Econolite New Controller Setup

Guided Setup

If you want a step-by-step guide to program basic Cobalt controller parameters, select Guided Setup:

• This takes you to the first of a series of basic screens to do essential programming.

• You can navigate to the next or previous screen with the right and left arrows at the top of each

screen.

• For help in each screen, select Options > Help (Options is the icon in the upper right corner

with three horizontal bars).

Manual Setup

If you want to manually program the Cobalt controller, select Manual Setup.

• This takes you to the Home (Traffic Applications) screen.

• From the Home screen, select the related icon for the function you want to program.

• At any time, from the Home screen, you can go to the Guided Setup from the Options drop-

down menu

(Options > Guided Setup) (Options is the icon in the upper right corner with three horizontal

bars).

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home

Trafc Applications

Default Home Screen

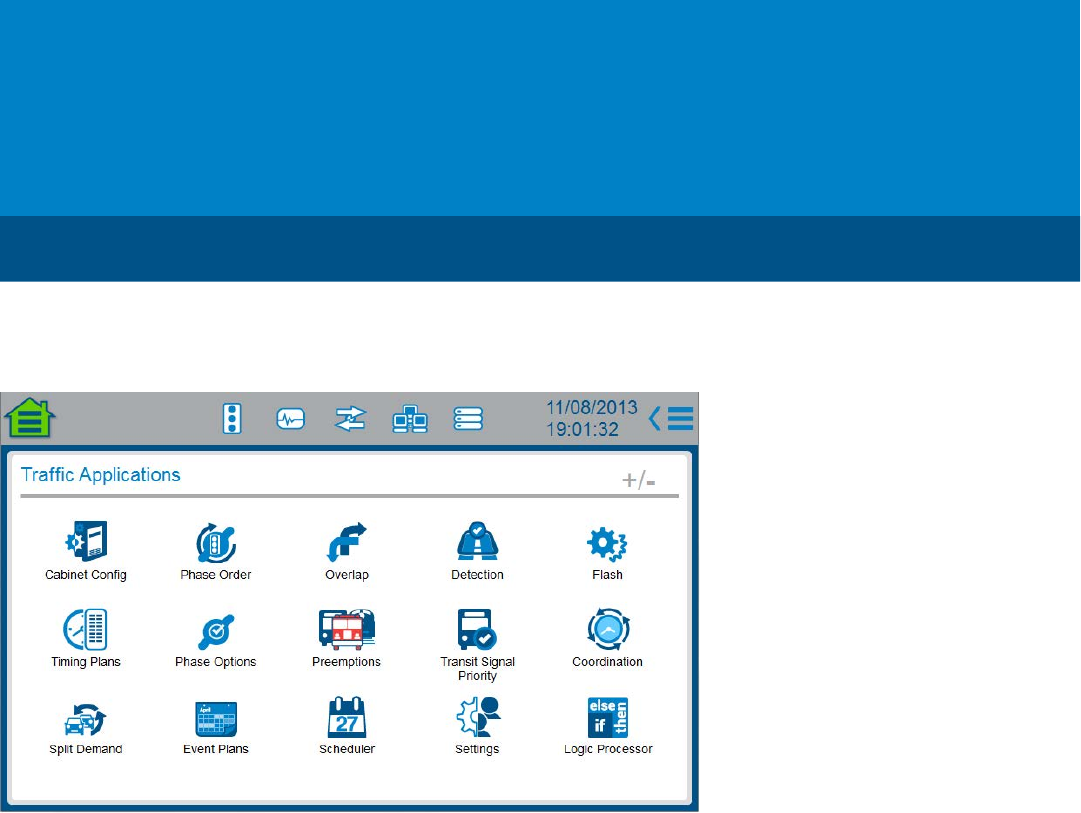

This is the main Home screen from which you access the screens to program Cobalt for your

application.

In future software versions, this screen may have more application programming screens.

Select the applicable icon to program:

• Cabinet Config

• Phase Order

• Overlap

• Ped Overlap (default is hidden)

• Detection

• Flash

• Timing Plans

• Phase Options

• Preemptions

• Transit Signal Priority

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

• Coordination

• Split Demand

• Event Plans

• Scheduler

• Settings

• Video Viewer (default is hidden)

• Logic Processor

To program whether you want to show (Yes) or hide (No) these icons, go to:

Settings > Applications or select +/- in the upper right corner of this screen

When you are in the Applications screen, select an icon to see a description of the purpose of its

screen.

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Signal Status

This Signal Status screen shows the real-time status of the displayed functions.

Active Phase

The example screen below shows the status for the current Event Plan, a Coordination Pattern that is

commanded by Time-Based Control with active Pattern 2 (CRD TBC P 2) as shown in the upper left

corner of the screen. The current plan is Plan 2 and the Next Plan is Plan that is scheduled to start at

22:00 hours (10 pm).

Timing Status

The rectangular fields on the far left of the screen give the active phase timing status.

Offset Value and Timing

This field is in the upper right corner.

Overlaps

This field is at the bottom. The example shows vehicle overlaps A and B and pedestrian overlap, P1.

Activity with Each Phase

You can see the phases that are timing and their colors in real-time. The circles with letters are as

follows:

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

I = Internal application

O = Phase Omitted

R = Recall programmed for that phase

Manual (Internal) Calls

To make a Vehicle or Ped call on a phase:

1. Select the phase

2. Select either [Vehicle Call] or [Ped Call]

To make a Preempt call on a phase:

1.Select the drop-down Options menu.

2.Select [Preemption Call]

3.Select the Preemption Plan number

4.Select [OK]

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

If the circle is red, the phase has passed its coordination permissive period.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Event Logs

What is an Event Log?

Event Logs give historic activity and events of the intersection. There are four logs. Each log records

events with a time stamp and has a maximum number of events in its buffer. Below, the maximum

number of events for which each event log is capable are shown in parentheses. When the controller

reaches the maximum limit, it starts to discard the oldest events.

Controller Events (500)

Detector Events (300)

Detector Activity (228)

MMU Events (50)

To show a display, select the related soft key. The controller events event log is shown below:

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Operations with Event Logs

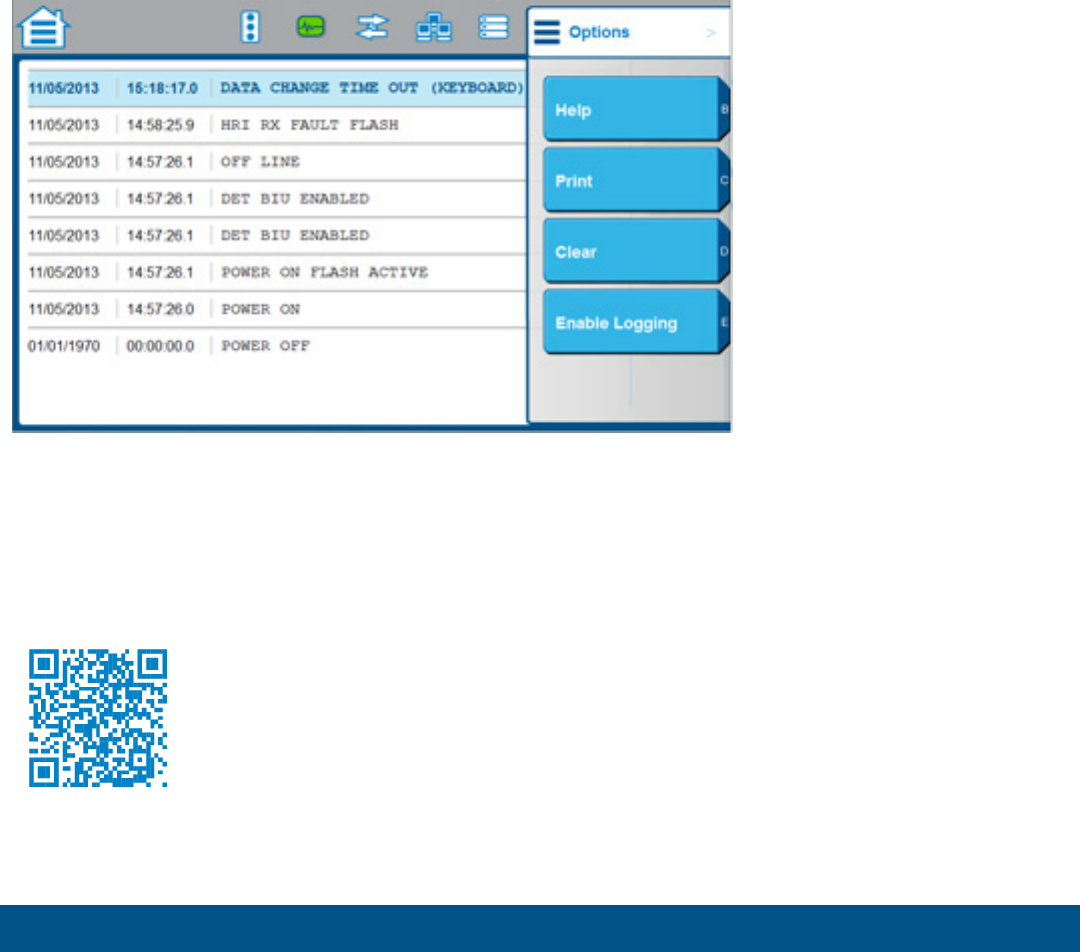

To Print, Clear and Enable Logging, select the drop-down Options menu, as shown below:

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Cabinet Hardware

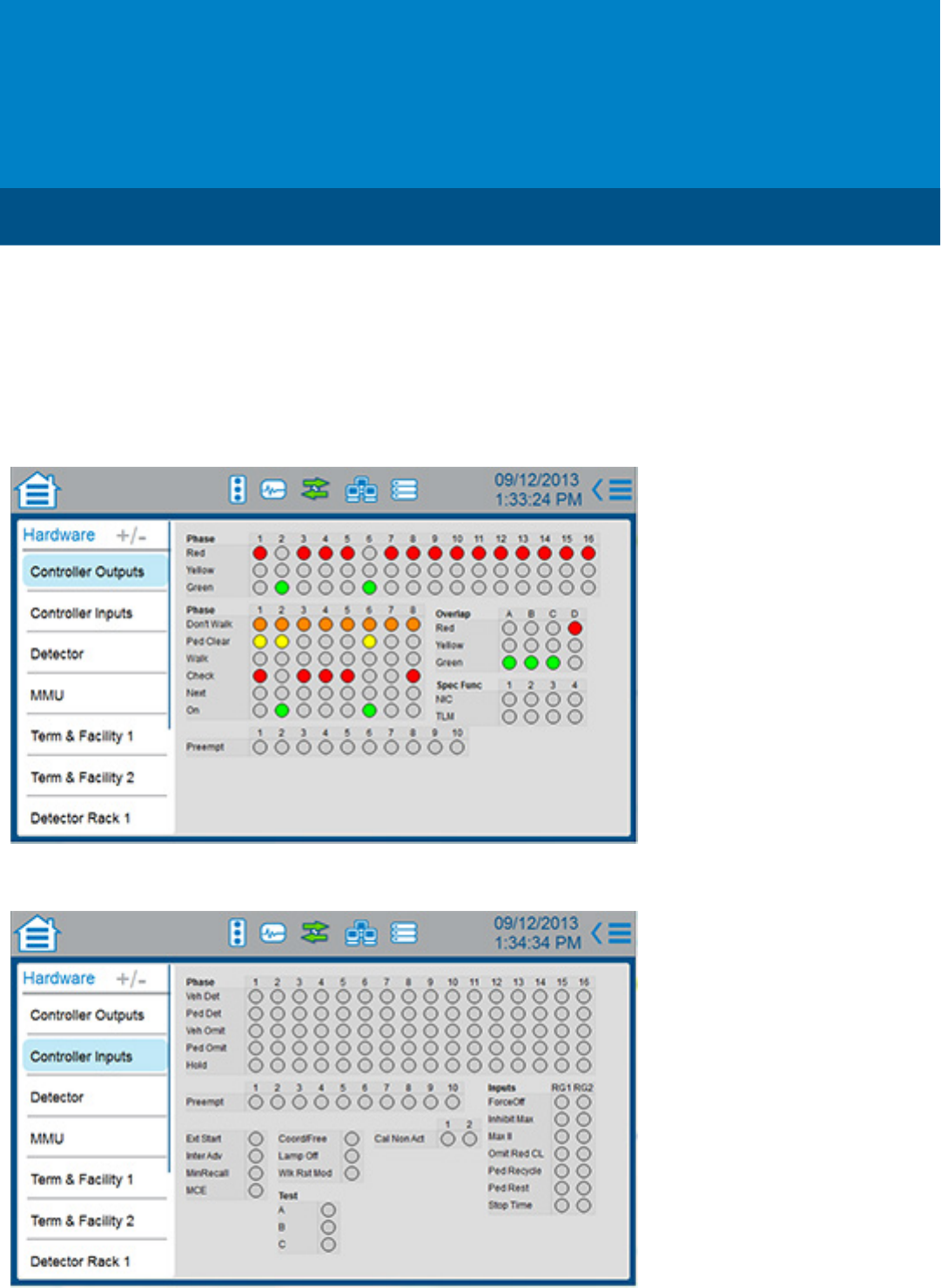

There are six screens for Cabinet Hardware:

• These screens show the real-time status of the displayed functions.

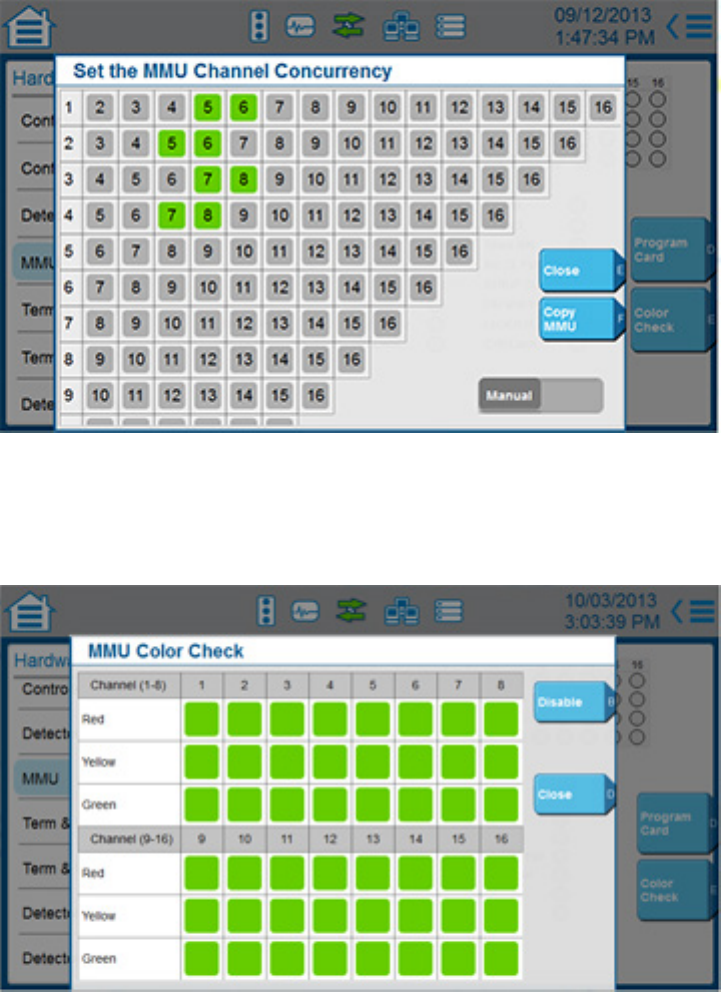

• From the MMU screen, you access screens for MMU Channel Concurrency and MMU Color

Check.

Controller Outputs

Controller Inputs

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Detector Inputs

You can place an internal call to test the input of a detector:

1. Select the Detector number (1-64).

2. Select [Test].

Maintenance Management Unit (MMU)

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

To set the MMU Channel Concurrency:

1. From the MMU screen, select [Program Card].

2. The screen below opens.

For an MMU Color Check:

1. From the MMU screen, select [Color Check].

2. The screen below opens.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Terminal and Facility Screens

Detector Racks

BIU 1 is shown.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

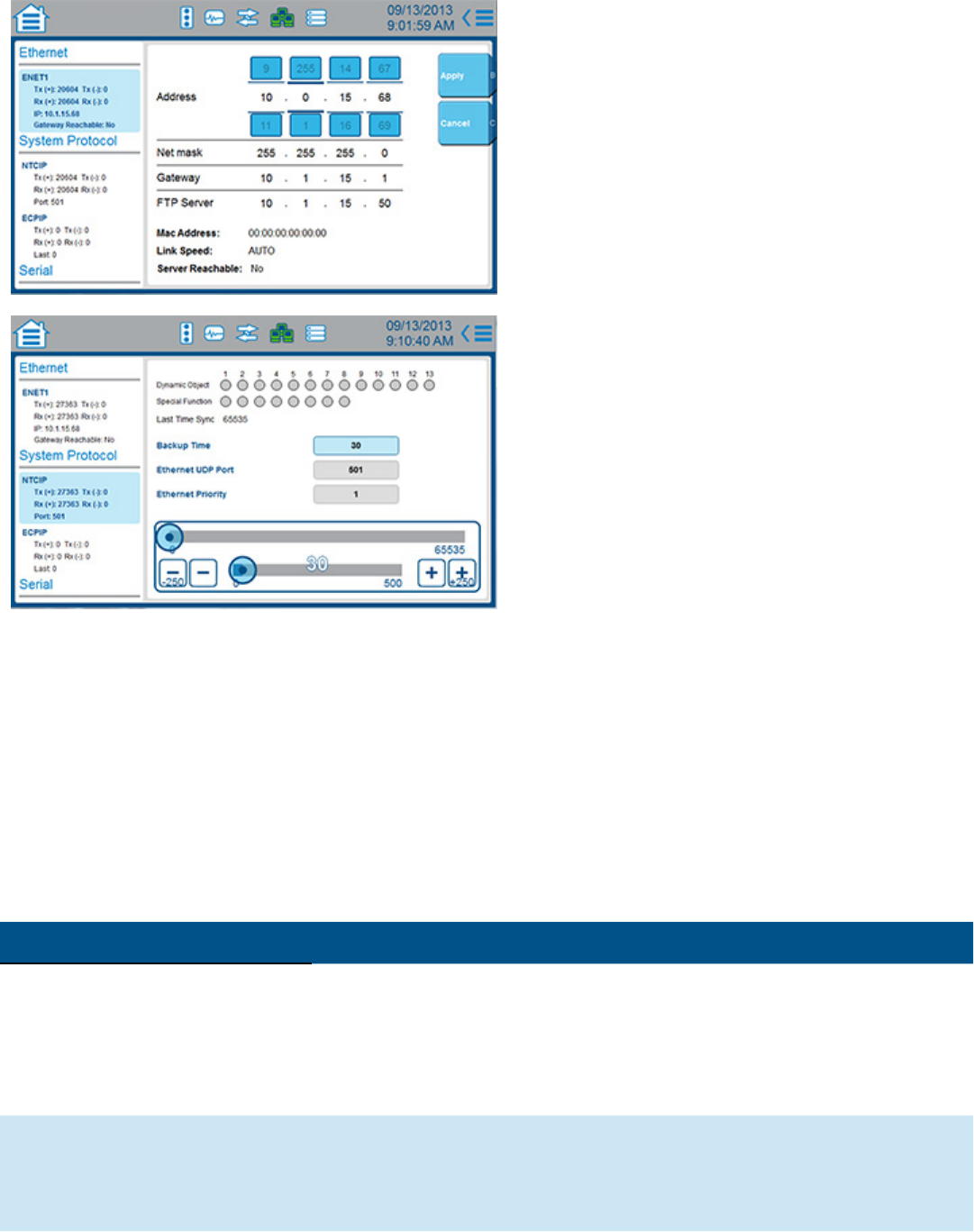

Network

ENET1 NTCIP

Configure and see status for the ENET1 IP address of the unit and adjust protocols and serial in the

scrollable list. Contact your Internet Protocol (IP) specialist to determine the correct setting for each

of the parameters.

Example Configuration

ENET1

IP Address: 10.1.15.64

Net Mask: 255.255.248.0

Gateway: 10.1.8.1

FTP Server: 10.1.15.51

NTCIP

Ethernet UDP Port: 55502

Procedure for Example

Enter the different ENET1 addresses:

• Select the number you want to change.

• Swipe the number up/down to the correct value.

• Select Apply to enter the value, or press Enter on the keyboard.

Note: You can enter numbers directly with the keyboard. Also, you can navigate to the next

address with the keyboard right cursor (works like the Tab on a computer).

Enter the NTCIP Ethernet UDP Port value:

• Select NTCIP and then the Ethernet UDP Port field.

• Slide the scrubber and/or select the +/- buttons, to set the value 55502 (or enter the value with

the keyboard).

• Touch an open area of the screen to enter the value (or press Enter on the keyboard).

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Completed Screens for Example (Guided Setup screens)

Ethernet

ENET1

This Ethernet Port can connect 100 Mbs between the controller and external devices.

Ethernet communication supports NTCIP and ECPIP protocols. Settings for these two protocols are

under System Protocol in the center of this screen. You configure Ethernet UDP Port for NTCIP in

System Protocol, NTCIP. The UDP port for ECPIP is fixed at 2101.

Note: Contact your Internet Protocol (IP) specialist to determine the correct setting for each of

the programmable parameters defined below.

Parameter Description

Address (0-255)

A unique address used by the Ethernet interface. The format follows the

Transmission Control Protocol/internet Protocol (TCP/IP) standard dot notation.

When used, the address must be assigned from the same subnet as the other

network devices with which it may communicate, such as a system controller or

File Transfer Protocol (FTP) server. If the controller is connected to an IP router,

the address must be valid for that router.

Net Mask (0-255)

The Net Mask must be the same as the other devices on the IP subnet to which

the controller is attached (when an Ethernet interface is being used).

This configures the ethernet port ENET2.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Parameter Description

Address (0-255)

A unique address used by the Ethernet interface. The format follows the

Transmission Control Protocol/internet Protocol (TCP/IP) standard dot notation.

When used, the address must be assigned from the same subnet as the other

network devices with which it may communicate, such as a system controller or

File Transfer Protocol (FTP) server. If the controller is connected to an IP router,

the address must be valid for that router.

Gateway (0-255)

The default IP address must be that of the Ethernet interface which is on

the same subnet as this controller. This gateway address will be used for

transmitting IP messages to end systems, which are not on the same subnet as

this controller.

This configures the ethernet port ENET2..

FTP Server

This address is optional, and is only required when the IP-based file download

options are to be used. The address must be that of the system where the FTP

server resides. This field is only used for local downloads from an FTP server

host on the local area network.

The parameters listed below are read-only:

Parameter Description

Mac Address The factory-set controller MAC address.

Link Speed This is the selected link speed and duplex setting for your Ethernet LAN. This

setting is auto-negotiated or auto-sensed.

Server Reachable Yes = Successful Ping

No = Unsuccessful Ping

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

System Protocols

NTCIP

Port parameters define the NTCIP backup time, UDP Port and priority of the port communications.

This programming is only required when the controller is communicating through one of its ports.

From this screen, you specify the NTCIP Backup Time parameters and Ethernet Priority values for

Port 2:

Parameter Description Range

Backup Time

Use the scrubber to enter the appropriate

NTCIP Backup Time value in seconds. Value

entered (1-65535) establishes the time that

the parameters are under control of the

SET command and will remain if no SET

command is received by the controller.

Value 0 disables clearing of the parameters

that were set regardless of the time

between SET commands.

0 disables

1-65535 sets time

Ethernet UDP Port

STMP or IP over PMPP using SNMP or STMP

Frame should use this port setting.

You can set port 161 to support applications

that have a fixed SNMP port setting.

161,

500-65535

Ethernet Priority

Use the scrubber to enter appropriate priority

level value (1-9, with 1 highest) for the port.

Value selects the priority of commands from

that port. While a higher priority port is in

control, the lower priority port can continue to

retrieve status information. The order of priority

when ports have the same priority number is

(from highest to lowest) Ethernet, Port 2.

1-9, with 1 highest

Serial Communication Protocols

TERM (Terminal)

Provides VT100-compatible communication.

NTCIP

Provides NTCIP-compatible communication.

ECPIP

Provides ECPIP-compatible communication. This protocol is tailored to function in an Econolite Aries

or Zone Master system.

AB3418

Provides AB3418-compatible communication. This protocol is tailored to comply with the California

AB3418 specification.

Note: Metro Rapid and IEEE 1570 protocols are for future development.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

GPS NMEA

Provides a connection to process a GPS NMEA message to set the time and date (or longitude/

latitude). The controller supports an Eltec GPS unit and all other standard GPS devices that support

a GPS NMEA Protocol message $GPRMC on serial COMM PORT2. This feature is compatible with

Centracs Version 1.5.3 or later. Information to order a GPS unit (antenna, antenna cable and serial

interface cable) from Econolite is given below:

Part No. Connector Name

TSD25-GPS 25 Pins for Serial Port 2 Eltec GPS DB25 Serial Time Sync Unit

COMM PORT 2

1. In the Protocol drop-down menu, select the protocol for your application (TERM, NTCIP, ECPIP,

AB3418, or GPS NMEA). The screen populates automatically with the applicable fields to set the

parameters that are related to the protocol you select.

2. Program the parameters per the table that follows.

3. After you program the parameters, in the Enabled field, select Yes

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Parameter Description Range

Enabled

After you program the parameters, select Yes.

Note: The port should not be enabled during setup or

non-use.

Yes, enables

No, disables

Protocol Select from the drop-down menu TERM, NTCIP, ECPIP, AB3418,

GPS NMEA

Speed Select from the drop-down menu port1200, 4800, 9600, 19200,

38400, 57600, 115200

Data Bits

Select from the drop-down menu.

This is of the form D/P/S

Where D = Data bits of 7 or 8

P = Parity of E (Even), Z (odd), N (None)

S = Stop bits of 1

7/E/1, 8/N/1, 8/O/1, 8/E/1,;7/N/1,

7/O/1

Duplex

Important: Please consult with the factory before

changing this setting.

As required by modem specifications, the port may be

configured as Half or Full Duplex. From the drop-down

menu, select HALF or FULL.

HALF duplex can receive data only after transmission of

a response is complete.

FULL duplex can receive and transmit data at the same

time.

FULL, HALF

Flow Control

Modem control signals sent over serial ports:

Carrier Detect (CD)

Data Set Ready (DSR)

Data Terminal Ready (DTR)

Set this to NO when using devices that do not support

modem control signals, such as fiber modems.

Yes, enables

No, disables

Telemetry Address

Select the value with the scrubber to specify a unique

address number (1-8191) to which this port will respond.

Zero (0) disables responding to any address.

NTCIP/AB3418 protocol:

1-8191: Address to respond to.

0: Disables responses

ECPIP protocol:

1-24: Address to respond to.

0 & 25-8191: Disables responses

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Parameter Description Range

Group Address

Select the value with the scrubber to specify an address number that

allows a master station to access this slave station via group command

of NTCIP protocol.

1-62 and 64-65535 for AB3418.

1-62 for NTCIP.

Address 63 is reserved as an all stations group address.

Address zero (0) excludes the station from any group.

0-65535

except 63

Drop Out Timer

Select the value with the scrubber to enter the time in seconds (1-

65535) from when the last valid command occurs before the controller

is returned to local control. Zero (0) disables the dropout feature.

1-65535 seconds

0 disables

Single Flag

For AB3418 or NTCIP.

Select YES (enable) or NO (disable).

Yes: The frame flag is used as both the closing flag for one frame and

the opening flag for the next frame.

No: Each response frame contains an opening and a closing flag.

Yes, No

Modem

Toggle to select one of the internal modem setup string options (NONE,

56K, or USER). Use this typically for the optional Intersection Monitor

module.

NONE, 56K, USER

User

Specifies the unique modem setup string required for the modem being

used. This string is only used if the MODEM SETUP STRING is set to

USER.

The on-screen keyboard is in view when you are in this field. Consult

the manual for your modem to determine the setup string required. Use

this typically for the optional Intersection Monitor module.

0-9, A-Z

Response Delay

ECPIP Only

Telemetry Response Delay (TRD) compensates response timing for

overall communication delays. Decrease (start communication earlier)

to compensate for longer delays and increase (start communication

later) to compensate for shorter delays.

0.0-30.0 msec

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Database

This screen gives access to Consistency and Warning Checks and has a Database Copy Utility.

What is a Warning Check?

In the Cobalt controller, following a database download or object data alteration via key board,

the controller runs Consistency Checks to look for critical errors. If it detects errors, they must be

corrected or all database changes are discarded.

After you program the controller, it may appear that a certain feature does not operate correctly, but it

may be because of incorrect programming. To call attention to a possible incorrect programmed entry,

the controller generates a Warning. The controller generates a Warning if, in the opinion of Econolite,

you override the programmed parameter setting from a database with an unusual selection, or select

a combination of programmed values that may not give you the operation you probably expect.

Warning Checks are intelligent diagnostics designed to tell you of data entries that, by themselves or

in combination with other entries, may result in unexpected operation.

Important: One thing to keep in mind: a warning is not an error.

Occasionally, it could be that programming results in incorrect operation, but is acceptable to you

because it provides a benefit to you that compensates for an occasional operational anomaly. For

example, some users routinely program Walk and Pedestrian Clearance times that exceed phase

split times in coordinated operation because there are very few pedestrian calls and the user does

not mind the occasional coordinator resynchronization that follows the service of a pedestrian call.

Because we cannot possibly anticipate what you have in mind, it is left to you to decide what action, if

any, to take to correct the situation that caused a Warning message.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Initially, the software framework and a limited set of diagnostics will be available. Warning Checks are

viewed as a long-term work-in-progress. These checks will be expanded as users and developers

find situations that cause an unexpected controller operation.

Select the condition for your application:

Database Hardware CRC Lock (Yes, No)

Request Database Download (Yes, No)

Automatic Backup to Datakey (Yes, No)

Enable VIOT Capture (Yes, No, Y + C)

Database Copy Utility

Note: When you program Cobalt, you select Commit as necessary to enable the change to the

database. For an explanation of Transaction Mode (that runs when you make a critical change to

programming), refer to the Help for Home > Phase Order > Phase Order.

To access the Database Copy Utility, select the Options drop-down menu and then select [Copy

Database].

The screen shown below opens. Use this screen to:

• Create a Default Database

• Restore your Default Database

• Restore the Factory Default Database

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

USB Status

Using Database Update to Transfer an Application Database

If you have a controller with Econolite ASC/3 software, you can transfer its application database to a

Cobalt controller. To transfer your database, use the procedure below that applies to your controller.

You will need a USB flash drive (memory stick).

When you insert a USB flash drive into a Cobalt controller, this External Drives icon is added to the

Status Bar:

When you select the External Drives icon, this screen opens and the External Drives icon turns green:

For the screen after a database transfer, refer to the end of this document.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Current Econolite Database Procedure to Load Database into a Cobalt

ASC/3 or ASC/3-2070 controller

connected to Centracs

1. Upload the database into the Centracs ASC/3 editor.

2. Export the database files.

3. Copy the database files to a USB flash drive.

4. Insert the USB flash drive into a Cobalt controller.

5. In the Status Bar at the top of the screen, select the External Drives icon.

6. In the center of the screen, select Database Update.

ASC/3 controller not connected to

Centracs

1. Run the ASC/3 Utility to upload the database from the ASC/3.

2. Copy the database files to a USB flash drive.

3. Insert the USB flash drive into a Cobalt controller.

4. In the Status Bar at the top of the screen, select the External Drives icon.

5. In the center of the screen, select Database Update.

ASC/3-2070 software on a

2070 controller not connected to

Centracs

1. Run the ASC/3-2070 Utility to upload the database from the 2070.

2. Copy the database files to a USB flash drive.

3. Insert the USB flash drive into a Cobalt controller.

4. In the Status Bar at the top of the screen, select the External Drives icon.

5. In the center of the screen, select Database Update.

ASC/3-LX software on a 2070E

controller with a 2070-1C CPU

module

1. Insert a USB flash drive into the 2070-1C CPU module.

2. The screen shown below opens.

3. Select 3 SAVE FROM CONTROLLER.

4. Select 1 SAVE CURRENT CONFIGURATION.

5. After the copy to USB, a SUCCESSFUL COMPLETION” screen opens.

6. Insert the USB flash drive into a Cobalt controller.

7. In the Status Bar at the top of the screen, select the External Drives icon.

8. In the center of the screen, select Database Update.

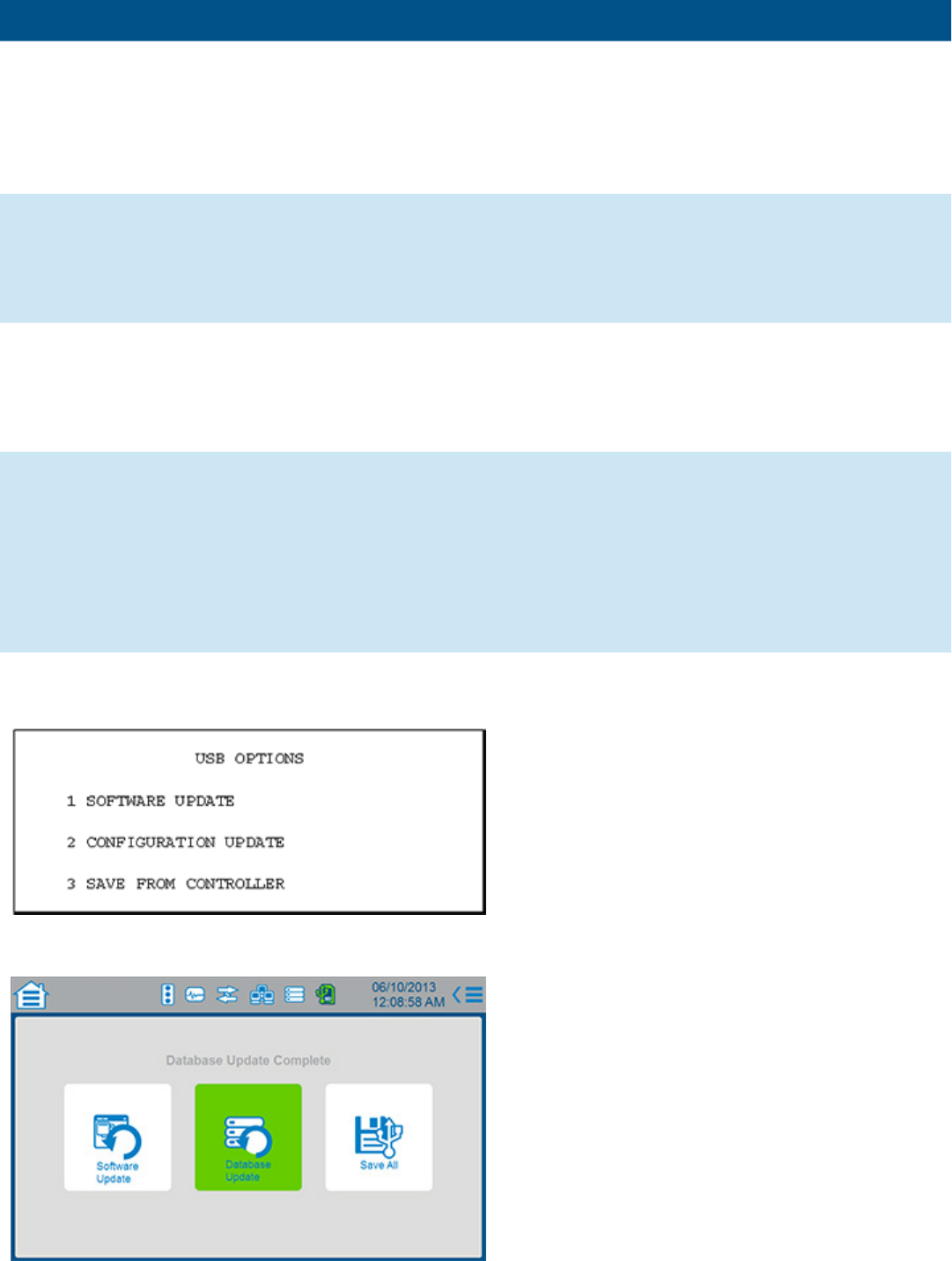

*Screen that opens when you plug a USB flash drive into a 2070-1C CPU module:

After a successful database transfer, and you see this screen, remove the USB flash drive.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Cabinet Config

Load Switch Assignment

The Load Switch pages configure the channels of the unique geometry of an intersection.

In this Load Switch screen, you configure the 16 Channel Outputs by assigning phase, overlap or

pedestrian drivers.

For each Channel Output you program:

• The Channel Type: None, Vehicle, Pedestrian or Overlap

• Phase pedestrian or overlap Assignment

•Approach: the eight directions (for example, North, South, East, West, Northeast, Northwest,

Southeast or Southwest)

•Movement: select from all possible combinations of straight, left and right arrows

•Dimming: Select Red, Yellow, Green and which half cycle to use

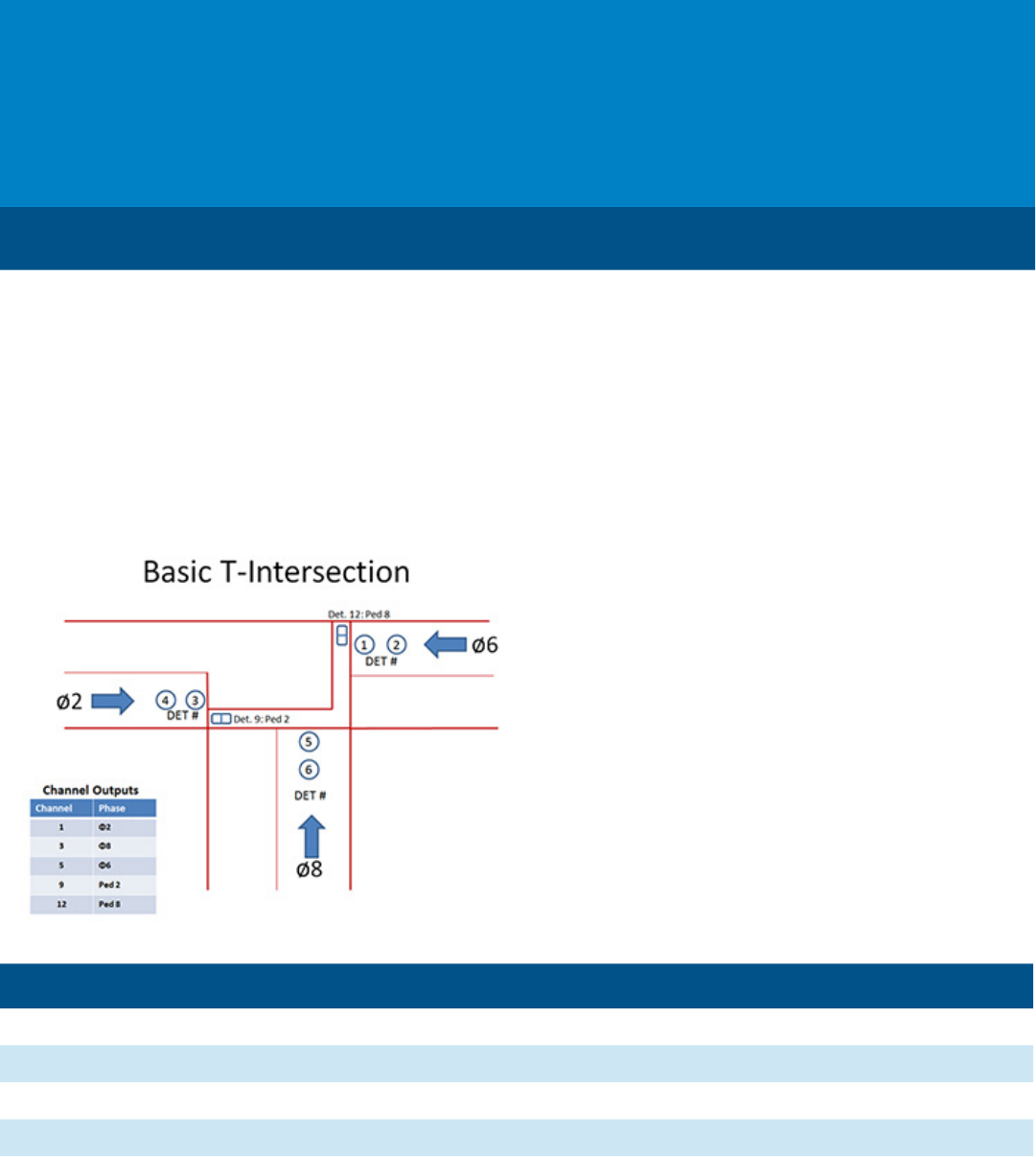

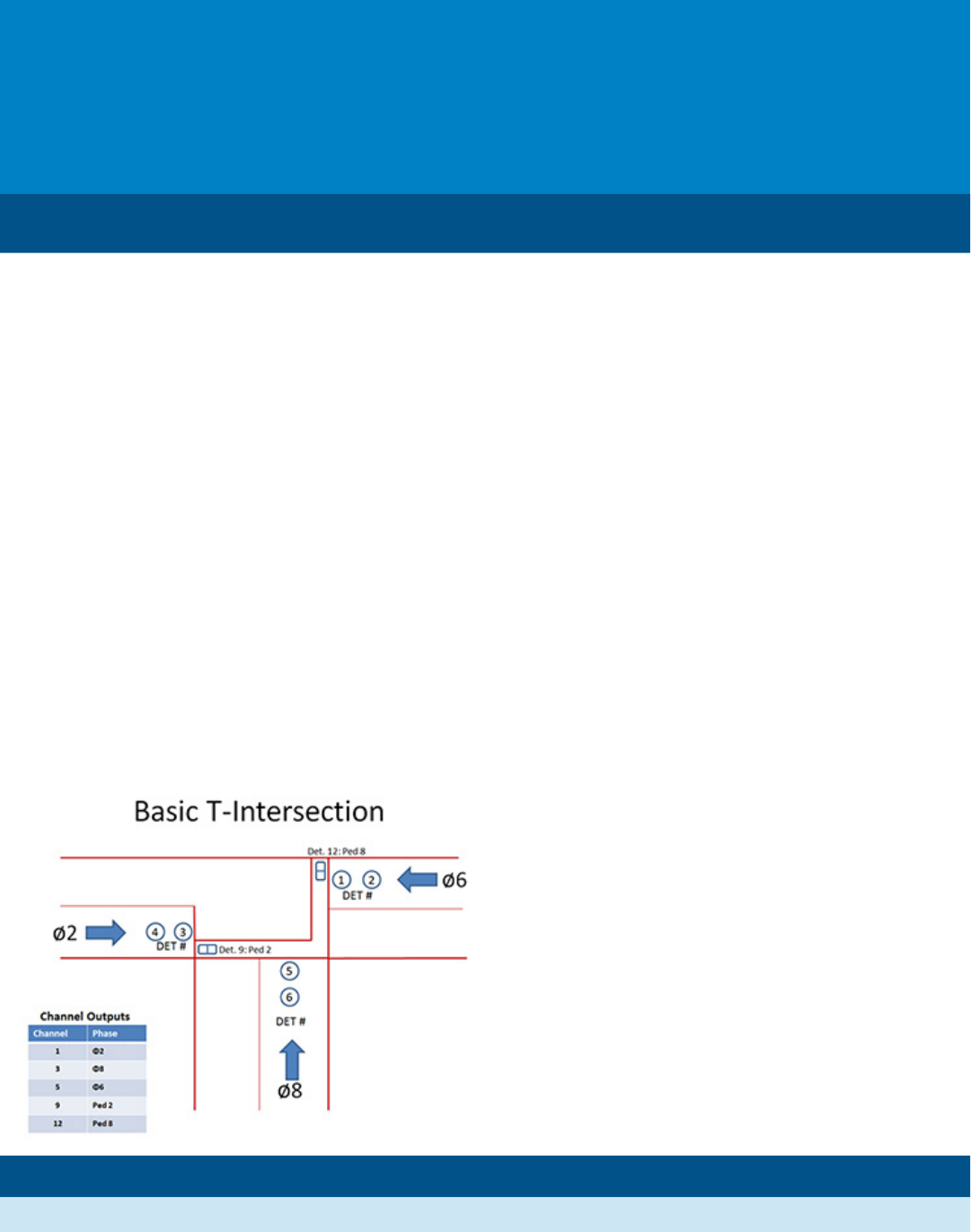

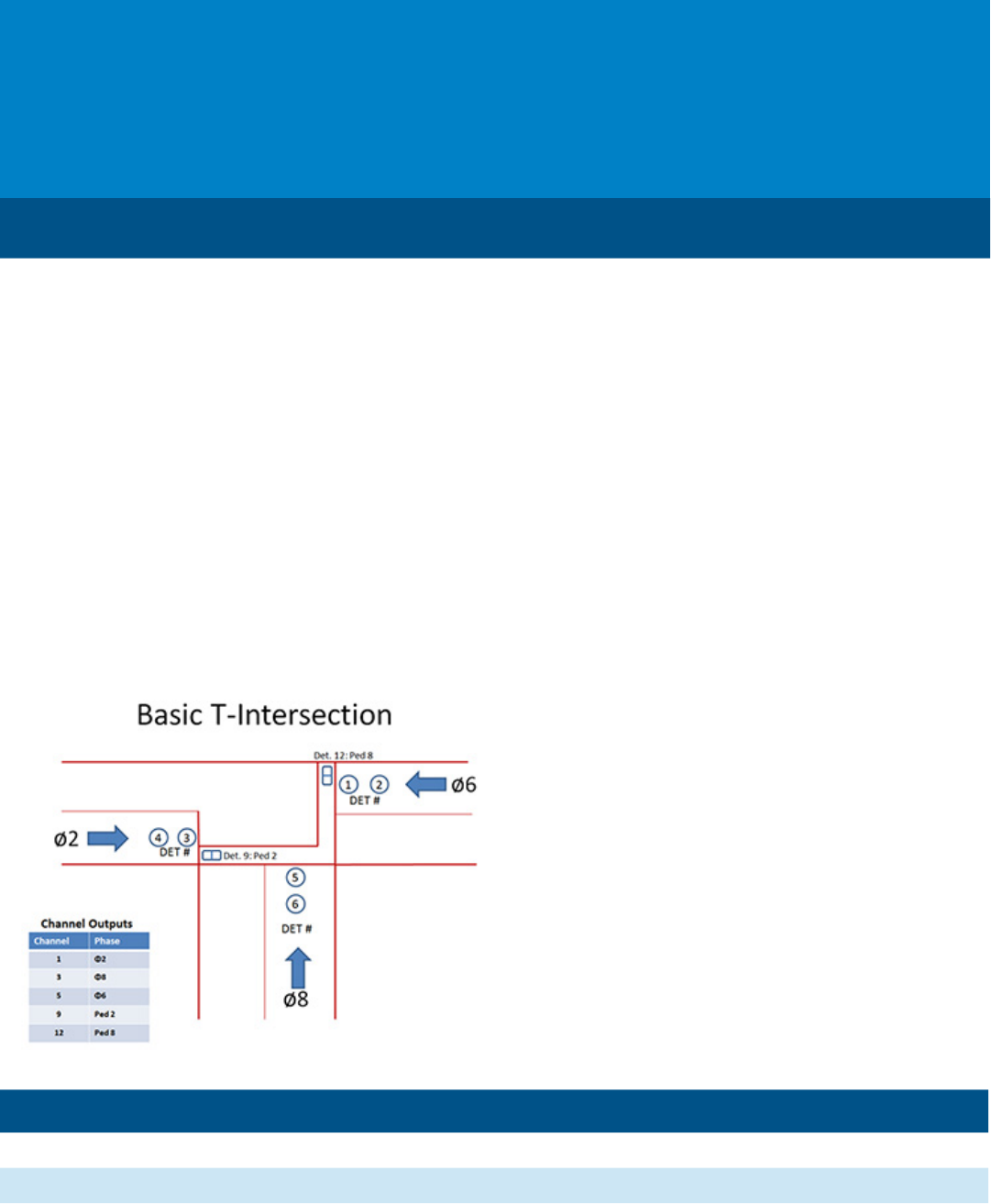

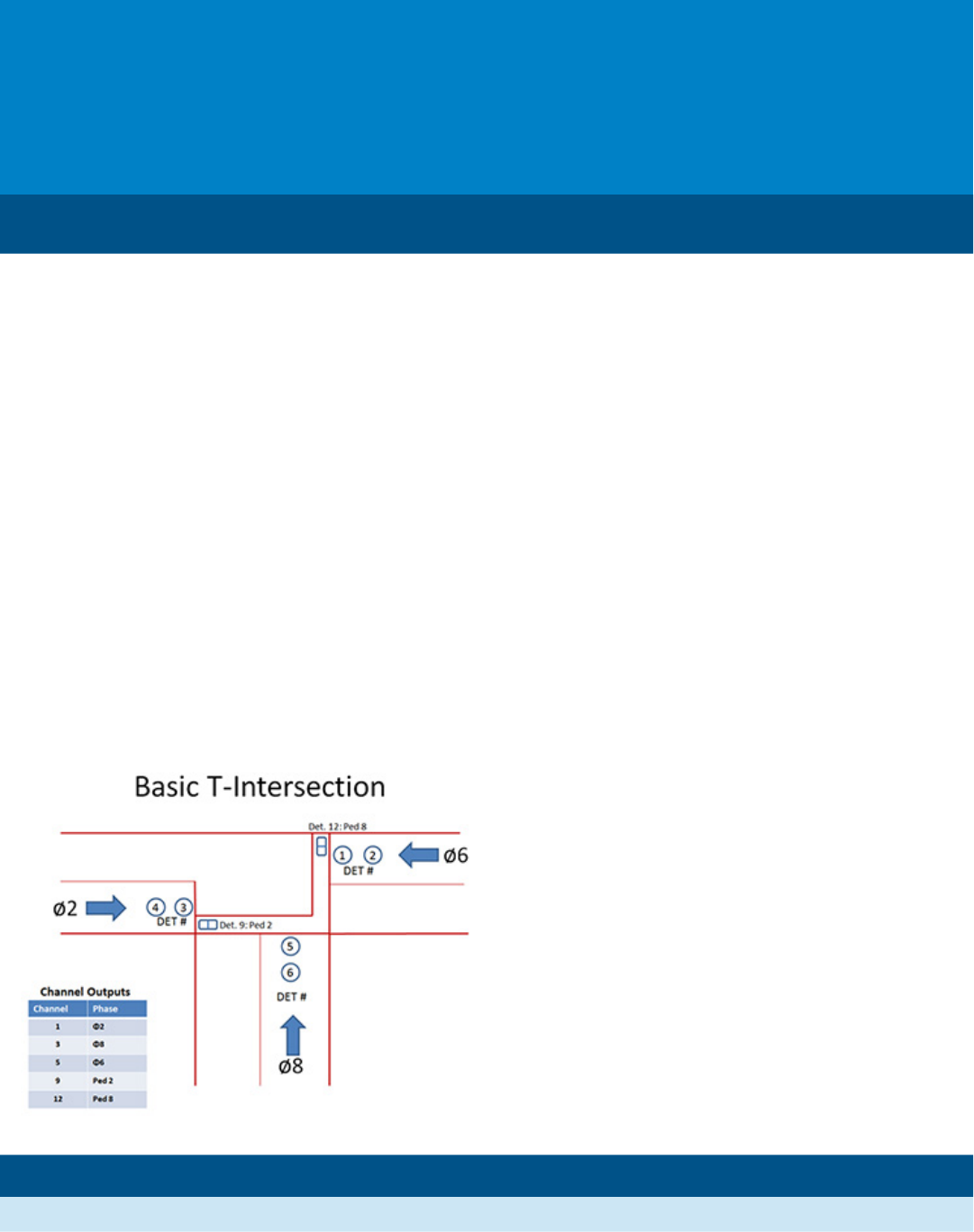

Example Configuration

Channel Driver

1 Phase 2

3 Phase 8

5 Phase 6

9 Ped 2

12 Ped 8

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Procedure for Example

Type

Per the table above, select the Vehicle or Pedestrian button at the bottom. To go to the Channel 9 thru

16 screen, select > in the top right corner.

Assignment (Phase/Overlap)

1. Slide the scrubber and/or select the +/- buttons, to set the values per the table.

For unused phases, enter 0.

2. For each value, select Commit or select Commit once done channel programming.

Approach

Select one of eight directions (for example, North, South, East or West) for each channel per

the intersection diagram.

Movement

Select the straight, right, left, or combination of arrows for each channel that is used.

Note: The completed screens for this example configuration are shown below.

General Notes for the Channel Outputs (Load Switch Assign) screen

Numbers at the Top - 1 thru 8 (first screen) and 9 thru 16 (next screen) are the load switch and MMU

channel numbers, 1 thru 16.

Type - Vehicle, Pedestrian, Overlap or None (“other” not defined)

• Select Vehicle, Pedestrian or Overlap indication (Walk, Pedestrian Clear, and Don’t Walk) as the

source of each load switch and MMU channel.

• This selection applies only to TS2 operation with a TS2 MMU. It provides the selection of and

correlation between the indication and MMU channel to make sure that the load switch output

sensed by the MMU corresponds to the BIU command.

• This selection also allows the controller to redundantly check and verify the load switch outputs

indications as sensed by the MMU are as it commanded.

Assignment - 0 thru 16 for Vehicle and Pedestrian phases; A thru P for Overlaps (Green/Walk,

Yellow/Ped Clear and Red/Don’t Walk)

1. Select a number (with the scrubber) or letter (from the selection boxes) for the assignment

2. Select Commit at the top of the screen (or Rollback if you want to undo your selection)

Assignments are for each load switch and MMU channel.

0 (zero): deselects any control for that load switch.

This assignment applies only to TS2 operation with a TS2 MMU. It provides the assignment of

and correlation between the indication and MMU channel for verifying that the load switch output

sensed by the MMU corresponds to the BIU command.

Note: For TS2 operation, unused load switch/MMU Channels should be cleared of all Type and

Assignment programming.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

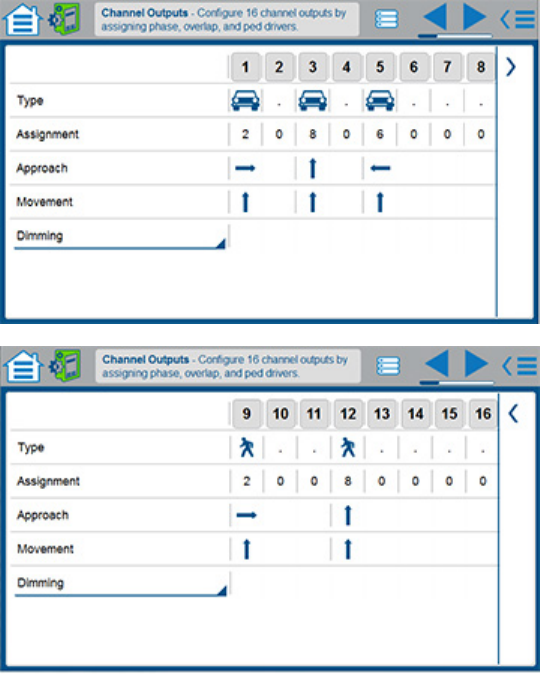

Completed Screens for the Example Configuration above

(Guided Setup Screens)

General Notes for the Channel Outputs (Load Switch Assign) screen, continued

Approach - select one of eight directions (for example, North, South, East or West) for each channel

Movement - select from all possible combinations of straight, left and right for each channel

Dimming - select Red, Yellow, Green and which Half Cycle to use for each channel

Note: After you select the drop-down menu, you need to scroll down to see the selections.

For Dim Red, Yellow, Green:

√ To allow a load switch indication(s) to be dimmed when dimming is enabled

No √ To inhibit a load switch indication(s) to be dimmed when dimming is enabled

For Half Cycle:

√ To select the positive (+) half cycle for dimming

No √ To select the negative (-) half cycle for dimming

Note: When dimming, the indication load current should be balanced for the positive and

negative half cycles of the AC line.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Phase Order

Phase Order

The Phase Order pages configure the priority, concurrency, and order in which phases will be

serviced.

Program the order and concurrency of phases by selecting the ring barrier phases. Options for

adding/removing/swapping are dynamic tabs.

Example Configuration

Ring Barrier 1 Phases Barrier 2 Phase

1 Phase 2 Phase 8

2 Phase 6

Procedure for Example

1. As necessary to configure as specified:

• Select two phases (4 and 8) and then select Swap Selected

• Select a single phase and then select Remove Selected for phases 1, 3, 4, 5, and 7.

2. After each operation, select Commit or select Commit after programming is complete.

Note: If you incorrectly delete a phase, select Rollback to start over.

3. You may get a Please Wait message after you select Commit

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Completed Screen for the Example Configuration (Guided Setup Screen)

Transaction Mode

IMPORTANT: To program an ASC/3 or an ATC 2070 Controller with ASC/3-2070 or ASC/3-

ATC software, it is necessary for you to understand Transaction Mode. Before you

proceed, read and understand this section about Transaction Mode.

Introduction

A Cobalt Controller contains a wide variety of Traffic features designed to give you maximum flexibility

in configuring an intersection. This broad base of applications requires database functions which, in

many cases, depend on other data entries to work properly. To ensure that critical data is entered

properly, the controller must run consistency checks on the database. These tests make sure

interrelated database functions are compatible with each other.

The consistency checks are done in what is called Transaction Mode.

Some data is relatively independent, such as timing entries. Other data, like the selection of controller

startup phases, depends on the phases and compatibilities of programmed sequence. These data

must be done within the Transaction Mode. Another type of data that triggers Transaction Mode is

one that has 2 or more functions — examples include HH:MM or 10.70.10.51.

Controller data may be modified manually via the keypad or remotely using SNMP/STMP messages.

In either case, critical data must be protected from incorrect or inconsistent changes.

Changing Data with the Keypad

If you attempt to modify a critical piece of data with the keypad (for example, controller start-up

phases), the controller automatically goes to Transaction Mode. A warning message will appear

on the display and the top line of the screen will flash. At this point, all changed data is stored in a

temporary buffer until you exit Transaction Mode.

When the Cobalt is in Transaction Mode, the controller gives you audio-visual indications as

explained below:

• Over the Database icon in the Status Bar, there is a rotating circular symbol and the selection of

Rollback (do not make a database change) or Commit (add the change to the database)

• As a reminder, if there is no key activity for 30 seconds, the controller will produce a continuous

beep sound and a pop-up reminder message will be displayed. This reminder is the same as the

message seen when you first triggered transaction mode and serves as a reminder to users who

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

might not remember how to exit transaction mode. Any key activity will stop the buzzer but se-

lecting Rollback clears the transaction mode message.

• The front-panel LED will blink Fast Yellow

To exit Transaction Mode without saving the data, select Rollback.

To initiate the VERIFY state, once you have completed all of the changes, select

Commit.

During the verify state, the controller runs its consistency checks on the newly entered data. If

the data passes, then the changes are copied to the active database and Transaction Mode is

terminated. If the Consistency Checks find an error (for example, incompatible Startup Phases), then

the controller displays a description of the problem and gives you the option to disregard/throw away

all changes or to go back into Transaction Mode to correct the data.

Although the controller’s display will show your changes, it is important to note that those changes

will NOT take effect in the controller’s operation until Transaction Mode has exited. Also, if you cycle

power during Transaction Mode, then upon start-up all modified data will be lost. This is because the

modified data was only stored in the temporary buffer and never officially copied to the database.

Please note that not all data changes force the controller to Transaction Mode. Timing parameters

such as Minimum Green and Yellow Clearance may be modified as soon as you enter the data.

These changes take effect immediately.

Changing Data with SNMP/STMP

You may also change the Cobalt database with an SNMP or STMP SET message from Central. In

this case, it is Central’s responsibility to force the controller into Transaction Mode if critical data is to

be modified. Before SETs will be accepted on any P2 (or critical) objects, Central must send a SET to

dbCreateTransaction.0, changing it to a value of 2- transaction. At this point, Central may send any

number of SETs to database objects. These values are stored in a temporary buffer, the same as with

the manual keypad entry.

Once Central has completed its SNMP/STMP SETS and is ready to commit the new data to

the database, Central must send a 3-Verify to dbCreateTransaction.0. Cobalt will run the same

Consistency Checks as for the Keypad entry. Once completed, the controller internally sets the

transaction state to 6-DONE. If no errors were found, the new data is automatically copied to the

active database. Otherwise, the data is held in the temporary buffer until the discrepancies have been

corrected. (Central can see the error messages by doing a GET on the object, dbVerifyError.0.)

Summary

The Cobalt contains many database elements which are dependent on other entries. To ensure

proper controller operations, these dependencies must be checked before data is committed to the

active database.

Two methods exist to modify the controller’s database- keypad and NTCIP communications. Both

require Cobalt to enter a Transaction Mode state to allow Consistency Checks to run on the modified

data. If you cycle power BEFORE these checks can be run, then the modified data will be lost.

Also note that while the changes may appear on the controller’s screens, those values will NOT be

implemented in the controller’s operation until Transaction Mode is complete. That is, the Consistency

Check must be done before the new data is officially copied to the database.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Phase Order

Backup Prevent

The Phase Order pages configure the priority, concurrency, and order in which phases are serviced.

Backup Prevent

A backup condition occurs when a phase is at rest and there is a call on a specified phase in the

same ring. This Backup Prevent Phases screen programs the action that is to take place when a

backup condition occurs.

Procedure

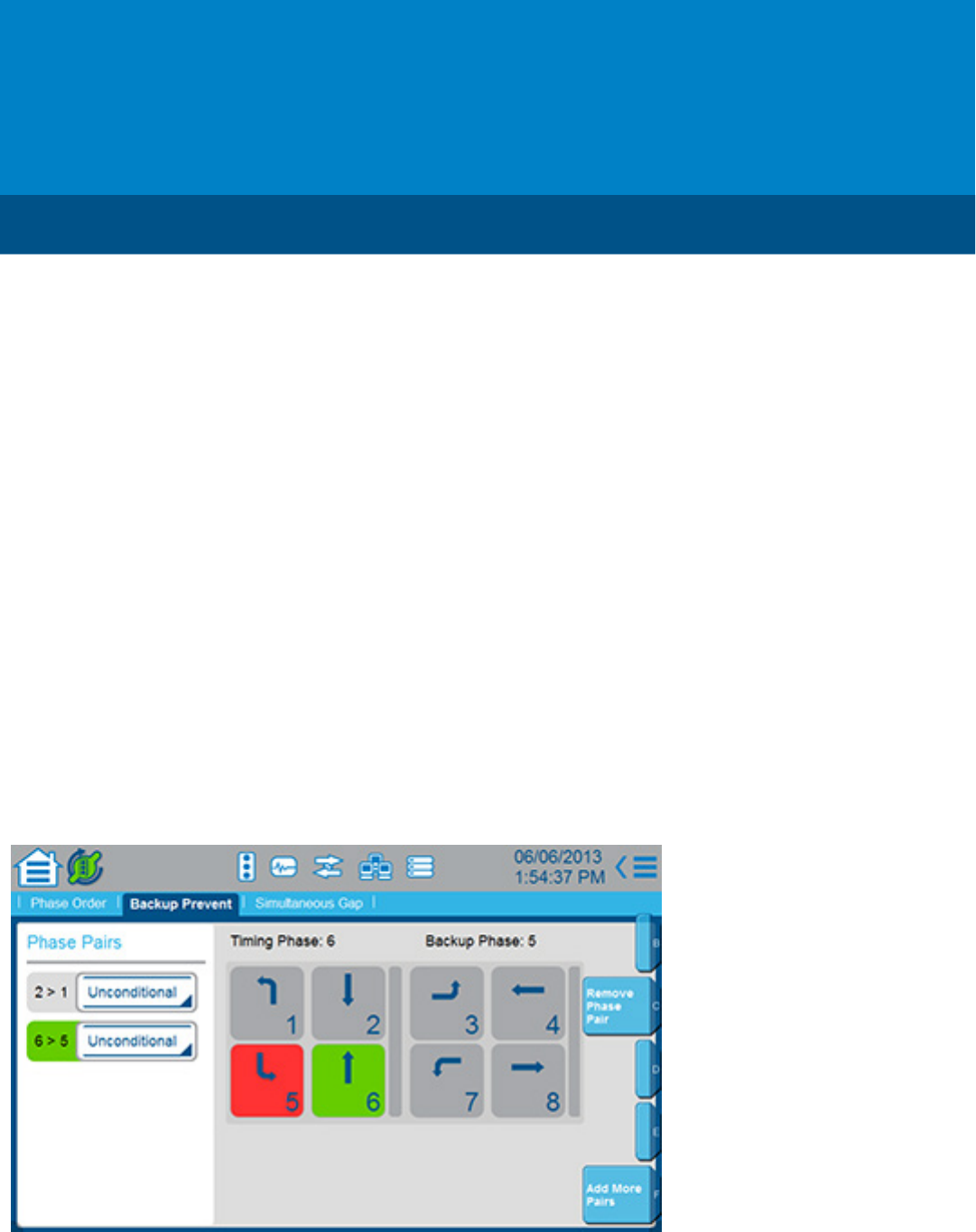

The screen prompts you in the selection process:

1. Select Timing Phase.

2. Select Backup Phase.

In the drop-down menu for each Phase Pair, select Unconditional or All Red.

The phase pairs are listed to the left. The format is Timing Phase number > Backup Phase number.

To delete a phase pair:

1. In the list to the left, select the phase pair.

2. Select [Remove Phase Pair].

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Phase Order

Simultaneous Gap

Example Procedure

To show how to select a pair of phases that will Gap-Out or Max-Out together, we make Phase 2 and

Phase 6 into a Gap-Out Pair.

Note: This screen prompts you through this process.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

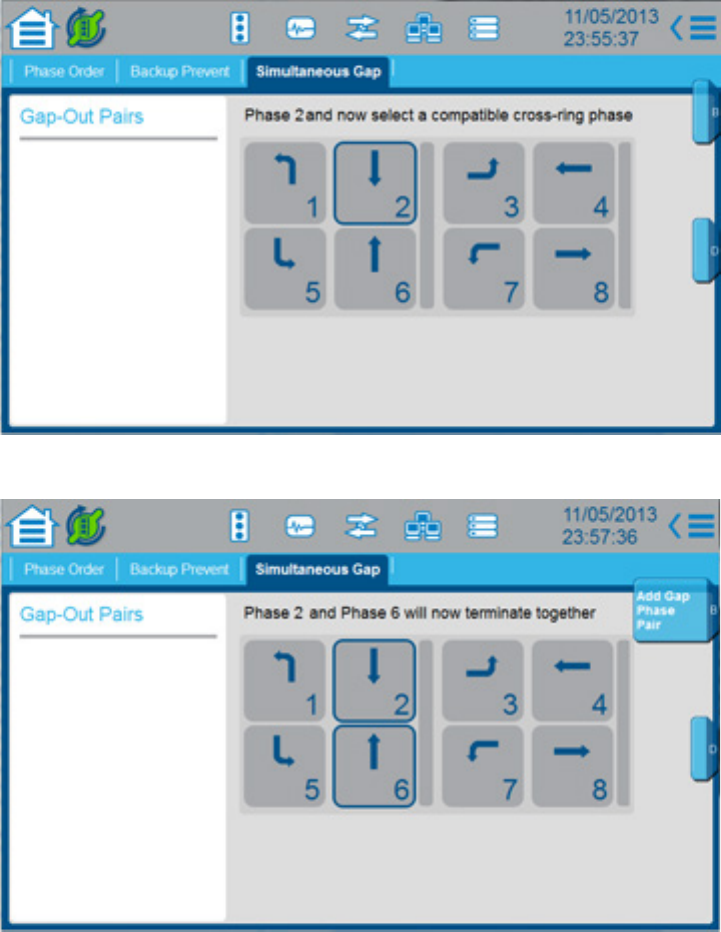

1. Select Phase 2:

2. Select the Phase 6:

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

3. Select [Add Gap Phase Pair].

4. You have now created a Gap-Out Pair that terminate together:

Notes:

• Each Gap-Out Pair that you create is listed in the Gap-Out Pairs column on the left.

• To delete a Gap-Out Pair:

1. Select the Gap-Out Pair in the column on the left.

2. Select [Remove Phase Pair]

The two phases selected must simultaneously gap when terminating together to service a conflicting

demand. If one phase is terminating to service a phase that is permissive with the other phase, then it

will not wait to gap simultaneously with the other phase. If a phase is not selected, it is allowed to gap

independently with the phase in the other ring.

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Overlap

Overlaps

The Overlaps page configures unique signal drivers outside of common phase control such as right

turns or permissive left turns.

Type: Econolite

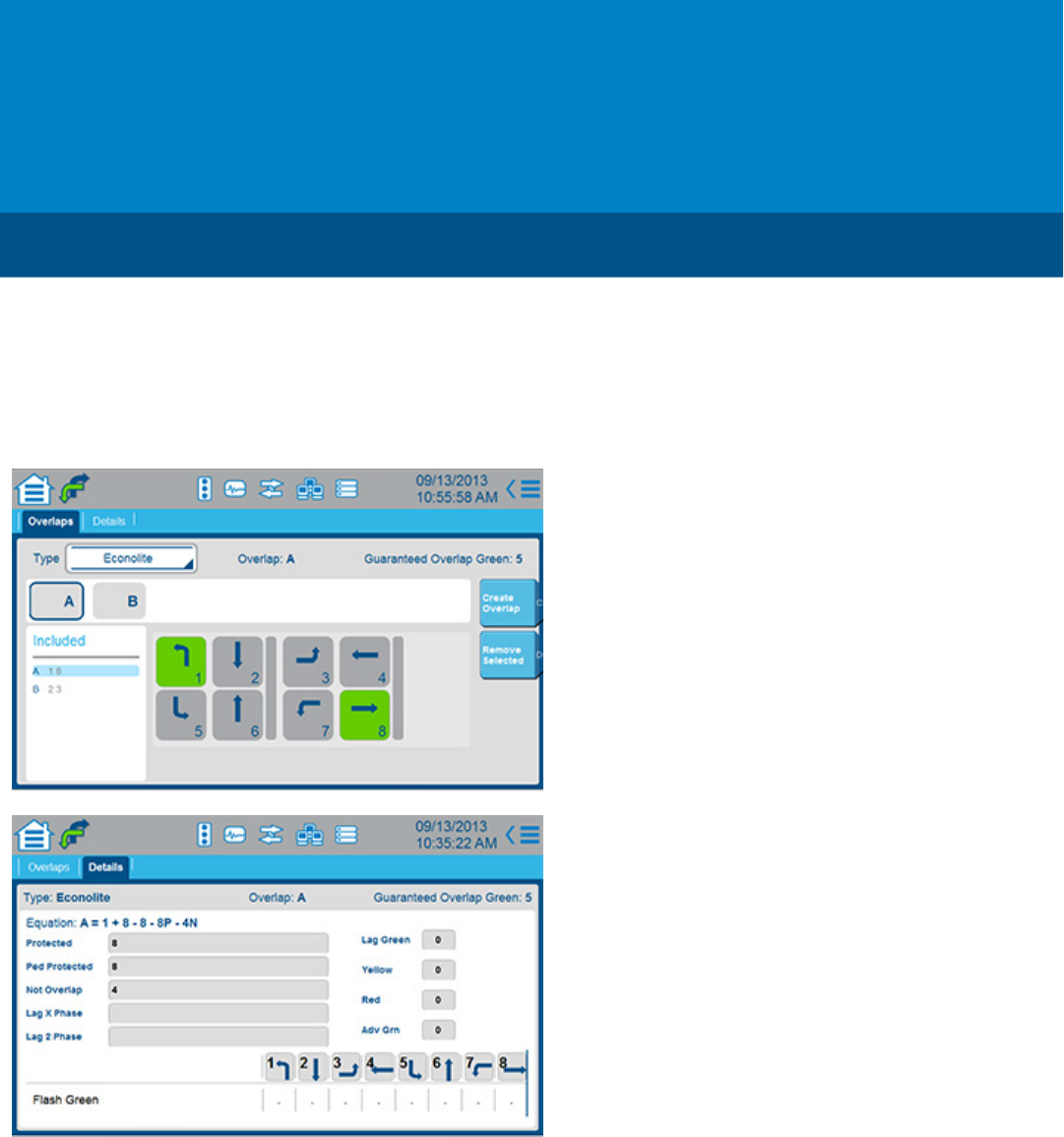

After you select Econolite as the type of overlap, select the Details tab to program the selected use of

these parameters whose functions are described below:

Protected

Ped Protected

Not Overlap

Lag X Phase (Lag, Trailing, Overlap Phases)

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Lag 2 Phase (Lead Overlap Phases)

Lag Green (Lag, Trailing, Green)

Yellow

Red

Adv Grn

Flash Green

Protected

The Protected Overlap is a movement having a protected green arrow (no conflicting phases timing).

Note: When a phase has protected overlap phase assignments, Modifier, Lead, and Trailing

assignments are ignored (inhibited).

Select the phases for this type of overlap.

Ped Protected

The Pedestrian Protect option provides for the specification of phase pedestrian movements that

cannot be serviced while the overlap is active. If a pedestrian call is present on a pedestrian protected

phase when that phase becomes the phase next selection, the overlap is terminated while the ring

transitions from the timing phase to the phase with the protected pedestrian service. If a pedestrian

call is not present when the pedestrian protected phase becomes the phase next selection, the

overlap remains active if an included phase is timing or a phase next selection. Should a pedestrian

call be input while the ring is in yellow change or red clear on the way to the pedestrian protected

phase, the overlap is not terminated until the pedestrian protected phase starts and then only if there

is enough time to terminate the overlap and time the pedestrian movement before the phase will max

out.

Select the phases for this type of overlap.

Not Overlap

The Not Overlap option is provided to inhibit the activation of an overlap when selected phases are

timing. If an overlap is active when a call is placed on a not overlap phase, the phase is not allowed to

time until the overlap is terminated. If the order of rotation would normally allow the not overlap phase

to time, overlap termination will be initiated even if an overlap included phase is timing or a phase

next selection.

Select the phases for this type of overlap.

Lag X Phase

The Lag (Trailing) Overlap Phases option identifies which phases are to time programmed trailing

green, yellow, and red. If Trailing phases are defined, only those phases will time trailing green,

yellow, and red when they advance to yellow change and no other included phase is timing or a

phase next selection. If no Trailing phases are defined, then trailing green, yellow, and red are

disabled.

Select the phases for this type of overlap.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Lag 2 Phase

For Lead Overlap Phases, when the overlap is active, the last timing overlap included phase is

advancing to yellow, no included phase is a phase next selection, and a Lead phase (that is not an

included phase) is next, trailing green, yellow, and red will be timed. This operation may be thought of

as timing a lagging overlap when proceeding to a particular phase.

When the overlap is not active and a Lead phase that is an included phase is a phase next selection,

overlap advance green will be displayed. Overlap advance green output starts, defined by the ADV

GRN time, when the phase of the ring that is transitioning to the included Lead phase begins its

yellow service.

Note: The Adv Grn time takes effect only if the lagging Yellow time is non-zero.

Select the phases for this type of overlap.

Lag Green, Yellow, Red

For Lag (Trailing) Green, Yellow and Red times, normally, if an included phase is terminating and no

other included phase is timing or a phase next selection, the terminating included phase’s yellow and

red are also output to the overlap. Trailing Green, Yellow, and Red provide a means of extending the

overlap’s green and then timing a specified yellow and red. When the last timing overlap included

phase begins its yellow change, the overlap’s green interval is extended by the specified Trailing

Green time. After Trailing Green has timed, Trailing Yellow and Trailing Red times are used to time the

overlap’s yellow change and red clearance intervals.

Note: Lagging times take effect only if the if the Green and Yellow entries are both non-zero.

Range is 0 to 25.5 seconds.

Adv Grn

Advance Green specifies the minimum amount of overlap advance green to be displayed before a

phase next selected included lead phase is started. If the amount of advance green is less than the

yellow change time and red clear timed by a ring before its phase next included lead phase can be

started, the overlap advance green is extended. If the amount of advance green is greater than the

yellow change and red clear timed by the ring before the overlap lead phase next selection would

normally start, the terminating ring phase’s red clearance is extended until the advance green time is

satisfied.

Overlap advance green output starts when the phase of the ring that is transitioning to the included

Lead phase begins its yellow service.

Range is 0 to 25.5 seconds.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Flash Green

Flash Overlap Green is specified for each included phase of an overlap and defines the rate at which

the overlap green interval is to flash when the included phase is timing.

For each phase, select a flash rate:

NF = no flash or phase is not an included phase for the overlap

F1 = flash at 1 pps.

F2 = flash at 2.5 pps.

F5 = flash at 5 pps.

The flash is extended across the transition from one included phase to another included phase if their

flash rates are the same.

Overlap green will be solid when transitioning between included phases that have different flash

rates.

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Overlap

PPLT/FYA Type Overlaps

The overlaps page configures unique signal drivers outside of common phase control such as right

turns or permissive left turns.

Types of Overlaps

You can program four types of overlaps:

• Normal

•-Green Yellow

• PPLT/FYA

• Econolite

Normal and Minus Green Yellow operate per the requirement specified in NTCIP 1202 paragraph

2.10.2.2. PPLT/FYA uses overlap so you can program Protected Permissive left hand turns. Type

Econolite identifies overlaps that supplement the Normal overlap with the Econolite-specific options.

Overlap Outputs for the PPLT/FYA Type of Overlap

PPLT/FYA = Protected/Permissive Left Turn Flashing Yellow Arrow

This is a special Econolite overlap type for Protected/Permissive Left Turns using the Flashing Yellow

Arrow. It changes programmed controller outputs to meet NEMA specification.

To program a PPLT/FYA type of overlap, in the Type drop-down menu, select PPLT/FYA.

Note: Throughout these procedures, select Commit as necessary to enable the change to the

database. For an explanation of Transaction Mode (that runs when you make a critical change to

programming), refer to the Help for Home > Phase Order > Phase Order.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

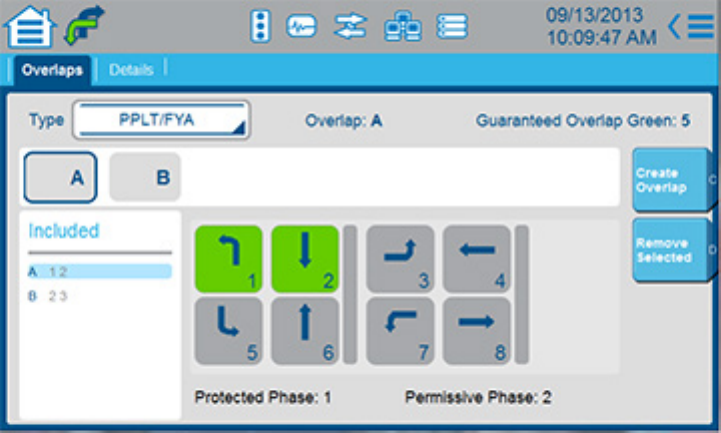

Top of the Screen (for both the Overlaps and Details tab)

The settings listed at the top of the screen show:

• The Type of Overlap you are programming: PPLT/FYA

• The overlap you are programming (A thru P)

• The Guaranteed Overlap Green time, in seconds. You set this value in Home > Timing Plans

> Guaranteed.

Procedure to program a PPLT/FYA Overlap

1. Select [Create Overlap].

2. A new overlap field (A, B, C, etc.) is shown in the overlap bar at the top. You can create up to 16

overlaps (A thru P).

3. Notice, at the bottom of the screen, there is a prompt, Select Protected Phase.

4. Select a Protected Phase (left turn) to Include in the overlap. This phase represents the protect-

ed turning movement.

5. Notice, at the bottom of the screen, the Protected Phase you selected in Step 4 is listed and

there is a prompt, Select Permissive Phase.

6. Select a Permissive Phase to Include in the overlap. This phase is the opposing through move-

ment in which the left turn phase is permitted for PPLT/FYA. When the assigned phase is timing

Green or timing with the protected left turn as a next phase decision, then the Flashing Yellow

Arrow output is active.

7. Notice:

• At the bottom of the screen, the Protected Phase you selected in Step 4 and the Permissive

Phase you selected in Step 6 are listed.

• In the Included list on the left of the screen, each PPLT/FYA overlap is listed with the phases

included in that overlap.

Note: To delete an overlap, select the overlap and then select [Remove Selected].

8. Select the Details tab and program the parameters as described in the table below.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

PPLT/FYA

Overlap

Parameter

Description Range

Flashing

Arrow Output

Channel

Mode

Flashing Arrow Output Channel Mode

Note: In the example screen above, Channel 13 was selected for Overlap A in

Home > Cabinet Config > Load Switch Assign

In the Mode drop-down menu, select as necessary:

Green Overlap: Connect the wire of the Flashing Yellow Arrow (FYA) signal to

the Green output on the assigned overlap load switch channel (Home > Cabinet

Config > Load Switch Assign) that is indicated by the (Channel xx) read-only

field. Note that the protected and permissive left turn clearance intervals will be

the same on the overlap and phase load switch channels.

Ped Yellow: Connect the wire of the Flashing Yellow Arrow (FYA) signal to the

Yellow output on the assigned permissive through load switch channel (Home

> Cabinet Config > Load Switch Assign) that is indicated by the (Channel xx)

read-only field.

Isolate (Isolate Protected Green): Connect the wire of the Flashing Yellow

Arrow (FYA) signal to the Green output on the assigned overlap load switch

channel. The protected and permissive left turn clearance outputs will also be

located on the overlap load switch channel. Isolate refers to the isolated green

indication remaining on the original protected left turn channel. This is based

on the EDI Basic FYA Mode.”

Green Overlap,

Ped Yellow,

Isolate

Flashing

Arrow Output

Channel

Action Plan

SF Bit Disable

Flashing Arrow Output Channel Event Plan Special Function Bit Disable

1-8: Assign the bit number that can be used in an Event Plan to disable the

permissive left turn by time-of-day. Refer to Home > Event Plans > Overview >

Special Output Flags.

0 (zero): PPLT/FYA will not be disabled by a Special Function Bit.

Note: A disable of PPLT/FYA while the permissive phase is either timing or

assigned as a next phase will not take effect until the permissive phase has

completed the timing interval.

0 - 8

Delay Start of:

Flashing

Yellow Arrow

Delay Start of Flashing Yellow Arrow

Assign the period of time in tenths of a second to delay flashing the yellow arrow

output when the permissive through movement starts timing green. This is a

safety feature that will limit the exposure of left turning vehicles because it is

assumed that opposing queued vehicles will not provide adequate headway. This

delay timer will not apply during preemption. The channel output will be red.

Note: To make sure that the flashing interval duration is at least two seconds,

a phase Hold is applied to make sure the parent opposing through movement

does not terminate too soon. If the opposing through phase has reached yellow

clearance before the delay start timer expires, then the FYA channel output

remains in red.

0 -25.5 seconds

Delay Start of:

Clearance

Delay Start of Clearance

Assign the period of time in tenths of a second to continue flashing the yellow

arrow output after the permissive through movement reaches yellow clearance.

This is a safety feature that will limit the exposure of providing two conflicting

solid yellow clearance arrows in PPLT/FYA operation.

0-25.5 seconds

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Overlap

Normal Type Overlaps

The overlaps page configures unique signal drivers outside of common phase control such as right

turns or permissive left turns.

Types of Overlaps

You can program four types of overlaps:

• Normal

•-Green Yellow

• PPLT/FYA

• Econolite

Normal and Minus Green Yellow operate per the requirement specified in NTCIP 1202 paragraph

2.10.2.2. PPLT/FYA uses overlap so you can program Protected Permissive left hand turns. Type

Econolite identifies overlaps that supplement the Normal overlap with the Econolite-specific options.

Overlap Outputs for the Normal Type of Overlap

The state of the Included Phases of the overlap determines the output, as given below:

Included Phase Overlap Output

Green

Yellow or Red Clearance

-and-

one of these phases is Next

(For example, Overlap A = 1+2. 1 Terminates and 2 is Next)

Yellow and no included phase is Next Yellow

Green and Yellow OFF Red

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

To program a Normal type of overlap, in the Type drop-down menu, select Normal:

Top of the Screen (for both the Overlaps and Details tab)

The settings listed at the top of the screen show:

1. The Type of Overlap you are programming: Normal

2. The overlap you are programming (A thru P)

3. The Guaranteed Overlap Green time, in seconds. You set this value in Home > Timing Plans >

Guaranteed.

Procedure to program a Normal Overlap

Note: Throughout this procedure, select Commit as necessary to enable the change to the

database. For an explanation of Transaction Mode (that runs when you make a critical change to

programming), refer to the Help for Home > Phase Order > Phase Order.

1. Select [Create Overlap].

2. A new overlap field (A, B, C, etc.) is shown in the overlap bar at the top. You can create up to 16

overlaps (A thru P).

3. Select a phase to Include in the overlap. The Included Phases specify the phases whose timing

state is used to derive the state of the overlap. In general terms, when any included phase is tim-

ing its green interval or the controller is advancing from one included phase to another included

phase, the overlap will be green. If no included phase is green, then the overlap will be yellow

when any included phase is yellow. If no included phase is green or yellow, the overlap will be

red. The usual derivation of the overlap state can be altered by more programming in the Details

tab.

4. Repeat Step 3 as necessary.

5. In the Included list on the left of the screen, each Normal overlap is listed with the phases in-

cluded in that overlap.

Note: To delete an overlap, select the overlap and then select [Remove Selected].

6. Select the Details tab and program the parameters as described in the table below.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Normal

Overlap

Parameter

Description Range

Lag Green

Yellow

Red

Lag (Trailing) Green, Yellow and Red times

Normally, if an included phase is terminating and no other included phase is

timing or a phase next selection, the terminating included yellow and red of the

phase are also output to the overlap. Trailing Green, Yellow, and Red provide a

means of extending the green of the overlap and then timing a specified yellow

and red. When the last timing overlap included phase begins its yellow change,

the green interval of the overlap is extended by the specified Trailing Green time.

After Trailing Green has timed, Trailing Yellow and Trailing Red times are used to

time the yellow change and red clearance intervals of the overlap.

Note: Lagging times take effect only if the if the Green and Yellow entries are

both non-zero.

0-25.5 sec.

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Overlap

Minus Green Yellow Type Overlaps

The overlaps page configures unique signal drivers outside of common phase control such as right

turns or permissive left turns.

Types of Overlaps

You can program four types of overlaps:

• Normal

•-Green Yellow

• PPLT/FYA

• Econolite

Normal and Minus Green Yellow operate per the requirement specified in NTCIP 1202 paragraph

2.10.2.2. PPLT/FYA uses overlap so you can program Protected Permissive left hand turns. Type

Econolite identifies overlaps that supplement the Normal overlap with the Econolite-specific options.

Overlap Outputs for the Minus Green Yellow Type of Overlap

The state of the Included Phases and the Modifier Phase Assignments of the overlap determine the

output.

This is used to avoid conflicting movements between modifier phase and overlap.

For example, Overlap A=1. Modifier phase is 6. Phase 6 is in conflict with Overlap A. When 6 is ON or

Next, Overlap A is NOT ON.

Included Phase Modifier Phase Overlap Output

Green

NOT Green Green

Yellow or Red Clearance and one is Next

Yellow and NOT Next NOT Yellow Yellow

Green and Yellow OFF --------------- Red

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

To program a Minus Green Yellow type of overlap, in the Type drop-down menu, select –Green/

Yellow:

Top of the Screen (for both the Overlaps and Details tab)

The settings listed at the top of the screen show:

1. The Type of Overlap you are programming: -Green/Yellow

2. The overlap you are programming (A thru P)

3. The Guaranteed Overlap Green time, in seconds. You set this value in Home > Timing Plans

> Guaranteed.

Procedure to program a Minus Green Yellow Overlap

Note: Throughout this procedure, select Commit as necessary to enable the change to the

database. For an explanation of Transaction Mode (that runs when you make a critical change to

programming), refer to the Help for Home > Phase Order > Phase Order.

1. Select [Create Overlap].

2. A new overlap field (A, B, C, etc.) is shown in the overlap bar at the top. You can create up to 16

overlaps (A thru P).

3. Select a phase to Include in the overlap. The Included Phases specify the phases whose timing

state is used to derive the state of the overlap. In general terms, when any included phase is tim-

ing its green interval or the controller is advancing from one included phase to another included

phase, the overlap will be green. If no included phase is green, then the overlap will be yellow

when any included phase is yellow. If no included phase is green or yellow, the overlap will be

red. The usual derivation of the overlap state can be altered by more programming in the Details

tab.

4. Repeat Step 3 as necessary.

5. In the Included list on the left of the screen, each Minus Yellow Green overlap is listed with the

phases included in that overlap.

Note: To delete an overlap, select the overlap and then select [Remove Selected].

6. Select the Details tab and program the parameters as described in the table below.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

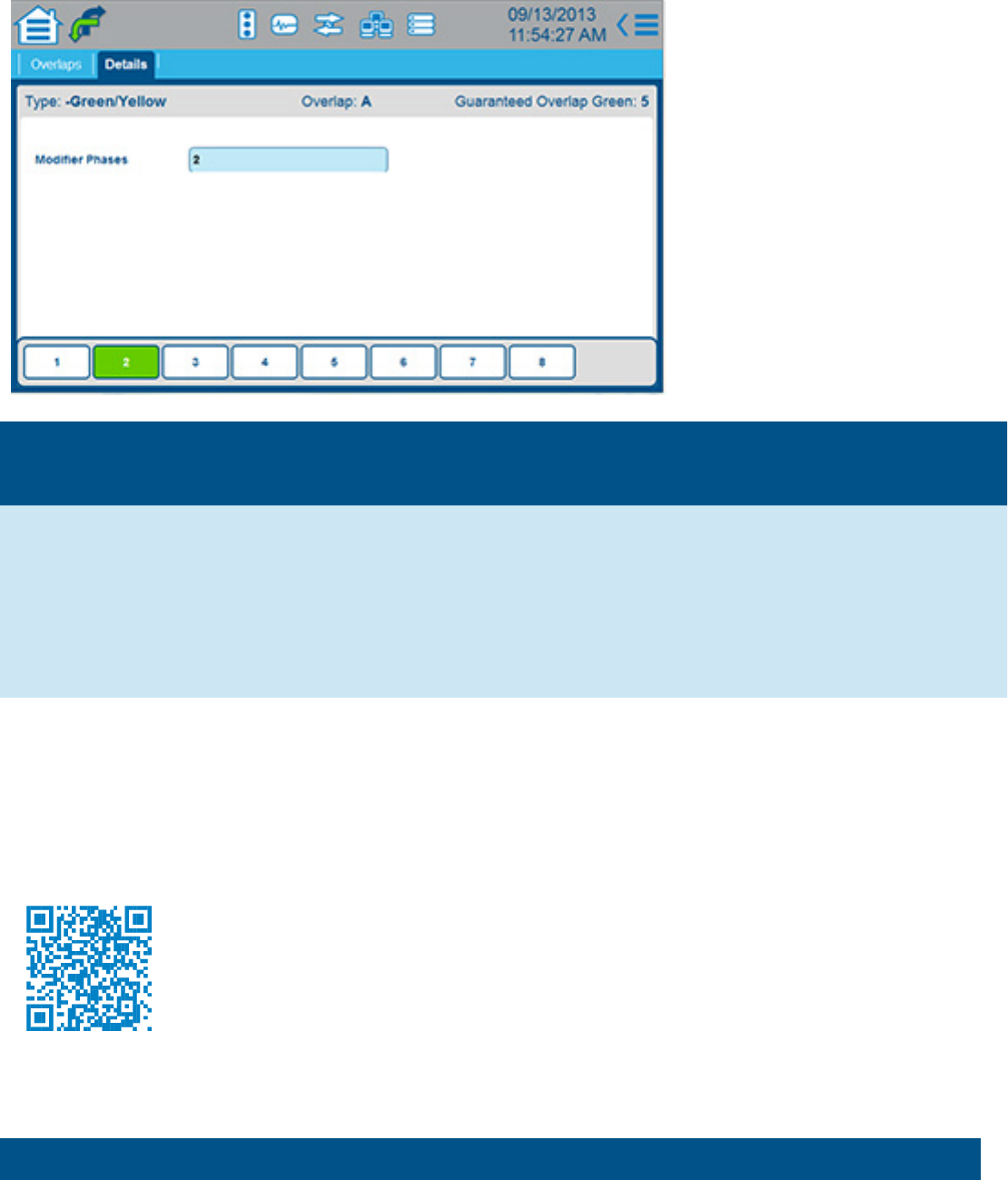

Minus Green

Yellow Overlap

Parameter

Description Range

Modifier Phases

Select the Modifier Phase(s).

These Modifier Phases are used when the overlap type is Minus Green Yellow to

provide an overlap that will terminate to red during a modifier phase green and

yellow.

Note: When Modifier phases are assigned, only it and the Included Phases

option are used to decide the state of the overlap. All other overlap programming

options are ignored.

Phases

1-16

Additional online help scheduled for next release

Updates will be available on a regular basis. Scan the QR Code below to access the latest Cobalt

documentation and reference material. ( http://www.econolite.com/QR/controller/cobalt/ )

trademarks of Econolite Group, Inc. and associated companies.

Cobalt by Econolite

* Cobalt Programming Manual - LIMITED DISTRIBUTION *

25/11/2013

Home > Overlap

Econolite Type Overlaps
