Combining the power of HF and LMR
CODAN MRAY
™
The MRAY is a unique solution for linking multiple analog/P25 repeater sites. The
solution integrates Codan’s Envoy™ HF smart radio, an LMR VHF/UHF 30 W
Repeater and 3031 Crosspatch™ to create an innovative product that enables long
distance communications between two or more P25 repeater sites via a HF link.
The MRAY provides both on-site radio coverage, via the self-contained analog or P25 repeater, and long-range
linking of the local communication via the included 125 W SDR Envoy™ HF radio. This  exible and robust
design enables a number of options such as AC and DC power sources, quick deployment solar power and a
versatile antenna/mast system. It also delivers the distinct advantages of rapid deployment, ease of use, and long
distance communications where previously a leased line, microwave or private IP networks were the only options.
Housed in a polyethylene weather resistant case for rapid deployment, the MRAY’s compact design enables it to
be transported in passenger vehicles and commercial aircraft. The MRAY is a complete self-contained solution
with optional accessories including a solar panel system, battery case, and antenna and masts.
Channel Capacity: Up to 1000 channels
with Envoy™ and up to 32 channels for LMR
Operational Time: Up to 66 hours (100 Ah
SLA battery), 53 hours (80 Ah SLA battery) or
24 hours (35 Ah SLA Battery)
Temperature Rating: –30°C to 60°C
Frequency Range: HF: 1.6 to 30 MHz
LMR: VHF, UHF or 700/800/900 MHz
Power Rating: HF: 125 W PEP
LMR: 3 to 30 W
AC Operating Range: 100 to 240 V AC ±10%
50/60 Hz
Protection: Fully protected against supply under/over
voltage, RF load open / short circuit / high VSWR
Size: 11.6” H x 24.8” W x 19.4” D,
29.7 cm H x 63.0 cm W x 49.5 cm D
Weight: 61.7 pounds, 25.0 kilograms
Colour: Black or high-visibility yellow
CODAN MRAY™— KEY SPECIFICATIONS
PROBLEM: DISTANT LMR RADIO SITES
The distance between two or more local LMR radio sites can be too great for
typical LMR technology to overcome, which means that the groups of subscribers
associated with each site are unable to communicate with each other.
SOLUTION: INTEGRATED LMR AND HF RADIO NETWORK
A HF link crosspatched to an LMR repeater at each site enables long distance
communications between two or more local LMR sites — previously a leased
line, microwaves or private IP networks were the only option. VHF and UHF
cannot provide this link due to the physical nature of propagation.
LONG DISTANCE P25
Enables long distance communications between two or more P25
repeater sites over a HF link, with no backbone infrastructure or
satellite link required
SECURE COMMUNICATIONS
Con gurable to different security standards for encryption over the HF
and VHF/UHF links, ensuring communications remain con dential
RAPID DEPLOYMENT
Easy to con gure and requires only an antenna for instant
communications and the linking of multiple repeater sites
FLEXIBLE FREQUENCIES
Easy to con gure to suit any frequency requirements
LIGHTWEIGHT AND RUGGED
Housed in a polyethylene weather resistant case, that is both tough
and lightweight, with wheels and handles for easy transportation by
vehicle or aircraft
CODAN RADIO COMMUNICATIONS
Codan Radio Communications is a leading designer and manufacturer of premium communications equipment
for High Frequency (HF) and Land Mobile Radio (LMR) applications. We’ve built our reputation for reliability for
over 50 years in radio communications, in some of the toughest conditions on the planet.
www.codanradio.com/mray
CODAN MRAY
™ — THE CODAN SOLUTION

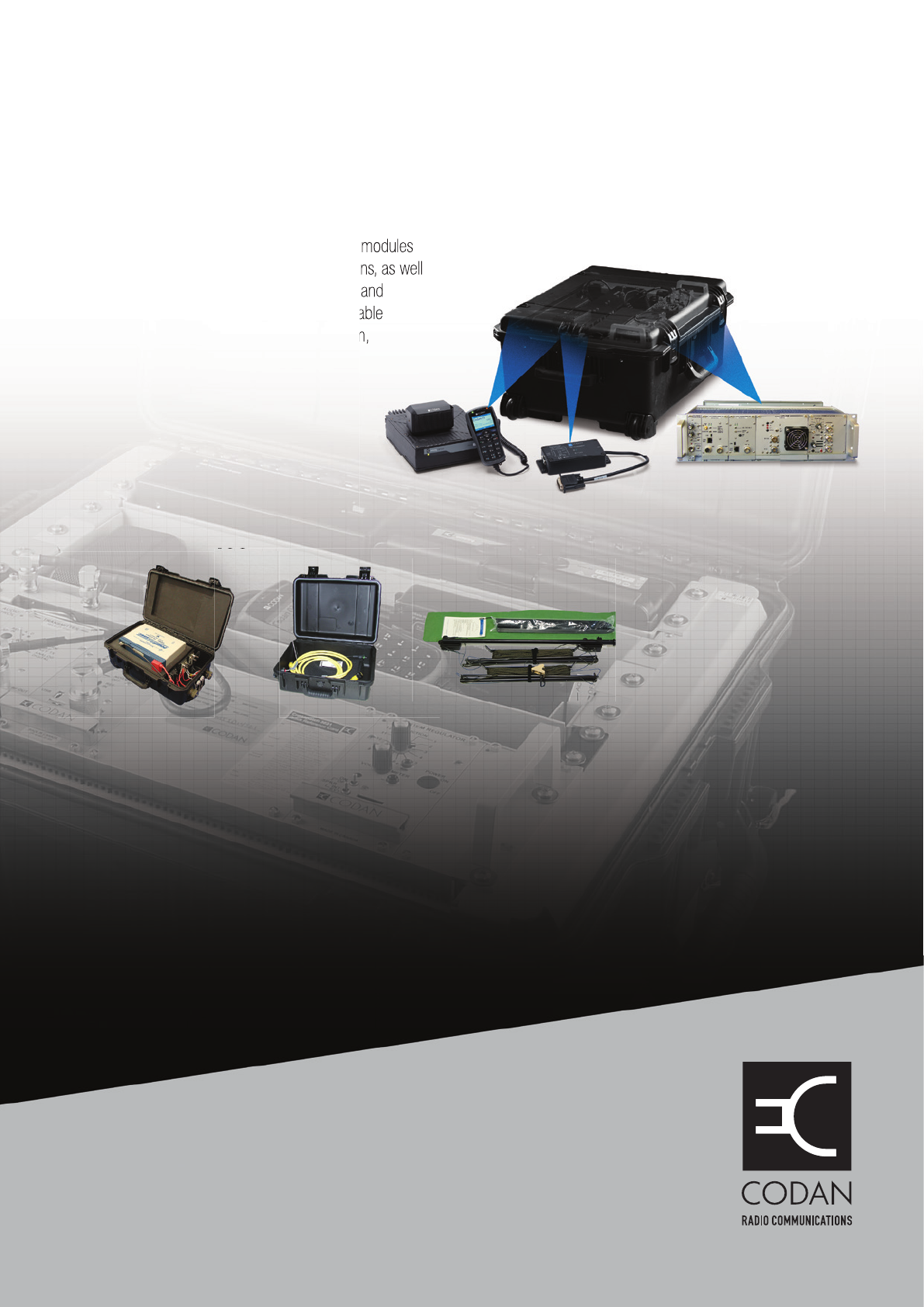

Codan’s HF and LMR solution consists of a VHF/UHF 30 W Repeater, Envoy™ Software De ned
HF Radio, 3031 Crosspatch™ and a universal-input rugged mains power supply.
A lightweight, compact polyethylene case is available
to accommodate standard Codan radio modules
in standalone or crosspatch con gurations, as well
as an optional battery backup, duplexer and
accessory storage box. Optional deployable
accessories include a solar panel system,
battery case and antenna and masts.
to accommodate standard Codan radio modules
in standalone or crosspatch con gurations, as well
as an optional battery backup, duplexer and
accessory storage box. Optional deployable
accessories include a solar panel system,
Codan VHF/UHF 30 W Repeater
Codan 3031 Crosspatch™
Codan Envoy™ HF Radio
Accessories
SOLAR PANEL
SYSTEM
TACTICAL 411
BROADBAND ANTENNA
BATTERY BACKUP
Accessories
CODAN RADIO COMMUNICATIONS
Australia: +61 8 8305 0528
Canada: +1 250 382 8268
US: +1 571 919 6432
UAE: +971 44 53 72 01
