1
Cover Page To
Be Included
Later
TACTICAL
HF RADIO SOLUTIONS
2015 PRODUCT CATALOGUE
This is Issue 4 of the Radio Communications Tactical Product
Catalogue, July 2015.
No part of this product catalogue may be reproduced, transcribed,
translated into any language or transmitted in any form whatsoever without
the prior written consent of Codan Limited.
Pictures shown in this product catalogue are for illustration purposes only
— actual products, colours and configurations may vary from the pictures
shown. The products in this catalogue are available with the NGT™
series Transceivers and 2110™ Manpack series as indicated by the
following logos:
CODAN™, 2110™, NGT™, Easitalk™, CALM™ and Crosspatch™ are
trademarks of Codan Limited. Other brand, product and company names
mentioned in this document are trademarks or registered trademarks of
their respective holders.
© Copyright 2015 Codan Limited.
Available with the NGT™ series Transceivers
Available with 2110M™ series Transceivers
Available with 2110™ series Transceivers
NGT
TRANSCEIVER
i ii
TABLE OF CONTENTS
‘How To’ Guide ...............................................................................................................................1
Choose your Transceiver Variant ...................................................................................................................1
Choose your System Package ........................................................................................................................1
Add your Options and Accessories ................... ...............................................................................................2
Build your own System ..................................................................................................................................2
2110M Manpack Transceiver .........................................................................................................3
Standard Features ........................................................................................................................................4
Optional Features ..........................................................................................................................................4
Key Features ...............................................................................................................................................5
Internal Antenna Tuner ......................................................... ......................................................................5
Internal GPS ............................................................................................................................................. 5
Intelligent Battery System ...........................................................................................................................5
Text Messaging ..... ...................................................................................................................................6
Internal Speaker ....................................................................................................................................... 6
FED-STD-1045 ALE/CALM ........................................................................................................................6
DSP Noise Reduction — Easitalk ...............................................................................................................6
Optional Features .........................................................................................................................................7
Encryption (COMSEC) ................................................................................................................................7
Frequency Hopping (ECCM) .......................................................................................................................7
MIL-STD-188-141B ALE (JITC Certified) .......................................................................................................7
High Speed Modem .......... ........................................................................................................................7
Digital Voice .............................................................................................................................................7
Configurations and Selections Guide ...............................................................................................................8
Manpack Transceiver Selection ................................................................................................................... 8
2110M Portable System 25 W ................................................................................................................9
2110M Vehicular System 25 W .............................................................................................................11
2110M Vehicular System 25 W (Extended) .............................................................................................13
2110M Vehicular System 125 W ............................................................................................................15
2110M Vehicular System 125 W (Extended) ............................................................................................17
2110M Base Station System 125 W ......................................................................................................19
2110M Manpack Transceivers .....................................................................................................................21
2110M Manpack Options ............................................................................................................................22
2110M Manpack Software Options ...........................................................................................................22
2110M Manpack Hardware Options ..........................................................................................................23
2110M Manpack Accessories ..................................................................................................................26
2110M Batteries .....................................................................................................................................26
2110M Chargers ................................................................................................................................. 27
3523 Battery Charger 3 A AC to DC ......................................................................................................27
3522 Battery Charger 1 A DC to DC ...................................................................................................... 27
2110M Hand-Powered Battery Charger ..................................................................................................28
2110M Solar Battery Charger ................................................................................................................ 28
2110M Audio Accessories — Handsets and Headsets ................................................................................29
Handset H-250/U ................................................................................................................................29
Bone Conduction Headset with PTT .......................................................................................................29
Lightweight Headset with PTT ...............................................................................................................29
2110M Morse Keys ................................................................................................................................ 29
Morse Key, Desktop .............................................................................................................................29
Morse Key, Leg Mount .........................................................................................................................29
2110M Portable Manpack Antennas — Long Wire, Dipoles and Whips .........................................................30
Long Wire and Adaptor, 1.6–30 MHz ..................................................................................................... 30
End-fed Broadband, 3–30 MHz ............................................................................................................30
Broadband Dipole, 3–30 MHz ..............................................................................................................30
Wire Dipole, 3–30 MHz .......................................................................................................................30
Dipole and Broadband Kit, 2–30 MHz ....................................................................................................30
Collapsible Whip, 3 m ..........................................................................................................................30
Tape Whip, 1.5 m ................................................................................................................................30
Knock Over Whip, 1.5 m ......................................................................................................................30
2110M Earthing ......................................................................................................................................31
Counterpoise 4-wire Kit ........................................................................................................................31
Anchor Peg ........................................................................................................................................31
Earth Wire with Clip ..............................................................................................................................31
2110M Antenna Masts ............................................................................................................................31
Mast, Man-portable 6 m Tactical ...........................................................................................................31
Mast, Transportable 10 m .....................................................................................................................31
3031 Crosspatch for 2110M ....................................................................................................................32
3031 Accessories ...............................................................................................................................32
2110M Backpacks .................................................................................................................................. 33
Backpack, External Frame (Olive) ...........................................................................................................33
Backpack, External Frame (Black) .......................................................................................................... 33
Backpack, External Frame (Desert) ........................................................................................................33
Backpack, External Frame (Woodland) ...................................................................................................34
Backpack, Softpack (Black) ..................................................................................................................34
iii iv
TABLE OF CONTENTS
2110M Manpack Accessories cont. ..............................................................................................................34
External GPS Antenna .............................................................................................................................34
Expansion Module ..................................................................................................................................34
Expansion Module Interface Cable, 1 m ..................................................................................................34
2110M Cradle Accessories .......................................................................................................................35
3160 Power Amplifier ..............................................................................................................................35
3160 Accessories — Cables for separated 3160 and 2110M ................................................................... 36
3160 Accessories — Cables for co-sited 3160 and 2110M .....................................................................36
3160 Accessories ................................................................................................................................37
NGT MR Transceiver ....................................................................................................................39
Standard Features .....................................................................................................................................40
Optional Features ......................................................................................................................................40
Key Features ............................................................................................................................................41
Rugged Design ......................................................................................................................................41
Innovative User Interface ..........................................................................................................................41
Automatic Link Establishment ...................................................................................................................41
Smart Monitoring and Scanning ............................................................................................................... 42
Optional Features ......................................................................................................................................43
Frequency Hopping (ECCM) .....................................................................................................................43
Voice Encryption (COMSEC) .....................................................................................................................43
GPS Support .......................................................................................................................................... 43
Data Communications ..............................................................................................................................43
Configurations and Selections Guide .............................................................................................................44
NGT MR Transceiver Selection .................................................................................................................. 44
NGT MR Transceiver System ....................................................................................................................45
NGT MR Vehicle .....................................................................................................................................47
NGT MR Base ........................................................................................................................................49
NGT MR High Power 500 W ....................................................................................................................51
NGT MR High Power 1000 W ..................................................................................................................53
NGT MR Transceivers .................................................................................................................................55
NGT MR Transceivers — RF Units ............................................................................................................55
NGT MR Transceiver Options .......................................................................................................................56
NGT MR Transceiver — Vehicular Parts ..................................................................................................... 56
NGT MR Transceiver — Base Station Parts ................................................................................................56
NGT MR Transceiver Software Options ......................................................................................................57
NGT MR Transceiver Hardware Options ...................................................................................................... 58
NGT MR Transceiver Options cont. ................................................................................................................60
NGT MR Tuners ......................................................................................................................................60
Tuner, 9103 Automatic Antenna with 10 m Cables ...................................................................................60
Tuner, 9103 Automatic Antenna with 30 m Cables ................................................................................... 60
Tuner, SG235C 500 W PEP ................................................................................................................. 60
NGT MR Tuner Accessories ..................................................................................................................61
NGT MR Base Whips ..............................................................................................................................62
Base Whip .......................................................................................................................................... 62
Ant, Base Whip, Ground Mounting (9.5 m / 31 ft Unloaded) .................................................................... 62
Ant, Base Whip, Roof Mounting (9.5 m / 31 ft Unloaded) .......................................................................62
NGT MR Base Whip Accessories .........................................................................................................63
Earth Mat for Base Whip Antenna, Ground Installations .........................................................................63
Radial Ground Plane for Base Whip Antenna, Roof Installations ..............................................................63
NGT MR Broadband Base Station Antennas ...............................................................................................64
Ant, Tuned Long Wire (2–30 MHz) ........................................................................................................64
3031 Crosspatch for NGT ........................................................................................................................65
3031 Accessories ...............................................................................................................................66
NGT MR Accessories ...............................................................................................................................67
NGT MR Accessories — Vehicular .........................................................................................................68
NGT MR Accessories — Base ..............................................................................................................69
NGT MR Transceiver Getting Started Guide .............................................................................................69
NGT MR Cables ..................................................................................................................................69
HF Data Modems ................................................................................................................................70

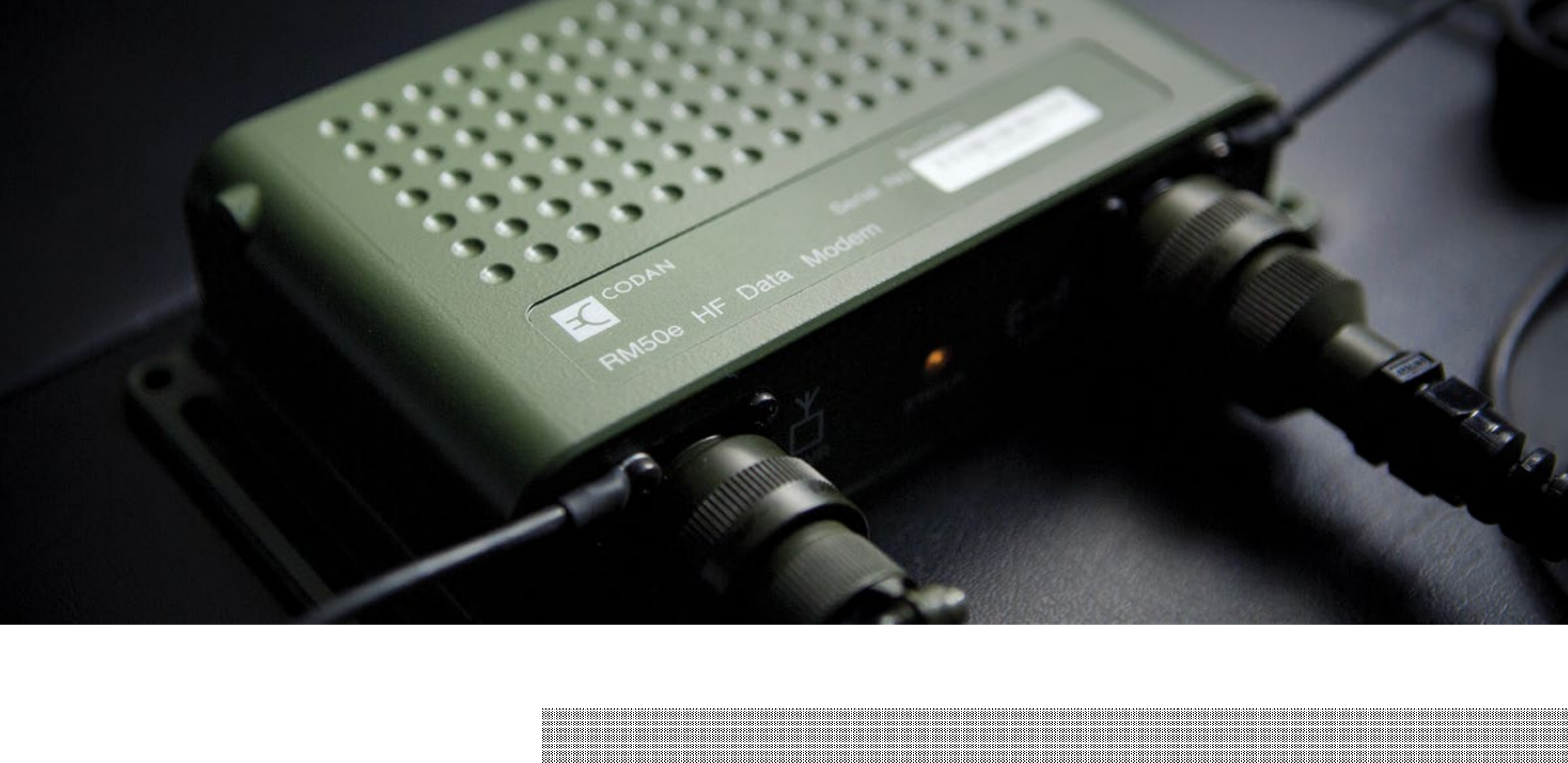

RM50e HF Data Modem ....................................................................................................................70
Modem Accessories ........................................................................................................................71
3033 Telephone Interconnect ................................................................................................................... 72
3033 Accessories ...............................................................................................................................73
3061 500 W Power Amplifiers .................................................................................................................74
3062 1000 W Power Amplifiers ...............................................................................................................75
3061/3062 Accessories ......................................................................................................................76
3020 Transceiver Supply .........................................................................................................................77
NGT MR 19” Racks and Accessories — Standard Rack Configurations .........................................................78
Standard High Power Rack Configuration ................................................................................................78
19” Rack Mount System Trays ...............................................................................................................79
19” Rack Mount Blanking Panels ...........................................................................................................79
19” Rack Mount Accessories .................................................................................................................80
v vi
TABLE OF CONTENTS
MRX Transportable Systems .......................................................................................................81
Standard Features ...................................................................................................................................... 82
Optional Features .......................................................................................................................................82
MRX Headquarters System .........................................................................................................................83
MRX Interoperability System ........................................................................................................................83
MRX High Power System Expansion .............................................................................................................84
Accessories ................................................................................................................................. 85
Voice Encryptors and Products .....................................................................................................................87
3590 AES-256 DV Encryptor ...................................................................................................................87
3591 CES-128 Encryptor ......................................................................................................................... 88
3590 AES-256 DV Encryptor System Diagram ...........................................................................................89
3591 CES-128 Encryptor System Diagram .................................................................................................89
3590/3591 Accessories .........................................................................................................................90
Software ...................................................................................................................................................92
HF Email Software ...................................................................................................................................92
RC50-C HF Email Software ...................................................................................................................92
NSP-M System Programmer Software ........................................................................................................93
NSP-M Cables ....................................................................................................................................93
Key Management Software (KMS) ............................................................................................................. 94
Key Fill Software (KFS) .............................................................................................................................94
Cables for NGT MR Key Fill ...................................................................................................................94
Cables for 2110M Key Fill .....................................................................................................................95
Power Supplies ..........................................................................................................................................96
3520 Transceiver Supply .........................................................................................................................96
3520 Transceiver Supply Variants ..........................................................................................................96
3520 Accessories ...............................................................................................................................97
3524 DC-DC Converter ...........................................................................................................................99
Solar Power Supplies .............................................................................................................................100
Solar Power Supply 40 W ...................................................................................................................100
Solar Power Supply 80 W ...................................................................................................................100
Solar Power Supply 240 W ................................................................................................................. 100
Solar Power Supply Accessories ..........................................................................................................101
Batteries ..............................................................................................................................................101
Accessories cont. ............................................................................................................................ 102
Vehicle Antenna Tuners ............................................................................................................................. 102
3040 Automatic Tuning Whip Antenna .....................................................................................................102
Cables Included in Packages ...............................................................................................................103
3040 Accessories ............................................................................................................................. 104
9350M Automatic Tuning Whip Antenna ..................................................................................................107
Cables Included in Packages ............................................................................................................... 108
9350M Accessories ..........................................................................................................................109
3042 HF Antenna Tuner ........................................................................................................................ 112
Cables Included in Packages ...............................................................................................................113
3042 HF Antenna Tuner Variants ......................................................................................................... 113
3046 HF Antenna Tuner ........................................................................................................................114
Cables Included in Packages ...............................................................................................................115
3046 HF Antenna Tuner Variants .........................................................................................................115
3042/3046 Accessories ....................................................................................................................116
3046 Military Grade Accessories ......................................................................................................... 118
Cables ............................................................................................................................................. 119
Base Antennas .........................................................................................................................................121
Tactical Base Antennas ..........................................................................................................................121
TAC 411 Broadband ...........................................................................................................................121
Broadband Base Station Antennas ..........................................................................................................122
Travelling Wave Dipole ........................................................................................................................122
Ant, Travelling Wave Dipole, 125 W PEP, 2–30 MHz, 53 m ...................................................................122
Ant, Travelling Wave Dipole, 125 W PEP, 3–30 MHz, 40 m ...................................................................122
Ant, Travelling Wave Dipole, 1000 W PEP, 2–30 MHz, 53 m .................................................................122
Ant, Travelling Wave Dipole, 1000 W PEP, 3–30 MHz, 40 m .................................................................122
Delta ................................................................................................................................................123
Ant, Full Delta, 125 W, 3–30 MHz .....................................................................................................123
Ant, Full Delta, 1000 W PEP, 3–30 MHz ............................................................................................ 123
Semi-delta ........................................................................................................................................124
Ant, Semi-delta, 125 W PEP, 2–30 MHz ............................................................................................124
Ant, Semi-delta, 1000 W PEP, 2–30 MHz ..........................................................................................124
vii viii
TABLE OF CONTENTS
Broadband Base Station Antennas cont. .................................................................................................. 125
TFD411 Broadband ...........................................................................................................................125
Ant, TFD411, 125 W, 2–30 MHz, 27 m ............................................................................................. 125
Ant, TFD411, 125 W, 2–30 MHz, 34 m ............................................................................................. 125
Ant, TFD411, 125 W, 2–30 MHz, 43 m ............................................................................................. 125
Ant, TFD411, 1000 W, 2–30 MHz, 34 m ...........................................................................................125
Ant, TFD411, 1000 W, 2–30 MHz, 43 m ...........................................................................................125
TFD411 Broadband/Mast Kits .............................................................................................................126
Antenna/Mast — Mast Bare Aluminium Finish ....................................................................................126
Ant, TFD411, 125 W, 2–30 MHz, 27 m c/w Lightweight Premium Mast, 10 m ......................................126
Ant, TFD411, 125 W, 2–30 MHz, 34 m c/w Lightweight Premium Mast, 10 m ......................................126
Ant, TFD411, 125 W, 2–30 MHz, 43 m c/w Lightweight Premium Mast, 10 m ......................................126
Antenna/Mast — Mast Matt Black Paint Finish ....................................................................................127
Ant, TFD411, 125 W, 2–30 MHz, 27 m c/w Lightweight Premium Black Painted Mast, 10 m ..................127
Ant, TFD411, 125 W, 2–30 MHz, 34 m c/w Lightweight Premium Black Painted Mast, 10 m .................. 127
Ant, TFD411, 125 W, 2–30 MHz, 43 m c/w Lightweight Premium Black Painted Mast, 10 m .................. 127
Tactical Masts ..........................................................................................................................................128
Antenna Masts ......................................................................................................................................128
Mast, 6 m Tactical Fibreglass .............................................................................................................. 128
Mast, 10 m Transportable Fibreglass ....................................................................................................128
Base Masts ............................................................................................................................................. 129
Mast, Guyed 12 m with Erection Kit .........................................................................................................129
Mast, Guyed 15 m with Erection Kit .........................................................................................................129
Mast, Guyed 10 m, Lightweight Mast ......................................................................................................129
Antenna Accessories ................................................................................................................................ 130
Coaxial Cables Type RG58 .....................................................................................................................130
Coaxial Cables Type RG213 ....................................................................................................................132
Earthing & Lightning Protection .................................................................................................................. 133
Earthing ...............................................................................................................................................133
Lightning Protection ..............................................................................................................................133
Support ......................................................................................................................................135
Language Support ...................................................................................................................................137
English Manuals ....................................................................................................................................137
French Manuals ....................................................................................................................................139
Spanish Manuals ..................................................................................................................................140
Portuguese Manuals ..............................................................................................................................141
Standard Terms .......................................................................................................................................143
International Warranty ............................................................................................................................... 153
Battery Cell Warranty ................................................................................................................................155
1 2
2 Choose your System Package
After selecting a 2110M Manpack or NGT MR Transceiver Variant please choose a
System Package — Portable, Vehicular, Base or High-Power — listed in the
Systems and Selections Guide section
3 Add your Options and Accessories
You can customise your System Packages by adding individual parts from the 2110M
Manpack, NGT MR Transceiver or general Options and Accessories sections.
* Build your own System
If the System Packages do not meet your requirements you can build your own system. It is
recommended that you select a Transceiver Variant — either 2110M Manpack or NGT MR
Transceiver — prior to adding options and accessories.
Once you’ve chosen your
Transceiver Variant, make note
of the unique code highlighted in
yellow. You’ll need to insert this
code into the System Package
Part-Number. (see step 2).
Use the Part-Number in the
grey box to defi ne the individual
accessories or options
you require.
Use the Part-Number in the
black box to defi ne your
Package, remembering to insert
the Transceiver Variant code
(from step 1).
You can fi nd out more
information on both Standard
and Optional Package items by
referring to the page number.
Use this key as a guide
to interpret the System
Package tables.
This table contains a list of
Standard Package items. Some
items may vary depending upon
your Transceiver Variant choice.
*
Select a Transceiver Variant,
using the Part-Number in the
blue box. There are important
distinctions, such as colour
options or Frequency Hopping
capabilities, so please
ensure you read the item
description carefully.
The bottom table contains a
list of Optional items for your
System Package.
‘HOW TO’ GUIDE
1Choose your Transceiver Variant
Codan has identifi ed key systems for the 2110M Manpack and NGT Transceiver range. Before
choosing your package from the Systems and Confi gurations Guide section please ensure
you select a Transceiver Variant:
3 4
The Codan 2110M SSB Manpack Radio is designed for the harshest fi eld conditions
and environments, meeting MIL-STD-810F. At 2.9 kg the 2110M is the lightest,
fully featured HF manpack radio available on the market offering up to 65 hours
of operation from a rechargeable battery pack.
The 2110M operates from 1.6 to 30 MHz at 5 or 25 watts, offering USB/LSB, AM,
AFSK and CW. A simple menu driven system with a 200 ID address book allows
easy operation with a ‘one’ push emergency calling feature.
OPTIONAL FEATURES
Encryption (COMSEC)
Frequency Hopping (ECCM)
MIL-STD-188-141B ALE (JITC Certifi ed)
STANAG 4538 (3G) ALE
MIL-STD-188-110A/B High speed modem
Digital Voice
2110M MANPACK TRANSCEIVER
STANAG 4538 (3G) ALE
STANAG 4538 (3G) ALE
STANDARD FEATURES
Internal Antenna Tuner
Internal GPS Receiver
User and administrative access
Intelligent battery system
Text messaging
Internal speaker
FED-STD-1045 ALE/CALM
DSP Noise Reduction — Easitalk
5 6
KEY FEATURES
INTERNAL ANTENNA TUNER
The 2110M features an integrated antenna tuner
that automatically detects the antenna and tunes
it to the operating frequency. Initial tuning typically
occurs within 2.5 seconds and takes only 50
milliseconds when tuning from memory. Silent
Tuning is supported when changing channels.
The tuner is fully protected against unexpected
antenna loads and mismatches, and overvoltage.
A separate 50 ohm BNC connection is also
available for broadband antennas.
INTERNAL GPS
The 2110M comes standard with an integrated
12-channel GPS receiver and internal antenna.
This enables accurate time and location, providing
latitude, longitude, altitude, speed and bearing of
the user. A GPS tracking option enables monitoring
of distance and bearing from other transceivers
within a HF network in fixed frequency, Selcall, ALE
and Frequency Hopping modes of operation.
An external GPS antenna port is also provided on
the front panel that allows connection of an optional
“hockey puck” antenna. Use of an external antenna
provides GPS data when the radio is located within
a vehicle or building, not allowing a clear line of
sight for the internal antenna.
INTELLIGENT BATTERY SYSTEM
Codan’s unique battery management technology
continuously monitors the battery condition and
remaining capacity. The transceiver’s front panel
shows the remaining operating hours, based
upon actual usage calculated against transmit
and received call time.
The intelligent monitoring system monitors
battery charging and prevents batteries from
being overcharged. Charging can occur via the
transceivers front panel whilst operating the radio.
TEXT MESSAGING
Utilising the full alpha-numeric keypad and large
display, the operator can compose and edit
text messages. These are sent as SMS in Fixed
Frequency, Selcall and Frequency Hopping
modes of operation. In MIL-STD-188-141B ALE,
these are transmitted and received utilising the
AMD feature.
INTERNAL SPEAKER
The front panel includes an internal speaker
that can be muted with a single button press.
FED-STD-1045 ALE/CALM
The FED-STD-1045 ALE capability supports
Codan’s advanced link management technology
(CALM), which improves the performance of
normal FED-STD ALE by maintaining channel
quality information (LQA) on a 24-hour basis and
reducing the quantity of soundings.
Other advanced ALE features supported include:
Automated messaging processing capability
including Remote Diagnostics, GPS polling
and position sending, Phone and
Emergency calls
Listen-Before Transmit capability preventing
ALE transmission on channels that are
already occupied
Simultaneous Multiple Network
Scanning capability
DSP NOISE REDUCTION —
EASITALK
Codan’s Digital Signal Processing techniques
greatly reduce the effect of interference and
channel noise to provide clearer communications.
Easitalk operates at the press of a button,
resulting in a loud and clear signal even
under harsh conditions.
5 6
7 8
OPTIONAL FEATURES
ENCRYPTION (COMSEC)
The 2110M offers Voice Encryption options
that can prevent third party monitoring of
communications. The following devices are
supported internally:
CES 128-Bit Encryptor
Supporting all modes of operation,
the 128-Bit CES Encryptor provides a
Type3 encryption solution to customers,
programmable from the front panel of
the radio or via Codan’s KMS — Key
Management Software application.
DV AES-256 Bit Encryptor
Supporting Fixed Frequency, Selcall and
ALE modes of operation, the 256-Bit AES
Encryptor provides digital voice using a
MELPe Digital Vocoder, complying with
STANAG 4591. The MELPe Digital Vocoder
supports rates of 2400 and 1200 bits/s.
The AES encryption is programmable
from the front panel of the radio or via
Codan’s KMS — Key Management
Software application.
FREQUENCY HOPPING (ECCM)
Codan’s Frequency Hopping offers additional
protection against malicious jamming and signal
interception.
The 2110M’s ECCM is user confi gurable allowing
selection of individual hop rates, 6/12/25 hops
per second, along with a unique 18 digit (128 bit)
security hopping key. These Frequency Hopping
parameters are programmable from the front panel
or via KMS — Key Management Software.
MIL-STD-188-141B ALE
(JITC CERTIFIED)
Providing 600 channels and 20 nets, the
2110M supports JITC certifi ed MIL-STD-188-141B
ALE, enabling it to be interoperable with
military transceivers using the JITC certifi ed
MIL-STD-188-141B ALE.
HIGH SPEED MODEM
The embedded AES-256 bit encrypted
modem supports both MIL-STD-110A/B and
STANAG4539 waveforms offering data rates of
75 – 9600 bits/s. Supported by the STANAG
5066 RC50-C email client application, the modem
provides an interoperable solution to other STANAG
5066 email clients on a HF network.
DIGITAL VOICE
Digital voice provides highly intelligible audio, free
from the noise, interference and fading effects
often heard over analogue voice. Supplied as
standard with a 2,400 bit/s Vocoder. It can
be ordered with AES-256 encryption and
1200 bit/s Vocoder.
CONFIGURATIONS AND SELECTIONS GUIDE
This section provides 2110M Manpack confi guration packages developed with the core
components needed for a complete Codan 2110M Manpack system. The Selections Guides
also outline the options and accessories you can select for your package or choose
to add to your manpack system.
The packages are a guide for your system requirements, a custom confi guration for your
2110M Manpack system can be built to meet exact specifi cations. Please note that items
shown in blue are standard parts and items in grey are optional.
MANPACK TRANSCEIVER SELECTION
The Codan 2110M HF Transceiver can be selected in green, with or without optional Frequency Hopping, or in
black. Each transceiver model shown below and the black Frequency Hopping capable 2110M listed on page
21 are suitable to be used in the system packages.
Your initial selection of HF transceiver is suggested before proceeding to package selection
or custom confi guration. For more information on Transceivers please see page 21.
7
Green Casing
Frequency Hopping
Green Casing
Frequency Hopping
SELECT GNSELECT GF
2110M GF and black Frequency Hopping capable 2110M Transceivers are subject to Australian Government Export
controls. A signed end-user Declaration must be provided for supply of this product.
For the black, Frequency Hopping capable 2110M, please see page 21, 2110M Manpack Transceivers.
9 10
OPTIONAL
CONFIGURATIONS AND SELECTIONS GUIDE
2110M Portable System 25 W
This package contains the key components for
a 2110M Vehicular HF System. Up to 50 hours
of use (using RX/TX at 9:1 ratio) is provided by
the 13Ah rechargeable lightweight battery. The
3 m collapsible whip antenna, coupled with the
internal 2110M Antenna Tuner provides continuous
coverage from 1.6 to 30 MHz. The internal GPS
receiver that is standard on the 2110M provides
synchronisation support for Frequency Hopping.
Maximum RF power output for this system
confi guration is 25 W.
Additional transceiver options and accessories can
be selected to expand the capabilities of
this confi guration.
2110M Transceiver page 21 for more info 08-06155-XXX
Frequency Hopping — only for page 22 for more info 15-10542-000
Handset H-250/U page 29 for more info 78-08000
Collapsible Whip page 30 for more info 15-00452
Counterpoise 4-wire kit page 31 for more info 15-00446
Earth Wire with Clip page 31 for more info 08-06259-001
Anchor Peg page 31 for more info 15-00462
Battery (NiMH), Green page 26 for more info 08-06186-002
2110M Operator Guide page 137 for more info 15-04153-EN
2110M Portable System 25 W QUOTE 2110M- XX -PORTABLE
GF
Software Options page 22
Hardware Options page 23
GPS Antenna page 34
Portable Antennas page 30
Batteries page 26
Chargers page 27
Backpacks page 33
Variable item (depends on confi guration selection) Standard item Optional item
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
page 137
11 12
CONFIGURATIONS AND SELECTIONS GUIDE
2110M Vehicular System 25 W
This package contains the key components for a
2110M Vehicular HF System. Power is provided
by the 12 V DC vehicle battery however with the
addition of an optional 24/12 V voltage converter
the system is also able to run from a 24 V DC
supply. The antenna system comprises the 3046
automatic tuner coupled with a 3 m composite
whip antenna mounted to a NATO hole pattern
compatible antenna base, providing continuous
coverage from 2 to 30 MHz. An external GPS
antenna is provided when this package is
confi gured with a Frequency Hopping capable
2110M Transceiver. The external GPS antenna
ensures reception of GPS signals for optimum
Frequency Hopping performance and reliability in a
vehicular environment. Maximum RF power output
for this system confi guration is 25 W.
The 2110M Transceiver unit can be quickly and
easily removed from the vehicle mounting cradle
for “jerk and run” operational scenarios.
Optional shock mounts are available for both the
transceiver vehicle mounting cradle and 3046 HF
Antenna Tuner. These provide added protection
when equipment is installed in environments that
may sustain extreme levels of shock/vibration. GF
Software Options page 22
Hardware Options page 23
Vehicle Antenna Tuners page 102
12/24 V Converter page 99
3042/3046 Shock Mounts page 117
3160 PA Shock Mount page 37
2110M Cradle Shock Mount page 35
2110M Transceiver page 21 for more info 08-06155-XXX
Frequency Hopping — only for page 22 for more info 15-10542-000
GPS Antenna — only for page 34 for more info 78-01253
Handset H-250/U page 29 for more info 78-08000
2110M Antenna Control Cable page 119 for more info 08-07010-006
2110M Cradle page 35 for more info 15-00139-002
External DC Back Panel page 35 for more info 15-00143-002
Battery Cable page 67 for more info 08-03255
32 A Fuse page 68 for more info 15-00712
Fuse Holder page 68 for more info 15-00711
Coax Cable, BNC to N-type, RG58 page 130 for more info 08-07198-006
3046 HF Antenna Tuner page 114 for more info 08-07185-001
3046 Installation Kit page 117 for more info 15-00146
NATO Base page 118 for more info 15-60006
Whip, MIL Spec page 118 for more info 15-60001
Flexible Antenna Shock Mount page 118 for more info 15-60002
2110M Operator Guide page 137 for more info 15-04153-EN
3046 Installation Handbook page 137 for more info 15-04175-EN
2110M Vehicular System 25 W QUOTE 2110M- XX -VEHICLE-25W
OPTIONAL
Variable item (depends on confi guration selection) Standard item Optional item
GF
whip antenna mounted to a NATO hole pattern
compatible antenna base, providing continuous
coverage from 2 to 30 MHz. An external GPS
antenna is provided when this package is
confi gured with a Frequency Hopping capable
2110M Transceiver. The external GPS antenna
ensures reception of GPS signals for optimum
Frequency Hopping performance and reliability in a
vehicular environment. Maximum RF power output
for this system confi guration is 25 W.
The 2110M Transceiver unit can be quickly and
easily removed from the vehicle mounting cradle
for “jerk and run” operational scenarios.
13 14
CONFIGURATIONS AND SELECTIONS GUIDE
2110M Vehicular System 25 W (Extended)
GF
2110M Transceiver page 21 for more info 08-06155-XXX
Frequency Hopping — only for page 22 for more info 15-10542-000
GPS Antenna — only for page 34 for more info 78-01253
Handset H-250/U page 29 for more info 78-08000
2110M Antenna Control Cable page 119 for more info 08-07010-006
2110M Cradle page 35 for more info 15-00139-002
External DC Back Panel page 35 for more info 15-00143-002
Battery Cable page 67 for more info 08-03255
32 A Fuse page 68 for more info 15-00712
Fuse Holder page 68 for more info 15-00711
Coax Cable, BNC to N-type, RG58 page 130 for more info 08-07198-006
Expansion Module page 34 for more info 08-06972-001
Expansion Module Interface Cable page 34 for more info 08-07014-001
3046 HF Antenna Tuner page 114 for more info 08-07185-001
3046 Installation Kit page 117 for more info 15-00146
NATO Base page 118 for more info 15-60006
Whip, MIL Spec page 118 for more info 15-60001
Flexible Antenna Shock Mount page 118 for more info 15-60002
2110M Operator Guide page 137 for more info 15-04153-EN
3046 Installation Handbook page 137 for more info 15-04175-EN
2110M Vehicular System
25 W (Extended) QUOTE 2110M- XX -VEHICLE-25W-EXTENDED
This package contains the key components for a
2110M Vehicular HF System. Power is provided
by the 12 V DC Battery, and with the addition of
a 24/12 V converter the system can run from a
24 V DC supply. The antenna system comprises
the 3046 HF Antenna Tuner coupled with a 3 m
composite whip antenna on a NATO base,
and provides continuous coverage from
2 to 30 MHz. When this package is confi gured
with a Frequency Hopping capable transceiver
an external GPS antenna is provided to ensure
optimum performance and reliability. Maximum RF
power output for this system confi guration is 25 W.
The Expansion Module expands the 19-pin
connector on the front panel of the 2110M into
3 extra ports to enable simultaneous connection
of multiple accessories. More details can be
found on page 34, 2110M Accessories.
The 2110M Transceiver unit can be quickly and
easily removed from the vehicle mounting cradle
for “jerk and run” operational scenarios. Optional
shock mounts are available for both the transceiver
vehicle mounting cradle and 3046 HF Antenna
Tuner for protection in extreme environments.
Variable item (depends on confi guration selection) Standard item Optional item
OPTIONAL
GF
Software Options page 22
Hardware Options page 23
Vehicle Antenna Tuners page 102
12/24 V Converter page 99
3042/3046 Shock Mounts page 117
2110M Cradle Shock Mount page 35
the 3046 HF Antenna Tuner coupled with a 3 m
composite whip antenna on a NATO base,
and provides continuous coverage from
2 to 30 MHz. When this package is confi gured
with a Frequency Hopping capable transceiver
an external GPS antenna is provided to ensure
optimum performance and reliability. Maximum RF
power output for this system confi guration is 25 W.
The Expansion Module expands the 19-pin
connector on the front panel of the 2110M into
3 extra ports to enable simultaneous connection
of multiple accessories. More details can be
found on page 34, 2110M Accessories.
Tuner for protection in extreme environments.
15 16
CONFIGURATIONS AND SELECTIONS GUIDE
2110M Vehicular System 125 W
2110M Transceiver page 21 for more info 08-06155-XXX
Frequency Hopping — only for page 22 for more info 15-10542-000
GPS Antenna — only for page 34 for more info 78-01253
Handset H-250/U page 29 for more info 78-08000
2110M Cradle page 35 for more info 15-00139-002
Cradle Back Panel, 3160 page 37 for more info 08-06811-001
3160 Power Amplifi er page 35 for more info 08-06804-002
3160 Installation Kit page 37 for more info 15-00146
3160 to BATT/3524 Pwr & Ctrl Cable page 36 for more info 08-06808-001
Coax Cable, BNC, RG58 page 36 for more info 08-06809-002
2110M Antenna Control Cable page 119 for more info 08-07010-006
Coax Cable, N-type, RG58 page 131 for more info 08-07078-006
Battery Cable page 67 for more info 08-03255
32 A Fuse page 68 for more info 15-00712
Fuse Holder page 68 for more info 15-00711
3046 HF Antenna Tuner page 114 for more info 08-07185-001
3046 Installation Kit page 117 for more info 15-00146
NATO Base page 118 for more info 15-60006
Whip, MIL Spec page 118 for more info 15-60001
Flexible Antenna Shock Mount page 118 for more info 15-60002
2110M Operator Guide page 137 for more info 15-04153-EN
3160 PA Installation Handbook page 137 for more info 15-04157-EN
3046 Installation Handbook page 137 for more info 15-04175-EN
GF
QUOTE 2110M- XX -VEHICLE-125W
2110M Vehicular System 125 W
This package contains the key components for a
2110M Vehicular HF System. Power is provided by
the 12 V DC vehicle battery and by adding a
24/12 V voltage converter the system can run
from a 24 V DC supply. The 3160 Power Amplifi er
boosts the maximum RF power output to
125 W. The antenna system comprises the 3046
HF Antenna Tuner coupled with a 3 m composite
whip antenna on a NATO base, and provides
continuous coverage from 2 to 30 MHz. When this
package is confi gured with a Frequency Hopping
capable transceiver an external GPS antenna is
provided to ensure optimum performance
and reliability.
The 2110M Transceiver unit can be
quickly and easily removed from the vehicle
mounting cradle for “jerk and run” operational
scenarios. Optional shock mounts are available
for the transceiver vehicle mounting cradle, 3160
Power Amplifi er, and 3046 HF Antenna Tuner for
protection in extreme environments.
Variable item (depends on confi guration selection) Standard item Optional item
GF
Software Options page 22
Hardware Options page 23
Vehicle Antenna Tuners page 102
12/24 V Converter page 99
3042/3046 Shock Mounts page 117
3160 PA Shock Mount page 37
2110M Cradle Shock Mount page 35
OPTIONAL
boosts the maximum RF power output to
125 W. The antenna system comprises the 3046
HF Antenna Tuner coupled with a 3 m composite
whip antenna on a NATO base, and provides
continuous coverage from 2 to 30 MHz. When this
package is confi gured with a Frequency Hopping
capable transceiver an external GPS antenna is
provided to ensure optimum performance
and reliability.
Power Amplifi er, and 3046 HF Antenna Tuner for
protection in extreme environments.
17 18
CONFIGURATIONS AND SELECTIONS GUIDE
2110M Vehicular System 125 W (Extended)
Software Options page 22
Hardware Options page 23
Vehicle Antenna Tuners page 102
12/24 V Converter page 99
Crosspatch page 32
Morse Key page 67
3042/3046 Shock Mounts page 117
3160 PA Shock Mount page 37
2110M Cradle Shock Mount page 35
OPTIONAL
This package contains the key components for a
2110M vehicular HF system with added expansion
capability. Power is provided by the 12V DC
vehicle battery and by adding a 24/12 V voltage
converter the system cam run from a
24 V DC supply. The 3160 Power Amplifi er
boosts the maximum RF power output to
125 watts. The antenna system comprises the
3046 HF Antenna Tuner coupled with a 3 m
composite whip antenna on a NATO base,
and provides continuous coverage from
2 to 30 MHz. When this package is confi gured
with a Frequency Hopping capable transceiver
an external GPS antenna is provided to ensure
optimum performance and reliability.
The Expansion Module expands the 19-pin
connector on the front panel of the
2110M into 3 extra ports to
enable simultaneous
connections of multiple accessories. More details
can be found on page 34, 2110M Accessories.
The 2110M Transceiver unit can be quickly and
easily removed from the vehicle mounting cradle
for “jerk and run” operational scenarios. Optional
shock mounts are available for the transceiver
vehicle mounting cradle, 3160 Power Amplifi er,
and 3046 HF Antenna Tuner for protection in
extreme environments.
2110M Vehicular System
125 W (Extended) QUOTE 2110M- XX -VEHICLE-125W-EXTENDED
2110M Transceiver page 21 for more info 08-06155-XXX
Frequency Hopping — only for page 22 for more info 15-10542-000
GPS Antenna — only for page 34 for more info 78-01253
Handset H-250/U page 29 for more info 78-08000
2110M Cradle page 35 for more info 15-00139-002
Cradle Back Panel, 3160 page 37 for more info 08-06811-001
3160 Power Amplifi er page 35 for more info 08-06804-002
3160 Installation Kit page 37 for more info 15-00146
3160 to BATT/3524 Pwr & Ctrl Cable page 36 for more info 08-06808-001
Battery Cable page 67 for more info 08-03255
32 A Fuse page 68 for more info 15-00712
Fuse Holder page 68 for more info 15-00711
Coax Cable, BNC, RG58 page 36 for more info 08-06809-002
2110M Antenna Control Cable page 119 for more info 08-07010-006
Coax Cable, N-type, RG58 page 131 for more info 08-07078-006
Expansion Module page 34 for more info 08-06972-001
Expansion Module Interface Cable page 34 for more info 08-07014-001
3046 HF Antenna Tuner page 114 for more info 08-07185-001
3046 Installation Kit page 117 for more info 15-00146
NATO Base page 118 for more info 15-60006
Whip, MIL Spec page 118 for more info 15-60001
Flexible Antenna Shock Mount page 118 for more info 15-60002
2110M Operator Guide page 137 for more info 15-04153-EN
3160 PA Installation Handbook page 137 for more info 15-04157-EN
3046 Installation Handbook page 137 for more info 15-04175-EN
Variable item (depends on confi guration selection) Standard item Optional item
GF
GF
boosts the maximum RF power output to
125 watts. The antenna system comprises the
3046 HF Antenna Tuner coupled with a 3 m
composite whip antenna on a NATO base,
and provides continuous coverage from
2 to 30 MHz. When this package is confi gured
with a Frequency Hopping capable transceiver
an external GPS antenna is provided to ensure
optimum performance and reliability.
The Expansion Module expands the 19-pin
connector on the front panel of the
2110M into 3 extra ports to
enable simultaneous
vehicle mounting cradle, 3160 Power Amplifi er,
and 3046 HF Antenna Tuner for protection in
extreme environments.
19 20
CONFIGURATIONS AND SELECTIONS GUIDE
2110M Base Station System 125 W
2110M Base Station System 125 W
2110M Transceiver page 21 for more info 08-06155-XXX
Frequency Hopping — only for page 22 for more info 15-10542-000
GPS Antenna — only for page 34 for more info 78-01253
Handset H-250/U page 29 for more info 78-08000
2110M Cradle page 35 for more info 15-00139-002
Cradle Back Panel, 3160 page 37 for more info 08-06811-001
3160 Power Amplifi er page 35 for more info 08-06804-002
3160 Mounting Bracket page 37 for more info 15-60016
3160 to 3520/3524 Pwr & Ctrl Cable page 36 for more info 08-07034-500
Coax Cable, BNC, RG58 page 36 for more info 08-06809-002
Coax Cable, N-type, RG58 page 131 for more info 08-07078-030
Mains Cable (EU) page 97 for more info 08-07094-001
Tactical 411 Broadband Antenna page 121 for more info 78-01259
Transportable Mast page 128 for more info 78-13036
3520 Transceiver Supply page 96 for more info 78-20049-002
3520 Cradle page 97 for more info 15-00139-002
2110M Operator Guide page 137 for more info 15-04153-EN
3160 PA Installation Handbook page 137 for more info 15-04157-EN
3520 User Guide page 137 for more info 12-50180-EN
QUOTE 2110M- XX -BASE-125W
GF
Software Options page 22
Hardware Options page 23
Expansion Module page 34
Base Antennas page 121
Antenna Lightning Protection page 133
Base Masts page 129
Tactical Masts page 128
Crosspatch page 32
Morse Key page 67
OPTIONAL
This package contains the key components
for a 2110M Base HF system with added
expansion capability. Power is provided by the
3520 AC Mains power supply. The antenna
system comprises the tactical 411 broadband
dipole antenna, together with a rugged 10 m
transportable mast, providing continuous coverage
from 2 to 30 MHz. An external GPS antenna is
provided when this package is confi gured with a
Frequency Hopping capable 2110M Transceiver.
The external GPS antenna ensures reception of
GPS signals for optimum Frequency Hopping
performance and reliability in a indoor base
environment. The 3160 Power Amplifi er boosts
the maximum RF power output for this system
confi guration to 125 W.
The Expansion Module expands the 19-pin
connector on the front panel of the 2110M into
3 extra ports. This enables simultaneous
connection of multiple accessories such as a Data
Terminal, Crosspatch, PC access for transceiver
profi le and secure key programming etc. More
details can be found on page 34, 2110M
Accessories.
Variable item (depends on confi guration selection) Standard item Optional item
GF
the maximum RF power output for this system
confi guration to 125 W.
21 22
2110M Manpack Software Options
Frequency Hopping
Provides additional protection from malicious jamming
and signal interception.
QUOTE
15-10542-000
MIL-STD-188-141B ALE Upgrade
Provides JITC certifi ed MIL-STD-188-141B ALE
capabilities. With this option the transceiver has
networks and 600 available channels.
QUOTE
15-10544
GPS Calling Enable
Enables sending and receiving of GPS position
information using Selcall or ALE.
QUOTE
15-10486
CIVS
CIVS Voice Scrambler
A cost effective software enabled voice scrambler
capability offering 64 codes. Simple to use and provides
a basic level of voice security. For a higher level of voice
security refer to AES and CES options, see page 23
and page 24.
QUOTE
15-10551
Amateur Mode
Enables transmit capability with free dial frequencies
within Amateur frequency bands. For use by licensed
operators only.
QUOTE
15-10518
Tx
Rx
TXD, Tx Program Disable
Disables front panel programming of new transmit
frequencies. For use in countries where front panel
programming is prohibited by regulatory authorities,
e.g. USA and Australia.
QUOTE
15-10481
2110M MANPACK OPTIONS
2110M Manpack Transceivers
2110M Transceiver Green, Frequency Hopping Capable 08-06155-006
2110M Transceiver Green, Non-Frequency Hopping 08-06155-007
2110M Transceiver Black, Frequency Hopping Capable 08-06155-005
The 2110M Manpack is available in three variations: Green with Frequency
Hopping capability, Green Non-Frequency Hopping, and Black with
Frequency Hopping capability.
The 2110M Transceiver meets the most demanding mission and user requirements with optional
Frequency Hopping capability and optional voice encryption for secure communications.
Interoperability with other military transceivers is achieved through advanced FED-STD or MIL-STD
ALE. It also features up to 65 hours battery life per charge providing greater durability and a lighter
carrying weight required for long duration tactical operations.
STANDARD FEATURES:
FED-STD-1045 ALE/CALM
1.6–30 MHz, 400 channels, 10 networks
25/5 W (PEP)
12 V DC, USB/LSB/AM
±0.5 ppm frequency stability
Internal automatic antenna tuner
Multi-net scanning
In-built Easitalk speech noise reduction
Comprehensive calling capabilities, including
Selective call, ALL call, Emergency call,
Message call, Phone call, Remote Diagnostics
Call logging
Battery management and up to 65 hours
use on a single charge
19-way external expansion connector for data
terminal, crosspatch, etc.
Computer interface (RS232) for PC control
and programming
Front panel programming
Extensive Built-In-Test functions
Meets MIL-STD-810F for shock, vibration,
immersion, salt fog and dust
2110M MANPACK TRANSCEIVERS
GF
GN
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
These transceivers are capable of Frequency Hopping. In order to enable Frequency Hopping you must also
add the Frequency Hopping option (part number 15-10542-000), see page 22 for details.
23 24
2110M MANPACK OPTIONS
2110M Manpack Hardware Options
2110M Manpack Hardware Options (continued)
2110M Manpack Software Options (continued)
AES
256
Upgrade, AES-256 Encryption
Adds AES-256 Encryption, with support for up to 256
preloaded keys. Suitable for use in conjunction with
the MIL/STANAG 2G Data, Digital Voice, and 3G ALE
options (part numbers 15-10584, 15-10585, 15-10586,
15-10587 or 15-10588). KMS/KFS Key Fill Software
recommended, see page 96 for details.
QUOTE
15-10595
1200
DV
Upgrade, 1200 bit/s Vocoder
Adds 1200 bit/s Vocoder, which enables operation of
digital voice in highly degraded channel conditions. Suitable
for use in conjunction with the Digital Voice options (part
numbers 15-10585, 15-10586 or 15-10588).
QUOTE
15-10596
600
DV
Upgrade, low rate Vocoder
Adds 600 bit/s Vocoder, which enables operation of digital
voice in severely degraded channel conditions. Suitable
for use in conjunction with the Digital Voice options (part
numbers 15-10585, 15-10586 or 15-10588).
QUOTE
15-10596
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
2.7 kHz BW Filter (Factory Fit)
Increases channel bandwidth to maximise throughput for
data related applications.
NOTE: Recommended for use with 2G Data option or
external RM50e modem. Fitted as standard with Digital
Voice/3G ALE options 15-10585, 15-10586, 15-10587,
15-10588
QUOTE
15-10529-000
500 Hz Filter (Factory Fit)
Delivers best performance with morse (CW) and
narrow FSK data modem like Pactor-II.
QUOTE
15-10530-000
CES-128 Voice Encryptor (Factory Fit)
Provides high grade voice security with exceptional
recovered audio quality.
Retro Kit: 15-10531
NOTE: KMS/KFS Key Fill Software is available for key fi ll
purposes, see page 94 for details.
QUOTE
15-10531-000
AES-256 Voice Encryptor (Factory Fit)
Provides 256-bit voice security according to the Advanced
Encryption Standard, with up to 256 user programmable
encryption keys. Optimal voice clarity is provided through
the use of a Mixed-Excitation Linear Predictive enhanced
(MELPe) Vocoder, with 1200 bit/s and 2400 bit/s user
selectable data rates.
Retro Kit: 15-10553
NOTE: KMS/KFS Key Fill Software is available for key fi ll
purposes, see page 94 for details.
QUOTE
15-10553-000
MIL-STANAG 2G Data (Factory Fit)
Enables integrated data modem capability according
to MIL-STD-110-188A/B and STANAG 4539. This
provides a range of military-spec data waveforms from
75 to 9600 bit/s uncompressed, capable of operating
across varying channel conditions. The modem utilises
adaptive equalisation and turbo-decoding for maximum
performance. Provides effi cient email over HF when used
in conjunction with RC50-C email gateway (part number
15-04161-CD), see page 92, “RC50-C HF Email
Software”.
AES-256 Encryption option (part number 15-10595) can
be added, see page 23 for details.
Retro Kit: 15-10584
NOTE: 2.7 kHz BW Filter recommended for use with the
2G Data option
QUOTE
15-10584-000
MIL-STANAG 2G Data and Digital Voice
(Factory Fit)
Integrates the MIL/STANAG 2G Data and Digital
Voice options.
Requires RC50-C email gateway (part number
15-04161-CD) for data operation, see page 92,
“RC50-C HF Email Software”.
AES-256 Encryption option (part number 15-10595) and
1200 bit/s Vocoder Upgrade option (part number
15-10596) can be added, see page 23 for details.
Retro Kit: 15-10585
NOTE: 2.7 kHz BW Filter included with this option and is
not required to be ordered separately.
QUOTE
15-10585-000
25 26
2110M Manpack Hardware Options (continued) 2110M Manpack Hardware Options (continued)
2110M Batteries
Battery Pack, 12 V 8Ah (NiMH)
Waterproof battery pack with 12 V, 8Ah rechargeable
Nickel Metal Hydride battery and battery management
controller.
Recharges: ~500 (Retaining at least 80% capacity)
Useable hours: ~30 hrs (using Rx/Tx 9:1)
FOR GREEN QUOTE
08-06185-002
FOR BLACK QUOTE
08-06185-001
Battery Pack, 12 V 13Ah (NiMH)
Waterproof battery pack with 12 V, 13Ah rechargeable
Nickel Metal Hydride battery and battery management
controller.
Recharges: ~500 (Retaining at least 80% capacity)
Useable hours: ~50 hrs (using Rx/Tx 9:1)
FOR GREEN QUOTE
08-06186-002
FOR BLACK QUOTE
08-06186-001
Battery Pack, 12 V 17Ah (LiFePO4)
Waterproof battery pack with 12 V, 17 Ah rechargeable
battery and battery management controller. Uses lithium
iron phosphate chemistry that is safe and has excellent
shelf life.
Recharges: ~2000 (retaining at least 80% capacity)
Usable hours: ~65 hrs (using Rx/Tx 9:1 ratio)
FOR GREEN QUOTE
08-07009-002
FOR BLACK QUOTE
08-07009-001
Battery Pack, 12 V 7Ah SLA
Waterproof battery pack with 12 V, 7Ah rechargeable
Sealed Lead Acid battery and battery management
controller.
Recharges: ~200 (Retaining at least 60% capacity)
Useable hours: ~15 hrs (using Rx/Tx 9:1)
QUOTE
08-06188-001
S4538 3G ALE and Digital Voice
(Factory Fit)
Integrates the S4538 3G ALE and Digital Voice. 2G Data
(MIL-STD-110-188A/B and STANAG 4539) capability as
per 2G data option (part number 15-10584-000) and
MIL-STD-188-141B ALE capability (part number 15-10544)
also included as standard. AES-256 Encryption option (part
number 15-10595),1200 bit/s Vocoder and 600 bit/s Low
Rate Vocoder Upgrade options (part numbers 15-10596
and 15-10597) can be added, see page 23 for details.
Retro Kit: 15-10588
NOTE: 2.7 kHz BW Filter included with this option and is
not required to be ordered separately.
QUOTE
15-10588-000
This battery is classifi ed as dangerous goods and
may impact freight cost and method. Please contact
your Codan Sales Representative for further details.
2110M MANPACK ACCESSORIES2110M MANPACK OPTIONS
Digital Voice (Factory Fit)
Enables digital voice capability. Digital voice provides
highly intelligible audio, free from the noise, interference
and fading effects often heard over analogue voice.
Supplied as standard with a 2400 bit/s Vocoder.
AES-256 Encryption option (part number 15-10595),1200
bit/s Vocoder and 600bit/s Low Rate Vocoder Upgrade
options (part numbers 15-10596 and 15-10597) can be
added, see page 23 for details.
Retro Kit: 15-10586
NOTE: 2.7 kHz BW Filter included with this option and is
not required to be ordered separately.
QUOTE
15-10586-000
S4538 3G ALE (Factory Fit)
Enables third-generation (3G) Automatic Link
Establishment (ALE) according to STANAG 4538. This
provides superior calling performance including faster
linking, and the ability to link in extremely poor channel
conditions. A variety of call types are supported including
voice, message, over-the-air sync, and GPS positioning.
2G Data (MIL-STD-110-188A/B and STANAG 4539)
capability as per 2G data option (part number 15-10584-
000) and MIL-STD-188-141B ALE capability (part number
15-10544) also included as standard.
AES-256 Encryption option (part number 15-10595) can
be added, see page 23 for details.
Retro Kit: 15-10587
NOTE: 2.7 kHz BW Filter included with this option and is
not required to be ordered separately.
QUOTE
15-10587-000
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
27 28
2110M Chargers
3523 Battery Charger 3 A AC to DC
Charges the battery directly and 3x faster than the low
noise 3522 DC Battery Charger. Does not support
charging via the front panel. 3523 recommended when
using the Manpack with spare batteries enabling power to
the transceiver while the other is being recharged.
NOTE: AC mains input cables and DC output cables need
to be ordered separately.
QUOTE
78-02015
Cable, Mains, MIL
2 m AC Mains Cable, terminated in 2-pin MIL connector
to suit 3523 Battery Charger.
NOTE: Different cables are available for specifi c regions
(Austraila, UK, USA and Europe). Please ensure
you quote the correct part number when building
your system.
FOR AUSTRALIA
08-07095-001
FOR UNITED KINGDOM
08-07096-001
FOR USA
08-07097-001
FOR EUROPE
08-07098-001
Cable, 3523 DC Output, 6-way
Used with 3523 Charger to charge battery directly. QUOTE
08-07103-001
3522 Battery Charger 1 A DC to DC
The low noise 3522 DC Battery Charger enables
charging of batteries from a 12 V to 60 V DC source.
With the use of detachable leads, the operator has the
option of charging the battery via the transceiver’s front
panel or by direct connection to the battery. The front
panel connection enables charging while operating
the transceiver.
NOTE: DC input cables and DC output cables need
to be ordered separately.
QUOTE
78-02016
Cable, 3522 DC Input, Cigarette Lighter
DC input cable to connect an in-vehicle lighter socket to
DC–DC 3522 Charger.
QUOTE
08-07099-001
Cable, 3522 DC Input, Alligator Clips
DC input cable with spring clips to connect DC power
source to DC–DC 3522 Charger.
QUOTE
08-07100-001
2110M MANPACK ACCESSORIES
Cable, 3522 DC Output, 6-way
Used to connect 3522 DC Charger output directly to
battery.
QUOTE
08-07101-001
Cable, 3522 DC Output, 19-way
Used to connect 3522 DC Charger output to 19-pin
connector on 2110M front panel for charging battery
connected to transceiver.
QUOTE
08-07102-001
2110M Hand-Powered Battery Charger
A portable hand-powered battery charger that is
compact and lightweight, and encased in a robust and
waterproof aluminium housing. The charger comes with
easy to use accessories for simple operation, and a
convenient carrying case.
QUOTE
15-00578
2110M Solar Battery Charger
A portable solar-powered 20 W battery charger that
uses solid state, thin fi lm solar technology to meet your
mobile power needs. It is lightweight, weatherproof and
UV resistant, and durable with a tough rip-stop nylon
backing. Camo Pattern.
QUOTE
15-00581
Cable, Output, 2-pin Molex to 19-way
Connects to output of handcrank or solar panel
charger to 19-pin front panel connector of 2110M to
charge battery.
QUOTE
08-06215-001
Cable, Output, 2-pin Molex to 6-way
Connects output of handcrank or solar panel charger
to battery for direct connect charging.
QUOTE
08-06214-001
2110M Chargers (continued)
29 30
2110M Audio Accessories — Handsets and Headsets
Handset H-250/U
Lightweight, waterproof and rugged design with noise
cancelling microphone and PTT switch. Includes coiled
cable cord with standard H-229 military audio connector.
QUOTE
78-08000
Bone Conduction Headset with PTT
Lightweight and waterproof bone conduction headset.
This enables clear reception of signal audio but
maintains awareness of environmental sounds. Includes
noise cancelling boom microphone and dedicated PTT
box. Headset terminated with standard H-229 military
audio connector.
QUOTE
15-00666
Lightweight Headset with PTT
Lightweight and waterproof low-profi le Headset suitable
for use with helmets. Includes noise cancelling boom
microphone and in-line PTT switch. Headset terminated
with standard H-229 military audio connector.
QUOTE
15-00667
2110M Portable Manpack Antennas — Long Wire, Dipoles and Whips
Long Wire and Adaptor, 1.6–30 MHz
Made from lightweight Kevlar and includes throw rope,
antenna adaptor, winding spool, anchor peg and
antenna deployment quick reference card.
QUOTE
15-00454
End-fed Broadband, 3–30 MHz
Made from lightweight Kevlar and includes 3 m coaxial
feeding cable terminated with BNC connectors,
broadband antenna balun, throw rope, counterpoise kit,
winding spool, anchor peg and antenna deployment
quick reference card.
QUOTE
15-00458
Broadband Dipole, 3–30 MHz
Made from lightweight Kevlar and includes 10 m coaxial
feeding cable terminated with BNC connectors,
broadband antenna balun, two lots of termination resistors,
throw rope, counterpoise kits, winding spool, anchor pegs
and antenna deployment quick reference card.
QUOTE
15-00456
Wire Dipole, 3–30 MHz
Made from lightweight Kevlar and includes 10 m coaxial
feeding cable terminated with BNC connectors, dipole
antenna balun, throw rope, antenna adapter, winding
spools, anchor peg and antenna deployment quick
reference card.
QUOTE
15-00455
Dipole and Broadband Kit, 2–30 MHz
Made from lightweight Kevlar and includes 10 m
coaxial feeding cable terminated with BNC connectors,
broadband antenna balun, two lots of termination resistors,
throw ropes, counterpoise kits, winding spools, anchor
pegs, and antenna deployment quick reference cards.
QUOTE
15-00457
Collapsible Whip, 3 m
Lightweight 6-section whip with fl exible gooseneck. QUOTE
15-00452
Tape Whip, 1.5 m
Foldable tape whip antenna with fl exible gooseneck. QUOTE
15-00453
Knock Over Whip, 1.5 m
Lightweight collapsible 3 section knock over whip
antenna with fl exible gooseneck.
QUOTE
15-00459
2110M MANPACK ACCESSORIES
2110M Morse Keys
Morse Key, Desktop
Morse key for desktop use with the 2110M transceiver.
Connects to the 19-pin front panel connector.
QUOTE
15-00665
Morse Key, Leg Mount
Leg mounted Morse key suitable for man portable use
with the 2110M transceiver. Connects to the 19-pin front
panel connector.
QUOTE
78-13039
31 32
2110M Earthing
Counterpoise 4-wire Kit
Lightweight counterpoise reel. Used to provide 4-wire
counterpoise for antenna system.
QUOTE
15-00446
Anchor Peg
Used in antenna kits to anchor the counterpoise reel. QUOTE
15-00462
Earth Wire with Clip
Earthing wire 1 m (3’) with spring clip. QUOTE
08-06259-001
2110M Antenna Masts
Mast, Man-portable 6 m Tactical
Lightweight, compact man-portable mast system. The
kit includes multi-section mast, guy ropes, guy stakes,
halyard, base plate stakes and installation instructions.
This mast is most suitable for use with lightweight, low
power (25 W) antennas used with the 2110 series
Manpack Transceiver (see page 30 for the Long Wire &
Dipole antennas that can be used with this mast).
NOTE:
The 6 m mast is not suitable for use with
full size 125 W / 1 kW Broadband Antennas.
Certain Manpack Transceiver antennas may require
more than one mast. Please check specifi c mast
requirements for each antenna before building
your system.
QUOTE
78-13035
Mast, Transportable 10 m
Lightweight, compact vehicle transportable mast system.
The kit includes, multi-section mast, guy ropes (2 sets),
guy stakes, halyard, base plate stakes and installation
instructions. This mast can be used with many antenna
types however it is most suitable for use with lightweight,
standard power (125 W) broadband antennas, for example
the Tactical Code 411 Broadband Dipole (see page 121,
“TAC 411 Broadband”).
QUOTE
78-13036
3031 Crosspatch for 2110M
3031 VHF/UHF to HF Crosspatch (2110M) 08-06730-002
3031 to VHF/UHF Transceiver Cable page 32 for more info 08-06766-001
Crosspatch 3031 CD Package (English) 15-04148-CD
3031 Quick Reference Cards (x2) page 33 for more info 06-02489-EN
Crosspatch 3031 Installation Kit page 32 for more info 15-00145
Codan’s leading edge 3031 Crosspatch enables you to carry
‘HF on your belt’ using a VHF/UHF radio and a Codan NGT/2110M
Transceiver. It is the practical, effective and affordable solution
for any organisation that needs to extend their current HF or
VHF/UHF networks.
QUOTE
XPATCH-2110
3031 Accessories
Cable, 3031 to VHF/UHF
Transceiver Generic, 2 m
A 2 m shielded multi-core cable, with a miniature D15
connector terminated to bare ends, for user connection to
a VHF/UHF transceiver.
QUOTE
08-06766-001
Crosspatch 3031 Installation Kit
Contains a variety of fasteners and fi ttings for mounting
and grounding the 3031 Crosspatch.
QUOTE
15-00145
2110M MANPACK ACCESSORIES
NOTE: For other 3031 accessories, see below and page 33, “3031 Accessories”.
33 34
2110M Backpacks
Backpack, External Frame (Olive)
Available in Olive. Heavy duty design with adjustable,
semi-fl exible external frame and ergonomic shoulder
harness for comfort (allows for additional loads up to
50kg). Made from 1000 Denier bulked fi lament nylon and
co-polymer frame.
QUOTE
15-00216-002
Backpack, External Frame (Black)
Available in Black. Heavy duty design with adjustable,
semi-fl exible external frame and ergonomic shoulder
harness for comfort (allows for additional loads up to
50kg). Made from 1000 Denier bulked fi lament nylon
and co-polymer frame.
QUOTE
15-00216-001
Backpack, External Frame (Desert)
Available in US Desert Camoufl age. Heavy duty design
with adjustable, semi-fl exible external frame and
ergonomic shoulder harness for comfort (allows for
additional loads up to 50 kg). Made from 1000 Denier
bulked fi lament nylon and co-polymer frame.
QUOTE
15-00216-003
Quick Reference Card, Crosspatch 3031 QUOTE
06-02489-EN
User Guide, Crosspatch 3031
Printed User Guide for the 3031 Crosspatch. QUOTE
15-04148-EN
External GPS Antenna
External GPS Antenna
Active external GPS antenna with magnetic base. Plugs
into GPS connector on front panel of 2110M Transceiver.
Used to ensure reception of GPS signals when embedded
GPS antenna is shielded e.g. 2110M installed in vehicular
or indoor environment.
QUOTE
78-01253
2110M Backpacks (continued)
Backpack, External Frame (Woodland)
Available in US Woodland Camoufl age. Heavy duty
design with adjustable, semi-fl exible external frame and
ergonomic shoulder harness for comfort (allows for
additional loads up to 50 kg). Made from 1000 Denier
bulked fi lament nylon and co-polymer frame.
QUOTE
15-00216-004
Backpack, Softpack (Black)
Available in Black. Ultra lightweight, compact and
comfortable design providing storage for transceiver,
all accessories as well as personal items.
QUOTE
15-00218
Expansion Module
Expansion Module
The Expansion Module provides up to 3 connection points
for external accessories to the 2110M Transceiver. The
Expansion Module is provided complete with fasteners
enabling mounting of the unit to the sides or top of the
2110M Transceiver cradle.
NOTE:
The interface cable below that is required to connect
the Expansion Module to the 2110M Transceiver must
be ordered separately.
Simultaneous connection of some combinations of
accessories may not be supported. Please contact
your Codan Representative for advice if multiple
connections via the Expansion Module is required.
QUOTE
08-06972-001
Expansion Module Interface Cable, 1 m
Used to connect the Expansion Module to the 2110M
front panel 19-way interface connector.
QUOTE
08-07014-001
2110M MANPACK ACCESSORIES
3031 Accessories (continued)
35 36
2110M Cradle Accessories
Vehicle Mounting Cradle, 2110M with
Screws
Heavy duty design used to secure the 2110M Manpack
in a vehicle. With quick release latches and screw kit the
radio can be easily docked with battery pack attached.
FOR GREEN QUOTE
15-00139-002
FOR BLACK QUOTE
15-00139
Cradle Back Panel, 3160
Used to provide external DC and control to 3160 and
DC to 2110M when installed in a cradle (part number
15-00139 or 15-00139-002).
QUOTE
08-06811-001
External DC Back Panel
Used to provide external DC to 2110M when installed in
a cradle (part number 15-00139 or 15-00139-002).
FOR GREEN QUOTE
15-00143-002
FOR BLACK QUOTE
15-00143
Vehicle Shock Mount
Recommended for installations likely to experience
extreme levels of vibration or shock.
QUOTE
15-60010
3160 Power Amplifi er
3160 Power Amplifi er
The 3160 auxiliary Power Amplifi er (PA) boosts the RF
output power of the Codan 2110M Transceiver from
25 to 125 W. The Amplifi er is suitable for both vehicular
and base station confi gurations, and provides full duty
cycle operation for all modes, including voice, data and
Frequency Hopping. Fan recommended for high duty-
cycle usage e.g. Data.
STANDARD FEATURES:
125 W PEP average output power
12 V DC nominal supply voltage
Fully protected against all load conditions
Interface cables for 2110M Transceiver (coaxial and
control cables)
Meets MIL-STD-810F for shock, vibration,
immersion and dust
QUOTE
08-06804-002
3160 Accessories — Cables for separated 3160 and 2110M
3160 Accessories — Cables for co-sited 3160 and 2110M
Cable, Coax Assembly, BNC to BNC Type
Connectors, RG58, 2.5 m
Connects 2110M RF output to 3160 PA input; this
length is used when units are installed separately.
QUOTE
08-06809-001
Cable, 3160 to 3520/3524 Power &
Control, 2 m
This cable allows up to 2 m cable length between
3160 PA and back panel of 2110M cradle, and up to
2 m from 3160 PA and 3520 Transceiver Supply or 3524
DC converter. Requires fi tment of Cradle Back Panel (part
number 08-06811-001) to transceiver cradle.
QUOTE
08-07034-002
Cable, 3160 to BATT/3524 Power &
Control, 1 m
This cable allows up to 1 m cable length between the
3160 PA and back panel of 2110M cradle fi tted with
the cradle back panel (part number 08-06811-001).
DC power can be provided from a 12 V battery using the
Battery cable (part number 08-03255) or from a
3520/3524 using the cable (part number
08-07032-001).
QUOTE
08-06808-001
Cable, Coax Assembly, BNC to BNC Type
Connectors, RG58, 0.7 m
Connects 2110M Transceiver RF output to 3160 PA
input; this length is used when units are co-sited.
QUOTE
08-06809-002
Cable, 3160 to 3520/3524 Power &
Control, 0.5 m
This cable allows up to 0.5 m cable length between
3160 PA and back panel of 2110M cradle, and up to 2m
from 3160 PA and 3520 Transceiver Supply or 3524
DC converter. Requires fi tment of cradle back panel (part
number 08-06811-001) to transceiver cradle.
QUOTE
08-07034-500
Cable, 3160 to BATT/3524 Power &
Control, 0.5 m
This cable allows up to 0.5 m cable length between
the 3160 PA and back panel of 2110M cradle fi tted with
the cradle back panel (part number 08-06811-001).
DC power can provided from a 12 V battery using
the battery cable (part number 08-03255) or from a
3520/3524 using cable (part number 08-07032-001).
QUOTE
08-06808-500
2110M MANPACK ACCESSORIES
NOTE: For operation in vehicles with 24/26 V systems, Codan recommends using the 20 A voltage
regulator (part number 78-03051). For details, see page 99, “3524 DC-DC Converter”.
37 38
3160 Accessories
Mounting Bracket, 3160
Used for mounting 3160 PA to the 2110M cradle.
NOTE: It is not recommended to mount the 3160 to the
2110M mounting cradle in vehicular environments.
QUOTE
15-60016
Cradle Back Panel, 3160
Used to provide external DC and control to the 3160 and
DC to the 2110M when installed in a cradle (part number
15-00139-002).
QUOTE
08-06811-001
Shock Mount
Recommended for installations likely to experience
extreme levels of vibration or shock.
QUOTE
15-60015
Fan Unit
Provides additional cooling in high ambient temperatures.
Recommended with systems using the 3160 PA
for data applications.
QUOTE
08-06900-002
3160 Installation Kit
Kit containing a selection of fasteners for mounting
the 3160 Power Amplifi er.
QUOTE
15-00146
Installation Handbook, 3160 Power
A m p l i fi e r QUOTE
15-04157-EN
2110M MANPACK ACCESSORIES
This page has been intentionally left blank.
39 40
With 125 W of output power packed into a rugged and small unit the NGT MR
Transceiver is suited to mobile and base confi gurations. The NGT MR is fully
interoperable with the 2110M Manpack Transceiver, and is more affordable than
manpack based 125 W solutions while delivering the same critical HF needs such
as reliable, secure and interoperable communications.
STANDARD FEATURES
125 W output power
4/6 digit Selcall (compatible with UN)
FED-STD-1045 ALE/CALM
Excellent on-air performance
3 year warranty
Service and support
OPTIONAL FEATURES
GPS Positioning
Encryption (CES-128 and AES-256)
MIL-STD-188-141B ALE (JITC Certifi ed)
Frequency Hopping (ECCM)
Independent Sideband (ISB) for high
speed (19K2) data communications
NGT MR TRANSCEIVER
41 42
KEY FEATURES
RUGGED DESIGN
The NGT MR is built to survive the world’s harshest
environments. The product meets MIL-STD-810F
for shock, vibration and dust ingress. Electrical
protection is provided against reverse polarity, over-
voltage, under-voltage, antenna VSWR mismatch.
INNOVATIVE USER INTERFACE
Codan’s cleverly designed NGT MR Handset and
intuitive interface provides many benefits over
traditional removable front panel designs. Its small
size and light weight make it simple to install in
many locations, especially in vehicles where space
is limited. The menu system includes a call address
list and the keypad is arranged like a mobile
phone to ensure that radio operation is simple,
familiar and intuitive. With convenient access to
the programming port, located on the base of
the Handset, users will find it quick and easy to
program the RF unit.
AUTOMATIC LINK ESTABLISHMENT
The NGT MR is fully compliant with both
FED-STD-1045 and JITC certified
MIL-STD-188-141B ALE waveforms.
Codan’s implementation of ALE incorporates
unique capabilities such as maintenance of channel
quality information (LQA) on a 24-hour basis. This
enables the Transceiver to select a suitable channel
at any time of the day, from the moment it is
switched on. This results in faster channel selection
than conventional ALE system with significantly less
sounding activity required.
The Listen-Before-Transmit capability detects
voice and data traffic on the channel before
initiating ALE. This prevents calling on channels
that already have traffic.
The NGT MR provides an extensive range of ALE
and Selcall based call facilities, including Phone
calls, GPS polling and sending, Emergency calls,
and Remote Diagnostics.
The multiple network scanning capability enables
multiple networks to be scanned simultaneously.
An ability to simultaneously decode voice,
Selcall and ALE calls on the same channel
maximises efficient use of bandwidth and
ensures interoperability in mixed mode
network environments.
SMART MONITORING AND
SCANNING
When an operator is absent, the NGT MR
generates an automatic log containing the caller’s
identity, time and channel number that can be
displayed upon their return.
With multiple net adaptive scanning, the NGTMR
automatically adjusts scan times for multiple
networks according to the channels’ preset
scan times.
This feature gives the most efficient scanning time
possible for Selcall, ALE and voice detection.
The NGT MR features flexible scanning networks,
with up to 20 scan tables containing up to
100 channels. Scan rates of up to 8 channels
per second are possible, which provides increased
capacity for HF networks based on the MR.
With the syllabic Voice Mute, the NGT MR
effectively detects voice patterns even in high-
noise environments. This ensures mute is only
opened after it detects speech on any scanned or
monitored channels.
When Selcall or ALE selective calling is
implemented, users are able to scan multiple
channels or networks. The operator is only
alerted when a call addressed to them specifically
is received. This relieves the operator from
continuous manual monitoring for relevant
incoming traffic.
41 42
43 44
OPTIONAL FEATURES
FREQUENCY HOPPING (ECCM)
Codan’s NGT MR provides 128-bit security
strength Frequency Hopping. It operates during
scanning, and during reception and transmission
of ALE calls to enable silent operation. Users can
optimise performance via three user-switchable
hopping rates of 6/12/25 hops per second. An
additional level of security can be achieved through
the use of a 10-digit user PIN.
VOICE ENCRYPTION (COMSEC)
The NGT MR has a choice of three internally
fitted voice encryption options to suit all levels of
communications security.
The CIVS voice encryption option is a cost effective
software enabled voice scrambler capability that
is simple to use and provides a basic level of
voice security.
The CES voice encryption option provides high
level 128 bit voice security. Up to 97 16-digit user
programmable keys are provided.
An additional layer of security is provided through
the ability to assign a PIN number during a secure
communications session.
The AES voice encryption option provides 256-bit
security according to the Advanced Encryption
Standard, with up to 256 user programmable
encryption keys.
Optimal voice clarity is provided through the
use of a Mixed Excitation Linear Predictive
enhanced (MELPe) Vocoder. The MELPe Vocoder
supports 1200 bit/s and 2400 bit/s user selectable
data rates.
All voice encryption options for the NGT MR are
fully integrated with core transceiver functions
like Selcall and ALE scanning to ensure simplicity
of operation.
GPS SUPPORT
The NGT MR supports connection of GPS via
NMEA0183 compatible GPS receivers. This
enables polling and sending of GPS positions
over air. Distance and bearing to other users can
be displayed. When used with Internav™ CHF
tracking PC software, up to 100 vehicles can be
tracked. Internav™ provides advanced features
such as corridor and alarm zones, waypoints, and
recording of emergency events.
DATA COMMUNICATIONS
The NGT MR supports Codan’s high speed RM50e
HF Data Modem. This provides MIL-STD-188-
110A/B data waveforms up to 9600 bit/s, or
19200 bit/s with the ISB option. Codan’s RC50-C
Email software works with the NGT MR and
RM50e Modem, to provide email capability over
conventional SMTP/POP mail clients such as
MS Outlook. Features include compression and
Data Rate Control (DRC), ensuring transmission
speed is optimised to the channel conditions.
CONFIGURATIONS AND SELECTIONS GUIDE
This section provides NGT
MR
Transceiver confi guration packages developed with the core
components needed for a complete Codan NGT
MR
Transceiver system. The Selections
Guides also outlines the options and accessories you can select for your package or choose
to add to your transceiver system.
The packages are a guide for your system requirements, a custom confi guration for your
NGT
MR
Transceiver system can be built to meet exact specifi cations. Please note that items
shown in blue are standard parts and items in grey are optional.
NGT MR TRANSCEIVER SELECTION
Codan’s NGT MR Transceiver can be selected in green, with or without optional Frequency Hopping.
Each transceiver model shown below is suitable to be used in the system packages.
Your initial selection of HF transceiver is suggested before proceeding to package selection
or custom confi guration. For more information on Transceivers please see page 55.
Green Casing
Frequency Hopping
Green Casing
QUOTE GF QUOTE GN
43
45 46
NGT MR Transceiver System
Software Options page 57
Hardware Options page 58
Vehicle Antenna Tuners page 102
Base Antennas page 121
Base Masts page 129
Tactical Masts page 128
12/24 V Converter page 99
RM50e Modem page 70
Crosspatch page 65
Telephone Interconnect page 72
OPTIONAL
This package contains the key components
required for a basic NGT MR Transceiver system.
The main RF Unit is controlled via the MR Handset
via the 6 m Handset control cable which also
provides a connection point for the Speaker.
A GPS receiver accessory is provided as part of
the package when a Frequency Hopping capable
variant of the MR RF Unit is selected.
The NGT MR Transceiver is designed to operate
from a 12 V DC source. Maximum RF power
output from this system is 125 W. NGT MR RF Unit page 55 for more info 08-05628-0XX
Frequency Hopping — only for page 57 for more info 15-10542-000
GPS Receiver — only for page 67 for more info 15-00765
NGT MR Handset page 56 for more info 08-05629-011
NGT MR Handset Cradle page 68 for more info 15-00129
NGT MR Handset Control Cable page 69 for more info 08-06022-001
Speaker page 56 for more info 15-00649
Self Adhesive Rubber Feet (x4) 30-11208-000
Earth Wire page 67 for more info 08-04515-001
NGT MR Operator Guide page 137 for more info 15-04151-EN
NGT MR Basic QUOTE NGTMR- XX -TCVR
GF
GF
Variable item (depends on confi guration selection) Standard item Optional item
CONFIGURATIONS AND SELECTIONS GUIDE
47 48
NGT MR Vehicle
NGT MR RF Unit page 55 for more info 08-05628-0XX
Frequency Hopping — only for page 57 for more info 15-10542-000
GPS Receiver — only for page 67 for more info 15-00765
NGT MR Handset page 56 for more info 08-05629-011
NGT MR Handset Cradle page 68 for more info 15-00129
Speaker page 56 for more info 15-00649
RF Unit Cradle and Battery Cable page 68 for more info 15-00130
Coax Cable, UHF, RG58 page 130 for more info 08-01503-006
NGT MR Handset Control Cable page 69 for more info 08-06022-001
9350M Antenna page 107 for more info 08-05063-002
9350M Stainless Steel Whip, 1.2 m page 109 for more info 78-23025
9350M Fibreglass Whip, 1.6 m page 109 for more info 78-23007-003
9350M Spring page 109 for more info 08-05140-001
Vehicle Installation Kit page 68 for more info 15-00112
NGT Antenna Control Cable page 119 for more info 08-05627-006
NGT MR Operator Guide page 137 for more info 15-04151-EN
9350M Installation Handbook page 137 for more info 15-04142-EN
NGT MR Vehicle QUOTE NGTMR- XX -VEHICLE
GF
GF
Software Options page 57
Hardware Options page 58
Vehicle Antenna Tuners page 102
12/24 V Converter page 99
RM50e Modem page 70
Crosspatch page 65
OPTIONAL
This package contains the key components
required for a NGT MR Vehicular system. The main
RF Unit is controlled via the MR Handset via the
6 m handset control cable which also provides a
connection point for the Speaker. A GPS receiver
accessory is provided as part of the package when
a Frequency Hopping capable variant of the MR
RF Unit is selected.
The antenna system comprises the 9350M
Automatic Tuning unit complete with a choice
of fi breglass and stainless steel whips.
The NGT MR Transceiver is designed to operate
from a 12 V DC source. Maximum RF power
output from this system is 125 W.
Variable item (depends on confi guration selection) Standard item Optional item
CONFIGURATIONS AND SELECTIONS GUIDE
49 50
NGT MR Base
NGT MR RF Unit page 55 for more info 08-05628-0XX
Frequency Hopping — only for page 57 for more info 15-10542-000
GPS Receiver — only for page 67 for more info 15-00765
NGT MR Desk Console page 56 for more info 15-00766
NGT MR Handset page 56 for more info 08-05629-011
Self Adhesive Rubber Feet (x4) 30-11208-000
C411 / 10 M Mast Kit page 127 for more info 15-60018-104
Earth Braid page 133 for more info 05-06374
3020 Transceiver Supply page 77 for more info 78-20022
Coax Cable, UHF, RG58 page 130 for more info 08-01503-030
Mains Cable, IEC (EU) page 77 for more info 67-90308
NGT MR Operator Guide page 137 for more info 15-04151-EN
NGT MR Base QUOTE NGTMR- XX -BASE
GF
GF
Software Options page 57
Hardware Options page 58
Base Antennas page 121
Antenna Lightning Protection page 133
Base Masts page 129
Tactical Masts page 128
RM50e Modem page 70
Crosspatch page 65
Telephone Interconnect page 72
OPTIONAL
Variable item (depends on confi guration selection) Standard item Optional item
This package contains the key components
required for a NGT MR Base System. The main
RF Unit is controlled using the MR Desk Console
via a 2m control cable. The Desk Console has
a built in microphone, speaker, dedicated PTT
and has the convenience of being able to use the
standard MR Handset for transceiver control and
confi guration. Power is provided by the 3020 AC
Mains power supply. A GPS receiver is provided
as part of the package when a Frequency Hopping
capable variant of the MR RF Unit is selected.
The antenna system comprises the Code 411
broadband dipole and 10 m mast antenna kit,
providing continuous coverage from 2 to 30MHz.
Maximum RF power output from this system
is 125W.
CONFIGURATIONS AND SELECTIONS GUIDE
51 52
NGT MR High Power 500 W
NGT MR RF Unit page 55 for more info 08-05628-0XX
Frequency Hopping — only for page 57 for more info 15-10542-000
GPS Receiver — only for page 67 for more info 15-00765
NGT MR Handset page 56 for more info 08-05629-011
NGT MR Handset Cradle page 68 for more info 15-00129
NGT MR Handset Control Cable page 69 for more info 08-0602 2-001
Speaker page 56 for more info 15-00649
External ALC Option (Factory Fit) page 58 for more info 15-10504-000
3061 500 W Power Amplifi er page 74 for more info 08-05974-001
Power Amplifi er Control Cable page 76 for more info 08-05956-001
Coax Cable, UHF, RG58 page 130 for more info 08-01503-002
DC Extension Cable page 80 for more info 08-05920-001
3061 500 W Power Supply page 74 for more info 08-06067-001
3020 Transceiver Supply page 77 for more info 78-20022
Mains Cable, IEC (EU) for 3020 PSU page 76 for more info 67-90308
Mains Cable, IEC (EU) for 3061 PSU page 76 for more info 67-90308
Standard Rack Cabinet page 78 for more info 08-06130-001
NGT MR Operator Guide page 137 for more info 15-04151-EN
3061/3062 PA Reference Manual page 137 for more info 15-04131-EN
NGT MR High Power 500 W QUOTE NGTMR- XX -HP-500W
GF
Base Masts page 129
RM50e Modem page 70
Crosspatch page 65
Telephone Interconnect page 72
Software Options page 57
Hardware Options page 58
SG235C 500 W Tuner page 60
Base Antennas page 121
Antenna Lightning Protection page 133
OPTIONAL
This package contains the key components
required for a NGT MR Base system with RF power
output boosted to 500W and housed in a 27RU,
19” rack cabinet. Control of the system is via the
MR Handset mounted on the upper most rack tray.
A GPS receiver is provided as part of the package
when a Frequency Hopping capable variant of the
MR RF Unit is selected.
Primary power for the NGT MR RF Unit is provided
by the 3020 AC Mains Power Supply and the High
Power Amplifi er is supplied via its own dedicated
3061 AC Mains Power Supply.
No antenna is provided with this package and
should be selected as a separate item.
CONFIGURATIONS AND SELECTIONS GUIDE
Variable item (depends on confi guration selection) Standard item Optional item
GF
53 54
GF
NGT MR High Power 1000 W
NGT MR RF Unit page 55 for more info 08-05628-0XX
Frequency Hopping — only for page 57 for more info 15-10542-000
GPS Receiver — only for page 67 for more info 15-00765
NGT MR Handset page 56 for more info 08-05629-011
NGT MR Handset Cradle page 68 for more info 15-00129
NGT MR Handset Control Cable page 69 for more info 08-06022-001
Speaker page 56 for more info 15-00649
External ALC Option (Factory Fit) page 58 for more info 15-10504-000
3062 1000 W Power Amplifi er page 75 for more info 08-05975-001
Power Amplifi er Control Cable page 76 for more info 08-05956-001
Coax Cable, UHF, RG58 page 130 for more info 08-01503-002
DC Extension Cable page 80 for more info 08-05920-001
3062 1000 W Power Supply page 75 for more info 08-06102-001
3020 Transceiver Supply page 77 for more info 78-20022
Mains Cable, IEC (EU) for 3020 PSU page 76 for more info 67-90308
Mains Cable, IEC 320 (UK) for 3062 PSU page 76 for more info 67-90309
Standard Rack Cabinet page 78 for more info 08-06130-001
NGT MR Operator Guide page 137 for more info 15-04151-EN
3061/3062 PA Reference Manual page 137 for more info 15-04131-EN
NGT MR High Power 1000 W QUOTE NGTMR- XX -HP-1000W
Base Masts page 129
RM50e Modem page 70
Crosspatch page 65
Telephone Interconnect page 72
Software Options page 57
Hardware Options page 58
Base Antennas page 121
Antenna Lightning Protection page 133
OPTIONAL
This package contains the key components
required for a NGT MR Base system with RF power
output boosted to 1000W and housed in a 27RU,
19” rack cabinet. Control of the system is via the
MR Handset mounted on the upper most rack tray.
A GPS receiver is provided as part of the package
when a Frequency Hopping capable variant of the
MR RF Unit is selected.
Primary power for the NGT MR RF Unit is provided
by the 3020 AC Mains Power Supply and the High
Power Amplifi er is supplied via its own dedicated
3062 AC Mains Power Supply.
No antenna is provided with this package and
should be selected as a separate item.
CONFIGURATIONS AND SELECTIONS GUIDE
Variable item (depends on confi guration selection) Standard item Optional item
GF
High current type cable terminated with UK plug. May need to be re-terminated to suit region.
55 56
NGT MR Transceivers — RF Units
NGT MR TRANSCEIVERS NGT MR TRANSCEIVER OPTIONS
NGT MR Transceiver — Base Station Parts
NGT MR Desk Console
An optional NGT Desk Console for the NGT MR
Transceiver, incorporating an in-built speaker, hand PTT
switch, goose-neck microphone, in-built headphone
output, and a 2 m interface cable.
QUOTE
15-00766
NGT MR Transceiver — Vehicular Parts
NGT MR Handset
Handset style user interface for NGT MR Transceiver,
providing full operation and confi guration control through
direct connection to RF Unit via Handset Control Cable
or with Desk Console. Handset incorporates PTT button,
curly cord, built in microphone, full keyset, LCD display
and PC programming port.
QUOTE
08-05629-011
Speaker
External speaker with 4 m lead. Connects to Handset
Control Cable.
QUOTE
15-00649
NGT MR Handset Control Cable, 6 m
Used to connect the NGT MR Handset to the NGT MR
RF Unit.
QUOTE
08-06022-001
NGT MR Transceiver RF Unit Green, Frequency Hopping Capable 08-05628-011
NGT MR Transceiver RF Unit Green, Non-Frequency Hopping 08-05628-012
The NGT MR Transceiver is available in two variations: Green with Frequency
Hopping capability, and Green non-Frequency Hopping.
The NGT MR Transceiver is a cost-effective solution to meet your military HF needs. With optional
Frequency Hopping capability and optional voice encryption, full in-built 125 W PEP RF output power,
and interoperability through FED-STD-ALE or optional JITC certifi ed MIL-STD-188-141B ALE. It is
capable of voice, data, email, fax and GPS tracking — all in a single cost effective unit.
STANDARD FEATURES:
Frequency Hopping for secure communications
General Purpose Interface Port (GPIO)
400 channels, 1.6–30 MHz, 10 networks
Scanning of multiple networks
125 W PEP, 12 V DC, USB/LSB/AM
In-built Easitalk speech noise reduction
Morse capability
Meets MIL-STD-810F for shock, vibration
and dust
GF
GN
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
This transceiver is capable of Frequency Hopping. In order to enable Frequency Hopping you must also
add the Frequency Hopping option (part number 15-10542-000), see page 57 for details.
57 58
NGT MR TRANSCEIVER OPTIONS
NGT MR Transceiver Hardware Options NGT MR Transceiver Software Options
Frequency Hopping
Provides additional protection from malicious jamming
and signal interception.
QUOTE
15-10542-000
MIL-STD-188-141B ALE Upgrade
Provides JITC certifi ed MIL-STD-188-141B ALE
capabilities. With this option the transceiver has
networks and 600 available channels.
QUOTE
15-10544
GPS Calling Enable
Enables sending and receiving of GPS position information
using Selcall or ALE.
QUOTE
15-10486
CIVS
CIVS Voice Scrambler
A cost effective software enabled voice scrambler
capability offering 64 codes. Simple to use and provides
a basic level of voice security. For a higher level of voice
security, see page 58 for AES and CES options.
QUOTE
15-10551
Tx
Rx
TXD, Tx Program Disable
Disables front panel programming of new transmit
frequencies. For use in countries where front panel
programming is prohibited by regulatory authorities,
e.g. USA and Australia.
QUOTE
15-10481
Amateur Mode
Enables transmit capability with free dial frequencies
within Amateur frequency bands. For use by licensed
operators only.
QUOTE
15-10518
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
External ALC (Factory Fit)
Required when using an NGT high power system.
Retro Kit: 15-10504
QUOTE
15-10504-000
High Speed Data (Factory Fit)
Hardware modifi cation required for use with Codan
HF Data Modems using high speed waveforms
(RM50e, 3212).
QUOTE
15-10541-000
CES-128 Voice Encryptor (Factory Fit)
Provides high grade voice security with exceptional
recovered audio quality.
Retro Kit: 15-10507
NOTE: KMS/KFS Key Fill Software is available for key fi ll
purposes, see page 94 for details.
QUOTE
15-10507-000
AES-256 Voice Encryptor (Factory Fit)
Provides 256-bit voice security according to the Advanced
Encryption Standard, with up to 256 user programmable
encryption keys. Optimal voice clarity is provided through
the use of a Mixed-Excitation Linear Predictive enhanced
(MELPe) Vocoder, with 1200 bit/s and 2400 bit/s user
selectable data rates.
Retro Kit: 15-10552
NOTE: KMS/KFS Key Fill Software is available for key fi ll
purposes, see page 94 for details.
QUOTE
15-10552-000
2.7 kHz BW Filter (Factory Fit)
Required when using Codan MIL-STD high-speed
data modems.
NOTE: The RM50e HF Data Modem requires this option
to be fi tted.
QUOTE
15-10514-000
500 Hz Filter (Factory Fit)
Delivers best performance with morse (CW) and
narrow FSK data modem like Pactor-II.
QUOTE
15-10506-000
59 60
NGT MR Transceiver Hardware Options (continued)
ISB Mode (Factory Fit)
This option is used to provide Independent Sideband
(ISB) high speed data capability when the transceiver
is combined with an ISB capable RM50e HF Data
Modem. Data rates of up to 19200 bit/s are possible
in this confi guration.
QUOTE
15-10556-000
Option Fan (Factory Fit)
Fan unit for continuous data transmission for NGT
series Transceivers.
QUOTE
15-10469-000
NGT MR Tuners
Tuner, 9103 Automatic Antenna with
10 m Cables
Designed to suit NGT MR Transceiver. Rated to 150 W
PEP voice or data, 2 to 30 MHz.
Includes: mounting bracket, control cable (10 m) to suit
NGT MR Transceiver, coaxial cable (10 m) and installation/
operation handbook
QUOTE
08-04835-013
Tuner, 9103 Automatic Antenna with
30 m Cables
Designed to suit NGT MR Transceiver. Rated to 150 W
PEP voice or data, 2 to 30 MHz.
Includes: mounting bracket, control cable (30 m) to suit
NGT MR Transceiver, coaxial cable (30 m) and installation/
operation handbook
QUOTE
08-04835-015
Tuner, SG235C 500 W PEP
Designed to suit 500 W high power NGT MR systems for
voice and data, 2 to 30 MHz.
Includes: mounting bracket and installation/
operation handbook
NOTE:
Maximum power input in data mode 300 W average.
Control and coaxial cables are not supplied. For
the control cable, see page 61, “NGT MR Tuner
Accessories”. For coaxial cables, see page 130,
“Coaxial Cables Type RG58”.
QUOTE
08-06739-001
NGT MR TRANSCEIVER OPTIONS
61 62
NGT MR Tuner Accessories
Copper Earth Strip
50 mm x 0.46 mm (26 gauge) supplied in units of 1 m QUOTE
30-37601-002
Cable, SG235C Control, 30 m
Used to connect the Antenna Control output (9-pin D) of
the 500 W 3061 PA to the 4-pin NANA connector on the
SG235C Antenna Tuner unit.
QUOTE
08-06740-030
Cable, Coax Assembly, UHF Type
Connectors, RG58, 30 m
For coaxial cable lengths, For coaxial cables, see
page 130, “Coaxial Cables Type RG58”.
NOTE: Only required with the 500 W SG235C Tuner.
QUOTE
08-01503-030
NGT MR Base Whips
Base Whip
The Base Whip Antenna is 9.5 m (31 ft) in height, and
requires an automatic antenna tuner. It is mounted
vertically on a suitable ground plane or metal roof. An
earth mat may be required where a suitable ground plane
cannot be found.
This antenna may be used where space is restricted and
omni-directional coverage is required.
Antenna rated to 500 W PEP. See page 60, “NGT MR
Tuners” for available tuner options.
Ant, Base Whip, Ground Mounting
(9.5 m / 31 ft Unloaded)
Comes complete with ground plate base.
NOTE:
Coaxial cable and tuner are not supplied.
Requires earth mat for ground installations.
Lightning protection is recommended for fi xed base
station installations, see page 133, “Lightning
Protection”.
QUOTE
15-00406-001
Ant, Base Whip, Roof Mounting
(9.5 m / 31 ft Unloaded)
Comes complete with roof plate base.
NOTE:
Coaxial cable and tuner are not supplied.
Requires radial ground plane for roof installations.
Lightning protection is recommended for fi xed base
station installations, see page 133, “Lightning
Protection”.
QUOTE
15-00406-002
NGT MR TRANSCEIVER OPTIONS
63 64
NGT MR Base Whip Accessories
Earth Mat for Base Whip Antenna,
Ground Installations QUOTE
15-00158
Radial Ground Plane for Base Whip
Antenna, Roof Installations QUOTE
15-00159
NGT MR Broadband Base Station Antennas
Ant, Tuned Long Wire (2–30 MHz)
This antenna exhibits a good combination of space
effi ciency and broadband capability. It is designed to be
used with the 9103 and SG235C Antenna Tuners.
A suitable antenna where space is limited.
NOTE:
Automatic antenna tuner is required, see
page 60, “NGT MR Tuners”.
Support mast not supplied. For masts, see
page 129, “Antenna Masts”.
Lighting protection is recommended for fi xed base
station installations, see page 133, “Lightning
Protection”.
QUOTE
15-00403
NGT MR TRANSCEIVER OPTIONS
65 66
3031 Crosspatch for NGT
3031 VHF/UHF to HF Crosspatch (NGT) 08-06730-001
3031 to VHF/UHF Transceiver Cable page 66 for more info 08-06766-001
Crosspatch 3031 CD Package (English) 15-04148-CD
3031 Quick Reference Cards (x2) page 66 for more info 06-02489-EN
Crosspatch 3031 Installation Kit page 66 for more info 15-00145
Codan’s leading edge 3031 Crosspatch enables you to carry
‘HF on your belt’ using a VHF/UHF radio and a Codan NGT/2110M
Transceiver. It is the practical, effective and affordable solution
for any organisation that needs to extend their current HF or
VHF/UHF networks.
QUOTE
XPATCH-NGT
3031 Accessories
Cable, 3031 to VHF/UHF Transceiver
Generic, 2 m
A 2 m shielded multi-core cable, with a miniature D15
connector terminated to bare ends, for user connection to
a VHF/UHF transceiver.
QUOTE
08-06766-001
Crosspatch 3031 Installation Kit
Contains a variety of fasteners and fi ttings for mounting
and grounding the 3031 Crosspatch.
QUOTE
15-00145
Quick Reference Card, Crosspatch 3031 QUOTE
06-02489-EN
User Guide, Crosspatch 3031
Printed User Guide for the 3031 Crosspatch. QUOTE
15-04148-EN
NGT MR TRANSCEIVER OPTIONS
NOTE: For other accessories, see page 66, “3031 Accessories”.
67 68
NGT MR Accessories
Battery Cable, 6 m
Used to provide 12 V DC to NGT MR, 2110M or
2110M/3160 system from vehicle battery.
QUOTE
08-03255
Earth Braid, 1.5 m
Terminated in lugged ends to suit earth screws on
Codan Transceiver and accessory equipment for long
earth connections.
QUOTE
05-06374
Earth Wire, 0.5 m
Terminated in lugs to suit earth screws on Codan
Transceiver and accessory equipment for short
earth connections.
QUOTE
08-04515-001
Morse Key
Morse key to suit NGT MR for desktop operation. QUOTE
15-00662
GPS Receiver
Includes receiver/antenna, magnetic mounting bracket,
NGT interconnecting cables. Features integrated antenna
and GPS receiver, and tracking up to 12 satellites.
QUOTE
15-00765
NGT MR Accessories — Vehicular
RF Unit Cradle and Battery Cable
Includes mounting cradle, fuse holder and fuse,
earth wire and battery cable.
QUOTE
15-00130
Vehicle Installation Kit
Includes assorted screws, cable ties and grommets. QUOTE
15-00112
RF Unit Mounting Cradle
Used to securely mount NGT MR RF Unit for
vehicular installations.
QUOTE
15-00136
NGT MR Handset Cradle
Provides secure mounting of NGT MR Handset in
vehicular installations.
QUOTE
15-00129
Fuse Holder with 32 A Fuse
To suit fuse (part number 15-00712). Recommended
to be fi tted in line with DC battery supply for protection
against accidental short circuits in vehicular installations.
QUOTE
15-00711
Fuse, 32 A
To suit fuse holder (part number 15-00711).
Recommended to be fi tted in line with DC battery supply
for protection against accidental short circuits in
vehicular installations.
QUOTE
15-00712
NGT MR TRANSCEIVER OPTIONS
69 70
NGT MR Cables
NGT MR Handset Control Cable
Used to connect the NGT MR Handset to the NGT MR
RF Unit. Includes 3.5 mm socket for connection
of loudspeaker.
QUOTE
08-06022-001
NGT MR Transceiver Getting Started Guide
NGT MR Transceiver Operator Guide
Printed Getting Started Guide for the NGT MR
Transceiver (includes Reference Manual on CD).
Available in various languages (English, French,
Portuguese).
NOTE: Operator Guides are available in different
languages (English, French and Portuguese).
Please ensure you quote the correct part number
when building your system.
FOR ENGLISH
15-04151-EN
FOR FRENCH
15-04151-FR
FOR PORTUGUESE
15-04151-PT
Desk Console Headphones
Headphones suitable for NGT MR Desk Console. QUOTE
15-00602
NGT MR Accessories — Base HF Data Modems
RM50e HF Data Modem
The RM50e is a high performance MIL Spec HF modem
designed to connect to the NGT family of radios. On-air
compatible with the RM50 in the 2110M series Manpacks,
this modem provides legacy interoperability with systems
running Fixed Frequency and ALE networks operating
STANAG 5066 email.
The RM50e operates using the most highly advanced
Military Standard (MIL-STD) waveforms, including STANAG
4539 and MIL-STD-188-110A/B, providing adaptive rates
from 75–9600 bit/s coded. When used in conjunction
with an ISB capable NGT, even higher rates of up to
19200 bit/s are available using MIL-STD-188-110B
Appendix F waveforms.
The RM50e modem must be used in conjunction with
RC50-C Email software, see page 92, “RC50-C HF
Email Software”.
NOTE: For optimum performance, the NGT MR must be
fi tted with the 2.7 kHz BW Filter option (part
number 15-10514-000) and the High Speed Data
option (part number 15-10541-000), see
page 58, “2.7 kHz BW Filter (Factory Fit)”.
STANDARD FEATURES:
On-air compatible with RM50 (2110M Manpack
Internal Modem)
MIL-STD Waveforms (MIL-STD-188-110A,
MIL-STD-188-110B (Inc. Appendix F),
STANAG 4285, STANAG 4529, STANAG 4415,
STANAG 4539)
ISB capable
Data Encryption (AES-256 bit Algorithm, up to
256 stored keys, Key fi ll via Codan Key
Management Software (KMS)), see page 94,
“Key Management Software (KMS)”.
MIL-STD-810F Immersion, Dust, Vibration
Transceiver and data cables must be ordered
separately, see page 71, “Modem Accessories”
QUOTE
08-06978-001
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
NGT MR TRANSCEIVER OPTIONS
71 72
Modem Accessories
Cable, RM50e to NGT Transceiver
Interface, 1 m
Used to connect the RM50e to the NGT Transceiver.
QUOTE
08-07167-001
Cable, RM50e to NGT Transceiver
Interface, 6 m
Used to connect the RM50e to the NGT Transceiver.
QUOTE
08-07167-006
Cable, Data Interface 19way MIL to
USB A, 2 m
USB to 19-way MIL Interface Cable for PC control (using
RC50-C) and security key programming (KMS/KFS) of
the RM50e HF Data Modem and embedded RM50
Modem (2110M only). Also used for programming of the
2110M Transceiver using NSP.
QUOTE
08-06901-001
Operator Guide, RM50e HF
Data Modem
Printed user guide for the RM50e HF Data Modem.
QUOTE
15-04167-EN
3033 Telephone Interconnect
3033 Telephone Interconnect 08-06797-001
3033 to Transceiver Interface Cable page 73 for more info 08-06820-001
3033 to 3020 Transceiver Supply Cable page 73 for more info 08-06819-001
3033 User Guide on CD (English) 15-04156-CD
Codan’s telephone interconnect equipment can link into the telephone
system enabling you to make or receive telephone calls on your
HF transceiver. Comes with all cables and User Guide.
STANDARD FEATURES:
Fully automated and intuitive operation
Multilingual voice prompts
Flexible confi guration and remote management
Worldwide compliance (Telephone and EMC)
Radio user can access public telephone network
Telephone users can contact radio users
Designed for extreme conditions
QUOTE
RTI-3033-NGT
NGT MR TRANSCEIVER OPTIONS
73 74
3033 Accessories
Cable, 3033 to Transceiver Interface QUOTE
08-06820-001
Cable, 3033 to 3020 Transceiver Supply QUOTE
08-06819-001
Cable, 6-way Phone QUOTE
08-04146-001
Earth Wire, 0.5 m QUOTE
08-04515-001
Cable, Ethernet Crossover CAT-5E,
Red — 2 or 10 m QUOTE
67-90800
QUOTE
67-90801
Cable, Ethernet Straight CAT-5E, Blue —
2 or 10 m QUOTE
67-90802
QUOTE
67-90803
User Guide, 3033 Telephone
Interconnect QUOTE
15-04156-EN
3061 500 W Power Amplifi ers
3061 500 W Power Amplifi er 08-05974-001
3061 500 W Power Supply 08-06067-001
External ALC Opt (Retro Fit) for NGT MR page 58 for more info 15-10504
Earth Braid page 76 for more info 05-06374
Coax Cable, UHF, RG58 page 130 for more info 08-01503-002
Power Amplifi er Control Cable page 76 for more info 08-05956-001
Mains Cable, IEC page 76 for more info 67-9030X
3061/3062 PA Reference Manual page 137 for more info 15-04131-EN
A reliable and affordable high power solution for voice and data
communication.
STANDARD FEATURES:
500 W PEP / 300 W average output power
100% continuous mode
100–270 V AC 50/60 Hz supply voltage
Fully protected against all load conditions
Fan forced cooling with thermostatically controlled fans
125 W PEP in bypass mode
19” rack mount (5RU + 5RU)
Interface cables for NGT MR Transceiver (coaxial and control cables)
Specify the mains cable (AU, EU, UK or US) at the time of ordering the Power Amplifi er and Power Supply Unit.
The 3061 Power Amplifi er is suitable for use with NGT
MR
systems, it is
not
suitable for use with the
2110M Transceiver.
Ensure the antenna used is suitable for 500 W operation.
Order External ALC Option (Factory Fit), part number 15-10504-000, when purchasing the Power Amplifi er with
an NGT MR Transceiver.
QUOTE
HIGH-PWR-500
Order External ALC Option (Factory Fit), part number 15-10504-000, when purchasing the Power Amplifi er with
NGT MR TRANSCEIVER OPTIONS
75 76
3062 1000 W Power Amplifi ers
3062 1000 W Power Amplifi er 08-05975-001
3062 1000 W Power Supply 08-06102-001
External ALC Opt (Retro Fit) for NGT MR page 58 for more info 15-10504
Earth Braid page 76 for more info 05-06374
Coax Cable, UHF, RG58 page 130 for more info 08-01503-002
Power Amplifi er Control Cable page 76 for more info 08-05956-001
Mains Cable, IEC 320 page 76 for more info 67-90309
3061/3062 PA Reference Manual page 137 for more info 15-04131-EN
A reliable and affordable high power solution for voice and data
communication.
STANDARD FEATURES:
1000 W PEP / 600 W average output power
100% continuous mode
100–270 V AC 50/60 Hz supply voltage
Fully protected against all load conditions
Fan forced cooling with thermostatically controlled fans
125 W PEP in bypass mode
19” rack mount (5RU + 5RU)
Interface cables for NGT MR Transceiver (coaxial and control cables)
QUOTE
HIGH-PWR-1000
3061/3062 Accessories
Earth Braid, 1.5 m
Used to connect RF Unit to ground point. QUOTE
05-06374
Cable, Power Amplifi er Control
Provides control signalling between the 3061/3062 PA
and the NGT MR Transceiver.
QUOTE
08-05956-001
Cable, 3C Blk Mld IEC, 2 m
AC mains cable for use with 3020 Transceiver Supply and
3061 500 W Power Supply.
NOTE: Different cables are available for specifi c regions
(Austraila, UK, USA and Europe). Please ensure
you quote the correct part number when building
your system.
FOR AUSTRALIA
67-90305
FOR UNITED KINGDOM
67-90306
FOR USA
67-90307
FOR EUROPE
67-90308
NGT MR TRANSCEIVER OPTIONS
Specify the mains cable (AU, EU, UK or US) at the time of ordering the Power Amplifi er and Power Supply Unit.
The 3062 Power Amplifi er is suitable for use with NGT
MR
systems, it is
not
suitable for use with the
2110M Transceiver.
Ensure the antenna used is suitable for 1000 W operation.
Order External ALC Option (Factory Fit), part number 15-10504-000, when purchasing the Power Amplifi er with
an NGT MR Transceiver.
77 78
3020 Transceiver Supply
3020 Transceiver Supply
Universal AC input (100 to 240 V AC) heavy duty power
supply providing a regulated 13.8 V DC Output for the
NGT MR. Designed for environments with unreliable and
fl uctuating mains systems. Suitable for use with either
voice or data stations.
QUOTE
78-20022
Cable, 3C Blk Mld IEC, 2 m
AC mains cable for use with 3020 PSU and 500 W
3061 PSU.
NOTE: Different cables are available for specifi c regions
(Austraila, UK, USA and Europe). Please ensure
you quote the correct part number when building
your system.
FOR AUSTRALIA
67-90305
FOR UNITED KINGDOM
67-90306
FOR USA
67-90307
FOR EUROPE
67-90308
Earth Braid, 1.5 m
Used to connect RF Unit to ground point. QUOTE
05-06374
Cable, DC Extension, 1 m
Required to connect the 3020 to NGT MR when both
items are rack mounted.
QUOTE
08-05920-001
Cable Kit for Float Charge
Cable kit for fl oat charging lead-acid storage battery for
uninterrupted supply.
QUOTE
15-00702
3RU Rack-mounting Frame for 3020 QUOTE
15-00175
NGT MR 19” Racks and Accessories — Standard Rack Confi gurations
Standard High Power Rack Confi guration
QUOTE
08-06130-001
Designed to rack mount an NGT MR High Power
500 W or 1000 W system.
COMPRISING:
19” 27RU rack complete with rear door, vented top and side panels
NGT rack mount tray for an NGT Transceiver
NGT rack mount tray for 3020 Transceiver Supply
Rack mount blanking panels 1RU, 2RU and 3RU supplied
Pre-fi tted equipment rails
Assorted cable ties, screws, washers and cage nuts
NGT MR TRANSCEIVER OPTIONS
NOTE: Rack comes pre-assembled ready for a NGT Transceiver and high power amplifi er to be mounted. 6RU of
space available for additional equipment. NGT Transceiver, power amplifi er and power supplies are ordered
separately. Does not include a 1 m DC Extension Cable for the NGT Transceiver.
79 80
19” Rack Mount System Trays
NGT Universal 19” Rack-mounting Tray
3RU with Blank Front Panel
Suitable for NGT RF Units, 3030 NGT Remote Interface.
QUOTE
15-00172-001
NGT Universal 19” Rack-Mounting Tray
3RU, Front Panel Speaker Grill and
Mounting Holes
Suitable for NGT RF Unit. Speaker can be mounted
behind Grill and handset can be mounted on front
panel using cradle.
QUOTE
15-00172-002
19” Rack-Mounting Frame
Suitable for 3020 Transceiver Supply, and 3012 or
3212 HF Data Modems.
QUOTE
15-00176
19” Rack Mount Blanking Panels
Set of 1RU + 2RU Blank Front Panels
Suitable for covering gaps or holes in rack fascia. QUOTE
15-00173
19” 4RU Vent Panel QUOTE
30-35002-019
19” 1RU Vent Panel QUOTE
30-35002-006
19” Rack Mount Accessories
Fixed Equipment Rail, 457 mm long
Suitable for 27RU rack cabinet only. QUOTE
30-35002-020
Cable, DC Extension, 1 m
Required to connect the 3020 to NGT MR when both
items are rack mounted.
QUOTE
08-05920-001
Earth Braid, 1.5 m
Terminated in lugged ends to suit earth screws on
Codan Transceiver and accessory equipment for long
earth connections.
QUOTE
05-06374
Earth Wire, 0.5 m
Terminated in lugs to suit earth screws on Codan
Transceiver and accessory equipment for short
earth connections.
QUOTE
08-04515-001
NGT MR TRANSCEIVER OPTIONS
81 82
The MRX Transportable Systems are housed in a fully ruggedised (MIL-STD-810F)
field deployable case, and support voice, data and an array of encryption options.
Providing a deployable backbone communication system, the MRX can be quickly
installed and interconnected with local infrastructure. When combined with a
MRX-I Interoperability System, the MRX delivers full spectrum communications
support to ground operators through HF, VHF, UHF and Satellite systems.
MRX TRANSPORTABLE SYSTEMS
STANDARD FEATURES
Easy to use
Legacy system interoperability
AC Supply
125 W standard (NGT MR)
FED-STD-1045 ALE/CALM (NGT MR)
OPTIONAL FEATURES
MIL-STD-141B ALE (JITC Certifi ed) and
FED-STD-1045 ALE/CALM
Data Capable (email & chat messaging)
GPS Tracking
500/1000 W system options
IP Remote Control
COMSEC Solution
(CES 128-bit & AES 256-bit)
FED-STD-1045 ALE/CALM (NGT
FED-STD-1045 ALE/CALM (NGT
83 84
MRX Headquarters System
MRX Interoperability System
MRX TRANSPORTABLE SYSTEMS
The MRX series of ruggedised cases provide the foundation on which to build ruggedised,
transportable HF communications systems based around the NGT
MR
and 2110M
Manpack series Transceivers.
The products represented by the part numbers below are the transit cases only, Codan
HF equipment, accessories and third party products must be ordered separately. The
cases are supplied with the necessary equipment mounting trays and hardware for the
various confi gurations that are supported by them — please contact your Codan Sales
Representative for further details.
Radio equipment and cases are shipped separately. It is highly recommended that
allowances be made to provide end user support for installation and system
commissioning when quoting these products.
Case, MRX NGT MR System
Designed to mount quantity one of any model
NGT Transceiver using a Handset control point as
well as one hardware HF data modem (RM50e).
Cases are available in Black, Green or Orange.
FOR BLACK QUOTE
08-07288-001
FOR GREEN QUOTE
08-07288-002
FOR ORANGE QUOTE
08-07288-003
Case, MRX NGT MR
Interoperability System
Designed to mount quantity one of any model NGT
Transceiver using a Handset control point
and interoperability system (1 x OIU and 1 x RIU)
FOR BLACK QUOTE
08-07284-001
FOR GREEN QUOTE
08-07284-002
FOR ORANGE QUOTE
08-07284-003
MRX High Power System Expansion
Case, MRX 500/1000 W
High Power Amplifi er
Designed to mount one 3061 500 W or
3062 1000 W PA.
NOTE: A High Power system comprises both High Power
Amplifi er and corresponding Power Supply Unit.
FOR BLACK QUOTE
08-07285-001
FOR GREEN QUOTE
08-07285-002
FOR ORANGE QUOTE
08-07285-003
Case, Power Amplifi er Power Supply
Designed to mount one 3061 500 W or
3062 1000 W Power Supply.
NOTE: A High Power system comprises both High Power
Amplifi er and corresponding Power Supply Unit.
FOR BLACK QUOTE
08-07286-001
FOR GREEN QUOTE
08-07286-002
FOR ORANGE QUOTE
08-07286-003
85 86
The 2110M and NGT MR Transceivers are available with a wide range of ancillary
equipment and accessories. Codan offers a complete communications solution
with voice encryption options, email and programming software, power supplies,
vehicle antenna tuners, and antennas and masts.
ACCESSORIES
87 88
VOICE ENCRYPTORS & PRODUCTS
3590 AES-256 DV Encryptor 3591 CES-128 Encryptor
Variable item (depends on confi guration selection)
Variable item (depends on confi guration selection)
3590 AES-256 DV Encryptor 08-07080-001
3590 AES-256 Encryptor (Flange Mount) 08-07080-002
Transceiver to 3590/3591 Cable page 90 for more info 08-07085-001
3590 AES-256 DV Encryptor User Guide page 137 for more info 15-04172-EN
3590 Quick Reference Card page 91 for more info 06-02757-EN
The 3590 AES-256 DV Encryptor is designed for use with legacy
HF transceivers, providing voice encryption compatible with the
AES-256 DV options for NGT MR and 2110M. It provides a high
grade 256-bit AES Encryption with a MELPe digital Vocoder
supporting 1200/2400 bit/s data rates. The unit’s compact size
supports multiple deployment scenarios from manpack to mobile
to base platforms.
Available in standard and fl ange mounting confi gurations.
QUOTE
3590-STANDARD
QUOTE
3590-FLANGE
3591 CES-128 Encryptor 08-07080-003
3591 CES-128 Encryptor (Flange Mount) 08-07080-004
Transceiver to 3590/3591 Cable page 90 for more info 08-07085-001
3591 CES-128 Encryptor User Guide page 137 for more info 15-04173-EN
3591 Quick Reference Card page 91 for more info 06-02768-EN
The 3591 CES-128 Voice Encryptor is designed for use with legacy
HF transceivers, providing voice encryption compatible with the
CES-128 options for NGT MR and 2110M. Communications
security (COMSEC) is provided through use of a proprietary
128-bit encryption algorithm. The unit’s compact size supports
multiple deployment scenarios from manpack to mobile to
base platforms.
Available in standard and fl ange mounting confi gurations.
QUOTE
3591-STANDARD
QUOTE
3591-FLANGE
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
NOTE: Cables, handset and key fi ll software must be ordered separately, see page 90, “3590/3591 Accessories”.
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
NOTE: Cables, handset and key fi ll software must be ordered separately, see page 90, “3590/3591 Accessories”.
89 90
3590 AES-256 DV Encryptor System Diagram
3591 CES-128 Encryptor System Diagram
3590/3591 Accessories
Handset H-250/U
Lightweight military handset with noise cancelling
microphone and PTT switch. Used for local voice
operation of 3590/3591.
QUOTE
78-08000
Cable, Transceiver to 3590/3591
(Unterminated), 2 m
Used for connecting the 3590/3591 to a third party
transceiver for receive and transmit audio, PTT control
and DC supply. The unterminated end of the cable has
stripped, tinned wire ends.
QUOTE
08-07085-001
Cable, NGT to 3590/3591, 2 m
Used for connecting the 3590/3591 to a Codan NGT MR
Transceiver via a GPIO connector.
QUOTE
08-07323-001
Cable, Power to 3590/3591
(Unterminated), 3 m
Used for connecting the 3590/3591 to a 10 to 36 V
DC power source where a third party transceiver cannot
supply power. The unterminated end of the cable has
tripped, tinned wire ends.
QUOTE
08-07086-001
Cable, Remote Control & Balanced
Interface, 2 m
Used for remote control of the 3590/3591. Supports
balance audio input/output, PTT and serial control of the
3590/3591.
QUOTE
08-07087-001
Key Management Software
Key Management Software (KMS) enables you to manage
and program encryption keys for Codan’s NGT MR/
2110M Transceivers and stand-alone encrypted devices,
e.g. RM50e HF Data Modem, 3590/3591 Encryptors.
QUOTE
15-04168-EN
Key Fill Software
Key Fill Software (KFS) enables you to program
encryption keys into Codan’s NGT MR/2110M
Transceivers and stand-alone encryption devices, e.g.
RM50e HF Data Modem, 3590/3591 Encryptors.
QUOTE
15-04171-EN
VOICE ENCRYPTORS & PRODUCTS
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
91 92
3590/3591 Accessories (continued)
Cable, Data Interface 19way MIL to
USB A, 2 m
Used for security key programming of the 3590/3591
via KMS/KFS.
QUOTE
08-06901-001
Cable, Data Interface 19way MIL to D9F
9-way D to 19-way MIL Interface Cable for keyfi ll 2110M
CES-128 / AES-256 Encryptors, and for 3590/3591
Encryptors. Also used for programming the 2110M
Transceiver using NSP.
QUOTE
08-06237-001
Plug, 2way for External DC Input
Plug to suit the DC connector on the 3590/3591 for
applications requiring a fully customised DC cable design.
QUOTE
60-00021-003
Plug, 14way for Transceiver Interface
Plug to suit the Transceiver Interface connector on
the 3590/3591 for applications requiring a fully
customised transceiver interface cable design.
QUOTE
60-00141-001
Plug, 19way for Key Fill/Remote Control/
Line Audio Interface
Plug to suit the Fill and Remote Control Interface
connector on the 3590/3591 for applications requiring a
fully customised Fill and Remote Control cable design.
QUOTE
60-00191-001
User Guide, 3590 AES-256 DV Encryptor QUOTE
15-04172-EN
Quick Reference Card, 3590 AES-256 DV
Encryptor QUOTE
06-02757-EN
User Guide, 3591 CES-128 Voice
Encryptor QUOTE
15-04173-EN
Quick Reference Card, 3591 CES-128
Voice Encryptor QUOTE
06-02768-EN
SOFTWARE
HF Email Software
RC50-C HF Email Software
Codan’s RC50-C HF Email software provides fast,
effi cient, error free email capability over HF radio.
Operating in conjunction with Codan’s HF Transceivers and
RM50 range of Data Modems, the software operates on a
standard Windows™ PC using a single USB port with no
specialised PC hardware requirements. When installed,
the software runs in the background requiring no
user interaction.
STANDARD FEATURES:
Adaptive rates up to 19200 bit/s (ISB only) or
9600 bit/s
Compatible with ALE/CALM
Intranet/Internet gateway
NATO interoperable
ISB capable
SYSTEM REQUIREMENTS:
Windows™ XP Professional SP2,
Windows™ 2000, Professional SP4 or
Windows™ 7
Intel Pentium IV 800 MHz or better
6 GB or more of free space for email storage
512 MB or more of RAM
CD-ROM drive
POP3/SMTP compliant email client
Access to any commercial POP3/SMTP compliant
email server for internet connectivity
Serial/USB port for connecting the HF modem to
the PC
NOTE: Requires Data Interface Cable (part number
08-06901-001) for connecting the PC to a
2110M Manpack Transceiver or RM50e
HF Data Modem.
QUOTE
15-04161-CD
VOICE ENCRYPTORS & PRODUCTS
93 94
SOFTWARE
NSP-M System Programmer Software
NSP-M System Programmer Software CD
(English)
Software used to profi le and fi rmware upgrade the NGT
MR/2110M Transceivers. NSP interface cable needs to be
ordered separately.
QUOTE
15-04165-EN
NSP-M Cables
Cable, NSP Interface for NGT
Interface cable to program NGT MR Transceiver from
a PC with a 9-pin D serial port.
QUOTE
08-05123-001
Cable, NSP Interface for 2110M
Interface cable to program 2110M Transceiver from a PC
with a 9-pin D serial port.
QUOTE
08-06237-001
Adaptor, USB to DB-9, Serial Port
Used with above cables to convert PC USB Port to serial.
USB V1.1 compliant and supports Microsoft Windows™
2000/XP/Vista/WIN7.
Not recommended to be used when upgrading
transceiver fi rmware.
QUOTE
78-01031
Key Management Software
Key Management Software (KMS) enables you to manage
and program encryption keys for Codan’s NGT MR/2110M
Transceivers and stand-alone encrypted devices, e.g.
RM50e HF Data Modem, 3590/3591 Encryptors.
QUOTE
15-04168-EN
Key Fill Software (KFS)
Key Fill Software
Key Fill Software (KFS) enables you to program encryption
keys into Codan’s NGT MR/2110M Transceivers and
stand-alone encryption devices, e.g. RM50e HF
Data Modem, 3590/3591 Encryptors.
QUOTE
15-04171-EN
Cables for NGT MR Key Fill
Cable, Serial 6-way to D9F
9-way D to 6-way Molex Interface Cable for transceiver
serial control or security key programming (KMS/KFS) of
NGT MR Transceiver via GPS Interface connector.
QUOTE
08-06380-001
Cable, Data Interface D9F to D15M
9-way D to 15-way D Interface Cable for transceiver serial
control or security key programming (KMS/KFS) for
NGT MR Transceiver via GPIO connector.
QUOTE
08-06266-001
Adaptor, USB to DB-9, Serial Port
Used with above cables to convert PC USB Port to serial.
USB V1.1 compliant and supports Microsoft Windows™
2000/XP/Vista/WIN7.
Not recommended to be used when upgrading
transceiver fi rmware.
QUOTE
78-01031
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
This product is subject to Australian Government Export controls. A signed end-user Declaration must be
provided for supply of this product.
Key Management Software (KMS)
95 96
SOFTWARE
Cables for 2110M Key Fill
Cable, Data Interface 19way MIL to USB A
USB to 19-way MIL Interface Cable for PC control (using
RC50-C) and security key programming (KMS/KFS) of
the RM50e HF Data Modem, embedded RM50 Modem
(2110M only), and keyfi ll for 3590/3591 Encryptors.
Also used for programming of the 2110M Transceiver
using NSP.
QUOTE
08-06901-001
Cable, Data Interface 19way MIL to D9F
9-way D to 19-way MIL Interface Cable for keyfi ll 2110M
CES-128 / AES-256 Encryptors, and for 3590/3591
Encryptors. Also used for programming the 2110M
Transceiver using NSP.
QUOTE
08-06237-001
POWER SUPPLIES
3520 Transceiver Supply
3520 Transceiver Supply (Green) page 96 for more info 78-20049-002
Mains Cable (EU) page 97 for more info 08-07094-001
3520 User Guide page 137 for more info 12-50180-EN
The 3520 Transceiver Supply is a universal AC input (100 to 240 V AC)
heavy duty power supply, providing a regulated 13.8 V DC Output for
the NGT MR and 2110M. Vehicle mounting cradle available.
QUOTE
PSU-3520-GN
3520 Transceiver Supply Variants
3520 Transceiver Supply (Green) QUOTE
78-20049-002
3520 Transceiver Supply (Black) QUOTE
78-20049-001
NOTE: For mains cables and other accessories, see page 97, “3520 Accessories”.
97 98
POWER SUPPLIES
3520 Accessories
Vehicle Mounting Cradle, 3520 with
Screws
Heavy duty cradle used to secure the 3520 Transceiver
Supply in a vehicle. Installation kit is included.
FOR GREEN QUOTE
15-00139-002
FOR BLACK QUOTE
15-00139
Vehicle Shock Mount
Used with the 3520 cradle to provide additional shock and
vibration protection for the 3520 Transceiver Supply in
extreme environments.
QUOTE
15-60010
Cable, Mains Input with AU plug, 2 m QUOTE
08-07091-001
Cable, Mains Input with UK plug, 2 m QUOTE
08-07092-001
Cable, Mains Input with US plug, 2 m QUOTE
08-07093-001
Cable, Mains Input with EU plug, 2 m QUOTE
08-07094-001
3520 Accessories (continued)
Cable, Power 2110 to 3520/3524, 2 m
Used to power a 2110M in a vehicle cradle fi tted with the
Cradle Back Panel (part number 08-06811-001).
QUOTE
08-07033-001
Cable, Power NGT to 3520/3524, 2 m
Used to connect the 12 V DC output of the 3520/3524
to the NGT MR Transceiver. Can also be used to provide
power to a 2110M in a vehicle cradle fi tted with the
External DC Back Panel (part number 15-00143-002).
QUOTE
08-07032-001
Cable, Battery Backup, 4 m
Cable kit for fl oat charging lead-acid storage battery bank
for uninterrupted supply.
QUOTE
15-00773
99 100
3524 DC-DC Converter
3524 DC-DC Converter
Operates in a 24 V DC automotive electrical system
providing a safe 12 V output for 12 V equipment. It is a
low noise voltage regulator designed for use with sensitive
radio communications equipment. The maximum output
is 25 Amps. The conversion effi ciency at full load is more
than 85%.
QUOTE
78-03051
Cable, Power NGT to 3520/3524, 2 m
Used to connect the 12 V DC output of the 3520/3524
to the NGT MR Transceiver. Can also be used to provide
power to a 2110M in a vehicle cradle fi tted with the
External DC Back Panel (part number 15-00143-002).
QUOTE
08-07032-001
Cable, Power 2110 to 3524, 2 m
Used to power a 2110M Transceiver in a vehicle cradle
fi tted with the Cradle Back Panel (part number
08-06811-001).
QUOTE
08-07033-001
Cable, Battery to 3524, 6 m
Used to connect a 24 V battery system to the input of the
3524 DC-DC Converter.
QUOTE
08-07035-001
Solar Power Supplies
Solar Power Supply 40 W
Recommended for voice (light duty).
Comprises: single 40 W solar panel, mounting frame
complete with anti-bird spikes, solar battery regulator,
heavy duty twin core cable, battery lugs
QUOTE
15-00531
Solar Power Supply 80 W
Recommended for voice (heavy duty).
Comprises: single 80 W solar panel, mounting frame
complete with anti-bird spikes, solar battery regulator,
heavy duty twin core cable, battery lugs
QUOTE
15-00532
Solar Power Supply 240 W
Recommended for fax and data (heavy duty).
Comprises: three 80 W solar panel, mounting frame
complete with anti-bird spikes, solar battery regulator,
heavy duty twin core cable, battery lugs
QUOTE
15-00533
POWER SUPPLIES
101 102
POWER SUPPLIES
Solar Power Supply Accessories
Cable, Battery Paralleling (+ve) QUOTE
08-05399-001
Cable, Battery Paralleling (–ve) QUOTE
08-05399-002
Batteries
Battery, Lead Acid 12 V 90Ah (supplied
dry charged) QUOTE
65-72000-012
Battery, 12 V 100Ah Gelcell QUOTE
65-72003
Battery, 12 V 185Ah Gelcell QUOTE
65-72004
This battery is classifi ed as dangerous goods and
may impact freight cost and method. Please contact
your Codan Sales Representative for further details.
VEHICLE ANTENNA TUNERS
3040 Automatic Tuning Whip Antenna
3040 Main Assembly 08-07007-001
3040 Spring page 104 for more info 08-07148-001
Fibreglass Riser, 0.8 m page 104 for more info 78-18058
3040 Fibreglass Whip, 1.6 m page 104 for more info 78-23085
3040 Stainless Steel Whip, 1.65 m page 104 for more info 78-23086
3040 Installation Handbook page 137 for more info 15-60012
The 3040 Automatic Whip Antenna is a low profi le, rugged,
lightweight unit designed for mobile installations. It provides fast
automated tuning across the HF band.
The 3040 is easy to install and meets MIL-STD-810F for shock,
immersion, dust and vibration. Available only in black.
STANDARD FEATURES:
2.5 to 30 MHz
125 W PEP voice or data
Fast tuning typically < 1 sec
Tune from memory
QUOTE
ANT-3040-NC
QUOTE
ANT-3040-6M-NGT
QUOTE
ANT-3040-6M-2110M
QUOTE
ANT-3040-6M-
2110M-125W
NOTE:
For the cables that are included in each package, see page 103, “Cables Included in Packages”.
For other accessories, see page 104, “3040 Accessories”.
103 104
3040 Accessories
3040 Spring
Flexible mounting for whip antennas. The spring is highly
recommended when using the fi breglass whip and/or riser.
QUOTE
08-07148-001
3040 Stainless Steel Whip, 1.65 m
A 1.65 m stainless steel whip offered as a more fl exible
and less visually obstructive alternative to the fi breglass
version.
QUOTE
78-23086
3040 Fibreglass Whip, 1.6 m
This is a 1.6 m fi breglass whip and is recommended
to be used with the spring and the riser section. In this
confi guration the antenna will operate over a transmit
frequency range of 2.5 to 30 MHz.
QUOTE
78-23085
Riser, Fibreglass, 0.8 m
A 0.8 m fi breglass section used to extend the overall
length of the antenna element when using the 1.6 m
fi breglass or stainless steel whips to achieve maximum
possible frequency range (2.5 to 30 MHz) and radiation
performance.
QUOTE
78-18058
3040 NVIS Antenna Kit
Suits the 3040 Automatic Tuning Whip Antenna for
improved short range (0 to 500 km) near vertical
incidence skywave communications mode over frequency
range 2 to 12 MHz. This antenna replaces the standard
whips for NVIS operation.
Includes: 2 section lightweight NVIS whip antenna
sections, tie down cord kit, instruction card and canvas
storage bag.
QUOTE
78-14010
VEHICLE ANTENNA TUNERS
CABLES PACKAGES
ANT-3040-NC ANT- 3040-6M-NGT ANT- 3040-
6M-2110M ANT-3040-6M-
2110M-125W
NGT ANTENNA
CONTROL CABLE, 6 M
08-05627-006
COAX CABLE,
UHF, RG58, 6 M
08-01503-006
COAX CABLE, UHF TO
BNC, RG58, 1 M
08-06357-001
COAX CABLE, UHF TO
N-TYPE, RG58, 6 M
08-05837-006
2110M ANTENNA
CONTROL CABLE, 6 M
08-07010-006
Cables Included in Packages
105 106
3040 Accessories (continued) 3040 Accessories (continued)
Cable, Coax Assembly, UHF to BNC Type
Connectors, RG58, 1 m
Used to convert 2110M front panel BNC RF output
connector to a UHF socket.
QUOTE
08-06357-001
Cable, Coax Assembly, UHF to N-Type
Connectors, RG58, 6 m
Used to connect RF output of 3160 PA to 3040 RF input.
For coaxial cable lengths, see page 130, “Coaxial
Cables Type RG58”.
NOTE: Maximum length useable with 3040 is 20 m.
QUOTE
08-05837-006
Cable, Control NGT to 9350M/304X —
2, 6, 10 or 20 m
Provides antenna control between the NGT MR and
9350M/3040 Automatic Tuning Whip Antenna or the
3042/3046 HF Antenna Tuner.
QUOTE
08-05627-002
QUOTE
08-05627-006
QUOTE
08-05627-010
QUOTE
08-05627-020
Cable, Control 2110M to 9350M/304X —
2, 6, 10 or 20 m
Provides antenna control between the 2110M and the
9350M/3040 Automatic Tuning Whip Antenna or the
3042/3046 HF Antenna Tuner. Cable connects to the
2110M via the 19-pin front panel connector or via the
2110M Expansion Module.
QUOTE
08-07010-002
QUOTE
08-07010-006
QUOTE
08-07010-010
QUOTE
08-07010-020
Cable, Coax Assembly, UHF Type
Connectors, RG58, 6 m
Connects the RF output of the NGT MR to the 3040
Automatic Tuning Whip Antenna. Requires addition of the
BNC to UHF adaptor coaxial cable (part number
08-06357-001) to connect the coaxial cable (part
number 08-01503-XXX) directly to the front panel of
the 2110M Transceiver.
For coaxial cable lengths, see page 130, “Coaxial
Cables Type RG58”.
NOTE: Maximum length useable with 3040 is 20 m.
QUOTE
08-01503-006
VEHICLE ANTENNA TUNERS
107 108
9350M Automatic Tuning Whip Antenna
9350M Main Assembly 08-05063-002
9350M Spring page 109 for more info 08-05140-001
9350M Fibreglass Whip, 1.6 m page 109 for more info 78-23007-003
9350M Stainless Steel Whip, 1.2 m page 109 for more info 78-23025
9350M Installation Handbook page 137 for more info 15-04142-EN
State-of-the-art robust antenna designed for Frequency Hopping
transceivers in mobile installations requiring fl exible, high performance
HF communications. It provides fast automated tuning over the entire
HF frequency range.
The 9350M is easy to install, and meets MIL-STD-810F for shock,
vibration and immersion.
STANDARD FEATURES:
Frequency Hopping compatible
125 W PEP Voice or Data
Tuning time typically 2 seconds
Transmit frequency range 2 to 30 MHz depending on antenna
Receive frequency range 250 kHz to 30 MHz
QUOTE
ANT-9350M-NC
QUOTE
ANT-9350M-6M-NGT
QUOTE
ANT-9350M-6M-2110M
QUOTE
ANT-9350M-6M-
2110M-125W
Cables Included in Packages
CABLES PACKAGES
ANT-9350M-NC ANT- 9350M-6M-
NGT ANT- 9350M-
6M-2110M ANT- 9350M-6M-
2110M-125W
NGT ANTENNA
CONTROL CABLE, 6 M
08-05627-006
COAX CABLE,
UHF, RG58, 6 M
08-01503-006
COAX CABLE, UHF TO
BNC, RG58, 1 M
08-06357-001
COAX CABLE, UHF TO
N-TYPE, RG58, 6 M
08-05837-006
2110M ANTENNA
CONTROL CABLE, 6 M
08-07010-006
VEHICLE ANTENNA TUNERS
NOTE:
For the cables that are included in each package, see page 108, “Cables Included in Packages”.
For other accessories, see page 109, “9350M Accessories”.
109 110
9350M Accessories
9350M Spring
Strain relief for 9350M Fibreglass Whip. QUOTE
08-05140-001
9350M Fibreglass Whip, 1.6 m
This is the primary whip normally supplied with the
9350M. It is a copper wire encased in a polyurethane
covered fi breglass rod. The whip is designed to withstand
substantial fl exing and rugged conditions. It operates over
the transmit frequency range of 2 to 30 MHz.
NOTE: Must be used with the spring (part number
08-05140-001).
QUOTE
78-23007-003
9350M Tapered Stainless Steel Whip,
1.65 m
This whip enables use over the transmit frequency range
of 2 to 30 MHz and provides a more fl exible and less
visible alternative to the fi breglass whip.
NOTE: Can be used without the spring (part number
08-05140-001).
QUOTE
78-23056
9350M Tapered Stainless Steel Whip,
1.2 m
This whip is designed as an emergency backup to the
primary whip (part number 78-23007-003) in case of
damage. It is only suitable for operation over a transmit
frequency range of 2.5 to 30 MHz and is less effi cient
than the primary whip.
NOTE: Can be used without the spring (part number
08-05140-001).
QUOTE
78-23025
9350M Accessories (continued)
NVIS Antenna Kit
Suits the 9350M Automatic Tuning Whip Antenna
for improved short range (0 to 500 km) near vertical
incidence skywave (NVIS) communications over frequency
range 2 to 12 MHz.
Includes: two piece whip antenna, angle adaptor,
extension riser, tie down cord kit and fi tting instructions in
a canvas bag
QUOTE
15-00323
Cable, Control NGT to 9350M/304X —
2, 6, 10 or 20
Provides antenna control between the NGT MR and
9350M/3040 Automatic Tuning Whip Antenna or the
3042/3046 HF Antenna Tuner.
QUOTE
08-05627-002
QUOTE
08-05627-006
QUOTE
08-05627-010
QUOTE
08-05627-020
Cable, Control 2110M to 9350M/304X —
2, 6, 10 or 20
Provides antenna control between the 2110M and the
9350M/3040 Automatic Tuning Whip Antenna or the
3042/3046 HF Antenna Tuner. Cable connects to the
2110M via the 19-pin front panel connector or via the
2110M Expansion Module.
QUOTE
08-07010-002
QUOTE
08-07010-006
QUOTE
08-07010-010
QUOTE
08-07010-020
VEHICLE ANTENNA TUNERS
111 112
VEHICLE ANTENNA TUNERS
9350M Accessories (continued)
Cable, Coax Assembly, UHF Type
Connectors, RG58, 6 m
For coaxial cable lengths, see page 130, “Coaxial
Cables Type RG58”.
QUOTE
08-01503-006
Cable, Coax Assembly, UHF to BNC Type
Connectors, RG58, 1 m
Used to convert 2110M front panel BNC RF output
connector to a UHF socket.
QUOTE
08-06357-001
Cable, Coax Assembly, UHF to N-Type
Connectors, RG58, 6 m
Used to connect RF output of 3160 PA to 9350M
RF input.
For coaxial cable lengths, see page 130, “Coaxial
Cables Type RG58”.
NOTE: Maximum length useable with the 9350M is 30 m.
QUOTE
08-05837-006
3042 HF Antenna Tuner
3042 HF Antenna Tuner (Green) page 113 for more info 08-07154-002
3042 Installation Kit page 117 for more info 15-00146
3042 Installation Handbook page 117 for more info 15-04174-EN
The 3042 is a low profi le, 125 W HF antenna tuning unit designed
to deliver high performance and reliability in the world’s harshest
environments. It provides high speed and effi cient tuning of short
whip antennas across the full operational HF band.
STANDARD FEATURES:
2 to 30 MHz
125 W RF power handling
Fast tuning typically < 1 sec
High effi ciency
Waterproof
MIL-STD-810G Environmentals
N-type RF Connector
Used with Vertical (short whip) & NVIS Whip Antennas
Flexible mounting
ALE compatible
Internal receive mode amplifi er
QUOTE
ANT-3042-NC
QUOTE
ANT-3042-6M-NGT
QUOTE
ANT-3042-6M-2110M
QUOTE
ANT-3042-6M-
2110M-125W
NOTE:
For the cables that are included in each package, see page 113, “Cables Included in Packages”.
For antennas and other accessories that can be used with the tuner, see page 116, “3042/3046 Accessories”.
113 114
Cables Included in Packages
CABLES PACKAGES
ANT-3042-NC ANT-3042-6M-NGT ANT-3042-6M-
2110M ANT-3042-6M-
2110M-125W
NGT ANTENNA
CONTROL CABLE, 6 M
08-05627-006
COAX CABLE, UHF TO
N-TYPE, RG58, 6 M
08-05837-006
COAX CABLE, BNC
TO N-TYPE, RG58, 6 M
08-07198-006
COAX CABLE, N-TYPE,
RG58, 6 M
08-07078-006
2110M ANTENNA
CONTROL CABLE, 6 M
08-07010-006
3042 HF Antenna Tuner Variants
3042 HF Antenna Tuner (Green) QUOTE
08-07154-002
3042 HF Antenna Tuner (White) QUOTE
08-07154-001
3046 HF Antenna Tuner
3046 HF Antenna Tuner (Green) page 115 for more info 08-07185-001
3046 Installation Kit page 117 for more info 15-00146
3046 Installation Handbook page 117 for more info 15-04175-EN
The 3046 is a low profi le, 125 W HF antenna tuning unit designed
to deliver high performance and reliability in the world’s harshest
environments. It provides high speed and effi cient tuning of short and
long whip (up to 9 m) antennas across the full operational HF band.
STANDARD FEATURES:
2 to 30 MHz
125 W RF power handling
Fast tuning typically < 1 sec
High effi ciency
Waterproof
MIL-STD-810G Environmentals
N-type RF Connector
Used with Vertical & NVIS Whip Antennas
Flexible mounting
ALE compatible
Internal receive mode amplifi er
QUOTE
ANT-3046-NC
QUOTE
ANT-3046-6M-NGT
QUOTE
ANT-3046-6M-2110M
QUOTE
ANT-3046-6M-
2110M-125W
VEHICLE ANTENNA TUNERS
NOTE:
For the cables that are included in each package, see page 115, “Cables Included in Packages”.
For antennas and other accessories that can be used with the tuner, see page 116, “3042/3046 Accessories”.
115 116
3046 HF Antenna Tuner Variants
3046 HF Antenna Tuner (Green) QUOTE
08-07185-001
3046 HF Antenna Tuner (White) QUOTE
08-07185-002
3042/3046 Accessories
Single Hole Mount Base
The single hole mount antenna base is designed for lighter
duty installations and provides the convenience of a small
installation footprint. The mounting stud requires a single
14 mm hole.
QUOTE
15-60020
Flange Mount Base
The fl ange mount antenna base is designed to provide a
sturdy antenna mount for installations requiring the high
voltage feed line to pass through a vehicle panel. Flange
mount includes rubber gasket and mounting hardware.
QUOTE
15-60021
Flange Mount Bracket
The fl ange mount bracket provides external side mounting
of the fl ange mount antenna base above. Fasteners for
mounting the bracket are not supplied.
QUOTE
15-60022
Spring
Flexible mounting for whip antennas with either the single
hole mount or fl ange mount bases. The spring is highly
recommended when using the fi breglass whip and/or riser.
QUOTE
08-07148-001
Fibreglass Whip, 1.6 m
This is a 1.6 m fi breglass whip and is recommended
to be used with the spring and the riser section. In this
confi guration the antenna will operate over a transmit
frequency range of 2.5 to 30 MHz.
QUOTE
78-23085
Fibreglass Riser, 0.8 m
A 0.8 m fi breglass section used to extend the overall
length of the antenna element when using the 1.6 m
fi breglass or stainless steel whips to achieve maximum
possible frequency range (2 to 30 MHz) and radiation
performance.
QUOTE
78-18058
Stainless Steel Whip, 1.65 m
A stainless steel whip offered as a more fl exible and less
visually obstructive alternative to the fi breglass version.
The whip is 1.65 m in length.
QUOTE
78-23086
VEHICLE ANTENNA TUNERS
Cables Included in Packages
CABLES PACKAGES
ANT-3046-NC ANT-3046-6M-NGT ANT-3046-6M-
2110M ANT-3046-6M-
2110M-125W
NGT ANTENNA
CONTROL CABLE, 6 M
08-05627-006
COAX CABLE, UHF TO
N-TYPE, RG58, 6 M
08-05837-006
COAX CABLE, BNC
TO N-TYPE, RG58, 6 M
08-07198-006
COAX CABLE, N-TYPE,
RG58, 6 M
08-07078-006
2110M ANTENNA
CONTROL CABLE, 6 M
08-07010-006
117 118
3042/3046 Accessories (continued)
3042/3046 NVIS Antenna Kit
Suits the 3042/3046 HF Antenna Tuner for improved
short range (0 to 500 km) near vertical incidence skywave
communications mode over frequency range 2 to 12 MHz.
Includes: 2 section lightweight NVIS whip antenna
sections, tie down cord kit, instruction card and canvas
storage bag.
NOTE: NVIS Antenna mounts directly to the single hole or
fl ange mount bases, spring not required.
QUOTE
78-14010
Shock Mount
The shock mount for the antenna tuner is
recommended for installations likely to experience
extreme levels of vibration or shock. The mount features
quick fi t/release fasteners that require no tools to use.
Fitting instructions are supplied, and an installation kit
that will suit most applications.
QUOTE
15-60023
3042/3046 Installation Kit
Kit containing a selection of fasteners for mounting
the antenna tuner.
QUOTE
15-00146
Installation Handbook, 3042 Automatic
Antenna Tuner QUOTE
15-04174-EN
Installation Handbook, 3046 Automatic
Antenna Tuner QUOTE
15-04175-EN
3046 Military Grade Accessories
MIL Spec Antenna Base, NATO Hole
Pattern
MIL Spec four hole pattern NATO antenna base to suit the
Flexible Antenna Shock Mount below. Mount supplied with
sealing gasket and mounting fasteners.
QUOTE
15-60006
MIL Spec Carbon Fibre Whip, 3 m
Two section, 3 m MIL Spec carbon fi bre whip designed for
use with the NATO base above.
NOTE: Must be ordered with the Flexible Antenna
Shock Mount.
QUOTE
15-60001
Flexible Antenna Shock Mount
MIL Spec rubber spring to provide fl exible mount for the
3 m Carbon Fibre Whip above.
NOTE: Recommended for use with 3 m Carbon Fibre
Whip and Whip Extension Kit.
QUOTE
15-60002
Whip Extension Kit
Used with the standard 3 m Carbon Fibre Whip to
extend the total antenna length to 7 m for extended
communications range. The Whip Extension Kit consists
of 3 whip sections, 4 guy kit, guy stakes, and laminated
installation instructions housed in a canvas bag
for transportation.
NOTE: The extended whip antenna confi guration is for
temporary, stationary use only.
QUOTE
15-60030
Longwire Antenna
Used with the MIL Spec NATO base to deploy a 9 m
long wire antenna confi guration for improved
communications. The long wire design enables
customised installation e.g. vertical, horizontal or
sloping to match with communications requirements
and environmental constraints.
NOTE:
The long wire antenna confi guration is for temporary,
stationary use only.
For masts that are suitable to support the Longwire
Antenna confi guration, see page 128, “Antenna
Masts”.
QUOTE
15-60029
VEHICLE ANTENNA TUNERS
119 120
Cables
Cable, Control NGT to 9350M/304X —
2, 6, 10 or 20 m
Provides antenna control between the NGT MR and
9350M/3040 Automatic Tuning Whip Antenna or the
3042/3046 HF Antenna Tuner.
QUOTE
08-05627-002
QUOTE
08-05627-006
QUOTE
08-05627-010
QUOTE
08-05627-020
Cable, Control 2110M to 9350M/304X —
2, 6, 10 or 20 m
Provides antenna control between the 2110M and the
9350M/3040 Automatic Tuning Whip Antenna or the
3042/3046 HF Antenna Tuner. Cable connects to the
2110M via the 19-pin front panel connector or via the
2110M Expansion Module.
QUOTE
08-07010-002
QUOTE
08-07010-006
QUOTE
08-07010-010
QUOTE
08-07010-020
Cable, Coax Assembly, UHF to N-Type
Connectors, RG58, 6 m
Used to connect the RF input of the 9350M/3040
Automatic Tuning Whip Antenna or the 3042/3046
HF Antenna Tuner to the RF output of the
3160 PA.
For coaxial cable lengths, see page 130, “Coaxial
Cables Type RG58”.
QUOTE
08-05837-006
Cables (continued)
Cable, Coax Assembly, BNC to N-type
Connectors, RG58, 6 m
Used to connect the RF input of the 3042/3046 HF
Antenna Tuner to the front panel RF output of the
2110M Transceiver.
For coaxial cable lengths, see page 130, “Coaxial
Cables Type RG58”.
QUOTE
08-07198-006
Cable, Coax Assembly, N-Type to N-type
Connectors, RG58, 6 m
Used to connect the RF input of the 3042/3046 HF
Antenna Tuner to the 3160 PA RF output.
For coaxial cable lengths, see page 130, “Coaxial
Cables Type RG58”.
QUOTE
08-07078-006
VEHICLE ANTENNA TUNERS
121 122
BASE ANTENNAS
Tactical Base Antennas Broadband Base Station Antennas
Travelling Wave Dipole
The Travelling Wave Dipole Antenna is effi cient for short to
medium distance communications. Its radiation patterns
are generally omni-directional, resulting in a consistent
coverage over the frequency range. Designed for
100% duty cycle voice and data operation at the rated
power level.
This antenna requires a substantial cleared area at ground
level for installation, and is more suitable for permanent
fi xed site installations. Refer to the antenna data sheet for
more details.
Includes: pulleys, halyards and installation hardware
NOTE:
Antenna is fi tted with UHF type RF connector.
Antenna lengths quoted are required mast to
mast distances.
Lightning protection is recommended for fi xed base
station installations, see page 133, “Lightning
Protection”.
Coaxial cable and mast not supplied. For coaxial
cables, see page 130, “Coaxial Cables Type RG58”.
For masts, see page 129, “Antenna Masts”.
Ant, Travelling Wave Dipole, 125 W PEP,
2–30 MHz, 53 m QUOTE
78-01248
Ant, Travelling Wave Dipole, 125 W PEP,
3–30 MHz, 40 m QUOTE
78-01249
Ant, Travelling Wave Dipole, 1000 W PEP,
2–30 MHz, 53 m QUOTE
78-01250
Ant, Travelling Wave Dipole, 1000 W PEP,
3–30 MHz, 40 m QUOTE
78-01251
TAC 411 Broadband
The TAC 411 is a 2-wire terminated folded dipole
broadband antenna suitable for fi xed operation in tactical
environments. The antenna is designed for optimum NVIS
and medium distance performance when installed with the
Codan 10 m Transportable Mast (part number 78-13036)
in the inverted V confi guration. The design of the central
spreader of the antenna enables the antenna to be raised
using a halyard attached to the balun or simply dropped
into the open end of the top mast section. The antenna is
constructed of Kevlar reinforced antenna wire for strength,
long life and immunity to kinking.
The antenna kit is supplied complete with guy stakes,
laminated installation instructions and canvas carry bag for
transportation and storage. It is designed for 100% duty
cycle voice and data operation at 125 W and over the
full 2 to 30 MHz HF band.
NOTE:
Antenna is fi tted with an N-Type RF connector.
Power rating is 125 W PEP, 60 W average.
Recommended anchor stake spacing is 31 m.
Suits mast ID of 32 mm.
Packed weight is 5 kg (without coaxial cable).
Coaxial cable and mast not supplied. For coaxial
cables, see page 130, “Coaxial Cables Type RG58”.
For masts, see page 128, “Antenna Masts”.
QUOTE
78-01259
123 124
Broadband Base Station Antennas (continued)
Delta
The Delta Antenna is a high performance, omni-directional
broadband antenna that performs well over very short to
medium distances. Designed for 100% duty cycle voice
and data operation at the rated power level.
This antenna requires a substantial cleared area at ground
level for installation, and is more suitable for permanent
fixed site installations. Refer to the antenna data sheet for
more details.
NOTE:
Antenna is fitted with UHF type RF connector.
Requires a 15 m central mast, see page 129, “Mast,
Guyed 15 m with Erection Kit”.
Antenna width is 46 m.
Mast guy radius is 12.5 m.
The Delta Antenna is not recommended for
rooftop installations.
Lightning protection is recommended for fixed base
station installations, see page 133, “Lightning
Protection”.
Coaxial cable, mast and gibbet not supplied.
For coaxial cables, see page 130, “Coaxial Cables
Type RG58”. For masts, see page 129, “Antenna
Masts”.
Ant, Full Delta, 125 W, 3–30 MHz QUOTE
78-01022
Ant, Full Delta, 1000 W PEP, 3–30 MHz QUOTE
78-01247
Broadband Base Station Antennas (continued)
Semi-delta
The Semi-delta Antenna is a high performance, omni-
directional broadband antenna that performs well over
short to medium distances.
This antenna requires a large cleared area at ground level
for installation, and is more suitable for permanent fixed
site installations.
NOTE:
Antenna is fitted with UHF type RF connector.
Pay attention to antenna counterpoise,
especially when mounted on rooftop locations or
at ground level where the soil conditions are poor.
Where soil conditions are very poor, an additional
counterpoise kit may be required.
Recommended main mast height is 15 m, stub mast
height 1.5 to 2 m.
Distance between main mast and stub mast
is 20 m.
Lightning protection is recommended for fixed base
station installations, see page 133, “Lightning
Protection”.
Coaxial cable and mast not supplied. For coaxial
cables, see page 130, “Coaxial Cables Type RG58”.
For masts, see page 129, “Antenna Masts”.
Ant, Semi-delta, 125 W PEP, 2–14 MHz
Includes: pulleys, halyards, basic counterpoise and
installation hardware
QUOTE
78-01012
Ant, Semi-delta, 1000 W PEP, 2–14 MHz
Includes: pulleys, halyards, basic counterpoise and
installation hardware
QUOTE
78-01246
BASE ANTENNAS
125 126
Broadband Base Station Antennas (continued)
TFD411 Broadband
The Code 411 TFD is a 2-wire terminated folded dipole
antenna designed for broadband operation. Designed for
100% duty cycle voice and data operation at the rated
power level.
The antenna is easy to install and can be mounted
horizontally between two support systems, or as an
inverted V using a single central support mast. A large
cleared area at ground level is required for installation.
Refer to the antenna data sheet for more details.
Includes: mounting arm for inverted V confi guration,
stainless steel antenna wiring, pulleys, rope, halyard,
UHF coaxial connector and detailed erection details
NOTE:
Antenna is fi tted with UHF type RF connector.
Always select the longest antenna variant possible to
maximise propagation effi ciency and performance.
Lightning protection is recommended for fi xed
base station installations, see page 133, “Lightning
Protection”.
Coaxial cable and mast not supplied. For coaxial
cables, see page 130, “Coaxial Cables Type RG58”.
For masts, see page 129, “Antenna Masts”.
Ant, TFD411, 125 W, 2–30 MHz, 27 m QUOTE
15-00411-005
Ant, TFD411, 125 W, 2–30 MHz, 34 m QUOTE
15-00411-004
Ant, TFD411, 125 W, 2–30 MHz, 43 m QUOTE
15-00411-003
Ant, TFD411, 1000 W, 2–30 MHz, 34 m QUOTE
15-00411-011
Ant, TFD411, 1000 W, 2–30 MHz, 43 m QUOTE
15-00411-012
TFD411 Broadband/Mast Kits
The Terminated Folded Dipole 411 Antenna and Mast
Kit provides an easy to deploy and economical antenna
solution for 125 W base station applications. The kits are
available with different mast fi nishes and antenna lengths
to meet customer requirements. The kits are designed for
inverted V antenna confi guration to minimise installation
footprint and optimise short to medium distance
HF communications.
NOTE:
Antennas are fi tted with a UHF type RF connector.
Always select the longest antenna variant possible to
maximise propagation effi ciency and performance.
The antennas and masts are designed to
work together, and are not intended to be
used separately.
Lightning protection is recommended for fi xed
base station installations, see page 133, “Lightning
Protection”.
Coaxial cable is not supplied. For coaxial
cables, see page 130, “Coaxial Cables Type RG58”.
Antenna/Mast — Mast Bare Aluminium Finish
Ant, TFD411, 125 W, 2–30 MHz, 27 m c/w
Lightweight Premium Mast, 10 m QUOTE
15-60018-005
Ant, TFD411, 125 W, 2–30 MHz, 34 m c/w
Lightweight Premium Mast, 10 m QUOTE
15-60018-004
Ant, TFD411, 125 W, 2–30 MHz, 43 m c/w
Lightweight Premium Mast, 10 m QUOTE
15-60018-003
BASE ANTENNAS
127 128
TFD411 Broadband/Mast Kits (continued)
Antenna/Mast — Mast Matt Black Paint Finish
Ant, TFD411, 125 W, 2–30 MHz, 27 m
c/w Lightweight Premium Black Painted
Mast, 10 m
QUOTE
15-60018-105
Ant, TFD411, 125 W, 2–30 MHz, 34 m
c/w Lightweight Premium Black Painted
Mast, 10 m
QUOTE
15-60018-104
Ant, TFD411, 125 W, 2–30 MHz, 43 m
c/w Lightweight Premium Black Painted
Mast, 10 m
QUOTE
15-60018-103
TACTICAL MASTS
Antenna Masts
Mast, 6 m Tactical
Lightweight, compact man-portable mast system. The
kit includes multi-section mast, guy ropes, guy stakes,
halyard, base plate stakes and installation instructions.
This mast is most suitable for use with lightweight, low
power (25 W) antennas used with the 2110 series
Manpack Transceiver (see page 30, “2110M Portable
Manpack Antennas — Long Wire, Dipoles and Whips”
and page 121, “TAC 411 Broadband”).
NOTE:
The 6 m mast is not suitable for use with
full size 125 W/1 kW Broadband Antennas.
Certain Manpack Transceiver antennas may require
more than one mast. Please check specifi c mast
requirements for each antenna before ordering.
QUOTE
78-13035
Mast, 10 m Transportable
Lightweight, compact vehicle transportable mast system.
The kit includes, multi-section mast, guy ropes
(2 sets), guy stakes, halyard, base plate stakes and
installation instructions.
This mast can be used with many antenna types however
it is most suitable for use with lightweight, standard power
(125 W) broadband antennas, for example the Tactical
Code 411 Broadband Dipole (see page 121, “TAC 411
Broadband”).
QUOTE
78-13036
BASE ANTENNAS
129 130
BASE MASTS
Mast, Guyed 12 m with Erection Kit
Four section 12 m mast.
Suitable for supporting Travelling Wave Dipole, Tuned Long
Wire, and 2-wire and 3-wire Broadband Dipole antennas.
Guyed tubular aluminium mast with ground plate, halyard
pulley, RF transparent guy kit, full erection kit, mast head
gibbet and erection instructions.
Designed to withstand wind speeds up to 144 kph
(40 m/s) in clear air with head loads up to 12 kg, subject
to ground anchoring.
NOTE: Mast suitable for air freight.
QUOTE
15-00422-012
Mast, Guyed 15 m with Erection Kit
Five section 15 m mast. Suitable for supporting Travelling
Wave Dipole, Semi-delta, Full Delta, Tuned Long Wire, and
2-wire and 3-wire Broadband Dipole antennas.
Guyed tubular aluminium mast with ground plate, halyard
pulley, RF transparent guy kit, full erection kit, mast head
gibbet and erection instructions.
Designed to withstand wind speeds up to 144 kph
(40 m/s) in clear air with head loads up to 12 kg, subject
to ground anchoring.
NOTE: Mast suitable for air freight.
QUOTE
15-00422-015
Mast, Guyed 10 m, Lightweight Mast
Lightweight guyed aluminium mast, halyard, and all
hardware for ground mounting.
Suitable for use with the 2-wire (Code 411) Broadband
Dipole antenna.
QUOTE
15-60013
Antenna Masts (continued)
ANTENNA ACCESSORIES
Coaxial Cables Type RG58
Cable, Coax Assembly, UHF Type
Connectors, RG58 — 2, 6, 8 or 30 m QUOTE
08-01503-002
QUOTE
08-01503-006
QUOTE
08-01503-008
QUOTE
08-01503-030
Cable, Coax Assembly, UHF to N-type
Connectors, RG58 — 2, 6, 10, 20 or 30 m QUOTE
08-05837-002
QUOTE
08-05837-006
QUOTE
08-05837-010
QUOTE
08-05837-020
QUOTE
08-05837-030
Cable, Coax Assembly, BNC to N-type
Connectors, RG58 — 2, 6, 10 or 20 m QUOTE
08-07198-002
QUOTE
08-07198-006
QUOTE
08-07198-010
QUOTE
08-07198-020
131 132
Coaxial Cables Type RG58 (continued)
Cable, Coax Assembly, N-type to N-type
Connectors, RG58 — 2, 6, 8 or 30 m QUOTE
08-07078-002
QUOTE
08-07078-006
QUOTE
08-07078-008
QUOTE
08-07078-030
Cable, Coax Assembly, UHF to BNC Type
Connectors, RG58, 1 m
Used to adapt the BNC RF connector on the front panel
of the 2110M Transceiver to UHF socket.
QUOTE
08-06357-001
Cable, Coax Assembly, BNC to BNC Type
Connectors, RG58 — 0.7 or 2.5 m
Used to connect the 50 ohm RF output on the 2110M
front panel to the RF input of 3160 PA.
QUOTE
08-06809-002
QUOTE
08-06809-001
Plug, UHF (RG58) W/proof
Waterproof UHF type connector for terminating
RG58 type coaxial cable. Requires soldering process.
QUOTE
60-11163-221
Coaxial Cables Type RG213
Cable, Coax Assembly, UHF Type
Connectors, RG213 — 10, 30, 50 or
100 m
QUOTE
08-04971-010
QUOTE
08-04971-030
QUOTE
08-04971-050
QUOTE
08-04971-100
Cable, Coax Assembly, UHF to N-type
Connectors, RG213 — 10, 30 or 40 m QUOTE
08-07053-010
QUOTE
08-07053-030
QUOTE
08-07053-040
Cable, Coax Assembly, N-type to N-type
Connectors, RG213 — 10, 30 or 40 m QUOTE
08-07079-010
QUOTE
08-07079-030
QUOTE
08-07079-040
Strain Relief
Reduces strain on connector when supporting
RG213 cable assemblies.
QUOTE
08-01233
Shackle
Used to attach strain relief to the antenna mount point. QUOTE
30-38000-002
Plug, UHF (RG213) W/proof
Waterproof UHF type connector for terminating
RG213 type coaxial cable. Requires soldering process.
QUOTE
60-11163-204
ANTENNA ACCESSORIES
133 134
EARTHING & LIGHTNING PROTECTION
Earthing
Earth Braid, 1.5 m
Terminated in lugged ends to suit earth screws on
Codan Transceiver and accessory equipment for long
earth connections.
QUOTE
05-06374
Earth Wire, 0.5 m
Terminated in lugs to suit earth screws on Codan
Transceiver and accessory equipment for short
earth connections.
QUOTE
08-04515-001
Lightning Protection
Lightning Arrestor
Self-resetting spark gap arrestor. Requires a good earth
to divert energy from a nearby lightning strike. Suits UHF
type connectors.
NOTE: Extra length of coaxial cable or extra UHF plug
may need to be ordered to fi t lightning arrestor into
RF feed system.
QUOTE
15-00464
Copper Earth Strip
50 mm x 0.46 mm (26 gauge) supplied in units of 1 m. QUOTE
30-37601-002
Earth Stake
1.8 m long x 13 mm with clamp for earth wire/strip. QUOTE
15-00163
This page has been intentionally left blank.
135 136
The 2110M and NGT MR Transceivers, and accessory equipment are supported with
user manuals in a range of languages.
SUPPORT
137 138
LANGUAGE SUPPORT
English Manuals
Operator Guide, Manpack Transceiver
2110M QUOTE
15-04153-EN
Operator Guide, NGT MR Transceiver QUOTE
15-04151-EN
Getting Started Guide, NGT Transceiver QUOTE
15-04127-EN
Operator Guide, RM50e HF Data Modem QUOTE
15-04167-EN
User Guide, 3033 Telephone Interconnect QUOTE
15-04156-EN
User Guide, 3031 Crosspatch QUOTE
15-04148-EN
Installation Handbook, 3160 Power
A m p l i fi e r QUOTE
15-04157-EN
Reference Manual, Power Amplifi ers
3061/3062 QUOTE
15-04131-EN
English Manuals
User Guide, 3520 Transceiver Power
Supply QUOTE
12-50180-EN
User Guide, 3590 AES-256 DV Encryptor QUOTE
15-04172-EN
User Guide, 3591 CES-128 Voice
Encryptor QUOTE
15-04173-EN
Installation Handbook, 3040 Automatic
Whip Antenna, c/w antenna connector
sealing kit
QUOTE
15-60012
Installation Handbook, Automatic Tuning
Whip Antenna 9350M QUOTE
15-04142-EN
Installation Handbook, 3042 Automatic
Antenna Tuner QUOTE
15-04174-EN
Installation Handbook, 3046 Automatic
Antenna Tuner QUOTE
15-04175-EN
139 140
French Manuals
Operator Guide, NGT MR Transceiver QUOTE
15-04151-FR
Getting Started Guide, NGT Transceiver QUOTE
15-04127-FR
Installation Handbook, Automatic Tuning
Whip Antenna 9350M QUOTE
15-04142-FR
Spanish Manuals
Getting Started Guide, NGT Transceiver QUOTE
15-04127-ES
Installation Handbook, Automatic Tuning
Whip Antenna 9350M QUOTE
15-04142-ES
Reference Manual, Power Amplifi ers
3061/3062 QUOTE
15-04131-ES
LANGUAGE SUPPORT
141 142
Portuguese Manuals
Operator Guide, Manpack Transceiver
2110M QUOTE
15-04153-PT
Operator Guide, NGT MR Transceiver QUOTE
15-04151-PT
LANGUAGE SUPPORT
This page has been intentionally left blank.
143 144
STANDARD TERMS
“Codan’s Standard Terms and Conditions and International Product Warranty (as updated from time to time) apply to all Orders for
the supply of Products by Codan to the Purchaser.”
Dictionary
In the Standard Terms and Conditions of Supply, the words below have the following meanings:
$ means AUD, unless specifically otherwise specified;
ACDC means the Australian Commercial Dispute Centre Limited A.C.N. 003 042
840 of Level 6, 50 Park Street, Sydney, NSW, 2000, Australia;
Agreement means the contract between Codan and The Purchaser as described in clauses 1.4 and 1.5;
Anything of Value includes cash or cash equivalents, gifts, services, employment offers, loans, travel expenses, entertainment,
political contributions, charitable donations, subsidies, per diem payments, sponsorships, honoraria or provision of any other asset,
even if nominal in value.
AUD means Australian dollars;
Business Day means any day except a Saturday, Sunday or public holiday in South Australia;
Calendar Day means a calendar day with periods expressed in Calendar Days subject to extension if necessary to allow for public
holidays in South Australia and/or the location where the Product (if imported) is sourced as the case may be;
Catalogue means any and all catalogues of Codan products published and distributed by Codan in hard copy and electronically
(including by making available for viewing through its official website) to its actual and prospective customers, setting out product
details and current prices, as updated and replaced by Codan from time to time in its discretion;
Codan or Company means Codan Limited A.C.N. 007 590 605 of 81 Graves Street, Newton, South Australia, 5074, Australia;
Confidential Information means all information disclosed by Codan or The Purchaser and includes:
(a) the fact that the parties will have, or are having, discussions, and the substance of those discussions;
(b) financial information and other trade secrets and confidential know-how;
(c) information regarding each party’s business; and
(d) all information generated by the parties which is based on the information referred to in these paragraphs (a) to (c) inclusive,
but excludes information that:
(e) the parties create or develop (whether alone or jointly with any person) independently of the Confidential Information;
(f) is public knowledge (otherwise than as a result of a breach of confidentiality by either party or any person to whom it
has disclosed the information);
(g) is rightfully know n t o, or in the possession or cont ro l of either pa rty or any of its person n el and not subject to an obligation of
confidentiality in accordance with the terms of this Agreement; or
(h) becomes ava il a bl e to ei ther pa rty from a sou rc e ot h er t h a n the part ies a n d w hi ch s ou rc e has the righ t to us e a nd di s c lo s e
and is not bound by any obligation of confidentiality in respect of the same;
Credit Limit means the AUD value of any credit facility extended by Codan to The Purchaser;
Duties means any stamp, transaction or registration duty or similar charge imposed by any Government Agency and includes, but
is not limited to, any interest, fine, penalty, charge or other amount imposed but excludes any income tax;
EUR or € means the euro (the official currency of the Eurozone);
Existing Arrangements means any arrangements and agreements between Codan and The Purchaser in effect as at the date
an Order is submitted, as agreed by Codan in writing;
Facilitating Payment means a payment to an individual to secure or expedite the performance of a routine government action by
Government Officials;
Force Majeure Event means anything outside a party’s reasonable control including, without limitation, shortages of materials,
fire, storm, flood, earthquake, explosion, accident, enemy acts, war, rebellion, insurrection, sabotage, epidemic, quarantine
restriction, labour dispute, labour shortage, transportation embargo or failure or delay in transportation;
Government Agency means any government or governmental, semi governmental, administrative, fiscal or judicial body,
department, commission, authority, tribunal, agency or entity;
Government Official means:
(a) any officer or employee of a government or any department, agency or instrument of a government (including but not limited to any
Government Agency);
(b) any person acting in an official capacity for or on behalf of a government or any department, agency, or instrument of a
government (including but not limited to any Government Agency);
(c) any officer or employee of a company or business owned in whole or part by a government;
(d) any officer or employee of a public international organisation such as the World Health Organisation or United Nations;
(e) any officer or employee of a political party or any person acting in an official capacity on behalf of a political party;
and/or
(f) any candidate for political office;
GST has the meaning it does in section 195-1 of the GST Act;
GST Act means A New Tax System (Goods and Services Tax) Act 1999 (Cth), as amended, varied or replaced from
time to time;
Insolvency Event, in relation to The Purchaser, means any of the following events:
(a) The Purchaser is unable to pay its creditors (or any class of them) in the ordinary course of business;
(b) a receiver, receiver and manager, administrator, liquidator or similar officer is appointed to The Purchaser or any of its assets;
(c) The Purchaser enters into, or resolves to enter into, a scheme of arrangement, compromise or composition with any class
of creditors;
(d) a resolution is passed or an application to a court is taken for the winding up, dissolution, official management or administration of
The Purchaser; or
(e) anything having a substantially similar effect to any of the events specified above happens under the law of any applicable
jurisdiction;
Intellectual Property Rights means any and all intellectual and industrial property rights anywhere in the world, including but not
limited to the rights comprised in any patent, copyright, design, trade mark, eligible layout or similar right whether at common law or
conferred by statute, rights to apply for registration under a statute in respect of those or like rights and rights to protect trade secrets
and know how, throughout the world for the full period of the rights and all renewals and extensions;
International Product Warranty means the warranty set out in the document on page 153, “International Warranty”, which is
incorporated into and forms part of these Standard Terms and Conditions;
Order means an order for Products created as the result of The Purchaser’s issue of a formal purchase order to Codan in hard copy
or electronically (in a form agreed by Codan). Issuance of an Order (whether or not a Quotation is first issued by Codan) is deemed to
constitute acceptance of these Standard Terms and Conditions by The Purchaser. In the event that a Quotation is issued by Codan,
issuance of an Order is also deemed to constitute acceptance of the Quotation by The Purchaser;
Order Acknowledgement means Codan's written confirmation that an Order has been received from The Purchaser, and
the Agreement brought into existence;
Order Value means the total price charged by Codan to The Purchaser for any Order, and including any amounts payable by The
Purchaser and charged by Codan in accordance with clause 3.1;
Payment refers to and includes any direct or indirect offer to pay, promise to pay, authorisation of payment of, or transfer of,
Anything of Value;
Perfected has the meaning given to that term in the PPSA;
PPSA means the Personal Properties Securities Act 2009 (Cth) and any regulations made under it;
PPS Register means the register established under the PPSA;
Products means the products to be manufactured and/or imported by Codan for The Purchaser as listed in the Order;
Quotation or Quote means the quote, if any, issued by Codan to The Purchaser in respect of the Products to which these Standard
Terms and Conditions of Supply are attached;
Security Agreement has the meaning given to that term in the PPSA;
Security Interest has the meaning given to that term in the PPSA;
Supply has the same meaning it does in section 9-10 of the GST Act and excludes any “GST-free supplies” and “input taxed supplies”
as those terms are defined in section 195-1 of the GST Act;
145 146
Tax or Taxes means any tax, levy, charge, impost, fee, deduction, compulsory loan or withholding (including corporate tax,
personal income tax, fringe benefits tax, payroll tax, withholding tax, excise and import duties, GST, consumption tax, value added
tax or any other taxes, levies or charges), which is assessed, levied, imposed or collected by any Government Agency, and includes
any interest, fine, penalty, charge, fee or any other amount imposed on or in respect of any such amounts;
The Purchaser means the entity requesting that Products be supplied and sold to it by Codan by the issuance of an Order,
as listed in the Quotation (if applicable); and USD means US dollars.
1. Catalogue/Credit Offers, Quotations and Agreement
1.1 The Purchaser acknowledges and agrees:
(a) that the Catalogue and/or approval of a Credit Limit by Codan following a request for a credit facility received from
The Purchaser in the form specified by Codan constitutes an offer by Codan to sell the Products to The Purchaser
on the terms and conditions set out in these Standard Terms and Conditions of Supply, at the standard prices for the
Products set by Codan which are current on the date The Purchaser submits an Order to Codan, as notified by Codan to
The Purchaser (subject always to clause 2.1 below) (Catalogue/Credit Offer); and
(b) that the Catalogue/Credit Offer may be accepted by The Purchaser at any time by submitting an Order with Codan.
1.2 By submitting an Order in response to a Catalogue/Credit Offer, The Purchaser warrants and represents to Codan that:
(a) it has been provided with a copy of Codan's current Product Price list and that it has reviewed this list prior to submitting
the Order; and
(b) it has read and understood these Standard Terms and Conditions of Supply prior to submitting the Order, and agrees to
be bound by them in full.
1.3 In addition to the Catalogue/Credit Offer, Codan may, in its discretion and following a request by The Purchaser, make an
offer to The Purchaser for the sale of Products by issuing a Quotation. Unless otherwise specified in the Quotation issued
by Codan to The Purchaser (if any) or agreed to in writing by Codan, all Quotations issued by Codan are valid for 30 days
from the date of issue (Acceptance Period). The Purchaser must accept a Quotation by submitting an Order with Codan during
the Acceptance Period. Any Quotation not accepted by The Purchaser during the Acceptance Period will lapse.
1.4 A contract between Codan and The Purchaser for the supply by Codan, and the purchase by The Purchaser, of the Products
will come into existence:
(a) in cases where a Quotation is issued by Codan, on the date The Purchaser accepts the Quotation by submitting a valid
Order with Codan within the Acceptance Period; and
(b) in all other cases, on the date that The Purchaser submits a valid Order with Codan, in response to the
Catalogue/Credit Offer.
1.5 Codan will determine in its sole discretion whether an Order Form has been validly completed and submitted by The Purchaser.
1.6 The contract will comprise:
(a) these Standard Terms and Conditions of Supply;
(b) the Quotation issued by Codan, if any;
(c) the Product details listed in the Order; and
(d) the invoice issued by Codan to The Purchaser,
to the exclusion of any other terms and conditions (including but not limited to any variations to either these Standard
Terms and Conditions or the terms of the Quotation or the Catalogue/Credit Offer (as applicable) purported to be
made by The Purchaser in the Order) and apart from any terms, conditions or guarantees implied or provided for by
applicable law which cannot lawfully be excluded. Codan may (but is not obliged to) issue an Order Acknowledgement to
The Purchaser, confirming the terms of the contract.
1.7 In the event of an inconsistency between any of the documents listed in clause 1.5 above, the terms of these Standard Terms
and Conditions will prevail to the extent of the inconsistency, with the terms of the Quotation (if any) prevailing thereafter. To the
extent of any inconsistency between the document in clause 1.6(c) and 1.6(d) above, the document described in clause 1.6(d)
will prevail.
1.8 Neither this Agreement nor any Order that has been submitted can be cancelled by The Purchaser except with the prior written
consent of Codan. Codan can cancel and terminate any Order or this Agreement in its sole discretion, without penalty, if it
considers that an Order Form has not been validly completed and/or submitted by The Purchaser.
2. Prices
2.1 Prices specified by Codan for the Products in a Quotation or any current Product Price list issued by Codan, as applicable, are
based upon the prevailing currency exchange rates generated by the Codan system. Subject to Codan deciding in its sole
discretion that it would be fair and reasonable in the circumstances to do so, Codan may pass on any variation in currency
exchange rates to The Purchaser in any invoice issued in accordance with clause 3.2.
2.2 If a Quotation has been issued by Codan, The Purchaser acknowledges that it has been prepared by Codan on the basis
of, and in reliance upon, the information provided by The Purchaser, and further acknowledges that the provision of incomplete
or misleading information by The Purchaser, unforeseen circumstances, misinterpretations, variations and similar events may
result in charges additional to those set out in the Quotation being payable by The Purchaser for the Products. The Purchaser
agrees to pay any such additional amounts to Codan, in full.
2.3 Unless otherwise expressly specified by Codan, all prices stated are exclusive of Product delivery costs and freight charges.
3. Payment
3.1 The Purchaser is solely responsible for payment of all freight, insurance, delivery costs, Taxes and other charges levied or
payable in respect of the Products, unless otherwise agreed by the parties in writing.
3.2 Codan will invoice The Purchaser for the Order Value of the Order at any time following receipt of such Order.
3.3 Unless otherwise stated in the Quotation the due date for payment by The Purchaser to Codan for the Order (Due Date) is
as follows:
(a) 30 days from the date on which the invoice was issued, if the following conditions are satisfied at the time that the Order
was submitted to Codan (i) The Purchaser has a pre-approved credit facility with Codan and (ii) the Order Value,
combined with any outstanding payments due to Codan by The Purchaser at the time of the Order, fall within
The Purchaser’s approved Credit Limit; and
(b) in all other cases, payment is immediately due at the time that The Purchaser places the Order with Codan.
3.4 If The Purchaser fails to make any payment by the Due Date, then, without prejudice to any other right or remedy available to
Codan, Codan may, in its sole discretion elect to:
(a) suspend any further deliveries to The Purchaser arising from the Order;
(b) cancel the Order for Products not yet supplied to The Purchaser in whole or in part by Codan;
(c) enter the property of The Purchaser in order to repossess the Products;
(d) appoint a receiver or receiver and manager to do anything the law allows a receiver or receiver and manager to do;
(e) charge The Purchaser interest (both before and after any judgement) on the unpaid amount at the rate of
10% per annum until payment is made in full; and/or
(f) withdraw any Credit Limits or credit facilities previously approved and extended to The Purchaser.
4. Delivery
4.1 Unless otherwise stated in any Order Acknowledgement issued by Codan to The Purchaser, Codan will deliver the Products
to The Purchaser in the manner (i) specified in the Order or (ii) if a Quotation has been issued, in the manner specified in the
Quotation, regardless of what is stated in the Order submitted by The Purchaser.
4.2 Codan will use its reasonable endeavours to deliver the Products described in the Order on the delivery date requested by
The Purchaser.
4.3 Risk of damage to or destruction or loss of the Products will pass to The Purchaser at the time of delivery to The Purchaser or
its nominated carrier, as appropriate.
4.4 Notwithstanding delivery and the passing of risk in the Products, the parties acknowledge and agree that the title to, and
property and ownership of, the Products supplied under this Agreement will not pass to The Purchaser until Codan has
received, in cleared funds, payment in full for the Products and any other sums which are or may become due to Codan under
this Agreement or any other agreement or arrangement between the parties.
STANDARD TERMS
147 148
4.5 Until such time as full title, property and ownership of the Products passes to The Purchaser in accordance with
clause 4.4, and while the Products remain in The Purchaser’s full control and possession:
(a) The Purchaser must hold the Products as Codan’s fiduciary agent and bailee;
(b) The Purchaser must keep the Products properly stored, protected and insured;
(c) Codan may at any time after payment is overdue require The Purchaser to deliver up the Products to Codan and, if
The Purchaser fails to deliver up the Products immediately, Codan may enter the premises of The Purchaser or any third
party where the Products are stored and repossess them; and
(d) The Purchaser must not pledge or in any way charge by way of security for any indebtedness, any of the Products
which remain the property of Codan. If The Purchaser does pledge or in any way charge by way of security for any
indebtedness any of the Products for which property and ownership has not passed to The Purchaser, all moneys owing
by The Purchaser to Codan will (without prejudice to any other right or remedy of Codan) immediately become due and
payable to Codan.
5. PPSA
5.1 The Purchaser acknowledges that until such time as full title, property and ownership of the Products passes to The Purchaser
under clause 4.4, this Agreement constitutes a Security Agreement for the purposes of the PPSA, and Codan has a Security
Interest in the Products.
5.2 Without limiting clause 17.6, The Purchaser agrees to do such things as Codan may require from time to time to ensure that
any Security Interest of Codan arising from or connected with this Agreement is Perfected under the PPSA for whatever period
Codan determines in its sole discretion, including signing documents and providing Codan with all further information required
to enable Codan to register its Security Interests on the PPS Register, and to otherwise protect Codan’s position under the
PPSA. The Purchaser must keep Codan fully informed of all relevant information regarding it and its activities, including by
providing not less than 14 days notice in writing of any proposed change in its name or contact details, and immediately
advising Codan of material changes in its business activities.
5.3 The Purchaser agrees to indemnify Codan for all expenses incurred by Codan in registering its Security Interests on the PPS
Register, and will reimburse Codan for all such expenses immediately upon demand.
5.4 The Purchaser waives its rights under section 157 of the PPSA to receive a notice in relation to the registration events
to which section 157(3)(a) of the PPSA applies, including without limitation, the right to receive a copy of a verification
statement confirming registration of a financing statement or financing change statement relating to the Security Interest
created by this Agreement.
5.5 The Purchaser agrees that nothing in sections 118, 121(4), 125, 130, 142 or 143 of the PPSA will apply to this Agreement
or any Security Interest in the Products created by this Agreement, and waives its rights to receive any of the
following documents:
(a) a notice of removal of an accession under section 95 of the PPSA;
(b) a notice of an intention to seize collateral under section 123 of the PPSA;
(c) a notice of a disposal of collateral under section 130 of the PPSA;
(d) a statement of account under section 132(3)(d) of the PPSA;
(e) a statement of account under section 132(4) of the PPSA;
(f) a notice of retention of collateral under section 135 of the PPSA; and
(g) any notice from Codan under each of the provisions listed in section 144 of the PPSA.
6. The Purchaser’s Obligations
6.1 Codan and The Purchaser agree that The Purchaser:
(a) is solely responsible for consideration and validation of Product designs and Product functionality, to confirm suitability for
particular applications, as desired by The Purchaser;
(b) must advise Codan of all statutory, regulatory and other official standards and/or requirements which the Product must
comply with, at the time of submitting the Order to Codan and immediately upon becoming aware of these
at any other time; and
(c) must provide Codan with any other information which Codan may request in respect of the intended application/use of
the Products.
7. Warranty
7.1 Codan agrees to provide the International Product Warranty in respect of the Products.
7.2 The International Product Warranty will not apply in the event of termination of this Agreement by Codan pursuant to clauses
12.4, 13.4 or 15.3.
8. Exclusion and Limitations of Liability
8.1 The Purchaser acknowledges and agrees that notwithstanding clause 4.2, any delivery dates quoted by Codan for delivery of
the Products are approximate only, and will not be binding upon Codan.
8.2 Codan does not exclude or limit the application of any provision of any applicable statute, legislation or other regulation
(including the Competition and Consumer Act 2010 (Cth) and its Schedules and Regulations) where to do so would contravene
that statute, legislation or regulation or cause any part of this clause to be void and nothing in this Agreement is to be
interpreted as doing so.
8.3 Subject always to clause 8.2, to the extent permitted by law Codan excludes from this Agreement:
(a) all conditions, warranties, guarantees and terms implied by statute, general law, international convention or custom,
except any implied term, condition, guarantee or warranty the exclusion of which would contravene any statute or cause
this clause to be void (Non-excludable Condition);
(b) all liability to The Purchaser for consequential or indirect damages arising out of or in connection with this Agreement
even if Codan knew they were possible, or they were otherwise reasonably foreseeable, and including without limitation,
loss of profits and damage suffered as a result of claims by any third person, such as a customer of The Purchaser; and
(c) all liability to The Purchaser in negligence for acts or omissions of Codan, its employees, agents and contractors arising
out of or in connection with this Agreement.
8.4 To the extent permitted by law, Codan will not be responsible for any consequences of any modification to the Products
(whether or not authorised) or for any loss, damage or claim arising from such actions. The Purchaser agrees to indemnify,
defend and hold harmless Codan against any and all claims, demands, suits, causes of action, damages and legal fees (on a
solicitor-own client basis) or expenses or costs whatsoever arising, directly or indirectly, from any modification of the Products,
and unconditionally frees, releases and discharges Codan and its officers, agents, contractors and employees from any claim
or cause of action arising in connection with such matters, to the fullest extent permitted by applicable law.
8.5 To the extent permitted by law, Codan will not be liable or otherwise responsible for any loss, accident, damage or injury
arising in connection with The Products, or any failure of the Products to operate in the manner required by The Purchaser,
whether or not caused by a defect or fault in the Products or due to Codan's negligence. The Purchaser unconditionally frees,
releases and discharges Codan and its officers, agents, contractors and employees from any claim or cause of action arising
in connection with the use of the Products by The Purchaser, to the fullest extent of the law.
8.6 To the extent permitted by law, Codan’s liability to The Purchaser for breach of any Non-excludable Condition which is
applicable (and other than one implied by sections 51, 52 or 53 of Schedule 2 of the
Competition and Consumer Act
2010
(Cth) is limited to any one of, at Codan’s option, repairing or replacing the Products in respect of which the breach
occurred, supplying equivalent products, payment of the cost of replacing the Products or acquiring equivalent products, or
payment of the cost of having the Products repaired.
8.7 Notwithstanding anything to the contrary in this Agreement, and to the extent permitted by law, Codan’s maximum liability
to The Purchaser for any cause of action or claim in connection with the Products or this Agreement shall be limited to a total
aggregate amount equal to the Order Value of the Order in connection with which the cause of action or claim arose.
9. Intellectual Property
9.1 The Purchaser expressly acknowledges and agrees that Codan is the sole proprietor and owner of all existing and future
Intellectual Property Rights associated with the Products (including all modifications and improvements), and that this
Agreement does not grant or transfer to it any rights to the Intellectual Property Rights associated with the Products.
9.2 The Purchaser must not copy, reverse engineer, improve, enhance, develop, refine, modify or otherwise alter any aspect of the
Products or any Intellectual Property Rights associated with the Products, or permit or assist a third party to undertake any of
these actions.
9.3 Notwithstanding anything to the contrary in this Agreement, The Purchaser acknowledges and agrees that Codan will own all
rights in any improvements, enhancements developments, modifications or refinements to the Products or associated
Intellectual Property Rights developed or created by The Purchaser, and The Purchaser will have no claim to such materials
The Purchaser agrees that it will execute, procure and deliver to Codan all assignments required to give effect to this
clause 9.3, and hereby waives any and all rights to any such improvements, developments, enhancements modifications
or refinements.
STANDARD TERMS
149 150
10. Confidentiality
10.1 Each party:
(a) may use Confidential Information of the other party solely for the purposes of this Agreement;
(b) must keep confidential all Confidential Information of the other party; and
(c) may disclose Confidential Information of the other party only to (i) employees and contractors who (A) are aware and
agree that the Confidential Information of the other party must be kept confidential and (B) either have a need to know
(and only to the extent that each has a need to know), or have been specifically approved by the other party, or (ii) as
required by law or stock exchange regulation.
10.2 Each party must notify the other party immediately once it becomes aware of any breach of confidentiality and must take all
reasonable steps necessary to prevent further unauthorised use or disclosure of the Confidential Information.
11. Taxes and Government Charges
11.1 The amounts payable by The Purchaser to Codan for, or in connection with this Agreement do not include any amounts on
account of Taxes and Duties. The Purchaser shall be solely liable for and shall pay, when due and payable, all Taxes and
Duties which may be imposed in relation to the Products, or which is assessed or chargeable in respect of this Agreement and
any associated documents or transactions.
11.2 The Purchaser agrees to indemnify Codan in respect of any liability for Taxes and Duties, and shall pay any Taxes and Duties
notified to it by Codan immediately upon request. The Purchaser must provide Codan with all necessary tax invoices, receipts
and other documentation as required by Codan in accordance with applicable laws, legislation and regulations.
11.3 In the case of GST payable in Australia, if applicable, The Purchaser must pay to Codan an additional amount on account of
GST equal to the amounts payable by The Purchaser for the Supply multiplied by the prevailing GST rate. Notwithstanding
anything to the contrary in this clause, The Purchaser is not required to pay any additional GST amount until such time as
The Purchaser has been provided with a tax invoice by Codan, which is in an approved form for GST purposes.
11.4 The additional amounts due to Codan on account of Taxes and Duties are payable at the same time and in the same manner
as the price and any other amounts payable by The Purchaser are required to be paid to Codan under this Agreement.
12. Government Approvals
12.1 Codan agrees, at its cost, to use its reasonable endeavours to obtain all necessary export licences, clearances and other
consents and approvals from Government Agencies which are necessary for the sale and supply/export of the Products to
The Purchaser. The Purchaser agrees to complete and provide to Codan any documentation required by Codan to obtain any
required approvals and consents.
12.2 The parties agree that Codan’s obligations under this Agreement are conditional upon Codan being issued all necessary export
licences, clearances and other consents and approvals by the relevant Government Agencies.
In the event that Codan is unable to secure all necessary licences, clearances, permits, approvals and other necessary
consents from appropriate Government Agencies, Codan shall be entitled to immediately terminate this Agreement by written
notice, and Codan shall not be required to supply the Products to The Purchaser.
In no circumstances shall Codan be liable to The Purchaser or any other person for any loss or damage (including without
limitation indirect or consequential loss or loss of profits) arising in connection with Codan’s failure to obtain any necessary
documentation from Government Agencies required for the sale and supply/export of the Products to The Purchaser, or the
termination of this Agreement pursuant to this clause 12.2, and The Purchaser unconditionally frees, releases and discharges
Codan and its officers, agents, contractors and employees from any claim or cause of action arising in connection with
Codan’s failure to obtain any export licence, clearances and other necessary consents and approvals from appropriate
Government Agencies.
12.3 The Purchaser is solely responsible, at its sole cost and expense, for ensuring that the Products meet the requirements of any
country into which they are imported, and must obtain and maintain any necessary import licences and permits, and all
other clearances and consents from Government Agencies required for the acquisition and use of the Products by
The Purchaser (including but not limited to customs approvals and clearances). Codan shall supply The Purchaser with
any documents reasonably requested by The Purchaser for the purposes of complying with its obligations under this
clause 12.3.
12.4 Codan may at any time require that The Purchaser supply it with copies of licences, permits, clearances and approvals
issued by Government Agencies and obtained by The Purchaser as required by clause 12.3, and The Purchaser agrees to
immediately comply with any such request. If at any time Codan becomes aware that The Purchaser has failed to comply with
its obligations under clause 12.3, it may immediately terminate this Agreement by written notice, and all outstanding amounts
shall become immediately due and payable by The Purchaser. The Purchaser agrees to indemnify, defend and hold harmless
Codan against any and all claims, demands, suits, causes of action, damages and legal fees (on a solicitor own client basis)
or expenses or costs whatsoever arising, directly or indirectly, from any failure by The Purchaser to comply with its obligations
under clauses 12.3 or 12.4.
13. Anti-Bribery and Corruption Requirements
13.1 It is a material term of this Agreement that The Purchaser must comply with the following:
(a) The Purchaser must comply fully at all times with all applicable laws and regulations, including but not limited to
applicable anti-corruption laws of the territory in which The Purchaser conducts business with Codan.
(b) The Purchaser must not, and covenants that it will not, in connection with the performance of this Agreement, directly
or indirectly promise, authorise, ratify, offer to make or make, or take any action, in furtherance of any Payment
of Anything of Value to any individual, or to an intermediary for payment to any individual, including a
Government Official, for the purpose of influencing or inducing or as a reward for any act, omission or decision
to secure an improper advantage or to improperly assist The Purchaser or Codan in obtaining or retaining business.
(c) The Purchaser must not, and covenants that it will not, in connection with the performance of this Agreement, directly
or indirectly promise, authorise, ratify or offer to make or make any Facilitating Payment to any individual, or to an
intermediary for payment to any individual, including a Government Official.
(d) The Purchaser must not contact, or otherwise meet with any Government Official with respect to any transactions
required under this Agreement, without the prior written approval of Codan and, when requested by Codan, only in the
presence of a Codan designated representative.
14. Insurance
14.1 The Purchaser must take out and maintain at all times, with reputable insurers, valid and enforceable insurance policies in
respect of the following:
(a) product and public liability insurance, for an amount not less than $10 million per incident or event;
(b) all necessary statutory workers compensation insurance; and
(c) such other risks that a reasonable, prudent person carrying on the business of The Purchaser would be
likely to insure against.
15. Termination
15.1 Codan may terminate this Agreement with immediate effect by written notice to The Purchaser if:
(a) The Purchaser is the subject of an Insolvency Event; or
(b) at the time of termination, a Force Majeure Event has persisted for greater than 40 Business Days.
15.2 The Purchaser may terminate this Agreement with immediate effect by written notice to Codan if Codan
breaches any material term of this Agreement, which is capable of remedy, and fails to remedy the breach within 20 Business
Days after receiving a notice requiring it to do so.
15.3 Without limiting Codan’s other rights under this Agreement, Codan may terminate this Agreement with immediate effect by
written notice to The Purchaser if:
(a) The Purchaser breaches any term of this Agreement, which is capable of remedy, and fails to remedy the breach within
20 Business Days after receiving a notice requiring it to do so;
(b) The Purchaser breaches any term of this Agreement and such breach is not capable of remedy; or
(c) The Purchaser repeatedly breaches any term of this Agreement and, within 20 Business Days after receiving a notice
requiring it to do so, fails to satisfy Codan that a breach of that term will not recur.
15.4 Termination of this Agreement will not affect any accrued rights or remedies a party may have as at the date of termination,
unless explicitly stated otherwise in this Agreement.
STANDARD TERMS
151 152
16. Dispute Resolution
16.1 A party will not commence arbitration or court proceedings (except proceedings seeking interlocutory relief)
in respect of a dispute arising out of this Agreement (Dispute) unless it has complied with this clause.
16.2 A party claiming that a Dispute has arisen will notify the other party of the Dispute in writing.
16.3 Each party to the Dispute will ensure that during the 30 Calendar Day period after a notice is given under clause 16.2
(or a longer period agreed between the parties) the chief executive officers (or equivalents) of the parties will use their best
reasonable endeavours to resolve the dispute in good faith.
16.4 If after fourteen (14) days the parties are unable to resolve the Dispute under clause 16.3, the parties will
attempt to settle the dispute by mediation conducted in accordance with the Commercial Mediation Guidelines of the ACDC.
16.5 The parties shall attempt to agree on the appointment of a mediator for the purposes of mediation of the Dispute pursuant
to clause 16.4, and if the parties cannot agree on the identity of a mediator within seven (7) Calendar Days, the mediator
will be appointed by ACDC within seven (7) Calendar Days thereafter. Mediation will be held within seven (7) Calendar Days of
the appointment of the mediator.
16.6 Each party will bear its own costs of resolving a Dispute under this clause 16, and will bear equally the costs of any mediator
required to be engaged.
16.7 If mediation does not proceed within the timetable set out in clauses 16.4 and 16.5, or is not successful in resolving the
Dispute, the parties will be entitled to terminate the Dispute resolution process by giving notice in writing to all other parties
and commence arbitration or court proceedings in respect of the Dispute. Nothing in this clause 16 prevents a party from
seeking urgent interlocutory relief.
16.8 Nothing in this clause 16 prevents or limits The Purchaser from exercising its rights and requiring remedies from Codan in
respect of a breach of a Non-Excludable Condition (subject always to clause 8 above).
17. Miscellaneous
17.1 Interpretation – In these Standard Terms and Conditions of Supply:
(a) the singular includes the plural and vice versa;
(b) the word person includes a firm, a body corporate, an unincorporated association, body or organisation established
pursuant to international treaty, intergovernmental body, or government authority and other official authority;
(c) a reference to a document or legislation includes a reference to that document or legislation as varied, amended, novated
or replaced from time to time;
(d) a reference to a person includes a reference to the person’s executors, administrators, successors, substitutes (including,
but not limited to, persons taking by novation) and permitted assigns; and
(e) headings are inserted for convenience and do not affect the interpretation of these Standard Terms and Conditions
of Supply.
17.2 Survival – The provisions of clauses 1, 2, 3, 4, 5, 7, 8, 9, 10, 11, 12, 13, 16 and 17 of these Standard Terms and Conditions
of Supply survive the expiry or termination of this Agreement.
17.3 Force Majeure – If a Force Majeure Event precludes Codan from partially or wholly complying with its obligations under
this Agreement then:
(a) as soon as reasonably practicable after that Force Majeure Event arises, Codan must notify The Purchaser of the Force
Majeure Event, and Codan’s obligation to perform in accordance with this Agreement will be suspended for the duration of
the actual delay arising directly out of the Force Majeure Event or 40 Business Days, whichever is shorter, provided that
Codan does everything reasonably possible to mitigate the effects of the Force Majeure Event.
(b) If a Force Majeure Event persists for greater than 40 Business Days, Codan shall be entitled to terminate this Agreement
in accordance with clause 15.1(b).
17.4 Governing Law – This Agreement will be governed by and construed in accordance with the laws applicable in South
Australia. The parties submit to the exclusive jurisdiction of the courts of South Australia in respect of matters arising out of or
in connection with this Agreement (including Disputes). The parties agree that the United Nations Convention on Contracts for
the International Sale of Goods (adopted at Vienna, Austria on 10 April 1980) (including as incorporated into South Australian
law by the Sale of Goods (Vienna Convention) Act 1986 (SA)) will not apply to this Agreement.
17.5 No Assignment – The Purchaser must not assign or otherwise deal with its rights and obligations under this Agreement without
the prior written approval of Codan, to be provided by Codan in its reasonable discretion.
17.6 Further Action – Each party must (a) do all acts necessary or desirable to give full effect to this Agreement,
and (b) refrain from doing anything which might prevent full effect being given to this Agreement.
17.7 Variation – A variation or modification of this Agreement must be in writing and signed by an authorised representative of
each party.
17.8 Severability – If any provision of this Agreement is held by any competent authority to be invalid or unenforceable in whole or in
part the validity of the other provisions of this Agreement and the remainder of the provision in question will not be affected.
17.9 No Waiver – No waiver by a party of any breach of this Agreement by another party shall be considered as a waiver of any
subsequent breach of the same or any other provisions.
17.10 Entire Agreement – This Agreement constitutes the entire agreement between the parties about its subject matter
(without limiting clause 8.2 in any way) and subject to the remainder of this clause, supersedes all previous representations,
understandings and agreements in connection with that subject matter. This Agreement overrides any terms for the sale
and supply of Products tendered to Codan by The Purchaser, irrespective of whether such terms are tendered before
or subsequent to the date of the Order. However, the parties agree that the Existing Arrangements continue in full force
and effect, and that nothing in this document supersedes, alters or otherwise affects the Existing Arrangements. In the event
of an inconsistency between the obligations of the Parties under this Agreement and any Existing Arrangements, the Existing
Arrangements prevail to the extent necessary.
17.11 Relationship – The relationship between the parties is and will remain that of independent contractors, and nothing in this
document constitutes the parties as partners or joint venturers or constitutes any party as the agent of another party or gives
rise to any other form of fiduciary relationship between the parties.
17.12 Notices – Notices by a party must be delivered by (i) prepaid post (ii) facsimile or (iii) hand, and sent to the address of the
receiving party specified in the Order. Notices shall be deemed to have been received by hand upon delivery, by post within
two (2) Business Days of sending and by facsimile upon receipt of a successful transmission report.
STANDARD TERMS
153 154
INTERNATIONAL WARRANTY
1. In this document:
(a) ACL means the Australian Consumer Law as set out in Schedule 2 of the Australian
Competition and Consumer
Act 2010
(Cth);
(b) Codan means Codan Limited A.C.N. 007 590 605 of 81 Graves Street, Newton, South Australia, 5074, Australia
(Ph: +61 (8) 8305 0311);
(c) Codan Products means products manufactured by or on behalf of Codan, including all Land Mobile Radio products
manufactured in Canada;
(d) Material means a material or component used by Codan in the manufacture of Codan Products;
(e) Warranty Period means a period of three (3) years from the date of shipment of Codan Products to the
purchaser; and
(f) Workmanship means the handling, assembly and manufacturing processes performed by or on behalf of Codan
in order to manufacture Codan Products.
2. Codan warrants that for the duration of the Warranty Period, all Warranted Products will be free of faults
arising from defects in design, Workmanship or Materials, on the terms and conditions set out in this
document.
3. Should any fault due to bad design, Workmanship or Materials be proven in Warranted Products acquired by
the purchaser at any time within the prescribed Warranty Period, Codan will, subject to the terms of this document as
set out below, remedy such fault free of charge provided the Codan Products are returned to Codan or to a
service centre authorised by Codan.
4. All Codan Products returned for warranty repair must be sent to 81 Graves Street, Newton, South Australia, 5074,
Australia if returned to Codan, and if returned to a service centre authorised by Codan must be sent to the address for the
service centre as listed on Codan’s website. The purchaser is responsible for all freight, insurance, taxes, duties and any costs
of returning the Codan Products to Codan or a service centre authorised by Codan for warranty repairs.
Codan is only responsible for the freight costs of returning the repaired Codan Products to the purchaser.
5. All Codan Products returned for warranty repair must have a valid Return Material Authorisation (
RMA
) number
issued by Codan or a Codan authorised service centre prior to return by the purchaser. This RMA number must be
clearly indicated and marked on all documentation and packaging by the purchaser when returning the Codan
Products in accordance with item 4 of this document.
6. This express warranty shall not extend to damage of Codan Products during transit or transportation, or any
abuse, accident or improper installation, connection, adjustment, repair or use of goods otherwise than in
accordance with instructions issued by Codan. This express warranty does not apply to any Codan Products in
respect of which the serial number has been altered, defaced or removed.
7. This express warranty is incorporated into, and forms part of, Codan’s Standard Terms and Conditions of Supply.
Accordingly, it is subject to the terms of Codan’s Standard Terms and Conditions of Supply, including but not limited
to clauses 8.2 – 8.7.
8. Subject to the matters set out in this express warranty, and to the full extent permitted by law, no liability (whether
expressed or implied) of any nature whatsoever, is accepted by Codan for any consequential loss, damage or injury
arising as a result of any fault in the Codan Products.
9. This express warranty does not extend to goods supplied by Codan, which are not designed or manufactured by or on
behalf of it. Some goods supplied but not manufactured by or on behalf of Codan, or Materials manufactured by third parties
which are used in Codan Products, benefit from specific warranties provided by their manufacturers. Codan will make
reasonable endeavours to ensure that the purchaser receives the full benefit of any warranty given by the manufacturer in
respect of goods supplied but not manufactured by or on behalf of Codan, and Materials manufactured by third parties which
are used by or on behalf of Codan in Codan Products. To the extent permitted by law, such action will be the sole remedy
available to the purchaser in respect of any faulty or defective goods or Materials not manufactured by or on behalf of Codan.
10. This express warranty is valid for Codan Products purchased from Codan anywhere in the world. Warranty service will be
provided in accordance with this express warranty in any country of the world where there is a service centre authorised
by Codan.
11. The benefits conferred by this express warranty are in addition to all other non-excludable rights and remedies which
the purchaser may have under the ACL and any similar laws in Australia or elsewhere.
12. To the extent permitted by law, Codan’s liability for any non-excludable term, condition, guarantee or warranty
applicable under the ACL or its equivalents is limited to (at Codan’s option):
(a) In the case of goods – repairing, replacing or supplying equivalent goods, or paying the cost of any of those
remedies to the purchaser; or
(b) In the case of services – supplying the services again or paying the cost of having the services supplied again.
13. Codan provides the following advice to all purchasers who are consumers as defined by the ACL and to whom the ACL
applies, as required by the ACL:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
155 156
BATTERY CELL WARRANTY
Codan Limited (‘Codan’) warrants that all batteries supplied by Codan will be free of faults arising from defects
in design, workmanship or materials in accordance with this express warranty.
In addition to Codan’s International Product Warranty period and conditions, the following conditions apply to battery cells supplied
by Codan.
Codan warrants the Nickel Metal Hydride (NiMH) battery cells to be free from defects in material and workmanship for a period of
three (3) years after shipment from the factory.
Codan warrants the Lithium Iron Phosphate (LiFePO4) battery cells to be free from defects in material and workmanship for a period
of three (3) years after shipment from the factory.
Codan warrants the Sealed Lead Acid (SLA) battery cells to be free from defects in material and workmanship for a period of
one (1) year after shipment from the factory.
The liability of Codan under this warranty shall be limited to the repair or replacement free of charge of NiMH battery cells,
LiFePO4 battery cells, or SLA battery cells provided notification of such failures or defect is given to Codan immediately upon
the same becoming apparent.
This warranty does not extend to cover defects in the battery cells that are due to fair wear and tear, negligent use, tampering,
improper handling, improper use, improper operation, improper storage, improper battery management or where the batteries have
not been charged, discharged or serviced as per Codan’s instructions.
Note that battery cell capacity reduces through time and usage and that this is normal. The degree of reduction depends upon the
battery cell type. This warranty will be rendered void if a battery pack has been disassembled unless such disassembly has been
agreed to by Codan. The warranty is not transferable to third parties.
This page has been intentionally left blank.
2
LONDON
DUBAI
ADELAIDE
BEIJING
VICTORIA
SALES OFFICE
LOCATIONS
Codan Radio Communications
sales@codanradio.com
www.codanradio.com
12-30038-EN Issue 4 July 2015
Note that all specifi cations in this document are subject to change.
WASHINGTON
