SS06005

L/SSHOMEBC/D

November 2006

Honeywell Security & Custom Electronics

Honeywell

PO Box 9035

Syosset, NY 11791

1-800-908-4737

www.honeywell.com

Find out more

For more information on Honeywell’s

Street Smart home control products,

visit www.security.honeywell.com/hsce

Street Smart Home Control

Convenience and Control

All brands and product names shown

are trademarks of their respective owners.

Make the smart choice. Add wireless to any system with Street Smart.

Honeywell’s Street Smart line provides some of the most

versatile wireless remote controls in the industry—most

notably the revolutionary Code Encryptor that works with

virtually every security system on the market. The first of

it’s kind, the cutting-edge device—with it’s state-of-the-art

64-bit encryption and four-billion hopping codes—provides

a great sales opportunity as well as an unmatched level of

security and convenience.

Our other quick-install wireless devices—ranging from

lamp modules, transmitters, panic buttons and more—give

you the opportunity to sell a full range of exciting options

that make systems easier than ever to operate. They

provide unmatched installation ease, reliability and

convenience—saving you time in labor, costs and training

while providing your customers with peace of mind and

convenience they can count on.

Contents

RF Lamp Module

Wall Transmitter

Code Encryptor LX2

Code Encryptor II

Wireless Emergency Line (WEL)

Wireless Automator

Additional Remote Controls

RF Lamp Module Functions

Plugs into any 110 outlet

(no wiring needed)

Uses one remote to control

three devices:

Home security system

Garage door

Lamps

Controls multiple modules

with one remote (i.e. one

button works the lamp in

the family room and the

bedroom)

Lets you add up to seven

remotes to one receiver

• Easy to install – just plug it in!

• Works with any lamp

• Ideal for added safety when entering a house

• Perfect for dealers who do not want to use

power line carrier

Part Numbers/Compatibility

Part Number: LT400

CEREMLX, CEREMWA,

CEREM1-LT, WT400

Control any lamp by remote. Install a switch without running wires!

The lamp module is a powerful add-on that can

help close sales and satisfy customers. When

combined with a wireless remote, it provides

convenient lighting control so your customers

never have to enter a dark home again.

The remote can be conveniently programmed to

activate lights and disarm the security system at

the same time.

Wall Transmitter

Honeywell’s attractive, thin style Wall Transmitter

can be mounted to a wall, placed on a tabletop

or hidden in a drawer.

Functions

Six-button wall transmitter

Three silk screened button

inserts included

Red LED indicator blinks

when a transmission has

been sent

Easy to attach – mounts on

a standard electrical box

or directly on the wall

Sends RF signals directly

to multiple Street Smart

433 MHz RF receivers (both

switch and receiver required)

Uses a single 3V CR2032

lithium battery (included)

• Convenient fingertip control of up to six lighting,

relay or automation devices

• Quick and easy to install

• Single-button programming

Part Number/Compatibility

Part Number: WT400

Code Encryptor LX2, WA6R,

RA400, LT400

4 5

Code Encryptor LX2 Code Encryptor II

Functions

Wires through the data bus –

AWAY, STAY, OFF, and PANIC

No zones required

Code hopping with four

billion codes that never repeat

On-board relay for garage

door open/close (designated

button)

LED output for visual alarm

status

Add up to seven remote

controls

• Easily adds to any home alarm system to turn it

on and off

• No need to remember codes to arm and disarm

alarm

• Plug and play installation

• Access home, garage door and police panic

via a keychain remote

• Add a panic button for emergency situations

• Works with the RF Lamp Module to control lighting

Part Numbers/Compatibility

Part Number: CE2Y-LX2

Honeywell

– ADEMCO 4110, 4120, 4140

– VISTA (SE & PLUS) Panels 5,

10, 15, 20, 48, 50

First Alert Professional®(all residential)

DSC™ – 1550, 2525, 2550, 3000

DSC – 1555 (632), 5010 (832),

5020 (864)

GE®– Caddx 8600E, 8980E

Napco™ – 1000E, 1008E, 1016E

Moose – Z900, Z1100, Z1100E,

A910

Part Number: CE2R-LX2

FBII (all)

GE – Caddx NX 4, 6, 8, 848

Napco – 816, 1632, 3200, 9600

Napco – P400, P600, P800,

Express 400, 600

The ultimate in convenience and control.

Our Code Encryptors send one of four billion possible codes, randomly

changing every time you press the button. No improvement in technology

for a “code grabber” will ever be able to bypass this state-of-the-art security!

The Code Encryptor LX2 provides security and peace of mind today, tomorrow

and in the future.

1 Alarm ON/STAY

2 Alarm OFF

3 Garage Door

OPEN/CLOSE

4 Relay Output or

Light Control

PANIC – Hold Buttons

1 and 2 for 3 seconds

Kit includes:

Receiver,

Wall Plate,

Remotes (2)

Kit includes:

Receiver,

Wall Plate,

Remotes (2)

Functions

Arm, disarm and panic

directly through the data

bus using no zones

Easy installation –

self-identifies to virtually

any panel

Garage door access using

secure encrypted codes

LED status light

Add up to seven remote

controls

• Easily adds to any home alarm system to turn it

on and off

• No need to remember codes to arm and disarm

alarm

• Plug and play installation

• Add remote controls (up to seven) for every family

member for security, safety and convenience

• Add a panic button for emergency situations

• Reduces user error and false alarms

Part Numbers/Compatibility

Part Number: CE2Y-2

Honeywell

– ADEMCO 4110, 4120, 4140

– VISTA (SE & PLUS) Panels 5,

10, 15, 20, 48, 50

First Alert Professional (all residential)

DSC – 1550, 2525, 2550, 3000

DSC – 1555 (632), 5010 (832),

5020 (864)

GE – Caddx 8600E, 8980E

Napco – 1000E, 1008E, 1016E

Moose – Z900, Z1100, Z1100E,

A910

Part Number: CE2R-2

FBII (all)

GE – Caddx NX 4, 6, 8, 848

Napco – 816, 1632, 3200, 9600

Napco – P400, P600, P800,

Express 400, 600

Part Number: CE2P-2

Honeywell – APEX Destiny 4100,

6100

1 Alarm ON/OFF/STAY*

*STAY – Press & hold

for 3 seconds

2 Garage Door

OPEN/CLOSE

3 PANIC – Hold button

for 3 seconds

RELAY – Press button

& release

6 7

Wireless Emergency Line (WEL) Wireless Automator

• Simple four-wire connection (wires exactly like

a keypad)

• Instant or three second delay single button

• Control anything that can be activated by relay

• Send police or medical panic via the data bus

• Four billion encrypted codes allow you to control

any device without giving up security

• Works on multiple receivers; i.e. one receiver on

your home and one for your business

Part Numbers/Compatibility

Part Number: WEL-Y

Honeywell

– ADEMCO 4110, 4120, 4140

– VISTA (SE & PLUS) Panels 5,

10, 15, 20, 48, 50

DSC – 1550, 2525, 2550, 3000

DSC – 1555 (632), 5010 (832),

5020 (864)

GE – Caddx 8600E, 8980E

Napco – 1000E, 1008E, 1016E

Moose – Z900, Z1100, Z1100E,

A910

Part Number: WEL-R

FBII (all)

GE – Caddx NX 4, 6, 8, 848

Napco – 816, 1632, 3200, 9600

Napco – P400, P600, P800,

Express 400, 600

Secure relay output.

Our Wireless Emergency Line is a multi use

product. You can use our WEL kit to either

activate panic (medical or police) or use the

on board relay as a single channel receiver

and single channel transmitter.

The Wireless Automator comes with six program-

mable form-C relays. This universal receiver can

be used for lighting control, key switch arm/disarm,

garage doors, magnetic locks, security gates or

any other item that can be controlled by a relay.

Functions

transformer or auxiliary

Unit will default to validity

mode

Each relay has eight

programmable options:

- Momentary

- Latching

- Validity

- 30-second timed

- 1-minute timed

- 5-minute timed

- 20-minute timed

- Strobe(.5 second on, .5 second off)

Multiple buttons can

control same relay/one

button multiple relays

Extra remote CEREMWA

Add up to seven remotes

to one receiver

• Simple connection – each relay has separate

color matched wires

• Each relay is preprogrammed for validity

• Control anything that can be activated by relay

• Four billion encrypted codes allow you to control

any device without giving up security

• One remote can work on multiple receivers;

for example, one receiver on your home, one

for your business

• Six form-C relays; normally open or normally closed

Part Number/Compatibility

Part Number: WA6R

Works with anything that can be

controlled with a dry contact relay.

1 Relay 1

2 Relay 2

3 Relay 3

4 Relay 4

1 & 2 Relay 5

(press simultaneously)

3 & 4 Relay 6

(press simultaneously)

Kit includes:

Receiver, keyfob,

neck cord, harness,

installation manual

Kit includes:

Receiver, keyfob,

neck cord, harness,

installation manual

Functions

Plug and play

self-programming operation

Panic via the data bus (if not

on data bus, unit will default

to relay mode)

Easily change from medical

or police – instant or three

second delay

Great for electronic lock

release control

Extra remotes CEREM1,

and CEREM2

Add up to seven remotes

to one receiver

8 9

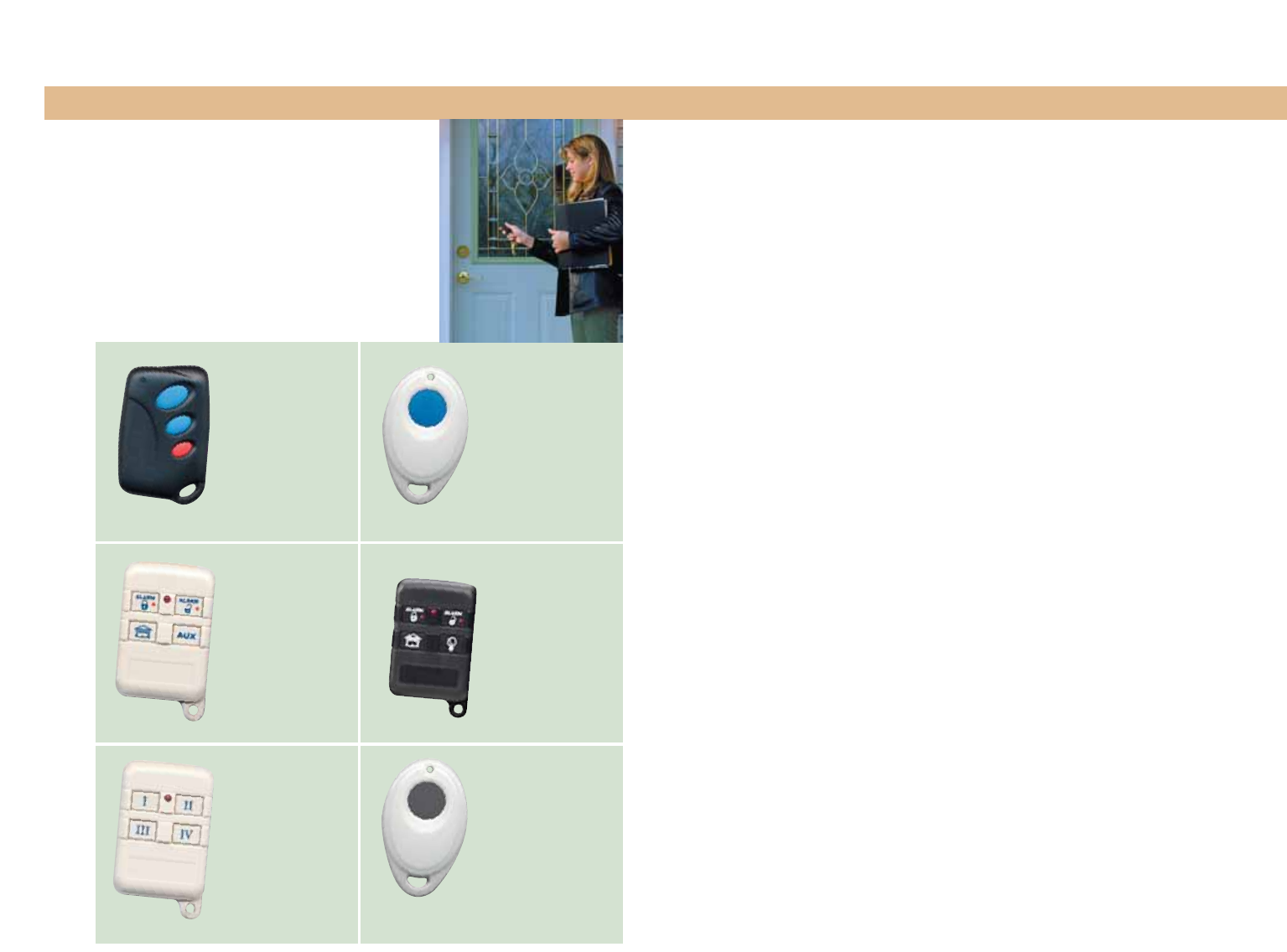

Additional Remote Controls

Small keychain styles Notes

• Code encrypted remotes

• Street Smart receivers hold up to

seven remotes each

• Easily add to receiver

Three Button Remote

(CEREM)

• for Code Encryptor II

• 303 MHz

Compatibility

CE2Y, CE2R, CE2P

One Button Remote

(CEREM1)

• for Wireless

Emergency Line

• 303 MHz

Compatibility

CE2Y, CE2R, CE2P,

WEL-Y, WEL-R

One Button Remote

(CEREM1-LT)

• 433 MHz

Compatibility

LT400, WA6R, RA400

Four Button Remote

(CEREMLXH)

• 433 MHz

Compatibility

CE2Y-LX2, CE2R-LX2,

LT400, RA400

Four Button Remote

(CEREMLX)

• 433 MHz

Compatibility

CE2Y-LX2, CE2R-LX2,

LT400, RA400

Four Button Remote

(CEREMWA)

• 433 MHz

Compatibility

CE2Y-LX2, CE2R-LX2,

WA6R, LT400, RA400
