Splendide Washer/Dryer 210 XC Combo Parts Break Down
User Manual: Splendide Washer/Dryer 210 XC
Open the PDF directly: View PDF .
Page Count: 56
![](asset-1.png)
Page 2 to 3
Model and S/N Designators 2002 / 2004 Models
'M' and Pre 'M' Models
Page 4 to 19
2002 / 2004 Models Splendide 2000S (WD2000S)
Splendide 2100 (WD2100)
Comb-o-matic 6200 (WDC6200CEE)
Comb-o-matic 5200 (WDC5200)
Page 20 to 46
087919
A
0
1) Splendide 2000 (WD802M)
114388 +) WD2000S
Comb-o-matic 2000 (SWD1054M)
Comb-o-matic 2000 (WDC1024M)
Comb-o-matic 6000 (WDC1025MCEE)
Comb-o-matic 6000 (WDC1025M)
Comb-o-matic 6000 (WDC1025)
Comb-o-matic 6100 (LWD1054M)
Page 47 to 56
Pre 'M' Models Splendide 2000 (WD802)
Splendide 2000 (WD804)
Splendide 2000 (NBR5000)
15650 SE 102nd Ave. Clackamas, Oregon - Hours: M-F, 7am-5pm PST
Combo Washer-Dryer Parts Breakdowns
IMPORTANT:
Always contact a Splendide Technician at 1-800-356-0766 ext. 5
(503-656-2280) to verify the correct part before ordering.
Splendide Combo Washer-Dryer Parts Breakdowns Last Updated: 7/7/2008
![](asset-2.png)
To speed the repair process, ALWAYS have the Model
and Serial No. ready when you call Westland Sales.
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housing Upper & Lower (602+) WD2000S
Splendide 2002 / 2004 Models
Model/Serial No. Designators
To speed the repair process, ALWAYS have the Model
and Serial No. ready when you call Westland Sales.
Model and S/N Designators 2002/2004 Vented and Ventless Models 2
![](asset-3.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housing Upper & Lower (602+) WD2000S
Splendide 'M' and Pre 'M' Models
Model/Serial No. Designators
To speed the repair process, ALWAYS have the Model
and Serial No. ready when you call Westland Sales.
Model and S/N Designators 'M' and Pre 'M' Vented and Ventless Models 3
![](asset-4.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housing Upper & Lower (602+) WD2000S
Splendide 2000S, 2100
Models: WD2000S, WD2100 - (Cabinet)
Splendide "Comb-o-matic" 6200, 5200
Models: WDC6200CEE, WDC5200 - (Cabinet)
2002 Cabinet Vented and Ventless Models 4
![](asset-5.png)
PART NO. DESCRIPTION MODEL
0111511 Owners Manual (406 & LATER) WD2000S
0A 090184 Owners Manual (BEFORE 406) WD2000S & WD2100
0B 090997 Owners Manual WDC5200
0C 090324 Owners Manual WDC6200
1082337 Wash Timer Knob - Big All
1A 116613 Wash Timer Knob - Big 50404+ WD2000S/WD2100
2081708 Wash Temperature, Dry Timer Knob - Small All
2A 116611 Wash Temperature, Dry Timer Knob - Small
50404 + WD2000S WD2100 All
3081706 Push Button All
3A 116615 Push Button PW 50404+ WD2100/WD2000S
4110421S Soap dispenser panel WD2000S B4 50404 WD2000S
4A 110421C Control Panel WD2000S B4 50404 WD2000S
4B 087919A Heater Housing Upper & Lower (406 - 601) WD2000S
114388 Heater Housing Upper & Lower (602+) WD2000S
4C 116782S Soap Panel WD2000S 50404+ WD2000S
4D 090192S Soap Dispenser WD2100 B4 50404 WD2100
4E 090192C Control Panel WD2100 B4 50404 WD2100
4F 117500S Soap Dispenser WD2100 50404+ WD2100
4G 117500C Control Panel WD2100 50404+_ WD2100
4H 091414C Control Panel WDC5200
4I 091414S Soap Panel WDC5200 WDC5200
4J 090320S Soap Panel WDC6200 WDC6200CEE
4K 090320C Control Panel WDC6200CEE
6116626 Door Assembly - WHITE ALL WD2000S
6A 118119 Door Assembly - TITANIUM LOOK WD2100/WDC5200/WDC
6200
7082299 Door Handle Assembly-WHITE WD2000S
7A 118122 Door Handle Assembly-TITANIUM LOOK WD2100/WDC5200/WDC
6200
8116630 Panel Lower Front ALL ALL
8A 081697 Panel Lower Front ALL
9087084 Front / Rear Foot ALL ALL
9A 081702 Front Foot-ALL ALL
10 083828 Spring Front Foot ALL WD2000S
10A 059869 Spring Front Foot ALL ALL
11 019846 Door Hinge Bolt ALL
12 075325 Door Hinge ALL
13 002497 Door Hinge Nut ALL
14 081701 Rear Foot ALL
15 046666 Drain Hose Collar ALL
16 084817 Serial Port Plug ALL
Splendide 2000S, 2100
Models: WD2000S, WD2100 - (Cabinet)
Splendide "Comb-o-matic" 6200, 5200
Models: WDC6200CEE, WDC5200 - (Cabinet)
2002 Cabinet Vented and Ventless Models 5
![](asset-6.png)
17 NA Rear Panel Plug ALL
18 099313 Back Panel (406 & LATER) WD2000S
18A 081698 Back Panel (BEFORE 406) WD2000S
19 041575 Adhesive Hook ALL
20 064550 Drain Hose Clip ALL
21 NA Clip ALL
22 091200 Top Panel W/Shield WD2000S
22A 116628 Top Panel W/Shield 5040+ PW WD2000S
22B 098184 Top Panel w/Shield (31017 & LATER) WD2100, WDC6200
22C 091201 Top Panel W/sheild B4 31017 WD2100, WDC6200
22D 116876 Top Panel W/Shield 5040+ PW WD2100, WDC6200
22E 089651 Top Panel W/Shield WDC5200
23 067695 Dryer Duct Flange WD2000S, WD2100
24 110432 Hose- Drum to Case (406 & LATER) WD2000S
24A 108842 Hose- Drum to Case (031017 & LATER) WD2000S, WD2100
24B 036024 Hose - Drum to Case WD2000S (Before 406)
24c 036024 Hose - Drum to Case WD2100 (Before 031017)
Not Shown 046667 Wiring Stop WD2100, WDC6200CEE
Not Shown 082598 Kit Package WD2000s, WD2100,
WDC6200
Not Shown 089669 Kit Package WDC5200
Not Shown 065871 Blanking Plug ALL
Not Shown 090932 Bottom Case Plate WD2000S
Not Shown 098183 Bottom Case Plate WD2100, WDC6200CEE
Not Shown 091056 Bottom Case Plate (before 031017 WD2100, WDC6200CEE
Not Shown 090996 Bottom Case Plate WDC5200
2002 Cabinet Vented and Ventless Models 6
![](asset-7.png)

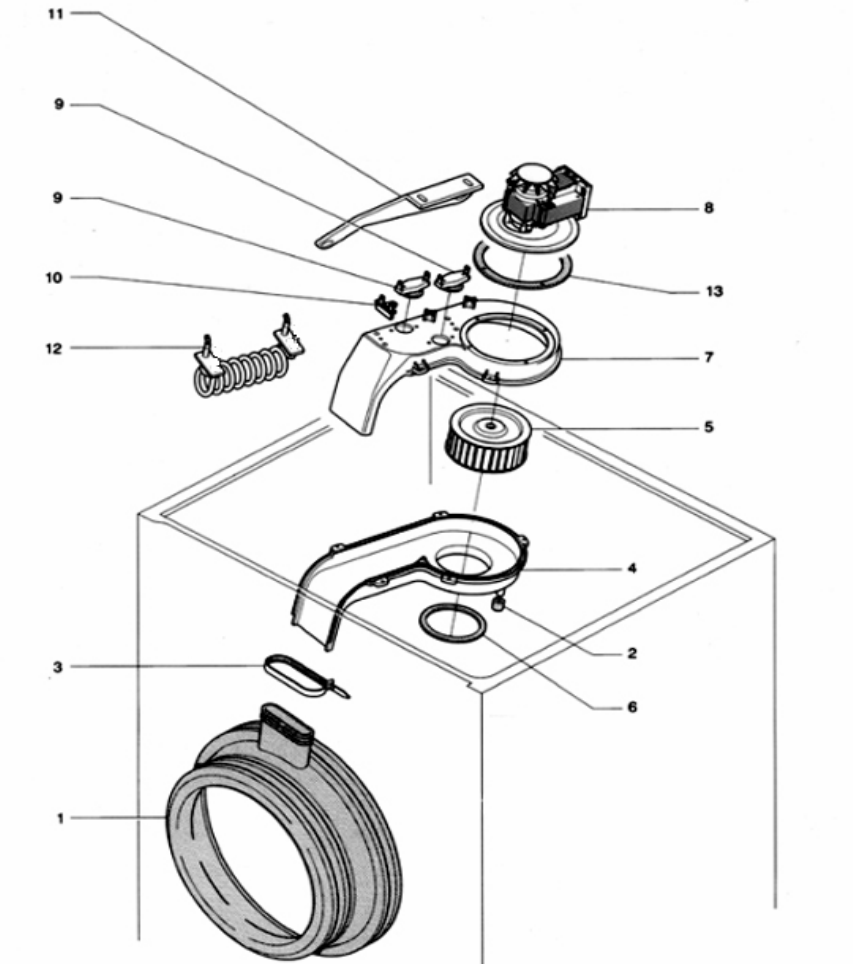

087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housing Upper & Lower (602+) WD2000S
Splendide 2000S, 2100
Models: WD2000S*, WD2100 - (Oscillating)
Splendide "Comb-o-matic" 6200, 5200
Models: WDC6200CEE, WDC5200 - (Oscillating)
* NOTE: SEE FOLLOWING PAGES for Model WD2000S with S/N "406XXXX" and LATER
2002 Oscillating Vented and Ventless Models* 7
![](asset-8.png)
PART NO. DESCRIPTION MODEL
1064786 Bolt WD2000S (before 406)
2082812 Belt Drive EL106H8 WD2000S(before 406),
WD2100, WDC6200
2
A
091042 Belt Drive WDC5200
3084026 Drum Pulley WD2000S(before 406),
WD2100, WDC6200
3
A
091051 Drum Pulley WDC5200
4090204 Cross Bearing Assembly WD2000S, WD2100
4
A
091049 Cross Bearing Assembly WDC5200
4B 082638 Cross Bearing Assembly WDC6200
5013563 Ball Bearing- Rear All - WD2000S (before 406)
6002591 Ball Bearing - Front All - WD2000S (before 406)
7035999 Ball Bearing Seal All - WD2000S (before 406)
8087919A Heater Housing Upper & Lower (406 - 601) All - WD2000S (before 406)
114388 Heater Housing Upper & Lower (602+) WD2000S
9055304 Bolt - Rear Tub Clamp All - WD2000S (before 406)
10 051526 Self Locking Nut All - WD2000S (before 406)
11 041605 Washer All - WD2000S (before 406)
12 052723 Washer All - WD2000S (before 406)
13 089965 Upper Counterweight All - WD2000S (before 406)
14 041607 Nylon Washer All - WD2000S (before 406)
15 041609 Screw All - WD2000S (before 406)
16 036066 Tub Gasket All - WD2000S (before 406)
17 064515 Anchor Pad - Suspension Spring All - WD2000S (before 406)
18 082322 Suspension Spring - Large All - WD2000S (before 406)
18
A
089967 Suspension Spring - Small All - WD2000S (before 406)
19 074041 Bushing Spring All - WD2000S (before 406)
20 095718 Outer Tub 1.6 CF (30609 to 405 & later) WD2000S
20
A
090934 Outer Tub (before 30609) ALL
20B 095720 Outer Tub 1.92 CF (30609 & Later) WD2100
20C 090206 Outer Tub (before 30609) WD2100
20D 095722 Outer Tub 1.6 CF (30609 & later) WDC5200
20E 091050 Outer Tub (30609 & later) WDC6200
20G 090321 Outer Tub (before 30609) WDC6200
21 081750 Hose - Detergent Recovery All - WD2000S (before 406)
22 090145 Clamp - Tub Diaphragm All - WD2000S (before 406)
23 090201 Porthole Diaphragm WD2000S(before 406),
WD2100, WDC6200
23
A
091052 Porthole Diaphragm WDC5200
24 064546 Outer Wire Clamp All - WD2000S (before 406)
25 081717 Front Counterweight WD2000S(before 406),
WD2100, WDC6200
Splendide 2000S, 2100
Models: WD2000S*, WD2100 - (Oscillatin
g
)
Splendide "Comb-o-matic" 6200, 5200
Models: WDC6200CEE, WDC5200 - (Oscillatin
g
)
* NOTE: SEE FOLLOWING PAGES for Model WD2000S with S/N "406XXXX" and LATER
2002 Oscillating Vented and Ventless Models* 8
![](asset-9.png)
25
A
089657 Front Counterweight WDC5200
26 081725 Screw WD2000S (before 406),
WD2100, WDC6200
26
A
051581 Screw WDC5200
27 081748 Hose - Tub to Pump WD2000S, WDC5200
27
A
083293 Hose - Tub to Pump WD2100, WDC6200
28 030680 Nut , M10, Use 17mm Wrench All - WD2000S (before 406)
28
A
098723 Nut, M8, Use 13mmWrench All - WD2000S (before 406)
29 065152 Nut, to bottom of Shock Absorber All - WD2000S (before 406)
30 082327 Shock Absorber, w/Small Hole All - WD2000S (before 406)
30
A
098722 Shock Absorber, w/Small Hole All - WD2000S (before 406)
31 030446 Bolt, M8, use 15mm Wrench All - WD2000S (before 406)
31
A
098724 Bolt, M8, use 13mm Wrench All - WD2000S (before 406)
32 NA Hose Clamp All - WD2000S (before 406)
33 092273 Hose Dispenser to Tub (30609 & later) All - WD2000S (before 406)
33
A
080654 Hose Dispenser to Tub (before 030609) All - WD2000S (before 406)
34 082639 Inner Tub - Stainless (before 406) WD2000S
34
A
083703 Inner Tub - Stainless WD2100, WDC6200
34B 089658 Inner Tub - Stainless WDC5200
35 036065 Clamp - Tub Gasket All - WD2000S (before 406)
36 090586 Motor Support Bracket WD2000S, WDC5200
36
A
088403 Motor Support Bracket WD2100, WDC6200
Not Show
n
074054 Binding All - WD2000S (before 406)
2002 Oscillating Vented and Ventless Models* 9
![](asset-a.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housing Upper & Lower (602+) WD2000S
* NOTE: SEE PREVIOUS PAGES for Model WD2000S with S/N BEFORE "406XXXX"
Splendide 2000S
Model: WD200S* (S/N 406 and later - Oscillating)
2004 Oscillating Vented Model "Splendide 2000S" * 10
![](asset-b.png)
PART NO. DESCRIPTION MODEL
1064786 Bolt WD2000s (406+)
2013563 Bearing WD2000s (406+)
3064785 Bolt WD2000s (406+)
4002591 Bearing WD2000s (406+)
5096186 Oil Seal WD2000s (406+)
8088408 Bolt WD2000s (406+)
9064517 Tank Cradle- Top Left Right WD2000s (406+)
10 087811 Upper Counterweight WD2000s (406+)
11 064515 Anchor Pad WD2000s (406+)
12 110420 Spspension Spring WD2000s (406+)
13 110429 Porthole Diaphragm WD2000s (406+)
14 087919A Heater Housing Upper & Lower (406 - 601) WD2000s (406+)
114388 Heater Housing Upper & Lower (602+) WD2000S
15 064547 Clamp - Tub Diaphragm WD2000s (406+)
16 092178 Front Counterweight WD2000s (406+)
17 092411 Hose Clamp WD2000s (406+)
18 092174 Hose to Filter WD2000s (406+)
19 092412 Hose Clamp WD2000s (406+)
20 091148 Clamp WD2000s (406+)
21 093848 Tank Cradle Lower WD2000s (406+)
22 030443 Nut WD2000s (406+)
23 065152 Nut WD2000s (406+)
24 093885 Shock Absorber WD2000s (406+)
25 064789 Wash Paddles WD2000s (406+)
26 111507 Outer Tub WD2000s (406+)
27 093750 Bolt WD2000s (406+)
28 092273 Hose Dispenser to Tank WD2000s (406+)
29 096077 Cross Bearing Assembly WD2000s (406+)
30 074211 Drum Pully WD2000s (406+)
31 074218 Belt Drive WD2000s (406+)
Splendide 2000S
Model: WD2000S* (S/N 406 and later - Oscillating)
* NOTE: SEE PREVIOUS PAGES for Model WD2000S with S/N BEFORE "406XXXX"
2004 Oscillating Vented Model "Splendide 2000S" * 11
![](asset-c.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housing Upper & Lower (602+) WD2000S
Splendide 2000S, 2100
Models: WD2000S, WD2100 - (Top Cover/Controls)
Splendide "Comb-o-matic" 6200, 5200
Models: WDC6200CEE, WDC6200CEE, WDC5200 - (Top Cover/Controls)
2004 Top Cover/Controls Vented and Ventless Models 12
![](asset-d.png)
PART NO. DESCRIPTION MODEL
1112930 Inlet Hose ALL
1005572 Inlet Hose Gasket ALL
4064534 Seal - Electovalve/Dispenser ALL
5066514 Support - Inlet Valve ALL
6098928 Power Cord (406 & later) WD2000S
6A 090194 Power Cord ( B4 406 All - WD2000S (before 406)
7019902 Support - Drain Hose ALL
8027466 Hose Outlet (406 & later) WD2000S
8A 091775 Hose Outlet All - WD2000S (before 406)
9090332 Junction Block ALL
10 111510 Wiring Harness - Complete (406 & later) WD2000S
10
A
090933 Wiring Harness - Complete (Before 406) WD2000S
10B 087919A Heater Housing Upper & Lower (406 - 601) WD2100
114388 Heater Housing Upper & Lower (602+) WD2000S
10C 091048 Wiring Harness - Complete WDC5200
10D 090323 Wiring Harness - Complete WDC6200
11 090195 Program Selector ALL
12 085195 Dry Timer & Water Temperature Selector ALL
14 084763 Light Auto Dry/Status Door Lock ALL
15 088394 Push Button Switch ALL
15
A
090218 On/Off Switch ALL
17 064537 Support - Pressure Switch ALL
18 090200 Pressure Switch ALL
19 092170 Hose - Pressure Switch (406 & later) WD2000S
19A 051552 Hose - Pressure Switch All - WD2000S (before 406)
22 092412 Tub Clamp (406 & Later) WD2000S
22A 078221 Tub Clamp All - WD2000S (before 406)
23 092173 Accumulator - Pressure Switch (406& Later) WD2000S
23
A
053409 Accumulator - Pressure Switch All - WD2000S (before 406)
24 090199 Door Interlock Switch ALL
25 090207 Pump Self Cleaning ALL
26 045027 Filter Element ALL
30 091054 Surge Protector ALL
32 110422 Self Locking Nut M6 (406 & later) ALL
32A 040932 Self Locking Nut M6 All - WD2000S (before 406)
34 074152 Bolt M6x30 (406 & later) WD2000S
34A 090124 Motor Bolt All - WD2000S (before 406)
35 090196 Main Motor WD2000S,WD2100,
WDC6200
35
A
091045 Main Motor WDC5200
36 050187 Fixing Nut ALL
38 074151 Rubber Bushing - Motor Mount WD2000S,WD2100,
WDC6200
38
A
104675 Motor Rubber Bushing WDC5200
Splendide 2000S, 2100
Models: WD2000S, WD2100 - (Top Cover/Controls)
Splendide "Comb-o-matic" 6200, 5200
Models: WDC6200CEE, WDC6200CEE, WDC5200 - (Top Cover/Controls)
2002 Top Cover/Controls Vented and Ventless Models 13
![](asset-e.png)
39 081720 Main Motor Mounting Bracket ALL
40 041611 Screw ALL
40
A
0827232 Screw ALL
41 10989820 Module Board (406 & Later) WD2000S
41
A
09050520 Module Board WD2000S B4 406 WD2000S
41B 09050520A Module Board Assy.WD2000S B4 406 WD20000S
41C 09050521 Module Board WD2100 WD2100
41E 09050521A Module Board Assy. WD2100 WD2100
41F 09050562 Module Board WDC6200 WDC6200CEE
41G 09050562A Module Board ASSY. WDC6200 WDC6200CEE
41H 09050552 Module Board WDC5200 WDC5200
41I 09050552A Module Board Assy. WDC5200 WDC5200
42 NA Module Board Housing ALL
44 080767 Tempuerature Sensor All - WD2000S (before 406)
44A 085458 Thermostat Gasket B4 406 All - WD2000S (before 406)
44B 098739 SENSOR,Temperature,20S-#406+ WD2000S
45 075459 Additive Container - Blaech ALL
46 097732 Soap Dispenser Drawer (406 & Later WD2000S
46
A
075352 Soap Dispenser Drawer All - WD2000S (before 406)
47 097834 Additive cover - Fabric Softner (406 & later) WD2000S
47
A
047069 Additive cover - Fabric Softner All - WD2000S (before 406)
48 046157 Compartment Cap - Bleach WD2000S
48
A
046157 Compartment Cap - Bleach All - WD2000S (before 406)
49 092314 Soap Dispenser Housing (30609 & later) ALL
49
A
075351 Soap Dispenser Housing (before 30609) ALL
50 115777 Soap Dispenser Housing Cover (406 & later) WD2000S
50
A
090949 Soap Dsipenser Housing Cover (Before 406) WD2000S
50B 098185 Soap Dispenser Housing Cover (031017 & later) WD2100
50C 090211 Soap Dispenser Housing Cover (before 031017 WD2100
50D 091053 Soap Dispenser Housing Cover WDC5200
50E 098187 Soap Dispenser Housing Cover (031017 & later) WDC6200
50F 090325 Soap Dispenser Housing Cover (before 031017 WDC6200
51 084566 Serial Key - Port Testing ALL
52 Not Available
110437
EEProm for Module Board (406 & later) WD2000S N/A
52A Not Available
090957
EEProm for Module Board (before 406) WD2000S N/A
52B Not Available
090183
EEProm for Module Board WD2100 N/A
52C Not Available
091001
EEProm for Module Board WDC5200 N/A
52D Not Available
090316
EEProm for Module Board WDC6200 N/A
53 110452 Valve - Hot Single (406 & later) WD2000S
53A 090212 Valve - Hot Single All - WD2000S (before 406)
53B 110453 Valve - Cold Double (406 & later) WD2000S
53C 090213 Valve - Cold Double WD2000S (before 406),
WD2100
53D 090327 Valve - Cold Triple WDC5200, WDC6200
Not Show
n
098754 Anit- Vibration Foam-For Part #19 (406 & later) WD2000S
Not Show
n
008612 Tube Clamp - For Part # 23 (406 & later WD2000S
2002 Top Cover/Controls Vented and Ventless Models 14
![](asset-f.png)
Not Show
n
019682 Rubber Bush - Motor - For Part # 34 (406 & later WD2000S
Not Show
n
089986 Condenser Hose WDC5200, WDC6200
Not Show
n
074153 Spacer Motor Support - for part # 34 (406 & later WD2000S
Not Show
n
092348 Self-Scraping Screw (406 & later) WD2000S
Not Show
n
095669 Wire Harnes, Serial Port Key to PC (406 & later) WD2000S
Not Show
n
051541 Binding ALL
Not Shown 084943 Wire Harness, Serial Port Key to PC All - WD2000S (before 406)
Not Shown 061958 Binding ALL
2002 Top Cover/Controls Vented and Ventless Models 15
![](asset-10.png)
08
7
Heater Housing Upper & Lower (406 - 601)
## Heater Housin
g
U
WD2000S
* NOTE: SEE FOLLOWING PAGES for Model WD2000S with S/N "406XXXX" and LATER
Splendide 2000S, 2100
Models: WD2000S*, WD2100 - (Ventilation)
Splendide "Comb-o-matic" 6200, 5200
Models: WDC6200CEE, WDC5200 - (Ventilation)
2002 Ventilation Vented and Ventless Models* 16
![](asset-11.png)

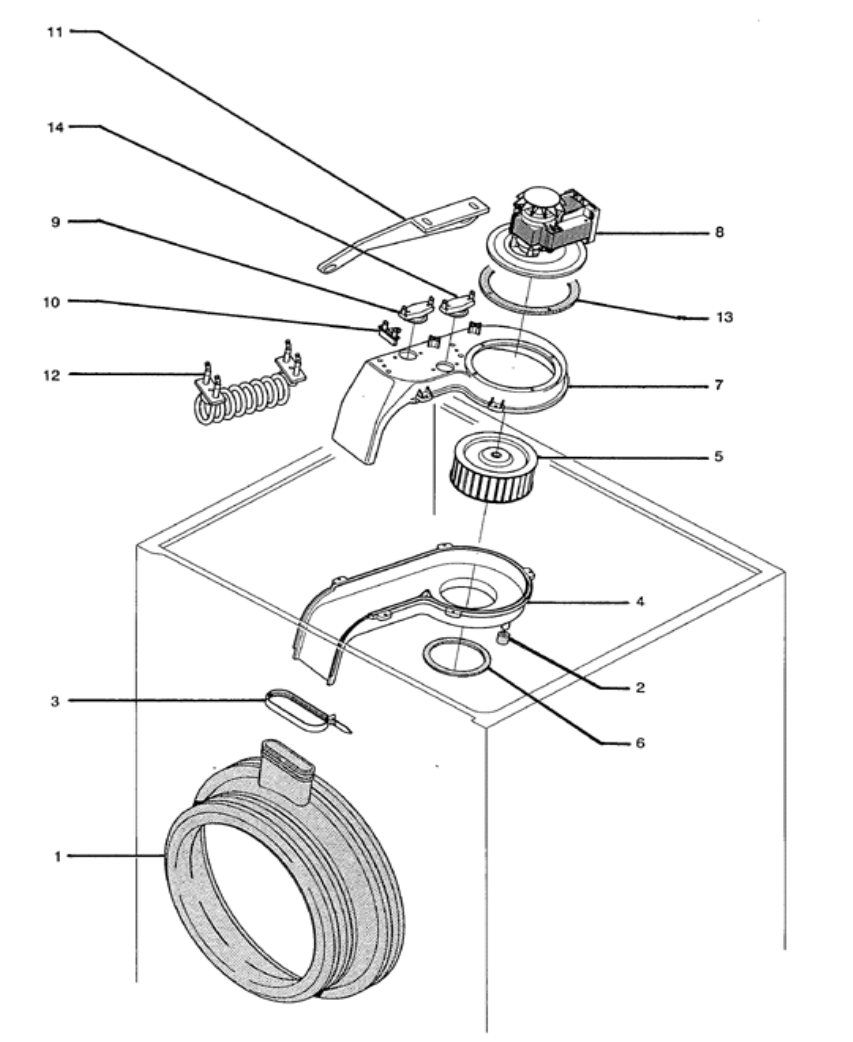

PART NO. DESCRIPTION MODEL
1090201 Porthole Diaphragm WD2000S (before 406),
WD2100,WDC6200
1
A
091052 Porthole Diaphragm WDC5200
2NA Heater Housing Block WD2000S (before 406), WD2100
2
A
041617 Heater Housing Tube WDC5200, WDC6200
3031331 Clamp All - WD2000S (before 406)
4**090214A Heater Housing Bottom All - WD2000S (before 406)
5036080 Fan Impellare All - WD2000S (before 406)
6041619 Heat Housing Lower Gasket WDC5200, WDC6200
7 **090214A Heater Housing Cover All - WD2000S (before 406)
8090215 Fan Motor All - WD2000S (before 406)
9
1
9
A
Heater Housin
g
U
ECO All - WD2000S (before 406)
## Heater Housin
g
U
WD2000S
9
A
080768 O-Ring All - WD2000S (before 406)
10 080767 Temperatur Sensor, To require All - WD2000S (before 406)
11 089985 Heater Housing Bracket All - WD2000S (before 406)
12 ** 090214A Heater Coil 1200W All
13 041625 Fan Motor to Housing Gasket All - WD2000S (before 406)
Not Shown 027230 Screw All - WD2000S (before 406)
Not Shown 043775 Screw All - WD2000S (before 406)
Not Shown 073183 Screw
* NOTE: SEE FOLLOWING PAGES for Model WD2000S with S/N "406XXXX" and LATER
Splendide 2000S, 2100
Models: WD2000S*, WD2100 - (Ventilation)
Splendide "Comb-o-matic" 6200, 5200
Models: WDC6200CEE, WDC5200 - (Ventilation)
** 09214A Includes Bottom, Top Cover and Coil
2002 Ventilation Vented and Ventless Models* 17
![](asset-12.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housing Upper & Lower (602+) WD2000S
Splendide 2000S
Model: WD200S* (S/N 406 and later - Ventilation)
* NOTE: SEE PREVIOUS PAGES for Model WD2000S with S/N before "406XXXX"
2004 Ventilation Vented Model "Splendide 2000S" * 18
![](asset-13.png)
PART NO. DESCRIPTION MODEL
1087921 Screw (406 & later) WD2000S
2089982 ECO (406 & later) WD2000S
3098739 Temperature Sensor, to Require (406 & later) WD2000S
4080768 O-Ring (406 & later) WD2000S
5089982 ECO (406 & later) WD2000S
6110433 Heater Coail 1200 Watt 115 Volt(406 & later) WD2000S
7032847 Blower Mainfold Seal(406 & later) WD2000S
9038358 Bolt M8x16(406 & later) WD2000S
11 032972 Blower Fixing Nut(406 & later) WD2000S
12 080658 Fan Motor(406 & later) WD2000S
13 054790 Screw M5x16(406 & later) WD2000S
14 087919A Heater Housing Upper & Lower (406 - 601) WD2000S
114388 Heater Housing Upper & Lower (602+) WD2000S
15 110434 Fan Motor 115 V - 60 HZ(406 & later) WD2000S
Not Show
n
110429 Porthole Diaphragm 406+ WD2000S
Splendide 2000S
Model: WD200S* (S/N 406 and later - Ventilation)
* NOTE: SEE PREVIOUS PAGE for Model WD2000S with S/N before "406XXXX"
2004 Ventilation Vented Model "Splendide 2000S" * 19
![](asset-14.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housin
g
Upper & Lower (602+
)
WD2000S
Splendide 2000
Model: WD802M - (Cabinet)
'M' Cabinet Vented Model 20
![](asset-15.png)
PART NO. DESCRIPTION Serial No.
1111100830 Top Panel ALL
2112903512 Top Decorative Element ALL
3116103031G Electornic Moduel Assembly ALL
4116990422 Junction Block (single -phase) ALL
5112902490 Support ALL
6ALL
7111100884 Back Panel ALL
8113800472 Spring Tub Suspension Before 0003
8
A
113800484 Spring Tub Suspension 0003 & Later
9116102798 Pressure Switch BEFORE 9719
9
A
116103075 Pressure Switch 9719 & Later
10 113200152 Clamp ALL
11 087919A Heater Housing Upper & Lower (406 - 601) Before 0003
114388 Heater Housing Upper & Lower (602+) WD2000S
11
A
113800483 Shock Absorber - Long 0003 & later
12 114300725 Outlet Hose Elbow ALL
13 116590746tg Pump ALL
14 113200240 Clamp ALL
15 113200087 Clamp ALL
16 119803162 Hose To Pressure Switch Before 9719
16
A
051552 Hose to Pressure Switch 1 ALL
16B 051552 Hose To Pressure Switch Hose ALL
17 113200354 Clamp Not Available Before 9719
17
A
113200113 Clamp Not Available 9719 & later
18 114300737 Hose Filter to Pump Before 9841
18
A
114300781 Hose Filter to Pump 9841 & Later
20 112990007 Filter Assembly Before 9719
20
A
112990007A Filter Assembly 9719 to 9840
20B 112990083 Filter Assembly 9841 & Later
21 114200666 Filter Gasket Before 9841
21
A
114200675 Filter Gasket 9841 & later
22 113800431 Spring Tub Suspension ALL
23 113900489 Pin ALL
24 111100676 Filter Door ALL
25 119803003 Leveling Screw ALL
26 116102761 Electirc Door Switch ALL
28 182990046 Hood Stop Plate ALL
29 113200491 Clamp ALL
30 117000099 Door Flange ALL
30
A
117000099 Door Flange ALL
31 112100592 Door Ring ALL
32 112300230 Door Handle ALL
33 112903262 Support ALL
34 113190122 Hinge Assembley (round porthole) ALL
36 112901939 Adjesive Hook ALL
39 112400459 Module Housing ALL
40 113800459 Spring ALL
Splendide 2000
Model: WD802M - (Cabinet)
'M' Cabinet Vented Model 21
![](asset-16.png)
42 112300233 Door Ring Hook ALL
43 11390056 Pin ALL
45 11190158 Plate Not Available ALL
46 113800477 Shock Absorber - Short Before 0003
46
A
113800483 Shock Absorber - Short 0003 & later
47 112903547 Plug Before 9943
47
A
112902017 Plug 9943 & later
49 114400211 Rubber Pad ALL
52 956333616 Rivet ALL
53 112903121 Wiring Support ALL
54 111901190 Plate ALL
55 114300692 Connection ALL
56 119803690 Filter Assembly ALL
57 112990022 Dryer Filter Housing ALL
N
ot Sho
w
116103096 Surge Protector 9719 & later
N
ot Sho
w
112902271 Round Flange, Dryer Vent ALL
N
ot Sho
w
111901116 Hook Spring ALL
N
ot Sho
w
119503810 Power Cord ALL
N
ot Sho
w
Accessory Accessory-Wrench "F" fitting & gasket ALL
N
ot Sho
w
ShipBrketWD Shipping Brackets - 4 Brackets & Bolts ALL
'M' Cabinet Vented Model 22
![](asset-17.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housin
g
Upper & Lower (602+
)
WD2000S
Splendide 2000
Model: WD802M - (Oscillating)

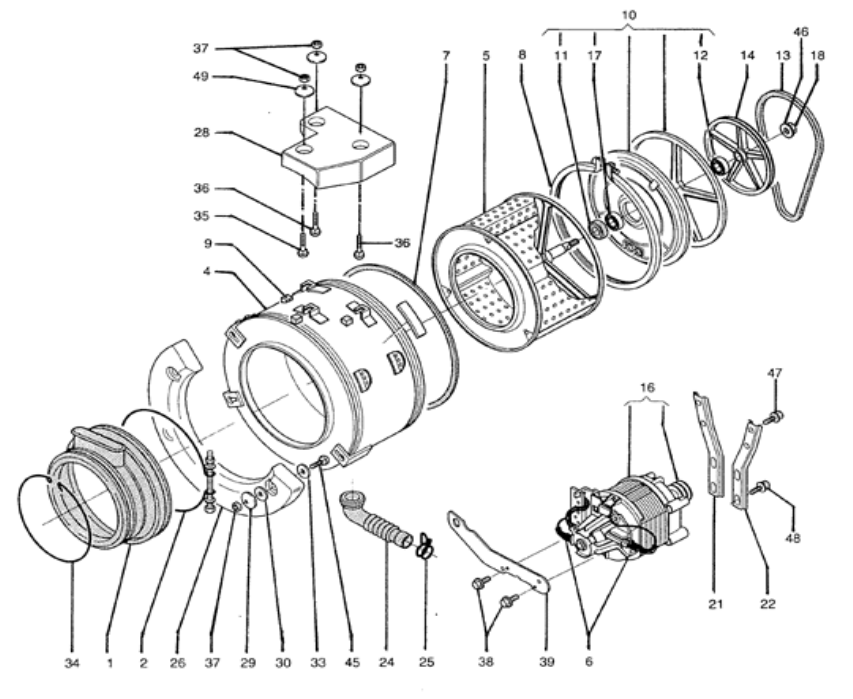

'M' Oscillating Vented Model 23
![](asset-18.png)
PART NO. DESCRIPTION Serial No.
1114200661 Porthole Diaphragm C6 AND M-MODEL ALL
2090145 Clamp ALL
2
A
97023001 Clamp Not Available 9719 & later
4119200763 Clamp Not Available Before 9720
4
A
119200858 Tub Assembley Not Available 9720 to 0002
4B 119200888 Tub Assembly 0003 & later
5119200837 Cylinder Assembly Before 0003
5
A
119200901 Cylinder Assembly 0003 & later
6113390244 Corbon Brush "M" Models All
7036066 Gasket ALL
8111600694 Back Tub Rin
g
Assembly Not Availabl ALL
9114900218 Rubber block ALL
9
A
087919A Heater Housin
g
Upper & Lower (406 - 0003 & later
114388 Heater Housin
g
Upper & Lower (602+
)
WD2000S
10 119200773 Cyulinder Cross Bearing Assy Before 0003
10
A
119200900 Cylinder Assembly 0003 & later
11 035999 Seal ALL
11B 114200686 Seal 0003 & later
12 002591 Ball Bearing ALL
13 114900257 Drive Belt "M" Models Before 9840
13
A
114900291 Drive Belt "M" Models 9840 & later
14 113300543 Pulley Assembly Before 0003
14
A
113300551 Pulley Assembly 0003 & later
16 116190213 & 119
5
Motor Assembly 0003 & later
16
A
116190223 Motor Assembly Before 9805
17 013563 Ball Bearing ALL
18 992400243 Nut Before 0003
18
A
912000001 Torx Screw 0003 & later
21 113900494 Right Motor Support Before 0003
22 113900495 Left Motor Support Before 0003
24 11430070 Hose Tub to Filter Before 9719
24
A
114300770 Hose Tub to Filter 9719 & later
25 113200366 Clamp (small) ALL
26 114900262 Front Counterweight Before 0003
26
A
114900268 Front Counterweight 0003 & later
28 114900273 Uppper Counterweight Before 0003
28
A
114900275 Uppper Counterweight 0003 & later
29 113800458 Spring ALL
30 99310001 Flat Washer ALL
33 993279721 Washer ALL
34 113200497 Clump for Porthole Diaphragm ALL
35 991173005 Screw ALL
36 991173008 Screw ALL
37 992400240 Nut Before 0003
37
A
992401238 Nut 0003 & later
38 995700012 Screw ALL
39 111901184 Support Before 0003
Splendide 2000
Model: WD802M - (Oscillating)
'M' Oscillating Vented Model 24
![](asset-19.png)
39
A
111901207 Support 0003 & later
45 991173007 Screw Before 0003
45
A
991173009 Screw 0003 & later
46 940018501 Washer ALL
47 995700014 Screw ALL
48 995700012 Screw ALL
49 993062138 Flat Washer Before 0003
49
A
993100002 Flat Washer 0003 & later
Not Shown 113900499 Motor Support 0003 & later
Not Shown 112903325 Wiring Support 0003 & later
Not Shown 970231002 Clamp - Large 9720 & later
'M' Oscillating Vented Model 25
![](asset-1a.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housin
g
Upper & Lower (602+
)
WD2000S
Splendide 2000
Model: WD802M - (Top Cover/Controls)
'M' Top Cover/Controls WD802M 26
![](asset-1b.png)
PART NO. DESCRIPTION Serial No.
1119803935 Control Panel ALL
2119803553 Knob ALL
4112903444 Push Button M Models
5112400418 Soap Dispenser Drawer ALL
6112400430 Container for Additives Compartment ALL
714801929400 Soap Dispenser Front Panel ALL
8112400414 Container for Additives Compartment ALL
16 116102961 Water Temp selector ALL
17 116103023B Timer ALL
18 114300731 Hose ALL
19 113200490 Clamp ALL
20 113200491 Clamp ALL
21 087919A Heater Housing Upper & Lower (406 - 601) ALL
114388 Heater Housing Upper & Lower (602+) WD2000S
23 114300646 Hose ALL
24 113200495 Clamp ALL
25 112400499 Soap Dispenser Housing ALL
26 112400497 Water Outlet Dispenser ALL
28 112930 Inlet Hose ALL
30 116102549 Hot Valve ALL
31 005572 Gasket ALL
32 112901946 Double Pipe Fitting ALL
33 116102541 Cold Valve ALL
35 116102964 Dryer Timer ALL
36 116102684 ON/Off Switch ALL
38 116102965 Unipolar Switch ALL
39 116102685 Unipolar Switch ALL
40 114300718 Hose Before 0003
40
A
11430753 Hose 00003 & later
41 112901982 "T" Connector ALL
43 114300683 Hose ALL
Splendide 2000
Model: WD802M - (Top Cover)
'M' Top Cover/Controls Vented Model 27
![](asset-1c.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housin
g
Upper & Low
e
WD2000S
Splendide 2000
Model: WD802M - (Ventilation)
'M' Ventilation Vented Model 28
![](asset-1d.png)
PART NO. DESCRIPTION Serial No.
1114200661 Porthole Diaphragm ALL
3970196912 Clamp ALL
4113300546 Heater Housing ALL
5036080 Impeller Assembly ALL
7113300547 Cover ALL
8090215 Fan Motor ALL
9186820052 Thermostat ALL
10 186240099 Safety Fuse 141 C ALL
11 111901110 Support ALL
11
A
11901204 Support ALL
12 119503931 Heater ALL
13 114200662 Gasket ALL
14 087919A Heater Housin
g
Upper & Lower (406 -
6
ALL
114388 Heater Housing Upper & Lower (602+) WD2000S
Splendide 2000
Model: WD802M - (Ventilation)
'M' Ventilation Vented Model 29
![](asset-1e.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heat WD2000S
Splendide "Comb-o-matic" 2000
Models: WDC1024M, SWD1054M - (Cabinet)
'M' Cabinet Ventless Model "Comb-o-matic 2000" 30
![](asset-1f.png)
PART NO. DESCRIPTION Serial No.
1119100650 Cabinet (Round Porthole) ALL
2111100926 Top Panel ALL
3112903547 NL
A
Stop Plug ALL
3
A
112902017 NL
A
Stop Plug ALL
4113800472 Spring Tub Suspension Before 0013
4
A
113800484 Spring Tub Suspension 0013 & later
5111700593 NL
A
Block Fix Top ALL
6112903121 NL
A
Wiring Support ALL
8112901939 NL
A
Adjesive Hook ALL
9116990427 NL
A
Junction Block ALL
10 111100877 Back Panel ALL
11 087919A Hea
t
Top Decorative Element ALL
114388 Hea
t
WD2000S
12 116103031G Electronic Module Assembly ALL
13 116102798 Pressure Switch Before 9719
13
A
116103075 Pressure Switch 9719 & later
14 113200152 NL
A
Clamp ALL
15 112902490 Support ALL
16 114300744 Outle Hose Elbow ALL
17 112903262 NL
A
Support ALL
18 113200240 NL
A
Clamp ALL
19 116590746G Pump ALL
20 113200087 Clamp ALL
21 119803162 NL
A
Hose To Pressure Switch Before 9719
21
A
154300019 NL
A
Hose To Pressure Switch 9719 to 0012
21B 112700001 NL
A
Hose To Pressure Switch 0013 & later
22 114300741 NL
A
Hose Filter to Pump Before 9841
22
A
114300780 NL
A
Hose Filter to Pump 9841 & later
23 113200491 NL
A
Clamp ALL
24 113200354 NL
A
Clamp Before 0013
24
A
113200113 NL
A
Clamp 0013 & later
25 114200608 Filter Gasket Before 9841
25
A
114200675 Filter Gasket 9841 & later
26 112990079 Filter Assembly before 9719
26
A
112990079A Filter Assembly 9719 to 9840
26B 112990086 Filter Assembly 9841 & later
27 114200609 Filter Gasket ALL
28 113800478 Shock Absorger (long) Before 0013
28
A
113800483 Shock Absorger (long) 0013 & later
29 116102761 Electric Door Switch ALL
30 113190159 Hinge Assembly ALL
31 182990046 Hook Stop Plate ALL
32 113800477 Shock Absorber (Short) Before 0013
32
A
113800483 Shock Absorber (Short) 0013 & later
33 119803003 Leveling Screw ALL
34 111100676 Filter Door ALL
Splendide "Comb-o-matic" 2000
Models: WDC1024M, SWD1054M - (Cabinet)
NLA = "No Longer Available"
'M' Cabinet Ventless Model "Comb-o-matic 2000" 31
![](asset-20.png)
35 113800431 Spring ALL
36 113900489 Pin ALL
37 112100592 Door Ring ALL
38 117000099 Door Flange ALL
38
A
117000099 Door Flange ALL
39 112300230 Door Handle ALL
40 112300233 Door Ring Hook ALL
41 113900056 Pin ALL
42 113800459 Spring ALL
43 111901190 NL
A
Plate ALL
44 112901916 NL
A
Filter Screw ALL
45 114400211 NL
A
Rubber Pad ALL
46 956333616 NL
A
Rivet ALL
48 930008327 NL
A
Ring ALL
52 112400459 Module Housing ALL
53 112903554 Safety Glass ALL
54 111901158 NL
A
Plate ALL
Not shown 116103096 Surge Protector ALL
Not shown 111901116 Plate ALL
Not shown 930046335 Washer ALL
Not shown 920143233 Nut ALL
Not shown 111901116 Hook Spring ALL
Not shown 119503810 Power Cord ALL
Not shown Accessory C2
Accessory - Wrench "F" Fittin
g
&
Gaskets ALL
Not shown ShipBrketC2
Shippin
g
Brackets - 2 Brackets 3
Bolts w/ Spacers and 4 screws ALL
'M' Cabinet Ventless Model "Comb-o-matic 2000" 32
![](asset-21.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heat
e
WD2000S
Splendide "Comb-o-matic" 2000
Models: WDC1024M, SWD1054M - (Oscillating)

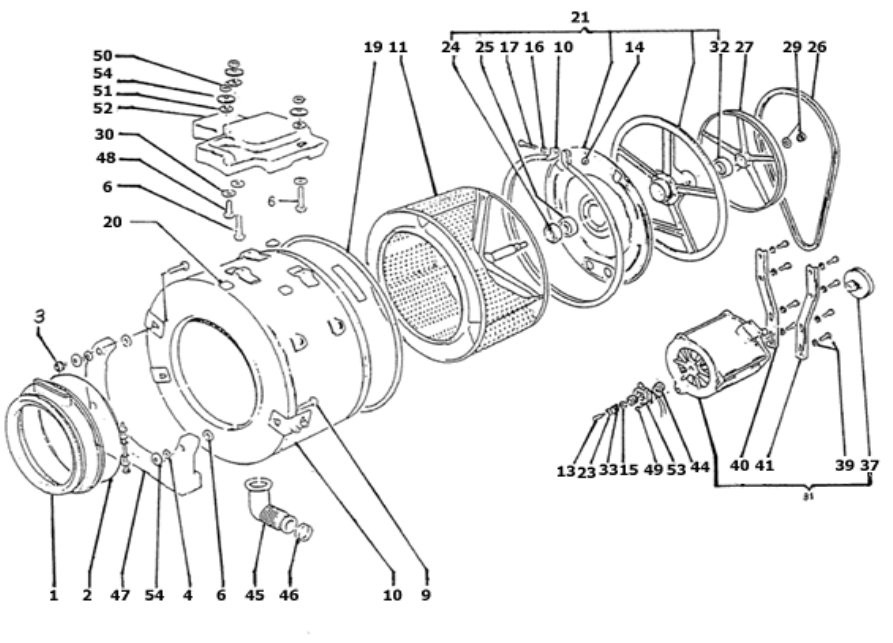

'M' Cabinet Ventless Model "Comb-o-matic 2000" 33
![](asset-22.png)
PART NO. DESCRIPTION Serial No.
1114200670 Porthole Diaphragm ALL
2090145 Clamp ALL
3114900268 NL
A
Front Counter Weight ALL
4991173010 NL
A
Screw Before 0013
4
A
991173009 NL
A
Screw 0013 & Later
5114900218 NL
A
Rubber Block ALL
6991173005 NL
A
Screw ALL
7991173008 NL
A
Screw ALL
8993279721 NL
A
Washer ALL
9114900275 NL
A
Upper Counterweight ALL
10 993100001 NL
A
Flat Washer ALL
11 087919A Heat
e
Spring ALL
114388 Heat
e
WD2000S
12 99240024 NL
A
Nut ALL
13 036066 Gasket ALL
14 119200839 NL
A
Cylinder Assembly Before 0013
14
A
119200901 Cylinder Assembly 0013 & Later
15 114200638 Seal Before 0013
15
A
114200686 Seal 0013 & Later
16 013563 Ball Bearing ALL
17 002591 Ball Bearing ALL
18 119200844 NL
A
Cylinder Cross Bearing Assembly ALL
18
A
119200903 Cylinder Cross Bearing Assembly ALL
19 113300551 Pulley Assembly ALL
20 114900257 Drive Belt Before 9840
20
A
114900291 Drive Belt 9840 & Later
21 992400243 NL
A
Nut Before 0013
21
A
912000001 NL
A
Nut 0013 & Later
24 113200497 Clamp for Porthole Diaphragm ALL
25 111600694 Back Tube Ring Assembly ALL
27 119200840 NL
A
Tub Assembly before 9719
27
A
119200856 NL
A
Tub Assembly 9719 to 0012
27B 119200889 Tub Assembly 0013 & Later
28 113200366 NL
A
Clamp ALL
29 114300707 NL
A
Hose Tub to Filer Before 9719
29
A
114300770 Hose Tub to Filer 9719 & Later
30 995700012 NL
A
Screw ALL
31 113900499 Motor Support ALL
32 995700012 NL
A
Screw ALL
33 111901186 Support Before 0013
33
A
111901207 Support 0013 & Later
34 116190223 Motor Assembly Before 9805
34
A
116190223 Motor Assembly 9805 & Later
42 995700012 NL
A
Screw ALL
43 992401238 NL
A
Nut ALL
44 940018501 NL
A
Washer ALL
Splendide "Comb-o-matic" 2000
Models: WDC1024M, SWD1054M - (Oscillating)
NLA = "No Longer Available"
'M' Cabinet Ventless Model "Comb-o-matic 2000" 34
![](asset-23.png)
45 113390244 Carbon Bruch ALL
46 993062138 NL
A
Flat Washer Before 0013
46
A
993100001 NL
A
Flat Washer 0013 & Later
Not Shown 112903728 NL
A
Plastic Plub 0013 & later
Not Shown 970231002 NL
A
Clamp 0013 & later
'M' Cabinet Ventless Model "Comb-o-matic 2000" 35
![](asset-24.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heat
e
WD2000S
Splendide "Comb-o-matic" 2000
Models: WDC1024M, SWD1054M - (Top Cover / Controls)
'M' Cabinet Ventless Model "Comb-o-matic 2000" 36
![](asset-25.png)
PART NO. DESCRIPTION Serial No.
1119803553 Knob ALL
214801929500 Soap Dispenser Front Panel ALL
3112400492 NL
A
Soap Dispenser Drawer ALL
4112400460 Plate ALL
5112400461 Siphon ALL
7119803938 Control Panel ALL
11 112400503 Soap Dispenser Housing Before 0013
11
A
112400494 NL
A
Soap Dispenser Housing 0013 & Later
12 112400495 Water Outlet Dispenser ALL
13 113200495 NL
A
Clamp ALL
14 114300754 NL
A
Hose ALL
15 087919A Heat
e
Hose Before 0013
114388 Heat
e
WD2000S
15
A
114300771 NL
A
Hose 0013 & Later
16 114300754 NL
A
Hose ALL
19 112930 Inlet Hose ALL
20 114300740 NL
A
Hose ALL
21 113200190 NL
A
Clamp ALL
22 116103032B Timer ALL
23 116102961 Program Selector ALL
24 113800407 NL
A
Spring ALL
25 112903401 NL
A
Support ALL
26 112903444 Push Button ALL
27 116102684 On/Off Switch ALL
29 116102965 Unipolar Switch ALL
30 116102685 Unipolar Switch ALL
33 116102964 Dryer Timer ALL
34 114300761 NL
A
Hose ALL
35 005572 Gasket ALL
36 112903366 Double Pipe Fitting ALL
37 116102995 Cold Valve ALL
38 116102999 Hot Valve ALL
40 113200495 NL
A
Clamp ALL
Splendide "Comb-o-matic" 2000
Models: WDC1024M, SWD1054M - (Top Cover / Controls)
NLA = "No Longer Available"
'M' Cabinet Ventless Model "Comb-o-matic 2000" 37
![](asset-26.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housin
g
Upper & Lower (602+
)
WD2000S
Splendide "Comb-o-matic" 2000
Models: WDC1024M, SWD1054M - (Ventilation)
'M' Cabinet Ventless Model "Comb-o-matic 2000" 38
![](asset-27.png)
PART NO. DESCRIPTION Serial No.
1114200670 Porthole Peaphragm ALL
2041617 Gasket ALL
3970196911 Clamp ALL
4113300554 Heater Housing ALL
5036080 Impeller Assembly ALL
6041619 Gasket ALL
7113300553 Cover ALL
8090215 Fan Motor ALL
9116102693 Thermostat ALL
10 186240099 Safety Fuse 141 C ALL
11 111901110 Support Before 0013
11
A
087919A Heater Housin
g
Upper & Lower (406 - 0013 & Later
114388 Heater Housin
g
Upper & Lower (602+
)
WD2000S
12 119503931 Heater Before 9835
12
A
119504521 Heater 9835 & Later
13 041625 Gasket ALL
14 186820052 Thermostat ALL
Not Shown 100A Air Duct Cleanin
g
Kit (Splendide) ALL
Splendide "Comb-o-matic" 2000
Models: WDC1024M, SWD1054M - (Ventilation)
NLA = "No Longer Available"
'M' Cabinet Ventless Model "Comb-o-matic 2000" 39
![](asset-28.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heate WD2000S
Splendide "Comb-o-matic" 6000, 6100
Models: WDC1025MCEE, WDC1025M, WDC1025, LWD1054M - (Cabinet)
'M' Cabinet Ventless Models "Comb-o-matic 6000, 6100" 40
![](asset-29.png)
PART NO. DESCRIPTION Serial No.
1111100830 Top Panel
2112903512 Top Decorative Element
3116103031G Electonic Module Assembly
4116990422 Junction Black (Single-Phase)
5112902490 Support
6119100642 NL
A
Cabinet (Round Porthole)
7111100884 Back Panel
8113800472 Spring Tub Suspension
9116102798 Pressure Switch Before 9719
9a 116103075 Pressure Switch 9719 to 9942
9B 116103134 Pressure Switch 9943 & Later
10 087919A Heat
er
Hou
sing
Upp
er &
Low
er
(
406 -
601)
Clamp
114388 Heat
er
Hou
sing
Upp
er &
Low
er
(602
+)
WD2000S
11 113800478 Shock Absorber (long) Before 0020
11
A
113800483 Shock Absorber (long) 0020 & Later
12 114300725 Outlet Hose Elbow
13 116590746TG Pump
14 113200240 NL
A
Clamp
15 113200087 NL
A
Clamp
16 119803162 Hose To Pressure Switch Before 9719
16
A
051552 Hose To Pressure Switch 9719 & Later
17 113200354 NL
A
Clamp Before 9719
17
A
113200113 NL
A
Clamp 9719 & Later
18 114300737 Hose Filter To Pump Before 9841
18
A
114300781 Hose Filter To Pump 9841 & Later
20 112990007 Filter Assembly Before 9719
20
A
112990007A Filter Assembly 9719 to 9840
Splendide "Comb-o-matic" 6000, 6100
Models: WDC1025MCEE, WDC1025M, WDC1025, LWD1054M - (Cabinet)
NLA = "No Longer Available"
'M' Cabinet Ventless Models "Comb-o-matic 6000, 6100" 41
![](asset-2a.png)
20B 112990083 Filter Assembly 9841 & Later
21 114200666 Filter Gasket Before 9841
21
A
114200675 Filter Gasket 9841 & Later
22 113800431 Spring
23 113900489 Pin
24 111100676 Filter Door
25 119803003 Leveling Screw
26 116102761 Electric Door Switch
28 182990046 Hook Stop Plate
29 113200491 NL
A
Clamp
30 117000099 Door Flange Before 9943
30
A
117000099 Door Flange 9943 & Later
31 112100592 Door Ring
32 112300230 Door Handle
33 112903262 NL
A
Support
34 113190122 Hinge Assembly (Round Porthole)
35 112903554 Safety Glass
36 112901939 NL
A
Adhesive Hook
39 112400459 Module Housing
40 113800459 Spring
42 112300233 Door Ring Hook
43 113900056 Pin
45 111901158 Plate
46 113800477 Shock Absorber (short) Before 0020
46
A
113800483 Shock Absorber (short) 0020 & Later
47 112903547 NL
A
Plug Before 9943
47
A
112902017 NL
A
Plug 9943 & Later
49 114400211 Rubber Pad
52 95633616 NL
A
Rivet
53 112903121 NL
A
Wiring Support
54 111901190 NL
A
Plate Before 9943
54
A
111901172 NL
A
Plate 9943 & Later
Not Shown 116103096 Surge Protector 9719 & Later
Not Shown 112700001 Hose To Pressure Switch 0020 & Later
Not Shown 111901116 Plate 0020 & Later
Not Show
n
930046335 NL
A
Washer 0020 & Later
Not Show
n
920143233 NL
A
Nut 0020 & Later
Not Shown 111901116 Hook Spring
Not Show
n
119503810 Power Cord
Not Shown Accessory NLA Acccesory - Wrench "F" Fitting & Gasket
Not Shown ShipBrketC6 NLA Shipping Brackets - 4 Brackets & 8 bolts
'M' Cabinet Ventless Models "Comb-o-matic 6000, 6100" 42
![](asset-2b.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heat
e
WD2000S
Splendide "Comb-o-matic" 6000, 6100
Models: WDC1025MCEE, WDC1025M, WDC1025, LWD1054M - (Top Cover / Controls)
'M' Cabinet Ventless Models "Comb-o-matic 6000, 6100" 43
![](asset-2c.png)
PART NO. DESCRIPTION Serial No.
1119803938 Control Panel Before 9943
1
A
119804221 Control Panel 9943 & Later
2119803553 Knob ALL
4112903444 Push Button ALL
5112400418 Soap Dispenser Drawer ALL
6112400430 Container for Additives Compartment ALL
7112605485 Soap Dispenser Front Panel Before 9943
7
A
14801929300 Soap Dispenser Front Panel 9943 & Later, all
8112400414 Container for Additives Compartment ALL
16 116102961 Program Selector Before 9943
16
A
116103107 Program Selector 9943 & Later
17 087919A Heat
e
Timer ALL
114388 Heat
e
WD2000S
18 114300731 Hose ALL
19 113200490 NL
A
Clamp ALL
20 113200491 NL
A
Clamp ALL
21 114300700 NL
A
Hose ALL
22 11400761 NL
A
Hose ALL
23 114300646 NL
A
Hose ALL
24 113200495 NL
A
Clamp ALL
25 112400501 Soap Dispenser Housing ALL
26 112400497 Water Outlet Dispenser ALL
28 112930 Inlet Hose ALL
30 116102549 Hot Valve ALL
30
A
116103135 Hot Valve FOR C6100
31 114200090 NL
A
Gasket ALL
32 112901946 NL
A
Double Pipe Fitting ALL
33 116102739 Cold Valve ALL
35 116102964 Dryer Timer ALL
36 116102684 Switch On/Off ALL
36
A
116102685 Switch Water ALL
38 116102965 Switch Spin ALL
39 116102685 Switch Heater ALL
40 114300718 Hose ALL
41 112901982 NL
A
T Connector ALL
42 113200495 NL
A
Clamp ALL
43 114300683 Hose ALL
Splendide "Comb-o-matic" 6000, 6100
Models: WDC1025MCEE, WDC1025M, WDC1025, LWD1054M - (Top Cover / Controls)
NLA = "No Longer Available"
'M' Cabinet Ventless Models "Comb-o-matic 6000, 6100" 44
![](asset-2d.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heate
r
WD2000S
Splendide "Comb-o-matic" 6000, 6100
Models: WDC1025MCEE, WDC1025M, , WDC1025, LWD1054M - (Ventilation)
'M' Cabinet Ventless Models "Comb-o-matic 6000, 6100" 45
![](asset-2e.png)
PART NO. DESCRIPTION Serial No.
1114200661 Porthole Diaphragm ALL
2041617 Gasket ALL
3970196912 NL
A
Clamp ALL
4113300546 Bottom heater Housing ALL
5036080 Impeller ALL
6041619 Lower Gasket ALL
7113300547 Top heater Housing ALL
8090215 Fan Motor ALL
9186820052 Thermostat 88c ALL
10 186240099 Safety Fuse 141 c ALL
11 111901110 NL
A
Support BEFORE 0020
11
A
087919A Heat
e
Support 0020 & LATER
114388 Heat
e
WD2000S
12 119503931 Heater coil 1300w ALL
13 041625 Gasket,Fan Motor to Housin
g
,Splendi
d
ALL
14 116102693 Thermostat 110c ALL
Not Shown 100A Air Duct Cleanin
g
Kit, Splendide ALL
Splendide "Comb-o-matic" 6000 and 6100
Models: WDC1025MCEE, WDC1025M, LWD1054M, WDC1025 - (Ventilation)
NLA = "No Longer Available"
'M' Cabinet 46
![](asset-2f.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heater Housing Upper & Lower (602+) WD2000S
Splendide 2000
Models: WD802(X), WD804, NBR5000 - (Cabinet)
Pre 'M' Cabinet Vented Model 47
![](asset-30.png)
PART NO. DESCRIPTION Serial No.
1111901056 Halter, Cap Bracket ALL
2112902184 Black Fix Top ALL
3116200723 Capacitor 60 mf Pre-M models
4995500001 Screw, Back Cover ALL
5112903121 Wiring Support ALL
6912600001 Screw, Top Block ALL
7116990422 Junction Block ALL
891225001 Screw, Cord Block ALL
12 119100631 Cabinet Assembly for Round Porthole ALL
13 111100657 Back Panel ALL
14 113800438 Spring, Tub Suspension ALL
15 116102795 Pressure Switch ALL
16 087919A Heater Housin
g
Upper & Lower (406 - 60
1
ALL
114388 Heater Housing Upper & Lower (602+) WD2000S
17 113800478 Shock absorber (long) ALL
18 995500001 Screw, Capacitor Mount ALL
19 991633518 Screw, Interlock ALL
22 920153234 Nut, Shock ALL
23 114300725 Hose, Outlet ALL
24 116590746TG Pump ALL
25 113200240 29,5 Clamp for Outlet Hose ALL
26 113200087 37 Clamp, Pump ALL
27 119802991 N/A Hose, Pressure Switch ALL
29 113200354 Clamp, Presso, 30 ALL
30 917112233 Screw, M5x12, Pump ALL
31 114300665 N/A Hose, Filter to Pump ALL
33 112990007 Filter Assembly Before 9719
34 930063324 Washer, Shock-10.5x17.5x4.4 ALL
35 995600003 Screw, Shock-M10x45 ALL
36 991342230 Screw, Wash Filter ALL
37 114200666 Gasket, Filer ALL
40 112800431 Spring, Wash Filter Door ALL
41 113900489 Pin, Filter Door ALL
42 111100676 Filter Door ALL
43 114400211 Pad, Rubber ALL
44 119803003 Leveling Screw ALL
46 116102761 Switch, Door Interlock ALL
48 182990046 Hook Stop Plate ALL
49 113200491 Clamp, 35 ALL
50 117000099 Flange, Door with Glass ALL
51 112300230 Handle, 2000 ALL
51
A
112300147 Handle, Indesit/Norcold ALL
51B 112300177 Handle, Splendide -Silver ALL
52 113200489 Wire, Porthole Diaphragm ALL
53 912153130 Screw, Hinge M5x10 ALL
54 113190122 Hinge Assembly, Round Porthole ALL
55 036024 Hose, Drum to Dry Filter ALL
Splendide 2000
Models: WD802(X), WD804, NBR5000 (Cabinet)
Pre 'M' Cabinet Vented Model 48
![](asset-31.png)
56 912200001 Screw, Door Hinge m5x10 ALL
57 112901939 Hook, Adhesive ALL
58 112100592 Ring, Porthole-2000 Chrome ALL
58
A
112100426 N/A Ring, Porthole-Indesit ALL
58B 112100427 Ring, Porthole-Splendide Silver ALL
62 112990022 Housing, Dry Filter ALL
63 119803690 Filter, Dry ALL
64 113800459 Spring, Door Hook ALL
65 912121136 Screw, Handle m3x6 ALL
66 912353335 Screw, Dry Filter ALL
67 116102637 Module, Electronic ALL
68 112300233 Hook, Door Ring ALL
69 113900056 Pin, Handle ALL
71 112400373 N/A Black, Module ALL
72 912344102 N/A Screw, Module Housing ALL
73 994000001 N/A Screw, Presso 3, 5x11 ALL
74 113800477 Shock Absorber (Short) ALL
75 112902017 N/A Plug, Drum Spring Mount ALL
88 112400374 Housing, Module ALL
89 112902490 Support, Drain Hose Elbow-180 ALL
90 182990101 Optional Kits Available as Accessory ALL
Not Shown 116103096 Surge Protector 9720 & Later
Pre 'M' Cabinet Vented Model 49
![](asset-32.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heat
e
WD2000S
Splendide 2000
Models: WD802(X), WD804, NBR5000 - (Oscillating)
Pre 'M' Oscillating Vented Model 50
![](asset-33.png)
PART NO. DESCRIPTION Serial No.
1114200661 Bellows, Porthole Diaphragm (seal) ALL
2113200012 Porthole diaphragm ringe (tub seal) ALL
4993041138 NL
A
Washer, Front Counterweight 8.4x36x1.6 ALL
5993279721 NL
A
Washer, Front Counterweight 10.5x30x2 ALL
6991173006 NL
A
Screw, Top Counterweight, M8x55 ALL
9991173007 NL
A
Screw, Top Counterweight, M8x50 ALL
10 119200763 NL
A
Tub Assembly ALL
11 119200758 NL
A
Cylinder Assembly ALL
13 917115231 NL
A
Screw, Tachometer ALL
14 920133132 NL
A
Nut, Tub ring, m6x10 ALL
15 112902092 NL
A
Washer, Tachometer ALL
16 087919A Heater
H
Washer, Tub Ring 6.4x12.5x1.6 ALL
114388 Heater
H
WD2000S
17 99570021 NL
A
Screw, Tub Ring M6x70 ALL
18 111600490 NL
A
Rub ring Assembly, Back ALL
19 036066 Gasket Ring, Tub Assembly ALL
20 114900218 NL
A
Black, Rubber, Top Counterweight ALL
21 119200773 NL
A
Cross Bearing Assembly ALL
22 930036328 NL
A
Washer, Tachometer ALL
24 114200638 NL
A
Seal, Cross Bearing Assembly ALL
25 117600244 NL
A
Ball Bearing, Cross Bearing Assembly, 20 ALL
26 114900133 Belt, Drive-3l-530 ALL
27 113300506 NL
A
Pulley Assembly ALL
29 992600002 NL
A
Flange Nut, Pulley Assembly ALL
31 116190222 NL
A
Motor Assembly, w/ pulley ALL
32 117600243 Ball Bearing, Cross Bearing Assembly 25 ALL
33 993001837 NL
A
Washer, Tachometer ALL
35 993279721 NL
A
Washer, Motor 10.5x30x2 ALL
37 113300537 NL
A
Pulley Motor ALL
39 995700012 Screw, Motor -M8x18 ALL
40 113900497 Support, Motor, Right ALL
41 113900498 Support, Motor, Left ALL
44 1129023691 NL
A
Washer, Tachometer ALL
45 114300707 Hose, Tub to Washer Filter ALL
46 113200366 Clamp, Hose, Wash Filter to Tub, 43 ALL
47 114900262 NL
A
Counterweight, Front ALL
48 991173007 NL
A
Screw, Top Counterweight, M8x50 ALL
49 916700001 NL
A
Screw, Tachometer Attachment ALL
50 992400240 NL
A
Nut, Top Counterweight, 8x10.6 ALL
51 993041138 NL
A
Washer, top Counterweight 8.4x36.1.5 ALL
52 114900244 NL
A
Counterweight, Top ALL
53 116102561 Generator, Tachometer ALL
54 113800458 Spring, Conic ALL
Splendide 2000
Models: WD802(X), WD804, NBR5000 - (Oscillating)
NLA = "No Longer Available"
Pre 'M' Oscillating Vented Model 51
![](asset-34.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heat
e
WD2000S
Splendide 2000
Models: WD802(X), WD804, NBR5000 - (Top Cover/Controls)
Pre 'M' Top Cover/Controls Vented Model 52
![](asset-35.png)
PART NO. DESCRIPTION Serial No.
1111100830 Top Panel ALL
2112902428 NL
A
Lamp, Insert ALL
3113800462 Spring, Dispenser Door ALL
5113200491 NL
A
Clamp, Dispenser Vent Hose, 35 ALL
6113200232 NL
A
Clamp, Dispenser Fill Hose, 15.9 ALL
8113200490 NL
A
Clamp, Dispenser to Drum Hose, 49.8 ALL
991655001 NL
A
Screw, Dispenser, 3.9x8 ALL
10 114300680 NL
A
Hose, Valve To Dispenser ALL
11 114300718 NL
A
Hose, Valve To Dispenser ALL
12 114300683 NL
A
Hose, Valve To Dispenser ALL
13 112901982 NL
A
T-Connection ALL
15 087919A Hea
te
Hose, Dispenser to Drum ALL
114388 Hea
te
WD2000S
16 114300646 NL
A
Hose, Dispenser to Vent ALL
17 112930 Hose, Inlet ALL
18 112930 Hose, Inlet ALL
20 116102541 Valve, Cold ALL
21 116102549 Valve, Hot ALL
22 116102529 Timer, Washer ALL
23 116102530 Selector, Program ALL
24 186810022 Timer, Dry ALL
25 116102684 Switch, On/Off, Bi-Polar ALL
29 116102685 Switch, High Heat/Low Heat, Uni-Polar ALL
30 116102567 Warning Lamp ALL
31 112903192 Push Button, 2000 ALL
31
A
112902604 Push Button, Splendide ALL
31B 112902393 NL
A
Push Button, Indesit/Norcold ALL
32 112902406 NL
A
Indicator, Light ALL
33 119803062 NL
A
Knob, 2000 ALL
33
A
119802923 NL
A
Knob, Spendide ALL
33B 119802688 NL
A
Knob, Indesit/Norcold ALL
35 119803064 NL
A
Knob, 2000 ALL
35
A
119802922 NL
A
Knob, Spendide ALL
35B 119802804 NL
A
Knob, Indesit/Norcold ALL
36 119803334 Control Panel, 2000 ALL
36
A
119802981 Control Panel, Splendide (small) ALL
36B 119802814 NL
A
Control Panel, Indesit/Norcold (small) ALL
37 112400479 NL
A
Control Panel Board, 2000 ALL
37
A
112400448 NL
A
Control Panel Board, Spendide (Big) ALL
37B 112400455 NL
A
Control Panel Board, Indesit/Norcold (Big) ALL
38 119803333 Soap Dispenser Front Panel, 2000 ALL
38
A
119803135 NL
A
Soap Dispenser Front Panel, Indesit/Norcold ALL
39 112400418 Soap Dispenser Drawer ALL
40 112400430 Syphon Cap ALL
41 112400499 Housing, Soap Dispenser ALL
42 112400497 Dispenser, Water Outlet ALL
Splendide 2000
Models: WD802(X), WD804, NBR5000 - (Top Cover/Controls)
NLA = "No Longer Available"
Pre 'M' Top Cover/Controls Vented Model 53
![](asset-36.png)
43 912344102 NL
A
Screw, 4.2x12.5 ALL
44 913312160 NL
A
Screw, Dispenser ALL
47 99580001 NL
A
Screw, Wash Timer, M5x5 ALL
48 995500001 NL
A
Screw, Capacitor ALL
49 995500001 NL
A
Screw, Water Valve ALL
50 993031133 NL
A
Washer, Wash Timer ALL
51 00522 Gasket, Water Valve ALL
52 112903512 Deco Element, Top 2000 (White) ALL
52
A
112902586 NL
A
Deco Element, Top Indesit/Norcold (White) ALL
52B 112902790 NL
A
Deco Element, Top Spendide (Silver) ALL
Pre 'M' Top Cover/Controls Vented Model 54
![](asset-37.png)
087919A Heater Housing Upper & Lower (406 - 601)
114388 Heat
e
WD2000S
Splendide 2000
Models: WD802(X), WD804, NBR5000 - (Ventilation)
Pre 'M' Ventilation Vented Model 55
![](asset-38.png)
PART NO. DESCRIPTION Serial No.
1114200661 Bellow, Porthole Diaphragm ALL
2916700002 NL
A
Screw, Heater Housing, 3x5 x 12.7 ALL
3970196912 NL
A
Fasterner, Porthole Diaphragm ALL
4113300519 NL
A
Housing, Lower Heater Duct ALL
5036080 Impeller Assembly ALL
6918541235 NL
A
Screw, 4.2.9 ALL
7186240099 Fuse, Safety ALL
8113300518 Cover Heater Duct ALL
9116590656 NL
A
Fan Motor Assembly ALL
10 186820052 Thermostat, 88 c ALL
11 912353335 NL
A
Screw, Fuse, 9.5x4.2 ALL
12 087919A Heater
H
Screw, Housing Support, M6x10 ALL
114388 Heater
H
WD2000S
13 111901085 NL
A
Support, Heater Housing ALL
16 119503736 NL
A
Element, Heater ALL
18 111901107 NL
A
Flapper, Ventilating Assembly ALL
20 114300713 NL
A
Hose, Fan to Filter ALL
21 113200237 NL
A
Clamp, Hose to Fan, 10.1 ALL
22 113200255 NL
A
Clamp, Hose to Fan, 11.3 ALL
23 112901986 NL
A
Washer, Flapper ALL
Splendide 2000
Models: WD802X, WD804, NBR5000 - (Ventilation)
NLA = "No Longer Available"
Pre 'M' Ventilation Vented Model 56
