V
05
ViP SYSTEM
PRODUCT CATALOGUE
Passion.Technology.Design.
IP
01
The Company
ViP System
New features of the ViP System
Advantages of the ViP System

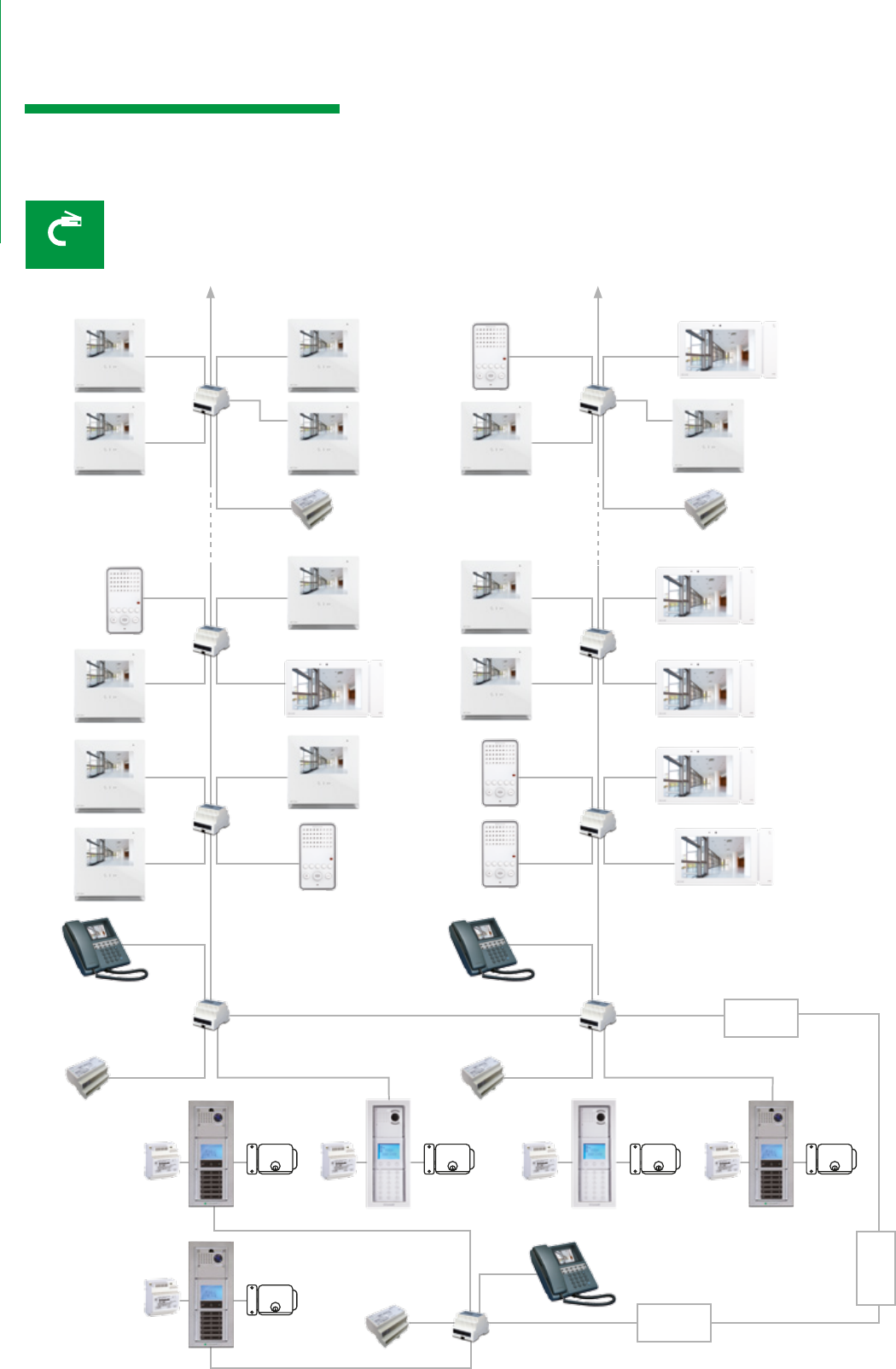

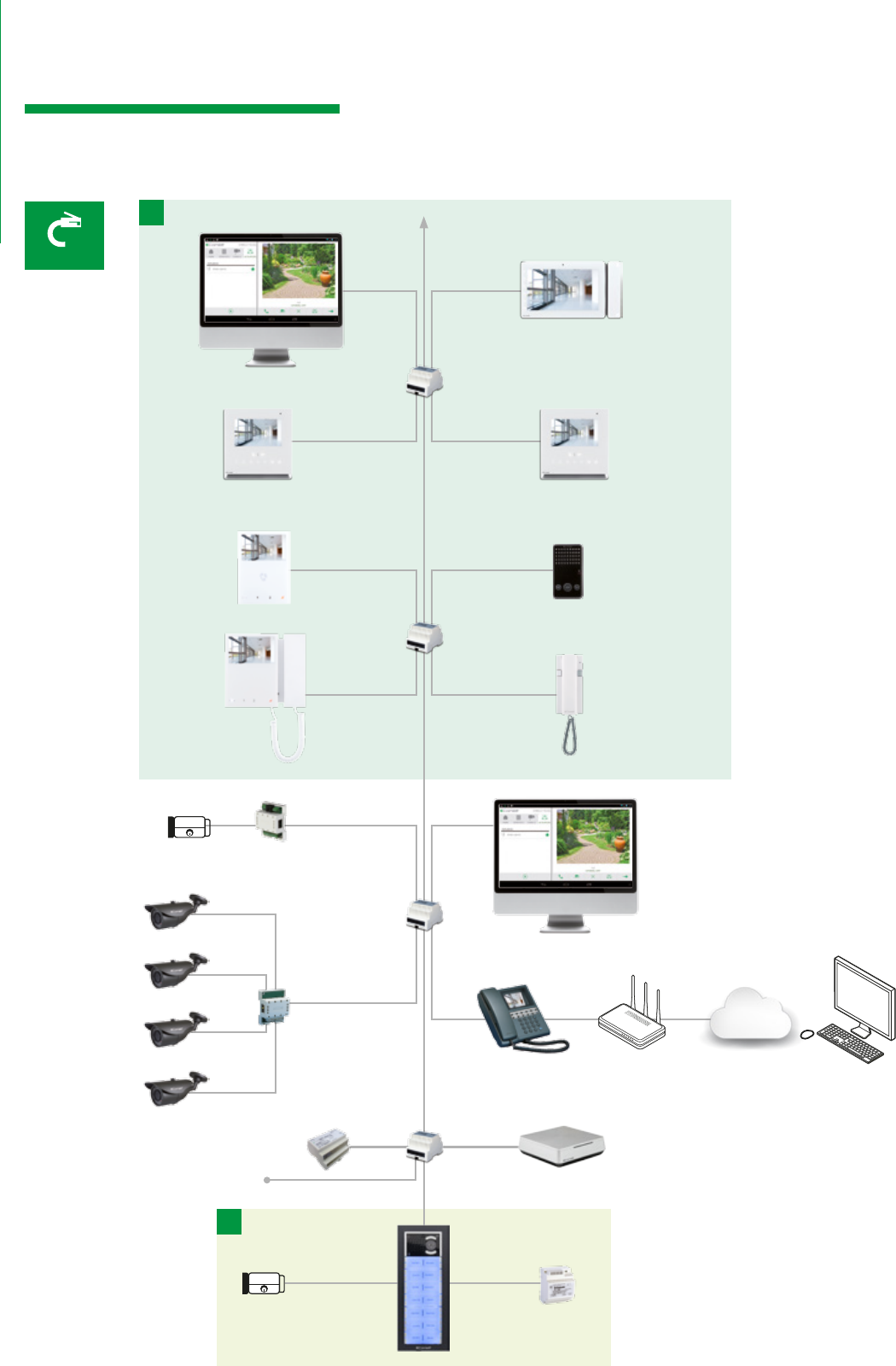

Application diagrams

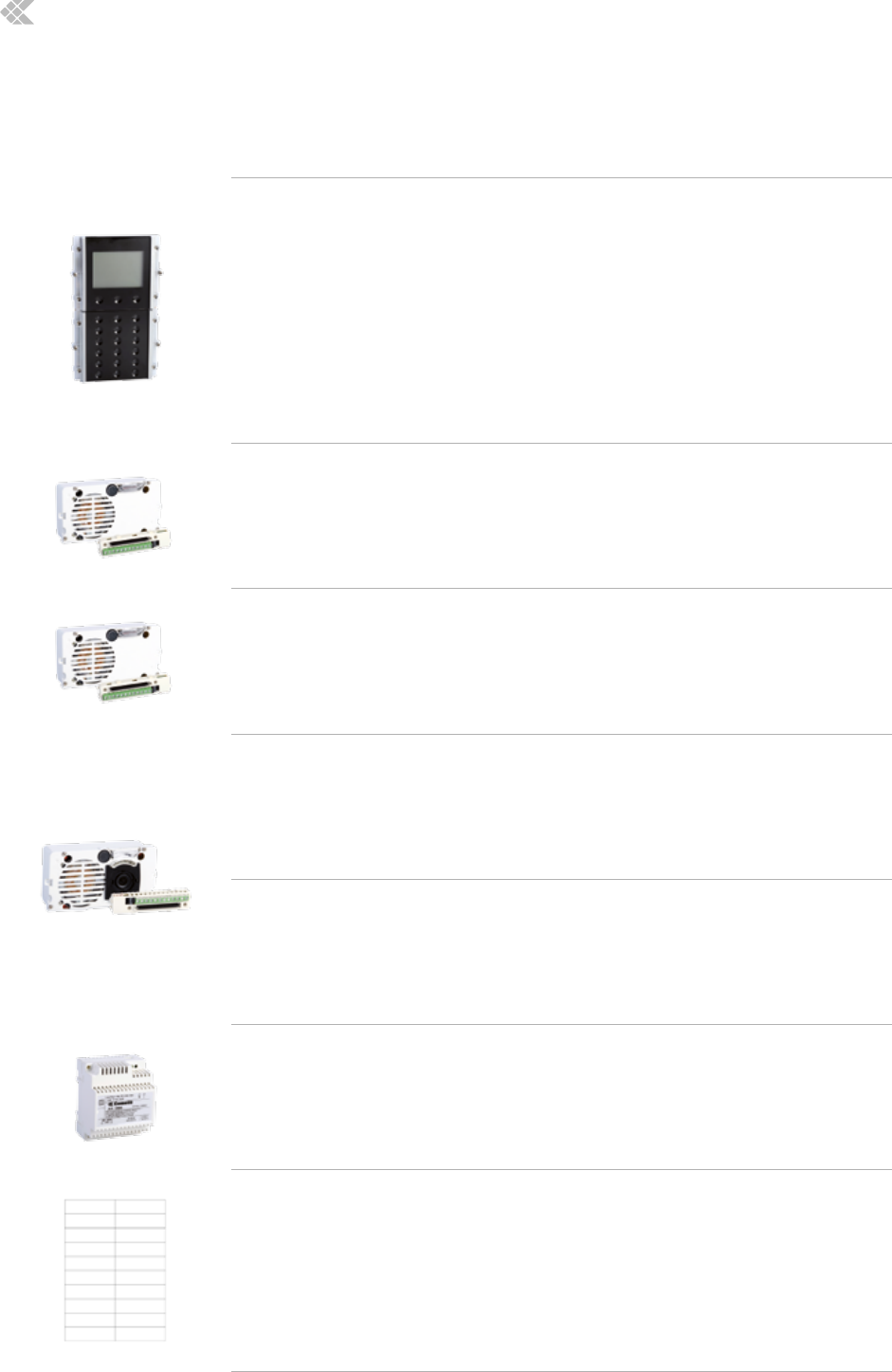

Product catalogue
16
06
04
40
32
VIP
Deep roots, global vision.
Founded in 1956, Comelit Group SpA is an industrial company operating on a worldwide scale
and specialising in the design and manufacture of video entry, video surveillance, anti-intrusion,
home automation and access control systems. The company has a strong international vocation
thanks to its close ties with the area in which it was created and in which its headquarters are
still located today.
An international group.
Comelit exports to over 70 countries worldwide and, in addition to its Italian headquarters,
has 15 branches located in strategic areas in which the company operates: from Europe to
the Far East, the United States and the Middle East. This articulated sales structure integrates
shared know-how with the awareness of specific requirements in each market.
Passion.Technology.Design.
Constant innovation, friendly technology.
Comelit makes constantly looking to the future its mission. Innovation through continuous
investment in manpower and technology finds an outlet in the design of new solutions
dedicated to improving the quality of everyday life by maximising simplicity and
functionality.
Design: style, passion, art.
Besides placing technology at the service of mankind, Comelit is also a byword for design.
Its unique and original style combines the most hi-tech materials with simple lines, clean
shapes and cutting-edge colours. Every Comelit product therefore conveys a new concept
for living in a space, in harmony with modern architectural trends.
DESIGN
MILANO
VIP SYSTEM
THE COMPANY
Systems that integrate with one another.
The technological evolution championed by Comelit in recent years has broken down the
barriers between the various systems used to adjust and manage dierent functions within
home and work environments.
VIDEO SURVEILLANCE
A comprehensive range of products for video surveillance. Analogue, IP and HD over coaxial cable.
ANTI-INTRUSION
A complete system capable of fulfilling all security requirements with wired systems or via radio.
HOME AUTOMATION
Home automation system oering full control of your own space for optimum confort and security.

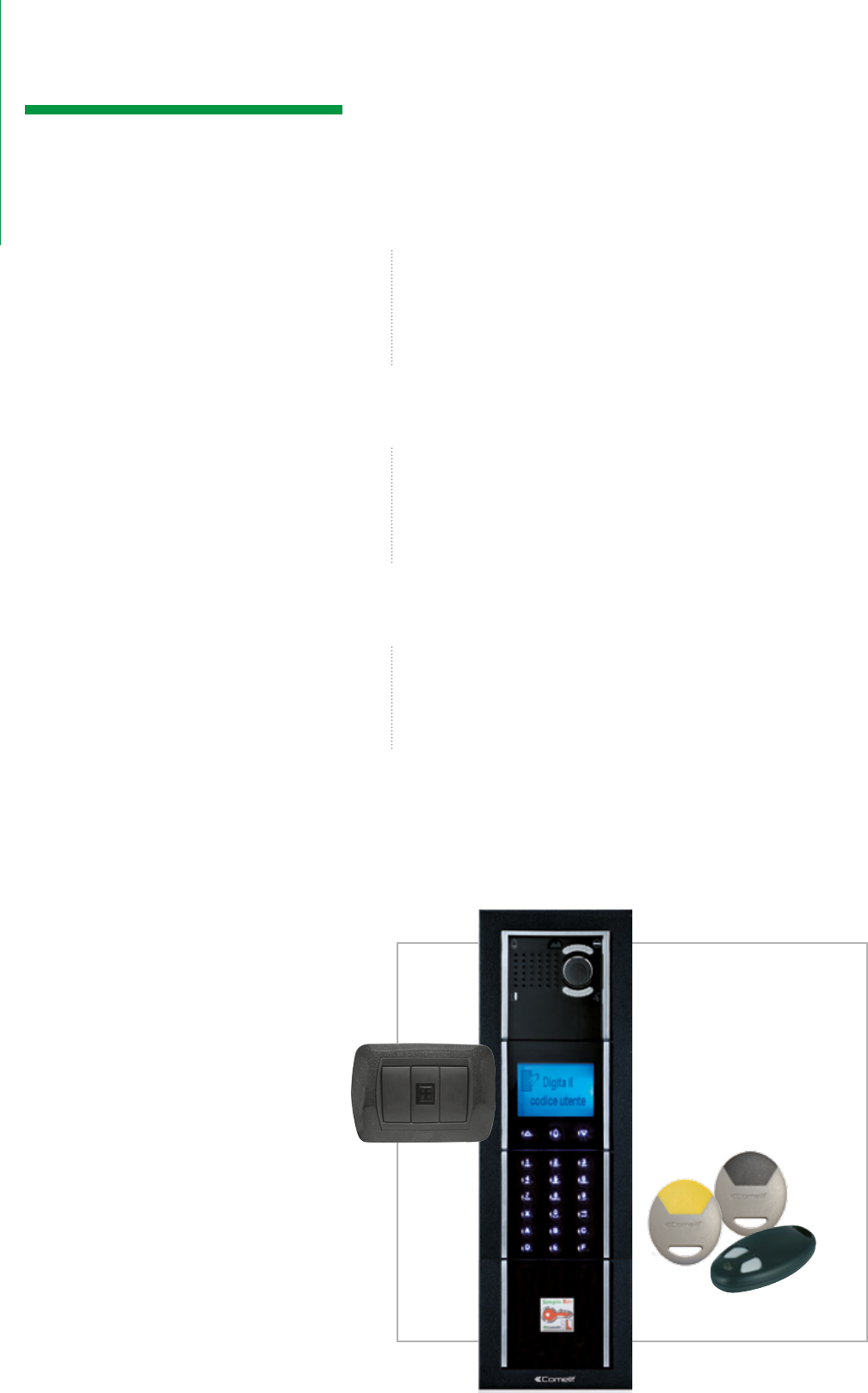

ACCESS CONTROL
Basic or Advanced access control system featuring Mifare technology.
VIDEO ENTRY
2-wire and digital IP systems, the best technical solution for responding to all application
requirements.
| 3

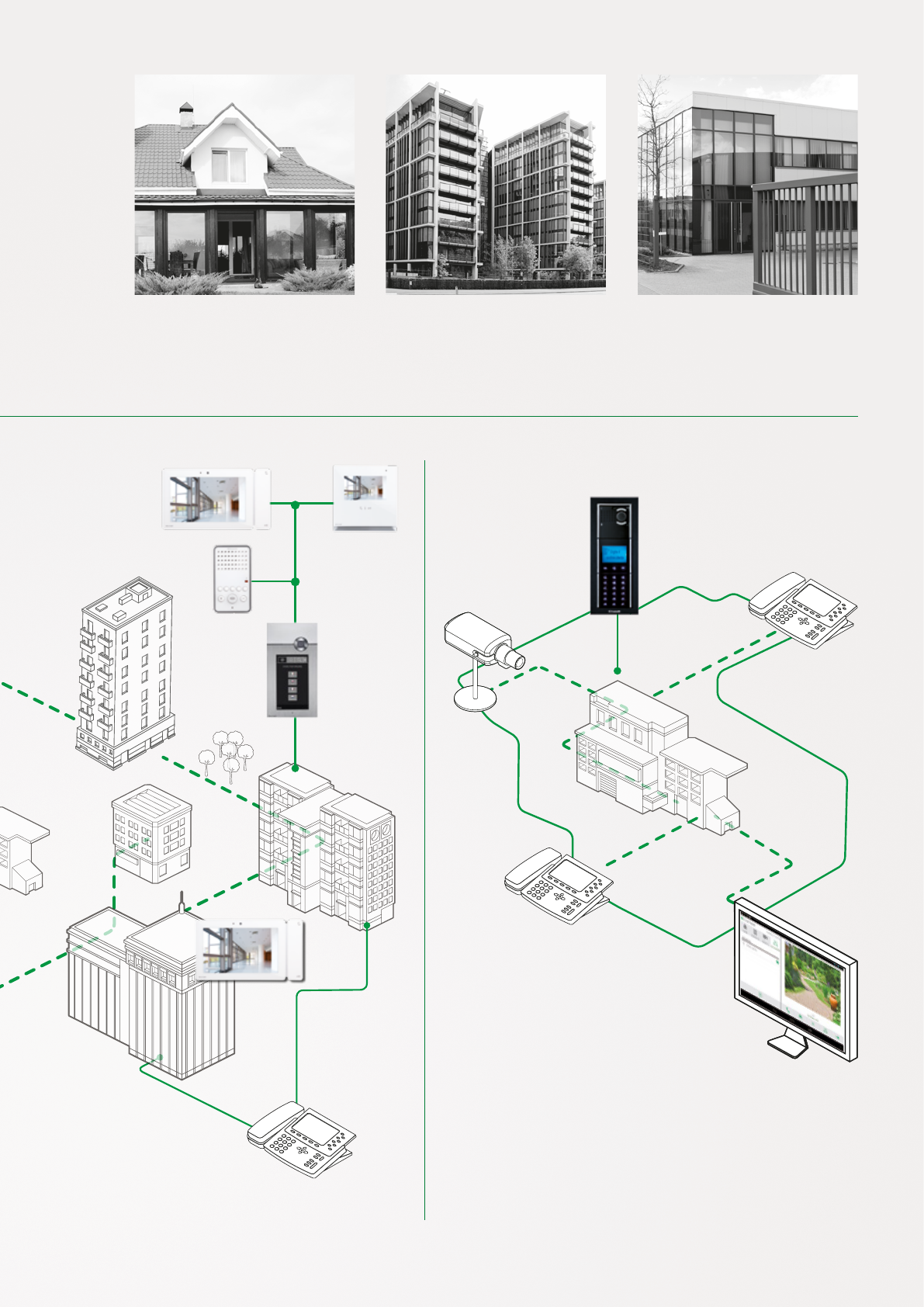

A SYSTEM FOR ALL
SETTINGS, EVEN THE
MOST COMPLEX
VARIATIONS

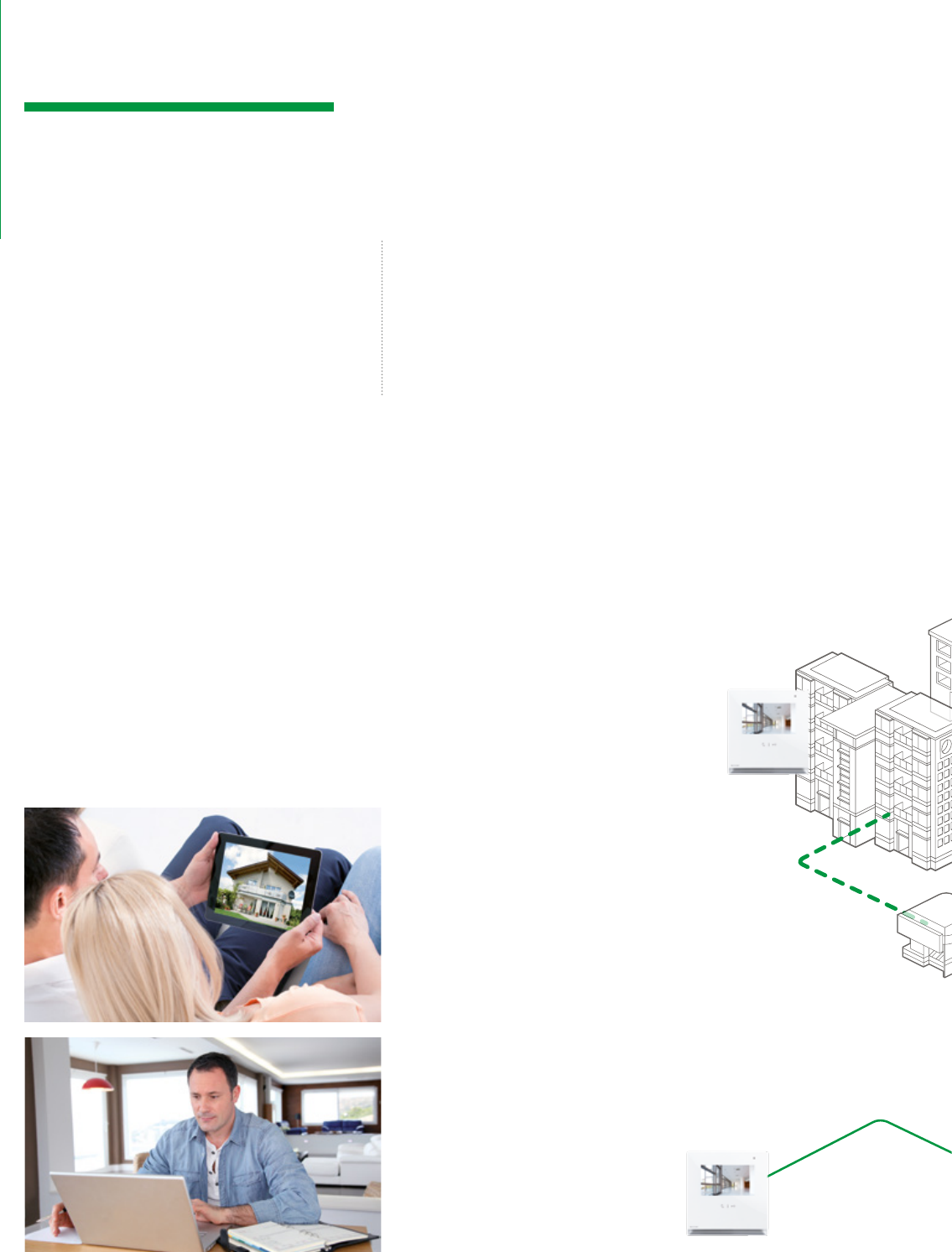

ViP System represents the evolution of video entry technology and the
services connected to it, with a new dimension linked to data transmission
oering performance suited to modern residential, commercial, industrial and
advanced tertiary scenarios: from individual residences to large complexes,
in new constructions, renovated buildings and modernised systems and
structures alike. Serves an unlimited number of users, with simultaneous
conversations and no distance limitations. A single backbone on a
LAN (specific or using existing networks), to which the devices are
connected via an RJ45 plug.

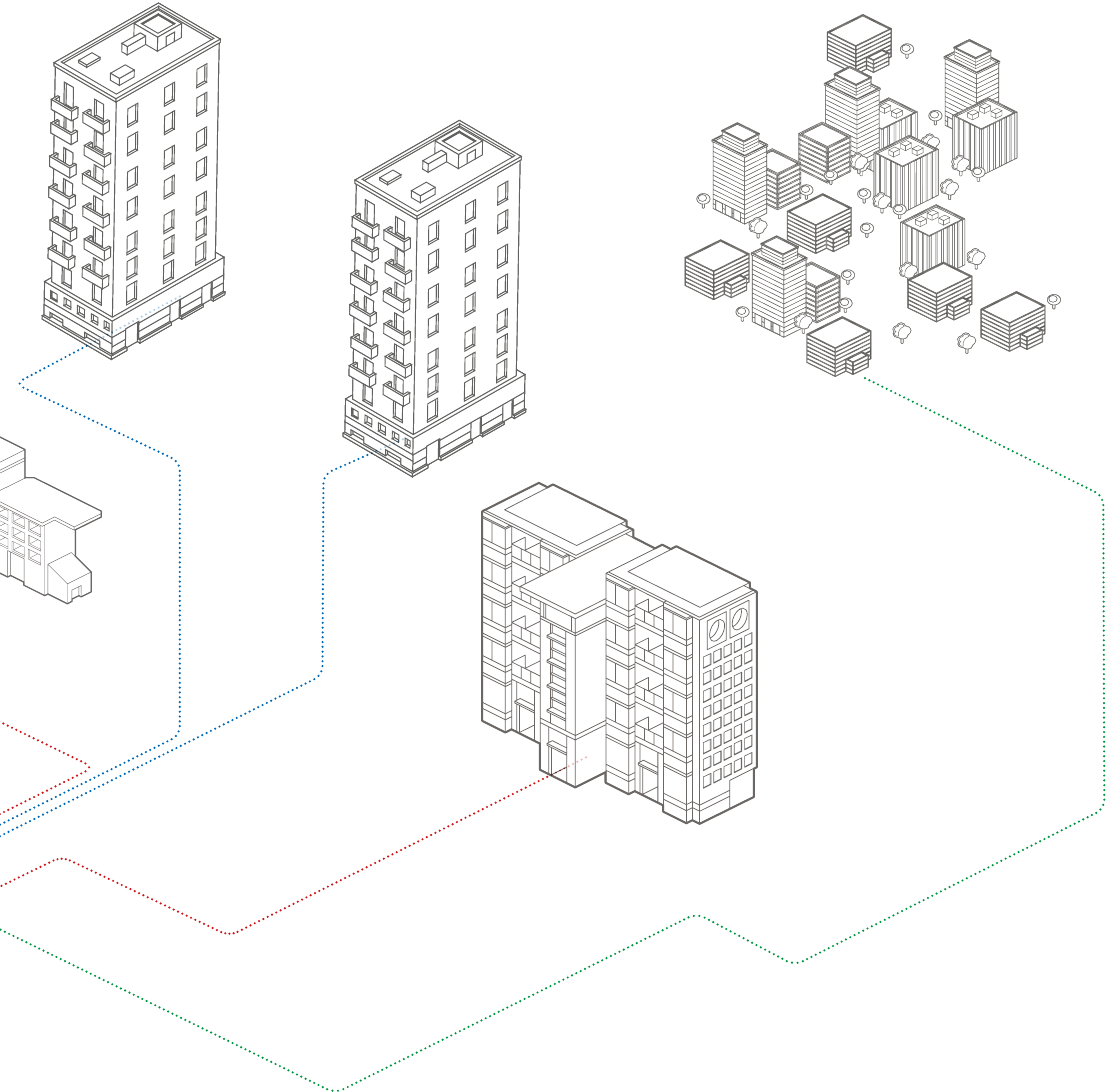

SMALL RESIDENTIAL MEDIUM/LARGE RESIDENTIAL SYSTEMS
INTEGRATION WITH SMARTPHONE AND TABLET
LOCAL AND REMOTE ANSWER
AVAILABLE IN KIT FORM
EASY INSTALLATION AND PROGRAMMING
UNLIMITED DISTANCES
SYSTEM NEVER BUSY
UNLIMITED USERS
EXTENDIBLE NETWORK
CENTRAL AND REMOTE PORTER SWITCHBOARD
VIP SYSTEM
Comelit
ViP remote
Comelit
ViP remote
VIP SYSTEM
VIP SYSTEM

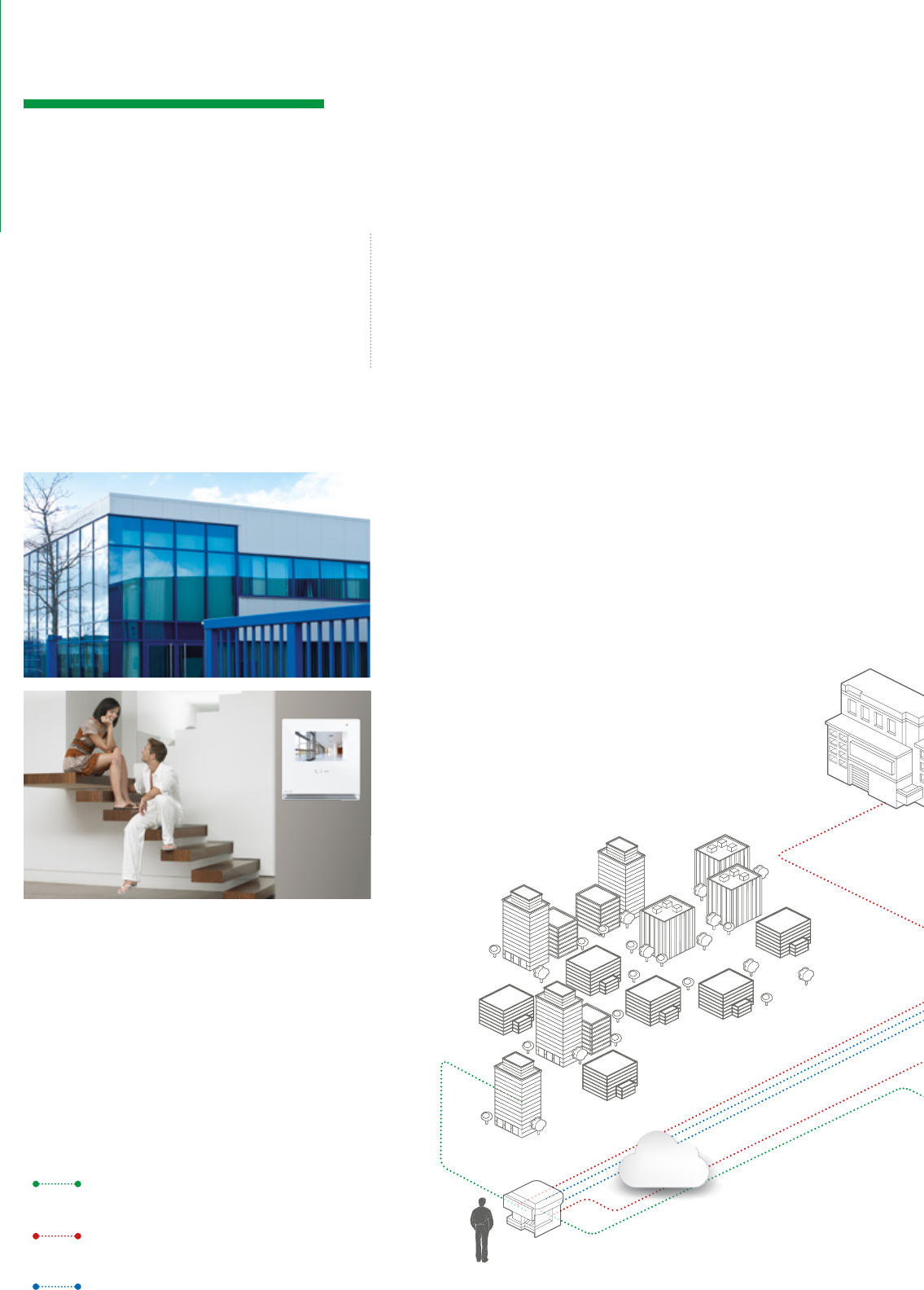

MEDIUM/LARGE RESIDENTIAL SYSTEMS TERTIARY (INDUSTRIAL/COMMERCIAL)
INTEGRATION WITH SIP DEVICES

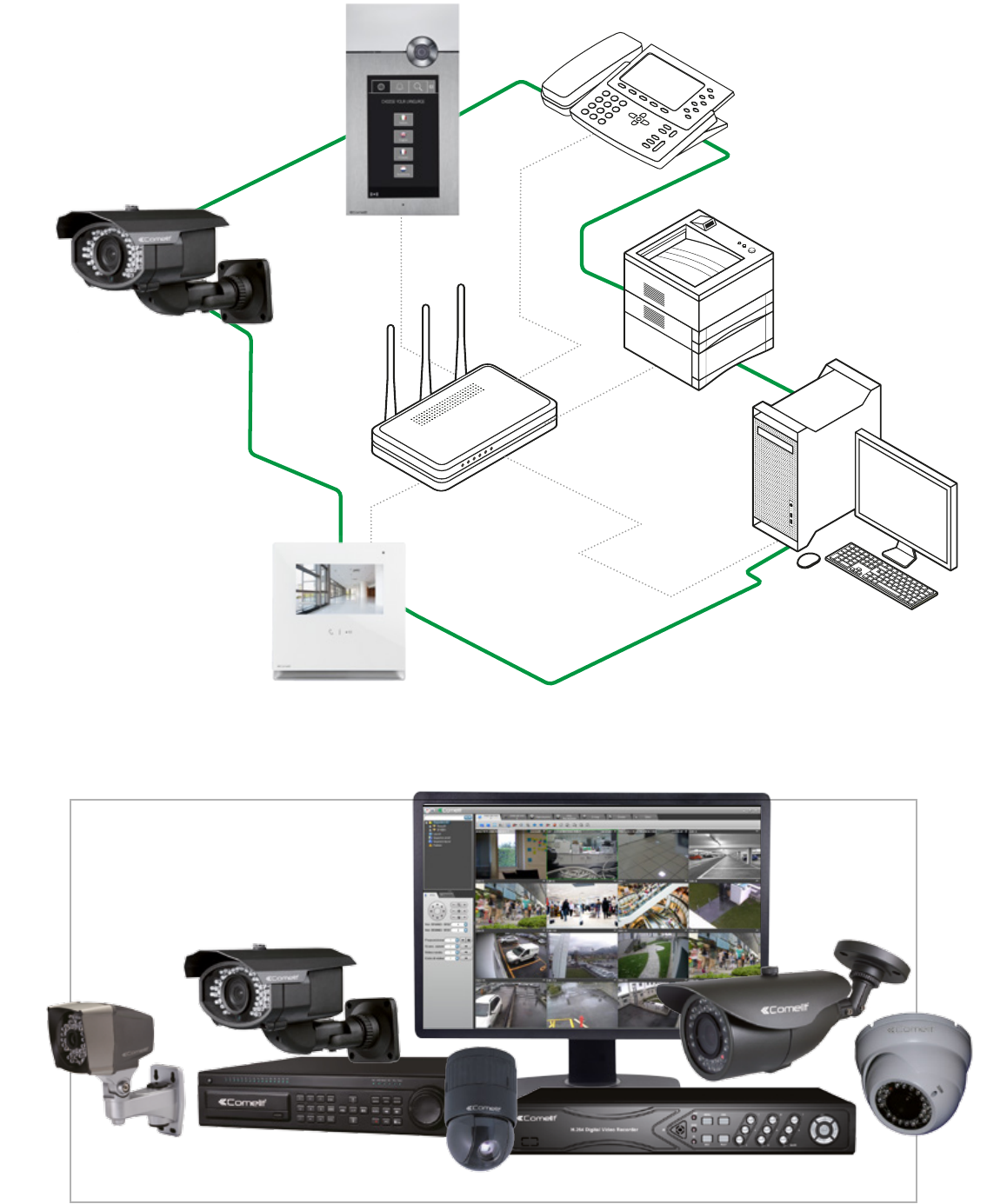

INTEGRATION WITH CCTV AND ACCESS CONTROL
INTEGRATION WITH EXISTING NETWORKS
CENTRAL AND REMOTE PORTER SWITCHBOARD
MEDIUM/LARGE
RESIDENTIAL SYSTEMS TERTIARY
SMALL
RESIDENTIAL
| 5
1456B
Multi-user
gateway for
apartment
blocks
NEW FEATURES OF THE ViP SYSTEM
FROM DOOR
ENTRY MONITOR
FROM LAND LINE
OR GSM
ANSWER CALLS AS YOU LIKE.
The 1456B is a Multi-user Gateway for apartment blocks.
An innovative solution using the Comelit ViP digital system
for apartment blocks. Used to answer calls from an external
unit via a ViP door entry monitor, Smartphone/Tablet via the
Comelit ViP APP or GSM telephone or land line.
FROM
SMARTPHONE/
TABLET
APP
ViP ENTRANCE PANEL
VIP SYSTEM
NEW FEATURES OF THE VIP SYSTEM

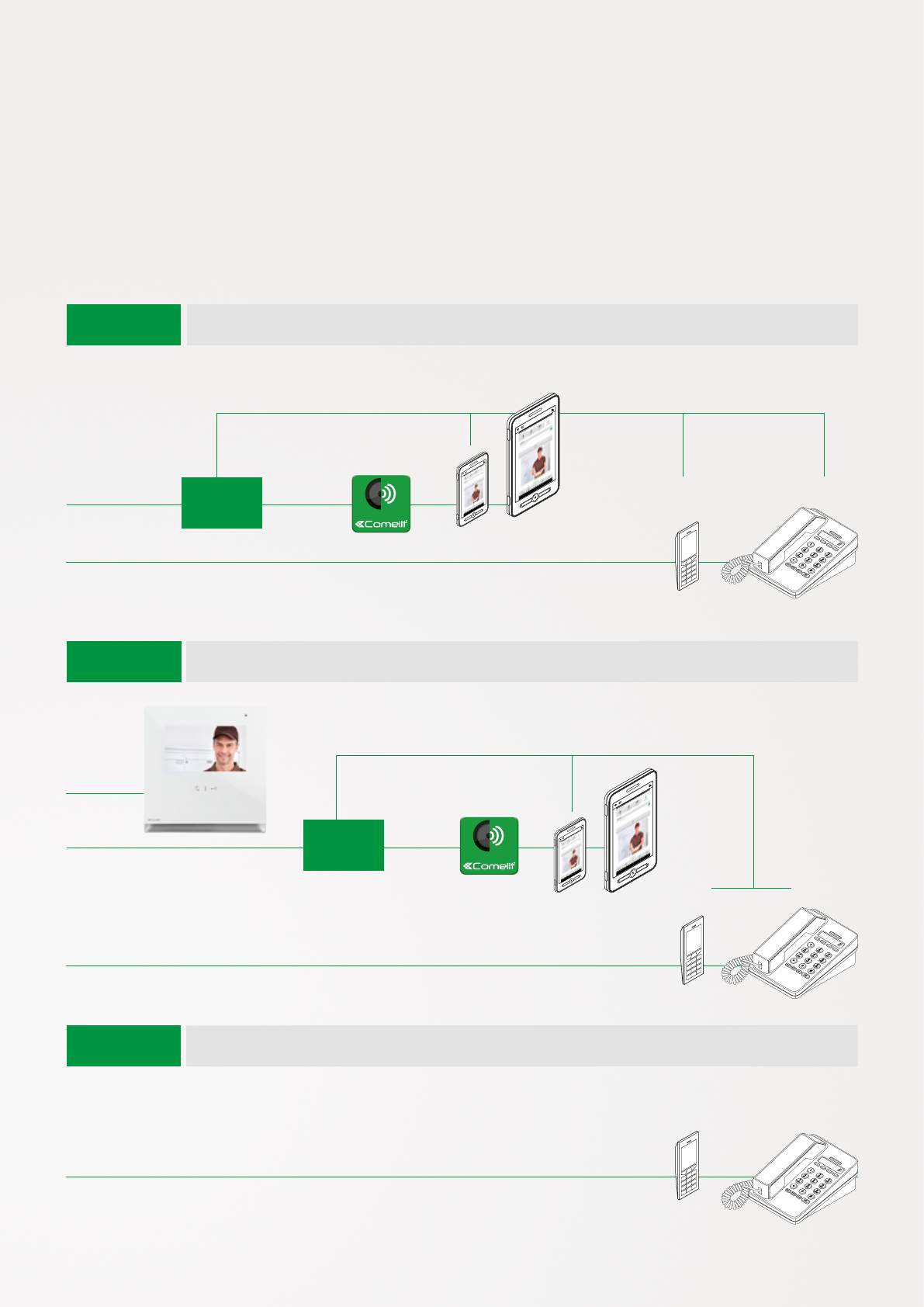

1456B can manage 3 types of license: Master, Slave and Phone. Each license
can be purchased in 5 dierent sizes (1, 10, 50, 100, 200 users) and can be
increased at any time.
3 TYPES
OF LICENSE AVAILABLE
SIP PROVIDER
SIP PROVIDER
INTERNET
APP
APP ACTIVE AND
DATA NETWORK
AVAILABLE?
YES
NO
AUDIO TELEPHONE BACKUP
VIP
SIP PROVIDER
INTERNET
APP
NO
APP ACTIVE AND
DATA NETWORK
AVAILABLE?
YES
SLAVE
MASTER
AUDIO TELEPHONE BACKUP
GSM PSTN
GSM PSTN
PHONE
GSM PSTN
| 7
FLOOR
DISTRIBUTOR
art. 1440
MULTI-USER
GATEWAY
art. 1456B
ViP ENTRANCE
PANEL
SMARTPHONE
TABLET
GSM (AUDIO)
LAND LINE
(AUDIO)
SIP
ALL SYSTEMS CAN
BE ADMINISTERED
REMOTELY
SLAVE LICENSE MASTER LICENSE
MULTI-USER
GATEWAY
art. 1456B
ViP ENTRANCE
PANEL
SMARTPHONE
TABLET
GSM (AUDIO)
LAND LINE
(AUDIO)
SIP
ALL SYSTEMS CAN
BE ADMINISTERED
REMOTELY
1456B, TECHNICAL DETAILS
Answer video calls remotely via Smarpthone or Tablet
Answer audio calls on land lines or Gsm telephones
Telephone backup if data line is unavailable
Manage up to 15 devices per license (Smartphone, Tablet,
GSM telephone or land line)
Answer video calls remotely via Smarpthone or Tablet
Answer audio calls on land lines or Gsm telephones
Audio telephone backup if data line is unavailable
Manage up to 15 devices per single license (Door
entry monitor, Smartphone, Tablet, GSM telephone or
land line)
NEW FEATURES OF THE ViP SYSTEM
VIP SYSTEM
MULTI-USER
GATEWAY
art. 1456B
ViP ENTRANCE
PANEL
GSM (AUDIO)
LAND LINE
(AUDIO)
SIP
ALL SYSTEMS CAN
BE ADMINISTERED
REMOTELY
SCALABILITY
200
USERS
200
USERS
200
USERS
200
USERS
NEW FEATURES OF THE VIP SYSTEM
PHONE LICENSE
Answer audio calls on land lines or GSM telephones
Every Multi-User Gateway can manage up to maximum of
200 users. In the case of more than 200 users, more than
one Gateway can be implemented. This can also be done
subsequently to the initial installation.
LICENCE FEATURES
3 TYPES OF LICENSE, 5 USER PACKAGES (in any
combination)
110 50 100 200
EVERY SINGLE USER CAN ASSOCIATE UP TO 15
DEVICES
MULTI-USER
GATEWAY
1456B
MULTI-USER
GATEWAY
1456B
MULTI-USER
GATEWAY
1456B
MULTI-USER
GATEWAY
1456B
ViP
ENTRANCE
PANEL
SWITCH
art. 1440
ROUTER
| 9

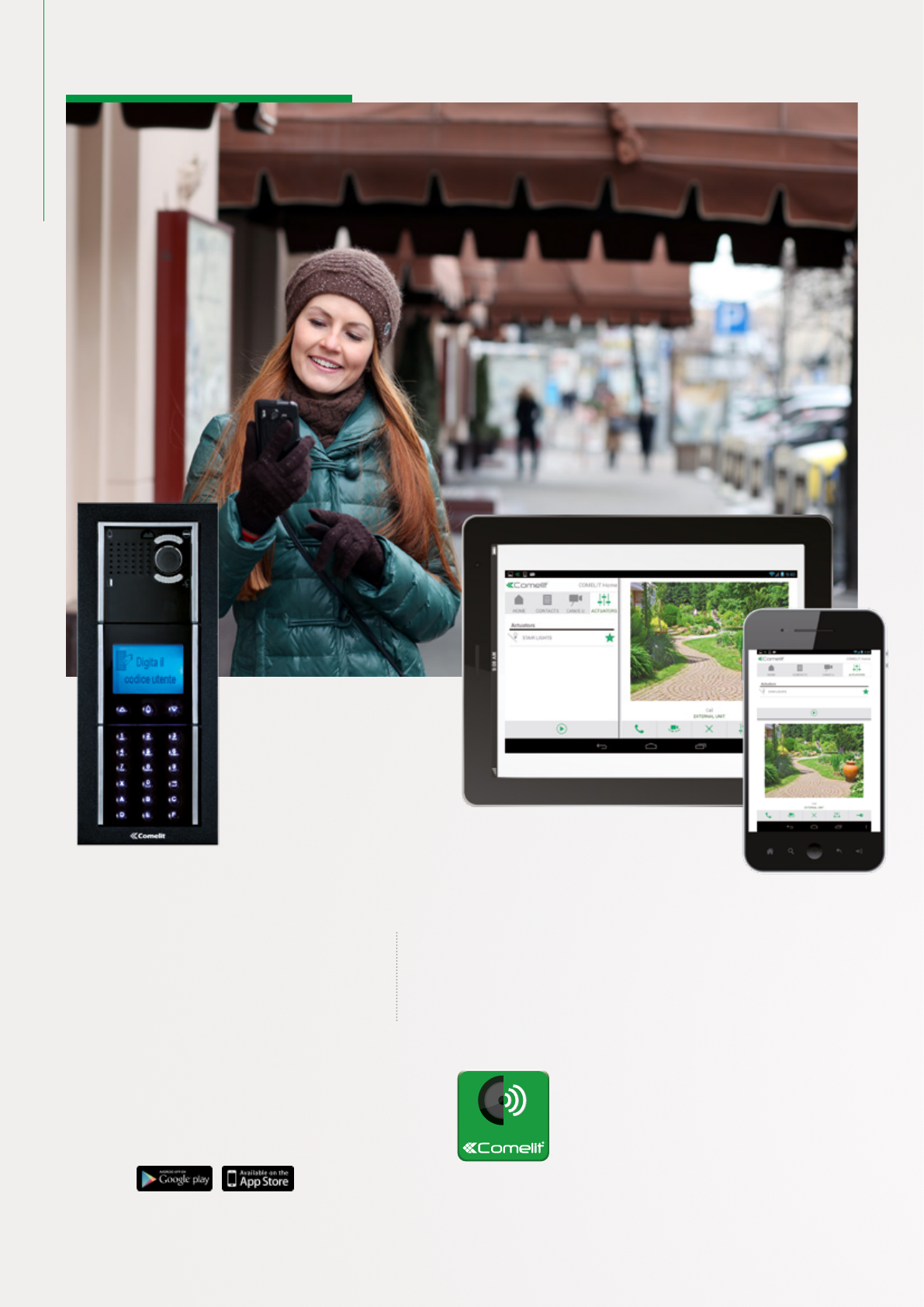

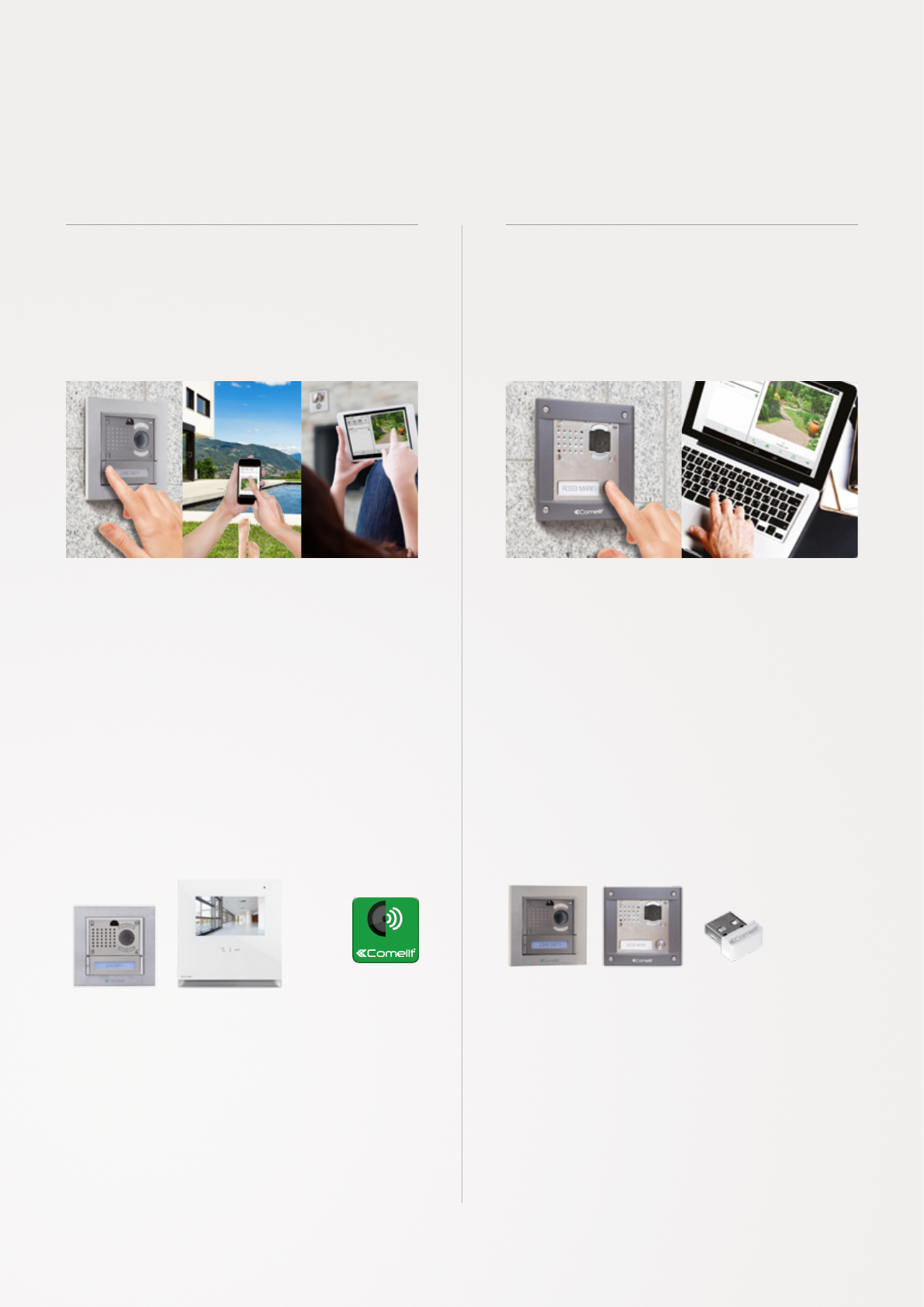

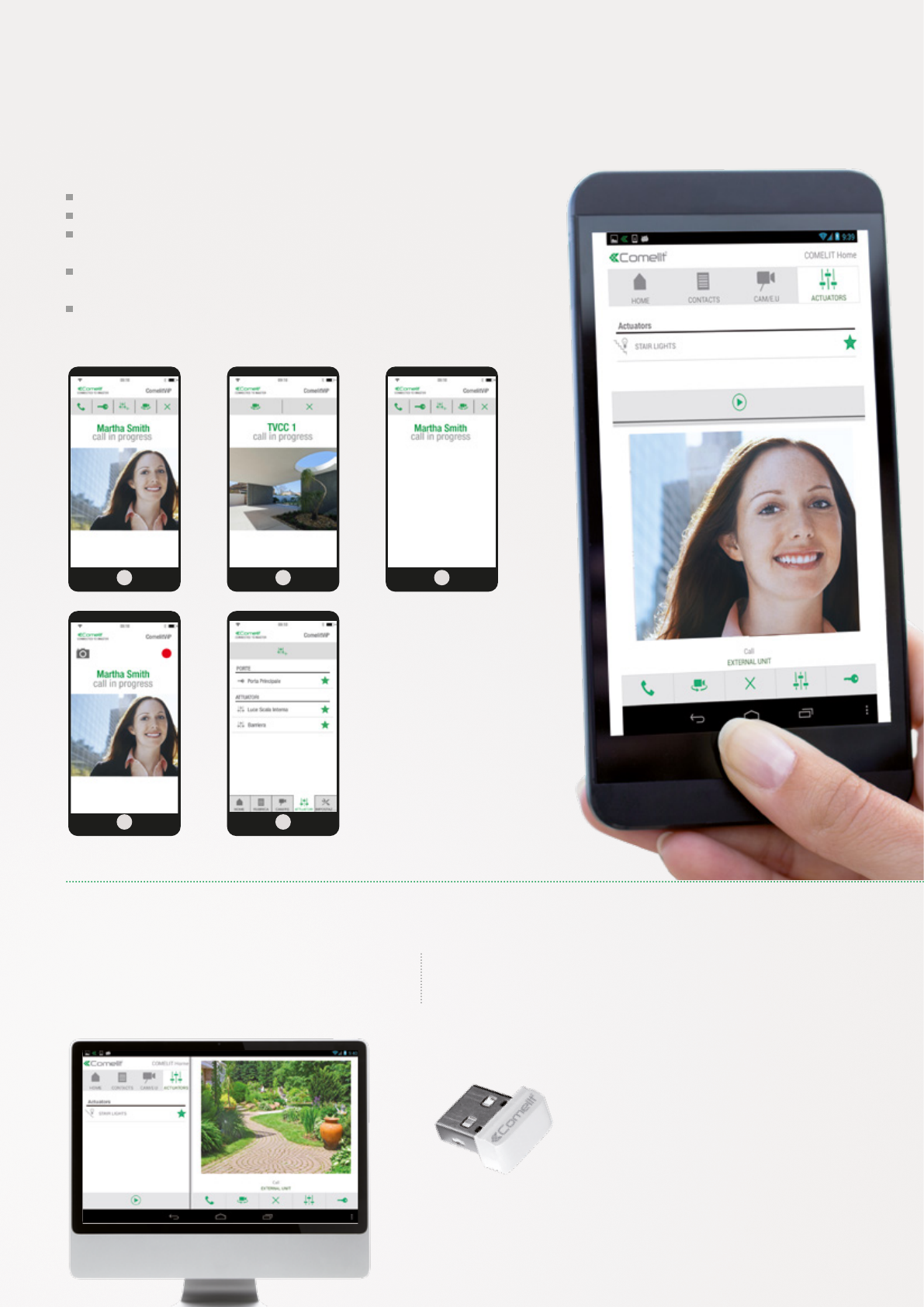

COMELIT VIP REMOTE
A DOOR ENTRY
MONITOR
WHEREVER YOU ARE
The Comelit App manages door entry and other advanced functions even from
3G or higher networks. The Comelit App is available for both smartphones
and tablets. The APP can be downloaded free of charge from the App Store
or Google Play
Remote door entry monitor
management also via Wi-Fi/3G
Comelit ViP RemoteFree download
NEW FEATURES OF THE ViP SYSTEM
VIP SYSTEM
Same functions as the APP
for PC/Mac.

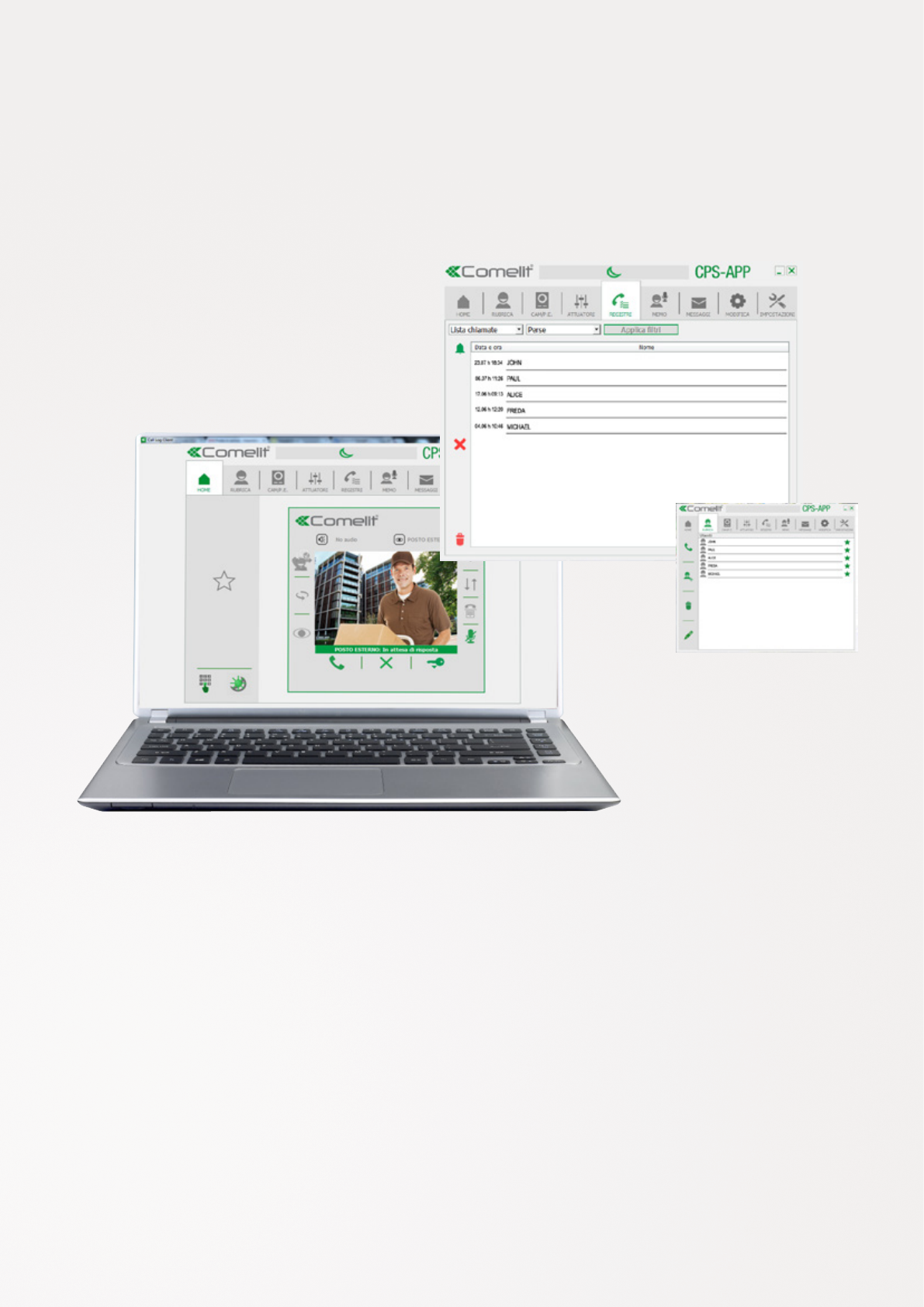

PC Intercom
All door entry monitor functions can also be managed and implemented on a
PC/MAC using the special PC-Intercom software (code 1454K). The software
is available on USB memory stick.
NEW FEATURES OF THE VIP SYSTEM
ANSWERING FROM
PC/MAC
Comelit ViP Remote allows
Answer calls from external units
View and manage cameras
Make and receive calls from other internal units (in the contacts list) and from
other devices
view of videos recorded from external units and CCTV cameras (VIDEO
MEMORY)
control actuators to manage lights, gates, barriers, etc.
| 11
Call Log
Server device for recording,
playing, storing video door entry
and con cierge calls to increase
the security of your ViP system.
art. 1459 COMELIT CLIENT SOFTWARE
Record the video stream from external units when a
call is made to switchboards and/or apartments (audio
recording may also be available as an option).
RECORD VIDEO
Play and manage recordings via
Play/Stop commands.
PLAY RECORDINGS
Export recordings to removable
storage (e.g. USB).
EXPORT RECORDINGS
This function can be used to set the following parameters:
maximum duration of each automatic recording;
single or grouped selection of the external units to be recorded;
single or grouped selection of the internal units and/or
switchboards to be recorded;
storage period (1-60 days).
SYSTEM CONFIGURATION
password protection for access to software
password protection for system configuration
SYSTEM SECURITY
The FILTER function can be used to select the saved video clips and play them
according to the following parameters:
date
time
external unit making the call
internal unit
switchboard receiving the call
FILTER FUNCTION
NEW FEATURES OF THE ViP SYSTEM
VIP SYSTEM
Switchboard
software for PC
RECORDING ARCHIVE FOR CALLS
USER DIRECTORY
SWITCHBOARD SOFTWARE FOR PC FOR VIP SYSTEM
Software on USB micro-key for simple management and control of all the typical functions of the
porter switchboard. In addition to the classic functions of ViP video door entry monitors, it receives
and forwards audio/video calls and manages alarms in the apartments; it has a directory of actuators,
internal and external units which, when programmed, easily identify the apartment and the external unit
which made the call. It also has a recordings archive which stores all calls (made, managed, lost and
forwarded) from internal/external units and alarms. It can also send messages to internal units. The
software comes with a user license. To work correctly, the USB micro-key must always be inserted in
the computer.
1448
NEW FEATURES OF THE VIP SYSTEM | 13
WI-FI / 3G APP VIP KIT
The kit allows use of the video entry phone system via a door entry monitor
as well as tablets and smartphones on the Wi-Fi network, or remotely on
3G (or higher) networks. The gateway in the pack allows connection of
other devices (Comelit VIP door entry monitors or PCs) besides the door
entry monitor supplied. In all cases, the gateway should be connected to
an ADSL router or another device guaranteeing local Wi-Fi and mobile 3G
connectivity. Depending on bandwidth limitations, the gateway can serve
up to 15 appliances (including door entry monitors, smartphones, tablets
and PCs) with 4 simultaneous door entry monitor streams. It also allows
“intercom” communication between all of the 16 devices served. For
mobile devices, whenever both modes are available and enabled, the APP
automatically switches connection, from Wi-Fi to 3G and vice-versa.
VIP KIT FOR WI-FI / 3G APP WITH
ICONA DOOR ENTRY MONITOR
ART. 8531
IKALL METAL AND ICONA KIT, GATEWAY SLAVE. H264
REMOTELOCAL REMOTELOCAL
The kit allows use of the video entry phone system via tablets and
smartphones on the Wi-Fi network, or remotely on 3G (or higher) networks.
The gateway in the pack allows connection of a further 2 devices (Comelit VIP
door entry monitors or PCs). In all cases, the gateway should be connected
to an ADSL router or another device guaranteeing local Wi-Fi and mobile 3G
connectivity. Depending on bandwidth limitations, the gateway can serve up
to 16 appliances (including door entry monitors, smartphones, tablets and
PCs) with 4 simultaneous door entry monitor streams.
It also allows “intercom” communication between all of the 16 devices
served. For mobile devices, whenever both modes are available and enabled,
the APP automatically switches connection, from Wi-Fi to 3G and vice-versa.
ART. 8513HIM
SINGLE-FAMILY KIT W/IKALL METAL AND MASTER GATEWAY. VIP H264
Comelit ViP
Remote
Comelit ViP
Remote
FOR FURTHER INFORMATION SEE PAGE 41 FOR FURTHER INFORMATION SEE PAGE 41
NEW FEATURES OF THE ViP SYSTEM
VIP SYSTEM
NEW FEATURES OF THE VIP SYSTEM
Comelit ViP
Remote
VIP KIT FOR WI-FI APP KIT WITH PC-INTERCOM
The kit allows use of the video entry phone system via a door entry monitor
as well as tablets and smartphones on the Wi-Fi network. The door entry
monitor system should nevertheless be connected to an ADSL router or
another device guaranteeing Wi-Fi connectivity. Depending on bandwidth
limitations, up to 16 devices (including door entry monitors, smartphones,
tablets and PCs) with 4 simultaneous door entry monitor streams can be
connected to the system. It also allows “intercom” communication between
all of the 16 devices served. Mobile devices can only connect to the system
via the Wi-Fi network.
ART. 8521
IKALL METAL AND ICONA KIT.VIP H264 SYSTEM
ART. 8522
2-FAMILY IKALL AND VIP ICONA H264 KIT
LOCAL
ART. 8501HIM
SING.-FAMILY KIT W/ IKALL METAL & PC INTERCOM VIP H264 SYST.
ART. 8504H
PC INTERCOM KIT WITH VANDALCOM ENTRANCE PANEL - SINGLE USER
The kit can be used to fully manage video entry phone calls via LAN (Ethernet
or Wi-Fi). Simply insert the USB stick provided into the computer and install
the software to receive calls and communicate with the external unit. This
software comes complete with a user license and is available for both PC
and MAC systems. The key must always be plugged into the computer to
ensure correct operation.
PC/MAC
FOR FURTHER INFORMATION SEE PAGE 42FOR FURTHER INFORMATION SEE PAGE 41
| 15
ADVANTAGES OF THE ViP SYSTEM
THE NETWORK In the ViP system, all devices are connected to a LAN (specific or
shared), from the external unit to the furthest internal unit.
In comparison with traditional analogue video entry technology, the network
using digital protocol allows easier system configuration without laborious or
unusual procedures, even in the case of updates, which become extremely
flexible and convenient. Installation, commissioning and reconfiguration can
be carried out easily, in complete safety, while the network is enabled.
MULTISITE FUNCTION
VIP SYSTEM
ADVANTAGES OF THE VIP SYSTEM
EASY PROGRAMMING
CAN BE UPDATEDREMOTE MANAGEMENT
INTEGRATION WITH
SMARTPHONE AND TABLET
INTEGRATION WITH PC
WWW
ROBERT ARMSTRONG
HERLBY CO.
JHONNY C.
ANDERS FRIDEN
ANDERS FRIDEN
ANNA LLORENT
ARTICK KELLER
BASIC EXPO
BRANDON S.
B.W.C. & CO.
CARLO ROSSI
CECILLE BLANC
CIME R.
COLTER JACK
AN...C
DI...F
GA...L
MC...P
RC...T
VI...Z
1 2 3
4 5 6
7 8 9
0
CIME R.
COLTER JACK
FIND NAME CODE
A Z
QWE R T YUI O P
123 4 5 678 9 0
#*.
ASD F G HJK L
ZXC V B NM
call forwarded
ROELL & CO.
0001
ROELL & CO.
ENTER PERSONAL CODE
1 2 3
4 5 6
7 8 9
0
CHOOSE YOUR LANGUAGE
Italiano
English
Français
Nederlands
MESSAGES
Message 1:
8/9/2013
STREET CLEANING - DO NOT PARK
ALONG BLOCK B SIDE
Message 2:
Message 3:
TOUCH THE DISPLAY
ROELL & CO.
ROBERT ARMSTRONG
HERLBY CO.
JHONNY C.
ANDERS FRIDEN
ANDERS FRIDEN
ANNA LLORENT
ARTICK KELLER
BASIC EXPO
BRANDON S.
B.W.C. & CO.
CARLO ROSSI
CECILLE BLANC
CIME R.
COLTER JACK
AN...C
DI...F
GA...L
MC...P
RC...T
VI...Z
1 2 3
4 5 6
7 8 9
0
CIME R.
COLTER JACK
FIND NAME CODE
A Z
QWE R T YUI O P
123 4 5 678 9 0
#*.
ASD F G HJK L
ZXC V B NM
call forwarded
ROELL & CO.
0001
ROELL & CO.
ENTER PERSONAL CODE
1 2 3
4 5 6
7 8 9
0
CHOOSE YOUR LANGUAGE
Italiano
English
Français
Nederlands
MESSAGES
Message 1:
8/9/2013
STREET CLEANING - DO NOT PARK
ALONG BLOCK B SIDE
Message 2:
Message 3:
TOUCH THE DISPLAY
ROELL & CO.
| 17
CITY - CITY
COMPANY - RESIDENCE
BUILDING-BUILDING
Company
City A
Central Porter Switchboard
MULTISITE Comelit also oers a response to the requirements of multisite installations
in which several ViP systems are interconnected via the Internet, for
example, for the remote control of communications between several company
oces or between several scattered sites and central porter switchboard
stations. Comelit is capable of designing and supplying the infrastructures
required for correct operation of this type of system, with ad hoc solutions
agreed with system managers.
WWW
ADVANTAGES OF THE ViP SYSTEM
VIP SYSTEM
City BBlock B
Block A
ADVANTAGES OF THE VIP SYSTEM | 19
APARTMENT - APARTMENT
SECONDARY UNIT - APARTMENT
MAIN UNIT - APARTMENT
BUILDING - BUILDING
SWITCHBOARD - APARTMENT
NO LIMIT The ViP system oers maximum freedom of configuration and
extraordinary flexibility in the connection of devices without specific
technical or installation constraints. VIP surpasses the limits of traditional
video entry technology: distance between devices, network extension and
number of switchboards and external units. Furthermore, the technology with
digital protocol allows simultaneous audio-video conversations to take place
without the system ever being “busy”.
ADVANTAGES OF THE ViP SYSTEM
VIP SYSTEM
ADVANTAGES OF THE VIP SYSTEM | 21
“PEER TO PEER”
ARCHITECTURE
The ViP system is based on “peer to peer” architecture which does not
require the presence of a network server: each device can communicate
directly with any of the other elements in the network independently. All users
can communicate with each other via their own internal units or with the
switchboards.
This means there are no “critical” devices or structural hubs that could
cause a total blackout. Any breakdown of an individual device does not
aect the other network components.
EASY
TO PROGRAM
ViP system programming does not require specific I.T. skills and is
carried out by means of the special ViP Manager software, a tool created
specifically to make system configuration quicker and easier.
All connected devices can automatically assume the network address
(Auto IP) without having to work selectively on each individual user. Plus,
once they are connected to the network, all devices can be fully configured
without physical access to those devices being necessary.
VIP also oers the option of remotely sending text or image messages to
all users registered on the network, or to individual recipients.
ADVANTAGES OF THE ViP SYSTEM
VIP SYSTEM
NO
REMOTE MANAGEMENT All system configuration functions can be implemented remotely via the
Internet.
This means device programming changes do not require direct action on
the system itself,which reduces costs while increasing the quality of the
service provided.
EASY TO UPDATE All devices can be reconfigured without direct action being taken on
those pieces of equipment. The innovative ViP Manager software can, in
fact, be used to change the original programming and add new functions to
VIP devices without having to access the rooms in which they are installed.
The list of user names can also be entered, saved and updated from a
remote station.
WWW
ADVANTAGES OF THE VIP SYSTEM | 23
INTEGRATION WITH
EXISTING NETWORKS
ViP devices can also be connected to existing LANs, which means the
functions of the digital video entry system can be added without the need
for special wiring.
In this case the ViP monitors and external units coexist and operate on the
same LAN with other equipment.
Device addressing can take place through DHCP or with a static IP.
INTEGRATION WITH
CCTV AND ACCESS
CONTROL
The potential applications of the ViP system allow the use of the same IP
network for integrating security and video surveillance functions into the
video entry phone system, such as viewing CCTV cameras and access
control.
INTEGRATION WITH VOIP
DEVICES
VoIP devices with Sip protocol can also be integrated into the ViP system
by means of the ViP2Sip interface, which can be used to make a direct call
from a ViP external unit to Voip telephones connected to Sip switchboards: in
practice the Voip telephone placed on a desk or anywhere in the home
or oce becomes an internal unit for answering calls and, for example,
opening gates, doors, entrances, etc.
ADVANTAGES OF THE ViP SYSTEM
VIP SYSTEM
ADVANTAGES OF THE VIP SYSTEM | 25
ADVANTAGES OF THE ViP SYSTEM
VIP SYSTEM
ADVANTAGES FOR THE MANAGING
AGENT AND SYSTEM MANAGER
DYNAMISM
ViP can be used to oer a system with
innovative functions, for an excellent
quality video entry service
INTEGRATION
Network infrastructures installed for
other services can easily be used, no
need for special infrastructures
SCALABILITY
The flexible features of digital
technology allow easy system
expansion in accordance with specific
requirements
USABILITY
ViP oers the option of remotely
sending informative text and/or image
messages directly to internal units in
the apartments
EASY TO UPDATE
The system can be updated without
the need for structural work: this
guarantees function development and
excellent performance, and ensures the
system holds its value over time
COMPETITIVENESS
VIP minimises wiring, commissioning
and maintenance costs
ADVANTAGES OF THE VIP SYSTEM | 27
ADVANTAGES OF THE ViP SYSTEM
VIP SYSTEM
ADVANTAGES FOR THE INSTALLER
SIMPLICITY
In system planning and costing
PROGRAMMABLE
Entirely using the PC software, without
directly working on the devices
PRACTICAL
Thanks to fewer references plus easy
installation and connection
CONVENIENCE
With the use of standard wires which
are easy to source
FLEXIBILITY
With a system structure which is easy
to reconfigure
SIMPLICITY
Device automatic addressing means
that no indepth knowledge of
communication networks is required
FLEXIBILITY
Includes access control and lift call
management functions
INTEGRATION
With the option of interfacing with
other technological services for
communication, security and comfort
RELIABILITY
Each device can operate independently
(guaranteeing greater sturdiness)
ACCESSIBILITY
System maintenance and management
can also be carried out remotely
USABILITY
Device FW updating can also take
place remotely
ADVANTAGES OF THE VIP SYSTEM | 29
ADVANTAGES OF THE ViP SYSTEM
VIP SYSTEM
ADVANTAGES FOR THE USER
QUALITY
Cutting-edge technology for an
excellent video entry service, ensuring
optimal intercommunication between
outdoors and indoors and vice-versa
SERVICE
ViP can be used to record messages
for playback at the external unit if you
are away
FREEDOM
Answering video entry phone calls from
a smartphone/ tablet
SECURITY
Connection with porter switchboards
allows the transmission of intervention
requests in case of alarm or panic
events. VIP also oers viewing of
rooms from internal units using security
cameras connected to the system
AVAILABILITY
With its integrated video entry
answering service, messages can be
saved to an SD card
ADVANTAGES OF THE VIP SYSTEM | 31
A
B
VIDEO ENTRY PHONE SYSTEM CONSISTING OF 1 ANALOGUE AUDIO/VIDEO INPUT
AND 1 AUDIO/VIDEO RISER
VIP
6602W 6602W
6722W
6802W
1440
1440
1443
1445H
1440
1440
2633
6203W
6203B
1459
WWW
1595
6702W
APPLICATION DIAGRAMS
1441
VIP SYSTEM
APPLICATION DIAGRAMS
INTERNAL UNITS
6602W
6802W
6203W
6203B
2633
1111
2222
3333
4444
5-6 5-6 5-6 5-6
7-8 7-8 7-8 7-8
9-10 9-10 9-10 9-10
11-12 11-12 11-12 11-12
13-14 13-14 13-14 13-14
15-16 15-16 15-16 15-16
17-18 17-18 17-18 17-18
19-20 19-20 19-20 19-20
21-22 21-22 21-22 21-22
23-24 23-24 23-24 23-24
25-26 25-26 25-26 25-26
27-28 27-28 27-28 27-28
29-30 29-30 29-30 29-30
31-32 31-32 31-32 31-32
33-34 33-34 33-34 33-34
35-36 35-36 35-36 35-36
37-38 37-38 37-38 37-38
39-40 39-40 39-40 39-40
41-42 41-42 41-42 41-42
43-44 43-44 43-44 43-44
45-46 45-46 45-46 45-46
47-48 47-48 47-48 47-48
49-50 49-50 49-50 49-50
ANALOGUE AUDIO/VIDEO ENTRANCE PANEL
3110/1
3110/2
3110/3
3110/4
3311/1S
3311/2S
3311/3S
3311/4S
33410
33411
33412
33433
33434
33436
3336
4682HC
1595
1441
1440
Users
1 1 1 1 1 1 1 1
2 1 1 1 1 1 1 1
3 1 1 1 1 1 1 1 1
4 1 1 1 1 1 1 1 1
5-6 1 1 1 1 1 1 1 2
7-8 1 1 1 1 1 1 1 2
9-10 1 1 1 1 1 1 1 1 3
11-12 1 1 1 2 1 1 1 3
13-14 1 1 1 2 1 1 1 4
15-16 1 11 12 1114
17-18 1 1 1 3 1 1 1 5
19-20 1 1 1 3 1 1 1 5
21-22 2 2 1 1311116
23-24 2 2 1 411116
25-26 2 2 1 411117
27-28 2 2 1 1 4 1 1 1 7
29-30 2 2 1 5 1 1 2 8
31-32 2 2 1 5 1 1 2 8
33-34 2 21 1511129
35-36 2 21 611129
37-38 2 2 1 6 1 1 1 2 10
39-40 2 2 1 1 6 1 1 2 10
41-42 2 2 1 7 1 1 2 11
43-44 2 2 1 7 1 1 2 11
45-46 3 3 1 1 7 1 1 2 12
47-48 3 3 1 8 1 1 2 12
49-50 3 3 1 8 1 1 2 13
Reserve one output of switch art. 1440 for every additional device
The flush-mounted or wall-mounted box is required for 6602W and 6802W.

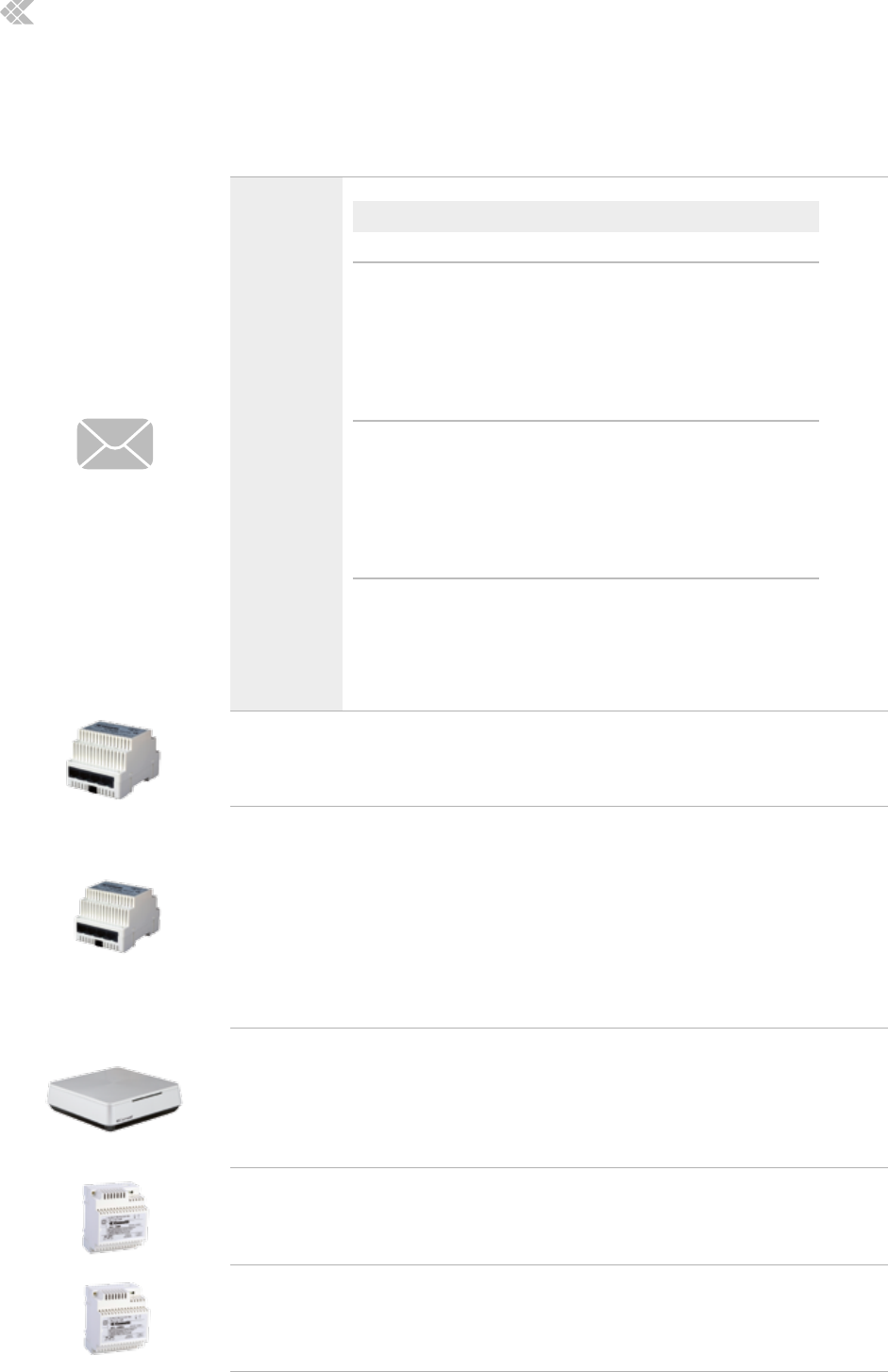

PORTER SWITCHBOARD ART. 1952
PORTER SWITCHBOARD PC SOFTWARE ART. 1448
ACTUATOR MODULE ART. 1443
CAMERA MODULE 1445H
COMELIT IP CAMERAS 100 SERIES MODEL
CALL LOG ART. 1459
PC DOOR ENTRY MONITOR ART. 1454
A MAIN AUDIO/VIDEO ENTRANCE PANEL B INTERNAL UNITS
NOTES
| 33
VIDEO ENTRY PHONE SYSTEM CONSISTING OF 1 DIGITAL AUDIO/VIDEO INPUT
AND 1 AUDIO/VIDEO RISER
VIP
APPLICATION DIAGRAMS
B
A
1440
1456S 1456
1440
6602W 6602W
6722W
6702W
1595
WWW
WWW
6802W
2633
6203B
6203W
1441
VIP SYSTEM
A MAIN AUDIO/VIDEO ENTRANCE PANEL B INTERNAL UNITS
INTERNAL UNITS
6602W
6802W
6203W
6203B
2633
1111
2222
3333
4444
5-6 5-6 5-6 5-6
7-8 7-8 7-8 7-8
9-10 9-10 9-10 9-10
11-12 11-12 11-12 11-12
13-14 13-14 13-14 13-14
15-16 15-16 15-16 15-16
17-18 17-18 17-18 17-18
19-20 19-20 19-20 19-20
21-22 21-22 21-22 21-22
23-24 23-24 23-24 23-24
25-26 25-26 25-26 25-26
27-28 27-28 27-28 27-28
29-30 29-30 29-30 29-30
31-32 31-32 31-32 31-32
33-34 33-34 33-34 33-34
35-36 35-36 35-36 35-36
37-38 37-38 37-38 37-38
39-40 39-40 39-40 39-40
41-42 41-42 41-42 41-42
43-44 43-44 43-44 43-44
45-46 45-46 45-46 45-46
47-48 47-48 47-48 47-48
49-50 49-50 49-50 49-50
ANALOGUE AUDIO/VIDEO ENTRANCE PANEL
3110/3
3311/3S
33410
3360B
4682HC
1595
1441
1440
Users
111111111
211111111
311111111
411111111
5-6 11111112
7-8 11111112
9-10 11111113
11-12 11111113
13-14 11111114
15-16 11111114
17-18 11111115
19-20 11111115
21-22 11111116
23-24 11111116
25-26 11111117
27-28 11111117
29-30 11111128
31-32 11111128
33-34 11111129
35-36 11111129
37-38 111111210
39-40 111111210
41-42 111111211
43-44 111111211
45-46 111111212
47-48 111111212
49-50 111111213
Variants for Users who have the “Comelit ViP remote” APP for receiving video entry phone calls on a
smartphone, whether locally over WiFi or remotely via 3G
USER WITH MONITOR
1 x slave Gateway art. 1456S
1 x Monitor chosen by the user (see table above)
Comelit ViP remote APP available to download free of charge
USER WITHOUT MONITOR
1 x slave Gateway art. 1456
Comelit ViP remote APP available to download free of charge
The flush-mounted or wall-mounted box is required for 6602W and 6802W.
NOTES
| 35
A
B
VIDEO ENTRY PHONE SYSTEM CONSISTING OF 2 INPUTS: 1 AUDIO/VIDEO INPUT
AND 1 AUDIO INPUT, 1 AUDIO/VIDEO RISER
VIP
1440
1440
1440
6602W 6602W
6722W
6702W
1595 1595
6802W 6802W
2633
6203B
6203W
APPLICATION DIAGRAMS
1441
VIP SYSTEM
A ANALOGUE AUDIO/VIDEO ENTRANCE PANEL AND ANALOGUE AUDIO
ENTRANCE PANEL
B INTERNAL
UNITS
INTERNAL UNITS
6602W
6802W
6203W
6203B
2633
1111
2222
3333
4444
5-6 5-6 5-6 5-6
7-8 7-8 7-8 7-8
9-10 9-10 9-10 9-10
11-12 11-12 11-12 11-12
13-14 13-14 13-14 13-14
15-16 15-16 15-16 15-16
17-18 17-18 17-18 17-18
19-20 19-20 19-20 19-20
21-22 21-22 21-22 21-22
23-24 23-24 23-24 23-24
25-26 25-26 25-26 25-26
27-28 27-28 27-28 27-28
29-30 29-30 29-30 29-30
31-32 31-32 31-32 31-32
33-34 33-34 33-34 33-34
35-36 35-36 35-36 35-36
37-38 37-38 37-38 37-38
39-40 39-40 39-40 39-40
41-42 41-42 41-42 41-42
43-44 43-44 43-44 43-44
45-46 45-46 45-46 45-46
47-48 47-48 47-48 47-48
49-50 49-50 49-50 49-50
ANALOGUE AUDIO/VIDEO ENTRANCE PANEL AND ANALOGUE AUDIO ENTRANCE PANEL
3110/1
3110/2
3110/3
3110/4
3311/1S
3311/2S
3311/3S
3311/4S
33410
33411
33412
33400
33401
33402
33433
33434
33436
3336
4682HC
1595
1441
1440
Users
1 2 2 1 1 1 2 1 1
2 2 2 1 1 1 2 1 1
3 2 2 1 1 2 1 2 1 1
4 2 2 1 1 2 1 2 1 1
5-6 2 2 1 1 2 1 2 1 2
7-8 2 2 1 1 2 1 2 1 2
9-10 2 2 1 1 2 2 1 2 1 3
11-12 2 2 1 1 4 1 2 1 3
13-14 2 2 1 1 4 1 2 1 4
15-16 2 2 1 1 2 4 1 2 1 4
17-18 2 2 1 1 6 1 2 1 5
19-20 2 2 1 1 6 1 2 1 5
21-22 4 4 1 1 2621216
23-24 4 4 1 1 8 2 1 2 1 6
25-26 4 4 1 1 8 2 1 2 1 7
27-28 4 4 1 1 2 8 1 2 1 7
29-30 4 4 1 1 10 1228
31-32 4 4 1 1 10 1228
33-34 4 4 1 1 2 10 21229
35-36 4 4 1 1 12 21229
37-38 4 4 1 1 12 212210
39-40 4 4 1 1 2 12 12210
41-42 4 4 1 1 14 12211
43-44 4 4 1 1 14 12211
45-46 6 6 1 1 2 14 12212
47-48 6 6 1 1 16 12212
49-50 6 6 1 1 16 12213
The flush-mounted or wall-mounted box is required for 6602W and 6802W.
NOTES
| 37
VIDEO ENTRY PHONE SYSTEM CONSISTING OF 5 AUDIO/VIDEO INPUTS, 1 PORTER
SWITCHBOARD. SYSTEM CAN BE EXPANDED WITH FIBRE OPTIC
VIP
APPLICATION DIAGRAMS
LAN/FIBER
CONVERTER
FIBER OPTIC
LAN/FIBER
CONVERTER
6602W
6602W
6602W
6602W
6602W
6602W
6602W
6602W 6602W
6602W
6602W
1440 1440
6203W
1440
6203W
6602W
1440
1440
1595
1952
1441
1441
1595
1441
1440
1952
6203W
6203W
1440
1440
6203W
6602W
1441
1595 1595
1595
1440
1952
1441
6802W 6802W
6802W
6802W
6802W
6802W
VIP SYSTEM
APPLICATION DIAGRAMS | 39
PRODUCT CATALOGUE
KITS 41
KIT ACCESSORIES 42
INTERNAL UNITS audio
EASYCOM 43
STYLE 44
INTERNAL UNITS video
MAXI 44
ICONA 45
EXTERNAL UNITS
3ONE6 TOUCH 46
3ONE6 SENSE 47
3ONE6 ANALOG 47
3ONE6 ACCESSORES 48
ARCHITECTUS PRO 49

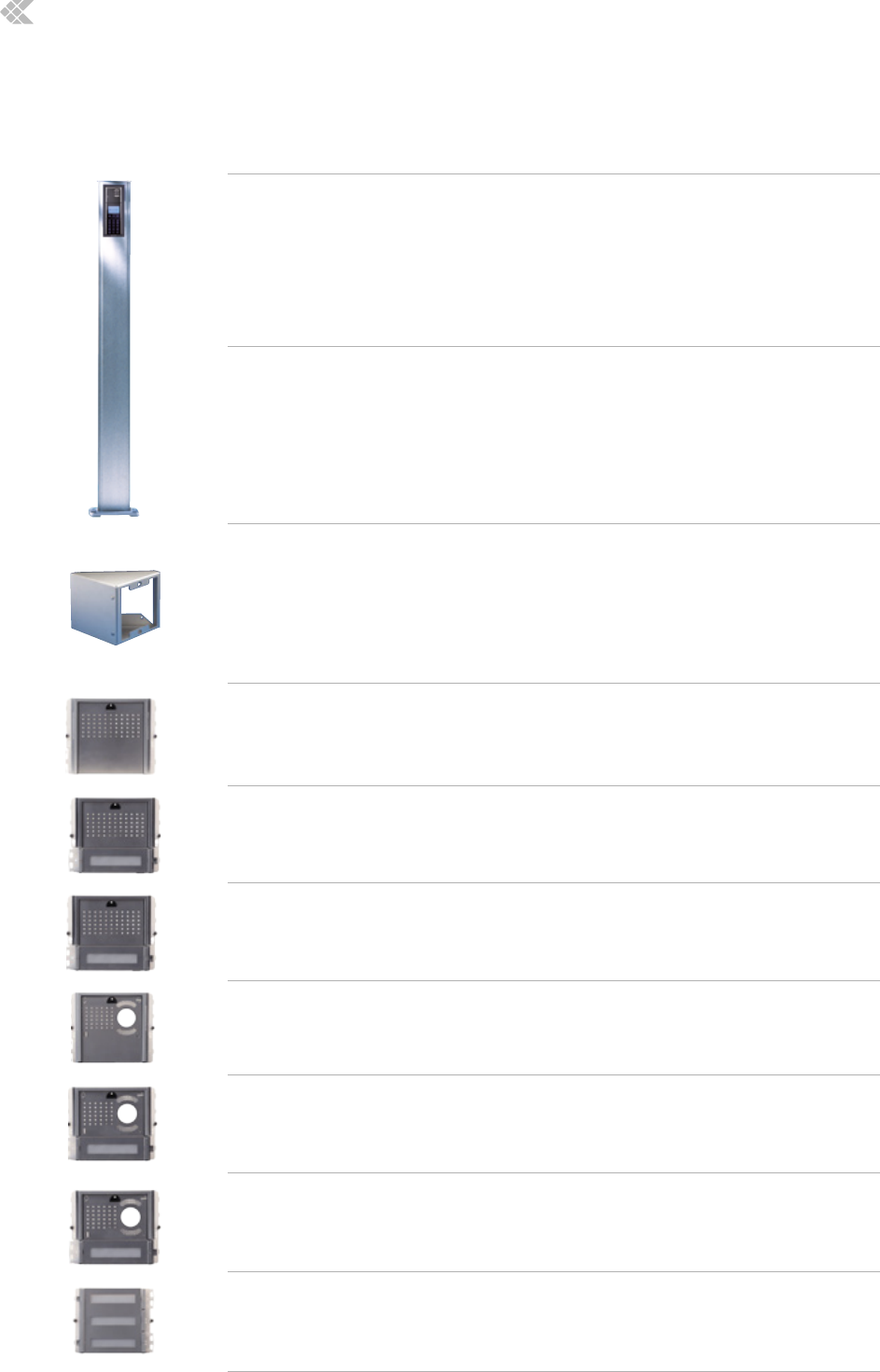

VANDALCOM 50
IKALL METAL 53
IKALL 57
ROMA 62
EMERGENCY PANELS 63
EASYCALL 64
ACCESSORIES 65
VIP SYSTEM
KITS
KITS
8531
IKALL METAL AND ICONA KIT, GATEWAY SLAVE. H264
The kit consists of 1 ViP kit external panel 4894HIM, 1 power supply unit art. 1595, 1 power supply unit
art. 1441B, 1 slave gateway art. 1456S, 1 Icona monitor art. 6602WK, 1 flush-mounted box art. 6117, 1
wall-mounted bracket art. 6620. The kit is pre-programmed and ready to use, except for 1456S gateway
configuration which must be carried out via internal web server. The kit can be expanded with other
products from the VIP catalogue. Compatible with H.264 video format.
8521
IKALL METAL AND ICONA KIT.VIP H264 SYSTEM
The kit consists of 1 colour audio/video unit art. 4682HKC, 1 module with 1 button art. 33411M, 1
flush-mounted box art. 3110/1, 1 frame complete with finishing frame art. 3311/1S, 1 power supply
unit art. 1595, 1 power supply unit art. 1441B, 1 switch art. 1440, 1 Icona monitor art. 6602WK,
1 flush-mounted box art. 6117, 1 wall-mounted bracket art. 6620. The kit is pre-programmed and
ready to use. The kit can be expanded with other products from the VIP catalogue. Compatible with
H.264 video format.
8522
IKALL METAL AND ICONA KIT.VIP H264 SYSTEM
The kit consists of 1 colour audio/video unit art. 4682HKC, 1 module with 1 button art. 33411M, 1
flush-mounted box art. 3110/1, 1 frame complete with finishing frame art. 3311/1S, 1 power supply
unit art. 1595, 1 power supply unit art. 1441B, 1 switch art. 1440, 1 Icona monitor art. 6602WK,
1 flush-mounted box art. 6117, 1 wall-mounted bracket art. 6620. The kit is pre-programmed and
ready to use. The kit can be expanded with other products from the VIP catalogue. Compatible with
H.264 video format.

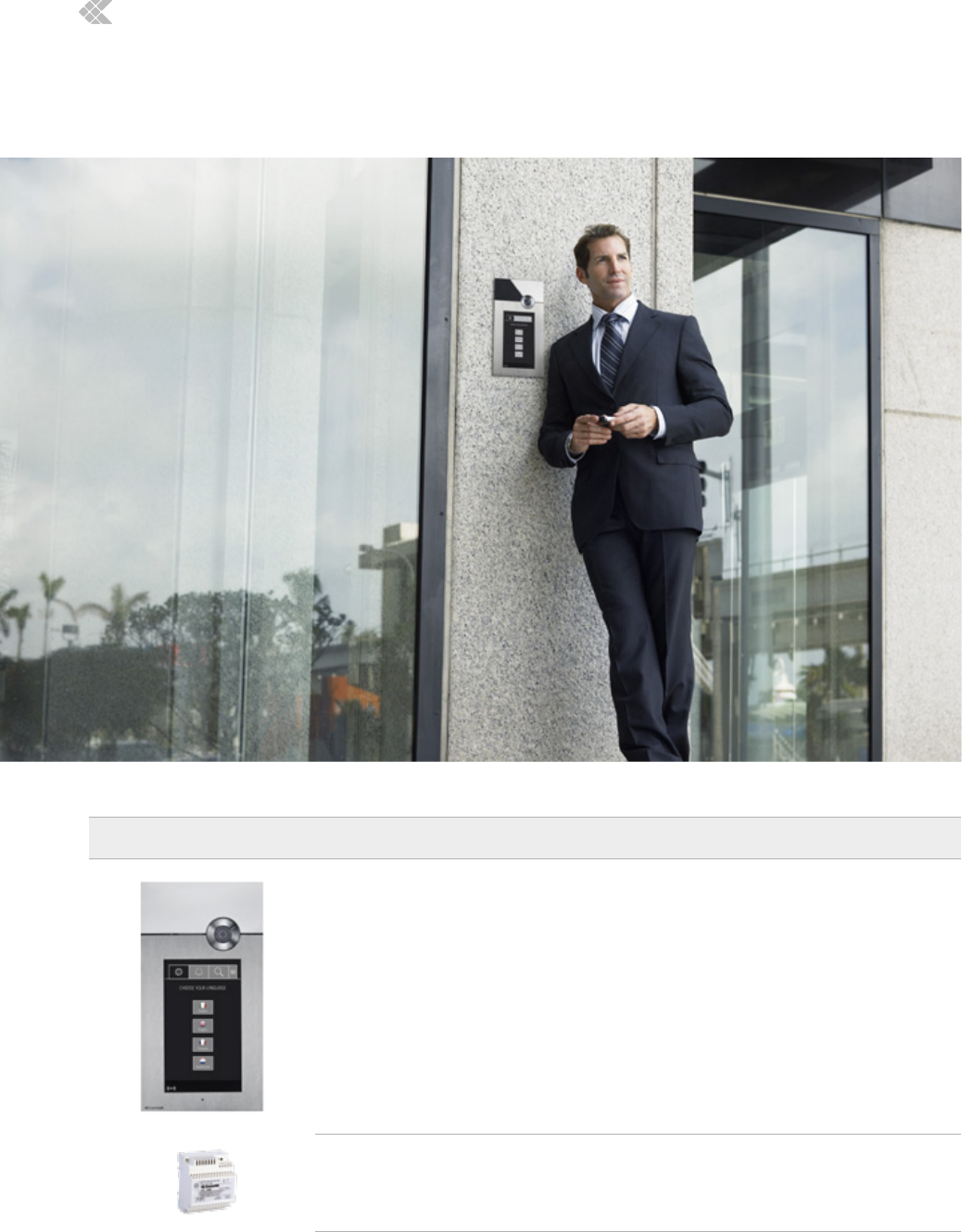

8513HIM
SINGLE-FAMILY KIT W/IKALL METAL AND MASTER GATEWAY. VIP H264
The kit consists of 1 ViP kit external panel 4894IM, 1 power supply unit art. 1595, 1 power supply unit
art. 1441B and 1 master gateway 1456. The kit is pre-programmed and ready to use, except for 1456
gateway configuration which must be carried out via internal web server. The kit can be expanded with
other products from the VIP catalogue.
PRODUCT CATALOGUE
ACCESSORIES
8501HIM
SINGLE-FAMILY KIT W/IKALL METAL AND MASTER GATEWAY. VIP H264
The kit consists of 1 ViP kit external panel 4894IM, 1 power supply unit art. 1595, 1 power supply
unit art. 1441B and 1 master gateway 1456. The kit is pre-programmed and ready to use, except
for 1456 gateway configuration which must be carried out via internal web server. The kit can be
expanded with other products from the VIP catalogue.
8504H
PC INTERCOM KIT WITH VANDALCOM ENTRANCE PANEL - SINGLE USER
The kit consists of 1 colour audio/video unit art. 4682HKC, 1 module with 1 button art. 3268I/1, 1
flush-mounted box art. 3160/1, 1 frame complete with finishing frame art. 3161/1, 1 power supply
unit art. 1595 and 1 PC Intercom software art. 1454K. The kit is pre-programmed and ready to use.
The kit can be expanded with other products from the VIP catalogue.
ACCESSORIES

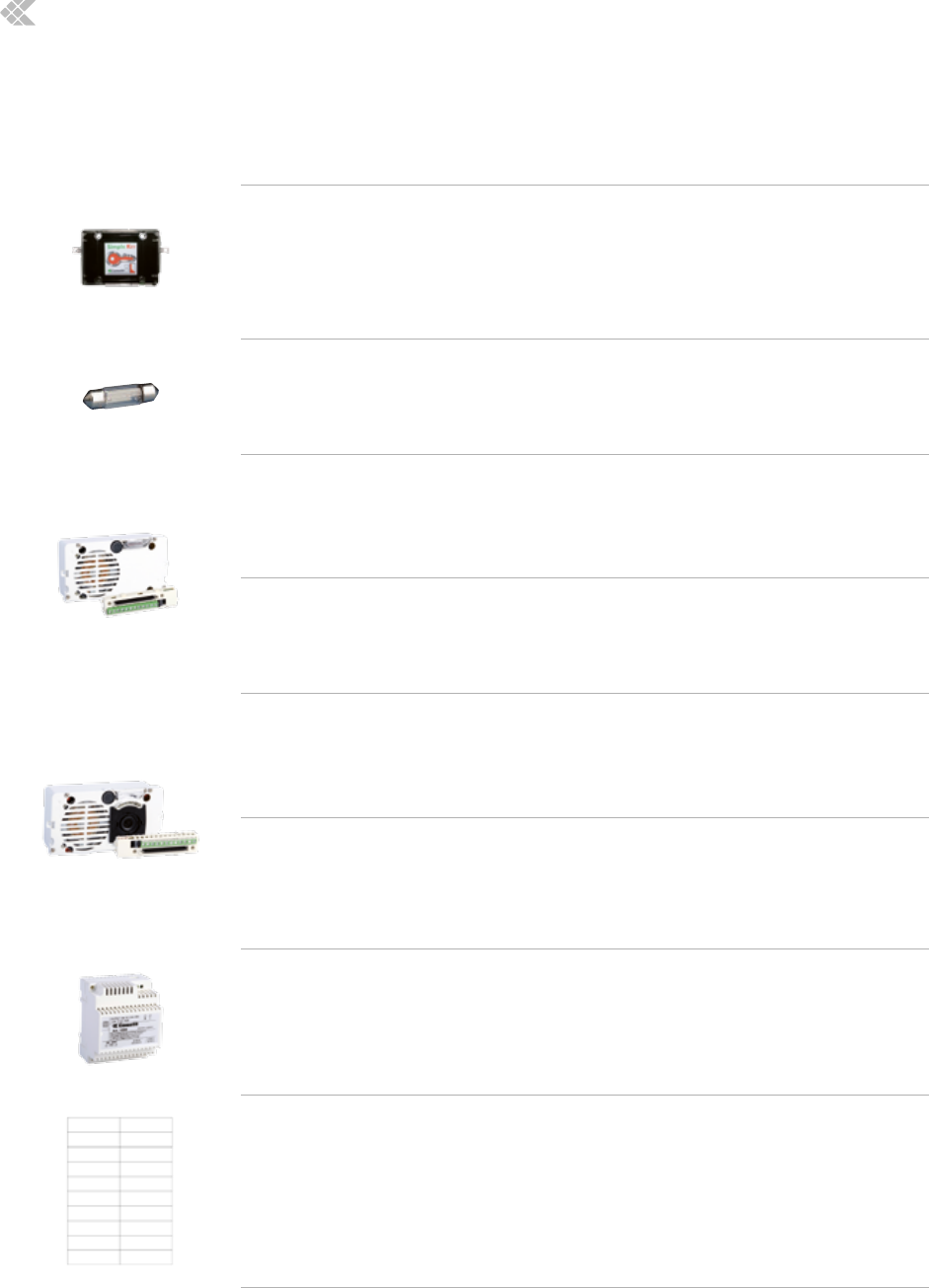

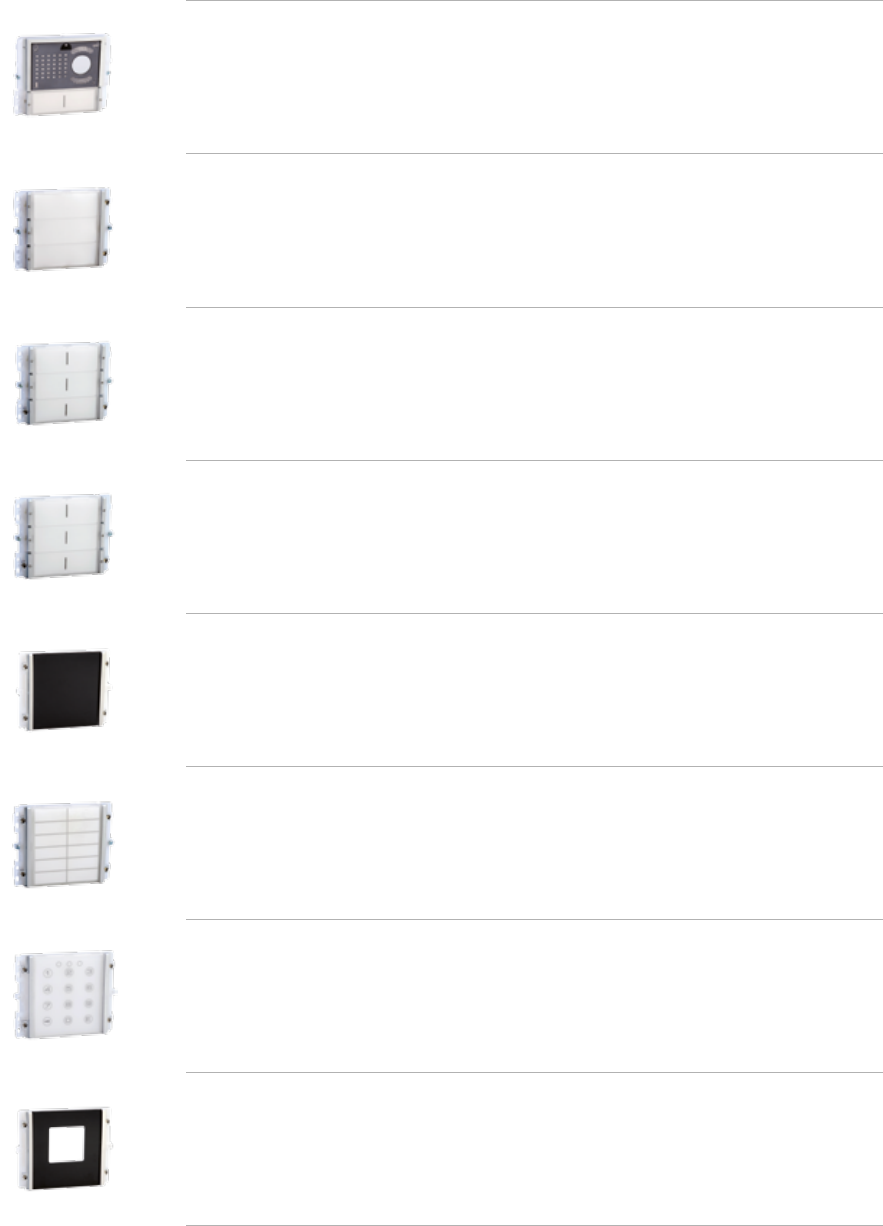

4894HIM
EXTERNAL UNIT FOR VIP KIT - IKALL METAL H264
Single-family video door entry external unit for ViP system with Ikall Metal entrance panel.
The kit comprises: 1 flush-mounted box Art. 3110/1, 1 silver coloured frame Art. 3311/1S, 1
module with 1 button art. 33411M and 1 colour audio/video unit Art. 4682HKC. The external
unit is coded with ViP address 100 and the button on module Art. 33411M sends the call to ViP
address 1. Compatible with H264 video format.

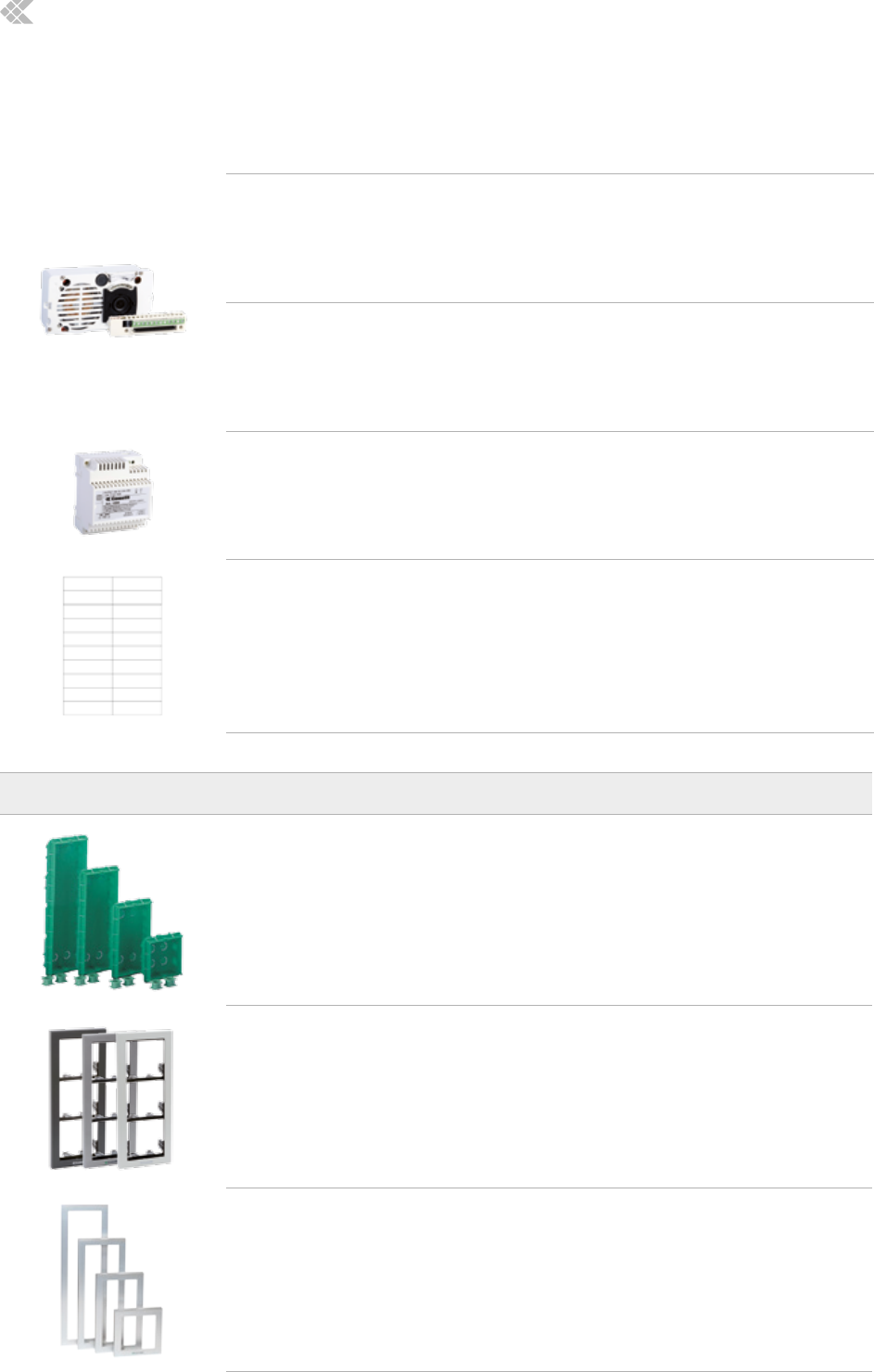

4682HKC
COLOUR A/V UNIT FOR VIP SYSTEM, IKALL SERIES. H264
ViP KIT system audio-video unit with terminal block, complete with mini lens colour camera
which is adjustable from the front and LED camera lighting. Complete with terminal block and
digital audio management system with Echo-cancelling, watertight loudspeaker and electret
microphone, loudspeaker volume adjustable from the front. Dimensions: 102x55x38 mm.
Compatible with H.264 video format
| 43
VIP
INTERNAL UNITS
INTERNAL UNITS

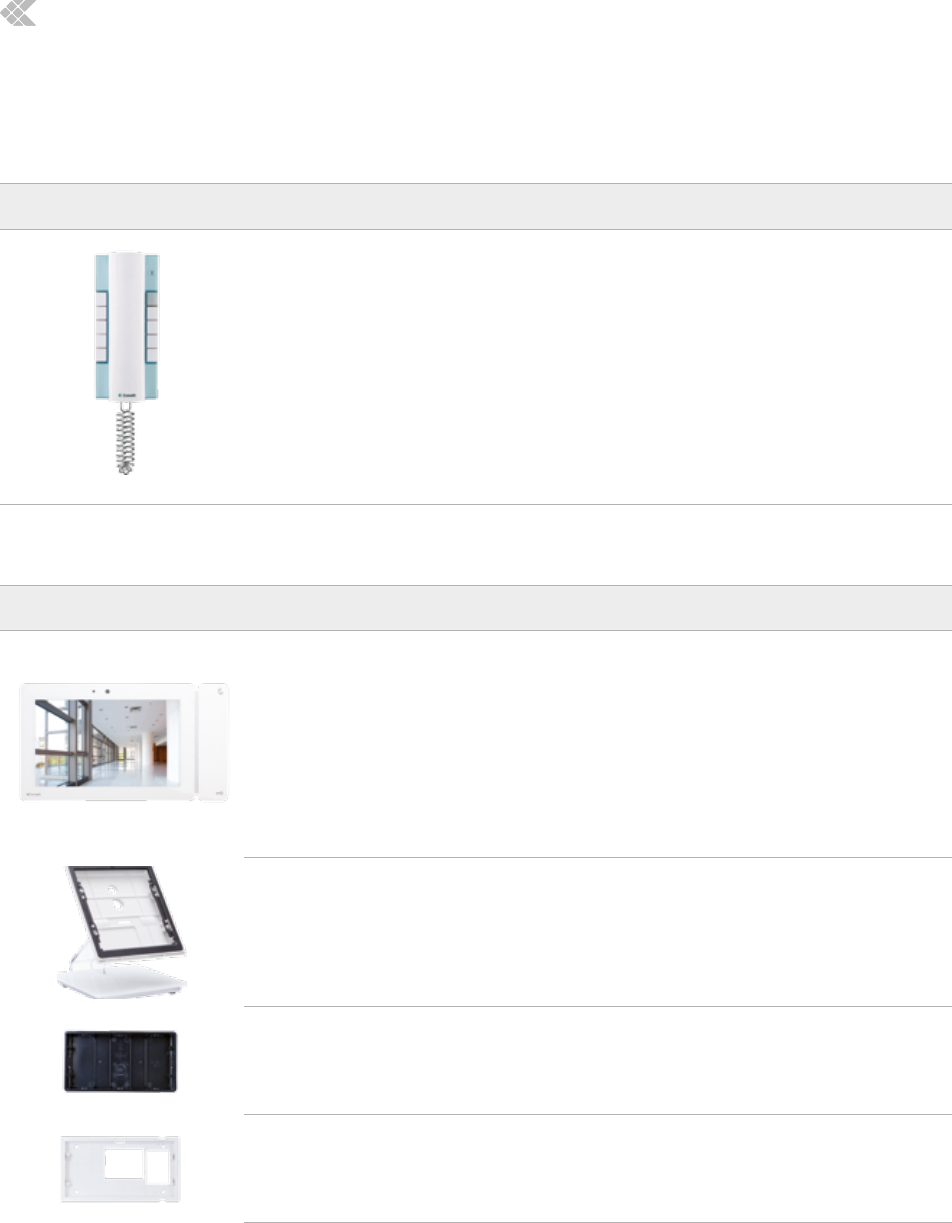

EASYCOM
6203B
EASYCOM VIP UNIT - BLACK
Full duplex hands-free intercom with electronic calling, call volume adjustment, privacy,
loud speaker volume adjustment and privacy of conversation. Fitted as standard with
audio activation push button with active audio LED signalling, door lock command and 6
configurable buttons. White colour. Dimensions: 90 x 160 x 28 mm
6203W
EASYCOM VIP UNIT - WHITE
Full duplex hands-free intercom with electronic calling, call volume adjustment, privacy,
loud speaker volume adjustment and privacy of conversation. Fitted as standard with
audio activation push button with active audio LED signalling, door lock command and 6
configurable buttons. White colour. Dimensions: 90 x 160 x 28 mm
INTERNAL UNITS
MAXI
6802W
MAXI SERIES 7” MONITOR. VIP SYSTEM
7” 16:9 touch monitor with full-duplex hands-free audio. Management of Audio distribution and
Energy consumption as standard. Audio, ringtone, colour and contrast adjustment. Equipped with
a slot to house the micro SD Card. Ringtone can be customised. Equipped with video memory
function and internal directory for the management of intercom calls. Management of external
floor door call and call repetition as standard. Panic and alarm input. “Sensitive touch” commands
with LED backlighting. The audio and door-opening command is always visible, whilst the others
appear after touch or swipe contact. Also has button for self-ignition, selectable privacy or doctor
button (with red privacy active indicator), and 2 buttons for dierent uses. “Door Open” and “New
Message” indicator lights. Flush or wall-mounted or desk base versions. 223x124x25 mm.
Compatible with H264 video format.
6812
DESK BASE FOR MAXI MONITOR
Desk base for desktop conversion of Handsfree Mini monitor. Complete with 1x 2 metre cable
with RJ45 connector to connect monitor terminals to the coupler or domestic series socket.
Dimensions: 140x190x140mm.
6817 FLUSH-MOUNTED BOX FOR MAXI MONITOR
Flush-mounted box in black ABS. Dimensions: 212x115x50mm
6820 SBC & VIP MAXI MONITOR WALL SUPPORT
Wall support for Maxi monitor. White. Dimensions: 216x117x16 mm.
STYLE
2633
EASYCOM VIP UNIT - WHITE
Full duplex hands-free intercom with electronic calling, call volume adjustment, privacy, loud
speaker volume adjustment and privacy of conversation. Fitted as standard with audio activation
push button with active audio LED signalling, door lock command and 6 configurable buttons.
White colour. Dimensions: 90 x 160 x 28 mm
PRODUCT CATALOGUE
| 45
VIP
INTERNAL UNITS
ICONA
6602W
ICONA SERIES HANDS-FREE COLOUR MONITOR. VIP SYSTEM. H264
Flush-mounted (on box Art. 6117) or surface-mounted (with bracket Art. 6620) colour monitor
with 4.3’’ 16/9 touch screen and hands-free full-duplex audio. Allows adjustement of backlighting
intensity, contrast, audio volume and ringtone volume. Equipped as standard with sensitive touch
controls for lock-release, audio activation, self-ignition, privacy service and 3 other controls for
programmable functions, and door open and new message indicator LEDs. Standard floor door
call and call repetition management, with alarm and panic inputs and micro SD Card slot. You can
customise the ringtone and video memory function with an absent message. Can also be used
on standard POE systems. Dimensions 142.5x147x23mm. Compatible with H.264 video format.
6117 PLANUX, SMART, ICONA FLUSH BACKBOX
Flush mounted box for Planux,Smart and Icona monitors Dimensions: 132x132x50mm
6612 WALL BRACKET FOR ICONA MONITOR
Wall bracket for Icona monitor. Colour: White. Dimensions: 137X142X12.5 mm.
6620 WANDSTEUN VOOR ICONA MONITOR
Wandsteun voor Icona-monitor. Kleur wit. Afmetingen: 137x142x12,5mm.
6118 PLANUX CLIPS FOR DRY LINED WALLS
Installation kit for plasterboard walls.
INTERNAL UNITS
3ONE6 TOUCH
3454H
VIP 316 TOUCH A/V ENTRANCE PANEL. H264
Stainless steel flush-mounted entrance panel (fitted level with the wall) with 8’ capacitive
touch screen featuring high visibility and impact-proof glass. Certified as IK08. Operation
with configurable graphics (list of names with search, virtual static buttons up to 10 users,
alphabetised directory, number code up to 8 digits). Allows customisation of the virtual buttons
and viewing of general apartment block messages. Fully configurable via ViP Manager; language,
brightness and name/code adjustment can also be carried out locally. Fitted with rfid reader for
local door lock control, an additional relay for various uses and proximity and brightness sensors
for optimal operational management. Complete with ViP a/v unit Art. 4682HC for audio/video/
door lock management and flush-mounted box. To be powered at 33 Vdc using Art. 1596.
Dimensions 342x182x3 mm. Compatible with H.264 video format
1596A
POWER SUPPLY UNIT 33 VDC 60W INPUT 110-240 VAC 316 ENTR. PAN
Power supply unit with 110-230V primary and 33Vdc 1.8A continuous output for 316 range
entrance panels. Equipped with internal protection against current overload and short circuits.
Dimensions: 71.7x90x62 mm (4 DIN modules).
EXTERNAL UNITS
PRODUCT CATALOGUE
EXTERNAL UNITS | 47
VIP
3ONE6 ANALOG
3ONE6 ANALOG AUDIO PANEL VIP
Flush-mounted entrance panel with 3 mm thick stainless steel plate; buttons integrated into the
plate, with no mechanical movement. Name card holders with LED lighting and front access for
name replacement. Complete with VIP audio unit part. 1682 for audio/door lock management,
and flush-mounted box with concealed fixing screws. To be powered at 33 Vdc using part. 1595.
IK08 certified.
Code N. Buttons Dimensions
3201XA 1 247x182x3 mm
3202XA 2 247x182x3 mm
3203XA 3 293x182x3 mm
3204XA 4 293x182x3 mm
3205XA 5 342x182x3 mm
3206XA 6 342x182x3 mm
3207XA 7 408x182x3 mm
3208XA 8 408x182x3 mm
3209XA 9 408x182x3 mm
3210XA 10 477x182x3 mm
3211XA 11 477x182x3 mm
3212XA 12 477x182x3 mm
3ONE6 SENSE
3452
DIGITAL CAP SENS STAINLESS STEEL A/V ENTRANCE PANEL – VIP
Flush-mounted entrance panel with 3 mm thick stainless steel plate. Complete with 128x64 dot
LCD graphic display and 15 buttons integrated into the plate, with no mechanical movement.
Also works as access control keypad. Two search buttons are used to scroll though the names;
alternatively, the first letter of the required name can be entered. Once the desired username
is displayed, simply press the call button. The call can also be made by directly entering the
user code. It can also be used to customise an initial welcome message and can operate with
a dual user interface language. Integrated RFID reader which can be used in conjunction with
Simplekey. Complete with VIP a/v unit part. 4682HC for audio/video/door lock management, and
flush-mounted box with concealed fixing screws. Dimensions 342x182x3 mm. IK08 certified.
3459 RAINSHIELD WITH LEDS FOR 316 SENSE ST. STEEL ENT. PANEL
Rain shield for 316 series panels.
1595
33VDC POWER SUPPLY UNIT FOR IKALL ENTRANCE PANEL
Power supply unit 110-230V input and 33Vdc 500 mA continuous output, and 1.2A inrush
current for external unit with IKALL entrance panel. Equipped with internal protection against
overcurrent and short circuits. Dimensions: 71.7x90x62 mm (4 DIN modules).
EXTERNAL UNITS
3ONE6 ANALOG A/V PANEL VIP H264
Flush-mounted entrance panel (fitted level with the wall) and plate in 3mm thick stainless steel;
buttons integrated into the plate, with no mechanical movement. IK08 certification. Nameplates
with LED lighting and front access for name replacement. Allows management of visual call,
conversation and door lock status indications. Complete with a/v ViP unit Art. 4682HC for audio/
video/door lock management, and flush-mounted box with concealed fixing screws. For powering
at 33Vdc with Art. 1595.
Code N. Buttons Dimensions
3201HXV 1 247x182x3 mm
3202HXV 2 247x182x3 mm
3203HXV 3 293x182x3 mm
3204HXV 4 293x182x3 mm
3205HXV 5 342x182x3 mm
3206HXV 6 342x182x3 mm
3207HXV 7 408x182x3 mm
3208HXV 8 408x182x3 mm
3209HXV 9 408x182x3 mm
3210HXV 10 477x182x3 mm
3211HXV 11 477x182x3 mm
3212HXV 12 477x182x3 mm
ACCESSOIRES 3ONE6
3458
ACCESS CONTROL ACCESSORY MODULE FOR EXTERNAL UNITS, 3ONE6
Flush-mounted 3 mm thick stainless steel plate for housing the access control module. Can be
used in conjunction with all entrance panels in the 316 range. Dimensions 88x182x3 mm
FLUSH-MOUNTED BOX ENT.PANELS. 3ONE6 SERIES
Flush-mounted box for 1- and 2-button ent. panels from 316 Analog series. Dimensions:
164x227.5x56 mm
Artikelnr. Aant. toetsen Afmetingen
3460/2 1 - 2 164x227,5x56 mm
3460/4 3 - 4 164x273,5x56 mm
3460/6 5 - 6 164x323x56 mm
3460/9 7 - 8 - 9 164x388,5x56 mm
3460/12 10 - 11 - 12 164x457,5x56 mm
3462/2
WALL-MOUNTED HOUSING SERIES 316 1 & 2 BUT. PANEL
Stainless steel accessory for wall-mounted 316 series entrance panels with 1 or 2 buttons.
Dimensions 180x245x57 mm
3462/4
WALL-MOUNTED HOUSING SERIES 316 3 & 4 BUT. PANEL
Stainless steel accessory for wall-mounted 316 series entrance panels with 3 or 4 buttons.
Dimensions 180x290x57 mm
3462/6
WALL HOUSING FOR TOUCH-SENSE & 5-6 BUTT.ENT.PAN. 316 SERIES
Stainless steel accessory for wall-mounted entrance panels Art. 3451, 3451/A, 3452, 3453,
3454. Dimensions 180x340x57 mm
EXTERNAL UNITS
PRODUCT CATALOGUE
| 49
EXTERNAL UNITS
EXTERNAL UNITS
ARCHITECTUS PRO
3472
SENSE MODULE VIP SYSTEM ARCHITECTUS-PRO
Flush-mounted entrance panel with 3 mm thick stainless steel plate. Complete with 128x64 dot
LCD graphic display and 15 buttons integrated into the plate, with no mechanical movement.
Also works as access control keypad. Two search buttons are used to scroll though the names;
alternatively, the first letter of the required name can be entered. Once the desired username
is displayed, simply press the call button. The call can also be made by directly entering the
user code. It can also be used to customise an initial welcome message and can operate with
a dual user interface language. Integrated RFID reader which can be used in conjunction with
Simplekey. Complete with VIP a/v unit part. 4682C for audio/video/door lock management, and
flush-mounted box with concealed fixing screws. Dimensions 342x182x3 mm. IK08 certified.
3474
TOUCH MODULE VIP SYSTEM ARCHITECTUS-PRO
Stainless steel flush-mounted entrance panel with 7’’ capacitive touch screen with impact-proof
glass. IK08 certified. Configurable graphics (list of names with search, up to 60 virtual buttons
(or 10 with images, name directory, access codes up to 8 digits). Integrated RFID reader which
can be used in conjunction with Simplekey. Users and settings are simple to program using VIP
Manager part. 1449. It is compatible with all VIP products and functions. Pre-assembed with
VIP a/v unit part. 4682C for audio/video/door lock management, and flush-mounted box with
concealed fixing screws. Dimensions 342x182x3 mm.
3476

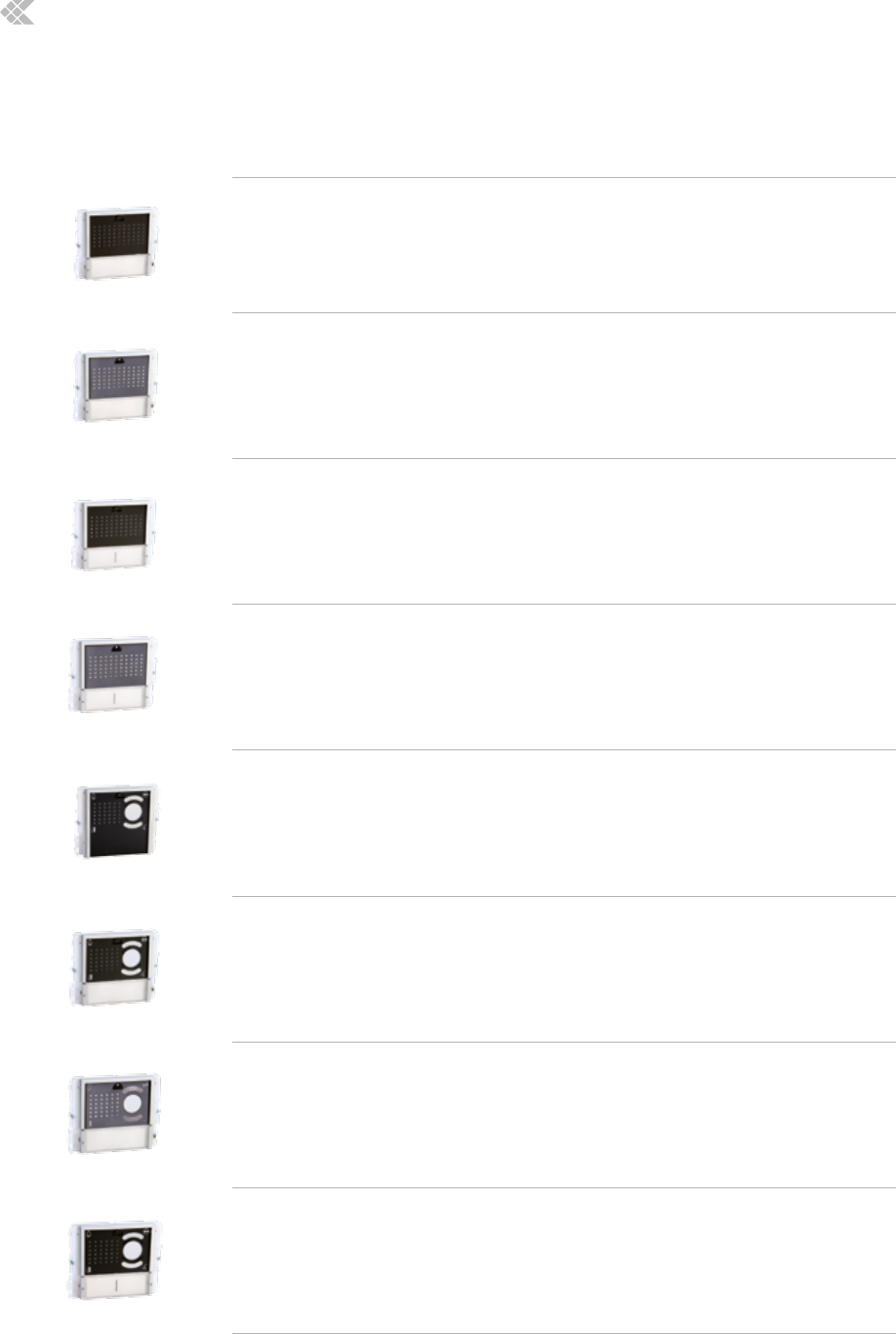

MODULE A/V VIP SYSTEM ARCHITECTUS-PRO
Flush-mounted audio/video module (fitted level with the wall) and 3 mm thick stainless steel
plate. Complete with Art. 4682C for audio/video/door lock management. Allows management of
visual call, conversation and door lock status indications. Dimensions 184x184x3 mm
3478
MODULE AUDIO VIP SYSTEM ARCHITECTUS-PRO
Flush-mounted audio module (fitted level with the wall) and 3 mm thick stainless steel plate.
Complete with Art. 1682 for audio/door lock management. Allows management of visual call,
conversation and door lock status indications. Dimensions 184x184x3 mm
3479
MODULE FOR SIMPLEKEY READER ARCHITECTUS-PRO
Flush-mounted module (fitted level with the wall) and 3 mm thick stainless steel plate for access
control module housing. Dimensions 184x184x3 mm
3481
MODULE 1 BUTTON SB/VIP BLANK NAMEPLATE ARCHITECTUS-PRO
Flush-mounted button module (fitted level with the wall) and 3 mm thick stainless steel plate;
buttons integrated into the plate, with no mechanical movement. Name card holders with LED
lighting and front access for name replacement. Dimensions 184x184x3 mm
3482
MODULE 1 BUTTON SB/VIP BLANK NAMEPLATE ARCHITECTUS-PRO
Flush-mounted button module (fitted level with the wall) and 3 mm thick stainless steel plate;
buttons integrated into the plate, with no mechanical movement. Name card holders with LED
lighting and front access for name replacement. Dimensions 184x184x3 mm
3483
MODULE 3 BUTTON SB/VIP BLANK NAMEPLATE ARCHITECTUS-PRO
Flush-mounted button module (fitted level with the wall) and 3 mm thick stainless steel plate;
buttons integrated into the plate, with no mechanical movement. Name card holders with LED
lighting and front access for name replacement. Dimensions 184x184x3 mm
3484
MODULE 4 BUTTON SB/VIP BLANK NAMEPLATE ARCHITECTUS-PRO
Flush-mounted button module (fitted level with the wall) and 3 mm thick stainless steel plate;
buttons integrated into the plate, with no mechanical movement. Name card holders with LED
lighting and front access for name replacement. Dimensions 184x184x3 mm
3489 CUSTOMISED NAMEPLATE ARCHIETCTUS-PRO
Customised engraved stainless steel nameplate. Available on request
VANDALCOM
3159
VANDALCOM SERIES STAINLESS STEEL SURFACE-MOUNTED HOUSING
Modules Code Dimensions
3159/1 1 142x142x58mm
3159/2 2 142x254x58mm
3159/3 3 142x366x58mm
3160
FLUSH-MOUNTED BOX FOR VANDALCOM ENTRANCE PANEL
Modules Code Dimensions
3160/1 1 130x130x58mm
3160/2 2 130x242x58mm
3160/3 3 130x354x58mm
3161
VANDALCOM SERIES FRAME. DARK GREY COLOUR
Modules Code Dimensions
3161/1 1 143x143x18mm
3161/2 2 143x255x18mm
3161/3 3 143x367x18mm
3161/A
VANDALCOM SERIES FRAME. STEEL GREY COLOUR
Modules Code Dimensions
3161/1A 1 143x143x18mm
3161/2A 2 143x255x18mm
3161/3A 3 143x367x18mm
EXTERNAL UNITS
PRODUCT CATALOGUE
| 51
3262S
MODULE FOR AUDIO UNITS
Module made using double 2.5 mm 316 stainless steel plate. For use with audio unit depending
on the wiring system used.
Modules Code Dimensions
3262S/0 0 106x106x44mm
3262S/1 1 106x106x44mm
3262S/2 2 106x106x44mm
3268S
MODULE FOR A/V UNITS
Module made using double 2.5 mm 316 stainless steel plate. For use with audio/video unit
depending on the wiring system used.
Modules Code Dimensions
3268S/0 0 106x106x44mm
3268S/1 1 106x106x44mm
3268S/2 2 106x106x44mm
3064S
4-BUTTON MODULE, VANDALCOM SERIES
Module made using double 2.5 mm 316 stainless steel plate. 4-button module. Dimensions
106x106x30 mm
3070S
DIGITAL CALL MODULE, VANDALCOM SERIES
Module made using double 2.5 mm 316 stainless steel plate, complete with keypad featuring
12 backlit buttons and 16-digit alphanumeric display showing call codes and user interaction
messages (busy, etc.). Also functions as an electronic key code with 1000 possible dierent
6-digit command codes. Dimensions: 106x106x56 mm.
3072S
DIGITAL DIRECTORY MODULE, VANDALCOM SERIES
Module made using double 2.5 mm 316 stainless steel plate, complete with 4 backlit buttons
and 32-digit alphanumeric display. Stores up to 1000 user names. Scroll through names using
2 search buttons. Once the name is displayed, simply press the call button. Dimensions:
106x106x56 mm.
3176S STEEL BLANK MODULE, VANDALCOM SERIES
Made using double 2.5 mm stainless steel plate. Dimensions: 106x106x9 mm
3179S
MODULE FOR SIMPLEKEY READER, VANDALCOM SERIES
Module made using double 2.5 mm 316 stainless steel plate, with facility for housing SimpleKey
units SK9000I-SK9001I-SK9030I. Dimensions: 106x106x9 mm
3186S
INDICATION/NAMEPLATE MODULE, VANDALCOM SERIES
Module made using double 2.5 mm 316 stainless steel plate. Complete with white label for
general information (house no., etc.) and pre-printed label with space for 12 user names.
Dimensions: 106x106x9 mm.
3188S
VANDALCOM ELECTRONIC KEY FOR PW AND IKALL UNITS
Module made using double 2.5 mm 316 stainless steel plate. Complete with backlit keypad.
Features 300 dierent 8-digit codes that can be programmed from the keypad to control two
relays (10A), as well as a confirm request buzzer and relay activation LED. Relay closure time can
be set from the keypad. Dimensions: 106x106x56 mm.
EXTERNAL UNITS
EXTERNAL UNITS
SK9001I
SIMPLEKEY ADVANCED READER IKALL
Simplekey Advanced access control unit, complete with Mifare proximity reader + control
unit. Hermetic PVC case to be fitted to various entrance panels. Capacity:1500 keys. System
programming through USB Encoder and Simplekey Advanced SK9091 software. LED for system
status indication. Recording of the previous 1,400 events. Option to create complex building
systems without the need for a physical connection. Relay closing timer: from 1 to 60 seconds, 5
second default. 12-24 V DC/AC or 33V DC power supply unit from part. 1595.
1172B LED BULB FOR EXTERNAL UNITS
LED bulb for nameplate lighting.
1682
IKALL VIP AUDIO ONLY SPEAKER
Audio-video unit for ViP system including terminal block complete with front-adjustable mini lens
colour camera, LED camera lighting. Complete with terminal block and digital audio management
system with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker
volume adjustable from the front. For fitting in modules: part. 33410, 33411 and 33412.
Dimensions: 102x55x38 mm.
1682HVC
IKALL SERIES AUDIO MOD. FOR REM.COL.CAM. VIP. H264
ViP system audio unit with facility for connection of a remote camera with 12Vdc power supply.
Complete with terminal block and digital audio management system with Echo-cancelling,
watertight loudspeaker and electret microphone, loudspeaker volume adjustable from the front.
Dimensions: 102x55x38 mm. Compatible with H.264 video format.
4682HC
COL.AUD/VID UNIT FOR VIP SYST., IKALL SERIES.H264
Audio-video unit for ViP system including terminal block complete with front-adjustable mini lens
colour camera, LED camera lighting. Complete with terminal block and digital audio management
system with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker
volume adjustable from the front. For fitting in modules: part. 33410, 33411 and 33412.
Dimensions: 102x55x38 mm.
4682HCW
D&N WIDE COL.A/V UNIT. VIP SYS. IKALL SERIES. H264
Audio-video unit for ViP system including terminal block complete with front-adjustable mini lens
colour camera, LED camera lighting. Complete with terminal block and digital audio management
system with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker
volume adjustable from the front. For fitting in modules: part. 33410, 33411 and 33412.
Dimensions: 102x55x38 mm.
1595
33VDC POWER SUPPLY UNIT FOR IKALL ENTRANCE PANEL
Power supply unit 110-230V input and 33Vdc 500 mA continuous output, and 1.2A inrush
current for external unit with IKALL entrance panel. Equipped with internal protection against
overcurrent and short circuits. Dimensions: 71.7x90x62 mm (4 DIN modules).
1219 NAME TAG SHEETS FOR VANDALCOM ENTRANCE PANEL
The kit contains 10 sheets of adhesive labels for nameplates, 7 sheets for information modules.
EXTERNAL UNITS
PRODUCT CATALOGUE
| 53
IKALL METAL
3110
MODULE FLUSH MOUNT BACK BOX
Modules Code Dimensions
3110/1 1 118x118x45mm
3110/2 2 118x207x45mm
3110/3 3 118x297x45mm
3110/4 4 118x387x45mm
3311
MODULE-HOLDER FRAME COMPLETE WITH FINISHING CORNICE
Modules White Anthracite Silver Dimensions
1 3311/1W 3311/1A 3311/1S 125x125x37,5mm
2 3311/2W 3311/2A 3311/2S 125x215x37,5mm
3 3311/3W 3311/3A 3311/3S 125x305x37,5mm
4 3311/4W 3311/4A 3311/4S 125x395x37,5mm
RAIN SHIELD FOR ENTRANCE PANEL
Natural anodised aluminum rain shield Ikall panel
Modules Code Dimensions
31121 1 154x152x44mm
31122 2 154x242x44mm
31123 3 154x332x44mm
31124L 4L* 154x422x44mm
*4 vertically-aligned modules
IKALL NATURAL ANODISED ALUMINIUM FINISHING FRAME
Artikelnr. Modules Afmetingen
31141 1 149x149x3mm
31142 2 149x239x3mm
31143 3 149x329x3mm
31144L 4L* 419x419x3mm
*4 vertically-aligned modules
IKALL NATURAL ANODISED ALUMINIUM HOUSING WITH RAIN SHIELD.
Modules Code Dimensions
31161 1 154x152x85mm
31162 2 154x242x85mm
31163 3 154x332x85mm
31164L 4L* 154x422x85mm
*4 vertically-aligned modules
EXTERNAL UNITS
EXTERNAL UNITS
EXTERNAL UNITS
PRODUCT CATALOGUE
3639
PILLAR FOR ENTRANCE PANEL, HEIGHT 170 CM
Extruded aluminium pillar with steel coloured finish, aluminium rain shield and floor-mounted
base, bolts provided.
Code Modules Dimensions
3639/1 1 18x170x7,5cm
3639/2 2 18x170x7,5cm
3639/3 3 18x170x7,5cm
3640
PILLAR FOR ENTRANCE PANEL, HEIGHT 117 CM
Extruded aluminium pillar with steel coloured finish, aluminium rain shield and floor-mounted
base, bolts provided.
Code Modules Dimensions
3640/1 1 18x117x7,5cm
3640/2 2 18x117x7,5cm
3640/3 3 18x117x7,5cm
3649
1 MODULE 45° ANGLED ENTRANCE PANEL HOUSING
Aluminium housing which allows entrance panels to be installed at 45°. Once fitted to the wall, the
housing angles the entrance panel laterally towards the user for easier and practical use.
Code Modules Dimensions
3649/1 1 183x130x100mm
3649/2 2 183x242x100mm
3649/3 3 183x354x100mm
33400M
IKALL METAL AUDIO MODULE - 0 BUTTONS
Module designed for audio speaker unit, with stainless steel finish. To be fitted with an audio
speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.
33401M
IKALL METAL AUDIO MODULE - 1 BUTTON
Module designed for audio speaker unit, with stainless steel finish. Nameplates with LED lighting
(options: blue, white or o). To be fitted with an audio speaker unit depending on the cabling system
used. Dimensions 112x89.5x32 mm.
33402M
IKALL METAL AUDIO MODULE - 2 BUTTONS
Module designed for audio speaker unit, with stainless steel finish. Nameplates with LED lighting
(options: blue, white or o). To be fitted with an audio speaker unit depending on the cabling system
used. Dimensions 112x89.5x32 mm.
33410M
IKALL METAL VIDEO MODULE - 0 BUTTONS
Audio/video module with stainless steel finish. Combine with matching Audio/Video module,
depending on applied cabling. Dimensions 112x89, 5x32 mm.
33411M
IKALL METAL VIDEO MODULE - 1 BUTTON
Audio/video module with stainless steel finish. Name plate with LED backlight, a choice of
blue, white or o. Combine with matching Audio/Video module, depending on applied cabling.
Dimensions 112x89, 5x32 mm.
33412M
IKALL METAL VIDEO MODULE - 2 BUTTONS
Audio/video module with stainless steel finish. Name plate with LED backlight, a choice of
blue, white or o. Combine with matching Audio/Video module, depending on applied cabling.
Dimensions 112x89, 5x32 mm.
33433M
IKALL METAL SB2 3 BUTTON MODULE
IKALL entrance panel 3-button module for Simplebus and VIP systems, with stainless steel finish.
Nameplate lighting options: blue/white/o. Dimensions 112x89.5x40 mm.
| 55
33434M
IKALL METAL SB2 4 BUTTON MODULE
IKALL entrance panel 4-button module for Simplebus and VIP systems, with stainless steel finish.
Nameplate lighting options: blue/white/o. Dimensions 112x89.5x40 mm.
33436M
IKALL METAL SB2 6 BUTTON MODULE
IKALL entrance panel 6-button module for Simplebus and VIP systems, with stainless steel finish.
Nameplate lighting options: blue/white/o. Dimensions 112x89.5x40 mm.
3334M IKALL METAL BLANK MODULE
Blank module with stainless steel finish. Dimensions 112x89.5x22 mm.
3336M
IKALL METAL INDICATOR MODULE
LED-backlit module providing various indications, with stainless steel finish. Nameplate lighting
options: blue/white/o. Dimensions 112x89.5x39.
3339M
IKALL METAL NAME PLATE
LED-backlit module displaying a list of names or user codes (max. 12). Stainless steel finish; blue/
white/o nameplate lighting options. Dimensions 112x89.5x39.
3348M
IKALL METAL CODED ACCESS MODULE
Digital electronic key module with LED keypad backlighting. Blue, white and o lighting options;
stainless steel finish. When a number with between 1 and 8 digits is entered on the keypad, two
relays (10A) are activated, allowing electric door locks or other devices to be operated. 12 V AC/DC
power supply. Dimensions 112x89.5x40 mm.
3349M
IKALL METAL SIMPLEKEY CUT-OUT
Module set up for use with Simplekey reader Art. SK9000I. Stainless steel finish. Dimensions
112x89.5x22 mm
3360BM
2-WIRE AND VIP CALL MODULE. IKALL METAL
Digital call module with 128x64 dot graphic LCD display and keypad with 21 buttons backlit
with blue LEDs. Also functions as an electronic key code. Two search buttons are used to scroll
though the names; alternatively, the first letter of the required name can be entered. Once
the desired username is displayed, simply press the call button. The call can also be made by
directly entering the user code. It can also be used to customise an initial welcome message and
can operate with a dual user interface language. It can be used in conjunction with Simplekey
electronic keys for automatic updating of names in the directory. For the SBC system (factory
setting), the electronic name directory saves up to 3500 user names and 6000 lock-release
passwords. Users and settings are simple to program using PC software art. 1249B (included,
with USB connection cable) via a USB or RS485 port, or locally on the digital module itself.
Includes the CD-ROM loaded with serial download SW art. 1249B for installation to PC and the
USB connection cable. Dimensions: 112x180x40
1682
IKALL VIP AUDIO ONLY SPEAKER
Audio-video unit for ViP system including terminal block complete with front-adjustable mini lens
colour camera, LED camera lighting. Complete with terminal block and digital audio management
system with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker
volume adjustable from the front. For fitting in modules: part. 33410, 33411 and 33412.
Dimensions: 102x55x38 mm.
1682HVC
IKALL SERIES AUDIO MOD. FOR REM.COL.CAM. VIP. H264
ViP system audio unit with facility for connection of a remote camera with 12Vdc power supply.
Complete with terminal block and digital audio management system with Echo-cancelling,
watertight loudspeaker and electret microphone, loudspeaker volume adjustable from the front.
Dimensions: 102x55x38 mm. Compatible with H.264 video format.
EXTERNAL UNITS
EXTERNAL UNITS
IKALL
3110
INBOUWDOOS VOOR DEURSTATION
Modules Code Dimensions
3110/1 1 118x118x45mm
3110/2 2 118x207x45mm
3110/3 3 118x297x45mm
3110/4 4 118x387x45mm
3311
MODULE-HOLDER FRAME COMPLETE WITH FINISHING CORNICE
Modules White Anthracite Silver Dimensions
1 3311/1W 3311/1A 3311/1S 125x125x37,5mm
2 3311/2W 3311/2A 3311/2S 125x215x37,5mm
3 3311/3W 3311/3A 3311/3S 125x305x37,5mm
4 3311/4W 3311/4A 3311/4S 125x395x37,5mm
3311/AL
ANODIZES ALUMINIUM FRAME
Anodized aluminum frame ideal for installation in extreme situations such as the marine environment.
Modules Code Dimensions
3311/1AL 1 125x125x37,5mm
3311/2AL 2 125x215x37,5mm
3311/3AL 3 125x305x37,5mm
3311/4AL 4 125x395x37,5mm
EXTERNAL UNITS
PRODUCT CATALOGUE
4682HC
COL.AUD/VID UNIT FOR VIP SYST., IKALL SERIES.H264
Audio-video unit for ViP system including terminal block complete with front-adjustable mini lens
colour camera, LED camera lighting. Complete with terminal block and digital audio management
system with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker
volume adjustable from the front. For fitting in modules: part. 33410, 33411 and 33412.
Dimensions: 102x55x38 mm.
4682HCW
D&N WIDE COL.A/V UNIT. VIP SYS. IKALL SERIES. H264
Audio-video unit for ViP system including terminal block complete with front-adjustable mini
lens colour camera, LED camera lighting. Complete with terminal block and digital audio
management system with Echo-cancelling, watertight loudspeaker and electret microphone,
loudspeaker volume adjustable from the front. For fitting in modules: part. 33410, 33411 and
33412. Dimensions: 102x55x38 mm
1595
33VDC POWER SUPPLY UNIT FOR IKALL ENTRANCE PANEL
Power supply unit 110-230V input and 33Vdc 500 mA continuous output, and 1.2A inrush
current for external unit with IKALL entrance panel. Equipped with internal protection against
overcurrent and short circuits. Dimensions: 71.7x90x62 mm (4 DIN modules).
1218
NAME TAG SHEETS FOR IKALL ENTRANCE PANEL
The kit contains 20 sheets of adhesive labels for single nameplates, 7 sheets for double
nameplates and 1 sheet for information modules.
EXTERNAL UNITS | 57
EXTERNAL UNITS
RAIN SHIELD FOR ENTRANCE PANEL
Natural anodised aluminum rain shield Ikall panel
Modules Code Dimensions
31121 1 154x152x44mm
31122 2 154x242x44mm
31123 3 154x332x44mm
31124L 4L* 154x422x44mm
*4 vertically-aligned modules
IKALL NATURAL ANODISED ALUMINIUM FINISHING FRAME
Modules Code Dimensions
31141 1 149x149x3mm
31142 2 149x239x3mm
31143 3 149x329x3mm
31144L 4L* 419x419x3mm
*4 vertically-aligned modules
IKALL NATURAL ANODISED ALUMINIUM HOUSING WITH RAIN SHIELD
Modules Code Dimensions
31161 1 154x152x85mm
31162 2 154x242x85mm
31163 3 154x332x85mm
31164L 4L* 154x422x85mm
*4 vertically-aligned modules
3639
PILLAR FOR ENTRANCE PANEL, HEIGHT 170 CM
Extruded aluminium pillar with steel coloured finish, aluminium rain shield and floor-mounted base,
bolts provided.
Modules Code Dimensions
3639/1 1 18x170x7,5cm
3639/2 2 18x170x7,5cm
3639/3 3 18x170x7,5cm
3640
PILLAR FOR ENTRANCE PANEL, HEIGHT 117 CM
Extruded aluminium pillar with steel coloured finish, aluminium rain shield and floor-mounted base,
bolts provided.
Modules Code Dimensions
3640/1 1 18x117x7,5cm
3640/2 2 18x117x7,5cm
3640/3 3 18x117x7,5cm
3649
1 MODULE 45° ANGLED ENTRANCE PANEL HOUSING
Aluminium housing which allows entrance panels to be installed at 45°. Once fitted to the wall, the
housing angles the entrance panel laterally towards the user for easier and practical use.
Modules Code Dimensions
3649/1 1 183x130x100mm
3649/2 2 183x242x100mm
3649/3 3 183x354x100mm
33400
ZERO-BUTTON AUDIO MODULE WITH BLACK FACEPLATE
Module designed for audio speaker unit, with black screen-printed faceplate. To be fitted with an
audio speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.
33401
IKALL AUDIO MODULE - 1 BUTTON
Module designed for audio speaker unit, with black screen-printed faceplate. Nameplates with LED
lighting (options: blue, white or o). To be fitted with an audio speaker unit depending on the cabling
system used. Dimensions 112x89.5x32 mm.
33401A
IKALL SERIES 1-BUTTON MODULE FOR AUDIO UNIT - METAL
Module designed for audio speaker unit, with stainless steel finish faceplate. Nameplates with LED
lighting (options: blue, white or o). To be fitted with an audio speaker unit depending on the cabling
system used. Dimensions 112x89.5x32 mm.
33402
IKALL AUDIO MODULE - 2 BUTTONS
Module designed for audio speaker unit, with black screen-printed faceplate. Nameplates with LED
lighting (options: blue, white or o). To be fitted with an audio speaker unit depending on the cabling
system used. Dimensions 112x89.5x32 mm.
33402A
IKALL SERIES 2-BUTTON MODULE FOR AUDIO UNIT - METAL
Module designed for audio speaker unit, with stainless steel finish faceplate. Nameplates with LED
lighting (options: blue, white or o). To be fitted with an audio speaker unit depending on the cabling
system used. Dimensions 112x89.5x32 mm.
33410
IKALL VIDEO MODULE - 0 BUTTONS
Module designed for audio/video speaker unit, with black screen-printed faceplate. To be fitted
with a suitable video entry speaker unit depending on the cabling system used. Dimensions
112x89.5x32 mm.
33411
IKALL VIDEO MODULE - 1 BUTTON
Module designed for audio/video speaker unit, with black screen-printed faceplate. Nameplates
with LED lighting (options: blue, white or o). To be fitted with a suitable video entry speaker unit
depending on the cabling system used. Dimensions 112x89.5x32 mm.
33411A
IKALL SERIES 1-BUTTON MODULE FOR AUDIO/VIDEO UNIT - METAL
Module designed for audio/video speaker unit, with stainless steel finish faceplate. Nameplates
with LED lighting (options: blue, white or o). To be fitted with a suitable door entry speaker unit
depending on the cabling system used. Dimensions 112x89.5x32 mm.
33412
IKALL VIDEO MODULE - 2 BUTTONS
Module designed for audio/video speaker unit, with black screen-printed faceplate. Nameplates
with LED lighting (options: blue, white or o). To be fitted with a suitable video entry speaker unit
depending on the cabling system used. Dimensions 112x89.5x32 mm.
EXTERNAL UNITS
PRODUCT CATALOGUE
33412A
IKALL SERIES 2-BUTTON MODULE FOR AUDIO/VIDEO UNIT - METAL
Module designed for audio/video speaker unit, with stainless steel finish faceplate. Nameplates
with LED lighting (options: blue, white or o). To be fitted with a suitable door entry speaker unit
depending on the cabling system used. Dimensions 112x89.5x32 mm.
33433
IKALL SIMPLEBUS 3 BUTTON MODULE
3-button IKALL entrance panel module for Simplebus system. Nameplate lighting options: blue/
white/o. Dimensions 112x89.5x40 mm.
33434
IKALL SIMPLEBUS 4 BUTTON MODULE
4-button IKALL entrance panel module for Simplebus system. Nameplate lighting options: blue/
white/o. Dimensions 112x89.5x40 mm.
33436
IKALL SIMPLEBUS 6 BUTTON MODULE
6-button IKALL entrance panel module for Simplebus system. Nameplate lighting options: blue/
white/o. Dimensions 112x89.5x40 mm.
3334 PLAIN MODULE WITH BLACK FACEPLATE
Plain module with black faceplate. Dimensions 112x89.5x22 mm.
3336
LIT MODULE. IKALL SERIES. SB SYSTEM
LED backlight module for various indications. Nameplate lighting options: blue/white/o. Contains
card for writing names and user codes (max. 12). Dimensions 112x89,5x39 mm).
3348
IKALL CODED ACCESS MODULE
Access control keypad with LED backlighting. Options: blue, white and o. When a number with
between 1 and 8 digits is entered on the keypad, two relays (10A) are activated, allowing electric door
locks or other devices to be operated. 12 V AC/DC power supply. Dimensions: 112x89,5x40 mm.
3349
IKALL SIMPLEKEY CUT-OUT
Module set up for use with Simplekey reader part. SK9000I, SK9001I and SK9030I. Dimensions
112x89,5x22 mm.
EXTERNAL UNITS | 59
EXTERNAL UNITS
3360B
2-WIRE AND VIP CALL MODULE. IKALL SERIES
Digital call module with 128x64 dot graphic LCD display and keypad with 21 buttons backlit with
blue LEDs. Also functions as an electronic key code. Two search buttons are used to scroll though
the names; alternatively, the first letter of the required name can be entered. Once the desired
username is displayed, simply press the call button. The call can also be made by directly entering
the user code. It can also be used to customise an initial welcome message and can operate with
a dual user interface language. It can be used in conjunction with Simplekey electronic keys for
automatic updating of names in the directory. For the SBC system (factory setting), the electronic
name directory saves up to 3500 user names and 6000 lock-release passwords. Users and settings
are simple to program using PC software art. 1249B (included, with USB connection cable) via
a USB or RS485 port, or locally on the digital module itself. Includes the CD-ROM loaded with
serial download SW art. 1249B for installation to PC and the USB connection cable. Dimensions:
112x180x40
1682
IKALL VIP AUDIO ONLY SPEAKER
Audio-video unit for ViP system including terminal block complete with front-adjustable mini lens
colour camera, LED camera lighting. Complete with terminal block and digital audio management
system with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker volume
adjustable from the front. For fitting in modules: part. 33410, 33411 and 33412. Dimensions:
102x55x38 mm.
1682HVC
IKALL SERIES AUDIO MOD. FOR REM.COL.CAM. VIP. H264
ViP system audio unit with facility for connection of a remote camera with 12Vdc power supply.
Complete with terminal block and digital audio management system with Echo-cancelling,
watertight loudspeaker and electret microphone, loudspeaker volume adjustable from the front.
Dimensions: 102x55x38 mm. Compatible with H.264 video format.
4682HC
COL.AUD/VID UNIT FOR VIP SYST., IKALL SERIES.H264
Audio-video unit for ViP system including terminal block complete with front-adjustable mini lens
colour camera, LED camera lighting. Complete with terminal block and digital audio management
system with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker volume
adjustable from the front. For fitting in modules: part. 33410, 33411 and 33412. Dimensions:
102x55x38 mm.
4682HCW
D&N WIDE COL.A/V UNIT. VIP SYS. IKALL SERIES. H264
Audio-video unit for ViP system including terminal block complete with front-adjustable mini lens
colour camera, LED camera lighting. Complete with terminal block and digital audio management
system with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker volume
adjustable from the front. For fitting in modules: part. 33410, 33411 and 33412. Dimensions:
102x55x38 mm.
1595
33VDC POWER SUPPLY UNIT FOR IKALL ENTRANCE PANEL
Power supply unit 110-230V input and 33Vdc 500 mA continuous output, and 1.2A inrush current
for external unit with IKALL entrance panel. Equipped with internal protection against overcurrent
and short circuits. Dimensions: 71.7x90x62 mm (4 DIN modules).
1218
NAME TAG SHEETS FOR IKALL ENTRANCE PANEL
The kit contains 20 sheets of adhesive labels for single nameplates, 7 sheets for double nameplates
and 1 sheet for information modules.
EXTERNAL UNITS
PRODUCT CATALOGUE
EMERGENCY PANELS
3460EA
AUDIO ENTRANCE PANEL FOR EMERGENCY CALLS. VIP SYSTEM
Stainless steel panel with a single call button and indicator LEDs for call forwarded and call
answered. Complete with audio/video module Art. 4682C for ViP system and flush-mounted
box. “EMERGENCY” model with Braille text. Can be wall-mounted using accessory Art. 3461.
Dimensions 229x180x3 mm. IP54 certified.
3460HEV
VIDEO ENT. PANEL FOR EMERGENCY CALLS. VIP SYSTEM. H264
Stainless steel entrance panel with a single call button and indicator LEDs for call forwarded and
call answered. Complete with audio/video module Art. 4682C for ViP system and flush-mounted
box. “EMERGENCY” model with Braille text. Can be wall-mounted using accessory Art. 3461.
Dimensions 229x180x3 mm. Compatible with H.264 video format. IP54 certified.
3460HA
AUDIO HELP POINT PUSHBUTTON ENTRANCE PANEL. VIP SYSTEM
Stainless steel panel with a single call button and indicator LEDs for call forwarded and call
answered. Complete with audio module Art. 1682 for ViP system and flush-mounted box. “HELP
POINT” model. Can be wall-mounted using accessory Art. 3461. Dimensions 229x180x3 mm.
IP54 certified.
3460HHV
VIDEO HELP POINT ENTRANCE PANEL. VIP SYSTEM H264
Stainless steel entrance panel with a single call button and indicator LEDs for call forwarded and call
answered. Complete with audio/video module Art. 4682C for ViP system and flush-mounted box.
“HELP POINT” model. Can be wall-mounted using accessory Art. 3461. Dimensions 229x180x3
mm. Compatible with H.264 video format. IP54 certified.
3461
WALL HOUSING FOR EMERGENCY AND HELP POINT PANELS
Stainless steel accessory for wall-mounted entrance panels Art. 3460EA, 3460HEV, 3460HA,
3460HHV. Dimensions 176x227x57 mm
EASYCALL
4894E
EASYCALL INTERNAL 1 BUTTON ENTRANCE PANEL FOR VIP SYSTEM
Internal entrance panel equipped with call button. Metal finish. Surface-mounted installation.
Dimensions: 90x160x28 mm
EXTERNAL UNITS | 61
EXTERNAL UNITS
ACCESSORIES
1437
VIP SCAN PROTECTOR
Device protecting the ViP system. If the device is fitted in the system, it will be necessary to
provide credentials in order to use the ViP Manager software. Observe the instructions given in the
technical documentation during use and programming. RJ45 connector. Dimensions: 66x85x35
mm (4 DIN modules).
1439
SERVER/CLIENT BRIDGE FOR VIP SYSTEM
Allows interconnection of ViP devices and/or systems located at dierent sites. Can be configured
as a Server or Client. The interconnection of two sites requires 2 devices: the first configured as
a server and the second as a client. Possibility to work with or without VPN connection between
sites. Comes equipped with a power supply unit.
1440 NETWORK SWITCH 4 PORT
PoE Ethernet switch with 2 ports (10/100 Mb) and 4 ports (10 MB). Dimensions 66 x 85 x 35 mm
1441
RISER POWER SUPPLY VIP 120W
230Vac/110Vac 100W power supply unit - 55Vdc with DIN bar (6 modules).
Dimensions 99 x 93 x 53 mm
1441A
VIP SYSTEM 120W RISER POWER SUPPLY UNIT
230Vac/110Vac 120W power supply unit - 55Vdc with DIN bar (4 modules).
Dimensions 65 x 125 x 107 mm
1441B
30W VIP SYSTEM POWER SUPPLY UNIT
Power supply unit with 110Vac/240Vac input and 48Vdc output. 30W power. DIN bar power
supply unit (4 DIN modules). Dimensions: 72x93x56mm
1443
VIP SYSTEM RELAY ACTUATOR MODULE
Intelligent device for commanding one 10A relay (local) for general use. RJ 45 connector
Dimensions: 66 x 85 x 35 mm (4 DIN modules).
1445H
VIP SYSTEM REMOTE CAMERA MODULE H264
This modulates and sends the video signals received from 4 cameras. RJ 45 connector.
Dimensions: 60x85x35mm (4 DIN modules). Compatible with H.264 video format
1446H
VIP SYSTEM PAL OR NTSC VIDEO OUTPUT MODULE H264
Module that generates system output video signal in PAL or NTSC format. RJ45 connector.
Dimensions: 60x85x35mm (4 DIN modules). Compatible with H.264 video format.
1447
10/100MB ACTIVE REPEATER MODULE VIP
10/100Mb active repeater module. Local power supply is not required. Up to 8 ‘cascaded’ devices
can be connected. 2 RJ45 ports. Dimensions: 60 x 85 x 35 mm (4 DIN modules).
1448
SWITCHBOARD SOFTWARE FOR PC FOR VIP SYSTEM
Software on USB micro-key for simple management and control of all the typical functions of
the porter switchboard. In addition to the classic functions of ViP video door entry monitors, it
receives and forwards audio/video calls and manages alarms in the apartments; it has a directory
of actuators, internal and external units which, when programmed, easily identify the apartment
and the external unit which made the call. It also has a recordings archive which stores all calls
(made, managed, lost and forwarded) from internal/external units and alarms. It can also send
messages to internal units. The software comes with a user license. To work correctly, the USB
micro-key must always be inserted in the computer.
1449 RJ45 ETHERNET CABLE, 4-POLE CONNECTION. LENGTH 2M
RJ45 Ethernet cable, 4-pole connection, length 2 metres. For connecting switch 1440 to the PC.
ACCESSORIES
PRODUCT CATALOGUE
ACCESSORIES | 63
ACCESSORIES
1450
VIP BARCODE READER FOR DEVICES
Bar code reader for scanning the MAC address of the device to be programmed onto the ViP
system. Fitted with interface and USB cable for connection to a PC.
1451A POE POWER SUPPLY UNIT FOR VIP SYSTEM MONITOR
PoE Injector for one device
1452
VIP REMOTE CONNECTION INTERFACE
The interface connected to the VIP system allows the system to be managed remotely with ViP
manager software part. 1449 or Communications manager software part. 1449CM, via an
Internet connection. A router with an Internet connection must be connected to the system.
1454
PC INTERCOM
Software allowing for a PC or Mac to be used as a video intercom. To be installed and used on
a PC or Mac connected to the system. Compatible from Snow Leopard version 10.6 or higher.
1454K
LOCAL PC DOOR ENTRY MONITOR SOFTWARE VIP
Software on USB stick that allows a PC to be used for answering calls like a door entry monitor.
Pre-set for operation with the single-family VIP KIT Art. 8501. For installation and use on a PC
wired directly to the system.
1456
MASTER APARTMENT GATEWAY
Apartment gateway in master version (does not require presence of door entry monitors). Allows
the operation of door entry monitor system via tablets and smartphones using the Comelit ViP App,
which can be downloaded free of charge. This function can be used locally via a Wi-Fi network or
on portable devices using 3G (or higher) networks; automatic switching between Wi-Fi and 3G
networks according to availability. In all cases, the gateway should be connected to an ASDL router
or another device guaranteeing local Wi-Fi and mobile 3G connectivity. Depending on bandwidth
limitations, the gateway can serve up to 15 appliances (including door entry monitors, smartphones,
tablets and PCs) with 4 simultaneous audio/video streams. It also allows “intercom” communication
between all of the 15 devices served. The gateway is equipped with 1 Ethernet port for ViP system
riser input, 1 PoE port, 2 PoE ports (can be set to non-PoE) and 1 non-PoE port. It is also equipped
with an input for the power supply.Dimensions: 70x90x62 mm (4 DIN modules).
1456B
MULTI-APARTMENT GATEWAY FOR VIP SYSTEM
Interface allowing the connection of a private local area network to the ViP system. 1 port for
connection to part. 1440 and 4 ports for connection to the VIP monitor, and other network devices
on the private network. Dimensions 70x90x62 mm (4 DIN modules).
USB KEY LICENCE
FOR 1456B
USB KEY LICENCE FOR 1456B
MASTER LICENCE
Code
1456B/M1 1 MASTER LICENCE FOR 1456B, VIP SYSTEM (USB KEY)
1456B/M10 10 MASTER LICENCES FOR 1456B, VIP SYSTEM (USB KEY)
1456B/M50 50 MASTER LICENCES FOR 1456B, VIP SYSTEM (USB KEY)
1456B/M100 100 MASTER LICENCES FOR 1456B, VIP SYSTEM (USB KEY)
1456B/M200 200 MASTER LICENCES FOR 1456B, VIP SYSTEM (USB KEY)
SLAVE LICENCE
Code
1456B/S1 1 SLAVE LICENCE FOR 1456B, VIP SYSTEM (USB-KEY)
1456B/S10 10 SLAVE LICENCES FOR 1456B, VIP SYSTEM (USB-KEY)
1456B/S50 50 SLAVE LICENCES FOR 1456B, VIP SYSTEM (USB-KEY)
1456B/S100 100 SLAVE LICENCES FOR 1456B, VIP SYSTEM (USB-KEY)
1456B/S200 200 SLAVE LICENCES FOR 1456B, VIP SYSTEM (USB-KEY)
PHONE LICENCE
Code
1456B/T1 1 PHONE LICENCE FOR 1456B, VIP SYSTEM (USB KEY)
1456B/T10 10 PHONE LICENCES FOR 1456B, VIP SYSTEM (USB KEY)
1456B/T50 50 PHONE LICENCES FOR 1456B, VIP SYSTEM (USB KEY)
1456B/T100 100 PHONE LICENCES FOR 1456B, VIP SYSTEM (USB KEY)
1456B/T200 200 PHONE LICENCES FOR 1456B, VIP SYSTEM (USB KEY)
E-MAIL LICENCE
FOR 1456B
E-MAIL LICENTIE VOOR 1456B
MASTER LICENCE
Code
1456B/ME1 1 MASTER LICENCE FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/ME10 10 MASTER LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/ME50 50 MASTER LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/ME100 100 MASTER LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/ME200 200 MASTER LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
SLAVE LICENCE
Code
1456B/SE1 1 MASTER LICENCE FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/SE10 10 MASTER LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/SE50 50 MASTER LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/SE100 100 MASTER LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/SE200 200 MASTER LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
PHONE LICENCE
Code
1456B/TE1 1 PHONE LICENCE FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/TE10 10 PHONE LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/TE50 50 PHONE LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/TE100 100 PHONE LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456B/TE200 200 PHONE LICENCES FOR 1456B, VIP SYSTEM (E-MAIL)
1456G
THIRD PARTY HOME AUTOMATION INTERFACE
Interface allowing the connection of third party Home Automation devices. 1 port for connection to
part. 1440 and 4 ports for connection to the VIP monitor, and other network devices on the private
network. Dimensions 70x90x62 mm (4 DIN modules).
1456S
APARTMENT SLAVE GATEWAY FOR VIP SYSTEM
Apartment gateway in slave version (requires presence of a door entry monitor). Allows the
operation of door entry monitor system via tablets and smartphones using the Comelit ViP App,
which can be downloaded free of charge. This function can be used locally via a Wi-Fi network
or on portable devices using 3G (or higher) networks; automatic switching between Wi-Fi and 3G
networks according to availability. In all cases, the gateway should be connected to an ASDL router
or another device guaranteeing local Wi-Fi and mobile 3G connectivity. Depending on bandwidth
limitations, the gateway can serve up to 15 appliances (including door entry monitors, smartphones,
tablets and PCs) with 4 simultaneous audio/video streams. It also allows “intercom” communication
between all of the 15 devices served. The gateway is equipped with 1 Ethernet port for ViP system
riser input, 1 PoE port, 2 PoE ports (can be set to non-PoE) and 1 non-PoE port. It is also equipped
with an input for the power supply. Dimensions: 70x90x62 mm (4 DIN modules).
1459
CALL LOG SERVER. VIP SYSTEM
Server device for ViP system that allows the recording, storage and playback of calls from external
units. Complete with Call-Log administrator software for settings (IP address, date, time, enable
audio, video or audio-video recording, recording duration and recording storage time) and recording
filters (days of the week, external unit making the call, internal unit receiving the call). Compatible
with Windows operating systems. 19 Vdc power supply. Equipped with power supply unit with 100-
240 Vac 50/60 Hz input and 19 Vdc output. Dimensions: 190x190x55 mm.
1595
33VDC POWER SUPPLY UNIT FOR IKALL ENTRANCE PANEL
Power supply unit 110-230V input and 33Vdc 500 mA continuous output, and 1.2A inrush current
for external unit with IKALL entrance panel. Equipped with internal protection against overcurrent
and short circuits. Dimensions: 71.7x90x62 mm (4 DIN modules).
1596A
POWER SUPPLY UNIT 33 VDC 60W INPUT 110-240 VAC 316 ENTR. PAN
Power supply unit with 110-230V primary and 33Vdc 1.8A continuous output for 316 range
entrance panels. Equipped with internal protection against current overload and short circuits.
Dimensions: 71.7x90x62 mm (4 DIN modules).
ACCESSORIES
PRODUCT CATALOGUE
ACCESSORIES | 65
ACCESSORIES
1952
VIDEO CPS VIP
Desk mounted audio-video porter switchboard, with alphanumeric key pad and touch screen.
Allows the visitor to be seen and the name or apartment number of the user being called to be
displayed. Allows management of calls. Day/Night setting and intercom facility. 12V DC power
supply with part. 43082 or directly from VIP network. Dimensions:193 x 223 x 65 mm
3063D
MODULE W/8 BUTT.IN 2 ROWS+VIP FOR SING.-PLATE PAN.
Button management module. Works in conjunction with audio/video modules or audio module.
Allows management of 8 buttons. Dimensions: 45x55x30 mm.
SK9071
SIMPLEKEY LIFT INTERFACE
To be connected to the VIP Actuator module part. 1443. 12 Vdc power supply. Allows one or more
relay contacts to be activated through an interface for lift systems or other uses. Up to 10 SK9071
interfaces can be connected to each 1443, therefore up to 100 relay contacts. Dimensions: 140 x
95 x 55 mm (8 DIN modules)
SW05SIP
LICENSE FOR INCREASING ART. 1456G BY 5 USERS
Software License for increasing the VOIP extensions addressed via ViP interface Art. 1456G by 5
units.
SW10SIP
LICENSE FOR INCREASING ART. 1456G BY 10 USERS
Software License for increasing the VOIP extensions addressed via ViP interface Art. 1456G by 10
units.
SW20SIP LICENSE FOR INCREASING ART. 1456G BY 20 USERS
SW license for increasing the VOIP extensions (addressed via ViP interface Art. 1456G) by 20 units.
SW50SIP LICENSE FOR INCREASING ART. 1456G BY 50 USERS
SW license for increasing the VOIP extensions (addressed via ViP interface Art. 1456G) by 50 units.
SW100SIP
LICENSE FOR INCREASING ART. 1456G BY 100 USERS
Software License for increasing the VOIP extensions addressed via ViP interface Art. 1456G by
100 units.
INDEX - 1 of 3
1172B LED BULB FOR EXTERNAL UNITS 52
1218 NAME TAG SHEETS FOR IKALL ENTRANCE PANEL 56 - 60
1219 NAME TAG SHEETS FOR VANDALCOM ENTRANCE PANEL 52
1437 VIP SCAN PROTECTOR 62
1439 SERVER/CLIENT BRIDGE FOR VIP SYSTEM 62
1440 NETWORK SWITCH 4 PORT 62
1441 RISER POWER SUPPLY VIP 120W 62
1441A VIP SYSTEM 120W RISER POWER SUPPLY UNIT 62
1441B 30W VIP SYSTEM POWER SUPPLY UNIT 62
1443 VIP SYSTEM RELAY ACTUATOR MODULE 62
1445H VIP SYSTEM REMOTE CAMERA MODULE H264 62
1446H VIP SYSTEM PAL OR NTSC VIDEO OUTPUT MODULE H264 62
1447 10/100MB ACTIVE REPEATER MODULE VIP 62
1448 SWITCHBOARD SOFTWARE FOR PC FOR VIP SYSTEM 62
1449 RJ45 ETHERNET CABLE, 4-POLE CONNECTION. LENGTH 2M 62
1450 VIP BARCODE READER FOR DEVICES 63
1451A POE POWER SUPPLY UNIT FOR VIP SYSTEM MONITOR 63
1452 VIP REMOTE CONNECTION INTERFACE 63
1454 PC INTERCOM 63
1454K LOCAL PC DOOR ENTRY MONITOR SOFTWARE VIP 63
1456 MASTER APARTMENT GATEWAY 63
1456B MULTI-APARTMENT GATEWAY FOR VIP SYSTEM 63
1456B/M1 1 MASTER LICENSE FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/M10 10 MASTER LICENSES FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/M100 100 MASTER LICENSES FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/M200 200 MASTER LICENSES FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/M50 50 MASTER LICENSES FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/ME1 1 MASTER LICENSE FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/ME10 10 MASTER LICENSES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/ME100 100 MASTER LICENSES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/ME200 200 MASTER LICENSES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/ME50 50 MASTER LICENSES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/S1 1 SLAVE LICENSE FOR 1456B, VIP SYSTEM (USB-KEY) 63
1456B/S10 10 SLAVE LICENSES FOR 1456B, VIP SYSTEM (USB-KEY) 63
1456B/S100 100 SLAVE LICENSES FOR 1456B, VIP SYSTEM (USB-KEY) 63
1456B/S200 200 SLAVE LICENSES FOR 1456B, VIP SYSTEM (USB-KEY) 63
1456B/S50 50 SLAVE LICENSES FOR 1456B, VIP SYSTEM (USB-KEY) 63
1456B/SE1 1 SLAVE LICENSE FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/SE10 10 SLAVE LICENSES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/SE100 100 SLAVE LICENSES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/SE200 200 SLAVE LICENSES FOR 1456B, VIP SYSTEM (E-MAIL) 64
VIP SYSTEM
INDEX
1456B/SE50 50 SLAVE LICENSES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/T1 1 PHONE LICENCE FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/T10 10 PHONE LICENCES FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/T100 100 PHONE LICENCES FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/T200 200 PHONE LICENCES FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/T50 50 PHONE LICENCES FOR 1456B, VIP SYSTEM (USB KEY) 63
1456B/TE1 1 PHONE LICENCE FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/TE10 10 PHONE LICENCES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/TE100 100 PHONE LICENCES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/TE200 200 PHONE LICENCES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456B/TE50 50 PHONE LICENCES FOR 1456B, VIP SYSTEM (E-MAIL) 64
1456G THIRD PARTY HOME AUTOMATION INTERFACE 64
1456S APARTMENT SLAVE GATEWAY FOR VIP SYSTEM 64
1459 CALL LOG SERVER. VIP SYSTEM 64
1595 33VDC POWER SUPPLY UNIT FOR IKALL ENTRANCE PANEL 47 - 52 - 56 - 60 - 64
1596A POWER SUPPLY UNIT 33 VDC 60W INPUT 110-240 VAC 316 ENTR. PAN 46 - 64
1682 IKALL VIP AUDIO ONLY SPEAKER 52 - 55 - 60
1682HVC IKALL SERIES AUDIO MOD. FOR REM.COL.CAM. VIP. H264 52 - 55 - 60
1952 VIDEO CPS VIP 65
2633 ELEGANCE DOOR-ENTRY PHONE, VIP SYSTEM. STYLE SERIES 44
3063D MODULE W/8 BUTT.IN 2 ROWS+VIP FOR SING.-PLATE PAN. 65
3064S 4-BUTTON MODULE, VANDALCOM SERIES 51
3070S DIGITAL CALL MODULE, VANDALCOM SERIES 51
3072S DIGITAL DIRECTORY MODULE, VANDALCOM SERIES 51
3110/1 1 MODULE BACK BOX 53 - 56
3110/2 2 MODULE BACK BOX 53 - 56
3110/3 3 MODULE BACK BOX 53 - 56
3110/4 4 MODULE BACK BOX 53 - 56
31121 RAIN SHIELD FOR 1 MODULE ENTRANCE PANEL 53 - 57
31122 RAIN SHIELD FOR 2 MODULE ENTRANCE PANEL 53 - 57
31123 RAIN SHIELD FOR 3 MODULE ENTRANCE PANEL 53 - 57
31124L IKALL RAIN SHIELD FOR 4 VERTICAL MODULES 53 - 57
31141 IKALL CORNICE FOR 1 MODULE PANEL 53 - 57
31142 IKALL CORNICE FOR 2 MODULE PANEL 53 - 57
31143 IKALL CORNICE FOR 3 MODULE PANEL 53 - 57
31144L IKALL CORNICE FOR 4 VERTICAL MODULES 53 - 57
31161 IKALL 1 MODULE HOUSING WITH RAINSHIELD 53 - 57
31162 IKALL HOUSING WITH RAINSHIELD 2 MODULE 53 - 57
31163 IKALL HOUSING WITH RAINSHIELD 3 MODULE 53 - 57
31164L IKALL HOUSING WITH RAINSHIELD 4 MODULE 53 - 57
3159/1 VANDALCOM SERIES STAINLESS STEEL SURFACE-MOUNTED HOUSING 50
| 67
INDEX - 2 of 3
3159/2 VANDALCOM SERIES STAINLESS STEEL SURFACE-MOUNTED HOUSING 50
3159/3 VANDALCOM SERIES STAINLESS STEEL SURFACE-MOUNTED HOUSING 50
3160/1 FLUSH-MOUNTED BOX FOR VANDALCOM ENTRANCE PANEL 50
3160/2 FLUSH-MOUNTED BOX FOR VANDALCOM ENTRANCE PANEL 50
3160/3 FLUSH-MOUNTED BOX FOR VANDALCOM ENTRANCE PANEL 50
3161/1 VANDALCOM SERIES FRAME. DARK GREY COLOUR 50
3161/1A VANDALCOM SERIES FRAME. STEEL GREY COLOUR 50
3161/2 VANDALCOM SERIES FRAME. DARK GREY COLOUR 50
3161/2A VANDALCOM SERIES FRAME. STEEL GREY COLOUR 50
3161/3 VANDALCOM SERIES FRAME. DARK GREY COLOUR 50
3161/3A VANDALCOM SERIES FRAME. STEEL GREY COLOUR 50
3176S STEEL BLANK MODULE, VANDALCOM SERIES 51
3179S MODULE FOR SIMPLEKEY READER, VANDALCOM SERIES 51
3186S INDICATION/NAMEPLATE MODULE, VANDALCOM SERIES 51
3188S VANDALCOM ELECTRONIC KEY FOR PW AND IKALL UNITS 51
3201HXV 1 BUTTON FLUSH 316 ANALOG A/V PANEL VIP H264 48
3201XA 1 BUTTON FLUSH 316 ANALOG AUDIO PANEL VIP 47
3202HXV 2 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3202XA 2 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3203HXV 3 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3203XA 3 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3204HXV 4 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3204XA 4 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3205HXV 5 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3205XA 5 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3206HXV 6 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3206XA 6 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3207HXV 7 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3207XA 7 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3208HXV 8 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3208XA 8 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3209HXV 9 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3209XA 9 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3210HXV 10 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3210XA 10 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3211HXV 11 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3211XA 11 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3212HXV 12 BUTTONS FLUSH 316 ANALOG A/V PANEL VIP H264 48
3212XA 12 BUTTONS FLUSH 316 ANALOG AUDIO PANEL VIP 47
3262S/0 0-BUTTON MODULE FOR AUDIO UNITS 51
3262S/1 1-BUTTON MODULE FOR AUDIO UNITS 51
3262S/2 2-BUTTON MODULE FOR AUDIO UNITS 51
VIP SYSTEM
3268S/0 0-BUTTON MODULE FOR A/V UNITS 51
3268S/1 1-BUTTON MODULE FOR A/V UNITS 51
3268S/2 2-BUTTON MODULE FOR A/V UNITS 51
3311/1A MODULE-HOLDER FRAME COMPLETE WITH FINISHING CORNICE 53 - 56
3311/1AL 1 MODULE SURROUND WITH ANODISED ALUMINIUM FRAME 56
3311/1S IKALL SERIES 1-MODULE HOLDER FRAME W/ SILVER FINISHING FRAME 53 - 56
3311/1W IKALL SERIES 1-MODULE HOLDER FRAME W/ WHITE FINISHING FRAME 53 - 56
3311/2A MODULE-HOLDER FRAME COMPLETE WITH FINISHING CORNICE 53 - 56
3311/2AL 2 MODULE SURROUND WITH ANODISED ALUMINIUM FRAME 56
3311/2S IKALL SERIES 2-MODULE HOLDER FRAME W/ SILVER FINISHING FRAME 53 - 56
3311/2W IKALL SERIES 2-MODULE HOLDER FRAME W/ WHITE FINISHING FRAME 53 - 56
3311/3A MODULE-HOLDER FRAME COMPLETE WITH FINISHING CORNICE 53 - 56
3311/3AL 3 MODULE SURROUND WITH ANODISED ALUMINIUM FRAME 56
3311/3S IKALL SERIES 3-MODULE HOLDER FRAME W/ SILVER FINISHING FRAME 53 - 56
3311/3W IKALL SERIES 3-MODULE HOLDER FRAME W/ WHITE FINISHING FRAME 53 - 56
3311/4A MODULE-HOLDER FRAME COMPLETE WITH FINISHING CORNICE 53 - 56
3311/4AL 4 MODULE SURROUND WITH ANODISED ALUMINIUM FRAME 56
3311/4S IKALL SERIES 4-MODULE HOLDER FRAME W/ SILVER FINISHING FRAME 53 - 56
3311/4W IKALL SERIES 4-MODULE HOLDER FRAME W/ WHITE FINISHING FRAME 53 - 56
3334 PLAIN MODULE WITH BLACK FACEPLATE 59
3334M IKALL METAL BLANK MODULE 55
3336 LIT MODULE. IKALL SERIES. SB SYSTEM 59
3336M IKALL METAL INDICATOR MODULE 55
3339M IKALL METAL NAME PLATE 55
33400 ZERO-BUTTON AUDIO MODULE WITH BLACK FACEPLATE 57
33400M IKALL METAL AUDIO MODULE - 0 BUTTONS 54
33401 IKALL AUDIO MODULE - 1 BUTTON 58
33401A IKALL SERIES 1-BUTTON MODULE FOR AUDIO UNIT - METAL 58
33401M IKALL METAL AUDIO MODULE - 1 BUTTON 54
33402 IKALL AUDIO MODULE - 2 BUTTONS 58
33402A IKALL METAL AUDIO MODULE - 2 BUTTONS 58
33402M IKALL METAL AUDIO MODULE - 2 BUTTONS 54
33410 IKALL VIDEO MODULE - 0 BUTTONS 58
33410M IKALL METAL VIDEO MODULE - 0 BUTTONS 54
33411 IKALL VIDEO MODULE - 1 BUTTON 58
33411A IKALL SERIES 1-BUTTON MODULE FOR AUDIO/VIDEO UNIT - METAL 58
33411M IKALL METAL VIDEO MODULE - 1 BUTTON 54
33412 IKALL VIDEO MODULE - 2 BUTTONS 58
33412A IKALL SERIES 2-BUTTON MODULE FOR AUDIO/VIDEO UNIT - METAL 59
33412M IKALL METAL VIDEO MODULE - 2 BUTTONS 54
33433 IKALL SIMPLEBUS 3 BUTTON MODULE 59
33433M IKALL METAL SB2 3 BUTTON MODULE 54
INDEX | 69
INDEX - 3 of 3
33434 IKALL SIMPLEBUS 4 BUTTON MODULE 59
33434M IKALL METAL SB2 4 BUTTON MODULE 55
33436 IKALL SIMPLEBUS 6 BUTTON MODULE 59
33436M IKALL METAL SB2 6 BUTTON MODULE 55
3348 IKALL CODED ACCESS MODULE 59
3348M IKALL METAL CODED ACCESS MODULE 55
3349 IKALL SIMPLEKEY CUT-OUT 59
3349M IKALL METAL SIMPLEKEY CUT-OUT 55
3360B 2-WIRE AND VIP CALL MODULE. IKALL SERIES 60
3360BM 2-WIRE AND VIP CALL MODULE. IKALL METAL 55
3452 DIGITAL CAP SENS STAINLESS STEEL A/V ENTRANCE PANEL – VIP 47
3454H VIP 316 TOUCH A/V ENTRANCE PANEL. H264 46
3458 ACCESS CONTROL ACCESSORY MODULE FOR EXTERNAL UNITS, 316 48
3459 RAINSHIELD WITH LEDS FOR 316 SENSE ST. STEEL ENT. PANEL 47
3460/12 FLUSH-MOUNTED BOX FOR 10-11-12-BUTTON ENT.PANELS. 316 SERIES 48
3460/2 FLUSH-MOUNTED BOX FOR 1- AND 2-BUTTON ENT.PANELS. 316 SERIES 48
3460/4 FLUSH-MOUNTED BOX FOR 3- AND 4-BUTTON ENT.PANELS. 316 SERIES 48
3460/6 FLUSH-MT.BOX FOR TOUCH-SENSE & 5-6 BUTT.ENT.PAN. 316 SERIES 48
3460/9 FLUSH-MOUNTED BOX FOR 7-8-9-BUTTON ENT. PANELS. 316 SERIES 48
3460EA AUDIO ENTRANCE PANEL FOR EMERGENCY CALLS. VIP SYSTEM 61
3460HA AUDIO HELP POINT PUSHBUTTON ENTRANCE PANEL. VIP SYSTEM 61
3460HEV VIDEO ENT. PANEL FOR EMERGENCY CALLS. VIP SYSTEM. H264 61
3460HHV VIDEO HELP POINT ENTRANCE PANEL. VIP SYSTEM H264 61
3461 WALL HOUSING FOR EMERGENCY AND HELP POINT PANELS 61
3462/2 WALL-MOUNTED HOUSING SERIES 316 1 & 2 BUT. PANEL 48
3462/4 WALL-MOUNTED HOUSING SERIES 316 3 & 4 BUT. PANEL 48
3462/6 WALL HOUSING FOR TOUCH-SENSE & 5-6 BUTT.ENT.PAN. 316 SERIES 48
3472 SENSE MODULE VIP SYSTEM ARCHITECTUS-PRO 49
3474 TOUCH MODULE VIP SYSTEM ARCHITECTUS-PRO 49
3476 MODULE A/V VIP SYSTEM ARCHITECTUS-PRO 49
3478 MODULE AUDIO VIP SYSTEM ARCHITECTUS-PRO 49
3479 MODULE FOR SIMPLEKEY READER ARCHITECTUS-PRO 49
3481 MODULE 1 BUTTON SB/VIP BLANK NAMEPLATE ARCHITECTUS-PRO 49
3482 MODULE 2 BUTTON SB/VIP BLANK NAMEPLATE ARCHITECTUS-PRO 49
3483 MODULE 3 BUTTON SB/VIP BLANK NAMEPLATE ARCHITECTUS-PRO 50
3484 MODULE 4 BUTTON SB/VIP BLANK NAMEPLATE ARCHITECTUS-PRO 50
3489 CUSTOMISED NAMEPLATE ARCHIETCTUS-PRO 50
3639/1 PILLAR FOR ENTRANCE PANEL, HEIGHT 170 CM 54 - 57
3639/2 PILLAR FOR ENTRANCE PANEL, HEIGHT 170 CM 54 - 57
3639/3 PILLAR FOR ENTRANCE PANEL, HEIGHT 170 CM 54 - 57
3640/1 PILLAR FOR ENTRANCE PANEL, HEIGHT 117 CM 54 - 57
3640/2 PILLAR FOR ENTRANCE PANEL, HEIGHT 117 CM 54 - 57
VIP SYSTEM
3640/3 PILLAR FOR ENTRANCE PANEL, HEIGHT 117 CM 54 - 57
3649/1 1 MODULE 45° ANGLED ENTRANCE PANEL HOUSING 54 - 57
3649/2 2 MODULE 45° ANGLED ENTRANCE PANEL HOUSING 54 - 57
3649/3 3 MODULE 45° ANGLED ENTRANCE PANEL HOUSING 54 - 57
4682HC COL.AUD/VID UNIT FOR VIP SYST., IKALL SERIES.H264 52 - 56 - 60
4682HCW D&N WIDE COL.A/V UNIT. VIP SYS. IKALL SERIES. H264 52 - 56 - 60
4682HKC COLOUR A/V UNIT FOR VIP SYSTEM, IKALL SERIES. H264 42
4894E EASYCALL INTERNAL 1 BUTTON ENTRANCE PANEL FOR VIP SYSTEM 61
4894HIM EXTERNAL UNIT FOR VIP KIT - IKALL METAL H264 42
6117 PLANUX, SMART, ICONA FLUSH BACKBOX 45
6118 PLANUX CLIPS FOR DRY LINED WALLS 45
6203B EASYCOM VIP UNIT - BLACK 43
6203W EASYCOM VIP UNIT - WHITE 43
6602W ICONA SERIES HANDS-FREE COLOUR MONITOR. VIP SYSTEM. H264 45
6612 DESK BASE FOR ICONA MONITOR 45
6620 WALL BRACKET FOR ICONA MONITOR 45
6802W MAXI SERIES 7" MONITOR. VIP SYSTEM 44
6812 DESK BASE FOR MAXI MONITOR 44
6817 FLUSH-MOUNTED BOX FOR MAXI MONITOR 44
6820 SBC & VIP MAXI MONITOR WALL SUPPORT 44
8501HIM SING.-FAMILY KIT W/ IKALL METAL & PC INTERCOM VIP H264 SYST. 42
8504H SING.-FMLY KIT W/VANDALCOM & PC INTERCOM VIP SYST. KIT H264 42
8513HIM SINGLE-FAMILY KIT W/IKALL METAL AND MASTER GATEWAY. VIP H264 41
8521 IKALL METAL AND ICONA KIT.VIP H264 SYSTEM 41
8522 2-FAMILY IKALL AND VIP ICONA H264 KIT 41
8531 IKALL METAL AND ICONA KIT, GATEWAY SLAVE. H264 41
SK9001I SIMPLEKEY ADVANCED READER IKALL 52
SK9071 SIMPLEKEY LIFT INTERFACE 65
SW05SIP LICENSE FOR INCREASING ART. 1456G BY 5 USERS 65
SW100SIP LICENSE FOR INCREASING ART. 1456G BY 100 USERS 65
SW10SIP LICENSE FOR INCREASING ART. 1456G BY 10 USERS 65
SW20SIP LICENSE FOR INCREASING ART. 1456G BY 20 USERS 65
SW50SIP LICENSE FOR INCREASING ART. 1456G BY 50 USERS 65
INDEX | 71
Comelit Group Spa
Via Don Arrigoni 5
24020 Rovetta S. Lorenzo
Bergamo [Italy]
Tel. +39 (0) 346 750011
Fax +39 (0) 34671436
www.comelitgroup.com
No part of this document may be reproduced without prior
written authorisation from Comelit Group spa. The brands
and trade names cited in this publication are the property
of their respective owners.
[ IT ] Comelit Group Spa
Via Don Arrigoni 5
24020 Rovetta S. Lorenzo
Bergamo Italy
Tel. +39 (0) 346 750011
Fax +39 (0) 346 71436
www.comelitgroup.com
info@comelit.it
[ AU ] Comelit Australia Pty Ltd
Unit 6/11 Sabre Drive
Port Melbourne
Victoria 3207
Ph. 1300 889000
enquiries@comelitgroup.com.au
[ BE ] Comelit Group Belgium
Kleinewinkellan 24
1853 Grimbergen
Belgium
Tel. +32 2 411 50 99
Fax. +32 2 411 50 97
www.comelit.be
info@comelit.be
[ CO ] Comelit Colombia
Carrera 76#73-44, 2° piso Bogotá,
Colombia
Tel.: (57-1) 4929358/79686
james.quimbaya@comelit.it
www.comelit.com.co
[ DE ] Comelit Group S.p.A. Deutschland
Konrad-Zuse-Ring 12c
41179 Mönchengladbach
Deutschland
tel. 02161/54959-0
fax: 02161/54959-10
info@comelit.de
[ ES ] Comelit Group Spa
Sucursal en Espana
Calle Pintor Roig i Soler, 28
08916 - Badalona (Barcelona)
Tel. +34 932 430 376
Fax +34 934 084 683
www.comelit.es
info@comelit.es
[ FR ] Comelit Immotec
18, rue Séjourné
94000 CRETEIL CEDEX
Tél. +33 (0) 1 43 53 97 97
Fax +33 (0) 1 43 53 97 87
www.comelit.fr
contact@comelit-immotec.fr
[ GR ] Comelit Hellas
Telergo Security Ltd
Roumelis, 59
16451 Argiroupoli - Athens Greece
Tel. +30 210 99 68 605-6
Fax +30 210 99 45 560
www.comelit.gr
telergo@otenet.gr
[ IE ] Comelit Ireland
Ground Floor
14 Herbert Street - Dublin 2
Tel. +353 (0) 1 619 0204
Fax +353 (0) 1 619 0298
www.comelit.ie
info@comelit.ie
[ NL ] Comelit Nederland BV
Buitendijks 1-3356 LX Papendrecht
Tel. +31 786511201
Fax +31 786170955
www.comelit.nl
info@comelit.nl
[ SG ] Comelit South East Asia Pte Ltd
Oxley Bizhub1 Blk 69,
Ubi Road 1, #05-27
408731 Singapore
Tel. +6567024780
www.comelit.sg
office@comelit.sg
[ AE ] Comelit Middle East
Office 1-154, Techno Hub
Dubai Silicon Oasis
Free zone - Dubai, UAE
www.comelit.ae
info@comelit.ae
[ GB ] Comelit Group UK Ltd
Unit 4 Mallow Park Watchmead
Welwyn Garden City Herts
AL7 1GX
Tel: +44 (0)1707377203
Fax: +44 (0)1707377204
www.comelitgroup.co.uk
info@comelitgroup.co.uk
[ US ] Comelit Usa
2021 S. Myrtle Avenue
Monrovia, CA 91016
Tel. +1 626 930 0388
Fax +1 626 930 0488
www.comelitusa.com
sales@comelitusa.com
[ RU ] Comelit Group Russia
Moscow,
Krasnogvardeisliy bulvar, 7A
tel: +7(495)789-49-33
www.comelit.ru
mail: tsn@comelit.ru
mail: info@comelit.ru
[ HK ] Comelit Hong Kong
Representative Office
Rm 601, 6/F, Tung Hip
Commercial Building,
248 Dex Voeux Road Central,
Sheung Wan, Hong Kong
Office direct line:
+852 3582 1632
www.comelit.hk
info@comelit.hk
www.comelitgroup.com
Passion.Technology.Design.
welcomeadv.it
cod.
2G31000380

Navigation menu
