Commands at a Glance
Disarm the system.
Cancel an accidental alarm. 1 + CODE
Arm to Level 2—STAY. 2 + CODE
Arm to Level 3—AWAY. 3 + CODE
Send a police alarm. Press and hold both POLICE
buttons for 2 seconds.
Send an auxiliary alarm. Press and hold both AUXILIARY
buttons for 2 seconds.
Send a fire alarm. Press and hold both FIRE
buttons for 2 seconds.
Arm system with No Delay. 2 + CODE + 4 or
3 + CODE + 4
Arm system for Latchkey. 2 + CODE + 6 or
3 + CODE + 6
Bypass a sensor. Indirectly: 2 + CODE + ƒ or
3 + CODE + ƒ
Directly: ƒ + CODE + Sensor Number
Arm system silently. 5 + 2 + CODE or
5 + 3 + CODE
Arm system with
exit lights off. 2 + CODE + 0 or
3 + CODE + 0
Turn all lights on/off. 0 + 0
Turn specific lights on/off. 0 + Light number
Check the system status. ‚
Turn Chime on/off. 7 + 1
Turn Energy Saver on/off. 7 + 2
Disable local phone access.
(This is a phone
command only.)
ƒ + 7 + 3
Check alarm memory. 7 + 6
iii
User's Guide
Status
Features
press both
Lights
System
Away
Pager
Off
No Delay
press both
press both
Test System Weekly
Silent
Stay
D*
7
0#
8
B
A
4
1
56
23
Bypass
Menu
C9
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
Status
Features
press both
Lights
System
Away
Pager
Off
No Delay
press both
press both
Test System Weekly
Silent
Stay
D*
7
0#
8
B
A
4
1
56
23
Bypass
Menu
C9
Text: 466–1515 Rev. D
iv
Getting to Know Your Security System 3
Overview 3
Communicating with the Panel 4
Instructing the Panel 4
Touchpads—Your System Interface 4
Alphanumeric Touchpads 4
LED Touchpads 4
Wireless Handheld Touchpad 4
Keychain Touchpads 4
Touchtone Phones 5
Panic Buttons 5
Beeps—How Your System Talks to You 5
Key Beeps 5
Status Beeps 5
What Happens in an Alarm Condition 5
Notification by Pager 5
Preventing Accidental Alarms 6
Cancelling Accidental Alarms 6
Basic System Operations 7
Arming Your System 7
Arming Level 1—OFF 7
Arming Level 2—STAY 8
Arming Level 3—AWAY 8
Exit and Entry Delay Times 9
Exit Delay Example 9
Entry Delay Example 9
Extended Delay 10
No Delay—For Instant Alarm 10
Arming While a Door or Window is Open 10
Bypassing a Sensor Directly 10
Bypassing a Sensor Indirectly 11
Was the Bypass Successful? 11
Basic Light Control 11
Checking the Status of Your System 12
Short System Status 12
Full System Status 12
Panic Alarms 13
Fire Panic 13
Lighting During a Fire Panic Alarm 13
Resetting Smoke Detectors 13
Police Panic Alarm 13
Lighting During a Police Panic Alarm 13
Auxiliary Panic Alarm 14
Lighting During an Auxiliary Panic Alarm 14
Siren Time-out 14
Assigning User Codes 14
Programming Access Codes 14
Good Access Code Hygiene 14
System Master Code Privileges 15
Partition Master Code Privileges 15
Regular User Code Privileges 15
The Touchpad Tamper Feature 15
Changing or Erasing User Codes 15
Changing a User Code 15
Erasing a User Code 15
Setting the Time and Date 16
Adjusting System Sounds and Touchpad Bright-
ness 16
Arming Your System Silently 16
Silent Arming on Demand 16
Arming Always Silent 16
Using the Chime Feature 17
Adjusting the Volume of the Wireless Siren 17
Adjusting the Touchpad Display Brightness 17
Table of Contents
Using the Energy
Saver Feature 18
Energy Saver Example 18
Setting the Energy Saver High and
Low Temperature Settings 18
Turning Energy Saver On and Off 19
Notification by Pager 20
Pager Messages 20
Streamlining the Page Report 20
Creating Time Schedules 21
Scheduling Consecutive Days 21
One Day Rollover 21
Multiple Day Rollover 21
Attaching Time Schedules 22
Time Schedules and Partitions 22
Advanced Light Control 22
Controlling Lights By Time Schedule 22
Installer Programmable Lighting 23
Opening and Closing Reports 23
When Will this Feature Be Active? 23
Who Will Be Paged? 23
What Will the Pager Report? 23
Latchkey Paging 24
Page In the Event of . . . 24
Who Will Be Paged? 24
Who Can Send a Page? 24
What Will the Pager Report? 24
Latchkey Opening 24
Basic Latchkey Opening 24
Advanced Latchkey Opening 25
Latchkey Closing 25
Assigning a Time Schedule
to Latchkey Paging 25
Applying the Latchkey 6 25
Notify by Exception 26
Page In the Event of . . . 26
Who Will Be Paged? 26
Who Can Send a Page? 26
What Will the Pager Report? 26
When Will this Feature Be Active? 26
Assigning a Time Schedule
to Exception Opening and Closing 26
The No Activity Feature 28
Using the Panel Download Feature 28
System Information 28
Using a Partitioned System 29
Global Settings 29
Partition-Specific Settings 29
Jumping Partitions 29
Arming and Disarming the Other Partition 29
Programming the Other Partition 29
Using a Touchtone Phone to Operate Your
System 30
Phone Command Prefix 30
Accessing the System from Off-site 30
How the Panel Answers the Phone 30
Codes with Remote Access Capability 30
Touchtone Phone System Operation 31
Sending a Police Panic Alarm 31
Using the Voice Chime Feature 31
Testing the System 32
Automatic Test Features 32
Manual Tests 32
Sensor Test 32
Phone Communication Test 34
Troubleshooting 35
Appendix A: User Sheets 39
Appendix B:
Planning for Emergencies 45
Appendix C:
Shortcuts to User Programming 49
3
SECTION 1:
GETTING TO KNOW YOUR
SECURITY SYSTEM
This security system is designed to protect your
family and property, whether you are on the
premises or away.
This manual describes how to operate your system.
It describes basic arming and disarming commands
as well programming instructions for system fea-
tures.
The dealer or installer may have already discussed
with you many details concerning your system.
Specific setup information is included in the User
Sheets, found in Appendix A.
Overview
Your security system is comprised of different com-
ponents. Each component plays a special role in
the system’s operation:
The panel is at the heart of your
system. It stores the intelli-
gence to monitor all the sensors
and devices in the system. The
panel is the piece of equipment
that initiates a call to the central
station in an alarm situation.
The panel’s circuitry is enclosed in a steel cabinet
and is installed out of the way of household or
workplace traffic.
Touchpads allow you to
communicate with your panel.
You’ll use a touchpad to arm,
disarm, and program your
system.
Door and window sensors pro-
tect the perimeter of your home
by alerting the panel when a
door or window is opened.
Motion detectors in hallways or
individual rooms detect a per-
son moving across the field of
detection.
Smoke and heat detectors
remain alert for the presence of
fire 24 hours a day.
Other environmental sensors
detect freezing temperatures or
carbon monoxide.
Your system may contain a
Phone Interface and Voice
Module that allows you to use
a Touchtone phone located on-
or off-site as a touchpad. The
module also makes it possible
to get voice feedback from
speakers, guiding and informing
with spoken prompts and sys-
tem status reports.
Status
Features
press both
Lights
System
Away
Pager
Off
No Delay
press both
press both
Test System Weekly
Silent
Stay
D
*
7
0#
8
B
A
4
1
56
23
Bypass
Menu
C9
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
Status
Features
press both
Lights
System
Away
Pager
Off
No Delay
press both
press both
Test System Weekly
Silent
Stay
D*
7
0#
8
B
A
4
1
56
23
Bypass
Menu
C9

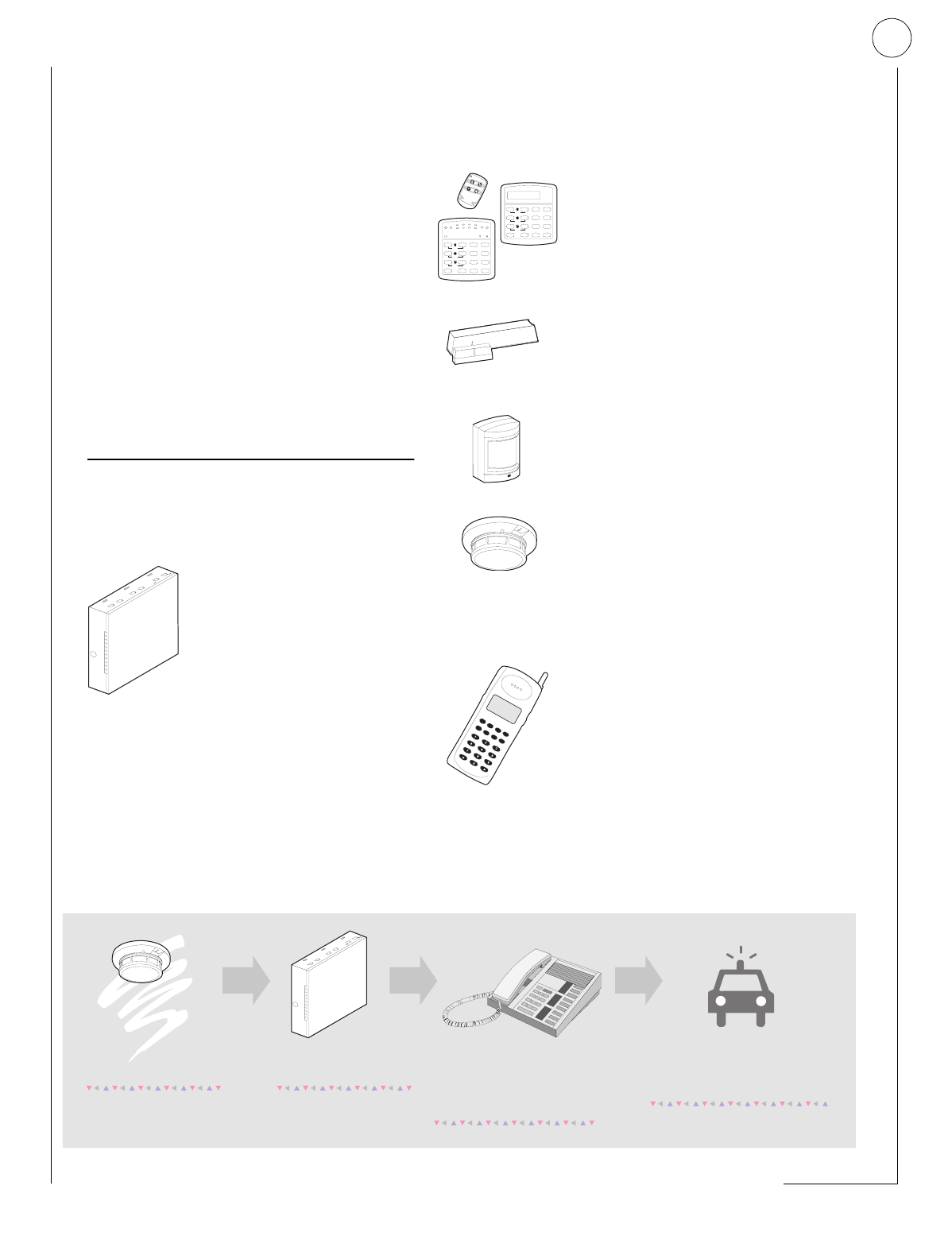

A se n so r is a c tiv a te d . The sensor im m ediately
a le rts th e p a n e l.
The panel activates sirens and
lights. If the system is m onitored,
th e p a n e l c a lls th e c e n tra l
m onitoring station.
The central m onitoring station
operator reports the alarm to
the police or fire departm ent.
4
SECTION 2:
COMMUNICATING
WITH THE PANEL
Touchpads allow you to communicate with the
panel. In turn, the system can be set up to commu-
nicate with you through:
• status beeps from touchpads and speakers,
• alarm sirens,
• scrolling text on alphanumeric touchpads,
• flashing lights on LED touchpads,
• voice feedback over Touchtone phones or
interior speakers, and
• system information over pagers.
Instructing the Panel
Most of your instructions to the panel consist of this
basic pattern:
Not just anyone can walk up to a touchpad and
operate your security system. Before the system
will process most commands, users are required to
enter a pre-programmed 4-digit access code.
Keychain touchpads that are enrolled as part of the
system do not require an access code, but are usu-
ally kept in an individual’s pocket or purse.

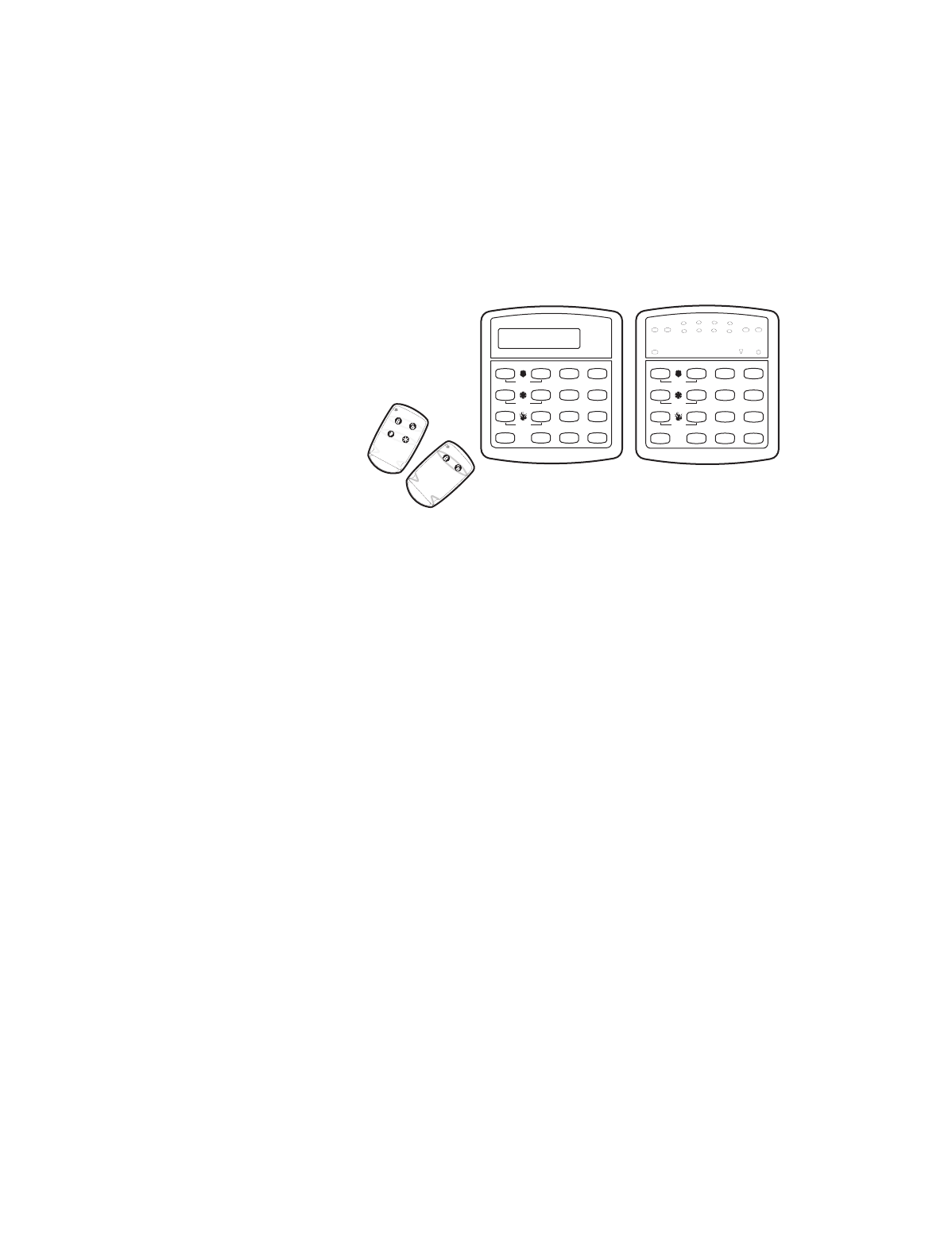

If you would rather use an
actual key to arm and disarm
the system, your security
dealer can install a special key
and keyswitch in your home.
Touchpads—Your System Interface
There is a broad range of touchpads that can be
used with your panel—from a single-button panic
sensor which sends only panic alarms, to an alpha-
numeric touchpad that displays text and allows
extensive user programming.

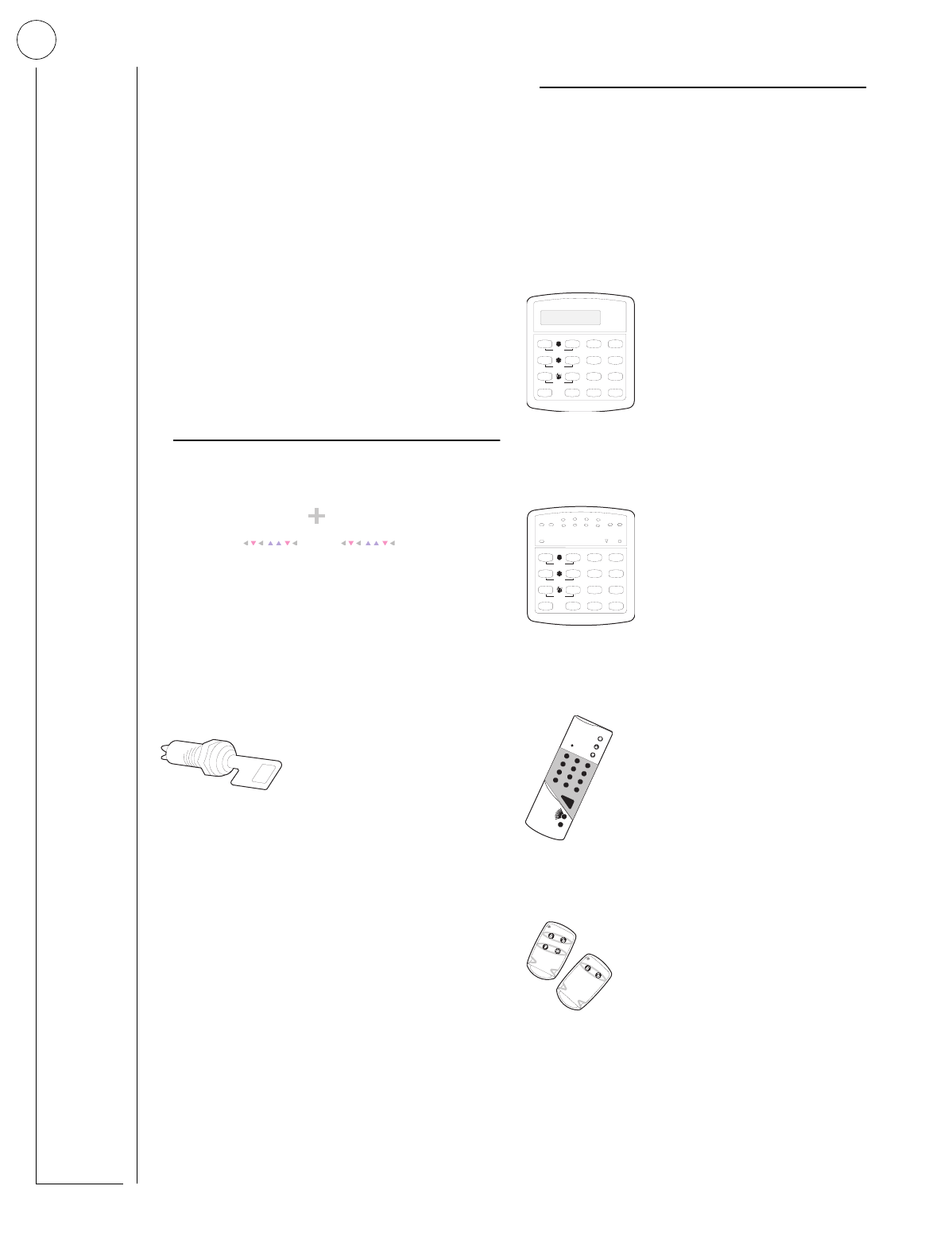

Alphanumeric Touchpads
Alphanumeric touchpads are
mounted on a wall and commu-
nicate by displaying text on a
two-line display.

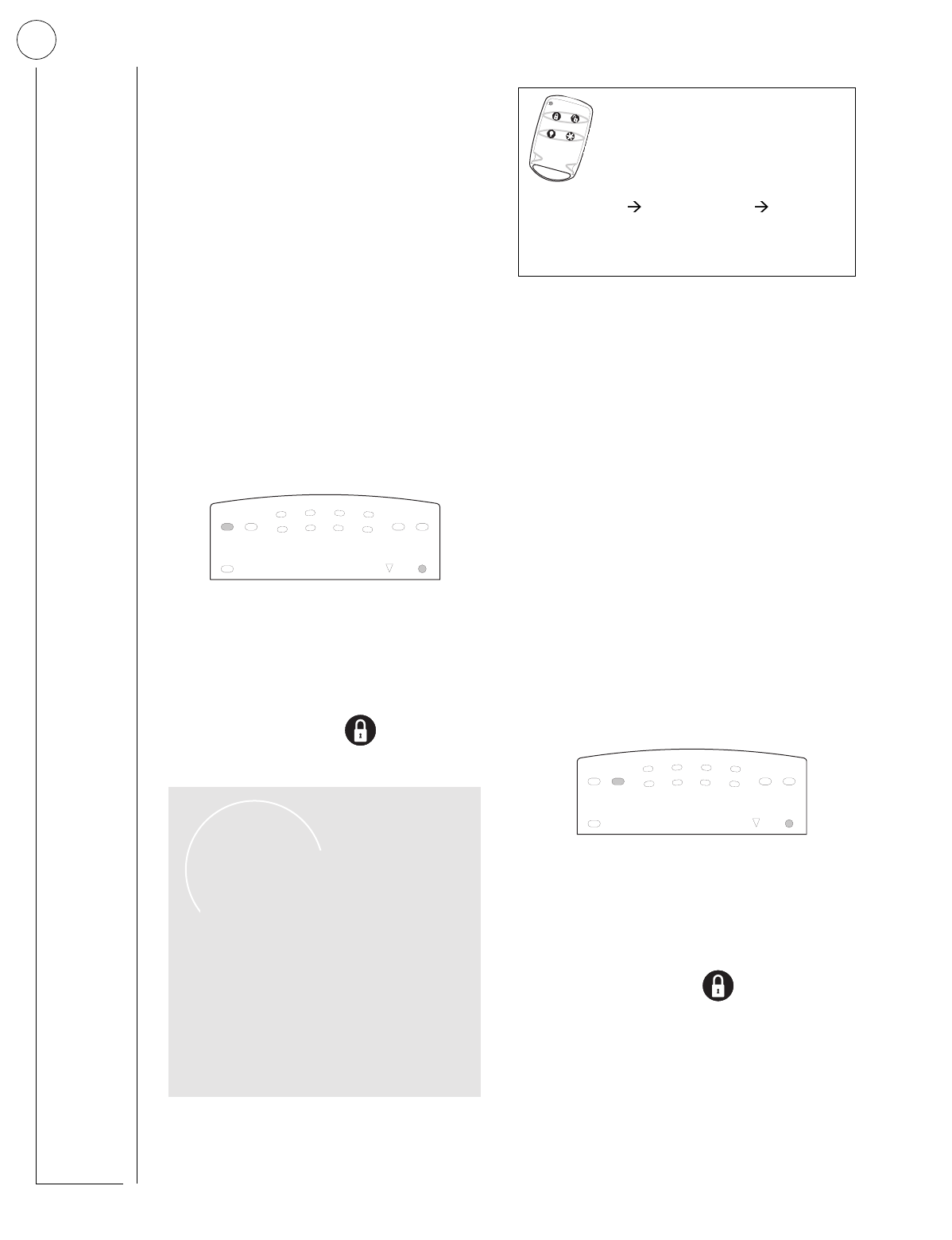

LED Touchpads
LED touchpads are mounted on
a wall and communicate by
lighting specific LEDs and LED
light patterns on the touchpad.
Wireless Handheld Touchpad
This touchpad is wireless and
can be carried from room to
room. Users can even arm the
system from outside the home
or business.

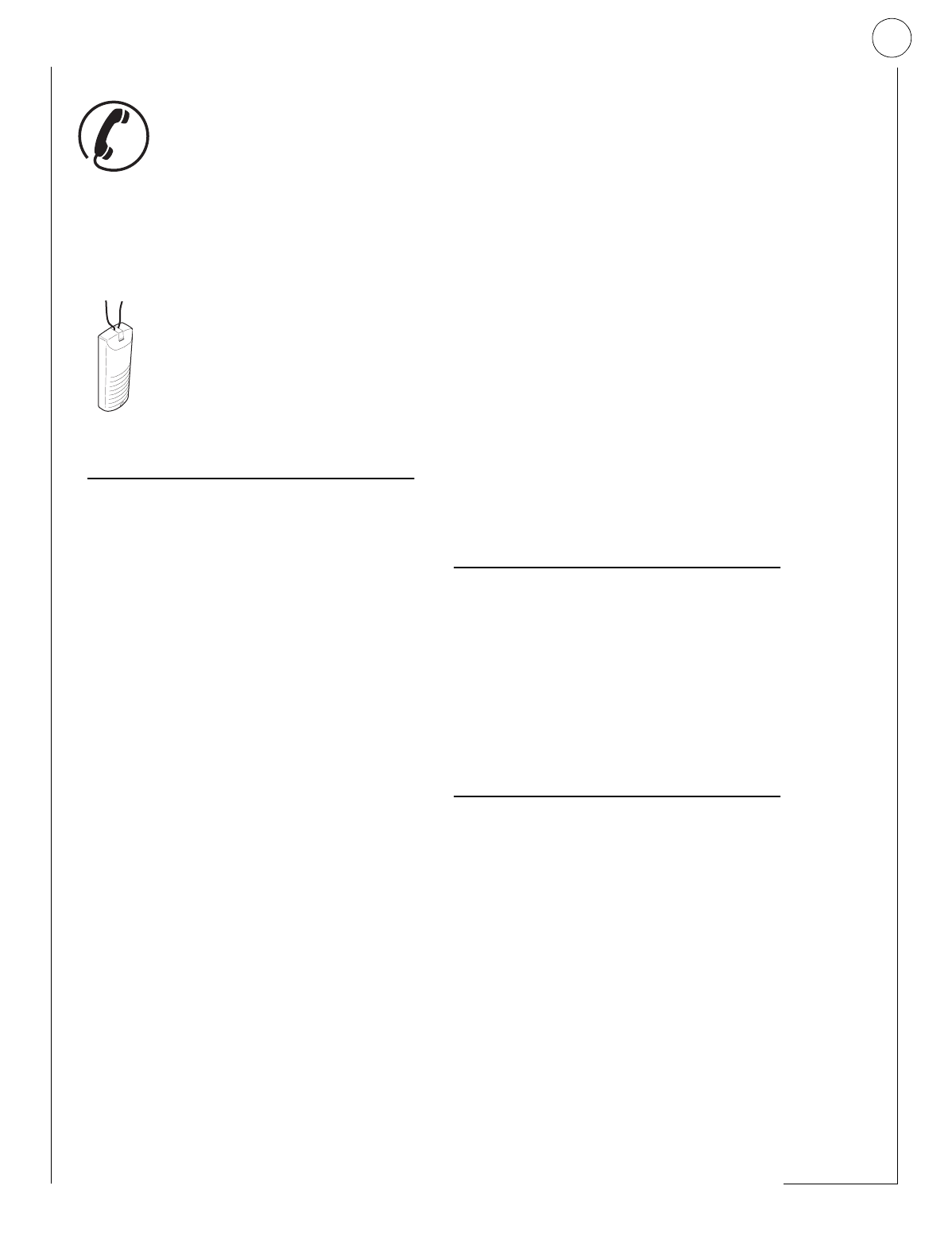

Keychain Touchpads
Keychain touchpads are handy for
simple arming and disarming func-
tions. They are wireless and can
be carried off-site in a purse or
pocket.
The installer can program specific
buttons or button combinations to operate a gate or
garage door, or to send a Police or Auxiliary panic
alarm.
Command A ccess C ode
Status
Features
press both
Lights
System
Away
Pager
Off
No Delay
press both
press both
Test System Weekly
Silent
Stay
D
*
7
0#
8
B
A
4
1
56
23
Bypass
Menu
C9
Status
Features
press both
Lights
System
Away
Pager
Off
No Delay
press both
press both
Test System Weekly
Silent
Stay
D
*
7
0#
8
B
A
4
1
56
23
Bypass
Menu
C9
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
123
6
9
8
5
4
7
ST
0
BY
OFF STAY AWAY
NO DELAY
CHIME
STATUS BYPASS
COMM AND
5
Touchtone Phones
Your system can be set up to allow
system operation from a Touchtone
phone on- or off-site. This includes
arming and disarming, plus system
features such as checking the system
status and turning on and off lights.
Panic Buttons
Panic button touchpads are dedi-
cated to sending only one signal—
usually a Police or Auxiliary panic
alarm. These touchpads are wireless
and usually kept near the user.
Beeps—How Your System Talks to You
Touchpads and interior sirens produce a variety of
operating beeps to inform you of different system
states and operations.
Key Beeps
A Key beep is the tone you hear when you press a
button on an alphanumeric, LED, or handheld wire-
less touchpad. The sound confirms that the button
was pressed adequately. Key Beeps can be turned
on or off by the installer.
Status Beeps
Status beeps come from touchpads or speakers and
are sounded when there is a change in the current
status of the system. Status beeps are not alarms,
but they do warrant your attention.
There is more than one type of Status beep:
• Exit Delay beeps indicate that an arming com-
mand has been entered and the countdown to
arming has begun.
• Entry Delay beeps indicate that you’ve entered
the building and the countdown to an alarm has
begun. (So disarm the system as soon as you get
in!)
• Chime feature beeps tell you that a door was
opened.
• Protest beeps inform you that you’re trying to arm
the system while there is an open door or win-
dow.
• Trouble beeps tell you that there is a problem
with the system or one of its components.
• Sensor test beeps are the sound the system makes
during a sensor test to indicate that a sensor was
tested properly.
Status beeps are described in more detail through-
out the manual.
What Happens in an Alarm Condition
When there is an alarm condition, three things hap-
pen all at once:
• Speakers and touchpads emit emergency tones
• System lights flash
• Panel notifies the central station for help.*
* Your system may or may not be monitored.
If it is not monitored, no call will be made.
Notification by Pager
Your system can notify up to five different pagers to
report events.
Some of the events include:
• System disarming
•System arming
• Trouble conditions
• Alarm conditions
For more information, see “Notification by Pager”
on page 20.
6
SECTION 3:
PREVENTING ACCIDENTAL ALARMS
Your security system is engineered with advanced
technology that reduces the chance of an acciden-
tal alarm caused by a technical problem. In wireless
systems, this technology prevents other devices,
such as garage door openers, ham radios, television
remote controls, and cellular phones, from interfer-
ing with your security system.
Most accidental alarms occur when leaving the
house after arming the system, or upon returning,
before disarming the system.
If, for example, you arm the system, then run
upstairs for something you forgot, the Exit Delay
time may expire. Once the Exit Delay expires,
opening an armed door or moving in front of a
motion detector will cause an alarm.
Cancelling Accidental Alarms
Your system can be set up with the opportunity to
cancel an accidental intrusion, Police or Auxiliary
alarm. (Fire alarms cannot be cancelled.)
If the Dialer Abort feature is turned on, cancelling
the alarm within a specified period will silence the
siren and prevent the alarm from being reported to
the central monitoring station.
Cancelling a fire alarm will silence the siren, but fire
alarms are always reported. If an accidental fire
alarm has sounded, follow the procedures of your
central monitoring station to prevent a false dis-
patch.
To cancel an alarm:
1. Press 1—OFF at any touchpad.
• Alphanumeric touchpads display,
“ENTER CODE.”
• On LED touchpads, the Enter Code light
blinks.
2. Enter your access code.
• Alphanumeric touchpads display
date and time, or programmed text.
• On LED touchpads, the Enter Code light
stops blinking.
The system sounds one long beep.
If you’re using a Touchtone phone, see “Using a
Touchtone Phone to Operate Your System” on
page 30.
G u id e lin e s fo r P re v e n tin g
A ccidental A larm s
Follow ing these guidelines w ill go a long
w ay tow ard preventing accidental alarm s.
þ
Close doors and w indow s before you leave
your house.
þ
W hen getting ready to leave the house, gather
the things you w ant to take w ith you so you
can exit im m ediately after arm ing the system .
þ
A lw ays enter and exit w ithin the program m ed
delay tim es.
þ
M ake sure you leave through a door that has
a d e la y tim e s e t fo r it. If y o u a rm y o u r s y s te m ,
th e n le a v e th ro u g h a d o o r w ith o u t a d e la y tim e ,
an alarm w ill im m ediately sound.
þ
W h e n y o u re tu rn , im m e d ia te ly d isa rm y o u r sy ste m .
þ
B e a w a re o f th e d e vice s in yo u r se cu rity syste m
and learn how each one operates.
þ
Liste n to system b e e p s an d vo ice an n o u n ce m en ts.
T a k e n o te o f in d ic a to r lig h ts a n d to u c h p a d m e ssa g e s
w hich indicate the system s current status.
þ
If you have pets, ask your installer if you need pet
le n se s in y o u r m o tio n d e te c to rs. P e ts c lim b h ig h e r
than you m ay guess, causing alarm s w hen
you are aw ay.
þ
Check the location of your sm oke detectors.
Sm oke detectors near bathroom s can
be tripped by steam from a show er.
S m o k e d e te c to rs n e a r th e k itc h e n
can be tripped by cooking sm oke.
R e fe r to th e U se r S h e e t in A p p e n d ix A
to determ ine w hat the specific
settin gs are fo r yo u r system .
7
SECTION 4:
BASIC SYSTEM OPERATIONS
This section describes:
• Arming your system.
• Bypassing sensors so you can arm your system
while a window is open.
• Basic light control.
For instructions on using a phone to perform any of
these functions, see “Using a Touchtone Phone to
Operate Your System” on page 30.
Arming Your System
Since your security needs may vary throughout the
day, this system was designed with three arming lev-
els to meet these different needs. By arming your
system to a particular level, only those sensors pro-
grammed to detect in that arming level will report
alarm conditions to the panel.
No matter which level your system is in, all sensors
programmed to be active 24 hours a day will con-
tinue to report alarm conditions. This includes
smoke detectors, fire sensors, panic buttons, and
environmental sensors.
Arming Level 1—OFF
Use arming Level 1 when the system is not being
used for intrusion detection. For example, on an
active Saturday morning—kids playing inside and
out, someone working in the garage, various house
projects going on.
Even though Arming Level 1 disarms the system,
your system continues to monitor fire, smoke, and
panic alarms.
Here are some other situations in which you’d set
the system to Level 1—OFF:
Upon entering the armed premises. When enter-
ing the armed premises through a designated delay
door, the entry delay time begins. Sirens beep to
remind you to disarm the system.
Before opening a door or window while inside or
outside the armed premises. When you wake up
in the morning and want to get your newspaper,
you must disarm the system before opening the
door to prevent an accidental alarm.
To stop sirens and cancel an alarm. When an
alarm condition occurs disarming the system turns
off any sirens.
To disarm to Level 1—OFF using a touchpad:
1. Press 1—OFF at any touchpad.
• Alphanumeric touchpads display,
“ENTER CODE.”
• On LED touchpads, Enter Code blinks.
2. Enter your access code.
• Alphanumeric touchpads display,
date and time, or programmed text.
• On LED touchpads, Enter Code stops blink-
ing.
3. The system sounds one long beep.
To disarm to Level 1—OFF using a keychain
touchpad:
• Press the Unlock button
Level 2 STA Y
P e rim e te r p ro te c tio n is o n .
In te rio r se n so rs a re n o t a c tiv e , so p e o p le
and pets can m ove around freely.
Level 1 O FF
In tru sio n d e te c tio n o ff.
Sm oke, heat, and enironm ental
se n so rs re m ain active .
Level 3AW AY
A ll p e rim e te r se n so rs a re a c tiv e ,
plus interior sensors.
Sm oke detectors, fire
sensors, and other
enironm ental sensors
continue to report
a la rm s in a ll le v e ls .
8
Arming Level 2—STAY
There are times when you want intrusion protec-
tion, but still want the freedom to move around
within your house without setting off an alarm. For
example, in the evening when your family is inside
for the night. In this and similar situations, set your
system to 2—STAY.
To arm to Level 2—STAY using a touchpad:
1. Close all protected perimeter doors and win-
dows.
2. Press 2—STAY at any touchpad.
• Alphanumeric touchpads display,
“ENTER CODE.”
• On LED touchpads, Enter Code blinks.
3. Enter your access code.
• Alphanumeric touchpads display,
“ARMED TO STAY.”
• On LED touchpads, STAY lights up:
4. The system sounds two short beeps.
5. If leaving the premises, exit through a desig-
nated delay door immediately.
To arm to Level 2—STAY using a keychain
touchpad:
• Press the Lock button
Arming Level 3—AWAY
At other times, you want every sensor to be alert:
when the family goes on vacation, or at closing
time.
In this and similar situations, set your system to
3—AWAY for maximum protection. All sensors are
active—perimeter door and window sensors, and
interior motion detectors.
To arm to Level 3—AWAY using a touchpad:
1. Close all perimeter doors and windows.
2. Press 3—AWAY at any touchpad.
• Alphanumeric touchpads display,
“ENTER CODE.”
• On LED touchpads, Enter Code blinks.
3. Enter your access code.
• Alphanumeric touchpads display,
“ARMED TO AWAY.”
• On LED touchpads, AWAY lights up:
4. The system sounds three short beeps.
5. Exit through a designated delay door immedi-
ately.
To arm to Level 3—AWAY using a keychain
touchpad:
Press the Lock button twice to go from
Level 1 to Level 3, or once to go from Level 2
to Level 3.
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
If yo u r syste m w ill n o t arm :
þ Reread and follow the arm ing
instructions carefully.
þ M ake sure that the access code
you entered w as valid.
þ If y o u h e a r p ro te st b e e p s, c h e c k to
see if a protected door or w indow
was left open.
Your installer can set up your key-
chain touchpad to either:
• increase the arming level each time
the Lock button is pressed
(Level 1 Level 2, Level 2 Level 3),
• or to arm directly to Level 3 with no
Exit or Entry delay.
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
9
Exit and Entry Delay Times
After arming your system, you need time to exit the
building so you won’t set off an alarm. Likewise,
upon returning to your home or business, you’ll
need enough time to open the door and get to a
touchpad to disarm the system.
•The Exit Delay is a period of time long
enough to let you leave through a des-
ignated delay door after arming the
system.
•The Entry Delay is a period of time long
enough to let you unlock a designated
delay door and get to a touchpad to
disarm the system.
Exit Delay Example
You’re about to go on an errand. You are inside
your house and have just armed the system to
3—AWAY.

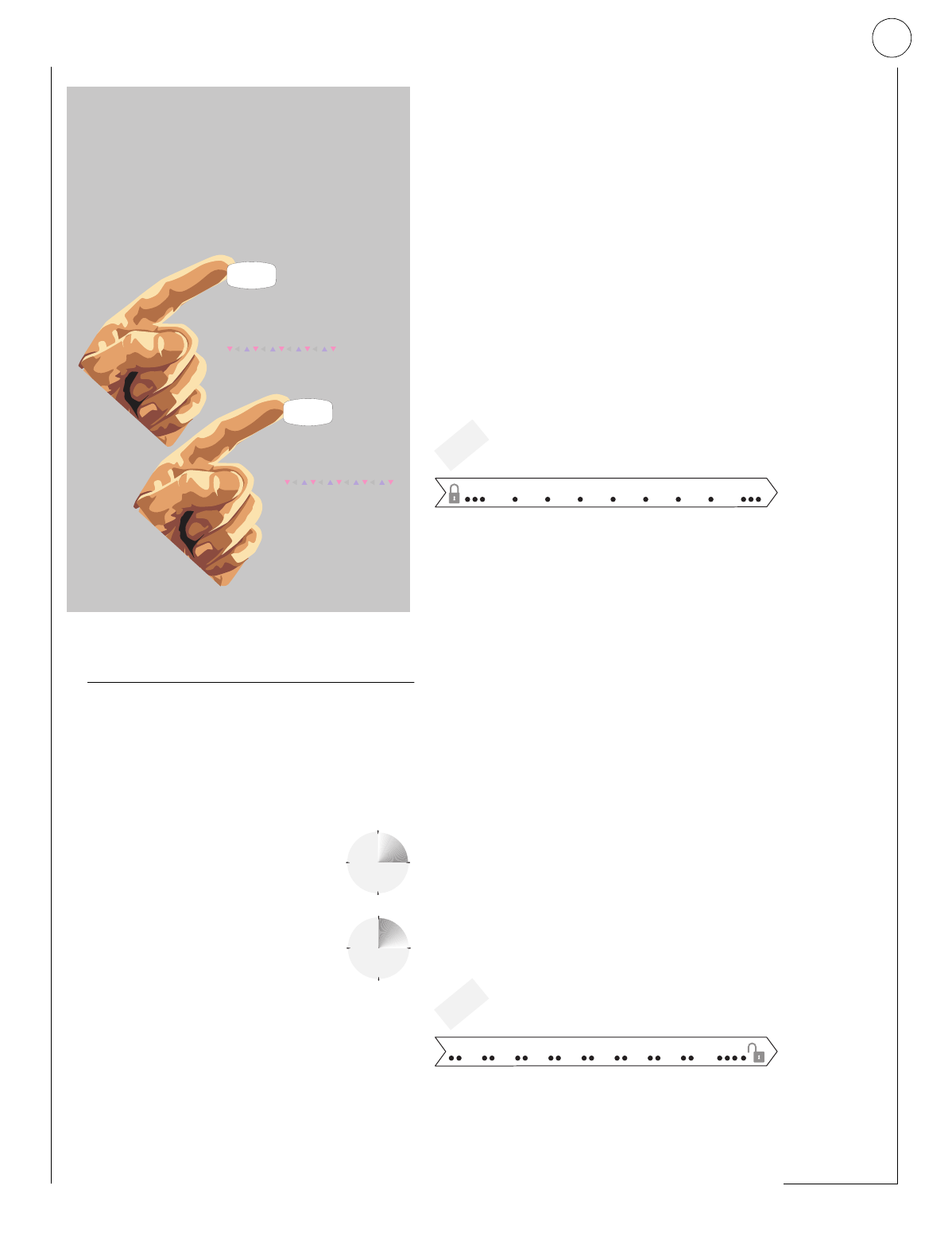

The interior sirens and speakers sound three status
beeps, telling you that the system accepted the
command and has started the Exit Delay time.

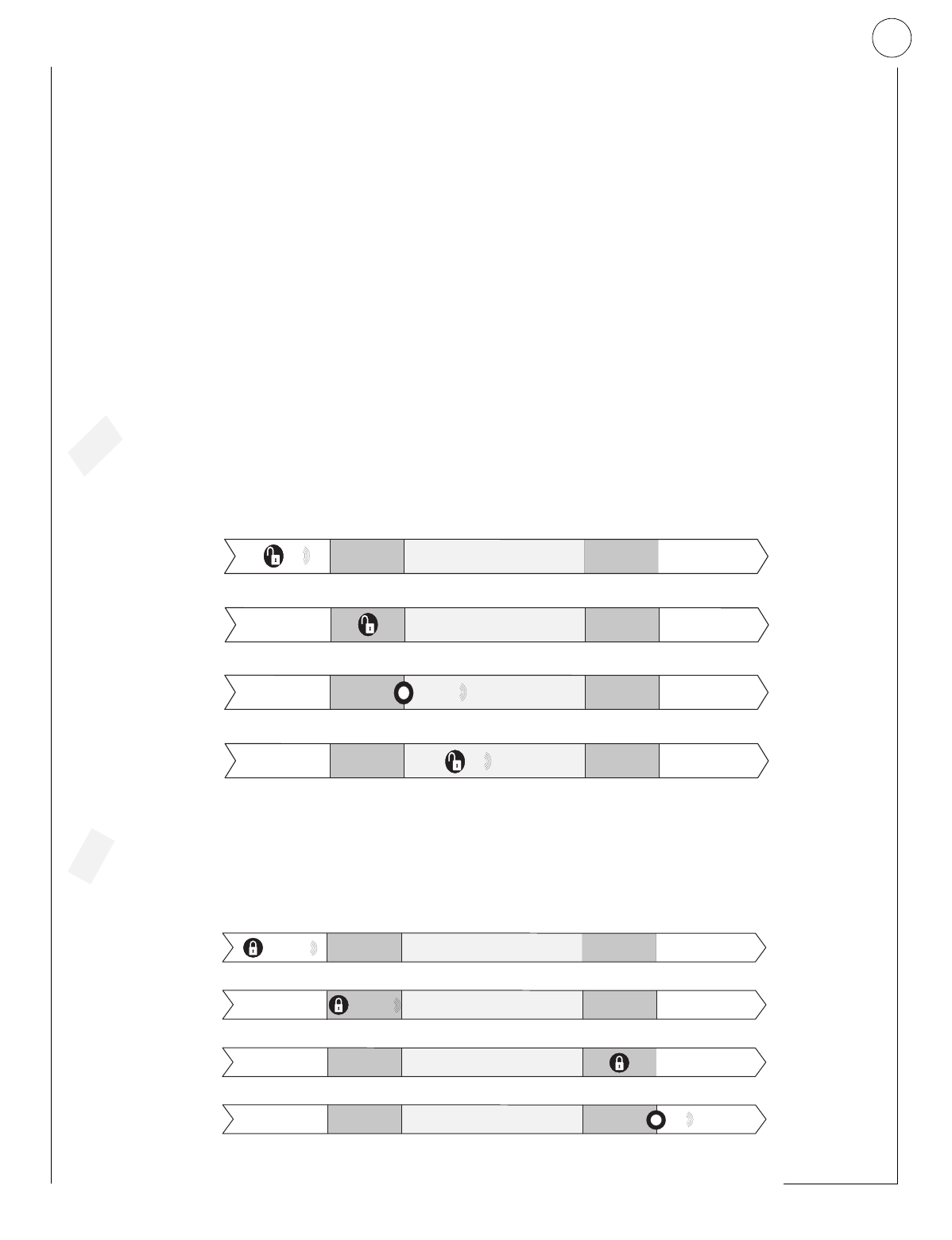

During the Exit Delay time, the system sounds one
short beep every 4 seconds. During the last 10 sec-
onds of Exit Delay, you’ll hear one beep every sec-
ond.
You must leave through the designated delay door
before you hear three consecutive short beeps, indi-
cating the Exit Delay time has ended.
Entry Delay Example
You are returning to your house that is armed to
Level 3—AWAY. When you unlock and enter the
designated delay door, the interior sirens and
speaker sound two short beeps every two sec-
onds. This tells you that the Entry Delay time has
begun and reminds you to disarm the system to
avoid setting off an alarm.
During the last 10 seconds of Entry Delay, you’ll
hear one beep every second.
Your installer will work with you to decide which
door(s) should be delay door(s), and determine the
delay times that will work best for you and your fam-
ily. Then, the installer will program the Exit and
Entry Delay times into your system.
Quick Arming
The Q uick A rm ing feature lets you arm
y o u r sy ste m w ith o u t u sin g a n a c c e ss c o d e .
You w ill still need to enter an access code
to d isa rm th e sy ste m .
From Level 1 or 2,
press 3 for
Level 3AW AY.
From Level 1 O FF,
sim p ly p re ss 2 fo r
Level 2 STA Y .
Stay
2
Away
3
C ontact your
in s ta lle r if y o u 'd
lik e to u s e
th is fe a tu re .
After arm ing,
y o u 'll h e a r 3
quick beeps.
A fte r th e s e c o n d
round of quick
b e e p s, th e syste m
is a r m e d .
Exit D elay
B E E P S
During the Exit Delay,
y o u 'll h e a r o n e b e e p
every four seconds.
Entry D elay
D isa rm th e system b e fo re
the round of 10 quick beeps
to avoid an accidental alarm .
B E E P S
U pon entering, and during
Entry D elay, you'll hear
2 bee
p
s e ve r
y
2 se co n d s.
10

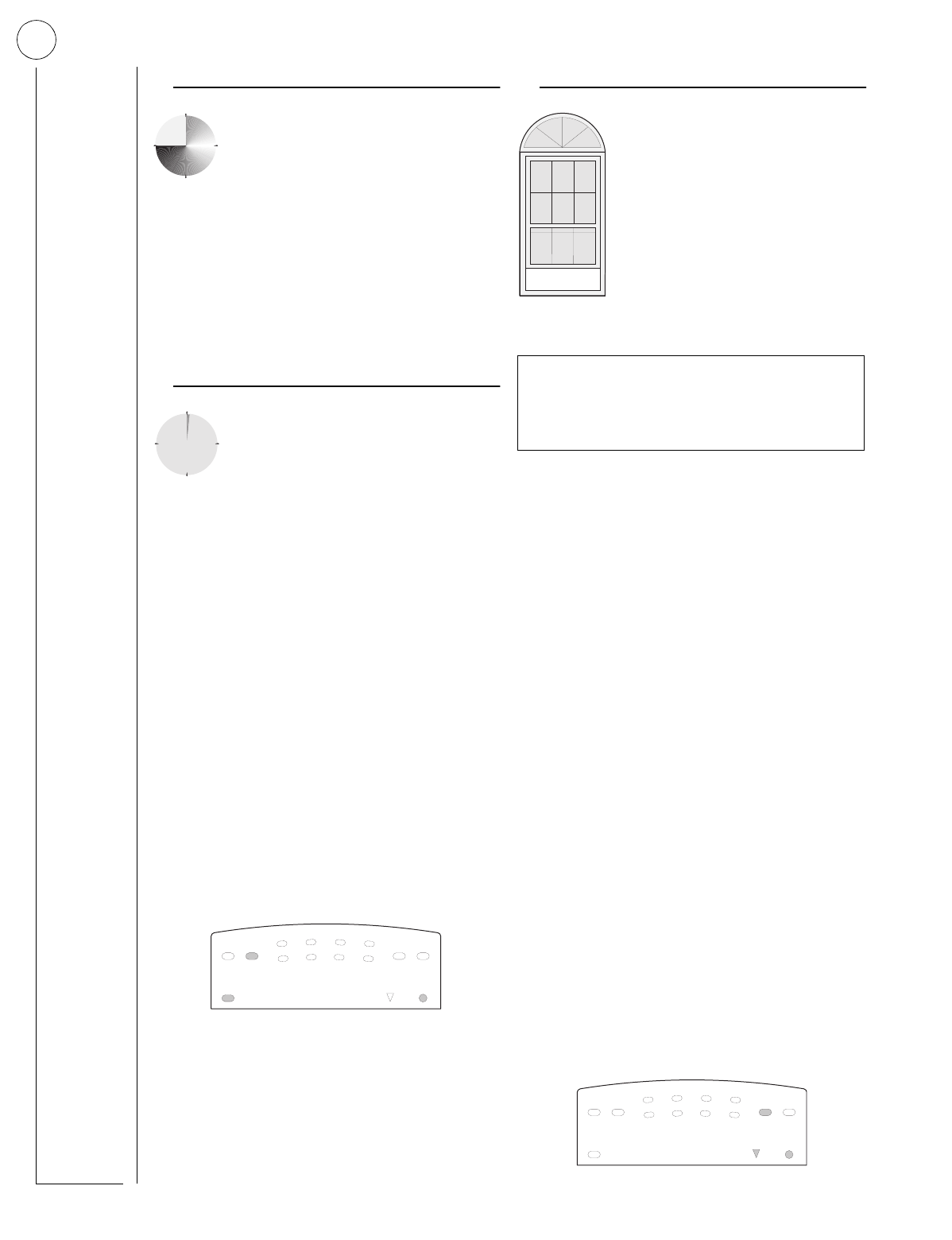

Extended Delay
In some situations, additional time is
needed to arm or disarm the system.
In these instances, the installer can pro-
gram an Extended Delay time, giving you
as much as 16 additional minutes to arm or disarm
the system before setting off an alarm.
Refer to the User Sheets to determine if there is an
Extended Delay for your delay door(s). If there is,
add that to the Entry and Exit Delay times to deter-
mine the actual delay times you have.
No Delay—For Instant Alarm
You can choose to turn off the Entry and
Exit Delays, causing the delay doors to
arm immediately. Anyone entering the
house through the delay door when the
system is set to No Delay would immediately cause
an alarm.
No Delay is normally used:
• When you’re staying at home, after you’ve armed
the system.
• When you’re arming your house from the outside.
(You must have a wireless touchpad in order to
do this.)
Arming to Level 2 or 3 with No Delay, using a
touchpad:
1. Close all perimeter doors and windows.
2. Exit the premises if arming to 3—AWAY.
3. Enter:
2 + CODE or 3 + CODE.
The system sounds two or three short beeps.
4. Immediately after hearing the beeps,
press 4 for No Delay.
On LED touchpads, No Delay lights.
Changing the arming level will restore delay doors
to their normal Exit and Entry Delay times.
Arming While a Door or Window is Open
It is possible to arm your system
while leaving a door or window
open. This is useful if, for example,
you like to sleep at night with the
window open.
If the door or window has a sensor
installed on it, the system must be
told to ignore, or bypass, that sensor
when it’s open. All other sensors
will remain active.
There are two methods for bypassing a sensor:
•Directly — After arming the system, bypass
door/window sensors before you open them.
You must know the sensor number of the door or
window you wish to bypass.
•Indirectly — As you are arming, bypass sensors on
already-open doors and window. This method
should not be used in UL-listed installations.
Bypassing a Sensor Directly
Use this method if the system is armed and you
would like to open a window without disarming.
Refer to the User Sheets in Appendix A to deter-
mine what the sensor number is for the door, win-
dow, or motion detector you wish to bypass.
To bypass sensors directly using an
alphanumeric or LED touchpad:*
1. Close all doors and windows.
2. Arm your system to the desired level.
3. At any touchpad:
Enter BYPASS + CODE + sensor number.
• Alphanumeric touchpads display,
“BYPASSED.”
• On LED touchpads, the Bypass LED
lights up:
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
REMEMBER:
When a sensor is bypassed, you are allowing
that door or window to go unprotected.
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
11
4. If the touchpad displays “INVALID” or the
Bypass LED does not light, make sure that
you entered a valid sensor number. Heat and
smoke sensors cannot be bypassed.
5. Bypass other sensors, if necessary, by repeat-
ing Step 3.
6. The bypassed door or window can now be
opened.
* You cannot bypass sensors directly using a
keychain touchpad.
Bypassing a Sensor Indirectly
Use this method if you are arming the system and
would like to bypass doors and windows already
open.
To bypass sensors indirectly using an
alphanumeric or LED touchpad:
1. Leave open only those doors and windows
that are to remain open. Close all others.
2. Arm your system to the desired level.
The touchpad will emit protest beeps
because of the open sensor(s).
3. At any touchpad:
Enter BYPASS.
• Alphanumeric touchpads display,
“SENSOR 01 BYPASSED,” for example.
• On LED touchpads, the Bypass LED
lights up.
4. The system sounds arming level beeps to indi-
cate that the system is armed and open sen-
sors have been successfully bypassed.
Disarming the system will undo the bypassing.
When you arm the system again, those sensors will
arm.
To bypass sensors indirectly using a keychain
touchpad:
• Press the Lock button once to arm the system
and again to bypass open sensors:
+
Was the Bypass Successful?
To confirm that a sensor was bypassed successfully
press the STATUS button on the touchpad:
• On alphanumeric touchpads, a list of bypassed
sensors is displayed.
• On LED touchpads, the LEDs of those bypassed
sensors flash for 2 or 3 seconds along with the
Bypass LED.
Basic Light Control
There are two kinds of light control:
•Basic light control, offering instant light control at
any touchpad, and
•Advanced light control, in which lights turn on
and off automatically according to specific situa-
tions. See “Advanced Light Control” on page 22.
To turn all lights on or off:
•From any touchpad:
Press 0 + 0.
•From a 4-button keychain touchpad:

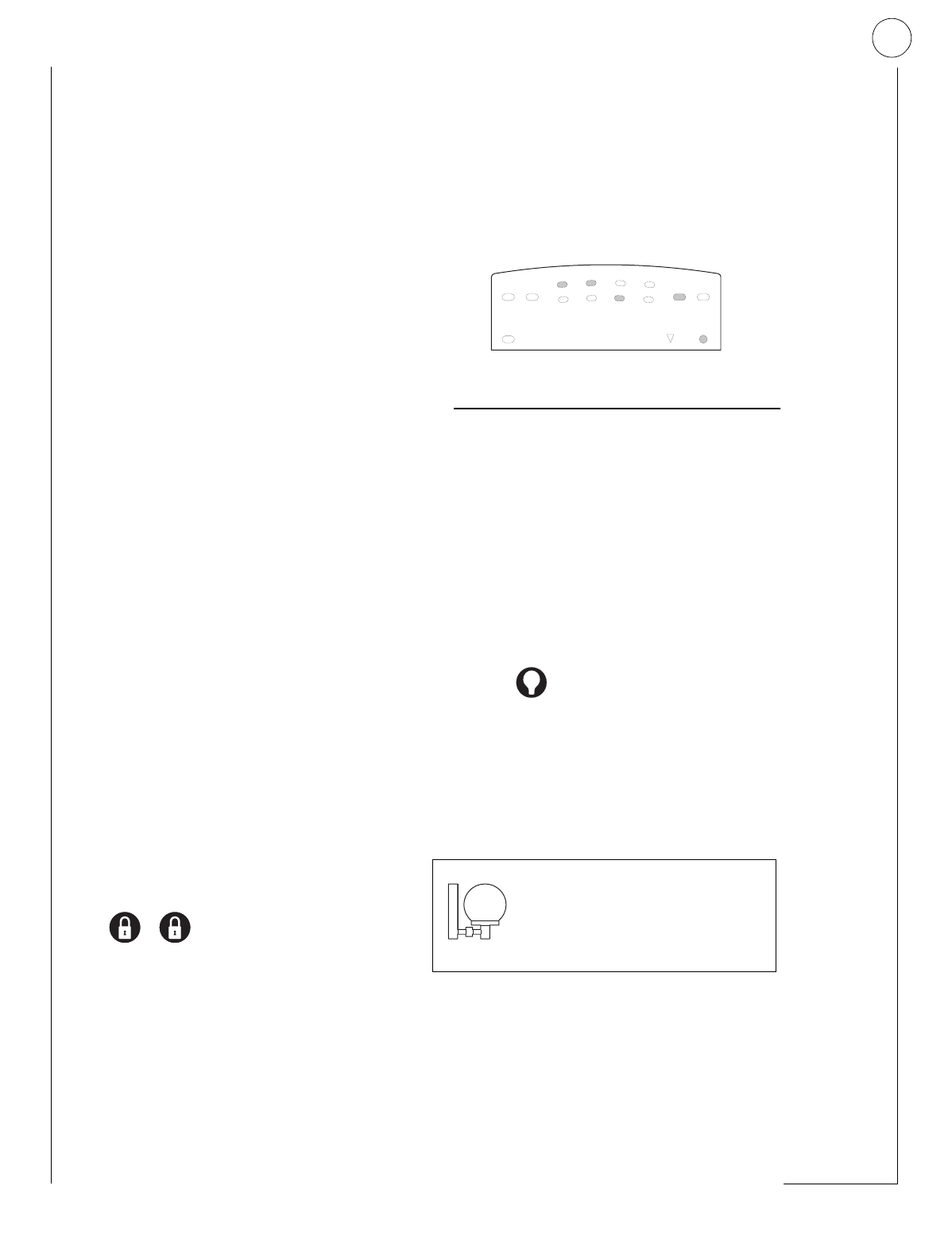

Press (the LIGHTS button).
To turn a specific light on or off*:
• From any touchpad, press 0 + light number.
You cannot turn on a specific light using a keychain
touchpad.
* Refer to the User Sheets in Appendix A to determine
which light number is associated with which lamp.
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
For system lights to respond to
basic and advanced light com-
mands, the light switches must be
turned on.
12
Checking the Status of Your System
Checking the system status means finding out about
the current condition of your system. This includes
finding out if any sensors are currently bypassed,
whether or not the AC power and backup battery
are okay, the nature of the most recent alarm, and
more, depending on the features in use and the
equipment in your system.
Check the system status if:
• Your system sounds trouble beeps
(five short beeps every minute).
• Alphanumeric touchpads display a blinking
asterisk.
•Trouble is lit on an LED touchpad.
Short System Status
A Short Status indicates the current arming level,
sensor status (whether open or bypassed), low bat-
tery, or supervisory, AC power or backup battery
failures.
To get a Short System Status:
• Press ‚ (STATUS button).
Interior sirens sound beeps according to the
current arming level.
Alphanumeric touchpads display the status
information, for example: “SENSOR O2
OPEN.”

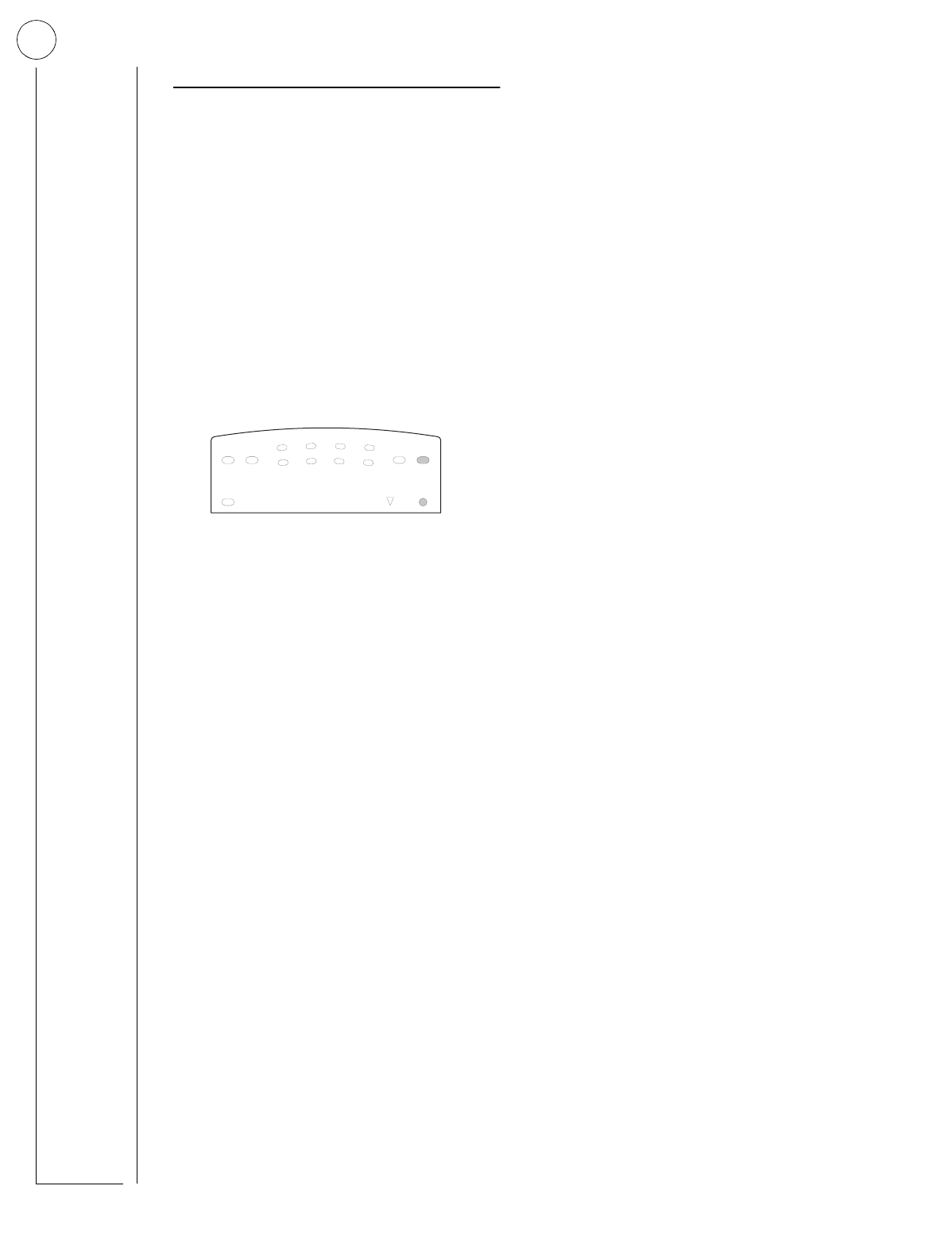

On LED touchpads, if any sensor is in trouble,
the Trouble and the corresponding sensor
LED flash at the same time. If Trouble is on,
but no sensor number is lit, try troubleshoot-
ing the problem before calling the installer.
If an alarm or system trouble condition has recently
occurred, it will be displayed on an alphanumeric
touchpad the first time you perform a Short or Full
Status check. Performing a system status check a
second time will display the system status including
any trouble conditions.
If any alarm or system trouble is active, it will show
up in every status check until the system is dis-
armed.
Full System Status
A Full Status combines the Short Status information
with added details about specific system features.
To get a Full System Status:
•Press
‚ + ‚.
Interior sirens sound beeps according to the
current arming level. Alphanumeric touch-
pads display the status information, for exam-
ple, “SENSOR 03 BYPASSED,” “SYSTEM
BATTERY IS OK,” “AC POWER IS OK,” “TEM-
PERATURE 72 DEGREES.”
Note There is no Full System Status available from
an LED touchpad.
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
13
SECTION 5:
PANIC ALARMS
Panic alarms are easily activated from any touchpad
to quickly alert the central monitoring station to a
Fire, Police, or Auxiliary emergency. A panic alarm
can be sent at any time, regardless of the current
arming level: 1—OFF, 2—STAY, or 3—AWAY.
This system is designed to inform a central monitor-
ing station of the nature of the emergency so the
correct personnel can be dispatched immediately.
Each type of panic alarm sounds and reacts differ-
ently when activated.
Fire Panic
The Fire panic alarm sounds from all interior and
exterior sirens. On monitored systems, the central
monitoring station responds by calling the fire
department.
To activate a Fire panic alarm from a touchpad:
• Press and hold both Fire buttons for
2 seconds.
Lighting During a Fire Panic Alarm
If your system is equipped with system lighting, all
system lights will turn on and remain on during a
Fire panic alarm.
Resetting Smoke Detectors
Hardwired and wireless smoke detectors used with
this system automatically reset themselves.
To reset a smoke alarm:
• Disarm the system.
The smoke detector will reset once all the
smoke has cleared.
In some cases, the installer may have installed a
smoke sensor reset switch which you’ll need to
press.
1. Disarm the system.
2. The light on the smoke detector remains lit
until the smoke clears.
3. Disarm system again to reset hardwired
detectors.
Police Panic Alarm
The Police panic alarm sounds from all interior and
exterior sirens, scaring off any intruder and alerting
neighbors to the trouble. On monitored systems,
the central monitoring station responds by calling
the police.
To activate a Police panic alarm using a touch-
pad:
• Press and hold the Police button(s) for
2 seconds.
To activate a Police panic alarm from a keychain
touchpad*:
• Press and hold the Lock and
Unlock buttons at the same time for 2
seconds.
* The installer must configure the Police panic alarm to
work this way.
Lighting During a Police Panic Alarm
If your system is equipped with system lighting, all
system lights will flash continuously during a Police
panic alarm.
Type of Alarm Alarm Sound
Fire Repeating series of three beeps
Police Continuous tone
Auxiliary Rapid beeps
14
Auxiliary Panic Alarm
The Auxiliary panic alarm sounds from interior
sirens only. It is typically set up by your security
dealer, based on your specific needs. On moni-
tored systems, the central station responds by call-
ing the service or agency you specified through
your dealer, such as an ambulance service.
To activate an Auxiliary panic alarm from a
touchpad:
• Press and hold the AUXILIARY button(s)
for 2 seconds.
To send an Auxiliary panic alarm from a key-
chain touchpad:
• Press and hold the Lights and Star
buttons at the same time for 2 seconds.
Lighting During an Auxiliary Panic Alarm
If your system is equipped with system lighting, all
system lights will turn on and remain on during an
Auxiliary panic alarm.
Siren Time-out
If the system is not disarmed after an alarm, the
sirens will continue to sound until the time-out
period is reached. The time-out period can be
changed by the installer, but is usually 4 minutes.
Even though reaching the time-out stops the sirens,
the alarm will still be in progress and will remain so
until the system is manually disarmed.
SECTION 6:
ASSIGNING USER CODES
The system requires a valid access code before it
will process most commands.
There is one System Master code which serves as
the primary User Programming code for your sys-
tem. Only a very limited number of users will need
to know this code.
There are two Partition Master codes (one for each
partition) which allow access to system operations
in their respective partitions.
There are 60 Regular User codes which act like
keys to arm and disarm the system. If necessary,
they can be assigned to neighbors, baby-sitters, or
repair persons for temporary use. Regular user
codes can be changed in User Programming and
are easily deleted from the system when no longer
necessary.
Programming Access Codes
The code you use to enter User Programming deter-
mines which access codes you’ll be able to change.
A user code can be given certain attributes which
limit what the user can do within the system. These
attributes can be changed only by a dealer over the
phone by using ITI downloading software.
The User Sheets in Appendix A provide a location
for you to record the actual user codes and the
attributes of each. If you would like any of the
attributes changed for any code, contact your
dealer.
Good Access Code Hygiene
To preserve the integrity of your
system, keep access codes
confidential and
delete extra codes
as soon as they
are no longer needed.
We recommend that you
avoid using obvious code
patterns such as 1234 or
1111, 2222, etc.
15
System Master Code Privileges
Using the System Master code to enter User Pro-
gramming allows you to:
• Change the System Master code.
• Change or delete the Partition Master code in the
current partition.
• Change or delete Regular User codes in the cur-
rent partition.
The System Master default code is 1234. It is
important that you change this default and write the
new code on the User Sheets in Appendix A.
Partition Master Code Privileges
Using the Partition Master code to enter User Pro-
gramming allows you to:
• Change the Partition Master code in the current
partition
• Change or delete the Regular User codes in the
current partition
Regular User Code Privileges
You cannot enter User Programming with a Regular
User code.
Changing or Erasing User Codes
Changing a User Code
To change or assign a user access code:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
2. Press B until the touchpad displays
“USER CODES,” then press ƒ.
3. Press B until the touchpad displays the type
of code you wish to change, then press ƒ.
For example, if you want to change a Regular
User code, press ƒ when the touchpad dis-
plays “REGULAR USER CODES.”
4. Enter the new code and press ƒ.
If you’re changing a Regular User code, press
B until the touchpad displays the user code
number you wish to change. Then proceed
to enter the new code and press ƒ.
5. Press B to move to another code, or
‚ + 7 + ƒ to exit User Programming.
Note The system will not accept the same code
for two different users.
Erasing a User Code
When a code is deleted from the system, that code
no longer acts as a key for operating the system in
any manner.
When a code is deleted, it appears as 4 asterisks on
alphanumeric touchpads: ✽ ✽ ✽ ✽
To erase a user code:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
2. Press B until the touchpad displays
“USER CODES,” then press ƒ.
3. Press B until the touchpad displays the type
of code you wish to erase, then press ƒ.
4. Enter the System Master or Partition Master
code you used in Step 1 and press ƒ.
The deleted code appears as, for example,
“USER 01 — ✽ ✽ ✽ ✽.”
5. Press B to move to another code, or
‚ + 7 + ƒ to exit User Programming.
The Touchpad Tamper Feature
The installer can program your system to send a
Police alarm in the case of possible touchpad
tampering.
If more than 40 keys are pressed when the sys-
tem asks for a code, and those keystrokes are
not part of a valid access code, a siren will
sound.
An LED touchpad or Touchtone phone can be
used to change or erase user codes, but an
alphanumeric touchpad works much better
because of its extensive feedback.
See Appendix C for LED and phone program-
ming instructions.
16
SECTION 7:
SETTING THE TIME AND DATE
Although the installer usually sets the time and date
at the time of installation, the user can change it
when necessary.
To set the system’s time and date using an alpha-
numeric touchpad:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
The touchpad displays “SYSTEM MENU,”
briefly, then “USER CODES.”
2. Press B until the touchpad displays
“TIME AND DATE,” then press ƒ.
3. Enter the correct time in 24-hour format,
then press ƒ. For example, if the current
time is 7:23 a.m., enter 0723.
The touchpad displays, “TIME 7:23 PM.”
4. To set the current date, press B.
5. Enter today’s date as 6 digits (mm/dd/yy)
and press ƒ. The touchpad displays,
“DATE 12/07/99,” for example.
6. Press ‚ + 7 + ƒ to exit User Program-
ming.
To set the system’s time and date using an LED
touchpad:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
2. Press ‚ + 1 + 0.
3. Enter the correct time in 24-hour format,
then press ƒ.
4. To set the current date, press
‚ + 1 + 1.
5. Enter today’s date as 6 digits (mm/dd/yy)
then press ƒ.
6. Press ‚ + 7 + ƒ to exit User Program-
ming.
SECTION 8:
ADJUSTING SYSTEM SOUNDS AND
TOUCHPAD BRIGHTNESS
Arming Your System Silently
Use the Silent Arming feature to arm your system
without disturbing people throughout the house
with arming status beeps. There are two methods
for implementing Silent Arming:
• Silent on Demand
(User presses 5 before arming.)
• Arming Always Silent (Silent Arming feature on).
Regardless of the method employed, when Silent
Arming is in effect, no Exit beeps sound.
Silent Arming on Demand
Pressing 5 before arming silences arming status
beeps from touchpads and interior sirens.
To use Silent Arming on demand:
1. From any touchpad, press 5.
2. Within 4 seconds enter:
2 + CODE or 3 + CODE.
Alphanumeric touchpads display, “SILENT
ARM ON” for 5 seconds before displaying
the arming level.
Arming Always Silent
Turning this feature on in User Programming means
that the status beeps that come from touchpads and
interior speakers while arming will always be silent.
You will not have to enter 5 before arming, as
with Silent Arming on Demand.
To enable Silent Arming:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
2. Alphanumeric touchpads:
• Press B until the touchpad displays
“OPTIONS,” then press ƒ.
• Press B until the touchpad displays
“SILENT ARMING OFF,” for example.
LED touchpads:
• Press ‚ + 4 + 1.
00:00
01:00
02:00
03:00
04:00
05:00
06:00
07:00
24-Hour Form at
08:00
09:00
10:00
11:00
12:00
13:00
14:00
15:00
8:00 am
9:00 am
10:00 am
11:00 am
Noon
1:00 pm
2:00 pm
3:00 pm
16:00
17:00
18:00
19:00
20:00
21:00
22:00
23:59
4:00 pm
5:00 pm
6:00 pm
7:00 pm
8:00 pm
9:00 pm
10:00 pm
11:59 pm
Midnight
1:00 am
2:00 am
3:00 am
4:00 am
5:00 am
6:00 am
7:00 am
17
3. Enter 2 to turn the feature on,
preventing system status beeps
while arming; or, enter 1 to
turn the feature off, allowing system arming
beeps from touchpads and speakers.
4. Press ƒ to secure your choice.
5. Press ‚ + 7 + ƒ to exit User Program-
ming.
Using the Chime Feature
Turning on the Chime feature is like having bells on
every protected door and window.
The Chime feature works only in Level 1—OFF.
Whenever anyone enters or exits a protected door,
sirens and speakers emit 2 beeps that let you know
someone has entered or exited the premises.
To turn Chime on/off:
• From any touchpad, press 7 + 1.
While the Chime feature is on, the display on
alphanumeric touchpads includes,
“CHIME IS ON.”
Adjusting the Volume of the Wireless Siren
(Not investigated by UL) Your system
may include a wireless siren that may be
supervised or unsupervised.
The system can supervise the state of the
siren to make sure that it is plugged into
the outlet.
In addition to Police, Fire, and Auxiliary alarms, the
wireless siren will sound trouble beeps in the event
of a trouble condition anywhere in the system, and
emit arming status beeps during Entry and Exit
Delay periods.
The wireless siren has five volume levels from 0
(silent) to 4 (loudest). All alarms sound at the loud-
est level, regardless of the volume setting.
To change the volume of the wireless siren:
1. Hold down the button on the front of the
siren for ten seconds until it beeps, then
release it.
The siren responds by beeping once, indicat-
ing it has entered change volume mode.
2. To increase the volume by one level, press
the siren button for one second until it beeps.
Repeat until the volume reaches the desired
level.
3. After the highest level, the siren sounds one
long beep, followed by 4 short beeps to sig-
nal the silent level. It then cycles through the
levels again.
Adjusting the Touchpad Display Brightness
You may want to change the brightness of a touch-
pad display based on its location in a building or
room. For example, dim the touchpad display in a
bedroom or enhance a display near a window.
Changing the touchpad display affects only the
touchpad currently being used.
1
2
= O ff
= O n
Silent
2
1
3
4
18
The brightness setting affects the background of an
alphanumeric touchpad or the brightness of the
lights on an LED touchpad.
To change touchpad display brightness:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
2. On alphanumeric touchpads:
• Press B until the touchpad displays
“OPTIONS,” then press ƒ.
• Press B until the touchpad displays
“TOUCHPAD BRIGHTNESS 2,”
for example.
On LED touchpads:
• Press ‚ + 4 + 2.
3. Enter a setting, between 0 and 3.
(3 is the brightest setting.)
4. Press ƒ to secure your choice.
5. Press ‚ + 7 + ƒ to exit User Program-
ming.
After dimming the display, pressing any button
momentarily returns the display to full brightness.
After 15 seconds without touchpad activity, the dis-
play returns to the set dimmed level. If an alarm
occurs while the display is dimmed, it automatically
returns to the full brightness level and stays that way
until you disarm your system.
SECTION 9:
USING THE ENERGY
SAVER FEATURE
Use the Energy Saver feature to keep your house
within a user-designated temperature range. These
high and low temperature points that you set over-
ride your normal heating and air conditioning tem-
perature settings. Doing so allows you to use more
energy-efficient settings when away from home.
Energy Saver Example
It works like this:
• At your touchpad, set a high temperature point
(to trigger the air conditioner) and a low tempera-
ture point (to trigger the furnace). This needs to
be done only once, but can be changed easily if
necessary.
• Let’s say that you usually keep the temperature in
your home at 68°F, but since no one will be there
during the day, you turn the Energy Saver feature
on. You’ve set the low temperature point to 55°F,
so the furnace will keep the house heated to 55°.
• You’re about to return home and would like the
house to be heated to its normal 68°F when you
arrive. If you have a Phone Interface and Voice
Module installed, you can simply call home and
turn the Energy Saver feature off, giving control
back to the furnace thermostat (68°).
Control your air conditioning temperatures in the
same manner.
In addition to controlling temperature, the Energy
Saver feature notifies the central monitoring station
if your heating or air conditioning unit fails—before
pipes freeze or pets are harmed by extreme heat or
cold.
Setting the Energy Saver High and
Low Temperature Settings
Initially, you must set the energy saver to the desired
high and low temperatures. This is done only once,
unless you want to change temperature settings.
19
The high and low settings you enter do not control
heating and cooling systems, but determine the
point at which the furnace or air conditioner is acti-
vated.
Temperature settings can range from 45° to 90°
Fahrenheit.
To set the Energy Saver temperature range from
an alphanumeric touchpad:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
2. Press B until the touchpad displays
“ENERGY SAVER,” then press ƒ.
3. Enter the lowest allowable temperature
before the furnace turns on. For example,
“LOW SETPOINT 50 DEGREES F.”
4. Press ƒ to secure your choice.
5. Press B. Enter the highest allowable temper-
ature before the air conditioner turns on.
6. Press ƒ to secure your choice.
7. Press ‚ + 7 + ƒ to exit User Program-
ming.
To set the Energy Saver temperature range from
an LED touchpad:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
2. Press ‚ + 6 + 0.
3. Enter the lowest allowable temperature
before the furnace turns on, then press ƒ to
secure your choice.
4. Press ‚ + 6 + 1.
5. Enter the highest allowable temperature
before the air conditioner turns on, then
press ƒ to secure your choice.
6. Press ‚ + 7 + ƒ to exit User Program-
ming.
Turning Energy Saver On and Off
To override your normal heating or air conditioning
settings, turn the Energy Saver feature on. When
you are ready to return to your normal temperature
control settings, turn Energy Saver off.
To turn Energy Saver on/off:
• From any touchpad, press 7 + 2.
Alphanumeric touchpads display,
“ENERGY SAVER IS ON,” for example.
High
Setpoint
90°
Low
S
etpoint
45°
If room tem perature
re a c h e s lo w se tp o in t,
fu rn a c e tu rn s o n .
If room tem perature
re ach e s h ig h se tp o in t,
a ir c o n d itio n e r tu r n s o n .
20
SECTION 10:
NOTIFICATION BY PAGER
Your system can notify up to five different pager
phone numbers to report system events. The
installer can program any pager to receive pages for
one or more of the following groups:
• High Level Reports,
which includes the following reports:
– Sensor alarms – Freeze alarms
– Tamper – Freeze troubles
– Restorals – No activity alarm
– Phone test – Fire panic
– Receiver failure – Police panic
– Receiver jam – Auxiliary panic
– Touchpad tamper – Duress alarm
– Bus failures
• Low Level Reports,
which includes the following reports:
– Bypass sensors – AC power fail
– Low battery – CPU low battery
– Supervisory – Auto phone test
– Trouble – CPU back in service
– Phone test – Phone Failure
– Supervisory – Event buffer full
– Touchpad low battery
• Opening and Closing reports
• Reports generated by the Latchkey feature
• Reports generated by the Notify by Exception
feature
Pager Messages
When an event is reported on the pager, the pager
includes the following information:
• Event code
• Sensor or user number (depending on event)
• Last four digits of the account number
Table 1. Pager Messages
Streamlining the Page Report
You can choose to have the four account number
digits reported with every page, or to exclude them.
Each partition has its own account number, so see-
ing the digits is useful if multiple partitions are
reporting to one pager.
Ask your dealer or installer if you would like the
Streamline feature turned on.
Event Code System Event
1 1 1 System has been disarmed
222 System has been armed to
Level 2–STAY
333 System has been armed to
Level 3–AWAY
1 1 8 System trouble has been fixed
1 1 9 System alarm condition has been
cancelled
555 System phone test
888 System has a trouble condition
999 System is in alarm condition
Sensor num ber
or user num ber
Last four account digits
Sample pager message with
Stream line feature turned off:
Sample pager message with
Stream line feature turned on:
Event code
21
SECTION 11:
CREATING TIME SCHEDULES
Time schedules are windows of time defined by a
start time, a stop time, and the days of the week
these times are effective.
You can create up to 16 time schedules for setting
up the following system features: Latchkey Paging,
Notify by Exception, and light control.
To define a time schedule:
1. At an alphanumeric touchpad, enter
User Programming by pressing
9 + System or Partition Master CODE.
2. Press B until the touchpad displays
“SET UP SCHEDULES,” then press ƒ.
The touchpad displays the first time schedule,
“SCHEDULE 00.”
3. Press B until the touchpad displays the time
schedule you wish to set, then press ƒ.
The touchpad displays the current start time
for this schedule.
4. Enter the start time in 24-hour format
(00:00–23:59), then press ƒ.
The touchpad displays the new start time.
5. To display the current stop time for this
schedule, press B once.
6. Enter the stop time in 24-hour format, then
press ƒ. The touchpad displays the new
stop time.
7. Press B until the touchpad displays a day of
the week you wish to assign this schedule to.
8. Enter 2 to include the day in
the schedule (“ON”) or 1 to
exclude the day from the
schedule (“OFF”).
9. Press ƒ to secure your choice.
10. Press B to move to the next day of the week
or press ‚ to return to the schedule list.
11. Press ‚ + 7 + ƒ to exit User Program-
ming.
Scheduling Consecutive Days
There may be instances when you’d like to schedule
a feature event to start one day and stop the next
day or a number of days later.
One Day Rollover
You can create a schedule that begins on one day,
and stops the next day by using only one time
schedule. (The stop time must be within 24 hours
of the start time.)
Example 1 of One Day Rollover.
At home you’d like the Latchkey Open-
ing feature to be effective from 10 p.m.
on Tuesday until 5 a.m. on Wednesday.
By taking advantage of One Day Roll-
over, one time schedule can cover both
days. (That schedule is illustrated at
right.)
Notice how the stop time is within 24
hours of the start time. The system
knows to apply the stop time to the
next day (5 a.m. on Wednesday).
Example 2 of One Day Rollover.
Building on Example 1, let’s say that
you’d like the Latchkey Opening fea-
ture to be effective between 10 p.m.
and 5 a.m., Monday through Friday
(ending Saturday morning).
By simply applying the start and stop
times to each day, one time schedule
can cover the entire week.
Multiple Day Rollover
The simplest method for defining a window of time
that spans multiple days is to use 99:99 to signify an
open start or stop time.
An LED touchpad or Touchtone phone can be
used to create time schedules, but an alphanu-
meric touchpad works much better because of
its extensive feedback.
See Appendix C for LED and phone program-
ming instructions.
1
2
= O ff
= O n
Schedule
X
Start
Stop
Mon
Tue
Wed
Thur
Fri
Sat
Sun
22:00
05:00
OFF
OFF
OFF
ON
OFF
OFF
Part.
1
OFF
Schedule
X
Start
Stop
Mon
Tue
Wed
Thur
Fri
Sat
Sun
22:00
05:00
OFF
OFF
Part.
1
ON
ON
ON
ON
ON
22
Example of Multiple Day Rollover.
At your business you’d like specific lights to remain
lit from Friday afternoon through the weekend, until
Monday morning.
In this situation, the lights need to be scheduled to
roll over until they reach a recognizable stop time.
In the figure to the right, Sched-
ule Y is set up to begin at 4 p.m.
on Friday afternoon. Since the
stop time is 99:99, the lights will
remain lit (roll over) until a rec-
ognizable stop time is reached.
Schedule Z is set up with an
undefined start time (99:99), so
if the lights were already lit, they
will remain lit until the Schedule
Z stop time is reached at 5 a.m.
Attaching Time Schedules
For any schedule to be effective, it needs to be
attached to a feature. One schedule can be
attached to more than one feature event. See:
• See “Advanced Light Control” on page 22 for
information on attaching time schedules for light
control.
• See “Latchkey Paging” on page 24 for information
on attaching time schedules to Latchkey Paging,
and.
• See “Notify by Exception” on page 26 for infor-
mation on attaching time schedules to Notify by
Exception.
Time Schedules and Partitions
Once a schedule is attached to a feature event in
one partition, that schedule becomes unavailable to
the other partition. This prevents the situation
where one partition changes a time schedule that
inadvertently affects both partitions.
SECTION 12:
ADVANCED LIGHT CONTROL
You can control system lights from
any touchpad, as discussed in “Basic
Light Control” on page 11.
There are other lighting options that
you or your installer can set up,
including:
• Turning lights on and off according to a time
schedule.
• Turning lights on after system arming for the dura-
tion of the Exit Delay.
• Turning lights on for the duration of the Entry
Delay so you have enough light to see your way
to the touchpad to disarm the system.
• Flashing lights on and off upon successful arming
and disarming.
Controlling Lights By Time Schedule
Lights can be turned on according to time sched-
ules. If you need assistance setting up a time sched-
ule that fits your lighting needs, see “Creating Time
Schedules” on page 21.
To schedule lights:
1. At an alphanumeric touchpad, enter
User Programming by pressing
9 + System or Partition Master CODE.
2. Press B until the touchpad displays
“ATTACH SCHEDULES TO EVENTS,”
then press ƒ.
3. Press B until the touchpad displays the light
number you would like to schedule. (Refer to
the User Sheets to determine which light
number is associated with which lamp.)
4. Press ƒ. The touchpad displays the first
available time schedule.
5. Enter 2 to assign the time
schedule (“ON”) or 1 to make
the time schedule inactive
(“OFF”) for this light.
6. Press ƒ to secure your choice.
7. Press B to go to the next time schedule, if
needed, and turn the schedule on or off for
this light.
8. When you’ve finished attaching the desired
time schedules, press ‚ + 7 + ƒ to exit
User Programming.
Schedule
Y
Start
Stop
Mon
Tue
Wed
Thur
Fri
Sat
Sun
16:00
99:99
OFF
OFF
OFF
OFF
ON
OFF
OFF
Part.
Schedule
Z
ON
OFF
OFF
OFF
OFF
OFF
OFF
99:99
05:00
11
1
2
= O ff
= O n
23
Installer Programmable Lighting
If you would like specific lights to turn on during
Entry and Exit Delay times, or if you would like a
light to flash to indicate successful arming and dis-
arming, contact your installer.
SECTION 13:
OPENING AND CLOSING REPORTS
The Opening and Closing Reports feature allows
pagerholders and/or the central station to be noti-
fied whenever the system is armed and/or dis-
armed.
When Will this Feature Be Active?
The Opening and Closing Reports feature can be
enabled only by the installer. There is nothing more
that the user needs to program in order to receive
the Opening and/or Closing pages.
If a pagerholder no longer wishes to receive the
reports, the pagerholder needs to contact the
installer to turn off this option for that pager.
Opening and Closing Reports occur without regard
to any time schedule. There are no special codes
that the user needs to enter in order for the page to
be sent.
Who Will Be Paged?
Your system can call up to 5 different pager num-
bers, as well as the central station, to report an
Opening and/or Closing Report.
Refer to the User Sheets in Appendix A to see
which pagers have been set up to receive a page for
this feature. Contact the installer if you would like
to turn Opening and Closing Reports on or off for
any programmed pager or for the central station.
What Will the Pager Report?
For Opening Reports, the page reports the arming
level (111 for 1—OFF) and the user code entered.
For Closing Reports, the page reports the arming
level as 222 (2—STAY) or 333 (3—AWAY), and the
user code that armed to that level.
See Table 1 in Section 10 for more information on
paging reports.
24
SECTION 14:
LATCHKEY PAGING
The Latchkey Paging feature allows programmed
pagerholders to be notified when the system is
armed and/or disarmed during specific hours or
under certain conditions.
Page In the Event of . . .
You can set up the Latchkey Paging feature to send
a page in the following situations:
• Send a page when the system is disarmed.
(Latchkey Opening)
• Send a page when the system is armed.
(Latchkey Closing)
Who Will Be Paged?
Your system can call up to 5 different pager num-
bers to report a Latchkey Opening and/or a Latch-
key Closing. Latchkey pages do not report to the
central station.
Refer to the User Sheets in Appendix A to see
which pagers have been set up to receive a page for
this feature. Contact the installer if you would like
to turn Latchkey Paging on or off for any pro-
grammed pager.
Who Can Send a Page?
Only Latchkey-designated users can cause a Latch-
key page to be sent. By default, this includes the
first 5 Regular User codes. If you’d like to extend
that number, contact your installer.
What Will the Pager Report?
For Latchkey Opening Reports, the page reports the
arming level (111 for 1—OFF) and the user code
entered.
For Latchkey Closing Reports, the page reports the
arming level as 222 (2—STAY) or 333 (3—AWAY),
and the user code that armed to that level.
See Table 1 in Section 10 for more information on
paging reports.
Latchkey Opening
The installer can set up Latchkey Opening for one
of two types of use: Basic and Advanced.
Basic Latchkey Opening
If your system is set up for Basic Latchkey, there are
two ways to send a Latchkey Opening page:
Based on Time Schedule Only.
1. Assign the Latchkey
Opening feature a
time schedule.
(This needs to be
done only once.)
2. Arm the system.
3. Disarming the sys-
tem by a Latchkey-
designated user
within the assigned
time schedule, sends
an Opening page:
Based on Latchkey Modifier 6 Only.
1. Arm the system,
then enter 6.
2. Disarming the
system by a Latch-
key-designated
user sends an
Opening page,
regardless of
assigned time schedule:
. . . L a tc h k e y p a g e s e n t.
If L a tc h k e y d is a rm
occurs w ithin
tim e s c h e d u le . . .
3:00
Latchkey O pening Schedule
5:00
111
System armed System disarmed
A fte r a rm in g th e
syste m , e n ter
6
.
D isarm in g th e syste m
at any tim e sends a
Latchkey page.
N o Latchkey O pening
sch e d u le is n e ce ssary
6
+
111
System arm ed Syste m d isa rm e d
25
Advanced Latchkey Opening
If your system is set up for Advanced Latchkey use,
there is one way to send a Latchkey Opening page:
1. Assign the Latchkey
Opening feature a
time schedule.
(This needs to be
done only once.)
2. Arm the system,
then enter 6.
3. Disarming the
system by a Latch-
key-designated user
within the assigned
time schedule, sends
an Opening page:
In Advanced Latchkey use, paging is available only
during the time schedule(s) that you assign to it.
Latchkey Closing
Latchkey Closing can be used alone, or in addition
to Latchkey Opening.
1. Assign the Latchkey
Closing feature a
time schedule.
2. The system is
disarmed.
3. Arming the system
by a Latchkey-desig-
nated user within
the assigned time,
schedule sends a Closing page:
Assigning a Time Schedule
to Latchkey Paging
Follow these steps to attach a time schedule to
Latchkey Opening or Latchkey Closing. If you need
assistance setting up a time schedule that fits your
needs, see Section 10.
Scheduling Latchkey Opening and/or Closing:
1. At an alphanumeric touchpad, enter
User Programming by pressing
9 + System or Partition Master CODE.
2. Press B until the touchpad displays
“ATTACH SCHEDULES TO EVENTS,”
then press ƒ.
3. To schedule:
• Latchkey Opening, press ƒ when the
touchpad displays “LATCHKEY OPENING.”
•Or, press B until the touchpad displays
“LATCHKEY CLOSING,” then press ƒ.
If you want a page to be sent every time
Latchkey-designated users codes arm or dis-
arm the system, apply the same time sched-
ules under Latchkey Opening (Basic) and
Latchkey Closing.
4. The touchpad displays the first available time
schedule.
5. Enter 2 to assign the time schedule
or 1 to make the time schedule inactive for
this event.
6. Press ƒ to secure your choice.
7. Press B to go to the next schedule and
repeat steps 4 and 5.
8. When you’ve finished attaching the desired
time schedules, press ‚ + 7 + ƒ to exit
User Programming.
Applying the Latchkey 6
The Latchkey modifier 6 is pressed after the arm-
ing keypress sequence.
Applying the Latchkey modifier:
• At any touchpad, press
2 or 3 + CODE + 6.
The touchpad displays, “LATCHKEY PAGER
ON.”
6 must be pressed within 5 seconds of arming.
Latchkey page sent.
A fte r a rm in g th e
syste m , e n ter
6
.
L a tc h k e y d isa rm o c c u rs
w ith in tim e sc h e d u le .
3:00
Latchkey O pening Schedule
5:00
6
+
111
System arm ed Syste m d isa rm e d
. . . L a tc h k e y p a g e s e n t.
If L a tc h k e y a rm in g
occurs w ithin
tim e s c h e d u le . . .
6:00
Latchkey C lo sing Sched ule
8:00
222 or 333
Syste m d isa rm e d S
y
stem a rm e d
An LED touchpad or Touchtone phone can be
used to set up Latchkey paging, but an alpha-
numeric touchpad works much better because
of its extensive feedback. See Appendix C for
LED and phone programming instructions.
26
SECTION 15:
NOTIFY BY EXCEPTION
The Notify by Exception feature allows pro-
grammed pagerholders and/or the central station to
be notified when arming or disarming occurs out-
side of specified time schedules.
Here are two specific examples of how the Notify
by Exception feature might be used in a business
setting:
• Every morning you’d like to be notified if your
business is disarmed after its normal opening
time.
• Every evening you’d like to be notified if your
business is armed before its normal closing time.
Page In the Event of . . .
You can set up the Notify by Exception feature to
page in the following instances:
• Send a page if the system is disarmed before the
Opening time schedule begins or after the Open-
ing time schedule has ended.
(Exception Opening)
• Send a page if the system is armed before the
Closing time schedule begins or after the Closing
time schedule has ended. (Exception Closing)
Who Will Be Paged?
Your system can call up to 5 different pager num-
bers to report an Open Exception and/or Closed
Exception. You can request that the Central Station
receive these two reports as well.
Refer to the User Sheets in Appendix A to see
which pagers have been set up to receive a page for
this feature. Contact the installer if you would like
to turn the Notify by Exception on or off for any
programmed pager or for the central station.
Who Can Send a Page?
All user codes will send a page if used while Notify
by Exception feature is in effect.
What Will the Pager Report?
Exception Opening Reports report the arming level
(111 for 1—OFF) and the user code entered.
Exception Closing Reports report the arming level
as 222 (2—STAY) or 333 (3—AWAY), and the user
code that armed to that level.
See Table 1 in Section 10 for more information on
paging reports.
When Will this Feature Be Active?
The most typical setup of this feature makes use of
both Exception Opening and Exception Closing.
(It is possible to use Exception Opening only or
Exception Closing only, however.)
The following figures show what page message
would be sent given the time the system was armed
or disarmed.
Assigning a Time Schedule
to Exception Opening and Closing
Follow these steps to define Opening and Closing
schedules for Exception paging. If you need assis-
tance setting up a time schedule that fits your
needs, see “Creating Time Schedules” on page 21.
An LED touchpad or Touchtone phone can be
used to set up Notify by Exception, but an
alphanumeric touchpad works much better
because of its extensive feedback.
See Appendix C for LED and phone program-
ming instructions.
27
Scheduling Exception Opening and/or Closing:
1. At an alphanumeric touchpad, enter
User Programming by pressing
9 + System or Partition Master CODE.
2. Press B until the touchpad displays
“ATTACH SCHEDULES TO EVENTS,”
then press ƒ.
3. To schedule:
• Exception Opening, press B until the
touchpad displays “EXCEPTION OPEN-
ING,” then press ƒ.
• Exception Closing, press B until the touch-
pad displays “EXCEPTION CLOSING,” then
press ƒ.
4. The touchpad displays the first available time
schedule.
5. Enter 2 to assign the time schedule
or 1 to make the time schedule inactive for
this event.
6. Press ƒ to secure your choice.
7. Press B to go to the next schedule and
repeat steps 4 and 5.
8. When you’ve finished attaching the desired
time schedules, press ‚ + 7 + ƒ to exit
User Programming.
6:00 8:00 5:00 7:00
222 or 333
If a rm e d b e fo re th e
c lo s in g tim e s c h e d u le ,
a page is sent.
E x c e p tio n O p e n in g S c h e d u le E x c e p tio n C lo s in g S c h e d u le
If a rm e d b e fo re th e
c lo s in g tim e s c h e d u le ,
no page is sent.
If the system is not arm ed
at all, a page is sent at the end
of the closing tim e schedule.
Exception C losing Pages
in a Typical Setup
E x c e p tio n C lo s in g p a g e s o c c u r if th e s y s te m is a rm e d
e a rlie r o r la te r th a n th e c lo sin g tim e sc h e d u le .
222 or 333
If a rm e d d u rin g th e
c lo s in g tim e s c h e d u le ,
no page is sent.
111
6:00 8:00 5:00 7:00
111
If d isa rm e d b e fo re th e
opening tim e schedule,
a page is sent.
E x c e p tio n O p e n in g S c h e d u le
If disarm ed during
the opening tim e schedule,
no page is sent.
E x c e p tio n C lo s in g S c h e d u le
Exception O pening pages occur if the system is disarm ed
e a rlie r o r la te r th a n th e o p e n in g tim e sc h e d u le .
Exception O pening Pages
in a Typical Setup
If the system is not disarm ed
at all, a page is sent at the
end of the opening tim e.
1
222 or 333
If d isa rm e d a fte r th e
opening tim e schedule has
ended, a page is sent.
111
28
SECTION 16:
THE NO ACTIVITY FEATURE
The system can monitor the activity in your home
and automatically call for help if normal activities
are not detected within a defined period of time.
For example, if someone falls and can’t move, the
system will detect that normal activities, such as
placing outgoing calls or opening doors and win-
dows, have not occurred for a predetermined No
Activity time.
The system sounds a low-volume auxiliary alarm to
let you know there may be a problem. If all is well,
you can stop the siren by disarming your system. If
no one disarms the system for 5 minutes, your sys-
tem calls the central monitoring station. The central
monitoring station will send emergency personnel
to the premises to check out the situation.
Refer to the User Sheets in Appendix A to see if the
No Activity feature is currently available to you and
the duration of the No Activity setting. If the fea-
ture is not currently available to you, contact your
installer.
SECTION 17:
USING THE PANEL
DOWNLOAD FEATURE
To download to the panel is to replace the old infor-
mation in it with new information. Downloading is
performed only by your dealer using ITI software
specifically designed for this panel.
Turning the Download feature on allows the dealer
remote access to your panel in order to:
• Update your account.
• Back up data from your panel.
• Allow your dealer to quickly implement requested
programming changes.
Note Before allowing any download sessions, the
system must be disarmed to level 1-OFF.
To enable/disable the Panel Download setting:
1. Enter User Programming by pressing
9 + System or Partition Master CODE.
2. On alphanumeric touchpads:
• Press B until the touchpad displays
“OPTIONS,” then press ƒ.
• Press B until the touchpad displays
“DOWNLOADING OFF,” for example.
On LED touchpads:
• Press ‚ + 4 + 0.
3. Enter 2 to turn the feature on,
allowing the dealer remote
access to the panel, or enter 1
to turn the feature off, denying
remote access.
4. Press ƒ to secure your choice.
5. Press ‚ + 7 + ƒ to exit User Programming.
SECTION 18:
SYSTEM INFORMATION
There is certain information about your system that
is useful to know for the purposes of future software
updates. This includes the factory code, the system
number, and the system level.
After identifying the information for your system,
make a note of it in the User Sheets found in
Appendix A.
This information is unavailable to systems relying
solely on an LED touchpad.
To identify system information:
1. From an alphanumeric touchpad, enter User
Programming by pressing
9 + System or Partition Master CODE.
2. Press B until the touchpad displays
“SYSTEM VERSION,” then press ƒ.
• The first information displayed is the factory
code. For example,
“FACTORY CODE nnn ✽ nnnn.”
• Press B to display the system number. For
example, “SYSTEM NUMBER ✽ nnnnnnn.”
• Press B to display the system level. For
example, “SYSTEM LEVEL nnnn.”
3. Press ‚ + 7 + ƒ to exit User Program-
ming.
1
2
= O ff
= O n
29
SECTION 19:
USING A PARTITIONED SYSTEM
The panel can be set up by your installer to operate
as a two-partitioned system.
A partitioned system would be useful in a strip mall,
or residential duplex, where two stores or house-
holds could share one system.
Global Settings
Global system settings affect both partitions. Most
are set by the installer. Global settings that are pro-
grammed by the user include:
• The time and date.
• The System Master code.
Partition-Specific Settings
Partition-specific settings affect only one partition.
User-programmable, partition-specific settings
include:
• Partition Master codes
(1 per partition for a total of 2).
• A pool of 60 Regular User codes for use by one
or the other partition. (Partition 1 Regular User
codes + Partition 2 Regular User = 60 Regular
User codes)
• A pool of 16 time schedules available to one or
the other partition. (Partition 1 time schedules +
Partition 2 times schedules = 16 time schedules)
• 9 Advanced Light Control setups available
to each partition.
• The Latchkey feature.
• The Notify by Exception feature.
• The Silent Arming option.
• Speaker volume settings.
• The Energy Saver feature and its high and
low setpoints.
To program any of these features for another parti-
tion, you must enter the User Programming menu
from a touchpad in that partition, or jump into that
partition, then enter the User Programming menu.
Jumping Partitions
Note If your system uses just one partition,
skip this section.
An alternative to jumping partitions is to arm, dis-
arm, or program from a hardwire touchpad belong-
ing to the other partition.
The ability to jump to another partition is an
attribute assigned to each code by the installer. By
default, the System Master is the only code that can
jump partitions. Refer to the User Sheets in Appen-
dix A to see if any other access codes have the abil-
ity to jump partitions.
To jump partitions:
1. From any hardwired touchpad, press
8 + CODE + 6.
Alphanumeric touchpads display,
“ENTER PARTITION.”
2. Press 1 if you want to change to Partition 1
or 2 if you want to change to Partition 2.
The touchpad sounds one short beep if the
jump was successful. One long beep means
the jump was not successful.
Alphanumeric touchpads display the text in
the newly entered partition.
3. Proceed to arm, disarm, or program as
needed. The partition assignment reverts
back if no keys are entered for 10 seconds.
Arming and Disarming the Other Partition
Once in the other partition, you need to use a code
that is valid in that partition to arm, disarm or pro-
gram that partition.
Programming the Other Partition
Only one partition can be programmed at a time.
When one partition is using the programming
menu, touchpads in the other partition are locked
out from any programming activity. Arming and dis-
arming can continue, however.
Some partition-specific settings share resources,
such as access codes and time schedules. For
example, if Partition 1 uses Regular User numbers
00 through 20, Partition 2 will not be able to see or
use those user numbers. The first Regular User
number available to Partition 2 would be 21.
The allocation of time schedules works in much the
same manner. There are 16 schedules that can be
used by either partition, but as soon as Partition 1
attaches a schedule to any event, that schedule can-
not be used by Partition 2, and vice versa.
30
SECTION 20:
USING A TOUCHTONE PHONE TO
OPERATE YOUR SYSTEM
Your system may be equipped with a
phone module that allows system
operation from a Touchtone phone
on or off the premises.
The module contains a digital-voice
chip, enabling programmed text to be spoken
through the phone and/or broadcast through inte-
rior speakers. Except for custom words, the voice
will speak the text that appears on alphanumeric
touchpads in the system.
Phone Command Prefix
What distinguishes a call to the panel
from any other out-going or incoming
call is the use of the Phone Command
Prefix:
• In the case of on-site operation, if
the Phone Command Prefix is
dialed first, the panel pricks up its
ears and waits for a valid access
code or command.
• If the system is being accessed
remotely, the Phone Command
Prefix is used in conjunction with
the access code.
The prefix is usually ƒ, but can be changed to ‚
by the installer. If your prefix has been changed,
use ‚ as the first key you press instead of ƒ
in the instructions on page 31.
Accessing the System from Off-site
To access the system from off-site, the system needs
to recognize two things about the call:
• The panel needs to recognize that it should
answer the phone.
• The panel needs to recognize that the code
entered has the authority to operate the system
from off-site.
When using a cellular phone to operate the system,
follow the off-site operating directions.
How the Panel Answers the Phone
When you call the panel, it needs to recognize that
it should answer the incoming call. This is accom-
plished by one of two methods:
• Ring-Hang-Ring method
• Twelve-Ring method
Ring-Hang-Ring Method. You can use this method
if there is no chance that an answering machine or
person will pick up the call on the first ring.
1. Call the panel. (In most cases this is the same
number as the regular phone.)
2. Let the phone ring once, then hang up.
3. Wait between 8 and 30 seconds, then call the
panel again. This time the panel will answer
(“System hello,”) on the first ring.
4. Enter ƒ (your designated Phone Command
Prefix).
5. Enter your access code.
6. You hear a short status message, such as,
“System is OK.”
7. Proceed with system commands.
Twelve-Ring. You can use this method if there is no
chance that an answering machine or person will
pick up the call before the twelfth ring.
1. Call the panel and let the phone ring. The
panel will answer “System hello,” after the
twelfth ring.
2. Enter ƒ (your designated Phone Command
Prefix).
3. Enter your access code.
4. You hear a short status message, such as,
“System is OK.”
5. Proceed with system commands.
Codes with Remote Access Capability
The ability to access the system from off-site is a
code attribute given by the installer.
Check the User Sheets in Appendix A to see which
access codes have the ability to operate the system
from off-site. You can have access code privileges
changed by contacting the installer.
#
✽
31
Touchtone Phone System Operation
Phone operation of your system involves 2 steps:
Sending a Police Panic Alarm
Your system can be set up so that you can send a
Police panic alarm from a Touchtone phone. If your
system is set up to send a Police panic alarm:
•Use the ‚, regardless of your phone command
key.
• Do not wait more than two seconds between key-
presses. Continue pressing ‚ even if you hear
the system voice interrupt with a system status.
• Police panic alarms can be activated from a
Touchtone phone on the premises only. The
alarm cannot be activated from a phone off-site.
Using the Voice Chime Feature
If the installer wired speakers to the Phone Interface
and Voice module outputs, you can program your
system to speak the programmed sensor text when-
ever someone opens a protected door or window.
To enable Voice Chime:
• See Appendix C, “User Programming from an
LED Touchpad or a Touchtone Phone.”
1. Use a Touchtone phone to access the system.
Local Phone
Access Pick up the phone. Within 5
seconds of picking up the phone
receiver, enter the command.
Remote Phone
Access
Use the Ring-Hang-Ring or the
Twelve-Ring method to get the
system to answer the call.
Then enter ƒ + CODE
2. Enter the command.
Disarm the
system ƒ + 1 + CODE
Arm to Level 2 ƒ + 2 + CODE
Arm to Level 3 ƒ + 3 + CODE
Send a Police
panic alarm ‚ + ‚ + ‚ + ‚ + ‚ + ‚
(Available from on-site only.)
Arm system with
No Delay ƒ + 2 + CODE + 4 or
ƒ + 3 + CODE + 4
Arm to enable
Latchkey ƒ + 2 + CODE + 6 or
ƒ + 3 + CODE + 6
Arm system with
exit lights off ƒ + 2 + CODE + 0 or
ƒ + 3 + CODE + 0
Bypass a sensor Indirectly: Arm system + ƒ + ƒ
Directly: ƒ + ƒ +
CODE + Sensor Number
Arm silently ƒ + 5 + 2 + CODE or
ƒ + 5 + 3 + CODE
Turn all lights
on/off ƒ + 0 + 0
Turn specific
lights on/off ƒ + 0 + Light number
Cancel an acci-
dental alarm ƒ + 1 + CODE
Check the
system status ƒ + ‚
Turn Chime
on/off ƒ + 7 + 1
Turn Energy
Saver on/off ƒ + 7 + 2
Disable local
phone access ƒ + 7 + 3
Check alarm
memory ƒ + 7 + 6
32
SECTION 21:
TESTING THE SYSTEM
The system contains a test mode that allows you to
test sensors and panic signals without creating false
alarms in monitored systems. Please follow the
instructions in this section carefully.
Automatic Test Features
Your security system conducts routine tests, check-
ing for problems like power failures, low batteries,
sensors that aren’t working, and communication
trouble with the central monitoring station.
When your system detects a problem, trouble
beeps sound to alert you. See “Troubleshooting”
on page 35 for an explanation of the causes of trou-
ble beeps and what you can do to fix the problem.
Manual Tests
The automatic tests your system performs provide
continuing reassurance that it is working properly.
There are also weekly system tests you can do your-
self as an added safeguard. Taking time to do these
tests will familiarize you with your system and alert
you to anything unusual, such as cut phone lines or
sensors that have been tampered with.
Sensor Test
This test verifies that the sensors in your system are
operating correctly.
The ability to conduct a sensor test is a code
attribute given by the installer.
Check the User Sheets in Appendix A to see which
access codes have the ability to conduct a sensor
test. You can have access code privileges changed
by contacting the installer.
What if someone calls
while I’m operating the panel?
If the phone rings while you’re using it to operate
the system, you’ll hear one long beep for each
ring from interior speakers and phones. You can
answer the call by simply hanging up on the sys-
tem, then answering the call as you normally
would.
You’ll have to initiate another session to resume
operation.
Can I control the system while I’m
talking on the phone?
Yes, even in mid-conversation.
To control the system while on the phone:
•ƒ + Command
How do I perform other phone
operations without commanding
my security system?
You can use your phone for transactions such as
banking from home by temporarily disengaging
phone control to your security system. The com-
mand described below works for one call at a
time.
To disengage local phone control:
• Enter ƒ + 7 + 3.
The system responds by returning a dial
tone.
33

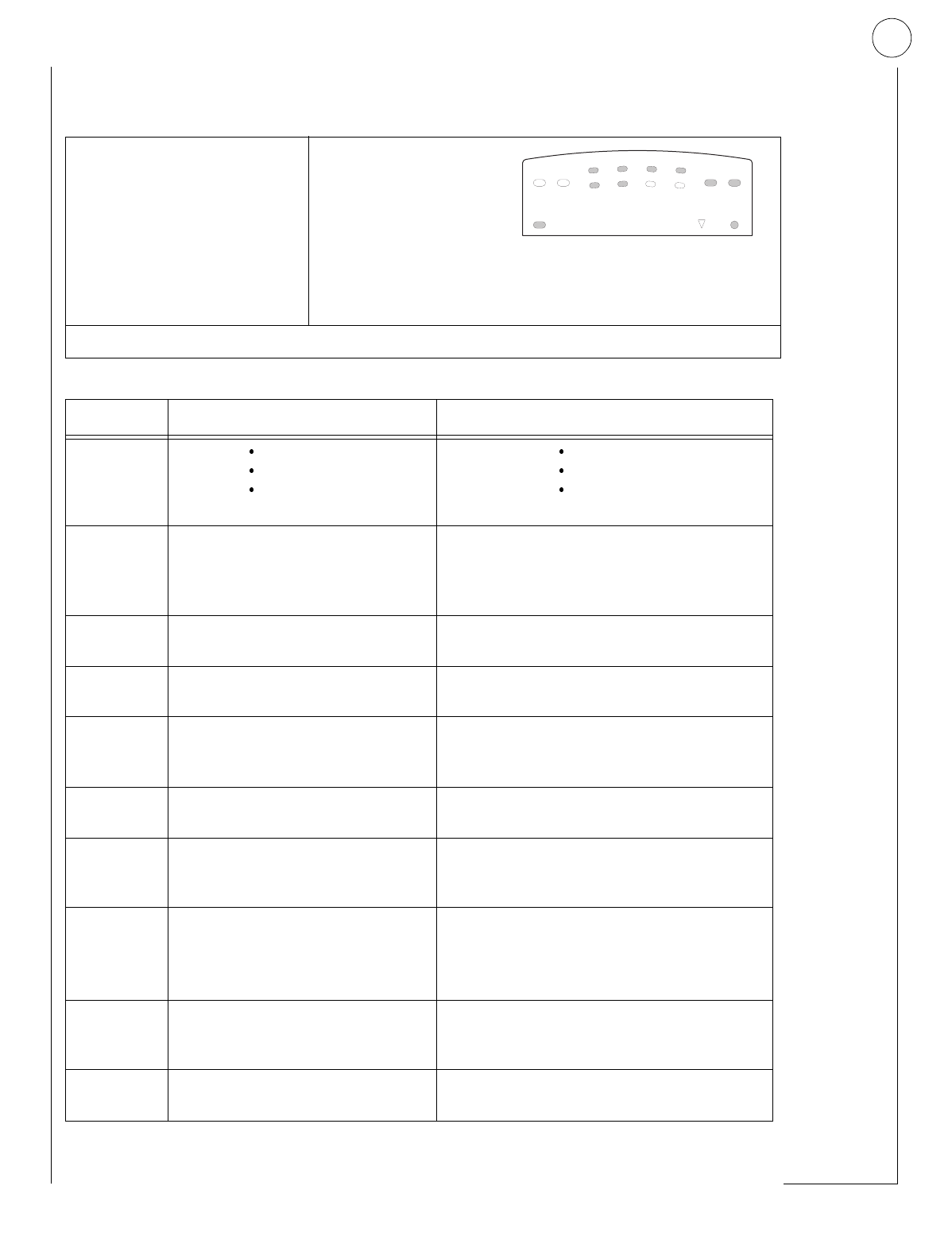

Table 3. Sensor Test Procedure
1. Enter Test Mode by
pressing
8 + CODE + 3.
• Alphanumeric touchpads
display, “✽SENSOR TEST.”
• LED touchpads display a
sensor test flash pattern:
No Delay, enrolled sensor
LEDs (1–8), Bypass, Trouble.
Every 60 seconds the system sounds a short beep. Phones and
speakers may announce, “Sensor test is on.”
2. Follow the activation procedure for each device.
5
1
6
2
7
8
3
4
NO DELAY
Enter Code
Power
Check
Status
TroubleBypass
Both Flashing
ALARM -
AWAYSTAY
Device Test procedure Touchpad Result
Alphanu-
meric or LED
Touchpads
Send a: Police panic alarm,
Fire panic alarm, and
Auxiliary panic alarm.
Alphanumeric: “POLICE PANIC OK”
“FIRE PANIC OK”
“AUXILIARY PANIC OK”
LED: 1 beep
Keychain
Touchpads Press and hold the two assigned panic
buttons simultaneously for 3 seconds. Alphanumeric: “POLICE PANIC OK” or
“FIRE PANIC OK” or
“AUXILIARY PANIC OK”
LED: 1 beep
Panic
buttons Press and hold the appropriate panic
button(s) for 3 full seconds. Alphanumeric: “POLICE PANIC OK”
LED: 1 beep
Door/win-
dow sensor Open the secured door or window. Alphanumeric: “SENSOR nn OK”
LED: 1 beep; sensor LED goes out
Smoke
detector Press and hold the test button until
the system sounds transmission
beeps.
Alphanumeric: “SENSOR nn OK”
LED: 1 beep; sensor LED goes out
Motion
detector Avoid the motion detector’s view for
5 minutes, then enter its view. Alphanumeric: “SENSOR nn OK”
LED: 1 beep; sensor LED goes out
Rate-of-Rise
Heat Detec-
tor
Rub your hands together until warm,
then place one hand on the detector
for 30 seconds.
Alphanumeric: “FIRE PANIC OK”
LED: 1 beep; sensor LED goes out
Phone Inter-
face and
Voice Mod-
ule
Activate a Police panic by accessing
the system using the phone and press-
ing
‚ + ‚ + ‚ + ‚ + ‚ + ‚.
Alphanumeric: “POLICE PANIC OK”
LED: 1 beep
Shock sensor Tap the glass twice, away from the
sensor. Wait at least 30 seconds
before testing again.
Alphanumeric: “SENSOR nn OK”
LED: 1 beep; sensor LED goes out
Glass guard
sensor Tap the glass 3 or 4 inches from the
sensor. Alphanumeric: “SENSOR nn OK”
LED: 1 beep; sensor LED goes out
34
Phone Communication Test
The purpose of this weekly test is to verify that the
connection between the central monitoring station
and your system are working properly.
Most phone tests take only a few minutes, however,
your system will try for up to 15 minutes to establish
a connection.
To perform a phone communication test:
1. Disarm the system.
2. Press
8 + System or Partition Master CODE.
3. Press 2.
• Alphanumeric touchpads display,
“✽PHONE TEST.”
• LED touchpad sensor lights make a bounc-
ing pattern from left to right.
4. If the phone test is successful:
• alphanumeric touchpads display,
“PHONE TEST OK.”
• LED touchpads sensor lights stop bouncing
pattern.
Within a few minutes, the display should return to
the Level 1 display. If it does not return in three
minutes, note how long before the Level 1 display
returns and contact the installer.
After the test has started, the arming level can be
changed to 1—Off, then to 2—Stay or 3—AWAY, if
you wish.
Supervised
wireless siren 1. Unplug the siren and check the
alphanumeric touchpad display.
2. Plug the siren in.
Alphanumeric: “SENSOR nn OK”
LED: 1 beep; sensor LED goes out
Freeze sen-
sor Apply ice to the sensor.
Do not allow the sensor to get wet. Alphanumeric: “SENSOR nn OK”
LED: 1 beep; sensor LED goes out
• If you need more time to complete testing, restart the timer by pressing 8 + CODE + 3.
• Check to see that all sensors have been tested by pressing ‚:
— Alphanumeric touchpads display a list of untested sensors.
— Untested sensor LEDs light on LED touchpads. Keep in mind that 8 sensors are represented.
If over 8 sensors are installed in the system, the Trouble light will remain on until all sensors and
panic alarms are tested.
• You’ll know you’ve finished testing when:
— Alphanumeric touchpads display, “SENSOR TEST OK.”
— When the Trouble light goes out on the LED touchpad.
3. Disarm to Level 1 to exit Test Mode.
Device Test procedure Touchpad Result
35
SECTION 22:
TROUBLESHOOTING
Your security system uses a variety of different
alarm sirens, status beeps, voice messages and trou-
ble beeps to communicate with you. The next few
pages describe the different sounds and what they
mean. Try to familiarize yourself with the differ-
ences. You will hear some sounds each time you
tell your security system to do something, like arm
or disarm. Some sounds you will hear only when
there is a problem with the system, like a low bat-
tery. And, there are sounds you will only hear in an
emergency. Getting to know your system sounds
allows you to react quickly and appropriately to the
messages you hear.
Trouble Beeps and Trouble Messages
When your system detects a problem, it lets you
know by sounding trouble beeps from system
touchpads and sirens, and by displaying trouble sig-
nals as messages on alphanumeric touchpads or
flashing lights on LED touchpads.
Trouble beeps are a series of five short beeps once
a minute.
Table 4 lists the causes of trouble beeps, the visual
display you can expect to see, and possible solu-
tions for the trouble condition.
Silencing Trouble Beeps
If possible, correct the situation which is causing the
trouble beeps. If this is not possible, call for service.
If the problem is not corrected, trouble beeps and
messages start again 4 to 10 hours later.
To stop trouble beeps:
• Perform a system status check by pressing the
STATUS button on a touchpad,
• if the system is equipped with a Phone Inter-
face and Voice module, gain phone access
and press ƒ + ‚, or
• change the arming level.
The following table describes the conditions under
which trouble beeps occur and when they begin.
(These sounds are heard from interior sirens and
touchpads if available.)
Table 4. Causes of Trouble Beeps
Touchpad Feedback After
Pressing ‚ Key Trouble Condition
Alphanumeric touchpads display,
“AC POWER FAILURE” The panel power transformer may be unplugged or there may
be an AC power outage. If the transformer is plugged in,
check the circuit breaker or fuse that controls that outlet.
The backup battery will take over, but if AC power is not
restored within 15 minutes, the system will alert you and the
central monitoring station (if your system is monitored). It
reports again when power is restored.
On LED touchpads:
Trouble LED flashes
Alphanumeric touchpads display,
“SYSTEM BATTERY FAILURE” The emergency backup battery has been drained and must be
recharged or replaced. If AC power is out, the security system
may shut down once the battery is drained. When AC power
is restored, the panel will recharge the battery. If the trouble
condition exists more than 24 hours after AC power is
restored, call your security dealer for service.
On LED touchpads:
Trouble LED flashes
Alphanumeric touchpads display,
“SENSOR SUPERVISORY” There is a problem with how the sensor is communicating
with the panel.
1. Test the sensor in Test Mode as described on page
page 33.
2. If the sensor does not test OK, call your security dealer
for service.
On LED touchpads:
Trouble LED flashes along
with affected LED sensor number
(if under sensor number 8)
36
Note If your system uses only LED touchpads and
a trouble condition not related to sensors
occurs (no sensor number LEDs flash when
STATUS is pressed), a service call from your
dealer is required to determine the cause of
the trouble condition.
Alphanumeric touchpads display,
“SENSOR TROUBLE” A sensor may have an internal problem or a fire/smoke sensor
may not have properly reset after activation, or the sensing
chamber may be dirty or partially obstructed.
1. Test the sensor in Test Mode as described on page
page 33.
2. If testing the sensor does not clear the trouble condi-
tion, call your security dealer for service.
On LED touchpads:
Trouble LED flashes along with
affected LED sensor number
(if under sensor number 8)
Alphanumeric touchpads display,
“LOW BATTERY” A sensor has a low battery.
1. Disarm the system.
2. Remove the sensor cover. If the battery is an Alkaline
AAA, change the battery. If the battery is any other
type, call your security dealer for service.
On LED touchpads:
Trouble LED flashes along
with affected LED sensor number
(if under sensor number 8)
Alphanumeric touchpads display,
“TAMPER” A sensor cover is off or open. Secure the cover and trip the
sensor to clear the tamper condition.
On LED touchpads:
Trouble LED flashes along
with affected sensor number LED
(if under sensor number 8)
Alphanumeric touchpads display,
“PHONE FAILURE TROUBLE” The system can’t communicate with the central monitoring
station. The system tries to report to the central station three
times before indicating Phone Failure Trouble, then makes five
more reporting attempts.
1. Make sure the panel is connected to the special phone
jack installed by your security dealer.
2. Disconnect the panel from the special phone jack and
check phones for dial tone.
If you hear a dial tone, call your security dealer for ser-
vice.
If you don’t hear dial from any phones, telephone ser-
vice in your area may be out.
On LED touchpads:
Trouble LED flashes
Alphanumeric touchpads display,
“RECEIVER INTERFERENCE” or
“RECEIVER FAILURE”
There is a receiver failure or receiver interference problem.
Call your security dealer for service.
On LED touchpads:
Trouble LED flashes
Alphanumeric touchpads display,
“MEMORY FAILURE” There is a system memory failure. Call your security dealer for
service.
On LED touchpads:
Trouble LED flashes as well as
all sensor number LEDs
Table 4. Causes of Trouble Beeps
Touchpad Feedback After
Pressing ‚ Key Trouble Condition
37
Arming Issues
Q. I can’t arm my system.
A. Try the following:
• If arming to Level 2 or Level 3, make sure all mon-
itored perimeter doors and windows are closed.
• Press ‚ for a system status and for clues to the
problem.
• Call the installer.
Q. I cannot bypass a sensor: my alphanumeric
touchpad displays “INVALID” and my LED touchpad
sounds a long beep.
A. Try the following:
• You may be trying to bypass a 24-hour sensor
than cannot be bypassed, such as a smoke detec-
tor. These sensors cannot be bypassed.
• The sensor you’re trying to bypass may not be
active in the current partition.
Q. When I arm my system silently
( 5 + 2 + CODE or 5 + 3 + CODE), then
bypass a sensor, I still hear the Exit Delay beeps.
Shouldn’t they be silent?
A. You need to press 5 once more to silence the
Exit Delay beeps after bypassing the sensor.
Touchpad Issues
Q. On my LED touchpad, the left 4 sensor LEDs
and the right 4 sensor LEDs take turns blinking.
A. The LED touchpad is in the User Programming
mode. Press ‚ + 7 + ƒ to get out of User Pro-
gramming.
Phone Issues
Q. How do I disable my system long enough to
retrieve messages from work or to do banking over
the phone?
A. You can temporarily disengage the security sys-
tem from local phone control by entering
ƒ + 7 + 3. The system responds by returning a
dial tone.
Siren Issues
Q. When testing my wireless siren, unplugging it
does not cause any test results.
A. The test procedure described in “Testing the
System” on page 32, applies only if the siren is
supervised. If the system does not acknowledge the
sensor test with two beeps, or the alphanumeric
touchpad does not display “SENSOR nn OK,” your
wireless siren may be unsupervised. Check the
User Sheets in Appendix A or ask your installer.
Lighting Issues
Q. My lights don’t come on automatically as
they’ve been programmed to do.
A. Try the following:
• Does the lamp have a working bulb?
• Is the lamp plugged in at a working outlet that is
not controlled by a light switch?
• Is the lamp plugged in to a lamp module?
• Make sure that you’ve attached the correct time
schedule as described in “Advanced Light Con-
trol” on page 22.
• Check to see that you’ve set up the time schedule
correctly as described in “Creating Time Sched-
ules” on page 21.
• Check the User Sheets is Appendix A to see in
which partition the light is set up to be active.
38
39
APPENDIX A:
USER SHEETS
It contains specific information about the setup of
your system. The User Sheets should be completed
by the installer and the user. System Sensors
Record the sensor number and name in the table
below. Indicate whether it is a hardwired (HW) or
wireless sensor (WL).
No. Sensor Name HW
/WL No. Sensor Name HW
/WL No. Sensor Name HW
/WL
01 27 53
02 28 54
03 29 55
04 30 56
05 31 57
06 32 58
07 33 59
08 34 60
09 35 61
10 36 62
11 37 63
12 38 64
13 39 65
14 40 66
15 41 67
16 42 68
17 43 69
18 44 70
19 45 71
20 46 72
21 47 73
22 48 74
23 49 75
24 50 76
25 51
26 52
40
40
User Codes
The tables below provide space for you to record
user codes and the attributes of each. If you would
like any of the attributes changed for any code, con-
tact your dealer.
LUser can send Latchkey pages.
B User can bypass sensors.
R User can access the system remotely.
P User can jump partitions.
S User can perform system tests.
Par. Partition in which the access code is enrolled.
Defaults are indicated by
LBRPS Code
System
Master N/A
Partition
Master 1 N/A
Partition
Master 2 N/A
LBRPSPar. Code LBRPSPar. Code LBRPSPar. Code
00 1 / 2 20 1 / 2 40 1 / 2
01 1 / 2 21 1 / 2 41 1 / 2
02 1 / 2 22 1 / 2 42 1 / 2
03 1 / 2 23 1 / 2 43 1 / 2
04 1 / 2 24 1 / 2 44 1 / 2
05 1 / 2 25 1 / 2 45 1 / 2
06 1 / 2 26 1 / 2 46 1 / 2
07 1 / 2 27 1 / 2 47 1 / 2
08 1 / 2 28 1 / 2 48 1 / 2
09 1 / 2 29 1 / 2 49 1 / 2
10 1 / 2 30 1 / 2 50 1 / 2
11 1 / 2 31 1 / 2 51 1 / 2
12 1 / 2 32 1 / 2 52 1 / 2
13 1 / 2 33 1 / 2 53 1 / 2
14 1 / 2 34 1 / 2 54 1 / 2
15 1 / 2 35 1 / 2 55 1 / 2
16 1 / 2 36 1 / 2 56 1 / 2
17 1 / 2 37 1 / 2 57 1 / 2
18 1 / 2 38 1 / 2 58 1 / 2
19 1 / 2 39 1 / 2 59 1 / 2
41

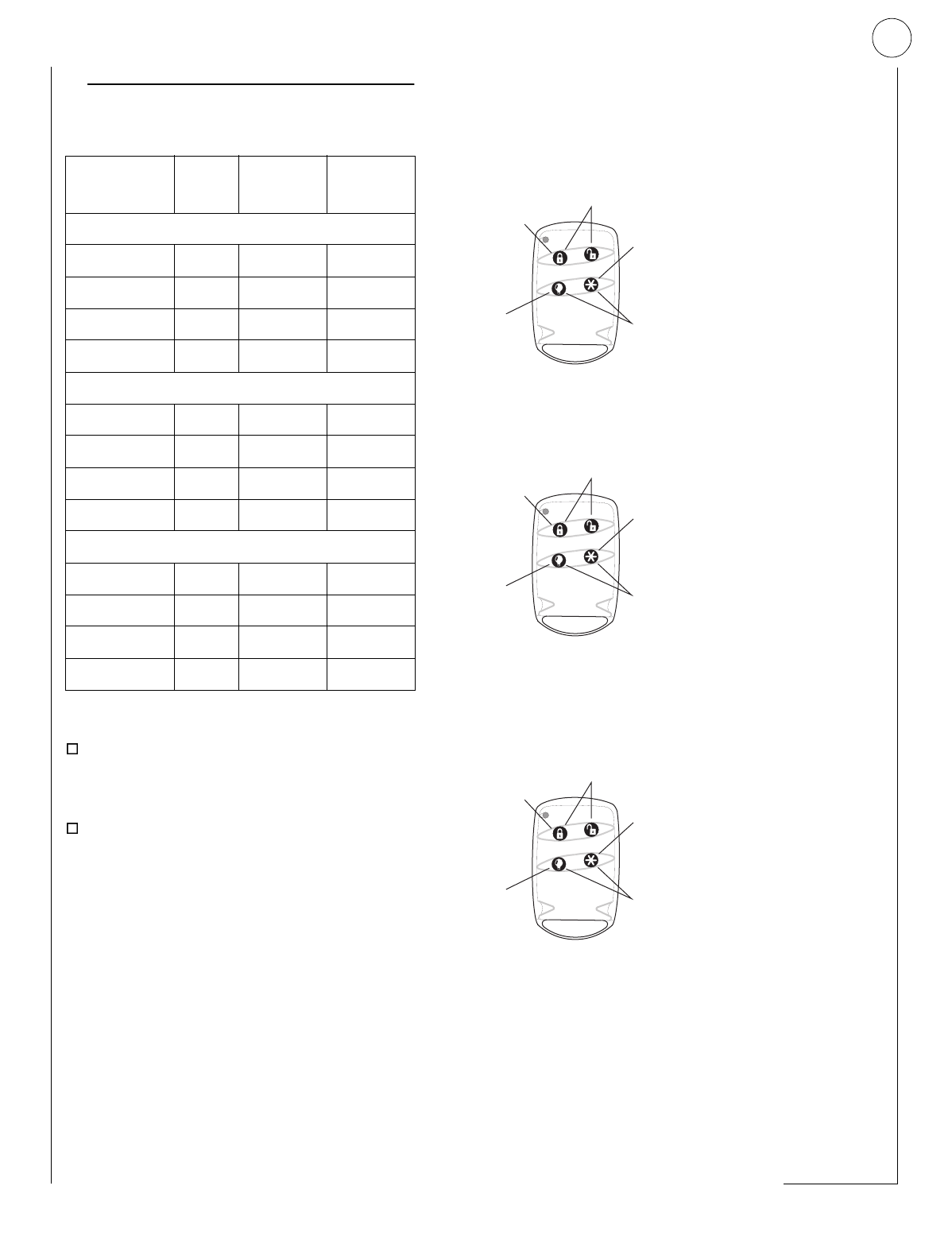

Touchpad Information
Status Beeps and Key Beeps are programmable by
the installer. Silent Arming is user–programmable.
Is Touchpad Tamper feature on?
Yes. If more than 40 touchpad keys are pressed
when the system asks for a code, and those key-
strokes are not part of a valid access code, a
siren will sound.
No. Multiple keypresses will not send an alarm.
There are _____ keychain touchpads in use
in the system.
Keychain Touchpad 1—Active for Partition: 1 2
Keychain Touchpad 2—Active for Partition: 1 2
Keychain Touchpad 2—Active for Partition: 1 2
Location of
TP Parti-
tion Status
Beeps Key
Beeps
Alphanumeric touchpads in system
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
LED touchpads in system
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
Wireless Handheld touchpads in system
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
1 / 2 On/Off On/Off
P re ssin g th is
key controls
a ll lig h ts .
P re ssin g th is
key triggers
_____________________
P re ss b o th a t o n e tim e to :
¨ C reate an A uxiliary
panic alarm .
P re s s th e L O C K k e y to :
¨ In c re a s e th e
a rm in g le v e l.
¨
A rm the system to
Level 3 w ith no
Exit or
Entry delay.
P re ss b o th a t o n e tim e to :
¨ C reate a panic alarm .
¨ _________________________
P re ssin g th is
key controls
a ll lig h ts .
P re ssin g th is
key triggers
_____________________
P re ss b o th a t o n e tim e to :
¨ C reate an A uxiliary
panic alarm .
P re s s th e L O C K k e y to :
¨ In c re a s e th e
a rm in g le v e l.
¨
A rm the system to
Level 3 w ith no
Exit or
Entry delay.
P re ss b o th a t o n e tim e to :
¨ C reate a panic alarm .
¨ _________________________
P re ssin g th is
key controls
a ll lig h ts .
P re ssin g th is
key triggers
_____________________
P re ss b o th a t o n e tim e to :
¨ C reate an A uxiliary
panic alarm .
P re s s th e L O C K k e y to :
¨ In c re a s e th e
a rm in g le v e l.
¨
A rm the system to
Level 3 w ith no
Exit or
Entry delay.
P re ss b o th a t o n e tim e to :
¨ C reate a panic alarm .
¨ _________________________
42
42
Arming Information
Is Quick Arm on?
Yes. Simply press the arming level desired.
Active for partition: 1 2
No. Enter arming level, then access code.
The Delay door(s) is located:
________________________________________
________________________________________
________________________________________
Partition 1 Entry Delay is set for
_________ seconds.
Partition 1 Exit Delay is set for
_________ seconds.
Partition 2 Entry Delay is set for
_________ seconds.
Partition 2 Exit Delay is set for
_________ seconds.
Does Partition 1 use keyswitch arming?
Yes. The switch is located:
________________________________________
________________________________________
No.
Is Extended Delay in use?
Yes. My system uses the Extended Delay.
The Extended Delay is set for _____________ .
These items use the Extended Delay:
________________________________________
________________________________________
________________________________________
________________________________________
No. My system does not use the Extended
Delay.
Dialer Abort
Is the Dialer Abort feature enabled?
Yes. I have ____ seconds to cancel an
accidental intrusion or auxiliary alarm before it
is reported to the central station.
No. All alarms are reported to the central sta-
tion immediately.
Time Schedules
Start/Stop
Time MTWThF SSu
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
43
Paging
For what events will the central station or pagers be
notified?
Lights
The housecode for the X-10 modules is:
Partition 1: __________
Partition 2: __________
Record the location of each light.
Wireless Interior Sirens
The housecode for the
wireless interior sirens is: _____.
Is the wireless interior siren supervised?
Yes. I’ll get a “Sensor nn OK” message on
alphanumeric touchpads when I test it.
No. No touchpad message will appear.
Energy Saver
The low setpoint is currently set for _____ degrees.
The high setpoint is currently set for _____ degrees.
If the Power Goes Out
Your system has a backup battery that keeps your
system operational during a power failure. An
optional feature allows your system to alert the cen-
tral monitoring station if the power is off for more
than 15 minutes. It reports again when power has
been restored.
Simply press the arm button to arm the system.
Press the disarm button to disarm the system.
(Pressing both at the same time sends a panic signal
to the central monitoring station.)
Resetting Smoke Detectors
After an alarm, wireless smoke detectors automati-
cally reset themselves after all smoke has cleared.
CS
1CS
2CS
3
Pagers
Reporting
Features 12345
High
Level
Reports
Low Level
Reports
Opening/
Closing
Reports
Latchkey
Reports N/A N/A N/A
Exception
Reports
Stream-
lining N/A N/A N/A
Partition N/A N/A N/A
Light Parti-
tion Location of Light
1 1 / 2
2 1 / 2
3 1 / 2
4 1 / 2
5 1 / 2
6 1 / 2
7 1 / 2
8 1 / 2
9 1 / 2
Siren
Sensor No. Location
of Siren Super-
vised
1Yes/No
2Yes/No
3Yes/No
4Yes/No
5Yes/No
6Yes/No
44
44
No Activity Time
My system uses the No Activity feature.
Yes. If there is no activity in my system for ____
hours (12-99, default 24), the system will send a
No Activity report to the Central Station.
No. My system setup does not include this
feature.
Resetting the Smoke Detector
To reset the smoke detectors:
It is reset automatically.
Press the reset switch.
System Information
System Information Code
Factory code
System number
System level
45
APPENDIX B:
PLANNING FOR EMERGENCIES
Develop plans for a variety of emergency situations.
Periodically discuss and rehearse emergency plans
that include the following:
• Understand how to use your security system.
• Know the normal state of doors and windows;
open, closed, or locked.
• Use a different escape route if closed doors feel
hot to the touch.
• Emphasize that everyone should escape as
quickly as possible. Do not stop to gather any
belongings.
• Crawl and hold your breath as much as possible
to help reduce smoke inhalation during your
escape.
• Meet at a designated outdoor location.
• Emphasize that no one should return to the pre-
mises if there is a fire.
• Notify fire department from a neighbor’s phone.
WARNING! If you arrive at the premises and hear
sirens, do not attempt to enter the
building. Call for emergency assis-
tance from a neighbor’s phone.

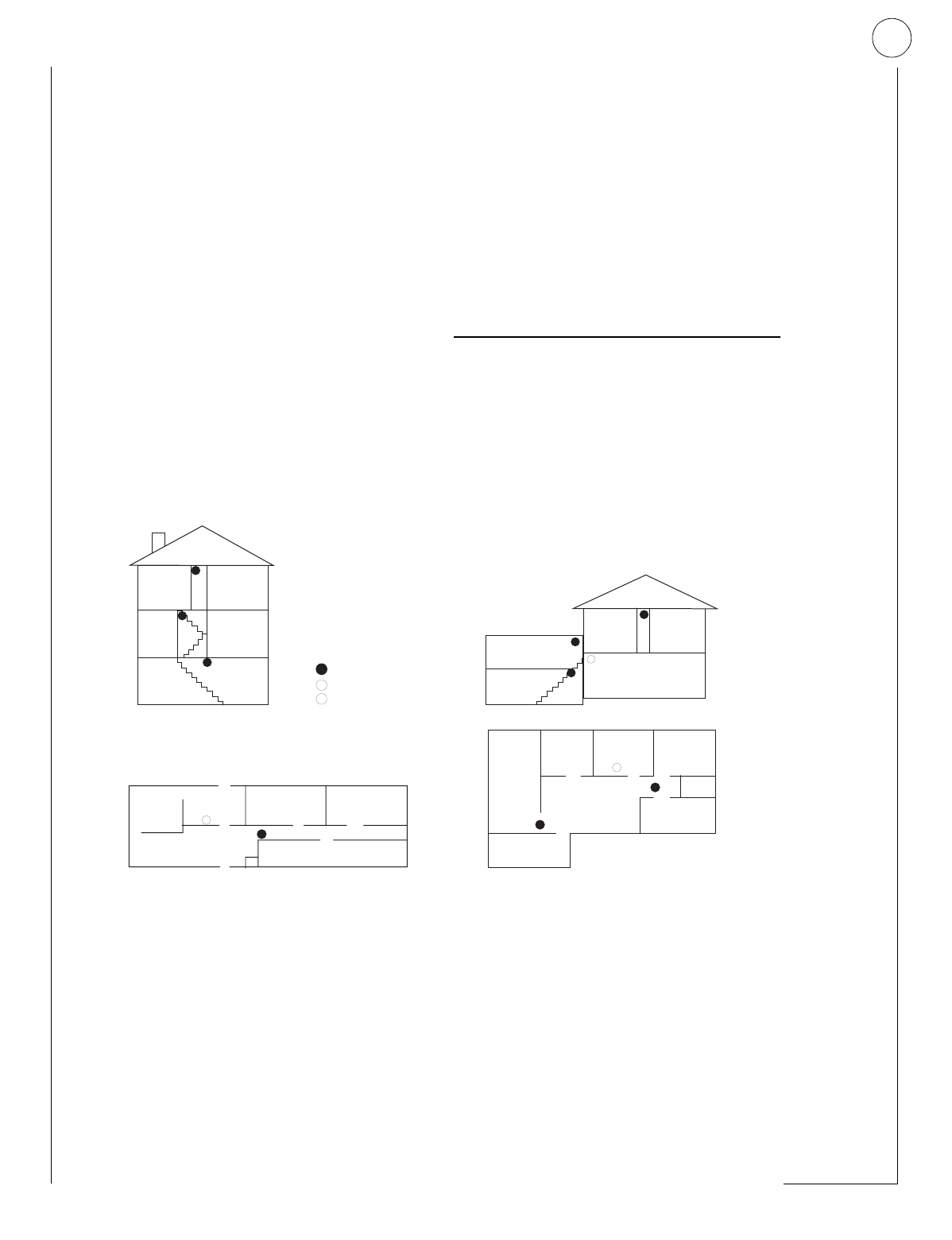

Floor Plan Example
The figure below is an example of a multilevel floor
plan. Use this example as a guide and draw your
floor plan on the next page.
Living
Room
D ining
Room
Basem ent
x
H
Hall
Bedroom Bedroom
Living
Room Recreation
Room
Basem ent
Hall
Bedroom Bedroom
Living
Room
D ining
Room
Hall
Bedroom Bedroom
Bedroom
Kitchen
A sm oke detector should
be located on each level.
Sm oke detectors should be located betw een the
sle e p in g a re a a n d th e re st o f th e fa m ily liv in g u n it.
N O TE: D o not install sm oke detectors w here norm al am bient tem peratures are above
100°F or below 40°F. A lso, do not locate detectors in front of AC / H eat
re g iste rs o r o th e r lo c a tio n s w h e re n o rm a l a ir c irc u la tio n w ill k e e p sm o k e
fro m e n te rin g th e d e te c to r.
N O TE: A dditional inform ation on household fire w arning is available at nom inal
cost from : The N ational Fire Protection Association, Batterym arch Park,
Q uincy, M A 02269. Request Standard N o. N FPA74.
H
X
Living
Room
Bedroom
Bedroom
Bedroom
D ining
Room Kitchen
TV
Room
In fam ily living units w ith m ore than one sleep-
ing area, locate a sm oke detector at each area.
H
N O TE: C eiling-m ounted sm oke detectors should be located in the center of the room
o r h a ll, o r n o t le ss th a n 4 in c h e s fro m th e w a ll. W h e n th e d e te c to r is m o u n te d
on the w all, the top of the detector should be 4 to 12 inches from the ceiling.
Required sm oke detector
Heat detector
Indicates sm oke detector
is optional if door is not
provided betw een basem ent
and recreation room s.
46
46
Your Floor Plan
Use the following guidelines when drawing your
floor plan:
Show all building levels.
Show exits from each room
(two exits per room are recommended).
Show the location of all security system compo-
nents.
Show the locations of any fire extinguishers.
47
Alarm System Limitations
Not even the most advanced alarm system can
guarantee protection against burglary, fire, or envi-
ronmental emergencies. All alarm systems are sub-
ject to possible compromise or failure-to-warn, for a
variety of reasons including:
• If sirens are not placed within range of persons
sleeping, in remote areas of the premises, or if
they are placed behind doors or other obstacles.
• If intruders gain access through unprotected entry
points or areas where sensors are bypassed.
• If intruders have the technical means of bypass-
ing, jamming, or disconnecting any or all parts of
the system.
• If power to sensors is disconnected or inade-
quate.
• If freeze, flood, or any environmental sensors are
not located in areas where the specific condition
can be detected.
• If smoke does not reach a smoke sensor. For
example, smoke sensors cannot detect smoke in
chimneys, walls, roofs, or smoke blocked by a
closed door. Sensors may not detect smoke on
building levels different from their installed loca-
tion. Sensors may not warn in time when fires are
caused by smoking in bed, explosions, improper
storage of flammables, overloaded electrical cir-
cuits, or other hazardous conditions.
• If telephone lines are out of service. Telephone
lines are also vulnerable to compromise by any of
several means.
Inadequate maintenance is the most common
cause of alarm failure. Therefore, test your system
once each week to verify sensors, sirens, and phone
communications are all working correctly.
Note Although having an alarm system can make
you eligible for reduced insurance premi-
ums, the system is no substitute for insur-
ance.
WARNING! Security systems and devices cannot
compensate you for life or property
losses.
If Your System Needs Service
If you have any questions about your security sys-
tem or if it ever needs servicing, please contact your
security dealer.
Company Name _____________________________
Address ____________________________________
City _______________ State _____ Zip __________
Phone Number (_____) _______________________
Contact Name _______________________________
48
48
49
APPENDIX C:
SHORTCUTS TO USER
PROGRAMMING
This section describes how to program your system
using numbered shortcuts. These shortcuts are nec-
essary if you’re entering User Programming from a
Touchtone phone or an LED touchpad. The short-
cuts will work with alphanumeric touchpads as well,
if you do not wish to use A or B to scroll through
the programming menus.
Remember, you must use the System Master or the
Partition Master code of the current partition to get
into User Programming,
50
1. Enter User Programming.
Local Phone ƒ + 9 + CODE
Remote Phone Access Dial the phone number +
ƒ + CODE + ƒ + 9 + CODE
Alphanumeric or LED Touchpad 9 + CODE
2. Enter a programming command sequence.
Regular User Codes User 00: ‚ + 0000 + NNNN + ƒ
User 01: ‚ + 0001 + NNNN + ƒ
User 02: ‚ + 0002 + NNNN + ƒ
(Continues through User 42)
User 42: ‚ + 1059 + NNNN + ƒ
Partition Master Codes Partition 1: ‚ + 010 + NNNN + ƒ
Partition 2: ‚ + 011 + NNNN + ƒ
System Master Code ‚ + 020 + NNNN +ƒ
Time ‚ + 10 + TTTT + ƒ
Date ‚ + 11 + DDMMYY + ƒ
Time Schedule 0 Start Time: ‚ + 2000 + TTTT + ƒ
Stop Time: ‚ + 2001 + TTTT + ƒ
Mon: ‚ + 2002 + 1 or 2 + ƒ
Tues: ‚ + 2003 + 1 or 2 + ƒ
Wed: ‚ + 2004 + 1 or 2 +ƒ
Thurs: ‚ + 2005 + 1 or 2 +ƒ
Fri: ‚ + 2006 + 1 or 2 +ƒ
Sat: ‚ + 2007 + 1 or 2 + ƒ
Sun: ‚ + 2008 + 1 or 2 + ƒ
Time Schedule 1 Start Time: ‚ + 2010 + TTTT + ƒ
Stop Time: ‚ + 2011 + TTTT + ƒ
Mon.: ‚ + 2012 + 1 or 2 + ƒ
through
Sun: ‚ + 2018 + 1 or 2 + ƒ
Time Schedule 2 Start Time: ‚ + 2020 + TTTT + ƒ
Stop Time: ‚ + 2021 + TTTT + ƒ
Mon: ‚ + 2022 + 1 or 2 + ƒ
through
Sun: ‚ + 2028 + 1 or 2 + ƒ
Time Schedule 3 Start Time: ‚ + 2030 + TTTT + ƒ
Stop Time: ‚ + 2031 + TTTT + ƒ
Mon: ‚ + 2032 + 1 or 2 + ƒ
through
Sun: ‚ + 2038 + 1 or 2 + ƒ
1
2
= O ff
= O n
51
Time Schedule 4 Start Time: ‚ + 2040 + TTTT + ƒ
Stop Time: ‚ + 2041 + TTTT + ƒ
Mon: ‚ + 2042 + 1 or 2 + ƒ
through
Sun: ‚ + 2048 + 1 or 2 + ƒ
Time Schedule 5 Start Time: ‚ + 2050 + TTTT + ƒ
Stop Time: ‚ + 2051 + TTTT + ƒ
Mon: ‚ + 2052 + 1 or 2 + ƒ
through
Sun: ‚ + 2058 + 1 or 2 + ƒ
Time Schedule 6 Start Time: ‚ + 2060 + TTTT + ƒ
Stop Time: ‚ + 2061 + TTTT + ƒ
Mon: ‚ + 2062 + 1 or 2 + ƒ
through
Sun: ‚ + 2068 + 1 or 2 + ƒ
Time Schedule 7 Start Time: ‚ + 2070 + TTTT + ƒ
Stop Time: ‚ + 2071 + TTTT + ƒ
Mon: ‚ + 2072 + 1 or 2 + ƒ
through
Sun: ‚ + 2078 + 1 or 2 + ƒ
Time Schedule 8 Start Time: ‚ + 2080 + TTTT + ƒ
Stop Time: ‚ + 2081 + TTTT + ƒ
Mon: ‚ + 2082 + 1 or 2 + ƒ
through
Sun: ‚ + 2088 + 1 or 2 + ƒ
Time Schedule 9 Start Time: ‚ + 2090 + TTTT + ƒ
Stop Time: ‚ + 2091 + TTTT + ƒ
Mon: ‚ + 2092 + 1 or 2 + ƒ
through
Sun: ‚ + 2098 + 1 or 2 + ƒ
Time Schedule 10 Start Time: ‚ + 2100 + TTTT + ƒ
Stop Time: ‚ + 2101 + TTTT + ƒ
Mon: ‚ + 2102 + 1 or 2 + ƒ
through
Sun: ‚ + 2108 + 1 or 2 + ƒ
Time Schedule 11 Start Time: ‚ + 2110 + TTTT + ƒ
Stop Time: ‚ + 2111 + TTTT + ƒ
Mon: ‚ + 2112 + 1 or 2 + ƒ
through
Sun: ‚ + 2118 + 1 or 2 + ƒ
Time Schedule 12 Start Time: ‚ + 2120 + TTTT + ƒ
Stop Time: ‚ + 2121 + TTTT + ƒ
Mon: ‚ + 2122 + 1 or 2 + ƒ
through
Sun: ‚ + 2128 + 1 or 2 + ƒ
Time Schedule 13 Start Time: ‚ + 2130 + TTTT + ƒ
Stop Time: ‚ + 2131 + TTTT + ƒ
Mon: ‚ + 2132 + 1 or 2 + ƒ
through
Sun: ‚ + 2138 + 1 or 2 + ƒ
2. Enter a programming command sequence.
1
2
= O ff
= O n
52
Time Schedule 14 Start Time: ‚ + 2140 + TTTT + ƒ
Stop Time: ‚ + 2141 + TTTT + ƒ
Mon: ‚ + 2142 + 1 or 2 + ƒ
through
Sun: ‚ + 2148 + 1 or 2 + ƒ
Time Schedule 15 Start Time: ‚ + 2150 + TTTT + ƒ
Stop Time: ‚ + 2151 + TTTT + ƒ
Mon: ‚ + 2152 + 1 or 2 + ƒ
through
Sun: ‚ + 2158 + 1 or 2 + ƒ
Latchkey Opening Attaching schedules for Latchkey Opening operation:
Sched 1: ‚ + 30001 + 1 or 2 + ƒ
Sched 2: ‚ + 30002 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30015 + 1 or 2 + ƒ
Latchkey Closing Attaching schedules for Latchkey Closing operation:
Sched 1: ‚ + 30100 + 1 or 2 + ƒ
Sched 2: ‚ + 30102 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30115 + 1 or 2 + ƒ
Exception Opening Attaching schedules for Exception Opening operation:
Sched 0: ‚ + 30200 + 1 or 2 + ƒ
Sched 1: ‚ + 30202 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30215 + 1 or 2 + ƒ
Exception Closing Attaching schedules for Exception Closing operation:
Sched 1: ‚ + 30300 + 1 or 2 + ƒ
Sched 2: ‚ + 30302 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30315 + 1 or 2 + ƒ
Light 1 Attaching schedules for Light 1 operation:
Sched 1: ‚ + 30400 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30415 +1 or 2 +ƒ
Light 2 Attaching schedules for Light 2 operation:
Sched 1: ‚ + 30500 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30515 + 1 or 2 + ƒ
Light 3 Attaching schedules for Light 3 operation:
Sched 1: ‚ + 30600 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30615 + 1 or 2 + ƒ
Light 4 Attaching schedules for Light 4 operation:
Sched 1: ‚ + 30700 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30715 + 1 or 2 + ƒ
2. Enter a programming command sequence.
53
Light 5 Attaching schedules for Light 5 operation:
Sched 1: ‚ + 30800 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30815 + 1 or 2 + ƒ
Light 6 Attaching schedules for Light 6 operation:
Sched 1: ‚ + 30900 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 30915 + 1 or 2 + ƒ
Light 7 Attaching schedules for Light 7 operation:
Sched 1: ‚ + 31000 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 31015 + 1 or 2 + ƒ
Light 8 Attaching schedules for Light 8 operation:
Sched 1: ‚ + 31100 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 31115 + 1 or 2 + ƒ
Light 9 Attaching schedules for Light 9 operation:
Sched 1: ‚ + 31200 + 1 or 2 + ƒ
(Continues through Schedule 15)
Sched 15: ‚ + 31215 + 1 or 2 + ƒ
Downloading ‚ + 40 + 1 or 2 + ƒ
Silent Arming ‚ + 41 + 1 or 2 + ƒ
Touchpad Brightness ‚ + 42 + N + ƒ
(enter 0 through 3)
Volume ‚ + 43 + N + ƒ
(enter 0 through 7)
Voice Chime ‚ + 44 + 1 or 2 +ƒ
Factory Code ‚ + 50
System Number ‚ + 51
System Level ‚ + 52
Energy Saver Setpoints
Low: ‚ + 60 + NN +ƒ
High: ‚ + 61 + NN + ƒ
(enter temperature value in Fahrenheit)
2. Enter a programming command sequence.
3. Exit programming.
From any touchpad: ‚ + 7 + ƒ
54
The figure below illustrates the User Programming
menu, which you might find useful as you navigat-
ing through the menu. Shortcut numbers appear
for each item.
#
*
#
*
#
*
#
*
#
BA BA
BA BA
BA BA
BA BA
BA BA
BA BA
BA BA
BA BA
# # #
**
A
B
#
*
Set Up Schedules
Wednesday
On/Off
4
Thursday
On/Off
5
Schedule 00
Start Time
*
0
0
Stop Time
1
Monday
On/Off
2
Tuesday
On/Off
3
Saturday
On/Off
7
Sunday
On/Off
8
Friday
On/Off
6
Wednesday
On/Off
Thursday
On/Off
Schedule 15
Start Time
*
15
Stop Time
Monday
On/Off
Tuesday
On/Off
Saturday
On/Off
Sunday
On/Off
Friday
On/Off
A
B
#
*
3
Latchkey
Opening
Schedule 00
On/Off
00
A
B
Latchkey
Closing
Schedule 01
On/Off
01
Schedule 02
On/Off
02
Schedule 15
On/Off
15
#
*
BA
#
Time
Date
Time &
Date
1
0
10
1
2
3
4
5
7
8
6
Schedule 00
On/Off
00
Schedule 01
On/Off
01
Schedule 02
On/Off
02
Schedule 15
On/Off
15
00 01
Schedules
01 – 14
Schedules
03 – 14
#
*
Schedules
03 – 14
2
A
B
BA
# #
A
B
BA
Regular Partition
Master System
Master
User 00
User 01
012
#
*
#
***
User Codes
0
System
Master
A
B
00
01
00
Codes 02 – 53
To enter the Programming Menu, press
+ System Master or Partition Master Code
9
00
Partition
Code
Partition Code
of current partition
A
B
A
B
Attach Schedules to Events
This appears if
the System
Master code was
used to enter
User Programming
BA
BA
BA
BA
BA
User 59
User 57
User 58
User 56
User 55
User 54
54
55
56
57
58
59
55
#
*
#
*
#
*
#
*
#
*
#
*
#
*
#
*
#
*
###### ##
A
B
A
B
A
B
A
B
A
B
A
B
A
B
Exception
Opening
Exception
Opening Exception
Closing Light
1Light
9
#
*
Options
BA
BA
BA
Down-
loading
Silent
Arming
#
*
0
1
Touchpad
Brightness
2
Volume
3
Voice
Chime
4
System
Version
#
*
Energy
Saver
Low
Setpoint
High
Setpoint
#
*
0
1
Exit Program-
ming
7
A
B
Schedule 00
On/Off
00
Schedule 01
On/Off
01
Schedule 02
On/Off
02
Schedule 12
On/Off
12
Schedule 00
On/Off
00
Schedule 01
On/Off
01
Schedule 02
On/Off
02
Schedule 00
On/Off
00
Schedule 01
On/Off
01
Schedule 02
On/Off
02
Schedule 00
On/Off
00
Schedule 01
On/Off
01
Schedule 02
On/Off
02
02 03 04 12
Lights
2 – 8
#
*
Schedules
03 – 11
#
*
Schedules
03 – 11
#
*
Schedules
03 – 11
#
*
Schedules
03 – 11
654
These options
appear only if
a Phone Interface
and Voice Module
is installed in the
current partition
#
*
BA
Factory
Code
System
Number
#
*
0
1
System
Level
2
Attach Schedules to Events
A
B
3
Press B to
return to
start of
Programming
Menu.
#
*
#
*
Schedule 13
On/Off
13
Schedule 14
On/Off
14
Schedule 15
On/Off
15
#
*
Schedule 12
On/Off
12
#
*
#
*
Schedule 13
On/Off
13
Schedule 14
On/Off
14
Schedule 15
On/Off
15
#
*
Schedule 12
On/Off
12
#
*
#
*
Schedule 13
On/Off
13
Schedule 14
On/Off
14
Schedule 15
On/Off
15
#
*
Schedule 12
On/Off
12
#
*
#
*
Schedule 13
On/Off
13
Schedule 14
On/Off
14
Schedule 15
On/Off
15
56
Index
Numerics
24-hour time 16
A
AC Power Fail Reports 20
access codes, description 4
accessing the system from off-site 30
accidental alarms, cancelling 6
account number 20
adjusting
touchpad display 18
volume of Supervised Wireless Siren 17
advanced light control 22
alarms, cancelling 6
arming
levels 7
lighting during 22
to Level 2-STAY 8
while a door or window is open 10
with No Delay 10
attributes
given via ITI ToolBox 14
jumping partitions 29
Latchkey 24
remote access to system via phone 30
sensor test 32
Auto Phone Test Reports 20
automatic test features 32
auxiliary alarm ii
Auxiliary panic alarm
activating 14
lighting during 14
sound of 13
Auxiliary Panic Reports 20
B
basic light control 11
brightness, adjusting on touchpad 18
Bus Failure Reports 20
Bypass Sensor Reports 20
bypassing sensors
checking if successful 11
directly 10
indirectly 11
C
cancelling accidental alarms 6
cellular phones 6
changing user codes 15
checking the system 12
Chime feature 5, 17
Closing Reports 20
codes
jumping partition attribute 29
remote access 31
remote access attribute 30
sensor test attribute 32
codes, pager 20
communication test 34
consecutive days, scheduling 21
CPU Back in Service Reports 20
CPU Low Battery Reports 20
D
date, setting system 16
Dialer Abort 6, 42
disarming
and lighting during 22
the system 7
to Level 1-OFF 7
disengaging local phone control 32
door/window sensors, testing 33
Download feature 28
downloading software 14
Duress Alarm Reports 20
E
Energy Saver feature 19, 29
entering Test Mode 33
Entry Delay
beeps 5
description 9
lighting during 22
erasing user codes 15
Event Buffer Full Reports 20
Exit Delay
beeps 5
description 9
lighting during 22
time 6
F
Factory Code 28
false alarms 32
features
Chime 5, 17
Dialer Abort 6, 42
Download 28
Energy Saver 29
Key Beeps 5
Latchkey 29
Latchkey Paging 21
light control 21
No Activity 28
No Delay 10
Notify by Exception 21, 29
Quick Arming 9
Silent Arming 16
Streamlining 20
Touchpad Tamper 15
Voice Chime 31
fire alarm ii
Fire panic
alarm 13
lighting during 13
Reports 20
Freeze Alarm Reports 20
freeze sensor 34
Freeze Trouble Reports 20
Full System Status 12
G
garage door openers 6
glass guard sensor 33
global settings 29
H
ham radios 6
High Level Reports 20
Hi-Tech Wireless Handheld touchpad 4
I
ITI ToolBox 14
J
jumping partitions 29
K
Key Beeps feature 5
keychain touchpads
arming to Level 2 8
disarming to Level 1 7
testing 33
keyswitch arming 4
L
Latchkey feature 29
Latchkey Reports 20
Latchkey-designated users 24
Level 1-OFF
from a Touchtone phone ii, 31
from an alphanumeric or LED touchpad 7
with a keychain touchpad 7
Level 2-STAY
from a Touchtone phone ii, 31
from an alphanumeric or LED touchpad 8
with a keychain touchpad 8
Level 3-AWAY
from a Touchtone phone ii, 31
from an alphanumeric or LED touchpad 8
with a keychain touchpad 8
light contro
by time schedule 22
light control
advanced 11
available per partition 29
basic 11
local phone access 31
Low Battery Reports 20
Low Level Reports 20
M
manual test features 32
motion detectors, testing 33
Multiple Day Rollover 21
N
No Activity Alarm Reports 20
No Activity feature 28
No Delay feature
description 10
from a Touchtone phone ii, 31
Notify by Exception feature 29
Notify by Exception Reports 20
O
One Day Rollover 21
opening doors or windows 10
Opening Reports 20
P
pager codes 20
pager reports, streamlining 20
panic alarms 13
panic buttons, testing 33
partioned systems
jumping partitions 29
Partition Master code
privileges 15
Partition Master codes 29
partitioned systems
programming 29
partitions 20, 22
partition-specific settings 29
phone access 31
Phone Command Prefix 30
phone control
local
controlling the system while using the
phone 32
disengaging from system to conduct
other phone operations 32
sending a Police alarm 31
remote
accessing the system 30
Phone Failure Reports 20
Phone Failure Trouble 36
Phone Interface and Voice Module 33
phone test 34
Phone Test Reports 20
police alarm ii
Police panic alarm
activating from a keychain touchpad 13
activating from an alphanumeric or LED
touchpad 13
lighting during 13
sending from a Touchtone phone 31
sound 13
Police Panic Reports 20
preventing accidental alarms 6
Protest beeps 5
Q
Quick Arming feature 9
R
Rate-of-Rise Heat Detector 33
Receiver Failure Reports 20
Receiver Jam Reports 20
Regular User codes 15
remote phone access 13, 31
resetting smoke detectors 13
Restoral Reports 20
Ring-Hang-Ring method 30
S
scheduled light control 11
Sensor Alarm Reports 20
Sensor test beeps 5
sensor test, conducting a 32
sensors
bypassing directly 10
bypassing indirectly 11
setting the system time and date 16
shock sensor 33
Short System Status 12
Silent Arming 29
arming always silent 16
silent on demand 16
siren time-out 14
sirens, wireless 17
smoke detectors
resetting 13
testing 33
speaker volume 29
Status beeps 5, 17
status, checking the system 12
streamlining pager reports 20
Supervised Wireless Siren
adjusting the volume 17
testing 34
Supervisory Reports 20
System Level 28
System Master Code 14, 15
System Status 12
system tamper prevention 15
System Version 28
T
Tamper Reports 20
television remote controls 6
Tem 3 fire alarm 13
temperature range, setting 19
Test Mode
entering 33
exiting 34
testing the system 32
time schedules 29
assigning for advanced lighting 22
assigning for Latchkey paging 25
assigning for Notify by Exception 26
creating 21
Multiple Day Rollover 21
One Day Rollover 21
scheduling consecutive days 21
using with partitioned systems 22
time, setting system 16
time-out for sirens 14
ToolBox downloading software 14
Touchpad Low Battery Reports 20
Touchpad Tamper feature 15
Touchpad Tamper Reports 20
touchpads
adjusting display brightness 18
testing 33
wireless 4
trouble beeps 5, 32
trouble condition 12
Trouble Reports 20
troubleshooting 32
turning off local phone control 32
Twelve-Ring method to access system re-
motely 30
U
user codes
changing 15
different types 14
erasing 15
giving attributes 14
Latchkey-designated 24
V
Voice Chime feature 31
volume, adjusting Supervised Wireless Siren
17
W
window sensors, testing 33
wireless
siren 17
touchpad 4
Notices
FCC Notices
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Install a quality radio or television outdoor antenna if the indoor antenna is not adequate.
• Reorient or relocate the panel.
• Move the panel away from the affected equipment.
• Move the panel away from any wire runs to the affected equipment.
• Connect the affected equipment and the panel to separate outlets, on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
• Send for the FCC booklet How to Identify and Resolve Radio-TV Interference Problems, available from the U.S. Government
Printing Office, Washington, D.C. 20402. Stock Number: 004-000-00345-4.
Changes or modifications not expressly approved by Interactive Technologies, Inc. can void the user’s authority to operate the
equipment.
This equipment complies with part 68 of the FCC rules. On the FCC label affixed to this equipment is the FCC Registration
Number and Ringer Equivalence Number (REN) for this equipment. If requested, provide this information to your telephone
company.
The REN is used to calculate the maximum number of devices your telephone line will support with ringing service. In most
areas the sum of all device RENs should not exceed 5.0. Contact your local telephone company to determine the maximum
REN for your calling area.
If your telephone equipment causes harm to the telephone network, your telephone company may temporarily disconnect your
service. If possible, you will be notified in advance. When advance notice is not practical, you will be notified as soon as possi-
ble. You will also be advised of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper
operation of your equipment. You will be given advanced notice in order to maintain uninterrupted service. The telephone
company may ask you to disconnect this equipment from the network until the problem has been corrected or until you are
sure that the equipment is not malfunctioning. This equipment may not be used on coin service provided by the telephone com-
pany. Connection to party lines is subject to state tariffs.
Declaration of Conformity (DoC)
Interactive Technologies, Inc. declares that the ITI model no. 60-792-95R is in conformity with Part 15 of the FCC Rules. Opera-
tion of this product is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Canada Notice
The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment
meets certain telecommunications network protective, operational, and safety requirements. The department does not guaran-
tee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecom-
munications company. The equipment must also be installed using an acceptable method of connection. In some cases, the
company’s inside wiring associated with a single-line individual service may be extended by means of a certified connector
assembly (telephone extension cord). The customer should be aware that compliance with the above conditions may not pre-
vent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any
repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications com-
pany cause to request the user to disconnect the equipment.
For your protection, make sure that the electrical ground connections of the power utility, telephone lines, and internal metallic
water pipe system, if present, are connected together.
Caution
Do not attempt to make connections yourself. Contact the appropriate electrician or electric inspections authority.
The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a tele-
phone loop that is used by the device to prevent overloading. The termination on a loop may consist of any combination of
devices subject only to the requirement that the total of the LNs of all the devices does not exceed 100. Load Number: 0.2B
AC.
“AVIS: - L étiquette du ministère des Communications du Canada identifie le matériel homologué. Cette étiquette certifie que
le matériel est conforme a certaines normes de protection, d´exploitation et de sécurité des réseaux de télécommunications.
Le ministère n´assure toutefois pas que le matériel fonctionnera a la satisfaction de l´utilisateur.
Avant d´installer ce matériel, l´utilisateur doit s´assurer qu´il est permis de le raccorder aux installations de l´enterprise locale
de télécommunication. Le matériel doit également etre installé en suivant une méthod acceptée de raccordement. Dans cer-
tains cas, les fils intérieurs de l´enterprise utilisés pour un service individuel a ligne unique peuvent etre prolongés au moyen
d´un dispositif homologué de raccordement (cordon prolongateur téléphonique interne). L´abonné ne doit pas oublier qu´il
est possible que la conformité aux conditions énoncées ci-dessus n´empechent pas le dégradation du service dans certaines
situations. Actuellement, les enterprises de télécommunication ne permettent pas que l´on raccorde leur matériel a des jacks
d´abonné, sauf dans les cas précis prévus pas les tarrifs particuliers de ces enterprises.
Les réparations de matériel homologué doivent etre effectuées pas un centre d´entretien canadien autorisé désigné par le
fournisseur. La compagne de télécommunications peut demander a l´utilisateur de débrancher un appareil a la suite de rép-
arations ou de modifications effectuées par l´utilisateur ou a cause de mauvais fonctionnement.
Pour sa propre protection, l´utilisateur doit s´assurer que tous les fils de mise a la terre de la source d´énergie électrique, des
lignes téléphoniques et des canalisations d´´ eau métalliques, s´ il y en a, sont raccordés ensemble. Cette précaution est par-
ticulièrement importante dans les régions rurales.
Avertissment. - L´utilisateur ne doit pas tenter de faire ces raccordements lui-meme; il doit avoir recours a un service d´inspec-
tion des installations électriques, ou a electricien, selon le cas”.
Une note explicative sur les indices de charge (voir 1.6) et leur emploi, a l´intention des utilisateurs du matériel terminal, doit
etre incluse dans l´information qui accompagne le materiel homologué. La note pourrait etre rédigée selon le modèle suiv-
ant:
“L´indice de charge (IC) assigné a chaque dispositif terminal indique, pour éviter toute surcharge, le pourcentage de la charge
totale qui peut etre raccordée a un circuit téléphonique bouclé utilisé par ce dispositif. La terminaison du circuit bouclé peut
etre constituée de n´import somme des indices de charge de l´ensemble des dispositifs ne dépasse pas 100.”
L ´ Indice de charge de cet produit est ____________.
Trademarks
ITI is a registered trademark of Interactive Technologies, Inc. Concord, SuperBus, SnapCard, and ToolBox are trademarks of
Interactive Technologies, Inc. X-10 is a registered trademark of X-10 (USA), Inc.
This manual may refer to products that are announced but are not yet available.
651/777-2690
651/779-4890
© 1998 Interactive Technologies, Inc.
ITI is a registered trademark of Interactive Technologies, Inc.
Concord is a trademark of Interactive Technologies, Inc.
Specifications are subject to change. Some features are optional.
For reprints, order manual 466–1513.

Navigation menu
