F28379D controlCARD (TMDSCNCD28379D)
Code Composer Studio (CCS) is a trademark of Texas Instruments.
User's Guide
SPRUI76–March 2017
F28379D controlCARD (TMDSCNCD28379D)
The Delfino F28379D controlCARD (TMDSCNCD28379D) from Texas Instruments (TI) provides a great
way to learn and experiment with the F2837x device family within TI’s C2000 family of microcontrollers
(MCUs). This 180-pin controlCARD is intended to provide a well-filtered robust design which is capable of
working in most environments. This document provides the hardware details of the F28379D controlCARD
and explains the functions, locations of jumpers, and connectors present on the board.

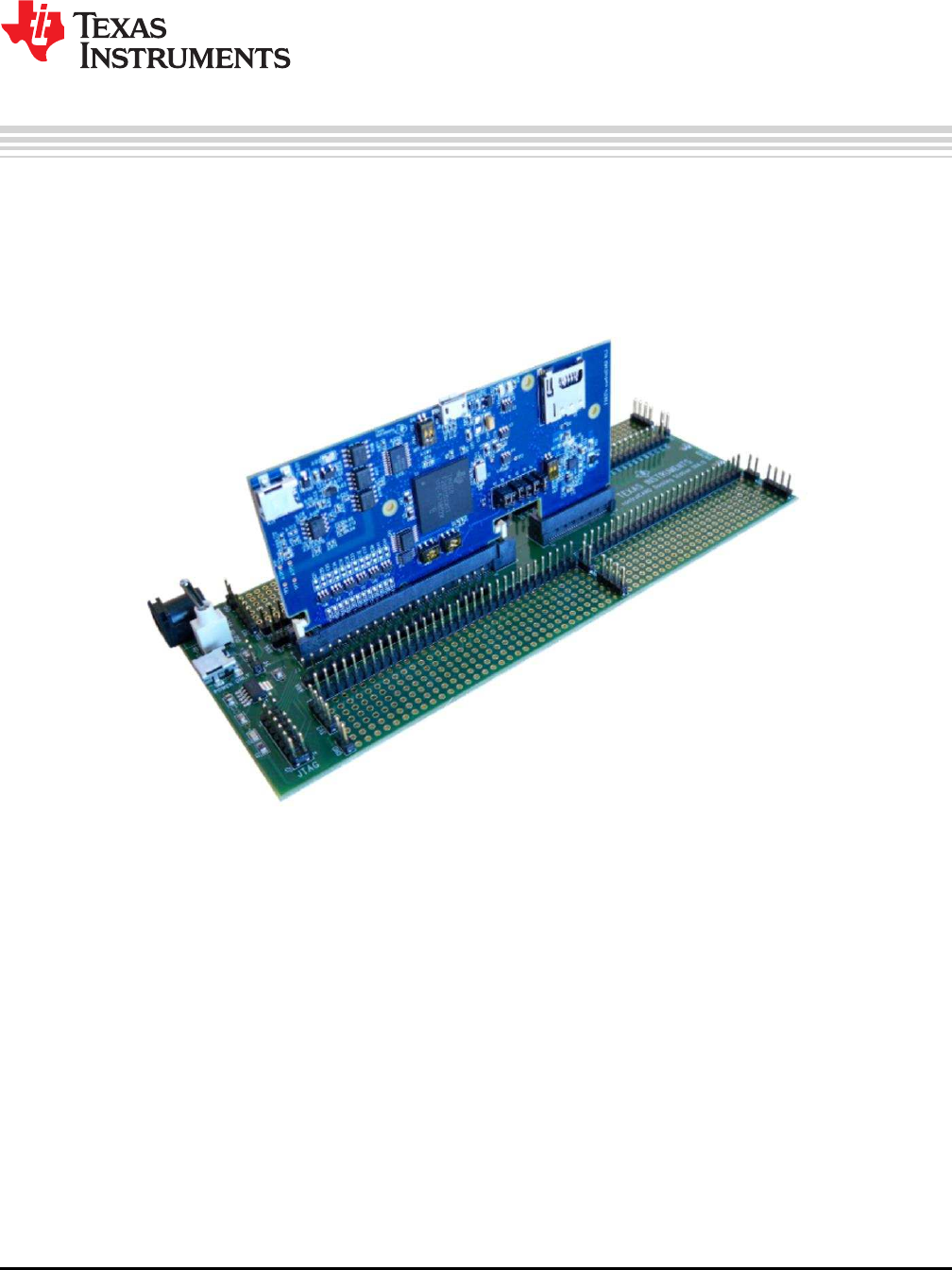

Figure 1. TMDSDOCK28379D Experimenter's Kit
1 Introduction
As of January 2016, all kits based on the F28377D MCU will now be replaced with the new F28379D
superset device. These two MCUs are identical except for the addition of the CLB on the F28379D MCU
to enable Position Manager. If the CLB is not a requirement in your application, that feature can be left
untouched and the MCU will perform like the F28377D.
Each controlCARD comes with a Hardware Developer’s Kit, a full set of files necessary to
evaluate/develop with a C2000 device. These files include:
• Schematics – Designed in Mentor PADS Logic
• Bill of Materials (BOM)
• Layout PCB files - Designed in Mentor layout
• Gerber files
![](asset-5.png)
www.ti.com
Errata
5
SPRUI76–March 2017
Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
NOTE: This kit is designed to explore the functionality of the F2837x microcontroller. Even though
the controlCARD can be treated as a good reference design, it is not intended to be a
complete customer design. Full compliance to safety, EMI/EMC, and other regulations are
left to the designer of the final customer’s system.
2 Errata
Current revision of controlCARD as of 2-Oct-2015: PCB rev - R1.3, ASSY rev - B
Note: the Letter B on the controlCARD's Serial Number sticker denotes ASSY rev – B
2.1 Warnings/Notes/Errata
Notes for all controlCARDs:
1. The F28379D controlCARD supports USB host/device connectivity. However, the micro-USB port, J8,
is not isolated from the board ground. Care should be taken when this controlCARD is being used in a
high-power application and this USB port is also being used. Note that external USB isolation buffers
may be required for these types of applications.
2. The F28379D Experimenter’s Kit ships with a USB cable and is designed to be powered via USB.
However, in extreme cases the board/controlCARD may require more power than the 5V @ 500mA a
computer’s USB port can provide (<0.01% of use cases). This is especially true when additional
circuitry has been added to the docking station.
In such cases, it is recommended to use an external 5V power supply (2.5mm inner diameter x 5.5mm
outer diameter) and plug it into J1. A compatible supply could be the: Phihong PSAC05R-050(P)-R-C2
+ Phihong RPBAG.
3. In Boot-from-SCI mode the MCU will, by default, expect GPIO84 and GPIO85 to be the IO pins
responsible for sending the program to the device. These GPIOs are different from the GPIOs which
connect to the isolated USB-to-serial interface via the FTDI chip (which uses GPIO28 and GPIO29). To
use GPIO28 and 29 instead:
(a) Change the boot mode to Get Mode and then, in your main flashed code, you can decide to call the
bootloader for SCIBoot IOOption2 (in the bootROM) always, or based on whatever is desired.
(b) Change the boot mode to Get Mode and configure the OTP such that SCIBoot IOOption2 is called.
This is really only an option if you always want to boot from SCI or Parallel GPIO, because you will
be overwriting your ability to boot from Flash.
(c) With an emulator connected (TRSTn = 1), registers can be set such that SCIBoot’s IOOption2 boot
mode is called.
See the TRM for your specific device for more information.
4. R83 on the controlCARD is populated to allow a customer to evaluate the controlCARD without a
baseboard if desired. Because R83 is populated, the controlCARD will put more capacitance on the
USB 5V supply than the USB specification allows. R83 should be removed in order to meet the
specification.
2.2 Warnings About Specific controlCARD Revisions
Warnings about R1.0a revision F28377D controlCARDs:
1. Among many other changes made, the pinout of the R1.1 F28377D controlCARD is different from the
pinout of the prerelease R1.0a controlCARDs. Please refer to the kit documentation and schematics
when porting code.
Warnings about R1.1 and earlier F28377D controlCARDs:
1. The F28377D MCU is not 5V-tolerant. Because of this, some additional protection is needed between
the USB port J8 and the MCU. In particular, resistor R72 should change from 0R0 to 100K and resistor
R74 should change from 0R0 to 10K. This will effectively limit the voltage/current received by the MCU
pin. This issue was fixed in R1.1a and later revision controlCARDs.
2. If used, the crystal X1 should be acceptable in most applications. However, it may fail under some
worst case conditions. To guarantee proper operation, please see the F28377x Silicon Errata guide.
This issue was fixed in R1.1a and later revision controlCARDs.
![](asset-6.png)
Getting Familiar with the controlCARD
www.ti.com
6SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
3. Several name changes were made to pins on the device and are now reflected in R1.1a controlCARD
documentation. No functionality was affected.
Warnings about R1.1a and earlier F28377D controlCARDs:
1. The circuitry used to drive the C2000 MCU’s voltage references is not ideal. Instead, we recommend
that users use the voltage reference driving circuitry found in the R1.3 controlCARD.
Warnings about R1.3 of F28379D controlCARD:
1. R51-R54 were mistakenly populated with 100MΩresistors instead of 100mΩresistors. With 100MΩ
resistors used, the voltage references for the ADCs may not be held adequately constant and the
accuracy/precision of ADC results may be affected during sampling/conversion. It is recommended that
customers replace R51-R54 with 100mΩ, 0603, 5% tolerance (or better) resistors. For evaluation of
the controlCARD in a lab environment, it is also acceptable to short R51-R54 using 0Ωresistors or
solder bridges; however, populating with 100mΩis preferred. Please see the following E2E post:
https://e2e.ti.com/support/microcontrollers/c2000/f/171/t/576301 .
3 Getting Familiar with the controlCARD
3.1 F28379D controlCARD Features
• Delfino F28379D Microcontroller – High performance C2000 microcontroller is located on the
controlCARD.
• 180-pin HSEC8 Edge Card Interface – Allows for compatibility with all of C2000’s 180-pin controlCARD
based application kits and controlCARDs. Compatibility with 100-pin controlCARDs can be
accomplished using the TMDSADAP180TO100 adapter card (sold separately).
• Built-in Isolated JTAG Emulation – An xds100v2 emulator provides a convenient interface to Code
Composer Studio without additional hardware. Flipping a switch allows an external JTAG emulator to
be used.
• Connectivity – The controlCARD contains connectors that allow the user to experiment with USB, a
microSD card, and isolated UART/SCI with the F2837x MCU. A hi-density connector is also provided
to experiment with external memory.
• Key Signal Breakout – Most GPIO, ADC and other key signals routed to hard gold connector fingers.
• Robust Power Supply Filtering – Single 5V input supply powers an on-CARD 3.3V LDO. All MCU
inputs are then decoupled using LC filters near the device.
• ADC Clamping – ADC inputs are clamped by protection diodes.
• Anti-Aliasing Filters – Noise filters (small RC filters) can be easily added on several ADC input pins.
3.2 Assumed Operating Conditions
This kit is assumed to run at standard room conditions. The EVM should run at approximately standard
ambient temperature and pressure (SATP) with moderate-to-low humidity.
3.3 Using the controlCARD
In order for the controlCARD to work, the controlCARD’s MCU must be powered. This is most often done
by inputting 5V through the HSEC connector via an accompanying baseboard. For example, if using a
docking station baseboard, 5VDC should be input into the docking station’s J1 or J17. Then SW1 will need
to be toggled to the appropriate position.
Optionally, the MCU could also be powered via the micro-USB connector on the controlCARD.
Based on the way the controlCARD will be used, additional hardware settings will be necessary. See
Table 1.
![](asset-7.png)
www.ti.com
Getting Familiar with the controlCARD
7
SPRUI76–March 2017
Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
Table 1. Getting Started Reference
Debug using CCS and the on-card
xds100v2 emulator Debug using CCS and an
external emulator via the
baseboard
Standalone
(Boot from FLASH or other
boot mode)
A:SW1 (controlCARD) Position 1: ON (up) Position 1: OFF (down) Position 1: OFF (down)
A:J1 (controlCARD) Connect a mini USB cable between
A:J1 and your computer. --- ---
In CCS, use this target
configuration:
TMS320F28379D device with an
xds100v2 emulator.
SW1 (controlCARD) Position 1: OFF (up)
Position 2: ON (down)
Putting the C2000 device into Wait
Mode can reduce the risk of
connectivity issues.
Position 1: OFF (up)
Position 2: ON (down)
Putting the C2000 device into
Wait Mode can reduce the risk
of connectivity issues.
Set SW1 as desired
Baseboard’s JTAG
connector
(J2 on the Docking
Station baseboard)
--- Connect an external emulator. ---
Code Composer Studio (CCS)™ is an Integrated Development Environment (IDE) used to debug and
develop software for the C2000 series of MCUs. It can be downloaded from the following link:
http://processors.wiki.ti.com/index.php/Download_CCS
For users new to C2000’s F28x7x series of devices and CCS, TI’s Technical Training Organization
provides several workshops (online and in person) that may be helpful:
http://processors.wiki.ti.com/index.php/C2000_32-bit_Real-Time_MCU_Training
http://processors.wiki.ti.com/index.php/Hands-On_Training_for_TI_Embedded_Processors
The following PDF documents are provided to describe where each of the F2837x MCU’s pins will appear
on the controlCARD connector/docking station:
• TTMDSCNCD28379D_180cCARD_pinout_R1_3 – tells where each MCU pin will go on the HSEC
controlCARD connector or the 120/180-pin controlCARD docking station.
• TMDSCNCD28379D_100DIMmap_R1_3 – tells where each MCU pin will go to on the DIM100
controlCARD connector or the DIM100 docking station. This assumes that the TMDSADAP180TO100
adapter card is used.
More information on the controlCARD docking station can be found at the following locations:
• \controlSUITE\development_kits\~controlCARDs\TMDSCNCD28379D_vX_X\
• \controlSUITE\development_kits\~ExperimentersKits\120or180pin_HSEC_DockingStn-
HWdevPkg_vX_X\
3.4 Experimentation Software
All key examples for the F28379D MCU can be found within controlSUITE at:
\controlSUITE\device_support\f2837xD\
This example software package includes many projects which allow the user to experiment with the ADC,
PWM, and other C2000 peripherals.
4 Special Notes on Connectivity
4.1 xds100v2 Emulator and SCI/UART Connectivity
The F28379D controlCARD provides emulation and USB-to-UART adapter functionality on the
controlCARD. This allows for a convenient method to debug and demo the F2837x MCU.
![](asset-8.png)
Special Notes on Connectivity
www.ti.com
8SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
Note that the FTDI chip, its support circuitry, and associated isolation components are placed in Macro A,
the left section of the controlCARD. Each of these components contains an additional A within the
component reference designator (that is, A:R2 for resistor 2 in Macro A). See Figure 2.
Each F28379D controlCARD’s xds100v2 is programmed with a fixed serial number. If a debug session
needs to involve two or more F28379D controlCARDs, each controlCARD will need to have a unique
serial number and some will need to be reprogrammed. See:
http://processors.wiki.ti.com/index.php/XDS100#Q:_Can_I_change_the_serial_number_on_my_X
DS100v2.3F
The configuration of the switches on A:SW1 determine whether the on-board emulator is active, whether
an external emulator can be used, or whether the device will boot from FLASH/peripherals. See Table 2.
Figure 2. xds100v2 Emulation circuitry and isolation circuitry is denoted by A:
4.2 External Connector – J9
External connector, J9, can be used to connect the controlCARD to another board. The ability to connect
up to EMIF2, SPI-C, I2C-A, and 2 GPIO are provided – although any peripheral mux option provided on
these GPIOs is technically possible.
Note that the GPIOs (122-125) which attach to the SPI portions of this connector, also go to the microSD
connector. At any specific time, only one should be used to avoid contention.
Note that the GPIOs (53-68) which attach to the EMIF data lines of this connector, and GPIOs (91 and 92)
which attach to the I2C portions of this connector, also go to the baseboard via the HSEC connector.
These GPIOs should either be used to connect to the baseboard OR utilized on this header to avoid
contention.
The connector which mates with J9 is the Hirose DF40HC(4.0)-60DS-0.4V(51). See Figure 3.
![](asset-9.png)
www.ti.com
Hardware References
9
SPRUI76–March 2017
Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
Figure 3. Hirose DF40HC(4.0)-60DS-0.4V(51)
5 Hardware References
Table 2 shows the various connections available on the board. Figure 4 illustrates the location of many of
these components on the board.
![](asset-a.png)
A:SW1 s,VRODWHG
Emulation and UART
Communication
Enable Switch
A:J1 s86%
Emulation/UART
Connector
J8 s86%+RVW/
Device Connector
U5 sX6'&DUG
Connector Slot
SW1 s%RRW0RGH
Switch
SW3 s$'&95()+,
Control Switch for
ADC (C and D)
SW2 s$'&95()+,
Control Switch for
ADC (A and B)
U1 s&2000 Delfino
F28379D
Microcontroller
J2-J7 s86%3+<
Connection Enable
Jumpers
Hardware References
www.ti.com
10 SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)

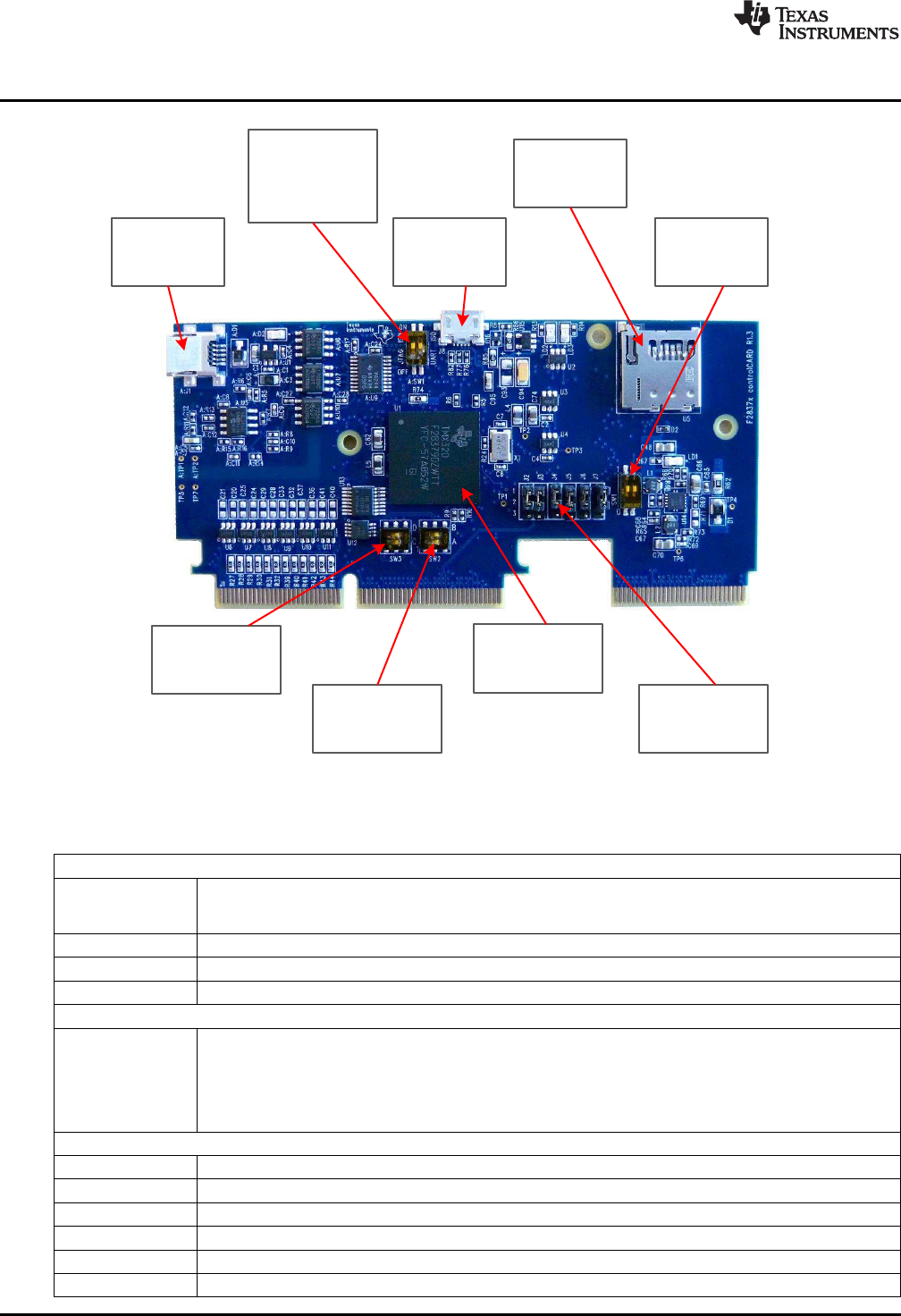

Figure 4. Key components on the controlCARD
Table 2. Hardware References
Connectors
A:J1 Emulation/UART connector - USB mini A connector used to provide xds100v2 emulation and USB-to-
UART(SCI) communication through FTDI logic. A:SW1 determines which connections are enabled to the
MCU.
U5 SD Micro card slot – connects to MCU via SPI
J8 USB connector – USB micro AB connector supports USB 2.0 host/device
J9 Enables a secondary board to have access to the F28379D’s EMIF2 and several other digital signals.
Jumpers
J2-J7 USB PHY connection enable/disable jumpers:
•All jumpers up – The MCU will be connected to the USB PHY on the controlCARD via GPIOs 42, 43,
46, 47, 120, and 121
• .All jumpers down – The MCU will not connect to the USB PHY and all signals will instead go through
the 180-pin controlCARD connector.
LEDs
LD1 Turns on when the controlCARD is powered ON (green)
LD2 Controlled by GPIO-31 with negative logic (red)
LD3 Controlled by GPIO-34 with negative logic (red)
A:D2 Turns on when ISO JTAG logic is powered on (green)
A:D3 JTAG/UART RX toggle indicator (blue)
A:D4 JTAG/UART TX toggle indicator (blue)
![](asset-b.png)
www.ti.com
Hardware References
11
SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
Table 2. Hardware References (continued)
Resistors and Capacitors
R59, R60 Alternate Reference Configuration Resistors
These resistors allow the user to choose whether the alternate reference for the ADCs will be given by:
• If R59 is unpopulated & R60 is populated
A precision 3.0V reference (REF5030)
• If R59 is populated & R60 is unpopulated
The reference will be given by pin 45 of the HSEC controlCARD connector. This will presumably allow
the baseboard to provide the desired voltage reference.
R27-R50 and C18-
C41 Optional RC input filter for all ADC inputs
Switches (default position in BOLD)
SW1 Boot Mode Switch:
Controls the Boot Options of the F2837x device. See the device datasheet for more information. (0 is down,
1 is up)
Mode # Switch Position 1 (GPIO-72) Switch Position 2 (GPIO-84) Boot from 00 0 0 Parallel I/O 01 0 1 Boot
from SCI 02 1 0 Wait Boot Mode 03 1 1 Get Mode (Flash by default)
Mode # Switch Position 1
(GPIO-72) Switch Position 2
(GPIO-84) Boot from
00 0 0 Parallel I/O
01 0 1 Boot from SCI
02 1 0 Wait Boot Mode
03 1 1 Get Mode (Flash by
default)
SW2 ADC VREFHI Control Switch for ADC modules A & B:
Switch 1 (lower switch) – VREFHI Control Switch for ADC module A:
• In the left position – ADC-A is configured to use VDDA (3.3V) as the ADC’s voltage reference. The full-
scale range of this ADC will be 0-3.3V, but the ADC will have reduced accuracy/precision.
•In the right position – ADC-A is configured to either use a precise 3.0V voltage reference or an
external voltage may be used as a reference. R59 and R60 determine which setting is used (see
description for R59/R60, above)
Switch 2 (upper switch) – VREFHI Control Switch for ADC module B:
• In the left position – ADC-B is configured to use VDDA (3.3V) as the ADC’s voltage reference. The full-
scale range of this ADC will be 0-3.3V, but the ADC will have reduced accuracy/precision.
•In the right position – ADC-B is configured to either use a precise 3.0V voltage reference or an
external voltage may be used as a reference. R59 and R60 determine which setting is used (see
description for R59/R60, above)
SW3 ADC VREFHI Control Switch for ADC modules C & D:
Switch 1 (lower switch) – VREFHI Control Switch for ADC module C:
•In the left position – ADC-C is configured to use VDDA (3.3V) as the ADC’s voltage reference. The
full-scale range of this ADC will be 0-3.3V, but the ADC will have reduced accuracy/precision.
•In the right position – ADC-C is configured to either use a precise 3.0V voltage reference or an
external voltage may be used as a reference. R59 and R60 determine which setting is used (see
description for R59/R60, above)
Switch 2 (upper switch) – VREFHI Control Switch for ADC module D:
•In the left position – ADC-D is configured to use VDDA (3.3V) as the ADC’s voltage reference. The
full-scale range of this ADC will be 0-3.3V, but the ADC will have reduced accuracy/precision.
•In the right position– ADC-D is configured to either use a precise 3.0V voltage reference or an
external voltage may be used as a reference. R59 and R60 determine which setting is used (see
description for R59/R60, above).
A:SW1 Isolated emulation and UART communication enable switches:
Switch Position 1 – JTAG Enable:
•ON – All signals between the xds100v2 emulation logic and the MCU will be connected. This setting is
valid when the MCU is being debugged or programmed via the on-card xds100v2 emulator.
• OFF – The xds100v2 emulation logic will NOT be connected to the MCU. This setting is valid when the
device will boot from FLASH, boot from a peripheral directly, or when an external JTAG emulator will be
used.
![](asset-c.png)
Hardware References
www.ti.com
12 SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
Table 2. Hardware References (continued)
Switch Position 2 – ISO UART communication enable:
•ON – The C2000 MCU’s GPIO-28 (and pin76 of the 180pin controlCARD connector) will be coupled to
the FTDI’s USB-to-Serial adapter. This allows UART communication to a computer via the FTDI chip.
However, in this position, GPIO-28 will be forced high by the FTDI chip. Functionality of pin76 of the
connector will be limited.
• OFF – The C2000 MCU will NOT be connected to the FTDI USB-to-Serial adapter. Pin76 of the 180-pin
controlCARD connector will be directly connected to GPIO-28.
![](asset-d.png)
www.ti.com
Hardware References
13
SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
STANDARD TERMS FOR EVALUATION MODULES
1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components,
and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in
accordance with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.
1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate
feasibility evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function
and are not finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any
finished product. For clarification, any software or software tools provided with the EVM (“Software”) shall not be subject
to the terms and conditions set forth herein but rather shall be subject to the applicable terms that accompany such
Software
1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned,
assigned, or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product
or production system.
2Limited Warranty and Related Remedies/Disclaimers:
2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License
Agreement.
2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers
such EVM to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the
nonconformity was caused by neglect, misuse or mistreatment by an entity other than TI, including improper installation
or testing, or for any EVMs that have been altered or modified in any way by an entity other than TI, (b) the
nonconformity resulted from User's design, specifications or instructions for such EVMs or improper system design, or
(c) User has not paid on time. Testing and other quality control techniques are used to the extent TI deems necessary.
TI does not test all parameters of each EVM.
User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within
ten (10) business days after delivery, or of any hidden defects with ten (10) business days after the defect has been
detected.
2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or
credit User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the
warranty period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI
elects to repair or replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements.
Repaired EVMs shall be warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted
for a new full ninety (90) day warranty period.
3Regulatory Notices:
3.1 United States
3.1.1 Notice applicable to EVMs not FCC-Approved:
FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software
associated with the kit to determine whether to incorporate such items in a finished product and software developers to
write software applications for use with the end product. This kit is not a finished product and when assembled may not
be resold or otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is
subject to the condition that this product not cause harmful interference to licensed radio stations and that this product
accept harmful interference. Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this
chapter, the operator of the kit must operate under the authority of an FCC license holder or must secure an
experimental authorization under part 5 of this chapter.
3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
FCC Interference Statement for Class A EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
![](asset-e.png)
Hardware References
www.ti.com
14 SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
STANDARD TERMS FOR EVALUATION MODULES (continued)
FCC Interference Statement for Class B EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
3.2 Canada
3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247
Concerning EVMs Including Radio Transmitters:
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Concernant les EVMs avec appareils radio:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Concerning EVMs Including Detachable Antennas:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication. This radio transmitter has been approved by Industry Canada to operate
with the antenna types listed in the user guide with the maximum permissible gain and required antenna impedance for
each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne
d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les
risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de
sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement
d'une communication satisfaisante. Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner
avec les types d'antenne énumérés dans le manuel d’usage et ayant un gain admissible maximal et l'impédance requise
pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur
3.3 Japan
3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本
国内に輸入される評価用キット、ボードについては、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page
3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be
certified by TI as conforming to Technical Regulations of Radio Law of Japan.
If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the
instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to
EVMs (which for the avoidance of doubt are stated strictly for convenience and should be verified by User):
1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of
Internal Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule
for Enforcement of Radio Law of Japan,
2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect
to EVMs, or
3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of
Japan with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee.
Please note that if User does not follow the instructions above, User will be subject to penalties of Radio Law of
Japan.
![](asset-f.png)
www.ti.com
Hardware References
15
SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
STANDARD TERMS FOR EVALUATION MODULES (continued)
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて
いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの
措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備
でご使用いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものと
します。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・
イ
ンスツルメンツ株式会社
東京都新宿区西新宿6丁目24番1号
西新宿三井ビル
3.3.3 Notice for EVMs for Power Line Communication: Please see
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
3.4 European Union
3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive):
This is a class A product intended for use in environments other than domestic environments that are connected
to a low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic
environment this product may cause radio interference in which case the user may be required to take adequate
measures.
4EVM Use Restrictions and Warnings:
4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT
NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to
handling or using the EVM, including without limitation any warning or restriction notices. The notices contain important
safety information related to, for example, temperatures and voltages.
4.3 Safety-Related Warnings and Restrictions:
4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in
the user guide, other available documentation provided by TI, and any other applicable requirements and employ
reasonable and customary safeguards. Exceeding the specified performance ratings and specifications
(including but not limited to input and output voltage, current, power, and environmental ranges) for the EVM
may cause personal injury or death, or property damage. If there are questions concerning performance ratings
and specifications, User should contact a TI field representative prior to connecting interface electronics including
input power and intended loads. Any loads applied outside of the specified output range may also result in
unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or interface
electronics. Please consult the EVM user guide prior to connecting any load to the EVM output. If there is
uncertainty as to the load specification, please contact a TI field representative. During normal operation, even
with the inputs and outputs kept within the specified allowable ranges, some circuit components may have
elevated case temperatures. These components include but are not limited to linear regulators, switching
transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the
information in the associated documentation. When working with the EVM, please be aware that the EVM may
become very warm.
4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with
the dangers and application risks associated with handling electrical mechanical components, systems, and
subsystems. User assumes all responsibility and liability for proper and safe handling and use of the EVM by
User or its employees, affiliates, contractors or designees. User assumes all responsibility and liability to ensure
that any interfaces (electronic and/or mechanical) between the EVM and any human body are designed with
suitable isolation and means to safely limit accessible leakage currents to minimize the risk of electrical shock
hazard. User assumes all responsibility and liability for any improper or unsafe handling or use of the EVM by
User or its employees, affiliates, contractors or designees.
![](asset-10.png)
Hardware References
www.ti.com
16 SPRUI76–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
F28379D controlCARD (TMDSCNCD28379D)
STANDARD TERMS FOR EVALUATION MODULES (continued)
4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international,
federal, state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User
assumes all responsibility and liability for compliance in all respects with such laws and regulations. User assumes all
responsibility and liability for proper disposal and recycling of the EVM consistent with all applicable international,
federal, state, and local requirements.
5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as
accurate as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information
on its websites as accurate, complete, reliable, current, or error-free.
6. Disclaimers:
6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT
LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH
ALL FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS,
INCLUDING BUT NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD
PARTY PATENTS, COPYRIGHTS, TRADE SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.
6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL
BE CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER
INDUSTRIAL OR INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD
PARTY, TO USE THE EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY
INVENTION, DISCOVERY OR IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.
7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS
LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES,
LOSSES, EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION
WITH ANY HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION
SHALL APPLY WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR
ANY OTHER LEGAL THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.
8. Limitations on Damages and Liability:
8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,
INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF
THESE TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF
REMOVAL OR REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES, RETESTING, OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS,
LOSS OF SAVINGS, LOSS OF USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION
SHALL BE BROUGHT AGAINST TI MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO
THE CAUSE OF ACTION HAS OCCURRED.
8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED
HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN
CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE
PARTICULAR EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES
OR DAMAGES ARE CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND
THIS LIMIT.
9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of
EVM(s) will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or
otherwise not in a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery
violates the applicable order, User should contact TI. All refunds will be made in full within thirty (30) working days from the
return of the components(s), excluding any postage or packaging costs.
10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of
Texas, without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of
or relating to these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas
County, Texas. Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI
may seek injunctive relief in any United States or foreign court.
STANDARD TERMS FOR EVALUATION MODULES
1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or
documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance
with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.
1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility
evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not
finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For
clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions
set forth herein but rather shall be subject to the applicable terms that accompany such Software
1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,
or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production
system.
2Limited Warranty and Related Remedies/Disclaimers:
2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License
Agreement.
2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM
to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by
neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have
been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications
or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control
techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.
User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)
business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.
2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit
User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty
period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or
replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be
warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day
warranty period.
3Regulatory Notices:
3.1 United States
3.1.1 Notice applicable to EVMs not FCC-Approved:
FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software
associated with the kit to determine whether to incorporate such items in a finished product and software developers to write
software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or
otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition
that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.
Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must
operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.
3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC Interference Statement for Class A EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
3.2 Canada
3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247
Concerning EVMs Including Radio Transmitters:
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Concernant les EVMs avec appareils radio:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concerning EVMs Including Detachable Antennas:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types
listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le
présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le
manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur
3.3 Japan
3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に
輸入される評価用キット、ボードについては、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page
3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified
by TI as conforming to Technical Regulations of Radio Law of Japan.
If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the
instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs
(which for the avoidance of doubt are stated strictly for convenience and should be verified by User):
1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal
Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for
Enforcement of Radio Law of Japan,
2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to
EVMs, or
3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan
with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note
that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて
いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの
措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用
いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ
ンスツルメンツ株式会社
東京都新宿区西新宿6丁目24番1号
西新宿三井ビル
3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/
/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
3.4 European Union
3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive):
This is a class A product intended for use in environments other than domestic environments that are connected to a
low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this
product may cause radio interference in which case the user may be required to take adequate measures.
4EVM Use Restrictions and Warnings:
4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT
LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling
or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information
related to, for example, temperatures and voltages.
4.3 Safety-Related Warnings and Restrictions:
4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user
guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and
customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input
and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or
property damage. If there are questions concerning performance ratings and specifications, User should contact a TI
field representative prior to connecting interface electronics including input power and intended loads. Any loads applied
outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible
permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any
load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.
During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit
components may have elevated case temperatures. These components include but are not limited to linear regulators,
switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the
information in the associated documentation. When working with the EVM, please be aware that the EVM may become
very warm.
4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the
dangers and application risks associated with handling electrical mechanical components, systems, and subsystems.
User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees,
affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic
and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely
limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and
liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or
designees.
4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal,
state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all
responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and
liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local
requirements.
5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate
as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as
accurate, complete, reliable, current, or error-free.
6. Disclaimers:
6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT
LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL
FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT
NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE
SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.
6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL BE
CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR
INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE
EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR
IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.
7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS
LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES,
EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY
HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION SHALL APPLY
WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL
THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.
8. Limitations on Damages and Liability:
8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,
INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE
TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR
REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING,
OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF
USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI
MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO THE CAUSE OF ACTION HAS
OCCURRED.
8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED
HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN
CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE PARTICULAR
EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE
CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND THIS LIMIT.
9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s)
will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in
a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable
order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s),
excluding any postage or packaging costs.
10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas,
without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to
these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas.
Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief
in any United States or foreign court.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2017, Texas Instruments Incorporated
![](asset-15.png)
IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES
Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to,
reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are
developing applications that incorporate TI products; by downloading, accessing or using any particular TI Resource in any way, you
(individually or, if you are acting on behalf of a company, your company) agree to use it solely for this purpose and subject to the terms of
this Notice.
TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI
products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections,
enhancements, improvements and other changes to its TI Resources.
You understand and agree that you remain responsible for using your independent analysis, evaluation and judgment in designing your
applications and that you have full and exclusive responsibility to assure the safety of your applications and compliance of your applications
(and of all TI products used in or for your applications) with all applicable regulations, laws and other applicable requirements. You
represent that, with respect to your applications, you have all the necessary expertise to create and implement safeguards that (1)
anticipate dangerous consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that
might cause harm and take appropriate actions. You agree that prior to using or distributing any applications that include TI products, you
will thoroughly test such applications and the functionality of such TI products as used in such applications. TI has not conducted any
testing other than that specifically described in the published documentation for a particular TI Resource.
You are authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that include
the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO
ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY
RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or
endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR
REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING TI RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO
ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL
PROPERTY RIGHTS.
TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY YOU AGAINST ANY CLAIM, INCLUDING BUT NOT
LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF PRODUCTS EVEN IF
DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL, DIRECT, SPECIAL,
COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN CONNECTION WITH OR
ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
You agree to fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of your non-
compliance with the terms and provisions of this Notice.
This Notice applies to TI Resources. Additional terms apply to the use and purchase of certain types of materials, TI products and services.
These include; without limitation, TI’s standard terms for semiconductor products http://www.ti.com/sc/docs/stdterms.htm), evaluation
modules, and samples (http://www.ti.com/sc/docs/sampterms.htm).
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2017, Texas Instruments Incorporated
