Product Directory Summer 2013
Heating Solutions
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 1406/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
Featuring the new
Controlling heat like never before
Cl/SfB
Uniclass L7522 EPIC L22
(56)
2
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 2418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
Index
Introduction
Green deal approved measure 3
Design application support 4
Quantum energy system
As electricity turns green, the world is turning to Quantum 5
A closer look at the Quantum energy system 6-7
Low-carbon and low-cost too 8
Controlling heat like never before 9
The Quantum energy system. How will you benefit? 10-11
The Quantum room heater 12

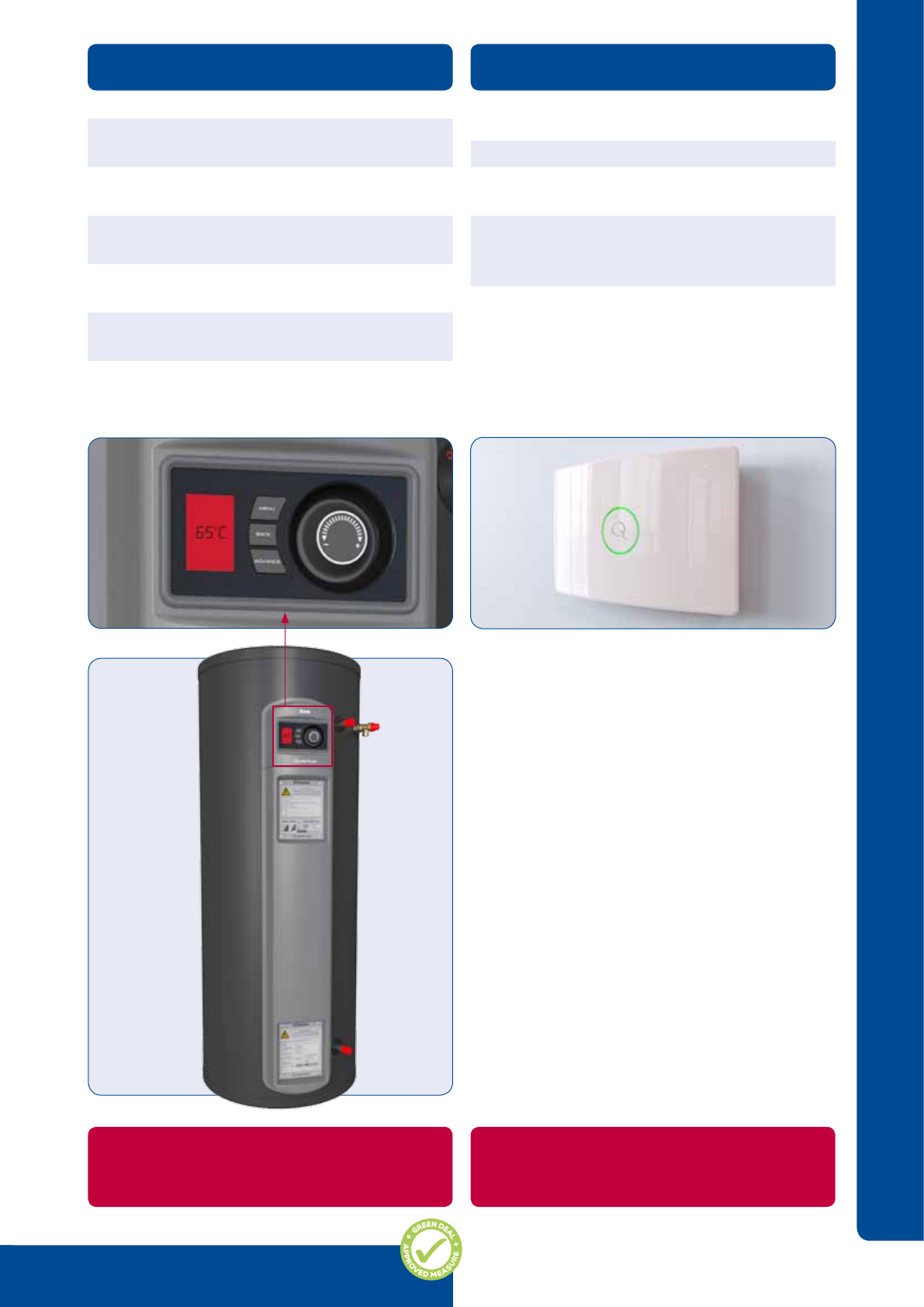

The Quantum cylinder 13
NOBO advanced control panel heaters
Introduction to NOBO 14
E4EU Electronic panel heaters 15
C4N Electronic panel heaters 16
LST Electronic Low Surface Temperature panel heaters 17

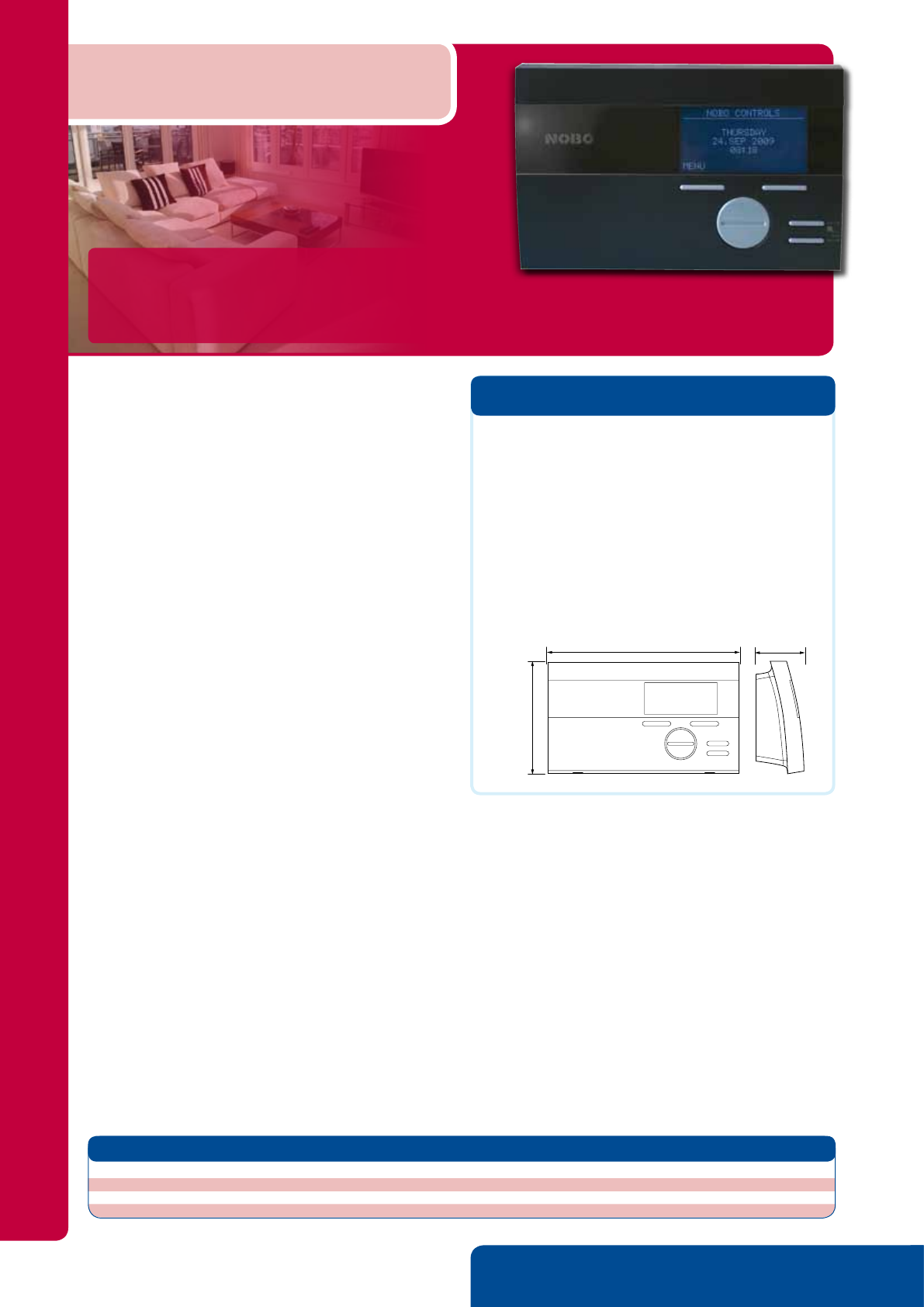

Multi zone control options 18
Control options 19
Electronic control panel heaters

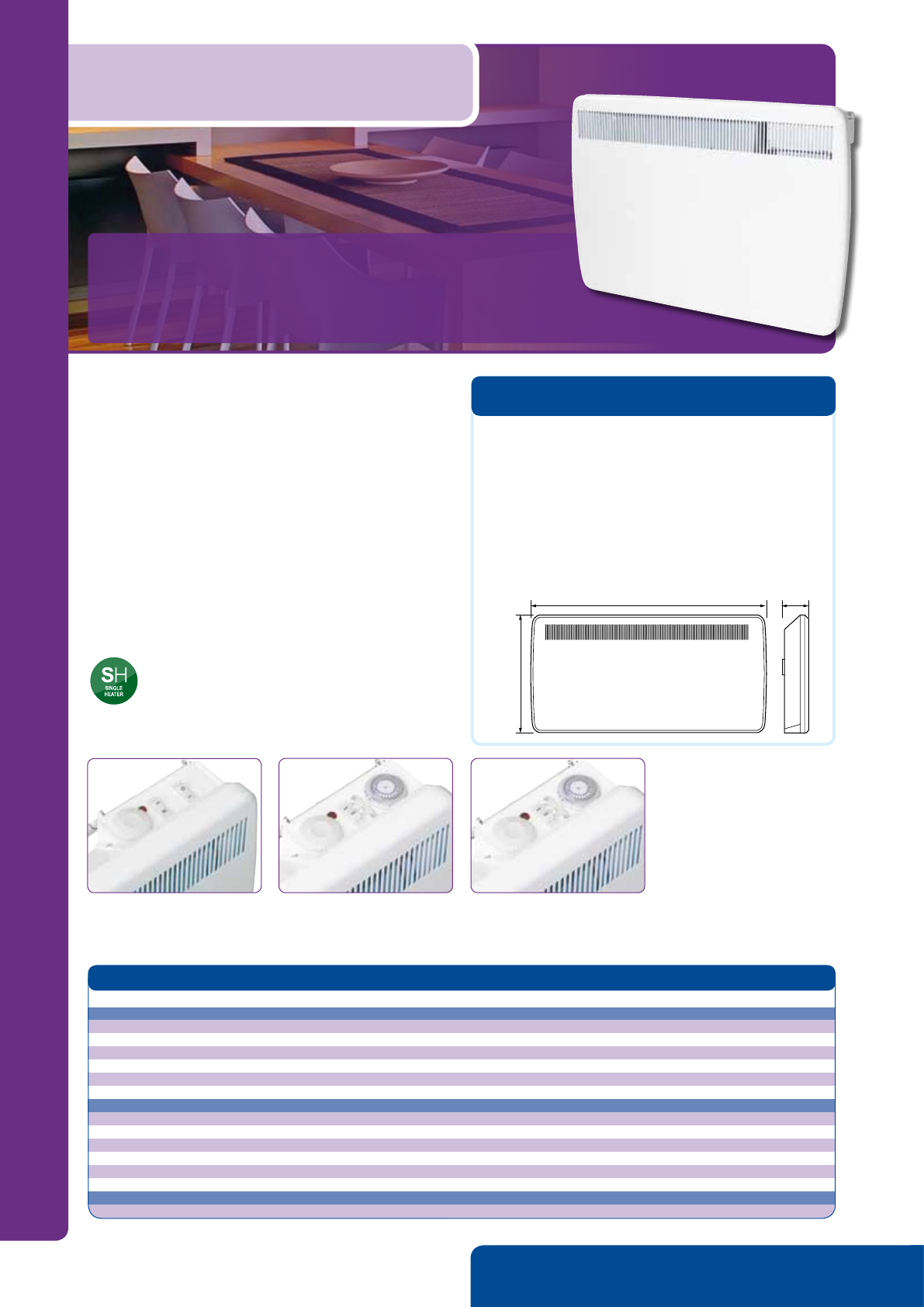

Contour100 Electronic panel heaters 20-21
TPRIII E Electronic pilot plus panel heaters 22
Newera Electronic Electronic panel heaters 23
Control options 24-25
Mechanical control panel heaters and electric storage heating
TPRIII M/MT Mechanical thermostatic panel heaters 26
TPRIII NC No controls panel heaters 27
Newera Plus Panel heaters 28

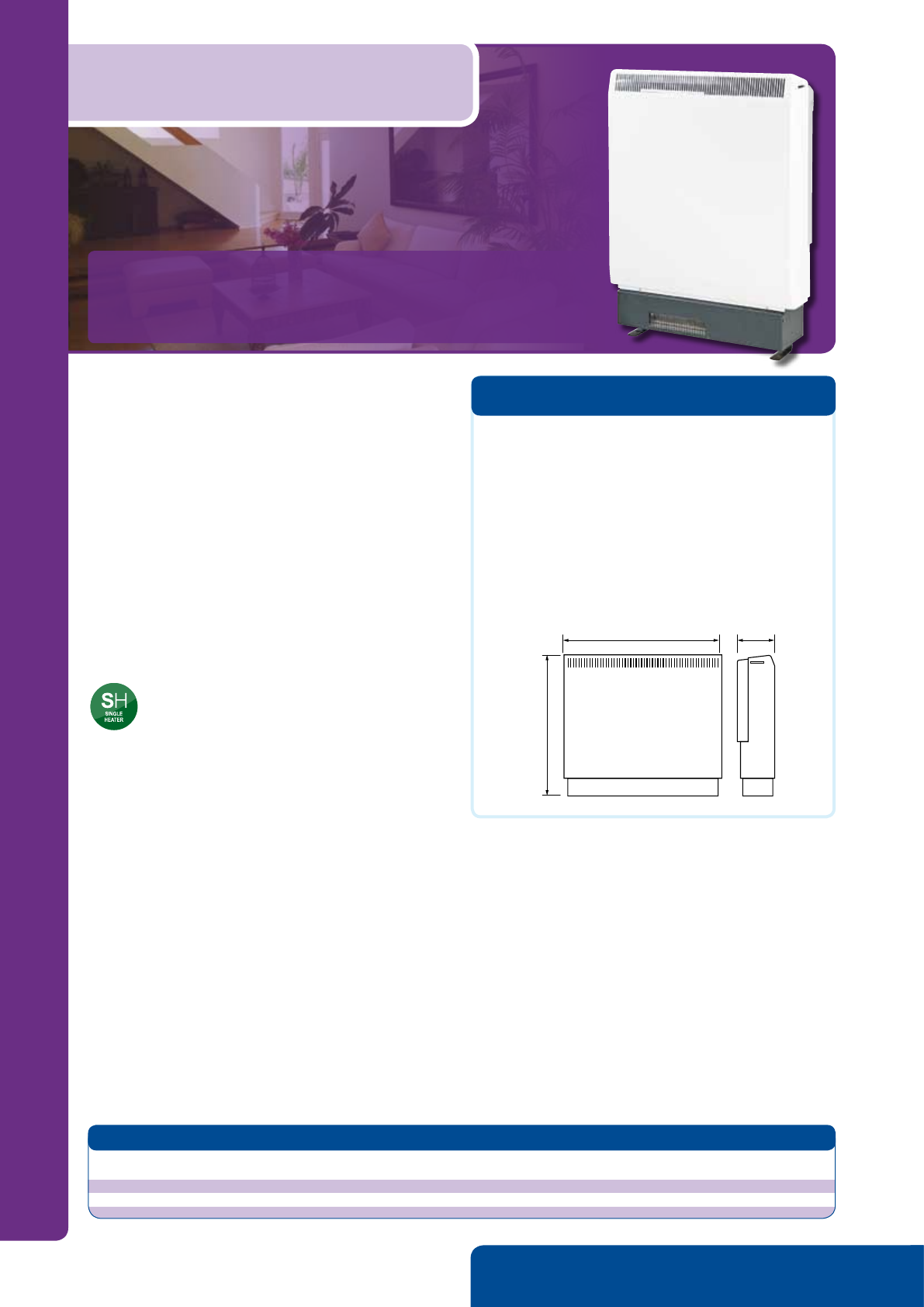

TSR Sensor Plus & Slimline Electric storage heaters 29

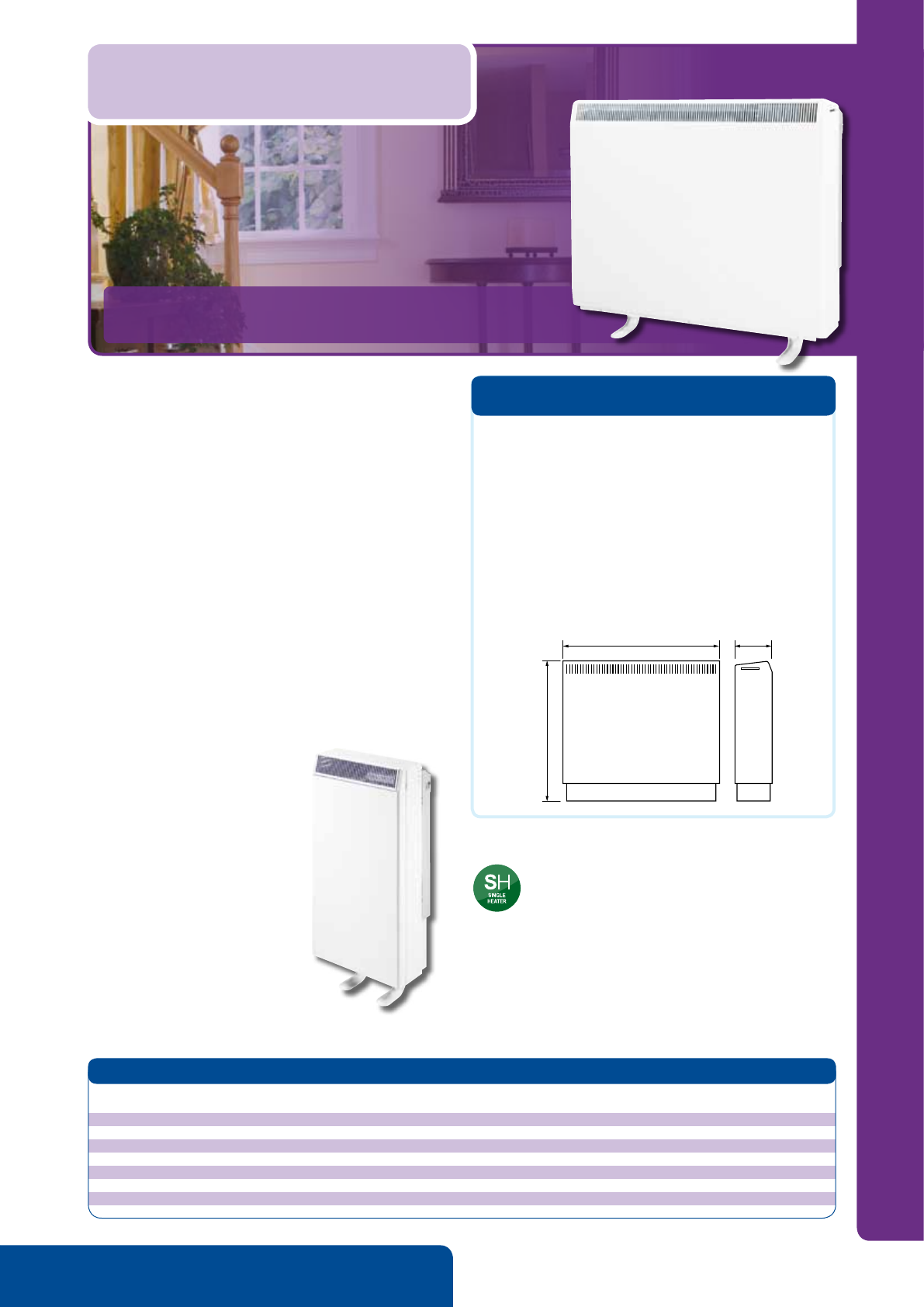

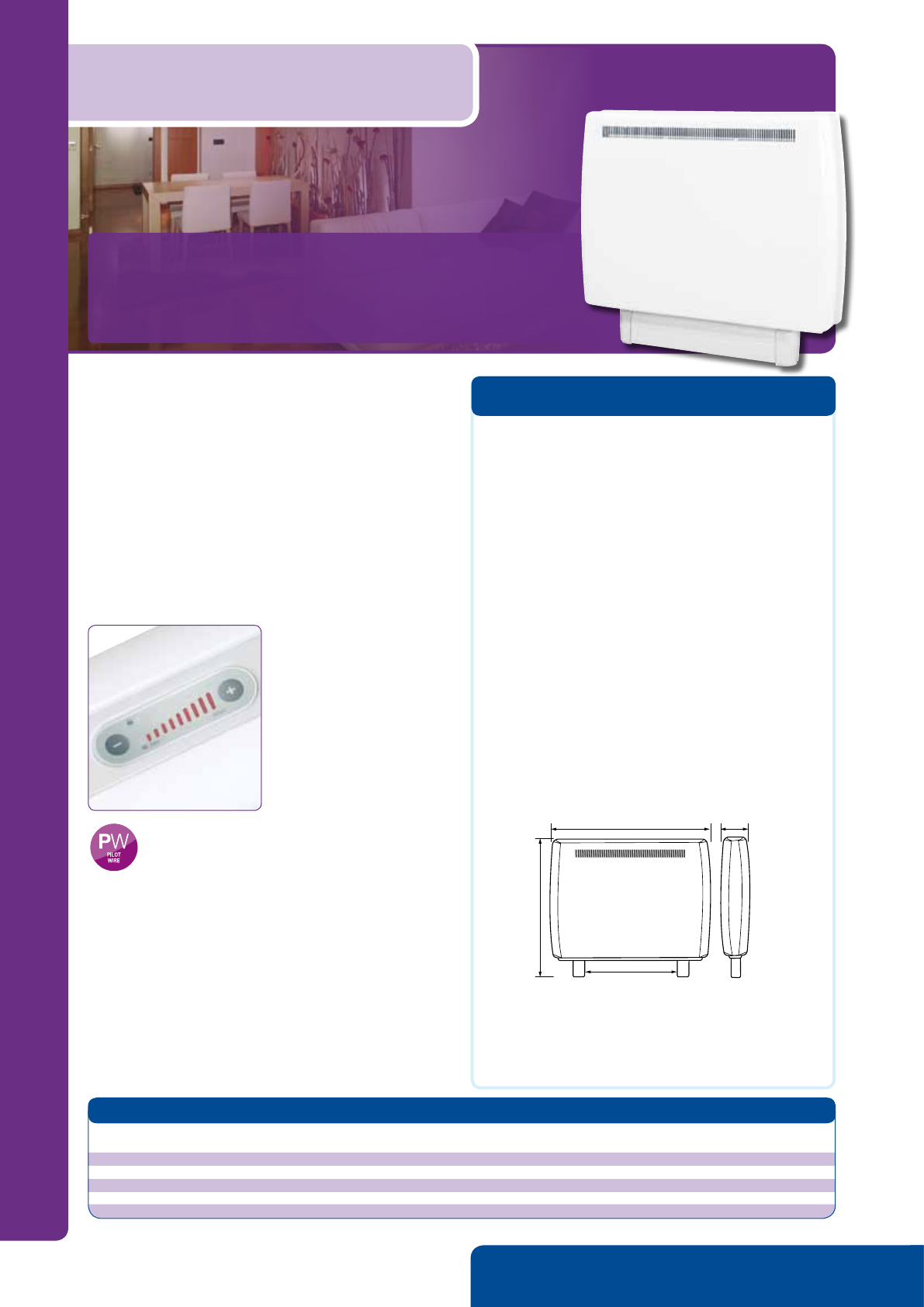

Eco-Response Storage radiant heaters 30-31
TSR Supaslim Combi Combined storage heaters 32
SFHA Sensair Automatic Electric storage fan heaters 33
Storage heater accessories 34
Towel rails and bathroom warmers

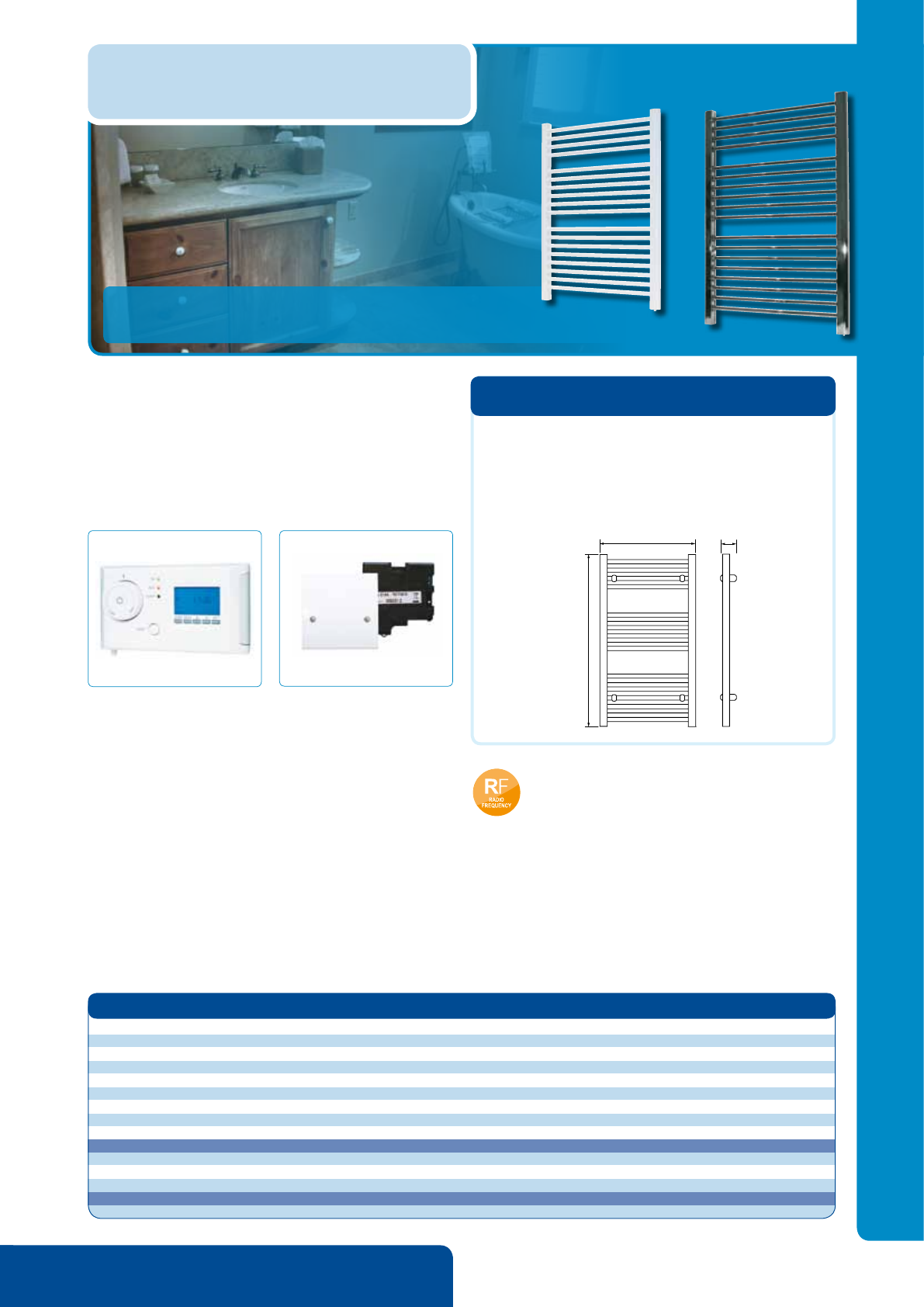

Proline TPL Fast response electric ladder towel rails 35
TD and Solarail Traditional style electric towel rails 36
Control options 37
Fan heaters and tubular heaters
CDF Compact downflow fan heaters 38
SolPlinth Electric plinth heaters for base units 39

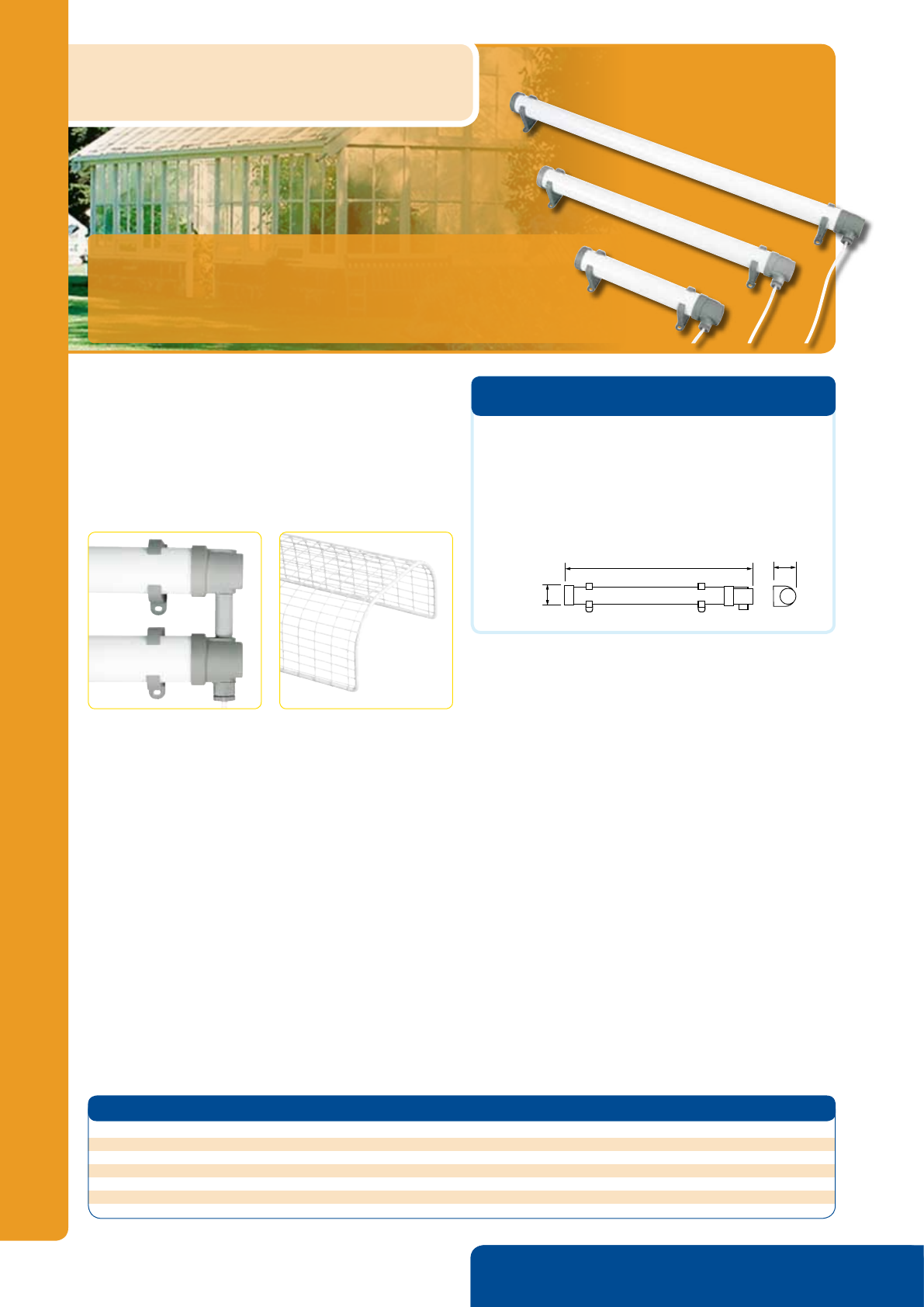

SolTube Tubular heaters 40
Commercial space heating
TSF Turbo Commercial storage fan heaters 41
SolHeat Outdoor patio heaters 42

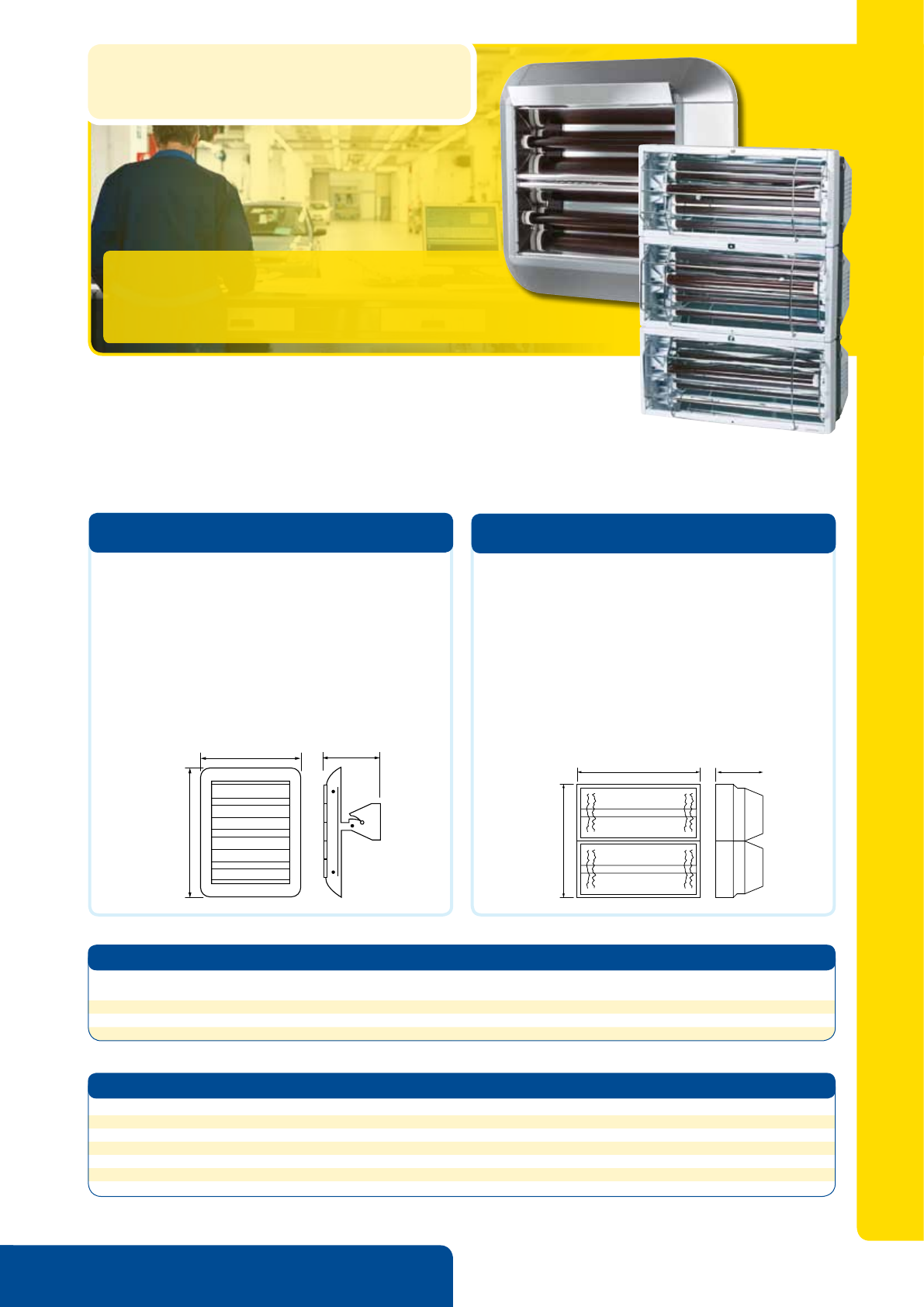

SolQuartz/SunQuartz Shortwave infra-red radiant heaters 43
SolFan High level fan heater 44

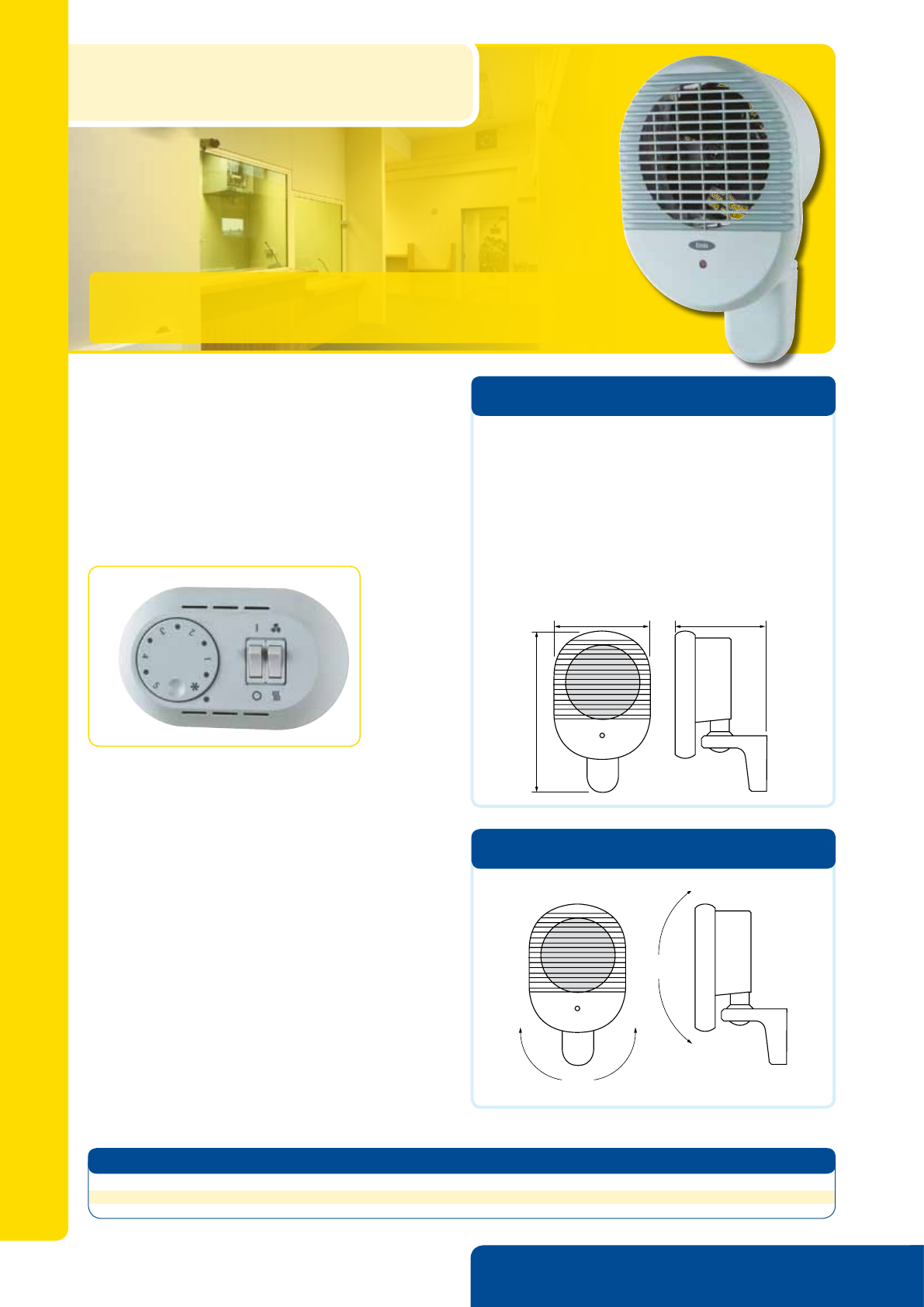

SunFan Wall mounted fan heater 45
SolScreen Warm air curtains 46
Website 47
Heater sizing table 48-49
Heating design request form 50
Cable and connection points 51
Index
3
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 3418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 2418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk www.credaheating.co.uk

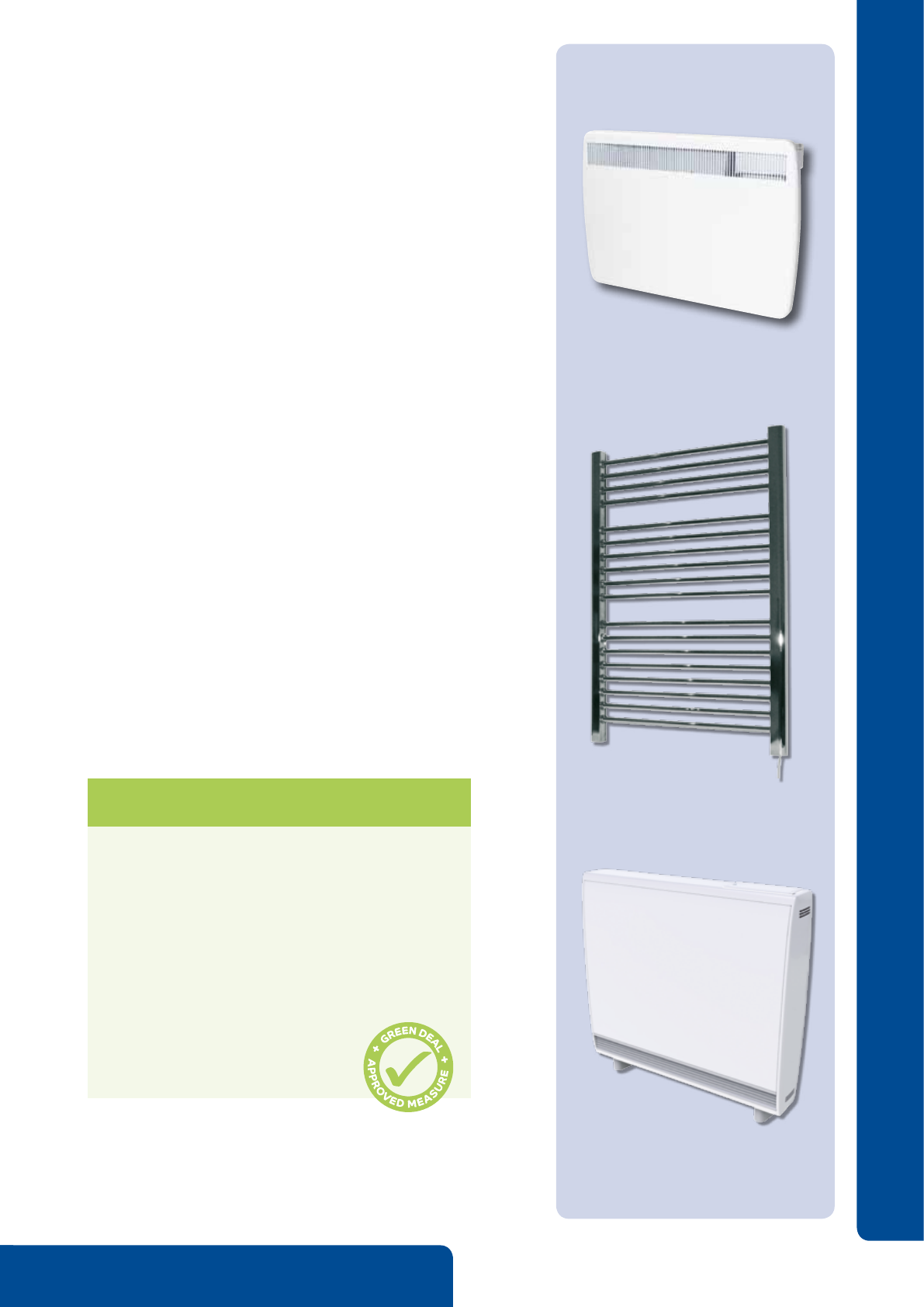

Creda Heating
For over 40 years, Creda NOBO has been
dedicated to heating the nation. In the future,
low-carbon electricity will make electric
heating the first choice for a lower carbon
footprint and low lifetime cost of ownership.
Introduction
As pioneers in electric heating, Creda Heating continues to lead the
field with innovative and contemporary product design – all backed
by nationwide after-sales support and a dedicated sales team.
All Creda electric heating products:
•aredesignedtocomplywithPartLoftheBuildingRegulations
•featureadvancedheatingcontrolstohelpachievethebestpossible
SAP ratings
•havealowercapitalandmaintenancecostthanagasboilersystem
•offertotalexibilityindesign
•arequickandeasytoinstallorupgrade
•arevirtuallymaintenance-freeandrequirenoannuallandlord
safety certificate
Whatevertherequirement–fromnewbuildtorefurbishment,asingle
room to a whole development, whether domestic or commercial –
Creda Heating offers the most effective, economical and
environmentally-friendly heating solution.
Now Creda Heating is proud to introduce Quantum, an electric heating
system like no other. Quantum is up to 27% cheaper to run and uses
up to 22% less energy than comparable static storage heaters.
Quantum: Controlling heat like never before.
The Green Deal
Quantum has been accepted as a Green Deal ‘measure’
by the department of Energy and Climate Change.
The Green Deal is an innovative government-backed financing
mechanism that lets householders pay for energy-efficient
improvements through savings on their energy bills.
Asthe‘goldenrule’oftheschemeisthattheexpectedenergy
savings must be greater than the cost of the improvements,
by installing Quantum householders should save energy
and money – as well as helping the environment.
See the following for further information:
www.gov.uk/greendeal
4
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 4418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
Creda Heating – Design application support
Our team of consultants will provide a clear and detailed specification
oftheproductsrequiredforeachproperty,togetherwithaclearand
simple summary of the total products for the project.
To take advantage of this service, simply complete the form on page 50
and send with a set of plan and elevation drawings to:
CredaNOBODesign
Millbrook House
Grange Drive
Hedge End
Southampton
SO30 2DF
Alternatively, information can be emailed to
design@credaheating.co.uk
Part L
In recent times, the proliferation of environmental legislation and
ongoingrevisionstotheBuildingRegulations,alldesignedtoreduce
carbon intensity and improve energy efficiency, have made the design
processmorecomplex.However,weareabletoofferadviceonthis
as well.
If you need specific advice on a project please speak to one of
our heating design consultants or your Creda regional manager.
Need a quick guide?
If you only need to know how much heat you need for one or two
rooms please use our sizing tables on pages 48 and 49 which
willgiveyouanindicationofthekilowattloadingrequiredfor
a specific room. Alternatively we have an on-line calculator,
which can be found at www.credaheating.co.uk
Creda on the Web
All of the information contained in this brochure is also available
on our website www.credaheating.co.uk.
In addition to standard product information, you will also find
details of wholesalers and contractors who sell and install the
Creda Heating range, installation and operating instructions,
brochure downloads, online heating calculator and a wealth
of other self help information.
Design application support
Application design
We have over 40 years experience in designing and supporting electrical heating
installations. We are able to offer an expert application design service for all our
products, helping new and existing customers alike to specify Creda products into real
buildings and live projects, either off-plan, commenced new-build or refurbishments.
5
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 5518/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 4418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
Quantum in a nutshell
The Quantum energy system is designed to use low-carbon energy
from renewable sources – such as hydro electric generation and wind –
and converts this into heat. When demand is low, the smart system
stores this green energy up in the form of heat to be used when
it’s needed.
Quantum: the smart electric heating system that
stores green energy.
The Quantum energy system offers homeowners:
•alow-cost,low-carbon,electricheatingsystem
•anelectricheatingsystemwhosecarbonuse
will decrease over time
•optimalefciency,comfortandcontrol
As electricity generation turns ever greener, the world is turning
to electric heating. Nationally-supplied, low-carbon electricity
provides security of energy supplies and low-carbon heating,
while helping to reduce the devastating impact of climate change.
The product of three years’ research and development, the Quantum energy
system combines the very latest in electric heating with an economical
demand response management tool. The result: the world’s most advanced
electric space and water heating system.
State-of-the-art
electric heating
An economical
demand response
management tool
Quantum: the world’s
most advanced electric
space and water
heating management
system
+ =
As electricity turns green,
the world is turning to Quantum
The Quantum Energy System – As electricity turns green, the world is turning to Quantum
6www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 6418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
A closer look
at the Quantum
energy system

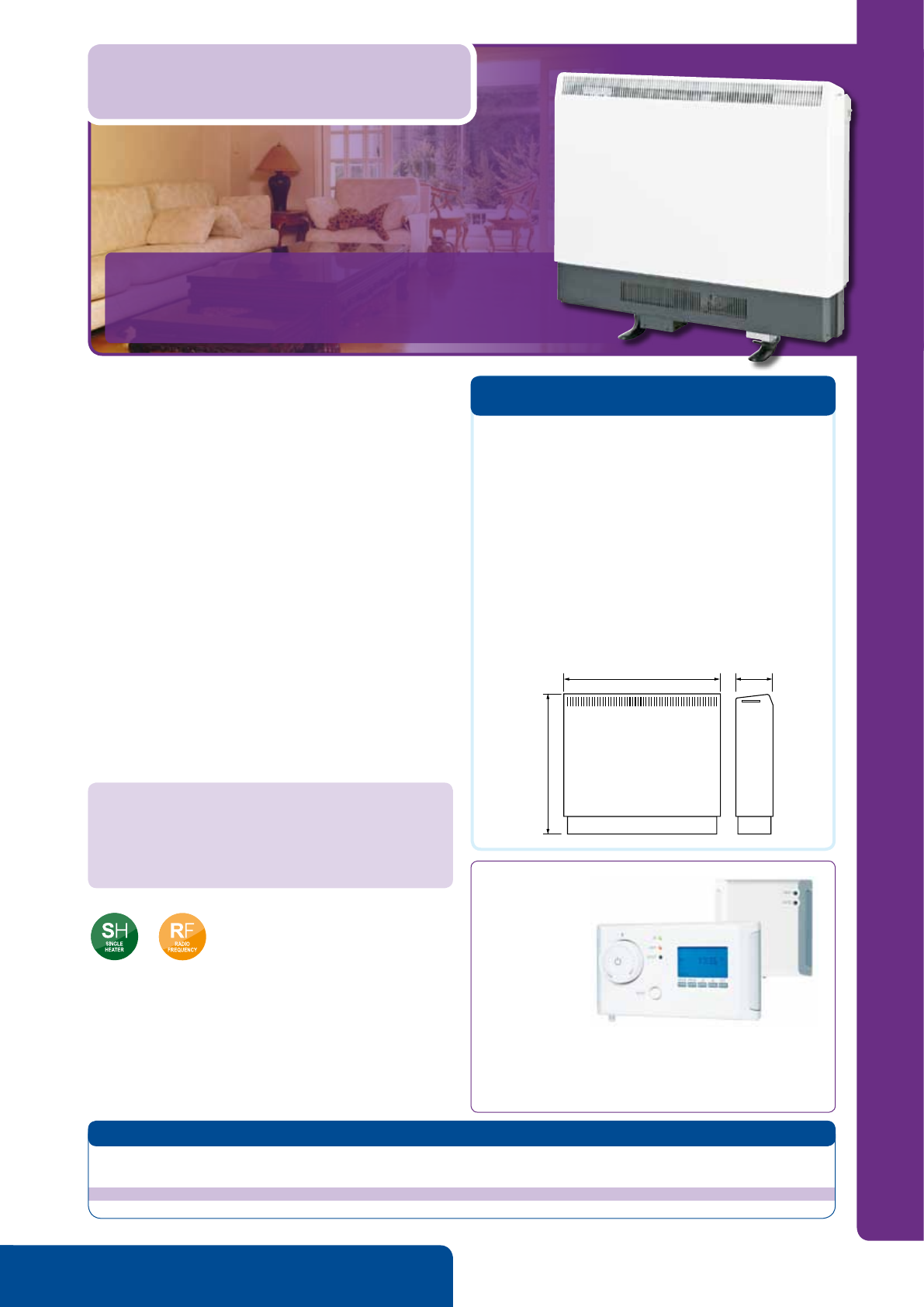

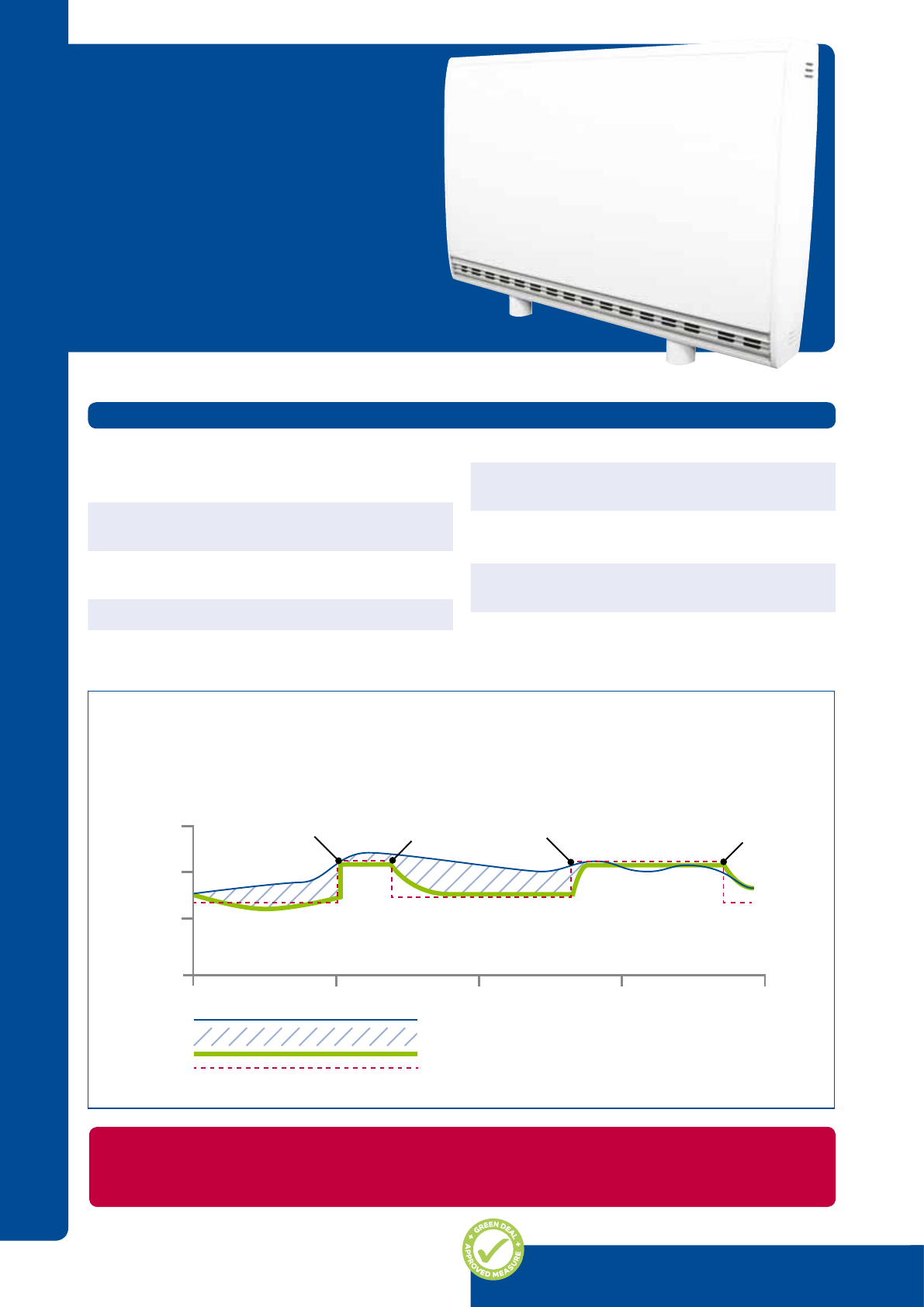

The Quantum Room Heater: an ultra-efficient heater
•Achieveslowrunningcostsbyutilisingoff-peaktariffs.
Onaroom-by-roombasis,90%oftheheatingrequirement
is anticipated to be met by off-peak energy
•Automaticallyadjuststo,andmatches,theuser’sneeds/lifestyle
through dynamic storage capacity

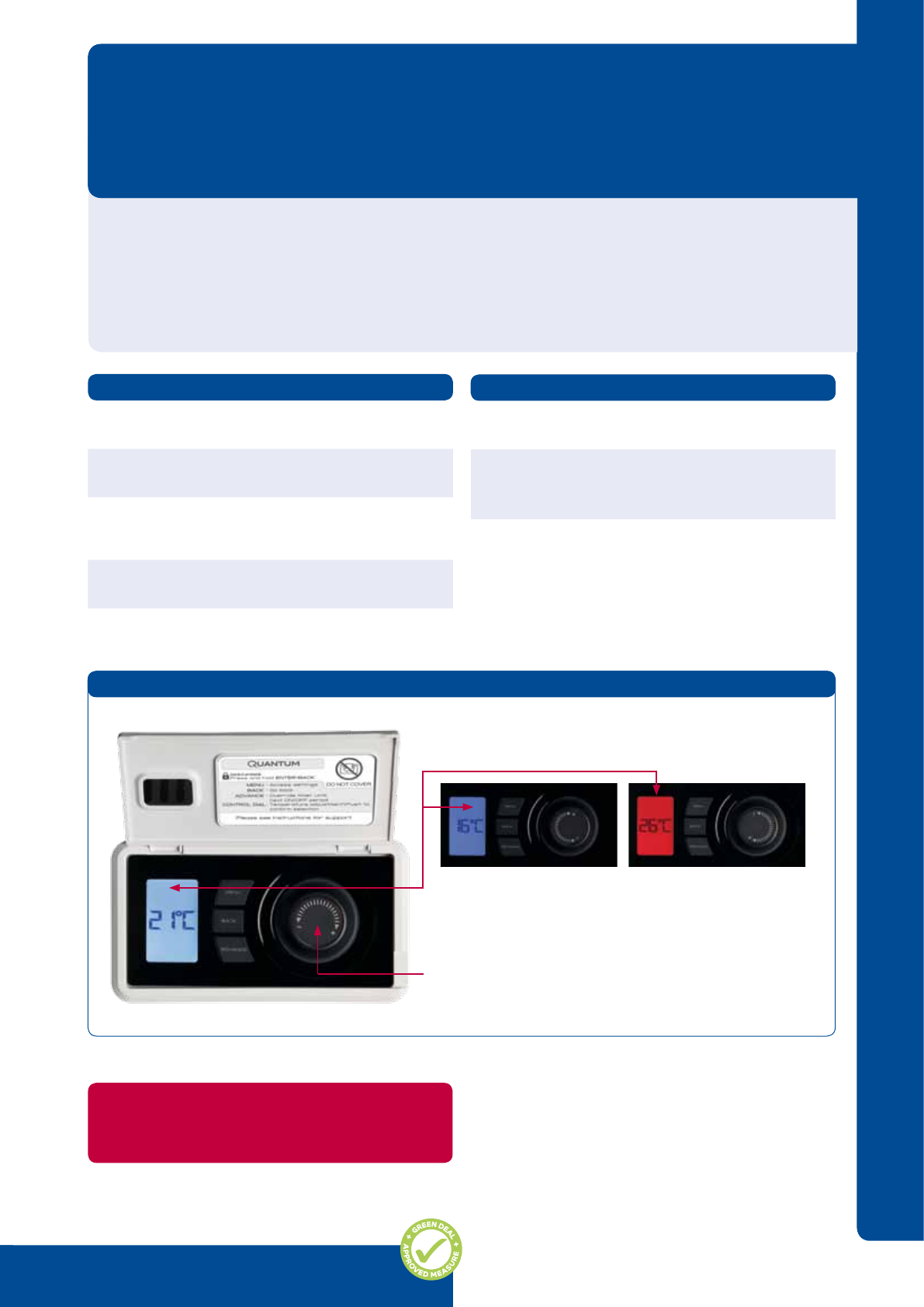

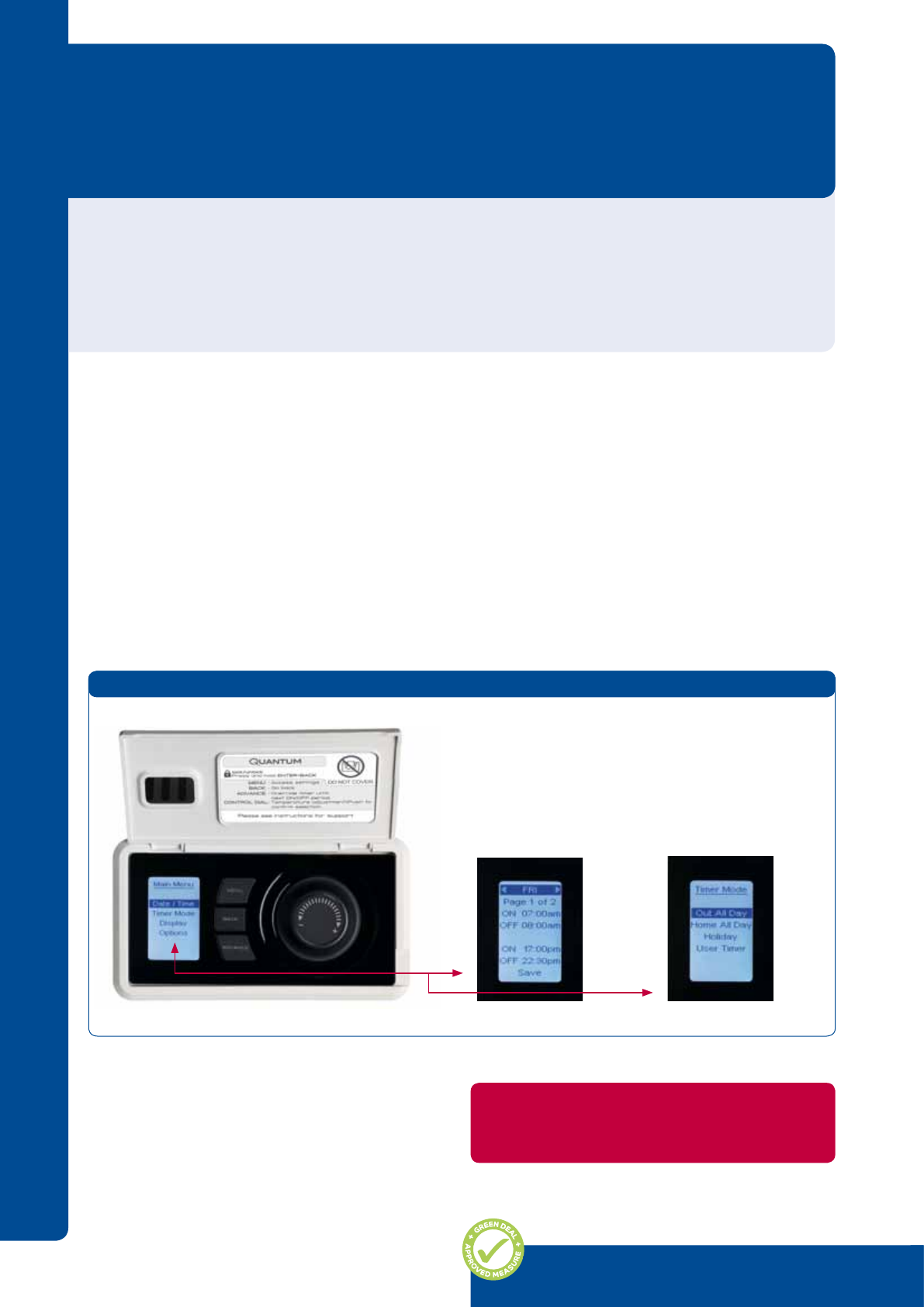

•Hasaneasy-to-useelectronicuserinterfacewithLCDdisplay,
featuring a room temperature setting with seven-day programmer
•Providesextremelyrapidheat-upthroughfan-assistedoutput
The Quantum Room Heater operates on any
off-peak tariff for low running costs.
The Quantum energy system consists
of three elements which can work as
a system or be purchased individually:
00:00 06:00 12:00 18:00 00:00
ROOM TEMPERATURE ºC
DAILY CYCLE HOURS
25
20
15
0
Quantum energy use = 10 kWh + 0.2kWh (fan) = 10.2kWh – 9 hours heating @ 21ºC
Conventional storage energy use = 12.2 kWh + 1.3kWh direct acting supplemetary heating = 13.6kWh – 9 hours heating @ 21ºC
Average weekday profile
Potential energy saving using Quantum
Comfort temperature profile created by Quantum Heater
Comfort temperature profile created by static storage heater
and direct acting heater
Ideal comfort temperature profile
*For test conditions please see page 12.
Quantum CQH125 vs Conventional Static 24kWh Storage Heater & Direct Acting Heater
Room Temperature Profile
Morning
rise
Leave
for work
Return
from work Retire
to bed
•Ensuresheatisalwaysreadilyavailablethankstoitsboostelement
•Hasanattractive,state-of-the-artandcompactdesign
(no deeper than a double wet radiator)
•Coversprevious‘xingmarks’ofmostcomparably
sized traditional storage heaters
•Hasfacilityforanoptionalcommunicationslinkfordemand
side management to help stabilise the grid
The Quantum Energy System – A closer look at the Quantum energy system
7
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 7418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 6418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
The Quantum Cylinder*
:
smart energy water storage
•Providesalong-life,low-maintenance,economicalhotwatersupply
•Deliversfast-llingbathsandpowerfulshowersthroughmains
pressure hot water
•Ismanufacturedfromstainlesssteelandcomescomplete
with a 25 year warranty on the cylinder
•Isavailableinvesizes–from125to300litres,bothvented
and unvented
•FeaturesadvancedcontrolswithelectronicuserinterfacewithLCD
display, providing feedback on hot water temperature and availability
•Hasahard-wearing,blackinsulationoutershellmadefrom
recycled materials, giving class-leading heat retention capability
•Hasdemandsidemanagementcapabilitythroughbi-directional
communications to energy supplier
The Quantum Hub*
:
optional system manager
•Enablestwo-waycommunicationspotentialbetween
Quantum products and the energy supplier
•Isfuture-proofedtosupportupcomingchangesinenergysupply
•Canbemounteddiscreetlyanywhereinthepropertythankstoits
compactsize,whichisapproximatelyhalfthesizeofthispage
•AllowstheQuantumRoomHeaterandQuantumCylindertobe
connected to a permanently live electrical circuit – and still benefit
from off-peak rate costs
•CommunicateswitheachQuantumapplianceviaatransceiver
The Quantum Cylinder provides smart energy
water storage and a long-life, low-maintenance,
economical hot water supply.
The Quantum Hub enables two-way communications
between Quantum and the energy supplier.
*AvailableAutumn2013
The Quantum Energy System – A closer look at the Quantum energy system
8www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 8418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
1. Off peak tariffs
Quantum utilises off-peak tariffs whenever possible to keep costs
to a minimum. So end users get the benefits associated with electric
heating at running costs unachievable with other ‘direct-acting’
electric heating systems.
2. New insulation technology
TheQuantumRoomHeaterusestheverylatestinsulationmaterial–
one with a thermal conductivity even lower than that of still air.
This prevents heat being lost or wasted.
3. Installation and maintenance
TheQuantumRoomHeateriseasytoinstallandmaintenancefree.
The Quantum Room Heater is up to 27% cheaper to run and uses up
to 22% less energy* than other comparable electric heaters. How?
It’s all thanks to new developments in insulation technology and controllability.
*Ratified by comparative energy and running cost data using SAP 2012 (issued May 2013).
End users get the benefits associated with electric
heating at running costs unachievable with other
‘direct-acting’ electric heating systems.
Low-carbon
and low-cost too
7 day programmer with 3 pre-set (adjustable)
timer profiles and display adjustment.
Holiday mode giving frost protection,
child lock settings and many more features.
7 day programmer
Here’s how the Quantum Room Heater’s running costs stay so low:
The Quantum Energy System – Low-carbon and low-cost too
9
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 9418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 8418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
Part of the beauty of the Quantum Room Heater is its controllability.
The heater monitors and adapts to its environment – that is, climate conditions
and usage patterns – and delivers heat accordingly. Should the end user
wish to adjust heat levels manually, they can do that too!
The Quantum Room Heater will monitor the target
room temperature and intuitively adjust output
to maintain this – to within a fraction of a °C.
The Quantum Room Heater will:
•Monitorweatherandusagepatterns,learningfromandadaptingto
thesetodeliverpreciselytherightamountofheat,whenrequired
•Respondtoanychangesinclimateand/orroomtemperature
conditions, altering configurations automatically
•Monitorthetargetroomtemperatureandintuitivelyadjustoutput
to maintain this – using a thermostat that is accurate to within
a fraction of a °C
•Workseamlesslywiththegrid,usingoff-peaktariffswhenpossible
tominimiseusercostsandmaximiseefciency
The end user can:
•Usethebuilt-inelectronicinterfacewithLCDdisplayandrotary‘click’
selector to manually adjust the temperature
•Choosefromapresetprogrammemenu,completewithoptions
suchas‘HomeAllDay’or‘HolidayMode’,thenrelaxasthe
QuantumRoomHeatertakescontrol
Target temperature display is colour coded to assist visually impaired.
Heater will maintain selected temperature using a thermostat
accurate to within +/- 0.3°C.
Rotaryclickselectionadjuststargettemperatureandenables
menu scrolling and selection.
Controlling heat
like never before
Controls
The Quantum Energy System – Controlling heat like never before
10 www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 10 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
For the specifier:
✓ An aesthetically-pleasing, state-of-the-art design
✓ A compact system, no deeper than a double wet radiator
✓ Fullcoverageofthe‘xingmarks’ofmostcomparably-sized
traditional storage heaters
✓ Awiderangeofheatersizes,allowingexibilityin
project specification
✓ Simple specification within SAP
✓ Technology that’s low-cost, low-carbon and future proofed
✓ A virtually maintenance-free system
For the end user:
✓ An aesthetically-pleasing, state-of-the-art design
✓ Useofanationally-suppliedandfuture-proofedfuelsource
✓ A system that’s economical to run – helping to alleviate
fuel poverty
✓ Agreaterlevelofcomfort,deliveringheatonlywhenrequired
✓ Greater accuracy in room temperature control
✓ Asystemthat’shighlyresponsivetoexternaltemperaturechanges
✓ Low-maintenance and high reliability
✓ A fully automatic system (after initial set-up)
Quantum has a number of benefits, whether you are a specifier,
end user, energy supplier or installer, so get ready to reap the rewards
of the Quantum energy system.
A system that’s economical to run and highly
responsive to external temperature changes.
The Quantum energy system.
How will you benefit?
Technology that’s low-cost, low-carbon and
future proofed.
The Quantum Energy System – How will you benefit?
11
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 11 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 10 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
For the energy supplier:
✓ Multiple communication options
✓ Off-peak tariff market protection
✓ Economical demand response management tool
✓ Low-cost,low-carbonandexibleenergystorage–it’sentirelyupto
the utilities how much energy they store and when they store it
✓ Betteruseofwindgeneration–sohelpingtodecarbonisethegrid
✓ Greater supply-demand balance
✓ Higher system reliability and security
✓ Reducedneedforinvestmentinnetworks
✓ Lower standby generation cost
For the installer:
✓ Easy installation, minimising time on site
✓ Electronic controller preset with the time and date, as well as
user programmes
✓ Reversiblecableentrypointsandcoverageofallprevious
‘xingmarks’ofmostcomparablysizedstorageheaters
✓ Minimised user confusion thanks to easy-to-use controls
Low-cost, low-carbon and flexible energy storage –
it’s entirely up to the utilities how much energy they
store and when they store it.
Easy-to-use controls mean there’s less chance of
user confusion.
The Quantum Energy System – How will you benefit?
12 www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 12 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL

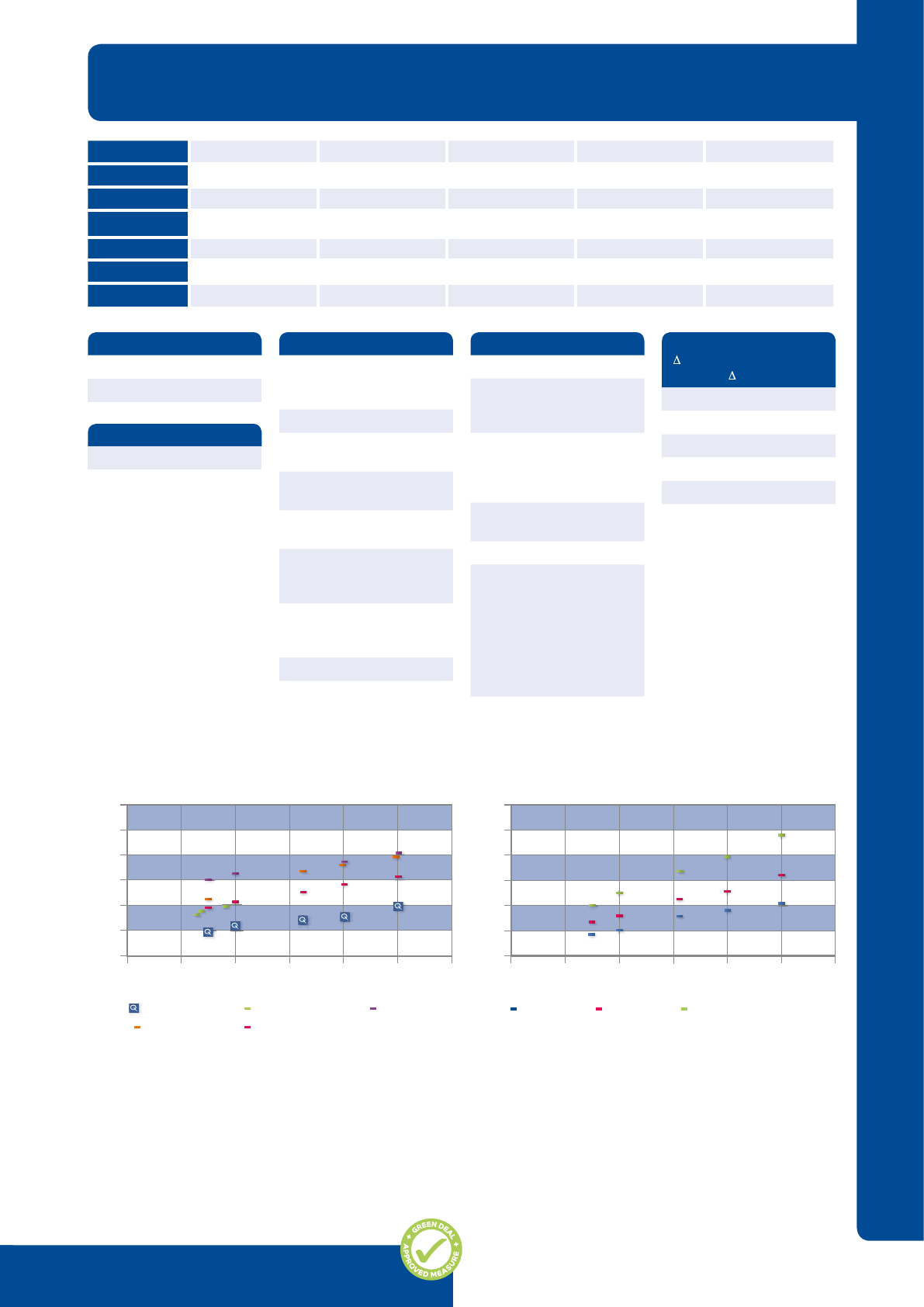

Model No. CQH070 CQH100 CQH125 CQH150
Height 730mm 730mm 730mm 730mm
Depth 185mm 185mm 185mm 185mm
Width 703mm 865mm 1069mm 1069mm
Installed Weight 83kg 107kg 135kg 155kg
Output Rating (stored energy) 700W 1000W 1250W 1500W
Input Rating 1560W 2200W 2760W 3300W
Max. Storage Capacity 10.9kWh 15.4kWh 19.3kWh 23.1kWh
Boost Element Rating 630W 880W 1130W 1300W
ENERGY CELL PACKS – packaged separately, required in the following quantities:
Model No. CQH070 CQH100 CQH125 CQH150
Energy cell packs required 6 8 10 12
Room dimensions 4m x 3m x 2.4m
U values:
Double layer solid brick
outer walls 2.0
Insulated internal walls
and ceiling 0.34
Insulated floor 0.25
UPVC double glazed window 3.3
UPVC double glazed door 3.0
Air change rate 1 A/C per hour
Climate Room Test Chamber – conditions for Room Temperature Profile graph on page 6.
AclimateroomwasbuilttoaccuratelyreplicatearoomfromtypicalUKhousingstock.Ithastwoexternalwallsandtwointernalwalls,andthetemperatures
outside all walls, ceiling and floor are accurately controlled.
The U values of walls, windows and door are as follows:
The Quantum Room Heater
Fan Thermal Insulation Battery Backup Approvals
Low rev/low noise heat
circulation fan with variable
speed and soft start.
Front, rear top and ends –
microporous silica.
Base – calcium silicate slab.
3.3V coin cell battery to
backup real time clock.
Battery life > 5 years.
BEAB/EN60335/EMC/CE.
Storage Core Colour/Finish Supply Warranty
High density bonded
magnetite energy cells.
White. 230-240V/50Hz. Off-peak +
24 hour supply required.
2 years.
Electromechanical limit
thermostat (self resetting).
Electromechanical cut-out
(manual reset).
Electromechanical over
temperature limit thermostat
for fan.
Controls Charge Controller Thermostat Safety Devices
Electronic user interface with
LCD display offering room
temperature setting, 7 day
programmer, installer settings,
3 preset timer profiles, holiday
setting and more.
Fully automatic charge controller
incorporates self learning
algorithms to optimise daily
energy storage, using multiple
sensors to automatically adjust
the charge taken based on
recent energy use patterns
and future programmed
requirements.
Electronic – accurate
to +/- 0.3oC.
The Test
A daily temperature profile was set up outside the two external walls to
simulate an average heating day in a property based in Sheffield, England.
Minimum outside temperature +4oC
Maximum outside temperature +11oC
The heating periods were set at 07:00 to 09:00 and 16:00 to 23:00.
The target room temperature was 21°C during these times.
The following heaters were tested under these conditions:
•   3.4kW (input) static storage heater with manual charge control
– supplemented with a direct acting heater
•  2.8kW (input) Quantum Heater (CQH125)
For results please see graph on page 6.
The Quantum Energy System – The Quantum Room Heater
13
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 13 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 12 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
The Quantum Cylinder
This graph illustrates the energy storage capacity of
the Quantum Cylinder across a range of temperatures.
Energy Storage Capacity Water Cylinders
This graph illustrates the standing heat loss of a range
of Quantum Cylinders against a range of references.
Cylinder Heat Loss Comparison
Notes
•   Creda Quantum values measured for direct electric cylinder 
in accordance with EN12897 at a temperature difference
between water (65°C) and ambient (20°C) of 45K.
•   CHeSS standard and best values in accordance
with central heating system specification CE 51 2008,
and Energy Saving Trust publication.
•   Red Jacket calculation based on 80mm bre glass insulation.
•   Spray foam cylinder heat loss data taken from competitor
product range. The stated insulation thickness is 35mm.
•   It should also be considered that cylinder replacements are 
covered under Part L1B of building regulations (conservation
of fuel and energy). Part L1B refers to the Domestic Building
Compliance Guide which calls for cylinders to have a heat loss of
no more than the high level products as specified in CE 51 2008.
Quantum (kWh/24h)
CHeSS Std (kWh/24h) CHeSS Best (kWh/24h)
Red jacket (kWh/24h)Spray foam 35mm (kWh/24h)
CYLINDER HEAT LOSS (kWh/24hr)
CYLINDER VOLUME (I)
6.0
5.0
4.0
3.0
0.0
50 100 150 200 250 300 350
2.0
1.0
Q_cyl_70K (kWh)Q_cyl_30K (kWh) Q_cyl_45K (kWh)
ENERGY STORAGE CAPACITY (kWh)
CYLINDER VOLUME (I)
30
25
20
15
0
50 100 150 200 250 300 350
10
5
Cylinder Model CQCD 125-580 CQCD 150-580 CQCD 210-580 CQCD 250-580 CQCD 300-580
Volume 125l 150l 210l 250l 300l
Height 945mm 1115mm 1490mm 1765mm 2065mm
Diameter 580mm 580mm 580mm 580mm 580mm
T&P Valve 720mm 890mm 1265mm 1540mm 1840mm
Immersion 1 208mm 208mm 208mm 208mm 208mm
Immersion 2 570mm 650mm 820mm 1265mm 1495mm
Type
Highly intuitive ergonomically
designed electronic
control system.
Modern, easy-to-read display.
User adjustable cylinder water
temperature to +/- 1°C.
“Boost” immersion heater for
rapid response short-term use.
Hot water volume
availability display.
User can set normal water
temperature and boost
water temperature.
Boost element automatically
disengages upon reaching
target temperature.
Holiday set back function.
Controls
Class-leading insulation levels.
Bi-directional communication
to power utility of specific control
and configuration parameters.
High level energy management
system will interact with external
(Wide Area) Networks and local
(Home Area) Networks.
Communicates stored water
volume and temperature.
Automatic sterilisation function.
Algorithm specifically calculates:
– Hot water volume
– How much more energy can be
stored in the tank until
the maximum set temperature
is reached
– Water and energy consumption
over a defined period
Technical features Heat loss over 24 hours
(T 45k): Storage capacity @
65°C water ( T 55k)
Vented and unvented systems.
Direct cylinders.
Colour/Finish
Black.
125l: 0.95kWh 7.1kWh
150l: 1.1kWh 8.8kWh
210l: 1.4kWh 12.7kWh
250l: 1.55kWh 15.3kWh
300l: 1.96kWh 18.4kWh
The Quantum Energy System – The Quantum Cylinder
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 14 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
14
The NOBO range
www.credaheating.co.uk
The NOBO range
NOBO Heating, recognised for its Norwegian manufactured electric panel heaters
and energy control systems, is an integral part of the Creda Heating range.
Forover30yearsNOBOproductshavebuiltareputationamongst
professional specifiers, architects, designers and property developers
who need a comprehensive solution to their electric heating needs.
From a single, reliable panel to a multi zone programmable network
ofheaters,NOBOcanbringwarmthandcomforttoanyenvironment.
NOBOheatingproductshavebeenspeciedworldwideacross
a diverse range of applications and temperature conditions.
TherearethreeNOBOranges:
•E4EU–Slim,atfrontedpanelheaterwithtop
air outlet and built in 7 day timer.
•C4N – Slimline panel heater with front air outlet
and a range of control modules.
•LST – Low Surface Temperature panel heater
with a range of control modules.
E4EU Range
A slim 500W – 2kW panel heater with built-in, fully programmable
digital 7 day timer. These are ‘all-in-one’, stand alone units and will
not operate as part of a central control system or with any of the other
NOBOcontrolmodulesthatareavailable.Panelheatersintherange
have 5°C – 30°C temperature scale and are ideal for homes, offices
and commercial applications.
C4N Range
A versatile, slimline 500W – 2kW panel heater supplied without controls.
C4N heaters will not operate unless a control module is purchased
separately and installed with the heater. These heaters are ideal for homes,
offices, commercial applications, hotels and student accommodation.
LST Range
A500W,800Wor1kWpanelheaterwhichcomplieswiththeNHS
guidelines on safe surface temperatures. This heater is larger than other
NOBOpanelheaterssothatnopartoftheheaterwillexceed43oC during
operation, even at full output. This means that prolonged contact with the
heater will not result in physical harm, making the heaters safe for use in
areas with children, the elderly and infirm. LST heaters will not operate
unless a control module is purchased separately and installed with the
heater. These heaters are ideal for sheltered accommodation, retirement
homes, healthcare, public waiting areas, hospitals, nurseries and schools.
Specification
Tondoutwhichsystembestsuitsyourrequirements,simplychoose
your application from the left-hand column of the table below, then
decide how you would like to control the system by moving across
thefourcontrolcolumns.PleasenotethattheNOBOrangeisextensive,
and this is only a guide to the most common applications.
Toconrmthatyourspecicationiscorrect,orforfurtherinformation,pleasecontactyourCredaNOBOHeatingRegionalManager.
Useful Tips
•No power cable is supplied with the C4N & LST heaters, it comes in the packet with the control module
•Tamperproof covers are available for all models
Application
Domestic
Commercial
Hotel
Education and Healthcare
Student Accommodation
Onboard Timer
E4EU
C4NwithGERT9
E4EU
C4NwithGERT9
Ask for details
LST with LST-T9
C4N with GCL
Central Control
Radio Frequency
C4NwithEC700&RDC700
andtowelrail–RS700
Waterheater–RSX700
C4N with EC700
andRDC700
Ask for details
LSTwithEC700&RDC700LST
andtowelrail–RS700
Waterheater–RSX700
Ask for details
Pilot Wire
C4N with ZSE
C4N with
ZSE or GCO
C4N with GCH
LST with GCH
or GCO
Ask for details
Remote Control
Control
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 15 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 14 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk 15
www.credaheating.co.uk

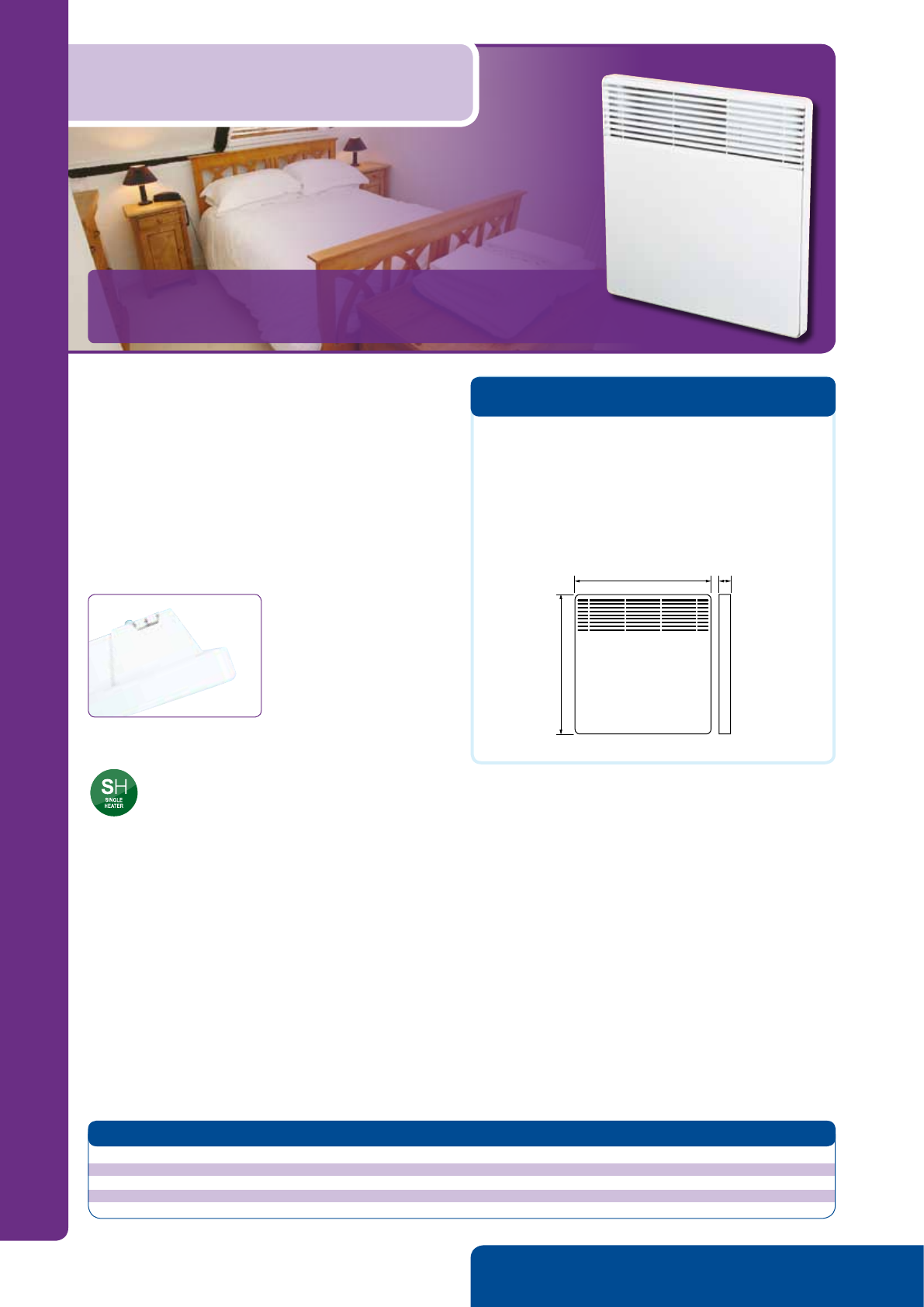

E4EU
Electric panel heaters with integral timer
Simple, understated, practical, economical. Admired for their unfaltering reliability,
unprecedented heating options and cost effectiveness, this robust and stylish range
of products is used extensively across both domestic and commercial applications.
Key features
•Fullyprogrammable24hourand7daydigitaltimerwithautoon,
auto off and manual modes
•Powerfailurememorybackupof150hoursusinginternalNi-cad
rechargeable battery
•Easycleaninghingedwallbrackets
•Extremelyshallowdepth
•Minimalmaintenance
•Availablein500,750,1000,1250,1500and2000wattoutputs
•Variabletemperaturecontrolfrom5°Cto30°C
•Overheatsafetycut-out
•Topairoutlets
•Roundedcorners
Control options
•E4EUthermostaticcontrollersuppliedasstandard
Technical Specification
•Thermostat–see‘Controloptions’
•Finish–purewhitetoRAL9010
•Protection–lockingcoversforcontrolsareavailable
•IPrating–splashprooftoIP24
Accessories:
•TamperproofthermostatcoverS14(2170614)
Model Rating (kW) Height (mm) Width (mm) Depth from wall (mm) Weight (kg)
E4EU0500 0.5 400 475 71 3.4
E4EU0750 0.75 400 625 71 4.3
E4EU1000 1 400 775 71 5.2
E4EU1250 1.25 400 975 71 6.4
E4EU1500 1.5 400 1125 71 7.5
E4EU2000 2 400 1525 71 9.9
Width
Height
Depth
NOBO advanced control panel heaters – E4EU
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 16 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW
16 www.credaheating.co.uk

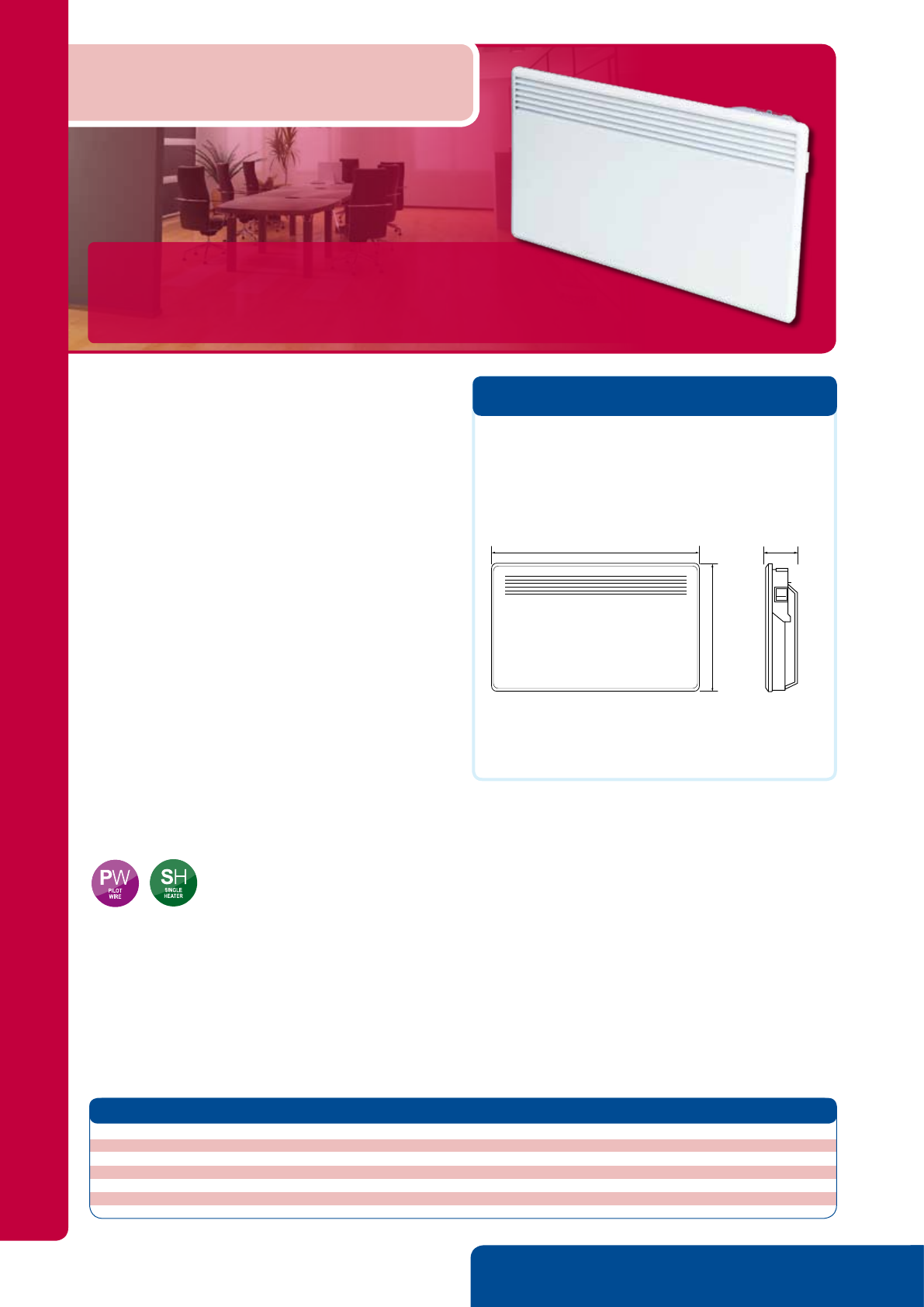

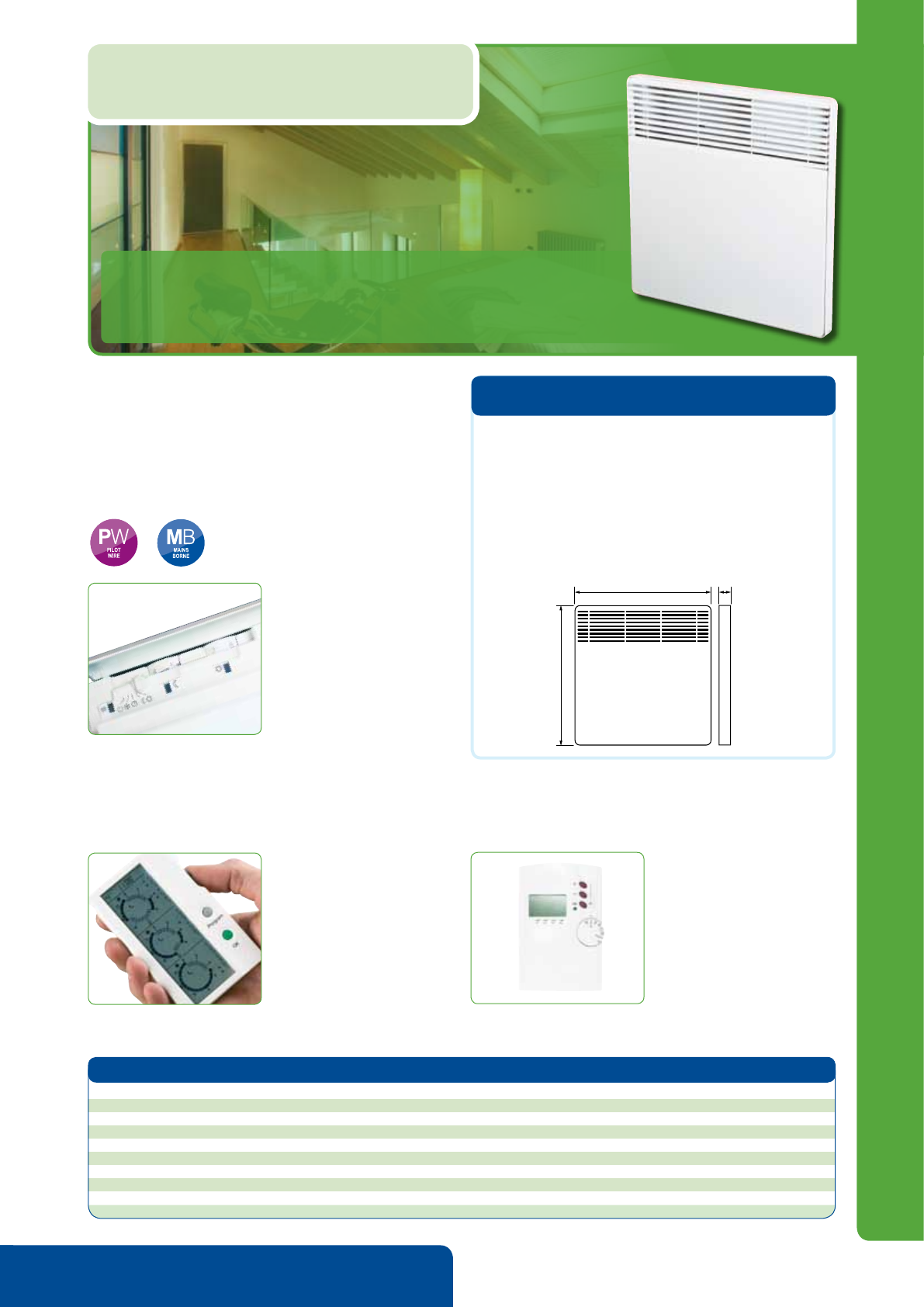

C4N
Electronic panel heaters
The C4N is a classic, slimline heater available in outputs ranging from
500W to 2kW. This is a heater for all applications, with an unobtrusive
design and quality finish it provides a clean and elegant heating solution
for the home, office, hotel or commercial space.
Key features
•Extensiverangeofoutputs
•Lowcapitalcosts
•Virtuallysilentelectronicthermostats
•Extremelyshallowdepth
•Tamperproofcapability
•Completerangeofcustomdesignedthermostatcontrolmodules
Control options
•RDC700(compatiblewiththeOrion700RFcontrolunit)
•GERT9(dualelectronicthermostatandtimer)
•GE(singleelectronicthermostat)
•GCL(dualelectronicthermostatandrunbacktimer,PIRorkey
card timers)
•GCO(dualelectronicthermostatandpilotwireforcentraltimer,
PIRorkeycardtimers)
•GCH(dualelectronicthermostatandpilotwireforcentraltimer,
PIRorkeycardtimers)
•ZSE(dualelectronicthermostatwithxedeconomysetting
and pilot wire)
Pleaseseepages18and19formoredetails
Technical Specification
•Thermostat–see‘Controloptions’
•Finish–purewhitetoRAL9010
•Protection–lockingcoversforcontrolsareavailable
•IPrating–splashprooftoIP24
Accessories:
•2170611BASBplasticcoverforon/offswitch
•2170613AOBR80-PLplasticcoverforthermostatslider
Model Rating (kW) Height (mm) Width (mm) Depth (mm from wall) Weight (kg)
C4N0500 0.5 400 425 78 3.1
C4N0750 0.75 400 525 78 3.7
C4N1000 1 400 675 78 4.6
C4N1250 1.25 400 825 78 5.6
C4N1500 1.5 400 975 78 7.0
C4N2000 2 400 1325 78 8.7
Width
Height
Width
Height
Depth
NOBO advanced control panel heaters – C4N
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 17 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 16 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW

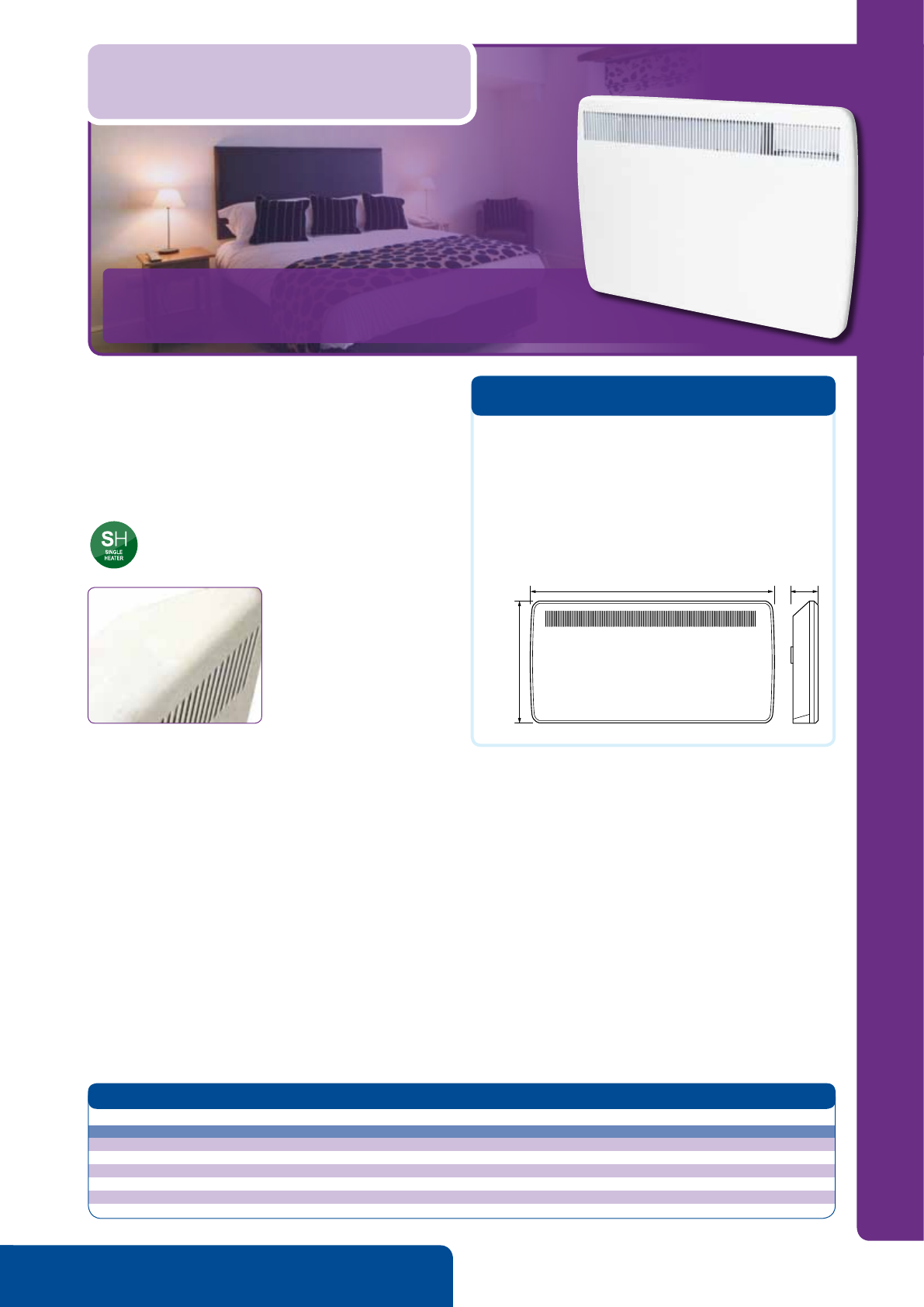

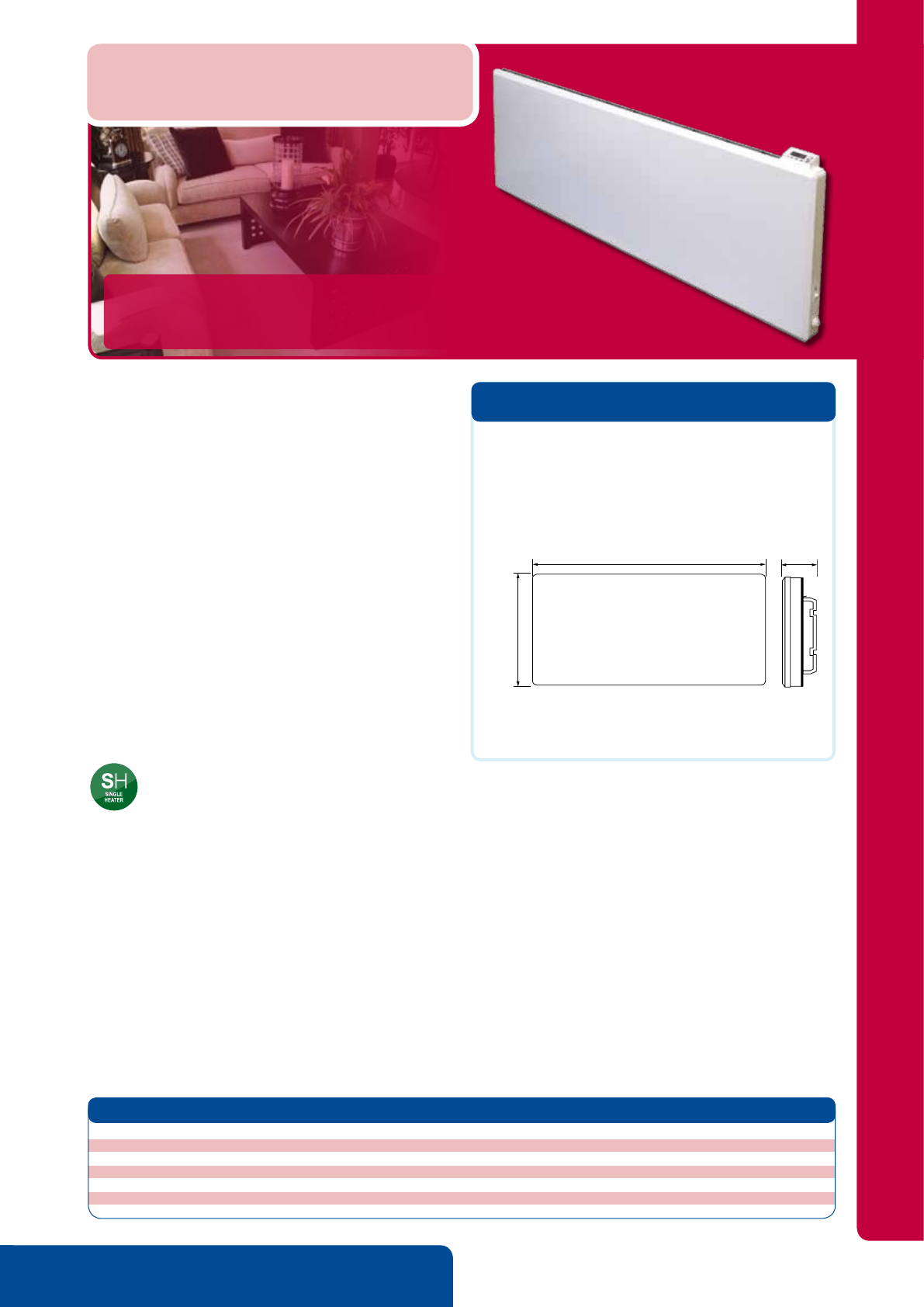

LST
Low surface temperature panel heaters
The LST meets the NHS Estates Health Guidance Notes on
‘Safe Hot Water and Surface Temperature’, as the surface
temperature does not exceed 43°C at full output.
www.credaheating.co.uk 17
www.credaheating.co.uk
Model Rating (kW) Height (mm) Width (mm) Depth from wall (mm) Weight (kg)
LST5N05 0.5 515 775 145 6.3
LST5N08 0.8 515 1275 145 9.25
LST5N010 1 515 1575 145 11.25
Key features
•Rangeofoutputs
•Maximumsurfacetemperatureof43tC
•Safeairleavingtemperature
•Tamperproofcapability
•Widerangeofcontroloptions
Control options
•RDC700LST(compatiblewiththeOrion700RFcontrolunit)
•LSTT9(dualelectronicthermostatwithtimer)
•GCH(dualelectronicthermostatandpilotwireforcentraltimer,
PIRorkeycardtimers)
•GCO(dualelectronicthermostatandpilotwireforcentraltimer,
PIRorkeycardtimers)
Pleaseseepages18and19formoredetails
Technical Specification
•Thermostat–see‘Controloptions’
•Finish–purewhitetoRAL9010
•Protection–lockingcoversforcontrolsareavailable
•IPrating–splashprooftoIP24
Width
Height
Depth
This stylish convector heater incorporates a safety cut-out,
virtually silent electronic thermostat and creates no hot-spots,
which can be a major weakness of other brands. The thermostat
controls can also be fitted with locking covers making them
tamperproof. All of these features ensure safe operation within
certain sectors of the community, such as:
•Nursinghomes
•Nurseries
•Hotels
•Publicbuildings
•Hospitals
•Doctors’surgeries
•Schools
•Residentialhomes
•Publicwaitingareas
The heater utilises the proven electronic plug-in proportional
thermostats with temperature scales designed to achieve optimum
warmthandcomfortwithmaximumsafety.Typically,therangewill
be14°C–24°Candwherecontrolmanagementisrequiredthe
NOBOOrion700wirelessRFcontrollerorthepilotwirecontrolled
GCH and GCO modules can be used for the management of
economy and safety levels.
NOBO advanced control panel heaters – LST
Accessories:
•2170611BASBplasticcoverforon/offswitch
•2170613AOBR80-PLplasticcoverforthermostatslider
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 18 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW
18 www.credaheating.co.uk

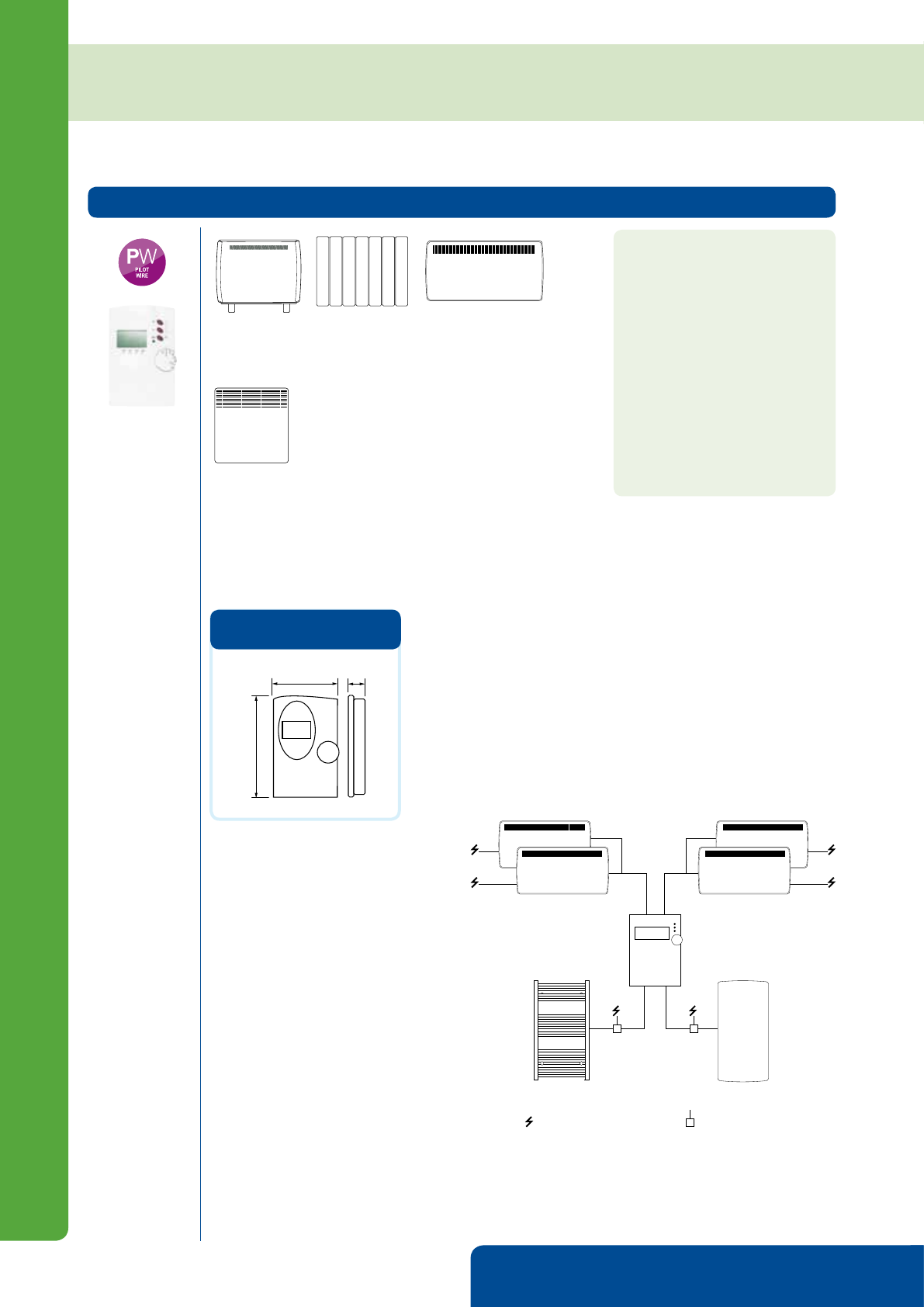

Multi zone control
Wireless and pilot wire programmers
Total control of your heating system, when and where you
need it. Amidst growing interest in energy conservation,
the NOBO multi zone controls provide the ability to
reduce energy use and achieve optimal comfort.
Orion 700 (EC 700) Wireless RF programmer
The Orion 700 is stylish, easy to use and ingenious in its technical
capabilities.Thisuniquesystemcanautomaticallycontrolawiderange
of individual zones in living rooms, bedrooms and bathrooms.
Heating zones are created by giving them a name, a named zone may
then be given a programme. Programmes consist of seven individual and
separate days, (Monday to Sunday) and each day is divided up into 48
half-hourly periods which may be set on either (on) or (off). Individual or
group override facility for holidays and frost protection is also provided.
Key features
•Designedtoprovide24/7costeffectivezonecontrolledheating
•Ancillaryfunctioncontrol
•FullycompatiblewiththeacclaimedC4NandLSTheaters
•Elegant,contemporarydesigninsmoothblacknish
•Capableofcontrollingupto100zones
•Automaticallyrelayssignalsontootherreceivers
•Dailyorweeklyindividualcontroloptions
•Simpleinstallation
•Fullprogrammeretentionintheeventofapowerfailure
Receivers
RDC 700
TheRDC700modelshavebuilt-inreceiversfortheC4Npanel
heaters, which can interpret commands and relay signals back
to the control unit.
RS 700
Forcontrolofsmallappliancesupto10amps,typically
towel rails.
RSX 700
Forcontrolofxedappliancesupto16amps.DINrailmounting,
typically for hot water.
Width
Height
Depth
Multi zone control options for C4N and LST Ranges
Model Enclosure Voltage (v) Consumption (ma) Height (mm) Width (mm) Depth (mm)
EC700 IP20 230–240 80 180 113 46
RSX700 IPX0 230–250 20 70 54 57
RS700 IPX0 230–240 20 57 53 28
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 19 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 18 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW
www.credaheating.co.uk 19
www.credaheating.co.uk

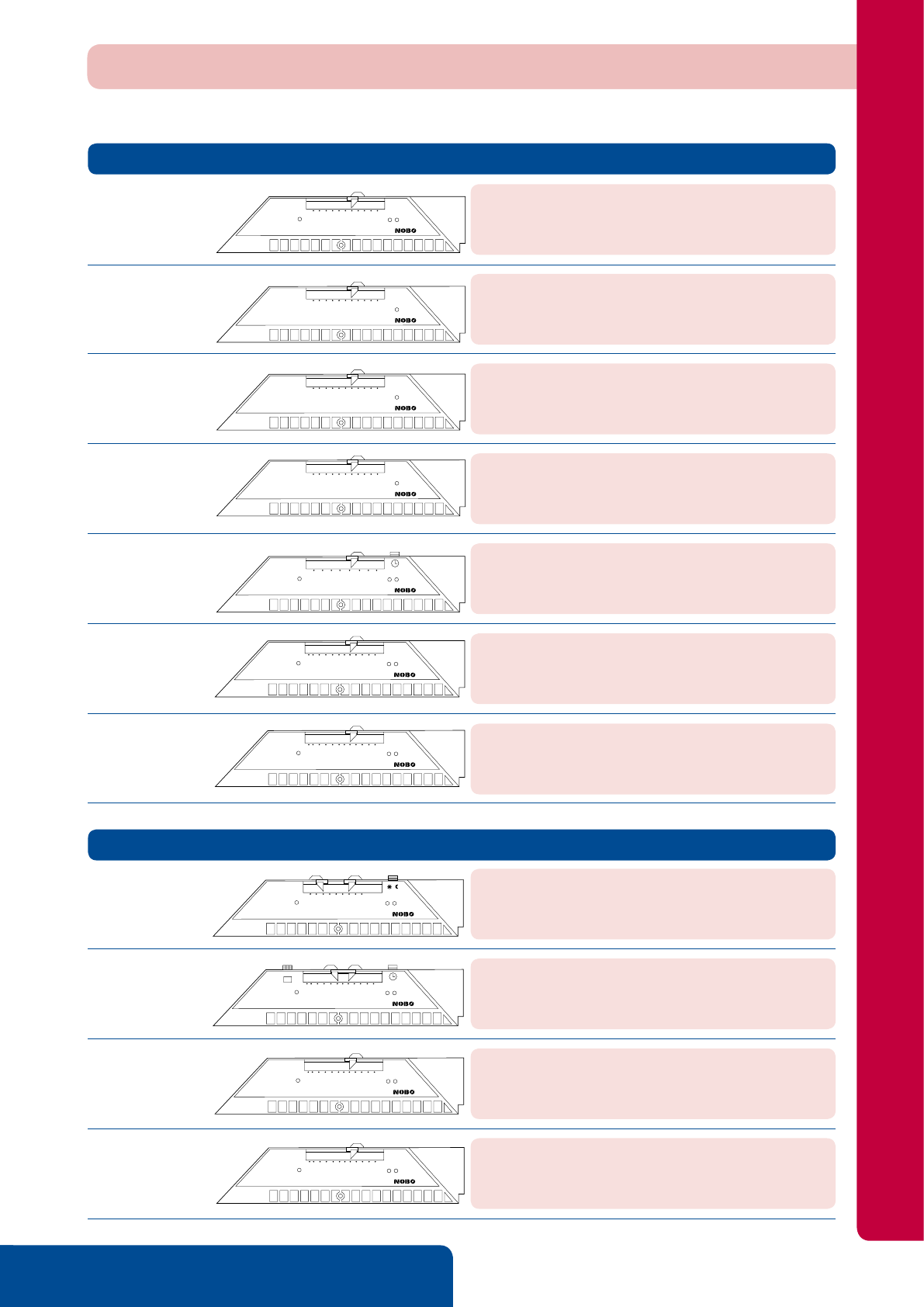

Control options – C4N and LST Only
The C4N and LST ranges of panel heaters require a control module to operate.
Control options for C4N and LST Ranges
Thermostat modules for C4N
ZSE 8833211
5°C – 30°C
GE 8833215
5°C – 30°C
GER T9 8833225
5°C – 30°C
RDC 700 8833661
5°C – 30°C
GCH 8833227E
14°C – 24°C
GCO 8833233
14°C – 24°C
51015202530
51015202530
❄
51015202530
❄
51015202530
❄
14 15 17 24
14 16 18 20 24
14 16 18 20 24
Application
•Apartments
•Standardapplications
•Domestic
Application
•Standardapplications
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•Fixedset-backtemperaturesetting
Specification
•Singleelectronicthermostat
•Proportionaltemperatureregulation
Application
•Standardapplications
•Domestic
•Commercial
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•Integralprogrammabletimer
•Fixedfrostprotectionsetting
Application
•Centralcontrolapplications
•Domestic
•Commercial
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•Radiofrequencycontrol
•Fixedfrostprotectionsetting
Application
•Hotels
•Nursinghomes
•Variousapplications
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•Cableconnectionforremotecontrol
•Fixedsetbacktemperaturesetting
Application
•Hotels
•Nursinghomes
•Variousapplications
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•Cableconnectionforremotecontrol
•Fixedsetbacktemperaturesetting
Application
•Studentapplications
•Occasionaloccupation
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•Integralsingleshotrunbacktimer
•Fixedsetbacktemperaturesetting
GCL 8833431/8833256
14°C – 24°C
Thermostat modules for LST
GCO 8833233
14°C – 24°C
14 16 18 20 24
Application
•Doctorssurgeries
•Hospitals
•Ofcedisabledfacilities
•Variousapplications
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•LSTtemperaturescale
•Fixedfrostprotectionsetting
GCH 8833227E
14°C – 24°C
14 16 18 20 24
Application
•Nursinghomes
•Sittingareas
•Children’splayareas
•Variousapplications
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•LSTtemperaturescale
•Fixedsetbacktemperaturesetting
5
P3
16 18 20 24
Application
•Publicareas
•Domesticapplications
•Ofcedisabledfacilities
•Variousapplications
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•Integraltimerwith9presetprogrammes
•Frostprotectionsetting
LST-T9 8833224
5°C – 24°C
510152024
❄
Application
•Hospitals
•Nurseries
•Ofces
•Variousapplications
Specification
•Doubleelectronicthermostat
•Proportionaltemperatureregulation
•Radiofrequencycontrol
•Adjustablesetbacktemperaturesetting
RDC 700 LST 8833662
5°C – 24°C
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 20 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
Key features
•Contemporaryradiatorstyling
•Electronicthermostaticcontrol,accurateto+/-0.3°C
•Convectedheatforrapidwarmup
•Virtuallysilentoperation
•Pre-setbackgroundtemperatureat5°Cbelowthermostatsetting
(when connected to a programming unit supporting setback feature)
•Hiddenthermostatrangelimiterfeature–foradditionaleconomy
•Rangeofoptionalplug-inelectronictimermodules,including:
–24hourdigitaltimer(ModelTPRE24T)
–Singlezone7daypilotwireprogrammer(ModelTPRE7DT)
–Runbacktimer(ModelTPRERBT)
•CompatiblewithCreda4zonepilotwirecentralcontroller
(Model PWE4ZC)
Technical Specification
•Elements–nned,mineral-lledsheathtype
•Thermostat–electronicwith5°Csetbackcontrolcapability
•Finish–whitepowdercoatedsteelandthermoplastic
•Protection–autoresetthermalcutout
•Cable–1.2metres,4core(live,neutral,pilotandearth)
•IPrating–IPX4(splashproof)
•Supply–230/240VACsinglephase

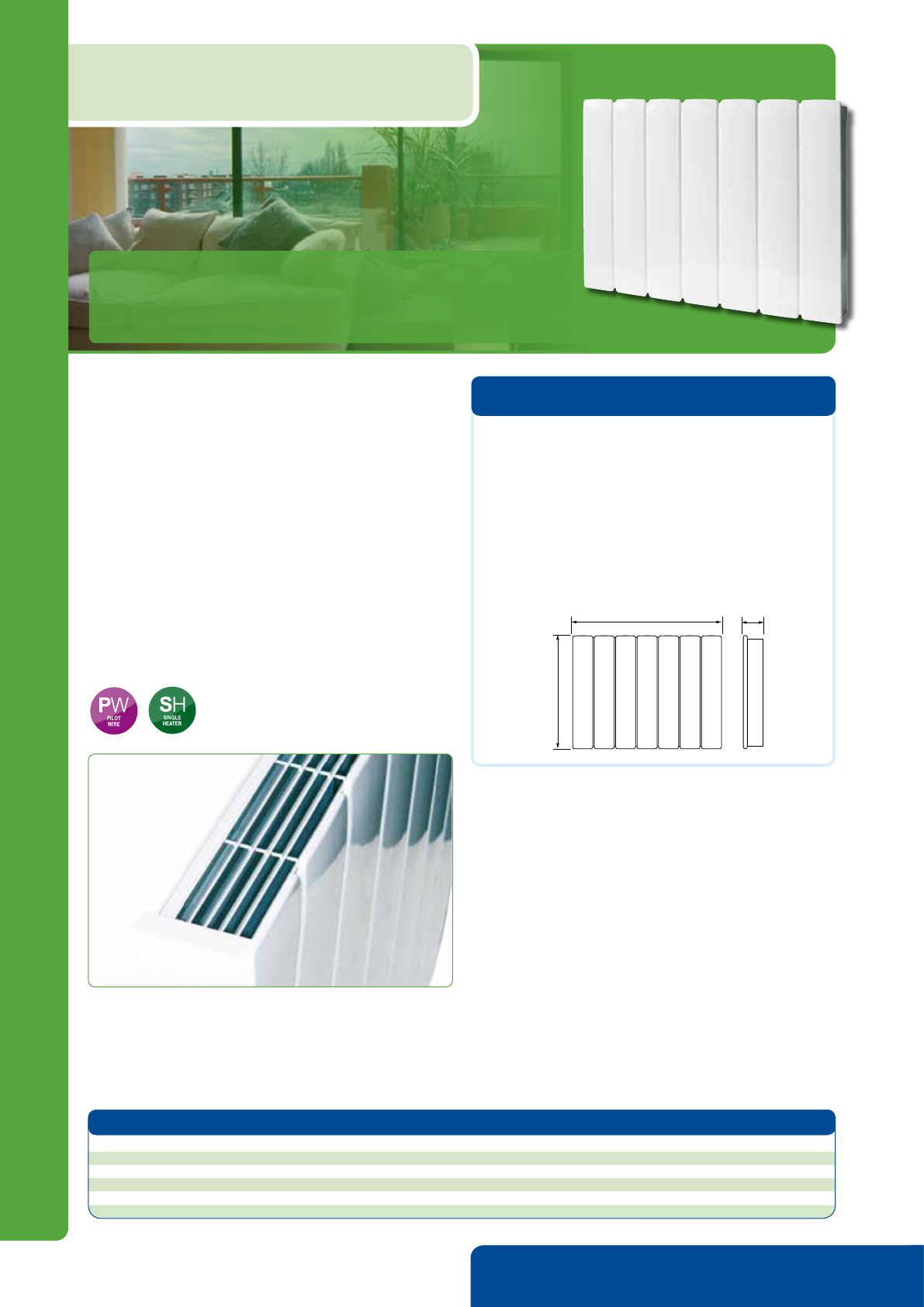

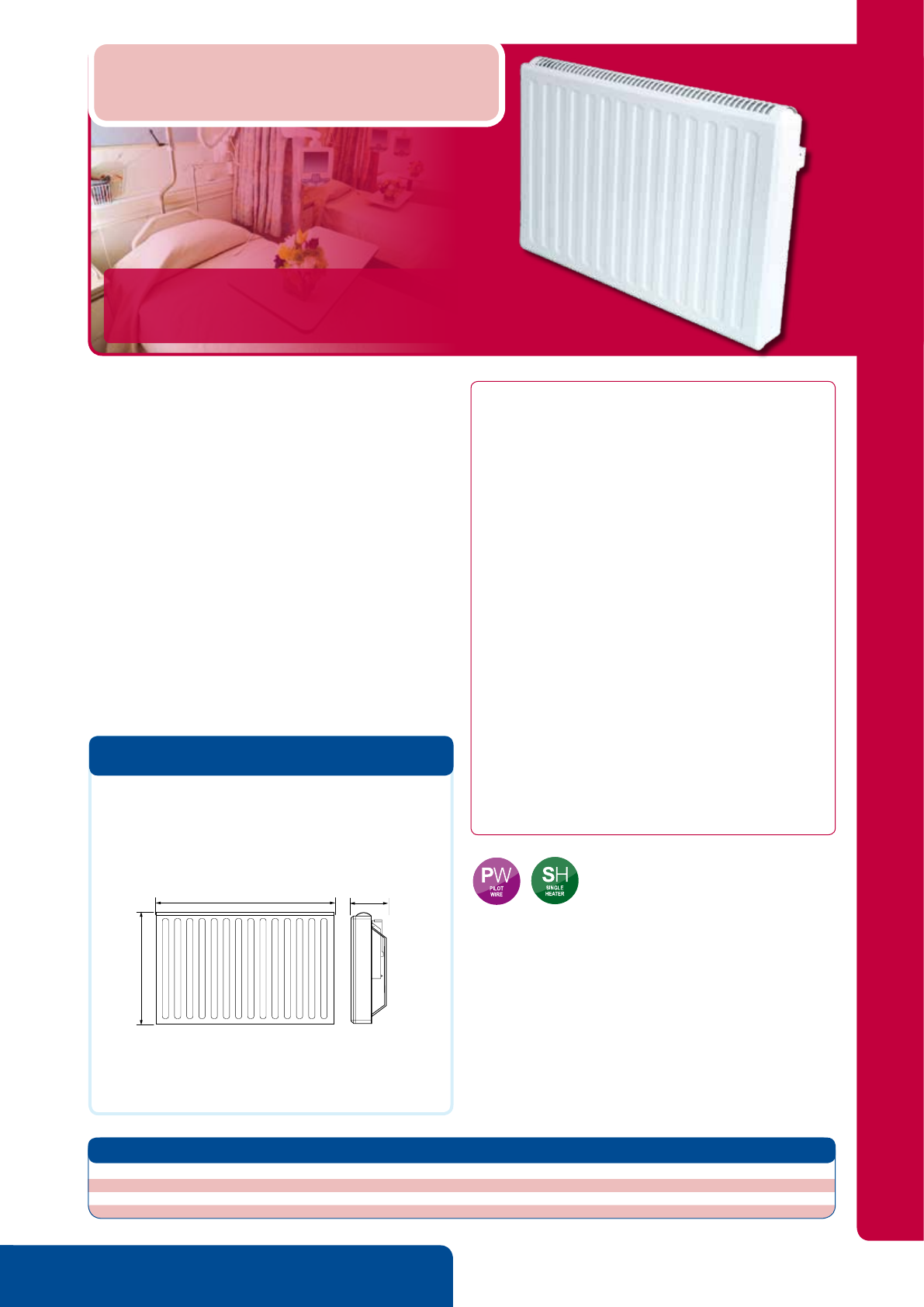

Contour100
Electronic panel heater
20
Advanced control heating systems – Contour100
www.credaheating.co.uk
Width
Height
Depth
Model Rating (kW) Height (mm) Width (mm) Depth (mm) Weight (kg)
CEP500E 0.5 536 503 104 12
CEP750E 0.75 536 503 104 12
CEP1000E 1 536 671 104 15
CEP1500E 1.5 536 741 104 17.5
CEP2000E 2 536 911 104 22
The Contour100 panel heater range offers high quality build
and panel finish with contemporary radiator styling. Contour100
panel heaters incorporate electronic thermostatic controls
which allow very precise regulation of room temperatures.
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 21 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 20 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL

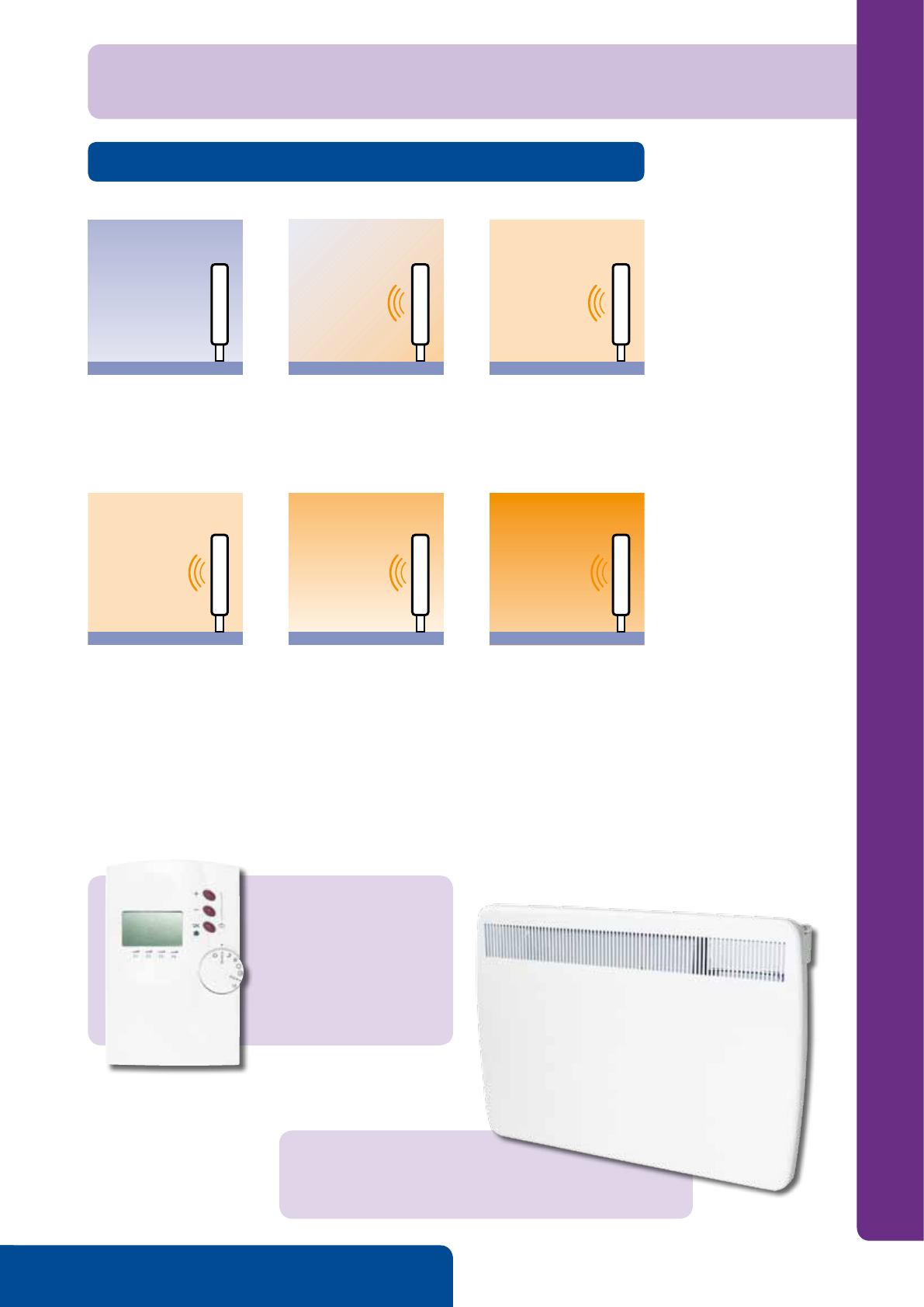

Controls
Electronic panel heaters
www.credaheating.co.uk
Advanced control heating systems – Electronic Controls
21
www.credaheating.co.uk
Control options
A range of optional plug-in control modules, which can be removed
fromtheheaterforeasyprogramming,providetheexibilitytomeet
a wide range of control specifications:
•TPRE24T24hourdigitaltimer.Provides24hourprogrammable
on/off control.
•TPRE7DTsinglezone,pilotwireprogrammercontrolsupto
10slaveheaters.Provides7dayprogrammableon/offcontrol.
•TPRERBTrunbacktimer.Providesinstallerprogrammablerunback
time up to 4 hours (in 30 minute increments). Can be locked
into heater.
Control options
4 zone pilot wire central controller.
Allows 7 day programming of
comfort/setback time settings
of multiple pilot wire linked
heaters in up to 4 separate zones.
See page 20 for more details.
Model PW E4ZC
+2°C
MECHANICAL
THERMOSTATS
MAY OVERSHOOT BY
UP TO 2°C
ELECTRONIC
THERMOSTATS
ARE ACCURATE
TO ±0.3°C
SET TEMPERATURE
+1°C
-1°C
-2°C
+0.3°C
-0.3°C
The electronic panel heaters feature highly accurate electronic thermostats
(+/-0.3°C), providing superior comfort and operating efficiency.
As the room temperature nears the desired set point, power to the
elements is reduced. The room temperature is closely monitored to an
accuracy of less than 0.3°C, minimising overshoot and temperature drift,
resulting in better energy efficiency and user comfort.
Electronic Thermostat
Model Product description Height (mm) Width (mm) Depth (mm)
TPRE24T 24hourplug-intimermodule 50 70 145
TPRE7DT 7daysinglezoneplug-intimermodule 50 70 145
TPRERBT 4hourrunbacktimerplug-inmodule 50 70 145
PWE16A 16amppilotwireinterfaceunit 86 86 22
PWE4ZC 4zonepilotwirecentralcontroller 132 86 38
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 22 823/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL,, UL
Advanced control heating systems – TPRIII E
22

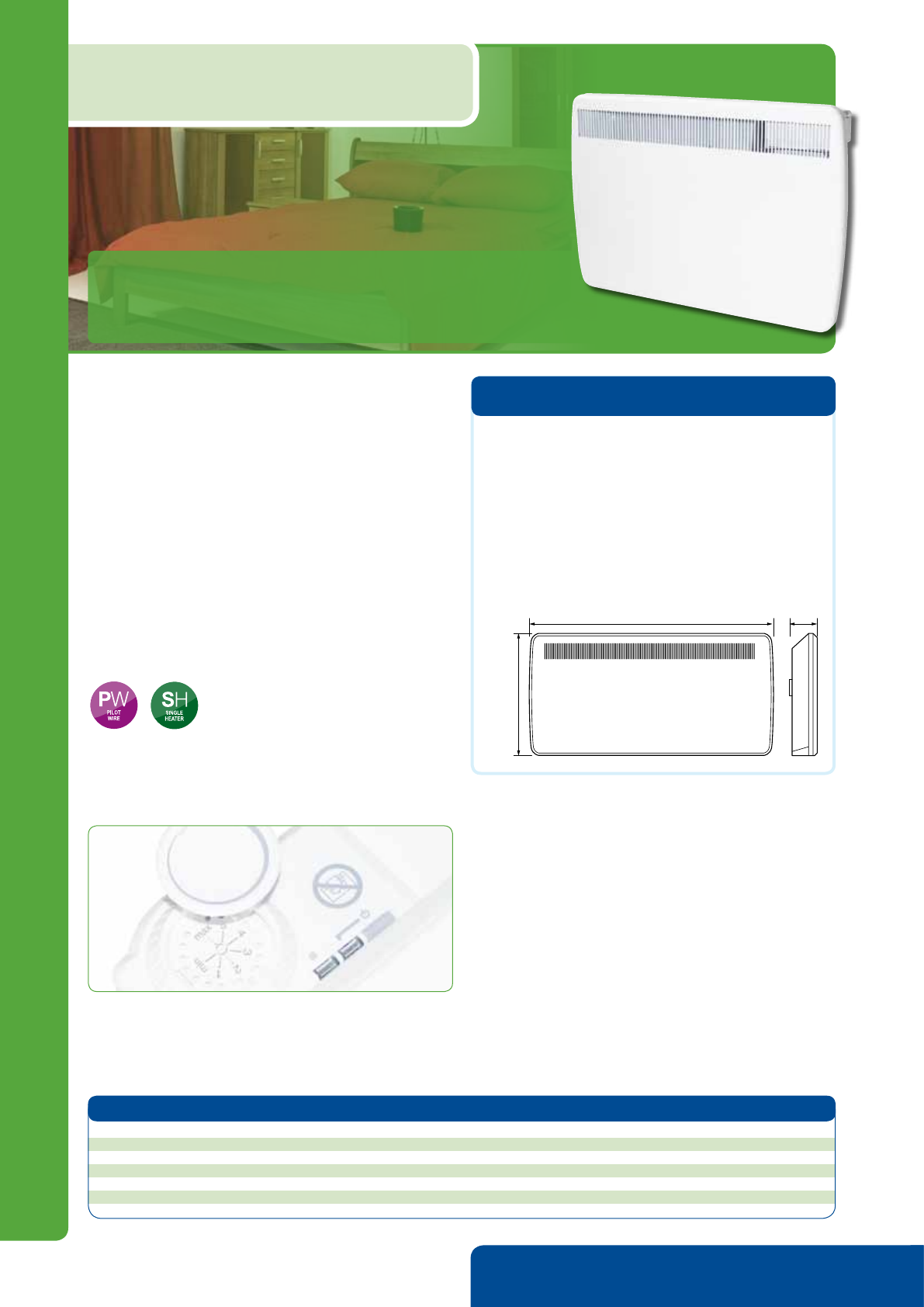

TPRIII E
Electronic Pilot Plus panel heaters
Key features
•Frontfacinggrilleforefcientheatprojection
•StylingtocomplementEco-Responseradiatorswithpurewhitenish
•Electronicthermostaticcontrol+/-0.3°C,completelysilentoperation
•Presetbackgroundtemperatureat5°Cbelowthermostatsetting
(when connected to a programming unit supporting setback feature)
•Optionalplug-inelectronictimermodules,including:
–24hourdigitaltimer(ModelTPRE24T)
–Single-zonepilotwireprogrammer(ModelTPRE7DT)
–Runbacktimer(ModelTPRERBT)
•CompatiblewithCreda4zone,wallmountedpilotwiresignalling
multi-heater programmers
•Hiddenthermostatrangelimiterfeature–foradditionaleconomy
•Simpledetachablewallbracketforeasyinstallation
Technical Specification
•Element–nned,mineral-lledsheathedtype
•Thermostat–electronicwithxed5°Csetbackfacility
•Finish–whitepowdercoatedsteelandthermoplastic
•Protection–autoresetthermalcut-out
•IPrating–IPX4(splashproof)
•Cable–1.2metres,4corecable(live,neutral,pilotandearth)
•Supply–230/240VACsinglephase
Width Depth
Height
www.credaheating.co.uk
TPRIII E Electronic rotary thermostat
Improved economy may be achieved by limiting the thermostat rotational
range, by means of the mechanical ‘peg and hole’ feature hidden beneath
a removable cap on the thermostat knob.
For more control options, please see page 23.
Model Loading (kW) Height (mm) Width (mm) Depth (mm) Weight (kg)
TPRIII500E 0.5 430 450 108 5.2
TPRIII750E 0.75 430 620 108 6.6
TPRIII1000E 1 430 620 108 6.6
TPRIII1250E 1.25 430 690 108 7.1
TPRIII1500E 1.5 430 690 108 7.1
TPRIII2000E 2 430 860 108 8.5
TPRIII Electronic Pilot Plus panel heaters incorporate electronic
thermostatic controls to allow precise regulation of room
temperatures – essential when comfort, economy and energy
efficiency need to be considered in equal measure.
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 23 518/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 22 823/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL,, UL
www.credaheating.co.uk
Advanced control heating systems – Newera Electronic
23
Newera Electronic
Electronic panel heaters
Key features
•Twinelectronicthermostatsforcomfortandsetback
•Compact,attractivedesignoccupyingminimumwallspace
•Mainsborneandpilotwirecontroloptions
•Hingedwallmountingbrackettoalloweasyaccessforcleaning
and decorating
Technical Specification
•Elements–nned,metalsheathedminerallledtype
•Thermostats–twinelectronic
•Protection–twolevelthermalsafetyoverheat
•Supply–230/240VACsinglephase
•IPRating–IPX4(splashproof)
Width Depth
Height
www.credaheating.co.uk
Model Rating (kW) Height (mm) Width (mm) Depth (mm)
EPH500 0.5 450 370 78
EPH1000 1 450 445 78
EPH1250 1.25 450 520 78
EPH1500 1.5 450 590 78
EPH2000 2 450 740 78
PWE4ZC 4 zone pilot wire central controller
MBPRG NeweraMBProgrammer
MBIF NeweraMBInterface
Control options
Newera Style and Newera Electronic panel heaters may be connected as
a centrally controlled system using the optional mains borne accessories.
TheMBprogrammer
communicates with the heaters
and controls a comfort or setback
thermostat as per the times set
in the programmer.
MBProgrammerModelMBPRG
MBInterfaceModelMBIF
Integral twin electronic thermostats
for setting comfort and setback
temperatures.
Allows 7 day programming of
comfort/setback time settings of
multiple pilot wire linked heaters
in up to 4 separate zones.
4 zone pilot wire central controller
Model PW E4ZC
The Newera Electronic range provides style, flexibility and ease of use in
any building. Built-in twin electronic thermostats allow control of comfort
and setback temperatures. Heaters can be used individually or linked for
a complete heating system.
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 24 823/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL,, UL
Advanced control heating systems – Control options
24
Control options
Wall mounted controller for 4 zone pilot wire linked heating system
www.credaheating.co.uk
Pilot Wire Controller
Model PW E4ZC
Eco-ResponseStorage
RadiantHeaters
Newera Electronic
Panel Heaters
Contour100Electronic
Panel Heaters
Pilot wire signalling – ideal control system
option for new build applications.
4 zone wall mounted central controller –
mains powered with 4hr backup.
Number of heaters – up to 20 in the
same zone.
Controller features:
TIME – individual 7 day programming
of multiple time periods MODES – on/off,
comfort/setback or comfort/frost.
Also with manual override selection
and holiday functions.
Panel heater features – integral electronic
thermostat for comfort temperature selection
withaxed5°Csetbackfromcomfort,
and frost protection at 5°C.
TPRIIIEElectronic
Panel Heaters
The performance and economy of Creda heating products can be further enhanced by the use of control options best suited
to the type of installation and lifestyle requirements.
Dimensions
86mm 38mm
132mm
240v mains supply
Zone 1 Zone 2
Zone 3 Zone 4
PW E16A Interface unit
Pilot wire heating system
The PW E4ZC central controller allows 7 day programming for comfort
and setback temperature periods of multiple pilot wire linked heaters in
up to four separate zones.
•4separateheatingzones
•Heatermodes–Comfort/Setback,Comfort/FrostorComfort/Off
•Wallmountedmainspoweredcontrollerwithcapacitorbackup
(approx.4hrs)
Note: Pilot wire installations are appropriate for single phase connection only.
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 25 518/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 24 823/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL,, UL
www.credaheating.co.uk
Advanced control heating systems – Control options
25
www.credaheating.co.uk

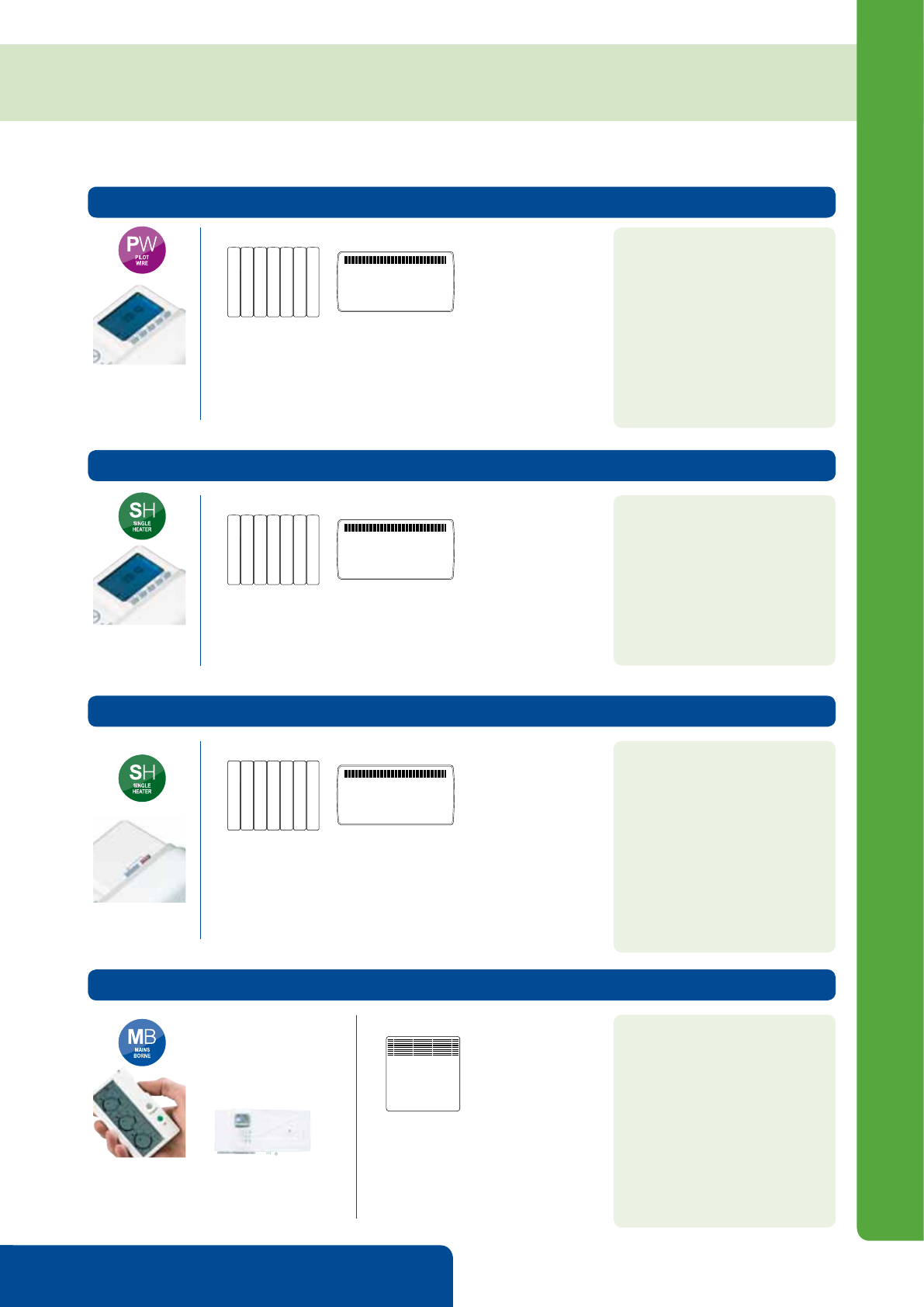

Plug-in 7 day heater module for single zone pilot wire linked system
7 day timer
Pilot Wire
ModelTPRE7DT
Contour100Electronic
Panel Heaters
Pilot wire signalling – ideal control system
option for new build applications.
Single zone plug-in module controller –
mainspoweredbypanelwith12hrbackup.
Number of heaters–upto10slavepanels
pilot wire linked in a single zone.
Timer features:
4 on/off time periods for weekdays and 4
for weekends.
Additional features: key lock and ‘advance
tonextprogramme’functions.
TPRIIIEElectronic
Panel Heaters
Plug-in 24 hour timer module for single heater control
24 hour timer
ModelTPRE24T
Contour100Electronic
Panel Heaters
Single heater control – not system linked.
24hr plug-in timer module – mains powered
bypanelwith12hrbackup.
Number of heaters – single heater
control only.
Timer features:
4 on/off time periods in 24hr.
Additional features: key lock and ‘advance
tonextprogramme’functions.
TPRIIIEElectronic
Panel Heaters
Plug-in runback timer module for single heater control
Runbacktimer
ModelTPRERBT
Contour100Electronic
Panel Heaters
Single heater control – not system linked.
Runback plug-in timer module – mains
powered by panel.
Number of heaters – single heater
control only.
Timer features:
on/offxedrunbacktimefrom1/2hruptoa4hr
period(1/2hrincrementsselectedatinstallation).
Special function – an alternative selection
that switches from comfort to setback for
an initial 24hr period, then switches to frost
protect mode.
TPRIIIEElectronic
Panel Heaters
Plug-in timer for single zone mains borne panel heating system
MBProgrammer
ModelMBPRG
MBReceiver
interface
ModelMBIF
Mains borne signalling – no additional signal
cablingrequiredidealforretrotinstallations.
Single zone plug-in programmer – powered
by panel with battery backup.
Number of heaters – any number of panels
each with a receiver interface unit fitted.
Controller features – 3 separate time clocks
with hourly on/off period selection over 24hrs.
Each can be allocated to one or more days of
the week.
Panel heater features – integral twin linked
electronic comfort and setback thermostats.
Newera Electronic
Panel Heaters
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 26 823/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL,, UL
Mechanical panel heaters & electric storage heating – TPRIII M/MT
26
TPRIII M/MT
Mechanical thermostatic panel heaters
Key features
•TPRIII(MT)modelshaveprogrammable24hourtimers
•TPRIII(MT7)modelhasaprogrammable7daytimer
•Fullorhalfpoweroutputselection
•Adjustablethermostat(5-30°C)
•Convectedheatforrapidwarm-up.Suitablefordomestic
or commercial use
•Frostprotectionsetting
•Frontheatoutletgrilleforefcientheatcirculation
•Lockabledustcover
•Detachablehingedwallmountingbracketforfastinstallation
and easy cleaning
Technical Specification
•Element–mineral-lledsheathedtype
•Thermostat–capillarytype
•Finish–whitepowdercoatedsteel
•Protection–autoresetthermalcut-out
•IPrating–IPX4(splashproof)
•Supply–230/240VACsinglephase
•Cable–900mm
Width Depth
Height
www.credaheating.co.uk
TPRIIIMmechanicalthermostat
(all ratings).
TPRIIIMTmechanicalthermostat
and 24 hour timer (all ratings).
TPRIIIMT7mechanicalthermostat
with 7 day timer (2kW model only).
Range options
Model Rating (kW) Height (mm) Width (mm) Depth (mm) Weight (kg)
Thermostat only models
TPRIII500M 0.5 430 450 108 4.8
TPRIII750M 0.75 430 620 108 6.2
TPRIII1000M 1 430 620 108 6.2
TPRIII1250M 1.25 430 690 108 6.6
TPRIII1500M 1.5 430 690 108 6.6
TPRIII2000M 2 430 860 108 8.0
Timer models 24hr
TPRIII500MT 0.5 430 450 108 4.8
TPRIII750MT 0.75 430 620 108 6.2
TPRIII1000MT 1 430 620 108 6.2
TPRIII1250MT 1.25 430 690 108 6.6
TPRIII1500MT 1.5 430 690 108 6.6
TPRIII2000MT 2 430 860 108 8.0
Timer model 7 day
TPRIII2000MT7 2 430 860 108 8.0
Designed to complement Creda storage heaters, TPRIII mechanical
thermostatic panels are ideal for any areas which require heating
for short periods of the day. Cost effective, they offer an efficient
way to extend existing heating systems and come with various
control options to suit different applications.
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 27 518/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 26 823/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL,, UL
Mechanical panel heaters & electric storage heating – TPRIII NC
27
TPRIII NC
No controls panel heaters
Technical Specification
•Element–mineral-lledsheathedtype
•Finish–whitepowdercoatedsteel
•Protection–autoresetthermalcut-out
•IPrating–IPX4(splashproof)
•Supply–230/240VACsinglephase
•Cable–900mm
Width Depth
Height
www.credaheating.co.ukwww.credaheating.co.uk
Model Rating (kW) Height (mm) Width (mm) Depth (mm) Weight (kg)
No controls models
TPRIII500NC 0.5 430 450 108 4.8
TPRIII750NC 0.75 430 620 108 6.2
TPRIII1000NC 1 430 620 108 6.2
TPRIII1250NC 1.25 430 690 108 6.6
TPRIII1500NC 1.5 430 690 108 6.6
TPRIII2000NC 2 430 860 108 8.0
Key features
•Convectedheatforrapidwarm-up
•Suitablefordomesticorcommercialuse
•Frontheatoutletgrilleforefcientheatcirculation
•Detachablehingedwallmountingbracketforfastinstallation
and easy cleaning
No built-in controls
toenableexternaltime
and temperature control.
A range of panel heaters without any integral controls
for use in applications where external control of
temperature and time programming is required.
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 28 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
2828 www.credaheating.co.uk
Newera Plus
Panel heaters
Key features
•Singlemechanicalthermostat,standaloneheating
•Excellentvalueandsimpletooperate
•Robustconstructionandeasytoinstall
•Compact–takesupminimalwallspace
•Hingedwallmountingbrackettoalloweasyaccess
for cleaning and decorating
•Idealforconservatories,extensions,hotelsand
student accommodation
•Elements–nned,metalsheathedmineral-lledtype
•Thermostat–singlemechanical
•Protection–twolevelthermalsafetyoverheat
•Supply–230/240VACsinglephase
•IPrating–IPX4(splashproof)
Width Depth
Height
Technical Specification
Model Rating (kW) Height (mm) Width (mm) Depth (mm)
HPH750 0.75 450 370 78
HPH1000 1 450 445 78
HPH1250 1.25 450 520 78
HPH1500 1.5 450 590 78
Single mechanical thermostat.
A simple robust stand alone thermostatic panel heater.
The Newera Plus range offers a low-cost heating solution
ideal for hotels or student accommodation.
Mechanical panel heaters & electric storage heating – Newera Plus
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 29 318/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 28 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
29
www.credaheating.co.ukwww.credaheating.co.uk
Mechanical panel heaters & electric storage heating – TSR Sensor Plus & Slimline
TSR Sensor Plus & Slimline
Electric storage heaters
Key features
•Multi-sensetwothermostaticsensorcontrolsystemforheatstorage
and room temperature control
•Theonlystorageheateravailablethatautomaticallymonitors
and controls heat output through a thermostatic sensor
•Controlscouldn’tbesimpler–oneforinputandoneforoutput
•Multi-sensesystemenablesenergysavingsofupto15%
•Automaticcontrolmeanslittleifanycontroladjustment–
just set and forget
•Allmulti-sensesensorsaremountedwithintheheater
•Lockablecontrolscover
Key features
•Simplecontrols–oneforinput
and one for output
•Lockablecontrolscover
•Manualcontroladjustment
Technical Specification
•Elements(storage)–mineralinsulatedstainlesssteelsheathed
•Insulation–opaciedsilicaceousaerogelandmineralbremat
•Storagecore–highdensityironoxidecompound
•Controls**(output)–manuallyadjustablethermostatcontrolling
output damper
•Controls(input)–hydraulicchargecontrolthermostat,
manually adjustable
•Protection–twolevelthermalsafetyoverheat
•Supply–230/240VACsinglephase
Width Depth
Height
TSR Sensor Plus (AW models)
Working on any low-cost tariff, these heaters monitor the room
temperature and energy stored within the heater core to avoid
overcharging.Thiscansaveupto15%oftheenergyusedby
ordinary storage heaters.
TSR Slimline (MW models)
TSRSlimlinemodelsofferthesame
range of sizes and outputs but with
simple manual input and output controls.
**TSR6AW/MWhavenousercontrolsandareIPX2rated(drip-proof)
The multi-sense system in the TSR Sensor Plus automatically
controls heat storage to maintain the desired room temperature.
Model Rating Charge acceptance Number Number Height (mm) Width (mm) Depth (mm) Weight (kg)
storage (kW) (7hrs) (kWh) of elements of core bricks
TSR6AW 0.9 6.3kWh 1 4 705 335 170 41
TSR12AW 1.68 11.8kWh 2 8 705 560 170 77
TSR18AW 2.5 17.6kWh 3 12 705 788 170 110
TSR24AW 3.4 23.5kWh 4 16 705 1016 170 145
TSR6MW 0.9 6.3kWh 1 4 705 335 170 41
TSR12MW 1.68 11.8kWh 2 8 705 560 170 77
TSR18MW 2.5 17.6kWh 3 12 705 788 170 110
TSR24MW 3.4 23.5kWh 4 16 705 1016 170 145 
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 30 823/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL,, UL
30
Key features
•Economicaluseofenergyutilisingthebestofstoredanddirectacting
heating technologies
•Contemporarydesign–looksgoodinanyhome
•Unobtrusive–takesupnomorespacethanatraditionalwetradiator
•Simpleone-touchelectroniccontrolswithchildlockfacility
•Rapidresponsetochangingtemperaturedemands
•Designedforrapidassemblytokeepinstallationcostsdown
•Requiresnoannualmaintenance
•Optionalcentralcontrollerfor4zonepilotwirelinkedheatingsystem
Technical Specification
•Elements(storage)–650Wincoloysheathed,
mineral filled elements
•Element(directacting)–cable-on-foilthinfaciapanel
•Thermostat(input)–integralelectronicchargelimiter.
Maximumcoretemperature670°C/690°Catfullcharge
•Thermostat(output)–integralelectronicthermostat
with child lock facility
•Thermalinsulation–Carbowool128kg/m2, Microtherm G
and calcium silicate
•Energyretentioncells–highdensitybondedmagnetite
•Protection(storage)–automaticresetcorelimitthermostat
and manual over-temperature cut-out
•Protection(directacting)–automaticresetlimitthermostat
and automatic reset over-temperature cut-out
•Finish–whitepolyesterandzinccoatedsteelwithgreybase
•Cable(storage)–1.6m2.5mm2 3 core
•Cable(directacting)–1.6m0.75mm2 2 core
•Supply–230/240VACsinglephase
Width
Height
Width
Feet width
Depth
Depth
Height
www.credaheating.co.uk
Warmth where it’s needed, when it’s needed in a single room
or across the home. A constant low level of background heat
prevents the fabric of the building from cooling. On demand,
this fast-acting appliance raises the temperature to meet your
needs, providing total control and low running costs.
Eco-Response
Storage radiant heaters
Mechanical panel heaters & electric storage heating – Eco-Response
Stored heat – maintains low level
background heat to keep the fabric of
the building warm, utilising economy
off-peak electricity.
Simple integral control on top of
the heater – allows easy adjustment
to achieve the user’s preferred
comfort temperature.
Radiantheat–rapidlyraises
temperaturetorequiredcomfort
level on demand.
Minimumclearancerequired
•75mmeithersideofheater
•150mminfrontoftheheater
•250mmdirectlyabovetheheater
Model Designed heat Charge Input rating, Input rating, Number Number Weight Height Width Depth Feet position
loss (kW) acceptance (kWh) off-peak (kW) radiant elt. (kW) of elements of bricks (kg) (mm) (mm) (mm) (mm)
ER300 0.7 9.1 1.3 0.28 2 8 65 712 600 130+10 295
ER400 1 13.65 1.95 0.34 3 12 94 712 830 130+10 523
ER500 1.4 18.2 2.6 0.39 4 16 124 712 1060 130+10 751
PWE4ZC 4 zone pilot wire central controller
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 31 518/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 30 823/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL, UL,, UL
Mechanical panel heaters & electric storage heating – Eco-Response
31
Eco-Response
Storage radiant heaters
www.credaheating.co.ukwww.credaheating.co.uk
PART L and SAP 2005
TheCredaEco-ResponsehasbeendevelopedtohelpmeettheneedsofPartL2006BuildingRegulations
and provides enhanced SAP scores.
Specifiers will benefit from the ‘integrated storage/direct acting heater’ category within table 4a of SAP 2005
whichrewardstheenhancedcontrollabilityofEco-Responsewitha100%efciencyrating,placingthisleading
technology in heating type 2 with a responsiveness weighting of 0.75.
Conventional heater
Why Eco-Response?
With a conventional ‘wet’
heating system, when heating
goes off, building shell cools.
The building shell has to then
be warmed again before room
feels comfortable.
This takes time and energy –
slow response.
Eco-Response
It is smarter to maintain low
level background heat.
The room temperature can be
raisedquicklyandefciently
when needed.
Economical.
Responsive.
Intelligent.
MatchingTPRIIIEelectronicpanel
heaters also available for pilot wire linked
heatingsystems(Seepages24–25).UseEco-Responseinliving
areasandTPRIII’sinbedrooms,conservatoriesetc.witha4zonecontrol.
Control options
4 zone pilot wire central controller
Allows 7 day programming
of comfort/setback time settings
of multiple pilot wire linked heaters
in up to 4 separate zones.
See pages 24–25 for more details.
Model PW E4ZC
1
1
2
2
3
3
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 32 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
Mechanical panel heaters & electric storage heating – TSR Supaslim Combi
32
TSR Supaslim Combi
Combi storage heaters
Key features
•Combineseconomictariffratestorageheaterwithafastand
responsive Warmflow fan heater for instant room heating
•Theslimmeststoragecombinationheateravailable
•Sensamaticfullyautomaticstorageheateroutputensuresroom
comfort levels are maintained throughout the day without user
intervention
•Quiet,lowvelocityWarmowfan
•TheWarmowfanheaterhasmanuallyadjustableroomtemperature
sensing thermostatic control accurate to within 0.5°C
•Allcontrolsareconcealedbehindalockableap
•Hydraulicinputchargecontrolthermostatprovidesauto-setinput
charge control
•Fanheaterratingscanbesetonfullorhalfload(installationoption)
www.credaheating.co.uk
Technical Specification
•Elements(storage)–mineralinsulatedstainlesssteelsheathed
•Insulation–opaciedsilicaceousaerogelandmineralbremat
•Storagecore–highdensityironoxidecompound
•Fanunit–crossow
•Controls–hydraulicheadtemperaturecompensated,roomand
storage core temperature sensitive, auto-set charge control
•Protection–twolevelthermalsafetyoverheat
•Supply–230/240VACsinglephase
Width Depth
Height
The Supaslim Combi heater is designed to combine economic and low-cost
storage heating with an independently thermostat-controlled fan heater.
Effectively two heaters in one, the built-in fan can provide heat on its own or
in combination with the storage heater for a rapid boost to room temperature.
Model Rating Direct Charge acceptance Number Number Height (mm) Width (mm) Depth (mm) Weight (kg)
storage (kW) acting (kW) (7hrs) (kWh) of elements of core bricks
TSR12ACW 1.7 1/0.5 11.8 2 8 760 560 170 78
TSR18ACW 2.5 1.5/0.75 17.6 3 12 760 788 170 114
TSR24ACW 3.4 2/1 23.5 4 16 760 1016 170 149
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 33 318/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 32 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk 33
www.credaheating.co.uk
Mechanical panel heaters & electric storage heating – SFHA Sensair Automatic
SFHA Sensair Automatic
Storage fan heaters
Key features
•Combineselectricstorageheating,directactingheating
and fanned heat output with simple controls
•Fullyautomaticheatstorage–nouseradjustmentrequired
on input controls
•Highperformanceinsulationworksmoreeffectivelythan
a conventional storage heater
•Heatoutputisviaaquiettwospeedfan
•Boostsettingforhighspeedroomheatup
•Fancanbeswitchedoffwithoutalteringthermostatsetting
•Operatesonvirtuallyanytariffandtakesbetteradvantage
ofextendedorsplittariffs
•Fannedheatingavoidsheatstratication
•Lockablecontrolscover
•Negativepressureairmovementthroughthestorage
core avoids hotspots and heat leakage
•Fanoperationcanbecontrolledbyanexternaltimer,
suchastheRFRTK7
Technical Specification
•Elements(storage)–mineralinsulatedstainlesssteelsheathed
•Insulation–opaciedsilicaceousaerogelandmineralbremat
•Storagecore–highdensityironoxidecompound
•Fanunit–twospeedcrossowfan
•Controls(output)–regulatedbyfan,activatedbyintegral
adjustable thermostat
•Controls(input)–hydraulicheadtemperaturecompensated,room
and storage core temperature sensitive, auto-set charge control
•Protection–twolevelthermalsafetyoverheat
•Supply–230/240VACsinglephase
Width Depth
Height
Control options
RFRTK7RFremotethermostatandprogrammerkit.
Enables programmable time and temperature control using wireless
signalling between the remote wall mounted thermostat and the
receiver unit at the appliance.
The incorporation of high performance insulation means that
stored heat is effectively retained by the heater, meaning that
more useful heat is available for later in the day. The heat output
is then regulated by a simple, thermostatically controlled fan
providing economical heat when and where you want it.
Model Rating Direct Charge acceptance Number Number Remaining useful heat Height (mm) Width (mm) Depth (mm) Weight (kg)
storage (kW) acting (kW) (7hrs) (kWh) of elements of core bricks after 17hrs (static)
discharge (fan off) (%)
SFHA18AW 2.5 1.5 17.6 3 12 40 705 788 187 121
SFHA24AW 3.4 1.5 23.5 4 16 40 705 1016 187 158
Able to operate on virtually any tariff and with two and a half
times greater insulation levels than conventional storage
heaters, the SFHA achieves higher SAP and NHER ratings
than manual input storage heaters.
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 34 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL

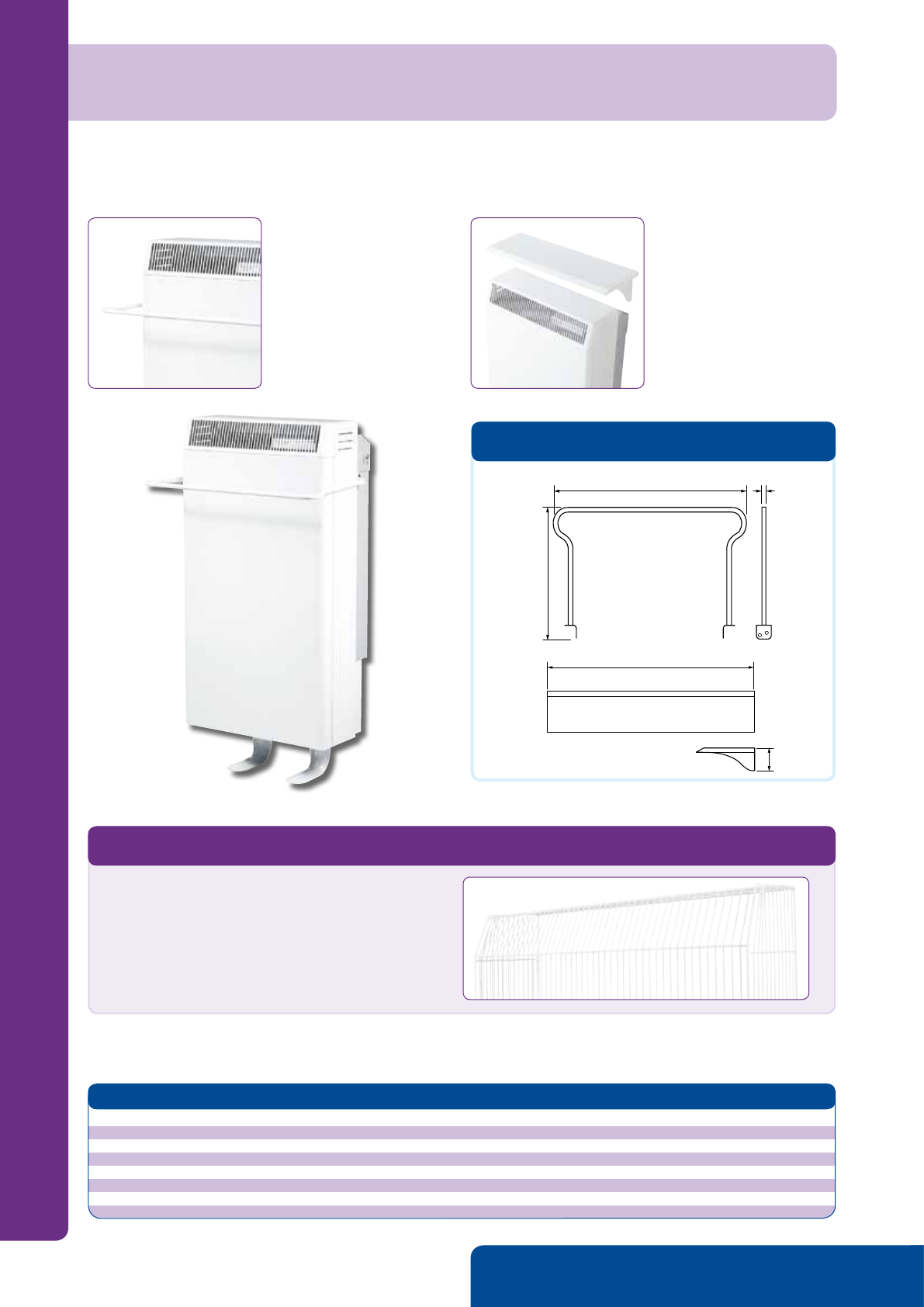

Heater guard options
A range of guards, designed to protect against accidental contact
with the hot surface of the heater, is available for Creda heaters
from our suppliers:
C. Aiano Ltd.
Please contact them direct:
Tel: 020 7987 1184 Web: www.aianos.co.uk
TSR towel rails
•AvailableforTSR6,TSR12and
TSR18autoandmanualmodels
•Warmsanddriestowelssafely
•Matchingwhitenish
•Quickandeasytot
•Suppliedcompletewithxings
Storage heater shelves
•Availableinfourwidthstocover
allsizesofTSRstorageheaters
and SFHA storage fan heaters
•Matchingwhitenish
•Quickandeasytot
•Suppliedcompletewithxings
Rail and shelf dimensions
Height
Width
Depth
Height
Storage heater accessories
A choice of heater accessories to complement the storage heater ranges.
Useful shelves for utilising space above the heater and rail attachment to
warm towels and clothes.
Mechanical panel heaters & electric storage heating – Storage heater accessories
34 www.credaheating.co.uk
Model Product description Compatible products Height (mm) Width (mm) Depth (mm)
TR6 Storageheatertowelrailattachment TSR6AandTSR6M 226 391 Ø10
TR12 Storageheatertowelrailattachment TSR12AandTSR12M 226 618 Ø10
TR18 Storageheatertowelrailattachment TSR18AandTSR18M 226 826 Ø10
SHS6 Storageheatershelf TSR6 140 405 93
SHS12 Storageheatershelf TSR12 140 630 93
SHS18 Storageheatershelf TSR18andSFHA18 140 858 93
SHS24 Storageheatershelf TSR24andSFHA24 140 1086 93
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 35 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 34 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
Towel rails & bathroom warmers – Proline TPL
35
Proline TPL
Fast response electric ladder towel rails
www.credaheating.co.ukwww.credaheating.co.uk
Ladder style towel rail. Available in a choice
of two sizes with chrome or white finish.
Key features
•Evenheatdistribution–nocoldspots
•Compact,slimlinedesign
•Canbemountedforleftorrightcableentry
•Oil-lledforevenheattransfer
Technical Specification
•Control–cyclingcutout
•Protection–twoautoresettemperaturelimiters
•Supply–230/240VACsinglephase
•IPrating–IPX5
Width
Depth
Height
RFRTK7 RF remote thermostat
and programmer kit
Enables thermostatic and time
control using wireless signalling
between the remote wall mounted
thermostat and the receiver unit
at the appliance (also available
thermostat kit only see page 37).
PW E16A pilot wire auxiliary
interface unit
Enables heaters without
electronic controls to be centrally
programmed, for on/off time
periods only, as part of a pilot
wire linked heating system
(see page 37).
Control options
Model Description Rating (Watts) Height (mm) Width (mm) Depth (mm) Weight (kg)
TPL180SW Straightwhite 180 610 453 80 6.0
PL220SW Straightwhite 220 843 453 80 6.9
PL260SW Straightwhite 260 610 602 80 7.8
TPL360SW Straightwhite 360 843 602 80 11.0
TPL180SC Straightchrome 120 610 453 80 6.0
PL220SC Straightchrome 220 843 453 80 6.9
PL260SC Straightchrome 260 610 602 80 7.8
TPL360SC Straightchrome 260 843 602 80 11.0
RF thermostat kits
RFRTK RFremotethermostatkit 2000
RFRTK7 RFthermostatandprogrammer 2000
RFRI RFadditionalreceiverunitonly 2000
Pilot wire interface unit
PWE16A Pilotwireauxiliaryinterfaceunit 3000
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 36 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
Key features
•60W,90W&175Wmodelsavailable
•Availableinwhiteorchromenishes
•Oil-lledforevenheattransfer
•Mainsneonindicator
•Suppliedwithwallmountingbracketsasstandard
•Durablewhitestoveenamelorchromeplated
•Canbemountedforleftorrighthandcableentry
Key features
•50Wdryelementtowelrails
•Suppliedwithmainscableandmountingbracketsforeasyinstallation
•Finishedinwhiteorchrome
•Lowrunningcost
TD Technical Specification
•Element–cartridgetype
•Cyclingthermostat
•Protection–thermofuse
•Supply–230/240V
AC single phase
•IPrating–
IPX4(splashproof)
Solarail Technical Specification
•Flexiblecabletype
•Cyclingthermostat
•Protection–thermofuse
•Supply–230/240V
AC single phase
•IPrating–IPX4(splashproof)
Width Depth
Height

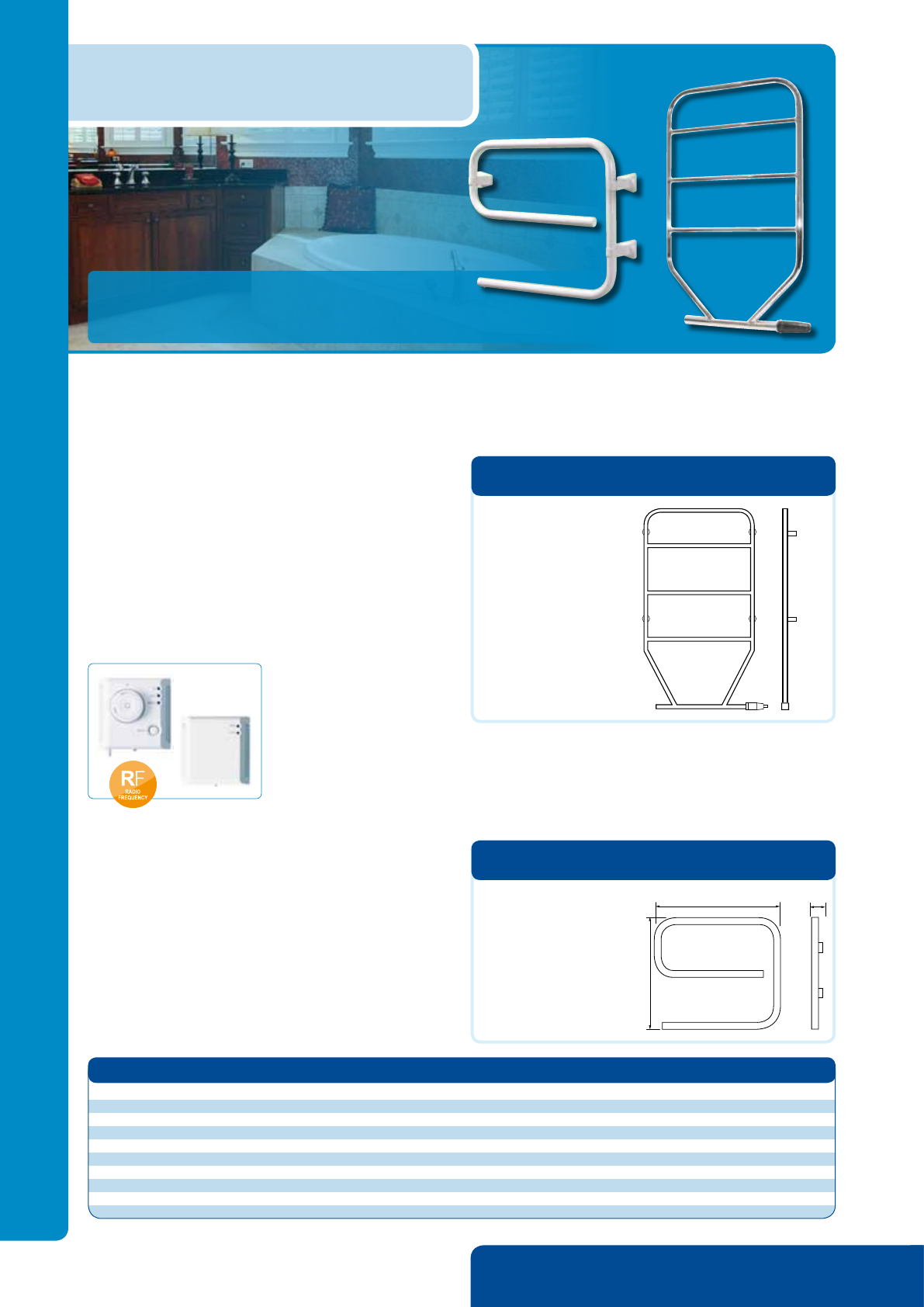

Towel rails & bathroom warmers – TD and Solarail
36
TD and Solarail
Electric towel rails
www.credaheating.co.uk
TD towel rail range
PermanentlyliquidlledformaintenancefreeoperationtheTDtowelrailrangeofferschromeandwhiteoptions,idealfordryingandairingsmall
towels in areas such as kitchens, cloakrooms and ensuite bathrooms. The TD towel rail can be left switched on indefinitely with the low wattage
cartridge element providing economical operation.
Solarail dry element towel rail range
Designed for towel drying in the bathroom, shower room or even kitchen
areas, Solarails are compact enough to fit in the smallest of spaces.
Control options
RFRTKRFremotethermostatkit.
Enables thermostatic control of
electric towel rails using wireless
signalling between the remote
wall mounted thermostat and the
receiver unit at the appliance
(see page 37).
Model Product Description Rating (Watts) Height (mm) Width (mm) Depth (mm)
TD60C TDtowelrail(chrome) 60 616 533 93
TD90W TDtowelrail(white) 60 851 533 93
TD90C TDtowelrail(chrome) 90 851 533 93
TD120W TDtowelrail(white) 120 616§ 533 93
TD175W TDtowelrail(white) 175 851 533 93
RFRTK RFremotethermostatkit - - - -
CSR50W Solarail50(white) 50 518 518 85
CSR50C Solarail50(chrome) 50 518 518 85
Classically styled towel rails that warm and
dry towels. All models offer low energy use
whilst maintaining superior heat output.
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 37 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 36 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
37
www.credaheating.co.ukwww.credaheating.co.uk

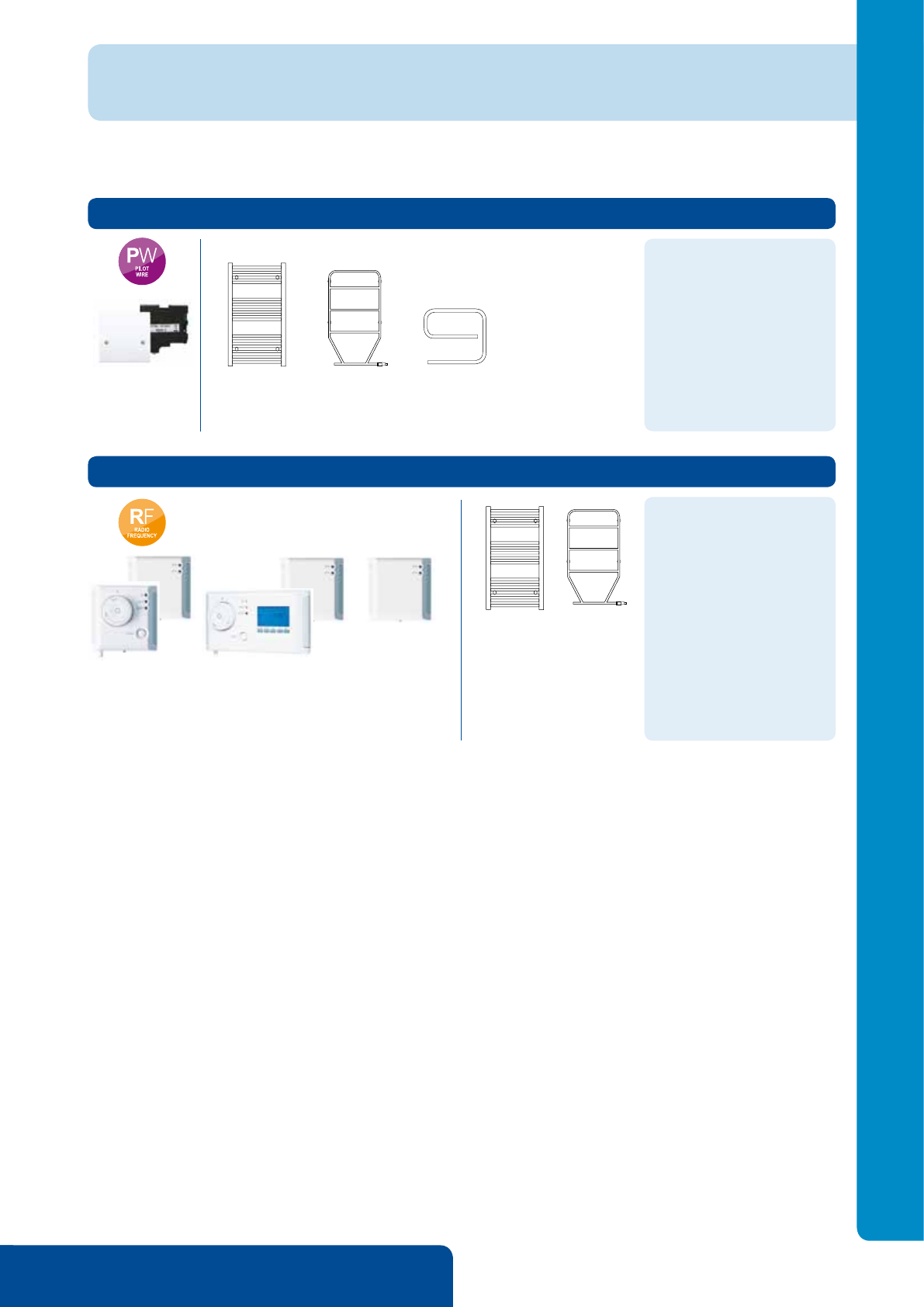

Control options
Auxiliary heater interface for pilot wire linked heating system
RF remote thermostat/programmer kits for auxiliary appliances
Pilot Wire Interface
ModelPWE16A
RFThermostat&
ReceiverKit
ModelRFRTK
RFThermostat
& Programmer
Receiver
ModelRFRTK7
RFReceiver
ModelRFRI
Proline T PL Electric
LadderTowelRails
TD Traditional Style
ElectricTowelRails
Solarail Electric
TowelRails
Towel rails and other
heaters without controls.
RFRTK7canalsoprovide
time control for SFHA
fan unit
Pilot wire signalling – ideal control system
option for new build applications.
16amp interface unit –forauxiliaryheaters
without any integral controls.
Number of heaters – single unit with up to
3kWmaximumloading.
Interface features:
on/off switching only as signalled by the
central controller.
Installation–requiresa46mmdeepsingle
gangmetalbackboxforushmounting.
Radio frequency signalling – wireless
signalling between thermostat/programmer
unit and the receiver at the heater.
Number of heaters – multiple heaters
withreceiverstteduptoamaximumtotal
loading of 2kW.
Thermostat unit features:
push on/off rotary control (5°C-30°C)
with 30 minute boost.
Thermostat with programmer unit –
4 programmable on/off time periods for
weekdays and weekends. LCD display
with12hrbackupmemory.
Installation – must be mounted in a single,
recessedmetaldock-box.
Width Depth
Height
Width Depth
Height
The performance and economy of Creda heating products can be further enhanced by use of control options best suited
to the type of installation and lifestyle requirements.
Towel rails & bathroom warmers – Control options
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 38 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW

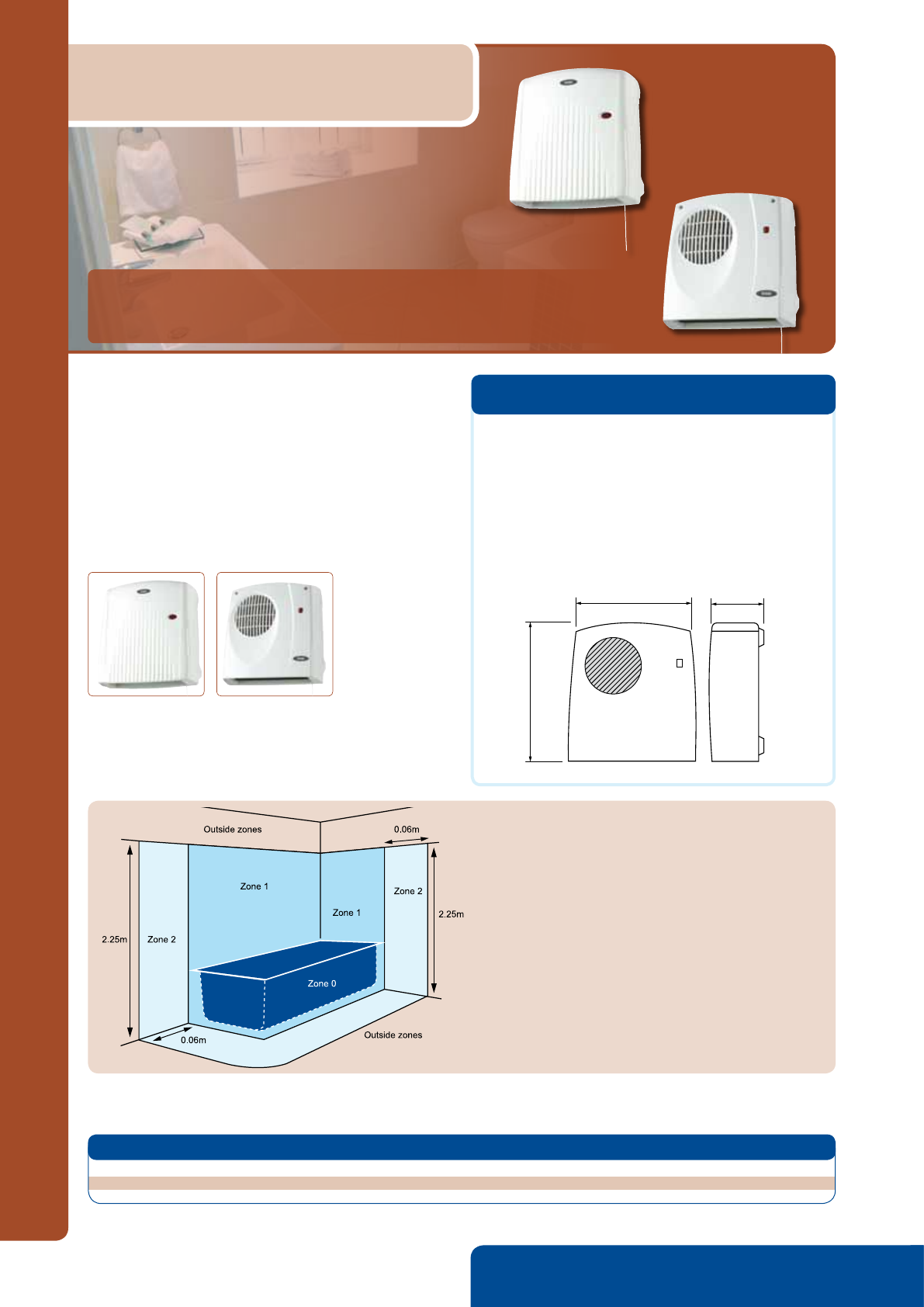

CDF
Compact downflow fan heaters
38 www.credaheating.co.uk
Key features
•2kWstepsbackto1kWafterwarmup
•Pullcordoperated
•Poweronneonindicator
•Twointegralsafetydevices
•CDF2IPX4isIPX4ratedforuseinZone2ofabathroom
Technical Specification
•Element–stitchedtype
•Protection–thermalcut-offandsafetyoverheat
•Weight1.45kg
•Supply–230/240VACsinglephase
•CDF2N–IPX2rated
•CDF2IPX4–IPX4rated
Width Depth
Height
Electrical products installed in bathrooms
Heating products installed in zone 2 of a bathroom must
carryanIPratingofatleastIPX4(IPX5ifwaterjetsare
going to be used in that area).
All electrical products must be connected in compliance
with the current IEE wiring regulations and the circuit
protectedbyanRCD.
Model Product description Rating (kW) Height (mm) Width (mm) Depth (mm)
CDF2N Compactdownow(stepdown) 2 242mm 229mm 109mm
CDF2IPX4 IPX4rateddownow(stepdown) 2 267mm 250mm 131mm
Range options
CDF2IPX4 CDF2N
Fast response downflow heaters offer a low-cost solution
for rapid heating on demand. Available in three models,
they are ideal for bathrooms, shower rooms and kitchens.
Fan heaters – CDF
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 39 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 38 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
www.credaheating.co.uk

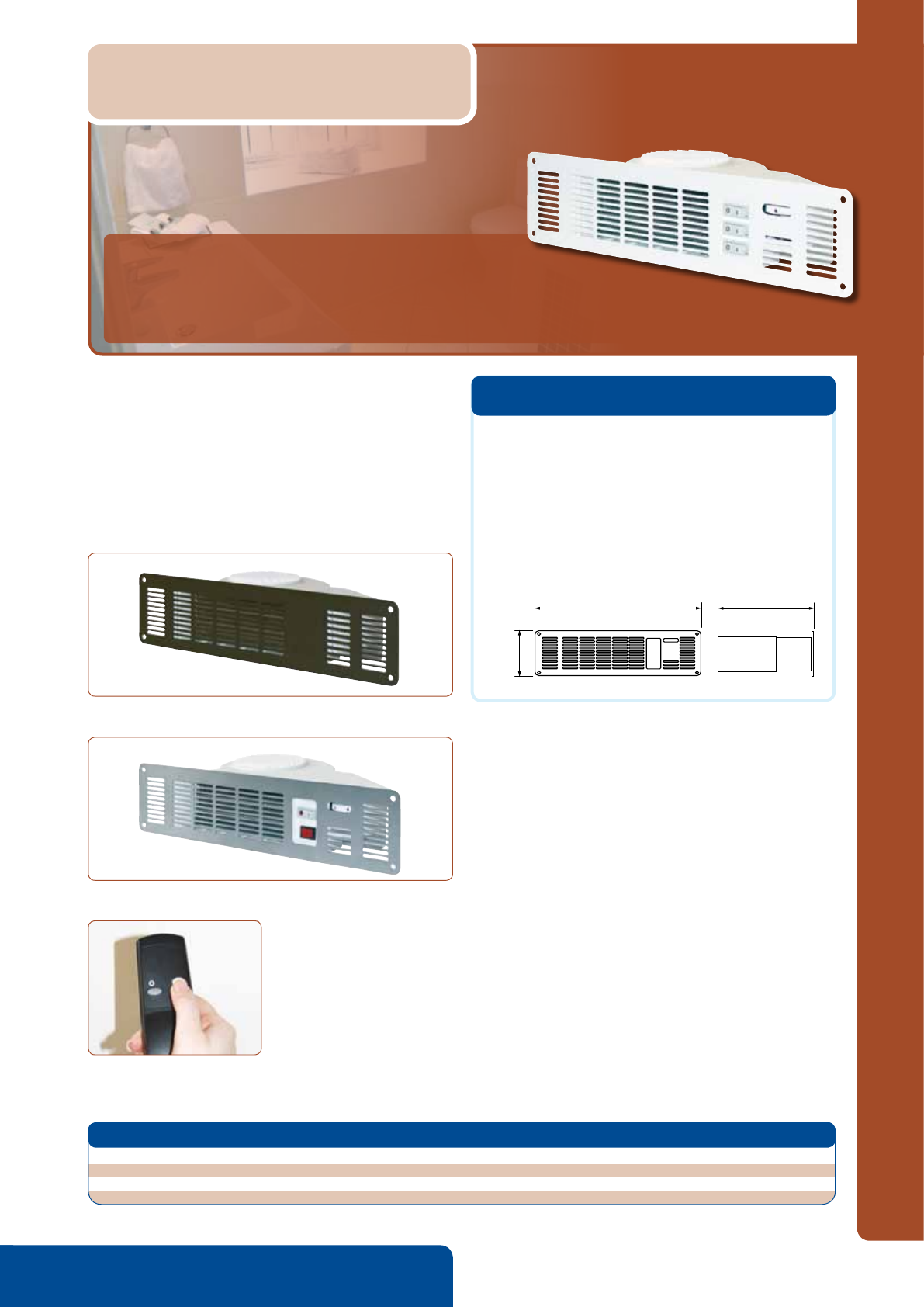

Plinth fan heaters – SolPlinth
39
SolPlinth
Electric plinth heaters for base units
www.credaheating.co.uk
Technical Specification
•Element–stitched‘blackheat’type
•Fan–crossowtype
•Thermoplasticbody
•Powdercoatedfasciaswhite,brownandsilver
•Weight2.5kg
•Supply–230/240VACsinglephase
Width Depth
Height
Key features
•Choiceof3models:manual,remoteornocontrols
•Eachmodelcomescompletewithwhite,brownandsilverfascias
•Automaticovertemperaturecut-out
•Maximumoutputof2kW(TMcanbe1kWor2kW)
•Lownoisefanonlyoptionforcoolaircirculation(onTMmodels)
•Easyslotinprole(nometalsleeverequired)
Remotemodel(silverfasciatted)
No controls model (brown fascia fitted)
PH2TRsuppliedcomplete
with hand held on/off infra-red
remote control.
Model Rating (kW) Product Description Height (mm) Width (mm) Depth (mm)
PH2TM 2 Plinthheater2kWthermostaticmanual 100 400 200
PH2TR 2 Plinthheater2kWthermostaticremote 100 400 200
PH2NC* 2 Plinthheater2kWnocontrols 100 400 200
Small and compact, plinth heaters heat a room much faster
than a traditional radiator many times its size but do not
occupy valuable wall space. The heater sits neatly in kitchen
base units, reception desks, shop counters and even stair
risers to provide an unobtrusive flow of warm air at floor level. Manual model (white fascia fitted)
*While stocks last
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 40 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
Miscellaneous heating – SolTube
40
SolTube
Tubular heaters
Key features
•60-360Woutputs
•Arangeof4lengthsandloadings
•Completewithuniversalmountingbracketsforoororwallxing
and1.5mwhitecablewithttedplug
Technical Specification
•Minerallledsheathedthroughout
•Polyesterepoxypowdercoatedaluminiumbody
•Hightemperatureglassllednylonendcapsandbrackets
•Supply–230/240VACsinglephase
•IPX4rated
Length Depth
Diameter
www.credaheating.co.uk
40 www.credaheating.co.uk
Interlinking kit
Available for multiple installations
(100mmmountingcentres).
STG guards*
We recommend the use of guards
for additional security in sensitive
areas such as schools, hospitals
and care homes. These can be
obtained from C.Ainao Ltd.
Tel:02079871184
www.aianos.co.uk
Optional accessories
Model *Guard short code Rating (Watts) Diameter (mm) Length (mm) Depth (mm)
CST1 STG1 60 70 350 95
CST2 STG2 120 70 655 95
CST4 STG4 240 70 1265 95
CST6 STG6 360 70 1875 95
Tubular linking kit – Compatible for all above models
SolTubes are ideal where energy efficient gentle background
warmth and frost protection is needed in both domestic and
commercial applications. They are highly effective as window
demisters and for horticultural use, providing invaluable, effective
heating and frost protection in greenhouses and conservatories.
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 41 318/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, UL
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 40 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
www.credaheating.co.ukwww.credaheating.co.uk
Technical Specification
•Insulation–opaciedsilicaceousaerogelandmineralbremat
•Storagecore–highdensityironoxidecompound
•Storageelements–mineralinsulatedstainlesssteelsheathed
•Protection–twolevelthermalsafetyoverheat
•Supply–230/240VACsinglephaseor400VACthreephase
Width Depth
Height

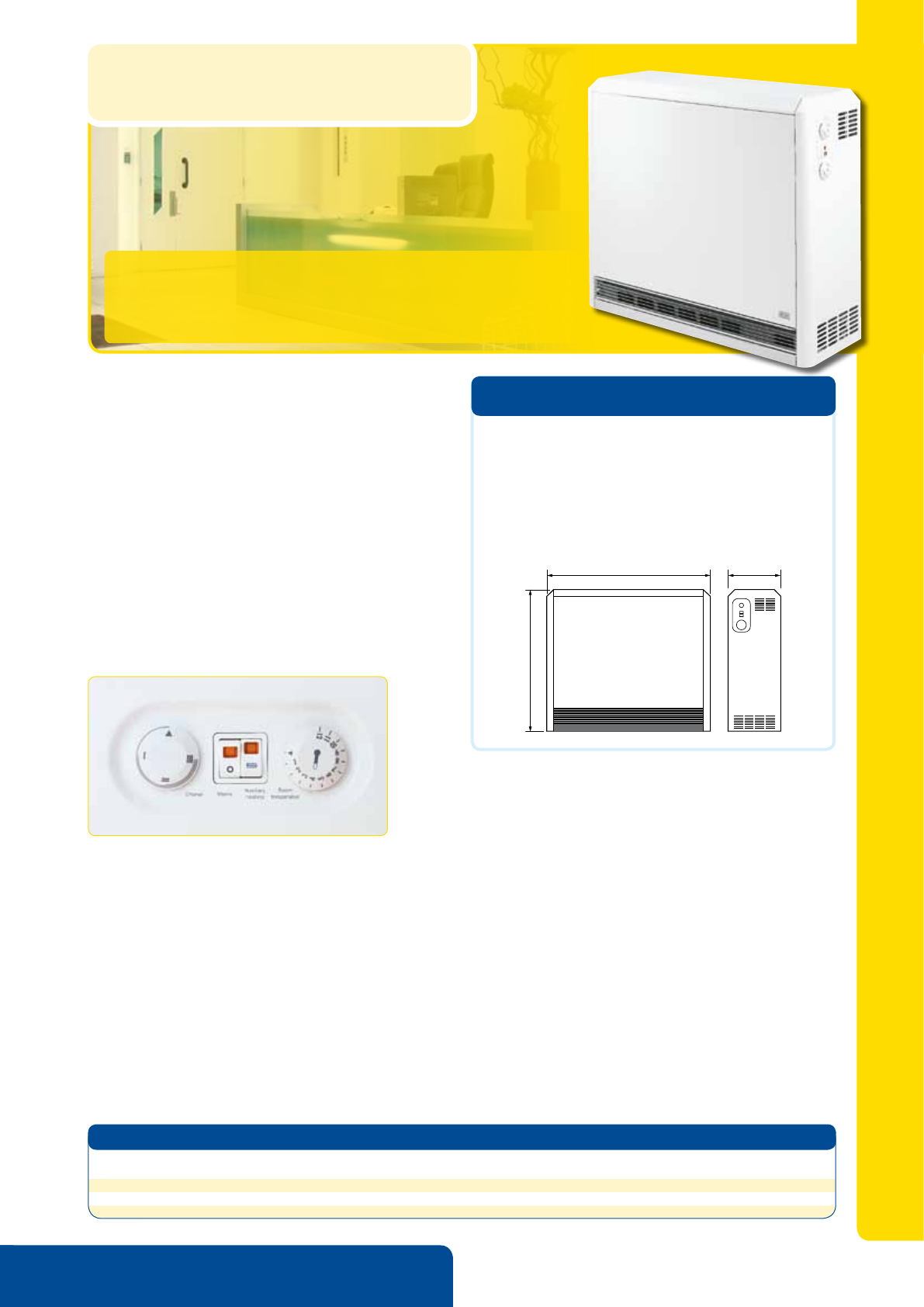

TSF Turbo
Commercial fan storage heaters
Commercial space heating – TSF Turbo
41
www.credaheating.co.uk
Key features
•Smooth,rounded,modernappearance,compatiblewith
commercial interiors
•TSFTurbocanbeusedonalleconomyelectricitytariffs
•Availablein3.4kW,4.6kWand5.7kWmodels
•Highlycontrollablewithenhancedinsulationforbetterperformance
•In-builtdirectelementforoutofseasonheatingusingday
rate electricity
•Fannedheatisfasterandmoreevenindistribution,particularlynear
ground level
•Easytousemanualcontrolsforroomthermostatandeconomycharge
•Singleor3phaseinstallationcapability
•Optionalfootkit-SHF25i(tsallmodels)
User controls
•Chargeinputcontrol–usedtocontrolthelengthoftime
the heater charges for
•Neonswitchforfan–easyindicationthattheheaterisenergised
•Neonswitchfordirectactingelement–givesuseraccesstoadditional
heat when needed
•Heatoutputcontrol–precisecontroloverheatreleasedtotheroom
The TSF Turbo fan storage heaters provide controlled output
space heating with maximum economy and flexibility. It retains
up to 40% of its total stored heat after 17 hours, making it one
of the most energy efficient storage heaters on the market today.
Model Rating (kW) Direct acting Charge acceptance Weight (kg) Number Height (mm) Width (mm) Depth (mm)
element load (kW) (7hrs) (kWh) of core bricks
TSF24K 3.4 0.7 23.8 137 18 672 776 250
TSF32K 4.6 1.1 32.2 176 24 672 926 250
TSF42K 5.7 1.5 39.9 215 30 672 1076 250
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 42 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW

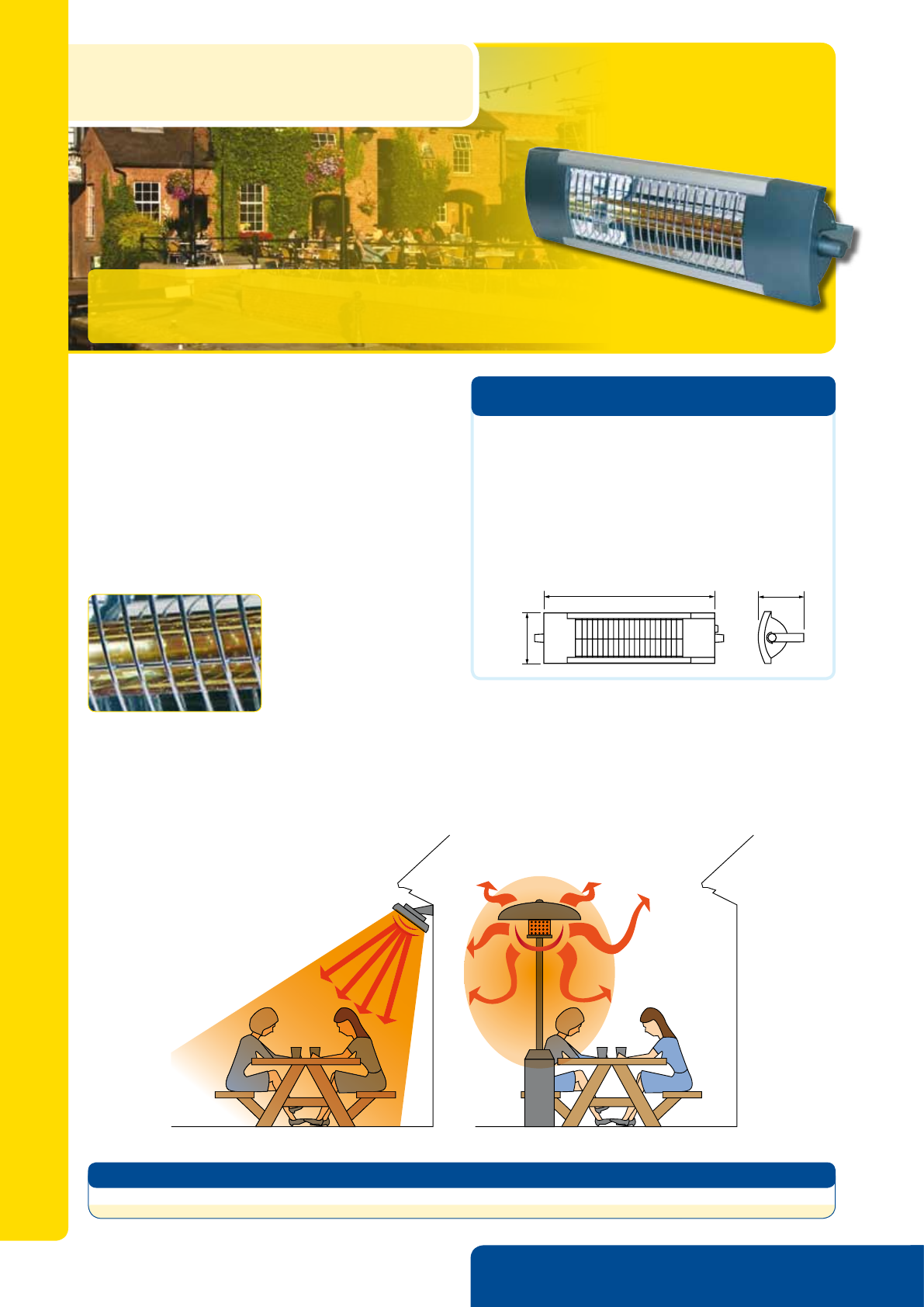

42
Key features
•Lowrunningcostsasradiantheatheatspeopledirectlynottheair
•Instantheatcutsthecostofoutdoorheatingoverall
•Silentrunningwithnomovingpartsornoisynakedames
•Convenient–noneedtorellgasbottles
•Safe–noammablegasbottlestobeknockedover
•Lowcapitalcostastheseheatersallowyoutoselectfewerheaters,
butplacethemexactlywheretheheatingneedis
•WhenusedwithPIRsensors,furtherenergysavingsareavailable
Technical Specification
•Element–2kWgoldquartzhalogenlamp
•Finish–highqualityaluminiumcaseinsilver
•Reector–highperformancepolishedreector
•Fittedguardincluded
•IPrating–IPX4
•Supply–230/240VACsinglephase
Width
Depth
Height
www.credaheating.co.uk
Gold finish halogen lamp
Thegoldquartzhalogenlamp
fitted to the SolHeat runs at up
to2,200°Candoffersextended
performanceand15%greater
transmission.
Model Rating (kW) Product description Height (mm) Width (mm) Depth (mm)
CSP2 2 SolHeatoutdoorpatioheater 159 594 144
Patio heating – why choose electric?
Electric patio heaters provide the only viable method of heating
an outdoor space without wasting heat to the atmosphere.
Unlikegasheaters,theirelectriccounterpartsuseinfra-redlamps
designed to allow outdoor heating without significant wasted heat.
Electric outdoor heaters heat people directly, rather than heating
the surrounding air, making them the most suitable solution for
outdoor heating. They can also be linked to automatic switches
andPIRsensorsforfurthersavingsinenergy.
The diagram shows the differences between the two technologies
and the comfort they provide.
Direct efficient heating Wasteful inefficient heating
Electric Patio Heater
Output: 2kW
Gas Patio Heater
Output: 12kW
SolHeat patio heaters provide an economic, attractive
outdoor heating solution that is quick and easy to install,
and can be conveniently controlled at the ‘flick of a switch’.
Commercial space heating – SolHeat
SolHeat
Outdoor patio heaters
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 43 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 42 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
www.credaheating.co.uk
Commercial space heating – SolQuartz/SunQuartz
43
SolQuartz/SunQuartz
Shortwave infra-red radiant heaters
Key features
SolQuartz Technical Specification
•Infra-redshortwaveradiantheating
•Tungstenhalogenlamps,withrubyredquartzoutersleeve
•Steelcasewithaluminiumreector
•Adjustablewallmountingbracketincluded
•Satinsilverpaintnish
•Type3orCMCBwith7-10trippingco-efcient
Width
Depth
Height
SunQuartz Technical Specification
•Tungstenhalogenlamps,230/240Vwithrubyredquartz
outer sleeve
•Reectorsbrightrolled,specular99.8%aluminium,
electro-chemically brightened
•Electrozinccoatedsteelcasing
•Highpressurediecastaluminiumendcastings
•Epoxypolyesterpowderpaintnishwhite/grey
•Supply–230/240VACsinglephase(3lampunits
canbeconnectedtoa380/415V3phasesupply)
Width Depth
Height
www.credaheating.co.uk
Model Rating (kW) Number of lamps Recommended height (m) Coverage at recommended height* Height (mm) Width (mm) Depth (mm)
(Throw(A) x Spread(B)) (m)
CSQ15 1.5 1 2.5 3.4x3.7 256 440 310
CSQ30 3 2 3.5 5.7x5.7 380 440 310
CSQ45 4.5 3 4.0 7.1x6.9 506 440 310
Model Rating (kW) Number of lamps Height (mm) Width (mm) Depth (mm)
SQ1.5 1.5 1 185 390 115
SQ2.0 2 1 185 390 115
SQ3.0 3 2 370 390 115
SQ4.0 4 2 370 390 115
SQ4.5 4.5 3 555 390 115
SQ6.0 6 3 555 390 115
*Calculated at 95w/m2 mounted at 45°
Instant heat right where it’s needed. These short wave
infra-red heaters warm people, not the air. Their uses are
endless, from warehouses to churches. These efficient sun-like
heaters can penetrate damp air with minimal heat loss to the atmosphere.
•Upto90%efcientatconvertingelectricityintoheat
•Instantsensationofheatwithvisibleglowatswitchon
•Absolutelysilentinoperation
•Longrangeheatprojection
•Lightweightandsilent
•Universalmountingbracket
•Allmodelscanbeconnectedtosinglephase230Vsupply
•CSQ45modelcanalsobeconnectedto3phasesupply
Product Selector
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 44 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
Commercial space heating –SolFan
44
SolFan
High level fan heater
Key features
•Compactdesignforsmallerinstallations
•Multi-anglebracketwithsinglescrewlockingforeasy
airflow adjustment
•Thermostatictemperaturecontrolasstandard
•Aircirculationmodeforsummeruse
•Wallremotecontrolwiththermostatsuppliedasstandard
•Redneonindicatingheaterenergised
Technical Specification
Flexible Adjustment
•Nylonheatercase
•Axialfan
•Thermostatrange5°C-35°C
•Wirestrungelement
•Greynish
•Protection–electricalreset
•Supply–230VACsinglephase
Width Depth
Height
120°
40°
www.credaheating.co.uk
Controls
Thermostatic controller (included). For remote
switching on/off and variable thermostatic control.
Model Rating (kW) Noise level @1m (dBA) Height (mm)* Width (mm) Depth (mm)
CSF3 3 24 378 230 226
Remote - - 60 170 102
The SolFan is a rapid response fan heater designed
for heating in smaller commercial installations and
can be used for air circulation in summer.
*with bracket
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 45 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 44 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
www.credaheating.co.uk

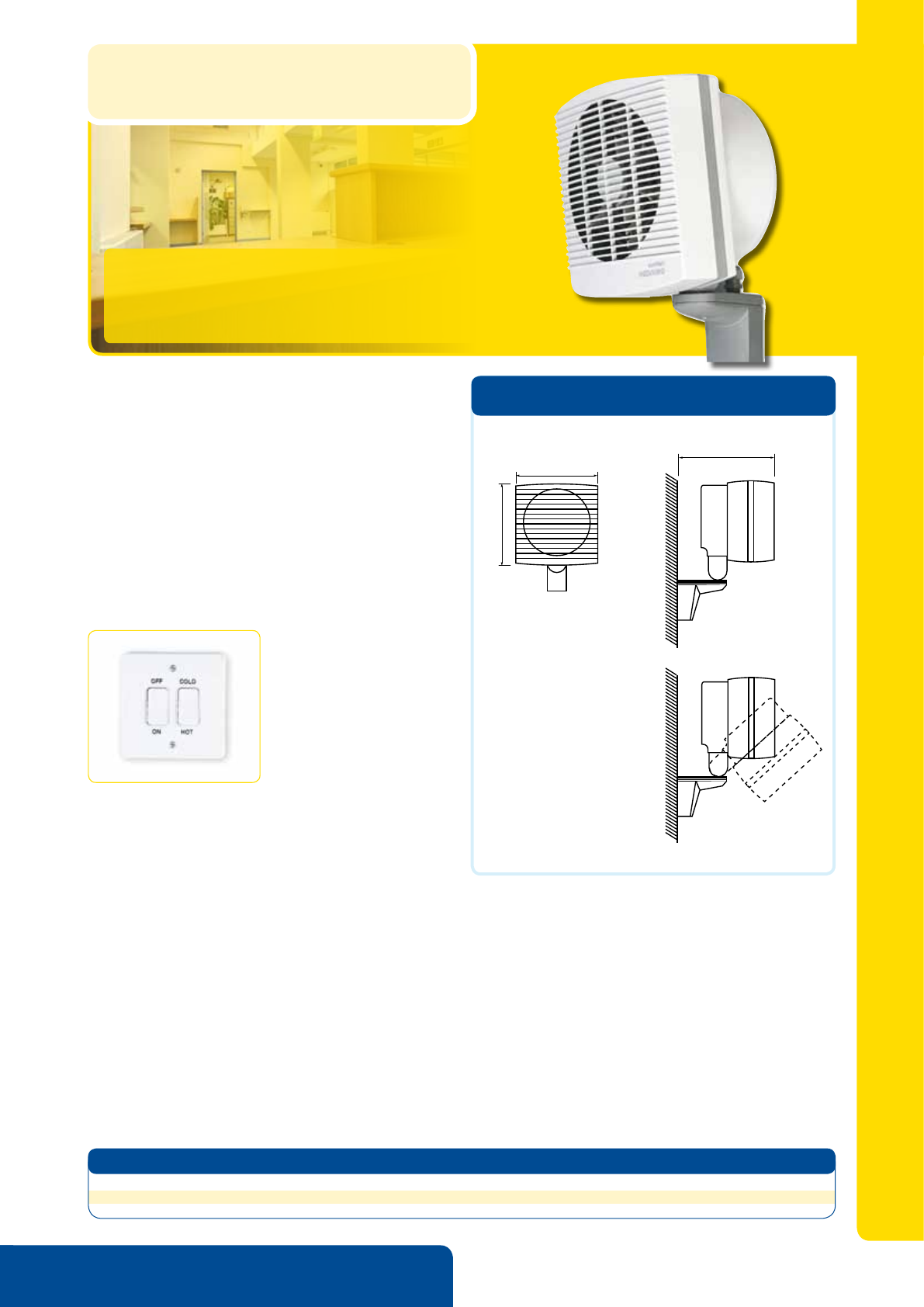

Commercial space heating – SunFan
45
SunFan
Wall mounted fan heater
Technical Specification
Width
Height
Depth
www.credaheating.co.uk
Key features
•Highairvolumethroughputof300m3/hour
•Quietrunning,totallyenclosedmotor
•Wallmountedwith2partselfsupportingbracket
•Multi-directionaladjustmentof45° verticallyand150°
horizontally with single screw locking
•Remotecontrolswitchavailableasanoptiontoprovide
a cool air circulation facility
•1yearguarantee(UK)
•BEABandCEapproved
•Twotonegrey
Accessories
The dual control switch can
be used to control the SunFan
remotely, switching it both on
and off and to fan only, for cool
air circulation in the summer.
The SunFan is a robust 3kW commercial/
industrial wall mounted fan heater design
to provide highly efficient heating in winter,
or cool air circulation in summer.
Product reference Short code Rating (kW) Noise level@1m (dBA) Height (mm) Width (mm) Depth (mm)
SunFan SF3 3 47.9 229* 267 260**
Dual Control Switch DCS - - - -
*excludingbracket **towall
SwivelArmVertical
Angle Adjustment
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 46 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW

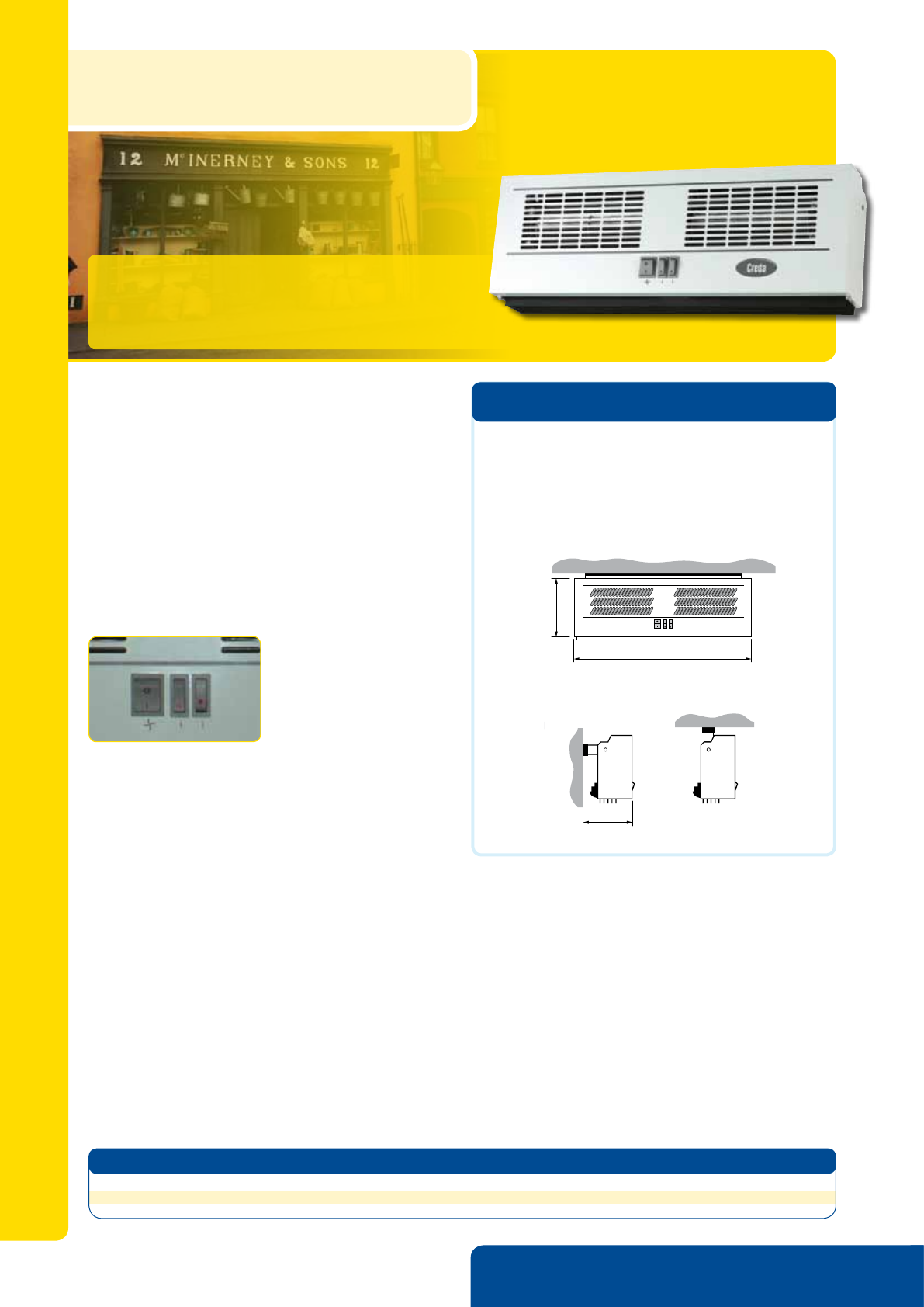

SolScreen
Warm air curtains
Commercial space heating – SolScreen
46 www.credaheating.co.uk
Technical Specification
•Tangentialblower
•Wirestitchedelement
•Powdercoatedsteelbodywhite/black
•Protection–electricalreset
•Supply–230/240VACsinglephase
Width
Depth
Height
Width
Depth
Ceiling
Wall
Height
Key features
•3kWor4.5kWmodelsavailable
•Fullheat,halfheatandfanmodes
•CSS3canbesettooutput3kWor1.5kW
•CSS45canbesettooutput4.5kWor2.25kW
•Fanonlymodeforsummeraircirculation
•Canbexedtotheceilingorwallmountedusingtheincludedbracket
•Bracketallowsadjustmentoverairdirection
•Centralfrontpanelswitchesforclearindicationofoperationmode
•Quietrunningmotor
Controls
Operation is clear to see with front
mounted controls.
The SolScreen range provides a welcoming
flow of warmed air close to open entrances
and is often chosen to help encourage
shoppers in through open entrances.
Model Rating (kW) Recommended mounting height (m) Height (mm) Width (mm) Depth (mm)
CSS3 3 1.8-2.25 214 605 135
CSS45 4.5 1.8-2.25 214 605 135
Product Selector
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 47 204/06/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 46 107/05/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW
www.credaheating.co.uk 47
www.credaheating.co.uk
Website
Website
Our website includes a wealth of additional information to help you make
the right choice of heating system and to find your local supplier of
Creda products.
As well as the product information featured in this brochure, the site has
a comprehensive Help Centre which features:
• Calculateheatingrequirements–toensureyouselecttherightCreda
productsforyourheatingrequirements,simplytypeafewdetails
of your room into this online calculator
• Heatingdesignservice–letustakethepainoutofyourheating
designrequirementsifyouneedaheatingsolutionformultiple
properties. We offer a number of service levels, all graded according
tocustomerdeadlinesandcomplexityofthescheme
• Wheretobuy–typeinyourpostcodeanddetailsofyournearest
suppliers including phone number and map is returned
• Installation/Operationinstructions–forquickaccesstoinstallation
instructions for one of our products any time of the day or night
• Requestarepair–ifyoudoneedarepairforaproduct,visitthispage
for advice on what the procedure is for products in and out of warranty
Visitwww.credaheating.co.uk
48 www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 48 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
48
The tables below provide heater sizing guidance
for traditional electric heating systems, including
Quantum, storage heaters and panel heaters.
For traditional electric heating the preferred
options for living and dining rooms are Quantum
orTSRACWcombinationstorageheaters.
Knowingtheoorarea,thewallconstruction
and the number of outside walls, the heater
loading in kilowatts is indicated in the
appropriate table. These tables do not
take into account particularly old properties
or those built very recently. If your property
fits into one of these classifications, please
complete the form on page 50 so that we
can provide a more accurate assessment.
ForsizingguidanceforEco-Response
radiators please refer to page 49.
Living or dining room: Quantum or panel heaters.
HeaterloadinginkW.Temperature21°C
Floor
area Solid walls
no. of outside walls Cavity walls
no. of outside walls Insulated cavity walls
no. of outside walls
m2123 123 123
12 1.84 2.16 2.88 1.60 1.92 2.48 1.12 1.28 1.68
16 2.08 2.48 3.20 1.84 2.32 2.88 1.36 1.60 1.92
20 2.64 3.12 3.92 2.32 2.72 3.44 1.68 1.92 2.32
24 2.96 3.44 4.32 2.64 3.12 3.76 2.08 2.32 2.64
28 3.28 3.92 4.80 2.96 3.44 4.24 2.16 2.48 2.96
32 3.52 4.32 5.28 3.28 3.76 4.72 2.40 2.72 3.20
ForTSRAWandMWheatersmultiplyloadingby2,forTSRACWmultiplyby1.25.
Commercial heating For greater control and economy of operation Quantum heaters
are recommended. Sizing is based on a single storey with a ceiling height of 3m and
a minimum of 75mm of roof insulation.
Office: Quantum or panel heaters.
HeaterloadinginkW.Temperature21°C
Floor
area Solid walls
No. of outside walls Cavity walls
No. of outside walls Insulated cavity walls
No. of outside walls
m2123 123 123
15 2.16 2.96 4.08 2.00 2.56 3.52 1.68 2.08 2.64
20 2.64 3.52 4.48 2.40 3.12 4.00 2.08 2.56 3.12
25 2.96 4.08 5.20 2.72 3.68 4.56 2.40 3.04 3.60
30 3.52 4.72 5.84 3.36 4.24 5.20 2.88 3.52 4.16
40 4.80 5.92 7.68 4.40 5.36 6.72 3.92 4.48 5.36
50 5.28 6.80 8.40 4.96 6.24 7.44 4.48 5.28 6.08
ForTSRAWandMWheatersmultiplyloadingby2,forTSRACWmultiplyby1.25.
Kitchen: Quantum or panel heaters.
HeaterloadinginkW.Temperature18°C
Floor
area Solid walls
no. of outside walls Cavity walls
no. of outside walls Insulated cavity walls
no. of outside walls
m2123 123 123
10 1.28 1.68 2.32 1.12 1.60 1.92 For all kitchens with
cavity wall insulation
direct heating is preferred.
12 1.52 2.16 2.64 1.36 1.84 2.32
14 1.68 2.40 2.88 1.60 2.08 2.48
16 1.92 2.64 3.12 1.68 2.32 2.72
ForTSRAWandMWheatersmultiplyloadingby2,forTSRACWmultiplyby1.25.
Bedrooms: For bedrooms panel heaters are recommended.
HeaterloadinginkW.Temperature18°C
Floor
area
Solid walls
no. of outside walls
Cavity walls
no. of outside walls
Insulated cavity walls
no. of outside walls
m2123 123 123
8 0.8 1.3 1.7 0.8 1.0 1.4 0.8 0.9 1.4
12 0.9 1.8 2.3 0.9 1.4 2.1 0.8 1.4 1.8
16 1.2 2.1 2.7 1.0 1.7 2.2 0.9 1.6 2.1
20 1.4 2.2 3.1 1.2 2.0 2.6 1.0 1.8 2.4
24 1.5 2.3 3.4 1.2 2.1 2.9 1.0 1.9 2.5
How to use this selection guide
ForTSRAWandMWheatersmultiplyloadingby1.5.
Heater sizing table
Heater sizing table
Creda provides a number of options,
to meet different property and
timescalerequirements.Ifyou
need to obtain an indication of
theheatingrequirementsfor
estimating or if you need heating
for one or two rooms, please use
the selection guide below.
Alternatively use our online
calculator at www.credaheating.co.uk
For single properties, please complete
the form on page 50 and send it
with a sketch plan to our heating
design department. We aim to provide
an accurate assessment within
7 working days.
For multiple properties, please send
us comprehensive scale drawings
(scale1:50or1:100)togetherwith
construction details and any other
relevant information. We offer a
14workingdayserviceforthis
type of assessment.
49
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 49 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 48 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
49
Floor
area Cavity walls Insulated cavity walls
m2Number of outside walls Number of outside walls
12312 3
12m2ER500 ER500 ER400
+400n
ER400 ER400 ER500
16m2ER500 ER400
+400n
ER400
+500n
ER400 ER500 ER400
+300n
20m2ER400
+400n
ER400
+400n
ER500
+500n
ER500 ER400
+300n
ER400
+400n
24m2ER400
+400n
ER400
+500n
ER400
+400n
+400n
ER400
+300n
ER400
+400n
ER400
+400n
28m2ER400
+500n
ER500
+500n
ER400
+400n
+500n
ER400
+300n
ER400
+400n
ER500
+400n
32m2ER500
+500n
ER400
+400n
+400n
ER400
+500n
+500n
ER400
+400n
ER400
+400n
ER500
+500n
ForsizingofEco-Responseradiatorstoreplace
existingstorageheatersystems,replacethe
existingheaterwithasimilarlysized
Eco-Responseradiator,asindicatedbelow.
Due to the consistency of heat output from
Eco-Responseradiators,thiswillprovide
a significant improvement in room comfort
levels throughout the course of the day.
Existing heater Eco-Response
TSR12AW/MW ER300
TSR18AW/MW ER400
TSR24AW/MW ER500
When considering the correct replacement
foracombinationstorageheater,thefrequency
with which the convector component is
used should be taken into consideration
(i.e. if it is used often, the heater may
already be undersized). Therefore it is
recommended that combination storage
heaters are replaced with a larger size
ofEco-Responseradiator,toensurethere
is sufficient capacity within the system
to match the capability of the convector
heater being replaced. In the case
of a 24kW combination storage heater,
it is recommended that an additional
appliance–eitherasecondEco-Response
radiatororCredaNOBOpanelheaterisadded:
Existing heater Eco-Response radiator
TSR12ACW ER400
TSR18ACW ER500
TSR24ACW
2xER400,
orER500+panelheater
orER500+ameeffectre
Eco-Response radiator sizing – replacement systems
Eco-Response radiator sizing – first time installations
The following chart provides guidance on
radiator sizing for first time installations
inkeylivingareasforexistingbuildings.
Simply select the floor area of your room
from the left hand column, and choose the
correct number of outside walls from either
the cavity or insulated cavity wall columns.
These tables do not take into account
particularly old properties or those built
very recently. If your property fits into one
of these classifications, please complete
the form on page 50 so that we can provide
a more accurate assessment.
Note: A ceiling height of 2.4m and a minimum of 75mm of roof insulation is assumed.
Heater sizing table
Heater sizing table
How to use this
selection guide
The tables on this page are for use
withEco-Responseradiatorsonly–
for other products please refer to our
selectionchartsonpage48.Unlike
the charts on page 48, these tables
cover all applications – living room,
dining room, kitchen and hallway –
and are designed to provide for an
internaltemperatureof21°C.
Eco-Responseradiatorsaredesigned
to provide primary heating in main
living areas, including living rooms,
dining rooms, kitchen/diners and
hallways/landings. This should be
supplemented in other rooms,
such as bedrooms and bathrooms,
with Creda electronic panel heaters.
50 www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 50 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
Scheme No. (GD only) Fax back to: 01489 773067
Completed form to be returned to Design Department: Creda NOBO,
Millbrook House, Grange Drive, Hedge End, Southampton SO30 2DF
Please note: We are unable to complete the scheme unless full name and address details are included
Company Telephone
Address        Fax
Email
Contact
Site name
Address
Heating design request form
Type of property (for a flat, please tick ‘semi-detached’ unless there are other flats on both sides, in which case, tick ‘terrace’)
House Bungalow Flat Other (please specify) _____________ Detached Semi-detached Terraced
Type of construction
Cavity wall Yes No With insulation Yes No Solid walls Yes No Floor Solid Timber Roof Pitched Flat
Insulation None 100mm 150mm 200mm Glazing Single Double  Approximateageoftheproperty
Products to be specified
Please list below the product ranges you would like us to base the scheme on. Alternatively leave blank and we will match the right products to your property.
Type/usage of room
(i.e. living room)
Area (m2) Floor to
ceiling
height
External
wall
length
Window
area (m2)
External
door area
(m2)
Internal
wall
length to
unheated
areas
Is room
above
heated?
Roof
above?
Open
fireplace?
Please include a scaled/sketched drawing showing the relative position of the rooms.
Details
Heating design request form
51
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 51 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk
JOB NUMBER TITLE PG VERSION DATE Size at 100%
20157243 Creda Main Brochure 50 418/07/2013 A4 4pp + 52pp @ 100%
DESIGNER Org A/W A/W AMENDS C: DATE:
MW MW, MW, UL
www.credaheating.co.uk

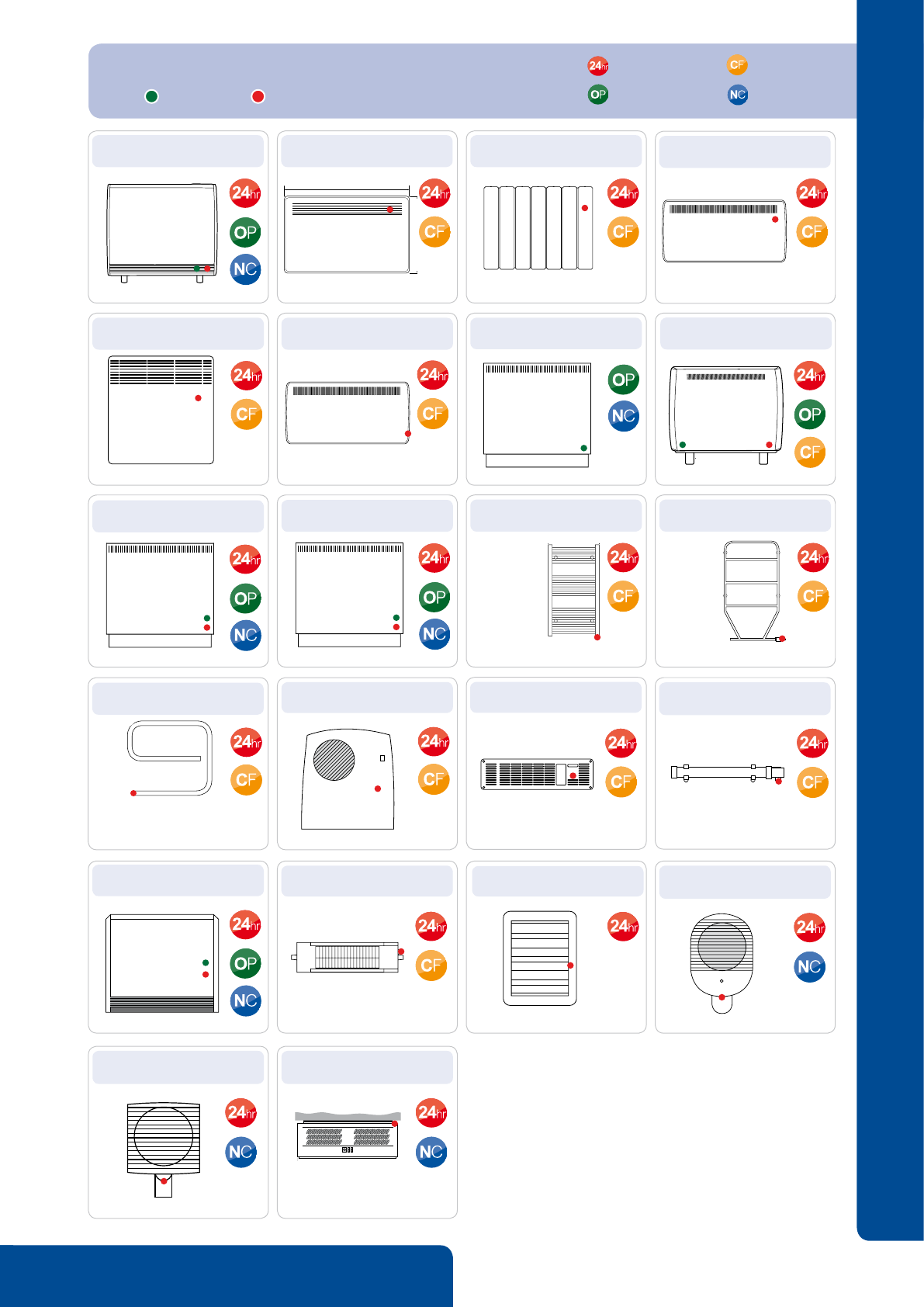

Contour100
Electronic panel heaters
4 core cable (pilot wire capability).
Width
Height
Depth
Proline TPL Fast response electric
ladder towel rails
Width Depth
Height
Straight rail
models may be
left hand or right
hand connection
mounted.
May be left
hand or right
hand connection
mounted.
SunFan
Wall mounted fan heater
SolScreen
Warm air curtains
Width Depth
Height
SFHA Sensair Automatic
Electric storage fan heaters
Width Depth
Height
TSR Slimline and Sensor Plus
Electric storage heaters
Width Depth
Height
TSR Supaslim Combi
Storage heaters
Width Depth
Height
SolQuartz
Heaters
SolHeat
Outdoor patio heater
Width Depth
Height
Length Depth
Diameter
SolTube
Tubular heaters
May be left hand or right hand
connection mounted.
Newera Electronic/Newera Plus
Panel heaters
Width Depth
Height
3 core cable (pilot wire capability).
Plinth
Electric base unit fan heaters
Width Depth
Height
PH2
TSF Turbo
Commercial storage fan heaters
Width Depth
Height
TPRIII M/NC Mechanical
thermostatic panel heaters
Width Depth
Height
TPRIII E
Electronic pilot plus panels
4 core cable (pilot wire capability).
Width Depth
Height
TD Traditional style
electric towel rails
May be left
hand or
right hand
connection
mounted.
Solarail
Electric towel rails
May be left
hand or right
hand connection
mounted.
Width Depth
Height
Compact Downflow
Fan heater
SolFan
High level fan heater
Width
Height
NOBO Range – C4N, LST, E4EU
Electronic panel heater
Cable and connection points
Off-peak cable Direct acting cable
Cable and connection points
24hr Mains Connection Cable Fitted
Off-peak Connection No Cable Fitted
Eco-Response
Quantum Range
Electronic room heater
Featuring the new
Web:
www.credaheating.co.uk
Sales:
Fax: 0844 879 3581
Email: salesorders@credaheating.co.uk
Trade Enquiries:
Tel: 0844 879 3587
Email: customer.services@credaheating.co.uk
Consumer Enquiries:
Tel: 0844 879 3588
Email: customer.services@credaheating.co.uk
Waste Electrical and Electronic Equipment Directive
We confirm that all our responsibilities under the Waste Electrical and Electronic
Equipment Directive will be fulfilled in accordance with the law. As required
within its provisions we are members of an accredited WEEE recycling scheme
for all product categories within the scope of the directive.
WEEE product registration number: GE0057TS
The BEAB Approved Mark is the electrical safety mark of the UK’s leading
independent approvals specialists. It confirms to all in the supply chain that
all products displaying the mark have been evaluated to the highest European
and International safety standards.
All Creda Heating products are CE marked to certify that the product fulfils
the requirements of all relevant European product directives.
Creda NOBO
Millbrook House, Grange Drive
Hedge End, Southampton
SO30 2DF
www.credaheating.co.uk
C015/0513
All Creda NOBO products, unless otherwise stated, are covered by a full parts
and labour guarantee for one year from the date of purchase, so should the product
become faulty within the guarantee period, it will be replaced with a new product
or repaired by our service engineers, totally free of charge.
We reserve the right to alter product specification or appearance without prior
notice. All finishes in the brochure are as accurate as printing processes allow.

Navigation menu
