Chain & Accessories
Copyright © 2002 The Crosby Group, Inc. 161
All Ri gh ts Re se rv ed
Cha in &
Accessories
Chain&Accessories

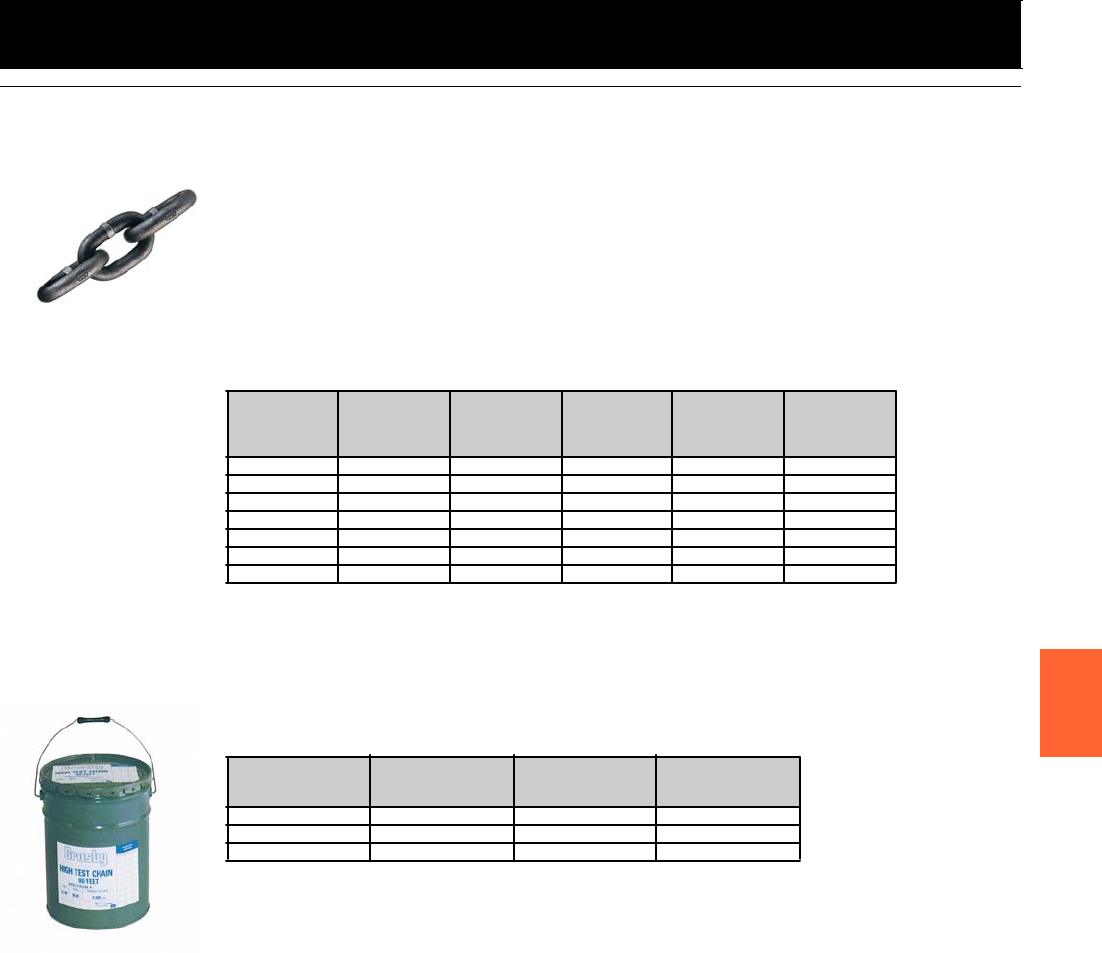

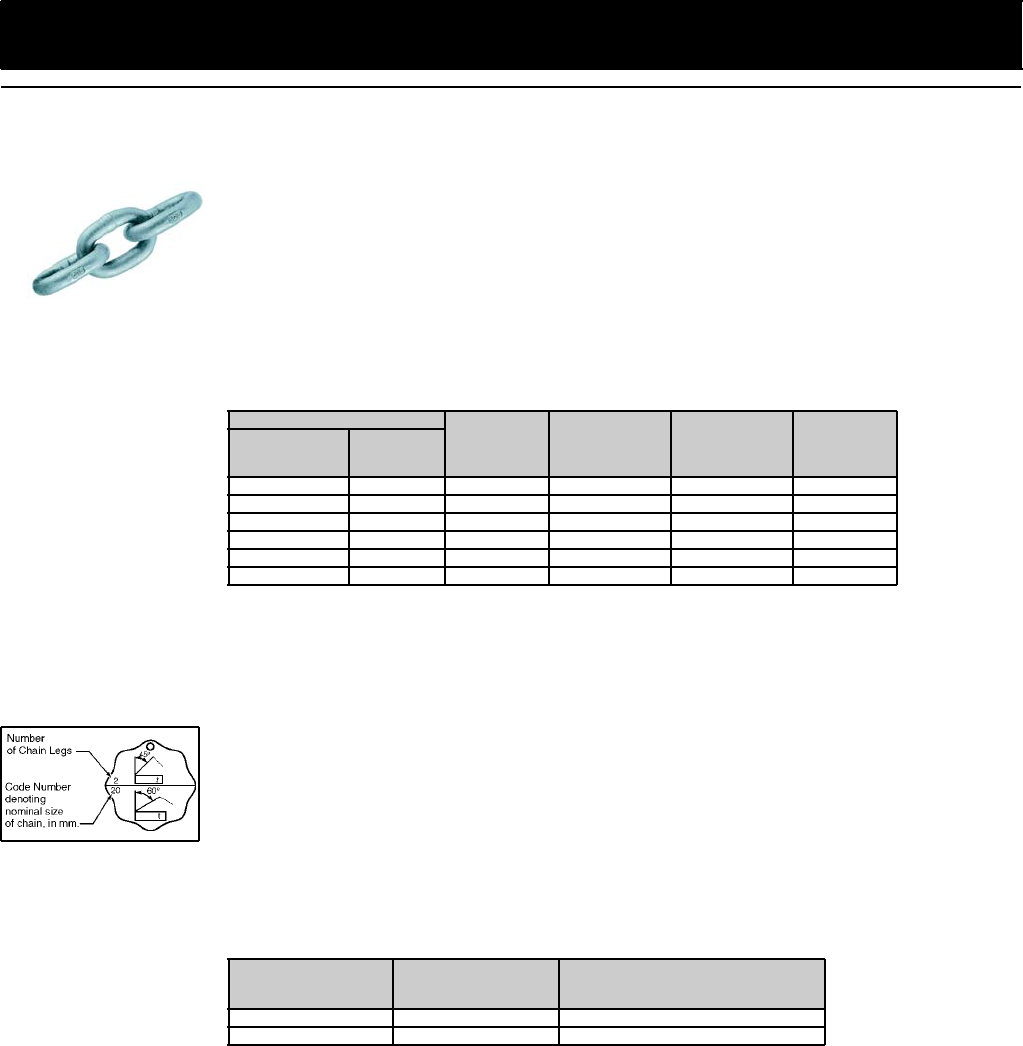

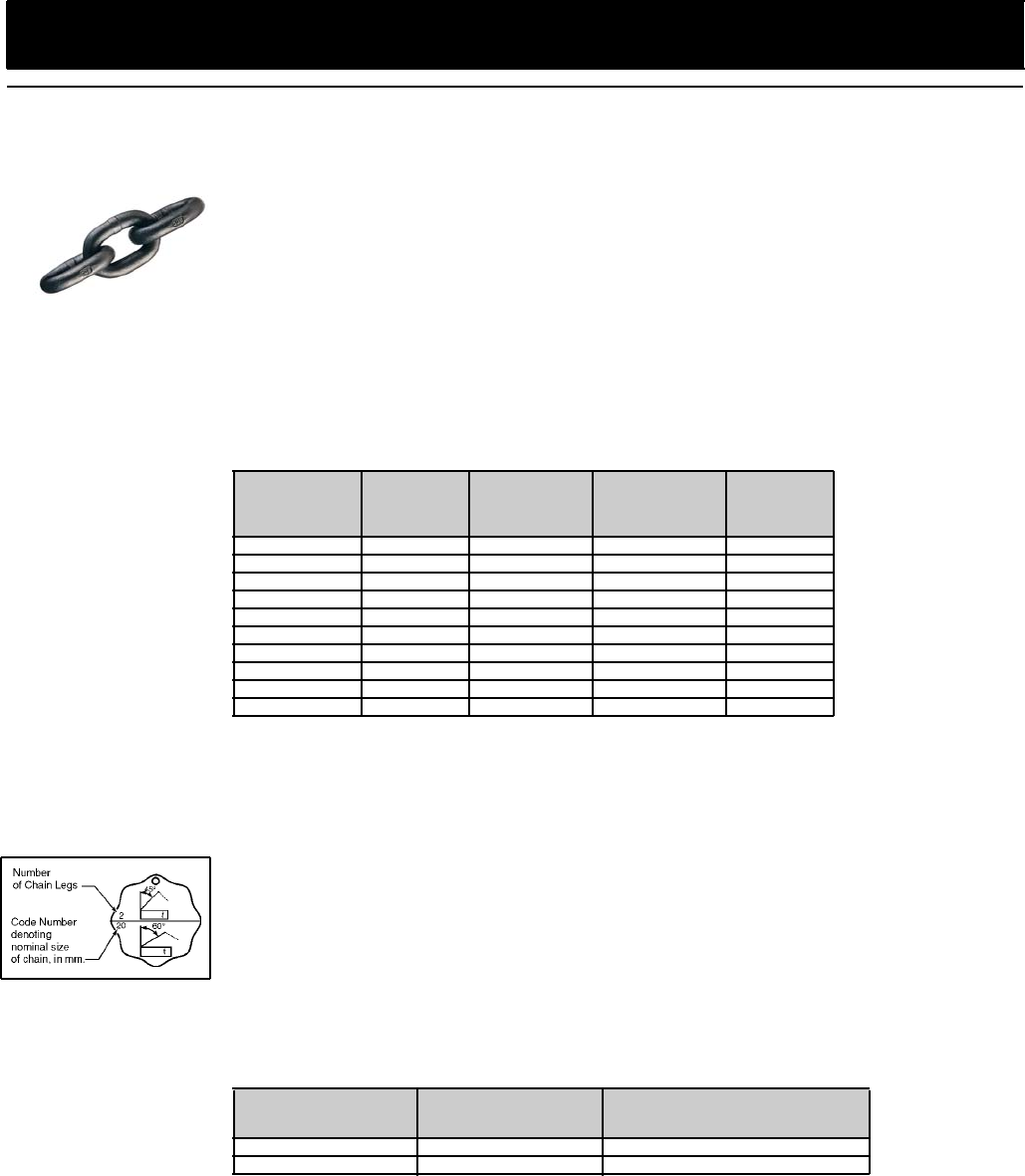

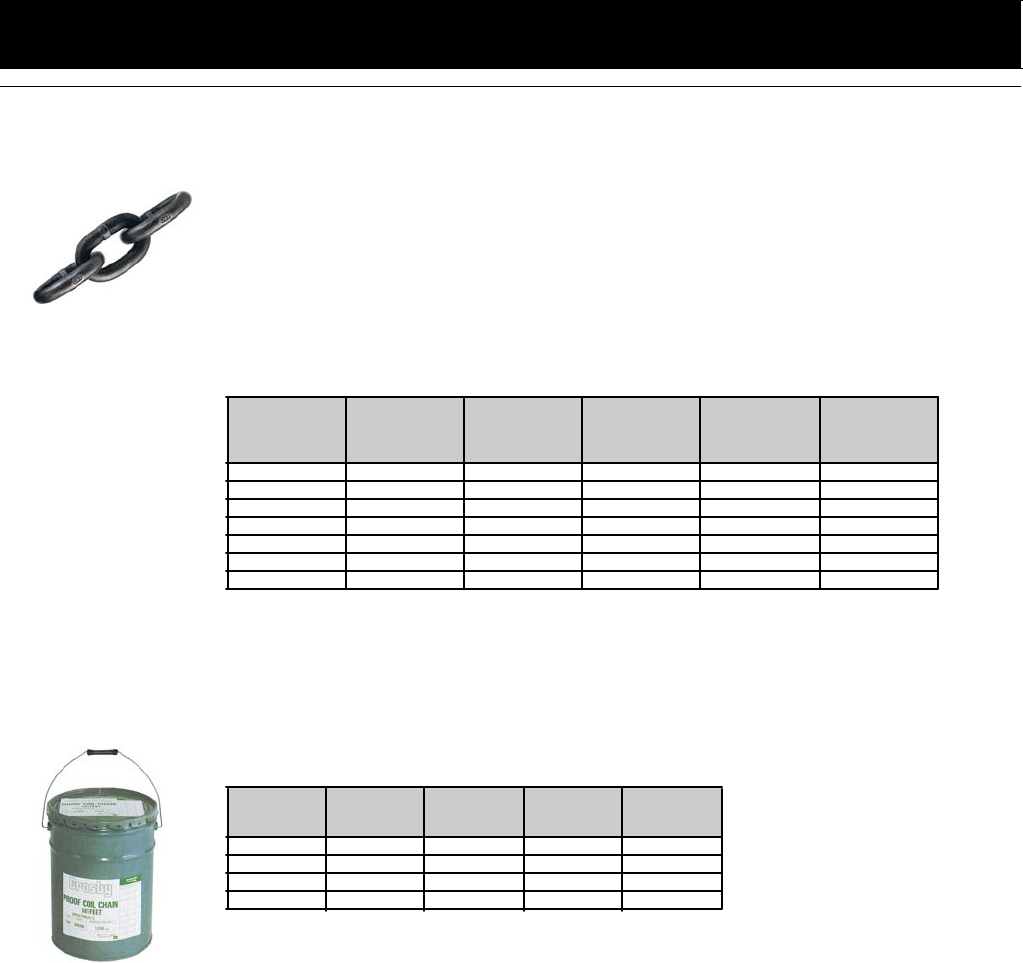

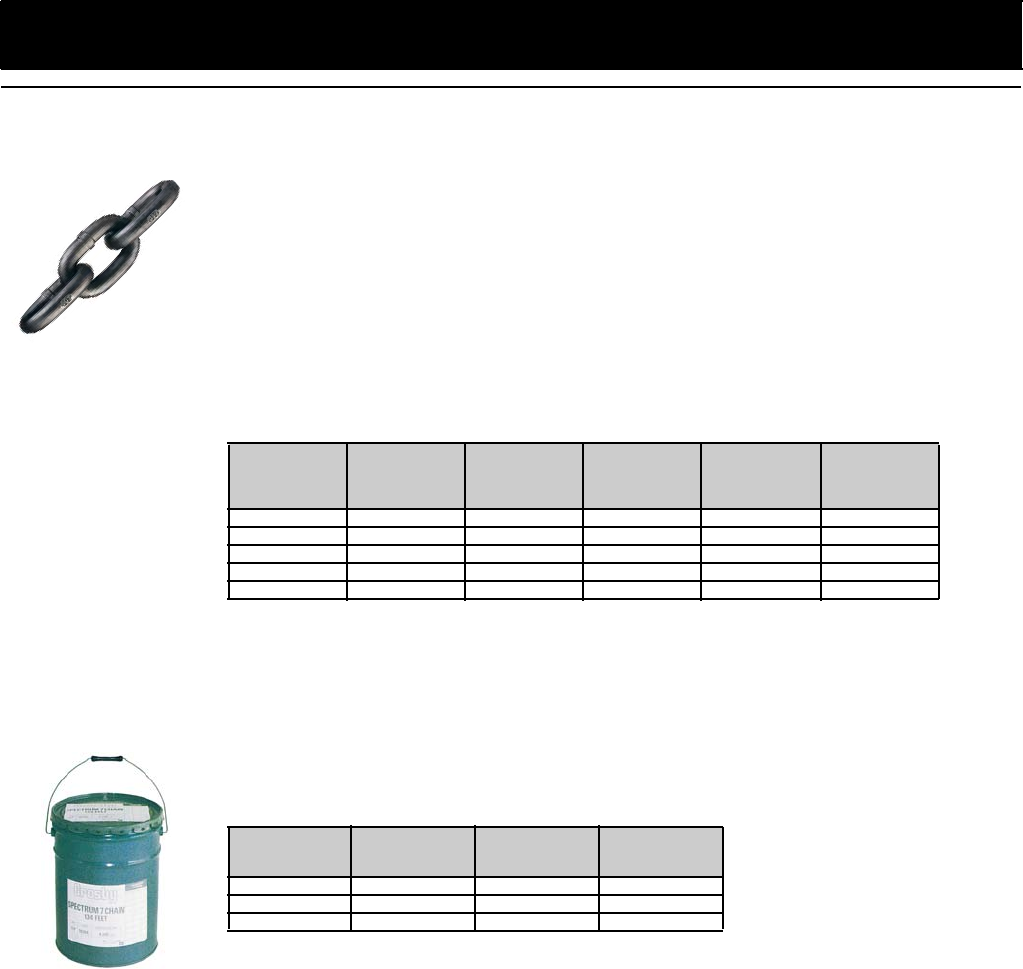

Grade 80 Alloy Chain
162 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
*5$'($//2<&+$,1
)RURYHUKHDGOLIWLQJDSSOLFDWLRQV
Sling ID
Tag Kit
• Octagonal metal sling tag.
• Prestamped - easy to add sling length, Working Load Limit, name, etc.
• Front side is shown - reverse is blank.
• Available with or without welded attached ring.
• Attaching ring size is 5mm x 50mm.
• Available completely blank for wire rope sling applications.
• Gold painted.
*5$'(
$//2<&+$,1
• Alloy Steel.
• Heat Treated.
• Finish - Self Colored.
• Permanently embossed with manufacturer's marking and 8(Grade).
Grade80AlloyChain
Chain
Size
(mm)
Meters
Per
Drum D im ensions
(mm)
Working
Load
Limit
(t)*
* Proof Loaded at 2-1/2 times the Working Load Limit. Minimum Ultimate Load is
4 times the Working Load Limit.
Weigh t
Per
Meter
(kg)
6 200 6 x 18 1.12 .80
7 200 7 x 21 1.50 1.05
8 200 8 x 24 2.00 1.25
10 200 10 x 30 3.15 2.20
13 100 13 x 39 5.30 3.80
16 100 16 x 48 8.00 5.70
19 50 19 x 54 11.2 8.03
22 50 22 x 66 15.0 10.9
26 - 26 x 78 21.2 15.2
32 - 32 x 96 31.5 23.0
6/,1*,'7$*
SlingIDTags
ID Tag
Stock No.
Wit h Ring
ID Tag
Stock N o.
Without Ring Application
1152445 1200829 For single leg sling: 90°
1152444 1200830 For multi-leg sling : 45°/ 60°
WORKING LOAD LIMIT
The “Working Load Limit” is the maximum load which should ever
be applied to chain, when the chain is new or “in as new” condition,
and when the load is uniformly applied in direct tension to a straight
length of chain.
PROOF TEST
The “Proof Test” is a term designating the tensile test applied to
new chain for the sole purpose of detecting injurious defects in the
material or manufacture. It is the load which the chain has with-
stood under a test in which the load has been applied in direct ten-
sion to a straight length of chain.
ANSI / ASME B30.9c-1997
Paragraph 9-1.4.2 “Mechanically assembled slings shall be
comprised entirely of proof tested components.” Paragraph
9-1.4.2c “If untested components are employed, the sling shall be
proof tested per Para. 9-1.4.1 prior to initial use.”
MINIMUM ULTIMATE LOAD
The “Minimum Ultimate Load” is the minimum load at which new
chain will break when tested by applying direct tension to a straight
length of chain at a uniform rate of speed in a testing machine.
ATTACHMENTS
Any attachments, such as hooks or links, should have a rated
“Working Load Limit” at least equal to the chain with which it is
used.
CAUTION
Only Crosby Alloy chain, Spectrum 8®or Spectrum 10®, should
be used for overhead lifting applications.
It must be recognized that certain factors in the usage of chain
and attachments can be abusive and lessen the load that the
chain or attachments can withstand. Some examples are twisting
of the chain, disfigurement, deterioration by straining,
usage, weathering and corrosion, rapid application of load or jerk-
ing and applying excessive loads, and sharp corners cutting ac-
tion.
Due to the crushing effect Grab Hooks have upon chain, the
design factor of all chain assemblies must be reduced by 20% for
Grab Hook applications.
GENERAL INFORMATION
Grade80Chain
CHAIN INSPECTION
INSPECTION AND REMOVAL FROM SERVICE PER
ANSI B30.9
FREQUENT INSPECTION
Normal Service - Monthly
Severe Service - Daily to Monthly
Check chain and attachments for wear, nicks, cracks,
breaks, gouges, stretch, bend, weld splatter, discoloration
from excessive temperature, and throat openings of hooks.
1. Chain links and attachments should hinge freely to
adjacent links.
2. Latches on hooks, if present, should hinge freely and seat
properly without evidence of permanent distortion.
PERIODIC INSPECTION - INSPECTION RECORDS
REQUIRED
Normal Service - Yearly
Severe Service - Monthly
This inspection shall include everything in a frequent inspection
plus each link and end attachment shall be examined
individually, taking care to expose inner link surfaces of the chain
and chain attachments.
1. Worn links should not exceed values given in table 1 or rec-
ommended by the manufacturer.
2. Sharp transverse nicks and gouges should be rounded out
by grinding and the depth of the grinding should not exceed
values in Table 1.
3. Hooks should be inspected in accordance with ANSI B30.10
4. If present, latches on hooks should seat properly, rotate
freely, and show no permanent distortion.
5. Chains use OSHA and ASME regulations and safety
information.
See: OSHA 1926.2 (a) 4 and 1910.184
ASME B30.9 Slings
ASME B30.10 Hooks
Use of Crosby Spectrum 8 Chain Under Heat Condition
Temperature
of Chain Grade 80
(F°) (C°)
Reduction*
of Working
Load Limit
WHILE AT
Temperature
Reduction
of Working
Load Limit
AFTER EXPOSURE
to Temperatures**
Below
400 Below
204 None None
400 204 10% None
500 260 15% None
600 316 20% 5%
700 371 30% 10%
800 427 40% 15%
900 482 50% 20%
1000 538 60% 25%
* Crosby does not recommend the use of Alloy Chain at temperatures
above 800° F.**
**When chain is used at room temperature after being heated to
temperaturesshowninthefirstcolumn.
TABLE 1
MAXIMUM ALLOWABLE WEAR AT ANY POINT OF LINK
Normal Chain or Coupling Link
Cross Section Maximum Allowable
Wear
Diameter
(mm)
(in.) (mm)
—6.79
1⁄4-9⁄32 7.94
5⁄16 81.05
3⁄810 1.32
1⁄213 1.75
5⁄816 2.13
3⁄419 2.67
7⁄822 2.95
1253.48
11⁄432 4.29
REFER TO ANSI B30.9
Copyright© 2002 The Crosby Group, Inc. 163
All Rights Reserved
Grade 80 Alloy Chain Sling
Follow these simple steps in making a sling assembly:
Determine the maximum load to be lifted by the sling
assembly.
Choose the type of sling assembly suited for the shape of the
load and the size of the sling assembly for the load to be lifted.
The decision must take into account the angle of the sling legs in
multileg slings.
Determine the overall reach for bearing point of master link to
bearing point on hook.
Select components, assemble chain and components. Affix sling
identification tag to sling. The tag is available from your Crosby
Distributor. The tag should be stamped with size chain, reach,
type sling, Working Load Limit at a specific
angle of lift, and some identifying number for record keeping.
If measurement comes in the link, cut the following link. For two
leg type slings count the links and use an even number for clevis
hooks and an odd number for eye hooks. This will
position hooks in the same plane. In multileg slings always use
the same number of links in each leg.
CAUTION
Derate sling in accordance with working load limit chart shown
above.
A chain grab hook application will result in 20% reduction of chain
capacity.
Care should be taken to observe these derated applications or
chain may fracture or permanently stretch at loads less than the
advertised chain ultimate strength and proof load respectively.

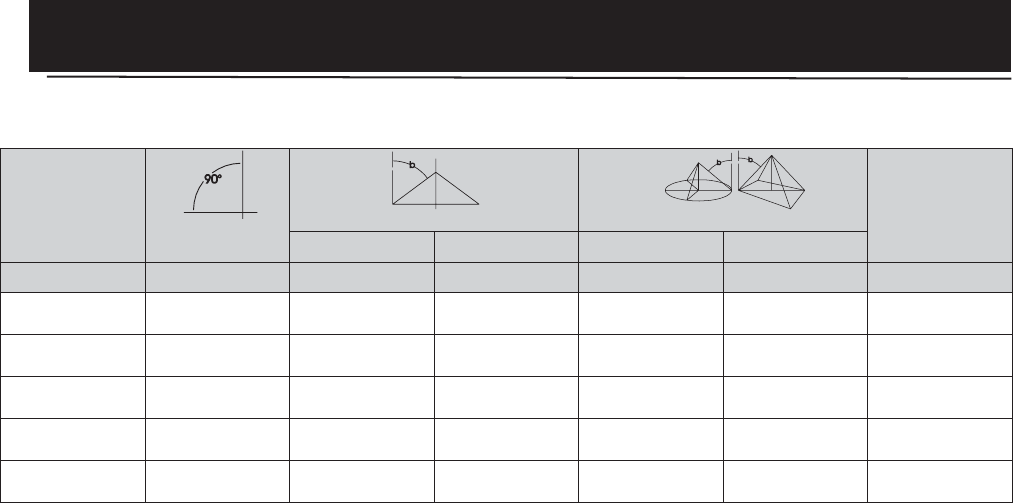

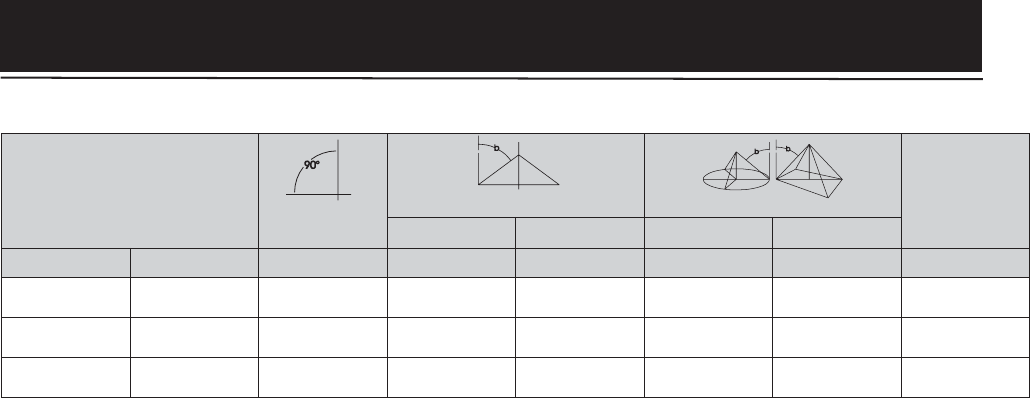

TO MAKE YOUR CROSBY GRADE 8®ALLOY CHAIN SLING
WORKING LOAD LIMIT — 4 TO 1 DESIGN FACTOR
The design factor of 4 to 1 on Grade 80 Alloy Chain agrees with the design factor used by the International Standards
Organization (I.S.O.) and ANSI B30.9 is the preferred set of Working Load Limit values to be used.
Nominal
size of
sling Single-leg
slings
Two leg slings Three-andfour-legslings
Choke hitch
0º<ß≤45° 45°<ß≤60° 0°<ß≤45° 45°<ß≤60°
mmtttttt
6
71,12
1,50 1,60
2,12 1,12
1,50 2,36
3,15 1,70
2,24 0,90
1,20
8
10 2
3,15 2,80
4,25 2
3,15 4,25
6,70 3
4,75 1,60
2,50
13
16 5,30
87,50
11,20 5,30
811,20
17 8
11,80 4,25
6,40
19
22 11,20
15 16
21,20 11,20
15 23,60
31,50 17
22,40 9
12
26
32 21,20
31,50 30
45 21,20
31,50 45
67 31,50
47,50 17
25,20
164 Copyright© 2002 The Crosby Group, Inc.
All Rights Reserved

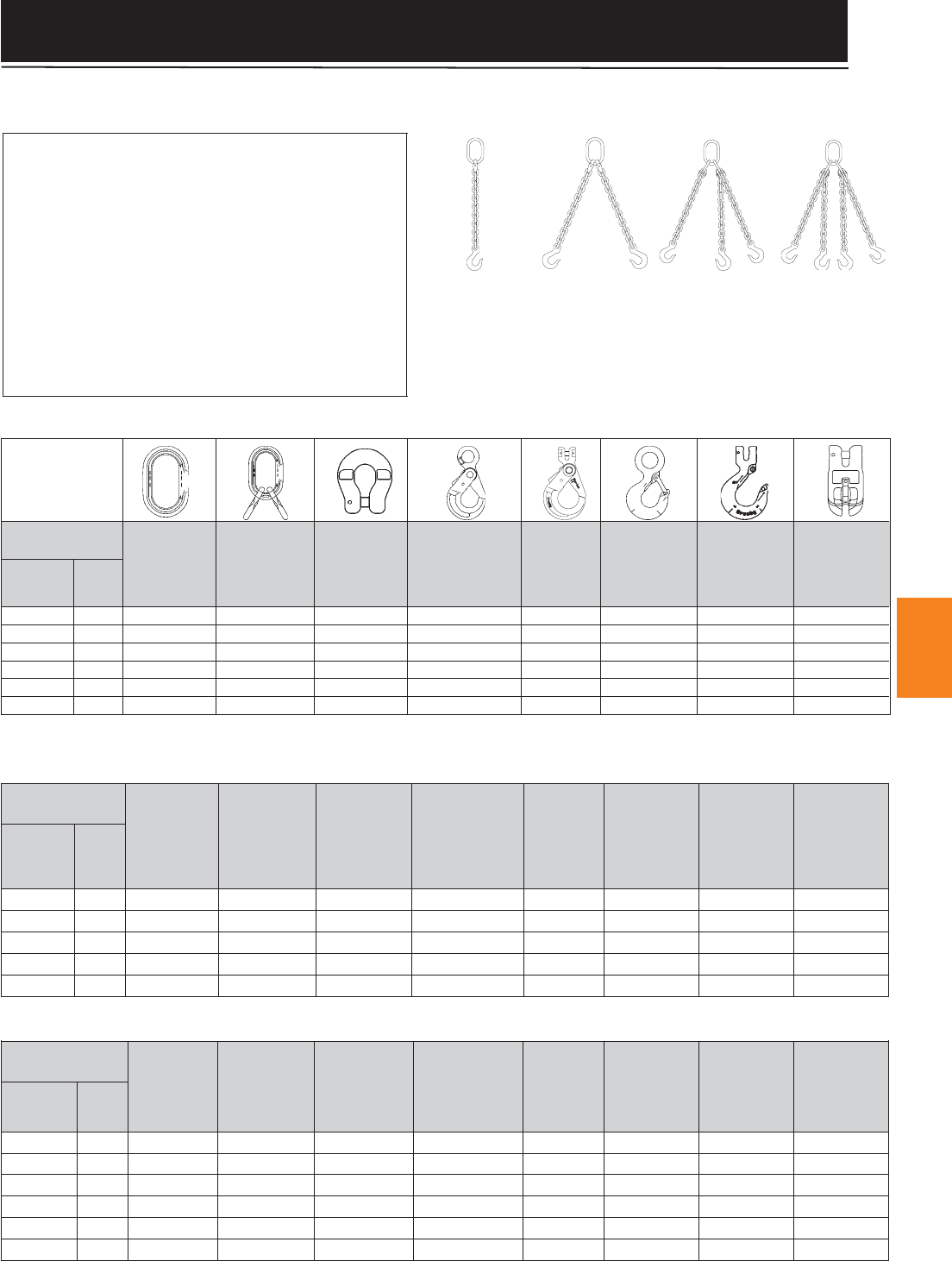

Crosby®Chain Sling Components
CHAIN ASSEMBLY CHART
Chain
Size
(mm)
A-344
A-347
(mm) A-342
(in.) A-337
(mm) S-325A
(mm) S-311A
(mm) A-338
(mm) A-328
(mm)
1Leg
(mm) 2Legs
(mm)
6 12 12 13/12 1/2 — 6 6 — —
7 12 13 17/13 1/2 7 7 - 8 7 - 8 7 7
8 13 17 19/13 5/8 8 7 - 8 7 - 8 — —
10 17 19 22/17 3/4 10 10 10 10 10
13 19 22 28/22 1 13 13 13 13 13
16 22 25 31/25 1 16 16 16 16 —
19 25 31 40/31 1-1/4 19 — — 19 19
22 31 36 46/36 1-1/2 22 — — 22 22
26 36 45 51/45 1-3/4 26 — — — —
32 45 51 — 2-1/4 32 — — —
Chain
Size
(mm) S-314A
(mm) A-339
(mm) M-315A
(mm) S-316A
(mm) S-317A
(mm)
S-320AN
L-320AN
t
S-322AN
L-322AN
tS-326A
(mm)
6 6 — 6 6 6 1.25 1.25 6
77-877-87-87-81.61.67-8
8 7-8 — 7-8 7-8 7-8 2.5 2.5 7-8
10 10 10 10 10 10 3.2 3.2 10
13 13 13 13 13 13 5.4 5.4 13
16 16 16 16 16 16 8 8 16
19 — 19 — — — 11.5 11.5 —
22 — 22 — — — 16 16 —
26—————2222—
32—————31.531.5—
Copyright© 2002 The Crosby Group, Inc. 165
All Rights Reserved
Grade 8 Alloy Fitting

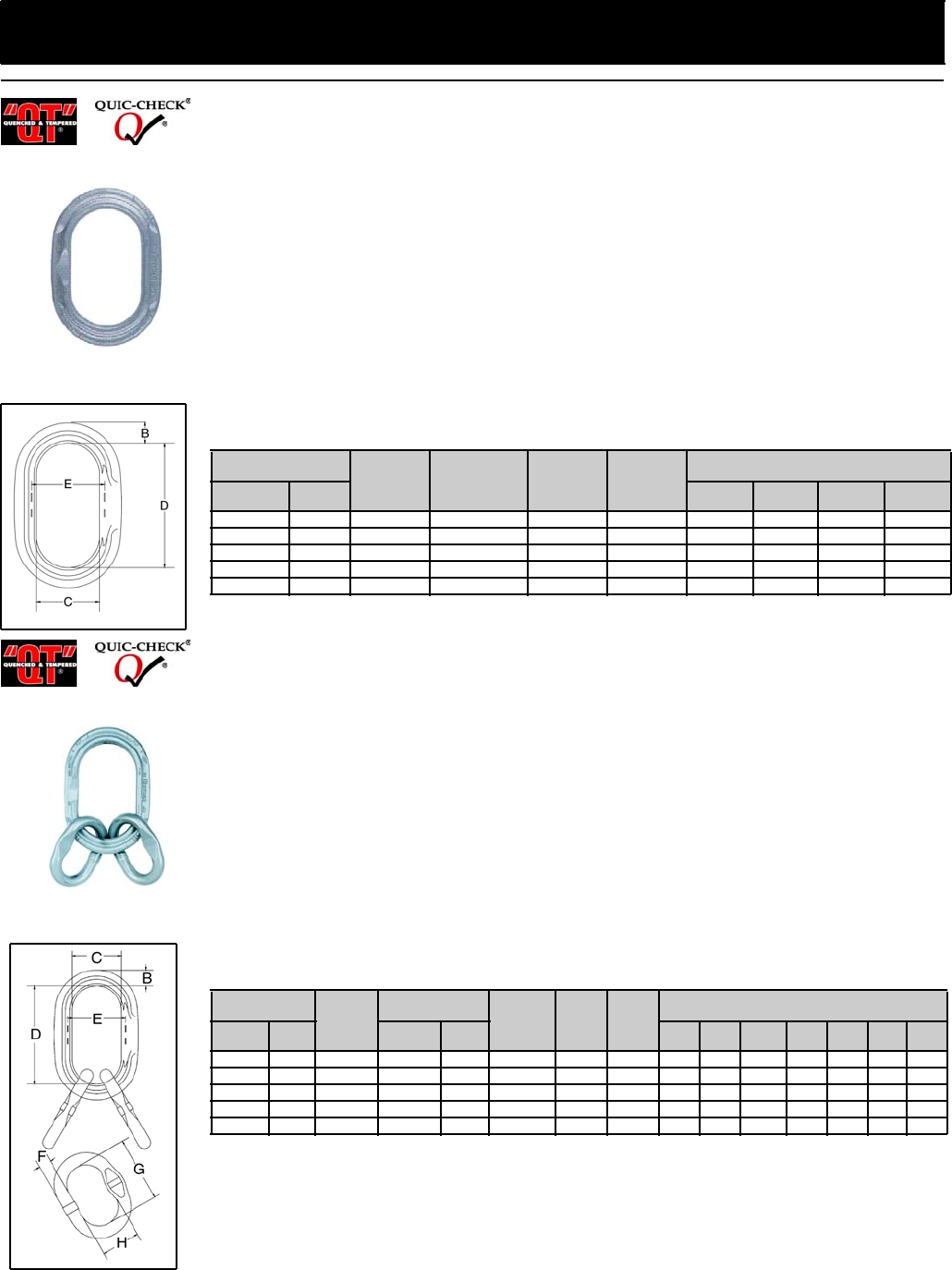

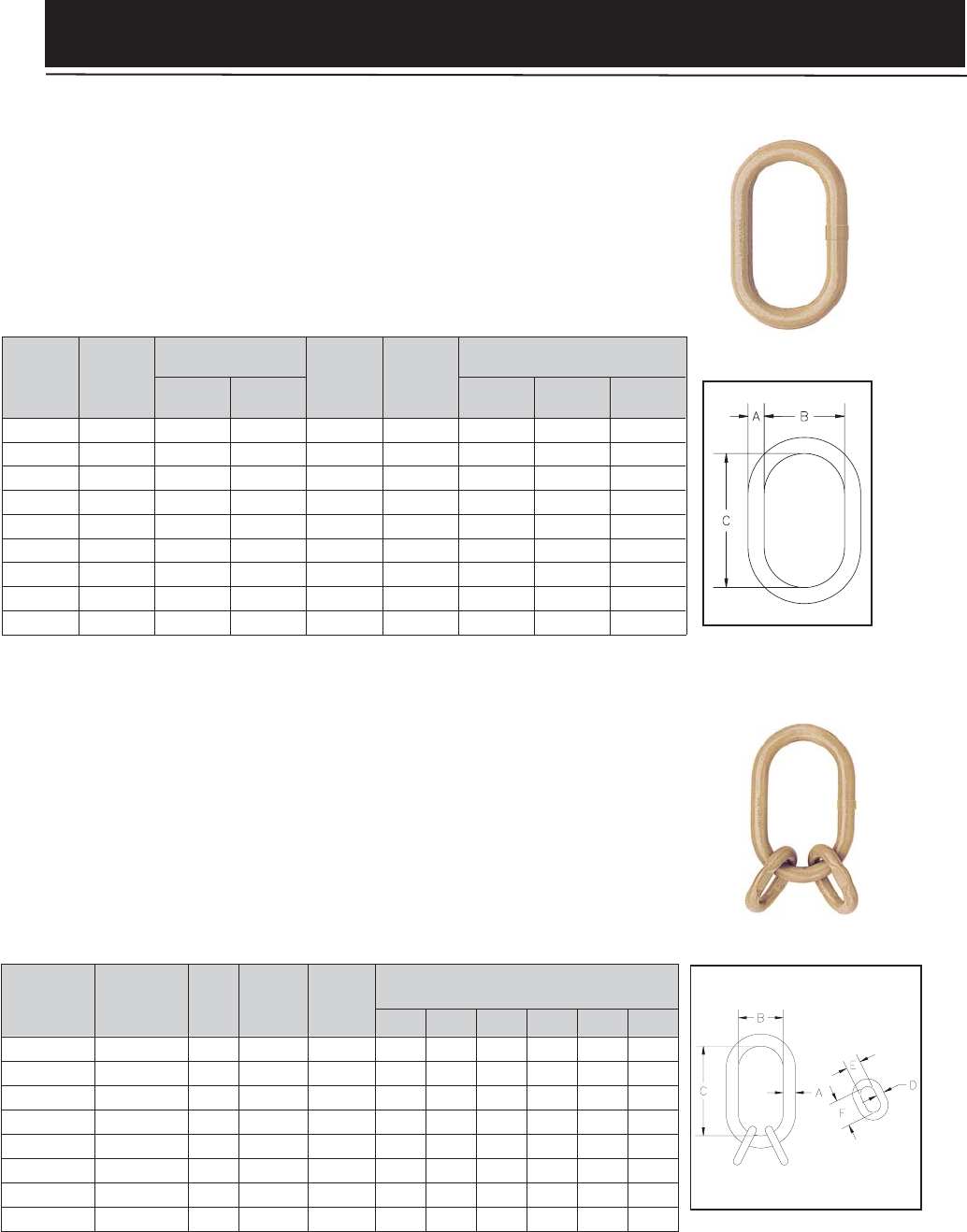

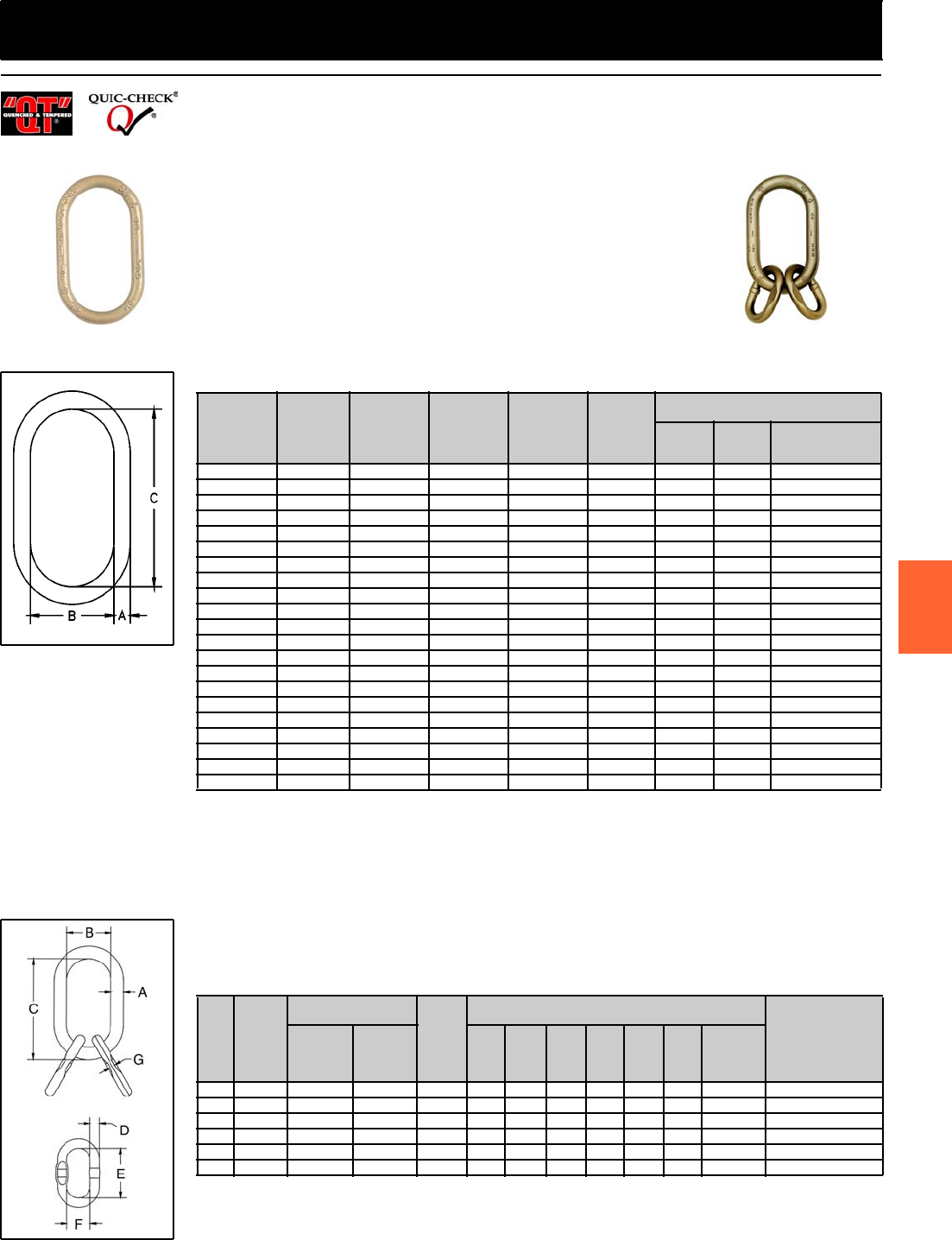

WELDED MASTER LINK
•Each link has a Product Identification Code (PIC) for material traceability, along with the
size, and “CG” stamped into it.
•Available in sizes A13 through A51.
•Design Factor of 4 to 1.
•Based on DIN 5688, part 3
•Alloy Steel - Quenched and Tempered
•Individually Proof Tested at 2.5 times the Working Load Limit.
Size
Stock
No.
S.C.
Chain Size
(mm) Working
Load
Limit*†
t
Weight
Each
(kg)
Dimensions
(mm)
Single
Leg
Double
Leg A B C
A13 593100 6 6 - 7 1.6 .34 13 60 110
A16 593102 8 — 2.0 .53 16 60 110
A18 593103 10 8 3.2 .82 18 75 135
A22 593104 13 10 5.3 1.50 22 90 160
A26 593105 16 13 8.0 2.31 26 100 180
A32 593106 18 - 19 16 11.2 3.95 32 110 200
A36 593107 20 - 22 18 - 19 15.2 6.34 36 140 260
A45 593109 26 - 28 22 25.5 12.82 45 180 340
A51 593110 32 26 36 17.30 51 190 350
* Based on single leg sling. Ultimate Load is 4 times the Working Load Limit.
WELDED MASTER LINK ASSEMBLY
Size
Stock
No.
S.C.
Chain
Size
(mm)
Working
Load
Limit*†
Weight
Each
(kg)
Dimensions
(mm)
ABCDEF
A18 - B13 1256010 6 2.4 1.16 18 75 135 13 25 54
A22 - B16 1256080 8 4.3 2.22 22 90 160 16 34 70
A26 - B17 1256150 10 6.70 3.37 26 100 180 18 40 85
A32 - B22 1256220 13 11.2 6.07 32 110 200 22 50 115
A36 - B26 1256290 16 17 10.00 36 140 260 26 65 140
A38 - B32 1256360 18 23.6 18.92 45 180 340 32 70 150
A51 - B32 1256395 20 27.0 23.40 51 190 350 32 70 150
A51 - B36 1256430 22 32.5 25.94 51 190 350 35 75 170
*Ultimate Load is 4 times the Working Load Limit.
†Working Load Limit with coupling links at 90 degrees included angle maximum.
•Each link has a Product Identification Code (PIC) for material traceability, along with
the size, and “CG” stamped into it.
•Available in sizes A18 - B13 through A51 - B36.
•Design Factor of 4 to 1.
•Based on DIN 5688, part 3.
•Alloy Steel - Quenched and Tempered
•Individually Proof Tested at 2.5 times the Working Load Limit.
A343
A346
166 Copyright© 2002 The Crosby Group, Inc.
All Rights Reserved
Alloy Master Links
Copyright © 2002 The Crosby Group, Inc. 167
All Ri gh ts Re se rv ed
Cha in &
Accessories

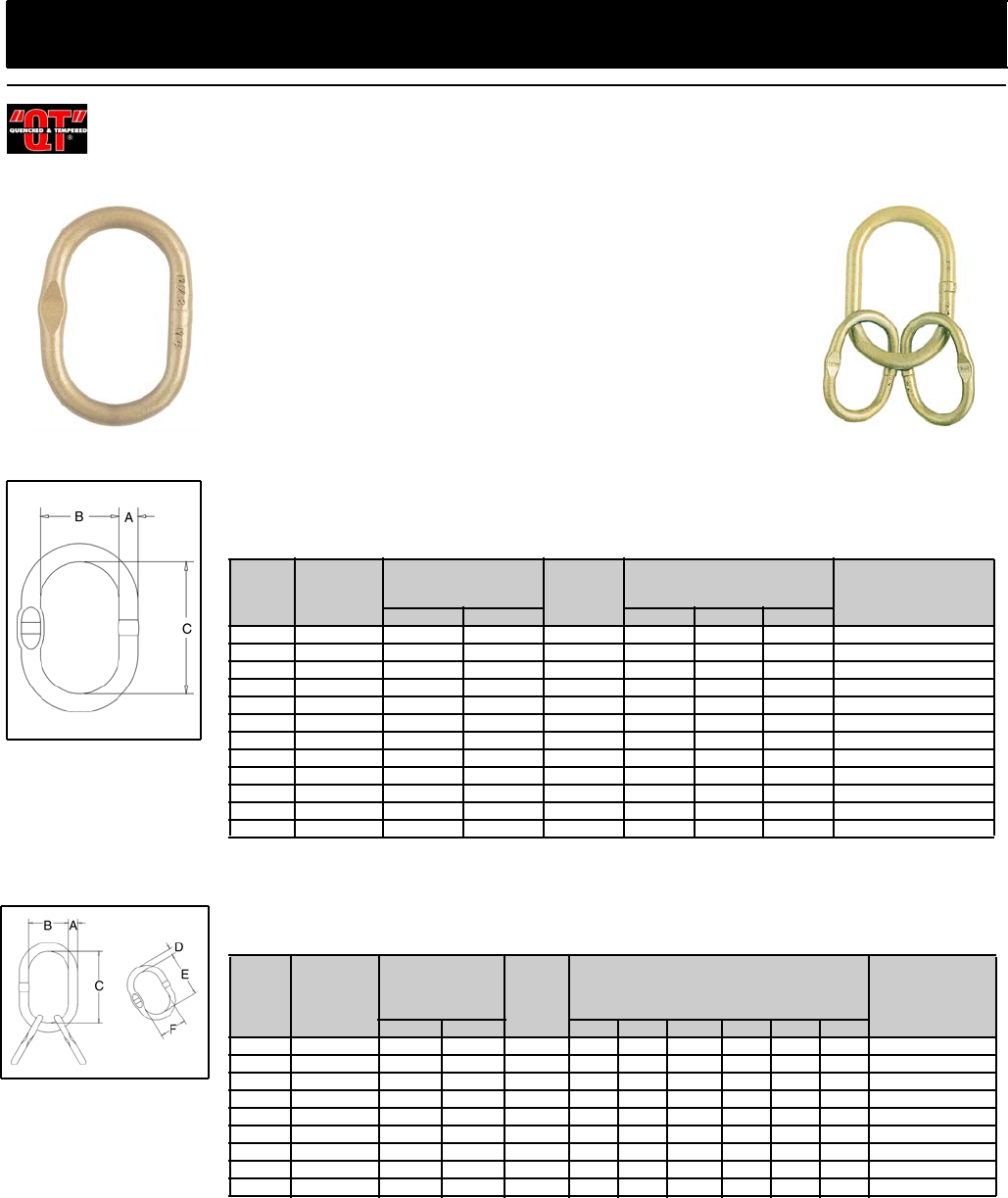

A-342 Alloy Master Links
A-345 Master Link Assembly
• Alloy Steel - Quenched and Tempered.
• Individually proof tested at 2,5 times the Working Load Limit with certification.
• Proof Test certification shipped with each link.
$• Alloy Steel - Quenche d and Tempered.
• Individually proof tested to values shown.
• For use with chain (S.F. = 4/1), prooftested to 2.5 times the working
load limit.
• For use with rope (S.F. = 5/1), prooftested to 2 times the working load
limit.
• Sizes from 13mm to 51mm are drop forged.
AlloyMasterLinks
$
Siz e
"A"
(mm)
A-342
A-342
Stock No.
Working
Load Limit
S.F . = 5: 1
for Rope
(t)*
* Based on single leg sling (in-line load), or resultant load on multiple legs with an included angle less than or
equal to 120 degrees.
** Proof test load equals or exceeds the requirement of ASTM A 957(8.1) and ASME B30.9-1.4 for the chain size
and number of legs. For use with chain slings, see page 166.
†† Welded Master Link.
Working
Load Limit
S.F . = 4: 1
for Chain
(t)
Proofload
in
kN **
Weight
Each
(kg)
Dimensions
(mm)
B C Deformation
Indicator
** 13 1014262 3.17 2.54 63 0.37 63.5 127 76
** 16 1014280 4.08 3.26 81 0.69 76.0 152 89
** 19 1014306 5.58 4.46 110 0.94 70.0 140 89
** 22 1014315 6.44 5.15 127 1.59 95.5 162 114
** 25 1014324 11.05 8.83 217 2.20 89.0 178 114
** 32 1014342 16.42 13.13 323 4.34 111 222 140
** 38 1014360 25.67 20.54 504 7.36 133 267 165
** 44 1014388 38.51 30.81 756 11.4 152 305 191
** 51 1014404 46.54 37.23 913 16.8 178 356 229
†† 57 1014422 65.6 52.47 1287 24.5 203 406 -
**†† 63 1014468 66.8 58.00 1311 30.7 203 406 -
†† 70 1014440 98.4 78.71 1930 39.8 241 406 -
†† 76 1014486 103 82.73 2029 52 229 457 -
†† 83 1014501 119 95.13 2334 66 254 508 -
†† 89 1014529 126 101 2483 91 305 610 -
†† 95 1015051 152 122 2990 90 254 508 -
†† 102 1015060 169 135 3319 103 254 508 -
†† 108 1015067 160 128 3150 137 305 610 -
†† 121 1015079 163 130 3204 156 356 711 -
†† 121 1015088 176 141 3462 198 356 711 -
†† 127 1015094 179 143 3515 234 381 762 -
"A"
Siz e
(mm)
A-345
A-345
Stock
No.
Working Load Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit. Proof Load is 2.5 times the Working Load Limit. Working
Load Limit with coupler links at 60 degree included angle maximum.
See page 165 for proper chain selection for triple and quadruple leg slings.
Weight
Each
(kg)
Dimensions
(mm) Engineered
Flat for
S-325A
(in.) - (mm)
Based on
Grade 80
Chain
Rating
Based
on 4:1
Design
Factor B C D E F G
Deforma-
tion
Indicator
19 1014734 4.13 4.77 1.18 19.1 70.0 140 14.2 85.0 39.9 89 1/4"-5/16", 7-8mm
25 1014752 8.35 11.0 2.77 25.4 89.0 178 17.5 100 60.0 114 3/8", 10mm
32 1014770 14.1 16.3 5.99 31.8 111 222 22.4 100 60.0 140 1/2", 13mm
38 1014798 21.3 24.6 11.0 38.1 133 267 28.7 150 70.0 165 5/8", 16mm
44 1014814 33.3 38.5 16.2 44.5 152 305 31.8 160 90.0 191 3/4", 20mm
51 1014832 40.3 46.6 26.0 51.0 178 356 38.1 180 100 229 No Flat
Welded Master Links
168 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
A-344
Welded Master Link
with Engineered Flat
A-347
Welded Master Link Assembly
$• Each link has a Product Identification Code (PIC) for material
traceability, along with the size and "CG" (The Crosby Group).
• De sign Factor of 4 to 1 for cha in an d 5 to 1 for wire rop e.
• Alloy Steel - Quenched and Tempered.
• In dividually P roof Tested at 2.5 times the Working L oad Limit (4:1)
with certification.
• Larger inside width and length for use with thimble.
• Engineered Flat for use with S-325A coupler link.
WeldedMasterLinks
$
Siz e
(mm)
A-344
A-344
Stock No.
Working
Load Limit
(t)*
* Ultimate lo ad based o n in line pull. Calculated for a single l eg s ling or for the resul tant load on a two leg sling
with included angle not exceeding 90 degrees.
Weight
Each
(kg)
Dimensions
(mm)
Engineered
Flat Size
for S-325A
(in.) - (mm)
4:1 5:1 A B C
12 1256862-4 1.6 1.6 .30 12 60 120 1/4"-5/16", 7-8mm
13 1256932-4 2.12 2.5 .36 13 60 120 1/4"-5/16", 7-8mm
17 1257002-4 3.15 4 .84 17 90 160 3/8", 10mm
19 1257072-4 5.3 6.5 1.07 19 90 160 1/2", 13mm
22 1257212-4 8 8 1.61 22 100 180 5/8", 16mm
25 1257282-4 11.2 11.5 2.37 25 115 205 5/8", 16mm
28 1257382-4 13 11.8 3.78 28 145 275 No Flat
31 1257422-4 16 16 4.69 31 145 275 No Flat
36 1257492-4 21.2 24 6.83 36 155 285 No Flat
40 1257532-4 25 25 8.90 40 160 300 No Flat
45 1257562-4 31.5 31.5 12.73 45 180 340 No Flat
51 1257632-4 40 45 17.26 51 215 390 No Flat
Size
(mm )
A-347
A-347
Stock No.
Working
Load
Limit
(t)*
* WLL for included angle of maximum 90 degrees. For larger included angles de WLL should be reduced.
Weight
Each
(kg)
Dimensions
(mm)
Engineered
Flat Size
for S-325A
(in.) - (mm)
4:1 5:1 A B C D E F
13/12 1257692-4 2.36 2.4 .81 13 60 120 12 85 45 No Flat
17/13 1257762-4 3.15 3.2 1.56 17 90 160 13 120 60 No Flat
19/13 1257832-4 4.25 4.2 1.79 19 90 160 13 120 60 1/4"-5/16", 7-8mm
22/17 1257972-4 6.7 8 3.29 22 100 180 17 160 90 3/8", 10mm
28/22 1258142-4 11.2 12 7.00 28 145 275 22 180 100 1/2", 13mm
31/25 1258182-4 17 17 9.43 31 145 275 25 210 115 5/8", 16mm
40/31 1258332-4 23.6 25 18.28 40 160 300 31 270 140 No flat
45/36 1258402-4 31.5 31.5 26.39 45 180 340 36 285 155 No flat
51/45 1258462-4 45 45 42.88 51 190 350 45 340 180 No flat

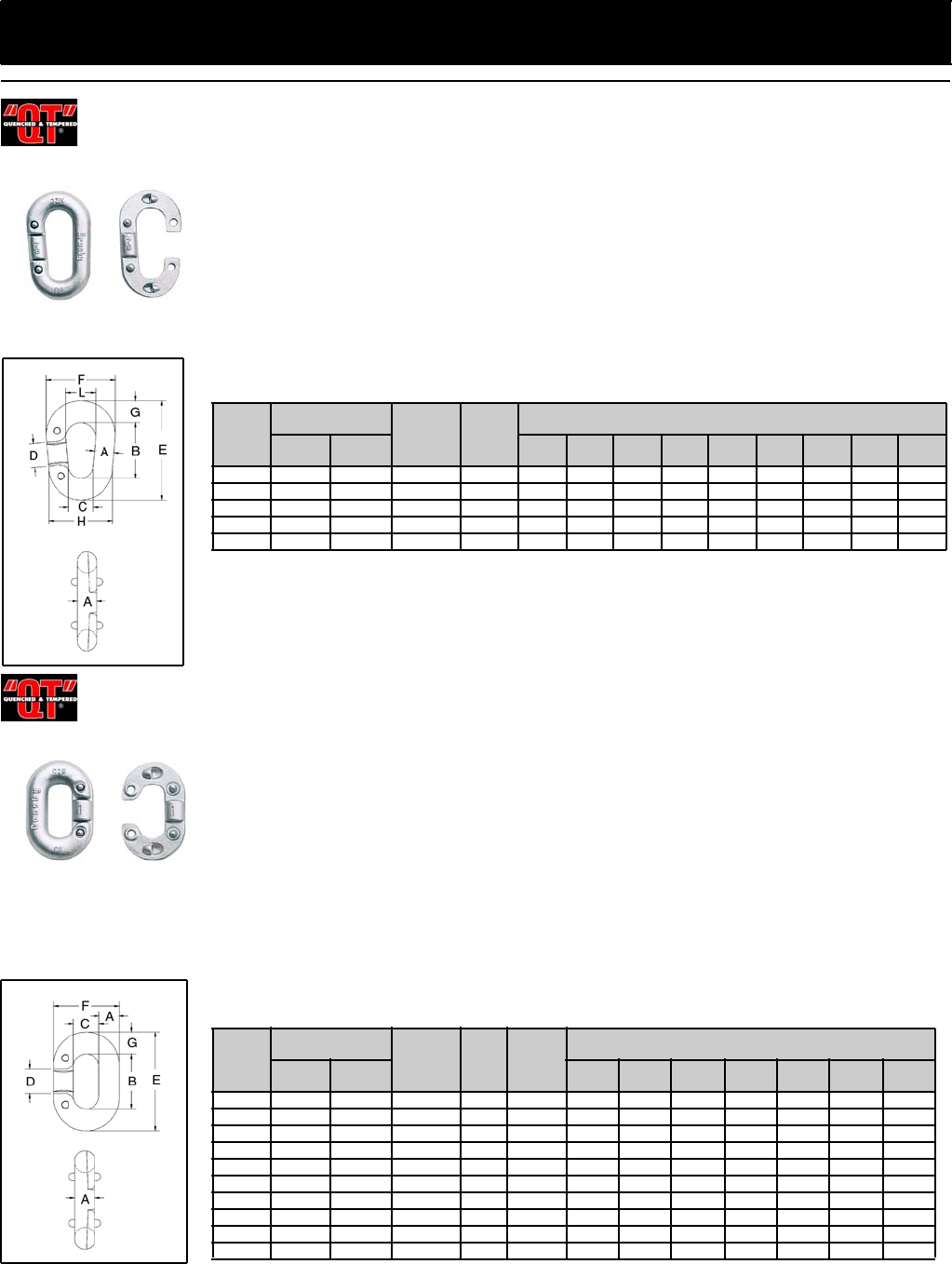

Grade 80 Alloy Connecting Links
Copyright © 2002 The Crosby Group, Inc. 169
All Ri gh ts Re se rv ed
Cha in &
Accessories

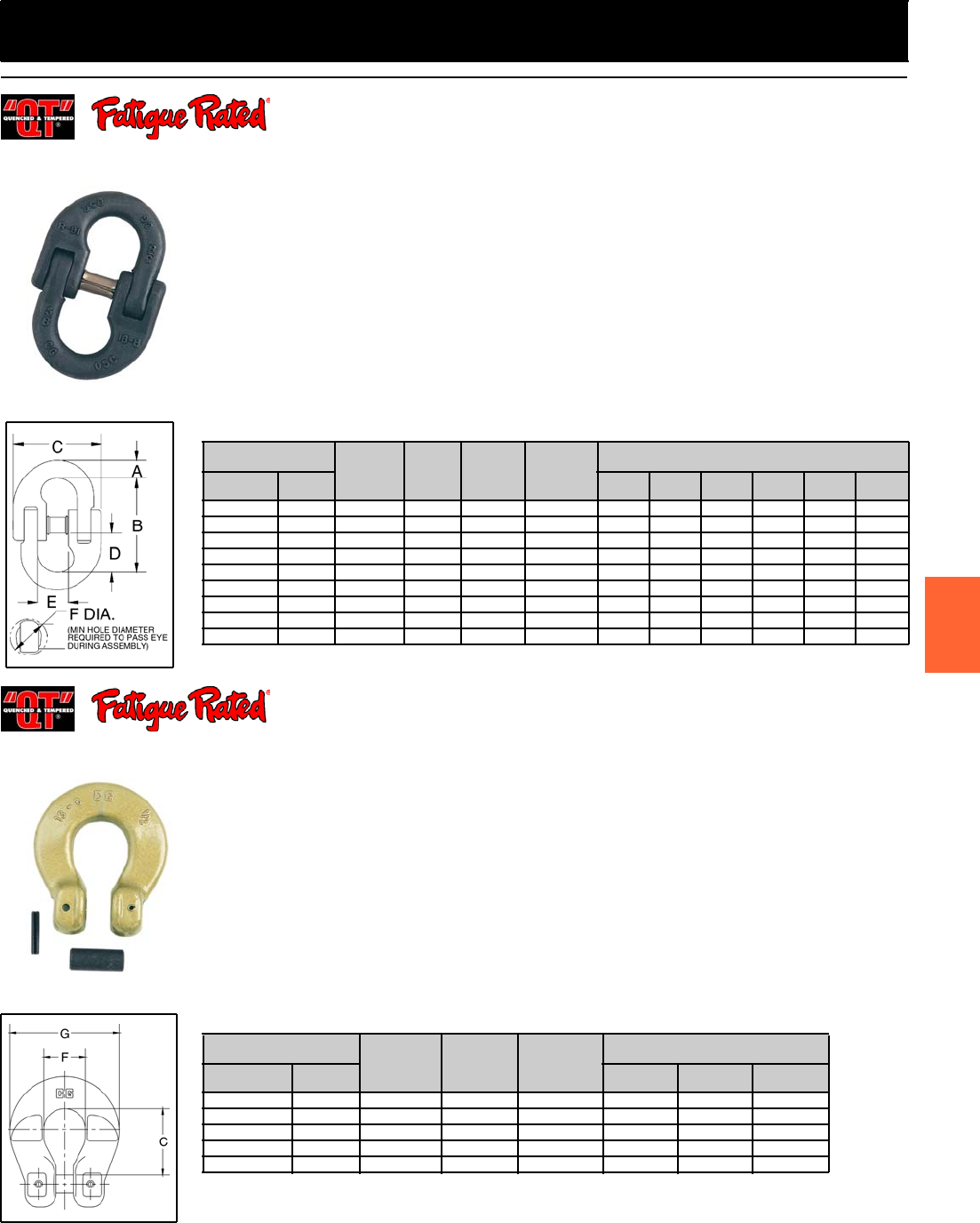

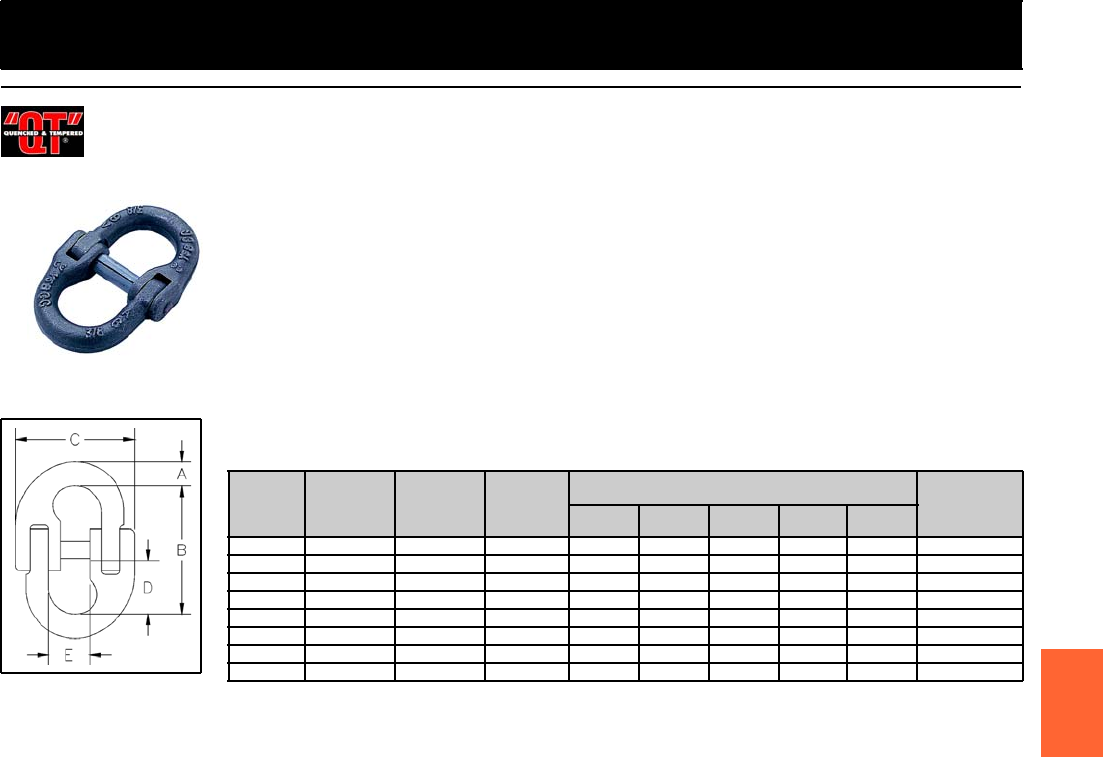

LOK-A-LOY® 8 Alloy Connecting Link
S-325A Grade 80 Coupling Link
$• In dividually P roof Tested at 2-1/2 time s Working L oad Limit with certification.
• Locking system that provides for simple assembly and disassembly - no special tools needed.
• Meets ASTM A-952-96 standards for Grad e 80 chain fittings.
• Forged Alloy Steel - Quen ched and Tempered.
•Fatigue rated.
Grade80AlloyConnectingLinks
Chain
Size
A-337
A-337
Stock No. Pkg.
Qty.
Weig ht
Each
(kg )
Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
D im ensions
(mm)
(in.) (mm) ABCDE F
9/32 (1/4) 7 1014720 24 .13 1.5 8.40 47.8 47.0 19.8 16.0 14.2
5/16 8 1014584 24 .15 2 9.15 55.4 50.0 23.1 16.8 16.0
3/8 10 1014721 24 .34 3.15 11.4 64.3 63.5 26.2 21.6 19.1
1/2 13 1014722 12 .75 5.3 16.3 87.4 81.8 36.6 27.7 23.9
5/8 16 1014723 12 1.30 8 19.1 105 96.0 43.9 35.1 28.7
3/4 20 1014724 1 2.26 11.2 23.6 126 118 53.1 40.4 32.5
7/8 22 1014725 1 3.41 15 26.9 140 143 58.7 50.0 36.6
1 25 1014727 1 5.00 21.2 31.0 152 157 63.5 56.4 47.8
1-1/4 32 1014728 1 9.25 31.5 38.1 189 194 78.5 64.3 55.6
6$ • Designed to connect Grade 80 chain fittings produced with "Engineered Flat"
to Grade 80 chain.
• In dividually Proof Tested at 2-1/2 time s Working Load Limit with certifica tion.
• Locking system that provides for simple assembly and disassembly - no special
tools needed.
• Meets ASTM A-952-96 standards for Grade 80 chain fittings.
• Forged Alloy Steel - Quen ched and Tempered.
•Fatigue Rated.
Grade80AlloyConnectingLinks
Chain
Size
S-325A
S-325A
Stock No.
Weight
Each
(kg)
Wo rking
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
D im ensions
(mm )
(in.) (mm) C F G
- 6 1097995 .11 1.12 26.2 19.3 44.7
1/4-5/16 7 -8 1098001 .23 2 35.8 23.4 59.0
3/8 10 1098005 .34 3.15 46.7 30.0 69.0
1/2 13 1098009 .75 5.3 55.5 38.1 94.5
5/8 16 1098013 .86 8 71.5 49.8 112
SHUR-LOC® Hook Series
170 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed

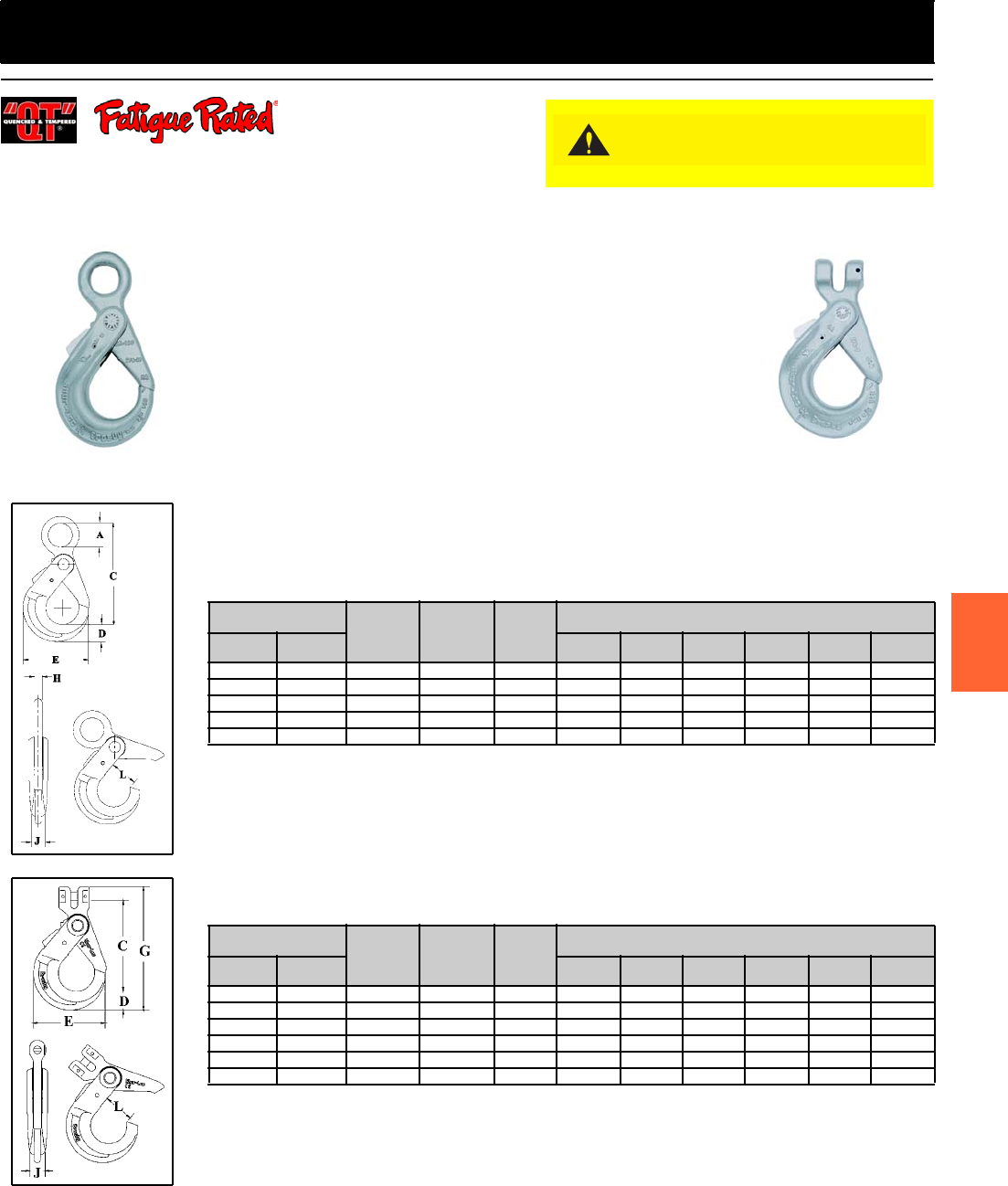

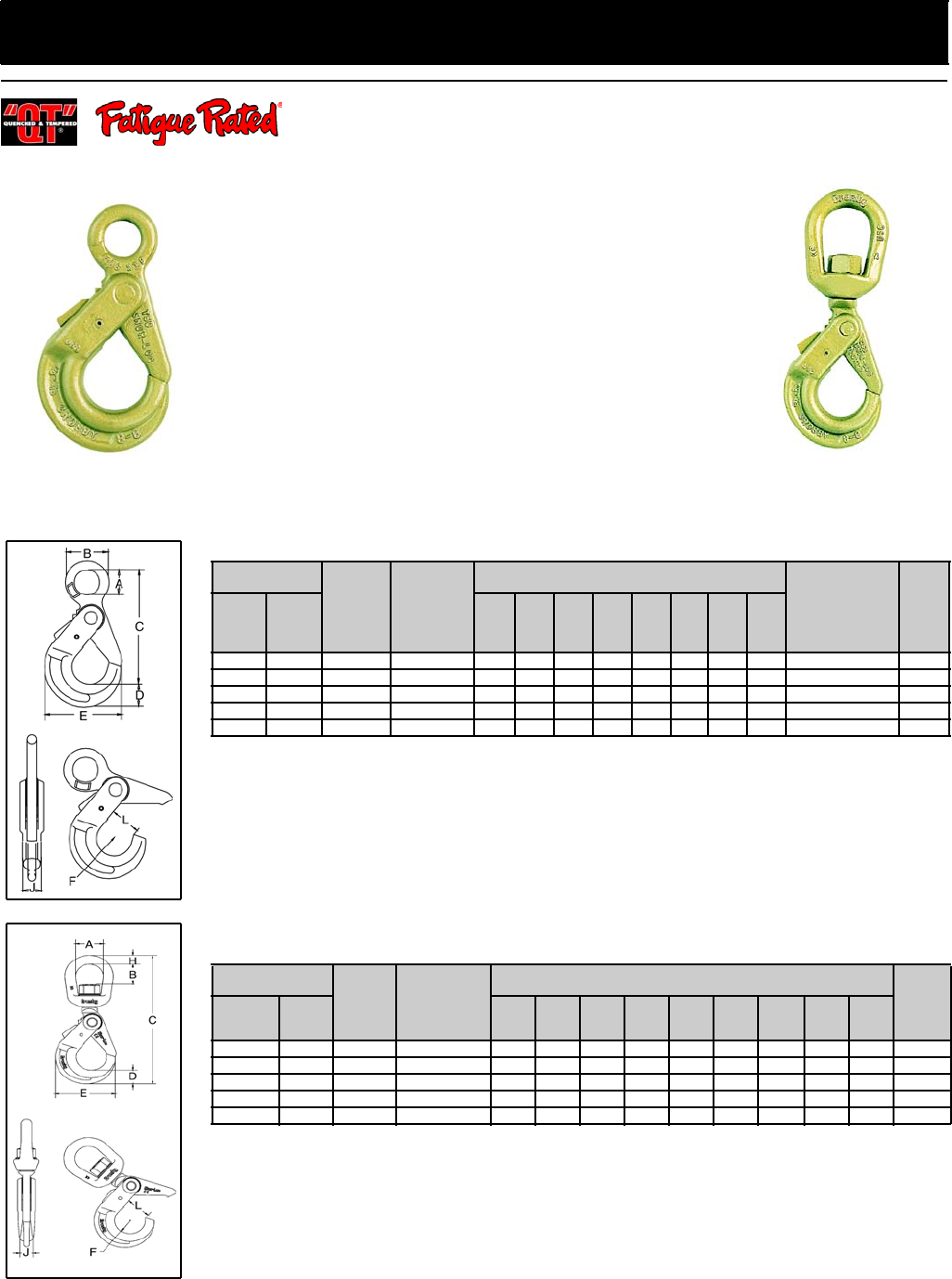

S-316A SHUR-LOC®
Eye Hook
S-326A SHUR-LOC®
Swivel Hooks
• U.S. Patent 5,381,650 and foreign equivalents.
6$ • Positive Lock Latch is Self-Locking when hook is loaded.
• Forged Alloy Steel - Quen ched and Tempered.
• Rated for both Wire Rope and Grade 80 Chain.
• M eets ASTM A-952-9 6 a nd pr oposed Euronorm stan da rd s for
Grade 80 chain fittin gs.
•Fatigue rated.
•The SHUR-LOC
®
hook, if properly installed and locked, can be
used for personnel lifting applications and meets the intent of
OSHA Rule 1926.550 (g) (4) (iv) (B).
• G-414 Heavy Thimble should be used with wire rope slings.
• In di vidually P roof Tested at 2-1/2 time s the Workin g Loa d Limit
with certification.
• Trigger repair Kit available (S-4316). Consist of spring, roll pin and
trigger.
• Designed with Engineered Flat to connect to Grade 80 chain fittings.
• "Look for the color Gold - Crosby Alloy Hooks".
SHUR-LOC
®
HookSeries
6$
Chain
Siz e
S-316A
S-316A
Stock No.
Grade 80
Alloy Chain
Working
Load Limit
(t)
4:1*
* Ultimate Load is 4 times the Working Load Limit based on Grade 8 Chain.
Dimensions
(mm )
Flat
Siz e
Weight
Each
(kg)
(in.) (m m) A B C D E F J L
- 6 1097918 1.12 19.8 36.1 100 20.1 66.0 17.0 16.0 28.7 - .39
1/4-5/16 7-8 1097920 2.0 27.4 50.5 135 27.9 89.0 22.1 20.6 35.1 1/4-5/16", 7-8mm .82
3/8 10 1097921 3.15 33.0 62.0 167 29.7 112 27.9 23.9 44.5 3/8", 10mm 1.47
1/2 13 1097922 5.3 41.9 80.0 209 42.4 138 32.0 29.5 53.5 1/2", 13mm 2.70
5/8 16 1097926 8.0 56.0 100 256 52.0 167 38.1 38.1 63.0 5/8", 16mm 5.78
Chain
Size
S-326Axx
S-326A
Stock
No.
Grade 80
Alloy Chain
Working
Load Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Dimensions
(mm) Weight
Each
(kg )
(in.) (mm) A B C D E F H J L
- 6 1004201 1.12 38.1 33.5 156 20.1 66.0 17.0 12.7 16.0 28.7 .57
1/4-5/16 7-8 1004210 2.0 44.5 40.4 193 27.9 89.0 22.1 16.0 20.6 35.1 1.19
3/8 10 1004223 3.15 51.0 43.9 224 29.7 112 27.9 19.1 23.9 44.5 2.13
1/2 13 1004234 5.3 63.5 60.5 284 42.4 138 32.0 25.4 29.5 53.5 3.92
5/8 16 1004235 8 70.0 64.5 330 52.0 167 38.1 28.7 38.1 63.0 7.71
SHUR-LOC®
Hook Series
Copyright © 2002 The Crosby Group, Inc. 171
All Ri gh ts Re se rv ed
Cha in &
Accessories

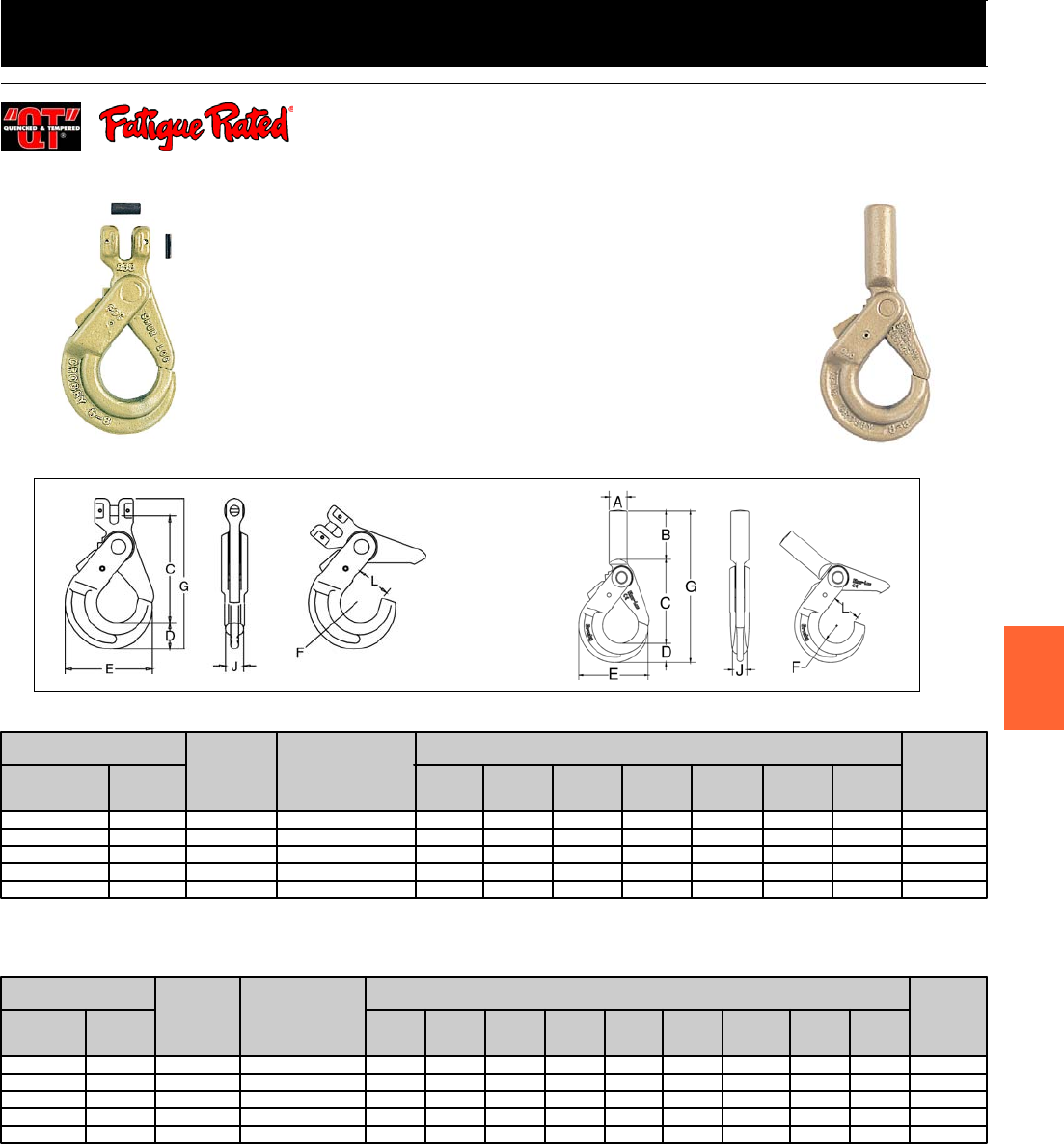

6$6+85/2&&OHYLV+RRNV
6$6+85/2&6KDQN+RRNV
6$
SHUR-LOC
®
HookSeries
6$
Chain
Size
S-317A
S-317A
Stock No.
Grade 80
Alloy Chain
Working
Load Limit
(t)*
Dimensions
(mm) Weight
Each
(kg)
(in.) (mm) C D E F G J L
- 6 1004084 1.12 87.0 20.1 66.0 17.0 121 16.0 28.7 .35
1/4-5/16 7-8 1004086 2.0 114 27.9 89.0 22.1 159 20.6 35.1 .81
3/8 10 1004095 3.15 140 29.7 112 27.9 192 23.9 44.5 1.45
1/2 13 1004102 5.3 173 42.4 138 32.0 242 29.5 53.5 3.06
5/8 16 1004111 8.0 209 52.0 167 38.1 295 38.1 63.0 5.42
* Ultimate Load is 4 times the Working Load Limit.
Chain
Size
S-318A
S-318A
Stock No.
Grade 80
Alloy Chain
Wo rking
Load Limit
(t)*
Dimensions
(mm) Weight
Each
(kg)
(in.) (mm) A† B C D E F G J L
- 6 1098101 1.12 20.1 55.0 84.0 20.1 66.0 17.0 159 16.0 28.7 .45
1/4-5/16 7-8 1098112 2.0 25.4 61.0 106 27.9 89.0 22.1 195 20.6 35.1 .90
3/8 10 1098123 3.15 29.0 75.0 131 29.7 112 27.9 235 23.9 44.5 1.61
1/2 13 1098134 5.3 34.0 85.0 160 42.4 138 32.0 288 29.5 53.5 3.18
5/8 16 1098145 8.0 41.4 100 185 52.0 167 38.1 337 38.1 63.0 7.26
* Ultimate Load is 4 times the Working Load Limit.

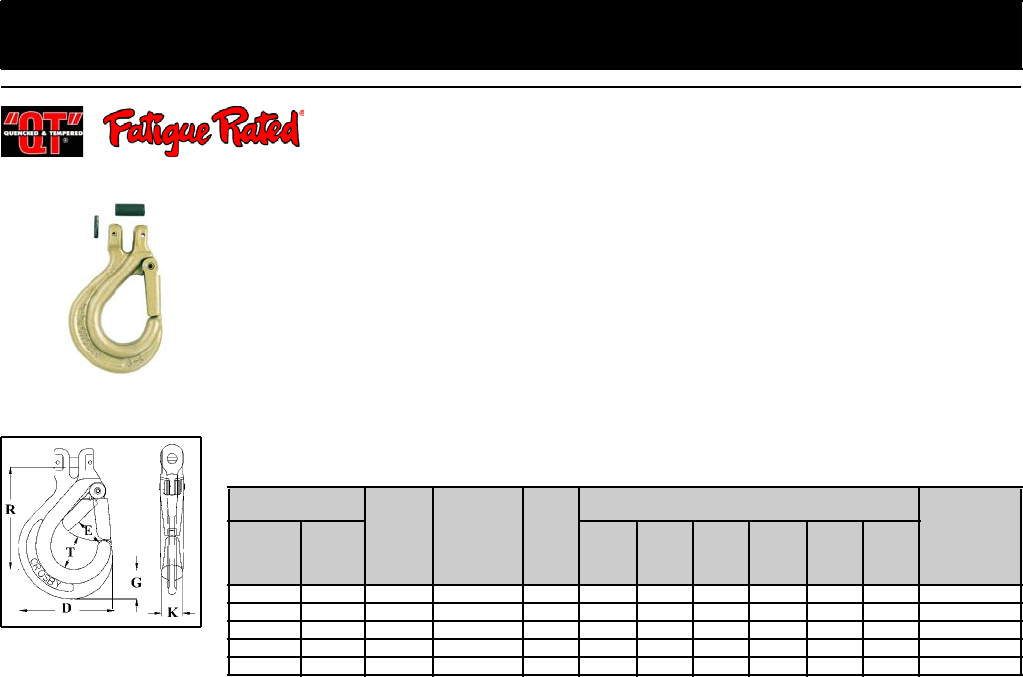

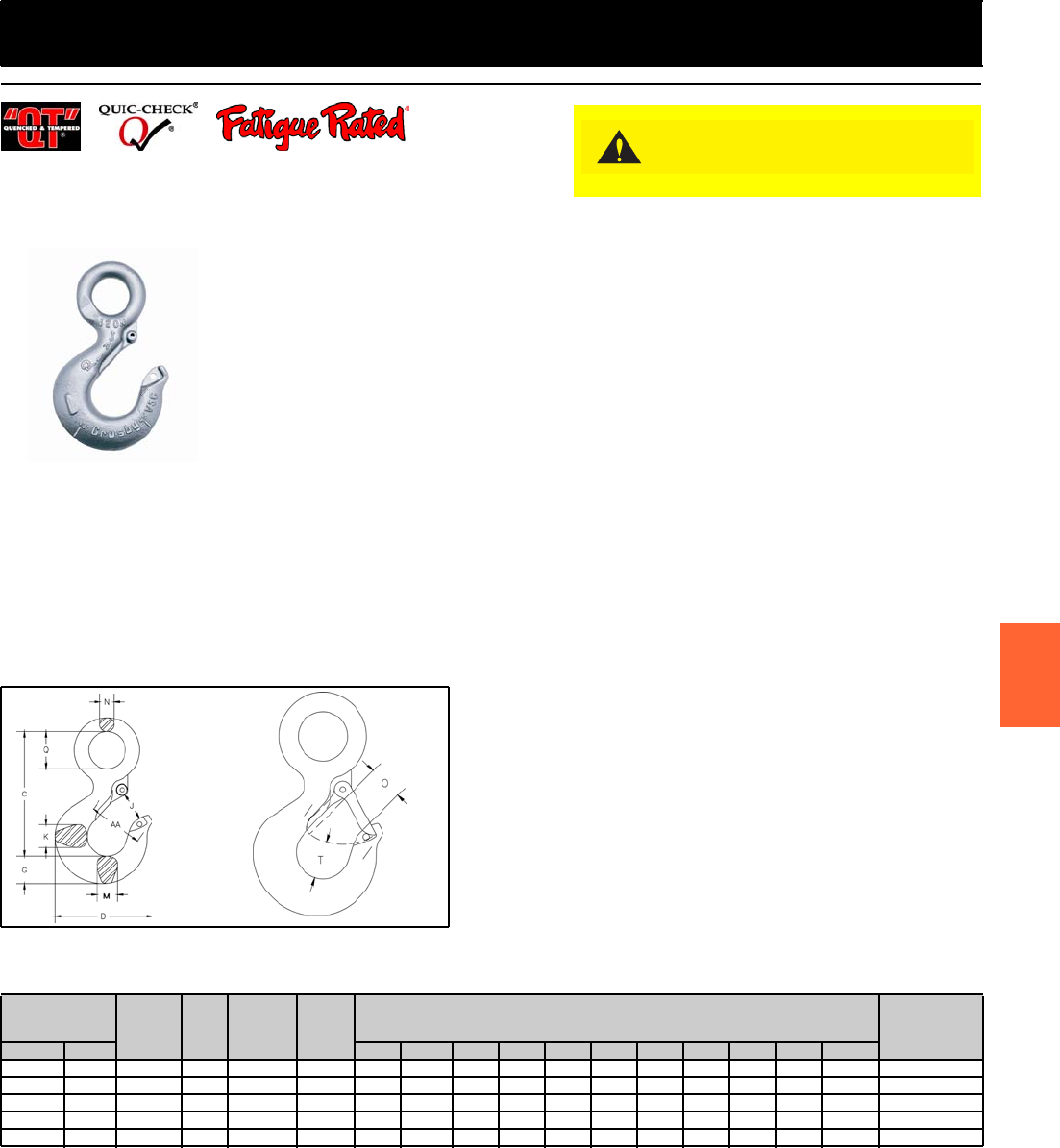

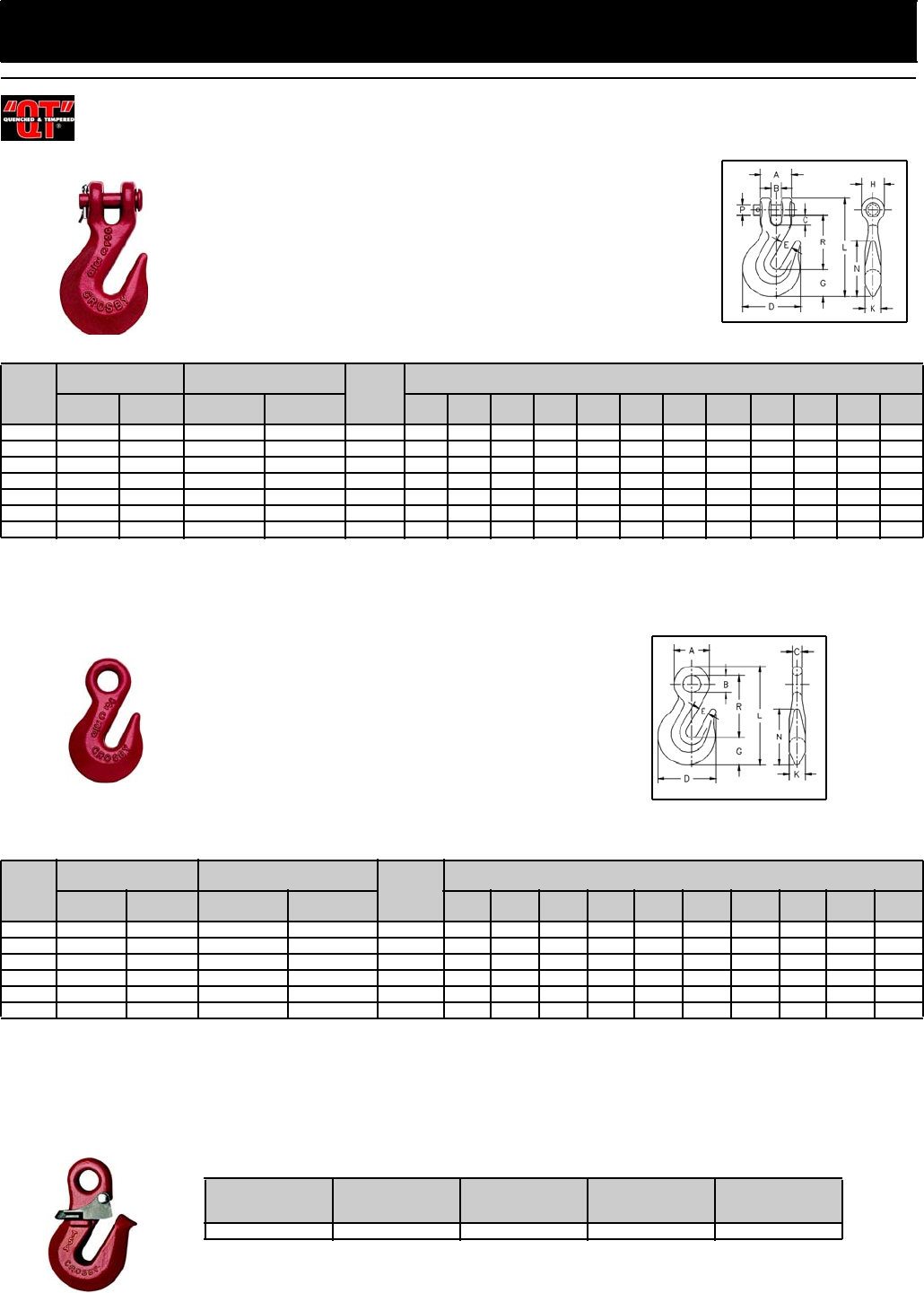

Grade 80 Alloy Eye Hooks
172 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
&URVE\6$1(\H+RLVW+RRN
)HDWXULQJDQ(QJLQHHUHG)ODW

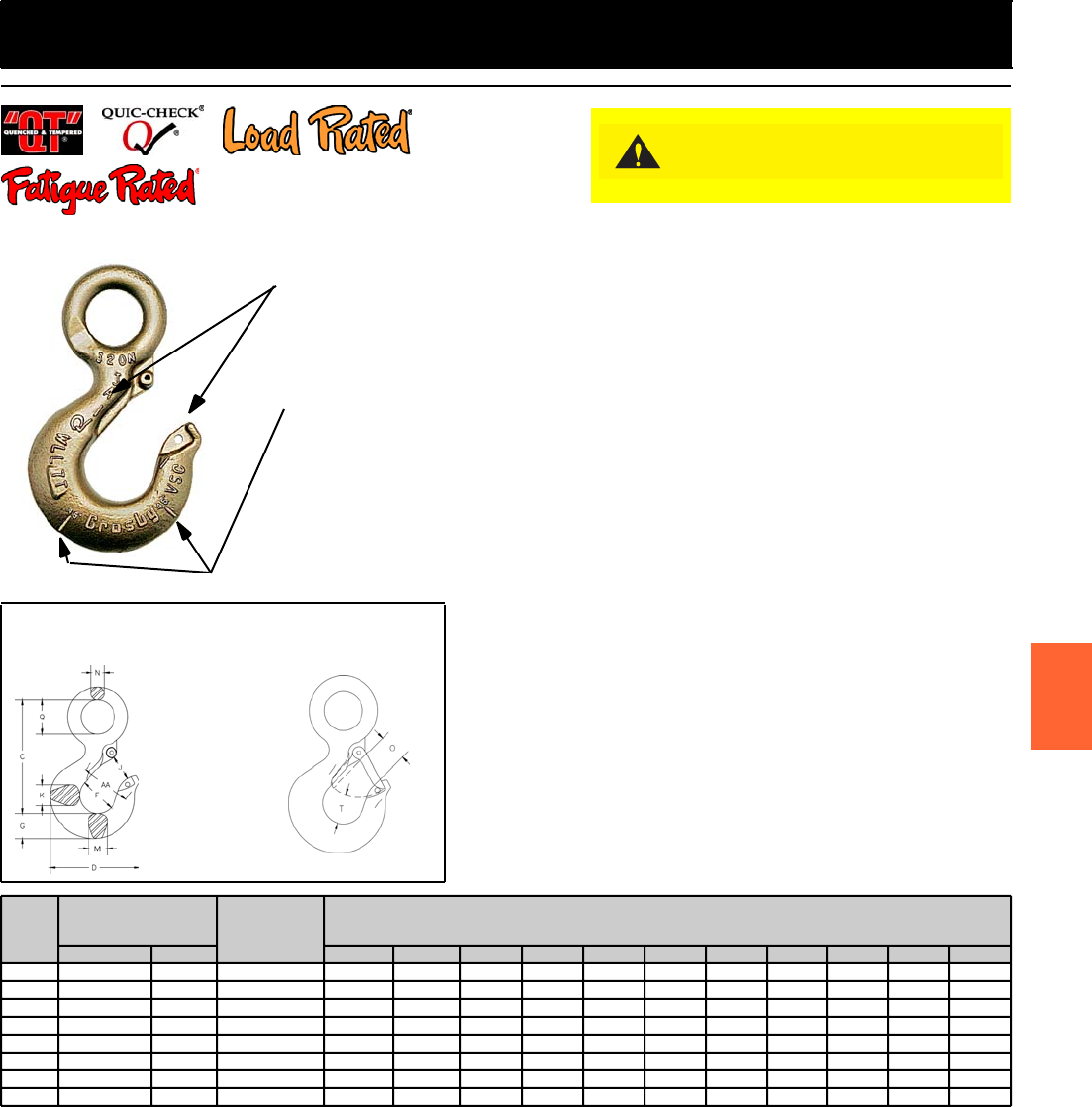

SEE APPLICATION AND
WARNING INFORMATION
On Pages 112-113

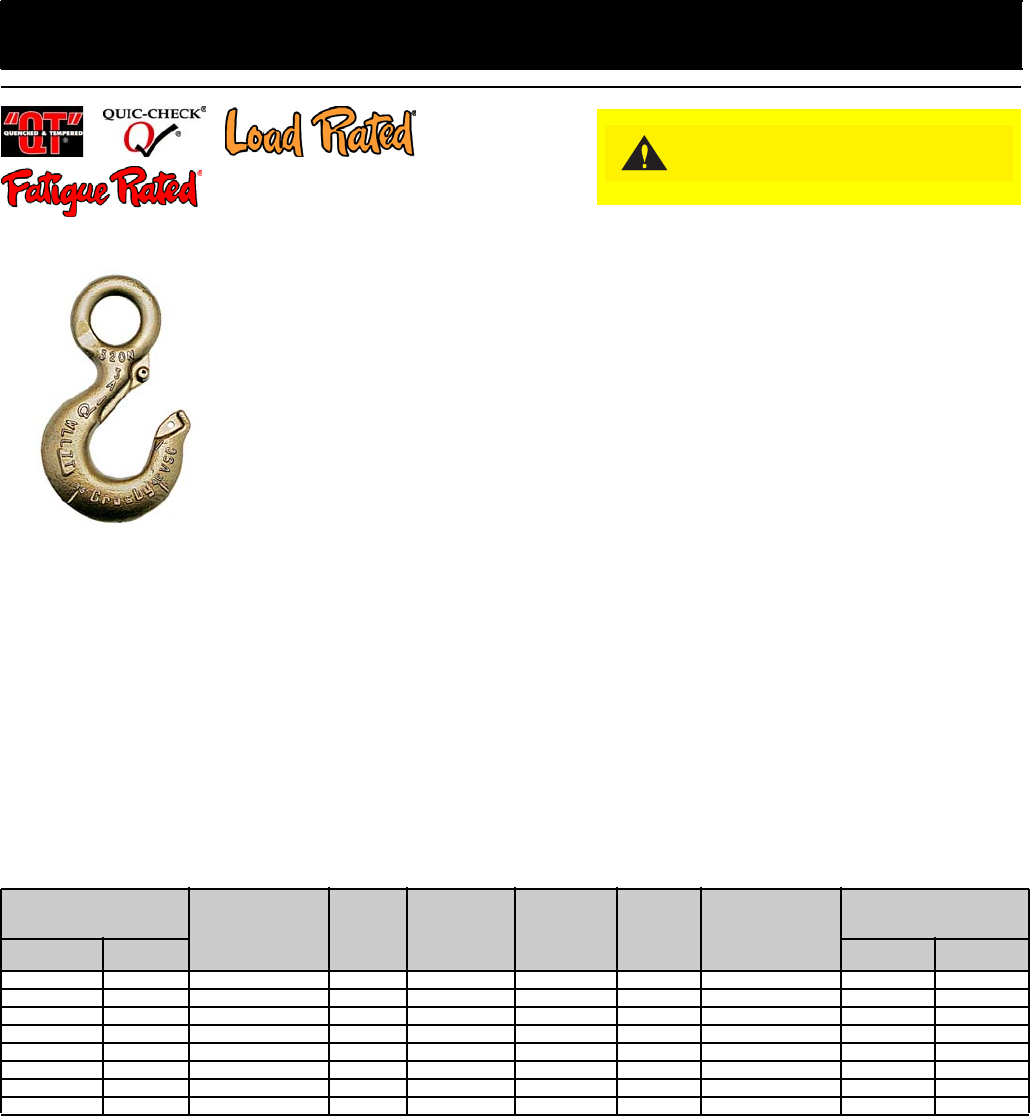

6$1 • The most complete line of Eye hoist hooks.
• Each hook has a Product Identification Code (PIC) for material traceability, along with
the size and Crosby & U.S.A. in raised letters.
• M eets ASTM A-952-96 stan da rds for Grade 80 chain fittin gs.
• Suitable for use with Grade 80 chain in overhead lifting applications as long as hook is Proof
Tested as part of the chain sling assembly or as an individual component. Per ANSI B30.9-1.
• Forged Alloy Steel - Quen ched and Tempered.
• Engineered Flat for use with S-325A coupler link (thru 5/8").
•QUIC-CHECK®
Hoist hooks incorporate two types of strategically placed markings forged
into the product which address two (2) QUIC-CHECK
® features:
• Deformation Indicators and Angle Indicators (see following page for detailed definition).
• Fatigue rated to 20.000 cycles at 1.1/2 times the working load limit.
• "Look for the color Gold - Crosby Alloy Products."
• Can be proof tested to 2-1/2 times the Working Load Limit (4:1).
• Low profile hook tip.
• Working Load Limit for Wire Rope forged on raised lettering pad to allow user to grind off
quickly and easily without affecting hook.
• Crosby recommends grinding the Working Load Limit (which is for a 5 to 1 Design Factor)
off the hook when using with Grade 80 ch ain.
• New integrated latch (S-4320) meets the World class standard for lifting.
• Heavy duty stamped latch interlocks with the hook tip.
• High cycle, long life spring.
• When secured with proper cotter pin through the hole in the tip of hook, meets
the intent of OSHA Rule 1926.550 (g) for personnel lifting.
Grade80AlloyEyeHooks
Grade 80
Alloy Chain
Size Wo rkin g
Load Limit
(t)
4:1 *
Hook
ID
Code
Working
Load Limit
for Wire Ro pe
(t)
5:1
S-320AN
S-320AN
Stock No.
Weight
Each
(kg)
Replacement
Latch
Stock No.
Recommended Cotter
Pin Dimensions
(mm)
(in.) (mm) Dia. Length
7/32 6 1.12 D A 1.00 1022375 .27 1096325 3.2 20
1/4-5/16 7 - 8 2 GA 2.00 1022397 .65 1096421 3.2 25
3/8 10 3.15 HA 2.55 1022406 .93 1096468 5 32
1/2 13 5.3 IA 4.30 1022419 1.95 1096515 6.3 40
5/8 16 8 JA 6.40 1022430 3.76 1096562 8 50
3/4 20 11.2 KA 9.20 1022441 6.80 1096609 8 50
7/8 22 15 LA 12.80 1022452 9.79 1096657 10 80
1 26 21.2 NA 17.60 1022465 17.91 1096704 10 80
* Minimum Ultimate Load is 4 times the Working Load Limit.
Grade 80 Alloy Eye Hooks
Copyright © 2002 The Crosby Group, Inc. 173
All Ri gh ts Re se rv ed
Cha in &
Accessories
SEE APPLICATION AND
WARNING INFORMATION
On Pages 112-113
6$1 • Hoist hooks incorporate markings forged into the product which address two (2) QUI C-CHECK®
features:
• Deformation Indicators: Two strategically placed marks, one just below the shank or eye
and the other on the hook tip, which allows for a QUIC-CHECK
® measurement to deter-
mine if the throat opening has changed, thus indicating abuse or overload. To ch eck, use
a me asuring device (i.e., tape me asure) to measure the distance between the marks. The
marks should align.If the measurement does not meet this criteria, the hook should be
inspected further for possible damage.
• Angle Indicators: Indicate s th e maximum included angle which is allowed between two (2)
sling legs in the hook. These indicators also provide the opportunity to approximate other
in clu ded a ngle s betwe en two sling le gs.
Grade80AlloyEyeHooks
Hook
ID
Code
G r ad e 80
Alloy Chain
Size
Working
Load Limit
(t)
4:1 *
Dimensions
(mm)
(in.) (mm) C D F G J K M N O Q T
DA 7/32 6 1.12 85 72.5 32.0 18.5 22.9 16.0 16.0 9.14 22.6 19.1 22.1
GA 1/4-5/16 7 - 8 2 108 90.0 38.1 25.4 25.1 22.4 22.4 12.7 25.4 28.7 26.2
HA 3/8 10 3.15 123 101 41.1 28.7 29.2 23.9 23.9 14.2 27.7 32.8 29.5
IA 1/2 13 5.3 150 124 51.0 36.6 38.6 33.3 33.3 17.5 34.5 39.6 38.9
JA 5/8 16 8 191 159 63.5 46.0 44.5 42.2 42.2 23.1 40.9 51.5 49.8
KA 3/4 19 11.2 233 191 76.0 57.0 61.0 47.8 41.4 28.2 52.0 62.0 62.5
LA 7/8 22 15 259 213 82.8 65.8 66.5 55.5 49.3 32.3 57.5 72.0 66.5
NA 1 26 21.2 326 263 108 76.2 86.5 68.5 60.5 39.9 76.5 89.0 72.0
* Minimum Ultimate Load is 4 times the Working Load Limit.
Grade 80 Latching Clevis Hook
174 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
S-314A
Clevis Chain Hook with Integrated Latch
6$ • Hook is Forged Alloy Steel - Quenched and Tempered.
• Integrated heavy duty latch.
• Large throat opening.
• Meets ASTM A-952-96 and proposed Euronorm standards for Grade 80 chain fittings.
• Anti-fouling due to carefully designed contours.
• Individually Proof Tested at 2.5 times the Working Load Limit with certification.
•Fatigue rated.
• "Look for the color Gold - Crosby Alloy Hooks."
Grade80LatchingClevisHook
Chain
Size
S-314A
S-314A
Stock
No.
Grade 80
Alloy Chain
Working
Load Limit
(t)
4:1*
* Ultimate Load is 4 times the Working Load Limit.
Weig ht
Each
(kg )
Dimensions
(mm)
Replacement
Latch
Stock No.
(in.) (mm) D E G K R T
- 6 1225020 1.12 .32 66.0 20.6 20.0 16.0 72.3 26.0 1291332
1/4 - 5/16 7 - 8 1225021 2 .70 89.0 27.4 28.0 20.5 98.0 32.6 1291402
3/8 10 1225091 3.15 1.29 110.5 36.1 29.3 24.0 125.3 42.2 1291472
1/2 13 1225161 5.3 2.34 138.5 38.6 42.1 29.5 144.5 49.2 1291542
5/8 16 1225162 8 3.67 166.5 48.5 52.0 38.0 172.6 58.9 1291612
Grade 80 Latching Eye Hook
Copyright © 2002 The Crosby Group, Inc. 175
All Ri gh ts Re se rv ed
Cha in &
Accessories

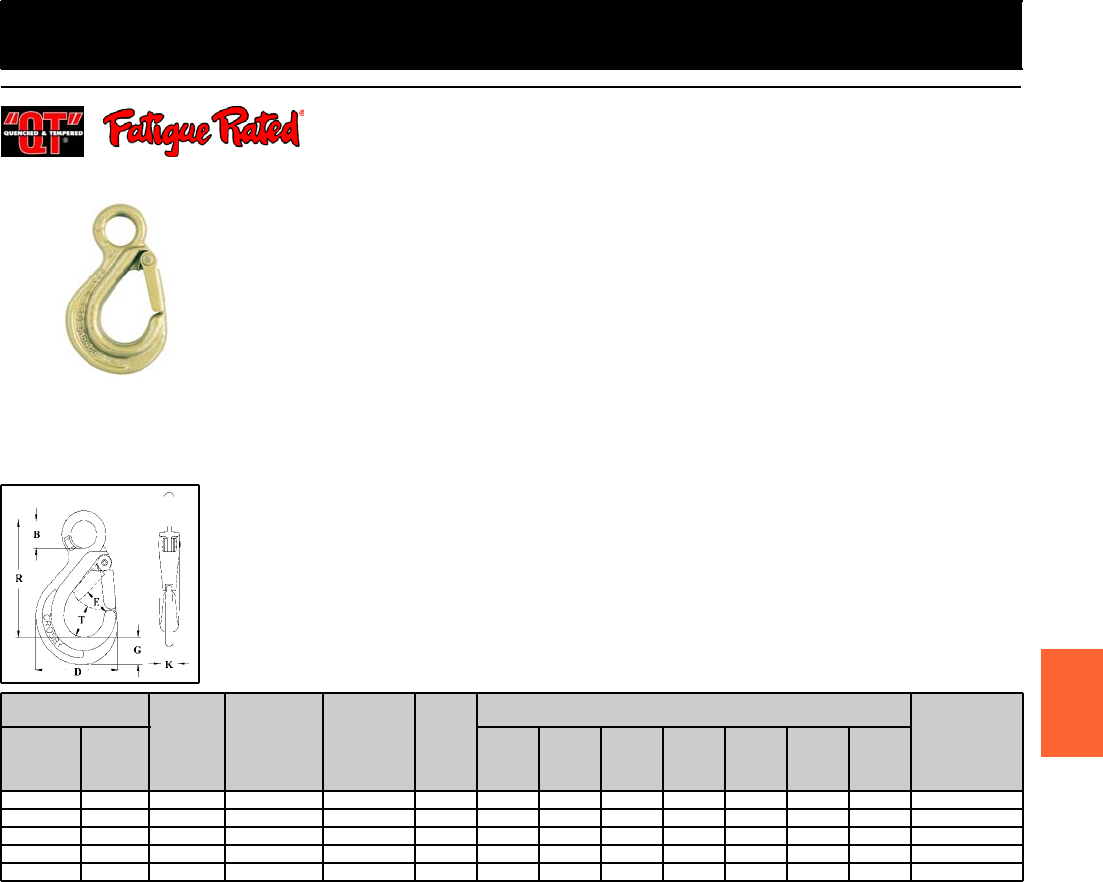

S-315A
Eye Chain Hook with Integrated Latch
6$ • Hook is Forged Alloy Steel - Quenched and Tempered.
• Integrated heavy duty latch.
• Large throat opening.
• Meets ASTM A-952-96 and proposed Euronorm standards for Grade 80 chain fittings.
• Anti-fouling due to carefully designed contours.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
•Fatigue rated.
• "Engineered Flat" for use with S-325A Coupler Link.
• "Look for the color Gold - Crosby Alloy Hooks."
Grade80LatchingEyeHook
Chain
Siz e
S-315A
S-315A
Stock No.
Grade 80
Alloy Chain
Working
Load Limit
(t)
4:1*
Working
Load Limit
for Wire
Rope
(t)
5:1
Weight
Each
(kg)
Dimensions
(mm)
Replacement
Latch
Stock No.
(in.) (m m) BDEGKRT
- 6 1029820 1.12 1 .25 20.1 66.0 20.6 20.1 16.0 84.5 25.9 1291332
1/4-5/16 7 -8 1029825 2 2 .59 27.9 89.0 27.4 27.9 20.6 117 32.5 1291402
3/8 10 1029830 3.15 3 1.18 36.1 110 36.1 29.5 23.9 157 42.2 1291472
1/2 13 1029835 5.3 5 2.13 46.0 138 38.6 42.4 29.5 186 49.3 1291542
5/8 16 1029840 8 7 3.88 56.0 167 48.5 52.0 38.1 227 59.0 1291612
* Ultimate Load is 4 times the Working Load Limit.
Grade 80 Alloy Fittings
176 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed

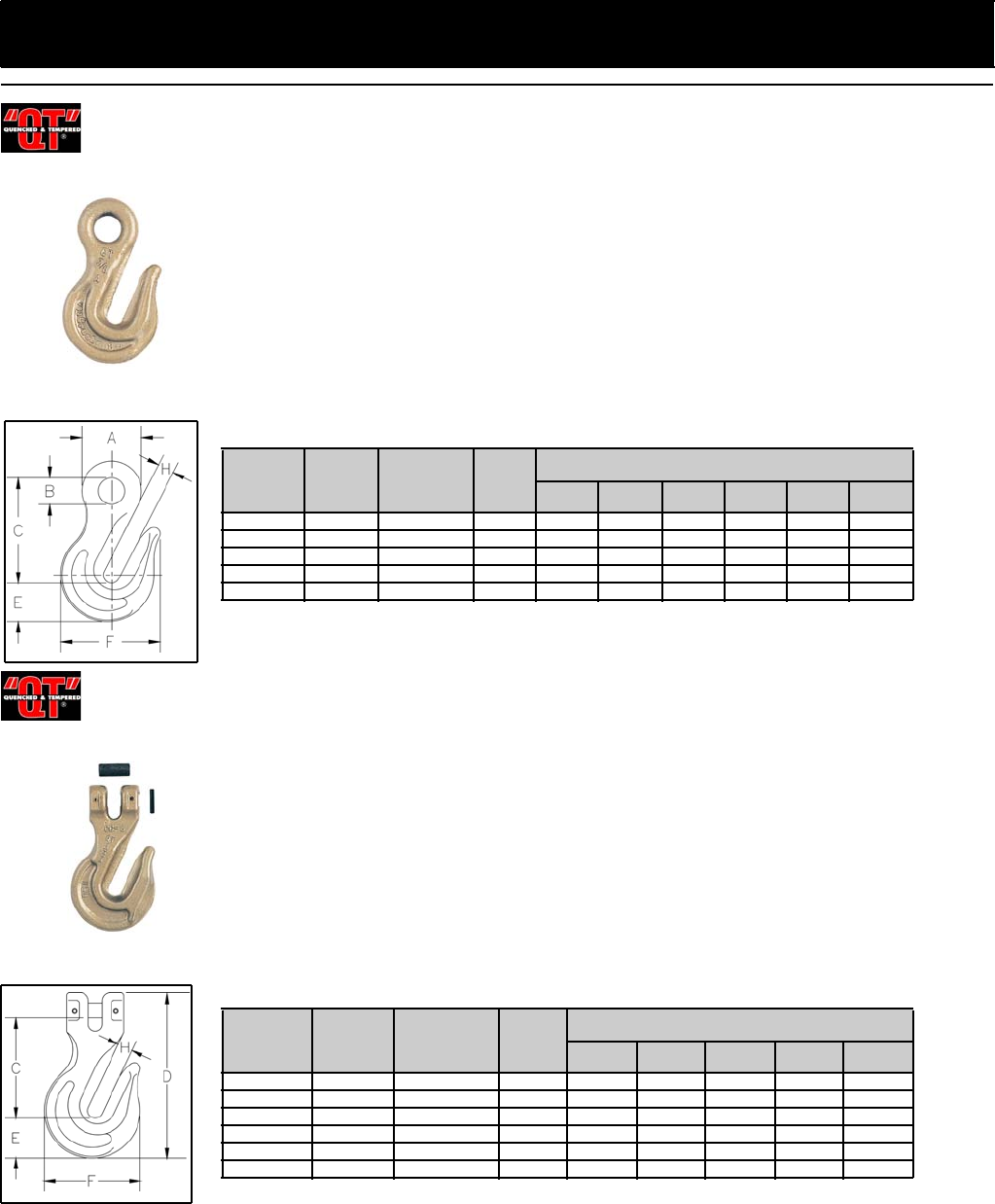

A-328 Eye Grab Hook
A-338 Clevis Grab Hook
$• Alloy Steel - Quenche d and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
Grade80AlloyFittings
Chain
Size
(mm)
A-328
A-328
Stock No.
Wo rking
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weight
Each
(kg)
Dimensions
(mm)
A B C E F H
7 1026017 1.59 .27 35.1 15.0 65.0 23.1 55.0 9.65
10 1026035 3.22 .54 45.7 20.3 82.5 29.5 76.0 12.7
13 1026053 5.45 1.36 57.0 24.9 106 42.9 102 16.0
19 1026099 12.84 3.74 82.0 34.5 151 55.5 139 22.4
22 1026115 15.51 5.40 94.0 39.4 175 65.0 160 26.9
$• Alloy Steel - Quenche d and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
• Pin locking requires no special tools.
Grade80AlloyFittings
Chain
Size
(mm)
A-338
A-338
Stock No.
Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weight
Each
(kg)
Dim ensions
(mm)
C D E F H
7 1027659 1.59 .28 66.5 106 22.6 55.0 9.65
10 1027677 3.22 .57 81.5 132 29.5 76.0 12.7
13 1027686 5.45 1.56 106 177 42.9 102 15.7
16 1027695 8.21 2.56 128 210 47.8 118 19.1
19 1027702 12.84 4.72 151 253 55.5 134 22.4
22 1027711 15.51 6.18 176 294 65.0 155 25.4
Grade 80 Alloy Fittings
Copyright © 2002 The Crosby Group, Inc. 177
All Ri gh ts Re se rv ed
Cha in &
Accessories

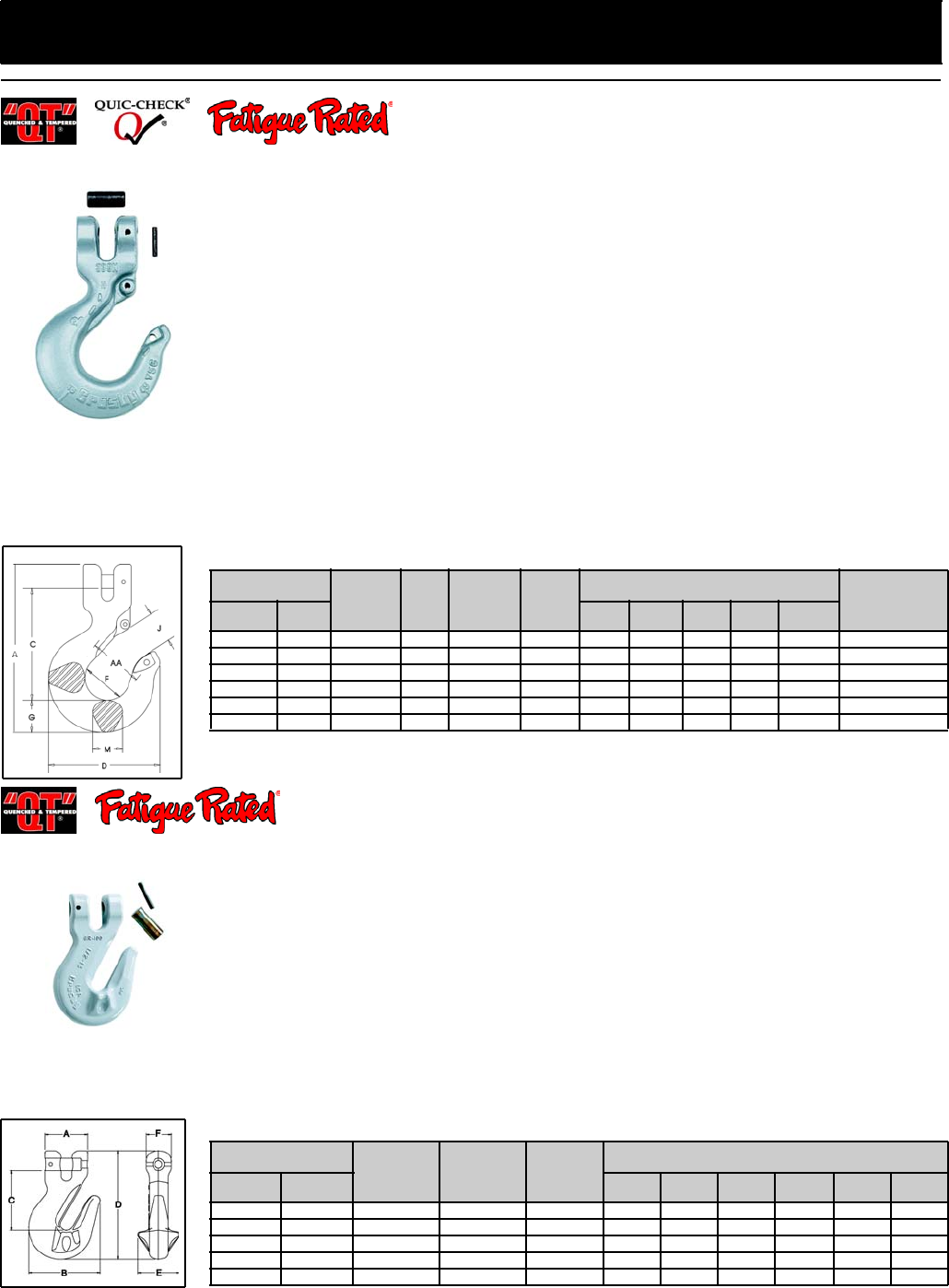

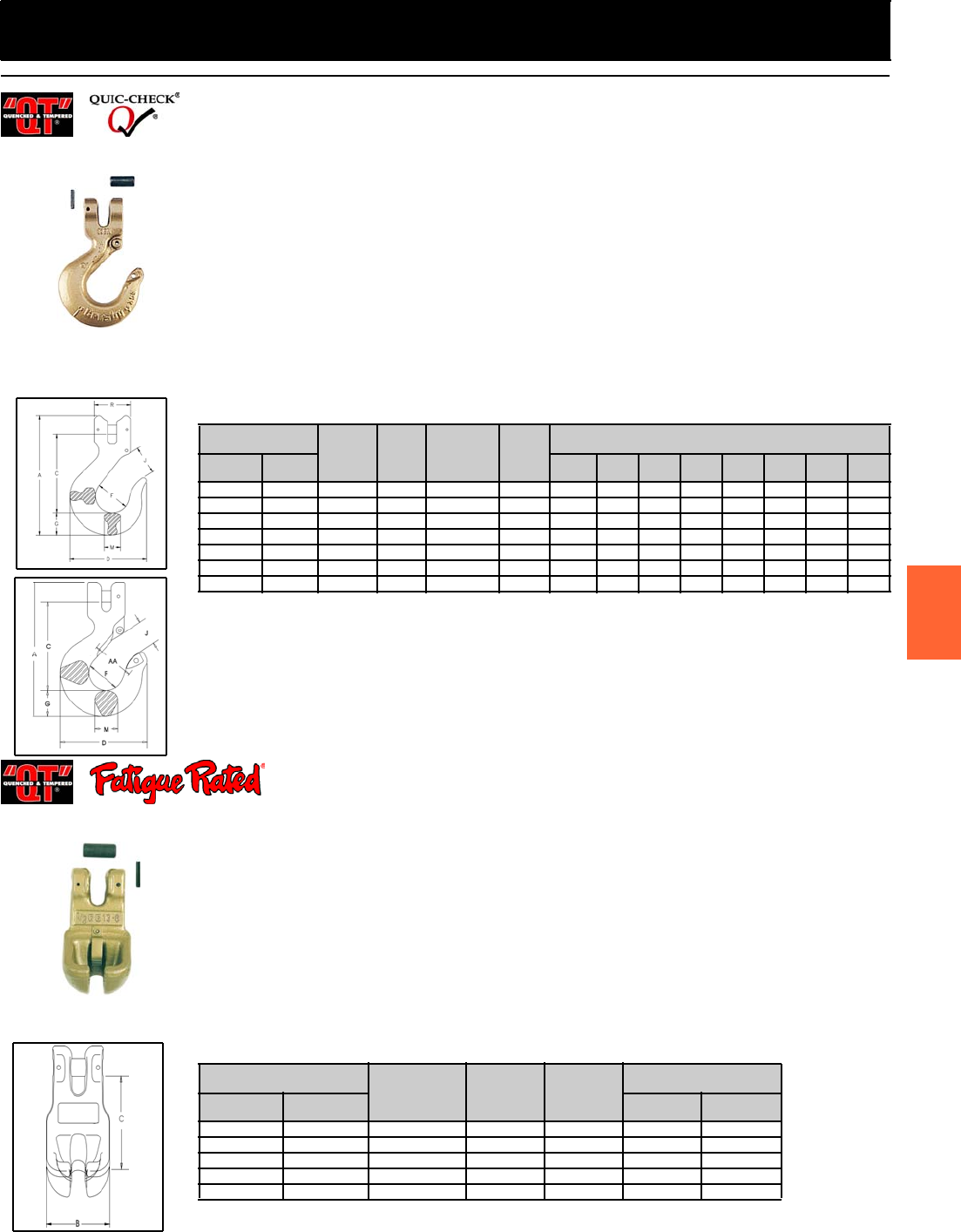

A-339N
Clevis Sling Hook
S-311A Chain Shortener Link
$1 • Alloy Steel - Quenched and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
• P in locking requir es n o special tools.
• New integrated latch (S-4320) fits 6mm - 16mm hooks.
• Heavy duty stamped latch interlocks with the hook tip.
• High cycle, long life spring.
• When secured with proper cotter pin through the hole in the tip of hook, meets
the intent of OSHA Rule 1926.550 (g) for personnel lifting.
• S-4088 Latch fits 3/4" & 7/8" hooks.
Grade80AlloyFittings
$  $  1
Hook
Size
A-339N
A-339N
Stock
No.
Hook
ID
Code
Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
** Old Style 339 hooks.
‡ New A-339N Style hooks.
Weight
Each
(kg)
Dimensions
(mm)
(in.) (mm) A C D F G J M AA
--- 6 1027910 DA ‡ 1.12 .27 107 75.0 72.5 32.0 18.5 23.6 406 38.1
1/4 - 5/16 7-8 1027914 HA ‡ 2 .68 144 101 98.0 41.1 26.2 30.2 484 51.0
3/8 10 1027923 IA ‡ 3.15 .95 171 120 111 51.0 30.2 38.9 606 63.5
1/2 13 1027932 JA ‡ 5.3 1.90 213 150 142 63.5 36.6 45.2 729 76.2
5/8 16 1027941 KA ‡ 8 3.80 259 177 172 76.0 47.8 61.0 929 102
3/4 ** 20 1027793 - 11.2 5.20 294 170 187 82.5 55.0 68.5 1019 ---
7/8 ** 22 1027800 - 15 8.00 334 193 215 92.0 62.0 77.5 1129 ---
6$ • Alloy Steel - Quenche d and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
•Fatigue rated.
• P rovide d with sprin g de signe d to retain chain.
Grade80AlloyFittings
Chain
Siz e Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
S-311A
S-311A
Stock No.
Weigh t
Each
(kg)
Dimensions
(mm)
(in.) (mm) B C
- 6 1.12 1098051 .34 37.1 43.7
1/4-5/16 7 - 8 2 1098062 .45 49.0 67.8
3/8 10 3.15 1098084 .68 57.7 77.2
1/2 13 5.3 1098095 1.47 75.9 99.5
5/8 16 8 1098106 2.54 84.6 120
Grade 80 Alloy Fittings
178 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed

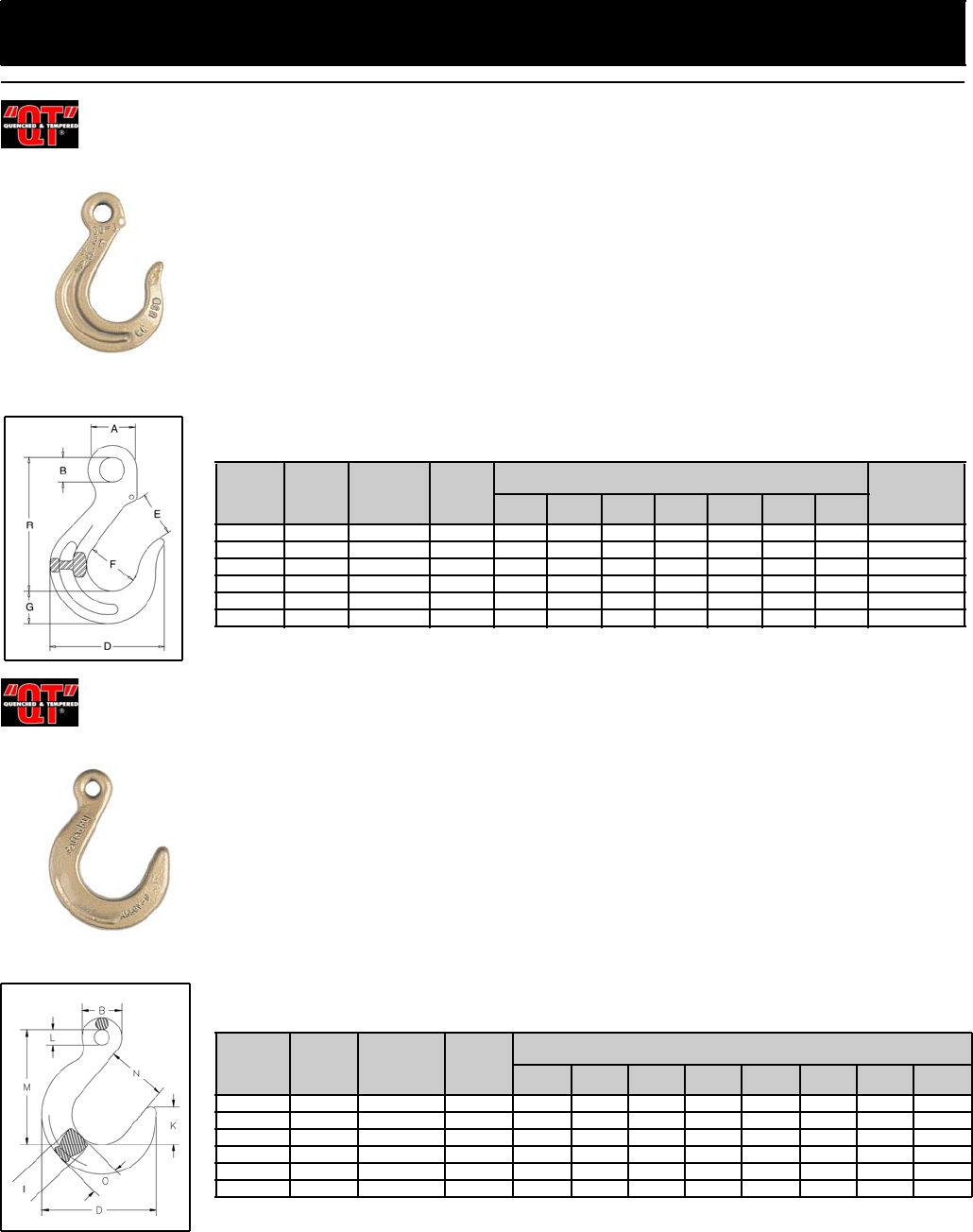

A-327
Eye Sling Hook
A-329
Eye Foundry Hook
$• Alloy Steel - Quenche d and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
• S-4088 Latch Kit fits hooks.
Grade80AlloyFittings
Chain
Size
(mm )
A-327
A-327
Stock
No.
Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weigh t
Each
(kg)
Dimensions
(mm ) Replacement
Latch
Stock No.
A B D E F G R
7 1003764 1.59 .36 34.0 14.2 88.0 33.0 44.5 22.6 94.5 1090250
10 1003773 3.22 .95 46.5 19.1 116 35.6 56.5 31.8 120 1090251
13 1003782 5.45 1.68 57.0 23.9 140 44.5 63.5 39.4 144 1090252
16 1003791 8.21 2.90 70.5 28.4 165 51.0 73.0 47.8 167 1090253
19 1003808 12.84 4.45 83.0 32.5 187 54.5 83.0 55.0 193 1090254
22 1003817 15.51 7.00 94.5 36.6 215 63.5 92.0 62.5 217 1090255
$• Alloy Steel - Quenche d and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
Grade80AlloyFittings
Chain
Siz e
(mm)
A-329
A-329
Stock No.
Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weigh t
Each
(kg)
Dimensions
(mm)
B D I K L M N O
7 1026179 1.59 1.09 39.6 121 25.4 39.6 16.0 121 63.5 31.2
10 1026197 3.22 2.04 50.8 145 32.3 47.8 19.1 146 76.0 38.1
13 1026213 5.45 3.22 63.5 171 38.1 56.5 25.4 175 89.0 44.5
16 1026231 8.21 5.53 76.2 198 46.0 67.0 31.8 205 102 51.5
19 1026259 12.84 8.75 88.9 232 56.0 89.0 38.1 235 114 65.0
22 1026277 15.51 11.9 102 256 57.0 86.0 44.5 264 127 70.5
INTRODUCING
"When buying Crosby, you're buying more than product, you're buying uality."Q
Can be used with either Grade 100 or
Grade 80 chain.
- Meets the requirements of the
Grade 100 specification.
Spectrum 10
Grade 100 Chain Fittings
Spectrum 10
Grade 100 Chain Fittings
- Meets the performance, dimensional
and functionality requirements of
Grade 8 (80) specification ASTM A952
and EN1677.
Forged Alloy Steel - Quenched & Tempered
Individually Proof Tested with Certification.
at 1-1/2 times the Working
Load Limit at 20,000 cycles.
Size for size,
than Grade 80 fittings.
“Look for the Platinum color”
Fatigue Rated
20% to 25% more capacity
Grade 100 Alloy Chain
WORKINGLOADLIMIT
The “Working Load Limit” is the maximum load in tons which
should ever be applied to chain, when the chain is new or “in
as new” condition, and when the load is uniformly
applied in direct tension to a straight length of chain.
PROOF TEST
The “Proof Test” is a term designating the tensile test applied
to new chain for the sole purpose of detecting injurious defects
in the material or manufacture. It is the load which the chain
has withstood under a test in which the load has been applied
in direct tension to a straight length of chain.
ANSI / ASME B30.9c-1997
Paragraph 9-1.4.2 “Mechanically assembled slings shall be
comprised entirely of proof tested components.” Paragraph
9-1.4.2c “If untested components are employed, the sling shall
be proof tested per Para. 9-1.4.1 prior to initial use.”
MINIMUM ULTIMATE LOAD
The “Minimum Ultimate Load” is the minimum load at which
new chain will break when tested by applying direct tension to
a straight length of chain at a uniform rate of speed in a testing
machine.
ATTACHMENTS
Any attachments, such as hooks or links, should have a rated
“Working Load Limit” at least equal to the chain with which it
is used.
CAUTION
Only Crosby Alloy chain, Spectrum 8 ®or Spectrum 10®
,
(Grade 80 or Grade 100) should be used for overhead lifting
applications.
It must be recognized that certain factors in the usage of chain
and attachments can be abusive and lessen the load that the
chain or attachments can withstand. Some examples are twist-
ing of the chain; disfigurement; deterioration by straining,
usage, weathering and corrosion; rapid application of load or
jerking, applying excessive loads; and sharp corners cutting
action.
Due to the crushing effect Grab Hooks have upon chain, the
design factor of all chain assemblies must be reduced by 20%
for Grab Hook applications.
GENERAL INFORMATION
CHAIN INSPECTION
INSPECTION AND REMOVAL FROM SERVICE PER
ANSI B30.9
FREQUENT INSPECTION
Normal Service - Monthly
Severe Service - Daily to Monthly
Check chain and attachments for wear, nicks, cracks,
breaks, gouges, stretch, bend, weld splatter, discoloration from
excessive temperature, and throat openings of hooks.
1. Chain links and attachments should hinge freely to
adjacent links.
2. Latches on hooks, if present, should hinge freely and
seat properly without evidence of permanent distortion.
PERIODIC INSPECTION - INSPECTION
RECORDS REQUIRED
Normal Service - Yearly
Severe Service - Monthly
This inspection shall include everything in a frequent inspec-
tion plus each link and end attachment shall be examined
individually, taking care to expose inner link surfaces of the
chain and chain attachments.
1. Worn links should not exceed values given in table 1 or
recommended by the manufacturer.
2. Sharp transverse nicks and gouges should be rounded
out by grinding and the depth of the grinding should
not exceed values in Table 1.
3. Hooks should be inspected in accordance with ANSI
B30.10.
4. If present, latches on hooks should seat properly,
rotate freely, and show no permanent distortion.
5. Chains use OSHA and ASME regulations and safety
information.
See: OSHA 1926.2 (a) 4 and 1910.184
ASME B30.9 Slings
ASME B30.10 Hooks
TABLE 1
MAXIMUM ALLOWABLE WEAR AT ANY POINT OF LINK
Normal Chain or Coupling Link
Cross Section Maximum Allowable
Wear
Diameter
(mm)
(in.) (mm)
—6.79
1⁄4-9⁄32 7.94
5⁄16 81.05
3⁄810 1.32
1⁄213 1.75
5⁄816 2.13
3⁄419 2.67
7⁄822 2.95
1253.48
11⁄432 4.29
REFER TO ANSI B30.9
UseofCrosbySpectrum10®Chain Under heat Condition
Temperature of
Chain
Reduction*
of Working Load
Limit WHILE AT
Temperature
Reduction
of Working Load
Limit
AFTER
EXPOSURE
to
Temperatures**
(F°) (C°)
Below
400 Below
204 None None
400 204 15% None
500 260 25% 5%
600 316 30% 15%
700 371 40% 20%
800 427 50% 25%
* Crosby does not recommend the use of Alloy Chain at tem-
peratures above 800° F.**
** When chain is used at room temperature after being heated
to temperatures shown in the first column.
180 Copyright© 2002 The Crosby Group, Inc.
All Rights Reserved
Grade 100 Alloy Chain
TO MAKE YOUR CROSBY GRADE 100 ALLOY CHAIN SLING
)ROORZ WKHVH VLPSOH VWHSV LQ PDNLQJ D VOLQJ DVVHPEO\
'HWHUPLQH WKH PD[LPXP ORDG WR EH OLIWHG E\ WKH VOLQJ DVVHPEO\
&KRRVH WKH W\SH RI VOLQJ DVVHPEO\ VXLWHG IRU WKH VKDSH RI WKH
ORDG DQG WKH VL]H RI WKH VOLQJ DVVHPEO\ IRU WKH ORDG WR EH OLIWHG
7KH GHFLVLRQ PXVW WDNH LQWR DFFRXQW WKH DQJOH RI WKH VOLQJ OHJV LQ
PXOWLOHJ VOLQJV
'HWHUPLQH WKH RYHUDOO UHDFK IRU EHDULQJ SRLQW RI PDVWHU OLQN WR
EHDULQJ SRLQW RQ KRRN
6HOHFW FRPSRQHQWV DVVHPEOH FKDLQ DQG FRPSRQHQWV $IIL[ VOLQJ
LGHQWLILFDWLRQ WDJ WR VOLQJ 7KH WDJ LV DYDLODEOH IURP \RXU &URVE\
'LVWULEXWRU 7KH WDJ VKRXOG EH VWDPSHG ZLWK VL]H FKDLQ UHDFK
W\SH VOLQJ :RUNLQJ /RDG /LPLW DW D VSHFLILF DQJOH RI OLIW DQG
VRPH LGHQWLI\LQJ QXPEHU IRU UHFRUG NHHSLQJ
,I PHDVXUHPHQW FRPHV LQ WKH OLQN FXW WKH IROORZLQJ OLQN )RU WZR
OHJ W\SH FRXQW WKH OLQNV DQG XVH DQ HYHQ QXPEHU IRU FOHYLV KRRNV
DQG DQ RGG QXPEHU IRU H\H KRRNV 7KLV ZLOO SRVLWLRQ KRRNV LQ WKH
VDPH SODQH ,Q PXOWLOHJ VOLQJV DOZD\V XVH WKH VDPH QXPEHU RI
OLQNV LQ HDFK OHJ
CAUTION
'HUDWH FKDLQ LQ DFFRUGDQFH ZLWK ZRUNLQJ ORDG OLPLW FKDUW VKRZQ
DERYH
$ FKDLQ JUDE KRRN DSSOLFDWLRQ ZLOO UHVXOW LQ  UHGXFWLRQ RI
FKDLQ FDSDFLW\ ,I D JUDE KRRN LV XVHG WR PDNH D FKRNHU KLWFK QR
UHGXFWLRQ WR FKDLQ FDSDFLW\ LV QHFHVVDU\
&DUH VKRXOG EH WDNHQ WR REVHUYH WKHVH GHUDWHG DSSOLFDWLRQV RU
FKDLQ PD\ IUDFWXUH RU SHUPDQHQWO\ VWUHWFK DW ORDGV OHVV WKDQ WKH
DGYHUWLVHG FKDLQ XOWLPDWH VWUHQJWK DQG SURRI ORDG UHVSHFWLYHO\
WORKING LOAD LIMIT — 4 TO 1 DESIGN FACTOR
Nominal
size of
sling Single-leg
slings
Two leg slings Three-and four-leg slings
Choke hitch
0º<ß≤45° 45°<ß≤60° 0°<ß≤45° 45°<ß≤60°
(in.)mmtttttt
—
1/4 6
71.4
22
2.8 1.4
23
4.2 2.12
31.12
1.6
5/16
3/8 8
10 2.5
43.55
5.6 2.5
45.3
8.4 3.75
62.1
3.2
1/2
5/8 13
16 6.7
10 9.5
14 6.7
10 14
21.2 10
15 5.45
8.2
Copyright© 2002 The Crosby Group, Inc 181
All Rights Reserved
Grade 100 Alloy Chain
182 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
*UDGH&KDLQ
)RURYHUKHDGOLIWLQJDSSOLFDWLRQV
Sling ID
Tag Kit
• Octagonal metal sling tag.
• Prestamped - easy to add sling length, Working Load Limit, name, etc.
• Front side is shown - reverse is blank.
• Available with or without welded attached ring.
• Attaching ring size is 5mm x 50mm.
• Available completely blank for wire rope sling applications.
• Gold painted.
*5$'(
$//2<&+$,1
• Alloy Steel
• Heat Treated
• Finish - Self Colored.
• Permanently embossed with manufacturer's marking and 10 (Grade).
Grade100AlloyChain
Chain Size
Meters
Per Drum Dimensions
(mm)
Working
Load
Limit
(t)*
* Proof loaded at 2-1/2 times Working Load Limit. Minimum Ultimate Load is 4 times the
Working Load Limit.
Weight
Per
Meter
(kg)
(in.) (mm)
- 6 200 6 x 18 1.40 .80
1/4 7 200 7 x 21 2.00 1.05
5/16 8 200 8 x 24 2.50 1.25
3/8 10 200 10 x 30 4.00 2.20
1/2 13 100 13 x 39 6.70 3.80
5/8 16 100 16 x 48 10.0 5.70
6/,1*,'7$*
SlingIDTags
ID Tag
Stock No.
With Ring
ID Tag
Stock No.
Witho ut Ring Application
1152445 1200829 For single leg sling: 90°
1152444 1200830 For multi-leg sling : 45°/ 60°
“Proof Tested” Parts needed to make Self Assembled Slings
Key to Selecting Proper Components
To locate proper size Crosby chain fittings for required
chain size, use the following steps.
1. Locate proper table (below) for type of sling
being assembled (Single, Double, Triple or Quad
Leg).
2. Determine size of chain required from the Work-
ing Load Limit table on page 181.
3. Locate proper chain size in the “Grade 100 Chain
Size” column in the proper table below.
4. Follow the row across until desired style of
fitting is found. The size shown indicates the
proper size Crosby chain fitting to be used.
Single Leg
Sling Double Leg
Sling
Triple Leg
Sling Quad Leg
Sling
SINGLE LEG SLING
Grade 100
Chain Size Master Link
A-1342
(in. - mm)
Master Link
Assembly
A-1345
Chain
Coupler
S-1325
(in. - mm)
SHUR-LOC®
Eye Hook
S-1316
(in. - mm)
SHUR-
LOC®
Clevis hook
S-1317
(in. - mm)
Eye
Sling Hook
S-1320
(in. - mm)
Clevis
Sling Hook
A-1339
(in. - mm)
Chain
Shortener
S-1311
(in. - mm)
(in.) (mm)
— 6 1/4-5/16-7-8 — 6 6 6 6 6 6
1/4 (9/32) 7 1/4-5/16-7-8 — 1/4 - 7 1/4-5/16 - 7-8 1/4 - 7 1/4-5/16 - 7-8 1/4 - 7 1/4 - 7
5/16 8 1/4-5/16-7-8 — 5/16 - 8 1/4-5/16 - 7-8 5/16 - 8 1/4-5/16 - 7-8 5/16 - 8 5/16 - 8
3/8 10 3/8 - 10 — 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10
1/2 13 1/2 - 13 — 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13
5/8 16 5/8 - 16 — 5/8 - 16 5/8 - 16 5/8 - 16 5/8 - 16 5/8 - 16 5/8 - 16
DOUBLE LEG SLING
Grade 100
Chain Size
Master Link
A-1342
(in. - mm)
Master Link
Assembly
A-1345
Chain
Coupler
S-1325
(in. - mm)
SHUR-LOC®
Eye Hook
S-1316
(in. - mm)
SHUR-
LOC®
Clevis
hook
S-1317
(in. - mm)
Eye
Sling Hook
S-1320
(in. - mm)
Clevis
Sling Hook
A-1339
(in. - mm)
Chain
Shortener
S-1311
(in. - mm)
(in.) (mm)
— 6 1/4-5/16-7-8 — 6 6 6 6 6 6
1/4 (9/32) 7 3/8 - 10 — 1/4 - 7 1/4-5/16 - 7-8 1/4 - 7 1/4-5/16 - 7-8 1/4 - 7 1/4 - 7
5/16 8 3/8 - 10 — 5/16 - 8 1/4-5/16 - 7-8 5/16 - 8 1/4-5/16 - 7-8 5/16 - 8 5/16 - 8
3/8 10 1/2 - 13 — 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10
1/2 13 5/8 - 16 — 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13
TRIPLE AND QUAD LEG SLINGS
Grade 100
Chain Size
Master Link
A-1342
Master Link
Assembly
A-1345
(in. - mm)
Chain Coupler
S-1325
(in. - mm)
SHUR-LOC®
Eye Hook
S-1316
(in. - mm)
SHUR-
LOC®
Clevis hook
S-1317
(in. - mm)
Eye
Sling Hook
S-1320
(in. - mm)
Clevis
Sling Hook
A-1339
(in. - mm)
Chain
Shortener
S-1311
(in. - mm)
(in.) (mm)
—6—1/4-5/16-7-86 66666
1/4 (9/32) 7 — 3/8 - 10 1/4 - 7 1/4-5/16 - 7-8 1/4 - 7 1/4-5/16 - 7-8 1/4 - 7 1/4 - 7
5/16 8 — 3/8 - 10 5/16 - 8 1/4-5/16 - 7-8 5/16 - 8 1/4-5/16 - 7-8 5/16 - 8 5/16 - 8
3/8 10 — 1/2 - 13 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10 3/8 - 10
1/2 13 — 5/8 - 16 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13 1/2 - 13
5/8 16 — 3/4 - 20 5/8 - 16 5/8 - 16 5/8 - 16 5/8 - 16 5/8 - 16 5/8 - 16
Grade 100 Chain Sling Components
All grade 100 fittings shown below can also be attached to Grade
80 Chain. NOTE: This will require the slings rated capacity to be
no greater than the load rating of Grade 80 chain (or the weakest
component).
Chain &
Accessories
Copyright© 2002 The Crosby Group, Inc 183
All Rights Reserved
Grade 100 Alloy Master Links
184 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
A-1342
Master Link
A-1345
Master Link Assembly
$ • Alloy Steel - Quenched and Tempered.
• Individually proof tested to values shown with certification.
• Proof test certification shipped with each link.
• All sizes are drop forged.
• "Look for the Platinum Color - Crosby Grade 100 Alloy Products."
Grade100AlloyMasterLinks
A-1342
Size
A-1342
A-1342
Stock No.
Working
Load
Limit
(t)*
* Minimum Ultimate Load is 4 times the Working Load Limit based on single leg sling.
Proo f
Load
(t)
Weight
Each
(kg)
Dimensions
(mm)
(in.) (mm) B C D E
1/4 - 5/16 7 - 8 1014904 2.6 5.8 .59 19.1 68.5 121 79.5
3/8 10 1014913 4.5 10.3 1.14 24.4 76.0 152 89.0
1/2 13 1014922 6.9 16.0 2.15 31.0 108 178 121
5/8 16 1014931 11.8 27.3 4.35 39.1 127 229 146
3/4 20 1014940 17.75 41.0 7.55 49.5 140 254 165
$ • Alloy Steel - Quenched and Tempered.
• In di vidually p roof te ste d to v alues show n with certifica tion.
• Proof test certification shipped with each link.
• All sizes are drop forged.
• "Look for the Platinum Color - Crosby Grade 100 Alloy Products."
Grade100AlloyMasterLinks
A-1345
Size
A-1345
A-1345
Stock
No.
Grade 100
Chain Size Working
Load
Limit
(t)*
* Minimum Ultimate Load is 4 times the Working Load Limit based on single leg sling.
Proof
Load
(t)
Weig ht
Each
(kg )
Dimensions
(mm )
(in.) (mm) (in .) (m m) B C D E F G H
1/4-5/16 7 - 8 1014003 - 6 3.75 8.7 1.22 19.1 68.5 121 79.5 14.2 85.0 45.0
3/8 10 1014012 1/4 - 5/16 7 - 8 6.7 15.5 2.59 24.4 76.2 152 89.0 19.1 100 60.0
1/2 13 1014021 3/8 10 10.4 24.0 3.90 31.0 108 178 121 25.4 160 90.0
5/8 16 1014030 1/2 13 17.7 40.9 8.98 39.1 127 229 146 31.8 180 100
3/4 20 1014038 5/8 16 26.6 61.5 13.9 49.5 140 254 165 35.1 205 115
Crosby® Grade 100 Eye Hooks
Copyright © 2002 The Crosby Group, Inc. 185
All Ri gh ts Re se rv ed
Cha in &
Accessories
S-1320
Eye Hoist Hook
SEE APPLICATION AND
WARNING INFORMATION
On Pages 112-113
6 • Each hook has a Product Identification Code (PIC) for material traceability, along with the
size and the name Crosby & U.S.A. in raised letters.
• Meets ASTM A-952 standards for Grade 100 chain fittings.
• Suitable for use with Grade 100 chain in overhead lifting applications as long as hook is Proof
Tested as part of the chain sling assembly or as an individual component. Per ANSI B30.9-1.
• Forged Alloy Steel - Quen ched and Tempered.
• Individually proof tested to values shown with certification.
• Proof test certification shipped with each link.
• Engineered Flat for use with S-1325A coupler link.
•QUIC-CHECK
® Hoist hooks incorporate two types of strategically placed markings forged
into the product which address two (2) QUIC-CHECK
® features :Deformation Indicators and
Angle Indicators.
• Fatigue rated to 20.000 cycles at 1.1/2 times the working load limit.
• "Look for the Platinum Color - Crosby Grade 100 Alloy Products."
• Low profile hook tip.
• New integrated latch (S-4320) meets the world standard for lifting.
• Heavy duty stamped latch interlocks with the hook tip.
• High cycle, long life spring.
• When secured with the proper cotter pin through the hole in the tip of hook, meets
the intent of OSHA Rule 1926.550(g) for personnel lifting.
Crosby
®
Grade100EyeHooks
Grade 100
Alloy Chain
Size
Working
Load
Limit
(t)*
Hook
ID
Code
S-1320
S-1320
St ock No.
Weig ht
Each
(kg )
Dimensions
(mm) Replacement
Latch
Stock No.
(in.) (mm) C D G J K M N O Q T AA
- 6 1.4 DA 1025802 .27 85.0 72.5 18.5 22.9 16.0 406 9.15 22.6 19.1 22.1 38.1 1096325
1/4-5/16 7 - 8 2.6 GA 1025811 .65 108 91.2 25.4 25.1 22.4 568 12.7 25.4 28.7 26.2 51.0 1096421
3/8 10 4.0 HA 1025820 .93 123 101 28.7 29.2 23.9 606 14.2 27.7 32.8 29.5 51.0 1096468
1/2 13 6.8 IA 1025839 1.95 147 123 36.6 38.6 33.3 845 17.5 34.5 39.6 38.9 63.5 1096515
5/8 16 10.3 JA 1025848 3.76 187 159 46.0 44.5 42.2 1071 23.1 40.9 51.5 49.8 76.0 1096562
* Ultimate Load is 4 times the Working Load Limit.
Crosby® Grade 100 Clevis Hooks
186 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
A-1339 Clevis Sling Hook
A-1338 Cradle Grab Hook
$ • Each hook has a Product Identification Code (PIC) for material traceability, along with the
size and the name Crosby & U.S.A. in raised letters.
• Meets ASTM A-952 standard for Grade 100 chain fittings.
• Suitable for use with Grade 100 chain in overhead lifting applications as long as hook is Proof
Tested as part of the chain sling assembly or as an individual component. Per ANSI B30.9-1.
• Forged Alloy Steel - Quen ched and Tempered.
•QUIC-CHECK®
Hoist hooks incorporate two types of strategically placed markings forged
into the product which address two (2) QUIC-CHECK
® features : Deformation Indicators and
Angle Indicators.
• Fatigue rated to 20.000 cycles at 1.1/2 times the working load limit.
• "Look for the Platinum Color - Crosby Grade 100 Alloy Products."
• In di vidually p roof te ste d to v alues show n with certifica tion.
• New integrated latch (S-4320) meets the world standard for lifting.
• Heavy duty stamped latch interlocks with the hook tip.
• High cycle, long life spring.
• When secured with the proper cotter pin through the hole in the tip of hook,
meets the intent of OSHA Rule 1926.550(g) for personnel lifting.
Crosby
®
Grade100ClevisHooks
Chain
Siz e Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Hook
ID
Code
A-1339
A-1339
Stock No.
Weigh t
Each
(kg)
Dimensions
(mm) Replacement
Latch
Stock No.
(in.) (m m) C D G J AA
- 6 1.4 DA 1048982 .27 75.0 72.5 18.5 23.6 38.1 1096325
1/4 7 1.9 HA 1048991 .43 101 98.0 26.2 30.2 51.0 1096468
5/16 8 2.6 HA 1049000 .43 101 98.0 26.2 30.2 51.0 1096468
3/8 10 4.0 IA 1049009 .97 120 111 30.2 38.9 63.5 1096515
1/2 13 6.8 JA 1049018 1.97 150 142 36.6 45.2 76.0 1096562
5/8 16 10.3 KA 1049027 3.37 177 172 47.8 61.0 102 1096609
$ • Each hook has a Product Identification Code (PIC) for material traceability, along with
the size and the name Crosby & U.S.A. in raised letters.
• In novative cradle d esign allows for 10 0% efficiency of Grade 100 chain.
• Meets ASTM A-952 standard for Grade 100 chain fittings.
• Suitable for use with Grade 100 chain in overhead lifting applications as long as hook is
Proof Tested as part of the chain sling assembly or as an individual component. Per
AN SI B30. 9-1 .
• Forged Alloy Steel - Quen ched and Tempered.
• In di vidually p roof te ste d to v alues show n with certifica tion.
• Fatigue rated to 20.000 cycles at 1.1/2 times the working load limit.
• "Look for the Platinum Color - Crosby Grade 100 Alloy Products."
Crosby
®
Grade100CradleGrabHooks
Chain
Siz e Wo rkin g
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
A-1338
A-1338
Stock
No.
Weight
Each
(kg)
Dimensions
(mm)
(in.) (mm) A B C D E F
1/4 7 1.9 1049417 .48 43.7 64.5 55.9 98.5 38.1 22.4
5/16 8 2.6 1049426 .48 43.7 64.5 55.4 98.5 38.1 22.4
3/8 10 4.0 1049435 .79 47.0 78.5 65.5 119 46.5 27.7
1/2 13 6.8 1049444 1.62 60.7 97.3 83.3 149 57.2 36.1
5/8 16 10.3 1049453 2.90 67.8 115 97.8 179 74.7 44.5
Crosby®
Grade 100 SHUR-LOC® Hooks
Copyright © 2002 The Crosby Group, Inc. 187
All Ri gh ts Re se rv ed
Cha in &
Accessories
SHUR-LOC® Hook Series
with Positive Locking Latch
S-1316 Eye Hook
S-1317 Clevis Hook
SEE APPLICATION AND
WARNING INFORMATION
On Pages 208-209
6 • Positive Lock Latch is Self-Locking when hook is loaded.
• Meets ASTM A-952 standard for Grade 100 chain fittings.
• Forged Alloy Steel - Quen ched and Tempered.
• Individually Proof Tested to 2-1/2 times the Working Load Limit
with certification.
•The SHUR-LOC
® h ook, if pr oper ly in sta ll ed and locked , ca n be used
for pe rsonne l liftin g ap plication s and mee ts the inten t of OSHA Rule
1926.550 (g) (4) (iv) (B).
• Eye style is designed with "Engineered Flat" to connect to S-1325
chain coupler.
• Fatigue rated to 20.000 cycles at 1.1/2 times the working load limit.
• "Look for the Platinum Color - Crosby Grade 100 Alloy Products."
Crosby
®
Grade100SHUR-LOC
®
Hooks
6
Chain
Siz e Working
Load
Limit
(t)*
* Minimum Ultimate Load is 4 times the Working Load Limit.
S-1316
S-1316
Stock No.
Weigh t
Each
(kg)
Dimensions
(mm)
(in.) (m m) A C D E J L
- 6 1.4 1022896 .39 20.1 100 20.1 66.0 16.0 29.0
1/4-5/16 7-8 2.5 1022914 .82 24.9 135 27.9 89.0 20.6 37.1
3/8 10 4 1022923 1.47 33.0 167 29.7 112 23.9 47.5
1/2 13 6.7 1022932 2.70 46.0 209 42.4 138 29.5 53.5
5/8 16 10 1022941 5.78 56.0 256 52.0 167 38.1 63.0
Chain
Siz e Working
Load
Limit
(t)*
* Minimum Ultimate Load is 4 times the Working Load Limit.
S-1317
S-1317
Stock No.
Weigh t
Each
(kg)
Dimensions
(mm)
(in.) (m m) C D E G J L
- 6 1.4 1028991 .35 87.0 20.1 66.0 121 16.0 28.7
1/4 7 2 1029000 .81 114 27.9 89.0 159 20.6 35.1
5/16 8 2.5 1029009 .81 114 27.9 89.0 159 20.6 35.1
3/8 10 4 1029018 1.45 140 29.7 112 192 24.1 44.5
1/2 13 6.7 1029027 3.06 170 42.4 138 242 29.5 53.5
5/8 16 10 1029036 5.42 208 52.0 167 295 38.1 63.0

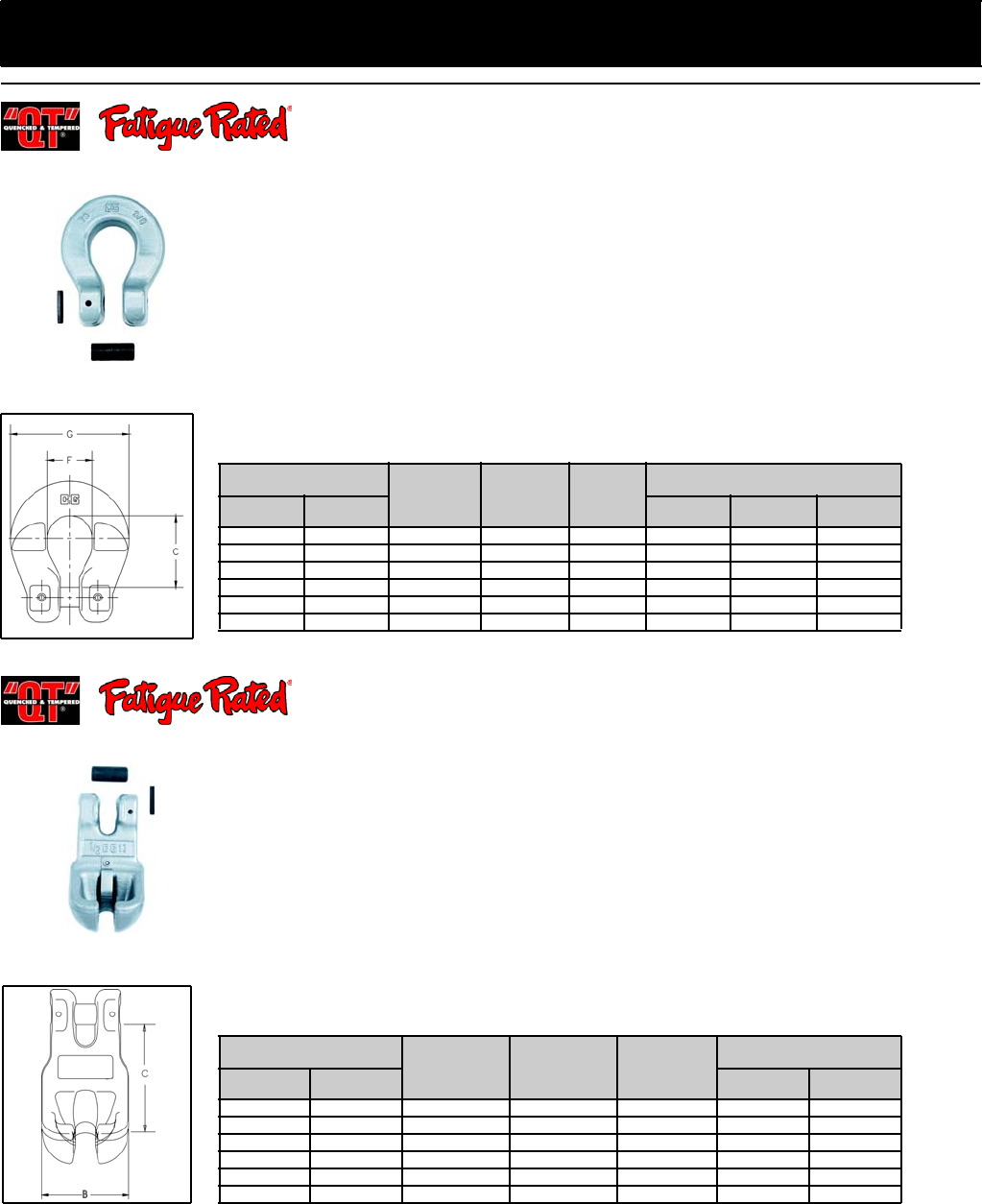

Crosby®
Grade 100 Chain Fittings
188 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
S-1325
Grade 100 Chain Coupler
S-1311
Grade 100 Chain Shortener Link
6 • Designed to connect Grade 100 chain fittings produced with "Engineered Flat" to Grade 100 chain.
• Meets ASTM A-952 standard for Grade 100 chain fittings.
• Forged Alloy Steel - Quen ched and Tempered.
• Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
• Locking system that provides for simple assembly and disassembly - no special tools required.
• Fatigue rated to 20.000 cycles at 1.1/2 times the working load limit.
• "Look for the Platinum Color - Crosby Grade 100 Alloy Products."
Crosby
®
Grade100ChainFittings
Chain
Size
S-1325
S-1325
Stock No.
Working
Load
Limit
(t)*
* Minimum Ultimate Load is 4 times the Working Load Limit.
Weig ht
Each
(kg )
Dimensions
(mm)
(in.) (mm) C F G
- 6 1098496 1.4 .11 26.2 19.3 44.7
1/4 7 1098500 2 .23 35.8 22.4 59.0
5/16 8 1098504 2.5 .23 35.6 22.4 59.0
3/8 10 1098508 4 .34 46.7 30.0 69.0
1/2 13 1098512 6.7 .75 55.6 38.1 94.5
5/8 16 1098516 10 .86 71.4 49.8 112
6 • Alloy Steel - Quenche d and Tempered.
• Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
• Meets ASTM A-952 standard for Grade 100 chain fittings.
• P rovide d with spr in g de signe d to reta in cha in.
•Fatigue Rated
• "Look for the Platinum Color - Crosby Grade 100 Alloy Products."
Crosby
®
Grade100ChainFittings
Chain
Siz e
S-1311
S-1311
Stock No.
Working
Load
Limit
(t)*
* Minimum Ultimate Load is 4 times the Working Load Limit.
Weight
Each
(kg)
Dim ensions
(mm )
(in.) (mm) B C
- 6 1017797 1.4 .34 37.1 43.7
1/4 7 1017806 2 .45 49.0 67.8
5/16 8 1017815 2.5 .45 49.0 67.8
3/8 10 1017824 4 .68 57.7 77.2
1/2 13 1017833 6.7 1.47 75.9 99.5
5/8 16 1017842 10 2.54 84.6 120
Crosby Proof Coil — Spectrum 3®Chain
Trade Size
(mm) Size Material
(mm)
Working
Load Limit
t
Maximum
Inside
Length
(mm)
Minimum
Inside Width
(mm)
Maximum
Length 100
links
(mm)
Weight Per
30 Meters
(kg)
5 5.50 .34 24.9 7.62 2489 17.7
7 7.00 .59 31.5 9.65 3150 29.5
8 8.00 .87 32.8 11.2 3277 45.4
10 10.0 1.21 35.1 14.0 3505 65
13 13.0 2.04 45.5 18.3 4547 113
16 16.0 3.13 55.9 20.1 5588 190
19 20.0 4.81 69.9 25.0 6985 294
Crosby High Test — Spectrum 4®Chain
Trade Size
(mm) Size Material
(mm)
Working
Load Limit
t
Maximum
Inside
Length
(mm)
Minimum
Inside Width
(mm)
Maximum
Length 100
links
(mm)
Weight Per
30 Meters
(kg)
7 7.00 1.18 31.5 9.65 3150 31.8
8 8.00 1.77 32.8 11.2 3277 48.1
10 10.0 2.45 35.1 14.0 3505 70
11 11.9 3.27 35.6 16.5 3560 93
13 13.0 4.18 45.5 18.3 4547 121
16 16.0 5.22 55.9 20.1 5588 182
19 20.0 7.35 70.1 24.9 7010 257
Crosby Transport — Spectrum 7®Chain
Trade Size
(mm) Size Material
(mm)
Working
Load Limit
t
Maximum
Inside
Length
(mm)
Minimum
Inside Width
(mm)
Maximum
Length 100
links
(mm)
Weight Per
30 Meters
(kg)
7 7.001.4431.59.65315036.7
8 8.702.1433.512.2335344.5
10 10.0 3.00 35.1 14.0 3505 64
11 11.9 3.98 41.7 16.5 4166 98
13 13.0 5.13 45.5 18.3 4547 112
Crosby Alloy — Spectrum 8®Chain
Trade Size
(mm) Size Material
(mm)
Working
Load Limit
t
Maximum
Inside
Length
(mm)
Minimum
Inside Width
(mm)
Maximum
Length 100
links
(mm)
Weight Per
30 Meters
(kg)
7 7.001.5922.98.64228632.7
8 8.702.0425.412.2254049.0
10 10.0 3.22 31.8 12.5 3175 67
13 13.0 5.45 41.7 16.3 4166 110
16 16.0 8.21 51.3 20.1 5131 159
19 20.0 12.84 64.0 24.9 6401 265
22 22.0 15.51 70.4 27.4 7036 320
SPECTRUM 8®
ENGINEERING SPECIFICATIONS
SPECTRUM 7®
SPECTRUM 4®
SPECTRUM 3®
Chain
Chain &
Accessories
Copyright© 2002 The Crosby Group, Inc. 189
All Rights Reserved
Proof Coil Chain
190 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
63(&75803URRI&RLO&KDLQ
Proof Coil Chain - SPECTRUM 3®
100 Pound Pail
63(&7580
'580
• Carbon Steel.
• Standard Container - fiber drum.
• Finish - Self colored and galvanized.
• Minimum Ultimate load is 4 times the Working Load Limit.
• Permanently embossed with CG®
(Crosby Group) and 3 (Grade).
ProofCoilChain
Chain
Size
(mm )
Wo rking
Load Limit
(t)*
* Proof Loaded at 2 times the Working Load Limit.
Me t er s
Per
Drum
Weight
Per 30 m
(kg)
Spec3
Drum
Stock No.
S.C.
Drum
Stock No.
Galv.
5 .36 244 17.7 275151 276150
6 .59 244 29.5 275259 276258
8 .86 168 45.4 275357 276356
10 1.20 122 65.5 275455 276454
13 2.04 61 113 275552 276551
16 3.13 46 191 275650 276659
19 4.81 30 294 275758 276757
63(&7580
3$,/
ProofCoilChain
Chain
Siz e
(mm)*
* Spectrum 3® Proof Coil Chain is not recommended for overhead
lifting. For these applications, Spectrum 8®
or grade 80 alloy chain
should be used. See page 162.
Weight
Per Pail
(kg) Met ers P er
Pail
Sp3Pl
Stock No.
S.C. Stock No.
Galv.
5 44.5 76 275115 276114
6 41.7 43 275213 276212
8 41.3 28 275311 276310
10 41.3 19 275419 276418
High Test Chain
Copyright © 2002 The Crosby Group, Inc. 191
All Ri gh ts Re se rv ed
Cha in &
Accessories
63(&7580+LJK7HVW&KDLQ
High Test Chain - SPECTRUM 4®
100 Pound Pail
63(&7580
'580
• Carbon Steel.
• Standard Container - fiber drum.
• Finish - Self Colored.
• Minimum Ultimate load is 3 times the Working Load Limit.
• Permanently embossed with CG®
(Crosby Group) and 4 (Grade).
HighTestChain
Chain
Siz e
(mm)
Working
Load
Limit
(t) Meters Per
Drum
Weight Per
30 m
(kg)
Sp4Dr
Drum
Stock No.
S.C.
1/2 Drum
Stock No.
S.C.
6 1.18 244 31.8 272788 272895
8 1.77 168 48.1 272797 272902
10 2.45 122 69.9 272804 272911
11 3.27 91 94.8 272813 272920
13 4.17 61 121 272822 272939
16 5.21 46 182 272831 272948
19 9.16 30 257 272840 272957
63(&7580
3$,/
HighTestChain
Chain
Siz e
(mm)*
* Spectrum 4® High Test Chain is not recommended for overhead lifting. For
these applications, Spectrum 8® or gr ade 80 Alloy chain should be used. See
page 162.
Weight
Per Pail
(kg) Meters
Per Pail
Sp4PL
Stock No.
S.C.
6 42.2 41 273000
8 43.1 27 273019
10 44.5 20 273028
Transport Chain
192 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
63(&7580
+LJK7HQVLOH7UDQVSRUW&KDLQ
High Tensile Transport
Chain - SPECTRUM 7®
100 Pound Pail
63(&7580
'580
• High Te nsil e Car bon Stee l.
• Standard container - fiber drum.
• Finish - Self Colored.
• Minimum Ultimate load is 4 times the Working Load Limit.
• Permanently embossed with CG®
(Crosby Group) and 7 (Grade).
TransportChain
Chain
Size
(mm )
Wo rking
Load Limit
(t)*
* Proof Loaded at 2 times the Working Load Limit.
Meters Per Drum
Weight
Per 30 m
(kg)
Sp7DR
Drum
Stock No.
S.C.
1/2 Drum
Stock No.
S.C.
6 1.43 244 36.7 273153 273260
8 2.13 168 44.5 273162 273279
10 3.00 122 64.0 273171 273288
11 3.97 91 98.0 273180 273297
13 5.13 61 112 273199 273304
63(&7580
3$,/
TransportChain
Chain
Siz e
(mm)*
*
Spectrum 7® High Tensile Transport chain is not recommended
for overhead lifting. For these applications, Spectrum 8® or grade
80 alloy chain should be used. See page 162.
Weig ht
Per Pail
(kg ) Meters Per Pail
Sp7Pl
Stock No.
S.C.
6 49.4 41 273377
8 39.9 27 273386
10 44.5 20 273395
Crosby® Connecting Links
Copyright © 2002 The Crosby Group, Inc. 193
All Ri gh ts Re se rv ed
Cha in &
Accessories
LOK-A-LOY® 6
Connecting Link
$• Forged Alloy Steel - Quenched and Tempered.
• In di vidually P roof Tested .
• Easy to assemble - see instructions on page 210
Crosby
®
ConnectingLinks
Chain
Size
(in.)
A-336
A-336
Stock No.
Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
The WLL of the A -336 are less than Grade 80 chain ratings. When using in Grade 80 chain slings, ANSI
B30.9c requires that the Working Load Limit of a sling must not exceed the lowest Working Load Limit of
the components in the system.
Weig ht
Each
(kg )
Dimensions
(mm ) Diameter of
Hole to
Accept Link
ABCDE
6-7 1014397 1.47 .11 7.85 52.5 42.9 19.8 19.8 12.7
8-10 1014413 3.00 .27 11.4 69.0 58.5 26.9 27.7 16.8
13 1014431 5.10 .54 14.7 85.0 80.5 32.5 35.8 22.4
16 1014459 7.48 1.10 19.8 99.5 100 39.6 42.9 26.9
19 1014477 11.20 1.76 22.6 123 113 50.0 51.0 30.2
22 1014495 13.04 2.75 25.4 148 135 60.5 64.0 35.1
26 1014510 17.58 3.19 27.4 165 154 72.0 65.0 37.3
32 1014538 26.00 6.00 35.1 215 194 96.0 96.0 44.0
Crosby® Connecting Links
194 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
Pear Shape "Missing Link"®
Replacement Links
"Missing Link"®
Replacement Links
*6 • Forged Steel - Quenche d and Tempered.
• Has larger inside dimensions making it easier to attach hooks or other fittings to the chain.
• An exclusive Crosby product.
• After making connections, rivets must be peened.
Crosby
®
ConnectingLinks
Chain
Size
(mm )
G334
Stock No. Wo rking
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Not Suitable for use with Grade 80 chain and chain slings used in overhead lifting.
Weight
Per 100
(kg)
Dimensions
(mm)
G-334
Galv. S- 334
S.C. A B C D E F G H L
10 1013432 1013441 .84 11.3 10.4 51.0 14.2 20.6 74.5 41.4 11.9 35.1 20.6
13 1013450 1013469 1.50 22.7 12.7 63.5 17.5 25.4 92.0 51.0 14.2 42.9 25.4
16 1013478 1013487 2.27 34.0 16.0 70.0 20.6 26.9 102 60.5 16.0 52.5 28.7
19 1013496 1013502 3.22 56.7 19.1 79.5 25.4 28.7 121 70.0 20.6 63.5 31.8
22 1013511 1013520 4.35 90.7 22.4 93.5 31.8 35.1 141 82.5 23.9 76.0 38.1
*6
Meets or exceeds the performance
requirement s of Federal Spec ifica-
t ions RRC-27lD, Type II, except for
those provisions required of the
contractor.
• Forged Steel - Quenche d and Tempered.
• Integral rivets join the two halves.
• After making connections, rivets must be peened.
Crosby
®
ConnectingLinks
Chain
Size
(mm )
G335
Stock No. Wo rking
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
** Rivets Only - No inter locki ng lugs.
† Has reinforced rivet holes. All sizes have countersunk rivet holes.
Not Suitable for use with Grade 80 chain and chain slings used in overhead lifting.
Links
Per
Box
Weigh t
Per 100
(kg)
Dimensions
(mm)
G-335
Galv. S- 335
S.C. A B C D E F G
** 5 1013094 1013101 .36 20 1.13 6.35 17.5 8.65 8.65 30.2 19.8 7.10
** 7 1013110 1013129 .60 10 2.83 7.10 22.4 11.2 11.2 38.1 25.4 7.85
** 8 1013138 1013147 .89 10 5.67 8.65 23.9 11.9 11.9 42.9 29.5 9.65
10 1013156 1013165 1.25 10 9.07 10.4 28.7 14.2 14.2 52.5 35.1 11.9
11 1013174 1013183 1.65 10 12.5 11.9 32.5 15.0 15.0 59.5 38.9 13.5
13 1013192 1013209 2.15 10 17.0 13.5 37.3 16.8 16.8 67.5 43.7 15.0
16 1013236 1013245 3.30 10 32.9 16.8 46.0 19.8 20.6 84.0 53.0 19.1
19 1013254 1013263 4.65 10 55.5 19.8 54.0 23.9 26.9 98.5 63.5 22.4
22 1013272 1013281 5.45 Bulk 79.5 23.1 63.5 28.7 28.7 114 74.5 25.4
† 26 1013290 1013307 7.00 Bulk 113 26.2 70.0 31.8 31.8 127 84.0 28.7
Crosby® Connecting Links
Copyright © 2002 The Crosby Group, Inc. 195
All Ri gh ts Re se rv ed
Cha in &
Accessories

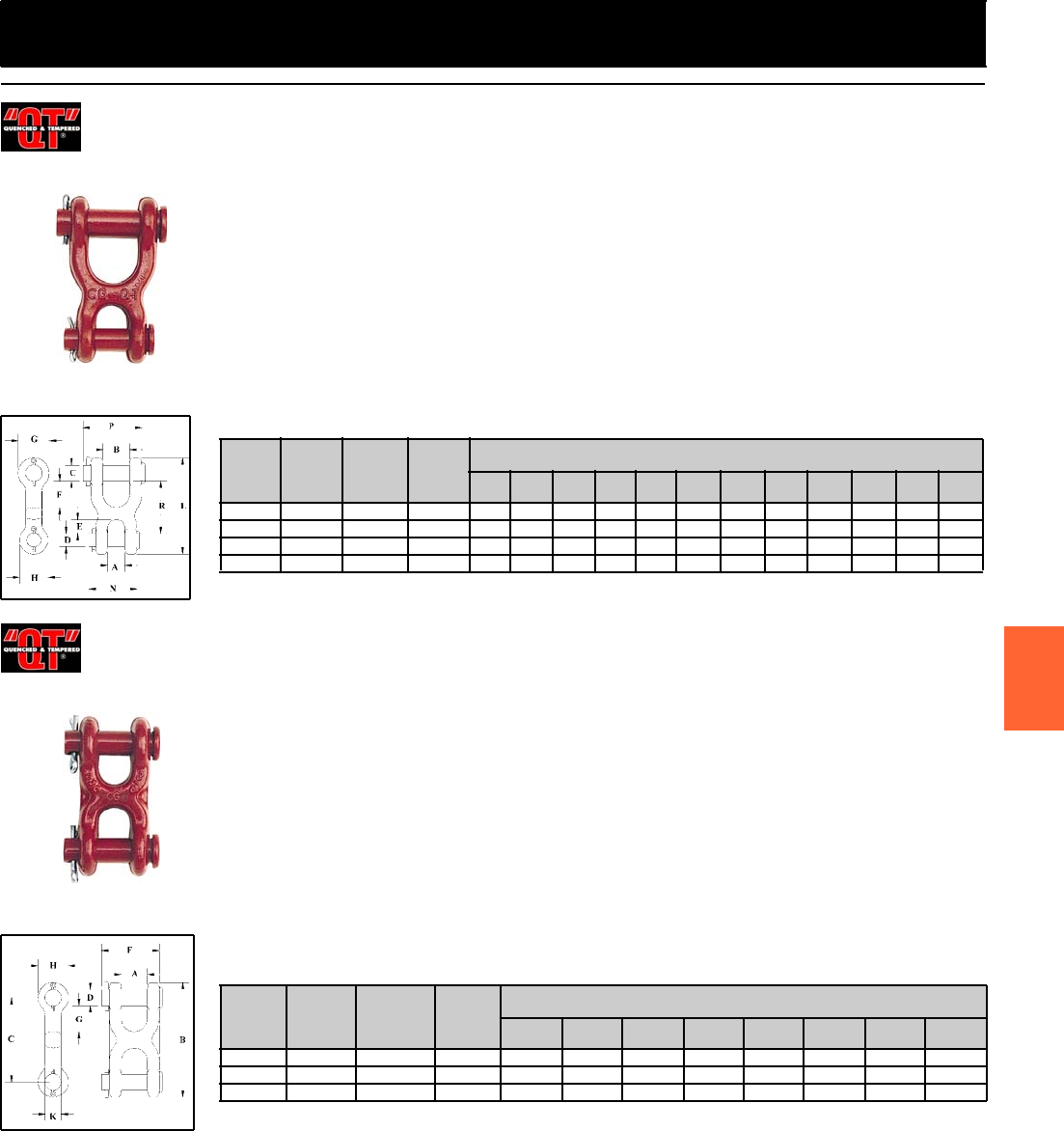

S-247 Double Clevis Link
S-249
Twin Clevis Link
6• Designed for linking all popular sizes of Crosby Spectrum 3®
and Spectrum 4®
chain to rings, end links, eye hooks, pad eyes, tractor eyebolts, etc.
• All pins Alloy Steel - Quenched and Tempered.
• Body is forged and heat treated carbon steel.
• Features quick and easy assembly.
Crosby
®
ConnectingLinks
Chain
Size
(mm )
S-247
S-247
Stock
No.
Wo rking
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weigh t
Each
(kg)
Dimensions
(mm)
A B C D E F G H L N P R
7 1013021 1.18 .17 12.7 19.1 12.7 7.85 9.65 19.1 25.4 20.6 71.5 35.1 42.2 38.1
8-10 1013049 2.45 .37 14.2 25.4 16.0 11.2 11.9 25.4 30.2 25.4 89.5 44.5 57.0 48.5
11 1013067 3.27 .57 17.5 28.7 17.5 14.2 15.0 27.7 33.3 30.2 103 51.0 63.5 55.5
13 1013085 4.17 .71 20.6 31.8 19.1 16.0 16.8 31.8 36.6 33.3 115 57.0 70.0 62.5
6• Ava ila ble in three p opula r size s.
• Body is forged and heat treated carbon steel.
• All pins Alloy Steel - Quenched and Tempered.
• Features quick and easy assembly.
• Twin Clevis design prov ides a variety of uses and can be used with Crosby Spectrum 3®
,
Spectrum 4®
an d Sp ectrum 7®
chain.
Crosby
®
ConnectingLinks
Chain
Size
(mm)
S-249
S-249
Stock No.
Wo rkin g
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Not Suitable for use with Grade 80 chain and chain slings used in overhead lifting.
Weig ht
Each
(kg )
Dim ensions
(mm)
A B C D F G H K
7-8 1012861 2.13 .14 11.9 63.5 39.6 9.65 33.3 10.9 23.9 12.7
10 1012889 3.00 .20 13.5 71.5 46.0 11.2 38.9 12.7 25.4 14.2
11-13 1012905 5.10 .44 16.5 92.0 58.5 14.2 48.5 16.0 33.3 20.6
Crosby® Grab Hooks
196 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
+$(\H*UDE+RRNV
Bullard Alloy Grab Hook with Latch
+$ • Forged Steel - Quenche d and Tempered.
• Features quick and easy assembly.
• H-330 designed for Crosby Spectrum 4® chain.
• A-330 designed for Crosby Spectrum 7®
chain.
• Design factor is 4:1.
Crosby
®
GrabHooks
Chain
Size
(mm)
H-330
Stock No. Working Load L im it
(t) Weight
Each
(kg)
Dimensions
(mm)
H-330
Carbon A-330
Alloy*H-330
Carbon A-330
Alloy ABCDEGHKLNPR
7 1027105 1027249* 1.18 1.59 .16 25.4 8.15 7.85 46.0 8.65 22.4 18.3 11.9 77.5 44.5 7.85 41.7
8 1027123 1027267* 1.77 2.04 .29 30.2 9.90 9.15 54.0 11.2 24.6 23.1 15.0 93.0 52.5 9.65 61.5
10 1027141 1027285* 2.45 3.22 .45 35.1 11.4 11.4 64.5 12.7 29.7 25.4 18.3 109 59.5 11.2 61.0
11 1027169 1027301 3.27 4.54 .59 42.2 16.8 15.7 78.5 14.2 33.3 28.7 17.5 125 67.5 14.2 70.0
13 1027187 1027329* 4.17 5.44 .95 47.8 14.5 17.8 90.5 16.8 38.9 31.8 19.8 145 75.5 16.0 81.0
16 1027203 1027347 5.90 7.16 1.91 58.0 23.1 21.3 112 19.8 45.2 39.6 27.7 179 109 19.1 104
19 1027221 1027365 9.16 11.2 2.95 66.5 23.9 23.9 133 23.9 54.0 47.8 33.3 207 129 22.4 118
*Is suitable for use with Grade 80 chain in over head lifting applications as long as hook is Proof Tested as part of the chain sling assembly
or as an individual component per ANSI B30.9c. We recommend the use of the A-338.
+$ • Forged Steel - Quenche d and Tempered.
• Design Factor is 4:1.
• H-323 designed for Crosby Spectrum 4® chain.
• A-323 designed for Crosby Spectrum 7®
chain.
Crosby
®
GrabHooks
Chain
Size
(mm)
H323
Stock No. Working Load Limit
(t)*Weight
Each
(kg)
Dimensions
(mm )
H-323
Carbon A-323
Alloy H-323 A-323 A B C D E G K L N R
7 1026204 1026384* 1.18 1.59 .13 27.7 13.5 7.85 46.0 8.65 22.4 11.9 77.5 44.5 47.8
8 1026222 1026400* 1.77 2.04 .20 33.3 15.7 9.65 54.0 11.2 24.6 15.0 91.0 52.5 58.0
10 1026240 1026428* 2.45 3.22 .36 39.6 19.1 11.2 64.5 12.7 29.7 18.3 109 59.5 68.5
13 1026286 1026464* 4.17 5.44 .79 49.3 22.4 13.5 90.5 16.8 38.9 19.8 138 75.5 86.0
16 1026302 1026482 5.90 7.16 1.47 60.5 26.9 16.8 112 19.8 48.0 25.4 169 96.0 104
19 1026320 1026507 9.16 11.2 2.69 73.0 35.1 19.1 133 23.9 54.0 33.3 205 129 131
*Is suitable for use with Grade 80 chain in over head lifting applications as long as hook is Proof Tested as part of the chain sling assembly
or as an individual component per ANSI B30.9c. Crosby r ecommends the use of the A-328.
%/*5%
Crosby
®
GrabHooks
Hook
Type
Chain
Size
(mm ) BL-GRB
Stock No.
Working
Load Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weigh t
Each
(kg )
GRAB HOOK 7 1051904 1.60 .23

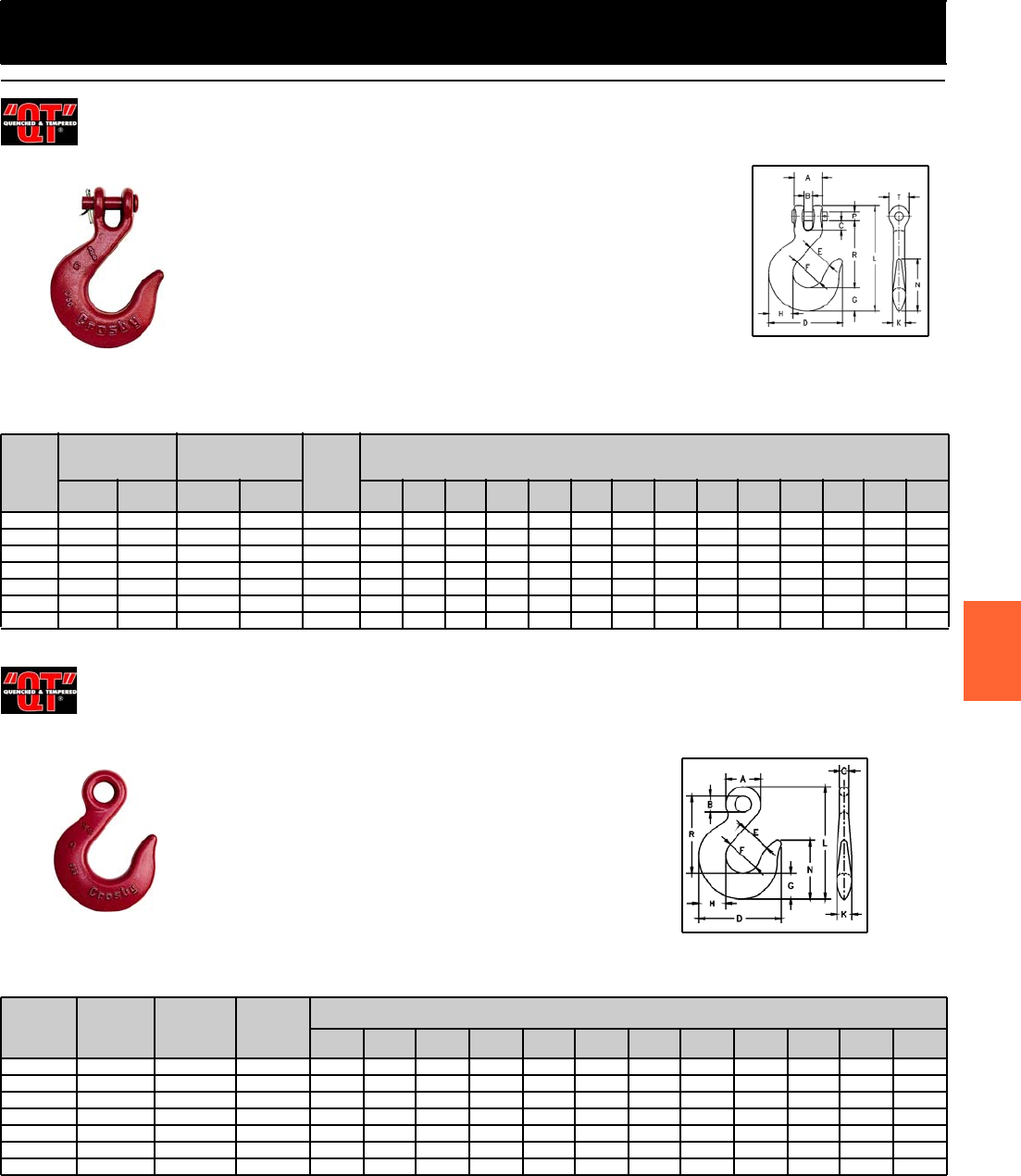

Crosby® Slip Hooks
Copyright © 2002 The Crosby Group, Inc. 197
All Ri gh ts Re se rv ed
Cha in &
Accessories
+$&OHYLV6OLS+RRNV
H-324 Eye Slip Hooks
+$ • Forged Carbon Steel or Forged Alloy Steel - Quenched and Tempered.
• All pins are Alloy Steel - Q uench ed and Tempered.
•Not Suitable for use with Grade 80 chain and chain slings used in
overhead lifting. For slings or lifting chains, Grade 80 or 100 alloy
components are recommended.
Crosby
®
SlipHooks
Chain
Size
(mm)
H-331
Stock No.
Working
Load Limit
(t)*Weight
Each
(kg)
Dimensions
(mm )
H-331
Carbon A-331
Alloy H-331
Carbon A-331
Alloy A B C D E F G H K L N P R T
7 1027383 1027524 .89 1.25 .25 26.9 8.15 7.35 70.0 23.9 30.2 20.6 22.4 12.7 100 54.0 8.65 65.5 18.3
8 1027409 1027542 1.30 1.95 .36 31.0 10.9 8.65 77.5 26.9 31.8 23.9 25.4 14.2 115 57.0 11.2 73.0 24.6
10 1027427 1027560 1.81 2.38 .55 35.1 11.4 11.2 92.0 33.3 38.1 28.7 30.2 16.8 131 65.0 11.9 82.5 26.9
11 1027445 1027588 2.27 3.18 .93 43.9 15.0 15.2 110 39.6 46.0 35.1 36.6 20.6 152 77.5 14.2 94.0 30.2
13 1027463 1027604 2.95 4.08 1.25 47.8 14.5 13.5 122 42.9 49.3 39.6 41.4 23.1 166 87.5 16.0 102 33.3
16 1027481 1027622 4.20 6.12 2.15 58.5 18.0 18.0 143 51.0 60.5 46.0 49.3 27.7 200 102 19.1 125 39.6
19
H331
- 1027640 - 8.73 5.12 81.0 30.0 32.8 187 63.5 76.2 60.5 63.5 36.6 255 129 25.4 155 53.0
* Ultimate Load is 4 times the Working Load Limit.
+ • Forged Carbon Steel - Quenched and Tempered.
Crosby
®
SlipHooks
Chain
Siz e
(mm)
H-324
H-324
Stock No.
Working
Load
Limit
(t)*
Weigh t
Each
(kg)
Dimensions
(mm)
A B C D E F G H K L N R
7 1026749 .89 .18 26.9 12.7 7.10 70.0 23.9 30.2 20.6 22.4 12.7 93.0 54.0 65.0
8 1026767 1.30 .29 31.8 16.0 8.65 77.5 26.9 31.8 23.9 25.4 14.2 107 57.0 75.0
10 1026785 1.81 .50 38.9 18.3 10.4 92.0 33.3 38.1 28.7 30.2 16.8 124 65.0 85.5
11 1026801 2.27 .71 42.9 20.6 11.2 110.2 39.6 46.0 35.1 36.6 20.6 145 77.5 98.5
13 1026829 2.95 .95 49.3 23.9 12.7 122.2 42.9 49.3 39.6 41.4 23.1 161 87.5 109
16 1026847 4.20 1.77 60.5 28.7 16.0 143.0 51.0 60.5 46.0 49.3 27.7 195 102 133
19 1026865 5.67 3.14 73.0 35.1 19.1 171.5 54.0 70.0 55.5 58.5 33.3 222 121 147
* Ultimate Load is 4 times the Working Load Limit.
Not Suitable for use with Grade 80 chain and chain slings used in overhead lif ting.
For slings or lifting chains, Grade 80 or 100 alloy components are recommended.

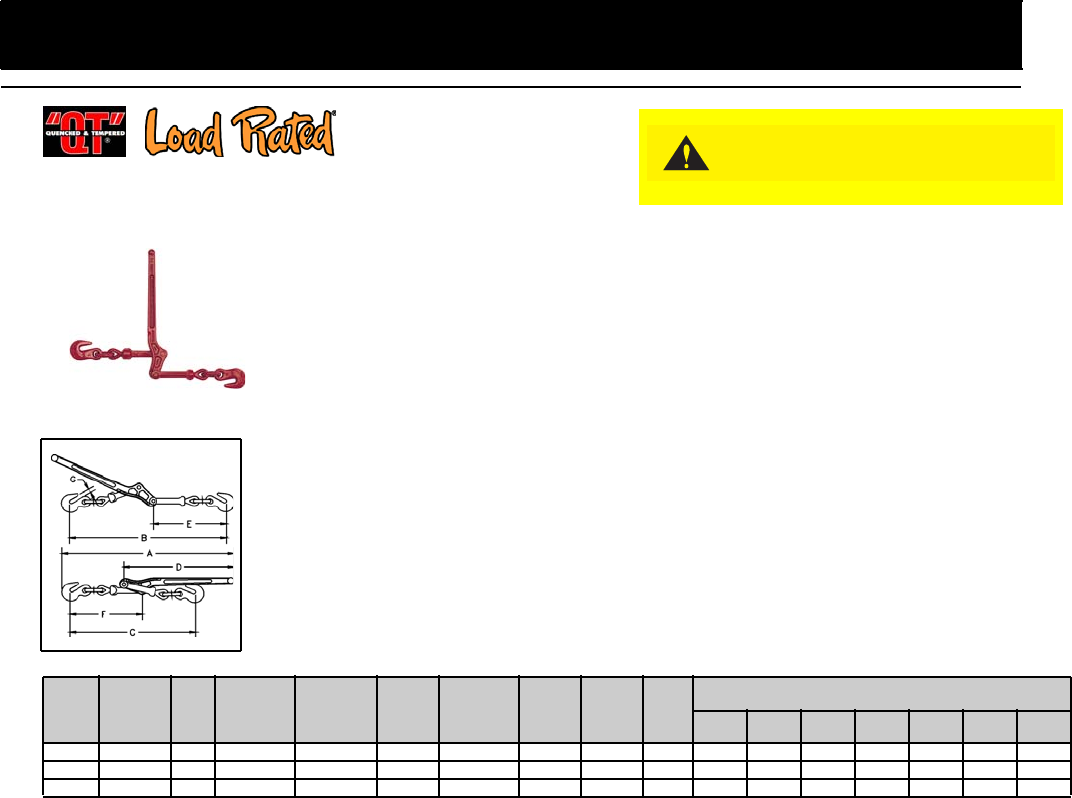

Lebus® Load Binders
198 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
L-150
Standard Lever Type Load Binders
• Extra heavy construction at leverage point to prevent spreading. Heel of binder toggles
away from load, permitting easy release.
• Bal l an d socket sw ive l joints at hook a ssemblies p ermit a stra igh t line pu ll .
• Meets or exceeds DOT and CVSA Cargo securement Guidelines, August 1993.
SEE APPLICATION AND
WARNING INFORMATION
On P age 207
/
Lebus
®
LoadBinders
Model
L150
L150
Stock No. St d.
Pkg .
Min-Max
Chain
Size
(mm)
Wo rking
Load
Limit
(t)
Proof
Load
(kN)*
Ultimate
Load
(t)
Weight
Each
(kg)
Handle
Length
(mm)
Take
Up
(mm)
Dimensions
(mm)
ABCDEFG
7-1 1048128 4 8 - 10 2.45 48 8.63 3.18 406 114 613 562 454 406 264 264 12.7
A-1 1048146 4 10 - 13 4.17 82 15.0 5.66 475 114 730 654 540 475 313 314 16.0
C-1 1048164 4 13 - 16 5.90 116 20.9 8.93 533 121 794 756 635 533 372 349 18.3
* Binders shown with Proof Loads have been individually proof tested to these values shown, prior to shipment.
Lebus®
Load Binders
Copyright © 2002 The Crosby Group, Inc. 199
All Ri gh ts Re se rv ed
Cha in &
Accessories

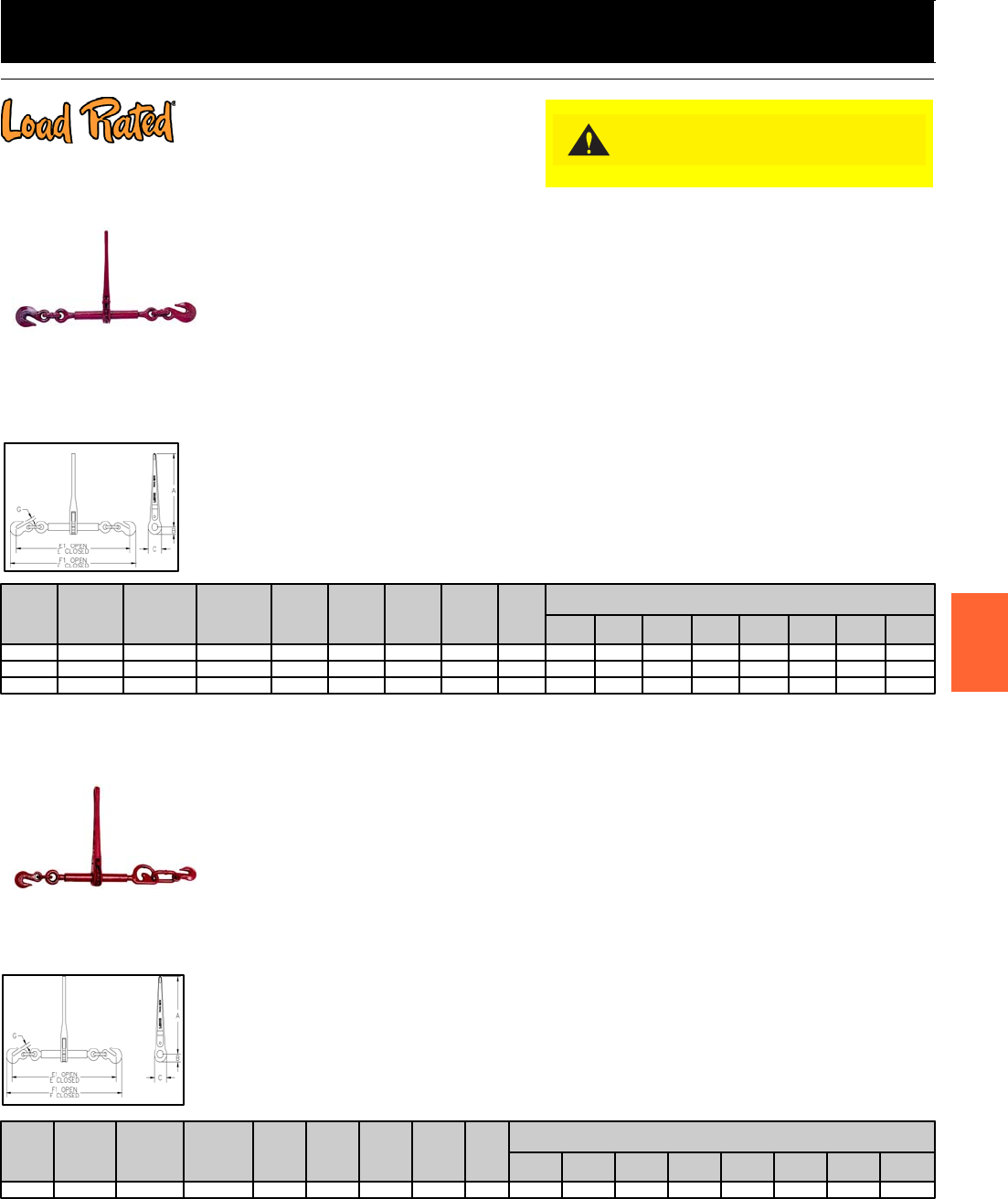

L-140
Standard Ratchet Type Load Binders
R-7QL
QUIC-LINK Ratchet Load Binder
SEE APPLICATION AND
WARNING INFORMATION
On P age 207
/• Utilizes standard Crosby A-323 Alloy Eye Grab Hooks.
• New design "one piece" forged handle.
• Continuous take-up feature, infinite adjustment, gets the last half link of chain.
• One piece assembly, no bolts or nuts to loosen.
• Ratchet spring rust proofed.
• All load bearin g or holding parts forged.
• Easy operating positive ratchet.
•Meets or exceeds DOT and CVSA Cargo securement Guidelines, August 1993.
Lebus
®
LoadBinders
Model
L140
L140
Stock
No.
Min -Max
Chain
Size
(mm )
Working
Load
Limit
(t)*
Proof
Load
(kN)
Weight
Each
(kg)
Handle
Length
(mm)
Barrel
Length
(mm)
Take
Up
(mm )
Dimensions
(mm)
A B C E E1 FF1 G
R-7 1048404 8 - 10 3.00 59 5.09 356 254 203 356 35.1 70.0 583 786 638 842 12.7
R-A 1048422 10 - 13 4.17 82 5.82 356 254 203 356 35.1 70.0 641 845 702 905 16.0
R-C 1048440 13 - 16 5.90 116 6.60 356 254 203 356 35.1 70.0 670 873 748 951 18.3
* Ultimate Load is 3 times the Working Load Limit.
/54/ • Utiliz es standard Crosby A-32 3 Alloy Eye Gra b Hooks.
• New design "one piece" forged handle.
• Continuous take-up feature, infinite adjustment, gets the last half of chain.
• One piece assembly, no bolts or nuts to loosen.
• Ratch spring rust proofed.
• All load bearin gs or h old in g parts forged.
• Easy operating positive ratchet.
Lebus
®
LoadBinders
Model
R-7QL
R-7QL
Stock
No.
Min-Max
Chain
Siz e
(mm)
Working
Load
Limit
(t)*
Proo f
Load
(kN)
Weight
Each
(kg)
Handle
Length
(mm)
Barrel
Length
(mm)
Take
Up
(mm )
Dimensions
(mm)
A B C E E1 FF1 G
R-7QL 1048413 8 - 10 3.00 59 5.56 356 254 203 356 35.1 70.0 630 833 686 889 12.7
* Ultimate Load is 3 times the Working Load Limit.
Binders shown with proof loads have been individually proof tested to these values shown, prior to shipment.

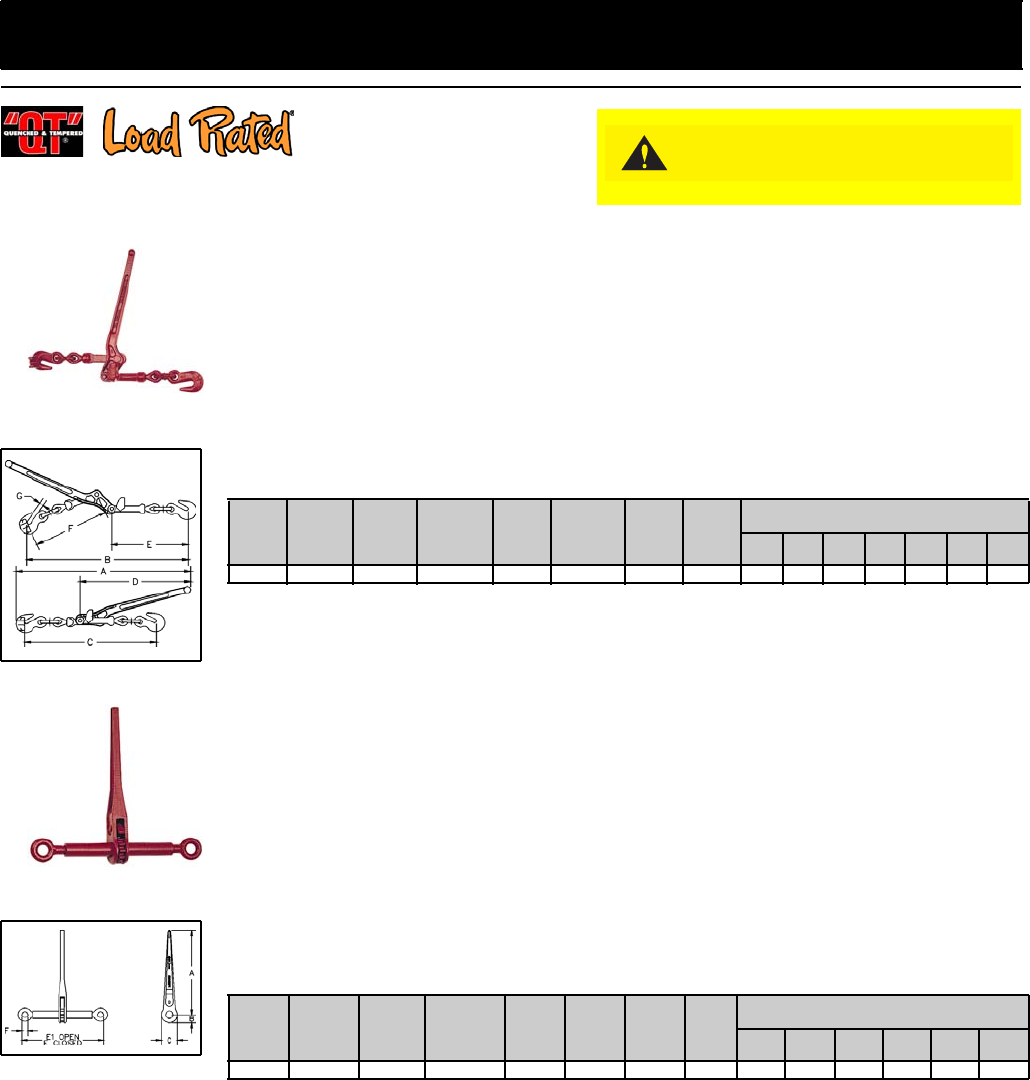

Lebus® Load Binders
200 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
A-1W
Walking Load Binder
R-10
Binder without Links and Hooks
•0HHWVRUH[FHHGV'27DQG&96$&DUJRVHFXUHPHQW*XLGHOLQHV$XJXV W
SEE APPLICATION AND
WARNING INFORMATION
On P age 207
/$: • Used as a come-a-long for short take-up on chain.
• Forged steel - Quenched and Tempered.
• Binder toggles away from the load.
•Meets or exceeds DOT and CVSA Cargo securement Guidelines, August 1993.
Lebus
®
LoadBinders
Model
Walk
Walk
Stock
No.
Chain
Siz e
(mm)
Working
Load
Limit
(t)
Proo f
Load
(kN) *
Ultimate
Load
(t)*
* Binders shown with proof loads have been individually proof tested to these values shown, prior to shipment.
Weight
Each
(kg)
Handle
Length
(mm)
Dim ensions
(mm)
A B C D E F G
A-1W 1048388 13 only 4.17 82 15.0 5.94 475 730 654 540 475 313 314 16.0
/5
Lebus
®
LoadBinders
Model
R-10
R-10
Stock
No.
Chain
Siz e
(mm)
Working
Load
Limit
(t)*
* Ultimate Load is 3 times the Working Load Limit.
Weight
Each
(kg)
Handle
Length
(mm )
Barrel
Length
(mm)
Take
Up
(mm )
Dim ensions
(mm)
A B C E E1 F
R-10 1048468 16 5.90 3.65 356 254 203 356 35.1 70.0 356 559 25.4
Lebus®
Load Binders
Copyright © 2002 The Crosby Group, Inc. 201
All Ri gh ts Re se rv ed
Cha in &
Accessories

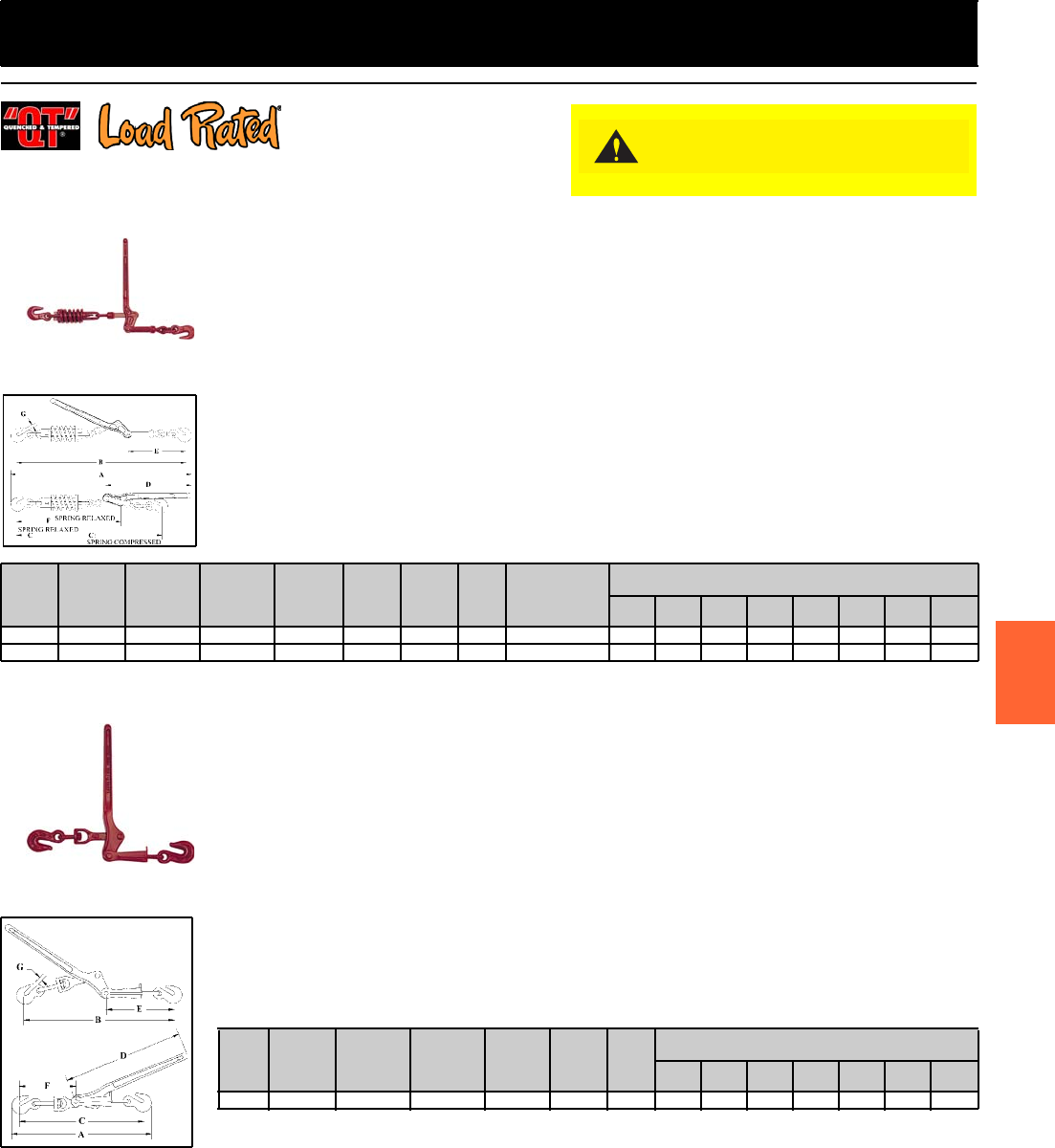

L-150
Snubbing Load Binders
L-130
Midget Load Binder
• Forged handle, hooks and swivel link.
• Steel swivels and clevis.
•0HHWVRUH[FHHGV'27DQG&96$&DUJRVHFXUHPHQW*XLGHOLQHV$XJXV W
SEE APPLICATION AND
WARNING INFORMATION
On P age 207
$• Forged steel - Quench ed and Tempered.
• S pr i ng cu sh ion for l oad pr o tecti on, cu sh ions sh ock and swa y.
• Binder toggles away from the load.
• Meets or exceeds DOT and CVSA Cargo securement Guidelines, August 1993.
Lebus
®
LoadBinders
Model
Snub
Snub
Stock
No.
Min -Max
Chain
Siz e
(mm)
Working
Load
Limit
(t)
Ultimate
Load
(t)
Weight
Each
(kg)
Handle
Length
(mm)
Take
Up
(mm)
Compression
Strength
of Sp ring
(kg )
Dimensions
(mm)
ABCC1 D E F G
7-12 1048280 8 - 10 2.45 7.27 5.10 406 108 1040 832 781 711 673 406 264 483 12.7
A-12 1048306 10 - 13 4.17 9.09 8.48 470 114 1500 945 864 749 773 475 313 530 16.0
/
Lebus
®
LoadBinders
Model
L130
L-130
Stock
No.
Min-Max
Chain
Size
(mm )
Working
Load
Limit
(t)
Ultim ate
Load
(t)
Weight
Each
(kg)
Take
Up
(mm)
Dimensions
(mm)
ABCDEFG
W-1 1048100 5 - 6 .66 2.31 1.17 61.0 410 346 279 286 159 167 8.65

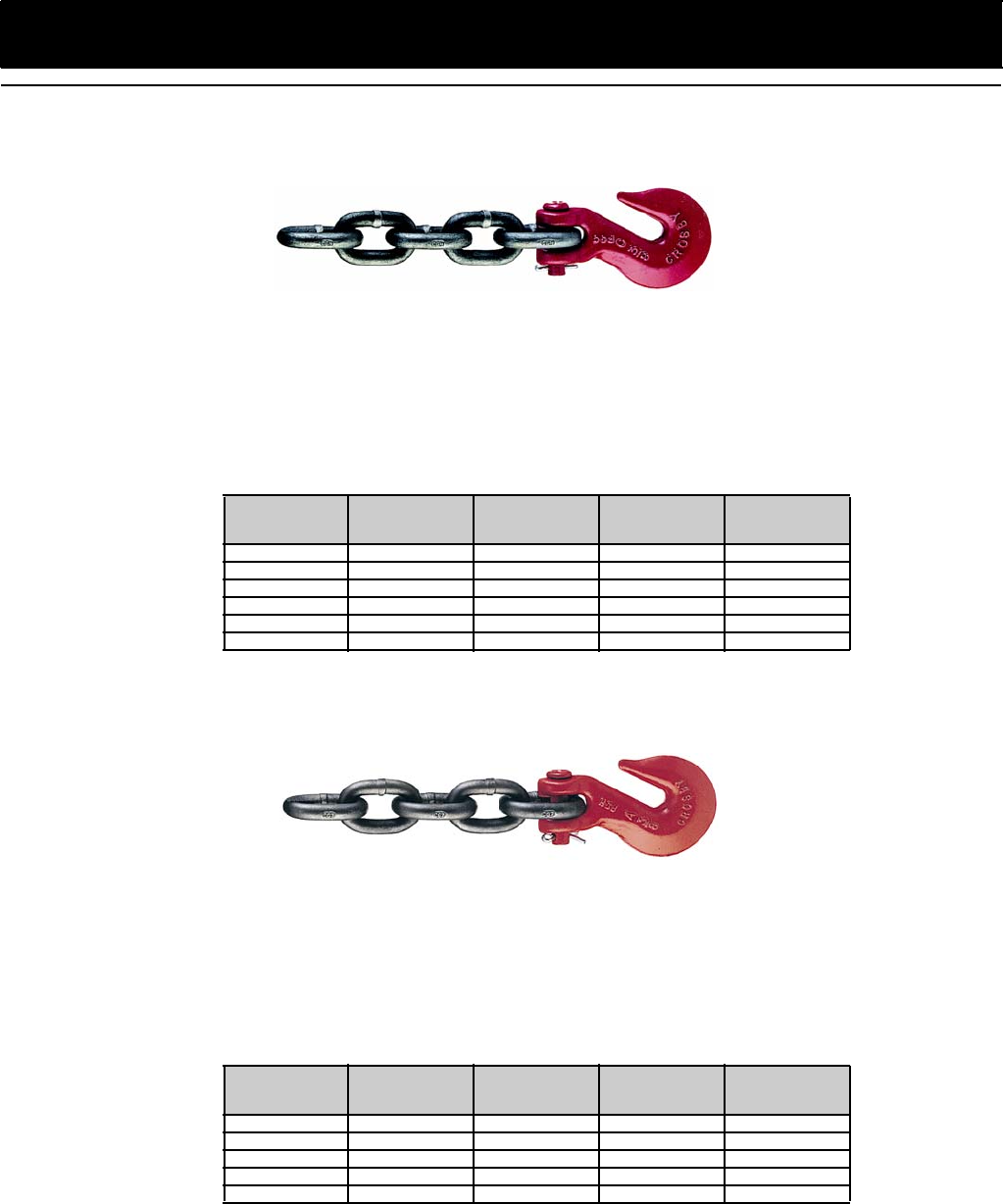

Boomer Chains
202 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
&
6SHFWUXP+LJK7HVW%RRPHU&KDLQV
• Ends fitted with Crosby H-330 Quenched and Tempered carbon steel clevis grab hook.
• Finish - Self Colored.
• Meets or exceeds DOT and CVSA Cargo securement Guidelines, August 1993.
&
6SHFWUXP7UDQVSRUW%RRPHU&KDLQV
• Ends fitted with Crosby A-330 Quenched and Tempered alloy clevis grab hook.
• Finish - Self Colored.
•0HHWVRUH[FHHGV'27DQG&96$&DUJRVHFXUHPHQW*XLGHOLQHV$XJXV W
&
BoomerChains
Chain
Siz e
(mm) C-186
Stock N o.
Working
Load Limit
(kg)
Standard
Length
(m)
Weight
Each
(kg)
6 278988 1180 6.10 7.3
8 278997 1770 6.10 11.3
10 279004 2450 6.10 15.4
11 279013 3270 6.10 20.4
13 279022 4170 6.10 27.2
16 279031 5900 6.10 40.8
&
BoomerChains
Chain
Siz e
(mm) C-187
Stock N o.
Working
Load Limit
(kg)
Standard
Length
(m)
Weight
Each
(kg)
6 279576 1430 6.10 7.3
8 279585 2130 6.10 11.3
10 279594 3000 6.10 15.4
11 279601 3970 6.10 20.4
13 279610 5130 6.10 27.2

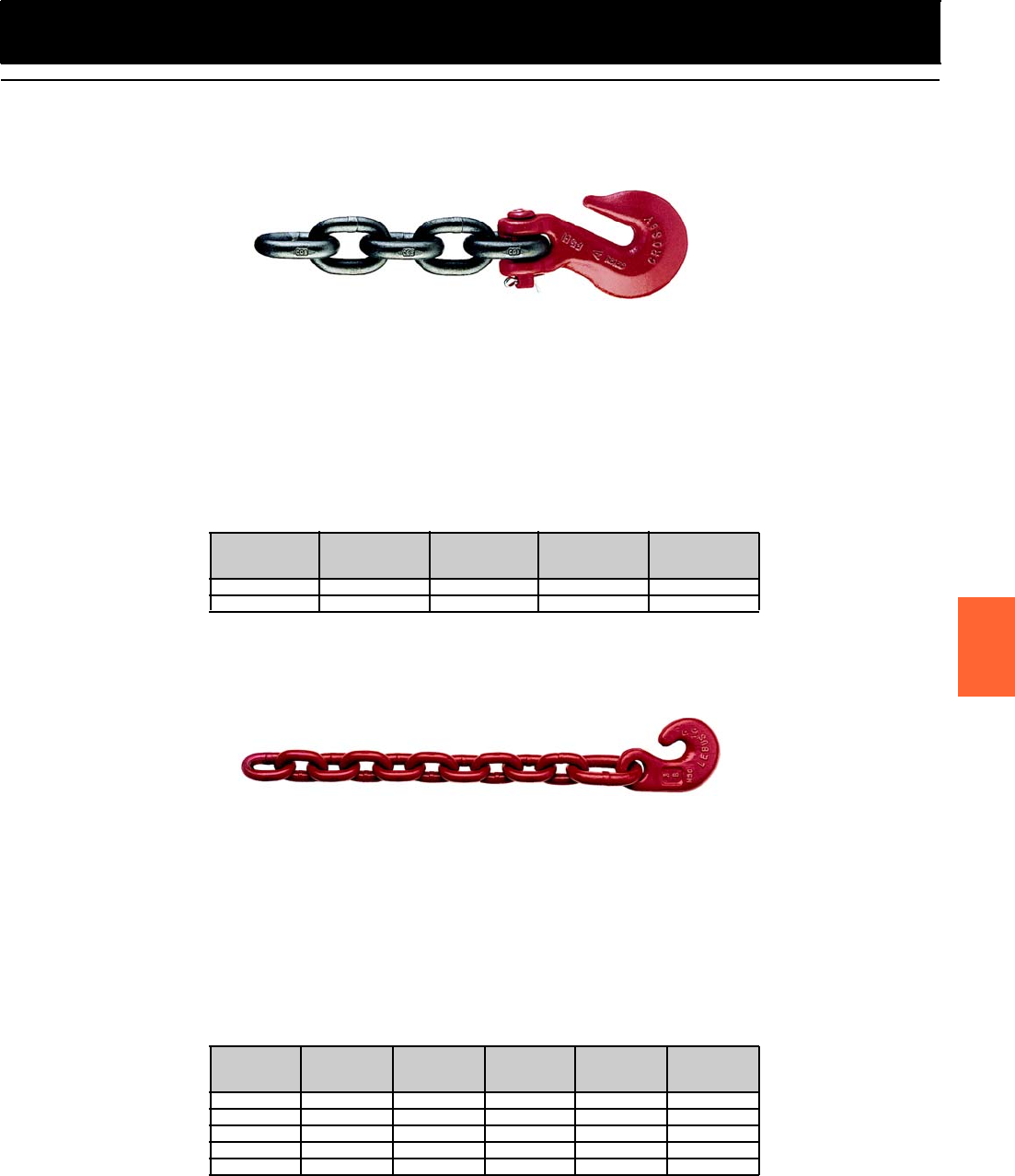

Boomer Chains and Fittings
Copyright © 2002 The Crosby Group, Inc. 203
All Ri gh ts Re se rv ed
Cha in &
Accessories
&
6SHF WUXP$OOR\%RRPHU&KDLQV
• Heat treated alloy steel.
• Ends fitted with Crosby A-330 Quenched and Tempered alloy clevis grab hook.
• Finish - Self Colored.
• Meets or exceeds DOT and CVSA Cargo securement Guidelines, August 1993.
/
:LQFKOLQH7DLO&KDLQV
• Hooks are Forged - Quenched and Tempered.
• Spectrum 4® High Test Carbon Steel from 5/16" thru 5/8" (8mm thru 16mm).
• Spectrum 8® Alloy Steel from 3/4" thru 1-1/8" (19mm thru 29mm).
• Individually Proof Tested.
•0HHWVRUH[FHHGV'27DQG&96$&DUJRVHFXUHPHQW*XLGHOLQHV$XJXV W
&
BoomerChainsandFittings
Chain
Siz e
(mm) C-188
Stock No.
Wo rking
Load Limit
(kg)
Standard
Length
(m)
Weight
Each
(kg)
10 279889 3200 6.10 13.7
13 279898 5400 6.10 24.5
/
BoomerChainsandFittings
Wire R ope
Diameter
(mm)*
* Recommended for IPS or XIP (EIP), RRL, FC or IWRC wire rope.
†Ultimate lload is 3.5 times the Working Load Limit.
L-180
Stock No.
Working
Load Limit
(kg) †Length
(mm) No. of
Links
Weight
Each
(kg)
8 - 10 1091473 2450 457 11 1.36
13 - 16 1091482 5900 457 7 2.81
19 - 22 1091511 15510 610 8 8.25
25 - 29 1091516 21640 457 5 9.60
25 - 29 1091525 21640 610 7 10.6
Boomer Chains and Fittings
204 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
O-318
Chain Nest Hooks
O-319
Chain Nest Hooks
SEE APPLICATION AND
WARNING INFORMATION
For O-318 : Pages 208-209
For O-319 : Pages 112-113
2  • A product Identification Code (PIC) for material traceability, the size,
and the name Crosby or "CG" is forged or stamped onto each hook
and swivel assembly (chain nest).
• Fits 1/ 4" thru 9/16" (6mm th ru 14mm) hoist chain.
• Available in Working Load Limits of 1.7, 2.3, and 4.2 Tons (1.5, 2.1, 3.8 tonnes).
• Hooks are forged alloy steel - Quenched and Tempered.
• Chain connecting pin is alloy
• Fitted wi th ball be ar in gs and is de signed to sw ive l u nd er loa d.
• Entire assembly is zinc plated.
• Repair kit availble consisting of bearing, nut and pin.
• O-318 Hooks utilize Crosby SHUR-LOC® "Positive Locking" hooks.
Latch is Self-Locking when hook is loaded.
• O-319 Hooks utilize Crosby standard 319 Shanks Hooks with the
registered QUIC-CHECK®
marking.
• Replacement latch kits are available. Replacement Hooks for Chain
Hoists
2
Chain
Size
(mm)
O-318
O-318
Stock No.
Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weigh t
Each
(kg)
Dimensions
(mm)
ABCDFGHJ K
6 - 7 1098409 1.5 1.59 44.5 17.8 66.5 9.65 27.9 20.6 37.1 89.0 117
8 - 10 1098427 2.1 2.72 54.0 17.8 81.0 12.7 29.2 23.9 47.5 110 144
10 - 11 1098445 3.8 6.24 76.0 25.4 111 14.2 42.2 29.5 53.5 138 179
13 - 14 1098463 3.8 6.24 76.0 25.4 111 19.1 42.2 29.5 53.5 138 179
Chain
Siz e
(mm)
O-319
O-319
Stock
No.
Wo rking
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weight
Each
(kg)
Dim ensions
(mm)
OD AA B C D E F G H J K
6 - 7 1098312 1.5 1.16 44.5 51.0 17.8 66.5 9.65 19.1 25.4 38.9 25.4 92.0 68.5
8 - 10 1098334 2.1 1.81 54.0 51.0 17.8 81.0 12.7 21.3 28.4 43.7 28.4 104 77.5
10 - 11 1098356 3.8 4.54 76.0 63.5 25.4 111 14.2 28.4 36.6 54.0 34.0 123 96.0
13 - 14 1098378 3.8 4.54 76.0 63.5 25.4 111 19.1 28.4 36.6 54.0 34.0 123 96.0

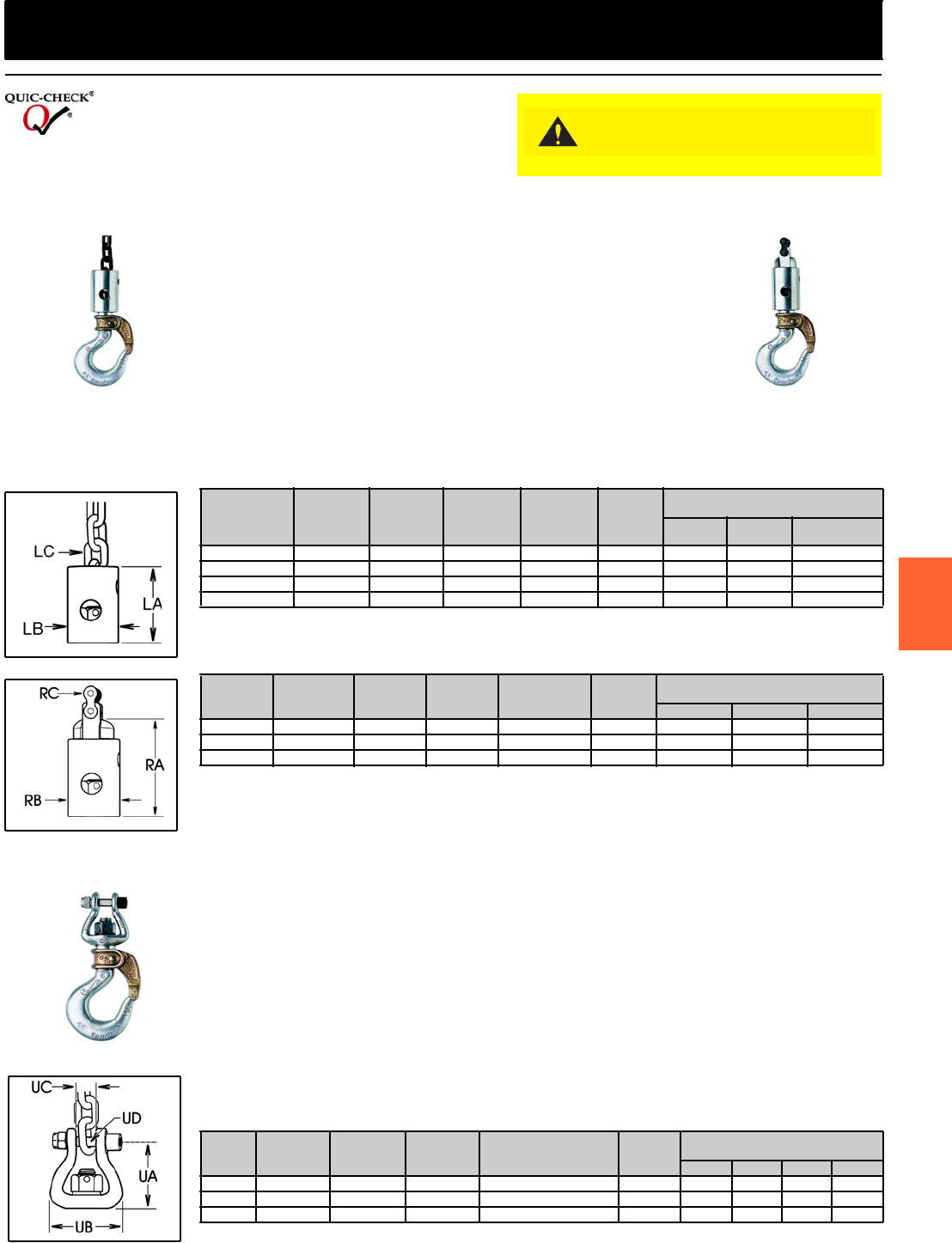

Replacement Hooks for Chain Hoists
Copyright © 2002 The Crosby Group, Inc. 205
All Ri gh ts Re se rv ed
Cha in &
Accessories
•%/( --with self-closing gate.
•%/* --with manual-closing gate.
• Open swivel bail for attachment to link chain.
SEE APPLICATION AND
WARNING INFORMATION
On Pages 114-115
/,1.&+$,1
1(67
BL-O --with self-closing gate
BL-P --wit h manual-closing gate
Wit h ball-bearing swivel; attache s to
c hain by alloy p in.
• A Product Identification Code (PIC) for material traceability, the size,
and the name Crosby or "CG" is forged or stamped onto each hook
and swivel assembly (chain nest).
• Fits 1/ 4" thru 9/16" (6mm th ru 14mm) hoist chain.
• Available in Working L oad Limits of 1. 7, 2.3, a nd 4.2 Tons
(1 .5, 2.1, 3. 8 tonn es).
• Hooks are forged alloy steel - Quenched and Tempered.
• Hooks utilize Crosby standard 319 Shank Hooks with the registerd
QUIC-CHECK
® marking (See page 84 for details).
ReplacementHooksforChainHoists
52//(5&+$,1
1(67
BL-S --with sel f-closing gate .
BL-R --with manual-closing gate.
A ttachmen t with bal l- bearin g swive l
and full- float ing c onn ector.
Hook
Size
BL-O2
BL-O
Stock No. BL-P
Stock N o. Gate
Type
Working
Load
Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weigh t
Each
(kg)
Dimensions
(mm)
LA LB LC
4:1/4-9/32 1051409 1051508 PIN-LOK 1.5 1.13 66.8 44.5 6 - 7
5:5/16-3/8 1051442 1051541 ROLLOX 2.1 2.04 81.0 54.1 8 - 10
7:3/8-7/16 1051464 1051563 ROLLOX 3.8 5.00 111 76.2 10 - 14
7:1/2-9/16 1051486 1051585 ROLLOX 3.8 5.00 111 76.2 10 - 14
Hook
Size
BL-S2
BL-S
Stock No. BL-R
Stock No. Gate
Type
Working
Load Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weigh t
Each
(kg)
Dim ensions
(mm)
RA RB RC
4 :# 50 1051310 1051200 PIN-LOK 0.68 1.32 88.9 44.5 16
5 :# 60 1051321 1051211 ROLLOX 1.13 2.36 111 54.1 19
6 :# 60 1051332 1051222 ROLLOX 1.13 2.81 111 52.3 19
23(1
6:, 9(/%$,/
ReplacementHooksforChainHoists
Open Swivel
Hook
Size
BL-E2
BL-E
Stock No. BL-G
Stock No. Gat e
Type
Working
Load Limit
(t)*
* Ultimate Load is 4 times the Working Load Limit.
Weight
Each
(kg)
Dimensions
(mm)
UA UB UC UD
3 1051607 1051706 PIN-LOK 1.3 .82 54.1 59.7 13.5 10
4 1051618 1051717 PIN-LOK 1.5 .95 54.1 59.7 13.5 10
5 1051629 1051728 ROLLOX 2.1 1.45 66.8 66.8 16.5 13

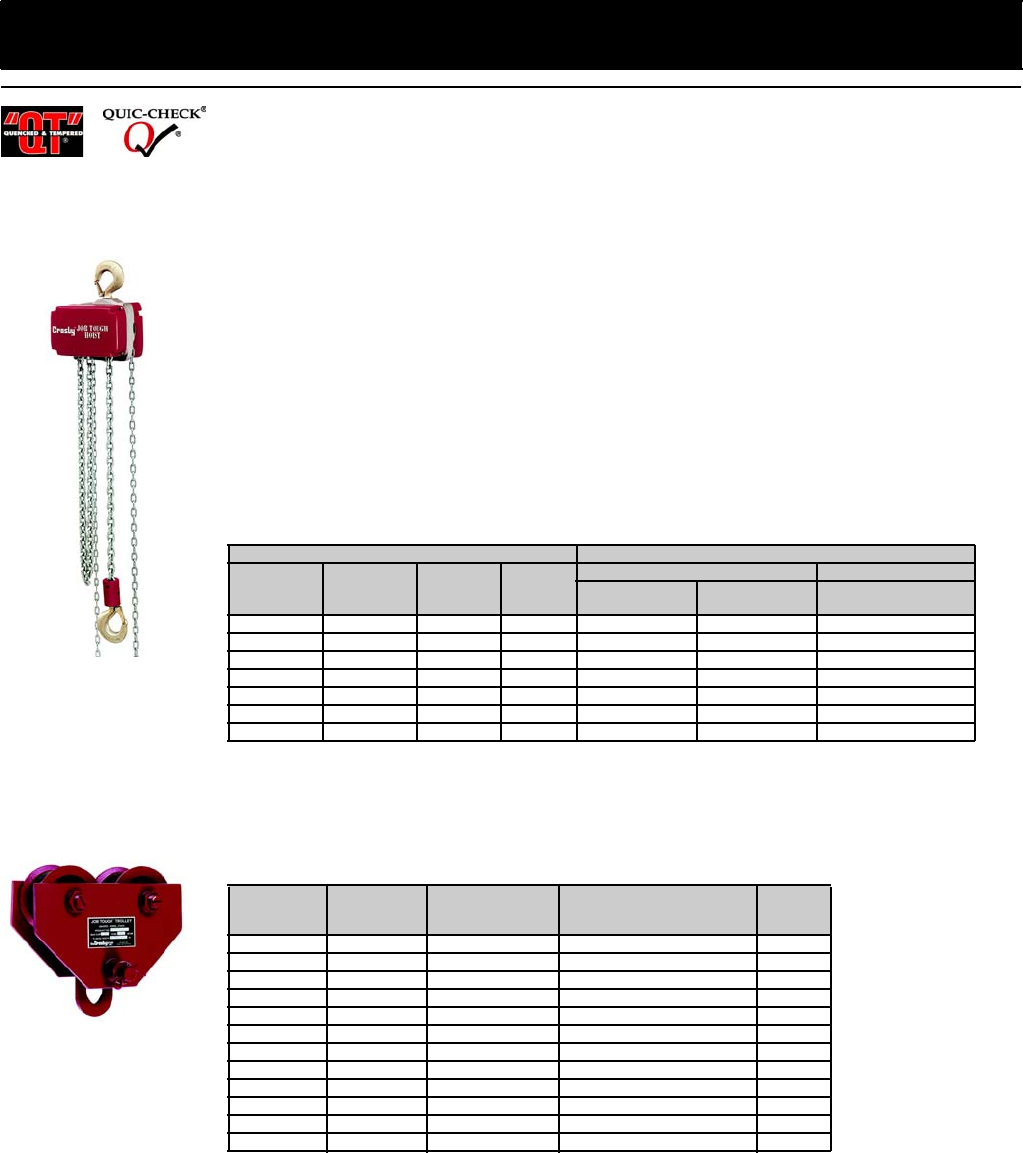

Job Tough® Hoists / Trolleys
206 Copyright © 2002 The Crosby Group, Inc.
All Ri gh ts Re se rv ed
JOB TOUGH®
HOISTS
• Tough, durable protective covers.
• Load chain is zinc plated alloy steel.
• A factory installed Overload Limiting Device.
• Top and bottom hooks are genuine Crosby, forged stee l - Quenched & Tempered.
• Each hook is protected with a yellow chromate finish that increases corrosion resistance.
• Hooks incorporate Crosby's patented QUI C-CHECK ®
markings. Deformation Indicators
and Angle Indicators are forged into each hook.
• A variety of "Gen uine" Crosby replacement hooks are available.
• All hooks furnished with a heavy duty stamped latch that interlocks with hook tip.
Latch utilizes high cycle, long life spring. Replacement kit available.
•Job Tough
® "JT-2500" trolleys available to fit a ll size s.
• Made in U.S.A.
JOB TOUGH®
JT-2500 Trolleys
-7
+$1'+2,67
JobTough
®
Hoists/Trolleys
JOB TOUGH® JT-2000 Hand Hoists Optional Chain Nest Hook Assemblies
JT2000
JT-2000
Stock No. Standard
Lift Range*
* Optio nal Length Available.
Hoist
Capacity
(t)
Weight
Each
(kg)
QUIC-CHECK® Hooks SHUR-LOC® Hooks
O-319
Stock No. BL-O
Stock No. O-318
Stock No.
1007000 2.45 m 0.4 15.9 1098312 1051420 1098409
1007019 2.45 m 0.9 16.8 1098312 1051420 1098409
1007028 2.45 m 1.8 27.2 1098334 1051442 1098427
1007037 2.45 m 2.7 44.0 - - -
1007046 2.45 m 3.6 44.0 - - -
1007055 2.45 m 4.5 57.6 - - -
1007064 2.45 m 5.4 57.6 - - -
-7752//( <
JobTough
®
Hoists/Trolleys
JT-2500
Stock No. Capacity
(t)
Operating
Beam
Flang Type
Operating Beam Flange
Width Range
(mm)
Weight
Each
(kg)
1008003 0.4 - 0.9 Sloped/Flat 76.0 - 143 19.5
1008012 0.4 - 0.9 Sloped/Flat 108 - 168 20.0
1008021 1.35 - 1.8 Sloped/Flat 82.5 - 178 23.1
1008030 1.35 - 1.8 Sloped/Flat 127 - 219 24.0
1008049 2.7 - 3.6 Sloped 102 - 165 45.3
1008058 2.7 - 3.6 Flat 102 - 165 45.3
1008085 2.7 - 3.6 Sloped 165 - 229 47.6
1008094 2.7 - 3.6 Flat 165 - 229 47.6
1008067 4.5 - 5.4 Sloped 117 - 181 79.4
1008071 4.5 - 5.4 Flat 117 - 181 79.4
1008076 4.5 - 5.4 Sloped 184 - 248 82.1
1008110 4.5 - 5.4 Flat 184 - 248 82.1

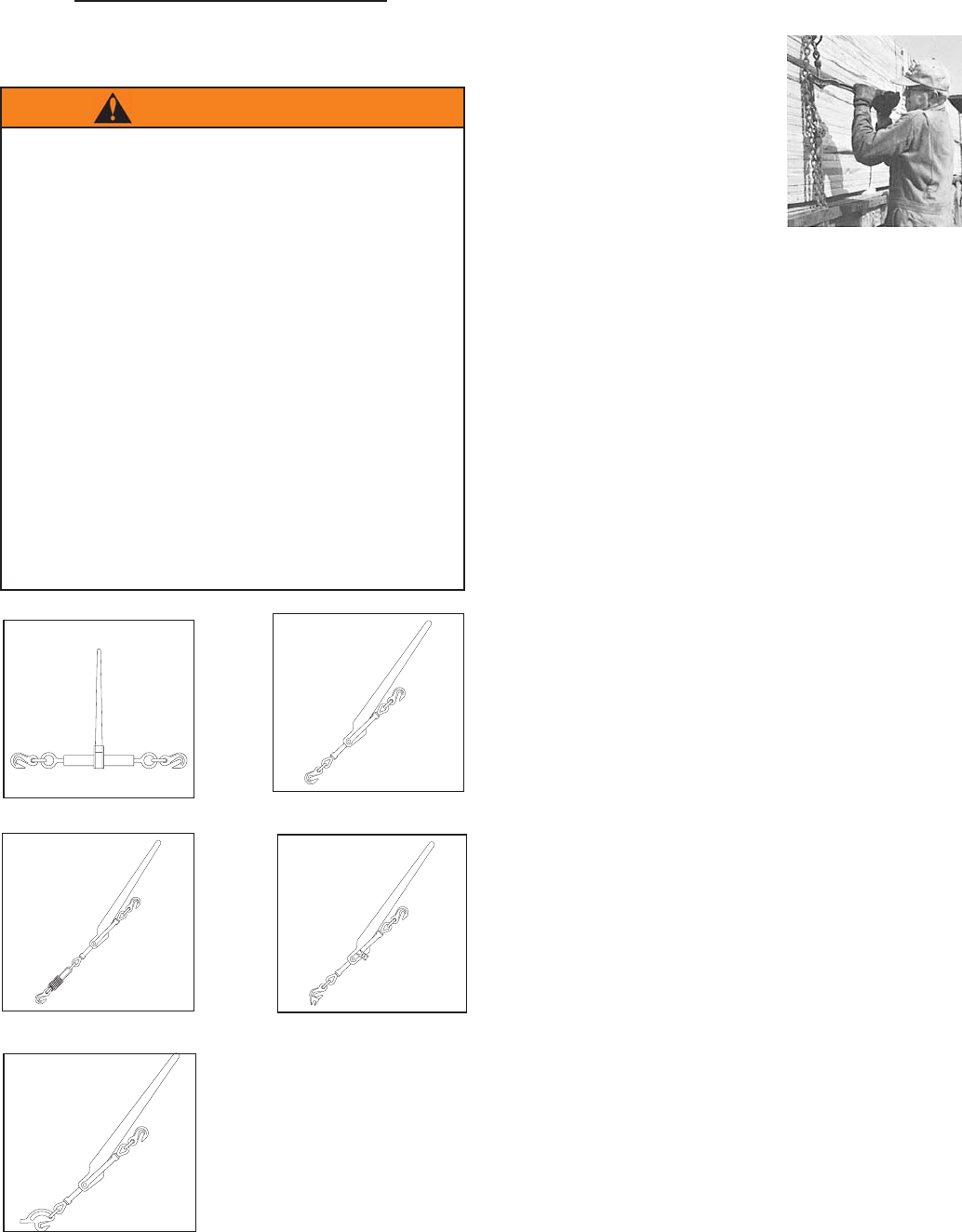

LOAD BINDER
WARNINGS AND APPLICATION
INSTRUCTIONS
Instructions - Lever Type
Load Binders
•Hook load binder to chain so
you can operate it while stand-
ing on the ground. Position
load binder so its handle can
be pulled downward to tighten
chain (see photo). Be aware
of ice, snow, rain, oil, etc.
that can affect your footing.
Make certain your footing is
secure.
•The Crosby Group, Inc. specifically recommends
AGAINST the use of a handle extender (cheater pipe).
If sufficient leverage cannot be obtained using the
lever type load binder by itself, a ratchet type binder
should be used.
•If the above recommendation is disregarded and a
cheater pipe is used, it must closely fit the handle and
must slide down the handle until the handle projections
are contacted. The pipe should be secured to the
handle, for example, by a pin, so that the pipe cannot
fly off the handle if you loose control and let go.
The increased leverage, by using a cheater pipe, can
cause deformation and failure of the chain and load
binder.
•During and after tightening chain, check load binder
handle position. Be sure it is in the locked position and
that its bottom side touches the chain link.
•Chain tension may decrease due to load shifting during
transport. To be sure the load binder remains in proper
position: Secure handle to chain by wrapping the loose
end of chain around the handle and the tight chain, or
tiehandletochainwithsoftwire.
•When releasing load binder, remember there is a great
deal of energy in the stretched chain. This will cause
the load binder handle to move very quickly with great
force when it is unlatched. Move handle with caution.
It may whip - Keep body clear.
•Never use a cheater pipe or handle extender to
release handle. Use a steel bar and pry under the
handle and stay out of the path of handle as it moves
upward.
•If you release the handle by hand, use an open hand
under the handle and pushupward. Do not close your
hand around the handle. Always keep yourself out
of the path of the moving handle.
Instructions - Ratchet Load Binders
•Position ratchet binder so it can be operated from the
ground.
•Make sure your footing is secure.
Maintenance of All Load Binders.
•Routinely check load binders for wear, bending,
cracks, nicks, or gouges. If bending or cracks are
present - Do not use load binder.
•Routinely lubricate pivot and swivel points of Lever
Binders, and pawl part and screw threads of Ratchet
Binders to extend product life and reduce friction wear.
Lever Type
Lever Snubbing Type Lever Walking Type
Lever Releasing Type
Mechanical Advantage
Lever Type Binder =25:1
Ratchet Type Binder =50:1
Example: 100 kg of effort applied to the
binder results in the following force on
the binder.
Lever Type:
2500 (100 kg x 25) kg of force
Ratchet Type:
5000 (100 kg x 50) kg of force
Ratchet Type
WARNING
•Failure to use this load binder properly may result
in serious injury or even death to you or others.
•Do not operate load binder while standing on the
load.
•Move handle with caution. It may whip - Keep body
clear.
•Keep yourself out of the path of the moving handle
and any loose chain laying on the handle.
•You must be familiar with state and federal
regulations regarding size and number of chain
systems required for securing loads on trucks.
•Always consider the safety of nearby workers as
well as yourself when using load binder.
•While under tension, load binder must not bear
against an object, as this will cause side load.
•Do not throw these instructions away. Keep them
close at hand and share them with any others who
use this load binder.
•Do not use handle extender - see instructions.
•Do not attempt to close or open the binder with more
than one person.
Copyright © 2002 The Crosby Group, Inc. 207
All Rights Reserved

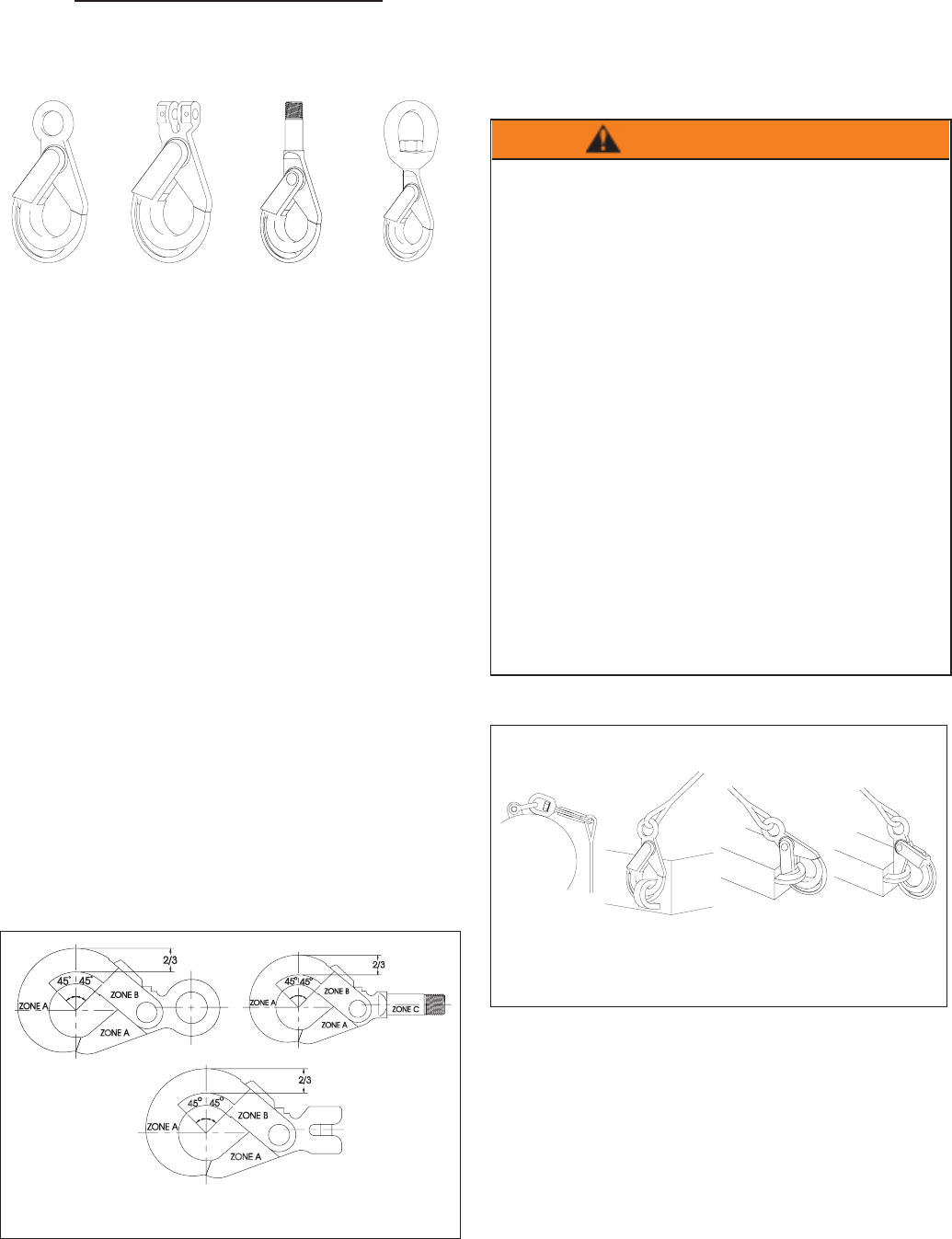

CROSBY SHUR-LOC®HOOK
WARNINGS AND APPLICATION
INSTRUCTIONS
Important Safety Information -
Read and Follow
•A visual periodic inspection for cracks, nicks, wear,
gouges and deformation as part of a comprehensive
documented inspection program, should be con-
ducted by trained personnel in compliance with the
schedule in ANSI B30.10.
•For hooks used in frequent load cycles or pulsating
load, the hook and threads should be periodically
inspected by Magnetic Particle or Dye Penetrant.
(Note: Some disassembly may be required.)
•Never use a hook whose throat opening has been
increased, or whose tip has been bent or twisted.
•Never use a hook that is worn beyond the limits shown
in Figure 1.
•Remove from service any hook with a crack, nick, or
gouge. Hooks with a crack, nick, or gouge shall be
repaired by grinding lengthwise, following the contour
of the hook, provided that the reduced dimension is
within the limits shown in Figure 1.
•Never repair, alter, rework, or reshape a hook by
welding, heating, burning, or bending.
•Never side load, back load or tip load a hook. Side
loading, back loading and tip loading are conditions
that damage and reduce the capacity of the hook.
(See Figure 2).
Figure 1
ZONE A:10% OF ORIGINAL DIMENSION
ZONE B: 5% OF ORIGINAL DIMENSION
ZONE C: SEE MINIMUM THREAD SIZE CHART
S-317A
S-1317
S-316A
S-1316
S-326A
S-318A
WARNING
•Loads may disengage from hook if proper
procedures are not followed.
•A falling load may cause serious injury or
death.
•Never use hook unless hook and latch are fully
closed and locked.
•Keep body parts clear of pinch point between
hook tip and hook latch when closing.
•Do not use hook tip for lifting.
•Shank threads may corrode and/or strip and
drop the load.
•Remove nut securement to inspect or to
replace S-326A bearing washers (2).
•Never apply more force than the hook’s
assigned Working Load Limit (WLL) rating.
•See OSHA Rule 1926.550 (g) for personnel
hoisting by cranes or derricks. A Crosby 316A,
317A, 318A, 326A, 1316A, or 1317A hook may
be used for lifting personnel.
•Use only genuine Crosby parts as
replacements.
•Read and understand these instructions before
using hook.
Back Load
Wrong
Side Load
Wrong Tip Load
Wrong
Figure 2
Side Load
Wrong
208 Copyright © 2002 The Crosby Group, Inc.
All Rights Reserved
Maximum Shank Diameter
Minimum Thread Size
Right
S-1316 & S-1317 Only
Grade 100 Chain
S-316A, S-317A, S-318A, S-326A S-318A Only
Grade 80 Chain Wire Rope XIP
Mechanical Splice
ChainSize WorkingLoad
Limit
(t) **
4:1
Chain Size Working Load
Limit
(t) **
4:1
Wire
Rope
Size
(mm)
Working Load
Limit*
(t)
5:1
Maximum
Shank
Diameter
(mm)
Minimum
Thread
Size
(in.) (mm) (in.) (mm)
— 6 1.4 — 6 1.12 8 .91 18.3 1⁄2-13 UNC
1⁄472
1⁄4-5⁄16 7-8 2 11 1.7 23.9 5⁄8-11 UNC
5⁄16 82.5———————
3⁄810 4 3⁄810 3.15 13 2.3 26.9 3⁄4-10 UNC
1⁄213 6.7 1⁄213 5.3 16 3.5 30.2 1" -8 UNC
5⁄816 10 5⁄816 8 22 6.9 35.1 11⁄4" - 7 UNC
Ultimate Load is 5 times the Working Load Limit based on XIP Wire Rope.
** Ultimate Load is 4 times the Working Load Limit based on Grade 80 or Grade 100 Chain.
†Working Load Limit - The maximum mass or force which the product is authorized to support in general service when the pull is applied in-line,
unless noted otherwise, with respect to the centerline of the product. This term is used interchangeably with the following terms:
1.WLL, 2. Rated Load Value, 3. SWL, 4. Safe Working Load, 5. Resultant Safe Working Load.
Crosby Hook Identification & Working Load Limit Chart†
Figure 5
Wrong
Figure 4
Right
Figure 3
•Efficiency of synthetic sling material may be reduced
when used in eye or bowl of hook.
•Always make sure the hook supports the load. (See
Figure 3).
•Do not use hook tip for lifting (See Figure 4).
•When placing two (2) sling legs in hook, make sure
the angle from vertical to the leg nearest the hook tip
is not greater than 45 degrees, and the included angle
between the legs does not exceed 90 degrees* (See
Figure 5).
•See ANSI/ASME B30.10 “Hooks” for additional
information.
*For two legged slings with angles greater than 90°, use an intermediate
link such as a master link or bolt type shackle to collect the legs of the
slings. The intermediate link can then be placed over the hook to provide
an in-line load on the hook. This approach must also be used when using
slings with three or more legs.
•Wrong thread and/or shank size can cause stripping
and loss of load.
•The maximum diameter is the largest diameter, after
cleanup, that could be expected after allowing for
straightness, pits, etc.
•All threads must be Class 2 or better.
•The minimum thread length engaged in the nut should
not be less than one (1) thread diameter.
•Hook shanks are not intended to be swaged on wire
rope or rod.
•Hook shanks are not intended to be drilled and inter-
nally threaded.
•Crosby cannot assume responsibility for, (A) the qual-
ity of machining, (B) the type of application, or (C) the
means of attachment to the power source or load.
•Consult the Crosby Hook Identification & Working
Load Limit Chart (See below) for the minimum thread
size for assigned Working Load Limits (WLL).†
•Remove from service any Hook which has threads
corroded more than 20% of the nut engaged length.
Important Basic Machining and Thread Information Read and Follow
Copyright © 2002 The Crosby Group, Inc. 209
All Rights Reserved

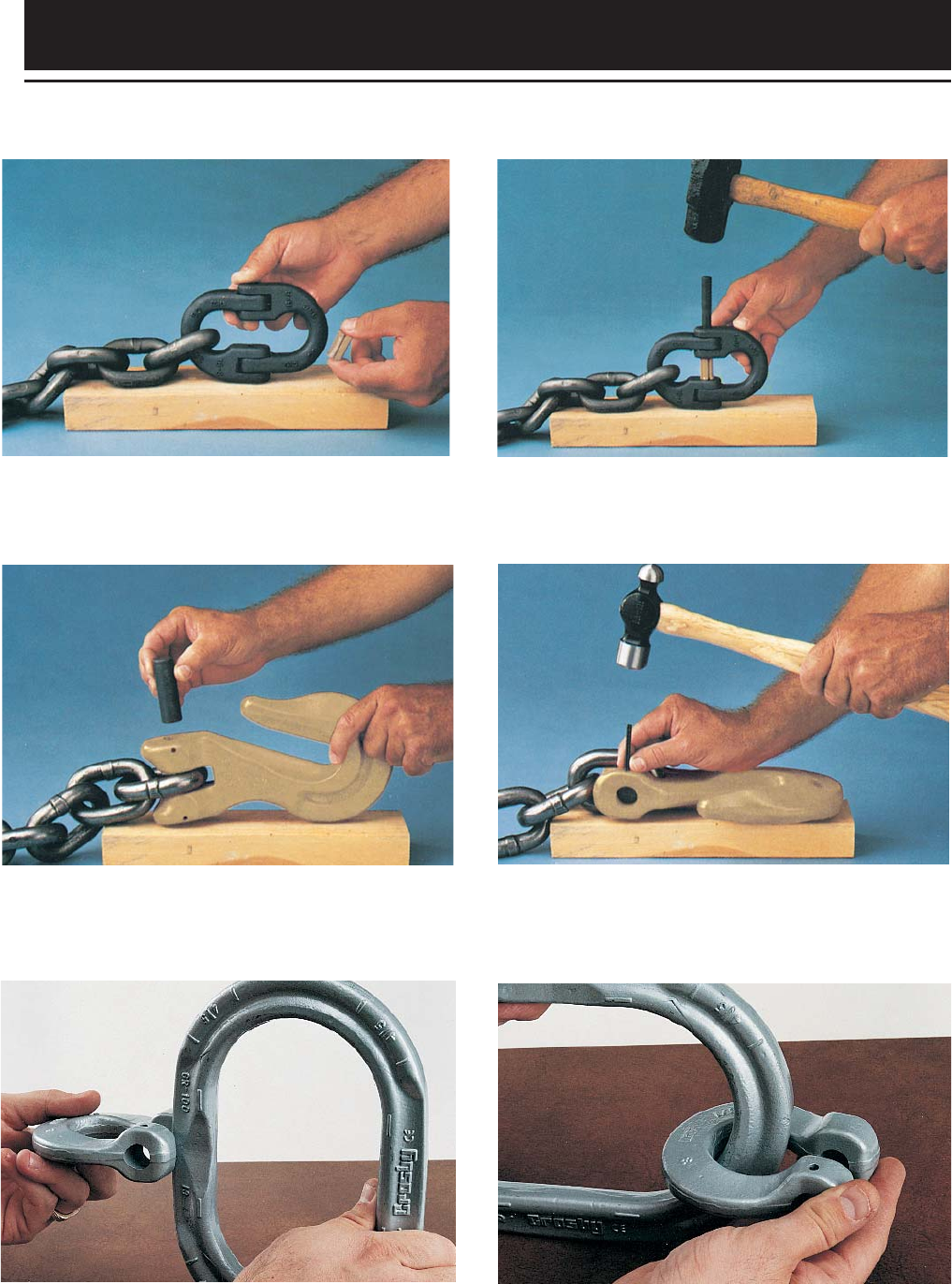

General Information
1. Place the locking sleeve between the assembled half link
forgings.
2. Drive the pin through the assembled link ends and sleeve
until the end of the pin is flush with the outside of the
connecting link halves.
HOW TO ASSEMBLE A LOK-A-LOY®8 CONNECTING LINK
Crosby Spectrum 8 Chain Slings are easy to assemble; the only too required is a hammer
HOW TO ASSEMBLE A CROSBY CLEVIS TYPE HOOK
1. Slide Coupler Link over Engineered Flat of Master Link 2. Rotate Coupler Link so that clevis fitting is to the outside
of Master Link and attach to chain sling.
1. Place chain link into clevis slot of hook. Insert pin fully
into the clevis ears.
2. Place the hook on its side and using a hammer, drive the
locking pin into the clevis ear until it is flush with the
outside surface.
HOW TO ASSEMBLE AN S-325/S-1325 COUPLER LINK
210 Copyright © 2002 The Crosby Group, Inc.
All Rights Reserved

Navigation menu
