Diagram And/or PartsList Cub Cadet Washer 123 Parts Manual For
User Manual: Cub Cadet Washer 123
Open the PDF directly: View PDF
.
Page Count: 65
123 Page 1 of 65

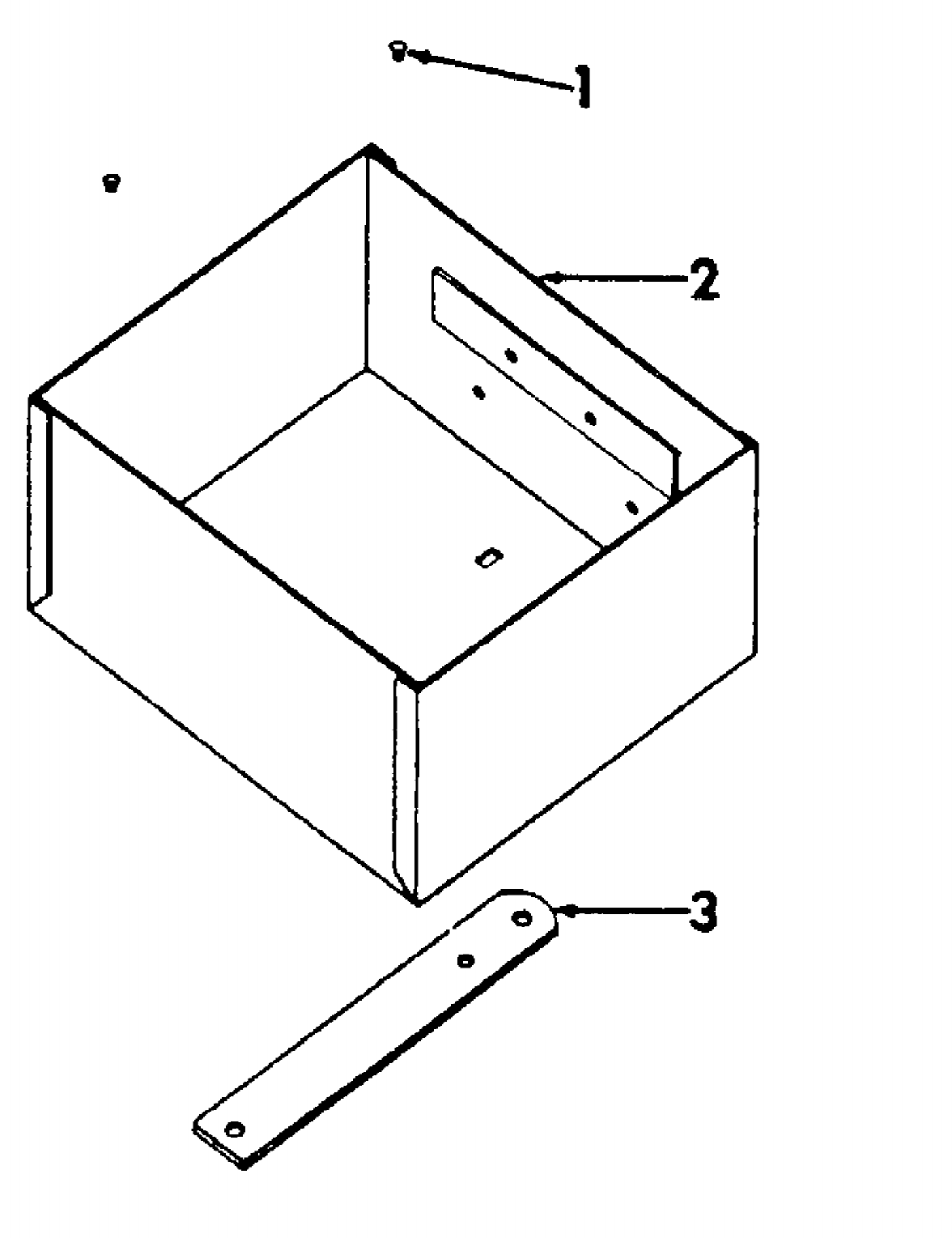

Battery Holder
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 2 of 65
Battery Holder
Ref # Part Number Qty DescriptionS/P/F
1 IH-376294-R2 Bolt, Battery Hold Down2
KH-X-276-7 Nut, 1/4-20 Type A Wing2 S
2 IH-376293-R2 Clamp, Battery Hold Down1 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 3 of 65

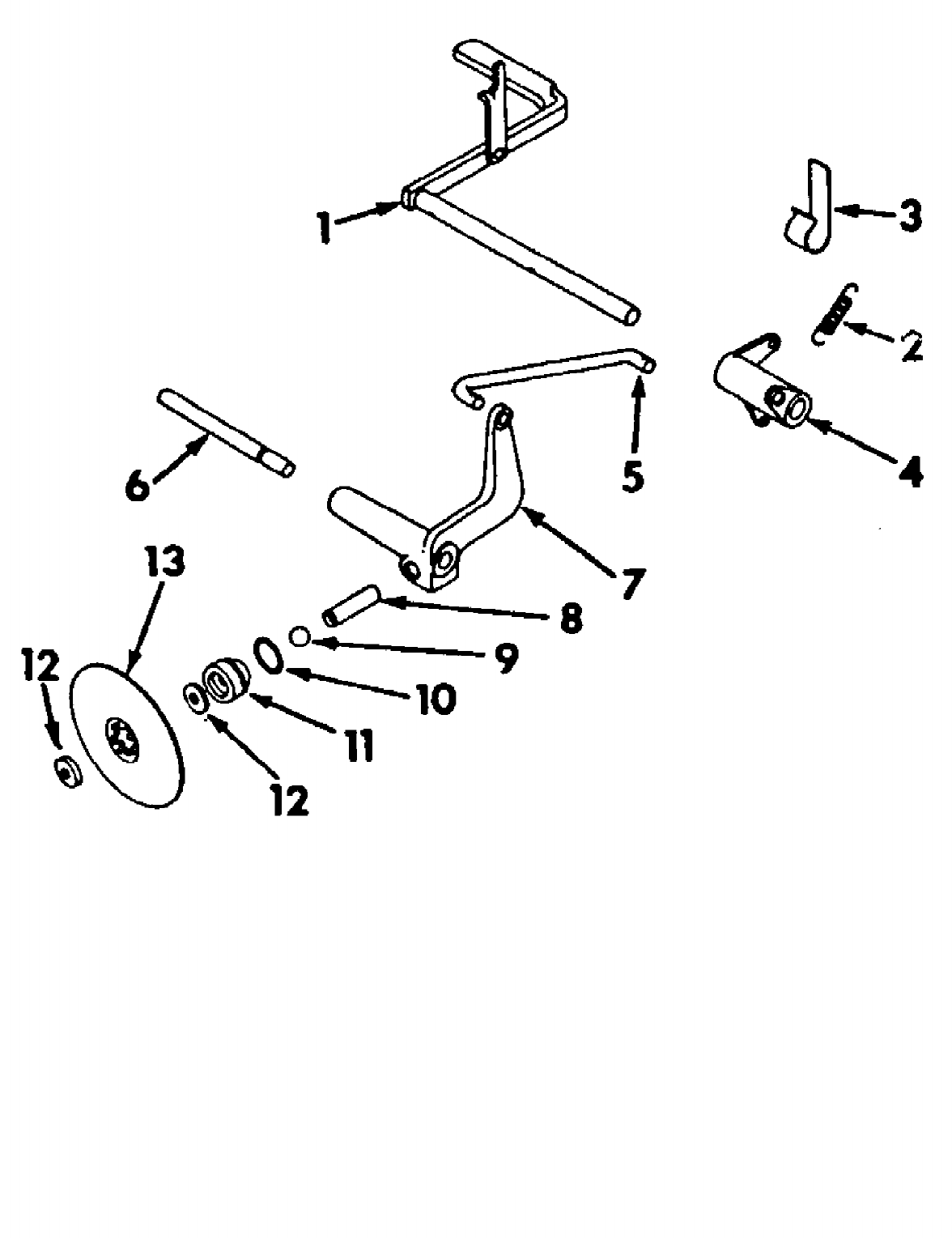

Brake & Connections
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 4 of 65
Brake & Connections
Ref # Part Number Qty DescriptionS/P/F
1 ~NLA Pedal Assy, Brake1
~NLA Rivet, 1/4 X 11/16 Small F Hd Solid1
736-3001 Washer, Spring1 /P
IH-19689-R1 Pin, 1/4 X 1-1/4 Hv Coiled Spring1 S
2 IH-370278-R1 Spring, Clutch Pedal Return1 S
3 IH-394037-R1 Clip, Safety Switch Release Lever Strip1
715-0114A Pin, 1/4 X 1-1/2 Hv Coiled Spring1 S
4 ~NLA Lever, Brake Rod1
5 ~NLA Rod, Brake1
~NLA Pin, 3/32 X 1/2 Cot2
6 IH-394032-R1 Pin, Brake Lever Pivot1
7 IH-394033-R1 Lever, Brake1 Screw, 3/8-16 X 1-1/2 Sq Hd Ov Pt Set*1 Nut, 3/8-16 Hex Jam *1
8 IH-394031-R1 Pin, Brake Push1
9 IH-17018-R1 Ball, 9/16 Dia Cr-Stl1
10 IH-378031-R1 O-Ring, 1-3/16 X 1-3/8 X 3/321 /P
11 IH-384720-R2 Retainer, Brake Lining1
12 IH-384719-R1 Disc, Brake Lining2 S
13 IH-384717-R11 Disc Assy, Brake1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 5 of 65
Carburetor
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 6 of 65

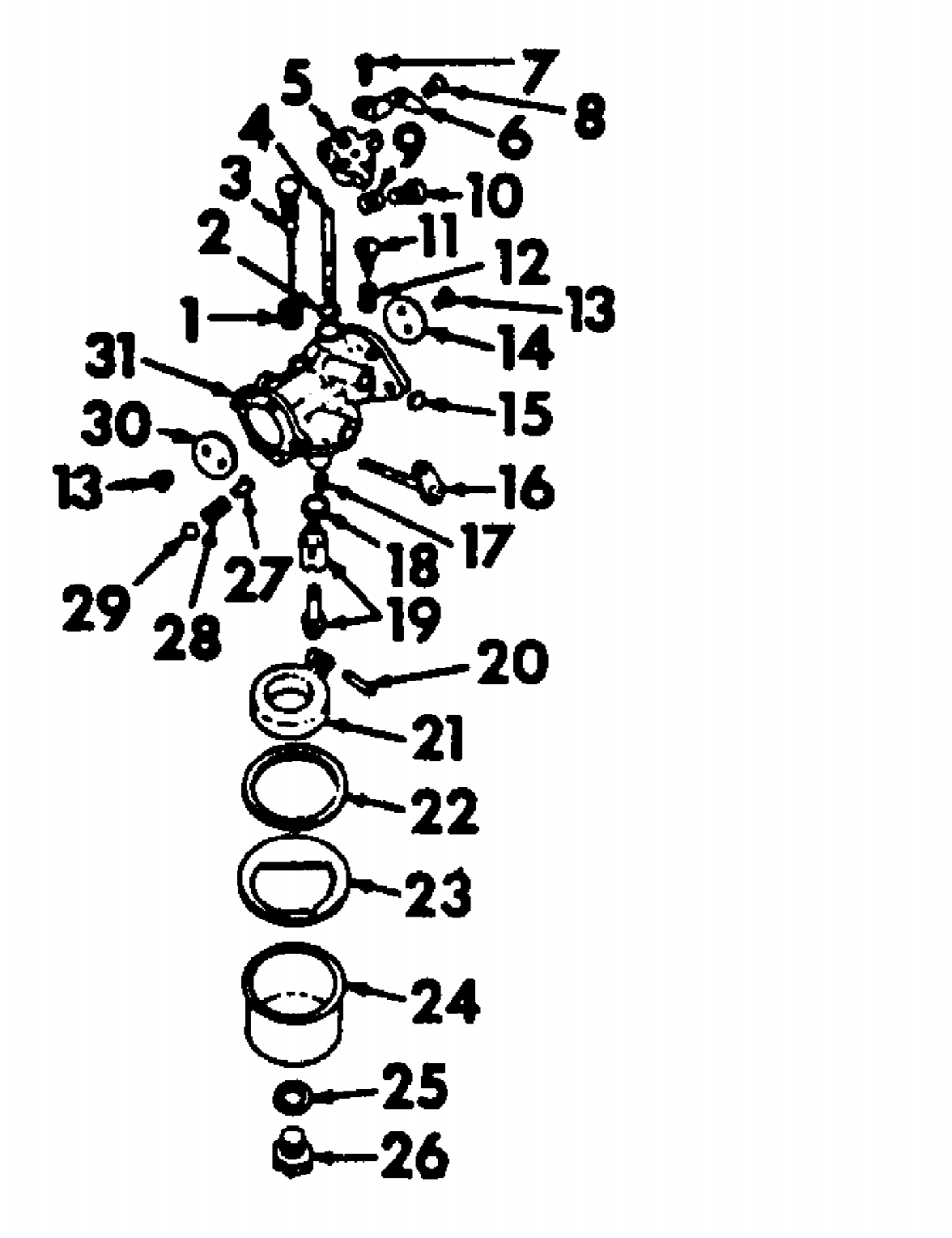

Carburetor
Ref # Part Number Qty DescriptionS/P/F
KH-47-853-22 Carburetor Assy1 /P
1 KH-200383 Spring, High Speed Needle1 /P
2 Seal, Throttle Shaft Dust (Furnish complete
Carburetor Assy)
1
3 KH-235415 Needle Assy, High Speed1 /P
4 Shaft, Throttle (Furnish complete Carburetor
Assy)
1
5 Dog Assy, Throttle Shaft (Furnish complete
Carburetor Assy)
1
6 KH-275228 Lever, Throttle (Furnish complete Carburetor
Assy)
1
7 Screw w/Washer, Throttle Lever (Furnish
complete Carburetor Assy)
1
8 Screw, 8-32 X 1/2 Slt Fil Hd Mach*1
9 KH-200380 Spring, Throttle Lever1
10 ~NLA Screw, Throttle Adjusting1
11 KH-235006 Screw, Idle Adjusting1 S
12 KH-200380 Spring, Idle Adj Screw1
13 Screw, Choke & Throttle Valve (Furnish
complete Carburetor Assy)
4
14 Valve Assy, Throttle (Furnish complete
Carburetor Assy)
1
15 Plug, 3/8 Aluminum Expansion (Furnish
complete Carburetor Assy)
1
16 Shaft & Lever Assy, Choke (Furnish complete
Carburetor Assy)
1
17 Nozzle, High Speed Needle (Furnish
complete Carburetor Assy)
1
18 Gasket, Needle Seat (Furnish Repair Kit
KH-25-757-01)
1
19 Needle & Seat Assy w/Spring (Furnish Repair
Kit KH-25-757-01)
1
20 KH-200376 Pin, Float & Lever1 /P
21 KH-25-757-03 Float & Lever Assy1 S
22 KH-200375 Gasket, Fuel Bowl Ring1 /P
23 KH-25-041-02 Gasket, Fuel Bowl1 /P
24 KH-235448 Bowl, Fuel1 /P
25 Gasket, Fuel Bowl Screw (Furnish Repair Kit
KH-25-757-01)
1
26 KH-47-100-06 Screw, Fuel Bowl1 S
27 Plug, Idle Passage Rivet (Furnish complete
Carburetor Assy)
1
28 Spring, Choke Shaft (Furnish complete
Carburetor Assy)
1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 7 of 65
Carburetor
Ref # Part Number Qty DescriptionS/P/F
29 Ball, Choke Shaft (Furnish complete
Carburetor Assy)
1
30 Valve Assy, Choke (Furnish complete
Carburetor Assy)
1
31 Body, Carburetor (Order Carburetor Assy)1
KH-25-757-01 Kit, Carburetor Repair (Consists of Ref No.
19, 20, 22, 23 & 25)
1 /P
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 8 of 65

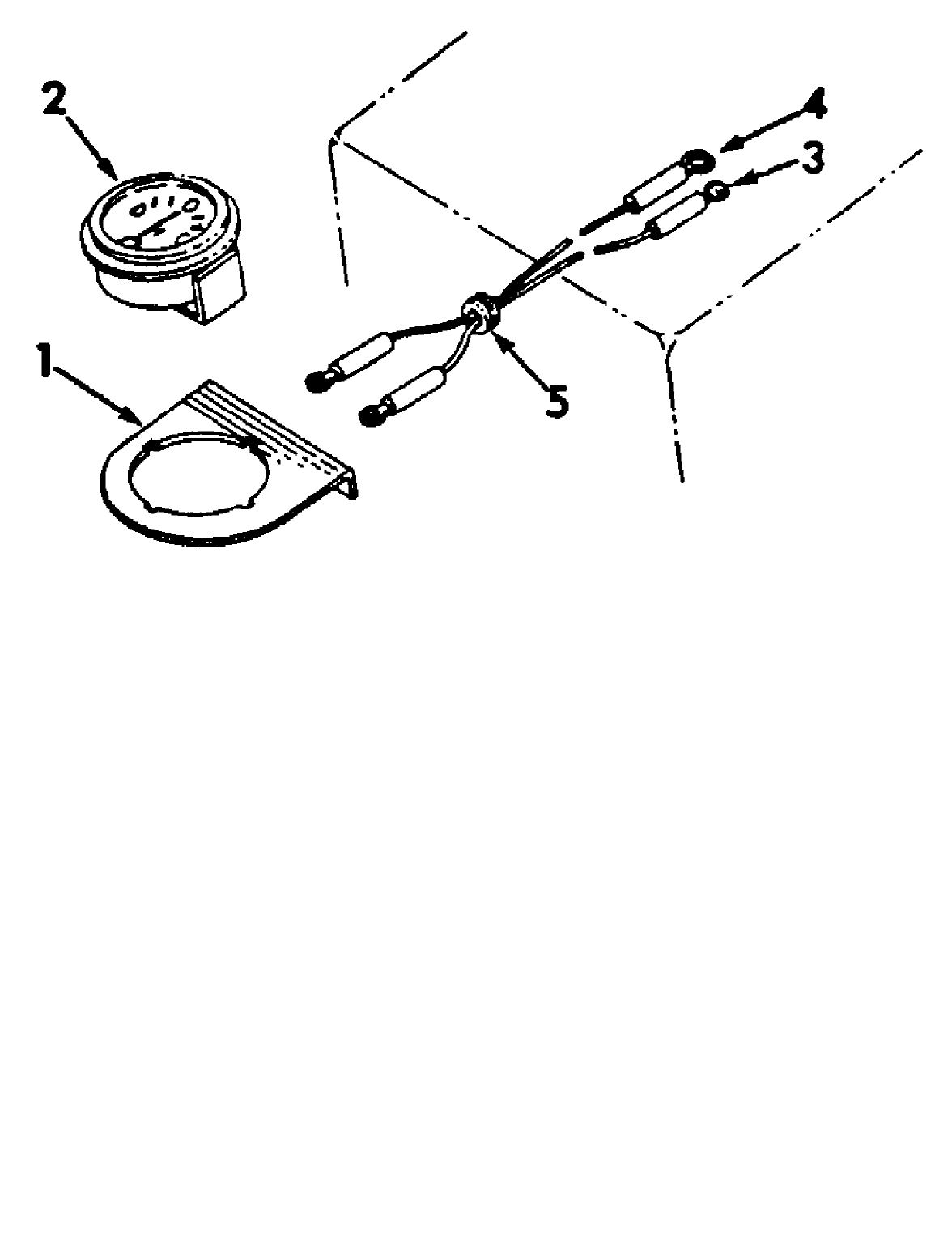

Charge Indicator
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 9 of 65
Charge Indicator
Ref # Part Number Qty DescriptionS/P/F
1 IH-394584-R1 Bracket, Charge Indicator1 Screw, 10-24 X 1/2 C-Z Slt Pan Hd Mach*2
BS-231082 Nut, 10-24 X-Z Hex Mach Screw2
736-0722 Washer, No. 10 C-Z Med Lock2 S
2 725-3023 Indicator Assy, Charge1 S
3 IH-357881-R91 Cable Assy, Charge Indicator to Voltage
Regulator Battery Terminal
1
4 IH-394585-R91 Cable Assy, Charge Indicator to Starting
Switch
1
5 IH-117959 Grommet, Charge Indicator Cables1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 10 of 65
Electric Lighting
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 11 of 65
Electric Lighting
Ref # Part Number Qty DescriptionS/P/F
1 IH-121846-C91 Taillight Assy (Only serviceable items are)1
IH-81714-R1 Gasket, Taillight1
IH-142450 Lamp, No. 671
IH-157729-R1 Lens, Taillight1
IH-121846-C91 Taillight Assy (Only serviceable items are)1
IH-142450 Lamp, No. 671
~NLA Lens, Taillight1
712-3006 Nut, 1/4-20 C-Z Hex2 /P
736-0329 Washer, 1/4 C-Z Med Lock2 S
2 ~NLA Bracket, Taillight Mounting1
710-3000 Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap2 S
736-0329 Washer, 1/4 C-Z Med Lock2 S
712-3006 Nut, 1/4-20 C-Z Hex2 /P
3 IH-62801-DC Switch Assy, Lighting1 S
~NLA Spacer, Lighting Switch1
4 726-3021 Clip, Taillight Cable Snap On2
5 ~NLA Panel Assy, Headlight Mounting1
6 IH-389745-R1 Ring, Headlight Retaining2
7 IH-389746-R1 Ring, Headlight Clamp2 S Nut, 10-32 C-Z Wing *4
8 725-0222 Unit Assy, Sealed Beam Headlight2 S
9 IH-404387-R91 Cable Assy, Lighting Switch to Magnetic
Switch
1
IH-120114 Fuse, Cartridge Type AGC 101
10 ~NLA Cable Assy, Headlight to Ground1
11 ~NLA Cable Assy, Lighting Switch to LH Headlight1
12 IH-404404-R1 Cable Assy, RH Headlight to LH Headlight1
13 ~NLA Cable Assy, Lighting Switch to Taillight1
14 726-3025 Clip, Headlight Cables (On voltage regulator
upper mounting bolt)
1 S
15 726-3025 Clip, Lighting Switch to Taillight Cable (On
rear frame LH side second bolt from rear)
1 S
16 735-3008 Grommet, Taillight Cable1 /P
17 ~NLA Product Graphic, Headlight Panel1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 12 of 65

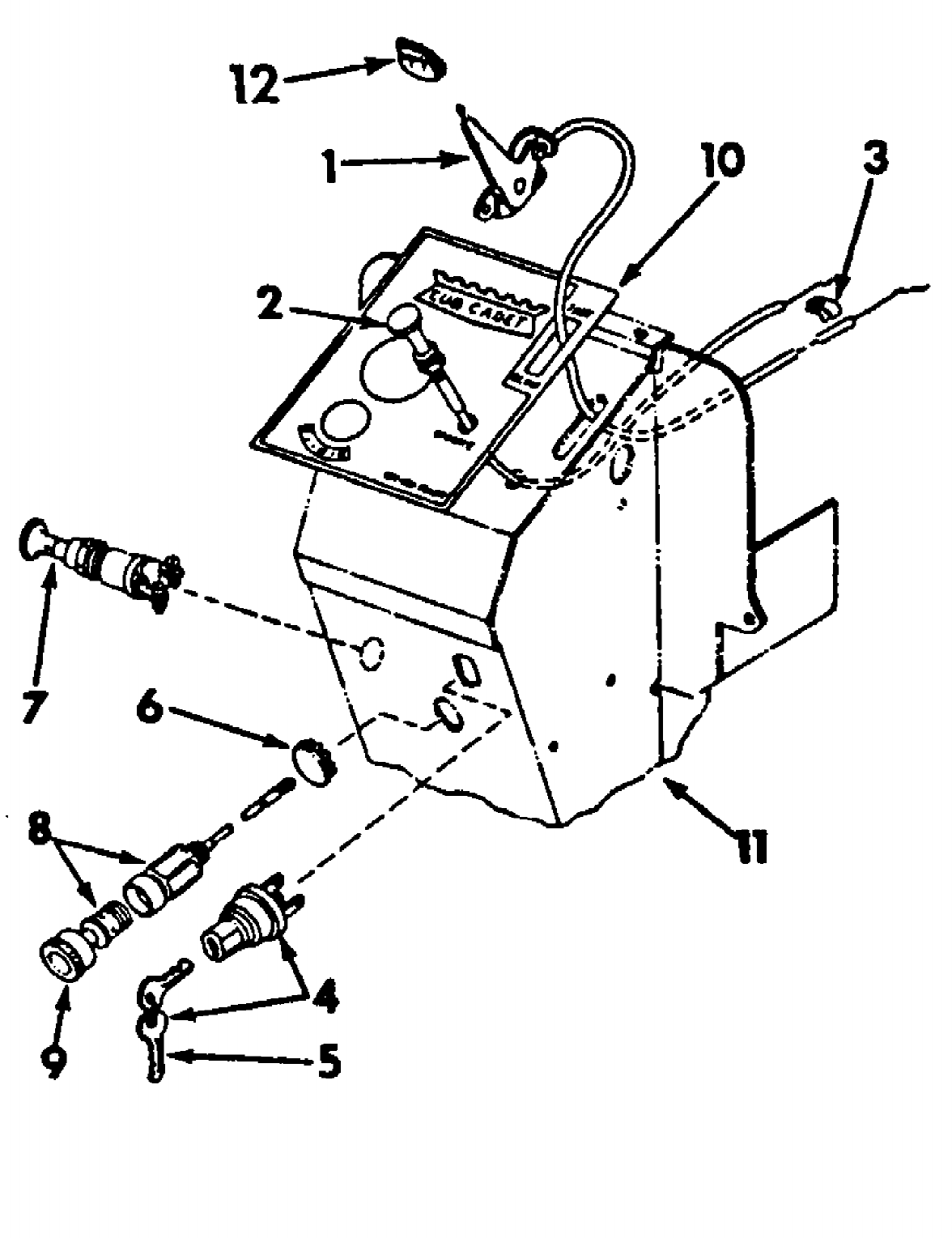

Engine Controls & Instrument Panel
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 13 of 65
Engine Controls & Instrument Panel
Ref # Part Number Qty DescriptionS/P/F
1 IH-384883-R92 Lever & Cable Assy, Throttle (Includes Knob)1 S
IH-443874 Screw, 10-24 X 1/2 C-Z Hex Hd Mach2
736-0722 Washer, 10 C-Z Med Lock2 S
BS-231082 Nut, 10-24 C-Z Hex Mach2
2 IH-384884-R91 Lever & Cable Assy, Choke1 S
3 IH-376298-R1 Clip, Throttle Cable Retainer1 S Screw, 8-32 X 1/2 C-Z Cr Rec Pan Hd Mach*1
712-0142 Nut, 8-32 C-Z Hex Mach1 /P
IH-121841 Washer, 8 C-Z Med Lock1
4 IH-60736-C2 Switch Assy, Ignition1 S
IH-365502-R1 Nut, Switch Mounting1
IH-375431-R1 Washer, Switch Mounting1
5 IH-382458-R1 Key, Switch1
6 IH-432281 Plug, Button (29/32 tractors w/o cigarette
lighter)
1
7 IH-62801-DC Switch Assy, Lighting (Tractors w/electric
lighting)
1 S
~NLA Spacer, Lighting Switch1
8 ~NLA Cigarette Lighter Parts Accessory, 12 Volt1
9 IH-378781-R91 Unit, Pop-Out (Element)1
~NLA Clip, Cable1
10 Product Graphic, Instrument Panel (Not
serviced separately, order package
IH-395309-R91)
1
11 Pedestal Assy (Refer to hood, grille & frame
listing)
1
12 Not serviced separately1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 14 of 65
Engine Driven Power Take-Off
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 15 of 65
Engine Driven Power Take-Off
Ref # Part Number Qty DescriptionS/P/F
IH-546775-R92 PTO Clutch Assy1 /P
1 IH-473484-R1 Rod, Clutch1
712-3006 Nut, 1/4-20 C-Z Hex1 /P
2 IH-473589-R1 Turnbuckle, Rod1
3 IH-473590-R1 Rod, Rear Clutch1
4 IH-401635-R2 Lever, Handle1
~NLA Bolt, 3/8-16 X 1-1/2 C-Z Cr-Rec Truss Hd
Mach
1
IH-481525-R1 Spacer, Handle1
5 Not used in this application1
6 Not used in this application1
7 ~NLA Latch, Handle1 Bolt, 1/4-20 X 1/2 C-Z Sq-Nk Crg Purchase
Locally
2
712-3006 Nut, 1/4-20 C-Z Hex2 /P
736-0329 Washer, 1/4 C-Z Med Lock2 S
8 IH-473471-R1 Plate, Pressure1
9 Disc, Friction (Order 759-3490)1
10 IH-59983-C1 Pulley, Mower Actuating1 S
IH-23025-R1 Screw, 1/4-20 X 1/2 Hex Soc Hd Cone Pt Set3 S
IH-23026-R1 Screw, 1/4-20 X 1/4 Hex Soc Hd F Pt Set3 S
11 IH-473475-R1 Ring, Snap 2.197 O.D., For Pulley1
12 IH-60071-C91 Bearing, Ball1 S
IH-60072-C1 Snap Ring For Bearing1
13 IH-455102-R21 Collar w/Set Screw & Lock Nut, Brg1 S
14 Spring, Pressure (Order 759-3490)1
15 IH-473477-R2 Button, Thrust1 S
16 IH-473483-R1 Button, Wear1 S
17 IH-25930-R1 Nut, 1/4-28 Hex Jam6 S
18 IH-27452-D Spring, Compression3
19 IH-473478-R1 Lever, Throw-Out3 S
20 IH-473472-R1 Screw, Special Machine3 S
21 IH-473479-R91 Shaft, Clutch1 S
22 IH-531978-R1 Spring, Friction Disc3 S
23 ~NLA Clamp, Locating2
759-3490 Kit, PTO Clutch Spring & Disc1 /P
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 16 of 65
Engine-K301a-12 Hp
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 17 of 65
Engine-K301a-12 Hp
Ref # Part Number Qty DescriptionS/P/F
1 712-0250 Nut, Exhaust Muffler Elbow Lock1 S
2 KH-235101 Base, Air Cleaner1 /P Screw, 10-32 X 3/8 Fil Hd Slt Mach*3 Washer, No. 10 Med Lock *3
~NLA Washer, Choke Shaft2
3 IH-385168-R2 Element, Air Cleaner Filter1 S
4 KH-235102 Cover, Air Cleaner1 /P
~NLA Washer, Packing1
5 KH-X-276-7 Nut, Air Cleaner Wing1 S
6 KH-275341 Gasket, Air Cleaner1 /P
7 ~NLA Housing Assy, Blower1 Screw w/Spring Lock Washer, 1/4-20 X 3/8
C-Z Hex Hd Mach*
4
8 KH-235049 Baffle, Cylinder Head Air (Serial No. 315299
& below)
1
KH-237677 Baffle, Cylinder Head Air (Serial No. 315300
& above)
1 /P
KH-X-400-71 Spacer, Pipe1 S
9 KH-235054 Baffle, Cylinder Air1
IH-9409106 Screw w/Spring Lock Washer, 1/4-20 X 1/2
C-Z Hex Hd Mach
1
10 KH-235652 Baffle, Housing Side Air1
11 IH-263515-R91 Clip, Choke Cable1
712-3006 Nut, 1/4-20 C-Z Hex1 /P Washer, 1/4 Med Lock *1
736-0493 Washer,17/16 X 9/16 X .062 C-Z1 S
12 KH-A-237559 Bracket, Throttle Cable1 S
KH-235603 Clip, Speed1 /P
13 KH-A-236919 Bracket, Choke1
KH-235603 Clip, Speed1 /P
14 Crankcase Assy (For service order short
block)
1
15 KH-234866 Bearing, Needle1
16 KH-235007-S Guide, Valve2 /P
17 KH-230170 Insert, Exhaust Valve1 /P
18 KH-235125-06 Shaft, Governor1
19 IH-172548 Plug, 1-1/8 Expansion (Crankcase)1
20 ~NLA Plate, Crankcase Brg1 Screw, 1/4-20 X 5/8 C-Z Hex Hd Cap*4
21 ~NLA Plug, 5/8 Button (Crankcase Bearing Plate)1
22 IH-ST436 Bearing, Crankcase Ball2 S
23 KH-47-032-06 Seal, Crankcase Brg Plate Oil (Blower
Housing End)
1 /P
24 KH-235070 Gasket, Brg Plate, .005AR
KH-235070 Gasket, Brg Plate, .010AR
25 KH-47-032-07 Seal, Crankcase Oil (Flywheel Pulley End)1 /P
26 KH-A-235941 Dipstick (Serial No. 351868 & below)1 /P
KH-A-237282 Dipstick (Serial No. 351869 & above)1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 18 of 65
Engine-K301a-12 Hp
Ref # Part Number Qty DescriptionS/P/F
27 KH-235026 Cover, Camshaft (Serial No. 351868 &
below)
1
IH-9409106 Screw w/Spring Lock Washer, 1/4-20 X 1/2
C-Z Hex Hd Mach
4
~NLA Cover, Camshaft (Serial No. 351869 &
above)
1
28 KH-235025 Gasket, Camshaft Cover1 S
29 KH-240282 Cover, Fuel Pump Pad1 Screw, 1/4-20 X 5/8 C-Z Fil-Hd Mach*2
30 KH-52-041-17 Gasket, Fuel Pump Pad Cover1
31 KH-235895 Tube, Oil Fill1
32 KH-230265 Insert, Intake Valve1 /P
33 KH-47-199-09 Base, Oil Pan1 /P
KH-X-75-10 Plug, 3/8-18 Auto Sq-Hd Filler & Drain1 S Screw w/Spring Lock Washer, 3/8-16 X 1-1/4
C-Z Hex-Hd Mach*
4
34 KH-235353 Gasket, Oil Pan Base1 /P
35 KH-A-235418-S Cover, Breather1
36 KH-235048 Gasket, Breather2 /P
37 KH-275220 Stud, Breather Cover1
712-3006 Nut, 1/4-20 C-Z Hex1 /P Washer, 1/4 Med Lock *1
38 KH-235631 Plate, Breather1 /P
39 KH-235047 Reed, Breather1 S
40 KH-231032 Seal, Breather1 /P
41 KH-235118 Filter, Breather1 /P
42 KH-235117 Baffle, Breather1 /P
43 Carburetor Assy (For components see list of
parts under details of carburetor)
1
KH-X-770-1 Screw w/Internal Tooth Lock Washer, 5/16-18
X 1 Slt Hex Hd Cap
2 S
44 KH-271030 Gasket, Carburetor1 /P
45 KH-231510 Elbow, Carburetor to Fuel Line1
46 KH-47-142-30 Crankshaft1 S
47 KH-230525 Key, Crankshaft1
48 KH-47-755-02 Flywheel1
49 KH-231591 Pulley w/Clutch Drive Plate, Flywheel1 /P
50 KH-X-60-50 Screw, Flywheel Pulley Set2 S
51 IH-452779-R1 Key, 1/4 X 7/8 Sq Parallel1 S
52 KH-41-071-05 Cup Assy, Flywheel Drive1 /P
IH-121358 Nut, 5/8-18 C-Z Hex1 Screw, 8/32 X 1/4 Hex Hd Tap *4 Washer, 5/8 LT Lock *1
759-3287 Cup w/Pulley1
53 KH-235190 Screen, Drive Cup Grass1 /P
54 IH-385293-R1 Pin, Flywheel Drive Cup1 S
55 KH-47-067-09 Rod Assy, Connecting, Std1 /P
KH-47-067-10 Rod Assy, Connecting, .010 U/S1 /P
56 ~NLA Washer, Connecting Rod Lock2
57 736-0140 Washer, Connecting Rod2 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 19 of 65
Engine-K301a-12 Hp
Ref # Part Number Qty DescriptionS/P/F
58 IH-117116-C1 Screw, Connecting Rod2
59 KH-47-874-06 Piston Assy, Std1 /P
KH-47-874-08 Piston Assy, .010 O/S1 /P
KH-47-874-09 Piston Assy, .020 O/S1 /P
KH-47-874-10 Piston Assy, .030 O/S1 /P
60 ~NLA Pin, Piston, Std1
~NLA Pin, Piston, .005 O/S1
61 KH-47-018-01 Retainer, Piston Pin2 /P
62 KH-48-108-01 Ring Set, Piston, Std1 /P
KH-48-108-02 Ring Set, Piston, .010 O/S1 /P
KH-235891 Ring Set, Piston, .020 O/S1 S
KH-48-108-04 Ring Set, Piston, .030 O/S1 /P
63 Ring, Top Compression (Not serviced
separately, order ring set)
1
64 Ring, Center Compression (Not serviced
separately, order ring set)
1
65 Ring, Oil Control (Not serviced separately,
order ring set)
1
66 KH-237670 Head, Cylinder (Replaces IH-393608-R2 by
also ordering baffle KH-237677, gasket
KH-47-041
1 /P
IH-20248-R1 Screw, 3/8-16 X 2-1/4 C-Z Hex Hd Mach6 Screw, 3/8-16 X 2-1/2 C-Z Hex Hd Mach*3
67 KH-270889 Washer, Cylinder Head9 /P
68 KH-47-041-15 Gasket, Cylinder Head1 /P
69 KH-47-010-09 Camshaft Assy1 /P
70 KH-47-089-01 Spring, Camshaft Actuating1 /P
71 KH-237898 Bracket, Fuel Tank (Serial No. 351868 &
below)
1
KH-236943 Bracket, Fuel Tank (Serial No. 351869 &
above)
1
72 KH-47-380-09 Pin, Camshaft1 /P
73 KH-275066 Shim, Camshaft, .005AR /P
KH-275067 Shim, Camshaft, .010AR /P
74 KH-D-235327 Tappet Assy, Valve2 /P
75 KH-235008 Valve, Intake1 S
76 KH-235826 Valve, Exhaust1 /P
77 KH-235010 Spring, Valve2 S
78 KH-230011 Retainer, Valve Spring2 /P
79 IH-46209D Key, Valve Spring Retainer (Order in sets of
two)
4
80 KH-235011 Retainer, Valve Spring Upper2 S
81 KH-235935 Tank Assy, Fuel w/Filler Cap1 S
82 KH-236655 Cap, Fuel Filler1 /P
83 KH-A-236942 Strap, Fuel Tank (Serial No. 351868 & below)2 /P Screw, 1/4-20 X 1-1/4 C-Z Hex Hd Cap*2
IH-20244-R1 Nut, 1/4-20 Esna Stop2
KH-A-236942 Strap, Fuel Tank (Serial No. 351869 &
above)
2 /P
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 20 of 65
Engine-K301a-12 Hp
Ref # Part Number Qty DescriptionS/P/F
84 ~NLA Nipple, 1/8 X 3/4 C-Z Pipe1
85 KH-A-210101 Filter Assy, Fuel1 S
86 KH-210478 Body, Fuel Filter1 /P
87 KH-A-210480 Valve Assy, Needle1 /P
88 KH-210479 Screen, Filter1 /P
89 KH-210467 Bowl, Fuel Filter Glass1 /P
90 KH-210468 Gasket, Fuel Filter Bowl1 /P
91 KH-A-210477 Bail Assy, Fuel Filter Bowl1 /P
92 IH-363660-R1 Clip, Cable Harness1
93 KH-231509 Connector, Fuel Filter (Serial No. 313486 &
below)
1
IH-61181-H Nipple, Hose 1/4 (Serial No. 313487 &
above)
1
94 IH-144526-H1 Sleeve, Fuel Line (Serial No. 313486 &
below)
2 S
95 KH-220786 Nut, Fuel Line (Serial No. 313486 & below)2 /P
IH-210511-R1 Clamp, No. 8 Hose1
96 KH-235372 Line, Fuel Filter to Carburetor Fuel (Serial
No. 313486 & below)
1
~NLA Line, Fuel Filter to Carburetor Fuel (Serial
No. 313487 & above)
1
97 KH-A-237653 Lever, Governor1
712-3006 Nut, 1/4-20 C-Z Hex1 /P Screw, 1/4-20 X 1-1/4 C-Z Hex Hd Cap*1
736-0463 Washer, 9/32 X 5/8 X .062 C-Z2 S
98 KH-235496 Spring, Governor1 /P
99 KH-235086 Bracket, Speed Control1 /P
100 KH-48-755-10 Clamp, Control Bracket1 /P
101 KH-235084 Bracket, Adjusting Screw1 Screw, 1/4-20 X 1 C-Z Hex Hd Cap*1 Washer, 1/4 Med Lock *1
KH-X-25-63 Washer, 17/64 X 1/2 X .062 C-Z1 /P
102 KH-235085 Spacer, Adjusting Screw1 S
103 KH-275690 Washer, Adjusting Screw Spacer1 /P
104 KH-A-235745-S Gear Assy, Governor1
KH-X-25-67 Washer, 13/32 X 3/4 X .0621
105 KH-231355 Pin, Governor Stop1 S
KH-X-25-12 Washer, 17/64 X 1/2 X .062, Copper1 /P
106 KH-A-235256-S Shaft Assy, Governor Cross1 /P
107 KH-235476 Bushing, Cross Shaft1 /P
108 KH-235277 Rod, Ball Joint Throttle1 /P
109 BS-93307 Retainer, Throttle Rod1 /P
110 IH-19726-R1 Joint, 10-32 X 1/4 Ball1 S Nut, 10-32 An-Pltd Hex *1 Washer, No. 10 Med Lock *1
111 IH-172548 Plug, 1-1/8 Expansion1
112 KH-231281 Coil, Ignition1 S
IH-9409106 Screw w/Spring Lock Washer, 1/4-20 X 1/2
C-Z Slt Hex Hd Mach
2
Washer, 17/64 X 1 X .062 C-Z *2
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 21 of 65
Engine-K301a-12 Hp
Ref # Part Number Qty DescriptionS/P/F
113 IH-62188-C1 Condenser, Ignition Coil1 S
114 KH-A-231839 Cable Assy, Condenser to Breaker1 /P
115 KH-220292 Clip, Condenser to Breaker Cable1
116 KH-47-150-03 Bracket & Breaker Assy1 /P
117 IH-62189-C1 Breaker Point Set1 S
118 Bracket, Point Breaker (Not serviced
separately, order KH-47-150-03)
1
Screw w/Washer, 8-32 X 1/4 Znd Slt Pan Hd
Mach*
1
119 KH-47-411-04 Rod, Breaker1 /P
120 KH-232535 Cover, Breaker1 S
KH-X-131-1 Screw w/Internal Tooth Lock Washer, 10-24
X 3/8 C-Z Slt Rd Hd Mach
4 /P
121 KH-52-041-11 Gasket, Breaker Cover1 S
122 IH-H10C Plug, Spark (Champion)1 /P
123 KH-238057 Kit, Hi-Tension Spark Plug Cable Lead1 S
124 Motor Generator (For components see list of
parts under details of motor generator)
1
710-0376 Screw, 5/16-18 X 1 C-Z Hex Hd Cap2 /P Washer, 5/16 Med Lock *2
125 KH-231149 Shim, Motor Generator Mounting BoltAR
~NLA Shim, Motor Generator Mounting BoltAR
126 KH-235373 Bracket, Motor Generator Mounting1
IH-24840-R1 Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap2 Washer, 3/8 Med Lock *2
127 KH-231273 Brace, Motor Generator Adjusting1 S
710-0118 Screw, 5/16-18 X 3/4 C-Z Hex Hd Cap1 S
IH-24840-R1 Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap1 Washer, 5/16 Med Lock *1 Washer, 3/8 Med Lock *1 Washer, 11/32 X 7/8 X .125 C-Z *1
128 KH-231278 Pulley, Motor Generator Drive1 S
129 IH-401960-R1 Belt, Motor Generator Drive1
130 IH-393840-R91 Muffler, Exhaust1 Screw, 5/16-18 X 3/8 C-Z Hex Hd Cap*1
736-0119 Washer, 5/16 C-Z Med Lock1 S
~NLA Washer, 5/16 X 3/4 X .062 C-Z1
KH-X-400-72 Spacer, Exhaust1 S
131 KH-235692 Tube, Exhaust Muffler1 /P
132 KH-237679 Baffle, Heat1 /P
133 ~NLA Angle, Hanging Strap1
IH-681797-C1 Clamp, Muffler1 Bolt, 3/8-16 X 1-1/4 Znd Sq-Nk Crg*1
712-0798 Nut, 3/8-16 Znd Hex1 /P
KH-47-004-01 Gasket Kit, Engine (Consists of Ref No. 6,
24, 25, 28, 30, 34, 36, 40, 44, 68, 90 & 121)
1 S
KH-237419 Cylinder Head Air Baffle Package1 S Washer *5
KH-237277 Stud5 /P
KH-X-400-71 Spacer5 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 22 of 65
Engine-K301a-12 Hp
Ref # Part Number Qty DescriptionS/P/F
IH-20153-R1 Screw4
KH-X-400-72 Spacer Nut Instructions1 S
KH-236676 Baffle1
KH-237677 Baffle1 /P Screw *1
KH-47-755-01 Kit, Dynamic Balance Gear Spacer
Instructions Includes Retainer Spacer, .005
Spacer, .010 Spacer, .020 Spacer
1 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 23 of 65

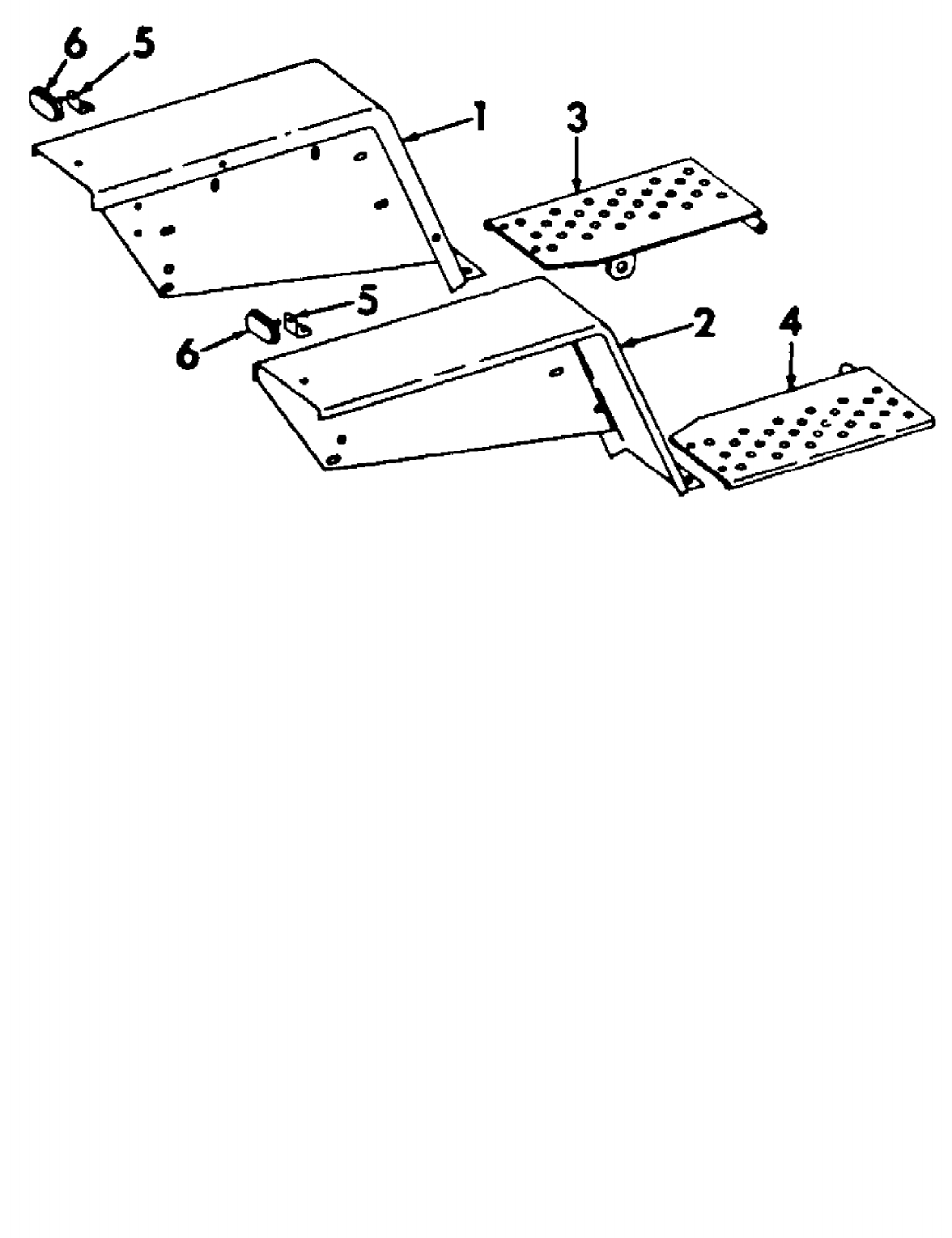

Fenders
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 24 of 65
Fenders
Ref # Part Number Qty DescriptionS/P/F
1 ~NLA Fender Assy, Rear LH1 Screw, 5/16-18 X 5/8 C-Z Slt Truss Hd Mach*2
712-0267 Nut, 5/16-18 C-Z Hex2 S
710-3039 Screw, 5/16-18 X 1/2 C-Z Hex Hd Cap6 /P
2 ~NLA Fender Assy, Rear RH1 Screw, 5/16-18 X 5/8 C-Z Slt Truss Hd Mach*2
712-0267 Nut, 5/16-18 C-Z Hex2 S
710-3039 Screw, 5/16-18 X 1/2 C-Z Hex Hd Cap6 /P
3 ~NLA Support Assy, Foot LH1 Screw, 3/8-16 X 3/4 Hex Hd Cap*1 Washer, 3/8 Med Lock *1
4 ~NLA Support Assy, Foot RH1 Screw, 3/8-16 X 3/4 Hex Hd Cap*1 Washer, 3/8 Med Lock *1
5 ~NLA Angle, Fender Reflector Bracket2 Screw, 10-24 X 3/8 C-Z Slt Rd Hd Mach*2
BS-231082 Nut, 10-24 C-Z Hex2
736-0722 Washer, No. 10 C-Z Med Lock2 S
6 ~NLA Reflector, Fender2
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 25 of 65
Front Axle & Connections
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 26 of 65

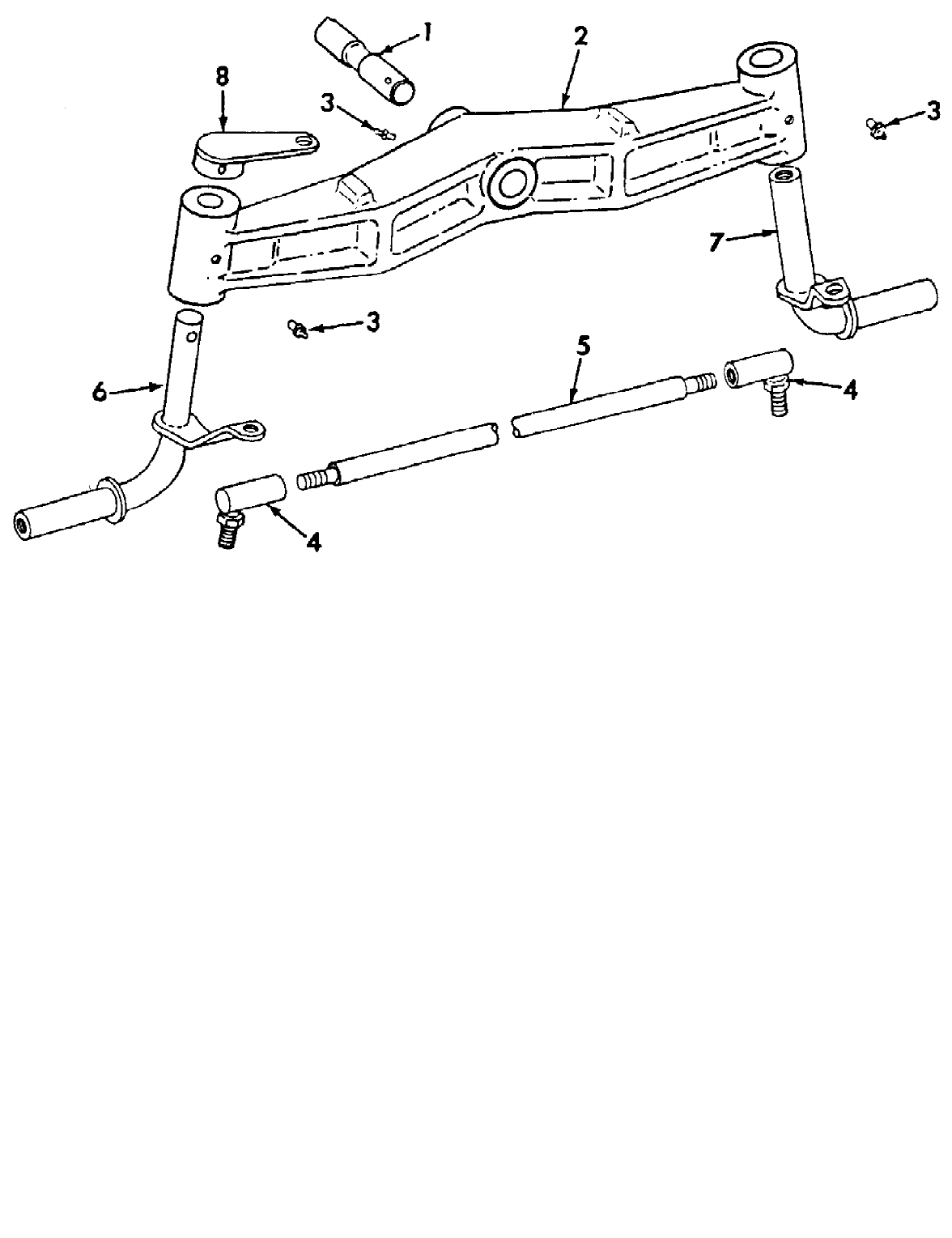

Front Axle & Connections
Ref # Part Number Qty DescriptionS/P/F
1 IH-384626-R3 Pin, Front Axle Pivot1 S
IH-591184-R1 Pin, 3/16 X 1-1/4 Hv Coiled Spring1
2 759-3011 Axle, Front1 S
3 737-3000 Fitting, 3/16 Drive Type Str Lube3 S
4 723-3018 Joint, Tie Rod2 S Nut, 3/8-24 Hex Lock *2
5 IH-384632-R1 Rod, Tie1
712-3001 Nut, 3/8-24 Hex2 S
6 759-3004 Knuckle Assy, Steering LH1 /P Screw, 3/8-16 X 3/4 Hex Hd Cap *1
736-0227 Washer, 13/32 X 1-1/2 X 11 Ga1 S
7 759-3006 Knuckle Assy, Steering RH1 /P Screw, 3/8-16 X 3/4 Hex Hd Cap *1
736-0227 Washer, 13/32 X 1-1/2 X 11 Ga1 S
8 759-3120 Arm Assy, Drag Link1 S
715-3009 Pin, 5/16 X 2 Hv Coiled Spring1 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 27 of 65

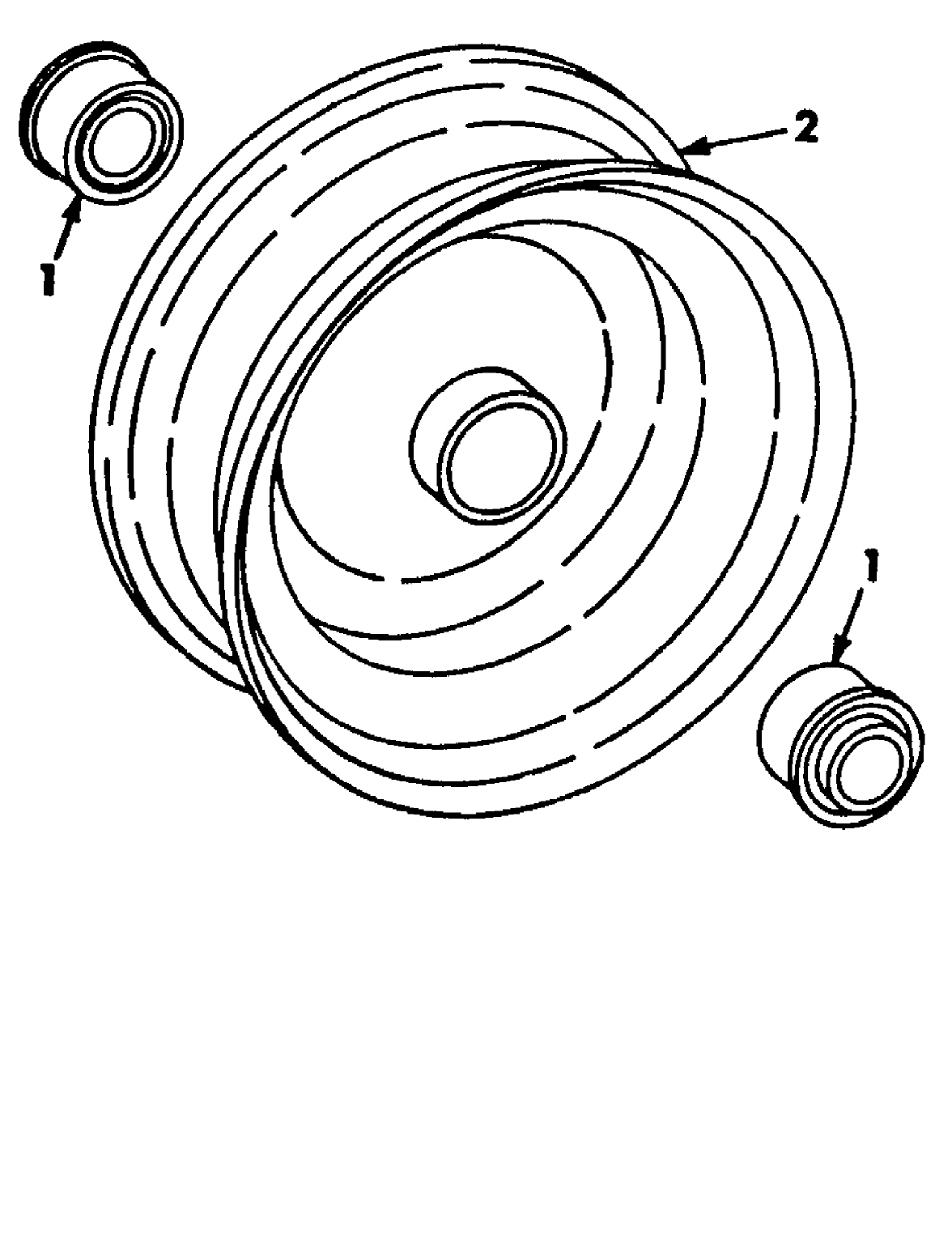

Front Wheels
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 28 of 65
Front Wheels
Ref # Part Number Qty DescriptionS/P/F
1 IH-384881-R93 Bearing Assy, Front Wheel Ball4 S
2 IH-386188-R92 Wheel Assy, Front w/3.75 X 8 Rim for
4.80/4.00 X 8 Tires
2 /P
IH-387839-R92 Wheel Assy, Front w/5.38 X 8 Rim for 16 X
6.50-8 Tires
2
734-0255 Valve, TR-413 Tubeless Type2 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 29 of 65

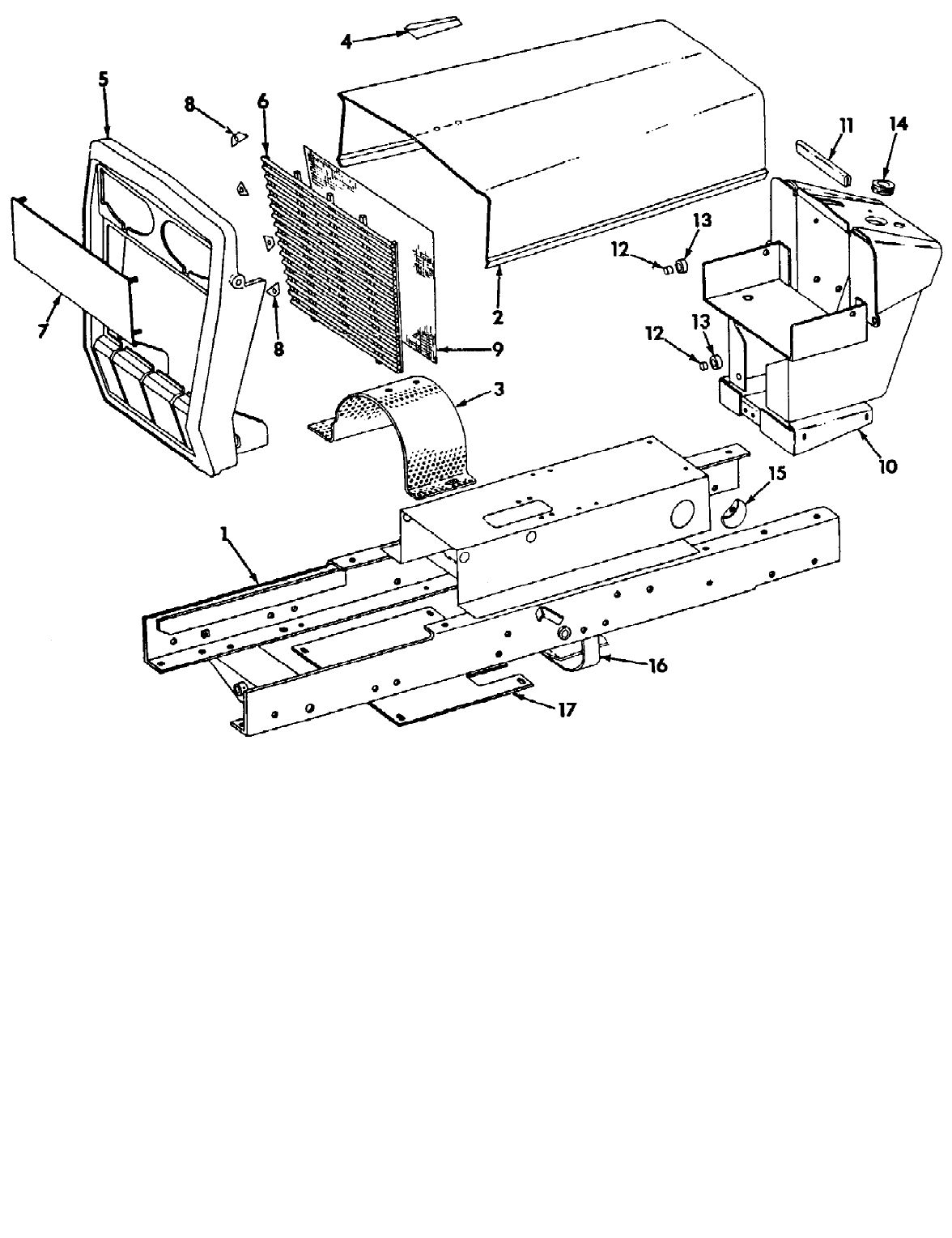

Hood, Grille & Frame
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 30 of 65
Hood, Grille & Frame
Ref # Part Number Qty DescriptionS/P/F
1 ~NLA Frame Assy1 Screw, 1/4-20 X 5/8 C-Z Hex Hd Cap*2 Screw, 3/8-16 X 11/16 Hex Hd Cap*2 Screw, 3/8-16 X 1-1/4 Hex Hd Cap*2
IH-21318-R1 Screw, 3/8-16 X 2-1/2 Hex Hd Cap2 Washer, 3/8 Med Lock *2 Nut, 1/4-20 Hex *4
2 ~NLA Hood Assy1 Screw, 3/8-16 X 1-1/8 C-Z Hex Hd Cap*2
712-3000 Nut, 3/8-16 Gripco Center Lock2 S
736-0140 Washer, 13/32 X 13/16 X .0622 S
3 IH-397457-R1 Shield, Clutch1 S Screw, 12-24 X 1/2 C-Z Hex Hd Cap*2 Washer, No. 12 C-Z Ext Tooth Lock*2
4 ~NLA Product Graphic, Hood Ornament1
IH-423324 Screw w/Ext Tooth Lock Washer, 10-24 X
7/16 Hex Hd Mach
2
5 ~NLA Housing, Grille1
712-0798 Nut, 3/8-16 C-Z Hex4 /P
710-0514 Screw, 3/8-16 X 1 C-Z Hex Hd Cap2 /P
710-0520 Screw, 3/8-16 X 1-1/2 C-Z Hex Hd Cap2 /P
6 ~NLA Grille1
7 ~NLA Strip Assy, Grille Panel1
712-0349 Nut, 10-32 Hex Mach Screw4 /P
8 IH-384898-R1 Strip, Grille Panel Clamp4
9 ~NLA Screen, Grille1
10 ~NLA Pedestal Assy1
710-3000 Screw, 3/8-16 X 3/4 C-Z Hex Hd Cap3 S
710-0514 Screw, 3/8 X 1 C-Z Hex Hd Cap1 /P
736-0169 Washer, 3/8 C-Z Med Lock4 S
11 IH-392622-R1 Bumper, Hood1 S
12 IH-384906-R1 Spacer, Hood Roller Lock2
13 IH-393859-R2 Roller, Hood Lock, Rubber2
710-3015 Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap2 /P Nut, 1/4-20 Stover Hex Lock *2
736-3020 Washer, 17/64 X 5/8 X .036 C-Z2 S
14 IH-384908-R1 Grommet, Instrument Panel1
15 ~NLA Plate, Neutral Adj Cover1 Screw, 1/4-28 X 3/8 C-Z Hex Hd Tap*1 Washer, 1/4 X 9/16 X 18 Ga C-Z *1
16 ~NLA Guard Assy, Suction Tube1
IH-181593 Screw, 5/16-24 X 5/8 Hex Hd Cap2
17 ~NLA Sheet, Bottom Clutch Shield1
IH-172415 Screw, 12-24 X 1/2 C-Z Hex Hd Tap4 S Washer, No. 12 C-Z Ext Tooth Lock*4
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 31 of 65
Hydraulic Unit & Related Parts
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 32 of 65
Hydraulic Unit & Related Parts
Ref # Part Number Qty DescriptionS/P/F
1 IH-386136-R91 Pump Assy, Hyd1
712-0798 Nut, 3/8-16 C-Z Hex1 /P
710-3100 Screw, 5/16-18 X 5/8 C-Z Hex Hd Cap2
736-0119 Washer, 5/16 C-Z Med Lock2 S
736-0140 Washer, 13/32 X 13/16 X .065 C-Z1 S
2 IH-386137-R1 Fitting, Hyd Pump 90 Deg Union2
3 IH-386138-R91 Hose Assy, Hyd 9 In.1
4 IH-386139-R91 Hose Assy, Hyd 14 In.1
5 ~NLA Bracket Assy, Hyd Pump Mounting1 Bolt, 3/8-16 X 7/8 C-Z Crg *2
712-0798 Nut, 3/8-16 C-Z Hex2 /P
736-0169 Washer, 3/8 C-Z Med Lock2 S
736-0140 Washer, 13/32 X 13/16 X .065 Ga C-Z2 S
6 ~NLA Bracket Assy, Hyd Cyl Support1 Bolt, 3/8-16 X 7/8 C-Z Crg *2
712-0798 Nut, 3/8-16 C-Z Crg2 /P
714-0142 Pin, 3/16 X 1-1/4 C-Z Cot1 /P
736-0169 Washer, 3/8 C-Z Med Lock2 S
7 ~NLA Bracket, Frame Mounting1
712-0798 Nut, 3/8-16 C-Z Hex3 /P
710-0520 Screw, 3/8-16 X 1-1/2 C-Z Hex Hd Cap3 /P
736-0169 Washer, 3/8 C-Z Med Lock3 S
8 ~NLA Cylinder Assy, Hyd1
9 ~NLA Clevis Assy, Hyd Cyl End1
10 ~NLA Clip, Cyl End Clevis Rivet Locking1
11 ~NLA Nut, Locking Clip Push-On Type1
12 IH-386149-R1 Rod, Hyd Pump Actuator Control1
13 ~NLA Nut, Actuator Control Rod Push-On Type2
14 ~NLA Extension, Pump Spool1
15 IH-386152-R1 Rod, Control Lever1
IH-20244 Nut, 1/4-20 Nylon Insert1
IH-24840-R1 Screw, 1/4-20 X 7/8 C-Z Hex Hd Cap1
~NLA Washer, 1/4 X 1/2 X .049 Ga C-Z1
16 720-3000 Knob, Control Lever Rod1 S
17 IH-386157-R1 Pulley, Driven1 Screw, 5/16-18 X 3/8 Hex Soc Hd Cup Pt Set*1
18 IH-386160-R1 Belt, Drive Pulley1
19 ~NLA Arm Assy, Lift1
IH-20240-R1 Screw, 5/16-18 X 7/8 C-Z Hex Hd Cap2 Washer, 5/16 C-Z Int Tooth Lock*2
20 TC-786026 Pin, 5/16 X 3/4 Dowel1 /P
21 ~NLA Spacer, Frame Mounting Bracket3
710-0520 Screw, 3/8-16 X 1-1/2 C-Z Hex Hd Cap2 /P
712-3006 Nut, 3/8-16 C-Z Hex2 /P
736-0169 Washer, 3/8 C-Z Med Lock2 S
22 ~NLA Rivet, 1/2 X 1-1/4 F-Hd Solid1
23 ~NLA Tube, Hydraulic Cylinder1
24 ~NLA Guide, Hydraulic Cylinder1
25 IH-350429-R1 O-Ring, 5/8 X .813 X 3/32 (Hydraulic Cylinder
Guide)
1
26 ~NLA Piston & Rod, Hydraulic Cylinder1
27 ~NLA Washer, Piston & Rod Backup2
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 33 of 65
Hydraulic Unit & Related Parts
Ref # Part Number Qty DescriptionS/P/F
28 ~NLA Head, Hydraulic Cylinder1
29 IH-252483-R1 O-Ring, 1-1/4 X 1-1/2 X 1/8 (Hydraulic
Cylinder Head)
3
30 ~NLA Body & Valve, Hyd Pump1
31 IH-444687 Plug, 1/8-27 Automotive Hex Soc Hd Pipe1
32 IH-17010-R1 Ball, 5/16 Cr-Stl1
33 ~NLA Spring, Hyd Pump Body1
34 IH-584773-R1 Plug, Pump Body Spring Retaining1
35 IH-386368-R1 Gasket, Hyd Pump Body1
36 ~NLA Spacer, Spring Sleeve1
37 IH-17047-R1 Pin, 5/32 X 7/8 Slt Spring1
38 715-3004 Pin, 1/8 X 1-1/4 Slt Spring2 S
39 IH-707253-R1 O-Ring, 1-1/4 X 1-1/2 X 1/8 (Hydraulic Pump
Spool Valve)
1
40 ~NLA Ring, Hyd Pump Spool Valve Snap1
41 IH-386371-R1 Spring, Hyd Pump Spool Valve1
42 IH-386372-R91 Shaft Assy, Hyd Pump Drive Includes Ref.
No. 44
1
43 ~NLA Shaft, Hyd Pump Idler1
44 Gear, Hyd Pump Idler Shaft Order Ref No. 421
45 ~NLA Cover, Hyd Pump Shaft1
46 ~NLA Screw w/Spring Lock Washer, 10-32 X 7/16
Slt Fil Hd Mach
6
47 IH-347478-R91 Seal, Hyd Pump Drive Shaft1
48 ~NLA Reservoir, Hyd Pump1
49 Screw, 1/2-20 X 1/2 Hex Hd Cap *1
50 ~NLA Washer, Hyd Pump Reservoir Fiber1
51 ~NLA Stud, Hyd Pump Reservoir1
52 Nut, 3/8-16 Hex Jam *1
53 IH-386379-R1 Washer, Hyd Pump Reservoir Stud1
54 TC-792040 Pin, 3/16 X 1-1/2 Slt Spring2
55 ~NLA Washer, 11/32 X 11/16 X .0652
56 ~NLA Screw w/Nylon Pellet, 5/16-18 X 1-1/8 Hex Hd
Cap
1
57 IH-403281-R1 Arm, Support1
712-0798 Nut, 3/8-16 C-Z Hex1 /P
710-0514 Screw, 3/8-16 X 1 C-Z Hex Hd Cap1 /P
736-0140 Washer, 13/32 X 3/4 X 16 Ga1 S
736-0169 Washer, 3/8 C-Z Med Lock1 S
726-3015 Clip, Cable Harness (For securing cable
harness)
1 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 34 of 65

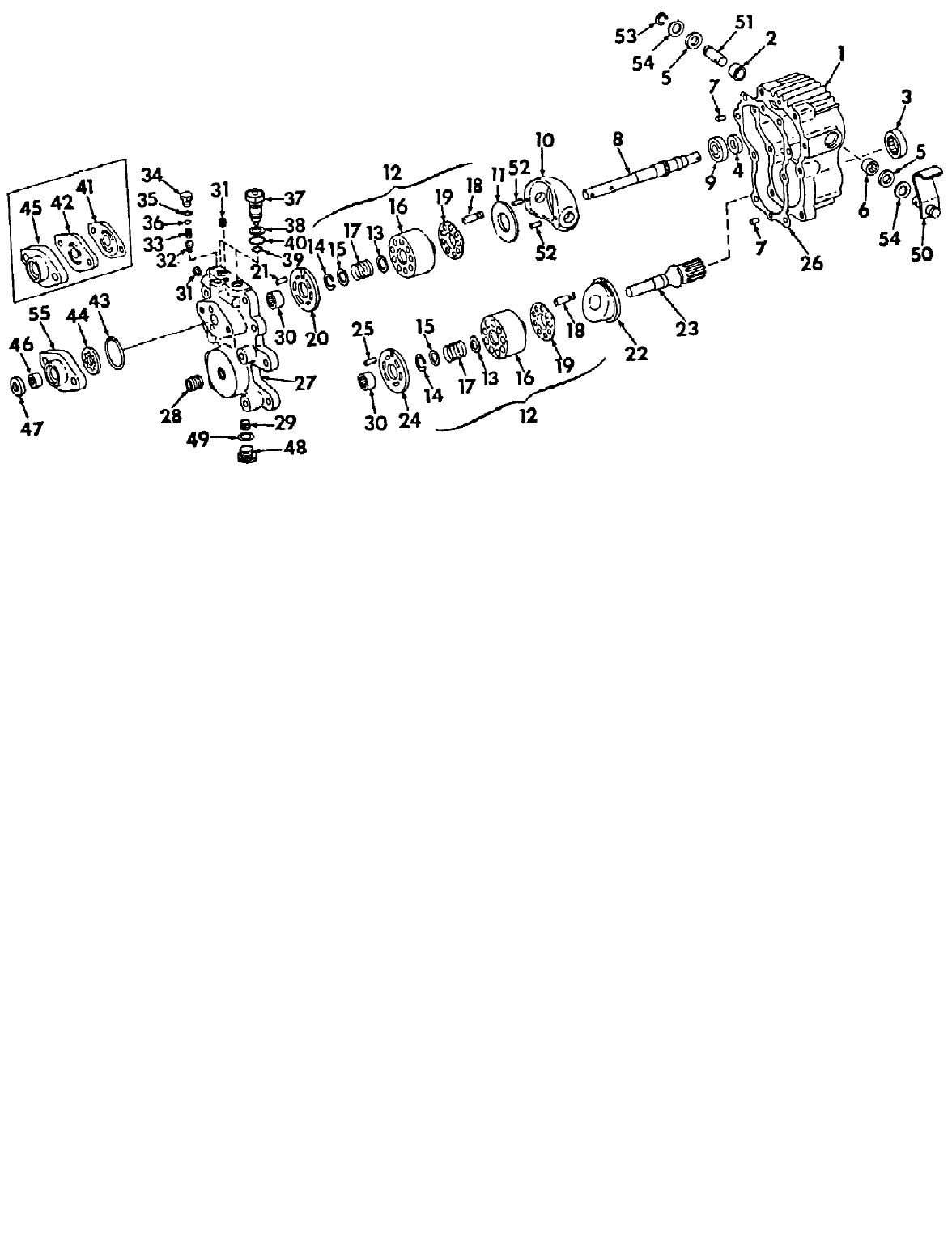

Hydrostatic Transmission
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 35 of 65
Hydrostatic Transmission
Ref # Part Number Qty DescriptionS/P/F
717-3032 Transmission Assy, Hydrostatic Drive1
1 IH-398560-R91 Housing Assy (Includes Ref. No. 2)1 Screw, 1/4-20 X 7/8 Hex Soc Hd Cap*2
2 Not used in this application1
3 SU-9001370-0003 Bearing, Hyd Pump Shaft Roller1 /P
4 IH-394847-R91 Seal, Lip1 S
5 IH-383534-R91 Seal, Lip2 S
6 Bearing, Needle1
7 SU-9004800-2506 Pin, Transmission Housing2 S
8 Shaft, Transmission Hyd Pump (Order shaft
SU-3101867, pin SU-9004875-0076, housing
& O-ring IH-23707-R1); (Used w/transmission
assy IH-397475-R93)
1
SU-3101867 Shaft, Transmission Hyd Pump (Used
w/transmission assy IH-406843-R91)
1 /P
9 741-0361 Bearing, Ball1 S
10 IH-394851-R1 Swashplate, Hyd Pump1
11 IH-394852-R1 Plate, Hyd Pump Swashplate Thrust1
12 IH-398563-R91 Kit, Cylinder Block Motor & Pump (Used
w/transmission assy IH-397475-R93)
2
12 SU-3103136 Kit, Cylinder Block Motor & Pump (Used
w/transmission assy IH-406843-R91)
2 /P
13 IH-405179-R1 Washer, Spring Front2 /P
14 IH-317776-R1 Ring, Hyd Cyl Block Spring Rear Washer
Snap
2
15 IH-394858-R1 Washer, Hyd Cyl Block Spring Rear2
16 SU-3103136 Block, Cylinder2 /P
17 SU-3100120 Spring, Hyd Cylinder Block2
18 SU-3103136 Piston Assy, Hyd Pump & Motor18 /P
19 SU-3100194 Retainer, Hyd Piston Slipper2 /P
20 SU-3102731 Plate, Hyd Cyl Block Valve1 /P
21 SU-9004800-1508 Pin, Hyd Pump Cyl Block1 /P
22 SU-3100349 Swashplate, Hyd Motor Order service kit
SU-9510735
1
23 SU-3101752 Shaft, Transmission Hyd Motor1 /P
24 SU-3102687 Plate, Hyd Motor Cyl Block Valve1 /P
25 SU-9004800-1508 Pin, Hyd Motor Cyl Block1 /P
26 SU-3102875 Gasket, Transmission Housing1 S
27 IH-406845-R1 Housing, Center Section1 Screw, 3/8-16 X 1-1/4 Hex Hd Cap*1 Screw, 3/8-16 X 1-1/2 Hex Hd Cap*1 Screw, 3/8-16 X 2 Hex Hd Cap*4 Screw, 3/8-16 X 1-1/4 Hex Hd Cap*2
28 IH-394868-R1 Fitting, Center Housing Oil Filter1 S
29 IH-444691 Plug, 1/4-18 Automotive Hex Soc Hd Pipe1
30 SU-9001355-0001 Bearing, Center Housing Needle2 /P
31 IH-444687 Plug, 1/8-27 Automotive Hex Soc Hd Pipe2
32 SU-3100053 Cone, Charge Pump Relief Valve1 /P
33 SU-3101536 Spring, Charge Pump Relief Valve1 /P
34 SU-3101159 Plug, Charge Pump Relief Valve1 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 36 of 65
Hydrostatic Transmission
Ref # Part Number Qty DescriptionS/P/F
35 IH-369384-R1 O-Ring, 13/32 X 9/16 X 5/64 Relief Valve Plug1
36 SU-9510447 Shim, Pack1/AR /P
37 SU-9500085 Valve Assy, Center Housing Check2 S
38 SU-9006110-0160 Washer, Check Valve Housing Housing Back
Up
2 /P
39 IH-379181-R1 O-Ring, 5/8 X 3/4 X 1/16 Check Valve
Housing Small
2
40 721-3005 O-Ring, 3/4 X 15/16 X 3/32 Check Valve
Housing Large
2 S
41 IH-398570-R2 Gasket, Charge Pump Port Plate (Used
w/transmission assy IH-397475-R93)
1 S
42 IH-398571-R1 Plate, Charge Pump Port (Furnish housing
717-3032, shaft SU-3101867 & O-ring
IH-23707-R1)
1
43 ~NLA O-Ring, 2-1/8 X 2-3/8 X 1/8 (Used w/shaft
IH-405177-R1)
1
IH-23707-R1 O-Ring, 2-3/8 X 2-1/2 X 1/6 Class 5 (Used
w/shaft SU-3101867)
1
44 SU-9510405-0001 Rotor Assy, Charge Pump1 /P
SU-9004875-0076 Pin, Charge Pump Rotor1 /P
45 IH-398572-R91 Housing Assy, Charge Pump (Used
w/transmission assy IH-397475-R92)
1 F
45 IH-398573-R1 Housing, Charge Pump (Used w/transmission
assy IH-397475-R93); (Furnish housing
SU-9510405-0001, shaft SU-3103867 &
O-ring IH-23707-R1)
1
46 IH-381501-R91 Bearing, Charge Pump Housing Needle1 S
47 IH-394847-R91 Seal, Lip1 S
48 IH-9410359 Plug, 3/4-16 C-Z Str Thrd O-Ring Boss Center
Hsg
2
49 IH-570828-R1 O-Ring, 41/64 X 13/16 X 3/32 Center Hsg
O-Ring Plug
2
50 SU-3103181 Shaft Assy, Trunnion1 S
51 SU-3101045 Shaft, Trunnion1 /P
52 IH-27280-R1 Pin, 3/16 X 5/8 Slt Spring2 /P
53 IH-21065-R1 Ring, Trunnion Shaft Snap1
54 SU-9009625-6904 Washer, Trunnion Shaft Seal Retaining2 /P
55 SU-9510405-0001 Housing, Charge Pump (Used w/transmission
assy 717-3032)
1 /P
Screw, 7/16-14 X 2 Hex Hd Cap*2
736-0171 Washer, 7/16 Med Lock2 S
SU-9510735 Kit, Swashplate w/Hsg Service1
SU-3103065 Housing1
SU-9008000-6201 Oil Seal1 S
SU-9008000-6701 Oil Seal1 /P
SU-9001455-0004 Needle Bearing2
SU-3102020 Thrust Plate2 /P
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 37 of 65
Hydrostatic Transmission
Ref # Part Number Qty DescriptionS/P/F
SU-3102029 Swashplate2
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 38 of 65

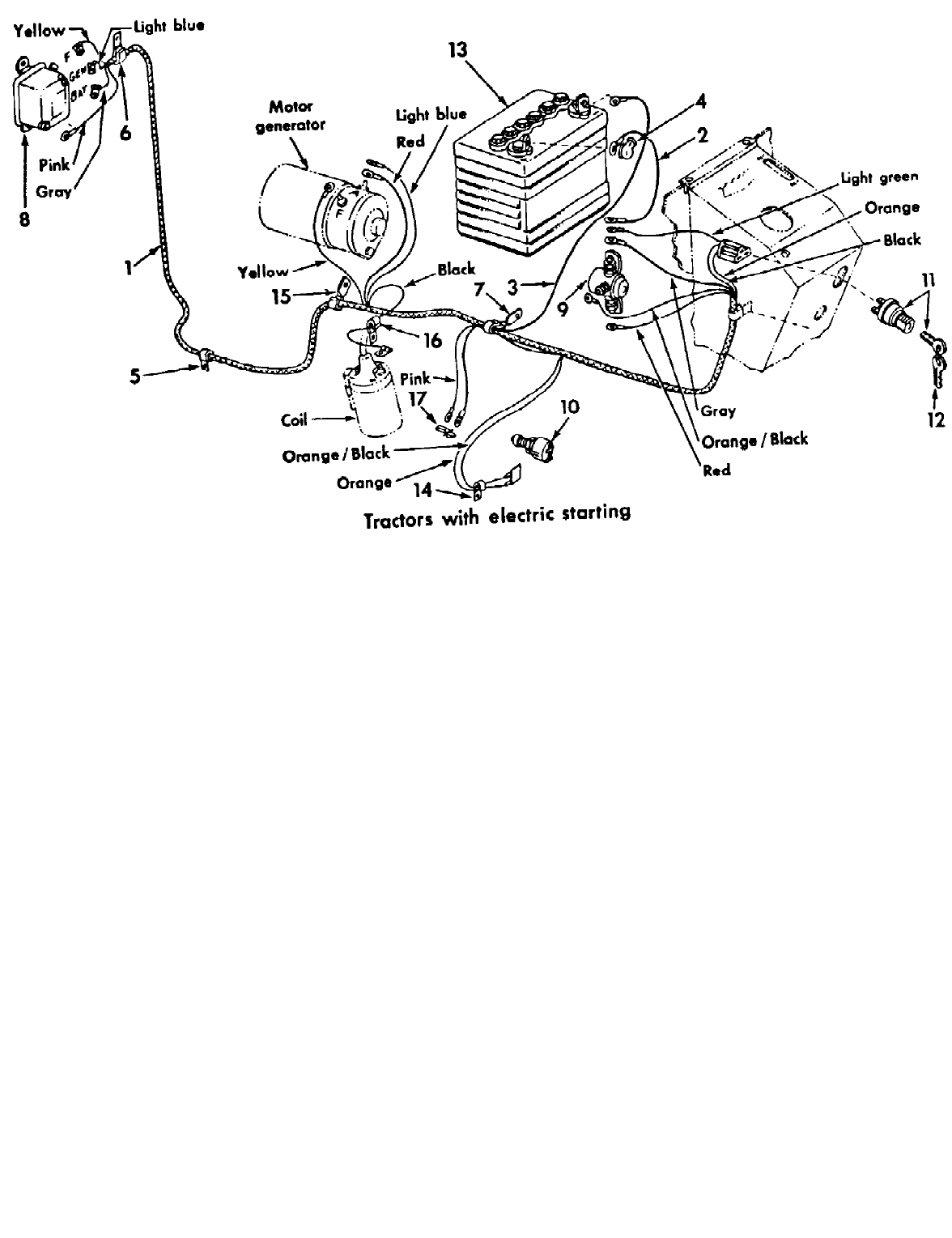

Ignition & Starting
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 39 of 65
Ignition & Starting
Ref # Part Number Qty DescriptionS/P/F
1 IH-404363-R1 Harness Assy, Cable1 S
2 IH-392966-R91 Cable Assy, Battery to Magnetic Switch1
710-0451 Bolt, 5/16-18 X 3/4 C-Z Sq-Nk Crg1 /P
736-0119 Washer, 5/16 C-Z Med Lock1 S
712-0267 Nut, 5/16-181 S
3 IH-384924-R91 Cable Assy, Battery to Ground1
710-3015 Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap1 /P
736-0329 Washer, 1/4 C-Z Med Lock1 S
736-3020 Washer, 17/64 X 5/8 X .049 C-Z1 S
712-3006 Nut, 1/4-20 C-Z Hex1 /P
4 IH-364910-R1 Cover, Battery Terminal1
5 IH-370383-R1 Clip, Cable Harness (On RH rear grille
housing mounting bolt)
1
6 726-3015 Clip, Cable Harness (On upper RH hole in
grille housing)
1 S
Screw, 1/4-20 X 1/2 Hex Hd Cap*1 Washer, 1/4 Med Lock *1
7 IH-363660-R1 Clip, Cable Harness (On battery & instrument
panel front RH mounting bolt below battery
tray)
1
710-3000 Screw, 3/8-16 X 3/4 C-Z Hex Hd Cap1 S
736-0169 Washer, 3/8 C-Z Med Lock1 S
712-0798 Nut, 3/8-16 C-Z Hex1 /P
8 IH-545130-R92 Regulator, Voltage1 S Screw, 1/4-20 X 1/2 Hex Hd Cap*2
9 IH-1114532 Switch Assy, Magnetic1 S
~NLA Cap, Magnetic Switch1 Nut, 1/4-20 Hex *2
736-0222 Washer, 1/4 Ext-Tooth Lock2 S
10 725-3038 Switch Assy, Safety Starting1 S
IH-365502-R1 Nut, Switch Mounting1
11 IH-60736-C2 Switch Assy, Ignition1 S
IH-365502-R1 Nut, Switch Mounting1
IH-375431-R1 Washer, Switch Mounting1
12 IH-382458-R2 Key, Switch1 S
13 IH-PRLU Battery, Prestolite 9948X 12 Volt1 S
14 IH-384554-R1 Clip, Cable (On left bolt of steering gear
housing)
1
15 IH-363660-R1 Clip, Cable Harness (On motor generator
rear mounting bolt)
1
16 726-3015 Clip, Cable (On upper LH side of engine)1 S
17 726-3021 Clip, Safety Starting Switch Cable Snap On1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 40 of 65
Implement Handle & Connections
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 41 of 65
Implement Handle & Connections
Ref # Part Number Qty DescriptionS/P/F
1 IH-376307-R2 Pin, Handle Release Rod1
2 732-3023 Spring, Release Rod Return1 S
3 IH-376308-R1 Washer, Release Rod Return Spring1
4 IH-376314-R1 Lock, Release Rod1
5 IH-392601-R91 Handle Assy, Lift1
6 Rod, Handle Release (Not serviced
separately, order lift handle)
1
7 IH-384740-R2 Stop, Lift Arm1 Bolt, 1/2-13 X 1-1/4 C-Z Crg *1
712-0206 Nut, 1/2-13 C-Z Hex1 S
736-0921 Washer, 1/2 C-Z Med Lock1 S
736-0272 Washer, 17/32 X 1-1/16 X .095 C-Z1 S
8 703-0364 Ratchet, Lift1
9 IH-400382-R1 Spacer, Lift Ratchet1 Bolt, 3/8-16 X 2-1/4 Sq Nk Crg *2 Nut, 3/8-16 Hex *2
736-0148 Washer, 3/8 Ext Tooth Lock2 /P
10 IH-384739-R1 Bracket, Lift Handle Shaft2
~NLA Screw, 3/8-16 X 3/4 Hex Hd Cap4
11 IH-384636-R1 Grip, Lift Handle1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 42 of 65

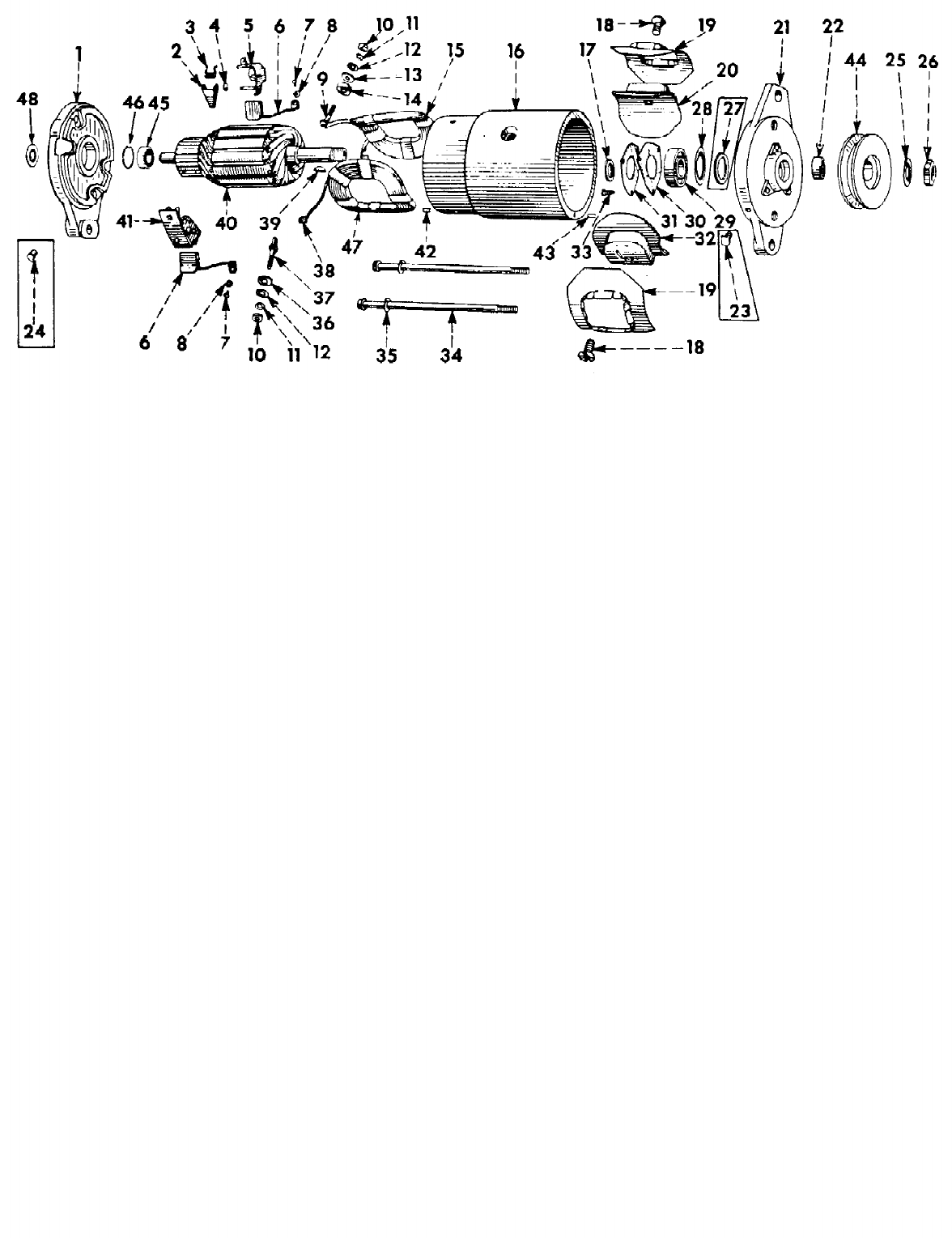

Motor Generator-Delco-Remy
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 43 of 65
Motor Generator-Delco-Remy
Ref # Part Number Qty DescriptionS/P/F
IH-330820Z Motor Generator Assy, 12 Volt1
1 IH-1939907 Frame Assy, Commutator End Clamp Frame
Pin Plug
1
2 IH-1944373 Arm, Brush2
3 IH-1916324 Spring, Brush2
4 ~NLA Washer, Brush Arm Space1
5 ~NLA Holder, Brush Ground1
6 IH-1946427 Brush2 S
7 ~NLA Screw, No. 6 X 1/4 C-Z Slt Rd Hd Mach1
~NLA Screw, No. 6 X 5/16 C-Z Slt Rd Hd Mach1
8 IH-131044 Washer, Brush Lead Attaching Screw Lock2
9 ~NLA Stud, Terminal Field1
10 IH-121743 Nut, No. 12 C-Z4
11 ~NLA Washer, Field Terminal Stud Lock4
12 ~NLA Washer, Terminal Stud2
13 IH-1858753 Washer, Terminal Stud Insulating1
14 ~NLA Bushing, Field Terminal Insulating1
IH-1939894 Bushing, Field Terminal Insulating Inside1
15 759-3358 Coil, Field (Set of two)1
16 Frame (Not serviced separately)1
17 IH-1861591 Collar, Drive End Spacer - Inside1
18 IH-1968396 Screw, Pole Shoe2
19 IH-1912073 Insulator, Field Coil2
20 ~NLA Shoe, Pole1
21 ~NLA Frame, Drive End1
22 IH-1959991 Collar, Drive End Space1
23 Not used in this application1
24 Not used in this application1
25 IH-1941978 Washer, Drive End Shaft Nut Lock1
26 IH-1915172 Nut, Drive End Shaft1
27 Not used in this application1
28 IH-1947344 Plate, Drive End Grease Slinger1
29 741-0361 Bearing, Drive End Ball1 S
30 IH-1912008 Gasket, Drive End Retainer Plate1
31 IH-1971993 Plate, Drive End Retainer1
32 ~NLA Shoe, Pole1
33 IH-1914580 Screw, Drive End Retainer Plate3
34 IH-809763 Bolt, Thru2
35 736-0119 Washer, Thru Bolt2 S
36 IH-1921362 Bushing, Armature Terminal Insulating1
37 IH-1858749 Stud, Terminal Armature1
38 ~NLA Clip, Terminal to Brush1
39 IH-124545 Key, No. 5 Woodruff Aly-Slt1
40 IH-1939904 Armature (Used with IH-1101951,
IH-1101967 & IH-1101997)
1
~NLA Armature (also order end frame 434940)1 F
41 IH-1940422 Holder, Brush Insulated1
42 ~NLA Pin, Commutator End Dowel1
43 IH-809593 Pin, Drive End Dowel1
44 KH-235583 Pulley, Motor Generator (Not included in
motor generator assy)
1 /P
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 44 of 65
Motor Generator-Delco-Remy
Ref # Part Number Qty DescriptionS/P/F
45 IH-441805-R91 Bearing, Commutator End Ball1 S
46 IH-1929959 Clamp, Commutator End Bearing1
47 759-3358 Coil, Field (Set of two)1
48 IH-1948326 Plug, Commutator End Bearing Well (Order
Part No. IH-1939907)
1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 45 of 65

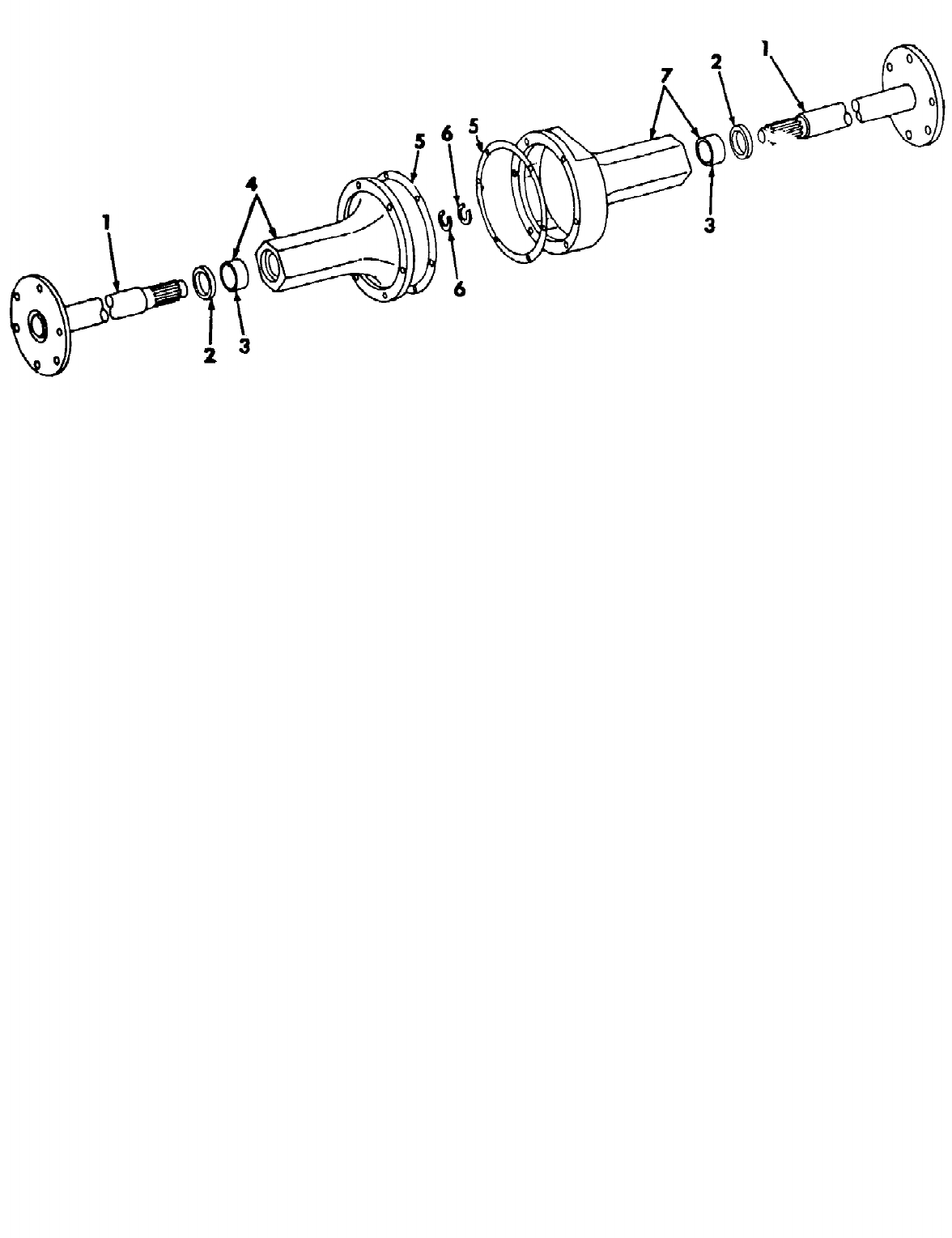

Rear Axle
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 46 of 65
Rear Axle
Ref # Part Number Qty DescriptionS/P/F
1 IH-531179-R1 Axle Assy, Rear (Replaces IH-384666-R32)2
2 721-0187 Seal, Rear Axle Oil2 S
3 IH-308674-R91 Bearing, Rear Axle Carrier Needle2 S
4 IH-397322-R11 Carrier Assy, Rear Axle LH1
IH-24840-R1 Screw, 3/8-16 X 1 Hex Hd Cap4
5 721-3014 Gasket, Rear Axle Carrier2 /P
6 IH-378066-R1 Ring, Rear Axle Retaining Snap2
7 703-0906 Carrier Assy, Rear Axle RH1 /P
710-3011 Screw, 3/8-16 X 2-1/4 Hex Hd Cap4 /P
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 47 of 65

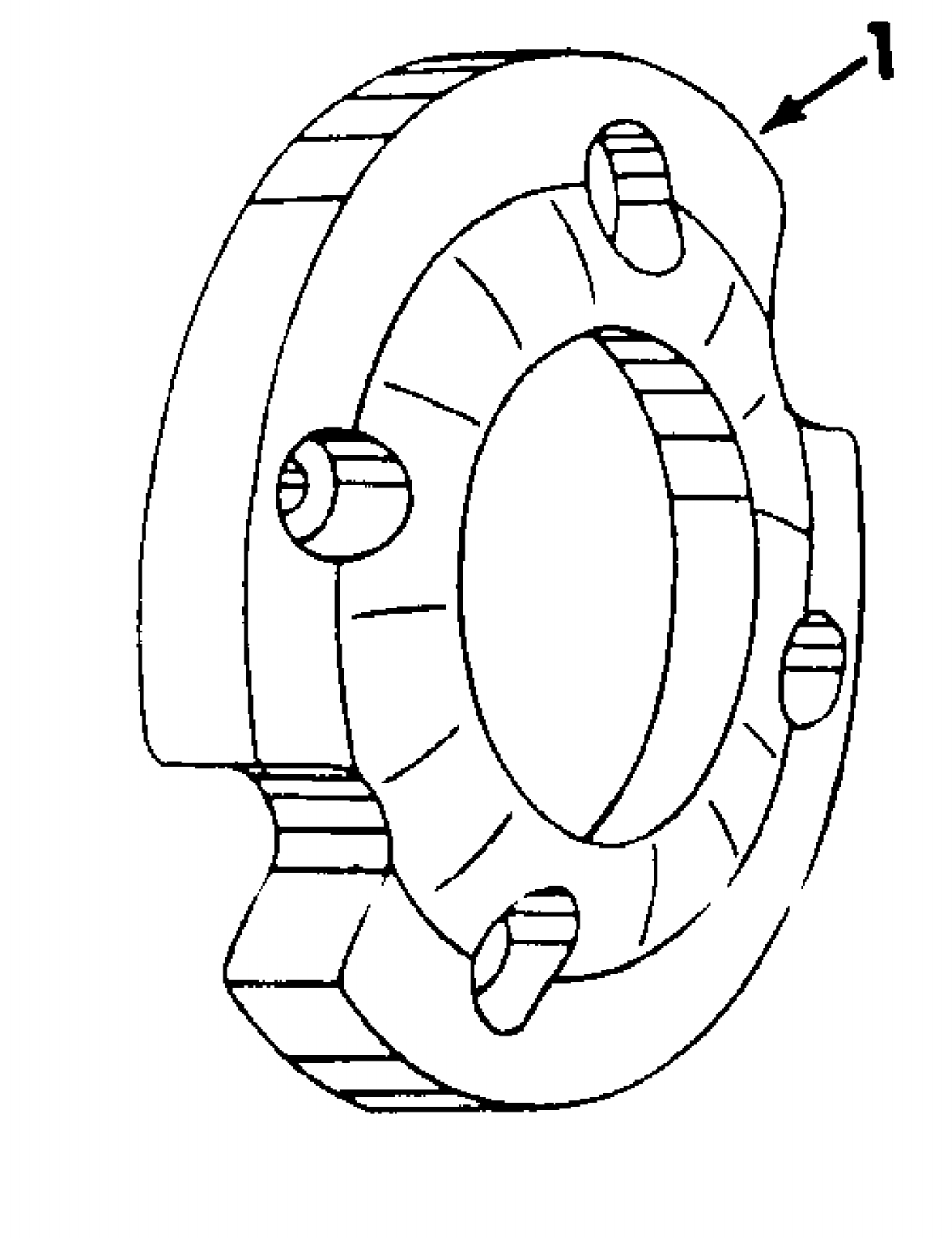

Rear Wheel Weights
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 48 of 65
Rear Wheel Weights
Ref # Part Number Qty DescriptionS/P/F
1 ~NLA Weight, Rear Wheel (Approx 26 lbs)2 F Bolt, 1/2-13 X 5-1/4 Crg *4
712-3034 Nut, 1/2-13 Hex4 S
736-0921 Washer, 1/2 Med Lock4 S
~NLA Weight, Rear Wheel (Approx 26 lbs)2 F Bolt, 1/2-13 X 7 Crg *4
712-3034 Nut, 1/2-13 Hex4 S
736-0921 Washer, 1/2 Med Lock4 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 49 of 65

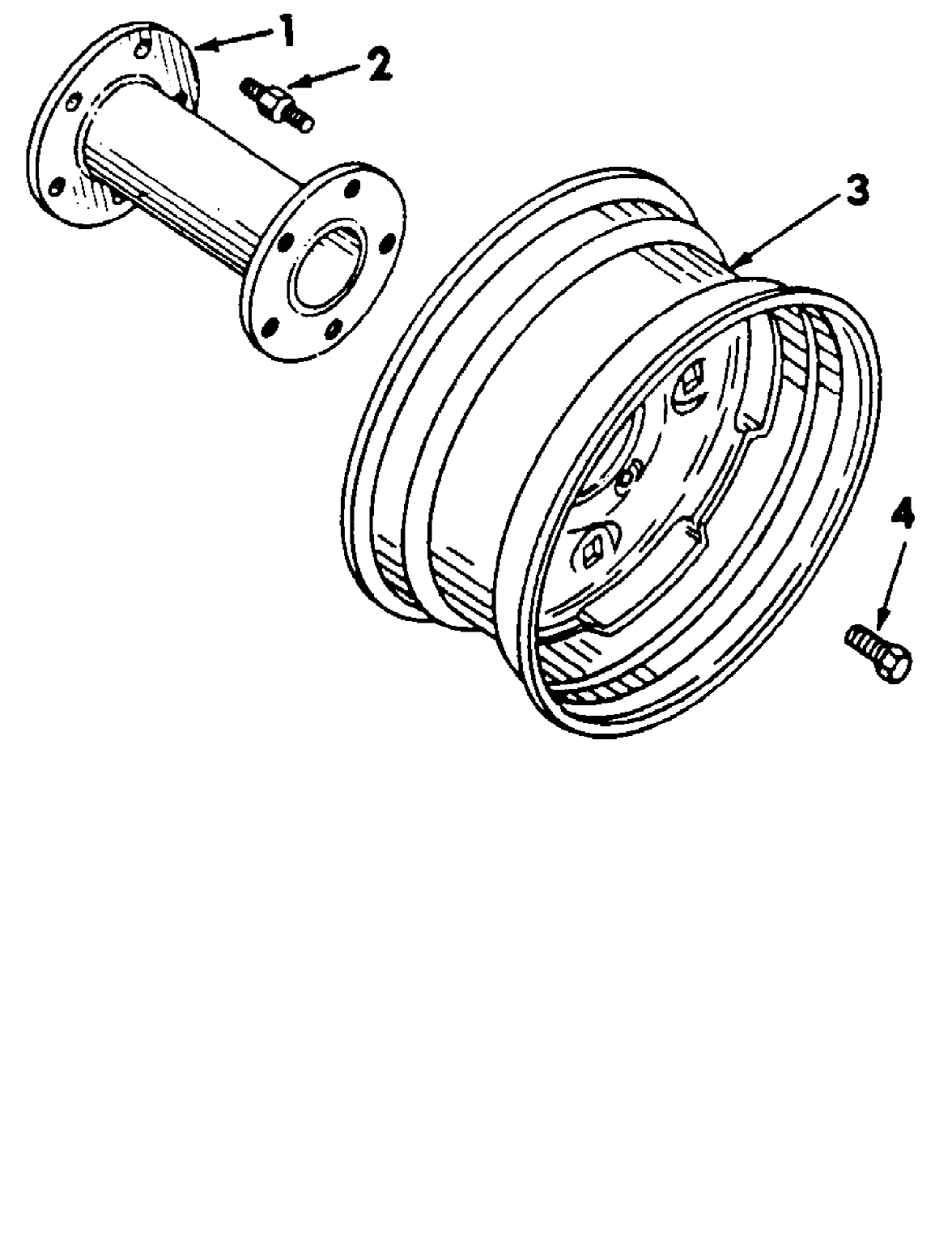

Rear Wheels
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 50 of 65
Rear Wheels
Ref # Part Number Qty DescriptionS/P/F
1 IH-381187-R11 Tube, Dual Rear Wheel2
2 ~NLA Stud, Dual Rear Wheel Spacer10
IH-271506 Nut, 7/16-20 Cd Pltd Hex10
736-0171 Washer, 7/16 Cd Pltd Med Lock10 S
3 IH-387840-R91 Wheel Assy, Rear w/7JA-12 Rim for 23 X
8.50-12 Tires
2
IH-376189-R91 Wheel Assy, Rear w/55A Rim for 6-12 Tires2 /P
4 710-3027 Bolt, Rear Wheel10 /P
IH-387897-R91 Valve, TR-415 Tubeless Type2
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 51 of 65

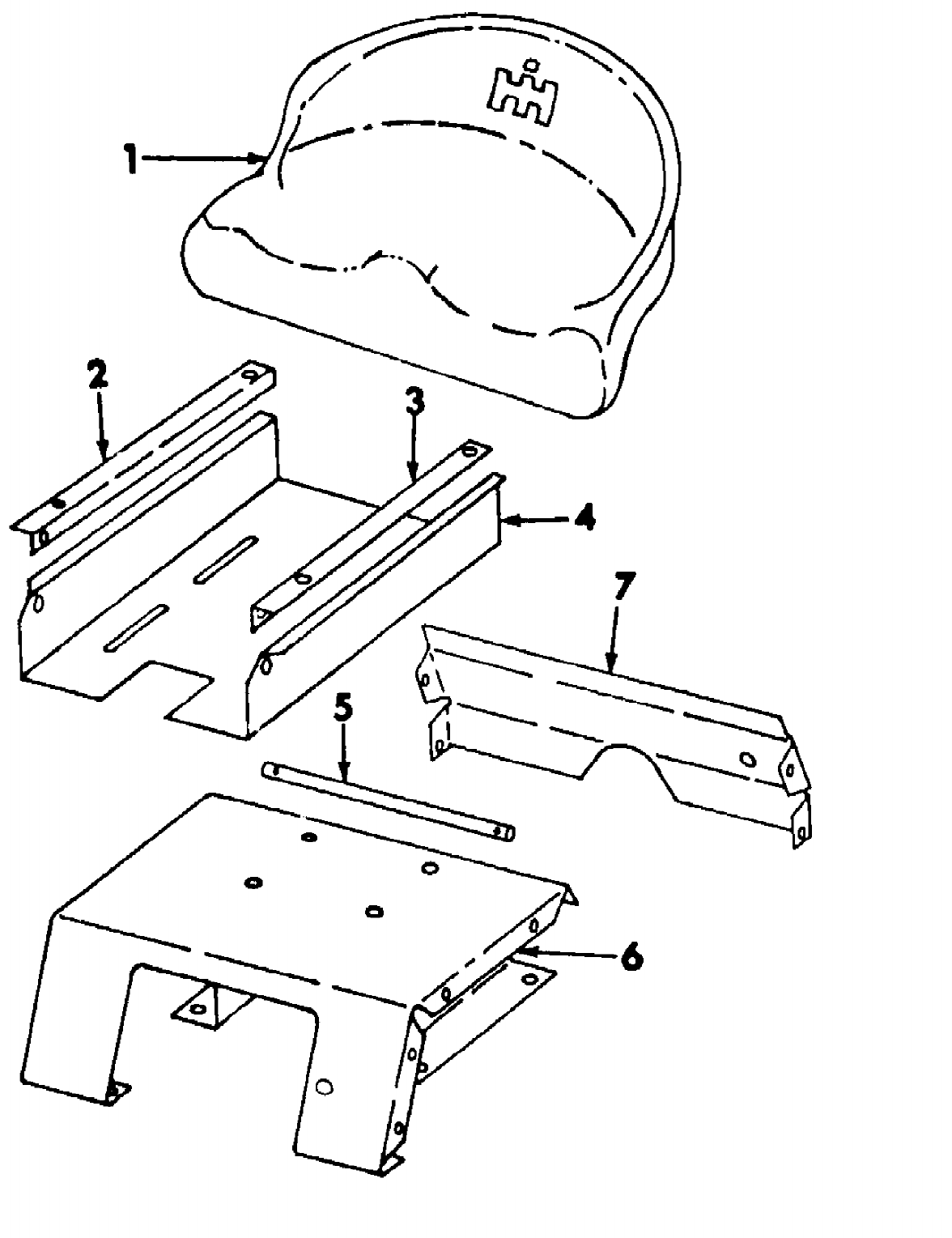

Seat
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 52 of 65
Seat
Ref # Part Number Qty DescriptionS/P/F
1 759-3148 Seat Assy1 /P
2 ~NLA Rail, Seat Support RH1
712-0267 Nut, 5/16-18 C-Z Hex2 S
736-0119 Washer, 5/16 C-Z Med Lock2 S
3 ~NLA Rail, Seat Support LH1
712-0267 Nut, 5/16-18 C-Z Hex2 S
736-0119 Washer, 5/16 C-Z Med Lock2 S
4 ~NLA Support, Seat1
710-0118 Screw, 5/16-18 X 3/4 C-Z Hex Hd Cap4 S
736-0275 Washer, 11/32 X 11/16 X .065 C-Z4 S
5 ~NLA Pin, Seat Pivot1
714-0474 Pin, 1/8 X 3/4 C-Z Cot2 S
6 ~NLA Cover & Seat Support Assy, Rear Frame1 Screw, 3/8-16 X 3/4 Hex Hd Cap *6
7 ~NLA Panel Assy, Rear Frame Cover Back1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 53 of 65

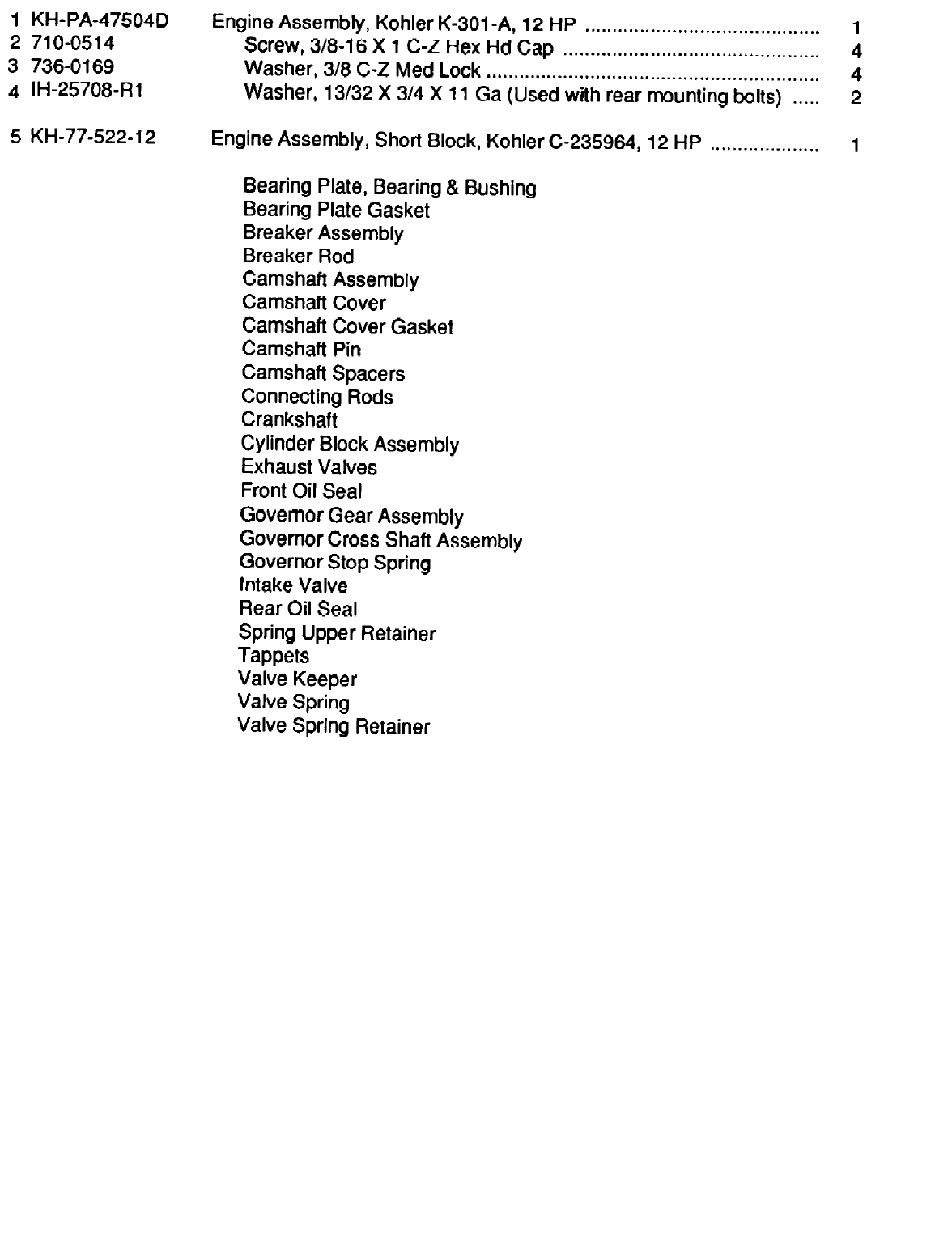

Service Engines
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 54 of 65
Service Engines
Ref # Part Number Qty DescriptionS/P/F
1 KH-PA-47504D Engine Assembly, Kohler K-301-A, 12 HP1
2 710-0514 Screw, 3/8-16 X 1 C-Z Hex Hd Cap4 /P
3 736-0169 Washer, 3/8 C-Z Med Lock4 S
4 IH-25708-R1 Washer, 13/32 x 3/4 x 11 Ga (Used with rear
mounting bolts)
2 S
5 KH-77-522-12 Engine Assembly, Short Block, Kohler
C-235964, 12 HP
1 /P
Bearing Plate, Bearing & Bushing1 Bearing Plate Gasket1 Breaker Assembly1 Breaker Rod1 Camshaft Assembly1 Camshaft Cover1 Camshaft Cover Gasket1 Camshaft Pin1 Camshaft Spacers1 Connecting Rods1 Crankshaft1 Cylinder Block Assembly1 Exhaust Valves1 Front Oil Seal1 Governor Gear Assembly1 Governor Cross Shaft Assembly1 Governor Stop Spring1 Intake Valve1 Rear Oil Seal1 Spring Upper Retainer1 Tappets1 Valve Keeper1 Valve Spring1 Valve Spring Retainer1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 55 of 65

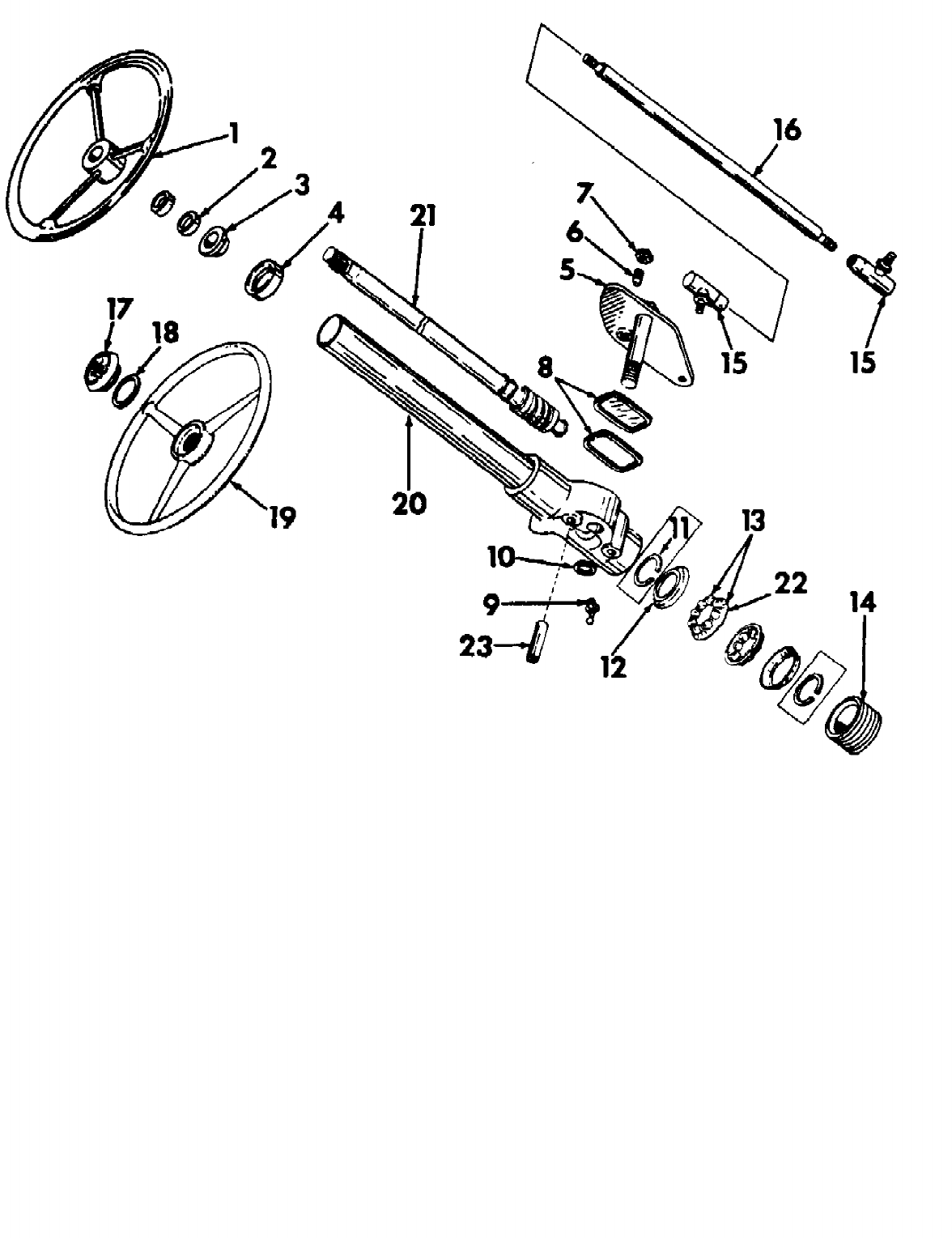

Steering Gear & Connections
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 56 of 65
Steering Gear & Connections
Ref # Part Number Qty DescriptionS/P/F
703-1085 Gear Assy, Steering (Marked CCC)1 /P/F
710-3001 Screw, 3/8-16 X .88 Lg GR52 /P
736-0169 Washer, Lock, 3/82 S
1 Not used in this application1
2 723-3001 Seal, Steering Gear2 S
3 IH-866105-R1 Bearing, Column Upper (Use
w/IH-384800-R94)
1 S
741-3000 Bearing, Column Upper (Use
w/IH-400884-R91)
1 S
4 IH-376480-R1 Retainer, Bearing1 S
5 IH-385522-R1 Lever & Bolt Assy1
~NLA Nut, 5/8-18 Hex Jam2
6 IH-379992-R1 Stud, Cam Follower (Used w/steering gear
IH-384800-R95)
1
IH-62806-C1 Stud Cam Follower (Used w/steering gear
IH-400884-R91)
1 S
7 IH-192510-R1 Nut, Cam Follower Stud1 S
8 IH-394936-R91 Package, Seal & Seal Retainer1
9 IH-273360 Fitting, 1/4 65 Deg Angle Drive Lube1
10 IH-308362-C1 Washer, Flat, Cd Pltd1
11 Not used in this application1
12 IH-379405-R1 Retainer, Bearing Ball2 S
13 IH-389081-R91 Retainer & Ball Assy2 S
14 IH-394288-R1 Plug, Adjusting1 /P
714-3015 Pin, 1/8 X 1/2 Cot1
15 723-3018 Joint, Tie Rod End (These parts are not
included in the steering gear assembly.)
2 S
Nut, 3/8-24 Hex Lock *2
16 IH-384801-R1 Link, Steering Gear Drag (These parts are
not included in the steering gear assembly.)
1
712-3001 Nut, 3/8-24 Hex Jam2 S
17 731-3012 Cap, Steering Wheel (These parts are not
included in the steering gear assembly.)
1 S
18 IH-385736-R1 Retainer, Steering Wheel Cap (These parts
are not included in the steering gear
assembly.)
1
19 IH-385734-R1 Wheel, Steering (These parts are not
included in the steering gear assembly.)
1
712-3056 Nut, 5/8-18 C-Z Hex Jam1 /P
20 IH-401277-R1 Tube Assy, Housing & Jacket1
21 IH-385984-R91 Cam & Tube Assy1 S
22 IH-389081-R1 Retainer, Ball2 S
23 Not used in this application1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 57 of 65

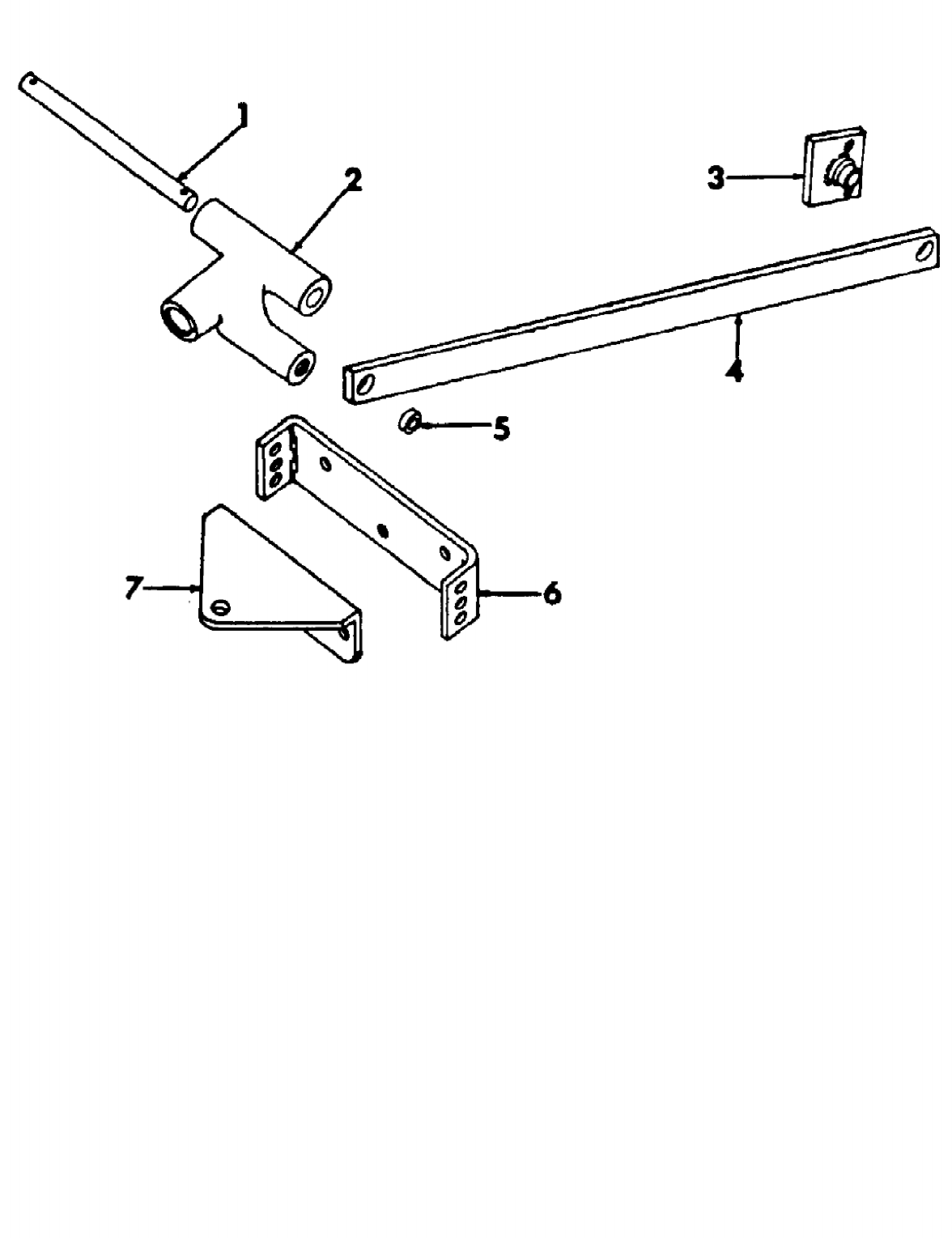

Three Point Hitch & Drawbar
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 58 of 65
Three Point Hitch & Drawbar
Ref # Part Number Qty DescriptionS/P/F
1 ~NLA Shaft, Lift Lever1
714-0111 Pin, 3/32 X 7/8 Cot2 S
2 IH-384655-R1 Lever, Lift1 Screw, 1/2-13 X 1-3/8 C-Z Hex Hd Cap*1
736-0921 Washer, 1/2 C-Z Med Lock1 S
736-0272 Washer, 17/32 X 1-1/16 X .095 C-Z1 S
3 IH-384679-R11 Plate Assy, Lift Bar Attaching1 Pin, 3/32 X 1 Cot *1
IH-20240-R1 Screw, 5/16-18 X 7/8 C-Z Hex Hd Cap2
736-0119 Washer, 5/16 C-Z Med Lock2 S
736-0275 Washer, 11/32 X 11/16 X .065 C-Z2 S
4 IH-384677-R1 Bar, Lift1
5 711-3073 Spacer, Lift Bar1 /P
6 703-0400 Link, Lower Hitch1 S
710-3005 Screw, 3/8-16 X 1-1/4 C-Z Hex Hd Cap3 /P
7 703-0401 Drawbar, Fixed1
IH-24840-R1 Screw, 3/8-16 X 1 Hex Hd Cap3
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 59 of 65

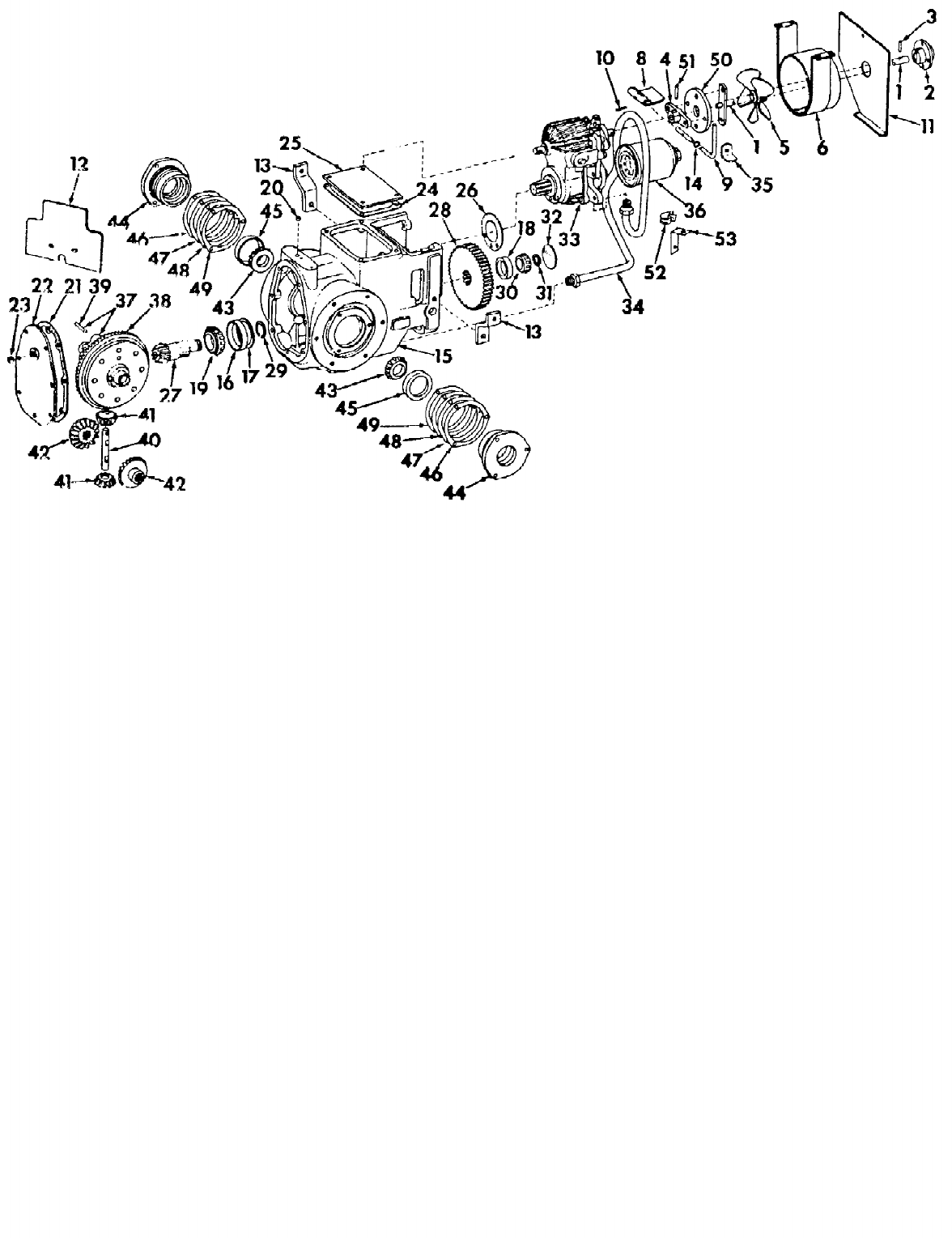

Transmission Case, Diff Hydro Drive & Rel Parts
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 60 of 65
Transmission Case, Diff Hydro Drive & Rel Parts
Ref # Part Number Qty DescriptionS/P/F
1 IH-397373-R2 Rod Assy, Drive1 /P
2 IH-394034-R31 Hub Assy, Drive Plate1 S Screw, 1/4-20 X 5/8 Hex Hd Cap *4 Washer, 1/4 Med Lock *4
3 IH-19837-R1 Pin, 1/4 X 1-1/2 Dowel1 S
4 759-3009 Arm, Coupling1 /P
5 IH-394065-R92 Fan, Cooling1
IH-139042 Screw, 5/16-24 X 5/16 Hex Soc Hd Cup Pt
Set
2
6 ~NLA Shroud Assy, Fan1
~NLA Nut, Mach, Screw Spring4
IH-159927 Screw, 10-24 X 1/2 C-Z Slt Pan Hd Mach4
736-0931 Washer, 7/32 X 1/2 C-Z4 /P
8 703-0310 Actuator, Dump Valve1 /P
9 ~NLA Rod, Dump Valve1
10 715-3008 Pin, 1/8 X 3/4 C-Z Hv Coiled Spring1 /P
11 ~NLA Plate, Air Baffle1 Screw, 1/4-28 X 5/8 C-Z Hex Hd Tap*1 Washer, 1/4 X 9/16 X 18 Ga C-Z *1
12 ~NLA Shield, Transmission Case Rear Cover1
IH-24839-R1 Screw, 3/8-16 X 5/8 Hex Hd Cap2 S
13 703-0168 Bracket, Transmission Mounting2 Bolt, 3/8-16 X 1 Hex Hd Mach *2 Washer, 3/8 Med Lock *2
14 735-3008 Grommet, Dump Valve Rod1 /P
15 IH-394081-R91 Case Assy, Transmission1
16 IH-394083-R91 Bearing, Bevel Pinion Shaft Rear Cup1
17 IH-395081-R1 Shim, Rear Brg Cup, .0042/AR
717-3124 Shim, Rear Brg Cup, .0152/AR
717-3125 Shim, Rear Brg Cup, .0072/AR /P
18 741-3072 Bearing, Bevel Pinion Shaft Front Cup1 S
19 IH-394083-R91 Bearing Assy, Bevel Pinion Shaft Rear Cone1
20 727-3025 Plug, Transmission Breather1
21 IH-350837-R2 Gasket, Transmission Case Rear Cover Plate1 S
22 IH-394089-R11 Plate Assy, Transmission Case Rear Cover1
IH-24839-R1 Screw, 3/8-16 X 5/8 Hex Hd Cap2 S
23 737-0177 Plug, 1/2-14 Automotive Sq-Soc-Hd Drain1 /P
24 IH-394091-R1 Gasket, Transmission Case Top Cover1
25 IH-394090-R1 Cover, Transmission Case Top1
IH-24840-R1 Screw, 3/8-16 X 3/4 Hex Hd Cap4 Washer, 3/8 Med Lock *4
26 721-3004 Gasket, Transmission Case Front1 S
27 IH-394093-R1 Shaft, Bevel Pinion1
28 717-3141 Gear, Constant Mesh -66T1 /P
29 IH-323315-C1 Ring, Gear Retaining1
30 741-0373 Bearing Assy, Bevel Pinion Shaft Front Cone1 S
31 717-3127 Ring, Pinion Shaft Front Brg Retainer, .1251/AR /P
717-3128 Ring, Pinion Shaft Front Brg Retainer, .1191/AR S
717-3129 Ring, Pinion Shaft Front Brg Retainer, .1131/AR /P
717-3130 Ring, Pinion Shaft Front Brg Retainer, .1071/AR /P
IH-395099-R1 Ring, Pinion Shaft Front Brg Retainer, .1011/AR
717-3132 Ring, Pinion Shaft Front Brg Retainer, .1311/AR /P
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 61 of 65
Transmission Case, Diff Hydro Drive & Rel Parts
Ref # Part Number Qty DescriptionS/P/F
32 726-0216 Plug, 2-1/8 in. Expansion1 /P
33 Transmission Assy, Hydrostatic Drive (For
components see list of parts under details of
hydrostatic transmission
1
Screw, 3/8-16 X 1-1/4 Hex Hd Cap *6 Washer, 3/8 Med Lock *3
34 IH-394827-R21 Tube w/Nuts, Suction1
35 ~NLA Bracket, Lever Retaining1
736-3001 Washer, Spring1 /P
712-0324 Nut, 1/4-20 C-Z Hex Lock1 /P
36 723-3014 Filter Assy1 S
37 IH-223472-C91 Case Assy, Differential1
38 IH-350787-R1 Gear, Differential Drive -46T1
~NLA Rivet, 5/16 X 1-1/8 Rd Hd8
39 IH-350788-R1 Pin, Differential Pinion Shaft Lock1
40 IH-350789-R1 Shaft, Differential Pinion1
41 717-3113 Pinion, Differential -10T2 /P
42 ~NLA Gear, Differential Side2
43 741-0369 Bearing Assy, Differential Cone2 /P
44 IH-376158-R91 Cage Assy, Differential Brg2
IH-24840-R1 Screw, 3/8-16 X 1 Hex Hd Cap6 Washer, 3/8 Med Lock *6
45 IH-ST974 Bearing, Differential Cup2
46 717-3097 Shim, Differential Brg Retainer, .0043/AR S
47 717-3098 Shim, Differential Brg Retainer, .0074/AR S
48 717-3099 Shim, Differential Brg Retainer, .01492/AR /P
49 717-3100 Shim, Differential Brg Retainer, .02992/AR /P
50 IH-376257-R3 Disc, Flexible Coupling1 /P Screw, 3/8-16 X 1-1/8 Hex Hd Cap *4 Washer, 3/8 X 3/4 X .062 *4
IH-385525-R1 Nut, 3/8-16 Gripco Center Lock4 S
51 715-0114A Pin, 1/4 X 1-1/2 Hv Coiled Spring1 S
52 ~NLA Clip, Suction Tube1
53 ~NLA Bracket, Suction Tube1 Screw, 1/4-20 X 1/2 Hex Hd Cap *1 Washer, 1/4 Med Lock *1 Nut, 1/4-20 Hex *1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 62 of 65

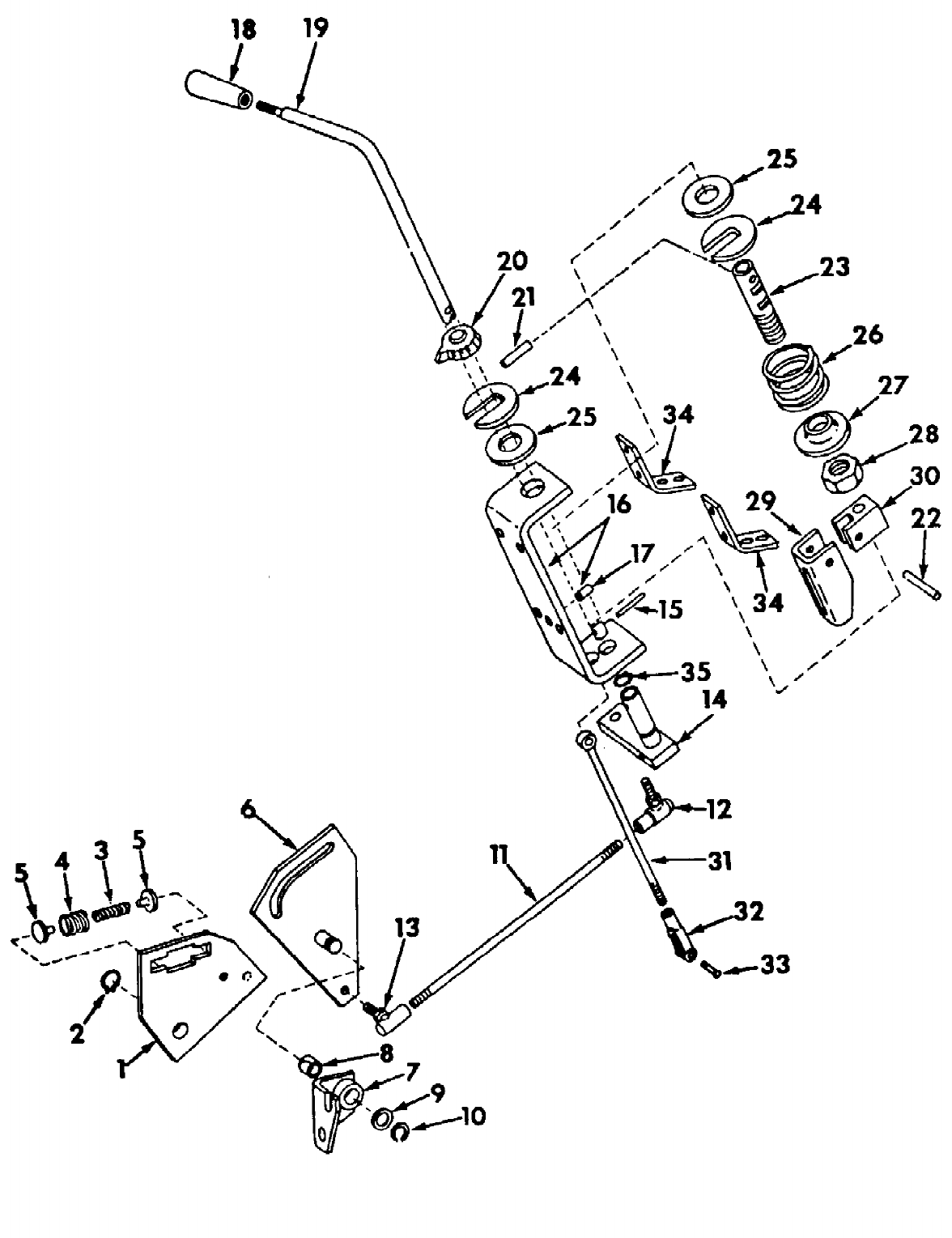

Transmission Controls
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 63 of 65
Transmission Controls
Ref # Part Number Qty DescriptionS/P/F
1 703-0194 Plate Assy, Damper Spring1 S
2 716-0115 Ring, Damper Plate Retaining1 S
3 732-3012 Spring, Damper Light1 S
4 732-3013 Spring, Damper Heavy1 S
5 711-3033 Pin, Damper Spring Guide2 S
6 IH-548057-R2 Cam Assy, Speed Control1 /P
7 ~NLA Bracket Assy, Cam Pivot1 Screw, 3/8-16 X 1-1/2 Hex Hd Cap*2
IH-279783-R1 Spacer, .406 X .68 X .0832
8 IH-394048-R1 Bushing, Cam Pivot1
9 IH-394049-R1 Washer, Cam Retaining1 S
10 716-0865 Ring, Cam Retaining1 /P
11 IH-394050-R1 Rod, Speed Control Connection1
736-0119 Nut, 5/16-24 Hex1 S
12 723-3011 Joint, 5/16-24 X 1-1/2 C-Z RH Thd Ball1 S
712-0237 Nut, 5/16-24 Hex, Nylon Insert1 S
13 723-3012 Joint, 5/16-24 X 1-1/2 LH Thd Ball1 S
712-0237 Nut, 5/16-24 Hex Nylon Insert1 S
14 ~NLA Lever Assy, Speed Control1
15 ~NLA Pin, 1/4 X 1-3/4 Dowel1
16 ~NLA Bracket Assy, Hand Control Mounting1
IH-395800-R1 Bolt, 1/4-20 X 3/8 C-Z Hex Washer Hd Mach4
17 IH-19841-R1 Pin, 1/4 X 1/2 Dowel1 S
18 IH-390001-R1 Grip, Speed Control Rod1
19 ~NLA Rod, Speed Control1
20 ~NLA Indicator, Speed Position1 Screw, 8-32 X 3/8 Hex Soc Hd Cup Pt Set*1
21 IH-19967-R1 Pin, 1/4 X 1-1/4 Dowel2
22 715-0114A Pin, 1/4 X 1-1/2 Hv Coiled Spring1 S
23 ~NLA Shaft, Frictional Adjusting Column1
24 ~NLA Retainer, Spring2
25 723-3019 Washer, Frictional Disc2 /P
26 ~NLA Spring, Frictional1
27 ~NLA Washer, Frictional Spring Guide1
28 IH-19331-R1 Nut, 7/8-14 Esna Stop1
29 ~NLA Channel, Speed Control Centering Cam1
30 ~NLA Swivel, Cam Centering Actuator1
31 ~NLA Rod Assy, Centering Cam Actuating1
IH-25930-R1 Nut, 1/4-28 Hex Jam1 S
32 IH-116383 Yoke, 1/4-28 X 2 Light Adj Rod End1
33 IH-138083 Pin, 1/4 X 51/64 C-Z Rod End1
~NLA Pin, 1/16 X 3/8 Cot1
34 ~NLA Brace, Control Bracket Reinforcement2
IH-395800-R1 Screw, 1/4-20 X 1/2 C-Z Hex Washer Hd
Mach
4
35 IH-21332-R1 Ring, Lever Retaining1
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 64 of 65
Utility Box
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
123 Page 65 of 65
Utility Box
Ref # Part Number Qty DescriptionS/P/F
1 ~NLA Pin, Drain Hole2 Pin, 1/16 X 1/2 Cot *2
2 ~NLA Box Assy, Utility1
IH-24840-R1 Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap2 Screw, 3/8-16 X 1-1/8 C-Z Hex Hd Cap*2
736-0169 Washer, 3/8 C-Z Med Lock4 S
IH-561277-R1 Spacer, Utility Box4
3 IH-390025-R1 Extension, Drawbar1
710-0389 Bolt, 3/8-16 X 3/4 C-Z Sq Nk Crg1 /P Bolt, 1/2-13 X 1-1/4 C-Z Sq Nk Crg*1
712-0206 Nut, 1/2-13 C-Z Hex1 S
712-0798 Nut, 3/8-16 C-Z Hex1 /P
736-0169 Washer, 3/8 C-Z Med Lock1 S
736-0921 Washer, 1/2 C-Z Med Lock1 S
www.mymowerparts.com
For Discount Cub Cadet Parts Call 606-678-9623 or 606-561-4983
