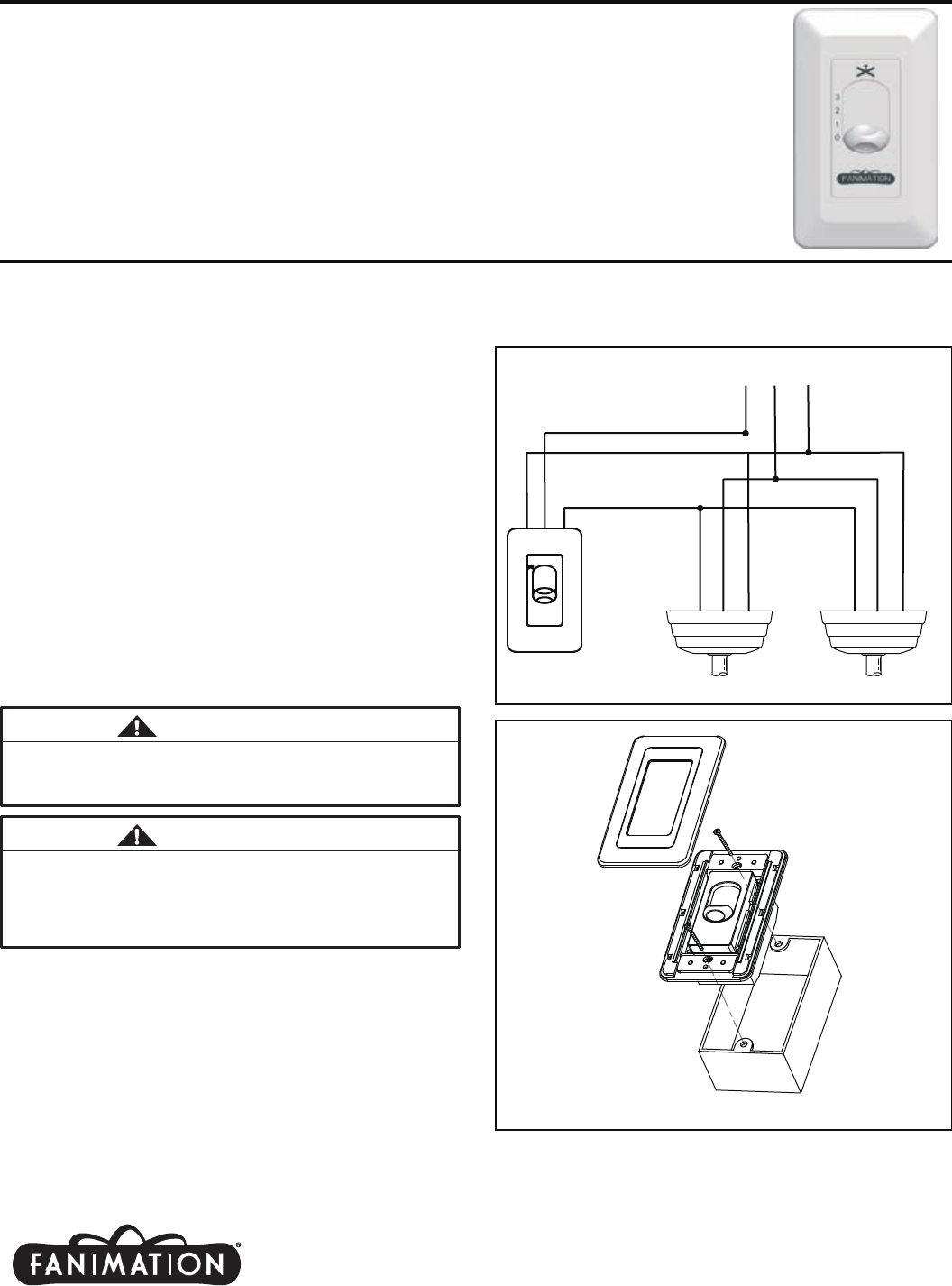

CW5(C5) Wall Control

SPECIFICATION and INSTRUCTION SHEET

DESCRIPTION: Two Fan (no light) Only, 3 Speed-Slide Control

ELECTRICAL SPECS: 120 Volts, 60 Hertz, 5 amps, 3 Wire Installation

FAN MODELS USED: most Fanimation fans - see Catalog or visit our

website, www.fanimation.com for more information

How to Wire and Operate Your CW5(C5) Wall Control

NOTE: If fan or supply wires are different colors than indi-

cated, have this unit installed by a qualified electrician.

1. Installing Wall Control (Figures 1 & 2):

• With electrical power still disconnected, remove the

existing wall plate and switch.

• Make wiring connections with wire nuts as shown in

Figure 1.

– One black wire from wall control unit to black

(A.C. power supply).

– One black wire from wall control unit to black wire

leading to ceiling outlet box.

– One green/yellow wire from wall control unit to green

ground wire.

• Attach wall control unit to outlet box using the two

screws provided. Then, the face plate attaches the wall

• Restore electrical power.

Check to see that all connections are tight, including

ground, and that no bare wire is visible at the wire con-

nectors, except for the ground wire. Do not operate fan

until the blades is in place. Noise and fan damage could

result.

WARNING

To avoid possible fire or shock, make sure that the elec-

trical wires are completely inside the outlet box and not

pinched between the wall plate and the wall.

WARNING

Figure 1

Figure 2

NOTE: Supply wires and fan wires

omitted for clarity.

2. Operating & Using Wall Control:

NOTE: Set pull chain to high speed before using wall

control. You can now use your speed control to select any

of the 3-speeds plus OFF.

• 3 Slide Switch – low fan speed

• 2 Slide Switch – medium fan speed

• 1 Slide Switch – high fan speed

• 0 Slide Switch – fan off

Copyright 2010 Fanimation

2010/01

10983 Bennett Parkway

Zionsville, IN 46077

(888) 567-2055 • FAX (866) 482-5215

Outside U.S. call (317) 733-4113

Visit Our Website @ www.fanimation.com

control. (Figure 2)

• Set the knob and light switch of the wall control in the

off (0) position.
