Washer-Extractor

Cabinet Freestanding

Refer to Page 5 for Model Numbers

CFD22C_D0055

Part No. D0055R12

November 2017

D0055 1

means without the expressed written consent of the publisher.

Table of Contents

Title Page

Parts Ordering Information........................................................................................................................................ 3

Serial Plate Location ................................................................................................................................................. 3

Model Identification ................................................................................................................................................... 5

Cabinet Freestanding Washer-Extractor Product Overview ..................................................................................... 6

Frame........................................................................................................................................................................ 8

Shock Absorber ...................................................................................................................................................... 10

Shell ........................................................................................................................................................................ 12

Bearing Housing (Drawing 1 of 2) - Models Through January 30, 2011 ................................................................. 14

Bearing Housing (Drawing 2 of 2) - Models Through January 30, 2011 ................................................................. 16

Bearing Housing - Models Starting January 31, 2011 ............................................................................................ 18

Basket, Pulley and Belt - Models Through January 30, 2011 ................................................................................. 20

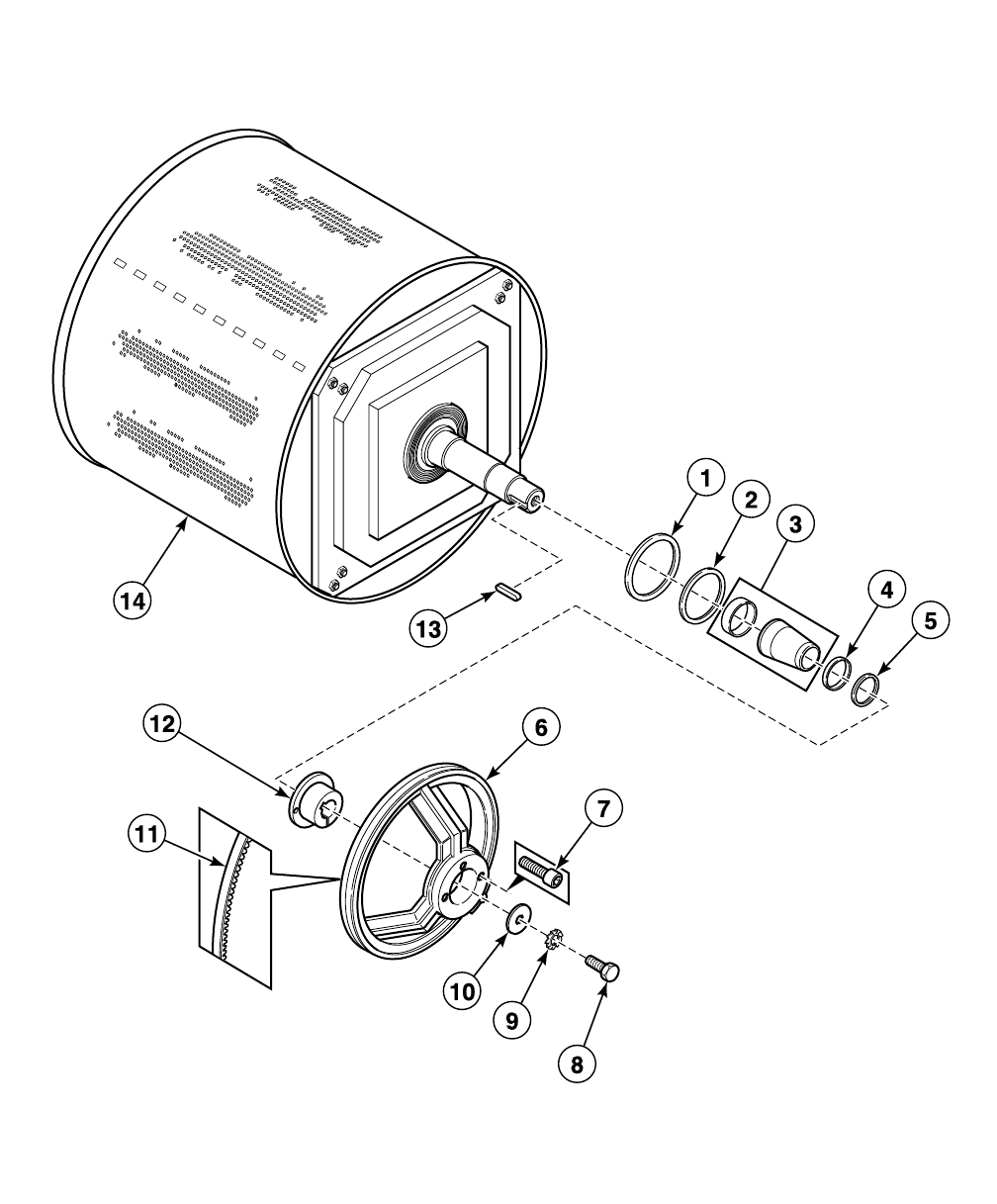

Basket, Pulley and Belt - Models Starting January 31, 2011 .................................................................................. 22

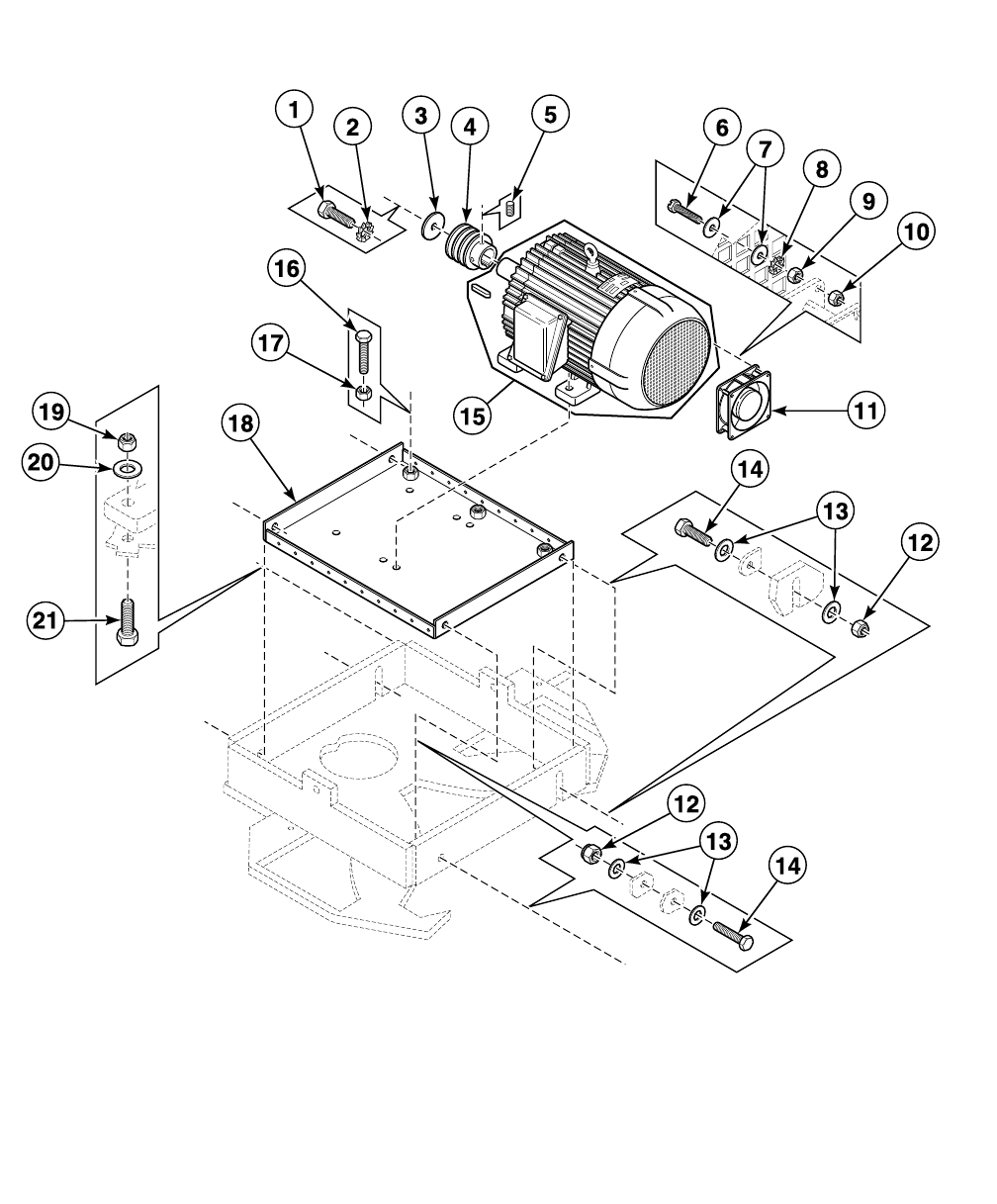

Motor....................................................................................................................................................................... 24

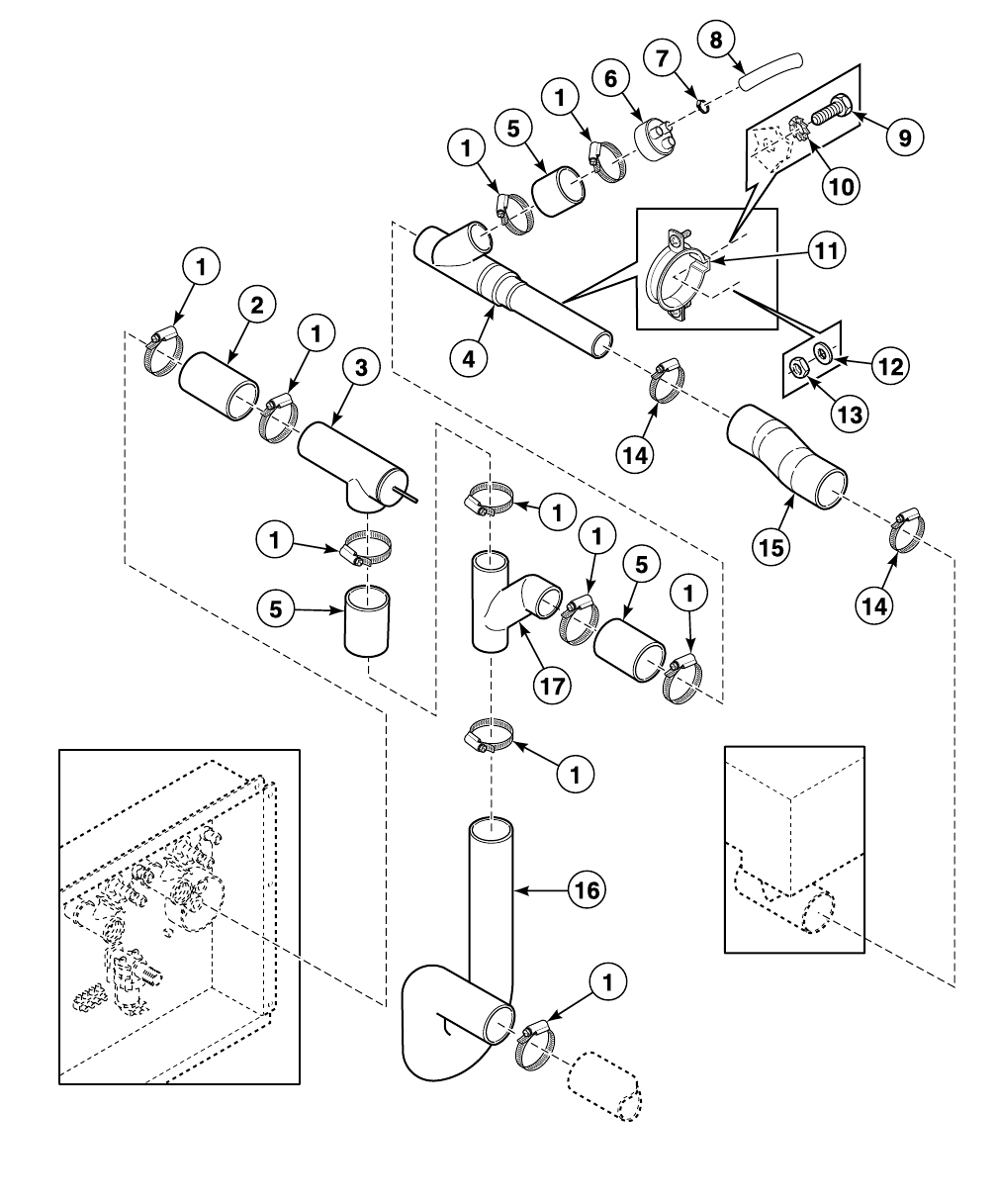

Drain Plumbing - Single Drain................................................................................................................................. 26

Drain Plumbing - Dual Drain ................................................................................................................................... 28

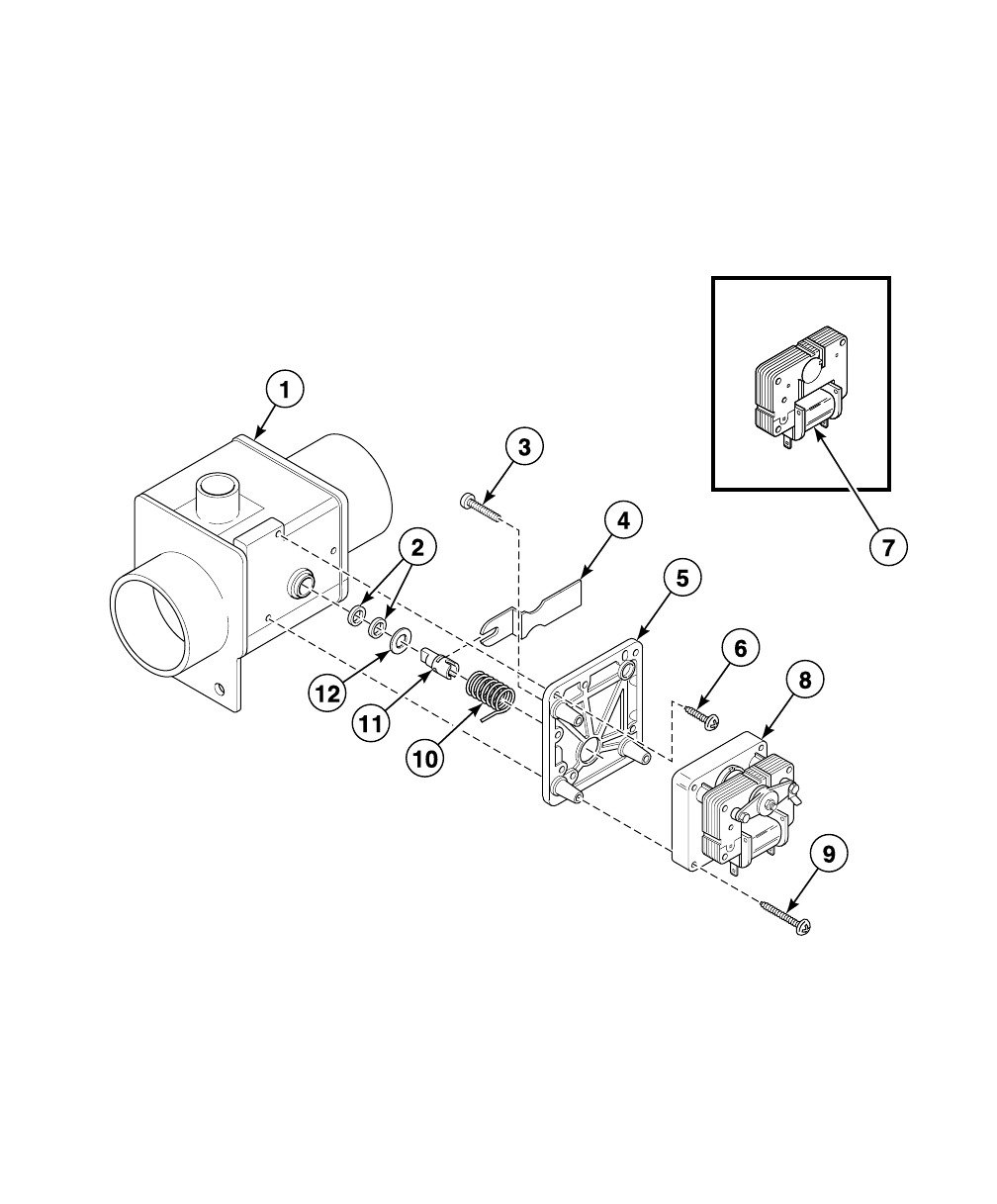

Drain Valve - Normally Open .................................................................................................................................. 30

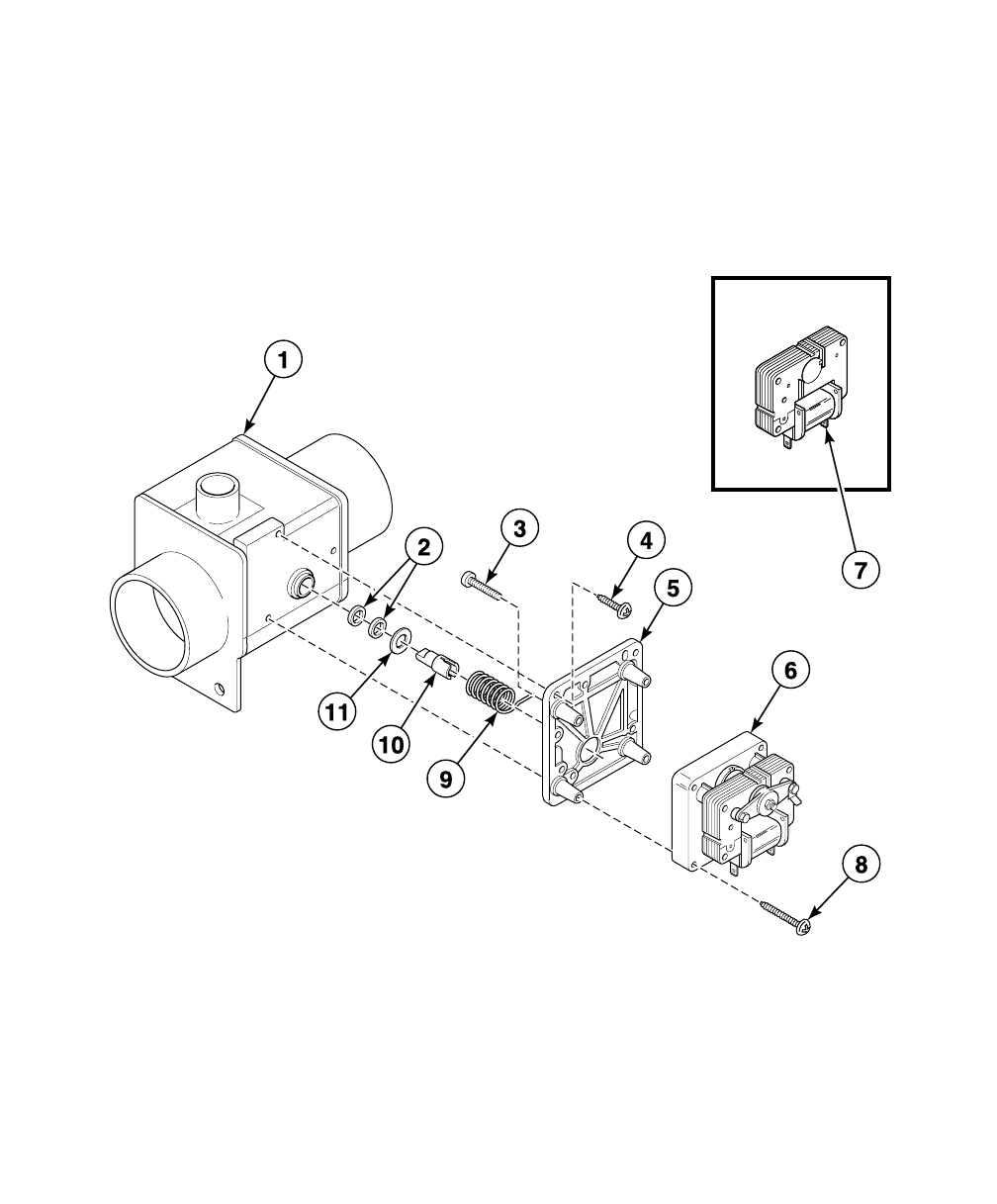

Drain Valve - Normally Closed ................................................................................................................................ 32

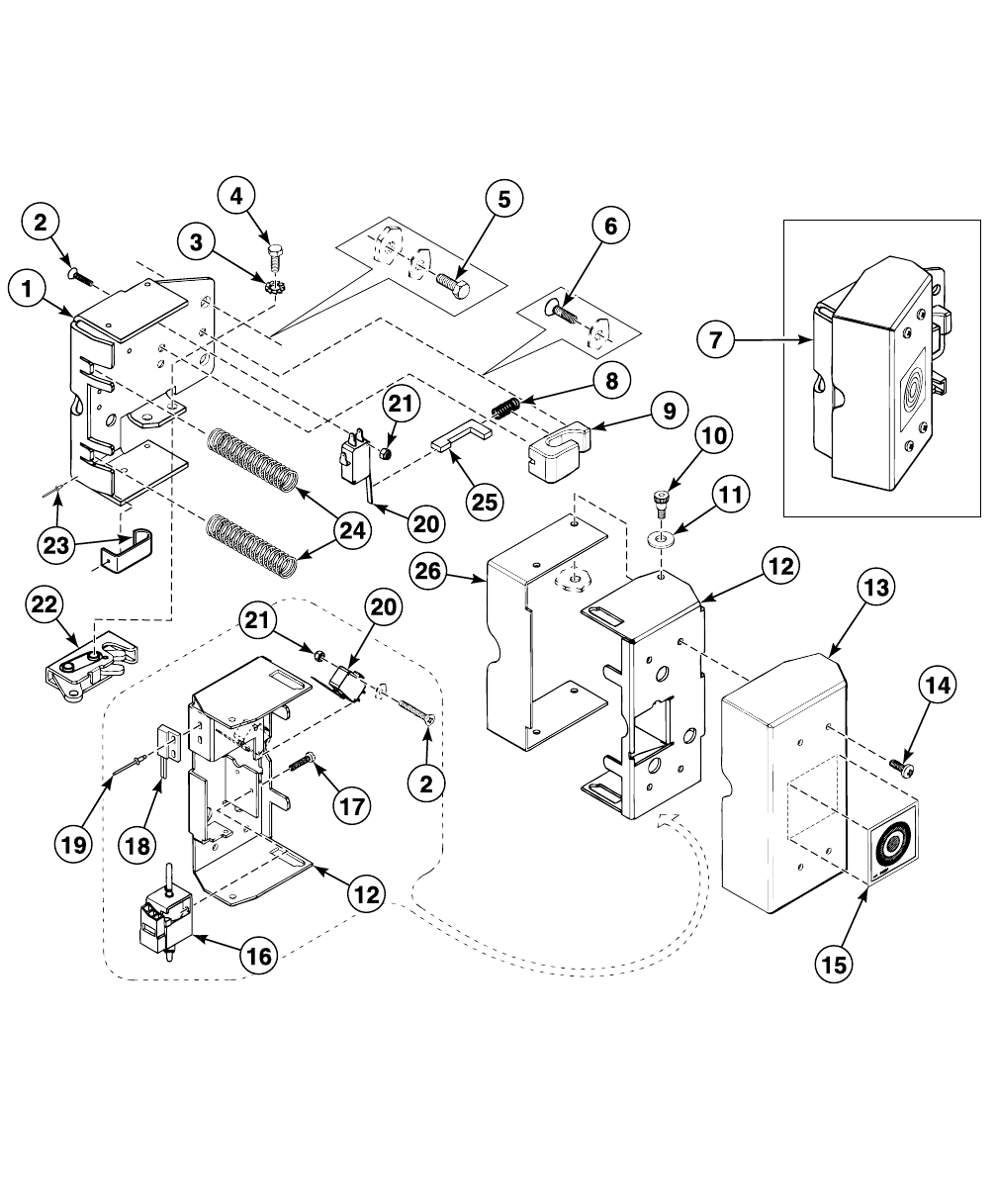

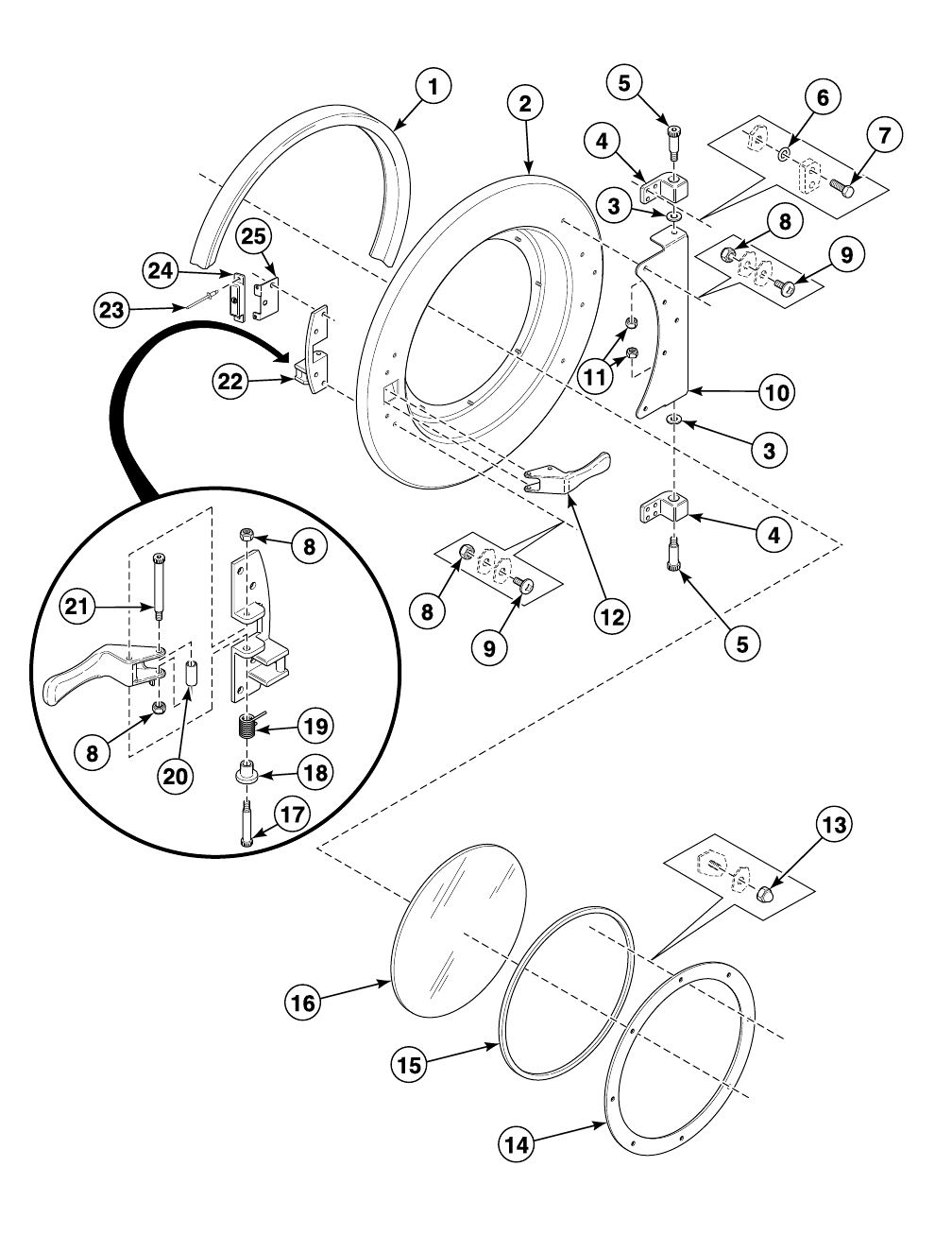

Door Lock................................................................................................................................................................ 34

Door - Models Through May 3, 2009 ...................................................................................................................... 36

Door - Models Starting May 4, 2009 ....................................................................................................................... 38

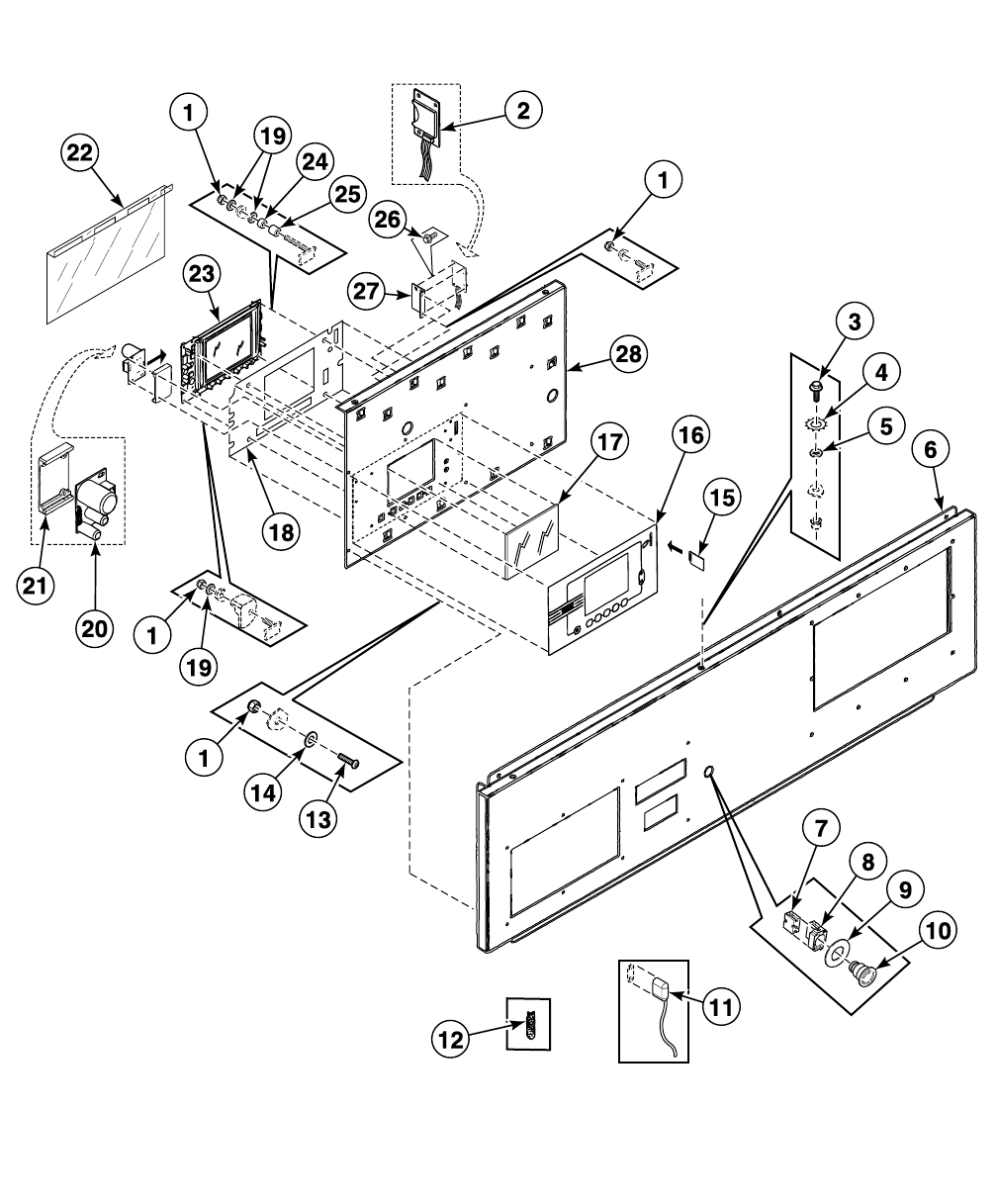

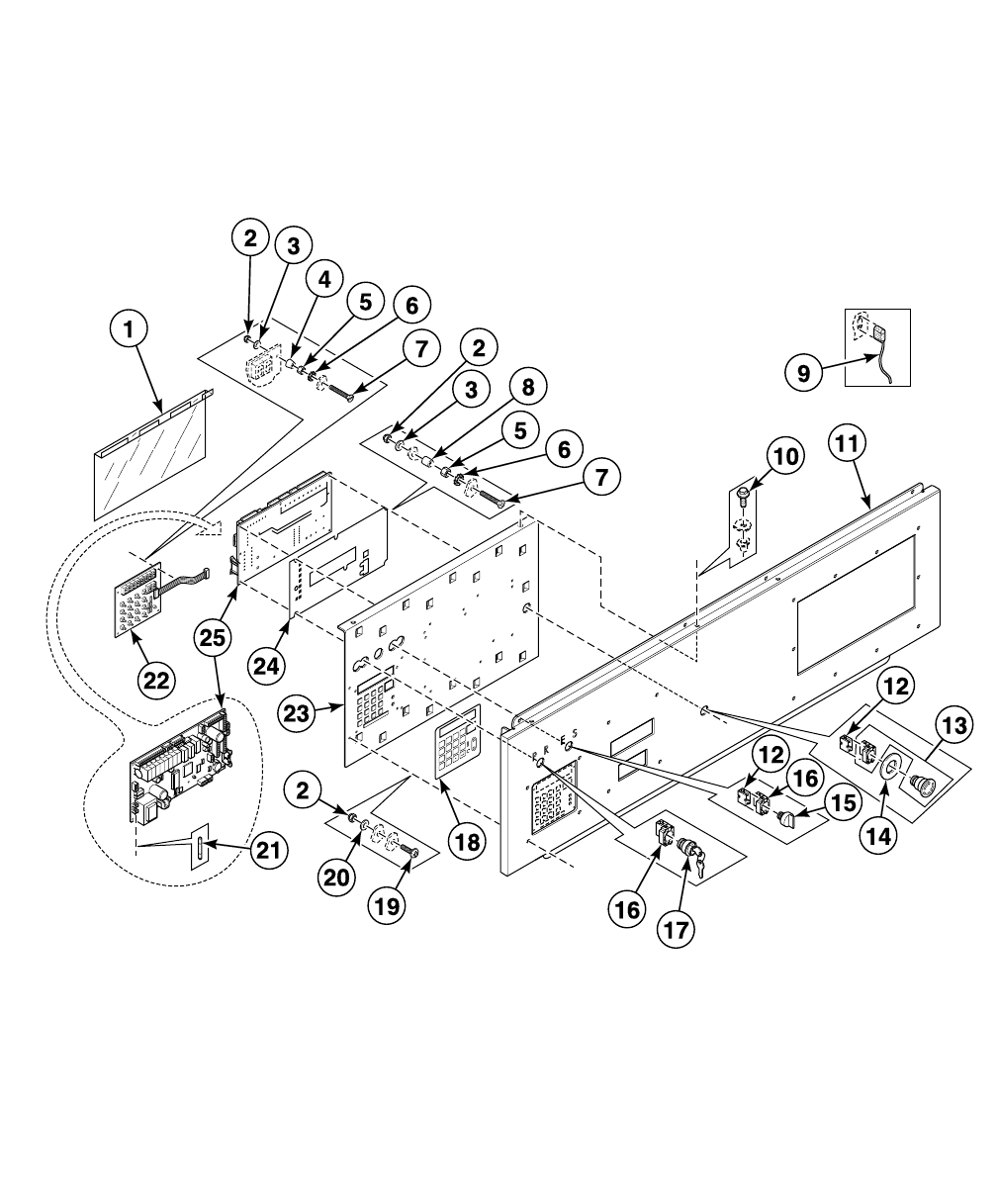

Control Panel - Cygnus Professional ...................................................................................................................... 40

Control Panel - PRO ............................................................................................................................................... 42

Control Panel - Cygnus Premium and Cygnus Ultra............................................................................................... 44

Control Panel - PS40F ............................................................................................................................................ 46

Control Panel - PS40 .............................................................................................................................................. 48

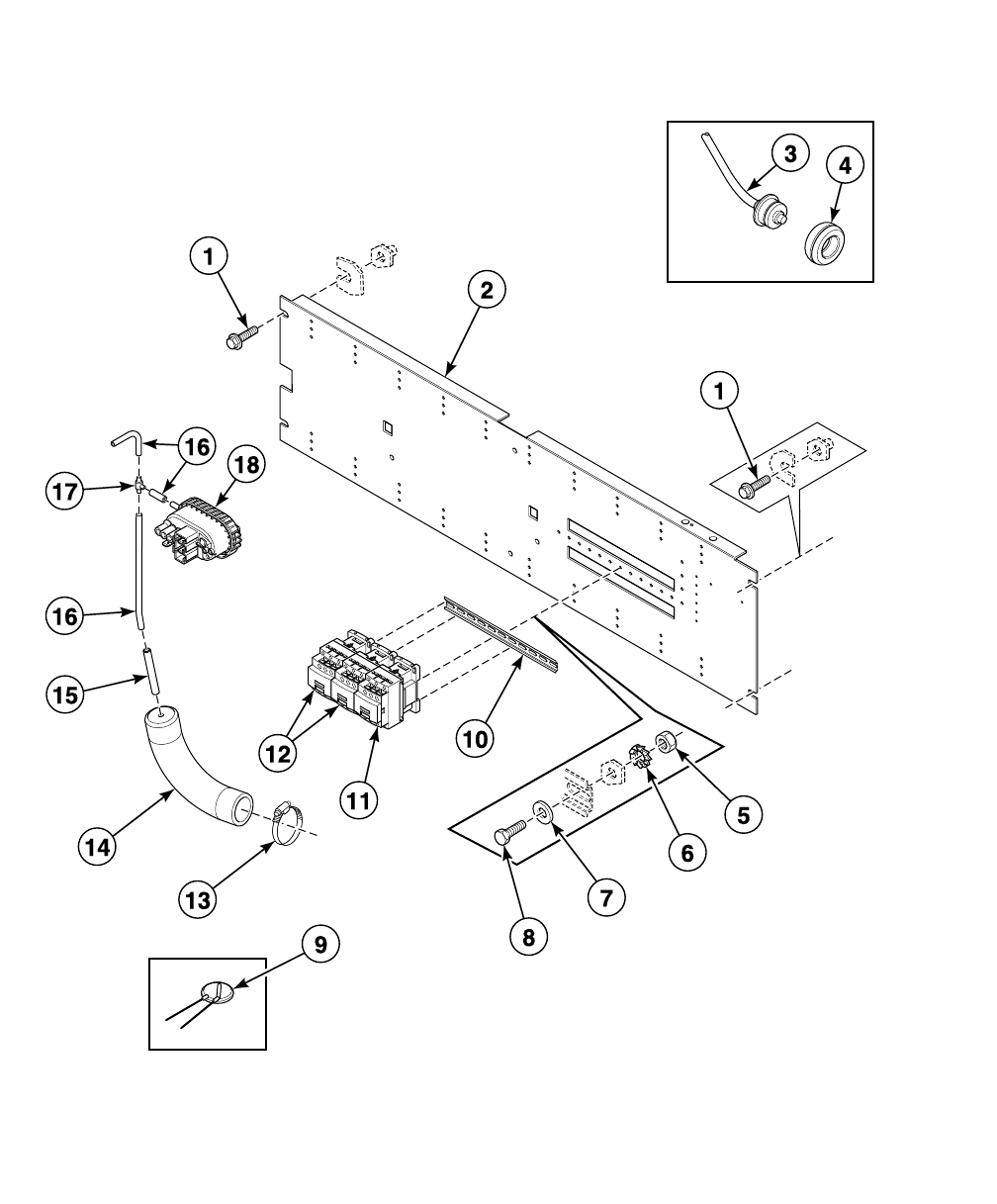

Electrical Component Mounting Plate - Models Through March 22, 2007.............................................................. 50

Electrical Component Mounting Plate - Models Starting March 23, 2007............................................................... 52

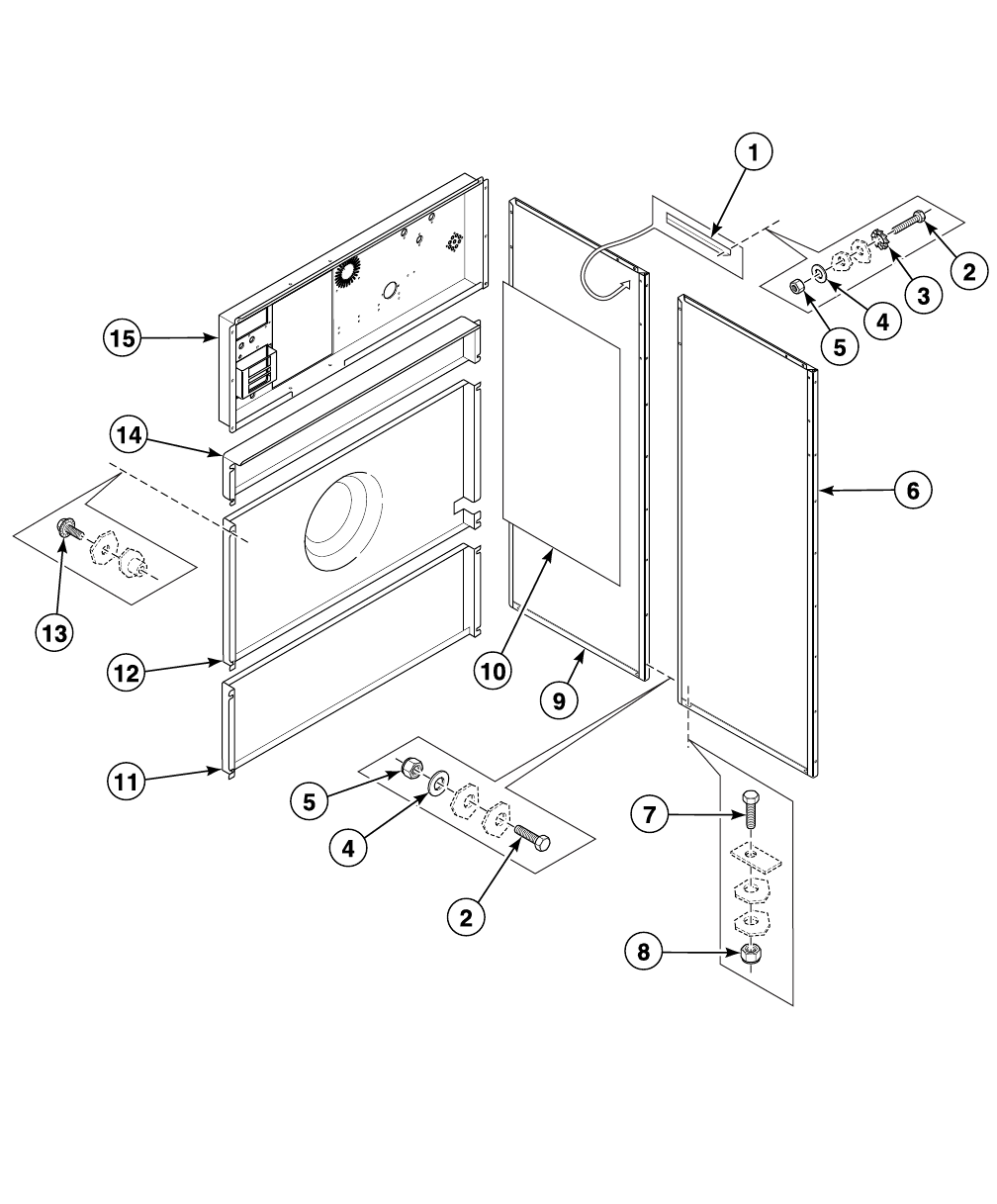

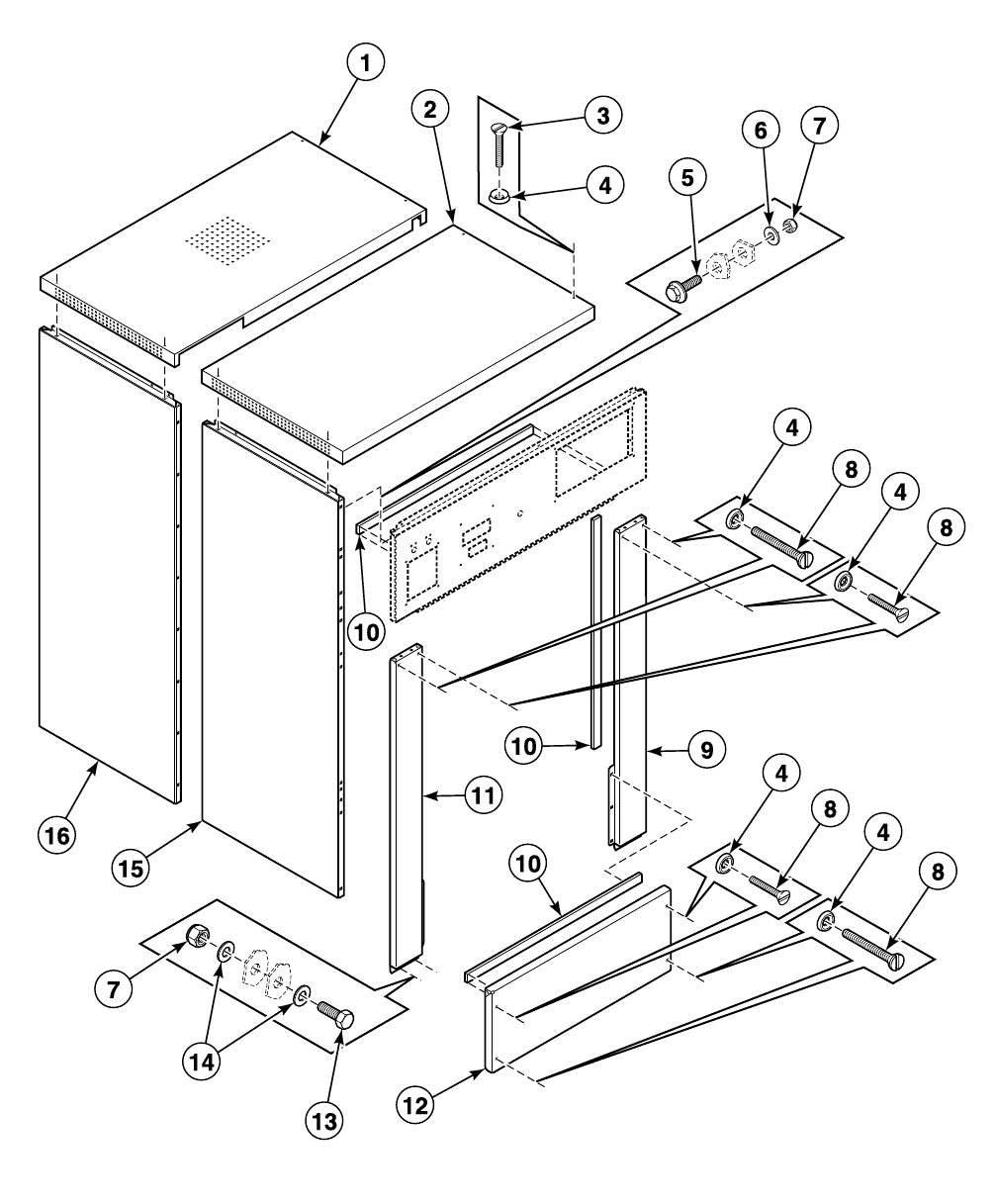

Front, Left Side and Top Panels ............................................................................................................................. 54

Right Side and Back Panels ................................................................................................................................... 56

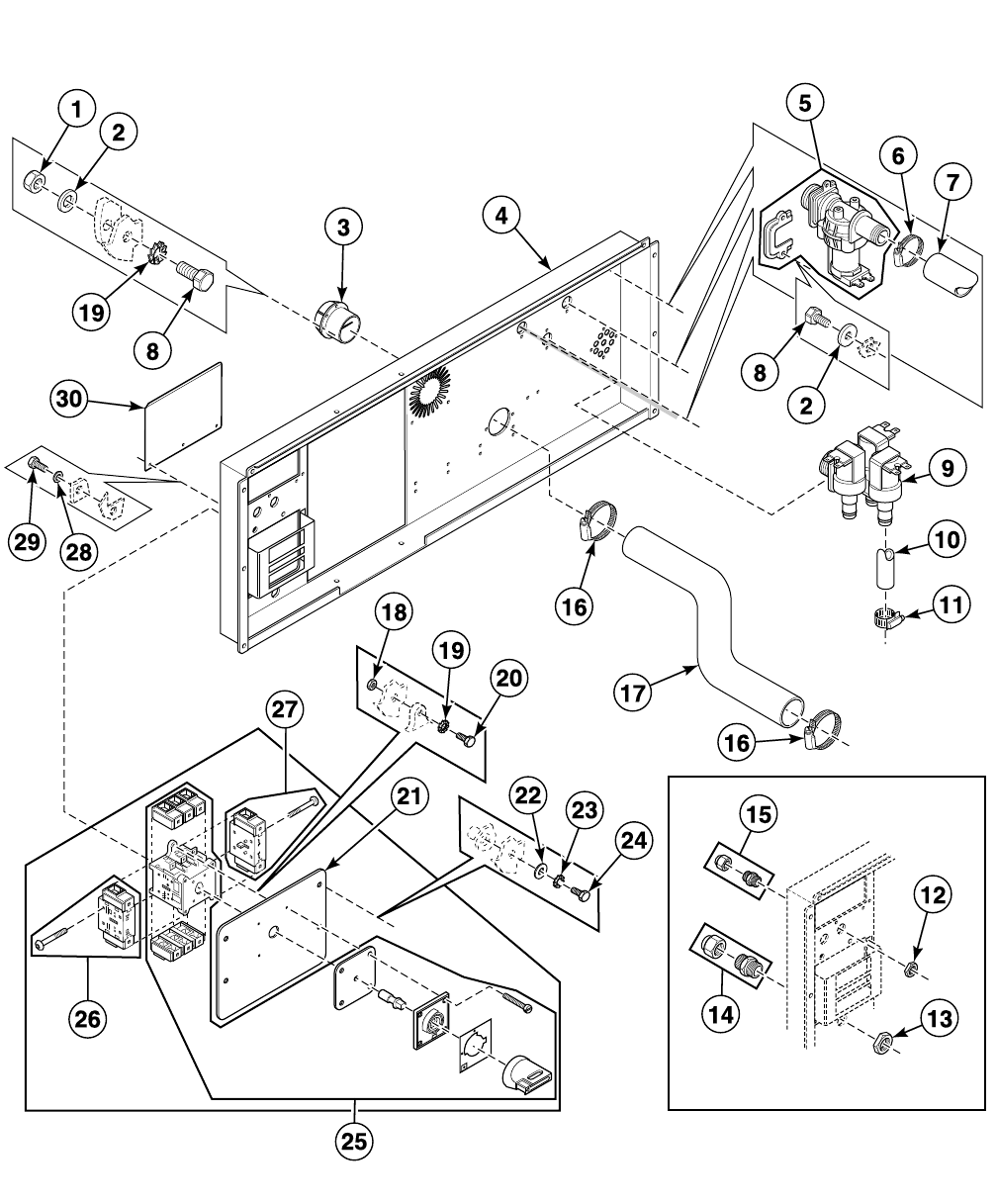

Upper Back Panel (Drawing 1 of 2) ........................................................................................................................ 58

Upper Back Panel (Drawing 2 of 2) ........................................................................................................................ 60

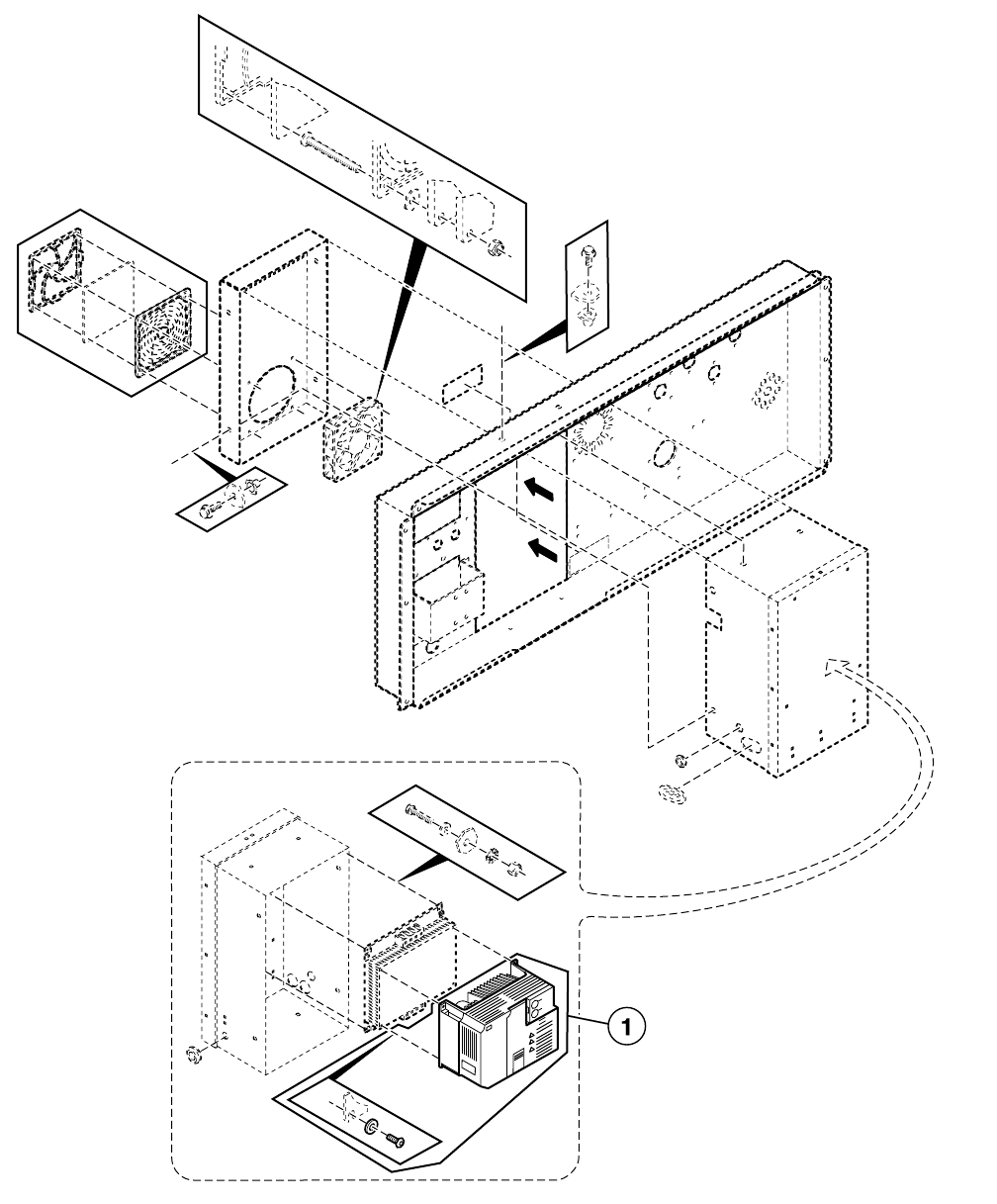

Inverter Drive (Drawing 1 of 2)................................................................................................................................ 62

Inverter Drive (Drawing 2 of 2)................................................................................................................................ 64

Main Board and Printboard - Cygnus Models ......................................................................................................... 66

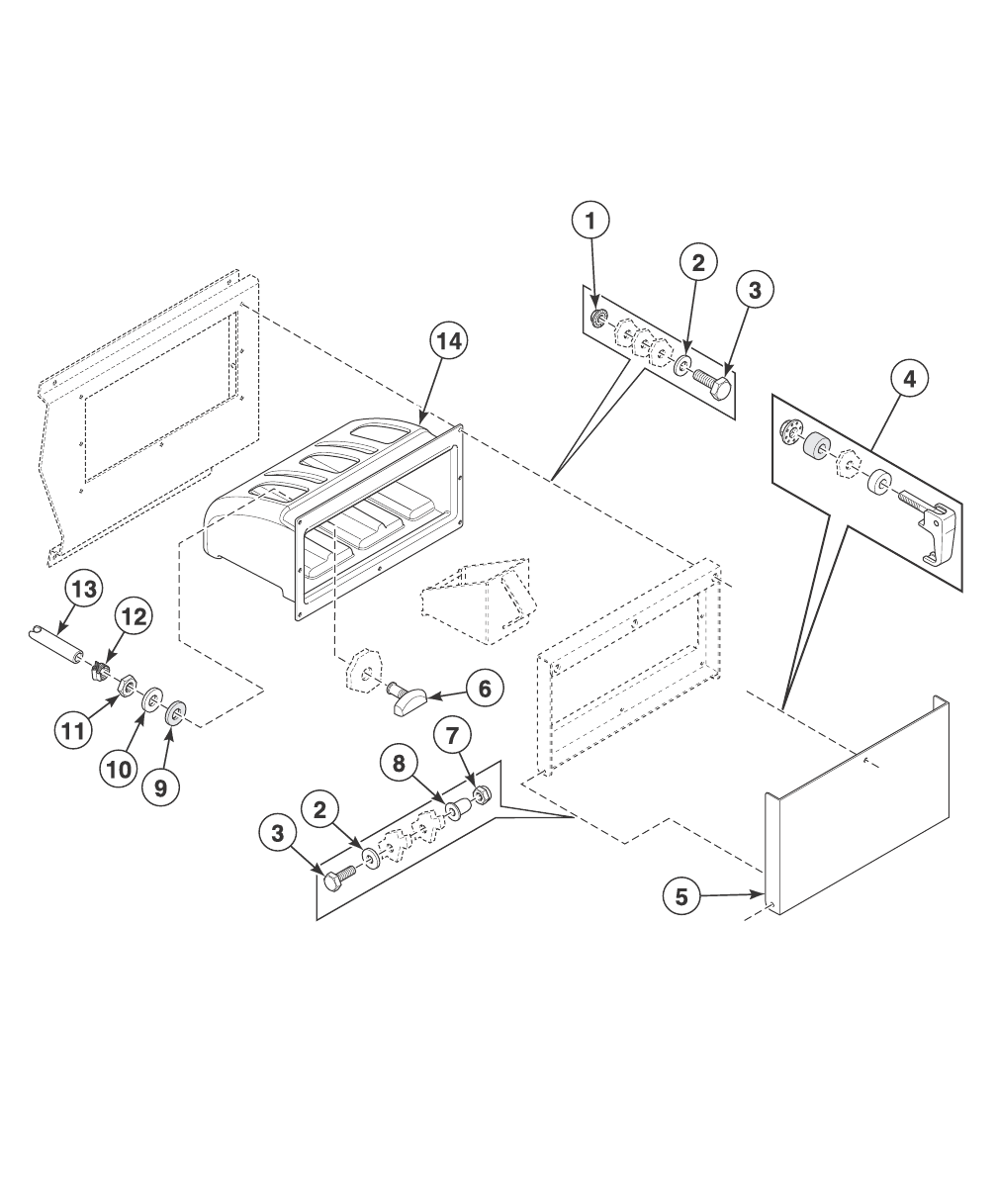

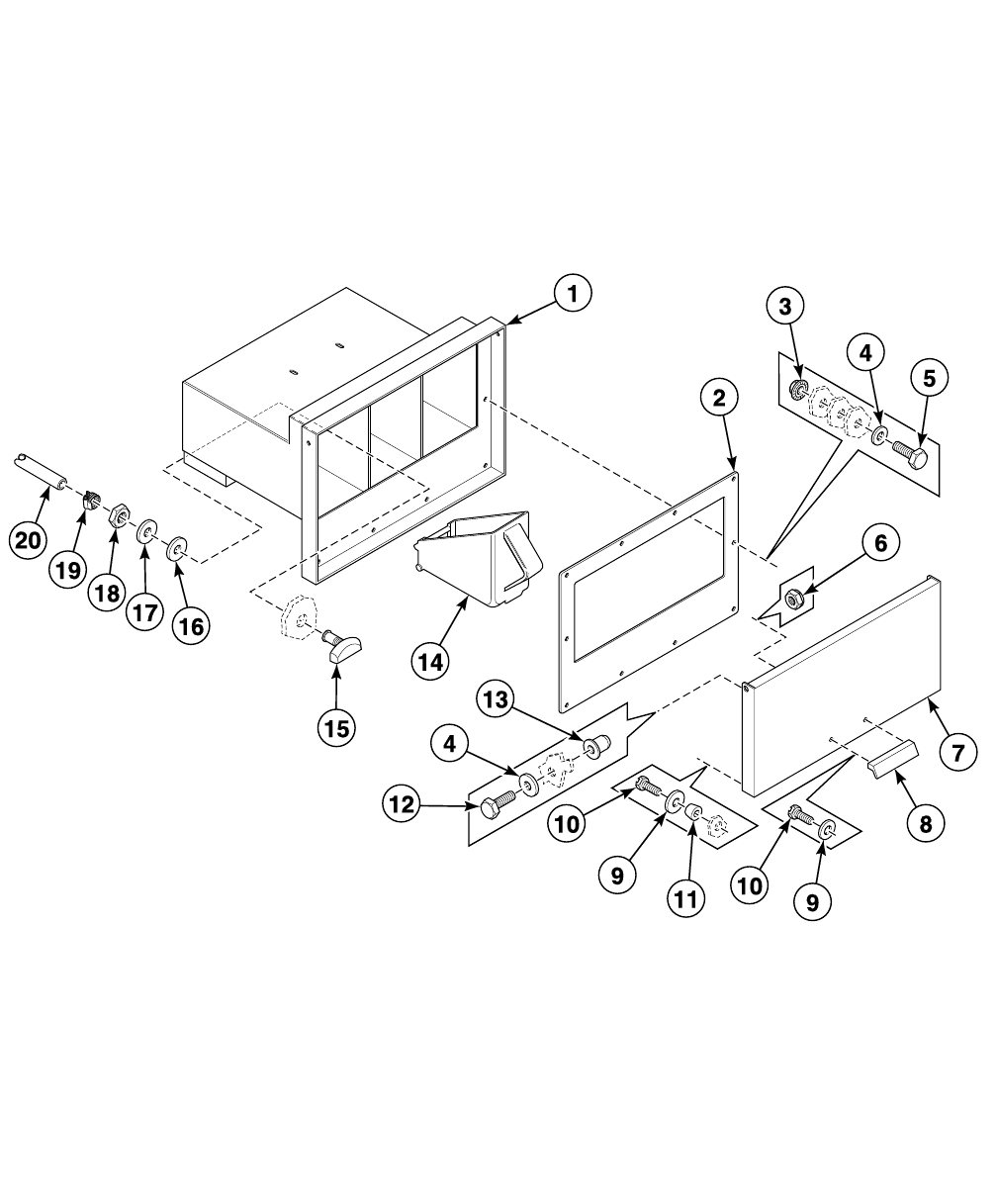

Supply Dispenser - Models Through April 26, 2009 ............................................................................................... 68

Supply Dispenser - Models Starting April 27, 2009 ................................................................................................ 70

Supply Dispenser Plumbing - Models Through April 26, 2009................................................................................ 72

Supply Dispenser Plumbing - Models Starting April 27, 2009 Through May 17, 2011 ........................................... 74

Supply Dispenser Plumbing - Models Starting May 18, 2011 ................................................................................. 76

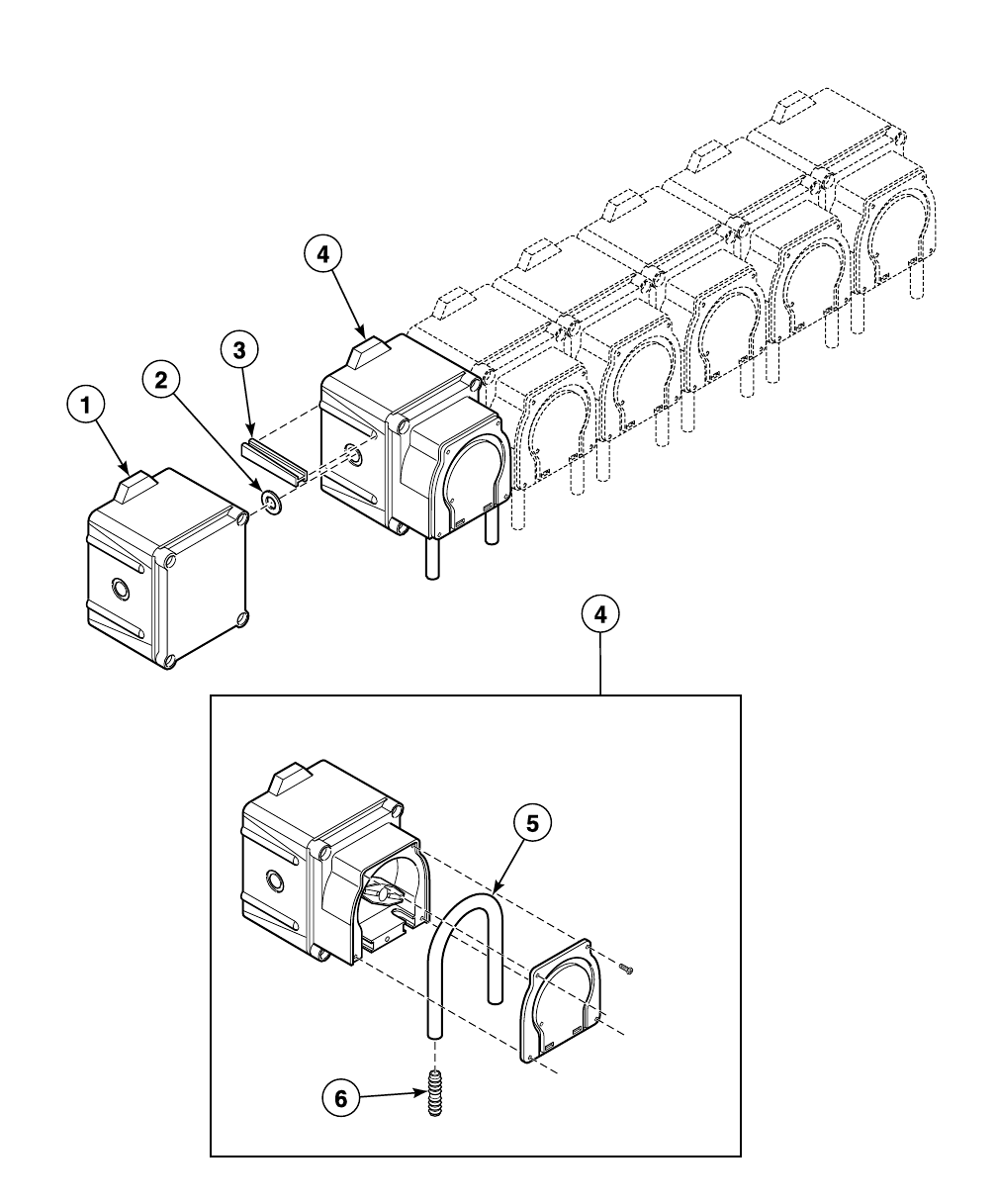

Soap Pumps ........................................................................................................................................................... 78

Liquid Supply Pump ................................................................................................................................................ 80

2D0055

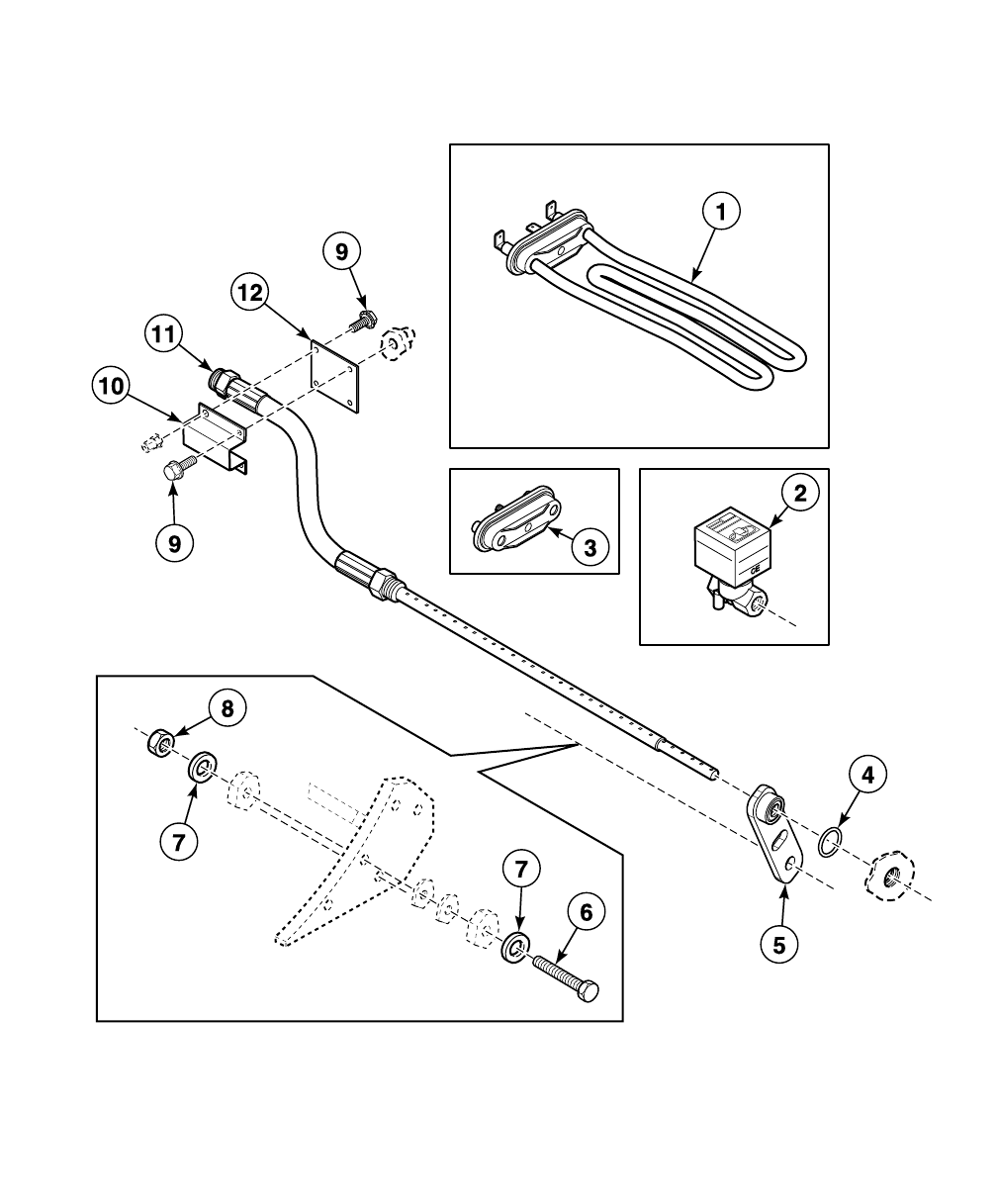

Electric and Steam Heating Options ....................................................................................................................... 82

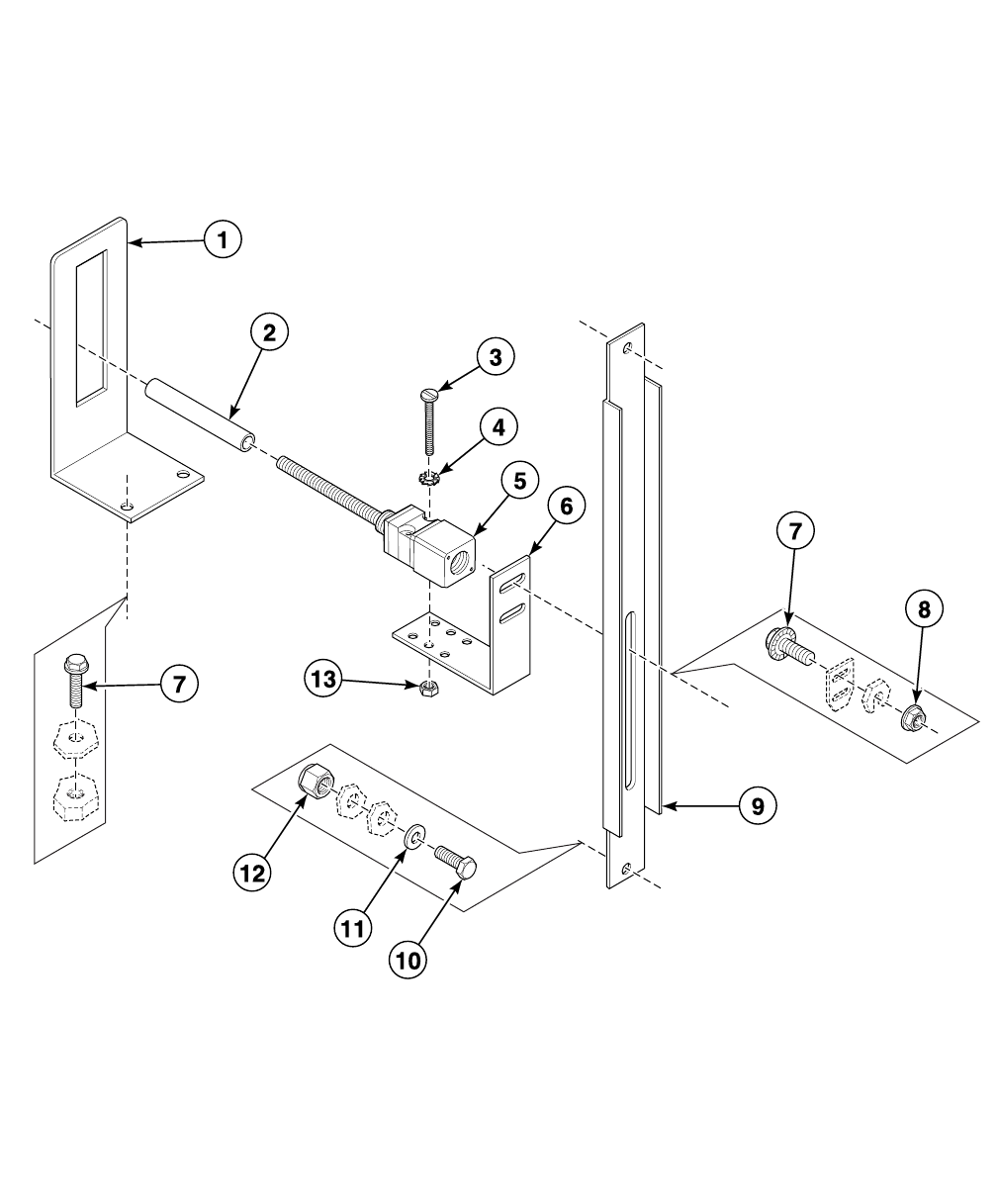

Balance Switch ....................................................................................................................................................... 84

Parts Index.............................................................................................................................................................. 87

D0055 3

Parts Ordering Information

If literature or replacement parts are required, con-

tact the source from whom the machine was pur-

chased or contact Alliance Laundry Systems at

(920) 748-3950 for the name and address of the

nearest authorized parts distributor.

For technical assistance, call the number listed

below:

(920) 748-3121 Ripon, Wisconsin

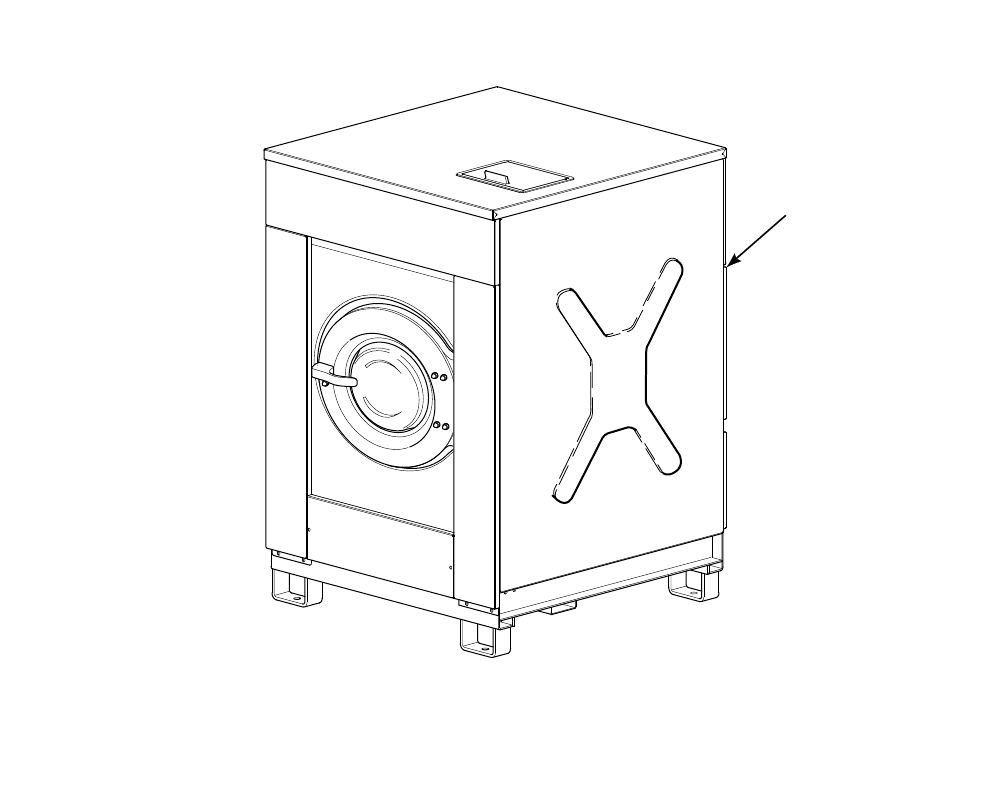

Serial Plate Location

When calling or writing about your product, be

sure to mention model and serial numbers. Model

and serial numbers are located on serial plate(s).

The serial plate is located at the rear of the ma-

chine as shown.

SERIAL PLATE

CFD22CA_D0055

Notes

D0055 4

D0055 5

Model Identification

Information in this manual is applicable to these washer-extractor models:

CHF100ANH

CHF135ANH

CS100_CYGNUS-ULTRA

CS135_CYGNUS-ULTRA

HF455_CYGNUS-PREM_OPL_THROUGH-MARCH-30-2014

HF455_CYGNUS-PRO_THROUGH-MARCH-30-2014

HF455_PS40

HF455_PS40F

HF575_CYGNUS-PREM_OPL_THROUGH-MARCH-30-2014

HF575_CYGNUS-PRO_THROUGH-MARCH-30-2014

HF575_PS40

HF575_PS40F

IHF100ANH

IHF100ZNH

IHF135ANH

IHF135ZNH

IHF455ANH

IHF455ZNH

IHF575ANH

IHF575ZNH

SX100Z

UX100Z

UX135Z

6D0055

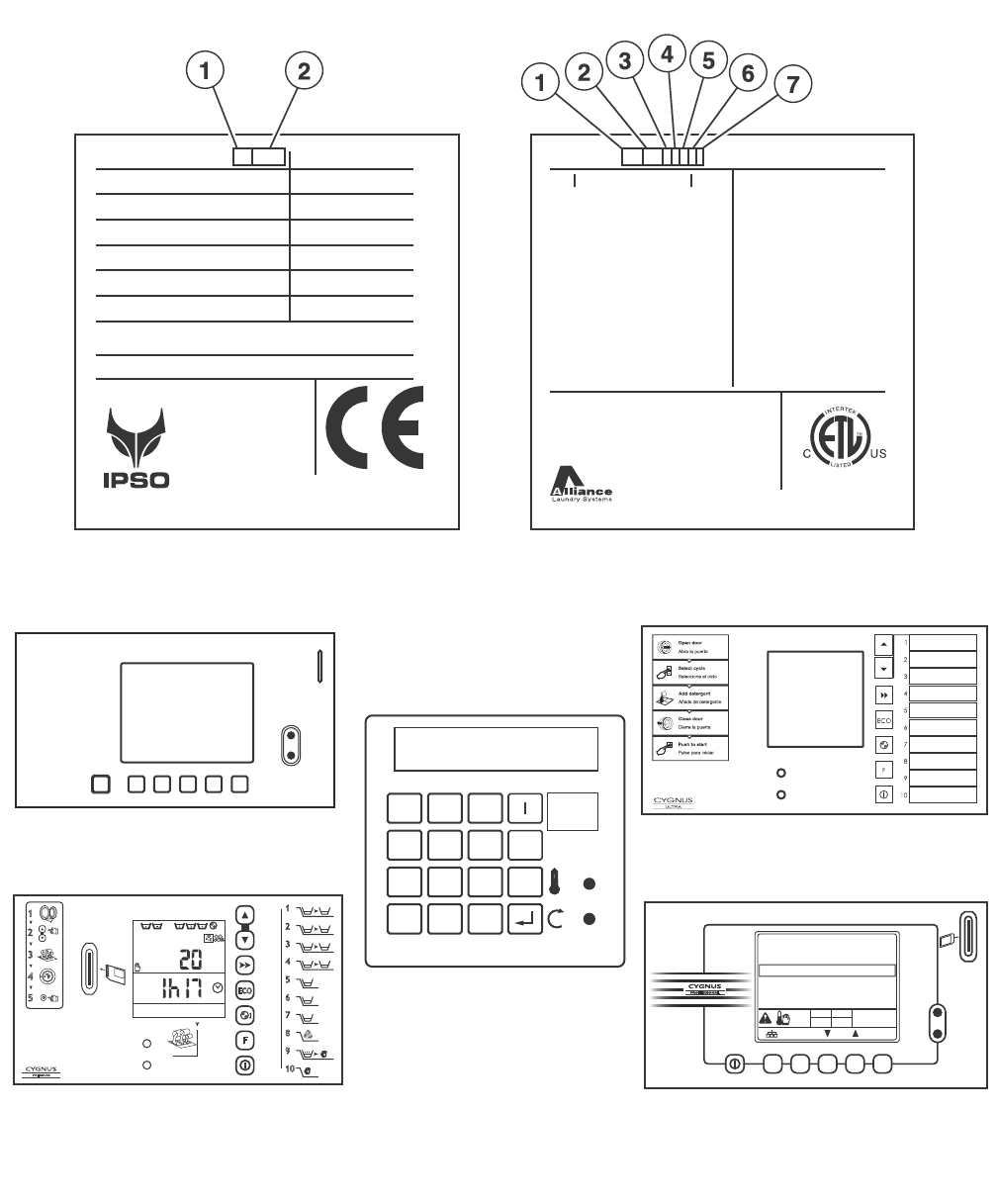

Cabinet Freestanding Washer-Extractor Product Overview

CFD2516P_D0055

PS40

Cygnus Professional

Label 1 Label 2

Cygnus Premium

CYGNUS

PROFESSIONAL

No r mal w ash 40º-40ºC

Wa r m w ash 40º-60ºC

Hot w ash 40º-90ºC

Delic a te 1 90ºC

Synthetic 1

1000

40ºC

1h03

1 2 3

PS40

4 5 6O

7 8 9NO

PROG

+ 0 _

CYGNUS

PREMIUM

ECO

3 4

min

Cygnus Ultra

PRO

Alliance International BVBA

Made in Belgium

TEL 1-920-748-3121

www.comlaundry.com

100740

CONFORMS TO ANSI/UL

STD 2157

CERTIFIED TO CAN/CSA

STD C22.2 NO.169

IPX4

Model No: IHF100ANHX10U01

Volts Hertz:

Phase:

Amps:

Recommended

Circuit Breaker:

Interrupt Current:

Motor:

Elec Heat:

Steam

heat:

Serial No: 0710740113

208-240 50/60

20 amps

25 amps

10 kA

15 hp

11 kW

N/A kW

N/A psi

N/A bar

Type:

Capacity:

Water

Pressure:

Max Speed:

Net

Weight:

HF730P

165/73 lbs/kg

30-85 psi

2.07-5.86 bar

750 rpm

3520 lbs

5070 kg

Alliance International BVBA

Nieuwstraat 146

8560 Wevelgem

Belgium

Tel: +32 56 41 20 54

Fax: +32 56 41 86 74

www.ipso.be

HF455P

3 ~ 380V 50Hz

7.5 kW 20 A

36 kW 60 A

43.50 kW

23257N/M

2007

Type:

Voltage:

Motor:

Heating:

Total:

Kinetic energy:

Manufactured in:

sfc 741295

Water Pressure: min. 2.07 max. 5.86 Kg/cm²

min. 20.7 max. 58.6 N/cm² IPX4

07110580147

1787 kg

575 L

57 kg

980 mm

800 rpm

Nr:

Weight:

Capacity:

Dry Load:

Drum:

Speed:

D0055 7

Cabinet Freestanding Washer-Extractor Product Overview

REF PART NO. DESCRIPTION COMMENTS

1- Product Family CHF

IHF

2- Capacity (Pounds) 100

135

455

575

3- Control A (PS40F)

Cygnus-Prem

Cygnus-Ultra

U (Cygnus-Ultra)

PS40

Z (Cygnus-Pro or PRO)

4- Actuation N (Non-Coin)

5- Speed H (High Speed)

6- Voltage N (440-480/50-60/3/3)

P (380-415/50-60/3/3)

Q (208-240/50-60/3/3)

X (200-240/50-60/1/3)

7-Design 1

8D0055

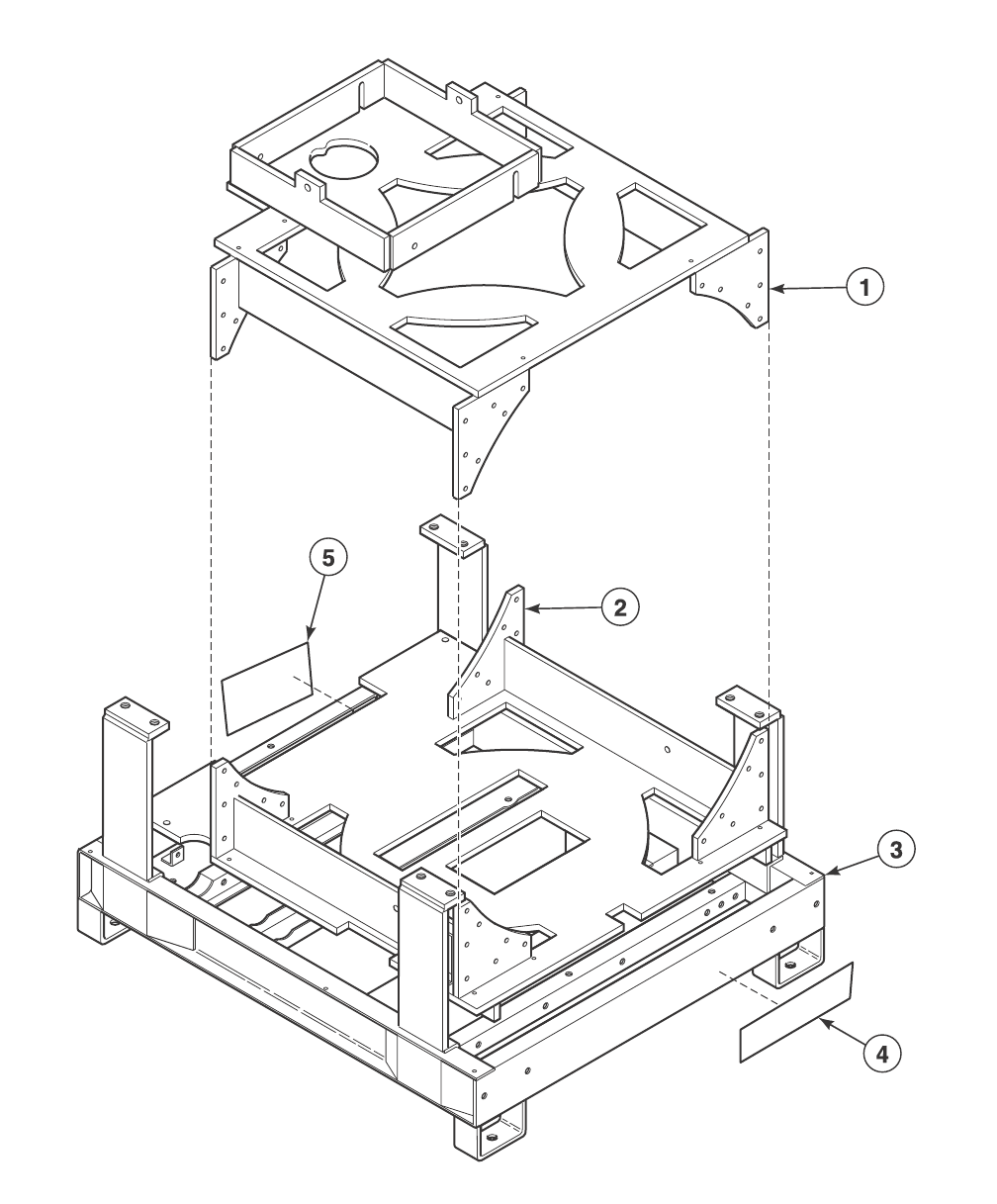

Frame

CFD3210P_D0055

D0055 9

Frame

REF PART NO. DESCRIPTION COMMENTS

1253/10111/00 Upper Support *HF100 and *HF455 models

1253/10112/00 Upper Support *HF135 and *HF575 models

2253/10011/00 Lower Support *HF100 and *HF455 models

2253/10012/00 Lower Support *HF135 and *HF575 models

3253/10009/00 Frame *HF100 and *HF455 models

3253/10010/00 Frame *HF135 and *HF575 models

4153/10009/11 Front Shipping Brace

5153/10009/12 Rear Shipping Brace

10 D0055

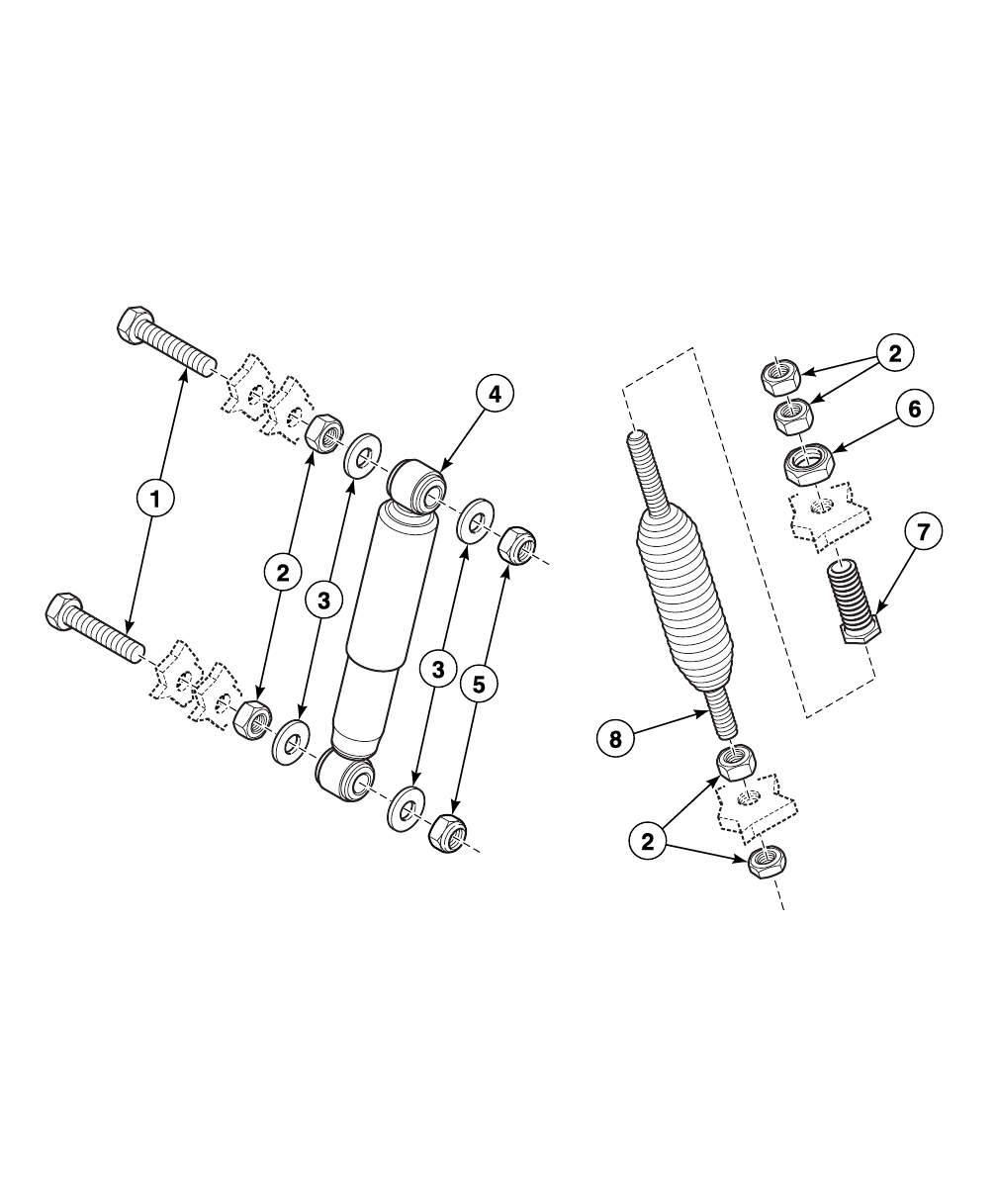

Shock Absorber

BE000333P_D0055

D0055 11

Shock Absorber

REF PART NO. DESCRIPTION COMMENTS

1206/00071/00 Bolt

2204/00012/00 Nut

3201/00001/00 Washer

4247/00008/00 Shock Absorber

5204/00113/00 Nut

6204/00016/00 Nut

7224/00046/00 Bolt

8B12456301 Suspension Spring

12 D0055

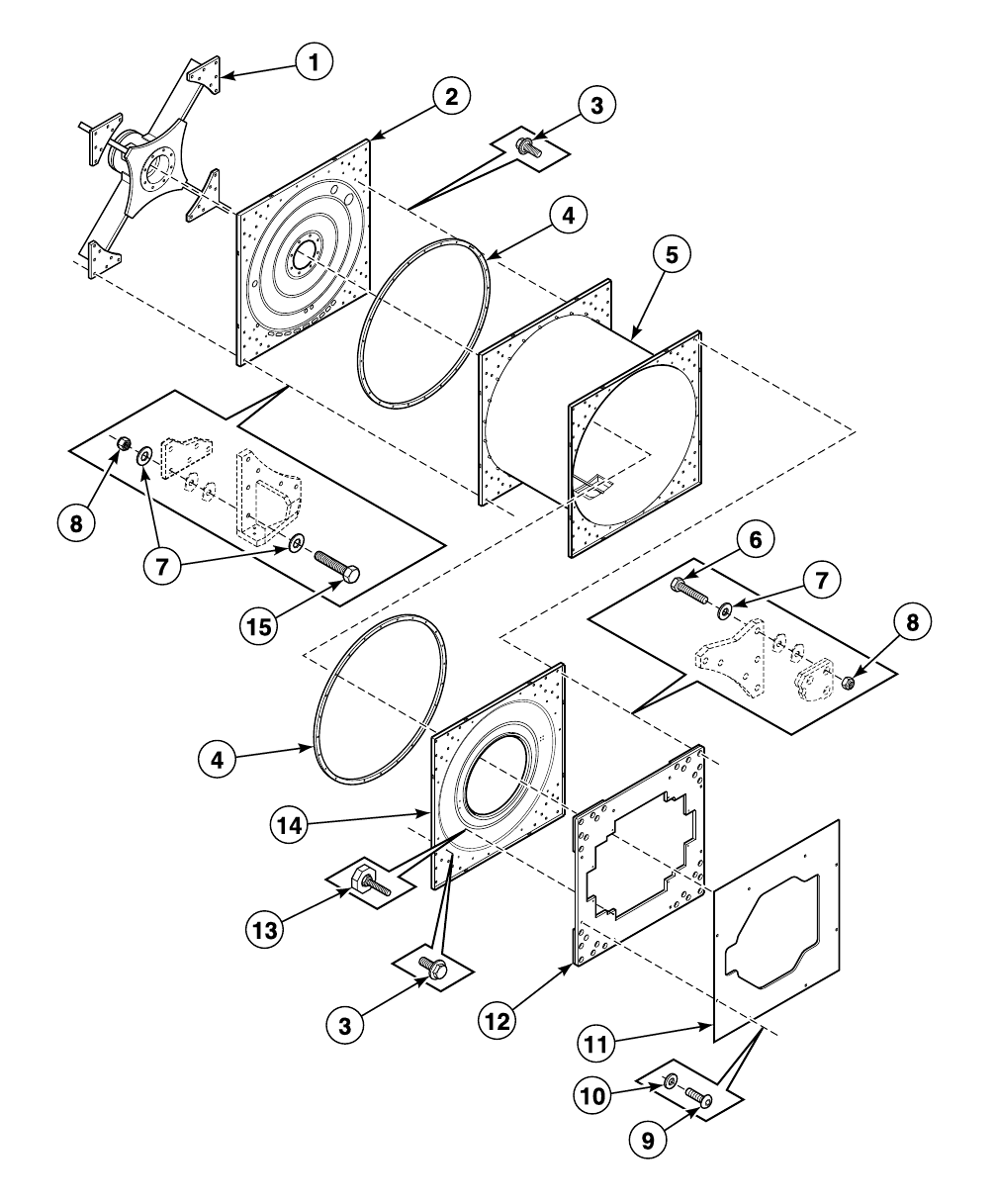

Shell

BE000306BP_D0055

D0055 13

Shell

REF PART NO. DESCRIPTION COMMENTS

1153/10004/00 Bearing Housing Assembly

2153/00076/10 Tub Back Plate Steam heat

2153/00075/10 Tub Back Plate Electric and steam heat

3206/00099/00 Bolt

4223/00168/00 Tub Gasket

5153/00077/00 Tub *HF100 and *HF455 models; Electric and steam heat

5153/00078/00 Tub *HF100 and *HF455 models; Steam heat

5153/00075/00 Tub *HF135 and *HF575 models; Electric and steam heat

5153/00076/00 Tub *HF135 and *HF575 models; Steam heat

6206/00122/00 Bolt

7B12522101 Washer

8204/00113/00 Nut

9205/00102/00 Bolt

10 202/00105/00 Washer

11 153/10113/00 Door Front Panel Round

11 153/10114/00 Door Front Panel Square

12 253/10013/00 Counterweight

13 252/00006/00 Leveling Leg

14 153/10013/00 Tub Front Panel

14 D0055

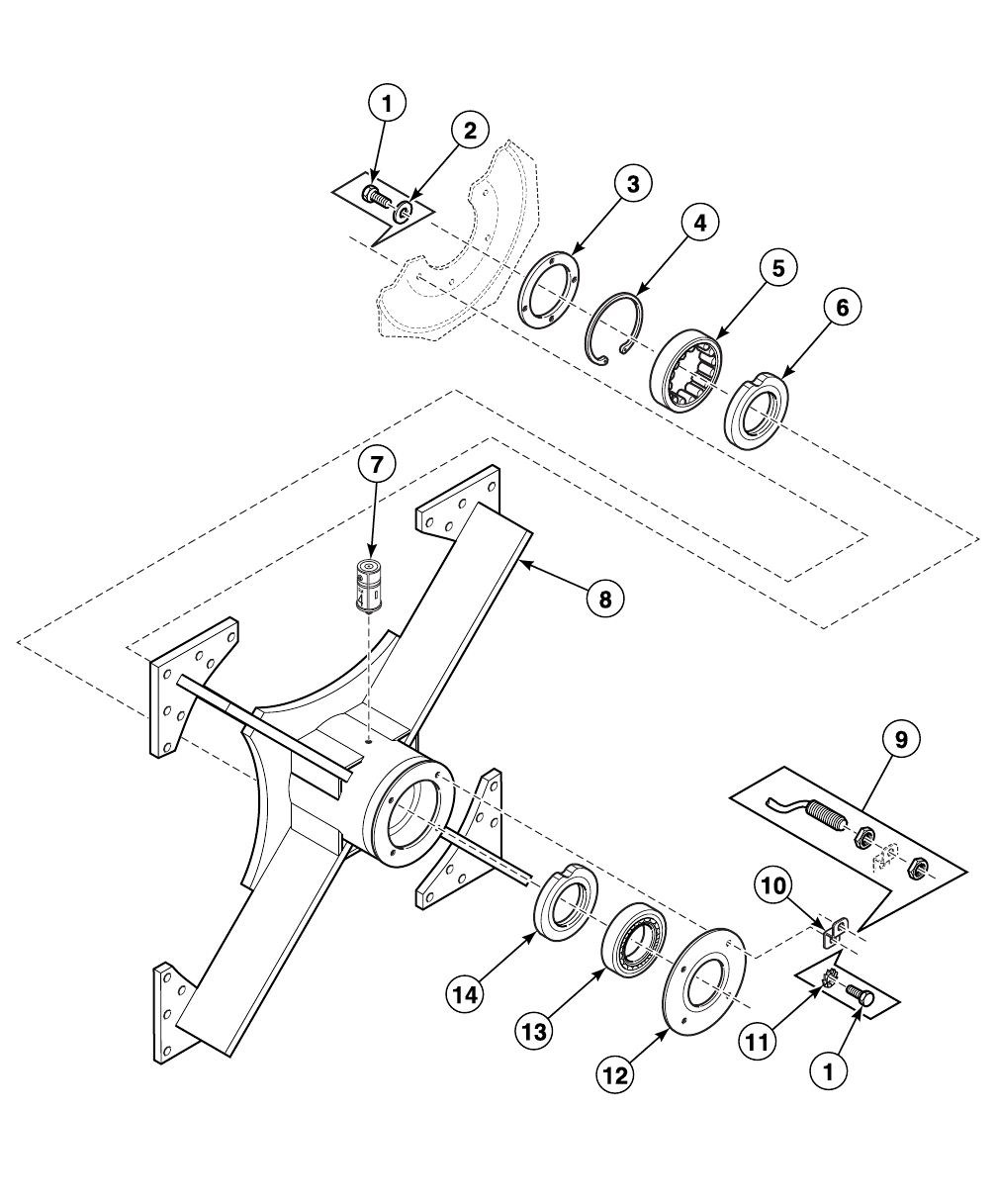

Bearing Housing (Drawing 1 of 2) - Models Through

January 30, 2011

BE000307P_D0055

D0055 15

Bearing Housing (Drawing 1 of 2) - Models Through

January 30, 2011

REF PART NO. DESCRIPTION COMMENTS

NA 245/00054/00 Bearing Replacement Tool Kit

NA 894P3 Bearing Replacement Kit Includes items 2, 5, 7, 13, 223/00168/00 Tub Gasket,

253/00151/00 V-Ring Seal, 253/00152/00 V-Ring Seal,

253/00153/00 V-Ring Seal and 254/00154/00 V-Ring

Seal

1205/00102/00 Bolt

2201/00202/00 Washer

3253/10127/00 Bearing Housing Cover

4253/00157/00 Retaining Ring

5253/00155/00 Roller Bearing

6253/10120/00 Spacer

7212/00002/00 Lubricator

8153/10004/00 Bearing Housing Assembly

9209/00400/00 Speed Detector

10 153/00041/02 Speed Sensor Bracket

11 203/00002/00 Washer

12 153/00069/00 Bearing Cover Plate

13 253/00156/00 Roller Bearing

14 B12360807 Bearing Spacer

16 D0055

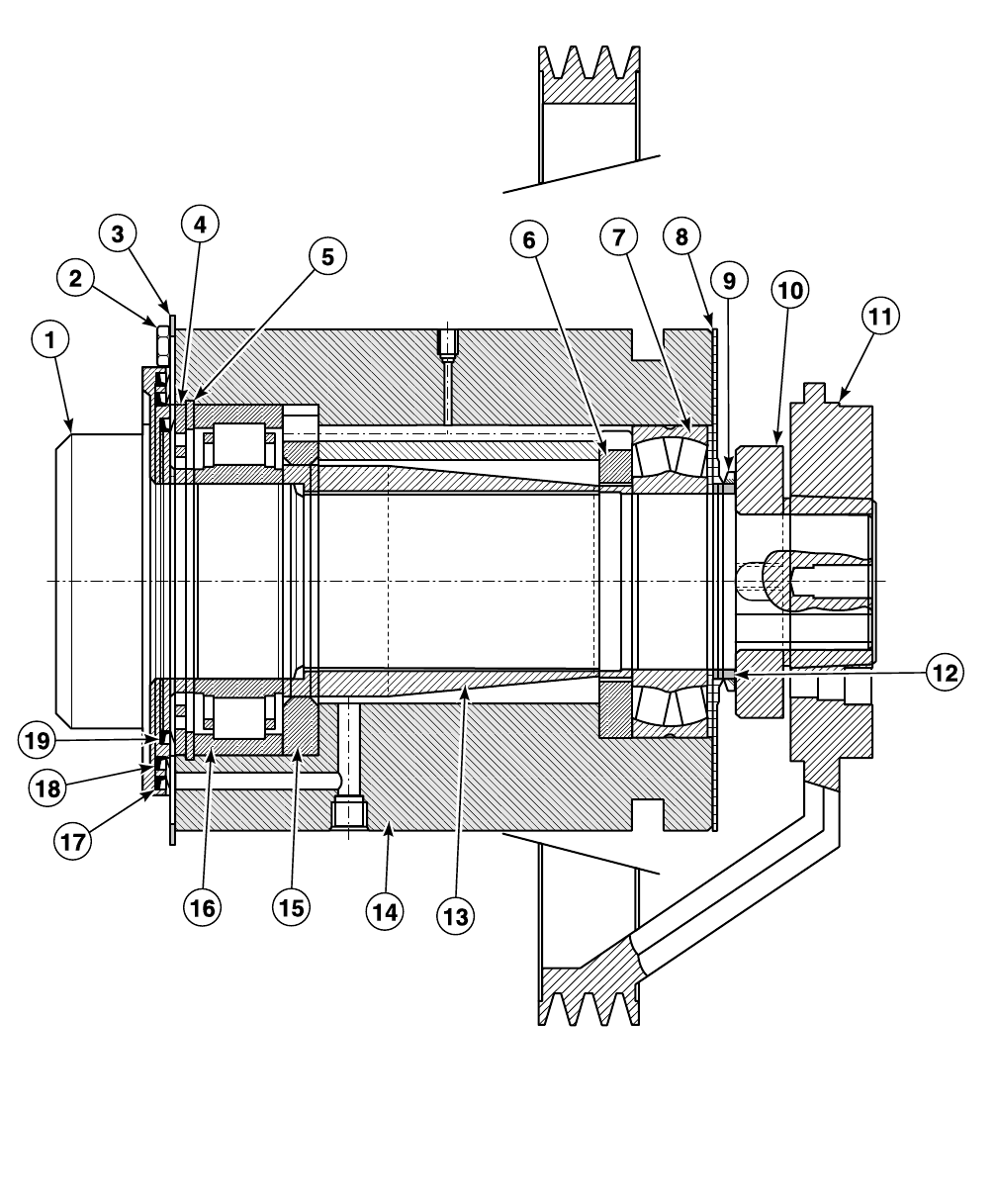

Bearing Housing (Drawing 2 of 2) - Models Through

January 30, 2011

BE000361P_D0055

D0055 17

Bearing Housing (Drawing 2 of 2) - Models Through

January 30, 2011

REF PART NO. DESCRIPTION COMMENTS

1B12374401 Drum Assembly

2205/00102/00 Bolt

3201/00202/00 Washer

4253/10127/00 Bearing Housing Cover

5253/00157/00 Retaining Ring

6B12360807 Bearing Spacer

7253/00156/00 Roller Bearing

8153/00069/00 Bearing Cover Plate

9253/00154/00 V-Ring Seal

10 253/00026/00 Pulley

11 253/00026/01 Pulley

12 253/00124/00 Bushing

13 253/00125/00 Spacer

14 153/10004/00 Bearing Housing Assembly

15 253/10120/00 Spacer

16 253/00155/00 Roller Bearing

17 253/00151/00 V-Ring Seal

18 253/00152/00 V-Ring Seal

19 253/00153/00 V-Ring Seal

18 D0055

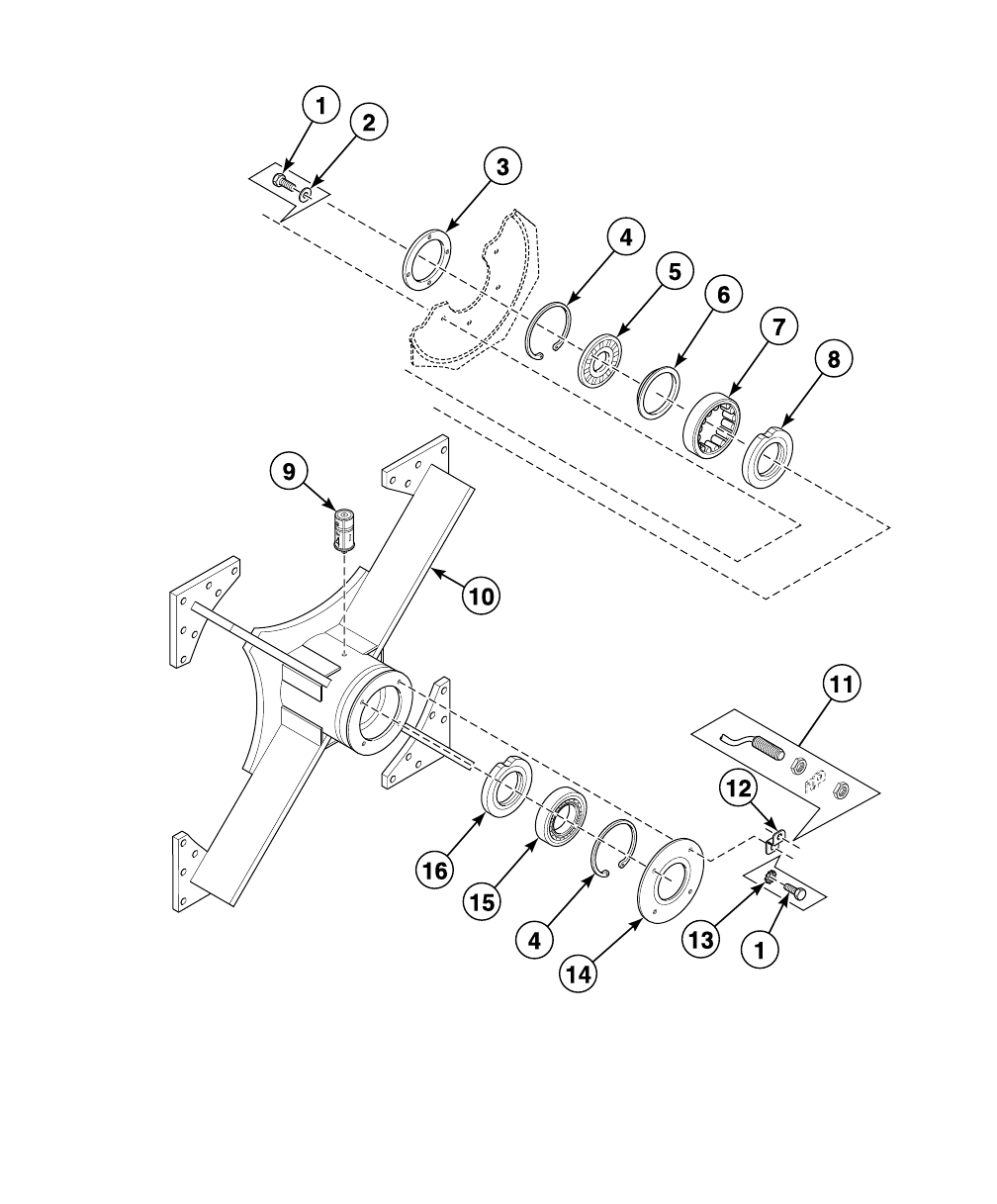

Bearing Housing - Models Starting January 31, 2011

CFD638P_D0055

D0055 19

Bearing Housing - Models Starting January 31, 2011

REF PART NO. DESCRIPTION COMMENTS

NA 245/00054/00 Bearing Replacement Tool Kit

NA 3885P Bearing Kit Includes items 2, 3, 5-7, 9, 15, B12378901 (VL200) Seal,

B12378801 (VL180) Seal, 253/00154/00 (VA100) Seal,

204/00113/00 Nut and 223/00168/00 Tub Gasket

1205/00102/00 Bolt

2201/00202/00 Washer

3153/00121/00 Seal Wear Plate

4253/00157/00 Retaining Ring

5253/00182/00 Lip Seal

6253/00131/00 Grease Ring Holder

7253/00155/00 Roller Bearing

8B12360810 Spacer

9212/00002/00 Lubricator

10 153/10004/00 Bearing Housing Assembly

11 209/00400/00 Speed Detector

12 153/00041/02 Speed Sensor Bracket

13 203/00002/00 Washer

14 153/00069/00 Bearing Cover Plate

15 253/00156/00 Roller Bearing

16 B12360807 Bearing Spacer

20 D0055

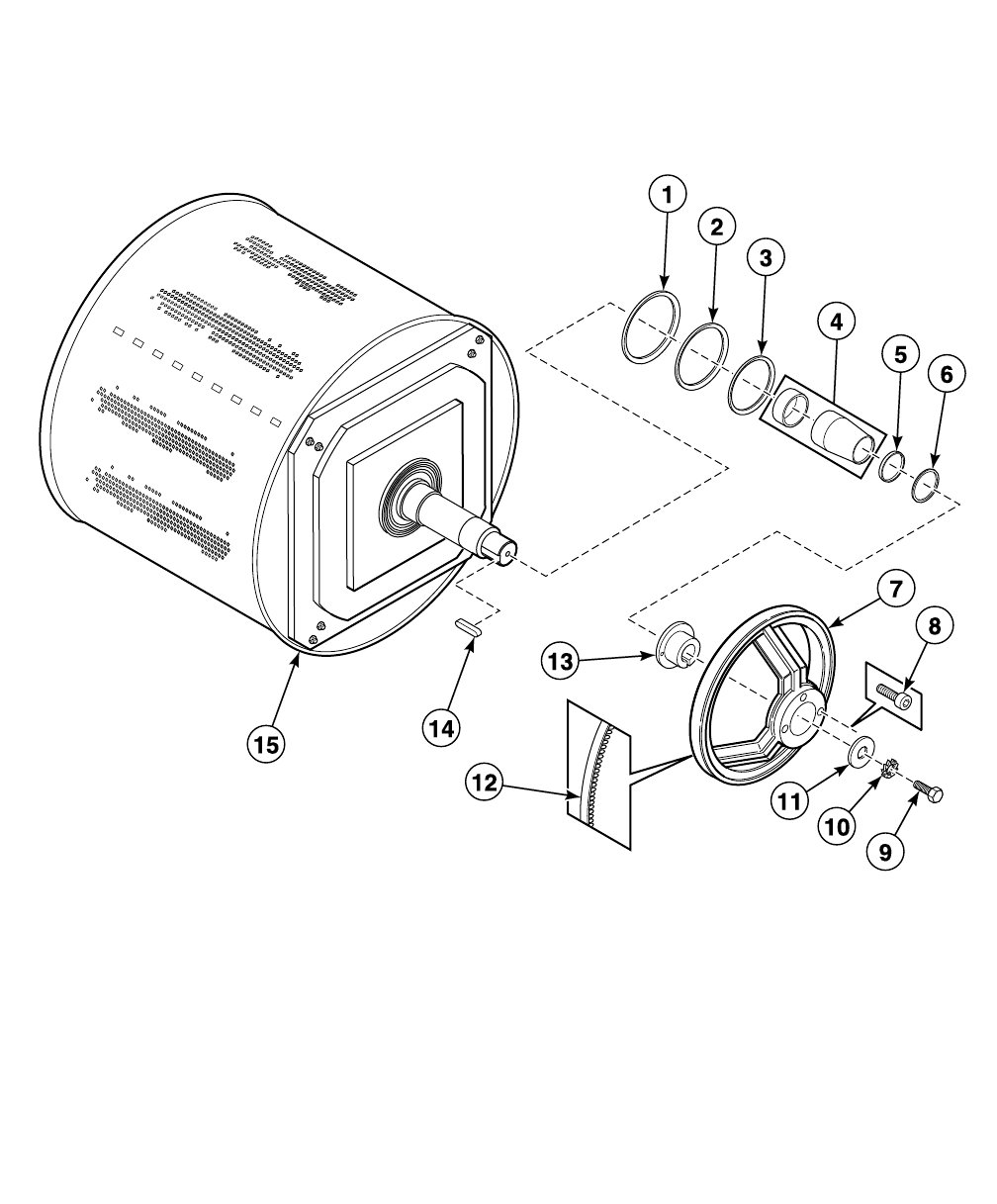

Basket, Pulley and Belt - Models Through January 30, 2011

BE000308P_D0055

D0055 21

Basket, Pulley and Belt - Models Through January 30, 2011

REF PART NO. DESCRIPTION COMMENTS

1253/00151/00 V-Ring Seal 246/00302/00 Seal Grease

2253/00152/00 V-Ring Seal

3253/00153/00 V-Ring Seal

4253/00125/00 Spacer

5253/00124/00 Bushing

6253/00154/00 V-Ring Seal

7253/00026/01 Pulley Models through 11/23/10; 450 mm (17.7 inches)

7253/00078/00 Pulley Models starting 11/24/10; 505 mm (19.9 inches)

8206/00053/00 Screw

9206/00147/00 Bolt

10 203/00016/00 Washer

11 201/00025/00 Washer

12 253/00148/00 Belt XPA 2360

12 226/00155/00 Belt *HF455 models starting Serial No. 10110440133; *HF575

models starting Serial No. 10110580127; XPA 2430

13 253/00026/00 Pulley

14 253/00033/00 Key

15 153/00035/50 Cylinder and Trunnion Assembly *HF100 and *HF455 models

15 B12543301 Basket Kit *HF100 and *HF455 models; For replacement of

153/00035/50 Cylinder and Trunnion Assembly; Includes

B12472401 Basket and 3885P Bearing Kit

15 N/A Drum Assembly *HF135 and *HF575 models; No longer available; Order

B12543401 Basket Kit

15 B12543401 Basket Kit *HF135 and *HF575 models; For replacement of basket

used before 1/30/11; Includes B12374401 Drum

Assembly and 3885P Bearing Kit

N/A = Part no longer available

22 D0055

Basket, Pulley and Belt - Models Starting January 31, 2011

CFD781K_D0055

D0055 23

Basket, Pulley and Belt - Models Starting January 31, 2011

REF PART NO. DESCRIPTION COMMENTS

1B12378901 Seal VL200

2B12378801 Seal VL180

3253/00125/00 Spacer

4253/00124/00 Bushing

5253/00154/00 V-Ring Seal VA100

6253/00026/01 Pulley

6253/00078/00 Pulley 505 mm (19.9 inches)

7206/00053/00 Screw

8206/00147/00 Bolt

9203/00016/00 Washer

10 201/00025/00 Washer

11 253/00148/00 Belt XPA 2360

11 226/00155/00 Belt *HF455 models starting Serial No. 10110440133; *HF575

models starting Serial No. 10110580127; XPA 2430

12 253/00026/00 Pulley

13 253/00033/00 Key

14 B12472401 Basket *HF100 and *HF455 models

14 B12374401 Drum Assembly *HF135 and *HF575 models

24 D0055

Motor

BE000309P_D0055

D0055 25

Motor

REF PART NO. DESCRIPTION COMMENTS

1206/00004/00 Bolt

2203/00001/00 Washer

3201/00011/00 Washer

4253/00147/00 Pulley Models through 11/24/10; 90 mm (3.5 inches)

4253/00079/00 Pulley *HF455 models starting Serial No. 10110440133;

*HF575 models starting Serial No. 10110580127;

Models starting 11/24/10; 85 mm (3.3 inches)

5206/00031/00 Screw

6207/00003/00 Screw

7201/00008/00 Washer

8203/00006/00 Washer

9204/00007/00 Nut

10 204/00114/00 Nut

11 209/00287/00 Cooling Fan

12 204/00113/00 Nut

13 201/00001/00 Washer

14 248/00114/00 Bolt

15 B12511401 Motor *HF135 and *HF575 models

15 227/00132/00 Motor *HF100 and *HF455 models

16 206/00125/00 Screw

17 204/00012/00 Nut

18 B12369701 Motor Plate

19 204/00111/00 Nut

20 201/00004/00 Washer

21 206/00142/00 Bolt

26 D0055

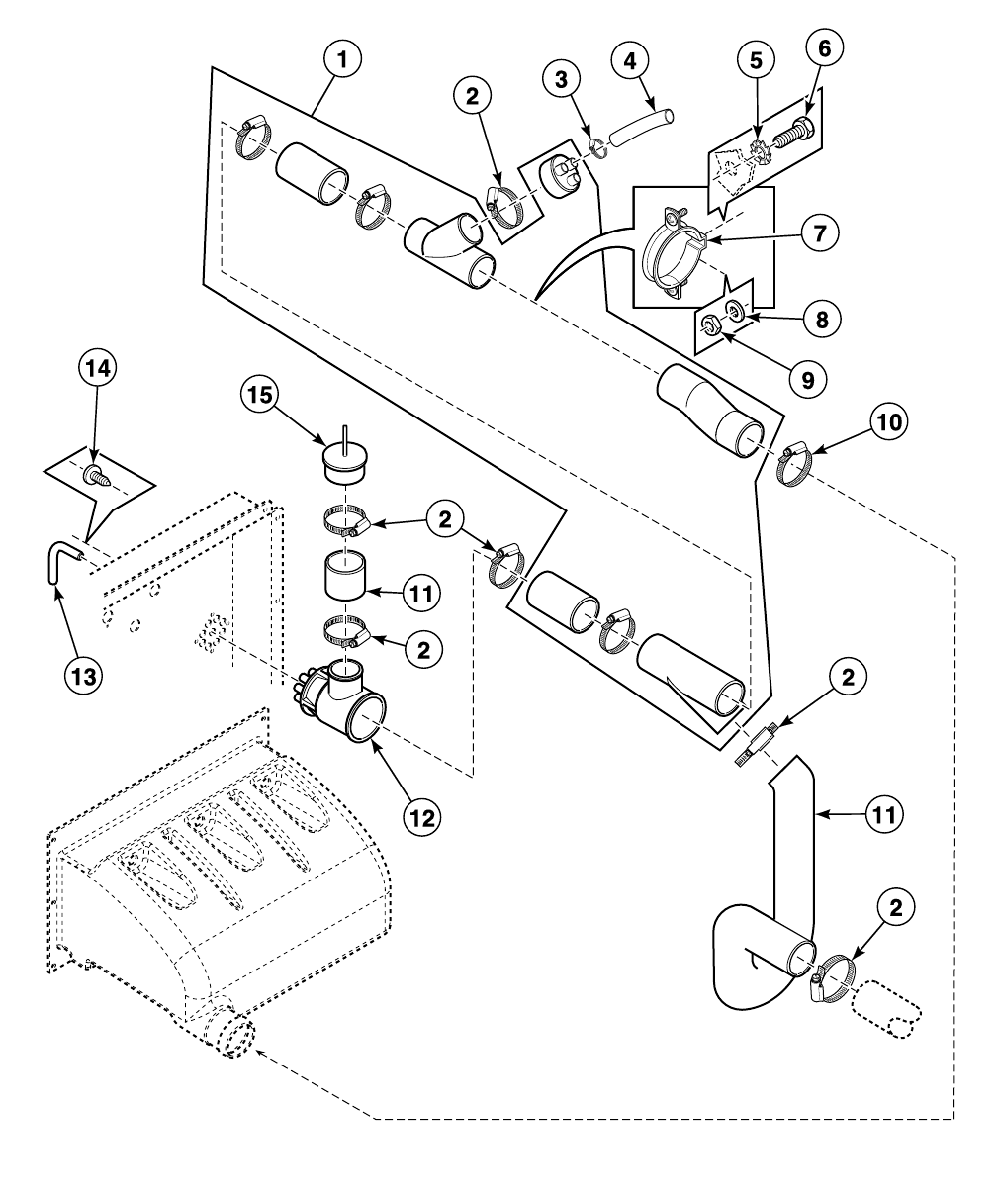

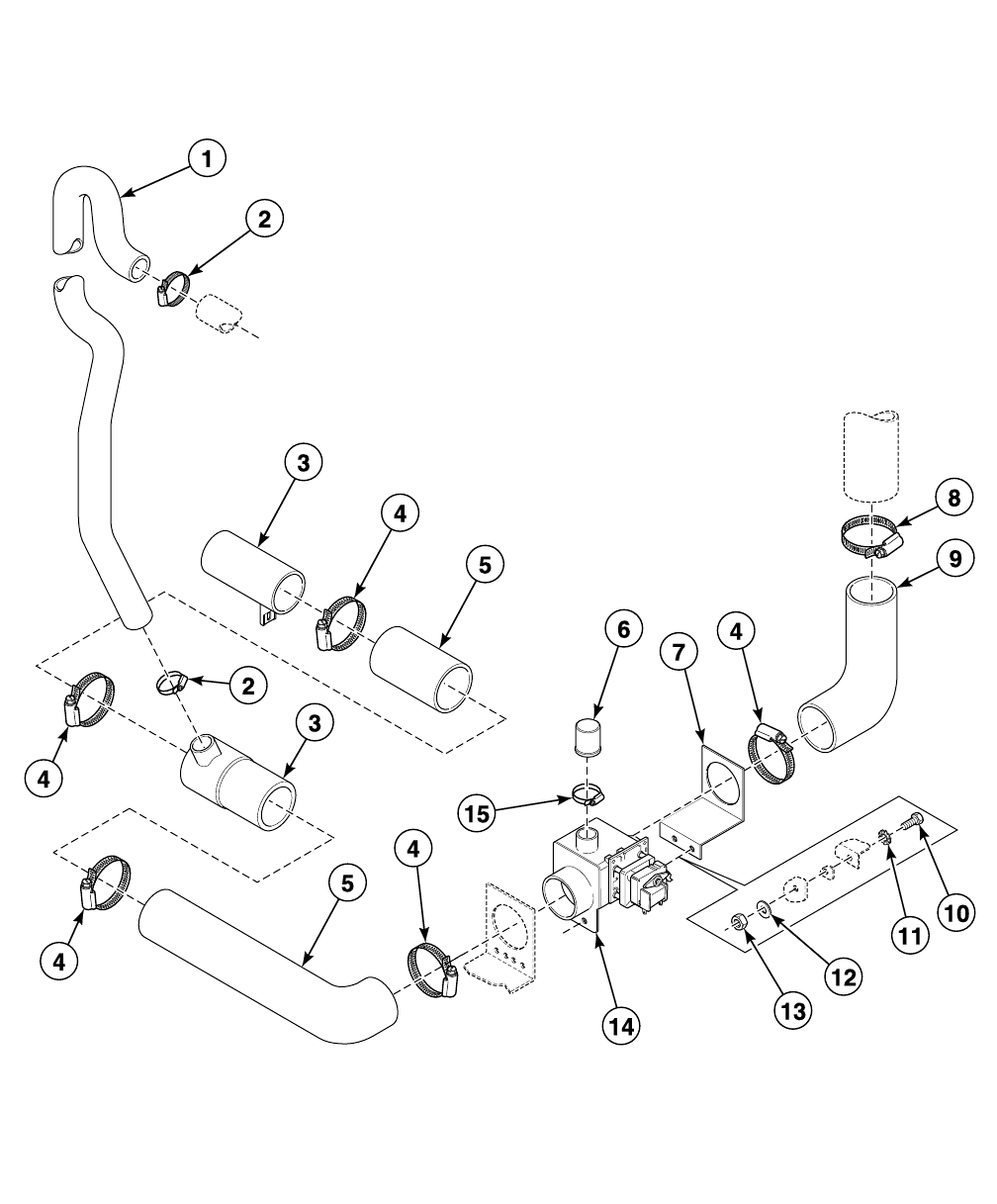

Drain Plumbing - Single Drain

BE000332P_D0055

D0055 27

Drain Plumbing - Single Drain

REF PART NO. DESCRIPTION COMMENTS

1223/00184/00 Overflow Hose

2223/00013/00 Hose Clamp

3223/00106/00 Drain Pipe

4223/00071/00 Hose Clamp

5223/00141/00 Drain Valve to Drain Pipe Hose

6223/00086/00 Drain Valve Overflow Plug

7114/00010/00 Drain Valve Plate Assembly

8223/00223/00 Hose Clamp

9223/00133/00 Drain Tub to Drain Valve Hose

10 206/00009/00 Bolt

11 203/00003/00 Washer

12 202/00002/00 Washer

13 204/00004/00 Nut

14 B12630701 Drain Valve Kit

15 229/00012/00 Hose Clamp

28 D0055

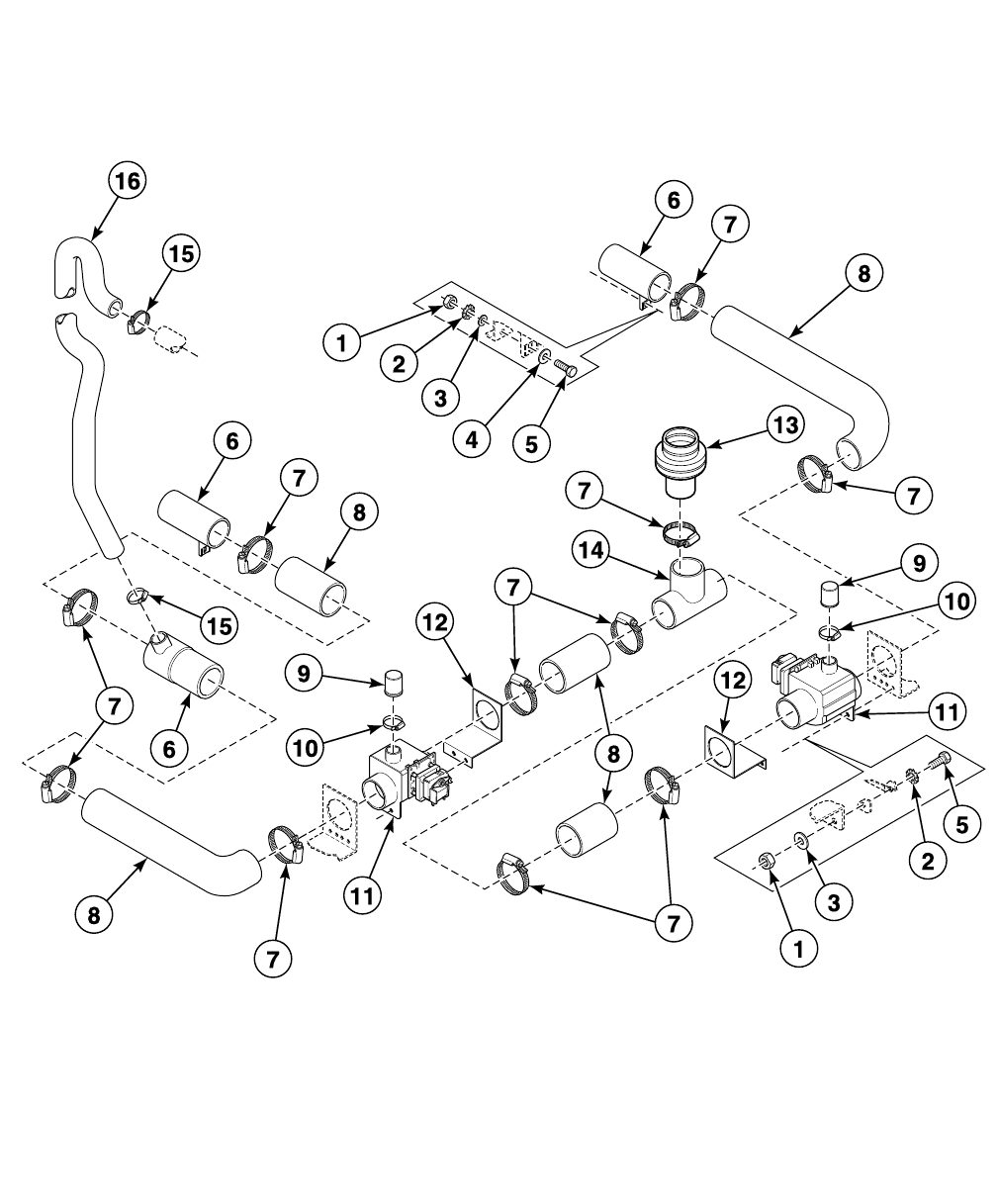

Drain Plumbing - Dual Drain

BE000130P_D0055

D0055 29

Drain Plumbing - Dual Drain

REF PART NO. DESCRIPTION COMMENTS

1204/00004/00 Nut

2203/00003/00 Washer

3202/00002/00 Washer

4201/00010/00 Washer

5206/00009/00 Bolt

6223/00106/00 Drain Pipe

7223/00071/00 Hose Clamp

8223/00141/00 Drain Valve to Drain Pipe Hose

9223/00086/00 Drain Valve Overflow Plug

10 223/00012/00 Hose Clamp

11 B12630701 Drain Valve Kit

12 114/00010/00 Drain Valve Plate Assembly

13 223/00170/00 Exhaust Valve Hose

14 253/00006/00 T-Piece

15 223/00013/00 Hose Clamp

16 223/00184/00 Overflow Hose

30 D0055

Drain Valve - Normally Open

BE000058P_D0055

D0055 31

Drain Valve - Normally Open

REF PART NO. DESCRIPTION COMMENTS

1209/00075/05 Drain Valve

2209/00025/10 Drain Valve Shaft Seal

3209/00025/08 Screw

4209/00170/05 Screw

5209/00025/07 Drain Valve Motor Mounting Plate

6209/00203/11 Drain Valve Motor 24 Volt

6209/00052/11 Drain Valve Motor 110 Volt/60 Hertz

6209/00051/11 Drain Valve Motor 220 Volt/50 or 60 Hertz

7209/00203/21 Coil 24 Volt

7209/00052/21 Coil 115 Volt/60 Hertz

7209/00051/21 Coil 220 Volt/50 or 60 Hertz

8209/00170/07 Screw

9209/00025/13 Drain Valve Spring

10 209/00170/10 Drain Valve Shaft

11 209/00025/12 Washer

32 D0055

Drain Valve - Normally Closed

BE000057P_D0055

D0055 33

Drain Valve - Normally Closed

REF PART NO. DESCRIPTION COMMENTS

1209/00075/05 Drain Valve

2209/00025/10 Drain Valve Shaft Seal

3209/00025/08 Screw

4209/00115/11 Drain Valve Handle

5209/00115/04 Drain Valve Motor Mounting Plate

6209/00170/05 Screw

7209/00203/21 Coil 24 Volt

7209/00052/21 Coil 115 Volt/60 Hertz

7209/00051/21 Coil 220 Volt/50 or 60 Hertz

8209/00203/12 Drain Valve Motor 24 Volt

8209/00052/12 Drain Valve Motor 110 Volt/60 Hertz

8209/00170/06 Drain Valve Motor Assembly 220 Volt/50 or 60 Hertz

9209/00170/07 Screw

10 209/00170/02 Drain Valve Spring

11 209/00170/10 Drain Valve Shaft

12 209/00025/12 Washer

34 D0055

Door Lock

CFD499P_D0055

D0055 35

Door Lock

REF PART NO. DESCRIPTION COMMENTS

NA C003286 Door Lock Harness Models starting 7/15/11

NA C001036M Door Lock Kit Includes C001036 Door Lock Assembly, F8390801

Magnet, C002994 Door Magnet Mounting Bracket and

F431223 Pop Rivet

1253/00158/684 Door Lock Plate

2253/00158/614 Screw

3253/00158/571 Washer

4253/00158/567 Screw

5205/00123/00 Bolt

6253/00158/612 Screw

7253/00159/1036 Door Latch Assembly

8253/00158/276 Door Lock Spring

9C000185 Door Lock Catch

10 C000430 Bolt

11 201/00007/00 Washer

12 253/00158/686 Door Lock Solenoid Bracket

13 253/00158/688 Door Lock Cover

14 253/00158/1047 Screw

15 253/00158/694 Door Release Decal

16 B12495102 Door Solenoid Assembly

17 207/00135/00 Screw

18 C003000 Reed Switch Assembly Models starting 7/15/11

19 F8245101 Blind Rivet Models starting 7/15/11

20 C000278 Door Lock Microswitch

21 253/00158/578 Nut

22 C001244 Door Latch

23 211/00072/00 Lock Spring Leaf *HF455 models starting Serial No. 10090440106;

*HF575 models starting Serial No. 10090580094

24 C000431 Spring

25 253/00158/271 Door Lock Switch Actuator

26 253/00158/687 Door Lock Spring Cover

36 D0055

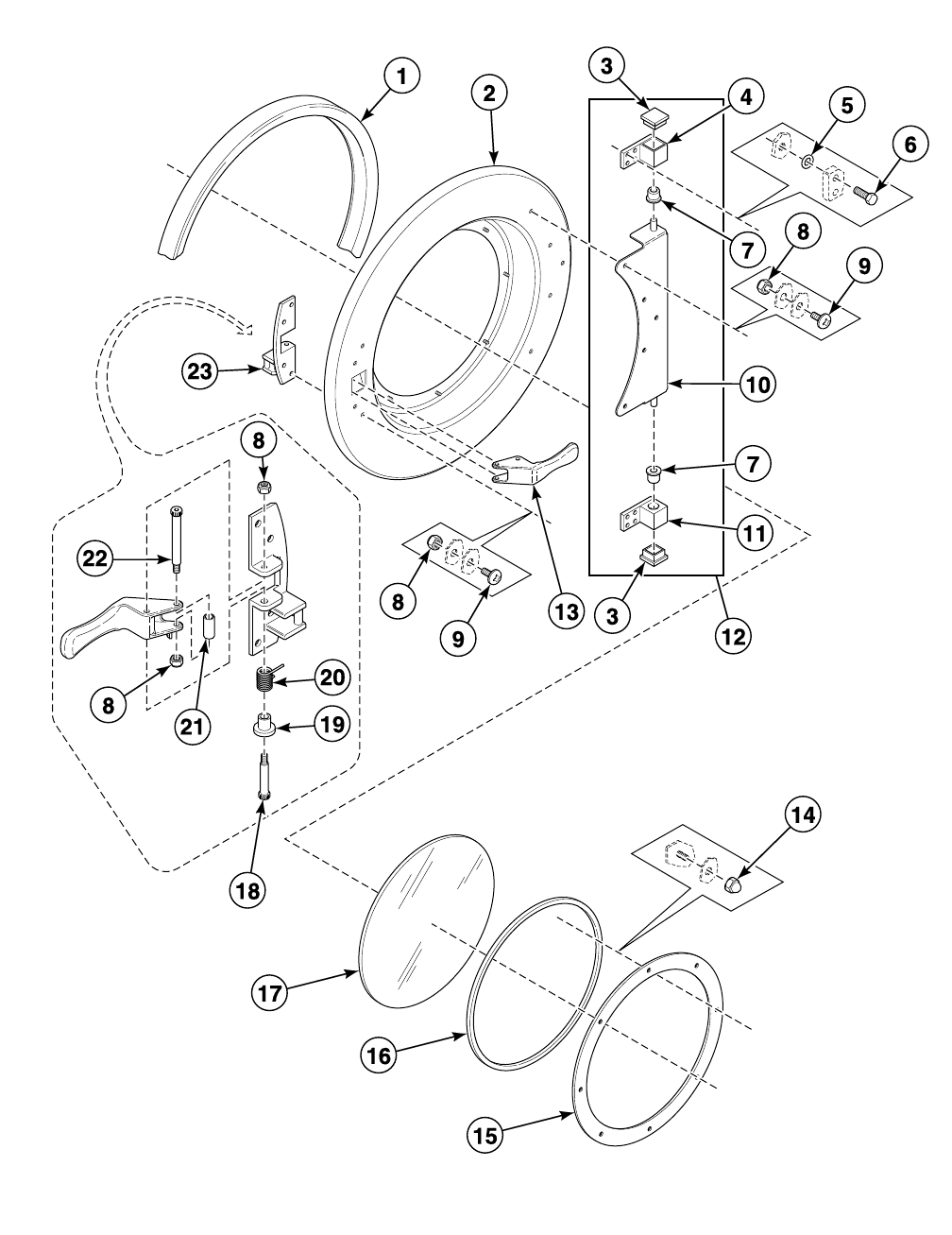

Door - Models Through May 3, 2009

BE000346BP_D0055

D0055 37

Door - Models Through May 3, 2009

REF PART NO. DESCRIPTION COMMENTS

1253/00162/01 Door Gasket

2153/00082/00 Door

3223/00396/00 Cap

4253/00178/00 Hinge Block

5223/00244/00 O-Ring

6205/00122/00 Bolt

7253/10528/00 Hinge Plate

8253/00158/560 Nut

9208/00132/00 Bolt

10 253/00177/00 Hinge Plate

11 253/00178/10 Hinge Block

12 253/00176/50 Hinge Plate

13 253/00158/028 Handle

14 253/00158/562 Nut

15 253/10128/00 Door Glass Retainer

16 223/00346/00 Door Glass Seal

17 217/00102/00 Door Glass

18 C001785 Bolt

19 253/00158/192 Door Handle Spring Bushing

20 C001786 Door Handle Torsion Spring

21 C000181 Door Handle Bushing

22 253/00158/180 Bolt

23 253/00158/470 Handle Hinge

38 D0055

Door - Models Starting May 4, 2009

CFD500P_D0055

D0055 39

Door - Models Starting May 4, 2009

REF PART NO. DESCRIPTION COMMENTS

1253/00162/01 Door Gasket

2253/00158/131 Door

3253/00158/177 Washer

4253/00158/175 Door Hinge Block

5C001784 Bolt

6223/00244/00 O-Ring

7205/00122/00 Bolt

8253/00158/560 Nut

9C000561 Bolt

10 253/00176/50 Hinge Plate

11 253/00158/558 Nut

12 253/00158/028 Handle

13 253/00158/562 Nut

14 253/00158/607 Door Glass Retainer

15 C000140 Door Glass Gasket

16 253/00158/139 Door Glass

17 C001785 Bolt

18 253/00158/192 Door Handle Spring Bushing

19 C001786 Door Handle Torsion Spring

20 C000181 Door Handle Bushing

21 253/00158/180 Bolt

22 253/00158/470 Handle Hinge

23 F431223 Pop Rivet Models starting 7/15/11

24 F8390801 Magnet Models starting 7/15/11

25 C002994 Door Magnet Mounting Bracket Models starting 7/15/11

40 D0055

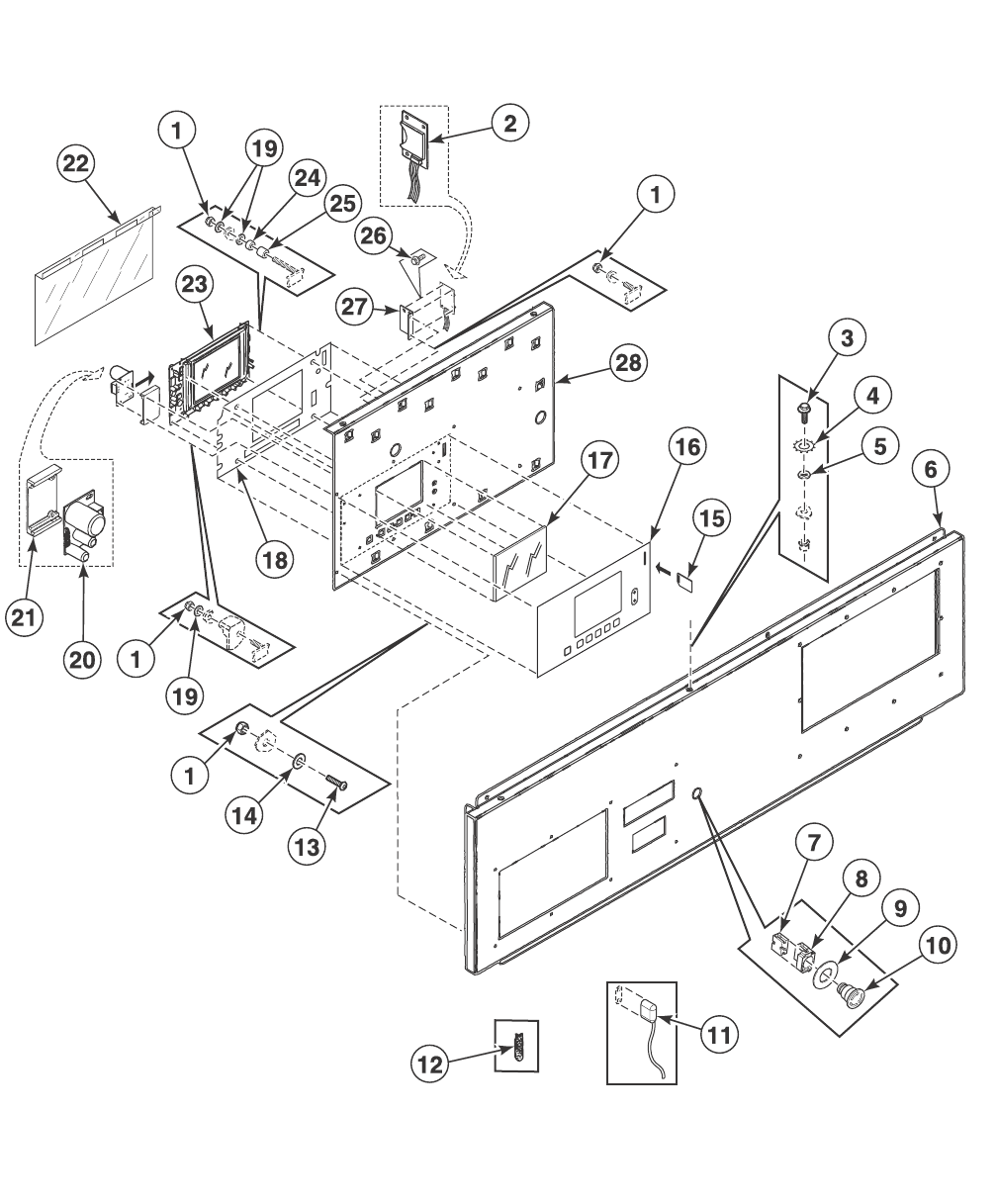

Control Panel - Cygnus Professional

CFD432P_D0055

D0055 41

Control Panel - Cygnus Professional

REF PART NO. DESCRIPTION COMMENTS

1204/00116/00 Nut

2B12305201 Memory Card PC-Board Models made prior to 4/5/11 require a firmware upgrade

3205/00105/00 Bolt

4B12300701 Washer

5B12300601 Washer

6153/10108/20 Upper Front Panel

7209/00099/26 Contact Switch

8209/00099/20 Emergency Switch Pushbutton

9209/00520/00 Telem Sticker

10 209/00248/20 Mushroom Pushbutton

11 210/00902/00 Infrared Cable

12 223/00348/00 Datacard Cover

13 207/00113/00 Screw

14 202/00004/00 Washer

15 209/02022/00 Datacard

16 225/10313/00 Operating Sticker

17 225/00321/00 Plexi Frame

18 229/00268/00 Insulating Sticker

19 223/00123/00 Washer

20 209/02010/00 Door Lock PC-Board

21 223/00374/00 Mounting Plate

22 229/00289/00 Circuit Board Cover

23 209/02002/Z02 Display and Printboard

24 211/00128/00 Printboard Separator

25 211/00122/00 Standoff

26 211/00145/00 Standoff

27 111/01893/00 Printboard Support Card

28 173/00013/20 Printboard Display Plate Assembly

42 D0055

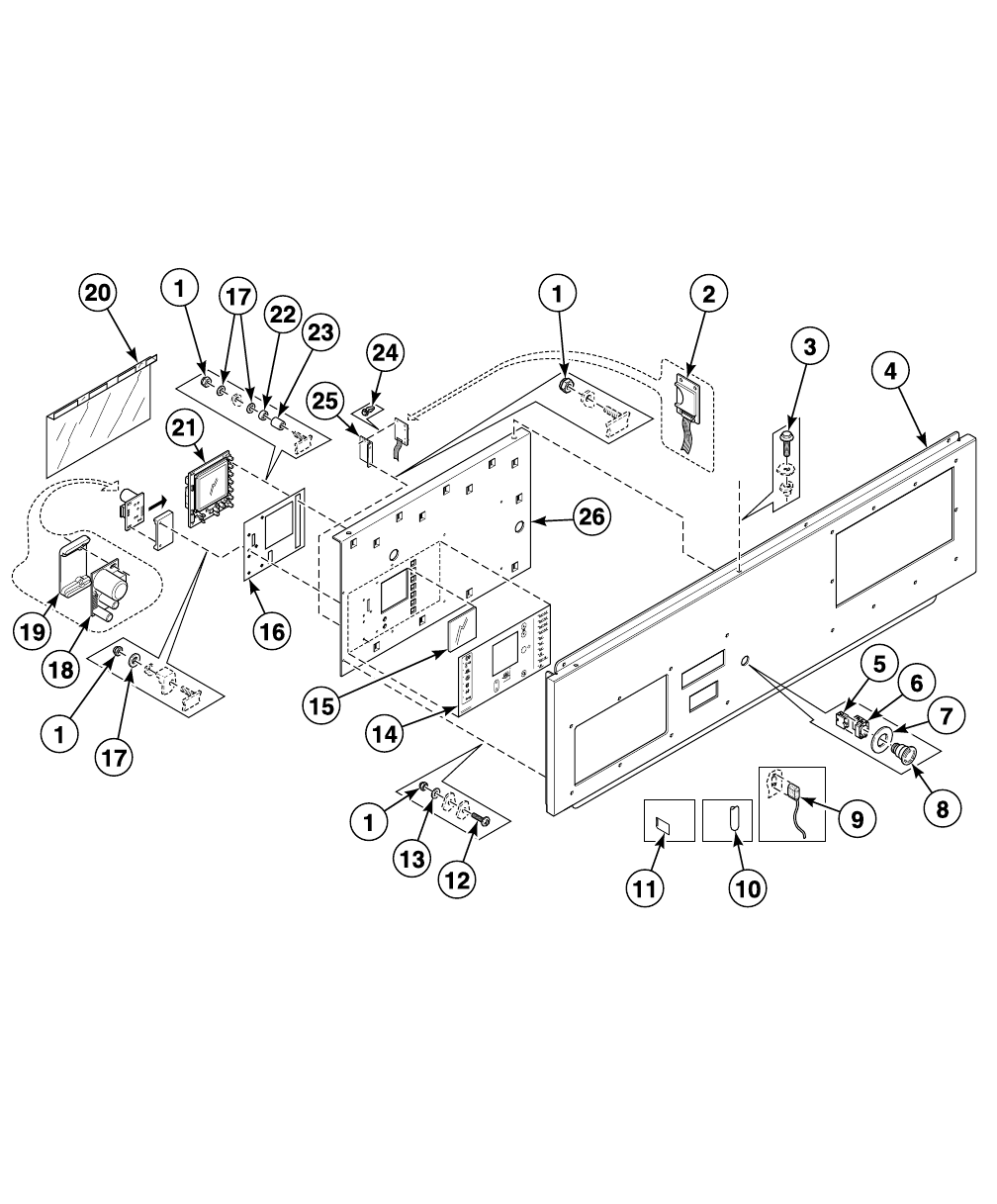

Control Panel - PRO

CFD2515P_D0055

D0055 43

Control Panel - PRO

REF PART NO. DESCRIPTION COMMENTS

1204/00116/00 Nut

2B12305201 Memory Card PC-Board Models made prior to 4/5/11 require a firmware upgrade

3205/00105/00 Bolt

4B12300701 Washer

5B12300601 Washer

6B12570301 Control Panel Models UX100Z and UX135Z

6B12570401 Control Panel Model SX100Z

7209/00099/26 Contact Switch

8209/00099/20 Emergency Switch Pushbutton

9209/00520/00 Telem Sticker

10 209/00248/20 Mushroom Pushbutton

11 210/00902/00 Infrared Cable

12 223/00348/00 Datacard Cover

13 207/00113/00 Screw

14 202/00004/00 Washer

15 209/02022/00 Datacard

16 B12568801 Overlay Models UX100Z and UX135Z

16 B12568901 Overlay Model SX100Z

17 225/00321/00 Plexi Frame

18 229/00268/00 Insulating Sticker

19 223/00123/00 Washer

20 209/02010/00 Door Lock PC-Board

21 223/00374/00 Mounting Plate

22 229/00289/00 Circuit Board Cover

23 209/02002/Z02 Display and Printboard

24 211/00128/00 Printboard Separator

25 211/00122/00 Standoff

26 211/00145/00 Standoff

27 111/01893/00 Printboard Support Card

28 173/00013/20 Printboard Display Plate Assembly

44 D0055

Control Panel - Cygnus Premium and Cygnus Ultra

BE000891P_D0055

CYGNUS

PREMIUM

ECO

D0055 45

Control Panel - Cygnus Premium and Cygnus Ultra

REF PART NO. DESCRIPTION COMMENTS

1204/00116/00 Nut

2B12305201 Memory Card PC-Board Models made prior to 4/5/11 require a firmware upgrade

3206/00099/00 Bolt

4153/10108/20 Upper Front Panel

5209/00099/26 Contact Switch

6209/00099/20 Emergency Switch Pushbutton

7209/00520/00 Telem Sticker

8209/00248/20 Mushroom Pushbutton

9210/00902/00 Infrared Cable

10 223/00348/00 Datacard Cover

11 209/02022/00 Datacard

12 207/00113/00 Screw

13 202/00004/00 Washer

14 225/10427/00 Operating Sticker Models

HF455_CYGNUS-PREM_OPL_THROUGH-MARCH-30-

2014 and

HF575_CYGNUS-PREM_OPL_THROUGH-MARCH-30-

2014; Models without data card opening

14 225/10404/00 Operating Sticker Models

HF455_CYGNUS-PREM_OPL_THROUGH-MARCH-30-

2014 and

HF575_CYGNUS-PREM_OPL_THROUGH-MARCH-30-

2014; Models with data card opening

14 B12456701 Operating Sticker Models CS100_CYGNUS-ULTRA and

CS135_CYGNUS-ULTRA

15 225/00323/00 Plexi Frame

16 229/00268/00 Insulating Sticker

17 223/00123/00 Washer

18 209/02010/00 Door Lock PC-Board

19 223/00374/00 Mounting Plate

20 229/00289/00 Circuit Board Cover

21 209/02015/02 Printboard

22 211/00128/00 Printboard Separator

23 211/00122/00 Standoff

24 211/00145/00 Standoff

25 111/01893/00 Printboard Support Card

26 173/00013/30 Printboard Display Plate Assembly

46 D0055

Control Panel - PS40F

BE000567P_D0055

PS40

PROG

D0055 47

Control Panel - PS40F

REF PART NO. DESCRIPTION COMMENTS

1229/00262/00 Circuit Board Cover

2204/00116/00 Nut

3223/00123/00 Washer

4223/00008/01 Handle Grommet

5204/00008/00 Nut

6203/00007/00 Washer

7207/00025/00 Screw

8211/00122/00 Standoff

9210/00902/00 Infrared Cable

10 206/00099/00 Bolt

11 153/10108/10 Upper Front Panel

12 209/00099/26 Contact Switch

13 209/00248/20 Mushroom Pushbutton

14 209/00520/00 Telem Sticker

15 209/00099/29 Switch Knob

16 209/00099/25 Switch Base

17 209/00326/20 Programming Key Contact Switch

18 225/00365/00 Overlay

19 207/00113/00 Screw

20 202/00004/00 Washer

21 209/00372/01 Fuse

22 209/00502/01 Keypad

23 173/00012/00 Mounting Plate

24 229/00255/00 Insulating Sticker

25 B12351701 Main Board

48 D0055

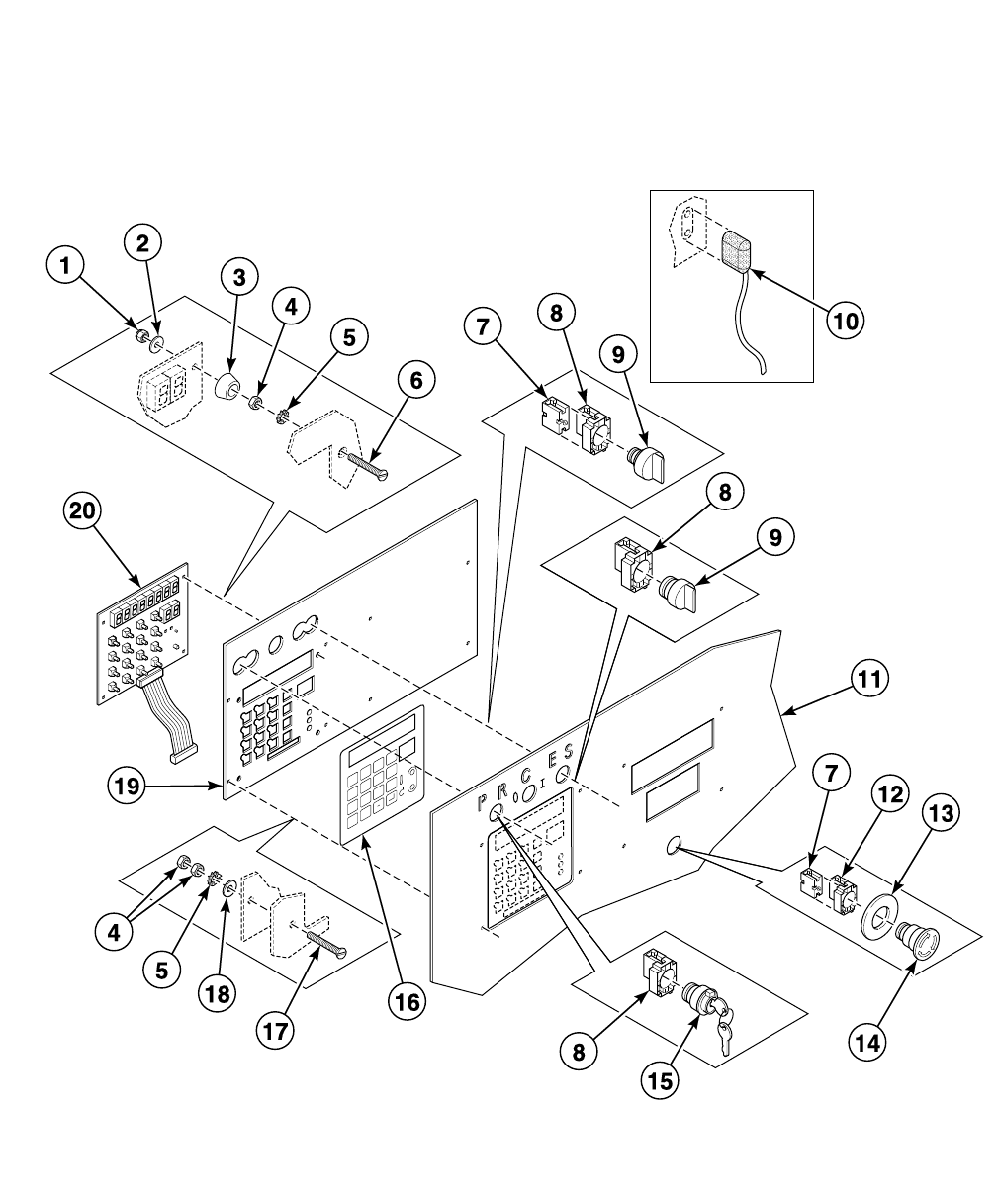

Control Panel - PS40

BE000310P_D0055

PS40

PROG

D0055 49

Control Panel - PS40

REF PART NO. DESCRIPTION COMMENTS

1204/00116/00 Nut

2223/00123/00 Washer

3223/00008/01 Handle Grommet

4204/00008/00 Nut

5203/00007/00 Washer

6207/00025/00 Screw

7209/00099/06 Contact Switch

8209/00099/25 Switch Base

9209/00099/29 Switch Knob

10 210/00902/00 Infrared Cable

11 153/10107/00 Upper Front Panel With frontal supply dispenser

11 153/10107/10 Upper Front Panel

12 209/00253/00 Emergency Stop Button Kit

13 209/00520/00 Telem Sticker

14 209/00248/20 Mushroom Pushbutton

15 209/00326/20 Programming Key Contact Switch

16 225/00365/00 Overlay

17 207/00108/00 Screw

18 202/00004/00 Washer

19 173/00012/00 Mounting Plate

20 209/00552/01 Keypad

50 D0055

Electrical Component Mounting Plate - Models Through

March 22, 2007

BE000337P_D0055

D0055 51

Electrical Component Mounting Plate - Models Through

March 22, 2007

REF PART NO. DESCRIPTION COMMENTS

1153/00111/01 Top Cover Plate *HF100 and *HF455 models

1153/00112/01 Top Cover Plate *HF135 and *HF575 models

2246/00149/00 Gasket

3210/01064/16 Thermostat Cygnus models

3210/01304/16 Thermostat All other models

4225/10004/00 Thermostat Grommet

5204/00116/00 Nut

6223/00123/00 Washer

7206/00141/00 Separator

8203/00007/00 Washer

9207/00135/00 Screw

10 209/00124/00 Contactor

11 223/00198/00 Grommet

12 209/00148/02 Contactor

13 209/00542/02 Printboard 115 Volt

13 209/00505/02 Printboard 230 Volt

14 206/00101/00 Nut

15 206/00099/00 Bolt

16 223/00174/00 Grommet

17 153/00111/10 Electrical Plate Assembly *HF100 and *HF455 models

17 153/00112/10 Electrical Plate Assembly *HF135 and *HF575 models

18 246/00092/00 Gasket

19 223/00011/00 Hose Clamp

20 223/00210/00 Pressure Switch Elbow

21 223/00016/00 Hose Barb

22 B12700018 Pressure Hose

23 223/00035/01 Hose Tee

24 209/00202/00 Fuse Holder

25 209/00468/00 Fuse

26 209/00218/13 Soap Injection PCB with Fuse

27 211/00120/00 Standoff

28 203/00006/00 Washer

29 204/00007/00 Nut

30 206/00027/00 Bolt

31 209/00007/50 Pressure Switch

32 201/00007/00 Washer

33 203/00004/00 Washer

34 205/00105/00 Bolt

35 207/00003/00 Screw

52 D0055

Electrical Component Mounting Plate - Models Starting

March 23, 2007

BE000337BP_D0055

D0055 53

Electrical Component Mounting Plate - Models Starting

March 23, 2007

REF PART NO. DESCRIPTION COMMENTS

1206/00099/00 Bolt

2153/00112/60 Plate Assembly *HF100 and *HF455 models

2173/00013/10 Plate Assembly *HF135 and *HF575 models

3210/01064/16 Thermostat Cygnus models

3210/01304/16 Thermostat All other models

4225/10004/00 Thermostat Grommet

5204/00007/00 Nut

6203/00006/00 Washer

7201/00008/00 Washer

8206/00027/00 Bolt

9209/00356/00 Noise Suppressor

10 720/00110/01 Rail

11 209/00641/04 Heating Contactor

12 209/06148/02 Heating Contactor

13 223/00223/00 Hose Clamp

14 223/00210/00 Pressure Switch Elbow

15 223/00016/00 Hose Barb

16 B12700018 Pressure Hose

17 223/00173/10 Pressure Switch Hose Tee

18 B12548601 Water Level Switch

54 D0055

Front, Left Side and Top Panels

BE000359BP_D0055

D0055 55

Front, Left Side and Top Panels

REF PART NO. DESCRIPTION COMMENTS

1153/00033/02 Rear Cabinet Top *HF100 and *HF455 models

1153/00034/02 Rear Cabinet Top *HF135 and *HF575 models

2153/00033/01 Front Cabinet Top *HF100 and *HF455 models

2153/00034/01 Front Cabinet Top *HF135 and *HF575 models

3207/00123/00 Screw

4208/00009/00 Washer

5206/00099/00 Bolt

6201/00007/00 Washer

7204/00106/00 Nut

8207/00102/00 Screw

9153/10116/00 Front Panel Right

10 246/00149/00 Gasket

11 153/10115/00 Front Panel

12 153/10117/00 Kickplate

13 206/00042/00 Bolt

14 202/00002/00 Washer

15 153/00104/00 Side Panel *HF100 and *HF455 models

15 153/00106/00 Side Panel *HF135 and *HF575 models

16 153/00103/00 Side Panel *HF100 and *HF455 models

16 153/00105/00 Side Panel *HF135 and *HF575 models

56 D0055

Right Side and Back Panels

BE000358AP_D0055

D0055 57

Right Side and Back Panels

REF PART NO. DESCRIPTION COMMENTS

1153/00103/01 Side Panel Support Assembly

2205/00104/00 Bolt

3203/00004/00 Washer

4202/00110/00 Washer

5204/00106/00 Nut

6153/00103/00 Side Panel *HF100 and *HF455 models

6153/00105/00 Side Panel *HF135 and *HF575 models

7205/00105/00 Bolt

8204/00009/00 Nut

9153/00104/00 Side Panel *HF100 and *HF455 models

9153/00106/00 Side Panel *HF135 and *HF575 models

10 246/00079/00 Side Panel Gasket

11 153/00114/C0 Back Panel Support Assembly

12 153/00114/B0 Back Panel Support Assembly

13 206/00099/00 Bolt

14 153/00114/A1 Back Panel Support Assembly

15 153/10027/90 Backbridge

58 D0055

Upper Back Panel (Drawing 1 of 2)

BE000339AP_D0055

D0055 59

Upper Back Panel (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1204/00007/00 Nut

2202/00004/00 Washer

3223/00102/07 Hose Vent

4153/10027/90 Backbridge

5209/00137/00 Inlet Valve

6223/00011/00 Hose Clamp

7223/00059/00 Water Hose

8206/00027/00 Bolt

9209/00277/00 3-Way Inlet Valve

10 223/00044/00 Water Hose

11 223/00010/00 Hose Clamp

12 211/00170/00 Nut

13 211/00172/00 Nut

14 211/00183/00 Nut

15 211/00181/00 Strain Relief Connector

16 223/00014/00 Hose Clamp

17 223/00185/00 Hose

18 204/00105/00 Nut

19 203/00006/00 Washer

20 205/00116/00 Bolt

21 153/00027/22 Switch Bracket

22 202/00101/00 Washer

23 203/00004/00 Washer

24 205/00104/00 Bolt

25 209/00672/00 Main Switch 40 Amp

25 209/00526/00 Main Switch 80 Amp

25 209/00532/00 Main Switch 125 Amp

26 209/00527/00 Terminal Block

27 209/00533/00 Terminal Block

27 209/00528/00 Terminal Block

28 207/00139/00 Ring

29 207/00110/00 Screw

30 140/00010/01 Electrical Connection Cover

60 D0055

Upper Back Panel (Drawing 2 of 2)

BE000338P_D0055

D0055 61

Upper Back Panel (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1223/00179/10 Pressure Hose

2211/00129/00 Plug

3205/00104/00 Bolt

4202/00110/00 Washer

5153/00043/00 Inlet

6211/00087/00 Plug

7153/10027/00 Backbridge

8211/00097/00 Cordlock

9211/00097/01 Cordlock

10 211/00117/00 Cordlock

11 211/00118/00 Cordlock

12 223/00198/00 Grommet

62 D0055

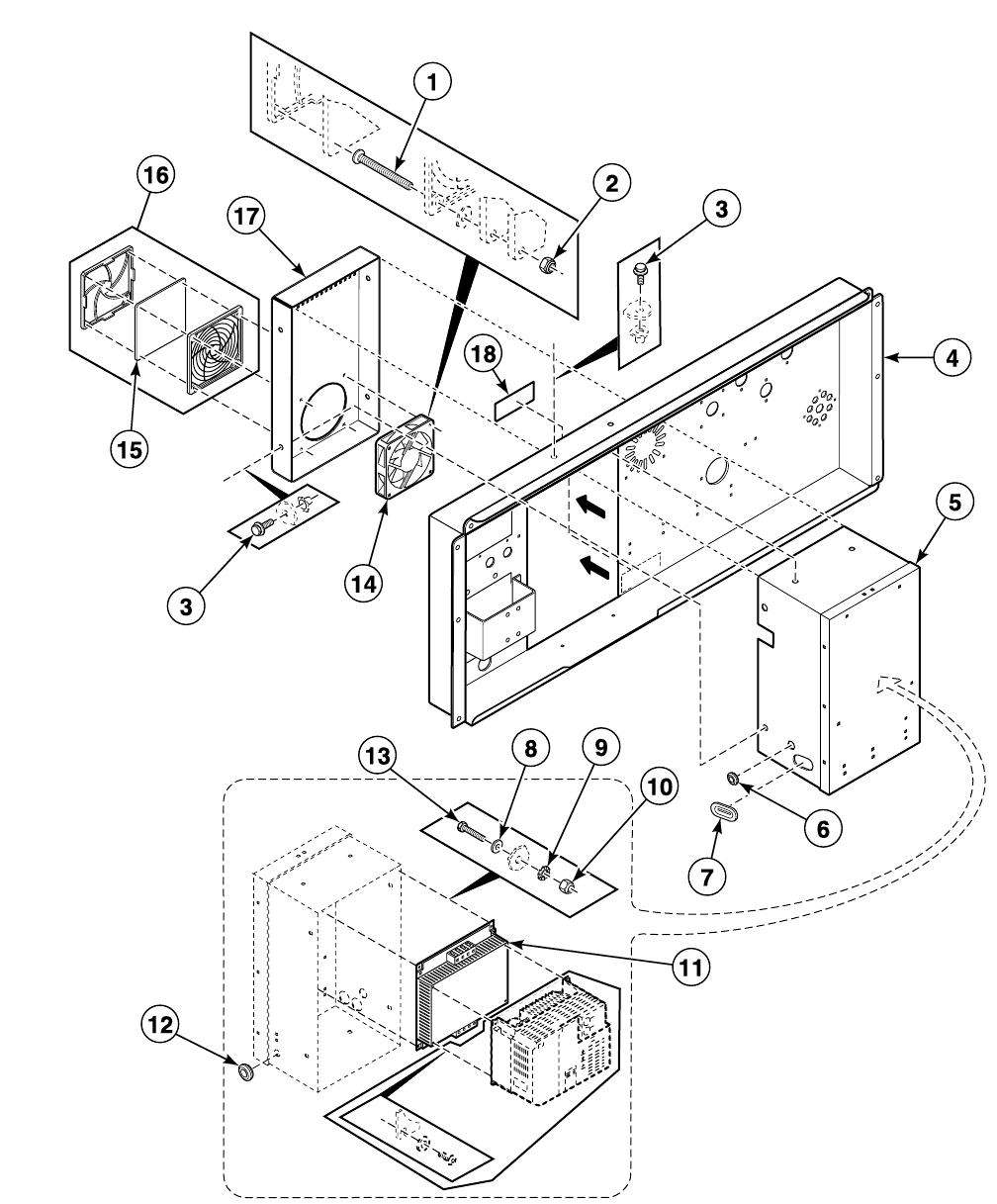

Inverter Drive (Drawing 1 of 2)

CFD433P _D0055

D0055 63

Inverter Drive (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

NA F8410901 Parameter Unit Assembly *E500-series; Inverter mounted

NA 227/00171/00 Parameter Unit Assembly *E500-series; Hand held

1207/00021/00 Screw

2204/00114/00 Nut

3206/00099/00 Bolt

4153/10027/90 Backbridge

5111/01147/00 Inverter Drive Box

6223/00213/00 Grommet

7223/00203/00 Grommet

8202/00003/00 Washer

9203/00005/00 Washer

10 204/00006/00 Nut

11 227/00163/00 Noise Filter

12 223/00198/00 Grommet

13 205/00108/00 Bolt

14 209/00287/00 Cooling Fan

15 209/00287/21 Filter

16 209/00287/11 AC Drive Filter

17 153/00027/14 Fan Inverter Cover

18 B12355001 Voltage Discharge Decal

64 D0055

Inverter Drive (Drawing 2 of 2)

CFD433PA _D0055

D0055 65

Inverter Drive (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1227/00130/00 Inverter FR-E520 series; 5.5 kW; 3 x 240 Volt; 100 and 455 models

1227/00135/00 Inverter FR-E540 series; 5.5 kW; 3 x 380 Volt; 100 and 455 models

1227/00131/00 Inverter FR-E520 series; 7.5 kW; 3 x 240 Volt

1227/00136/00 Inverter FR-E540 series; 7.5 kW; 3 x 380 Volt

1F8645701P Inverter FR-D720-238-NA series; 5.5 kW; 3 x 230 Volt; 100 and 455 Cygnus Control

Models

1F8645801P Inverter FR-D740-120-NA series; 5.5 kW; 3 x 400 Volt; 100 and 455 Cygnus Control

Models

1F8645901P Inverter FR-D720-318-NA series; 7.5 kW; 3 x 240 Volt; 135 and 575 Cygnus Control

Models

1F8646001P Inverter FR-D740-160-NA series; 7.5 kW; 3 x 400 Volt; 135 and 575 Cygnus Control

Models

1F8421013 Inverter Drive

Retrofit Kit

200 Volt/3 Phase; Used with a 5.5 kW motor; 5:1 pulley ratio; Used to convert

from 500 to 700 series inverter drive; Includes F8421113 Inverter Drive; 100 and

455 PS40 and PS40F Control Models

1F8421113 Inverter Drive 200 Volt/3 Phase; Used with a 5.5 kW motor; 5:1 pulley ratio; 700 series inverter

drive; 100 and 455 PS40 and PS40F Control Models

1F8421015 Inverter Drive

Retrofit Kit

200 Volt/3 Phase; Used with a 5.5 kW motor; 6:1 pulley ratio; Used to convert

from 500 to 700 series inverter drive; Includes F8421115 Inverter Drive; 100 and

455 PS40 and PS40F Control Models

1F8421115 Inverter Drive 200 Volt/3 Phase; Used with a 5.5 kW motor; 6:1 pulley ratio; 700 series inverter

drive; 100 and 455 PS40 and PS40F Control Models

1F8421014 Inverter Drive

Retrofit Kit

400 Volt/3 Phase; Used with a 5.5 kW motor; 5:1 pulley ratio; Used to convert

from 500 to 700 series inverter drive; Includes F8421114 Inverter Drive; 100 and

455 PS40 and PS40F Control Models

1F8421114 Inverter Drive 400 Volt/3 Phase; Used with a 5.5 kW motor; 5:1 pulley ratio; 700 series inverter

drive; 100 and 455 PS40 and PS40F Control Models

1F8421016 Inverter Drive

Retrofit Kit

400 Volt/3 Phase; Used with a 5.5 kW motor; 6:1 pulley ratio; Used to convert

from 500 to 700 series inverter drive; Includes F8421116 Inverter Drive; 100 and

455 PS40 and PS40F Control Models

1F8421116 Inverter Drive 400 Volt/3 Phase; Used with a 5.5 kW motor; 6:1 pulley ratio; 700 series inverter

drive; 100 and 455 PS40 and PS40F Control Models

1F8421017 Inverter Drive

Retrofit Kit

200 Volt/3 Phase; Used with a 7.5 kW motor; 5:1 pulley ratio; Used to convert

from 500 to 700 series inverter drive; Includes F8421117 Inverter Drive; 135 and

575 PS40 and PS40F Control Models

1F8421117 Inverter Drive 200 Volt/3 Phase; Used with a 7.5 kW motor; 5:1 pulley ratio; 700 series inverter

drive; 135 and 575 PS40 and PS40F Control Models

1F8421019 Inverter Drive

Retrofit Kit

200 Volt/3 Phase; Used with a 7.5 kW motor; 6:1 pulley ratio; Used to convert

from 500 to 700 series inverter drive; Includes F8421119 Inverter Drive; 135 and

575 PS40 and PS40F Control Models

1F8421119 Inverter Drive 200 Volt/3 Phase; Used with a 7.5 kW motor; 6:1 pulley ratio; 700 series inverter

drive; 135 and 575 PS40 and PS40F Control Models

1F8421018 Inverter Drive

Retrofit Kit

400 Volt/3 Phase; Used with a 7.5 kW motor; 5:1 pulley ratio; Used to convert

from 500 to 700 series inverter drive; Includes F8421118 Inverter Drive; 135 and

575 PS40 and PS40F Control Models

1F8421118 Inverter Drive 400 Volt/3 Phase; Used with a 7.5 kW motor; 5:1 pulley ratio; 700 series inverter

drive; 135 and 575 PS40 and PS40F Control Models

1F8421020 Inverter Drive

Retrofit Kit

400 Volt/3 Phase; Used with a 7.5 kW motor; 6:1 pulley ratio; Used to convert

from 500 to 700 series inverter drive; Includes F8421120 Inverter Drive; 135 and

575 PS40 and PS40F Control Models

1F8421120 Inverter Drive 200 Volt/3 Phase; Used with a 7.5 kW motor; 6:1 pulley ratio; 700 series inverter

drive; 135 and 575 PS40 and PS40F Control Models

66 D0055

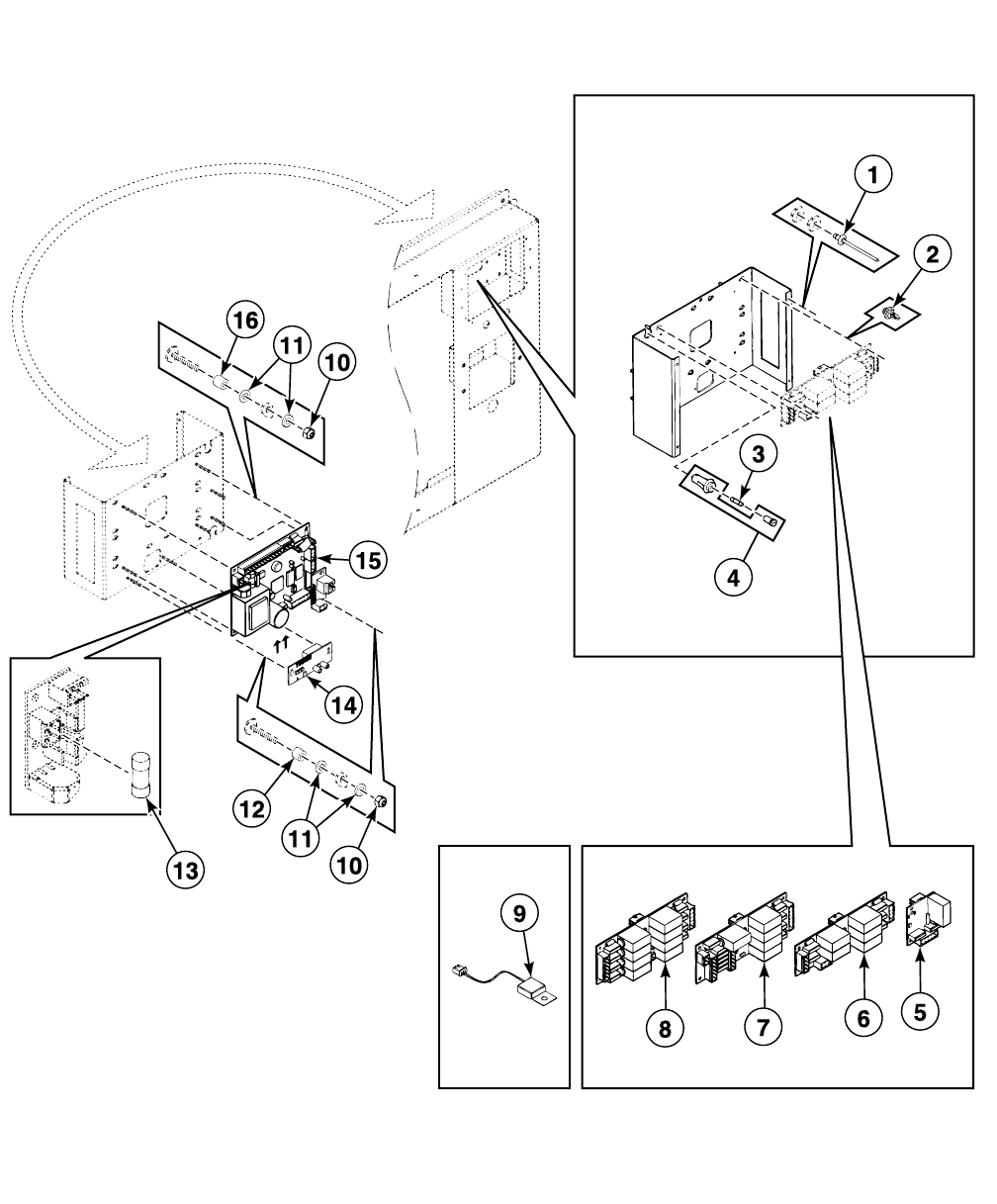

Main Board and Printboard - Cygnus Models

CFD442P_D0055

D0055 67

Main Board and Printboard - Cygnus Models

REF PART NO. DESCRIPTION COMMENTS

1206/00017/00 Rivet

2211/00146/00 Standoff

3209/00468/00 Fuse

4209/00202/00 Fuse Holder Includes item 3

4209/00202/01 Fuse Holder

5209/02016/00 Relay PC-Board

6209/02005/00 Detergent PC-Board

7209/02014/00 Relay PC-Board

8209/02008/00 Detergent PC-Board

9209/02020/00 ID Chip

10 204/00116/00 Nut

11 223/00123/00 Washer

12 211/00128/00 Printboard Separator

13 209/00766/00 Fuse

14 209/02007/00 Network Connection Printboard

15 209/02025/00 Microprocessor With PC-Board

16 211/00122/00 Standoff

68 D0055

Supply Dispenser - Models Through April 26, 2009

BE000354P_D0055

D0055 69

Supply Dispenser - Models Through April 26, 2009

REF PART NO. DESCRIPTION COMMENTS

1153/00072/00 Soap Dispenser

2153/00071/00 Soap Dispenser Cover Plate

3206/00101/00 Nut

4202/00101/00 Washer

5205/00105/00 Bolt

6204/00009/00 Nut

7153/00070/00 Soap Dispenser Cover

8223/00008/05 Soap Dispenser Cover Handle

9207/00139/00 Ring

10 207/00110/00 Screw

11 223/00008/01 Handle Grommet

12 207/00126/00 Screw

13 204/00301/00 Bushing

14 253/00012/02 Soap Dispenser Cup

15 223/00001/04 Prewash and Mainwash Nozzle

16 223/00001/07 Washer

17 201/00002/00 Washer

18 204/00201/00 Nut

19 223/00010/00 Hose Clamp

20 223/00044/00 Water Hose

70 D0055

Supply Dispenser - Models Starting April 27, 2009

BE000920P_D0055

D0055 71

Supply Dispenser - Models Starting April 27, 2009

REF PART NO. DESCRIPTION COMMENTS

1206/00101/00 Nut

2202/00101/00 Washer

3205/00104/00 Bolt

4223/00392/00 Supply Dispenser Handle

5153/00089/00 Supply Dispenser Cover

6223/00001/04 Prewash and Mainwash Nozzle

7204/00009/00 Nut

8204/00301/00 Bushing

9223/00001/07 Washer

10 201/00002/00 Washer

11 204/00201/00 Nut

12 223/00010/00 Hose Clamp

13 223/00044/00 Water Hose

14 223/00345/01 Supply Dispenser Box

72 D0055

Supply Dispenser Plumbing - Models Through April 26, 2009

BE000356P_D0055

D0055 73

Supply Dispenser Plumbing - Models Through April 26, 2009

REF PART NO. DESCRIPTION COMMENTS

1223/00071/00 Hose Clamp

2223/00219/00 Soap Inlet Hose Kit

3253/00029/00 Elbow

4253/00021/00 Reducing Tee

5223/00141/00 Drain Valve to Drain Pipe Hose

6223/00289/00 Water Inlet Grid

7223/00011/00 Hose Clamp

8223/00059/00 Water Hose

9205/00105/00 Bolt

10 203/00004/00 Washer

11 253/00019/00 Clamp

12 202/00110/00 Washer

13 204/00106/00 Nut

14 223/00014/00 Hose Clamp

15 223/00107/03 Vent Hose

16 223/00187/00 Soap Dispenser to Tub Hose

17 253/00030/00 Y Pipe

74 D0055

Supply Dispenser Plumbing - Models Starting April 27, 2009

Through May 17, 2011

BE000356BP_D0055

D0055 75

Supply Dispenser Plumbing - Models Starting April 27, 2009

Through May 17, 2011

REF PART NO. DESCRIPTION COMMENTS

1223/00299/00 Connector *HF100 and *HF455 models

1223/00300/00 Connector *HF135 and *HF575 models

2223/00071/00 Hose Clamp

3223/00011/00 Hose Clamp

4223/00059/00 Water Hose

5203/00004/00 Washer

6205/00105/00 Bolt

7253/00036/00 Clamp

8202/00110/00 Washer

9204/00106/00 Nut

10 223/00014/00 Hose Clamp

11 223/00187/00 Soap Dispenser to Tub Hose

12 223/00249/00 Liquid Soap Manifold

13 223/00179/10 Pressure Hose

14 B12347501 Screw

15 253/00035/00 Y Pipe

76 D0055

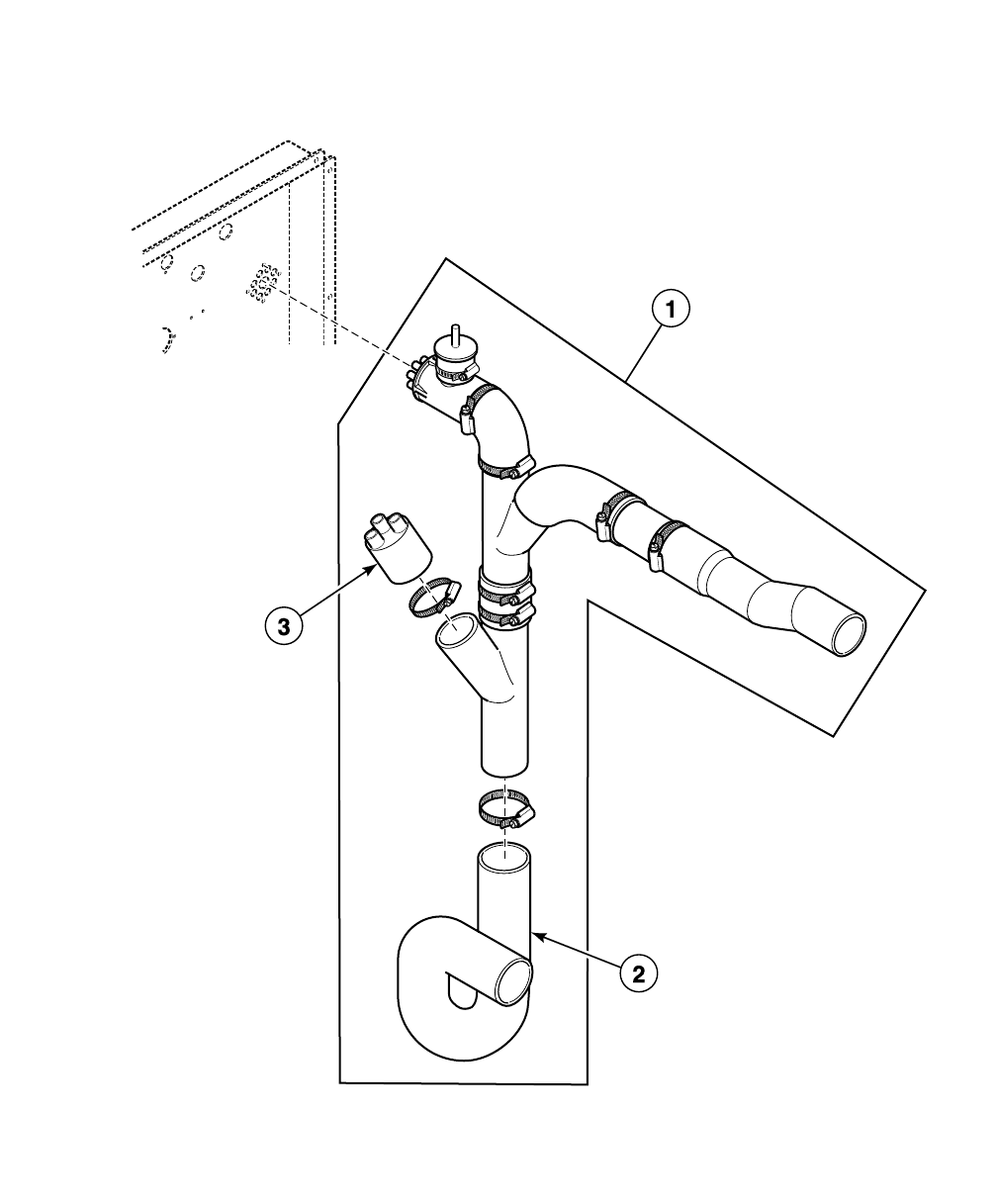

Supply Dispenser Plumbing - Models Starting May 18, 2011

CFD423P_D0055

D0055 77

Supply Dispenser Plumbing - Models Starting May 18, 2011

REF PART NO. DESCRIPTION COMMENTS

1B12374001 Plumbing Assembly *HF100 and *HF455 models

1223/00413/00 Plumbing Assembly *HF135 and *HF575 models

2223/00187/00 Soap Dispenser to Tub Hose

3223/00289/00 Water Inlet Grid

78 D0055

Soap Pumps

BE000499AP_D0055

D0055 79

Soap Pumps

REF PART NO. DESCRIPTION COMMENTS

1209/00555/01 Soap Pump Assembly Feeding and 1 pump

1209/00555/02 Soap Pump Assembly Feeding and 2 pumps

1209/00555/03 Soap Pump Assembly Feeding and 3 pumps

1209/00555/04 Soap Pump Assembly Feeding and 4 pumps

1209/00555/05 Soap Pump Assembly Feeding and 5 pumps

1209/00555/06 Soap Pump Assembly Feeding and 6 pumps

1209/00554/51 Feeding Liquid Soap Dosing Pump

2209/00554/52 Liquid Soap Dosing Pump O-Ring

3209/00554/53 Liquid Soap Dosing Pump Connection Piece

4209/00555/50 Liquid Soap Dosing Pump

5209/00555/98 Dosing Pump Hose

6209/00555/99 Dosing Pump Hose Connector

80 D0055

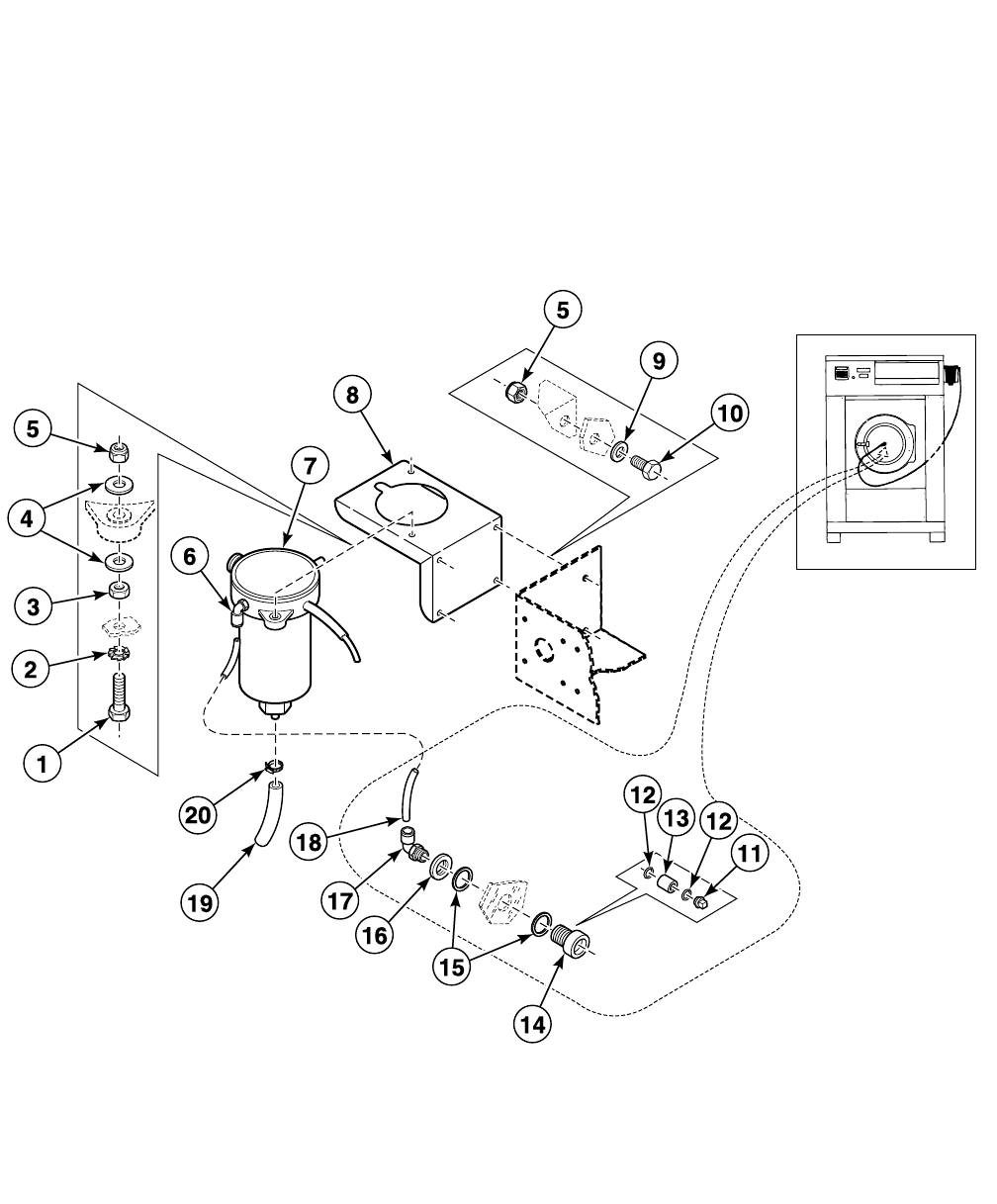

Liquid Supply Pump

BE000068P_D0055

D0055 81

Liquid Supply Pump

REF PART NO. DESCRIPTION COMMENTS

1205/00103/00 Bolt

2203/00004/00 Washer

3204/00106/00 Nut

4202/00101/00 Washer

5204/00009/00 Nut

6223/00181/00 Soap Injector Elbow Coupling

7209/00369/00 Liquid Soap Spray Pump

8111/10179/00 Spray Pump Mounting Plate

9201/00007/00 Washer

10 205/00107/00 Bolt

11 223/00178/00 Soap Injector Orifice

12 223/00177/00 O-Ring

13 211/00126/00 Soap Injector Orifice Nipple

14 211/00127/00 Soap Injector Connector

15 223/00176/00 O-Ring

16 211/10106/00 Nut

17 223/00182/00 Soap Injector Coupling

18 223/00180/00 Soap Injector Hose

19 223/00179/10 Pressure Hose

20 211/00088/00 Cable Tie

82 D0055

Electric and Steam Heating Options

BE000353BP_D0055

D0055 83

Electric and Steam Heating Options

REF PART NO. DESCRIPTION COMMENTS

NA 809P3 Steam Kit Includes 9001685 Steam Injector, 9001686 Steam

Injector Bracket, 9001687 Steam Injector Plate, 9001751

Harness, F380787 Steam Valve, F605220 Steam Valve

Harness, 9001310 Bolt and 9001311 Nut

1209/00562/20 Heating Element 3000W; 220/240 Volt

1209/00581/10 Heating Element 4000W; 380 Volt

2209/00476/00 Steam Valve

3209/00196/00 Heating Element Plug

4223/00349/00 O-Ring

5B12365603 Connecting Piece

6206/00047/00 Bolt

7201/00001/00 Washer

8204/00113/00 Nut

9206/00099/00 Bolt

10 153/00051/10 Bracket

11 153/00051/50 Steam Injector

12 153/00051/11 Steam Injector Plate

84 D0055

Balance Switch

BE000364P_D0055

D0055 85

Balance Switch

REF PART NO. DESCRIPTION COMMENTS

1153/00046/00 Out-of-Balance Detector Plate

2223/00246/00 Out-of-Balance Switch Boot

3207/00018/00 Screw

4203/00006/00 Washer

5209/00255/00 Out-of-Balance Switch

6111/00107/00 Tilt Switch Bracket

7206/00099/00 Bolt

8206/00101/00 Nut

9153/00045/00 Out-of-Balance Switch Plate

10 205/00107/00 Bolt

11 202/00101/00 Washer

12 204/00009/00 Nut

13 204/00007/00 Nut

Notes

86 D0055

D0055 87

N/A items do not appear in index.

Parts Index

AC Drive Filter

209/00287/11 .......................................................... 63

Back Panel Support Assembly

153/00114/A1 .......................................................... 57

153/00114/B0 .......................................................... 57

153/00114/C0.......................................................... 57

Backbridge

153/10027/00 .......................................................... 61

153/10027/90 .............................................. 57, 59, 63

Basket

B12472401.............................................................. 23

Basket Kit

B12543301.............................................................. 21

B12543401.............................................................. 21

Bearing Cover Plate

153/00069/00 .............................................. 15, 17, 19

Bearing Housing Assembly

153/10004/00 ........................................ 13, 15, 17, 19

Bearing Housing Cover

253/10127/00 .................................................... 15, 17

Bearing Kit

3885P...................................................................... 19

Bearing Replacement Kit

894P3...................................................................... 15

Bearing Replacement Tool Kit

245/00054/00 .................................................... 15, 19

Bearing Spacer

B12360807.................................................. 15, 17, 19

Belt

226/00155/00 .................................................... 21, 23

253/00148/00 .................................................... 21, 23

Blind Rivet

F8245101................................................................ 35

Bolt

C000430 ................................................................. 35

C000561 ................................................................. 39

C001784 ................................................................. 39

C001785 ........................................................... 37, 39

205/00102/00 ........................................ 13, 15, 17, 19

205/00103/00 .......................................................... 81

205/00104/00 ........................................ 57, 59, 61, 71

205/00105/00 ...................... 41, 43, 51, 57, 69, 73, 75

205/00107/00 .................................................... 81, 85

205/00108/00 .......................................................... 63

205/00116/00 .......................................................... 59

205/00122/00 .................................................... 37, 39

205/00123/00 .......................................................... 35

206/00004/00 .......................................................... 25

206/00009/00 .................................................... 27, 29

206/00027/00 .............................................. 51, 53, 59

206/00042/00 .......................................................... 55

206/00047/00 .......................................................... 83

206/00071/00 .......................................................... 11

206/00099/00 .... 13, 45, 47, 51, 53, 55, 57, 63, 83, 85

206/00122/00 .......................................................... 13

206/00142/00 ..........................................................25

206/00147/00 ....................................................21, 23

208/00132/00 ..........................................................37

224/00046/00 ..........................................................11

248/00114/00...........................................................25

253/00158/180 ..................................................37, 39

Bracket

153/00051/10 ..........................................................83

Bushing

204/00301/00 ....................................................69, 71

253/00124/00 ..............................................17, 21, 23

Cable Tie

211/00088/00...........................................................81

Cap

223/00396/00 ..........................................................37

Circuit Board Cover

229/00262/00 ..........................................................47

229/00289/00 ..............................................41, 43, 45

Clamp

253/00019/00 ..........................................................73

253/00036/00 ..........................................................75

Coil

209/00051/21 ....................................................31, 33

209/00052/21 ....................................................31, 33

209/00203/21 ....................................................31, 33

Connecting Piece

B12365603 ..............................................................83

Connector

223/00299/00 ..........................................................75

223/00300/00 ..........................................................75

Contact Switch

209/00099/06 ..........................................................49

209/00099/26 ........................................41, 43, 45, 47

Contactor

209/00124/00 ..........................................................51

209/00148/02 ..........................................................51

Control Panel

B12570301 ..............................................................43

B12570401 ..............................................................43

Cooling Fan

209/00287/00 ....................................................25, 63

Cordlock

211/00097/00...........................................................61

211/00097/01...........................................................61

211/00117/00 ...........................................................61

211/00118/00 ...........................................................61

Counterweight

253/10013/00 ..........................................................13

Cylinder and Trunnion Assembly

153/00035/50 ..........................................................21

Datacard

209/02022/00 ..............................................41, 43, 45

88 D0055

N/A items do not appear in index.

Datacard Cover

223/00348/00 .............................................. 41, 43, 45

Detergent PC-Board

209/02005/00 .......................................................... 67

209/02008/00 .......................................................... 67

Display and Printboard

209/02002/Z02 .................................................. 41, 43

Door

153/00082/00 .......................................................... 37

253/00158/131 ........................................................ 39

Door Front Panel

153/10113/00 .......................................................... 13

153/10114/00 .......................................................... 13

Door Gasket

253/00162/01 .................................................... 37, 39

Door Glass

217/00102/00 .......................................................... 37

253/00158/139 ........................................................ 39

Door Glass Gasket

C000140 ................................................................. 39

Door Glass Retainer

253/00158/607 ........................................................ 39

253/10128/00 .......................................................... 37

Door Glass Seal

223/00346/00 .......................................................... 37

Door Handle Bushing

C000181 ........................................................... 37, 39

Door Handle Spring Bushing

253/00158/192 .................................................. 37, 39

Door Handle Torsion Spring

C001786 ........................................................... 37, 39

Door Hinge Block

253/00158/175 ........................................................ 39

Door Latch

C001244 ................................................................. 35

Door Latch Assembly

253/00159/1036 ...................................................... 35

Door Lock Catch

C000185 ................................................................. 35

Door Lock Cover

253/00158/688 ........................................................ 35

Door Lock Harness

C003286 ................................................................. 35

Door Lock Kit

C001036M .............................................................. 35

Door Lock Microswitch

C000278 ................................................................. 35

Door Lock PC-Board

209/02010/00 .............................................. 41, 43, 45

Door Lock Plate

253/00158/684 ........................................................ 35

Door Lock Solenoid Bracket

253/00158/686 ........................................................ 35

Door Lock Spring

253/00158/276 ........................................................ 35

Door Lock Spring Cover

253/00158/687 ........................................................ 35

Door Lock Switch Actuator

253/00158/271 ........................................................ 35

Door Magnet Mounting Bracket

C002994 ................................................................. 39

Door Release Decal

253/00158/694 ........................................................ 35

Door Solenoid Assembly

B12495102 ..............................................................35

Dosing Pump Hose

209/00555/98 ..........................................................79

Dosing Pump Hose Connector

209/00555/99 ..........................................................79

Drain Pipe

223/00106/00 ....................................................27, 29

Drain Tub to Drain Valve Hose

223/00133/00 ..........................................................27

Drain Valve

209/00075/05 ....................................................31, 33

Drain Valve Handle

209/00115/11 ...........................................................33

Drain Valve Kit

B12630701 ........................................................27, 29

Drain Valve Motor

209/00051/11...........................................................31

209/00052/11...........................................................31

209/00052/12 ..........................................................33

209/00203/11...........................................................31

209/00203/12 ..........................................................33

Drain Valve Motor Assembly

209/00170/06 ..........................................................33

Drain Valve Motor Mounting Plate

209/00025/07 ..........................................................31

209/00115/04...........................................................33

Drain Valve Overflow Plug

223/00086/00 ....................................................27, 29

Drain Valve Plate Assembly

114/00010/00.....................................................27, 29

Drain Valve Shaft

209/00170/10 ....................................................31, 33

Drain Valve Shaft Seal

209/00025/10 ....................................................31, 33

Drain Valve Spring

209/00025/13 ..........................................................31

209/00170/02 ..........................................................33

Drain Valve to Drain Pipe Hose

223/00141/00 ..............................................27, 29, 73

Drum Assembly

B12374401 ........................................................17, 23

Elbow

253/00029/00 ..........................................................73

Electrical Connection Cover

140/00010/01 ..........................................................59

Electrical Plate Assembly

153/00111/10 ...........................................................51

153/00112/10...........................................................51

Emergency Stop Button Kit

209/00253/00 ..........................................................49

Emergency Switch Pushbutton

209/00099/20 ..............................................41, 43, 45

Exhaust Valve Hose

223/00170/00 ..........................................................29

D0055 89

N/A items do not appear in index.

Fan Inverter Cover

153/00027/14 .......................................................... 63

Feeding Liquid Soap Dosing Pump

209/00554/51 .......................................................... 79

Filter

209/00287/21 .......................................................... 63

Frame

253/10009/00 ............................................................ 9

253/10010/00 ............................................................ 9

Front Cabinet Top

153/00033/01 .......................................................... 55

153/00034/01 .......................................................... 55

Front Panel

153/10115/00 .......................................................... 55

Front Panel Right

153/10116/00 .......................................................... 55

Front Shipping Brace

153/10009/11 ............................................................ 9

Fuse

209/00372/01 .......................................................... 47

209/00468/00 .................................................... 51, 67

209/00766/00 .......................................................... 67

Fuse Holder

209/00202/00 .................................................... 51, 67

209/00202/01 .......................................................... 67

Gasket

246/00092/00 .......................................................... 51

246/00149/00 .................................................... 51, 55

Grease Ring Holder

253/00131/00 .......................................................... 19

Grommet

223/00174/00 .......................................................... 51

223/00198/00 .............................................. 51, 61, 63

223/00203/00 .......................................................... 63

223/00213/00 .......................................................... 63

Handle

253/00158/028 .................................................. 37, 39

Handle Grommet

223/00008/01 .............................................. 47, 49, 69

Handle Hinge

253/00158/470 .................................................. 37, 39

Heating Contactor

209/00641/04 .......................................................... 53

209/06148/02 .......................................................... 53

Heating Element

209/00562/20 .......................................................... 83

209/00581/10 .......................................................... 83

Heating Element Plug

209/00196/00 .......................................................... 83

Hinge Block

253/00178/00 .......................................................... 37

253/00178/10 .......................................................... 37

Hinge Plate

253/00176/50 ....................................................37, 39

253/00177/00 ..........................................................37

253/10528/00 ..........................................................37

Hose

223/00185/00 ..........................................................59

Hose Barb

223/00016/00 ....................................................51, 53

Hose Clamp

223/00010/00 ..............................................59, 69, 71

223/00011/00.........................................51, 59, 73, 75

223/00012/00 ..........................................................29

223/00013/00 ....................................................27, 29

223/00014/00 ..............................................59, 73, 75

223/00071/00 ........................................27, 29, 73, 75

223/00223/00 ....................................................27, 53

229/00012/00 ..........................................................27

Hose Tee

223/00035/01 ..........................................................51

Hose Vent

223/00102/07 ..........................................................59

ID Chip

209/02020/00 ..........................................................67

Infrared Cable

210/00902/00 ..................................41, 43, 45, 47, 49

Inlet

153/00043/00 ..........................................................61

Inlet Valve

209/00137/00 ..........................................................59

Inlet Valve, 3-Way

209/00277/00 ..........................................................59

Insulating Sticker

229/00255/00 ..........................................................47

229/00268/00 ..............................................41, 43, 45

Inverter

F8645701P..............................................................65

F8645801P..............................................................65

F8645901P..............................................................65

F8646001P..............................................................65

227/00130/00 ..........................................................65

227/00131/00 ..........................................................65

227/00135/00 ..........................................................65

227/00136/00 ..........................................................65

Inverter Drive

F8421113.................................................................65

F8421114.................................................................65

F8421115.................................................................65

F8421116.................................................................65

F8421117.................................................................65

F8421118.................................................................65

F8421119.................................................................65

F8421120.................................................................65

Inverter Drive Box

111/01147/00 ...........................................................63

Inverter Drive Retrofit Kit

F8421013 ................................................................65

F8421014 ................................................................65

F8421015 ................................................................65

F8421016 ................................................................65

F8421017 ................................................................65

F8421018 ................................................................65

F8421019 ................................................................65

90 D0055

N/A items do not appear in index.

F8421020................................................................ 65

Key

253/00033/00 .................................................... 21, 23

Keypad

209/00502/01 .......................................................... 47

209/00552/01 .......................................................... 49

Kickplate

153/10117/00 .......................................................... 55

Leveling Leg

252/00006/00 .......................................................... 13

Lip Seal

253/00182/00 .......................................................... 19

Liquid Soap Dosing Pump

209/00555/50 .......................................................... 79

Liquid Soap Dosing Pump Connection Piece

209/00554/53 .......................................................... 79

Liquid Soap Dosing Pump O-Ring

209/00554/52 .......................................................... 79

Liquid Soap Manifold

223/00249/00 .......................................................... 75

Liquid Soap Spray Pump

209/00369/00 .......................................................... 81

Lock Spring Leaf

211/00072/00 .......................................................... 35

Lower Support

253/10011/00 ............................................................ 9

253/10012/00 ............................................................ 9

Lubricator

212/00002/00 .................................................... 15, 19

Magnet

F8390801................................................................ 39

Main Board

B12351701.............................................................. 47

Main Switch

209/00526/00 .......................................................... 59

209/00532/00 .......................................................... 59

209/00672/00 .......................................................... 59

Memory Card PC-Board

B12305201.................................................. 41, 43, 45

Microprocessor

209/02025/00 .......................................................... 67

Motor

B12511401 .............................................................. 25

227/00132/00 .......................................................... 25

Motor Plate

B12369701.............................................................. 25

Mounting Plate

173/00012/00 .................................................... 47, 49

223/00374/00 .............................................. 41, 43, 45

Mushroom Pushbutton

209/00248/20 .................................. 41, 43, 45, 47, 49

Network Connection Printboard

209/02007/00 ..........................................................67

Noise Filter

227/00163/00 ..........................................................63

Noise Suppressor

209/00356/00 ..........................................................53

Nut

204/00004/00 ....................................................27, 29

204/00006/00 ..........................................................63

204/00007/00 ..................................25, 51, 53, 59, 85

204/00008/00 ....................................................47, 49

204/00009/00 ..................................57, 69, 71, 81, 85

204/00012/00 ....................................................11, 25

204/00016/00 ..........................................................11

204/00105/00 ..........................................................59

204/00106/00 ..................................55, 57, 73, 75, 81

204/00111/00 ...........................................................25

204/00113/00.........................................11, 13, 25, 83

204/00114/00.....................................................25, 63

204/00116/00.......................41, 43, 45, 47, 49, 51, 67

204/00201/00 ....................................................69, 71

206/00101/00 ........................................51, 69, 71, 85

211/00170/00...........................................................59

211/00172/00...........................................................59

211/00183/00...........................................................59

211/10106/00...........................................................81

253/00158/558 ........................................................39

253/00158/560 ..................................................37, 39

253/00158/562 ..................................................37, 39

253/00158/578 ........................................................35

Operating Sticker

B12456701 ..............................................................45

225/10313/00 ..........................................................41

225/10404/00 ..........................................................45

225/10427/00 ..........................................................45

O-Ring

223/00176/00 ..........................................................81

223/00177/00 ..........................................................81

223/00244/00 ....................................................37, 39

223/00349/00 ..........................................................83

Out-of-Balance Detector Plate

153/00046/00 ..........................................................85

Out-of-Balance Switch

209/00255/00 ..........................................................85

Out-of-Balance Switch Boot

223/00246/00 ..........................................................85

Out-of-Balance Switch Plate

153/00045/00 ..........................................................85

Overflow Hose

223/00184/00 ....................................................27, 29

Overlay

B12568801 ..............................................................43

B12568901 ..............................................................43

225/00365/00 ....................................................47, 49

D0055 91

N/A items do not appear in index.

Parameter Unit Assembly

F8410901................................................................ 63

227/00171/00 .......................................................... 63

Plate Assembly

153/00112/60 .......................................................... 53

173/00013/10 .......................................................... 53

Plexi Frame

225/00321/00 .................................................... 41, 43

225/00323/00 .......................................................... 45

Plug

211/00087/00 .......................................................... 61

211/00129/00 .......................................................... 61

Plumbing Assembly

B12374001.............................................................. 77

223/00413/00 .......................................................... 77

Pop Rivet

F431223.................................................................. 39

Pressure Hose

B12700018........................................................ 51, 53

223/00179/10 .............................................. 61, 75, 81

Pressure Switch

209/00007/50 .......................................................... 51

Pressure Switch Elbow

223/00210/00 .................................................... 51, 53

Pressure Switch Hose Tee

223/00173/10 .......................................................... 53

Prewash and Mainwash Nozzle

223/00001/04 .................................................... 69, 71

Printboard

209/00505/02 .......................................................... 51

209/00542/02 .......................................................... 51

209/02015/02 .......................................................... 45

Printboard Display Plate Assembly

173/00013/20 .................................................... 41, 43

173/00013/30 .......................................................... 45

Printboard Separator

211/00128/00 ........................................ 41, 43, 45, 67

Printboard Support Card

111/01893/00............................................... 41, 43, 45

Programming Key Contact Switch

209/00326/20 .................................................... 47, 49

Pulley

253/00026/00 .............................................. 17, 21, 23

253/00026/01 .............................................. 17, 21, 23

253/00078/00 .................................................... 21, 23

253/00079/00 .......................................................... 25

253/00147/00 .......................................................... 25

Rail

720/00110/01 .......................................................... 53

Rear Cabinet Top

153/00033/02 .......................................................... 55

153/00034/02 .......................................................... 55

Rear Shipping Brace

153/10009/12 ............................................................ 9

Reducing Tee

253/00021/00 .......................................................... 73

Reed Switch Assembly

C003000..................................................................35

Relay PC-Board

209/02014/00 ..........................................................67

209/02016/00 ..........................................................67

Retaining Ring

253/00157/00 ..............................................15, 17, 19

Ring

207/00139/00 ....................................................59, 69

Rivet

206/00017/00 ..........................................................67

Roller Bearing

253/00155/00 ..............................................15, 17, 19

253/00156/00 ..............................................15, 17, 19

Screw

B12347501 ..............................................................75

206/00031/00 ..........................................................25

206/00053/00 ....................................................21, 23

206/00125/00 ..........................................................25

207/00003/00 ....................................................25, 51

207/00018/00 ..........................................................85

207/00021/00 ..........................................................63

207/00025/00 ....................................................47, 49

207/00102/00 ..........................................................55

207/00108/00 ..........................................................49

207/00110/00.....................................................59, 69

207/00113/00.........................................41, 43, 45, 47

207/00123/00 ..........................................................55

207/00126/00 ..........................................................69

207/00135/00 ....................................................35, 51

209/00025/08 ....................................................31, 33

209/00170/05 ....................................................31, 33

209/00170/07 ....................................................31, 33

253/00158/1047 ......................................................35

253/00158/567 ........................................................35

253/00158/612 ........................................................35

253/00158/614 ........................................................35

Seal

B12378801 ..............................................................23

B12378901 ..............................................................23

Seal Wear Plate

153/00121/00 ..........................................................19

Separator

206/00141/00 ..........................................................51

Shock Absorber

247/00008/00 ..........................................................11

Side Panel

153/00103/00 ....................................................55, 57

153/00104/00 ....................................................55, 57

153/00105/00 ....................................................55, 57

153/00106/00 ....................................................55, 57

Side Panel Gasket

246/00079/00 ..........................................................57

Side Panel Support Assembly

153/00103/01 ..........................................................57

Soap Dispenser

153/00072/00 ..........................................................69

Soap Dispenser Cover

153/00070/00 ..........................................................69

Soap Dispenser Cover Handle

223/00008/05 ..........................................................69

92 D0055

N/A items do not appear in index.

Soap Dispenser Cover Plate

153/00071/00 .......................................................... 69

Soap Dispenser Cup

253/00012/02 .......................................................... 69

Soap Dispenser to Tub Hose

223/00187/00 .............................................. 73, 75, 77

Soap Injection PCB with Fuse

209/00218/13 .......................................................... 51

Soap Injector Connector

211/00127/00 .......................................................... 81

Soap Injector Coupling

223/00182/00 .......................................................... 81

Soap Injector Elbow Coupling

223/00181/00 .......................................................... 81

Soap Injector Hose

223/00180/00 .......................................................... 81

Soap Injector Orifice

223/00178/00 .......................................................... 81

Soap Injector Orifice Nipple

211/00126/00 .......................................................... 81

Soap Inlet Hose Kit

223/00219/00 .......................................................... 73

Soap Pump Assembly

209/00555/01 .......................................................... 79

209/00555/02 .......................................................... 79

209/00555/03 .......................................................... 79

209/00555/04 .......................................................... 79

209/00555/05 .......................................................... 79

209/00555/06 .......................................................... 79

Spacer

B12360810.............................................................. 19

253/00125/00 .............................................. 17, 21, 23

253/10120/00 .................................................... 15, 17

Speed Detector

209/00400/00 .................................................... 15, 19

Speed Sensor Bracket

153/00041/02 .................................................... 15, 19

Spray Pump Mounting Plate

111/10179/00........................................................... 81

Spring

C000431 ................................................................. 35

Standoff

211/00120/00 .......................................................... 51

211/00122/00 .................................. 41, 43, 45, 47, 67

211/00145/00 .............................................. 41, 43, 45

211/00146/00 .......................................................... 67

Steam Injector

153/00051/50 .......................................................... 83

Steam Injector Plate

153/00051/11 .......................................................... 83

Steam Kit

809P3...................................................................... 83

Steam Valve

209/00476/00 .......................................................... 83

Strain Relief Connectort

211/00181/00 .......................................................... 59

Supply Dispenser Box

223/00345/01 .......................................................... 71

Supply Dispenser Cover

153/00089/00 .......................................................... 71

Supply Dispenser Handle

223/00392/00 .......................................................... 71

Suspension Spring

B12456301.............................................................. 11

Switch Base

209/00099/25 ....................................................47, 49

Switch Bracket

153/00027/22 ..........................................................59

Switch Knob

209/00099/29 ....................................................47, 49

Telem Sticker

209/00520/00 ..................................41, 43, 45, 47, 49

Terminal Block

209/00527/00 ..........................................................59

209/00528/00 ..........................................................59

209/00533/00 ..........................................................59

Thermostat

210/01064/16 ....................................................51, 53

210/01304/16 ....................................................51, 53

Thermostat Grommet

225/10004/00 ....................................................51, 53

Tilt Switch Bracket

111/00107/00 ...........................................................85

Top Cover Plate

153/00111/01 ...........................................................51

153/00112/01...........................................................51

T-Piece

253/00006/00 ..........................................................29

Tub

153/00075/00 ..........................................................13

153/00076/00 ..........................................................13

153/00077/00 ..........................................................13

153/00078/00 ..........................................................13

Tub Back Plate

153/00075/10 ..........................................................13

153/00076/10 ..........................................................13

Tub Front Panel

153/10013/00 ..........................................................13

Tub Gasket

223/00168/00 ..........................................................13

Upper Front Panel

153/10107/00 ..........................................................49

153/10107/10 ..........................................................49

153/10108/10 ..........................................................47

153/10108/20 ....................................................41, 45

Upper Support

253/10111/00 .............................................................9

253/10112/00.............................................................9

Vent Hose

223/00107/03 ..........................................................73

Voltage Discharge Decal

B12355001 ..............................................................63

V-Ring Seal

253/00151/00 ....................................................17, 21

253/00152/00 ....................................................17, 21

253/00153/00 ....................................................17, 21

D0055 93

N/A items do not appear in index.

253/00154/00 .............................................. 17, 21, 23

Washer

B12300601........................................................ 41, 43

B12300701........................................................ 41, 43

B12522101.............................................................. 13

201/00001/00 .............................................. 11, 25, 83

201/00002/00 .................................................... 69, 71

201/00004/00 .......................................................... 25

201/00007/00 ........................................ 35, 51, 55, 81

201/00008/00 .................................................... 25, 53

201/00010/00 .......................................................... 29

201/00011/00 .......................................................... 25

201/00025/00 .................................................... 21, 23

201/00202/00 .............................................. 15, 17, 19

202/00002/00 .............................................. 27, 29, 55

202/00003/00 .......................................................... 63

202/00004/00 ............................ 41, 43, 45, 47, 49, 59

202/00101/00 .................................. 59, 69, 71, 81, 85

202/00105/00 .......................................................... 13

202/00110/00 ........................................ 57, 61, 73, 75

203/00001/00 .......................................................... 25

203/00002/00 .................................................... 15, 19

203/00003/00 .................................................... 27, 29

203/00004/00 ............................ 51, 57, 59, 73, 75, 81

203/00005/00 .......................................................... 63

203/00006/00 .................................. 25, 51, 53, 59, 85

203/00007/00 .............................................. 47, 49, 51

203/00016/00 .................................................... 21, 23

208/00009/00 .......................................................... 55

209/00025/12 .................................................... 31, 33

223/00001/07 .................................................... 69, 71

223/00123/00 ...................... 41, 43, 45, 47, 49, 51, 67

253/00158/177 ........................................................ 39

253/00158/571 ........................................................ 35

Water Hose

223/00044/00 .............................................. 59, 69, 71

223/00059/00 .............................................. 59, 73, 75

Water Inlet Grid

223/00289/00 .................................................... 73, 77

Water Level Switch

B12548601.............................................................. 53

Y Pipe

253/00030/00 .......................................................... 73

253/00035/00 .......................................................... 75

Notes

94 D0055

Washer Extractor Parts Manual HF455 D0055

Navigation menu

Versions of this User Manual:

Views

Navigation
