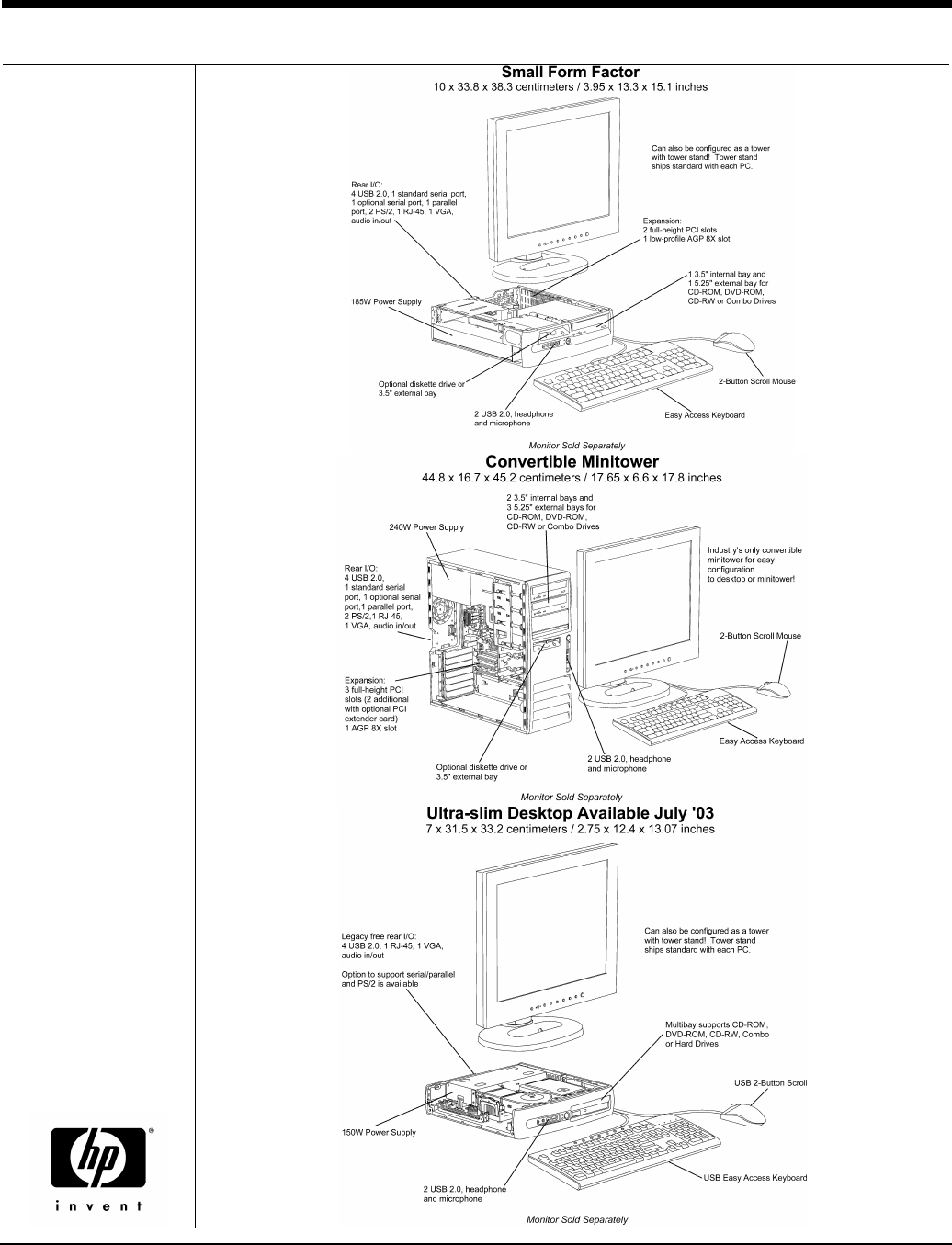

QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 1
Overview
At A Glance
•
Intel
Pentium
4 and
Celeron™ processors
•
Intel 865G chipset with Intel
Extreme 2 integrated graphics
•
Integrated Broadcom
NetXtreme Gigabit ethernet
for HP
•
400, 533 and 800-MHz
processor front side bus
support
•
Intel HyperThread support
•
SMART III Ultra ATA/100
Hard Drives
•
SoundMax Digital AC97
integrated audio with internal
speaker
•
Standard MultiBay drive on
ultra-slim desktop
•
MultiBay support on small
form factor and convertible
minitower (optional drive
adapter is required)
•
Pre-loaded Manageability
tools
•
Energy Star compliance with
energy-saving features
•
Protected by HP Services,
including a 3-3-3, standard
warranty. Terms and
conditions vary by country.
Certain restrictions and
exclusions apply.
![](asset-2.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 2
Standard Features – Select Models
HP Compaq Business Desktop d530
All D530’s come with:
Intel 865G chipset
Integrated Intel Extreme graphics
Integrated Broadcom NetXtreme Gigabit Ethernet for HP
Integrated AC97 audio
1.44 MB floppy drive (SMT and SFF only)
Model Key
Example: d530s/P2.66/40d/c/512b/3n
D530s D530 small form factor
D530c D530 convertible minitower
D530u D530 ultra slim dt
Processor Speed
C2.2 Celeron 2.2GHz
P2.66 P4 2.66GHz (533MHz)
P2.6C P4 2.6GHz (800MHz)
P2.8 P4 2.8GHz (533MHz)
P2.8C P4 2.8GHz (800MHz)
Hard Drive
40 Hard Drive Size
b 7200 RPM Hard Drive Speed
Removable Storage
c CD-ROM
r CDRW
d DVD
x no removable storage
Memory Size
512 Memory size
Memory Speed
e DDR333Mhz dual channel
d DDR333Mhz single channel
OS
2 Windows 2000
4 XP
NIC
N nic
Small Form Factor
DG780A#ABA d530s/C2.2/40b/c/256e/4n
ww DK907A#ABA d530s/P2.4/40b/c/256e/4n
ww DG058A#ABA d530s/P2.66/40b/c/256e/4n
DG784A#ABA d530s/P2.66/40b/c/256e/2n
ww DG781A#ABA d530s/P2.66/40b/c/512e/4n
DG782A#ABA d530s/P2.66/40b/d/512e/4n
DG783A#ABA d530s/P2.66/40b/r/512e/4n
ww DG059A#ABA d530s/P2.8/40b/c/256e/4n
DG060A#ABA d530s/P2.8/40b/c/512e/4n
*DK665A#ABA *d530s/P2.6C/40b/512e/4n
* DK666A#ABA *d530s/P2.8C/80b/512e/4n
![](asset-3.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 3
Standard Features – Select Models
HP Compaq Business Desktop d530
Convertible Minitower
ww DK913A#ABA d530c/P2.4/40b/c/256e/4n
ww DG061A#ABA d530c/P2.66/40b/c/256e/4n
DG769A#ABA d530c/P2.66/40b/c/256e/2n
DG768A#ABA d530c/P2.66/40b/r/512e/4n
ww DG767A#ABA d530c/P2.66/40b/c/512e/4n
ww DG062A#ABA d530c/P2.8/40b/c/256e/4n
DG063A#ABA d530c/P2.8/40b/c/512e/4n
*DK667A#ABA *d530c/P2.6C/40b/512e/4n
*DK668A#ABA *d530c/P2.8C/80b/512e/4n
Ultra-slim Desktop – Available July ‘03
ww DK895A#ABA d530u/P2.4/40b/c/256d/4n
ww DG009A#ABA d530u/P2.66/40b/x/256d/4n
ww DG008A#ABA d530u/P2.66/40b/c/256d/4n
ww DG135A#ABA d530u/P2.66/40b/c/512d/4n
ww DG010A#ABA d530u/P2.8/40b/c/256d/4n
*TBD *d530u/P2.6C/40b/512d/4n
*TBD *d530u/P2.8C/40b/512d/4n
NOTE: ww = Worldwide sku
* skus available via HP direct only – channel and reseller partners can orders skus but will not be inventoried
![](asset-4.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 4
Standard Features – Custom Components
USDT SFF CMT
Processor and Speed – One of
the following Intel Celeron Processors with 400-MHz Front Side Bus,
128KB L2 cache
2.2-GHz
2.3-GHz
Intel Pentium 4 Processors with 800-MHz Front Side Bus,
512KB L2 cache with HyperThread
2.4-GHz
2.6-GHz
2.8-GHz
3.0-GHz
Intel Pentium 4 Processors with 533-MHz Front Side Bus,
512KB L2 cache
2.4-GHz (without HyperThread)
2.66-GHz (without HyperThread)
2.8-GHz (without HyperThread)
3.06-GHz (with HyperThread)
40-GB 7200 rpm SMART III Ultra ATA/100
Hard Disk Drive
–
One of the
following
80-GB 7200 rpm SMART III Ultra ATA/100
160-GB 7200 rpm SMART III Ultra ATA/100
2nd hard drive, 40-GB 7200 rpm SMART III Ultra ATA/100
2nd hard drive, 80-GB 7200 rpm SMART III Ultra ATA/100
2nd hard drive, 160-GB 7200 rpm SMART III Ultra ATA/100
Memory – One of the following 128-MB DDR Synch Dram PC2700 (333-MHz) Non ECC
(1 x 128)
256-MB DDR Synch Dram PC2700 (333-MHz) Non ECC
(1 x 256)
256-MB DDR Synch Dram PC2700 (333-MHz) Non ECC
(2 x 128)
384-MB DDR Synch Dram PC2700 (333-MHz) Non ECC
(1 x 128, 1 x 256)
512-MB DDR Synch Dram PC2700 (333-MHz) Non ECC
(1 x 512)
512-MB DDR Synch Dram PC2700 (333-MHz) Non ECC
(2 x 256)
1-GB DDR Synch Dram PC2700 (333-MHz) Non ECC (2 x 512)
256-MB DDR Synch Dram PC3200 (400-MHz) Non ECC
(2 x 128)
512-MB DDR Synch Dram PC3200 (400-MHz) Non ECC
(2 x 256)
640-MB DDR Synch DRAM PC2700 (333-Mhz) Non ECC (128
X 512)
768 MB DDR Synch DRAM PC2700 (333-Mhz) Non ECC (256
X 512)
1-GB DDR Synch Dram PC3200 (333-MHz) Non ECC (1X 1G)
2-GB DDR Synch Dram PC3200 (333-MHz) Non ECC (2 x 1GB)
4-GB DDR Synch Dram PC3200 (333-MHz) Non ECC (4 x 1GB)
NOTE: For best performance, memory speeds and sizes should not be mixed. See memory section for more
information
![](asset-5.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 5
Standard Features – Custom Components
USDT SFF CMT
Removable Storage Optional 1.44-MB Diskette Drive
64MB USB Disk-on-Key
48X CD-ROM Drive
48X/24X/48X CD-RW Drive
16X/40X DVD-ROM with +R Read
48X/24X/48X/16X Combo CD-RW/DVD-ROM Drive
4X 4.7GB DVD+R/RW Drive
Zip 250 for 3.5″ drive bay
Zip 250 for 5.25″ drive bay
Multibay Storage Multibay Drive Adapter
MultiBay 24X CD-ROM Drive
MultiBay 8X/24X DVD-ROM Drive with RAM Read
MultiBay 24X/10X/24X CD-RW Drive
MultiBay 24X/10X/24X/8X Combo DVD-ROM and CD-RW Drive
Multibay 1.44MB diskette drive
*NOTE: Multibay Drive Adaptor is standard in Ultra-slim Desktop, optional on Convertible Minitower and Small
Form Factor via MultiBay Drive Adapter.
Keyboard – One of the following PS/2 Easy Access Keyboard
*
USB Easy Access Keyboard
USB Wireless Keyboard
Mouse – One of the following PS/2 2-Button Scroll Mouse
*
USB 2-Button Optical Mouse
USB 2-Button Scroll Mouse
Wireless Optical Mouse
* NOTE: requires optional USB/PS2 legacy adapter
Modem Lucent V.90 controllerless 56K Win PCI Fax/Modem
Audio Integrated Intel Audio with Premier Internal Speaker
NIC Integrated Broadcom NetXtreme Gigabit ethernet for HP
Intel Pro 1000 MT NIC
Wireless 802.11b PCI
Miscellaneous Legacy PCI card (1 serial port, 1 parallel port)
Legacy cable USB to PS/2 (for keyboard and mouse support)
IEEE 1394 Firewire PCI (firewire 400)
PCI extender card (adds 2 PCI)
2nd serial port option
Tower stand (ships standard with USDT & SFF)
![](asset-6.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 6
Standard Features – Custom Components
USDT SFF CMT
Graphics Intel Extreme Graphics 2 (integrated with Intel 865G chipset)
DVI ADD card full height
DVI ADD card low profile
DVI ADD card
NVIDIA Quadro4 100NVS AGP (64MB, dual VGA) full height
*Available July ‘03
NVIDIA Quadro4 100NVS AGP (64MB, dual VGA) low profile
Available July ‘03
NVIDIA Quadro4 100NVS PCI (64MB, dual DVI)
Available July ‘03
NVIDIA GeForce4 MX440/8 (64MB, 8XAGP, DVI, S-video)
full height
NVIDIA GeForce4 MX440/8 (64MB, 8XAGP, DVI, S-video)
low profile
Security Solenoid/Hood Sensor
Port Control Bracket
TCPA module
Microsoft Windows XP Professional with service pack 1
Operating System – One of the
following Microsoft Windows XP Home with service pack 1
Microsoft Windows 2000 with service pack 3
Mandrake 9.1 Linux - Light
NOTE: Microsoft Windows NT 4.0 are not available on system,
but Softpaq drivers are downloadable from hp.com.
Software Norton AntiVirus 2003
Microsoft Office XP Professional
Microsoft Office XP Small Business Edition
For information about Intelligent Manageability visit:
http://www.compaq.com/im
![](asset-7.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 7
Standard Features
ultra-slim desktop small form factor convertible minitower
Processor Intel Celeron and Pentium 4
CPU Bus Speed Supported 800-MHz, 533-MHz or 400-MHz FSB
Standard L2 Cache – Pentium 4 512-KB ECC depending on processor speed
Chipset Intel 865G
Memory Expansion Slots 2 DIMMs 4 DIMMs 4 DIMMs
Memory Type Supported DDR (ECC not supported by Chipset)
Memory Speed Supported DDR Synch DRAM PC2100 (266MHz), PC2700 (333-MHz) or DDR Synch DRAM PC3200 (400MHz) Non-ECC
Maximum Memory 2-GB 4-GB 4-GB
Network controller Integrated Broadcom NetXtreme Gigabit ethernet for HP
Graphics Integrated Intel Extreme Graphics 2
Audio integrated digital audio with S/PDif 6-channel pass-through, stereo microphone, active noise cancellation and
Yamaha XG Lite Softsynth support
PCI 1 full-height, 5.28 in / 13.4 cm length
PCI card 2 full-height, 6.87 in / 17.45 cm
length PCI cards 3 full-height slots on PCA (2
additional slots available via
optional PCI Extender Card)
AGP None 1 low-profile AGP 8X, 1.5V 1 AGP 8X, 1.5V

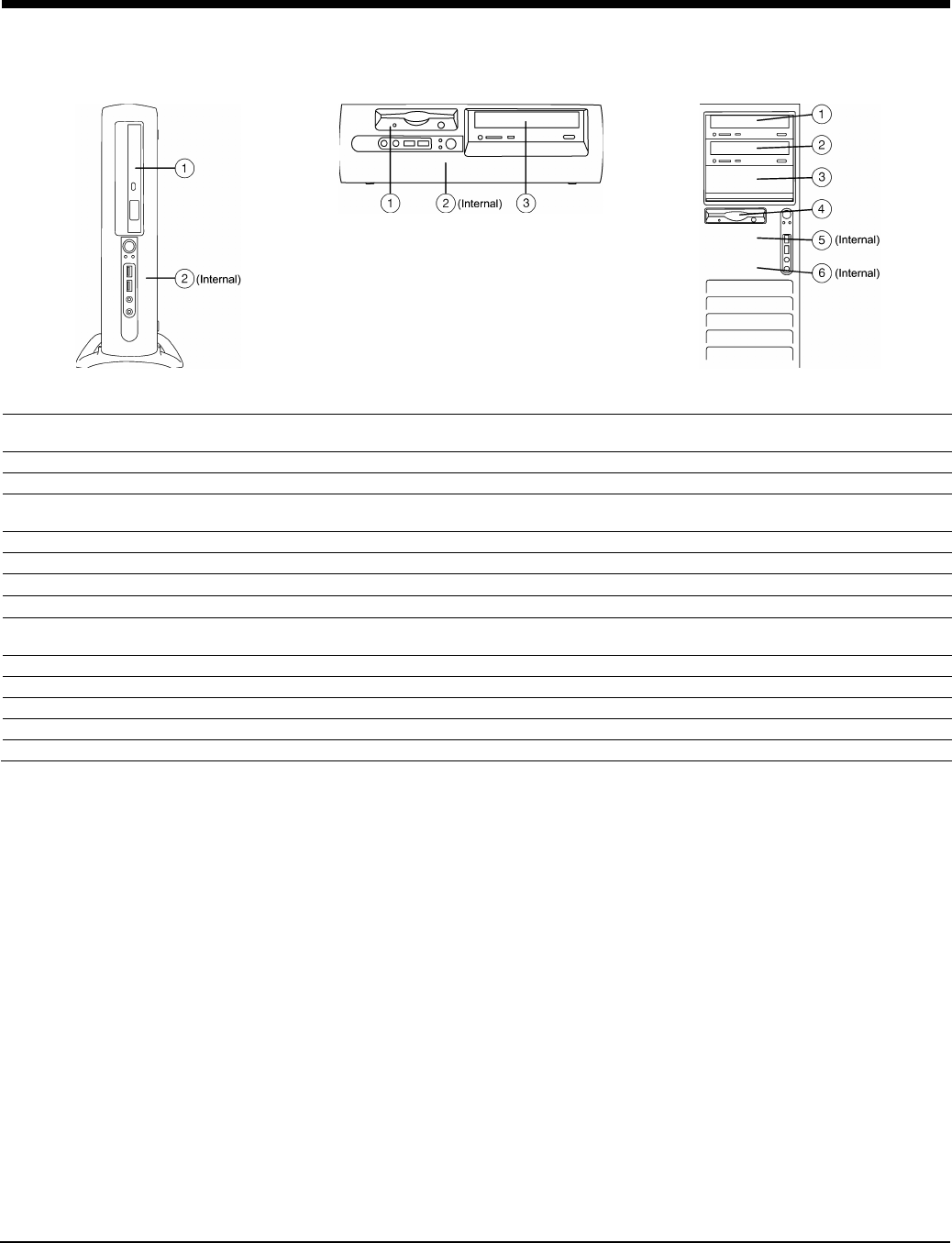

Bays Total Bays = 2 Total Bays = 3 Total Bays = 6
Internal Bays (1) 3.5 inch ATA Hard Drive (1) 3.5 inch ATA Hard Drive (2) 3.5 inch ATA Hard Drive
External Bays (1) MultiBay (1) 5.25 inch half-height
(1) 3.5 inch third height (3) 5.25 inch half-height
(1) 3.5 inch third height
Parallel Port Optional via PCI card 1 1
Serial Port Optional via PCI card 1 – with 2
nd
available as option 1 – with 2
nd
available as option
Front I/O Front Headphone, Microphone, and 2 USB 2.0 Standard
Rear I/O 4 USB, 1 VGA, Audio In, Audio Out, 1
RJ-45, Audio In, Audio Out /
Headphone, Mic In
4 USB, 1 standard serial port, 1
optional serial port, 1 parallel port,
PS/2 keyboard and mouse, 1 RJ-45,
1 VGA, Audio In, Audio Out /
Headphone, Mic In
4 USB, 1 standard serial port, 1
optional serial port, 1 parallel port,
PS/2 keyboard and mouse, 1 RJ-
45, 1 VGA, Audio In, Audio Out /
Headphone, Mic In
USB Keyboard 1 Optional Optional
USB Mouse 1 Optional Optional
PS/2 Keyboard Optional via USB adapter 1 1
PS/2 Mouse Optional via USB adapter 1 1
VGA Adapter 1
Chassis Dimensions (H x W x D) 2.75 x 12.4 x 13.07 inches
(7 x 31.5 x 33.2 cm) 3.95 x 13.3 x 15.1 inches
(10 x 33.8 x 38.3 cm) 17.65 x 6.6 x 17.8 inches
(44.8 x 16.7 x 45.2 cm)
System Weight 15.4 lbs (6.99 kg) 22.2 lbs (10.07 kg) 32.5 lbs (14.74 kg)
System Volume 7.3 liters 13 liters 34.2 liters
Shipping weight 19 lbs (8.62 kg) 29 lbs (32.15 kg) 43 lbs (19.5 kg)
Weight Supported 77 lbs (34.92 kg) 77 lbs (34.92 kg) 77 lbs (34.92 kg)
Power Supply 150W Power Supply – PFC (115v /
230v line switch) 185W Power Supply – PFC (115v /
230v line switch) 240W ATX Power Supply – PFC
with in 240V mode (115v/230V line
switch)
Hard Drive Interfaces Supported 2 ULTRA ATA/100 interfaces
Hard Drive Controller (PCI) Supported ULTRA ATA 100/66/33
Serial-ATA 1 port 2 ports 2 ports
Preinstalled Software
Windows NT 4.X
(drivers available on web -
Softpaqs Only)
(drivers available on web -
Softpaqs Only)
(drivers available on web-
Softpaqs Only)
Windows 2000 SP3
Windows XP Pro SP1
Windows XP Home SP1
Computer Setup Utility
Diagnostics for Windows
Microsoft Internet Explorer
![](asset-8.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 8
After Market Options
USDT SFF CMT
Part Number
Communications Modems
v.90 56k PCI win modem (worldwide) 239137-001
USB 56k fax modem
228141-001
NICs
Broadcom NetXtreme Gigabit Ethernet for HP (PCI) DC194A
Intel Pro/1000 MT DC193A
Wireless WL220 802.11b PCI (full height and low profile
brackets) DC756B#ABA
hp WL215 USB (802.11b) WiFi wireless LAN
191810-B22
Graphics 2D Graphics
NVIDIA GeForce4 MX440/8 64-MB DDR 8XAGP DVI &
S-video (includes low profile bracket for Small Form Factor) DC663
A
2D Multi-Display Graphics
NVIDIA Quadro4 100NVS 64-MB AGP VGA dualhead DC665
A
NVIDIA Quadro4 100NVS 64-MB PCI VGA, DVI-I, S-video DC644
A
Cables
NVIDIA Quadro4 100NVS DVI connector cables (for use
with DC665A)
DC157
A
Hard Drives Ultra ATA/100 SMART Hard Drives
160-GB 7200 rpm Ultra ATA/100 Hard Drive DC189A
80-GB 7200 rpm Ultra ATA/100 Hard Drive 250020-B21
40-GB 7200 rpm Ultra ATA/100 Hard Drive 201066-B21
Cables
Input/Output Devices Keyboards
HP PS/2 Easy Access Keyboard (Carbonite/Silver)
*
DC167B#ABA
HP Wireless Easy Access Keyboard with Wireless/Optical
Mouse DC170B#ABA
HP USB Easy Access Smartcard Keyboard
(Carbonite/Silver) DC169B#ABA
HP USB Easy Access Keyboard (Carbonite/Silver) DC168B#ABA
Mice
HP PS/2 2-Button Scroll Mouse (Carbonite)
*
DD440B
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B
* NOTE: requires optional USB/PS2 legacy adapter
Other
PCI to PCMCIA Universal adapter for 3.5” bay DC680B
Parallel/Serial connector legacy PCI adapter DC195A
USB to PS/2 Mouse/Keyboard legacy adapter DC681B
IEEE1394 Firewire PCI card DE471A
![](asset-9.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 9
After Market Options
USDT SFF CMT
Part Number
Memory (DIMMs) 266-MHz (PC2100) DDR DIMMs Non-ECC
1-GB DDR Synch Dram PC2100 (266-MHz) Non-ECC DC166A
512-MB DDR Synch Dram PC2100 (266-MHz) Non-ECC DC165A
256-MB DDR Synch Dram PC2100 (266-MHz) Non-ECC DC164A
128-MB DDR Synch Dram PC2100 (266-MHz) Non-ECC DC163A
333-MHz (PC2700) DDR DIMMs Non-ECC
128MB PC2700 (DDR 333MHz) DIMM DC338A
512-MB DDR Synch Dram PC2700 (333-MHz) Non-ECC DC340A
256-MB DDR Synch Dram PC2700 (333-MHz) Non-ECC DC339A
400-MHz (PC3200) DDR DIMMs Non-ECC
128MB PC3200 (DDR 400MHz) DIMM DE465A
512-MB DDR Synch Dram PC3200 (400-MHz) Non-ECC DE467A
256-MB DDR Synch Dram PC3200 (400-MHz) Non-ECC DE466A
Monitors TFTs
HP TFT L2025 Monitor (20.1-inch)
P4831D
HP TFT L1825 Monitor (18.1-inch
P9021A
Compaq TFT1720 Monitor (17-inch)
D5064D
CRTs
Compaq P1130 CRT Monitor (21-inch)
Compaq P930 CRT Monitor (19-inch)
Compaq S9500 CRT Monitor (19-inch)
261615-003
Compaq S7500 CRT Monitor (17-inch)
P9008A
Compaq S5500 CRT Monitor (15-inch)
261602-001
Multimedia PC Comm station (no keyboard or mouse)
304251-008
PC Comm station pro (with wireless keyboard and optical
mouse)
302002-008
JBL Platinum Series Speakers DE893B#ABA
Optical Drives DVD-ROM Drive
16X/40X DVD-ROM w/ +R read DC151B
CD-ROM Drive
48X Max CD-ROM Drive DC143B
DVD+R/+RW Drive
4X DVD+R/+RW Drive DC517B
CD-RW Drive
48X/24X/48X CD-RW Drive DC196B
Combo Drive
48X Combo DVD-ROM/CD-RW Drive DC197B
Removable Storage Diskette Drives and Media
ZIP 250 Drive DC140B
128-MB USB Disk-on-Key DC190B
![](asset-a.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 10
After Market Options
USDT SFF CMT
Part Number
MultiBay Drive Storage MultiBay Drive Adapter DC149B
Multibay 20GB hard drive
250826-B21
MultiBay 24X CD-ROM Drive DC513B
MultiBay 24X CD-RW Drive DC514B
MultiBay 24X Combo DVD-ROM/CD-RW Drive DC148B
MultiBay 8X DVD-ROM Drive (reads all formats) DC515B
NOTE: In order to use Multibay devices on SFF & CMT, the Multibay Drive adapter is required.
Security Port Control DE900A
Port Control DE897A
Port Control DE896A
Solenoid Hood Lock DE472A
Solenoid Hood Lock DE618A
Brackets/Stands Chassis clamp lock (no cable) DE817A
Chassis clamp lock (with 6 foot cable) DE818A
![](asset-b.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 11
Memory
865G chipset
DDR
SYNCH
DRAM
N
ON
-ECC
M
EMORY
It is not necessary to add memory in pairs. Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes.
This chart does not represent all possible memory configurations. The Intel 865G chipset supports non-ECC 266MHz (PC2100), 333MHz
(PC2700) and 400MHz (PC3200) DDR memory.
For best performance, add in pairs, add in same channel, and do not mix speeds. For dual-channel performance, DIMMs must be same size,
same DRAM technology, same DRAM bus width, and either all single-sided or double-sided DIMMs. Brand and timing specs are not an issue. If
speeds are mixed, default will default to the slowest DIMM.
M
AXIMUM
M
EMORY
(
SMALL FORM FACTOR AND CONVERTIBLE MINITOWER
)
Supports up to 4-GB of DDR SYNCH DRAM.
P
OSSIBLE
M
EMORY
C
ONFIGURATIONS
(
SMALL FORM FACTOR AND CONVERTIBLE MINITOWER
)
NOT ALL MEMORY CONFIGURATIONS POSSIBLE ARE REPRESENTED BELOW
DIMM Size Slot
Channel A Channel B
1 2 3 4
128-MB 128-MB
256-MB 128-MB 128-MB
512-MB 512-MB
512-MB 256-MB 256-MB
1-GB 1-GB
1-GB 512-MB 512-MB
2-GB 1-GB 1-GB
2-GB 512-MB 512-MB 512-MB 512-MB
4-GB Maximum 1-GB 1-GB 1-GB 1-GB
M
AXIMUM
M
EMORY
(
ULTRASLIM DESKTOP
)
Supports up to 2-GB of DDR SYNCH DRAM.
P
OSSIBLE
M
EMORY
C
ONFIGURATIONS
(
ULTRA
-
SLIM DESKTOP
)
NOT ALL MEMORY CONFIGURATIONS POSSIBLE ARE REPRESENTED BELOW
DIMM Size Slot
1 2
128-MB 128-MB
256-MB 128-MB 128-MB
512-MB 512-MB
512-MB 256-MB 256-MB
1-GB 1-GB
1-GB 512-MB 512-MB
2-GB Maximum 1-GB 1-GB
![](asset-c.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 12
Storage
ultra-slim desktop
small form factor
convertible minitower
Quantity Supported Position Supported Controller
ULTRA-SLIM DESKTOP
Hot-swappable MultiBay Drive 1 1 IDE
3.5″ SMART III Ultra ATA Hard Drives 1 2 IDE
SMALL FORM FACTOR
Diskette Drives 1 1 Diskette
Storage Drive Bay 1 3 IDE
3.5″ SMART III Ultra ATA Hard Drives 2 1, 2 IDE
MultiBay Drive (optional, with adapter) 1 3 IDE
CONVERTIBLE MINITOWER
Diskette Drives 1 4 Diskette
Tape Drives 2 1, 2, 3* IDE
Storage Drive Bay 2 1, 2, 3* IDE
3.5″ SMART III Ultra ATA Hard Drives 2 4, 5, 6 IDE
MultiBay Drive (optional, with adapter) 2 1, 2 IDE
* For CMT, not all storage devices will fit in bay 3 – restricted length
![](asset-d.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 13
Technical Specifications
Base Unit Contents ultra-slim desktop small form factor convertible minitower
Processor Intel Pentium 4 Socket N – 478 (low
power only) Intel Pentium 4 Socket N – 478 Intel Pentium 4 Socket N - 478
CPU Bus Speed Supported 800-MHz, 533-MHz or 400-MHz FSB 800-MHz, 533-MHz or 400-MHz FSB 800-MHz, 533-MHz or 400-MHz FSB
Coprocessor Integrated Integrated Integrated
CPU Package FC-PGA2 FC-PGA2 FC-PGA2
Standard L2 Cache – Pentium 4 512-KB ECC depending
on processor speed 512-KB ECC depending
on processor speed 512-KB ECC depending
on processor speed
L2 Cache Architecture / Speed – Pentium 4 Full core clock speed Full core clock speed Full core clock speed
Cache Upgradeable – Pentium 4 and
Celeron Not upgradeable –
Integrated into Processor Not upgradeable –
Integrated into Processor Not upgradeable –
Integrated into Processor
System board with Intel 865G Chipset with
Integrated 8X AGP
Cables ATA Cable ATA Cable ATA Cable
Optical Media Multibay
Quick Setup Poster
Product Documentation on CD
Operating System CD
Restore CD
Power Cord
Keyboard
(USB)
(PS/2)
(PS/2)
Mouse
(USB)
(PS/2)
(PS/2)
Memory Expansion Slots 2 DIMMs 4 DIMMs 4 DIMMs
Memory Type Supported DDR (ECC not supported by Chipset) DDR (ECC not supported by Chipset) DDR (ECC not supported by Chipset)
Memory Speed Supported DDR Synch DRAM PC2100
(266MHz), PC2700 (333-MHz) or
DDR Synch DRAM PC3200
(400MHz) Non-ECC
DDR Synch DRAM PC2100
(266MHz), PC2700 (333-MHz) or
DDR Synch DRAM PC3200
(400MHz) Non-ECC
DDR Synch DRAM PC2100
(266MHz), PC2700 (333-MHz) or
DDR Synch DRAM PC3200
(400MHz) Non-ECC
Maximum Memory 2-GB 4-GB 4-GB
Memory Parity Not Needed for non-ECC Not Needed for non-ECC Not Needed for non-ECC
ECC Memory Not Supported by chipset Not Supported by chipset Not Supported by chipset
Serial Presence Detect Support Supported Supported Supported
PCI 1 full-height, 5.28 in / 13.4 cm length
PCI card 2 full-height, 6.87 in / 17.45 cm length
PCI cards 3 full-height slots on PCA (2
additional slots available via optional
PCI Extender Card)
AGP None 1 low-profile AGP 8X, 1.5V 1 AGP 8X, 1.5V
Bays Total Bays = 2 Total Bays = 3 Total Bays = 6
Internal (1) 3.5 inch ATA Hard Drive (1) 3.5 inch ATA Hard Drive (2) 3.5 inch ATA Hard Drive
External: (1) MultiBay (1) 5.25 inch half-height
(1) 3.5 inch third height (3) 5.25 inch half-height
(1) 3.5 inch third height
Wireless Support PCI card or external USB PCI card or external USB PCI card or external USB
Parallel Port Optional via PCI card 1 1
Serial Port Optional via PCI card 1 1 – with 2
nd
available as option
USB Keyboard 1 Optional Optional
USB Mouse 1 Optional Optional
PS/2 Keyboard Optional via USB adapter 1 1
PS/2 Mouse Optional via USB adapter 1 1
VGA Adapter 1 1 1
Chassis Dimensions (H x W x D) 2.75 x 12.4 x 13.07 inches
(7 x 31.5 x 33.2 cm) 3.95 x 13.3 x 15.1 inches
(10 x 33.8 x 38.3 cm) 17.65 x 6.6 x 17.8 inches
(44.8 x 16.7 x 45.2 cm)
System Weight 15.4 lbs (6.99 kg) 22.2 lbs (10.07 kg) 32.5 lbs (14.74 kg)
System Volume 7.3 liters 13 liters 34.2 liters
Shipping Weight 19 lbs (8.62 kg) 29 lbs (32.15 kg) 43 lbs (19.5 kg)
Weight supported 77 lbs (34.92 kg) 77 lbs (34.92 kg) 77 lbs (34.92 kg)
Hard Drive Interfaces Supported 2 ULTRA ATA/100 interfaces 2 ULTRA ATA/100 interfaces 2 ULTA ATA/100 interfaces
Hard Drive Controller (PCI) Supported ULTRA ATA 100/66/33 ULTRA ATA 100/66/33 ULTRA ATA 100/66/33
Serial-ATA 1 port 2 ports 2 ports
![](asset-e.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 14
Technical Specifications
System Board ultra-slim desktop small form factor convertible minitower
Architecture P4 / PCI / AGP 8X P4 / PCI / AGP 8X P4 / PCI / AGP 8X
Chipset Intel 865G Chipset Intel 865G Chipset Intel 865G Chipset
I/O Controller SMSC LPC47B387 SMSC LPC47B387 SMSC LPC47B387
System Board Form Factor custom UATX UATX
Processor Socket - 478 Pin ZIF
DIMM Connectors (2.5V) 2 4 4
AGP Connector (1.5V)
1 (8X) 1 (8X)
Integrated AGP Graphics Intel Intel Intel
PCI Connectors (5.0V) 1 2 3; 5 with optional extender
Flash ROM
Audio (Integrated AC97 Audio)
CD ROM IN (Audio)
AUX IN (Audio)
Clear CMOS Button
CPU Fan Header
Chassis Fan Header
Chassis Speaker Header
CMOS Battery Holder - Lithium
Hood Lock Header
Hood Sensor Header
Multibay Header
Integrated Broadcom NetXtreme Gigabit
ethernet for HP
Wake-On-Lan
®
ASF 1.0 (Alert Standard Format)
Power Supply Header
Power Switch, Power LED
& Hard Drive LED Header
Password Clear Header
Riser Connector
SCSI LED Header
PCI extender that connects to
System Board
![](asset-f.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 15
Technical Specifications
Chassis ultra-slim desktop small form factor convertible minitower
Color Carbonite/Silver
Carbonite/Silver Carbonite/Silver
System Board Form Factors Supported Custom USDT Standard µATX Standard µATX
Cooling Solutions Supported
Power Supply Fan (Variable Speed)
Processor Fan-Heatsink (Variable Speed)
Chassis Fan
Slots Supported 1 full-height, 5.28 in / 13.4 cm length
PCI card 2 full-height, 6.87 in / 17.45 cm length
PCI cards 5 Full-height, Full-length
PCI slots
AGP Slot
1 Low Profile AGP 1 AGP
Front I/O Front Headphone, Microphone, and 2
USB 2.0 Standard Front Headphone, Microphone, and 2
USB 2.0 Standard Front Headphone, Microphone, and 2
USB 2.0 Standard
Rear I/O 4 USB, 1 VGA, Audio In, Audio Out, 1
RJ-45, Audio In, Audio Out /
Headphone, Mic In
4 USB, 1 standard serial port, 1
optional serial port, 1 parallel port,
PS/2 keyboard and mouse, 1 RJ-45,
1 VGA, Audio In, Audio Out /
Headphone, Mic In
4 USB, 1 standard serial port, 1
optional serial port, 1 parallel port,
PS/2 keyboard and mouse, 1 RJ-45,
1 VGA, Audio In, Audio Out /
Headphone, Mic In
Internal Speaker
Power Supply 150W Power Supply – PFC (115v /
230v line switch) 185W Power Supply – PFC (115v /
230v line switch) 240W ATX Power Supply – PFC with
in 240V mode (115v/230V line
switch)
Security Locks Supported Kensington Cable Lock Provision
(Lock not included)
Hood Cover Security Loop (Lock not
included)
Kensington Cable Lock Provision
(Lock not included)
Hood Cover Security Loop
(Lock not included)
Smart Cover Lock (option) – Locking
solenoid controlled via F10 setup
(failsafe key)
Kensington Cable Lock Provision
(Lock not included)
Hood Cover Security Loop (Lock not
included)
Smart Cover Lock (option) – Locking
solenoid controlled via F10 setup
(failsafe key)
Security Loop hole diameter .212 inches .236 inches .220 inches
Interfaces
I/O Chip SMSC LPC47B387 SMSC LPC47B387 SMSC LPC47B387
Serial Port Optional via PCI card 1 standard, 2
nd
via option 1 standard, 2
nd
via option
Parallel Port Optional via PCI card 1 1
PS/2 Optional via USB adapter 1 Keyboard and 1 Mouse 1 Keyboard and 1 Mouse
USB (2.0) 6 ports (4 rear/2 front) 6 ports (4 rear/2 front) 6 ports (4 rear/2 front)
RJ-45 10/100/1000 Network
Keyboard
(USB standard, PS/2 available via
optional USB adapter)
(PS/2)
(PS/2)
Mouse
(USB standard, PS/2 available via
optional USB adapter)
(PS/2)
(PS/2)
Multibay
CTO Option - Multibay Drive Adapter
CTO Option - Multibay Drive Adapter
Video (VGA)
Audio
![](asset-10.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 16
Technical Specifications
Power Supply ultra-slim desktop small form factor convertible minitower
Power Supply Custom Power Supply – PFC
With in 230V (115v/230V line
switch)
Custom Power Supply – PFC
With in 230V (115v/230V line
switch)
ATX Power Supply – PFC
With in 230V (115v/230V line
switch)
Full Ranging Input (No Line Select Switch)
Active Power Factor Correction (APFC) (Input
Current is nearly 1/2 a non-APFC PS)
Passive Power Factor Correction (PFC)
Operating Voltage Range 90 – 132 / 180 – 264 VAC 90 – 132 / 180 – 264 VAC 90 – 132 / 180 – 264 VAC
Rated Voltage Range 100 – 127 / 200-240 VAC 100 – 127 / 200-240 VAC 100 – 127 / 200-240 VAC
Rated Line Frequency 50/60 Hz 50/60 Hz
50/60 Hz
Operating Line Frequency Range 47 – 63 Hz 47 – 63 Hz 47 – 63 Hz
Rated Input Current 5A / 2.5A 5A / 2.5A 6A / 3A
Maximum Rated Power 150W 185W 240W
Heat Dissipation Typical 256 btu/hr (65 kg-cal/hr)
Maximum 788 btu/hr
(199 kg-cal/hr)
Typical 256 btu/hr (65 kg-cal/hr)
Maximum 971 btu/hr
(245 kg-cal/hr)
Typical 256 btu/hr (65 kg-cal/hr)
Maximum 1260 btu/hr
(318 kg-cal/hr)
Power Supply Fan None; airflow is ducted from
processor blower 60mm variable speed 92mm variable speed
Energy Star Compliant
Blue Angel Compliant (<5w in S5-- Power Off)
FEMP Standby Power Compliant
(<2W in S5 – Power Off)
Power Consumption in ES Mode - Suspend to
RAM (S3) (Instantly Available PC) 2.5W to 3W 2.5W to 3W 2.5W to 3W
Processor/Cache Memory Power -Down (S3) < 3W < 3W < 3W
Environmental and Mechanical Engineering
Support Center http://env-webserver.ccm.cpqcorp.net/EMESC/default.htm
![](asset-11.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 17
Technical Specifications
ROM Features Description ultra-slim
desktop small form
factor convertible
minitower
Instantly Available PC
(Suspend to RAM - S3) Allows for very low power consumption with quick resume time
ROM Based F10 Setup Review and customize BIOS settings
Remote System Installation via F12 (PXE)
(Remote Boot from Server) Allows a new or existing system to boot over the network and
download software, including the operating system
System/Emergency ROM Flash Recovery
with Video Recovers corrupted system BIOS
CMOS Archive and CMOS Restore Holding down the power button restores the last known good
BIOS settings (from previous restart) if the system gets into a
locked state after configuration changes are made
Auto Setup when New Hardware Installed System automatically detects addition of new hardware
Serial, Parallel, USB, Audio, Network,
Enable/Disable Port Control Enable or disables serial, parallel, USB, audio, and network
ports
Removable Media Write / Boot Control Prevents ability to boot from removable media on supported
devices (and can disable writes to media)
Network Server Mode Allows for secured keyboard-less operation
Power-On Password Prevents an unauthorized person from booting up the computer
Setup Password Prevents an unauthorized person from changing the system
configuration
Replicated Setup Saves BIOS settings to diskette or USB disk-on-key in human
readable file. Repset.exe utility can then replicate these
settings on machines being deployed without entering ROM-
based F10 setup
Memory Change Alert (Requires Insight
Management Agent) Alerts management console if memory is removed or changed
Thermal Alert (Requires Insight
Management Agent) Monitors the temperature state within the chassis. Three modes:
• NORMAL – normal temperature ranges
• ALERTED – excessive temperatures are detected. Raises
a flag so action can be taken to avoid shutdown or provide
for a smoother system shutdown
• SHUTDOWN – excessive temperatures are encountered.
Automatically shuts down the computer without warning
before hardware component damage occurs
ROM Features
Cover Removal Alert (Requires Insight
Management Agent for network alerts) Notifies the Network Administrator and end user when the cover
has been removed without authorization through an electronic
switch residing inside the computer. Can be set to one-of-three
modes:
• DISABLED - user/network administrator does not want to be
made aware of the computer hood removal
• NOTIFY USER - notifies user/network administrator that the
hood has been removed, but no action required before re-
booting the computer
• UP PASSWORD – notifies user/network administrator that
the hood has been removed and administrator password is
required before the computer will continue to boot
Optional Optional
Master Boot Record Security Detects changes to MBR and optional restoration, useful in
protecting from viruses
Remote ROM Flash Provides secure, fail-safe ROM image management from a
central network console
![](asset-12.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 18
Technical Specifications
ROM Features (continued) Description ultra-slim
desktop small form
factor convertible
minitower
Remote Wakeup • System administrators can power on, restart, and power off
a client computer from a remote location.
• Enables cost-effective power consumption when the
administrator needs to distribute software, perform security
management, or update the ROM.
ACPI (Advanced Configuration and Power
Management Interface) • Allows the system to wake from a low power mode
• Controls system power consumption, making it possible to
place individual cards and peripherals in a low-power or
powered-off state without affecting other elements of the
system
Keyboard-less Operation The system can be operated without a keyboard
SMBIOS System Management BIOS, previously known as DMI BIOS, for
system management information
Environmental and Mechanical
Engineering Support Center (EMESC) –
Intranet Web Site only
http://env-webserver.ccm.cpqcorp.net/EMESC/default.htm
Software
Preinstalled Software
Windows 3.1
Windows 95
Windows 98
Windows NT 4.X
(drivers available on web - Softpaqs only)
Windows 2000 SP3
Windows XP Pro SP1
Windows XP Home SP1
Computer Setup Utility
Diagnostics for Windows
Microsoft Internet Explorer
Pre-loaded Software
Altiris Agents (Aclient, Nsclient)
Insight Management Agent
Local Diskette Boot
Network Boot
Disk-on-Key Boot
![](asset-13.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 19
Technical Specifications
Initial Configuration and Deployment Description ultra-slim
desktop small form
factor convertible
minitower
HP/Compaq Client Manager (free)
A
FREE solution that provides asset tracking, alerting,
diagnostics, and SoftPaq distribution for Compaq business
desktops, notebooks, and workstations. Compaq Client
Manager "plugs" into the Altiris eXpress infrastructure to
provide value-add Compaq specific information that can be
leveraged by all Altiris eXpress solutions
A
ltiris eXpress Solutions (30-day trial
v
ersion)
A
suite of solutions that focus on business needs in four
areas, saving time and freeing resources to address other
crucial issues:
• Deployment & Migration
• Software & Operations Management
• Inventory & Asset Management
• Help Desk & Problem Resolution
PC Transplant Pro (30-day trial version) Makes transferring the files and settings that make your PC
unique quick and intuitive process
System Software Manager (free) Detects and updates BIOS, device drivers, and management
agent versions on your networked PCs
Replicated Setup Saves BIOS settings to diskette or USB disk-on-key in
human readable file. Repset.exe utility can then replicate
t
hese settings on machines being deployed without entering
ROM-based F10 setup
Insight Manage
r
-
----
Support Software CD
-
----
Software Restore CD Restores computer to its original factory shipping image
A
sset Tag • Repository for storing company-specific property asset
numbers for easy tracking
• Initially set equal to the system serial number
• Stored in a protected section of non-volatile memory
that can be accessed and modified with the F10 Setup
program
DIMM Serial Presence Detect Detects whether or not memory DIMMs are present and their
t
ype
Hard drive serial number, model, and
manufacture
r
Hard drive manufacturer, model, and serial number is stored
in the hard drive firmware and reported in ROM-based F10
s
etup
Monitor serial number, model, and
manufacturer
-
----
System serial number, model, and
manufacture
r
System serial number, model, & manufacturer stored in a
non-volatile memory and can be retrieved with management
SW or viewed in ROM-based F10 setup
ROM revision levels • Identifies system ROM revision levels and reports in
ROM-based F10 setup
• Version is stored in an industry standard memory
location (SMBIOS) so that management SW
applications can use and report this information
System board revision level • Allows management SW to read the revision level of
the system board
• Revision level is digitally encoded into the hardware
and cannot be modified
Memory Change Alert
A
lerts management console if memory is removed or
changed
Ownership Tag
A
use
r
-defined string stored in non-volatile memory that is
displayed in the BIOS splash screen
![](asset-14.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 20
Technical Specifications
Security Features Description ultra-slim
desktop small form
factor convertible
minitower
Smart Cover Lock Remote operated system lock Optional Optional
Smart Cover Sensor (Requires Insight
Management Agent for network alerts) Notifies the Network Administrator and end user when the
cover has been removed without authorization through an
electronic switch residing inside the computer. Can be set to
one-of-three modes:
• DISABLED -user/network administrator does not want
to be made aware of the computer hood removal
• NOTIFY USER - notifies user/network administrator
that the hood has been removed, but no action
required before re-booting the computer
• UP PASSWORD – notifies user/network administrator
that the hood has been removed and administrator
password is required before the computer will continue
to boot
Optional Optional
Mechanical Hood Security Provision Security Loop
Kensington Lock Support Kensington lock slot on the chassis
Cable Lock Provision Physically secure computer hardware from theft
Serial, Parallel, USB Enable/Disable Enable or disable serial, parallel or USB ports and hide them
f
orm the operating system
Port Control
A
ttaches to back of chassis covering external ports and
thereby preventing unauthorized access; also aids in cable
management
Removable Media Write / Boot Control Prevents the computer from being booted from removable
media on supported devices (and can disable writes to
media)
Powe
r
-On Password Prevents an unauthorized person from booting up the
compute
r
Setup Password Prevents an unauthorized person from changing the system
configuration
Smartcard Reade
r
Prevents system access to the operating system unless the
user has the appropriate Smartcard
Fingerprint Reade
r
Restricts system access to the operating system based on
f
ingerprint
Fault Notification and Recovery
SMART Hard Drives, Fault Notification, &
Prefailu
r
e Warranty • Allows hard drives to monitor their own health and to
raise flags if imminent failures were predicted
• Predicts failures before they occur. Tracks fault
prediction and failure indication parameters such as re-
allocated sector count, spin retry count, calibration retry
count
•
By avoiding actual hard drive failures, SMART hard
drives act as “insurance” against unplanned user
downtime and potential data loss from hard drive failure
Proactive Backup • Initiates an automatic backup of the computers SMART
hard (to a local tape device for example) when an
imminent failure is predicted
• Prevents data loss and end-user down time due to a
failing hard drive
Surge Tolerant Full Ranging Power Supply
W
ithstands power surges up to 2000V
Thermal Senso
r
Monitors the temperature within the chassis
• NORMAL – normal temperature ranges
• ALERTED – excessive temperatures are detected.
Raises a flag so that appropriate action can be taken to
avoid shutdown or provide for a smoother system
shutdown
• SHUTDOWN – excessive temperatures are
encountered. Automatically shuts down the computer
without warning before hardware component damage
occurs
![](asset-15.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 21
Technical Specifications
Fault Notification and Recovery
(continued) Description ultra-slim
desktop small form
factor convertible
minitower
Ultra ATA Integrity Monitoring
(CRC Checking) Provides data transfer verification and proactive notification
of hard drive data transmission problems with
recommendations for enhancing system performance. It
detects all the following errors types:
• single-bit errors
• double-bit errors
• an odd number of errors
• error bursts up to 32-bits long
System Software Updating
Product Change Notification • Program to proactively communicate Product Change
Notifications (PCNs) and Customer Advisories by email
to customers, based on a user-defined profile.
• PCNs provide advance notification of hardware and
software changes to be implemented in the factory
providing time to plan for transition.
• Customer Advisories provide concise, effective problem
resolution, greatly reducing the need to call technical
support
Active Update • Advanced web-based application that provides
proactive notification and automatic download of
software updates for most Compaq commercial
products
• Updates may be deployed using Compaq or third-party
deployment tools
• Software subscription filters automatically identify and
download only relevant content based on the user-
defined subscription information
Remote ROM Flash Provides secure, fail-safe ROM image management from a
central network console
Remote Wakeup /
Remote Shutdown • System administrators can power on, restart, and
power off a client computer from a remote location.
• Enables cost-effective power consumption when the
administrator needs to distribute software, perform
security management, or update the ROM.
ROM Based Setup (F10) and Start-up
Diagnostics -----
Support Software CD and WWW -----
Other Features
ACPI-Ready Hardware Advanced Configuration and Power Management Interface
(ACPI).
• Allows the system to wake from a low power mode.
• Controls system power consumption, making it possible
to place individual cards and peripherals in a low-power
or powered-off state without affecting other elements of
the system
SMBIOS System Management BIOS, previously known as DMI BIOS,
for system management information
Wired for Management Support Intel-driven, industry-wide initiative to make Intel
architecture-based PCs, servers and mobile computers more
inherently manageable right out of the box and over the
network
Dual-State Power Button Power button acts as both an on/off button and suspend-to-
sleep button
![](asset-16.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 22
Technical Specifications
Serviceability Features of System Description ultra-slim
desktop small form
factor convertible
minitower
Dual Color Power LED on Front of
Computer (Indicates Normal Operations
and Fault Conditions)
-
----
Blinking Diagnostic Keyboard LED Codes
A
llows for easy problem resolution
Diagnostic LED Explanation Table Number of 1-second red LED blinks followed by 2-second
pause, then repeats:
2
-processor thermal protection activated
3-processor not installed
4
-power supply failure
5-memory error
6-video error
7-PCA failure (ROM detected failure prior to video)
8-invalid ROM, bootblock recover mode
System/Emergency ROM Flash Recovery
w
ith Video Recovers corrupted system BIOS.
Compaq Diagnostic for Windows Software
-
----
Compaq Configuration Record SW
-
----
Ove
r
-Temp Warning on Screen
(Requires IM Agents)
-
----
Compaq OS CD (Restore OS CD) Restores computer to its original factory shipping image
Compaq Restore CD Restores the computer to its original factory shipping image
Flash ROM
-
----
3.3V Aux Power LED on System PC
A
-
----
Dual Function 5V Aux Power LED (ON) /
PS_ON LED (OFF) on System PC
A
-
----
Diagnostic Power Switch LED on board
-
----
Clear Password Jumpe
r
-
----
Clear CMOS Button
CMOS Battery Holder for easy
Replacement
-
----
Processor ZIP Socket for easy Upgrade
-
----
DIMM Connectors for easy Upgrade
-
----
NIC LEDs (integrated) (Green & Amber) Used to determine NIC status
![](asset-17.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 23
Technical Specifications
Serviceability Features of Chassis Description ultra-slim
desktop small form
factor convertible
minitower
Dual Color Power and HD LED - To
Indicate Normal Operations and Fault
Conditions
-
----
A
SF 1.0 support (Alert Standard Format) Industry-standard specification for network alerting in
o
perating system-absent environments
Smart Cover Sensor (Requires Insight
Management Agent for network alerts) Notifies the Network Administrator and end user when the
cover has been removed without authorization through an
electronic switch residing inside the compute. Can be set to
o
ne-of-three modes:
• DISABLED - user/network administrator does not want
to be made aware of the computer hood removal
• NOTIFY USER - notifies user/network administrator
that the hood has been removed, but no action required
before re-booting the computer
• UP PASSWORD – notifies user/network administrator
that the hood has been removed and administrator
password is required before the computer will continue
to boot
Optional Optional
Smart Cover Lock Remote operated system lock (cover can
be locked with
security loop
or Kensington)
(Option) (Option)
Front power switch
-
----
Green Pull Tabs, and Quick Release
Latches for easy Identification
-
----
Color coordinated cables and connectors
System memory can be upgraded without
removing the system board or any internal
components
Eases memory upgrading
Tool-less Hood Removal Eases entry to the chassis without use of special tools (with
captive
thumbscrew)
(single
latch) (single
latch)
Tool-less Hard Drive, CD & Diskette
Removal
-
---- Hard Drive is
tool-less.
Multibay
Drives are
hot-swappable
and ejectable.
Tool-less System Board Removal No special tools required for system board removal or
maintenance
Towerable Product can be oriented as a tower (in addition to desktop
o
rientation)
(Can also
Rotate Drives
in External
Bays)
Universal Tower Stand Necessary to safely orient as a towe
r
(Standard) (Optional)
(Not needed -
Chassis is
easily
converted to
either
desktop or
tower)
![](asset-18.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 24
Technical Specifications
Serviceability Features of Chassis Description ultra-slim
desktop small form
factor convertible
minitower
Drive Self Tests (DPS)
DPS Access through F10 Setup during
Boot
DPS Access through Diagnostics for
W
indows
• Drive Protection System
• A diagnostic hard drive self test. It scans critical
physical components and every sector of the hard drive
for physical faults and then reports any faults to the
user.
• Running independently of the operating system, it can
be accessed through a Windows-based diagnostics
utility or through the computer's setup procedure. It
produces an evaluation on whether the hard drive is the
source of the problem and needs to be replaced.
• The system expands on the Self-Monitoring, Analysis,
and Reporting Technology (SMART), a continuously
running systems diagnostic that alerts the user to
certain types of failures
SMART Technology
(Sel
f
-Monitoring, Analysis and Reporting
Technology)
SMART I - Drive Failure Prediction
SMART II - Off-Line Data Collection
SMART III - Off-Line Read Scanning with
Defect Reallocation
• Allows hard drives to monitor their own health and to
raise flags if imminent failures were predicted
• Predicts failures before they occur. Tracks fault
prediction and failure indication parameters such as re-
allocated sector count, spin retry count, calibration retry
count
• By avoiding actual hard drive failures, SMART hard
drives act as “insurance” against unplanned user
downtime and potential data loss from hard drive failure
O
n-site Warranty and Service
Note 1
: This three-year, limited warranty and service offering delivers three years
o
f on-site, next business-day
Note 2
service for parts and labor and includes free telephone support
Note 3
24 x 7.
G
lobal coverage
Note 2
ensures that any product purchased in one country and transferred to another, non-
r
estricted country will remain fully covered under the original warranty and service offering.
N
OTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
N
OTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP
third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
Service and Support
N
OTE 3: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.
![](asset-19.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 25
Technical Specifications – Audio
Type Integrated
AC97 Integrated ADI 1981A Audio AC97 Stereo Codec Yes
FM Synthesis Support Yes – Yamaha XG Lite
OPL3 FM Synthesis Support Yes
Sound Blaster Compatibility Yes
Audio Jacks
Mic-In (20-K ohm Input Impedance) rear stereo and front analog microphone
ports available
Line-In (12-K ohm Input Impedance)
Line-Out * (less than 800 ohms Output Impedance, expects at least a 10-K ohm
load)
Headphone-Out (2.5 Ohms Output Impedance, expects at least a 32 ohm load)
*Internal Speaker Amplifier is for Internal Speaker only. External Speakers need
to be powered externally.
Sampling
7 kHz – 48 kHz
Compression
ADPCM, ESPCM
Wavetable Syntheses
(software) Yes – GM and FM Midi support. Direct Music and Down Loadable Soundset (4
meg DLS level 1 and 2 support)
3D Positional Sound No
Analog Audio
Number of Channels on
Line-Out (mono/stereo) Stereo (Left and Right channels)
Internal Audio Speaker Power
Rating 3W
Internal Speaker Yes
Internal Tuned Port Speaker Yes
Hardware Equalizer for Internal
Speaker Fixed 7 Band Parametric EQ
External Speaker Jack
(Line-Out) Yes
![](asset-1a.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 26
Technical Specifications – Communications
Connector RJ-45
Integrated Broadcom NetXtreme Gigabit
Ethernet NIC Controller Broadcom 5782 PCI LAN Controller
Memory Integrated 96Kb frame buffer memory
Data rates supported 10/100/1000 Mbps
Compliance IEEE 802.1A, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture PCI 2.2
Data path width 32-bit, 33/66 MHz bus interface
Data transfer mode Bus-master DMA
Hardware certifications FCC class B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS
Mark for European Union
Power requirement 1.48 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support Yes
Network transfer rate 10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental Operating temperature 32° to 131°F (0° to 55° C)
Operating humidity 85% at 131° F (55° C)
Dimensions 4.7 x 2.0 x 0.08 inches (12 x 5 x 1.9 cm)
Operating system driver
support Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP,
Linux
2.2, Linux 2.4
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0
Alerting ASF 1.0
![](asset-1b.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 27
Technical Specifications – Graphics
Integrated Intel Extreme Graphics 3D/2D Controller Support is fully compliant with Microsoft standard API such as Direct Draw,
GDI/GDI+ and Direct Show
VGA Controller Integrated
Bus Type AGP8X (Internal graphics is disabled if external AGP Graphics card is installed)
RAMDAC Integrated 350-MHz DAC
Memory Graphics memory is shared with system memory. Graphics memory usage can
vary from 8 – 64MB depending on the amount of system memory installed and
system load. 16MB is pre-allocated for graphics use at system boot time.
Additional memory is allocated for graphics using Intel’s Dynamic Video Memory
Technology (DVMT) to balance the optimum amount of memory between
graphics and other system use. With a 128MB system graphics memory will be
8MB – 32MB depending on the system load. With 256MB or more, graphics
memory usage will be 16MB – 64MB depending on system load.
Controller Clock Speed 200 MHz
Overlay Planes Single Overlay support with 5x3 filtering
Maximum Color Depth 32-bits/pixel
Maximum Vertical Refresh
Rate 85Hz at up to 1920 x 1440, 75Hz at 2048 x 1536. Varies with mode and
configuration. See table below
Multi-display Support Support for one CRT via the motherboard’s VGA connector. Support for an
additional DVI-D display via the optional DVI ADD card. Intel’s Dual Display
Twin mode allows for displaying the same image on both the displays.
Operating Systems Microsoft Windows XP and Windows 2000
Graphics API Support Complete Microsoft DirectX
support, including DirectX 8.1; complete OpenGL
1.3 support. Compatible with DirectX 9.
Resolution Maximum Refresh
Rate (Hz)
DDR266 Single
Channel
(8/16/32 bits/pixel)
Maximum Refresh
Rate (Hz)
DDR 266 Dual /
DDR 333 Single
Channel
(8/16/32 bits/pixel)
Maximum Refresh
Rate (Hz)
DDR 333 Dual
Channel
(8/16/32 bits/pixel)
Resolutions Supported
(At various color depths and
memory configurations)
(NOTE: Refresh rates higher
than 85Hz may be obtainable
in some modes and
configurations but are not
recommended) 640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 720
1280x768
1280 x 960
1280 x 1024
1400 x 1050
1600 x 900
1600 x 1200
1856 x 1392
1920 x 1080
1920 x 1200
1920 x 1440
2048 x 1536
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
75/75/60
85/85/75
75/75/60
85/85/60
75/75/NA
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
75/75/60
85/85/85
75/75/75
85/85/60
75/75/NA
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
85/85/85
75/75/60
85/85/85
75/75/75
85/85/60
75/75/60
![](asset-1c.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 28
Technical Specifications – Hard Drives
40-GB Capacity 40,000 MB
Rotational Speed 7200 rpm
7200 rpm SMART III Ultra ATA/100
Hard Drives
Interface Ultra ATA/100
Height 1 in (25.4 mm)
Width 3.5 in (88.9 mm)
Transfer Rate Synchronous
(Maximum) 100 MB/s
Single Track 1.2 ms (2.7 ms quiet seek)
Average 8 ms (10.1 ms quiet seek)
Seek Time (typical reads,
including settling)
Full-Stroke 18 ms (21.1 ms quiet seek)
Physical Configuration
Logical Blocks 78,165,360
Operating Temperature 41° to 131°F (5° to 55°C)
80-GB Capacity 80,000 MB
Rotational Speed 7200 rpm
Interface Ultra ATA/100
Height 1 in (25.4 mm)
Width 3.5 in (88.9 mm)
Transfer Rate Synchronous
(Maximum) 100 MB/s
Single Track 0.8 ms
Average 9 ms
Seek Time (typical reads,
including settling)
Full-Stroke 17 ms
Physical Configuration
Logical Blocks 156,301,488
Operating Temperature 41° to 131°F (5° to 55°C)
160-GB Capacity 160,0000 MB
Rotational Speed 7200 rpm
Interface Ultra ATA/100
Height 1 in (25.4 mm)
Width 3.5 in (88.9 mm)
Transfer Rate Synchronous
(Maximum) 100 MB/s
Single Track 0.8 ms
Average 9 ms
Seek Time (typical reads,
including settling)
Full-Stroke 17 ms
Physical Configuration
Logical Blocks 320,173,056
Operating Temperature 41° to 131°F (5° to 55°C)
![](asset-1d.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 29
Technical Specifications – Input/Output Devices
Dimensions (HxWxD) 1.4 x 18.3 x 6.3 inches (36 x 465 x160 mm)
Easy Access Keyboard
(PS/2 or USB) Weight Approximately 2 lbs (0.9 kg)
Electrical Operating Voltage +5VDC ± 5%
Power Consumption 50 mA maximum (with 3 LEDs on)
System Interface PS/2 mini-din connector
ESD CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing
device
PC98 Functionally compliant
Mechanical Languages 30+ available
Keycaps Low-profile design
Switch Actuation 55 g nominal peak force with tactile feedback
Switch Life
20 million keystrokes (using Hasco modified
tester)
Switch Type Contamination resistant membrane
Key Leveling Mechanism For all double wide and greater length keys
Cable Length 6 ft (1.8 m)
PC98-99 Mechanically compliant
Acoustics 50 dBA maximum sound pressure level
Environmental Operating Temperature 50° to 122° F (10° to 50° C)
Non-operating Temperature −22° to 140° F (−30° to 60° C)
Operating Humidity 10% to 90% (non-condensing at ambient)
Non-operating Humidity
20% to 80% (non-condensing at ambient)
Operating Shock 40 g, 6 surfaces
Non-operating Shock 80 g, 6 surfaces
Operating Vibration 2 g peak acceleration
Non-operating Vibration 4 g peak acceleration
![](asset-1e.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 30
Technical Specifications – Input/Output Devices
Scroll Wheel 8 mm
Maximum Rotation Speed 30 mm/s
2-Button Scroll Mouse
(PS/2 or USB) Switch Type Light force micro-switch
Switch Life 1 million operations
Mechanical Life Minimum 200,000 revolutions
Environmental Operating Temperature 50° to 122° F (10° to 50° C)
Non-operating Temperature −22° to 140° F (−30° to 60° C)
Operating Humidity 10% to 90% (non condensing at ambient)
Non-operating Humidity 20% to 80% (non condensing at ambient)
Operating Shock 40 g, 6 surfaces
Non-operating Shock 80 g, 6 surfaces
Operating Vibration 2 g peak acceleration
Non-operating Vibration 4 g peak acceleration
Electrical Operating Voltage +5VDC ± 10%
Power Consumption 15mA
System Consumption PS/2 mini-din connector
ESD CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing
device
PC98 Functionally compliant
Mechanical Resolution 400 ± 20% DPI
Tracking Speed 10 in/s maximum
Acceleration 100 in/s
Switch Actuation 85 g nominal peak force
Switch Life
1,000,000 operations (using Hasco modified
tester)
Cable Length 6.56 ft (2 m)
PC98-99 Mechanically compliant
Regulatory Approvals UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick
![](asset-1f.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 31
Technical Specifications – Optical Storage
Interface ATAPI IDE
48X Max CD-ROM Drive
Data Buffer 16.6 Mbps
Data Transfer Rate Sustained 150 Kbps minimum (audio)
Variable (CD) 3,000 to 7,200 Kbps
Disk Rotation Technology CAV (Constant Angular Velocity)
Access Time (ms) Random <100 ms
Full-stroke seek <150 ms
Average Access Time < 80 ms
Cache Buffer
(standard/maximum) 128 KB
Disk Formats Read Multi-session Photo CD, multi-read CD-ROM, CD text, audio CD, CD-I, CD-RW,
CD-R, CD-Extra, CD-ROM XA
Disk Formats Written None
Disk Capacity (CD) 650 MB
Block Size Mode 1—2,048 bytes
Mode 2—2,340/2,336 bytes
CD-DA—2,352 bytes
CD-XA—2,328 bytes
Diameter 12 cm; 8 cm
Thickness 1.2 mm
Track Pitch 1.6 µm
Audio Output Level Line-out 0.7 V @ 47 Kohm
Headphone 0.6 V @ 32 ohm
Startup Time <7 seconds (typical); < 30 seconds with multi-session
Operating Conditions Temperature 41° to 113° F (5° to 45° C)
Relative Humidity 10% to 80%
Dimensions (H x W x D,
maximum) 1.7 x 5.9 x 8.2 inches (4.3 x 15.0 x 20.8 cm)
Weight 2.6 lbs (1200 g)
Operating Systems SupportedMicrosoft
Windows
NT 4.0, Microsoft Windows 2000, and Microsoft Windows
XP.
MPEG Playback Graphics
Solution Support None
![](asset-20.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 32
Technical Specifications – Optical Storage
Height 5.25-in, half-height
Interface Type ATAPI
16X/40X DVD-ROM with +R Read
Support
Dimensions– External,
Excluding Bezel (W x H) 5.88 x 1.71 inches (149.5 x 43.5 mm)
Disc Diameter
12 cm, 8 cm
Disc Thickness
1.2 mm
Track Pitch 1.6 µm (CD), 0.74 µm (DVD)
Disc Center Hole Diameter 15 mm
Disc Formats DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0;
DVD-RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW; DVD+R ;
CD-ROM Mode 1 and 2; CD-DA; CD-ROM XA Mode 2, Form 1 and 2; CD-extra;
CD-text; CD-I Mode 2, Form 1 and 2; CD-I ready; video CD, CD-bridge; PhotoCD
(single and multi-session); CD-R; CD-RW
Disc Capacity
DVD-ROM
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB
(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7
GB (DVD-R version 2.0), 4.7 GB (DVD-RW
version 1.0 and 1.1), 4.7 GB (DVD+RW), 4.7G
(DVD+R)
CD-ROM 540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12
cm), 700 MB (80 minimum CD-R and CD-RW),
180 MB (8 cm)
Block Size (bytes) DVD-ROM – 2048; CD-ROM Mode 0 – 2352; CD-ROM Mode 1 – 2352, 2340,
2336, 2048; CD-ROM Mode 2 – 2352, 2340, 2336, 2048
DVD-ROM Single Layer 120 ms (typical)
Access Times
(typical reads, including settling) CD-ROM Mode 1 90 ms (typical)
Full Stroke DVD 240 ms (seek) (typical)
Full Stroke CD 160 ms (seek) (typical)
Data Transfer Rates 2600 – 6000 KB/s (40X CAV CD-ROM mode)
8100 – 21,600 KB/s (16X CAV DVD-ROM mode)
Data Transfer Modes PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode
3 (44.4 MB/s)
Power Source Four-pin, DC power receptacle
5 VDC ± 5% – 100 mV ripple p-p
DC Power Requirement 12 VDC ± 5% – 200 mV ripple p-p
DC Current 5 VDC – <800 mA typical, < 1000 mA maximum
12 VDC – < 870 mA typical
Audio Output Level 0.7 Vrms (typical)
Configuration Jumper Block Master, slave, and cable select modes
Data Interface Connector 40-pin, shrouded and keyed, flat ribbon
Temperature (operating) 41° to 122° F (5° to 50° C)
Relative Humidity (operating) 10% to 90%
Environmental
(all conditions non-condensing)
Maximum Wet Bulb
Temperature (operating) 86° F (30° C)
Certifications, Approvals MMC II support, multi-read certification, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE EN60950,
EN 55022, EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN 60825-1, UL
60950, and CSA C22.2 60950-2000.
Operating Systems SupportedMicrosoft Windows NT, Microsoft Windows 2000, and Microsoft Windows XP.
Kit Contents 16X/40X DVD-ROM Drive, InterVideo™ WinDVD™ MPEG Movie Playback
software, audio cable, and installation guide.
![](asset-21.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 33
Technical Specifications – Optical Storage
48X/24X/48X CD-RW Orientation Either horizontal or vertical
Disc Loading Mechanism Half-height, tray load
Interface Type ATAPI IDE
Dimensions—external
(W x H x D) 7.99 x 5.88 x 1.71 in (203 x 149.5 x 43.5 mm)
Weight 2.6 lb (1.2 kg)
Disc Diameter 12 cm, 8 cm
Disc Thickness 1.2 mm
Track Pitch 1.6 µm
Disc Center Hole Diameter 15 mm
Reference Scanning Velocity 1.2 m/s
Recording/Playing Time 80 minutes with CD-R media
Read Only Disc Parameters Formats and Modes
Supported CD-ROM—Mode 1; CD-ROM XA—Mode 2
(forms 1 and 2); CD digital audio; CD Extra;
CD-I—Mode 2 (forms 1 and 2) and CD-I-
Ready; Photo CD (single and multi-session);
video CD
Capacity 185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12
cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode
2, 12 cm)
Block Size Mode 1—2,048 and 2,352 bytes; mode 2, form
1—2,048; 2,328; 2,336; 2,340 and 2,352 bytes;
mode 2, form 2—2,328; 2,336; 2,340 and 2,352
bytes; CD-DA—2,352 and 2,368 bytes
Writeable Disc Parameters Disc Type CD-R and CD-RW
Write Methods
Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
Format and Modes Supported CD-ROM (mode 1); CD-ROM XA (mode 2,
forms 1 and 2); CD digital audio, CD-I (mode 2,
forms 1 and 2); video CD
Capacity 185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12
cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode
2, 12 cm)
Block Size Mode 1—2,048 bytes; mode 2, form 1—2,048
and 2,352 bytes; mode 2, form 2—2,352 bytes;
CD-DA ---2,352 bytes
Random < 120 ms
Access Times (typical)
Full Stroke < 200 ms
![](asset-22.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 34
Technical Specifications – Optical Storage
Data Transfer Rates Sustained CD-R write—1,800 KB/s (12X)
48X/24X/48X CD-RW (continued) CD-R write—2400 KB/s (16X)
CD-RW write (1-4X media) —600 KB/s (4X)
CD-RW write (4-10X media) —1,500 KB/s
(10X)
CD-RW write (4-12X media) —1,800 KB/s
(12X)
Variable
CD-RW write—2,400 to 3,600 KB/s (16X to
24X)
CD-RW write—2,400 to 4,800 KB/s (16X to
32X)
CD-RW write—2,400 to 6,000 KB/s (16X to
40X)
CD-RW write—2,400 to 7,200 KB/s (16X to
48X)
CD-ROM, CD-R read—1,500 to 7,200 KB/s
(10X to 48X)
CD-RW read—1800 to 4800 KB/s (12X - 32X
CAV)
Digital audio extraction — 1800 to 4800 KB/s
(12X - 32X CAV)
Data Transfer Modes ATA PIO mode 4 (16.7MB/s); ATA multi-word DMA mode 2 (16.7 MB/s); ATA
UltraDMA mode 0 (16.7 MB/s); ATA UltraDMA mode 1 (24 MB/s); ATA
UltraDMA mode 2 (33 MB/s) – default.
Cache Buffer 2 MB (minimum)
Start-up Time (single) < 7 seconds typical
Start-up Time (multi-session) < 30 seconds typical
Stop Time < 4 seconds
Power Source
Four-pin, DC power receptacle
DC power requirement 5 VDC ± 5%—100 mV ripple p-p
12 VDC ± 5%—200 mV ripple p-p
DC current 5 VCD < 1A (typical)
< 1600 mA (maximum)
12 VCD < 600 mA (typical)
< 1.4A (maximum)
Total Drive Power
(Standby mode) < 2.5 watt
Audio Output Level 0.7 Vrms
Configuration Jumper Block Master, slave and cable select modes
Data Interface Connector 50-pin IDE interface
Temperature (operating) Operating 41° to 122° F (5° to 50° C)
Relative Humidity (operating) 10% to 90%
Environmental
(all conditions, non-
condensing) Maximum Wet Bulb
Temperature (operating) 84° F (29° C)
Certifications, Requirements
ACA AS/NZS 3548, ANSI C63.4–1992, CB Test Certificate for IEC 950, CE
Mark, CFR 47 part 15, CNS 13438, CSA C22.2 No. 60950, DHHS/FDA - 1040,
EN60825, EN55022:1998, EN55024, EN60 950:2000, ICES-003 class B, IEC
61000 4-2 – 4-11, Nordic EN60 950, TUV or VDE EN60 950, UL 60950,
C.I.S.P.R. Publication 22 Class B, BSMI, Microsoft P2001, Microsoft Logo for
Windows XP, 2000, NT4, ME, 98
Operating Systems SupportedMicrosoft
Windows
XP, Microsoft Windows 2000, Microsoft Windows NT
4.0
Option Kit Contents CD-RW drive, CD-R media, High-Speed CD-RW media, Roxio™ Easy CD
Creator, Dantz Retrospect Express Backup for CD-RW, audio cable and
installation guide.
![](asset-23.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 35
Technical Specifications – Optical Storage
MultiBay Drive Dimensions (H x W x D) 0.5 x 5.2 x 5.0 inches (1.3 x 13.3 x 12.6 cm)
MultiBay and Slimline
24X CD-ROM Drive Weight 0.47 lb (215.0 grams)
Applicable Disk CD-ROM (Modes 1, 2 and 3), CD-XA ready (Modes 2, Form 1 and 2), CD-I ready
(Mode 2, Forms 1 and 2), CD-R (read only), CD Plus, Photo CD (Single and
Multi-session), CD-Extra, Video CD, CD-WO (fixed packets only), CD-Bridge
Center Hole Diameter 0.6 inch (15 mm)
Disk Diameter 4.7 inches (12 cm), 3.2 inches (8 cm)
Disk Thickness 0.05 inch (1.2 mm)
Track Pitch 1.6 µm
Random < 150 ms
Access Times (typical reads,
including settling) Full-Stroke < 300 ms
Audio Output Level Line-out 0.7 Vrm
Cache Buffer 128 KB
Sustained (16X) 2400 Kbps (sustained)
Data Transfer Rate (typical,
including settling) Variable 1500 to 3600 Kbps (10X to 24X)
Normal PIO Mode 4
(single burst) 16.7 Mbps
Start-up Time < 8 seconds
Stop Time < 4 seconds
48X Combo CD-RW/DVD-ROM Height 5.25-inch, half-height, tray-load
Color Carbonite
Orientation Either horizontal or vertical
Interface Type ATAPI
Dimensions (W x H x D) 5.77 x 1.71 x 7.36 in (146.5 x 43.5 x 187 mm)
(external, excluding bezel)
Disc Diameter 12 cm, 8 cm
Disc Thickness 0.05 in (1.2 mm)
Track Pitch 1.6 um (CD), 0.74 um (DVD)
Disc Center Hole Diameter 0.6 in (15 mm)
Reference Scanning Velocity 1.2 m/s (CD); 3.49 m/s (DVD SL); 3.84 m/s (DVD DL)
Read Only Disc Parameters Formats and Modes
Supported CD-ROM—Mode 1; CD-ROM XA—Mode 2
(forms 1 and 2); CD-Bridge; CD digital audio;
CD Extra; CD-I—Mode 2 (forms 1 and 2) and
CD-I-Ready; Photo CD (single and multi-
session); video CD; DVD (single- and double-
layer); DVD-R; DVD-RW; DVD-RW Multi-
Border; DVD+R; DVD+R Multi-Session , and
DVD+RW
Capacity 180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
cm); 650 MB (mode 2, 12 cm); 700 MB (Mode
2, 12 cm); 4.7 GB (DVD-5); 8.54 GB (DVD-9);
9.4 GB (DVD-10)
Block Size Mode 1—2,048 and 2,352 bytes; mode 2, form
1—2,048; 2,328; 2,336; 2,340 and 2,352 bytes;
mode 2, form 2—2,328; 2,336; 2,340 and 2,352
bytes; CD-DA—2,352 bytes; DVD—2,048 bytes
![](asset-24.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 36
Technical Specifications – Optical Storage
Writeable Disc Parameters Disc Type CD-R and CD-RW
48X Combo CD-RW/DVD-ROM
(continued) Write Methods Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
Format and Modes Supported CD-ROM (mode 1); CD-ROM XA (mode 2,
forms 1 and 2); CD digital audio, CD-I (mode 2,
forms 1 and 2); video CD; CD-Bridge; Video
CD
Capacity 180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
cm); 650 MB (mode 2, 12 cm); 700 MB (mode
2, 12 cm);
Block Size CD-DA—2,352 bytes; mode 0— 2,336 and
2,352 bytes; mode 1—2,048 and 2,352 bytes;
mode 2—2,336 and 2,352; mode 2, form 1—
2,048 and 2,352 bytes; mode 2, form 2—2,324
and 2,352 bytes
Random DVD < 140 ms (typical)
Random CD < 125 ms, (typical)
Access Times
(typical reads, including settling)
Full Stroke DVD < 250 ms (seek)
Full Stroke CD < 210 ms (seek)
Data Transfer Rates Sustained — CD-R write 600 KB/s (4X), 1800 KB/s (12X)
Sustained — CD-RW write 600 KB/s (4X, 1-4X media), 1500 KB/s (10X, 4-
10X media)
Variable — CD-R write 2400 KB/s (16X), 3600 KB/s (24X), 4800 KB/s
(48X)
Variable — CD-ROM, CD-R
Read 1500 – 6000 KB/s (10X to 40X)
Variable — DVD ROM 8112 - 21,632 KB/s (6X - 16X )
Variable — DVD Video 1352 – 3268 KB/s (2.4X)
Variable — DVD-R, DVD-RW 1352 – 3268 KB/s (2.4X)
Variable — DVD+R, DVD-RW 1352 – 3268 KB/s (2.4X)
Variable — DVD+R, DVD-RW 1352 – 3268 KB/s (2.4X)
Variable — CD-RW read 1800 to 4800 KB/s (12X - 32X CAV)
Variable — Digital Audio
Extraction 1800 to 4800 KB/s (12X - 32X CAV)
Data Transfer Modes ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7 MB/s); ATA
UltraDMA mode 0 (16.7 MB/s); ATA UltraDMA mode 1 (24 MB/s), mode 2 (33
MB/s); ATA UltraDMA Mode 3 44 Mbytes/s (default)
Cache Buffer 2 MB (minimum)
Startup Time (single) < 7 seconds (typical)
Startup Time (multi-session) < 30 seconds (typical)
Stop Time < 4 seconds
![](asset-25.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 37
Technical Specifications – Optical Storage
Power Source Four-pin, DC power receptacle
48X Combo CD-RW/DVD-ROM
(continued) DC Power Requirement 5 VDC ± 5%—100 mV ripple p-p
12 VDC ± 5%—200 mV ripple p-p
DC Current 5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
Total Drive Power
(standby mode) < 2.5 Watt
Audio Output Level 0.7 Vrms (typical)
Configuration Jumper Block Master, slave, and cable select modes
Data Interface Connector 40-pin, shrouded and keyed, flat ribbon
Temperature (operating) 41° to 122° F (5° to 50° C)
Environmental
(all conditions non-condensing) Relative humidity (operating) 10% to 90%
Maximum wet bulb
temperature (operating) 86° F (30° C)
Certifications, Requirements MPC-3 compliant, multi-read requirements, ACA AS/NZS 3548, ANSI C63.4–
1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA
C22.2 No. 950-1995, C.I.S.P.R. Pub 22, EMKO-TSE 207/94, TUV or VDE EN60
950, EN60825-1, Microsoft PC2001 certification, Microsoft Logo for Windows
XP, 2000, and NT4
Operating Systems SupportedMicrosoft Windows NT 4.0, Microsoft Windows 2000, and Microsoft Windows
XP.
NOTE: MPEG video playback is not supported on Microsoft Windows NT.
Option Kit Contents 48X Combo CD-RW/DVD-ROM Drive, Roxio™ Easy CD Creator, Dantz
Retrospect Express, InterVideo™ WinDVD™ MPEG Movie Playback software,
CD-R media, high-speed CD-RW media, audio cable, and installation guide.
![](asset-26.png)
QuickSpecs HP Compaq Business Desktop d530 Series
DA-11632 North America — Version 9 — July 14, 2003 38
Technical Specifications – Removable Storage
1.44-MB Diskette Drive Diskette Size 3.5 inches
LED Indicators (front panel) Green
Read/Write Capacity per
diskette (high/low density) 1.44 MB/720 KB
Drive Supported One
Drive Height One-third
Drive Rotation
300 rpm
Transfer Rate (high/low) 500/250 Kb/s
Bytes/Sector 512
Sectors/Track (high/low) 18/9
Tracks/Side (high/low) 80/80
Access Times Track-to-Track (high/low) 3/6 ms
Average (high/low) 169/94 ms
Settling Time 15 ms
Latency Average 100 ms
HP recommends Microsoft® Windows® XP Professional for Business.
© Copyright 2003 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows and Windows NT are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries.
Pentium, Celeron, and the Intel Inside Logo are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. All other product
names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are
set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein.
