User’s Manual
D9 Series
— i —
Copyright
This publication, including all photographs, illustrations and software, is protected under international copy-
right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.
© Copyright 2011
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no repre-
sentations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pend-
ing applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing LLC in the United States and other countries.
All other product names used in this manual are the properties of their respective owners and are ac-
knowledged.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause per-
sonal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the MENU button on the remote control to open the DISPLAY menu.”
General Safety Information
Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.
— ii —
P
P
Pr
r
re
e
ef
f
fa
a
ac
c
ce
e
e
Projector Installation Notice
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in
any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
Allow at least 50 cm clearance around the exhaust vent.
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed 5 – 35°C while the projector is running, and the air intake and
exhaust vents are unobstructed.
All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable 5 – 35°C range.
Power Safety
Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.
– iii –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
— iv —
Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 37
for clear and safe instructions for this procedure. Before replacing the lamp:
¾ Unplug the power cord.
¾ Allow the lamp to cool for about one hour.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and bro-
ken shards of the lamp.
Cleaning the Projector
¾ Unplug the power cord before cleaning. See Cleaning the Projector on page 39.
¾ Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance section
on page 51.
Important Recycle Instructions:
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp
specific disposal information check WWW.LAMPRECYCLE.ORG.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
P
P
Pr
r
re
e
ef
f
fa
a
ac
c
ce
e
e
Table of Contents
GETTING STARTED.......................................................................................................................................................... 1
PACKING CHECKLIST ........................................................................................................................................................... 1
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2
Front-right View ............................................................................................................................................................. 2
Top view—On-screen Display (OSD) buttons and LEDs ............................................................................................... 3
Rear view ........................................................................................................................................................................ 4
Bottom view..................................................................................................................................................................... 5
REMOTE CONTROL PARTS ................................................................................................................................................... 6
REMOTE CONTROL OPERATING RANGE............................................................................................................................... 8
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 8
SETUP AND OPERATION................................................................................................................................................. 9
INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 9
CONNECTING INPUT DEVICES ............................................................................................................................................ 10
STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 11
ADJUSTING THE PROJECTOR LEVEL ................................................................................................................................... 13
ADJUSTING THE ZOOM RING, FOCUS AND KEYSTONE........................................................................................................ 14
ADJUSTING THE VOLUME .................................................................................................................................................. 15
ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 16
OSD MENU CONTROLS ..................................................................................................................................................... 16
Navigating the OSD...................................................................................................................................................... 16
SETTING THE OSD LANGUAGE.......................................................................................................................................... 17
OSD MENU OVERVIEW ..................................................................................................................................................... 18
PICTURE>>BASIC MENU................................................................................................................................................. 19
PICTURE>>ADVANCED MENU ........................................................................................................................................ 20
HSG Adjustment............................................................................................................................................................ 21
DISPLAY MENU............................................................................................................................................................... 22
PC Detail Adjustment.................................................................................................................................................... 23
SETUP>>BASIC MENU ..................................................................................................................................................... 24
Menu Settings................................................................................................................................................................ 25
Source ........................................................................................................................................................................... 25
Lan Control Settings ..................................................................................................................................................... 26
SETUP>>ADVANCED MENU ............................................................................................................................................ 32
Audio............................................................................................................................................................................. 33
Lamp ............................................................................................................................................................................. 33
HDMI............................................................................................................................................................................ 34
Closed Caption.............................................................................................................................................................. 34
Presentation Timer........................................................................................................................................................ 35
STATUS MENU ................................................................................................................................................................ 36
MAINTENANCE AND SECURITY................................................................................................................................. 37
REPLACING THE PROJECTION LAMP................................................................................................................................... 37
CLEANING THE PROJECTOR................................................................................................................................................ 39
Cleaning the Lens ......................................................................................................................................................... 39
Cleaning the Case......................................................................................................................................................... 39
USING THE KENSINGTON® LOCK ....................................................................................................................................... 40
TROUBLESHOOTING ..................................................................................................................................................... 41
COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 41
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 41
LED ERROR MESSAGES .................................................................................................................................................... 42
IMAGE PROBLEMS.............................................................................................................................................................. 42
LAMP PROBLEMS ............................................................................................................................................................... 43
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 43
AUDIO PROBLEMS ............................................................................................................................................................. 44
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 44
HDMI Q & A .................................................................................................................................................................... 45
– v –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
SPECIFICATIONS............................................................................................................................................................. 46
SPECIFICATIONS................................................................................................................................................................. 46
PROJECTION DISTANCE VS. PROJECTION SIZE ................................................................................................................... 47
Projection Distance and Size Table.............................................................................................................................. 47
TIMING MODE TABLE ........................................................................................................................................................ 48
PROJECTOR DIMENSIONS ................................................................................................................................................... 50
REGULATORY COMPLIANCE ..................................................................................................................................... 51
FCC WARNING.................................................................................................................................................................. 51
CANADA ............................................................................................................................................................................ 51
SAFETY CERTIFICATIONS ................................................................................................................................................... 51
— vi —
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
G
ETTING
S
TARTED
Packing Checklist
Carefully unpack the projector and check that the following items are included:
DLP PROJECTOR
R
EMOTE CONTROL
(WITH TWO
AAA BATTERIES)
L
ENS
C
AP
VGA
CABLE
P
OWER CORD
C
ARRY
C
ASE
CD-ROM
(T
HIS
U
SER
’
S MANUAL
) Q
UICK
S
TART
G
UIDE
W
ARRANTY
C
ARD
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.
Caution:
Avoid using the projector in dusty environments.
– 1 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Views of Projector Parts
Front-right View
1
2
3
4
5
6
7
ITEM LABEL DESCRIPTION SEE PAGE:
1. Height-adjuster button Push to release height adjuster
2. Height adjuster Adjusts level of projector
13
3. Lens Projection Lens
4. IR receiver Receive IR signal from remote control 6
5. Focus ring Focuses the projected image
6. Zoom ring Enlarges the projected image
14
7. Function keys See Top view—On-screen Display (OSD) buttons
and LEDs. 3
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
– 2 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Top view—On-screen Display (OSD) buttons and LEDs
ITEM LABEL DESCRIPTION SEE
PAGE:
1.
(Power button) Turns the projector On or Off.
11
2.
BLANK Displays a blank screen and mutes audio
3.
◄ (Left cursor) /
Volume-
Navigates and changes settings in the OSD
Quick Menu – For Volume
4.
Enter Enter or confirm highlighted OSD menu item
5.
MENU Opens and exits OSD menus
6.
▲ (Up cursor) /
Keystone+
Navigates and changes settings in the OSD
Quick Menu – For Keystone
16
7.
AUTO Optimizes image size, position, and resolution
8.
► (Right cursor) /
Volume+
Navigates and changes settings in the OSD
Quick Menu – For Volume
16
9.
SOURCE Enter the Source menu
10
10.
▼ (Down cursor) /
Keystone-
Navigates and changes settings in the OSD
Quick Menu – For Keystone
16
Red Lamp is ready to be powered-on.
11.
READY LED
Flashing Lamp is not ready (warming up/shutting down/cooling)
(see LED Error Messages on page 42)
12.
TEMP LED Flashing Error code
– 3 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 4 –
Rear view
ITEM LABEL DESCRIPTION SEE PAGE:
1. AC IN Connect the POWER CABLE 11
2. (USB) For servicing purpose only
3. COMPONENT IN Connect a component video enabled device
4. S-VIDEO IN Connect the S-VIDEO CABLE from a video device
5. VIDEO IN Connect the COMPOSITE CABLE from a video device
6. VGA OUT Connect the RGB CABLE to a display
7. VGA IN Connect the RGB CABLE from a computer
8. HDMI – 1 Connect the HDMI TM CABLE from a HDMI TM device
9. HDMI – 2 Connect the HDMI TM CABLE from a HDMITM device
10
10. DC 12V TRIGGER Connect the 12V OUT
11. Kensington Lock Secure to permanent object with a Kensington® Lock
system 40
12. Speaker Outputs audio sound 10
13. IR receiver Receive IR signal from remote control 6
14. AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device
15. AUDIO IN Connect an AUDIO CABLE from the input device
16. RS-232C Connect RS-232 serial port cable for remote control
17. AUDIO OUT Connect an AUDIO CABLE for audio loop through
18. RJ – 45 Connect a LAN CABLE from Ethernet
10
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMI TM, component, S-Video, Composite for better picture quality.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 5 –
Bottom view
ITEM LABEL DESCRIPTION SEE PAGE:
1. Tilt adjustor Rotate adjuster lever to adjust angle position. 13
2. Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling
3. Height adjustor Adjuster drops down when adjuster button is pushed.
4. Height adjustor button Push to release adjustor.
13
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 6 mm (0.23 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Remote Control Parts
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-
rescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path be-
tween the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.
– 6 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 7 –
ITEM LABEL DESCRIPTION SEE PAGE:
1. IR transmitter Transmits signals to projector
2. Status LED Lights when the remote control is used
3. Laser Press to operate the on-screen pointer
4. Up Up arrow when connected through USB to a PC (Not available in this series)
5. Right Right arrow when connected through USB to a PC (Not available in this series)
6. Down Down arrow when connected through USB to a PC (Not available in this series)
7. Page Down Page down when connected through USB to a PC (Not available in this series)
8. Up cursor
9. Right cursor
10. Down cursor
Navigates and changes settings in the OSD 16
11. Volume +/- Adjusts volume 15
12. Mute Mutes the built-in speaker
13. Zoom+ Zoom in
14. Zoom- Zoom out
15. Freeze Freeze/unfreezes the on-screen picture
16. Blank Makes the screen blank
17. Source Detects the input device
18. Auto Auto adjustment for phase, tracking, size, position
19. Menu Opens the OSD 16
20. Status Opens the OSD Status menu (the menu only opens when an
input device is detected) 36
21. Keystone top/bottom Corrects image-trapezoid (wider top/bottom) effect 14
22. Left cursor Navigates and changes settings in the OSD
23. Enter Changes settings in the OSD
24. Page Up Page up when connected through USB to a PC (Not available
in this series)
25. Left Left arrow when connected through USB to a PC (Not avail-
able in this series)
26. Enter Enter key when connected through USB to a PC (Not avail-
able in this series)
16
27. Power Turns the projector on or off 11
28. Laser Use as on-screen pointer. DO NOT POINT IN EYES.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are lim-
ited in use.
– 8 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 9 –
S
ETUP AND
O
PERATION
Inserting the Remote Control Batteries
1.
Remove the battery compartment cover
by sliding the cover in the direction of
the arrow.
2.
Insert the battery with the positive side
facing up.
3.
Replace the cover.
Caution:
1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 10 –
Connecting Input Devices
A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.
ITEM LABEL DESCRIPTION
A
AC IN Connect the POWER CABLE
B
(USB) For servicing purpose only
C
COMPONENT IN Connect a component video enabled device
D
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
E
VIDEO IN Connect the COMPOSITE CABLE from a video device
F
VGA OUT Connect the RGB CABLE to a display
G
VGA IN Connect the RGB CABLE from a computer
H
HDMI – 1 Connect the HDMITM CABLE from a HDMITM device
I
HDMI – 2 Connect the HDMITM CABLE from a HDMITM device
J
DC 12V TRIGGER Connect the 12V OUT
K
AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device
L
AUDIO IN Connect an AUDIO CABLE from the input device
M
RS-232C Connect RS-232 serial port cable for remote control
N
AUDIO OUT Connect an AUDIO CABLE for audio loop through
O
RJ – 45 Connect a LAN CABLE from Ethernet
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 11 –
Starting and Shutting down the Projector
1.
Connect the power cord to the projector.
Connect the other end to a wall outlet.
The POWER LED will be on.
2.
Turn on the connected devices.
3.
Ensure the POWER LED displays a
solid blue and not a flashing blue. Then
press the POWER button to turn on
the projector.
The projector splash screen displays and
connected devices are detected.
4.
If more than one input device is con-
nected, press the SOURCE button and
use ▲▼ to scroll among devices.
• PC: Analog RGB
• HDMI 1/2: High Definition Multimedia Interface
• Component: DVD input YCbCr / YPbPr.
• S-Video: Super video (Y/C separated)
• Video: Traditional composite video
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
5.
When the POWER OFF window ap-
pears, press on the control panel or
on the remote control. The projec-
tor turns off.
Caution:
Do not unplug the power cord until the READY LED stops flashing–indicating the projector has
cooled down.
– 12 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Adjusting the Projector Level
Take note of the following when setting up the projector:
• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Remove the Back Foot Holder on the rear adjuster foot before adjusting the projection
angle.
• Ensure the cables are in a safe location. You could trip over them.
A
D
C
1. To raise the level of the projector, lift the projector [A] and press the height-adjuster
button [B].
The height adjuster drops down [C].
2. To lower the level of the projector, press the height-adjuster button and push down
on the top of the projector.
3. To adjust the angle of the picture, turn the tilt-adjuster [D] right or left until the
desired angle has been achieved.
– 13 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 14 –
Adjusting the Zoom ring, Focus and Keystone
1.
Use the Image-zoom
control (on the projector
only) to resize the pro-
jected image and screen
size
B
.
2.
Use the Image-focus
control (on the projector
only) to sharpen the pro-
jected image
A
.
3.
Use the KEYSTONE
buttons (on the projector
or the remote control) to
correct image-trapezoid
(wider top or bottom)
effect.
Remote control and OSD panel
4.
The keystone control
appears on the display.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 15 –
Adjusting the Volume
1.
Press the Volume +/-
buttons on the remote
control.
The volume control
appears on the display.
2.
Press the Left or Right
Cursor buttons on the
keypad to adjust Volume
+/-.
3.
Press the MUTE button to
turn off the volume (This
feature is available only
on the remote).
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 16 –
O
N
-S
CREEN
D
ISPLAY
(OSD)
M
ENU
S
ETTINGS
OSD Menu Controls
The projector has an OSD that lets you make image adjustments and change various settings.
Navigating the OSD
You can use the remote control cursor buttons or the buttons on the top of the projector to navigate
and make changes to the OSD. The following illustration shows the corresponding buttons on the
projector.
1. To enter the OSD, press the MENU
button.
2. There are six menus. Press the cur-
sor ◄► button to move through the
menus.
3. Press the cursor ▲▼ button to move
up and down in a menu.
4. Press ◄► to change values for set-
tings.
5. Press MENU to close the OSD or
leave a sub menu.
Note:
Depending on the video source, not all items in the OSD are available. For example, the PC Detail
Adjustment item in the PICTURE>>Basic menu can only be modified when connected to a PC.
Items that are not available cannot be accessed and are grayed out.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Setting the OSD Language
Set the OSD language to your preference before continuing.
1. Press the MENU button. Press the cursor ◄► button to navigate to SETUP>>Basic.
2. Press the cursor ▲▼ button until Language is highlighted.
3. Press the cursor ◄► button until the language you want is selected.
4. Press the MENU button to close the OSD.
– 17 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
OSD Menu Overview
Use the following illustration to quickly find a setting or determine the range for a setting.
– 18 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
PICTURE>>Basic Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
PICTURE>>Basic menu. Press the cursor ▲▼ button to move up and down in the
PICTURE>>Basic menu. Press ◄► to change values for settings.
Note:
Customizing the settings in PICTURE>>Basic menu is only available in User 1/ 2/ 3 mode.
ITEM DESCRIPTION
Display Mode
Press the cursor ◄► buttons to set the Display Mode.
(Range: Movie/ Bright/ Normal/ User 1/ User 2/ User 3)
Notes: ISF Day/ISF Night is available when ISF Mode is on.
Brightness Press the cursor ◄► buttons to adjust the display brightness.
Contrast Press the cursor ◄► buttons to adjust the display contrast.
Color
Press the cursor ◄► buttons to adjust the video saturation.
Notes: This function is only available when Component, Video or S-Video input source is
selected.
Tint
Press the cursor ◄► buttons to adjust the video tint/hue.
Notes: This function is only available when Component, Video or S-Video with NTSC
system input source is selected.
Sharpness
Press the cursor ◄► buttons to adjust the display sharpness.
Notes: This function is only available when Component, Video or S-Video input source is
selected.
Flesh Tone
Press the cursor ◄► buttons to adjust the display flesh tone.
Notes: This function is only available when Component, Video or S-Video input source is
selected.
Reset Picture Settings Press the ENTER button to reset all settings to default values.
– 19 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 20 –
PICTURE>>Advanced Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
PICTURE>>Advanced menu. Press the cursor ▲▼ button to move up and down in the
PICTURE>>Advanced menu. Press ◄► to change values for settings.
ITEM DESCRIPTION
Noise Reduction Press the cursor ◄► button to adjust the Noise Reduction.
Color Temperature Press the cursor ◄► button to set the Color Temperature.
Gamma Press the cursor ◄► button to adjust the gamma correction of the display.
Notes: This function is only available in User 1/ 2/ 3 mode.
HSG Adjustment Press the ENTER button to enter the HSG Adjustment sub menu.
See HSG Adjustment on page 21.
Color Space
Press the cursor ◄► button to set the Color Space.
(Range: Auto/ RGB/ SDTV/ HDTV)
Notes: This function is only available when HDMI TM input source is selected.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
HSG Adjustment
Press the ENTER button to enter the HSG Adjustment sub menu.
ITEM DESCRIPTION
Primary Color Press the ◄► buttons to set the Primary Color.
Notes: There are six sets (R/ G/ B/ C/ M/ Y) of colors to be customized.
Hue Press the ◄► buttons to adjust the Hue.
Saturation Press the ◄► buttons to adjust the Saturation.
Gain Press the ◄► buttons to adjust the Gain.
– 21 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
DISPLAY Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
DISPLAY menu. Press the cursor ▲▼ button to move up and down in the DISPLAY menu.
Press ◄► to change values for settings.
ITEM DESCRIPTION
Aspect Ratio Press the cursor ◄► button to set the Aspect Ratio.
(Range: Auto/ 16:9/ 4:3/ Letter Box/ Real)
Keystone Press the cursor ◄► button to adjust the Keystone.
Notes: This function is available when the Auto keystone function is turned off.
Overscan Press the cursor ◄► button to adjust the Overscan.
PC Detail Adjustment Press the ENTER button to enter the PC Detail Adjustment sub menu.
See PC Detail Adjustment on page 23.
Auto Keystone Press the cursor ◄► button to turn on or off the Auto Keystone.
Notes: When Auto Keystone is on, the projector will automatically adjust the Keystone.
– 22 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
PC Detail Adjustment
Press the ENTER button to enter the PC Detail Adjustment sub menu.
Note:
Customizing the settings in PC Detail Adjustment menu is only available when PC input source
(analog RGB) is selected.
ITEM DESCRIPTION
Auto Press the ENTER/AUTO button on the control panel or the ENTER/AUTO button on the
remote control to automatically adjust frequency, phase, and position.
Frequency Press the ◄► buttons to adjust the A/D sampling number.
Phase Press the ◄► buttons to adjust the A/D sampling clock.
Horizontal Position Press the ◄► buttons to adjust the display position right or left.
Vertical Position Press the ◄► buttons to adjust the display position up or down.
– 23 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
SETUP>>Basic Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
SETUP>>Basic menu. Press the cursor ▲▼ button to move up and down in the
SETUP>>Basic menu. Press ◄► to change values for settings.
ITEM DESCRIPTION
Language
Press the cursor ◄► buttons to select a different localization menu.
(Range: English/ Danish/ Dutch/ Finnish/ French/ German/ Italian/ Japanese/ Ko-
rea/Norwegian/ Polish/ Portuguese/ Russian/ Traditional Chinese/ Simplified Chinese/
Spanish/ Swedish)
Splash Logo Press the cursor ◄► buttons to select a different startup screen.
(Range: Vivitek/ Blue/ Black)
Projection Press the cursor ◄► buttons to choose from four projection methods:
Front Table/ Front Ceiling/ Rear Table/ Rear Ceiling.
Blank Timer
Press the cursor ◄► buttons to set the Blank Screen timer. The projected image is automati-
cally restored after the set time.
(Range: Disable/ 5 min/ 10 min/ 15 min/ 20 min/ 25 min/ 30 min)
Auto Power Off
Press the cursor ◄► buttons to set the Auto Power Off timer. The projector automatically
turns off if no input source is detected after the preset period of time.
(Range: Disable/ 5 min/ 10 min/ 15 min/ 20 min/ 25 min/ 30 min)
Sleep Timer
Press the cursor ◄► buttons to set Sleep timer. The projector automatically turns off after the
preset period of time.
(Range: Disable/ 30 min/ 1hr/ 2hr/ 3hr/ 4hr/ 8hr/ 12hr)
Background Color Press the cursor ◄► buttons to select the background color when no input source is detected.
(Range: Purple/ Black/ Blue)
Menu Settings Press the ENTER button to enter the Menu Settings sub menu. See Menu Settings on page 25.
Source Press the ENTER button to enter the Source sub menu. See Source on page 25.
Lan Control Settings Press the ENTER button to enter the Lan Control Settings sub menu.
See Lan Control Settings on page 26.
– 24 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Menu Settings
Press the ENTER button to enter the Menu Settings sub menu.
ITEM DESCRIPTION
Menu Position Press the ◄► buttons to select from five OSD locations:
Top-Left/ Top-Right/ Center/ Bottom-Left/ Bottom-Right.
Menu Transparency Press the ◄► buttons to set the OSD transparency. (Range: 0 ~ 10)
Menu Display Time Press the ◄► buttons to set the Menu Display timer before the OSD times out.
(Range: 5sec/ 10sec/ 15sec/ 20sec/ 25sec/ 30sec)
Source
Press the ENTER button to enter the Source sub menu.
ITEM DESCRIPTION
PC Press the ◄► buttons to enable or disable the PC source.
HDMI 1
HDMI 2
Press the ◄► buttons to enable or disable the HDMI source.
Component Press the ◄► buttons to enable or disable the Component source.
Video Press the ◄► buttons to enable or disable the Video source.
S-Video Press the ◄► buttons to enable or disable the S-Video source.
Quick Auto Search Press the ◄► buttons to enable or disable Quick Auto Search for available input source.
Notes: When the desired source is selected, the Quick Auto Search function will be turn off.
– 25 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Lan Control Settings
Press the ENTER button to enter the Lan Control Settings sub menu.
ITEM DESCRIPTION
Control By Press the ◄► buttons to select projector remote command control. (Range: RS232/ RJ45)
Network State Press the ENTER button to enter the Network State sub menu.
See Network State on page 26.
Network State
ITEM DESCRIPTION
Network State Displays the network connection status.
DHCP
Press ◄► to turn DHCP On or Off.
Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS
fields.
Projector IP Address Enter a valid IP address if DHCP is turned off.
Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
Default Gateway Displays the default Gateway address on the network.
DNS Enter a valid DNS name if DHCP is turned off.
Apply Press (Enter) / ► to confirm settings.
– 26 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
For simplicity and ease of operation, the projector provides diverse networking and remote manage-
ment features.
The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off,
Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-
Mute, etc.
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2. On the PC (Laptop), select Start ´ Control Panel ´ Network Connections.
– 27 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
3. Right-click on Local Area Connection, and select Properties.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).
5. Click Properties.
– 28 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.
7. Press the Menu button on the projector.
8. Select OSD ´ SETUP ´ Network ´ Enabled.
9. After getting into Network, input the following:
` DHCP: Off
` IP Address: 10. 10. 10. 10
` Subnet Mask: 255.255.255.0
` Gateway: 0.0.0.0
` DNS Server: 0.0.0.0
10. Press (Enter) / ► to confirm settings.
11. Open a web browser (for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).
12. In the Address bar, input the IP address: 10. 10. 10. 10.
– 29 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 30 –
13. Press (Enter) / ►.

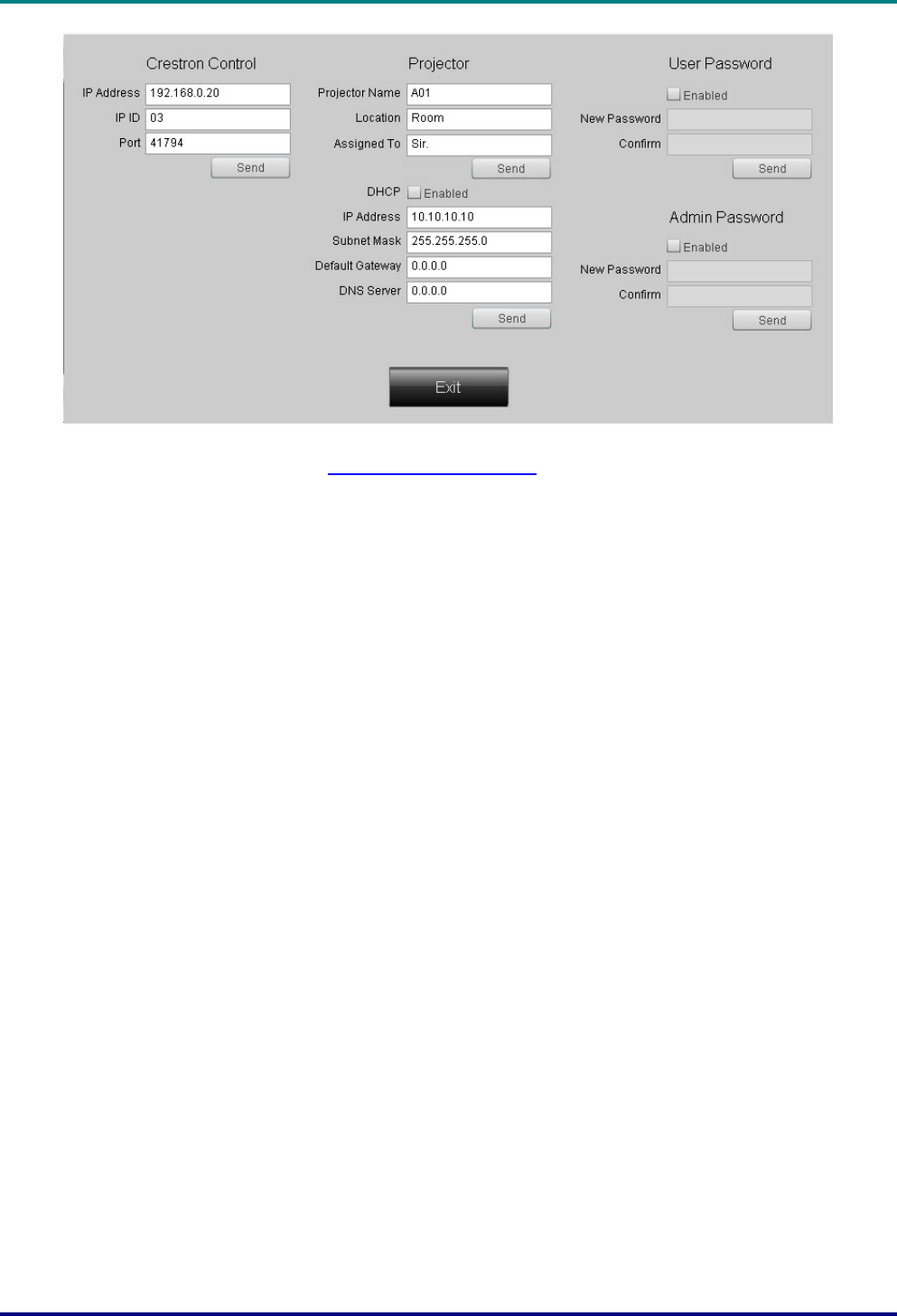

The projector is setup for remote management. The LAN/RJ45 function displays as follows.
Based on network web-page for the input-string in tools tab, the limitation for Input-Length is
in the below list (“space” and the other punctuation key included):
CATEGORY ITEM INPUT-LENGTH
IP Address 15
IP ID 2
Crestron Control
Port 5
Projector Name 10
Location 9
Projector
Assigned To 8
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
Network Configuration
DNS Server 15
Enabled (N/A)
New Password 15
User Password
Confirm 15
Enabled (N/A)
New Password 15
Admin Password
Confirm 15
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
For more information, please visit http://www.crestron.com/.
– 31 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
SETUP>>Advanced Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
SETUP>>Advanced menu. Press the cursor ▲▼ button to move up and down in the
SETUP>>Advanced menu.
ITEM DESCRIPTION
Audio Press the ENTER button to enter the Audio sub menu. See
Audio on page 33.
Lamp Press the ENTER button to enter the Lamp sub menu. See Lamp on page 33.
HDMI Press the ENTER button to enter the HDMI sub menu. See HDMI on page 34.
High Altitude Mode Press the cursor ◄► buttons to turn on or off High Altitude Mode when the altitude of the
environment is higher than 1500m, or the temperature is over 40°C.
Test Pattern Press the cursor ◄► buttons to turn on or off the grid test pattern.
Closed Caption Press the ENTER button to enter the Closed Caption sub menu.
See Closed Caption on page 34.
LED Control Press the cursor ◄► buttons to select the LED control.
Select Normal for normal LED display and Off to disable LED display.
Presentation Timer Press (Enter) / ► to the Presentation Timer menu. See Presentation Timer on page 35.
Reset All Press the ENTER button to enter reset all settings to default values.
– 32 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Audio
Press the ENTER button to enter the Audio sub menu.
ITEM DESCRIPTION
Volume Press the ◄► buttons to adjust the audio Volume.
Bass Press the ◄► buttons to adjust the audio Bass.
Treble Press the ◄► buttons to adjust the audio Treble.
Mute Press the ◄► buttons to turn on or off the speaker.
AGC Press the ◄► buttons to turn on or off the AGC setting.
Reset Press the ENTER button to reset all settings to default values.
Lamp
Press the ENTER button to enter the Lamp sub menu.
ITEM DESCRIPTION
Lamp Mode Press the ◄► buttons to adjust lamp brightness.
Reset Lamp Timer Press the ENTER button to reset the Lamp Hour after the lamp is replaced.
Lamp Hour Displays the number of hours the lamp has been in use.
– 33 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
HDMI
Press the ENTER button to enter the HDMI sub menu.
ITEM DESCRIPTION
HDMI Format Press the ◄► buttons to select from three HDMI display formats:
Auto/ PC signal/ Video signal.
HDMI Amplifier Gain Press the ◄► buttons to adjust HDMI Amplifier Gain.
Closed Caption
Press the ENTER button to enter the Closed Caption sub menu.
ITEM DESCRIPTION
Closed Caption Enable Press the ◄► buttons to turn on or off Closed Caption.
Caption Version Press the ◄► buttons to select the Caption Version.
– 34 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Presentation Timer
The Presentation Timer function can indicate the presentation time on the screen to help you achieve
better time management when giving presentations.
ITEM DESCRIPTION
Timer Press the cursor ◄► button to enable or disable presentation timer.
Timer Period Press the cursor ◄► button to select timer period (1 ~ 60 minutes)
Timer Reset Press (Enter) / ► to reset the timer settings.
– 35 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
STATUS Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
STATUS Menu.
ITEM DESCRIPTION
Source Displays the activated input source.
Resolution Displays the native resolution of input source.
Lamp Hour Displays the number of hours the lamp has been in use.
Firmware Version Displays the firmware version of the projector.
Note:
Status displayed in this menu is for viewing only and cannot be edited.
– 36 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 37 –
M
AINTENANCE AND
S
ECURITY
Replacing the Projection Lamp
The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.
Important:
a. The projection lamp used in this product contains a small amount of mercury.
b. Do not dispose this product with general household waste.
c. Disposal of this product must be carried out in accordance with the regulations of your local
authority.
Warning:
Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to
do so could result in a severe burn.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and bro-
ken shards of the lamp.
When removing the lamp from a ceiling-mounted projector, make sure that no one is under the pro-
jector. Glass fragments could fall if the lamp has been burned out.
！
IF A LAMP EXPLODES
If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come
out of the exhaust vent. The gas contains toxic mercury.
Open windows and doors for ventilation.
If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor
immediately.
1.
Remove the single screw on
the lamp compartment cover.
2.
Remove the lamp compart-
ment cover.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
3.
Remove the three screws from
the lamp module.
4.
Lift the module handle up.
5.
Pull firmly on the module
handle to remove the lamp
module.
6.
Reverse steps 1 to 5 to install
the new lamp module.
While installing, align the
lamp module with the
connector and ensure it is level
to avoid damage.
Note: The lamp module must
sit securely in place and the
lamp connector must be con-
nected properly before
tightening the screws.
– 38 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Cleaning the Projector
Cleaning the projector to remove dust and grime will help ensure trouble-free operation.
Warning:
1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so
could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.
Cleaning the Lens
You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the pro-
jector lens.
1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the
lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.
Cleaning the Case
Refer to the following to clean the projector case.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then
wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
– 39 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Using the Kensington® Lock
If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.
Note:
Contact your vendor for details on purchasing a suitable Kensington security cable.
The security lock corresponds to Kensington’s MicroSaver Security System. If you have any com-
ment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535-4242,
http://www.Kensington.com.
– 40 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 41 –
T
ROUBLESHOOTING
Common problems and solutions
These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.
Often after time spent troubleshooting, the problem is traced to something as simple as a loose con-
nection. Check the following before proceeding to the problem-specific solutions.
• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspending mode.
• Ensure a connected notebook computer is configured for an external display.
(This is usually done by pressing a Fn-key combination on the notebook).
Tips for Troubleshooting
In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.
Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.
Keep a record of the steps you take when troubleshooting: The information may be useful when call-
ing for technical support or for passing on to service personnel.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 42 –
LED Error Messages
ERROR CODE MESSAGES POWER LED
BLINK
READY LED
BLINK
TEMP LED
BLINK
Lamp Ready ON ON OFF
Start ON OFF OFF
Cooling ON FLASHING OFF
Over temperature OFF OFF ON
Thermal Break Sensor error 4 4 OFF
Lamp error 5 OFF OFF
Lamp End of lamp life detected 5 3 OFF
Burner Fan error 6 1 OFF
Lamp Fan error 6 2 OFF
Power Fan error 6 3 OFF
DMD Fan error 6 4 OFF
Case Open 7 OFF OFF
DMD error 8 OFF OFF
Color wheel error 9 OFF OFF
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before re-
starting the projector. If the POWER or LAMP LEDs are still blinking or the TEMP LED is lit, or any
other situation that isn't listed in the chart above, contact your service center.
Image Problems
Problem: No image appears on the screen
1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.
Problem: The image is blurred
1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.
Problem: The image is wider at the top or bottom (trapezoid effect)
1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.
Problem: The image is reversed
Check the Projection setting on the Installation I menu of the OSD.
Problem: The image is streaked
1. Set the Frequency and Tracking settings on the Computer menu of the OSD to the de-
fault settings.
2. To ensure the problem is not caused by a connected PC’s video card, connect to another
computer.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Problem: The image is flat with no contrast
Adjust the Contrast setting on the Image menu of the OSD.
Problem: The color of the projected image does not match the source image.
Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.
Lamp Problems
Problem: There is no light from the projector
1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.
Problem: The lamp goes off
1. Power surges can cause the lamp to turn off. Re-plug power cord. When the READY LED
is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.
Remote Control Problems
Problem: The projector does not respond to the remote control
1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.
– 43 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Audio Problems
Problem: There is no sound
1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.
Problem: The sound is distorted
1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.
Having the Projector Serviced
If you are unable to solve the problem, you should have the projector serviced. Pack the projector in
the original carton. Include a description of the problem and a checklist of the steps you took when
trying to fix the problem: The information may be useful to service personnel. For servicing, return the
projector to the place you purchased it.
– 44 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
HDMI Q & A
Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI
cable?
Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High-
Speed cables.
․Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or
up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.
․High Speed (or “category 2”) HDMI cables have been tested to perform at speeds of
340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an
HDMI cable and can successfully handle 1080p signals including those at increased color
depths and/or increased refresh rates from the Source. High-Speed cables are also able to
accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of
2560 x 1600).
Q. How do I run HDMI cables longer than 10 meters?
There are many HDMI Adopters working on HDMI solutions that extend a cable’s effective
distance from the typical 10 meter range to much longer lengths. These companies
manufacture a variety of solutions that include active cables (active electronics built into
cables that boost and extend the cable’s signal), repeaters, amplifiers as well as CAT5/6 and
fiber solutions.
Q. How can I tell if a cable is an HDMI certified cable?
All HDMI products are required to be certified by the manufacturer as part of the HDMI
Compliance Test Specification. However, there may be instances where cables bearing the
HDMI logo are available but have not been properly tested. HDMI Licensing, LLC actively
investigates these instances to ensure that the HDMI trademark is properly used in the
market. We recommend that consumers buy their cables from a reputable source and a
company that is trusted.
For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49
– 45 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 46 –
S
PECIFICATIONS
Specifications
Model D950HD D952HD D963HD
Display type TI DLP DMD 0.65”
Native Resolution 1920 x 1080
Weight 3.4 kg (7.5 lbs)
Projection distance 1 meters ~ 10 meters
Projection screen size 23.5" ~ 282.3"
Projection lens Manual Focus/Manual Zoom
Zoom ratio 1.2
Vertical keystone correction +/- 30 steps +/- 40 steps
Auto Keystone Yes
Projection methods Front, Rear, Desktop/Ceiling (Rear, Front)
Data compatibility VGA, SVGA, XGA, SXGA, UXGA, Mac
SDTV/ EDTV/ HDTV 480i, 480p,576i, 576p, 720p, 1080i, 1080p
Video compatibility NTSC 4.43, PAL (M/N/60), SECAM
H-Sync 15K, 31 – 91.1 KHz
V-Sync 43 – 85 Hz
Safety certification FCC-B, UL, cUL, CB, CE, CCC, KC, PCT, and C-tick
Operation temperature 5° ~ 35°C
Dimensions (W x D x H) 332.8 mm x 254.6 mm x 113 mm (13.1” x 10.0” x 4.45”)
AC Input AC Universal 100-240, Typical @ 110VAC (100-240)/ ±10%
Power consumption
STD: 290W(Typical)/
310W(Max)
ECO: 240W(Typical)/
260W(Max)
STD: 350W(Typical)/
370W(Max)
ECO: 290W(Typical)/
310W(Max)
STD: 350W(Typical)/
380W(Max)
ECO: 290W(Typical)/
320W(Max)
Stand By <1 watt
Lamp 220W 280W 300W
Audio speaker AMP 5W speaker
Digital: HDMI x 2
Analog: RGB HD-15 x 1
Composite: RCA x 1 (Yellow)
S-Video: mini dim x 1
Component: RCA x 3
Input Terminals
Audio in: ψ3.5 mm stereo mini jack x 1; RCA x 2 R/L
Analog: RGB HD-15 x 1
Mini-jack stereo x 1
Output Terminals
DC_out (screen trigger): DC Jack x 1 (DC12V 200mA output function)
RS-232: DSUB-9 x 1
Keyboard Emulation Control: USB connector type B
Control Terminals
RJ45
Security Kensington lock
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 47 –
Projection Distance vs. Projection Size
Projection Distance and Size Table
D950HD / D952HD / D963HD (16：9 SCREEN)
IMAGE DIAGONAL
（INCH）
IMAGE WIDTH
(INCH)
IMAGE HEIGHT
(INCH)
PROJECTION
DISTANCE
（MM）
FROM
PROJECTION
DISTANCE
（MM）
TO
OFFSET-A
( MM )
40 34.9 19.6 1408.0 1682.5 74.7
60 52.3 29.4 2112.0 2523.7 112.1
70 61 34.3 2464.0 2944.4 130.8
72 62.8 35.3 2534.4 3028.5 134.5
80 69.7 39.2 2816.0 3365.0 149.4
84 73.2 41.2 2956.8 3533.2 156.9
90 78.4 44.1 3168.0 3785.6 168.1
96 83.7 47.1 3379.1 4038.0 179.3
100 87.2 49.0 3519.9 4206.2 186.8
120 104.6 58.8 4223.9 5047.5 224.1
135 117.7 66.2 4751.9 5678.4 252.2
150 130.7 73.5 5279.9 6309.3 280.2
200 174.3 98.1 7039.9 8412.4 373.6
300 261.5 147.1 10559.8 12618.7 560.4
Image Height
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 48 –
Timing Mode Table
The projector can display several resolutions. The following table outlines the resolutions that can be
displayed by the projector.
SIGNAL RESOLUTION H-SYNC
(KHZ)
V-SYNC
(HZ)
COMPOSITE
/ S-VIDEO COMPONENT RGB
(ANALOG)
HDMITM
(DIGITAL)
NTSC — 15.734 60.0 O
— － －
PAL/SECAM — 15.625 50.0 O — － －
720 x 400 37.9 85.0 — — O O
640 x 480 31.5 60.0 — — O O
640 x 480 37.9 72.8 — — O O
640 x 480 37.5 75.0 — — O O
640 x 480 43.3 85.0 — — O O
800 x 600 35.2 56.3 — — O O
800 x 600 37.9 60.3 — — O O
800 x 600 46.9 75.0 — — O O
800 x 600 48.1 72.2 — — O O
800 x 600 53.7 85.1 — — O O
1024 x 768 48.4 60.0 — — O O
1024 x 768 56.5 70.1 — — O O
1024 x 768 60.0 75.0 — — O O
1024 x 768 68.7 85.0 — — O O
1280 x 800 49.7 59.8 — — O O
1280 x 800 62.8 74.9 — — O O
1280 x 800 71.6 84.8 — — O O
1280 x 1024 64.0 60.0 — — O O
1280 x 1024 80.0 75.0 — — O O
1280 x 1024 91.1 85.0 — — O O
1400 x 1050 65.3 60.0 — — O O
1440 x 900 55.9 60.0 — — O O
1600 x1200 75.0 60 — — O O
VESA
1920 x1080 67.2 60 — — O O
640 x 480 35.0 66.7 — — O O
832 x 624 49.7 74.5 — — O O
1024 x 768 60.2 74.9 — — O O
Apple
Macintosh
1152 x 870 68.7 75.1 — — O O
480i 15.734 60.0 — O — O
SDTV 576i 15.625 50.0 — O — O
576p 31.3 50.0 — O — O
EDTV 480p 31.5 60.0 — O — O
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 49 –
SIGNAL RESOLUTION H-SYNC
(KHZ)
V-SYNC
(HZ)
COMPOSITE
/ S-VIDEO COMPONENT RGB
(ANALOG)
HDMI TM
(DIGITAL)
720p 37.5 50.0 — O — O
720p 45.0 60.0 — O — O
1080i 33.8 60.0 — O — O
1080i 28.1 50.0 — O — O
1080p 67.5 60.0 — O — O
HDTV
1080p 56.3 50.0 — O — O
O: Frequency supported
—: Frequency not supported
The native resolution of the panel is1920 x 1080 Resolution other than native resolution may display
with uneven size of text or lines.
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r—
—
—U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Projector Dimensions
– 50 –
D
D
DL
L
LP
P
P
P
P
Pr
r
ro
o
oj
j
je
e
ec
c
ct
t
to
o
or
r
r
–
–
–
U
U
Us
s
se
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
– 51 –
R
EGULATORY
C
OMPLIANCE
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his/her own expense.
Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.
Canada
This class B digital apparatus complies with Canadian ICES-003.
Safety Certifications
FCC-B, UL, cUL, CB, CE, CCC, KC, PCT, and C-tick
