Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 1 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

1. Abstract

This guide explains how to get started with the MicroVision Linux Software Development Kit (SDK)

for its 4th Generation PicoP Scanning Engines (PSE). The PicoP Linux SDK allows developers to

quickly and easily integrate PicoP Scanning Engine control into a Linux application. The Linux

Application can communicate with PSE over USB. The SDK package includes the C Application

Programming Interface (API), SDK libraries, documentation, and sample projects that demonstrate use

of some basic (PSE) functions. The sample applications have been developed and built using GNU

command line tools.

2. Table of Contents

1. ABSTRACT ......................................................................................................................................................... 1

2. TABLE OF CONTENTS ................................................................................................................................... 1

3. INSTALLING PICOP SDK ............................................................................................................................... 2

4. ACCESSING SDK DOCUMENTATION ........................................................................................................ 3

5. USING THE PICOP APPLICATION PROGRAMMING INTERFACE (API) .......................................... 4

5.1. SDK VERSION CONTROL .............................................................................................................................. 4

5.2. STEP 1: LINK SDK LIBRARY TO THE APPLICATION ....................................................................................... 4

5.3. STEP 2: INITIALIZE THE SDK LIBRARY ......................................................................................................... 4

5.4. STEP 3: CONNECT TO PICOP .......................................................................................................................... 4

5.5. STEP 4: CONFIGURE AND CONTROL PICOP .................................................................................................... 5

5.5.1. Connection Management ..................................................................................................................... 5

5.5.2. Display Control Functions .................................................................................................................. 6

5.5.3. System Management Functions ........................................................................................................... 8

5.5.4. Input Control Functions ...................................................................................................................... 8

5.5.5. Rendering Functions ........................................................................................................................... 8

5.6. STEP 5: EXIT APPLICATION ........................................................................................................................... 9

6. SDK HOST PLATFORMS .............................................................................................................................. 10

6.1. REQUIRED PLATFORM PACKAGES ............................................................................................................... 10

7. DEMO APPLICATIONS ................................................................................................................................. 11

7.1. PICOP_CONSOLE SAMPLE PROJECT ............................................................................................................ 11

7.2. PICOP_DISPLAY SAMPLE PROJECT ............................................................................................................. 13

7.3. PICOP_UPDATE_FW SAMPLE PROJECT ...................................................................................................... 14

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 2 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

3. Installing PicoP SDK

The latest PicoP Linux SDK can be cloned or downloaded from:

https://github.com/MicroVision-Inc/Interactive_Projection

Alternatively, the SDK may be delivered as a compressed file named

PicoP_Linux_SDK_Ver_X_Y_Z.zip. The X_Y_Z postfix of the file name represents the version

number of the SDK (X equals the major version, Y the minor version, and Z the patch number of the

SDK). To install the SDK, simply decompress the file into a directory of your choice. The cloned or

uncompressed destination folder will contain the following subfolders:

PicoP_Linux_SDK

SDK Root folder

Docs

SDK Documentation

Reference_Guide/html

Detailed Programmer’s Reference Guide

index.html

Programmer’s Reference Guide entry point

*.html

Programmer’s Reference Guide documentation

DA0140028_PicoP_Gen4_Progra

mmers_Guide.pdf

High-Level Programmer’s Guide

EULA.pdf

SDK End User License Agreement

Interface

PicoP SDK API Interface

picop_api.h

PicoP SDK header file with function prototypes

picop_def.h

PicoP SDK definitions files

picop_rc.h

PicoP SDK return codes

Lib

PicoP SDK Linux libraries (64-bit)

libPicoP_Api.so.1.3.0

PicoP SDK shared library

libPicoP_Api.a

PicoP SDK static library

Samples

SDK Sample Applications

Bin

Contains the 64-bit executables for the sample

applications.

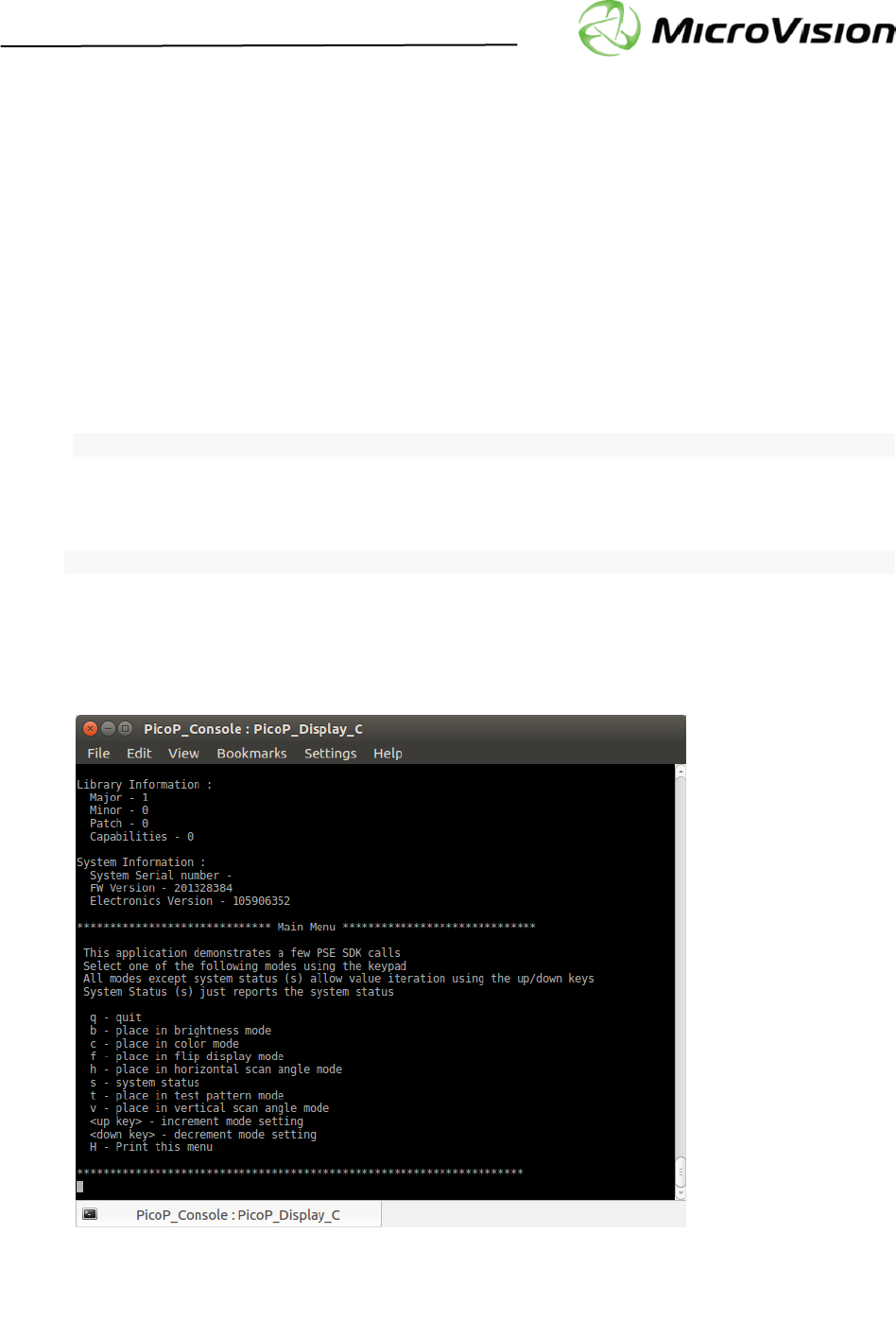

PicoP_Console

Simplest Console application demonstrating

how to communicate with PSE

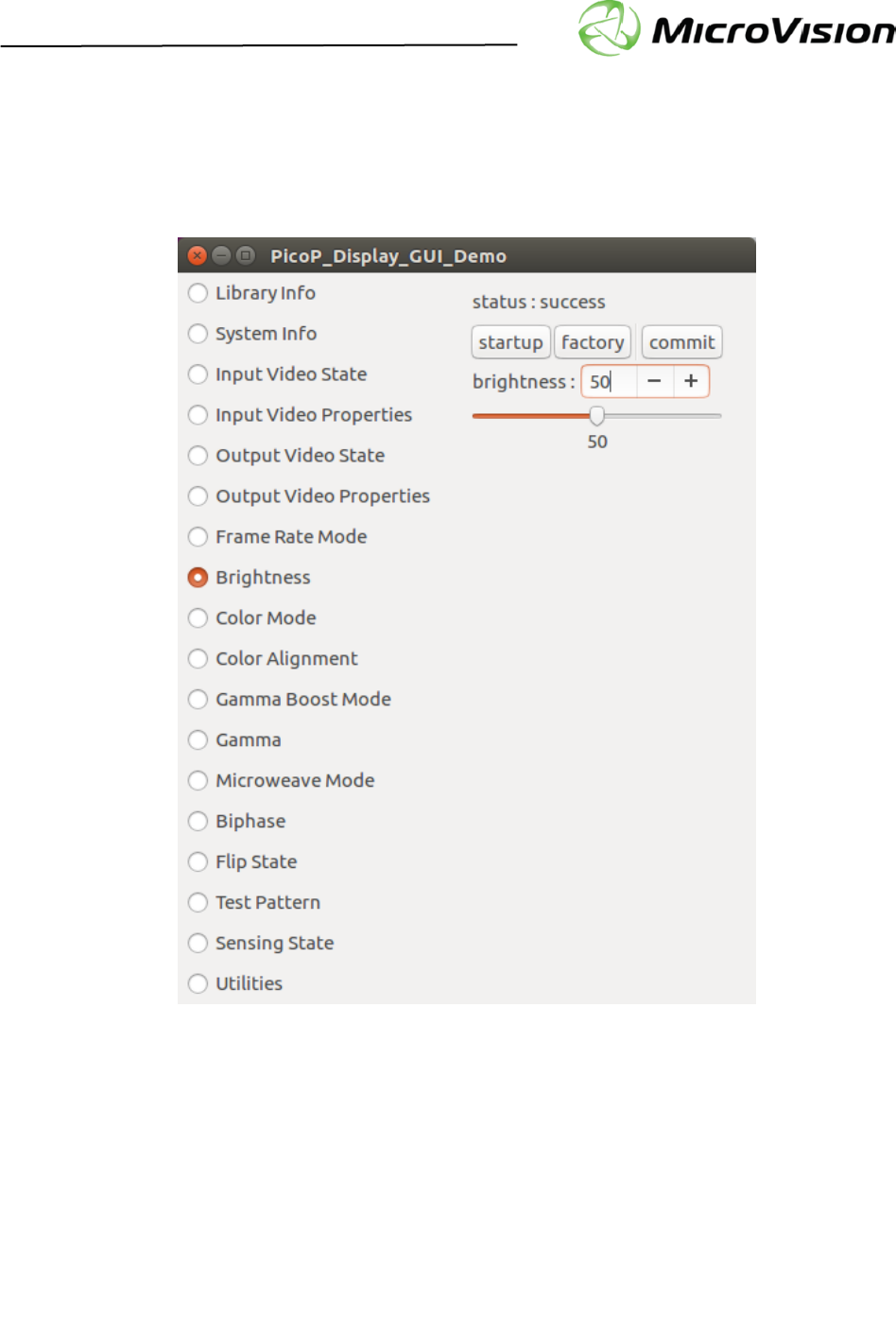

PicoP_Display

Simple GUI Application demonstrating the basic

usage of sample C APIs for Display functions

PicoP_Update_FW

Simplest Console application demonstrating

how to perform a FW update on the PSE

DA0140038_PicoP_Gen4_Linux_SDK_Getting_

Started_Guide.pdf

This Getting Started guide for PicoP Linux SDK

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 3 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

4. Accessing SDK Documentation

For high level description of functions/commands supported by the PSE Application Programming

Interface (API), please refer to the DA0140028_PicoP_Gen4_Programmers_Guide.pdf .

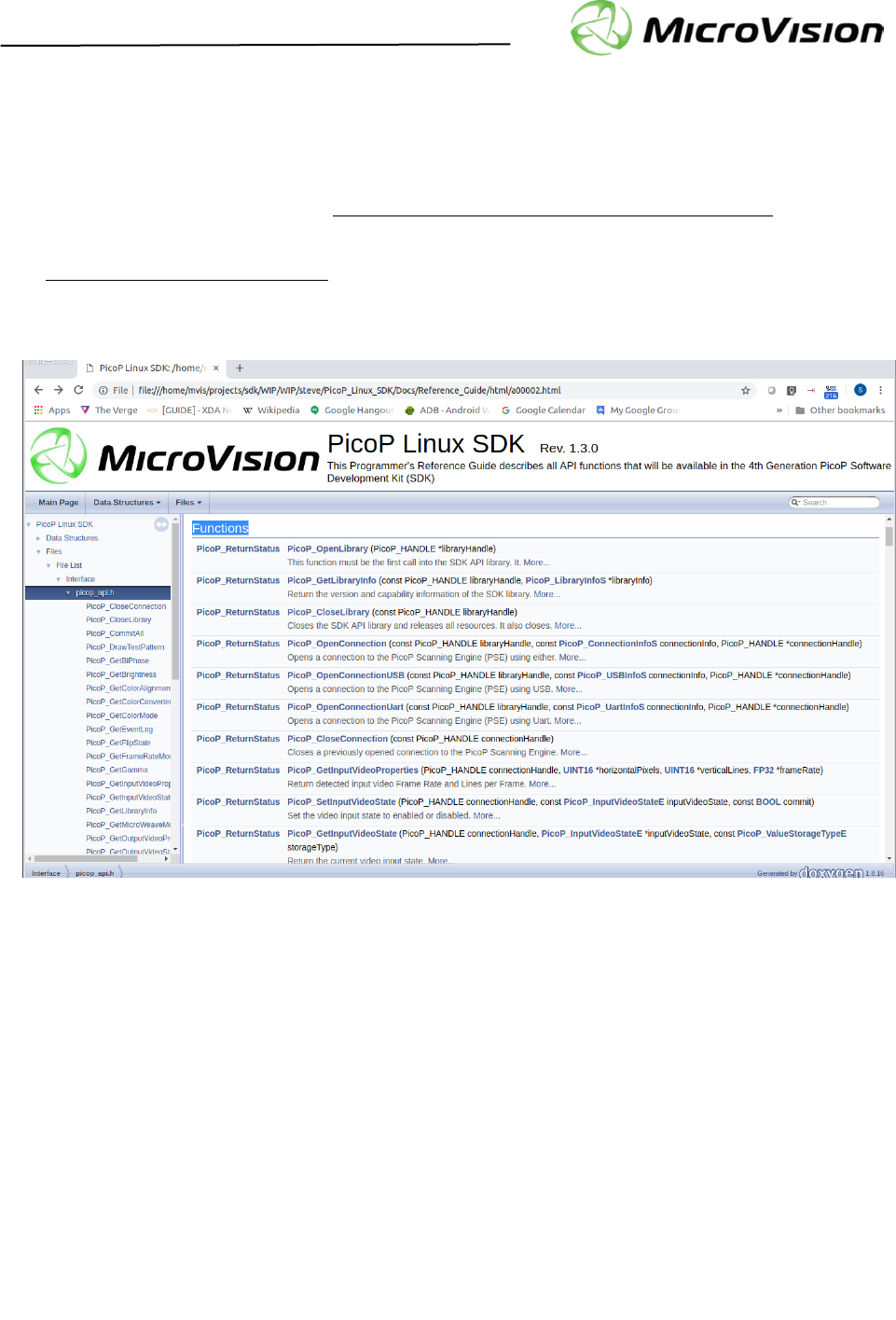

For detailed description of the C-language API, please refer to the Programmer’s Reference Guide at

Docs\Reference_Guide\index.html. The Reference Guide is a set of hyperlinked HTML files

containing detailed description of all Function interfaces and definitions provided by the API.

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 4 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

5. Using the PicoP Application Programming Interface (API)

The PicoP SDK for Linux allows you to easily interface your application software with the PicoP

Scanning Engine. This section explains the steps of the integration process.

5.1. SDK Version Control

The SDK API version can be queried with the PicoP_GetLibraryInfo() function. The Library

info returns the major (X), minor (Y), and patch number (Z) for the SDK Version X.Y.Z. The library

information also includes capability flags which can differentiate library implementation

enhancements that are compatible with the same API and header files.

// Library information

typedef struct {

UINT8 majorVersion; // Contains the major version of the library

UINT8 minorVersion; // Contains the minor version of the library

UINT8 patchVersion; // Contains the patch version of the library

UINT32 capabilityFlags; // Flags that describe the capability of the library

} PicoP_LibraryInfoS;

5.2. Step 1: Link SDK Library to the application

To include the PicoP Linux SDK to an application, include the picop_api.h header file into the

application source code and link the libPicoP_Api.a static library or

libPicoP_Api.so.1.3.0 shared library to the application executable.

5.3. Step 2: Initialize the SDK Library

The first step in connecting to a PicoP is to initialize the PicoP library by calling

PicoP_OpenLibrary(). The PicoP_OpenLibrary() function returns a handle to the library that

can be used to open a connections to the PicoP device.

5.4. Step 3: Connect to PicoP

After successful initialization of the library, the next step is to create a connection to the PicoP device.

The connection can be established using either Universal Serial Bus (USB) or Universal Asynchronous

Receiver-Transmitter (UART) physical interfaces. To create a connection to the PicoP Scanning

Engine, call either the PicoP_OpenConnection(), PicoP_OpenConnectionUSB(), or

PicoP_OpenConnectionUart() functions. Upon successful connection, the library will return a

connection handle to be used with subsequent library calls. The connection handle identifies the

connected system.

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 5 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

5.5. Step 4: Configure and Control PicoP

The PicoP API is split into the following functional categories:

• Connection & Library Management: Connect to PicoP over USB or Serial (UART)

interface.

• Display Control: Configure and control the PicoP Display.

• System Management: Manage the PicoP System, Firmware upgrades, Event Log, etc.

• Input Control: Configure the PicoP Input Video.

• 3D Sensing: Configure and control PicoP 3D Sensing interface and retrieve 3D point cloud

data.

• Rendering: Render images and test patterns into Framebuffer and On-Screen Display (OSD).

5.5.1. Connection Management

The Connection Management Functions are used to connect to the PicoP Display Engine using USB

or UART.

Function

Description

PicoP_OpenLibrary( )

Opens the library and allocates resources

necessary for operation. It returns a handle to

the library that must be used in subsequent

calls

PicoP_GetLibraryInfo( )

Retrieves the version and capability

information of the SDK Library

PicoP_CloseLibrary( )

Closes the library and releases all resources. It

also closes all the open connections.

PicoP_OpenConnection( )

Opens a connection to the PicoP Display

Engine using either USB or UART.

PicoP_CloseConnection( )

Closes a previously opened connection to the

PicoP Display Engine.

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 6 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

5.5.2. Display Control Functions

The Display Control Functions can be used to configure the output display.

Function

Description

PicoP_SetBrightness( )

Sets brightness for the output display.

PicoP_GetBrightness( )

Returns brightness setting of the output

display.

PicoP_SetColorMode( )

Sets color mode for the output display.

PicoP_GetColorMode( )

Returns color mode setting of the output

display.

PicoP_SetGamma( )

Sets gamma value for the output display.

PicoP_GetGamma( )

Returns gamma value setting of the output

display.

PicoP_SetVideoGammaBoostMode( )

Set the color specific video gamma boost

mode.

PicoP_GetVideoGammaBoostMode( )

Return the color specific video gamma

boost mode.

PicoP_SetMicroWeaveMode( )

Select the MicroWeave mode.

PicoP_GetMicroWeaveMode( )

Return the MicroWeave mode.

PicoP_SetFlipState()

Sets the flip state of the image to

horizontal, vertical, both horizontal and

vertical or none.

PicoP_GetFlipState()

Returns the current flip state of the output

display.

PicoP_SetOutputVideoState( )

Set the video output state to enabled or

disabled.

PicoP_GetOutputVideoState( )

Returns the current video output state.

PicoP_GetOutputVideoProperties( )

Return output video properties.

PicoP_SetBiPhase( )

Sets the scan line phase delay to align the

forward and reverse scan video.

PicoP_GetBiPhase( )

Returns the scan line phase delay setting.

PicoP_SetColorAlignment()

Performs vertical or horizontal color

alignment for the selected color

PicoP_GetColorAlignment()

Gets the color alignment offset of the

chosen color

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 7 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

PicoP_SetColorConverter()

Sets the color converter values

PicoP_GetColorConverter()

Gets the color converter values

PicoP_SetFrameRateMode( )

Sets the output frame rate mode (frame

rate vs. vertical display and sensing

resolutions) and display scaling.

PicoP_GetFrameRateMode( )

Returns the output frame rate mode

(frame rate vs. vertical display and sensing

resolutions) and display scaling

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 8 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

5.5.3. System Management Functions

The System Management Functions are used to control the PicoP System and to access the system

information.

Function

Description

PicoP_GetSystemInfo( )

Retrieves system information.

PicoP_GetSystemStatus( )

Retrieves the system status.

PicoP_GetEventLog( )

Retrieves the system event log.

PicoP_RestoreFactoryConfig( )

Restores System Settings to Factory

Configuration.

PicoP_CommitAll( )

Commits all user settings to flash.

PicoP_UpgradeSoftware( )

Upgrades the embedded Software.

5.5.4. Input Control Functions

The Input Control functions are used to configure the PicoP Input Video.

Function

Description

PicoP_GetInputVideoProperties( )

Returns detected input video Frame Rate

and Lines per Frame.

PicoP_SetInputVideoState( )

Enables or Disables the input video. When

input video is disabled, the framebuffer will

not be updated and the output video will

contain the last captured frame.

PicoP_GetInputVideoState( )

Returns the current state of the input

video.

5.5.5. 3D Sensing Functions

The 3D Sensing functions are used to configure the 3D sensor.

Function

Description

PicoP_SetSensingState( )

Turns the 3D Sensing function on or off.

When the 3D Sensing function is off, the IR laser

is not pulsing and no 3D sensing data is sent

over the USB.

PicoP_GetSensingState( )

Returns the current Sensing state.

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 9 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

5.5.6. Rendering Functions

The Rendering function allows the host system to render information into the PicoP On-Screen Display

(OSD) or FrameBuffer.

Function

Description

PicoP_DrawTestPattern( )

Displays one of the built-in test patterns.

5.6. Step 5: Exit Application

To gracefully exit the host application, call the PicoP_CloseConnection() and

PicoP_CloseLibrary() functions to shut down the connection to PicoP and to release all resources

used by the library.

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 10 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

6. SDK Host Platforms

The PicoP Gen4 SDK and applications has been verified on the following hardware platforms

("$ cat /etc/os-release", "$ uname -r"):

• PC : Ubuntu Linux 16.04

o DISTRIB_ID=Ubuntu

o DISTRIB_RELEASE=16.04

o DISTRIB_CODENAME=xenial

o DISTRIB_DESCRIPTION="Ubuntu 16.04.5 LTS"

o NAME="Ubuntu"

o VERSION="16.04.5 LTS (Xenial Xerus)"

o ID=ubuntu

o ID_LIKE=debian

o PRETTY_NAME="Ubuntu 16.04.5 LTS"

o VERSION_ID="16.04"

o HOME_URL="http://www.ubuntu.com/"

o SUPPORT_URL="http://help.ubuntu.com/"

o BUG_REPORT_URL="http://bugs.launchpad.net/ubuntu/"

o VERSION_CODENAME=xenial

o UBUNTU_CODENAME=xenial

o kernel version: 4.15.0-36-generic

6.1. Required Platform Packages

Each Linux platform requires the installation of the following packages:

• libudev-dev, (GNU Lesser General Public License (LGPL), version 2.1)

• libbluetooth-dev, (GNU General Public License (GPL))

• libusb-1.0-0-dev, (GNU Lesser General Public License (LGPL), version 2.1)

• v4l-utils, (GNU Lesser General Public License)

• build-essential

• git

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 11 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

7. Demo Applications

PicoP_Linux_SDK/samples/ contains the following demo applications utilizing the PicoP SDK:

• PicoP_Console

• PicoP_Display

• PicoP_Update_FW

To build any of these applications, open a shell and navigate to the application directory and execute

"make". This will build the application using the static library.

There is no Advanced Packaging Tool (APT) package created for shared library installation. To

evaluate the shared library, softlink creation is required to traverse the versions of the soname. For

example, if released version is libPicoP_ALC_Api.so.1.0.0 then create following softlinks in library

path directory:

$ sudo ln -sf libPicoP_Api.so.1.3.0 libPicoP_Api.so.1.3

$ sudo ln -sf libPicoP_Api.so.1.3 libPicoP_Api.so.1

$ sudo ln -sf libPicoP_Api.so.1 libPicoP_Api.so

The library utilizes USB device node access for communication and video streaming. This requires

running all demo applications under sudo access control or create udev rules to allow user space

programs access to usb device nodes. There are several ways to create the udev rules, but one simple

rule set which allows device node access to any user on the host is the following 2 lines:

• SUBSYSTEMS=="usb", ENV{DEVTYPE}=="usb_device", ATTRS{idVendor}=="148a",

ATTRS{idProduct}=="0004", MODE="0666"

• SUBSYSTEMS=="usb", ENV{DEVTYPE}=="usb_device", ATTRS{idVendor}=="04b4",

ATTRS{idProduct}=="00f9", MODE="0666"

Add these 2 lines to a udev file (filename extension .rules) located in /etc/udev/rules.d. Note if your

chosen filename exists in /lib/udev/rules.d directory those rules will be overridden, so it is advisable

to choose a unique filename for these udev rules.

7.1. PicoP_Console Sample Project

The PicoP_Console sample project is a simple Linux console application. It demonstrates the use

of SDK interfaces to communicate with the PicoP device and to control basic Projector functions. The

application can control the following PicoP operations:

• Retrieve library info and PSE system status

• Retrieve/Change display brightness setting

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 12 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

• Retrieve/Change display color mode setting

• Flip display

• Retrieve System Status

• Retrieve/Change Horizontal Scan Angle

• Retrieve/Change Vertical Scan Angle

• Present Test Patterns

To build the application using a static library invoke make with no arguments:

$ make

To build using a shared library, configure softlinks as detailed above, and invoke make with the

STATIC argument:

$ make STATIC=false

To run the application issue “sudo ./PicoP_Display_Console_Demo” at the shell command line to

run the application. As shown below, Library and System information will be displayed in the shell

followed by help instructions. Select one of the supported modes, and then press the up key (key

value 65) or down key (key value 66) to cycle though configurations for that mode.

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 13 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

7.2. PicoP_Display Sample Project

The PicoP_Display_GUI_Demo application presents a GUI to exercise several more of the Display

control API functions. The application can control the following PicoP operations:

• Retrieve library info and PSE system status

• Retrieve/Change display color mode setting

• Retrieve/Change Input Video State

• Retrieve/Change Output Video State

• Retrieve Output Video Properties

• Retrieve/Change Frame Rate Mode

• Retrieve/Change Brightness value

• Retrieve/Change Brightness Compensation Mode

• Retrieve/Change Color Mode

• Retrieve/Change Color Conversion

• Retrieve/Change Gamma

• Retrieve/Change Gamma Boost Mode

• Retrieve/Change Microweave Mode

• Retrieve/Change BiPhase value

• Change Flip State

• Perform Factory Configuration Reset

• Present Test Patterns

• Perform Commit All and Factory Reset

Installation of the following platform package is required for this application:

• libgtkmm-3.0-0-dev, (version >= 3.18.0-1) (GNU Lesser General Public License)

To build the application using a static library invoke make with no arguments:

$ make

Getting Started with PicoP® Gen4 SDK for Linux

PicoP Gen4 Linux SDK Ver. 1.3.0 Getting Started Guide

MVIS #: DA0140038 May 2019 Revision A.0

Page 14 of 14

MicroVision.com

PicoP® is a registered trademark of MicroVision, Inc.

Specifications subject to change without notice.

MicroVision, Inc. Specifications subject to change

without notice.

customerservice@microvision.com

To run the application issue “sudo ./PicoP_Display_GUI_Demo” at the shell command line to run the

application. As shown below, a GUI application launches with supported commands enumerated on

the left side of the pane. Selecting a command mode radio button will show its control widgets on the

right side of the pane.

7.3. PicoP_Update_FW Sample Project

The PicoP_Update_FW is a command line application for performing a FW update. Place the FW

binary named “pde_client.chunk.bin” in the same directory as the PicoP_Update_FW_Demo

executable. Connect USB to the Dev Kit target and run the executable. The console will display the

FW update progress.

PicoP Gen4 Linux SDK Getting Started Guide DA0140038 Pico P

Navigation menu

Versions of this User Manual:

Views

Navigation
