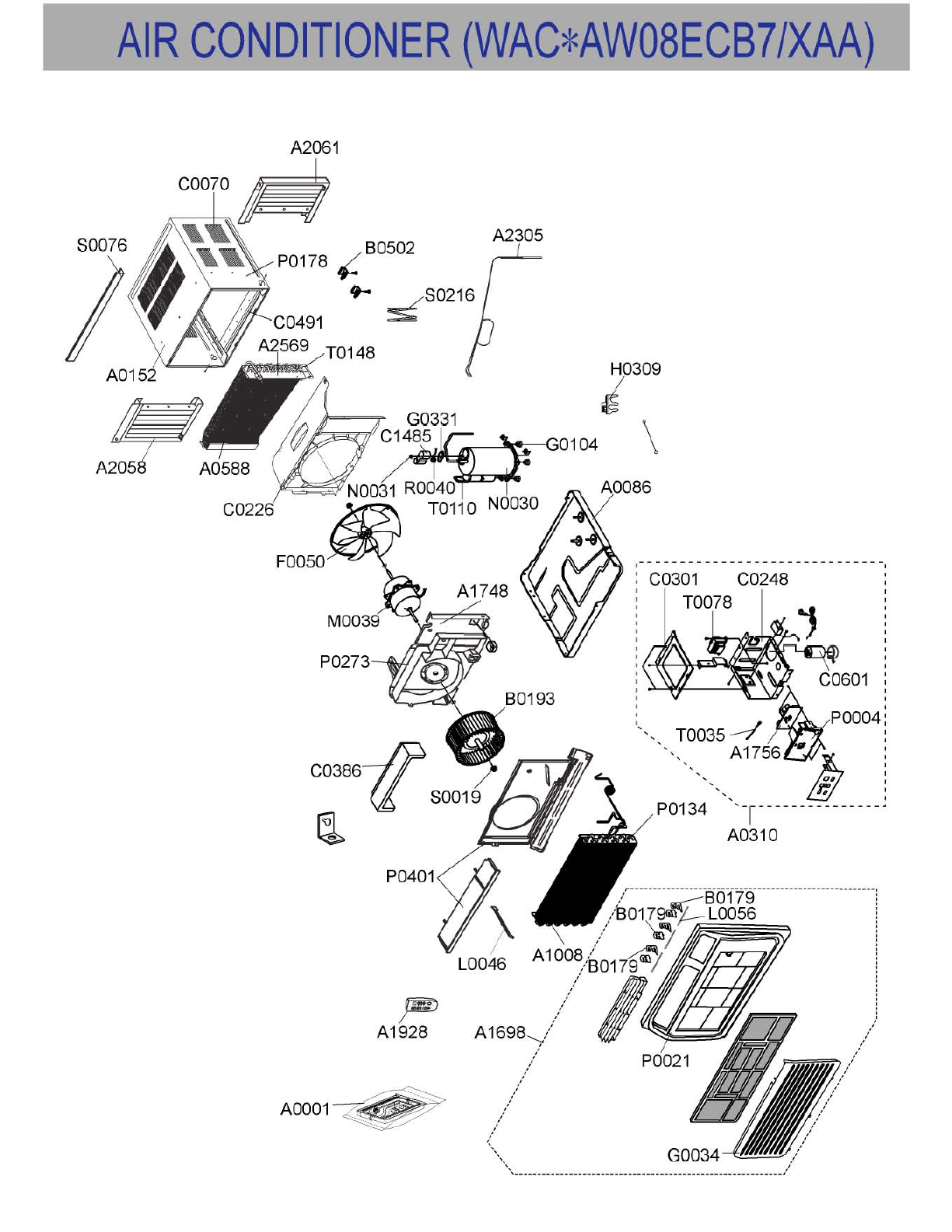

Model code : AW08ECB7PRE
SA : SERVICE AVAILABLE SNA : SERVICE not AVAILABLE DNA : DELIVERY not AVAILABLE
Part Code Description Location SNA
DB97-05643A ASSY PRINT PARTS;-,CO,-,-,-,-,-,-,-,-,-, SNA
6902-000250 BAG PE;LDPE,T0.03,L350,W250,TRP,8,2,PE M B0016 SNA
DB68-02809A LABEL BAR CODE;-,-,-,-,W170,L115,-,-,-,F L0094 SNA
DB68-40056C MINI-MANUAL;OK-PJT,-,-,-,MOJO,-,-,-,CHIN A1558 SA
DB98-05714A ASSY-LABEL BARCODE;-,-,-,-,-,-,-,-,-,-,- L0094 SA
DB98-16354A ASSY-INSTALL MANUAL;CO,-,-,DANBY BUYER,E A1451 SA
DB98-16543A ASSY-CARD REGISTER;-,-,-,DANBY BUYER,-,- A0444 SNA
DB98-16544A ASSY-LABEL CAUTION;-,-,-,TRANSPARENT,RED SNA
DB98-16545A ASSY-LABEL SERIAL;-,-,-,DANBY SPEC,-,-,- SNA
DB98-16610A ASSY-LABEL CUATION CSA;-,-,-,DANBY,CSA,C SA
DB98-16611A ASSY-LABEL RESTART;-,-,-,DANBY,RESTART,- SA
DB98-16706C ASSY-FOLDER I/M;CO,-,10k,AW10NHHAD/AAC,A A1122 SNA
DB98-26752A ASSY-EXTENDED WARRANTY;CO,-,5000BTU,AW05 SNA
DB98-26753C ASSY-LABEL POP;CO,-,8000BTU,AW08ECB7PRE, SNA
DB98-26766E ASSY-LABEL RATING;CO,-,8000BTU,AW08ECB7P A1905 SNA
DB98-26936A ASSY-SHIPPING LABEL;CO,-,5000,DAC5071M,- SNA
DB98-27168B ASSY-CARD ENERGY;CO,-,8000BTU,AW08ECB7PR A0475 SNA
DB98-27181A ASSY-MANUAL USERS;CO,-,10000BTU,AW10ECB7 SNA
DB98-27184A ASSY-DIAGRAM MECH;C/O,-,12K,SSEC,-,-,-,- SNA
DB97-05650A ASSY PACKING PARTS;-,-,-,-,-,-,-,AW08ECB SNA
DB69-00076A BAG PE;HD-PE,T0.03,L700,L650,-,-,-,- B0016 SA
DB69-00741A BAND-PP;R/COMP,PP,T0.8,W18,-,WHT,1GRADE, B0040 SNA
DB69-00814A CUSHION-BOTTOM;H1-PJT,40FO-PS,-,W499,L54 A0835 SA
DB69-00920A CUSHION-TOP;H1-PJT,50FO-PS,-,W282,L499,- C1624 SA
DB69-01362H PACKING CASE;AW08ECB7PRE,CB,DW-2,-,554,5 P0403 SNA
DB90-03084A ASSY CABI PARTS;AW08ECB7XAA,8000BTU SNA
6002-000213 SCREW-TAPPING;TH,+,-,1,M4,L12,ZPC(WHT),S S0025 SA
6002-000214 SCREW-TAPPING;TH,+,-,1,M4.0,L16,ZPC(BLK) S0025 SA
6002-000527 SCREW-TAPPING;TH,+,-,2S,M4,-,ZPC(WHT),ST S0025 SA
6009-001001 SCREW-SPECIAL;TH,+,-,M4,L8,ZPC(WHT),SWRC S0019 SA
DB60-10012C SCREW-TAPPING;TH,+,-,-,M4,L8,-,-,T/WASHE S0025 SA
DB61-01532A CASE COND-L;H1-P/J,PP,T2.0,W448,L449,BLK C0226 SA
DB61-02863A CASE EVAP-UP;H1-TOP,22797;PP,T2.0,335,80 C0386 SA
DB65-10074K CLAMPER CORE;H3-TOP,NYLON,66,6N,NTL,H3-T C0520 SNA
DB70-00696A PLATE-EVAP CASING;H1-TOP,TB52,PP,-,T2.5, P0401 SA
DB70-00697A PLATE-PARTITION;H1-TOP,TB52,PP,-,T2.5,33 P0273 SA
DB90-03151B ASSY BASE;H1-P/J,2006 SINGLE PAINT B A0086 SA
DB90-03154A ASSY CABINET;H1-P/J,2006 SINGLE PAINT A0152 SA
DB62-02211A SEAL-CABI UP;-,FO-PU,-,T10,W30,L500,- SNA
DB62-02211B SEAL-CABI LF RH;-,FO-PU,-,T10,W30,L320,- SNA
DB64-01794A CABINET;H1-P/J,SGCC-M,T0.7,415,500,no,SC C1538 SNA
DB70-00767A PLATE-CABINET;H1-P/J,SGCC-M,T0.7,400,129 P0178 SA
DB64-01795A CABINET-FRONT;H1-P/J,SGCC-M,T0.7,95,500, C0491 SA
DB64-01798A CABINET-REAR;H1-P/J,SGCC-M,T0.7,36,95,no C0070 SA
DB94-01131A ASSY PARTITION;AW10NCB7XAA,06'year A1748 SA
DB62-00706E SEAL-MOTOR;Y-TOP,30FO-PU,D/GRY,T5,95,95, S0272 SNA
DB92-01011A ASSY PANEL FRONT PARTS;-,-,-,-,-,-,-,-,- SNA
DA02-10017J TAPE ETC-FILAMENT;3M #8915,-,T0.15,W18,L T0003 SNA
DB66-00557B LEVER-DAMPER;AW069CB,ABS,T2,-,-,NONE,-,L L0046 SA
DB92-00515K ASSY PANEL FRONT;NO,SEA,Premiere,SC-0310 A1698 SA
DB61-01530A FRAME-BLADE;H1-P/J,TOP,SEA,HIPS,-,-,-,T2 F0188 SA
DB62-02211D SEAL-PANEL A;-,FO-PU,BLACK,T5,W10,L770,H SNA
SEAL-PANEL B;-,FO-PU,BLACK,T10,W10,L385, SNA
DB62-02211E
DB63-00810C GUARD-AIR FILTER;H1-P/J,TB52 PP,T2.5,198 G0120 SNA
DB64-00916F PANEL FRONT;H1-P/J,HIPS,T2,353,500,NO,SC P0021 SA
DB64-00917A GRILLE-AIR INLET;H1-P/J,HIPS,T2.0,W277.5 G0034 SA
DB66-00555A BLADE-V L;H1-P/J,PP,T2.0,-,-,- B0179 SA
DB66-00556A BLADE-V S;H1-P/J,PP,T2.0,-,-,- B0179 SA
DB66-00558A LINK BLADE;H1-PJT,TOP,PP,L106.5,-,-,SC-9 L0056 SA
DB66-00696A BLADE-V;H1-P/J,HIPS,T2.0,-,BLK,SEA B0179 SA
DB93-04875A ASSY CONTROL PARTS;CO,-,-,-,-,-,-,-,-,-, A2739 SNA
DB61-40251A HOLDER-SENSOR;-,PP,-,-,-,BLK,- H0309 SA
DB93-04296F ASSY CONTROL-BOX;CO,-,8000BTU,H1-TOP FOR A0310 SA
6009-001001 SCREW-SPECIAL;TH,+,-,M4,L8,ZPC(WHT),SWRC S0019 SA
DB26-00068A TRANS POWER;EI41,H-P/J,-,4-PIN,150V/AC,1 T0078 SA
DB32-10051E THERMISTOR;-,10K/25,-,3435K,-,-,-,-,SSEC T0035 SA
DB39-00034X LEAD CONNECTOR-COMP;H-P/J,-,-,3-PIN,210m SNA
DB39-00946C CONNECT WIRE-FAN;H-P/J,-,-,1-PIN,250mm,- C0733 SNA
DB39-01347A CONNECT WIRE-EARTH; H-P/J,#1007 18AWG,#2 C0725 SNA
DB61-01535B CASE CONTROL-LOWER;H1-P/J,SGCC-M,T0.6,-, C0248 SA
DB61-01536B CASE CONTROL-UPPER;H1-P/J,SGCC-M,T0.6,-, C0301 SA
DB62-02947B SEAL CONTROL;H1-P/J(TOP),30FOAM PE,-,T3. SNA
DB62-04063F SEAL-MEMBRANE;H-SBS,FOAM-PE,GREY,2,13,46 SNA
DB64-00918A PANEL CONTROL-D;H1-P/J,ABS,T2.0,W90.5,L1 P0004 SA
DB64-01788A INLAY CONTROL;H1-P/J,P.E.T,0.3mm,10,100, I0058 SNA
DB65-10088D CABLE-TIE;-,NY-66,-,-,-,L100MM C0095 SNA
DB68-02634A LABEL-CONTROL NAME;-,-,-,W7,L24*4,-,-,-, L0090 SNA
DB93-04189V ASSY PCB MAIN;Y-P/J£¬C/O,OPT£º5615 S A1756 A
0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, D0060 SA
0402-000371 DIODE-RECTIFIER;1N4002,100V,1A,DO-204AL, D0060 SA
0402-001298 DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP D0060 SNA
0501-000534 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SOT-2 T0100 SA
0506-000175 TR-ARRAY;2003,NPN,7,1W,SOP-16,ST,1000 SA
0609-001201 Module Remocon;HORIZONTAL,16.4MM,TR M0033 SA
1203-000243 IC-POSI.FIXED REG.;7812,TO-220,3P,-,PLAS I0027 SA
1203-000274 IC-POSI.FIXED REG.;7805,TO-220,3P,-,PLAS I0027 SA
2001-001172 R-CARBON(S);620OHM,5%,1/2W,AA,TP,2.4X6.4 R0021 SA
2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 R0025 SA
2007-000297 R-CHIP;10Kohm,1%,1/8W,TP,2012 R0025 SA
2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012 R0025 SA
2007-000346 R-CHIP;120ohm,5%,1/4W,TP,3216 R0025 SA
2007-000468 R-CHIP;1Kohm,5%,1/8W,TP,2012 R0025 SA
2007-000493 R-CHIP;2.2Kohm,5%,1/8W,TP,2012 R0025 SA
2007-000613 R-CHIP;24Kohm,1%,1/8W,TP,2012 R0025 SA
2007-000686 R-CHIP;3.3Kohm,5%,1/8W,TP,2012 R0025 SA
2007-000766 R-CHIP;330ohm,5%,1/8W,TP,2012 R0025 SA
2007-001067 R-CHIP;6.8Kohm,1%,1/8W,TP,2012 R0025 SA
2007-001173 R-CHIP;8.25Kohm,1%,1/8W,TP,2012 R0025 SNA
2203-000192 C-CER,CHIP;100nF,+80-20%,50V,Y5V,2012 C0011 SA
2203-000227 C-CER,CHIP;0.1nF,10%,50V,C0G,2012 C0011 SA
2203-000444 C-CER,CHIP;1nF,10%,50V,X7R,2012 C0011 SA
2203-001608 C-CER,CHIP;22nF,+80-20%,50V,Y5V,TP,2012 C0011 SA
2401-000037 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 C0096 SA
2401-000151 C-AL;1000uF,20%,25V,GP,TP,10x20,5 C0096 SA
2401-000173 C-AL;1000uF,20%,35V,GP,TP,13x25,5 C0096 SA
2802-001198 RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3X5.5M R0050 SNA
3002-001129 BUZZER-PIEZO;85DB,-,-,2KHZ,- B0702 SNA
3501-001163 RELAY-MINIATURE;12VDC,200MW,5000MA,1FORM R0041 SNA
3501-001169 RELAY-POWER;12VDC,0.9W,20000MA,SPST,20MS R0042 SA
3601-000263 FUSE-CARTRIDGE;250V,3.15A,TIME-LAG,GLASS F0178 SA
3601-001399 FUSE-RADIAL LEAD;250V,800mA,TIME DELAY,P F0180 SNA
3708-000523 CONNECTOR-FPC/FFC/PIC;8P,2.54MM,STRAIGHT C1101 SA
3711-000203 HEADER-BOARD TO CABLE;1WALL,2P/3P,1R,7.9 SA
3711-000796 HEADER-BOARD TO CABLE;BOX,2P,1R,2.5MM,ST SNA
3711-000880 HEADER-BOARD TO CABLE;BOX,3P,1R,2.5MM,ST SA
3711-003407 HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM SNA
3812-001283 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING) W0076 SA
6042-001009 EYELET;ID1.8,OD2.2,L3,-,BRASS SNA
DB07-00074A LED DISPLAY;CSE-42202G,H-PJT,2,14,20,22. L0023 SNA
DB09-00384A IC MICOM£»S3C84E9X11-QZ89,-,44P,+5V,10MHS L0023 NA
DB39-00264L CONNECT WIRE-MOTOR;H-P/J,#1015 18 AWG,-, C0883 SNA
DB41-00503A PCB-MAIN;H-P/J,FR-1,ONE-LAYER,VERSION1,T SNA
DB61-00924A HOLDER-FUSE;-,FH-51B,-,-,-,-,SSEC H0180 SNA
DB62-03085A HEAT SINK;-,A6063,25,15,15,-,-,SSEC H0034 SNA
DB93-04822C ASSY POWER CORD;LCDI,AMERICA,125V/10A,15 A1879 SA
DB98-26867D ASSY-LABEL UL;CO,-,18000BTU,AW18ECB7GEA, L0111 SNA
2501-001311 C-OIL;8/50uF,370V,MF,OD50*110mm,20.6mm C0601 SA
6002-000239 SCREW-TAPPING;TH,+,-,2S,M4,L8,ZPC(WHT),S S0025 SA
6002-000527 SCREW-TAPPING;TH,+,-,2S,M4,-,ZPC(WHT),ST S0025 SA
6002-000534 SCREW-TAPPING;PH,+,-,2S,M3,L8,ZPC(BLK),S S0025 SNA
DB94-01317A ASSY FAN PARTS;AW08ECB7XAA,8000BTU SNA
DB31-00215A MOTOR FAN;YSK40-6S-1,H1-PJT,-,-,-,-,1030 M0039 SA
DB60-00154B FASTENER-MOTOR;-,MSWR10,-,T2.0,OD21.5,ID F0066 SA
DB60-30004A SCREW-MACHINE;FL,-,-,M6,-,ZPC(WHT),SWRCH S0019 SA
DB60-30020A SCREW-MACHINE;FL,-,-,M6,-,ZPC(WHT),SWRCH S0019 SA
DB67-50077A FAN-PROPELLER;-,ABS,290,-,-,- F0050 SA
DB67-50078D BLOWER;AZ09PHHEA,ABS+GF20%,-,-,-,- B0193 SA
DB95-01167A ASSY COMP PARTS;AW08ECB7XAA,8000BTU SNA
39B076HSAEA ROTARY COMPRESSOR:115V,60HZ,1P; R0110 SA
6021-000124 NUT-HEXAGON;1C,M8,ZPC(YEL),SM10C N0030 SA
6021-001142 NUT-HEXAGON FLANGE;-,M5,ZPC(YEL),SWCH10A N0031 SA
DB35-00024G RELAY PROTECTOR O/L;-,39B080HSAEA,MRA134 R0040 SA
DB61-01897A SPRING ETC-OLP;-,STS304-WPB,-,24.9,-,-,3 S0216 SA
DB61-02968A BRACKET-COMP;Y-P/J,SGCC,T1.0,24,24,WHITE SA
DB63-00762B COVER TERMINAL;AW069CB,GE NORYL,-,-,-,-, C1485 SA
DB63-00764A GROMMET ISOLATOR;39A,EPDM,-,-,-,-,-,-,39 G0104 SA
DB63-00765A GASKET;R/COMP,EPDM,0.8,-,-,-,65-70,EPDM G0331 SA
DB63-01713A COVER-OLP;H-P/J,PVC,T2.5,17,17,-,-,WHITE SA
DB96-07194A ASSY EVAP PARTS;AW08ECB7XAA,8000BTU SNA
DB96-07133A ASSY EVAP;AW08ECB7XAA,3*11*390mm A1008 SA
DB01-00129A FOIL;-,WAC,FOIL,0.095,622,-,GREY,SILICA SA
DB62-00328B TUBE JOINT;-,C1120T-O,T0.8,-,L100,-,- T0058 SNA
DB62-02813A TUBE-CU;-,C1220T-O,0.28,7.0,-,-,Tw0.25 H T0125 SA
DB62-04423A TUBE-EVAP IN;H1-TOP,C1220T-0,T0.7,OD4.76 T0017 SNA
DB62-04424A TUBE-EVAP OUT;H1-TOP,C1220T-0,T0.7,OD7.0 T0017 SNA
DB70-00360D PLATE-EVAP LF;H1-P/J,SGCC-M,-,T0.6,W49.5 P0400 SNA
DB70-00361D PLATE-EVAP RH;H1-P/J,SGCC-M,-,T0.6,W49.5 P0134 SA
DB96-10256A ASSY U-BEND C1220T-0,OD7,T0.41,RING 1.3 P0134 SA
DB96-10257A ASSY U-BEND C1220T-0,OD7,T0.41,RING 1.3 S0107 SA
DB96-07195A ASSY COND PARTS;AW08ECB7XAA,8000BTU SNA
0202-001163 SOLDER-SILVER;BCUP-3S,KSD67,OD3.0,AG3.0% S0107 SNA
0204-000418 FREON;KORFROM-22,CHCLF2,99.9%,- F0175 SNA
DB96-07134A ASSY COND;AW08ECB7XAA,2*14*505mm A0588 SA
DB01-00128A FOIL;-,WAC,FOIL,0.095,622,-,WHT,NORMAL SA
DB62-00328A TUBE JOINT-JUMP;C1220T-0,OD7,T0.7,L63.4, T0058 SA
DB62-02813A TUBE-CU;-,C1220T-O,0.28,7.0,-,-,Tw0.25 H T0125 SA
DB62-04778A TUBE COND-OUT;AW08NCB7XAA,C1220T-0,T0.7, T0148 SA
DB62-31730A TUBE-TRIPOD;BCUP-3,7.0,0.8,25,BCUP-2 T0109 SNA
DB65-10088B CABLE-TIE;-,NY-66,-,-,-,L140MM C0095 SNA
DB70-00362B PLATE-COND;-,SGCC-M,-,T0.6,W16,-,L336.5, A2569 SA
DB70-00363E PLATE-COND L,R;H1-P/J,SGCC-M,-,T0.6,W57, A2569 SA
DB96-06918A ASSY TUBE COND IN;H1-P/J,10K-NOR A2320 SNA
DB96-10256A ASSY U-BEND C1220T-0,OD7,T0.41,RING 1.3 A2320 SA
DB62-30368A TUBE-U BEND;C1220T-O,OD7.0,T0.41,L47,- T0109 SNA
0102-000252 COPPER-TUBE;C1220T,O,OD7.0,-,ROLL,- T0125 SNA
DB93-50001A ASSY-WIRE RING SOLD;-,PI1.6 A1527 SNA
DB96-10257A ASSY U-BEND C1220T-0,OD7,T0.41,RING 1.3 S0107 SA
DB62-30369A TUBE-U BEND;C1220T-O,OD7.0,T0.41,L44.4,- T0109 SNA
0102-000252 COPPER-TUBE;C1220T,O,OD7.0,-,ROLL,- T0125 SNA
DB93-50001A ASSY-WIRE RING SOLD;-,PI1.6 A1527 SNA
0202-001022 SOLDER-SILVER;-,RL KS6704,D1.6,7P/93Cu,P S0107 SNA
DB96-07196A ASSY TUBE PARTS;AW08ECB7XAA,8000BTU SNA
DB62-04769A SEAL-COVER TUBE;H1-P/J,FOAM-PE,GRAY,T30, SA
DB62-04826A TUBE DISCHARGE;AW08ECB7XAA,C1220T-0,T0.7 T0008 SNA
DB62-04827A TUBE SUCTION;AW08ECB7,C1220T-0,T0.7,OD9. T0110 SNA
DB96-07131A ASSY TUBE CAPILLARY;AW08ECB7XAA,H1-P/J, A2305 SA
DB97-05642A ASSY ACCESSORY PARTS;CO,-,8000BTU,-,-,-, SNA
DB47-00035A HOLDER;-,-,-,1.5V,-,-,AAA,NO HG,-,-,-,-, H0353 SNA
DB93-03018Y ASSY REMOCON;Danby,ARC-758 A1928 SA
DB97-00252A ASSY ACCESSORY-SEAL;SPS-P/J,GE,- A0285 SA
DB72-00140M SEAL-BASE;-,-,-,T10,W25,L660,SPS-P/J S0238 SNA
DB72-00200A SEAL-ANGLE UP;-,-,SPS-P/J,T5,W10,L660,- SNA
DB97-03298A ASSY-INSTALL PART;-,co,-,6K,-,-,-,-,-,-, SNA
DB64-00048H SHUTTER-ANGLE UP;H1-P/J,HIPS,T3.0,-,-,66 S0076 SA
DB97-02854B ASSY ACCESSORY-BOX;-,-,-,-,-,-,H1-P/J,DA A0001 SA
DB61-30219F BRACKET-INSTALL;GE,SPS-P/J,SGCC-A,T1.6,- B0502 SA
DB69-01185B BAG ACCESSORY;DANBY,-,-,-,-,-,H1-P/J SNA
DB72-00140J SEAL-INSTALL WINDOW;-,-,GRAY,T15,W35,L94 SA
DB72-10102X SEAL-WINDOW SHUTTER;-,-,-,STK,T3,35,940, SA
DB92-00112C ASSY SHUTTER-RH;H1-P/J,ASSY A2061 SA
DB92-00113C ASSY SHUTTER-LF;H1-P/J,ASSY A2058 SA
DB97-30156C ASSY ACCESSORY;-,-,-,-,-,-,SPS/GEA,ASSY A0001 SA
6002-000239 SCREW-TAPPING;TH,+,-,2S,M4,L8,ZPC(WHT),S S0025 SA
6005-000124 SCREW-WOOD;RH,+,M5,L16,ZPC(WHT),MSWR10 S0018 SA
DB60-20015B BOLT-HEX;HEX,M10,L20,ZPC3,MSWR10,- B0249 SNA
DB61-30133B BRACKET-INSTALL;-,SBHG1-M,T1.0,-,-,-,- B0502 SA
DB69-40027A BAG PE;HDPE,0.05,100,150,-,-,-,- B0016 SA

Navigation menu
