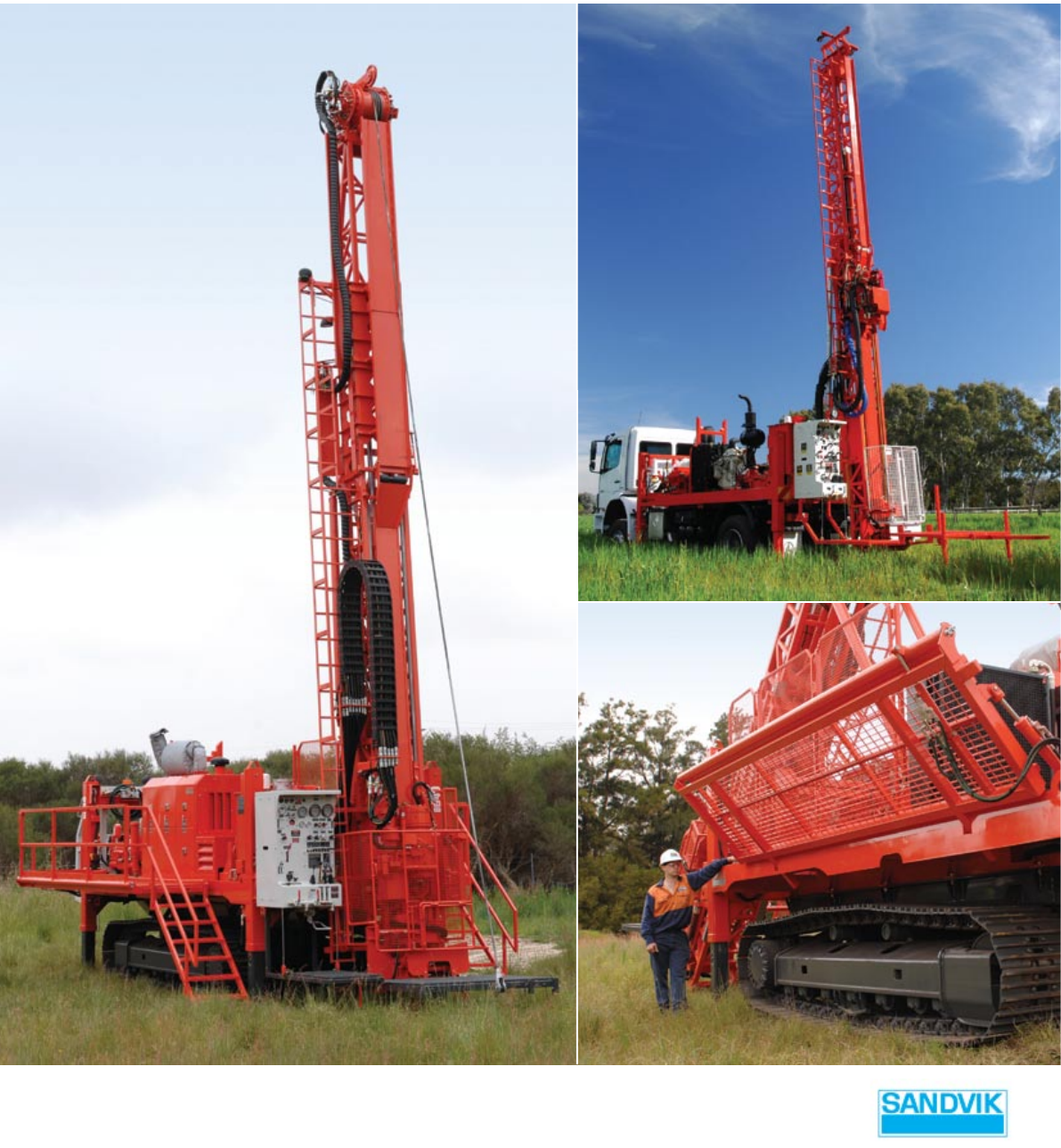

DE700 series
heavy duty core drills
Powerful drill rigs
with efficient footprints
DE740
The powerful DE740 has a design that allows pulling and
running of rods and casings in 9 m (30 ft) lengths. With its
efficient design and possibility to telescope the mast mak-
ing it 1,8 m (6 ft) shorter, it can be configured to suit your
transportation needs.
HWT chuck drive C40 ■
9 m (30 ft) rod pull capacity ■
Pull down 67 kN (15 000 lbf) ■
Pull back 133,5 kN (30 000 lbf) ■
Capacity of 1800 m (5900 ft) of 6,5 mm (1/4'') ■
wire rope
Depth capacity up to 1837 m (6025 ft) with N-size rods ■
DE710
The DE710 is a space efficient and powerful diamond core
drill with a heavy duty base frame. The versatile DE710 is
available in a range of different configurations to suit global
operational and environmental demands.
P-size rotation head chuck drive ■
6 m (20 ft) rod pull capacity ■
Pull down 53,2 kN (12 000 lbf) ■
Pull back 91,2 kN (20 500 lbf) ■
Capacity of 1000 m (3280 ft) of 6 mm (15/64'') wire rope ■
Depth capacity up to 1126 m (3693 ft) with N-size rods ■
Packed for shipment in a standard 40 ft shipping container ■
EXPERIENCED AND PROVEN
Sandvik has brought together some of the industry’s most
outstanding expertise, products and experience to provide
a unique offering in the area of exploration drilling. The
Sandvik heavy duty DE700 series consists of two dedicated
and powerful diamond core drills for surface exploration
applications - the DE710 and DE740. They are designed
for deep hole drilling and can be found in a wide range of
drilling operations such as mineral exploration, directional
drilling and geotechnical drilling all over the world - from
easy-access open pit mines to the remotest of areas. Thanks
to close cooperation with customers, these heavy duty drill
rigs for deep hole drilling can meet requirements in an im-
pressive range of applications.
CONFIGURED TO YOUR APPLICATION
The smaller in the series, the DE710, still has a remarkable
depth capacity up to 1126 m (3693 ft) with N size rods.
The DE740 is bigger and stronger with a depth capacity up
to 1837 m (6025 ft) with N size rods. The DE700 series is
available in a range of configurations which make the drills
uniquely suitable for operational and environmental
demands globally. The drills can be truck-mounted for
greater maneuverability and ease of relocating the drills be-
tween sites or can be fitted on crawler tracks, powered from
the rig hydraulic system, making the drills self-propelled
units for areas with difficult site access. The space efficient
design has proven a great benefit on sites where a small foot
print is required.
Select the right model and configuration to meet your ap-
plications needs in core drilling. With strategically located
Sandvik regional offices around the world to support you
with spare parts and service, drilling can be carried out with
minimal downtime.

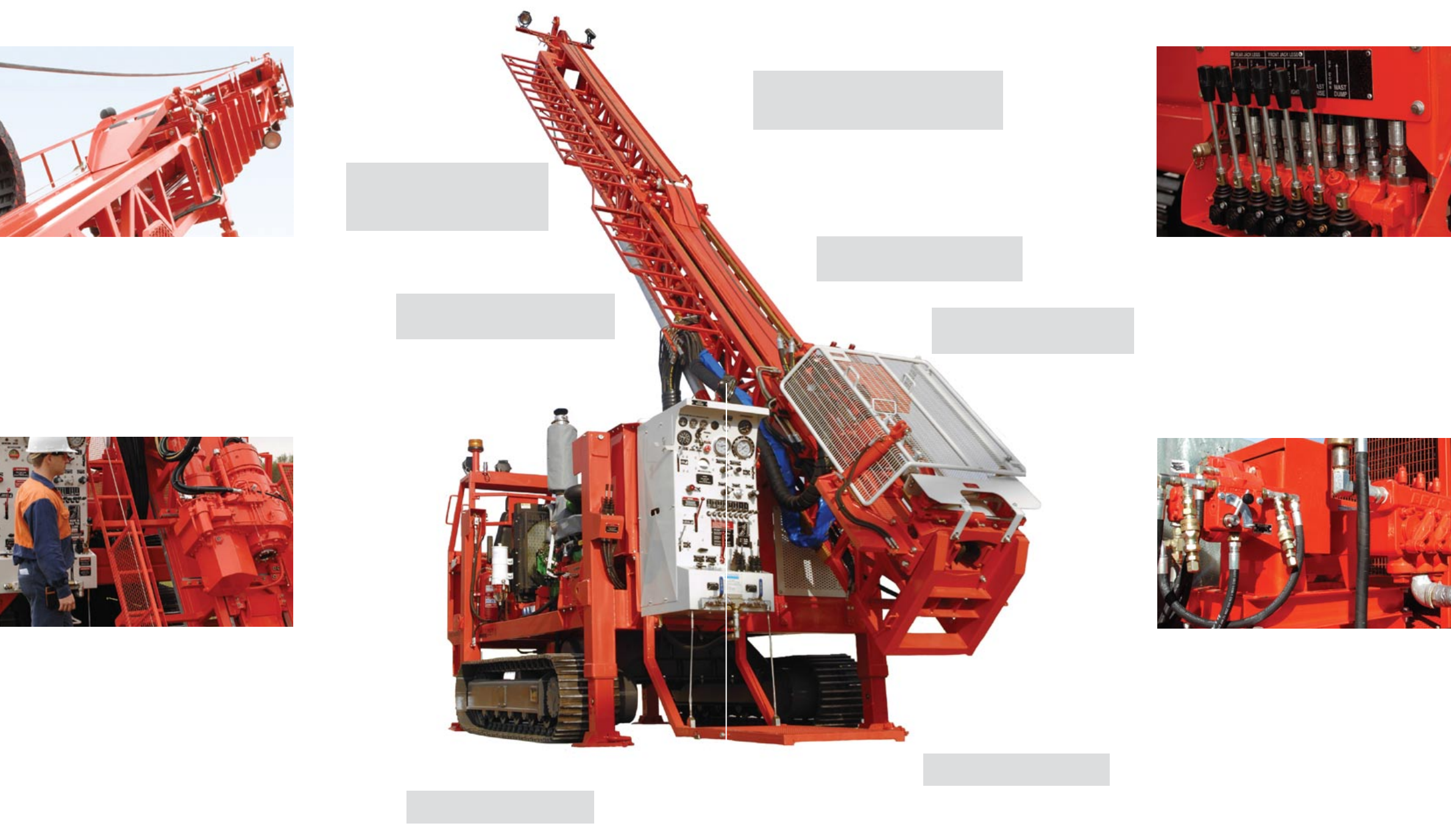

Robust and reliable
for high productivity
The long feed stroke combined with the ability to side
rack the rotation head provide the driller with more flex-
ibility and supports higher productivity.
ROBUST AND RELIABLE MAST
Capacity to angle drill between vertical and 45° ■
- Flexible drilling
Mast dump stroke is 1067 mm (3'5'') ■
- Ensures the mast is always able to make contact with the ground
- Flexible drilling even at acute angles or uneven drill pad
- Allows the mast to be as low as possible to ground
level, for ease of operation by driller and helpers
The design allows for pulling of core tubes and casings ■
up to 6 m (20 ft) for DE710 and up to 9 m (30 ft) for DE740
- Improves productivity
- Longer continuous core runs without drilling stoppage
Telescoping upper mast for DE740 ■
- Lowers to near horizontal position and telescopes 1,8 m
(6 ft) shorter for transportation
The design of the head traverse system includes a hydraulic cyl-
inder that is directly coupled to the rotation head carriage. This
design significantly reduces the amount of moving components
and reduces the overall maintenance costs for the drill.
To help the operators and to provide a safer working
environment, the DE710 and DE740 are equipped
with rod spin guards.
HIGHLY EFFICIENT HYDRAULICS
Highest quality axial and radial piston pumps and motors ■
used in three independent open loop circuits
Full flow 10 micron Beta rated return oil filtration ■
Larger than typical hoses and control valve sizes used ■
- Highest possible circuit efficiency
- Greater flexibility
- Precise control of critical drilling functions
- Proven reliability over thousands of hours
DIESEL ENGINES FOR TOP PERFORMANCE
Peak power rating of 134 kW (180 hp) at 2200 rpm for ■
DE710 and 194 kW (260 hp) at 2200 rpm for DE740
- Complies with Tier 3 emissions standards
- Provides low emission output combined with fuel
efficiency and performance
- Low weight and high performance engine
The cooling system has been design for operations in ■
ambient temperatures up to 50°C (122°F)
Hydraulically powered waterpump with a capacity of ■
140 l/min (37 GPM) at pressures up to 7000 kPa (1000 PSI)
- Flow rate is controlled and is infinitely variable
- All controls are located in the operator’s control panel
The operator has excellent accessibility for both
minor and major maintenance work thanks to the
drill’s open design. The robust drill mast is designed
so the parts at the top can be easily accessed and
maintained.
The powerful rotation unit features more torque for
higher productivity and has a simple design for easy
maintenance.
Operator’s platform allows the driller to have an
ergonomic work place.
Hydraulic leveling jacks make set-up fast and easy
and provide an ideal drilling position.
ROTATION UNIT FOR THE jOB
A variable displacement hydraulic motor drives the ■
rotation head gearbox
- Pilot-adjustable torque-speed control
- Controlled by operator from control panel
High/low manual gear change ■
Stepless speed control ■
- Speed control can be very precise
- Improves life time on bit
- Easier to spin
Air to oil lubrication, oil cooler fitted ■
■Efficient hydraulics for maximum output torque
- Higher productivity

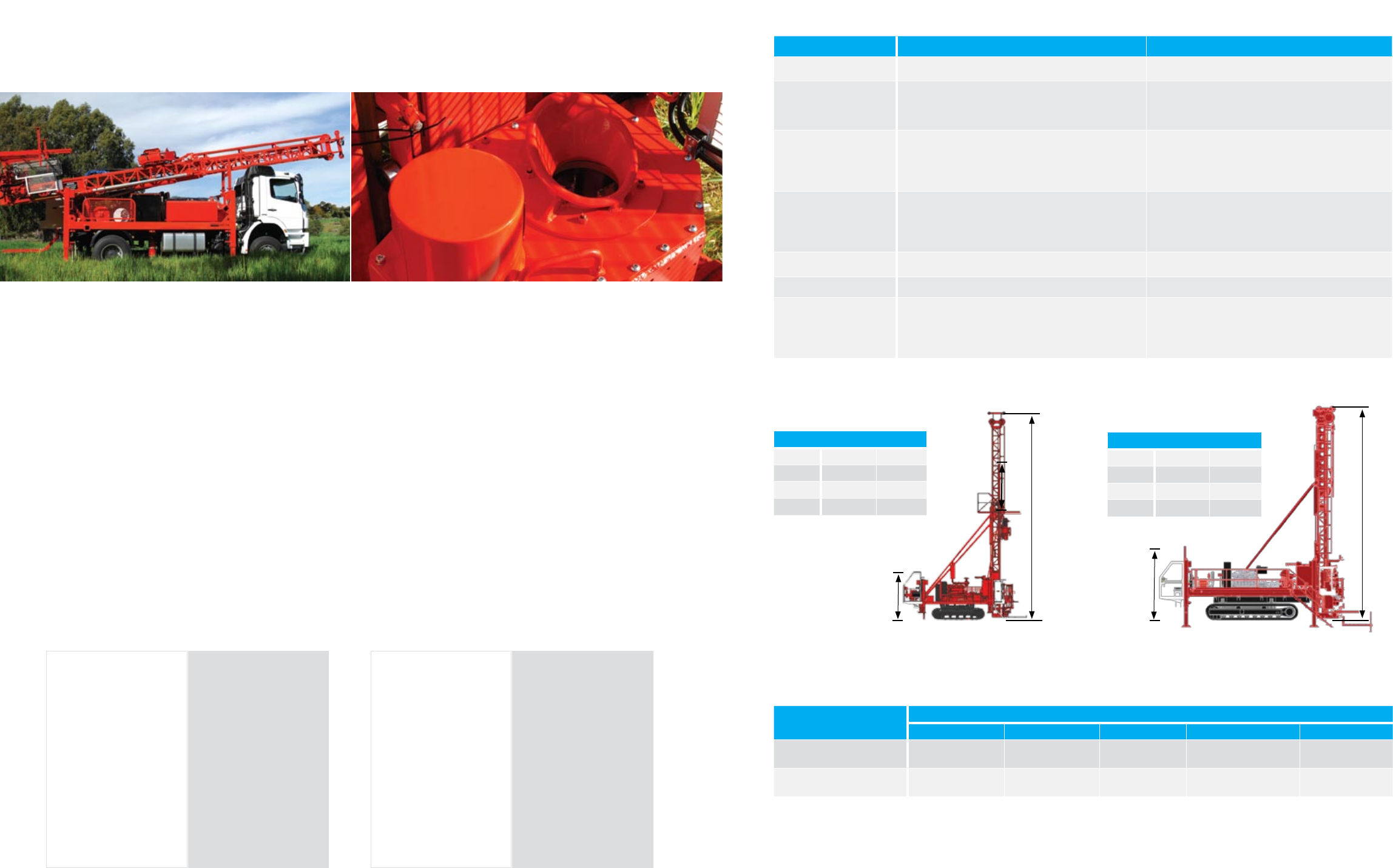

BASIC FACTS
User-friendly design
with high efficiency
Dimensions and weights
Depth capacity
EFFICIENT AND SECURE ROD HANDLING
Wide range of rod clamps, supplied for B, N, H and P sizes ■
44,5 mm to 177,8 mm (1 3/4'' to 7'')
- Flexibility in drilling
- Easy to remove jaws
- Hydraulically operated
Rod spin guard that cages off the rotation rods from the operator ■
and is hydraulically interlocked with rotation
- Reduces the rotation speed to 100 rpm when cage is opened
- Contribute to a safer and more comfortable working environment
Safety spin designed as a compact tool capable of making up and ■
breaking out of drill rod threads during rod tripping operations
- Reduces injury risks resulting from operator fatigue
- Provides consistent pre-torque joint for every joint in the drill string,
increasing drill rod thread life
DE710 popular options
- High altitude boost system
- Mast platform
- Upper rod breaker
- Fire suppression system
- Truck or crawler options
Benefits
- Enables operation above 3000 m
(10 000 ft)
- Allows stacking of drill rods and
casings in 6 m (20 ft) lengths; ease
of service
- Float up to break out a drill rod
joint or float down to make up a
drill joint, increases productivity
- Effective system to help protect the
drill and crew
- Flexibility for different applications
and environments
DE740 popular options
- High altitude boost system
- Fire suppression system
- Truck or crawler options
- Hydraulic folding walkaways
- Hydraulic leveling jacks
Benefits
- Enables operation above 3000 m
(10 000 ft)
- Effective system to help protect the
drill and crew
- Flexibility for different applications
and environments
- Ease of maintenance work
- For easy and fast set-up of drill unit
All dimensions and weights are approximate. Please see technical specification for more details and options.

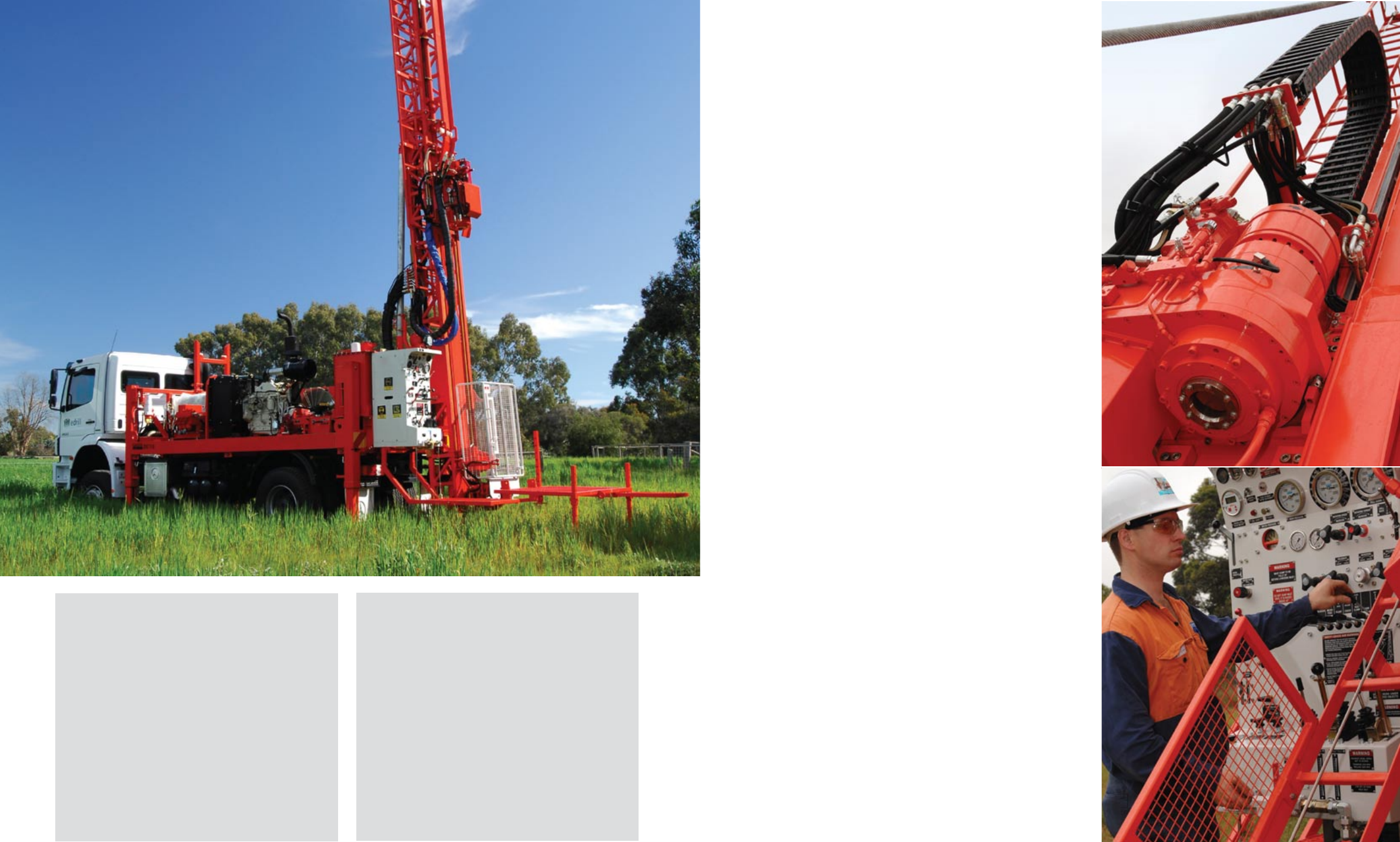

USER-FRIENDLY AND FLEXIBLE
■Flexible for alternative carriers
- Truck or crawler configuration
All components mounted on one platform ■
- Self-contained drill rig
- Makes it easier moving from drill site to drill site
- Allows a small footprint on site
The whole drilling procedure is controlled from one control panel ■
- The control panel is placed at the back of the drill rig and allows the
operator to have an excellent overview of the drill site
- The control panel is intuitive and easy to learn and operate
DE710 DE740
Drill mast 6 m (20 ft) rod pull capacity
1067 mm (3'6'') hydraulic mast dump
9 m (30 ft) rod pull capacity
1067 mm (3'6'') hydraulic mast dump
Rotation head
P chuck drive
High - low manual gear change
100 - 1500 rpm step less speed control
Lube oil lter tted on rig base
HWT chuck drive C40
High - low manual gear change
10 - 1500 rpm step less speed control
Air to oil lubrication oil cooler
Head traverse
Direct coupled to rotation head
3,45 m travers (11'3'')
Max. speed of 30 m/min (100 ft/min) up or down
Pull down 53,2 kN (12 000 lbf)
Pull back 91,2 kN (20 500 lbf)
Direct coupled to rotation head
3,45 m travers (11’3’’)
Max. speed of 30 m/min (100 ft/min) up or down
Pull down 67 kN (15 000 lbf)
Pull back 133,5 kN (30 000 lbf)
Wireline winch
Capacity of 1000 m (3280 ft) of 6 mm (15/64'')
wire rope
Variable speed control
Max. pull 7,8 kN (1750 lbf) bare drum
Max. speed 270 m/min (887 ft/min) full drum
Capacity of 1800 m (5900 ft) of 6,5 mm (1/4'')
wire rope
Variable speed control
Max. pull 21,4 kN (4800 lbf) bare drum
Max. speed 430 m/min (1411 ft/min) full drum
Water pump 140 l/min (37 GPM) at pressures up
to 7000 kPa (1000 PSI)
140 l/min (37 GPM) at pressures up
to 7000 kPa (1000 PSI)
Diesel engine 134 kW (180 hp) at 2200 rpm 194 kW (260 hp) at 2200 rpm
Rod clamp
B, N, H and P rod clamp jaws
Hydraulically operated and self energizing
Range of optional jaws available from 44,5 mm to
177,8 mm (1 3/4'' to 7'')
224 mm (8 3/4'') rod clamp body opening
B, N and H rod clamp jaws
Hydraulically operated and self energizing
44,5 mm to 177,8 mm (1 3/4’’ to 7’’)
224 mm (8 3/4’’) rod clamp body opening
Model Drill rod, m (ft)
A B N H P
DE710 1841
(6038)
1440
(4723)
1126
(3693)
754
(2473)
509
(1670)
DE740 N/A 2350
(7708)
1837
(6025)
1230
(4034)
831
(2726)
These calculations are based on feedback from field operatives and can be reasonably expected with vertical, water filled holes, by a well-trained drilling crew
using high quality drilling tools. Sandvik cannot guarantee that these results will be achieved in all drilling conditions.
*Approximate weight for bare drill on hydraulic jack-up tray
DE710
A2,25 m 7’2”
B9,1 m 30'2"
Width 2,2 m 7'2"
Weight* 7200 kg 15 875 lb
DE740
A3,8 m 12’6”
B9,3 m 30'6"
Width 2,2 m 7'2"
Weight* 12 200 kg 26 900 lb
B
A
B
A
SANDVIK MINING AND CONSTRUCTION • www.sandvik.com
Sandvik is a high-technology engineering group with
world-leading positions in selected areas – tools for metal
working, advanced materials technology, and mining and
construction. We are represented in 130 countries.
Sandvik Mining and Construction represents one third of
the overall Sandvik Group and serves a broad range of
customers in construction, mineral exploration, mining
and bulk materials handling. Our construction expertise
covers quarrying, tunneling, demolition and recycling, and
other civil engineering applications. Our mining products
and services support customers on the surface and under
ground, in all mineral, coal and metal mining applications
from exploration to ore transportation.
Article No B2-319:1 ENG
® SANDVIK is a registered trademark owned by Sandvik Companies in Sweden and other countries. © 2011 SANDVIK
Performance is based on ideal conditions. Sandvik reserves the right to amend specifications without notice
