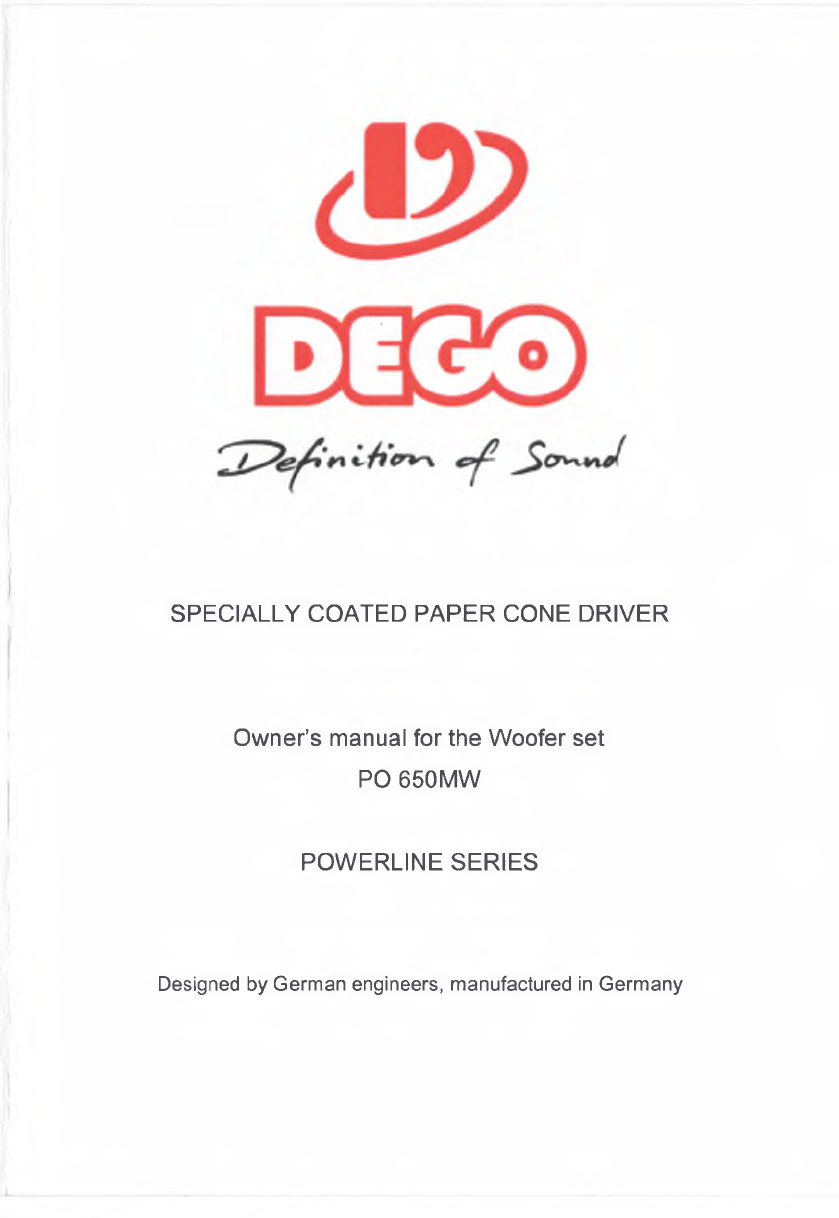

SPECIALLY COATED PAPER CONE DRIVER
Owner’s manual for the Woofer set
PO 650MW
POWERLINE SERIES
Designed by German engineers, manufactured in Germany

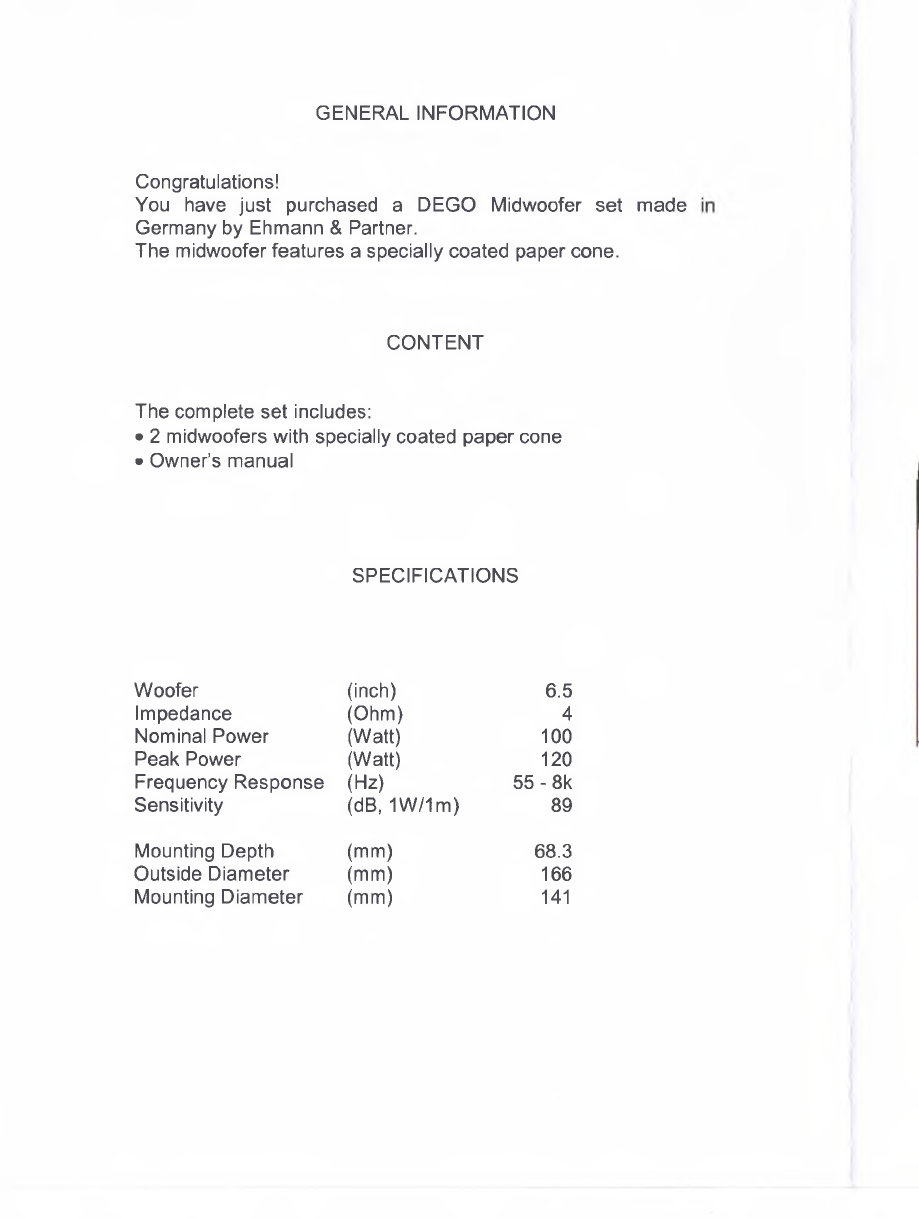

GENERAL INFORMATION
Congratulations!
You have just purchased a DEGO Midwoofer set made
Germany by Ehmann & Partner.
The midwoofer features a specially coated paper cone.
CONTENT
The complete set includes:
• 2 midwoofers with specially coated paper cone
• Owner’s manual
SPECIFICATIONS
Woofer (inch) 6.5
Impedance (Ohm) 4
Nominal Power (Watt) 100
Peak Power (Watt) 120
Frequency Response (Hz) 55-8k
Sensitivity (dB, 1W/1m) 89

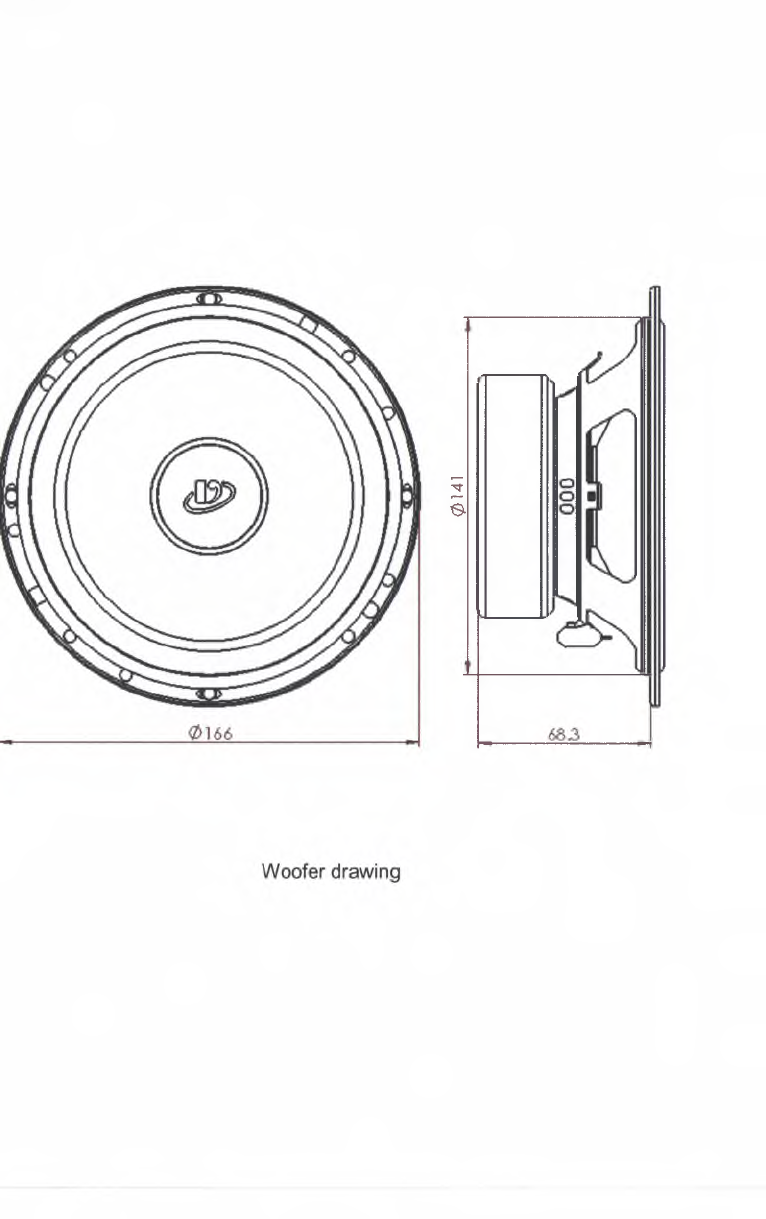

Mounting Depth (mm) 68.3
Outside Diameter (mm) 166
Mounting Diameter (mm) 141
Speaker Specification
DC resistance
Nominal impedance
Voice coil inductance
Voice coil diameter
Voice coil height
Height of gap
Linear excursion
Max. mech. excursion
Resonance frequency
Mechanical Q factor
Electrical Q factor
Total Q factor
Moving mass
Effective piston area
Mechanical Resistance
Compliancce
Force factor
Equivalent volume
Efficiency
SPL 1W/1m
SPL 2,83V/1m
Re 3.4 Cl
Zn 4Cl
Le 0.33 mH
37 mm
12 mm
6 mm
±3 mm
±11 mm
fs 61 Hz
Qms 6.40
Qes 0.54
Qt 0.50
Mms 14.0 9
Sd 135 cm2
Rms 0.86 kg/s
Cms 0.46 mm/N
Bl 5.9 Tm
Vas 11.9 dm3
0.52 %
89 dB
93 dB
Frequency response [1W/1m]
Impedance
Harmonic Distortion [1W/1m]
\ AT В
[Hz]
0141
