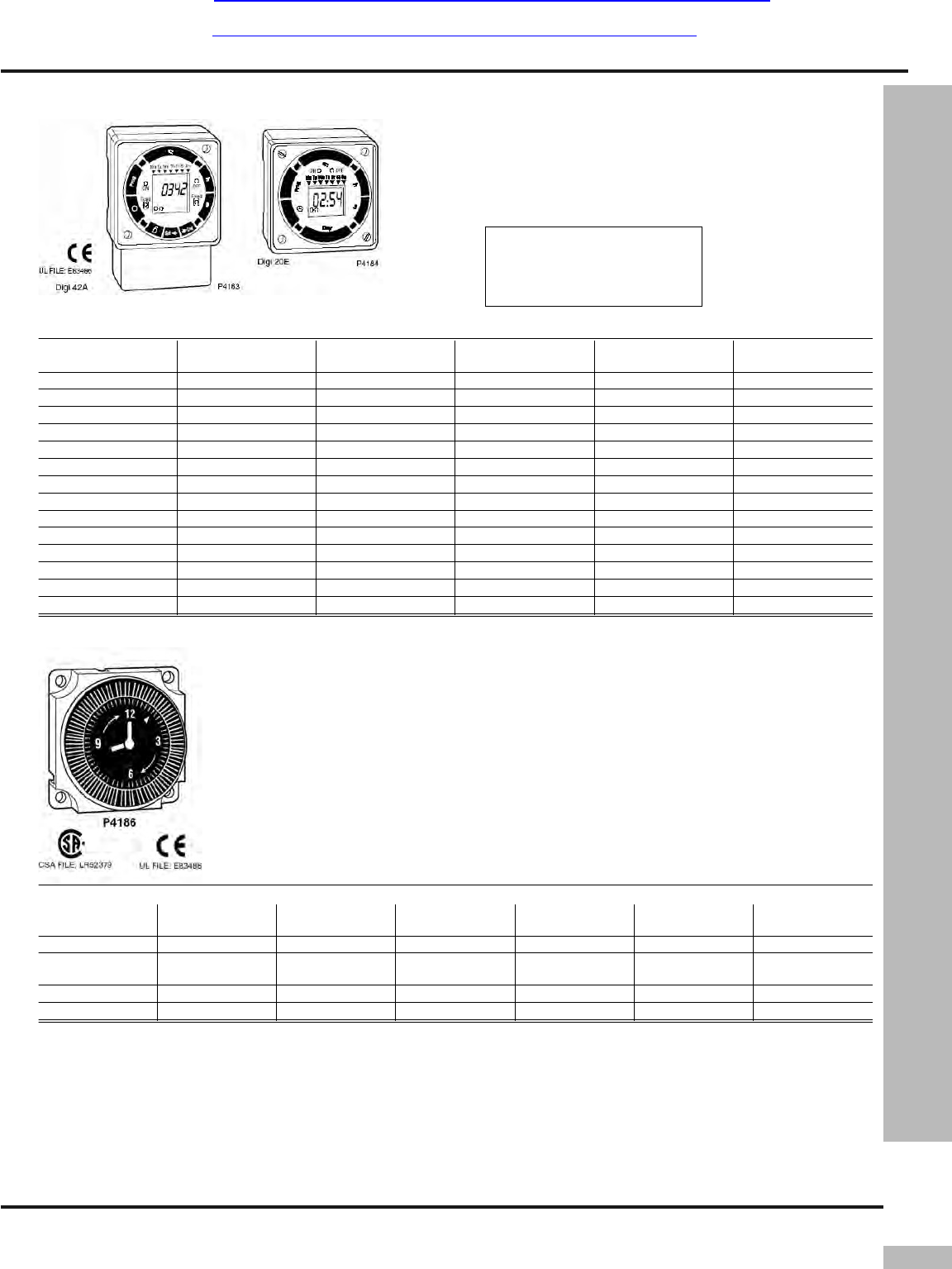

GRASSLIN - digi 20, digi 42 SERIES (24-Hour, 7-Day)
• Automatic Daylight Time changeover with Digi 42
• Holiday program with Digi 42.
• Rechargeable battery backup with 1 week or more carryover.
• 16 amp, SPDT switching.
]
C.E.C. CERTIFIED
TITLE 24, PART 6
ON ALL MODELS MARKED WITH “†”
PART NO TIMER VOLTAGE MOUNTING* SETPOINT PROGRAMS MAXIMUM WEEKLY ON/OFF
EVENTS
RELAY OUTPUT GENERAL
PURPOSE RATING
Digi 20A — 120 120 V, 50/60 Hz Surface or DIN Rail 20 140 SPDT, 16 A, 250 V
Digi 20A — 240 208/240 V, 50/60 Hz Surface or DIN Rail 20 140 SPDT, 15 A, 250 V
Digi 20A — 24 24 V, 50/60 Hz Surface or DIN Rail 20 140 SPDT, 16 A, 250 V
Digi 20A — 277 277 V, 50/60 Hz Surface or DIn Rail 20 140 SPDT, 16 A, 250 V
Digi 42A — 120† 120 V, 50/60 Hz Surface or DIN Rail 42 294 SPDT, 16 A, 250 V
Digi 42A — 240† 208/240 V, 50/60 Hz Surface or DIN Rail 42 294 SPDT, 16 A, 250 V
Digi 42A — 24† 24 V, 50/60 Hz Surface or DIn Rail 42 294 SPDT, 16 A, 250 V
Digi 20E — 120 120 V, 50/60 Hz Flush Panel 20 140 SPDT, 16 A, 250 V
Digi 20E — 240 208/240 V, 50/60 Hz Flush Panel 20 140 SDPT, 16 A, 250 V
Digi 20E — 24 24 V, 50/60 Hz Flush Panel 20 140 SPDT, 16 A, 250 V
Digi 20E — 277 277 V, 50/60 Hz Flush Panel 20 140 SPDT, 16 A, 250 V
Digi 42E — 120† 120 V, 50/60 Hz Flush Panel 42 294 SDPT, 15 A, 250 V
Digi 42E — 240† 208/240 V, 50/60 Hz Flush Panel 42 294 SDPT, 16 A, 250 V
Digi 42E — 24† 24 V, 50/60 Hz Flush Panel 42 294 SPDT, 16 A, 250 V
GRASSLIN - FM/1 SERIES (24-Hour, 7-Day)
The FM/1 series modules are designed to be placed inside a machine control panel, circuit
board, or other equipment. It offers up to 21A switching designed for control of heating,
ventilating, air conditioning, refrigeration, lighting, security, circulating pumps, spas or any
electrical load requiring 24-hour or 7-day scheduling.
• Authentic clock face.
• 21 A SPDT switch.
• Captive Trippers.
SWITCH OUTPUT
PART NO MINIMUM ON/OFF TIME SWITCH PROGRAM CARRY-OVER PROGRAM ON/OFF
EVERY
TypeRating
FM/1 StuZ (synchronous) 15 minutes 21 A Res. No 15 minutes SPDT 21 A Res.
FM/1 SWuZ
(synchronous)
2 hours 21 A Res. No 2 hours SPDT 21 A Res.
FM/1 QtuZ (quartz) 15 minutes 21 A Res. 7 day 15 minutes SPDT 21 A Res.
FM/1 QWuZ (quartz) 2 hours 21 A Res. 7 day 2 hours SPDT 21 A Res.
NOTES:
1. Available with 24 V, 120 V, 240 V, 277 VAC input. 2. Quartz also available with 12 V, 30 V, 60 V, or 120 VDC input.
http://waterheatertimer.org/Intermatic-trippers-and-parts.html#digi
http://waterheatertimer.org/Intermatic-timers-and-manuals.html#FMD
