DIRBS Core Release 8.0.0 User Guide

DIRBS_User_Guide

User Manual:

Open the PDF directly: View PDF .
Page Count: 98

Qualcomm Technologies, Inc.

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0

International License.

DIRBS Core Release 8.0.1

User Guide

80-GD079-2 Rev. D

July 30, 2018

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Revision history

Revision

Date

Description

January 2018

Initial release

April 2018

Updates for DIRBS 7.0.0 release

May 2018

Updates for DIRBS 8.0.0 release

July 208

Updates for DIRBS 8.0.1 release


80-GD079-2 Rev. D  Copyright (c) 2018 Qualcomm Technologies, Inc.  3
This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
Contents
Introduction ........................................................................................................................... 7
Configuring DIRBS Core ....................................................................................................... 9
1 Copying the config file ................................................................................................................................ 9
2 Database details ........................................................................................................................................ 9
3 Regional settings ..................................................................................................................................... 10
3.1 Operator settings .................................................................................................................... 10
4 Data purging ............................................................................................................................................ 11
5 List generation settings ............................................................................................................................ 11
6 Report generation settings ....................................................................................................................... 12
7 Multiprocessing settings ........................................................................................................................... 12
8 Operator data import validation thresholds .............................................................................................. 13
9 Historic thresholds ................................................................................................................................... 14
10 Classification conditions ......................................................................................................................... 14
11 Logging settings ..................................................................................................................................... 15
12 StatsD settings ....................................................................................................................................... 16
13 Data catalog settings ............................................................................................................................. 17
Operating DIRBS Core .........................................................................................................18
1 Data in the Docker instance ..................................................................................................................... 18
2 Managing database schema – dirbs-db ............................................................................................... 18
2.1 Creating DIRBS Core PostgreSQL roles – dirbs-db install_roles ............................. 19
2.2 Installing schema into a clean database – dirbs-db install ........................................... 19
2.3 Checking status of the database schema – dirbs-db check ............................................. 20
2.4 Upgrading the database schema – dirbs-db upgrade ...................................................... 20
3 Importing data into DIRBS Core – dirbs import ................................................................................. 20
3.1 GSMA TAC DB – dirbs-import gsma_tac ...................................................................... 22
3.2 operator data dumps – dirbs-import operator.............................................................. 23
3.3 golden list data – dirbs-import golden_list ................................................................ 26
3.3.1 golden list delta import .............................................................................................. 27
3.4 Local stolen list data – dirbs-import stolen_list ........................................................ 27
3.4.1 stolen list delta import ............................................................................................... 28
3.5 pairing list data – dirbs-import pairing_list .............................................................. 29
3.5.1 pairing list delta import .............................................................................................. 30
3.6 registration list data – dirbs-import registration_list ............................................ 30
3.6.1 registration list delta import ....................................................................................... 31
4 Automating import of new files ................................................................................................................. 31
4.1 Sample Makefiles and Jenkins ............................................................................................... 31
5 Classification of IMEIs – dirbs-classify ............................................................................................ 32
6 Generating lists – dirbs-listgen ........................................................................................................ 35
7 Generating DIRBS reports – dirbs-report ......................................................................................... 37
7.1 dirbs-report directory structure ....................................................................................... 40
8 Accessing the API server ......................................................................................................................... 41
8.1 Data catalog API ..................................................................................................................... 42
8.2 Job metadata API ................................................................................................................... 43

DIRBS Core Release 8.0.1 User Guide  Contents
80-GD079-2 Rev. D  Copyright (c) 2018 Qualcomm Technologies, Inc.  4
This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
8.3 TAC API .................................................................................................................................. 44
8.4 IMEI API ................................................................................................................................. 44
8.5 MSISDN API ........................................................................................................................... 44
8.6 Version API ............................................................................................................................. 44
9 Pruning old data ....................................................................................................................................... 44
Understanding DIRBS Reports ...........................................................................................46
1 Standard reports ...................................................................................................................................... 46
1.1 Country report ......................................................................................................................... 47
1.1.1 HTML ........................................................................................................................ 47
1.1.2 JSON ........................................................................................................................ 54
1.1.3 CSV .......................................................................................................................... 68
1.2 Operator reports ..................................................................................................................... 68
1.2.1 CSV .......................................................................................................................... 69
2 Condition IMEI overlaps reports ............................................................................................................... 69
3 GSMA not found reports .......................................................................................................................... 70
4 Stolen violations reports ........................................................................................................................... 70
5 Top duplicates reports ............................................................................................................................. 71
Understanding DIRBS Lists ................................................................................................72
1 Blacklist .................................................................................................................................................... 72
1.1 Full blacklist ............................................................................................................................ 72
1.2 Delta blacklist ......................................................................................................................... 73
2 Notifications lists ...................................................................................................................................... 74
2.1 Full notification list .................................................................................................................. 74
2.2 Delta notification lists .............................................................................................................. 75
3 Exceptions lists ........................................................................................................................................ 76
3.1 Full exceptions list .................................................................................................................. 76
3.2 Delta exceptions list ................................................................................................................ 76
Frequently Asked Questions ...............................................................................................78
1 How does duplicate averaging work? ...................................................................................................... 78
2 Reported error during dirbs-classify or dirbs-import ................................................................................. 78
3 Reported error during dirbs-import .................................................................................................... 79
4 Understanding gsma_not_found Reporting Body Index delay configuration ............................................ 79
5 Duplicate and conflicting rows in non-operator imports............................................................................ 80
5.1 Key and metadata columns .................................................................................................... 80
5.1.1 Normalized IMEI – imei_norm ................................................................................... 81
5.2 Problems ................................................................................................................................ 81
5.2.1 Duplicate keys in the file ........................................................................................... 81
5.2.2 Prior resolution of conflicting rows required .............................................................. 82
5.3 Options for resolving a conflicting row problem ...................................................................... 83
6 DIRBS Amnesty feature ........................................................................................................................... 83
6.1 Enabling and configuring amnesty in .dirbs.yml ...................................................................... 84
6.2 Eligibility and notifications ....................................................................................................... 84
6.2.1 Modifications ............................................................................................................. 85
6.2.2 Disabling ................................................................................................................... 85
6.3 Stolen, paired, and golden IMEI interaction ............................................................................ 85
6.3.1 Post-amnesty ............................................................................................................ 86
A DIRBS Configuration File Sample: YML .............................................................................87
A.1 Sample annotated config for DIRBS Core configuration.......................................................................... 87
B Sample Conditions: YML ....................................................................................................96


DIRBS Core Release 8.0.1 User Guide  Contents
80-GD079-2 Rev. D  Copyright (c) 2018 Qualcomm Technologies, Inc.  5
This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
Figures

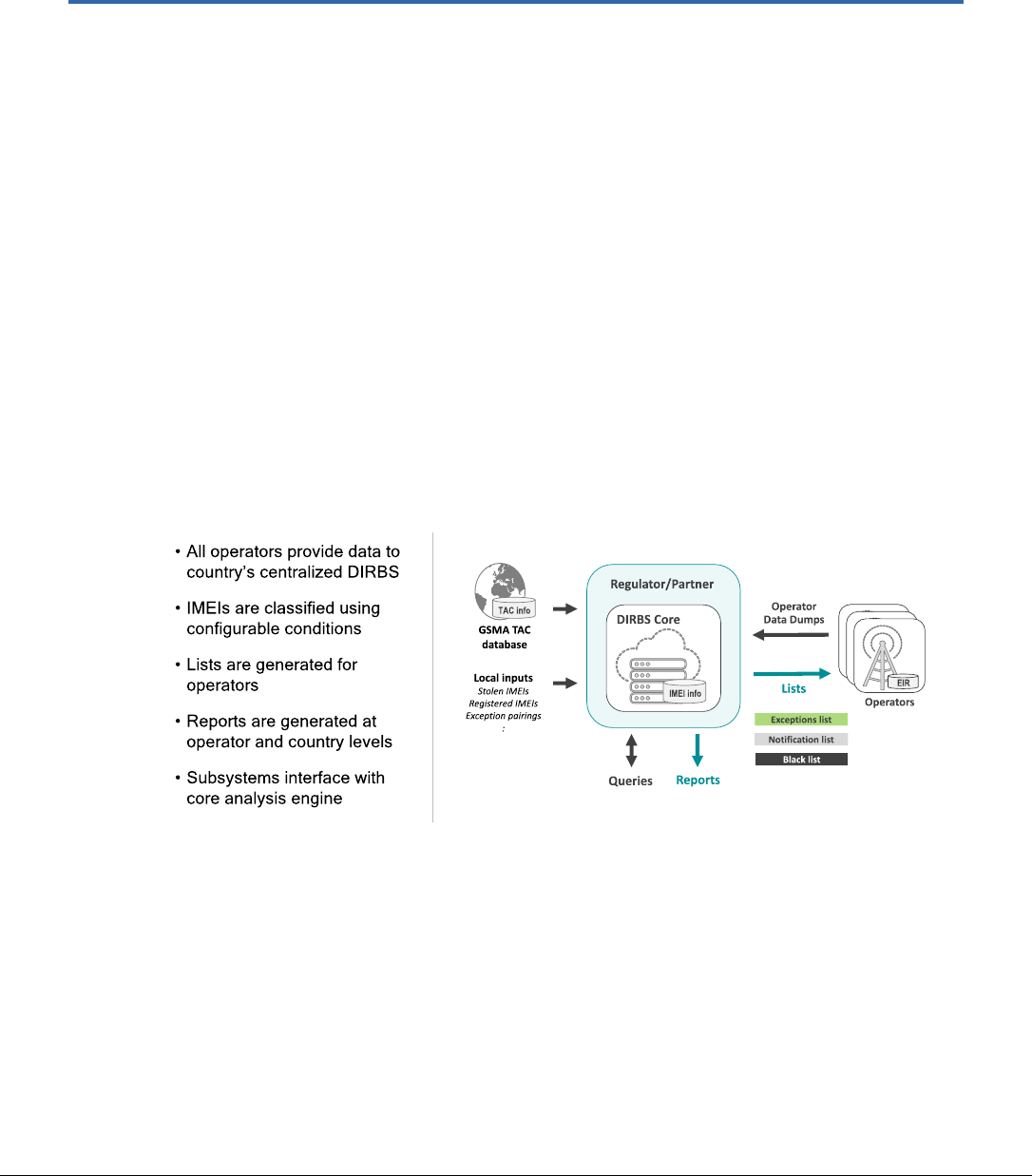

Figure 1-1 DIRBS Core .................................................................................................................................................. 7

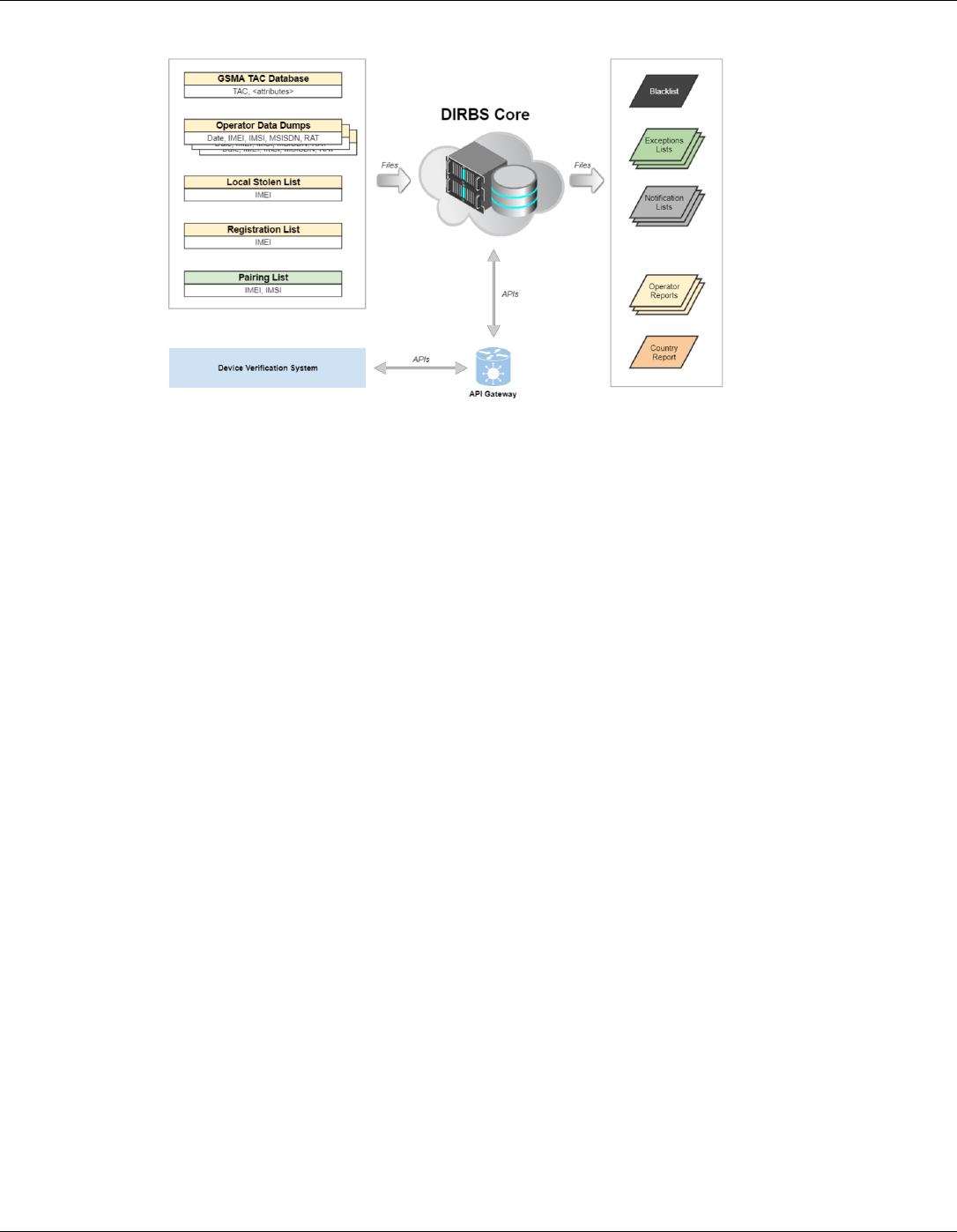

Figure 1-2 DIRBS input/output ....................................................................................................................................... 8

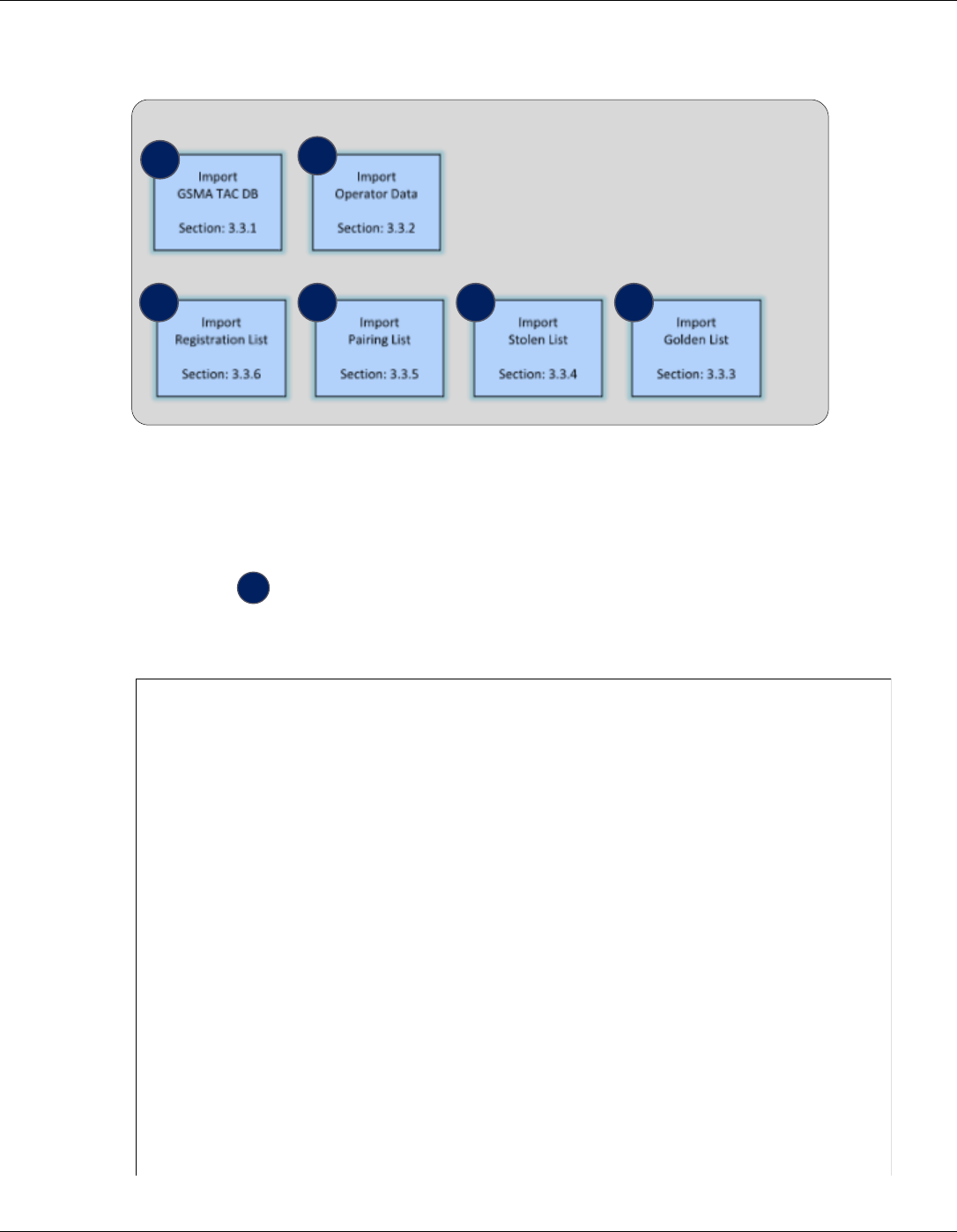

Figure 3-1 Importing data into DIRBS .......................................................................................................................... 21

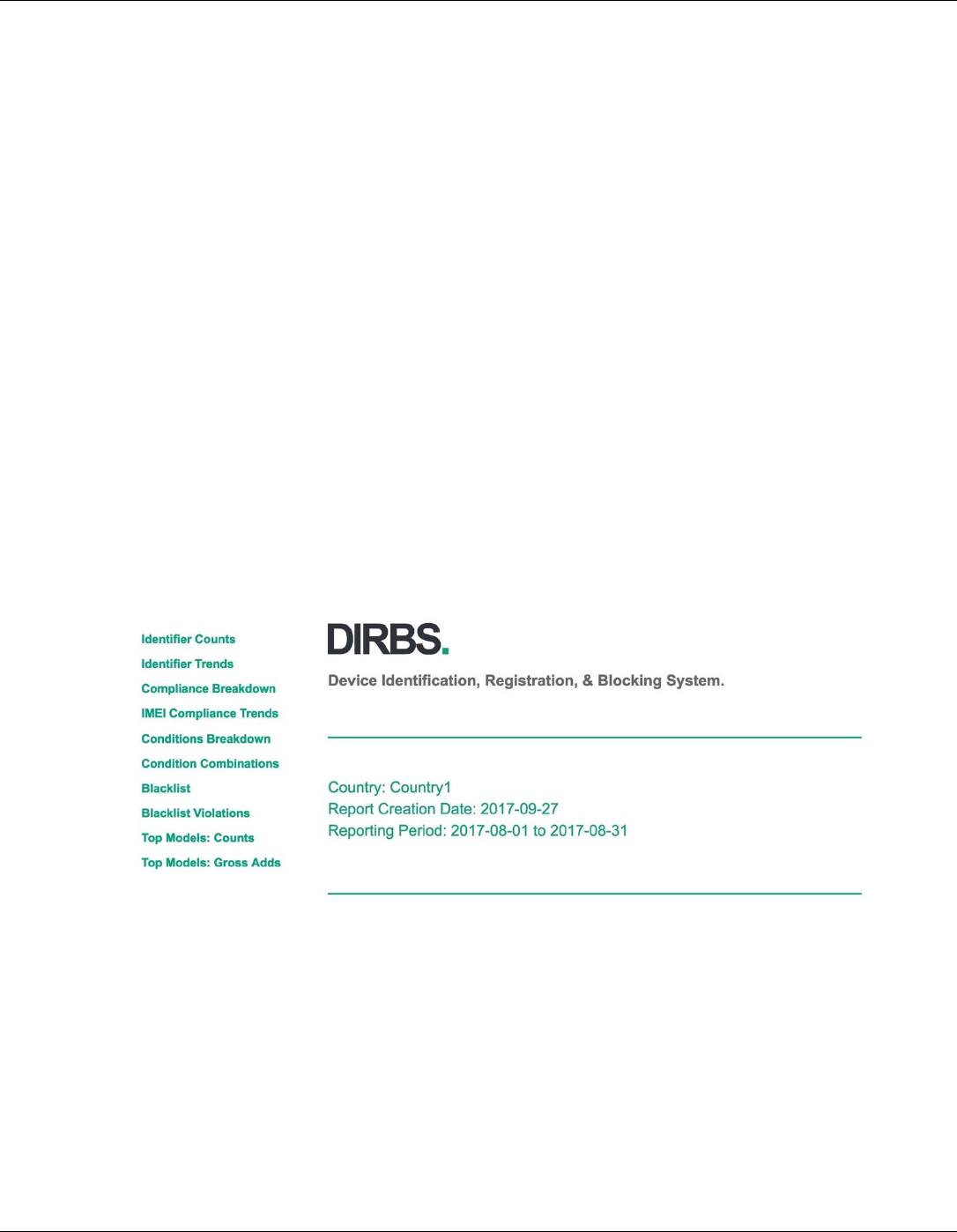

Figure 4-1 Country report main page – HTML ............................................................................................................. 47

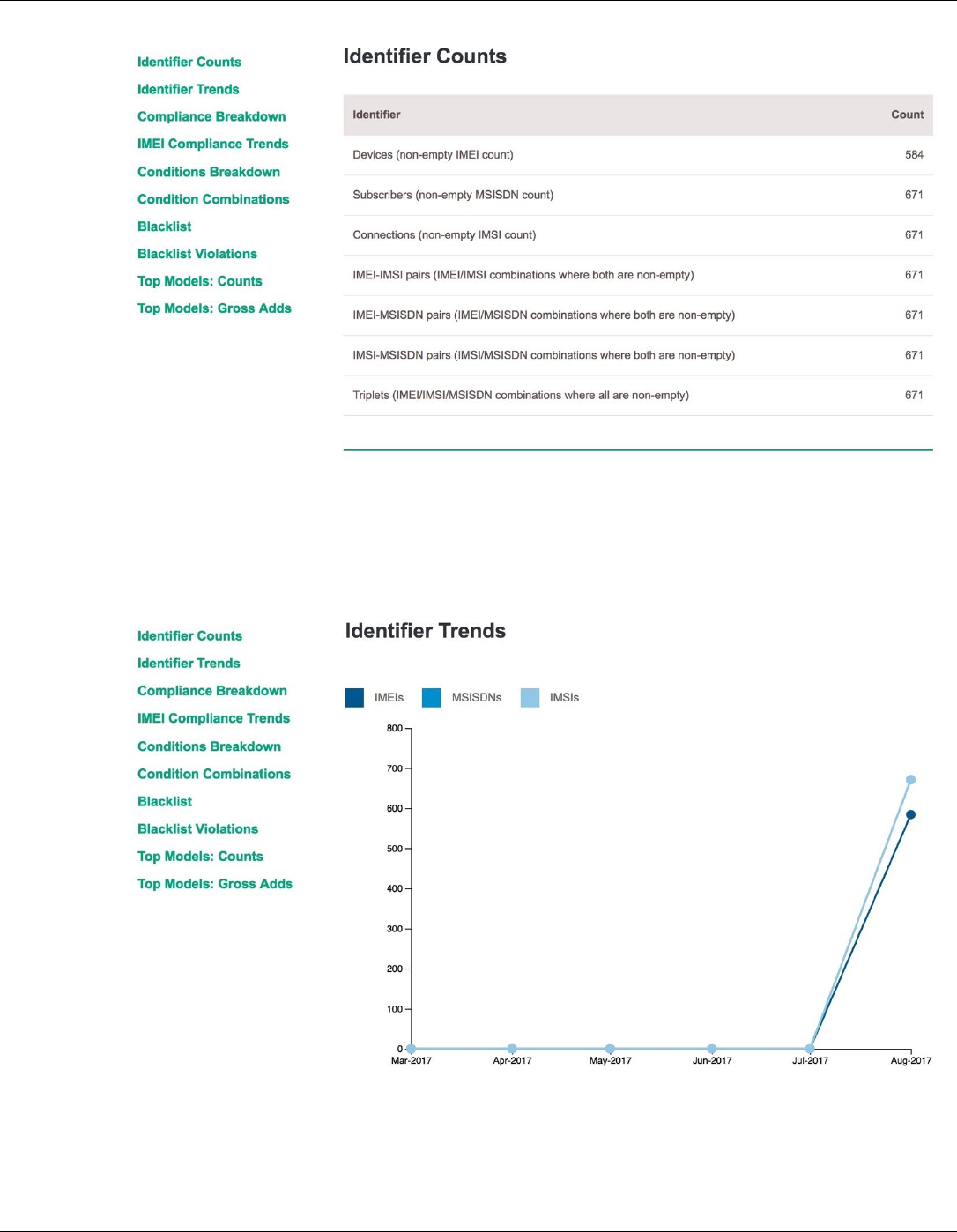

Figure 4-2 Identifier counts .......................................................................................................................................... 48
Figure 4-3 Identifier trends ........................................................................................................................................... 48

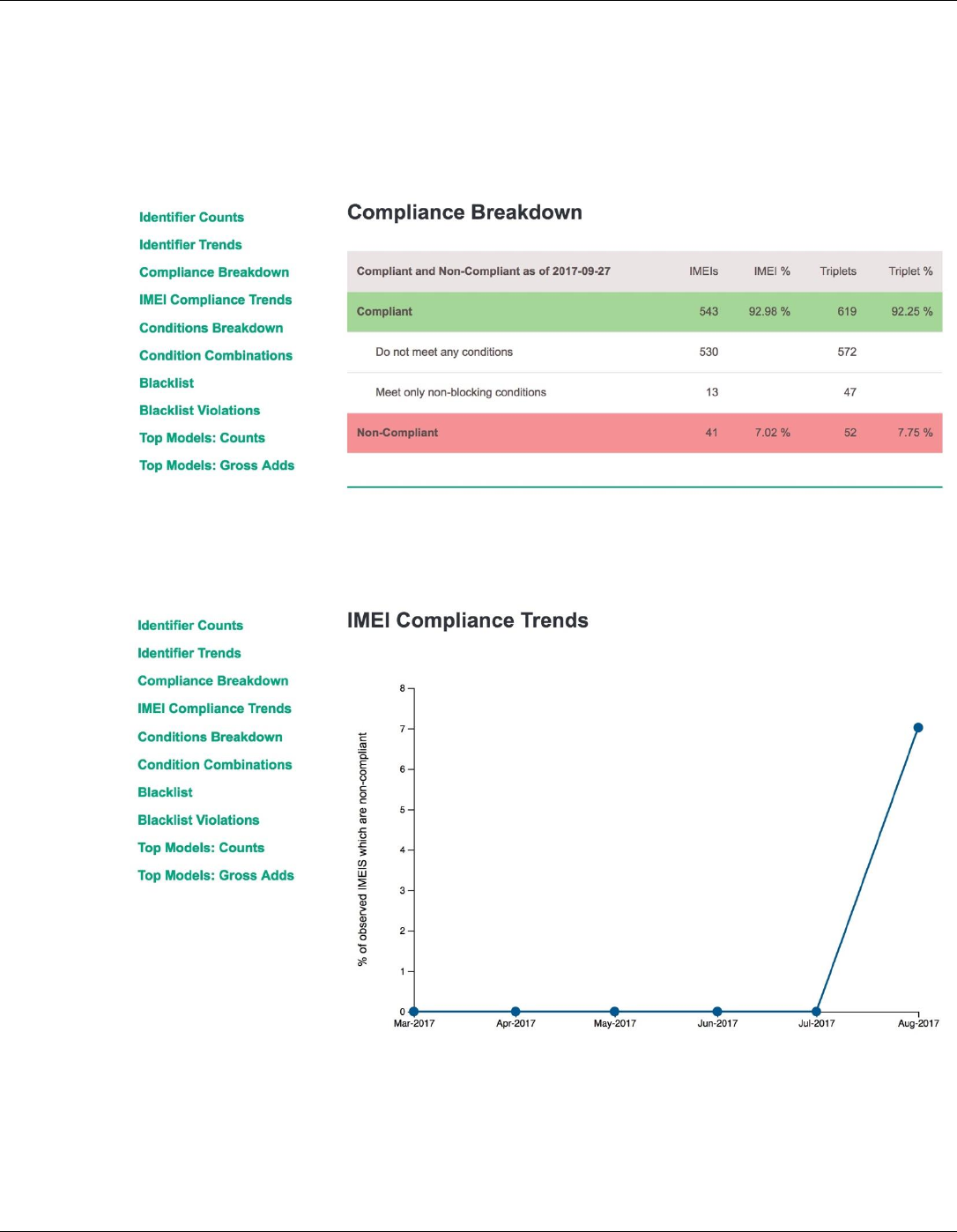

Figure 4-4 Compliance breakdown .............................................................................................................................. 49
Figure 4-5 IMEI compliance trends .............................................................................................................................. 49

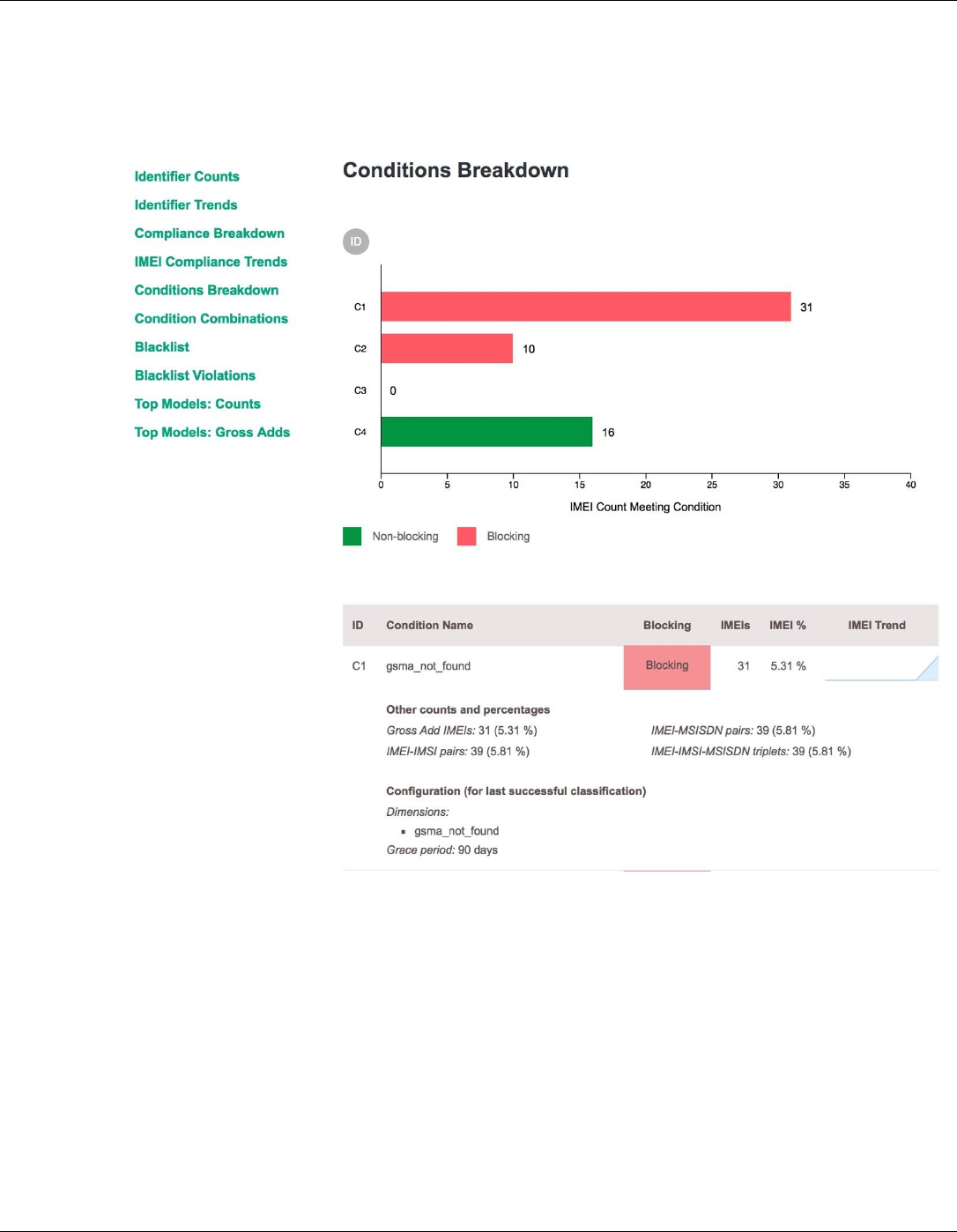

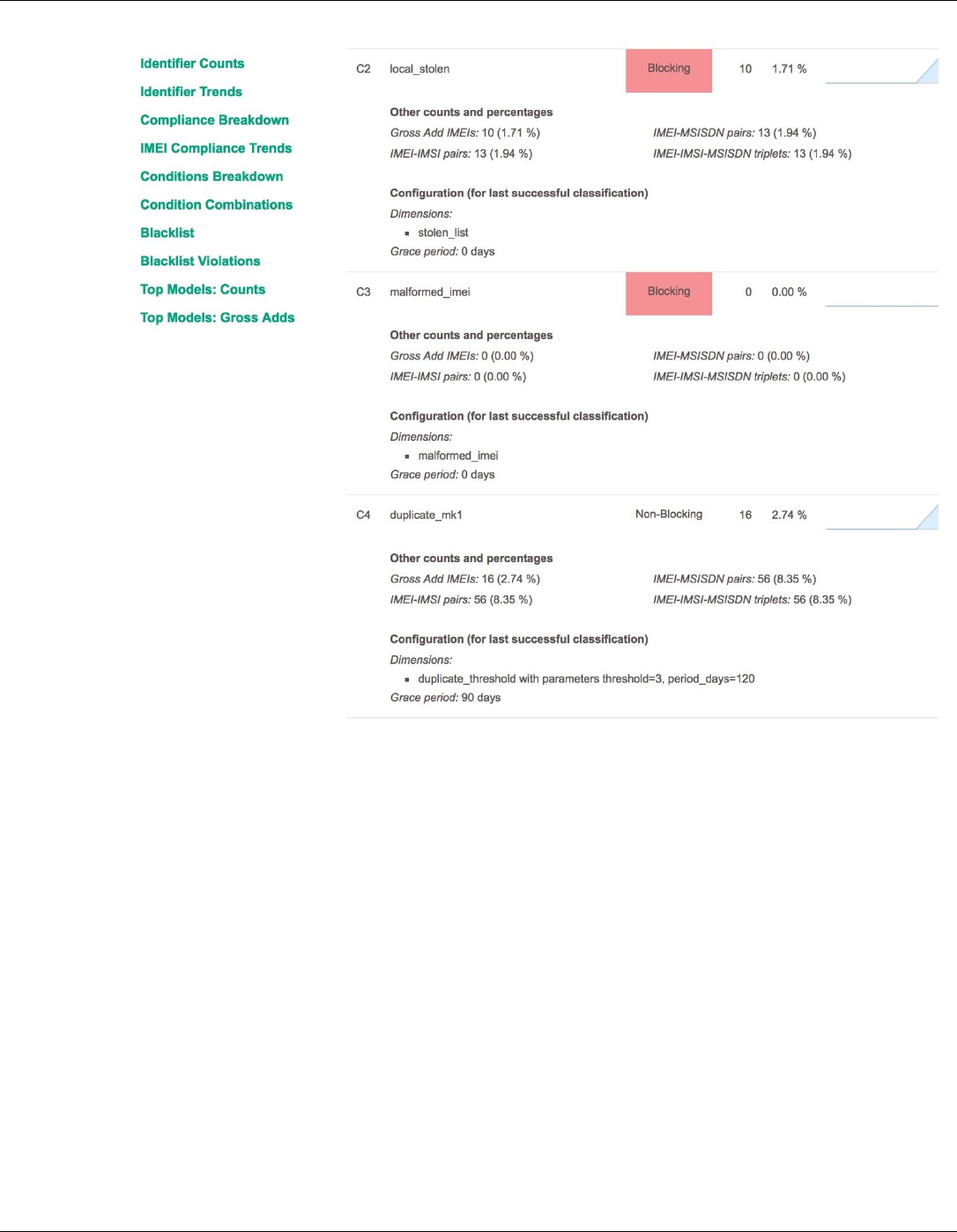

Figure 4-6 Conditions breakdown ................................................................................................................................ 51

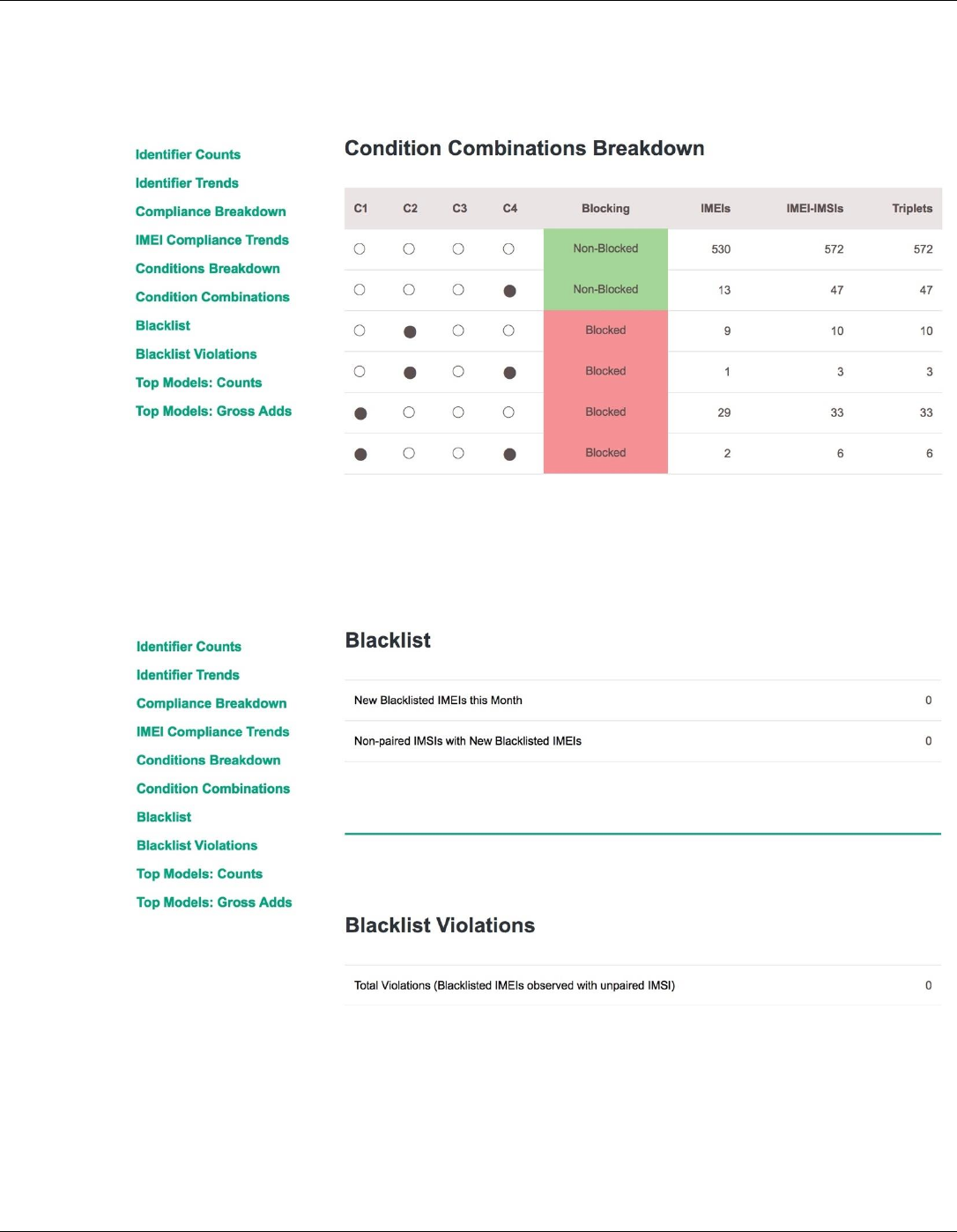

Figure 4-7 Condition combinations ............................................................................................................................... 52
Figure 4-8 Blacklist and blacklist violations .................................................................................................................. 52

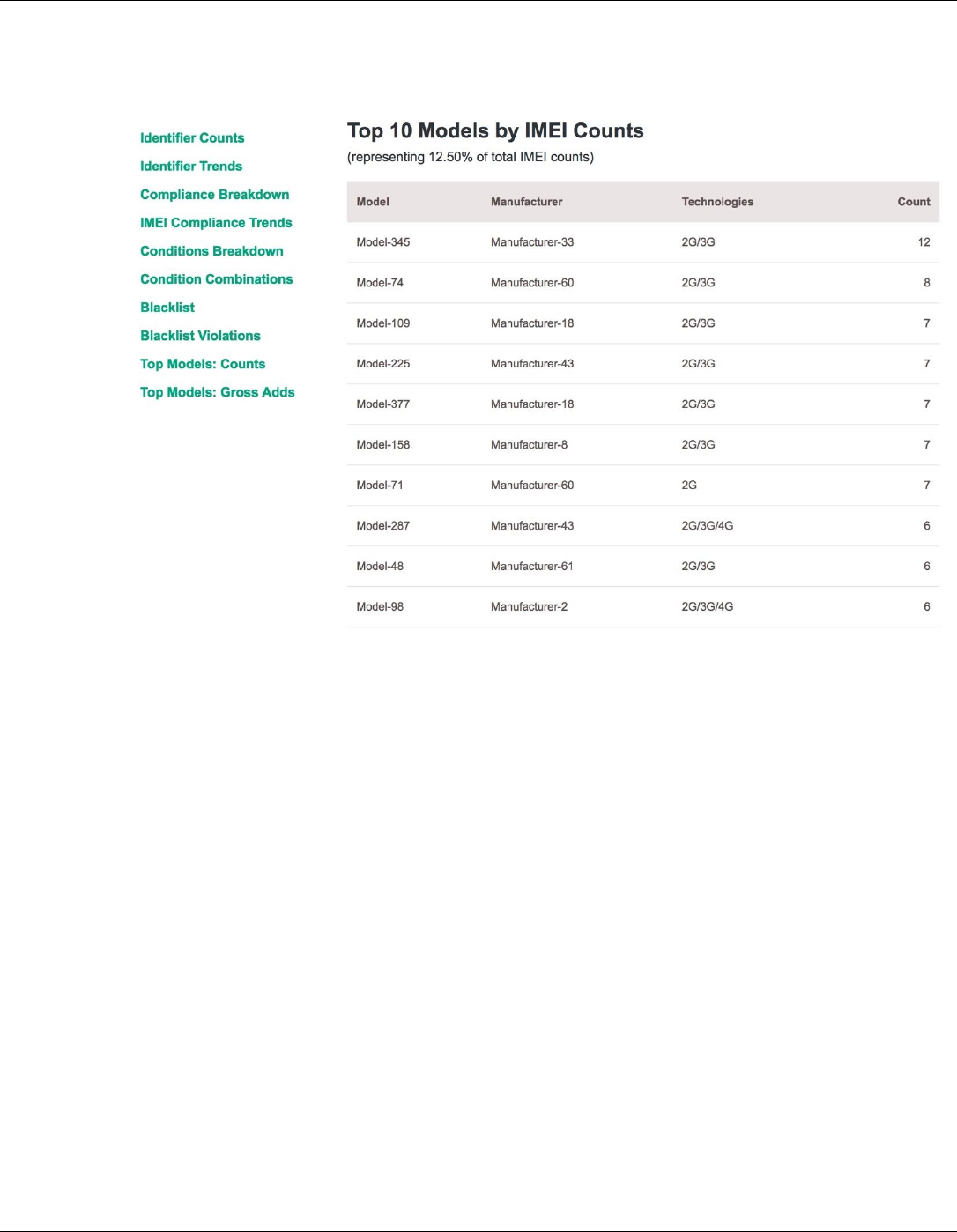

Figure 4-9 Top models: counts..................................................................................................................................... 53
Figure 4-10 Top models: gross adds ............................................................................................................................ 54

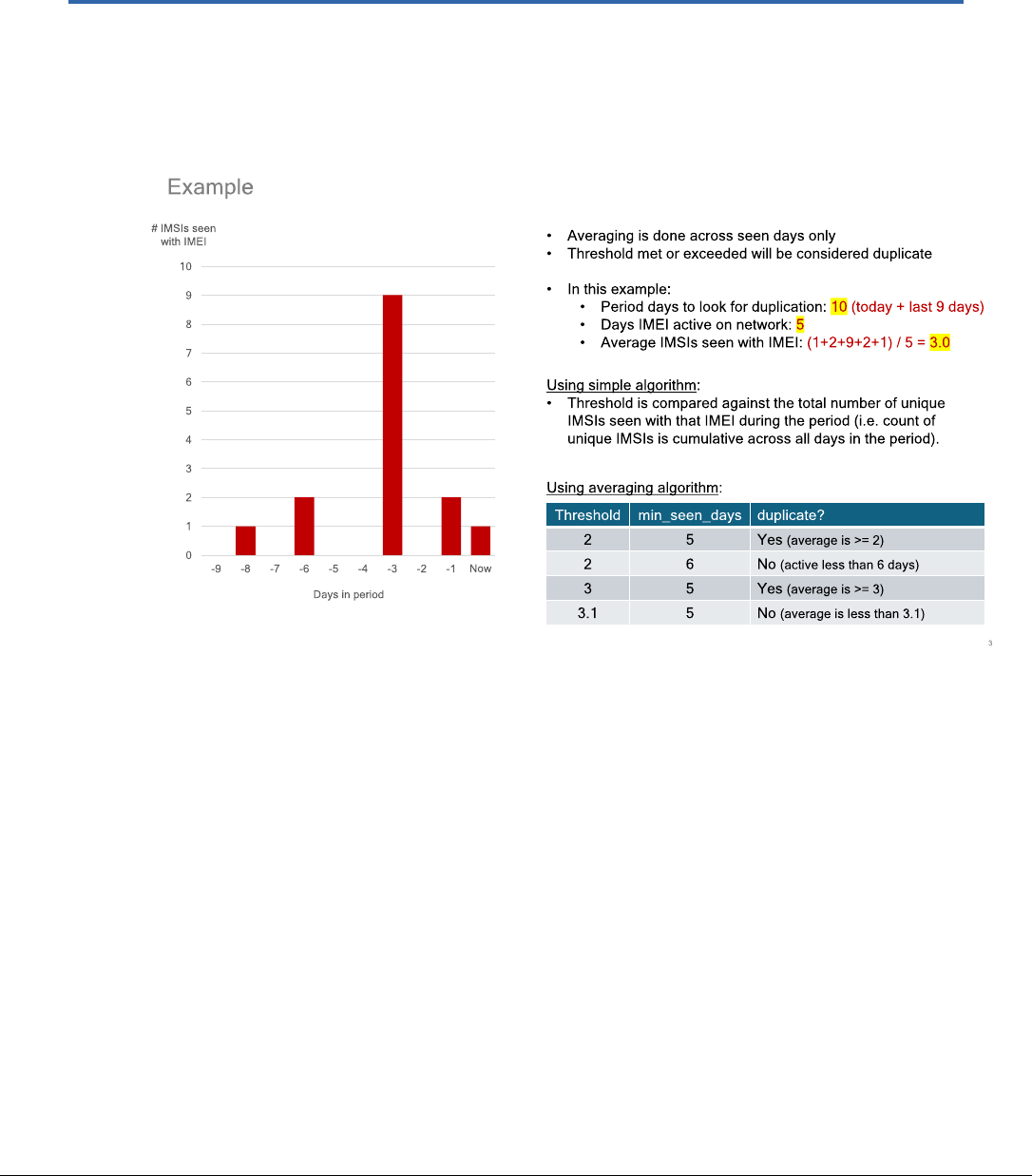

Figure 7-1 Duplicate averaging .................................................................................................................................... 78
Figure 6-2 RBI delay .................................................................................................................................................... 80

Tables
Table 2-1 Configuring database settings ........................................................................................................................ 9
Table 2-2 Configuring regional settings ........................................................................................................................ 10
Table 2-3 Operator settings ......................................................................................................................................... 10
Table 2-4 Data retention settings ................................................................................................................................. 11
Table 2-5 List generation settings ................................................................................................................................ 11
Table 2-6 Report generation settings ........................................................................................................................... 12
Table 2-7 Multiprocessing settings ............................................................................................................................... 12
Table 2-8 Import validation thresholds ......................................................................................................................... 13
Table 2-9 Historic threshold ......................................................................................................................................... 14
Table 2-10 Conditions settings ..................................................................................................................................... 14
Table 2-11 Logging settings ......................................................................................................................................... 15
Table 2-12 StatsD Settings .......................................................................................................................................... 16
Table 2-13 Data catalog settings.................................................................................................................................. 17
Table 3-1 gsma_tac fields and format .......................................................................................................................... 22
Table 3-2 operator data fields and format .................................................................................................................... 24
Table 3-3 Validation checks ......................................................................................................................................... 24
Table 3-4 golden list MD5 pre-hashed fields and format .............................................................................................. 26
Table 3-5 golden list fields and format ......................................................................................................................... 26
Table 3-6 stolen list fields and format ........................................................................................................................... 28
Table 3-7 pairing list fields and format ......................................................................................................................... 29
Table 3-8 registration list fields and format .................................................................................................................. 30
Table 3-9 Implemented dimensions and parameters ................................................................................................... 32
Table 3-10 DIRBS Core lists ........................................................................................................................................ 36
Table 3-11 Report types ............................................................................................................................................... 37
Table 3-12 Data catalog API ........................................................................................................................................ 42
Table 3-13 Job metadata API ...................................................................................................................................... 43
Table 3-14 Prune commands ....................................................................................................................................... 44
Table 4-1 Blacklist information ..................................................................................................................................... 55
Table 4-2 Compliance breakdown................................................................................................................................ 57
Table 4-3 Condition combinations ................................................................................................................................ 58
Table 4-4 Conditions breakdown.................................................................................................................................. 59

DIRBS Core Release 8.0.1 User Guide  Contents
80-GD079-2 Rev. D  Copyright (c) 2018 Qualcomm Technologies, Inc.  6
This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
Table 4-5 Historic IMEI, IMSI, MSISDN and triplet counts ........................................................................................... 63
Table 4-6 IMEI/IMSI and IMSI/IMEI overloading .......................................................................................................... 64
Table 4-7 Daily counts for IMEIs, IMSIs and MSISDNs ............................................................................................... 64
Table 4-8 Top models .................................................................................................................................................. 66
Table 4-9 Monthly counts ............................................................................................................................................. 67
Table 5-1 Blacklist event types..................................................................................................................................... 73
Table 5-2 Notification list event types ........................................................................................................................... 75
Table 5-3 Exceptions list change types ........................................................................................................................ 77
Table 6-1 Key and metadata columns .......................................................................................................................... 80
Table 6-2 Stolen list ..................................................................................................................................................... 81
Table 6-3 Stolen list after normalization ....................................................................................................................... 81
Table 6-4 Conflicting rows ............................................................................................................................................ 82
Table 6-5 Future DIRBS Core registration list .............................................................................................................. 82
Table 6-6 Normalized delta file..................................................................................................................................... 83
Table B-1 YML sample configuration ........................................................................................................................... 96

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

1 Introduction

The Device Identification, Registration & Blocking System (DIRBS) is a country-wide system

deployed in cooperation between the country regulator, operators in that country, and a

technology partner that supports deployment. The system checks, identifies, and discourages non-

compliant devices by verifying the installed base of devices currently active in a market and

continuing to monitor as new devices are activated.

DIRBS can verify that:

■ Devices have properly allocated identifiers and type approval

■ Devices are not duplicated or stolen

■ Device importation takes place through legal channels

DIRBS consists of the DIRBS Core and a set of DIRBS Interface Systems that interface with

DIRBS Core (see Figure 1-1 and Figure 1-2).

NOTE: DIRBS Interface Systems may be developed by third-party technology partner(s).

Figure 1-1 DIRBS Core

DIRBS Core Release 8.0.1 User Guide Introduction

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Figure 1-2 DIRBS input/output

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

2 Configuring DIRBS Core

A sample config file, config.yml, was distributed with this release. When DIRBS Core scripts

run, they look for a file in ~/.dirbs.yml. If that file is not found, look in the system location

/opt/dirbs/etc/config.yml.

For the complete sample .yml file, see Appendix 0.

2.1 Copying the config file

To run a configuration using Docker, edit ./etc/config.yml, and rebuild the Docker images.

If you are not using Docker:

1. Copy dirbs config to the appropriate location with:

cp /opt/dirbs/etc/config.yml ~/.dirbs.yml

2.2 Database details

Table 2-1 lists settings of the postgresql section in the sample config. These values are

overridden by the environment variable if configured.

Table 2-1 Configuring database settings

Config file setting

name

Environment variable

name

Function

database

DIRBS_DB_DATABASE

Database name (an empty database on the first

run)

host

DIRBS_DB_HOST

Host that the PostgreSQL server runs on

port

DIRBS_DB_PORT

PostgreSQL port if not running on standard port

of 5432

user

DIRBS_DB_USER

Username (user should have all privileges

specified on the database)

password

DIRBS_DB_PASSWORD

Password used to connect to the database

DIRBS Core Release 8.0.1 User Guide Configuring DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

NOTE: The database password can be configured in several ways and are dependent on the level of

security required in your deployed system. The password may be configured in the following

ways:

■ In clear text in the .dirbs.yml file by configuring the password setting.

■ The user’s .pgpass file located in their home directory.

■ The DIRBS_DB_PASSWORD environment variable is set. This overwrites values

configured in the .dirbs.yml and the .pgpass file

■ The password can be provided in the dirbs command-line option as –db-password-prompt.

2.3 Regional settings

DIRBS Core uses regional settings for reporting and input validation. Table 2-2 lists settings of

the region section in the sample config.

Table 2-2 Configuring regional settings

Config file setting

name

Value, range

Function

name

String

Name used for the country level report

import_msisdn_data

True/False

Whether or not MSISDN data is present and should be

imported for this region

import_rat_data

True/False

Whether or not RAT data is present and should be

imported for this region

country_codes

Digits

▪ List of country codes for the region.

▪ Used to validate MSISDNs in operator data dumps

exempted_device_types

String

▪ Exempted_device_types contains a list of GSMA

device types that do not require registration in this

country.

▪ Specifiying a list of device types here will mean that

the not_in_registration_list classification dimension

will ignore IMEIs whose TACs correspond to the listed

device types. They will also be ignored in the IMEI

API's realtime registration check.

operators

See Section 2.3.1

2.3.1 Operator settings

The region config has an operators section. Table 2-3 lists the settings for each operator section

in the sample config.

Table 2-3 Operator settings

Setting

Value, range

Function

String

Operator ID (short string used to uniquely id operator)

name

String

Longer name for the operator, used in reports

DIRBS Core Release 8.0.1 User Guide Configuring DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Setting

Value, range

Function

mcc_mnc_pairs

Digits

MCC/MNC pairs for the operator

▪ Validate IMSIs during operator data import

▪ Determine which operator notifications about an

offending subscriber should be sent to

▪ Determine which operators excepted IMEI-IMSI pairings

should be sent to

2.4 Data purging

The sample config has a data_retention section that defines the number of months operator

data can remain before it is deleted from the system (see Error! Reference source not found.).

NOTE: The DIRBS Core system does not delete CSV data off disk. Purging only applies to data in the

database. It is recommended that an operator of the DIRBS Core system write a small job to

remove old CSV data if this is also required by regulation.

Table 2-4 Data retention settings

Setting

Value, range

Function

months_retention

Integer

▪ The number of months from the start of the current

month that DIRBS Core retains data about a triplet seen

in its DB.

▪ After this time, the triplet will be erased from the

seen_triplet table. The IMEI continues to be stored after

this date as it is needed for continued list generation, etc.

All references to IMSI and MSISDN will be pruned after

this date.

▪ If this value is set to two months and the current date is

March 29, only the data in December or earlier will be

purged from the database when the dirbs-prune

command is run.

2.5 List generation settings

The sample config has a list_generation section containing a list of configurable settings

related to list generation (see Table 2-5).

Table 2-5 List generation settings

Setting

Value, range

Function

lookback_days

Integer

The number of days that DIRBS Core looks back

through data from the current date to determine

IMSIs/MSISDNs which were associated with the

notifiable IMEIs.

restrict_exceptions

_list_to_blacklisted_imeis

True/False

▪ If true, the exception list contains only those IMEI-

IMSI pairs where the IMEI is on the blacklist.

▪ By default, all IMEI-IMSI pairs of the pairing list are

output to the exception list.

DIRBS Core Release 8.0.1 User Guide Configuring DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Setting

Value, range

Function

generate_check_digit

True/False

▪ If true, generates a check digit for IMEIs during list

generation.

▪ Check digit will only be added to "valid IMEIs".

output_invalid_imeis

True/False

▪ If true, outputs only "valid" IMEIs.

▪ Valid IMEIs start with 14 digits (they will have 15

digits if the check digit append has been enabled).

2.6 Report generation settings

The sample config has a report_generation section containing a list of configurable settings

related to report generation process (see Table 2-6).

Table 2-6 Report generation settings

Setting

Value, range

Function

blacklist_violations_grace_period_days

Integer

Used by blacklist violations and stolen list

violations reports to give the MNO some

processing time (in days) before an IMEI

appearing on the network is considered a

violation.

2.7 Multiprocessing settings

The sample config has a multiprocessing section that outlines how DIRBS Core uses multiple

cores and database connections to speed up processing (see Table 2-7).

Table 2-7 Multiprocessing settings

Setting

Value, range

Function

max_local_cpus

Integer

▪ Maximum number of local processing blade workers to

achieve DIRBS Core tasks

▪ Useful for pre-validation of large operator import jobs where

we can run multiple instances of the pre-validator in parallel

on different parts of the file

▪ Default is to use half of the available CPUs in the system

max_db_connections

Integer

▪ Maximum number of database connections to parallelize

DIRBS Core tasks

 PostgresSQL 9.6 has support for parallelizing tasks

internally and this setting does not affect parallelization

for a single connection

▪ When PostgresSQL cannot parallelize a single query by

itself, we use this number of workers to issue multiple

queries at once on different connections

 Generally scales very well, safe to set this high

 Should probably be set to roughly the number of disks in

your RAID array

DIRBS Core Release 8.0.1 User Guide Configuring DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Setting

Value, range

Function

max_db_writers

Integer

▪ Number of I/O write-intensive DB connections to use at once

 Should be lower than max_db_connections

 For RAID-10, this should be set to about half of

max_db_connections to indicate the paired nature of that

type of RAID array

2.8 Operator data import validation thresholds

The sample config has an operator_threshold section containing a list of validation thresholds

for operator data. These thresholds are used when importing operator data using the dirbs-

import command. Table 2-8 lists the settings for these thresholds and their functions.

Table 2-8 Import validation thresholds

Setting

Value,

range

Function

null_imei_threshold

null_imsi_threshold

null_msisdn_threshold

null_rat_threshold

Decimal,

0.0-1.0

▪ Proportion of entries in the data allowed to have one or

more of IMSI, MSISDN, IMEI, or RAT as null

▪ null_msisdn_threshould is ignored if import_msisdn_data

is set to False

▪ null_rat_threshold is ignored if import_rat_data is set to

False

null_threshold

Decimal,

0.0-1.0

▪ Proportion of the entries in the data allowed to have any

column equal to NULL.

▪ Only includes columns enabled in the import (MSISDN

and RAT may be excluded)

unclean_imei_threshold

Decimal,

0.0-1.0

Proportion of non-NULL IMEIs in the data allowed to not

start with 14 digits

unclean_imsi_threshold

Decimal,

0.0-1.0

Proportion of non-NULL IMSIs in the data allowed to not be

14-15 digits

unclean_threshold

Decimal,

0.0-1.0

Proportion of entries in the data allowed to have either an

unclean IMEI or an unclean IMSI

out_of_region_imsi_threshold

Decimal,

0.0-1.0

Proportion of non-NULL IMSIs in the data allowed to have

an MCC that does not match the configured region

out_of_region_msisdn_thresh

old

Decimal,

0.0-1.0

▪ Proportion of non-NULL MSISDNs in the data allowed to

have a CC that does not match the configured region

▪ Ignored if MSISDN disabled

out_of_region_threshold

Decimal,

0.0-1.0

▪ Combined proportion of entries in the data allowed to

have either a CC (IMSI) or MCC (MSISDN) that does not

match the configured region

▪ Ignored if MSISDN disabled (same as the out-of-region

IMSI check)

non_home_network_threshold

Decimal,

0.0-1.0

Proportion of entries in the data allowed to have an IMSI not

starting with one of the MCC-MNC prefixes associated with

the operator the data is being imported for

historic_imei_threshold

Decimal,

0.0-1.0

Minimum valid ratio of average daily IMEI count against

historical daily IMEI count for a data dump to be considered

valid

DIRBS Core Release 8.0.1 User Guide Configuring DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Setting

Value,

range

Function

historic_imsi_threshold:

Decimal,

0.0-1.0

Minimum valid ratio of average daily IMSI count against

historical daily IMSI count for a data dump to be considered

valid

historic_msisdn_threshold

Decimal,

0.0-1.0

▪ Minimum valid ratio of average daily MSISDN count

against historical daily MSISDN count for a data dump to

be considered valid

▪ Ignored if MSISDN disabled

2.9 Historic thresholds

The sample config has a historic_thresholds section that can validate new import row count

against previously imported data for the same importer. Table 2-9 lists the settings for these

thresholds and their functions.

Table 2-9 Historic threshold

Setting

Value, range

Function

gsma_threshold:

import_size_variation_absolute:

import_size_variation_percent:

pairing_list_threshold:

import_size_variation_absolute:

import_size_variation_percent:

stolen_list_threshold:

import_size_variation_absolute:

import_size_variation_percent:

registration_list_threshold:

import_size_variation_absolute:

import_size_variation_percent:

golden_list_threshold:

import_size_variation_absolute:

import_size_variation_percent:

Integer

Decimal, 0.0-1.0

Integer

Decimal, 0.0-1.0

Integer

Decimal, 0.0-1.0

Integer

Decimal, 0.0-1.0

Integer

Decimal, 0.0-1.0

▪ import_size_variation_absolute: The most

an import can decrease in absolute row

count before it is rejected as invalid. By

setting this variable to -1, this check will be

disabled.

▪ import_size_variation_percent: The most an

import can decrease in percentage row

count before it is rejected as invalid.

 0.75 indicates a new import must be at

least 75% of the previous import's row

count or it will be rejected. Therefore,

setting this variable to 0 will disable this

check.

2.10 Classification conditions

The sample config has a conditions section containing a list of conditions that classify IMEIs

(see Table 2-10).

Table 2-10 Conditions settings

Setting

Function

label

▪ A name/ID/key for the condition

▪ If label is changed, all previous classifications will be reset

DIRBS Core Release 8.0.1 User Guide Configuring DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Setting

Function

 Likewise, if you change the dimensions but keep the condition label

the same, existing classifications for that condition will be retained.

dimensions

▪ For dimension configuration details, see Section 3.5.

▪ A list of dimensions whose intersection forms the IMEI set result for the

condition. Each dimension can take parameters specific to the

dimension being used. Additionally, they all accept an invert property,

which NOTs the result of the dimension by taking the all-time observed

IMEIs list and subtracting the set of IMEIs returned by this dimension.

▪ Each dimension has:

 module: Python code module that implements condition.

 parameters: List of parameters supplied to dimension (available

parameters depend on dimension).

 invert: Boolean stating whether results from this dimension should

be inverted to produce a NOT result, i.e., inverting the GSMA Not

Found dimension would return a list of all seen IMEIs that were

found in the GSMA TAC DB.

grace_period_days

Number of days after DIRBS Core detects condition has been met by

IMEI before it moves from the notification list to the blacklist.

blocking

▪ Boolean stating whether this condition contributes to list generation or

is simply informational.

▪ Information conditions can be used to try out new modules or to tweak

parameters.

reason

Human-readable reason string summarizing this condition (to be used in

notification lists and blacklist).

max_allowed_matching_ratio

▪ The maximum ratio of IMEIs that can be matched before the condition

fails because something is wrong.

 Example: Under normal circumstances, we might not expect more

than 20% of all IMEIs to not be found in GSMA, so we can set this

to 0.2. If more than this number of IMEIs match, we probably forgot

to import the GSMA TAC DB, so we refuse to add the results of

this condition to the classification_state table. Other conditions will

still be added to the DB but the overall status of the dirbs-classify

job will be non-zero (failure).

2.11 Logging settings

The sample config has a logging section containing a list of configurable settings related to

logging output (see Table 2-11).

Table 2-11 Logging settings

Setting

Value, range

Function

level

String

▪ Minimum logging level to output log

messages before

▪ Valid values are:

 debug

 info

 warn

 error

DIRBS Core Release 8.0.1 User Guide Configuring DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Setting

Value, range

Function

format

LogRecord Objects

Format string for log messages output by the

application

Example Format:

format: '%(asctime)s - %(name)s -

%(levelname)s - %(message)s'

show_statsd_messages

True/False

▪ Determines whether or not log messages

related to StatsD should be output

▪ If enabled, all calls to StatsD will be logged

for debugging

show_sql_messages

True/False

▪ Determines whether or not log queries made

it to the SQL database

▪ If enabled (True), all queries will be logged for

debugging (can result in very large output)

show_werkzeug_messages

True/False

▪ Determines whether or not log internal

Werkzeug messages from the TAC/IMEI APIs

▪ Should almost always be set to False

▪ If enabled (True), all TAC/IMEI API queries

will be logged (can resilt in large output)

log_directory

String

▪ Sets this directory to store the log files

▪ Directory must exist and be writable

file_prefix

String

Uncomment and set this value to prefix all log

files created on this host with a prefix to

distinguish them from other hosts

file_rotation_max_bytes

Integer

▪ Sets the number of bytes before a logfile is

rotated

▪ If this or file_rotation_backup_count is 0,

rotation is disabled

file_rotation_backup_count

Integer

Sets the number of old logs to keep

2.12 StatsD settings

The sample config has a statsd section containing a list of configurable settings related to

forwarding application-defined metrics to a StatsD server for aggregation (see Table 2-12).

Table 2-12 StatsD Settings

Setting

Value, range

Function

hostname

String

▪ StatsD server hostname

▪ Overridden by the environment variable

DIRBS_STATSD_HOST

port

Integer

▪ UDP port that StatsD server listens on for metrics

▪ Overridden by environment variable

DIRBS_STATSD_PORT

prefix

True/False

▪ Prefix for all metrics collected from this instance

 Useful if there are multiple hosts or environments

sending data to the same StatsD server and you

want to differentiate them

▪ Overridden by the environment variable DIRBS_ENV

DIRBS Core Release 8.0.1 User Guide Configuring DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

2.13 Data catalog settings

The sample config has a catalog section containing a list of configurable settings related to the

data cataloging process (see Table 2-13).

Table 2-13 Data catalog settings

Setting

Value, range

Function

file_type

String

▪ Type of files contained within the specified paths

▪ Should match the keyword specified during

dirbs-import, e.g. operator, gsma_tac, etc.

paths

Integer

▪ Directories and/or files to be harvested

 Sub-directories within the listed path are not

traversed automatically

 Should be listed separately if files within them

must be cataloged.

▪ Multiple paths can be defined for each file type and

the path used should be absolute and globally

unique

schema_filename:

String

▪ Schema file for data pre-validation (if enabled)

▪ Multiple prospectors can be defined for the same

file_type if files exist across multiple schema

versions

perform_prevalidation

String, True/False

▪ Set to true if pre-validation should be performed on

the data files

▪ Enabling this can slow down the process if there

are a lot of uncataloged files

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

3 Operating DIRBS Core

NOTE: If you are not using Docker, the following commands only work when the DIRBS Core virtual

environment is activated. This must be done each time you log into the machine or start a new

shell.

To activate the virtual environment, run:

source <install_path>/bin/activate

3.1 Data in the Docker instance

If you run the Data Processing blade image, the /data directory is marked as a persistent data

volume in Docker. Data in this directory will persist after a container has been destroyed.

For more information on data volumes, see

https://docs.docker.com/engine/tutorials/dockervolumes/.

When the Data Processing blade image is created, the entry point script (entrypoint.sh) populates

the /data directory with the required folder structure, along with the correct permissions. This

script reads a list of operators from the DIRBS_OPERATOR environment variable and creates

folders for each if they are missing.

There are a couple options to get data into the container:

■ Bind-mount /data to a directory on the host machine using the –v option to docker run. If

using this approach, ensure that the directory has the correct permissions and can be written

to by the docker user. The entry point creates the requisite folders in this directory so it can be

empty to begin with.

■ Use commands scp or ssh to copy data into the container. Once it is in there, it will persist

across container builds due to the persistent nature of the data volume.

3.2 Managing database schema – dirbs-db

dirbs-db manages the database schema version deployed to the PostgreSQL server.

For information on the dirbs-db command and its available subcommands, run:

dirbs-db –-help

Usage: dirbs-db [OPTIONS] COMMAND [ARGS]...

DIRBS script to intiliaze, configure and upgrade the PostgreSQL schema.

Options:

--version Show the version and exit.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

-v, --verbose Print debug console output - file output is

unaffected.

--db-password-prompt If set, will prompt the user for a PostgreSQL

password rather than reading from config.

--db-user TEXT The PostgreSQL DB database user to connect as.

--db-name TEXT The PostgreSQL DB database name to connect to.

--db-port INTEGER The PostgreSQL DB port to connect to.

--db-host TEXT The PostgreSQL DB host to connect to.

--statsd-prefix TEXT The environment prefix to prepend to all StatsD

metrics.

--statsd-port INTEGER The StatsD port to connect to on the configured host.

--statsd-host TEXT The StatsD host to send metrics to.

--help Show this message and exit.

Commands:

check Checks whether DB schema matches software DB...

fix_whitespace_triplets Fixes whitespace issues in seen_triplets...

install Installs latest schema on clean DB instance.

install_roles Creates DIRBS Core PostgreSQL base roles if...

upgrade Upgrades the current DB schema to the version...

3.2.1 Creating DIRBS Core PostgreSQL roles – dirbs-db

install_roles

NOTE: Roles must be created and installed prior to running the dirbs-db install and dirbs-db

upgrade commands. For detailed instructions on installing and configuring a new database, see

DIRBS Core Release 5.2.0 Installation Guide (80-GD079-1).

dirbs-db --db-user <username> --db-password-prompt install_roles

where

■ <username> is the name of the user with the CREATEROLE privilege

3.2.2 Installing schema into a clean database – dirbs-db install

To install the DIRBS Core schema into a clean database, run:

dirbs-db --db-user <username_of_power_user> --db-password-prompt install

This command only works on a clean database. You can force-install the schema into a non-clean

database using –force flag, but this is dangerous as it may leave the database in an inconsistent

state where future migration scripts fail.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

For help on the options available to dirbs-db install, run:

dirbs-db install –-help

Usage: dirbs-db install [OPTIONS]

Installs latest schema on clean DB instance.

Options:

--help Show this message and exit.

3.2.3 Checking status of the database schema – dirbs-db check

dirbs-db check displays which schema version is currently deployed to the PostgreSQL

database, and which version is required by the installed code.

To run this check, run:

dirbs-db check

3.2.4 Upgrading the database schema – dirbs-db upgrade

It is recommended to take a database backup before attempting these steps in case something

goes wrong. Downgrades are not possible.

dirbs-db upgrade upgrades the currently installed database schema in PostgreSQL to the

version required by the installed software.

To run the upgrade, run:

dirbs-db --db-user <power_user> --db-password-prompt upgrade

where

■ <power_user> is a user that has been GRANT’ed the dirbs_core_poweruser role

The upgrade script determines which version of the schema is required and automatically runs

SQL migration scripts to upgrade the schema.

3.3 Importing data into DIRBS Core – dirbs import

This section describes how to import data into the DIRBS Core using dirbs-import

functionality.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

While the DIRBS System does not enforce a specific data import order, Figure 3-1 describes the

recommended steps involved in importing data.

Importing Data Into the DIRBS System

3 3 3 3

Figure 3-1 Importing data into DIRBS

During normal system operation, it is expected that jobs are scheduled and configured to

periodically import these data files.

Depending on the analysis that you are performing you may or may not require the import of the

files listed in

For information on the dirbs-import and its available subcommands, run:

dirbs-import –-help

Usage: dirbs-import [OPTIONS] COMMAND [ARGS]...

DIRBS script to import data into DIRBS Core PostgreSQL database.

Options:

--version Show the version and exit.

-v, --verbose Print debug console output - file output is

unaffected.

--db-password-prompt If set, will prompt the user for a

PostgreSQL password rather than reading from

config.

--db-user TEXT The PostgreSQL DB database user to connect

as.

--db-name TEXT The PostgreSQL DB database name to connect

to.

--db-port INTEGER The PostgreSQL DB port to connect to.

--db-host TEXT The PostgreSQL DB host to connect to.

--statsd-prefix TEXT The environment prefix to prepend to all

StatsD metrics.

--statsd-port INTEGER The StatsD port to connect to on the

configured host.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

--statsd-host TEXT The StatsD host to send metrics to.

--max-db-writers INTEGER The maximum write-intensive DB connections

to use concurrently during this job.

--max-db-connections INTEGER The maximum DB connections to use

concurrently during this job.

--max-local-cpus INTEGER The maximum number of local CPUs to use

concurrently during this job.

--batch-size INTEGER Size of batches to import into DB, in lines.

--no-cleanup If set, intermediate split data files and

the staging table will not be deleted so

that they can inspected.

--extract-dir DIRECTORY Directory to extract contents of .zip file

into (same directory as input file by

default).

--prevalidator-path PATH The path to the CSV pre-validator

executable.

--prevalidator-schema-path DIRECTORY

The path to the directory where the CSV pre-

validator schema are stored.

--help Show this message and exit.

Commands:

golden_list Import the Golden list data found in INPUT...

gsma_tac Import the GSMA TAC DB data found in INPUT...

operator Import the CSV operator data found in INPUT...

pairing_list Import the Pairing List data found in INPUT...

registration_list Import the Registration list data found in...

stolen_list Import the Stolen List data found in INPUT

3.3.1 GSMA TAC DB – dirbs-import gsma_tac

To import a .zip version of the GSMA TAC database, run:

dirbs-import gsma_tac <gsma_zip_file>

The .zip file is expected to contain a .txt file where the columns are pipe-separated. It is run

through the CSV pre-validator GoldenListSchemaData.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core.

Table 3-1 lists the expected header columns and format. These fields can be in any order and

case.

Table 3-1 gsma_tac fields and format

Field

Mandatory (M)

Optional (O)

Expected format

tac

Integer, Length 8

manufacturer

String, Length (1-128) 2

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Field

Mandatory (M)

Optional (O)

Expected format

model name

String, Length (1-1024) 2

bands

String, Length (1-4096) 2

allocation date

▪ Day-Month-Year format2, e.g., 26-Apr-2016

 Day: 0 – 31 (must correspond to days in month/year)

 Month: Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sept,

Oct, Nov, Dec

 Year: 19XX, 20XX

optional fields

String, Length (1-4096) 2

1 The tac field must not be empty.

2 Empty string and whitespace allowed.

The GSMA TAC DB importer can accept additional columns, which will be imported into an

optional_fields column in the DB and returned by the TAC API without changes. No

validation or processing takes place on these optional fields.

The GSMA TAC DB also performs a historic validation check as specified in section 2.9. If this

check fails, the import is rejected. This check can be disabled with --disable-historic-

check.

For help on all the options available to dirbs-import gsma_tac, run:

dirbs-import gsma_tac –-help

Usage: dirbs-import gsma_tac [OPTIONS] INPUT_FILE

Import the GSMA TAC DB data found in INPUT into the PostgreSQL database.

Options:

--disable-historic-check Skip checking the size of this import against

the currently stored data.

--disable-duplicates-check Skip checking for duplicate rows in this file

and failing if there any.

--help Show this message and exit.

3.3.2 operator data dumps – dirbs-import operator

To import a .zip version of an operator data dump, run:

dirbs-import operator <operator_id> <operator_zip_file>

The .zip file is expected to contain a ‘,’ comma separated .csv file containing the operator data. It

is run through the CSV pre-validator OperatorImportSchema_v2.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Table 3-2 lists the expected header columns and format. These fields can be in any order and

case.

Table 3-2 operator data fields and format

Field

Mandatory (M)

Optional (O)

Expected format

date

▪ yyyymmdd format starting with year 2000, e.g., 20160703

 yy: 20XX, where X=0-9

 mm: 00-12

 dd: 00 – 31 (must correspond to days in month/year)

imei

▪ Digits, Length (1 – 16) 1

 Valid digits: 0-9,A-F,a-f,*,#

 14 leading digits for good IMEI Records(check

digit/software version is stripped on import)

imsi

▪ Digits, Length (1-15) 1

 Valid digits: 0-9

msisdn

▪ Digits, Length (1-15) 1

 E.164 format

rat

▪ Digits, Length (3) 1

 Within range of 001-007 or 101-105

1 Empty string and whitespace allowed but will be stored as NULL.

operator_id is a string or number that uniquely identifies the operator which must match one of

the operator IDs in the config .yml file. Data import will fail and will not be imported if the

Operator ID does not match.

NOTE: If operatorIDs are modified/replaced after successfully importing operator data, that data will still

be included in the country-level reporting and in blacklist generation. However, notification lists

will not be generated for the previously replaced operatorID.

The default behavior of the operator data importer expects data to contain RAT information. If a

data dump does not contain RAT information, it can be imported using the --disable-rat-

import.

Validation checks

Operator data performs multiple validation checks during import. Table 3-3 lists the validation

checks and their functions.

Table 3-3 Validation checks

Check

Function

CSV pre-validation

Ensures input CSV conforms to the operator data schema

Filename checks

Ensures .zip file conforms to the required filename format

(<operator_id>_<startdate>_<enddate>.zip) and that the .csv

filename within the .zip also conforms to that filename format

Date checks

Ensures connection_date field in the CSV data falls within the date

range specified by the filename

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Check

Function

Null checks

Ensures CSV data does not contain too many rows with blanks for IMEIs,

IMSIs, MSISDNs, and/or RAT values

Clean checks

Ensures CSV data does not contain too many rows with invalid characters

in the IMEI, IMSI or MSISDN

Leading zero checks

Ensures leading zeroes have not been stripped from the IMEIs in the CSV

data

Region checks

Ensures that not too many rows contain IMSIs or MSISDNs with out-of-

region CC and MCC values

Home network checks

Ensures that not too many rows contain IMSIs with an MCC-MNC prefix

not associated with the operator

Historic checks

▪ Ensures data is consistent with previous imports from the same

operator

▪ Performed based on previously generated reports

 If reporting was never performed, historic checks will not be

performed

 These checks compare the average daily counts for IMEI, IMSIs,

and MSISDNs against historical counts

Most of these checks can be disabled with command-line options. For help on all the options

available to dirbs-import operator, run:

dirbs-import operator –-help

Usage: dirbs-import operator [OPTIONS] OPERATOR_ID INPUT_FILE

Import the CSV operator data found in INPUT into the PostgreSQL database.

OPERATOR_ID is an ID up to 16 characters to unique identify the operator.

Options:

--disable-leading-zero-check Skip checking if the import data appears to

have lost leading zeros.

--disable-null-check Skip checking the ratio of IMSIs, MSISDNs,

IMEIs and RATs that are NULL.

--disable-clean-check Skip checking the ratio of IMEIs and IMSIs

that are the wrong length or contain invalid

characters.

--disable-region-check Skip checking the ratio of MSISDNs and IMSIs

that have out of region cc and mcc values.

--disable-home-check Skip checking the ratio of and IMSIs that have

out of region mcc and mnc pair values.

--disable-msisdn-import Skip importing MSISDN field even if it does

exist in input data.

--disable-rat-import Skip importing RAT field if it does not exist

in input data.

--disable-historic-check Skip checking the size of this import against

the currently stored data.

--help Show this message and exit.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

3.3.3 golden list data – dirbs-import golden_list

To import a .zip version of the complete golden list, run:

dirbs-import golden_list <golden_list_zip_file>

The golden list identifies IMEIs of high-ranking officials to be excluded from being blocked.

CAUTION: Any IMEIs added to the golden list will never be blocked.

The .zip file is expected to contain a .csv file containing the list of golden list data. It is run

through the CSV pre-validator GoldenListSchemaPreHashedData.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core.

The golden list can be imported with MD5 pre-hashed IMEIs or non-hashed IMEI. When hashing

the IMEIs, it is expected to hash a 14-digit IMEI (see Section 6.5)

Table 3-4 and Table 3-5 list the expected header columns and format of a golden list.

Table 3-4 golden list MD5 pre-hashed fields and format

Field

Mandatory (M)

Optional (O)

Expected format

golden_imei

Hex String, Length (32), MD5 Encrypted

Valid characters: 0-9,A-F,a-f,*,#

Table 3-5 golden list fields and format

Field

Mandatory(M)

Optional(O)

Expected format

golden_imei

Digits, Length(1 – 16)

Valid digits: 0-9,A-F,a-f,*,#

Do not remove leading zeros

For help on all the options available to dirbs-import golden list, run:

dirbs-import golden_list –-help

Usage: dirbs-import golden_list [OPTIONS] INPUT_FILE

Import the Golden list data found in INPUT into the PostgreSQL database.

NOTE: Use caution when adding entries to the Golden list, as any IMEIs

added to this list will never be blocked.

Options:

--disable-historic-check Skip checking the size of this import against

the currently stored data.

--pre-hashed TEXT DANGEROUS: The input file contains normalized

IMEIs that have already been hashed using the

MD5 algorithm. If IMEIs have not been

normalized or hashed according to DIRBS Core

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

rules, the IMEIs in the imported list may not

be correctly excluded from being blocked.

--disable-delta-adds-check If in delta mode, disable verification that

adds in delta list are not already in DB.

--disable-delta-removes-check If in delta mode, disable verification that

removes in delta list are already in DB.

--disable-delta-updates-check If in delta mode, disable verification that

updates in delta list are already in DB.

--delta Switch to delta import mode.

--help Show this message and exit.

3.3.3.1 golden list delta import

The delta list import feature was designed to allow regulators to supply changes to lists in a file

rather than the complete file every time. These changes include ‘add’, ‘remove’.

The golden list delta import functionality can be invoked by the command line option:

dirbs-import golden_list <golden_list_delta_zip_file>

The .zip file is expected to contain a .csv file containing the delta golden list data. It is run

through the CSV pre-validator GoldenListDeltaSchemaData.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core.

The golden_imei field is used as a key column to uniquely identify an entry in the list

(see Section 6.5).

Sample delta .csv file

golden_imei,change_type

622222222222222,add

633333333333333,remove

3.3.4 Local stolen list data – dirbs-import stolen_list

To import a .zip version of the local stolen list, run:

dirbs-import stolen_list <stolen_list_zip_file>

The stolen list inputs IMEIs of stolen devices and the reported stolen date.

The .zip file is expected to contain a .csv file containing the list of data. It is run through the CSV

pre-validator StolenListSchema.csvs located at /opt/dirbs/etc/schema to ensure it

conforms to the expected format by DIRBS Core (see Section 6.5).

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Table 3-6 lists the expected header columns and format. These fields can be in any order and

case.

Table 3-6 stolen list fields and format

Field

Mandatory (M)

Optional (O)

Expected format

imei

▪ Digits, Length (1 – 16)

 Valid digits: 0-9,A-F,a-f,*,#

 14 leading digits for good IMEI Records (check

digit/software version is stripped on import)

reporting_date

▪ yyyymmdd format1, e.g., 20160703

 Starting with year 2000

 yy: 20XX, where X=0-9

 mm: 00-12

 dd: 00 – 31 (must correspond to days in month/year)

1 Empty string allowed, whitespace not allowed.

For help on all the options available to dirbs-import stolen_list, run:

dirbs-import stolen_list –help

Usage: dirbs-import stolen_list [OPTIONS] INPUT_FILE

Import the Stolen List data found in INPUT into the PostgreSQL database.

Options:

--disable-historic-check Skip checking the size of this import against

the currently stored data.

--disable-delta-adds-check If in delta mode, disable verification that

adds in delta list are not already in DB.

--disable-delta-removes-check If in delta mode, disable verification that

removes in delta list are already in DB.

--disable-delta-updates-check If in delta mode, disable verification that

updates in delta list are already in DB.

--delta Switch to delta import mode.

--help Show this message and exit.

3.3.4.1 stolen list delta import

The delta list import feature was designed to allow regulators to supply changes to lists in a file

rather than the complete file every time. These changes include ‘add’, ‘remove’ or ‘update’.

The stolen list delta import functionality can be invoked by the command line option:

dirbs-import stolen_list <stolen_list_delta_zip_file>

The .zip file is expected to contain a .csv file containing the delta stolen list data. It is run through

the CSV pre-validator StolenListDeltaSchemaData.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core.

The imei field is used as a key column to uniquely identify an entry in the list (see Section 6.5).

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Sample delta .csv file

imei,reporting_date,change_type

622222222222222,20180909,add

633333333333333,20180909,remove

644444444444444,20180909,update

3.3.5 pairing list data – dirbs-import pairing_list

To import a .zip version of the complete pairing list, run:

dirbs-import pairing_list <pairing_list_zip_file>

The pairing list inputs IMEI-IMSI pairs that will be excluded from blocking.

The .zip file is expected to contain a .csv file containing the list of IMEI-IMSI pairs. It is run

through the CSV pre-validator PairingListSchema.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core

(see Section 6.5).

Table 3-7 lists the expected header columns and format. These fields can be in any order and

case.

Table 3-7 pairing list fields and format

Field

Mandatory (M)

Optional (O)

Expected format

imei

Digits, Length (1 – 16)

Valid digits: 0-9,A-F,a-f,*,#

14 leading digits for good IMEI Records(check digit/software

version is stripped on import)

imsi

Digits, Length (1-15)

Valid digits: 0-9

For help on all the options available to dirbs-import pairing_list, run:

dirbs-import pairing_list –-help

Usage: dirbs-import pairing_list [OPTIONS] INPUT_FILE

Import the Pairing List data found in INPUT into the PostgreSQL database.

Options:

--disable-historic-check Skip checking the size of this import against

the currently stored data.

--disable-delta-adds-check If in delta mode, disable verification that

adds in delta list are not already in DB.

--disable-delta-removes-check If in delta mode, disable verification that

removes in delta list are already in DB.

--disable-delta-updates-check If in delta mode, disable verification that

updates in delta list are already in DB.

--delta Switch to delta import mode.

--help Show this message and exit.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

3.3.5.1 pairing list delta import

The delta list import feature was designed to allow regulators to supply changes to lists in a file

rather than the complete file every time. These changes include ‘add’ or ‘remove’.

The pairing list delta import functionality can be invoked by the command line option:

dirbs-import pairing_list <pairing_list_delta_zip_file>

The .zip file is expected to contain a .csv file containing the delta pairing list data. It is run

through the CSV pre-validator PairingListDeltaSchemaData.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core.

The imei, imsi fields are a key column to uniquely identify an entry in the list

(see Section 6.5).

Sample delta .csv file

imei,imsi,change_type

00333333333333,003333333333333,add

012222222222222,012222222222222,add

02333333333333,023333333333333,remove

3.3.6 registration list data – dirbs-import registration_list

To import a .zip version of the complete import list, run:

dirbs-import registration_list <registration_list_zip_file>

The purpose of the pairing list is to input IMEIs that have been registered.

The .zip file is expected to contain a .csv file containing the list of approved IMEIs. It is run

through the CSV pre-validator RegistrationListSchema.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core

(see Section 6.5).

Table 3-8 registration list fields and format

Field

Mandatory (M)

Optional (O)

Expected format

approved_imei

Digits, Length (1 – 16)

Valid digits: 0-9,A-F,a-f,*,#

For help on all the options available to dirbs-import registration_list, run:

dirbs-import registration_list –-help

Usage: dirbs-import registration_list [OPTIONS] INPUT_FILE

Import the Registration list data found in INPUT into the PostgreSQL

database.

Options:

--disable-historic-check Skip checking the size of this import against

the currently stored data.

--disable-delta-adds-check If in delta mode, disable verification that

adds in delta list are not already in DB.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

--disable-delta-removes-check If in delta mode, disable verification that

removes in delta list are already in DB.

--disable-delta-updates-check If in delta mode, disable verification that

updates in delta list are already in DB.

--delta Switch to delta import mode.

--help Show this message and exit.

3.3.6.1 registration list delta import

The delta list import feature was designed to allow regulators to supply changes to lists in a file

rather than the complete file every time. These changes include ‘add’ or ‘remove’.

The pairing list delta import functionality can be invoked by the command line option:

dirbs-import registration_list <registration_list_delta_zip_file>

The .zip file is expected to contain a .csv file containing the delta registration list data. It is run

through the CSV pre-validator RegistrationListDeltaSchemaData.csvs located at

/opt/dirbs/etc/schema to ensure it conforms to the expected format by DIRBS Core.

The approved_imei field is used as a key column to uniquely identify an entry in the list (see

Section 6.5).

Sample delta .csv file

approved_imei, change_type

10000000000000,add

10000000000001,remove

10000000000002,add

3.4 Automating import of new files

3.4.1 Sample Makefiles and Jenkins

The dirbs-import command works very well for a single file, but DIRBS Core also provides

the ability to monitor a directory for new files and automatically import them. This functionality

is provided by the standard UNIX utility make.

We have provided Makefiles in the release distributables under “etc/makefiles”. Once installed,

these Makefiles are located at /opt/dirbs/etc/makefiles. There is a different Makefile for

each type of import.

Whenever make is invoked, it looks for files where there is no corresponding .processed file, or

where the source file is newer than the .processed file. For each file it finds that matches the

previous criteria, dirbs-import imports the file and creates a .processed file.

This approach is very flexible and can be integrated with crontabs or with a more sophisticated

approach using Jenkins. In both approaches, either a crontab entry or Jenkins job would be

created for each type of import and for each operator.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Sample Makefile invocations

■ To import GSMA data:

make -f /opt/dirbs/etc/makefiles/tac_db_import.mk GSMA_HOME=/data/

gsma_tac all

■ To import operator data with operator ID operator_id:

make -f /opt/dirbs/etc/makefiles/operator_import.mk

OPERATOR_ID=operator_id all

■ To import stolen_list data:

make -f /opt/dirbs/etc/makefiles/stolen_list_import.mk

STOLEN_LIST_HOME=/data/stolen_list all

■ To import pairing_list data:

make -f /opt/dirbs/etc/makefiles/pairing_list_import.mk

PAIRING_LIST_HOME=/data/pairing_list all

■ To import registration_list data:

make -f /opt/dirbs/etc/makefiles/registration_list_import.mk

REGISTRATION_LIST_HOME=/data/registration_list all

■ To import golden_list data:

make -f /opt/dirbs/etc/makefiles/golden_list_import.mk

GOLDEN_LIST_HOME=/data/golden_list all

Jenkins

If you are using Jenkins to trigger the above Makefile invocations, Jenkins will not, by default,

create a login shell, and the DIRBS Core virtualenv will not be activated. In this case, virtualenv

activation must precede the call to make:

. /home/dirbs/dirbs-venv/bin/activate

This makes the total command, as run under Jenkins via an SSH slave, similar to:

. /home/dirbs/dirbs-venv/bin/activate && make –f /opt/dirbs/etc/makefiles/

stolen_list_import.mk STOLEN_LIST_HOME=/data/stolen_list all

3.5 Classification of IMEIs – dirbs-classify

The dirbs-classify command runs analysis on imported data, based on the configured

conditions in the .yml configuration file. Analysis should be run prior to running dirbs-listgen

and dirbs-reports.

A sample configuration for the conditions in this section is provided in Appendix B.

Table 3-9 lists the implemented dimensions and their parameters in release 7.0.0.

Table 3-9 Implemented dimensions and parameters

Asset

Function

gsma_not_found

Determines whether an IMEI is in the GSMA TAC database

Note: Do not use this condition if there is a live DRS enforcing

GSAM not found.

stolen_list

Matches IMEIs on the local stolen list

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Asset

Function

duplicate_threshold

▪ Matches duplicate IMEIs where the number of triplets

(IMEI/IMSI/MSISDN combinations) with IMEI exceeds the

threshold over configurable period

▪ Required parameters:

 threshold: Threshold of IMSIs that an IMEI must be seen with

to be considered a duplicate (inclusive)

 period_days or period_months: Number of days or months in

history to consider for duplicate analysis (only one of these

can be specified)

duplicate_daily_avg

▪ Matches duplicate IMEIs where the average daily number of

IMSIs seen with that IMEI over a configurable period exceeds a

configurable threshold if that IMEI was seen on at least a

configurable number of days during that period

▪ Required parameters:

 threshold: Floating point number of daily average IMSIs that

an IMEI must be seen with to be considered a duplicate

(inclusive)

 period_days or period_months: Number of days or months in

history to consider for duplicate analysis (only one of these

can be specified)

 min_seen_days: Minimum number of days that an IMEI must

be seen before it can be considered a duplicate (used to avoid

averaging a small number of data points)

malformed_imei

▪ Matches IMEIs containing a non-digit character in the first 14

characters

▪ Matches IMEIs that are not 14 characters in length

not_on_registration_list

Matches IMEIs that do not appear on the registration list

inconsistent_rat

Matches IMEIs whose observed RAT on the network does not match

model capabilities in GSMA TAC DB

used_by_dirbs_subscriber

▪ Matches IMEIs seen with an IMSI belonging to a configured

DIRBS operator (MCC-MNC match)

▪ Can be used as part of a compound condition to specify different

business rules when IMEI was seen with at least one local DIRBS

subscriber

▪ Required parameters:

 lookback_days: Maximum number of days to look back when

considering whether IMEI was seen with a DIRBS subscriber

used_by_international_roamer

▪ Matches IMEIs seen with an IMSI where the MCC did not match

one of the configured MCCs for the DIRBS country

▪ Can be used as part of a compound condition to specify different

business rules when IMEI was seen with at least one international

roamer

▪ Required parameters:

 lookback_days: Maximum number of days to look back when

considering whether IMEI was seen with an international

roamer

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Asset

Function

used_by_local_non_dirbs_roamer

▪ Matches IMEIs seen with an IMSI belonging to the DIRBS country

but not a configured MCC-MNC

▪ Intended to target an edge case where not all national operators

might be analyzed DIRBS and/or where only certain regions were

targeted

▪ Can be used as part of a compound condition to define different

business rules for these cases

▪ Required parameters:

 lookback_days: Maximum number of days to look back when

considering whether IMEI was seen with a DIRBS subscriber

To run classification using the conditions specified in the config file, use:

dirbs-classify

For help on all the options available to dirbs-classify, run:

dirbs-classify –-help

Usage: dirbs-classify [OPTIONS]

DIRBS script to classify IMEIs.

Iterates through all configured conditions and write to the

classification_state table.

Options:

--conditions TEXT By default, dirbs-classify classifies on all

conditions. Specify a comma-separated list

of condition names if you wish to classify

only on those conditions. The condition name

corresponds to the label parameter of the

condition in the DIRBS configuration file.

--safety-check / --no-safety-check

DANGEROUS: Disables safety check that

ensures that no more than a certain ratio of

IMEIs will be classified.

--curr-date TEXT DANGEROUS: Sets current date in YYYYMMDD

format for testing. By default, uses system

current date.

--version Show the version and exit.

-v, --verbose Print debug console output - file output is

unaffected.

--db-password-prompt If set, will prompt the user for a

PostgreSQL password rather than reading from

config.

--db-user TEXT The PostgreSQL DB database user to connect

as.

--db-name TEXT The PostgreSQL DB database name to connect

to.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

--db-port INTEGER The PostgreSQL DB port to connect to.

--db-host TEXT The PostgreSQL DB host to connect to.

--statsd-prefix TEXT The environment prefix to prepend to all

StatsD metrics.

--statsd-port INTEGER The StatsD port to connect to on the

configured host.

--statsd-host TEXT The StatsD host to send metrics to.

--max-db-connections INTEGER The maximum DB connections to use

concurrently during this job.

--max-local-cpus INTEGER The maximum number of local CPUs to use

concurrently during this job.

--help Show this message and exit.

If a specific limited list of conditions must be run instead of all the conditions listed on the

configuration file .dirbs.yml, the --conditions option can be used. Use the condition label to be

run.

Example

dirbs-classify --conditions simple_dimension

where the condition simple_dimension is the label parameter of the condition in the DIRBS

configuration or .dirbs.yml as shown below:

conditions:

- label: simple_dimension

dimensions:

- module: gsma_not_found

grace_period_days: 30

blocking: true

reason: Violated simple dimension

max_allowed_matching_ratio: 0.1

This command classifies all the IMEIs and stores the results in the database for list generation. It

can be trivially scheduled using a crontab or Jenkins job to allow for daily classification.

3.6 Generating lists – dirbs-listgen

List generation takes place after classification.

To run list generation, run:

dirbs-listgen <output_dir>

where output_dir is a directory where the various lists will be output. dirbs-listgen

automatically creates a timestamp-based subdirectory under this directory. There is no need for

this directory to be empty.

Running listgen with no explicit curr-date parameter will base the end of its lookback window

off the most recent operator data date, rather than the current date.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Table 3-10 lists the different types of lists created by dirbs-listgen.

Table 3-10 DIRBS Core lists

List

Function

blacklist

▪ Lists IMEIs which have met a blocking condition and where the current date

has exceeded the block date.

▪ This list is distributed to all operators and is the same for each.

notification lists

▪ Lists IMEIs which have met a blocking condition where the current date is still

within the grace period for the condition.

 Does not include any IMEI already on the blacklist.

▪ For each IMEI, we generate subscriber triplets based on imported operator

data. There is one row in the list for each triplet.

▪ For each triplet, we determine who the home network is based on the IMSI

and the configured MCC/MNC pairs for each configured operator.

▪ If a triplet does not match any MCC/MNC pairing for a configured operator

(roamers, etc.), we notify all operators whose data they have been seen in.

▪ Each operator gets a different list containing their subscribers and any

fallback triplets seen on their network.

exception lists

▪ Each operator gets a copy of the pairing list, split into per-operator exception

lists based again on their IMSI and the configured MCC/MNC pairs for the

configured operators.

▪ If a pairing's IMSI does match any MCC/MNC pairing for a configured

operator (roamers, etc.), the pairing is placed on every MNO exception list.

For help on all the options available to dirbs-listgen, run:

dirbs-listgen -–help

Usage: dirbs-listgen [OPTIONS] OUTPUT_DIR

DIRBS script to output CSV lists (blacklist, exception, notification) for

the current classification state.

Options:

--version Show the version and exit.

-v, --verbose Print debug console output - file output is

unaffected.

--db-password-prompt If set, will prompt the user for a PostgreSQL

password rather than reading from config.

--db-user TEXT The PostgreSQL DB database user to connect as.

--db-name TEXT The PostgreSQL DB database name to connect to.

--db-port INTEGER The PostgreSQL DB port to connect to.

--db-host TEXT The PostgreSQL DB host to connect to.

--statsd-prefix TEXT The environment prefix to prepend to all

StatsD metrics.

--statsd-port INTEGER The StatsD port to connect to on the

configured host.

--statsd-host TEXT The StatsD host to send metrics to.

--max-db-connections INTEGER The maximum DB connections to use concurrently

during this job.

--max-local-cpus INTEGER The maximum number of local CPUs to use

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

concurrently during this job.

--curr-date TEXT Sets current date in YYYYMMDD format for

testing. By default, uses system current date.

--no-full-lists If set, disable outputting full lists as CSV

for a performance improvement.

--no-cleanup If set, intermediate tables used to calculate

lists will not be deleted so that they can be

inspected.

--base INTEGER If set, will use this run ID as the base for

the delta CSV lists.

--help Show this message and exit.

The dirbs-listgen command can be trivially scheduled using a crontab or Jenkins job to allow

for daily list generation.

3.7 Generating DIRBS reports – dirbs-report

Several reports can be generated using the dirbs-report command. The dirbs-report

report_type command generates all reports in DIRBS Core (see Table 3-11).

Table 3-11 Report types

Report commands (types)

Function

condition_imei_overlaps

Generates per-condition reports showing matched IMEIs seen on more

than one MNO network

gsma_not_found

Generates report of all GSMA not found IMEIs as CSV

standard

Generates standard monthly per-operator and country-level reports as

HTML, CSV and JSON

stolen_violations

Generates per-MNO list of IMEIs seen on the network after they were

reported stolen.

top_duplicates

Generates report listing IMEIs seen with more than 5 IMSIs in a given

month and year as CSV

For help on all the options available to dirbs-report, run:

dirbs-report –-help

Usage: dirbs-report [OPTIONS] COMMAND [ARGS]...

DIRBS script to output reports (operator and country) for a given MONTH

and YEAR.

Options:

--version Show the version and exit.

-v, --verbose Print debug console output - file output is

unaffected.

--db-password-prompt If set, will prompt the user for a PostgreSQL

password rather than reading from config.

--db-user TEXT The PostgreSQL DB database user to connect as.

--db-name TEXT The PostgreSQL DB database name to connect to.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

--db-port INTEGER The PostgreSQL DB port to connect to.

--db-host TEXT The PostgreSQL DB host to connect to.

--statsd-prefix TEXT The environment prefix to prepend to all StatsD

metrics.

--statsd-port INTEGER The StatsD port to connect to on the configured host.

--statsd-host TEXT The StatsD host to send metrics to.

--help Show this message and exit.

Commands:

condition_imei_overlaps Generate per-condition reports showing...

gsma_not_found Generate report of all GSMA not found IMEIs.

standard Generate standard monthly operator and...

stolen_violations Generate per-MNO list of IMEIs seen on the...

top_duplicates Generate report listing IMEIs seen with more...

dirbs-report condition_imei_overlaps –-help

Usage: dirbs-report condition_imei_overlaps [OPTIONS] MONTH YEAR OUTPUT_DIR

Generate per-condition reports showing matched IMEIs seen on more than one

MNO network.

Options:

--max-db-writers INTEGER The maximum write-intensive DB connections

to use concurrently during this job.

--max-db-connections INTEGER The maximum DB connections to use

concurrently during this job.

--max-local-cpus INTEGER The maximum number of local CPUs to use

concurrently during this job.

--debug-query-performance Enable this to print out more stats about

duration of queries during stats generation.

--disable-data-check Disable check to validate existence of data

for all configured operators in this

reporting month.

--disable-retention-check Disable check that stops reports being run

for months outside the retention period.

--force-refresh / --no-refresh Whether data in report should be refreshed

from latest data or from previously-

calculated data (default: --no-refresh).

--help Show this message and exit.

dirbs-report gsma_not_found –-help

Usage: dirbs-report gsma_not_found [OPTIONS] MONTH YEAR OUTPUT_DIR

Generate report of all GSMA not found IMEIs.

Options:

--max-db-writers INTEGER The maximum write-intensive DB connections

to use concurrently during this job.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

--max-db-connections INTEGER The maximum DB connections to use

concurrently during this job.

--max-local-cpus INTEGER The maximum number of local CPUs to use

concurrently during this job.

--debug-query-performance Enable this to print out more stats about

duration of queries during stats generation.

--disable-data-check Disable check to validate existence of data

for all configured operators in this

reporting month.

--disable-retention-check Disable check that stops reports being run

for months outside the retention period.

--force-refresh / --no-refresh Whether data in report should be refreshed

from latest data or from previously-

calculated data (default: --no-refresh).

--help Show this message and exit.

dirbs-report standard –-help

Usage: dirbs-report standard [OPTIONS] MONTH YEAR OUTPUT_DIR

Generate standard monthly operator and country-level reports.

Options:

--max-db-writers INTEGER The maximum write-intensive DB connections

to use concurrently during this job.

--max-db-connections INTEGER The maximum DB connections to use

concurrently during this job.

--max-local-cpus INTEGER The maximum number of local CPUs to use

concurrently during this job.

--debug-query-performance Enable this to print out more stats about

duration of queries during stats generation.

--disable-data-check Disable check to validate existence of data

for all configured operators in this

reporting month.

--disable-retention-check Disable check that stops reports being run

for months outside the retention period.

--force-refresh / --no-refresh Whether data in report should be refreshed

from latest data or from previously-

calculated data (default: --no-refresh).

--help Show this message and exit.

dirbs-report stolen_violations –-help

Usage: dirbs-report stolen_violations [OPTIONS] OUTPUT_DIR

Generate per-MNO list of IMEIs seen on the network after they were

reported stolen.

Options:

--max-db-writers INTEGER The maximum write-intensive DB connections to

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

use concurrently during this job.

--max-db-connections INTEGER The maximum DB connections to use concurrently

during this job.

--max-local-cpus INTEGER The maximum number of local CPUs to use

concurrently during this job.

--newer-than TEXT Include violations newer than the date passed

in YYYYMMDD format.

--filter-by-conditions TEXT Specify a comma-separated list of condition

names if you wish to filter by those

conditions.

--help Show this message and exit.

dirbs-report top_duplicates –-help

Usage: dirbs-report top_duplicates [OPTIONS] MONTH YEAR OUTPUT_DIR

Generate report listing IMEIs seen with more than 5 IMSIs in a given month

and year.

Options:

--max-db-writers INTEGER The maximum write-intensive DB connections

to use concurrently during this job.

--max-db-connections INTEGER The maximum DB connections to use

concurrently during this job.

--max-local-cpus INTEGER The maximum number of local CPUs to use

concurrently during this job.

--debug-query-performance Enable this to print out more stats about

duration of queries during stats generation.

--disable-data-check Disable check to validate existence of data

for all configured operators in this

reporting month.

--disable-retention-check Disable check that stops reports being run

for months outside the retention period.

--force-refresh / --no-refresh Whether data in report should be refreshed

from latest data or from previously-

calculated data (default: --no-refresh).

--help Show this message and exit.

output_dir is the existing directory where HTML, JS, CSS, CSV, and JSON files will be

output. dirbs-report automatically creates a timestamp-based subdirectory under this directory

so there is no need for this directory to be empty.

3.7.1 dirbs-report directory structure

Generated output from the dirbs-report command will be placed in the specified

output_dir.

The output_dir will contain the HTML, JS, CSS, CSV, and JSON files, and based on the

following directory naming convention:

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

‘report’_’subcommand’_’timestamp’_’run_id’_’class_run_id’_’data_id’_’month’

_’year’

where:

■ subcommand is the dirbs-report subcommand

□ standard, gsma_not_found, top_duplicates, condition_imei_overlaps, stolen_violations

■ timestamp is the run_id_start_time in the job_metadata table

□ Format is %Y%m%d_%H%M%S, i.e., 20171102_051731

■ run_id increments each time a report is run, i.e., ‘run_id_4

■ class_run_id is the classification id of the last successful dirb-classify run,

i.e., ‘class_id_3’

■ data_id, i.e., data_id_1

■ month, i.e., month_7

■ year, i.e., year_2016

Sample listing of directory names for various subcommands

■ standard

report_standard_20171102_052206_run_id_5_class_id_3_data_id_1_month_7_ye

ar_2016

■ condition_imei_overlaps

This is the same name structure as gsma_not_found and top_duplicate subcommands.

data_id is not used for these subcommands.

report_condition_imei_overlaps_20171102_052800_run_id_6_class_id_3_month

_11_year_2016

■ stolen_violation_directory

Month, year and data_id are not used for this subcommand

report_stolen_violations_20171102_051731_run_id_4_class_id_3

NOTE: Visual reports depend on the JSON data, so it is not possible to publish just the HTML, CSS and

JS files. Due to security restrictions imposed by the browser, HTML files generated by dirbs-

report must be hosted by a webserver rather than opened locally from the filesystem. If you

open the reports from the file system, you will receive an alert box stating that the JSON data

could not be loaded.

3.8 Accessing the API server

The API server provides information on the data catalog, job metadata, TAC, IMEI, MSISDN,

and DIRBS code and schema version

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Assuming that you have published the container's port 5000 to the host using the -p 5000:5000

option to docker run, you should be able to open a web browser on the host machine and access

the API server on the:

■ Data catalog API (see Section 3.8.1)

■ Job metadata API (see Section 3.8.2)

■ TAC, IMEI, and MSISDN API (see Section 3.8.3)

■ Version API (see Section 3.8.4)

3.8.1 Data catalog API

Table 3-12 Data catalog API

API endpoint

Description

/api/v1/catalog

Returns last 100 entries from the data_catalog table

sorted by last_seen timestamp in descending order

/api/v1/catalog?max_results=1

▪ Returns last 'x' entries from the data_catalog table

sorted by last_seen timestamp in descending order

 'x' is specified in max_results parameter

/api/v1/catalog?file_type=gsma_tac

▪ Returns last 100 entries of file_type 'x' from the

data_catalog table sorted by last_seen timestamp in

descending order

 'x' is specified by file_type parameter

/api/v1/catalog?is_valid_zip=True

▪ Returns last 100 entries with is_valid_zip status equal

to 'x' from the data_catalog table sorted by last_seen

timestamp in descending order

 'x' is specified in is_valid_zip parameter

/api/v1/catalog?modified_since=20170825

▪ Returns last 100 entries with modified_time greater

than equal to 'x' from the data_catalog table sorted by

last_seen timestamp in descending order

 'x' is specified in modified_since parameter

/api/v1/catalog?cataloged_since=20170801

▪ Returns last 100 entries with last_seen greater than

equal to 'x' from the data_catalog table sorted by

last_seen timestamp in descending order

 'x' is specified in cataloged_since parameter

/api/v1/catalog?modified_since=20170825&is_

valid_zip=True

▪ Returns last 100 entries with last_seen greater than

equal to 'x' and is_valid_zip equal to 'y' from the

data_catalog table sorted by last_seen timestamp in

descending order

 'x' is specified in cataloged_since and

'y' is_valid_zip parameters

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

3.8.2 Job metadata API

Table 3-13 Job metadata API

API endpoint

Description

/api/v1/job_metadata?max_results=<n> (n defaults to

10)

The number of jobs to show in this list can be

configured by the <max_results> query

parameter, which defaults to 10 and must be a

positive integer.

/api/v1/job_metadata?run_id=<first_run_id>&run_id=<

second_run_id> (defaults to any run_id)

Jobs can be filtered by a list of run_ids

using the <run_id> query parameter, which

defaults to any run_id.

Each run_id must be a positive integer.

/api/v1/job_metadata?command=<first_command_na

me_without_quotes>&

command=<second_command_name_without_quotes

>(defaults to any command)

e.g. for import job :

/api/v1/job_metadata?command=dirbs-

import&command=dirbs-prune

Job command name can be specified using the

<command> query parameter, which defaults to

any command.

It is possible to specify more than one

command name in the same query using the

symbol "&" to concatenate the params.

Each command name must refer to an

existing command, such as:

"dirbs-import", "dirbs-classify", "dirbs-prune",

"dirbs-listgen", "dirbs-catalog", "dirbs-report",

"dirbs-db" .

/api/v1/job_metadata?subcommand=<subcommand_n

ame> (defaults to any sub_command)

Jobs can be filtered by a list of job

subcommands using the <subcommand> query

parameter, which defaults to any subcommand.

/api/v1/job_metadata?status=error&status=success (d

efaults to any status)

Jobs can be filtered by a list of job metadata

using the <status> query parameter, which

defaults to any status. Each job metadata must

be either 'running', 'success' or 'error'.

/api/v1/job_metadata?show_details=True (defaults to

True)

Extra details for the specific job can be retrieved

in the extra_metadata section in the JSON

response by setting <show_details> query

parameter to True, which is the default value.

Show_details must have a boolean value:

True, False, 0, 1. If show_details is set to

False, extra_metadata section will not be

included in the JSON response.

/api/v1/job_metadata?show_details=True&status=erro

r&status=success&max_results=3&command=dirbs-

import&command=dirbs-prune

Query parameters for jobs can be repeated to

allow multiple values for the same param (if

eligible). All query params are eligible for

multiple values except max_results and

show_details.

Multiple filters can be combined in the same

query by adding query parameters separated by

the symbol '&' (first query param must start with

symbol '?').

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

3.8.3 TAC API

The TAC API returns relevant data from the GSMA TAC DB. The GSMA TAC fields for NFC,

Bluetooth and WLAN are displayed as the raw content from the GSMA TAC DB.

http://localhost:5000/api/v1/tac/<tac_num>

where <tac_num> is the 8-digit TAC.

3.8.4 IMEI API

The IMEI API returns all known information about the IMEI, as well as results of all 'conditions'

evaluated as part of DIRBS Core.

The following realtime checks are also included information:

■ Invalid IMEI

■ GSMA not found

■ Registration status

■ IMEIs ever observed on the network

http://localhost:5000/api/v1/imei/<imei>?include_seen_with=<0,1,true,

false>

where

include_seen_with determines whether or not the seen_with field will be present in the

response.

If the include_seen_with parameter is not set, it defaults to 0, meaning no seen_with data

will be calculated or sent.

3.8.5 MSISDN API

The MSISDN API returns a list of IMEI, IMSI, GSMA Manufacturer, GSMA Model Name for

the MSISDN specified:

http://localhost:5000/api/v1/msisdn/<msisdn>

3.8.6 Version API

This simple API returns the code, DB schema version, and a boolean value to individuate

potential whitespace in IMSIs and MSISDNs of DIRBS Core:

http://localhost:5000/api/v1/version

3.9 Pruning old data

Table 3-14 lists commands used to prune obsolete data from the DIRBS Core PostgreSQL.

Table 3-14 Prune commands

Prune commands

Function

classification_state

Prune obsolete classification_state data.

triplets

Prune old seen_triplets data.

DIRBS Core Release 8.0.1 User Guide Operating DIRBS Core

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

For help on all options available to dirbs-prune, run:

dirbs-prune --help

Usage: dirbs-prune [OPTIONS] COMMAND [ARGS]...

DIRBS script to prune obsolete data from the DIRBS Core PostgreSQL

database.

Options:

--version Show the version and exit.

-v, --verbose Print debug console output - file output is

unaffected.

--db-password-prompt If set, will prompt the user for a PostgreSQL

password rather than reading from config.

--db-user TEXT The PostgreSQL DB database user to connect as.

--db-name TEXT The PostgreSQL DB database name to connect to.

--db-port INTEGER The PostgreSQL DB port to connect to.

--db-host TEXT The PostgreSQL DB host to connect to.

--statsd-prefix TEXT The environment prefix to prepend to all StatsD

metrics.

--statsd-port INTEGER The StatsD port to connect to on the configured

host.

--statsd-host TEXT The StatsD host to send metrics to.

--curr-date TEXT Sets current date in YYYYMMDD format for

testing. By

default, uses system current date.

--help Show this message and exit.

Commands:

classification_state Prune obsolete classification_state data.

triplets Prune old seen_triplets data.

dirbs-prune classification_state --help

Usage: dirbs-prune classification_state [OPTIONS]

Prune obsolete classification_state data.

Options:

--help Show this message and exit.

dirbs-prune triplets --help

Usage: dirbs-prune triplets [OPTIONS]

Prune old seen_triplets data.

Options:

--help Show this message and exit.

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

4 Understanding DIRBS Reports

4.1 Standard reports

Standard monthly operator and country-level reports are generated in HTML, JSON and CSV

formats. The formats and sections for the country and operator reports are the same. Operator

reports are specific to their respective operators configured in the .dirbs.yml file. Country-level

reports reflect all the IMEIs seen in the country.

The JSON file has a report schema version associated with any generated standard report and are

explicit fields called “report_schema_version” and “software_version”

Expect to see the version number incremented when:

■ Fields are added, removed or renamed

■ The method of calculation for a field is changed so that it cannot be compared to previous

reports

The standard report has a --force-refresh / --no-refresh (default) CLI option:

■ --no-refresh reports can be generated very quickly since no numbers are calculated

■ --force-refresh tells dirbs-report to re-do stats generation if there is previous data

available for the same month and year

■ Standard report only looks for previous data with the same report_schema_version

□ If schema has changed, dirbs-report will always generate new data

Placeholder reports were created with no data for configured operators that have no data for the

month. These reports are only created when the CLI option --disable-data-check is used.

Other CLI options for placeholder reports are:

■ --max-db-connections <int>: Determines the number of parallel jobs to perform during

stats generation (performance scales linearly with this number).

■ --disable-data-check: By default, dirbs-report ensures that there is data available for

all operators for the given month and year before generating a report. Disabling this allows a

report to be generated even if data for one operator’s data is missing.

■ --disable-retention-check: By default, dirbs-report will fail if there is an attempt to

generate a report outside the retention period.

■ --debug-query-performance: Provides more detail in the console output about query

performance during the stats generation phase.

DIRBS Core Release 8.0.1 User Guide  Understanding DIRBS Reports
80-GD079-2 Rev. D  Copyright (c) 2018 Qualcomm Technologies, Inc.  47
This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
4.1.1 Country report
4.1.1.1 HTML
The HTML country report covers:
■ Identifier counts
■ Identifier trends
■ Compliance breakdown
■ IMEI compliance trends
■ Conditions breakdown
■ Condition combinations
■ Blacklist and blacklist violations
■ Top models: counts
■ Top models: gross adds
NOTE: Figures in this section show graphic representations of the same sections in the JSON report.
Figure 4-1 shows the main page for country reports in HTML. Navigate to different sections of
the report by clicking on the navigation pane on the left.


Figure 4-1 Country report main page – HTML
Identifier counts
Identifier counts show a distinct number of:
■ IMEIs, MSISDNs, and IMSIs
■ Combination pairs of IMEI-IMSI, IMEI-MSISDN, and IMSI-MSISDN
■ Triplet combinations of IMEI-IMSI-MSISDN

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Figure 4-2 Identifier counts

Identifier trends

IMEIs, MSISDNs, and IMSIs counts for the months with data for the period specified in the

configuration file.

Figure 4-3 Identifier trends

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Compliance breakdown

The compliance breakdown shows:

■ Compliant IMEIs and triplets that do not meet any conditions or conditions that are non-

blocking

■ Non-compliant IMEIs and triplets that meet one or more blocking conditions

Figure 4-4 Compliance breakdown

IMEI compliance trends

Figure 4-5 IMEI compliance trends

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Conditions breakdown

Each condition is independent of each other. An IMEI can meet one or more conditions, and is

counted on each condition it meets. The sum of the IMEIs for the conditions breakdown does not

equal the number of IMEIs found on the compliance breakdown.

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Figure 4-6 Conditions breakdown

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Condition combinations

IMEIs, IMEI-IMSIs pairs, and triplets count for the conditions they meet including the

combination of conditions.

Figure 4-7 Condition combinations

Blacklist and blacklist violations

Blacklists and blacklist violations report the number of blacklisted IMEIs.

Figure 4-8 Blacklist and blacklist violations

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Top models: counts

Top models show the top 10 models by IMEI counts.

Figure 4-9 Top models: counts

DIRBS Core Release 8.0.1 User Guide  Understanding DIRBS Reports
80-GD079-2 Rev. D  Copyright (c) 2018 Qualcomm Technologies, Inc.  54
This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.
Top models: gross adds

Figure 4-10 Top models: gross adds
4.1.1.2 JSON
The JSON country report covers:
■ Blacklist information
■ Classification conditions
■ Compliance breakdown
■ Condition combinations
■ Conditions breakdown
■ Report name
■ Historic blacklist adds
■ Historic compliance breakdown
■ Historic conditions breakdown
■ Historic IMEI, IMSI, MSISDN, and triplet counts

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

■ IMEI/IMSI and IMSI/IMEI overloading

■ Daily counts for IMEIs, IMSIs, and MSISDNs

■ Top models

■ Monthly counts

Blacklist information

Table 4-1 Blacklist information

Field names

Description

blacklist_adds

▪ imeis: Number of IMEIs seen on network during this month which were

first blocked during the month

▪ non_paired_imsis: Number of non-paired IMSIs seen on this network

during this month associated with those IMEIs

blacklistviolations_by_age

Count of IMEIs seen after they were blacklisted, bucketed by the difference

in days between when they were last seen during this month and the block

date

"blacklist_adds": {

"imeis": 0,

"non_paired_imsis": 0

"blacklist_violations_by_age": {

"1-2": 0,

"11-20": 0,

"21-30": 0,

"3-5": 0,

"31-90": 0,

"6-10": 0,

"90+": 0

Classification conditions

Classification number counts are always filtered by data appearing for that operator or for the

whole country during the reporting month. For example, if there are 10 GSMA Not Found IMEIs,

but only 6 were seen on an operator network during the month, the report will return 6.

The latest classification data is always used, not taken at the end of the reporting month. If a

report was run in September for June, it would first take the IMEIs classified at the current date in

September. To generate an IMEI count, it takes the subset of what appeared on the network

during that month for that operator.

The following classification conditions were configured at the last dirbs-classify execution.

"classification_conditions": [

{

"blocking": true,

"config": {

"blocking": true,

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

"dimensions": [

{

"invert": false,

"module": "gsma_not_found",

"parameters": {}

}

"grace_period_days": 90,

"label": "gsma_not_found",

"max_allowed_matching_ratio": 0.1,

"reason": "TAC not found in GSMA TAC database",

"sticky": false

"label": "gsma_not_found"

{

"blocking": true,

"config": {

"blocking": true,

"dimensions": [

{

"invert": false,

"module": "stolen_list",

"parameters": {}

}

"grace_period_days": 0,

"label": "local_stolen",

"max_allowed_matching_ratio": 0.1,

"reason": "IMEI found on local stolen list",

"sticky": false

"label": "local_stolen"

{

"blocking": true,

"config": {

"blocking": true,

"dimensions": [

{

"invert": false,

"module": "malformed_imei",

"parameters": {}

}

"grace_period_days": 0,

"label": "malformed_imei",

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

"max_allowed_matching_ratio": 0.1,

"reason": "Invalid characters detected in IMEI",

"sticky": false

"label": "malformed_imei"

{

"blocking": false,

"config": {

"blocking": false,

"dimensions": [

{

"invert": false,

"module": "duplicate_threshold",

"parameters": {

"period_days": 120,

"threshold": 3

}

"grace_period_days": 90,

"label": "duplicate_mk1",

"max_allowed_matching_ratio": 0.1,

"reason": "Duplicate threshold exceeeded",

"sticky": false

"label": "duplicate_mk1"

}

Compliance breakdown

High level compliance data can be found in the compliance_breakdown field. The breakdown

lists stats on overall compliance across all configured conditions.

Table 4-2 lists the properties of the configured conditions. There is also historical data for

compliance breakdown in the historic_compliance_breakdown field.

Table 4-2 Compliance breakdown

Field names

Description

num_compliant_imei_imsis

Number of compliant IMEI-IMSIs (no NULLs)

num_compliant_imei_msisdns

Number of compliant IMEI-MSISDNs (no NULLs)

num_compliant_imeis

Number of compliant IMEIs (no NULLs)

num_compliant_triplets

Number of compliant IMEI-IMSI-MSISDN triplets (no

NULLs)

num_noncompliant_imei_imsis_blocking

IMEI-IMSIs (no NULLs) meeting 1+ blocking condition

num_noncompliant_imei_imsis_info_only

As above, but meeting only non-blocking conditions

num_noncompliant_imei_imsis

Sum of above 2 counts. Redundant

num_noncompliant_imei_msisdns_blocking

IMEI-MSISDNs (no NULLs) meeting 1+ blocking condition

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Field names

Description

num_noncompliant_imei_msisdns_info_only

As above, but meeting only non-blocking conditions

num_noncompliant_imei_msisdns

Sum of above 2 counts. Redundant

num_noncompliant_imeis_blocking

IMEIs (no NULLs) meeting 1+ blocking condition

num_noncompliant_imeis_info_only

As above, but meeting only non-blocking conditions

num_noncompliant_imeis

Sum of above 2 counts. Redundant

num_noncompliant_triplets_blocking

Triplets (no NULLs) meeting 1+ blocking condition

num_noncompliant_triplets_info_only

As above, but meeting only non-blocking conditions

num_noncompliant_triplets

Sum of above 2 counts. Redundant

"compliance_breakdown": {

"num_compliant_imei_imsis": 572,

"num_compliant_imei_msisdns": 572,

"num_compliant_imeis": 530,

Condition combinations

Table 4-3 lists the stats for every combination of conditions in the condition_combination_table

field.

Table 4-3 Condition combinations

Field names

Description

combination

▪ Describes combination of conditions for this entry in the

list

▪ If Cond A is True and the rest are False, it means Cond

A only

▪ If Cond A and Cond B are true and the rest are False, it

means Cond A and Cond B only

compliance_level

▪ 2 means compliant

▪ 1 means non-compliant but informational

▪ 0 means non-compliant and blocking

▪ This is determined by the config of the conditions

selected by combination

num_imeis

Number of matching IMEIs (no NULLs)

num_imei_gross_adds

Number of matching gross add IMEIs (no NULLs)

num_imei_imsis

Number of matching IMEI-IMSIs (no NULLs)

num_imei_msisdns

Number of matching IMEI-MSISDNs (no NULLs)

num_subscriber_triplets

Number of matching triplets (no NULLs)

"condition_combination_table": [

{

"combination": {

"duplicate_mk1": false,

"gsma_not_found": false,

"local_stolen": false,

"malformed_imei": false

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

"compliance_level": 2,

"num_imei_gross_adds": 530,

"num_imei_imsis": 572,

"num_imei_msisdns": 572,

"num_imeis": 530,

"num_subscriber_triplets": 572

{

"combination": {

"duplicate_mk1": true,

"gsma_not_found": false,

"local_stolen": false,

"malformed_imei": false

"compliance_level": 1,

"num_imei_gross_adds": 13,

"num_imei_imsis": 47,

"num_imei_msisdns": 47,

"num_imeis": 13,

"num_subscriber_triplets": 47

Conditions breakdown

Overall stats about an individual condition can be found in the conditions_breakdown field. There

is an entry for each classification condition (matches label in classification_conditions). There is

also historical data for this in the historic_conditions_breakdown field

Table 4-4 Conditions breakdown

Field names

Description

num_imeis

Number of matching IMEIs (no NULLs)

num_imei_gross_adds

Number of matching gross add IMEIs (no NULLs)

num_imei_imsis

Number of matching IMEI-IMSIs (no NULLs)

num_imei_msisdns

Number of matching IMEI-MSISDNs (no NULLs)

"conditions_breakdown": {

"duplicate_mk1": {

"num_imei_gross_adds": 16,

"num_imei_imsis": 56,

"num_imei_msisdns": 56,

"num_imeis": 16,

"num_triplets": 56

"gsma_not_found": {

"num_imei_gross_adds": 31,

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

"num_imei_imsis": 39,

"num_imei_msisdns": 39,

"num_imeis": 31,

"num_triplets": 39

"local_stolen": {

"num_imei_gross_adds": 10,

"num_imei_imsis": 13,

"num_imei_msisdns": 13,

"num_imeis": 10,

"num_triplets": 13

"malformed_imei": {

"num_imei_gross_adds": 0,

"num_imei_imsis": 0,

"num_imei_msisdns": 0,

"num_imeis": 0,

"num_triplets": 0

}

Report name

"country_name": "Country1",

"creation_date": "2017-09-27",

"end_date": "2017-08-31",

"has_compliance_data": true,

"has_data": true,

Historic blacklist adds

Historic statsfor the last five months of blacklist adds. This is used to generate drawing trends.

"historic_blacklist_adds": [

{

"imeis": 0,

"non_paired_imsis": 0

{

"imeis": 0,

"non_paired_imsis": 0

{

Historic compliance breakdown

"historic_compliance_breakdown": [

{

"num_compliant_imei_imsis": 572,

"num_compliant_imei_msisdns": 572,

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

"num_compliant_imeis": 530,

"num_compliant_triplets": 572,

"num_noncompliant_imei_imsis": 146,

"num_noncompliant_imei_imsis_blocking": 52,

"num_noncompliant_imei_imsis_info_only": 47,

"num_noncompliant_imei_msisdns": 52,

"num_noncompliant_imei_msisdns_blocking": 52,

"num_noncompliant_imei_msisdns_info_only": 47,

"num_noncompliant_imeis": 54,

"num_noncompliant_imeis_blocking": 41,

"num_noncompliant_imeis_info_only": 13,

"num_noncompliant_triplets": 99,

"num_noncompliant_triplets_blocking": 52,

"num_noncompliant_triplets_info_only": 47

}

Historic conditions breakdown

"historic_conditions_breakdown": {

"duplicate_mk1": [

{

"num_imei_gross_adds": 0,

"num_imei_imsis": 0,

"num_imei_msisdns": 0,

"num_imeis": 0,

"num_triplets": 0

…

{

"num_imei_gross_adds": 16,

"num_imei_imsis": 56,

"num_imei_msisdns": 56,

"num_imeis": 16,

"num_triplets": 56

}

"gsma_not_found": [

{

"num_imei_gross_adds": 0,

"num_imei_imsis": 0,

"num_imei_msisdns": 0,

"num_imeis": 0,

"num_triplets": 0

…

{

"num_imei_gross_adds": 31,

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

"num_imei_imsis": 39,

"num_imei_msisdns": 39,

"num_imeis": 31,

"num_triplets": 39

}

"local_stolen": [

{

"num_imei_gross_adds": 0,

"num_imei_imsis": 0,

"num_imei_msisdns": 0,

"num_imeis": 0,

"num_triplets": 0

…

{

"num_imei_gross_adds": 10,

"num_imei_imsis": 13,

"num_imei_msisdns": 13,

"num_imeis": 10,

"num_triplets": 13

}

"malformed_imei": [

{

"num_imei_gross_adds": 0,

"num_imei_imsis": 0,

"num_imei_msisdns": 0,

"num_imeis": 0,

"num_triplets": 0

…

"num_imei_gross_adds": 0,

"num_imei_imsis": 0,

"num_imei_msisdns": 0,

"num_imeis": 0,

"num_triplets": 0

}

]

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Historic IMEI, IMSI, MSISDN and triplet counts

Table 4-5 Historic IMEI, IMSI, MSISDN and triplet counts

Field names

Description

historic_imei_counts

Contains list of total_imeis_seen results for previous months for drawing

trends

historic_imsi_counts

Contains list of total_imsis_seen results for previous months for drawing

trends

historic_msisdn_counts

Contains list of total_msisdns_seen results for previous months for

drawing trends

historic_triplet_counts

Contains list of total_triplets_seen results for previous months for

drawing trends

"historic_imei_counts": [

584

"historic_imsi_counts": [

671

"historic_msisdn_counts": [

671

"historic_triplet_counts": [

671

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

IMEI/IMSI and IMSI/IMEI overloading

Table 4-6 IMEI/IMSI and IMSI/IMEI overloading

Field names

Description

imsi_imei_overloading

Number of IMSIs seen with 1 IMEI, 2 IMEIs, 3 IMEIs, etc.

imei_imsi_overloading

Number of IMEIs seen with 1 IMSI, 2 IMSIs, 3 IMSIs, etc. (duplication)

"imei_imsi_overloading": [

{

"num_imeis": 521,

"seen_with_imsis": 1

{

"num_imeis": 47,

"seen_with_imsis": 2

{

"num_imeis": 13,

"seen_with_imsis": 3

{

"num_imeis": 1,

"seen_with_imsis": 4

{

"num_imeis": 1,

"seen_with_imsis": 5

{

"num_imeis": 1,

"seen_with_imsis": 8

}

Daily counts for IMEIs, IMSIs and MSISDNs

Table 4-7 Daily counts for IMEIs, IMSIs and MSISDNs

Field names

Description

imeis_per_day

Distinct IMEIs seen per day (no NULLs)

imsis_per_day

Distinct IMSIs seen per day (no NULLs)

msisdns_per_day

Distinct MSISDNs seen per day (no NULLs)

recs_per_day

Distinct triplets seen per day (no NULLs)

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

"imeis_per_day": [

{

"count": 281,

"date": "2017-08-01"

…

{

"count": 266,

"date": "2017-08-31"

}

"imsi_imei_overloading": [

{

"num_imsis": 671,

"seen_with_imeis": 1

}

…

"imsis_per_day": [

{

"count": 299,

"date": "2017-08-01"

…

{

"count": 281,

"date": "2017-08-31"

"msisdns_per_day": [

{

"count": 299,

"date": "2017-08-01"

…

{

"count": 250,

"date": "2017-08-31"

"recs_per_day": [

{

"count": 299,

"date": "2017-08-01"

…

{

"count": 250,

"date": "2017-08-31"

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Report schema version and DIRBS core software version

"report_schema_version": 2,

"software_version": "5.2.0",

"start_date": "2017-08-01",

Top models

Table 4-8 Top models

Field names

Description

top_models_gross_adds

List of top 10 models by ordered by IMEI gross adds. Each list item

contains manufacturer, model, gross add IMEI count and tech

generation (2G, etc.)

top_models_imei

List of top 10 models by ordered by raw IMEI count. Each list item

contains manufacturer, model, gross add IMEI count and tech

generation (2G, etc.)

top_models_gross_adds_count

Sum of IMEI gross add counts for top_models_gross_adds. Used for

percentage calculations. Technically redundant

top_models_imei_count

Sum of IMEI gross add counts for top_models_imei. Used for

percentage calculations. Technically redundant

"top_models_gross_adds": [

{

"count": 12,

"manufacturer": "Manufacturer-33",

"model": "Model-345",

"tech_generations": "2G/3G"

{

"count": 8,

"manufacturer": "Manufacturer-60",

"model": "Model-74",

"tech_generations": "2G/3G"

{

"count": 7,

"manufacturer": "Manufacturer-18",

"model": "Model-109",

"tech_generations": "2G/3G"

…

"top_models_gross_adds_count": 73,

"top_models_imei": [

{

"count": 12,

"manufacturer": "Manufacturer-33",

"model": "Model-345",

"tech_generations": "2G/3G"

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

{

"count": 8,

"manufacturer": "Manufacturer-60",

"model": "Model-74",

"tech_generations": "2G/3G"

{

"count": 7,

"manufacturer": "Manufacturer-18",

"model": "Model-109",

"tech_generations": "2G/3G"

…

"top_models_imei_count": 73,

Monthly counts

Table 4-9 Monthly counts

Field names

Description

total_imeis_seen

Number of distinct IMEIs seen (no NULLs)

total_imsis_seen

Number of distinct IMSIs seen (no NULLs)

total_msisdns_seen

Number of distinct MSISDNs seen (no NULLs)

total_imei_imsis_seen

Number of distinct IMEI-IMSI pairs (no NULLs)

total_imei_msisdns_seen

Number of distinct IMEI-MSISDN pairs (no NULLs)

total_imsi_msisdns_seen

Number of distinct IMSI-MSISDN pairs (no NULLs)

total_gross_adds

Number of IMEI gross adds

total_records_seen

Blind COUNT(*) of all rows of data

total_triplets_seen

Number of distinct IMEI-IMSI-MSISDN triplets (no NULLS)

total_null_imei_records

Rows of data containing a NULL IMEI

total_null_imsi_records

Rows of data containing a NULL IMSI

total_null_msisdn_records

Rows of data containing a NULL MSISDN

total_invalid_imei_imsis

Distinct IMEI-IMSI pairs where IMEI or IMSI is NULL

total_invalid_imei_msisdns

Distinct IMEI-IMSI pairs where IMEI or MSISDN is NULL

total_invalid_triplets

Distinct IMEI-IMSI-MSISDN triplets where any is NULL

total_whitespace_imsi_records

Will always be zero in recent release (REMOVE)

total_whitespace_msisdn_records

Will always be zero in recent release (REMOVE)

historic_blacklist_adds

Historic stats for the last five months for above for drawing trends

"total_blacklist_violations": 0,

"total_gross_adds": 584,

"total_imei_imsis_seen": 671,

"total_imei_msisdns_seen": 671,

"total_imeis_seen": 584,

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

"total_imsi_msisdns_seen": 671,

"total_imsis_seen": 671,

"total_invalid_imei_imsis": 0,

"total_invalid_imei_msisdns": 0,

"total_invalid_triplets": 0,

"total_msisdns_seen": 671,

"total_null_imsis": 0,

"total_null_msisdns": 0,

"total_records_seen": 671,

"total_triplets_seen": 671,

"total_whitespace_imsis": 0,

"total_whitespace_msisdns": 0

4.1.1.3 CSV

Country1_8_2017.csv

Country1_8_2017.csv shows conditions met per TAC and the additional data in the header.

TAC,gsma_not_found,local_stolen,malformed_imei,duplicate_mk1,IMEI count,IMEI gross

adds count,IMEI-IMSI count,IMEI-MSISDN count,Subscriber triplet count,Compliance

Level

35929705,False,False,False,False,2,2,2,2,2,2

35347306,False,False,False,False,1,1,1,1,1,2

35544905,False,False,False,False,1,1,1,1,1,2

35295707,False,False,False,False,1,1,1,1,1,2

35305902,False,False,False,False,1,1,1,1,1,2

35211906,False,False,False,False,1,1,1,1,1,2

35627206,False,False,False,False,1,1,1,1,1,2

35730805,False,False,False,False,1,1,1,1,1,2

…

Country1_8_2017_condition_counts.csv

Country1_8_2017_condition_counts.csv shows all configured conditions and additional data in

the header.

gsma_not_found,local_stolen,malformed_imei,duplicate_mk1,IMEI count,IMEI gross adds

count,IMEI-IMSI count,IMEI-MSISDN count,Subscriber triplet count,Compliance Level

False,False,False,False,530,530,572,572,572,2

False,False,False,True,13,13,47,47,47,1

False,True,False,False,9,9,10,10,10,0

False,True,False,True,1,1,3,3,3,0

True,False,False,False,29,29,33,33,33,0

True,False,False,True,2,2,6,6,6,0

4.1.2 Operator reports

HTML and JSON operator reports are identical.

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

4.1.2.1 CSV

Country1_operator1_8_2017.csv shows conditions met per TAC and additional data in the

header.

Country1_operator1_8_2017.csv

TAC,gsma_not_found,local_stolen,malformed_imei,duplicate_mk1,IMEI

count,IMEI gross adds count,IMEI-IMSI count,IMEI-MSISDN count,Subscriber

triplet count,Compliance Level

99000435,False,False,False,False,1,1,1,1,1,2

01140800,False,False,False,False,1,1,1,1,1,2

86809701,False,False,False,True,1,1,2,2,2,1

86809701,False,False,False,False,1,1,1,1,1,2

Country1_operator1_8_2017_condition_counts.csv

Country1_operator1_8_2017_condition_counts.csv shows all configured conditions and

additional data in the header.

gsma_not_found,local_stolen,malformed_imei,duplicate_mk1,IMEI count,IMEI

gross adds count,IMEI-IMSI count,IMEI-MSISDN count,Subscriber triplet

count,Compliance Level

False,False,False,False,488,488,488,488,488,2

True,False,False,False,25,25,25,25,25,0

False,True,False,True,2,2,5,5,5,0

False,False,False,True,55,55,131,131,131,1

4.2 Condition IMEI overlaps reports

Condition IMEI overlaps reports generate per-condition reports showing matched IMEIs seen on

more than one MNO network.

Country1_8_2017_condition_imei_overlap_duplicate_mk1.csv

IMEI,Operators

01170100000001,operator1|operator2

01206400000001,operator1|operator2

01219000000001,operator1|operator2

01223745000001,operator1|operator2

Country1_8_2017_condition_imei_overlap_gsma_not_found.csv

IMEI,Operators

01134900000001,operator1|operator2

01223745000001,operator1|operator2

01349800000001,operator1|operator2

01392300000001,operator1|operator2

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Country1_8_2017_condition_imei_overlap_local_stolen.csv

IMEI,Operators

01368900000001,operator1|operator2

01388500000001,operator1|operator2

01453800000001,operator1|operator2

35236005000001,operator1|operator2

Country1_8_2017_condition_imei_overlap_malformed_imei.csv

IMEI,Operators

0113AA00000001,operator1|operator2

0122AA45000001,operator1|operator2

0136AA00000001,operator1|operator2

0138AA00000001,operator1|operator2

4.3 GSMA not found reports

Country report with list of IMEIs seen on the network that are not found in the GSMA TAC:

Country1_8_2017_gsma_not_found.csv

IMEI

01134900000001

01223745000001

4.4 Stolen violations reports

Stolen violations reports generate a per-MNO list of IMEIs seen on the network after they were

reported stolen.

stolen_violations_operator1.csv

imei_norm,last_seen,reporting_date

35236005000001,20170831,20170809

35930705000001,20170831,20170809

35819806000002,20170829,20170809

35570805000002,20170831,20170809

stolen_violations_operator2.csv

imei_norm,last_seen,reporting_date

35819806000002,20170829,20170809

35793806000001,20170830,20170809

01388500000001,20170829,20170809

01453800000001,20170831,20170809

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Reports

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

4.5 Top duplicates reports

Country reports of all IMEIs seen with more than five IMSIs:

Country1_8_2017_duplicates.csv

IMEI,IMSI count

01206400000001,16

35177105000001,10

35840304000001,8

01381500000001,6

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

5 Understanding DIRBS Lists

The dirbs-listgen command creates .zip files containing both the full lists and all the delta

lists in CSV format for blacklists, notifications, and exceptions. ZIP files are named as shown

below, where both date_string and operator_id are variables based on the list generation

timestamp and the operator id:

■ <date string>_blacklist.zip (same for every MNO)

■ <date_string>_notifications_<operator_id>.zip

■ <date_string>_exceptions_<operator_id>.zip

Full lists contain all the entries that are on the respective list, while the delta list only contains

changes between the list-generation runs

NOTE: Running listgen with no explicit curr-date parameter bases the end of its lookback window off

the most recent operator data date rather than the current date.

5.1 Blacklist

The <date_string> blacklist.zip file will contain the full blacklist and the delta blacklists .CSVs as

listed in the sample filenames below. The same blacklists are distributed to all operators,

■ 20180217_000302_blacklist.csv

■ 20180217_000302_blacklist_delta_-1_42_blocked.csv

■ 20180217_000302_blacklist_delta_-1_42_changed.csv

20180217_000302_blacklist_delta_-1_42_unblocked.csv

5.1.1 Full blacklist

The full blacklist file will contain the following information:

■ Lists IMEIs that have met a blocking condition and where the current date has exceeded the

block date.

■ A CSV file containing the complete blacklist is distributed to all MNOs.

■ One row per IMEI containing these fields:

□ IMEI

□ Block date for IMEI (earliest block date for all the blocking classification conditions that

the IMEI meets)

□ List of reasons for this condition (one reason for each condition resulting in the IMEI

being blocked, pipe-separated)

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Lists

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

20180217_000302_blacklist.csv

imei,block_date,reasons

31111106045110,20160503,TAC not found in GSMA TAC database

41111101365980,20160503,TAC not found in GSMA TAC database

12640904324427,20171016,IMEI found on local stolen list

12909602872723,20171016,IMEI found on local stolen list

5.1.2 Delta blacklist

Delta blacklists will also be included in the .zip file.

Each file contains the difference between the results of previous list generation run ID for each

event type. The file format is:

<date_string>_blacklist_delta_-

<Previous_RunID>_<Current_RunID>_<event_type>.csv

The following are sample delta blacklist file names:

■ 20180217_000302_blacklist_delta_-1_42_blocked.csv

■ 20180217_000302_blacklist_delta_-1_42_changed.csv

■ 20180217_000302_blacklist_delta_-1_42_unblocked.csv

The delta blacklist file contains the same fields as the full list.

20180217_000302_blacklist_delta_-1_42_blocked.csv

imei,block_date,reasons

31111106045110,20160503,TAC not found in GSMA TAC database

41111101365980,20160503,TAC not found in GSMA TAC database

12640904324427,20171016,IMEI found on local stolen list

12909602872723,20171016,IMEI found on local stolen list

Table 5-1 Blacklist event types

Event

Example scenarios

blocked

▪ Grace period for an IMEI has expired on a previously-met condition

▪ IMEI meets a blocking condition for the first time and grace period was 0

▪ IMEI was on the golden list, was meeting a blocking condition and then golden list

entry was removed

unblocked

▪ IMEI was previously blocked but no longer meets any blocking condition (non-sticky

blocking condition)

▪ IMEI was added to the golden list

changed

▪ IMEI previously was blacklisted, but reasons or block date changed

▪ Perhaps stolen and GSMA Not Found and then the TAC got allocated in GSMA so

that the new reasons are just stolen

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Lists

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

5.2 Notifications lists

The <date_string>_notifications_<operator_id>.zip file will be generated for each

operator and contain the full notification and the delta notification CSVs, as listed in the following

sample file names:

■ 20180217_000302_notifications_operator1.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_blacklisted.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_changed.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_new.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_no_longer_seen.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_resolved.csv

5.2.1 Full notification list

The full notification list file will contain the following information:

■ Lists IMEIs that have met a blocking condition where the current date is still within the grace

period for the condition. Does not include any IMEI already on the blacklist.

■ For each IMEI, subscriber triplets are generated based on imported operator data. There is

one row in the list for each triplet.

■ Determines the home network for each triplet based on IMSI and configured MCC/MNC

pairs for each configured operator.

■ If a triplet does not match any MCC/MNC pairing for a configured operator (roamers, etc.),

we notify all operators whose data they have been seen in.

■ Each operator gets a different list containing their subscribers and any fallback triplets seen

on their network.

■ These fields are included in each row:

□ IMEI

□ IMSI

□ MSISDN (if available in country)

□ Block date for IMEI (earliest block date for all the blocking classification conditions that

the IMEI meets)

□ List of reasons for this condition (one reason for each condition met by the IMEI, pipe-

separated)

□ Amnesty granted field (set to either True or False)

● Specifies if IMEI is eligble for amnesty

20180217_000302_notifications_operator1.csv

imei,imsi,msisdn,block_date,reasons, amnesty_granted

38674133009747,11101536296900,22300001929746,20161206,IMEI not found on

local registration list,blacklisted,false

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Lists

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

5.2.2 Delta notification lists

Delta notification lists will also be included in the .zip file.

Each file will contain the difference between the results of previous list generation run ID for

each event type. The file format is:

<date_string>_notification_<operator_id>_delta_-

<Previous_RunID>_<Current_RunID>_<event_type>.csv

The following are sample delta notification list file names:

■ 20180217_000302_notifications_operator1_delta_-1_42_blacklisted.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_changed.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_new.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_no_longer_seen.csv

■ 20180217_000302_notifications_operator1_delta_-1_42_resolved.csv

The delta notification list will contain the same fields as the full list.

20171208_235247_notifications_operator1_delta_36_41.csv

imei,imsi,msisdn,block_date,reasons,amnesty_granted

38674133009747,11101536296900,22300001929746,20161206,IMEI not found on

local registration list,blacklisted,false

Table 5-2 Notification list event types

Event

Example scenarios

new

▪ IMEI has met a blocking condition for the first time, and there is a non-zero grace

period

▪ A new subscriber triplet has been seen with an IMEI meeting a blocking condition

and in grace period (changed SIM)

▪ Pairing has been removed for a subscriber using an IMEI meeting a blocking

condition and in grace period

▪ IMSI did not have an identifiable home network (via MCC-MNC) and gfipldg was

seen for the first time on a network in the lookback window

resolved

▪ IMEI no longer meets a blocking condition and was in grace period previously

▪ Pairing added for a subscriber using an IMEI meeting a blocking condition and in

grace period

▪ IMEI added to golden list and was in grace period previously

▪ Triplet no longer seen during lookback window so no longer needs to be notified

blacklisted

▪ IMEI met a blocking condition and was in grace period, but now grace period has

expired

▪ IMEI met a new blocking condition that had 0 grace period

changed

IMEI is in grace period, but reasons or block date changed (blocking condition added

or removed since last list generation)

no_longer_seen

The triplet was removed from the notifications list, is not paired or blacklisted but the

IMEI is still being notified

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Lists

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

5.3 Exceptions lists

The <date_string>_exceptions_<operator_id>.zip file will be generated for each operator

and contain the full exception and the delta exceptions CSVs, as listed in the following sample

filenames:

■ 20180217_000302_exceptions_operator1.csv

■ 20180217_000302_exceptions_operator1_delta_-1_42_added.csv

■ 20180217_000302_exceptions_operator1_delta_-1_42_removed.csv

5.3.1 Full exceptions list

A full exceptions list file contains the following information:

■ Each operator gets a copy of the pairing list, split into per-operator exception lists based again

on their IMSI and the configured MCC/MNC pairs for the configured operators.

■ If a pairing's IMSI matches any MCC/MNC pairing for a configured operator (roamers, etc.),

the pairing is placed on each operator's exception lists which that IMEI/IMSI combination

has been seen.

■ These fields are included in each row:

□ IMEI

□ IMSI

20180217_000302_exceptions_operator1.csv

imei,imsi

811111013136464,111038001111111

311111060451100,111035111111111

411111013659808,310035111111111

5.3.2 Delta exceptions list

Delta exceptions lists will also be included in the .zip file.

Each file contains the difference between the results of previous list generation run ID for each

event type. The file format is:

<date_string>_exceptions_<operator_id>_delta_-

<Previous_RunID>_<Current_RunID>_<event_type>.csv

The following are sample delta notification list file names:

■ 20180217_000302_exceptions_operator1_delta_-1_42_added.csv

■ 20180217_000302_exceptions_operator1_delta_-1_42_removed.csv

20180217_000302_exceptions_operator1_delta_1_42.csv

imei,imsi,change_type

64220299727231,111041012987198,added

DIRBS Core Release 8.0.1 User Guide Understanding DIRBS Lists

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Table 5-3 Exceptions list change types

Event

Example scenarios

added

▪ IMEI-IMSI pair has been added to the pairing list since last run

▪ IMSI did not have an identifiable home network (via MCC-MNC) and was seen for the

first time on a network

▪ Config setting restrict_exceptions_list_to_blacklisted_imeis is True and the IMEI

associated with this pairing just got blacklisted

removed

▪ IMEI-IMSI pair has been removed from the pairing list since last run

▪ IMSI did not have an identifiable home network (via MCC-MNC) and was no longer

seen on a network

▪ Config setting restrict_exceptions_list_to_blacklisted_imeis is True and the IMEI

associated with this pairing was unblocked

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

6 Frequently Asked Questions

6.1 How does duplicate averaging work?

Figure 6-1 Duplicate averaging

6.2 Reported error during dirbs-classify or dirbs-import

The following error message is the result of a connection timeout between the DIRBS Core and

the PostgreSQL server:

2017-11-24 13:03:49,826 - dirbs.exception - ERROR - DIRBS encountered an

uncaught software exception

...

psycopg2.DatabaseError: SSL SYSCALL error: Connection timed out

...

psycopg2.OperationalError: SSL SYSCALL error: EOF detected

...

During handling of the above exception, another exception occurred:

...

psycopg2.DatabaseError: SSL SYSCALL error: Connection timed out

DIRBS Core Release 8.0.1 User Guide

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Build step 'Execute shell' marked build as failure

Finished: FAILURE

The timeout can be caused and fixed by either or both of the following:

■ PostgreSQL server requires tuning. Logs from the server must be analyzed during the tuning

process. Check the following on the PostgreSQL server:

□ tcp_keepalives_count

□ tcp_keepalives_idle

□ tcp_keepalives_interval

■ Network device configuration, i.e., firewalls:

□ Increase TCP timeout to greater than 1800

6.3 Reported error during dirbs-import

The following error message occurred while importing operator data and is the result of

insufficient disk space on the PostgreSQL server:

File "/usr/lib/python3.5/concurrent/futures/_base.py", line 357, in

__get_result

raise self._exception

File "/usr/lib/python3.5/concurrent/futures/thread.py", line 55, in run

result = self.fn(*self.args, **self.kwargs)

File "/home/dirbs/dirbs-venv/lib/python3.5/site-

packages/dirbs/importer/abstract_importer.py", line 338, in

_upload_file_to_staging_table

cursor.copy_expert(sql=self._upload_batch_to_staging_table_query(),

file=f)

psycopg2.OperationalError: could not extend file "base/24702/25222.8":

wrote only 4096 of 8192 bytes at block 1162731

HINT: Check free disk space.

CONTEXT: COPY staging_operator_import_5, line 320617

This issue can be resolved by adding additional disk space to your PostgreSQL Server.

6.4 Understanding gsma_not_found Reporting Body Index

delay configuration

The dirbs.yml file enables the configuration of the Reporting Body Index (RBI) delays to be used

when classifying the gsma_not_found condition. For syntax and default values, see Appendix B.

Due to delays by the reporting body, there can be a lag between the TAC allocation date and the

GSMA TAC DB. New IMEIs may be seen on the network before the TAC is included in the

GSMA TAC DB and can be erroneously reported as gsma_not found and potentially prematurely

blocked.

DIRBS Core Release 8.0.1 User Guide

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

The RBI delay enables the configuration of a delay in days on a per RBI basis (see Figure 6-2).

An IMEI that contains an RBI listed in Appendix B will not be classified as gsma_not_found

until the RBI delay period has elapsed.

RBI Delay(days)

IMEI not classified as gsma_not_found

IMEI Classified as

gsma_not_found

IMEI First Seen Date

Invalid TAC

IMEI Contains RB

With Configured Delay

IMEI seen on

the network again

Figure 6-2 RBI delay

The default values configured in the DIRBS Core have been selected based on the analysis of

historical data.

NOTE: For all other RBIs that are not listed in Appendix B or configured in the dirbs.yml, the RBI delay

is 0. Any found IMEI whose tag does not include a legitimate RBI will be immediately classified

as gsma_not_found.

6.5 Duplicate and conflicting rows in non-operator imports

This section provides the rationale behind the "conflicting rows" check that has been

implemented in DIRBS 7.0.0 and for which there is no option to disable. This includes:

■ The difference between duplicate and conflicting rows, and

■ Why DIRBS Core cannot safely import files containing conflicting data for the same records.

6.5.1 Key and metadata columns

Every non-operator import in DIRBS Core (stolen list, pairing list, registration list, and golden

list) has columns that fall into two categories:

■ Key columns uniquely identify the device or pairing. This is often the normalized IMEI for

many imports.

■ Metadata columns contain metadata associated with the device or pairing identified by the

key columns. This might be make, model, status, reporting date, etc.

Table 6-1 summarizes the columns for each type of non-operator import.

Table 6-1 Key and metadata columns

Import type

Key columns

Metadata columns in 7.0.0

Stolen list

Normalized IMEI

Reporting date

Pairing list

Normalized IMEI, IMSI

None

Registration list

Normalized IMEI

None

Golden list

Normalized IMEI or Hashed Normalized IMEI

None

DIRBS Core Release 8.0.1 User Guide

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

6.5.1.1 Normalized IMEI – imei_norm

Unfortunately, there is no single definition of an IMEI. There are at least four variants of the

same standards-compliant IMEI:

■ 14-digit IMEI (no check digit or software version)

■ 15-digit IMEI (with Luhn check digit calculated and appended)

■ 15-digit IMEI (with 0 transmitted as last digit, as sent over the air)

■ 16-digit IMEI (with 2 digit software version appended to 14 digit number)

DIRBS must normalize IMEIs using some well-defined process to ensure that variations listed

above map to the same IMEI during classification and list generation.

The algorithm used by DIRBS Core is:

■ Trim leading and trailing whitespace to produce TRIMMED_IMEI. If TRIMMED_IMEI is

an empty string, convert it to NULL.

□ If TRIMMED_IMEI starts with 14 digit characters (0-9), use those 14 digits as the

normalized IMEI.

□ Else, return the uppercase version of TRIMMED_IMEI as the normalized IMEI.

6.5.2 Problems

6.5.2.1 Duplicate keys in the file

After normalization of IMEIs, there might be duplicate keys in an input file.

Table 6-2 and Table 6-3 show an example file of a stolen list before and after normalization,

respectively.

Table 6-2 Stolen list

imei

reporting_date

123456789012345

2017-01-01

1234567890123463

2017-01-01

Table 6-3 Stolen list after normalization

imei_norm

reporting_date

12345678901234

2017-01-01

12345678901234

2017-01-01

The imei_norm column in Table 6-3 is now duplicated in the file. There may have also been

IMEIs in the original file that were duplicated even before normalization.

In general, there are two possible scenarios:

■ There are duplicate keys, but all the metadata columns agree , i.e., they all contain the same

value. This is the case in Table 6-2 and Table 6-3, where the reporting_date column has the

same value for both rows with the duplicate imei_norm. This is called a duplicate row,

because it is an exact duplicate of the other row. These kinds of duplicates can be safely

ignored by the importer.

DIRBS Core Release 8.0.1 User Guide

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

■ There are duplicate keys, but the metadata columns do not agree, i.e., they contain different

vaues. These are called conflicting rows because the rows contain conflicting data for the

same key. These kinds of rows cannot be safely imported and will fail the conflicting

rows validation check.

6.5.2.2 Prior resolution of conflicting rows required

Table 6-4 provides an example of two conflicting rows. These rows cannot be safely imported

because DIRBS Core does not know how to resolve the conflict.

Table 6-4 Conflicting rows

imei_norm

reporting_date

12345678901234

2017-01-01

12345678901234

2018-03-02

If the only metadata column is reporting_date, it might be possible to simply take the minimum of

the reporting_date and store that, but this may be an incorrect assumption and does not also hold

for metadata that are not dates.

Table 6-5 is a hypothetical example of conflicting rows, containing extra columns proposed in a

future DIRBS Core release for the registration list.

Table 6-5 Future DIRBS Core registration list

imei_norm

make

model

status

12345678901234

Samsung

Galaxy

whitelist

12345678901234

Apple

iPhone

pending_approval

If the registration_list importer were to import the above rows, how would it know which row to

import? DIRBS Core does not have enough information to make a decision.

Why not import both rows?

Importing both rows causes the following issues:

■ The key columns (imei_norm) are currently used by the database table as a primary key,

meaning that they must be unique. This is only a technical limitation only. The primary key

can be changed at the expense of performance and optimal query plans if there is a very good

reason to do so.

■ If the same IMEI is on the list twice, what make/model should be returned? Is the status of

that IMEI that it is registered and therefore whitelisted, or that it is still pending approval

from the regulator? Systems like the DVS do not know what answer to return for an IMEI if

there is conflicting information for the same IMEI.

■ Importing both rows can mess up reporting. If we choose the wrong reporting date, the

blacklist violations report might say that there was a stolen list violation that is a false

positive.

Delta imports

Delta imports pose an additional, related problem if the same IMEI is in the delta file after

normalization with different change types.

DIRBS Core Release 8.0.1 User Guide

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

For example, after normalizing an IMEI might be 'added' and 'removed' in the same delta file

(see Table 6-6).

Table 6-6 Normalized delta file

imei

reporting_date

change_type

12345678901234

2017-01-01

add

123456789012345

2017-01-01

remove

This is another conflict that DIRBS Core cannot resolve. This special check for delta files is

called the 'multiple_changes_check' and only performs if the importer is in delta mode. If a delta

file import is failing this check, it is a simlar issue to the conflicting rows check above.

6.5.3 Options for resolving a conflicting row problem

There are three options for resolving a conflicting row problem:

■ Ensure that subsystems that record IMEIs use the same normalization rules as DIRBS Core.

□ This way there are never any duplicates detected by DIRBS Core that could potentially

have conflicting data. If the same IMEI is reported stolen twice, for example, the IMEI

should already be blocked and a second report should not be lodged. This would be

required for new subsystems using replication to directly replicate into DIRBS Core

database tables.

■ Do not import with any metadata columns.

□ The subsystems in some deployments may not use extra metadata columns. The only use

of metadata columns is in the stolen list import, which uses this information for the

stolen_violations report. This might not be a viable option.

■ Pre-process data during export for DIRBS.

□ If there is a business need to store duplicate data in the subsystems, these can simply be

filtered out during export of data for DIRBS Core using a conflict resolution process

based on business rules.

6.6 DIRBS Amnesty feature

The DIRBS Amnesty (grandfathering) feature enables DIRBS operators to grant a grace period

for IMEIs that have been seen on the network that match certain blocking and amnesty eligible

conditions.

When an IMEI is eligible for amnesty, it will not be blacklisted or blocked from the network for

the duration of the amnesty period and enables IMEIs to continue working on the operator

network. Once the amnesty period expires, IMEIs are classified based on the rules and conditions

configured in .dirbs.yml.

The DIRBS system maintains the list of amnesty eligible IMEIs internally in the DIRBS

database.

DIRBS Core Release 8.0.1 User Guide

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

DIRBS Amnesty contains three phases:

■ Amnesty evaluation: A pre-configured period of time that determines IMEI amnesty

eligibility based on conditions configured in the .yml file. Amnesty eligible IMEIs are

determined by running the dirbs-classify command.

■ Amnesty: A pre-configured period of time that defines when amnesty is in effect. Amnesty

eligible IMEIs will be on the notification list with a block date that is the amnesty end date

(see Section 6.6.1). IMEIs are no longer evaluated for amnesty eligibility.

■ Post-amnesty: Amnesty period has expired. The system no longer checks whether an IMEI

is eligible for amnesty. Normal system classification and notifications are in effect.

6.6.1 Enabling and configuring amnesty in .dirbs.yml

To enable the amnesty feature and configure amnesty evaluation and period end dates:

# Definition of settings to be used for amnesty feature. Amnesty feature

enables native grandfathering support within

# DIRBS Core. A list of whitelisted IMEIs is managed within Core

transparent to EIRs during the amnesty period.

# The amnesty list is mutable during the amnesty evaluation period,

immutable during the amnesty period.

# During the amnesty evaluation period, the amnesty_list table is

overwritten each time dirbs-classify is run.

amnesty:

# Boolean value to indicate whether to enable this feature or not.

amnesty_enabled: True

# End date of the amnesty evaluation period & start of the amnesty

period.

evaluation_period_end_date: 20180131

# End of amnesty period. Must be greater than the evaluation period end

date.

amnesty_period_end_date: 20180417

Conditions that determine amnesty eligibility are configured in .dirbs.yml:

- label: simple_dimension

dimensions:

- module: gsma_not_found

grace_period_days: 0

blocking: True

amnesty_eligible: True

reason: Violated simple dimension

NOTE: The blocking parameter must be set to True for the amnesty eligible parameter to take effect.

6.6.2 Eligibility and notifications

During the amnesty evaluation period, IMEIs will be classified using the configured amnesty

eligible conditions. When running dirbs-classify and the IMEI meets the amnesty eligible

condition, it will be classified as amnesty eligible and stored as such in the DIRBS classification

state table.

DIRBS Core Release 8.0.1 User Guide

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Running dirbs-listgen during this period will not generate notifications for amnesty eligible

IMEIs.

Running dibs-listgen during the amnesty_period will generate notifications for amnesty eligible

IMEIs in the format described in Section 5.2.

6.6.2.1 Modifications

Evaluation period

The evaluation period can be extended or reduced by modifying the evaluation_period_end_date

and re-running dirbs-classify.

Amnesty period

The amnesty_period can be extended or reduced by modifying the amnesty_period_end_date and

re-running dirbs-classify.

6.6.2.2 Disabling

Amnesty can be disabled prior to the amnesty evaluation end date by toggling the

amnesty_enabled parameter in the .dirbs.yml to False.

Changing this value to False after the evaluation period or during the amnesty period does not

disable the feature as amnesty eligible IMEIs have already been classified and stored in the

database.

During the amnesty period, the feature can be disabled by accelerating the amnesty period end

date to the current date and re-running dirbs-classify. IMEIs will then be classified based on

the configured conditions and notified/blocked accordingly.

6.6.3 Stolen, paired, and golden IMEI interaction

Amnesty eligible IMEIs added to the golden list will not be added to the notification list.

Amnesty eligible IMEIs added to the pairing list will exclude a subset of triplets from the

notification list.

Example

Triplets seen on the network:

■ IMEI-1 - IMSI-1 - MSISDN-1

■ IMEI-1 - IMSI-2 - MSISDN-2

■ IMEI-1 - IMSI-3 - MSISDN-3

If IMEI-1 is amnesty eligible and also on the golden list, then none of the above triplets are on the

notification list.

If IMEI-1 is amnesty eligible and IMEI-1-IMSI-1 is on the pairing list, then IMEI-1-IMSI-2-

MSISDN-2 and IMEI-1-IMSI-3-MSISDN-3 triplets will be on the notification list.

The behavior for amnesty eligible IMEIs that are added to the stolen list must be specifically

configured in the conditions section of the .dirbs.yml.

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

It is recommended to treat stolen (not duplicated) IMEIs, and stolen and duplicated IMEIs

differently:

■ For an amnesty eligible IMEI that was stolen and not duplicated, the IMEI should be blocked

and blacklisted. This should be configured as a compound dimension in the conditions

section.

- label: compound_dimension1

dimensions:

- module: stolen_list

- module: duplicate_threshold

parameters:

threshold: 2

period_days: 30

invert: True

grace_period_days: 0

blocking: True

reason: Violated compound dimension stolen & not duplicate

max_allowed_matching_ratio: 0.1

■ For an amnesty eligible IMEI that was stolen and duplicated, it is recommended to not block

the IMEI so as not to impact other IMEIs that are amnesty eligible.

It is recommended that the Operator terminate the subscription associated with the stolen

device.

- label: compound_dimension2

dimensions:

- module: stolen_list

- module: duplicate_threshold

parameters:

threshold: 2

period_days: 30

invert: False

grace_period_days: 0

blocking: False

amnesty_eligible: Trus

reason: Violated compound dimension of stolen & duplicate

max_allowed_matching_ratio: 0.1

6.6.3.1 Post-amnesty

After the amnesty period, DIRBS Core will classify IMEIs based on conditions configured

in .dirbs.yml. It is recommended that the conditions are reviewed and reconfigured as required.

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

A DIRBS Configuration File Sample: YML

A.1 Sample annotated config for DIRBS Core configuration

# PostgreSQL settings used to build connection string

postgresql:

# Database name (an empty database on the first run). Overridden by

environment

# variable DIRBS_DB_DATABASE if set.

database: dirbs

# Host that the PostgreSQL server runs on. Overridden by environment

# variable DIRBS_DB_HOST if set.

host: localhost

# PostgreSQL port if not running on standard port of 5432. Overridden by

environment

# variable DIRBS_DB_PORT if set.

port: 5432

# Database role/user that DIRBS will connect to PostgreSQL as. Overridden

by environment

# variable DIRBS_DB_USER if set.

user: dirbs

# Password used to connect to the database.

# There are a number of ways to set the password, with each option having

pros and cons

# dependent on the level of security required vs. ability to automate

# - Firstly, the password can be defined here in clear text. This file

would

# then have its permissions set appropriately to restrict access to

non-admin

# users

# - If the setting is not defined in this config file, the user's

.pgpass file

# will be read from their home directory. Note that this file will

only be

# read if its permissions are set appropriately (must only be

readable by the user)

# - If the DIRBS_DB_PASSWORD environment variable is set, this value

will

# overwrite any value configured in here or in .pgpass

# - Finally, the --db-password-prompt command-line option can be used

to prompt

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

# the user for a password when a command is run.

# Uncomment the below line to set the password explicitly in this config

file

# password: <change me>

# Definitions of regional settings used by DIRBS core for reporting and

# for input validation.

region:

# Name is used for the country level report

# Whether or not MSISDN data is present and should be imported for this

region

import_msisdn_data: True

# Whether or not RAT data is present and should be imported for this

region

import_rat_data: True

# country_codes are used to validate MSISDNs during operator data import

country_codes:

- "22"

# exempted_device_types contains a list of GSMA device types that do not

require

# registration in this country. Specifiying a list of device types here

will mean

# that the not_in_registration_list classification dimension will ignore

IMEIs

# whose TACs correspond to the listed device types. They will also be

ignored in

# the IMEI API's realtime registration check. The expected syntax for

this is:

# exempted_device_types:

# - Module

# - Tablet

exempted_device_types: []

# operators map operator IDs to a more human-friendly display string for

# reporting purposes

operators:

- id: operator1

# mcc_mnc values are used to:

# - validate IMSIs during operator data import

# - work out which operators notifications about an offending

subscriber

# should be sent to

# - work out which operators excepted IMEI-IMSI pairings should be

sent to

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

mcc_mnc_pairs:

- mcc: "111"

mnc: "01"

- id: operator2

mcc_mnc_pairs:

- mcc: "111"

mnc: "02"

- id: operator3

mcc_mnc_pairs:

- mcc: "111"

mnc: "03"

- id: operator4

mcc_mnc_pairs:

- mcc: "111"

mnc: "04"

# Definitions of configuration variables related to pruning of subscriber

data

# after a specified retention window

data_retention:

# The number of months from the start of the current months that DIRBS

core

# will retain data about a triplet seen in its DB. After this time, the

triplet

# will be erased from the seen_triplet table. The IMEI will continue to

be stored

# after this date as it is needed for continued list generation, etc.

# All references to IMSI and MSISDN will be pruned after this date.

months_retention: 6

# Definitions of configuration variables used by DIRBS Core in the list

generation process.

list_generation:

# The number of days that DIRBS core will look back through data from

current date to determine IMSIs/MSISDNs

# which were associated with the notifiable IMEIs.

lookback_days: 180

# If true, the exception list will contain only those IMEI-IMSI pairs

where the IMEI is on the blacklist.

# By default, all IMEI-IMSI pairs part of the pairing list are output to

the exception list.

restrict_exceptions_list_to_blacklisted_imeis: false

# If true, generate a check digit for IMEIs during list generation.

# Check digit will only be added to "valid IMEIs"

generate_check_digit: false

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

# If true, output only "valid" IMEIs.

# Valid IMEIs start with 14 digits as they will have 15 digits if the

check digit append has been enabled

output_invalid_imeis: true

# Definitions of configuration variables used by DIRBS Core in the report

generation process.

report_generation:

# This setting is used by blacklist violations and stolen list violations

reports to give the MNO

# some processing time (in days) before an IMEI appearing on the network

is considered a violation.

blacklist_violations_grace_period_days: 2

# Definitions of configuration variables used by DIRBS Core to determine

how many workers to use to parallelise

multiprocessing:

# The maximum number of local processing blade workers to use to achieve

DIRBS Core tasks. This is particularly

# useful for pre-validation of large operator import jobs where we can

run multiple instances of the pre-validator

# in parallel on different parts of the file. The default is to use half

of the available CPUs in the

# system will be used.

# max_local_cpus: 10

# The maximum number of database connections to use to parallelise DIRBS

Core tasks. PostgreSQL 9.6 has support

# for parellelising tasks internally - this setting does not affect

parellelisation for a single connection.

# Where PostgreSQL is unable to parallelise a single query by itself, we

use this number of workers to issue

# multiple queries at once on different connections. Generally this

scales very well - it is safe to set this

# reasonably high. It should probably be set to roughly the number of

disks in your RAID array in case there are

# I/O intensive DB operations going on. If using SSD, can be set to a

higher value.

max_db_connections: 4

# Definition of ratio limits for the various checks on operator data.

operator_threshold:

# The proportion of the entries in the data that are allowed to have a

NULL IMEI

null_imei_threshold: 0.05

# The proportion of the entries in the data that are allowed to have a

NULL IMSI

null_imsi_threshold: 0.05

# The proportion of the entries in the data that are allowed to have a

NULL MSISDN (ignored if MSISDN disabled)

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

null_msisdn_threshold: 0.05

# The proportion of the entries in the data that are allowed to have a

NULL RAT (ignored if RAT disabled)

null_rat_threshold: 0.05

# The proportion of the entries in the data that are allowed to have any

column equal to NULL

# This only includes columns enabled in the import (MSISDN and RAT may be

excluded)

null_threshold: 0.05

# The proportion of the non-NULL IMEIs in the data that are allowed to

not start with 14 digits

unclean_imei_threshold: 0.05

# The proportion of the non-NULL IMSIs in the data that are allowed to

not be 14-15 digits

unclean_imsi_threshold: 0.05

# The proportion of entries in the data that are allowed to have either a

unclean IMEI or an unclean IMSI

unclean_threshold: 0.05

# The proportion of the non-NULL IMSIs in the data that are allowed to

have a MCC that does not match the

# configured region

out_of_region_imsi_threshold: 0.1

# The proportion of the non-NULL MSISDNs in the data that are allowed to

have a CC that does not match the

# configured region. Ignored ir MSISDN disabled

out_of_region_msisdn_threshold: 0.1

# The combined proportion of entries in the data that are allowed to have

either a CC (IMSI) or MCC (MSISDN)

# that does not match the configured region. Ignored if MSISDN if

disabled, as this would then be the same as the

# out of region IMSI check.

out_of_region_threshold: 0.1

# The proportion of the entries in the data that are allowed to have an

IMSI not starting with one of the MCC-MNC

# prefixes associated with the operator the data is being imported for

non_home_network_threshold: 0.2

# The minimum valid ratio of average daily IMEI count against historical

daily IMEI count for a data dump to be

# considered valid.

historic_imei_threshold: 0.9

# The minimum valid ratio of average daily IMSI count against historical

daily IMSI count for a data dump to be

# considered valid.

historic_imsi_threshold: 0.9

# The minimum valid ratio of average daily MSISDN count against

historical daily MSISDN count for a data dump to be

# considered valid. Ignored if MSISDN if disabled

historic_msisdn_threshold: 0.9

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

# Each of the following importers specifies 2 historic_thresholds which can

be used to validate new import

# row count against previously imported data for the same importer.

# - import_size_variation_absolute: The most an import can decrease in

absolute row count before

# it is rejected as invalid. By setting this variable to -1, this check

will be disabled.

# - import_size_variation_percent: The most an import can decrease in

percentage row count before

# it is rejected as invalid. 0.75 indicates a new import must be at

least 75% of the previous

# import's row count or it will be rejected. Therefore, setting this

variables to 0 will disable

# this check.

gsma_threshold:

import_size_variation_absolute: 100

import_size_variation_percent: 0

pairing_list_threshold:

import_size_variation_absolute: 1000

import_size_variation_percent: 0.95

stolen_list_threshold:

import_size_variation_absolute: -1

import_size_variation_percent: 0.75

registration_list_threshold:

import_size_variation_absolute: -1

import_size_variation_percent: 0.75

golden_list_threshold:

import_size_variation_absolute: -1

import_size_variation_percent: 0.75

# Definition of conditions used by the DIRBS system. There are zero or more

# conditions used to drive the classification. A system with zero

conditions

# does no classification at all

conditions:

# Each condition specifies the following properties

# label: A name for the condition. This is the id/key for the

condition. If

# this is changed, all previous classifications will be reset.

Likewise,

# if you change the dimensions but keep the condition label the same,

# existing classifications for that condition will be retained.

# dimensions: A list of dimensions whose intersection forms the IMEI

set

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

# result for the condition. Each of these can take parameters that

# are particular for the dimension being used. Additionally, they all

# accept an 'invert' property, which basically NOTs the result of the

# dimension by taking the all-time observed IMEIs list and

subtracting the

# set of IMEIs returned by this dimension

# grace_period_days: The integer number of days that an IMEI failing

# this condition will remain on the notification list before moving

# to the black list.

# blocking: A boolean stating whether this condition contributes to

# list generation or is simply informational. Information conditions

# can be used to try out new modules or to tweak parameters.

# reason: A string sent to the operators describing why the IMEI is

# to be blacklisted.

# max_allowed_matching_ratio: The maximum percentage of all-time seen

IMEIs

# this condition is allowed to match. This is a safety check

implemented

# to catch a missing GSMA TAC DB, registration list, etc.

# The following are just sample conditions designed to show the features

# DIRBS Core and just an example of simple/compound conditions. They are

not

# supposed to represent suggestions for real business rules. Please

consult

# the release documentation for available dimensions and their

parameters.

- label: simple_dimension

dimensions:

- module: gsma_not_found

grace_period_days: 30

blocking: true

reason: Violated simple dimension

max_allowed_matching_ratio: 0.1

- label: compound_dimension

dimensions:

- module: stolen_list

- module: duplicate_daily_avg

parameters:

threshold: 3.1

period_days: 30

min_seen_days: 5

invert: True

grace_period_days: 0

blocking: true

reason: Violated compound dimension

max_allowed_matching_ratio: 0.1

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

# Definition of settings to be used for logging output of DIRBS system.

logging:

# Logging level determines the verbosity of logs. This is also set to

'debug' by the -v CLI option

level: info

# Format string can be configured here

format: '%(asctime)s - %(name)s - %(levelname)s - %(message)s'

# Set this to true if you want to see logging message for StatsD

show_statsd_messages: False

# Set this to true if you want to see Werkzeug internal log messages from

TAC/IMEI APIs

show_werkzeug_messages: False

# Set this to true if you want to see SQL messages from DIRBS (most are

debug level)

show_sql_messages: False

# If log_directory is set to a value that is not "null", DIRBS will log

to a file as well as to the console. The

# log files will all be generated in the directory specified by this

setting. This directory needs to exist and

# be writable

log_directory: /var/log/dirbs

# Uncomment and set this value if you want to prefix all log files

created on this host with a prefix

# to distinguish them from other host

file_prefix: null

# Set the number of bytes before a logfile is rotated. If this or

file_rotation_backup_count is zero, rotation

# is disabled

file_rotation_max_bytes: 100000000

# Sets the numbwe old logs to keep

file_rotation_backup_count: 100

# Definition of settings to be used for forwarding application-defined

metrics to a StatsD server

# for aggregation

statsd:

# The hostname for the StatsD server. Overridden by environment

# variable DIRBS_STATSD_HOST if set.

# Uncomment this and set to a real StatsD hostname to enable collection

of metrics

# hostname = statsd.local

# The UDP port that the StatsD server is listening on for metrics.

Overridden by environment

# variable DIRBS_STATSD_PORT

port: 8125

DIRBS Core Release 8.0.1 User Guide DIRBS Configuration File Sample: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

# The prefix to be used for for all metrics collected from this instance.

This is useful

# if you have multiple hosts or environments sending data to the same

StatsD server and you

# with to differentiate them, Overridden by the environment variable

DIRBS_ENV if set.

# Uncomment this and set to a prefix string to enable prefixing of StatsD

metrics

# prefix =

# Definition of settings to be used during data cataloging process.

catalog:

# The prospector harvests all files in the path adding them to the data

catalog.

# Each prospector specifies the following properties:

# file_type: Type of files contained within the specified paths.

# It should match the keyword specified during dirbs-import (eg.

operator, gsma_tac etc.)

# paths: Directories and/or files to be harvested. Sub-directories

within the listed path are not

# traversed automatically; they should be listed separately if files

within them need to be cataloged.

# Multiple paths can be defined for each file type and the path used

should be absolute and globally unique.

# schema_filename: Schema file to be used for data pre-validation (if

enabled).

# Multiple prospectors can be defined for the same file_type if files

exist across multiple schema versions.

prospectors:

- file_type: operator

paths:

- /path/to/operator_data/directory

schema_filename: OperatorImportSchema_v2.csvs

- file_type: operator

paths:

- /path/to/operator_data/directory/operator_data_file

schema_filename: OperatorImportSchema.csvs

- file_type: gsma_tac

paths:

- /path/to/gsma_tac/directory

schema_filename: GSMASchema.csvs

# Set this to true if pre-validation should be performed on the data

files.

# Note: Enabling this can slow down the process if there are a lot of

uncataloged files.

perform_prevalidation: False

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

B Sample Conditions: YML

Table B-1 YML sample configuration

Condition module name

Sample configuration

Default config

duplicate_daily_avg

- label: duplicate_daily_avg

dimensions:

- module: duplicate_daily_avg

parameters:

threshold: 2.0

period_days: 30

min_seen_days: 2

grace_period_days: 0

blocking: true

sticky: false

reason: Duplicate daily avg detected

N/A

duplicate_threshold

- label: duplicate_mk1

dimensions:

- module: duplicate_threshold

parameters:

threshold: 5

period_days: 120

grace_period_days: 90

blocking: false

reason: Duplicate threshold exceeeded

max_allowed_matching_ratio: 0.1

N/A

DIRBS Core Release 8.0.1 User Guide Sample Conditions: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Condition module name

Sample configuration

Default config

gsma_not_found

Note: Do not use this

condition if there is a

live DRS enforcing GSAM

not found.

- label: gsma_not_found

dimensions:

- module: gsma_not_found

parameters:

ignore_rbi_delays: False

per_rbi_delays:

"00": 0

"01": 0

grace_period_days: 0

blocking: true

reason: TAC not found in GSMA TAC database

max_allowed_matching_ratio: 0.1

Note: “bold italics” indicates optional parameters

‘RBI’:’Delay(days)’

'00': 32,

'01': 40,

'35': 20,

'86': 19,

'91': 20,

'99': 69

See GSM Association Non

Confidential Official

Document TS.06 (DG06)

IMEI Allocation and Approval

Guidelines for additional

information on RBIs

malformed_imei

- label: malformed_imei

dimensions:

- module: malformed_imei

grace_period_days: 0

blocking: true

reason: Invalid characters detected in IMEI

max_allowed_matching_ratio: 0.1

N/A

not_on_registration_list

- label: not_on_registration_list

dimensions:

- module: not_on_registration_list

grace_period_days: 0

blocking: true

reason: IMEI not found on local registration

list

max_allowed_matching_ratio: 1.0

N/A

DIRBS Core Release 8.0.1 User Guide Sample Conditions: YML

This work is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License.

Condition module name

Sample configuration

Default config

stolen_list

- label: local_stolen

dimensions:

- module: stolen_list

grace_period_days: 0

blocking: true

max_allowed_matching_ratio: 0.1

reason: IMEI found on local stolen list

N/A

used_by_dirbs_subscriber

- label: used_by_local_non_dirbs_roamer

dimensions:

- module: used_by_dirbs_subscriber

parameters:

lookback_days: 2

grace_period_days: 0

reason: IMEI found for local non DIRBS roamer

N/A

used_by_international_roam

- label: used_by_local_non_dirbs_roamer

dimensions:

- module: used_by_international_roamer

parameters:

lookback_days: 2

grace_period_days: 0

reason: IMEI found for local non DIRBS roamer

N/A

used_by_local_non_dirbs_ro

amer

- label: used_by_local_non_dirbs_roamer

dimensions:

- module: used_by_local_non_dirbs_roamer

parameters:

lookback_days: 2

grace_period_days: 0

reason: IMEI found for local non DIRBS roamer

N/A
