DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
DIYINO STARDUST V3 USER
MANUAL
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Table of Contents
1 Introduction ........................................................................................................................................... 3
2 Getting Started ...................................................................................................................................... 4
2.1 Preparing the board for first usage ............................................................................................... 4
2.2 A piece of advice on the USB port ................................................................................................. 5
3 Board Supply Concepts .......................................................................................................................... 5
3.1 Standard supply scheme ............................................................................................................... 5
4 Basic Wirings of external components .................................................................................................. 7
4.1 Wiring buttons and speaker .......................................................................................................... 7
4.2 In-hilt recharge using USB ............................................................................................................. 7
4.3 In-hilt recharge using Recharge Port ............................................................................................. 8
4.4 Wiring an OLED display (for blaster props) ................................................................................... 8
4.5 Charge Status indication LED connection ...................................................................................... 9

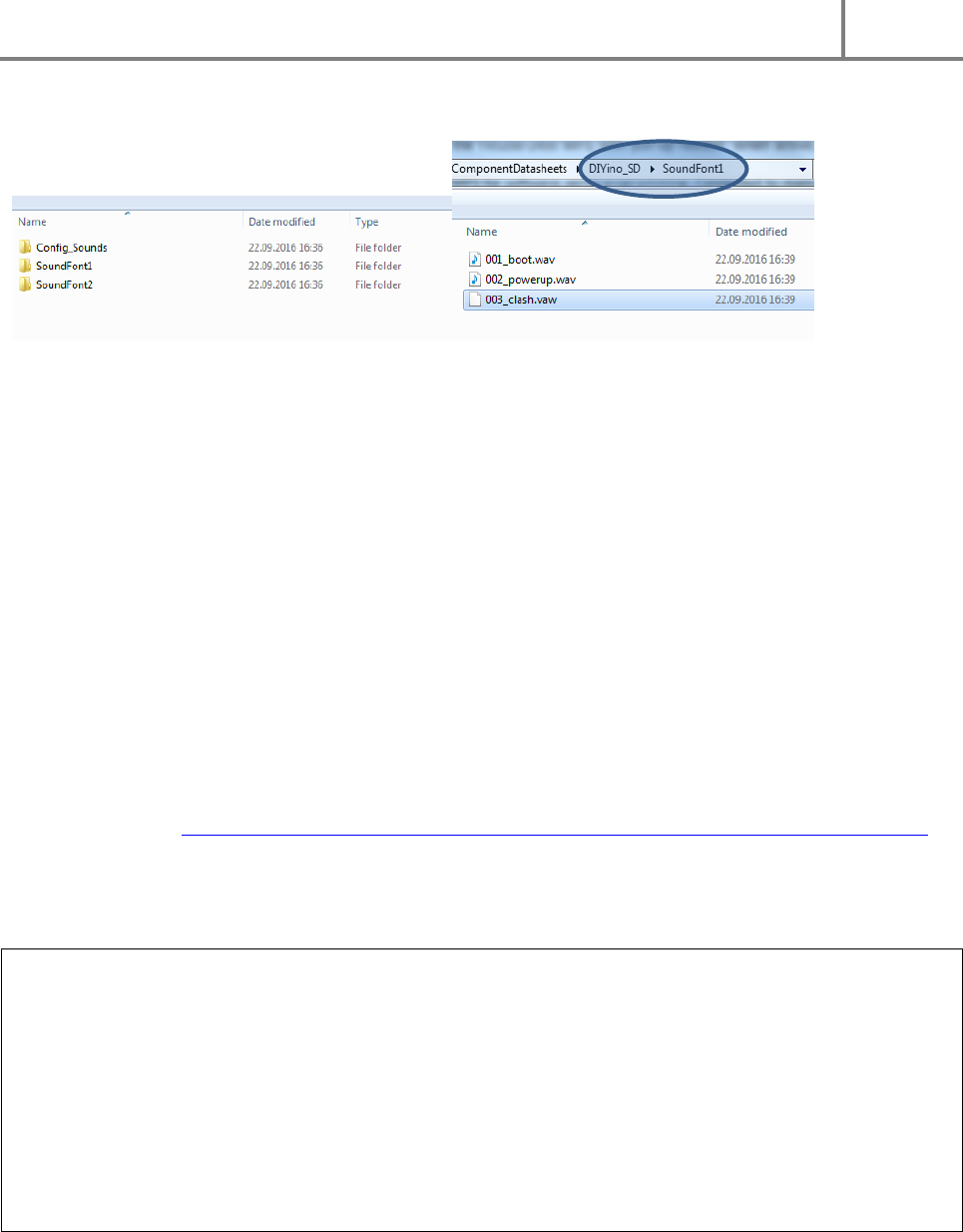

4.6 Copying sound files to the SD-card ............................................................................................... 9
4.7 Sound font preparation – hum-extension ................................................................................... 10
5 Application Examples .......................................................................................................................... 10

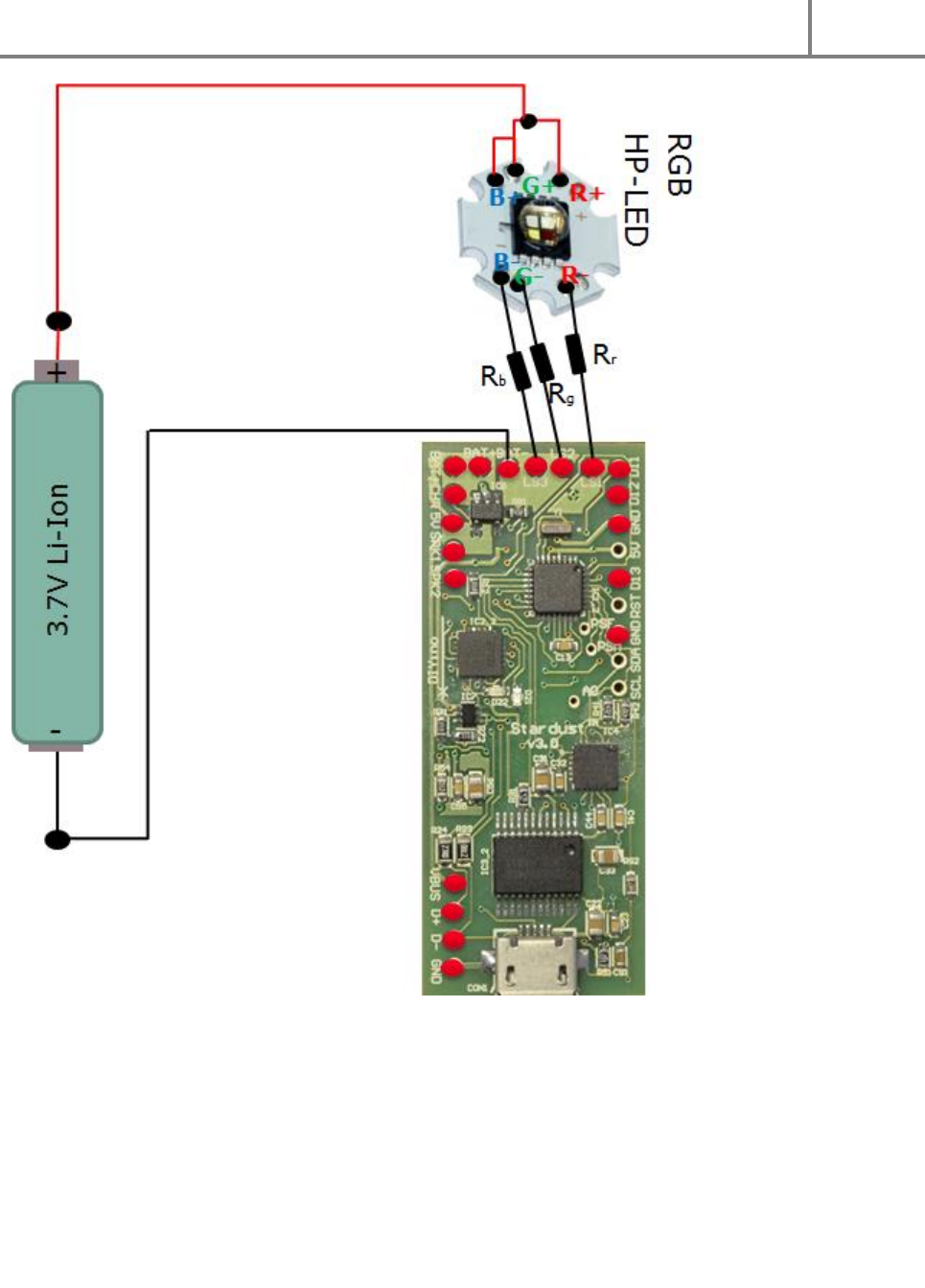

5.1 High-Power RGB LED setup ......................................................................................................... 11

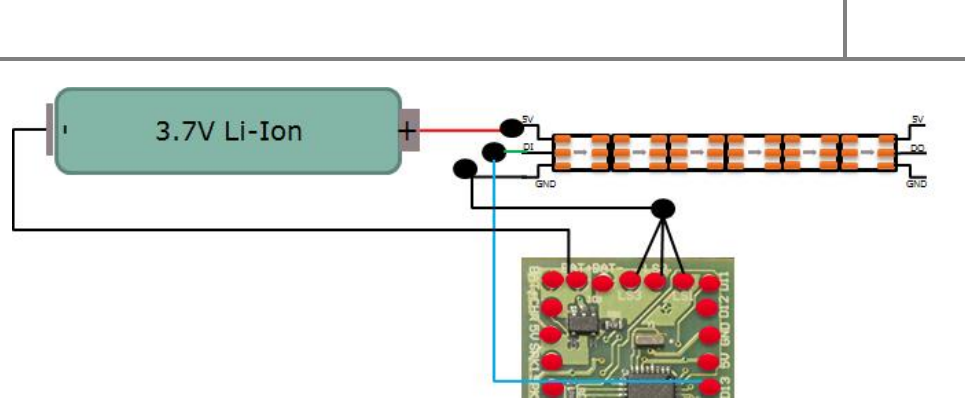

5.2 Neopixels setup ........................................................................................................................... 12
6 Full wiring examples ............................................................................................................................ 15

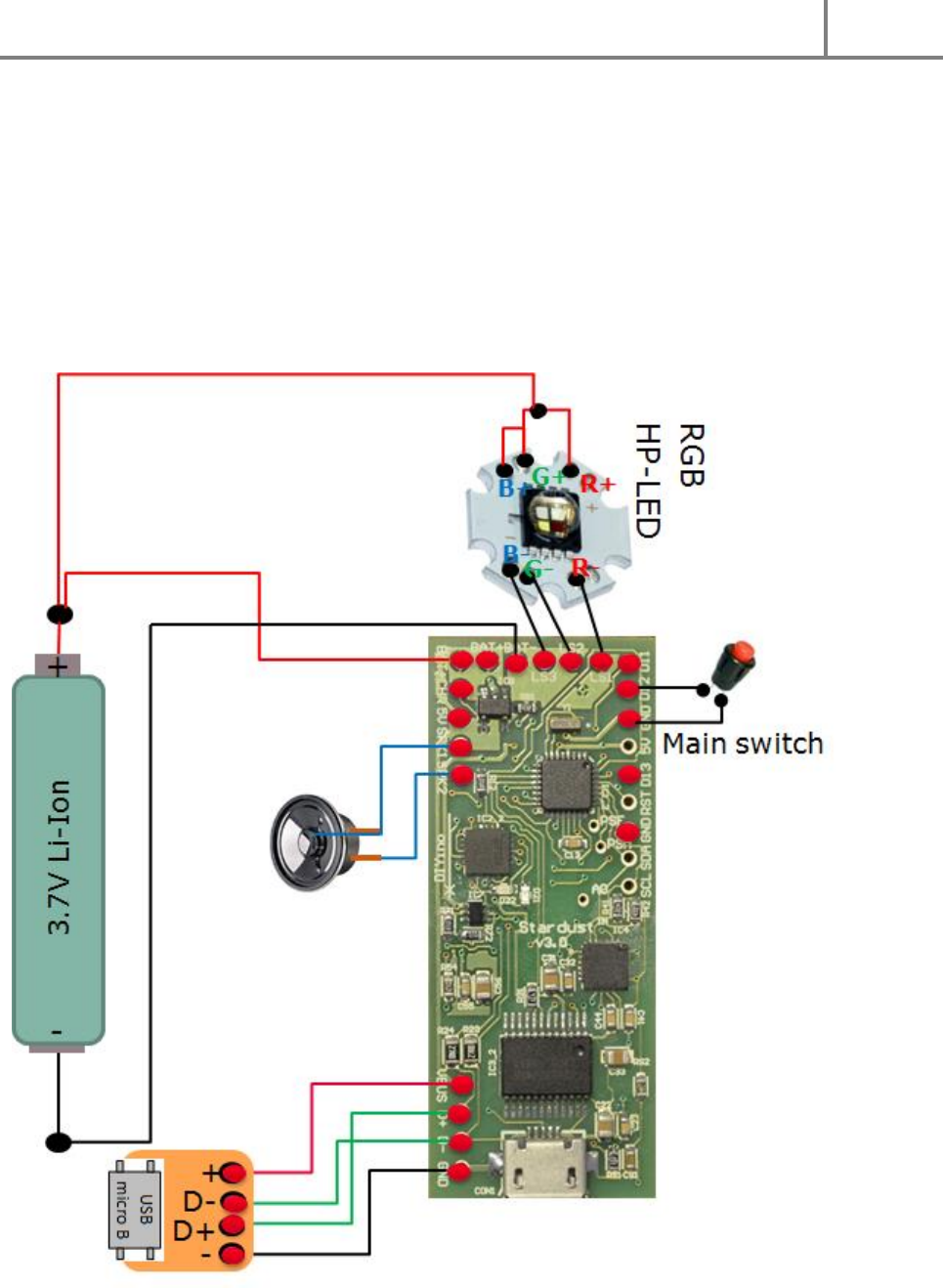

6.1 RGB High-Power LED setup with 3.7V and Single Button ........................................................... 15
6.2 Neopixel setup with programmable kill-key, 3.7V supply and dual charging scheme with USB
and Recharge Port ................................................................................................................................... 16
7 Technical Specification ........................................................................................................................ 16
7.1 Circuit Pinout ............................................................................................................................... 16

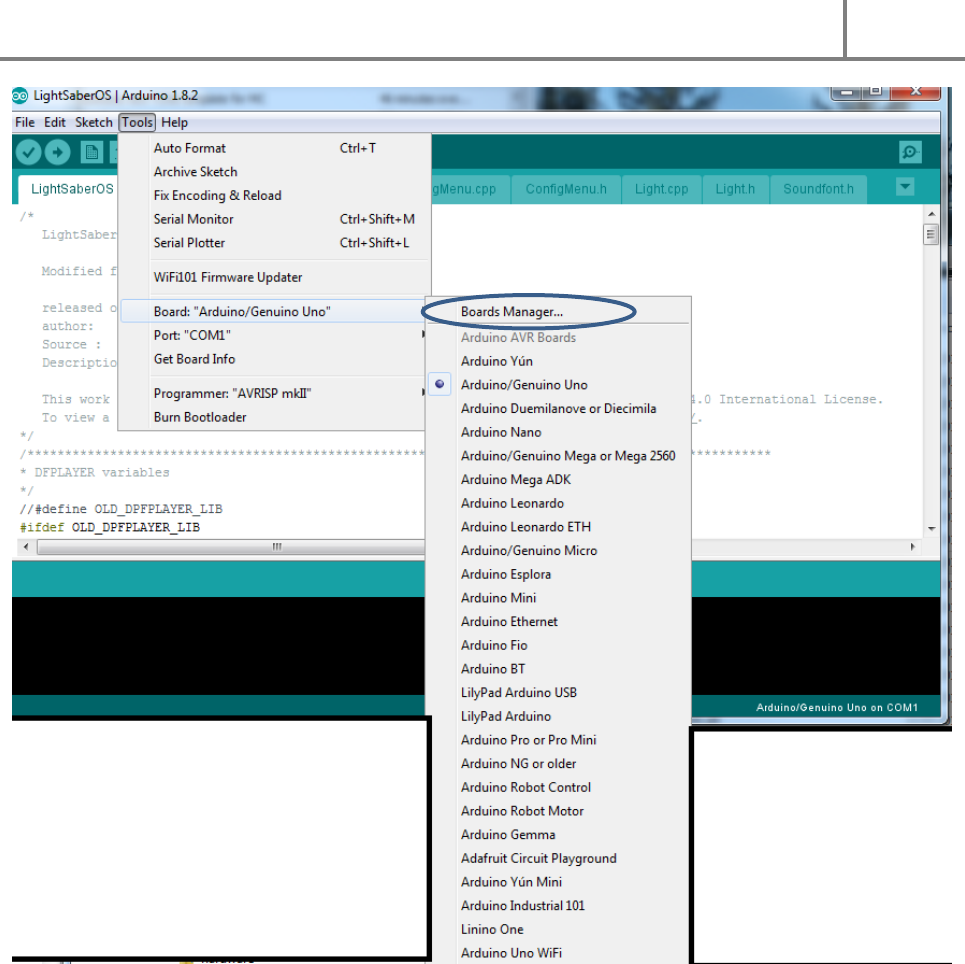

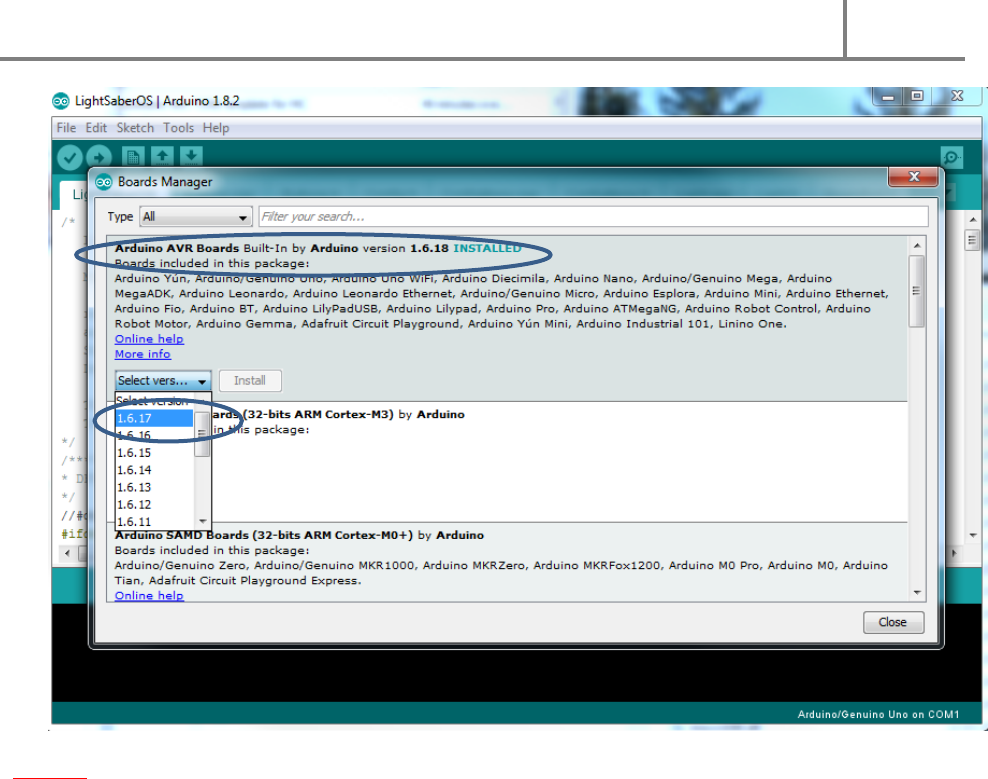

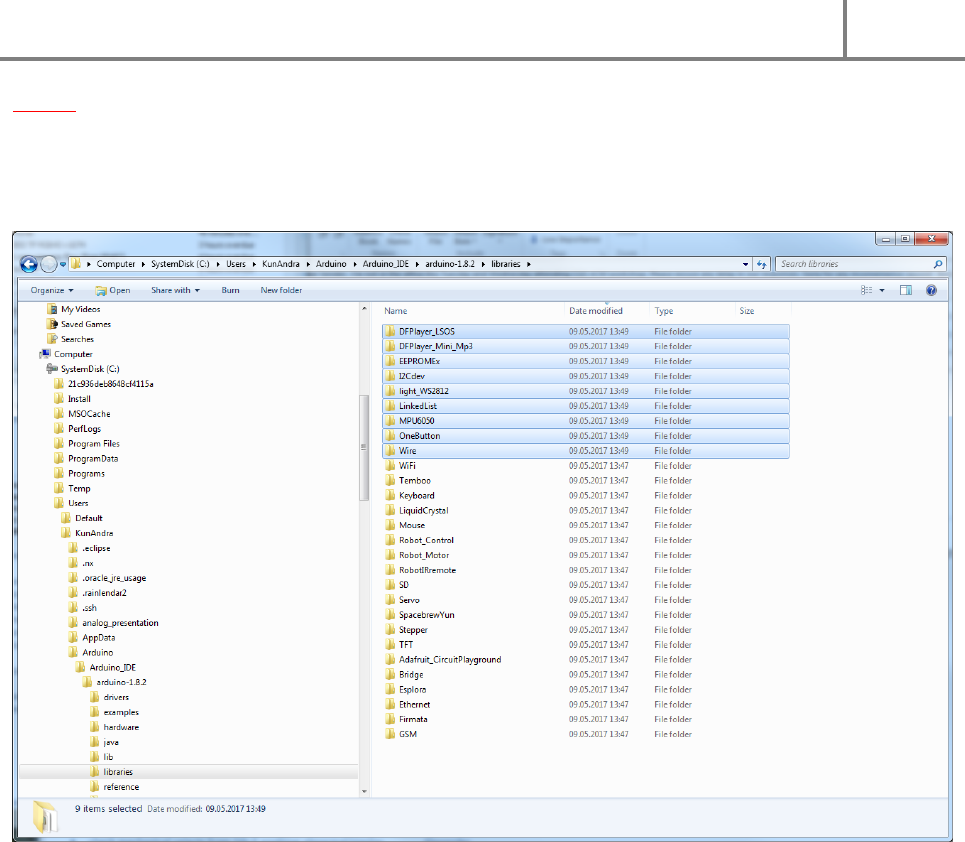

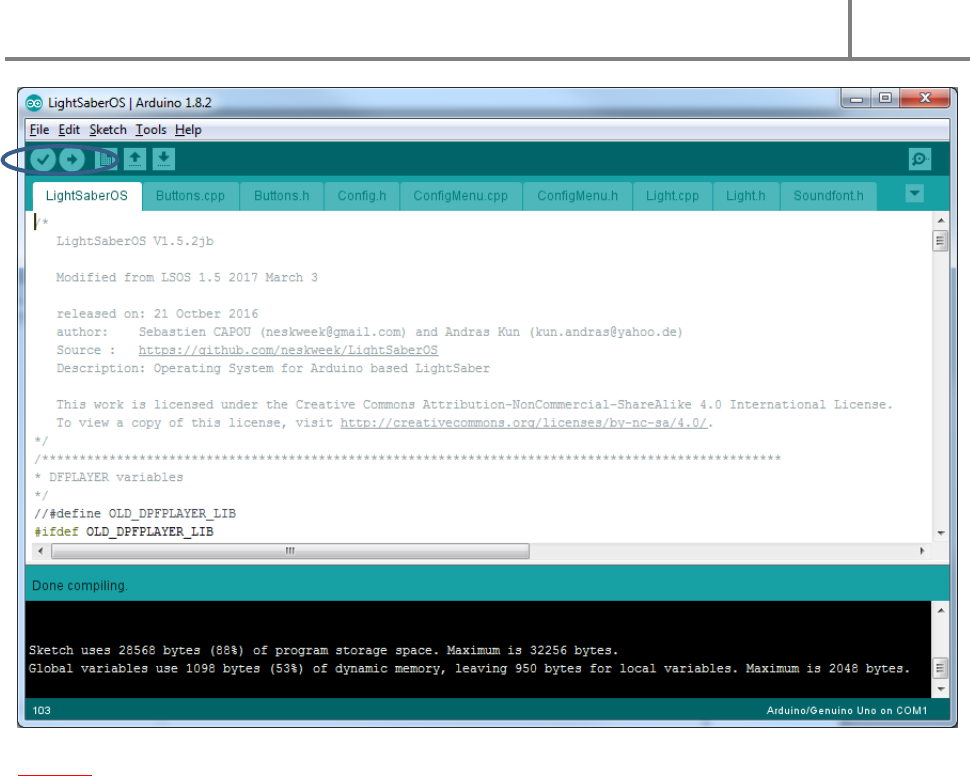

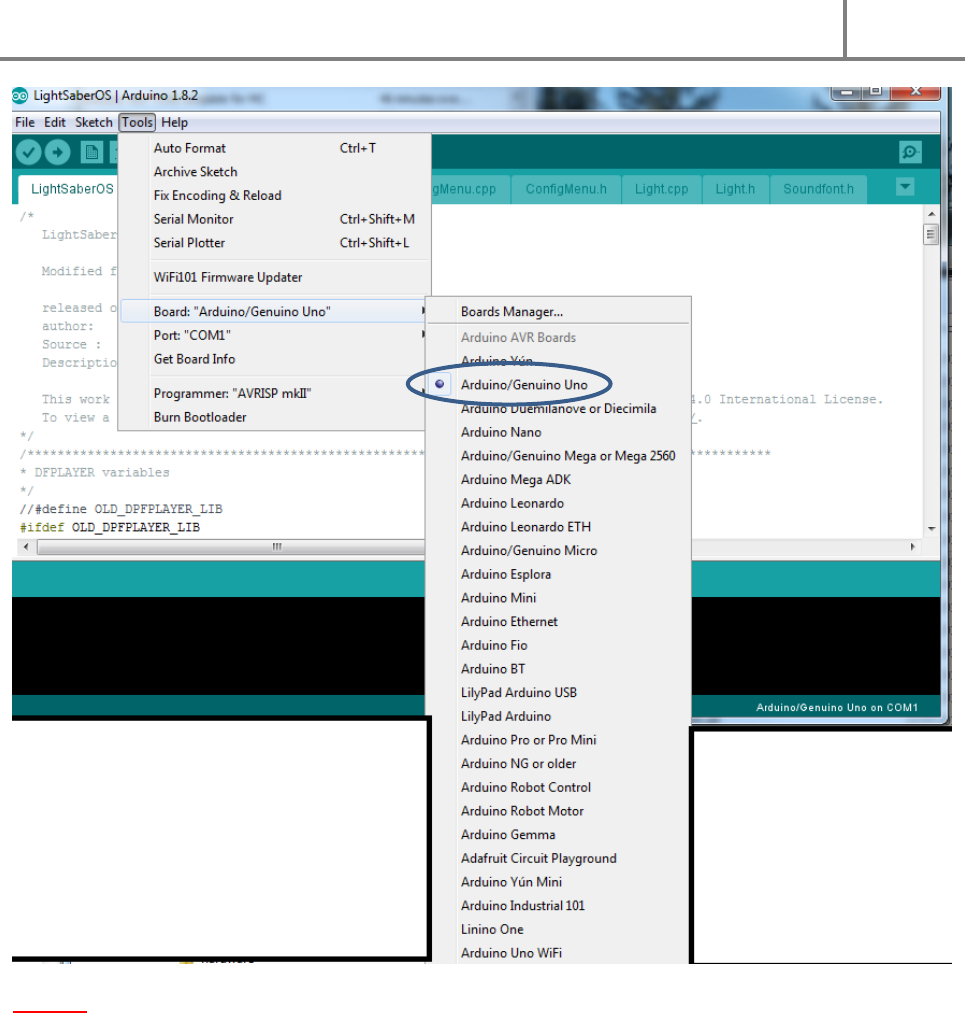

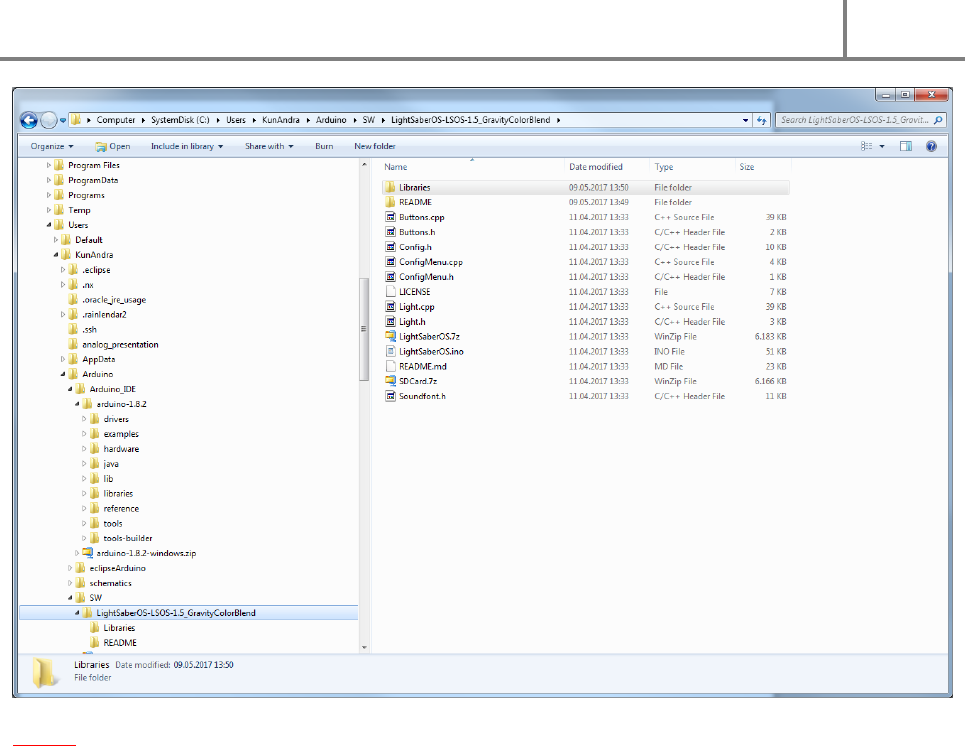

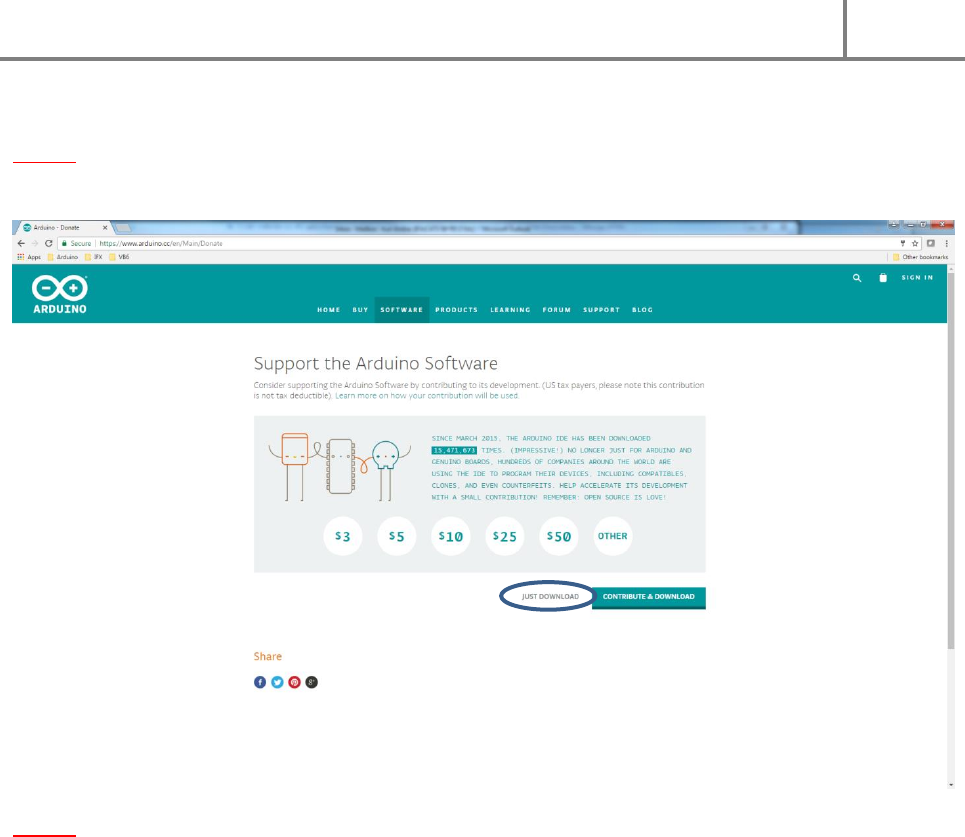

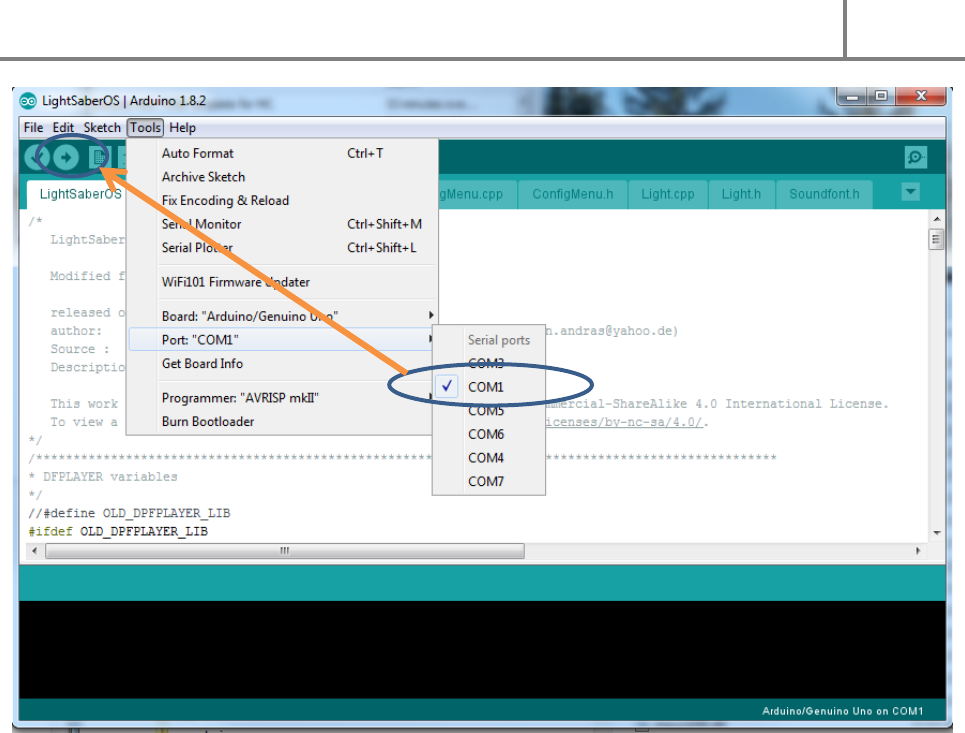

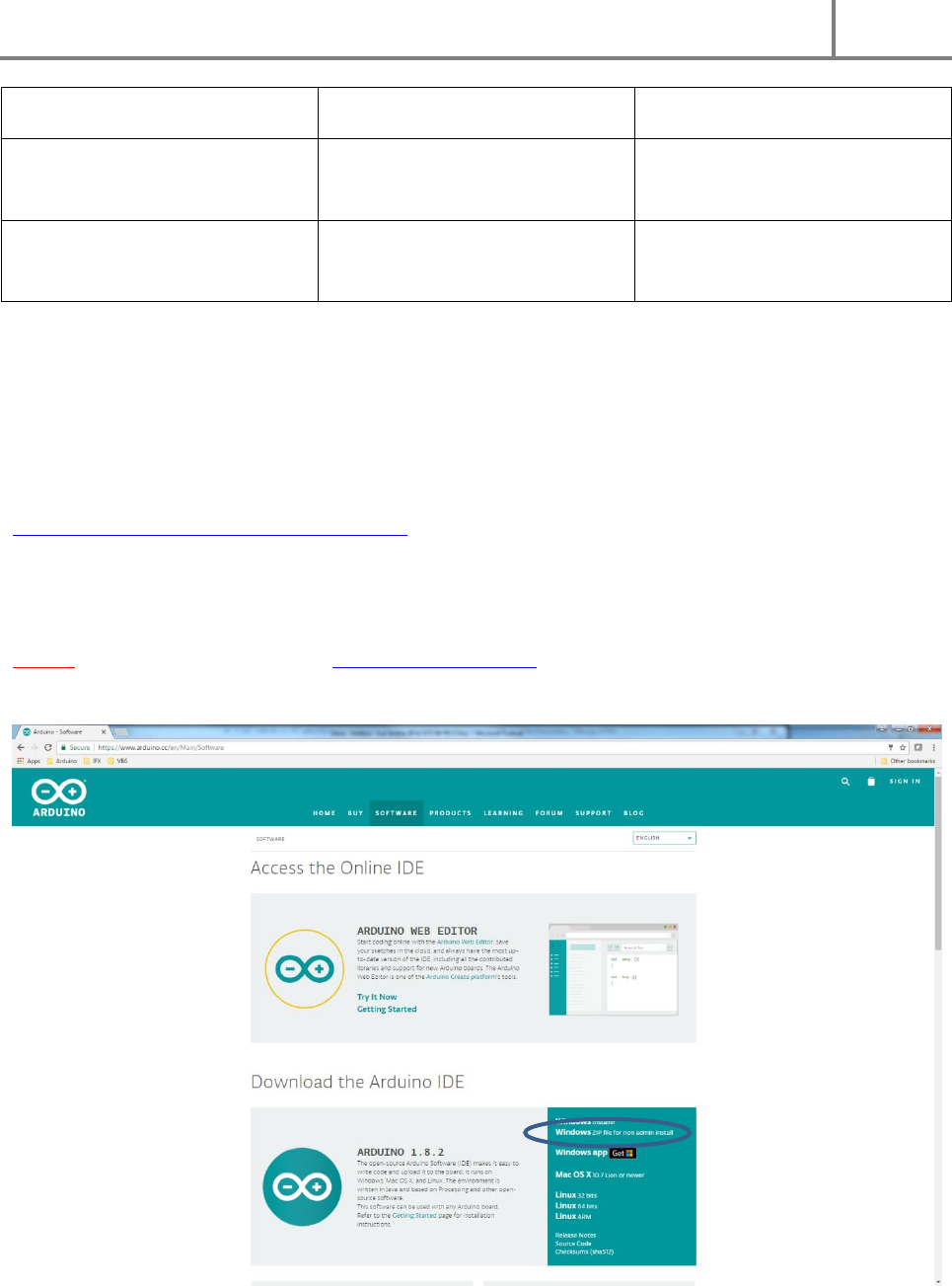

8 Upload software using Arduino IDE: A Step-by-Step walkthrough ..................................................... 19
9 Generic Saber Code ............................................................................................................................. 31
10 Quick-Start Guide to FX-SaberOS .................................................................................................... 32
11 Related links .................................................................................................................................... 32
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.

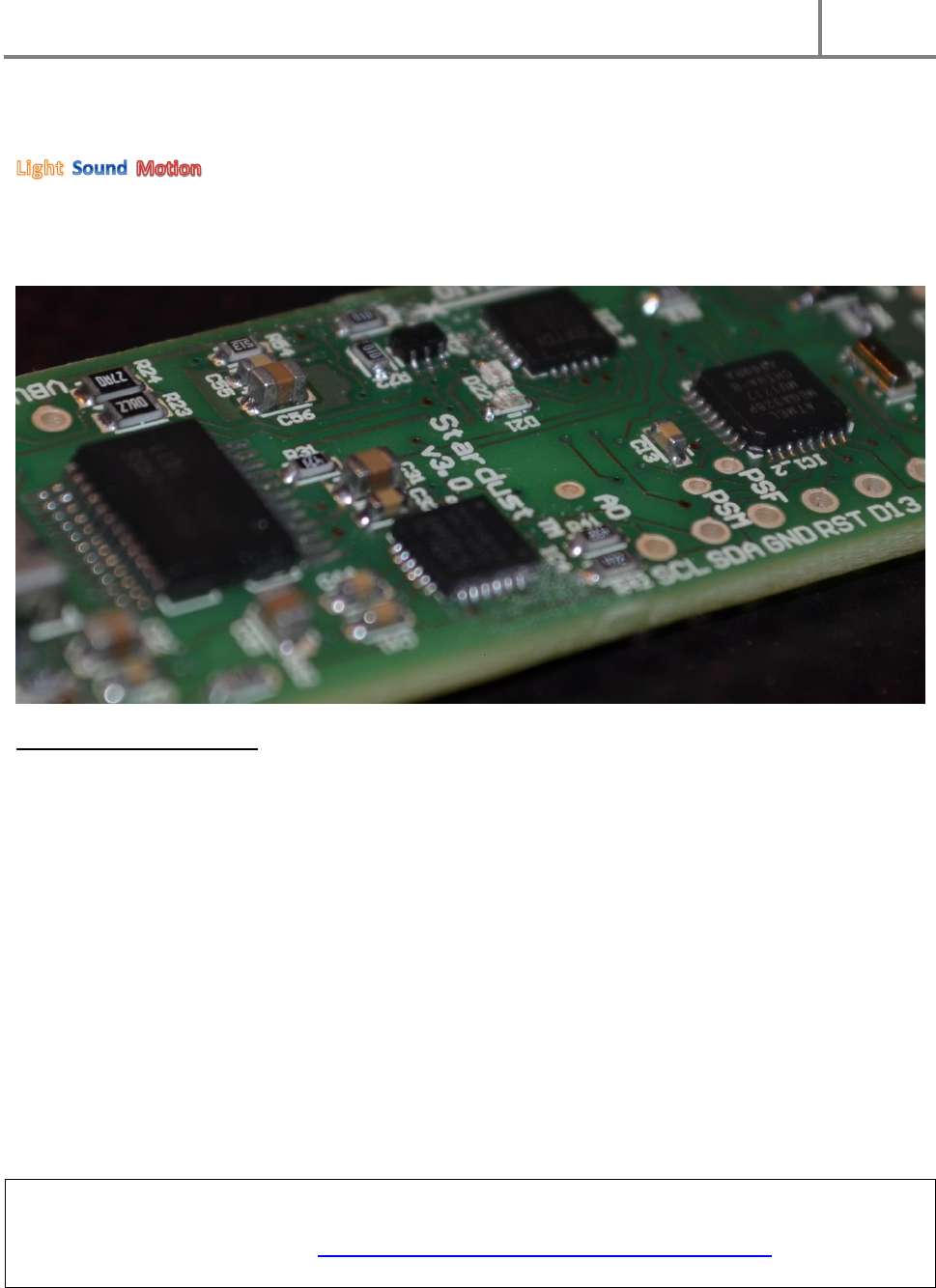

1 INTRODUCTION
DIYino Stardust is an Arduino compatible integrated circuit board for all projects implementing
/ / . Its main field of application is to control lightsaber, blaster and other prop/replica
electronics. It is Arduino compatible, i.e. it can be programmed using Arduino compatible IDE’s (Arduino
IDE, Eclipse etc.)
Board features on a glance:
- Compact size: 21 mm(W)x 51 mm(L)x 5 mm(H)
- Arduino Compatible
- Gapless Wav-audio playback
- Full USB integration (code upload, Li-Ion battery recharge)
- 3W audio amplifier (supports 8Ω/4Ω speakers up to 3W)
- Built in high-end gesture detection sensor (6-axis accelerometer and gyro)
- K3 Technology: aka. “Kill the Kill-Keytm”: Ultra-low power consumption in sleep/idle mode (0.3mA)
- Includes FTDI USB2Serial chipset for plug-and-play programming with Arduino IDE or similar
- 3 PWM controlled build-in low-side drivers as power extenders with up to 2.4A current capability
each
- Input voltage range 3.7V-5V
- Sound files stored on SD-card (*sold separately)
Warning: DIYino Stardust is an electronic board containing parts sensitive to ESD. Final wiring &
assembly is under the responsibility of the user with the appropriate tools and ESD protection. If you’re
not familiar with ESD, please visit : http://en.wikipedia.org/wiki/Electrostatic_discharge
The manufacturer cannot be held responsible for improper use or assembly of the DIYino Stardust board.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
2 GETTING STARTED
2.1 PREPARING THE BOARD FOR FIRST USAGE
After receiving your board, follow the steps outlined below:
1. Plug in your USB cable to the on-board USB port. Please do not ram in the USB connector, see
also Chapter 2.2
2. Using a multi-meter measure the voltage between any GND and the 5V signal. The reading
should show ~4.2V. This is the peak charging voltage of the USB charger and shows that the
board is supplied through the USB and the charger is alive (at this state the battery shall not be
connected).
3. Disconnect all power sources from the board.
4. Now your 4Ohm/8Ohm Speaker can be connected between SPK1 and SPK2. Make sure using a
multi-meter that you measure the specified impedance of the speaker between its two terminals
and no short exists between the terminals and any of the neighboring signals.
5. The board comes delivered with a generic saber code. For more information on its features and
wiring, see 9 . Please note that the generic saber code is provided for you to be able to enjoy the
saber experience right from the beginning. However if you want to unlock more advanced
features, the saber code can be updated from FX-SaberOS, visit the Wiki for more details. Code
provided as is, without guarantee.
6. Now that you board is proven to be working fine, you can wire it up fully (of course unpowered)
and upload other “sketches” (Arduino slang for application code).
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
2.2 A PIECE OF ADVICE ON T HE USB PORT
The delivered USB breakout board can be used to wire up a programming/recharge terminal to be
accessible from the exterior of your prop design. This way the electronics can be enclosed and all
interaction with the board can be handled via this single USB port. The USB breakout board is also
recommended to be used for charging the single cell Li-Ion battery. Why it is so? You can of course use
the on-board USB terminal for all these operations as well. However as opposed to the somewhat larger
and more robust mini-USB port, the smaller micro-USB port is less mechanically sturdy. It has no guide
pins protruding into the PCB to hold it tight in place like the mini-USB, therefore repeated plug-in and –
out might dislocate the port and severe the solder joints between the port and the PCB. Therefore please
handle the on-board mini-USB port with care (true for all micro-USB port, not only for the one found on
the Stardust!) and utilize the USB breakout board for frequent usage.
You can also choose to replace the micro-USB breakout board included with your Stardust with a mini-
USB breakout port, for example like the one here: https://www.pololu.com/product/2593
3 BOARD SUPPLY CONCEPTS
Warning: Please note that the DIYino Stardust board does not implement a reverse polarity protection.
Reversing the polarity of the supply will lead to board damage!
3.1 STANDARD SUPPLY S CHEME
The DIYino Stardust board shall be supplied directly from a single Li-Ion battery cell. Please connect the
positive terminal of the battery to the BAT+ and the negative terminal of the battery to the BAT- to
supply the board directly from the battery.
Figure 1 shows wiring of the battery to supply the board. If the USB cable is plugged in, i.e. as during
sketch upload, the circuit will be supplied both by the battery and by the USB port, with any surplus
current used to charge the battery. If there is no battery connected to the board, it can be supplied via
USB through the USB charger circuitry, providing ~4.2V to the board with a maximum charging current of
250mA. Please note that if you connect a 2W 8/4Ohm speaker to the board and supply it only via USB
(i.e. no battery connected), depending on the set volume the USB might not be able to supply the
powerful on-board audio amp and you might hear a static noise from the speaker, as well as the board
resetting due to under-voltage. Therefore it is recommended to connect the battery to the board if you
want to use the speaker at full volume.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.

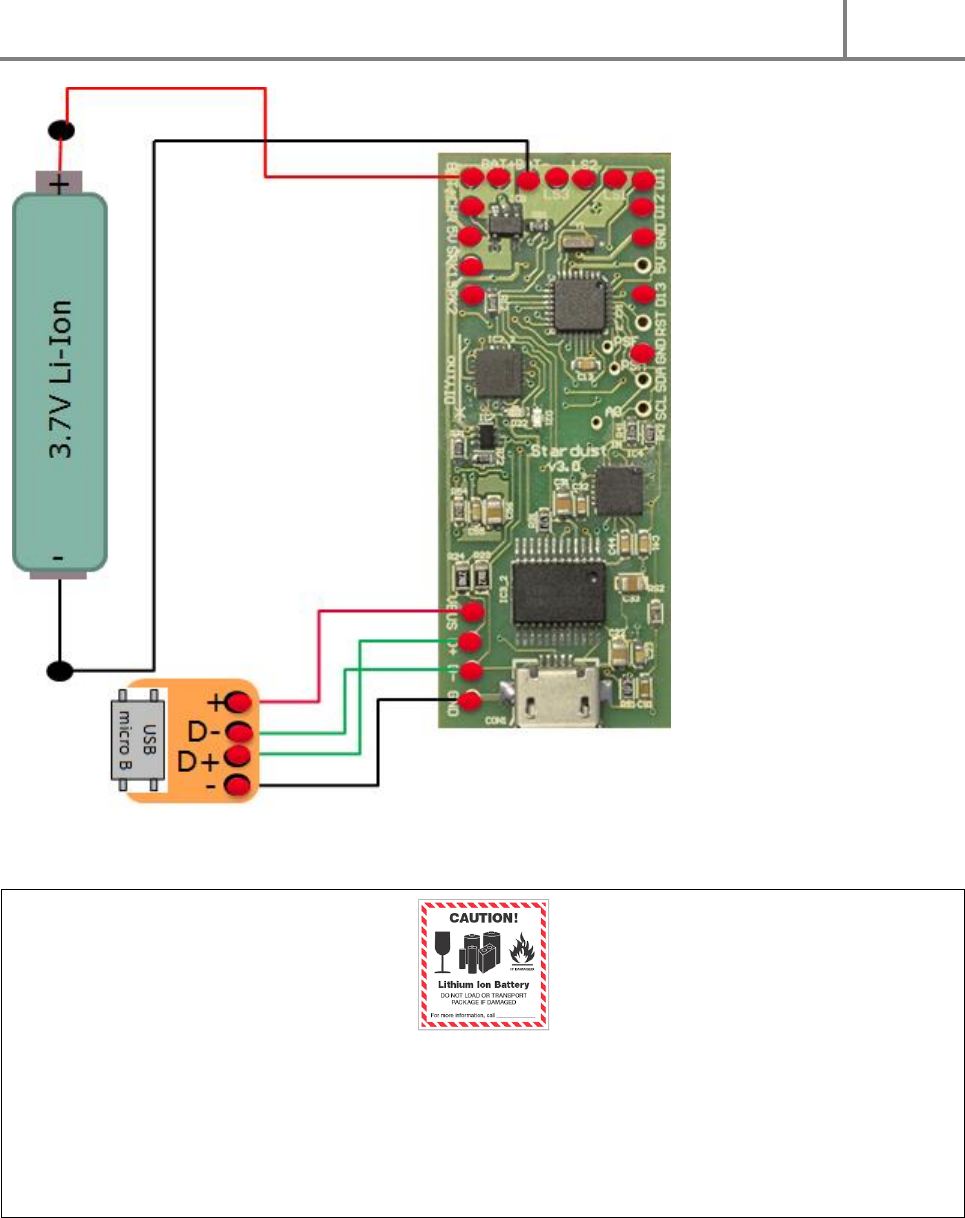

FIGURE 1: STAND ARD SUPPLY W IRING
Warning: before connecting any Li-Ion battery to the DIYino Stardust, please ensure that your selected
battery complies to the charging characteristic of the USB on-board charger (CCCV with 250mA average
charge current at 4.2V charge voltage). In case of doubt please consult your battery vendor. The board
manufacturer of the DIYino boards cannot be held liable for any injury or damage due to incompatibility
of the used battery with the on-board Li-Ion charger.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
4 BASIC WIRINGS OF EXTERNAL COMPONENTS
4.1 WIRING BUTTONS AND SPEAKER
Figure 2 shows wiring of the switches and that of the speaker.
The speaker has to be connected between the SPK1 and SPK2 terminals/pins of the board. 4Ω/8Ω
speaker can be used, up to 3W output power. It does not matter which terminal of the speaker you
connect to which pin. The SPK1 and SPK2 signals are furthermore connected on-board to the ADC input
pins A6 and A7 respectively, which can be used to sample the audio file played. This feature finds
widespread use to control the flicker of the LEDs in-sync with the sound file being played
(SoundTrack`ERtm)
Switches – latching or momentary, although mostly momentary switches are supported by Arduino
libraries – are connected with one terminal connected to GND and the other terminal to a digital I/O.

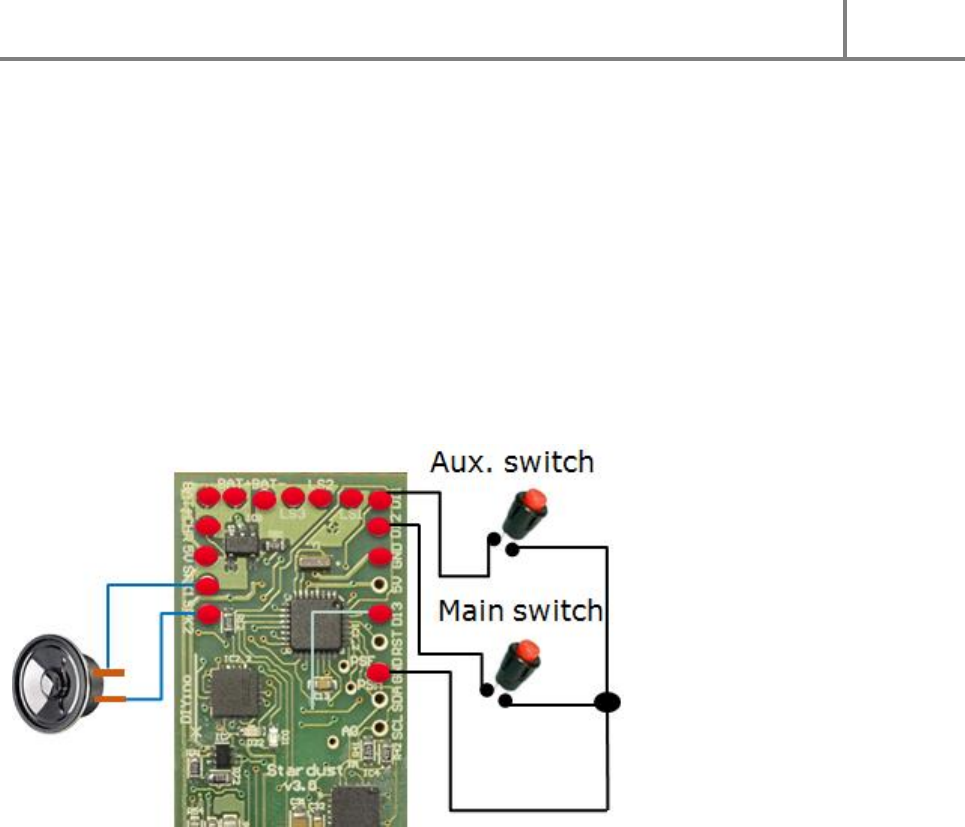

FIGURE 2: W IR ING SWITCHES AND THE SPEAKER
4.2 IN-HILT REC HARGE USING USB
It is very convenient if the battery does not have to be removed from the hilt every time it needs
recharging. Therefore so called in-hilt recharge ports found a wide-spread use in saber hilts together
with rechargeable batteries (most common type being the 3.7V type 18650). The DIYino Stardust has an
integrated Li-Ion USB charger module which can be used to charge the battery directly from USB, thus
eliminating the need to include a bulky recharge port in the hilt. To ease recharging and interaction with
the board like sketch, a USB breakout board can be used to connect the USB signals to a port in the hilt.
Connection of an external USB breakout-board is depicted in Figure 3 .
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.

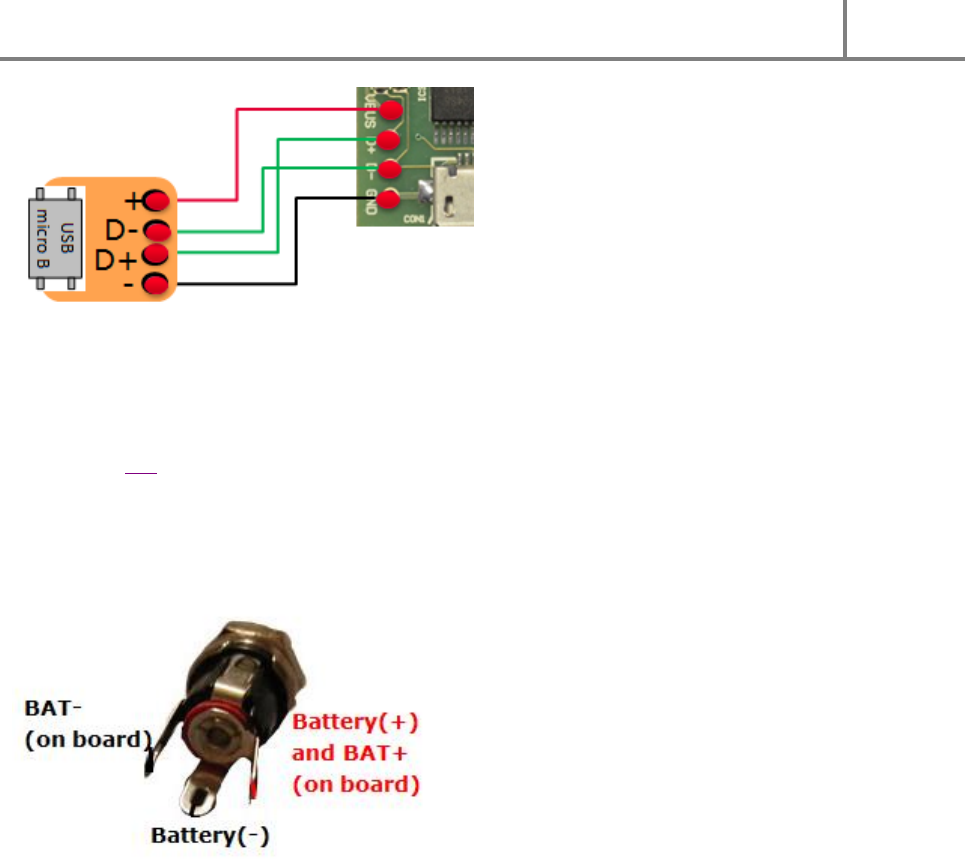

FIGURE 3: IN-HILT RECHARG E USING A N USB BR EAKOUT-BOARD
4.3 IN-HILT REC HARGE USING RECHARGE PORT
To make the Stardust board compatible with hilt and chassis design having a so called recharge port (see
for example link), the V3 is designed for dual-charging, i.e. the single Li-Ion cell can be charged either via
USB or via Recharge Port, making it ideally suited to different circumstances like charging at home or
quick recharge in the car or on an event/Con. Wiring of the 2.1mm recharge port can be seen on Figure

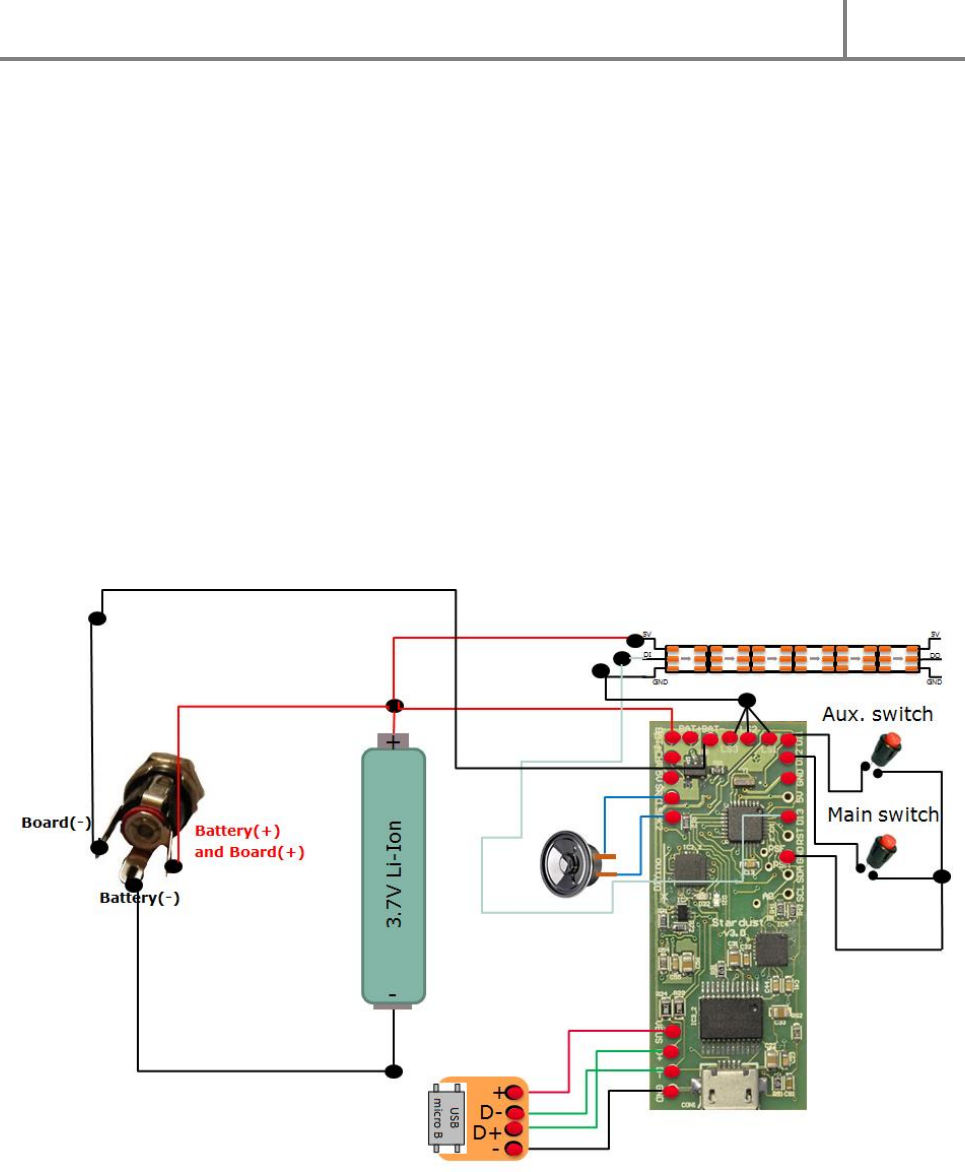

4, a full wiring diagram using the dual-charging scheme can be seen on Figure 10
FIGURE 4: IN-HILT RECHARG E USING A 2.1MM RECHARGE PORT
4.4 WIRING AN OLED DISPLAY (FOR BLASTER PROPS)
If you want to add a small display to your prop project - especially popular with sci-fi blaster, but you can
include one for a custom MP3 player, armor gadgets etc. – there is a good selection of OLED displays in
different display sizes using the SSD1306 driver IC.
The wiring of such an OLED using I2C communication can be seen on Figure 5 . You need to supply the
OLD display with 3.3V (some OLED displays have in-built 3.3V LDO, in which case you can also use the 5V
pin to supply them) and use the Atmega328P’s I2C bus signals A4(SDA)/A5(SCL) to communicate with the
display.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.

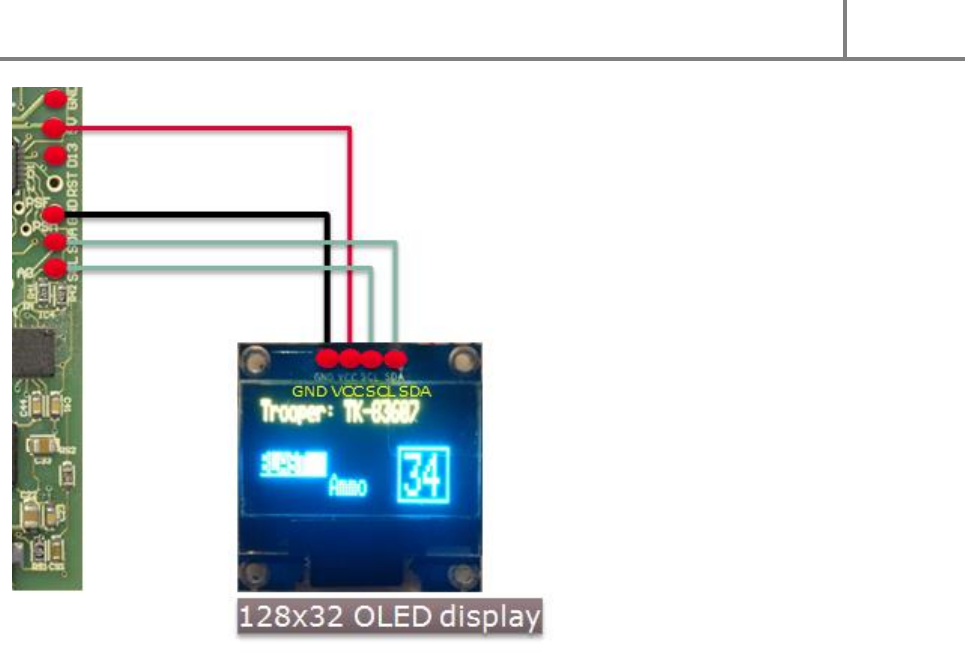

FIGURE 5: W IR ING OF AN OLED DISPLAY USING THE SD1306 OLED CONTROLLED (128X32)
4.5 CHARGE STATUS INDICATION LED CONNECTION
The on-board USB charger includes a charge status indication signal which can be accessed on the board
via the CHR signal. The signal remains logic low during charging and changes to logic high when the
battery is fully charged. This signal can be used to connect a charge indication LED via a proper resistor to
light up when charging completes. Connect the LED anode (+) to the CHR signal (via a resistor if needed)
and the cathode (-) of the LED to board GND. Alternatively you can connect the CHR signal to the aux.
signal A0 and read the charge status voltage via digitalRead() command in the C++ sketch. This makes it
possible to implement more sophisticated charge completion functions i.e. notifying via a unique sound,
going back to sleep mode until charging finishes etc.
4.6 COPYING SOUND FILES T O THE SD-C ARD
On DIYino Stardust sound files can be stored and played back from the SD-card connected to the MP3
chipset.
Sound files stored on the SD-Card will be indexed and accessed according to their physical copy order to
the storage media. Therefore some simple rules apply to define SD-card content.
1. Format your SD-card always before changing any file on it
2. Select all the files from this folder and "Drag and Drop" them to your SD-card. NO COPY AND
PASTE !!! : We need to have this file copied in the same order as their filename order. On
Microsoft Windows, Copy/paste produce an anarchic copy order, but Drag and Drop produce an
ordered copy...
You can organize your files in folders to keep a better overview of the content. All what counts to the
MP3/Wav chip is the physical order of the files on the SD-card. You can even drag-and-drop whole
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
folders, but inside the folder you need to establish a defined copy order by preceding files names with a
numbering for instance:
FIGURE 6: C OP YING FIL ES TO THE SD-CARD
4.7 SOUND FONT PREPARATIO N – HUM-EXTENSION
The DIYino Stardust is capable of gapless playback of sound files in WAV format, i.e. it can change from
one sound track to another without a gap in the audio. This feature is mandatory for lightsaber
electronics where a seamless transition is expected between the different sound files (like hum, clash,
swings etc.).
While the MP3/WAV chips is capable of gapless playback, especially when it comes to relaunching the
background noise of a lightsaber (so called “hum”), it cannot be done without spending a significant
amount of effort and code space. For this reason a more pragmatic approach to hum-relaunch is
implemented in most of the open source lightsaber software which simply relaunches the hum at certain
time intervals. In order not to “loose” the hum if the saber is idling, each sound file (except lockup and
power off) has to be extended with a bit of hum sound. This is called the hum-extension. Modifying an
existing sound font file is easy by simply copy+paste a chunk of hum sound after the end of the sound
file. This can be done with freewares (Audacity for instance). A more advanced method is developed by
Jakesoft – the father of Arduino lightsabers – in form of an automatic conversion program which can be
downloaded here: http://forum.arduino.cc/index.php?action=dlattach;topic=361566.0;attach=192631
5 APPLICATION EXAMPLES
Warning : High-power LEDs (such as the Luxeon, Cree etc.) and strings/stripes of LEDs (such as LED
strings composed of many single LEDs or neopixel LED moduls such as WS2812B) are extremely bright.
Especially High-power LEDs are considered “class 2 lasers”! You should neither look directly to the beam
nor point someone with it when the light source is not diffused/blocked, just like a powerful lamp or
flashlight. Manufacturer of the DIYino Stardust board could not be held responsible for any injury
resulting from the use of high-power or other type of LEDs/LED modules. To avoid injuries and retina
damage due to the high brightness of LEDs, always use protective googles or other means to avoid
looking directly into the light source and also take care to protect others (like children) from being able
to look directly into the light source.
In this Chapter the most common lighting options of saber designs will be discussed with application
notes and wiring diagrams showing how these options can be interfaced to the DIYino Stardust board.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Caution: in case of a High-Power LED or LED-string setups, you can use the LS pins to adjust the current
flowing through the LEDs using PWM control (Pulse Width Modulation) of the transistor gates. The
transistors which connect the cathode (-) of the LEDs to the GND can act as voltage controlled variable
resistors, thus limiting the current through the LED. For those LEDs having a Vth above the battery
voltage, this intrinsic current limiting is sufficient to ensure no overvoltage/overcurrent to the LED, while
still offering the full dynamic range of brightness control. But in case the LED has a Vth below (or even far
below) the nominal battery voltage (i.e. for red/amber/yellow LEDs), depending on the electrical
characteristic of the LED, this intrinsic limiting might not be enough to ensure no overvoltage to the LED,
which in turn can lead to damage or degradation of the life time of the LED. Even if the limiting through
the transistors is deemed sufficient, during debug the PWM level can be set accidentally to a level which
causes overvoltage. Last but not least, if only a small portion of the available PWM range can be used to
control the brightness, it can lead to less smooth color blending. Therefore in doubt please include a
limiting series resistor, which can be calculated using the following formula:
𝑅𝑠𝑒𝑟𝑖𝑒𝑠 = 𝑉𝑏𝑎𝑡𝑡𝑒𝑟𝑦 − 𝑉𝑡ℎ_𝐿𝐸𝐷
𝐼_𝐿𝐸𝐷
Example: suppose you use a Red LED with Vth_LED=2V and you want the current to be I_LED=700mA,
you use a Vbattery=3.7V, type 18650 battery. The value of the resistor you need to wire in series to the
LED is:
3,7𝑉 − 2,0𝑉
0,7𝐴 = 2.4Ω
Please check the power rating of the resistor you intend to use.
5.1 HIGH-POWER RGB LED SETUP
Figure 7 depicts connection of a High-Power LED module to the DIYino Stardust. It depicts a 3-color LED
module consisting of 3 LED dies in colors Red, Green and Blue. The same wiring can be extended to all
different variants of HP-LEDs, like a single die HP-LED which can be controlled with a single Low-side
driver. Please include appropriate resistors (see previous section) for the individual LED dice, as depicted
on Figure 7.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
FIGURE 7: W IR ING OF A HIGH-POWER LED MODUL E (RGB)
Please note that that maximum DC current that can be switched by the individual LS pins is 2.4A. If the
HP-LED used in the design involves LED dies with a max current above this rating, you must connect the
cathode of the LED die to multiple of these LS pins and ensure they are controlled with the same PWM
setting to avoid violating the maximum rating of the transistors.
5.2 NEOPIXELS SETUP
“NeoPixel” is Adafruit’s brand for individually-addressable RGB color pixels and strips based on
the WS2812, WS2811 and SK6812 LED/drivers, using a single-wire protocol. Commonly used neopixel
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
stripes are composed of individual LED segments connected together to form a ladder similar to LED-
strings. The stripes can be cut at any joint and multiple striped can be connected together at these joints
as well.
Neopixel LED modules integrate RGB LEDs and a control circuit which uses PWM (Pulse Width
Modulation) to control the brightness of each die individually. For that purpose each LED module has a
shift register composed of 24-bits, 8-bits belonging to each of the colors Red, Green and Blue. The shift
registers are connected between the DI (Data-In) and DO (Data-Out) pins of the individual segments. In a
stripe configuration one segment shift register is connected serially to the shift register of the next
segment. If a blade has a stripe with 100LEDs, it means during programming 100x24=2400 bits of data
have to be transmitted to the stripe using neopixels own serial protocol to fill up all PWM registers,
which in turn determine the brightness of the LEDs. This takes only a few us, so programming can
happen so fast, that transitions seem smooth to the eye.
A neopixel stripe has only 3+1 signals:
5V: supply of the stripe
DI: Data-In for the single-line serial protocol
GND: Ground or negative of the stripe
DO: Data-out, this signal has to be used only of you want to connect several stripes together which are
not continuous (back-to-back stripes or think about the cross guard of a Kylo Ren style saber)
The specification of the neopixel LED segments defines 5V as nominal voltage for the stripes, however
the module can work with a much lower voltage as well. A lower voltage is even necessary to minimize
power loss during operation, because any excess voltage above the voltage threshold of the used LEDs
(Red ~2V, Green and Blue ~3.5V) is “wasted” over protection circuits in the control logic. Therefore a
voltage source around the LED Vth is ideal to power neopixel strings.
For a complete characterization of neopixel brightness and current consumption please see LINK
Neopixels chips consume considerable power even when all the LEDs are switched off (all 0’s). This static
current consumption amounts to 1mA per LED. You can quickly calculate what this means to your
battery life time if you use – let’s say – 60LED/m type of neopixels, back to back, in a 80cm blade. There
will be 100 LEDs in your blade, drawing 100mA even if all LEDs are switched off. It will even discharge the
best battery in less than one day. It is not hard to predict, that with the introduction of the 144LED/m
type neopixel stripes, some blades will include much more than 100 LEDs, which will lead to an even
quicker discharging of the battery. Killing power to the circuitry using a kill-key is a good method to
lengthen the shelf life of your saber, but quite annoying during a show if you have to keep plugging
in/out the kill key. Therefore a unique method was invented using the existing DIYino Stardust
architecture. If the GND pin of the neopixels stripe is connected to the LS pins instead of the GND of the
battery/DIYino Stardust, the transistors of the LS pins can be used to cut power to the neopixels stripe. If
the blade is activated, the transistors have to be fully switched on (using the digitalWrite function) to
connect the GND of the neopixels to the Battery(-), therefore powering the stripe. If the blade is
retracted/switched off, the transistors have to be fully switched off in order to avoid the static current
consumption of the stripes discharging the battery. Please take note that the restrictions as to the
maximum current capability of the DIYino Stardust board apply also here (max 6A!!!).
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
FIGURE 8: NEOPIXEL S WIRING U SI NG 3.7V VOLT AGE SOURCE, “PR OGRAMMABLE K ILL-KEY”
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
6 FULL WIRING EXAMPLES
6.1 RGB HIGH-POWER LED SETUP WITH 3.7V AND SINGLE BUTTON
The Figure 9 shows the full wiring diagram of a HP-LED saber using a single 3.7V Li-Ion battery as supply,
using a single main button. The HP-LED module is directly supplied from the Battery+ (note: for a more
compact wiring schematics, resistors to the LED dice are not shown, but might needed to be included,
see 5.1)
FIGURE 9: FULL WIR ING D IA GRAM OF A HIGH-POW ER LED (RGB) SABER
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
6.2 NEOPIXEL SETUP WITH PROGRAMMABLE KILL-KEY, 3.7V SUPPLY AND DUAL
CHARGING SCHEME WITH USB AND RECHARGE PORT
On Figure 10 the full saber wiring diagram can be seen. It includes
- an in-hilt USB recharge port
- an in-hilt 21mm recharge port
- 3.7V Li-Ion battery as voltage source (for instance 18650)
- A neopixels LED-stripe of (theoretically ) any length
- Programmable neopixels stripe kill-key setup
- A main and an aux. switches
- Speaker
When connecting the programmable neopixels stripe kill-key, you have to calculate max. current
consumption of your LED stripe and connect the LSx pins accordingly, i.e. if you anticipate 2A-3A’s,
connect 3 of the LS pins to the GND terminal of the stripe. Up to max. 6A over all LSx pins due to limited
heat dissipation on the board!!!
All considerations in the Chapters describing the individual parts of this circuit diagram apply here as
well. Please read them carefully.
FIGURE 10: FULL WIRING DIAGR AM OF A NEOPIX EL STRIPE BA SED SABER WITH DU AL-CH ARGING
7 TECHNICAL SPECIFICATION
7.1 CIRCUIT PINOUT
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Pin
Functionality
Comment
BAT+ (2x)
Positive terminal of a single Li-
Ion 3.7V battery cell.
2 breakout signals
BAT-
Negative terminal of a single Li-
Ion 3.7V battery cell.
LS1
Drain of the Low-Side switch 1
HP-LED: connect cathode of Red
die here (via resistor if needed)
LS2
Drain of the Low-Side switch 2
HP-LED: connect cathode of
Green die here (via resistor if
needed)
LS3
Drain of the Low-Side switch 3
HP-LED: connect cathode of Blue
die here (via resistor if needed)
CHR
Charge completed signal of the
USB charger circuit.
Can be connected to the anode
of an LED (via resistor if
appropriate) to light up when
battery is fully charged over USB.
B
The „B“-point!!!
It can be used to implement the
USB Kill-Keytm Feature
5V (2x)
Legacy Arduino name of board
logic supply.
2 breakout signals.
RST
Reset pin of the Atmega328P,
with pull-up to 5V.
Pin used for burning bootloader.
D11
D11 digital I/O of Atmega328P,
PWM capable, connected to
Gate of LS6 Low-Side driver, with
100kΩ pull-down to GND. MOSI
pin for ICP.
Pin used for burning bootloader.
D12
D12 digital I/O of Atmega328P.
MISO pin for ICP.
Pin used for burning bootloader.
D13
D13 digital I/O of Atmega328P.
Pin used for burning bootloader.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
SCK pin for ICP.
GND (3x)
Board(-) or GND. Connected to
GND plane of the PCB.
Pin used for burning bootloader.
SPK1
Speaker terminal 1. Connect to
speaker directly. Other speaker
terminal to SPK2.
Connected to A6 of the
Atmega328 for Sound-Track’ERtm
SPK2
Speaker terminal 2. Connect to
speaker directly. Other speaker
terminal to SPK1.
Connected to A7 of the
Atmega328 for Sound-Track’ERtm
GND
Board(-) or GND. Connected to
GND plane of the PCB.
Connected to BAT- via star-point.
Digital GND, do not connect to
battery negative terminal.
3 breakout signals.
SDA
A4 digital I/O of Atmega328P
with input 10-bit ADC.
SDA I2C signal for
communication with MPU6050
or an external device using I2C
protocol (i.e. OLED display).
SCL
A5 digital I/O of Atmega328P
with input 10-bit ADC.
SDA I2C signal for
communication with MPU6050
or an external device using I2C
protocol (i.e. OLED display).
PSF
FTDI power switch
Pulled to GND. Can be connected
to 5V signal to disable FTDI
chipset.
PSM
MP3 power switch
Pulled to GND. Can be connected
to 5V signal to disable MP3
chipset and Audio Amp.
A0
A0 digital I/O of Atmega328P
with input 10-bit ADC.
Auxiliary signal, can be used as
an additional ADC input or as
accent light signal
VBUS
USB supply voltage
5V voltage input from USB bus or
USB charger. Breakout signal for
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
external USB connector hook-up
D+
USB positive
Breakout signal for external USB
connector hook-up
D-
USB negative
Breakout signal for external USB
connector hook-up
8 UPLOAD SOFTWARE USING ARDUINO IDE: A STEP-BY-STEP
WALKTHROUGH
Please visit the Arduino Home Page for instructions how to install the Arduino IDE and upload code using
it to your DIYino Stardust board:
https://www.arduino.cc/en/Guide/Windows (instructions are also available for Mac OS X and Linux)
The DIYino Stardust boards are configured as an Arduino/Genuino Uno compatible board, so when
choosing your board please select Arduino/Genuino Uno.
To upload open-sorce code to your Stardust board, follow the steps described here:
Step 1: Download Arduino IDE from http://www.arduino.cc. Go to Software and then to Download the
Arduino IDE.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Step 2: From this page you will be redirected to another page where you can donate to the developers of
the Arduino IDE. Optional, you can choose not to donate by clicking on Just Download.

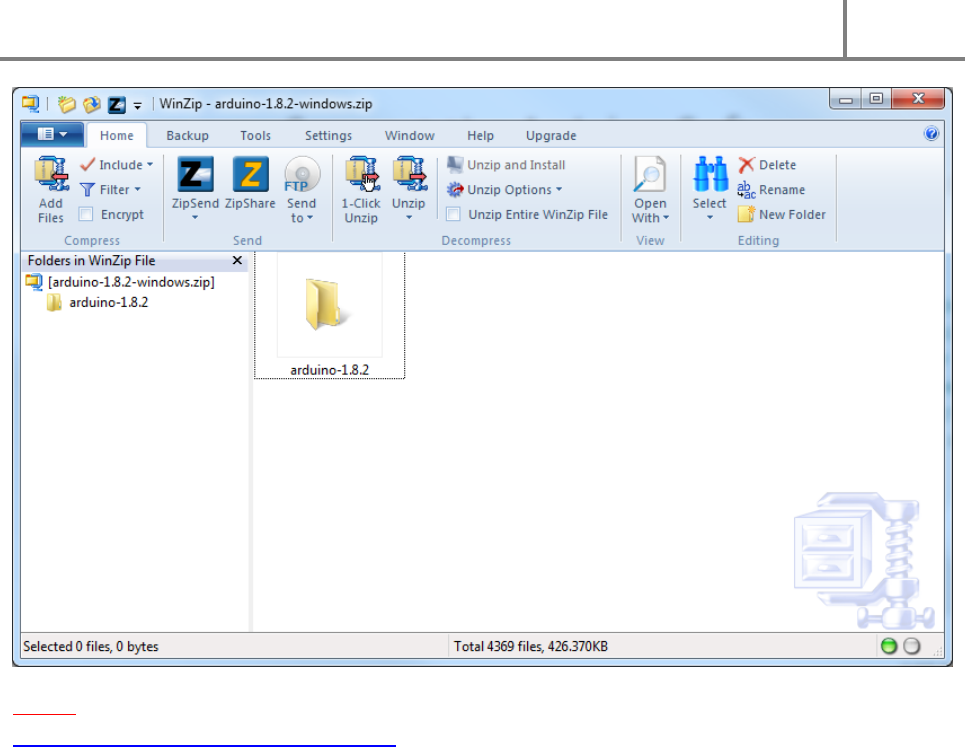

Step 3: The Arduino IDE will be downloaded. When download is completed, unzip the software
anywhere you like to your PC.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.

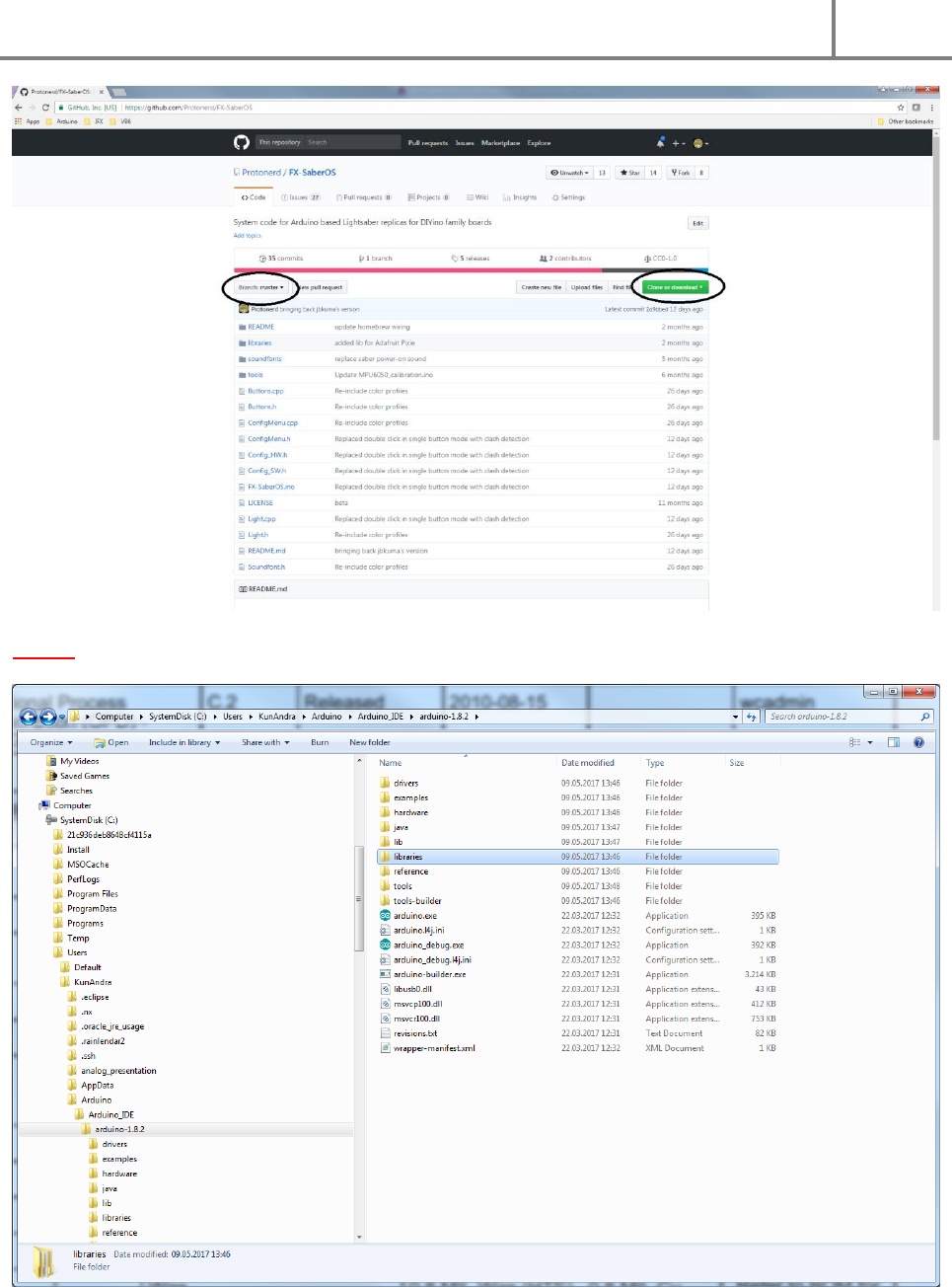

Step 4: Download the lightsaber code of your choice, from example from GitHub:
https://github.com/Protonerd/FX-SaberOS
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Step 5: Navigate to the folder you unzipped the Arduino IDE and go to the libraries folder.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Step 6: This libraries folder contains basic libraries for Arduino. For the IDE to find the libraries necessary
to compile your downloaded lightsaber code, you must copy all folders located in libraries folder of the
lightsaber software ZIP file to this folder. Sounds more difficult than it really is, look at the next picture
which clearly explains what is to be done:
And in the next picture you can see where the libraries of the lightsaber software can be found:
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.

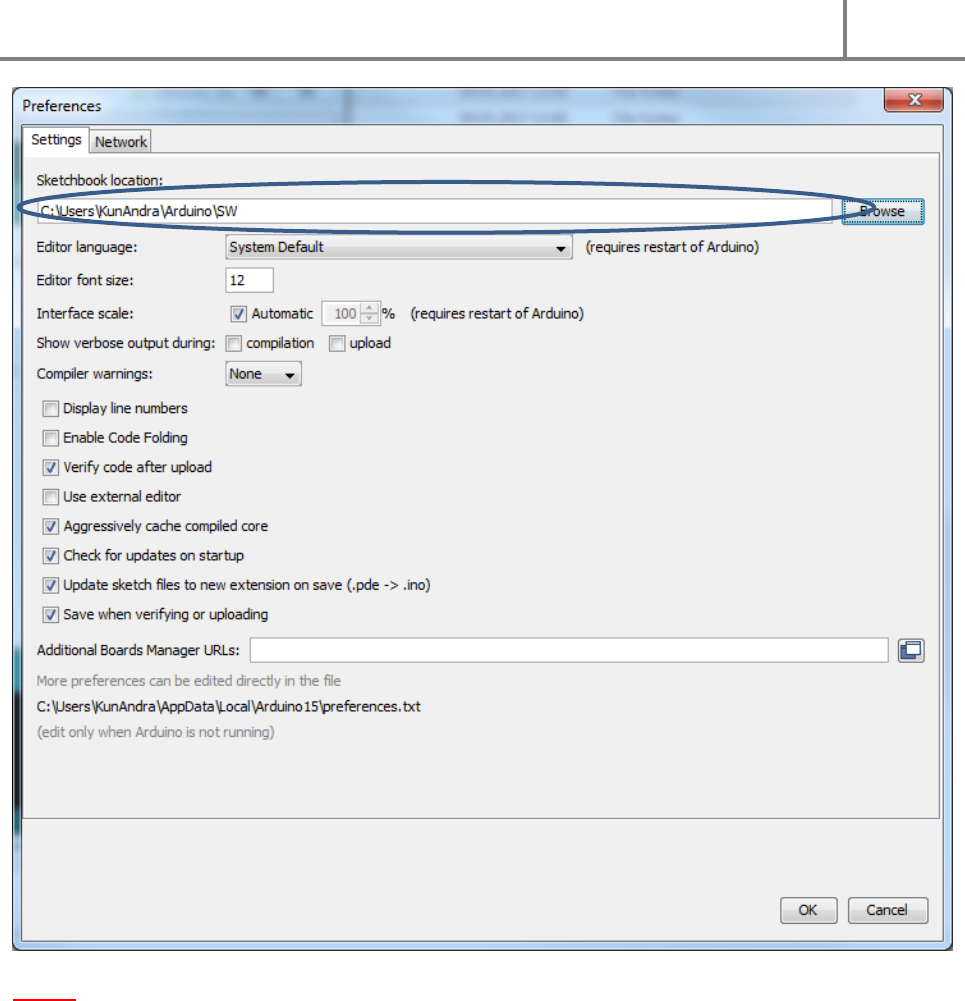

Step 7: Now it’s time to start the Arduino IDE. Simply start the arduino.exe. Then go to File/Preferences
and specify the folder containing the lightsaber code folder you downloaded (see path in the pic above
and compate it to the path indicated under Sketchbook location):
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.

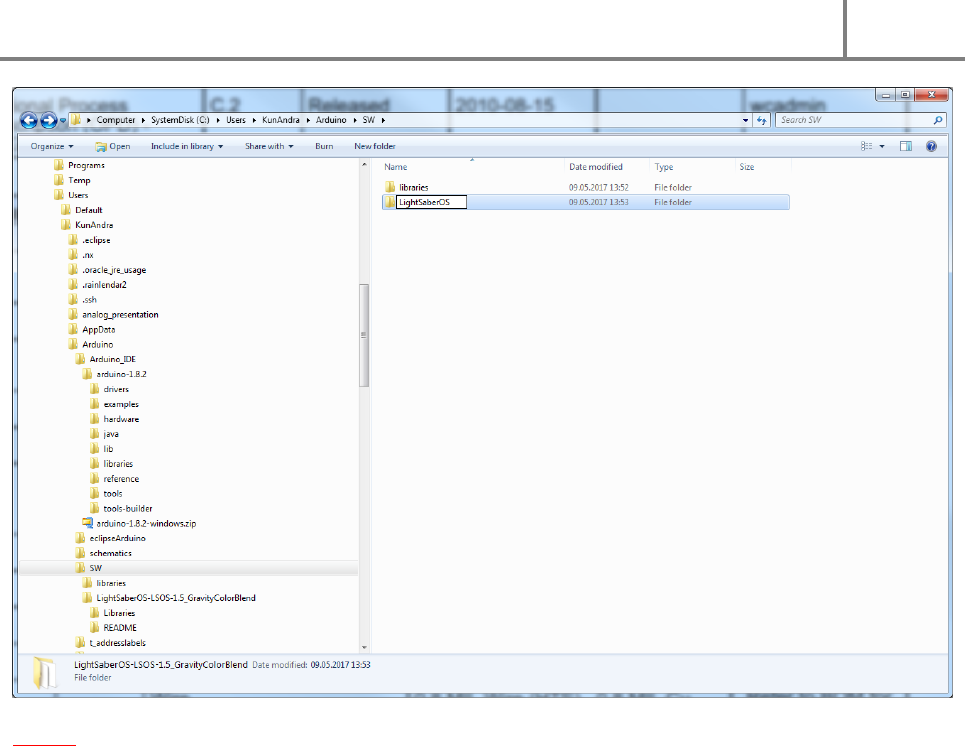

Step 8: It is crucial that the name of the lightsaber code folder be the same as the .ino file in that folder,
see in the next picture. I.e. if the ino file name is LightsaberOS.ino, the folder containing the .ino file also
must be named LightsaberOS. Rename the folder accordingly.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Step 9: Once everything is settled, go to File -> Open -> /../../<lightsaber code .ino file name>. See next
picture how it should look like once the code is opened. The Check and Arrow buttons can be used to
compile or compile/download the code to your Arduino compatible board.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Step 10: Prior to downloading the code to your board, the type of your microcontroller needs to be
specified. To do this, enter the Boards Manager as depicted on the following picture:
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Once the Boards Manager starts, choose Arduino AVR Board, select the version 1.6.17 from the Select
Version drop-down meeu and click on install.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Step 11: Once installation of the Boards Manager is donw, specify your board by selecting
Arduino/Genuino Uno from Tools/Boards (DIYino Stardusts boards are all configured as Arduino/Genuino Uno, as well as newer
runs of DIYino Prime boards. Some older Runs from the Prime configured the boards as Arduino Nano, since the original Prime was based on the
Nano. Later on it was decided to configure the boards unifromly as Uno to benefit from the additional 1.5k code space)
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
Step 12: Connect the Stardust board to your PC using an USB cable. Once done, a new COM port shall
appear under Tools/Port, which corresponds to your board. Select this COM port and start uloading code
with the Arrow button.
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
9 GENERIC SABER CODE
All Stardust V3 boards come pre-installed with a generic saber code which implements the most
essential saber functions. The goal of the generic saber code is to allow users access to a working saber
core right after receiving the board. To unlock the full set of features of the FX-SaberOS, the user can
upload the code to replace the generic saber code.
The generic saber code is made to drive an RGB LED module using a single main button (see 5.1) to
interact with the board.
After boot the saber starts in Idle Mode.
A short press of the main button will activate the saber (Saber On Mode) with a smooth ignition,
using the main blade color. You can try clashes and swings (default threshold of 1000), the blade
flickering is set to AudioTrackER.
Long press in Saber On Mode will retract the saber and bring it back to Idle Mode.
Long press in idle mode will enter the saber into Config Mode.
Config Mode consists of a simple set of items:
- Main blade color: choose from 6 preset color profiles by a short press on the main button
- Clash color: choose from 6 preset color profiles by a short press on the main button
- Volume control: short press on main button will increase the volume, after reaching highest
value of 31, value will start again at 0 (mute)
DIYino Stardust v3 User Manual
ProtoWerkstatt 2018, All rigths reserved
Author of this documentation is in no way affiliated, associated, licensed or endorsed by Disney or Lucasfilm Ltd., Industrial Light
and Magic or any of their associates. All brands and trademarks listed are the exclusive property of their respective Owners.
The generic saber code uses a single sound font. To populate your SD card follow the instructions in 4.6
and copy the Config file folder and a single sound font folder from the sound bundle which can be found
here: https://github.com/Protonerd/FX-
SaberOS/blob/master/soundfonts/DIYino_Stardust_SPIFlash_image.7z
10 QUICK-START GUIDE TO FX-SABEROS
FX-SaberOS (https://github.com/Protonerd/FX-SaberOS) is the world’s most popular open source saber
operating system, evolving out of the world’s first such system, the LightSaberOS written by Sebastien
Capou (neskweek) and Andras Kun (Protonerd). In this Chapter you can learn how to quickly set up the
most important parameters of the saber code for a first upload.
First of all you need to upload so called sound fonts to your Stardust board. You can use your own sound
fonts (see Chapter Error! Reference source not found. for uploading sound files and Chapter 4.7 for
preparing your own sound fonts for upload to the Stardust board). There are excellent free-to use sound
fonts from Darth PJs (Trinity Force Sabers) on GitHub (https://github.com/Protonerd/FX-
SaberOS/blob/master/soundfonts/DIYino_Prime_SDCard_image.7z ), the contents of the zip file can be
directly moved to the SPI flash following the instructions in Chapter 4.6. Afterwards you can download
and open FX-SaberOS in your Arduino IDE.
On the Config_HW.h tab, you can configure your hardware and peripherals:
Make sure you select Stardust as board:
//#define DIYINO_PRIME_V1
//#define DIYINO_STARDUST_V2
#define DIYINO_STARDUST_V3
You can select between single and 2-buttons modes by commenting out or leaving following line
uncommented:
#define SINGLEBUTTON -> single button setup
//#define SINGLEBUTTON -> 2- buttons setup
Now it’s time to define your blade type, leave your blade type uncommented and the other two
commented. For instance to select a neopixel blade:
//#define LEDSTRINGS -> defaults to 6 segments, DIYino Prime recommended
//#define STAR_LED -> defaults to Red to LS1, Green to LS2 and Blue to LS3
#define PIXELBLADE -> neopixel blade
And finally if you are using neopixel blade, define the length of your blade in pixels:
#define NUMPIXELS 115
For basic setup that’s all. If you want to understand how the code works, visit the GitHub Wiki. Have fun
and May The Force Be With You! Always!
11 RELATED LINKS
FX-SaberOS: https://github.com/Protonerd/FX-SaberOS
LSOS: https://github.com/neskweek/LightSaberOS
USaber: https://github.com/JakeS0ft/USaber
