DMR-EH80VEG

DMR-EH80VEB

Vol. 1

Colour

(S).......................Silver Type

DVD Video Recorder

ORDER NO.MAD0510009CE

SPECIFICATIONS

Power supply: AC220-240 V, 50/60 Hz

Power consumption: 46W +/-1,3W

Power Save mode: 5W+/-0,4W

Dimensions and Mass: 430 (W)×380 (D)×89 (H) mm

(excluding protrusions) / 7kg

Operating temperature range:+5 to +40°C

Operating humidity range: 35 to 80% RH (no condensation)

Pickup:

Laser power and Wave length:CLASS2/CLASS1 662nm / 795nm

No hazardous radiation is emitted with the safety protection

Laser performance: Class 3B / Class 3A (optical scan unit)

(NORSK) B : nm / 795nm

Laserstyrke Ingen farlig str

Video Recording signal: PAL

MESECAM (only EG)

NTSC (only from extern and DVD)

DVD Signal system: PAL625/50, PAL525/60

NTSC (playback on PAL TV)

DVD Region number: Region No.2

Approximate Recording time (approximate):

DVD 4.7GB Disk / HDD 200GB

XP: 10 MBps 1h / 44h

SP: 5 MBps 2h / 89h

LP: 2,5 MBps 4h / 177h

EP: 1.7, 1.2 MBps 6h, 8h / 266h, 355h

DVD Video Recording and Playback format:

Video: MPEG2 (Hybrid VBR) / Audio: Dolby Digital 2CH

DVD-RAM: 12cm 4.7GB / 9.4GB / 8cm 2.8GB

DVD-R: 12cm 4.7GB / 8cm 1.4GB

DVD-RW: 12cm 4.7GB

DVD+R: 12cm 4.7GB

Only Playback format:

DVD-Video, DVD-Audio, DVD+RW

CD-Audio (CD-DA), Video CD, S-Video CD (IEC62107)

CD-R/CD-RW (CD-DA, Video CD formatted discs)

MP3 (audio), JPG (picture)

Maximum number of tracks and groups: 999 tracks and 99 groups

TV tuner system EB: 1x DVD / 1x VCR

UHF: CH21-CH68

VHF (OIRT): CHR1-CHR12

TV tuner system EG: 1x DVD / 1x VCR

VHF: CH E2-CH E12 A-H2

UHF: CH21-CH69

CATV: S01-S05 (S1-S3),

S1-S20(M1-U10), S21-S41

RF out system:

DMR-EH80V EB UHF: CH21-CH68 (71 +/-3dBµ, 75Ω close)

DMR-EH80V EG without RF converter

Video Recording system: 4 rotary heads (helical scanning system)

Video heads: 4 rotary video heads

2 audio HIFI heads

1 audio head (normal audio)

Video input:

EURO AV (AV1 / AV2) 21 pin connector (1.0Vp-p, 75W terminated)

VIDEO IN (AV3 front input) cinch connector (1.0Vp-p, 75W terminated)

S-VIDEO IN Y: 1Vp-p, C:0.3 Vp-p (PAL-Burst)

DV input IEEE1394 4pin PAL/NTSC

SD Card slot: Still picture (JPEG, TIFF)

SD Memory Card, MuliMediaCard

Format: FAT12, FAT16

Video output:

EURO AV (AV1 / AV2) 21 pin connector (1.0Vp-p, 75Ω terminated)

VHS / DVD 1x cinch (1.0Vp-p, 75Ω terminated)

DVD (only) component 3x cinch Progressive / Interlace

(Y:1.0Vp-p, P

: 0.7Vp-p, P

: 0.7Vp-p)

S-VIDEO Y (1.0Vp-p , 75Ω terminated)

Ølgelengde 662

åling sendes ut

C PAL (0.3Vp-p, 75Ω terminated)

C NTSC (0.286 Vp-p, 75Ω terminated)

DVD RGB video output:

RGB output level: 0.7 Vp-p (75O) +/-10%

Output terminal: AV (21pin)

Number of terminals: 1 system

Audio heads:

1 stationary head Mono

2 channels Hi-Fi Sound-Stereo

Audio input:

EURO AV (AV1 / AV2) 21 pin connector:

-6dBV (500mV), more than 10kΩ

AUDIO IN (AV3 front input) cinch connector:

-6dBV (500mV), more than 10kΩ

Audio output:

VHS / DVD, DVD only cinch connector:

-6dBV (500mV), less than 1kΩ

EURO AV (AV1 / AV2) 21 pin connector:

-6dBV (500mV), less than 1kΩ

DVD optical digital output audio out (PCM, Dolby Digital, DTS, MPEG)

Audio characteristics:

S/N ratio Normal: more than 43dB (SP)

Hi-Fi: 65dB,

DVD: 115dB

Frequence responce Normal: 80Hz - 8kHz,

Hi-Fi: 20Hz - 20kHz

DVD: 4Hz - 22kHz (linear audio)

48kHz sampling

DVD: 4Hz - 44kHz (linear audio)

96kHz sampling

CD Audio: 4Hz - 20kHz

Total harmonic distortion: CD Audio: 0.0025%

Dynamic range:

VCR: more than 90dB

DVD (linear audio): more than 98dB

CD audio: more than 96dB

Videotape speed and Recording time (PAL / SECAM 240min. tape):

SP: 23.39mm/s, 240min.

LP: 11.695mm/s, 480min.

EP: 7.796mm/s, 720min.

FF / REW time: 60sec. (180min. tape)

Videotape speed and Recording time (NTSC 240min. tape):

SP: 33.35mm/s, 168min.

EP: 11.12mm/s, 505min.

Winding Speed (180min tape):

FF time approximate 60sec.

REW time approximate 43sec.

Note:

Specifications are subject to change without notice.

Mass and dimensions are approximate.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer

IIS and Thomson multimedia.

■

Built-in decoders

You can play discs with these symbols.

This product incorporates copyright protection technology that is

protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology must

be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses only unless otherwise autherwise

authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

DMR-EH80VEG / DMR-EH80VEB

1 INTRODUCTION 5

2 SAFETY PRECAUTIONS 5

2.1. GENERAL GUIDELINES 5

3 PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO

ELECTROSTATIC SENSITIVE (ES) DEVICES 6

4 PRECAUTION OF LASER DIODE 7

5 ABOUT LEAD FREE SOLDER (PbF) 7

6 PREVENTION OF STATIC ELECTRICITY DISCHARGE 8

6.1. GROUNDING FOR ELECTROSTATIC BREAKDOWN

PREVENTION 8

6.2. HANDLING PRECAUTIONS FOR OPTICAL PICK-UP

UNIT 8

7 GENERAL DESCRIPTION 9

8 NEW FEATURES 10

8.1. QUICK START FUNCTION (REC) 10

9 (DVD) TAKING OUT THE DISC FROM RAM-DRIVE UNIT WHEN

THE DISC CANNOT BE EJECTED BY BUTTON 11

9.1. (DVD) FORCIBLE DISC EJECT 11

9.2. (DVD) WHEN THE FORCIBLE DISC EJECT CAN NOT

BE DONE. 11

10 (VHS) REMOVING OF CASSETTE TAPE 12

10.1. (VHS) REMOVAL BY COMPULSORY UNLOADING. 12

10.2. (VHS) REMOVAL BY MANUAL OPERATION. 12

10.3. (VHS) TAKE OUT CASSETTE TAPE MANUALLY AFTER

REMOVING THE MECHANNISM 13

11 (DVD) SERVICE EXPLORER 14

12 (DVD) SELF-DIAGNOSIS AND SPECIAL MODE SETTING 17

12.1. (DVD) SELF-DIAGNOSIS FUNCTIONS 17

12.2. (DVD) SPECIAL MODES SETTING 19

12.3. (DVD) SERVICE MODES 21

13 (VHS) SELF-DIAGNOSIS AND SPECIAL MODE SETTING 27

13.1. (VHS) SPECIAL MODES SETTING 27

13.2. (VHS) SERVICE MODES 27

13.3. (VHS) SELF-DIAGNOSIS FUNCTIONS 28

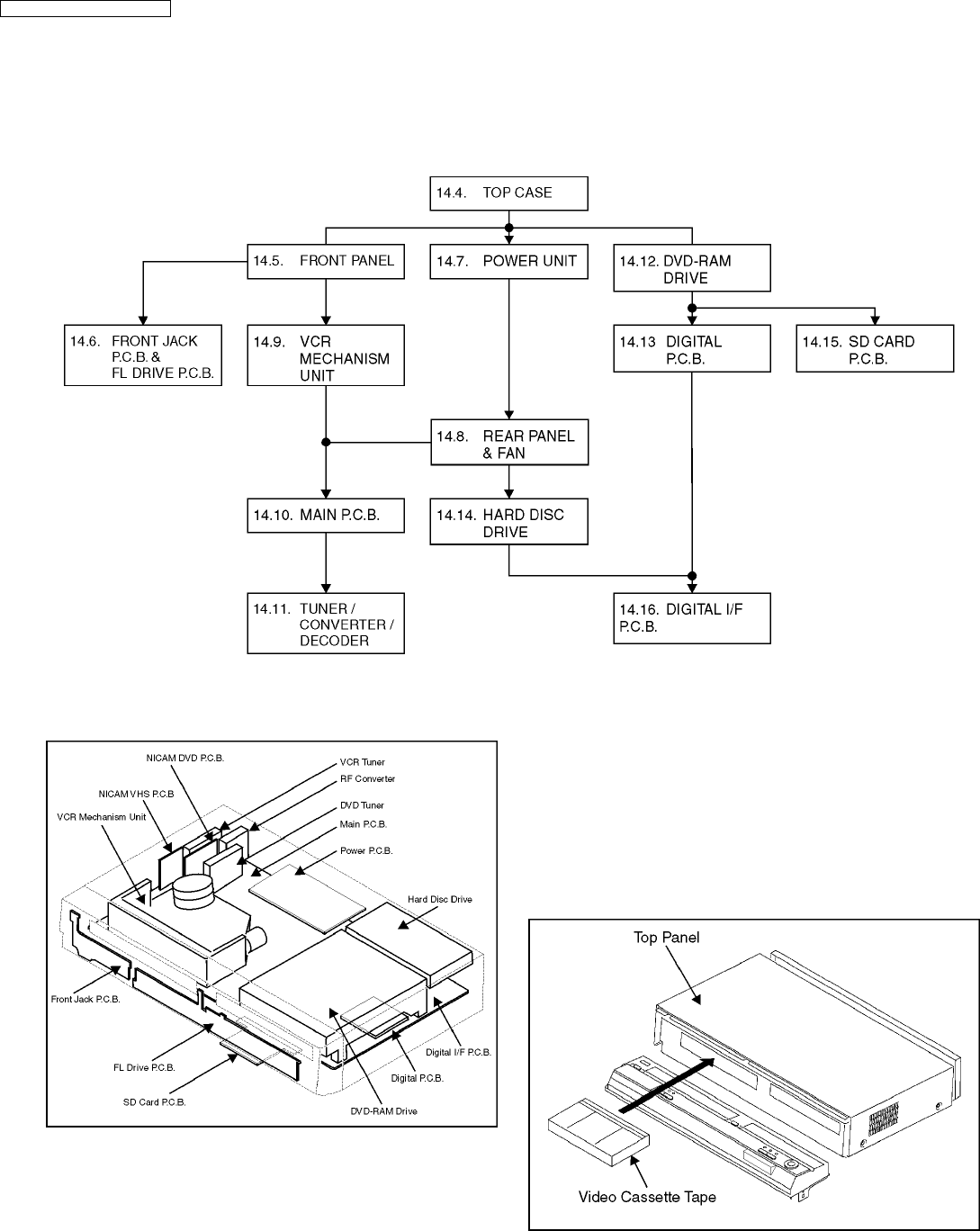

14 ASSEMBLING AND DISASSEMBLING 30

14.1. DISASSEMBLY FLOW CHART 30

14.2. P.C.B. POSITIONS 30

14.3. CAUTION WHILE INSERTING CASSETTE TAPE WHEN

DISASSEMBLING THE UNIT 30

14.4. TOP CASE 31

14.5. FRONT PANEL 31

14.6. FRONT JACK P.C.B. & FL DRIVE P.C.B. 32

14.7. POWER P.C.B. 32

14.8. REAR PANEL & FAN MOTOR 33

14.9. VCR MECHANISM UNIT 34

14.10. MAIN P.C.B. 35

14.11. TUNE R / CONVERTE R /DECODER 35

14.12. DVD-RAM DRIVE 35

14.13. DIGITAL P.C.B. 36

14.14. HARD DISC DRIVE 37

14.15. SD CARD P.C.B. 39

14.16. DIGITAL I/F P.C.B. 39

15 SERVICE FIXTURE AND TOOLS 40

16 SERVICE POSITIONS 41

16.1. CHECKING AND REPAIRING OF POWER P.C.B. 41

16.2. CHECKING AND REPAIRING OF DIGITAL I/F P.C.B. 42

16.3. CHECKING AND REPAIRING OF MAIN P.C.B. 44

16.4. CHECKING AND REPAIRING OF DVD-RAM DRIVE 45

16.5. CHECKING AND REPAIRING OF HARD DISC DRIVE 46

16.6. CHECKING AND REPAIRING OF SD CARD P.C.B. 47

17 (DVD) CAUTION AFTER REPLACING PARTS 48

17.1. (DVD) AFTER REPLACING THE RAM DRIVE 48

17.2. (DVD) AFTER REPLACING THE TIMER

MICROPROCESSOR 48

17.3. (DVD) AFTER REPLACING EEPROM (IC37502) 48

18 (VHS) CAUTION AFTER REPLACING PARTS 49

18.1. ADJUSTMENT PROCEDURES AFTER REPLACING DD

CYLINDER, VHS MICROPOCESSOR OR MAIN P.C.B 49

18.2. (VHS) X-VALUE & LINEARITY (P2 AND P3 POSTS)

ADJUSTMENT 50

18.3. (VHS) CAUTION AFTER REPLACING VHS

MICROPROCESSOR (IC6001) 51

19 (DVD) STANDARD INSPECTION SPECIFICATIONS AFTER

MAKING REPAIRS 52

20 VOLTAGE AND WAVEFORM CHART 53

20.1. WAVEFORM CHART 59

21 ABBREVIATIONS 60

21.1. DVD 60

21.2. VHS 62

22 INTERCONNECTION DIAGRAM 67

23 BLOCK DIAGRAM 69

23.1. POWER SUPPLY BLOCK DIAGRAM 69

23.2. DIGITAL I/F REGULATOR BLOCK DIAGRAM 70

23.3. SYSTEM CONTROL, SERVO & TIMER BLOCK

DIAGRAM 71

23.4. AUDIO BLOCK DIAGRAM 72

23.5. VIDEO BLOCK DIAGRAM 73

23.6. DIGITAL I/F P.C.B. BLOCK DIAGRAM 75

24 SCHEMATIC DIAGRAM 77

24.1. POWER SUPPLY 77

24.2. DVD OUTPUT 79

24.3. INTERFACE 80

24.4. IO / TUNER 81

24.5. SYSCON / SERVO / TIMER MAIN 82

24.6. VHS AUDIO 83

24.7. VIDEO 84

24.8. NICAM DECODER 85

24.9. FRONT JACK 86

24.10. FL DRIVE 87

24.11. SD CARD / DV IN 88

25 PRINTED CIRCUIT BOARD 89

25.1. POWER P.C.B. (COMPONENT SIDE) 89

CONTENTS

Page Page

DMR-EH80VEG / DMR-EH80VEB

25.2. POWER P.C.B. (SOLDER SIDE) 90

25.3. MAIN P.C.B. (COMPONENT SIDE) 91

25.4. MAIN P.C.B. (SOLDER SIDE) 92

25.5. DIGITAL I/F P.C.B. (COMPONENT SIDE) 93

25.6. DIGITAL I/F P.C.B. (SOLDER SIDE) 94

25.7. NICAM DECODER P.C.B. (VEP07A51A / VEP07A51B) 95

25.8. NICAM DECODER P.C.B. (VEP07A51F) 96

25.9. FRONT JACK P.C.B. 97

25.10. FL DRIVE P.C.B. 98

25.11. SD CARD P.C.B. 99

26 EXPLODED VIEWS 101

26.1. MECHANISM & CASING PARTS 101

26.2. FRONT PANEL PARTS 102

26.3. VHS MECHANISM PARTS 103

26.4. PACKING & ACCESSORIES 104

27 REPLACEMNET PARTS LIST 105

27.1. VHS MECHANISM PARTS 105

27.2. MECHANISM & CASING PARTS 105

27.3. PRINTED CIRCUIT BOARDSINCLUDED IN MAIN PCB

106

27.4. PACKING & ACCESSORIES PARTS 106

27.5. ELECTRICAL PARTS 107

27.6. SERVICE FIXTURE AND TOOLS 118

28 DIAGRAMS FOR PRINTING A4 SIZE 119

28.1. BLOCK DIAGRAM FOR PRINTING A4 SIZE 119

28.2. SCHEMATIC DIAGRAMM FOR PRINTING A4 SIZE 135

28.3. POWER P.C.B. FOR PRINTING A4 SIZE 159

28.4. MAIN P.C.B. (COMPONENT SIDE) FOR PRINTING A4

SIZE 163

28.5. MAIN P.C.B. (SOLDER SIDE) FOR PRINTING A4 SIZE

165

28.6. OTHER P.C.B.痴FOR PRINTING A4 SIZE 167

DMR-EH80VEG / DMR-EH80VEB

1 INTRODUCTION

This service manual contains technical information which will

allow service personnel to understand and service these

models.

Please place orders using the parts list and not the drawing

reference numbers.

1. This service manual does not contain the following

information, because of the impossibility of servicing at

component level.

· Schematic Diagram, Block Diagram and P.C.B. layout

of Digital P.C.B.

· Parts List for individual parts of Digital P.C.B.

· Exploded View and Parts List for individual parts of RAM

drive.

2. The following categories are recycling module part. Please

send them to Central Repair Center.

· Digital P.C.B.:

DMR-EH80VEB: RFKBEH80VEB

DMR-EH80VEG: VEP79108E

· RAM Drive: VXY1872

3. If the circuit is changed or modified, this information will be

followed by supplement service manual to be filed with

original service manual.

4. Adjustment procedures, Disassembly Procedures and

Assembly Procedures for VCR Mechanism Chassis are

separate volume from this service manual. Please refer to

the service manual for R4 Mechanism Chassis for EURO

model (MAD0403002C2).

2 SAFETY PRECAUTIONS

2.1. GENERAL GUIDELINES

1. Be careful during removing metal parts, sharp edges.

2. When servicing, observe the original lead dress. If a short

circuit is found, replace all parts which have been

overheated or damaged by the short circuit.

3. After servicing, see to it that all the protective devices such

as insulation barriers, insulation papers shields are properly

installed.

4. After servicing, make the following leakage current checks

to prevent the customer from being exposed to shock

hazards.

2.1.1. LEAKAGE CURRENT COLD

CHECK

1. Unplug the AC cord and connect a jumper between the two

prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between

the jumpered AC plug and each exposed metallic cabinet

part on the equipment such as screw heads, connectors,

control shafts, etc. When the exposed metallic part has a

return path to the chassis, the reading should be between

1MΩand 5.2MΩ.

When the exposed metal does not have a return path to

the chassis, the reading must be infinity.

Figure 1

2.1.2. LEAKAGE CURRENT HOT CHECK

1. Plug the AC cord directly into the AC outlet. Do not use an

isolation transformer for this check.

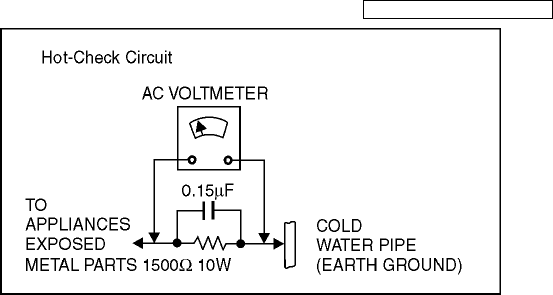

2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15µF

capacitors, between each exposed metallic part on the set

and a good earth ground such as a water pipe, as shown in

Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more

sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the

above measurements.

6. The potential at any point should not exceed 0.75 volts

RMS. A leakage current tester (Simpson Model 229 or

equivalent) may be used to make the hot checks, leakage

current must not exceed 1/2 milliampere. In case a

measurement is outside of the limits specified, there is a

possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the

customer.

DMR-EH80VEG / DMR-EH80VEB

Some semiconductor (solid state) devices can be damaged

easily by static electricity. Such components commonly are

called Electrostatic Sensitive (ES) Devices. Examples of typical

ES devices are integrated circuits and some field-effect

transistor-sand semiconductor "chip" components. The

following techniques should be used to help reduce the

incidence of component damage caused by electrostatic

discharge (ESD).

1. Immediately before handling any semiconductor

component or semiconductor-equipped assembly, drain off

any ESD on your body by touching a known earth ground.

Alternatively, obtain and wear a commercially available

discharging ESD wrist strap, which should be removed for

potential shock reasons prior to applying power to the unit

under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such

as aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder

or unsolder ES devices.

4. Use only an anti-static solder removal device.

Some solder removal devices not classified

as "anti-static (ESD protected)" can generate electrical

charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective

package until immediately before you are ready to install it.

(Most replacement ES devices are packaged with leads

electrically shorted together by conductive foam, aluminum

foil or comparable conductive material).

7. Immediately before removing the protective material from

the leads of a replacement ES device, touch the protective

material to the chassis or circuit assembly into which the

device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and

observe all other safety precautions.

8. Minimize bodily motions when handling unpacked

replacement ES devices. (Otherwise harmless motion such

as the brushing together of your clothes fabric or the lifting

of your foot from a carpeted floor can generate static

electricity sufficient to damage an ES device).

3 PREVENTION OF ELECTROSTATIC DISCHARGE (ESD)

TO ELECTROSTATIC SENSITIVE (ES) DEVICES

DMR-EH80VEG / DMR-EH80VEB

This model uses lead free solder (PbF). For repair use only

lead free handsolder.

Caution:

Pb free solder has a higher melting point than standard

solder; Typically the melting point is 50 - 70ｰF (30 - 40ｰC)

higher. Please use a high temperature soldering iron. In

case of the soldering iron with temperature control, please

set it to 700 +/-20ｰF (370 +/-10ｰC). Pb free solder will tend

to splash when heated too high (about 1100ｰF/ 600ｰC).

When soldering or unsoldering, please completely remove

all of the solder on the pins or solder area and be sure to

heat the soldering points with the Pb free solder until it

melts enough.

4 PRECAUTION OF LASER DIODE

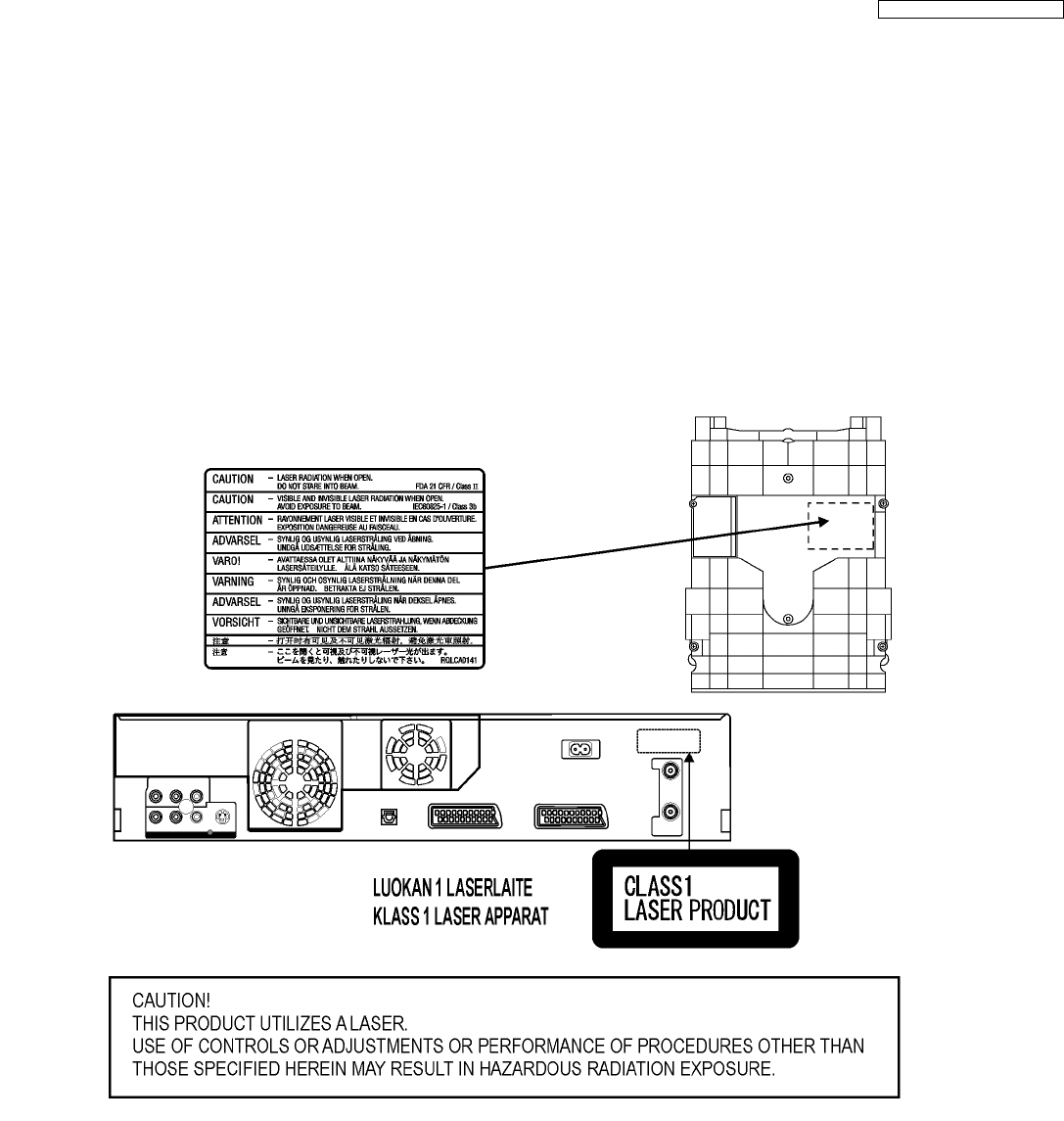

CAUTION: ACHTUNG:

This product utilizes a laser diode with the unit turned “on”,

invisible laser radiation is emitted from the pickup lens.

Wave length: 662 nm/795 nm

Maximum output radiation power from pickup: 100µ W/VDE.

Laser radiation from the pickup lens is safety level, but be sure

the followings:

Dieses Produkt enthält eine Laserdiode.

Im eingeschalteten Zustand wird unsichtbare Laserstrahlung von der

Lasereinheit ausgestrahlt.

Wellenlänge: 662 nm/795 nm

Maximale Strahlungsleistung der Lasereinheit: 100µ W/VDE.

Die Strahlung der eingeschalteten Lasereinheit ist ungefährlich, wenn

folgende Punkte beachtet werden:

1. Do not disassemble the optical pickup unit, since radiation

from exposed laser diode is dangerous. 1. Die Lasereinheit nicht zerlegen, da die Strahlung an der freigelegten

Laserdiode gefährlich ist.

2. Do not adjust the variable resistor on the pickup unit.

It was already adjusted. 2. Den werksseitig justierten Einstellregler der Lasereinheit nicht

verstellen.

3. Do not look at the focus lens using optical instruments. 3. Nicht in die Fokussierlinse blicken.

4. Recommend not to look at pickup lens for a long time. 4. Auch nicht mit optischen Instrumenten in die Fokussierlinse blicken.

5 ABOUT LEAD FREE SOLDER (PbF)

DMR-EH80VEG / DMR-EH80VEB

The laser diode in the traverse unit (optical pickup) may brake

down due to static electricity of clothes or human body. Use

due caution to electrostatic breakdown when servicing and

handling the laser diode.

6.1. GROUNDING FOR

ELECTROSTATIC

BREAKDOWN PREVENTION

Some devices are using the optical pickup (laser diode) and the

optical pickup will be damaged by static electricity in the

working environment. Proceed servicing works under the

working environment where grounding works is completed.

6.1.1. WORKTABLE GROUNDING

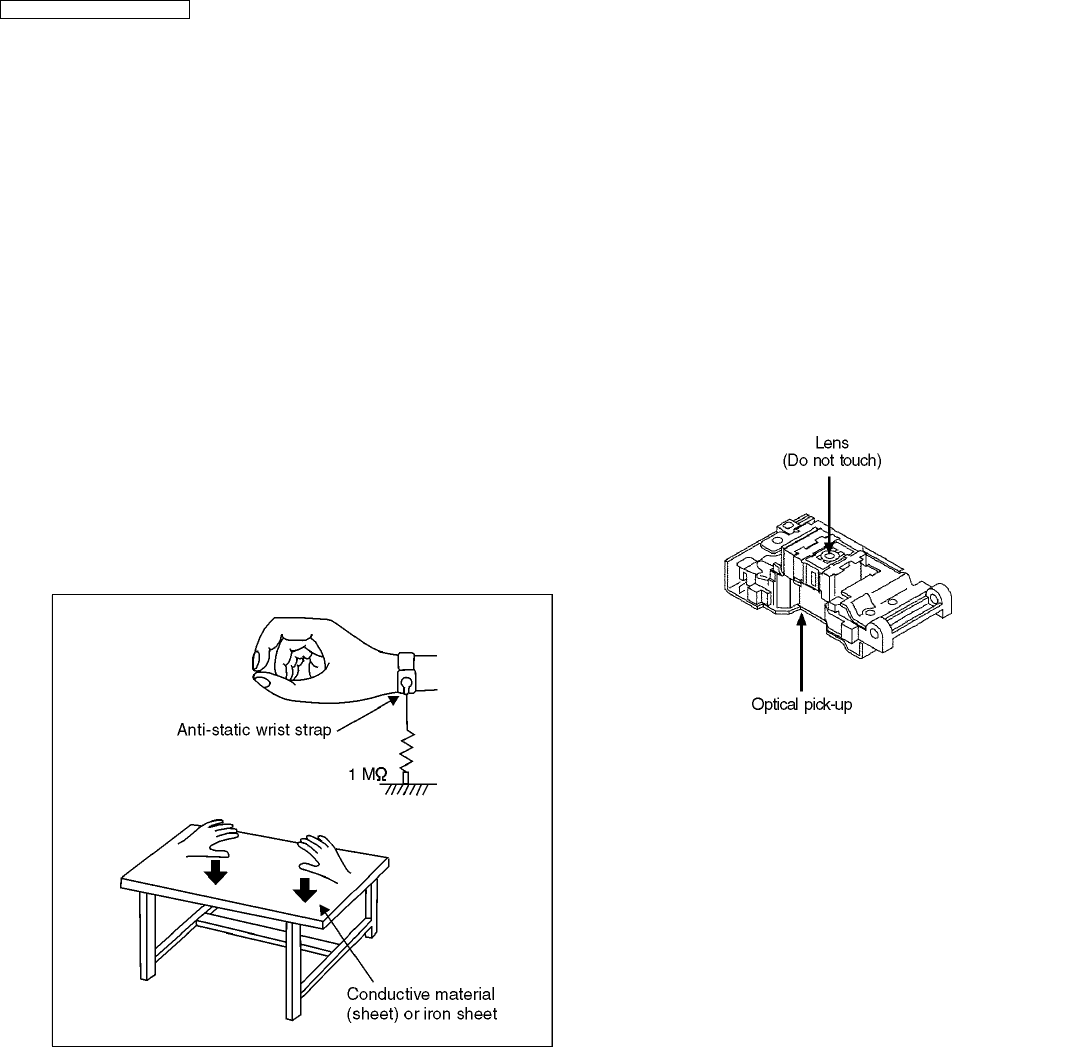

1. Put a conductive material (sheet) or iron sheet on the area

where the optical pickup is placed, and ground the sheet.

6.1.2. HUMAN BODY GROUNDING

1. Use the anti-static wrist strap to discharge the static

electricity form your body.

6.1.3. HANDLING OF OPTICAL PICKUP

1. To keep the good quality of the optical pickup maintenance

parts during transportation and before installation, the both

ends of the laser diode are short-circuit. After replacing the

parts with new ones, remove the short circuit according to

the correct procedure.

2. Do not use a tester to check the laser diode for the optical

pickup. Failure to do so will damage the laser diode due to

the power supply in the tester.

6.2. HANDLING PRECAUTIONS

FOR OPTICAL PICK-UP UNIT

The laser diode in the optical pick-up unit may break down due

to potential difference caused by static electricity of clothes or

human body.

So be careful of electrostatic breakdown during repair of the

optical pick-up unit.

6.2.1. HANDLING OF OPTICAL PICK-UP

UNIT

1. The optical pick-up unit has high precision extremely

sensitive structure. Be careful not to apply excessive shock.

6 PREVENTION OF STATIC ELECTRICITY DISCHARGE

DMR-EH80VEG / DMR-EH80VEB

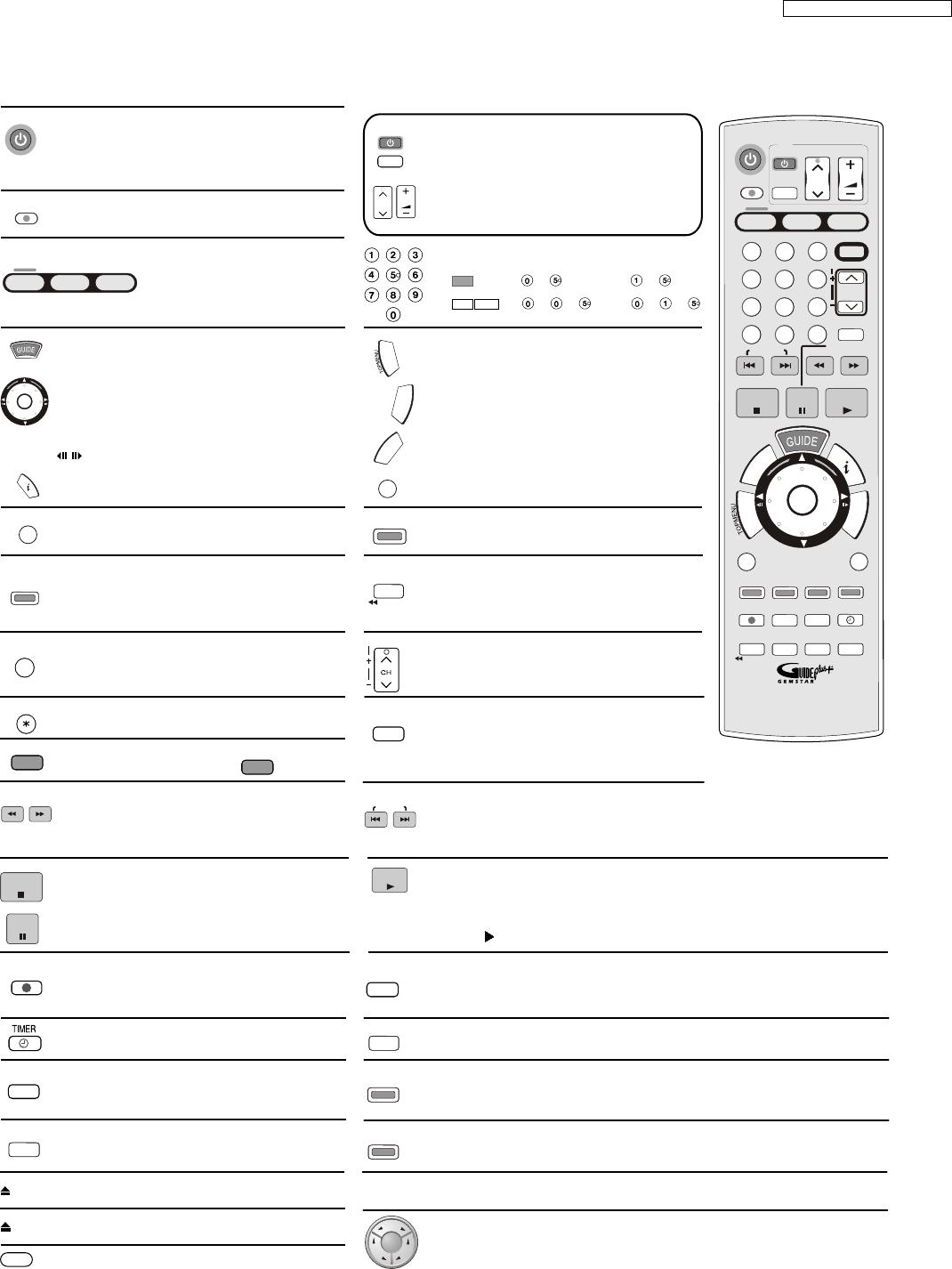

7 GENERAL DESCRIPTION

OPEN/CLOSE

DRIVE SELECT

EJECT

VHS/DVD

EXT LINK

Front Panel Button: Open and close the disc tray

Front Panel Button: Recording with external recording control

Front Panel Button: One Touch Dubbing (HD, DVD, TAPE)

Front Panel Button: Remove cassette

Front Panel Button:

Seclection HDD, DVD, SD

VCR, DVD and HD Controls

Stand-by/on switch

Press to switch the unit from on to stand-by mode

or vice versa. In stand-by mode, the unit is still consuming

a small amount of power.

VCD

MP3 JPEG

5: + 15: +

5: + + 15: + +

VOLUME

Buttons to switch between VHS, HDD, DVD and SD.

TIME SLIP: DVD - Select the timeframe

to be skipped.

JET REW: VHS - Fast rewind to the

beginning of the cassette.

Time and detail information appears

on the screen.

Select the AV input on the television set.

Turn the television set on and off.

CH: Select the channel on the television set.

VOLUME: Volume control of the television set.

Exit a menu.

TIMER RECORDING menu.

FUNCTION selection menu.

TOPMENU: Main menu of DVD video.

DIRECT NAVIGATOR TITLE VIEW

Launch the GUIDE Plus+ system.

Rotate the wheel to select the parameter.

Display the programme information from

the GUIDE Plus+ system.

to select the Function in the menu.

Launch DVD sub-menus.

ENTER: Select or save a setting.

Smart Wheel: Press up, down, left or right

Still picture or time loop playback.

Launch the disc menu.

GUIDE Plus+ menu: RED - Back 24 hours.

GUIDE Plus+ menu: BLUE - Programme Type selection.

GUIDE Plus+ menu: GREEN - Forward 24 hours.

Press the corresponding button

to operate the desired element.

The unit is switched on from electrical standby mode.

Number buttons - direct input

TRACKING/V-LOCK

AUDIO

REC MODE

EXT LINK

ShowView

VIDEO Plus+

INPUT SELECT

REC

CANCEL/RESET

Switch button of the AV input between AV1, AV2

and AV3 (front) / TP (DVD) and DC (VHS), AV4, DV.

Switch timer on and off.

Record with external recording control.

Split the recording into chapters.

CH: Channel select button.

TRACKING/V.LOCK + / -

VHS - Optimisation of the playback picture.

SLOW/SEARCH:

DVD - Search or slow motion playback.

REW/FF:

VHS - Fast forward or rewind from stop mode.

Forward or reverse scene search during playback mode.

Starts playback.

EB Model VHS - Press several times to select

sound playback mode.

DVD - Depending on the disc, select the audio

channel and or the sound track.

Cancel a function.

VHS - Reset the tape counter.

INDEX: VHS - Search for the beginning of a recording.

SKIP: DVD - Skip chapters, titles, or pictures.

Stops recording, replay or forward .

Press and hold more than 3 seconds

to remove cassette.

/reverse action

Pause a recording or playback.

Start the recording. Record mode button VHS - SP, LP, EP

Record mode button DVD - XP, SP, LP, EP

DUBBING menu

Direct TV record to DVD or HDD.

PLAY/ x1.3

HDD / RAM - You can increase the playback speed.

Hold PLAY during playback.

ShowView menu

Erase a title or a chapter.

DVD - Jumps forward 30 seconds.

123

456

789

DVD/VHS

DIRECT TV REC

VOLUME

ShowView

CANCEL/RESET

REC

TIME SLIP

TIMER

DISPLAY

Panasonic

DVD/TV

INPUT SELECT

REC MODE

AUDIO

SKIP/INDEX

SLOW/

STOP

PAUSE

PLAY

DUBBING

HDD/DVD

ERASE

MANUAL SKIP

ENTER

SUB MENU

RETURN

HDD

DVD

VHS

REW

STATUS

CREATE

CHAPTER

JET REW

TRACKING/V-LOCK/PAGE

EUR7729KM0

EXT LINK

DUBBING

HDD

VHS DVD

DMR-EH80VEG / DMR-EH80VEB

8 NEW FEATURES

8.1. QUICK START FUNCTION (REC)

(Note: Descriptions concerning HDD is applied only to models with HDD.)

1. General

A few seconds after tuning on the unit, you can start recording to DVD-RAM, HDD.

You can switch the operation of this function (ON/OFF) on the menu screen.

2. Quick start (REC) principle

In the power-off at Quick start, only power supplies for video IC, tuner and storage media are cut off.

2.1. When the REC button is pushed a few second after the power button is pushed, Audio and Video data are stored

in DDR SDRAM before a storage media (DVD-RAM or HDD) preparation.

*Preparation time →DVD-RAM: About 8 seconds

2.2. After a storage media DVD-RAM or HDD preparation, Audio and Video data are transfered from DDR SDRAM to

the storage media.

DMR-EH80VEG / DMR-EH80VEB

9.1. (DVD) FORCIBLE DISC EJECT

9.1.1. (DVD) WHEN THE POWER CAN BE

TURNED OFF.

1. Turn off the power and press [(DVD) STOP], [(DVD) CH

UP] keys on the front panel simultaneously for 5 seconds.

9.1.2. (DVD) WHEN THE POWER CAN

NOT BE TURNED OFF.

1. Press [POWER] key on the front panel for over 10 seconds

to turn off the power forcibly

and press [(DVD) STOP] [(DVD) CH UP] keys on the front

panel simultaneously for 5 seconds.

9.2. (DVD) WHEN THE FORCIBLE

DISC EJECT CAN NOT BE

DONE.

1. Turn off the power and pull out AC cord.

2. Remove the Top Case.

3. Remove the Front Panel.

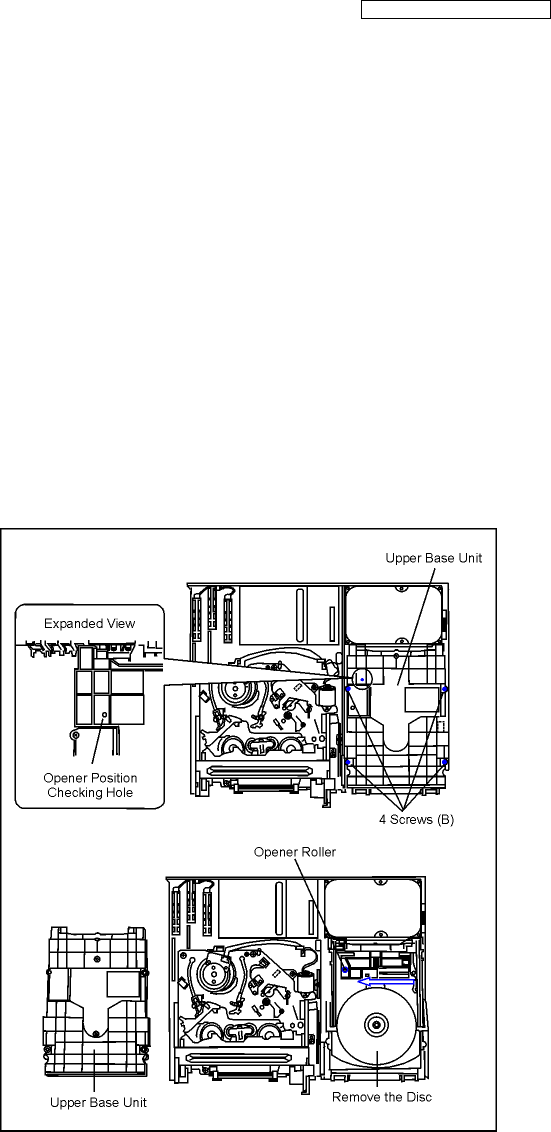

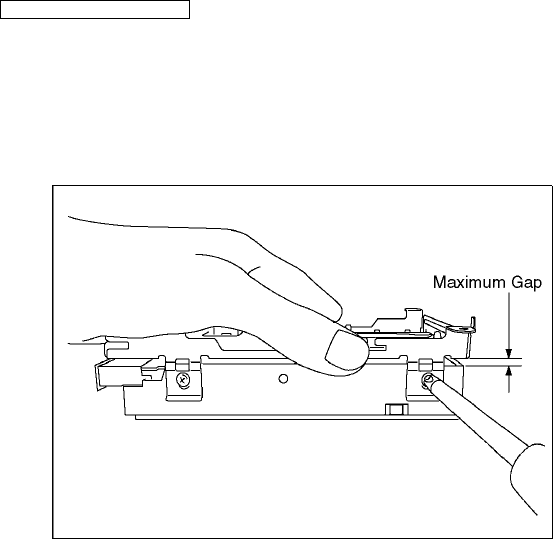

4. Remove 4 screws (B) and Upper Base Unit from DVD-RAM

Drive.

5. Take out the disc and put the Opener Roller on fully position

for direction of Arrow.

6. Put the Upper Base Unit so that the Opener Roller is

inserted into the groove.

7. Check center of Opener Roller is seen through the Opener

position Checking Hole, and tighten 4 screws (B).

9 (DVD) TAKING OUT THE DISC FROM RAM-DRIVE UNIT

WHEN THE DISC CANNOT BE EJECTED BY BUTTON

DMR-EH80VEG / DMR-EH80VEB

10 (VHS) REMOVING OF

CASSETTE TAPE

When the cassette tape could not be removed after an

electrical malfunction, there are 2 ways to remove a cassette

tape.

10.1. (VHS) REMOVAL BY

COMPULSORY UNLOADING.

If Service Mode can be activated when the power can not be

turned on, this operation is able.

1. Press [FF] and [EJECT] button simultaneously for more

than 3 seconds and set the Service Mode to 7.

2. Press [STOP] button in order to unload the mechanism.

(Pay attention to tape slack)

Service Mode Display:

7 ** ** (STOP) →7 0L ** (EJECT)

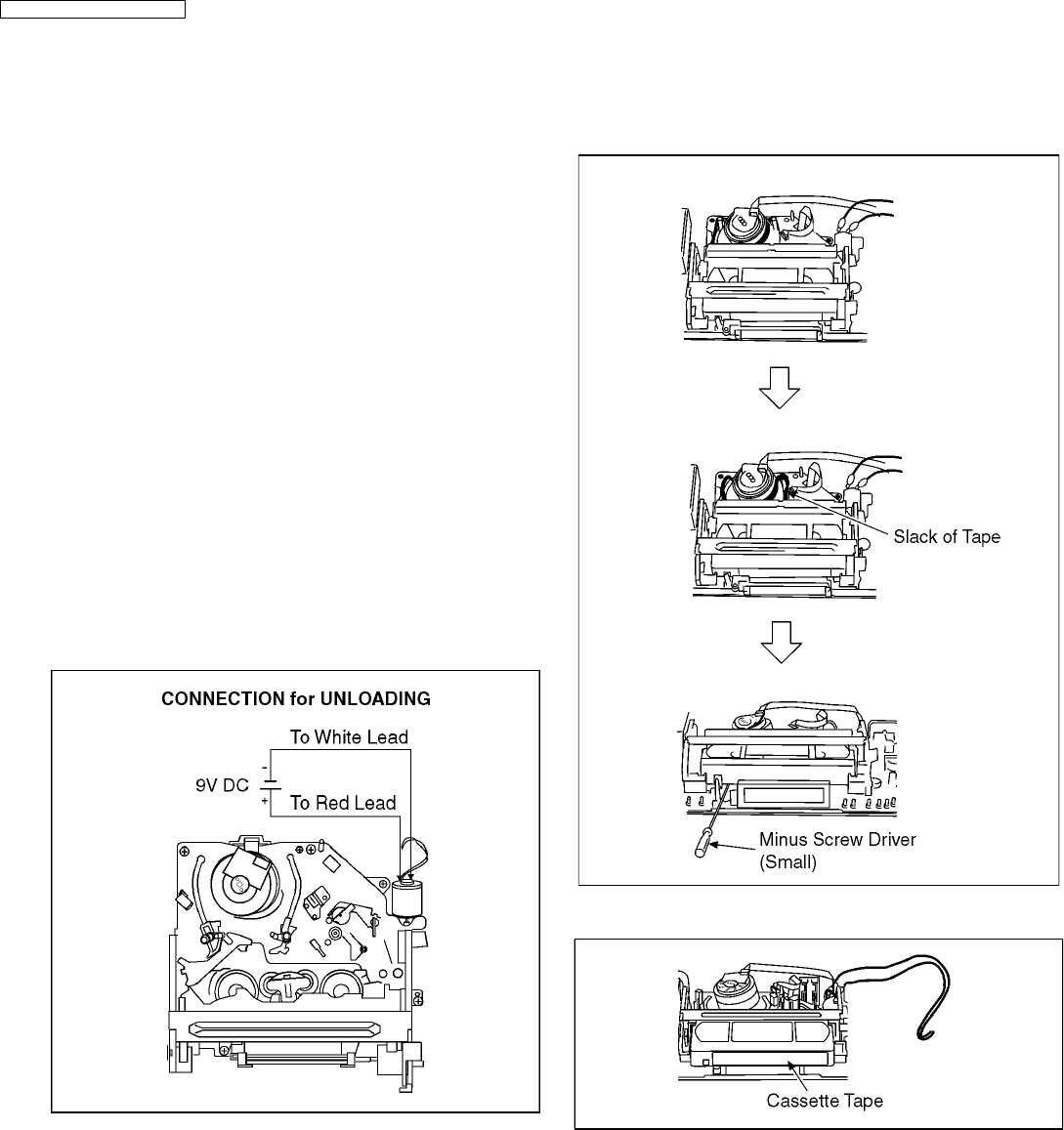

10.2. (VHS) REMOVAL BY MANUAL

OPERATION.

1. Disconnect the AC plug, and remove the Top Panel and the

Front Panel by referring to the Disassembly Procedures.

2. Connect a batterie (9V spec.) to the Loading Motor in series

for supplying 9V to rotate the Loading Motor.

3. Stop unloading just before unloading will be completed. The

tape becomes slack.

4. Rotate the S-Reel by a small minus screwdriver to remove

the slack tape.

5. Then unload again to remove the cassette tape.

DMR-EH80VEG / DMR-EH80VEB

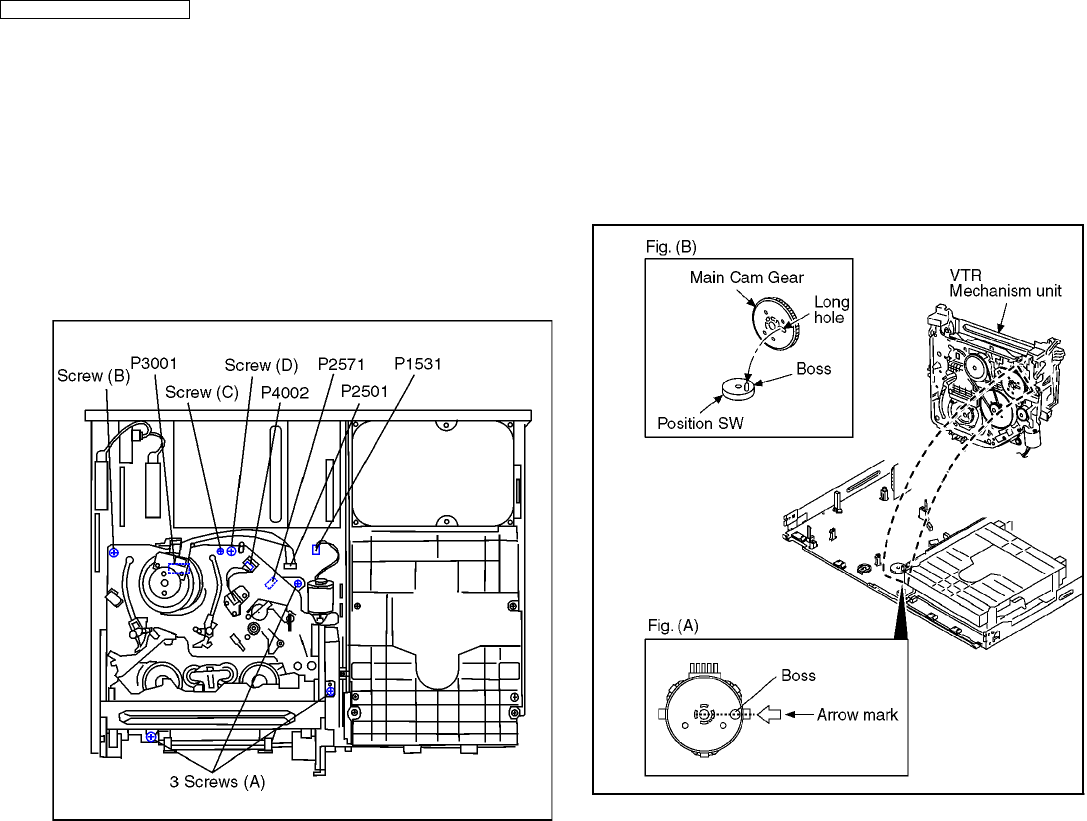

10.3. (VHS) TAKE OUT CASSETTE

TAPE MANUALLY AFTER

REMOVING THE

MECHANNISM

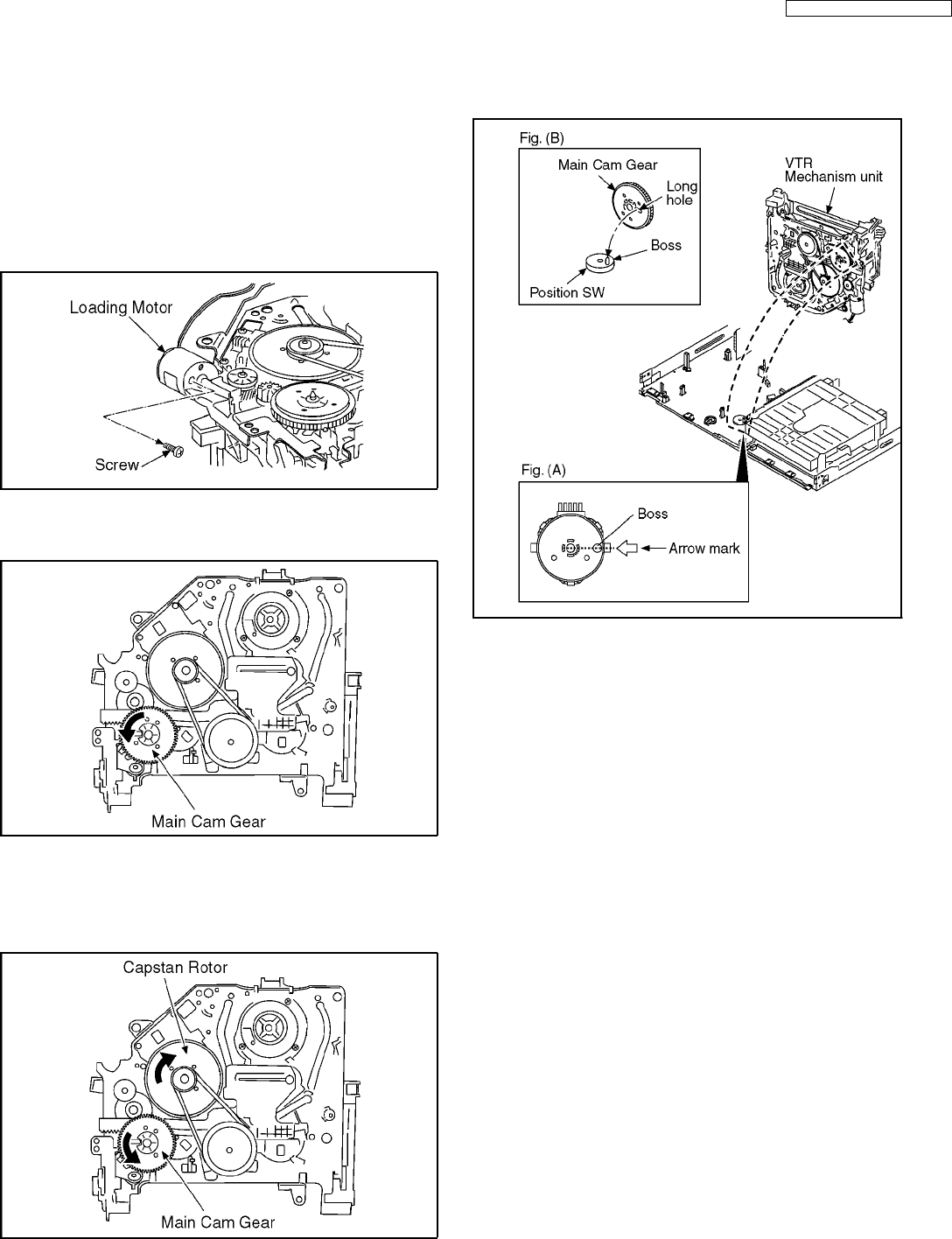

1. Disconnect the AC plug, and remove the Top Panel, Front

Panel and the Mechanism by referring assembling and

disassembling description.

2. Remove the Screw and remove the Loading Motor.

3. Rotate the Main Cam Gear counter-clockwise until just

before the unloading will be completed.

4. Rotate the Capstan Motor clockwise to remove the slack

tape.

5. Rotate the Main Cam Gear counter-clockwise again to

remove the cassette-tape.

6. Attach Loading Motor and tighten the screw.

7. Set the Position Switch to EJECT POSITION certainly and

attach the mechanism to chassis.

DMR-EH80VEG / DMR-EH80VEB

11 (DVD) SERVICE EXPLORER

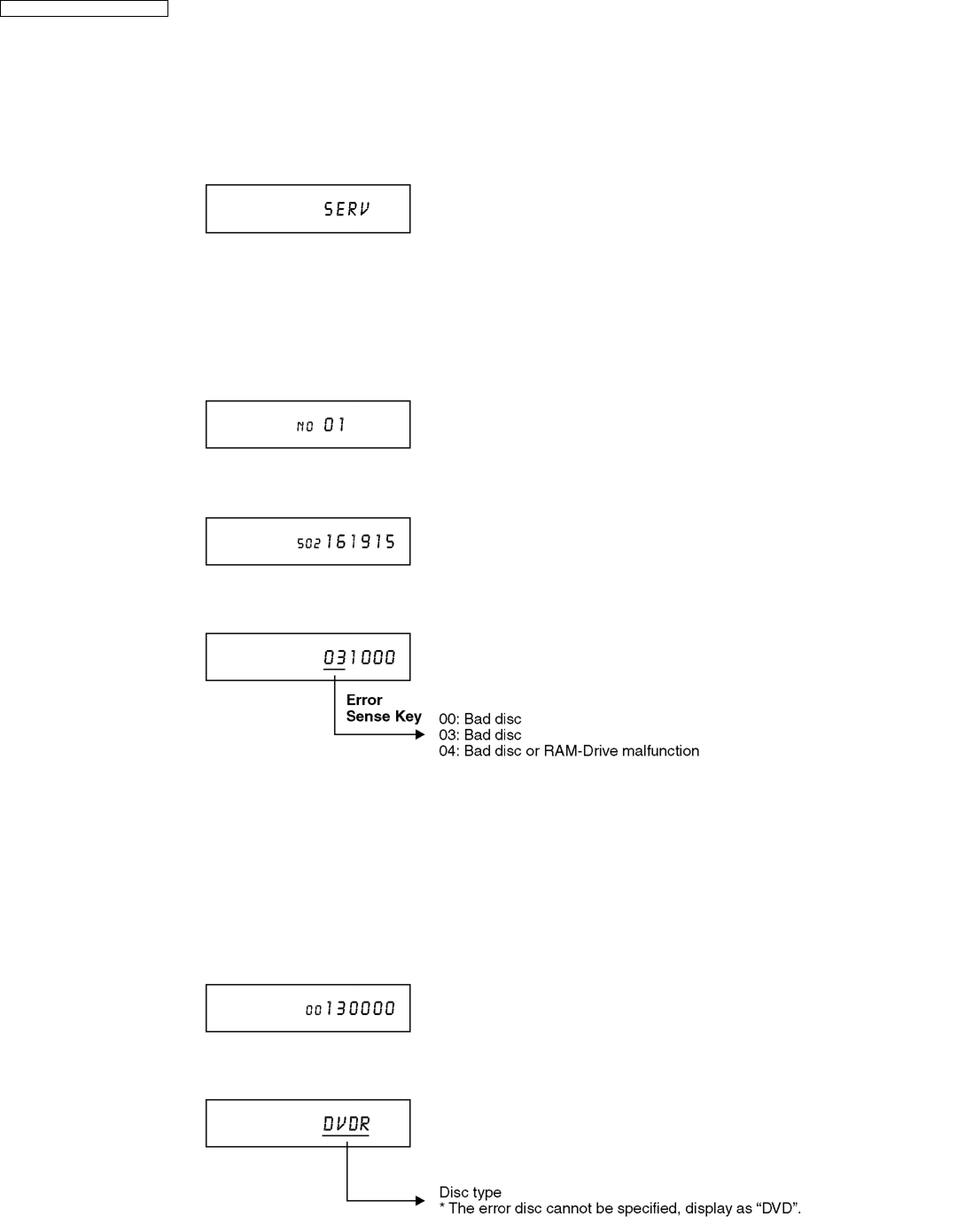

Confirm “RAM-Drive Last Error” in Service Mode

Execute Service Mode

1. When the power is off, press [DVD DUBBING], [OPEN/CLOSE] and [STOP] keys simultaneously for 5 seconds.

FL Display:

*After finishing display “(7). Factor of Drive Error occurring”, press [0] [2] ~[1] [9] keys of the Remote Controller so that

19 memories can be displayed as maximum.

2. Press [4] [2] keys of remote controller.

Example of FL Display:

(1) Error Number is displayed for 5 seconds.

(2) Time when the error has occurred is displayed for 5 seconds.

(3) Last Drive Error (1/2) is displayed for 5 seconds.

When above error codes are displayed, confirm operation with Panasonic RAM disc or Panasonic DVD-R

disc.

* If the operation is OK, judge the error is due to media.

* If the operation is NG and symptom as BLOCK NOISES and so on, that are particular symptom of Digital

appears, judge the error is due to RAM-Drive or Digital P.C.B. .

(4) Last Drive Error (2/2) is displayed for 5 seconds.

(5) Error occurring Disc type is displayed for 5 seconds.

(6) Disc Maker´s ID is displayed for 5 seconds.

DMR-EH80VEG / DMR-EH80VEB

Example of Disc Maker´s ID:

DVD-R Disc

No. FL Display (Disc Maker´s ID) Disc Maker Country

1 MEI Panasonic Japan

2 PVC Pioneer Japan

3 MCC Mitsubishi Chemical Corporation Japan

4 TDK TDK Japan

5 MXL Maxell Japan

6 MCI MITUI CHEMICALS Japan

7 JVC Victor JVC Japan

8TAIYOYUDEN Taiyo yuden Japan

TYG

9 GSC Giga Storage Taiwan

10 PRODISC Prodisc Taiwan

11 PRINCO PRINCO Taiwan

12 RITEK RITEK Taiwan

13 OPTDISC OPTDISC Taiwan

14 LEAD DATA LEAD DATA Taiwan

15 CMC CMC Taiwan

16 AUVISTAR AUVISTAR Taiwan

17 ACER Acer Taiwan

18 VIVASTAR VIVASTAR Switzerland

19 LGE LG Electronics Korea

DVD-RAM Disc

No. FL Display (Disc Maker´s ID) Disc Maker Country

1 MEI Panasonic

2 MATSUSHITA Panasonic Japan

3 MXL Maxell Japan

4 PRODISC Prodisc Taiwan

5 OPTDISC OPTDISC Taiwan

6 CMC CMC Taiwan

*Since an display is arbitrarily set up by the disc producer side, the above-mentioned display may be changed.

Please make it reference as an example of a display.

(7) Factor of Drive Error occurring is left displayed

Error Occurring Disc Type

FL Display Disc Type

00 DVD-ROM/Video

01 Audio-CD

02 2.6GB DVD-RAM

03 4.7GB DVD-RAM

04 DVD-R

DMR-EH80VEG / DMR-EH80VEB

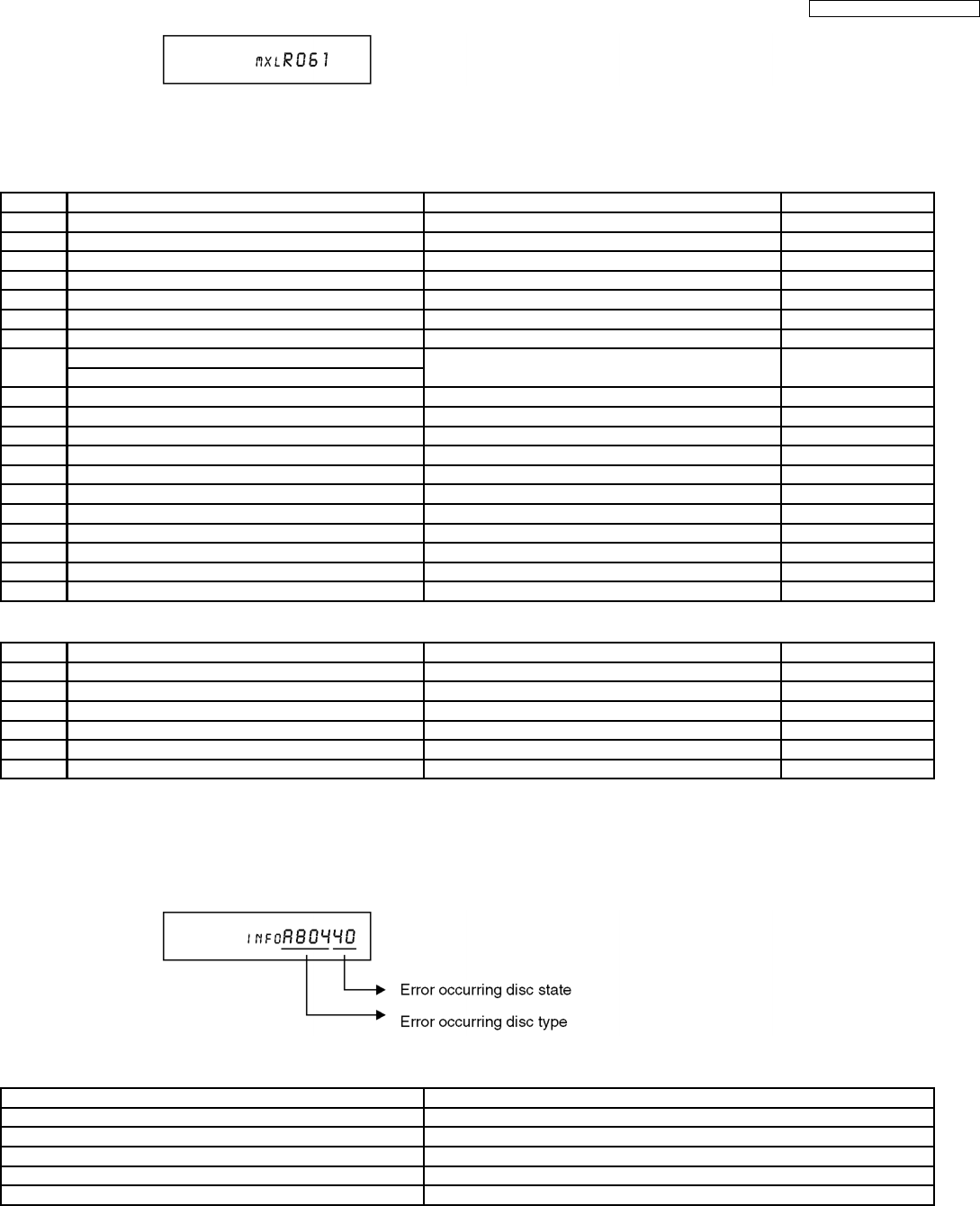

Error Occurring Disc State

FL Displays

(Hexadecimal) Description

Disc distinction state Cartridge disc state Cartridge disc state Disc size

00 OK With cartridge Has not been opened yet. 12 cm

10 OK With cartridge Has not been opened yet. 8cm

20 OK With cartridge Has been opened. 12 cm

30 OK With cartridge Has been opened. 8cm

40 OK Bare Has not been opened yet. 12 cm

50 OK Bare Has not been opened yet. 8cm

60 OK Bare Has been opened. 12 cm

70 OK Bare Has been opened. 8cm

80 NG With cartridge Has not been opened yet. 12 cm

90 NG With cartridge Has not been opened yet. 8cm

A0 NG With cartridge Has been opened. 12 cm

B0 NG With cartridge Has been opened. 8cm

C0 NG Bare Has not been opened yet. 12 cm

D0 NG Bare Has not been opened yet. 8cm

E0 NG Bare Has been opened. 12 cm

F0 NG Bare Has been opened. 8cm

DMR-EH80VEG / DMR-EH80VEB

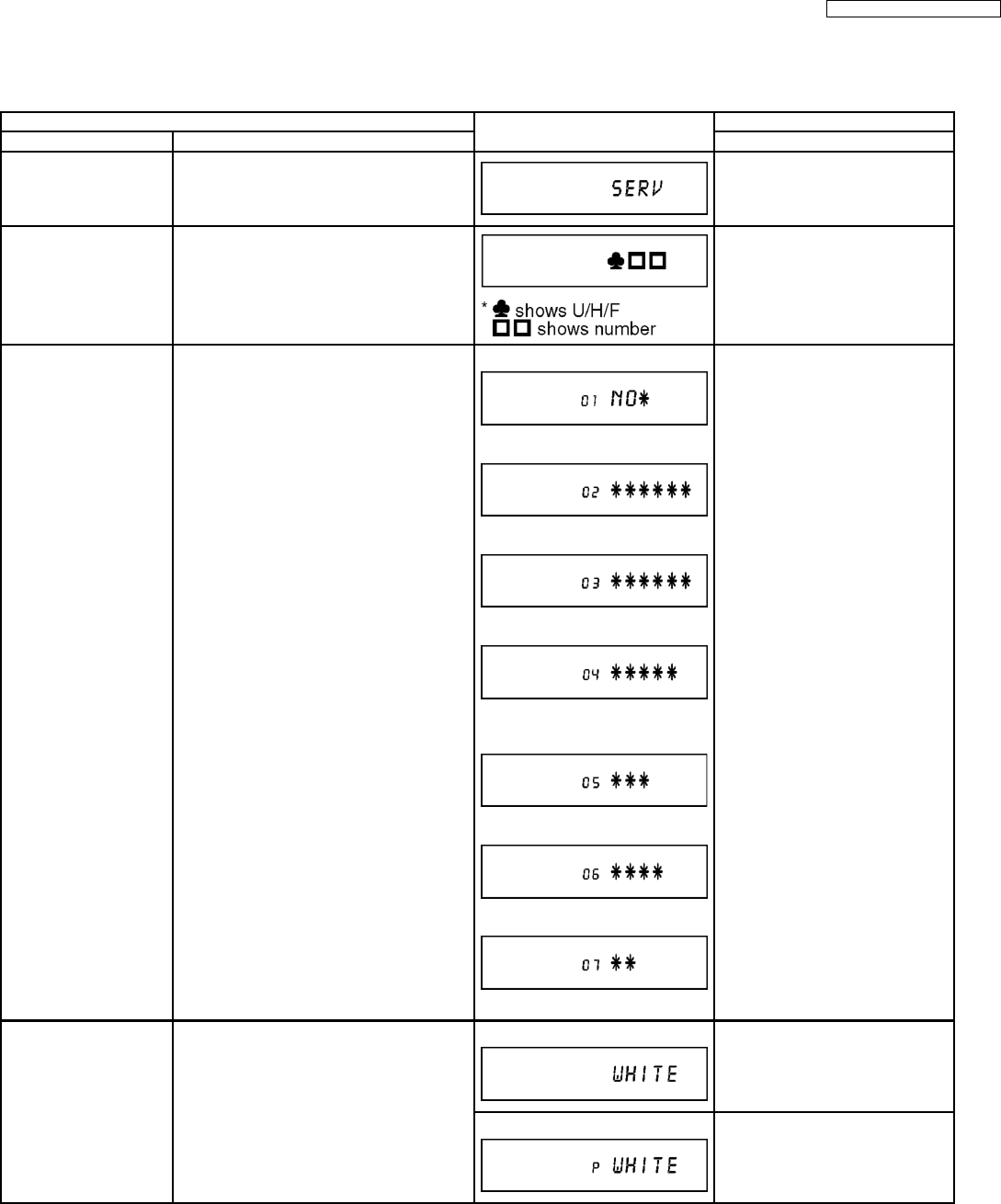

12 (DVD) SELF-DIAGNOSIS AND SPECIAL MODE SETTING

12.1. (DVD) SELF-DIAGNOSIS FUNCTIONS

Self-Diagnosis Function provides information for errors to service personnel by “Self-Diagnosis Display” when any error has

occurred.

U**, H** and F** are stored in memory and held.

Display on FL will be cancelled when the power is turned off or AC input is turned off during self-diagnosis display is ON.

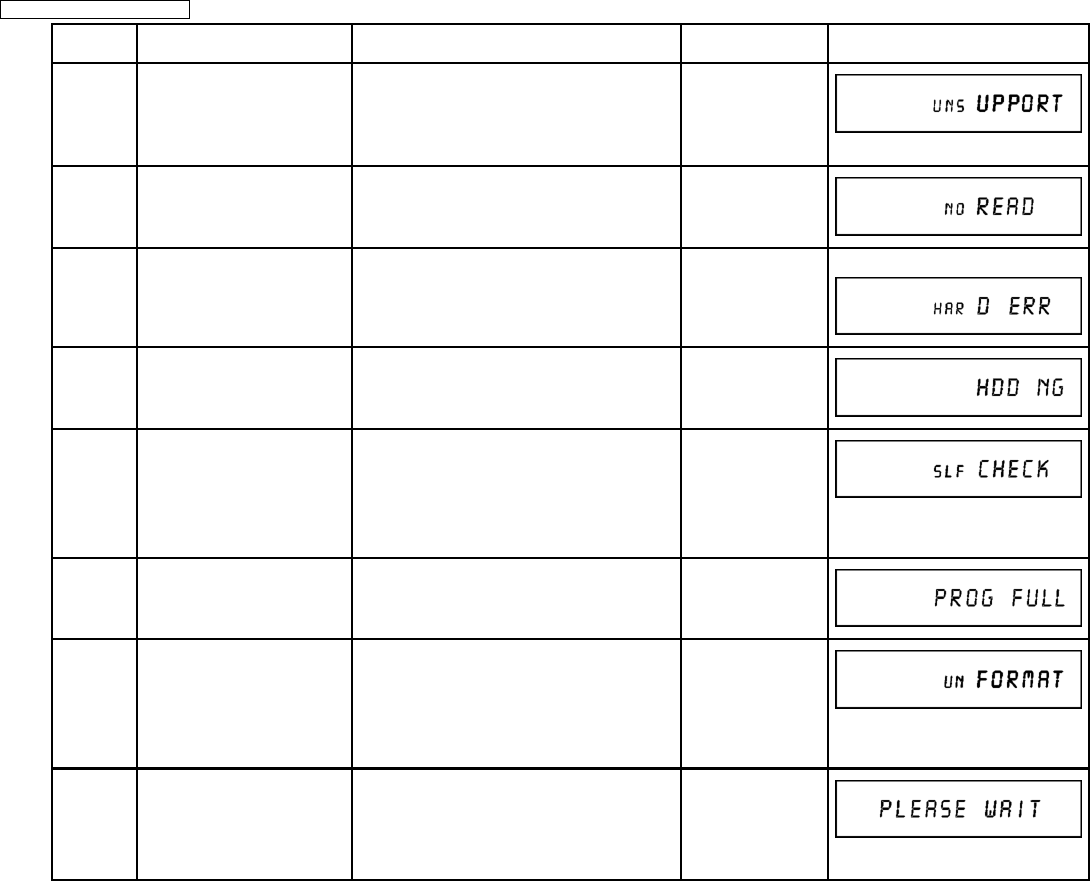

Error

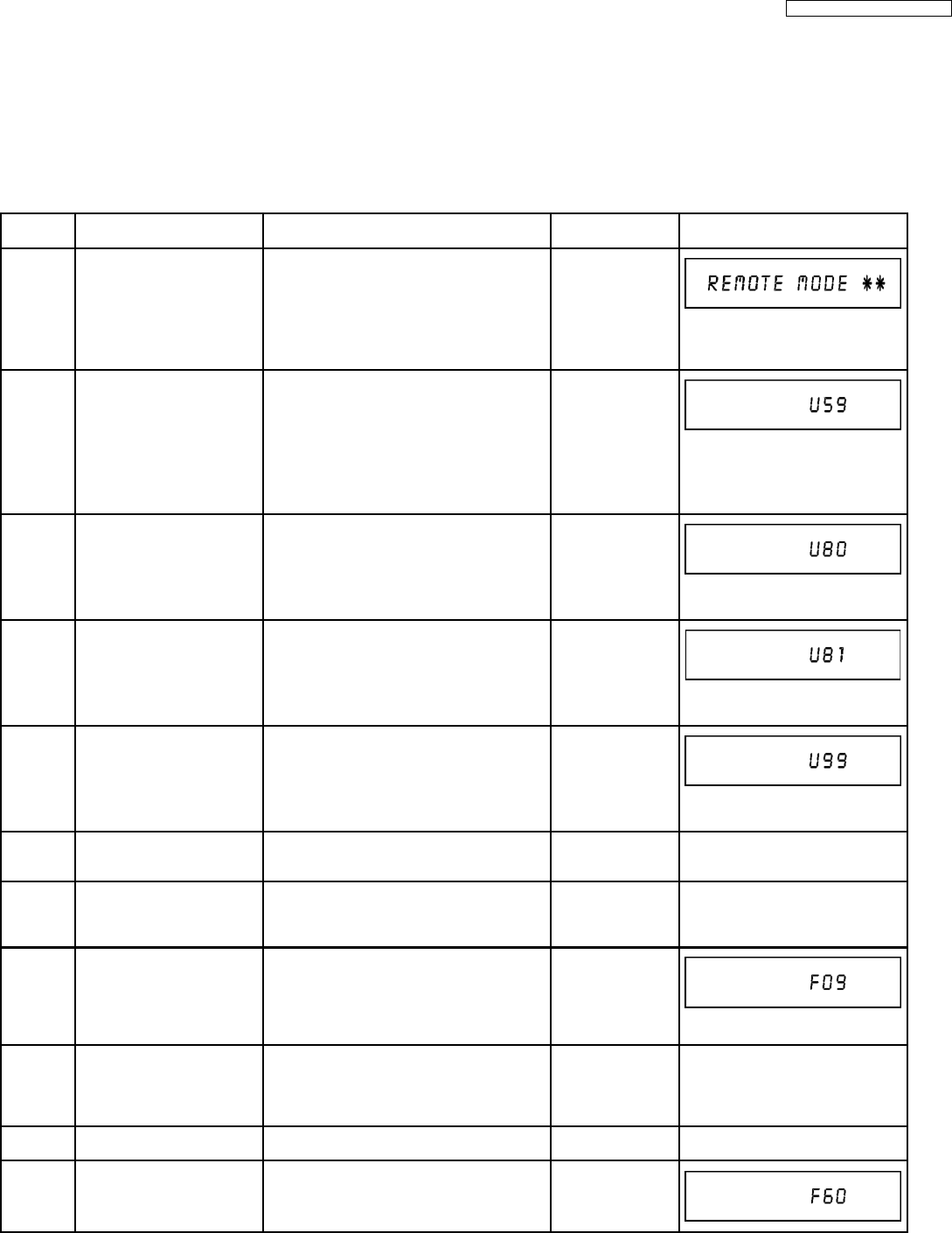

Code Diagnosis contents Description Monitor Display FL display

U30 Remote control code error Display appears when main unit and remote

controller codes are not matched. No display

“*” is remote controller code of the

main unit.

Display for 5 seconds.

U59 Abnormal inner temperature

detected Display appears when the drive temperature

exceeds 70°C.

The power is turned off forcibly.

For 30 minutes after this, all key entries are

disabled. (Fan motor operates at the highest

speed for the first 5 minutes. For the

remaining 25 minutes, fan motor is also

stopped.) The event is saved in memory as

well.

No display

“U59” is displayed for 30 minutes.

U80 ST Microprocessor

Communication Error on

Timer Bus

Displayed appears when ST Microprocessor

Communication Error on Timer Bus occurs. No display

“U80” is displayed till Power Key is

pressed.

U81 ST Microprocessor

Communication Error on

UART

Displayed appears when ST Microprocessor

Communication Error on UART occurs. No display

“U81” is displayed till Power Key is

pressed.

U99 Hang-up Displayed when communication error has

occurred between Main microprocessor and

Timer microprocessor.

No display

Displayed is left until the [POWER]

key is pressed.

H19 Inoperative fan motor Display appears when inoperative fan motor

is detected after powered on.

The power is turned off when detecting.

No display No display

F00 No error information Initial setting for error code in memory

(Error code Initialization is possible with error

code initialization and main unit

initialization.)

No display No display

F09 Serial Communication Error

between VHS Micropressor

and Timer Microprocessor

Please confirm Serial Communication

terminal of Microprocessor.

Note:

If F09 appears just after updating Firmware,

pull off and insert AC plug,

then it will disappear

No display

F34 Initialization error when main

microprocessor is started up

for program recording

Display appears when initialization error is

detected after starting up main

microprocessor for program recording. The

event is saved in memory.

The power is turned off when detecting.

No display No display

F58 Drive hardware error Display appears when drive unit error is

detected. The event is saved in memory. No display No display

F60 DVD module has not been

started. Defect of Digital P.C.B. .

Mode: No change No display

DMR-EH80VEG / DMR-EH80VEB

Error

Code Diagnosis contents Description Monitor Display FL display

UN-

SUPPORT Unsupported disc error *An unsupported format disc was played,

although the drive starts normally.

*The data format is not supported, although

the media type is supported.

*Exceptionally incase of the disc is dirty.

“This disc is

incompatible.”

Display for 5 seconds.

NO READ Disc read error *A disc is flawed or dirty.

*A poor quality failed to start.

*The track information could not be read.

“Cannot read.

Please check the

disc.”

HARD

ERR Drive error The drive detected a hard error. “DVD drive error.” Display for 5 seconds.

HDD NG HDD is NG HDD is NG. Please replace HDD. No display

SELF

CHECK Restoration operation Since the power cord fell out during a power

failure or operation, it is under restoration

operation.

*It will OK, if a display disappears

automatically. If a display does not

disappear, there is the possibility that

defective Digital P.C.B. / RAM drive.

No display

Full

Program 16 programs are already set. 16 programs are already set. No display

UN-

FORMAT The disc is not formatted You have inserted an unformatted DVD-

RAM or DVD-RW that is unformatted or

recorded on other equipment.

If you will use this disc, format is

necessary.

But, all program recorded on this disc

will be deleted.

Format:

This disc is not

formatted properly.

Format the disc in

DISC

MANAGEMENT?

PLEASE

WAIT Unit is in termination

process Unit is in termination process now.

“BYE” is displayed and power will be turned

off.

In case “Quick Start” of setup menu is ON, it

is displayed in restoration operation for AC

off.

No display

DMR-EH80VEG / DMR-EH80VEB

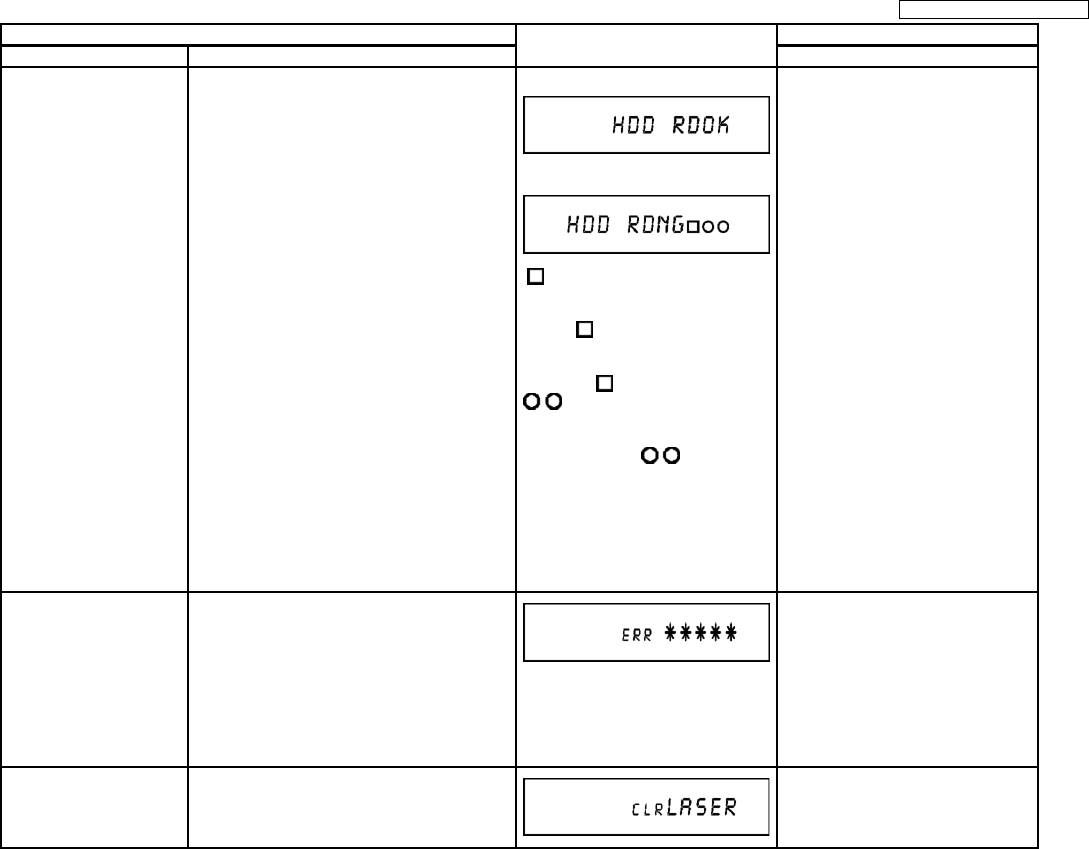

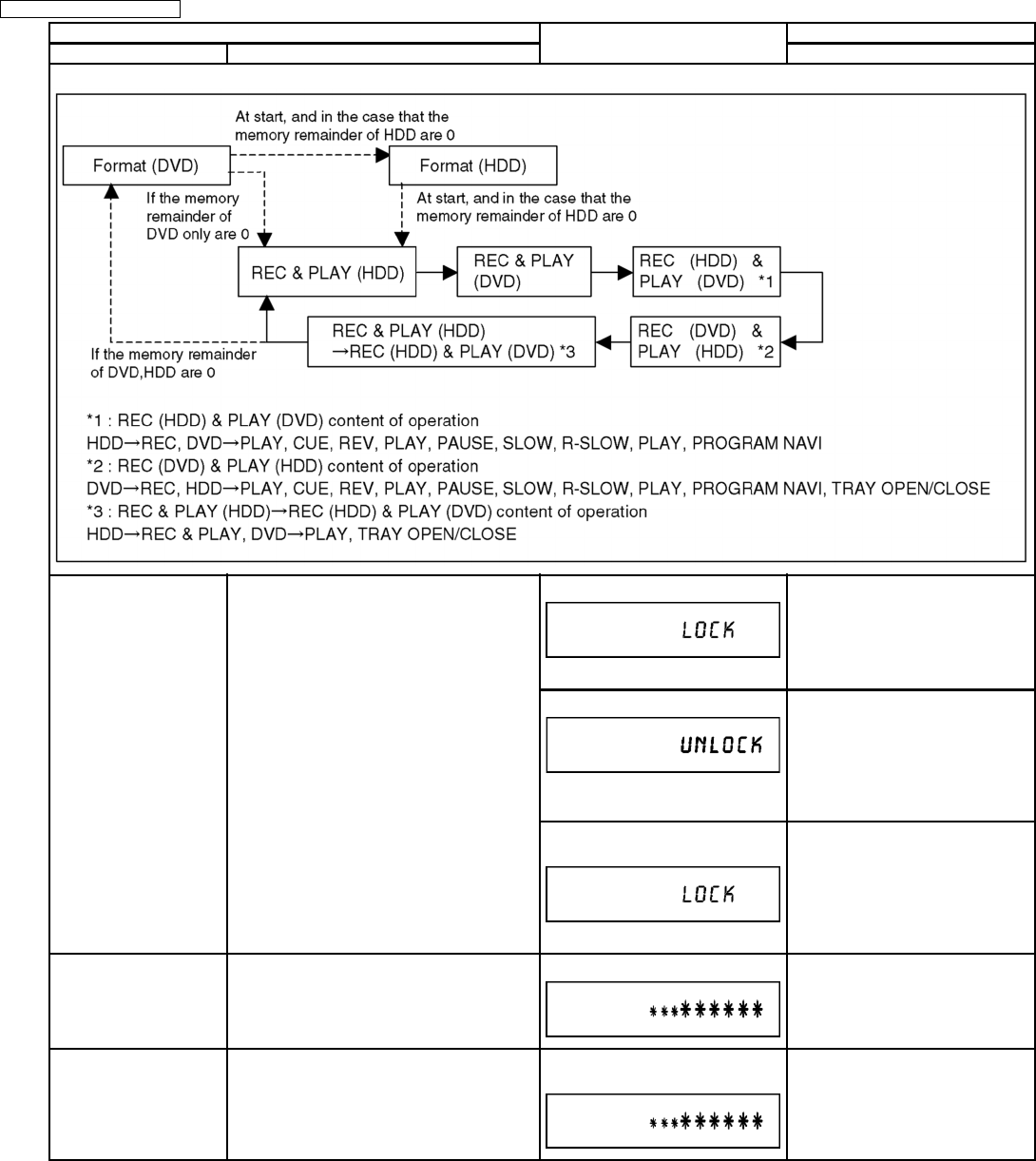

12.2. (DVD) SPECIAL MODES SETTING

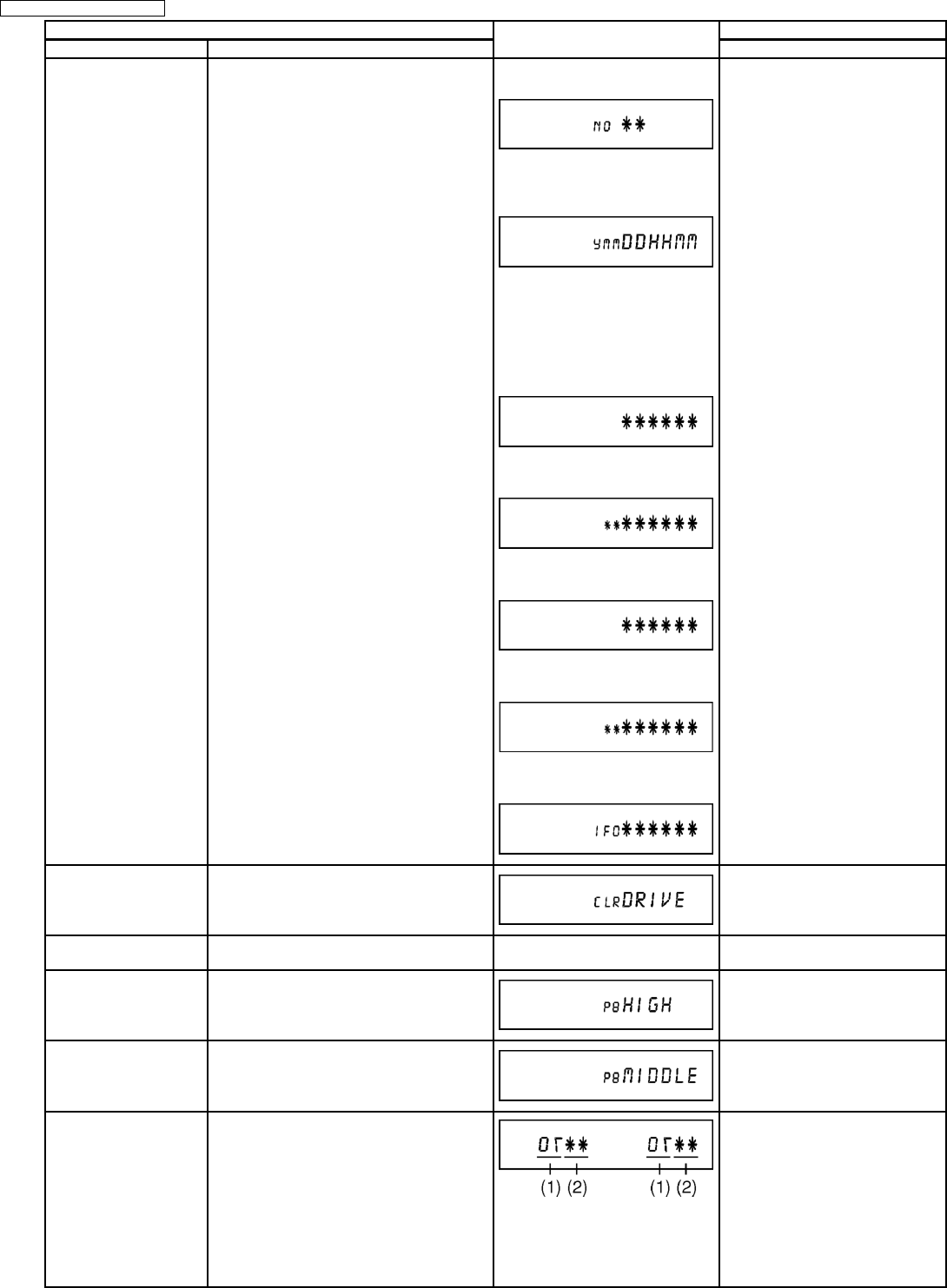

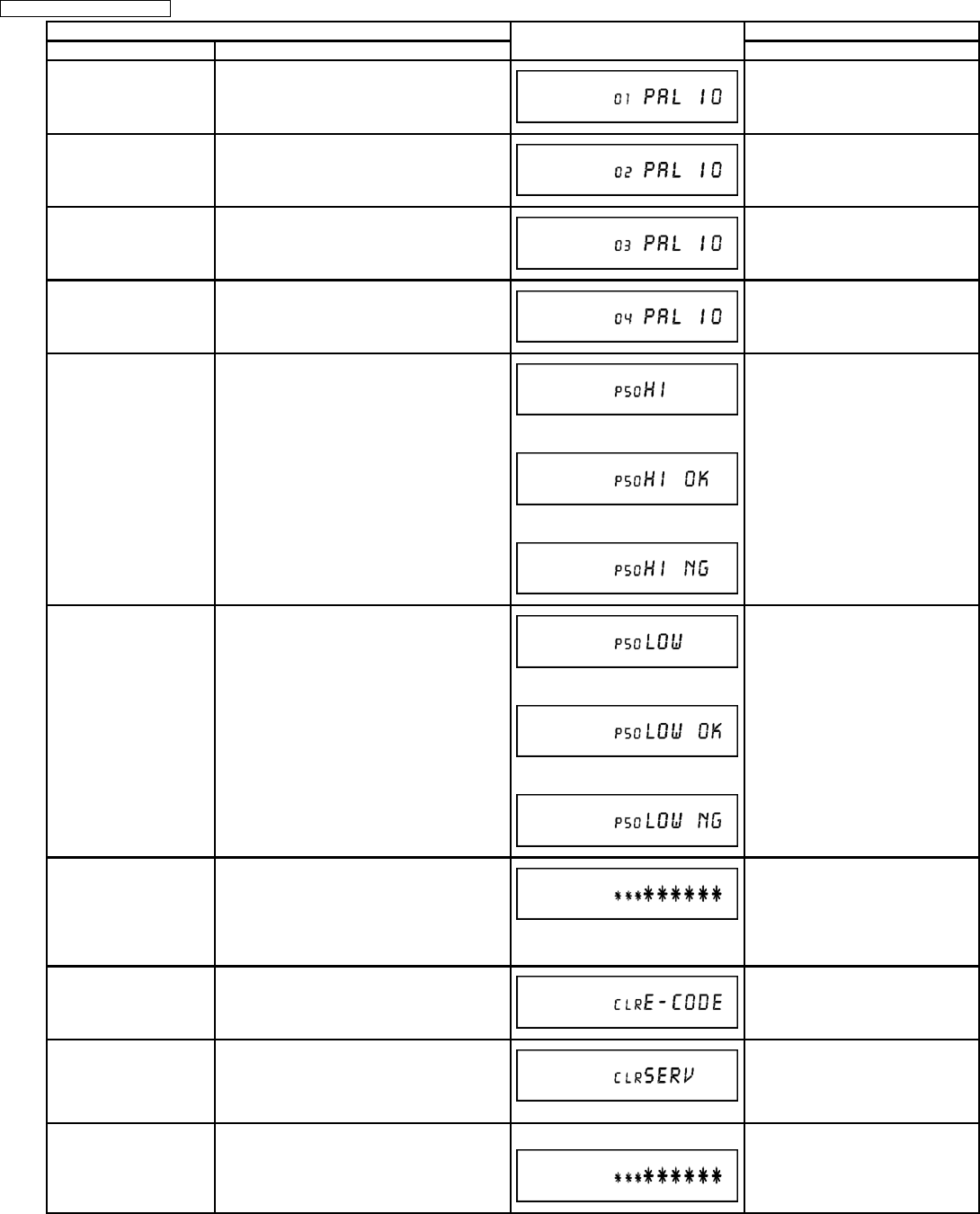

Item FL display Key operation

Mode name Description Front Key

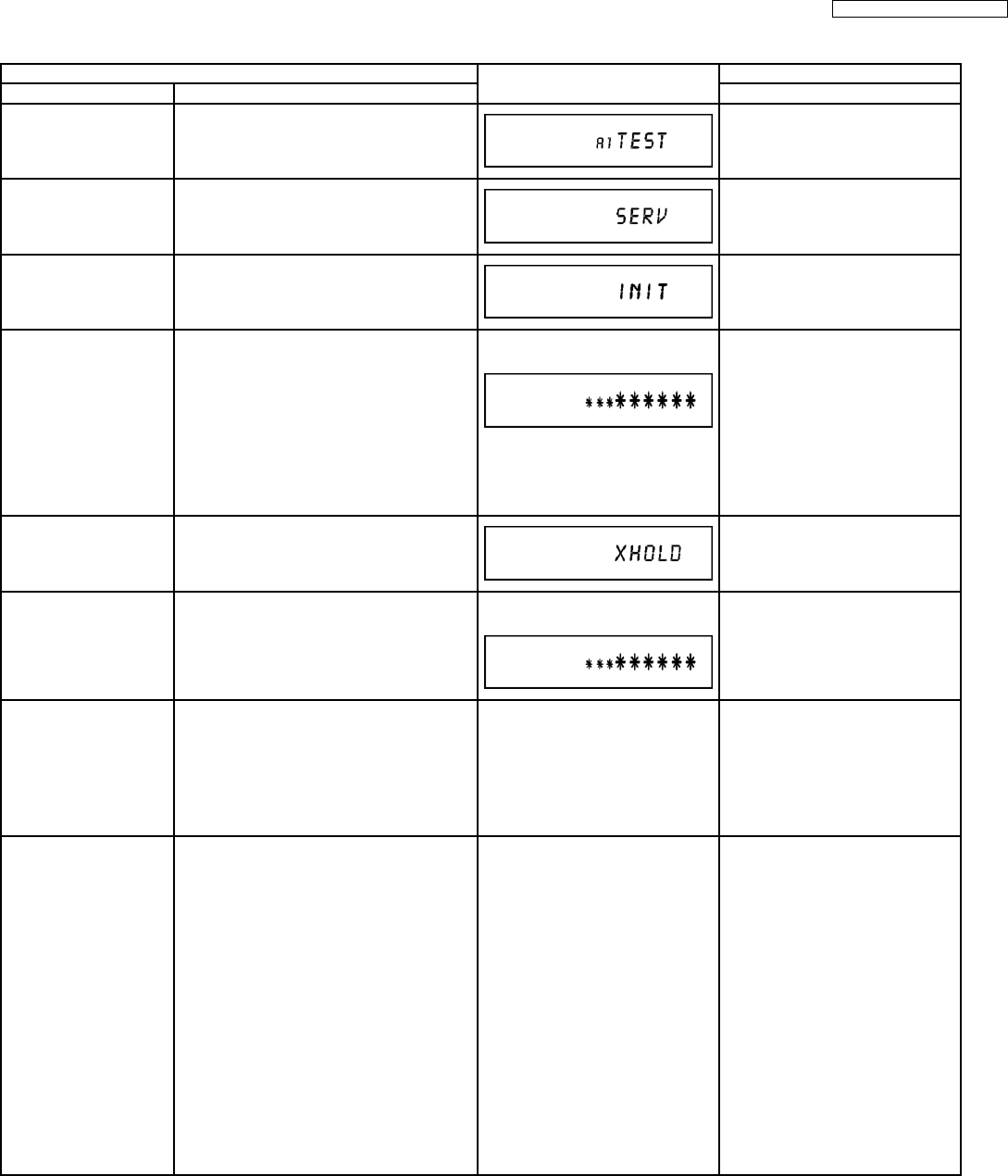

TEST Mode *All the main unit´s parameters (include

tuner) are initialized. Press [VHS to DVD DUBBING],

[OPEN/CLOSE] and [(DVD)REC]

keys simultaneously for five

seconds when power is off.

Service Mode Setting every kind of modes for servicing.

*Details are described in

“(DVD) Service Mode”.

When the power is off, press [VHS

to DVD DUBBING],

[OPEN/CLOSE] and [(DVD) STOP]

keys simultaneously for 5 seconds.

Rating password The audiovisual level setting

password is initialized to “Level 8”. While the tray is open, press

[(DVD) REC] and [(DVD) PLAY]

simultaneously for five seconds.

Forced disc eject Removing a disc that cannot be ejected.

The tray will open and unit will shift to P-off

mode.

*When Timer REC is ON or EXT-LINK is

ON, execute "Forced disc eject" after

releasing TimerREC or EXT-LINK.

*This command is not effective during “Child

lock” is ON.

If this command was executed while

TIMER REC is being set, TIMER REC

setting will turn to OFF.

The display before execution

leaves. When the power is off, press

[(DVD) STOP] and [(DVD) CH UP]

keys simultaneously for five

seconds.

Child lock/unlock Set or release "Child Lock". Press [ENTER] and [RETURN] by

remote controller simultaneously

until [X-HOLD] is displayed.

NTSC/PAL system select To switch PAL/ NTSC alternately. The display before execution

leaves. When the power is on (E-E mode),

press [DVD STOP] and

[OPEN/CLOSE] simultaneously for

five seconds.

Forced power-off When the power button is not effective while

power is ON, turn off the power forcibly.

*When Timer REC is ON, execute “Forced

Power-off” after releasing Timer REC or

EXT-LINK.

Action:

The tray will open, and the power will turn

off.

Display in P-off mode. Press [Power] key over than 10

seconds.

Aging Perform sequence of modes as * Aging

Description shown below continually.

Caution:

All programs in HDD and DVD-RAM disc

will be deleted because Formatting is

done once in Aging process.

Display following the then mode. When the power is ON, press

[STOP], [POWER] and

[OPEN/CLOSE] simultaneously for

over 5 seconds and less than 10

seconds.

NOTE1:

If Unit has not turned into Aging

mode by operations shown above,

execute TEST MODE once and

re-execute operation shown above.

(*All the main unit’s parameters

include tuner are initialized by

TEST mode.)

NOTE2:

If the unit has hung-up because of

pressing keys for over 10 seconds,

once turn off the power, and

re-execute this command.

*When releasing Aging mode,

press [POWER] key.

DMR-EH80VEG / DMR-EH80VEB

Item FL display Key operation

Mode name Description Front Key

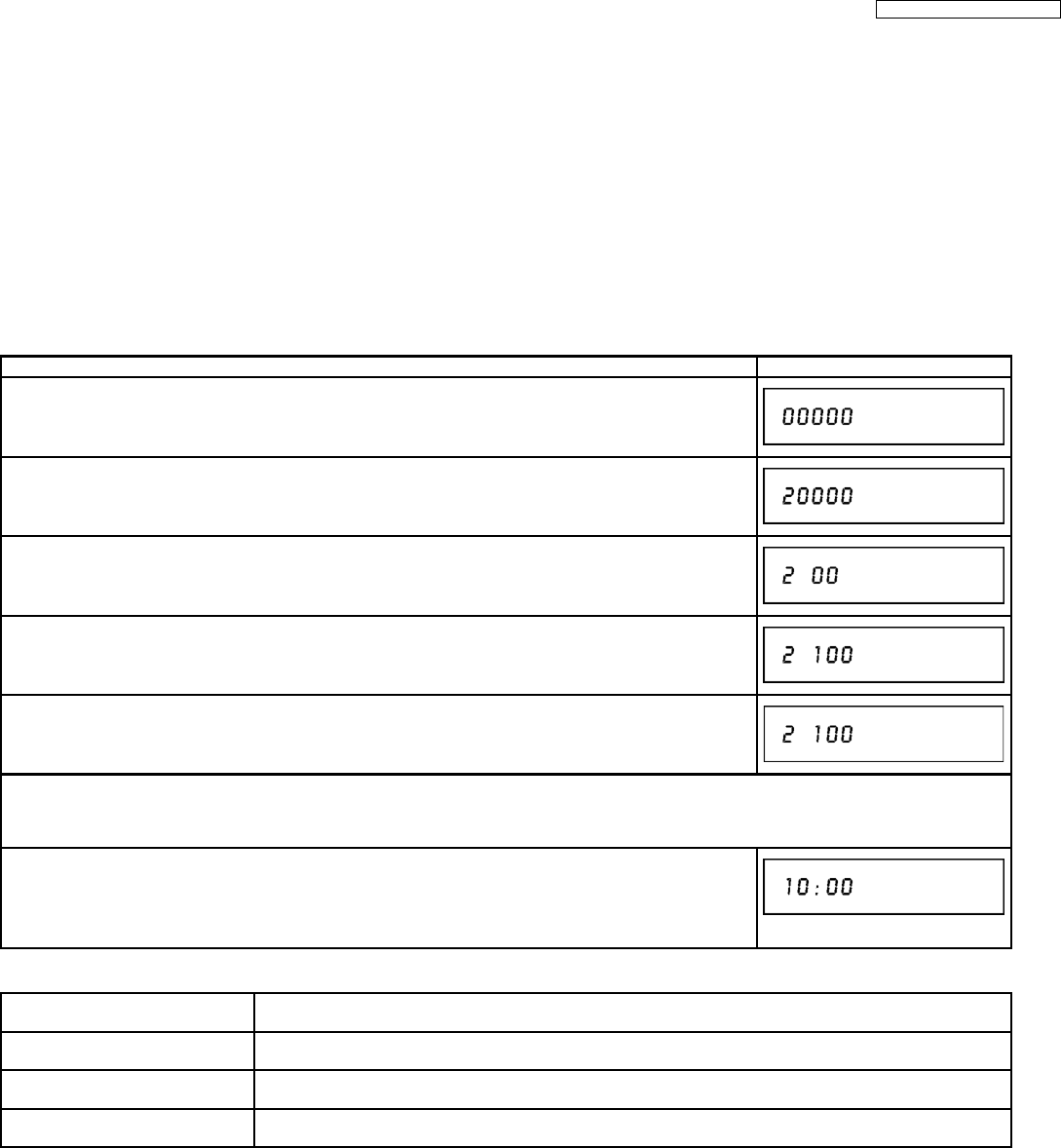

Aging Contents (Example):

Demonstration

lock/unlock Ejection of the disc is prohibited.

The lock setting is effective until unlocking

the tray and not released by “Main unit

initialization” of service mode.

*When lock the tray.

“LOCK” is displayed for 3 seconds.

When the power is on, press

[(DVD) STOP] and [POWER] keys

simultaneously for five seconds.

*When unlock the tray.

“UNLOCK” is displayed for 3

seconds.

When the power is on, press

[(DVD) STOP] and [POWER] keys

simultaneously for five seconds.

*When pressing [OPEN/CLOSE]

key while the tray is locked.

Display “LOCK” for 3 seconds.

Press [OPEN/CLOSE] key while

the tray is locked.

ATP re-execution Re-execute ATP. When the power is on (E-E mode),

press [(DVD) CH UP] and [(DVD)

CH DOWN] simultaneously for five

seconds.

Progressive initialization The progressive setting is initialized to

Interlace. The display before execution

leaves. When the power is on (E-E mode),

press [VHS to DVD DUBBING] and

[(DVD) STOP] simultaneously for

five seconds.

DMR-EH80VEG / DMR-EH80VEB

12.3. (DVD) SERVICE MODES

Service mode setting: While the power is off, press [DVD DUBBING], [OPEN/CLOSE] and [DVD STOP] keys simultaneously for

five seconds.

Item FL display Key operation

Mode name Description (Remote controller key)

Release Items Item of Service Mode executing is cancelled. Press [0] [0] or [Return] in service

mode.

Error Code Display Last Error Code of U59/H/F held by Timer is

displayed on FL.

*Details are described in

“(DVD) Self-Diagnosis Functions”.

Press [0] [1] in service mode

ROM Version Display (01)Region code,

(02)MAIN firmware version,

(03)TIMER firmware version,

(04)DRIVE firmware version,

(05)ROM correction version,

(06)VHS microprocessor version are

displayed on FL for five seconds per each

version in order, but

(07)VHS ROM correction version will be left

displayed.

(01)Region code

(02)MAIN firmware version

(03)TIMER firmware version

(04)DRIVE firmware version

(05)ROM correction version+ROM

Type

(06)VHS microprocessor version

(07)VHS ROM correction version

* are version displays

Press [0] [2] in service mode

White Picture Output White picture is output as component Output

from AV Decoder.

*White picture

(Saturation rate: 100%)

*It is enable to switch Interlace/Progressive

by “I/P Switch: [1] [4]”

*Initial mode is “Interlace”. Press [1] [1] in service mode.

Switch Interlace/Progressive Press [1] [4] in White Picture Output

mode.

*I/P are switched alternately.

DMR-EH80VEG / DMR-EH80VEB

Item FL display Key operation

Mode name Description (Remote controller key)

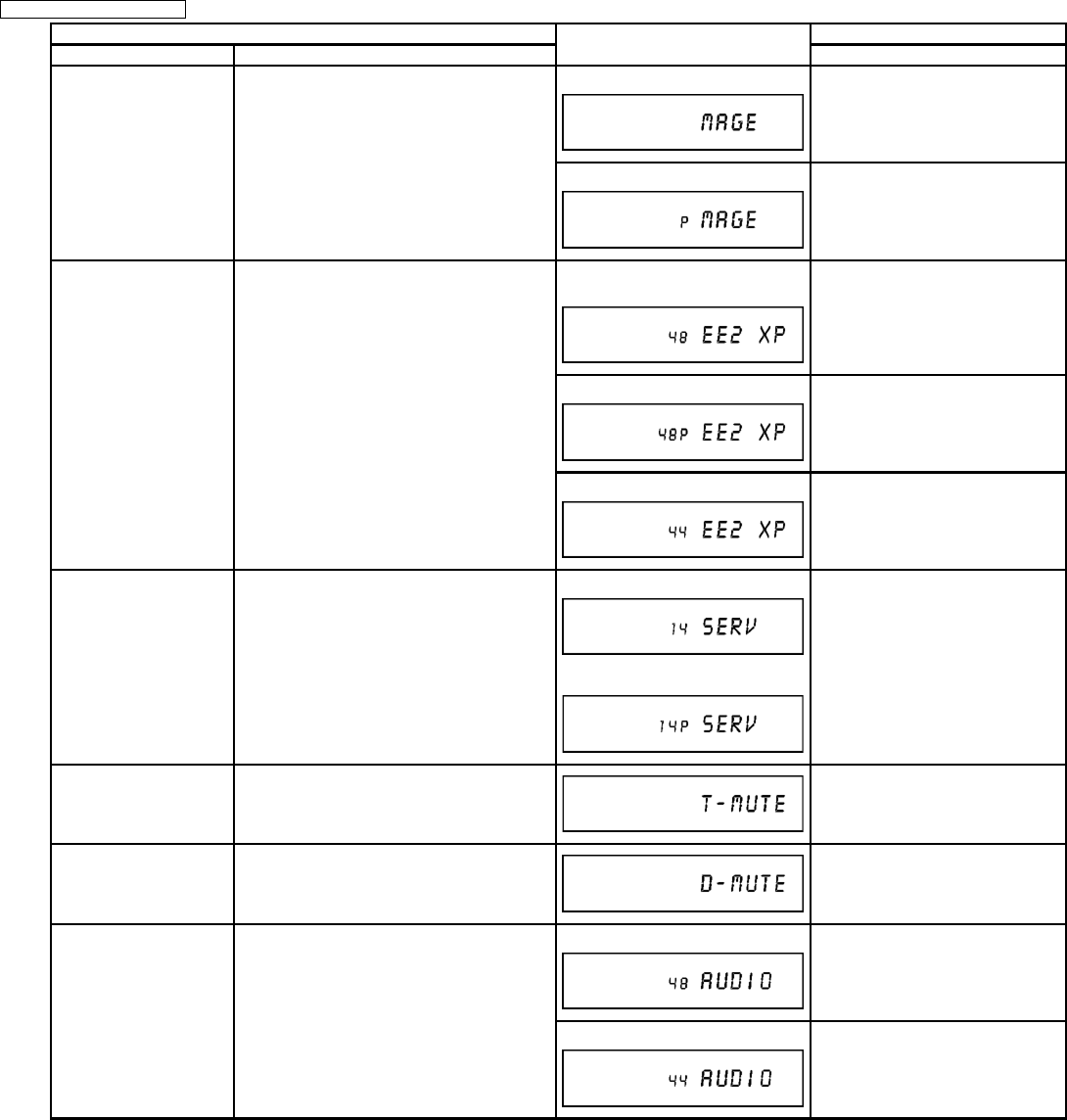

Magenta Picture Output Magenta picture is output with Component

Output from AV Decoder.

*Magenta picture

(Saturation rate: 100%)

*It is enable to switch Interlace/Progressive

by “I/P Switch: [1] [4]”

*Initial mode is “Interlace”. Press [1] [2] in service mode.

Switch Interlace/Progressive Press [1] [4] in Magenta Picture

Output mode.

*I/P are switched alternately.

RTSC Return in XP

(A & V) AV1 input signal is encoded (XP), decoded

(XP) and output decoded signal to external

without DISC recording and DISC playback.

Initial mode: EE2/ Interlace/ XP/

Audio 48kHz Press [1] [3] in service mode.

Switch Interlace/Progressive Press [1] [4] in RTSC Return XP

mode.

*I/P are switched alternately.

Audio 44.1 kHz/ 48 kHz Switch Press [2] [4] in RTSC Return XP

mode.

*48 kHz / 44.1 kHz are switched

alternately.

I/P Switch Switch Interlace and Progressive in EE

mode.

*Initial setting is “Interlace”.

*This command is effective during executing

“White Picture Output”, “Magenta Picture

Output” and “RTSC Return in XP (A & V)”

modes.

Initial mode is Interlace

Switch Interlace/Progressive

Press [1] [4] in I/P Switch mode.

*I/P are switched alternately.

Audio Mute (XTMUTE) Check whether mute is applied normally by

the timer microprocessor. Press [2] [1] in service mode.

Audio Mute (XDMUTE) Check whether mute is applied normally by

the Digital P.C.B. (GLUE IC). Press [2] [2] in service mode.

Audio Pattern Output The audio pattern stored in the internal

memory is output

(Lch: 1kHz/-18dB)

(Rch: 400Hz/-18dB)

*Audio sound clock switching operation of

DAC can be confirmed by sub command [2]

[4].

Initial mode (Audio 48kHz) Press [2] [3] in service mode.

Audio 44.1kHz/48kHz switching Press [2] [4] in Audio Pattern

Output mode.

*48 kHz / 44.1 kHz are switched

alternately.

DMR-EH80VEG / DMR-EH80VEB

Item FL display Key operation

Mode name Description (Remote controller key)

HDD READ inspection Perform a complete read inspection of the

HDD. When the HDD is OK

If the HDD is defective

: Judge of Forward rate.

* When normal (Forward rate is 35

Mbps or more and there is no HDD

error): is Space.

* When Abnormal (Forward rate is

less than 35 Mbps or HDD error

existing): is X.

: Number of what have

spent time for seeking is over

100ms.

* When normal: are spaces.

* When Abnormal: Display Number

of what have spent time fore

seeking over 100 ms.

However, if the number is more

than 100, display [XX].

We judge it is normal that the

number is less than 4.

Press [3] [1] in the service mode.

* When canceling the checking

mode while executing, do “forced

power-off”.

Method: Press the “POWE” button

more than 10 seconds.

Laser Used Time

Indiction Check laser used time (hours) of drive.

●(*****) is the used time display in

hour.

●Laser used time of DVD/CD in

Playback/Recording mode is

counted.

Press [4] [1] in service mode.

Delete the Laser Used

Time Laser used time stored in the memory of the

unit is deleted. Press [9] [5] in service mode.

DMR-EH80VEG / DMR-EH80VEB

Item FL display Key operation

Mode name Description (Remote controller key)

RAM Drive Last Error RAM Drive error code display.

*For details about the drive error code, refer

to the Service Manual for the specific RAM

Drive.

*Details are described in

“(DVD) Service Explorer”.

1. Error Number is displayed for 5

seconds.

2. Time when the error has

occurred is displayed for 5

seconds.

Y: Year

MM: Month

DD: Day

hh: Hour

mm: Minute

3. Last Drive Error (1/2) is

displayed for 5 seconds.

4. Last Drive Error (2/2) is

displayed for 5 seconds.

5. Error occurring Disc type is

displayed for 5 seconds.

6. Disc Maker ID is displayed for 5

seconds.

7. Factor of Drive Error occurring is

left displayed

Press [4] [2] in service mode.

Then press [0] [1] ~ [9] [9], the

past 99 errors are displayed.

In case that the supplier cannot be

identified, display is black out.

Delete the Last Drive

Error Delete the Last Drive Error information

stored on the DVD RAM-Drive. Press [9] [6] in service mode.

Turn on all FL/LEDs All segments of FL and all LEDs are turned

on. All segments are turned on. Press [5] [1] in service mode.

PB HIGH Signal Output 8 pin of AV 1 Jack (PB HIGH terminal) is

High (approx. 11V DC). Press [5] [2] in service mode.

PB MIDDLE Signal

Output 8 pin of AV 1 Jack (PB HIGH terminal) is

Middle (approx. 5.5V DC). Press [5] [3] in service mode.

Front connection

inspection Press all front keys and check the

connection between Main P.C.B. and Front

P.C.B.

(1) Each time a key is pressed,

segment turned on increases one

by one.

(2) Total umber of keys that have

been pressed.

Press [5] [4] in service mode.

DMR-EH80VEG / DMR-EH80VEB

Item FL display Key operation

Mode name Description (Remote controller key)

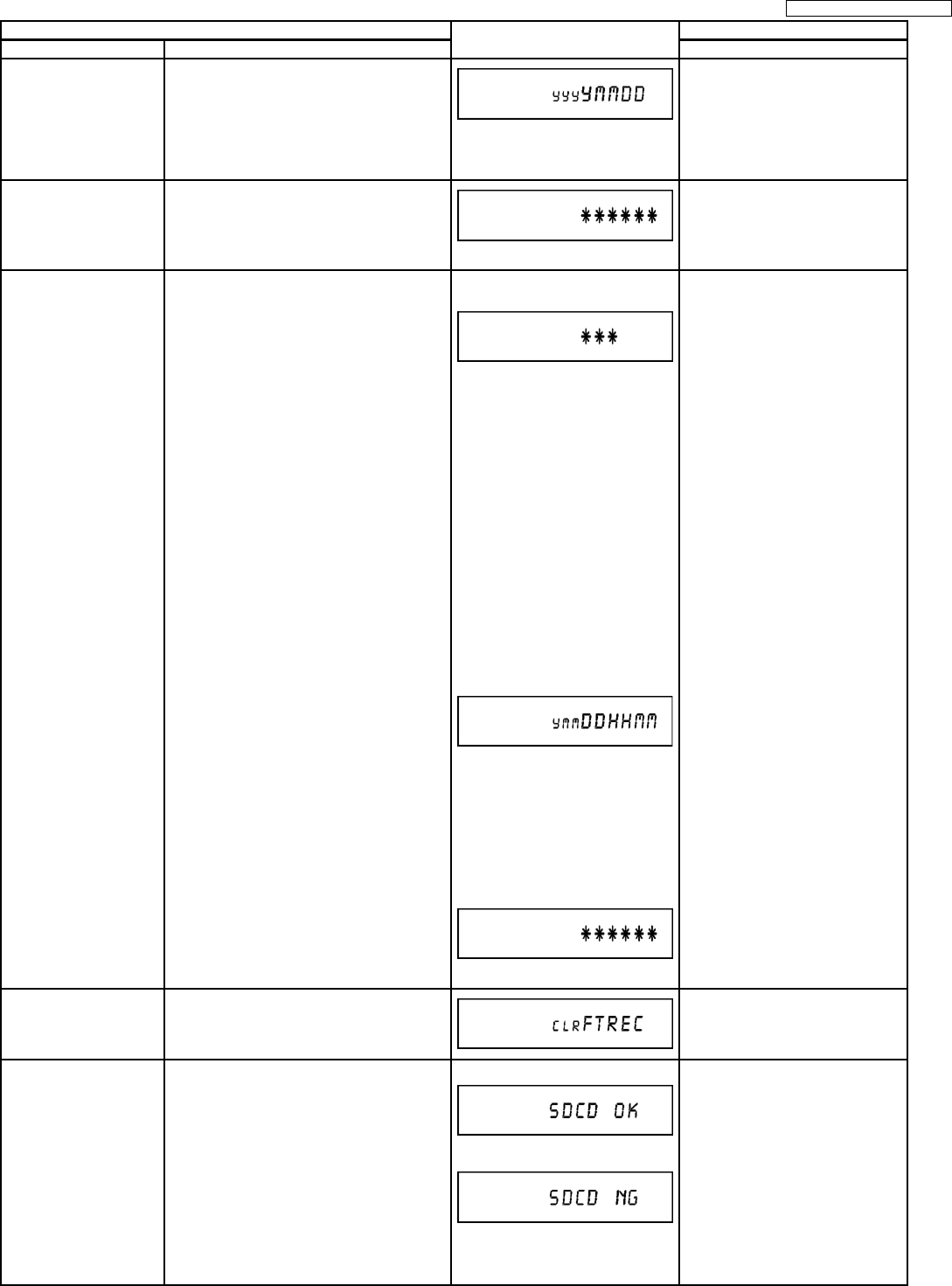

Production Date Display Display the date when the unit was produced.

YYY: Year

MM: Month

DD: Day

Press [6] [1] in service mode.

Display the accumulated

working time Display the accumulated unitｴs working time.

(Indicating unit: Second)

Press [6] [4] in service mode.

Display the Error History Display the Error History stored on the unit. Display reason of error for 5

seconds.

Description of Error Numbers

NO FTREC: No error

01:

Defect of Digital P.C.B.

(AV DEC/MAIN CPU)

02:

Defect of RAM Drive

03:

Defect of Disc

04:

Defect of Digital P.C.B. or

Communication Error

05:

Defect of Digital P.C.B.

(AV DEC/MAIN CPU)

06:

Defect of HDD

Display the time when the error

has occurred for 5 seconds.

Y: Year

MM: Month

DD: Day

HH: Hour

MM: Minute

Display the accumulated working

time to occurring of the error for 5

seconds.

(Indicating unit: Second)

Press [6] [5] in service mode.

Then press [0] [1] ~ [1] [9], the past

19 error histories are displayed.

Delete the Error History Delete Error History information stored on

the unit. Press [9] [7] in service mode.

SD card WRITE check Check SD card WRITE function with SD card

slot. When the WRITE check is OK.

When the WRITE check is NG.

*Note:

The image stored in the SD

card will be erased.

Insert a SD card to SD card slot,

and press [7] [4] in service mode.

* Insert SD card while the power is

off.

* Check for [CARD SD] display on

the FL display and go on the

procedure.

DMR-EH80VEG / DMR-EH80VEB

Item FL display Key operation

Mode name Description (Remote controller key)

AV4 (V) / AV1 (RGB) I/O

Setting Set input to AV4(V) and set output to

AV1(RGB) for I/O checking Press [8] [0] in service mode.

AV2 (Y/C) / AV1 (V) I/O

Setting Set input to AV2(Y/C) and set output to

AV1(V) for I/O checking Press [8] [1] in service mode.

AV2 (V) / AV1

(Y/C) I/O Setting Set input to AV2(V) and set output to

AV1(Y/C) for I/O checking Press [8] [2] in service mode.

AV2 (RGB) /

AV1 (V) I/O Setting Set input to AV2(RGB) and set output to

AV1(V) for I/O checking Press [8] [3] in service mode.

P50 (H) Output Timer Microprocessor IC7501-22 output

High signal for AV1-pin 10 passing through

inverter (approx. 0V DC at AV1-pin 10).

When OK.

When NG.

Press [8] [4] in service mode.

P50 (L) Output Timer Microprocessor IC7501-22 output Low

signal for AV1-pin 10 passing through

inverter (approx. 4.4 V DC at AV1-pin 10).

When OK.

When NG.

Press [8] [5] in service mode.

Tray OPEN/CLOSE Test The RAM drive tray is opened and closed

repeatedly.

“*” is number of open/close cycle

times.

Press [9] [1] in service mode

*When releasing this mode, press

the [POWER] button on Front

Panel more than 10 seconds.

Error code initialization Initialization of the last error code held by

timer (Write in F00) Press [9] [8] in service mode.

Initialize Service Last Drive Error, Error history and Error

Codes stored on the unit are initialized to

factory setting.

Then VHS Microprocessor is initialized to

shipping setting too.

Press [9] [9] in service mode.

Finishing service mode Release Service Mode. Display in STOP (E-E) mode. Press power button on the front

panel in service mode.

DMR-EH80VEG / DMR-EH80VEB

13 (VHS) SELF-DIAGNOSIS AND SPECIAL MODE SETTING

13.1. (VHS) SPECIAL MODES SETTING

Item FL display Key operation

Mode name Description Front Key

Tracking Center Tape Tracking is adjusted to center

FIX position. No display. During PLAYBACK, press [VHS CH

UP] and [VHS CH DOWN] keys

simultaneously.

VHS Service Mode In order to make service easy, a part

of inside information of a

microprocessor is displayed on FIP.

*Details are described in

"VHS Service Mode".

Press [FF], and [EJECT] keys

simultaneously for three seconds

when power is off.

Releasing EXT LINK &

Timer Program Releasing Continuation EXT LINK &

Continuation Timer Program No display. While in EXT LINK or Timer REC

mode, press [VHS STOP] key for 3

seconds.

Eject Ejecting Cassette Tape No display. While in other than Timer REC

mode, press [VHS STOP] key for 3

seconds or press [STOP] key of the

Remote Controller for 3 seconds in

VHS mode.

13.2. (VHS) SERVICE MODES

(Service Mode Setting)

1. When power is OFF, press [FF] and [EJECT] keys simultaneously for 3 seconds to into Service Mode.

2. In Service Mode, press [FF] and [EJECT] keys simultaneously to add Service Number.

Service

Mode

Number

Contents Contents of Indication

on minute Contents of Indication

on second Remarks

0Indication for the

inner data of

IC6001

VHS mode

(Real time) Process number of the mechanism

movement

(Real time)

1Indication for the

inner data of

IC6001

Tape beginning and ending

detection data (Real time) Key code

(Real time)

00: Both tape beginning and ending

have not been detected

01: Tape ending is detecting now

02: Tape beginning is detecting now

03: Both tape beginning and ending

are detecting now

Indicate the receiving code when

the key of VCR or remote controller

being operated.

2Indication for the

inner data of

IC6001

Mechanism position (Real time) Ordering for the Motors (Real time) The following functions are

prohibited to operate the

mechanism without cassette tape.

●Tape beginning and ending

detection.

●Reel lock detection

●Tape detection and tape position

detection

Press the EJET key for over 3

seconds in this mode, and then the

VCR is shifted into the special

modes, such as PG Adjustment,

Model Code Setting, and so on.

The orders for the motors are

asfollows.

0L: EJECT position

02: DOWN position

03: RREW position

04: LOAD position

05: REV position

06: PLAY position

07: POFF position

08: STOP_R position

09: STOP_F position

0- : FF/REW position

0_ : Intermediate between each

positions

0*, 2*: CYL off,

CAP off

1*: CYL off,

CAP on (fwd)

3*: CYL off,

CAPon (rev)

8*, A*: CYL on,

CAP off

9*: CYL on,

CAPon (fwd)

B*: CYL on,

CAP on (rev)

*0: Motor off

*1:Loading

*2: Unloading

*3: Break (Load + Unload)

3Self-diagnosis

history (1st) 1st history of error number "- -" is displayed.

4Self-diagnosis

history (2nd) 2nd history of error number "- -" is displayed

5Self-diagnosis

history (3rd) 3rd history of error number "- -" is displayed

6Indication for the

inner data of

IC6001

Servo data (4 digits)

(Real time)

DMR-EH80VEG / DMR-EH80VEB

Service

Mode

Number

Contents Contents of Indication

on minute Contents of Indication

on second Remarks

7Manual mechanism

operation Mechanism position (Real time) Ordering for the Motors Press the following key;

PLAY key: Loading

STOP key: Unloading

0L: EJECT position

02: DOWN position

03: RREW position

04: LOAD position

05: REV position

06: PLAY position

07: POFF position

08: STOP_R position

09: STOP_F position

0- : FF/REW position

0 _: Intermediate between each

positions

0*, 2*: CYL off,

CAP off

1*:CYL off,

CAP on (fwd)

3*: CYL off,

CAPon (rev)

8*, A*: CYL on,

CAP off

9*: CYL on,

CAPon (fwd)

B*: CYL on,

CAP on (rev)

*0: Motor off

*1:Loading

*2: Unloading

*3: Break (Load + Unload)

13.3. (VHS) SELF-DIAGNOSIS FUNCTIONS

This model has a self-diagnosis. If the VHS section detects trouble during installation or during use, the power is automatically

turned off or become power-save mode and it is memorized into the EEPROM (IC37502) as error code of two-digit number. Itｴs

memorized error code can be displayed in "second" display portion (the last 2 digits of the FIP) by placing the unit is Service Mode

Number 2 when turning on the Service Information Display as for example "01" or "02" etc. as below. If a second error occurs, the

most recent error will be memorized and can be displayed in Service Mode Number 2. It can be memorized until 3 self-diagnosis

histories in maximum.

In order to erase the memorized error code, press FF and EJECT buttons on the Front Panel simultaneously over 5 seconds during

turning on Service Information Display mode.

13.3.1. MEMORY OF THE SELF-DIAGNOSIS HISTORY

*This is effective only in Service Mode 3, 4, 5.

13.3.1.1. ERROR NUMBERS AT A GLANCE

Memory No. (Error Code) Reason

01 The cylinder could not be started. (Error of the cylinder or the cylinder driver.)

02 The CAP FG could not be detected.

03 Mechanism lock during without the unloading and the cassette-up.

04 Mechanism lock during unloading

05 S-reel pulse cannot be detected during unloading. (Error of the S-reel circuit or the Capstan circuit)

06 Mechanism lock during the Cassette-up.

09 Communication Error between VHS Microprocessor and Timer Microprocessor.

15 S-reel pulse cannot be detected when a cassette tape is inserted.

(Error of the S-reel circuit or the Capstan circuit)

16 Detection of the Cylinder lock during the constant rotation

17 Detection of S-reel lock during the constant tape running

18 Detection of T-reel lock during the constant tape running

Refer to following table An error while the PG Automatic Adjustment

80 An exceptional ejection depends on a accidental error

Note:

2* is as follows.

20 NG1 in the PG Shifter Automatic Adjustment (The cylinder rotation is unstable during the automatic adjustment.)

21 NG2 in the PG Shifter Automatic Adjustment (The vertical sync signal is lacked while over 5 seconds on the alignment tape.)

22 NG3 in the PG Shifter Automatic Adjustment (The installing position of Heads to the cylinder is our of specification.

23 NG4 in the PG Shifter Automatic Adjustment (The servo is not locked to the cylinder for more than 10 sec.)

13.3.1.2. MEMORY FOR THE SELF-DIAGNOSIS HISTORY

3. The self-diagnosis result is memorized the state of the moment of detecting.

4. There are the histories from number 1 to number 3.

5. The latest error is memorized on history number 1, and then the old histories are shifted to the history number 2 and 3.

The error code memorized in the history number 2 and 3 is over-written by shift.

DMR-EH80VEG / DMR-EH80VEB

4. If the latest error is the same with the history number 1 (2nd-latest), it is not memorized.

(The same error code is not memorized in succession)

13.3.1.3. CLEAR FOR THE SELF-DIAGNOSIS HISTORY

1. Press FF and EJECT buttons on the VCR simultaneously over 5 seconds during turning on Service Information Display mode.

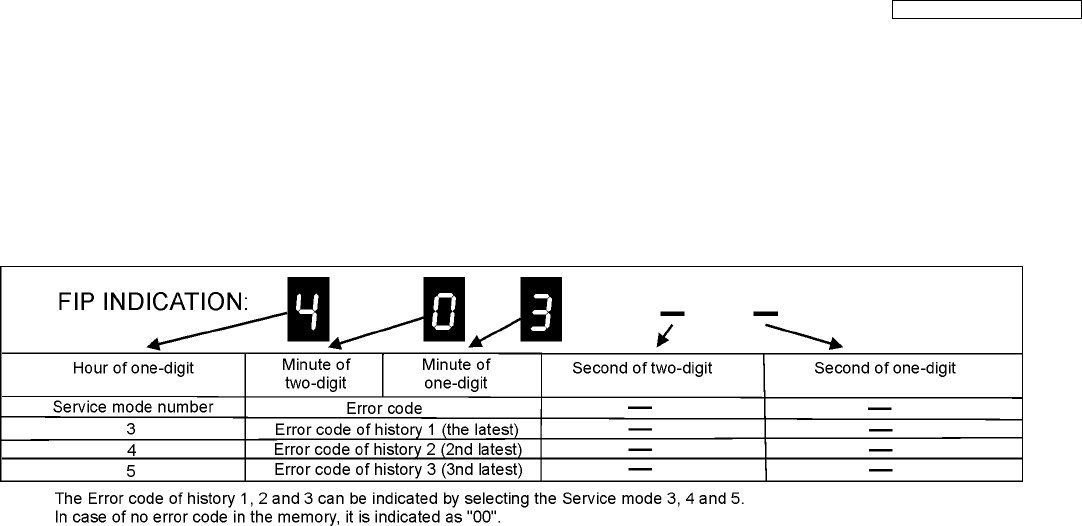

13.3.1.4. INDICATION OF THE SELF-DIAGNOSIS HISTORY

The self-diagnosis histories can be indicated on the FIP with Service Mode number 3 to 5.

The procedure of service mode setting and indication format are the same as usual.

DMR-EH80VEG / DMR-EH80VEB

14.2. P.C.B. POSITIONS 14.3. CAUTION WHILE INSERTING

CASSETTE TAPE WHEN

DISASSEMBLING THE UNIT

NOTE:

Video Cassette might not enter when a strong lighting is

applied to VHS Mechanism when Video Cassette is

inserted. Please weaken the lighting or cover with the top

panel etc.

14 ASSEMBLING AND DISASSEMBLING

14.1. DISASSEMBLY FLOW CHART

The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the

servicing. To assemble the unit, reverse the steps shown in the chart below.

DMR-EH80VEG / DMR-EH80VEB

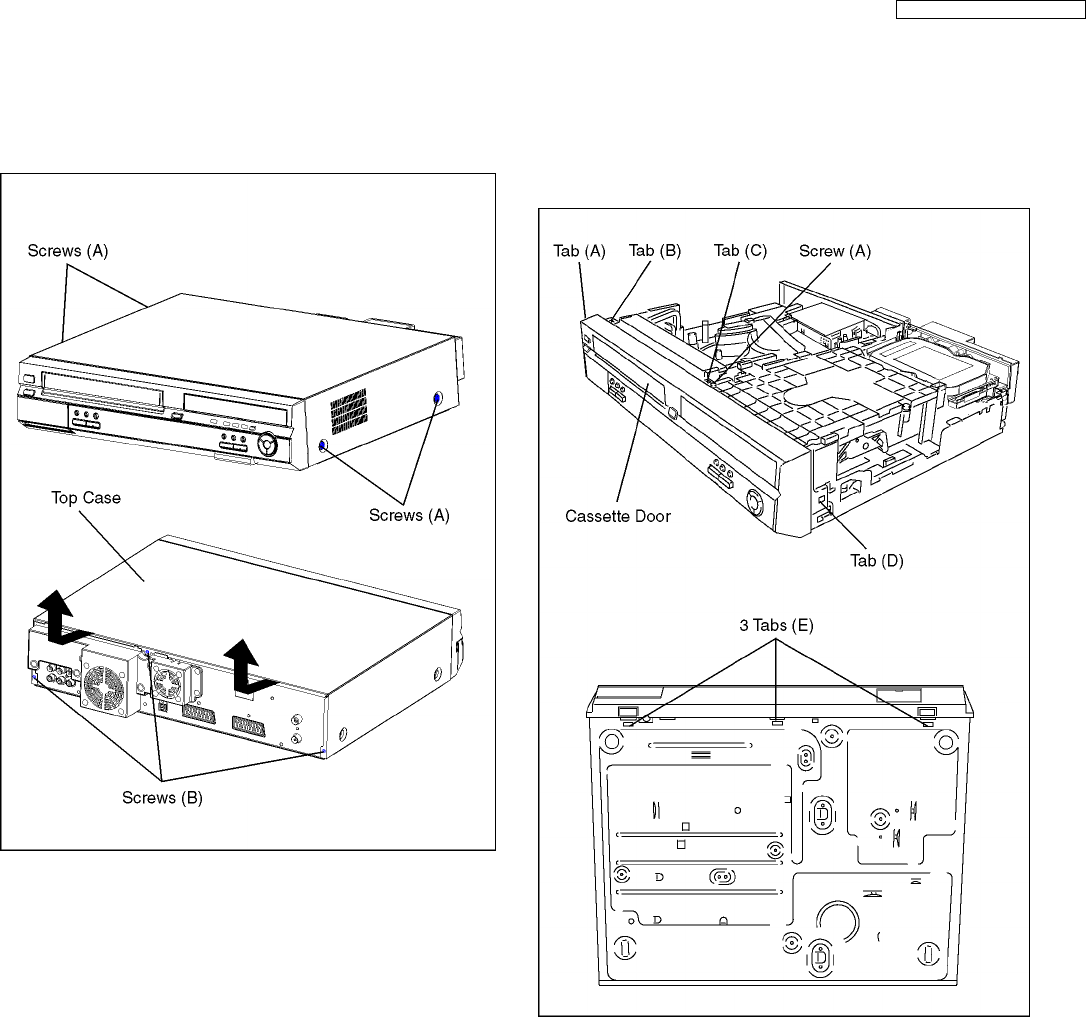

14.4. TOP CASE

1. Remove the 4 screws (A) and 3 screws (B).

2. Slide the Top Case for rear direction slightly, and open the

both ends at rear side of the Top Case a little and lift up the

Top Case for the direction of the arrows.

14.5. FRONT PANEL

1. Remove one screw (A).

2. Unlock tab (A) and tab (B) simultaneously.

3. Unlock tab (C) and tab (D) simultaneously.

4. Unlock 3 tabs (E) respectively and pull out Front Panel with

connector slightly.

DMR-EH80VEG / DMR-EH80VEB

Note:

When attaching Front Panel, in order to hook Cassette

Door Opener Lever to Cassette Door, push up cassette

door in the direction of arrow and insert a front panel.

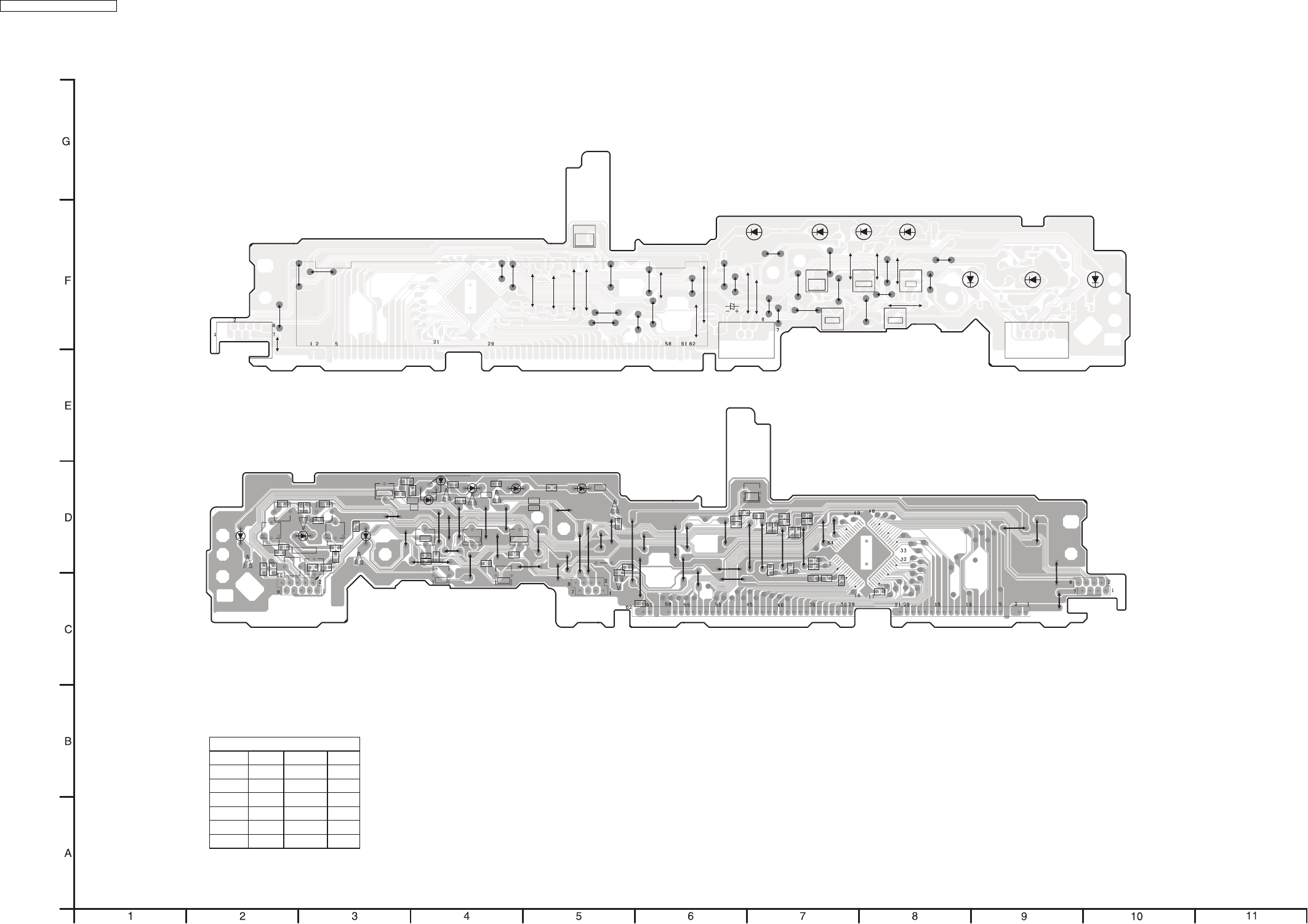

14.6. FRONT JACK P.C.B. &

FL DRIVE P.C.B.

1. Remove one 5 screws (A) and unlock 5 Locking Tabs (A) to

remove FL Drive P.C.B. .

2. Remove one 3 screws (B) and unlock 2 Locking Tabs (B) to

remove Front Jack P.C.B. .

14.7. POWER P.C.B.

1. Disconnect 3 Connectors from Power P.C.B. .

2. Remove 5 Screws (A).

3. Remove Screw (B).

4. Lift up Power Unit vertically out of Tabs.

5. Open the Top Cover of the Shield Case.

6. Remove the 2 Screws (C).

7. Lift up Power P.C.B. out of the Tabs.

DMR-EH80VEG / DMR-EH80VEB

14.8. REAR PANEL & FAN MOTOR

1. Remove the 2 Fan Connectors.

2. Remove 7 Screws.

3. Unlock 2 Locking Tabs to remove Rear Panel

with Fan Motor.

4. Attention when inserting Rear Panel:

Don’t shut the Fan Cable between Rear Panel

and Chassis.

14.8.1. ONLY FAN MOTOR UNIT

1. Remove the 2 Fan Connectors.

2. Remove the 5 Screws.

3. Unlock the 3 Tabs and remove the Fan Motor Unit.

14.8.2. FAN MOTOR

1. Remove the Screws (A) or Screws (B).

2. Remove the selected Fan Motor.

DMR-EH80VEG / DMR-EH80VEB

14.9. VCR MECHANISM UNIT

1. Disconnect 3 Connectors (P1531, P2501 and P4002).

2. Remove 3 Black Screws (A), Screw (B), Screw (C)

and Screw D).

3. Lift up VCR Mechanism Unit perpendicularly so to

disconnect Connectors (P2571 and P3001).

Note:

When you lift up VCR Mechanism Unit, because

connections of P2501 and P3001 are tight, pay attention to

that.

14.9.1. CAUTION FOR ATTACHING VCR

MECHANISM UNIT

1. Because Position SW should be set to "Eject Position",

refer to fig.(A) and set the position switch so that the boss

and arrow mark come on a straight line.

2. Attach VCR Mechanism Unit so that Boss of Position SW is

put into long hole of Main Cam Gear, refer to Fig. (B).

DMR-EH80VEG / DMR-EH80VEB

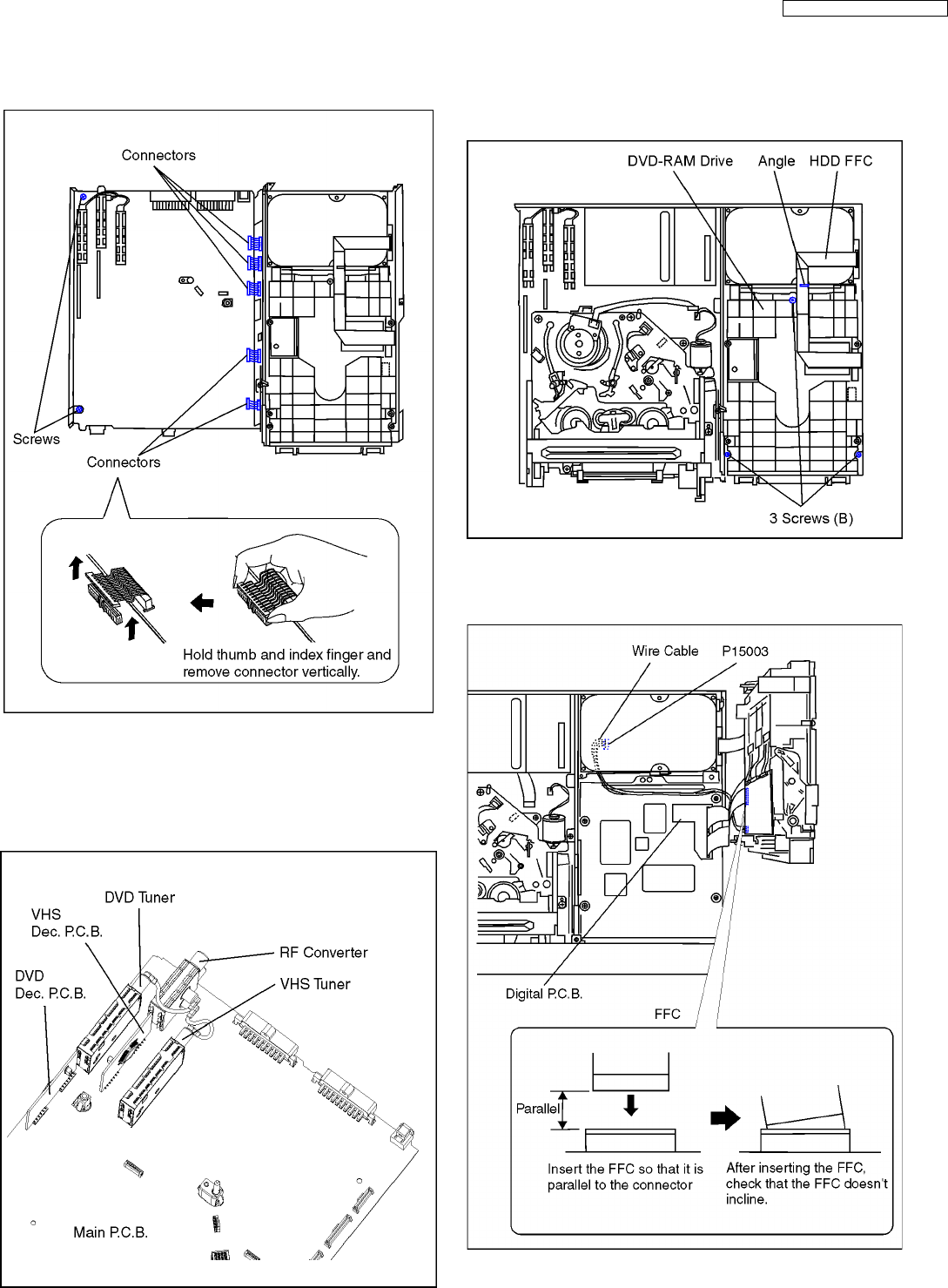

14.10. MAIN P.C.B.

1. Disconnect 5 Connectors.

2. Remove 2 Screws (A), and remove Main P.C.B.

14.11. TUNER / CONVERTER /

DECODER

1. Remove the solders.

2. Pull out the P.C.B. .

14.12. DVD-RAM DRIVE

1. Take out HDD FFC from Angle sideways.

2. Remove 3 Screws (B).

3. Lift up DVD-RAM Drive slightly.

4. Remove Wire Cable from Connector P15003.

5. Disconnect FFC from Digital P.C.B. .

DMR-EH80VEG / DMR-EH80VEB

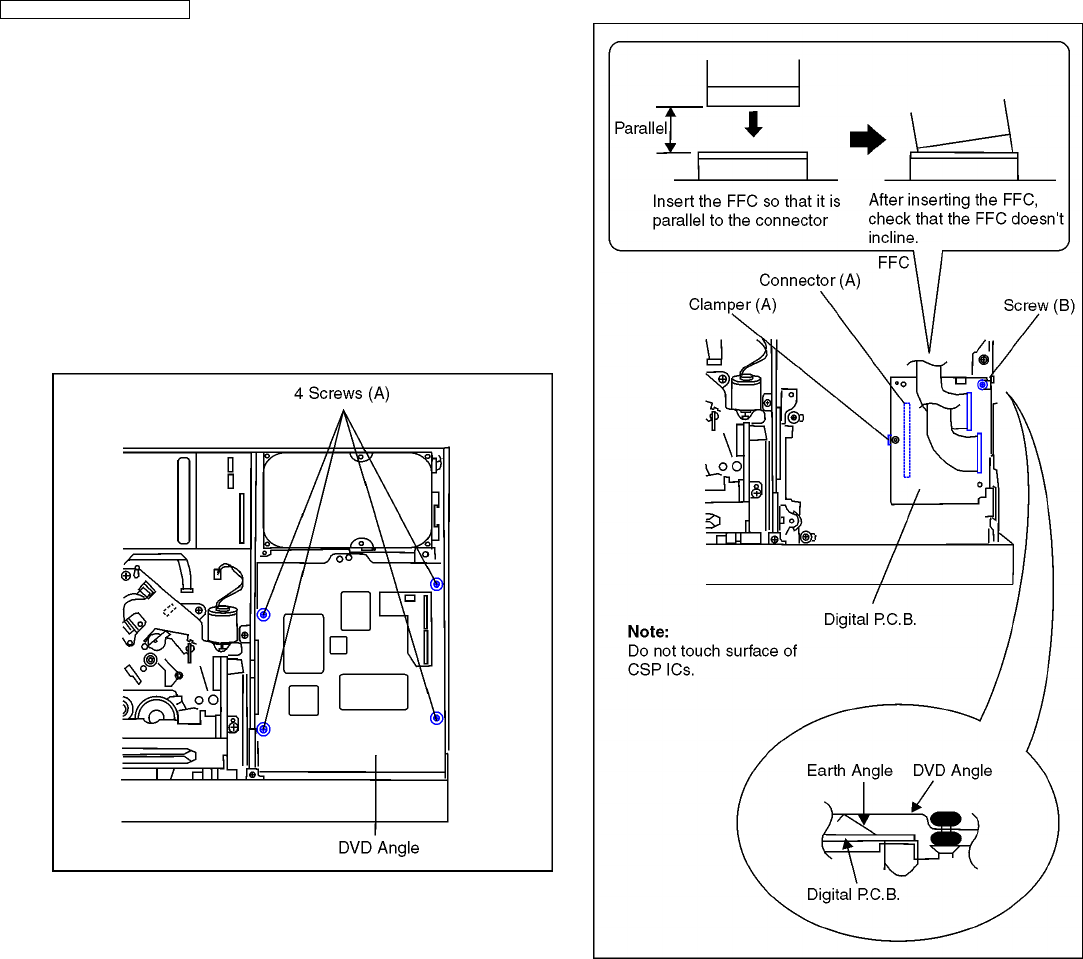

14.13. DIGITAL P.C.B.

Note:

When replacing the Digital P.C.B., “UNFORMAT” indication

is displayed and HDD must be formatted.

· After “UNFORMAT” is is displayed on the FL display,

warning message for HDD format is appeared on the

TV screen.

· Select “YES” and press “ENTER” button on the

remote control; the HDD will be formatted automatically.

· After that all programme in the HDD will be lost.

How to format the HDD.

1. Remove 4 Screws (A) and DVD Angle.

2. Disconnect FFC.

3. Remove Screw (B).

4. Unlock Clamper (A), pay attention to Connector (A), and

pull out Digital P.C.B. to disconnect Connector (A).

CAUTION 1:

When replacing Digital P.C.B., pay attention to inserting

FFC, and be careful to do not touch surface of CSP ICs.

If you have touched surface of CSP IC, clean up with

alcohol and so on to prevent oxidation.

CAUTION 2:

When attaching Digital P.C.B. on to Earth Angle, Earth

Angle should be touches to DVD angle as shown.

DMR-EH80VEG / DMR-EH80VEB

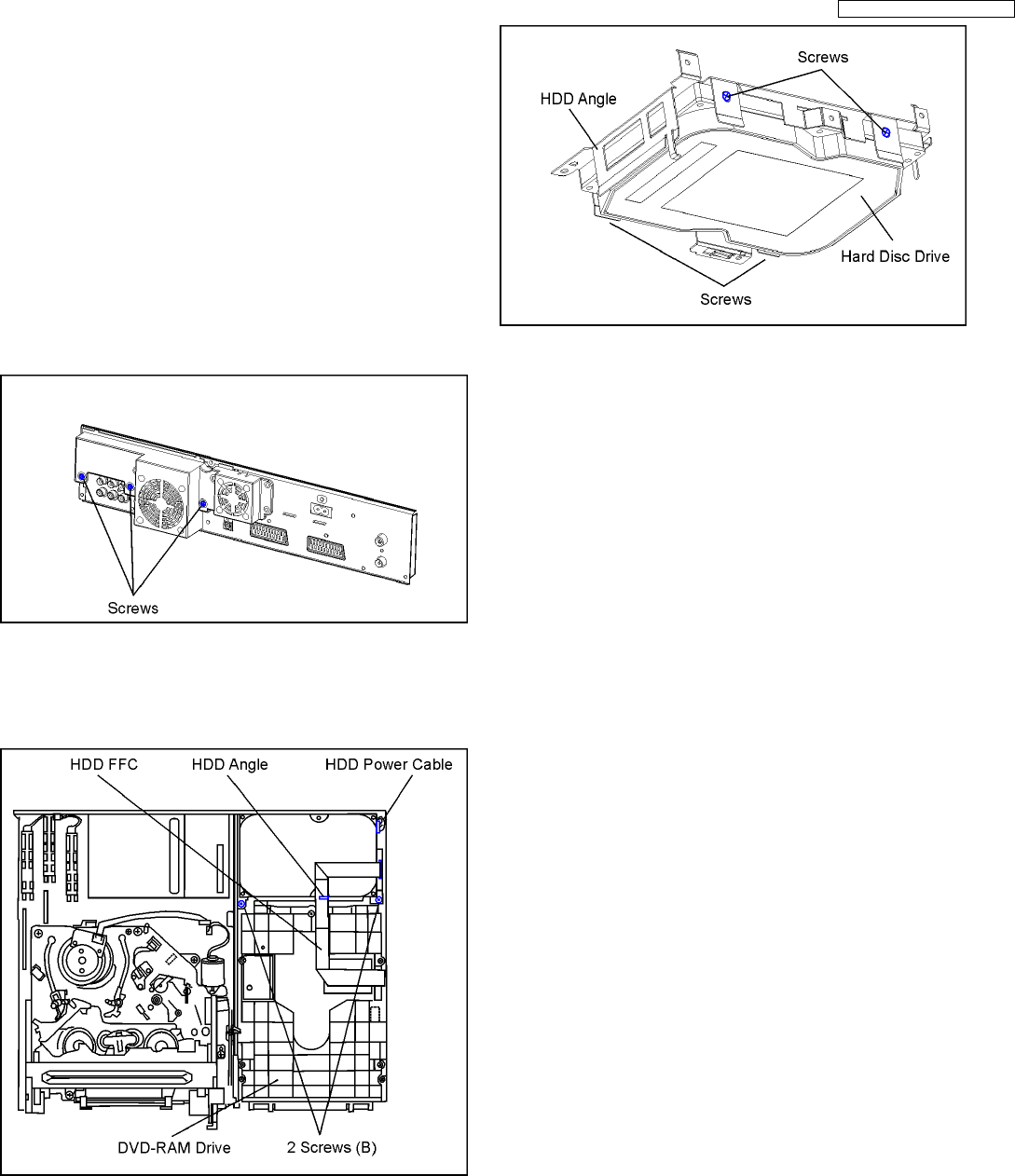

14.14. HARD DISC DRIVE

Note:

When replacing with HDD (HARD DISC DRIVE) “UNFORMAT”

indication

is displayed and HDD (HARD DISC DRIVE) must be formatted.

· After “UNFORMAT” is is displayed on the FL display,

warning message for HDD format is appeared on the

TV screen.

· Select “YES” and press “ENTER” button on the

remote control; the HDD will be formatted automatically.

· After that all programme in the HDD will be lost.

How to format the HDD.

1. Remove 3 Screws from the Rear Panel.

2. Disconnect HDD Power Cable from Hard Disc Drive Unit.

3. Take out HDD FFC from HDD Angle sideways and

disconnect the FFC from Hard Disc Drive Unit.

4. Remove 2 Screws (B) from HDD Angle.

5. Lift up HDD Angle together with Hard Disc Drive.

6. Put HDD with HDD Angle up side down so as not give a

shock to HDD.

7. Remove 4 Screws from Hard Disc Drive.

DMR-EH80VEG / DMR-EH80VEB

Caution for Attaching HDD

Put HDD up and down inversely so as not to give a

shock to HDD,

and put HDD Angle on to HDD and tighten 4 screws

while lifting HDD Angle so as to keep maximum gap

between HDD and HDD Angle.

Handling of HDD

The following precautions should be taken when

handling HDD.

a. Never give an impact to HDD. (Even a drop from 1

cm height can be a cause of HDD failure).

b. When placing HDD on a workbench, provide a mat

on a bench for shock absorption and anti-static

purposes.

c. When installing HDD, release it from your hands

only after confirming that it is fully set on the chassis.

d. Avoid stacking up HDD.

e. HDD is unstable and easy to fall. Do not stand it on

its side face.

f. When handling HDD, hold its side faces to avoid

static hazard.

g. Do not place HDD on its wrapping bag after removal.

(Prevention of static hazard.)

h. Use a screwdriver with low impact and anti-static

features.

Note:

When replacing HDD, please make the rear

jumper slave or cable select configuration.

DMR-EH80VEG / DMR-EH80VEB

14.15. SD CARD P.C.B.

1. Remove Front Panel, Power Unit, Rear Panel, Hard Disc

Drive Unit, DVD-RAM Drive.

2. Disconnect 2 Connectors.

3. Remove the 2 Screws.

4. Remove SD CARD P.C.B. .

14.16. DIGITAL I/F P.C.B.

1. Remove Front Panel, Power Unit, Rear Panel, Hard Disc

Drive Unit, DVD-RAM Drive, Digital P.C.B., SD Card Unit

2. Disconnect 5 Connectors.

3. Remove the 2 Screws (A) from SD Card Angle.

4. Remove SD Card Angle together with SD Card P.C.B. .

5. Remove the 3 Screws (B) from Digital I/F P.C.B. .

6. Remove Digital I/F P.C.B. .

Note:

When inserting P.C.B. confirm correct positions of Guide

Pins.

DMR-EH80VEG / DMR-EH80VEB

15 SERVICE FIXTURE AND TOOLS

Part Number Description Pcs Compatibility

RFKZ0125 Extension FFC (Digital P.C.B. - DVD-RAM Drive / 40 Pin) 1 Same as E30/HS2/E50/

E55/ES10 series

VFK1729 Extension Cable (Main P.C.B. - Digital I/F P.C.B. / 13pin/40mm) 2 Same as E75V

RFKZ0240 Extension Cable (Main P.C.B. - Digital I/F P.C.B. / 19pin/40mm) 2 Same as E75V

RFKZ0178 Extension Cable (Main P.C.B. - Digital I/F P.C.B. / 7pin/40mm) 1 Same as E75V

RFKZ0215 Extension Cable (Main P.C.B. - Front Jack P.C.B. / 12 Pin) 1Same as DMR-E55/E75V series

RFKZ0238 Extension Cable (Main P.C.B. / Digital I/F P.C.B. - FL Drive P.C.B. / 8 Pin) 1 Same as E75V

RFKZ0239 Extension Cable (Digital I/F P.C.B. - FL Drive P.C.B. / 10 Pin) 1 Same as E75V

(for VHS)

Part Number Description Pcs Compatibility

VFJ8125H3F PAL VHS Alignment Tape 1 Same as E75V

VFK0329 Post Adjustment Screwdriver 1 Same as E75V

VFK0330 Fine Adjustment Gear Driver 1 Same as E75V

DMR-EH80VEG / DMR-EH80VEB

16 SERVICE POSITIONS

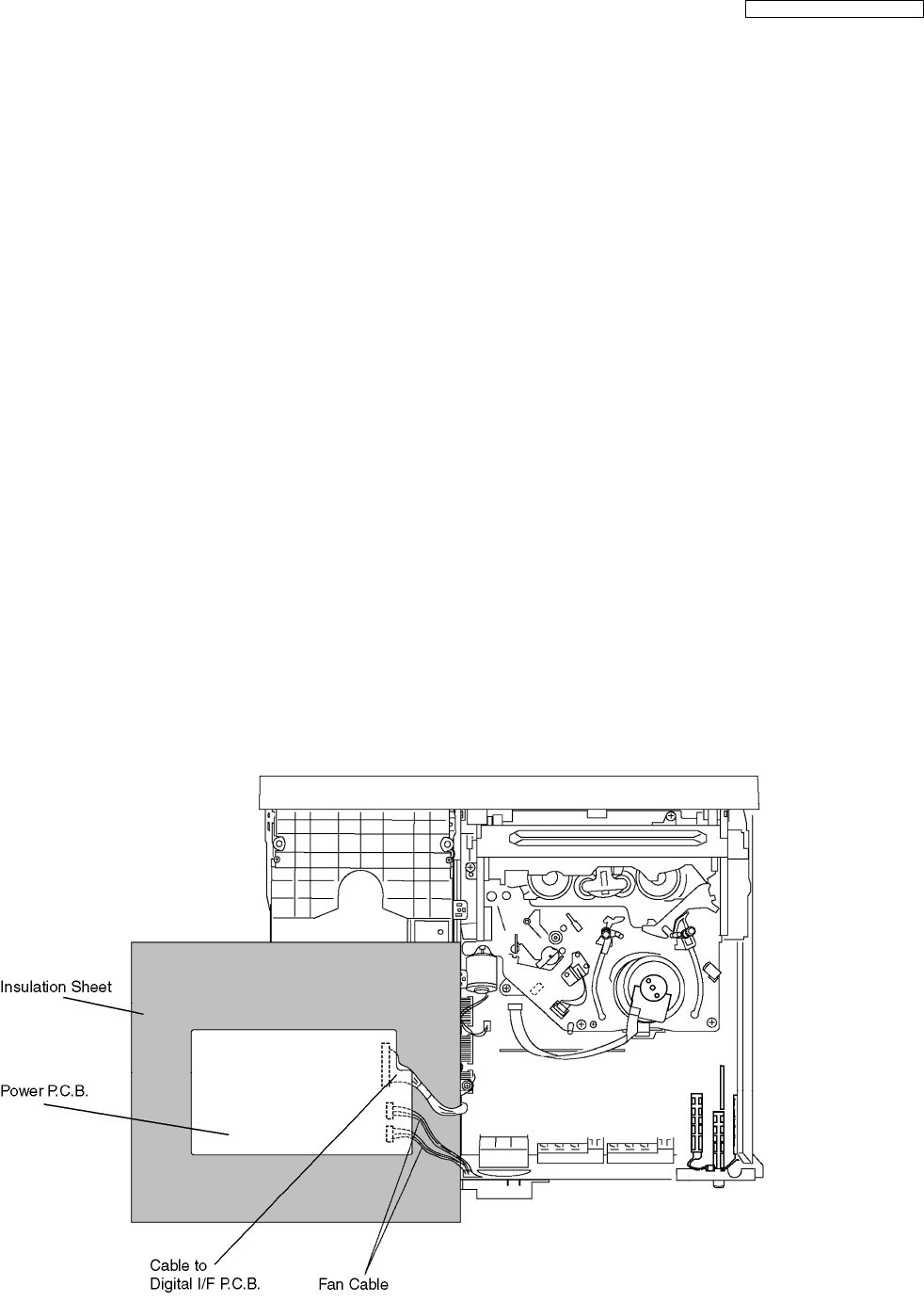

16.1. CHECKING AND REPAIRING OF POWER P.C.B.

1. Top Case

· Remove 4 Screws (A) on side

· Remove 3 Screws (B) on rear

· Remove Top Case

2. Rear Panel

· Remove 1 Screw from Fan (right upper corner)

· Remove 1 Screw from Rearpanel (above Power Connector)

· Remove 1 Screw beside Power Connector

3. Power P.C.B. Angle

· Remove 1 Screw

4. Power P.C.B.

· Disconnect 3 Connectors from Power P.C.B.

· Lift up Power Unit vertically out of Tabs

· Open the Top Cover of the Shield Case

· Remove the 2 Screws (C)

· Lift up Power P.C.B. out of the Tabs

· Connect 3 Connectors to Power P.C.B.

Caution 1:

Original screw should be used.

Caution 2:

In some case, Shield Case of Power Unit is soldered.

In this case, remove solder when removing Shield Case and certainly solder Shield Case when installing.

If soldering was not done, noises mix into picture.

DMR-EH80VEG / DMR-EH80VEB

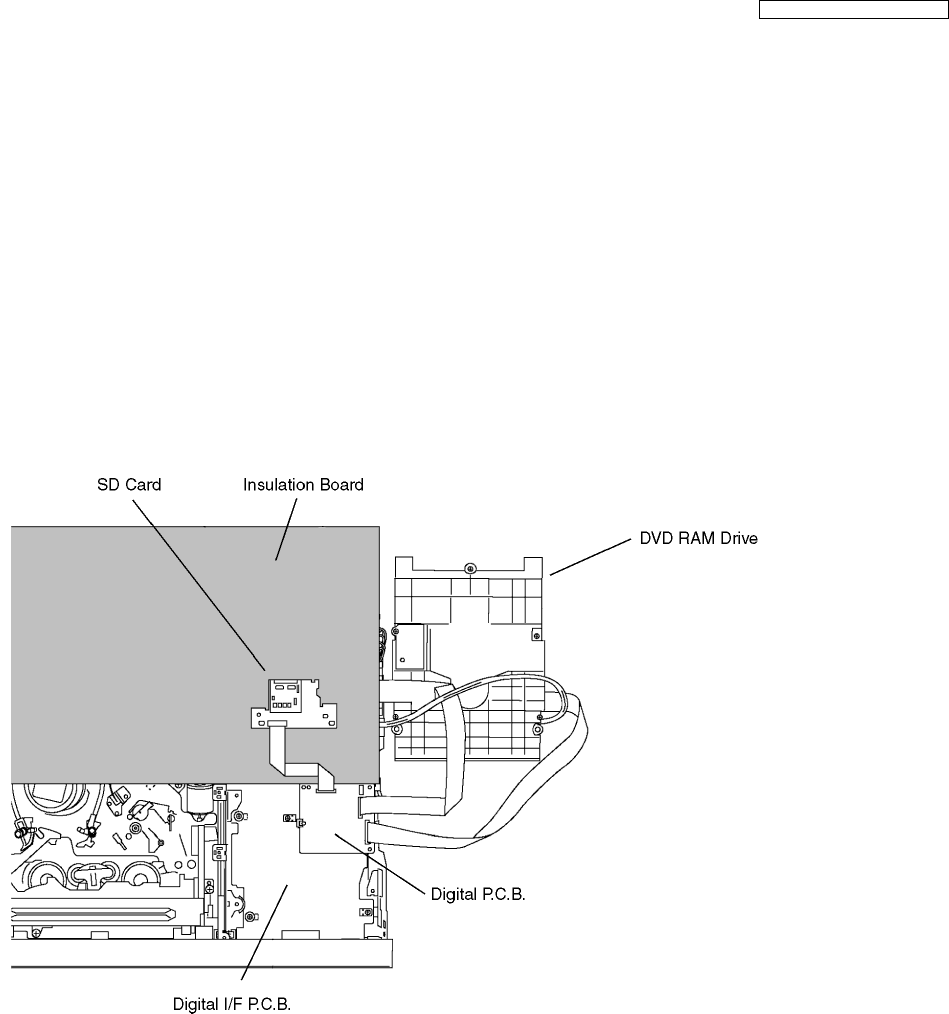

16.2. CHECKING AND REPAIRING OF DIGITAL I/F P.C.B.

1. Top Case

· Remove 4 Screws (A) on side

· Remove 3 Screws (B) on rear side

· Remove Top Case

2. Front Panel

· Remove one Screw (A) on center

· Unlock 2 Locking Tabs (A), (D) on Front Panel side

· Unlock 2 Locking Tabs (B), (C) on Front Panel topside

· Unlock 3 Locking Tabs (E) on Front Panel bottom side

· Remove Front Panel

3. Power Unit and Rear Panel

· Disconnect 3 Connectors from Power P.C.B.

· Remove all Screws from Rear Panel and Fan Unit (Screws for Fan Motor not necessary)

· Remove 1 Srews Power P.C.B. Angle and lift up Power Unit vertically out of Tabs

· Remove Rear Panel with Fan Motor Unit

4. Hard Disc Drive & Hard Disc Angle

· Disconnect HDD Power Cable from Hard Disc Drive Unit

· Take out HDD FFC from HDD Angle sideways

· Disconnect the HDD FFC from Hard Disc Drive Unit

· Remove 2 Screws (B) from HDD Angle

· Lift up HDD Angle together with Hard Disc Drive Unit

5. DVD-RAM Drive

· Remove Power Cable (DVD-RAM Drive) from Digital I/F P.C.B.

· Remove the 4 Screws from DVD Angle

· Lift up DVD Angle together with DVD-RAM Drive and put it upside-down

· Put a solid Insulation Sheet on DVD-Ram Drive Unit

6. SD Card Angle and Digital P.C.B.

· Remove 2 Screws from SD Card Angle

· Remove Screw (B) from Digital P.C.B.

7. Remove Digital I/F P.C.B.

· Disconnect 5 Connectors from Digital I/F P.C.B.

· Remove 3 Screws (B) from Digital I/F P.C.B.

· Lift up Digital I/F P.C.B. together with Digital P.C.B. and SD Card Angle out of Chassis

· Put it upside down on the Insulation Sheet

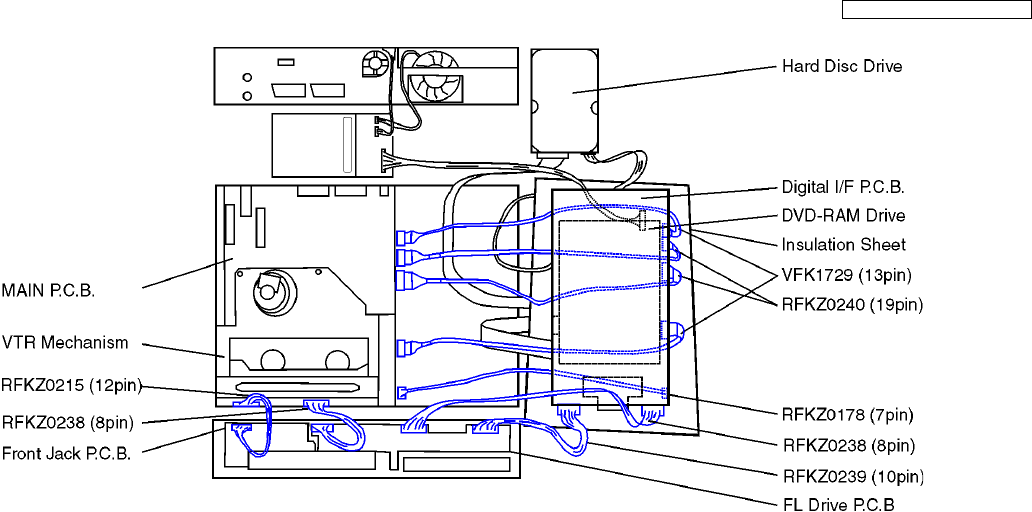

8. Connect Digital I/F P.C.B.

· Connect the Cables:

− between Digital I/F P.C.B. and Hard Disc Drive (2x)

− between Digital I/F P.C.B. and DVD-RAM Drive (1x)

− between Digital I/F P.C.B. and Power P.C.B. (1x)

− between Power P.C.B. and Fan Motor (2x)

− between Main P.C.B. and Digital I/F P.C.B.: RFKZ0178 (1x), RFKZ0240 (2x), VKF1729 (2x)

− between Main P.C.B. and Front Jack P.C.B.: RFKZ0215 (1x)

− between Main P.C.B. and FL Drive P.C.B.: RFKZ0238 (1x)

− between Digital I/F P.C.B. and FL Drive P.C.B.: RFKZ0239 (1x)

− between Digital I/F P.C.B. and FL Drive P.C.B.: RFKZ0238 (1x)

DMR-EH80VEG / DMR-EH80VEB

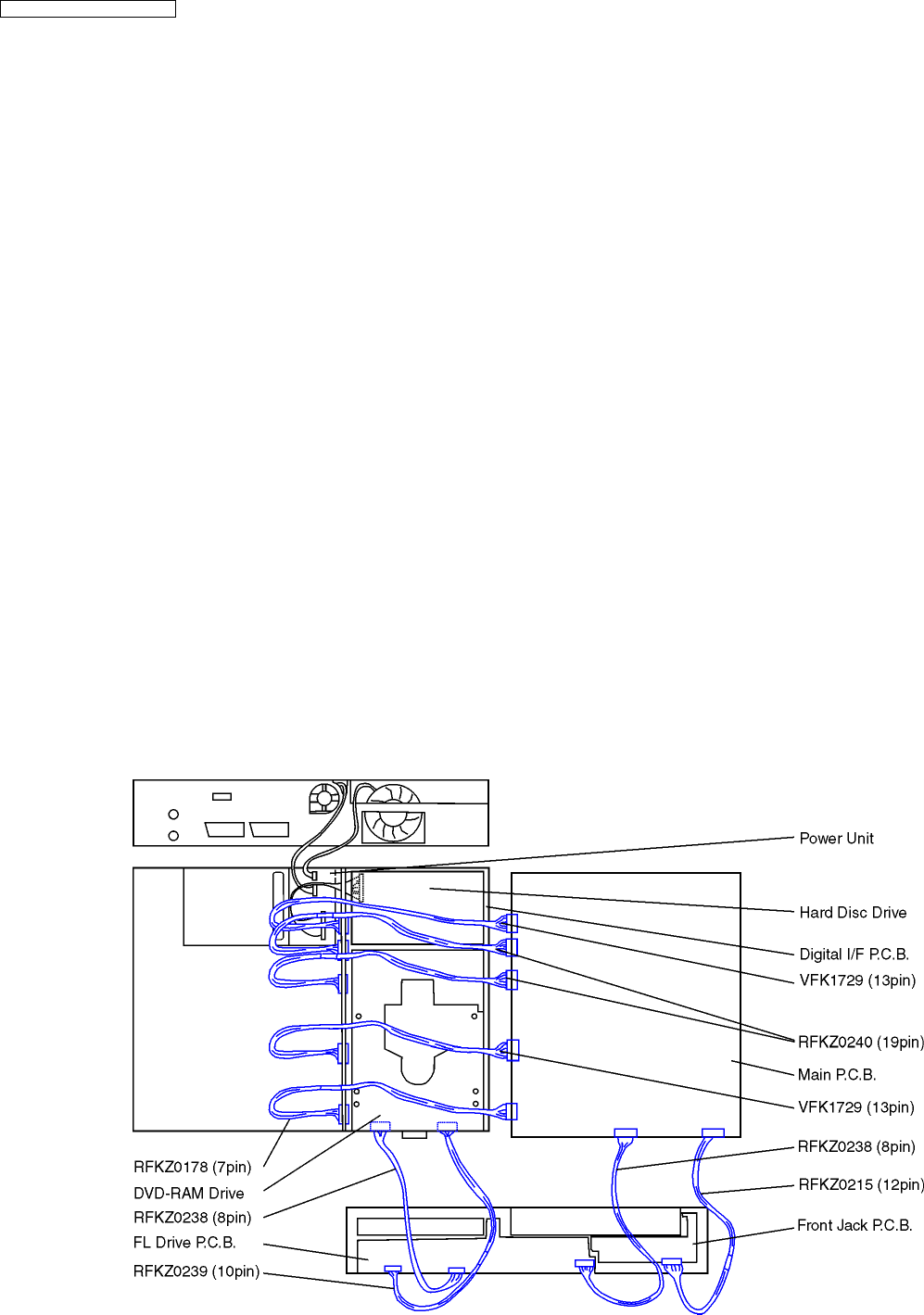

16.3. CHECKING AND REPAIRING OF MAIN P.C.B.

1. Top Case

· Remove 4 Screws (A) on side and 3 Screws (B) on rear side and the Top Case

2. Front Panel

· Remove one Screw (A) on center

· Unlock 2 Locking Tabs (A), (D) on Front Panel side and unlock 2 Locking Tabs (B), (C) on Front Panel topside

· Unlock 3 Locking Tabs (E) on Front Panel bottom side and remove Front Panel

3. Power Unit and Rear Panel

· Disconnect 3 Connectors from Power P.C.B.

· Remove all Screws from Rear Panel and Fan Unit (Screws for Fan Motor not necessary)

· Remove 1 Srews Power P.C.B. Angle and lift up Power Unit vertically out of Tabs

· Remove Rear Panel with Fan Motor Unit

4. Main P.C.B. and VTR Mechanism

· Remove 3 black Screws (A) and 3 Screws (B), (C), (D)

· Disconnect 5 Connectors from Digital I/F P.C.B.

· Remove 2 Screws (A) from Main P.C.B.

· Lift up Main P.C.B. together with VCR Mechanism and put it upside down on the insulation sheet

5. Attach the Rear Panel to Chassis and the Power Unit to the Rear Panel

6. Connect Main P.C.B.

· Connect Cables:

− between Power P.C.B. and Fan Motor (2x)

− between Power P.C.B. and Digital I/F P.C.B. (1x)

− between Main P.C.B. and Digital I/F: P.C.B. RFKZ0178 (1x), RFKZ0240 (2x), VKF1729 (2x)

− between Main P.C.B. and Front Jack P.C.B.: RFKZ0215 (1x)

− between Main P.C.B. and FL Drive P.C.B.: RFKZ0238 (1x)

− between Digital I/F P.C.B. and FL Drive P.C.B.: RFKZ0239 (1x) and RFKZ0238 (1x)

DMR-EH80VEG / DMR-EH80VEB

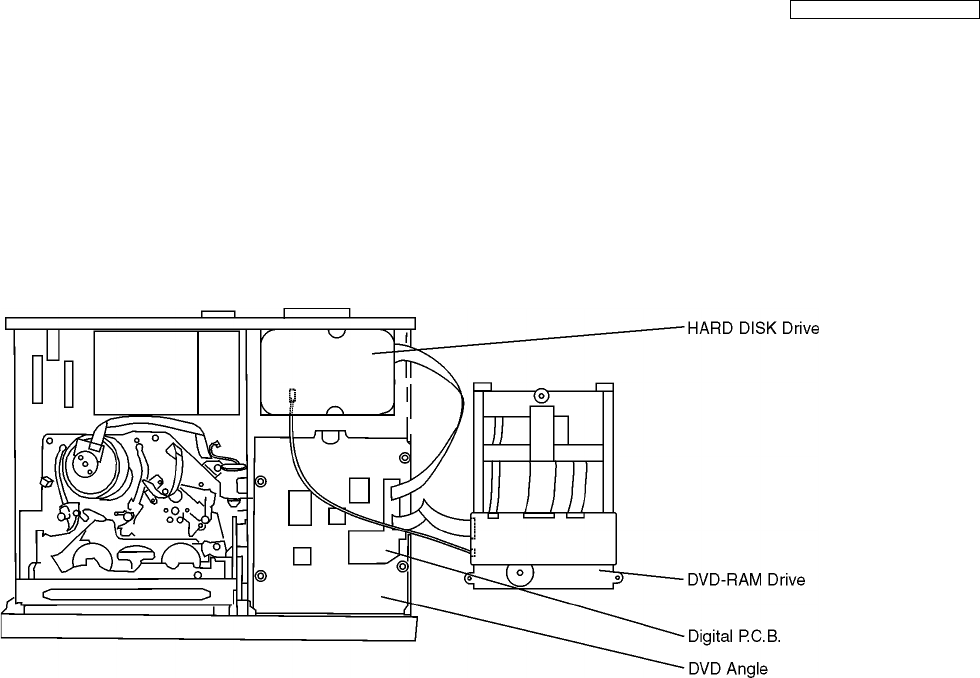

16.4. CHECKING AND REPAIRING OF DVD-RAM DRIVE

1. Top Case

· Remove 4 Screws (A) on side and 3 Screws (B) on rear side

· Remove Top Case

2. DVD-RAM Drive

· Take out HDD FFC from HDD Angle sideways

· Remove 3 Screws (B)

· Lift up DVD-RAM Drive slightly and put it upside down

DMR-EH80VEG / DMR-EH80VEB

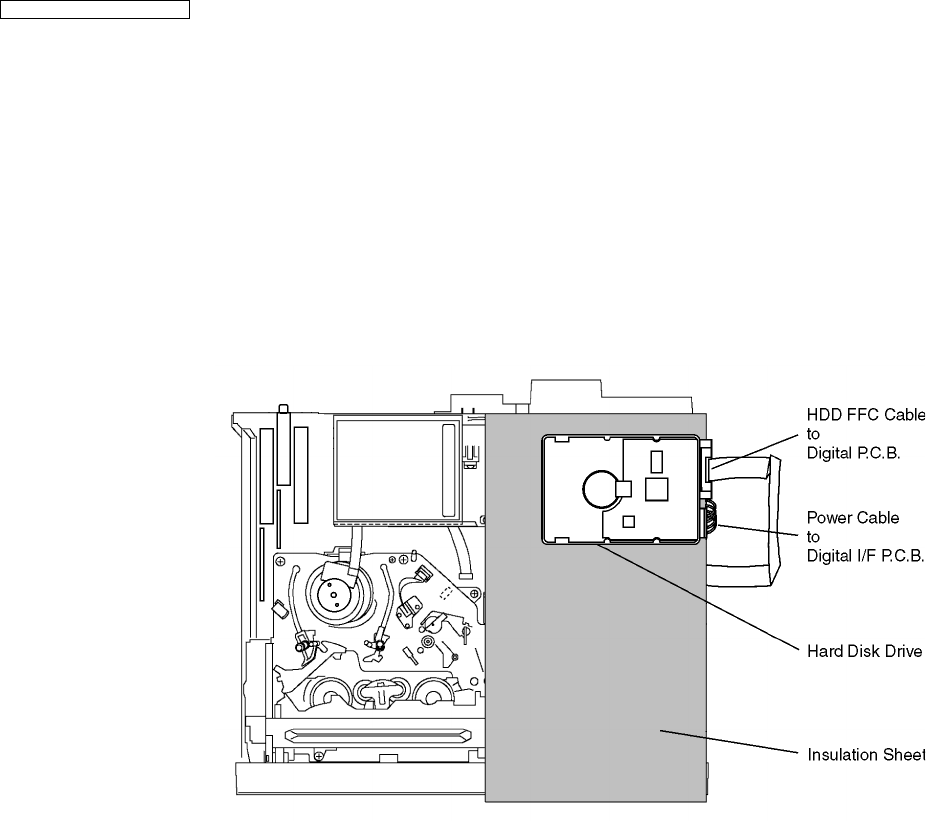

16.5. CHECKING AND REPAIRING OF HARD DISC DRIVE

1. Top Case

· Remove 4 Screws (A) on side and 3 Screws (B) on rear side

· Remove Top Case

2. Hard Disc Drive

· Take out HDD FFC from HDD Angle sideways

· Remove 2 Screws on HDD Angle

· Lift up HDD Angle together with Hard Disc Drive

· Put HDD with HDD Angle up side down so as not give a shock to HDD

· Remove 4 Screws from Hard Disc Drive

DMR-EH80VEG / DMR-EH80VEB

16.6. CHECKING AND REPAIRING OF SD CARD P.C.B.

1. Top Case

· Remove 4 Screws (A) on side and 3 Screws (B) on rear side

· Remove Top Case

2. DVD-RAM

· Take out HDD FFC from HDD Angle sideways

· Remove 3 Screws (B)

· Lift up DVD-RAM Drive slightly

· Remove 4 Screws (A)

· Disconnect 2 Connectors from Digital P.C.B.

· Remove DVD Angle

· Connect 2 Connectors to Digital P.C.B.

3. SD Card P.C.B.

· Remove 2 Screws

DMR-EH80VEG / DMR-EH80VEB

17 (DVD) CAUTION AFTER REPLACING PARTS

17.1. (DVD) AFTER REPLACING THE RAM DRIVE

After replacing of RAM drive unit, TEST mode is not necessary. Please confirm operation for RAM drive.

In this case, all parameters are initialized.

17.2. (DVD) AFTER REPLACING THE TIMER MICROPROCESSOR

When the unit does not operate normally after replacing the Timer Microprocessor or Main P.C.B. with new one, reset Timer

Microprocessor.

Step Operation Descriptions

1While power is ON, short IC37508-4 pin (RESET_OUT) and the GND

momentarily. “RESET (L)” is transmitted to the XRESET terminal of

Timer Microprocessor (IC37501-11 pin), then the unit

operates normally.

17.3. (DVD) AFTER REPLACING EEPROM (IC37502)

IC37502 has clock setting data, Tuning data, Self-Diagnosis data (DVD & VHS) and VHS PG Shifter adjustment data.

Therefore after replacing IC37502, PG Shifter should be adjusted (refer to 18.1).

DMR-EH80VEG / DMR-EH80VEB

18 (VHS) CAUTION AFTER REPLACING PARTS

PG Shifter Automatic Adjustment and X-VALUE & LINEARITY (P2 and P3 Posts) ADJUSTMENT should be performed after

replacing DD Cylinder, EEPROM (IC37502) or Digital I/F P.C.B.

Note:

The “X-VALUE & LINEARITY (P2 and P3 Posts) ADJUSTMENT” is not necessary after only replacement of EEPROM

(IC37502) or Digital I/F P.C.B.

18.1. ADJUSTMENT PROCEDURES AFTER REPLACING DD CYLINDER, VHS

MICROPOCESSOR OR MAIN P.C.B

PG SHIFTER ADJUSTMENT PROCEDURE

PROCEDURE F.I.P. DISPLAY

Turn on the Service Mode

1.Press the FF key and the EJECT key simultaneously for more than 3 seconds.

Activate the Service Mode 2

2. While keep pressing FF key, press the EJECT key twice.

Activate the Entering Mode.

3. Press the EJECT key for more than 3 seconds.

Set the Mode 2.

4. Press the CH UP key once.

Insert the alignment cassette tape (VFJ8125H3F)

5. The PG Shifter Adjustment starts automatically.

When the sequence of the automatic adjustment has been terminated, the following action has been made.

●SUCCEED: The cassette tape is ejected.

●ERROR: The“F20“, “F21“, “F22“ or “F23“ is displayed.

Refer to next PG Shifter Adjustment Self-Diagnosis Indication Table regarding the details of the indications.

Exit from Service Mode.

6. Press FF and EJECT keys simultaneously in 6 times.

Then the FIP becomes normal indication.

(Normal Indication)

PG SHIFTER AUTOMATIC ADJUSTMENT SELF-DIAGNOSIS INDICATION

F20 NG1 in the PG Shifter Automatic Adjustment

(The cylinder rotation is unstable during the automatic adjustment.)

F21 NG2 in the PG Shifter Automatic Adjustment

(The vertical sync signal is lacked while over 5 seconds on the alignment tape.)

F22 NG3 in the PG Shifter Automatic Adjustment

(The installing position of Heads to the cylinder is our of specification.

F23 NG4 in the PG Shifter Automatic Adjustment

(The servo is not locked to the cylinder for more than 10 sec.)

NOTE:

When DD Cylinder was replaced, the Tape Interchangeability adjustment (X-Value Adjustment, P2 and P3 Posts Adjustment)

shown below should be performed after the PG Shifter Automatic Adjustment.

DMR-EH80VEG / DMR-EH80VEB

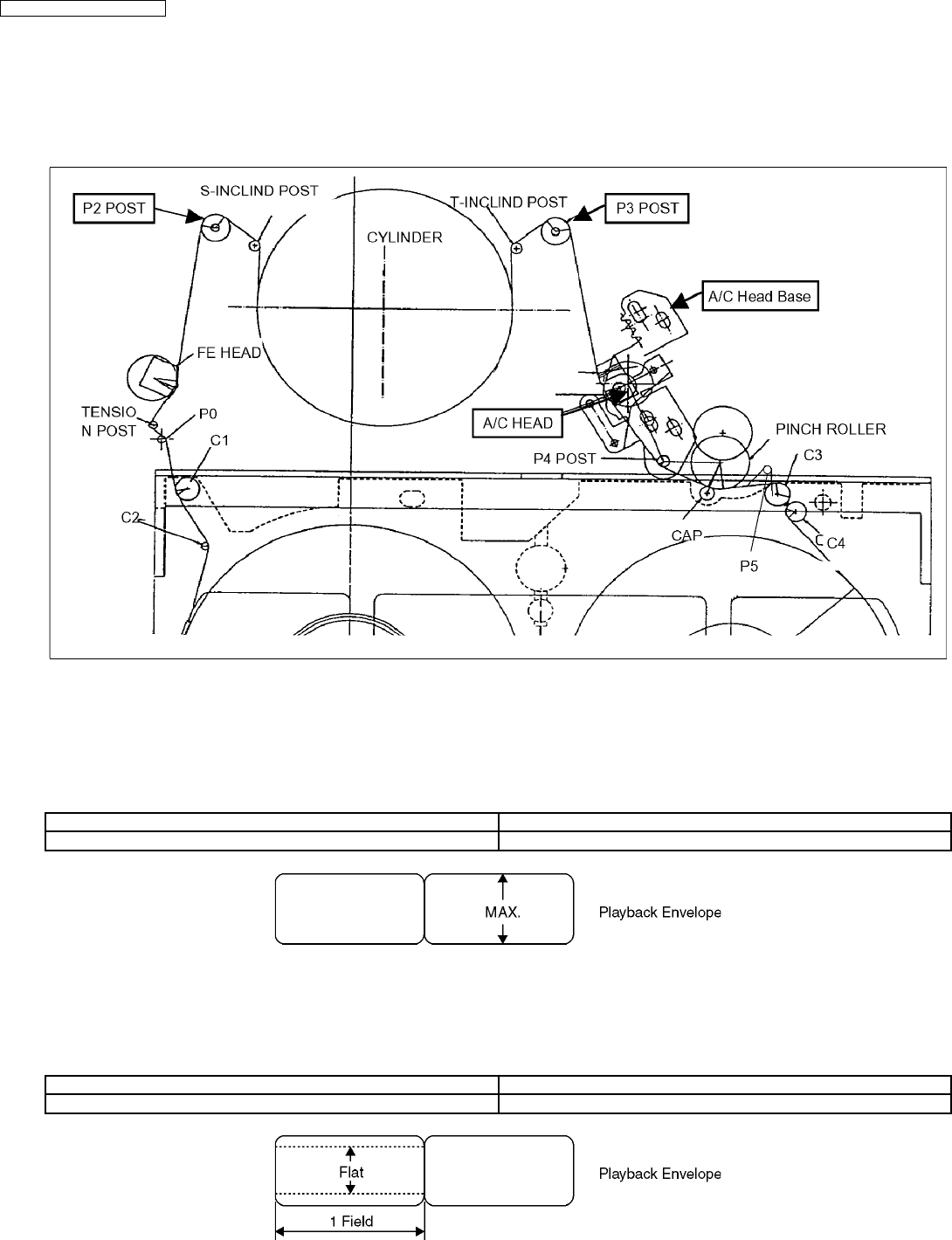

18.2. (VHS) X-VALUE & LINEARITY (P2 AND P3 POSTS) ADJUSTMENT

1. Set the Auto Tracking to off.

a. Press the FF key and the EJECT key simultaneously for more than 3 seconds to enter Service Mode.

b. While keep pressing FF key, press the EJECT key twice to activate Service Mode 2, then Auto-Tracking is turned off.

2. Perform the X-VALUE ADJUSTMENT

18.2.1. (VHS) X-VALUE ADJUSTMENT

1. After turning off the Auto tracking, playback the alignment Tape and press [VHS CH UP] and [VHS CH DOWN] keys

simultaneously to adjust the tracking to FIX value.

2. Adjust A/C Head Base so that the envelope becomes maximum level. (It is described on “5-2. Tape Interchangeability

Adjustment” in “R4 Mechanism” that is separated volume.)

Alignment Tape VFJ8125H3F

Test Point of Playback Envelope TW3001 (or TW4502)

18.2.2. (VHS) LINEARITY ADJUSTMENT

1. After turning off the Auto tracking, playback the alignment Tape and press [VHS CH UP] and [VHS CH DOWN] keys

simultaneously to adjust the tracking to FIX value.

2. Adjust the LINEARITY so that the envelope is flat when moving tracking to (+) and (-) directions.

Alignment Tape VFJ8125H3F

Test Point of Playback Envelope TW3001 (or TW4502)

●Main symptoms and Adjustment point

DMR-EH80VEG / DMR-EH80VEB

Envelope Post Name Adjustment Method

P2 Post Turn P2 Post counter-clockwise

(Approx. 1/2 revolution)

P2 Post Turn P2 Post clockwise

(Approx. 1/4 revolution)

P3 Post Turn P3 Post clockwise

(Approx. 1/2 revolution)

P3 Post Turn P3 Post counter-clockwise

(Approx. 1/4 revolution)

P2 Post P3 Post Turn P2 Post clockwise

(Less than 1 revolution)

Turn P3 Post counter-clockwise

(Less than 1revolution)

18.3. (VHS) CAUTION AFTER REPLACING VHS MICROPROCESSOR (IC6001)

After replacing VHS Microprocessor IC6001, if the unit does not operate normally, reset IC6001.

1. Turn on the power.

2. Short out circuit between TL6004 (RESET_L) and TL6002 (GND) momentarily to reset IC6001.

DMR-EH80VEG / DMR-EH80VEB

19 (DVD) STANDARD INSPECTION SPECIFICATIONS AFTER

MAKING REPAIRS

After making repairs, we recommend performing the following inspection, to check normal operation.

No. Procedure Item to Check

1Turn on the power, and confirm items pointed out. Items pointed out should reappear.

2 Insert RAM disc. The Panasonic RAM disc should be recognized.

3 Enter the EE (TU IN / AV IN - AV OUT) mode. No abnormality should be seen in the picture, sound or operation.

4Perform auto recording and playback for one minute using

the RAM disc. No abnormality should be seen in the picture, sound or operation.

*Panasonic DVD-RAM disc should be used when recording and

playback.

5If a problem is caused by a VCD, DVD-R, DVD-Video,

Audio-CD, or MP3, playback the test disc. No abnormality should be seen in the picture, sound or operation.

6After checking and making repairs, upgrade the firmware to

the latest version. Make sure that [FIRM_SUCCESS] appears in the FL displays.

*[UNSUPPORT] display means the unit is already updated to newest

same version. Then version up is not necessary.

7Transfer [9][9] in the service mode setting, and initialize the

service settings (return various settings and error

information to their default values. The laser time is not

included in this initialization).

Make sure that [CLR SERV] appears in the FL display.

After checking it, turn the power off.

8When replacing of RAM drive, transfer [9] [5] in the service

mode setting to delete Laser used time. Make sure that [CLR LASER] appears in the FL display.

After that, turn power off.

Use the following checklist to establish the judgement criteria for the picture and sound.

Item Contents Check Item Contents Check


Block noise

Sound

Distorted sound

Crosscut noise Noise (static, background noise, etc.)

Dot noise The sound level is too low.

Picture disruption The sound level is too high.

Not bright enough The sound level changes.

Too bright

Flickering color

Color fading

DMR-EH80VEG / DMR-EH80VEB

20 VOLTAGE AND WAVEFORM CHART

NOTE:

· Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance)

with the chassis taken as standard.

Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester.

Ref.No.

Mode 1234578 CAR

Stop 2,40 1,60 0,00 14,00 0,00 280,00 280,00 8,50 0,00 2,47

Play 2,40 1,60 0,00 14,00 0,00 280,00 280,00 8,50 0,00 2,47

Rec. 2,40 1,60 0,00 14,00 0,00 280,00 280,00 8,50 0,00 2,47

Ref.No.

Mode 12345678 12345

Stop 12,40 4,50 1,24 1,29 0,79 0,00 6,23 12,39 0,04 0,02 0,02 5,04 5,06

Play 12,40 4,50 1,24 1,29 0,79 0,00 6,23 12,39 0,04 0,02 0,02 5,04 5,06

Rec. 12,40 4,50 1,24 1,29 0,79 0,00 6,23 12,39 0,04 0,02 0,02 5,04 5,06

Ref.No

Mode 12345678 12345678

Stop 12,42 0,02 1,35 4,23 0,02 1,12 0,83 3,5 12,43 4,52 1,26 1,31 1,25 0,00 7,30 12,41

Play 12,42 0,02 1,35 4,23 0,02 1,12 0,83 3,5 12,43 4,52 1,26 1,31 1,25 0,00 7,30 12,41

Rec. 12,42 0,02 1,35 4,23 0,02 1,12 0,83 3,5 12,43 4,52 1,26 1,31 1,25 0,00 7,30 12,41

Ref.No.

Mode 12345678

Stop 12,43 4,58 1,26 1,26 0,84 0,00 10,58 12,43

Play 12,43 4,58 1,26 1,26 0,84 0,00 10,58 12,43

Rec. 12,43 4,58 1,26 1,26 0,84 0,00 10,58 12,43

Ref.no.

Mode 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Stop 12,24 0,23 0,00 0,22 0,00 0,00 16,05 0,00 2,73 1,72 1,70 0,62 1,33 2,40 2,43 2,43 2,43 1,25 4,96 0,74

Play 12,24 0,23 0,00 0,23 0,00 0,00 14,54 0,00 2,74 1,72 1,69 0,61 1,37 2,38 2,43 2,43 2,43 1,25 4,96 3,15

REC 12,24 0,23 0,00 0,23 0,00 0,00 14,57 0,00 2,72 1,72 1,69 0,61 1,35 2,39 2,43 2,43 2,43 1,26 4,96 3,14

Ref.no.

Mode 21 22 23 24 25

Stop 12,25 0,73 0,73 0,00 0,73

Play 12,24 3,15 3,15 0,00 3,14

REC 12,24 3,13 3,14 0,00 3,13

Ref.no.

Mode 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Stop 0,00 0,00 0,05 5,01 2,07 2,56 2,81 1,96 1,90 2,26 2,08 1,64 0,00 1,39 2,77 3,31 2,77 1,98 2,77 0,00

Play 0,00 0,00 0,05 5,01 2,07 2,55 2,81 1,83 1,68 2,90 3,05 0,98 0,00 2,64 2,77 3,33 2,75 1,27 2,77 0,00

REC 0,00 0,00 0,05 5,01 2,05 2,57 2,81 2,06 2,01 1,88 2,08 1,70 0,00 1,40 2,77 3,30 2,77 2,14 2,77 0,00

Ref.no.

Mode 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

Stop 0,00 4,96 2,29 0,40 2,11 2,97 0,00 0,00 1,62 2,22 0,14 2,24 2,10 1,98 3,90 2,39 3,90 2,15 1,48 2,08

Play 2,77 4,39 2,30 2,80 2,11 2,76 1,63 0,00 1,60 2,82 0,37 2,25 2,05 2,78 2,72 2,15 2,82 2,17 1,46 2,10

REC 2,77 4,96 2,30 0,35 2,11 2,73 0,00 0,00 1,46 2,85 0,28 2,25 1,86 1,79 2,80 2,15 2,80 2,13 1,46 2,07

Ref.no.

Mode 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Stop 2,56 1,95 2,10 0,00 3,06 3,06 0,00 0,12 3,35 4,97 2,10 4,97 2,54 0,00 1,04 0,00 2,15 1,99 4,94 4,94

Play 2,16 1,96 2,11 0,00 3,05 2,05 4,97 0,13 3,04 4,97 1,85 4,97 2,54 0,00 1,94 0,00 2,16 2,03 4,94 4,94

REC 2,55 1,96 2,10 0,00 3,06 0,00 0,00 0,13 3,06 4,97 1,88 4,97 0,00 0,00 1,94 0,00 0,00 1,97 4,89 0,00

Ref.no.

Mode 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Stop 0,00 2,35 2,19 2,18 2,18 2,14 0,33 2,42 1,97 2,69 2,15 0,13 3,99 3,92 2,75 2,21 2,82 0,01 0,00 2,33

Play 0,00 2,10 2,15 2,31 2,19 2,36 0,33 2,42 1,96 2,42 2,16 0,13 4,00 3,94 2,74 2,16 2,82 0,00 0,00 2,57

REC 0,00 0,00 0,00 2,30 2,19 0,00 0,00 2,43 0,00 2,69 2,16 0,13 4,01 3,97 2,74 2,16 2,82 0,00 0,00 2,54

Ref.no.

Mode 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Stop 2,66 0,00 3,22 0,00 2,23 2,23 2,23 0,00 2,22 2,22 2,22 5,01 0,58 2,52 2,50 0,00 0,00 2,33 0,00 2,57

Play 4,73 0,00 2,96 4,92 2,23 0,00 0,00 0,00 0,00 2,22 2,22 5,01 0,51 2,52 2,50 0,00 0,00 2,54 0,00 2,55

REC 4,66 0,00 3,13 4,87 2,36 0,00 2,34 0,00 0,01 0,00 0,01 5,01 0,60 2,53 2,50 0,00 0,00 2,31 0,00 2,57

Ref.no.

Mode 12345678 12345678

Stop 5,04 0,00 0,00 3,47 4,69 0,00 0,01 5,59 2,78 0,00 2,80 0,00 2,79 5,00 2,05 0,00

Play 5,04 0,00 0,00 3,47 4,69 0,00 0,01 5,58 2,79 4,88 2,78 0,00 2,79 5,03 2,05 0,00

REC 5,04 0,00 0,00 3,47 4,67 0,02 0,02 5,53 2,78 0,00 2,79 0,00 2,79 5,03 2,05 0,00

Ref.no.

Mode 12345678

Stop 2,72 4,87 2,71 4,88 2,71 4,89 1,99 0,00

Play 2,71 0,01 2,72 4,88 2,70 4,89 1,99 0,00

REC 2,71 4,86 2,71 4,87 2,71 4,89 1,99 0,00

IC2501

IC3001

IC3501

IC15004

IC11201 IC11301

IC11501 IC15001

IC15002 IC15003

IC3002 IC3003

DMR-EH80VEG / DMR-EH80VEB

Ref.no.

Mode 1234567891011121314

Stop 4,87 0,01 4,89 3,36 3,16 4,89 2,72 2,86 2,86 2,86 0,00 3,51 3,51 2,01

Play 0,01 0,01 4,89 3,37 3,14 4,89 2,48 2,02 2,02 2,02 0,00 3,53 3,53 2,01

REC 4,86 0,01 4,89 3,36 3,14 4,89 2,72 2,86 2,86 2,86 0,00 3,51 3,51 2,01

Ref.no.

Mode 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Stop 2,03 2,50 1,57 0,00 1,56 4,95 0,00 4,95 0,55 0,04 0,00 0,53 0,00 0,00 0,04 1,56 0,55 0,00 1,68 1,71

Play 2,03 0,00 1,57 0,00 0,00 4,95 0,00 4,96 0,00 0,04 0,00 0,50 0,00 0,00 0,00 1,56 0,53 0,00 1,67 1,71

REC 2,03 2,50 1,57 0,00 1,56 0,00 0,00 4,95 0,60 0,04 0,00 0,57 0,00 0,00 0,00 1,56 0,57 0,00 1,67 1,71

Ref.no.

Mode 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

Stop 0,00 1,69 1,20 1,26 4,95 0,00 10,67 1,01 0,00 2,41 1,55 0,00 1,55 0,00 1,56 0,05 1,56 0,02 2,37 4,95

Play 0,00 1,69 1,19 1,25 4,95 1,02 10,67 1,01 0,00 2,40 0,03 0,00 1,56 0,00 1,56 0,02 1,56 0,02 2,37 0,02

REC 0,00 1,69 1,89 1,25 4,95 1,02 10,66 1,01 0,00 2,40 1,55 0,00 1,55 0,00 1,56 0,05 1,56 0,02 2,36 4,95

Ref.no.

Mode 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Stop 1,55 4,96 2,90 0,00 2,90 11,24 1,75 2,00 4,54 4,49 4,50 4,50 4,50 4,50 4,50 4,50 9,10 0,00 4,50 4,50

Play 0,02 4,96 2,00 0,00 2,90 11,24 1,60 2,00 4,53 4,49 4,50 4,50 4,50 4,50 4,50 4,50 9,09 4,50 4,50 4,50

REC 1,55 4,96 2,90 0,00 2,90 11,24 1,67 2,00 4,53 4,49 4,50 4,50 4,50 4,50 4,50 4,50 9,09 4,50 4,50 4,50

Ref.no.

Mode 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Stop 4,50 4,50 4,50 0,00 8,96 0,00 0,00 0,00 0,00 0,00 4,54 4,54 4,54 4,54 0,00 4,53 9,14 0,00 4,55 0,00

Play 4,50 4,50 4,50 4,50 8,96 0,00 0,00 0,00 0,00 0,00 4,54 4,54 4,54 4,54 0,00 4,53 9,14 4,55 4,55 0,00

REC 4,50 4,50 4,50 4,50 8,96 0,00 0,00 0,00 0,00 0,00 4,54 4,54 4,54 4,54 0,00 4,54 9,14 4,55 4,55 0,00

Ref.no.

Mode 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Stop 2,10 4,96 2,02 4,05 3,26 4,70 3,77 4,67 4,53 0,04 2,03 0,82 1,87 4,96 1,62 0,00 1,87 0,04 1,59 2,50

Play 2,10 4,96 2,01 0,00 3,28 4,71 3,77 4,62 4,47 0,00 2,03 0,81 1,87 4,96 1,61 0,00 1,87 0,04 1,59 2,50

REC 2,09 4,96 2,00 4,96 3,25 4,70 3,77 4,66 4,53 0,04 2,03 0,81 1,87 4,96 1,61 0,00 1,87 0,04 1,59 2,50

Ref.no.

Mode 12345678 12345678

Stop 2,74 0,05 2,75 0,04 2,75 4,96 2,01 0,00 1,65 0,05 1,47 0,04 1,47 4,96 0,92 0,00

Play 2,74 0,05 2,75 0,04 2,75 4,96 2,01 0,00 1,65 0,05 1,47 0,04 1,47 4,96 0,92 0,00

REC 2,74 0,05 2,75 0,04 2,75 4,95 2,01 0,00 1,64 0,05 1,47 0,04 1,46 4,95 0,92 0,00

Ref.no.

Mode 12345678 12345678

Stop 1,42 0,05 1,47 0,04 1,47 4,96 0,70 0,00 4,98 0,00 0,00 3,41 4,46 0,00 0,00 5,53

Play 1,42 0,05 1,47 0,04 1,47 4,96 0,70 0,00 4,98 0,00 0,00 3,41 4,45 0,00 0,00 5,53

REC 1,42 0,05 1,47 0,04 1,47 4,96 0,70 0,00 4,98 0,00 0,00 3,41 4,43 0,00 0,00 5,51

Ref.no.

Mode 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Stop 2,39 0,00 2,39 0,00 0,04 2,50 2,01 0,00 0,00 0,00 0,00 2,02 0,00 0,00 0,00 2,47 0,47 2,50 2,49 2,05

Play 2,38 0,00 2,38 0,00 0,03 2,48 2,02 0,00 0,00 0,00 0,00 0,02 0,00 0,00 0,00 2,49 0,51 2,52 2,52 0,00

REC 2,36 0,00 2,36 0,00 0,06 2,47 1,99 0,00 0,00 0,00 0,00 1,98 0,00 0,00 0,00 2,44 0,45 2,47 5,46 1,98

Ref.no.

Mode 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

Stop 2,05 2,05 0,00 2,05 5,01 2,06 0,00 4,24 1,81 1,81 0,00 2,49 2,50 0,51 2,47 4,80 1,68 0,00 0,07 5,01

Play 0,00 0,66 0,00 0,66 5,00 0,10 2,57 4,20 1,81 1,81 1,78 2,53 2,53 0,54 2,50 0,00 1,68 0,00 0,07 5,00

REC 1,90 1,98 0,00 2,06 4,96 2,04 0,00 4,21 3,97 3,97 1,09 2,46 2,47 0,49 2,44 0,00 1,67 0,00 0,06 4,96

Ref.no.

Mode 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Stop 0,00 0,03 3,99 3,28 1,58 1,87 2,49 2,49 0,18 0,88 5,89 5,99 6,03 0,00 0,00 0,00 6,03 11,87 6,18 0,00

Play 0,05 0,04 4,00 3,28 1,54 4,88 2,53 2,53 0,18 0,87 5,88 5,96 6,05 0,01 0,00 0,01 6,03 11,87 6,18 0,00

REC 0,00 0,00 3,98 3,29 1,58 4,82 2,47 2,47 0,18 0,87 5,85 5,95 5,95 0,01 0,00 0,01 5,95 11,87 6,09 0,00

Ref.no.

Mode 61 62 63 64

Stop 2,49 2,42 0,00 0,00

Play 2,48 2,41 0,00 0,00

REC 2,46 2,39 0,00 0,00

IC3502

IC4501

IC3903

IC3904 IC3906

IC3901

IC3902

DMR-EH80VEG / DMR-EH80VEB

Ref.no.

Mode 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Stop 0,00 0,00 4,89 0,00 4,86 4,86 4,71 4,69 3,24 0,00 0,00 3,32 0,00 4,86 3,79 4,88 0,00 2,48 0,00 0,20

Play 0,00 0,01 4,89 0,00 4,85 4,85 4,80 4,71 1,82 4,85 4,58 0,13 0,00 4,83 3,80 0,00 0,00 2,21 2,53 0,02

REC 0,00 0,01 4,87 0,00 4,82 4,82 3,90 4,45 3,12 4,82 4,56 3,30 0,00 4,82 3,82 4,86 0,00 2,81 0,00 4,85

Ref.no.

Mode 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

Stop 4,86 0,00 4,23 0,00 0,00 0,00 0,00 4,82 4,89 0,00 4,90 4,90 0,00 0,00 0,00 2,95 4,92 2,13 5,03 0,00

Play 4,85 0,00 4,21 0,00 0,00 0,00 0,00 0,00 4,90 0,00 4,90 4,90 0,00 0,00 0,00 2,95 4,92 2,13 5,03 0,00

REC 4,82 0,00 4,21 0,00 0,00 4,88 0,00 0,00 4,88 0,00 4,88 4,88 0,00 4,91 0,00 2,95 4,92 2,13 5,03 0,00

Ref.no.

Mode 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Stop 0,00 4,88 4,90 4,90 0,00 0,00 1,80 2,19 0,00 1,02 2,45 1,02 4,92 2,78 0,00 1,30 0,00 0,00 0,61 0,01

Play 4,87 0,00 4,91 4,90 4,88 0,00 1,81 2,20 0,00 1,88 2,45 1,85 4,91 2,02 0,00 2,10 0,00 0,00 0,38 4,86

REC 0,00 4,87 4,89 4,88 0,00 0,00 1,82 2,19 0,00 0,84 2,45 0,84 4,92 2,75 0,00 1,16 0,00 0,00 0,45 0,01

Ref.no.

Mode 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Stop 0,01 0,00 4,86 0,70 3,82 3,88 4,14 3,80 0,90 4,05 3,98 3,98 0,00 0,00 4,86 0,00 2,41 0,28 0,15 0,16

Play 4,15 0,00 4,86 0,97 3,80 3,85 4,14 3,89 1,38 4,06 4,90 3,04 0,00 0,00 4,68 2,50 3,90 0,24 4,94 4,94

REC 0,01 0,00 4,84 0,98 3,86 3,86 4,16 3,85 1,90 4,02 3,98 3,95 0,00 0,00 4,66 2,47 2,39 0,31 4,93 4,93

Ref.no.

Mode 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Stop 0,00 0,00 0,00 0,00 4,85 2,46 2,46 0,00 0,00 1,25 2,46 2,47 0,00 2,44 2,44 2,46 2,46 4,95 4,84 4,67

Play 0,00 0,00 0,00 0,00 4,81 2,46 2,46 0,00 0,00 1,27 2,46 2,47 0,00 2,44 2,44 2,46 2,45 2,49 4,86 4,67

REC 0,00 0,00 0,00 0,00 4,79 2,46 2,46 0,00 0,00 1,27 2,46 2,46 0,00 2,07 2,84 2,46 2,45 4,95 4,83 4,67

Ref.no.

Mode 12345 12345

Stop 4,91 4,91 0,00 0,00 0,00 4,96 0,00 4,68 5,65 0,00

Play 4,91 4,91 0,00 0,00 0,00 4,96 0,00 4,67 5,64 0,00

REC 4,90 4,90 0,00 0,00 0,00 4,96 0,00 4,66 5,61 0,00

Ref.no.

Mode 12345678 12345678

Stop 4,97 0,00 0,00 3,39 5,51 0,00 0,00 5,51 4,97 0,00 0,00 3,38 4,68 0,00 0,00 5,50

Play 4,97 0,00 0,00 3,39 5,50 0,00 0,00 5,50 4,97 0,00 0,00 3,39 4,67 0,00 0,00 5,50

REC 4,97 0,00 0,00 3,39 5,48 0,00 0,00 5,48 4,97 0,00 0,00 3,39 4,66 0,00 0,00 5,48

Ref.no.

Mode 12345678

Stop 4,97 0,00 0,00 3,39 4,95 0,00 0,00 5,50

Play 4,97 0,00 0,00 3,39 4,94 0,00 0,00 5,50

REC 4,97 0,00 0,00 3,39 4,93 0,00 0,00 5,47

Ref.no.

Mode 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Stop 4,96 0,69 4,13 3,80 0,00 2,10 2,09 4,83 -27,00 -25,00 -25,00 -25,00 -25,00 -22,84 -0,23 -20,54 -20,52 4,83 -21,00 -23,00

Play 4,96 0,69 4,13 3,80 0,00 2,10 2,09 4,83 -27,00 -25,00 -25,00 -25,00 -25,00 -22,84 -0,23 -20,54 -20,52 4,83 -21,00 -23,00

REC 4,96 0,69 4,13 3,80 0,00 2,10 2,09 4,83 -27,00 -25,00 -25,00 -25,00 -25,00 -22,84 -0,23 -20,54 -20,52 4,83 -21,00 -23,00

Ref.no.

Mode 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

Stop -23,20 -23,55 -23,00 -23,00 -21,00 -21,00 -21,00 -21,00 -21,00 -17,00 -18,00 -18,00 -20,00 -16,00 -23,00 -23,00 -23,00 -23,00 -23,00 -18,00

Play -23,20 -23,55 -23,00 -23,00 -21,00 -21,00 -21,00 -21,00 -21,00 -17,00 -18,00 -18,00 -20,00 -16,00 -23,00 -23,00 -23,00 -23,00 -23,00 -18,00

REC -23,20 -23,55 -23,00 -23,00 -21,00 -21,00 -21,00 -21,00 -21,00 -17,00 -18,00 -18,00 -20,00 -16,00 -23,00 -23,00 -23,00 -23,00 -23,00 -18,00

Ref.no.

Mode 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Stop -18,00 -18,00 -18,00 -18,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -25,00 -25,00 -25,00 -25,00 -25,00 -25,00 -25,00

Play -18,00 -18,00 -18,00 -18,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -25,00 -25,00 -25,00 -25,00 -25,00 -25,00 -25,00

REC -18,00 -18,00 -18,00 -18,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -28,00 -25,00 -25,00 -25,00 -25,00 -25,00 -25,00 -25,00

Ref.no.

Mode 61 62 63 64

Stop -0,20 -25,00 -25,00 -29,12

Play -0,20 -25,00 -25,00 -29,12

REC -0,20 -25,00 -25,00 -29,12

Ref.no.

Mode 12345 123456

Stop 5,82 4,93 3,25 0,00 0,00 0,00 1,52 4,71 2,32 0,02 2,26

Play 5,82 4,93 3,25 0,00 0,00 0,00 1,33 4,71 2,12 0,02 2,06

REC 5,82 4,92 3,25 0,00 0,00 0,00 1,52 4,71 2,33 0,02 2,26

IC6001

IC31502

IC6201 IC6302

IC7401

IC35004

IC7405

IC7502

IC7402

DMR-EH80VEG / DMR-EH80VEB

Ref.no.

Mode 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Stop 4,71 1,88 2,01 1,41 4,53 1,41 0,02 1,88 1,88 0,02 1,86 1,86 1,39 1,40 1,39 1,87

Play 4,71 1,89 2,02 1,42 4,53 1,43 0,01 1,88 1,88 0,02 1,87 1,86 1,56 1,48 1,52 1,87

REC 4,71 1,88 2,02 1,63 4,53 1,63 0,02 1,88 1,88 0,02 1,86 1,86 1,83 1,84 1,83 1,87

Ref.no.

Mode 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Stop 4,11 4,85 2,60 0,00 0,00 0,00 0,00 0,00 0,73 0,91 4,96 1,49 0,00 2,03 3,32 4,96 3,26 3,21 3,21 3,10

Play 4,19 4,84 2,65 0,00 0,00 0,00 0,00 0,00 0,73 0,91 4,96 1,51 0,00 2,04 3,34 4,96 3,26 3,18 3,16 3,31

REC 4,12 4,83 2,62 0,00 0,00 0,00 0,00 0,00 0,73 0,91 4,96 1,50 0,00 2,03 3,33 4,96 3,25 3,17 3,17 3,31

Ref.no.

Mode 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

Stop 0,00 0,00 0,00 3,32 0,00 0,00 0,00 4,63 4,48 0,00 0,90 1,57 1,20 4,96 2,42 0,00 0,00 3,32 3,25 3,32

Play 0,00 0,00 1,81 3,32 0,00 0,00 0,00 4,68 4,56 0,00 0,89 1,58 1,20 4,96 2,42 0,00 0,00 3,32 3,24 3,32

REC 0,00 0,00 1,81 3,32 0,00 0,00 0,00 4,70 4,59 0,00 0,90 1,58 1,20 4,96 2,42 0,00 0,00 3,32 3,32 3,32

Ref.no.

Mode 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Stop 0,00 0,00 3,23 3,31 0,00 0,00 4,85 4,96 4,95 4,95 4,94 4,84 0,46 0,00 0,00 0,00 4,95 0,00 0,00 4,92

Play 0,00 0,00 3,19 3,31 0,00 0,00 4,84 4,96 4,95 4,96 4,94 2,45 0,58 0,00 0,00 0,00 4,95 0,00 0,00 0,00

REC 0,00 0,00 3,20 3,30 0,00 0,00 4,85 4,96 4,95 4,95 4,94 2,55 0,12 0,00 0,00 0,00 4,95 0,00 0,00 4,93

Ref.no.

Mode 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Stop 0,00 0,00 0,00 0,00 0,00 0,00 0,00 0,00 4,96 0,00 0,00 0,00 0,00 0,00 0,00 0,00 4,96 0,00 0,00 4,87

Play 0,00 0,00 4,96 0,00 0,00 0,00 0,00 0,00 4,96 0,00 0,00 0,00 0,00 0,00 0,00 0,00 4,96 0,00 0,00 4,86

REC 0,00 0,00 4,96 0,00 0,00 0,00 0,00 0,00 4,96 0,00 0,00 0,00 0,00 0,00 0,00 0,00 4,96 0,00 0,00 4,85

Ref.no.

Mode 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Stop 0,00 4,84 0,00 0,00 0,00 4,93 0,00 NC NC NC NC NC 4,96 0,00 4,85 3,82 0,00 4,86 4,67 0,00

Play 0,00 4,84 0,00 0,00 0,00 4,93 0,00 NC NC NC NC NC 4,96 0,00 4,85 3,75 0,00 4,85 4,67 4,27

REC 0,00 0,00 0,00 0,00 0,00 4,93 0,00 NC NC NC NC NC 4,96 0,00 4,84 3,82 0,00 4,85 4,67 0,00

Ref.no.

Mode 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116

Stop 4,86 4,86 0,00 0,11 0,12 4,96 3,94 4,96 1,86 1,22 0,00 4,96 2,60 0,00 0,15 1,33

Play 4,85 4,85 0,00 4,86 4,86 4,97 3,95 4,97 0,00 1,22 0,00 4,97 2,61 0,00 0,00 1,78

REC 4,85 4,86 0,00 4,85 4,86 4,96 3,95 4,97 1,87 1,22 0,00 4,96 2,61 0,00 0,16 2,35

Ref.no.

Mode 12345678 12345

Stop 0,01 0,01 0,01 0,01 4,59 4,69 4,95 4,84 0,00 0,00 0,00 4,95 4,96

Play 0,01 0,01 0,01 0,01 4,57 4,69 4,95 4,83 0,00 0,00 0,00 4,95 4,96

REC 0,01 0,01 0,01 0,01 4,58 4,69 4,95 4,83 0,00 0,00 0,00 4,95 4,96

Ref.no.

Mode 12345 123456

Stop 2,35 3,27 0,00 0,00 0,00 1,20 0,01 4,92 5,83 0,01 4,99

Play 2,35 3,27 0,00 0,00 0,00 1,20 0,01 4,92 5,83 0,01 4,99

REC 2,35 3,27 0,00 0,00 0,00 1,20 0,01 4,92 5,83 0,02 4,99

Ref.no.

Mode 12345678 12345678

Stop 4,60 3,31 3,31 0,02 3,31 3,31 4,63 10,53 10,53 4,99 4,99 0,02 3,31 3,31 3,31 12,26

Play 4,60 3,31 3,31 0,02 3,31 3,31 4,63 10,53 10,53 4,99 4,99 0,02 3,31 3,31 3,31 12,26

REC 4,60 3,31 3,31 0,02 3,31 3,31 4,63 10,53 10,53 4,99 4,99 0,02 3,31 3,31 3,31 12,26

IC45002 IC45003

IC45001

IC37502

IC35005

IC37501

IC37508

IC37505

DMR-EH80VEG / DMR-EH80VEB

Ref.No.

Mode 12345678910111213141516

Stop 20,71 6,05 6,05 6,05 12,44 12,44 12,44 0 0 0 0,02 0,02 2,57 6,08 5,06 4,95

Play 20,71 6,05 6,05 6,05 12,44 12,44 12,44 0 0 0 0,02 0,02 2,57 6,08 5,06 4,95

Rec. 20,71 6,05 6,05 6,05 12,44 12,44 12,44 0 0 0 0,02 0,02 2,57 6,08 5,06 4,95

Ref.No.

Mode 1234 123

Stop 5,07 0 0,01 0 6,09 0 2,57

Play 5,07 0 0,01 0 6,09 0 2,57

Rec. 5,07 0 0,01 0 6,09 0 2,57

Ref.no.

Mode EBCEBCEBCEBCEBCEBCEBC

Stop 1,56 2,19 5,02 2,73 2,10 0,00 2,13 1,48 0,00 2,10 2,71 4,89 4,50 0,00 0,00 0,00 0,00 4,50 4,50 4,89 4,50

Play 1,56 2,19 5,02 2,75 2,12 0,00 2,02 1,36 0,00 1,87 2,49 4,89 4,50 0,00 0,00 0,00 0,00 4,50 4,50 4,89 4,50

Rec 1,56 2,20 5,02 2,50 1,86 0,00 2,13 1,48 0,00 2,09 2,72 4,88 4,50 0,00 0,00 0,00 0,00 4,50 4,50 4,89 4,50

Ref.no.

Mode EBCEBCEBCEBCEBCEBCEBC

Stop 4,50 4,90 4,50 0,00 0,74 0,01 0,00 0,74 0,00 0,00 0,36 0,37 5,60 5,60 0,02 11,97 11,25 11,92 12,01 11,28 11,94

Play 4,50 4,90 4,50 0,00 0,74 0,01 0,00 0,74 0,00 0,00 0,34 0,35 5,58 5,58 0,32 11,97 11,25 11,92 12,00 11,28 11,95

Rec 4,50 4,90 4,50 0,00 -7,36 0,00 0,00 -7,33 0,00 0,00 0,37 1,12 5,56 2,91 1,29 11,97 11,25 11,92 12,00 11,27 11,94

Ref.no.

Mode EBCEBCEBCEBCEBCEBCEBC

Stop 1,64 0,99 0,00 0,90 1,62 4,91 2,65 3,24 4,91 1,65 0,99 0,00 4,94 5,69 5,63 0,00 0,00 11,94 0,00 0,00 0,00

Play 1,64 0,99 0,00 0,97 1,60 4,91 2,62 3,28 4,91 1,64 0,98 0,00 4,94 5,69 5,63 11,32 11,91 11,94 0,01 0,00 11,90

Rec 1,48 0,81 0,00 0,83 1,46 4,91 2,56 3,20 4,91 1,48 0,83 0,00 4,93 5,69 5,61 0,01 0,00 11,94 0,00 0,00 0,00

Ref.no.

Mode EBCEBCEBCEBCEBCEBC

Stop 0,01 0,55 0,00 0,00 0,00 4,83 0,00 0,00 11,86 0,00 0,62 0,06 0,00 0,06 0,06 1,83 1,15 0,00

Play 0,01 0,55 0,00 0,00 0,00 4,81 0,00 0,00 11,86 0,00 0,62 0,06 0,00 0,61 0,06 1,83 1,15 0,00

Rec 0,01 0,00 0,55 0,00 0,00 4,80 0,00 0,00 11,86 0,00 0,62 0,06 0,00 0,61 0,06 1,83 1,15 0,00

Ref.no.

Mode EBCEBCEBC

Stop -26,10 -26,00 4,70 0,00 0,80 11,60 0,00 -1,01 -0,96

Play -26,10 -26,00 4,70 0,00 0,96 11,74 0,00 -1,01 -0,96

Rec -26,10 -26,10 4,70 0,00 0,96 11,74 0,00 -1,01 -0,96

Ref.No.

Mode 12345671234567BEC

Stop 9,50 8,50 0,00 1,40 6,15 6,15 6,23 12,38 6,15 6,15 0,01 0,00 2,57

Play 9,50 8,50 0,00 1,40 6,15 6,15 6,23 12,38 6,15 6,15 0,01 0,00 2,57

Rec. 9,50 8,50 0,00 1,40 6,15 6,15 6,23 12,38 6,15 6,15 0,01 0,00 2,57

Ref.No.

Mode 12345678 123456

Stop 12,43 12,43 12,43 6,24 12,43 12,43 12,43 12,43 5,15 5,15 7,30 12,41 5,15 5,15

Play 12,43 12,43 12,43 6,24 12,43 12,43 12,43 12,43 5,15 5,15 7,30 12,41 5,15 5,15

Rec. 12,43 12,43 12,43 6,24 12,43 12,43 12,43 12,43 5,15 5,15 7,30 12,41 5,15 5,15

Ref.No Q15003 Q33501 Q33502 Q33503 Q33504 Q33505

Mode 123456EBCEBCEBCEBCEBC

Stop 1,60 1,60 10,85 12,43 1,60 1,60 3,78 3,41 0,06 3,27 1,66 5,03 4,45 3,82 0,06 2,22 1,66 5,03 3,80 3,42 0,06

Play 1,60 1,60 10,85 12,43 1,60 1,60 3,78 3,41 0,06 3,27 1,66 5,03 4,45 3,82 0,06 2,22 1,66 5,03 3,80 3,42 0,06

Rec. 1,60 1,60 10,85 12,43 1,60 1,60 3,78 3,41 0,06 3,27 1,66 5,03 4,45 3,82 0,06 2,22 1,66 5,03 3,80 3,42 0,06

Ref.No. Q37001 Q37002

Mode E B C E B C

Stop 6,12 6,74 12,43 5,11 5,72 12,43

Play 6,12 6,74 12,43 5,11 5,72 12,43

Rec. 6,12 6,74 12,43 5,11 5,72 12,43

P12001 P12002

Q7401 Q7403Q7402

Q7901 Q7902Q7501

Q6305 Q6401 Q6402

Q6404

Q4502

Q6103 Q6104

Q4001 Q4002 Q4003 Q4004

Q6102

Q3901 Q3902 Q3903

Q3904 Q4901

Q3501 Q3502 Q3503

Q6101

Q6403

Q3002

P11001

Q6801

Q11501 Q12001

Q15002Q15001

Q11301

DMR-EH80VEG / DMR-EH80VEB

Ref.no.

Mode EBCEBCEBCEBCEBCEBCEBC

Stop 0,00 4,87 0,00 0,00 0,00 2,11 0,00 0,00 2,19 0,00 0,00 0,00 0,00 0,00 4,46 0,00 0,00 4,95 0,00 0,00 0,00

Play 0,00 4,87 0,00 0,00 0,00 2,11 0,00 0,00 2,19 0,00 0,00 0,00 0,00 0,00 4,45 0,00 0,00 4,95 0,00 0,00 0,00

Rec 0,00 4,86 0,00 0,00 0,00 2,11 0,00 0,00 2,19 0,00 0,00 0,00 0,00 0,00 4,45 0,01 0,00 4,95 0,00 0,00 0,00

Ref.no.

Mode EBCEBCEBCEBCEBCEBCEBC

Stop 5,01 0,00 4,92 0,00 0,00 5,59 0,00 4,67 0,01 0,00 0,00 4,95 4,96 4,95 0,00 0,00 0,00 0,07 0,00 0,00 -0,90

Play 5,00 0,00 4,91 0,00 0,00 5,58 0,00 4,67 0,01 0,00 0,00 4,95 4,96 4,95 0,00 0,00 0,00 0,06 0,00 0,00 -0,08

Rec 4,98 4,84 -7,39 0,00 4,87 0,02 0,00 4,66 0,01 0,00 0,00 4,95 4,96 4,95 0,00 0,00 0,00 0,06 0,00 0,00 -0,08

Ref.no.

Mode EBCEBCEBCEBCEBCEBCEBC

Stop 0,00 0,00 0,03 0,00 0,00 0,08 4,79 0,01 4,73 0,01 4,73 0,01 0,00 4,73 0,01 0,00 4,46 0,04 0,01 0,00 4,50

Play 0,00 0,00 0,03 0,00 0,00 0,08 0,00 0,01 0,00 0,01 0,00 0,01 0,01 0,00 0,02 0,00 4,46 0,04 0,01 0,00 4,50

Rec 0,00 0,00 0,02 0,00 0,00 0,08 0,00 0,01 0,00 0,01 0,00 0,09 0,01 0,00 0,08 0,00 4,45 0,04 0,01 0,00 4,50

Ref.no. QR15001 QR15002

Mode EBCEBCEBCEBCEBCEBCE BC

Stop 0,00 4,92 0,00 11,97 11,86 4,78 36,16 0,06 36,11 36,20 0,06 36,15 0,00 0,00 4,20 0,02 4,91 0,06 0,02 0,06 4,51

Play 0,00 0,00 11,92 11,97 11,86 4,78 36,16 0,06 36,11 36,21 0,06 36,16 0,00 0,00 4,20 0,02 4,91 0,06 0,02 0,06 4,51

Rec 0,00 4,91 0,00 11,97 11,86 4,77 36,17 0,06 36,12 36,20 0,06 36,16 0,00 0,00 4,20 0,02 4,91 0,06 0,02 0,06 4,51

Ref.no. QR15003 QR15004 QR15005 QR15007 QR33701 QR35007 QR35008

Mode EBCEBCEBCEBCEBCEBCEBC

Stop 0,02 4,87 0,02 0,01 4,88 0,06 0,02 4,91 0,06 0,02 0,06 4,54 0,06 0,81 2,80 0,05 0,07 2,22 0,05 0,07 2,21

Play 0,02 4,87 0,02 0,01 4,88 0,06 0,02 4,91 0,06 0,02 0,06 4,54 0,06 0,81 2,80 0,05 0,07 2,22 0,05 0,07 2,21

Rec 0,02 4,87 0,02 0,01 4,88 0,06 0,02 4,91 0,06 0,02 0,06 4,54 0,06 0,81 2,80 0,05 0,07 2,22 0,05 0,07 2,21

Ref.no. QR37501 QR37502 QR37503 QR45001 QR45002 QR45003 QR45004

Mode EBCEBCEBCEBCEBCEBCEBC

Stop 0,06 4,93 0,07 0,06 2,28 0,08 0,06 0,07 3,34 6,02 0,06 5,95 0,05 6,00 0,06 0,05 3,33 0,06 0,05 6,00 0,06

Play 0,06 4,93 0,07 0,06 2,28 0,08 0,06 0,07 3,34 6,02 6,01 0,45 0,05 0,46 0,06 0,05 0,08 0,06 0,05 0,42 0,06

Rec 0,06 4,93 0,07 0,06 2,28 0,08 0,06 0,07 3,34 6,02 0,06 5,95 0,05 6,00 0,06 0,05 3,33 0,06 0,05 6,00 0,06

Ref.no. QR45005 QR45006 QR45007 QR45008 QR45009

Mode EBCEBCEBCEBCEBC

Stop 0,05 6,00 0,01 0,05 4,91 0,06 0,05 0,06 0,06 0,05 3,33 0,06 0,05 0,06 3,32

Play 0,05 0,42 0,07 0,05 4,91 0,06 0,05 0,06 6,01 0,05 0,08 6,01 0,05 2,36 0,08

Rec 0,05 0,42 0,06 0,05 4,91 0,06 0,05 0,06 0,06 0,05 3,33 0,06 0,05 0,07 3,33

QR6403 QR7401 QR7402QR6801

QR6402

QR7505

QR4913 QR4914

QR4501

QR4003

QR4004 QR4005 QR4904QR4902 QR4903

QR3901 QR3902

QR4905

QR3005

QR4906 QR4911 QR4912

QR4901

QR3001 QR3002 QR3003

DMR-EH80VEG / DMR-EH80VEB

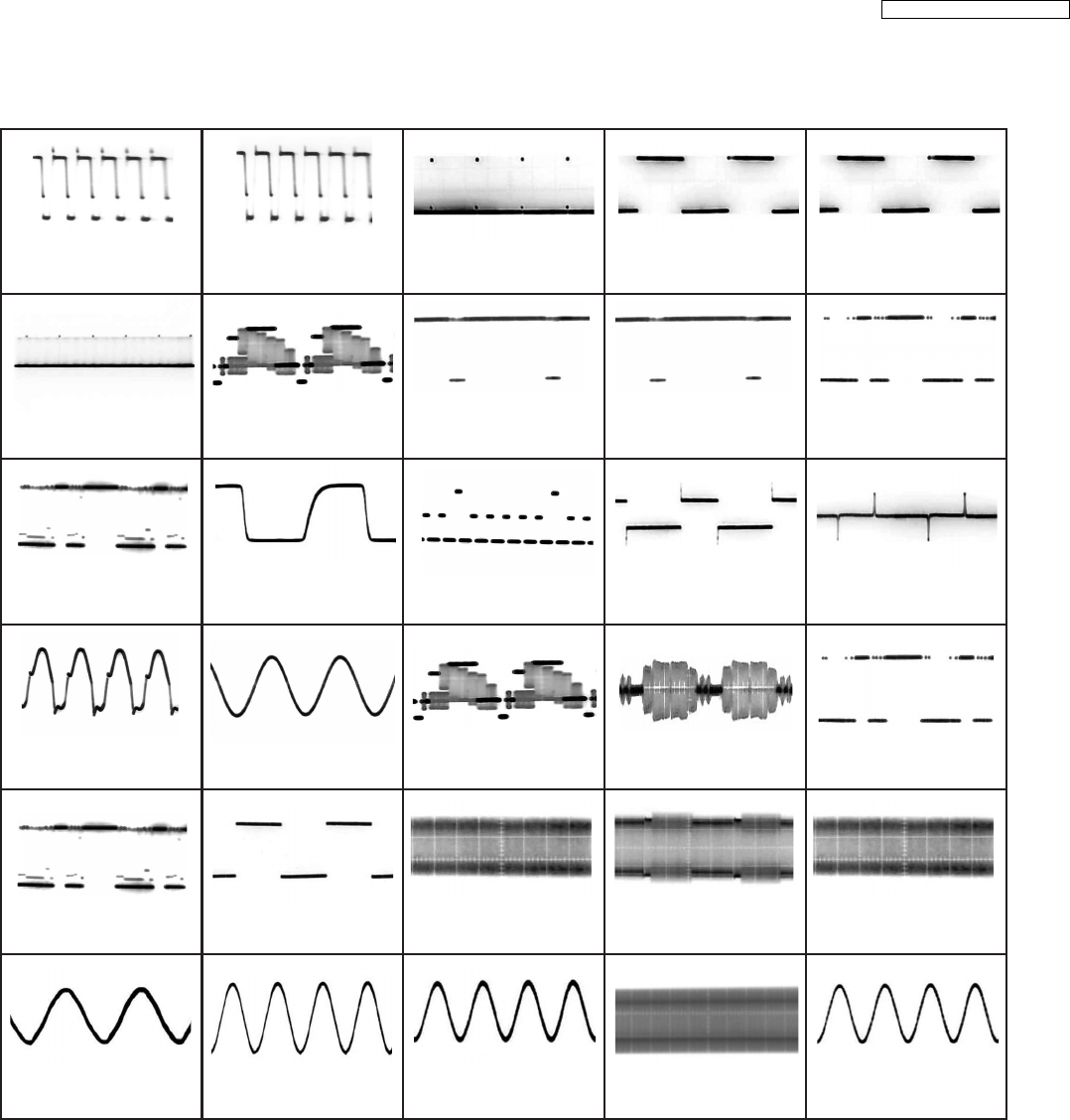

20.1. WAVEFORM CHART

NOTE:

The waveforms are measured with PAL colour bar signal.

IC6001-71 REC

5.0Vp-p (10msec.div.)

IC3001-98 REC

2.4Vp-p (1msec.div.)

IC3001-96 PLAY

5.0Vp-p (5msec.div.)

IC3001-86 REC

1.5Vp-p (5msec.div.)

IC3001-85 PLAY

1.5Vp-p (20µsec.div.)

IC6001-72 REC

5.0Vp-p (10msec.div.) IC6001-90 REC

5.0Vp-p (10msec.div.)

IC6001-94,95 REC

6.0Vp-p (10msec.div.)

IC6001-97 PLAY

4.5Vp-p (10msec.div.)

IC2501-2,4 REC

12Vp-p (5msec.div.)

IC6001-70 REC

5.0Vp-p (10msec.div.)

IC6001-68,69 REC

5.0Vp-p (10msec.div.)

IC6001-13 PAUSE

5.0Vp-p (10msec.div.)

IC6001-18 REC

5.0Vp-p (10msec.div.)

IC6001-19 REC

5.0Vp-p (10msec.div.)

IC6001-48 REC

0.5Vp-p (10msec.div.)

IC3001-87 PLAY

1.5Vp-p (20µsec.div.)

IC3001-73 REC/PLAY

5.0Vp-p (5msec.div.)

IC3001-74 REC/PLAY

5.0Vp-p (5msec.div.)

IC3001-15,17,19 REC

1.1Vp-p (20µsec.div.)

IC3001-80 REC/PLAY

0.6Vp-p (10msec.div.)

IC3001-45,46 PLAY

0.5Vp-p (20µsec.div.)

IC3001-6 REC/PLAY

0.9Vp-p (0.5msec.div.)

IC6001-79,80 FF/REW

5.0Vp-p (1msec.div.)

IC6001-52 REC

2.1Vp-p (20µsec.div.)

T11101-5 STOP

50Vp-p (5µsec.div)

T11101-6 STOP

0.2Vp-p (5µsec.div)

IC4501-9,14 REC

100mVp-p (1msec.div.)

IC4501-53,57 REC/PLAY

1.9Vp-p (0.2msec.div.)

IC4501-21(TW4501) REC

1.5Vp-p (20µsec.div.)

DMR-EH80VEG / DMR-EH80VEB

21.1. DVD

INITIAL/LOGO ABBREVIATIONS

A A0~UP

ACLK

AD0~UP

ADATA

ALE

AMUTE

AREQ

ARF

ASI

ASO

ASYNC

ADDRESS

AUDIO CLOCK

ADDRESS BUS

AUDIO PES PACKET DATA

ADDRESS LATCH ENABLE

AUDIO MUTE

AUDIO PES PACKET REQUEST

AUDIO RF

SERVO AMP INVERTED INPUT

SERVO AMPOUTPUT

AUDIO WORD DISTINCTION SYNC

B BCK

BCKIN

BDO

BLKCK

BOTTOM

BYP

BYTCK

BIT CLOCK (PCM)

BIT CLOCK INPUT

BLACK DROP OUT

SUB CODE BLOCK CLOCK

CAP. FOR BOTTOM HOLD

BYPATH

BYTE CLOCK

C CAV

CBDO

CDSCK

CDSRDATA

CDRF

CDV

CHNDATA

CKSL

CLV

COFTR

CPA

CPCS

CPDT

CPUADR

CPUADT

CPUIRQ

CPRD

CPWR

CSYNCIN

CSYNCOUT

CONSTANT ANGULAR VELOCITY

CAP. BLACK DROP OUT

COMPACT DISC

CD SERIAL DATA CLOCK

CD SERIAL DATA

CD RF (EFM) SIGNAL

COMPACT DISC-VIDEO

CHANNEL DATA

SYSTEM CLOCKSELECT

CONSTANT LINEAR VELOCITY

CAP. OFF TRACK

CPU ADDRESS

CPU CHIP SELECT

CPU DATA

CPU ADDRESS LATCH

CPU ADDRESS DATA BUS

CPU INTERRUPT REQUEST

CPU READ ENABLE

CPU WRITE ENABLE

CHIPSELECT

COMPOSITE SYNC IN

COMPOSITE SYNC OUT

DDACCK

DEEMP

DEMPH

DIG0~UP

DIN

DMSRCK

DMUTE

DOUT0~UP

DRF

DRPOUT

DREQ

DRESP

DSC

DSLF

DVD

D/A CONVERTER CLOCK

DEEMPHASIS BIT ON/OFF

DEEMPHASIS SWITCHING

FL DIGIT OUTPUT

DATA INPUT

DM SERIAL DATA READ CLOCK

DIGITAL MUTE CONTROL

DROP OUT

DATAOUTPUT

DATA SLICE RF (BIAS)

DROP OUT SIGNAL

DATA REQUEST

DATA RESPONSE

DIGITAL SERVO CONTROLLER

DATA SLICE LOOP FILTER

DIGITAL VIDEO DISC

INITIAL/LOGO ABBREVIATIONS

E EC

ECR

ENCSEL

ETMCLK

ETSCLK

ERROR TORQUE CONTROL

REFERENCE

ENCODER SELECT

EXTERNAL M CLOCK (81MHz/40.5MHz)

EXTERNAL S CLOCK (54MHz)

F FBAL

FCLK

FFI

FEO

FSC

FSCK

FOCUS BALANCE

FRAME CLOCK

FOCUS ERROR

FOCUS ERROR AMP INVERTED INPUT

FOCUS ERROR AMP OUTPUT

FREQUENCY GENERATOR

FREQUENCY SUB CARRIER

FS (384 OVER SAMPLING) CLOCK

G GND COMMON GROUNDING (EARTH)

HHA0~UP

HD0~UP

HINT

HRXW

HOST ADDRESS

HOST DATA

HOST INTERRUPT

HOST READ/WRITE

I IECOUT

IPFRAG

IREF

ISEL

IEC958 FORMAT DATA OUTPUT

INTERPOLATION FLAG

I (CURRENT) REFERENCE

INTERFACE MODE SELECT

L LDON

LPC

LRCK

LASER DIODE CONTROL

LASER POWER CONTROL

L CH/R CH DISTINCTION CLOCK

M MA0~UP

MCK

MCKI

MCLK

MDATA

MDQ0~UP

MDQM

MLD

MPEG

MEMORY ADDRESS

MEMORY CLOCK

MEMORY CLOCK INPUT

MEMORY SERIAL COMMAND CLOCK

MEMORY SERIAL COMMAND DATA

MEMORY DATA INPUT/OUTPUT

MEMORY DATA I/O MASK

MEMORYSERIAL COMMAND LOAD

MOVING PICTURE EXPERTS GROUP

O ODC

OFTR

OSCI

OSCO

OSD

OPTICAL DISC CONTROLLER

OFF TRACKING

OSCILLATOR INPUT

OSCILLATOR OUTPUT

ON SCREEN DISPLAY

P P1~UP

PCD

PCK

PDVD

PEAK

PLLCLK

PLLOK

PWMCTL

PWMDA

PWMOA, B

PORT

CD TRACKING PHASE DIFFERENCE

PLL CLOCK

DVD TRACKING PHASE DIFFERENCE

CAP. FOR PEAK HOLD

CHANNEL PLL CLOCK

PLL LOCK

PWM OUTPUT CONTROL

PULSE WAVE MOTOR DRIVEA

PULSE WAVE MOTOR OUT A, B

21 ABBREVIATIONS

DMR-EH80VEG / DMR-EH80VEB

INITIAL/LOGO ABBREVIATIONS

R RE

RFENV

RFO

RSEL

RST

RSV

READ ENABLE

RF ENVELOPE

RF PHASE DIFFERENCE OUTPUT

(CD-ROM) REGISTER SELECT

RF POLARITY SELECT

RESET

RESERVE

S SBI0, 1

SBO0

SBT0, 1

SCK

SCKR

SCL

SCLK

SDA

SEG0~UP

SELCLK

SEN

SIN1, 2

SOUT1, 2

SPDI

SPDO

SPEN

SPRCLK

SPWCLK

SQCK

SQCX

SRDATA

SRMADR

SRMDT0~7

STAT

STCLK

STD0~UP

STENABLE

STSEL

STVALID

SUBC

SBCK

SUBQ

SYSCLK

SERIAL DATA INPUT

SERIAL DATA OUTPUT

SERIAL CLOCK

SERIAL DATA CLOCK

AUDIO SERIAL CLOCK RECEIVER

SERIAL CLOCK

SERIAL DATA

FL SEGMENT OUTPUT

SELECTCLOCK

SERIAL PORT ENABLE

SERIAL DATA IN

SERIAL DATA OUT

SERIAL PORT DATA INPUT

SERIAL PORT DATA OUTPUT

SERIAL PORT R/W ENABLE

SERIAL PORT READ CLOCK

SERIAL PORT WRITE CLOCK

SUB CODE Q CLOCK

SUBCODE Q DATA READ CLOCK

SERIAL DATA

SRAM ADDRESS BUS

SRAM DATA BUS 0~7

START/STOP

STATUS

STREAM DATA CLOCK

STREAM DATA

STREAM DATA INPUT ENABLE

STREAM DATA POLARITY SELECT

STREAM DATAVALIDITY

SUB CODE SERIAL

SUB CODE CLOCK

SUB CODE Q DATA

SYSTEM CLOCK

T TE

TIBAL

TID

TIN

TIP

TIS

TPSN

TPSO

TPSP

TRCRS

TRON

TRSON

TRACKING ERROR

BALANCE CONTROL

BALANCE OUTPUT 1

BALANCE INPUT

BALANCE OUTPUT 2

OP AMP INPUT

OP AMP OUTPUT

OP AMP INVERTED INPUT

TRACK CROSSSIGNAL

TRACKING ON

TRAVERSE SERVO ON

INITIAL/LOGO ABBREVIATIONS

V VBLANK

VCC

VCDCONT

VDD

VFB

VREF

VSS

V BLANKING

COLLECTOR POWER SUPPLY

VOLTAGE

VIDEO CD CONTROL (TRACKING

BALANCE)

DRAIN POWER SUPPLY VOLTAGE

VIDEO FEED BACK

VOLTAGE REFERENCE

SOURCE POWER SUPPLYVOLTAGE

WWAIT

WDCK

WEH

WSR

BUS CYCLE WAIT

WORD CLOCK

WRITE ENABLE HIGH

WORD SELECT RECEIVER

X X

XALE

XAREQ

XCDROM

XCS

XCSYNC

XDS

XHSYNCO

XHINT

XINT

XMW

XRE

XSRMCE

XSRMOE

XSRMWE

XVCS

XVDS

XVSYNCO

X´ TAL

X ADDRESS LATCH ENABLE

X AUDIO DATA REQUEST

X CD ROM CHIP SELECT

X CHIP SELECT

X COMPOSITE SYNC

X DATA STROBE

X HORIZONTAL SYNC OUTPUT

XH INTERRUPTREQUEST

X´ TAL OSCILLATOR INPUT

X INTERRUPT

X MEMORY WRITE ENABLE

X´ TAL OSCILLATOR OUTPUT

X READ ENABLE

X SRAM CHIP ENABLE

X SRAM OUTPUT ENABLE

X SRAM WRITE ENABLE

X V-DEC CHIPSELECT

X V-DEC CONTROL BUS STROBE

X VERTICAL SYNC OUTPUT

DMR-EH80VEG / DMR-EH80VEB

21.2. VHS

3-1. ABBREVIATIONS

443NT [L]

A. COMP

A. COMPO

A. D.P [L]

A. D/L [L]

A. DEF [S]

A. DEF [S] [L]

A. DUB P [L]

A. DUB [H]

A. ERASE

A. H. SW

A. HEAD [R]

A. HEAD [W]

A. IN [L]

A. IN [R]

A. MUT [H]

A. MUTE [H]

A. OUT [L]

A. OUT [R]

A. RF OUT

A/VS/S. DATA

AC ONLINE

AC. O/EE. H

AFC S C

AFC [S]

AFC. DEF

ARFC OUT

ART. V

ART. V. MM

ART. V/H/N

AT. V/H/N

ATSW/TEST/NOR/SE

AUDIO IN [L]

AUDIO IN [R]

AUDIO OUT [L]

AUDIO OUT [R]

AUDIO SELECT [H]

AUDIO. L

AUDIO. R

AV CNT

AV CTL

AV CTL/S. CLK

AV. C.M.

AVCNT/METER. R

AVSW/METER. L

B MODE. H

B.G.P

BACKUP 5V

BAND. U.E.

BANDVL. D

BI/MI [L]

4.43 NTSC L

AUDIO COMPONENT SIGNAL

AUDIO DUBBING PAUSE L

AUDIO DEFEAT

AUDIO DUBBING PAUSE L

AUDIO DUBBING H

AUDIO ERASE

AUDIO HEAD SWITCHING PULSE

AUDIO HEAD (REC)

AUDIO HEAD (PLAY)

AUDIO INPUT (L)

AUDIO INPUT (R)

AUDIO MUTE H

AUDIO OUTPUT (L)

AUDIO OUTPUT (R)

AUDIO RF SIGNAL OUTPUT

AV SW/SERIAL DATA

AC ONLINE

AC ONLINE/EE H

AFC S CURVE

AFC DEFEAT

AUDIO RF SIGNAL OUTPUT

ARTIFICIAL VERTICAL SYNC SIGNAL

ARTIFICIAL VERTICAL SYNC

SIGNAL MONO MULTI

ARTIFICIAL VERTICAL SYNC

SIGNAL H/NORMAL

ARTIFICIAL VERTICAL SYNC SIGNAL

TEST/NORMAL/SERVICE

AUDIO INPUT (L)

AUDIO INPUT (R)

AUDIO OUTPUT (L)

AUDIO OUTPUT (R)

AUDIO SELECT H

AUDIO (L)

AUDIO (R)

AV CONTROL

AV CONTROL/SERIAL CLOCK

AV CONTROL MODE

AV CONTROL/LEVEL METER (R)

AV SW/LEVEL METER (L)

B MODE H

BURST GATE PULSE

BACK UP 5V

BAND U

BAND VL

BILINGUAL/MIX L

BIL

BIL [L]

BIL. [H]

BIL/M1 [L]

BS CLOCK

BS DATA

BS LCH IN

BS MIX [H]

BS MON [H]

BS MONI [H]

BS RCH IN

BS VIDEO

BS VIDEO/BS1

BS [H]

BS. LEVEL

BS. M [H]

BS/VTR [H]

BUS CLK

BUS LSN

BUS TLK

BUZZER

CAP EC

CAP M GND

CAP. ET

CAP. FG1

CAP. FG2

CAS. SW

CCN

CCP

CHM

CHP

CINEM [L]

CINEMA [L]

CINEMA/MIX

CKL

CKS

CLK

CLK (C.G)

CLOCK. IN

CLP

COL/B/W/NOR

COLOR [H]

CONV

CTL GND

CTL HEAD [

]

CTL HEAD [

−

]

CTL [

]

CTL [

−

]

CUE BIAS

CURRENT LIM

CYL ET

BILINGUAL

BILINGUAL L

BILINGUAL H

BILINGUAL L

BS CLOCK

BS DATA

BS L CHANNEL INPUT

BS MIX H

BS MONITOR H

BS R CHANNEL INPUT

BS VIDEO SIGNAL

BS H

BS LEVEL

BS MONITOR H

BS/VTR H

BUS CLOCK

BUS LISTEN

BUS TALK

BUZZER

CAPSTAN TORQUE CONTROL

CAPSTAN MOTOR GND

CAPSTAN TORQUE CONTROL

CAPSTAN FG1 PULSE

CAPSTAN FG2 PULSE

CASSETTE SW

PLAYBACK CONTROL SIGNAL (

−

)

PLAYBACK CONTROL SIGNAL (

)

CONTROL SIGNAL (

)

CONTROL SIGNAL (

−

)

CINEMA L

CINEMA/MIX

RATCH LOCK

SHIFT LOCK

CLOCK

CLOCK INPUT

CLAMP

COLOUR/BLACK & WHITE/NORMAL

COLOUR H

CONVERTOR

CHIP SELECT

CONTROL GND

CONTROL HEAD (

)

CONTROL HEAD (

−

)

CONTROL HEAD (

)

CONTROL HEAD (

−

)

CUE BIAS

CURRENT LIMMITER

CYLINDER TORQUE CONTROL

DMR-EH80VEG / DMR-EH80VEB

CYL GND

D.F.M. REC [H]

D. FM REC [L]

D. GND

D. REC [H]

D4/S. LED

D4/STILLED

DAC [CLK]

DAC/FSCS

DAREC [H]

DATA

DECODER [L]

DECODER [R]

DEW

DEW SNS

DFMRE [H]

E. REC 5V

ECR

EDT TRIG [L]

EDIT [H]

EE [H]

EE [H]/INS [M]

EE. VV. TR

EJECT. PO

EJECT/VDET

ENV. SEL

ENVE. OUT

ENVE. SEL

ENV SELECT

EP [H]

EP/LP [H]

EP/LP/SP

EP/SS [H]

EPROMCS

EX. REC 5V

FF/REW [L]

FG1 IN

FG2 IN

FILTER ADJUSTMENT

FLY ERASE [H]

FLY ON [H]

FLY. E [H]

FM MUT [H]

FM MUTE [H]

FM OUT [L]

FM OUT [R]

FM PACK OUT [L]

FM PACK OUT [R]

FM/BS SEL [L]

FM/BS SEL [R]

FS. CLK

FUL. E [H]

FULL. E [H]

CYLINDER GND

DELAIED FM RECORDING H

DELAIED FM RECORDING L

DIGITAL GND

DELAYED RECORDING H

D4/STILL LED

TUNER DAC (CLOCK)

TUNER DAC/FS CHIP SELECT

DELAYED AUDIO RECORDING

DATA

DECODER (L)

DECODER (R)

DEW

DEW SENSOR

DELAYED FM AUDIO RECORDING

EXCEPT RECORDING 5V

ERROR TORQUE CONTROL

REFERENCE VOLTAGE

EDIT TRIGGER L

EDIT H

EE H

EE H/INSERT M

EE/VV/TRICK PLAY

EJECT POSITION

EJECT/REVERSE SLOW LOCK

ENVELOPE SELECT

ENVELOPE OUTPUT

ENVELOPE SELECT

LP H

LP/SP

LP/SLOW/STILL/STOP H

EPROM CHIP SELECT

EXCEPT RECORDING 5V

FIRST FORWARD/REWIND L

FG1 PULSE INPUT

FG2 PULSE INPUT

FILTER ADJUSTMENT

FLYING ERASE HEAD ON H

FM AUDIO MUTE H

FM OUTPUT (L)

FM OUTPUT (R)

FM PACK OUTPUT (L)

FM PACK OUTPUT (R)

FM/BS SELECT (L)

FM/BS SELECT (R)

FS CLOCK

FULL ERASE HEAD ON H

FULL. E. 12V

GND [A]

GND [TU]

GND/N. SW. 12V

H. SYNC

H. AMP. SW

H. P <R>

H. P <L>

H. P GND

H. P OUT [L]

H. P OUT [R]

H. SW

HEAD PHONE [L]

HEAD PHONE [R]

HEAD SW

HEATER [

]

HEATER [

−

]

HSS

HTR [

]

HTR [

−

]

I RFE

ICL

IN SELA1

IN SELA2

IN SELA3

INS L/R [L]

INS. [H]

INSEL A1

INSEL A2

INSERT

INSERT [H]

IO CS

JOG1

JOG S3 LED/FOWRD

JOG/F. LED

JSB [H]

JST. CLCK

JST. CLK

JST. CLOCK

L. OUT

L. CH [H]

L. CH [L]

LED (MAIN)

LED (STEREO)

LED (SUB)

LED CKL

LED CKS

LED DATA

LINE IN 1 [L]

LINE IN 1 [R]

LINE IN 2 [L]

LINE IN 2 [R]

LINE IN V

LINE IN [L]

FULL ERASE 12V

GND (ANALOG)

GND (TUNER)

GND/NON SW 12V

HORIZONTAL SYNC

HEAD AMP SW PULSE

HEAD PHONE (R)

HEAD PHONE (L)

HEAD PHONE GND

HEAD PHONE OUTPUT (L)

HEAD PHONE OUTPUT (R)

HEAD SW PULSE

HEAD PHONE (L)

HEAD PHONE (R)

HEAD SW

HEATER (

)

HEATER (

−

)

HORIZONTAL SYNC SIGNAL

HEATER (

)

HEATER (

−

)

REFERENCE CURRENT

CONTROL AGC CIRCUIT

INTERMEDIATE FREQUENCY

INPUT SELECT A1 POSITION

INPUT SELECT A2 POSITION

INPUT SELECT A3 POSITION

INSERT Lch/Rch L

INSERT H

INPUT SELECT A1 POSITION

INPUT SELECT A2 POSITION

INSERT

INSERT H

INPUT/OUTPUT CHIP SELECT

JOG1

JOG LED/FORWARD LED

JSB H

JUST CLOCK

Lch OUTPUT

Lch H

Lch L

LED (MAIN)

LED (STEREO)

LED (SUB)

LED SERIAL CLOCK

LED SERIAL DATA

LINE INPUT 1 (L)

LINE INPUT 1 (R)

LINE INPUT 2 (L)

LINE INPUT 2 (R)

LINE INPUT VIDEO

LINE INPUT (L)

DMR-EH80VEG / DMR-EH80VEB

LINE IN [R]

LINE OUT [L]

LINE OUT [R]

LP [H]

LPTRI [L]

Lch/A. DUB

M GND

M REG

MAIN OUT

MAIN [L]

MAIN/MONO

MAX IN

MES [H]

MESE [H]

MESE [L]

METER 5V

METER [L]

METER [R]

METER. L/AVS

METER. R/AVC

MI/BI [L]

MIC GND

MIC IN

MIC IN [L]

MIC IN [R]

MIC [H]

MIX [H]

MIX [H]/CINEMA [L]

MIX/CINE

MIX/CINEMA [L]

MN. H/M. L

MN. H/MAI. L

MN2/MES. L

MODE SEL

MODE SW

MODE. S. IN

MODE. S. OUT

MONO [H]

MONO [H]/MAIN [L]

MONO2 [L]

MONO2/MESE [FM(L)]

MOTOR GND

MUTE

N. A. REC [L]

N. SW 12V

N. SW. 5. DET

NICAM

NICAM [L]

NOL [H]

NOR/SOFT [H]

NORMAL [H]

NR BIAS

NTSC [L]

OCH

OUT

LINE INPUT (R)

LINE OUTPUT (L)

LINE OUTPUT (R)

LP H

LP TRICK PLAY L

Lch/AUDIO DUBBING

MOTOR GND

MOTOR REGULATOR

MAIN OUTPUT

MAIN L

MAIN/MONAURAL

MAXIMAM INPUT

MESECAM H

MESECAM L

LEVEL METER 5V

LEVEL METER (L)

LEVEL METER (R)

LEVEL METER (L)

LEVEL METER (R)

MIX H/BILIGUAL

MIC GND

MIC INPUT

MIC INPUT (L)

MIC INPUT (R)

MIC H

MIX H

MIX H/CINEMA SOUND L

MONAURAL H/MAIN L

MONAURAL 2/MESECAM L

AUDIO MODE SELECT

AUDIO MODE SW

AUDIO MODE SELECT INPUT

AUDIO MODE SELECT OUTPUT

MONAURAL H

MONAURAL H/MAIN L

MONAURAL 2

MONAURAL 2/MESECAM (FM L)

MOTOR GND

MUTE

NORMAL AUDIO RECORDING

NON SW 12V

NON SW 5V DETECT

NICAM

NICAM L

PAL

/4.43 NTSC

/3.58 NTSC

NORMAL/SOFT TAPE PLAY H

NORMAL H

NR BIAS

NTSC L

CONTROL AGC CIRCUIT

OUTPUT

P-OFF [H]

P-OFF [L]

P. FAIL

P. OFF [H]

P. OFF [L]

PAL [H]

PAL [L]/NTSC [H]

PB ADJ OUT

PB OUT

PB. H

PFG

PHOTSN +B

PICT. CNT

PLAY LED/RVS LED

PLAY. PO

PLAY/R. LED

PLY/DEW

POWER OFF [L]

PREROLL [H]

PWRFAIL

R. CH [H]

R. CH [L]

R. ST

R/S/F

RCH [H]

REC 12V

REC CHROMA

REC H

REC IN

REC OUT [L]

REC START

REC VR [C]

REC VR [L]

REC VR [R]

REC Y

REC [H]

REC. C

REC. Y

REC/EE CTL

REEL-T

REEL-S

REGULATOR FILTER

RESET

REV M F/R

REV M V1

REV M V2

REV MOTOR F/R

REV MOTOR V1

REV MOTOR V2

REV MOTOR [

]

REV MOTOR [

−

]

REV. M. GND

RF. CHROMA

POWER OFF H

POWER OFF L

POWER FAILURE DETECT

POWER OFF H

POWER OFF L

PAL H

PAL L/NTSC H

PLAYBACK ADJUST OUTPUT

PLAYBACK OUTPUT

PLAYBACK H

PG/FG

PHOTO SENSOR +B

PICTURE CONTROL

PLAY LED/REVERSE LED

PLAY POSITION

PLAY LED/REVERSE LED

PLAY/DEW H

POWER OFF L

PREROLL H

POWER FAILURE DETECT

Rch H

Rch L

RESET

REVERSE

/STOP

/FORWARD

Rch H

RECORDING 12V

RECORDING CHROMINANCE SIGNAL

RECORDING H

RECORDING INPUT

RECORDING OUTPUT L

RECORDING START

RECORDING VOLUME (COMMON)

RECORDING VOLUME (L)

RECORDING VOLUME (R)

RECORDING LUMINANCE SIGNAL

RECORDING H

RECORDING CHROMINANCE SIGNAL

RECORDING LUMINANCE SIGNAL

RECORDING/EE CONTROL

REEL PULSE (TAKE-UP)

REEL PULSE (SUPPLY)

REGULATOR FILTER

RESET

REVIEW MOTOR

FORWARD/REVERSE

REVIEW MOTOR V1

REVIEW MOTOR V2

REVIEW MOTOR

FORWARD/REVERSE

REVIEW MOTOR V1

REVIEW MOTOR V2

REVIEW MOTOR (

)

REVIEW MOTOR (

)

REVIEW MOTOR GND

RF CHROMINANCE SIGNAL

DMR-EH80VEG / DMR-EH80VEB

RF OUT

RF Y

RF. Y. IN

RF. Y. OUT

ROTAR. SW

ROTARY

RST

RST [L]

Rch/INST

S IN

S OUT

S-PHOTO

S-RL. PLS

S. CLK

S. CLK/AV

S. DATA

S. DATA/A

S. PHOTO

S. TAB [L]

S/P/N

SC IN

SC OUT

SCK SELECT

SEL OUT [L]

SEL OUT [R]

SHUTTLE 1

SIF

SLMUT [H]

SLNID [

]

SLNID [

−

]

SLW TR. MM

SLW TR. REF

SNS. GND

SOFT [H]

SOFT [H]/NORMAL

SOLENOID ON [L]

SP [H]

SP/L/SLP

SSS [L]

STEREO LED

STEREO [H]

STEREO [L]

STOP. PO

STOP/5V

STOP1/TAPE SEL

STOP1/PAL:ST

STOP2. PO

STOP2/S-TAB

STREO [H]

SUB BIAS

SUB. SW

SVHS CAS [L]

SW. 5. DET

SYNC [L]

RF OUTPUT

RF LUMINANCE SIGNAL

RF LUMINANCE SIGNAL INPUT

RF LUMINANCE SIGNAL OUTPUT

ROTARY SW

RESET

RESET L

Rch/INSERT

SERIAL DATA INPUT

SERIAL DATA OUTPUT

SUPPLY PHOTO TRANSISTOR

SUPPLY REEL PULSE

SERIAL CLOCK

SERIAL CLOCK/AV

SERIAL DATA

SUPPLY PHOTO TRANSISTOR

SAFETY TAB SW ON L

SECAM/PAL/NTSC

SERIAL CLOCK INPUT

SERIAL CLOCK OUTPUT

SERIAL CLOCK SELECT

SELECT OUTPUT (L)

SELECT OUTPUT (R)

SHUTTLE 1

SOUND INTERMEDIATE FREQUENCY

INPUT SELECT MUTE H

SOLENOID (

)

SOLENOID (

−

)

SLOW TRACKING MONO MULTI

SLOW TRACKING REFERENCE

VOLTAGE

SENSOR GND

SOFT TAPE PLAY H

SOFT TAPE PLAY H/NORMAL H

SOLENOID ON L

SP H

SP/LP

SLOW/STILL/STOP

STEREO LED

STEREO H

STEREO L

STOP POSITION

STOP POSITION/5V

STOP1 POSITION/TAPE SELECT

STOP1 POSITION/PAL

STOP 2 POSITION

STOP 2 POSITION/SAFETY TAB SW

STEREO H

SUB BIAS

SUB SW

S-VHS CASSETTE L

SW 5V DETECT

SYNC L

SYSCON 5V

SYSTEM

T-PHOTO

T-RL. PLS

T. BUSCLK

T. BUSLSN

T. BUSTLK

T. END [L]

T. PHOTO

TAPE END [L]

TAPE END [L]/CAM

TEST

TPZ

TRIC [L]

TRICK [L]

TRK. ENV

TU. AUDIO

TU. GND

TU. V. IN

TU. VIDEO

TUN NOR IN

TUN R

TUN. AUDIO IN

TUNER 12V

TUNER L

TUNER V IN

TUNER [L]

TUNER [N]

TUNER [R]

TUNER. 12

TUOFF [H]

TV. AUDIO

TV/VTR

TXTON [L]

U. REG45V

UNREG

UNREG19V

V. REF

V. EE [H]

V. EE [L]

VCO REF

VD. IN

VD. OUT

VIDEO EE [L]

VIDEO IN

VIDEO OUT

VM DOWN [L]

VSS

VTR [H]

VTR. 12V

X IN

X OUT

SYSTEM CONTROL 5V

SYSTEM SW

TAKE-UP PHOTO TRANSISTOR

TAKE-UP REEL PULSE

TIMER BUS CLOCK

TIMER BUS LISTEN

TIMER BUS TALK

TAPE END L

TAKE-UP PHOTO TRANSISTOR

TAPE END L

TAPE END L/CAMERA PAUSE

TEST MODE

TRAPEZOIDAL WAVE CIRCUIT

TRIC PLAY L

AUTO TRACKING ENVELOPE DETECT

TUNER AUDIO

TUNER GND

TUNER VIDEO SIGNAL INPUT

TUNER VIDEO

TUNER NORMAL INPUT

TUNER AUDIO (R)

TUNER AUDIO INPUT

TUNER 12V

TUNER AUDIO (L)

TUNER VIDEO SIGNAL INPUT

TUNER AUDIO (L)

TUNER AUDIO (NORMAL)

TUNER AUDIO (R)

TUNER 12V

TUNER OFF H

TV AUDIO

TV/VTR

TEXT ON L

UNREGULATOR 45V

UNREGULATOR

UNREGULATOR 19V

REFERENCE VOLTAGE

VIDEO EE H

VIDEO EE L

REFERENCE OSCILLATER

VIDEO SIGNAL INPUT

VIDEO SIGNAL OUTPUT

VIDEO EE L

VIDEO SIGNAL INPUT

VIDEO SIGNAL OUTPUT

MOTOR VOLTAGE

MOTOR VOLTAGE DOWN L

VERTICAL SYNC SIGNAL

VTR H

VTR 12V

OSCILLATOR INPUT

OSCILLATOR OUTPUT

DMR-EH80VEG / DMR-EH80VEB

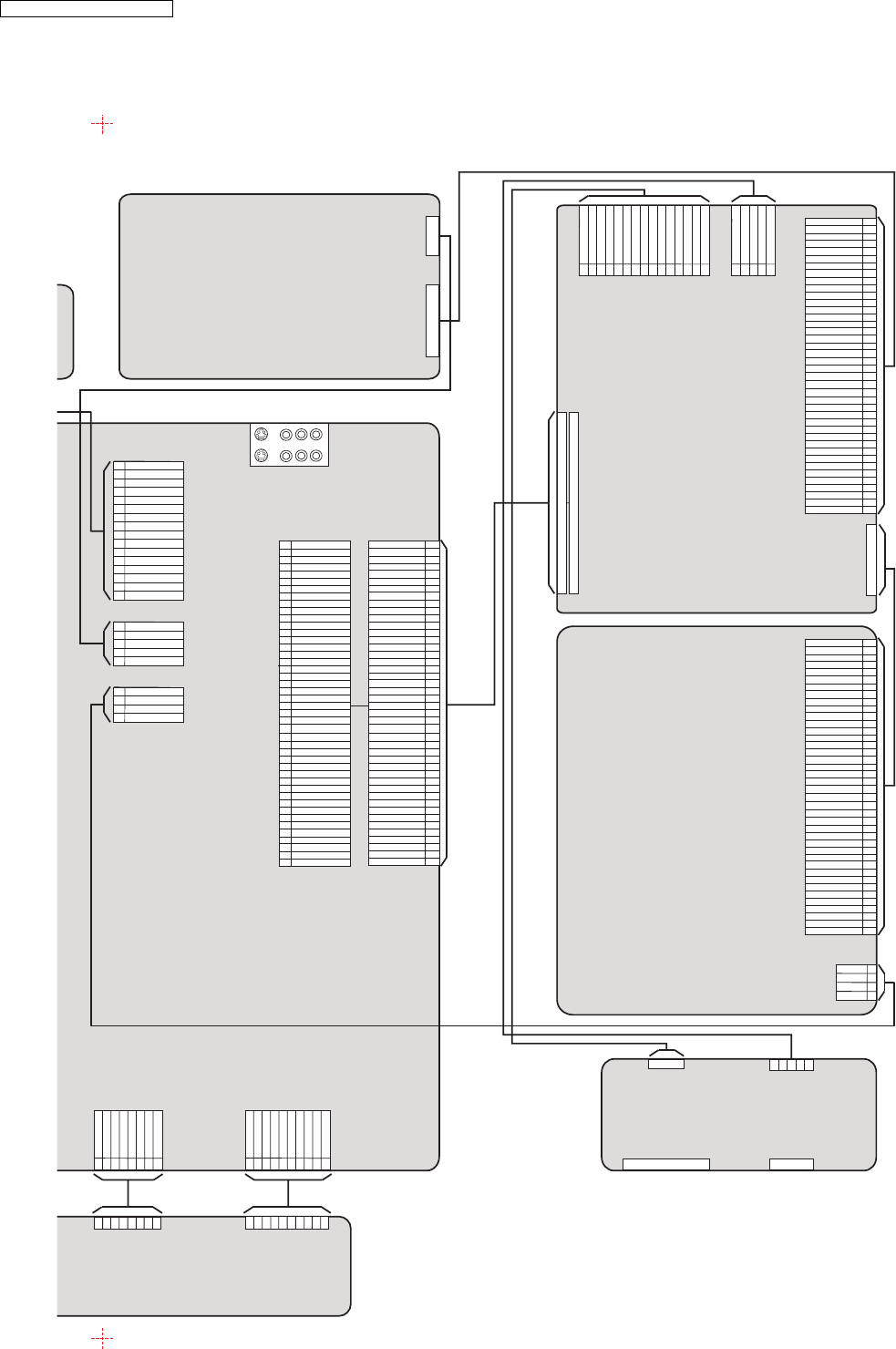

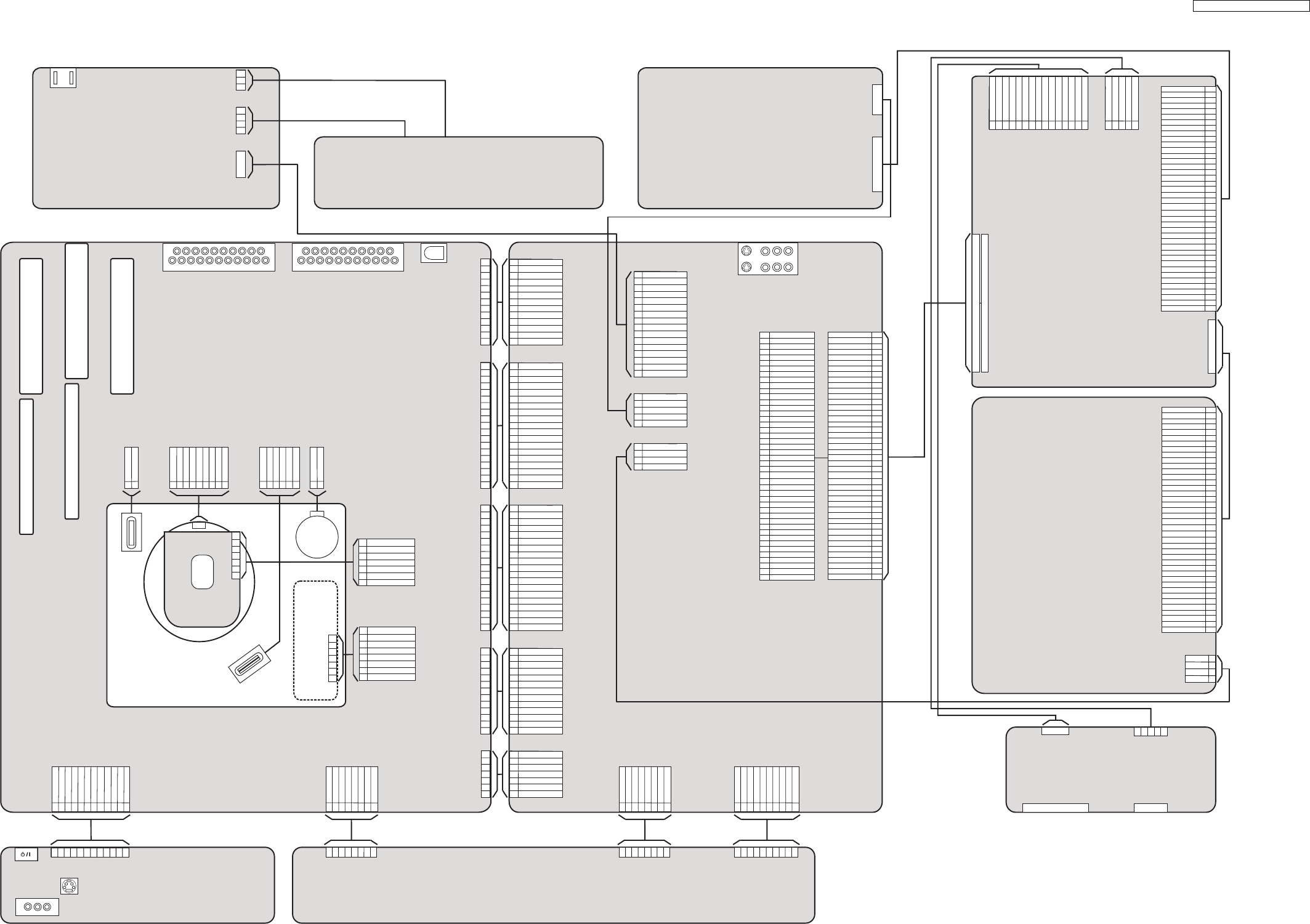

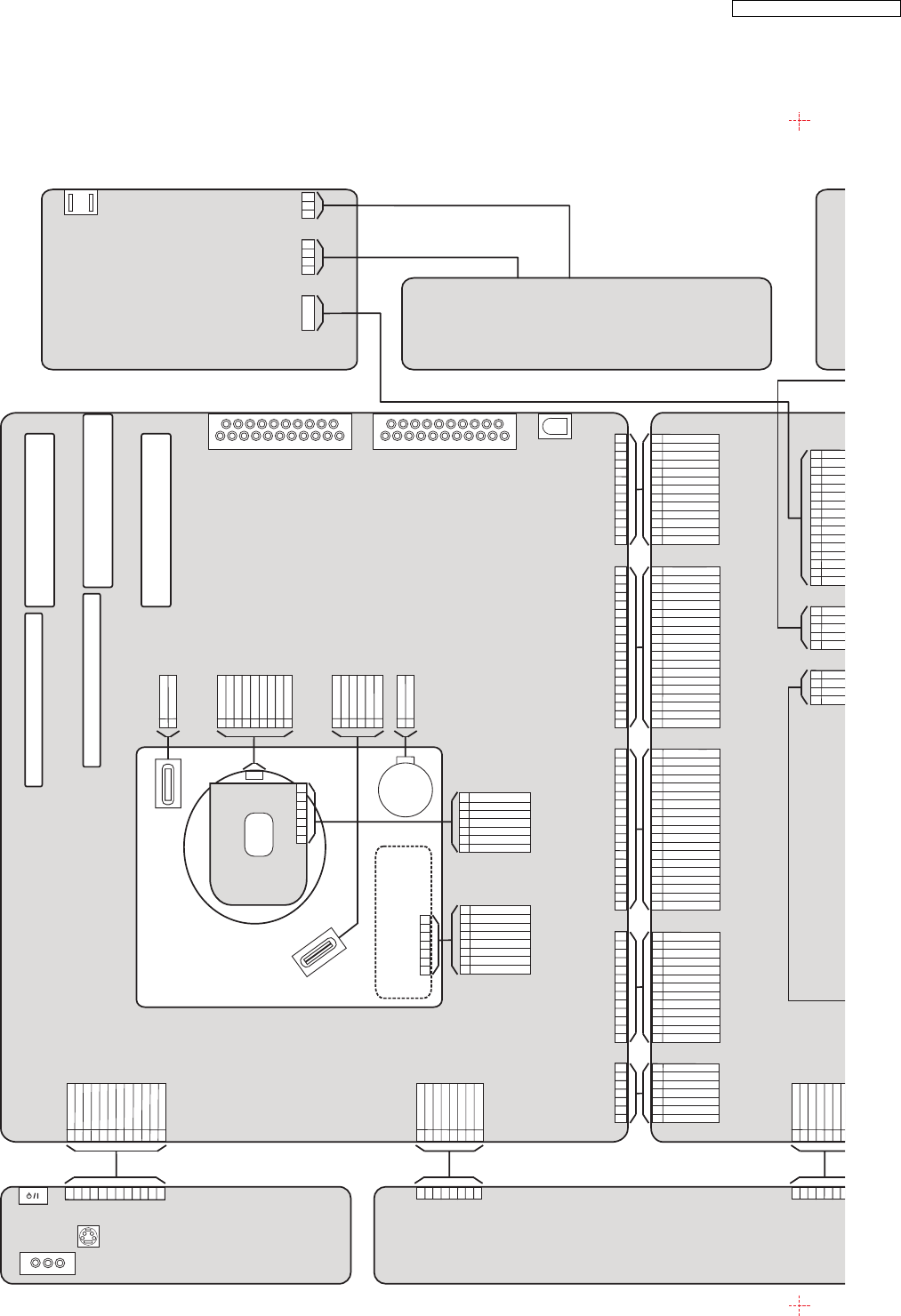

22 INTERCONNECTION DIAGRAM

DMR-EH80VEG

DMR-EH80VEB

INTERCONNECTION DIAGRAM

MAIN P.C.B.

TU7402

DVD TUNER

TU7403

RF CONVERTER

TU7401

VCR TUNER

PK7403

PK7404

NICAM DVD

PK7402

PK7401

NICAM VCR

(SYSCON / SERVO / TIMER)

DIGITAL I/F P.C.B.

VCR MECHANISM

CYLINDER

STATOR PCB

CAPSTAN

PCB

P4001

FULL E

P5001

A COM

L EP R

SP COM

SP R

SP L

LEPL

LEPCOM

P4002

CTL HEAD [+]

CTL HEAD [-]

A HEAD [R]

A HEAD [W]

N A GND

A E IN

P1531

LOADING M [-]

LOADING M [+]

P2901

PG+

PG-

CAP VM

GND

FG1

COM

GND[FG]

CAP R/F

M GND

P0201

P2501

P2571

DVD RAM DRIVE

SD CARD / DV IN P.C.B.

FRONT JACK P.C.B. FL DRIVE P.C.B.

05 08

06 07

07 06

08 05

09 04

04 09

02 11

03 10

PS6002

PP4600

01 12

KEY 1

5V[AD]

VIDEO IN2

KEY 2

L2 IN[L]

L2 SW

L2 IN[R]

CPN C IN2

GND

CPN Y IN2

GND

JK4600

JK3802

M GND

GND

12V

P101

P9106

53 BSON

DGND

D5V

COUT_DM

BILING_L

DGND

ANA5V

YOUT_DM

DGND

ANA3R3V_A

MIX_ROUT_DM

STEREO_L

MIX_LOUT_DM

ANA3R3V_B

AUGND

IECOUT

D1R5V

AUGND

CPN_CIN_DM

A_DEF_MUTE_H

D1R5V

AADC_L

V_YIN_DM

P_OFF_L

D1R5V

AUGND

DGND

EPG_ON_H

D1R5V_B

AUGND

RGB/CPS_VIN

NET_PON_H

CSYNC_IN

2AADC_R

DGND

HIFEBL

D1R5V

2AADC_L

B_IN

XSH_RES

D3R3V

VREF

DGND

HIFRDY

D3R3V

AU5V

G_IN

XFWE

D3R3V

XD_MUTE_L

DGND

BOOT_REQ

D3R3V

ITA2M

R_IN

XMPREQ

PRGSEL

ITM2A

DGND

SBMTP

SBMTM

X_SW_5R8V

UARTP2M

BPBOUT_DM

XINTM

X_SW_5R8V

UARTM2P

DGND

SCLK

X_SW_5R8V

SCURVE1/I2C3CK

GPYOUT_DM

XINTP

NET4R4V

SCURVE0/I2C3DT

DGND

I2C5CK

NET4R4V

I2C5DT

RPROUT_DM

DGND

D1R5V

AADC_R

DGND

PS37502

05 05

06 06

07 07

04 04

02 02

03 03

PP7501

01 01

FL_CS/LED3

FL_RST

GND

FL_6V

FL_CLK/LED1

FL_DATA/LED2

AD5

KEY_IN3

KEY_IN2

KEY_IN1

PP7503 PP7502

F-

GND

F+

GND

LED4

GND

LED5

FL_CLK/LED1

LED6

GND

LED7

FL_DATA/LED2

GND

FL_CS/LED3

GND

PS6001 PS37501

JK3902JK3901 JK4901

HARD DISC DRIVE

FAN

P6001

GND

AV2_R_IN

AV2_B_IN

I2C3_DT/SW2

I2C3_CK

GND

VREF

PS5V

IECOUT

X_SW12V

X_SW5R8V

P9101

JK35001 JK73701

P6002

BPBOUT_DM

RPROUT_DM

----

DGND

AADC_R

AADC_L

GPYOUT_DM

GND

YOUT_DM

GND

COUT_DM

GND

V_YIN_DM

GND

CPNCIN_DM

GND

MGND

XSW_17V

P9102

FANLOCK

FANDCOUT1

FANDCOUT2

P_SAVE_L

DR_GND

GND

X_SW12V

DR5V

X_SW5R8V

DR_GND

X_SW5R8V

DR_GND

DR12V

X_SW17V

DR12V

P15001

P15002

P3203

FFC 40pin

P3202

FFC 40pin

FP101

FFC 40pin

P66803

P66804

P66802

P15003

P6003

I2C5DT

----

SLICER_V

SYNC_DET

D_POFF/JC_PON

SWIDE/AFC

VSYNC

I2C5CK

----

AU5V

DVD_L_OUT

AU_GND

DVD_R_OUT

VTR_SIN

VTR_SCLK

GND

VTR_SOUT

---

P9103

P6004

RGB_CPSVIN

GND

AV2PB

WIDE

P50OUT

P50IN

AV2_P50_H

AV2-8

AV2_BLANK

A3_SIN

GND

COMN_MUTE

P9104

AD5V

P_SAVE

VTR_CS

----

GND

REMOCON

FL6V / SST6V

P9105

P6005

DIGITAL P.C.B.

POWER P.C.B.

P11101

P11001

P12002

POWER

P12001

87 88

DD13

DD1

DD14

DD0

DD15

GND

---------------

DMARQ

GND

/DIOW

/DIOR

GND

IORDY

/HRST

CSEL

GND

DMACK-

DD7

GND

DD8

INTRQ

DD6

---------------

DD9

DA1

DD5

----------------

DD10

DA0

DA2

DD4

/CS1FX

DD11

/CS3FX

DD3

/DASP

DD12

GND

DD2

GND

IORDY

GND

DIOR-

GND

DIOW-

GND

DMARQ

---------------

GND

DD15

DD14

DD1

DD13

GND

DD2

DASP NC1

DD12

CS1-

DD3

CS0-

DD11

DA2

DD4

DA0

DD101

---------------

DD5

DA1

DD9

DD6

---------------

DD8

INTRQ

DD7

GND

DMACK-

RESET-

CSEL

DD0

P66801

FFC 15pin

TPB-

TPB+

TPA-

GND

TPA+

PS37002

CMD

GND

3R3V

CLK

GND

DAT0

---------------

DAT1

---------------

DAT3

DAT2

P6005

DMR-EH80VEG / DMR-EH80VEB

23 BLOCK DIAGRAM

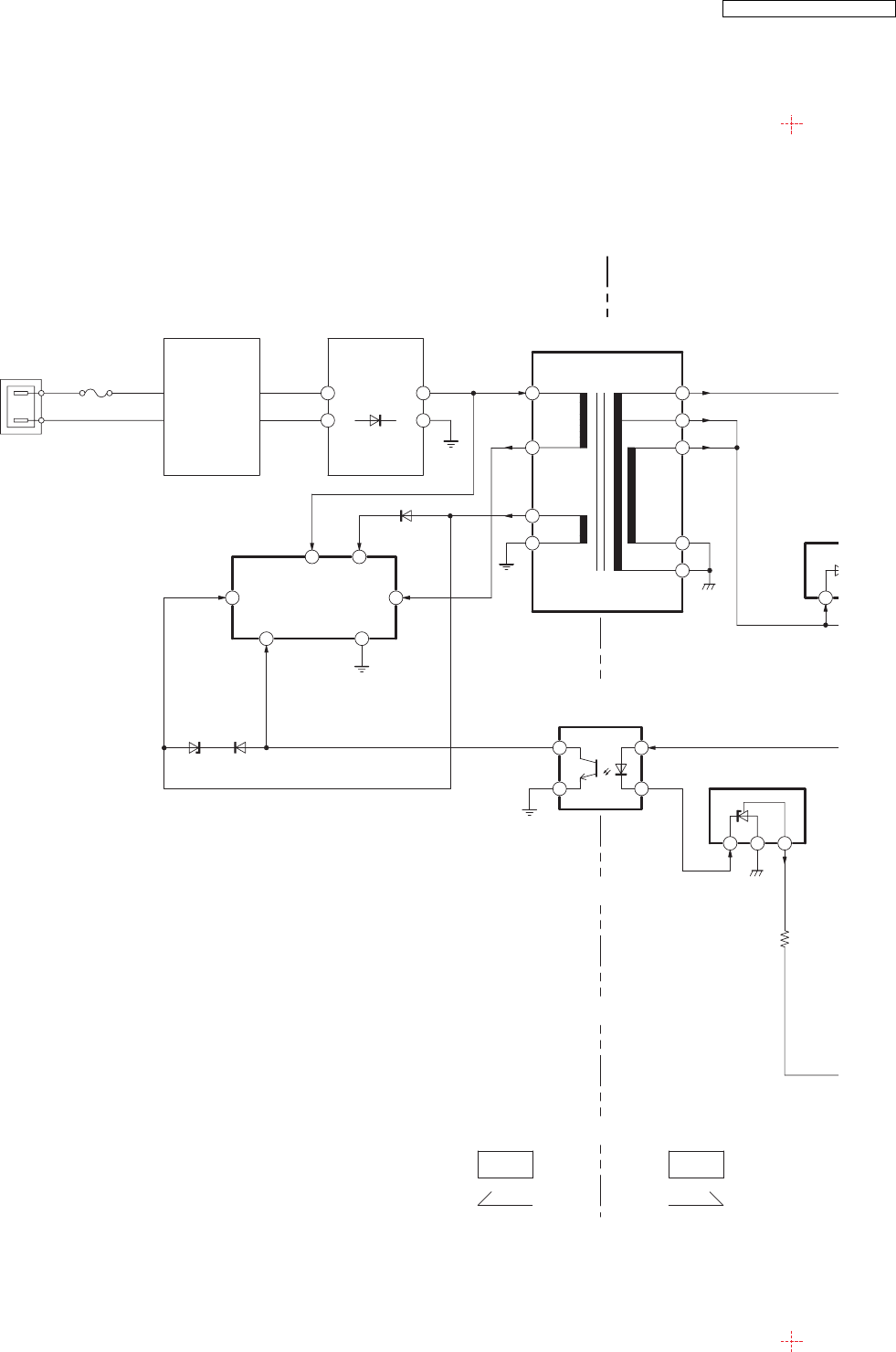

23.1. POWER SUPPLY BLOCK DIAGRAM

DMR-EH80VEG

DMR-EH80VEB

POWER SUPPLY

BLOCK DIAGRAM

XSW +12V

5,6,7

P15001P11001

XSW +5.8V

BLOCK SECTION

I/F REGULATOR

DIGITAL

2,3,4

P15001P11001

X SW +17V P11001 P15001

IP11501

IC11501

(DC-DC CONVERTER)

VIN

8CS

(REG.XSW +5.8V)

Q11501

D11403

231

RAC

(ERROR VOLTAGE DET.)

IC11301

(FEED BACK)

Q11301

VCC

VIN

7B2

GND

P1 D11401

D11402

IC11201

F/B

COLLECTOR

SW TRANSFORMER

T11101

RECTIFIER

D11101,C11103

L11102

VA11101,L11101

250V2A

F11101

ABSORBER

SURGE

AND

SUPPRESSOR

SURGE

(SWITCHING IC)

P11101

AC SOCKET

D11203

D11204D11205

FB 5

21EXT 7

HOT COLD

DMR-EH80VEG / DMR-EH80VEB

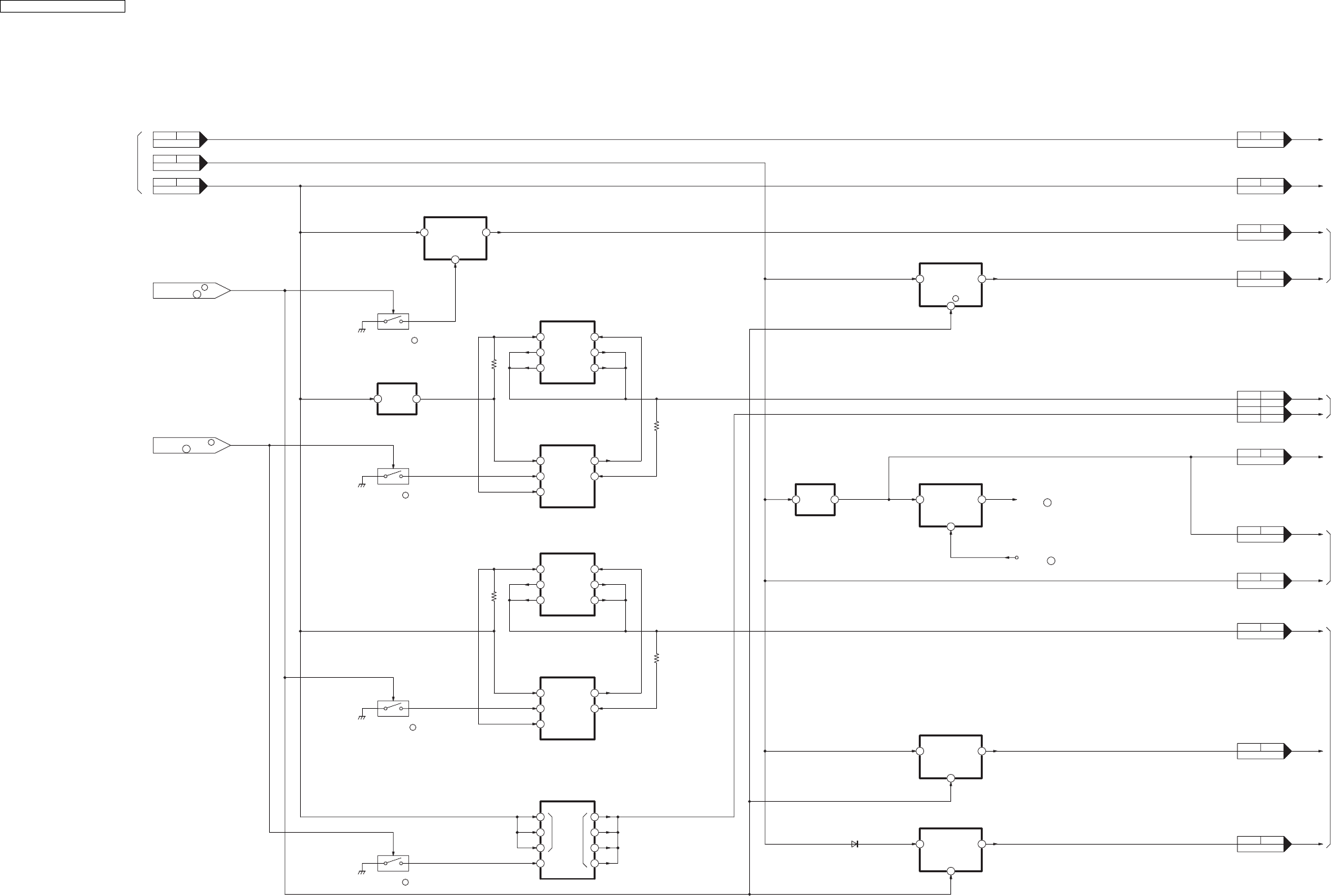

23.2. DIGITAL I/F REGULATOR BLOCK DIAGRAM

DMR-EH80VEG

DMR-EH80VEB

DIGITAL I/F REGULATOR

BLOCK DIAGRAM

IC37501-

FROM

MAIN P.C.B.

8CS

(DR P ON OUT)

QR15001

BLOCK SECTION

POWER SUPPLY

FROM

IC37501-

DRIVE POWER ON

IC37501-

POWER ON

FL DRIVE P.C.B.

DIGITAL P.C.B.

DVD-RAM DRIVE

DIGITAL P.C.B.

MAIN P.C.B.

DRIVE UNIT

CAPSTAN

XSW +5.8V

ANA +3.3V

ANA +5V

D +1.5V

XSW +5.8V

DR +12V

DR +5V

AU +5V

D +3.3V

XSW +12V

XSW +17V

3,41,2

P31905

1,7

PS37502

4,7

P39702

48,52

P39702

76,82,84,86,88

P31901

1,2

P15003

P39702

68,70,72,74

P31901

3,4

P31902

IP37501

15IC37501-

CONT

VOUT1

IC37504

VIN

(REG.+3.3V)

ON/OFF

VOUT1

IC31502

VIN

(REG.ANA +3.3V)

ON/OFF

VOUT4

IC31510

VIN

(REG.ANA +5V)

XSW +5.8V

2,3,4

P15001P11001

VOUT4

IC45001

VIN

(REG.AU +5V)

(DR +12V SELECT SWITCH)

Q15001

(POWER ON OUT)

QR15004

(DC-DC CONVERTER)

IC15004

(DC-DC CONVERTER)

IC15003

FBON/OFF

VIN

(REG.D +1.5V)

Q15003

(DR P ON OUT)

QR15002,15005

EXT

ON/OFF

VIN

Q15002

(REG.DR +5V)

IP15001

(POWER ON/ OUT)

QR15003

ON/OFF

VOUT1

IC15002

(REG.D +3.3V)

VIN

XSW +12V

XSW +17V

P11001 P15001

5,6,7

P15001P11001

P9001

P6005

PP7501

P102

P9001

P6001

P6002

Q15007

EXT

P6001

DMR-EH80VEG / DMR-EH80VEB

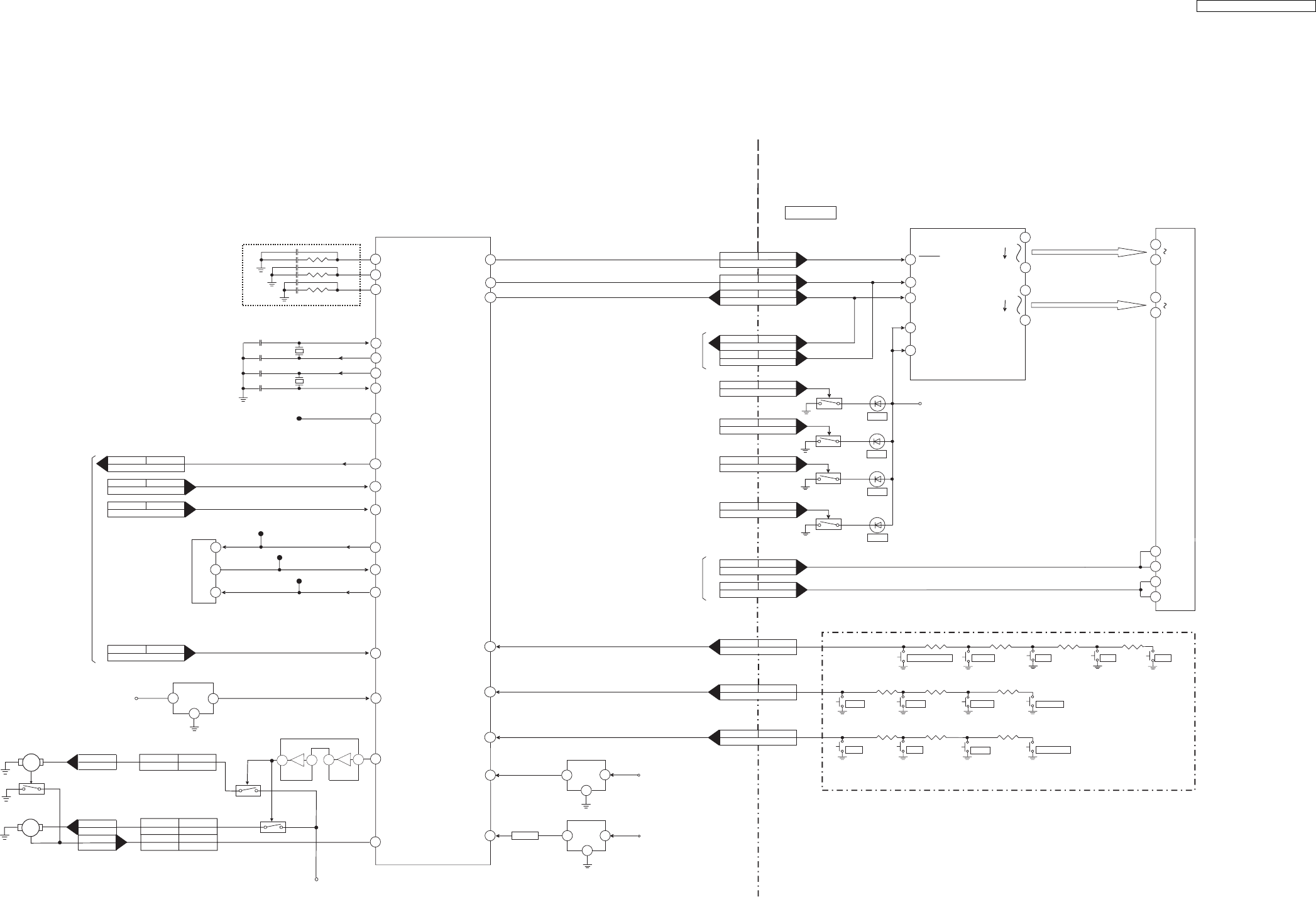

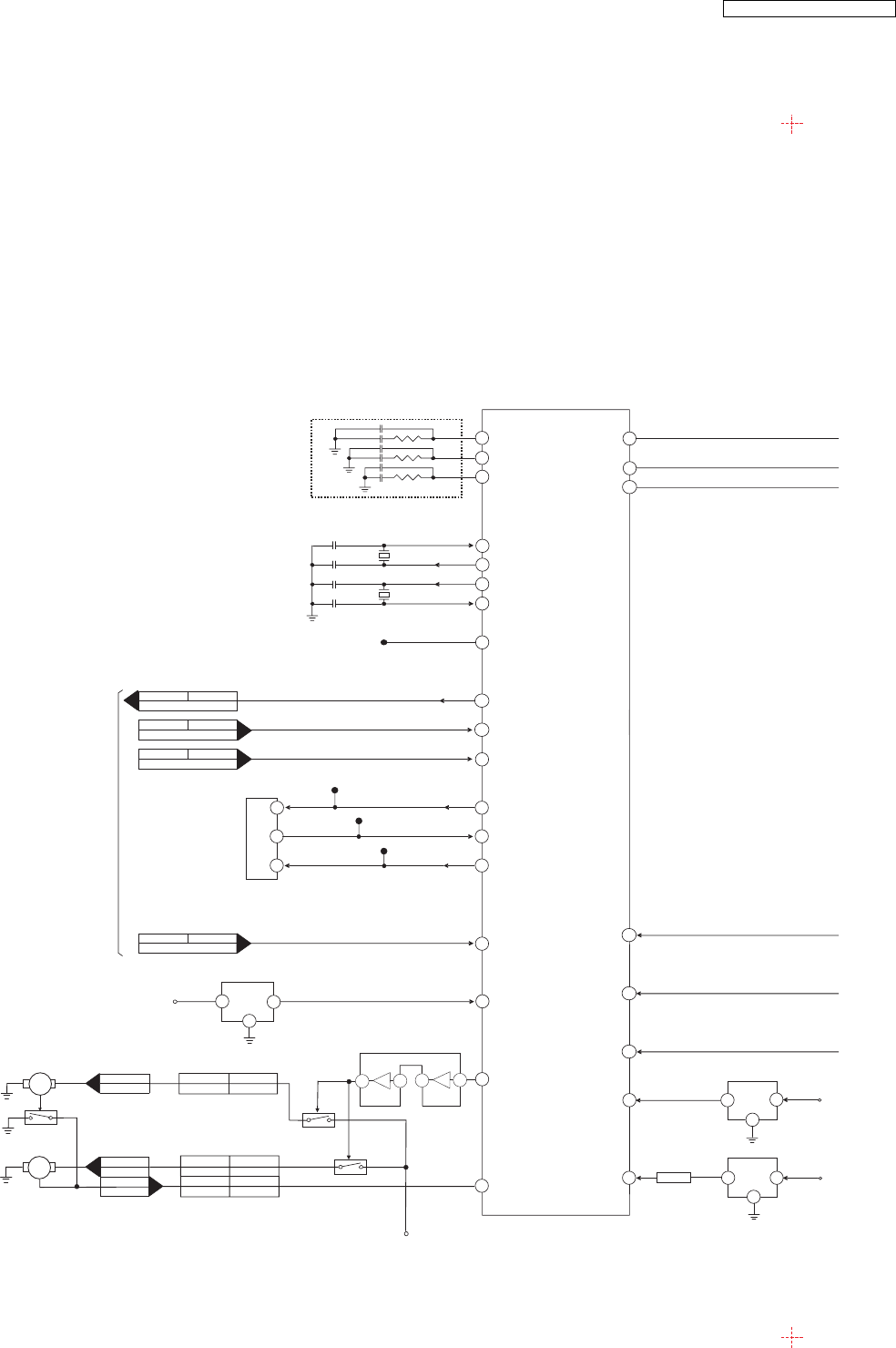

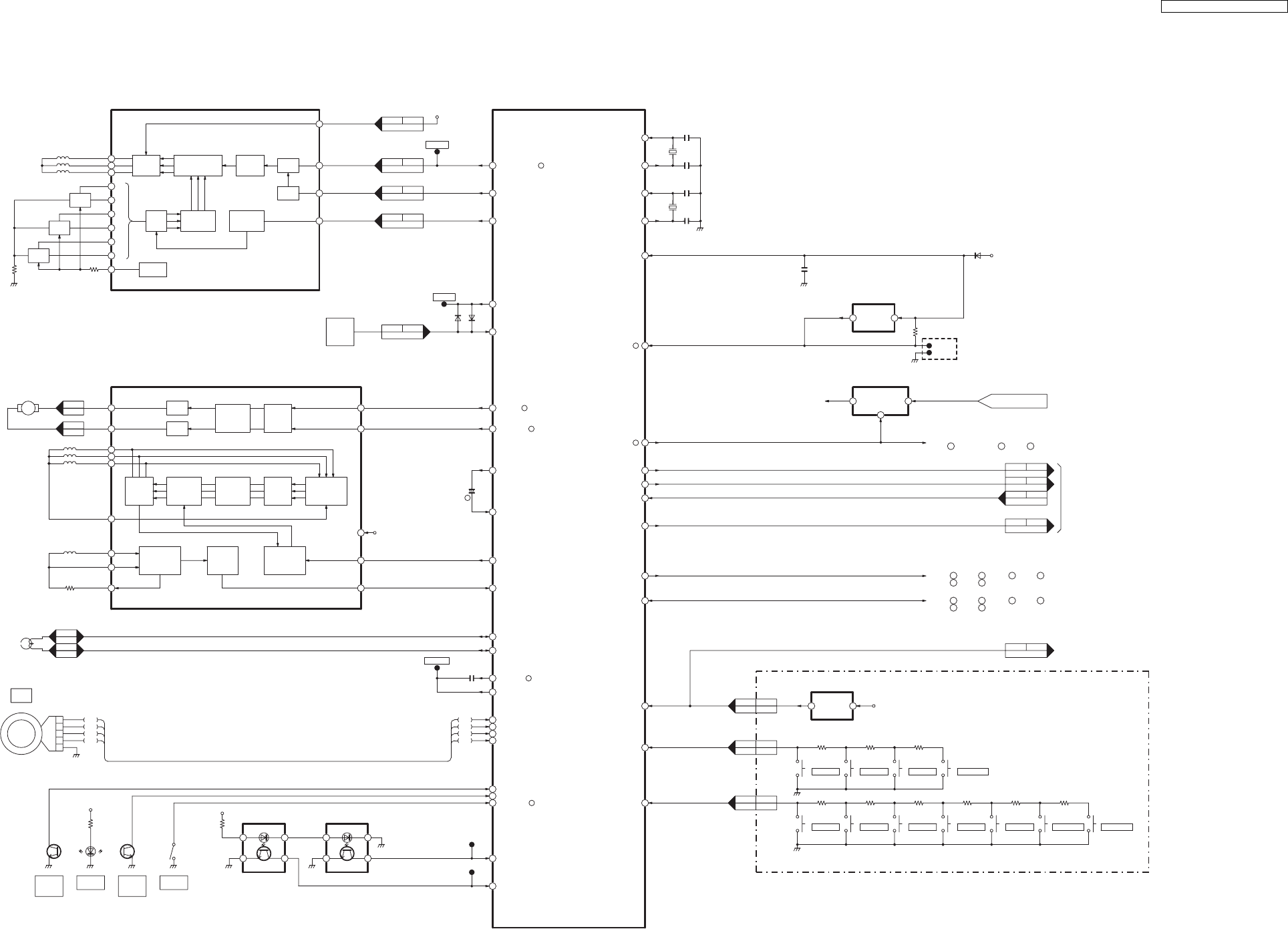

23.3. SYSTEM CONTROL, SERVO & TIMER BLOCK DIAGRAM

DMR-EH80VEG

DMR-EH80VEB

SYSTEM CONTROL / SERVO & TIMER

BLOCK DIAGRAM

IC3002 , QR4501, IC3906 , IC7402

5 5 5

P. C . B .

DIGITAL I/F

TO/FROM

TL6002

+6V

CAP TL

CAP FG

+5V

PB CTL

VCC +5V

TL600434RESET

FRONT JACK P.C.B.

PG OUT

PG-

PG+

P31905P6005

112

103

PP4600

PS6002

P6003

P31903

P31905P6005

+5V3

IC7801

1IR

(REMOTE CTL.RECEIVER)

14REMOCON

VHS KEY 1 5

VHS KEY 2 6

STOP

S7801

FFPOWER

S7802

CH-UP

S7805S7806

S7813 S7812 S7810

PLAY REC EXT_LINK_D EXT_LINK_V

S7809

EJECT REW

S7808 S7807 S7803

CH DN

TIMER BUS CLK 70

TIMER BUS DATA IN 69

IIC CLK 71

TIMER BUS DATA OUT 68

15TIMER CS

POWER

FROM

(S-REEL SENSOR)

IC1512

CTL HEAD(+)

CTL HEAD(-)

COIL

COILS

MOTOR

CYLINDER

IC6202

4 OUT

(RESET)

X SW+5.8V+5V

(SWITCHING REG.+5V)

IC6302

INOUT 4

PON 75

SST 6V5V(D) 37

(12MHz)

X6001

(32KHz)

X6002

12MHz OUT 39

12MHz IN 38

32KHz OUT 36

32KHz IN 35

SENSOR


TAKE-UP

Q1501

LED

SENSOR

D1501

SENSOR


SUPPLY

Q1502

TAB S W

SAFETY

S1531

+5V

(T-REEL SENSOR)

IC1511

TL23

TL24

80 T.REEL

79 S.REEL

27 SAFETY TAB

7 S.PHOTO

8 T.PHOTO

MODE

S1532

SW4

SW3

SW2

SW1

SW4

SW3

SW2

SW1

30 POSITION SW4

POSITION SW331

32 POSITION SW2

POSITION SW133

PB CTL OUT

EX.FF/REW

TW2002

P4002

P4002HEAD

CONTROL

COMPOSER

FG/PG

AMPLIFIRE

DIFFERENTIAL

PFG9018

CYL ET

CTL AMP REF96

OPEF91

UNLOADING

FG. AMP. IN

FG. AMP. OUT

7714

AMPLIFIRE

DIFFERENTIAL

COM

+++

AMPLIFIRE

DIFFERENTIAL

SELECTOR

GENERATOR

SIGNAL

DRIVE

MOTOR

PRE-DRIVE

DRIVE

MOTOR

P1531

OUT 2

OUT 1

AMP

PRE-DRIVE LOGIC

CONTROL

RIN

FIN

(LOADING MOTOR & CYLINDER MOTOR DRIVE)

IC2501

HEAD

CAPSTAN

P0201 P2571

TL2015

(SYSTEM CONTROL/SERVO/TIMER)

IC6001

CAP R/F

CAP ET

CURRENT LIMIT

TL2502

P2571

P0201

+15.5V

XSW

ED/S

POWER

HALL

SELECT

DIRECTION

TORQUE

PROCESS

SIGNAL

POSITION

AMP

DEF

AMP

CONTROL

TORQUE

AMPLIFIRE

DIFFERENTIAL

DRIVE

MOTOR

VH+

H2+

H2-

H1+

H1-

H3+

H3-

HALL

COILS

MOTOR

CAPSTAN

(CAPSTAN MOTOR DRIVE)

IC0201

IIC DATA 72

IC37501

IC4501

, IC3901

, IC6101

, TU7401

, IC3001

DMR-EH80VEG / DMR-EH80VEB

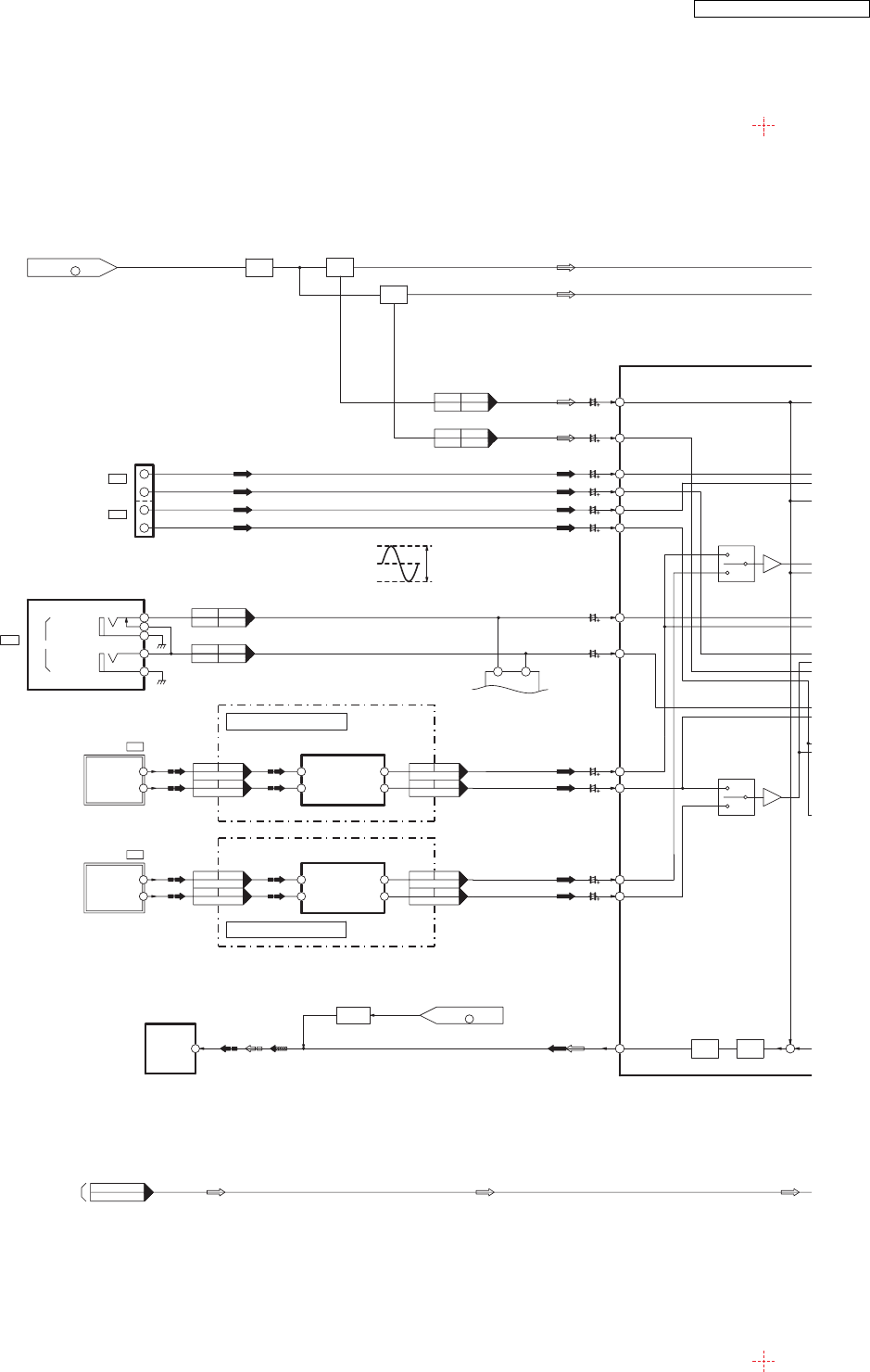

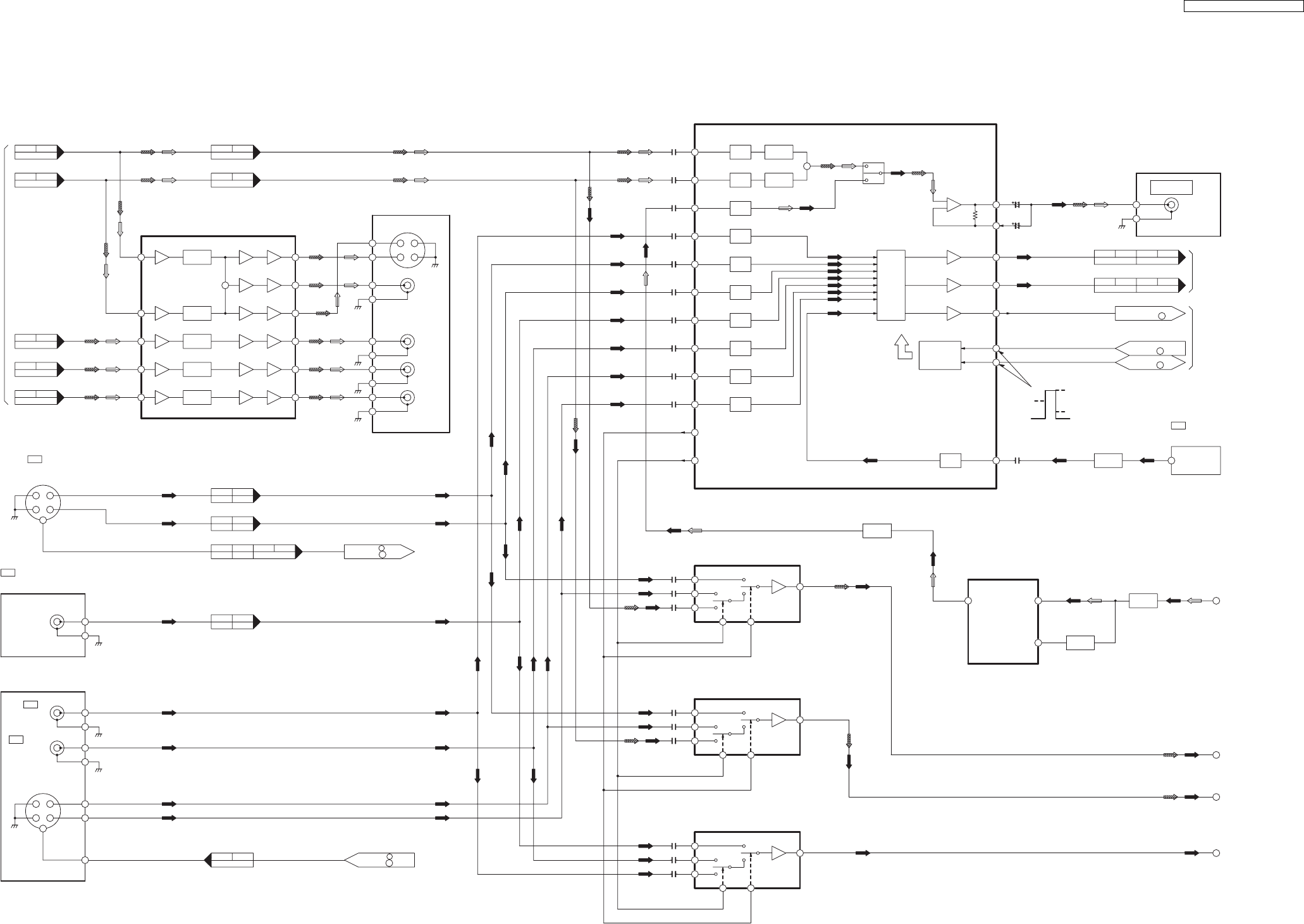

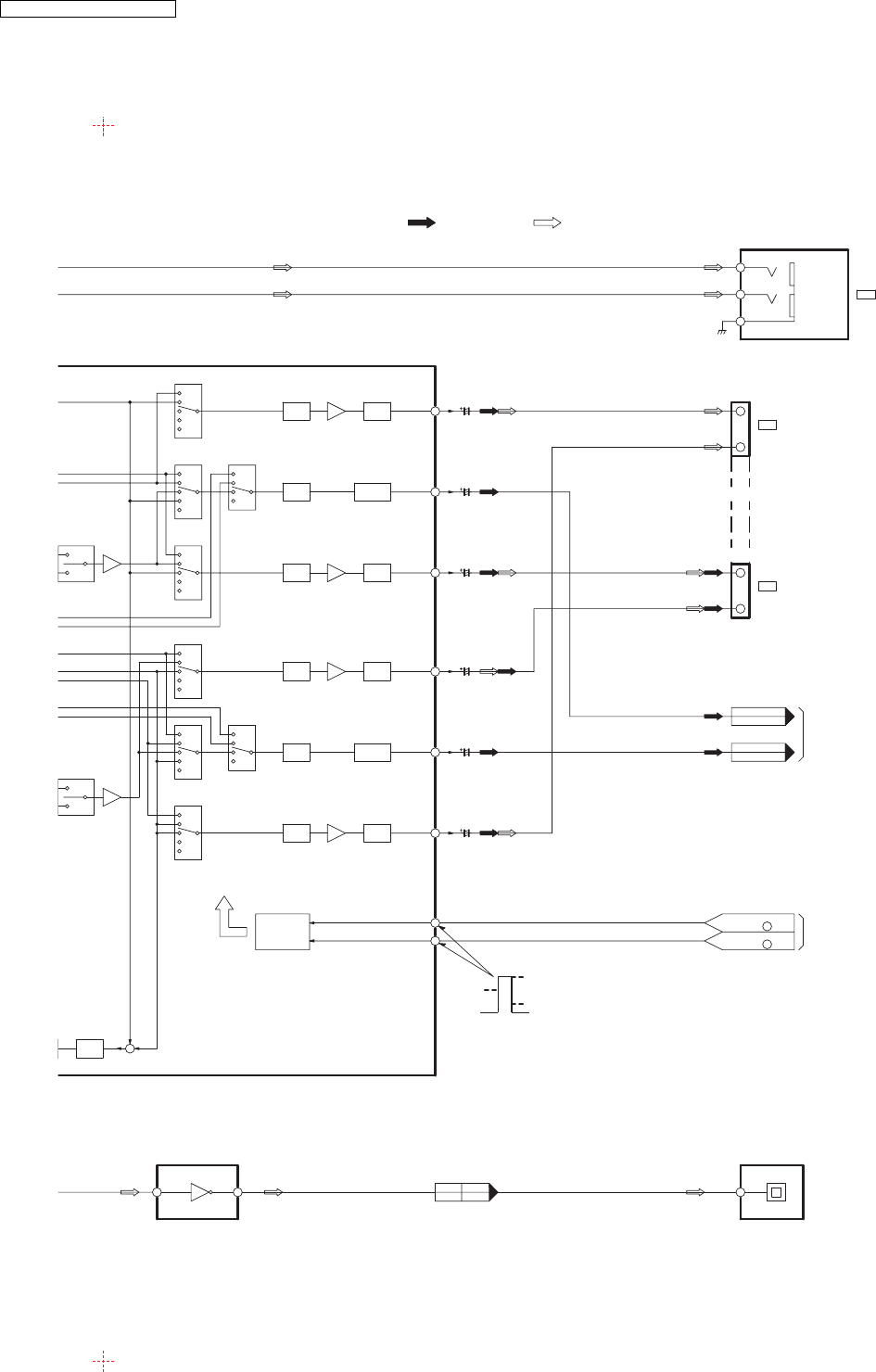

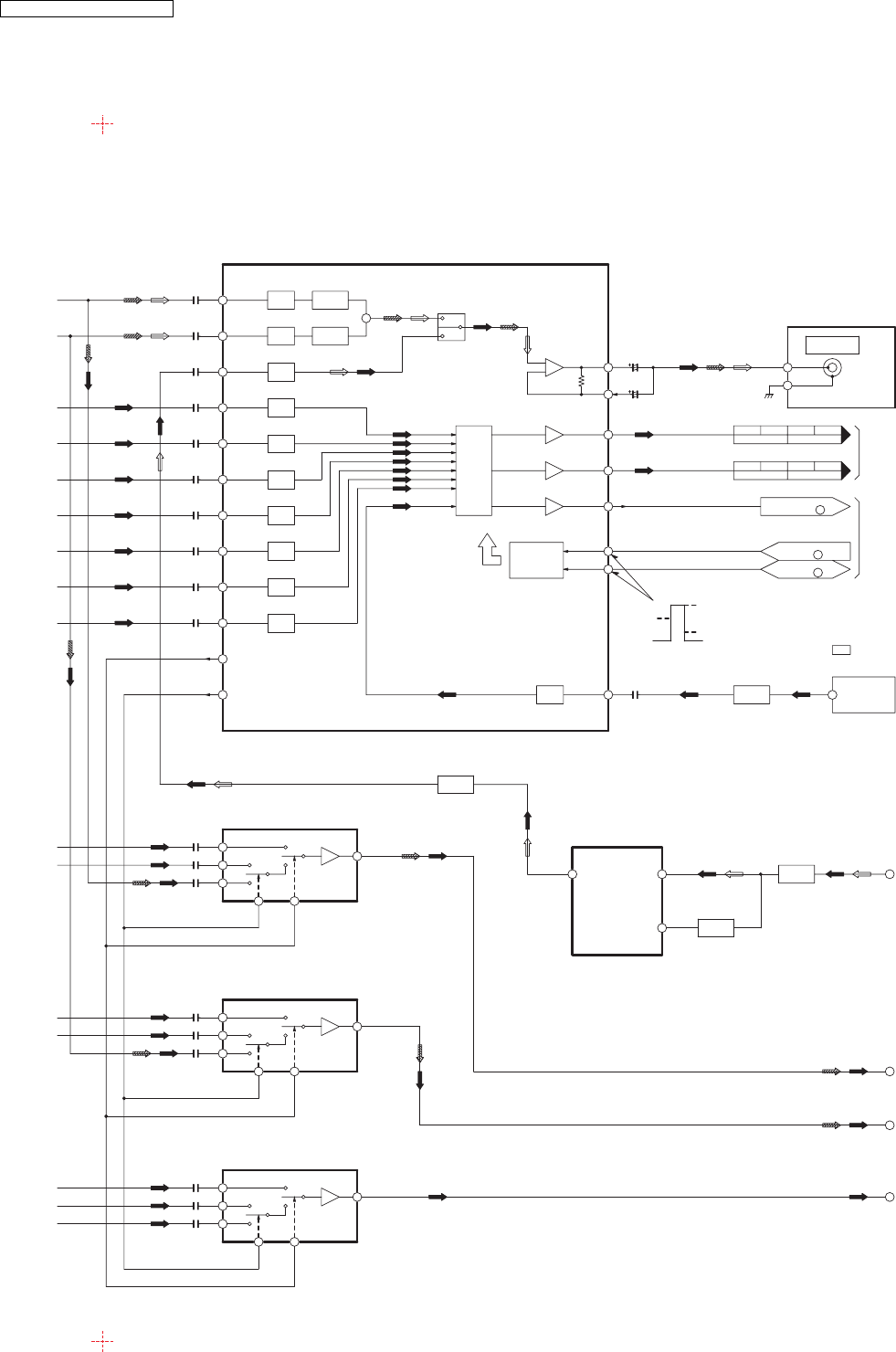

23.4. AUDIO BLOCK DIAGRAM

DMR-EH80VEG

DMR-EH80VEB

AUDIO

BLOCK DIAGRAM

XTMUTE_L

IC37501 63

FROM

INTERFACE

QR4502/QR4504

QR4501

QR4503/QR4505

IC3901

(SA1R)

(SA3R)

DAC Rch

DAC Lch

AV1 Rch

AV1 Lch

53 AV2 Rch

61 AV2 Lch

JK3901

JK3902

21 PIN JACK

AUDIO IN ch2(R)

AUDIO IN ch1(L)

AUDIO IN ch2(R)

AUDIO IN ch1(L)

(SA2R)

BUFF.

AV4

TUN

(SA5R)

50 AV3 Rch

OUTPUT

SELECT SWITCH

(SA4R)

LINE

(Rch)

LINE

(Lch/MONO)

AUDIO

JK4600

FRONT INPUT JACK

AV3

(FRONT) AV3 Lch

(SA2L)

(SA3L)

(SA1L)

BUFF.

(SA5L)

TUN

AV459 TUN_2 Lch

TUN_2 Rch

TUN Rch

62 TUN Lch

PS6002

P6003

PS6002

PP4600

P31903

PP4600

76 RF OUT MUTE VCA +

MIX

AGC ADC Rch

AMP

LPF

BUFF.

MUTE

BUFF.

LPF

MUTE

BUFF.

LPF

ADC Lch

AMP

AGC

MUTE

BUFF.

LPF

AV1 Rch

ADC Rch 79

AV2 Rch 74

AV2 Lch 73

ADC Lch 78

AV1 Lch 71

IIC CLK

IC37501 28

IIC DATA

IC37501 29

FROM

INTERFACE

SCL 88

SDA

IIC BUS

LOGIC

JK3901

JK3902

21 PIN JACK

AV1

(TV)

AV2

(DECEODER/EXT)

P39702

DIGITAL

P. C . B .

LINE OUT

(L)

LINE OUT

(R)

JK35001

REAR JACK

AUDIO OUT Ch1(L)

AUDIO OUT Ch2(R)

AUDIO OUT Ch1(L)

AADC R

AADC L

P93702

FROM

DIGITAL

P. C . B . 24

IC34001

(OPTICAL AUDIO BUFFER)

JK4901

OPTICAL

(DIGITAL AUDIO OUT)

IEC OUT

:REC SIGNAL :PB SIGNAL

4.5V Max

5.6Vpp

2.3V

1.0V

AV1

(TV)

(DECODER/EXT)

AV2

AUDIO SIGNAL

OUTPUT

SELECT SWITCH

(SA4L)

AV4

SECTION

CONTROL

SYSTEM

FROM

IC6001

COM_MUTE

QR4910,QR4908

MUTE

AUDIO 5

RF CONVERTER

TU7403

TUNER

TU7401

TUNER

TU7402

143

138

Nicam Decoder(B) P.C.B.

Nicam Decoder(A) P.C.B.

(NICAM DECODER)

IC7301

OUT R

MONO IN

SIF PK7302

PK7402PK7302

PK7402

PK7401

PK7301PK7401

PK7301

3OUT L

AUDIO

TUNER 14

15SIFOUT

VHS

(NICAM DECODER)

IC7301

OUT R

OUT LMONO IN

SIF PK7302

PK7404PK7302

PK7404

PK7301

PK7403

AUDIO

TUNER

15SIFOUT

DVD

IC4501

P6003P31903

P6001

P31901

DMR-EH80VEG / DMR-EH80VEB

23.5. VIDEO BLOCK DIAGRAM

DMR-EH80VEG

DMR-EH80VEB

VIDEO 1/2

BLOCK DIAGRAM

V/Y IN DM

CPN CIN DM

Q6101

Q6102

P. C . B .

DIGITAL

P6002

AV2 C

AV2 Y

AV2 V

AV3 V

AV3 C

AV3 Y

AV1 V

EXT CTL1

EXT CTL3

(REAR JACK)

JK3901

AV1

AV2

AV1 V

AV2 V

AV2 Y

AV2 C

AV3 V

AV3 C

AV3 Y

(SYSTEM CONTROL)

IC6001

P. C . B .

DIGITAL

FROM

AV2 S IN

IC37501-

P6004 P31904

VIDEO IN

(DECODER/EXT)

VIDEO IN

(TV) 14

PS6002PP4600

AV3

(FRONT JACK)

JK4600

VIDEO IN 7

PS6002PP4600

695

IC37501-

AV3 S IN

DIGITAL I/F TIMER SECTION

FROM

DIGITAL I/F TIMER SECTION

P31904P6004

PS6002PP4600

S-VIDEO IN

(FRONT JACK)

JK3802

BUFFER

BUFFER59SECAM MIX

52 C V INC V OUT

Q6103,Q6104

BUFFER

7 D

(V SELECT SW)

IC3904

(Y SELECT SW)

IC3903

IC3902

(C SELECT SW)

DVD

U/V TUNER

TU7402

Q7403

BUFFER

P39702

(REAR JACK)

JK3902

COMMON OUT

DVD/VHS

VIDEO OUTVCR Y

(REAR DVD JACK)

JK35001

S-VIDEO OUT

(BLUE)

(GREEN)

(RED)

OUT

VIDEO

BPBOUT DM

GPYOUT DM

RPROUT DM

P39702P9001

C OUT DM

Y OUT DM

2dB

4dB

IC35005

(VIDEO BUFFER)

LPF

6.75MHz

LPF

6.75MHz

LPF

6.75MHz

LPF

6.75MHz

8dB

LPF

6.75MHz

P6002P31902

P39702P9001

CLAMP43

CLAMP39

CLAMP35

CLAMP37

CLAMP45

CLAMP41

CLAMP33

CLAMP47

(SW9)

OUT

AV4

I/F TIMER

SECTION

DIGITAL

FROM/TO

IIC CLK

IC37501-

Q33501,Q33505

SLICER

29IC37501-

IIC DATA

1.0V

2.3V

CLAMP V

TUNER

LOGIC

IIC BUS

SDA 89

SCL 88

SLICER 85

OUT

ADC

V/Y

OUT

C-ADC

TUNER V

AV2 C

AV2 Y

AV2 V

AV3 V

AV3 C

AV3 Y

AV1 V

CIRCUIT

SWITCH

SELECT

OUTPUT

ADC

(VIDEO PROCESSOR)

IC3901

LPF

6.75MHz

CLAMP

BPF

6.75MHz

BIAS

P31902

P9001

P31902 P9001

VIDEO OUT

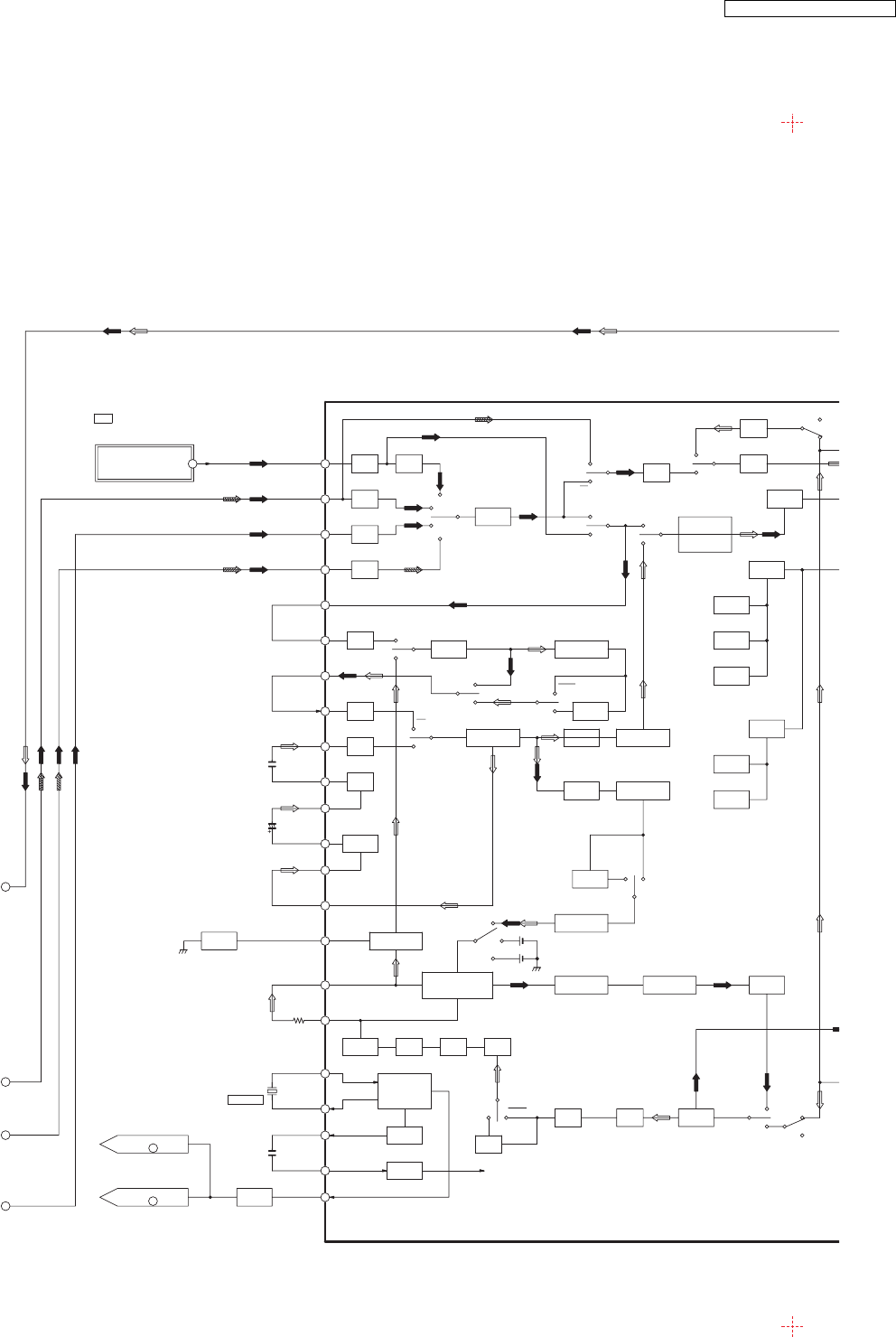

DMR-EH80VEG / DMR-EH80VEB

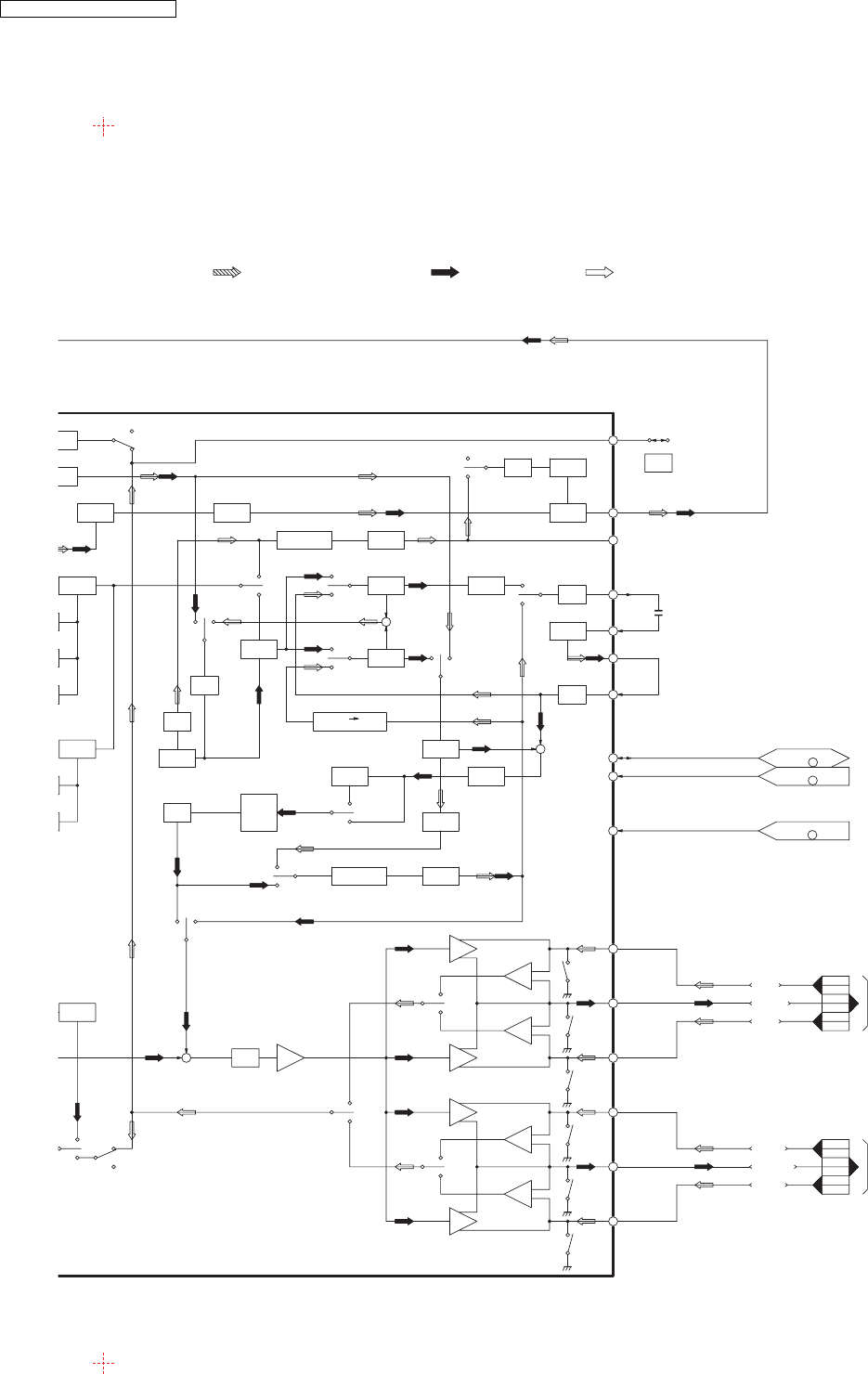

DMR-EH80VEG

DMR-EH80VEB

VIDEO 2/2

BLOCK DIAGRAM

C3005,R3003,L3001

FILTER

PEAKING

SYSTEM CONTROL SECTION

FROM

SYSTEM CONTROL SECTION

TO/FROM

IC6001-

HEAD SW

HSW

CLOCK

DATA

IC6001-

IIC DATA

IC6001-

IIC CLOCK

Q3002

BUFFER

IC4501-

FSC

AUDIO SECTION

IC6001-

FSC

SYSTEM CONTROL SECTION

ENVE

VIDEO

TW3001

3.58MHz

:DVD VIDEO EE SIGNAL

U/V TUNER PACK

TU7401

VIDEO OUT

VTR

IC3001

(AUDIO/VIDEO SIGNAL PROCESSOR)

LP/EP R

LP/EP COM

LP/EP L

SP R

SP COM

SP L

VIDEO HEAD

DD CYLINDER

TO/FROM

VIDEO HEAD

DD CYLINDER

TO/FROM

P5001

ATP

EXT

INT

X3002

EMPHASIS

NON-LINEAR

DEH

COMPARATOR

PHASE

TRAP-NC

HP-NC

REDUCTION

Y-NOISE

DELAY

Y-CCD

LPF

GCL

GCL35

DO/REC

SQPB

Y-LPF

GCL

TO C CCD

EXT

P-EQ

SQPB

DRIVER

C CLOCK

2FSC

OSCILLATOR

VCO

X'TAL

PB AGC+APL

REC FBC+ALC

INT

ADJUSTMENT

fo/DEVIATION

ET LPF

MODULATION

FILTER

REC

DE-EMPHASIS

MAIN

ACC DET

CHROMA

ACC DET

W.C/D.C

CARRIER OFFSET

MAIN EMPHASIS

ACC SW

TRAP

629MHz

REC APC

LPF

SUB

KILLER

SQPB

PB APC

DEMO

APC SW

AGC

SQPB

DLIM

DE-EMPHASIS

NON-LINEAR

VIDEO ALC

G-EQ

CLAMP

FEED BACK

SYNC

CLEAR

ACC

LPF

2MHz

HPF

-10dB

ATT

-10dB

ATT

-10dB

ATT

-6dB

ATT

-4dB

ATT

AGC

VIDEO

INT

EXT

VCA

MUTE

REC

DELAY

C-

FREC TRAP

Hi-Fi TRAP

REC TRAP/

ADJUST

LEVEL

MIX

B.E

ACC

CHROMA

C-ACC:ON

CTL TRAP

fh HPF

THROUGH

KILLER

COLOUR

TRAP

FREC

LPF

CCD

C CCD

29V-AMP

SQUELCH

C-

C LPF2

AMP

6dB

CONV DELAY

4.43PAL MPAL

ERASE

PILOT

VCA

B.D

BPF

ADD

PILOT

C LPF1

CONV 1

MAIN

CONV 2

MAIN

KILLER

COLOUR

CONVERTER

NTSC/PAL

SQUELCH

CH1

CH2

CH1

CH2

EP1

EP2

SP1

SP2

:PB SIGNAL:REC SIGNAL

DMR-EH80VEG / DMR-EH80VEB

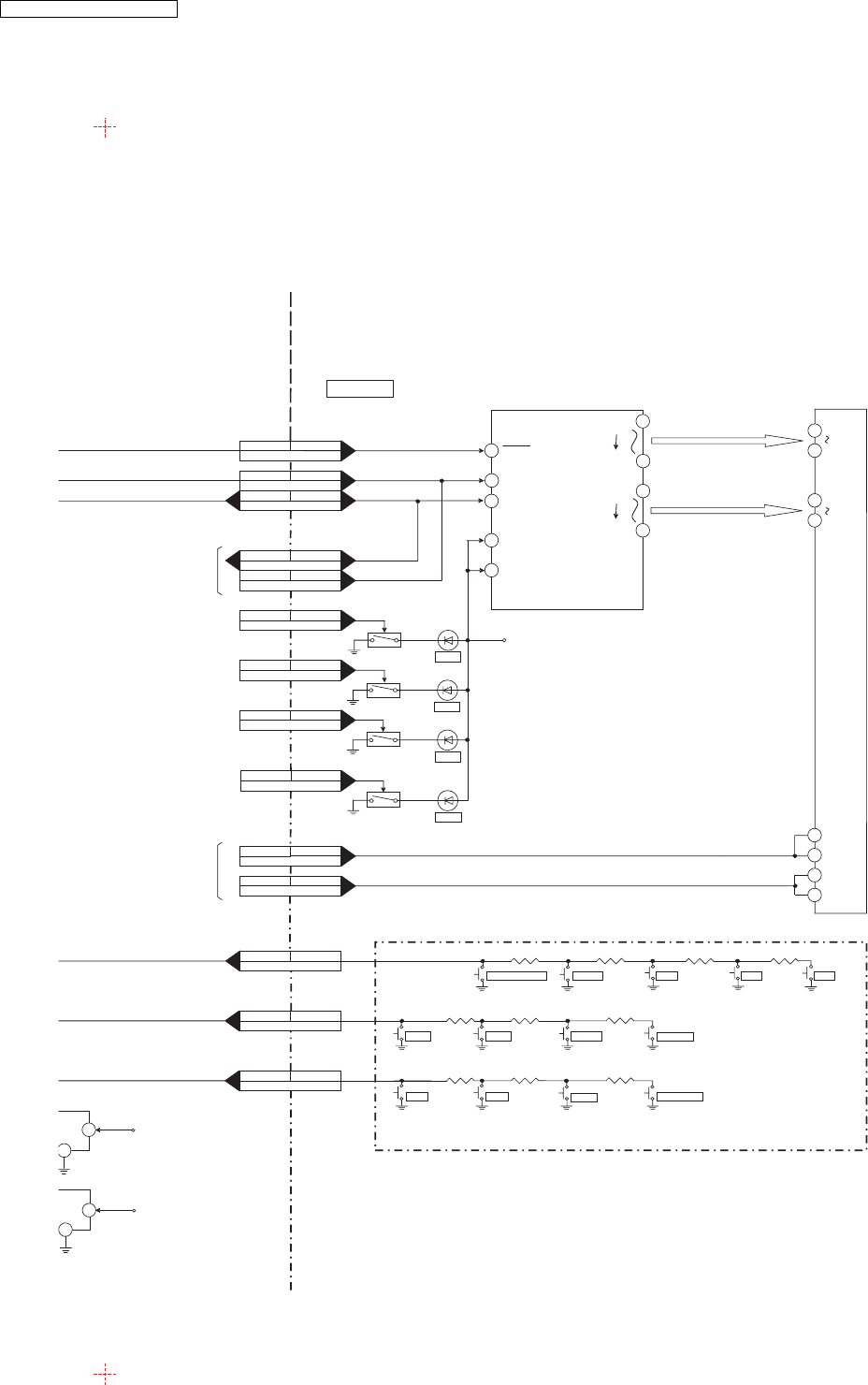

23.6. DIGITAL I/F P.C.B. BLOCK DIAGRAM

DMR-EH80VEG

DMR-EH80VEB

DIGITAL I/F PCB

BLOCK DIAGRAM

93 PS37502 PP7501

91FL RESET

SDAT A

SCK

RESET

PP7501

PS37502

PP7503PS6001

PP7503

PS6001

VCC2

VCC1

AD +5V

D7501

DUB

DVD

D7504

D750

VHS

HDD

QR7501

QR7504

QR7506

QR7505

OPEN/CLOSE H2V

PP7501

PS37502

PP7501PS37502

S7501 S7510

PLAV20 Y

S7505S7514 S7504

CH UP

PS37502 PP7501

3S7506S7515

RECD2V STOP

S7503 S7502

S7509

CH DOWN

SELECT

101

102

104

S7513 S7512

D2H V2H H20

S7511

SEG00

SEG35

DIG00

DIG17

DP7501

10G

29 P1

P19

62 F-

F-

F+

PP7503

PS6001

DVD OPERATION KEY

FL DRIVE

LED 1 84

85LED 2

TO/FROM

SYSCON/SERVO/

TIMER MAIN

KEY_IN1

KEY_IN2

KEY_IN3

PFAIL_L 12

AD +5V

IC37501

IC 37503

SYS_PFAIL_H 81 INV.

QR37502

IC 37505

D3R3V

TO/FROM

SYSCON/SERVO/

TIMER MAIN

PP7501PS37502

PP7501

(LPF)

X37501

X37502

XCIN

LP2FSC

LP3FSC

LP4FSC

XCOUT

XOUT10MHZ

XIN10MHZ

21 125HZ

TL37503

P31903

2107 VTR_S_IN

116

P31903

41VTR_S_CLK

IIC_CLK

SCL

SDA

/WC

IIC_DAT

EEPROM_W/C

IC37502

TL9720

TL9718

TL9719

P31905

22REMOCON

P6003

P6005

TO/FROM

SYSCON/SERVO/

TIMER MAIN

IC37502

XRESET

+5V

23 FAN_PWM_OUT

X_SW12V

P12002

P12001

P11001

P15001

P11001

13 13

52 FAN_LOCK

FAN MOTOR 1

FAN MOTOR 2

IC7502

Q12001

Q37001

Q37002

FANLOCK

FANDCOUT1

FANDC

OUT2

IC37001

(FAN MOTOR DRIVE)

P12002

VTR_S_OUT

PS37502

PS37501

PP7501

PP7502

DMR-EH80VEG / DMR-EH80VEB

24 SCHEMATIC DIAGRAM

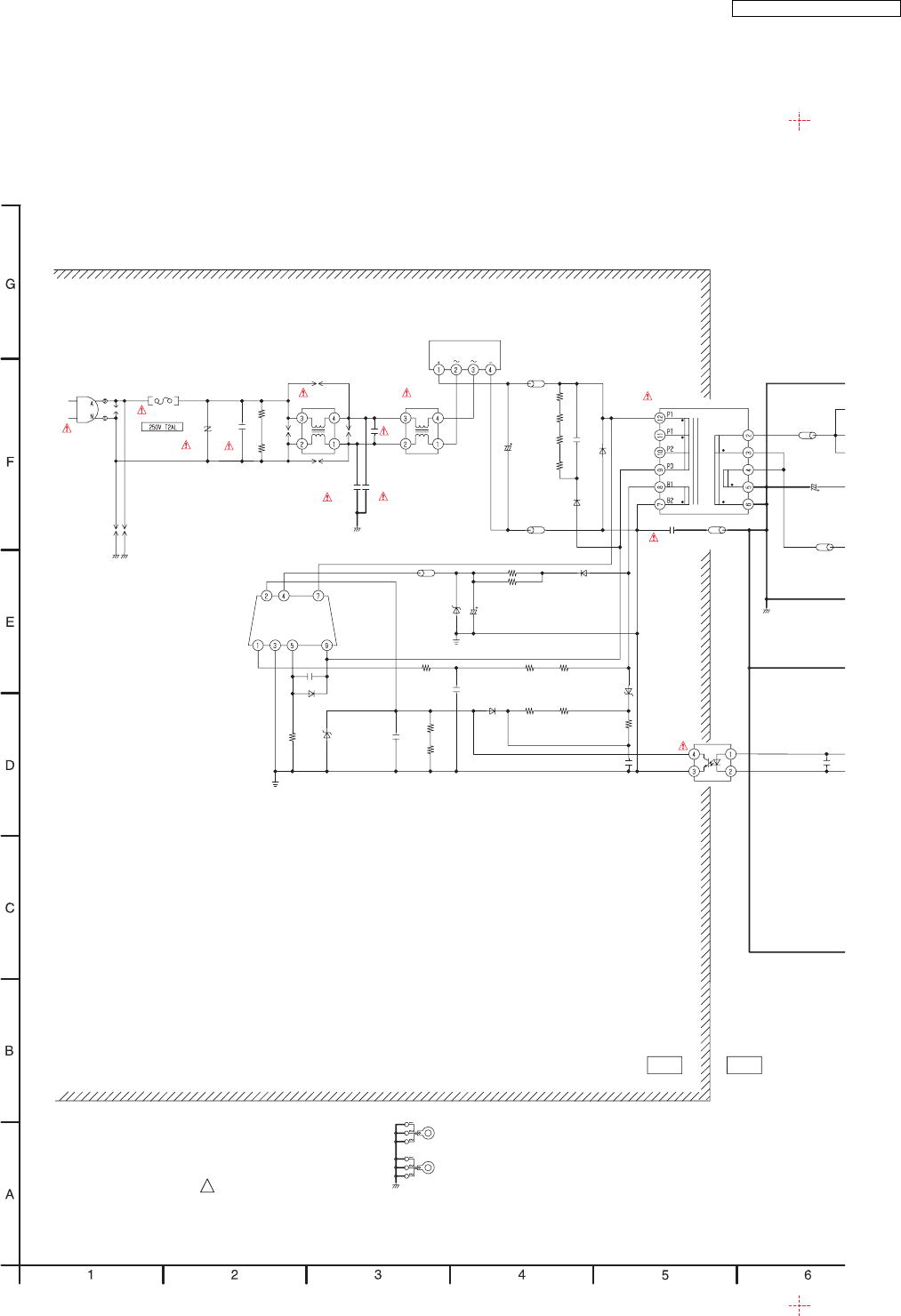

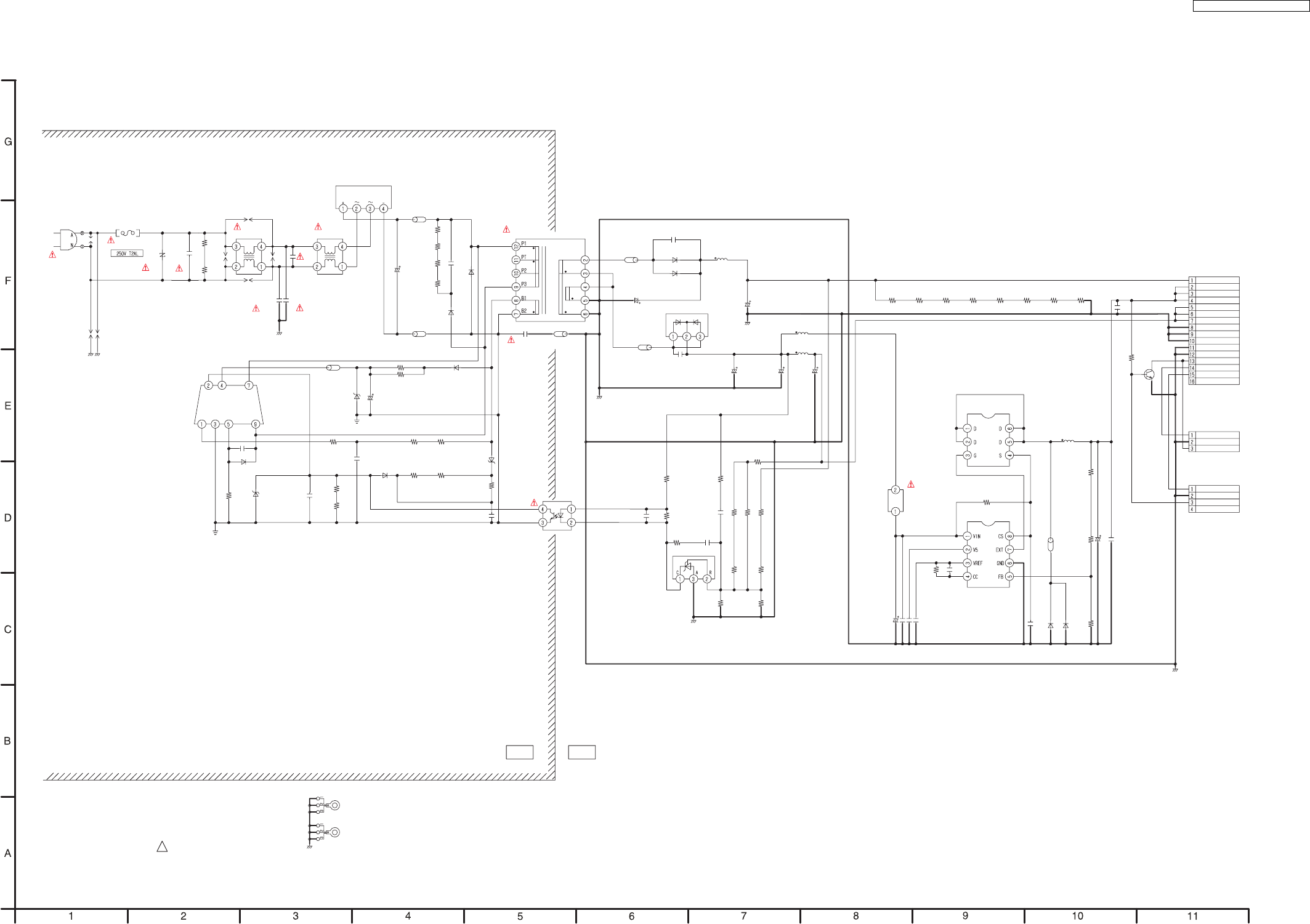

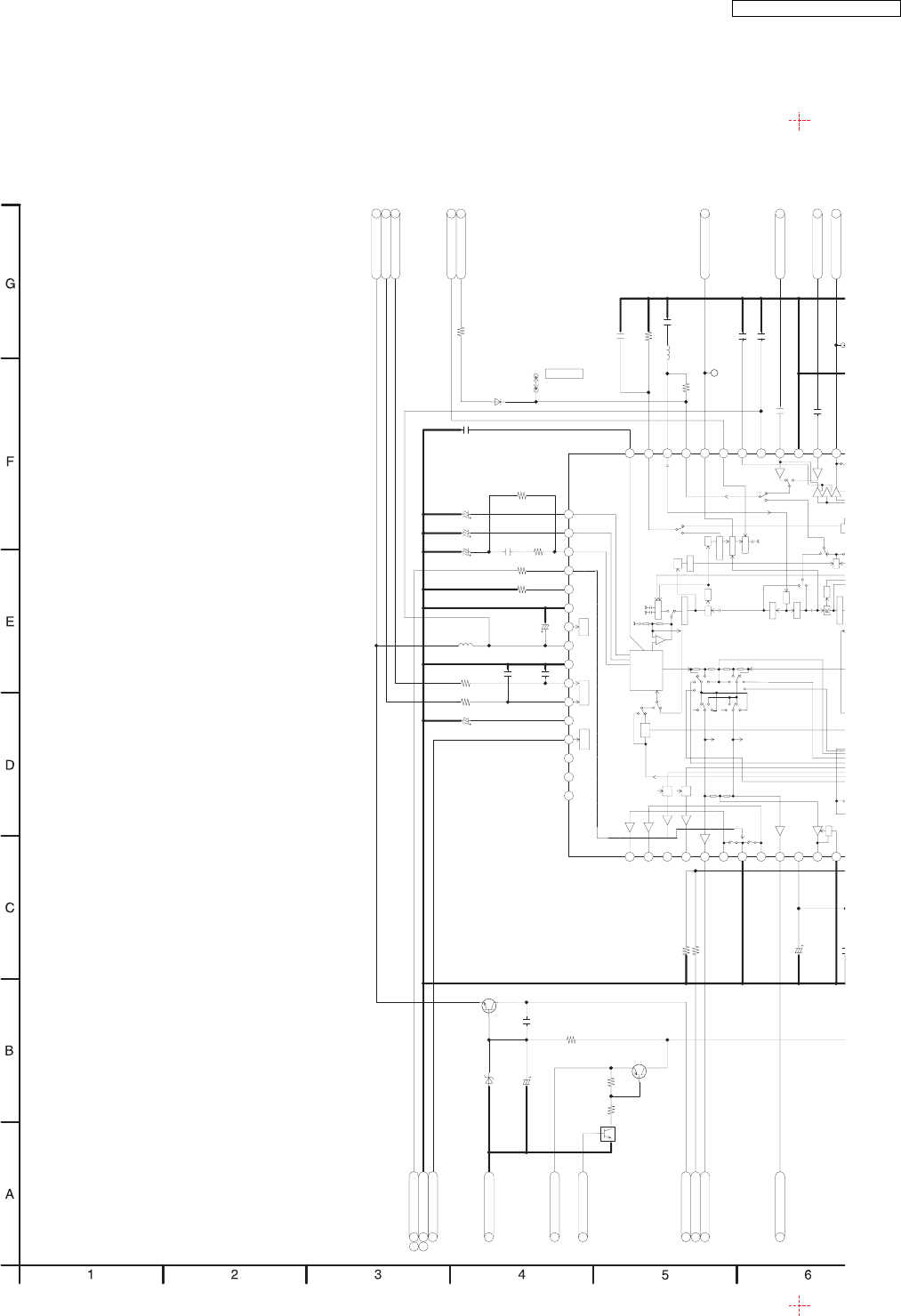

24.1. POWER SUPPLY

Note:

Important Safety Notice:

Components identified with the mark have

the special characteristics for safety.

When replacing any of these components

use only the same type.

Marked $ (spare) parts are not assembled

P11101

ZA11101 ZA11102

F11101

VA11101

C11110

R11101

L11102

V11107

C11106

C11105

L11101

D11101

LB11101

T11101

*C11406

LB11401 D11401 L11401

D11402

P11001

X_SW17V

X_SW5R8V

X_SW12V

GND

DRGND

FANLOCK

FANDCOUT1

FANDCOUT2

C11509

C11103

LB11102

D11104

D11103

R11106

R11107

R11104

C11108

R11103

C11102

LB11103

C11401

D11403

LB11402

C11407

C11402

L11403

L11402

R11401

R11402

R11403

R11404

R11405

R11406

R11407

R11408

R12001

Q12001

P12002

FANDCOUT1

GND

FANLOCK

L11501

Q11501

R112502

R11501

IC11501

IP11501

R11308

R11304

R11301

Q11301

R11302

C11303

C11301

$R11303

C11302

D11203

R11204

R11205

C11204

D11202

LB11201

IC11201

C11201

D11102

R11203

D11204

R11206

R11207

D11205

R11210

R11209

R11208

R11201

C11202

R11202

D11201

R11105

*C11205

R11305

R11306 $

R11307

IC11301 R11311

$R11312

R11309

R11310 $

C11501

C11502

C11503

C11504

R11505

C11505

C11506

D11501

D11502 $

R11504

LB11501

R11503

C11507

C11508 $

P12001

FANDCOUT2

GND

FANLOCK

C11403 C11404

C11405

ZA11006

ZA11005

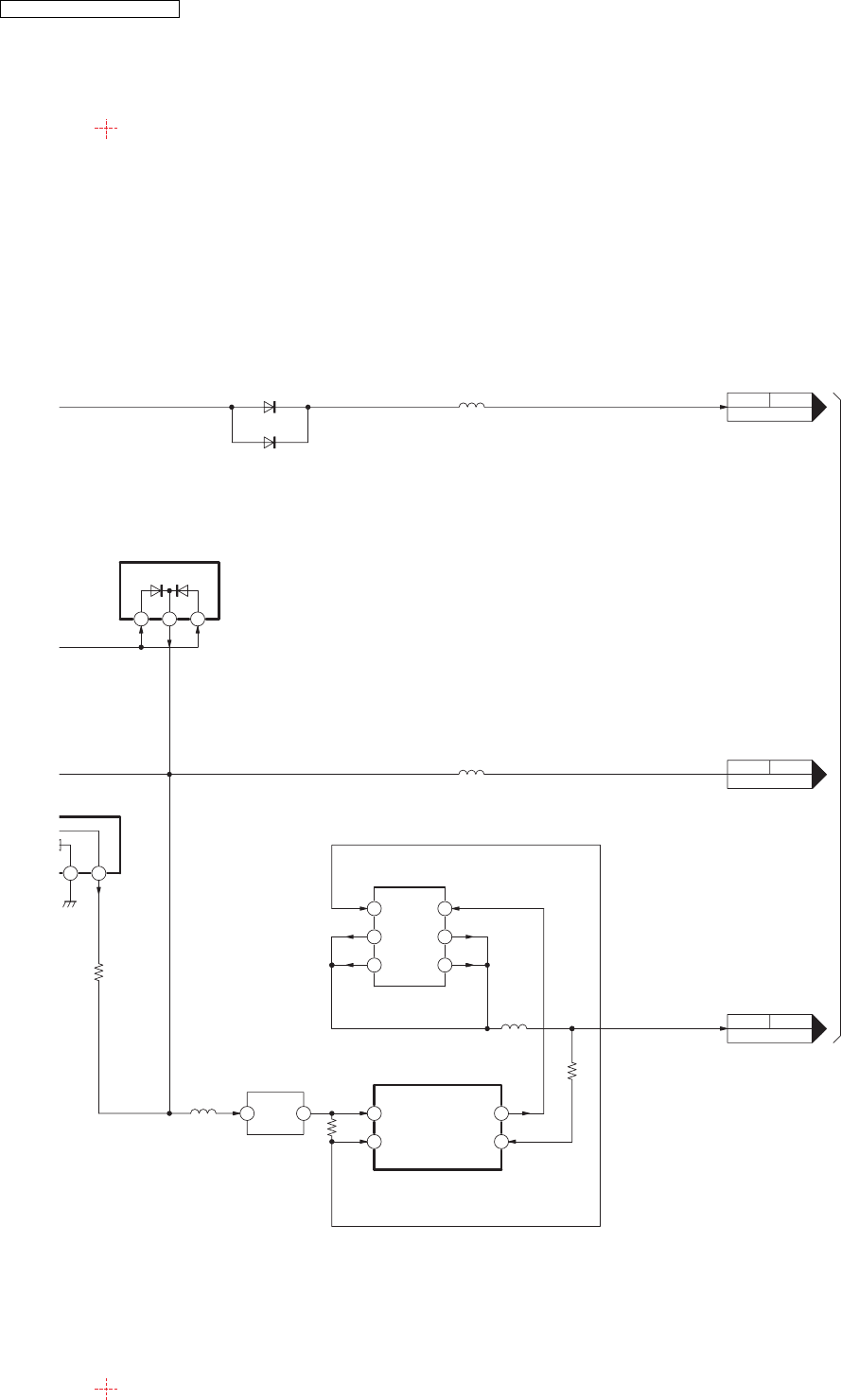

DMR-EH80VEG

DMR-EH80VEB

POWER 1/2

SCHEMATIC DIAGRAM

COLDHOT

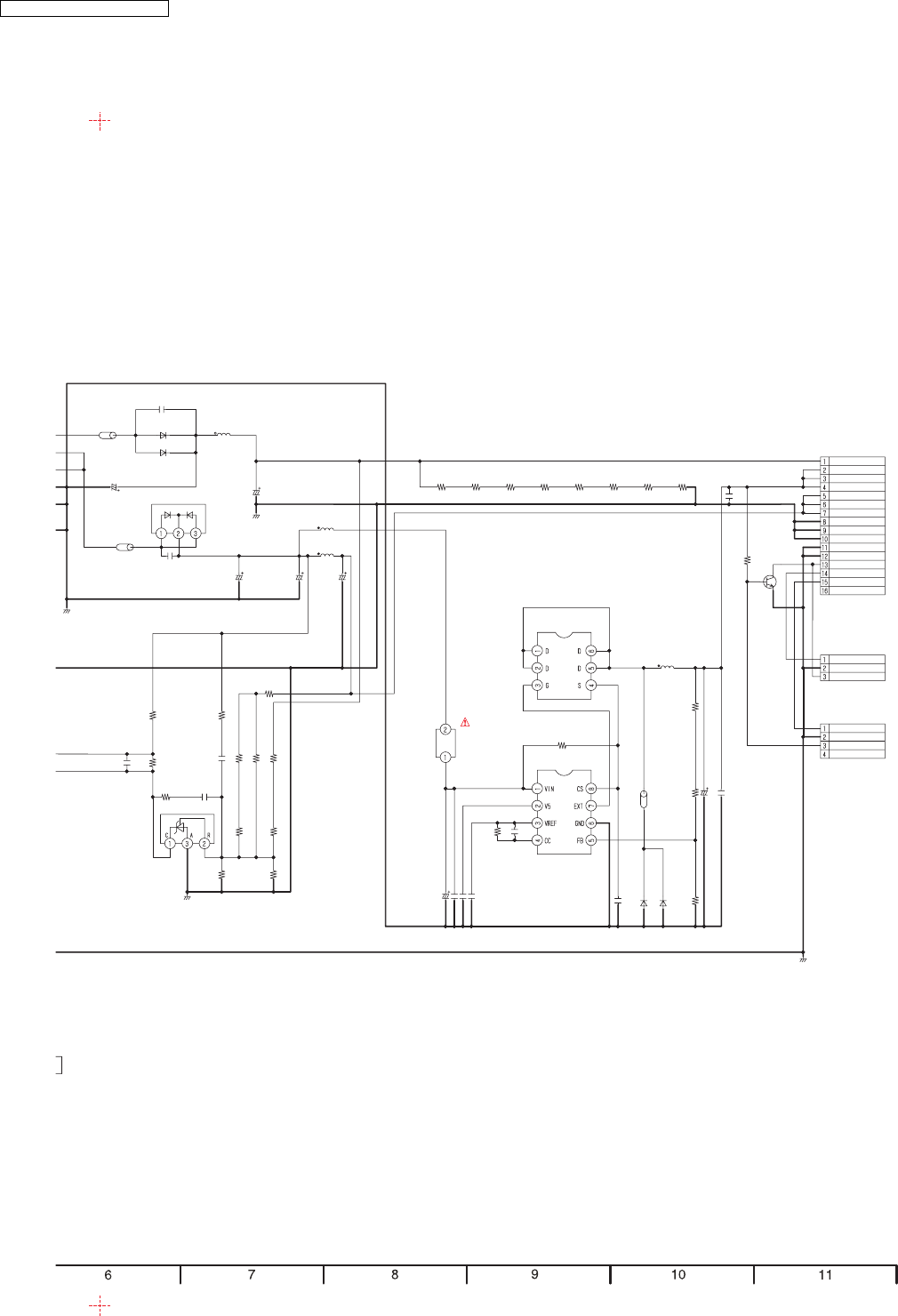

DMR-EH80VEG / DMR-EH80VEB

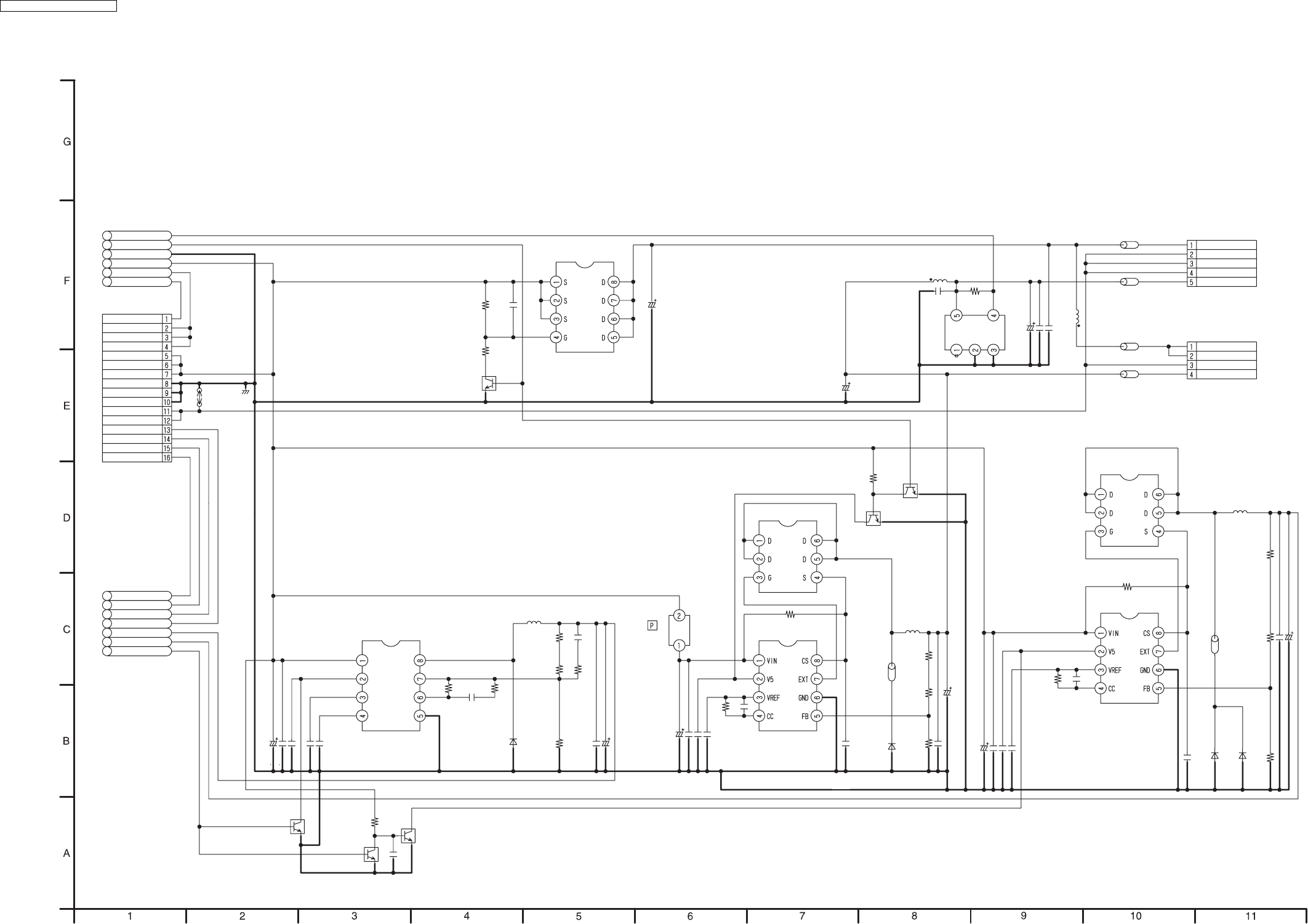

DMR-EH80VEG

DMR-EH80VEB

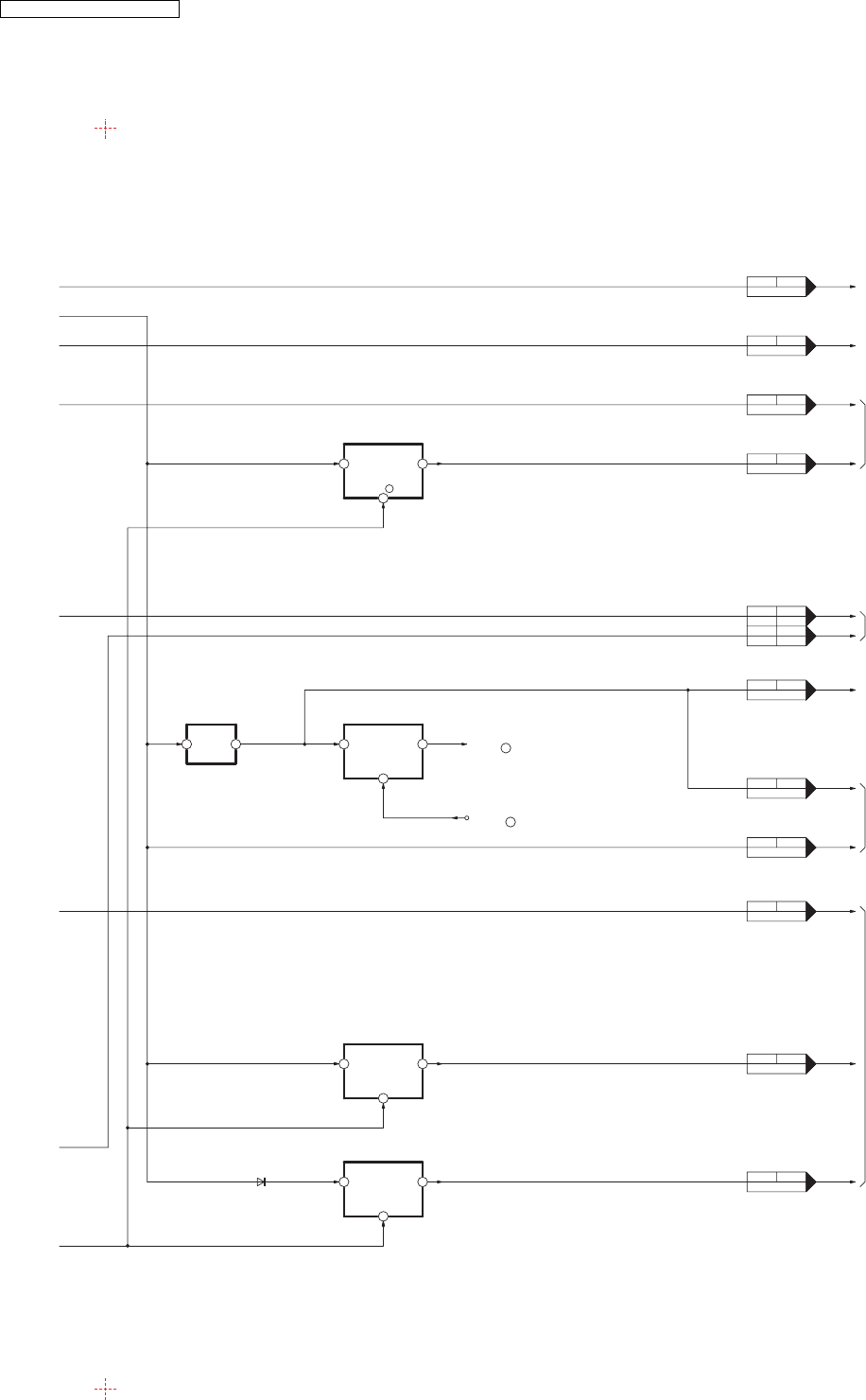

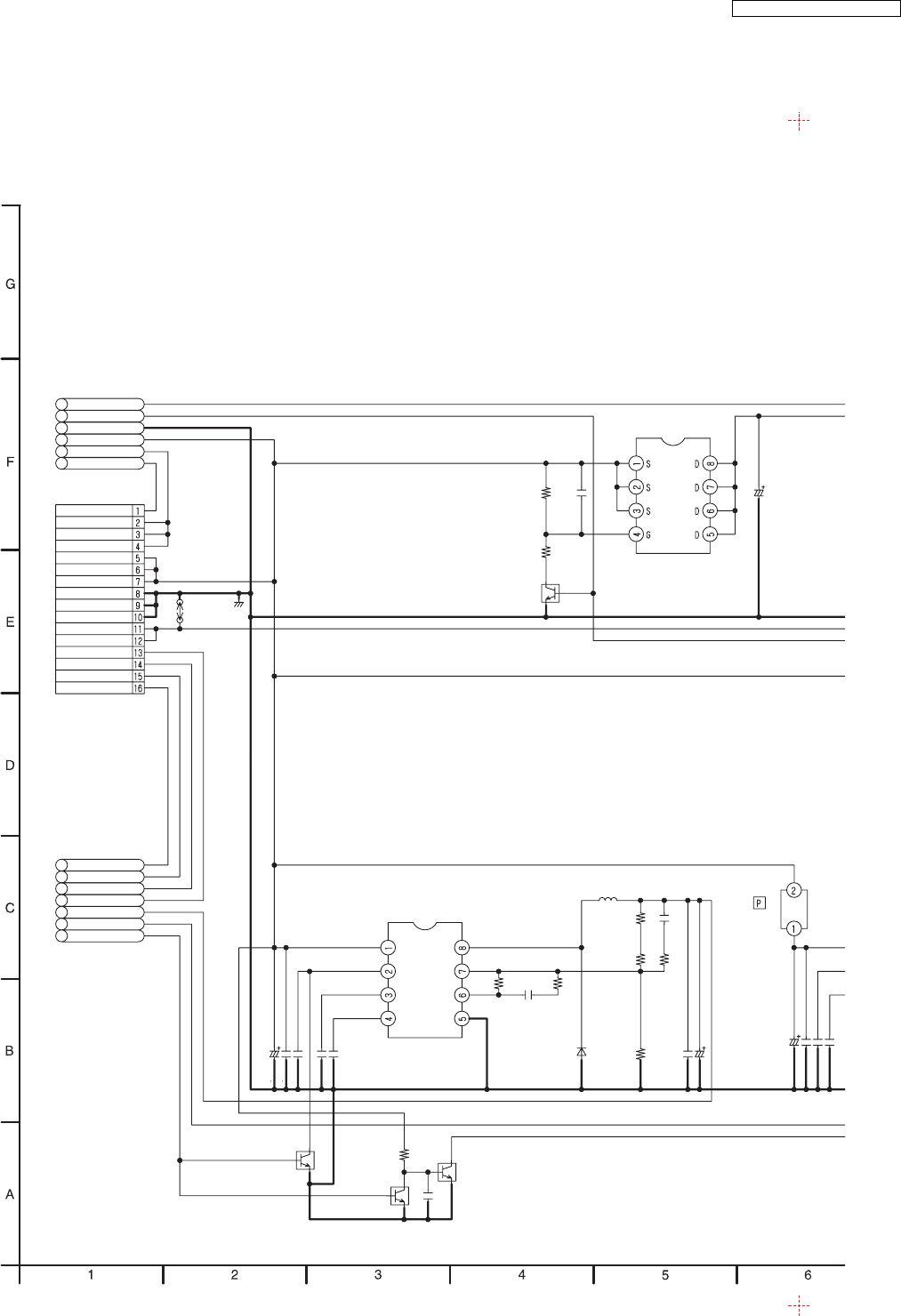

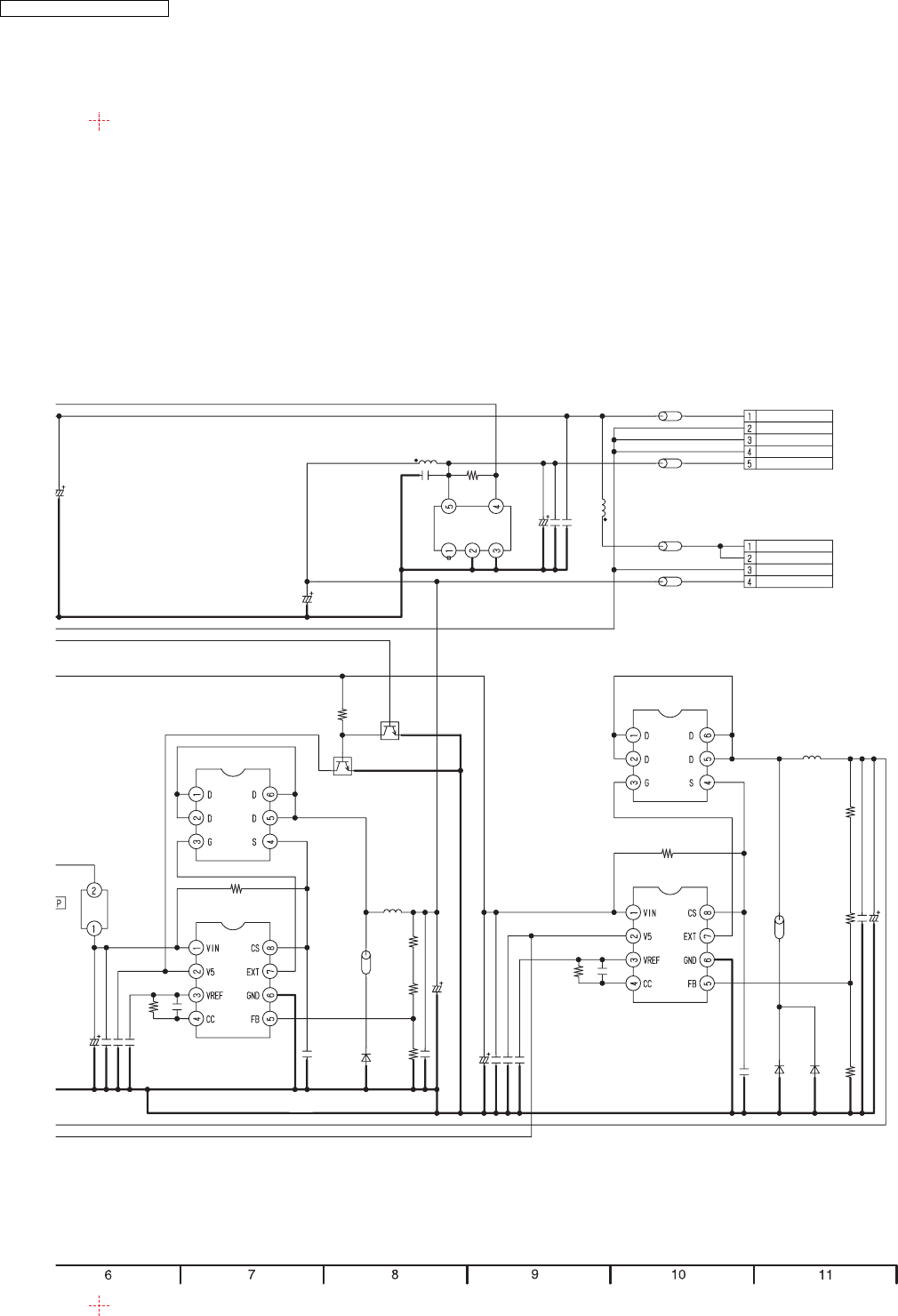

POWER 2/2

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled

HDD_PFAIL

DR_P_ON_H

GND

X_SW12V

X_SW5R8V

X_SW17V

P15001

X_SW17V

X_SW5R8V

X_SW12V

GND

DR_GND

FANLOCK

FANDCOUT1

FANDCOUT2

P_SAVE_L

FANDCOUT2

FANDCOUT1

FANLOCK

D3R3V

D1R5V

P_ON_H

QR15003

C15008

C15009

C15010 0.01

C15011 390P

C15012

4700P

K15001

C15100

QR15004

R15026

10K

IC15002

R15001

4700

R15027

4700

QR15001

R15004

C15013

1000P

R15005

100K

D15001

QR15007

R15008

C15016

$C15015

10V680

R15007

560

R15009

R15006

2700

L15003

C15014

C15033

Q15001

C15001

16V120

IP15001

C15018 0.1

C15019 0.1

C15017

C15020 *

R15010

51K

C15021

180P

IC15003

R15011 *

Q15002

C15002

R15002

10K

QR15005

QR15002

L15004

LB15005

R15012

2700

R15013

12K

C15022

0.01

D15002

R15014

4700

C15023

$C15024 *

IC15001

C15004

R15003

L15001

L15002

C15005 *

C15006 *

C15007 *

C15029

27P

R15016

33K

C15025

C15026 0.1

C15027 0.1

C15028

IC15004

R15015

47M

Q15003

LB15004

LB15003

LB15002

LB15001

TO HDD

P15002

TO DVD

P15003

DR12V

DR_GND

DR5V

DR_GND

DR5V

L15005

R15018

1500

LB15006

C15030

D15003 D15004

$R15017

5600

R15019

3900

C15031 $

C15032 10V680

DMR-EH80VEG / DMR-EH80VEB

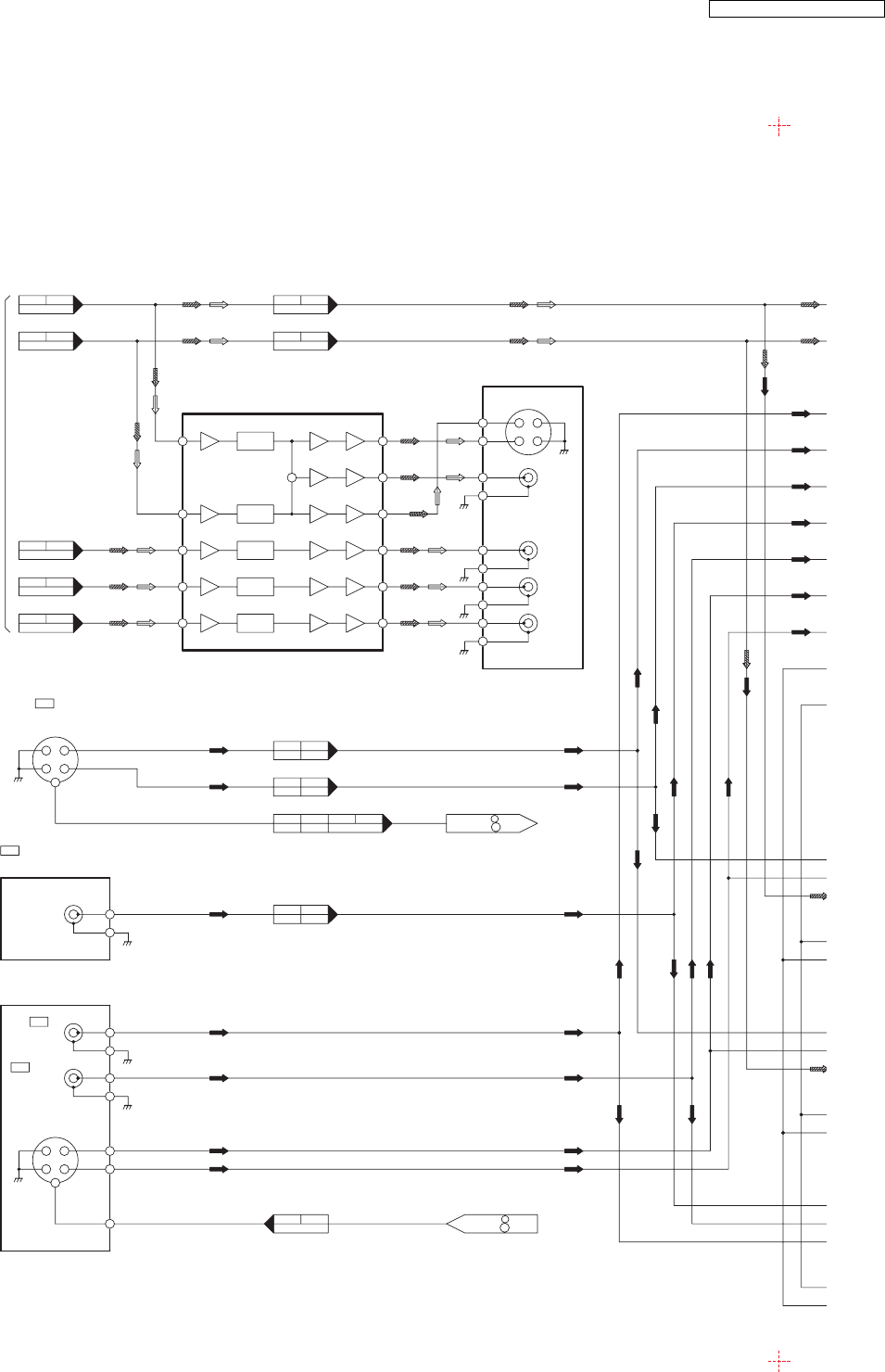

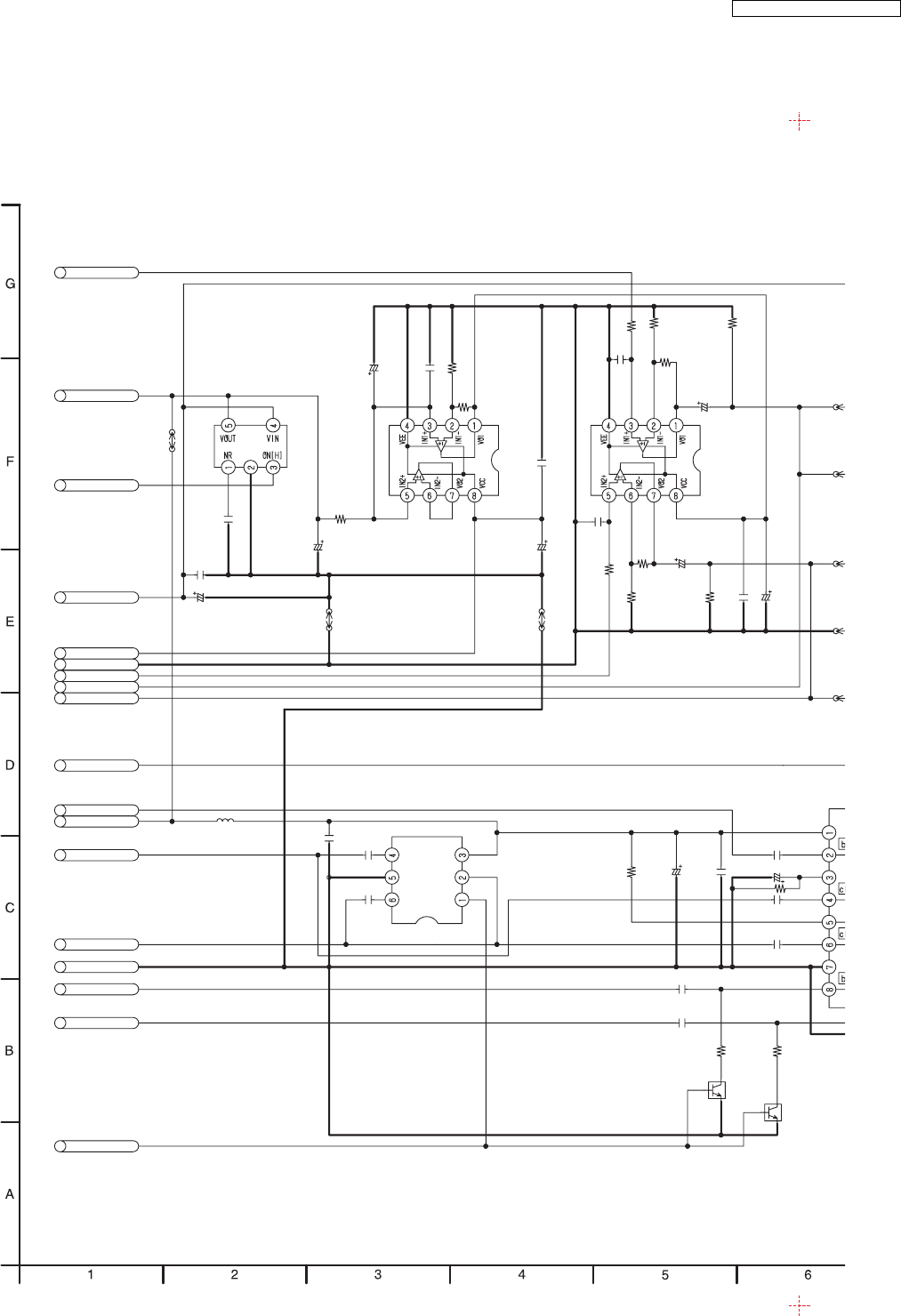

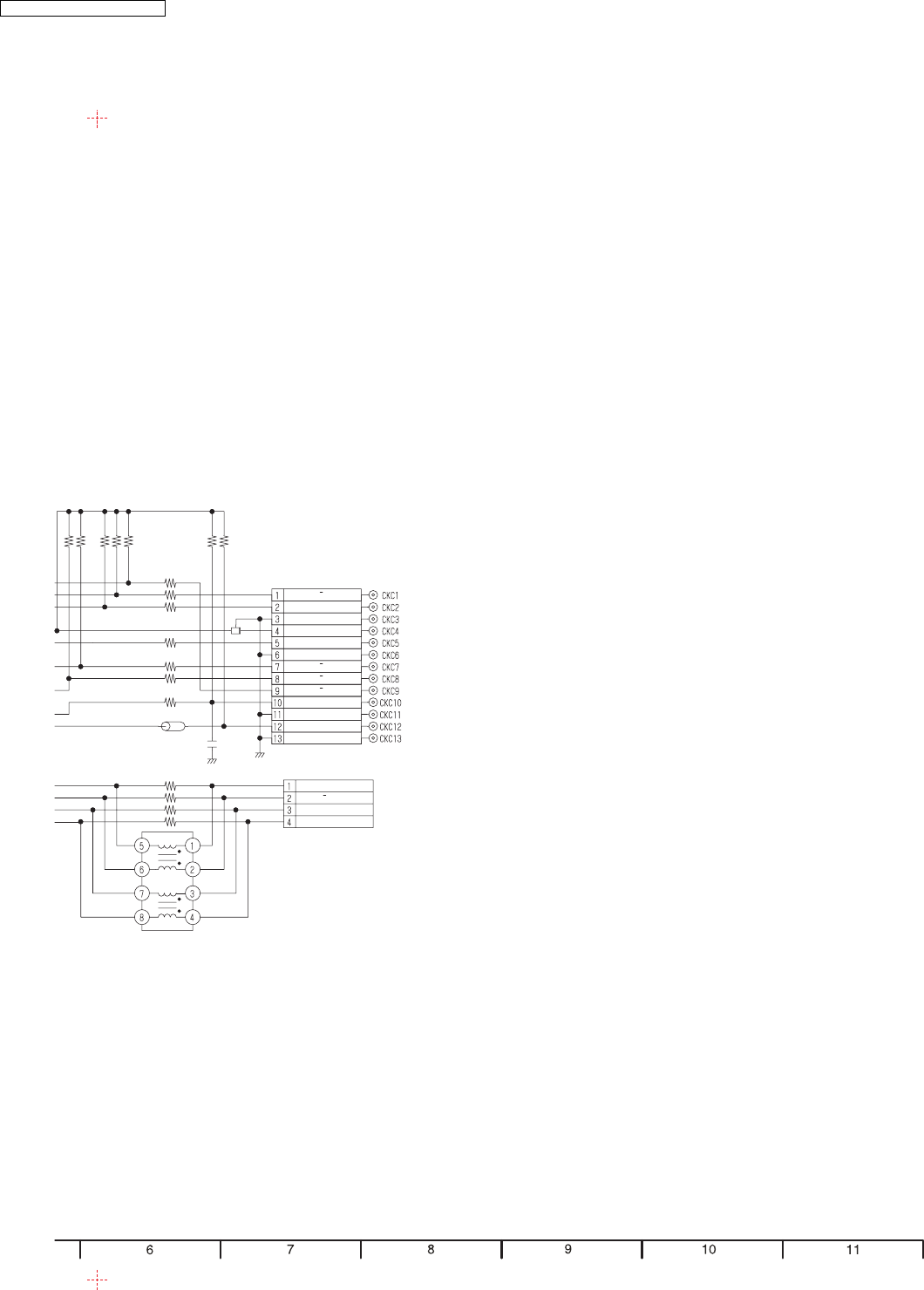

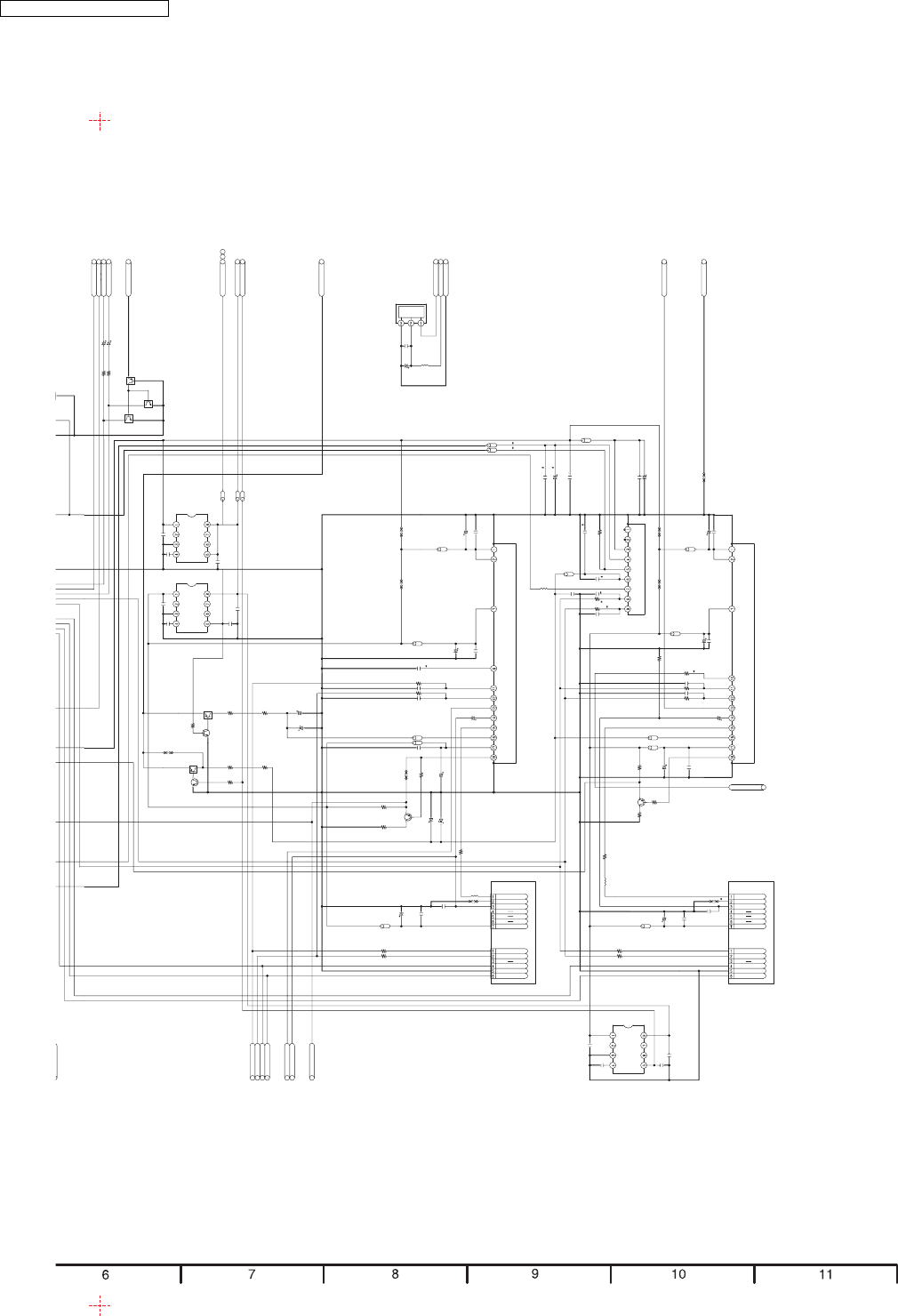

24.2. DVD OUTPUT

DMR-EH80VEG

DMR-EH80VEB

DVD OUTPUT

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled

IF DVD_R_OUT

IF AU5V

IF P_ON_H

IF X_SW5R8V

X_SW12V

AUGND

DVD_L_OUT

MIX_R_OUT

MIX_L_OUT

WIDE_H

COUT_DM

ANA5V

YOUT_DM

GPYOUT_DM

GND

BPBOUT_DM

RPROUT_DM

IF L3_H_RGB_H

XTMUTE_L

XDMUTE_L

MUTE_L

BBR_EURO

K45010

C45003

C45001

0.1

C45002

L35001

C35019

C35017

*C35018

IC35004

C45004

K45001

IC45001

R45001

100

C45005

C45006 0.1

C45007

0.1

R45002

R45003

IC45002

C45008

K45002

C45019

1000P

R45019

1K R45004

R45005

C45010

C45020

1000P

IC45003

R45018

R45007

R45008

C45012

R45009

47K

C45013

C45014

R35031

*C35020

C35021

C35022

C35023

R35032 $

C35024

C35025

C35026

C35027

QR35007

R35026

R35027

QR35008

K45009

K45008

K45007

K45005

K45003

R45006

47K

QR45001

IC35005

R45014

10K

R45015

10K

QR45007 QR45008

QR45006

D45001

QR45009

R45012

*QR45002

R45010

QR45004

C45015

R45011

QR45003

QR45005

C45016

R45013

C35028 *

C35029 *

C35030 *

C35031 *

C35032 *

C35033 *

R35021

R35020

R35019

R35018

R35017

R45017

R35015

R45016

LB45101

C45018

LB35101

LB45102

C45017 $

LB35102

LB35103

LB35104

LB35105

LB35106

DVD_R_OUT

DVD_L_OUT

DVD_V_OUT

DVD_CPN_OUT

JK35001

DMR-EH80VEG / DMR-EH80VEB

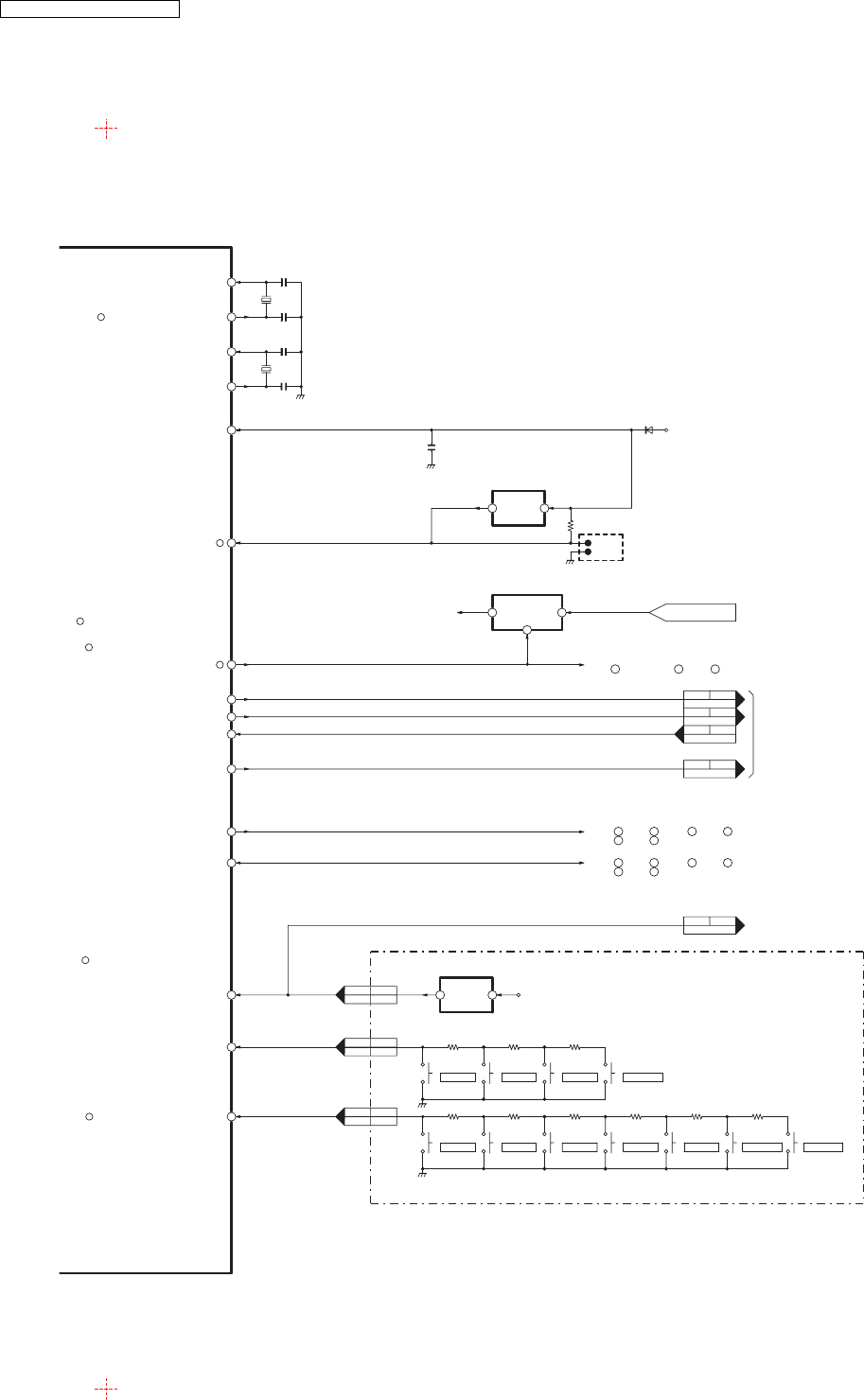

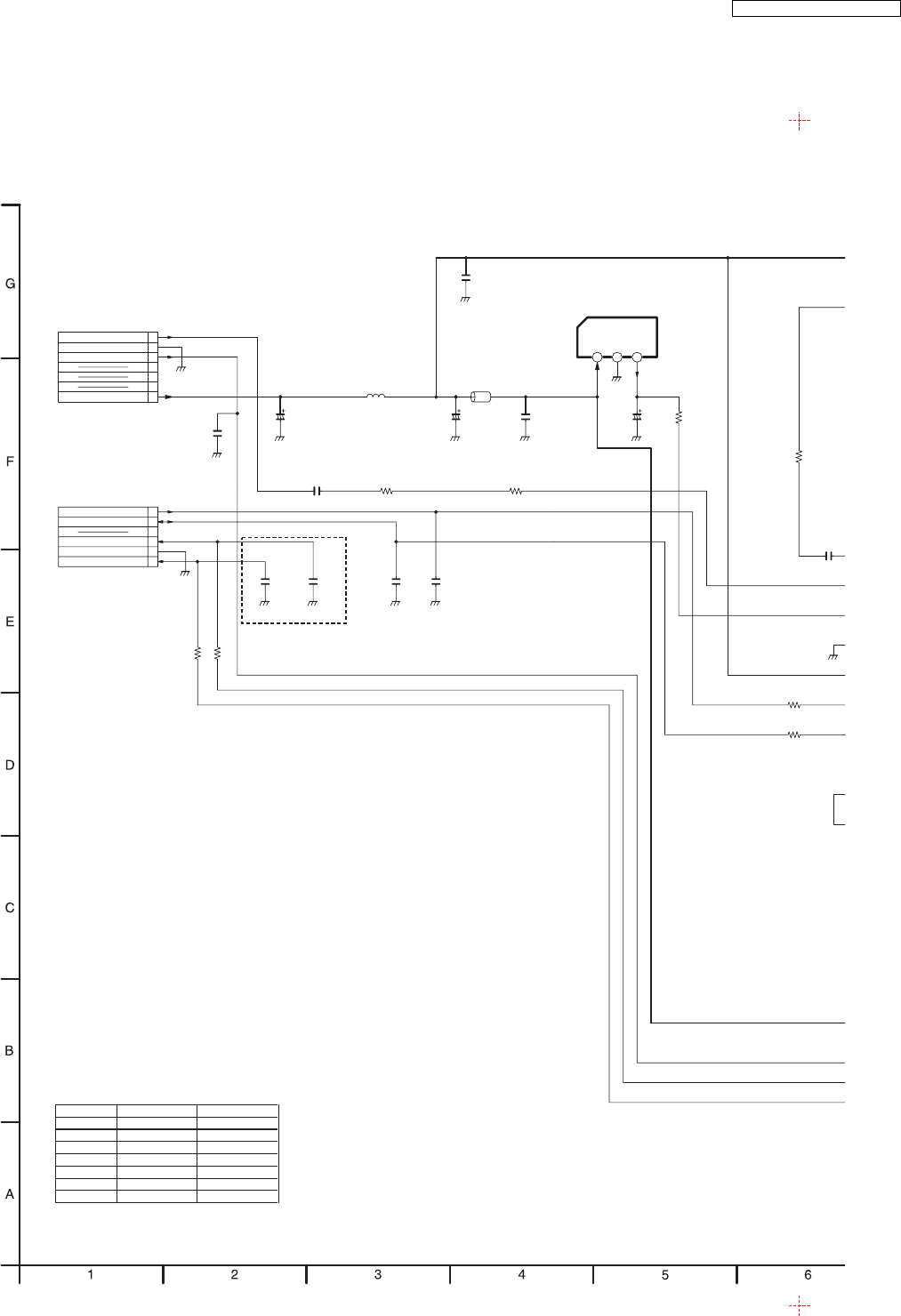

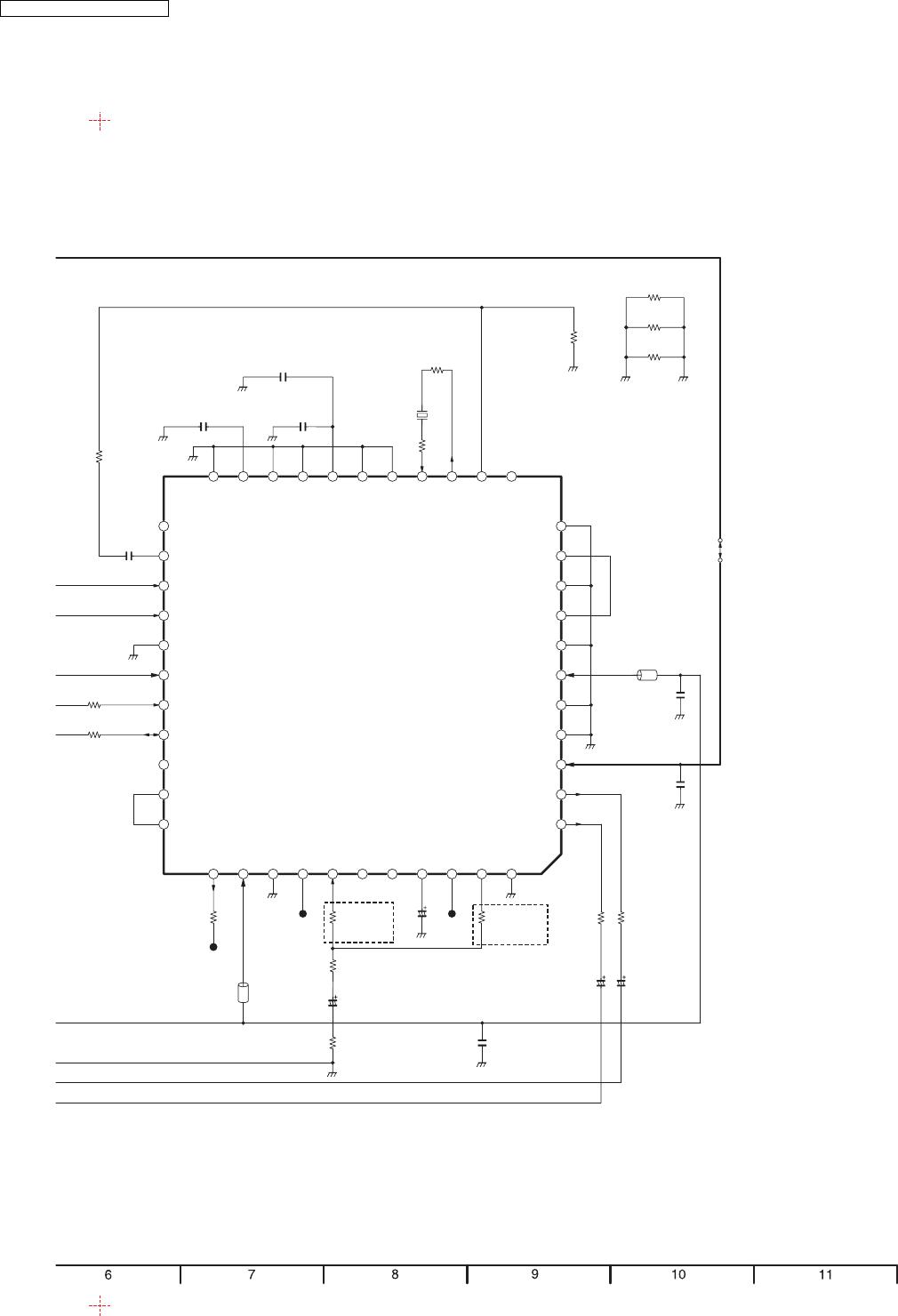

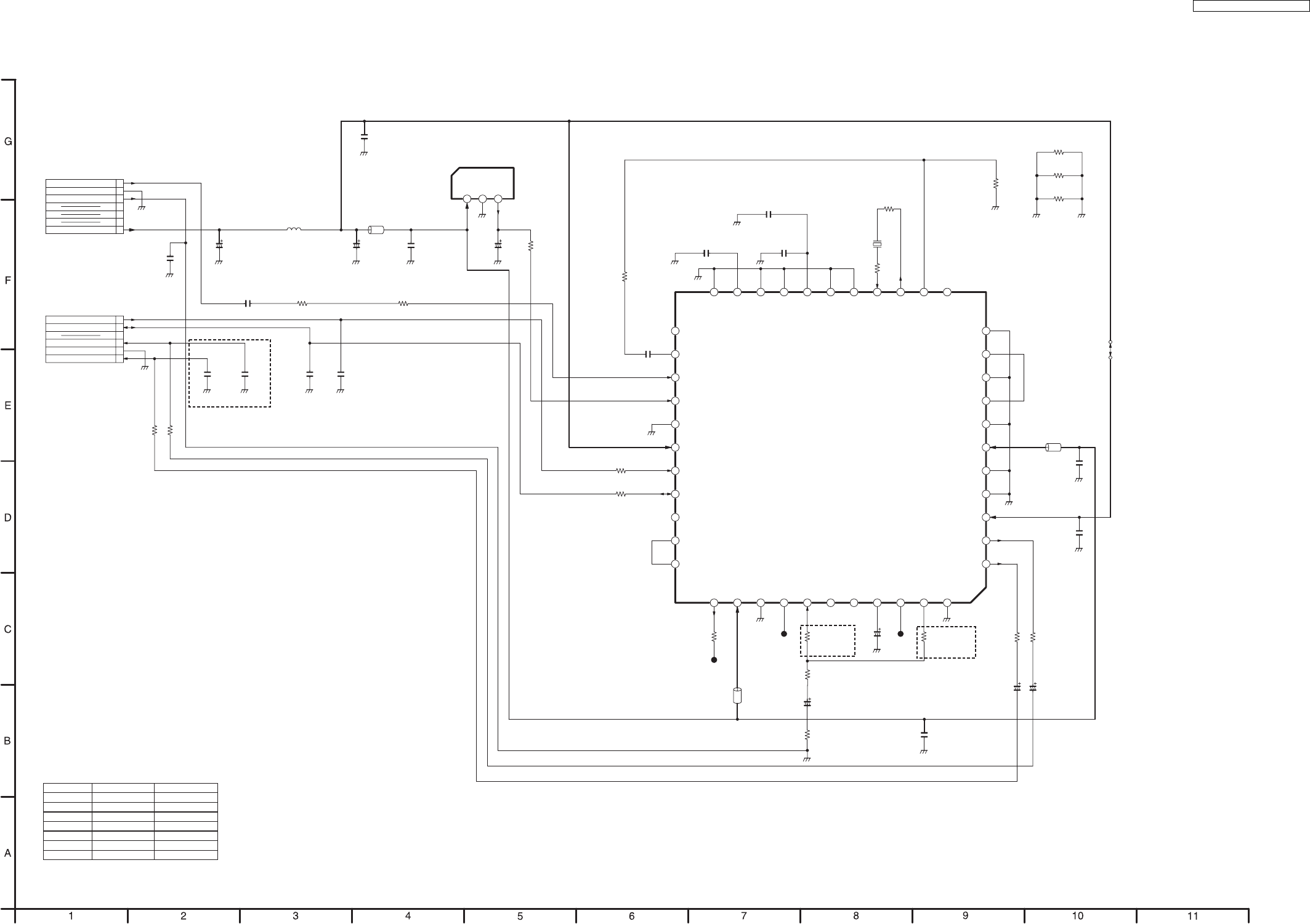

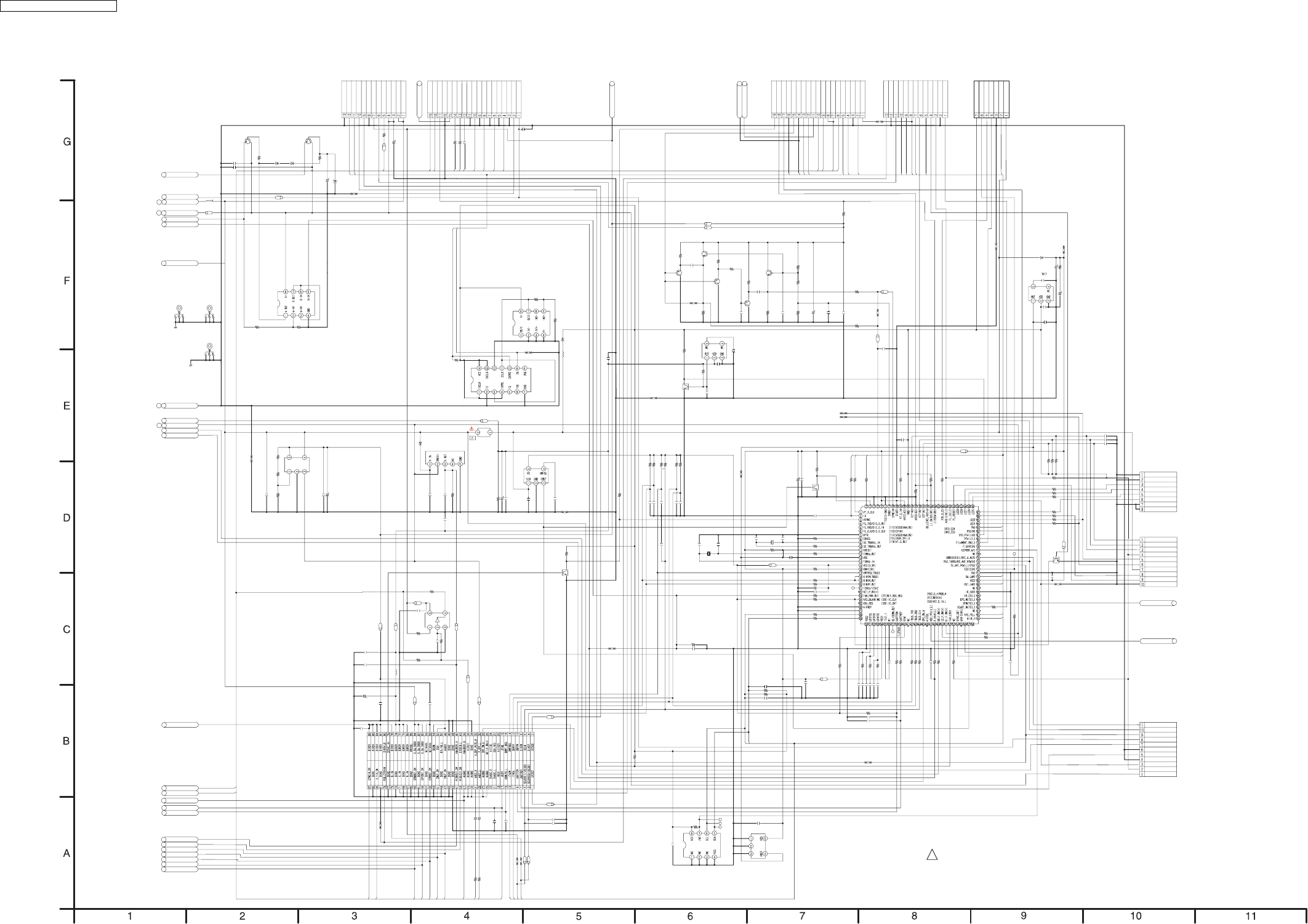

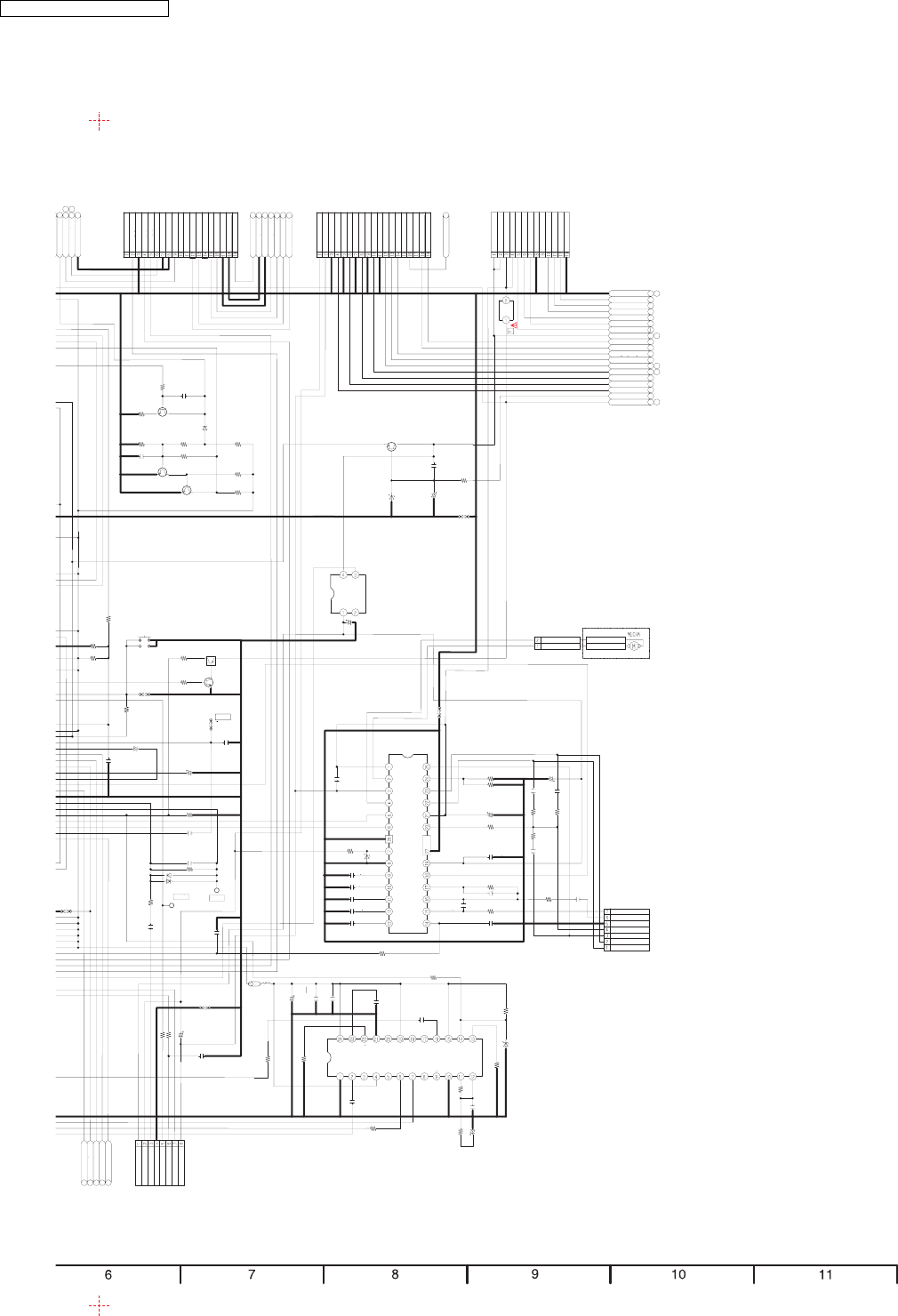

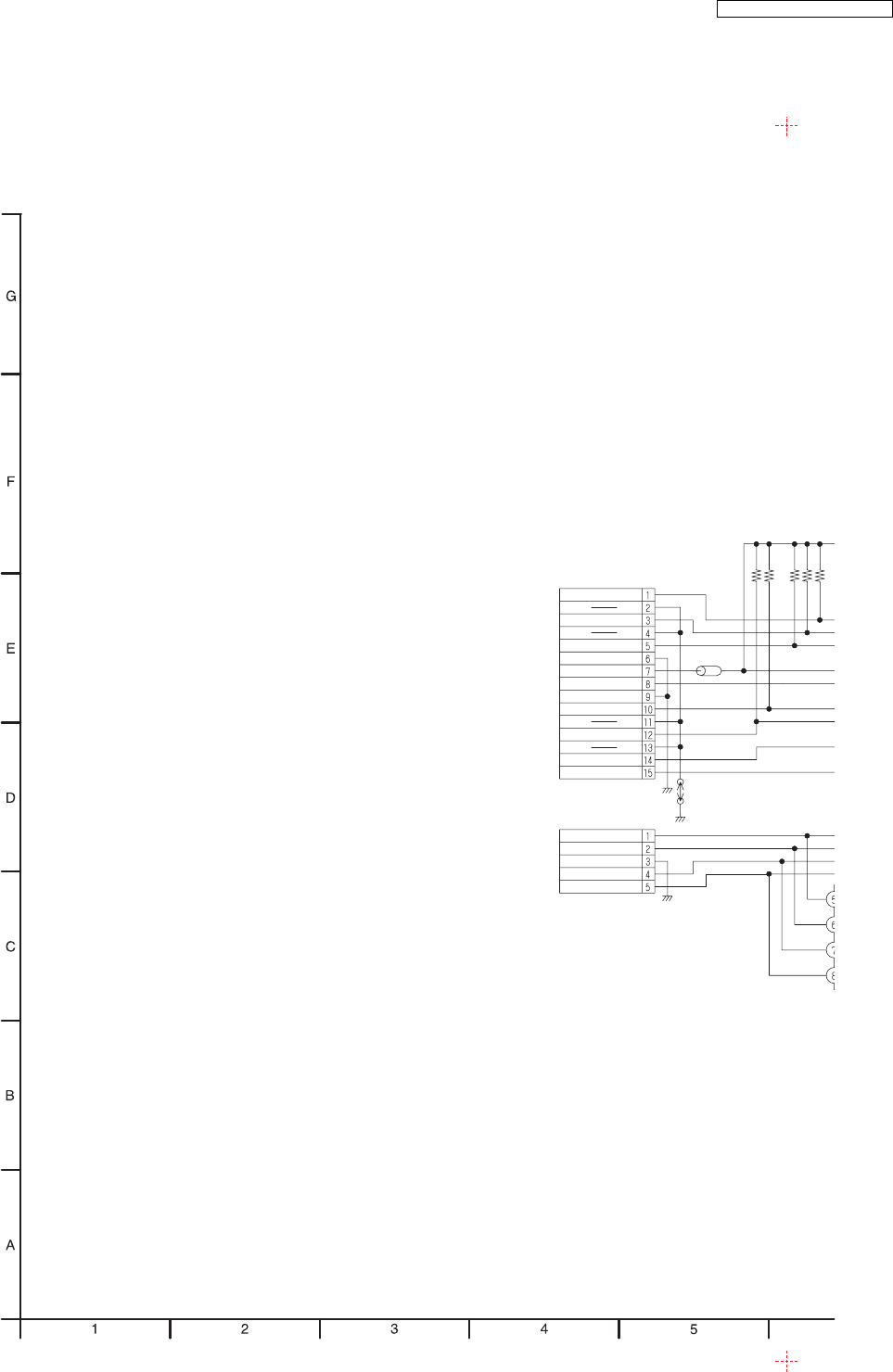

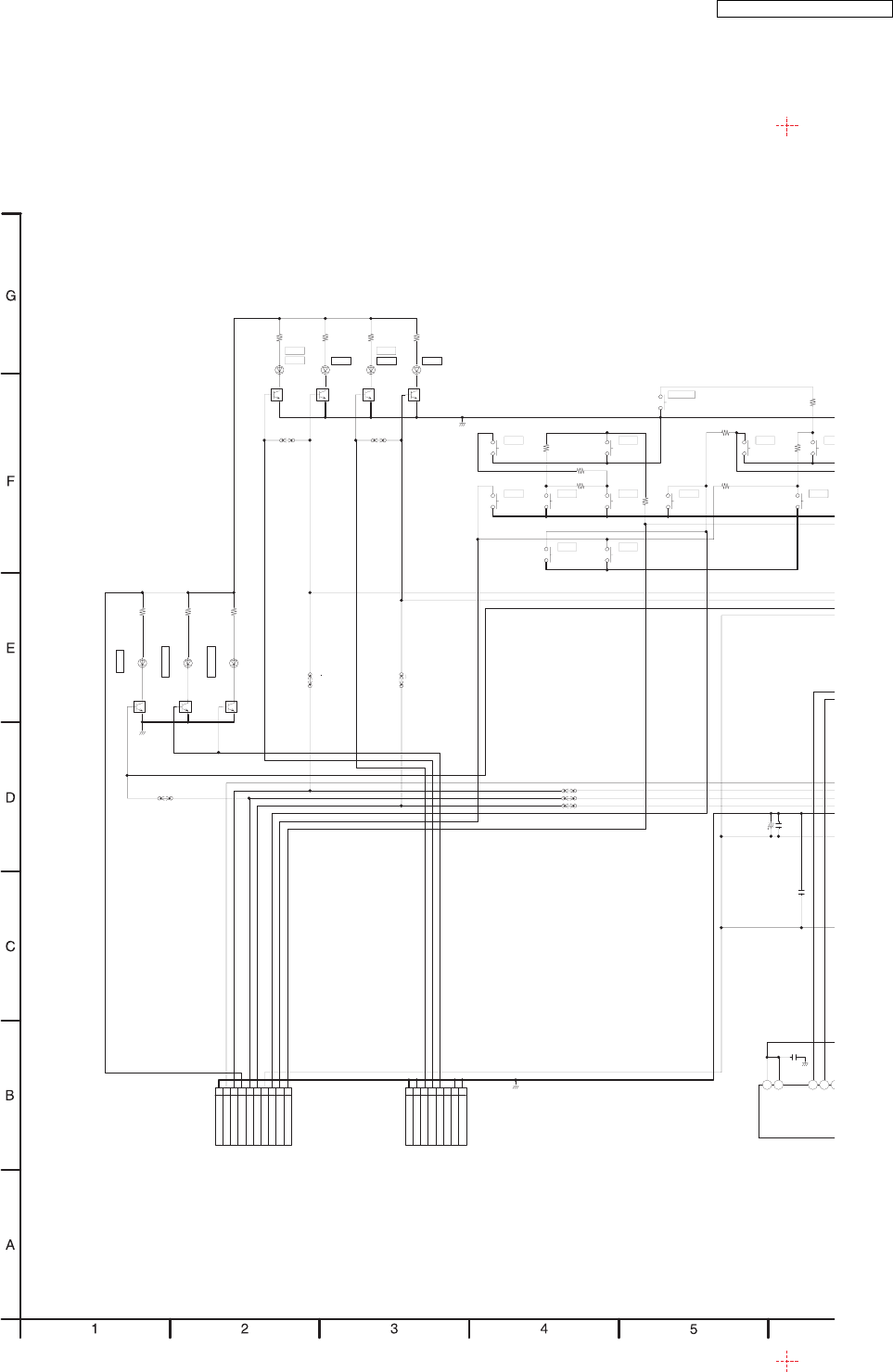

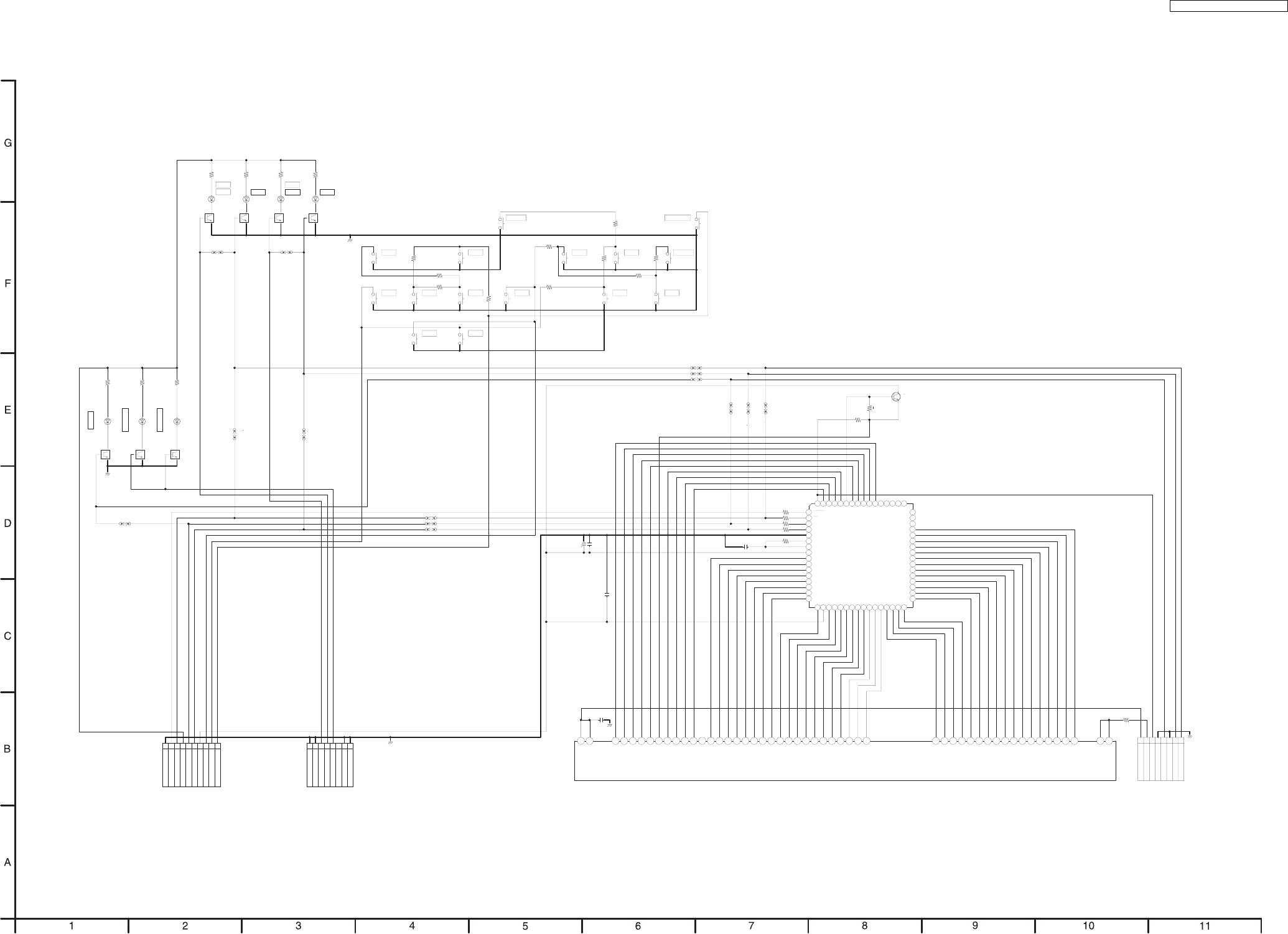

24.3. INTERFACE

Q37001

C37001

C37002 *

L37101

LB31903

ZJ37301

ZJ37303

ZJ37305

K31998

C31535

R31503 R31502

IC31510

C31536 C31537 $

R31501

R37003 R37004

IC37001

LB31902

Q37002

(TO MAIN)

P31901

R37001

D37001

D37002

R3702 *0

SCURVE1

SCURVEO

LB34002 R34011

IECOUT

C31902 *

(TO MAIN)

P31902

AADC_L

AADC_R

RPROUT_DM C33735 *

C33740 *

C33738

BPBOUT_DM

GPYOUT_DM

YOUT_DM

COUT_DM

V_YIN_DM

CPNCIN_DM

C31901

(TO MAIN)

P31903

SYNC_DET

L3_H_RGB_H

I2C3DT

I2C3CK

AU5V

MIX_L_OUT

AUGND

MIX_R_OUT

VTR_S_IN

VTR_S_CLK

VTR_S_OUT

K37511 *

(TO MAIN)

P31904

AV2BP

WIDE

P50OUT

P50IN

AV2-8

(TO MAIN)

P31905

R37506

LB33501 *

LB33502 *

SW_UART

RST_UART

K31999

D37003

C37003

TW37501

D37502

C37617

C37633

R37573 *

K37598

IC37503 *

C37618

C37620

LB33503

R33510

K33502

R33509

C33507

C33506

C33505

R33508

R33506

R33505

Q33504

C33504

R33504

C33503

Q33503

R33507

Q33502

R33511

R33503

Q33505

C33502

C33501

Q33501

K33501

R33502

R33501

R37714

IC37702

R37704

K37703 *

R37711 *

D37503

L37501

C37100 $

R37596

IC37505

R37597

C37626

C37627 $

LB33504

C33508

C37503

C37610

C37603

C37609

C39010 LB37506

K37506 *

K37507 *

QR37502

C37625

K37597

IC37703

LB31505

IP37501

IC31502

D31501

C31511

C31512

R31513

C31503

IC37504

R31512

C31507

C31527 $

C37507

C37508

K31995

R37648 $

C37606 $

C37605 $

C37579

C37581

C37582

R37584

R37583

R37530

R37531

R37532

R37533

K37502 *

C37583

C37608 $

C37607

R37505

QR37501

R37537

R37559

R37612

VTR_S_CLK

VTR_S_IN

R37558 VTR_S_OUT

AV2-8

R37501

R37582

R37581

R37605

R37606

R37604

R37504 *

R37567 $

R37566 *

R37565 *

R37563 *

R37562 *

R37512 *

R37511 *

(TP FLD)

PS37501

(TO FLD)

PS37502

LB37509

QR37503

C37604

TL37504

P50OUT

P50IN

SW_UART

RST_UART

IC37501

R37538

R37539 *

R37541

R37542

C37587

X37502

R37540

C37588

C37586

C37585

LB37507

C37584

X37501

C37580

R33707

IECOUT R34004 $

LB34001

QR33701

R37578

R37577

C37590 $TL37503

C37589

R37600

R37502 *

K37504

R37503 *

R37575

AV2PB

WIDE

R37571

R37572

L3_H_RGB_H

SYNC_DET

TL37509

R37544

R37545

C37635 $

C37636

K37505 $

LB37105

C34001 $

IC34001

R34001

C34002 $

R34003 $

R34002

LB37108

LB37109

C37104

C37105

L31501

C31501

C37106

LB37107 $

C39003

LB34003

LB37104

LB37409 *

R37585

C37592

R37546

R37547

C37593

I2C3CK

I2C3DT

LB37508

C37595

R37548

R37549 *

R37550 *

R37551 *

C37652

R37556

R37557

R37535

R37534

R37536

C37602

R37561

R37569

R37633

C39011

C37596 *

C37597 *

C37598 *

C37599 *

C37600 *

C37601 *

R37588 *

C37502 *

C37506 *

C37107

P39702

LB37101 *

K37510 *

(TO BS_PACK

NOT FOR MODEL EG, EB)

PP37401

C37546 *

IC37508

R37599

TL37520

TL37519

TL37518

IC37502

C37504

C37101 $

C37102 $

C39002

C39001

C34004

C34003

K39704

CPNC IN_DM

V_YIN_DM

BPBOUT_DM

R34008

R34009

GPYOUT_DM

RPROUT_DM

COUT_DM

YOUT_DM

AUGND

AADC_R

AADC_L

AU5V

ITA2M

ITM2A

SCURVE1

SCURVEO

K33701 *

K33702 *

LB37102 *

LB37103 *

SP FANDCOUT2

DO SP

X_SW17V

X_SW5R8V

X_SW12V

FANDCOUT1

FANLOCK

DO BBR_EURO

DOSP GND

SP D3R3V

DOSP P_ON_H

SP DR_P_ON_H

SP P_SAVE_L

SP D1R5V

DO MIX_L_OUT

MIX_R_OUT

DO AUGND

AU5V

XDMUTE_L

DVD_R_OUT

DVD_L_OUT

YOUT_DM

COUT_DM

RPROUT_DM

GPYOUT_DM

BPBOUT_DM

BOOSTER_H

BS_ANT_H

TV_ANT_POW_L

X_SW17V

GND

X_SW5R8V

BSPOW[H] 3V

GND

BS_LEVEL

5R2V

X_SW12V

HDD_PFAIL SP

XTMUTE_L DO

KEY_IN1

KEY_IN2

KEY_IN3

AD5

FL_DATA/LED2

FL_CLK/LED1

FL_6V

FL_CS/LED3

FL_RST

GND

LED7

LED6

LED5

LED4

GND

SCURVE1/R

SCURVEO/B

I2C5_DT/SW2

I2C5_CK

GND

VREF

PS5

IECOUT

X_SW12V

X_SW5R8V

WIDE_H

AADC_L

AADC_R

L123_SWIDE_B/A2_SIN

DGND

WIDE_H

RPROUT_DM

BPBOUT_DM

GPYOUT_DM

GND

YOUT_DM

GND

COUT_DM

GND

V_YIN_DM

GND

CPNCIN_DM

GND

MGND

X_SW17V

ANA5V

L3_H_RGB_H

MUTE_L

VSYNC

L123_SWIDE/AFC

DVD_POFF/JC_PON

SYNC_DET

SLICER_VIDEO

L3_H

I2C3DT/IIC_DATA

I2C3CK/IIC_CLK

MUTE_L

AU5V

MIYLOUT_DM

AUGND

MIXROUT_DM

VTR_S_IN

VTR_S_SLK

GND

VTR_S_OUT

TP_H

RGB_CPSVIN

GND

AV2PB

WIDE

P50OUT

P50IN

AV2_P50_H

AV2-8

AV2_BLANK

A3_SIN

GND

SCART_MUTE

AD5V

P_SAVE

VTR_CS

FL_MUTE

GND

REMOCON

SST6V

Note:

Important Safety Notice:

Components identified with the mark have

the special characteristics for safety.

When replacing any of these components

use only the same type.

Marked $ (spare) parts are not assembled

DMR-EH80VEG

DMR-EH80VEB

INTERFACE

SCHEMATIC DIAGRAM

DMR-EH80VEG / DMR-EH80VEB

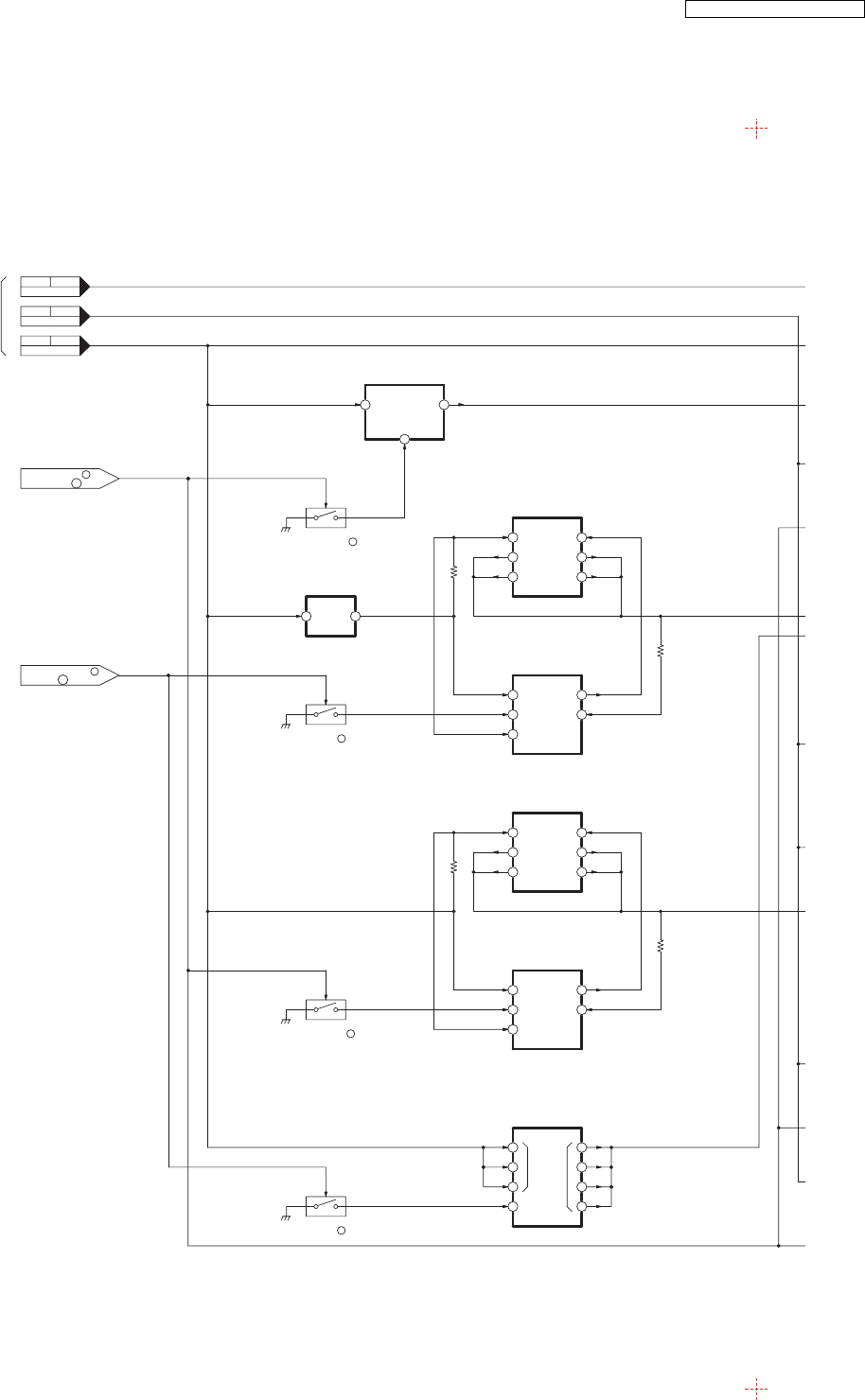

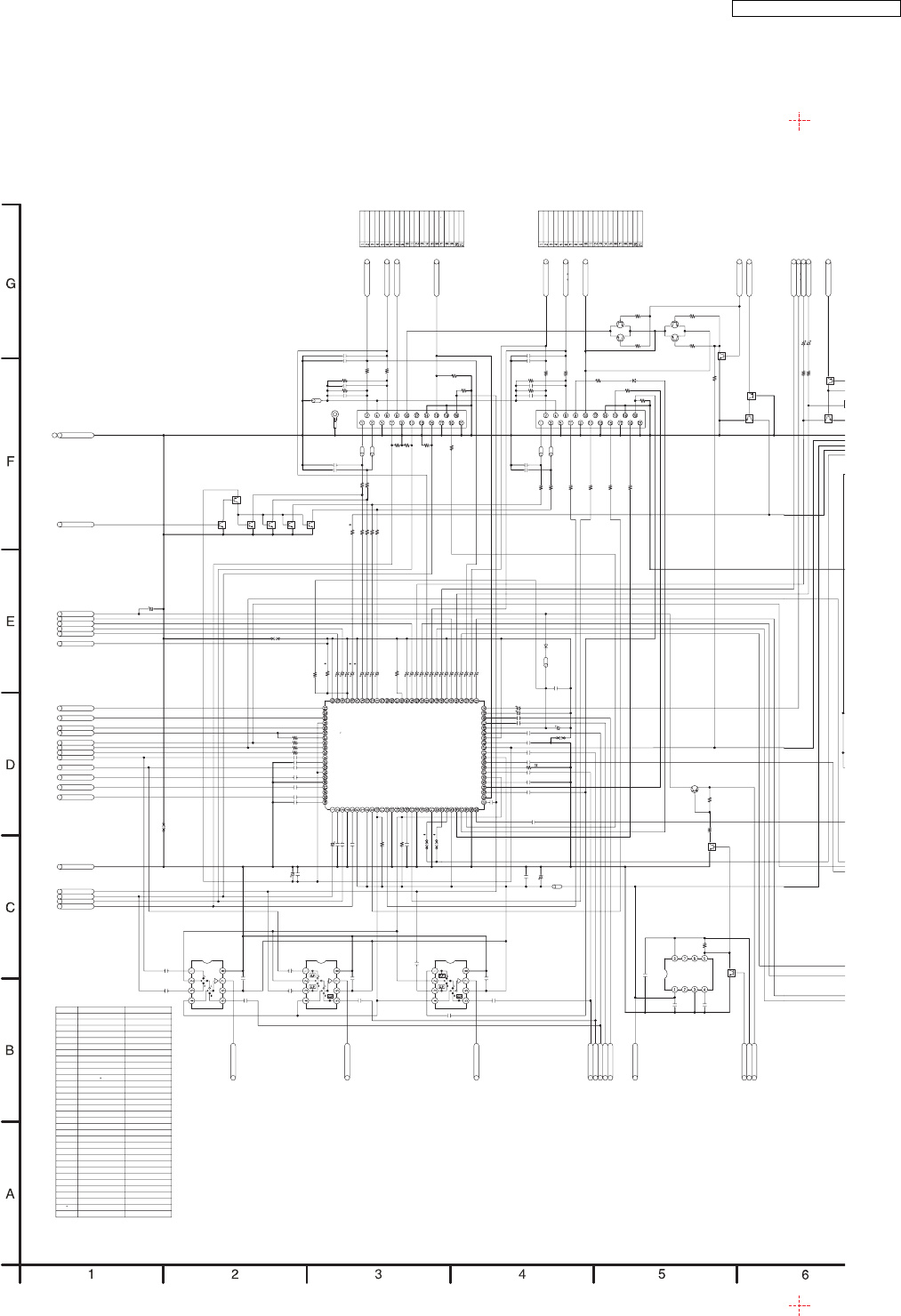

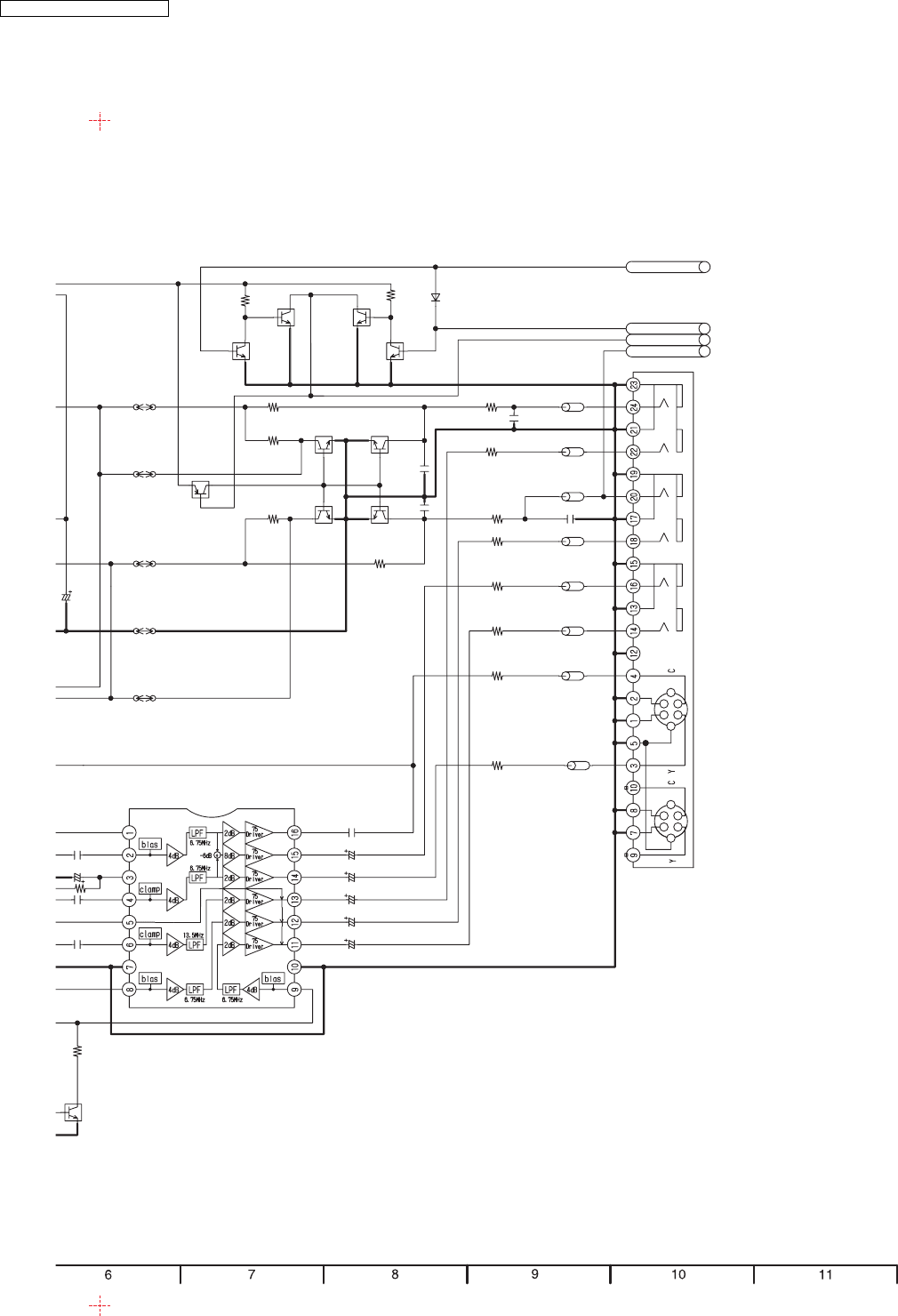

24.4. IO / TUNER

DMR-EH80VEG

DMR-EH80VEB

IO / TUNER

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled

A_DAC_R_IN

REG9V_AR

AV3(FRONT)_L_IN

AV4(REAR)_L/TUNER2_AL_IN

AV1_L_IN(PIN8)

AV2_L_IN(PIN6)

TUNER_AL_IN

VCR_L_IN

A_DAC_L_IN

REG9V_AL

GND_REG

AV1_L_OUT(PIN3)

AV1_R_OUT(PIN1)

AV2_L_OUT(PIN3)

AV2_R_OUT(PIN1)

GND_AR

RF_OUT

ALC_DET

VCC5V_VD

P Y_OUT

VCC5V_RGB

AV1_R/C_OUT(PIN15)

EXT_CTL1

B-Y_OUT

AV1_B_OUT(PIN7)

COMPONENT_Y_OUT

COMPONENT_V_OUT_SAG

MUTE_FIL

AV1_G_QUT(PINE11)

GND_RGB

LINE_Y_OUT

LINE_Y_OUT_SAG

GND_VL

LINE_C_OUT

LINE_V_OUT

LINE_V_OUT_SAG

VCC5V_VL

AV1_V_OUT(PIN19)

AV1_FS_OUT(PIN8)

AV2_V_OUT(PIN19)

GND_VC

TUNER_V_IN

GND GND GND

VCC VCC VCC

NC GND

COUT NC

VIN

REF_GND

SCART_MUTE

PS12V

MIX_R_MUTE

MIX_L_MUTE

AADC_L

AADC_R

AU_GND

C4946

$(16V22)

CPN_C_IN_DM

V_Y_IN_DM

SLICER_VIDEO

V_SYNC

I2C5_CK

I2C5_DT

SYNC_DET

C_OUT_DM

Y_OUT_DM

R_PR_OUT_DM

G_PY_OUT_DM

B_PB_OUT_DM

IO_GND

AV2_V_IN

AV2_R_C_IN

AV2_G_IN

AV2_B_IN

C3901

0.01

C3930

0.01

IC3902

C3931

0.1

C3932

0.01

C3933

0.1

C3934

0.1

C_IN

Y_IN

C3936

0.1

C3935

0.1

IC3903

C3911

6V220

C3912

0.1

C3910

C3909

C3908

C3907

0.01

0.1

C3906

C3905

C3904

R3914

R3917

R3916

R3915 8200

100

0.01

1µ

IC3901

R4927

K4902

C3948

0.1

C3953 0.1

C3947 0.1

0.01C3927

0.1

0.01

0.1

D4901

LB4101

C4942

C4943

C4944 C4945

K4903

C3922

C3921

C3920

C3923 $

C3924

C3925

R3918

C3926

LB3902

C3928

0.1

C3929

6V220

LB7406

C7430

6V47

C7431

0.01

C7465

470P

K7403

DE7401 *

PK7402 $

SCL

SDA

DECODER [R]

GND

DECODER [L]

(VHS)

R7410

R7411

220

QR3901

C3939

0.1

IC3906

C3937

C3945

0.1

IC3904

C3952

0.1

C3943 0.1

C3946

0.1

C3938

1µ

C7454

IC7405

C7457

C7456

0.1

C7455

0.1

TUN_V_IN1

TU_AIN

AFC_S

DECODER_L

DECODER_R

IIC_DATA

IIC_CLK

P_SAVE

X_SW_5R8V

X_SW12V

PS5V

PB_C_OUT

VCR_V_Y_OUT

AV3_C_IN

AV3_Y_IN

AV3_V_IN

V_IN

DE7402 *

PK7404 $

SCL

SDA

DECODER [R]

GND

DECODER [L]

(DVD)

R7421

R7422

220

C7466

470P

C7453

0.01

C7452

6V47

LB7413

R3934

10K

L7401

PK7401

QPSK

GND

TU_AUDIO_IN

R7437

R4926

4700

QR4914

R4925

4700

K3902

K3901

R3922 6800

C4926 1µ

R3921 6800

C3916 0.1

0.1

0.01

C3915

C3914

C3913 16V10

K3903

Q4901 Q7402

R7434

QR7402

K7402

R7403

330

R7404

330

Q7401

R7433

100K

QR7401 R7401

330

R7402

330

C7415

50V1

D7401

K7401

R7407

C7414

6V47

C7422

LB7405

LB7415

0.01

C7411

(VHS)

VIDEO OUT

5V(VIF)

BTL+30VIN

SIF-OUT

AUDIO OUT

AFT OUT

SDA

SCL

RFAGC

5V(TUNER)

BOOSTER+B

TU7401

C7426

470P

C7425

6V47

LB7416

L7403

LB7414

C7476

470P

C7437

C7438

R7414

R7415

C7439

(RF CONV)

LB7410 C7445

6V100 C7446

0.01

(TUNER)

BOOSTER+B

LB7417

DATA

CLK

VIDEO

BTL 30V

TU7403

ANT+B

(5V)

MB(5V)

AUDIO

K7410

K7407

K7408

C7407

C7406

0.1

IC7402

C7404

C7405

0.1

QR4901 QR4903 QR4904 QR4905 QR4906

QR4902

R4907

R4908

R4909

R4910

R4911

470

R4905

220

R4906

220

R4916 220

220

R4917

R3910

R3911

R3912

R3913

75 [0.5%]

IC7401

C7401

C7402

0.1 C7403

LB7401

LB7402

LB7403

C7441

R7413

K7409 C7428

6V47

C7448

470P

TU7402

K7406

C7477

470P

C7435

6V47

LB7409

C7434

0.01

C7433

C7432

LB7408

LB7407

QR4913

QR4910

LB4106

LB4105

C4111 100P

100P

C4112

R3906

R3905

R3904

R3903

LB4104LB4103

C5105 100P

100P

C4106

LB4102 ZJ3101

JK3902

(AV2)

C4104

R4902

C4103

R4901 $(47K)

$(47P)

$(47K)

$(47P)

R4101

1K R4102

1K R3901 75

R3902

JK3901

(AV1)

R4914

C4109

R4915

C4110

$(47K)

$(47P)

$(47K)

$(47P)

R4103

R4104

R3907

D3901

R3908 75

R3909

R3925

QR4908

R4922

470

R4923

470 QR4911

QR4912

C4916

L4901

C4915

0.1

C4917

16V10

C4918

16V10

QR3902

R3923

R3924

Q3904

Q3903

R3919

R3920

Q3902

Q3901

C4107

C4108

470P

C4101

C4102

AV2_IN_R

AV2_IN_L

AV2_PB_H

AV2_BLANKING

AV1_IN_R

AV1_IN_L

P50

AV2_P50_H

COM_MUTE

AV3_IN_L

AV3_IN_R

VHS_OUT_L

VHS_OUT_R

FM_MUTE_H

VTR_P_ON_H

X_SW_5R8V

JC_PON

UNREG_38V

JK4901

IEC_OUT

VREF

D_GND

AFC_H3

A_GND

Variations Category

C4921

C4949

C7411

C7432

C7433

C7436

C7437

C7438

C7439

DMR-EH80VEG DMR-EH80VEB

ERJ3GEY0R00V

50V2R2

6V22

16V10

ECJ1VB1H103K

50V2R2

6V47

DE7401

DE7402

K3901

K3902

K7402

L7403

ERJ3GEY0R00V

VWJ0795=5

27µ

VEP07A51B

VEP07A51A

VEP07A51F

LB7407

LB7408

LB7414

Q7402

QR4908

QR4910

QR7402

R4907

R4924

R4927

R7409

R7413

(AV2)

AUDIO OUT R/B

AUDIO IN R/B

AUDIO OUT L/A

GND(AUDIO)

GND (BLUE)

AUDIO IN L/A

BLUE IN

FUNCTION SW IN/OUT

GND(GREEN)

GREEN IN

GND(RED)

GND(BLANKING)

RED/C IN

BLANKING IN

GND(VIDEO OUT)

GND(VIDEO IN)

VIDEO OUT

VIDOE/Y IN

GND

(AV1)

AUDIO OUT R/B

AUDIO IN R/B

AUDIO OUT L/A

GND(AUDIO)

GND (BLUE)

AUDIO IN L/A

BLUE OUT

FUNTION SW OUT

GND(GREEN)

CONTROL OUT

GREEN OUT

GND(RED)

GND(BLANKING)

RED OUT

BLANKING OUT

GND(VIDEO OUT)

GND (VIDEO IN)

VIDEO OUT

VIDEO IN

GND

2SD1819A0L

J0JHC0000032

UNR521300L

UNR521600L

UNR511200L

22K

470

2R2M

100

R7414

R7415

R7434

R7435

TU7401

TU7402

100K

ENG37A17GF

5600

ENG37A08GF

ENG37A14GF

R7408 $

Q7404

R7423 $

C7424

D7402

50V1

K7405

PK7403

QPSK

GND

TU_AUDIO_IN

LB7404

C7417

6V100

C7418

0.01

C7410

R7405

C7412

R7406

C7413

470

33P

470

33P

R7436

L7404 *

R7419

Q7403

R7418

R7420

C7449

6V47

LB7411

C7450

0.01

LB7412

SW2_D

(DVD)

VIDEO OUT

5V(VIF)

BTL+30VIN

SIF_OUT

AUDIO OUT

AFT OUT

7436

SDA

SCL

SW(VIF)

R7435

R7432

C7442

R7416

C7443

R7417

33P

470

33P

470

R4924

C4919

C4920

C4921

C4949

C4922

C4923

C4924

C4925

R4903 0

C4927

C4928

C4929

C4930

C4931

C4932

C4933

C4934

C4935

C4936

C4937

C4938

C4939

C4940

C4941

C_ADC

Y/V_ADC

V_SYNC_OUT

VCC5V_VSW

SLICER

C_SYNC_OUT

V_DET_IN

SCL_IN

SDA_IN

V_DET_OUT

ENC_C_IN

V_DET_FIL

ENC_Y_IN

VCC_LOGIC

ENC_R/R-Y_IN

GND_LOGIC

ENC_G/Y_IN

GND_V_SW

ENC_B/B-Y_IN

REG2.5V

[78] A_ADC_L_OUT

[79] A_ADC_R_OUT

[80] GND_AL

[ 1 ] AV2_R/C_IN(PIN15)

[ 2 ] REG2.5

[ 3 ] AV2_G_IN(PIN11)

[ 4 ] GND_VD

[ 5 ] AV2_B_IN(PIN7)

[55] VCR_R_IN

[54] TUNER_AR_IN

[53] AV2_R_IN(PIN2)

[52] AV1_R_IN(PIN2)

[51] AV4(REAR)_R/TUNER2_AR_IN

[36] EXT_CTL3

[35] AV4(REAR)_V_IN

[34] AV1_FB_OUT(PIN16)

[33] AV1_V_IN(PIN20)

[32] AV2_FB_IN(PIN16)

[31] AV2_V/Y_IN(PIN20)

AV3(FRONT)_R_IN

REF4.5V

VCR_C_IN

VCR_Y_IN

VCC11.6V_A

AV3(FRONT)_C_IN

GND

AV4(REAR)_C_IN

VCC_ALL_5V

AV3(FRONT)Y_IN

VCC5V_VC

AV4(REAR)_Y/TUNER2_V_IN

EXT_CTL4

AV3(FRONT)_V_IN

VIN

COUT

GND

VCC

VIN

COUT

GND

VIN

COUT

GND

DMR-EH80VEG / DMR-EH80VEB

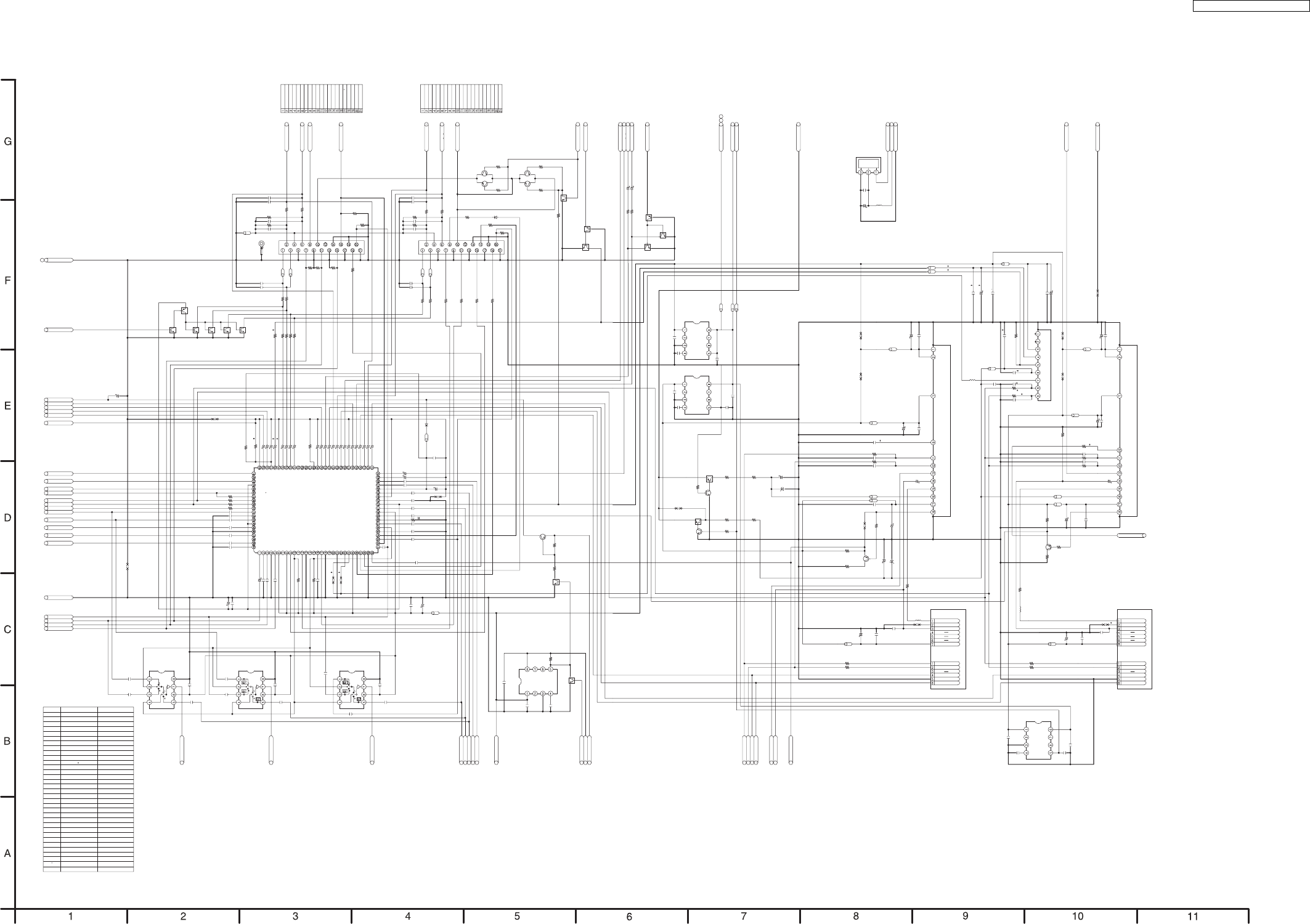

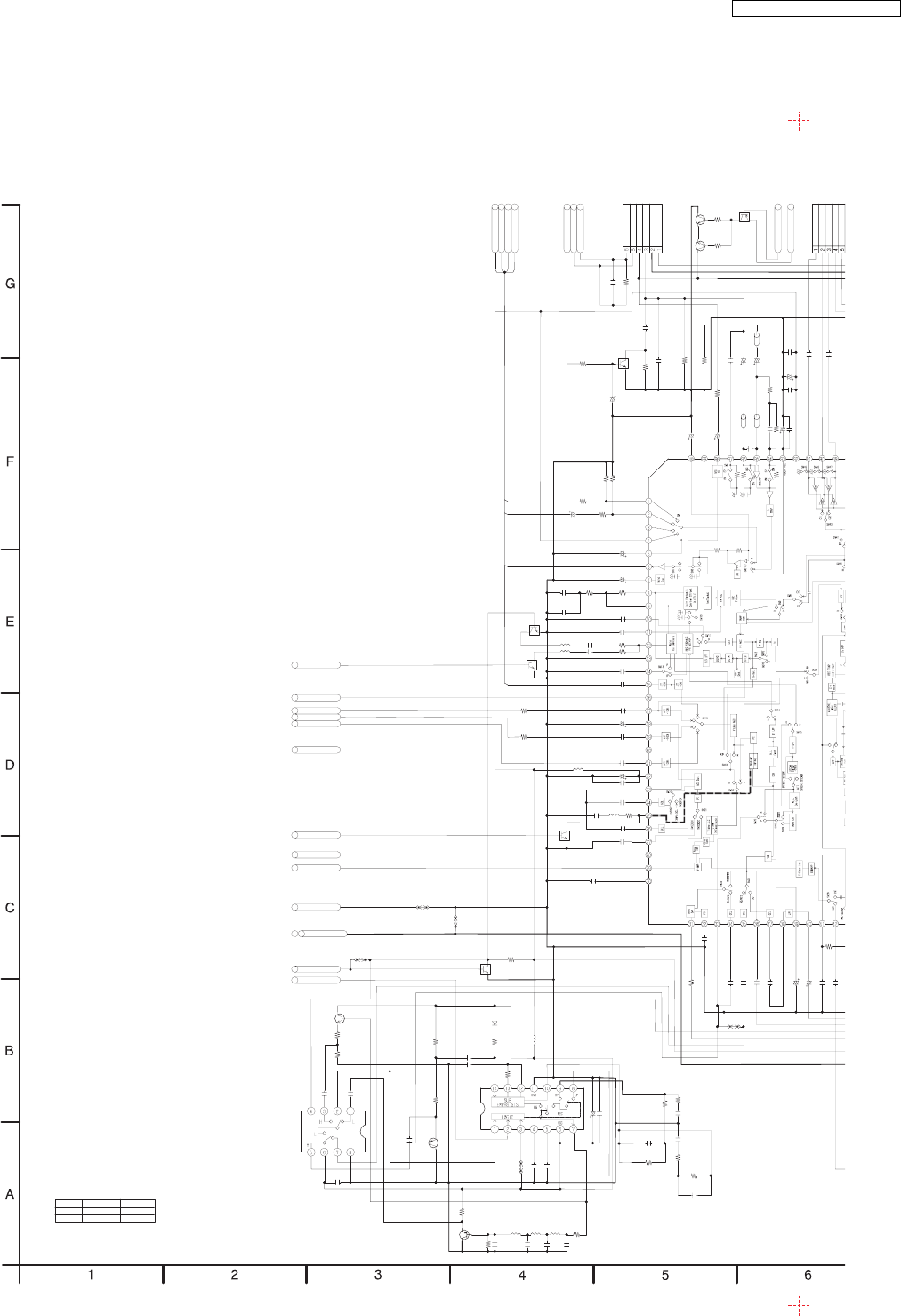

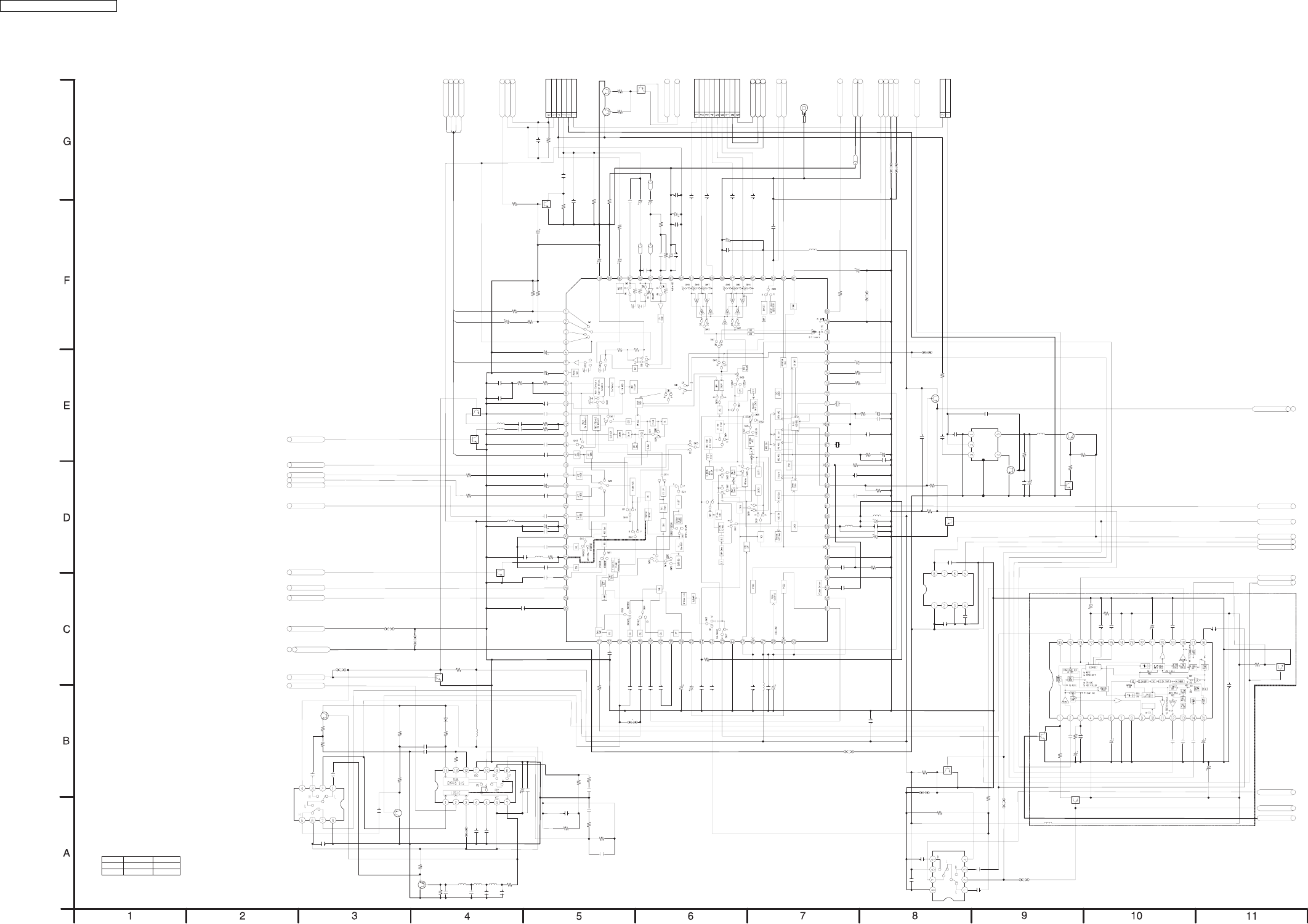

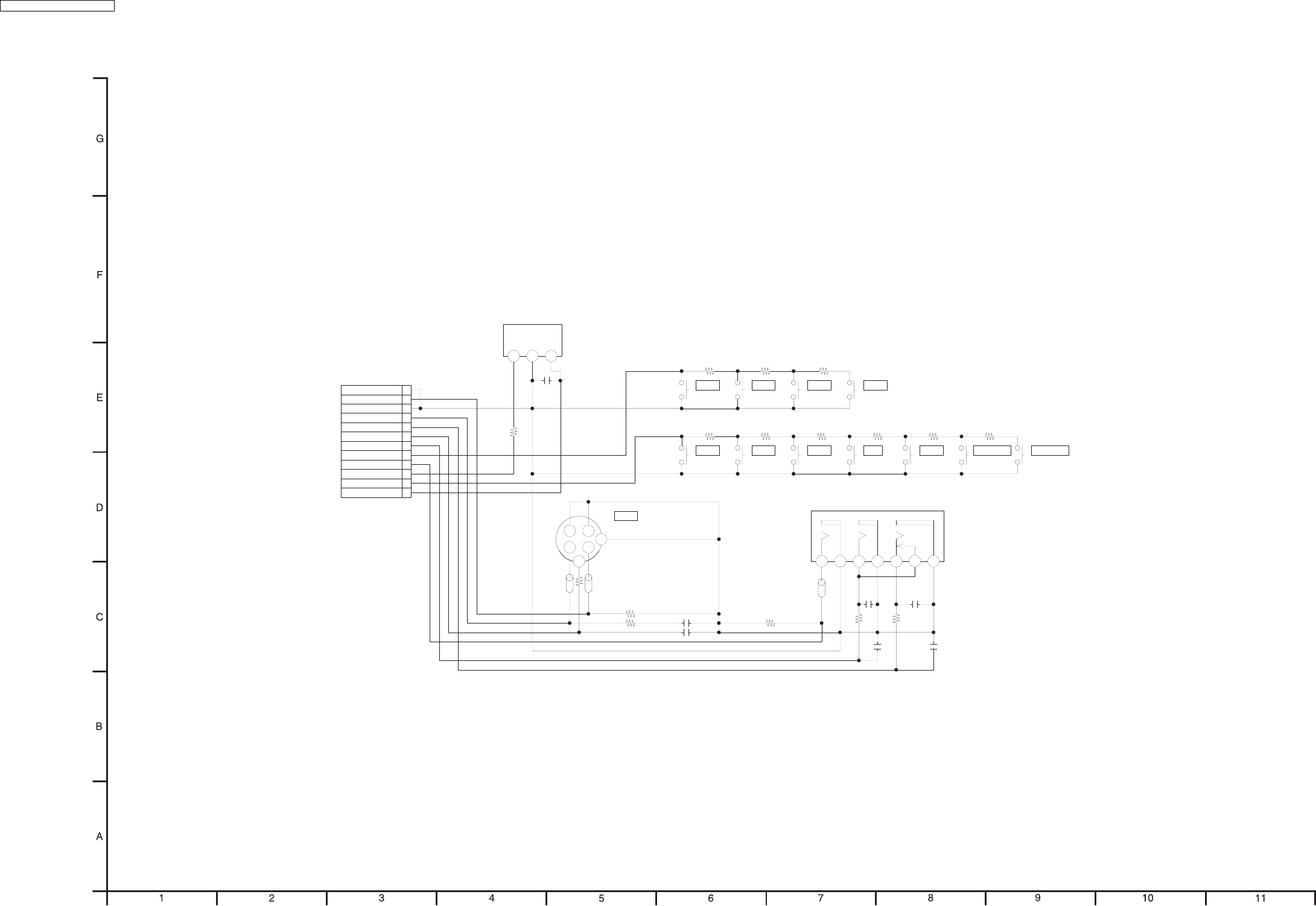

24.5. SYSCON / SERVO / TIMER MAIN

DMR-EH80VEG

DMR-EH80VEB

SYSCON / SERVO / TIMER

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled

C7901

0.01

R7901

560

L7901

100µ

UNREG_38V

PS6001

F-

F+

GND

FL_CLK

GND

FL_DATA

FL_CS

TRK_ENV

FADJ

ART_V_H_N

EE_H

H_SW

A_H_SW

DREC_H

ABS_NORM_L

PAL_EP_H

BIAS_H

FM_MUTE_H

SW2_V

S1532

MODE SW

SVHS_H

DUB_H

HPNC_H

AV3_V_IN

AV3_C_IN

AV3_Y_IN

SYS_GND

OSD_GND

PS6002

GND

CPN_Y_IN2

GND

CPN_CIN2

L2_RIN

L2SW

L2_LIN

KEY2

L2_VIN2

KEY1

5V AD

K6098

ZJ6001

AV3_IN_L

AV3_IN_R

P_SAVE

SST6V

PS12V

REMOCON

AV2_PB_H

GND

FL_MUTE

VTR_CS

P_SAVE

AD5V

SCART_MUTE

GND

A3_SIN

A2BLANKING

AV2 -8

AV2_P50_H

P50IN

P50OUT

WIDE

AV2 PB

GND

RGB_CPSVIN

AV2 _V_ IN

AV2_G_IN

AV2_P50_H

AV2_BLANKING

BWH

KILLER

AFC_S

TO DVD I/F

P6005

TO DVD I/F

P6004

TO DVD I/F

P6003

TO DVD I/F

P6002

TO DVD I/F

P6001

X_SW5R8V

X_SW12V

IECOUT

PS5V

VREF

GND

--------------

SW2

AV2_B_IN

AV2_R_IN

GND

-----------

VTR_S_OUT

GND

VTR_S_CLK

VTR_S_IN

MIXROUT_DM

AUGND

MIXLOUT_DM

AU5V

-----------

IIC_CLK

IIC_DATA

-----------

XSW_17V

MGND

GND

CPNCIN_DM

GND

V_YIN_DM

GND

COUT_DM

GND

YOUT_DM

GND

GPYOUT_DM

BPBOUT_DM

RPROUT_DM

D_GND

AADC_R

AADC_L

D_GND I

SLICER_VIDEO

SYNC_DET

JC_PON

AFC

VSYNC

V_SYNC

AFC_H3

JC_PON

SYNC_DET

SLICER_VIDEO

I2C5_DT

I2C5_CK

P50

MIX_L_MUTE

MIX_R_MUTE

AU_GND

REF_GND

AV2_R_C_IN

AV2_B_IN

SW2_D

PS5V

VREF

IEC_OUT

X_SW_5R8V

AADC_L

AADC_R

R_PR_OUT_DM

B_PB_OUT_DM

G_PY_OUT_DM

Y_OUT_DM

C_OUT_DM

V_Y_IN_DM

CPN_C_IN_DM

REG12V

X_SW12V

P1531

LOADING M [-] LOADING M [-]

LOADING M [+] LOADING M [+]

P2501

PG+

PG-

GND

COM

VFSC

OSD_V_IN

OSD_5V

LP_H

SVHS_PB_H

SECAM_L

IIC_CLK

IIC_DATA

COM_MUTE

VTR_P_ON_H

VCR_V_Y_OUT

MESECAMDET_H

SECAMDET_H

CTL_HEAD_M

CTL_HEAD_P

60HZ_H

P2571

CAP VM

FG1

GND[FG]

CAP R/F

MGND

D7901

C7903

ECJ1VF1H104Z

C7905

F2A1C221A019

R7902

33K

D7902

Q7901

L7902

R7907

100

C7906 R7903

4700

R7903

C7907

R7904 4700

T7901

LB7901

D7904

C7908

0.022

D7905

D7906

C7902

50V10

K7901

R7908

C7910

50V56

C7909

50V56

R7909

39K

R6403

10K

R6402

15K R6404

470

Q6401

QR6402

QR6403

D6401

B0AACK000004 R6405

22K

R6406

470K

R6407

15K

IC6201 IC6202

C6201

0.1($)

D7751

C6202

0.1($)

TL6002

TL6004

0.01

0.1

C6004

C6020

C6001

C6002

C6003

C6014

X6002

$(22P) $(22K)

22K

R6003

R6002

R6031

18P

22P X6001

R6001 1K

R6035

R6020

R6036

C6101

C6103

R6109

C6110

100

6V220

0.01

1µ

R6016

R6018

R6116

C6114

L6104

R6118

Q6101

Q6102

R6123

120

R6119

120 C6116

0.1

R6117

180

L6103

R6115

470

R6201

10K

K6201

K6203

K6204

K6202

R1511

27K

TL24

R1512

27K R1513

120

TL23

R1503

150[D]

SAFETY

TAB SW T PHOTO SENSOR

S1531 Q1501 D1501 Q1502

SPHOTO

TW2001

HSW

TL6010

T REEL

S REEL

IC1511

IC1512

R1501

R1502

C6006

27K

0.1

R6033 *

R6007 18K

C6005 16V10

R6011 18K

R6014 10K

R6026 10K

R6027 10K

R6028 10K

R6029 4700

R6030 4700

C2562

C6007

C6010

0.056

22P

R6408

100K

C6401

220P

R6401

220

Q6402

D6402

R6409

C6402

100K

220P

R6410

R6411

220K

2R2M

Q6403

Q6404

R6412

R6413

R6414

43K

47K

4700

Q6305

D6306

C6302

0.01

C6303

6V47

R6309

2700

K6099

R6009

100

R6010

39K

R6004

43K

S1533

QR6801

R6802

R6801

100K

K6002

R6021

$(33K) PB CTL

TW2002

C2054

3900P

C2053

16V10

C2012

0.01

R6803

C2055

470K

0.1

C2051 6V22

C2001

R2002

33P

D2001

D2002

K6001

R2001

3900

C2003

1µ

CAP TL

TL2502 TL2015

CAP FG

C2551

0.056

K2597

C2561 0.056

VIN ON

VOUT VSS

R2503

1800 D2502

LB6101

L6101

68µ

R2552 10K

C6308

6V47

C2519

0.01

IC2501

VM2 M3

OUT1 RNF

LGND M2

OUT2 M1

FIN VM

RIN COM

GND VCC

CST PFG

CT1 PG OUT

CT2 PG-

PCI PG+

CNF EC

C2506

C2504

C2505

C2507

C2515

0.22

0.022

1000P

0.01

C6105

$(0.1)

R6110 $(220) R6112

$(2700)

C6106

$(50V4R7)

C6109

0.47

C6102

$(1µ)

R6114 1K

C2552 0.056

C2518

0.01 R2564 100

R2520

C2501

C2508

18K

0.1

1800P

R2565 100

C2509 16V22

CAP5VL2501

R2501

C2502

R2502

1R2 6V220

1R5

C2511

0.1 C2510

0.1

C2512

0.1

R2515

220 R2514

220

R2516

220

R2521

1K C2513

1µ

R6101

$(10K)

C6009

L6102

C6008 470P

0.01

POS. SW3

POS. SW2

POS. SW1

RESET[L]

32KHz. IN

32KHz. OUT

+5V[D]

12MHz. IN

12MHz. OUT

GND [OSC]

DUB[H]

SVHS[H]

X_SEL

EEP_WR

HPNC[H]

NUB[GND]

FSC.LPF

OSD.FSC IN

OSD[GND]

CVIN

AFCS

5V[AD]

+5V[A]

PB. CTL. OUT

CTL. AMP. REF

CTL. HEAD[+]

CTL. HEAD[-]

SECAM_ID

IREF

OPEF

PFG

MESECAM_DET[H]

GND[A]

FG. AMP. IN

FG. AMP. OUT

DAVN

LOADING[H]

UNLOADING[H]

EX. FF/REW[L]

60Hz[H]

[28]FM_MUTE

[29]SW2

[30]POS. SW4

[1]DVD_OUT_H

[2]CKILLER_DET[L]

[3]B/W[H]

[77]CYL. ET

[78]P. FAIL[L]

[79]S. REEL. PULSE

[80]T. REEL. PULSE

[51]LECHA

[52]CVOUT

[53]OSD5V

IC6001

HLF

CVIN2

NUA[GND]

AMUTE[H]

SECAM_MIX

LP(H)

SVHS_PB[H]

VHS_TUN[H]

SECAM/PAL[SYS2]

FLD_CS

FLD_DATA_OUT

FLD_DATA_IN

FLD_CLK

TIMER_BUS_DATA_OUT

TIMER_BUS_DATA_IN

TIMER_BUS_CLK

IIC.CLK

IIC.DATA

125HZ/COM_MUTE

CAP R/F

PON[H]

CAP. ET

S_TAB[L]

BIAS[H]

SLP[H]/

ABS_NORM

SLICER_TYPE

D. REC[H]

AUDIO. H. SW

VIDEO. H. SW

EE[H]

TIMER_CS

REMOCON

ART. V/H/N

F_ADJUST

CURRENT_LIMIT

N/S/T2

TRACKING_ENVE

T-PHOTO

S-PHOTO

VHS_KEY2

VHS_KEY1

VSS1 VDD1

XIN /RST

XOUT CDLR

CTRL1 CTRL2

NC VOUT

SDA SEPIN

SCL SEPOUT

SYNC SEPC

HOUT SYNIN

VSS2 VDD2

CPOUT DAV

VCOIN VCOR

IP4901

C7752

6V220

R6006

27K

R6008

R6024

R6022

2200

220

Q6801

IC6302

K2598

680

R6012

R6013

R6019

R6023

R6025

R2561

220

680

220

TL6001

10K

R6017

2200

C6015

C6016

1000P

0. 033

C6111

560P

C6104

6V470

C6108

$(0.01)

C6122

$(0.01)

35V220

47K

0.01

C6115

R2562

R2563

C2571

D6801

R6113 $(5600)

IC6101

R6102 $(10K)

R6111 2200

R6103

$(10K)

C6107

$(0.056)

L6105

68µ

Q6103

R6121

560

R6122

560

Q6104

R6131

R6120

100

C6121

33P

Q7902

R7905

22K

R7906

22K

C7904

0.1

Variations Category

DMR-EH80VEG

C6114 33P $

L6104 33µ $

Q6101 2SB1218AOL $

R6116 1500 $

R6118 $47K

DMR-EH80VEB

Important Safety Notice:

Components identified with the mark have

the special characteristics for safety.

When replacing any of these components

use only the same type.

DMR-EH80VEG / DMR-EH80VEB

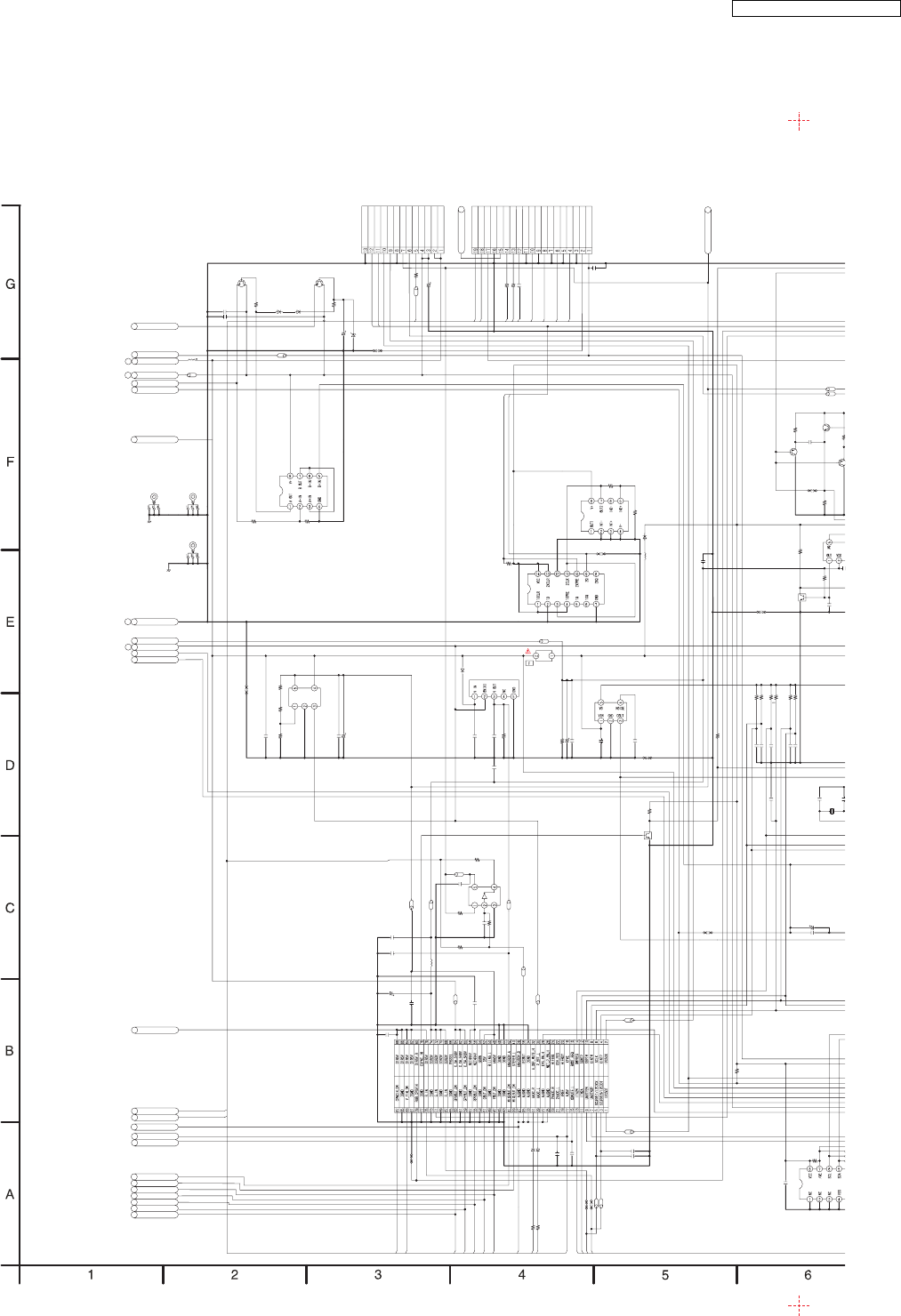

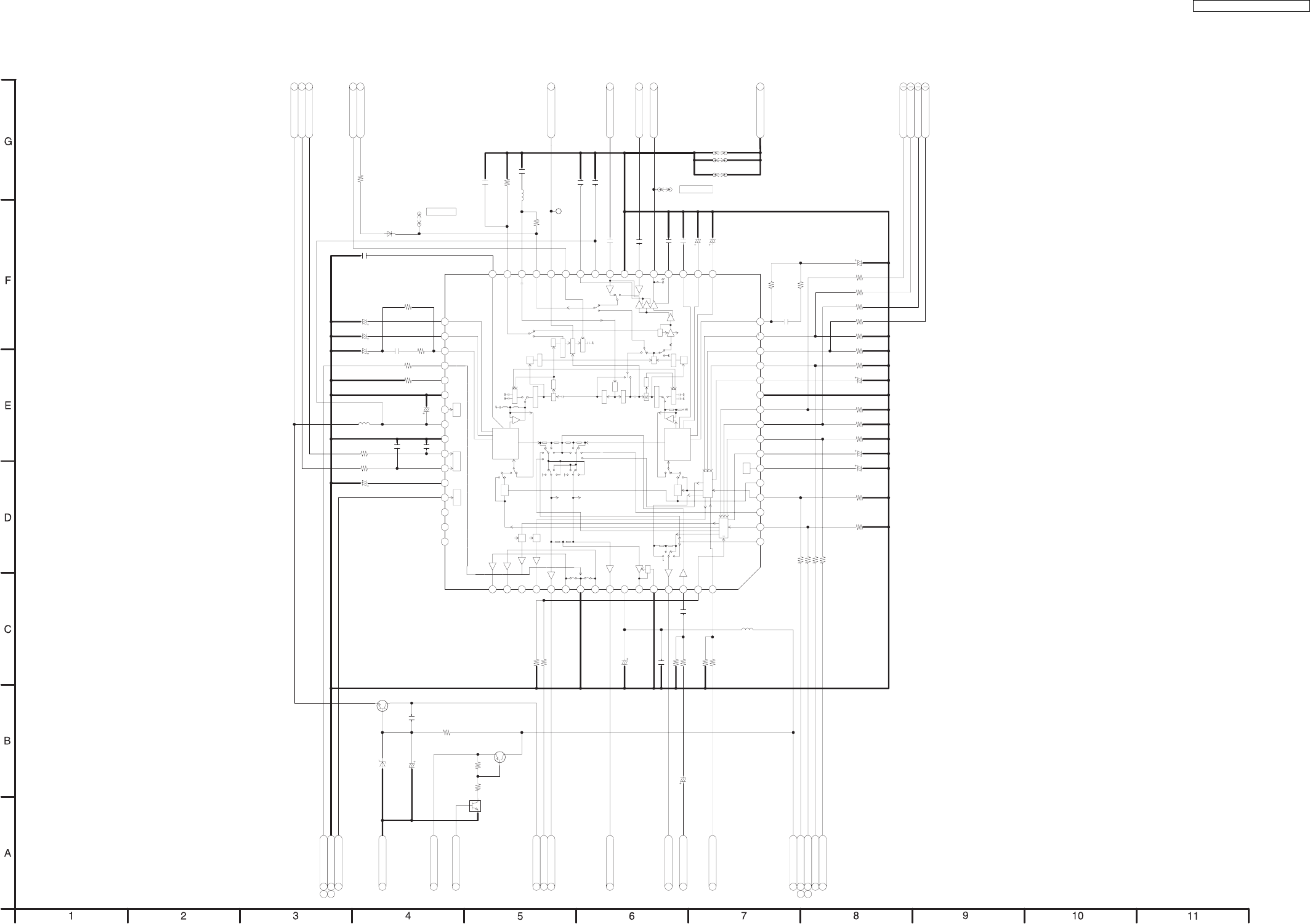

24.6. VHS AUDIO

DMR-EH80VEG

DMR-EH80VEB

VHS AUDIO

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled

A_5V

IIC_DATA

IIC_CLK

A_H_SW

DREC_H

ASB_NORM_L

FM_MUTE_H

A_GND

FSC

REF_GND

X_SW12V

VTR_P_ON_H

X_SW_5R8V

MIX_R_MUTE

VHS_OUT_R

VHS_OUT_L

NOR_TO_YC

NOR_FROM_YC

MIX_L_MUTE

REG12V

AV3_IN_L

AV3_IN_R

DECODER_L

DECODER_R

HA_GND

A_COM

AV2_IN_R

AV2_IN_L

AV1_IN_R

D4501

IC4501

PB-FM ENV

TW4502 TL4501

FM MIX OUT

R4522

4700

C4520

6V22

C4521

16V10

C4522

6V33

C4523

0.047

C4504

0.047

C4505

R4516

R4515

R4514

R4513

R4512

R4511

R4510

C4503

R4509

R4508

R4507

C4502

C4501

R4506

R4505

6V33

56K

4300

9100

16V10

4300

9100

16V10

4300

R4523

510

R4524

R4525

33K

L4502

1R2µ

C4524

6V100

R4526

R4527

C4526

16V10

C4527

($)

C4528

($)

L4503

100µ

Q4501

C4544

0.1

D4502 C4545

6V22

R4555

820 Q4502

R4519

4700

R4528

4700

QR4501

R4532 680

C4519

0.015

C4517

100P

($)

TW4501

L4501

180µ ($)

C4518

C4516

C4515

R4521

0.22

0.1

120K

R4520

C4513

C4512

C4511

C4510

C4509

C4508

0.01

0.033 [KB]

0.015 [KB]

6V22

16V10

REC OUT

R4518

R4517

4700

510

C4534

0.1

R4501 56K

56K

22K

R4502

R4503

R4504

R4557 4700

68K

16V47

16V10

0.01

6800

39K

4700

68K

R4558

C4531

C4506

C4533

R4560

R4559

R4530

R4554

17181920212223242526272829303132

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

PNR Rch

PNR Lch

HA1 HA2

SW11

SW15

AMP

REC

SW12

REC LPF

SW9

SW18

SW16

INSWL

SW17

SW2

SW1

AGC/

MUTE

SW19

SW20

LOGIC

VCO-f0

adj LOGIC

AGC/

SW21

INSWR

HIFI

MIX

SW22

DET

AMP

AMPAMP

LOG

REC

NOR REC IN

MIX

NORMAL NORMAL

HIFI

SW NOISE

ZZ-PROM

H/S

AUDIO LIMTER

Rch

VCO

HPF

NOISE DET

LINER SW

HOLD T

SW14

MIX

SW13

REC LPF

S/H

SW NOISE

SW4

SW10

PBLPF

Lch BPF

Rch BPF

FMLMT

AUDIO LIMTER

Lch

VCO

DET

AGC

37PIN

DEC(R)SW

DEC(L)SW

INPUT SW(L)

INPUT SW(R)

VREF1

K4501

K4502

K4506

DMR-EH80VEG / DMR-EH80VEB

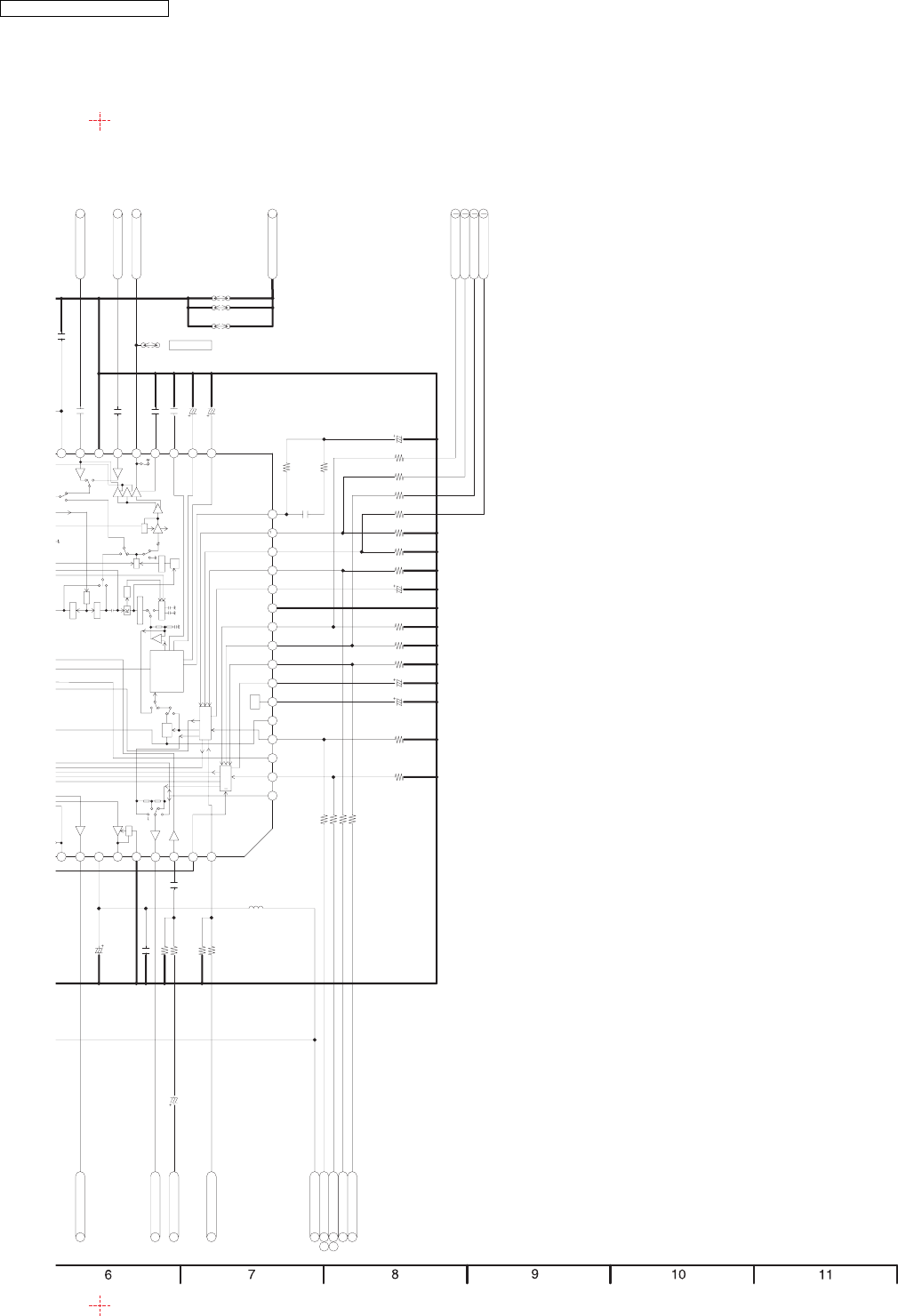

24.7. VIDEO

DMR-EH80VEG

DMR-EH80VEB

VIDEO

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled

DMR-EH80VEG DMR-EH80VEB

Variation Category

R4001

R4003

2000

3900

3300

6800

60HZ_H

FADJ

C_IN

V_IN

Y_IN

SVHS_PB_H

HPNC_H

ART_V_H_N

OSD_V_IN

IO_GND

SSVHS_H

SAREF_GND

K3009

K3002

R3022

10K($)

C3017 1µ

R3008

10M

SLP_H

L3502

33µ

L3503

33µ

L3504

33µ

R3516

R3504

R3505

1200

C3509

C3504

R3511

3300

C3511

C3512

R3513

1500

C3513

K3010

K4002

R3004

$(10K)

QR3006

K3005

R3023 *

IC3003

C3018

0.01

C3035

0.1

C3054

0.01

C3055

0.01

K3007 $

QR8002

C8009

+6V100($)

L8001

10µ($)

R8004

10K($)

QR8003

($)

SECAM_L S

BWH S

PB_C_OUT I

FSC S A

SECAMDET_H S

SKILLER

DUB_H

EE_H

SECAM

X_SW_5R8V

VTR_P_ON_H

QSD_5V

QR4003

R4006

3300

IC3001

R4002

15K

R4001

R4003

C4001

16V10

R4004

4700

TU_AIN

NOR_TO_YC

NOR_FROM_YC

QR3001

QR3005

TUN_V_IN1

R3006

R3009

QR3002

C4002 16V10

C4004 16V10

C3001

150P

C3002

($)

R3001

1500

R3002 6200

C3003 1µ

C3004 0.1

L3001

82µ

C3005

27P R3003

R3024

5600

6800

L3008

68µ

C3056

10P C3006

C3007

0.1

1µ

C3008

C3009

C3010

0.01

50V4R7

1µ

L3002

27µ C3011 1µ

C3012

C3013

6V47

0.01

C3014

0.1($)

C3016

L3003

*R3005

C3015 0.1

C3080 *

R3007

C3026

C3027

C3028

C3029

C3030

C3023

C3019

C3024

C3025

TU_AIN

NOR_FROM_YC

TUN_V_IN1

NOR_TO_YC

PAL_EP_H S

CTL_HEAD_M

CTL_HEAD_P

C2099 680P

R2099 6800

P4002

CTL HEAD[ + ]

CTLHEAD[-]

A HEAD [R]

A HEAD[W]

N.A GND

AEIN

(TO AC HEAD)

Q4003

C4023

0.022

C4022

6V47

R4015 3300

R4017 2200

QR4005

R4016

2200

Q4004

L4001

C4024 1500P

C4021 220P

Q3002

R4014 10K

C4020

0.022

T4001

IC3002

QR3003

C3050 1µ

TW3001

K3011

R3010 15K

C5005 0.1

C5004 0.01

C5003 0.01

C5002 0.01

C5001 0.01

C4202

C4012

0.01

C4011

6V47

C4025

0.01

C4015

C4014

R4012

6800P

470K

50V4R7

R4013

15K

C4016

6V22

LB4203

LB4202

C4001

($) LB4201 C4017 50V3R3

C4018 1800P

C4010 25V4R7 R4011 20K

R4009 270

C4009 6V22

R4008 15K

C4008 1800P

R4007 100K

C4007

2200

C4005

6V100

Q4001 Q4002

R4018

R4019

QR4004

H_SW S

A_GND

HA_GND

IIC_DATA S

IIC_CLK

OSD_GND

SYS_GND

P4001

FULL E

(TO FE HEAD)

K3008 $

K3004

LB4204

($)

VEEOU97

C5006

6V47

C5007

0.1

DREC_H S

A_5V

P5001

LP EP R

LP EP COM

LP EP L

SP R

SP COM

SP L

A COM

(TO CYLINDER)

AR A

A_COM

TRK_ENV

MESECAMDET_H

C3033

0.1

C3020 330P

L3004 68µ

C3021 0.01

C3022 6V47($)

R3510

470

L3501

56µ

K3503

C3505

C3506

C3507

C3508

6V47

0.1

IC3502

D3501

R3508

390K

R3502

C3518

C3517

56P

22P

C3516

56P

C3515

22P

R3515

1200

Q3502

R3503

1200

Q3501

R3501

560

C3501

R3507

1200

K3003

QR3004

($)

R3509

C3510

100

1µ

0.1

50V3R3

16V10

0.01

$(0.1)

C3052

1µ

C3053

0.1

GND

VIN NC

COUT

C3051

R3012

470($) (EF)

R8001

10K($)

K3006

IC8001

QR8001

($)

C8001 0.01($)

R8002 1K($)

C8003

50V1($) C8002

0.01($)

C8004 50V1($)

C8010 0.1 ($)

C8011

0.1 ($)

C8016

50V2R2($)

R8003

120K ($)

C8015

2200P($)

C8014

2200P($)

C8013

50VR47($)

C8012

0.01($)

IC3501

C3503

C3514

C3502

0.1

Q3503

L5001

68µ

C3034 50V1

BIAS_H S

C3036 50V4R7

R3013 100

100

R3014

X3001

R3015

27K

C3037

50VR47

C3038

0.022

C3039

0.033

R3016

470

C3040

50V2R2

X3002

R3017 3300 C3041

0.022

C3042

C3043 0.1

R3018

3300($)

L3007

L3006 27µ

C3044 6V47

C3045 0.01

C3046 3P

C3047 50V1

C3048

0.01

R3019

3300($)

C3049

0.01

SECAM DET

SENS

SYNC-IN

MODE

CLK IN

AFC

FILTER

B6P

DELAY

Connect

BAL

GND2

GND

TEST MODE

VCO MONIT

SECAM-DET

OUT

DET C

S/H C1

S/H C2

VCC2

VCC

No Connect

S/H C3

BELL

MONIT4

LIM EXC

PB-OUT

PB-H

REC-IN

C8005

C8006

C8007

C8008

0.1[KB] ($)

50VR47($)

R3020

3300

R3021

R3512

3300

4. 3M ANTI

BELLFO CTL

BELL

MONIT1

REC-OUT

REG

PB-IN

AGE

FILTER

DMR-EH80VEG / DMR-EH80VEB

24.8. NICAM DECODER

DMR-EH80VEG

DMR-EH80VEB

NICAM DECODER

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled.

K7307

R7314

(RESET)

K7303

C7329

LB7303

R7315

R7307

8200

C7330

100

R7304

VSSA4

OUT M

V REF2

EXTIL

EXTIR

MONO IN

VSSD3/NC(E)

VDDD3

SYS CLK/CTRIG

PCLK

ADDR1/AFR(E)

XTALO

XTALI

TPB

TEST2

1 REF/LF2(E)

ADDR2

VSSA2

VDDA2

TEST1

OUT L

OUT R

VDDA1

VSSA1

VSSD1

VDDD1

VSSD2

AF11

TP2

AF1D

TP1

AF21

AF20

LPF

SDA

SCL

VDDA3

VSSA3

CRESET/CAF2(E)

SIF1

VREF1/CAF1(E)

SIF2

OUTGIN

IC7302

JC REG.5V

GND

TU AUDIO IN

SIF

0.1

C7314

LB7302

R7309

TL7301

TL7302

TL7303

16V47

C7317

16V10

C7318

220

R7311

220

ONLY EH80VEB

ONLY EH80VEG

R7310

16V10

C7313

16V10

C7312

R7312 R7313

C7324

1000P

C7323

LB7301

R7322

X7301

0.1

C7332

C7333

C7330

680P

R7325 100

R7324 100

100P

C7311

C7302 0

R7301

0.1

C7301

321

50V2.2

C7334

0.01

C7306

6V100

C7303

L7303 1u

6V100

C7305

0.1

C7335

IC7301(NICAM/A2)

K73050

K7301 0

K7302 0

PK7301

(MAIN NET SEC.)

MAIN P.C.B.

TO PK7701

34 35 36 37 38 39 40 41 42 43 44

22 21 20 19 18 17 16 15 14 13 12

R7319

R7317

DECODER AUDIO(L)

GND

DECODER AUDIO(R)

SDA

SCL

10P

C7307

10P

C7308

C7310

100P100P

C7309

PK7302

(MAIN NET SEC.)

MAIN P.C.B.

TO PK7702

ONLY DMR-EH80VEB

DMR-EH80VEG DMR-E 0VH8 EB

C7309 $ 100P

C7310 $ 100P

R7309 1K 10K

R7310 $ 220

R7311 220 $

R7317 J0JCC0000103 ERJ3GEY0R00V

R7319 J0JCC0000103 ERJ3GEY0R00V

DMR-EH80VEG / DMR-EH80VEB

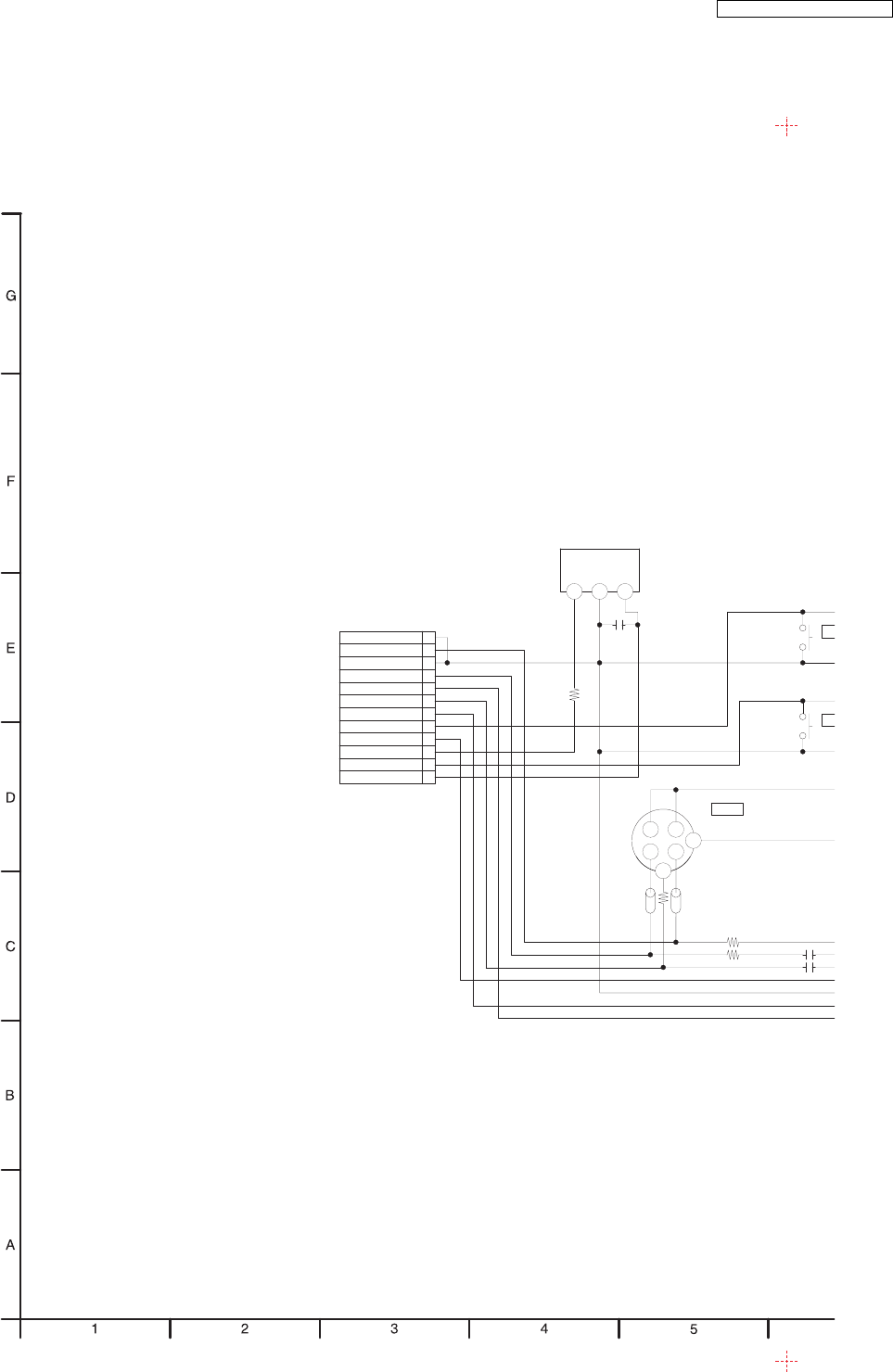

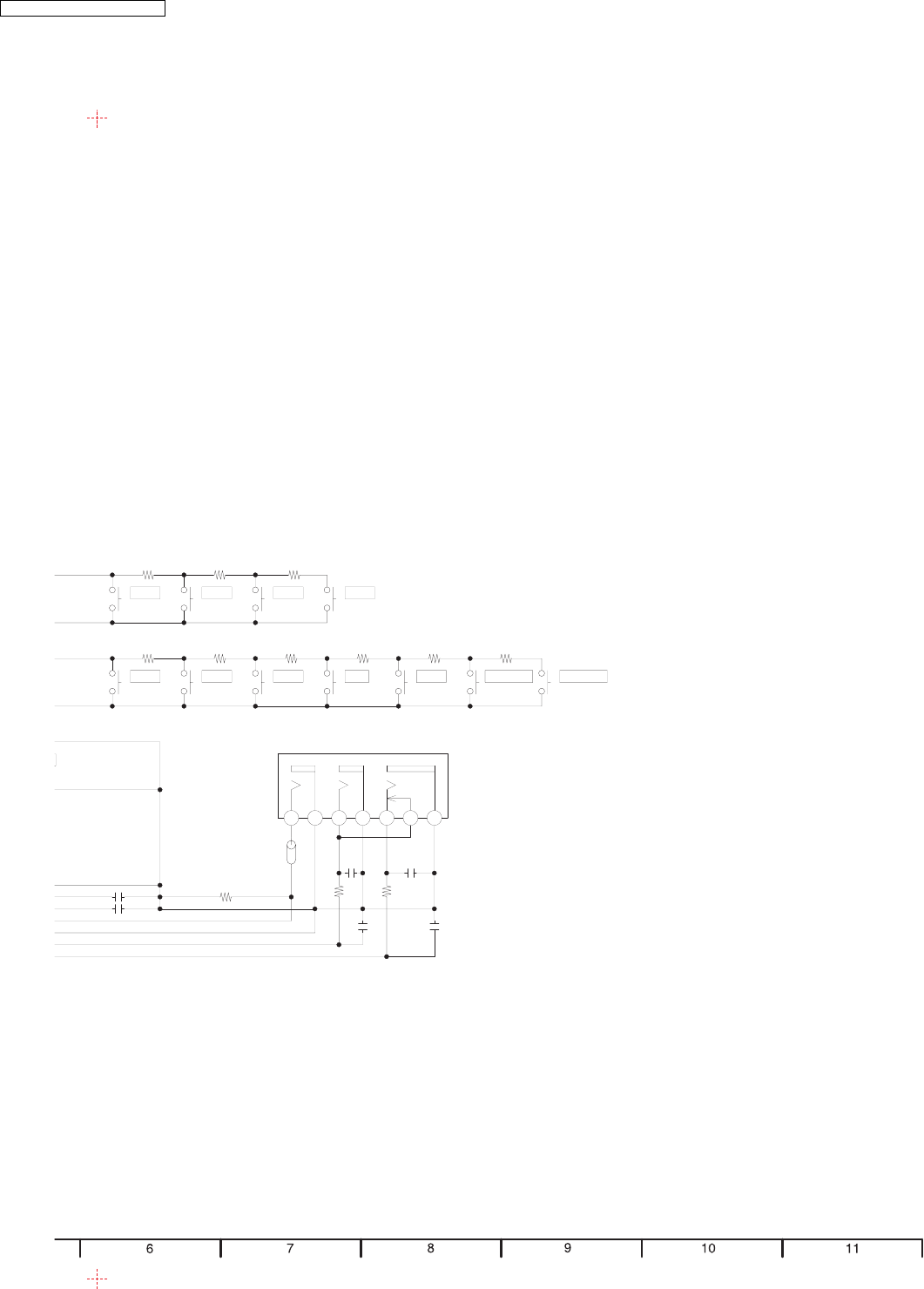

24.9. FRONT JACK

DMR-EH80VEG

DMR-EH80VEB

FRONT JACK

SCHEMATIC DIAGRAM

PP4600

GND

CPN Y IN2

GND

CPN C IN2

L2 IN[R]

L2 SW

L2 IN[L]

KEY 2

VIDEO IN2

KEY 1

5V[AD]

IC7801

JK3802

JK4600

C7801

0.1

R7801

220

R7802

1800

R7807

1800

R7803

3300

R7808

3300

R7806

4700

R7809

4700 R7812

R7810

6800 R7813

S7806 S7805 S7802 S7801

S7813 S7812 S7810 S7808

S7809 S7807

S7803

POWER FF STOP CH UP

EJECT REW CH DN PLAY REC EXT_LINK_D EXT_LINK_V

123

LB3301

LB3303

R3804

R3802

R3801

C3801

C3802

0.1

S1 IN

LB3302

R3803 75

C4305

C4306

R4306

R4305

C4303

*C4304

76 54321

Note:

Marked $ (spare) parts are not assembled

DMR-EH80VEG / DMR-EH80VEB

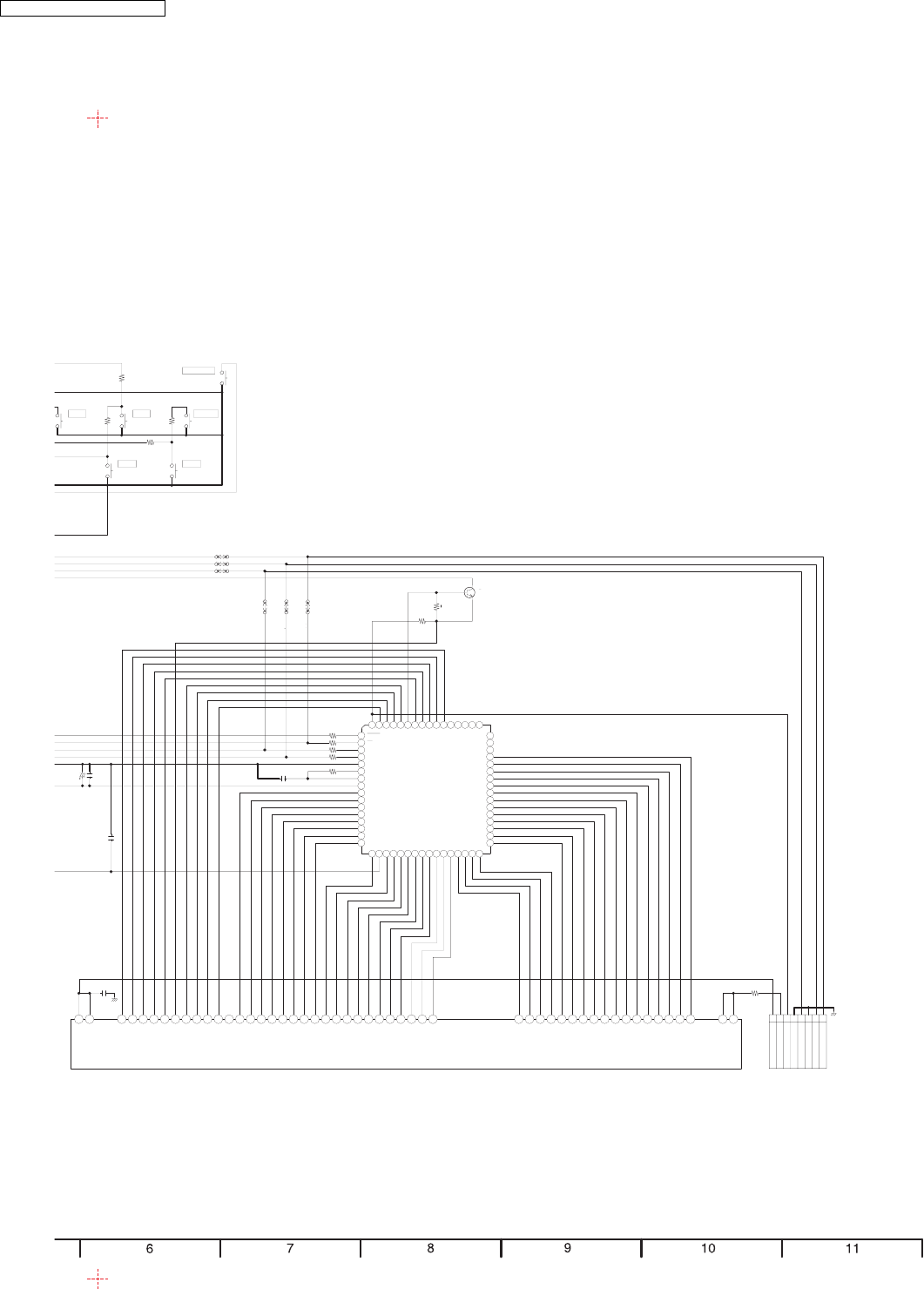

24.10. FL DRIVE

DMR-EH80VEG

DMR-EH80VEB

FL DRIVE

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled

R7503

270

R7504

DVD

SD DVD

D7503

D7504

QR7503 QR7504

VHS

HDD

D7505

QR7505

VHS

D7506

QR7506

R7505

R7506

K7516

K7515

H2D

S7511

R7530

H2V

S7510

SELECT

S7509

R7508

1200

R7532

REC

S7506 R7516

1500

CH UP

S7504 R7517

2200

OPEN/CLOSE

S7501

CH DOWN

S7502

V2D

S7508

R7529 *

R7528 *

D2H

S7513

V2H

S7512

R7531

D2V

S7507

R7509

1200

R7511 1500

PLAY

S7505

STOP

S7503

D2V V2D

S7515

S7514

R7501

270

R7502

R7518

K7509

K7510

K7511

Q7501

R7512

10K

R7513

68K

K7512 *

K7513 *

K7514 *

K7506

K7507

DUB_RED

DUB_RING1

DUB_RING2

D7501

D7502

D7508

QR7501

QR7502

QR7508

K7503

*K7508 *

K7504 *

K7505 *

(TO I/F)

PP7501

(TO I/F)

PP7502

GND

FL_RST

LED3

GND

LED4

LED5

LED6

LED7

GND

FL_6V

LED1

LED2

AD_5V

KEY_IN3

KEY_IN2

KEY_IN1

C7502

6V47

C7501

0.1

C7528 $(0.1)

C7525 100P

R7525 27K

R7514 0

R7515 100

R7526 100

R7527 100

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

DIG01

DIG02

DIG03

DIG04

DIG05

DIG06

DIG07

DIG08

DIG09

DIG10

DIG11

DIG12

DIG13

DIG14

RESET

SCK

SDATA

VSS

XOUT

XIN

VCC1

SEG34

SEG33

SEG32

SEG31

SEG30

SEG29

SEG28

SEG27

DIG17

SEG35

SEG00

SEG01

SEG02

SEG03

SEG04

SEG05

SEG06

SEG07

SEG08

SEG09

SEG25

SEG24

SEG23

SEG22

SEG21

SEG20

SEG19

SEG18

SEG17

SEG16

SEG15

SEG14

SEG13

SEG12

IC7502

[63] DIG00

[64] VP [48] DIG15

[47] DIG16

[17] SEG26

[18] VCC2 [33] SEG11

[34] SEG10

C7503

$(0.1)

62 61 58 57 56 55 54 53 52 51 50 49 48 47 46 45 2144 2043 1942 1841 1740 1639 1538 1437 1336 1235 1134 1033 932 831 730 6229 51

F-

10G

P20

P21

P22

P23

P24

P25

P26

P10

P27

P11

P28

P12

P29

P13

P30

P14

P31

P15

P32

P16

P33

P17

P34

P18

P35

F+

P19

P36

F+

DP7501

R7510

5R6

(TO MAIN)

PP7503

F-

F+

GND

FL_CLK/LED1

GND

FL_DATA/LED2

FL_CS/LED3

DMR-EH80VEG / DMR-EH80VEB

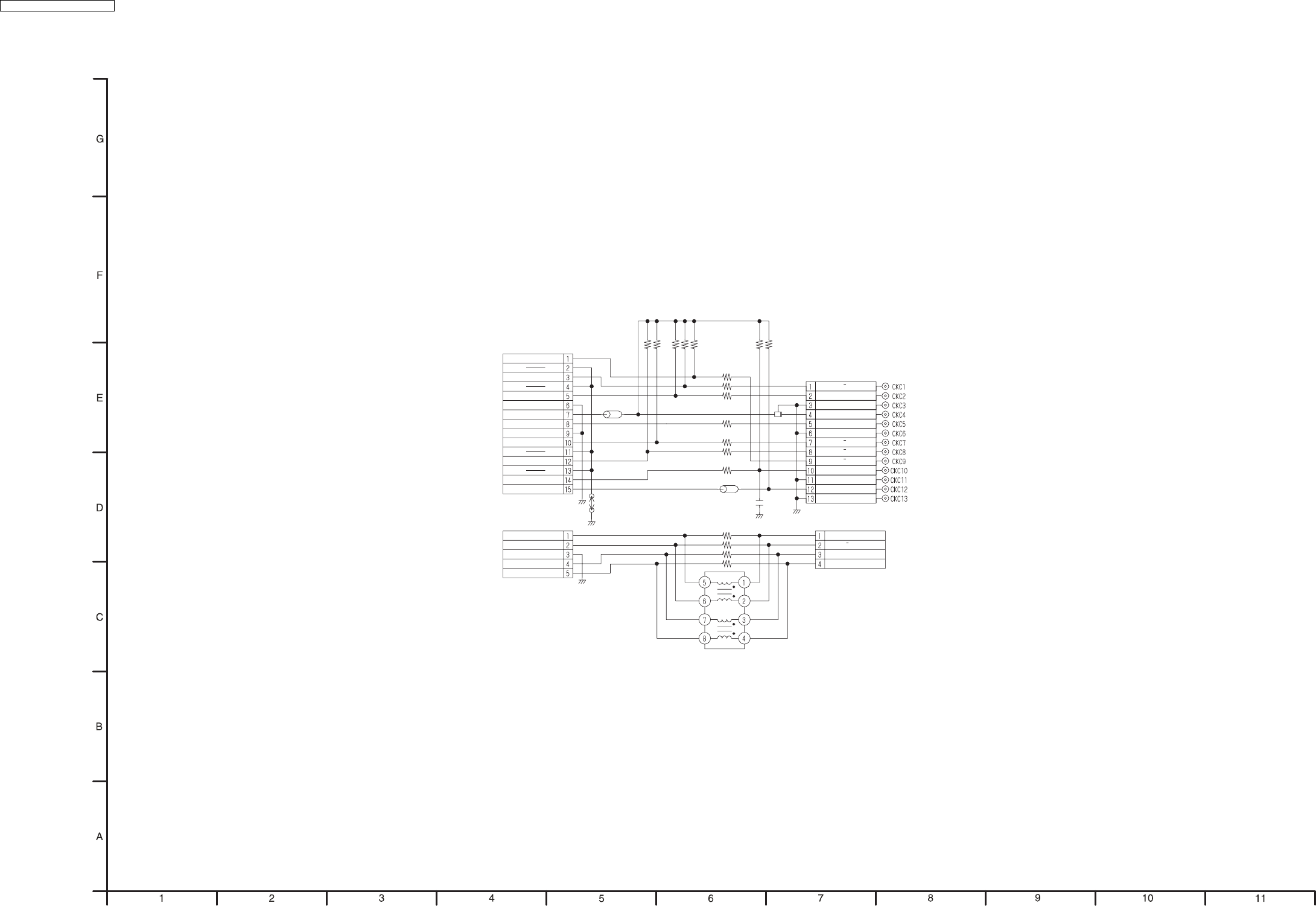

24.11. SD CARD / DV IN

DMR-EH80VEG

DMR-EH80VEB

SD CARD / DV IN

SCHEMATIC DIAGRAM

Note:

Marked $ (spare) parts are not assembled

P66801

DAT2

DAT3

CMD

GND

3R3V

CLK

GND

DAT0

DAT1

P66803

TPA+

TPA-

GND

TPB+

TPB-

LB66801

K66801

P66802

DAT3

CMD

GND

3R3V

CLK

GND

DAT0

DAT1

DAT2

COM

P66804

TPA+

TPA-

TPB+

TPB-

R66809 *

R66810 *

R66811 *

R66812 *

R66813 *

R66814 *

R66815 *

R66816 *

R66817 *

R66818 *

R66819 *

LB66802

T66801

C66801

FL66801

R66801 *

R66802 *

R66804 *

R66805 *

R66806 *

R66807 *

R66808 *

DMR-EH80VEG / DMR-EH80VEB

25 PRINTED CIRCUIT BOARD

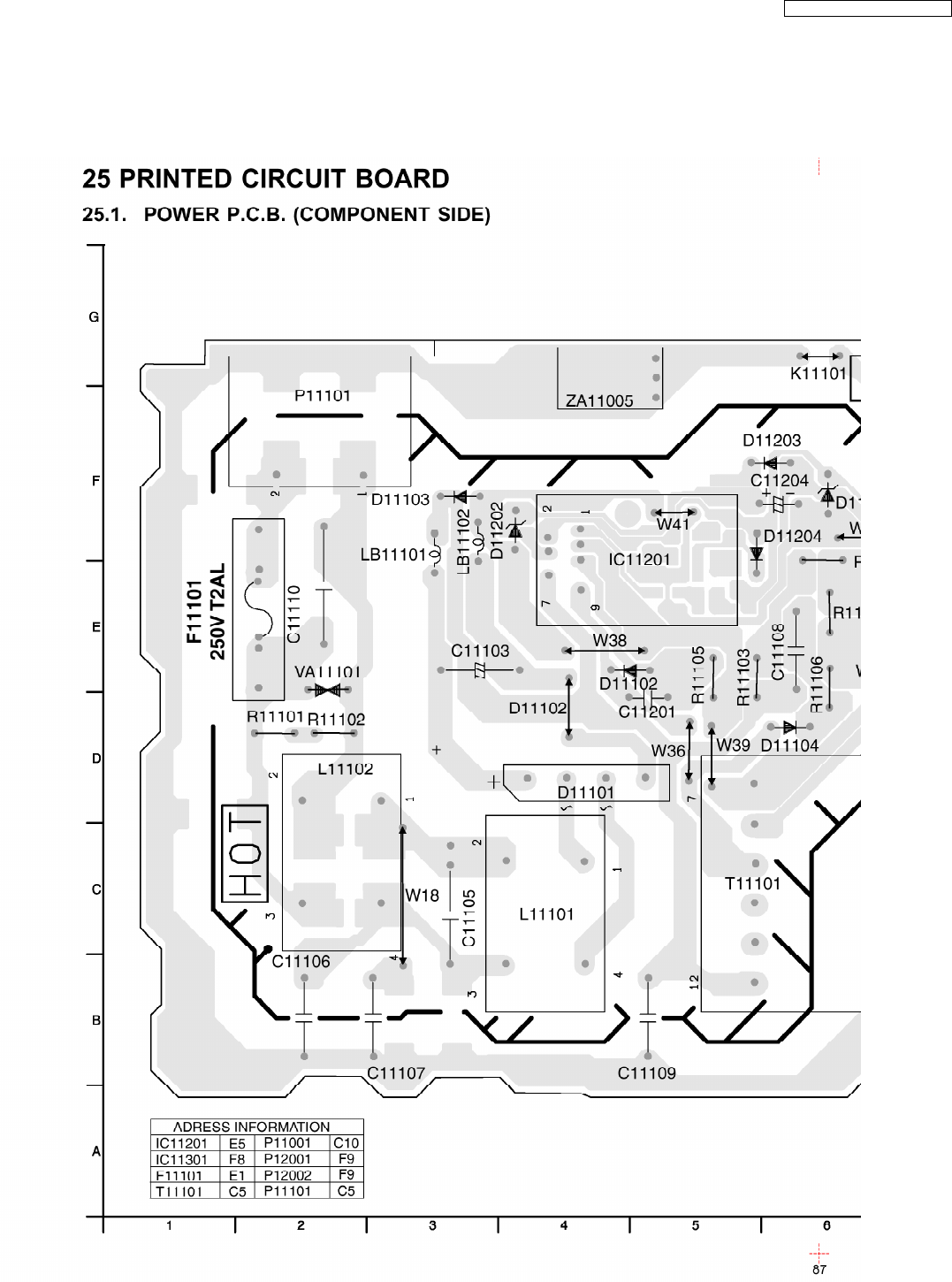

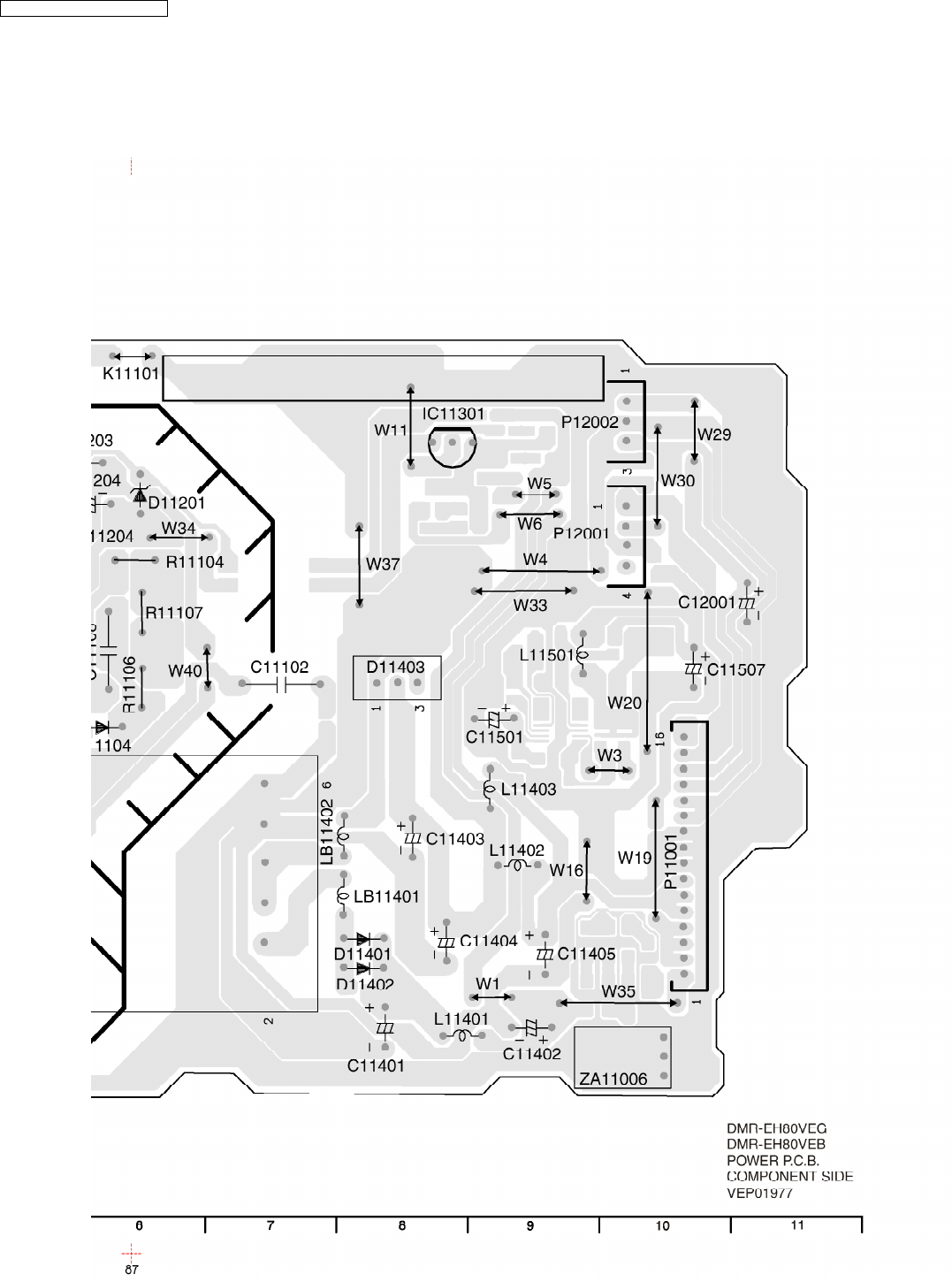

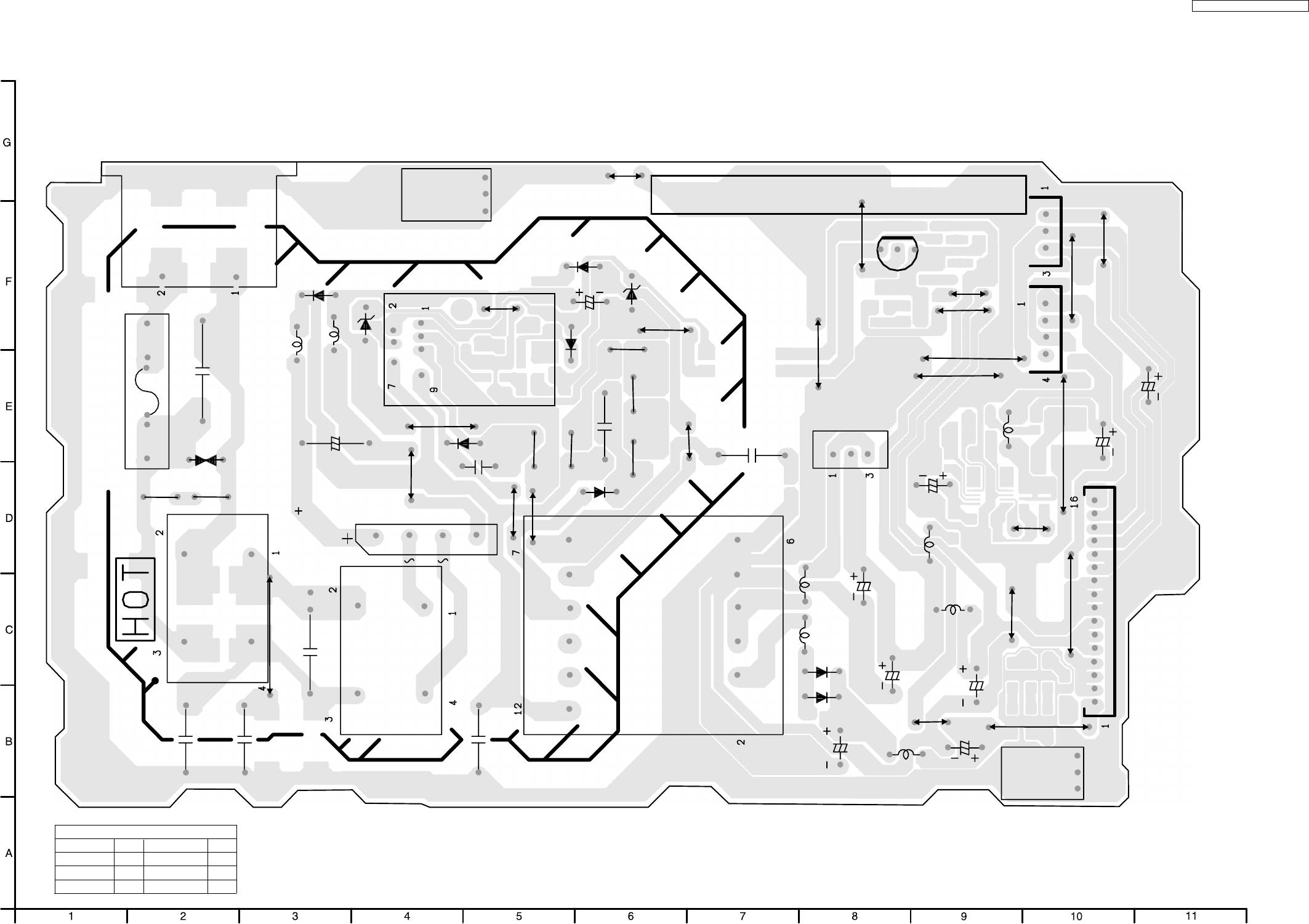

25.1. POWER P.C.B. (COMPONENT SIDE)

DMR-EH80VEG

DMR-EH80VEB

POWER P.C.B.

COMPONENT SIDE

VEP01977

IC11301 P12001

F11101 P12002

T11101 P11101

E5 C10

F8 F9

E1 F9

C5 C5

P11101 ZA11005

K11101

D11203

W41

IC11201

D11201

W34

R11104

C11204

D11204

W11

IC11301

W37

W33

W30

W29

P12002

P12001

C12001

R11107

D11103

LB11101

LB11102

D11202

C11103 W38

VA11101

C11110

R11101 R11102 D11102 C11201

D11102

R11105

C11108

R11103

R11106

W40 C11102 L11501

W20

C11507

C11501

L11403

D11403

L11402

C11403

LB11402

D11104

W39

W36

D11101

L11102

W18

C11106

C11107

IC11201

ADRESS INFORMATION

P11001

C11105

L11101

C11109

T11101

C11401

D11402

LB11401

D11401

L11401

C11404

C11402

ZA11006

W35

C11405

W16 W19

P11001

F11101

250V T2AL

DMR-EH80VEG / DMR-EH80VEB

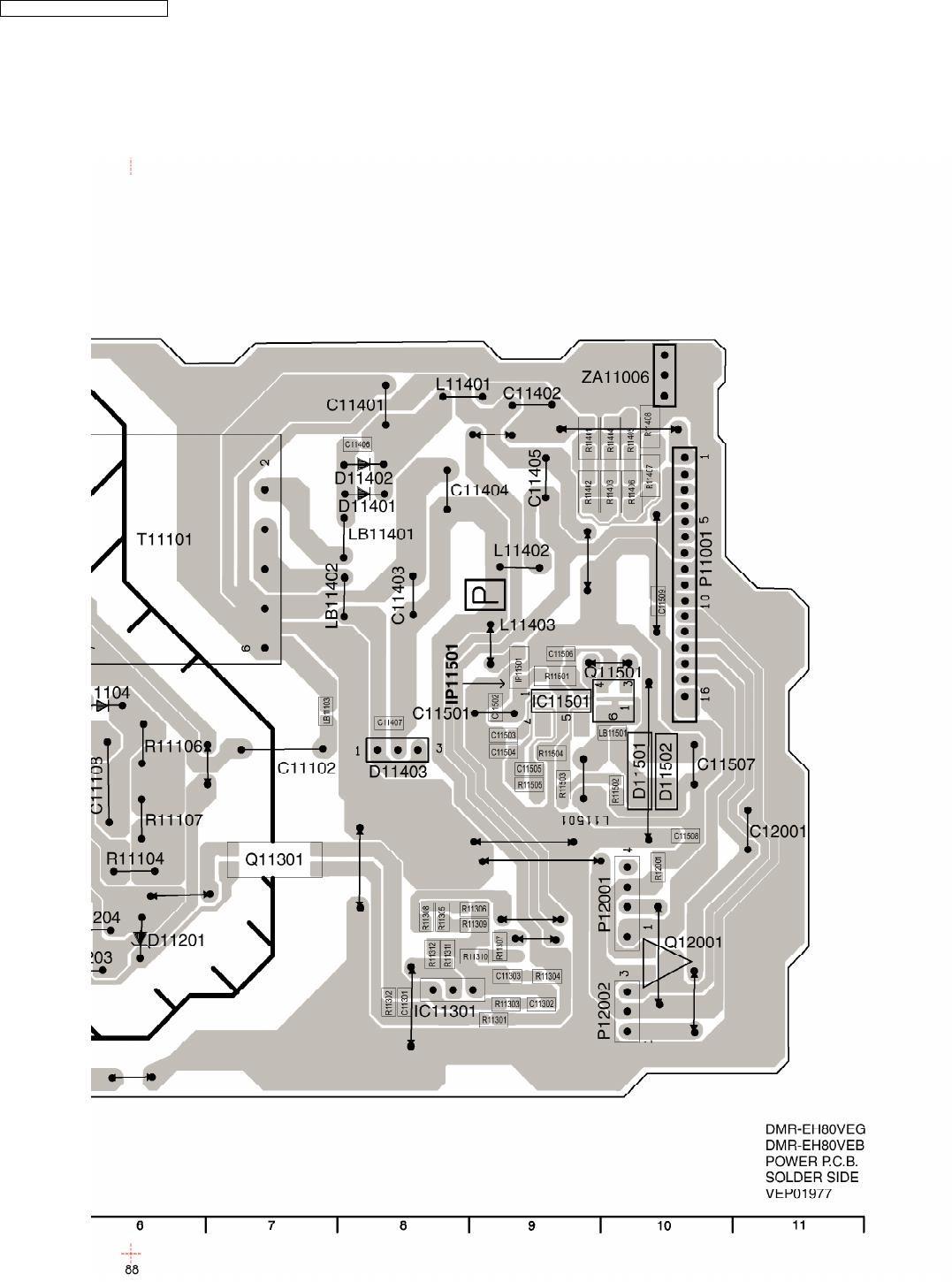

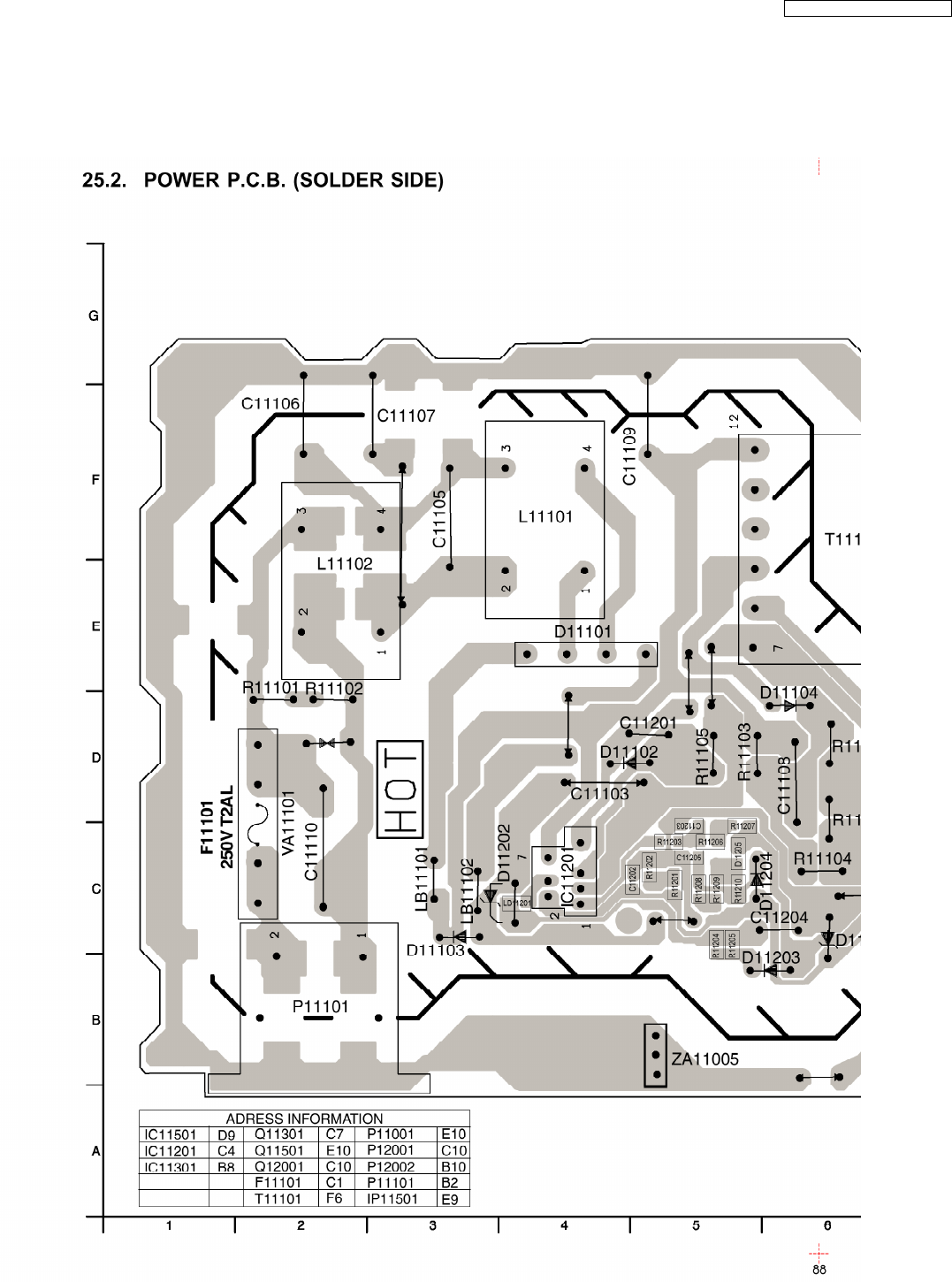

25.2. POWER P.C.B. (SOLDER SIDE)

DMR-EH80VEG

DMR-EH80VEB

POWER P.C.B.

SOLDER SIDE

VEP01977

IC11201

IP11501

IC11301

P11001

F11101

Q12001

Q11301

Q11501 P12001

P11101

P12002

E10

C10

E10 C10

B10

IC11501

ADRESS INFORMATION

T11101

L11401

C11401

C11106 C11107

C11109

D11402

D11401 C11404

C11402

C11405

ZA11006

P11001

L11402

T11101 LB11401

LB11402

C11403

L11403

Q11501

IC11501

D11403

C11102

C11501

D11104

R11106

R11107

C11108

R11103

R11105

D11102

C11201

D11101

C11103

IC11201

LB11102

D11202

D11103

P11101

LB11101

C11110

VA11101

R11101 R11102

L11101

L11102

C11105

R11104

D11204

Q11301

C11204

D11201

D11203

ZA11005

IC11301

P12002 P12001

Q12001

C12001

C11507

D11501

D11502

IP11501

F11101

250V T2AL

LB11103

C11406

R11401

R11402

R11403 R11404

R11405

R11406

R11407 R11408

LB11501

C11509

C11506

R11501

IP11501

C11407

C11502

C11503

C11504

C11505

R11505

R11504

R11503

R11502

C11508

R12001

R11303

R11310

C11302

C11303 R11304

C11301

R11301

R11305

R11302

R11306

R11307

R11308

R11309

R11312

R11311

R11201

R11209

R11210

R11205

R11202

C11205

C11203

R11203

C11202

R11204

R11206

R11207

R11208

D11205

LB11201

DMR-EH80VEG / DMR-EH80VEB

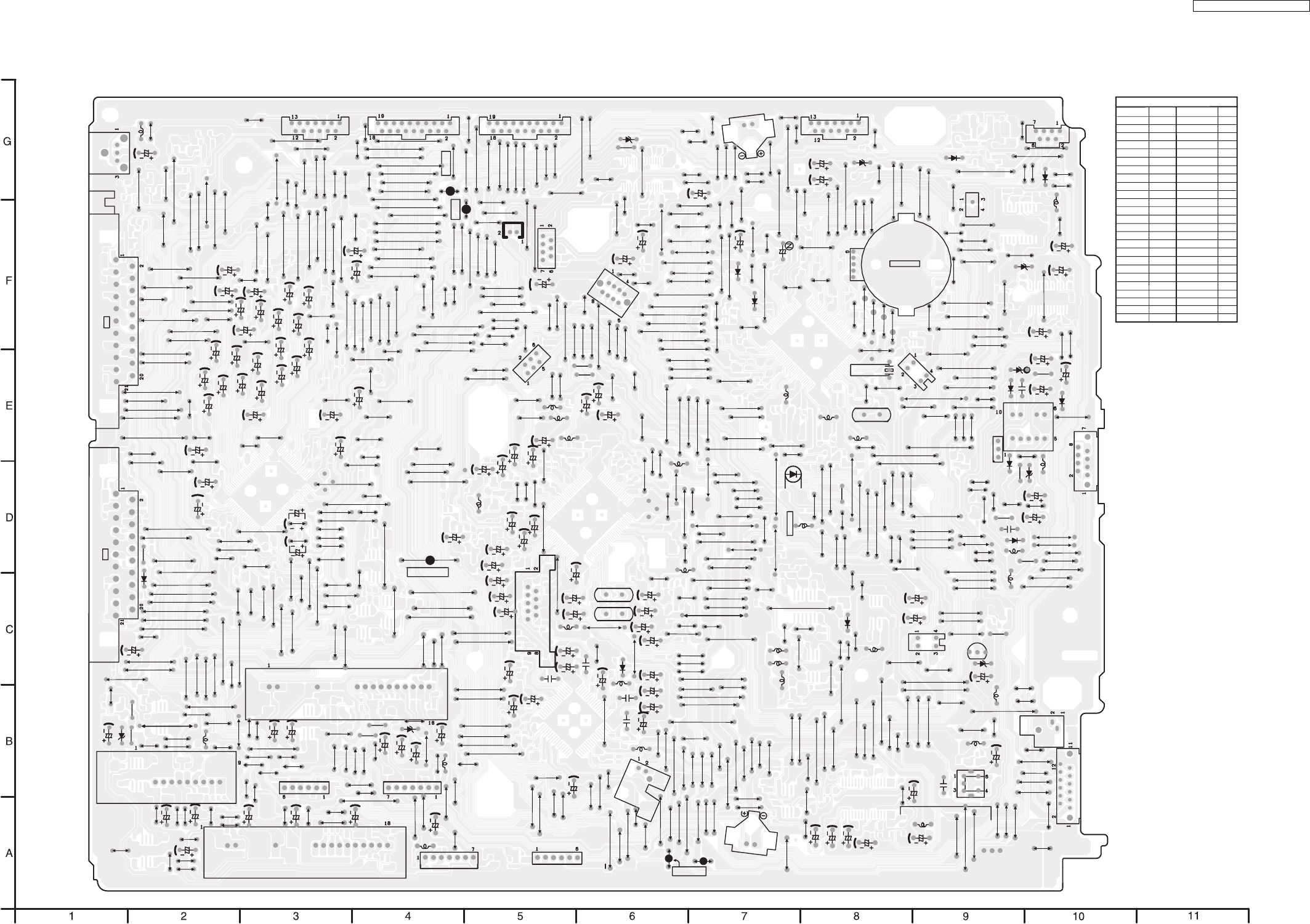

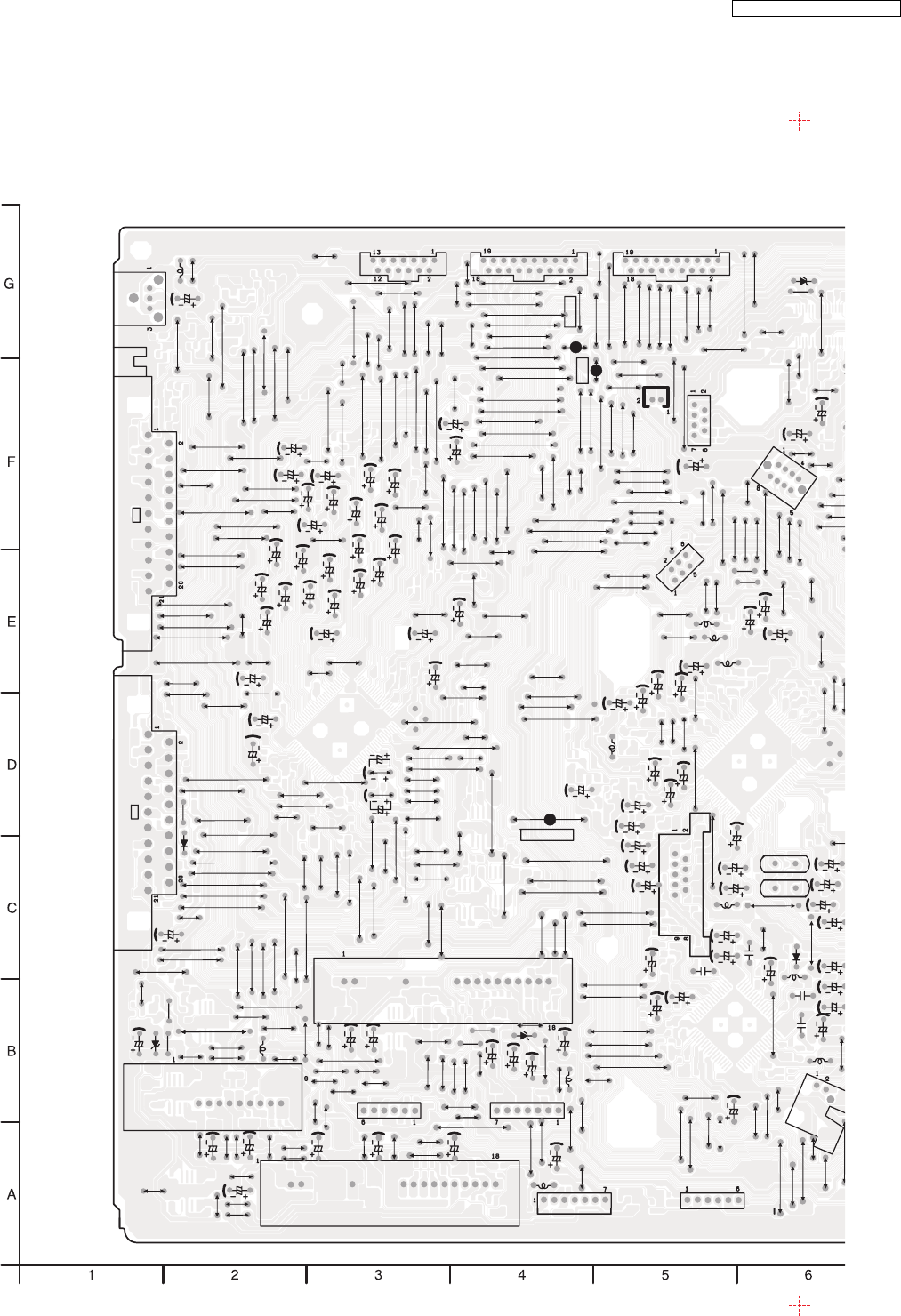

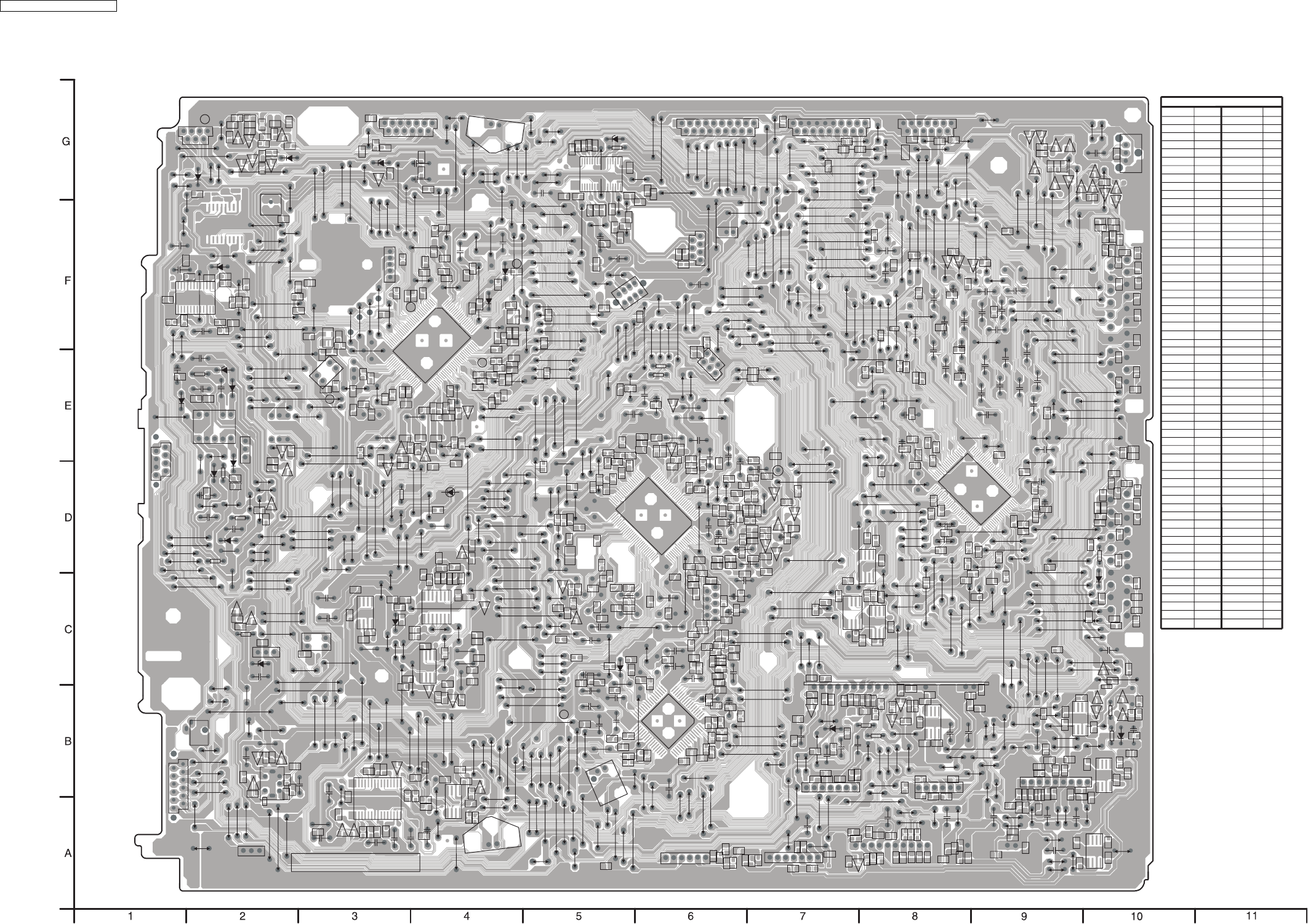

25.3. MAIN P.C.B. (COMPONENT SIDE)

DMR-EH80VEG:

VEP06F87D

DMR-ES30VEB:

VEP06F87C

MAIN PCB

COMPONENT SIDE

L4901

C4916

ZJ3101 JK4901

W576

W574

W578

JK3902

AV2

W581

W551

W554

W557

W558

W570

P6001

W572 W457

C4521

W584

W583

W579

W582

W580

W577

C4936

W559

W560

W562 W561

W563

W564

W566

W567

W568

W569

K4902

W535

K3903 W537

C4943

W539

W541

W542 W540

C4944

C4927

W538

W536

C3911

W407

W404

W402

W400

W401

W403

W405

W406

C4002 C4004

W302

C4506

W294

C3012

L3002

L3003 C3022

W171

W167

K3008

W172

K6098

W170

L6102

W169

X6001

W44

W46

W41

W43

W47

W45

C7907

W51

W59

W63

C7902

R7902

W49

W66

W48

W58

W62

W55

W57

W61

W64

L6105

W173

W174

W176

W179

W184

W189

W191

W192

C4017

C4005

W410

W408

W413

W414

W415

W382

W412

W409

W411

C3917

K3902

W544

K3901

C3918

W546

W547

W543

W545

W549

W508

W509

W511

W513

W514

W548 W550

W416

P6002

W453

W456

W458

W460

W461

W463

W468

W474

W475

W477

W478

W350

W351

W353 P1531

W349

P6003

W342

D2502

R2503

W225

W227

W232

W238

C2509

W240

W241

Q1501

T PHOTO

W236

C6303

W228

P6004

C6005

D6306 D6401

W95

P6005

W92

W93

W96

W100

C7752

W590

C6104

D6801

W104

W106

W105

W107

W109

W71

W256

W200

W202

W355

W255

W258

W259

W199

W201

W203

W354

C6308

W311

K2597

W205

W313

W314

W316

W479

W481

W482

W483

W417

W425

C4918

C4938

W555

C4932

W565 W446

W449

W451 W452

W435

W436

W440

W445

W325

W317

W318

W322

W326

W332

W333

P4002

W339

R3006

R3009

P2571

W206

W208

W211

W215

W216

W218

W219

W220

W210

W221

W79

X6002

W86

W80

IC1511

W223

T REEL

W87

W83

W84

W85

W72

W74

W76

W78

D7906

C6106

C7910

R7907

K7901

W88 C7905

W90

W89

W38

L6103

W224

W166

W399

TW4501

C4016 W195

W196 W19

W65

W67

W21

LB7901 W68

W20

R7908

W22

W24

W23

W25

L7901

C6101

C3507 W26

W27

W28 R4555

Q4501

W33

W31 D4502

C4545

W32

W29

L3501

W156

W146

W141

K3503

L3502

L3503

W151

W139

W140

W144

W145

W147

W142

L3006

W149

W148

W150

W154

W159

W160

W161

W162

W286

C3044

C3040

C3037

C3047

W157

C4520

X3002

K3011

C3036

L5001

C4509

C4508

C4504

C4014

C4011

C4505

W289

W290

W384

W388

W390

W381

W385

W387

TU7401

W517

W519

W520

C4946

W523

W525

W526

D7402

W534

W533

W489 W488

W486 W485

W491 W362

W493

W363

K7408

W359

R7402

R7401

C7411

W369

D7401

C4502

W292

W293

W260

W261

W264

W265

W364

L4501

C4519 C4522

C4526

L4502

P4001

W164

W165

W110

W262

W34

W36

W37

W587

L4001

T4001

W10

W11

W17

W18

ZJ6001

K4002

W586

L8001

C8016

C8003

C8004

C8008

C8013

W132

Q1502

S PHOTO

W131

TW3001

PK7404

L7404

PK7401

C7415

W370

W371

W373

W375

W377

PK7402

W378

C7436

TU7402

K7409

W494

W495

TU7403

C7435

W501

C7433

W504

C7428

W505

W507

PK7403

W230

W571

W499

W506

W502

K7410

W500

W503

W490

L7403

R7404

C7424 K7402

R7403

W532

W530

W531

W529

D3901 R3907

C4945

JK3901

AV1

K4903 C4939

C4940

W552

C4934

W573

W575

W556

C4930 C4928

C4922

W553

W426

C4925 W476

W469

W473

W418

W484

C4921

C4935

C4941

C4937

C4933

C4931

C4929

C4923 C4924

C4949

W527

W524

W528

W516

W518

W522

W512

W386

W389

W391

W492

W487

W496

K7407

C7425

C7417

W521

C7445 W497

W498

C7449

W361

W366

W368

W360

C7430

C398

W383

W392

W393

W397

C3929

C3913

W450

C4920

W439

C4919

W431

W448

W433

C4917

W419

W422

W427

W480

W443

W444

W447

W438

W442

W441

W437

PB CTL

W472

W470

W471 W459

W454

W465

W380

W372

C7452

W379

W376

W374

W367

L7401 C7414

W365

C4501

W396

W394

W395

C4503 C4001

L3001

FM MIX OUT

W432

W430

W429

W421

W420

W428

W423

W424

W312

TW2001

HSW

TW2002

W462

W466

W467

W464

W344

W455

W346

W345

W347

W343

W341

W340

W585

K2898

C2571 W357

W310

P2501

K3002

W324

W323

W330

W336

W337

W315

W327

W321

W320

W331

W319

W328

C3023

C3019

W356

W338

L3008

W303

C3009

W300

W305

W308

C4009

P5001

C4010

W287

C5006

X3001

C3034

C4510

W291

C4524

D4501

W263

C4523

C4531

W272

W270

W269

W271

W277

W274

W276

W268

W285

W284

K7406

W280

W279

W283 W266

W267

TW4502

W281

K4501

W306

W334

W295

W301

W298

W306

W299

W304

W307

W178

W175

L3004

W296

W297

W335

W222

W168

W329

W217 K6204

C2502

W358

W352

W348

W245

W253 W235

W226

W233

W234

K6203

W243

W231

K6099

C2053

K6001

W244

D2002

W257

C2051

W207

W252

W239

W254

L6104

SENSOR

D1501

W181

W138

W152

L3504

W158

W120

W118

W275

W273

W128

W127

W126

W133

W282

W278

W137

W136

W135

W130

W124

W122

W123

K3003

W134 W129 K3007

PF-FM ENV

W242

W229

W251

W250

W446

W249

W248

W247

MODE SW

S1532

W237

W103

W101

W209

W213

W212

W214

W77

W180

W188

W155 D3501

W153

K3004

W198

W197

W185

W183

W177

R1503

W182

W187

W193

W194

W186

W143

W50

W54

W60

W117

W116

W125

W121

W119 W163

W114

W111

W112

W115

W113

W12

C8009

C4020

S REEL

IC1512

W69

W52

W42

W40

W75

W70

W102

W94

W99

W91

S1533

W98

W97

D7751

L6101

W589

W588

W73

W82

D7904

C7908

Q7901

T7901

W53

W56

C7906

D7903

R7901

D7901

L7902

D7902

L4503

W35

SAFETY

TAB SW

C4022

S1531

W515

W510

W204

D2001

W190

D7905

C7909 W81

PS6001

W15

W14

W16

W13

PS6002

ADRESS INFORMATION

IC1511

IC1512

Q1501

Q1502

Q4501

Q7901

P1531

P2501

P2571

P4001

P4002

P5001

P6001

P6002

P6003

P6004

P6005

PK7401

PK7402

PK7403

PK7404

PS6001

PS6002

T4001

T7901

TU7401

TU7402

TU7403

TW2001

TW2002

TW3001

TW4501

TW4502

C10

G10

D10

B10

B12

E10

DMR-EH80VEG / DMR-EH80VEB

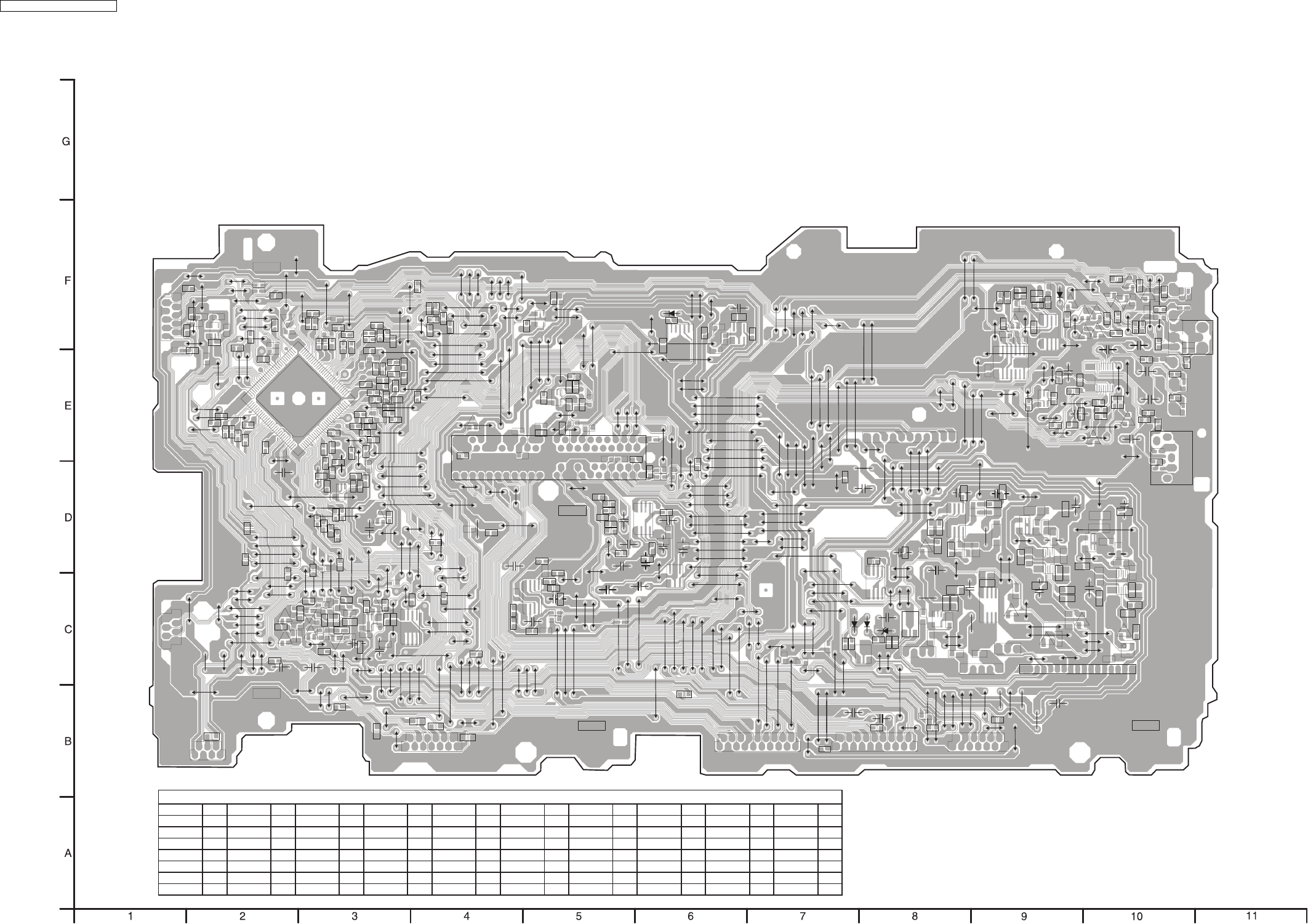

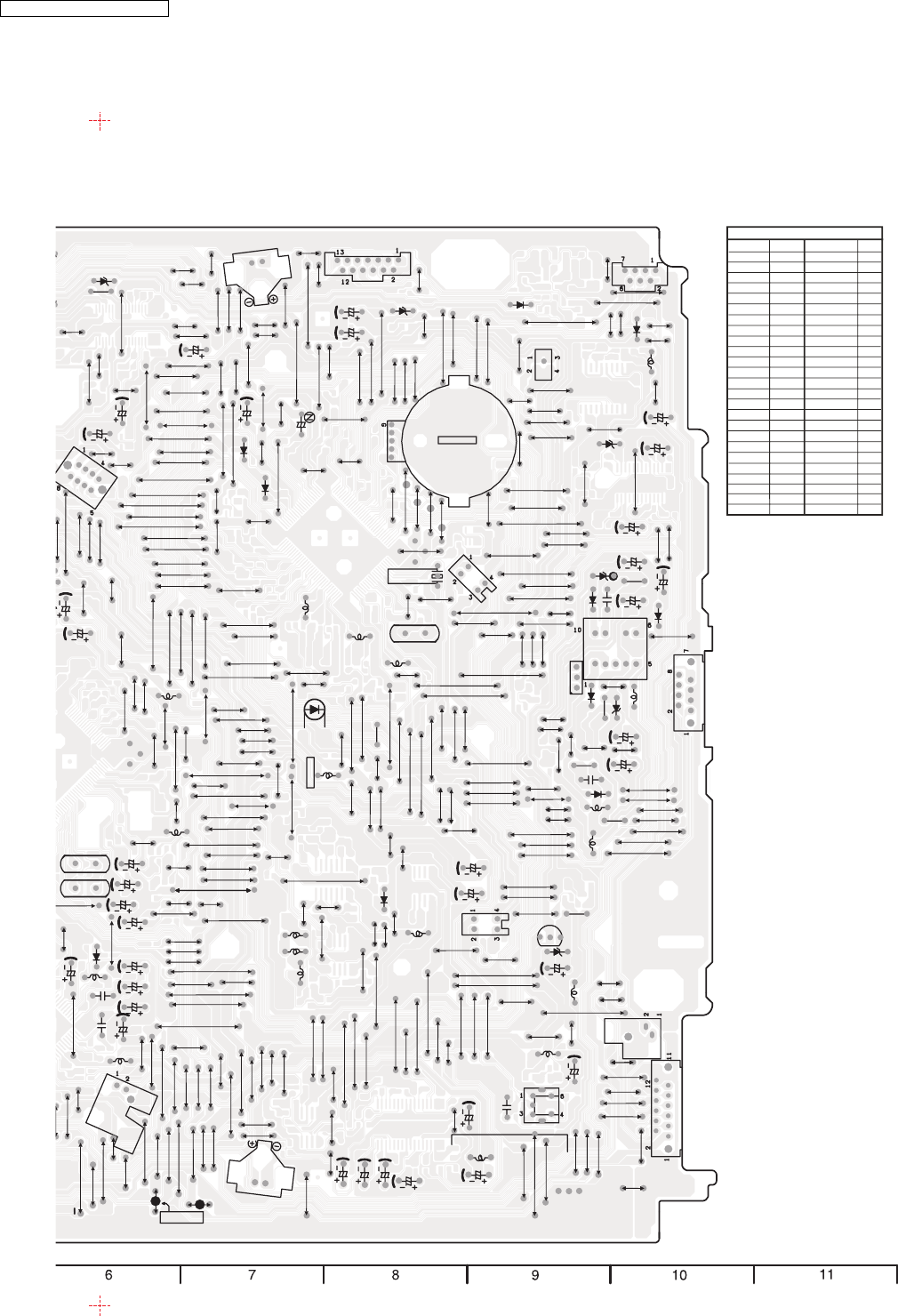

25.4. MAIN P.C.B. (SOLDER SIDE)

IC1511

IC1512

IC2501

IC3001

IC3002

IC3501

IC3502

IC3901

IC3902

IC3903

IC3904

IC3906

IC4501

IC6001

IC6101

IC6201

IC6202

IC7401

IC7405

IC8001

Q1501

Q1502

Q3002

Q3501

Q3502

Q3503

Q3901

Q3902

Q3903

Q3904

Q4001

Q4002

Q4003

Q4004

Q4501

Q4502

Q4901

Q6101

Q6102

Q6103

Q6104

Q6305

Q6401

Q6402

Q6403

Q6404

Q6801

Q7401

Q7402

Q7403

Q7404

Q7901

Q7902

IP4901

TU7401

TU7402

TU7403

QR3001

QR3002

QR3003

QR3004

QR3005

QR3006

QR3901

QR3902

QR4003

QR4004

QR4005

QR4501

QR4901

QR4902

QR4903

QR4904

QR4905

QR4906

QR4908

QR4910

QR4911

QR4912

QR4913

QR4914

QR6402

QR6403

QR6801

QR7402

QR8001

QR8002

QR8003

P1531

P2501

P2571

P4001

P4002

P5001

P6001

P6002

P6003

P6004

P6005

PK7402

PK7403

PK7404

PS6001

PS6002

T4001

T7901

TL23

TL24

TL2015

TL2502

TL4501

TL6001

TL6002

TL6004

TL6010

B10

A10

C10

B10

G10

F10

C10

ADRESS INFORMATION

DMR-EH80VEG:

VEP06F87C

DMR-ES30VEB:

VEP06F87D

MAIN PCB

SOLDER SIDE

TL6002

P6005

D7751

S1533

D6401

C7752

C6104

24 13

D6308

P6004

113

212

C6303

C6005

Q1501

T PHOTO

C2509

IC2501

13 1

14 25

D2502

R2503

P6003

119

218 P6002 19

1P6001

113

C4916 JK4901

C4938

C4918

P1531

C6308

D6801

C6106

C7910

R7907

D7906

IC1511

TL6004

IC6001

100

TL2502

CAP TL

P2571

C2571

TL6001 R3006 P4002

C4936

C4928

C4934

C4932

JK3902

AV2

20 21

R3009

C4927

C3911

L3008

L3002

C3022

L6103

X6001

TL23

C7908

610

T7901

PS6001

C7907 R7901

R7902

C7902

L6102

D1501

SENSOR

L6105

L3004

L3003

IC3901

100

JK3901

AV1

30 31

C3917

C3918

C4002

C3012

C7906

D7902

LB7901

R7908 L6006

IC3001

31 30

80 81

100

C4017 Q4002

C4005

IC3904

20 21

C4946

IC3903

IC3902

C4014

C4505

P5001

8D4901

C4011

C3036

L5001

X3002

C3037

C3047

IC3502

14 8

IC3002

C6101

C3507

R4555

Q4501

D4502

C4545

IC1512

S REEL

TL24

L3501

IC3501

L3502

L3503

TL4501

C4521

C4522

C4519

L4501

C4509

C4508

C4504

C4502

TU7401

9721

IC3906

R7403

R7402

R7401

D7401

IC4501

L4502

L4001

S1531

SAFETY

TAB SW

PS6002

11 12

Q4003

T4001

IC8001

30 16

L8001

C8003

C8016

IC3003

Q1502

S PHOTO

P4001

PK7404

61PK7403

L7404

TU7402

9721

PK7402

TU7403

IC7401

C7428

IC7405

ZJ6001

C4940

C4939 C4941

C4937

C4935

C4933

C4943

C4944

C4945

R3907 D3901

L7403

C7424

C7433

C7435

C7445

C7425

C7417

C7436

C4931

C4923

C4949

C4924

C4930

C4925

C4922

C4921

C4920

C4918

IP4901

C4917 C3913

C4929

C3929

C7430

C7411

C7449

C7415

C7452

L7401

C7414

L3001

P2501

C4004

C4506

C3009

C4001

C4017

C4016

C4010

C4009

C4503

C4501

C4531

C4523

C4526

D4501

X3001

C3023

C2502

L3504

L6104

IC6201

D2002

D2001

CAP FG

TL2015

C2053

C2051

S1532

MODE SW

TL6010 R1503

D3501

C8013

C8008

C8004

C8009

C4020

C3019

D7402

D7905

C7909

C7905

IC6101

L6101

L7901

L4503

C4022

L7902

D7901

IC6202

D7904 Q7901

D7903

R7419

C7468

R7435

LB7412

C7455

LB7411

W788

C7446

C7438

C7444

R7420

C7456

LB7410

C7448

K7404

C7467

Q7403

R7418 LB7417

C7450

C7476

R7415

C7443

R8004

C8011

C8014

C7457

C7442

R7436

W755

C7439

R7414

Q6305

C7427

C7454

LB7414

W758

C7437

QR4914

W757

W789

C7447

C7440

W703

C8012

W709

R8003

R7417

W722

W759

W756

C7466

C7431

C7402

K7405

LB7406

C7429

W751

R7422

C7470

C7406

W750

R7421

C7471

W721

C7451

K4506

R7433

W764

W795

C3935

W765

C7420

LB7413

W702

C4023

R8001

C4518

C7453

QR4906

K4502

LB7409

C7409

R7434

C3937

W781

QR7401

C7426

LB7416

C7416

C3943

C3930

C3931

C3932

C4008

R7410

C3946

C3922

C3927

W760

R4916

C3928

C3945

C3936

R3902

C3915

C3909

C3901

W763

QR3003

C4018

W761

C4007

C5004

R3013

W767

C5005

LB4204

W793

C4202

QR3004

W776

W778

W802

W772

W773 W774

C3921

Q3503

C3018

C3035

C3515

C3516

C3517

C3518

R1513

C3503

Q7402

Q3501

C6116

C3056

R6117

C3080

R3508

R6405

R6406

C6004

C6015

QR4005

C3514

C3506

C3505

C8010

C4544 C3502

C3055

C3054

C3053

C3052

C4528

C4527

Q4003

Q3502

C3051

C3509

C3501

R7905

C6115

R6309

C6003

C6110

C3508

Q4901

C6006

C3512

Q4004

C4517 C4511

R4512

C4512

R4530

R4505

C4515

C4533

R4501

R7407

R7408

R4515

C3017

C3010

C3016

W715

C3015

C3049

C3014

C3028

C3046

C3005

C3004

C3006

C3030

C3008

C3013

QR3002

C3039

Q3002

Q4502

R4017

C3045

C3043

C3029

R3017

C3042

W711

C3027

C3038

R3018

C3041

R3505

R3020

C3050

R3016

C3048

R3504

Q4002

C3011

C4012

C4015

C5002

C4201

C5003

W766

C5001

K3001

C3007

QR3001

QR4003

QR4004

W735

C5007

R3005

C4513

W717

R6101

C2562

C6012

C6016

R6102

R6027

C6105

W718

C6107

R6031

R6001

C6103

R6017

C6009

D6402

R6403

C6114

R6026

C4025

R7904

R6402

C6402

R7906

C6201

C6202

C3033

R6414

R7903

R7909

W805

C6111

C6010

C3026

C2552

R6131

C2518

W743

C6102

C2508

C2099

C2512

R2520

C2511

R4911

R2099

C2501

W744

C2510

C3908

R2515

C6007

C2561

QR3005

W783

C3938

W786

W785

W782

W779

W784

C7405C7404

LB7408

C7403

LB7403

C3924

C7418

R7416

C3025

C3024

C7407

W787

LB7401

D4901

IC6302

QR3901

LB7407

LB7402

C3926

W792

R3908

C3939

QR7402

C4942

C3934

R3901

R3906 R3904 R3903

R3905

C4107

C3933

C3947

C3914

IC7402

R3921

C3021

W762

W796

W790

W797

W791

W799

R3912

R3911

QR4901

QR4912

QR4902

QR4905

C3920

W798

W777

C3923

W801

C3925

R3923

C4103

LB4103

C3953

QR4911

QR4913

W775

W770

W803

QR3902

QR4903

QR4904

Q3903

Q3902

Q3904

QR4910

C4102

C4101

R3924

R3010

R3014

R3004

C4534

C7422

K3005

R4559

C7465

R4557

R3503

C3504

C8005

R3502

R3515

C3510

W720

W713

W712

C6302

R3511

R3510

R6009

R3507

R6003

R6119

C7901

C7903

R3501

L3007

R3024

W716

C3020

R3007

R3008

R3015

R3513

R3516

C3513

R3509

R3512

K3009

R3021

Q6101

R6036

R6035

R6020

R6012

R6019

R6013

R1501

R6109

W719

Q6104

LB3902

R2564

R6010

W704

R6801

C6008

R2001

R6018

C2054

C2001

W769

R6113

C3904

R6029

R2552

R3914

R2565

Q6403

QR6403

R6004

R3023

K3006

R4014

C4024

R6803

R6802

R6120

R6122

R6121

C6001

C6002

C6020

R6123

R4519

Q6801

Q6103

QR4501

W701

R4502

QR3006

C8007

R4504

C4516

W732

C8015

R3012

R1511

R6016

R4528

R6103

R4004

R4016

R6112

C4021

R6033

R6032

R6115

C2055

K6201

C7904

R6116

W714

R6201

K6002

LB6101

R6404

R6401 R6407

R6118

R6408

R6409

R6410

R6411

R6412

R6110

Q7902

Q6401

Q6102

R6014

R2002

R1502

R1512

R6006

R2551

R6024

R6008

R6002

C2551

R6007

R6022

W706

R6011

W734

R3019

C3511

W742

R4523

R4524

R4525

R4520

R4526

R4521

R4527

R4522

R4532

W710

W724 W725

R3022

R4518

R4517

R4503

R4509

LB7415

R4506

R4507

R4513

R4508

R4514

C7421

C7413

R4510

R4516

C7412

R4560

R7409

W728

R4006

R4012

R4015

R4011

R4003

R4009

R4002

R4008

R4001

R4007

R3003

R3002

R3011

K3010

LB4203

R4013

W737

W736

W738

C7419

LB4202

R4511

C7410

R4554

R4558

R7405

W723

W733

W726

W729 W730

W731

LB7405

K7403

K7401

R7423

R7437

W752

R7432

Q7404

W727

R2563

R2562

R2561

R2516

R3916

R2514

C3948

K6202

C2003

R6023

C6121

R6025

R6021

R6030

R6028

C6108

QR8002

W768

R2501

C4926

W747

W748

R2521

C2513

W745

W746

R2502

R3934

W780

C7423

C7434

LB4101

R3910

C7441

C7472

C7473

C4109

C4112

R4915

C4110 R4103

C4111

K3904

LB4102

R4903

LB7404

R3922

R3918

R4927

C4108

R7411

R4917

W753

W754

W794

Q7401

R4926

R4925

R4914

C4105

LB4104

C4106

R4104

C4104

R4906

R4905

R4101

LB4105

R4902

LB4106

R3909

R3913

Q3901

QR4908

QR6801

IP4901

R3920

C4915

R3919

W804

R4924

R4923

R4922

R4910

R4909

R4908

R4907

R3917

W771

R3925

W749

C2507

C2515

C2505

C2504

R4901

R4102

C2506

C2519

R3915

C3905

QR6402

QR8003

R6413

Q6404

W708

W707

C6109

C6120

R6111 R6114

W705

QR8001

Q6402

C6401

C8001

R8002

C8002

C8006

R7406

C7408

R7413

C7432

C7477

C7401

W800

R4018

C3910

C3907

C3906

C3912

C3916

C3952

LB4201

W741

R4019

Q4001

C3001

W740

C3002

W739

R3001

C3003

C6014

DMR-EH80VEG / DMR-EH80VEB

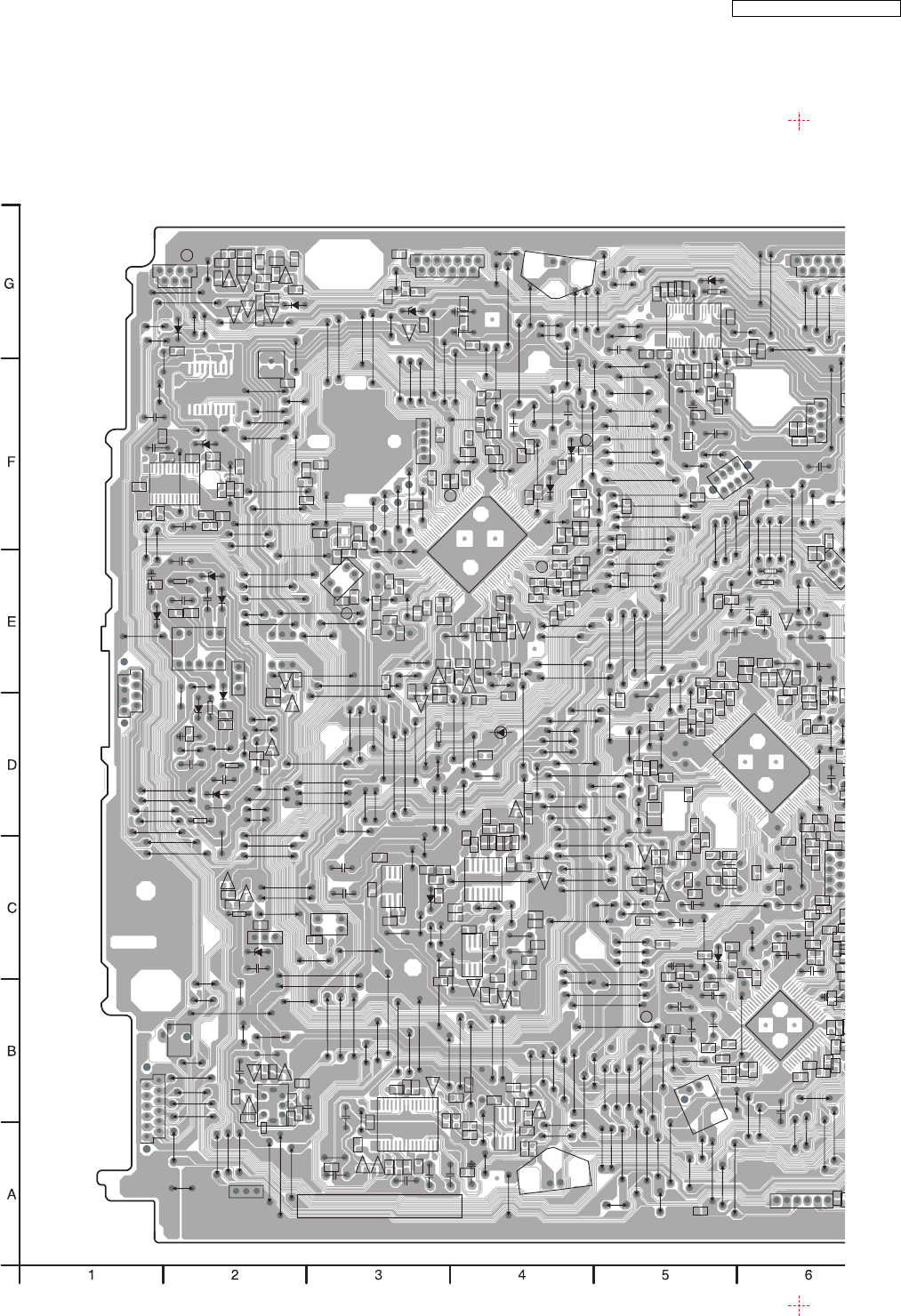

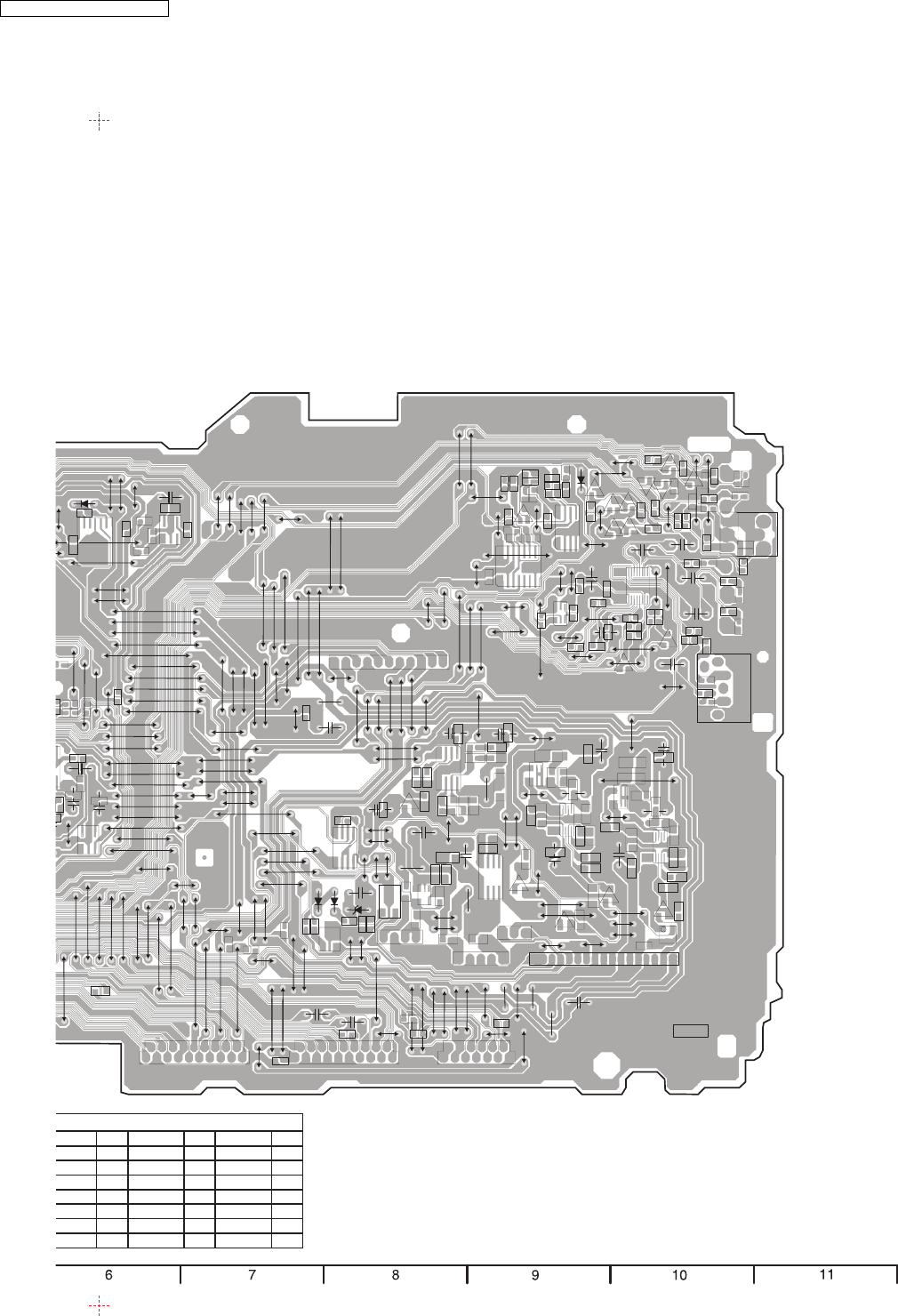

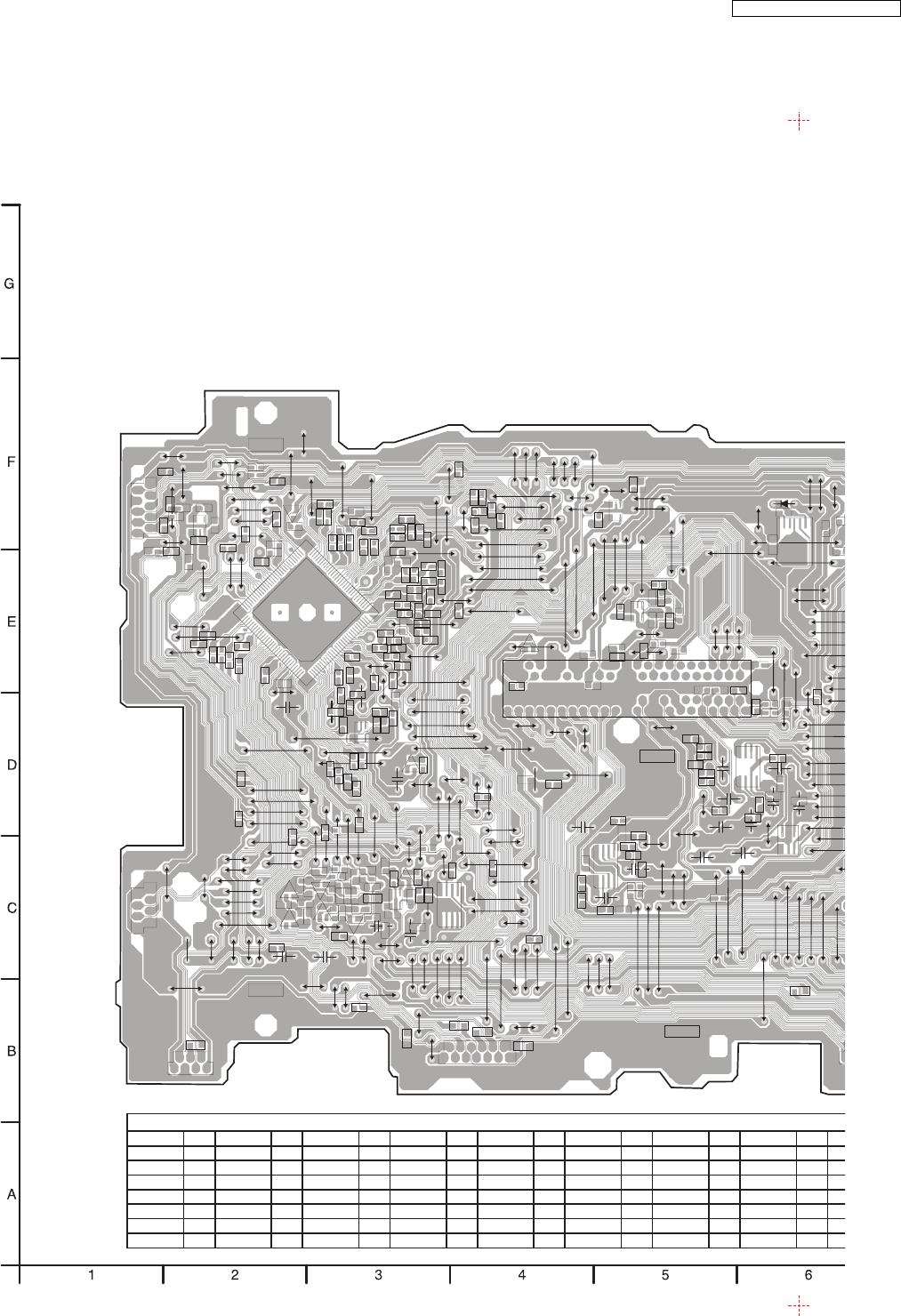

25.5. DIGITAL I/F P.C.B. (COMPONENT SIDE)

DMR-EH80VEG

DMR-EH80VEB

DIGITAL I/F PCB

VEP09136G

COMPONENT SID

P12100

ZJ37304

W153

W159

W125

W268

W269

C45012

W275

C45010

W319

W274

W86

W84

W108

W165

W213

W188

W190

K37597

W192

W331

W149

R31513

W152

W148

W158

W80

W79

W78

C31537

W217

W128

W127

W278

W277

W280

W226

W163

W162

W173

W87

W227

W161

W207

W206

W211

W37

W118

W204

W156

W154

W151

W155

W160

C37633

W122

PS37501

W180

W323

C37590

W324

W318

C37608

W276

K31998

W223

W174

W176

W233

W234

W85

W305

W231

W205

W232

W273

W272

W168

W196

W194

W67

W58

W65

C35031

C35032

C15032

C35033

W164

C35029 C35023

W42

C35030

C15024

C15015

C15008 C31507

W19

W100

WQ16

W14

R31512

W39

W332

W93

W95

W64

W53

W94

W106

WQ18

W49

W150

W35

C37003

W145

W117

W175

W157

D37003

W178

WQ36

W311

W22

W302

K37502

W20

W121

W119

W256

W251

W250

W255

WQ38

W201

W199

W143

W139

W222

W76

W77

W75

W83

W82

W81

C37635

C33505

P31905

W229

W224

W230

W225

W123

W25

W281

W102

W130

W333

W141

W142

W114

W61

W321

W147

P31901 P31902 P31903

L37101

L15002

W116

W115

W264

W212

W237

W246

LB31902

LB31903

W185

C31902

C45013

W241

C15001

C15005

C45004

C15017

X37501

C15002

P39702

P31904

W265

X37502

W260

W266

W296

W315

L31501

W263

C45008

W191

W48

W262

LB31505

C45005

W307

C45002

W257

C45014

W254

W221

L15005

L15004

L15003

W105

C35020

C33740 C33735

P15002

JK37701

P15003

W104

TW37501

C37503

P15001

W43

C34004

C34003

PP37401

JK35001

D31501

D37502

D37503

D45001

D37001

D37002

W179

W182

W184

W109

W110

W31

WQ13

W40

W198

W167

W187

W189

W242

W240

W126

W298

K37598

W34

K37504

W214

W325

W101

WQ3

WS2

WQ4

W144

W27

W132

W134

W133

W282

W210

W209

W208

W177

W270

W220

W244

W243

W245

W219

W235

WQ12

WQ11

W88

WQ5

K35010

W89

K45001

W239

W327

W326

W197

W328

W308

W309

W295

K33701

W63

K45007

K45006

W103

WQ21

W215

W216

W283

W284

W44

W287

W285

W286

W45

W46

W99

W146

W91

WQ28

W90

W136

W137

W135

W113

W138

W304

W261

W310

W259

W258

W253

W271

W249

W252

W171

W172

W72

W73

W74

W71

W70

W289

W290

W293

W294

K31999

WR10

WR9

W92

W98

W96

W170

W50

W47

W112

W51

W131

WQ23

WR15

WQ30

WQ26

WQ29

W140

K31995

W203

W202

W120

W66

W57

W68

W62

W181

W193

W195

K37511

WQ8

K45002

W166

WQ1

W32

W97

WQ17

W24

W107

W169

W111

K39704

K33702

WQ33

W52

W129

K37505 W41

W69

W330

W55

W54

W56

K45010

W248

W247

W291 W228

W306

W238

W236

W279

K15001

W299

W300

W292

W288

W303

W314

W316

W301

W329

K45008

W218 WR7

W297

W313

W317

W322

W320

W312

W60

ZJ37301

ZJ37302

C45003

C31501

ZJ37305

L37501

ZJ37303

L15001

C15025

L35001

PS37502

11 12

12 2

19 1

13 1

212

116

JK37701 F1 P15003 C4 P39702 D6

JK35001 E1 P31901 B3 PP37401 E4

P31902 B4 PS37501 C11

P12100 C3 P31903 B5 PS37502 F11

P15001 C2 P31904 B8

P15002 C3 P31905 B10 TW37501 C10

ADRESS INFORMATION

DMR-EH80VEG / DMR-EH80VEB

25.6. DIGITAL I/F P.C.B. (SOLDER SIDE)

DMR-EH80VEG

DMR-EH80VEB

DIGITAL I/F PC

VEP09136G

SOLDER SIDE

C15003

C15004

C15006

C15007

C15009

C15010 C15011

C15012

C15013

C15014

C15016

C15018

C15019

C15020

C15021

C15022

C15023

C15026

C15027

C15028

C15029

C15030

C15031

C15033

C15100

C31503

C31511

C31512

C31527

C31535

C31536

C31901

C33501

C33502

C33503

C33504

C33506

C33507

C33508

C33509

C33738

C34001 C34002

C35017

C35018

C35019

C35021

C35022

C35024

C35025

C35026

C35027

C35028

C37001

C37002

C37100

C37101

C37102

C37104

C37105

C37106

C37107

C37502

C37504

C37506

C37507

C37508

C37546

C37579

C37580

C37581

C37582

C37583

C37584

C37585

C37586

C37587 C37588

C37589

C37592

C37593

C37595

C37596 C37597

C37598 C37599

C37600

C37601

C37602

C37603

C37604

C37605

C37606

C37607

C37609

C37610 C37617

C37618

C37620

C37625

C37626

C37627

C37636

C37652

C37703

C37706

C37707

C37708

C37709

C37710

C39001 C39002

C39003

C39010

C39011

C45001

C45006

C45007

C45015

C45016

C45017

C45018

C45019

C45020

D15001

D15002

D15003

D15004

IC15001

IC15002

IC15003

IC15004

IC31502 IC31510

IC34001 IC35004

IC35005

IC37001

IC37501

IC37502

IC37503 IC37504

IC37505

IC37508

IC37702

IC37703

IC45001

IC45002

IC45003

IP15001

IP37501

K33501

K33502

K37506

K37507

K37510

K37512

K37702

K37703

K37704

K45003

K45004

K45005 K45009

LB15001

LB15002

LB15003

LB15004

LB15005

LB15006

LB33501

LB33502

LB33503

LB33504

LB34001

LB34002

LB34003

LB35101

LB35102

LB35103

LB35104

LB35105

LB35106

LB37101

LB37102

LB37103

LB37104

LB37105

LB37107

LB37108

LB37109

LB37409

LB37506

LB37507

LB37508

LB37509

LB45101

LB45102

Q15001

Q15002

Q15003

Q33501 Q33502

Q33503

Q33504

Q33505

Q37001

Q37002

Q37701

QR15001

QR15002

QR15003

QR15004

QR15005

QR15007

QR33701

QR35007

QR35008

QR37501

QR37502

QR37503

QR45001

QR45002

QR45003

QR45004

QR45005

QR45006

QR45007

QR45008

QR45009

R15001

R15002

R15003

R15004

R15005

R15006R15007

R15008

R15009

R15010

R15011

R15012

R15013

R15014

R15015

R15016

R15017

R15018

R15019

R15026

R15027

R31501

R31502

R31503

R33501

R33502

R33503

R33504

R33505

R33506

R33507

R33508

R33509

R33510

R33511

R33707

R34001

R34002

R34003

R34004

R34005

R34006

R34007

R34008

R34009

R34010

R34011

R35015

R35017

R35018

R35019

R35020

R35021

R35026

R35027

R35028

R35031

R35032

R37001

R37002

R37003

R37004

R37501

R37502

R37503

R37504

R37505

R37506

R37507

R37508

R37509

R37511

R37512

R37530

R37531

R37532

R37533

R37534

R37535

R37536

R37537

R37538 R37539

R37540

R37541

R37542

R37544

R37545

R37546

R37547

R37548

R37549

R37550

R37551

R37556

R37557

R37558

R37559

R37561

R37562

R37563

R37565

R37566

R37567

R37569

R37571

R37572

R37573

R37575

R37576 R37577

R37578

R37581

R37582

R37583

R37584

R37585

R37588

R37595

R37596

R37597

R37599

R37600

R37604

R37605

R37606

R37611

R37612

R37613

R37633

R37648

R37703

R37704 R37705

R37706

R37707 R37708

R37709

R37710

R37711

R37712

R37713

R37714

R45001

R45002

R45003

R45004 R45005

R45006

R45007

R45008

R45009

R45010

R45011

R45012

R45013

R45014

R45015

R45016

R45017

R45018

R45019

W507

W509

W510

W511

W512

W513

W514

W516

W517

W518

W519

W520

W521

WS503

WS506

WS508

WT501

WT502

WT505

ZJ37304

PS37502

ZJ37305

JK35001

59 58

116

TL37504

TL37509

TL37503

P39702

D31501

R31513

554

D45001 24 23

JK37701

PP37401

111

R31512

TL37520

ZJ37302

D37502

PS37501

P31905

P31904

ZJ37301

P31903

P31902

P31901

212

ZJ37303

P15001

16 1

P12100

P15002

P15003

TL37518

TL37519

L37501

D37503

L35001

D37001

D37002

D37003

C37633

C37503

C33505

C37635

C45010

C45012

C45004 C45003

C45014 C45013

C33735

C33740

LB31902 LB31903

C37003

L15001

L15002

C15001

C15005

C15002

L15003

C15017

C15025

L37101

C31902

L15005

C15024

C15032

L15004

C15015

C15008

C35030

C35029

C35033

C35031

C35032

C35020

C35023

C31537

C37590

C37608 X37502

X37501

C31501

C34004

C45002

C45005

C45008

C34003

C31507

LB31505

L31501

IC15001 C8 IC35005 E10 IC37702 F9 QR15003 D8 QR37502 C3 QR45007 F10 Q33502 C3 IP15001 C9 P12100 C9 P31905 B2

IC15002 D8 IC37001 C8 IC37703 E9 QR15004 C10 QR37503 F2 QR45008 F10 Q33503 C2 IP37501 F5 P15001 C9 P39702 D4

IC15003 D9 IC37501 E2 IC45001 C6 QR15005 C9 QR45001 F9 QR45009 F10 Q33504 C3 JK35001 D10 P15002 C9

IC15004 C10 IC37502 C3 IC45002 D6 QR15007 C10 QR45002 F10 Q33505 C2 JK37701 F10 P15003 C8 PP37401 E8

IC31502 F6 IC37503 F2 IC45003 C5 QR33701 E4 QR45003 F10 Q15001 C9 Q37002 C8 P31901 B9

IC31510 F6 IC37504 F5 QR35007 E10 QR45004 F10 Q15002 D9 Q37701 F9 P31902 B8 PS37501 C1

IC34001 E5 IC37505 C3 QR15001 C9 QR35008 E10 QR45005 F10 Q15003 D10 P31903 B6 PS37502 F1

IC35004 E9 IC37508 D3 QR15002 C9 QR37501 D3 QR45006 F10 Q33501 C3 P31904 B4

ADRESS INFORMATION

DMR-EH80VEG / DMR-EH80VEB

25.7. NICAM DECODER P.C.B. (VEP07A51A / VEP07A51B)

DMR-EH80VEB

NICAM DECODER PCB

COMPONENT SIDE

DMR-EH80VEB

NICAM DECODER PCB

COMPONENT SIDE

Nicam Decoder P.C.B.(VEP07A51A) Nicam Decoder P.C.B.(VEP07A51B)

R7310

VEP07A51A VEP07A51B

ADDRESS INFORMATION ADDRESS INFORMATION

IC7301

IC7302

PK7301

PK7302

TL7301

TL7302

TL7303

X7301

IC7301

IC7302

PK7301

PK7302

TL7301

TL7302

TL7303

X7301

C10

D11

IC7302

C7329

C7330

C7333

K7305

C7305

R7304

C7302

C7311

PK7301

C7303

IC7301

L7302

LB7302

K7301

PK7302

TL7301

R7315

R7311

C7317

TL7302

TL7303

R7312

R7313

C7324

LB7303

C7314

C7334

C7310

R7317

C7309

R7319

R7314

C7318

R7309

R7324

R7325

C7307

C7308

L7303

L7301

C7335

C7301 R7301

K7302

R7307

C7332

X7301

R7322

K7303

LB7301

C7323

C7306

K7307

C7312

C7313

33 34

IC7302

C7329

C7330

C7333

K7305

C7305

R7304

C7302

C7311

PK7301

C7303

IC7301

L7302

LB7302

K7301

PK7302

TL7301

R7315

R7311

C7317

TL7302

TL7303

R7312

R7313

C7324

LB7303

C7314

C7334

C7310

R7317

C7309

R7319

R7314

C7318

R7309

R7324

R7325

C7307

C7308

L7303

L7301

C7335

C7301 R7301

K7302

R7307

C7332

X7301

R7322

K7303

LB7301

C7323

C7306

K7307

C7312

C7313

33 34

DMR-EH80VEG / DMR-EH80VEB

25.8. NICAM DECODER P.C.B. (VEP07A51F)

DMR-EH80VEG

NICAM DECODER PCB

COMPONENT SIDE

Nicam Decoder P.C.B.(VEP07A51F)

VEP07A51F

ADDRESS INFORMATION

IC7301

IC7302

PK7301

PK7302

TL7301

TL7302

TL7303

X7301

IC7302

C7329

C7330

C7333

K7305

C7305

R7304

C7302

C7311

PK7301

C7303

IC7301

L7302

LB7302

K7301

PK7302

TL7301

R7315

R7311

C7317

TL7302

TL7303

R7312

R7313

C7324

LB7303

C7314

C7334

R7317

R7319

R7314

C7318

R7309

R7324

R7325

C7307

C7308

L7303

L7301

C7335

C7301 R7301

K7302

R7307

C7332

X7301

R7322

K7303

LB7301

C7323

C7306

K7307

C7312

C7313

33 34

DMR-EH80VEG / DMR-EH80VEB

25.9. FRONT JACK P.C.B.

DMR-EH80VEG

DMR-EH80VEB

FRONT JACK PCB

COMPONENT SIDE / SOLDER SIDE

VEP04885C-L

REW

S7812

JK4600

S7805

S7807 S7803

EXT_LINK_V EXT_LINK_D

PP4600 W8

S1 IN

JK3802

S7810

CH DN

S7802

STOP

S7801

CH UP

S7809

PLAY

S7808

REC

S7806

S7813

POWER

IC7801

EJECT

FRONT JACK COMPONENT SIDE

S7801

S7808

REC

S7809

PLAY

CH UP

S7810

CH DN

S7802

STOP

JK3802

S1 IN

PP4600

EXT_LINK_D EXT_LINK_V

S7803 S7807

S7805

REW

S7812

JK4600

S7813

EJECT

S7806

IC7801

POWER

FRONT JACK SOLDER SIDE

IC7801

JK3802

JK4600

PP4600

ADRESS INFORMATION ADRESS INFORMATION

IC7801

JK3802

JK4600

PP4600

E11

C10

DMR-EH80VEG / DMR-EH80VEB

25.10. FL DRIVE P.C.B.

DMR-EH80VEG

DMR-EH80VEB

FL DRIVE PCB

COMPONENT SIDE / SOLDER SIDE

VEP07A78F

FL DRIVE SOLDER SIDE

FL DRIVE COMPONENT SIDE

PP7503

W12

W11

W10

DP7501

W14

W15

W13

W22

W23

W20

W25

W29

W30

W31

W17

W34

W21

W18

W37

W27

W36

W26

W19

W16

W24

W40

C7502

PP7502 PP7501

W32

S7502 S7504

W28

W38

S7503 S7505

S7506

W33

CH UP

DOWN

STOP PLAY

REC

W35

S7501

OPEN/

IC7502

QR7502

D7508

D7501

PP7502

Q7501

IC7502

DP7501

PP7503

QR7506

QR7503

D7502

QR7501

QR7508

PP7501

DUB_RED

SELECT

PLAY

STOP

CH UP

CH DOWN

D7504

D7505

DVD

VHS

HDD

QR7504

VHS

D7506

DVD

REC

S7512

S7510

S7511

S7507

S7508

S7513

S7515

S7514

S7509

D7503

S7506

S7505 S7503

S7504 S7502

QR7505

C7502

S7501

OPEN/

R7510

IC7502 QR7501

DP7501 QR7502

PP7501 QR7503

PP7502 QR7504

PP7503 QR7505

Q7501 QR7506

QR7508

D8/F4 D3

C6/F3 D3

C2/F9 D4

C5/F6 D4

C10/F2 D4

C5 D5

ADRESS INFORMATION

DMR-EH80VEG / DMR-EH80VEB

25.11. SD CARD P.C.B.

DMR-EH80VEG

DMR-EH80VEB

DIGITAL P.C.B./DV-JACK P.C.B.

COMPONENT SIDE

VEP001J19B

SOLDER SIDE

COMPONENT SIDE

P66804

P66801

P66803

P66802

K66801

R66815

C66801

R66807

R66806

R66809

R66810

R66805

R668004

R66811

FL66801

LB66801

R66812

R66813

R66802

R66801

R66814

LB66802

R66808

R66816

R66817

R66818

R66819

DMR-EH80VEG / DMR-EH80VEB

100

26 EXPLODED VIEWS

26.1. MECHANISM & CASING PARTS

101

DMR-EH80VEG / DMR-EH80VEB

26.2. FRONT PANEL PARTS

102

DMR-EH80VEG / DMR-EH80VEB

26.3. VHS MECHANISM PARTS

103

DMR-EH80VEG / DMR-EH80VEB

26.4. PACKING & ACCESSORIES

104

DMR-EH80VEG / DMR-EH80VEB

NOTES:

*Important safety notice:

Components identified by mark have special

characteristics important for safety.

Furthermore, special parts which have purposes of

fire-retardant (resistors), high-quality sound (capacitors),

low-noise (resistors), etc. are used.

When replacing any of components, be sure to use

only manufactures specified parts shown in the parts list.

*Warning: This product uses a laser diode.

Refer to caution statements.

*Capacity values are in microfarads (µF) unless

specified otherwise, P=Pico-farads (pF), F=Farads (F).

*Resistance values are in ohms, unless specified otherwise,

1K=1,000 (OHM), 1M=1,000k (OHM).

*The marking (RTL) indicates the retention time is

limited for this item. After the discontinuation of this

assembly in production, it will no longer be available.

*Printed Circuit Board’s are identified by “■” character.

*All parts except parts mentioned [SPC] in the Remarks

column are supplied from PAVCG.

*Parts mentioned [SPC] are supplied from PAVC.

No indication = all models

27.1. VHS MECHANISM PARTS

Ref.

No. Part No. Part Name &

Description Pcs Remarks

1VEG1648-DT RDD CYLINDER 1

2VEM0750 CAPSTAN UNIT 1

3L1AZ00000004 FE HEAD UNIT 1

4VDG1510 INTERMEDIATE GEAR 1

5VDG1511-4 MAIN CAM GEAR 1

6VDG1512 IDLER GEAR 1

7VDG1512 IDLER GEAR 1

8VDG1514-1 CHANGE GEAR 1

9VDR0372 REEL TABLE 1

10 VDR0372 REEL TABLE 1

11 VDV0391-2 CAPSTAN BELT 1

12 VMB3550 CHANGE GEAR SPRING 1

14 VMD4252 OPENER PIECE 1

15 VMD4253 LED PRISM 1

17 VML3624-1 MAIN LEVER 1

18 VML3626-1 PINCH CHARGE ARM 1

19 VML3632 IDLER ARM 1

20 VMX3092 P4 CAP 1

21 VDB1431 TENSION ARM BOSH 1

22 VEM0796 LOADING MOTOR UNIT 1

23 VDG1637 WORM GEAR 1

24 VMD4987 WORM BEARING 1

25 VXA7105-2 SUPPLY SHAFT HOLDER

UNIT 1

26 VXA7106-2 TAKE UP SHAFT HOLDER

UNIT 1

27 L1AE00000036 AC HEAD UNIT 1

28 VXA7311 SECTOR GEAR UNIT 1

29 VXL3107 SUPPLY LOADING ARM

UNIT 1

30 VXL3108 TAKE UP LOADING ARM

UNIT 1

31 VXL3109-4 PINCH ARM UNIT 1

32 VXL3110 P5 ARM UNIT 1

33 VXL3111-1 TENSION ARM UNIT 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

34 VMB3547-3 TENSION SPRING 1

35 VXL3112 SUPPLY BRAKE ARM

UNIT 1

36 VXL3113 TAKE UP BRAKE ARM

UNIT 1

37 VMB3548-2 TAKE UP BRAKE SPRING 1

38 VXL3124-2 CHANGE LEVER UNIT 1

39 VXP2133-1 CENTRE CLUTCH UNIT 1

40 VXP2168 TORQUE CLUTCH UNIT 1

41 VMD4983 FPC HOLDER 1

50 VMA0L25 TOP PLATE 1

51 VMD4255-4 SIDE PLATE (L) 1

52 VMD4254-4 SIDE PLATE (R) UNIT 1

53 VML3706-1 OPENER LEVER 1

54 VXA7110-3 CASSETTE HOLDER UNIT 1

55 VXL3160 MAIN SHAFT UNIT 1

B1 VHD1044 SCREW 1

B2 XSN3+35 SCREW 1

B3 XTN26+7J SCREW 1

B4 XTN26+7J SCREW 1

B5 XTN26+7J SCREW 1

B6 XTV26+5F SCREW 1

B7 XTV26+5F SCREW 1

B8 XTV26+8FR SCREW 1

B9 XTV26+8FR SCREW 1

B10 VHD1066 SCREW 1

B11 VHD1066 SCREW 1

B12 VHD1185 SCREW 1

B13 VHD1095-1 SCREW 1

B14 VHD1117-1 SCREW 1

B15 VHD1117-1 SCREW 1

W1 VMX2208 WASHER 1

W2 VMX3196 WASHER 1

W3 VMX2699 WASHER 1

W4 VMX3196 WASHER 1

27.2. MECHANISM & CASING

PARTS

Ref.

No. Part No. Part Name &

Description Pcs Remarks

1VXY1872 RAM DRIVE UNIT 1(RTL) (SPC)

&block;

2VEP01977A POWER PCB 1(RTL)

3RSC0770B SHIELD CASE (B) 1

4VSC5586-1 SHIELD CASE (T) 1

5RMZ0778 P.BARRIER (B) 1

6RMZ0788 P.BARRIER (C) 1

&block;

7VEP06F87D MAIN PCB 1DMR-

EH80VEBS

(RTL)

&block;

7VEP06F87C MAIN PCB 1DMR-

EH80VEGS

(RTL)

&block;

8VEP79108E DIGITAL PCB 1DMR-

EH80VEGS

(RTL)

&block;

8RFKBEH80VEB DIGITAL PCB 1DMR-

EH80VEBS

(RTL)

&block;

9VEP09136G DIGITAL INTERFACE

PCB 1(RTL)

&block;

10 VEP001J9B SD DV PCB 1(RTL)

11 RMA1908-1 FRONT ANGLE 1

12 RMA1917-1 HDD BRACKET 1

13 K1MZ40Z00002 CONNECTOR 1

14 RFKV0052HDK HARD DISC DRIVE 1

15 VEE1A65 HDD CABLE 1

16 VWJ1777 HDD-DIGITAL PCB FFC 1

17 RMA1905 DVD ANGLE 1

18 VEE1A64 DRIVE MAIN CABLE 1

27 REPLACEMNET PARTS LIST

105

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

19 VWJ1779 FFC 40P 1

20 VEE1B77 SD-DIGITAL PCB FFC 1

21 VWJ1727 CYL FFC 1

22 VWJ1728 A/C HEAD FFC 1

23 VEE0Z83 POWER WIRE 1

24 K2KA29A00013 COAX CABLE 2

25 VMX3399 MECHA SPACER(R) 1

26 VMX3398 MECHA SPACER(F) 1

27 RMG0677-K DAMPER 4

28 VKC0412 MINI CLAMPER 1

29 VHD1662 SCREW 4

30 J0KE00000067 FILTER 1

31 RKA0178-X LEG 2

32 VKA0382 LEG CUSHION 2

33 RMC0622 EARTH SPRING (DI) 1

34 RMC0632 EARTH SPRING (T) 1

35 RMA1897 CENTER ANGLE 1

36 RGR0357B-B REAR PANEL 1DMR-

EH80VEBS

36 RGR0357B-A REAR PANEL 1DMR-

EH80VEGS

37 L6FAHCBE0001 FAN POWER 1

38 L6FAKCCE0007 FAN HDD 1

39 RMN0817A FAN COVER 1

40 RKM0537-S TOP PANEL 1

41 VKC0554 PCB SUPPORT 1

42 VKC0295 MINI CARD SPACER 1

43 VKC0612 PCB SPACER 1

44 RHD32001 SCREW WITH WASHER 4

45 XSN3+4FJK SCREW (TUNER) 1

46 RHD30111-3 SCREW 16

47 VEE1A66 DV-DIGITAL CABLE U 1

48 VHD0690-1 SCREW 19

49 VHD1452-2 SCREW 1

50 VHD1453-3 SCREW 3

51 RHD30115-3 SCREW 3

52 VHD1092-1 SCREW 1

53 XTV26+6FFJ SCREW 1

54 RHD30113 SCREW 4

55 XYN3+J8FJ SCREW 2

&block;

56 VEP04885C-L FRONT JACK PCB 1(RTL)

&block;

57 VEP07A78F FL DRIVE PCB 1(RTL)

58 RHD26045 SCREW 8

59 RYP1278L-S FRONTPANEL 1DMR-

EH80VEBS

59 RYP1278F-S FRONTPANEL 1DMR-

EH80VEGS

59-1 RYF0762C-S DOOR ASS’Y 1

59-2 RKF0722C-S BLINDER PANEL 1

59-3 RKF0723A-S TRAY DOOR 1

59-4 REKD0039 SD SLOT UNIT 1

27.3. PRINTED CIRCUIT BOARDS

INCLUDED IN MAIN PCB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

TU7401 ENG37A08GF TUNER 1DMR-

EH80VEBS

(RTL)

TU7401 ENG37A07GF TUNER 1DMR-

EH80VEGS

(RTL)

TU7402 ENG37A08GF TUNER 1DMR-

EH80VEBS

(RTL)

TU7402 ENG37A14GF TUNER 1DMR-

EH80VEGS

(RTL)

TU7403 ENC879T3F RF MODULATOR 1(RTL)

Ref.

No. Part No. Part Name &

Description Pcs Remarks

■

DE7401 VEP07A51B DECODER PCB 1DMR-

EH80VEBS

(RTL)

■

DE7401 VEP07A51F DECODER PCB 1DMR-

EH80VEGS

(RTL)

■

DE7402 VEP07A51A DECODER PCB 1DMR-

EH80VEBS

(RTL)

■

DE7402 VEP07A51F DECODER PCB 1DMR-

EH80VEGS

(RTL)

27.4. PACKING & ACCESSORIES

PARTS

Ref.

No. Part No. Part Name &

Description Pcs Remarks

A1 EUR7729KN0 REMOTE CONTROL 1DMR-

EH80VEBS

A1 EUR7729KM0 REMOTE CONTROL 1DMR-

EH80VEGS

A2 UR77EC2903 BATTERY COVER 1

A3 RJA0044-3C POWER CORD 1DMR-

EH80VEBS

A3 RJA0043-1C POWERCORD 1DMR-

EH80VEGS

A4 K1TWACC00001 RF CABLE 1

A5 K2KA6BA00003 AV CORD 1

A6 RPQFD0007 ACCESSORY BOX 1

A7 RPFD0003 PAPER BAG 1DMR-

EH80VEBS

A7 RPFD0001 PE-BAG 1DMR-

EH80VEGS

A8 RPQD0005 CORRUGATED PAD 1DMR-

EH80VEGS

A9 RQTD0179-B O/I BOOK ENG UK 1DMR-

EH80VEBS

A9 RQTD0180-D O/I BOOK GER 1DMR-

EH80VEGS

A9 RQTD0181-V O/I BOOK ITA 1DMR-

EH80VEGS

A9 RQTD0182-H O/I BOOK DUT 1DMR-

EH80VEGS

A9 RQTD0184-A O/I BOOK ENG CONT 1DMR-

EH80VEGS

A9 RQTD0183-C O/I BOOK FRE PAL 1DMR-

EH80VEGS

A9 RQTD0185-M O/I BOOK SPA 1DMR-

EH80VEGS

A9 RQTD0186-Z O/I BOOK SWE 1DMR-

EH80VEGS

A9 RQTD0187-J O/I BOOK DAN 1DMR-

EH80VEGS

A10 RQCA1405-1 EPG CAUTION SHEET 1DMR-

EH80VEGS

A10 RQCAD0024 QUICK START GUIDE 1DMR-

EH80VEBS

A10 RQCC2704 DVD-MEDIA LEAFLET 1

A10 RQCA1395 CARD CAUTION SHEET 1

A11 RPQ1594 PAD 1

PC1 RPG7619 PACKING CASE 1DMR-

EH80VEBS

PC1 RPG7618 PACKING CASE 1DMR-

EH80VEGS

PC2 RPFD0006 MIRAMAT BAG 1

PC3 RPN1819A CUSHION(LEFT) 1

PC4 RPN1819B CUSHION(RIGHT) 1

106

DMR-EH80VEG / DMR-EH80VEB

27.5. ELECTRICAL PARTS

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C11102 ECKMNA222MEV CERAMIC CAPACITOR 1

C11103 F2B2G680A050 ALU ELEC CAPACITOR 1

C11105 ECQU2A223MLC EMI CAPACITOR 1

C11106 F1B2G4710001 CERAMIC CAPACITOR 1

C11107 F1B2G4710001 CERAMIC CAPACITOR 1

C11108 F1B3A3320011 CERAMIC CAPACITOR 1

C11110 ECQU2A683MLC X2 CAPACITOR 1

C11201 F1B3D271A011 CERAMIC CAPACITOR 1

C11202 ECJ2VB1H102K CHIP CAPACITOR 1

C11203 ECJ2VC1H470J CHIP CAPACITOR 1

C11204 F2A1V5600013 ALU ELEC CAPACITOR 1

C11205 F1J1H222A532 CHIP CAPACITOR 1

C11302 ECJ2VB1E823K CHIP CAPACITOR 1

C11303 ECJ2VB1E473K CHIP CAPACITOR 1

C11401 EEUFM1V221B ALU ELEC CAPACITOR 1

C11402 F2A1V5600013 ALU ELEC CAPACITOR 1

C11403 F2A1C152A619 ALU ELEC CAPACITOR 1

C11404 F2A1C152A619 ALU ELEC CAPACITOR 1

C11405 EEUFM1C471B ALU ELEC CAPACITOR 1

C11406 F1J2A332A023 CHIP CAPACITOR 1

C11407 F1J2A332A023 CHIP CAPACITOR 1

C11501 EEUFM1E221B ALU ELEC CAPACITOR 1

C11502 F1J1H1040007 CHIP CAPACITOR 1

C11503 F1J1H1040007 CHIP CAPACITOR 1

C11504 F1J1E104A081 CHIP CAPACITOR 1

C11505 ECJ2VC1H181J CHIP CAPACITOR 1

C11506 ECJ2VB1H103K CHIP CAPACITOR 1

C11507 F2A1A2210063 ALU ELEC CAPACITOR 1

C11509 F1J1E104A081 CHIP CAPACITOR 1

C12001 ECEA1CKA220B ALU ELEC CAPACITOR 1

C15001 EEUFM1C121B ALU ELEC CAPACITOR 1

C15004 ECJ2VF1H103Z CHIP CAPACITOR 1

C15005 F2A1A4710038 ALU ELEC CAPACITOR 1

C15006 F1J0J106A014 CHIP CAPACITOR 1

C15007 F1K1C106A062 CHIP CAPACITOR 1

C15008 EEUFM1E221B ALU ELEC CAPACITOR 1

C15009 F1J1C1050030 CHIP CAPACITOR 1

C15010 ECJ2VF1H103Z CHIP CAPACITOR 1

C15011 ECJ2VB1H391K CHIP CAPACITOR 1

C15012 ECJ2VB1H472K CHIP CAPACITOR 1

C15013 ECJ2VB1H102K CHIP CAPACITOR 1

C15015 F2A1A681A540 ALU ELEC CAPACITOR 1

C15017 EEUFM1E221B ALU ELEC CAPACITOR 1

C15018 F1J1H1040007 CHIP CAPACITOR 1

C15019 F1J1H1040007 CHIP CAPACITOR 1

C15020 F1J1H2230005 CHIP CAPACITOR 1

C15021 ECJ2VC1H181J CHIP CAPACITOR 1

C15022 ECJ2VB1H103K CHIP CAPACITOR 1

C15024 F2A1A4710038 ALU ELEC CAPACITOR 1

C15025 EEUFM1E221B ALU ELEC CAPACITOR 1

C15026 F1J1H1040007 CHIP CAPACITOR 1

C15027 F1J1H1040007 CHIP CAPACITOR 1

C15028 ECJ2VB1E473K CHIP CAPACITOR 1

C15029 ECJ2VC1H270J CHIP CAPACITOR 1

C15030 F1J1C334A091 CHIP CAPACITOR 1

C15032 F2A1A681A540 ALU ELEC CAPACITOR 1

C15033 F1J1C105A091 CHIP CAPACITOR 1

C2001 F1H1H330A736 CHIP CAPACITOR 1

C2003 F1H1A1050029 CHIP CAPACITOR 1

C2051 ECEA0JKN220B ALU ELEC CAPACITOR 1

C2053 ECEA1CKA100B ALU ELEC CAPACITOR 1

C2054 ECJ1VB1H392K CHIP CAPACITOR 1

C2055 F1H1C104A008 CHIP CAPACITOR 1

C2099 ECJ1VC1H681J CHIP CAPACITOR 1

C2501 F1H1C104A008 CHIP CAPACITOR 1

C2502 ECEA0JKA221B ALU ELEC CAPACITOR 1

C2504 F1H1E223A029 CHIP CAPACITOR 1

C2505 F1H1E223A029 CHIP CAPACITOR 1

C2506 F1H1A2240004 CHIP CAPACITOR 1

C2507 F1H1H1020005 CHIP CAPACITOR 1

C2508 F1H1H182A219 CHIP CAPACITOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C2509 ECEA1CKA220B ALU ELEC CAPACITOR 1

C2510 F1H1C104A042 CHIP CAPACITOR 1

C2511 F1H1C104A042 CHIP CAPACITOR 1

C2512 F1H1C104A042 CHIP CAPACITOR 1

C2513 F1H1A1050029 CHIP CAPACITOR 1

C2515 F1H1H1030007 CHIP CAPACITOR 1

C2518 F1H1H1030007 CHIP CAPACITOR 1

C2519 F1H1H1030007 CHIP CAPACITOR 1

C2551 ECJ1VB1C563K CHIP CAPACITOR 1

C2552 ECJ1VB1C563K CHIP CAPACITOR 1

C2561 ECJ1VB1C563K CHIP CAPACITOR 1

C2562 ECJ1VB1C563K CHIP CAPACITOR 1

C2571 ECA1VM221B ALU ELEC CAPACITOR 1

C3001 F1H1H1510001 CHIP CAPACITOR 1

C3003 F1H0J1050012 CHIP CAPACITOR 1

C3004 F1H1C104A042 CHIP CAPACITOR 1

C3005 F1H1H2700003 CHIP CAPACITOR 1

C3006 F1H1C104A042 CHIP CAPACITOR 1

C3007 F1H0J1050012 CHIP CAPACITOR 1

C3008 F1H1H1030006 CHIP CAPACITOR 1

C3009 ECEA1HKA4R7B ALU ELEC CAPACITOR 1

C3010 F1H0J1050012 CHIP CAPACITOR 1

C3011 F1H0J1050012 CHIP CAPACITOR 1

C3012 ECEA0JKA470B ALU ELEC CAPACITOR 1

C3013 F1H1H1030007 CHIP CAPACITOR 1

C3015 F1H1C104A042 CHIP CAPACITOR 1

C3016 F1H1H4700004 CHIP CAPACITOR 1

C3017 F1H0J1050012 CHIP CAPACITOR 1

C3018 F1H1H1030006 CHIP CAPACITOR 1

C3019 ECEA1CKA100B ALU ELEC CAPACITOR 1

C3020 ECJ1VC1H331J CHIP CAPACITOR 1

C3021 F1H1H1030007 CHIP CAPACITOR 1

C3023 ECEA1HKA3R3B ALU ELEC CAPACITOR 1

C3024 F1H1H1030006 CHIP CAPACITOR 1

C3026 F1H0J1050012 CHIP CAPACITOR 1

C3027 F1H1C104A042 CHIP CAPACITOR 1

C3028 F1H1C104A042 CHIP CAPACITOR 1

C3029 F1H1C104A042 CHIP CAPACITOR 1

C3030 F1H1C104A042 CHIP CAPACITOR 1

C3033 F1H1C104A042 CHIP CAPACITOR 1

C3034 ECEA1HKA010B ALU ELEC CAPACITOR 1

C3035 F1H1C104A042 CHIP CAPACITOR 1

C3036 ECEA1HKA4R7B ALU ELEC CAPACITOR 1

C3037 ECEA1HKAR47B ALU ELEC CAPACITOR 1

C3038 F1H1E223A029 CHIP CAPACITOR 1

C3039 F1H1C333A041 CHIP CAPACITOR 1

C3040 ECEA1HKA2R2B ALU ELEC CAPACITOR 1

C3041 F1H1E223A029 CHIP CAPACITOR 1

C3042 ECJ2YB0J335K CHIP CAPACITOR 1

C3043 F1H1C104A042 CHIP CAPACITOR 1

C3044 ECEA0JKA470B ALU ELEC CAPACITOR 1

C3045 F1H1H1030007 CHIP CAPACITOR 1

C3046 ECJ1VC1H030C CHIP CAPACITOR 1

C3047 ECEA1HKA010B ALU ELEC CAPACITOR 1

C3048 F1H1H1030007 CHIP CAPACITOR 1

C3049 F1H1H1030007 CHIP CAPACITOR 1

C3050 F1H1A1050029 CHIP CAPACITOR 1

C3051 ECJ1VB1A105K CHIP CAPACITOR 1

C3052 F1H0J1050012 CHIP CAPACITOR 1

C3053 F1H1C104A042 CHIP CAPACITOR 1

C3054 F1H1H1030006 CHIP CAPACITOR 1

C3055 F1H1H1030006 CHIP CAPACITOR 1

C3056 ECJ1VC1H100D CHIP CAPACITOR 1

C3080 F1H1H1030006 CHIP CAPACITOR 1

C31507 F2A1A2210063 ALU ELEC CAPACITOR 1

C31511 ECJ1VB1A105K CHIP CAPACITOR 1

C31512 F1J0J106A014 CHIP CAPACITOR 1

C31535 ECJ1VB1A105K CHIP CAPACITOR 1

C31536 F1J0J106A014 CHIP CAPACITOR 1

C31901 ECJ1VC1H102J CHIP CAPACITOR 1

C33501 F1J0J475A008 CHIP CAPACITOR 1

C33502 F1H1H1010005 CHIP CAPACITOR 1

C33503 F1J0J475A008 CHIP CAPACITOR 1

107

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C33504 F1H1C104A042 CHIP CAPACITOR 1

C33505 ECEA0JKA101B ALU ELEC CAPACITOR 1

C33506 F1H1C104A042 CHIP CAPACITOR 1

C33507 F1H1C104A008 CHIP CAPACITOR 1

C33738 D0YBR0000020 CHIP RESISTOR 1

C3501 F1J0J475A002 CHIP CAPACITOR 1

C3502 F1H1C104A042 CHIP CAPACITOR 1

C3503 F1J0J475A002 CHIP CAPACITOR 1

C3504 F1H1H271A832 CHIP CAPACITOR 1

C3505 F1J0J475A002 CHIP CAPACITOR 1

C3506 F1J0J475A002 CHIP CAPACITOR 1

C3507 ECEA0JKA470B ALU ELEC CAPACITOR 1

C3508 F1H1C104A008 CHIP CAPACITOR 1

C3509 F1J0J475A002 CHIP CAPACITOR 1

C3510 F1H1H8200004 CHIP CAPACITOR 1

C3511 F1H1H271A832 CHIP CAPACITOR 1

C3512 F1H1H271A832 CHIP CAPACITOR 1

C3513 F1H1H221A832 CHIP CAPACITOR 1

C3514 F1J0J475A002 CHIP CAPACITOR 1

C3515 ECJ1VC1H220J CHIP CAPACITOR 1

C3516 ECJ1VC1H560J CHIP CAPACITOR 1

C3517 ECJ1VC1H560J CHIP CAPACITOR 1

C3518 ECJ1VC1H220J CHIP CAPACITOR 1

C35017 F1H1C104A042 CHIP CAPACITOR 1

C35018 F1H0J1050012 CHIP CAPACITOR 1

C35019 F1H0J1050012 CHIP CAPACITOR 1

C35020 ECEA0JKA470B ALU ELEC CAPACITOR 1

C35021 F1H1C104A042 CHIP CAPACITOR 1

C35022 F1H1H1030006 CHIP CAPACITOR 1

C35023 ECEA1CKA220B ALU ELEC CAPACITOR 1

C35024 F1H0J1050012 CHIP CAPACITOR 1

C35025 F1H0J1050012 CHIP CAPACITOR 1

C35026 F1H0J1050012 CHIP CAPACITOR 1

C35027 F1H0J1050012 CHIP CAPACITOR 1

C35028 F1H1C104A042 CHIP CAPACITOR 1

C35029 F2A0J102A016 ALU ELEC CAPACITOR 1

C35030 F2A0J102A016 ALU ELEC CAPACITOR 1

C35031 F2A0J102A016 ALU ELEC CAPACITOR 1

C35032 F2A0J471A016 ALU ELEC CAPACITOR 1

C35033 F2A0J471A016 ALU ELEC CAPACITOR 1

C37001 F1H1C104A008 CHIP CAPACITOR 1

C37002 F1H1C104A008 CHIP CAPACITOR 1

C37003 ECEA1CKS100B ALU ELEC CAPACITOR 1

C37104 F1H1H1030006 CHIP CAPACITOR 1

C37105 F1H1H1030006 CHIP CAPACITOR 1

C37106 F1H1H1030006 CHIP CAPACITOR 1

C37107 F1H1H1030006 CHIP CAPACITOR 1

C37502 ECJ1VC1H100D CHIP CAPACITOR 1

C37503 F4D55473A013 ALU ELEC CAPACITOR 1

C37504 F1H1C104A008 CHIP CAPACITOR 1

C37506 ECJ1VC1H100D CHIP CAPACITOR 1

C37507 F1H0J1050012 CHIP CAPACITOR 1

C37508 F1H1H1030007 CHIP CAPACITOR 1

C37546 F1H1C104A008 CHIP CAPACITOR 1

C37579 ECJ1VC1H100D CHIP CAPACITOR 1

C37580 ECJ1VC1H100D CHIP CAPACITOR 1

C37581 ECJ1VC1H100D CHIP CAPACITOR 1

C37582 ECJ1VC1H100D CHIP CAPACITOR 1

C37583 F1H1H1010005 CHIP CAPACITOR 1

C37584 F1H1H2700003 CHIP CAPACITOR 1

C37585 F1H1H2700003 CHIP CAPACITOR 1

C37586 ECJ1VC1H180J CHIP CAPACITOR 1

C37587 ECJ1VC1H180J CHIP CAPACITOR 1

C37588 F1H1H1030007 CHIP CAPACITOR 1

C37589 F1H1C104A008 CHIP CAPACITOR 1

C37592 ECJ1VC1H100D CHIP CAPACITOR 1

C37593 ECJ1VC1H100D CHIP CAPACITOR 1

C37595 F1H1C104A008 CHIP CAPACITOR 1

C37596 F1H1H4700004 CHIP CAPACITOR 1

C37597 F1H1H1030007 CHIP CAPACITOR 1

C37598 F1H1H4700004 CHIP CAPACITOR 1

C37599 F1H1C104A008 CHIP CAPACITOR 1

C37600 F1H1H4700004 CHIP CAPACITOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C37601 F1H1C104A008 CHIP CAPACITOR 1

C37602 F1H1H1030007 CHIP CAPACITOR 1

C37603 F1H1H1030007 CHIP CAPACITOR 1

C37604 F1H1C104A008 CHIP CAPACITOR 1

C37607 F1H1C104A008 CHIP CAPACITOR 1

C37609 F1H1H1030007 CHIP CAPACITOR 1

C37610 F1H1H1030007 CHIP CAPACITOR 1

C37618 F1H1H1030007 CHIP CAPACITOR 1

C37620 F1H1H1030007 CHIP CAPACITOR 1

C37626 F1H1H1030007 CHIP CAPACITOR 1

C37633 ECEA0JKA101B ALU ELEC CAPACITOR 1

C37636 F1H1A1050029 CHIP CAPACITOR 1

C37652 F1H1A1050029 CHIP CAPACITOR 1

C3801 D0YBR0000020 CHIP RESISTOR 1

C3802 F1H1C104A008 CHIP CAPACITOR 1

C3901 F1H1H1030006 CHIP CAPACITOR 1

C3904 F1H1H1030006 CHIP CAPACITOR 1

C3905 F1H0J1050012 CHIP CAPACITOR 1

C3906 F1H1C104A042 CHIP CAPACITOR 1

C3907 F1H1C104A042 CHIP CAPACITOR 1

C3908 F1H1C104A042 CHIP CAPACITOR 1

C3909 F1H1C104A042 CHIP CAPACITOR 1

C3910 F1H1H1030006 CHIP CAPACITOR 1

C3911 ECEA0JKA221B ALU ELEC CAPACITOR 1

C3912 F1H1C104A042 CHIP CAPACITOR 1

C3913 ECEA1CKA100B ALU ELEC CAPACITOR 1

C3914 F1H1H1030006 CHIP CAPACITOR 1

C3915 F1H1C104A042 CHIP CAPACITOR 1

C3916 F1H1C104A042 CHIP CAPACITOR 1

C3920 F1H1H1030006 CHIP CAPACITOR 1

C3921 F1H1C104A042 CHIP CAPACITOR 1

C3922 F1H1H1030006 CHIP CAPACITOR 1

C3923 F1H1H1030006 CHIP CAPACITOR 1

C3924 F1H1C104A042 CHIP CAPACITOR 1

C3925 F1H1C104A042 CHIP CAPACITOR 1

C3926 F1H1C104A042 CHIP CAPACITOR 1

C3927 F1H1H1030006 CHIP CAPACITOR 1

C3928 F1H1C104A042 CHIP CAPACITOR 1

C3929 ECEA0JKA221B ALU ELEC CAPACITOR 1

C3930 F1H1H1030006 CHIP CAPACITOR 1

C3931 F1H1C104A042 CHIP CAPACITOR 1

C3932 F1H1H1030006 CHIP CAPACITOR 1

C3933 F1H1C104A042 CHIP CAPACITOR 1

C3934 F1H1C104A042 CHIP CAPACITOR 1

C3935 F1H1C104A042 CHIP CAPACITOR 1

C3936 F1H1C104A042 CHIP CAPACITOR 1

C3937 ECJ1VB1A105K CHIP CAPACITOR 1

C3938 F1H0J1050012 CHIP CAPACITOR 1

C3939 F1H1C104A042 CHIP CAPACITOR 1

C3943 F1H1C104A042 CHIP CAPACITOR 1

C3945 F1H1C104A042 CHIP CAPACITOR 1

C3946 F1H1C104A042 CHIP CAPACITOR 1

C3947 F1H1C104A042 CHIP CAPACITOR 1

C3948 F1H1C104A042 CHIP CAPACITOR 1

C3952 F1H1C104A042 CHIP CAPACITOR 1

C3953 F1H1C104A042 CHIP CAPACITOR 1

C39001 F1H1H1030006 CHIP CAPACITOR 1

C39002 F1H1H1030006 CHIP CAPACITOR 1

C39003 F1H1H1030006 CHIP CAPACITOR 1

C39010 F1H1C104A042 CHIP CAPACITOR 1

C4001 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4002 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4004 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4005 ECEA0JKA101B ALU ELEC CAPACITOR 1

C4007 F1H1H222A219 CHIP CAPACITOR 1

C4008 F1H1H182A219 CHIP CAPACITOR 1

C4009 ECEA0JKA220B ALU ELEC CAPACITOR 1

C4010 ECEA1EKA4R7B ALU ELEC CAPACITOR 1

C4014 ECEA1HKA4R7B ALU ELEC CAPACITOR 1

C4015 F1H1H682A219 CHIP CAPACITOR 1

C4016 ECEA0JKA220B ALU ELEC CAPACITOR 1

C4017 ECEA1HKA3R3B ALU ELEC CAPACITOR 1

C4018 F1H1H182A219 CHIP CAPACITOR 1

108

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4020 ECQB1H223JF3 PLAST FILM CAPACITOR 1

C4021 ECJ1VC1H221J CHIP CAPACITOR 1

C4022 ECEA0JKA470B ALU ELEC CAPACITOR 1

C4023 F1H1E223A029 CHIP CAPACITOR 1

C4024 ECJ1VB1H152K CHIP CAPACITOR 1

C4025 ECJ2VF1H103Z CHIP CAPACITOR 1

C4101 ECJ1VC1H471J CHIP CAPACITOR 1

C4102 ECJ1VC1H471J CHIP CAPACITOR 1

C4105 F1H1H1010005 CHIP CAPACITOR 1

C4106 F1H1H1010005 CHIP CAPACITOR 1

C4107 ECJ1VC1H471J CHIP CAPACITOR 1

C4108 ECJ1VC1H471J CHIP CAPACITOR 1

C4111 F1H1H1010005 CHIP CAPACITOR 1

C4112 F1H1H1010005 CHIP CAPACITOR 1

C4303 F1H1H1010005 CHIP CAPACITOR 1

C4304 F1H1H1010005 CHIP CAPACITOR 1

C4305 F1H1H1020005 CHIP CAPACITOR 1

C4306 F1H1H1020005 CHIP CAPACITOR 1

C4501 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4502 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4503 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4504 ECQB1H473JF3 PLAST FILM CAPACITOR 1

C4505 ECEA0JKA330B ALU ELEC CAPACITOR 1

C4506 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4508 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4509 ECEA0JKA220B ALU ELEC CAPACITOR 1

C4510 ECQB1H153JF3 PLAST FILM CAPACITOR 1

C4511 F1H1C333A041 CHIP CAPACITOR 1

C4512 F1H1H1030007 CHIP CAPACITOR 1

C4513 F1H1H1030007 CHIP CAPACITOR 1

C4515 F1H1C104A008 CHIP CAPACITOR 1

C4516 F1H1C104A042 CHIP CAPACITOR 1

C4518 F1H1A2240004 CHIP CAPACITOR 1

C4519 ECQB1H153JF3 PLAST FILM CAPACITOR 1

C4520 ECEA0JKA220B ALU ELEC CAPACITOR 1

C4521 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4522 ECEA0JKA330B ALU ELEC CAPACITOR 1

C4523 ECQB1H473JF3 PLAST FILM CAPACITOR 1

C4524 ECEA0JKA101B ALU ELEC CAPACITOR 1

C4526 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4531 ECEA1CKA470B ALU ELEC CAPACITOR 1

C4533 F1H1H1030007 CHIP CAPACITOR 1

C4534 F1H1C104A042 CHIP CAPACITOR 1

C4544 F1H1C104A008 CHIP CAPACITOR 1

C4545 ECEA0JKA220B ALU ELEC CAPACITOR 1

C45001 F1H1C104A008 CHIP CAPACITOR 1

C45003 ECQV1H104JL3 PLAST FILM CAPACITOR 1

C45004 F2A1C471A628 ALU ELEC CAPACITOR 1

C45005 F2A0J101A592 ALU ELEC CAPACITOR 1

C45006 F1H1C104A008 CHIP CAPACITOR 1

C45007 F1H1C104A008 CHIP CAPACITOR 1

C45008 F2A1C101A699 ALU ELEC CAPACITOR 1

C45010 F2A1C470A637 ALU ELEC CAPACITOR 1

C45012 F2A1C470A637 ALU ELEC CAPACITOR 1

C45013 ECQB1H473JF3 PLAST FILM CAPACITOR 1

C45014 F2A1H4R7A638 ALU ELEC CAPACITOR 1

C45015 F1H1H1020005 CHIP CAPACITOR 1

C45016 F1H1H1020005 CHIP CAPACITOR 1

C45019 F1H1H1020005 CHIP CAPACITOR 1

C45020 F1H1H1020005 CHIP CAPACITOR 1

C4915 F1H1C104A042 CHIP CAPACITOR 1

C4916 F2A0J470A599 ALU ELEC CAPACITOR 1

C4917 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4918 ECEA1CKA100B ALU ELEC CAPACITOR 1

C4919 F2A1V100A534 ALU ELEC CAPACITOR 1

C4920 F2A1V100A534 ALU ELEC CAPACITOR 1

C4921 ECEA0JKA220B ALU ELEC CAPACITOR 1DMR-

EH80VEBS

C4922 F2A1V100A534 ALU ELEC CAPACITOR 1

C4923 F2A1V100A534 ALU ELEC CAPACITOR 1

C4924 F2A1V100A534 ALU ELEC CAPACITOR 1

C4925 F2A1V100A534 ALU ELEC CAPACITOR 1

C4926 F1H0J1050012 CHIP CAPACITOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C4927 F2A1E1010067 ALU ELEC CAPACITOR 1

C4928 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4929 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4930 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4931 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4932 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4933 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4934 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4935 F2A1E1010067 ALU ELEC CAPACITOR 1

C4936 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4937 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4938 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4939 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4940 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4941 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4942 F1H1C104A008 CHIP CAPACITOR 1

C4943 F2A1H1R0A236 ALU ELEC CAPACITOR 1

C4944 F2A1C470A637 ALU ELEC CAPACITOR 1

C4945 F2A1C221A637 ALU ELEC CAPACITOR 1

C4949 ECEA1CKA100B ALU ELEC CAPACITOR 1DMR-

EH80VEBS

C5001 F1H1H1030006 CHIP CAPACITOR 1

C5002 F1H1H1030006 CHIP CAPACITOR 1

C5003 F1H1H1030006 CHIP CAPACITOR 1

C5004 F1H1H1030006 CHIP CAPACITOR 1

C5005 F1H1C104A008 CHIP CAPACITOR 1

C5006 ECEA0JKA470B ALU ELEC CAPACITOR 1

C5007 F1H1C104A042 CHIP CAPACITOR 1

C6001 ECJ1VC1H180J CHIP CAPACITOR 1

C6002 ECJ1VC1H220J CHIP CAPACITOR 1

C6003 D0YBR0000020 CHIP RESISTOR 1

C6005 ECEA1CKA100B ALU ELEC CAPACITOR 1

C6006 F1H1C104A008 CHIP CAPACITOR 1

C6007 ECJ1VC1H220J CHIP CAPACITOR 1

C6008 ECJ1VC1H471J CHIP CAPACITOR 1

C6009 F1H1H1030007 CHIP CAPACITOR 1

C6010 ECJ1VC1H220J CHIP CAPACITOR 1

C6012 F1H1H1030007 CHIP CAPACITOR 1

C6014 F1H1H1030007 CHIP CAPACITOR 1

C6015 F1H1C333A041 CHIP CAPACITOR 1

C6016 F1H1H1020005 CHIP CAPACITOR 1

C6020 F1J1H1040007 CHIP CAPACITOR 1

C6101 ECEA0JKA221B ALU ELEC CAPACITOR 1

C6102 F1H1A1050029 CHIP CAPACITOR 1

C6103 F1H0J1050012 CHIP CAPACITOR 1

C6104 F2A0J471A016 ALU ELEC CAPACITOR 1

C6105 F1H1C104A008 CHIP CAPACITOR 1

C6106 ECEA1HKA4R7B ALU ELEC CAPACITOR 1

C6107 ECJ1VB1C563K CHIP CAPACITOR 1

C6108 F1H1H1030007 CHIP CAPACITOR 1

C6109 F1H1A1050029 CHIP CAPACITOR 1

C6110 F1H1A1050029 CHIP CAPACITOR 1

C6111 ECJ1VC1H561J CHIP CAPACITOR 1

C6114 F1H1H330A736 CHIP CAPACITOR 1DMR-

EH80VEGS

C6115 F1H1H1030007 CHIP CAPACITOR 1

C6116 F1H1C104A042 CHIP CAPACITOR 1

C6121 F1H1H330A736 CHIP CAPACITOR 1

C6302 F1H1H1030007 CHIP CAPACITOR 1

C6303 ECEA0JKA470B ALU ELEC CAPACITOR 1

C6308 ECEA0JKA470B ALU ELEC CAPACITOR 1

C6401 ECJ1VC1H221J CHIP CAPACITOR 1

C6402 ECJ1VC1H221J CHIP CAPACITOR 1

C66801 F1H1H1030007 CHIP CAPACITOR 1

C7301 F1H1C104A008 CHIP CAPACITOR 1

C7302 D0YBR0000020 CHIP RESISTOR 1

C7303 ECEA0JKA101B ALU ELEC CAPACITOR 1

C7305 ECEA0JKA101B ALU ELEC CAPACITOR 1

C7306 F1H1H1030007 CHIP CAPACITOR 1

C7307 ECJ1VC1H100D CHIP CAPACITOR 1

C7308 ECJ1VC1H100D CHIP CAPACITOR 1

C7309 F1H1H1010005 CHIP CAPACITOR 1DMR-

EH80VEBS

109

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C7310 F1H1H1010005 CHIP CAPACITOR 1DMR-

EH80VEBS

C7311 F1H1H1010005 CHIP CAPACITOR 1

C7312 ECEA1CKA100B ALU ELEC CAPACITOR 1

C7313 ECEA1CKA100B ALU ELEC CAPACITOR 1

C7314 F1H1C104A008 CHIP CAPACITOR 1

C7317 ECEA1CKA470B ALU ELEC CAPACITOR 1

C7318 ECEA1CKA100B ALU ELEC CAPACITOR 1

C7323 ECJ1VC1H102J CHIP CAPACITOR 1

C7323 F1H1H1020005 CHIP CAPACITOR 1DMR-

EH80VEBS

C7324 F1H1C104A008 CHIP CAPACITOR 1

C7329 D0YBR0000020 CHIP RESISTOR 1

C7330 D0GB822JA057 CHIP RESISTOR 1

C7332 F1H1C104A008 CHIP CAPACITOR 1

C7333 F1H1C104A042 CHIP CAPACITOR 1

C7334 ECEA1HKA2R2B ALU ELEC CAPACITOR 1

C7335 F1H1C104A008 CHIP CAPACITOR 1

C7401 F1H0J1050012 CHIP CAPACITOR 1

C7402 F1H1C104A042 CHIP CAPACITOR 1

C7403 F1J1A105A003 CHIP CAPACITOR 1

C7404 F1H0J1050012 CHIP CAPACITOR 1

C7405 F1H1C104A042 CHIP CAPACITOR 1

C7406 F1H1C104A042 CHIP CAPACITOR 1

C7407 F1J1A105A003 CHIP CAPACITOR 1

C7411 ECEA1HKA2R2B ALU ELEC CAPACITOR 1DMR-

EH80VEGS

C7412 F1H1H330A736 CHIP CAPACITOR 1

C7413 F1H1H330A736 CHIP CAPACITOR 1

C7414 ECEA0JKA470B ALU ELEC CAPACITOR 1

C7415 ECEA1HKA010B ALU ELEC CAPACITOR 1

C7417 ECEA0JKA101B ALU ELEC CAPACITOR 1

C7418 F1H1H1030006 CHIP CAPACITOR 1

C7422 F1H1H1030006 CHIP CAPACITOR 1

C7424 ECEA1HKA010B ALU ELEC CAPACITOR 1

C7425 ECEA0JKA470B ALU ELEC CAPACITOR 1

C7426 ECJ1VC1H471J CHIP CAPACITOR 1

C7428 ECEA0JKA470B ALU ELEC CAPACITOR 1

C7430 ECEA0JKA470B ALU ELEC CAPACITOR 1

C7431 F1H1H1030006 CHIP CAPACITOR 1

C7432 F1H1H1030006 CHIP CAPACITOR 1DMR-

EH80VEBS

C7432 D0YBR0000020 CHIP RESISTOR 1DMR-

EH80VEGS

C7433 ECEA0JKA470B ALU ELEC CAPACITOR 1DMR-

EH80VEBS

C7434 F1H1H1030006 CHIP CAPACITOR 1

C7435 ECEA0JKA470B ALU ELEC CAPACITOR 1

C7436 ECEA1HKA2R2B ALU ELEC CAPACITOR 1DMR-

EH80VEGS

C7437 D0YBR0000020 CHIP RESISTOR 1DMR-

EH80VEGS

C7438 D0YBR0000020 CHIP RESISTOR 1DMR-

EH80VEGS

C7439 D0YBR0000020 CHIP RESISTOR 1DMR-

EH80VEGS

C7441 ECJ1VC1H471J CHIP CAPACITOR 1

C7442 F1H1H330A736 CHIP CAPACITOR 1

C7443 F1H1H330A736 CHIP CAPACITOR 1

C7445 ECEA0JKA101B ALU ELEC CAPACITOR 1

C7446 F1H1H1030006 CHIP CAPACITOR 1

C7448 ECJ1VC1H471J CHIP CAPACITOR 1

C7449 ECEA0JKA470B ALU ELEC CAPACITOR 1

C7450 F1H1H1030006 CHIP CAPACITOR 1

C7452 ECEA0JKA470B ALU ELEC CAPACITOR 1

C7453 F1H1H1030006 CHIP CAPACITOR 1

C7454 F1H0J1050012 CHIP CAPACITOR 1

C7455 F1H1C104A042 CHIP CAPACITOR 1

C7456 F1H1C104A042 CHIP CAPACITOR 1

C7457 F1J1A105A003 CHIP CAPACITOR 1

C7465 ECJ1VC1H471J CHIP CAPACITOR 1

C7466 ECJ1VC1H471J CHIP CAPACITOR 1

C7476 ECJ1VC1H471J CHIP CAPACITOR 1

C7477 ECJ1VC1H471J CHIP CAPACITOR 1

C7501 F1H1C104A008 CHIP CAPACITOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C7502 ECEA0JKA470B ALU ELEC CAPACITOR 1

C7525 F1H1H1010005 CHIP CAPACITOR 1

C7752 F2A0J221A016 ALU ELEC CAPACITOR 1

C7801 F1H1C104A008 CHIP CAPACITOR 1

C7901 F1H1H1030007 CHIP CAPACITOR 1

C7902 ECEA1HKA100B ALU ELEC CAPACITOR 1

C7903 F1H1H104A220 CHIP CAPACITOR 1

C7904 F1H1C104A042 CHIP CAPACITOR 1

C7905 F2A1C221A019 ALU ELEC CAPACITOR 1

C7906 ECQB1H473JF4 PLAST FILM CAPACITOR 1

C7907 F2A1A1010072 ALU ELEC CAPACITOR 1

C7908 ECQB1H223JF3 PLAST FILM CAPACITOR 1

C7909 F2A1H5600009 ALU ELEC CAPACITOR 1

C7910 F2A1H5600009 ALU ELEC CAPACITOR 1

D11101 B0EBKT000008 DIODE 1

D11102 B0AAGV000004 SWITCHING DIODE 1

D11103 B0AAGR000003 SWITCHING DIODE 1

D11104 B0AAGV000004 SWITCHING DIODE 1

D11201 MAZ73000BC DIODE 1

D11202 MAZ73000BC DIODE 1

D11203 B0AADM000003 DIODE 1

D11204 B0AACK000004 SWITCHING DIODE 1

D11205 MAZ80820ML DIODE 1

D11401 B0JAMK000015 DIODE 1

D11402 B0JAMK000015 DIODE 1

D11403 B0JBSG000009 BARRIER DIODE 1

D11501 B0JCPD000021 DIODE 1

D1501 B3EA00000072 DIODE 1

D15001 B0JCPE000015 DIODE 1

D15002 B0JCPD000021 DIODE 1

D15003 B0JCPD000021 DIODE 1

D2001 B0AACK000004 SWITCHING DIODE 1

D2002 B0AACK000004 SWITCHING DIODE 1

D2502 MAZ4160NMF DIODE 1

D31501 B0EAKL000062 DIODE 1

D3501 B0AACK000004 SWITCHING DIODE 1

D37001 B0AACK000004 SWITCHING DIODE 1

D37002 B0AACK000004 SWITCHING DIODE 1

D37003 MAZ4091NLF DIODE 1

D37502 B0AACK000004 SWITCHING DIODE 1

D37503 B0AACK000004 SWITCHING DIODE 1

D3901 B0AACK000004 SWITCHING DIODE 1

D4501 B0AACK000004 SWITCHING DIODE 1

D4502 MAZ4056NHF DIODE 1

D4901 MA2J11200L DIODE 1

D6306 MAZ4056NHF DIODE 1

D6401 B0AACK000004 SWITCHING DIODE 1

D6402 B0ACCK000005 DIODE 1

D6801 MAZ4051NMF DIODE 1

D7401 MAZ4300NMF DIODE 1

D7402 MAZ4300NMF DIODE 1

D7501 B3AAA0000752 DIODE 1

D7502 B3AEA0000069 DIODE 1

D7503 B3ABA0000595 LED 1

D7504 B3ACA0000273 DIODE 1

D7505 B3AEA0000069 DIODE 1

D7506 B3ADA0000173 DIODE 1

D7508 B3AEA0000069 DIODE 1

D7751 B0AACK000004 SWITCHING DIODE 1

D7901 MAZ4220NMF DIODE 1

D7902 B0AAGM000007 DIODE 1

D7903 B0JAME000025 DIODE 1

D7904 MA2C18500E DIODE 1

D7905 MA2C18500E DIODE 1

D7906 MAZ4300NMF DIODE 1

DP7501 A2BB00000145 FL DISPLAY 1

F11101 K5D202BK0005 FUSE 1

FL6801 F1H0J4740004 CHIP CAPACITOR 1

IC11201 C0DACZH00017 IC 1

IC11301 C0DAEMB00003 IC 1

IC11501 C0DBAKG00007 IC 1

IC1511 B3NAA0000073 IC 1

IC1512 B3NAA0000073 IC 1

110

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

IC15001 C0EBJ0000143 IC 1

IC15002 C0DAAJG00007 IC 1

IC15003 C0DBAKG00005 IC 1

IC15004 C0DBAKG00007 IC 1

IC2501 C1AB00001767 IC 1

IC3001 C1AB00002080 IC 1

IC3002 C0CBCDD00007 IC 1

IC3003 C1AB00001681 IC 1

IC31502 C0CBCBG00012 IC 1

IC31510 C0CBCYE00001 IC 1

IC3501 C1AB00001681 IC 1

IC3502 AN3293S-E2V IC 1

IC35004 C1AB00001486 IC 1

IC35005 C9ZB00000498 IC 1

IC37001 C0ABBA000146 IC 1

IC37501 C2CBKH000211 IC 1

IC37502 C3EBJC000055 IC 1

IC37503 C0EBH0000172 IC 1

IC37504 C0CBCBC00037 IC 1

IC37505 C0EBE0000194 IC 1

IC37508 C0EBE0000504 IC 1

IC3901 C1AB00002100 IC 1

IC3902 C1AB00001681 IC 1

IC3903 C1AB00001682 IC 1

IC3904 C1AB00001682 IC 1

IC3906 C0CBCDD00006 IC 1

IC4501 AN3656NFBPBV IC 1

IC45001 C0DBAHD00013 IC 1

IC45002 C0ABBB000119 IC 1

IC45003 C0ABBA000054 IC 1

IC6001 C2CBJG000544 IC 1

IC6101 C1AB00002140 IC 1

IC6201 C0EBH0000172 IC 1

IC6302 C0CBCDC00020 IC 1

IC7301 C1AB00002225 IC 1

IC7302 C0EAH0000051 IC 1

IC7401 C0CBCDD00006 IC 1

IC7402 C0CBCDD00006 IC 1

IC7405 C0CBCDD00006 IC 1

IC7502 C0HBB0000048 IC 1

IC7801 PNA4618M13VT IC 1

IP11501 K5H3022A0013 FUSE 1

IP15001 K5H3022A0013 FUSE 1

IP37501 K5H5012A0010 FUSE 1

IP4901 K5H5012A0010 FUSE 1

JK35001 K1U717B00005 CONNECTOR 1

JK3802 K1CB106A0012 CONNECTOR 1

JK3901 K1FB121B0018 CONNECTOR 1

JK3902 K1FB121B0018 CONNECTOR 1

JK4600 K2HA307A0009 CONNECTOR 1

JK4901 B3ZAZ0000017 OPTICAL LINK 1

K3005 D0YBR0000020 CHIP RESISTOR 1

K3006 D0YBR0000020 CHIP RESISTOR 1

K3009 D0YBR0000020 CHIP RESISTOR 1

K37703 D0YBR0000020 CHIP RESISTOR 1

K45003 D0YBR0000020 CHIP RESISTOR 1

K45005 D0YBR0000020 CHIP RESISTOR 1

K45009 D0YBR0000020 CHIP RESISTOR 1

K4502 D0YBR0000020 CHIP RESISTOR 1

K6002 D0YBR0000020 CHIP RESISTOR 1

K6201 D0YBR0000020 CHIP RESISTOR 1

K66801 D0YBR0000020 CHIP RESISTOR 1

K7301 D0YBR0000020 CHIP RESISTOR 1

K7302 D0YBR0000020 CHIP RESISTOR 1

K7303 D0YBR0000020 CHIP RESISTOR 1

K7305 D0YBR0000020 CHIP RESISTOR 1

K7401 D0YBR0000020 CHIP RESISTOR 1

K7403 D0YBR0000020 CHIP RESISTOR 1

K7405 D0YBR0000020 CHIP RESISTOR 1

K7503 D0YBR0000020 CHIP RESISTOR 1

K7506 D0YBR0000020 CHIP RESISTOR 1

K7507 D0YBR0000020 CHIP RESISTOR 1

K7512 D0YBR0000020 CHIP RESISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

K7513 D0YBR0000020 CHIP RESISTOR 1

K7514 D0YBR0000020 CHIP RESISTOR 1

L11101 G0B233D00001 LINE FILTER 1

L11102 G0B233D00001 LINE FILTER 1

L11401 G0A220GA0026 CHOKE COIL RADIAL 1

L11402 G0A100H00025 CHOKE COIL 1

L11403 G0A100HA0023 CHOKE COIL 1

L11501 G0A150ZA0051 CHOKE COIL 1

L15001 G0A100HA0023 CHOKE COIL 1

L15002 G0A220GA0026 CHOKE COIL RADIAL 1

L15003 G0A330ZA0041 CHOKE COIL 1

L15004 G0A150ZA0041 CHOKE COIL 1

L15005 G0A220ZA0041 CHOKE COIL 1

L3001 G0C820JA0019 CHOKE COIL AXIAL 1

L3002 G0C270JA0019 CHOKE COIL AXIAL 1

L3003 G0C390JA0019 CHOKE COIL AXIAL 1

L3004 G0C680JA0019 CHOKE COIL AXIAL 1

L3006 G0C270JA0019 CHOKE COIL AXIAL 1

L3007 ELJFA120KFB CHIP INDUCTOR 1

L3008 G0C680JA0019 CHOKE COIL AXIAL 1

L31501 G0A220ZA0041 CHOKE COIL 1

L3501 G0C560JA0019 CHOKE COIL AXIAL 1

L3502 G0C330JA0019 CHOKE COIL AXIAL 1

L3503 G0C330JA0019 CHOKE COIL AXIAL 1

L3504 G0C330JA0019 CHOKE COIL AXIAL 1

L35001 G0C680JA0019 CHOKE COIL AXIAL 1

L37101 G0A100HA0023 CHOKE COIL 1

L4001 G0C471KA0065 FIXED INDUCTOR 1

L4502 G0C1R2J00004 CHOKE COIL AXIAL 1

L4503 G0C101JA0019 CHOKE COIL AXIAL 1

L4901 G0C220JA0019 CHOKE COIL AXIAL 1

L5001 G0C680JA0019 CHOKE COIL AXIAL 1

L6101 G0C100JA0019 CHOKE COIL AXIAL 1

L6103 G0C1R5JA0019 CHOKE COIL 1

L6104 G0C330JA0019 CHOKE COIL AXIAL 1DMR-

EH80VEGS

L6105 G0C680JA0019 CHOKE COIL AXIAL 1

L7303 G0C1R0JA0019 CHOKE COIL AXIAL 1

L7401 G0C2R2JA0019 CHOKE COIL AXIAL 1

L7403 G0C270JA0019 CHOKE COIL AXIAL 1DMR-

EH80VEBS

L7404 G0C2R2JA0019 CHOKE COIL AXIAL 1

L7901 G0A101EA0017 CHOKE COIL 1

LB11101 J0JKB0000003 BEAD CORE 1

LB11102 J0JKB0000003 BEAD CORE 1

LB11103 J0JHC0000048 BEAD CORE 1

LB11201 J0JHC0000048 BEAD CORE 1

LB11501 J0JHC0000048 BEAD CORE 1

LB15001 J0JHC0000048 BEAD CORE 1

LB15002 J0JHC0000048 BEAD CORE 1

LB15003 J0JHC0000048 BEAD CORE 1

LB15004 J0JHC0000048 BEAD CORE 1

LB15005 J0JHC0000048 BEAD CORE 1

LB15006 J0JHC0000048 BEAD CORE 1

LB31505 J0JKB0000003 BEAD CORE 1

LB3301 D0YBR0000020 CHIP RESISTOR 1

LB3302 D0YBR0000020 CHIP RESISTOR 1

LB3303 D0YBR0000020 CHIP RESISTOR 1

LB33502 D0YBR0000020 CHIP RESISTOR 1

LB33503 D0YBR0000020 CHIP RESISTOR 1

LB33504 D0YBR0000020 CHIP RESISTOR 1

LB34002 J0JCC0000103 BEAD CORE 1

LB34003 D0YBR0000020 CHIP RESISTOR 1

LB35101 D0YBR0000020 CHIP RESISTOR 1

LB35102 D0YBR0000020 CHIP RESISTOR 1

LB35103 D0YBR0000020 CHIP RESISTOR 1

LB35104 D0YBR0000020 CHIP RESISTOR 1

LB35105 D0YBR0000020 CHIP RESISTOR 1

LB35106 D0YBR0000020 CHIP RESISTOR 1

LB37104 J0JCC0000103 BEAD CORE 1

LB37105 J0JHC0000032 BEAD CORE 1

LB37108 J0JHC0000032 BEAD CORE 1

LB37109 J0JHC0000032 BEAD CORE 1

111

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

LB37506 D0YBR0000020 CHIP RESISTOR 1

LB37507 D0YBR0000020 CHIP RESISTOR 1

LB37508 D0YBR0000020 CHIP RESISTOR 1

LB37509 D0YBR0000020 CHIP RESISTOR 1

LB3902 J0JGC0000020 BEAD CORE 1

LB4101 J0JBC0000041 BEAD CORE 1

LB4102 J0JBC0000041 BEAD CORE 1

LB4103 J0JBC0000041 BEAD CORE 1

LB4104 J0JBC0000041 BEAD CORE 1

LB4105 J0JBC0000041 BEAD CORE 1

LB4106 J0JBC0000041 BEAD CORE 1

LB4201 J0JBC0000070 CHIP INDUCTOR 1

LB4202 J0JBC0000070 CHIP INDUCTOR 1

LB4203 D0YBR0000020 CHIP RESISTOR 1

LB45101 D0YBR0000020 CHIP RESISTOR 1

LB45102 D0YBR0000020 CHIP RESISTOR 1

LB6101 D0YBR0000020 CHIP RESISTOR 1

LB6801 J0JHC0000032 BEAD CORE 1

LB6802 J0JHC0000045 BEAD CORE 1

LB7301 J0JCC0000124 BEAD CORE 1

LB7302 J0JCC0000124 BEAD CORE 1

LB7303 J0JCC0000080 BEAD CORE 1

LB7401 J0JHC0000032 BEAD CORE 1

LB7402 J0JHC0000032 BEAD CORE 1

LB7403 J0JHC0000032 BEAD CORE 1

LB7404 J0JHC0000032 BEAD CORE 1

LB7405 J0JHC0000032 BEAD CORE 1

LB7406 D0YBR0000020 CHIP RESISTOR 1

LB7407 J0JHC0000032 BEAD CORE 1DMR-

EH80VEBS

LB7408 J0JHC0000032 BEAD CORE 1DMR-

EH80VEBS

LB7409 D0YBR0000020 CHIP RESISTOR 1

LB7410 J0JHC0000032 BEAD CORE 1

LB7411 J0JHC0000032 BEAD CORE 1

LB7412 D0YBR0000020 CHIP RESISTOR 1

LB7413 D0YBR0000020 CHIP RESISTOR 1

LB7414 J0JHC0000032 BEAD CORE 1DMR-

EH80VEBS

LB7415 D0YBR0000020 CHIP RESISTOR 1

LB7416 J0JHC0000032 BEAD CORE 1

LB7417 J0JHC0000032 BEAD CORE 1

LB7901 J0JKB0000028 BEAD CORE 1

P11001 K1KA16AA0194 CONNECTOR 1

P11101 K2AA2H000007 AC INLET 1

P12001 K1KA04AA0180 CONNECTOR 1

P12002 K1KA03AA0301 CONNECTOR 1

P15001 K1KA16AA0194 CONNECTOR 1

P15002 K1KA05AA0180 CONNECTOR 1

P15003 K1KA04AA0180 CONNECTOR 1

P1531 K1KA02A00375 CONNECTOR 1

P2501 K1MN07A00019 CONNECTOR 1

P2571 K1KA08A00290 CONNECTOR 1

P31901 K1KA13A00074 CONNECTOR 1

P31902 K1KA19A00007 CONNECTOR 1

P31903 K1KA19A00007 CONNECTOR 1

P31904 K1KA13A00074 CONNECTOR 1

P31905 K1KA07A00083 CONNECTOR 1

P39702 K1KA88A00003 CONNECTOR 1

P4001 K1MZ02A00003 CONNECTOR 1

P4002 K1MN06A00033 CONNECTOR 1

P5001 K1MN09A00022 CONNECTOR 1

P6001 K1KB13AA0032 CONNECTOR 13POL. 1

P6002 K1KB19AA0032 CONNECTOR 19POL. 1

P6003 K1KB19AA0032 CONNECTOR 19POL. 1

P6004 K1KB13AA0032 CONNECTOR 13POL. 1

P6005 K1KB07AA0032 CONNECTOR 1

P66801 K1KA05BA0047 CONNECTOR 1

P66802 K1NA09E00051 CONNECTOR 1

P66803 K1MN15B00037 CONNECTOR 1

P66804 K2HZ104B0015 CONNECTOR

PK7301 K1MM07B00002 CONNECTOR 1

PK7302 K1MM06B00002 CONNECTOR 1

PP4600 K1KA12B00129 CONNECTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

PP7501 K1KA10B00176 CONNECTOR 1

PP7502 K1KA08B00210 CONNECTOR 1

PP7503 K1KA08B00210 CONNECTOR 1

PS37501 K1KB08B00043 CONNECTOR 1

PS37502 K1KB10B00045 CONNECTOR 1

PS6001 K1KB08B00043 CONNECTOR 1

PS6002 K1KB12B00040 CONNECTOR 1

Q11301 B3PBA0000237 PHOTO COUPLER 1

Q11501 B1DHDD000022 TRANSISTOR 1

Q12001 2SD0601ARN TRANSISTOR 1

Q1501 PNB2302MF PHOTO TRANSISTOR 1

Q1502 PNB2302MF PHOTO TRANSISTOR 1

Q15001 B1DHED000008 TRANSISTOR 1

Q15002 B1DHDD000022 TRANSISTOR 1

Q15003 B1DHDD000022 TRANSISTOR 1

Q3002 2SD1819ARL TRANSISTOR 1

Q33501 2SB1218ARL SS-TRANSISTOR 1

Q33502 2SD1819ARL TRANSISTOR 1

Q33503 2SB1218ARL SS-TRANSISTOR 1

Q33504 2SD1819ARL TRANSISTOR 1

Q33505 2SB1218ARL SS-TRANSISTOR 1

Q3501 2SB1218ARL SS-TRANSISTOR 1

Q3502 2SB1218ARL SS-TRANSISTOR 1

Q3503 2SD1819ARL TRANSISTOR 1

Q37001 2SD0874A0L TRANSISTOR 1

Q37002 2SD0874A0L TRANSISTOR 1

Q3901 2SD132800L CHIP TRANSISTOR 1

Q3902 2SD132800L CHIP TRANSISTOR 1

Q3903 2SD132800L CHIP TRANSISTOR 1

Q3904 2SD132800L CHIP TRANSISTOR 1

Q4001 2SD114900L TRANSISTOR 1

Q4002 2SD1819ARL TRANSISTOR 1

Q4003 2SD0602ARL TRANSISTOR 1

Q4004 2SB0710ARL TRANSISTOR 1

Q4501 B1AAGD000016 TRANSISTOR 1

Q4502 2SB0710ARL TRANSISTOR 1

Q4901 2SB0710ARL TRANSISTOR 1

Q6101 2SB1218ARL SS-TRANSISTOR 1DMR-

EH80VEGS

Q6102 2SD1819ARL TRANSISTOR 1

Q6103 2SD1819ARL TRANSISTOR 1

Q6104 2SB1218ARL SS-TRANSISTOR 1

Q6305 2SD0601ARN TRANSISTOR 1

Q6401 2SD1819ARL TRANSISTOR 1

Q6402 2SD1819ARL TRANSISTOR 1

Q6403 2SD1819ARL TRANSISTOR 1

Q6404 2SD1819ARL TRANSISTOR 1

Q6801 2SD1819ARL TRANSISTOR 1

Q7401 2SD1819ARL TRANSISTOR 1

Q7402 2SD1819ARL TRANSISTOR 1DMR-

EH80VEGS

Q7403 2SB1218ARL SS-TRANSISTOR 1

Q7501 2SD1819ARL TRANSISTOR 1

Q7901 2SD21770SA TRANSISTOR 1

Q7902 2SD1819ARL TRANSISTOR 1

QR15001 UNR221300L TRANSISTOR 1

QR15002 UNR221300L TRANSISTOR 1

QR15003 UNR221300L TRANSISTOR 1

QR15004 UNR221300L TRANSISTOR 1

QR15005 UNR221300L TRANSISTOR 1

QR15007 UNR221300L TRANSISTOR 1

QR3001 UNR521300L TRANSISTOR 1

QR3002 UNR521200L TRANSISTOR 1

QR3003 UNR521200L TRANSISTOR 1

QR3005 UNR521200L TRANSISTOR 1

QR33701 UNR521100L TRANSISTOR 1

QR35007 UNR521200L TRANSISTOR 1

QR35008 UNR521200L TRANSISTOR 1

QR37501 UNR521300L TRANSISTOR 1

QR37502 UNR521200L TRANSISTOR 1

QR37503 UNR521400L TRANSISTOR 1

QR3901 UNR521100L TRANSISTOR 1

QR3902 UNR521300L TRANSISTOR 1

112

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

QR4003 UNR521100L TRANSISTOR 1

QR4004 UNR511100L TRANSISTOR 1

QR4005 UNR521300L TRANSISTOR 1

QR4501 UNR521100L TRANSISTOR 1

QR45001 UNR511100L TRANSISTOR 1

QR45002 UNR521600L TRANSISTOR 1

QR45003 UNR521600L TRANSISTOR 1

QR45004 UNR521600L TRANSISTOR 1

QR45005 UNR521600L TRANSISTOR 1

QR45006 UNR521100L TRANSISTOR 1

QR45007 UNR521100L TRANSISTOR 1

QR45008 UNR521100L TRANSISTOR 1

QR45009 UNR521100L TRANSISTOR 1

QR4901 UNR521300L TRANSISTOR 1

QR4902 UNR511100L TRANSISTOR 1

QR4903 UNR521600L TRANSISTOR 1

QR4904 UNR521600L TRANSISTOR 1

QR4905 UNR521600L TRANSISTOR 1

QR4906 UNR521600L TRANSISTOR 1

QR4908 UNR511300L TRANSISTOR 1DMR-

EH80VEBS

QR4910 UNR521600L TRANSISTOR 1DMR-

EH80VEBS

QR4911 UNR511300L TRANSISTOR 1

QR4912 UNR521600L TRANSISTOR 1

QR4913 UNR521600L TRANSISTOR 1

QR4914 UNR521300L TRANSISTOR 1

QR6402 UNR521500L TRANSISTOR 1

QR6403 UNR521500L TRANSISTOR 1

QR6801 UNR511300L TRANSISTOR 1

QR7401 UNR511200L TRANSISTOR 1

QR7402 UNR511200L TRANSISTOR 1DMR-

EH80VEGS

QR7501 UNR521100L TRANSISTOR 1

QR7502 UNR521100L TRANSISTOR 1

QR7503 UNR521100L TRANSISTOR 1

QR7504 UNR521100L TRANSISTOR 1

QR7505 UNR521100L TRANSISTOR 1

QR7506 UNR521100L TRANSISTOR 1

QR7508 UNR521100L TRANSISTOR 1

R11103 ERG2SJ153E METAL OXIDE RESISTOR 1

R11104 ERG2SJ153E METAL OXIDE RESISTOR 1

R11105 ERX2SZJR18E METAL RESISTOR 1

R11106 ERG2SJ223E METAL OXIDE RESISTOR 1

R11107 ERG2SJ153E METAL OXIDE RESISTOR 1

R11201 ERJ6GEYG273V CHIP RESISTOR 1

R11202 D0YDR0000006 CHIP RESISTOR 1

R11203 ERJ6GEYJ223V CHIP RESISTOR 1

R11204 ERJ6GEYJ470V CHIP RESISTOR 1

R11205 ERJ6GEYJ470V CHIP RESISTOR 1

R11206 ERJ6GEYG822V CHIP RESISTOR 1

R11207 D0YDR0000006 CHIP RESISTOR 1

R11208 ERJ6GEYG471V CHIP RESISTOR 1

R11209 ERJ6GEYG752V CHIP RESISTOR 1

R11301 ERJ6GEYJ222V CHIP RESISTOR 1

R11302 ERJ6GEYJ102V CHIP RESISTOR 1

R11303 ERJ6GEYJ102V CHIP RESISTOR 1

R11304 ERJ6GEYJ103V CHIP RESISTOR 1

R11305 ERJ6GEYG912V CHIP RESISTOR 1

R11308 D0YDR0000006 CHIP RESISTOR 1

R11309 ERJ6GEYG471V CHIP RESISTOR 1

R11312 ERJ6GEYG242V CHIP RESISTOR 1

R11501 D1BFR0150001 RESISTOR ARRAY 1

R11502 ERJ6RBD302V CHIP RESISTOR 1

R11503 ERJ6RBD153V CHIP RESISTOR 1

R11504 ERJ6RBD272V CHIP RESISTOR 1

R11505 ERJ6GEYJ513V CHIP RESISTOR 1

R12001 ERJ6GEYJ473V CHIP RESISTOR 1

R15001 ERJ6GEYJ472V CHIP RESISTOR 1

R15002 ERJ6GEYJ103V CHIP RESISTOR 1

R15003 ERJ6GEYJ473V CHIP RESISTOR 1

R15005 ERJ6GEYJ104V CHIP RESISTOR 1

R15006 ERJ6RBD272V CHIP RESISTOR 1

R15007 ERJ6RBD561V CHIP RESISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R15008 ERJ6RBD102V CHIP RESISTOR 1

R1501 D0GB273JA057 CHIP RESISTOR 1

R15010 ERJ6GEYJ513V CHIP RESISTOR 1

R15011 D1BFR0150001 RESISTOR ARRAY 1

R15012 ERJ6RBD272V CHIP RESISTOR 1

R15013 ERJ6RBD123V CHIP RESISTOR 1

R15014 ERJ6RBD472V CHIP RESISTOR 1

R15015 D1BFR047A010 RESISTOR ARRAY 1

R15016 ERJ6GEYJ333V CHIP RESISTOR 1

R15017 ERJ6RBD562V CHIP RESISTOR 1

R15018 ERJ6RBD152V CHIP RESISTOR 1

R15019 ERJ6RBD392V CHIP RESISTOR 1

R1502 D0GB273JA057 CHIP RESISTOR 1

R15026 ERJ6GEYJ103V CHIP RESISTOR 1

R15027 ERJ6GEYJ472V CHIP RESISTOR 1

R1503 ERDS2TJ151T CARBON RESISTOR 1

R1511 D0GB273JA057 CHIP RESISTOR 1

R1512 D0GB273JA057 CHIP RESISTOR 1

R1513 ERJ6GEYJ121V CHIP RESISTOR 1

R2001 D0GB392JA057 CHIP RESISTOR 1

R2002 D0GB105JA057 CHIP RESISTOR 1

R2099 D0GB682JA057 CHIP RESISTOR 1

R2501 ERJ6GEYJ1R2V CHIP RESISTOR 1

R2502 ERJ6GEYJ1R5V CHIP RESISTOR 1

R2503 ERDS2TJ182T CARBON RESISTOR 1

R2514 D0GB221JA057 CHIP RESISTOR 1

R2515 D0GB221JA057 CHIP RESISTOR 1

R2516 D0GB221JA057 CHIP RESISTOR 1

R2520 D0GB183JA057 CHIP RESISTOR 1

R2521 D0GB102JA057 CHIP RESISTOR 1

R2551 D0GB103JA057 CHIP RESISTOR 1

R2552 D0GB103JA057 CHIP RESISTOR 1

R2561 D0GB102JA057 CHIP RESISTOR 1

R2562 D0GB473JA057 CHIP RESISTOR 1

R2563 D0GB102JA057 CHIP RESISTOR 1

R2564 D0GB101JA057 CHIP RESISTOR 1

R2565 D0GB101JA057 CHIP RESISTOR 1

R3001 D0GB152JA057 CHIP RESISTOR 1

R3002 D0GB622JA057 CHIP RESISTOR 1

R3003 D0GB562JA057 CHIP RESISTOR 1

R3005 D0GB122JA057 CHIP RESISTOR 1

R3007 D0GB101JA057 CHIP RESISTOR 1

R3008 D0GB106JA057 CHIP RESISTOR 1

R3010 D0GB153JA057 CHIP RESISTOR 1

R3013 D0GB101JA057 CHIP RESISTOR 1

R3014 D0GB101JA057 CHIP RESISTOR 1

R3015 D0GB273JA057 CHIP RESISTOR 1

R3016 D0GB471JA057 CHIP RESISTOR 1

R3017 D0GB332JA057 CHIP RESISTOR 1

R3020 D0GB332JA057 CHIP RESISTOR 1

R3021 D0GB102JA057 CHIP RESISTOR 1

R3023 D0YBR0000020 CHIP RESISTOR 1

R3024 D0GB682JA057 CHIP RESISTOR 1

R31501 D1BB6802A010 CHIP RESISTOR 1

R31502 D0YBR0000020 CHIP RESISTOR 1

R31503 D1BB22020002 CHIP RESISTOR 1

R31512 ERDS2TJ271T CARBON RESISTOR 1

R31513 ERDS2TJ271T CARBON RESISTOR 1

R33501 D0GB102JA057 CHIP RESISTOR 1

R33502 D0GB104JA057 CHIP RESISTOR 1

R33503 D0GB392JA057 CHIP RESISTOR 1

R33504 D0GB102JA057 CHIP RESISTOR 1

R33505 D1BB1502A010 CHIP RESISTOR 1

R33506 D1BB15010002 CHIP RESISTOR 1

R33507 D0GB104JA057 CHIP RESISTOR 1

R33508 D1BB5601A010 CHIP RESISTOR 1

R33509 D0YBR0000020 CHIP RESISTOR 1

R33510 D0YBR0000020 CHIP RESISTOR 1

R33511 D0GB102JA057 CHIP RESISTOR 1

R33707 D0GB472JA057 CHIP RESISTOR 1

R34002 D0YBR0000020 CHIP RESISTOR 1

R34008 D0YBR0000020 CHIP RESISTOR 1

R34009 D0YBR0000020 CHIP RESISTOR 1

113

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R34011 D0GB221JA057 CHIP RESISTOR 1

R3501 D1BB5600A010 CHIP RESISTOR 1

R3502 D1BB1001A010 CHIP RESISTOR 1

R3503 D0GB122JA057 CHIP RESISTOR 1

R3504 D0GB102JA057 CHIP RESISTOR 1

R3505 D0GB122JA057 CHIP RESISTOR 1

R3507 D1BB1201A010 CHIP RESISTOR 1

R3508 D0GB394JA057 CHIP RESISTOR 1

R3509 D1BB1001A010 CHIP RESISTOR 1

R3510 D1BB4700A010 CHIP RESISTOR 1

R3511 D1BB33010002 CHIP RESISTOR 1

R3512 D1BB33010002 CHIP RESISTOR 1

R3513 D1BB15010002 CHIP RESISTOR 1

R3515 D1BB1201A010 CHIP RESISTOR 1

R3516 D1BB1001A010 CHIP RESISTOR 1

R35015 D1BB75R0A010 CHIP RESISTOR 1

R35017 D1BB75R0A010 CHIP RESISTOR 1

R35018 D1BB75R0A010 CHIP RESISTOR 1

R35019 D1BB75R0A010 CHIP RESISTOR 1

R35020 D1BB75R0A010 CHIP RESISTOR 1

R35021 D1BB75R0A010 CHIP RESISTOR 1

R35026 D0GB102JA057 CHIP RESISTOR 1

R35027 D0GB102JA057 CHIP RESISTOR 1

R35031 D0GB102JA057 CHIP RESISTOR 1

R37001 D0GB821JA057 CHIP RESISTOR 1

R37002 D0GB821JA057 CHIP RESISTOR 1

R37003 D0GB183JA057 CHIP RESISTOR 1

R37004 D0GB103JA057 CHIP RESISTOR 1

R37501 D0GB101JA057 CHIP RESISTOR 1

R37502 D0GB103JA057 CHIP RESISTOR 1

R37503 D0GB101JA057 CHIP RESISTOR 1

R37504 D0GB103JA057 CHIP RESISTOR 1

R37505 D0GB473JA057 CHIP RESISTOR 1

R37506 D0GB103JA057 CHIP RESISTOR 1

R37511 D0GB101JA057 CHIP RESISTOR 1

R37512 D0GB101JA057 CHIP RESISTOR 1

R37530 D0GB473JA057 CHIP RESISTOR 1

R37531 D0GB473JA057 CHIP RESISTOR 1

R37532 D0GB473JA057 CHIP RESISTOR 1

R37533 D0GB473JA057 CHIP RESISTOR 1

R37534 D0GB101JA057 CHIP RESISTOR 1

R37535 D0GB101JA057 CHIP RESISTOR 1

R37536 D0GB101JA057 CHIP RESISTOR 1

R37537 D0GB101JA057 CHIP RESISTOR 1

R37538 D0GB472JA057 CHIP RESISTOR 1

R37539 D0YBR0000020 CHIP RESISTOR 1

R37540 D0GB332JA057 CHIP RESISTOR 1

R37541 D0YBR0000020 CHIP RESISTOR 1

R37542 D0GB103JA057 CHIP RESISTOR 1

R37544 D0GB221JA057 CHIP RESISTOR 1

R37545 D0GB221JA057 CHIP RESISTOR 1

R37546 D0GB472JA057 CHIP RESISTOR 1

R37547 D0GB472JA057 CHIP RESISTOR 1

R37548 D0GB472JA057 CHIP RESISTOR 1

R37549 D0GB511JA057 CHIP RESISTOR 1

R37550 D0GB202JA057 CHIP RESISTOR 1

R37551 D0GB202JA057 CHIP RESISTOR 1

R37556 D0GB101JA057 CHIP RESISTOR 1

R37557 D0GB101JA057 CHIP RESISTOR 1

R37558 D0GB101JA057 CHIP RESISTOR 1

R37559 D0GB101JA057 CHIP RESISTOR 1

R37561 D0GB392JA057 CHIP RESISTOR 1

R37562 D0GB101JA057 CHIP RESISTOR 1

R37563 D0GB101JA057 CHIP RESISTOR 1

R37565 D0GB101JA057 CHIP RESISTOR 1

R37566 D0GB101JA057 CHIP RESISTOR 1

R37569 D0GB101JA057 CHIP RESISTOR 1

R37571 D0GB101JA057 CHIP RESISTOR 1

R37572 D0GB101JA057 CHIP RESISTOR 1

R37573 D0GB181JA057 CHIP RESISTOR 1

R37575 D0GB104JA057 CHIP RESISTOR 1

R37577 D0GB101JA057 CHIP RESISTOR 1

R37578 D0GB101JA057 CHIP RESISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R37581 D1BB3902A010 CHIP RESISTOR 1

R37582 D1BB4302A010 CHIP RESISTOR 1

R37583 D0GB473JA057 CHIP RESISTOR 1

R37584 D0GB473JA057 CHIP RESISTOR 1

R37585 D0GB223JA057 CHIP RESISTOR 1

R37588 D0GB472JA057 CHIP RESISTOR 1

R37596 D0GB473JA057 CHIP RESISTOR 1

R37597 D0GB153JA057 CHIP RESISTOR 1

R37599 D0GB223JA057 CHIP RESISTOR 1

R37600 D0GB153JA057 CHIP RESISTOR 1

R37604 D0GB822JA057 CHIP RESISTOR 1

R37605 D0GB822JA057 CHIP RESISTOR 1

R37606 D0GB822JA057 CHIP RESISTOR 1

R37612 D0GB101JA057 CHIP RESISTOR 1

R37633 D0GB223JA057 CHIP RESISTOR 1

R3801 D0GB750JA057 CHIP RESISTOR 1

R3802 D0GB750JA057 CHIP RESISTOR 1

R3803 D0GB750JA057 CHIP RESISTOR 1

R3804 D0GB102JA057 CHIP RESISTOR 1

R3901 ERJ6GEYG750V CHIP RESISTOR 1

R3902 ERJ6GEYG750V CHIP RESISTOR 1

R3903 ERJ6GEYG750V CHIP RESISTOR 1

R3904 ERJ6GEYG750V CHIP RESISTOR 1

R3905 ERJ6GEYG750V CHIP RESISTOR 1

R3906 ERJ6GEYG750V CHIP RESISTOR 1

R3907 ERDS2TJ221T CARBON RESISTOR 1

R3908 ERJ6GEYJ750V CHIP RESISTOR 1

R3909 ERJ6GEYG750V CHIP RESISTOR 1

R3910 ERJ3RED750V CHIP RESISTOR 1

R3911 ERJ3RED750V CHIP RESISTOR 1

R3912 ERJ3RED750V CHIP RESISTOR 1

R3913 ERJ6GEYG750V CHIP RESISTOR 1

R3914 D0GB330JA057 CHIP RESISTOR 1

R3915 D0GB822JA057 CHIP RESISTOR 1

R3916 D0GB101JA057 CHIP RESISTOR 1

R3917 D0GB101JA057 CHIP RESISTOR 1

R3918 D0GB102JA057 CHIP RESISTOR 1

R3919 D0GB154JA057 CHIP RESISTOR 1

R3920 D0GB154JA057 CHIP RESISTOR 1

R3921 D0GB682JA057 CHIP RESISTOR 1

R3922 D0GB682JA057 CHIP RESISTOR 1

R3923 D0GB124JA057 CHIP RESISTOR 1

R3924 D0GB124JA057 CHIP RESISTOR 1

R3925 D0GB153JA057 CHIP RESISTOR 1

R3934 D0GB103JA057 CHIP RESISTOR 1

R4001 D0GB332JA057 CHIP RESISTOR 1DMR-

EH80VEBS

R4001 D0GB202JA057 CHIP RESISTOR 1DMR-

EH80VEGS

R4002 D0GB153JA057 CHIP RESISTOR 1

R4003 D0GB682JA057 CHIP RESISTOR 1DMR-

EH80VEBS

R4003 D0GB392JA057 CHIP RESISTOR 1DMR-

EH80VEGS

R4004 D0GB472JA057 CHIP RESISTOR 1

R4006 D0GB332JA057 CHIP RESISTOR 1

R4007 D0GB104JA057 CHIP RESISTOR 1

R4008 D0GB153JA057 CHIP RESISTOR 1

R4009 D0GB271JA057 CHIP RESISTOR 1

R4011 D0GB203JA057 CHIP RESISTOR 1

R4012 D0GB474JA057 CHIP RESISTOR 1

R4013 D0GB153JA057 CHIP RESISTOR 1

R4014 D0GB103JA057 CHIP RESISTOR 1

R4015 D0GB332JA057 CHIP RESISTOR 1

R4016 D0GB222JA057 CHIP RESISTOR 1

R4017 D0GB222JA057 CHIP RESISTOR 1

R4018 ERJ6GEYJ102V CHIP RESISTOR 1

R4019 ERJ6GEYJ102V CHIP RESISTOR 1

R4101 D0GB102JA057 CHIP RESISTOR 1

R4102 D0GB102JA057 CHIP RESISTOR 1

R4103 D0GB102JA057 CHIP RESISTOR 1

R4104 D0GB102JA057 CHIP RESISTOR 1

R4305 D0GB471JA057 CHIP RESISTOR 1

R4306 D0GB471JA057 CHIP RESISTOR 1

114

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R4501 D0GB563JA057 CHIP RESISTOR 1

R4502 D0GB563JA057 CHIP RESISTOR 1

R4503 D0GB223JA057 CHIP RESISTOR 1

R4504 D0GB223JA057 CHIP RESISTOR 1

R4505 D0GB432JA057 CHIP RESISTOR 1

R4506 D0GB432JA057 CHIP RESISTOR 1

R4507 D0GB912JA057 CHIP RESISTOR 1

R4508 D0GB432JA057 CHIP RESISTOR 1

R4509 D0GB432JA057 CHIP RESISTOR 1

R4510 D0GB912JA057 CHIP RESISTOR 1

R4511 D0GB432JA057 CHIP RESISTOR 1

R4512 D0GB432JA057 CHIP RESISTOR 1

R4513 D0GB563JA057 CHIP RESISTOR 1

R4514 D0GB563JA057 CHIP RESISTOR 1

R4515 D0GB563JA057 CHIP RESISTOR 1

R4516 D0GB563JA057 CHIP RESISTOR 1

R4517 D0GB511JA057 CHIP RESISTOR 1

R4518 D0GB472JA057 CHIP RESISTOR 1

R4519 D0GB472JA057 CHIP RESISTOR 1

R4520 D0YBR0000020 CHIP RESISTOR 1

R4521 D0GB124JA057 CHIP RESISTOR 1

R4522 D0GB472JA057 CHIP RESISTOR 1

R4523 D0GB511JA057 CHIP RESISTOR 1

R4524 D0GB102JA057 CHIP RESISTOR 1

R4525 D0GB333JA057 CHIP RESISTOR 1

R4526 D0GB102JA057 CHIP RESISTOR 1

R4527 D0GB102JA057 CHIP RESISTOR 1

R4528 D0GB472JA057 CHIP RESISTOR 1

R4530 D0GB472JA057 CHIP RESISTOR 1

R4532 D0GB681JA057 CHIP RESISTOR 1

R4554 D0GB683JA057 CHIP RESISTOR 1

R4555 ERDS2TJ821T CARBON RESISTOR 1

R4557 D0GB472JA057 CHIP RESISTOR 1

R4558 D0GB683JA057 CHIP RESISTOR 1

R4559 D0GB393JA057 CHIP RESISTOR 1

R4560 D0GB682JA057 CHIP RESISTOR 1

R45001 D0GB101JA057 CHIP RESISTOR 1

R45002 D0HB202ZA002 CHIP RESISTOR 1

R45003 D0HB222ZA002 CHIP RESISTOR 1

R45004 D0HB183ZA002 CHIP RESISTOR 1

R45005 D0HB103ZA002 METAL FILM RESISTOR 1

R45006 D0GB473JA057 CHIP RESISTOR 1

R45007 D0HB183ZA002 CHIP RESISTOR 1

R45008 D0HB103ZA002 METAL FILM RESISTOR 1

R45009 D0GB473JA057 CHIP RESISTOR 1

R45010 D0GB471JA057 CHIP RESISTOR 1

R45011 D0GB471JA057 CHIP RESISTOR 1

R45012 D0GB471JA057 CHIP RESISTOR 1

R45013 D0GB471JA057 CHIP RESISTOR 1

R45014 D0GB103JA057 CHIP RESISTOR 1

R45015 D0GB103JA057 CHIP RESISTOR 1

R45016 D0GB221JA057 CHIP RESISTOR 1

R45017 D0GB221JA057 CHIP RESISTOR 1

R45018 D0GB102JA057 CHIP RESISTOR 1

R45019 D0GB102JA057 CHIP RESISTOR 1

R4903 D0YBR0000020 CHIP RESISTOR 1

R4905 D0GB221JA057 CHIP RESISTOR 1

R4906 D0GB221JA057 CHIP RESISTOR 1

R4907 D0GB471JA057 CHIP RESISTOR 1DMR-

EH80VEBS

R4908 D0GB471JA057 CHIP RESISTOR 1

R4909 D0GB471JA057 CHIP RESISTOR 1

R4910 D0GB471JA057 CHIP RESISTOR 1

R4911 D0GB471JA057 CHIP RESISTOR 1

R4916 D0GB221JA057 CHIP RESISTOR 1

R4917 D0GB221JA057 CHIP RESISTOR 1

R4922 D0GB471JA057 CHIP RESISTOR 1

R4923 D0GB471JA057 CHIP RESISTOR 1

R4924 D0GB225JA057 CHIP RESISTOR 1DMR-

EH80VEBS

R4925 D0GB472JA057 CHIP RESISTOR 1

R4926 D0GB472JA057 CHIP RESISTOR 1

R4927 D0GB223JA057 CHIP RESISTOR 1DMR-

EH80VEGS

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R6001 D0GB102JA057 CHIP RESISTOR 1

R6002 D0GB102JA057 CHIP RESISTOR 1

R6004 D0GB433JA057 CHIP RESISTOR 1

R6006 D0GB273JA057 CHIP RESISTOR 1

R6007 D0GB183JA057 CHIP RESISTOR 1

R6008 D0GB222JA057 CHIP RESISTOR 1

R6009 D0GB101JA057 CHIP RESISTOR 1

R6010 D0GB393JA057 CHIP RESISTOR 1

R6011 D0GB183JA057 CHIP RESISTOR 1

R6012 D0GB681JA057 CHIP RESISTOR 1

R6013 D0GB221JA057 CHIP RESISTOR 1

R6014 D0GB103JA057 CHIP RESISTOR 1

R6016 D0GB102JA057 CHIP RESISTOR 1

R6017 D0GB222JA057 CHIP RESISTOR 1

R6018 D0GB102JA057 CHIP RESISTOR 1

R6019 D0GB681JA057 CHIP RESISTOR 1

R6020 D0GB101JA057 CHIP RESISTOR 1

R6022 D0GB221JA057 CHIP RESISTOR 1

R6023 D0GB221JA057 CHIP RESISTOR 1

R6024 D0GB221JA057 CHIP RESISTOR 1

R6025 D0GB221JA057 CHIP RESISTOR 1

R6026 D0GB103JA057 CHIP RESISTOR 1

R6027 D0GB103JA057 CHIP RESISTOR 1

R6028 D0GB103JA057 CHIP RESISTOR 1

R6029 D0GB472JA057 CHIP RESISTOR 1

R6030 D0GB472JA057 CHIP RESISTOR 1

R6031 D0GB223JA057 CHIP RESISTOR 1

R6033 D0GB103JA057 CHIP RESISTOR 1

R6035 D0GB102JA057 CHIP RESISTOR 1

R6036 D0GB102JA057 CHIP RESISTOR 1

R6101 D0GB103JA057 CHIP RESISTOR 1

R6102 D0GB103JA057 CHIP RESISTOR 1

R6103 D0GB103JA057 CHIP RESISTOR 1

R6109 D0GB105JA057 CHIP RESISTOR 1

R6110 D0GB221JA057 CHIP RESISTOR 1

R6111 D0GB101JA057 CHIP RESISTOR 1

R6112 D0GB272JA057 CHIP RESISTOR 1

R6113 D0GB562JA057 CHIP RESISTOR 1

R6114 D0GB102JA057 CHIP RESISTOR 1

R6115 D0GB471JA057 CHIP RESISTOR 1

R6116 D0GB152JA057 CHIP RESISTOR 1DMR-

EH80VEGS

R6117 D0GB181JA057 CHIP RESISTOR 1

R6118 D0GB473JA057 CHIP RESISTOR 1DMR-

EH80VEBS

R6119 D0GB241JA057 CHIP RESISTOR 1

R6120 D0GB102JA057 CHIP RESISTOR 1

R6121 D0GB561JA057 CHIP RESISTOR 1

R6122 D0GB561JA057 CHIP RESISTOR 1

R6123 D0YBR0000020 CHIP RESISTOR 1

R6131 D0GB101JA057 CHIP RESISTOR 1

R6201 D0GB103JA057 CHIP RESISTOR 1

R6309 D0GB272JA057 CHIP RESISTOR 1

R6401 D0GB221JA057 CHIP RESISTOR 1

R6402 D0GB153JA057 CHIP RESISTOR 1

R6403 D0GB103JA057 CHIP RESISTOR 1

R6404 D0GB471JA057 CHIP RESISTOR 1

R6405 D0GB223JA057 CHIP RESISTOR 1

R6406 D0GB474JA057 CHIP RESISTOR 1

R6407 D0GB153JA057 CHIP RESISTOR 1

R6408 D0GB104JA057 CHIP RESISTOR 1

R6409 D0GB104JA057 CHIP RESISTOR 1

R6410 D0GB224JA057 CHIP RESISTOR 1

R6411 D0GB225JA057 CHIP RESISTOR 1

R6412 D0GB433JA057 CHIP RESISTOR 1

R6413 D0GB473JA057 CHIP RESISTOR 1

R6414 D0GB472JA057 CHIP RESISTOR 1

R66801 D0GB123JA057 CHIP RESISTOR 1

R66802 D0GB123JA057 CHIP RESISTOR 1

R66804 D0GB123JA057 CHIP RESISTOR 1

R66805 D0GB123JA057 CHIP RESISTOR 1

R66806 D0GB123JA057 CHIP RESISTOR 1

R66807 D0GB223JA057 CHIP RESISTOR 1

115

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R66808 D0GB223JA057 CHIP RESISTOR 1

R66809 D0GB750JA057 CHIP RESISTOR 1

R66810 D0GB750JA057 CHIP RESISTOR 1

R66811 D0GB750JA057 CHIP RESISTOR 1

R66812 D0GB750JA057 CHIP RESISTOR 1

R66813 D0GB750JA057 CHIP RESISTOR 1

R66814 D0GB750JA057 CHIP RESISTOR 1

R66815 D0GB101JA057 CHIP RESISTOR 1

R66816 D0YBR0000020 CHIP RESISTOR 1

R66817 D0YBR0000020 CHIP RESISTOR 1

R66818 D0YBR0000020 CHIP RESISTOR 1

R66819 D0YBR0000020 CHIP RESISTOR 1

R6801 D0GB104JA057 CHIP RESISTOR 1

R6802 D0YBR0000020 CHIP RESISTOR 1

R6803 D0GB474JA057 CHIP RESISTOR 1

R7301 D0YBR0000020 CHIP RESISTOR 1

R7304 D0GB101JA057 CHIP RESISTOR 1

R7307 D0YBR0000020 CHIP RESISTOR 1

R7309 D0GB103JA057 CHIP RESISTOR 1

R7310 D0GB221JA057 CHIP RESISTOR 1DMR-

EH80VEBS

R7311 D0GB221JA057 CHIP RESISTOR 1

R7312 D1BB2200A010 CHIP RESISTOR 1DMR-

EH80VEBS

R7312 D1BB18010002 CHIP RESISTOR 1DMR-

EH80VEGS

R7313 D1BB2200A010 CHIP RESISTOR 1DMR-

EH80VEBS

R7313 D1BB18010002 CHIP RESISTOR 1DMR-

EH80VEGS

R7314 D0YBR0000020 CHIP RESISTOR 1

R7315 D0YBR0000020 CHIP RESISTOR 1

R7317 D0YBR0000020 CHIP RESISTOR 1DMR-

EH80VEBS

R7317 J0JCC0000103 BEAD CORE 1DMR-

EH80VEGS

R7319 D0YBR0000020 CHIP RESISTOR 1DMR-

EH80VEBS

R7319 J0JCC0000103 BEAD CORE 1DMR-

EH80VEGS

R7322 D0YBR0000020 CHIP RESISTOR 1

R7324 D0GB101JA057 CHIP RESISTOR 1

R7325 D0GB101JA057 CHIP RESISTOR 1

R7401 ERDS2TJ331T CARBON RESISTOR 1

R7402 ERDS2TJ331T CARBON RESISTOR 1

R7403 ERDS2TJ331T CARBON RESISTOR 1

R7404 ERDS2TJ331T CARBON RESISTOR 1

R7405 D0GB471JA057 CHIP RESISTOR 1

R7406 D0GB471JA057 CHIP RESISTOR 1

R7410 D0GB221JA057 CHIP RESISTOR 1

R7411 D0GB221JA057 CHIP RESISTOR 1

R7413 D0YBR0000020 CHIP RESISTOR 1DMR-

EH80VEGS

R7414 D0GB101JA057 CHIP RESISTOR 1DMR-

EH80VEBS

R7415 D0GB101JA057 CHIP RESISTOR 1DMR-

EH80VEBS

R7416 D0GB471JA057 CHIP RESISTOR 1

R7417 D0GB471JA057 CHIP RESISTOR 1

R7418 D0YBR0000020 CHIP RESISTOR 1

R7419 D0YBR0000020 CHIP RESISTOR 1

R7420 D0GB681JA057 CHIP RESISTOR 1

R7421 D0GB221JA057 CHIP RESISTOR 1

R7422 D0GB221JA057 CHIP RESISTOR 1

R7433 D0GB104JA057 CHIP RESISTOR 1

R7434 D0GB104JA057 CHIP RESISTOR 1DMR-

EH80VEGS

R7435 D0GB562JA057 CHIP RESISTOR 1DMR-

EH80VEGS

R7436 D0YBR0000020 CHIP RESISTOR 1

R7437 D0YBR0000020 CHIP RESISTOR 1

R7501 D0GB271JA057 CHIP RESISTOR 1

R7502 D0GB151JA002 CHIP RESISTOR 1

R7503 D0GB681JA057 CHIP RESISTOR 1

R7504 D0GB391JA057 CHIP RESISTOR 1

R7505 D0GB471JA057 CHIP RESISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R7506 D0GB391JA057 CHIP RESISTOR 1

R7508 D0GB122JA057 CHIP RESISTOR 1

R7509 D0GB122JA057 CHIP RESISTOR 1

R7510 ERDS2TJ5R6T CARBON RESISTOR 1

R7511 D0GB152JA057 CHIP RESISTOR 1

R7512 D0GB103JA057 CHIP RESISTOR 1

R7513 D0GB683JA057 CHIP RESISTOR 1

R7514 D0YBR0000020 CHIP RESISTOR 1

R7515 D0GB101JA057 CHIP RESISTOR 1

R7516 D0GB152JA057 CHIP RESISTOR 1

R7517 D0GB222JA057 CHIP RESISTOR 1

R7518 D0GB151JA002 CHIP RESISTOR 1

R7525 D0GB273JA057 CHIP RESISTOR 1

R7526 D0GB101JA057 CHIP RESISTOR 1

R7527 D0GB101JA057 CHIP RESISTOR 1

R7528 D0GB222JA057 CHIP RESISTOR 1

R7529 D0GB332JA057 CHIP RESISTOR 1

R7530 D0GB152JA057 CHIP RESISTOR 1

R7531 D0GB122JA057 CHIP RESISTOR 1

R7532 D0GB222JA057 CHIP RESISTOR 1

R7801 D0GB221JA057 CHIP RESISTOR 1

R7802 D0GB182JA057 CHIP RESISTOR 1

R7803 D0GB332JA057 CHIP RESISTOR 1

R7806 D0GB472JA057 CHIP RESISTOR 1

R7807 D0GB182JA057 CHIP RESISTOR 1

R7808 D0GB332JA057 CHIP RESISTOR 1

R7809 D0GB472JA057 CHIP RESISTOR 1

R7810 D0GB682JA057 CHIP RESISTOR 1

R7812 D0GB123JA057 CHIP RESISTOR 1

R7813 D0GB273JA057 CHIP RESISTOR 1

R7901 ERDS2TJ561T CARBON RESISTOR 1

R7902 ERDS2TJ333T CARBON RESISTOR 1

R7903 D0GB472JA057 CHIP RESISTOR 1

R7904 D0GB472JA057 CHIP RESISTOR 1

R7905 D0GB223JA057 CHIP RESISTOR 1

R7906 D0GB223JA057 CHIP RESISTOR 1

R7907 ERDS2TJ101T CARBON RESISTOR 1

R7909 D0GB393JA057 CHIP RESISTOR 1

S1531 K0C111A00006 SAFETY TAB SWITCH 1

S1532 K0ZZ00000598 MODE SWITCH 1

S7501 EVQ11G04M TOUCH SWITCH 1

S7502 EVQ11G07K TOUCH SWITCH 1

S7503 EVQ11G07K TOUCH SWITCH 1

S7504 EVQ11G07K TOUCH SWITCH 1

S7505 EVQ11G07K TOUCH SWITCH 1

S7506 EVQ11G07K TOUCH SWITCH 1

S7509 EVQ11G07K TOUCH SWITCH 1

S7510 EVQ11G07K TOUCH SWITCH 1

S7511 EVQ11G07K TOUCH SWITCH 1

S7512 EVQ11G07K TOUCH SWITCH 1

S7513 EVQ11G07K TOUCH SWITCH 1

S7514 EVQ11G07K TOUCH SWITCH 1

S7515 EVQ11G07K TOUCH SWITCH 1

S7801 EVQ11G07K TOUCH SWITCH 1

S7802 EVQ11G07K TOUCH SWITCH 1

S7803 EVQ11G07K TOUCH SWITCH 1

S7805 EVQ11G07K TOUCH SWITCH 1

S7806 EVQ11G07K TOUCH SWITCH 1

S7807 EVQ11G07K TOUCH SWITCH 1

S7808 EVQ11G07K TOUCH SWITCH 1

S7809 EVQ11G07K TOUCH SWITCH 1

S7810 EVQ11G07K TOUCH SWITCH 1

S7812 EVQ11G07K TOUCH SWITCH 1

S7813 EVQ11G07K TOUCH SWITCH 1

T11101 G4D3A0000188 SWITCH. TRANSFORMER 1

T4001 G2A362C00004 BIAS TRANSFORMER 1

T7901 ETS13TB159AP TRANSFORMER 1

VA11101 ERZVA5V471 SURGE ABSORBER 1

W501 D0YDR0000006 CHIP RESISTOR 1

W501 D0YBR0000020 CHIP RESISTOR 1

W502 D0YDR0000006 CHIP RESISTOR 1

W503 D0YBR0000020 CHIP RESISTOR 1

W503 D0YDR0000006 CHIP RESISTOR 1

116

DMR-EH80VEG / DMR-EH80VEB

Ref.

No. Part No. Part Name &

Description Pcs Remarks

W504 D0YBR0000020 CHIP RESISTOR 1

W505 D0YDR0000006 CHIP RESISTOR 1

W505 D0YBR0000020 CHIP RESISTOR 1

W506 D0YBR0000020 CHIP RESISTOR 1

W507 D0YBR0000020 CHIP RESISTOR 1

W507 D0YDR0000006 CHIP RESISTOR 1

W508 D0YBR0000020 CHIP RESISTOR 1

W509 D0YBR0000020 CHIP RESISTOR 1

W510 D0YDR0000006 CHIP RESISTOR 1

W511 D0YDR0000006 CHIP RESISTOR 1

W512 D0YDR0000006 CHIP RESISTOR 1

W513 D0YBR0000020 CHIP RESISTOR 1

W514 D0YBR0000020 CHIP RESISTOR 1

W516 D0YBR0000020 CHIP RESISTOR 1

W517 D0YDR0000006 CHIP RESISTOR 1

W518 D0YBR0000020 CHIP RESISTOR 1

W519 D0YBR0000020 CHIP RESISTOR 1

W520 D0YDR0000006 CHIP RESISTOR 1

W521 D0YBR0000020 CHIP RESISTOR 1

W6 D0YBR0000020 CHIP RESISTOR 1

W7 D0YBR0000020 CHIP RESISTOR 1

W701 D0YDR0000006 CHIP RESISTOR 1

W702 D0YBR0000020 CHIP RESISTOR 1

W703 D0YBR0000020 CHIP RESISTOR 1

W704 D0YDR0000006 CHIP RESISTOR 1

W705 D0YBR0000020 CHIP RESISTOR 1

W706 D0YDR0000006 CHIP RESISTOR 1

W707 D0YDR0000006 CHIP RESISTOR 1

W708 D0YDR0000006 CHIP RESISTOR 1

W709 D0YBR0000020 CHIP RESISTOR 1

W710 D0YBR0000020 CHIP RESISTOR 1

W711 D0YBR0000020 CHIP RESISTOR 1

W712 D0YBR0000020 CHIP RESISTOR 1

W713 D0YBR0000020 CHIP RESISTOR 1

W714 D0YBR0000020 CHIP RESISTOR 1

W715 D0YBR0000020 CHIP RESISTOR 1

W716 D0YBR0000020 CHIP RESISTOR 1

W717 D0YDR0000006 CHIP RESISTOR 1

W718 D0YBR0000020 CHIP RESISTOR 1

W719 D0YDR0000006 CHIP RESISTOR 1

W720 D0YBR0000020 CHIP RESISTOR 1

W721 D0YBR0000020 CHIP RESISTOR 1

W722 D0YBR0000020 CHIP RESISTOR 1

W724 D0YBR0000020 CHIP RESISTOR 1

W725 D0YBR0000020 CHIP RESISTOR 1

W726 D0YBR0000020 CHIP RESISTOR 1

W727 D0YDR0000006 CHIP RESISTOR 1

W728 D0YBR0000020 CHIP RESISTOR 1

W729 D0YBR0000020 CHIP RESISTOR 1

W730 D0YBR0000020 CHIP RESISTOR 1

W731 D0YDR0000006 CHIP RESISTOR 1

W732 D0YBR0000020 CHIP RESISTOR 1

W733 D0YBR0000020 CHIP RESISTOR 1

W734 D0YBR0000020 CHIP RESISTOR 1

W735 D0YDR0000006 CHIP RESISTOR 1

W736 D0YDR0000006 CHIP RESISTOR 1

W737 D0YBR0000020 CHIP RESISTOR 1

W738 D0YDR0000006 CHIP RESISTOR 1

W739 D0YBR0000020 CHIP RESISTOR 1

W740 D0YBR0000020 CHIP RESISTOR 1

W741 D0YDR0000006 CHIP RESISTOR 1

W742 D0YDR0000006 CHIP RESISTOR 1

W743 D0YBR0000020 CHIP RESISTOR 1

W744 D0YBR0000020 CHIP RESISTOR 1

W745 D0YDR0000006 CHIP RESISTOR 1

W746 D0YDR0000006 CHIP RESISTOR 1

W747 D0YBR0000020 CHIP RESISTOR 1

W748 D0YBR0000020 CHIP RESISTOR 1

W749 D0YDR0000006 CHIP RESISTOR 1

W750 D0YBR0000020 CHIP RESISTOR 1

W751 D0YBR0000020 CHIP RESISTOR 1

W752 D0YBR0000020 CHIP RESISTOR 1

W753 D0YBR0000020 CHIP RESISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

W754 D0YBR0000020 CHIP RESISTOR 1

W755 D0YDR0000006 CHIP RESISTOR 1

W756 D0YDR0000006 CHIP RESISTOR 1

W757 D0YDR0000006 CHIP RESISTOR 1

W758 D0YDR0000006 CHIP RESISTOR 1

W759 D0YBR0000020 CHIP RESISTOR 1

W760 D0YDR0000006 CHIP RESISTOR 1

W761 D0YDR0000006 CHIP RESISTOR 1

W762 D0YBR0000020 CHIP RESISTOR 1

W763 D0YBR0000020 CHIP RESISTOR 1

W764 D0YBR0000020 CHIP RESISTOR 1

W765 D0YBR0000020 CHIP RESISTOR 1

W766 D0YBR0000020 CHIP RESISTOR 1

W767 D0YDR0000006 CHIP RESISTOR 1

W768 D0YDR0000006 CHIP RESISTOR 1

W769 D0YDR0000006 CHIP RESISTOR 1

W770 D0YBR0000020 CHIP RESISTOR 1

W771 D0YDR0000006 CHIP RESISTOR 1

W772 D0YBR0000020 CHIP RESISTOR 1

W773 D0YBR0000020 CHIP RESISTOR 1

W774 D0YDR0000006 CHIP RESISTOR 1

W775 D0YBR0000020 CHIP RESISTOR 1

W776 D0YBR0000020 CHIP RESISTOR 1

W777 D0YBR0000020 CHIP RESISTOR 1

W778 D0YBR0000020 CHIP RESISTOR 1

W779 D0YBR0000020 CHIP RESISTOR 1

W780 D0YDR0000006 CHIP RESISTOR 1

W781 D0YDR0000006 CHIP RESISTOR 1

W782 D0YBR0000020 CHIP RESISTOR 1

W783 D0YDR0000006 CHIP RESISTOR 1

W784 D0YDR0000006 CHIP RESISTOR 1

W785 D0YBR0000020 CHIP RESISTOR 1

W786 D0YDR0000006 CHIP RESISTOR 1

W787 D0YBR0000020 CHIP RESISTOR 1

W788 D0YBR0000020 CHIP RESISTOR 1

W789 D0YDR0000006 CHIP RESISTOR 1

W790 D0YBR0000020 CHIP RESISTOR 1

W791 D0YBR0000020 CHIP RESISTOR 1

W792 D0YBR0000020 CHIP RESISTOR 1

W793 D0YBR0000020 CHIP RESISTOR 1

W794 D0YDR0000006 CHIP RESISTOR 1

W795 D0YBR0000020 CHIP RESISTOR 1

W796 D0YBR0000020 CHIP RESISTOR 1

W797 D0YBR0000020 CHIP RESISTOR 1

W798 D0YDR0000006 CHIP RESISTOR 1

W799 D0YBR0000020 CHIP RESISTOR 1

W800 D0YDR0000006 CHIP RESISTOR 1

W801 D0YBR0000020 CHIP RESISTOR 1

W802 D0YBR0000020 CHIP RESISTOR 1

W803 D0YBR0000020 CHIP RESISTOR 1

W804 D0YDR0000006 CHIP RESISTOR 1

W805 D0YBR0000020 CHIP RESISTOR 1

X3001 H0D443400040 CRYSTAL OSCILLATOR 1

X3002 H0D357400067 CRYSTAL OSCILLATOR 1

X37501 H0D100500006 CRYSTAL OSCILLATOR 1

X37502 H0A327200108 CRYSTAL OCSILLATOR 1

X6001 H0D120500009 CRYSTAL OSCILLATOR 1

X7301 H0D245500016 CRYSTAL OSCILLATOR 1

ZA11005 K9ZZ00001279 EARTH FITTING 1

ZA11006 K9ZZ00001279 EARTH FITTING 1

ZA11101 EYF52BCY FUSE HOLDER 1

ZA11102 EYF52BCY FUSE HOLDER 1

ZA11200 VSC5757 HEAT SINK 1

ZA11400 VSC5604 HEAT SINK 1

ZG11200 VSC5763 HEAT RADIATION SEAT 1

ZJ3101 VMC1359 EARTH SPRING 1

ZJ37301 K9ZZ00001279 EARTH FITTING 1

ZJ37303 K9ZZ00001279 EARTH FITTING 1

ZJ37305 K9ZZ00001279 EARTH FITTING 1

ZJ6001 K9ZZ00001279 EARTH FITTING 1

117

DMR-EH80VEG / DMR-EH80VEB

27.6. SERVICE FIXTURE AND

TOOLS

Ref.

No. Part No. Part Name & Description PCS Remarks

RFKZ0125 Extension FFC

(Digital P.C.B. -

DVD-RAM Drive / 40 Pin)

1Same as

E30/HS2/E

50/

E55/ES10

series

(SPC)

VFK1729 Extension Cable

(Main P.C.B. -

Digital I/F P.C.B. /

13 pin / 40 mm)

2Same as

E75V

(SPC)

RFKZ0240 Extension Cable

(Main P.C.B. -

Digital I/F P.C.B. /

19 pin / 40 mm)

2Same as

E75V

(SPC)

RFKZ0178 Extension Cable

(Main P.C.B. -

Digital I/F P.C.B. /

7 pin / 40 mm)

1Same as

E75V

(SPC)

RFKZ0215 Extension Cable

(Main P.C.B. -

Front Jack P.C.B. /

12 Pin)

1Same as

DMR-

E55/E75V

series

(SPC)

RFKZ0238 Extension Cable

(Main P.C.B. /

Digital I/F P.C.B. -

FL Drive P.C.B. / 8 Pin)

1Same as

E75V

(SPC)

RFKZ0239 Extension Cable

(Digital I/F P.C.B. -

FL Drive P.C.B. / 10 Pin)

1Same as

E75V

(SPC)

for VHS

VFJ8125H3F PAL VHS Alignment Tape 1Same as

E75V

(SPC)

VFK0329 Post Adjustment Screwdriver 1Same as

E75V

(SPC)

VFK0330 Fine Adjustment Gear Driver 1Same as

E75V

(SPC)

118

DMR-EH80VEG / DMR-EH80VEB

28 DIAGRAMS FOR PRINTING A4 SIZE

28.1. BLOCK DIAGRAM FOR PRINTING A4 SIZE

22 INTERCONNECTION DIAGRAM

MAIN P.C.B.

TU7402

DVD TUNER

TU7403

RF CONVERTER

TU7401

VCR TUNER

PK7403

PK7404

NICAM DVD

PK7402

PK7401

NICAM VCR

(SYSCON / SERVO / TIMER)

VCR MECHANISM

CYLINDER

STATOR PCB

CAPSTAN

PCB

P4001

FULL E

P5001

A COM

L EP R

SP COM

SP R

SP L

LEPL

LEPCOM

P4002

CTL HEAD [+]

CTL HEAD [-]

A HEAD [R]

A HEAD [W]

N A GND

A E IN

P1531

LOADING M [-]

LOADING M [+]

P2901

PG+

PG-

CAP VM

GND

FG1

COM

GND[FG]

CAP R/F

M GND

P0201

P2501

P2571

FRONT JACK P.C.B. FL DRIVE P.C.B.

05 08

06 07

07 06

08 05

09 04

04 09

02 11

03 10

PS6002

PP4600

01 12

KEY 1

5V[AD]

VIDEO IN2

KEY 2

L2 IN[L]

L2 SW

L2 IN[R]

CPN C IN2

GND

CPN Y IN2

GND

JK4600

JK3802

PP7503 PP750

01 01

F-

GND

F+

GND

LED4

GND

LED5

FL_CLK/LED1

LED6

GND

LED7

FL_DATA/LED2

GND

FL_CS/LED3

PS6001 PS375

JK3902JK3901 JK4901

FAN

P6001

GND

AV2_R_IN

AV2_B_IN

I2C3_DT/SW2

I2C3_CK

GND

VREF

PS5V

IECOUT

X_SW12V

X_SW5R8V

P9101

P6002

BPBOUT_DM

RPROUT_DM

----

DGND

AADC_R

AADC_L

GPYOUT_DM

GND

YOUT_DM

GND

COUT_DM

GND

V_YIN_DM

GND

CPNCIN_DM

GND

MGND

XSW_17V

P9102

FANL O

FAND C

P_SAV

DR_GN

GND

X_SW1

DR5V

X_SW5

DR_GN

X_SW5

DR_GN

DR12V

X_SW1

DR12V

P6003

I2C5DT

----

SLICER_V

SYNC_DET

D_POFF/JC_PON

SWIDE/AFC

VSYNC

I2C5CK

----

AU5V

DVD_L_OUT

AU_GND

DVD_R_OUT

VTR_SIN

VTR_SCLK

GND

VTR_SOUT

---

P9103

P6004

RGB_CPSVIN

GND

AV2PB

WIDE

P50OUT

P50IN

AV2_P50_H

AV2-8

AV2_BLANK

A3_SIN

GND

COMN_MUTE

P9104

AD5V

P_SAVE

VTR_CS

----

GND

REMOCON

FL6V / SST6V

P9105

P6005

POWER P.C.B.

P11101

P11001

P12002

P12001

DMR-EH80VEG / DMR-EH80VEB

119

DMR-EH80VEG

DMR-EH80VEB

INTERCONNECTION DIAGRAM

DIGITAL I/F P.C.B.

DVD RAM DRIVE

SD CARD / DV IN P.C.B.

.B.

M GND

GND

12V

P101

P9106

53 BSON

DGND

D5V

COUT_DM

BILING_L

DGND

ANA5V

YOUT_DM

DGND

ANA3R3V_A

MIX_ROUT_DM

STEREO_L

MIX_LOUT_DM

ANA3R3V_B

AUGND

IECOUT

D1R5V

AUGND

CPN_CIN_DM

A_DEF_MUTE_H

D1R5V

AADC_L

V_YIN_DM

P_OFF_L

D1R5V

AUGND

DGND

EPG_ON_H

D1R5V_B

AUGND

RGB/CPS_VIN

NET_PON_H

CSYNC_IN

2AADC_R

DGND

HIFEBL

D1R5V

2AADC_L

B_IN

XSH_RES

D3R3V

VREF

DGND

HIFRDY

D3R3V

AU5V

G_IN

XFWE

D3R3V

XD_MUTE_L

DGND

BOOT_REQ

D3R3V

ITA2M

R_IN

XMPREQ

PRGSEL

ITM2A

DGND

SBMTP

SBMTM

X_SW_5R8V

UARTP2M

BPBOUT_DM

XINTM

X_SW_5R8V

UARTM2P

DGND

SCLK

X_SW_5R8V

SCURVE1/I2C3CK

GPYOUT_DM

XINTP

NET4R4V

SCURVE0/I2C3DT

DGND

I2C5CK

NET4R4V

I2C5DT

RPROUT_DM

DGND

D1R5V

AADC_R

DGND

PS37502

05 05

06 06

07 07

04 04

02 02

03 03

PP7501

01 01

FL_CS/LED3

FL_RST

GND

FL_6V

FL_CLK/LED1

FL_DATA/LED2

AD5

KEY_IN3

KEY_IN2

KEY_IN1

05 05

06 06

07 07

08 08

04 04

02 02

03 03

PP7502

01 01

GND

LED4

LED5

LED6

LED7

GND

PS37501

HARD DISC DRIVE

JK35001 JK73701

FANLOCK

FANDCOUT1

FANDCOUT2

P_SAVE_L

DR_GND

GND

X_SW12V

DR5V

X_SW5R8V

DR_GND

X_SW5R8V

DR_GND

DR12V

X_SW17V

DR12V

P15001

P15002

P3203

FFC 40pin

P3202

FFC 40pin

FP101

FFC 40pin

P66803

P66804

P66802

P15003

DIGITAL P.C.B.

POWER

87 88

DD13

DD1

DD14

DD0

DD15

GND

---------------

DMARQ

GND

/DIOW

/DIOR

GND

IORDY

/HRST

CSEL

GND

DMACK-

DD7

GND

DD8

INTRQ

DD6

---------------

DD9

DA1

DD5

----------------

DD10

DA0

DA2

DD4

/CS1FX

DD11

/CS3FX

DD3

/DASP

DD12

GND

DD2

GND

IORDY

GND

DIOR-

GND

DIOW-

GND

DMARQ

---------------

GND

DD15

DD14

DD1

DD13

GND

DD2

DASP NC1

DD12

CS1-

DD3

CS0-

DD11

DA2

DD4

DA0

DD101

---------------

DD5

DA1

DD9

DD6

---------------

DD8

INTRQ

DD7

GND

DMACK-

RESET-

CSEL

DD0

P66801

FFC 15pin

TPB-

TPB+

TPA-

GND

TPA+

PS37002

CMD

GND

3R3V

CLK

GND

DAT0

---------------

DAT1

---------------

DAT3

DAT2

P6005

DMR-EH80VEG / DMR-EH80VEB

120

23 BLOCK DIAGRAM

23.1. POWER SUPPLY BLOCK DIAGRAM

D11403

231

RAC

(ERROR VOLTAGE DET.)

IC11301

(FEED BACK)

Q11301

VCC

VIN

7B2

GND

IC11201

F/B

COLLECTOR

SW TRANSFORMER

T11101

RECTIFIER

D11101,C11103

L11102

VA11101,L11101

250V2A

F11101

ABSORBER

SURGE

AND

SUPPRESSOR

SURGE

(SWITCHING IC)

P11101

AC SOCKET

D11203

D11204D11205

HOT COLD

DMR-EH80VEG / DMR-EH80VEB

121

DMR-EH80VEG

DMR-EH80VEB

POWER SUPPLY

BLOCK DIAGRAM

XSW +12V

5,6,7

P15001P11001

XSW +5.8V

BLOCK SECTION

I/F REGULATOR

DIGITAL

2,3,4

P15001P11001

X SW +17V P11001 P15001

IP11501

IC11501

(DC-DC CONVERTER)

VIN

8CS

(REG.XSW +5.8V)

Q11501

D11403

OLTAGE DET.)

D11401

D11402

FB 5

21EXT 7

DMR-EH80VEG / DMR-EH80VEB

122

23.2. DIGITAL I/F REGULATOR BLOCK DIAGRAM

8CS

(DR P ON OUT)

QR15001

BLOCK SECTION

POWER SUPPLY

FROM

IC37501-

DRIVE POWER ON

IC37501-

POWER ON

XSW +5.8V

2,3,4

P15001P11001

(DR +12V SELECT SWITCH)

Q15001

(POWER ON OUT)

QR15004

(DC-DC CONVERTER)

IC15004

(DC-DC CONVERTER)

IC15003

FBON/OFF

VIN

(REG.D +1.5V)

Q15003

(DR P ON OUT)

QR15002,15005

EXT

ON/OFF

VIN

Q15002

(REG.DR +5V)

IP15001

(POWER ON/ OUT)

QR15003

ON/OFF

VOUT1

IC15002

(REG.D +3.3V)

VIN

XSW +12V

XSW +17V

P11001 P15001

5,6,7

P15001P11001

Q15007

EXT

DMR-EH80VEG / DMR-EH80VEB

123

DMR-EH80VEG

DMR-EH80VEB

DIGITAL I/F REGULATOR

BLOCK DIAGRAM

IC37501-

FROM

MAIN P.C.B.

FL DRIVE P.C.B.

DIGITAL P.C.B.

DVD-RAM DRIVE

DIGITAL P.C.B.

MAIN P.C.B.

DRIVE UNIT

CAPSTAN

XSW +5.8V

ANA +3.3V

ANA +5V

D +1.5V

XSW +5.8V

DR +12V

DR +5V

AU +5V

D +3.3V

XSW +12V

XSW +17V

3,41,2

P31905

1,7

PS37502

4,7

P39702

48,52

P39702

76,82,84,86,88

P31901

1,2

P15003

P39702

68,70,72,74

P31901

3,4

P31902

IP37501

15IC37501-

CONT

VOUT1

IC37504

VIN

(REG.+3.3V)

ON/OFF

VOUT1

IC31502

VIN

(REG.ANA +3.3V)

ON/OFF

VOUT4

IC31510

VIN

(REG.ANA +5V)

VOUT4

IC45001

VIN

(REG.AU +5V)

P9001

P6005

PP7501

P102

P9001

P6001

P6002

P6001

DMR-EH80VEG / DMR-EH80VEB

124

23.3. SYSTEM CONTROL, SERVO & TIMER BLOCK DIAGRAM

CAP TL

CAP FG

+5V

PB CTL

VCC +5V

PG OUT

PG-

PG+

(S-REEL SENSOR)

IC1512

CTL HEAD(+)

CTL HEAD(-)

COIL

COILS

MOTOR

CYLINDER

SENSOR


TAKE-UP

Q1501

LED

SENSOR

D1501

SENSOR


SUPPLY

Q1502

TAB SW

SAFETY

S1531

+5V

(T-REEL SENSOR)

IC1511

TL23

TL24

80 T.REEL

79 S.REEL

27 SAFETY TAB

7 S.PHOTO

8 T.PHOTO

MODE

S1532

SW4

SW3

SW2

SW1

SW4

SW3

SW2

SW1

30 POSITION SW4

POSITION SW331

32 POSITION SW2

POSITION SW133

PB CTL OUT

EX.FF/REW

TW2002

P4002

P4002HEAD

CONTROL

COMPOSER

FG/PG

AMPLIFIRE

DIFFERENTIAL

PFG9018

CYL ET

CTL AMP REF96

O PEF91

UNLOADING

FG. AMP. IN

FG. AMP. OUT

7714

AMPLIFIRE

DIFFERENTIAL

COM

+++

AMPLIFIRE

DIFFERENTIAL

SELECTOR

GENERATOR

SIGNAL

DRIVE

MOTOR

PRE-DRIVE

DRIVE

MOTOR

P1531

OUT 2

OUT 1

AMP

PRE-DRIVE LOGIC

CONTROL

RIN

FIN

(LOADING MOTOR & CYLINDER MOTOR DRIVE)

IC2501

HEAD

CAPSTAN

P0201 P2571

TL2015

(SYSTEM CONTROL/SERVO/TI

IC6001

CAP R/F

CAP ET

CURRENT LIMIT

TL2502

P2571

P0201

+15.5V

XSW

ED/S

POWER

HALL

SELECT

DIRECTION

TORQUE

PROCESS

SIGNAL

POSITION

AMP

DEF

AMP

CONTROL

TORQUE

AMPLIFIRE

DIFFERENTIAL

DRIVE

MOTOR

VH+

H2+

H2-

H1+

H1-

H3+

H3-

HALL

COILS

MOTOR

CAPSTAN

(CAPSTAN MOTOR DRIVE)

IC0201

DMR-EH80VEG / DMR-EH80VEB

125

DMR-EH80VEG

DMR-EH80VEB

SYSTEM CONTROL / SERVO & TIMER

BLOCK DIAGRAM

IC3002 , QR4501, IC3906 , IC7402

5 5 5

P. C . B .

DIGITAL I/F

TO/FROM

TL6002

+6V

TL600434RESET

FRONT JACK P.C.B.

P31905P6005

112

103

PP4600

PS6002

P6003

P31903

P31905P6005

+5V3

IC7801

1IR

(REMOTE CTL.RECEIVER)

14REMOCON

VHS KEY 1 5

VHS KEY 2 6

STOP

S7801

FFPOWER

S7802

CH-UP

S7805S7806

S7813 S7812 S7810

PLAY REC EXT_LINK_D EXT_LINK_V

S7809

EJECT REW

S7808 S7807 S7803

CH DN

TIMER BUS CLK 70

TIMER BUS DATA IN 69

IIC CLK 71

TIMER BUS DATA OUT 68

15TIMER CS

POWER

FROM

HEAD(+)

HEAD(-)

IC6202

4 OUT

(RESET)

X SW+5.8V+5V

(SWITCHING REG.+5V)

IC6302

INOUT 4

PON 75

SST 6V5V(D) 37

(12MHz)

X6001

(32KHz)

X6002

12MHz OUT 39

12MHz IN 38

32KHz OUT 36

32KHz IN 35

ETY TAB

OTO

ITION SW4

ITION SW3

ITION SW2

ITION SW1

TL OUT

F/REW

AMP REF

OADING

DING

MP. IN

MP. OUT

(SYSTEM CONTROL/SERVO/TIMER)

R/F

RENT LIMIT

IIC DATA 72

IC37501

IC4501

, IC3901

, IC6101

, TU7401

, IC3001

DMR-EH80VEG / DMR-EH80VEB

126

23.4. AUDIO BLOCK DIAGRAM

XTMUTE_L

IC37501 63

FROM

INTERFACE

QR4502/QR4504

QR4501

QR4503/QR4505

IC3901

DAC Rch

DAC Lch

AV1 Rch

AV1 Lch

53 AV2 Rch

61 AV2 Lch

JK3901

JK3902

21 PIN JACK

AUDIO IN ch2(R)

AUDIO IN ch1(L)

AUDIO IN ch2(R)

AUDIO IN ch1(L)

BUFF.

AV4

TUN

(SA5R)

50 AV3 Rch

LINE

(Rch)

LINE

(Lch/MONO)

AUDIO

JK4600

FRONT INPUT JACK

AV3

(FRONT) AV3 Lch

BUFF.

(SA5L)

TUN

AV459 TUN_2 Lch

TUN_2 Rch

TUN Rch

62 TUN Lch

PS6002

P6003

PS6002

PP4600

P31903

PP4600

76 RF OUT MUTE VCA +

MIX

P93702

FROM

DIGITAL

P. C . B .

IEC OUT

4.5V Max

5.6Vpp

AV1

(TV)

(DECODER/EXT)

AV2

AUDIO SIGNAL

SECTION

CONTROL

SYSTEM

FROM

IC6001

COM_MUTE

QR4910,QR4908

MUTE

AUDIO 5

RF CONVERTER

TU7403

TUNER

TU7401

TUNER

TU7402

143

138

Nicam Decoder(B) P.C.B.

Nicam Decoder(A) P.C.B.

(NICAM DECODER)

IC7301

OUT R

MONO IN

SIF PK7302

PK7402PK7302

PK7402

PK7401

PK7301PK7401

PK7301

3OUT L

AUDIO

TUNER 14

15SIFOUT

VHS

(NICAM DECODER)

IC7301

OUT R

OUT LMONO IN

SIF PK7302

PK7404PK7302

PK7404

PK7301

PK7403

AUDIO

TUNER

15SIFOUT

DVD

IC4501

P6003P31903

DMR-EH80VEG / DMR-EH80VEB

127

DMR-EH80VEG

DMR-EH80VEB

AUDIO

BLOCK DIAGRAM

(SA1R)

(SA3R)

(SA2R)

BUFF.

AV4

TUN

(SA5R)

OUTPUT

SELECT SWITCH

(SA4R)

(SA2L)

(SA3L)

(SA1L)

BUFF.

(SA5L)

TUN

AV4

VCA +

MIX

AGC ADC Rch

AMP

LPF

BUFF.

MUTE

BUFF.

LPF

MUTE

BUFF.

LPF

ADC Lch

AMP

AGC

MUTE

BUFF.

LPF

AV1 Rch

ADC Rch 79

AV2 Rch 74

AV2 Lch 73

ADC Lch 78

AV1 Lch 71

IIC CLK

IC37501 28

IIC DATA

IC37501 29

FROM

INTERFACE

SCL 88

SDA

IIC BUS

LOGIC

JK3901

JK3902

21 PIN JACK

AV1

(TV)

AV2

(DECEODER/EXT)

P39702

DIGITAL

P. C . B .

LINE OUT

(L)

LINE OUT

(R)

JK35001

REAR JACK

AUDIO OUT Ch1(L)

AUDIO OUT Ch2(R)

AUDIO OUT Ch1(L)

AADC R

AADC L

IC34001

(OPTICAL AUDIO BUFFER)

JK4901

OPTICAL

(DIGITAL AUDIO OUT)

:REC SIGNAL :PB SIGNAL

2.3V

1.0V

OUTPUT

SELECT SWITCH

(SA4L)

AV4

P6001

P31901

DMR-EH80VEG / DMR-EH80VEB

128

23.5. VIDEO BLOCK DIAGRAM

(REAR JACK)

JK3901

AV1

AV2

AV1 V

AV2 V

AV2 Y

AV2 C

AV3 V

AV3 C

AV3 Y

P. C . B .

DIGITAL

FROM

AV2 S IN

IC37501-

P6004 P31904

VIDEO IN

(DECODER/EXT)

VIDEO IN

(TV) 14

PS6002PP4600

AV3

(FRONT JACK)

JK4600

VIDEO IN 7

PS6002PP4600

695

IC37501-

AV3 S IN

DIGITAL I/F TIMER SECTION

FROM

DIGITAL I/F TIMER SECTION

P31904P6004

PS6002PP4600

S-VIDEO IN

(FRONT JACK)

JK3802

(REAR DVD JACK)

JK35001

S-VIDEO OUT

(BLUE)

(GREEN)

(RED)

OUT

VIDEO

BPBOUT DM

GPYOUT DM

RPROUT DM

P39702P9001

C OUT DM

Y OUT DM

2dB

4dB

IC35005

(VIDEO BUFFER)

LPF

6.75MHz

LPF

6.75MHz

LPF

6.75MHz

LPF

6.75MHz

8dB

LPF

6.75MHz

P6002P31902

P39702P9001

DMR-EH80VEG / DMR-EH80VEB

129

DMR-EH80VEG

DMR-EH80VEB

VIDEO 1/2

BLOCK DIAGRAM

V/Y IN DM

CPN CIN DM

Q6101

Q6102

P. C . B .

DIGITAL

P6002

AV2 C

AV2 Y

AV2 V

AV3 V

AV3 C

AV3 Y

AV1 V

EXT CTL1

EXT CTL3

(SYSTEM CONTROL)

IC6001

BUFFER

BUFFER59SECAM MIX

52 C V INC V OUT

Q6103,Q6104

BUFFER

7 D

(V SELECT SW)

IC3904

(Y SELECT SW)

IC3903

IC3902

(C SELECT SW)

DVD

U/V TUNER

TU7402

Q7403

BUFFER

P39702

(REAR JACK)

JK3902

COMMON OUT

DVD/VHS

VIDEO OUTVCR Y

CLAMP43

CLAMP39

CLAMP35

CLAMP37

CLAMP45

CLAMP41

CLAMP33

CLAMP47

(SW9)

OUT

AV4

I/F TIMER

SECTION

DIGITAL

FROM/TO

IIC CLK

IC37501-

Q33501,Q33505

SLICER

29IC37501-

IIC DATA

1.0V

2.3V

CLAMP V

TUNER

LOGIC

IIC BUS

SDA 89

SCL 88

SLICER 85

OUT

ADC

V/Y

OUT

C-ADC

TUNER V

AV2 C

AV2 Y

AV2 V

AV3 V

AV3 C

AV3 Y

AV1 V

CIRCUIT

SWITCH

SELECT

OUTPUT

ADC

(VIDEO PROCESSOR)

IC3901

LPF

6.75MHz

CLAMP

BPF

6.75MHz

BIAS

P31902

P9001

P31902 P9001

VIDEO OUT

DMR-EH80VEG / DMR-EH80VEB

130

C3005,R3003,L3001

FILTER

PEAKING

Q3002

BUFFER

IC4501-

FSC

AUDIO SECTION

IC6001-

FSC

SYSTEM CONTROL SECTION

3.58MHz

U/V TUNER PACK

TU7401

VIDEO OUT

VTR

IC3001

(AUDIO/VIDEO SIGNAL PROCESSOR)

ATP

EXT

INT

X3002

EMPHASIS

NON-LINEAR

DEH

COMPARATOR

PHASE

TRAP-NC

HP-NC

REDUCTION

Y-NOISE

DELAY

Y-CCD

LPF

GCL

GCL35

DO/REC

SQPB

Y-LPF

GCL

TO C CCD

EXT

P-EQ

SQPB

DRIVER

C CLOCK

2FSC

OSCILLATOR

VCO

X'TAL

PB AGC+APL

REC FBC+ALC

INT

ADJUSTMENT

fo/DEVIATION

ET LPF

MODULATION

FILTER

REC

DE-EMPHASIS

MAIN

ACC DET

CHROMA

ACC DET

W.C/D.C

CARRIER OFFSET

MAIN EMPHASIS

ACC SW

TRAP

629MHz

REC APC

LPF

SUB

KILLER

SQPB

PB APC

DEMO

APC SW

AGC

SQPB

DLIM

DE-EMPHASIS

NON-LINEAR

VIDEO ALC

G-EQ

CLAMP

FEED BACK

SYNC

CLEAR

ACC

LPF

2MHz

HPF

-10dB

ATT

-10dB

ATT

-10dB

ATT

-6dB

ATT

-4dB

ATT

AGC

VIDEO

DMR-EH80VEG / DMR-EH80VEB

131

DMR-EH80VEG

DMR-EH80VEB

VIDEO 2/2

BLOCK DIAGRAM

SYSTEM CONTROL SECTION

FROM

SYSTEM CONTROL SECTION

TO/FROM

IC6001-

HEAD SW

HSW

CLOCK

DATA

IC6001-

IIC DATA

IC6001-

IIC CLOCK

ENVE

VIDEO

TW3001

:DVD VIDEO EE SIGNAL

LP/EP R

LP/EP COM

LP/EP L

SP R

SP COM

SP L

VIDEO HEAD

DD CYLINDER

TO/FROM

VIDEO HEAD

DD CYLINDER

TO/FROM

P5001

EXT

INT

EXT

INT

FILTER

REC

ACC SW

APC SW

SYNC

CLEAR

MHz

INT

EXT

VCA

MUTE

REC

DELAY

C-

FREC TRAP

Hi-Fi TRAP

REC TRAP/

ADJUST

LEVEL

MIX

B.E

ACC

CHROMA

C-ACC:ON

CTL TRAP

fh HPF

THROUGH

KILLER

COLOUR

TRAP

FREC

LPF

CCD

C CCD

29V-AMP

SQUELCH

C-

C LPF2

AMP

6dB

CONV DELAY

4.43PAL MPAL

ERASE

PILOT

VCA

B.D

BPF

ADD

PILOT

C LPF1

CONV 1

MAIN

CONV 2

MAIN

KILLER

COLOUR

CONVERTER

NTSC/PAL

SQUELCH

CH1

CH2

CH1

CH2

EP1

EP2

SP1

SP2

:PB SIGNAL:REC SIGNAL

DMR-EH80VEG / DMR-EH80VEB

132

23.6. DIGITAL I/F P.C.B. BLOCK DIAGRAM

93FL RESET

101

102

104

LED 1 84

85LED 2

KEY_IN1

KEY_IN2

KEY_IN3

PFAIL_L 12

IC37501

IC 37503

SYS_PFAIL_H 81 INV.

QR37502

IC 37505

(LPF)

X37501

X37502

XCIN

LP2FSC

LP3FSC

LP4FSC

XCOUT

XOUT10MHZ

XIN10MHZ

21 125HZ

TL37503

P31903

2107 VTR_S_IN

116

P31903

41VTR_S_CLK

IIC_CLK

SCL

SDA

/WC

IIC_DAT

EEPROM_W/C

IC37502

TL9720

TL9718

TL9719

P31905

22REMOCON

P6003

P6005

TO/FROM

SYSCON/SERVO/

TIMER MAIN

IC37502

XRESET

+5V

23 FAN_PWM_OUT

X_SW12V

P12002

P12001

P11001

P15001

P11001

13 13

52 FAN_LOCK

FAN MOTOR 1

FAN MOTOR 2

Q12001

Q37001

Q37002

FANLOCK

FANDCOUT1

FANDC

OUT2

IC37001

(FAN MOTOR DRIVE)

P12002

VTR_S_OUT

DMR-EH80VEG / DMR-EH80VEB

133

DMR-EH80VEG

DMR-EH80VEB

DIGITAL I/F PCB

BLOCK DIAGRAM

PS37502 PP7501

SDAT A

SCK

RESET

PP7501

PS37502

PP7503PS6001

PP7503

PS6001

VCC2

VCC1

AD +5V

D7501

DUB

DVD

D7504

D750

VHS

HDD

QR7501

QR7504

QR7506

QR7505

OPEN/CLOSE H2V

PP7501

PS37502

PP7501PS37502

S7501 S7510

PLAV20 Y

S7505S7514 S7504

CH UP

PS37502 PP7501

3S7506S7515

RECD2V STOP

S7503 S7502

S7509

CH DOWN

SELECT

S7513 S7512

D2H V2H H20

S7511

SEG00

SEG35

DIG00

DIG17

DP7501

10G

29 P1

P19

62 F-

F-

F+

PP7503

PS6001

DVD OPERATION KEY

FL DRIVE

TO/FROM

SYSCON/SERVO/

TIMER MAIN

AD +5V

505

D3R3V

TO/FROM

SYSCON/SERVO/

TIMER MAIN

PP7501PS37502

PP7501

IC7502

PS37502

PS37501

PP7501

PP7502

DMR-EH80VEG / DMR-EH80VEB

134

28.2. SCHEMATIC DIAGRAMM FOR PRINTING A4 SIZE

24 SCHEMATIC DIAGRAM

24.1. POWER SUPPLY

Note:

Important Safety Notice:

Components identified with the mark have

the special characteristics for safety.

When replacing any of these components

use only the same type.

Marked $ (spare) parts are not assembled

P11101

ZA11101 ZA11102

F11101

VA11101

C11110

R11101

L11102

V11107

C11106

C11105

L11101

D11101

LB11101

T11101

LB11401

C11103

LB11102

D11104

D11103

R11106

R11107

R11104

C11108

R11103

C11102

LB11103

C11401

LB11402

R1130

Q11301

C1130

D11203

R11204

R11205

C11204

D11202

LB11201

IC11201

C11201

D11102

R11203

D11204

R11206

R11207

D11205

R11210

R11209

R11208

R11201

C11202

R11202

D11201

R11105

*C11205

ZA11006

ZA11005

COLDHOT

DMR-EH80VEG / DMR-EH80VEB

135

C11406

LB11401 D11401 L11401

D11402

P11001

X_SW17V

X_SW5R8V

X_SW12V

GND

DRGND

FANLOCK

FANDCOUT1

FANDCOUT2

C11509

C11401

D11403

LB11402

C11407

C11402

L11403

L11402

R11401

R11402

R11403

R11404

R11405

R11406

R11407

R11408

R12001

Q12001

P12002

FANDCOUT1

GND

FANLOCK

L11501

Q11501

R112502

R11501

IC11501

IP11501

R11308

R11304

R11301

R11302

C11303

C11301

$R11303

C11302

R11305

R11306 $

R11307

IC11301 R11311

$R11312

R11309

R11310 $

C11501

C11502

C11503

C11504

R11505

C11505

C11506

D11501

D11502 $

R11504

LB11501

R11503

C11507

C11508 $

P12001

FANDCOUT2

GND

FANLOCK

C11403 C11404

C11405

DMR-EH80VEG

DMR-EH80VEB

POWER 1/2

SCHEMATIC DIAGRAM

DMR-EH80VEG / DMR-EH80VEB

136

Note:

Marked $ (spare) parts are not assembled

HDD_PFAIL

DR_P_ON_H

GND

X_SW12V

X_SW5R8V

X_SW17V

P15001

X_SW17V

X_SW5R8V

X_SW12V

GND

DR_GND

FANLOCK

FANDCOUT1

FANDCOUT2

P_SAVE_L

FANDCOUT2

FANDCOUT1

FANLOCK

D3R3V

D1R5V

P_ON_H

QR15003

C15008

C15009

C15010 0.01

C15011 390P

C15012

4700P

K15001

C15100

QR15004

R15026

10K

IC15002

R15001

4700

R15027

4700

QR15001

R15004

C15013

1000P

R15005

100K

D15001

QR15007

R15008

C15016

$C15015

10V680

R15007

560

R15009

R15006

2700

L15003

C15014

C15033

Q15001

C15001

16V120

IP15001

C15018 0.1

C15019 0.1

C15017

C15020 *

DMR-EH80VEG / DMR-EH80VEB

137

DMR-EH80VEG

DMR-EH80VEB

POWER 2/2

SCHEMATIC DIAGRAM

C15001

16V120

5001

C15018 0.1

C15019 0.1

C15017

C15020 *

R15010

51K

C15021

180P

IC15003

R15011 *

Q15002

C15002

R15002

10K

QR15005

QR15002

L15004

LB15005

R15012

2700

R15013

12K

C15022

0.01

D15002

R15014

4700

C15023

$C15024 *

IC15001

C15004

R15003

L15001

L15002

C15005 *

C15006 *

C15007 *

C15029

27P

R15016

33K

C15025

C15026 0.1

C15027 0.1

C15028

IC15004

R15015

47M

Q15003

LB15004

LB15003

LB15002

LB15001

TO HDD

P15002

TO DVD

P15003

DR12V

DR_GND

DR5V

DR_GND

DR5V

L15005

R15018

1500

LB15006

C15030

D15003 D15004

$R15017

5600

R15019

3900

C15031 $

C15032 10V680

DMR-EH80VEG / DMR-EH80VEB

138

24.2. DVD OUTPUT

Note:

Marked $ (spare) parts are not assembled

IF DVD_R_OUT

IF AU5V

IF P_ON_H

IF X_SW5R8V

X_SW12V

AUGND

DVD_L_OUT

MIX_R_OUT

MIX_L_OUT

WIDE_H

COUT_DM

ANA5V

YOUT_DM

GPYOUT_DM

GND

BPBOUT_DM

RPROUT_DM

IF L3_H_RGB_H

K45010

C45003

C45001

0.1

C45002

L35001

C35019

C35017

*C35018

IC35004

C45004

K45001

IC45001

R45001

100

C45005

C45006 0.1

C45007

0.1

R45002

R45003

IC45002

C45008

K45002

C45019

1000P

R45019

1K R45004

R45005

C45010

C45020

1000P

IC45003

R45018

R45007

R45008

C45012

R45009

47K

C45013

C45014

R35031

*C35020

C35021

C35022

C35023

R35032 $

C35024

C35025

C35026

C35027

QR35007

R35026

R35027

QR35008

K45

R45006

47K

DMR-EH80VEG / DMR-EH80VEB

139

DMR-EH80VEG

DMR-EH80VEB

DVD OUTPUT

SCHEMATIC DIAGRAM

XTMUTE_L

XDMUTE_L

MUTE_L

BBR_EURO

C45014

022

023

32 $

024

025

R35027

QR35008

K45009

K45008

K45007

K45005

K45003

QR45001

IC35005

R45014

10K

R45015

10K

QR45007 QR45008

QR45006

D45001

QR45009

R45012

*QR45002

R45010

QR45004

C45015

R45011

QR45003

QR45005

C45016

R45013

C35028 *

C35029 *

C35030 *

C35031 *

C35032 *

C35033 *

R35021

R35020

R35019

R35018

R35017

R45017

R35015

R45016

LB45101

C45018

LB35101

LB45102

C45017 $

LB35102

LB35103

LB35104

LB35105

LB35106

DVD_R_OUT

DVD_L_OUT

DVD_V_OUT

DVD_CPN_OUT

JK35001

DMR-EH80VEG / DMR-EH80VEB

140

24.3. INTERFACE

Q37001

C37001

C37002 *

L37101

LB31903

ZJ37301

ZJ37303

ZJ37305

K31998

C31535

R31503 R31502

IC31510

C31536 C31537 $

R31501

R37003 R37004

IC37001

LB31902

Q37002

(TO MAIN)

P31901

R37001

D37001

D37002

R3702 *0

SCURVE1

SCURVEO

LB34002 R34011

IECOUT

C31902 *

(TO MAIN)

P31902

AADC_L

AADC_R

RPROUT_DM C33735 *

C33740 *

C33738

BPBOUT_DM

GPYOUT_DM

YOUT_DM

COUT_DM

V_YIN_DM

CPNCIN_DM

C31901

LB33501 *

LB33502 *

SW_UART

RST_UART

K31999

D37003

C37003

Q33502

C33501

Q33501

K33501

R33502

R33501

R37714

IC37702

R37704

K37703 *

R37711 *

D37503

L37501

C37100 $

R37596

IC37505

R37597

C37

QR37502

C37625

K37597

IC37703

LB31505

IP37501

IC31502

D31501

C31511

C31512

R31513

C31503

IC37504

R31512

C31507

C31527 $

C37507

C37508

K31995

R37648 $

C37606 $

C37605 $

C37579

C37581

C37582

R37584

R37583

R37530

R37531

R37532

R37533

C37584

X37501

C37580

R33707

IECOUT R34004 $

LB34001

QR33701

C37635 $

C37636

K37505 $

LB37105

C34001 $

IC34001

R34001

C34002 $

R34003 $

R34002

LB37108

LB37109

C37104

C37105

L31501

C31501

C37106

LB37107 $

C39003

LB34003

LB37104

LB37409 *

R37585

C37107

P39702

LB37101 *

R37599

IC37502

C37504

C37101 $

C37102 $

C39002

C39001

C34004

C34003

K39704

CPNC IN_DM

V_YIN_DM

BPBOUT_DM

R34008

R34009

GPYOUT_DM

RPROUT_DM

COUT_DM

YOUT_DM

AUGND

AADC_R

AADC_L

AU5V

ITA2M

ITM2A

SCURVE1

SCURVEO

K33701 *

K33702 *

LB37102 *

LB37103 *

SP FANDCOUT2

DO SP

X_SW17V

X_SW5R8V

X_SW12V

FANDCOUT1

FANLOCK

DO BBR_EURO

DOSP GND

SP D3R3V

DOSP P_ON_H

SP DR_P_ON_H

SP P_SAVE_L

SP D1R5V

DO MIX_L_OUT

MIX_R_OUT

DO AUGND

AU5V

XDMUTE_L

DVD_R_OUT

DVD_L_OUT

YOUT_DM

COUT_DM

RPROUT_DM

GPYOUT_DM

BPBOUT_DM

GND

SCURVE1/R

SCURVEO/B

I2C5_DT/SW2

I2C5_CK

GND

VREF

PS5

IECOUT

X_SW12V

X_SW5R8V

WIDE_H

AADC_L

AADC_R

L123_SWIDE_B/A2_SIN

DGND

WIDE_H

RPROUT_DM

BPBOUT_DM

GPYOUT_DM

GND

YOUT_DM

GND

COUT_DM

GND

V_YIN_DM

GND

CPNCIN_DM

GND

MGND

X_SW17V

ANA5V

DMR-EH80VEG / DMR-EH80VEB

141

(TO MAIN)

P31903

SYNC_DET

L3_H_RGB_H

I2C3DT

I2C3CK

AU5V

MIX_L_OUT

AUGND

MIX_R_OUT

VTR_S_IN

VTR_S_CLK

VTR_S_OUT

K37511 *

(TO MAIN)

P31904

AV2BP

WIDE

P50OUT

P50IN

AV2-8

(TO MAIN)

P31905

R37506

LB33501 *

LB33502 *

TW37501

D37502

C37617

C37633

R37573 *

K37598

IC37503 *

C37618

C37620

LB33503

R33510

K33502

R33509

C33507

C33506

C33505

R33508

R33506

R33505

Q33504

C33504

R33504

C33503

Q33503

R33507

Q33502

R33511

R33503

Q33505

C33502

C33501

Q33501

K33501

R33502

R33501

R37596

IC37505

R37597

C37626

C37627 $

LB33504

C33508

C37503

C37610

C37603

C37609

C39010 LB37506

K37506 *

K37507 *

QR37502

C37625

37597

C37606

C37605 $

C37579

C37581

C37582

R37584

R37583

R37530

R37531

R37532

R37533

K37502 *

C37583

C37608 $

C37607

R37505

QR37501

R37537

R37559

R37612

VTR_S_CLK

VTR_S_IN

R37558 VTR_S_OUT

AV2-8

R37501

R37582

R37581

R37605

R37606

R37604

R37504 *

R37567 $

R37566 *

R37565 *

R37563 *

R37562 *

R37512 *

R37511 *

(TP FLD)

PS37501

(TO FLD)

PS37502

LB37509

QR37503

C37604

TL37504

P50OUT

P50IN

SW_UART

RST_UART

IC37501

R37538

R37539 *

R37541

R37542

C37587

X37502

R37540

C37588

C37586

C37585

LB37507

C37584

X37501

C37580

R37578

R37577

C37590 $TL37503

C37589

R37600

R37502 *

K37504

R37503 *

R37575

AV2PB

WIDE

R37571

R37572

L3_H_RGB_H

SYNC_DET

TL37509

R37544

R37545

C37635 $

C37636

C37592

R37546

R37547

C37593

I2C3CK

I2C3DT

LB37508

C37595

R37548

R37549 *

R37550 *

R37551 *

C37652

R37556

R37557

R37535

R37534

R37536

C37602

R37561

R37569

R37633

C39011

C37596 *

C37597 *

C37598 *

C37599 *

C37600 *

C37601 *

R37588 *

C37502 *

C37506 *

K37510 *

(TO BS_PACK

NOT FOR MODEL EG, EB)

PP37401

C37546 *

IC37508

R37599

TL37520

TL37519

TL37518

IC37502

C37504

BOOSTER_H

BS_ANT_H

TV_ANT_POW_L

X_SW17V

GND

X_SW5R8V

BSPOW[H] 3V

GND

BS_LEVEL

5R2V

X_SW12V

HDD_PFAIL SP

XTMUTE_L DO

KEY_IN1

KEY_IN2

KEY_IN3

AD5

FL_DATA/LED2

FL_CLK/LED1

FL_6V

FL_CS/LED3

FL_RST

GND

LED7

LED6

LED5

LED4

GND

L3_H_RGB_H

MUTE_L

VSYNC

L123_SWIDE/AFC

DVD_POFF/JC_PON

SYNC_DET

SLICER_VIDEO

L3_H

I2C3DT/IIC_DATA

I2C3CK/IIC_CLK

MUTE_L

AU5V

MIYLOUT_DM

AUGND

MIXROUT_DM

VTR_S_IN

VTR_S_SLK

GND

VTR_S_OUT

TP_H

RGB_CPSVIN

GND

AV2PB

WIDE

P50OUT

P50IN

AV2_P50_H

AV2-8

AV2_BLANK

A3_SIN

GND

SCART_MUTE

AD5V

P_SAVE

VTR_CS

FL_MUTE

GND

REMOCON

SST6V

Note:

Important Safety Notice:

Components identified with the mark have

the special characteristics for safety.

When replacing any of these components

use only the same type.

Marked $ (spare) parts are not assembled

DMR-EH80VEG

DMR-EH80VEB

INTERFACE

SCHEMATIC DIAGRAM

DMR-EH80VEG / DMR-EH80VEB

142

24.4. IO / TUNER

Note:

Marked $ (spare) parts are not assembled

A_DAC_R_IN

REG9V_AR

AV3(FRONT)_L_IN

AV4(REAR)_L/TUNER2_AL_IN

AV1_L_IN(PIN8)

AV2_L_IN(PIN6)

TUNER_AL_IN

VCR_L_IN

A_DAC_L_IN

REG9V_AL

GND_REG

AV1_L_OUT(PIN3)

AV1_R_OUT(PIN1)

AV2_L_OUT(PIN3)

AV2_R_OUT(PIN1)

GND_AR

RF_OUT

ALC_DET

VCC5V_VD

P Y_OUT

VCC5V_RGB

AV1_R/C_OUT(PIN15)

EXT_CTL1

B-Y_OUT

AV1_B_OUT(PIN7)

COMPONENT_Y_OUT

COMPONENT_V_OUT_SAG

MUTE_FIL

AV1_G_QUT(PINE11)

GND_RGB

LINE_Y_OUT

LINE_Y_OUT_SAG

GND_VL

LINE_C_OUT

LINE_V_OUT

LINE_V_OUT_SAG

VCC5V_VL

AV1_V_OUT(PIN19)

AV1_FS_OUT(PIN8)

AV2_V_OUT(PIN19)

GND_VC

TUNER_V_IN

GND GND GND

VCC VCC VCC

REF_GND

SCART_MUTE

PS12V

MIX_R_MUTE

MIX_L_MUTE

AADC_L

AADC_R

AU_GND

C4946

$(16V22)

CPN_C_IN_DM

V_Y_IN_DM

SLICER_VIDEO

V_SYNC

I2C5_CK

I2C5_DT

SYNC_DET

C_OUT_DM

Y_OUT_DM

R_PR_OUT_DM

G_PY_OUT_DM

B_PB_OUT_DM

IO_GND

AV2_V_IN

AV2_R_C_IN

AV2_G_IN

AV2_B_IN

C3901

0.01

C3930

0.01

IC3902

C3931

0.1

C3932

0.01

C3933

0.1

C3934

0.1

C_IN

Y_IN

C3936

0.1

C3935

0.1

IC3903

C3911

6V220

C3912

0.1

C3910

C3909

C3908

C3907

0.01

0.1

C3906

C3905

C3904

R3914

R3917

R3916

R3915 8200

100

0.01

1µ

IC3901

R4927

K4902

C3948

0.1

C3953 0.1

C3947 0.1

0.01C3927

0.1

0.01

0.1

D4901

LB4101

C4942

C4943

C4944 C4945

K4903

C3922

C3921

C3920

C3923 $

C3924

C3925

R3918

C3926

LB3902

C3928

0.1

C3929

6V220

QR3901

C3939

0.1

IC3906

C3937

C3945

0.1

IC3904

C3952

0.1

C3943 0.1

C3946

0.1

C3938

1µ

P_SAVE

X_SW_5R8V

X_SW12V

PS5V

PB_C_OUT

VCR_V_Y_OUT

AV3_C_IN

AV3_Y_IN

AV3_V_IN

V_IN

R3934

10K

R4926

4700

QR4914

R4925

4700

K3902

K3901

R3922 6800

C4926 1µ

R3921 6800

C3916 0.1

0.1

0.01

C3915

C3914

C3913 16V10

K3903

Q4901

QR4901 QR4903 QR4904 QR4905 QR4906

QR4902

R4907

R4908

R4909

R4910

R4911

470

R4905

220

R4906

220

R4916 220

220

R4917

R3910

R3911

R3912

R3913

75 [0.5%]

QR4913

QR4910

LB4106

LB4105

C4111 100P

100P

C4112

R3906

R3905

R3904

R3903

LB4104LB4103

C5105 100P

100P

C4106

LB4102 ZJ3101

JK3902

(AV2)

C4104

R4902

C4103

R4901 $(47K)

$(47P)

$(47K)

$(47P)

R4101

1K R4102

1K R3901 75

R3902

JK3901

(AV1)

R4914

C4109

R4915

C4110

$(47K)

$(47P)

$(47K)

$(47P)

R4103

R4104

R3907

D3901

R3908 75

R3909

R3925

QR4908

R4922

470

R4923

470 QR4

C4917

16V10

C4918

16V10

QR3902

R3923

R3924

Q3904

Q3903

R3919

R3920

Q3902

Q3901

C4107

C4108

470P

C4101

C4102

AV2_IN_R

AV2_IN_L

AV2_PB_H

AV2_BLANKING

AV1_IN_R

AV1_IN_L

P50

AV2_P50_H

COM_MUTE

AV3_IN_L

AV3_IN_R

VHS_OUT_L

VHS_OUT_R

FM_MUTE_H

Variations Category

C4921

C4949

C7411

C7432

C7433

C7436

C7437

C7438

C7439

DMR-EH80VEG DMR-EH80VEB

ERJ3GEY0R00V

50V2R2

6V22

16V10

ECJ1VB1H103K

50V2R2

6V47

DE7401

DE7402

K3901

K3902

K7402

L7403

ERJ3GEY0R00V

VWJ0795=5

27µ

VEP07A51B

VEP07A51A

VEP07A51F

LB7407

LB7408

LB7414

Q7402

QR4908

QR4910

QR7402

R4907

R4924

R4927

R7409

R7413

(AV2)

AUDIO OUT R/B

AUDIO IN R/B

AUDIO OUT L/A

GND(AUDIO)

GND (BLUE)

AUDIO IN L/A

BLUE IN

FUNCTION SW IN/OUT

GND(GREEN)

GREEN IN

GND(RED)

GND(BLANKING)

RED/C IN

BLANKING IN

GND(VIDEO OUT)

GND(VIDEO IN)

VIDEO OUT

VIDOE/Y IN

GND

(AV1)

AUDIO OUT R/B

AUDIO IN R/B

AUDIO OUT L/A

GND(AUDIO)

GND (BLUE)

AUDIO IN L/A

BLUE OUT

FUNTION SW OUT

GND(GREEN)

CONTROL OUT

GREEN OUT

GND(RED)

GND(BLANKING)

RED OUT

BLANKING OUT

GND(VIDEO OUT)

GND (VIDEO IN)

VIDEO OUT

VIDEO IN

GND

2SD1819A0L

J0JHC0000032

UNR521300L

UNR521600L

UNR511200L

22K

470

2R2M

100

R7414

R7415

R7434

R7435

TU7401

TU7402

100K

ENG37A17GF

5600

ENG37A08GF

ENG37A14GF

R4924

C4919

C4920

C4921

C4949

C4922

C4923

C4924

C4925

R4903 0

C4927

C4928

C4929

C4930

C4931

C4932

C4933

C4934

C4935

C4936

C4937

C4938

C4939

C4940

C4941

C_ADC

Y/V_ADC

V_SYNC_OUT

VCC5V_VSW

SLICER

C_SYNC_OUT

V_DET_IN

SCL_IN

SDA_IN

V_DET_OUT

ENC_C_IN

V_DET_FIL

ENC_Y_IN

VCC_LOGIC

ENC_R/R-Y_IN

GND_LOGIC

ENC_G/Y_IN

GND_V_SW

ENC_B/B-Y_IN

REG2.5V

[78] A_ADC_L_OUT

[79] A_ADC_R_OUT

[80] GND_AL

[ 1 ] AV2_R/C_IN(PIN15)

[ 2 ] REG2.5

[ 3 ] AV2_G_IN(PIN11)

[ 4 ] GND_VD

[ 5 ] AV2_B_IN(PIN7)

[55] VCR_R_IN

[54] TUNER_AR_IN

[53] AV2_R_IN(PIN2)

[52] AV1_R_IN(PIN2)

[51] AV4(REAR)_R/TUNER2_AR_IN

[36] EXT_CTL3

[35] AV4(REAR)_V_IN

[34] AV1_FB_OUT(PIN16)

[33] AV1_V_IN(PIN20)

[32] AV2_FB_IN(PIN16)

[31] AV2_V/Y_IN(PIN20)

AV3(FRONT)_R_IN

REF4.5V

VCR_C_IN

VCR_Y_IN

VCC11.6V_A

AV3(FRONT)_C_IN

GND

AV4(REAR)_C_IN

VCC_ALL_5V

AV3(FRONT)Y_IN

VCC5V_VC

AV4(REAR)_Y/TUNER2_V_IN

EXT_CTL4

AV3(FRONT)_V_IN

VIN

COUT

GND

DMR-EH80VEG / DMR-EH80VEB

143

DMR-EH80VEG

DMR-EH80VEB

IO / TUNER

SCHEMATIC DIAGRAM

NC GND

COUT NC

VIN

LB7406

C7430

6V47

C7431

0.01

C7465

470P

K7403

DE7401 *

PK7402 $

SCL

SDA

DECODER [R]

GND

DECODER [L]

(VHS)

R7410

R7411

220

C7454

IC7405

C7457

C7456

0.1

C7455

0.1

TUN_V_IN1

TU_AIN

AFC_S

DECODER_L

DECODER_R

IIC_DATA

IIC_CLK

SW12V

DE7402 *

PK7404 $

SCL

SDA

DECODER [R]

GND

DECODER [L]

(DVD)

R7421

R7422

220

C7466

470P

C7453

0.01

C7452

6V47

LB7413

L7401

PK7401

QPSK

GND

TU_AUDIO_IN

R7437

Q7402

R7434

QR7402

K7402

R7403

330

R7404

330

Q7401

R7433

100K

QR7401 R7401

330

R7402

330

C7415

50V1

D7401

K7401

R7407

C7414

6V47

C7422

LB7405

LB7415

0.01

C7411

(VHS)

VIDEO OUT

5V(VIF)

BTL+30VIN

SIF-OUT

AUDIO OUT

AFT OUT

SDA

SCL

RFAGC

5V(TUNER)

BOOSTER+B

TU7401

C7426

470P

C7425

6V47

LB7416

L7403

LB7414

C7476

470P

C7437

C7438

R7414

R7415

C7439

(RF CONV)

LB7410 C7445

6V100 C7446

0.01

(TUNER)

BOOSTER+B

LB7417

DATA

CLK

VIDEO

BTL 30V

TU7403

ANT+B

(5V)

MB(5V)

AUDIO

K7410

K7407

K7408

C7407

C7406

0.1

IC7402

C7404

C7405

0.1

IC7401

C7401

C7402

0.1 C7403

LB7401

LB7402

LB7403

C7441

R7413

K7409 C7428

6V47

C7448

470P

TU7402

K7406

C7477

470P

C7435

6V47

LB7409

C7434

0.01

C7433

C7432

LB7408

LB7407

QR4913

R4922

470

R4923

470 QR4911

QR4912

C4916

L4901

C4915

0.1

C4917

16V10

C4918

16V10

AV3_IN_L

AV3_IN_R

VHS_OUT_L

VHS_OUT_R

FM_MUTE_H

VTR_P_ON_H

X_SW_5R8V

JC_PON

UNREG_38V

JK4901

IEC_OUT

VREF

D_GND

AFC_H3

A_GND

R7408 $

Q7404

R7423 $

C7424

D7402

50V1

K7405

PK7403

QPSK

GND

TU_AUDIO_IN

LB7404

C7417

6V100

C7418

0.01

C7410

R7405

C7412

R7406

C7413

470

33P

470

33P

R7436

L7404 *

R7419

Q7403

R7418

R7420

C7449

6V47

LB7411

C7450

0.01

LB7412

SW2_D

(DVD)

VIDEO OUT

5V(VIF)

BTL+30VIN

SIF_OUT

AUDIO OUT

AFT OUT

7436

SDA

SCL

SW(VIF)

R7435

R7432

C7442

R7416

C7443

R7417

33P

470

33P

470

GND

VCC

VIN

COUT

GND

VIN

COUT

GND

DMR-EH80VEG / DMR-EH80VEB

144

24.5. SYSCON / SERVO / TIMER MAIN

Note:

Marked $ (spare) parts are not assembled

C7901

0.01

R7901

560

L7901

100µ

UNREG_38V

PS6001

F-

F+

GND

FL_CLK

GND

FL_DATA

FL_CS

TRK_ENV

FADJ

ART_V_H_N

EE_H

H_SW

A_H_SW

DREC_H

ABS_NORM_L

PAL_EP_H

BIAS_H

FM_MUTE_H

SW2_V

S1532

MODE SW

SVHS_H

DUB_H

HPNC_H

AV3_V_IN

AV3_C_IN

AV3_Y_IN

SYS_GND

OSD_GND

PS6002

GND

CPN_Y_IN2

GND

CPN_CIN2

L2_RIN

L2SW

L2_LIN

KEY2

L2_VIN2

KEY1

5V AD

K6098

ZJ6001

AV3_IN_L

AV3_IN_R

P_SAVE

SST6V

PS12V

REMOCON

AV2_PB_H

GND

FL_MUTE

VTR_CS

P_SAVE

AD5V

SCART_MUTE

GND

A3_SIN

A2BLANKING

AV2-8

AV2_P50_H

P50IN

P50OUT

WIDE

AV2PB

GND

RGB_CPSVIN

AV2_V_IN

AV2_G_IN

AV2_P50_H

AV2_BLANKING

BWH

KILLER

AFC_S

TO DVD I/F

P6005

TO DVD I/F

P6004

TO DVD I/F

P6003

-----------

VTR_S_OUT

GND

VTR S CLK

P50

MIX_L_MUTE

MIX_R_MUTE

AU_GND

VFSC

OSD_V_IN

OSD_5V

LP_H

SVHS_PB_H

SECAM_L

IIC_CLK

IIC_DATA

COM_MUTE

VTR_P_ON_H

VCR_V_Y_OUT

MESECAMDET_H

SECAMDET_H

CTL_HEAD_M

CTL_HEAD_P

60HZ_H

P2571

CAP VM

D7901

C7903

ECJ1VF1H104Z

C7905

F2A1C221A019

R7902

33K

D7902

Q7901

L7902

R7907

100

C7906 R7903

4700

R7903

C7907

R7904 4700

T7901

LB7901

D7904

C7908

0.022

D7905

D7906

C7902

50V10

K7901

R7908

C7910

50V56

C7909

50V56

R7909

39K

R6403

10K

R6402

15K R6404

470

Q6401

QR6402

QR6403

D6401

B0AACK000004 R6405

22K

R6406

470K

R6407

15K

IC6201 IC6202

C6201

0.1($)

D7751

C6202

0.1($)

TL6002

TL6004

0.01

0.1

C6004

C6020

C6001

C6002

C6003

C6014

X6002

$(22P) $(22K)

22K

R6003

R6002

R6031

18P

22P X6001

R6001 1K

R6035

R6020

R6036

C6101

C6103

R6109

C6110

100

6V220

0.01

1µ

R6016

R6018

R6116

C6114

L6104

R6118

Q6101

Q6102

R6123

120

R6119

120 C6116

0.1

R6117

180

L6103

R6115

470

R6201

10K

K6201

K6203

K6204

K6202

R1511

27K

TL24

R1512

27K R1513

120

TL23

R1503

150[D]

SAFETY

TAB SW T PHOTO SENSOR

S1531 Q1501 D1501 Q1502

SPHOTO

TW2001

HSW

TL6010

T REEL

S REEL

IC1511

IC1512

R1501

R1502

C6006

27K

0.1

R6033 *

R6007 18K

C6005 16V10

R6011 18K

R6014 10K

R6026 10K

R6027 10K

R6028 10K

R6029 4700

R6030 4700

C2562

C6007

C6010

0.056

22P

R640

220

R6409

C6402

R6009

100

R6010

39K

R6004

43K

R6021

$(33K)

C2012

0.01

C2051 6

K6001

R200

3900

C200

1µ

C6009

L6102

C6008 470P

0.01

POS. SW3

POS. SW2

POS. SW1

RESET[L]

32KHz. IN

32KHz. OUT

+5V[D]

12MHz. IN

12MHz. OUT

GND [OSC]

DUB[H]

SVHS[H]

X_SEL

EEP_WR

HPNC[H]

NUB[GND]

FSC.LPF

OSD.FSC IN

OSD[GND]

CVIN

AFCS

5V[AD]

+5V[A]

PB. CTL. OUT

CTL. AMP. REF

CTL. HEAD[+]

CTL. HEAD[-]

SECAM_ID

IREF

OPEF

PFG

MESECAM_DET[H]

GND[A]

FG. AMP. IN

FG. AMP. OUT

DAVN

LOADING[H]

UNLOADING[H]

EX. FF/REW[L]

60Hz[H]

[28]FM_MUTE

[29]SW2

[30]POS. SW4

[1]DVD_OUT_H

[2]CKILLER_DET[L]

[3]B/W[H]

[77]CYL. ET

[78]P. FAIL[L]

[79]S. REEL. PULSE

[80]T. REEL. PULSE

[51]LECHA

[52]CVOUT

[53]OSD5V

IC6001

HLF

CVIN2

NUA[GND]

AMUTE[H]

SECAM_MIX

LP(H)

SVHS_PB[H]

VHS_TUN[H]

SECAM/PAL[SYS2]

FLD_CS

FLD_DATA_OUT

FLD_DATA_IN

FLD_CLK

TIMER_BUS_DATA_OUT

TIMER_BUS_DATA_IN

TIMER_BUS_CLK

IIC.CLK

IIC.DATA

125HZ/COM_MUTE

CAP R/F

PON[H]

CAP. ET

S_TAB[L]

BIAS[H]

SLP[H]/

ABS_NORM

SLICER_TYPE

D. REC[H]

AUDIO. H. SW

VIDEO. H. SW

EE[H]

TIMER_CS

REMOCON

ART. V/H/N

F_ADJUST

CURRENT_LIMIT

N/S/T2

TRACKING_ENVE

T-PHOTO

S-PHOTO

VHS_KEY2

VHS_KEY1

C7752

6V220

R6006

27K

R6008

R6024

R6022

2200

220

680

R6012

R6013

R6019

R6023

R6025

R2561

220

680

220

TL6001

10K

R6017

2200

C6015

C6016

1000P

0. 033

C6111

560P

0.01

C6115

L6105

68µ

Q6103

R6121

560

R6122

560

Q6104

R6131

R6120

100

C6121

33P

Q7902

R7905

22K

R7906

22K

C7904

0.1

Variations Category

DMR-EH80VEG

C6114 33P $

L6104 33µ $

Q6101 2SB1218AOL $

R6116 1500 $

R6118 $47K

DMR-EH80VEB

Important Safety Notice:

Components identified with the mark have

the special characteristics for safety.

When replacing any of these components

use only the same type.

DMR-EH80VEG / DMR-EH80VEB

145

DMR-EH80VEG

DMR-EH80VEB

SYSCON / SERVO / TIMER

SCHEMATIC DIAGRAM

TO DVD I/F

P6003

TO DVD I/F

P6002

TO DVD I/F

P6001

X_SW5R8V

X_SW12V

IECOUT

PS5V

VREF

GND

--------------

SW2

AV2_B_IN

AV2_R_IN

GND

-----------

VTR_S_OUT

GND

VTR_S_CLK

VTR_S_IN

MIXROUT_DM

AUGND

MIXLOUT_DM

AU5V

-----------

IIC_CLK

IIC_DATA

-----------

XSW_17V

MGND

GND

CPNCIN_DM

GND

V_YIN_DM

GND

COUT_DM

GND

YOUT_DM

GND

GPYOUT_DM

BPBOUT_DM

RPROUT_DM

D_GND

AADC_R

AADC_L

D_GND I

SLICER_VIDEO

SYNC_DET

JC_PON

AFC

VSYNC

V_SYNC

AFC_H3

JC_PON

SYNC_DET

SLICER_VIDEO

I2C5_DT

I2C5_CK

P50

MIX_L_MUTE

MIX_R_MUTE

AU_GND

REF_GND

AV2_R_C_IN

AV2_B_IN

SW2_D

PS5V

VREF

IEC_OUT

X_SW_5R8V

AADC_L

AADC_R

R_PR_OUT_DM

B_PB_OUT_DM

G_PY_OUT_DM

Y_OUT_DM

C_OUT_DM

V_Y_IN_DM

CPN_C_IN_DM

REG12V

X_SW12V

P1531

LOADING M [-] LOADING M [-]

LOADING M [+] LOADING M [+]

P2501

PG+

PG-

GND

COM

MESECAMDET_H

SECAMDET_H

CTL_HEAD_M

CTL_HEAD_P

60HZ_H

P2571

CAP VM

FG1

GND[FG]

CAP R/F

MGND

R6408

100K

C6401

220P

R6401

220

Q6402

D6402

R6409

C6402

100K

220P

R6410

R6411

220K

2R2M

Q6403

Q6404

R6412

R6413

R6414

43K

47K

4700

Q6305

D6306

C6302

0.01

C6303

6V47

R6309

2700

K6099

R6009

100

R6010

39K

R6004

43K

S1533

QR6801

R6802

R6801

100K

K6002

R6021

$(33K) PB CTL

TW2002

C2054

3900P

C2053

16V10

C2012

0.01

R6803

C2055

470K

0.1

C2051 6V22

C2001

R2002

33P

D2001

D2002

K6001

R2001

3900

C2003

1µ

CAP TL

TL2502 TL2015

CAP FG

C2551

0.056

K2597

C2561 0.056

VIN ON

VOUT VSS

R2503

1800 D2502

LB6101

L6101

68µ

R2552 10K

C6308

6V47

C2519

0.01

IC2501

VM2 M3

OUT1 RNF

LGND M2

OUT2 M1

FIN VM

RIN COM

GND VCC

CST PFG

CT1 PG OUT

CT2 PG-

PCI PG+

CNF EC

C2506

C2504

C2505

C2507

C2515

0.22

0.022

1000P

0.01

C6105

$(0.1)

R6110 $(220) R6112

$(2700)

C6106

$(50V4R7)

C6109

0.47

C6102

$(1µ)

R6114 1K

C2552 0.056

C2518

0.01 R2564 100

R2520

C2501

C2508

18K

0.1

1800P

R2565 100

C2509 16V22

CAP5VL2501

R2501

C2502

R2502

1R2 6V220

1R5

C2511

0.1 C2510

0.1

C2512

0.1

R2515

220 R2514

220

R2516

220

R2521

1K C2513

1µ

R6101

$(10K)

VSS1 VDD1

XIN /RST

XOUT CDLR

CTRL1 CTRL2

NC VOUT

SDA SEPIN

SCL SEPOUT

SYNC SEPC

HOUT SYNIN

VSS2 VDD2

CPOUT DAV

VCOIN VCOR

IP4901

Q6801

IC6302

K2598

C6104

6V470

C6108

$(0.01)

C6122

$(0.01)

35V220

47K

R2562

R2563

C2571

D6801

R6113 $(5600)

IC6101

R6102 $(10K)

R6111 2200

R6103

$(10K)

C6107

$(0.056)

DMR-EH80VEG / DMR-EH80VEB

146

24.6. VHS AUDIO

Note:

Marked $ (spare) parts are not assembled

A_5V

IIC_DATA

IIC_CLK

A_H_SW

DREC_H

ASB_NORM_L

FM_MUTE_H

A_GND

FSC

REF_GND

X_SW12V

VTR_P_ON_H

X_SW_5R8V

MIX_R_MUTE

VHS_OUT_R

VHS_OUT_L AL

A_COM

D4501

IC4501

PB-FM ENV

TW4502 TL4501

R4522

4700

C4520

6V22

C4521

16V10

C4522

6V33

C4523

0.047

R4523

510

R4524

R4525

33K

L4502

1R2µ

C4524

6V100

R4526

R4527

C4526

16V10

C4527

($)

C4528

($)

Q4501

C4544

0.1

D4502 C4545

6V22

R4555

820

Q4502

R4519

4700

R4528

4700

QR4501

R4532 680

C4519

0.015

C4517

100P

($)

L4501

180µ ($)

C4518

C4516

C4515

R4521

0.22

0.1

120K

R4520

C4513

C4512

0.01

REC OUT

R4557 4700

68K

16V47

0.01

R4558

C4531

C4533

212223242526272829303132

49 50 51 52 53 54 55 56 57 58 59 60

PNR Rch

HA1 HA2

SW11

SW15

AMP

REC

SW12

REC LPF

SW9

SW18

SW16

INSWL

SW17

MUTE

SW19

SW20

LOGIC

VCO-f0

adj LOGIC

AGC/

SW21

INSWR

HIFI

MIX

DET

AMP

AMPAMP

LOG

REC

MIX

NORMAL NORMAL

HIFI

SW NOISE

ZZ-PROM

H/S

AUDIO LIMTER

Rch

VCO

HPF

NOISE DET

LINER SW

HOLD T

SW14

MIX

SW13

SW10

PBLPF

Lch BPF

Rch BPF

FMLMT

AUDIO LIMTER

DET

DEC(R)SW

DEC(L)SW

DMR-EH80VEG / DMR-EH80VEB

147

DMR-EH80VEG

DMR-EH80VEB

VHS AUDIO

SCHEMATIC DIAGRAM

VHS_OUT_L

NOR_TO_YC

NOR_FROM_YC

MIX_L_MUTE

REG12V

AV3_IN_L

AV3_IN_R

DECODER_L

DECODER_R

HA_GND

A_COM

AV2_IN_R

AV2_IN_L

AV1_IN_R

FM MIX OUT

C4504

0.047

C4505

R4516

R4515

R4514

R4513

R4512

R4511

R4510

C4503

R4509

R4508

R4507

C4502

C4501

R4506

R4505

6V33

56K

4300

9100

16V10

4300

9100

16V10

4300

L4503

100µ

TW4501

C4515

C4513

C4512

C4511

C4510

C4509

C4508

0.01

0.033 [KB]

0.015 [KB]

6V22

16V10

REC OUT

R4518

R4517

4700

510

C4534

0.1

R4501 56K

56K

22K

R4502

R4503

R4504

16V47

16V10

0.01

6800

39K

4700

68K

C4531

C4506

C4533

R4560

R4559

R4530

R4554

171819202122232425

56 57 58 59 60 61 62 63 64

PNR Lch

HA1 HA2

SW11

W15

AMP

SW2

SW1

AGC/

MIX

SW22

DET

AMP REC

NOR REC IN

SW14

MIX

SW13

REC LPF

S/H

SW NOISE

SW4

SW10

PBLPF

Lch BPF

Rch BPF

FMLMT

AUDIO LIMTER

Lch

VCO

DET

AGC

37PIN

INPUT SW(L)

INPUT SW(R)

VREF1

K4501

K4502

K4506

DMR-EH80VEG / DMR-EH80VEB

148

24.7. VIDEO

Note:

Marked $ (spare) parts are not assembled

DMR-EH80VEG DMR-EH80VEB

Variation Category

R4001

R4003

2000

3900

3300

6800

60HZ_H

FADJ

C_IN

V_IN

Y_IN

SVHS_PB_H

HPNC_H

ART_V_H_N

OSD_V_IN

IO_GND

SSVHS_H

SAREF_GND

K3009

K3002

R3022

10K($)

C3017 1µ

R3008

10M

SLP_H

L3502

33µ

L3503

33µ

L3504

33µ

R3516

R3504

R3505

1200

C3509

C3504

R3511

3300

C3511

C3512

R3513

1500

C3513

K3010

QR4003

R4006

3300

IC3001

R4002

15K

R4001

R4003

C4001

16V10

R4004

4700

TU_AIN

NOR_TO_YC

NOR_FROM_YC

QR3001

QR3005

TUN_V_IN1

R3006

R3009

QR3002

C4002 16V10

C4004 16V10

C3001

150P

C3002

($)

R3001

1500

R3002 6200

C3003 1µ

C3004 0.1

L3001

82µ

C3005

27P R3003

R3024

5600

6800

L3008

68µ

C3056

10P C3006

C3007

0.1

1µ

C3008

C3009

C3010

0.01

50V4R7

1µ

L3002

27µ C3011 1µ

C3012

C3013

6V47

0.01

C3014

0.1($)

C3016

L3003

*R3005

C3015 0.1

C3080 *

R3007

C3026

C3027

C3028

C3029

C3030

C3023

C3019

C3024

C3025

TU_AIN

NOR_FROM_YC

TUN_V_IN1

NOR_TO_YC

PAL_EP_H S

CTL_HEAD_M

CTL_HEAD_P

C2099 680P

R2099 6800

P4002

CTL HEAD[ + ]

CTL HEAD [ - ]

A HEAD [R]

A HEAD[W]

N.A GND

AEIN

(TO AC HEAD)

C5002 0.01

C5001 0.01

C4202

C4012

0.01

C4011

6V47

C4025

0.01

C4015

C4014

R4012

6800P

470K

50V4R7

R4013

15K

C4016

6V22

LB4203

LB4202

C4001

($) LB4201 C4017 50V3R3

C4018 1800P

C4010 25V4R7 R4011 20K

R4009 270

C4009 6V22

R4008 15K

C4008 1800P

R4007 100K

C4007

2200

C4005

6V100

Q4001 Q4002

R4018

R4019

QR4004

DREC_H S

A_5V

P5001

LP EP R

LP EP COM

LP EP L

SP R

SP COM

R3510

470

L3501

56µ

K3503

C3505

C3506

C3507

C3508

6V47

0.1

IC3502

D3501

R3508

390K

R3502

C3518

C3517

56P

22P

C3516

56P

C3515

22P

R3515

1200

Q3502

R3503

1200

Q3501

R3501

560

C3501

R3507

1200

K3003

QR3004

($)

R3509

C3510

100

1µ

0.1

50V3R3

16V10

0.01

$(0.1)

IC3501

C3503

C3514

C3502

0.1

Q3503

R3512

3300

DMR-EH80VEG / DMR-EH80VEB

149

DMR-EH80VEG

DMR-EH80VEB

VIDEO

SCHEMATIC DIAGRAM

R3008

10M

K4002

R3004

$(10K)

QR3006

K3005

R3023 *

IC3003

C3018

0.01

C3035

0.1

C3054

0.01

C3055

0.01

K3007 $

QR8002

C8009

+6V100($)

L8001

10µ($)

R8004

10K($)

QR8003

($)

SECAM_L S

BWH S

PB_C_OUT I

FSC S A

SECAMDET_H S

SKILLER

DUB_H

EE_H

SECAM

X_SW_5R8V

VTR_P_ON_H

QSD_5V

C3030

C3023

C3019

C3024

C3025

Q4003

C4023

0.022

C4022

6V47

R4015 3300

R4017 2200

QR4005

R4016

2200

Q4004

L4001

C4024 1500P

C4021 220P

Q3002

R4014 10K

C4020

0.022

T4001

IC3002

QR3003

C3050 1µ

TW3001

K3011

R3010 15K

C5005 0.1

C5004 0.01

C5003 0.01

C5002 0.01

C5001 0.01

C4202

C4012

0.01

C4011

6V47

C4025

0.01

C4015

C4014

R4012

6800P

470K

50V4R7

R4013

15K

C4016

6V22

LB4203

H_SW S

A_GND

HA_GND

IIC_DATA S

IIC_CLK

OSD_GND

SYS_GND

P4001

FULL E

(TO FE HEAD)

K3008 $

K3004

LB4204

($)

VEEOU97

C5006

6V47

C5007

0.1

DREC_H S

A_5V

P5001

LP EP R

LP EP COM

LP EP L

SP R

SP COM

SP L

A COM

(TO CYLINDER)

AR A

A_COM

TRK_ENV

MESECAMDET_H

C3033

0.1

C3020 330P

L3004 68µ

C3021 0.01

C3022 6V47($)

0.1

50V3R3

16V10

0.01

$(0.1)

C3052

1µ

C3053

0.1

GND

VIN NC

COUT

C3051

R3012

470($) (EF)

R8001

10K($)

K3006

IC8001

QR8001

($)

C8001 0.01($)

R8002 1K($)

C8003

50V1($) C8002

0.01($)

C8004 50V1($)

C8010 0.1 ($)

C8011

0.1 ($)

C8016

50V2R2($)

R8003

120K ($)

C8015

2200P($)

C8014

2200P($)

C8013

50VR47($)

C8012

0.01($)

L5001

68µ

C3034 50V1

BIAS_H S

C3036 50V4R7

R3013 100

100

R3014

X3001

R3015

27K

C3037

50VR47

C3038

0.022

C3039

0.033

R3016

470

C3040

50V2R2

X3002

R3017 3300 C3041

0.022

C3042

C3043 0.1

R3018

3300($)

L3007

L3006 27µ

C3044 6V47

C3045 0.01

C3046 3P

C3047 50V1

C3048

0.01

R3019

3300($)

C3049

0.01

SECAM DET

SENS

SYNC-IN

MODE

CLK IN

AFC

FILTER

B6P

DELAY

Connect

BAL

GND2

GND

TEST MODE

VCO MONIT

SECAM-DET

OUT

DET C

S/H C1

S/H C2

VCC2

VCC

No Connect

S/H C3

BELL

MONIT4

LIM EXC

PB-OUT

PB-H

REC-IN

C8005

C8006

C8007

C8008

0.1[KB] ($)

50VR47($)

R3020

3300

R3021

4. 3M ANTI

BELLFO CTL

BELL

MONIT1

REC-OUT

REG

PB-IN

AGE

FILTER

DMR-EH80VEG / DMR-EH80VEB

150

24.8. NICAM DECODER

Note:

Marked $ (spare) parts are not assembled.

(RESET)

LB7303

R7307

100

R7304

OUTGIN

IC7302

JC REG.5V

GND

TU AUDIO IN

SIF

C7333

R7325 100

R7324 100

100P

C7311

C7302 0

R7301

0.1

C7301

321

50V2.2

C7334

0.01

C7306

6V100

C7303

L7303 1u

6V100

C7305

0.1

C7335

PK7301

(MAIN NET SEC.)

MAIN P.C.B.

TO PK7701

R7319

R7317

DECODER AUDIO(L)

GND

DECODER AUDIO(R)

SDA

SCL

10P

C7307

10P

C7308

C7310

100P100P

C7309

PK7302

(MAIN NET SEC.)

MAIN P.C.B.

TO PK7702

ONLY DMR-EH80VEB

DMR-EH80VEG DMR-E 0VH8 EB

C7309 $ 100P

C7310 $ 100P

R7309 1K 10K

R7310 $ 220

R7311 220 $

R7317 J0JCC0000103 ERJ3GEY0R00V

R7319 J0JCC0000103 ERJ3GEY0R00V

DMR-EH80VEG / DMR-EH80VEB

151

DMR-EH80VEG

DMR-EH80VEB

NICAM DECODER

SCHEMATIC DIAGRAM

K7307

R7314

K7303

C7329

R7315

R7307

8200

C7330

VSSA4

OUT M

V REF2

EXTIL

EXTIR

MONO IN

VSSD3/NC(E)

VDDD3

SYS CLK/CTRIG

PCLK

ADDR1/AFR(E)

XTALO

XTALI

TPB

TEST2

1 REF/LF2(E)

ADDR2

VSSA2

VDDA2

TEST1

OUT L

OUT R

VDDA1

VSSA1

VSSD1

VDDD1

VSSD2

AF11

TP2

AF1D

TP1

AF21

AF20

LPF

SDA

SCL

VDDA3

VSSA3

CRESET/CAF2(E)

SIF1

VREF1/CAF1(E)

SIF2

0.1

C7314

LB7302

R7309

TL7301

TL7302

TL7303

16V47

C7317

16V10

C7318

220

R7311

220

ONLY EH80VEB

ONLY EH80VEG

R7310

16V10

C7313

16V10

C7312

R7312 R7313

C7324

1000P

C7323

LB7301

R7322

X7301

0.1

C7332

C7333

C7330

680P

R7325 100

R7324 100

IC7301(NICAM/A2)

K73050

K7301 0

K7302 0

34 35 36 37 38 39 40 41 42 43 44

22 21 20 19 18 17 16 15 14 13 12

DMR-EH80VEG / DMR-EH80VEB

152

24.9. FRONT JACK

PP4600

GND

CPN Y IN2

GND

CPN C IN2

L2 IN[R]

L2 SW

L2 IN[L]

KEY 2

VIDEO IN2

KEY 1

5V[AD]

IC7801

JK3802

C7801

0.1

R7801

220

123

LB3301

LB3303

R3804

R3802

R3801

C3801

C3802

0.1

S1 IN

Note:

Marked $ (spare) parts are not assembled

DMR-EH80VEG / DMR-EH80VEB

153

DMR-EH80VEG

DMR-EH80VEB

FRONT JACK

SCHEMATIC DIAGRAM

JK4600

R7802

1800

R7807

1800

R7803

3300

R7808

3300

R7806

4700

R7809

4700 R7812

R7810

6800 R7813

S7806 S7805 S7802 S7801

S7813 S7812 S7810 S7808

S7809 S7807

S7803

POWER FF STOP CH UP

EJECT REW CH DN PLAY REC EXT_LINK_D EXT_LINK_V

C3801

C3802

0.1

LB3302

R3803 75

C4305

C4306

R4306

R4305

C4303

*C4304

76 54321

DMR-EH80VEG / DMR-EH80VEB

154

24.10. FL DRIVE

Note:

Marked $ (spare) parts are not assembled

R7503

270

R7504

DVD

SD DVD

D7503

D7504

QR7503 QR7504

VHS

HDD

D7505

QR7505

VHS

D7506

QR7506

R7505

R7506

K7516

K7515

H2D

S7511

R7530

H2V

S7510

SELECT

S7509

R7508

1200

R7532

REC

S7506 R7516

1500

V2D

S7508

R7529 *

R7528 *

D2H

S7513

V2H

S7512

R7531

D2V

S7507

R7509

1200

R751

PLAY

S7505

D2V V2D

S7515

S7514

R7501

270

R7502

R7518

K7506

K7507

DUB_RED

DUB_RING1

DUB_RING2

D7501

D7502

D7508

QR7501

QR7502

QR7508

K7503

*K7508 *

K7504 *

K7505 *

(TO I/F)

PP7501

(TO I/F)

PP7502

GND

FL_RST

LED3

GND

LED4

LED5

LED6

LED7

GND

FL_6V

LED1

LED2

AD_5V

KEY_IN3

KEY_IN2

KEY_IN1

C7502

6V47

C7501

0.1

C7528 $(0.1)

C7503

$(0.1)

62 61 58 57

F-

DMR-EH80VEG / DMR-EH80VEB

155

DMR-EH80VEG

DMR-EH80VEB

FL DRIVE

SCHEMATIC DIAGRAM

R7532

REC

S7506 R7516

1500

CH UP

S7504 R7517

2200

OPEN/CLOSE

S7501

CH DOWN

S7502

R7511 1500

PLAY

S7505

STOP

S7503

K7509

K7510

K7511

Q7501

R7512

10K

R7513

68K

K7512 *

K7513 *

K7514 *

C7502

6V47

C7501

0.1

C7528 $(0.1)

C7525 100P

R7525 27K

R7514 0

R7515 100

R7526 100

R7527 100

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

DIG01

DIG02

DIG03

DIG04

DIG05

DIG06

DIG07

DIG08

DIG09

DIG10

DIG11

DIG12

DIG13

DIG14

RESET

SCK

SDATA

VSS

XOUT

XIN

VCC1

SEG34

SEG33

SEG32

SEG31

SEG30

SEG29

SEG28

SEG27

DIG17

SEG35

SEG00

SEG01

SEG02

SEG03

SEG04

SEG05

SEG06

SEG07

SEG08

SEG09

SEG25

SEG24

SEG23

SEG22

SEG21

SEG20

SEG19

SEG18

SEG17

SEG16

SEG15

SEG14

SEG13

SEG12

IC7502

[63] DIG00

[64] VP [48] DIG15

[47] DIG16

[17] SEG26

[18] VCC2 [33] SEG11

[34] SEG10

C7503

$(0.1)

62 61 58 57 56 55 54 53 52 51 50 49 48 47 46 45 2144 2043 1942 1841 1740 1639 1538 1437 1336 1235 1134 1033 932 831 730 6229 51

F-

10G

P20

P21

P22

P23

P24

P25

P26

P10

P27

P11

P28

P12

P29

P13

P30

P14

P31

P15

P32

P16

P33

P17

P34

P18

P35

F+

P19

P36

F+

DP7501

R7510

5R6

(TO MAIN)

PP7503

F-

F+

GND

FL_CLK/LED1

GND

FL_DATA/LED2

FL_CS/LED3

DMR-EH80VEG / DMR-EH80VEB

156

24.11. SD CARD / DV IN

Note:

Marked $ (spare) parts are not assembled

P66801

DAT2

DAT3

CMD

GND

3R3V

CLK

GND

DAT0

DAT1

P66803

TPA+

TPA-

GND

TPB+

TPB-

LB66801

K66801

R66801 *

R66802 *

R66804 *

R66805 *

R66806 *

DMR-EH80VEG / DMR-EH80VEB

157

DMR-EH80VEG

DMR-EH80VEB

SD CARD / DV IN

SCHEMATIC DIAGRAM

P66802

DAT3

CMD

GND

3R3V

CLK

GND

DAT0

DAT1

DAT2

COM

P66804

TPA+

TPA-

TPB+

TPB-

R66809 *

R66810 *

R66811 *

R66812 *

R66813 *

R66814 *

R66815 *

R66816 *

R66817 *

R66818 *

R66819 *

LB66802

T66801

C66801

FL66801

R66801 *

R66802 *

R66804 *

R66805 *

R66806 *

R66807 *

R66808 *

DMR-EH80VEG / DMR-EH80VEB

158

28.3. POWER P.C.B. FOR PRINTING A4 SIZE

DMR-EH80VEG / DMR-EH80VEB

159

DMR-EH80VEG / DMR-EH80VEB

160

DMR-EH80VEG / DMR-EH80VEB

161

DMR-EH80VEG / DMR-EH80VEB

162

28.4. MAIN P.C.B. (COMPONENT SIDE) FOR PRINTING A4 SIZE

25.3. MAIN P.C.B. (COMPONENT SIDE)

L4901

C4916

ZJ3101 JK4901

W576

W574

W578

JK3902

AV2

W581

W551

W554

W557

W558

W570

P6001

W572 W457

W584

W583

W579

W582

W580

W577

C4936

W559

W560

W562 W561

W563

W564

W566

W567

W568

W569

K4902

W535

K3903 W537

C4943

W539

W541

W542 W540

C4944

C4927

W538

W536

C3911

W407

W404

W402

W400

W401

W403

W405

W406

C4002 C4004

W302

C4506

W294

C3012

L3002

L3003 C3022

C4017

C4005

W410

W408

W413

W414

W415

W382

W412

W409

W411

C3917

K3902

W544

K3901

C3918

W546

W547

W543

W545

W549

W508

W509

W511

W513

W514

W548 W550

W416

P6002

W453

W456

W458

W460

W461

W463

W468

W474

W475

W477

W478

W350

W351

W353 P1531

W349

P6003

W342

D2502

R2503

W354

C6308

W311

K2597

W313

W314

W316

W479

W481

W482

W483

W417

W425

C4918

C4938

W555

C4932

W565 W446

W449

W451 W452

W435

W436

W440

W445

W325

W317

W318

W322

W326

W332

W333

P4002

W339

R3006

R3009

P2571

W399

TW4501

C4016

C3047

C4520

X3002

K3011

C3036

L5001

C4509

C4508

C4504

C4014

C4011

C4505

W289

W290

W384

W388

W390

W381

W385

W387

TU7401

W517

W519

W520

C4946

W523

W525

W526

D7402

W534

W533

W489 W488

W486 W485

W491 W362

W493

W363

K7408

W359

R7402

R7401

C7411

W369

D7401

C4502

W292

W293

W260

W261

W264

W265

W364

L4501

C4519

C45

L4502

P4001

PK7404

L7404

PK7401

C7415

W370

W371

W373

W375

W377

PK7402

W378

C7436

TU7402

K7409

W494

W495

TU7403

C7435

W501

C7433

W504

C7428

W505

W507

PK7403

W571

W499

W506

W502

K7410

W500

W503

W490

L7403

R7404

C7424 K7402

R7403

W532

W530

W531

W529

D3901 R3907

C4945

JK3901

AV1

K4903 C4939

C4940

W552

C4934

W573

W575

W556

C4930 C4928

C4922

W553

W426

C4925 W476

W469

W473

W418

W484

C4921

C4935

C4941

C4937

C4933

C4931

C4929

C4923 C4924

C4949

W527

W524

W528

W516

W518

W522

W512

W386

W389

W391

W492

W487

W496

K7407

C7425

C7417

W521

C7445 W497

W498

C7449

W361

W366

W368

W360

C7430

C398

W383

W392

W393

W397

C3929

C3913

W450

C4920

W439

C4919

W431

W448

W433

C4917

W419

W422

W427

W480

W443

W444

W447

W438

W442

W441

W437

PB CTL

W472

W470

W471 W459

W454

W465

W380

W372

C7452

W379

W376

W374

W367

L7401 C7414

W365

C4501

W396

W394

W395

C4503 C4001

L3001

FM MIX OUT

W432

W430

W429

W421

W420

W428

W423

W424

W312

TW2001

HSW

TW2002

W462

W466

W467

W464

W344

W455

W346

W345

W347

W343

W341

W340

W585

K2898

C2571 W357

W310

P2501

K3002

W324

W323

W330

W336

W337

W315

W327

W321

W320

W331

W319

W328

C3023

C3019

W356

W338

L3008

W303

C3009

W300

W305

W308

C4009

P5001

C4010

W287

C5006

X3001

C3034

C4510

W291

C4524

D4501

W263

C4523

C4531

W272

W270

W269

W271

W277

W274

W276

W268

W285

W284

K7406

W280

W279

W283 W266

TW4502

K4501 W334

W295

W301

W298

W299

W329

C2502

W352

W348

W515

W510

DMR-EH80VEG / DMR-EH80VEB

163

DMR-EH80VEG:

VEP06F87D

DMR-ES30VEB:

VEP06F87C

MAIN PCB

COMPONENT SIDE

C4521

C3022

W171

W167

K3008

W172

K6098

W170

L6102

W169

X6001

W44

W46

W41

W43

W47

W45

C7907

W51

W59

W63

C7902

R7902

W49

W66

W48

W58

W62

W55

W57

W61

W64

L6105

W173

W174

W176

W179

W184

W189

W191

W192

W342

D2502

R2503

W225

W227

W232

W238

C2509

W240

W241

Q1501

T PHOTO

W236

C6303

W228

P6004

C6005

D6306 D6401

W95

P6005

W92

W93

W96

W100

C7752

W590

C6104

D6801

W104

W106

W105

W107

W109

W71

W256

W200

W202

W355

W255

W258

W259

W199

W201

W203

W354

C6308

W311

K2597

W205

P2571

W206

W208

W211

W215

W216

W218

W219

W220

W210

W221

W79

X6002

W86

W80

IC1511

W223

T REEL

W87

W83

W84

W85

W72

W74

W76

W78

D7906

C6106

C7910

R7907

K7901

W88 C7905

W90

W89

W38

L6103

W224

W166

W195

W196 W19

W65

W67

W21

LB7901 W68

W20

R7908

W22

W24

W23

W25

L7901

C6101

C3507 W26

W27

W28 R4555

Q4501

W33

W31 D4502

C4545

W32

W29

L3501

W156

W146

W141

K3503

L3502

L3503

W151

W139

W140

W144

W145

W147

W142

L3006

W149

W148

W150

W154

W159

W160

W161

W162

W286

C3044

C3040

C3037

C3047

W157

C4520

X3002

K3011

L4501

C4519 C4522

C4526

L4502

P4001

W164

W165

W110

W262

W34

W36

W37

W587

L4001

T4001

W10

W11

W17

W18

ZJ6001

K4002

W586

L8001

C8016

C8003

C8004

C8008

C8013

W132

Q1502

S PHOTO

W131

TW3001

W230

W331

W319

W328

C3023

W356

W338

X3001

C3034

W291

C4524

D4501

W263

C4523

W272

W268

W285

W284

K7406

W280

W279

W283 W266

W267

TW4502

W281

K4501

W306

W334

W295

W301

W298

W306

W299

W304

W307

W178

W175

L3004

W296

W297

W335

W222

W168

W329

W217 K6204

C2502

W358

W352

W348

W245

W253 W235

W226

W233

W234

K6203

W243

W231

K6099

C2053

K6001

W244

D2002

W257

C2051

W207

W252

W239

W254

L6104

SENSOR

D1501

W181

W138

W152

L3504

W158

W120

W118

W275

W273

W128

W127

W126

W133

W282

W278

W137

W136

W135

W130

W124

W122

W123

K3003

W134 W129 K3007

PF-FM ENV

W242

W229

W251

W250

W446

W249

W248

W247

MODE SW

S1532

W237

W103

W101

W209

W213

W212

W214

W77

W180

W188

W155 D3501

W153

K3004

W198

W197

W185

W183

W177

R1503

W182

W187

W193

W194

W186

W143

W50

W54

W60

W117

W116

W125

W121

W119 W163

W114

W111

W112

W115

W113

W12

C8009

C4020

S REEL

IC1512

W69

W52

W42

W40

W75

W70

W102

W94

W99

W91

S1533

W98

W97

D7751

L6101

W589

W588

W73

W82

D7904

C7908

Q7901

T7901

W53

W56

C7906

D7903

R7901

D7901

L7902

D7902

L4503

W35

SAFETY

TAB SW

C4022

S1531

W204

D2001

W190

D7905

C7909 W81

PS6001

W15

W14

W16

W13

PS6002

ADRESS INFORMATION

IC1511

IC1512

Q1501

Q1502

Q4501

Q7901

P1531

P2501

P2571

P4001

P4002

P5001

P6001

P6002

P6003

P6004

P6005

PK7401

PK7402

PK7403

PK7404

PS6001

PS6002

T4001

T7901

TU7401

TU7402

TU7403

TW2001

TW2002

TW3001

TW4501

TW4502

C10

G10

D10

B10

B12

E10

DMR-EH80VEG / DMR-EH80VEB

164

28.5. MAIN P.C.B. (SOLDER SIDE) FOR PRINTING A4 SIZE

25.4. MAIN P.C.B. (SOLDER SIDE)

TL6002

P6005

D7751

S1533

D6401

C7752

C6104

24 13

D6308

P6004

113

212

C6303

C6005

Q1501

T PHOTO

C2509

IC2501

13 1

14 25

D2502

R2503

P60

C6308

D6801

C6106

C7910

R7907

D7906

IC1511

TL6004

IC6001

100

TL2502

CAP TL

P2571

C2571

TL6001 R3006 P400

R3009

L3008

L3002

C3022

L6103

X6001

TL23

C7908

610

T7901

PS6001

C7907 R7901

R7902

C7902

L6102

D1501

SENSOR

L6105

L3004

L3003 C3

C7906

D7902

LB7901

R7908 L6006

IC3001

31 30

80 81

100

P5001

C3036

L5001

X3002

C3037

C3047

IC3502

14 8

IC3002

C6101

C3507

R4555

Q4501

D4502

C4545

IC1512

S REEL

TL24

L3501

IC3501

L3502

L3503

TL4501

C4521

C4522

C4519

L4501

C4509

C4508

C4504

C4502

IC4501

L4502

L4001

S1531

SAFETY

TAB SW

PS6002

11 12

Q4003

T4001

IC8001

30 16

L8001

C8003

C8016

IC3003

Q1502

S PHOTO

P4001

PK7404

ZJ6001

P2501

C3009 C4010

C4009

C4531

C4523

C4526

D4501

X3001

C3023

C2502

L3504

L6104

IC6201

D2002

D2001

CAP FG

TL2015

C2053

C2051

S1532

MODE SW

TL6010 R1503

D3501

C8013

C8008

C8004

C8009

C4020

C3019

D7905

C7909

C7905

IC6101

L6101

L7901

L4503

C4022

L7902

D7901

IC6202

D7904 Q7901

D7903

R8004

C8011

C8014

Q6305

W703

C8012

W709

R8003

R7421

C7471

K4506

W702

C4023

R8001

C4518

QR3003

C5004

R3013

C5005

QR3004

Q3503

C3018

C3035

C3515

C3516

C3517

C3518

R1513

C3503

Q3501

C6116

R6117

C3080

R3508

R6405

R6406

C6004

C6015

QR4005

C3514

C3506

C3505

C8010

C4544 C3502

C3055

C3054

C3053

C3052

C4528

C4527

Q4003

Q3502

C3051

C3509

C3501

R7905

C6115

R6309

C6003

C6110

C3508

C6006

C3512

Q4004

C4517 C4511

R4512

C4512

R4530

R4505

C4515

C4533

C3017

C3010

C3016

W715

C3015

C3049

C3014

C3028

C3046

C3004

C3006

C3030

C3008

C3013

QR3002

C3039

Q3002

Q4502

R4017

C3045

C3043

C3029

R3017

C3042

W711

C3027

C3038

R3018

C3041

R3505

R3020

C3050

R3016

C3048

R3504

C3011

C4012

C40

C5002

C5003

C5001

K3001

C3007

W735

C5007

R3005

C4513

W717

R6101

C2562

C6012

C6016

R6102

R6027

C6105

W718

C6107

R6031

R6001

C6103

R6017

C6009

D6402

R6403

C6114

R6026

C4025

R7904

R6402

C6402

R7906

C6201

C6202

C3033

R6414

R7903

R7909

W805

C6111

C6010

C3026

C2552

R6131

C2518

W743

C6102

C2508

C2099

C2512

R2520

C2511

R2099

C2501

W744

C2510

R2515

C6007

C2561

QR3005

C3025

C3024 IC6302

C3021

R3010

R3014

R3004

C4534

K3005

R4559 R4557

R3503

C3504

C8005

R3502

R3515

C3510

W720

W713

W712

C6302

R3511

R3510

R6009

R3507

R6003

R6119

C7901

C7903

R3501

L3007

W716

C3020

R3007

R3008

R3015

R3513

R3516

C3513

R3509

R3512

K3009

R3021

Q6101

R6036

R6035

R6020

R6012

R6019

R6013

R1501

R6109

W719

Q6104

R2564

R6010

W704

R6801

C6008

R2001

R6018

C2054

C2001

R6113

R6029

R2552

R2565

Q6403

QR6403

R6004

R3023

K3006

R4014

C4024

R6803

R6802

R6120

R6122

R6121

C6001

C6002

C6020

R6123

R4519

Q6801

Q6103

QR4501

W701

QR3006

C8007

R4504

C4516

W732

C8015

R3012

R1511

R6016

R4528

R6103

R4016

R6112

C4021

R6033

R6032

R6115

C2055

K6201

C7904

R6116

W714

R6201

K6002

LB6101

R6404

R6401 R6407

R6118

R6408

R6409

R6410

R6411

R6412

R6110

Q7902

Q6401

Q6102

R6014

R2002

R1502

R1512

R6006

R2551

R6024

R6008

R6002

C2551

R6007

R6022

W706

R6011

W734

R3019

C3511

W742

R4523

R4524

R4525

R4520

R4526

R4521

R4527

R4522

R4532

W710

W724 W725

R3022

R4518

R4517

R450

R4509

R45

R4560

R40

R4015

R3011

K3010

R4511

W723

W729

W727

R2563

R2562

R2561

R2516

R2514

K6202

C2003

R6023

C6121

R6025

R6021

R6030

R6028

C6108

QR8002

R2501

W747

W748

R2521

C2513

R2502

QR6801

C2507

C2515

C2505

C2504

C2506

C2519

QR6402

QR8003

R6413

Q6404

W708

W707

C6109

C6120

R6111 R6114

W705

QR8001

Q6402

C6401

C8001

R8002

C8002

C8006

C6014

DMR-EH80VEG / DMR-EH80VEB

165

IC1511

IC1512

IC2501

IC3001

IC3002

IC3501

IC3502

IC3901

IC3902

IC3903

IC3904

IC3906

IC4501

IC6001

IC6101

IC6201

IC6202

IC7401

IC7405

IC8001

Q1501

Q1502

Q3002

Q3501

Q3502

Q3503

Q3901

Q3902

Q3903

Q3904

Q4001

Q4002

Q4003

Q4004

Q4501

Q4502

Q4901

Q6101

Q6102

Q6103

Q6104

Q6305

Q6401

Q6402

Q6403

Q6404

Q6801

Q7401

Q7402

Q7403

Q7404

Q7901

Q7902

IP4901

TU7401

TU7402

TU7403

QR3001

QR3002

QR3003

QR3004

QR3005

QR3006

QR3901

QR3902

QR4003

QR4004

QR4005

QR4501

QR4901

QR4902

QR4903

QR4904

QR4905

QR4906

QR4908

QR4910

QR4911

QR4912

QR4913

QR4914

QR6402

QR6403

QR6801

QR7402

QR8001

QR8002

QR8003

P1531

P2501

P2571

P4001

P4002

P5001

P6001

P6002

P6003

P6004

P6005

PK7402

PK7403

PK7404

PS6001

PS6002

T4001

T7901

TL23

TL24

TL2015

TL2502

TL4501

TL6001

TL6002

TL6004

TL6010

B10

A10

C10

B10

G10

F10

C10

ADRESS INFORMATION

DMR-EH80VEG:

VEP06F87C

DMR-ES30VEB:

VEP06F87D

MAIN PCB

SOLDER SIDE

P6003

119

218 P6002 19

1P6001

113

C4916 JK4901

C4938

C4918

P1531

C2571

R3006 P4002

C4936

C4928

C4934

C4932

JK3902

AV2

20 21

R3009

C4927

C3911

L3008

L3002

L3003

IC3901

100

JK3901

AV1

30 31

C3917

C3918

C4002

C3012

3001

80 81

100

C4017 Q4002

C4005

IC3904

20 21

C4946

IC3903

IC3902

C4014

C4505

P5001

8D4901

C4011

C3036

L5001

C4509

C4508

C4504

C4502

TU7401

9721

IC3906

R7403

R7402

R7401

D7401

IC4501

PK7404

61PK7403

L7404

TU7402

9721

PK7402

TU7403

IC7401

C7428

IC7405

C4940

C4939 C4941

C4937

C4935

C4933

C4943

C4944

C4945

R3907 D3901

L7403

C7424

C7433

C7435

C7445

C7425

C7417

C7436

C4931

C4923

C4949

C4924

C4930

C4925

C4922

C4921

C4920

C4918

IP4901

C4917 C3913

C4929

C3929

C7430

C7411

C7449

C7415

C7452

L7401

C7414

L3001

P2501

C4004

C4506

C3009

C4001

C4017

C4016

C4010

C4009

C4503

C4501

C4531

3019

D7402

R7419

C7468

R7435

LB7412

C7455

LB7411

W788

C7446

C7438

C7444

R7420

C7456

LB7410

C7448

K7404

C7467

Q7403

R7418 LB7417

C7450

C7476

R7415

C7443

C7457

C7442

R7436

W755

C7439

R7414

C7427

C7454

LB7414

W758

C7437

QR4914

W757

W789

C7447

C7440

R7417

W722

W759

W756

C7466

C7431

C7402

K7405

LB7406

C7429

W751

R7422

C7470

C7406

W750

R7421

C7471

W721

C7451

K4506

R7433

W764

W795

C3935

W765

C7420

LB7413

C7453

QR4906

K4502

LB7409

C7409

R7434

C3937

W781

QR7401

C7426

LB7416

C7416

C3943

C3930

C3931

C3932

C4008

R7410

C3946

C3922

C3927

W760

R4916

C3928

C3945

C3936

R3902

C3915

C3909

C3901

W763

C4018

W761

C4007

C5004

R3013

W767

C5005

LB4204

W793

C4202

W776

W778

W802

W772

W773 W774

C3921

Q7402

C3056

Q4901

C4511

R4512

C4512

R4530

R4505

C4533

R4501

R7407

R7408

R4515

C3010

C3016

C3015

C3014

C3005

C3004

C3006

C3008

C3013

QR3002

Q4002

C3011

C4012

C4015

C5002

C4201

C5003

W766

C5001

K3001

C3007

QR3001

QR4003

QR4004

W735

C5007

R3005

C4513

C4025

C2099

R4911

R2099

W744

C3908

QR3005

W783

C3938

W786

W785

W782

W779

W784

C7405C7404

LB7408

C7403

LB7403

C3924

C7418

R7416

C7407

W787

LB7401

D4901

QR3901

LB7407

LB7402

C3926

W792

R3908

C3939

QR7402

C4942

C3934

R3901

R3906 R3904 R3903

R3905

C4107

C3933

C3947

C3914

IC7402

R3921

W762

W796

W790

W797

W791

W799

R3912

R3911

QR4901

QR4912

QR4902

QR4905

C3920

W798

W777

C3923

W801

C3925

R3923

C4103

LB4103

C3953

QR4911

QR4913

W775

W770

W803

QR3902

QR4903

QR4904

Q3903

Q3902

Q3904

QR4910

C4102

C4101

R3924

C4534

C7422

R4559

C7465

R4557

W720

R3024

LB3902

R2564

W769

C3904

R3914

R4502

R4504

W732

R4004

W742

R4518

R4517

R4503

R4509

LB7415

R4506

R4507

R4513

R4508

R4514

C7421

C7413

R4510

R4516

C7412

R4560

R7409

W728

R4006

R4012

R4011

R4003

R4009

R4002

R4008

R4001

R4007

R3003

R3002

LB4203

R4013

W737

W736

W738

C7419

LB4202

R4511

C7410

R4554

R4558

R7405

W723

W733

W726

W729

W730

W731

LB7405

K7403

K7401

R7423

R7437

W752

R7432

Q7404

W727

R3916

C3948

W768

C4926

W748

R2521

C2513

W745

W746

R2502

R3934

W780

C7423

C7434

LB4101

R3910

C7441

C7472

C7473

C4109

C4112

R4915

C4110 R4103

C4111

K3904

LB4102

R4903

LB7404

R3922

R3918

R4927

C4108

R7411

R4917

W753

W754

W794

Q7401

R4926

R4925

R4914

C4105

LB4104

C4106

R4104

C4104

R4906

R4905

R4101

LB4105

R4902

LB4106

R3909

R3913

Q3901

QR4908

IP4901

R3920

C4915

R3919

W804

R4924

R4923

R4922

R4910

R4909

R4908

R4907

R3917

W771

R3925

W749

R4901

R4102

R3915

C3905

R7406

C7408

R7413

C7432

C7477

C7401

W800

R4018

C3910

C3907

C3906

C3912

C3916

C3952

LB4201

W741

R4019

Q4001

C3001

W740

C3002

W739

R3001

C3003

DMR-EH80VEG / DMR-EH80VEB

166

28.6. OTHER P.C.B.’s FOR PRINTING A4 SIZE

25.6. DIGITAL I/F P.C.B. (SOLDER SIDE)

C31503

C31511

C31512

C33501

C33502

C33503

C33504

C33506

C33507

C33508

C33509

C34001 C34002

C37100

C37101

C37102

C37104

C37105

C37106

C37107

C37502

C37504

C37506

C37507

C37508

C37546

C37579

C37580

C37581

C37582

C37583

C37584

C37585

C37586

C37587 C37588

C37589

C37592

C37593

C37595

C37596 C37597

C37598 C37599

C37600

C37601

C37602

C37603

C37604

C37605

C37606

C37607

C37609

C37610 C37617

C37618

C37620

C37625

C37626

C37627

C37636

C37652

C39001 C39002

C39003

C39010

C39011

C45001

C45006

C45007

C45019

C45020

IC31502

IC34001

IC37501

IC37502

IC37503 IC37504

IC37505

IC37508

IC45001

IC45002

IC45003

IP37501

K33501

K33502

K37506

K37507

K37512

K45003

K45004

K45005 K45009

LB33503

LB33504

LB34001

LB34003

LB37101

LB37102

LB37103

LB37104

LB37105

LB37107

LB37108

LB37109

LB37409

LB37506

LB37507

LB37508

LB37509

Q33501 Q33502

Q33503

Q33504

Q33505

QR33701

QR37501

QR37502

QR37503

R31

R33501

R33502

R33503

R33504

R33505

R33506

R33507

R33508

R33509

R33510

R33511

R33707

R34001

R34002

R34003

R34004

R34005

R34006

R34007

R34008

R34009

R34010

R37501

R37502

R37503

R37504

R37505

R37506

R37507

R37508

R37509

R37511

R37512

R37530

R37531

R37532

R37533

R37534

R37535

R37536

R37537

R37538 R37539

R37540

R37541

R37542

R37544

R37545

R37546

R37547

R37548

R37549

R37550

R37551

R37556

R37557

R37558

R37559

R37561

R37562

R37563

R37565

R37566

R37567

R37569

R37571

R37572

R37573

R37575

R37576 R37577

R37578

R37581

R37582

R37583

R37584

R37585

R37588

R37595

R37596

R37597

R37599

R37600

R37604

R37605

R37606

R37611

R37612

R37613

R37633

R37648

R45001

R45002

R45003

R45004 R45005

R45006

R45007

R45008

R45009

R45018

R45019

W507

W509

W510

W511

W512

W513

W514

W516

W517

W518

W521

WS503

WS506

WS508

WT501

WT502

WT505

ZJ37304

PS37502

ZJ37305

59 58

116

TL37504

TL37509

TL37503

P39702

D31501

R31513

TL37520

ZJ37302

D37502

PS37501

P31905

P31904

ZJ37301

TL37518

TL37519

L37501

D37503

C37633

C37503

C33505

C37635

C45010

C45012

C45004 C45003

C45014 C45013

C37590

C37608 X37502

X37501

C31501

C34004

C45002

C45005

C45008

C34003

L31501

IC15001 C8 IC35005 E10 IC37702 F9 QR15003 D8 QR37502 C3 QR45007 F10 Q33502 C3 IP15001 C9 P

IC15002 D8 IC37001 C8 IC37703 E9 QR15004 C10 QR37503 F2 QR45008 F10 Q33503 C2 IP37501 F5 P

IC15003 D9 IC37501 E2 IC45001 C6 QR15005 C9 QR45001 F9 QR45009 F10 Q33504 C3 JK35001 D10 P

IC15004 C10 IC37502 C3 IC45002 D6 QR15007 C10 QR45002 F10 Q33505 C2 JK37701 F10 P

IC31502 F6 IC37503 F2 IC45003 C5 QR33701 E4 QR45003 F10 Q15001 C9 Q37002 C8 P

IC31510 F6 IC37504 F5 QR35007 E10 QR45004 F10 Q15002 D9 Q37701 F9 P

IC34001 E5 IC37505 C3 QR15001 C9 QR35008 E10 QR45005 F10 Q15003 D10 P

IC35004 E9 IC37508 D3 QR15002 C9 QR37501 D3 QR45006 F10 Q33501 C3 P

ADRESS INFORMATION

DMR-EH80VEG / DMR-EH80VEB

167

DMR-EH80VEG

DMR-EH80VEB

DIGITAL I/F PCB

VEP09136G

SOLDER SIDE

C15003

C15004

C15006

C15007

C15009

C15010 C15011

C15012

C15013

C15014

C15016

C15018

C15019

C15020

C15021

C15022

C15023

C15026

C15027

C15028

C15029

C15030

C15031

C15033

C15100

C31503

C31511

C31512

C31527

C31535

C31536

C31901

C33738

C35017

C35018

C35019

C35021

C35022

C35024

C35025

C35026

C35027

C35028

C37001

C37002

C37100

C37101

C37703

C37706

C37707

C37708

C37709

C37710

C45001

C45006

C45007

C45015

C45016

C45017

C45018

D15001

D15002

D15003

D15004

IC15001

IC15002

IC15003

IC15004

IC31502 IC31510

IC35004

IC35005

IC37001

IC37702

IC37703

IC45001

IP15001

K37510

K37702

K37703

K37704

LB15001

LB15002

LB15003

LB15004

LB15005

LB15006

LB33501

LB33502

LB34002

LB35101

LB35102

LB35103

LB35104

LB35105

LB35106

LB37101

LB37102

LB37103

37409

LB45101

LB45102

Q15001

Q15002

Q15003

Q37001

Q37002

Q37701

QR15001

QR15002

QR15003

QR15004

QR15005

QR15007

QR35007

QR35008

QR45001

QR45002

QR45003

QR45004

QR45005

QR45006

QR45007

QR45008

QR45009

R15001

R15002

R15003

R15004

R15005

R15006R15007

R15008

R15009

R15010

R15011

R15012

R15013

R15014

R15015

R15016

R15017

R15018

R15019

R15026

R15027

R31501

R31502

R31503

R34011

R35015

R35017

R35018

R35019

R35020

R35021

R35026

R35027

R35028

R35031

R35032

R37001

R37002

R37003

R37004

R37703

R37704 R37705

R37706

R37707 R37708

R37709

R37710

R37711

R37712

R37713

R37714

R45001

R45003

R45010

R45011

R45012

R45013

R45014

R45015

R45016

R45017

W517

W519

W520

JK35001

D31501

554

D45001 24 23

JK37701

PP37401

111

R31512

P31903

P31902

P31901

212

ZJ37303

P15001

16 1

P12100

P15002

P15003

L35001

D37001

D37002

D37003

C33735

C33740

LB31902 LB31903

C37003

L15001

L15002

C15001

C15005

C15002

L15003

C15017

C15025

L37101

C31902

L15005

C15024

C15032

L15004

C15015

C15008

C35030

C35029

C35033

C35031

C35032

C35020

C35023

C31537

C45002

C45005

C45008

C31507

LB31505

5001 C9 P12100 C9 P31905 B2

7501 F5 P15001 C9 P39702 D4

5001 D10 P15002 C9

7701 F10 P15003 C8 PP37401 E8

P31901 B9

P31902 B8 PS37501 C1

P31903 B6 PS37502 F1

P31904 B4

DMR-EH80VEG / DMR-EH80VEB

168

25.7. NICAM DECODER P.C.B. (VEP07A51A / VEP07A51B)

DMR-EH80VEB

NICAM DECODER PCB

COMPONENT SIDE

Nicam Decoder P.C.B.(VEP07A51A)

R7310

VEP07A51A

ADDRESS INFORMATION

IC7301

IC7302

PK7301

PK7302

TL7301

TL7302

TL7303

X7301

IC7302

C7329

C7330

C7333

K7305

C7305

R7304

C7302

C7311

PK7301

C7303

IC7301

L7302

LB7302

K7301

PK7302

TL7301

R7315

R7311

C7317

TL7302

TL7303

R7312

R7313

C7324

LB7303

C7314

C7334

C7310

R7317

C7309

R7319

R7314

C7318

R7309

R7324

R7325

C7307

C7308

L7303

L7301

C7335

C7301 R7301

K7302

R7307

C7332

X7301

R7322

K7303

LB7301

C7323

C7306

K7307

C7312

C7313

33 34

DMR-EH80VEG / DMR-EH80VEB

169

DMR-EH80VEB

NICAM DECODER PCB

COMPONENT SIDE

Nicam Decoder P.C.B.(VEP07A51B)

VEP07A51B

ADDRESS INFORMATION

IC7301

IC7302

PK7301

PK7302

TL7301

TL7302

TL7303

X7301

C10

D11

IC7302

C7329

C7330

C7333

K7305

C7305

R7304

C7302

C7311

PK7301

C7303

IC7301

L7302

LB7302

K7301

PK7302

TL7301

R7315

R7311

C7317

TL7302

TL7303

R7312

R7313

C7324

LB7303

C7314

C7334

C7310

R7317

C7309

R7319

R7314

C7318

R7309

R7324

R7325

C7307

C7308

L7303

L7301

C7335

C7301 R7301

K7302

R7307

C7332

X7301

R7322

K7303

LB7301

C7323

C7306

K7307

C7312

C7313

33 34

DMR-EH80VEG / DMR-EH80VEB

170

25.8. NICAM DECODER P.C.B. (VEP07A51F)

Nicam Decoder P.C.B.(VEP07A51F)

VEP07A51F

ADDRESS INFORMATION

IC7301

IC7302

PK7301

PK7302

TL7301

TL7302

TL7303

X7301

IC7302

C7329

C7330

C7333

K7305

C7305

R7304

C7302

C7311

PK7301

C7303

IC7301

L7302

LB7302

K7301

PK7302

TL7301

R7315

R7311

C7317

TL7302

TL7303

R7312

R7313

C7324

LB7303

C7314

C7334

R7317

R7319

R7314

C7318

R7309

R7324

R7325

C7307

C7308

L7303

L7301

C7335

C7301 R7301

K7302

R7307

C7332

X7301

R7322

K7303

LB7301

C7323

C7306

K7307

C7312

C7313

33 34

DMR-EH80VEG / DMR-EH80VEB

171

DMR-EH80VEG

NICAM DECODER PCB

COMPONENT SIDE

DMR-EH80VEG / DMR-EH80VEB

172

25.9. FRONT JACK P.C.B.

REW

S7812

JK4600

S7805

S7807 S7803

EXT_LINK_V EXT_LINK_D

PP4600 W8

S1 IN

JK3802

S7810

CH DN

S7802

STOP

S7801

CH UP

S7809

PLAY

S7808

REC

S7806

S7813

POWER

IC7801

EJECT

FRONT JACK COMPONENT SIDE FR

IC7801

JK3802

JK4600

PP4600

ADRESS INFORMATION

DMR-EH80VEG / DMR-EH80VEB

173

DMR-EH80VEG

DMR-EH80VEB

FRONT JACK PCB

COMPONENT SIDE / SOLDER SIDE

VEP04885C-L

S7801

S7808

REC

S7809

PLAY

CH UP

S7810

CH DN

S7802

STOP

JK3802

S1 IN

PP4600

EXT_LINK_D EXT_LINK_V

S7803 S7807

S7805

REW

S7812

JK4600

S7813

EJECT

S7806

IC7801

POWER

FRONT JACK SOLDER SIDE

ADRESS INFORMATION

IC7801

JK3802

JK4600

PP4600

E11

C10

DMR-EH80VEG / DMR-EH80VEB

174

25.10. FL DRIVE P.C.B.

FL DRIVE SOLDER SIDE

FL DRIVE COMPONENT SIDE

PP7503

W12

W11

W10

DP7501

W14

W15

W13

W22

W23

W16

W24

S7501

OPEN/

IC7502

QR7502

D7508

D7501

PP7502

Q7501

QR7506

QR7503

D7502

QR7501

QR7508

PP7501

DUB_RED

SELECT

PLAY

STOP

CH UP

CH DOWN

D7504

D7505

DVD

VHS

HDD

QR7504

VHS

D7506

DVD

REC

S7512

S7510

S7511

S7507

S7508

S7513

S7515

S7514

S7509

D7503

S7506

S7505 S7503

S7504 S7502

QR7505

C7502

IC7502 QR7501

DP7501 QR7502

PP7501 QR7503

PP7502 QR7504

PP7503 QR7505

Q7501 QR7506

QR7508

D8/F4 D3

C6/F3 D3

C2/F9 D4

C5/F6 D4

C10/F2 D4

C5 D5

ADRESS INFORMATION

DMR-EH80VEG / DMR-EH80VEB

175

DMR-EH80VEG

DMR-EH80VEB

FL DRIVE PCB

COMPONENT SIDE / SOLDER SIDE

VEP07A78F

W15

W22

W23

W20

W25

W29

W30

W31

W17

W34

W21

W18

W37

W27

W36

W26

W19

W16

W40

C7502

PP7502 PP7501

W32

S7502 S7504

W28

W38

S7503 S7505

S7506

W33

CH UP

DOWN

STOP PLAY

REC

W35

IC7502

DP7501

PP7503

S7501

OPEN/

R7510

DMR-EH80VEG / DMR-EH80VEB

176

25.11. SD CARD P.C.B.

SOLDER

COMPONENT SIDE

DMR-EH80VEG / DMR-EH80VEB

177

DMR-EH80VEG

DMR-EH80VEB

DIGITAL P.C.B./DV-JACK P.C.B.

COMPONENT SIDE

VEP001J19B

SOLDER SIDE

P66804

P66801

P66803

P66802

K66801

R66815

C66801

R66807

R66806

R66809

R66810

R66805

R668004

R66811

FL66801

LB66801

R66812

R66813

R66802

R66801

R66814

LB66802

R66808

R66816

R66817

R66818

R66819

DMR-EH80VEG / DMR-EH80VEB

178

Tmp.sgm DMREH80

Navigation menu

Versions of this User Manual:

Views

Navigation
