DOC02 DN9848E_Operator Manual_IssB DN9848E

User Manual: DN9848E

Open the PDF directly: View PDF .
Page Count: 52

DN9848E

System Controller

Operator Manual

Klark Teknik,

Klark Teknik Building,

Walter Nash Road,

Kidderminster.

Worcestershire.

DY11 7HJ.

England.

Tel: +44 (0) 1562 741515

Fax: +44 (0) 1562 745371

Email: info@uk.telex.com

Website: www.klarkteknik.com

DN9848E System Controller Operator Manual

DOC02-DN9848E Issue B - August 2006

In line with the company’s policy of continual improvement, specifications and function may be

subject to change without notice. This Operator Manual was correct at the time of writing. E&OE.

IMPORTANT SAFETY INSTRUCTIONS

The lightning flash with arrowhead symbol within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “Dangerous Voltage”

within the product's enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user

to the presence of important operating and maintenance (servicing) instructions

in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE.

WARNING: DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND

ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, ARE

PLACED ON THE EQUIPMENT.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been

damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

14. Use the mains plug to disconnect the apparatus from the mains.

15. The mains plug of the power supply cord shall remain readily operable.

Telex Communications (UK) Limited, Klark Teknik Building,

Walter Nash Road, Kidderminster. Worcs. DY11 7HJ. England.

Tel: +44 1562 741515 Fax: +44 1562 745371

www.midasconsoles.com www.klarkteknik.com

DECLARATION OF CONFORMITY

We, Telex Communications (UK) Limited

of, Klark Teknik Building, Walter Nash Road, Kidderminster, Worcestershire, DY11 7HJ.

Declare that a sample of the following product:-

Product Type Number Product Description Nominal Voltage(s) Current Freq

DN9848E System Controller 115V AC

230V AC

279mA

153mA

50/60Hz

to which this declaration refers, is in conformity with the following directives and/or standards:-

Directive(s) Test Standard(s)

89/336/EEC Electromagnetic Compatibility Directive

amended by 92/31/EEC & 93/68/EEC 73/23/EEC,

Low Voltage Directive, amended by 93/68/EEC

Generic Standard Using EN55103 Limits and Methods EN50081/1

Class B Conducted Emissions PAVI EN55103

Class B Radiated Emissions PAVI EN55103

Fast Transient Bursts at 2kV EN61000-4-4

Static Discharge at 4kV EN61000-4-2

Electrical Stress Test EN60204

Electrical Safety EN60065

Signed: ............................ Date: 14th March 2006

Name: Simon Harrison

Authority: Research and Development Director, Telex Communications (UK) Limited

Attention!

Where applicable, the attention of the specifier, purchaser, installer or user is drawn to

special limitations of use which must be observed when these products are taken into

service to maintain compliance with the above directives. Details of these special measures

and limitations to use are available on request and are available in product manuals.

Company registration No. 2414018. A Subsidiary of Telex Communications Inc.

Thank You For Using This Klark Teknik Product

Our engineers have designed this product with uncompromising dedication to providing the superb

audio performance, ease of use and rugged reliability that meets the demands of live sound

engineering.

Please take time to complete and return the Klark Teknik three-year warranty registration card and,

to obtain maximum performance with minimum effort, refer to this operator’s manual. Please

ensure that you read both the Important Safety Instructions and Attention! pages.

Finally, enjoy your new DN9848E!

CONTENTS

ATTENTION! ......................................................................................... 1

1. INTRODUCING THE DN9848E .......................................................................3

2. FRONT PANEL ...........................................................................................4

3. REAR PANEL ............................................................................................5

4. PROGRAMMING SETTINGS ............................................................................6

4.1. The DN9848E Programming Panel................................................................................. 6

4.2. Navigating the DN9848E Menus.................................................................................... 7

4.2.1 Input and Output Menus ....................................................................................... 7

4.2.2 Set Up Menu ....................................................................................................... 7

4.2.3 Store and Recall................................................................................................... 7

4.2.4 Home Page ......................................................................................................... 7

5. INPUT CHANNELS ......................................................................................9

5.1. Brief Technical Overview ............................................................................................. 9

5.2. Setting Input Parameters ............................................................................................ 9

5.2.1 The Input Menu ................................................................................................... 9

5.2.2 Naming the Input Channel (Page 1) ........................................................................ 9

5.2.3 Gain and Delay (Page 1) ..................................................................................... 10

5.2.4 Parametric Equalisation (Pages 2 to 13) ................................................................ 10

5.2.5 Compression (Page 14)....................................................................................... 11

5.3. Monitoring the Input Signal ....................................................................................... 11

6. OUTPUT CHANNELS .................................................................................. 12

6.1. Brief Technical Overview ........................................................................................... 12

6.2. Setting Output Parameters ........................................................................................ 13

6.2.2 Naming the Output Channel and Matrix Mixing (Page 1)........................................... 13

6.2.3 Signal Invert, Delay and Output Level (Page 2) ...................................................... 14

6.2.4 Phase Adjustment (Pages 3 and 4) ...................................................................... 14

6.2.5 High Pass and Low Pass Filters (Pages 5 and 6) ...................................................... 15

6.2.6 Parametric Equalisation (Pages 7 to 12) ................................................................ 16

6.2.7 Compression (Page 13)....................................................................................... 17

6.2.8 Output Limiter (Page 14)..................................................................................... 17

6.3. Monitoring the Output Signal...................................................................................... 18

6.4. Output Gain and Mute - Front Panel Control ................................................................. 19

6.5. Channel Copying ...................................................................................................... 20

7. DN9848E SET UP OPTIONS .......................................................................21

7.1. General................................................................................................................... 21

7.2. Remote Comms Channel/Gang Mode (Page 1) .............................................................. 21

7.3. Gang Mode Setup (Page 2) ........................................................................................ 23

7.4. Security Settings (Pages 3 and 4) ............................................................................... 24

7.4.1 Front Panel Lock (Page 3).................................................................................... 24

7.4.2 System Protect (Page 4)...................................................................................... 25

7.5. Analogue/Digital Input Select (Page 5) ........................................................................ 26

7.6. LCD and LED Lighting (Page 6)................................................................................... 27

7.7. Naming (Pages 7 and 8)............................................................................................ 27

7.8. Backup System (Page 9) ........................................................................................... 28

7.9. Delay Options (Page 10)............................................................................................ 28

7.10. Power Up Options (Page 11) ...................................................................................... 29

7.11. Ethernet Settings (Pages 12 and 13) ........................................................................... 29

7.11.1 Ethernet IP Address (Page 12) ............................................................................. 29

7.11.2 Ethernet Subnet Mask Setup (Page 13) ................................................................. 30

8. STORING AND RECALLING SETTINGS ..............................................................31

9. DN9848E REMOTE CONTROL SETUP .............................................................32

9.1. Overview ................................................................................................................ 32

9.2. HELIX DN9848E unit interconnections ......................................................................... 32

9.2.1 Connecting HELIX DN9848E units in a daisy chain................................................... 33

9.2.2 Connecting HELIX DN9848E units to an Ethernet switch or hub ................................. 33

9.3. Ethernet Connection ................................................................................................. 34

9.3.1 Ethernet connection – standard ............................................................................ 34

9.3.2 Ethernet connection – wireless option.................................................................... 34

9.3.3 Configuring the DN9848E for Network Communication ............................................. 35

9.4. Serial Connection (Option)......................................................................................... 35

9.4.1 Serial connection details...................................................................................... 35

9.4.2 Connection and Configuration Procedure................................................................ 36

10. APPLICATION NOTES .................................................................................37

10.1. The Advantage of DN9848E Look-Ahead Limiters .......................................................... 37

10.2. Phase-adjustment with the DN9848E .......................................................................... 39

11. TECHNICAL SPECIFICATION .........................................................................41

12. SERVICE INFORMATION..............................................................................43

12.1. Battery ................................................................................................................... 43

12.1.1 Replacement ..................................................................................................... 43

ATTENTION!

Please ensure that you read and follow the

IMPORTANT SAFETY INSTRUCTIONS at the front of this manual and the

SAFETY WARNINGS and INSTALLATION CONSIDERATIONS given below.

Safety Warning

To prevent shock or fire hazard, do not expose the unit to rain or moisture. To avoid electrical shock

do not remove covers. Refer servicing to qualified personnel only.

This unit is fitted with a standard fused IEC mains power socket. The unit contains a switch mode

power supply that automatically adjusts itself to 50 - 60Hz mains supplies in the 100V to 240V

(±10%) AC range. This information is printed on the rear of the unit, below the mains inlet socket.

Before connecting this unit to the mains supply, ensure that the fuse fitted is the correct type and

rating as indicated on the rear panel.

For safety reasons the mains earth lead should never be disconnected. In the event of ground loop

problems, disconnect the signal screen at one end of the connecting cables – note that this can only

be done when the unit is used within a balanced system.

Installation Considerations

Location: Do not install this unit in a location subjected to excessive heat, dust or

mechanical vibration. Allow for adequate ventilation around the unit, making sure

the unit’s fans and vents are not obstructed. To prevent excessive heating of the

unit, avoid mounting the unit directly above power amplifiers or other devices

that radiate significant amounts of heat. Where necessary use fan cooled racks.

Cables: To ensure correct and reliable performance, this product should only be used with

high quality, screened twisted pair audio cables, terminated with metal bodied

3-pin XLR connectors (Pin 2 Hot).

Electric Fields: Should this product be used in an electromagnetic field that is amplitude

modulated by an audio frequency signal (20Hz to 20kHz), the signal to noise ratio

may be degraded. Degradation of up to 60dB at a frequency corresponding to the

modulation signal may be experienced under extreme conditions (3V/m, 90%

modulation).

After Unpacking

Please retain the original packing for use should you need to transport or ship this unit.

Please inspect the unit carefully for any signs of damage that may have occurred in transit and notify

the courier immediately if you feel that any damage has occurred.

DN9848E Key Features

1. INTRODUCING THE DN9848E

The DN9848E is a highly configurable, digital electronic crossover/loudspeaker management system

controller comprising four balanced AES/EBU digital input channels and eight balanced analogue

output channels. Its unrivalled routing flexibility enables any amount of any input to be routed to any

output.

Each input channel features:

• 12 separately configurable, fully parametric equalisation stages that may be used for room

equalisation

• A programmable delay of up to 1000ms

• Gain control

• Full range compression

Each output channel features:

• Configurable high and low-pass filters for setting the crossover characteristics

• Six stages of fully parametric equalisation that may be used to compensate for system or

enclosure characteristics

• Delay of up to 300ms on each output, mainly used for system time alignment

• Gain control and output muting

• Full range compression and full range limiting

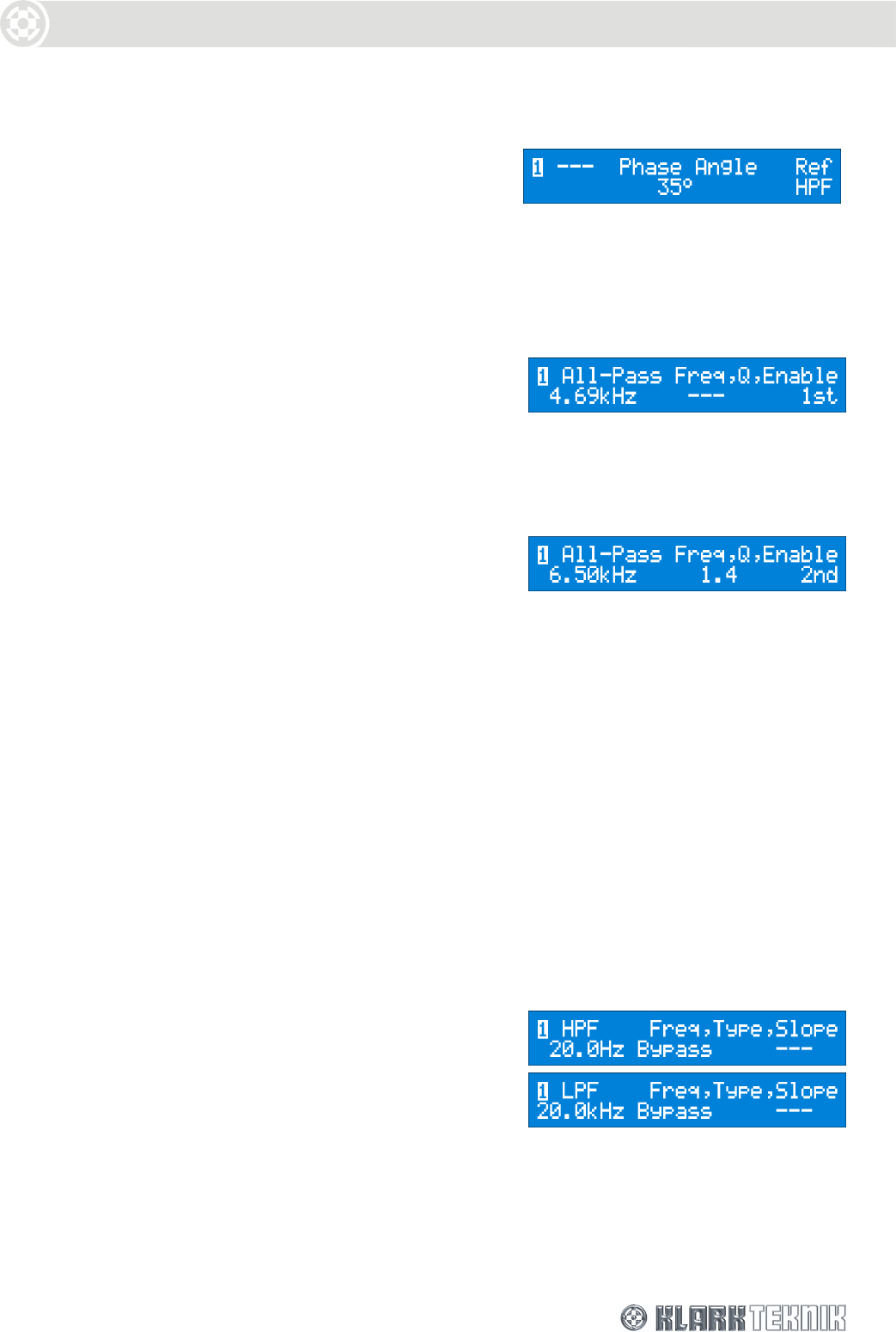

• Dual all-pass phase correction sections, the first of which can be any of the filter or

parametric EQ stages and can be adjustable in five-degree steps

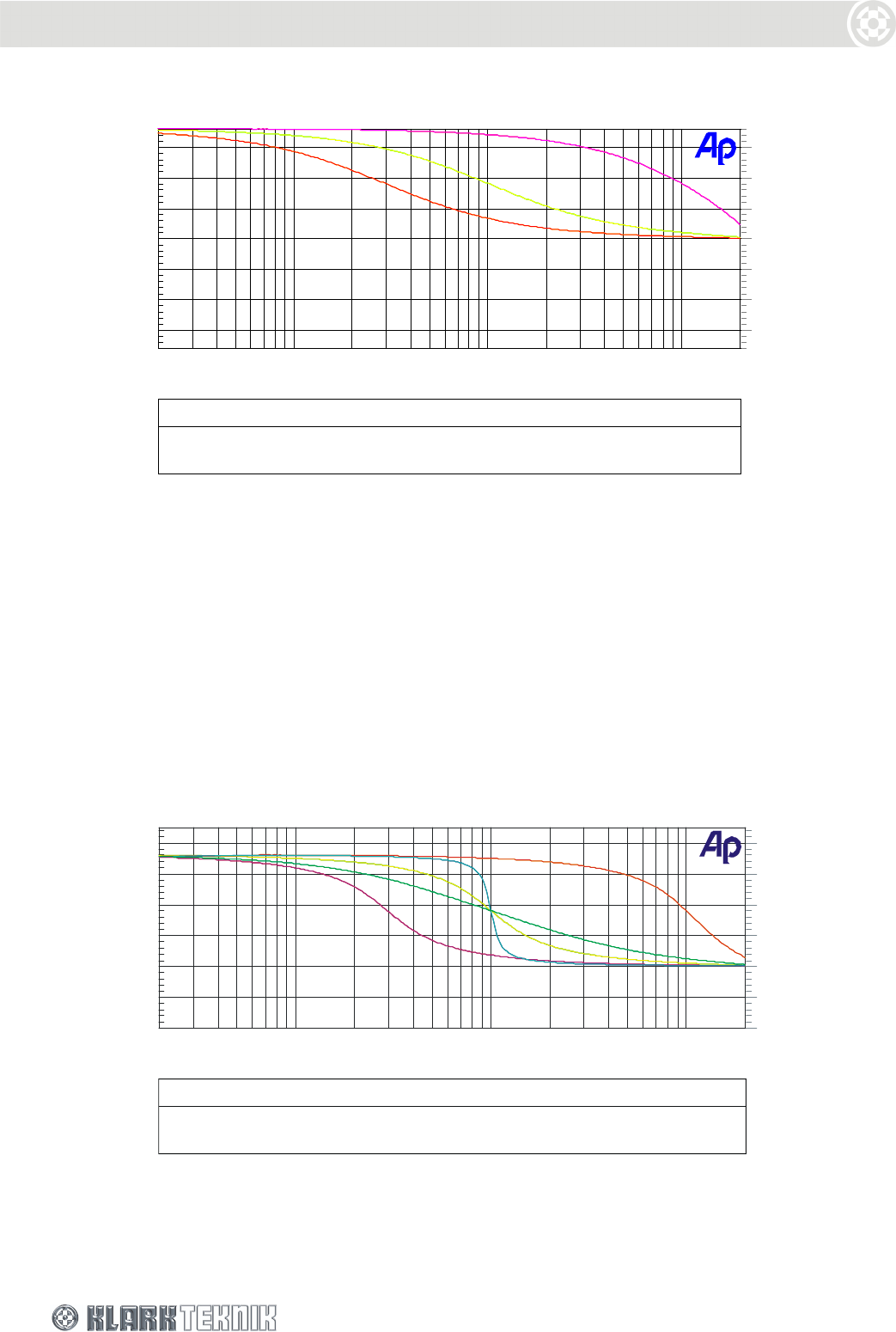

The crossover filter may be chosen from the following types:

• 12dB/oct and 24dB/oct peaking (high-pass filter only)

• Butterworth (6, 12, 18, 24, 36 and 48dB/octave)

• Linkwitz-Riley (12 and 24dB/octave)

• Bessel (12, 18, 24, 36 and 48dB/octave)

Channel programming can be performed directly from the front panel controls or remotely from a PC

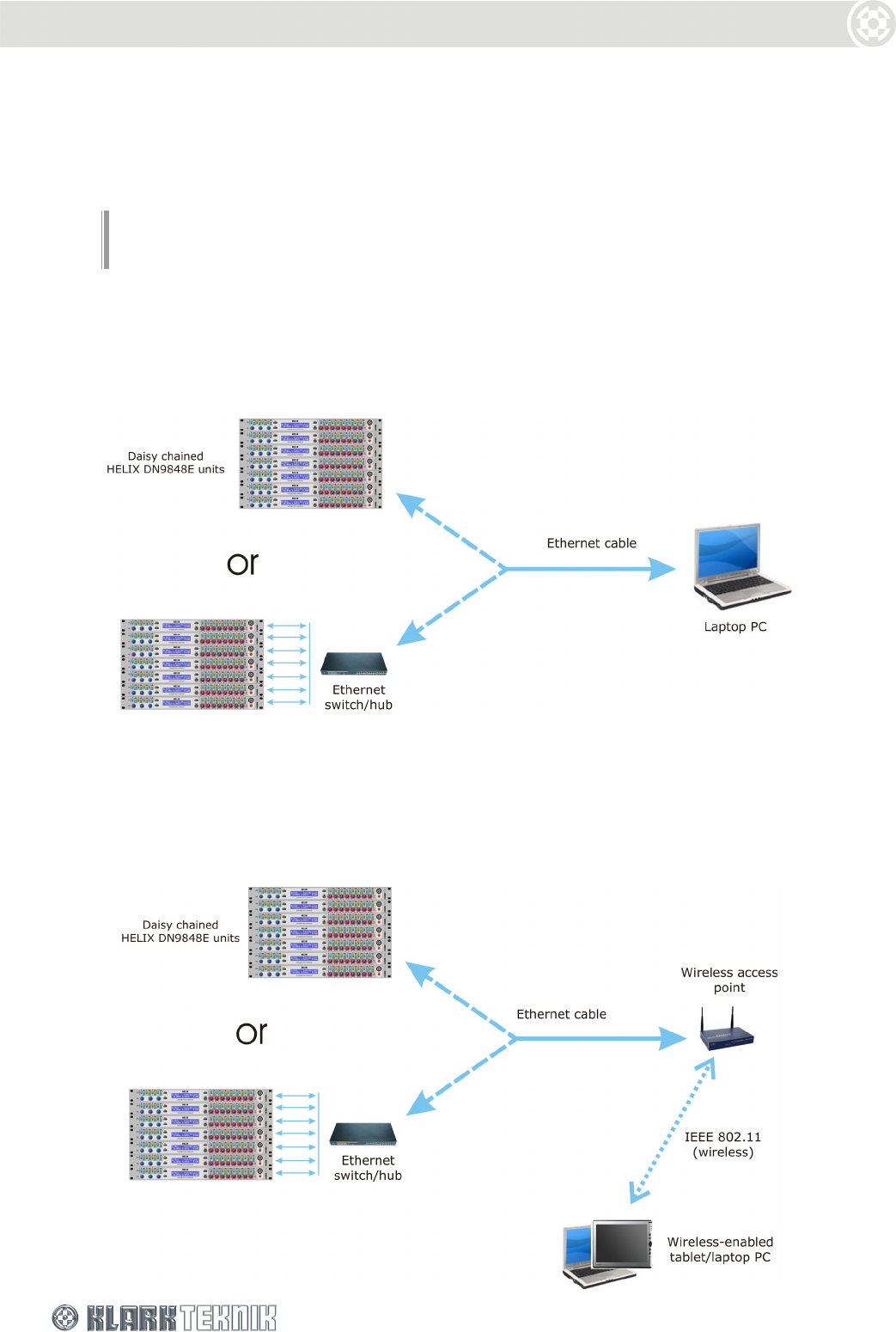

using the associated Elgar software application via the real panel Ethernet comms connectors (or

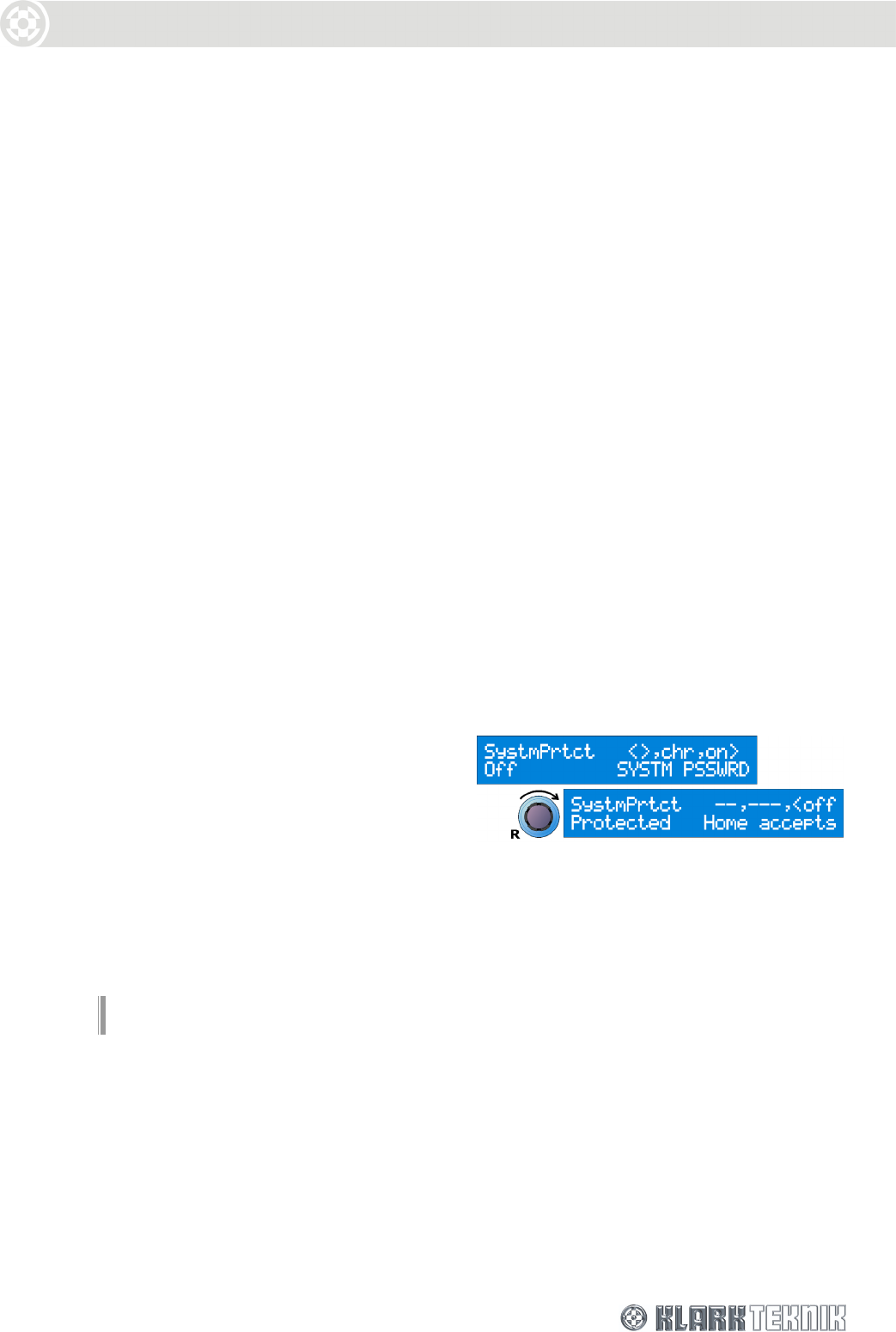

RS-232 PC port on the front panel). If required, access to critical parameter menus can be password

protected, for example, to avoid unauthorised adjustments in hire installations.

Commonly used settings can be stored for repetitive use in up to 32 lockable System memories while

varying show settings can be stored in up to five User memories.

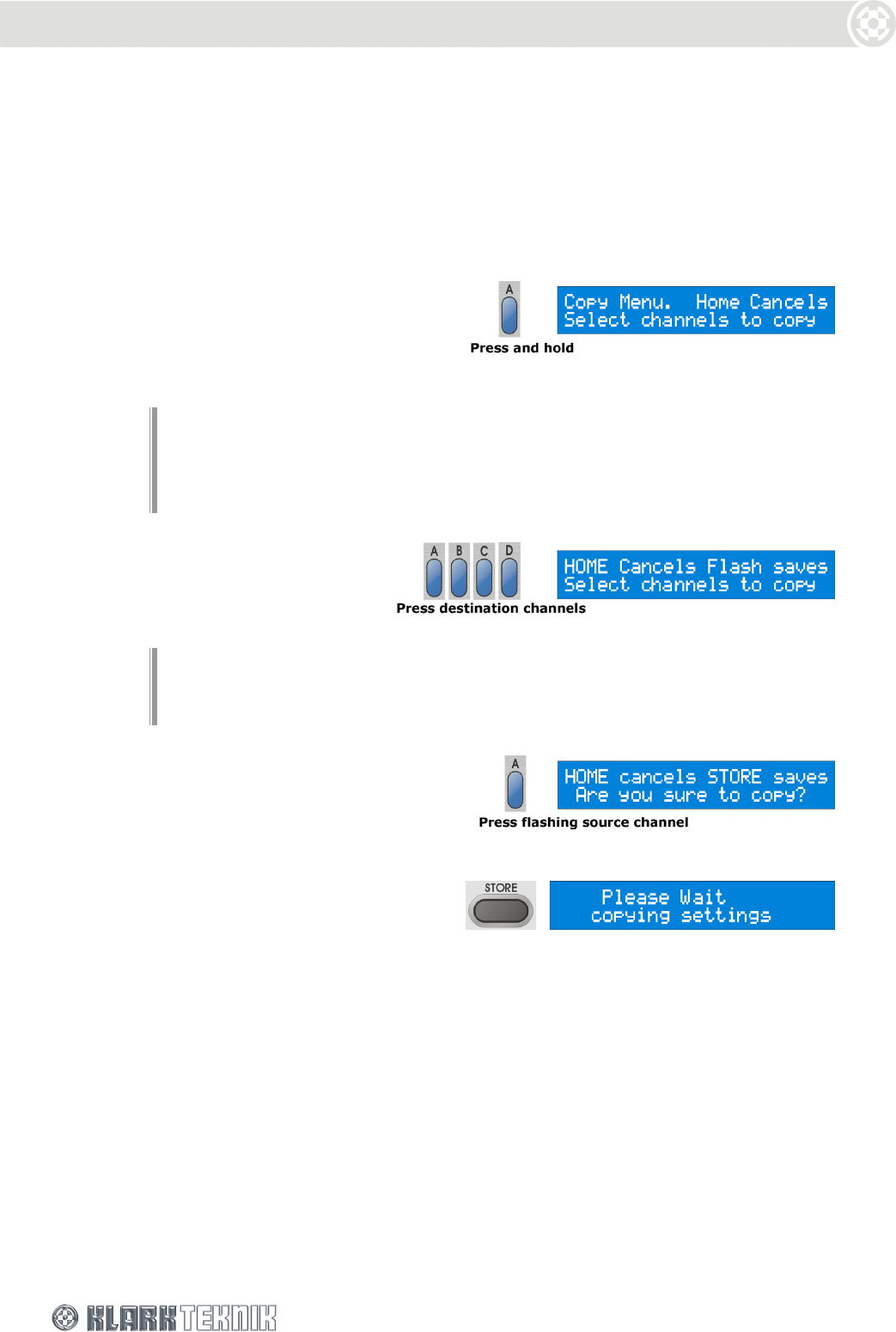

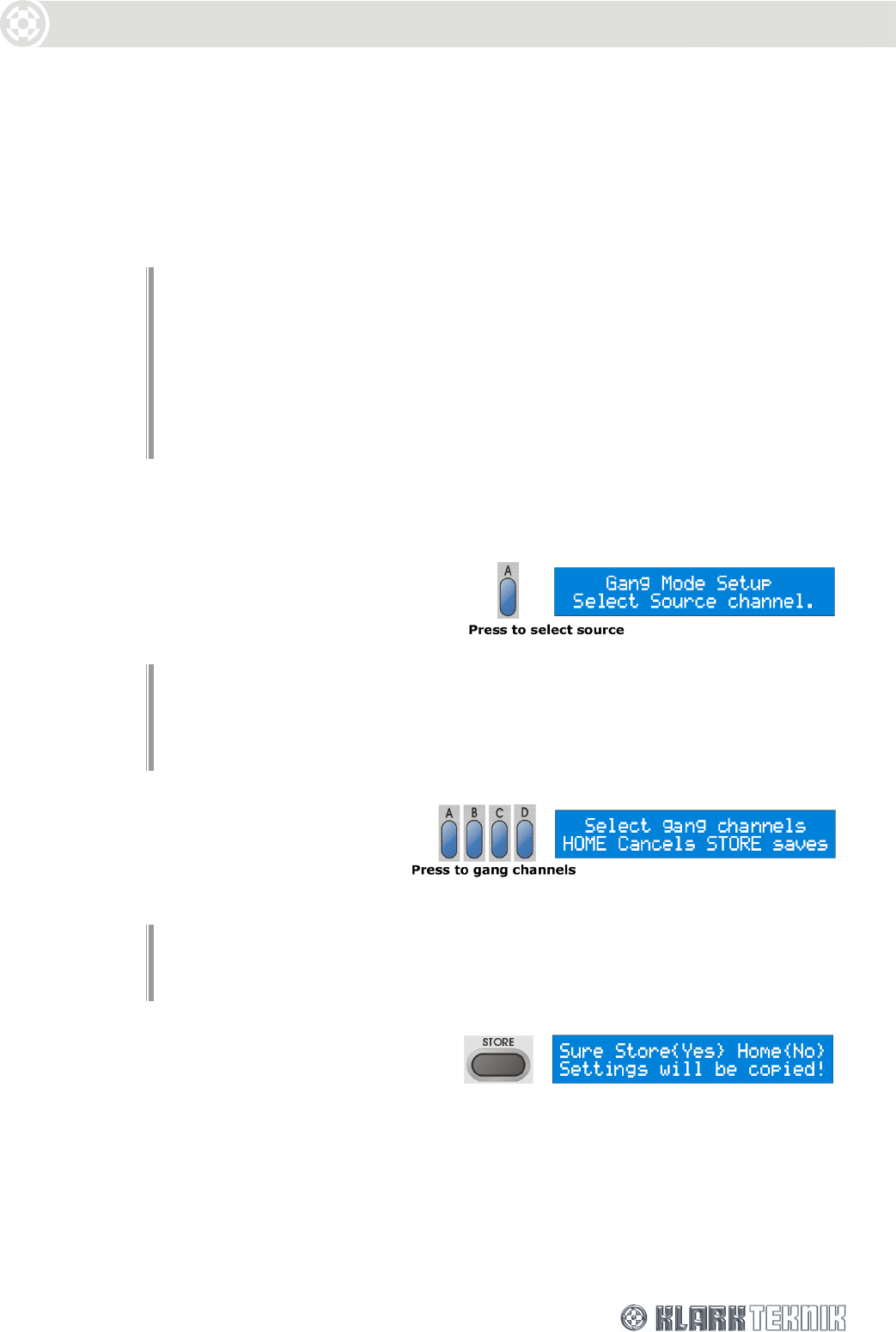

In addition, any input or output channel’s parameters may be copied across channels, and channels

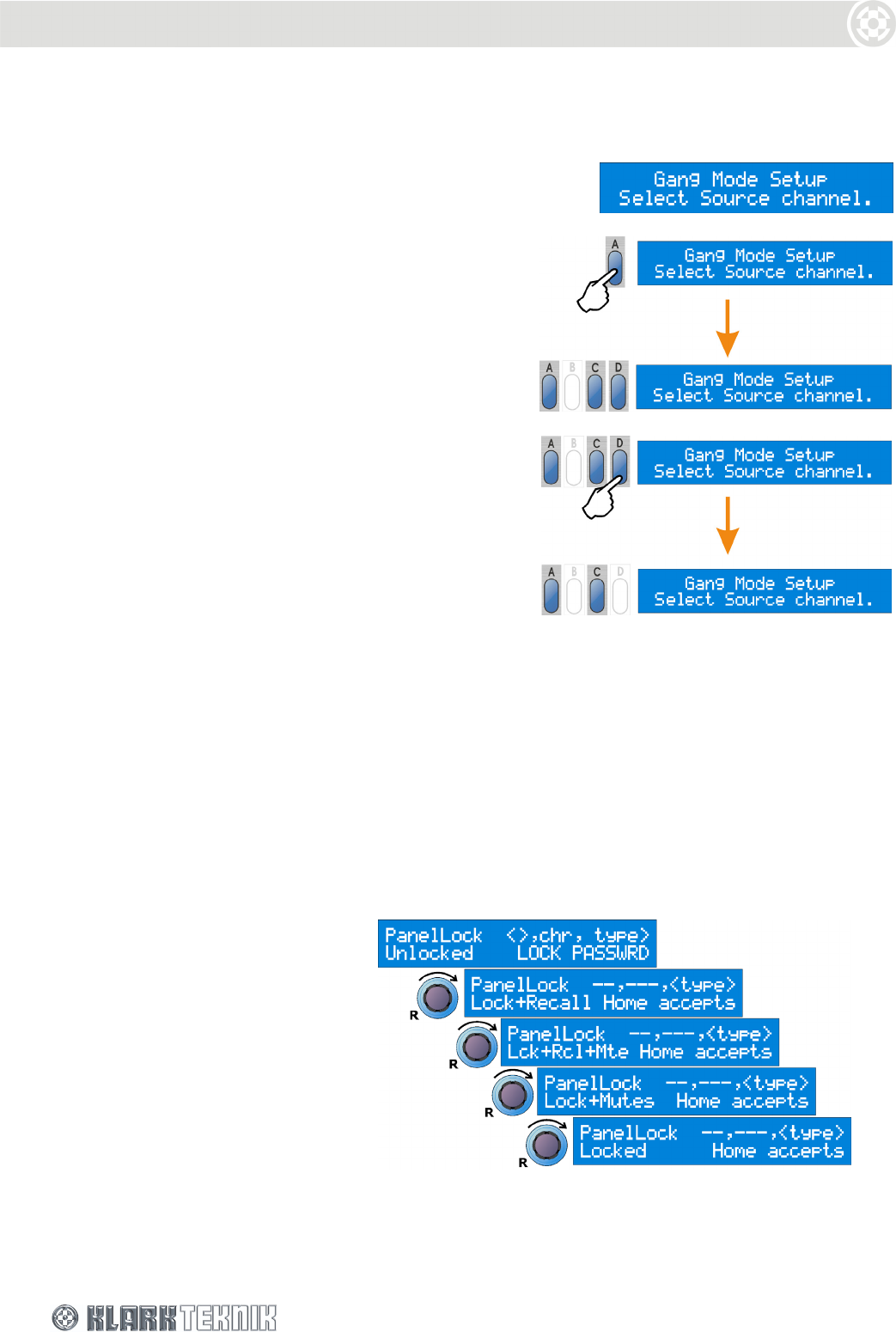

may be ganged to link source and destination channels for ease of operation.

Klark Teknik has a policy of continuous development and may produce updates to the DN9848E host

code. These can be downloaded to the unit via the front panel PC Port. To keep up with latest

features and functions, please visit www.klarkteknik.com.

Controls, Connectors, Indicators

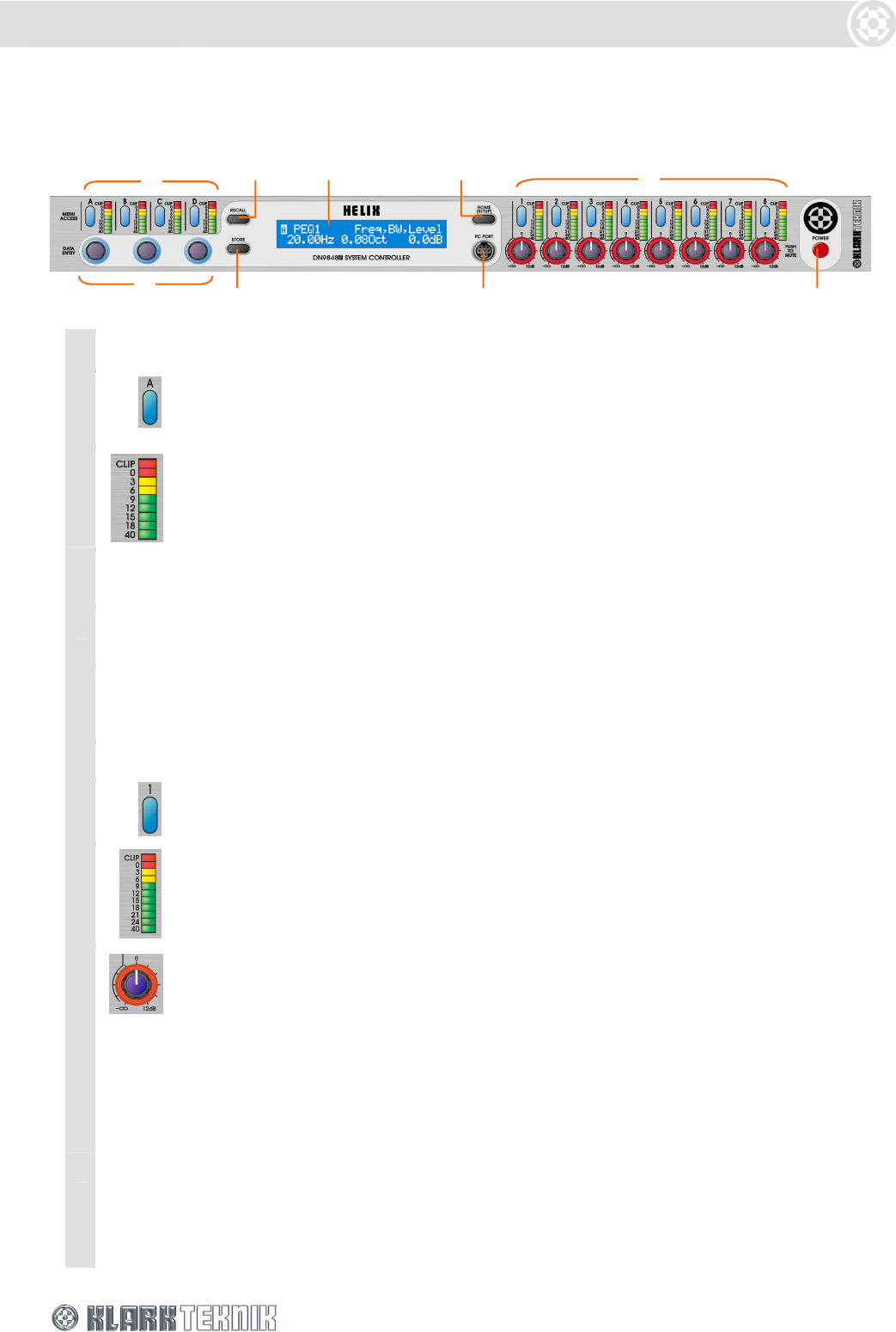

2. FRONT PANEL

1 Input channels A-D

MENU ACCESS

Buttons A-D

Press to access and step through the menu pages for the

respective input. The available pages depend on the current

security setting. The button is lit when active.

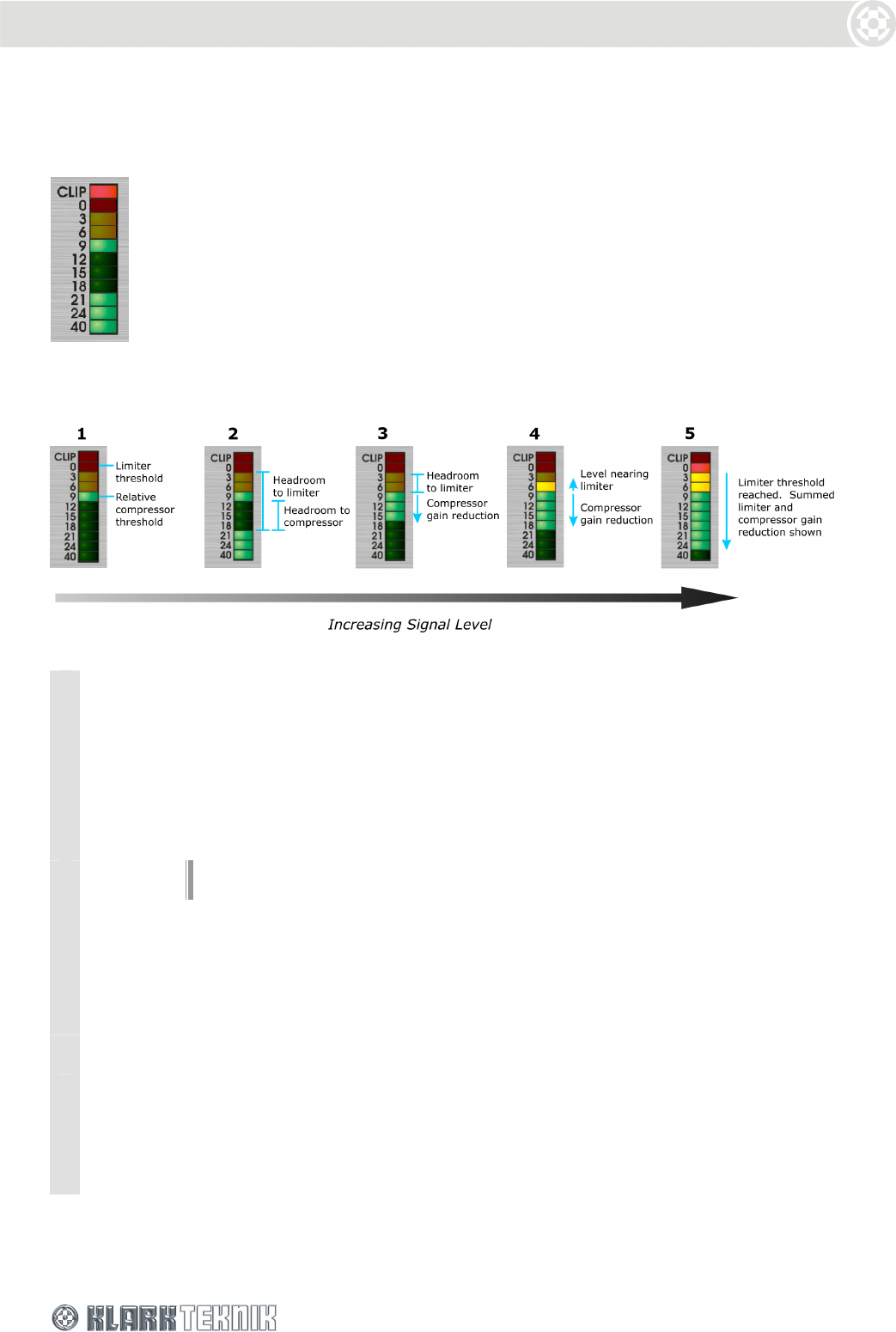

Signal Level

Meters A - D

9-segment signal meters for monitoring signal level

(compressor headroom and gain reduction) and clip on the

respective channels.

2 RECALL button Press to access the Recall menu page from which a User,

System or Backup memory can be selected for recall.

3 Alphanumeric display Displays menu pages for viewing/defining parameter values.

Values are adjusted via the DATA ENTRY control knobs.

4 HOME (SET UP) button Press to exit current menu page and return to default Home

page. Press and hold for one second to access Set Up menu,

then press to step through Set Up pages.

5 Output channels 1 - 8

MENU ACCESS

Buttons 1-8

As for input channels.

Signal Level

Meters 1 - 8

11-segment signal meters for monitoring signal level

(compressor headroom and gain reduction – reads relative

to limiter threshold) and clip on the respective channels.

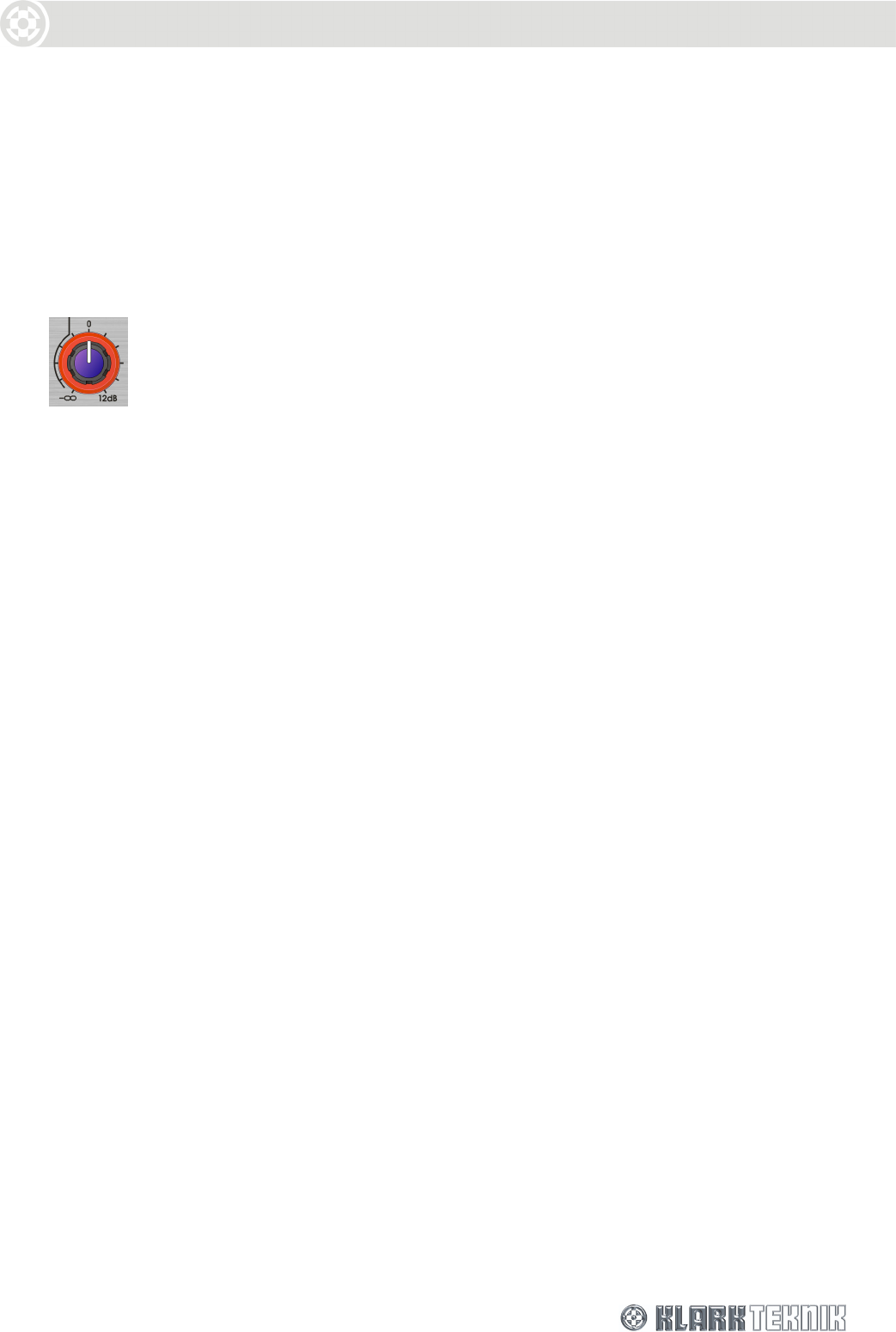

Output level and

mute control

Potentiometer control for fine-tuning/muting of output level.

Provides relative adjustment from zero level, which is the

level set in the output menu. Turn control to

increase/decrease level or press to mute. Red ring

illuminates when mute is active.

6 DATA ENTRY control

knobs

Used to set parameter values on menu pages (see

Section 4.1).

7 STORE button Press to access the Store menu page for storing User or

System memories.

8 PC port 8-pin mini-DIN socket for connecting to an RS-232 serial

port on a PC or other remote control device. (Ethercon

connectors are provided on the rear panel for remote control

via Ethernet.)

9 POWER button Press to switch the unit on or off.

2 3

7 8 9

Controls, Connectors, Indicators

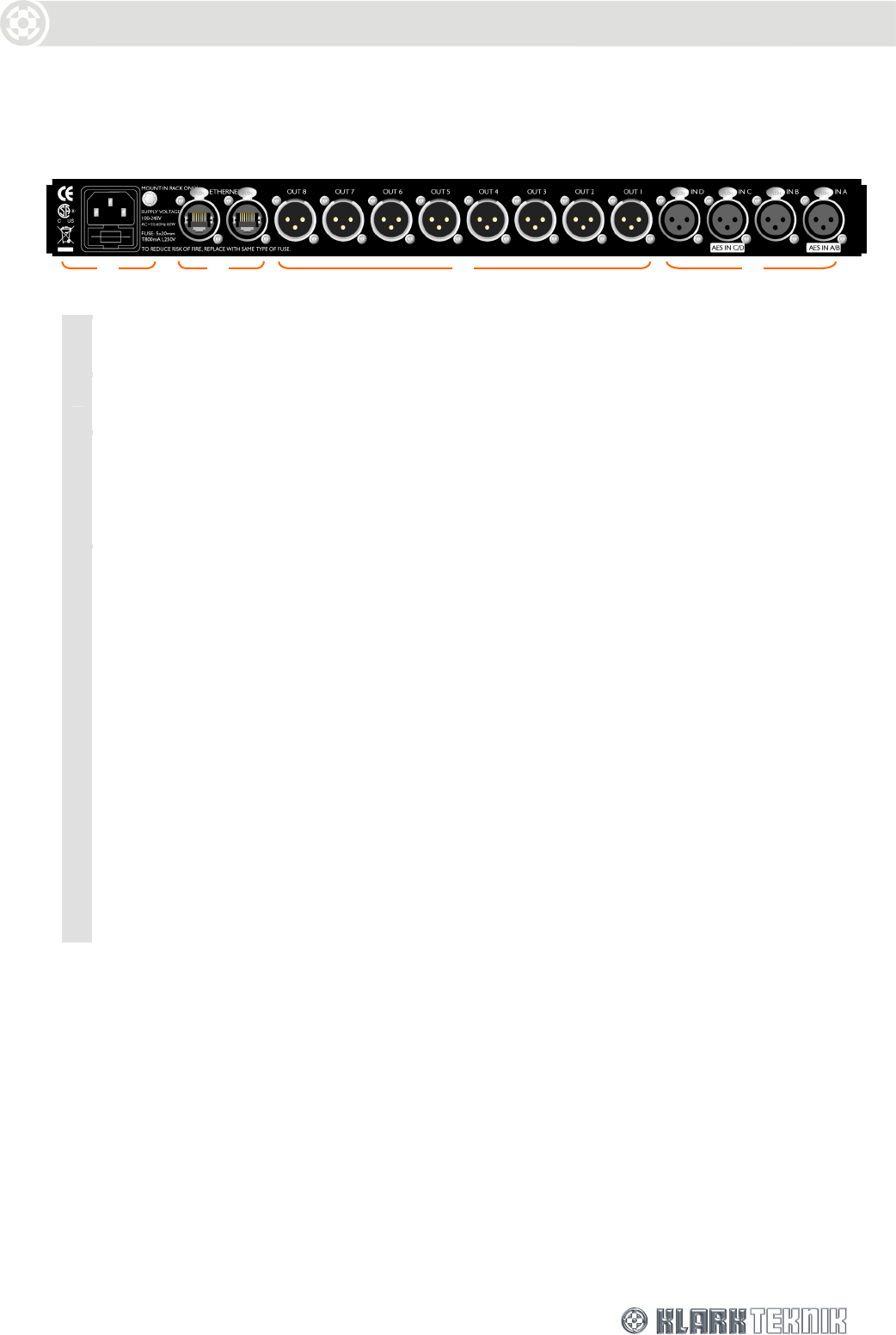

3. REAR PANEL

1 IEC fused mains

inlet socket

For mains power connection. Accepts input voltages from

100-240V AC 50/60Hz.

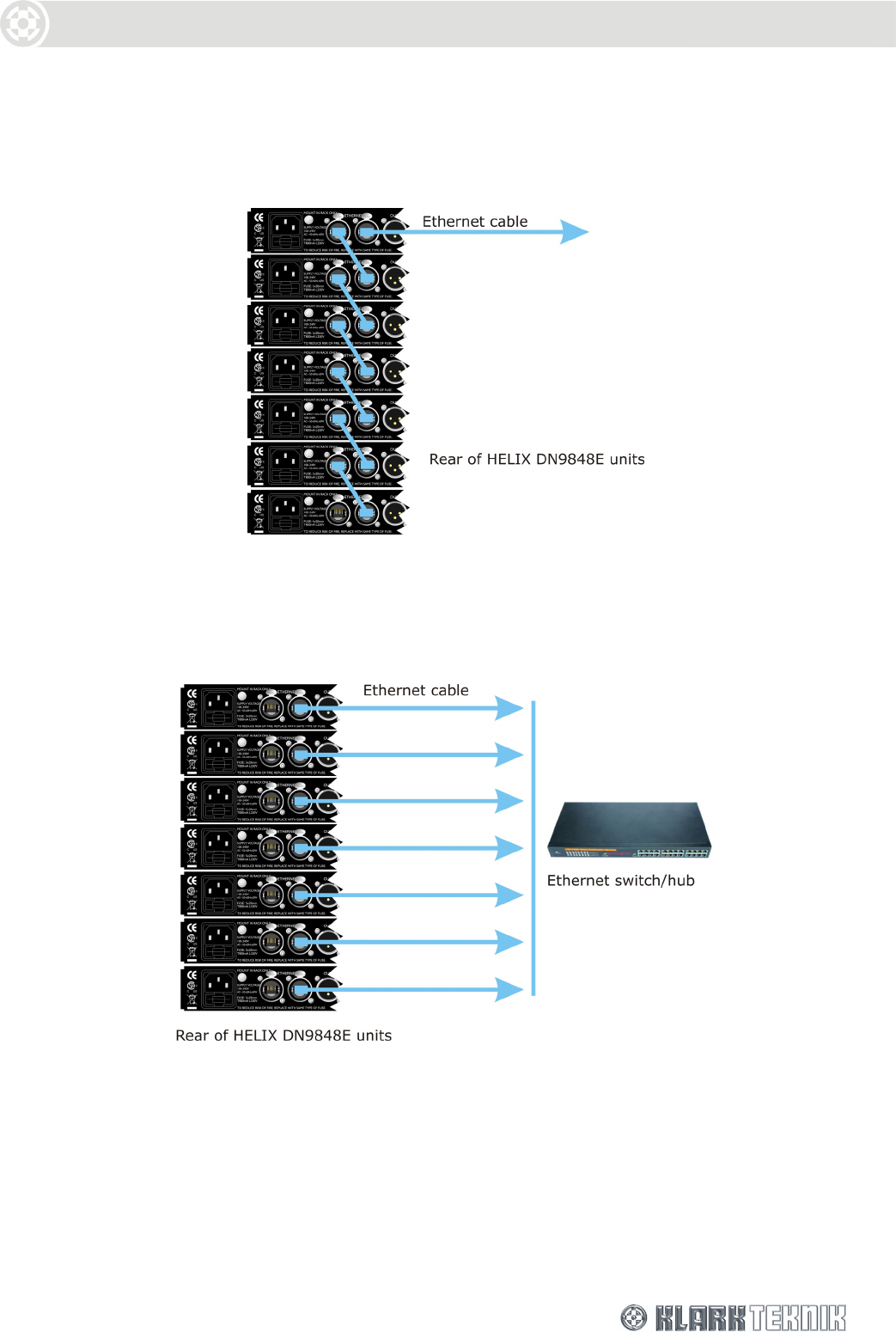

2 Ethernet 2-port Ethernet switch for remote control using Cat-5

cabling.

3 Outputs 1-8 Electronically balanced XLR audio output plugs

Pinouts: Pin 1 - Screen

Pin 2 - Hot

Pin 3 - Cold (Return)

4 Inputs A-D Analogue – electronically balanced XLR audio input sockets

Pinouts: Pin 1 - Screen

Pin 2 - Hot

Pin 3 - Cold (Return)

Digital – inputs A and C support incoming 96kHz AES/EBU

signals. Note that when digital input is selected, inputs B

and D are inactive.

AES/EBU is 110 Ohms. Sample rate converters (SRCs)

support incoming signals at sampling frequencies from

32kHz to 96kHz ±12.5%, while allowing the unit to operate

internally at 48kHz. An SRC bypass facility is available for

48kHz operation; this is to eliminate the propagation delay

through the SRC.

Pinouts: Pin 1 - Screen

Pin 2 - Data +

Pin 3 - Data -

2 3 4 1

DN9848E Menu System

4. PROGRAMMING SETTINGS

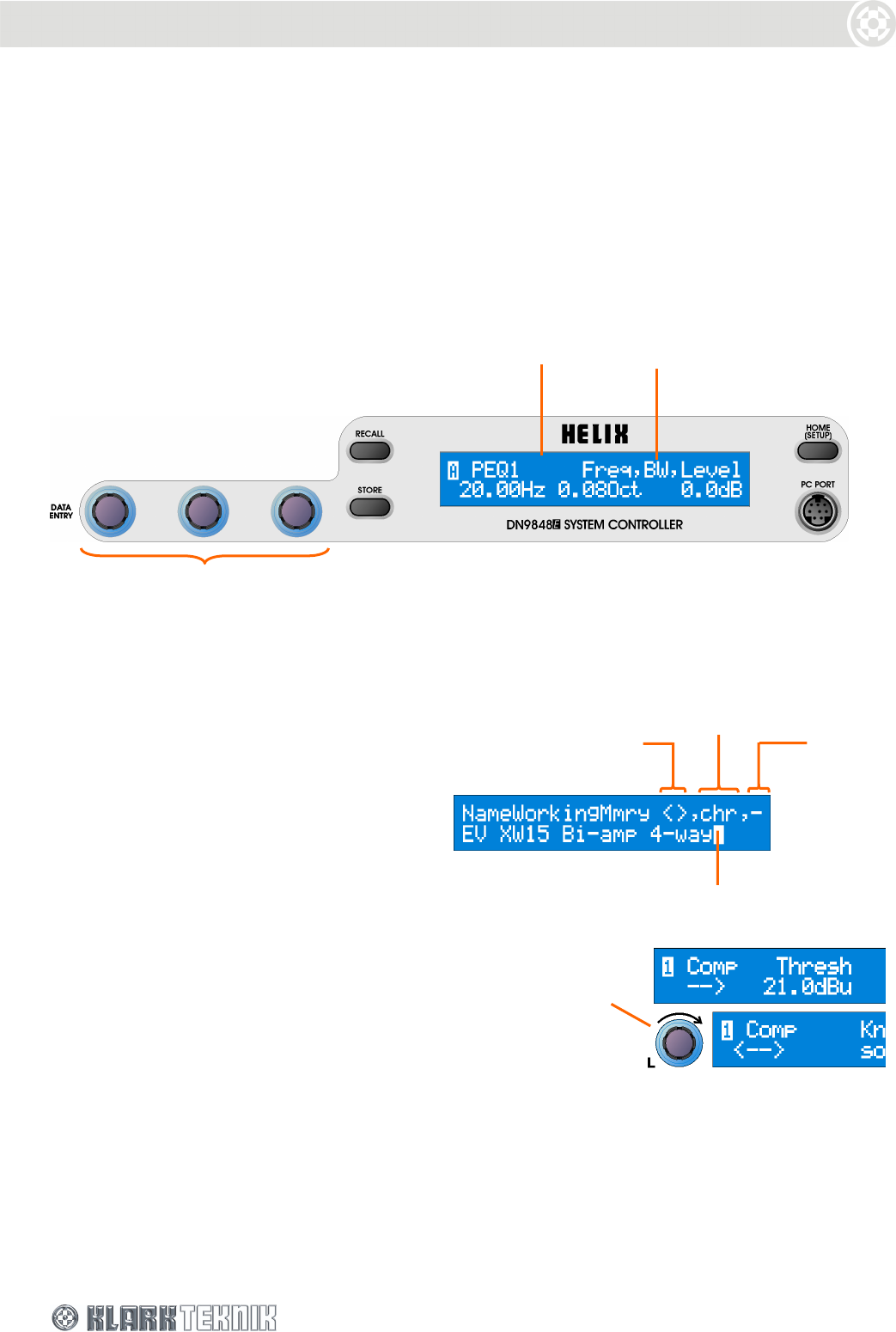

4.1. The DN9848E Programming Panel

All the parameters for input and output signal processing and routing are defined via function-specific

menu pages that are displayed and edited at the programming panel shown below. As described in

the illustration, each menu page uses a standard layout that relates the displayed parameters to the

three DATA ENTRY control knobs, which are used to adjust the parameter values.

When the menu page requires text entry, ‘<>’

indicates which DATA ENTRY control knob moves

the cursor left and right while “chr” indicates

which control knob changes the alphanumeric

character.

When there are sub-menu pages, either the left

or right DATA ENTRY control knob will be allocated

to moving forward ( - - >) or back up ( < - -). This

will be indicated here by a control knob icon

marked L (Left) or R (Right).

The alphanumeric display,

showing the menu page fo

programming PEQ1

he adjustable parameters are

named on the top line.

Current values are given

below in corresponding order.

DATA ENTR

control knobs adjust the left,

centre and right parameter values at the

display, in corresponding order. If there

are only one or two parameters, only the

active controls are lit.

he icon indicates

that turning the left

knob clockwise will

access the sub-menu

page.

Right knob

inactive

Centre knob

changes character

Left knob moves curso

Cursor

DN9848E Menu System

4.2. Navigating the DN9848E Menus

The DN9848E menu system is divided logically into Input, Output and Set Up menus, plus two

function-specific menus for quick access to the Store and Recall commands. A menu map is provided

at the end of this section for reference purposes.

4.2.1 Input and Output Menus

Each of the four input channels (A-D) and eight output channels (1-8) have their own set of menu

pages, accessed and stepped through by pressing the channel’s blue MENU ACCESS button.

When you make a selection, the MENU ACCESS button illuminates to show that channel is now active at

the programming panel. In addition, all the menu pages show the channel number (1 to 8) or letter

(A to D) in the top left-hand corner.

To program each parameter in turn across all the input/output channels, you can skip to the same

page on another input/output channel by pressing the MENU ACCESS button on the other channel.

If you want to jump back to the first page on a different channel, press the HOME button and then the

required channel button.

Note

If you cannot select any of the channel menu pages from the front panel, then your unit may

be set for remote control or the front panel may be locked as indicated on the alphanumeric

display. Please refer to Sections 7.2 and 7.4 for more details.

4.2.2 Set Up Menu

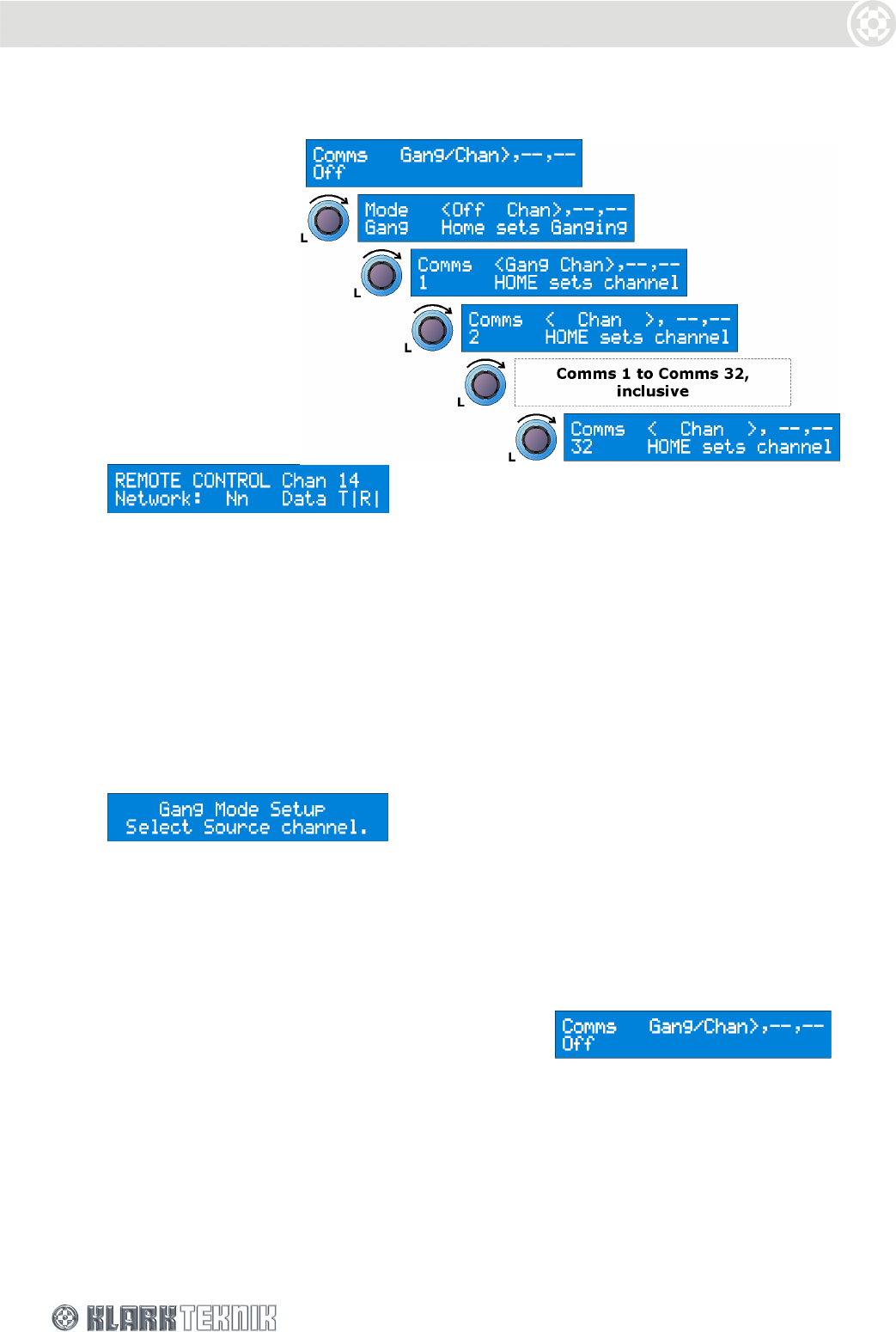

Global parameters, such as the Comms Channel for remote control set ups, security options and unit

labelling are defined in the Set Up menu. To switch to the Set Up menu, press and hold the black

HOME (SET UP) button located on the programming panel. Press the button repeatedly to cycle through

the menu pages.

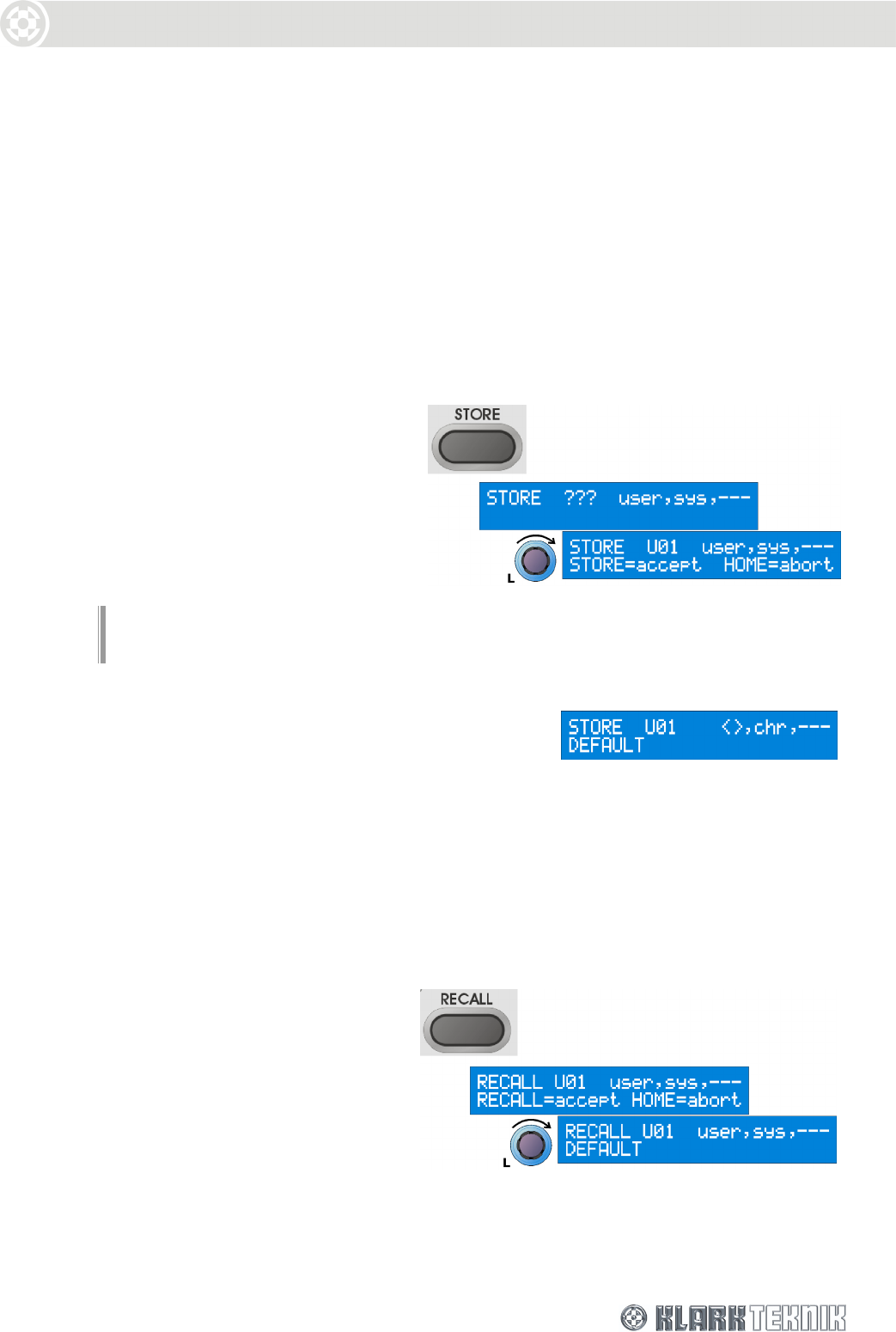

4.2.3 Store and Recall

The Store and Recall menu pages are accessed by the corresponding buttons on the programming

panel. To abort and exit the store/recall menu press the HOME button.

4.2.4 Home Page

The Home page, displayed at the end of the start up routine, indicates the unit name (set by the

User) and the current working memory which was retained from the previous session. To return to

the Home page at any time, press and release the HOME button. (The HOME button is a dual function

button – a short press returns to the Home page while a long press opens the Set Up menu.) The

HOME button can also be pressed to abort a Store or Recall process.

DN9848E Menu Map

Input Channels

5. INPUT CHANNELS

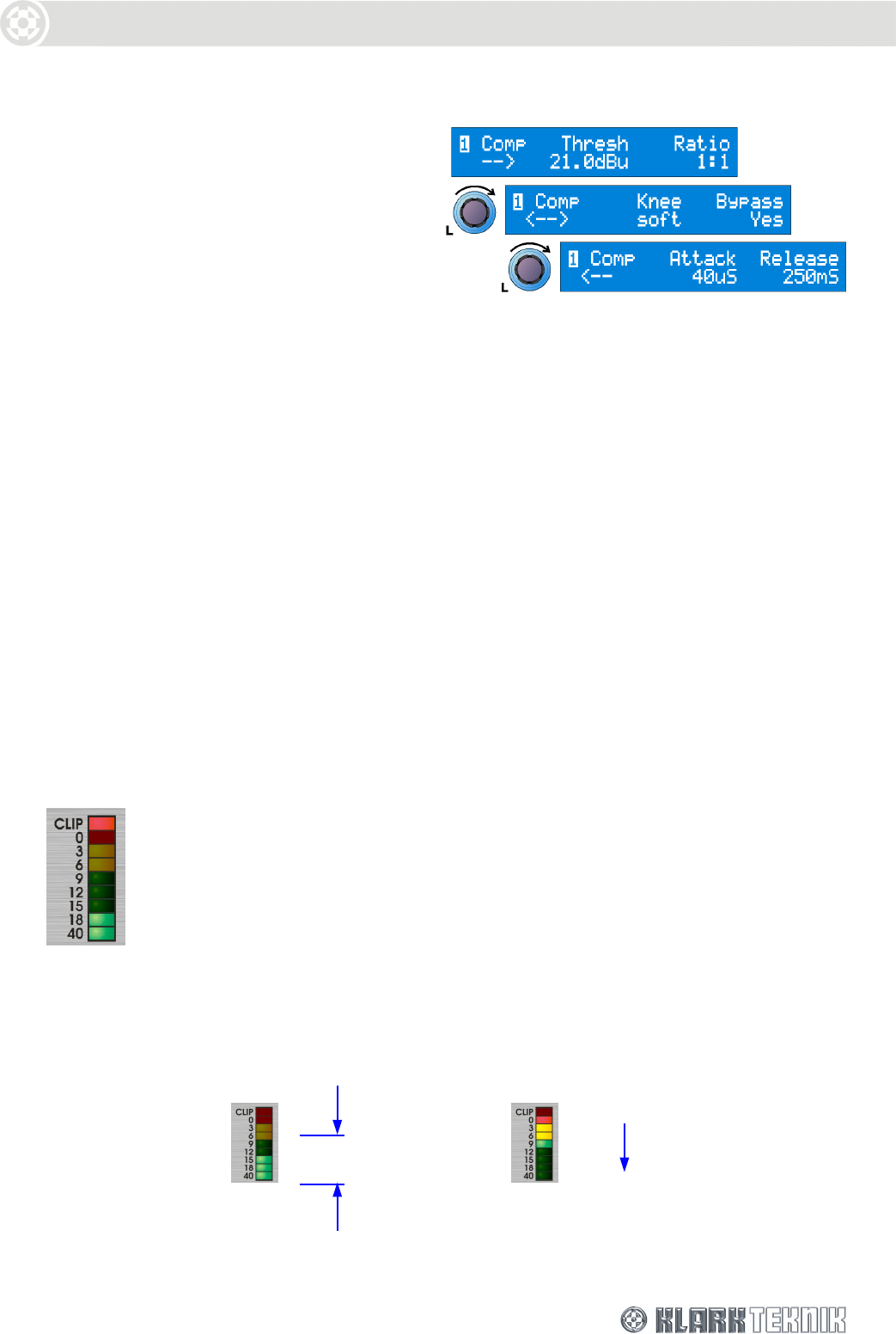

5.1. Brief Technical Overview

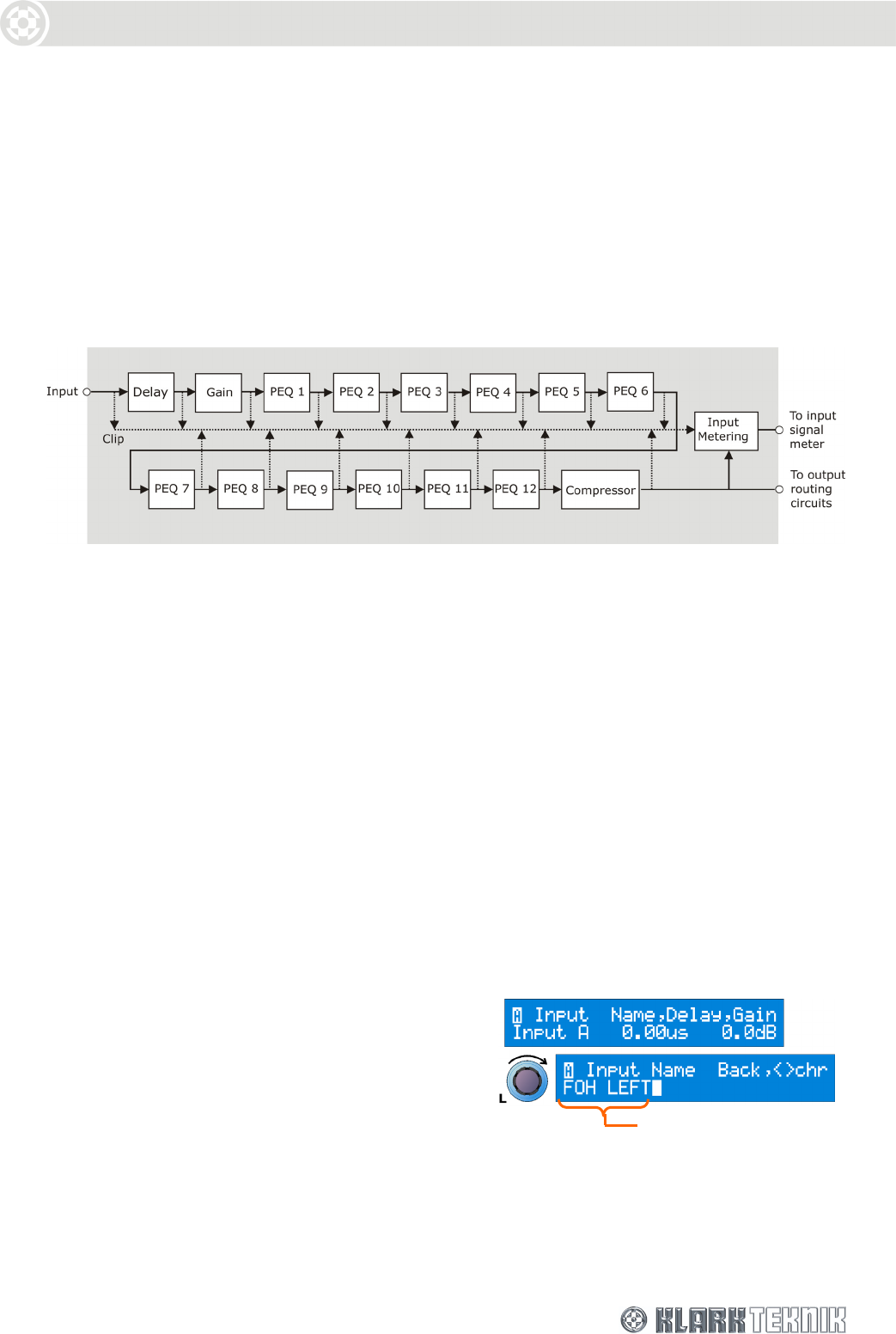

Referring to the illustration below, each input channel of the DN9848E processes the audio signal

through delay and gain stages, followed by 12 bands of parametric equalisation, and a full-band

compressor. All key stages are monitored for signal clipping which, if detected, illuminates the top

red segment at the top of the input signal meter; thus, clipping of the signal during processing is not

inadvertently missed. In addition, the signal level is monitored at the compressor to provide signal

headroom and gain reduction indications at the meter.

5.2. Setting Input Parameters

5.2.1 The Input Menu

The signal processing for each input channel is programmed independently via the separate Input

menu associated with each channel. The signal processing parameters are described below in menu

order.

 To access the Input menu pages for a particular channel

1 Press its blue MENU ACCESS button (A – D) to switch to its menu.

2 Press the button repeatedly to step through the pages in turn. Note that, after the last page,

the next button press will cycle the menu back to the first page.

 To skip across to the same parameter on another input, press its MENU ACCESS button.

5.2.2 Naming the Input Channel (Page 1)

Each input channel can be allocated a name up to

seven characters long, which will be shown in the first

page of the menu for easy reference. The default

names are “Input A”, “Input B”, etc. Names are

retained after power down and are included in stored

settings.

 To enter a name

1 Turn the left DATA ENTRY control knob clockwise to access the Input Name sub-menu page.

2 Use the centre control knob to move the cursor right or left, and the right control knob to

select the letter, number or symbol.

3 On completion, turn the left control knob anti-clockwise to go back to the main page. The

new name is now shown to the left of the menu page.

User defined channel name

Input Channels

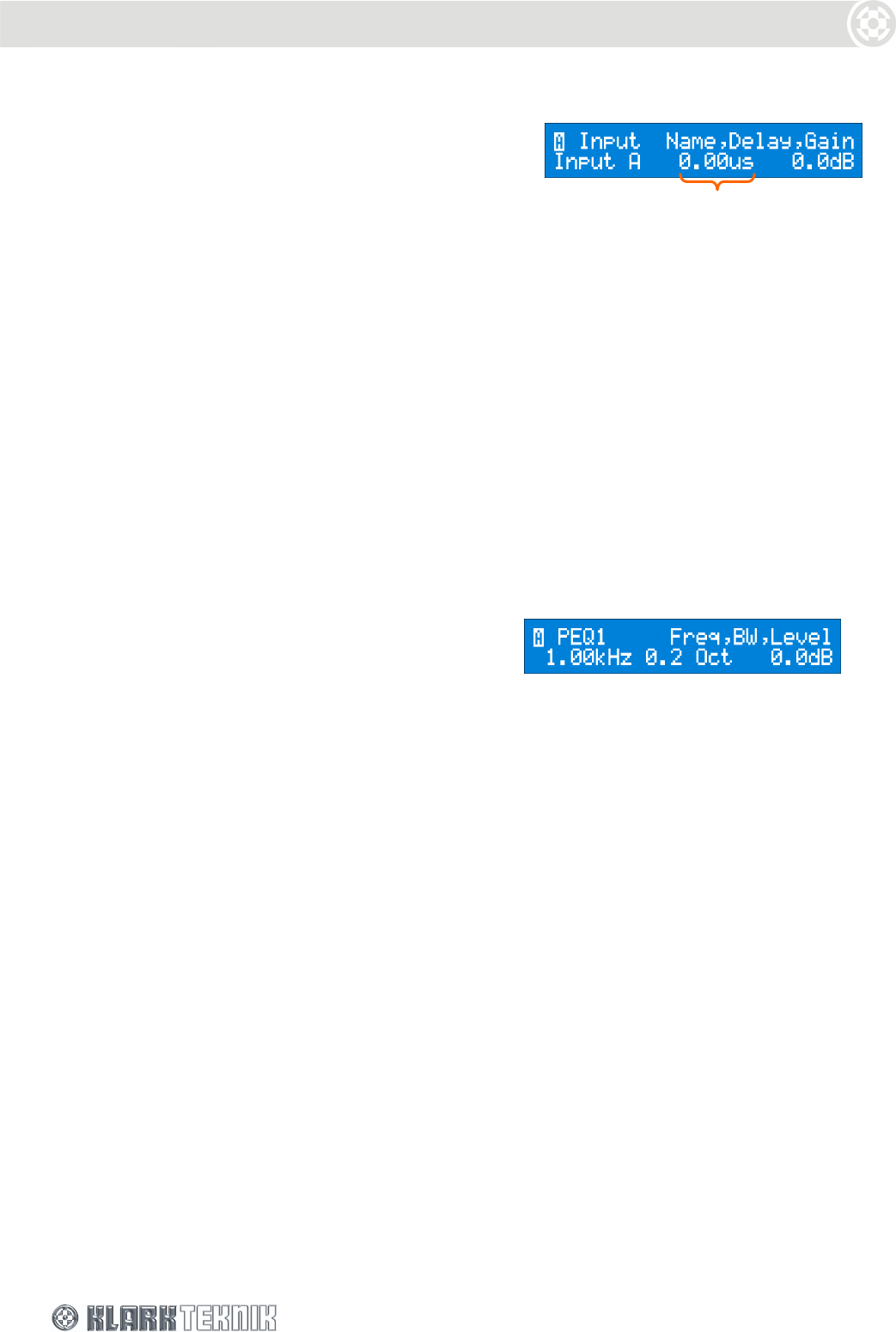

5.2.3 Gain and Delay (Page 1)

Gain and delay are also set in the first page of the channel’s

menu, providing easy access for quick adjustment during set

up or performance. Note that the delay can be specified in

terms of time or distance, as preferred. The unit of

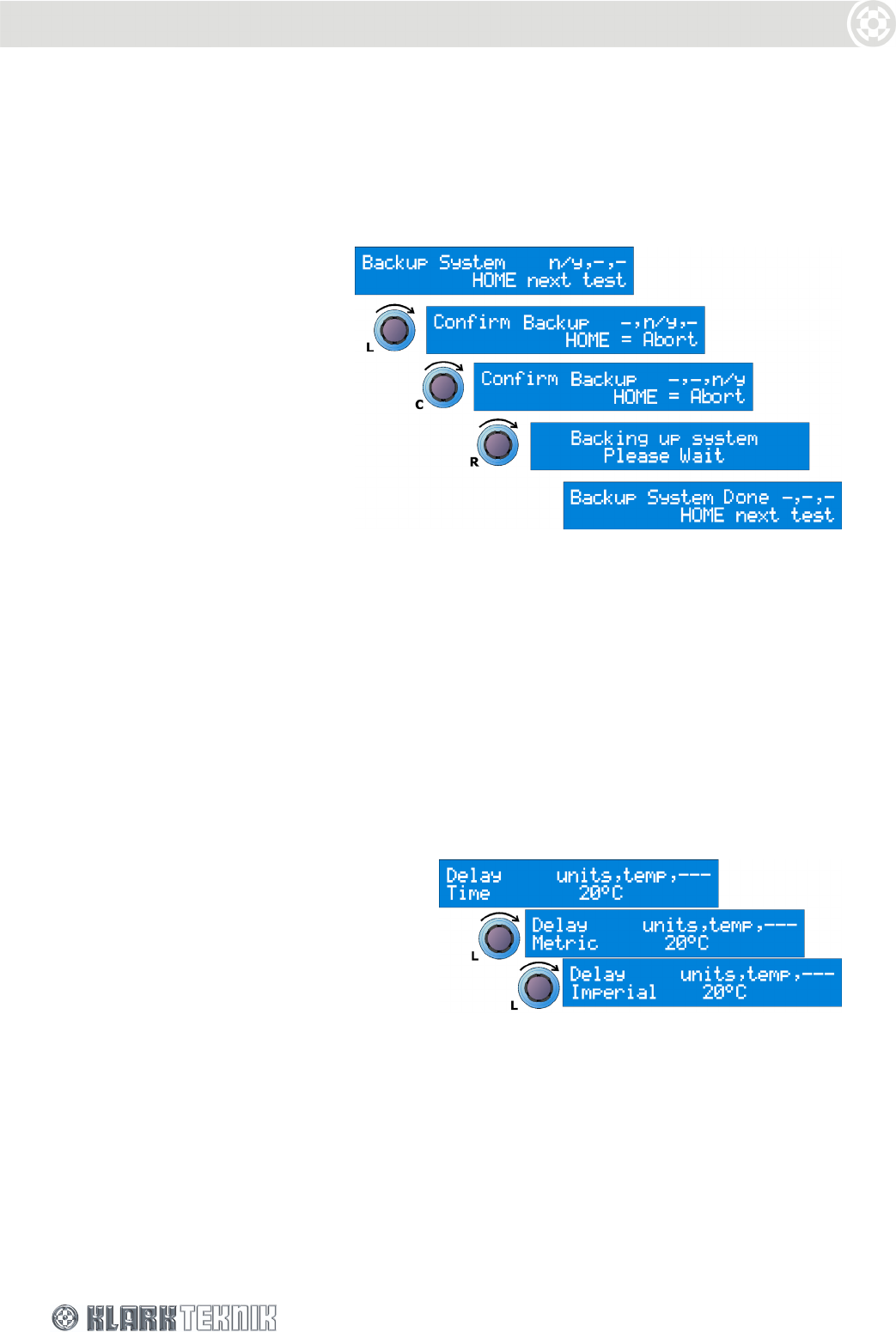

measurement is changed in the Set Up menu (see

Section 7.9).

 To set the delay

 Turn the centre DATA ENTRY control knob slowly for step increments, or sharply to leap to the

bottom/top of the range (two or three sharp turns should cover the whole range). When the

delay is set for time the overall range is 0 to 1.00s, with steps of approximately 20.8µs

between 0 to 1ms and steps of 0.02ms between 1ms to 1s. When the delay is set for metres,

the overall range is 0 to 343.53 m in steps of 0.1 m and for imperial (feet and inches) the

overall range is 0’ 0” to 1127’ 0” in steps of 1”.

 To adjust the gain

 Turn the right DATA ENTRY control knob. The range is –40dB to +12dB in steps of 0.1dB, with

an OFF position just ‘below’ –40dB. Setting the gain to OFF will mute the input signal.

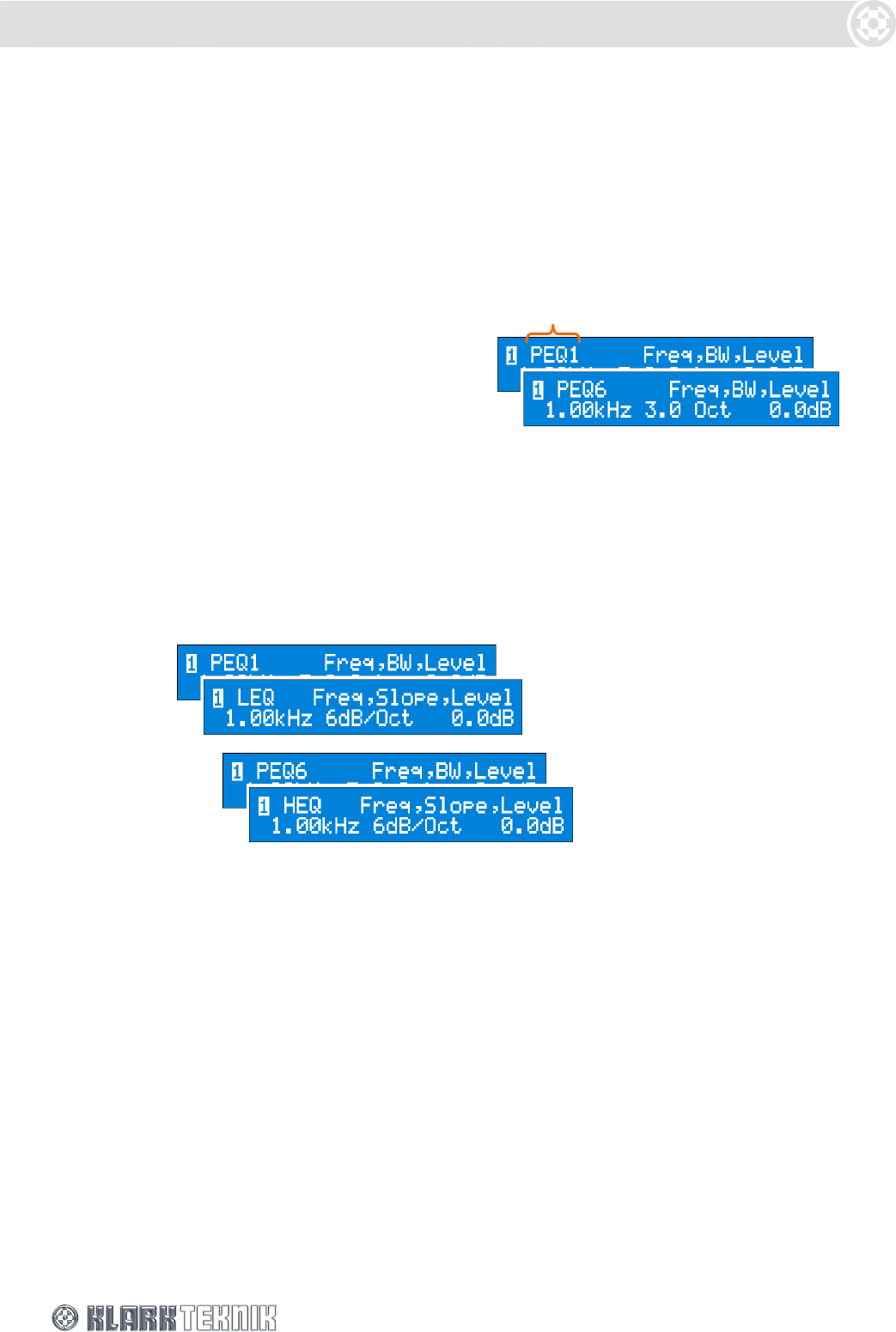

5.2.4 Parametric Equalisation (Pages 2 to 13)

The DN9848E provides 12 parametric equalisation stages

on each input channel, for equalising the input signal in

respect of room/venue characteristics. Each stage can be

used across the full range from 20Hz to 20kHz and is set

independently via its own menu page.

 To set a PEQ

1 Set a centre frequency (21 steps per octave) and bandwidth (0.08 to 3 Oct) for the PEQ

section, using the left and centre DATA ENTRY control knobs, respectively.

2 Turn the right control knob to set an attention/boost level in the range -18dB to +6dB.

PEQ sections that are not needed in the set up should be set to 0dB attention/boost.

Delays can be set in seconds,

metres or feet and inches

Input Channels

5.2.5 Compression (Page 14)

Each input has an independent full-range

compressor to improve the dynamics of the

incoming signal levels. The compressors are

variable ratio and can be set to a hard knee

characteristic for a sharp gain reduction

response at the compression threshold, or soft

knee for a more ‘musical’ response.

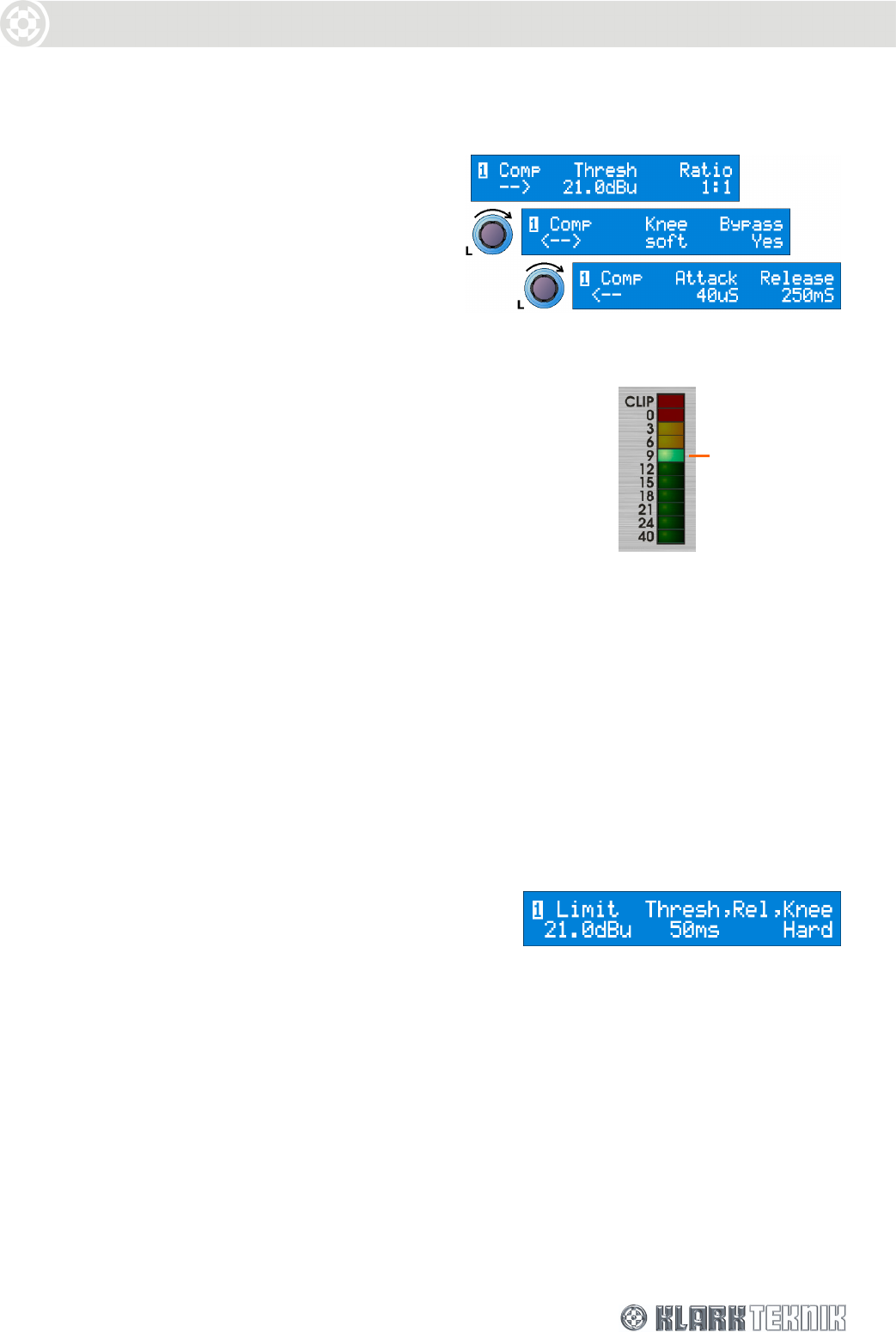

 To set the compressor parameters

1 On the first compressor menu page, use the centre DATA ENTRY control knob to select a

threshold value in the range –10dBu to +21dBu, and the right control knob to set a ratio from

1:1 to 5:1.

2 Turn the left control knob clockwise to access the first sub-menu page. Use the centre

control knob to select a hard or soft knee characteristic and the right control knob to set the

bypass state to ‘No’ so that the compressor is included in the signal path.

3 Turn the left control knob clockwise to access the second sub-menu page. Use the centre

control knob to set the compressor attack time (range of 40µs – 1ms in 20µs steps or 1ms to

100ms in 1ms steps). Use the right control knob to set the release time (10ms to 2s in 10ms

steps).

 To switch the compressor out of the circuit

 Set the bypass state on the second compressor page to ‘Yes’. The other settings are held for

future use.

5.3. Monitoring the Input Signal

Each of the four inputs has a nine-segment signal meter for monitoring the internal signal clipping

and compressor headroom or gain reduction.

The top CLIP segment (shown illuminated in diagram left) monitors the internal signal

clipping. It operates independently of the rest of the meter, illuminating when signal

clipping is detected at any stage in the processing circuits, regardless of whether the

input level is above or below the compressor threshold. Hence, the audio engineer has

full visibility of internal signal clipping that may result in audio distortion.

The 0dB to –40dB signal meter monitors the input level on a relative scale, where the “0”

segment is set at the specified compressor threshold. For example, if the threshold is set

to +9dBu then the input signal meter “0” segment is set at 9dBu true value, and a signal

of –3dBu registers as 12dBu below the threshold (below left). Thus, when the signal level is below

the threshold, the meter indicates the headroom.

When the signal level reaches the threshold, that is, the red “0” segment illuminates, the meter ‘flips’

and reads downwards to show the amount of gain reduction applied to the signal.

Signal level below

compressor threshold

9dBu gain

reduction

Compressor threshold

reached

12dBu available

headroom

Output Channels

6. OUTPUT CHANNELS

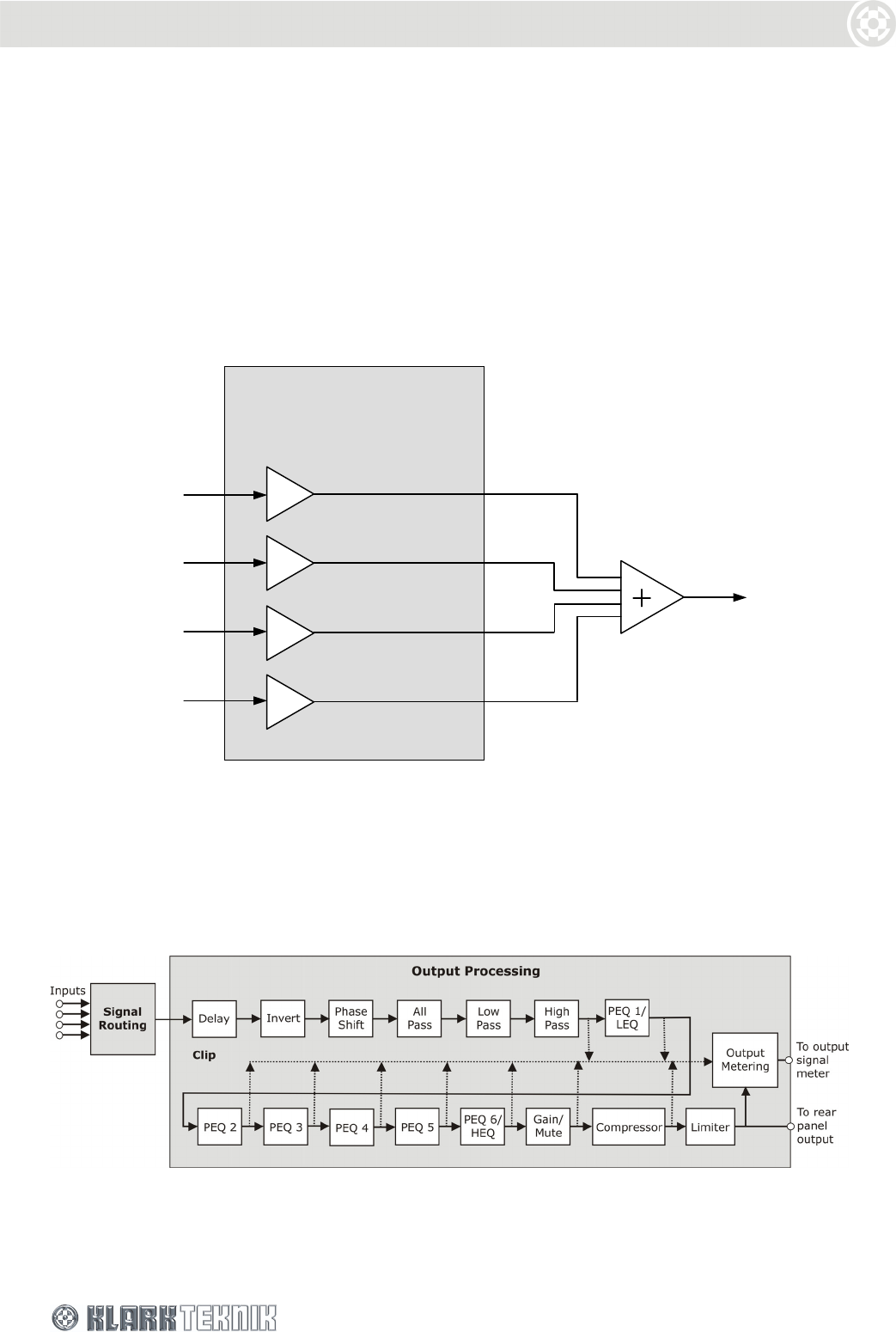

6.1. Brief Technical Overview

The output channels are slightly more complex than the input channels in that they are responsible

for the signal routing as well as output signal processing. At the input of each output there is a

matrix mixer (see following diagram) that can source each output from a mix of the four input

channels (A to D). An output can derive its source from a single input by setting the gain of the other

inputs to off. The amount, or level, of input that can be routed to the output is variable from –40dB

to 0dB in 0.1dB steps, or can be switched off completely.

After routing, the resultant signal is passed through the various output processing circuits as shown

below. Processing options include delay, inversion, two independent phase adjustment stages (Phase

Shift and All Pass), filtering, six stages of parametric equalisation, gain/mute, compression and

limiting. All key stages are monitored for signal clipping which, if detected, illuminates the top red

segment at the top of the output signal meter. In addition, the signal is monitored through the

compressor and limiter stages to provide headroom/gain reduction indications at the signal meter.

Processed Inputs

From A

From B

From C

From D

Signal Routing

Select the amount of input

between –40.0dB to 0.0dB in

0.1dB steps, or switch it off

Sourced output for

onward processing

Matrix Mixer

Output Channels

6.2. Setting Output Parameters

Signal processing for each output channel is programmed independently via the separate Output

menu associated with each channel. The signal processing parameters are described below in menu

order.

 To access the Output menu pages for a particular channel

 Press its blue MENU ACCESS button (1 – 8) to switch to its menu.

 Press the button repeatedly to step through the pages in turn. Note that, after the last page,

the next button press will cycle the menu back to the first page.

 To skip across to the same parameter on another output, press its MENU ACCESS button.

6.2.2 Naming the Output Channel and Matrix Mixing (Page 1)

Each output channel can be allocated a name up to eight characters long, which will be shown in the

first page of the menu for easy reference. The default names are “Output 1”, “Output 2”, etc. Names

are retained after power down and are included in stored settings.

Each output of the DN9848E can be sourced from a mix of the input channels. The level of the source

inputs can be set to between 0.0dB and –40.0dB or switched off.

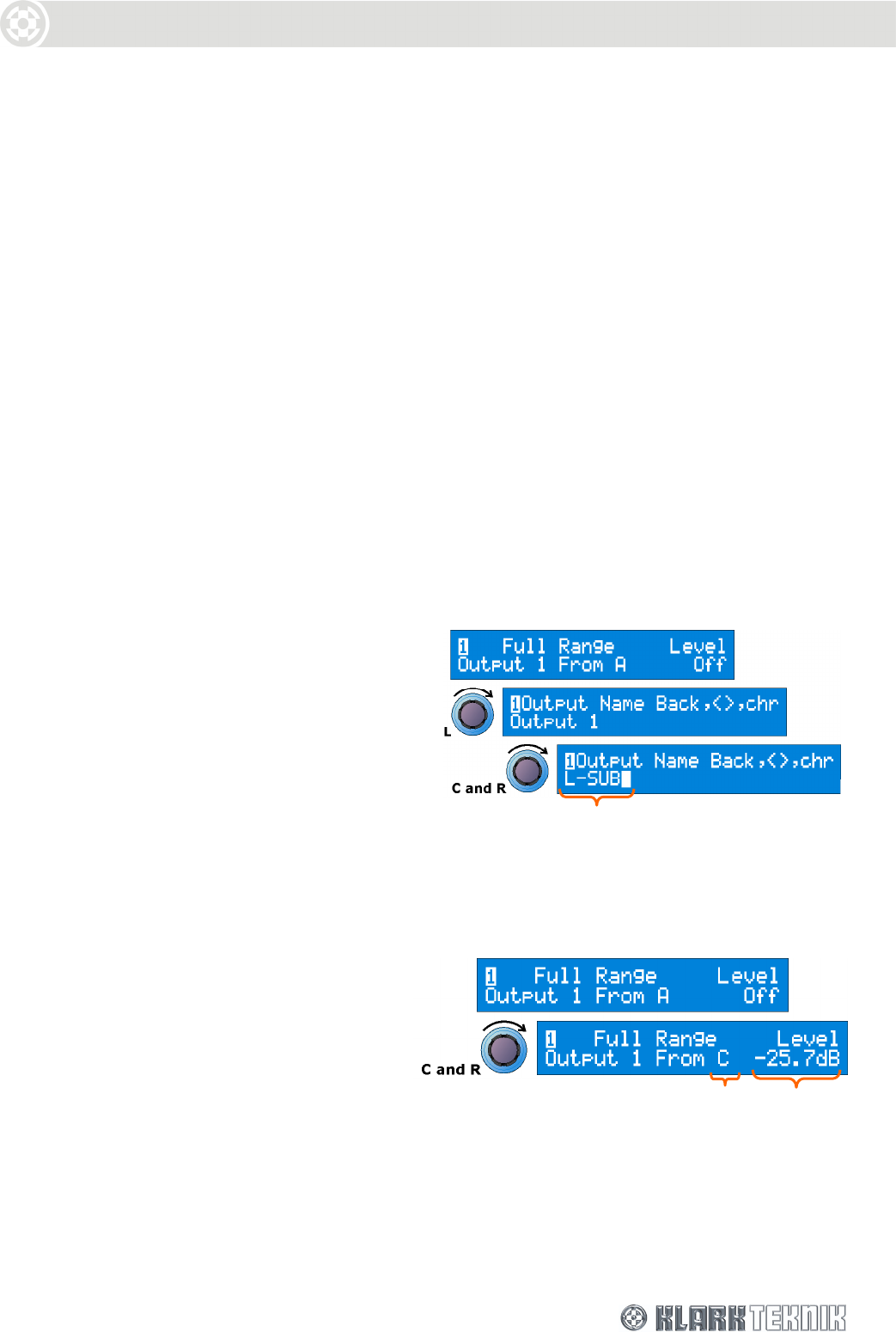

 To enter a name

1 Turn the left DATA ENTRY control knob

clockwise to access the Output Name

menu page.

2 Use the centre control knob to move the

cursor right or left, and the right control

knob to select the letter, number or

symbol.

3 On completion, turn the left control knob

anti-clockwise to go back to the main

page. The new name is now shown to

the left of the menu page.

 To set the source input channel and adjust the level

1 Using the centre DATA ENTRY control

knob, select source input channel,

that is, A, B C or D.

2 Turn the right control knob to select

the level of the source input, or

switch level off.

3 On completion, press the next

output channel MENU ACCESS button

to go to the next menu page.

User-defined channel name

User-defined output channel

source and level

Output Channels

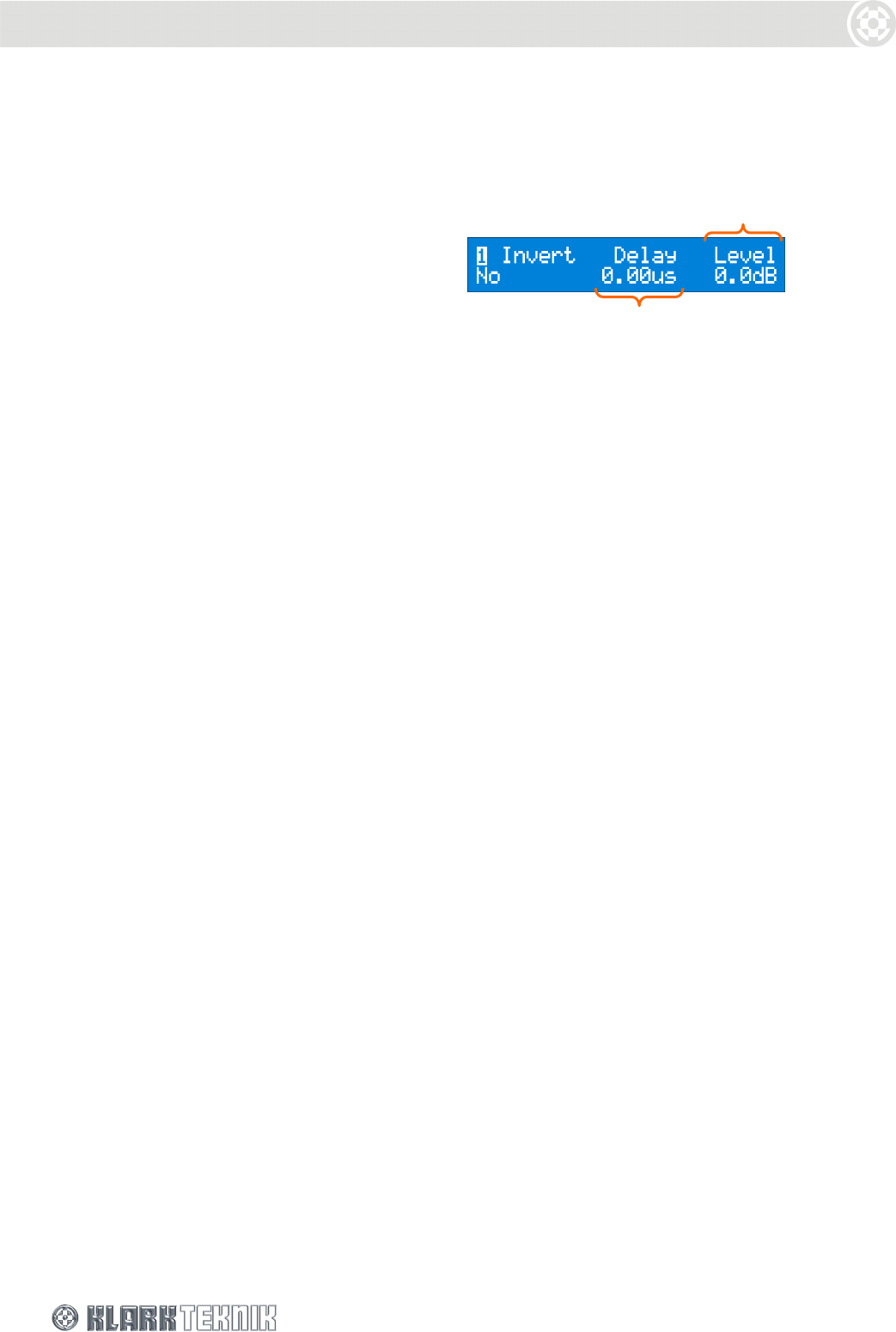

6.2.3 Signal Invert, Delay and Output Level (Page 2)

Each output can be phase inverted by 180º

(separate to the phase-alignment for

crossover), delayed for system alignment and

the level attenuated or boosted.

Delay can be specified in terms of time or

distance, as preferred. The unit of

measurement is changed in the Set Up menu

(see Section 7.9).

The Level entered here sets the baseline

output level, that is, the ‘zero’ value, for the

rotary Output Gain controls. For example, if

the Level is set to 6dB, the 0 represents 6dB. Turning the rotary Gain Control right/left will

increase/decrease the level in a proportional manner beyond 6dB (it is not directly additive since the

gain is limited to +12dB). Hence, the Output Gain controls enable fine-tuning during a performance,

while the baseline output level is retained as a standard setting for future use.

 To invert the output signal

 Turn the left DATA ENTRY control knob clockwise until the Invert field reads “Yes”. The default

setting is “No” inversion.

 To set the delay

 Turn the centre DATA ENTRY control knob slowly for step increments, or sharply to leap to the

bottom/top of the range (one or two sharp turns should cover the whole range). When the

delay is set for time the overall range is 0 to 300.00ms, with steps of approximately 5.2µs

between 0 to 1ms and steps of 0.01ms between 1ms to 300ms. When the delay is set for

metres the overall range is 0 to 103.06 m in steps of 0.1 m and for imperial (feet and inches)

the overall range is 0’ 0” to 338’ 0” in steps of 1”.

 To set the base level for the front panel Gain control

 Turn the right DATA ENTRY control knob. The range is –40dB to +12dB in steps of 0.1dB, with

an OFF position just ‘below’ –40dB. Setting the gain to OFF will mute the input signal.

6.2.4 Phase Adjustment (Pages 3 and 4)

To meet the demands of a wide range of situations, the Klark Teknik DN9848E provides two all-pass

filters with complementary control parameters for fine-tuning the phase response on each output, for

example, for alignment at crossover. The first filter is presented as a ‘phase shifter’ for which you

can set a specific phase shift at a reference frequency, for example, the HPF or LPF (typically the

crossover point). The second filter enables a 1st or 2nd order phase shift to be applied at a chosen

frequency. With 2nd order, the phase shift window can be shaped, that is, you can adjust the

steepness of the transition by setting the Q value.

For detailed information on how these filters modify the signal, please refer to Section 10 “Application

Notes”.

Delays can be set in seconds,

metres or feet

Sets the baseline for the

rotary Output Gain control

Output Channels

 To set a precise phase shift at a reference frequency

1 Step to the Phase Angle/Ref page shown right.

2 Turn the centre DATA ENTRY control knob to

select a phase angle between 0º and 180º.

Turn the right control knob to set the

reference frequency to HPF, LPF or one of the

six PEQs (set in the subsequent Output menu

pages).

 To apply a 1st order phase adjustment in relation to a chosen frequency

1 Step to the All-Pass page, shown right.

2 Turn the right DATA ENTRY control knob to

enable a 1st (90º) order shift.

3 Turn the left control knob to the required

frequency.

 To apply a ‘shaped’ phase transition at a chosen frequency

1 Step to the All-Pass page, shown right.

2 Turn the right DATA ENTRY control knob to

enable a 2nd (180º) order shift.

3 Turn the centre control knob to select the Q

(slope) and the left control knob to select the

frequency.

6.2.5 High Pass and Low Pass Filters (Pages 5 and 6)

The DN9848E provides the following high and low pass filter (HPF and LPF) options for crossover

purposes:

Butterworth: 6, 12, 18, 24, 36 and 48dB / Octave

Bessel: 12, 18, 24, 36 and 48dB / Octave

Linkwitz Riley: 12 and 24dB / Octave

Peaking (HPF only): 12 and 24dB / Octave 0-6dB Gain

Bypass: No Filter

 To add a high/low pass filter to output processing

1 Step to the HPF or LPF page, as required (see

right).

2 Use the left DATA ENTRY control knob to specify

the cut-off frequency.

3 Use the centre control knob to select the filter

type and the right control knob to set the

slope/gain. (The right parameter switches

between slope and gain, dependent on the

filter type).

Output Channels

 To bypass the high/low pass filter processing

1 Step to the HPF or LPF page, as required.

2 Turn the centre DATA ENTRY control knob anti-clockwise to ‘Bypass’. The last selected values

for each type of filter are retained in the background for easy recall.

6.2.6 Parametric Equalisation (Pages 7 to 12)

The DN9848E provides six parametric equalisation

stages on each output channel, for equalising the

output signal in respect of loudspeaker and/or

system characteristics. The first and last of these

PEQ sections can, alternatively, be configured for

lower and upper shelving equalisation. All the PEQ

sections can be used across the full range from

20Hz to 20kHz and are set independently via their

own menu page.

 To set a PEQ

1 Set a centre frequency (21 steps per octave) and bandwidth (0.08 to 3 Oct) for the PEQ

section, using the left and centre DATA ENTRY control knobs, respectively.

Or:

Switch to an LEQ/HEQ setting with a 6dB or 12db slope by turning the centre control knob

clockwise beyond 3 Oct (see below). Use the left control knob to set the LEQ/HEQ frequency.

2 Turn the right control knob to set the amount of attenuation/boost from -12dB and +12dB.

If a PEQ section is not needed in the set up, set its level to 0dB.

Any PEQ can be used as the reference

frequency for the Phase Shifter (see

Section 6.2.4)

Output Channels

6.2.7 Compression (Page 13)

Each output has an independent full range

compressor to improve the audio dynamics and/or

reduce louder signal levels to avoid loudspeaker

damage. The compressors are variable ratio and

can be set to a hard knee characteristic for a sharp

gain reduction response at the compression

threshold, or soft knee for a more ‘musical’

response.

 To set the compressor parameters

1 On the first compressor menu page, use the centre DATA

ENTRY control knob to select a threshold value in the range

–10dBu to +21dBu, and the right control knob to set a

ratio from 1:1 to 5:1.

2 Turn the left control knob clockwise to access the first sub-

menu page. Use the centre control knob to select a hard

or soft knee characteristic and the right control knob to set

the bypass state to “No” so that the compressor is

included in the signal path. The relative position of the

compressor threshold to the limiter threshold will be

indicated by an illuminated segment at the meter

(provided the compressor threshold is below the limiter threshold).

3 Turn the left control knob clockwise to access the second sub-menu page. Use the centre

control knob to set the compressor attack time (range of 40µs – 1ms in 20µs steps or 1ms to

100ms in 1ms steps). Use the right control knob to set the release time (10ms to 2s in 10ms

steps).

 To switch the compressor out of the circuit

 Set the bypass state on the second page to “Yes”. The other settings will be retained for

future use.

6.2.8 Output Limiter (Page 14)

In addition to compression, each DN9848E output has a

limiter to protect any attached equipment being driven

into clip and potentially being damaged. Notably, the

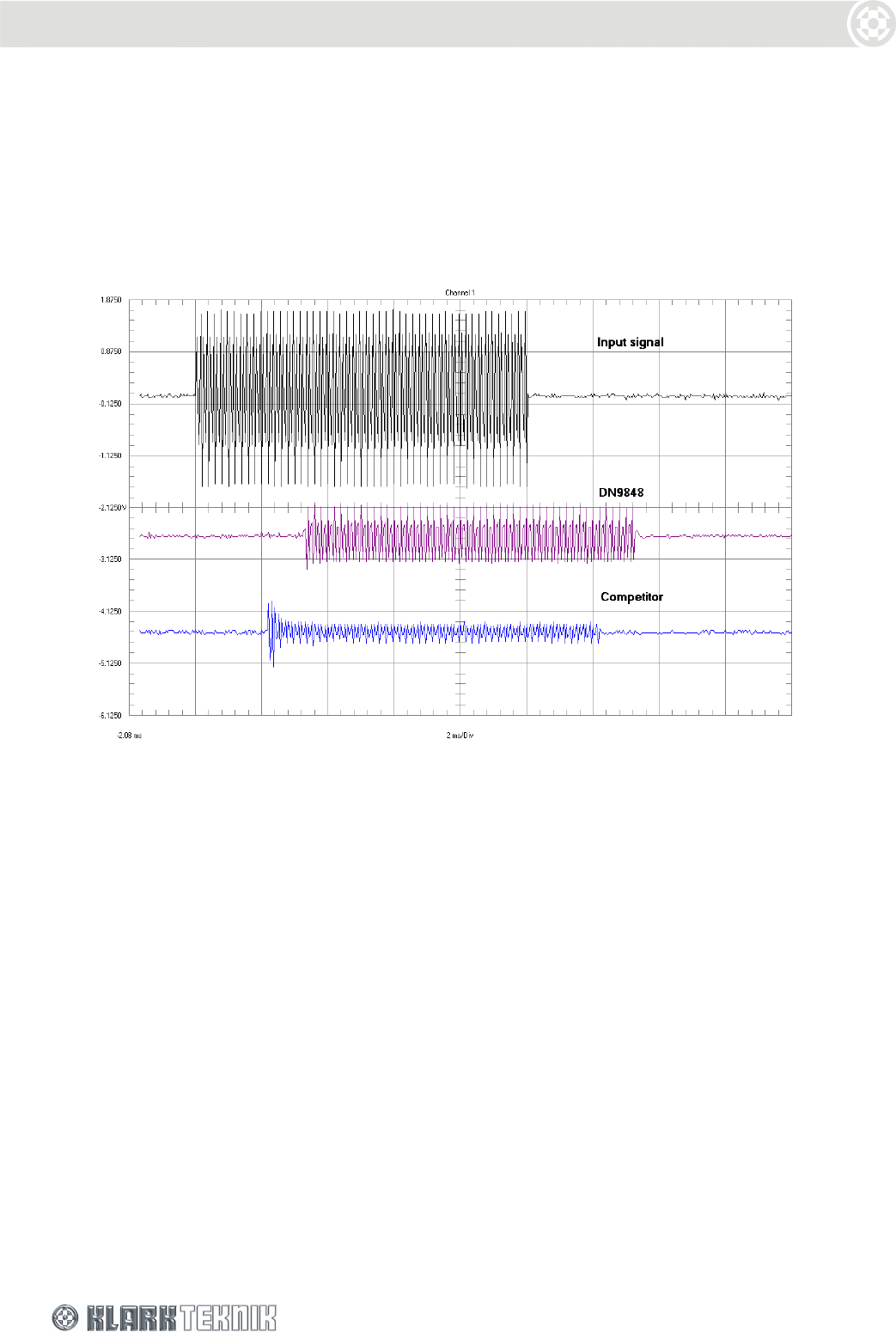

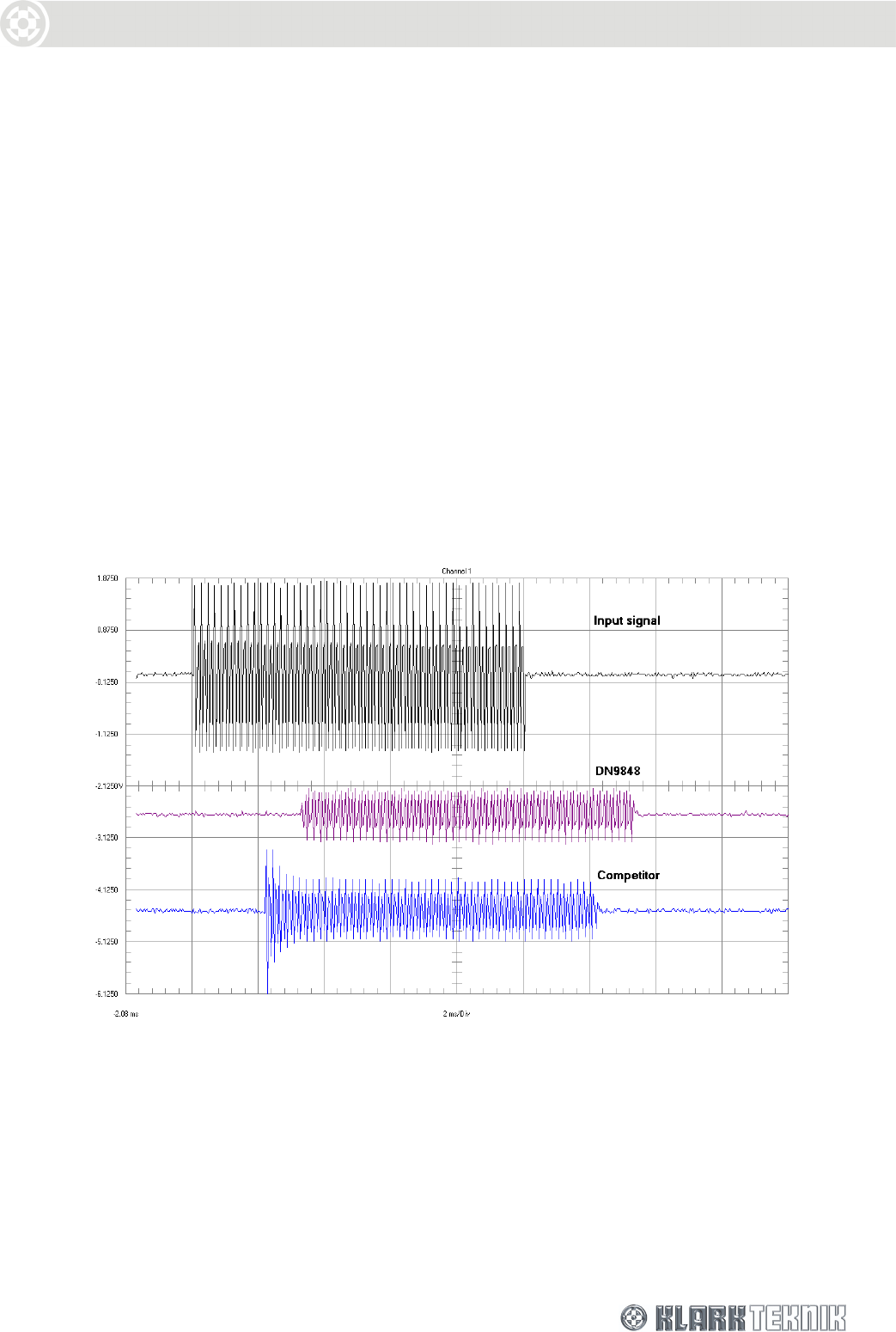

DN9848E uses a special ‘look-ahead’ limiter so that it can

anticipate transient overshoots and act ‘immediately’ (see

Section 10 “Application Notes” for further details). The limiter threshold can be adjusted to

accommodate the varying requirements of commercial equipment.

 To set the limiter parameters

1 Select a threshold value in the range –10dBu to +21dBu with the left DATA ENTRY control knob.

2 Use the centre control knob to set a release time between 1ms and 100ms.

3 Use the right control knob to select a hard or soft knee characteristic for a sharp or gradual

cut-off, respectively.

 To switch the limiter out of the circuit

 Turn the left DATA ENTRY control knob fully clockwise until the threshold value reads ‘OFF’ (a

sharp turn will leap to the OFF position).

Illuminated

segment shows the

compressor position

relative to the

limiter threshold

Output Channels

6.3. Monitoring the Output Signal

Each of the eight outputs has an 11-segment signal meter for monitoring internal signal clipping and

output levels that may cause damage to the loudspeaker equipment.

The top CLIP segment monitors the internal signal clipping. It operates

independently of the rest of the meter, illuminating if signal clipping is detected at

any stage in the processing circuits regardless of whether the level of the final

processed signal is above or below the compressor and/or limiter thresholds. Hence,

the audio engineer has full visibility of any internal signal clipping that may result in

audio distortion.

The 0dB to – 40dB signal meter is primarily designed to monitor the output level with

respect to excessive levels that may cause damage to the onward loudspeaker

equipment. To do this it uses a dual-purpose scale that refers the signal level to both

limiter threshold and compressor threshold, as illustrated and described overleaf.

1 The meter uses a downward relative scale where the “0” segment represents the

limiter threshold. For example, if the limiter threshold is set to +5dB in the output

menu page, then the signal meter “0” segment represents 5dBu true value, the –3

segment becomes 2dBu down, -6 becomes -1dBu down and so on.

The compressor threshold is also marked, relative to the limiter threshold, by a single

steadily lit segment. For example, when the limiter threshold is set to 8dBu, the “0”

segment is 8dBu; if the compressor threshold is –1dBu, segment “9” will be

illuminated.

Note If the limiter is set to OFF, the meter is scaled relative to 21dBu.

2 While the signal level lies below the compressor threshold, the meter illuimates

upwards from –40, such that the current headroom to both the compressor and limiter

thresholds can be monitored.

3 When the signal level reaches the compressor threshold level, the meter ‘flips’ and

reads downwards to show the amount of gain reduction applied to the signal.

4 With further increase, the meter reads in both directions, that is, it increments

upwards to track the signal level as it approaches the limiter threshold and increments

downwards to show the applied gain reduction.

5 When the limiter kicks in, the meter flips to read downwards from the “0” segment

instead of just from the compressor threshold. It now shows the summed gain

reduction from both compressor and limiter.

Output Channels

6.4. Output Gain and Mute - Front Panel Control

Each output is equipped with a dual-action rotary/push-switch control for adjusting or muting the

output level. Note that zero mark on the control refers to the baseline output level set in the Output

menu (see Section 6.2.3) and hence the rotary control provides fine-tuning relative to this level.

To increase/decrease the level turn clockwise/anti-clockwise

To mute an output push in and hold until the red ring illuminates

To un-mute an output push in and hold until the red ring light

extinguishes

To mute all outputs push in and hold an unlit output until it and then

all other controls illuminate

To un-mute all outputs push in and hold a muted (illuminated) output

until it and then all other red rings extinguish

Output Channels

6.5. Channel Copying

Parameters from a source channel may be copied to one or more destination channels using the

channel copy function. Note that parameters may only be copied between channels of a similar type,

that is, you cannot copy input channels to output channels or vice versa.

 To copy a channel’s parameters

1 Press and hold the blue MENU ACCESS

button on the source input (A - D) or

output (1 – 8) channel for more than

three seconds. This puts the unit into

copy mode, as indicated on the display,

and selects that channel as the source for the copy.

Note The MENU ACCESS button flashes to indicate that channel is selected as the

source.

Press the HOME button at any point to exit copy mode and return to the

Home page.

2 Now press the blue MENU

ACCESS buttons on the

destination channels. The

buttons illuminate as they are

selected.

Note If the source channel is an input, you may only select input channels as

destinations. Similarly, if the source channel is an output, only output

channels may be selected as destinations.

3 Press the flashing blue MENU ACCESS

button on the source channel again, and

the display updates to request

confirmation for the copy.

4 Press the STORE button to confirm the

copy, or press HOME to exit the copy

mode without completing the

operation.

Security and Other Set Up Options

7. DN9848E SET UP OPTIONS

7.1. General

The DN9848E provides various set up options for adapting the operation of the unit to best suit your

operational requirements and preferences, as follows:

• Comms channel setting for remote control operation (Page 1)

• Channel Gang setup for linking either input channels or output channels together (Page 2)

• Security features such as front panel lock and system memory protect (Pages 3 and 4)

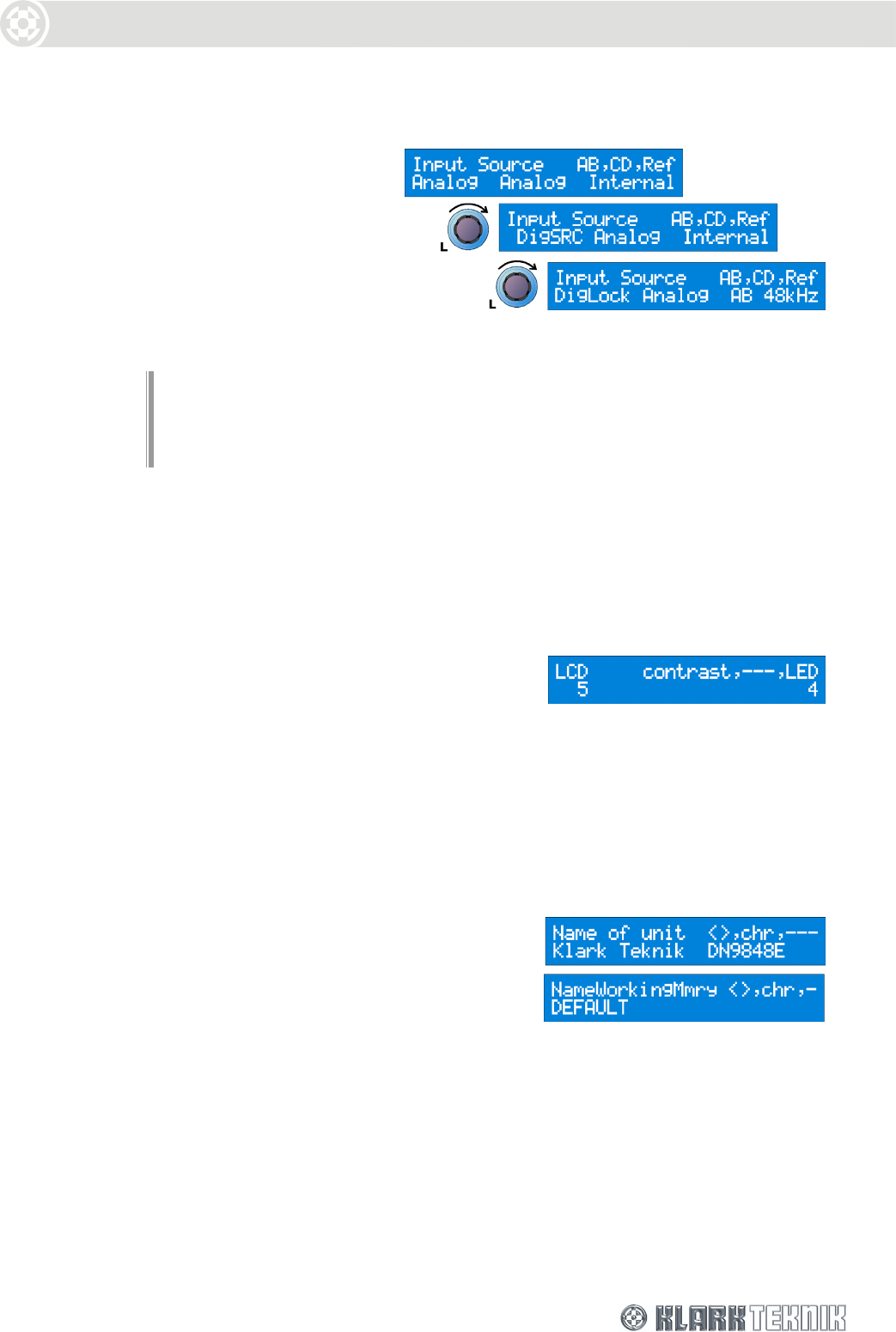

• Analogue/digital input select (Page 5)

• Display and LED lighting (Page 6)

• Unit and memory naming (Pages 7 and 8)

• Backup of system memories to flash RAM (Page 9)

• Delay units of measurement (Page 10)

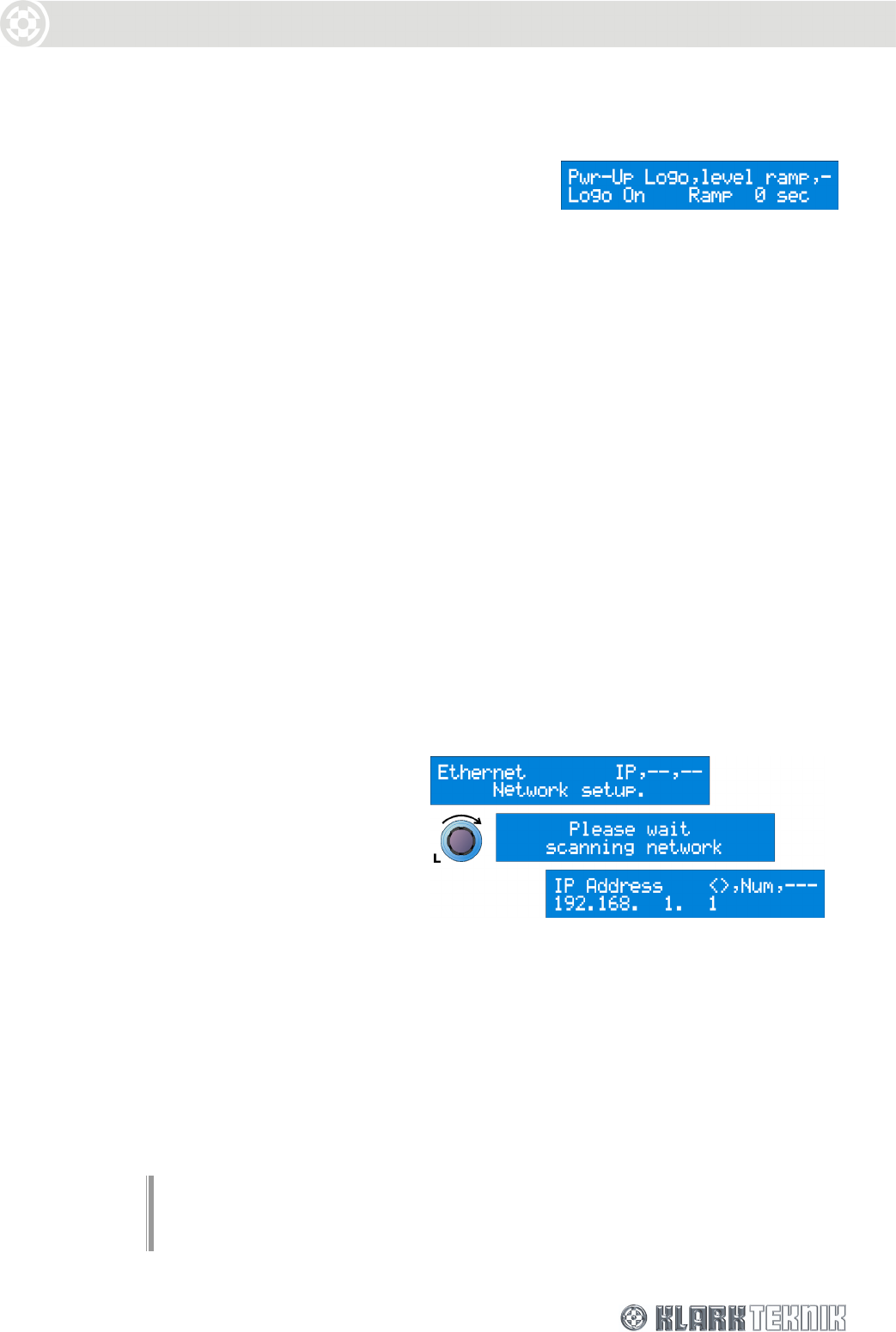

• Power up settings (Page 11)

• Ethernet settings for remote control operation (Pages 12 and 13)

These options are programmed in the Set Up menu and are described below in menu order.

 To access the Set Up menu pages

 Press HOME (SET UP) to return to the Home page.

 Press and hold the HOME (SET UP) button to open the menu.

 Press the HOME (SET UP) button repeatedly to step through the pages in turn.

Note that this menu does not ‘cycle’. On completing the set up, the menu returns to the Home page.

7.2. Remote Comms Channel/Gang Mode (Page 1)

The Comms page lets you select either the communications channel on which the unit will

send/receive data to/from a controlling PC, or the gang mode for working with ganged input or output

channels.

Comms channels 1 to 32 are available enabling a slave network of up to 16 DN9848E units to be

remotely controlled from a PC using the Elgar Library Manager and HELIX DN9848E RCS add-in

software. For more information on DN9848E remote control set ups, see Section 9.

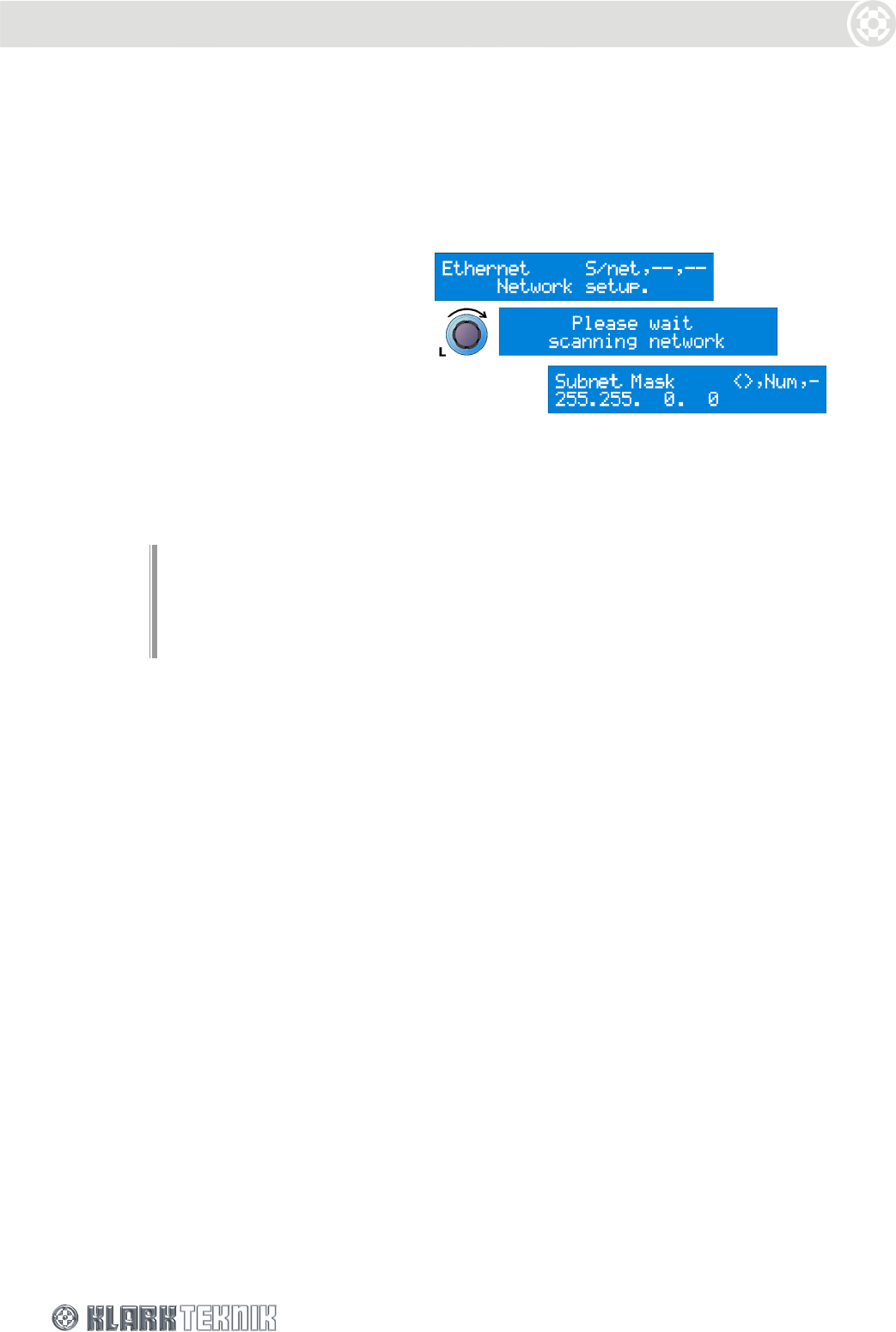

Note that, when using Ethernet communication you will need to set up the unit’s IP address and

Subnet mask before selecting the comms channel, see Section 7.11 for further details.

Also, note that remote comms and gang mode are mutually exclusive as channel ganging is a feature

of stand alone unit operation only and is not compatible with the grouping facility offered in the Elgar

9848E Remote Control Software add-in. For more information on channel ganging, see Section 7.3.

Security and Other Set Up Options

 To select a remote communications channel

1 Referring to diagram

opposite, use the left

DATA ENTRY control

knob to go to the

communications

channel on which you

wish to control the

unit remotely, for

example, scroll

through to channel

14.

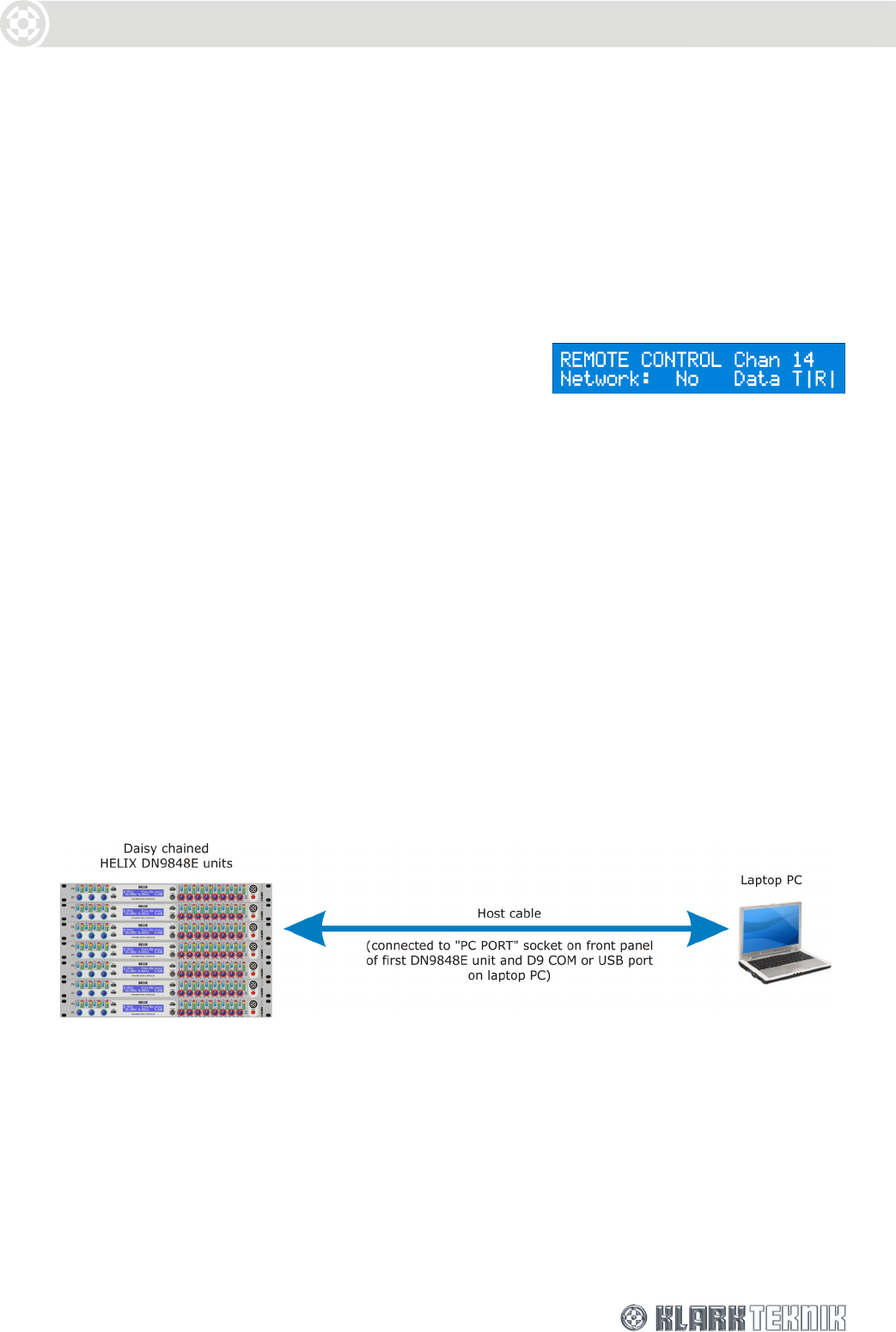

2 Press HOME to

confirm the selection;

the display will

change to the one

shown below.

The front panel controls, except the HOME (SETUP) button, are locked out to facilitate remote operation.

The display indicates that the unit is under remote control.

For further details on DN9848E remote control set ups, see Section 9.

 To switch gang mode on

1 Press and hold the HOME (SET UP) button to re-open the Comms page.

2 Turn the left DATA ENTRY control knob to select the Gang Mode option shown above.

3 Press HOME to enable channel ganging; the display will change to the one shown below and

any ganging which has already been prepared will now be active.

For further details on ganging channels, see Section 7.3.

 To switch remote communications/gang mode off

1 Press and hold the HOME (SET UP) button to re-open the Comms page.

2 Turn the left DATA ENTRY control knob

anticlockwise to select Comms Off, as shown

opposite.

3 Press HOME to confirm your selection.

Security and Other Set Up Options

7.3. Gang Mode Setup (Page 2)

This option is used to link multiple input channels or output channels together so that a change on

one channel will be made to all channels in the gang. When a gang is created, the settings from the

source channel are copied to the destination channel(s) so that all ganged channels inherit the same

parameter values. From hereon, any changes to a ganged channel are carried out on the other

channels on an absolute basis, with the exception of input and output names.

Notes A channel may only be part of one gang.

Only channels of a similar type may be ganged, that is, you cannot gang

input channels to output channels or vice versa.

Ganging is a feature of stand alone unit operation only and is not

compatible with the grouping facility offered in the Elgar 9848E Remote

Control Software add-in. Therefore, ganging is only active when the unit

is put into Gang mode, see Section 7.2; channel ganging is disabled if

the unit is set to receive data on a remote comms channel.

 To select channels for ganging

1 Step through the Set Up menu to the Gang Mode Setup menu page.

2 Press the blue MENU ACCESS button on

the input (A - D) or output (1 – 8)

channel that you wish to be the source

channel for the gang.

Notes The MENU ACCESS button flashes to indicate that channel is selected as the

source.

Press the HOME button at any point to exit the gang mode and return to

the Home page.

3 Now press the blue MENU

ACCESS buttons on the

channels you wish to gang;

the buttons flash as they are

selected, and press the STORE

button.

Note If the source channel is an input, you may only select input channels as

part of the gang. Similarly, if the source channel is an output, only

output channels may be selected.

4 Finally, press the STORE button again

to confirm the operation. All

parameters from the source channel

are copied to the destination channels

with the exception of the input and

output channel names, and the channels are prepared for ganging.

To activate channel ganging, you must select the Gang mode as described in Section 7.2. With the

unit switched to gang mode, any changes to a ganged channel are carried out on the other channels

on an absolute basis. Also notice that when you select the blue MENU ACCESS button of a ganged

channel in normal operation, the MENU ACCESS buttons on the ganged channels illuminate to show that

they are part of the gang.

Security and Other Set Up Options

 To remove a channel(s) from a gang

This procedure is the same for input channels and output channels. In the following example, inputs

A, C and D are initially ganged.

1 Step through the Set Up menu to the Gang Mode Setup

menu page.

2 Press the blue MENU ACCESS button on any of the

channels within the gang, for example, input

channel A. The MENU ACCESS buttons flash to

indicate channels in the gang.

3 Press the blue MENU ACCESS button on the channel

you wish to remove from the gang, for example,

channel D. The blue MENU ACCESS button will

extinguish to show that it has been deselected and

removed from the gang.

4 Repeat Step 3 for any other channel you wish to remove from the gang. To completely

dissolve the gang, press all flashing MENU ACCESS buttons to extinguish them.

5 Press the STORE button twice to complete the operation.

7.4. Security Settings (Pages 3 and 4)

7.4.1 Front Panel Lock (Page 3)

This option is used to set a password and lock out all, or nearly all, of the front panel controls to

protect settings from tampering by unauthorised personnel. Five levels of Panel Lock are possible:

• Unlocked – All controls available.

• Lock + Recall – This leaves

the Recall button active so that

saved memories can be still be

recalled.

• Lock + Recall + Mute - As

above, but also leaves the Mute

controls active.

• Lock + Mutes – Leaves the

Mute controls only active.

• Locked – Imposes a full

lockout on the front panel

controls.

In all cases, limited Set Up menu options remain available, namely the Comms Channel, Panel Unlock

pages and Power Up pages.

Security and Other Set Up Options

 To set a Panel Lock

1 Step through the Set Up menu to the Panel Lock menu page.

2 Use the left and centre DATA ENTRY control knobs to set a password of 12 characters, including

blank spaces, made up of letters, numbers and/or symbols.

Important! Note that preliminary and subsequent blank spaces are recorded as part of the

12-character password; therefore, if you use a short password the characters must be

re-entered in exactly the same position to unlock the panel. To avoid confusion, either record

the blanks as part of the password or enter the word at the far left of the display.

3 Turn the right control knob clockwise to cycle to the required lock type.

4 Press HOME to apply the Panel Lock.

The Home page now indicates that the unit is ‘Locked’. The lock state is retained after power down,

and will be indicated on the Home page when the unit is powered up again.

 To remove the Panel Lock

1 Step through the Set Up menu to the Panel Lock page.

2 Use the left and centre DATA ENTRY control knobs to enter the password. Note that the letters

must be in the same position as when the password was set.

3 Turn the right control knob clockwise to apply the password.

4 If correct, the display will report ‘UNLOCKED’. Press HOME to exit the page and return to

normal operation.

If you have entered the wrong password, the DN9848E will flag it as incorrect and return to

the Panel Unlock page for a further attempt.

7.4.2 System Protect (Page 4)

System Protect offers limited operational

control, while protecting against unauthorised

users tampering with key parameters that may

result in loudspeaker damage.

 When System Protect is on

• The output MENU ACCESS buttons and Output Mute controls are disabled, but the inputs can still

be edited and the level and mutes are still active.

• User memory settings can be recalled or stored, but System and Backup memories are

inaccessible.

• The full Set Up menu is still available.

Note

Panel Lockout takes priority over the System Protect state.

Security and Other Set Up Options

 To switch System Protect on

1 Step through the Set Up menu to the System Protect menu page.

2 Use the left and centre DATA ENTRY control knobs to set a password of 12 characters (including

blank spaces) made up of letters, numbers and a limited number of symbols.

Note

Important! Note that preliminary and subsequent blank spaces are recorded as part of

the 12-character password; therefore, if you use a short password the characters must

be re-entered in exactly the same position to unlock the panel. To avoid confusion, either

record the blanks as part of the password or enter the word at the far left of the display.

3 Turn the right control knob (‘on>’) clockwise to accept the password and switch protection

on.

4 Press HOME to apply the System Protect state.

The Home page now indicates the unit is locked with inputs editable. The System Protect state is

retained after power down, as will be shown on the Home page when the unit is powered up again.

 To switch System Protect off

1 Step through the Set Up menu to the System Protect page.

2 Use the left and centre DATA ENTRY control knobs to enter the password. Note that the letters

must be in the same position as when the password was set.

3 Turn the right control knob clockwise to apply the password.

4 If you have entered the wrong password, the DN9848E will flag it as incorrect and return to

the Panel Unlock page for a further attempt.

If accepted, the password cursor stops flashing. When you next access this menu page,

System Protect will be in the default Off state.

7.5. Analogue/Digital Input Select (Page 5)

This page selects the input source for input channels A and B, and C and D on a paired basis due to

the sharing of channels for AES/EBU inputs. There are three options available for each input pair:

• ‘Analog’ - switches to analogue inputs. Note that this is the default setting.

• ‘DigSRC’ – switches to the digital AES/EBU input. In this mode, the unit locks to its internal

48kHz clock reference. Sample rate converters (SRCs) support incoming signals at sampling

frequencies from 32kHz to 96kHz ± 12.5%.

• ‘DigLock’ – switches to the digital AES/EBU input without sample rate conversion. In this

mode, the sample rate converter (SRC) of the digital input is bypassed and the clock

reference is set to lock to the channel’s incoming AES/EBU bit stream. This allows the unit to

be used in 48kHz systems without incurring the propagation delay inherent in sample rate

conversion.

Note If both input pairs are set to ‘DigLock’, then either pair may be selected

as the clock reference.

Any combination of analogue and digital inputs may be selected. For example, input channels A and

B may be set for analogue sources while input channels C and D are digital.

Security and Other Set Up Options

 To select the input source

1 Step through the Set Up menu

to the Input Source select

page.

2 Use the left DATA ENTRY control

knob to select the input source

for channels A and B as shown

opposite.

3 Use the centre DATA ENTRY

control knob to select the input

source for channels C and D in

a similar manner.

Note The ‘Ref’ menu shows the clock reference for the unit, for example,

Internal. If both input pairs are set to ‘DigLock’, then this menu

becomes active; turn the right DATA ENTRY control knob to select input

source AB or CD as the clock reference.

7.6. LCD and LED Lighting (Page 6)

If required, the contrast of the alphanumeric display (LCD) and the brightness of the front panel LEDs

can be adjusted to suit.

 To adjust the contrast of the LCD

 Step to the LCD page. Turn the left DATA ENTRY control

knob to adjust the display contrast. The default

setting is 5, with a range of 0-10.

 To adjust the brightness of the front panel LEDs

 Step to the LCD page. Turn the right DATA ENTRY control knob to adjust the LED brightness.

The default setting is 4, with a range of 0-15.

7.7. Naming (Pages 7 and 8)

To help with system identification, the DN9848E unit and the

current working memory may each be given a name up to 24

characters long.

Both names are shown in the Home page and are retained

after power down, which is particularly useful for system

reassembly when changing venues.

 To enter a name

1 Use the left DATA ENTRY control knob to move the cursor right or left, and the centre control

knob to select the letter, number or symbol. (Tip: to clear existing characters enter a blank

space which can be found after the letter “Z”.)

2 Press the HOME button to apply the new name.

Names can also be allocated to individual input and output channels via their associated menus (see

Sections 5.2.2 and 6.2.2).

All names are stored with User and System memory settings. The Store function will assume the

working memory name as the default memory name, prompting you to edit it if required, see

Section 8 “Storing and Recalling Settings”.

Security and Other Set Up Options

7.8. Backup System (Page 9)

This menu allows you to backup the 32 System memories, as described in Section 8, into flash RAM.

By performing a backup, you can ensure that important System memories may be recovered in the

event of power loss and battery failure.

 To backup the 32 System memories

1 Step through the Set Up

menu to the Backup

System page.

2 Turn the left, centre and

then right DATA ENTRY

control knobs clockwise

to accept the three

levels of confirmation.

Or, press the HOME button to

exit the operation and

return to the Home page.

The backup copies System

memories (S01 – S32) into

Backup locations (B01 – B32) in

one operation. You may recall

any of the backup memories (B01 – B32) using the Recall function as described in Section 8.

7.9. Delay Options (Page 10)

The units of measurement used to specify the delay on the input and output channels can be set to

suit user preference, as follows:

• Time (milliseconds and microseconds)

• Metric distance (metres)

• Imperial distance (feet and inches)

 To change the units of measurement

1 Step through the Set Up menu to

the Backup System page.

2 Turn the left DATA ENTRY control

knob to choose the units.

3 For Metric or Imperial distance

measurement, specify the ambient

temperature of the venue using the

centre control knob. The DN9848E

will use this to adjust the speed of

sound (which varies with

temperature) in the delay

calculation so that accurate delays

are applied to the channels.

The delay units are changed in the input and output menus, with the current values being

automatically converted to equivalent values.

Security and Other Set Up Options

7.10. Power Up Options (Page 11)

Two power up options are provided as follows:

• Logo On/Off– This refers to the logo animation

displayed a start up.

• Output Level Ramp – This is used to apply a gradual ramp up to full output levels when you

power on the unit, for example, to avoid sudden power surges in larger systems. The ramp

can be adjusted between 0 – 32s and will recover the output mute states held when the unit

was last switched off. Alternatively, an initial mute can be automatically applied to all of the

outputs (on a ramp setting; this is the default setting.

 To switch the logo on/off, turn the left DATA ENTRY control knob

 To change the ramp up time at the outputs, turn the centre DATA ENTRY control knob.

The ‘Outputs Muted’ option is found just below 0s.

7.11. Ethernet Settings (Pages 12 and 13)

When controlling the DN9848E unit remotely via Ethernet, the unit requires an individual IP Address

and Subnet Mask to be set. For more information on DN9848E remote control set ups, see Section 9.

7.11.1 Ethernet IP Address (Page 12)

The IP Address is entered manually on each unit in the network using the DN9848E’s front panel

controls.

 To check the current IP Address

1 With the DN9848E connected to

your network, step through the

Set Up menus to the Ethernet IP

Network setup page shown

opposite.

2 Turn the left DATA ENTRY control

knob and the unit will scan the

network to obtain the IP address.

At the end of the scan, which takes a few seconds, the display updates with an IP address as shown

above. The Default IP Address is 192.168.1.1.

 To set the IP Address

1 Turn the left DATA ENTRY control knob to highlight the area of the IP Address you wish to

change.

2 Now turn the centre control knob to select a number from 0 to 255.

3 Press the HOME button to confirm the new IP Address.

Note It is important that all units and the controlling PC have a unique IP

Address in order for the network to function correctly. For more

information on configuring your network, please see the HELIX DN9848E

RCS User Guide.

Security and Other Set Up Options

7.11.2 Ethernet Subnet Mask Setup (Page 13)

When the IP Address is set, it is necessary to check the Ethernet IP Address Subnet mask on each

unit. The default subnet mask is 255.255.255.0.

 To check and edit the Subnet Mask

1 Step through the Set Up menus to

the Ethernet S/Net Network setup

page shown opposite.

2 Turn the left DATA ENTRY control

knob and the unit will scan the

Network to obtain the Subnet

Mask.

3 Turn the left DATA ENTRY control

knob to highlight the area of the

Subnet Mask you wish to change.

4 Now turn the centre control knob to select a number from 0 to 255.

5 Press the HOME button to confirm the new Subnet Mask

Note It is important that all units and controlling PCs have the same Subnet

Mask to function correctly. You may want to modify Subnet Masks

where one area of the network is required to be ‘hidden’ from another.

For example, in an installation with one network but multiple

auditoriums. For more information on configuring your network, please

see the HELIX DN9848E RCS User Guide.

For more information on remote control setups, see Section 9.

Using the DN9848E Memories

8. STORING AND RECALLING SETTINGS

The DN9848E System Controller has the following memory facilities:

• 32 lockable System memories, designated as S01 to S32, for storing standard set-ups in

battery-backed-up SRAM. These memories may be locked to prevent accidental changes to

common set-ups using the System Protect function as described in Section 7.4.2. They may

also be backed up into flash memory, using the Backup System function as described in

Section 7.8, to provide system memory recovery in the event of power loss and battery

failure.

• Five free access User memories, designated as U01 to U05, for storing a series of set ups for

the current show.

 To store settings in either a user or system memory

1 Press the black STORE button to

access the Store menu.

2 Select a User memory location

(U01 –U05) using the left DATA

ENTRY control knob, or a System

memory location (S01 – S32)

using centre control.

3 Press STORE to accept the memory

location and move on.

Note

Since a memory location is now active, you should only press STORE if you wish to accept and

continue the storing process. Otherwise, press HOME to abort.

4 The current working memory name is displayed (as

defined in the Set Up menu). To change the name

before storing, use the left DATA ENTRY control knob to

move the cursor right or left, and the centre control

knob to select the letter, number or symbol.

5 Press STORE to confirm the action and return to the DN9848E Home page.

The DN9848E automatically checks the memory settings and displays a warning if any errors are

found. Where possible, it will also attempt to automatically correct the error.

 To lock the 32 system memory locations see Section 7.4.2 System Protect.

 To recall stored settings from memory

1 Press the black RECALL button to

access the Recall menu.

2 Select a User memory (U01 –

U05) using the left DATA ENTRY

control knob, or a System

memory (S01 – S32) or Backup

memory (B01-B32) using the

centre control.

3 Press RECALL to confirm the

action and return to the

DN9848E Home page.

The selected memory settings are recalled to the working memory.

Remote Control Setup

9. DN9848E REMOTE CONTROL SETUP

A slave network of up to 16 DN9848E System Controllers can be linked together and remotely

controlled from a PC running the Elgar Library Manager and HELIX DN9848E RCS add-in software.

Further details on these commercially available software applications can be found on the Klark

Teknik website at www.klarkteknik.com.

9.1. Overview

To control a system, a laptop/PC running HELIX DN9848E RCS is connected to one of the HELIX

DN9848E units. The laptop/PC then assumes control of the HELIX units’ system. The following

options for connecting the laptop/PC to the system are available:

Ethernet: HELIX DN9848E units have a direct Ethernet LAN connection to the PC and can be

connected together in a daisy chain configuration, or each one can be plugged into

an Ethernet switch or hub, all via their rear panel Ethernet sockets. The wireless

option offers increased flexibility during the event set-up, as the engineer can

move around freely with a laptop and adjust the equalisation while listening to the

end effect at any place in the venue.

Serial (option): The optional RS-232 serial connection is via the “PC PORT” on the front panel of

the first HELIX DN9848E unit. It is possible to connect to other HELIX DN9848E

units from the rear Ethernet port(s) when using a serial connection, but note that

this will be slower than using Ethernet.

The following sections describe how to connect the master HELIX DN9848E RCS laptop/PC to the

system for each option and also the interconnectivity of the HELIX DN9848E units. For details on

configuring and controlling the system from the PC applications, please refer to the Elgar Library

Manager and HELIX DN9848E RCS User Guides.

9.2. HELIX DN9848E unit interconnections

The HELIX DN9848E units in your system can be connected together in a daisy chain, or each one can

be connected to an Ethernet switch or hub.

Note When connecting the Ethernet cable to the rear panel of a HELIX DN9848E unit, either of

the Ethernet sockets can be used.

Remote Control Setup

9.2.1 Connecting HELIX DN9848E units in a daisy chain

The diagram below shows a typical example of the HELIX DN9848E units connected in a daisy chain

configuration.

9.2.2 Connecting HELIX DN9848E units to an Ethernet switch or hub

The diagram below shows each HELIX DN9848E unit directly connected to an Ethernet switch or hub,

which is then connected top a laptop/PC.

Remote Control Setup

9.3. Ethernet Connection

For familiarisation purposes, a basic Ethernet connection may be made to a single unit by connecting

the Ethernet cable to either of the unit’s rear panel Ethernet sockets and to the network socket on the

laptop PC or wireless access point (wireless option).

Note

For Ethernet connectivity, the HELIX DN9848E units must be operating V4.01 (or later) host

code.

9.3.1 Ethernet connection – standard

Alternatively, you can set up a system involving multiple units. One end of the Ethernet cable is

connected to the network socket of the laptop/PC. The other end is either connected to an Ethernet

socket on one of the HELIX DN9848E units (daisy chain), or an Ethernet switch or hub, depending on

system configuration.

9.3.2 Ethernet connection – wireless option

The system set-up for the wireless option Ethernet connection is via an Ethernet cable. One end is

connected to the network socket of the wireless access point. The other end is connected to either an

Ethernet socket on one of the HELIX DN9848E units (daisy chain), or an Ethernet switch or hub,

depending on system configuration. This system is operated remotely from a tablet or laptop PC.

Remote Control Setup

9.3.3 Configuring the DN9848E for Network Communication

Before you can control the DN9848E from your remote software, there are number of configuration

settings to check on the DN9848E unit(s):

• First, you must configure the system devices (the laptop/PC and HELIX DN9848E units) to

communicate with each other using TCP/IP protocol. This is done by assigning them unique

IP addresses on the network. For more details on setting the IP Address and Subnet Mask on

the DN9848E, see Section 7.11.

• Having completed the Ethernet setup, now activate remote comms on each DN9848E unit.

Set each unit to receive and transmit data on a unique Comms channel following the

instructions in Section 7.2.

Note that when you press HOME to confirm channel, the

display updates (see diagram right).

• The final stage is to configure the Elgar Library Manager software to communicate with the

DN9848E unit(s) on the correct ports with corresponding IP Addresses, etc. For more

information on configuring the Elgar Library Manager and HELIX DN9848E RCS add-in

software, please refer to the relevant documentation.

Note that once remote communications are established, the DN9848E display updates to show the

Network status as “Yes”, and that Data is being received, as indicated by a rotating line on the

display.

9.4. Serial Connection (Option)

There is an option to control your system remotely from a laptop/ PC via the RS-232 connection (the

“PC PORT”) on the front panel of the first HELIX DN9848E unit. It is possible to connect to other

HELIX DN9848E units from the rear Ethernet port(s) when using a serial connection, but note that

this will be slower than using Ethernet.

9.4.1 Serial connection details

The system set up for serial connection is illustrated below.

Remote Control Setup

9.4.2 Connection and Configuration Procedure

The remote control PC is connected to the system as follows:

 To connect, set up and configure your system for serial operation

1 Connect the HELIX DN9848E units in a daisy chain configuration, see Section 9.2.1.

2 Power up the HELIX DN9848E units and assign each one a unique Comms channel

address, as described in Section 7.2.

Note The order of the addresses does not need to mirror the order of the daisy chain

networking, but each unit MUST have a unique comms channel address.

3 Referring to the following table, connect your laptop/PC to the first HELIX unit in the

daisy chain.

HELIX DN9848E Unit

Connection

Laptop/PC

Connection

Cable/Converter Required

D9 COM port Host cable RS-232 input to front panel

“PC PORT”

USB port KK systems USB/232 converter plus host cable

For details of converters plese refer to

http://www.klarkteknik.com/faq_connections.htm

For details on configuring and controlling the DN9848E from the Elgar Library Manager and HELIX

DN9848E RCS add-in software, please refer to the relevant documentation.

Application Notes

10. APPLICATION NOTES

10.1. The Advantage of DN9848E Look-Ahead Limiters

The limiter in a loudspeaker processor is the last line of defence in protecting the speaker drivers

from damage, and as such it has a very specific and critical job to do. One of the chief modes of

loudspeaker failure is driver over-excursion, and unless the limiter is designed to act instantly in

response to sudden increases in level, it will allow through brief transients that can cause damage

through over-excursion. All dynamics processors take a finite amount of time to respond to a change

in input level, and unless additional steps are taken the result is that the input signal is initially let

through at anything up to its full level, until the gain element in the limiter can act in response to the

increase in signal level.

The DN9848E exploits the fact that digital signal processing works on a sample-by-sample basis (the

signal data samples are clocked through the unit at the sample rate of 48kHz) and that there is a

small delay through each processing block, and literally ‘looks-ahead’ further back in the signal chain

to sample the data for the limiter side chain, so that the limiter can apply the required gain reduction

on an instantaneous sample-by-sample basis, so that the limiter never lets through any dangerous

transients.

In the example below a 10kHz tone burst of 10 ms duration has been used as the input signal and the

output of both a DN9848E and a leading competitor are shown. Note the very large transient of the

competitor unit which does not have a look-ahead limiter.

Signal source: Audio Precision System One

Settings: Waveform: Burst – Normal. Frequency: 10.0kHz. Burst: 10 ms. Interval: 100 ms. High Level: +10.0 dBu Low level: -

40.0 dBu

DN9848E settings: HPF: 1.25kHz Lnk-Ril 24dB/Oct. LPF: 20kHz Lnk-Ril 24dB/Oct. Limiter Threshold: 0.0dBu Release: 50ms

Response: Hard Knee

Competitor settings: HPF: 1.26kHz Lnk-Ril 24dB/Oct. LPF: 22kHz Lnk-Ril 24dB/Oct. Limiter Threshold: 0.0dBu Attack &

Release: Automatic

All other settings are default on both units.

As with all units that use sigma-delta ADC and DAC converters, there is a propagation delay from

input to output, 3.2 ms for the DN9848E and 2.1 ms for the competitor unit, the additional delay in

Application Notes

DN9848E is caused by the use of sigma-delta converters for both analogue-to-digital and digital-to

analogue conversion (the competitor unit uses a different method of digital-to-analogue conversion),

which allows the DN9848E to achieve its superior dynamic range.

In order to prevent driver failure, the competitor product’s limiter threshold needs to be reduced such

that the peak of the transient is at the same level as the threshold of the DN9848E’s look-ahead

limiter, with a major effect on efficiency of speaker systems, as the effect of reducing the limiter

threshold is to limit the amount of continuous output power available, which means more amplifiers

and more speaker cabinets to achieve the same SPL. In the example below the competing unit’s

limiter threshold has been reduced so that level of the transient peak matches the threshold of the

DN9848E’s limiter:

The limiter threshold of the competitor’s unit has been lowered to -10.0 dBu to avoid the risk of driver

damage from the initial transient, at the cost of greatly reducing the efficiency of the PA system. The

look-ahead capability of the DN9848E’s limiters allows the thresholds to be set at the levels required

to protect the loudspeaker drivers, without the need to be concerned about transients being passed

by the limiters. This allows the PA system performance to be maximised by safely exploiting the full

operational range of the loudspeaker drivers.

Application Notes

10.2. Phase-adjustment with the DN9848E

To meet the demands of a wide range of situations, the Klark Teknik DN9848E provides two all-pass

filters with complementary control parameters for fine-tuning the phase response on each output.

Although some crossover filter designs, e.g. Linkwitz-Riley types, are inherently phase-aligned at

crossover, others such as Butterworth or Bessel responses may require manual phase alignment.

Even Linkwitz-Riley filters may not produce accurate phase coherence when HPF and LPF are

combined to produce a band-pass output. In addition, the phase response of the drive units and

cabinets (especially horn-loaded types) may require compensation to achieve correct acoustic phase,

even if the electrical phase is correct. The DN9848E filters provide straightforward tuning control in

all cases.

The first filter of the DN9848E is presented as a “phase shifter” for which you can specify a particular

phase shift at a reference frequency, namely a HPF or LPF (typically the crossover point) or one of the

6 PEQs. The plots in the graph below show the effect of these controls on the filter response when

set to a 90° phase shift at references points equivalent to 20Hz, 300Hz, 1kHz and 20kHz. Referring to

the figure, the overall response always remains the same shape i.e. tending from +180° at low

frequencies to 0° at high frequencies, but is shifted along the frequency axis to achieve the required

phase shift at the specified reference point.

Audio Precision 01/19/01 15:52:4590 deg phase shift @ 20, 300, 1K, 20K

phase.at1

Color Line Style Thick Data Axis

Green Solid 1 Anlr.Phase Left

Yellow Solid 1 Anlr.Phase Right

Yellow Solid 1 Anlr.Phase Left

-150

+150

-100

-50

+50

+100

-150

+150

-100

-50

+50

+100

20 20k50 100 200 500 1k 2k 5k 10k

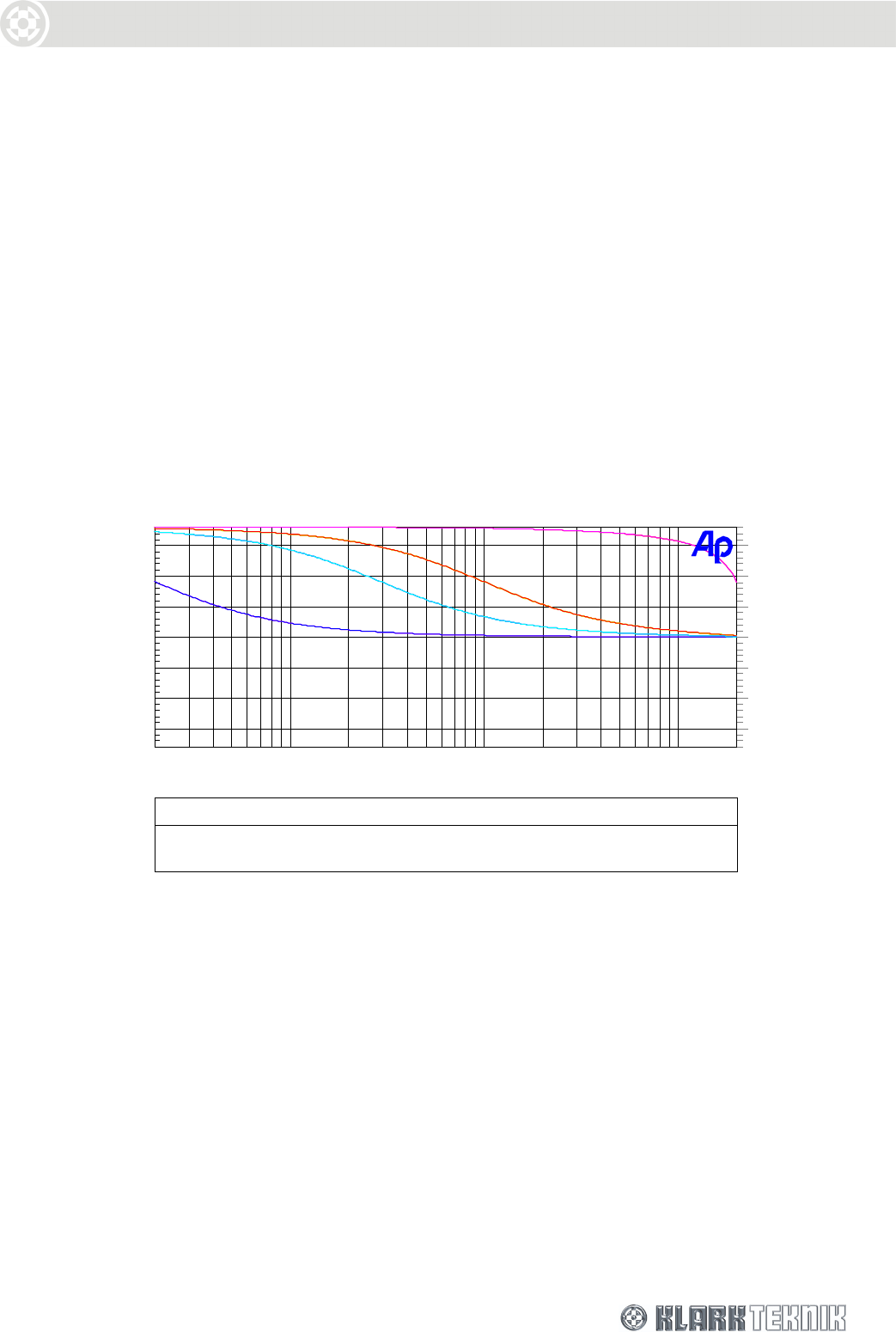

Response of the phase shifter filter for a phase shift of 90° at

reference points equivalent to 20Hz, 300Hz, 1kHz and 20kHz

The second filter, presented to the user as an “all-pass filter”, enables the user to set the Order and Q

of the phase shift, at a particular Frequency. The Order can be switched to Off (no filter), 1st order

(90° shift) or 2nd Order (180° shift).

The graph over the page shows the response of the filter for a 1st order shift. In this mode, the Q

control is disabled. As can be seen, the filter behaves in an identical manner to the phase shifter, i.e.

the response tends from +180° at low frequencies to 0° at high frequencies, shifted along the

frequency axis according to the chosen frequency. In effect, this is a phase shifter for which the

frequency is entered directly, rather than being referred to a HPF/LPF or PEQ section.

Application Notes

Audio Precision 01/19/01 16:00:021st order allpass @ 300, 1K, 10K

phase.at1

Color Line Style Thick Data Axis

Green Solid 1 Anlr.Phase Left

Yellow Solid 1 Anlr.Phase Right

Yellow Solid 1 Anlr.Phase Left

-150

+150

-100

-50

+50

+100

-150

+150

-100

-50

+50

+100

20 20k50 100 200 500 1k 2k 5k 10k

Response of the All Pass Filter for 1st Order phase

shift at frequencies of 300Hz, 1kHz and 10kHz

The response of the filter for a 2nd order shift is shown below with the Q control set to 1, at

frequencies of 300Hz, 1kHz, and 10kHz, and also Q set to 6 (max) and 0.4 (min) at 1kHz. As can be

seen, the filter response now tends from 360° at low frequencies to 0° at high frequencies, and Q

controls the rate at which the phase changes (i.e. the slope) around the transition point. With low Q,

the phase changes gradually across the whole frequency range. With high Q, the phase changes

rapidly in the transition area, and is unchanging at 360°/0° over the remainder of the frequency

spectrum. Hence, the 2nd order all-pass provides the user with the additional control of shaping the

phase shift ‘window’.

udio Precisio

01 16:09:1

2nd order allpass

300, 1K, 10K +

=0.4

@ 1K

hase.at1

Color Line Style Thick Data Axis

Green Solid 1 Anlr.Phase Left

Yellow Solid 1 Anlr.Phase Right

Yellow Solid 1 Anlr.Phase Left

-200

+400

-100

+100

+200

+300

-200

+400

-100

+100

+200

+300

20 20k50 100 200 500 1k 2k 5k 10k

Response of the all pass filter for 2nd order phase shift with Q=1 at frequencies

of 300Hz, 1kHz and 10kHz and also with Q=6 at (max) and Q=0.4 (min) at 1kHz

Note: Both filters are all-pass with a flat amplitude response between 20Hz and 20kHz; only the

phase response changes with frequency.

Technical Specification

11. TECHNICAL SPECIFICATION

Digital Inputs Two 2-Channel Inputs

Type AES/EBU

Impedance (Ω) 110

Sample Rate 44.1kHz, 48kHz, 88.2kHz*, 96kHz*

Word Length 24-bit or 16-bit

* SRC Input at these sample rates

Analogue Inputs Four

Type Electronically balanced (Pin 2 Hot)

Impedance (Ω) Balanced 20k, Unbalanced 10k

Common Mode Rejection >80dB @ 1kHz

Maximum level + 21dBu

Audio Outputs Eight

Type Electronically Balanced (Pin 2 Hot)

Minimum load impedance 56Ω /20nF

Source impedance 56Ω

Maximum level + 21dBu into > 2kΩ

Performance

Frequency response (20-20kHz) +/- 0.3dB with all filters and EQ flat

Distortion (THD+N) @ +8dBu <0.02% @ 1kHz, +8dBu

Dynamic range >114dB

(20-20kHz, unweighted)

Input Processing (per channel)

Gain +12dB to -40dB in 0.1dB steps plus Off

Parametric EQ 1-12 Frequency range: 20Hz to 20kHz in 21 steps per octave

Boost/cut +6/-18dB in 0.1dB steps

Bandwidth (Q) 3.0 to 0.08

Compressor

Threshold: +21dBu to -10dBu in 0.1dB steps

Attack: 40µs to 100ms

Insert: On/Off

Release: 10ms to 2000ms

Ratio: 1:1 to 5:1 in unit increments

Knee: Hard/Soft

Delay (at 20°)

Time: 0 to 1 second; 0 to 1ms in 20.8µs steps and 1ms to 1s in 0.02ms steps

Metric: 0 to 343.53 metres in steps of 0.1 m

Imperial: 0’ 0” to 1127’ 0” in steps of 1”

Technical Specification

Output Processing (per channel)

Routing Full featured matrix mixing: any combination of inputs can be routed to any output in 0.1dB

steps from 0dB to –40dB and OFF.

Delay (at 20°)

Time: 0 to 300ms; 0 to 1ms in 5.2µs steps and 1ms to 300ms in 0.01ms steps

Metric: 0 to 103.06 metres in steps of 0.1 m

Imperial: 0’ 0” to 338’ 1” in steps of 1”

Phase correction filters 0°‹ to 180°‹ in 5°‹ steps

All pass filter 1st and 2nd order

Low pass filter frequency range 50Hz to 20kHz in 21 steps per octave.

Supported configurations are:- Butterworth (6dB/Oct, 12dB/Oct, 18dB/Oct, 24dB/Oct, 36dB/Oct, 48dB/Oct)

Linkwitz-Riley (12dB/Oct, 24dB/Oct)

Bessel (12dB/Oct,18dB/Oct, 24dB/Oct, 36dB/Oct, 48dB/Oct)

High pass filter frequency range 20Hz to 15kHz in 21steps per octave.

Supported configurations are :- 12dB/Oct Peaking

24dB/Oct Peaking

Butterworth (6dB/Oct, 12dB/Oct, 18dB/Oct, 24dB/Oct, 36dB/Oct, 48dB/Oct)

Linkwitz-Riley (12 dB/Oct, 24dB/Oct)

Bessel (12dB/Oct,18dB/Oct, 24dB/Oct, 36dB/Oct, 48dB/Oct)

Peaking Filter Boost: 0dB to +6dB in 0.1dB steps.

Parametric EQ 1 frequency range 20Hz to 20kHz in 21steps per octave.

Low shelf filter Boost/cut: +12/-12dB in 0.1dB steps

Parametric EQ Q: 3.0 to 0.08

Shelf slope: 6dB/Oct and 12dB/Oct

Parametric EQ 2-5 frequency range 20Hz to 20kHz in 21steps per octave.

Boost/cut: +12/-12dB in 0.1dB steps

Q: 3.0 to 0.08

Parametric EQ 6 frequency range 20Hz to 20kHz in 21steps per octave.

Hi shelf filter Boost/cut: +12/-12dB in 0.1dB steps

Parametric EQ Q: 3.0 to 0.08

Shelf slope: 6 dB/Oct and 12dB/Oct

Polarity invert Normal/invert

Output gain +12dB to -40dB in 0.1dB steps plus Off

Look-ahead limiter Threshold: +21dBu to - 10dBu in 0.5dB steps

Release: 10ms to 1000ms

Knee: Hard/Soft

Compressor Threshold: +21dBu to -10dBu in 0.1dB steps

Attack: 40us to 100ms

Insert: On/Off

Release: 10ms to 2000ms

Ratio: 1:1 to 5:1

Knee: Hard/Soft

Mute On/off (press output trim)

Terminations

Audio inputs/outputs 3-pin XLR

Ethernet inputs/outputs Ethercon

RS-232 8-pin Mini-DIN socket (front)

9 pin D-type (rear)

World Clock BNC

Power 3-pin IEC

Power Requirements

Voltage / Consumption 100 to 240V a.c ±10% 50/60Hz < 60VA

Dimensions & Weight

Height 44 mm (1.75 inch) - (1U)

Width 483mm (19 inch)

Depth 287mm (12 inch)

Nett 4kg

Shipping 6kg

Service Information

12. SERVICE INFORMATION

12.1. Battery

This unit contains a battery. Do not expose unit or batteries to excessive heat, such as may be

caused by sunshine, fire or the like.

12.1.1 Replacement

Caution!:

Danger of explosion if battery is incorrectly placed. Replace only with the same or equivalent type

recommended by the manufacturer. Discard used batteries according to the manufacturer’s

instruction.

Advarsel!:

Lithiumbatteri. Ekxplosionsfare ved feijlagtig handtering af samme fabrikat og type. Lever det brugte

batteri tilbage till leverandoren.

Service Information

DOC02 DN9848E_Operator Manual_IssB DN9848E
