Data Sheet Fujitsu Mainboard D2963-S
Page 1 of 3
ts.fujitsu.com/mainboards
Data Sheet
Fujitsu Mainboard D2963-S MINI-ITX
Industrial Series
Powered by the AMD M690E & SB600 Chipset
for DDR2 800/667 SDRAM Memory (SO-DIMM)
and AMD Sempron™ 200U or AMD Athlon™ Neo X2 L325 Mobile Processor
Enhanced operating temperature range from 0°C to 60°C
Data Sheet Fujitsu Mainboard D2963-S
Page 2 of 3
ts.fujitsu.com/mainboards
Features and benefits
Board Size Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm)
Chipset AMD M690E & SB600
Memory
1 x SO DIMM Socket (1.8V), max. 4GB, Single Channel
DDR2-800 (CL6) / DDR2-667 (CL5) SDRAM, unbuffered, no ECC
Note: Effective memory speed depends on installed processor!
Processor
AMD Mobile Sempron™ 200U Single Core Processor (1.0GHz; 8W) or
AMD Mobile Athlon™ Neo L325 Dual Core Processor (1.5GHz/18W)
ASB1 (BGA) soldered onboard; supports HyperTransport™ 1.0
Power Specification
19-24V / 3A via DC-connector (rear I/O connector or onboard connector)
5V and 3.3V Supply Voltage on PCI Slot (PCI Rev. 2.3)
3.3V Auxiliary Supply Voltage on PCI Slot (Wake-Up Support)
Onboard CPU Core Voltage Regulator
Power Supply Requirements
for onboard components (worst case)
Source
Voltage
Max.Voltage
Tolerance
Cont./ Peak Mainboard
Current
DC-In
+ 19-24 V
± 10% / -15%
1 A
BIOS
Phoenix TrustedCore BIOS Version V6.00
modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS
(DMI), BIOS Update via USB (stable user settings), Quick
Boot, Logo Boot, Quiet Boot, Plug & Play, automatic DRAM and PCI
Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI
S3 (Save-to-RAM), ACPI S4 (Save-to-Disk),
Wake on time from S5; configurable LVDS support
Security Features
Recovery BIOS, System and BIOS Password, Boot Sequence Control
for each drive, Serial Port Access Protection,
Boot Sector Virus Warning, Write Protection for Flash BIOS, Harddisk
Password incl. “Silent Password” option (no keyboard entry required).
Special Features
Silent Fan Independent temperature related processor fan
and system fan supervision and control
System Guard View and adjust Silent Fan
Silent Drives Noise reduction for optical and hard disk drive
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
Designed for Industrial Applications
Longlife components for 24 / 7 use in industrial applications
Revision control & Extended Lifetime (up to 5 years)
Enhanced operating temperature range (0°C - 60°C) 1)
Miscellaneous
- Board Support Package (BSP) for Windows XP embedded
- Evaluation BSP for Embedded Linux (emlix)

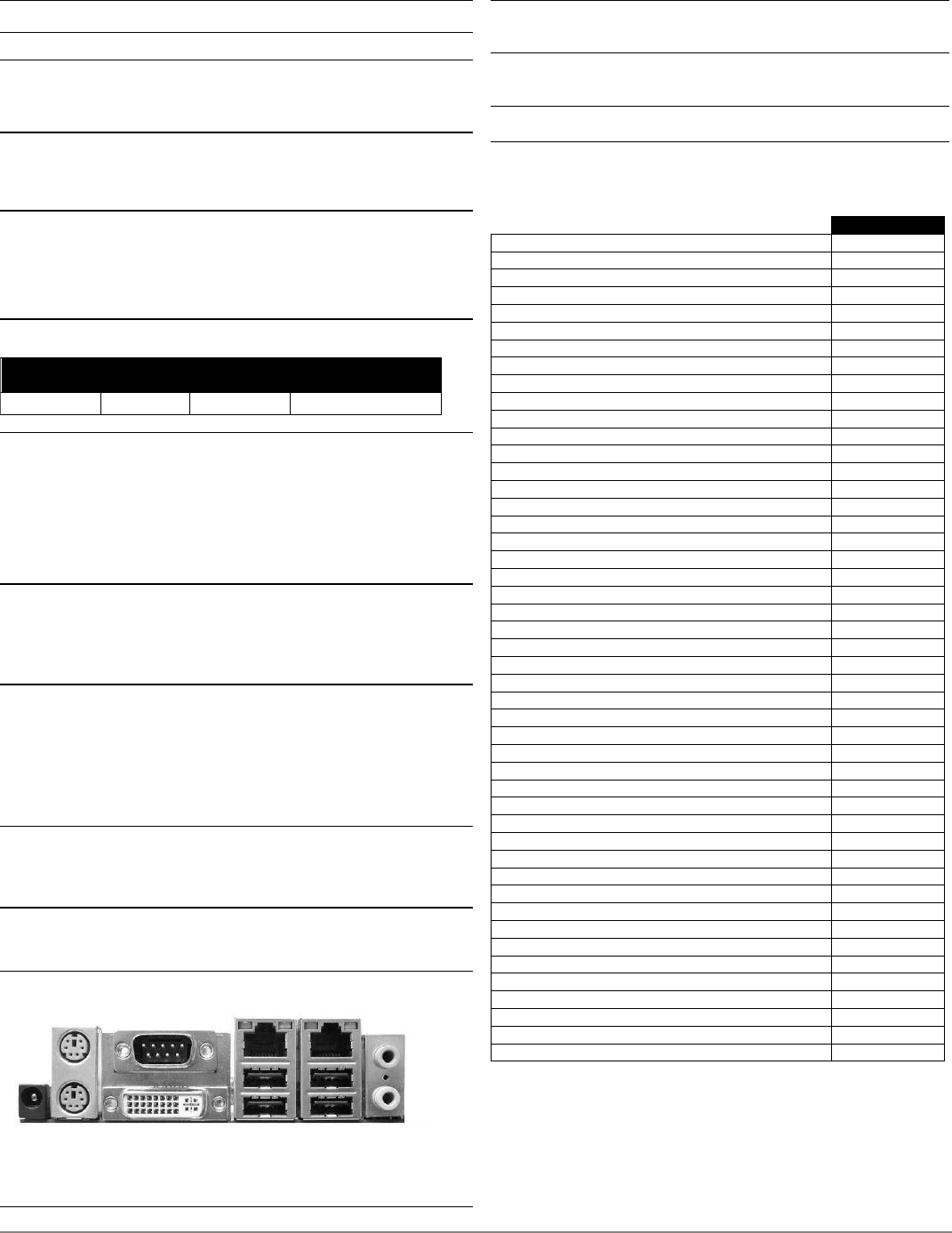

External Connectors
DC-In Mouse COM1 LAN2 LAN1 Audio
Keyb DVI-D USB USB
Graphics
Integrated ATI Radeon X1250 graphics; shared memory (up to 256MB);
DirectX 9 compliant; DVI, VGA and 24Bit / Dual Channel LVDS support
Audio
Realtek ALC262 (HD Audio); HW 3D Stereo Enhancement;
SW Wavetable Synthesis Support
LAN
Dual Realtek RTL8111C 10/100/1000 Ethernet controller; WoL support
Drives
2 Serial ATA II 300 Interfaces (max 3 GBit/s); up to 2 Drives; RAID 0/1
1 CF Interface (Typ I)
Features
D2963-S
Chipset
M690E / SB600
Board Size
Mini-ITX
VGA 2) / DVI / LVDS / HDMI
/ / / -
Stereo Audio / Multichannel Audio
/ -
Buzzer / int. Speaker Support
/ -
Dual LAN Gbit / 100 Mbit / 10 Mbit
/ / 
LAN ASF / AoL / WoL / Boot
- / - / / 
SATA / ATA / RAID
/ - / 
FireWire™ / USB 2.0
- /
FAN monitored & controlled CPU / AUX1 / AUX2
/ / -
TEMP monitored CPU / ONB1 / ONB2 / OFFB
/ / / -
Special Features
Silent Fan / Silent Fan LT / System Guard / Silent Drives
/ - / /
Recovery BIOS / Desk Update / Multi Boot
/ /
HDD Password
Bot Logo Option

Internal Connectors
DIMM Sockets (DDR2 800/667, SO-DIMM)
1
PCI Express x16 Slot for Graphics Card
-
PCI Express x1 Slot
1
PCI Slot (32Bit, 33 MHz, Rev. 2.3)
1
Mini PCI Express Slot (fullsize)
1
SATA (300) / ATA (133) / Floppy / CF-Card
2 / - / - / 1
S/PDIF (digital Audio) OUT / IN
- / -
CD Audio Input
-
Frontpanel Audio (9-Pin) AC’97 / Azalia 3)
- / 1
FireWire™ (9-Pin, Intel standard header)
-
USB (2.0, ~480 MB/s; 2 channels per connector)
2
Specific socket for internal USB stick
1
Serial (FIFO, 16550 compatible)
1
FAN 4) CPU / System (AUX1) / System (AUX2)
1 / 1 / -
SMBus (Case Temperature) / Intrusion (Case Open)
- / 1
LVDS Dual Channel / Backlight Inverter
1 / 1
Feature Connector (8 Bit General Purpose I/O)
1
Frontpanel (Power Switch, LEDs, Intel 10 pin header)
1
Onboard Power Output (+5V/2A, +12V/2A) for drives
1
Onboard (internal input) DC-In 19-24V / 3A
1
Power 20 pin (ATX) / 4 pin (12V processor supply)
- / -
External Connectors
1 / 1
VGA Sub D 2) / DVI-I / HDMI / DisplayPort
- / 1 / - / -
Audio In / Line out (or driver configuration)
1 / 1
S/PDIF (digital Audio) OUT / IN
- / -
LAN (RJ-45)
2
PS/2 Mouse / Keyboard
1 / 1
USB (2.0, ~480MB/s)
4
Serial (RS232, FIFO, 16550 compatible)
1
DC-IN (external input) 19-24V / 3A
1
1) Forced cooling required, see technical documentation for detailed requirements
2) Via optional DVI-I / VGA interface connector
3) Support for AC´97 audio frontpanel possible via BIOS Setup option
4) CPU fan = 4 pin PWM, system fan = 4 pin PWM or 3 pin (selectable via BIOS Setup)
Data Sheet Fujitsu Mainboard D2963-S
Page 3 of 3
ts.fujitsu.com/mainboards
More information
Fujitsu platform solutions
In addition to Fujitsu Mainboards Fujitsu
provides a range of platform solutions. They
combine reliable Fujitsu products with the
best in services, know-how and worldwide
partnerships.
Dynamic Infrastructures
With the Fujitsu Dynamic Infrastructures
approach, Fujitsu offers a full portfolio of IT
products, solutions and services, ranging
from clients to datacenter solutions,
Managed Infrastructure and
Infrastructure-as-a-Service. How much you
benefit from Fujitsu technologies and
services depends on the level of
cooperation you choose. This takes IT
flexibility and efficiency to the next level.
Computing products
www.fujitsu.com/global/services/computing
- PRIMERGY: Industrial standard server
- SPARC Enterprise: UNIX server
- PRIMEQUEST: Mission-critical IA server
- ETERNUS: Storage system
Software
www.fujitsu.com/software/
- Interstage: Application infrastructure
software
- Systemwalker: System management
software
More information
Learn more about Fujitsu Mainboards,
please contact your Fujitsu sales
representative, Fujitsu business partner, or
visit our website.
http://ts.fujitsu.com/
Fujitsu green policy innovation
