Sony EMCS Co.
SERVICE MANUAL
LEVEL 2
Link
Link
DSLR-A900_L2

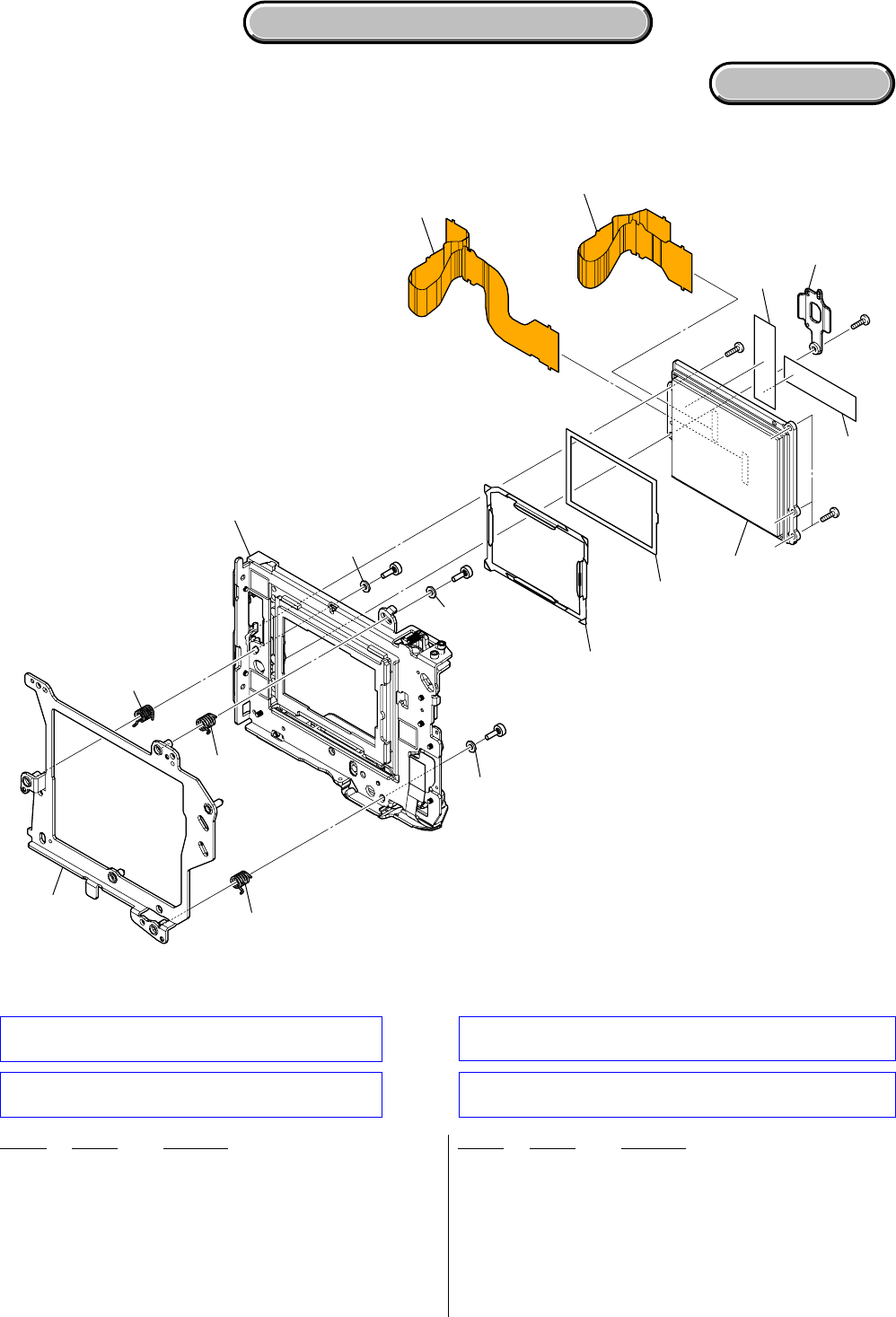

DISASSEMBLY
SERVICE NOTE
SPECIFICATIONS

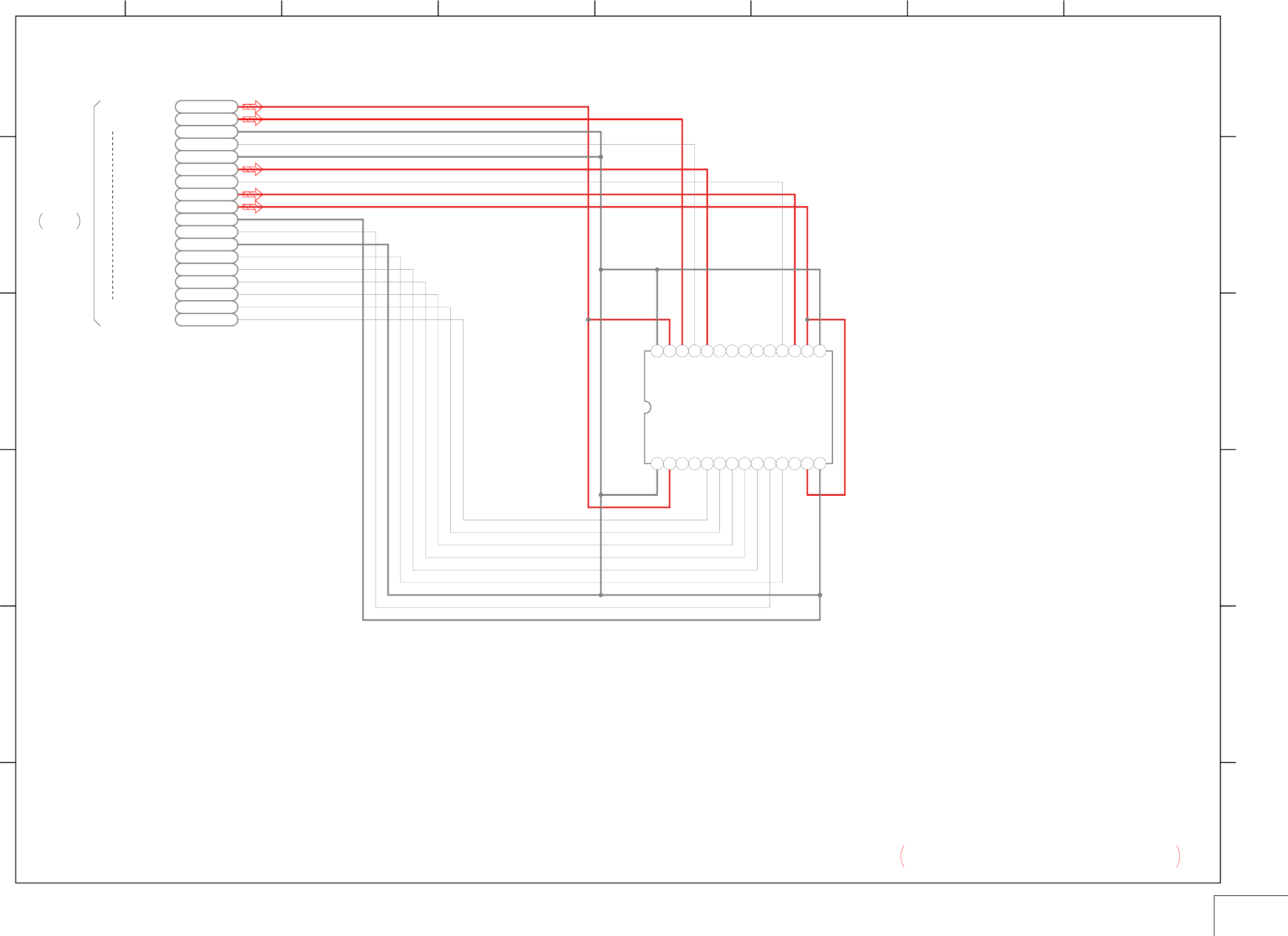

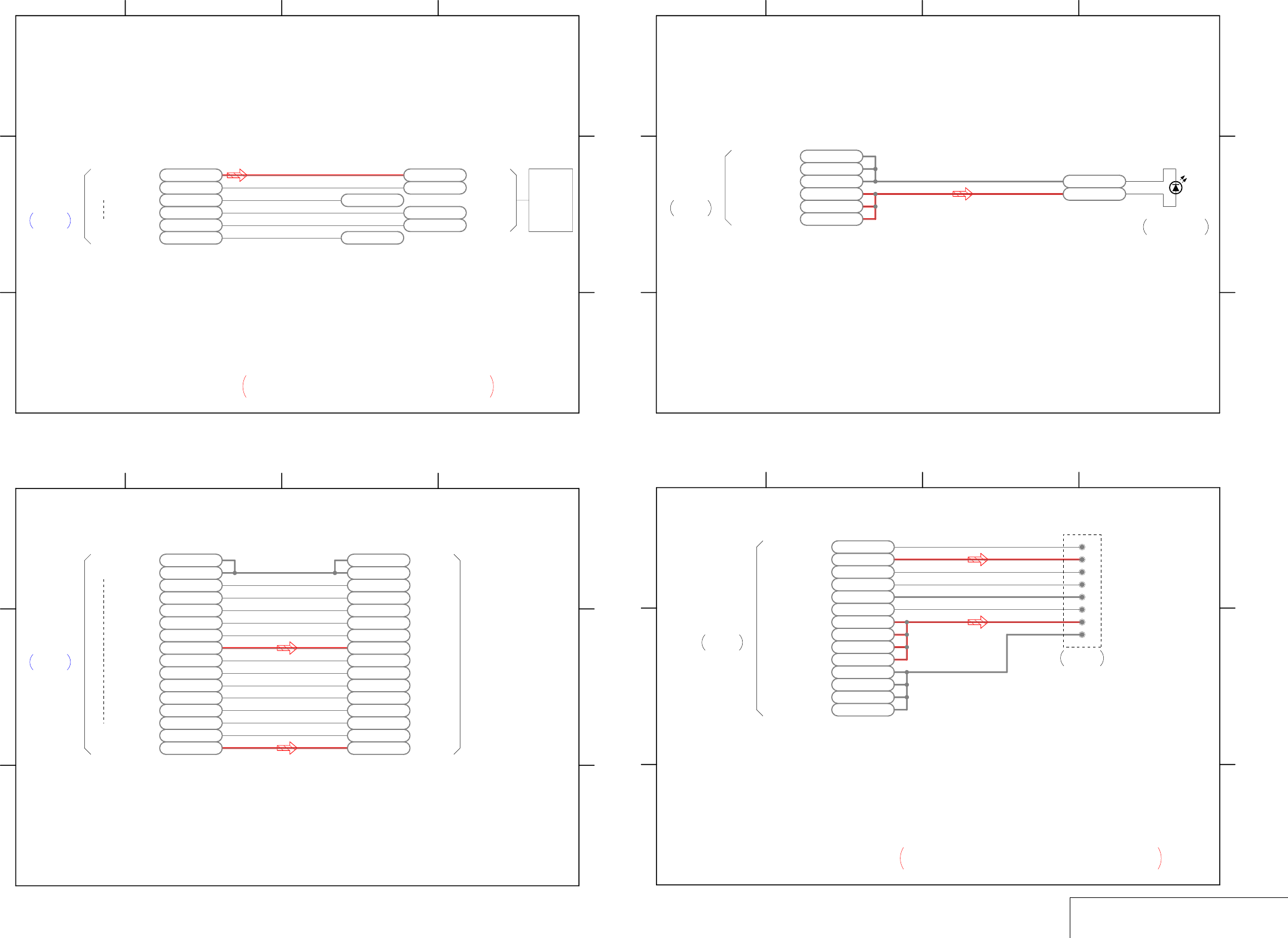

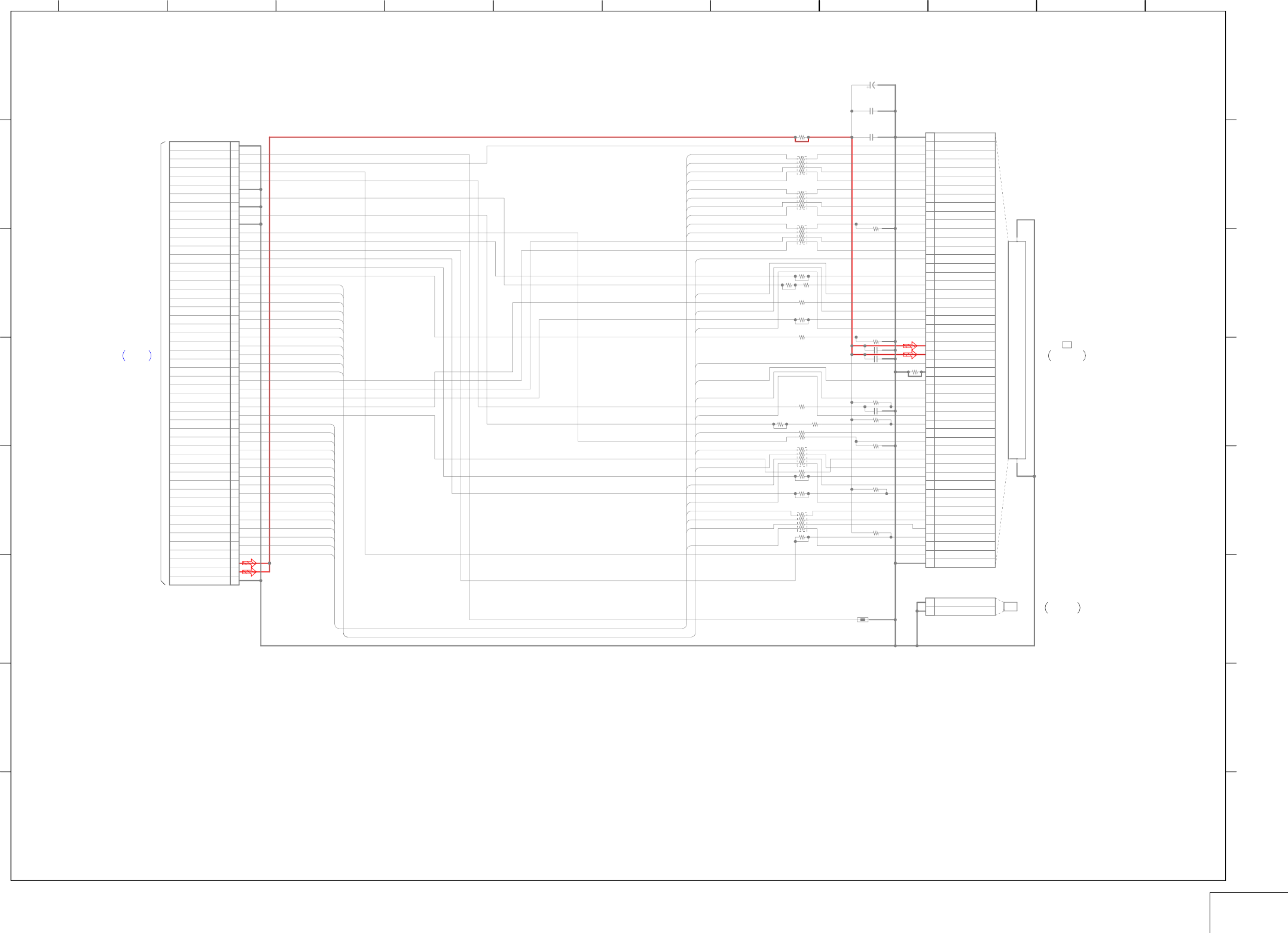

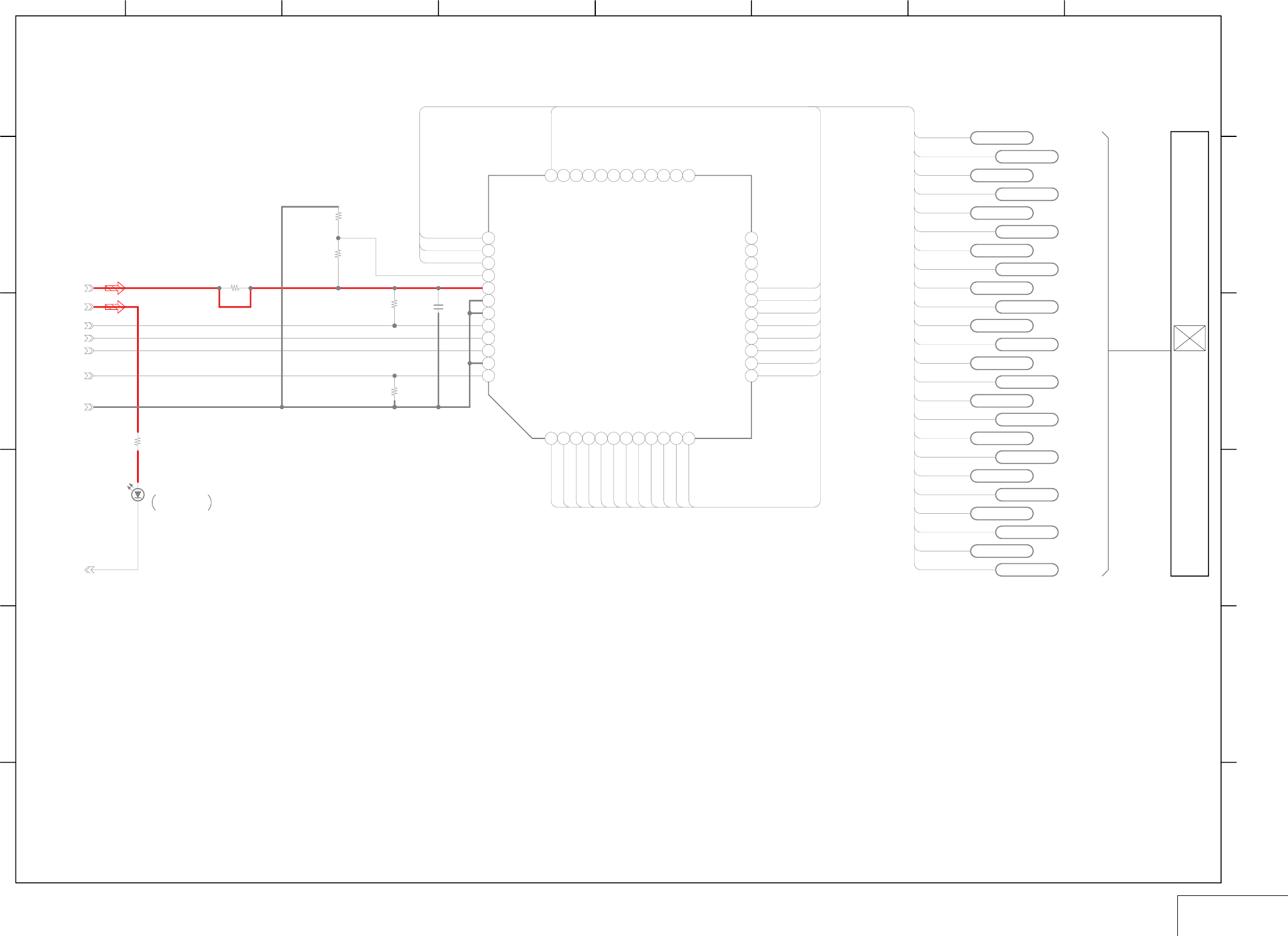

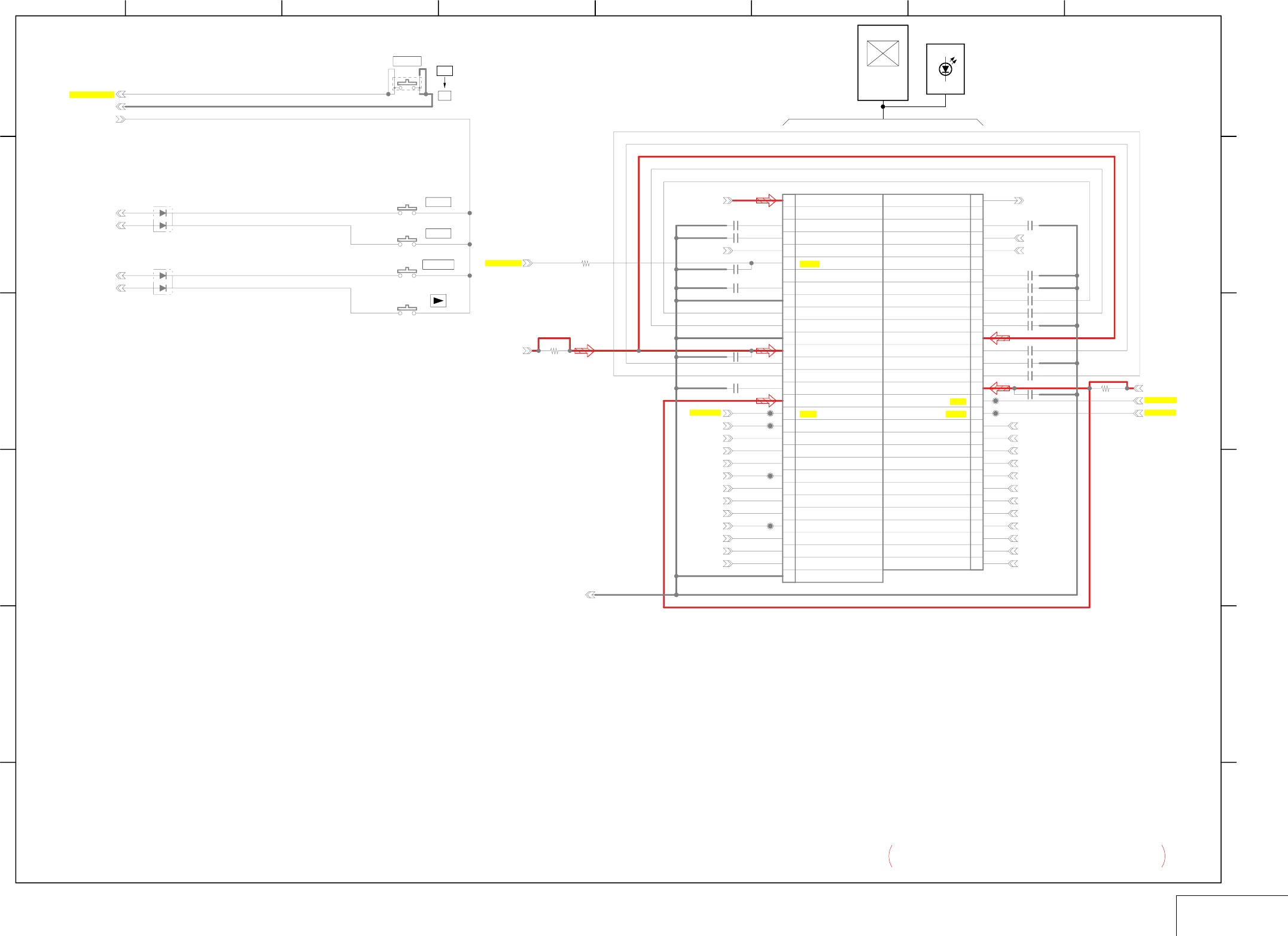

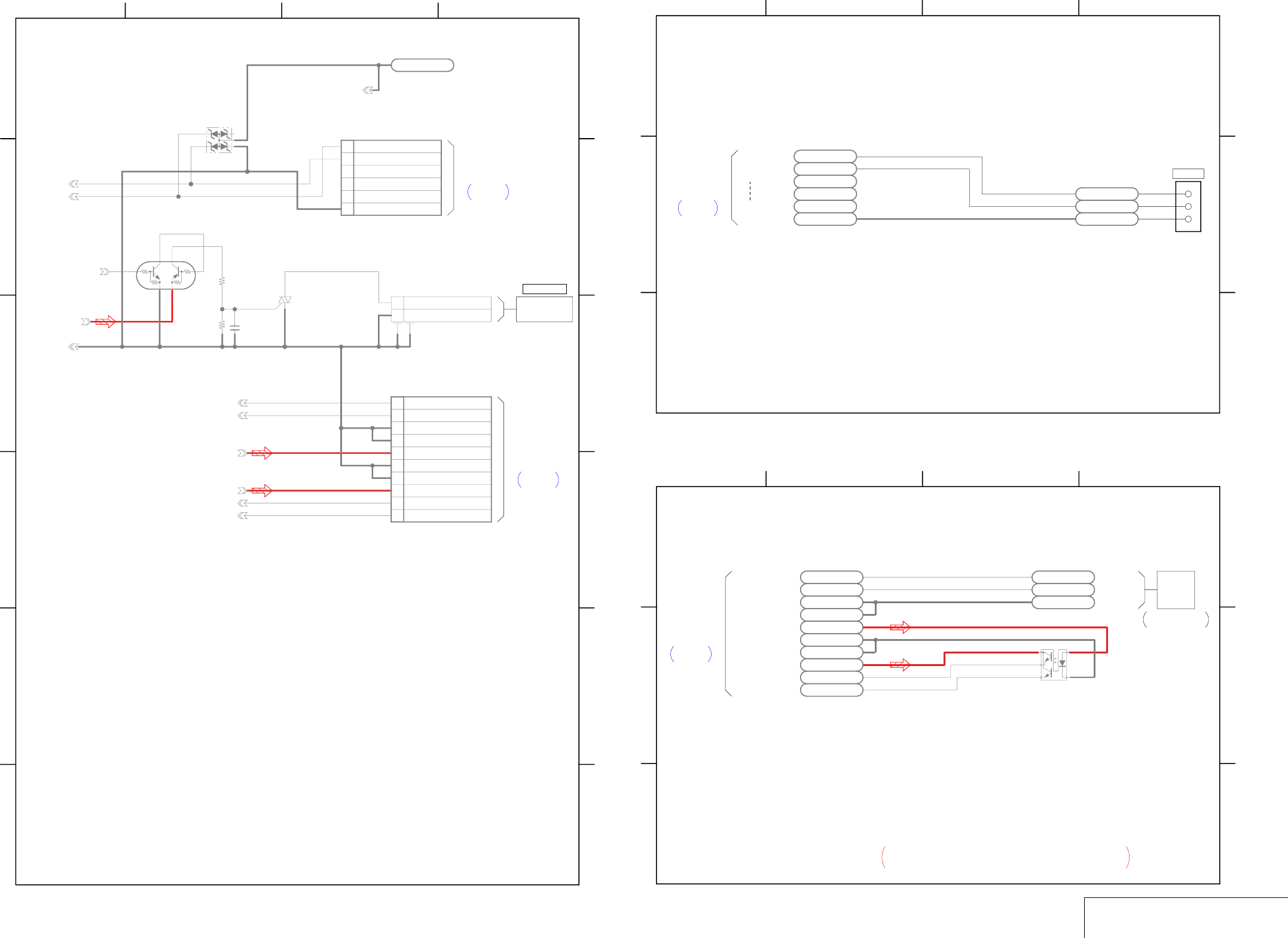

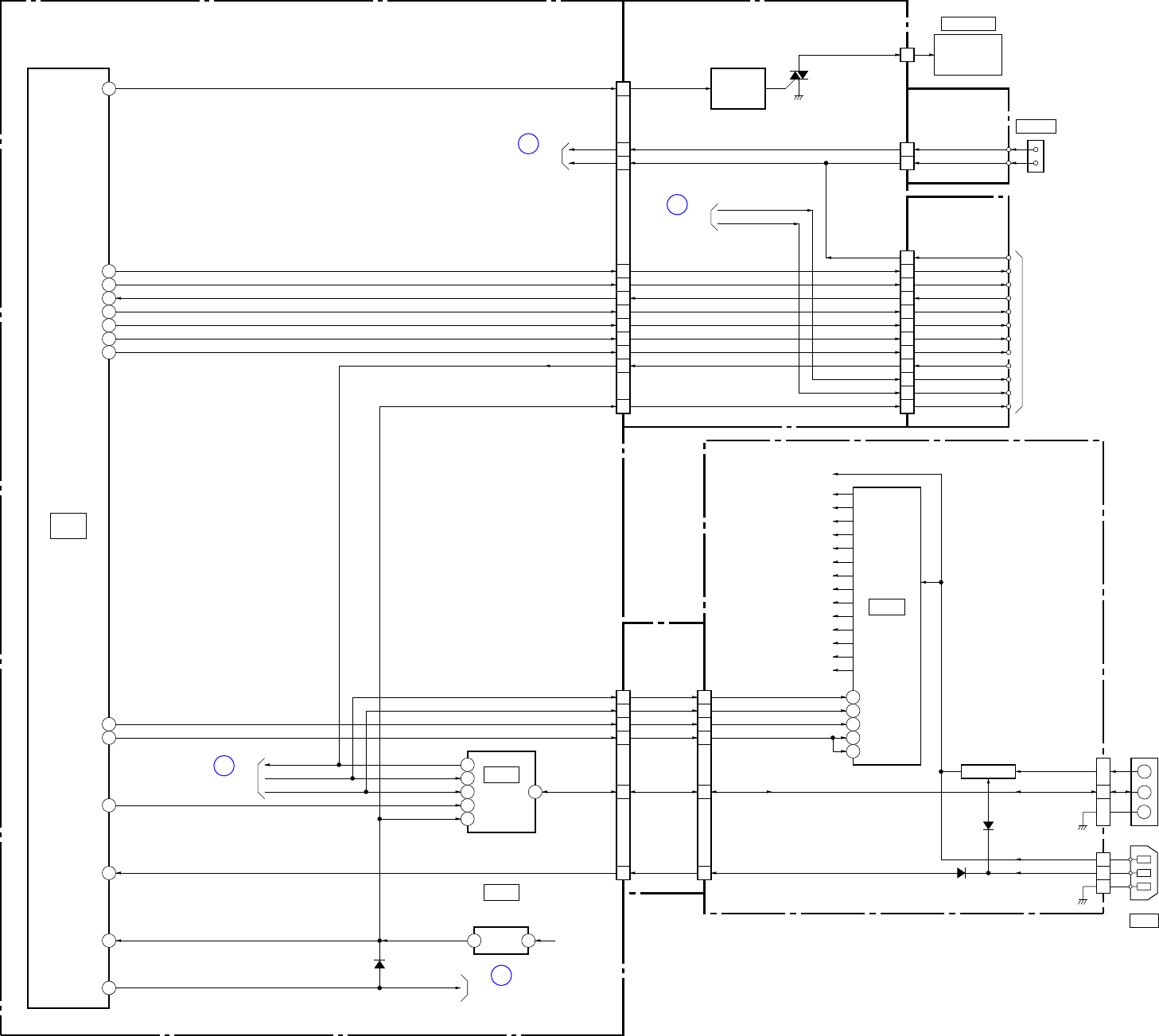

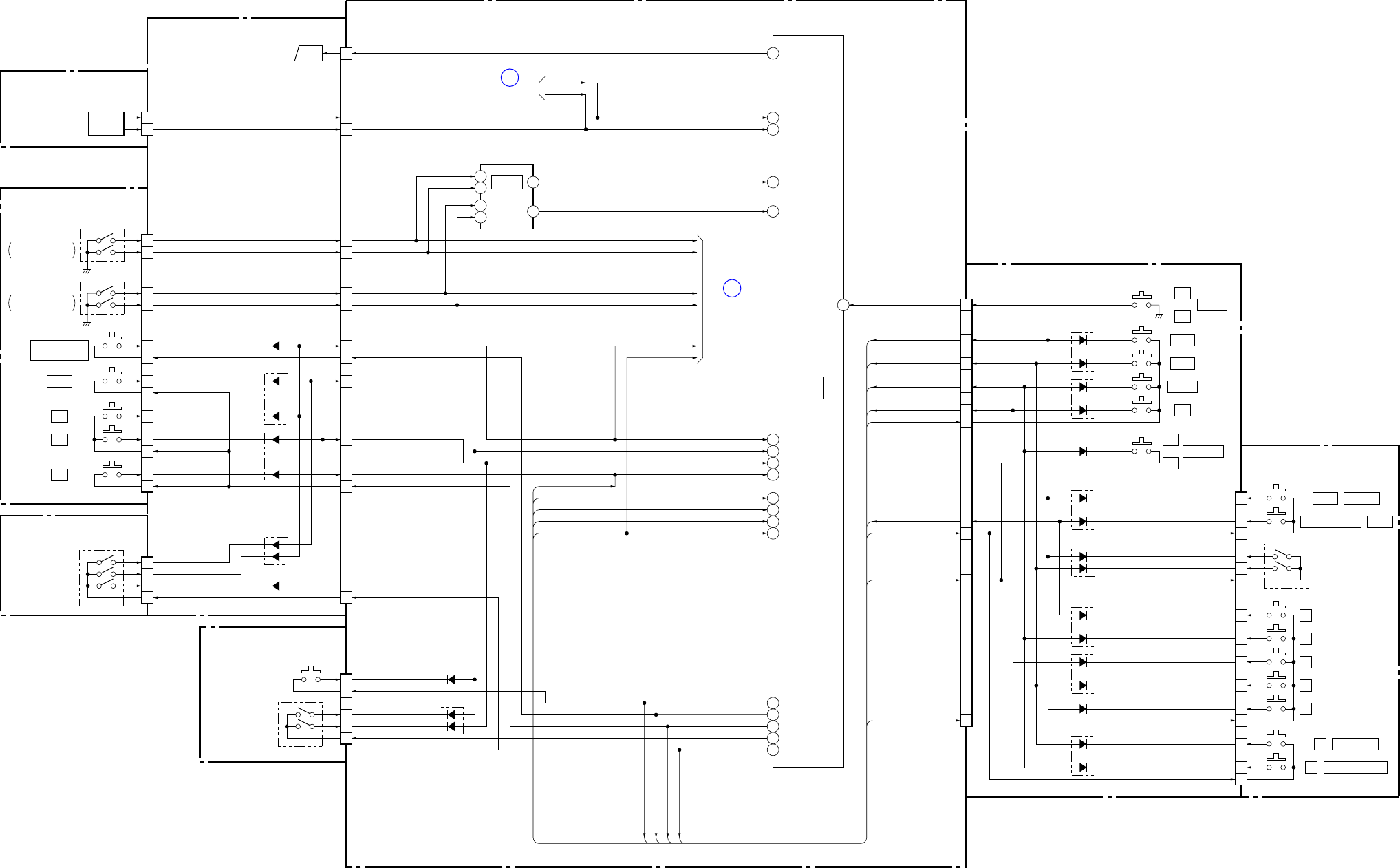

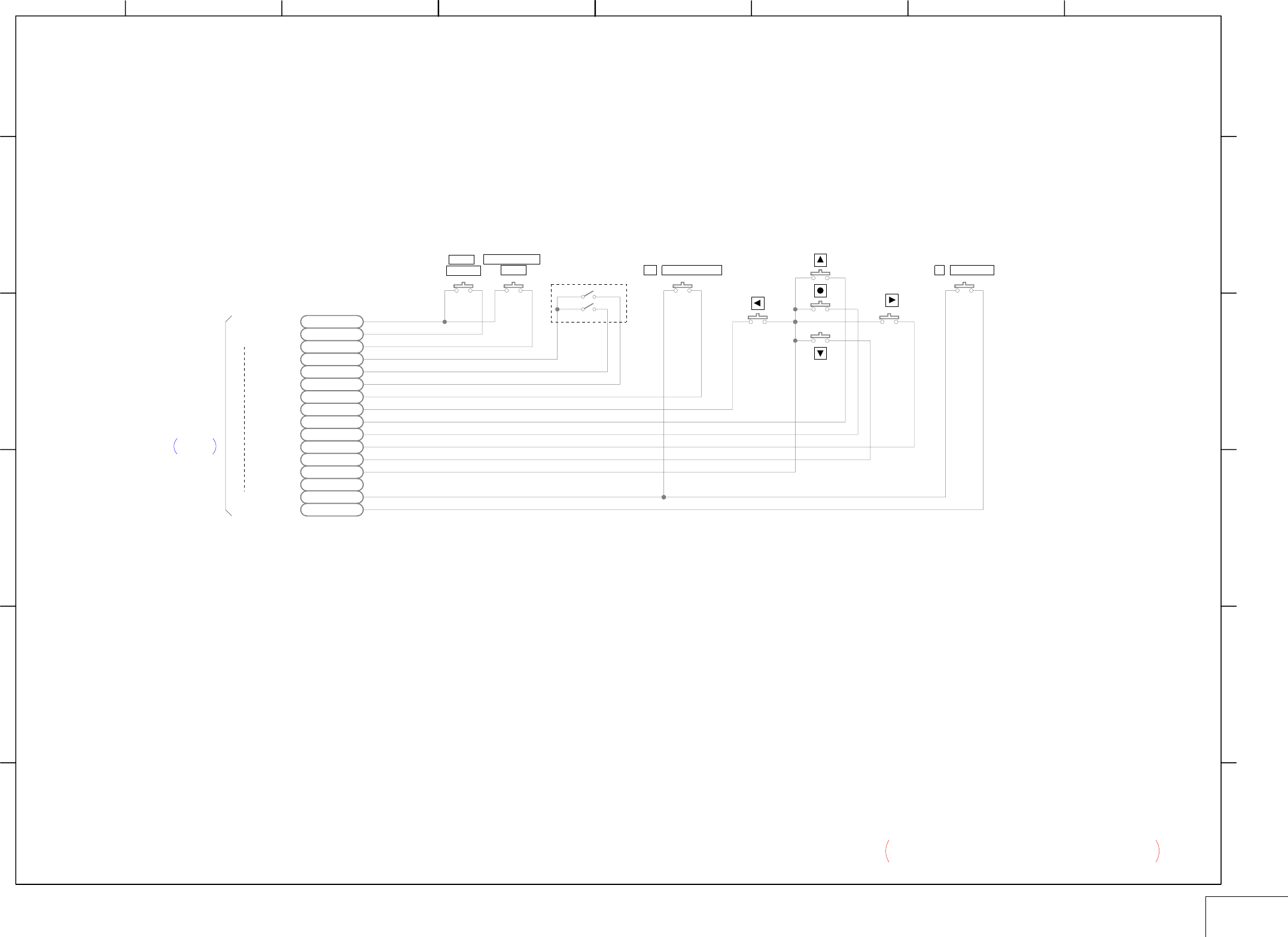

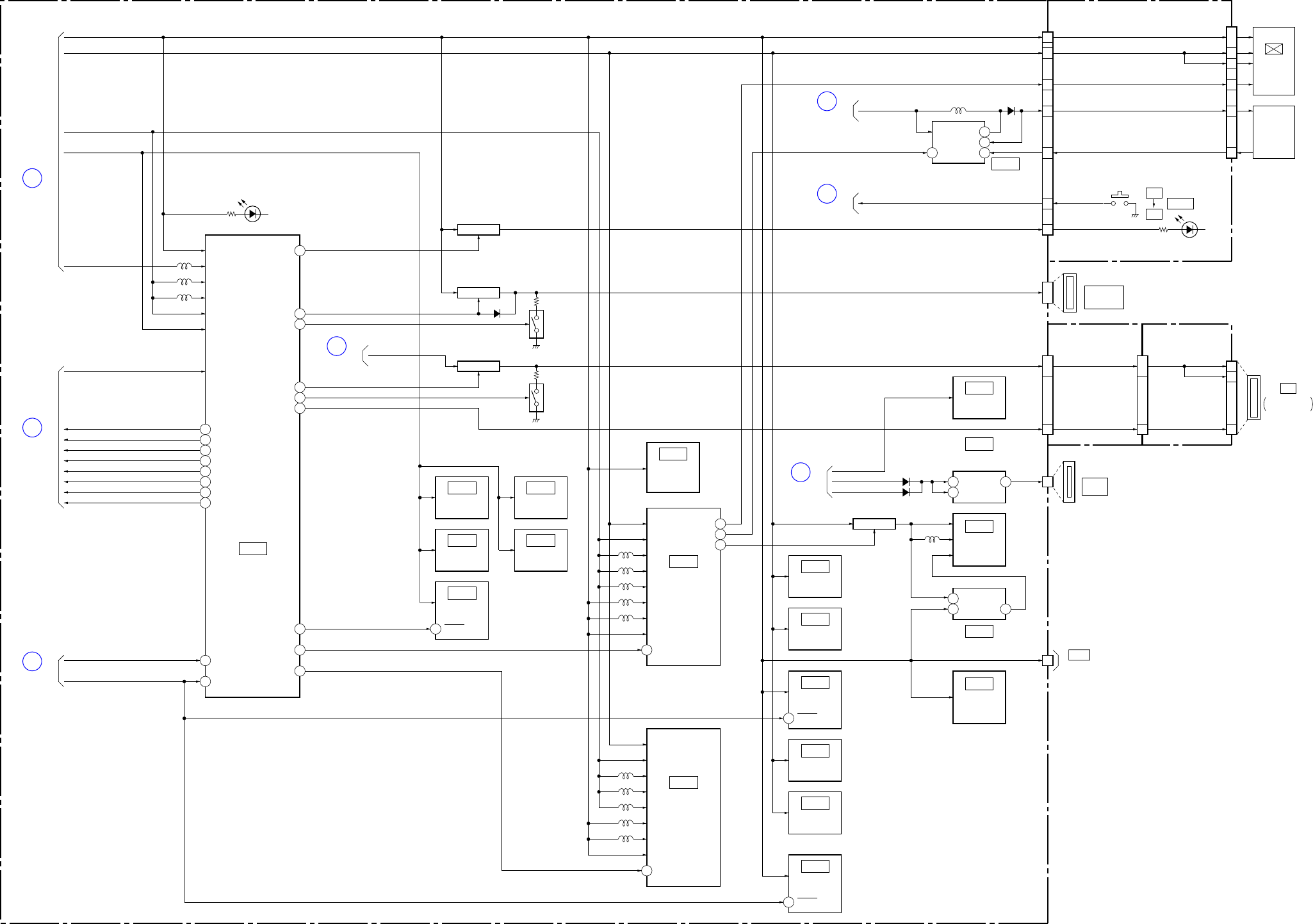

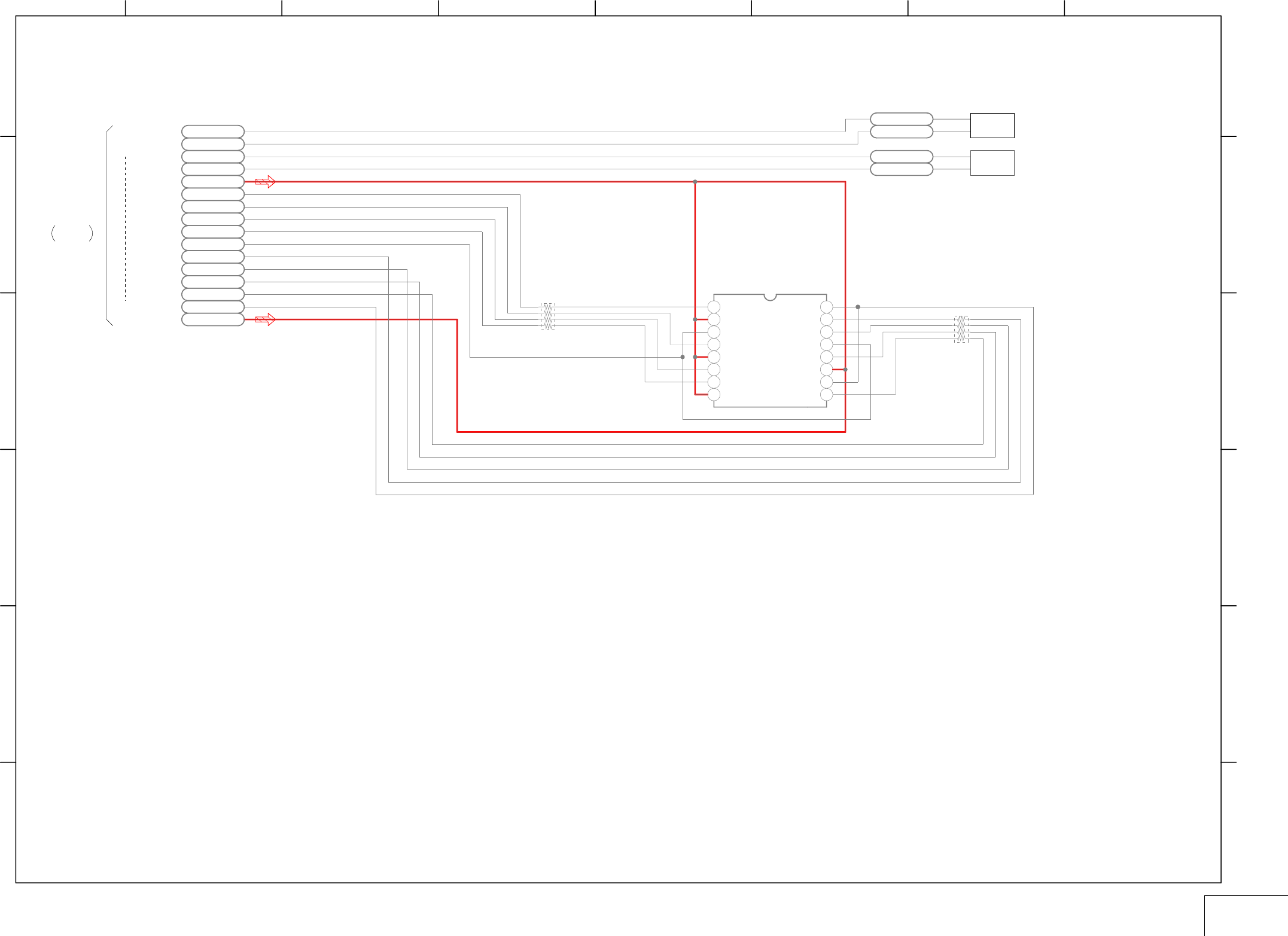

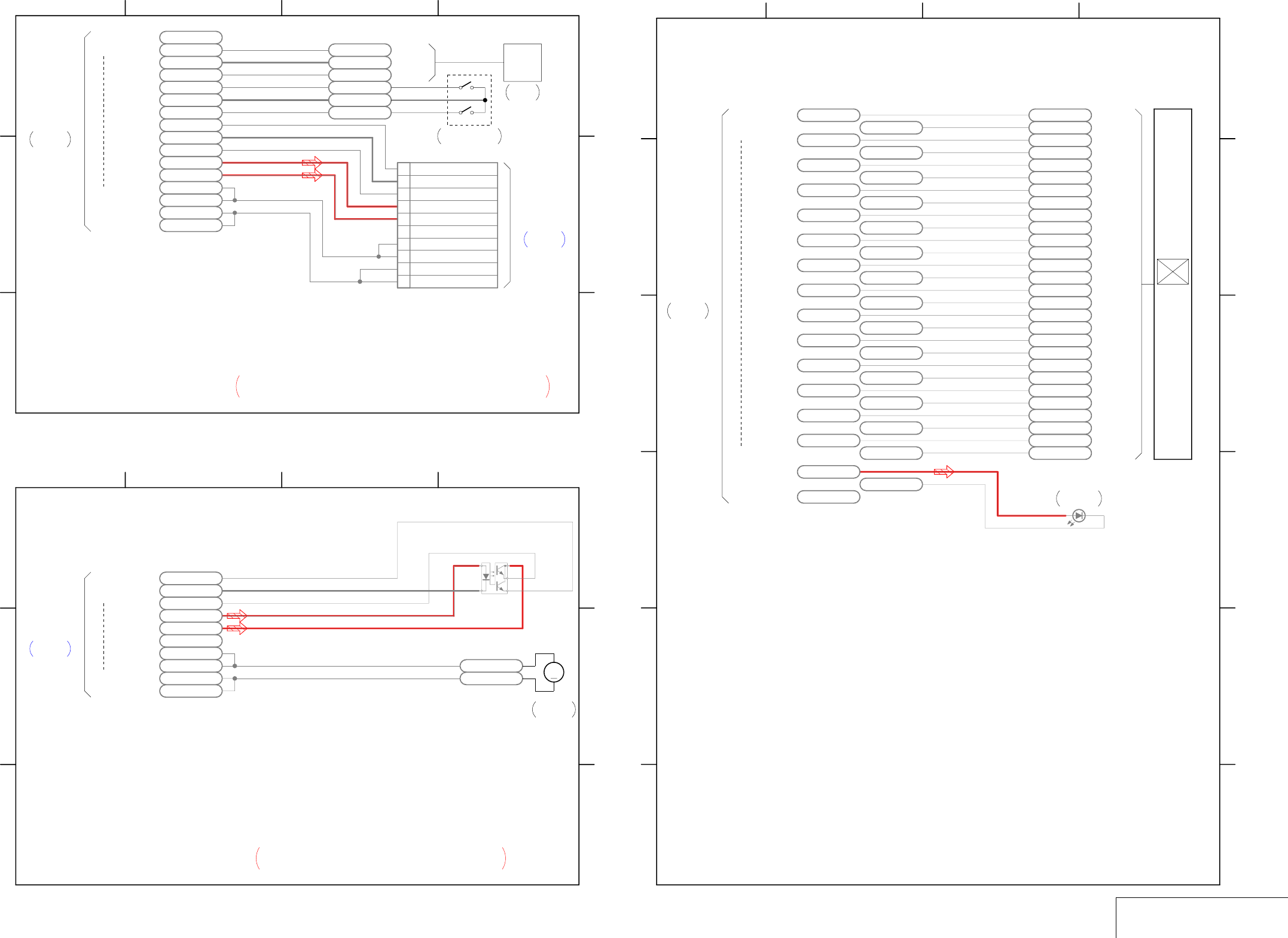

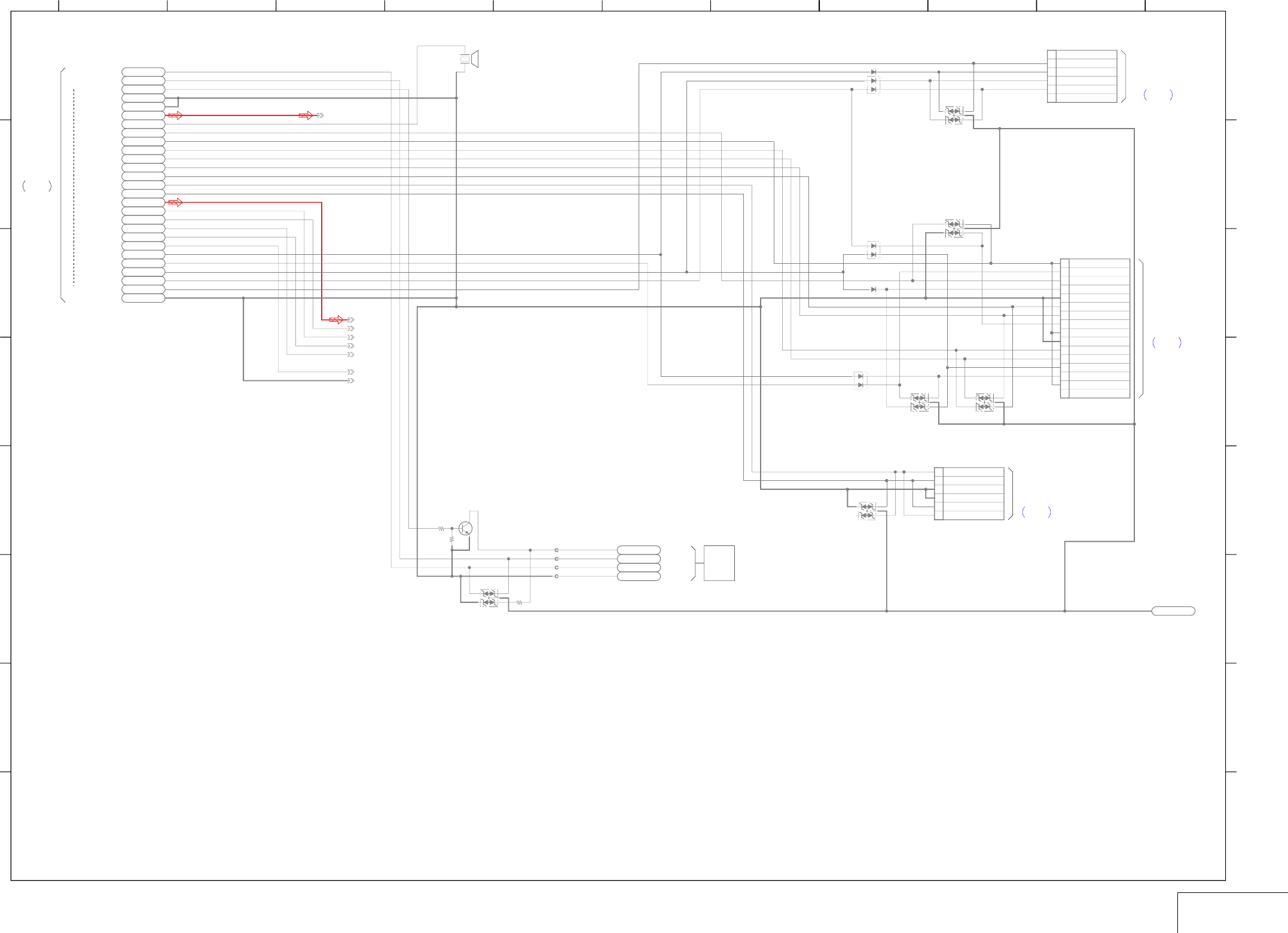

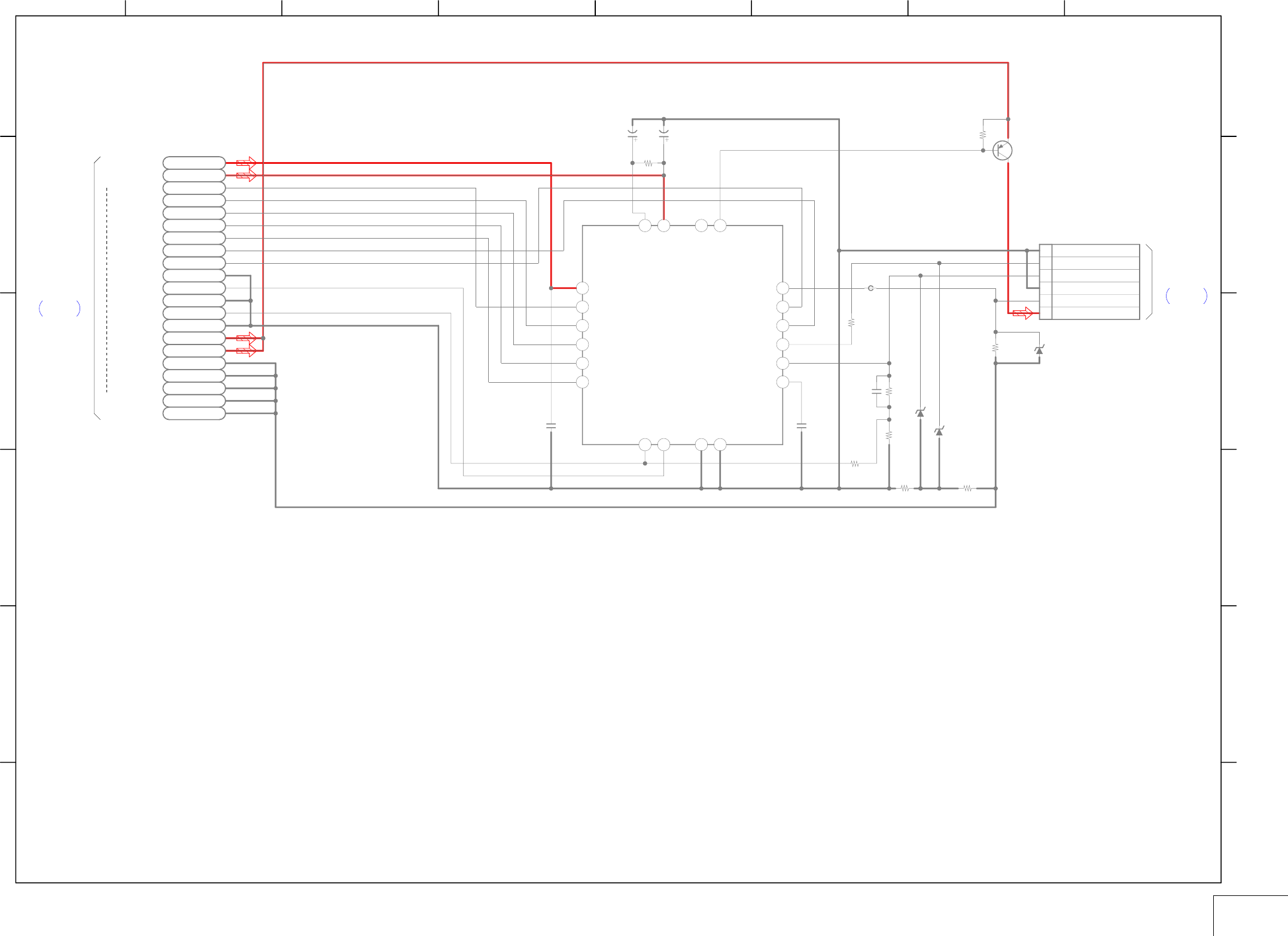

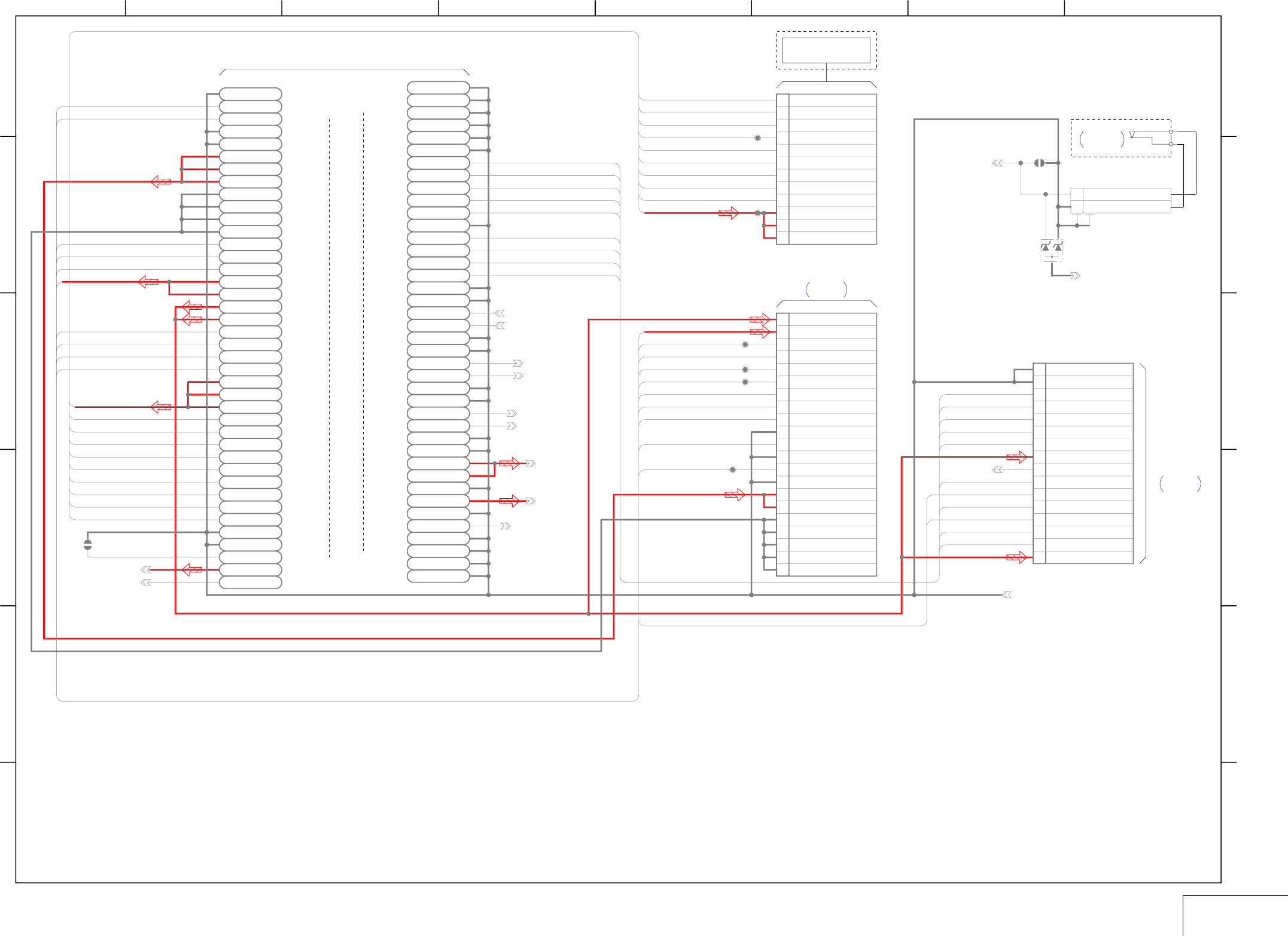

SCHEMATIC DIAGRAMS

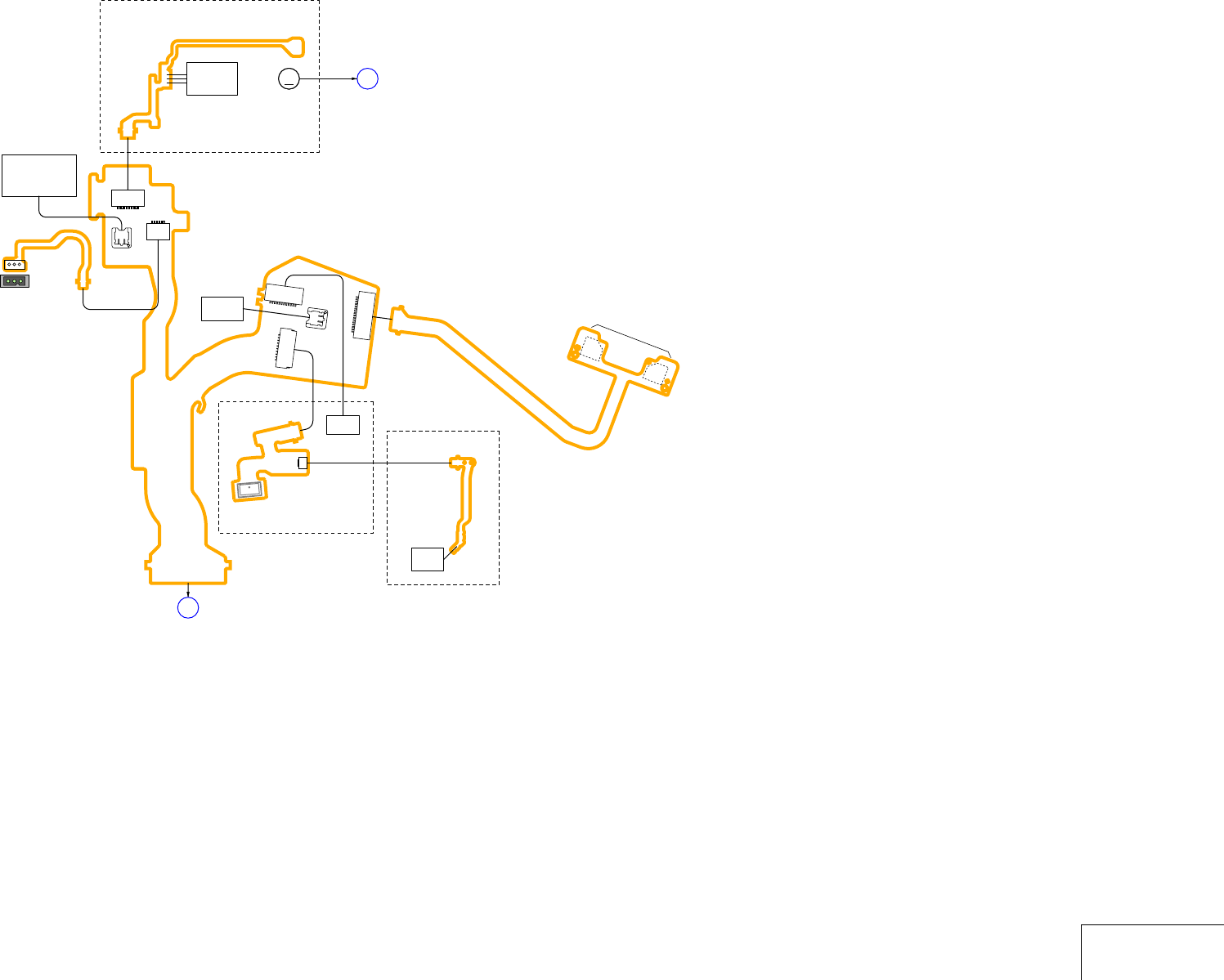

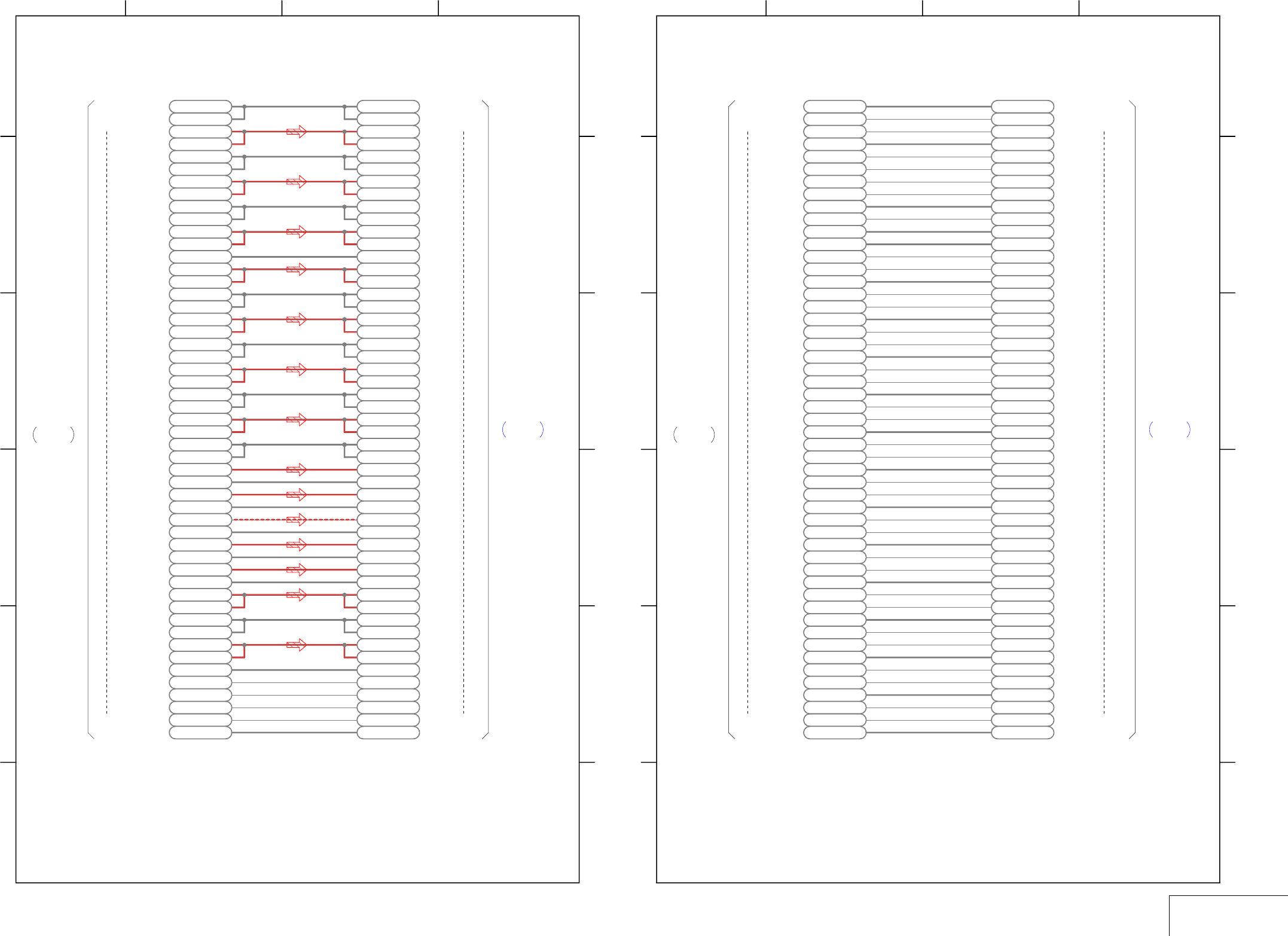

FRAME SCHEMATIC DIAGRAMS

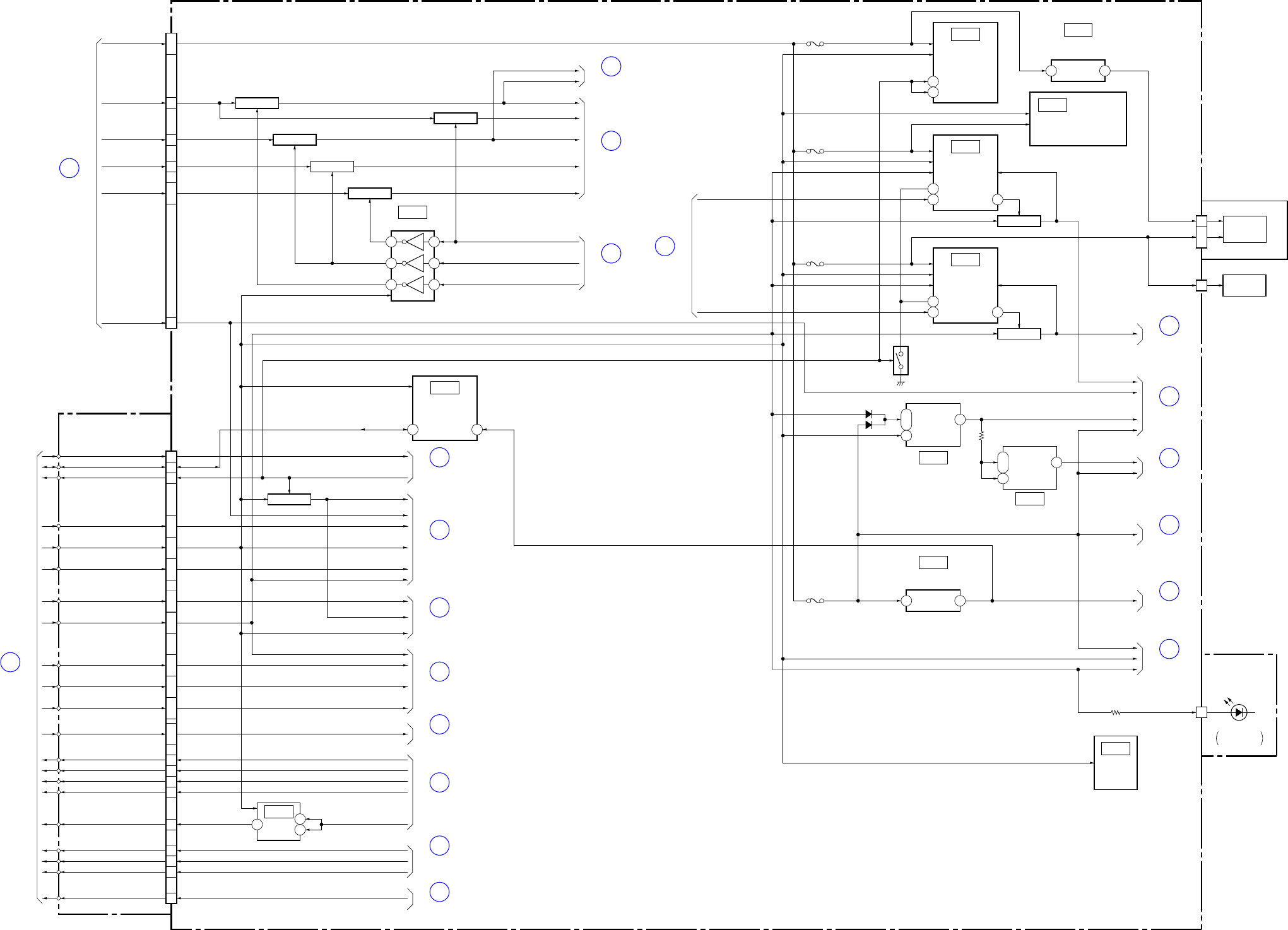

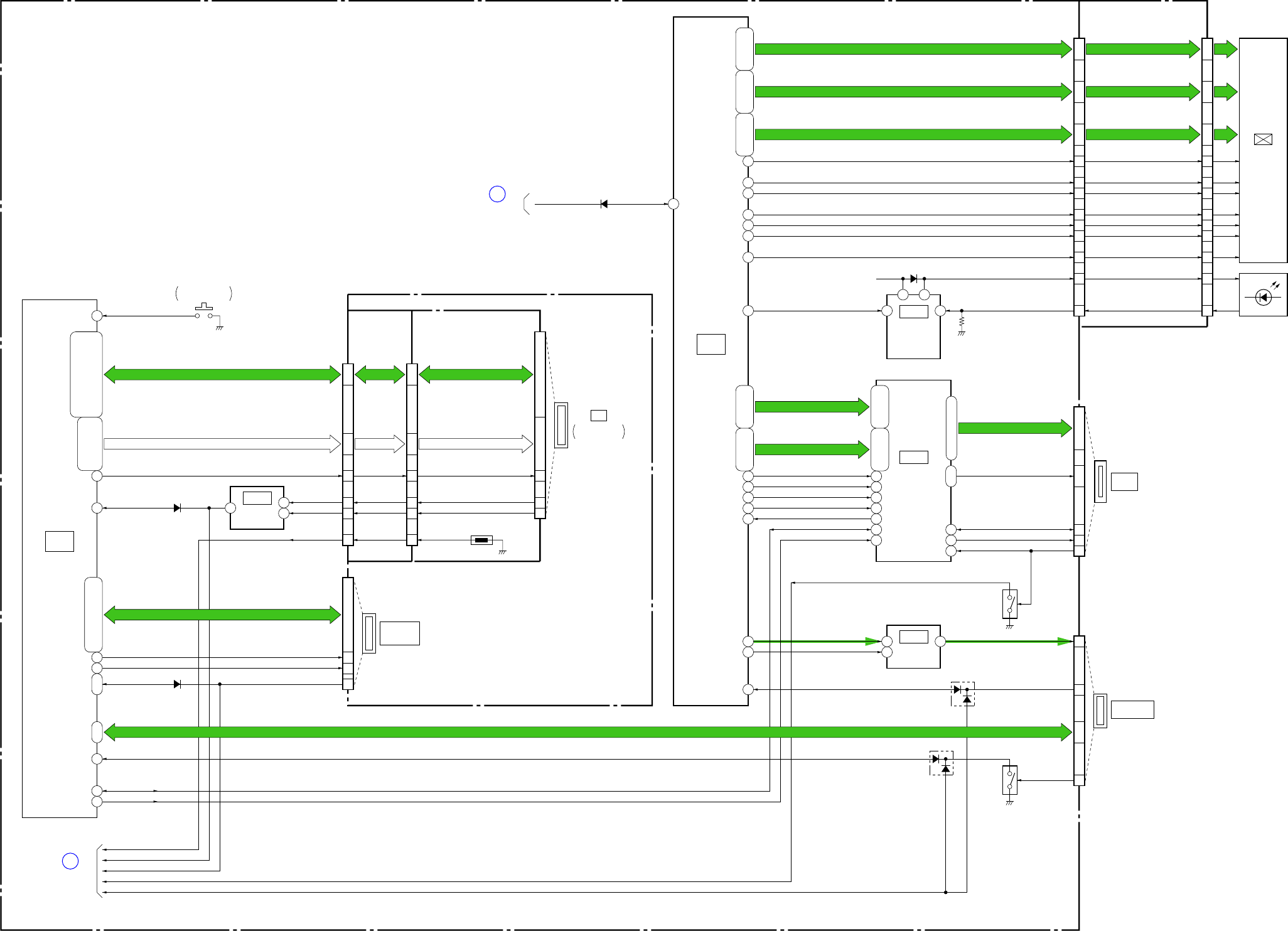

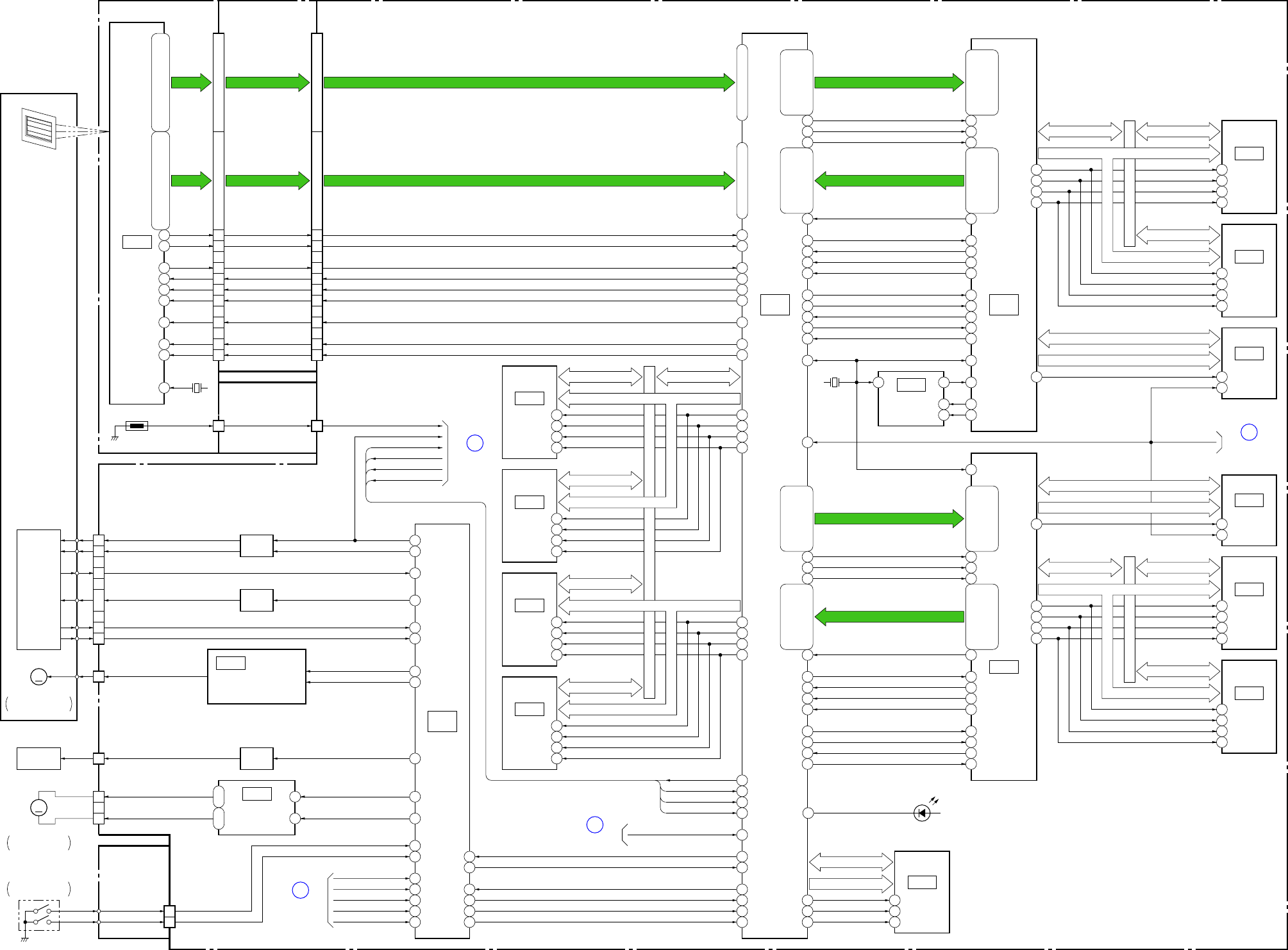

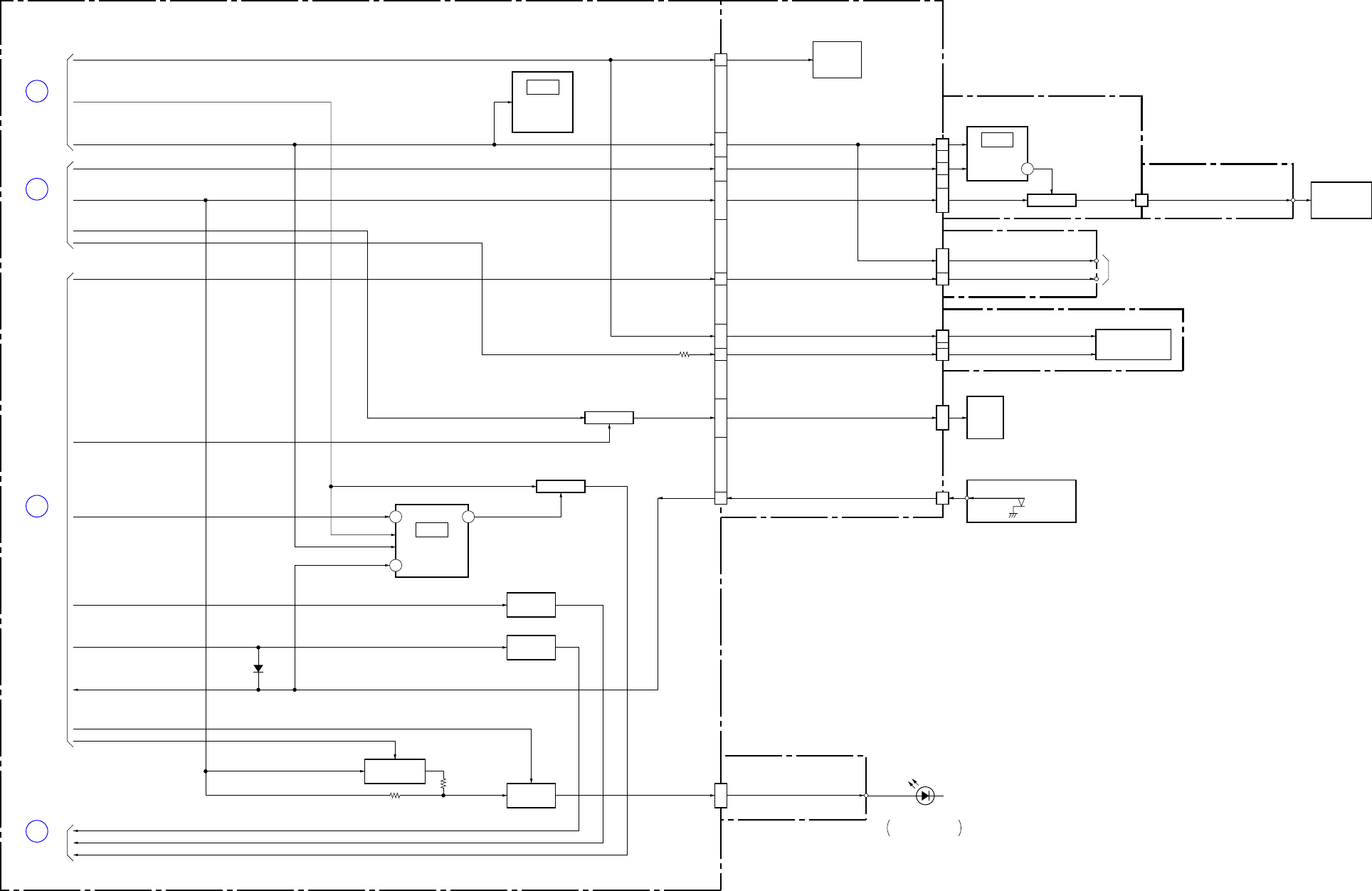

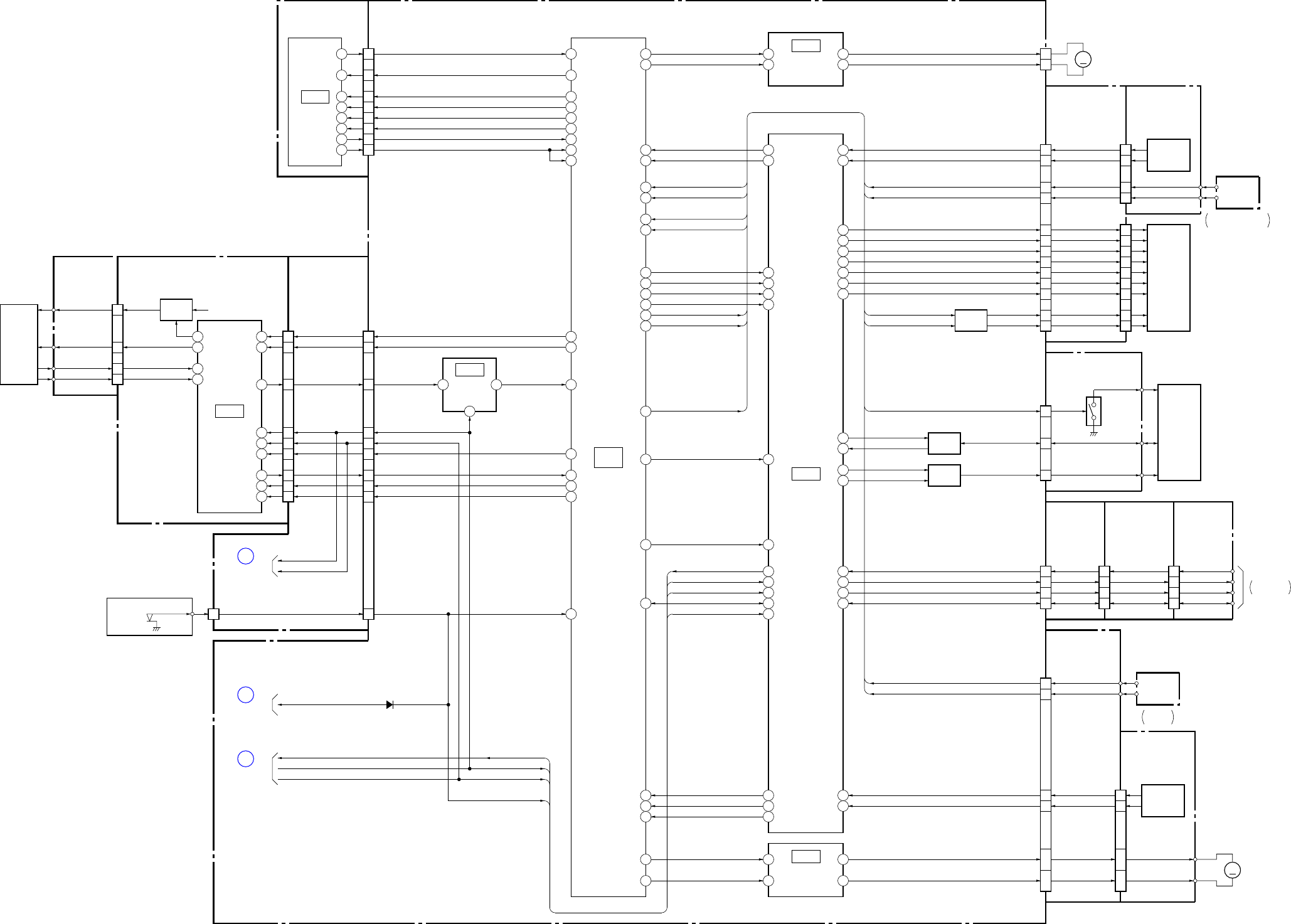

BLOCK DIAGRAMS

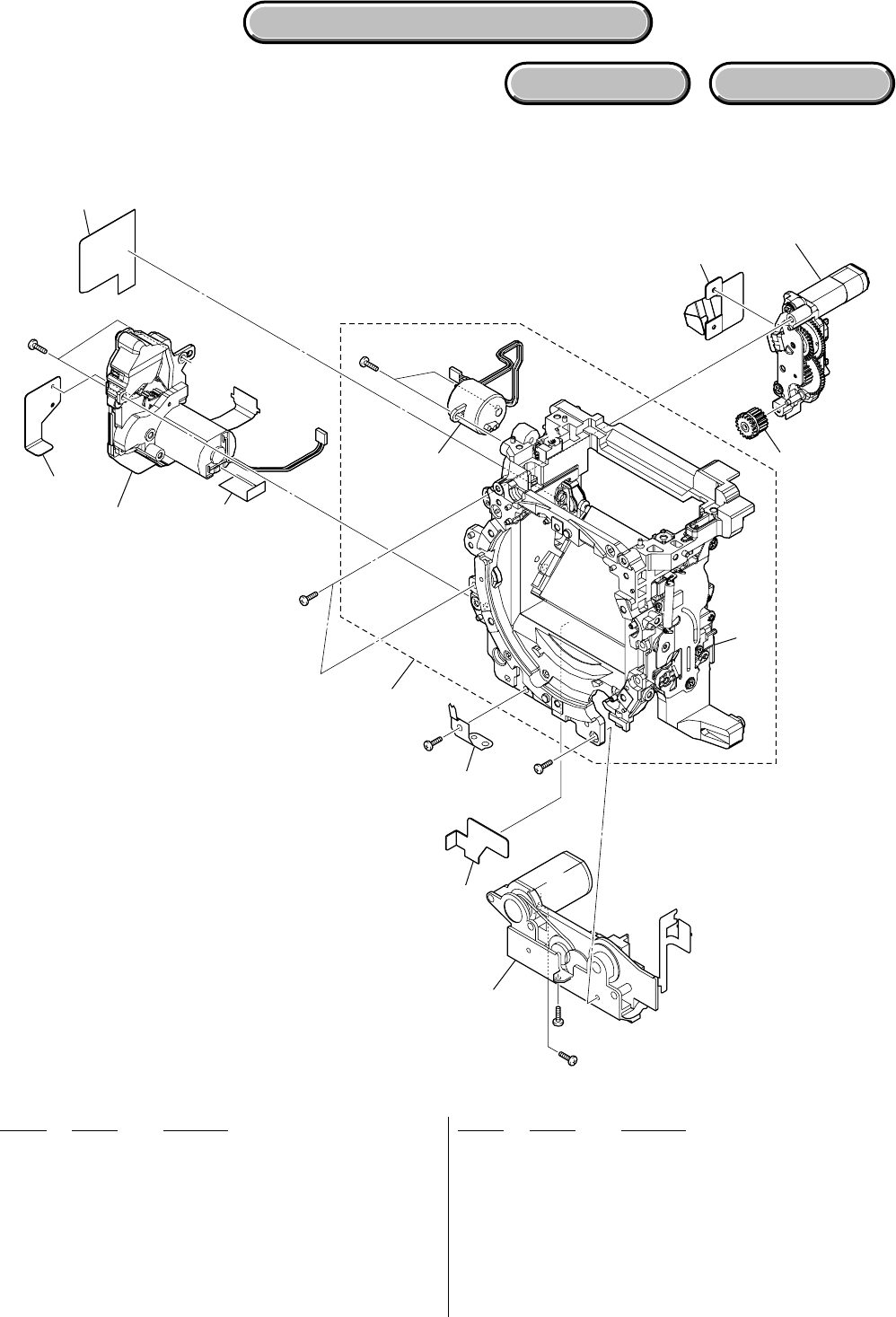

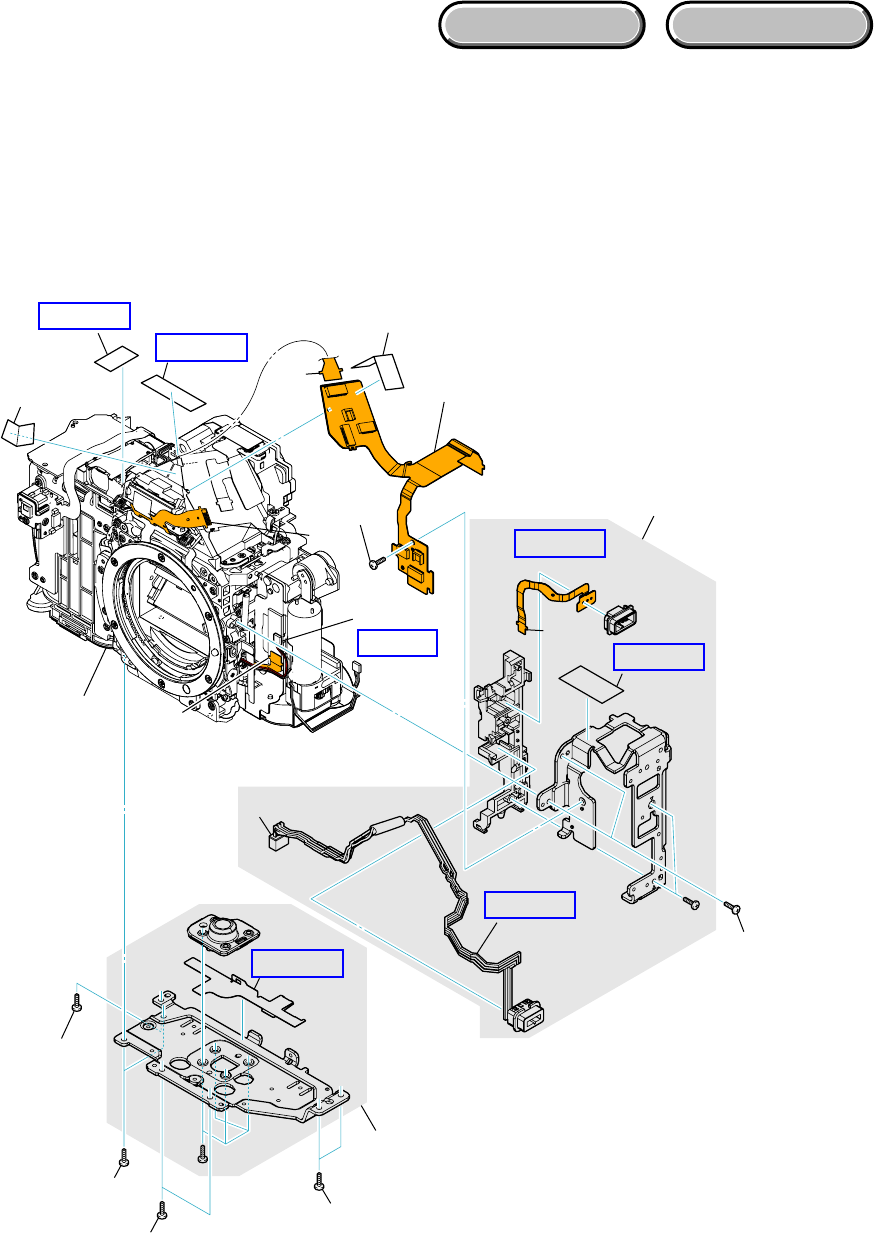

REPAIR PARTS LIST

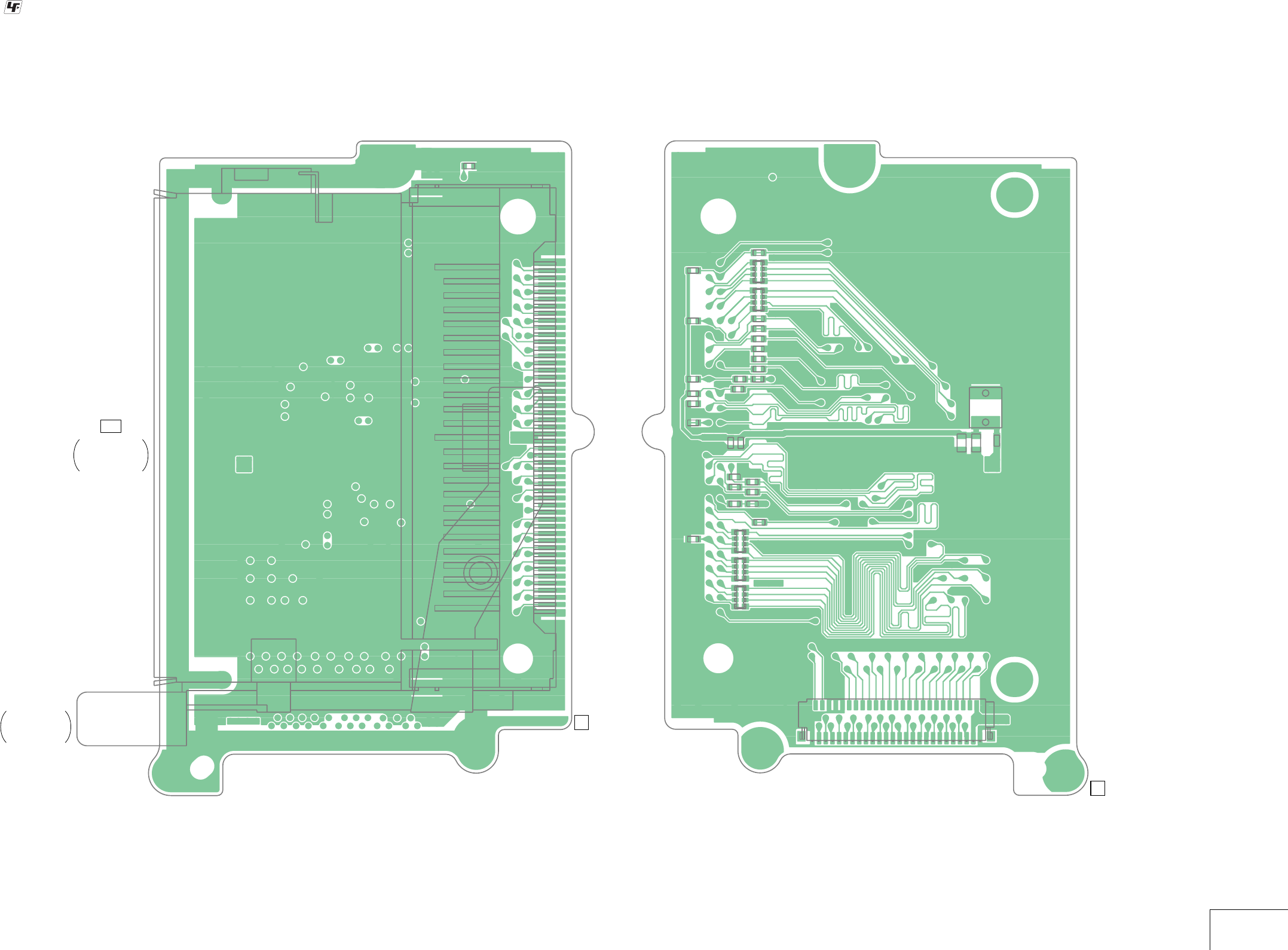

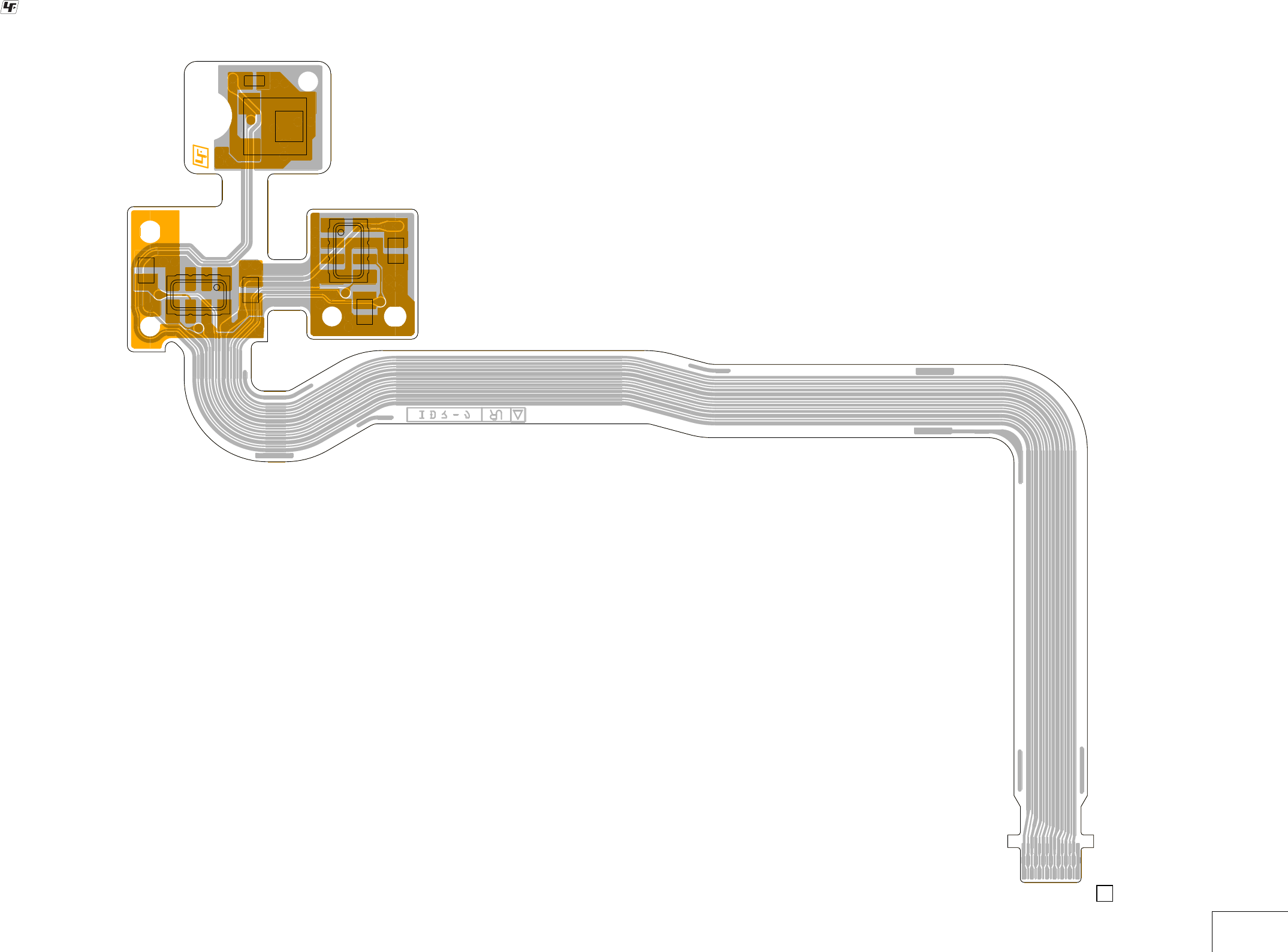

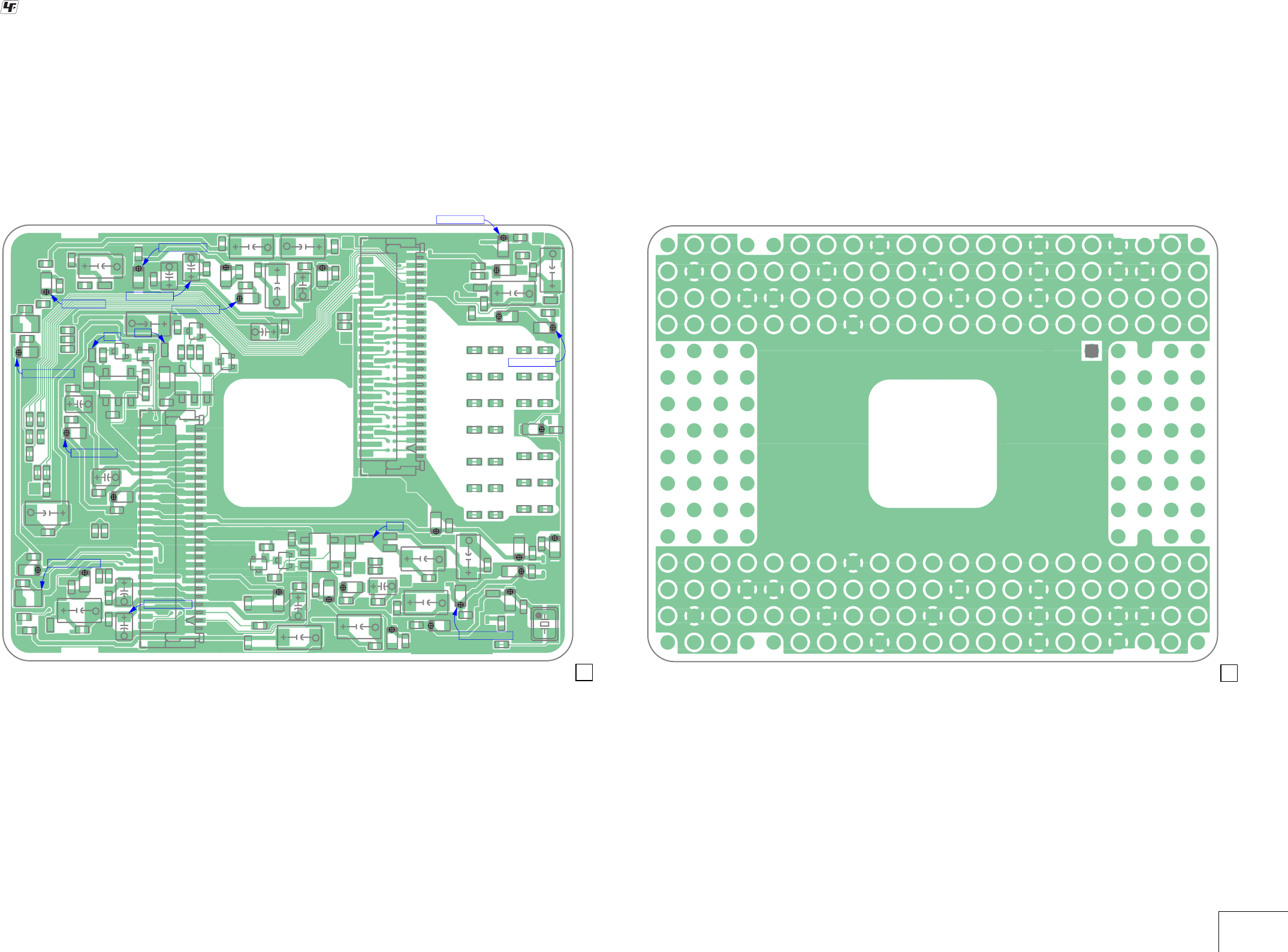

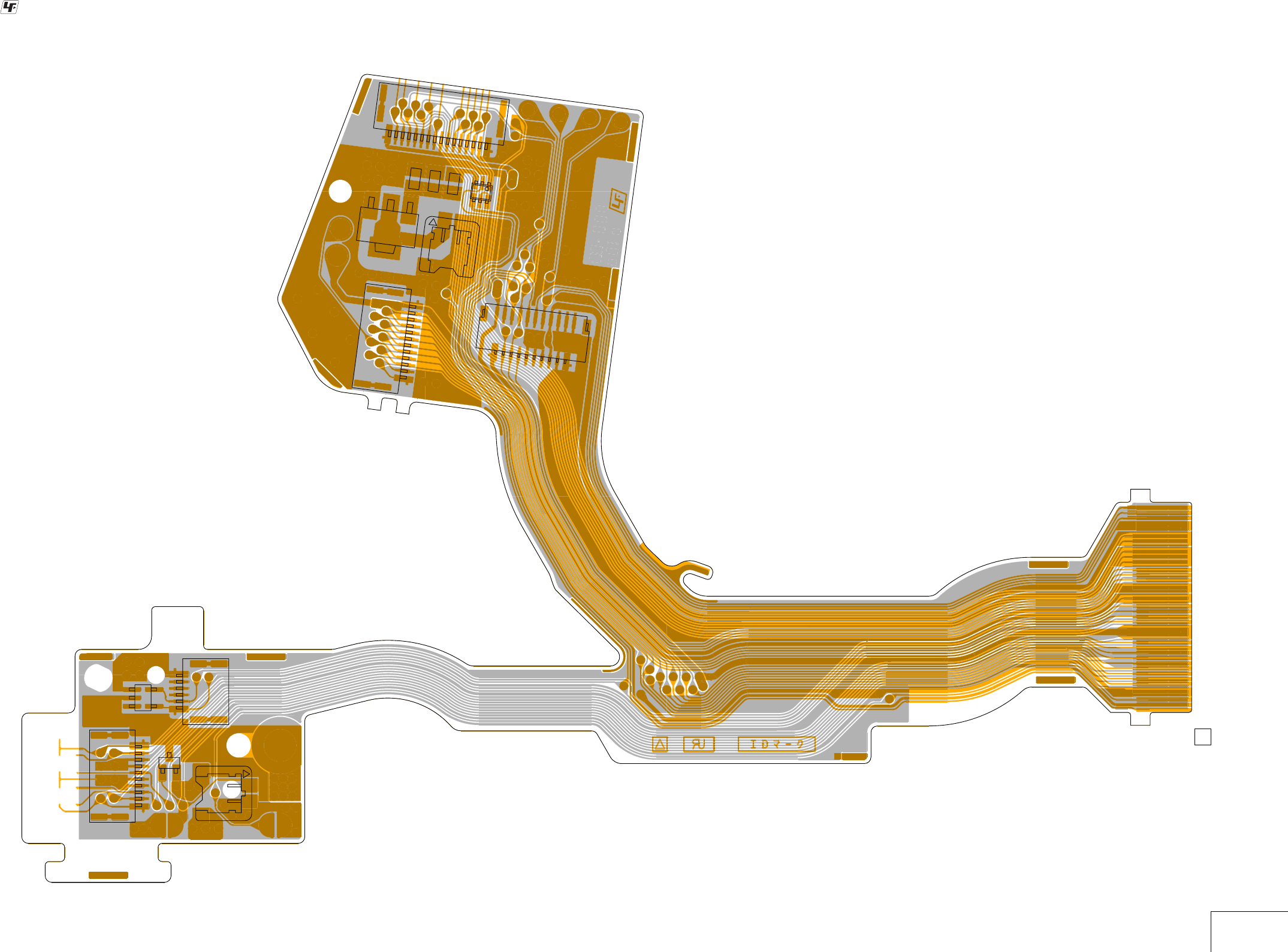

PRINTED WIRING BOARDS
2009A0500-1
© 2009.1
Published by Kohda TEC9-852-609-32
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ver. 1.1 2009.01
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Japanese Model
DSLR-A900
RMT-DSLR1
DIGITAL SINGLE LENS REFLEX CAMERA
— 2 —
DSLR-A900_L2
SPECIFICATIONS
Camera
[System]
Camera Type
Digital Single Lens Reflex Camera
and interchangeable lenses
Lens All of α Lens (except for DT lens*)
*Using a DT lens is not guaranteed because the
corners of the field are darkened and the camera
does not meet the primary AE performance
standard. The APS-C size is automatically
selected.
[Image sensor]
Total pixel number of camera
Approx. 25 720 000 pixels
Effective pixel number of camera
Approx. 24 610 000 pixels
Image format
35 mm (35.9×24.0) CMOS sensor
ISO sensitivity (Recommended exposure index)
AUTO, 100 to 6400
[SteadyShot]
System Sensor-Shift mechanism
SteadyShot Compensation capability
Approximately 2.5 to 4 EV decrease
in shutter speed (varies according to
shooting conditions and lens used)
[Anti-Dust]
System Charge protection coating on
Low-Pass Filter and image
sensor-Shift mechanism
[Viewfinder]
Type Fixed eye-level system with
pentaprism
Focusing Screen
Spherical Acute Matte
(exchangeable, option)
Frame coverage
Approx. 1
Magnification
0.74 × with 50 mm lens at infinity,
–1 m –1
Eye point Approximately 20 mm from the
eyepiece
Diopter Adjustment
–3.0 to +1.0 m–1
[Auto Focus System]
System TTL phase-detection system, CCD
line sensors (with center dual
cross-hair sensor, F2.8 sensor)
Ranging point
9 points and 10 supplementary
ranging points
Sensitivity Range
0 to 18 EV (at ISO 100 equivalent)
AF illuminator
Approx. 1 to 7 m (3.3 to 23 feet)
[Exposure]
Metering Cell
40-segment honeycomb-pattern SPC
Metering Range
0 to 20 EV (2 to 20 EV with Spot
metering), (at ISO 100 with
F1.4 lens)
[Shutter]
Type Electronically-controlled, vertical-
traverse, focal-plane type
Speed range 1/8000 second to 30 seconds, bulb
Flash sync speed
1/250 second (SteadyShot
deactivated),
1/200 second (SteadyShot activated)
[Recording media]
CompactFlash card (TypeI,II),
Microdrive, “Memory Stick Duo”
[LCD monitor]
LCD panel 7.5 cm (3.0 type) TFT drive
Total number of dots
921 600 (640 × 3 (RGB) × 480) dots
[LCD monitor]
With backlighting
[Power, general]
Used battery pack
Rechargeable battery pack
NP-FM500H
[Others]
PictBridge Compatible
Exif Print Compatible
PRINT Image Matching III
Compatible
Dimensions Approx. 156.3 × 116.9 × 81.9 mm
(6 1/4 × 4 5/8 × 3 1/4 inches)
(W/H/D, excluding protrusions)
Mass Approx.850 g (1 lb 14 oz) (without
batteries, memory card and body
accessories)
Operating temperature
0 to 40°C (32 to 104°F) (When using
the Microdrive: 5 to 40°C (41 to
104°F))
Exif Exif Ver.2.21
USB communication
Hi-Speed USB (USB 2.0 compliant)
BC-VM10 Battery charger
Input rating 100 V – 240 V AC, 50/60 Hz
Output rating
8.4 V DC, 750 mA
Operating temperature range
0 to 40°C (32 to 104°F)
Storage temperature range
–20 to +60°C (–4 to +140°F)
Maximum dimensions
Approx. 70 × 25 × 95 mm
(2 7/8 × 1 × 3 3/4 inches) (W/H/D)
Mass Approx. 90 g (3.2 oz)
Rechargeable battery pack
NP-FM500H
Used battery
Lithium-ion battery
Maximum voltage
DC 8.4 V
Nominal voltage
DC 7.2 V
Maximum charge current
2.0 A
Maximum charge voltage
DC 8.4 V
Capacity 11.8 Wh (1 650 mAh)
Maximum dimensions
Approx. 38.2 × 20.5 × 55.6 mm
(1 9/16 × 13/16 × 2 1/4 inches)
(W/H/D)
Mass Approx. 78 g (2.8 oz)
Design and specifications are subject to change
without notice.
1-1
ENGLISH JAPANESE
ENGLISH JAPANESE
DSLR-A900_L2
1. SERVICE NOTE
1-1. CHEMICALS
Some chemicals used for servicing are highly volatile.
Their evaporation caused by improper management affects your health and environment, and wastes resources.
Manage the chemicals carefully as follows.
•Store chemicals sealed in a specific place to prevent from exposure to high temperature or direct sunlight.
•Avoid dividing chemicals into excessive numbers of small containers to reduce natural evaporation.
•Keep containers sealed to avoid natural evaporation when chemicals are not in use.
•Avoid using chemicals as much as possible. When using chemicals, divide only required amount to a small plate from the container and
use up it.
1-2. EXTERIOR PARTS
Be careful to the following points for plastic parts used in this unit.
• Use a piece of cleaning paper or cleaning cloth for cleaning plastic parts. Avoid using chemicals.
Even if you have to use chemicals to clean heavy dirt, don’t use paint thinner, ketone, nor alcohol.
•Insert the specific screws vertically to the part when installing a plastic part.
Be careful not to tighten screws too much.
1-3. UNLEADED SOLDER
This unit uses unleaded solder.
Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)
: LEAD FREE MARK
Be careful to the following points to solder or unsolder.
• Set the soldering iron tip temperature to 350 °C approximately.
If cannot control temperature, solder/unsolder at high temperature for a short time.
Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!
Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur
such as on IC pins, etc.
•Be sure to control soldering iron tips used for unleaded solder and those for leaded solder so they are managed separately. Mixing
unleaded solder and leaded solder will cause detachment phenomenon.
1-4. SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer.
1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their
replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 °C during repairing.
• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
1-2
ENGLISH JAPANESE
ENGLISH JAPANESE
DSLR-A900_L2

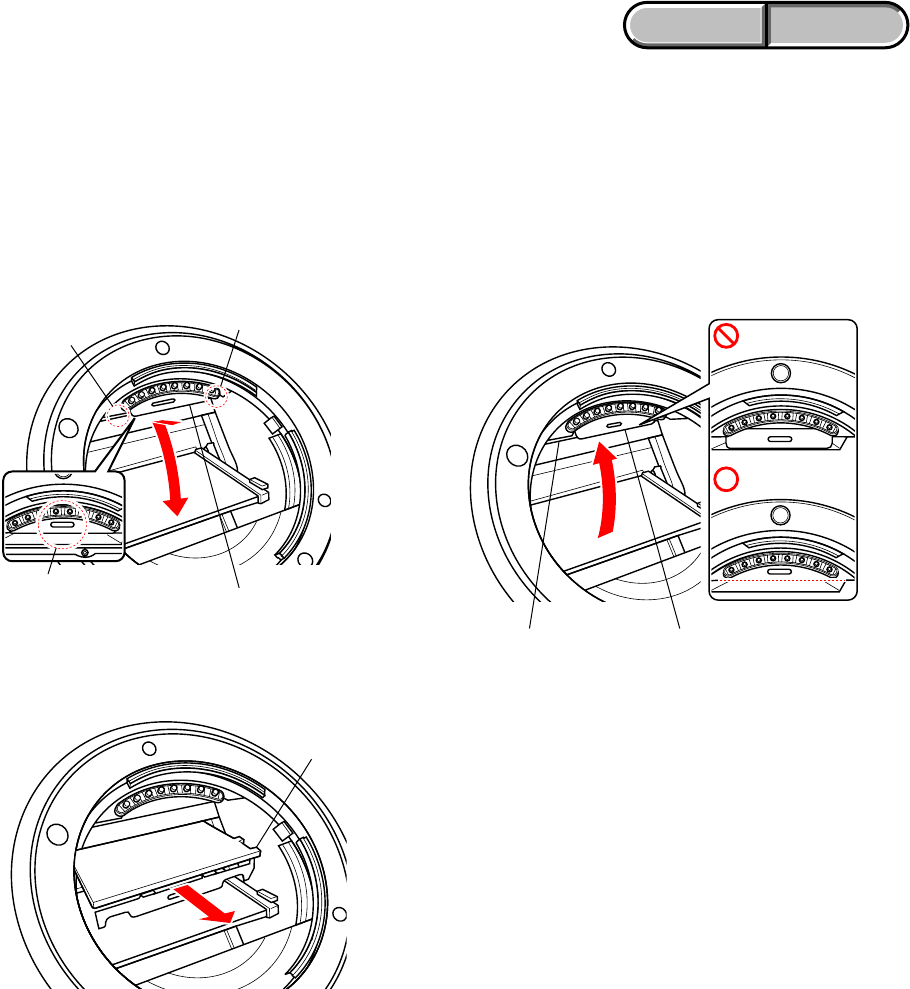

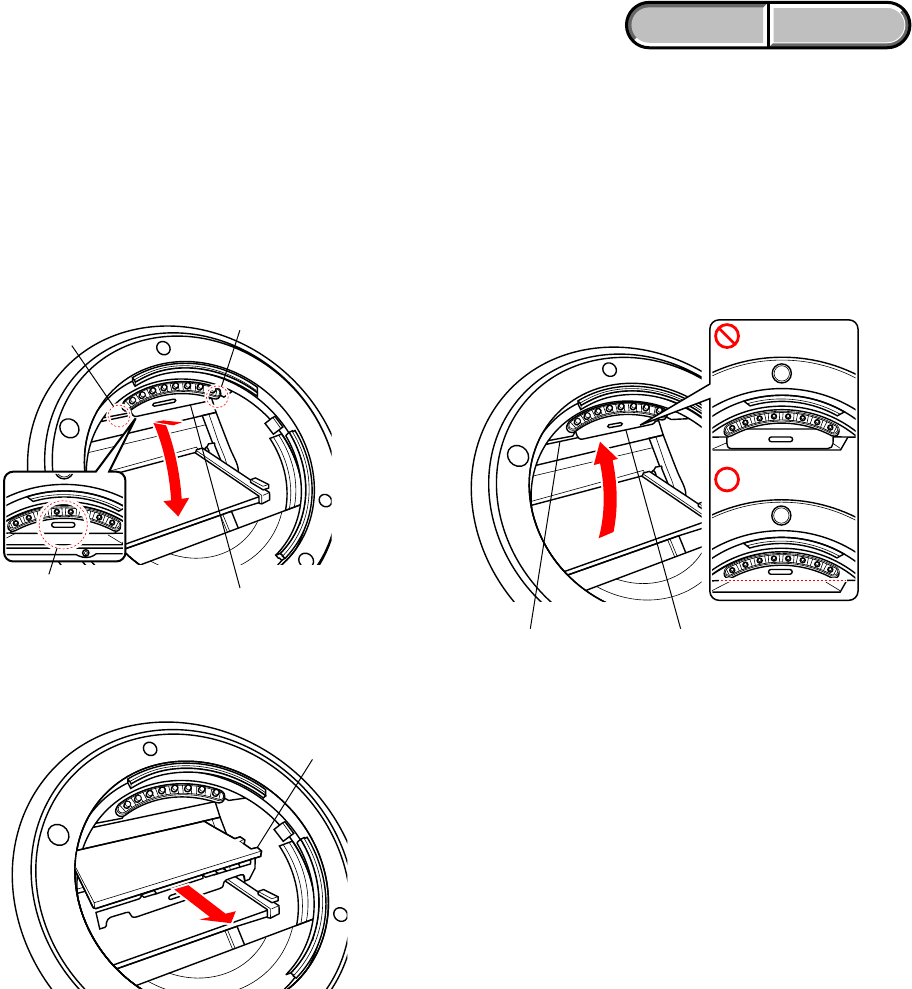

1-5. METHOD OF EXCHANGING FOCUSING SCREEN
1Remove two claws pushing part A below,
and remove focusing screen holder in the
direction of arrow.
3Confirm whether the point of the focusing
screen holder and the height of front frame
become complete after exchanging boards.
2Remove focusing screen.
Focusing Screen Holder
Focusing Screen HolderFront Frame
Focusing Screen
Claw Claw
A
1-3
ENGLISH JAPANESE
ENGLISH JAPANESE
DSLR-A900_L2
1-1. 各種薬品の取り扱いについて
現在使用されている薬品の中には揮発性の高い薬品もあります。
それらを不用意に取り扱い蒸発させてしまうと，環境や健康へ影響を与えたり，資源の無駄使いになります。
各種薬品は，下記の点に注意して取り扱ってください。
・ 保管場所を定め，高温になったり直射日光の当たらない場所に密閉して保管してください。
・ 小分け（ハンドラップ等）する数は必要最小限に留め，容器による自然蒸発を防いでください。
・ 作業に使用しない時は，必ずキャップ等をして自然蒸発を防いでください。
・薬品を使用する回数を極力少なくし，使用する場合は使用する量だけ容器より出して受け皿に残さないようにしてくだ
さい。
1-2. 樹脂系部品の取り扱いについて
本機に使用されている樹脂系の部品は，下記の点に注意して取り扱ってください。
・ 清掃には薬品を使用せず，清掃紙や清掃布を使用してください。
やむを得ず汚れがひどくて薬品を使用する場合は，シンナー，ケトン，エーテルは使用しないでください。
・ 各部品の取り付けには指定されたねじを使用し，部品に対して垂直に取り付けてください。
また，ねじを締め付ける時は，無理な力を加えないでください。
1-3. 無鉛半田について
本機には無鉛半田が使用されています。
無鉛半田を使用している基板には，無鉛（Lead Free）を意味するレッドフリーマークがプリントされています。
（注意：基板サイズによっては，無鉛半田を使用していてもレッドフリーマークがプリントされていないものがあります）
：レッドフリーマーク
無鉛半田は，下記の点に注意して使用してください。
・ 半田こてのこて先温度は約350℃に設定してください。
温度調節が無理な場合は，高温短時間で作業を行ってください。
注意： 半田こてを長く当てすぎると，基板のパターン（銅箔）がはがれてしまうことがありますので，注意してくださ
い。また，従来の半田よりも粘性が強いため，IC端子などが半田ブリッジしないように注意してください。
・ 半田こてのこて先は，必ず無鉛半田用と有鉛半田用に分けて管理してください。
無鉛半田と有鉛半田が混在すると剥離現象が発生してしまいます。
1. SERVICE NOTE
1-4
ENGLISH JAPANESE
ENGLISH JAPANESE
DSLR-A900_L2
1-4. SAFETY CHECK-OUT
サービス，点検時には次のことにご注意ください。
1. 注意事項をお守りください。
サービスのとき特に注意を要する個所については，キャビネット，シャーシ，部品などにラベルや捺印で注意事項を表
示しています。これらの注意書き及び取扱説明書等の注意事項を必ずお守りください。
2. 指定部品のご使用を
セットの部品は難燃性や耐電圧など安全上の特性を持ったものとなっています。
従って交換部品は，使用されていたものと同じ特性の部品を使用してください。
特に回路図，部品表に0印で指定されている安全上重要な部品は必ず指定のものをご使用ください。
3. 部品の取付けや配線の引きまわしはもとどおりに
安全上，チューブやテープなどの絶縁材料を使用したり，プリント基板から浮かして取付けた部品があります。
また内部配線は引きまわしやクランパによって発熱部品や高圧部品に接近しないよう配慮されていますので，これらは
必ずもとどおりにしてください。
4. サービス後は安全点検を
サービスのために取外したネジ，部品，配線がもとどおりになっているか，またサービスした個所の周辺を劣化させて
しまったところがないかなどを点検し，安全性が確保されていることを確認してください。
5. チップ部品交換時の注意
・取り外した部品は再使用しないでください。
・タンタルコンデンサのマイナス側は熱に弱いため交換時は注意してください。
6. フレキシブルプリント基板の取扱いについて
・こて先温度を270℃前後にして行なってください。
・同一パターンに何度もコテ先を当てないでください。（3回以内）
・パターンに力が加わらないよう注意してください。
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
1-5E
ENGLISH JAPANESE
ENGLISH JAPANESE
DSLR-A900_L2
1-5. 焦点板の交換方法
1 A部を下に押してつめ2箇所を外し，
矢印方向に焦点板ホルダを外す。
2 焦点板を外す。
3 焦点板を交換したあとは，焦点板ホルダの
先端と前枠との高さが同じになっているか
確認をする。
焦点板
焦点板ホルダ
つめ つめ
焦点板ホルダ 前枠
A
2-1
DSLR-A900_L2

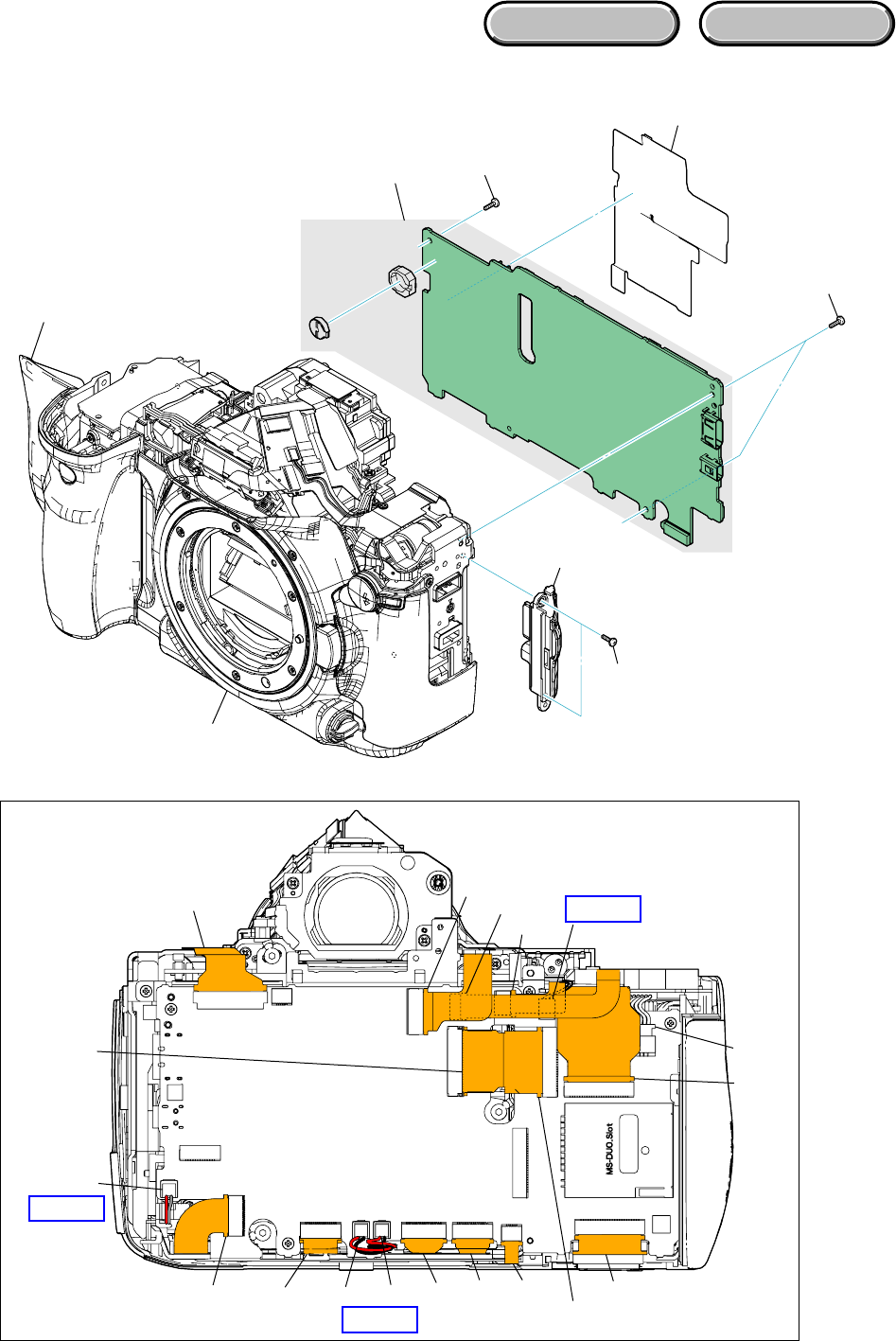

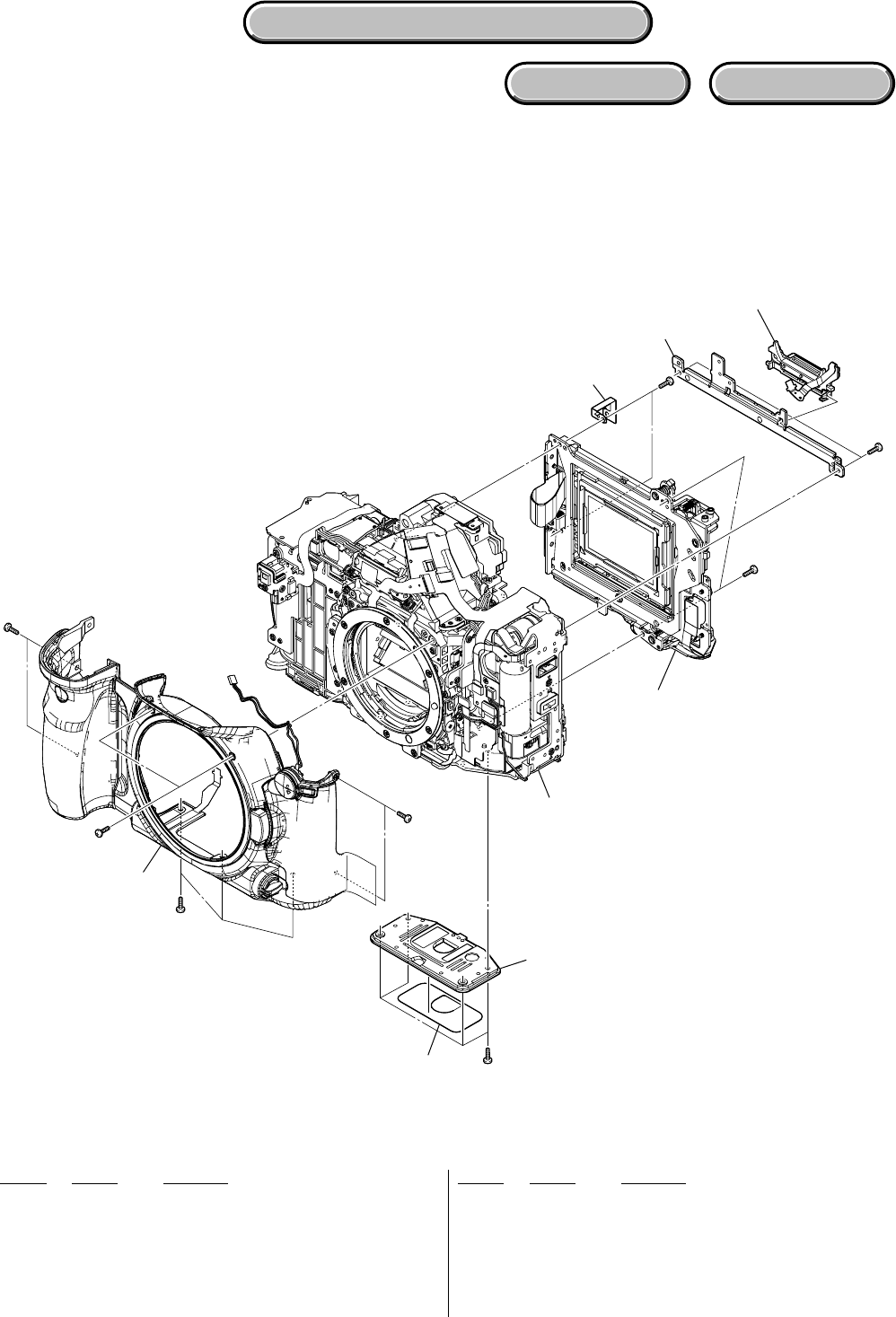

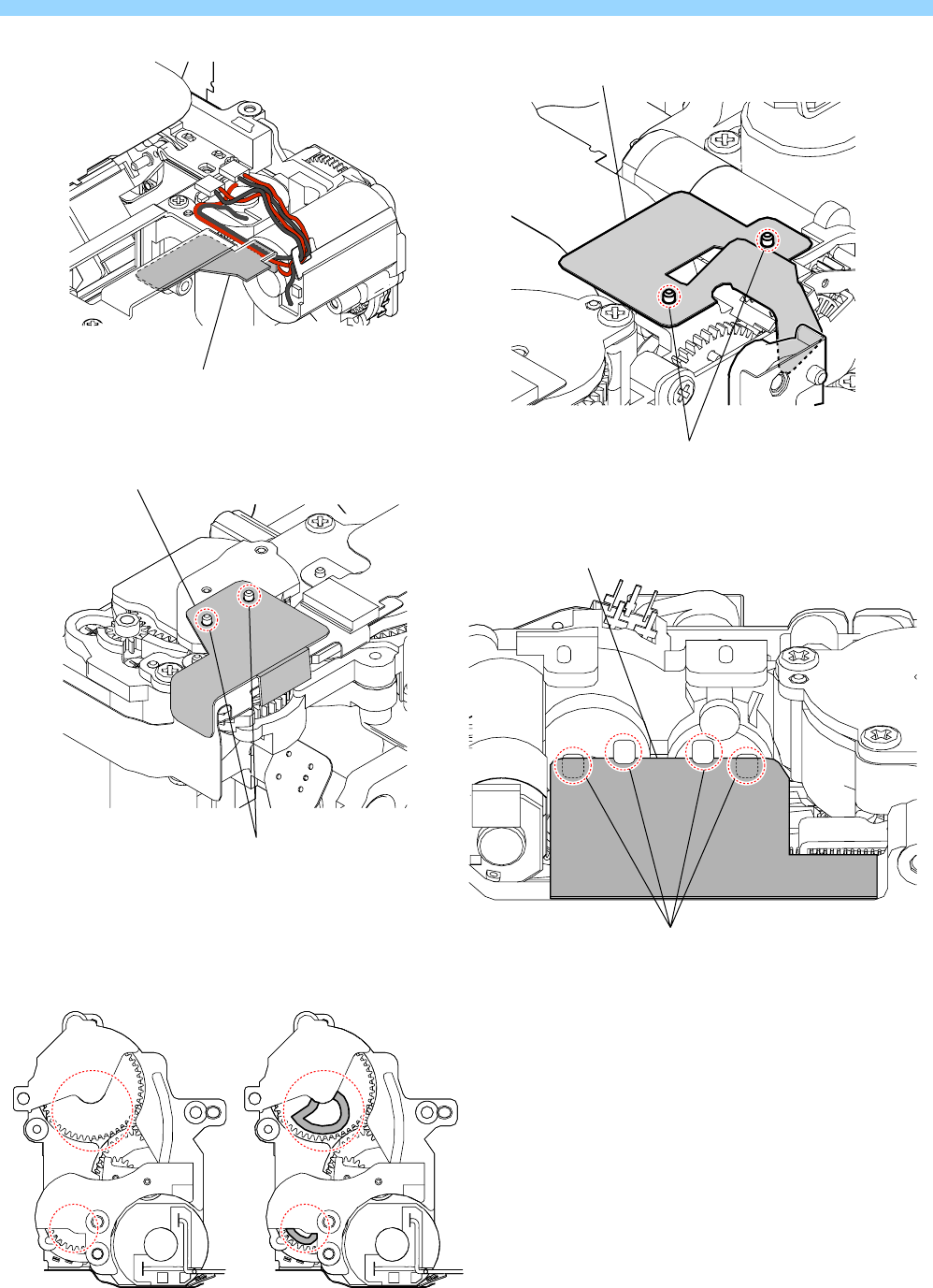

2. DISASSEMBLY

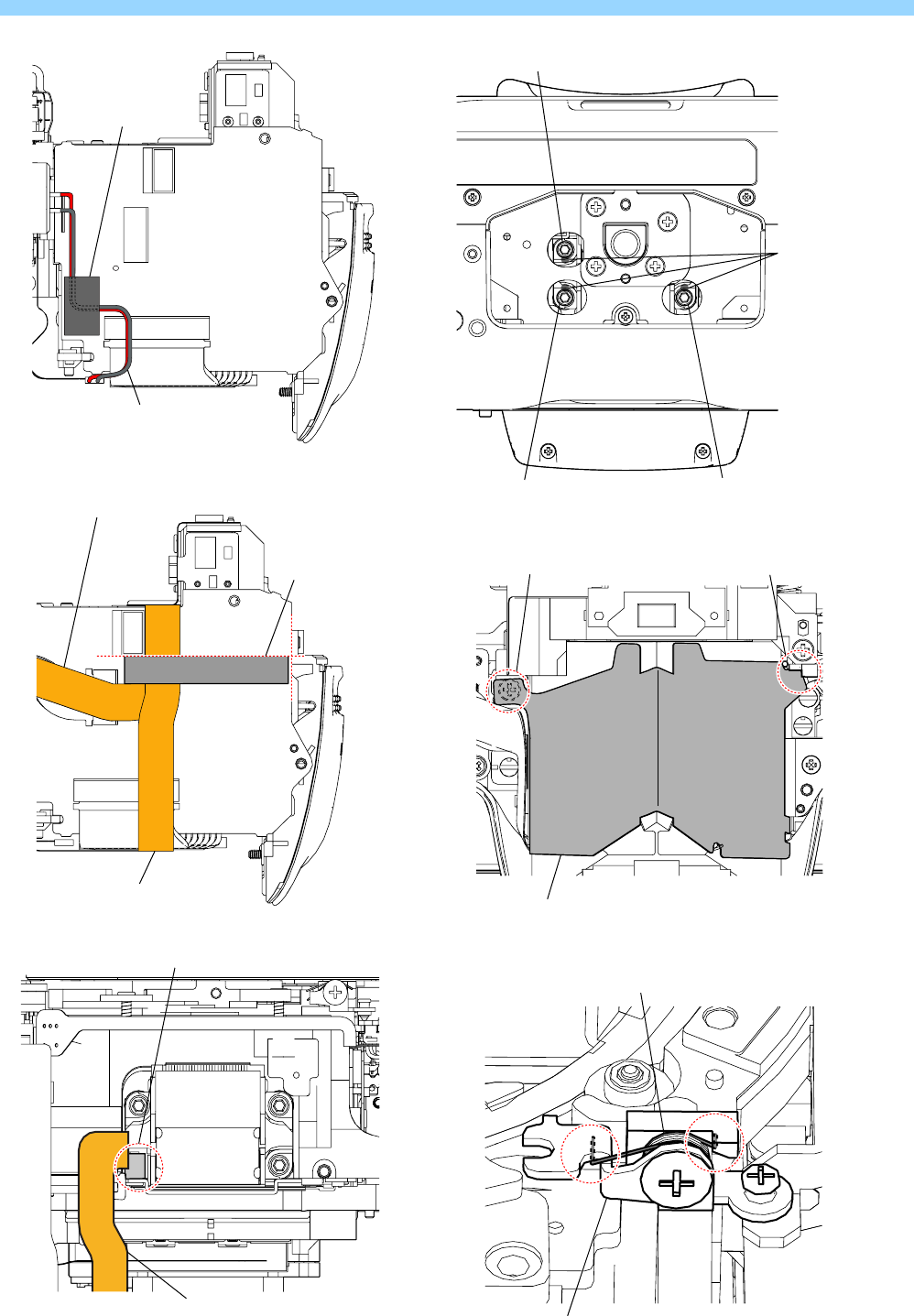

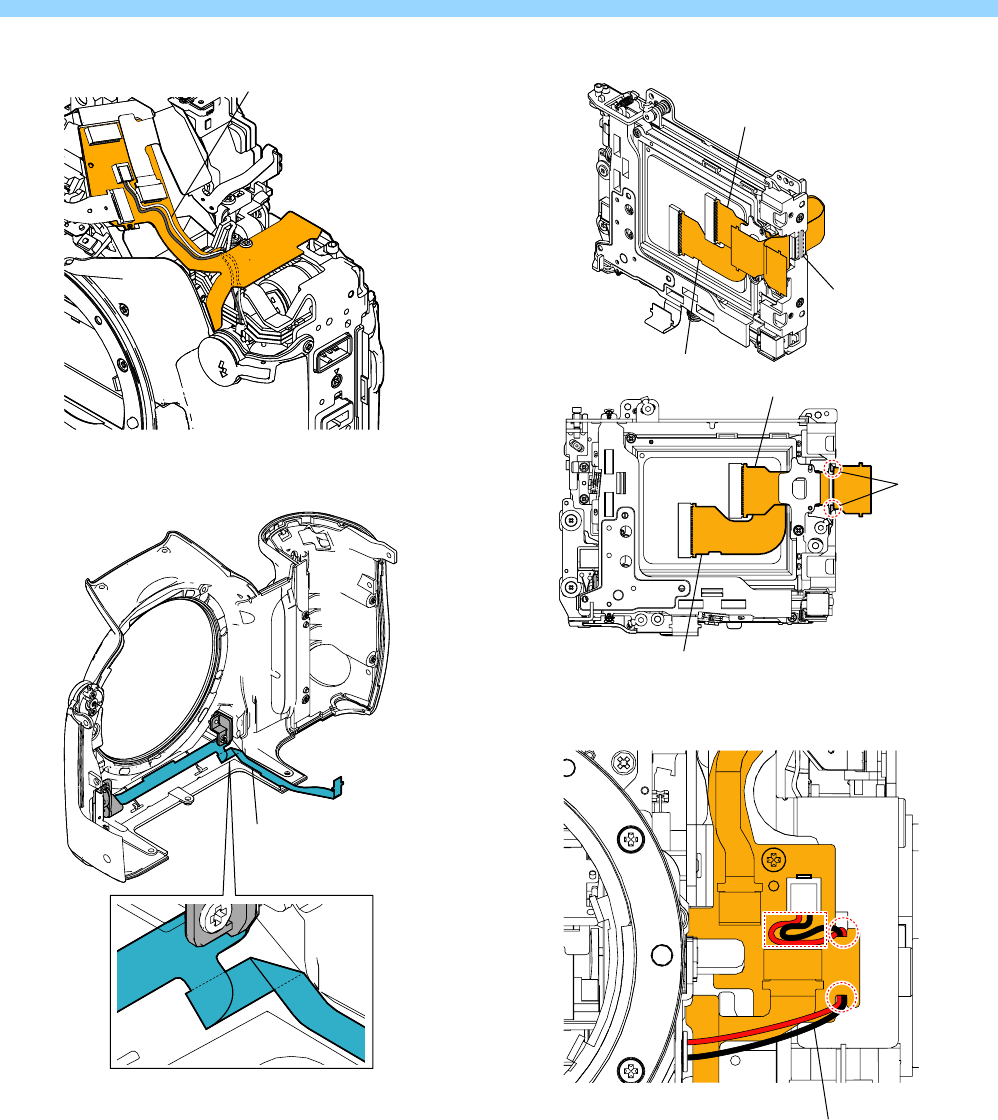

NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, don’t pull at wire of connector. It is possible that a wire is snapped.
•When installing a connector, don’t press down at wire of connector.
It is possible that a wire is snapped.

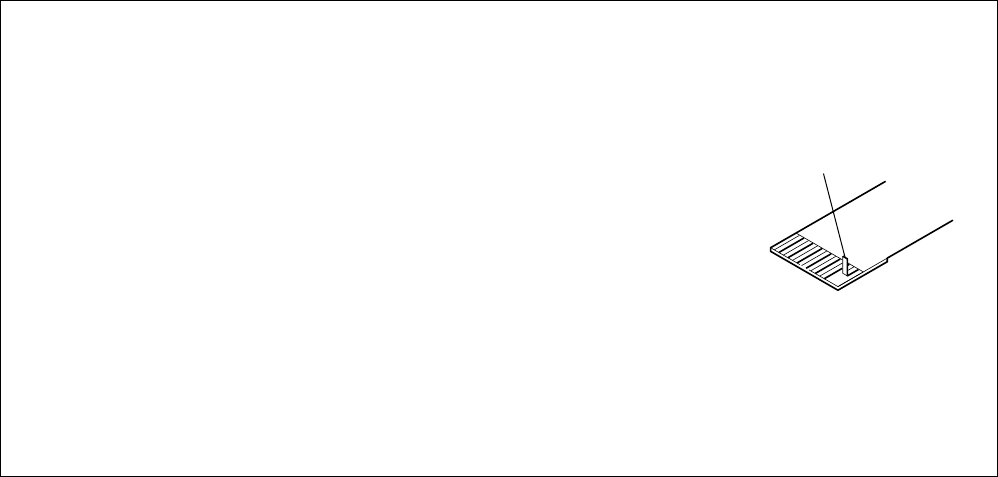

•Do not apply excessive load to the gilded flexible board.
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
SUBSIDIARY MATERIALS
G: Grease
G-15 (J-6082-619-A)
G-85 (J-6082-626-A)
2-2
DSLR-A900_L2

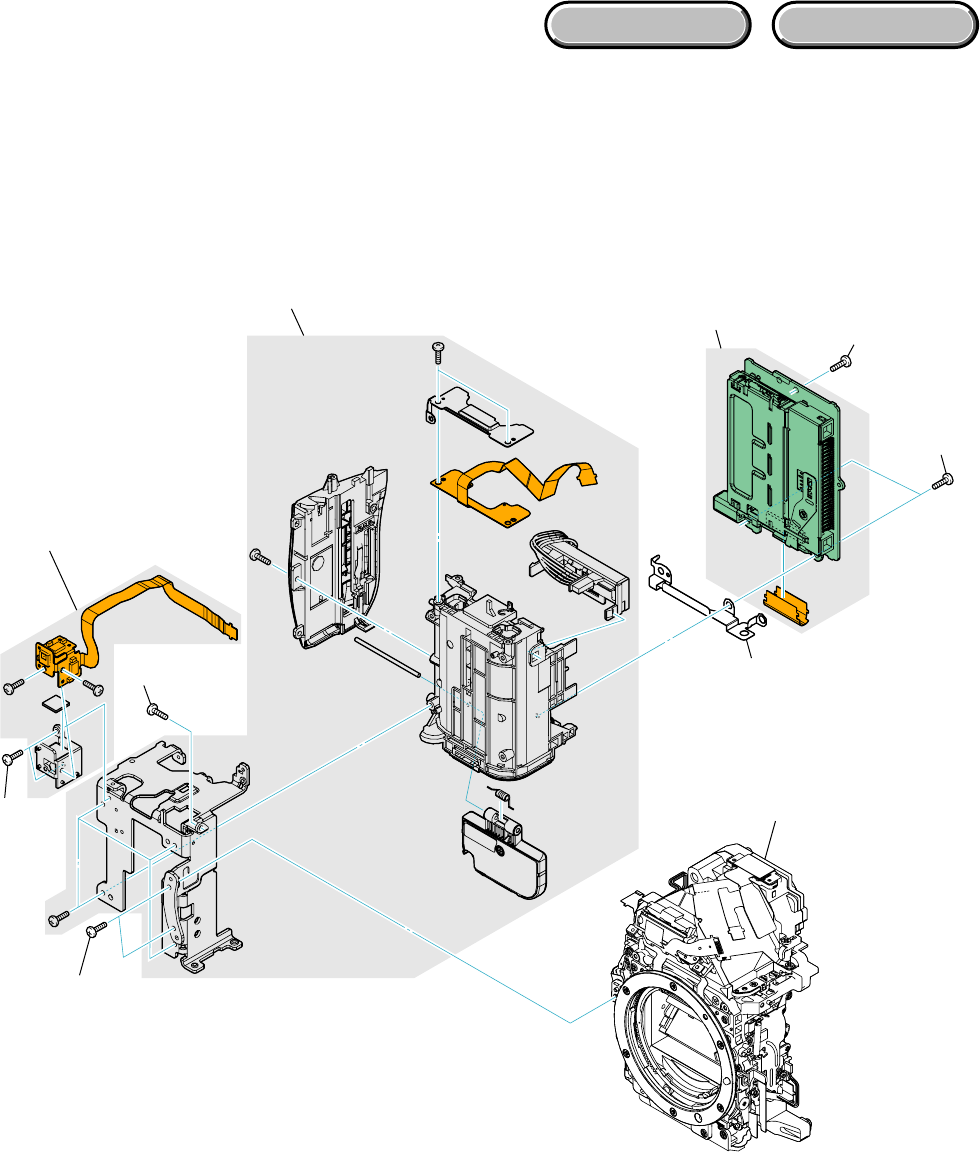

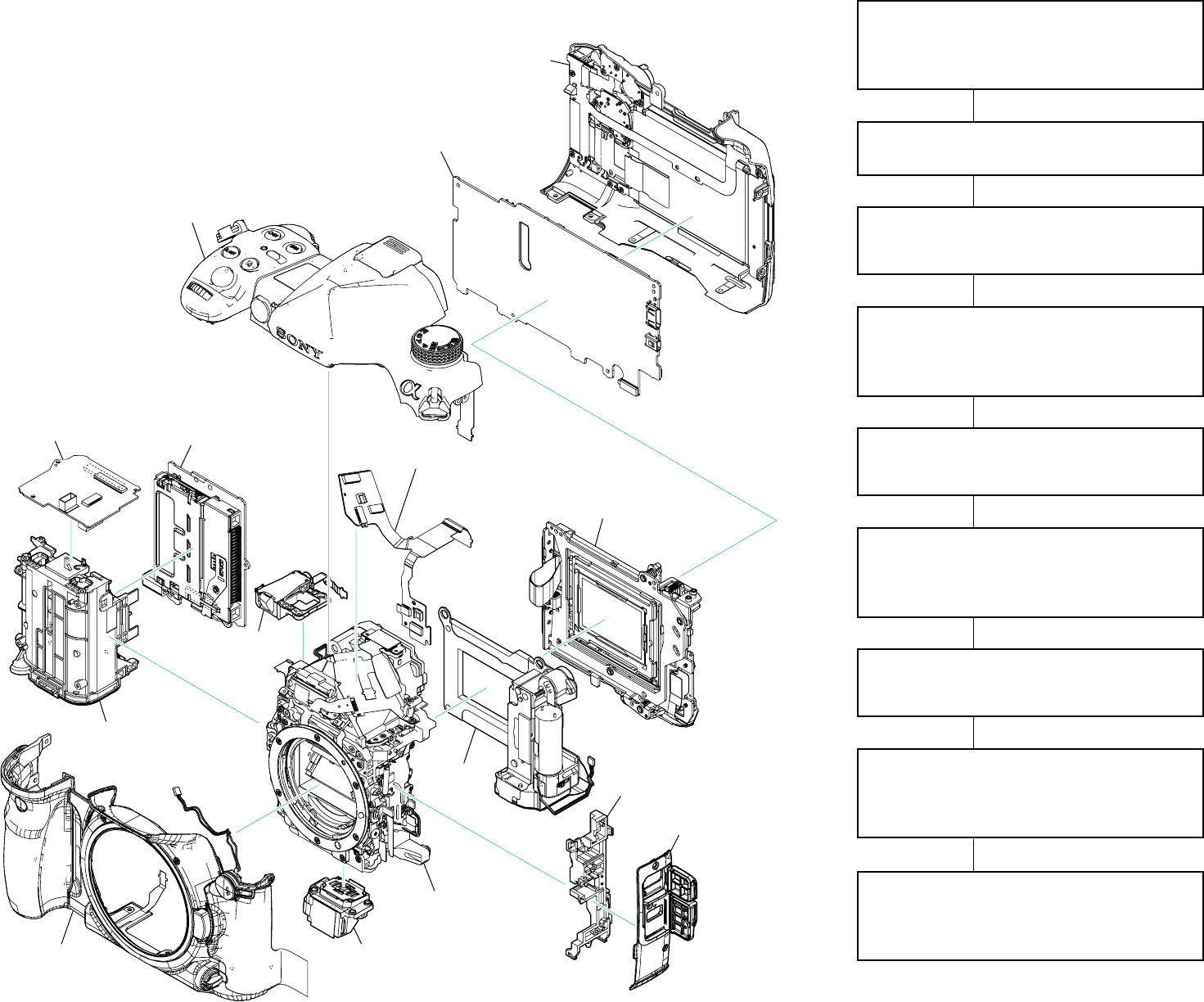

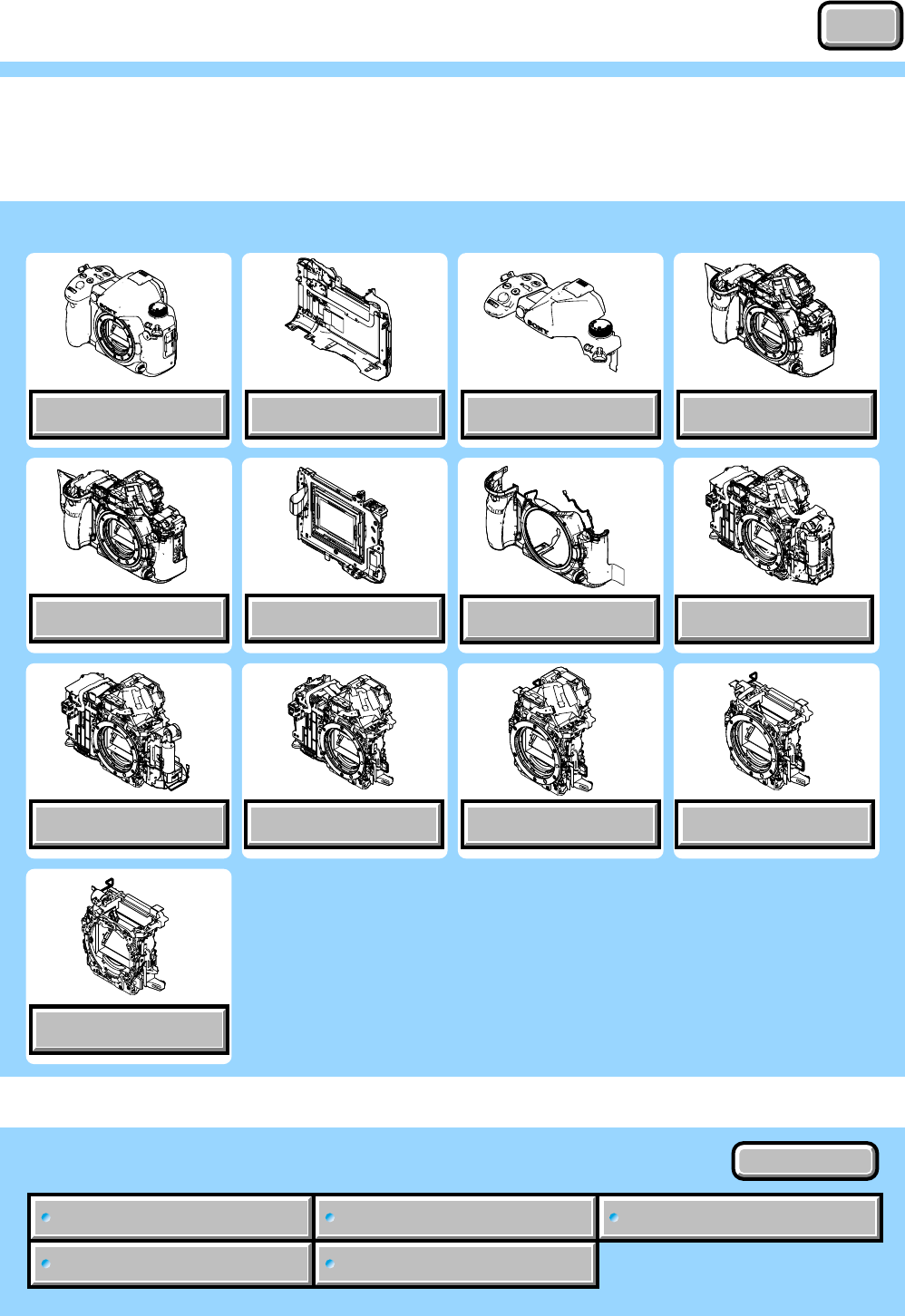

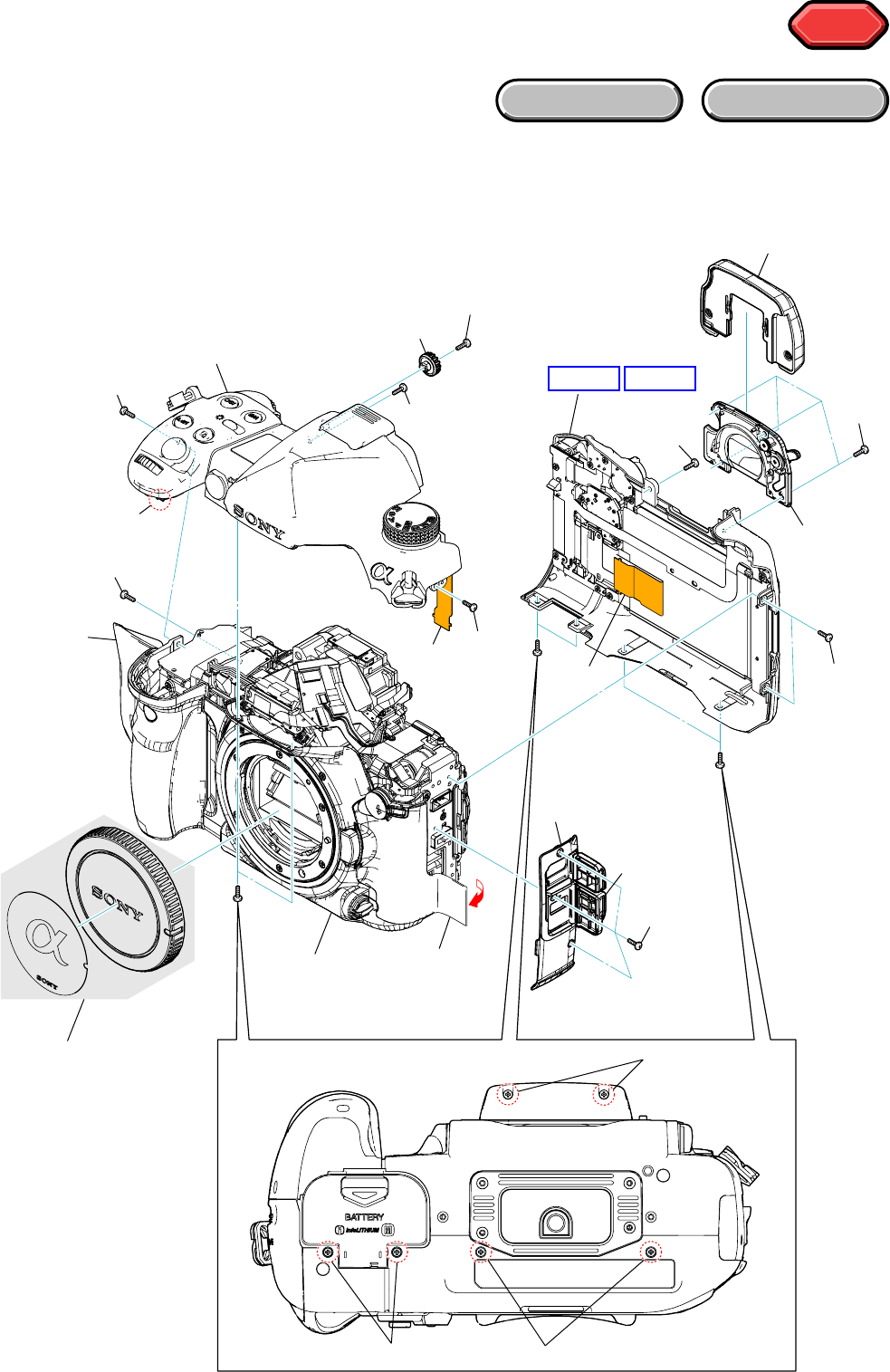

2-1. IDENTIFYING PARTS
Top Cover
⋅ TOP-004 Flexible Board
Rear Cover

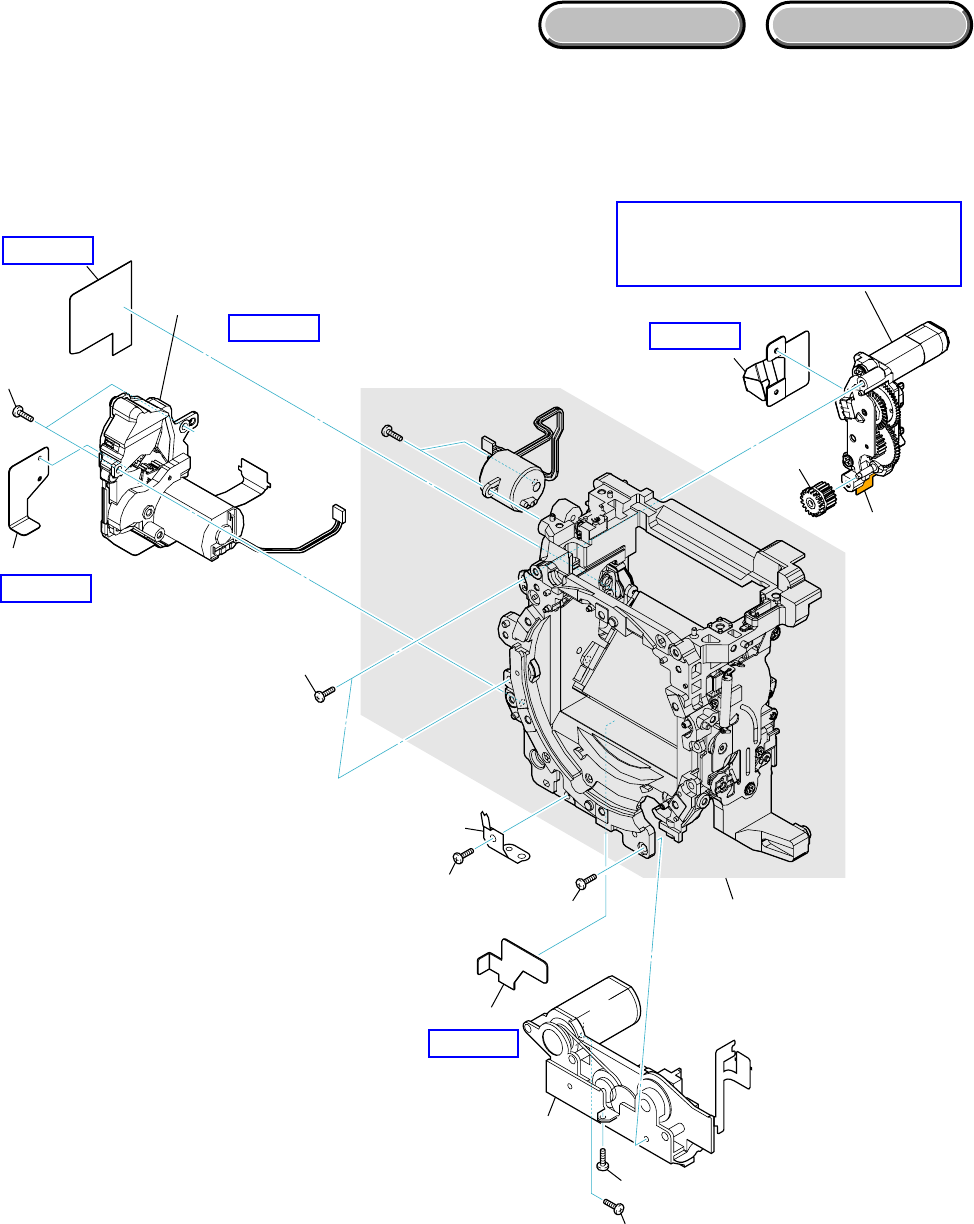

Mirror Box
Jack Holder
⋅ FP-898 Flexible Board
Shutter
AF Module
Te b ure Unit
⋅ Omega Unit
⋅ FP-893 Flexible Board
⋅ FP-894 Flexible Board
Battery Holder
⋅ GY-009 Flexible Board
⋅ FP-896 Flexible Board
MM-079 Board
⋅ FP-890 Flexible Board
AF Assist
Light Block
DD-299 Board
⋅ FP-895 Flexible Board
MA-453 Flexible Board
AM-015 Board
Front Cover
Side Cover
2-2-2. MAIN BOARD SECTION
⋅AM-015 Board
2-2-3. OVERALL SECTION-2
⋅Te b ure Unit
⋅Front Cover
2-2-5. SHUTTER SECTION
⋅Shutter
⋅DD-299 Board
2-2-7. MIRROR BOX SECTION (PENTA UNIT)
⋅AF Module
⋅Penta Unit
2-2-4. SIDE FRAME SECTION
⋅MA-453 Flexible Board
⋅Bottom Frame
⋅Jack Holder
2-2-6. BATTERY HOLDER SECTION
⋅Battery Holder
⋅MM-079 Board
⋅GY-009 Flexible Board
2-2-8. MIRROR BOX SECTION (SUB UNIT-1)
⋅Iris Ring
⋅SLLK Contact Piece Unit
⋅BL Contact Unit
2-2-9. MIRROR BOX SECTION (SUB UNIT-2)
⋅Mirror Charge Motor Unit
⋅Aperture Unit
⋅AF Driving Unit
2-2-1. OVERALL SECTION-1
⋅Side Cover
⋅Rear Cover
⋅Top Cover
- DISASSEMBLY FLOW -
2-3
DSLR-A900_L2
2-2. DISASSEMBLY

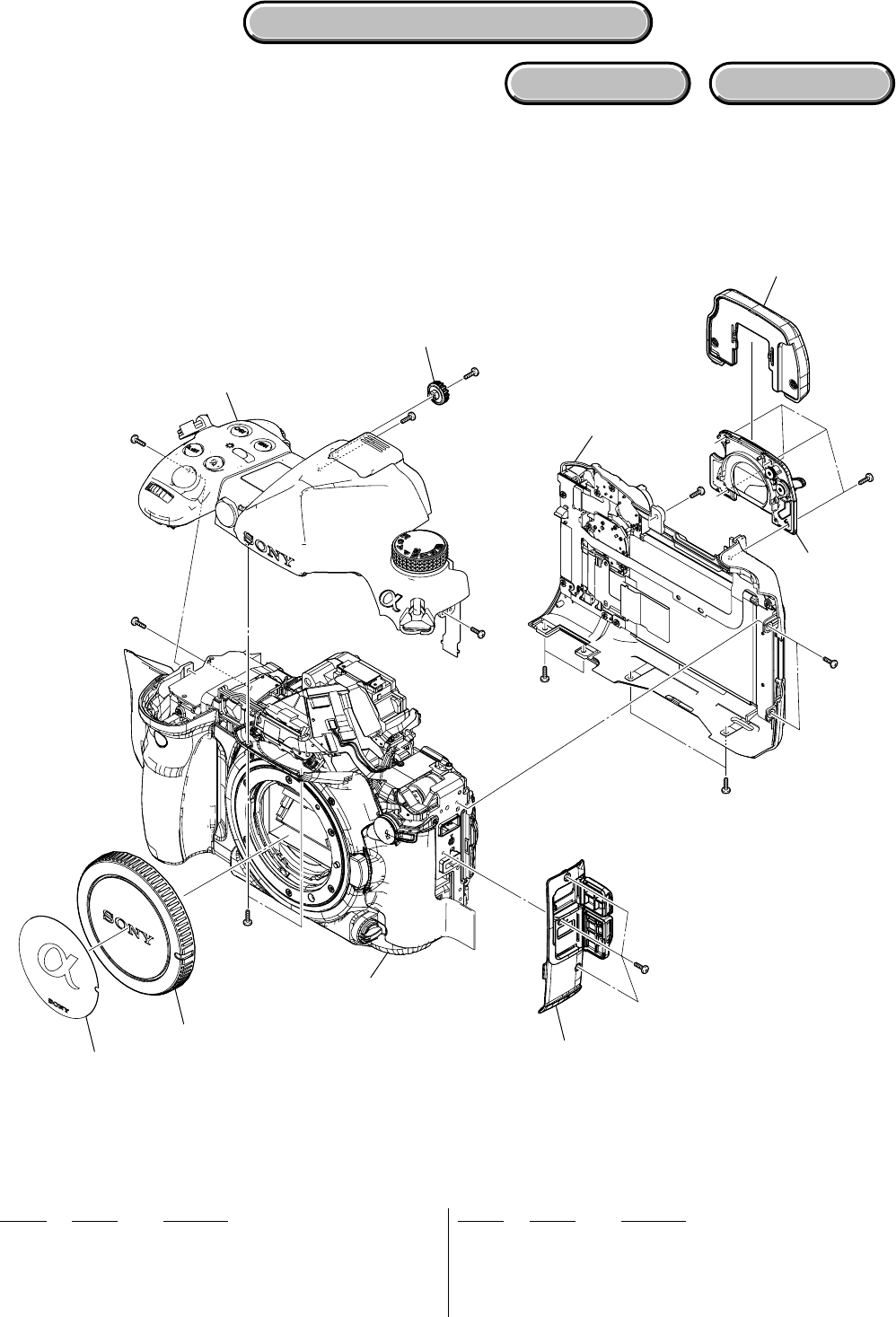

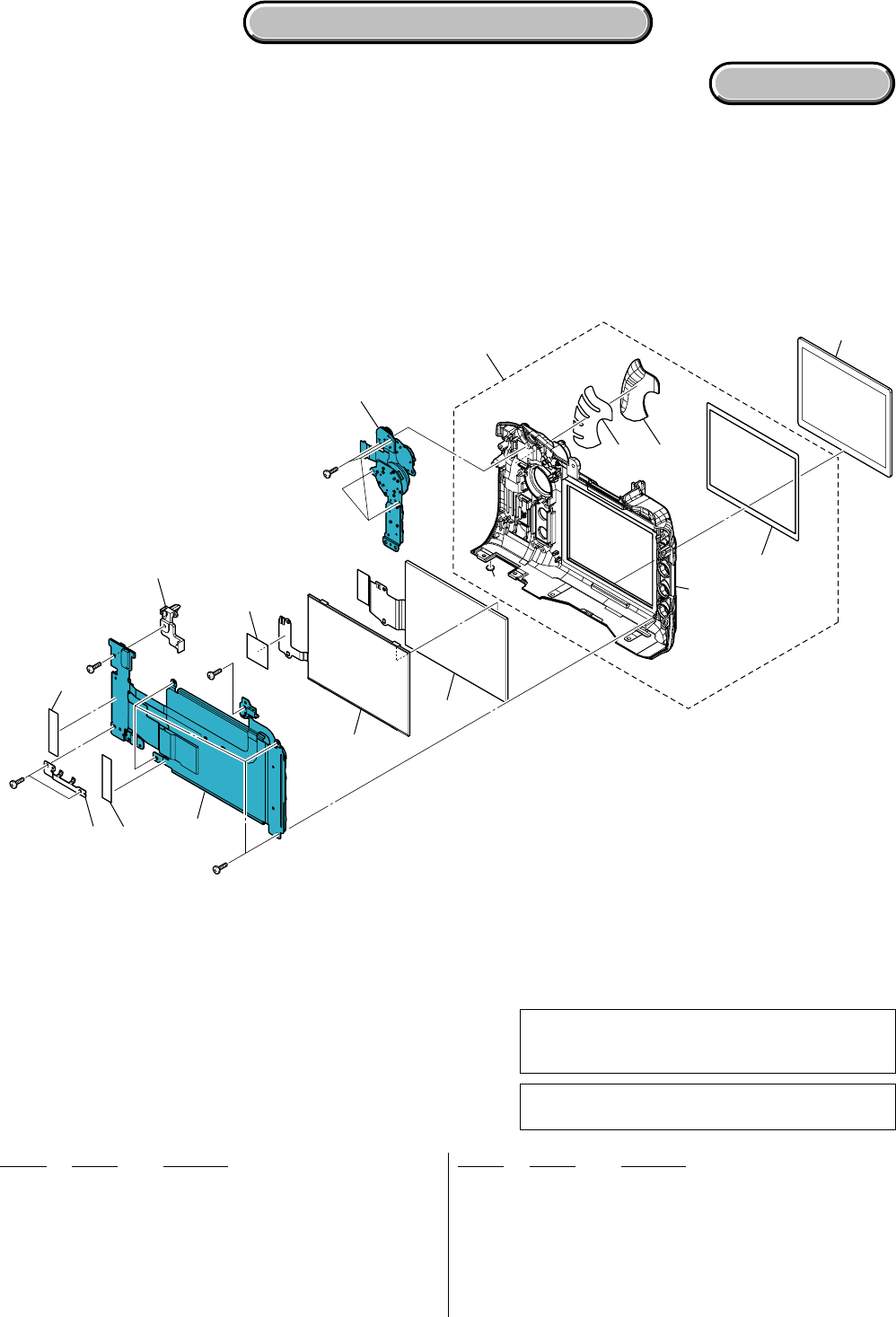

2-2-1. OVERALL SECTION-1
Follow the disassembly in the numerical order given.
1Side Cover (1-1 to 1-3)
2Rear Cover (2-1 to 2-10)
3Top Cover (3-1 to 3-8)
HELP
HELP
EXPLODED VIEW

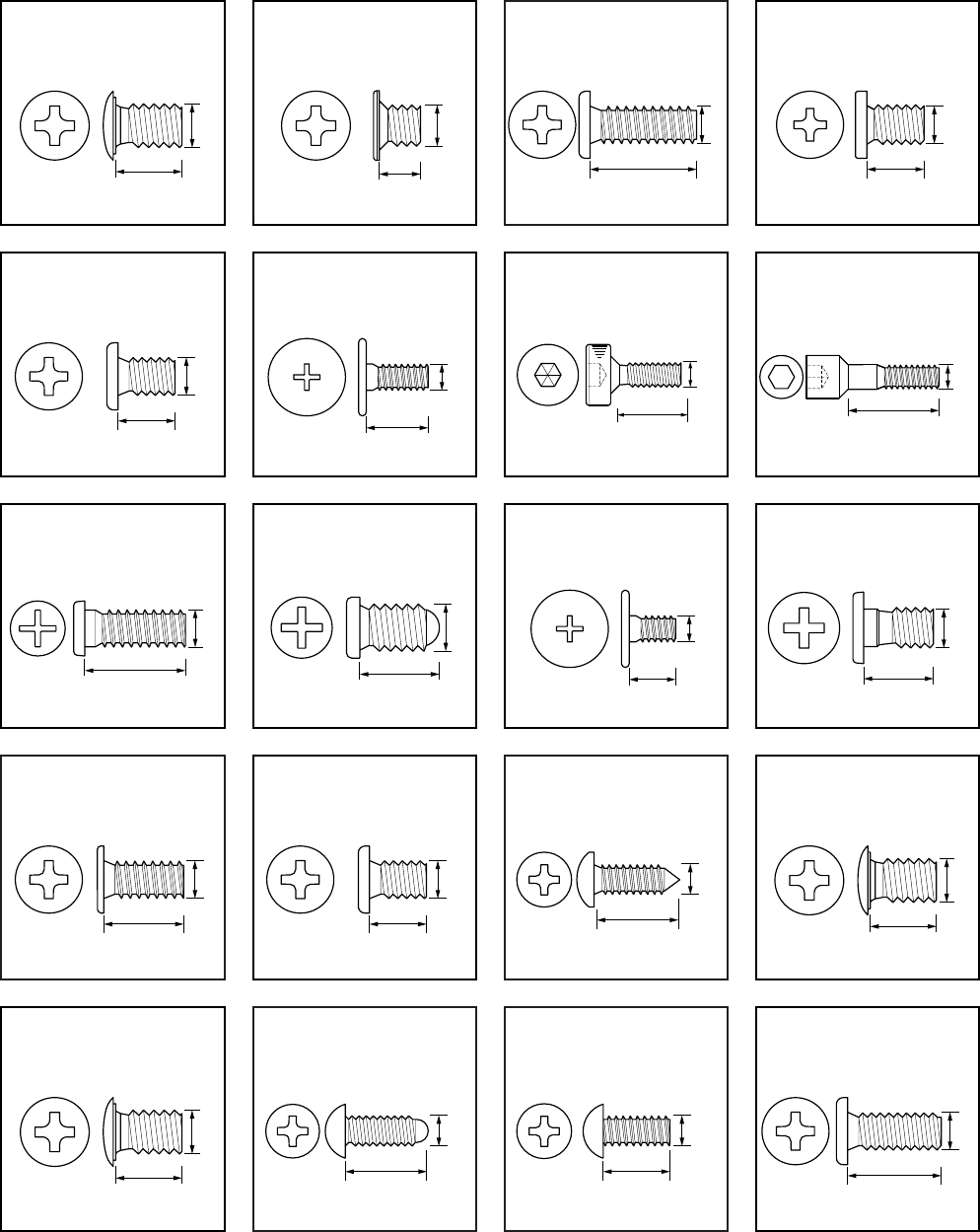

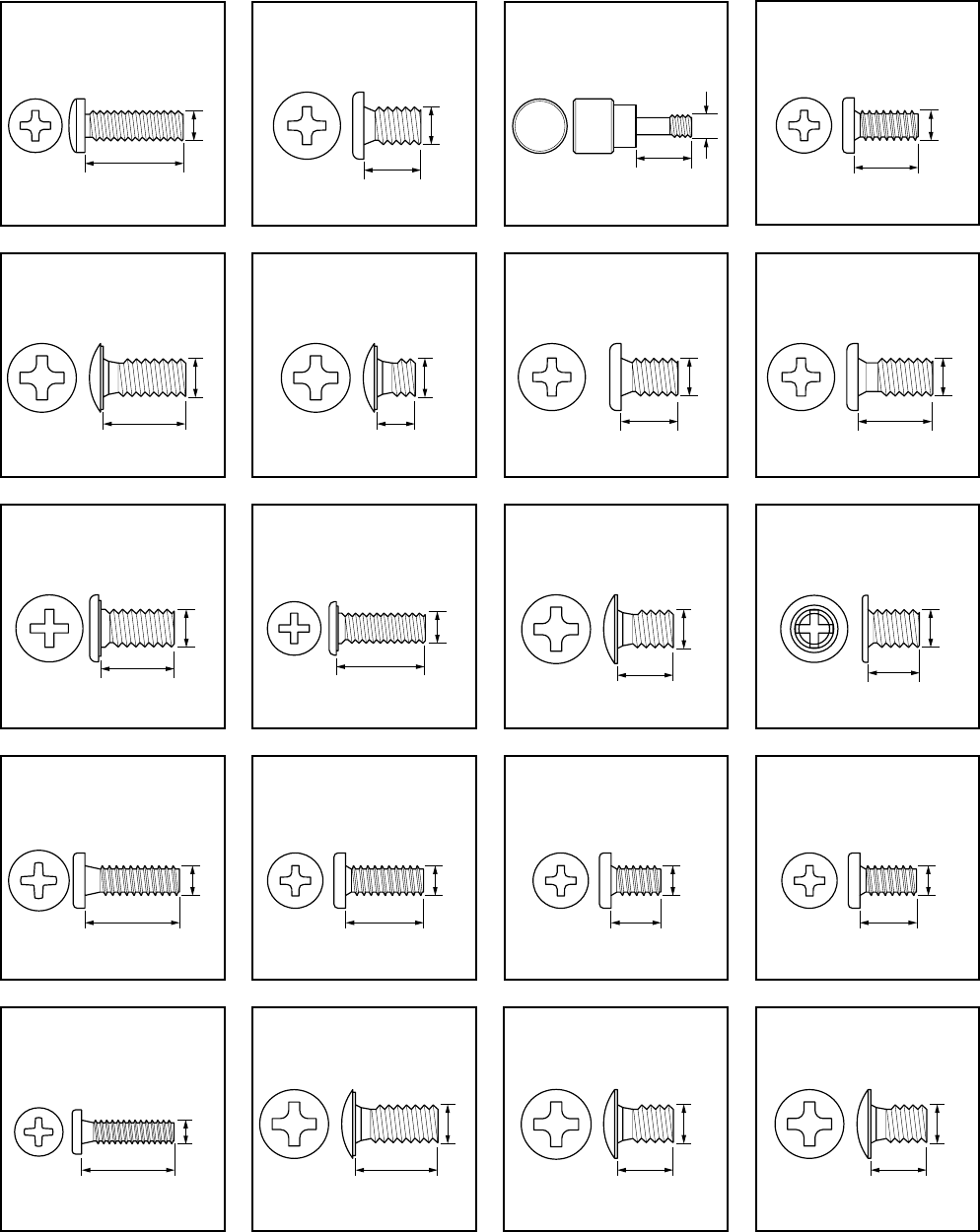

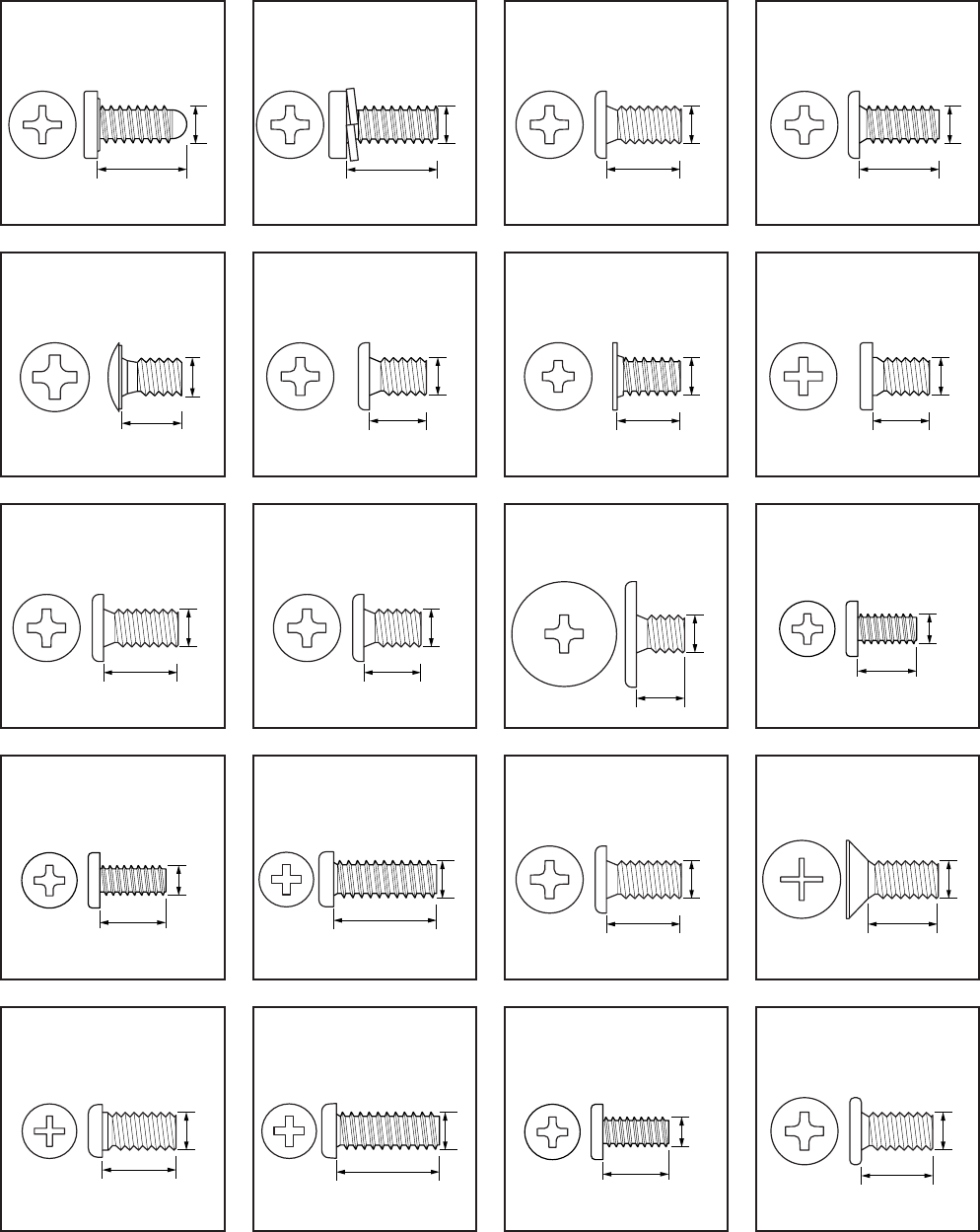

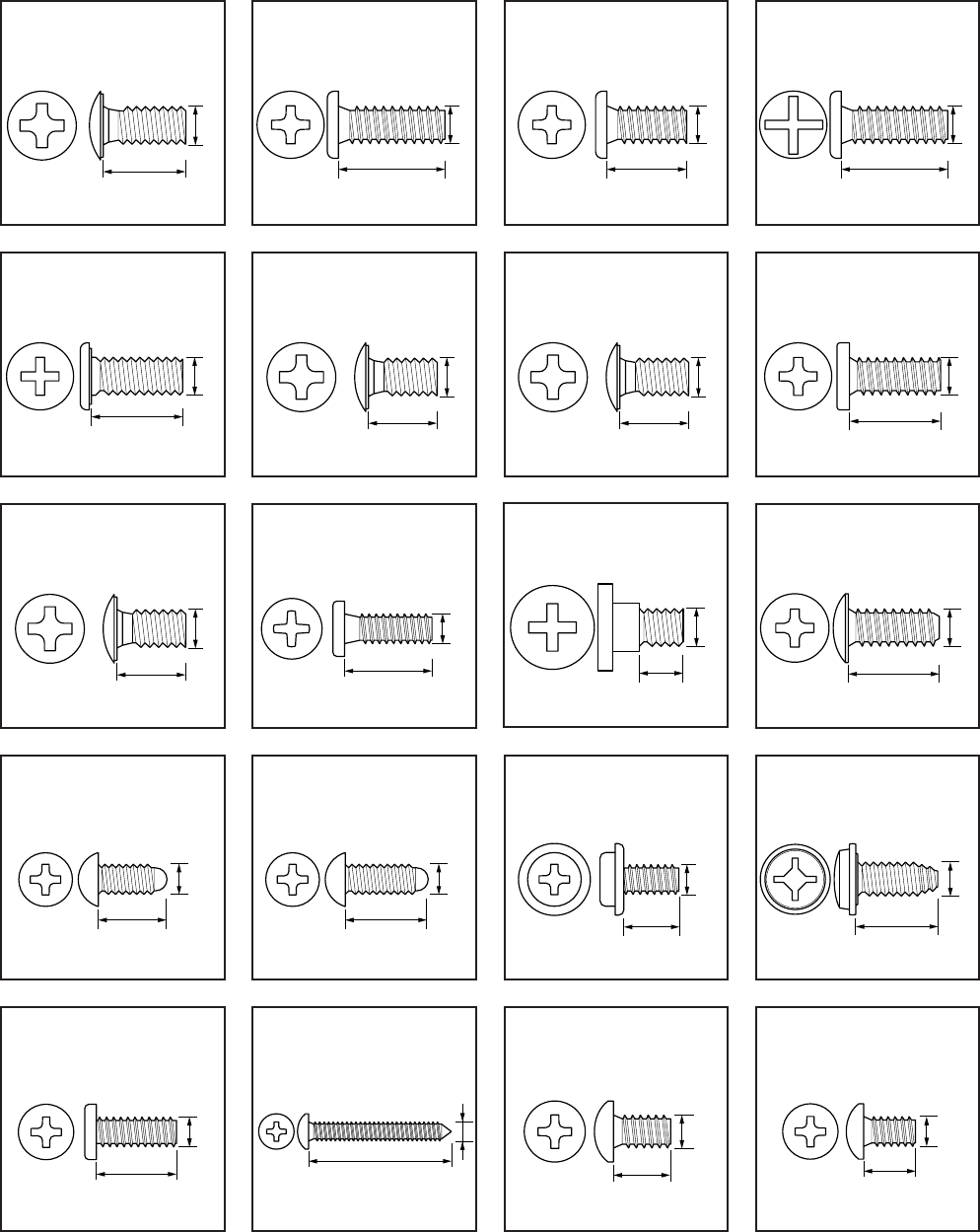

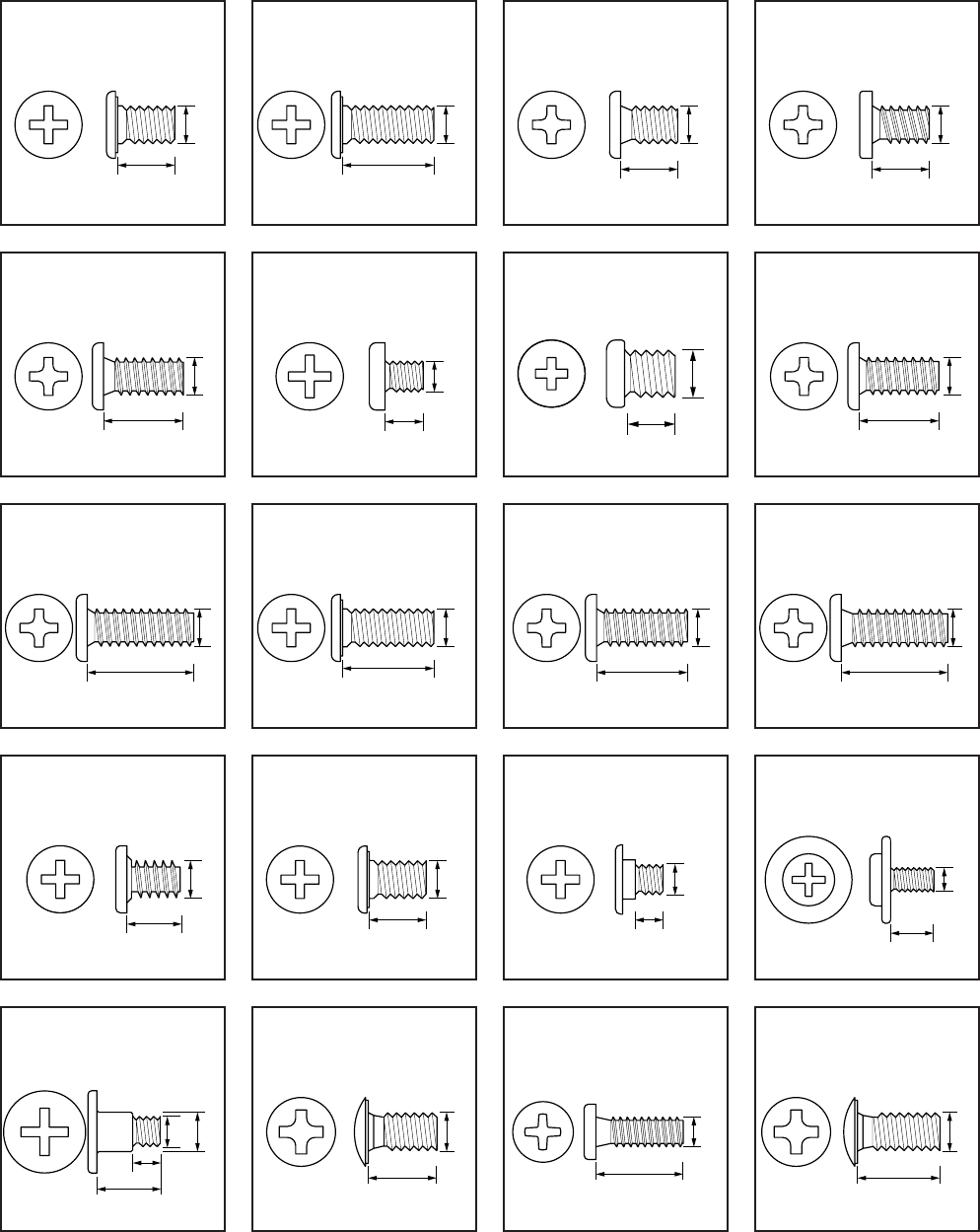

HARDWARE LIST
3-2 (#94)
3-5 (#94)
3-6
(#94)
3-8
(Claw)
3-7 (#94)
3-3 (#83)
3-4
3-1
2-1
2-2
(#94)
2-9
(#94)
2-10
2-5
(Open)
2-4
(#94)
2-6 (#94)
2-7 (#94)
2-8 (#12)
2-3
2Rear Cover
HELP 1 HELP 2
1-1
(Peel off)
1-2 (Open)
1-3 (#94)
1Side Cover
3Top Cover
Main Board
Section
(See Page 2-4)
Body Cap
2-4
DSLR-A900_L2

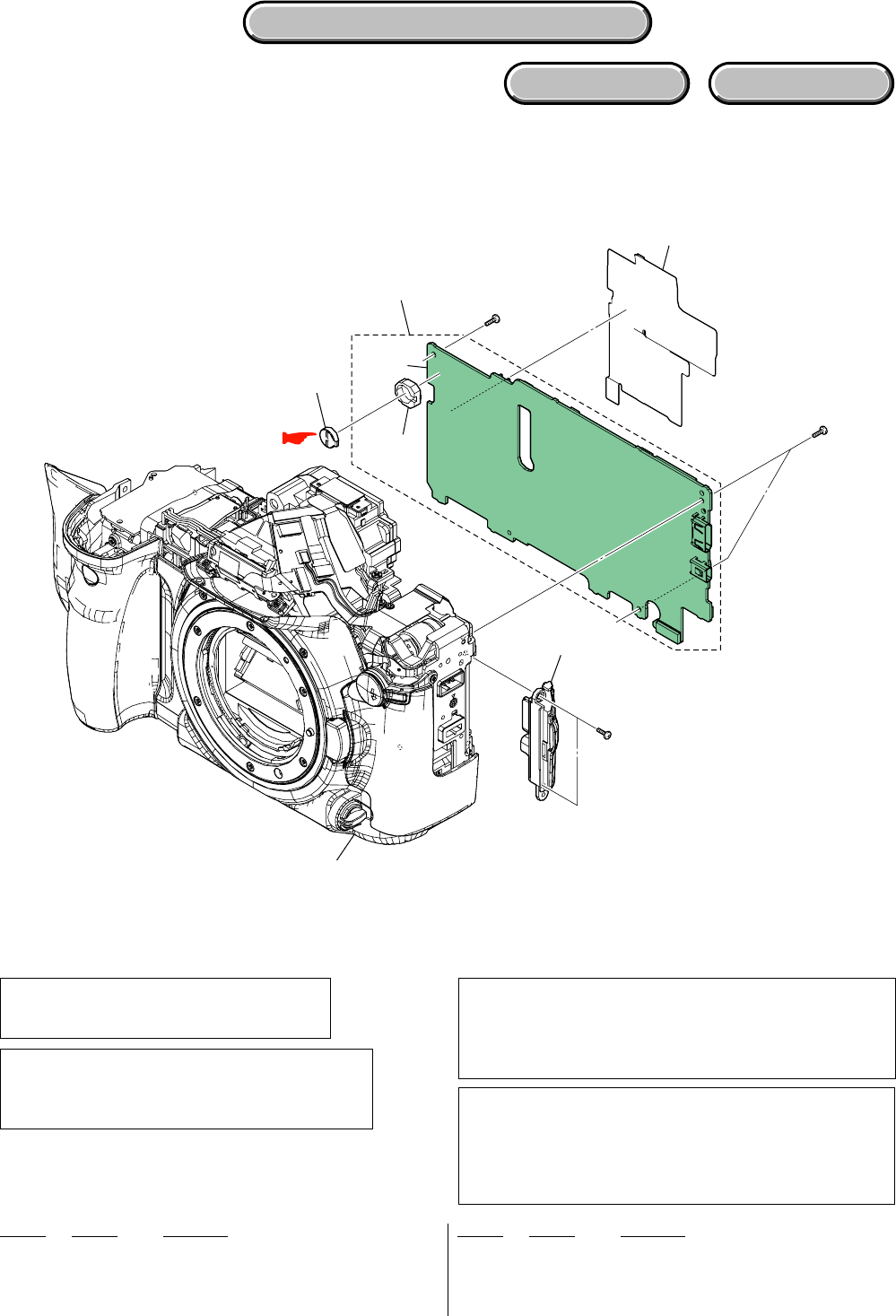

2-2-2. MAIN BOARD SECTION
Follow the disassembly in the numerical order given.
1AM-015 Board (1-1 to 1-24)
EXPLODED VIEW
HARDWARE LIST
AM-015
HELP 3
HELP 4
HELP 5
1-2 (#76)
1-1 (Open)
1-23
(#109)
1-3
1-4
1-5
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-22
1AM-015 Board
Overall Section-2
(See Page 2-5)
1-7
1-8
1-9
1-10
1-111-121-13
1-14
1-6
1-24
(#109)
2-5
DSLR-A900_L2

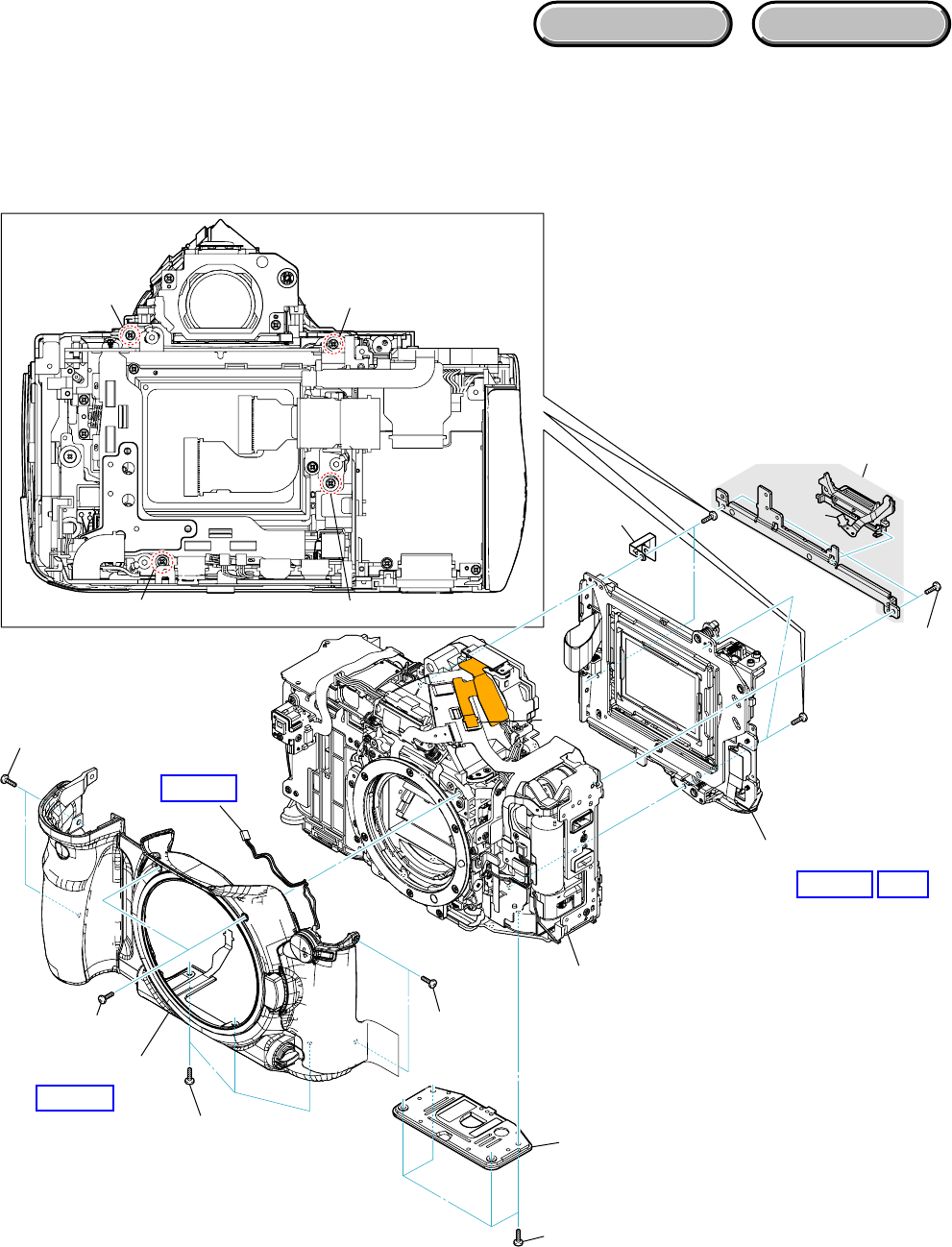

2-2-3. OVERALL SECTION-2
Follow the disassembly in the numerical order given.
1Te b ure Unit (1-1 to 1-9)
2Front Cover (2-1 to 2-7)
EXPLODED VIEW
HARDWARE LIST
2-1 (#94)
2-5 (#94)
2-7 (#12) 2-6
(#94)
2-3
2-4 (#83)
2-2
2Front Cover
HELP 6
HELP 8 G-15
HELP 7
1-2
1-1
1-8
1-4
1-3
(#109)
1-9 (#59) 1-7 (#59)
1-5 (#59)
1Te bure Unit
Side Frame Section
(See Page 2-6)
1-6 (#59)
2-6
DSLR-A900_L2

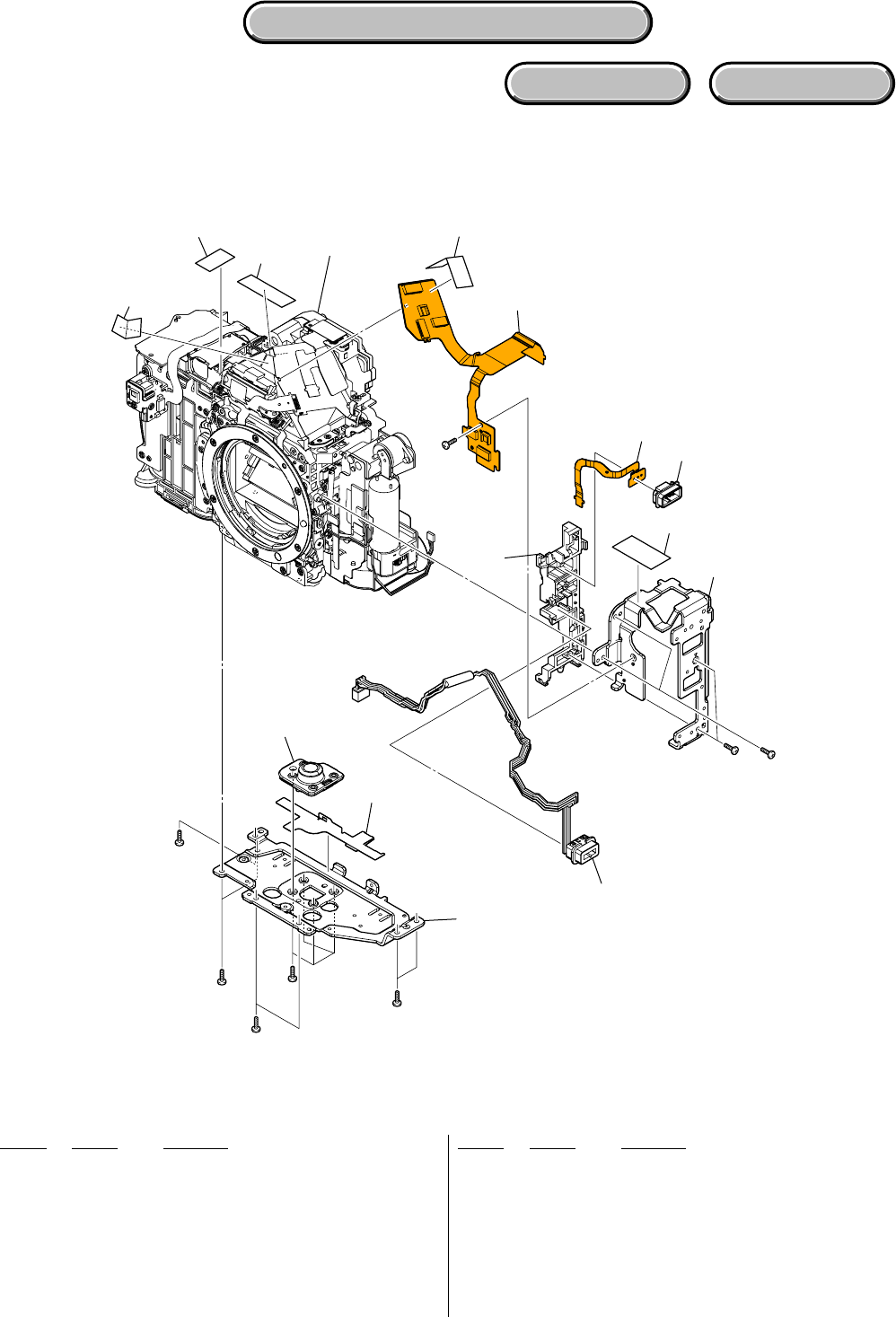

2-2-4. SIDE FRAME SECTION
Follow the disassembly in the numerical order given.
1MA-453 Flexible Board (1-1 to 1-8)
2Bottom Frame (2-1 to 2-4)
3Jack Holder (3-1 to 3-4)
EXPLODED VIEW
HARDWARE LIST
3-1
3-2
3-3
3-4 (#76)
2-3 (#76)
2-4 (#76)
2-1 (#109)
2-2 (#109)
2Bottom Frame
HELP 9 HELP 13
HELP 11
HELP 14
HELP 15
HELP 12
HELP 10
1-6
(#109)
1-4
1-1
1-8
1-7
1-5
1-2
1-3
1MA-453 Flexible Board
3Jack Holder
Shutter Section
(See Page 2-7)
2-7
DSLR-A900_L2
EXPLODED VIEW
HARDWARE LIST

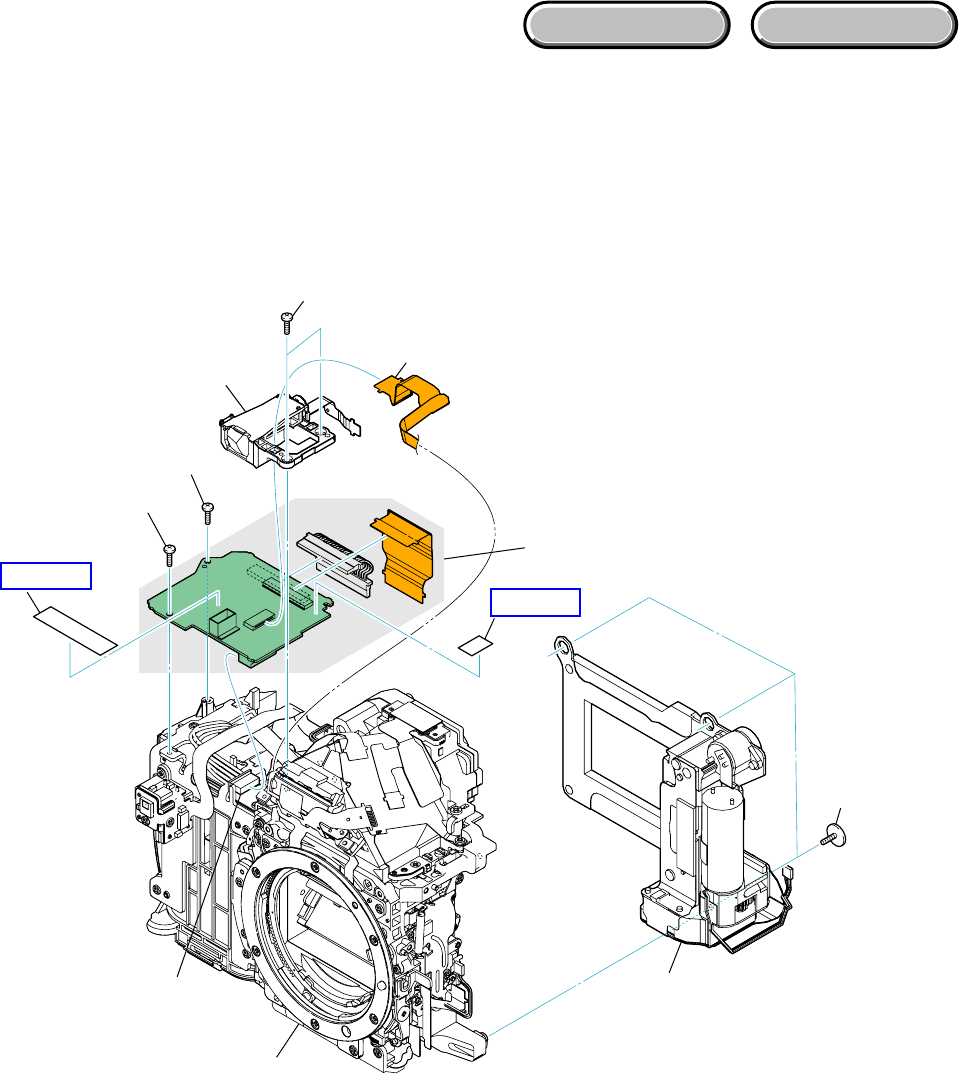

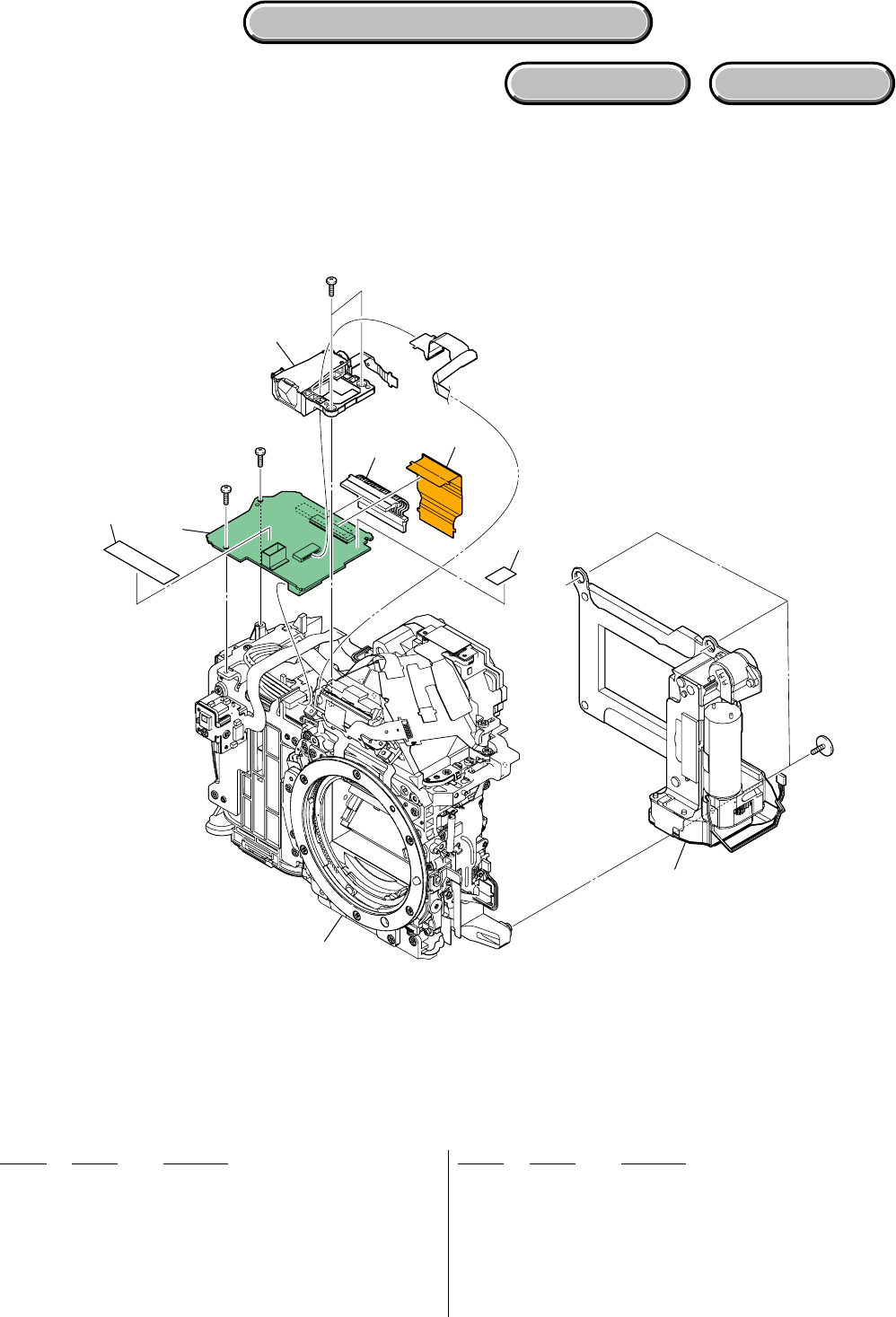

2-2-5. SHUTTER SECTION
Follow the disassembly in the numerical order given.
1Shutter (1-1)
2DD-299 Board (2-1 to 2-8)
1-1 (#91)
2-1 (#76)
2-6 (#12)
2-7 (#109)
2-8
2-2
2-3
2DD-299 Board
1Shutter
Battery Holder Section
(See Page 2-8)
2-4
HELP 16
2-5
HELP 17
2-8
DSLR-A900_L2
EXPLODED VIEW
HARDWARE LIST
2-2-6. BATTERY HOLDER SECTION
Follow the disassembly in the numerical order given.
1Battery Holder (1-1 to 1-2)
2MM-079 Board (2-1 to 2-3)
3GY-009 Flexible Board (3-1)
1-1 (#76)
1-2 (#76)
3-1
(#109)
2-1 (#109)
2-2 (#76)
2-3
2MM-079 Board
1Battery Holder
3GY-009
Flexible Board
Mirror Box Section
(Penta Unit)
(See Page 2-9)
2-9
DSLR-A900_L2
EXPLODED VIEW
HARDWARE LIST

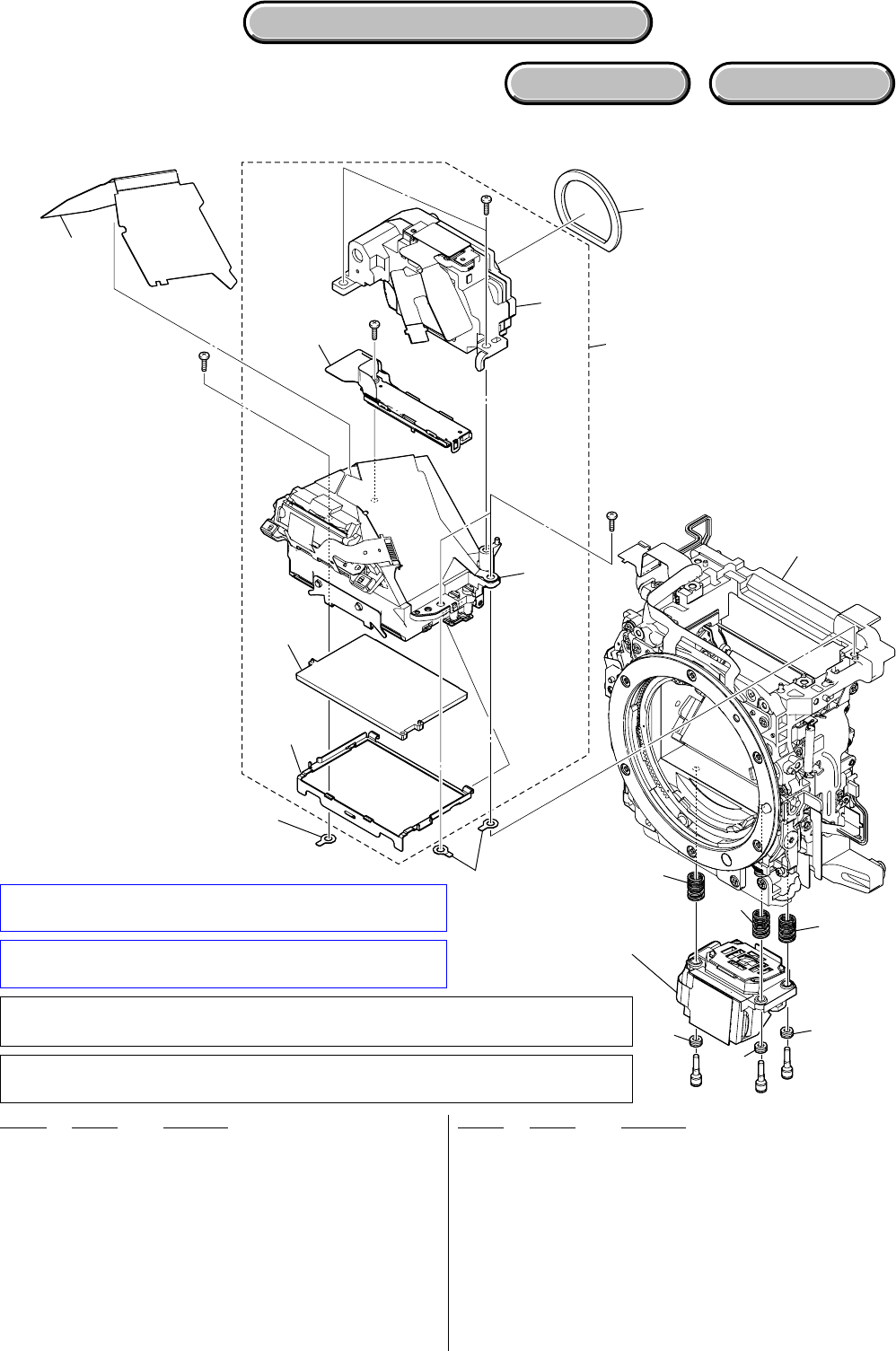

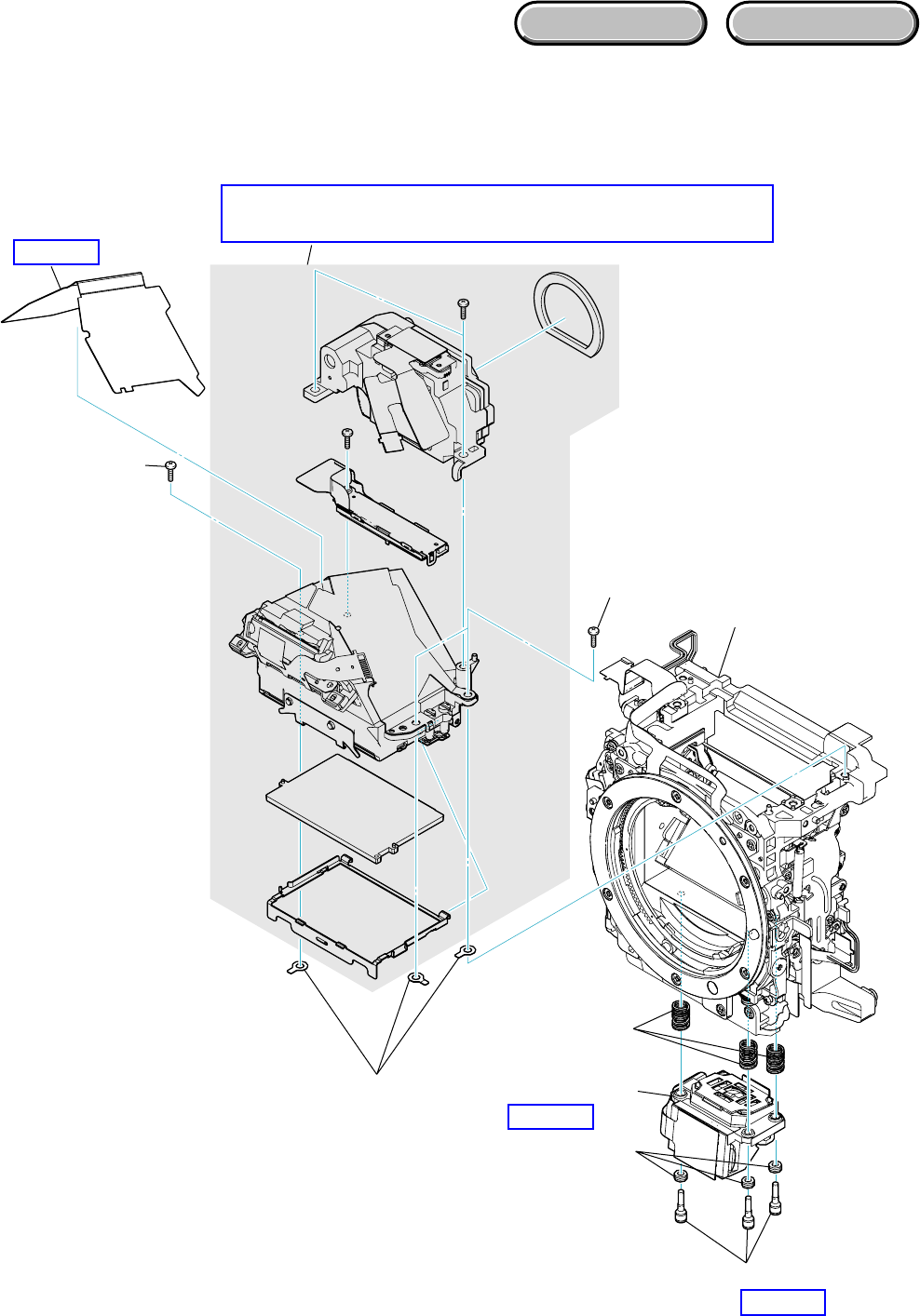

2-2-7. MIRROR BOX SECTION (PENTA UNIT)
Follow the disassembly in the numerical order given.
1AF Module (1-1 to 1-3)
2Penta Unit (2-1 to 2-4)
1-1 (#149)
1-2
1-3
2-1
2-2 (#89)
2-3 (#89)
2-4
2Penta Unit
HELP 18
HELP 19
HELP 20
1AF Module
Mirror Box Section
(Sub Unit-1)
(See Page 2-10)
Refer to page 1-2 "1-5. METHOD OF EXCHANGING FOCUSING
SCREEN" when focusing screen are exchanged.
2-10
DSLR-A900_L2
EXPLODED VIEW
HARDWARE LIST

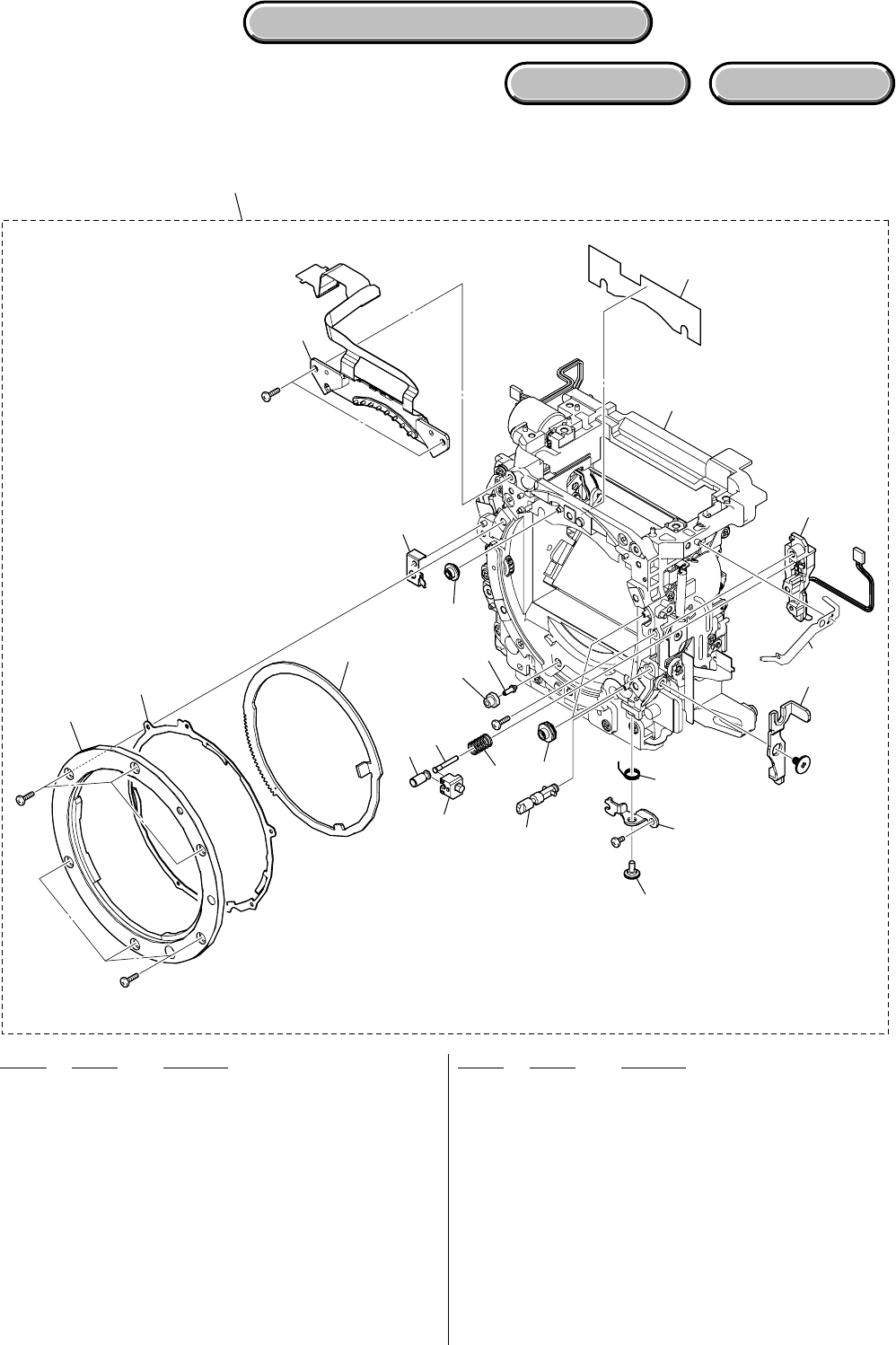

2-2-8. MIRROR BOX SECTION (SUB UNIT-1)
Follow the disassembly in the numerical order given.
1Iris Ring (1-1 to 1-15)
2SLLK Contact Piece Unit (2-1 to 2-8)
3BL Contact Unit (3-1 to 3-2)
3-1 (#23)
2-1 (#91)
2-8 (#23)
2-2
2-3
2-4
2-5
2-6
2SLLK
Contact
Piece Unit
HELP 21
3BL Contact Unit
3-2
G-85
G-85
2-7
1Iris Ring
Refer to page 2-13 "2-4. IRIS RING
REMOVAL/INSTALLATION" when
the iris ring is exchanged.
Mirror Box Section
(Sub Unit-2)
(See Page 2-11)
1-8
1-9
1-7
1-10
1-14
1-15
1-13
1-11
1-1 (#89)
1-2 (#89)
1-5 (#89)
1-6 (#89)
1-3 (#89)
1-4 (#89)
1-12
Ver. 1.1 2009.01
2-11
DSLR-A900_L2
EXPLODED VIEW
HARDWARE LIST
2-2-9. MIRROR BOX SECTION (SUB UNIT-2)
Follow the disassembly in the numerical order given.
1Mirror Charge Motor Unit (1-1 to 1-5)
2Aperture Unit (2-1 to 2-4)
3AF Driving Unit (3-1 to 3-5)
1-4 (#23)
1-5 (#23)
1-1
1-3
1-2
3-1 (#23)
3-2 (#23)
3-4 (#23)
2-1 (#23)
2-2
2-3
2-4
3-3
3-5
2Aperture Unit
HELP 22
HELP 23
HELP 26
HELP 24 HELP 25
Refer to page 2-13 "2-5. APERTURE
UNIT INSTALLATION" when the
aperture unit is exchanged.
1Mirror Charge Motor Unit
3AF Driving Unit
2-12
DSLR-A900_L2

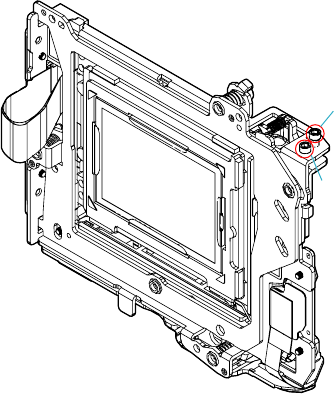

2-3. IMAGER INCLINATION ADJUSTMENT
Checking Method
1. Use the copy stand or place a mirror on the wall, and adjust the accuracy so that the camera is opposed to the mirror.
2. Use the AE master lens as an inspection lens.
3. Obtain the inclination angle with the Photoshop, and perform as follows according to the angle:
• For the angle above ± 0.4 degree, be sure to repair the camera.
• For the angle above ± 0.2 degree and below ± 0.4 degree, repair the camera according to the user's requirement level.
• For the angle below ± 0.2 degree, check again the angle to satisfy the specified value.
Adjusting Method
1. Loosen the fixed screw.
2. Adjust the inclination with the adjusting screw.
• For an image that tilts to the right, rotate the screw clockwise.
• For an image that tilts to the left, rotate the screw counterclockwise.
3. Tighten the fixed screw.
Imager Inclination Adjusting Screw
Adjusting Screw
Fixed Screw
2-13
DSLR-A900_L2

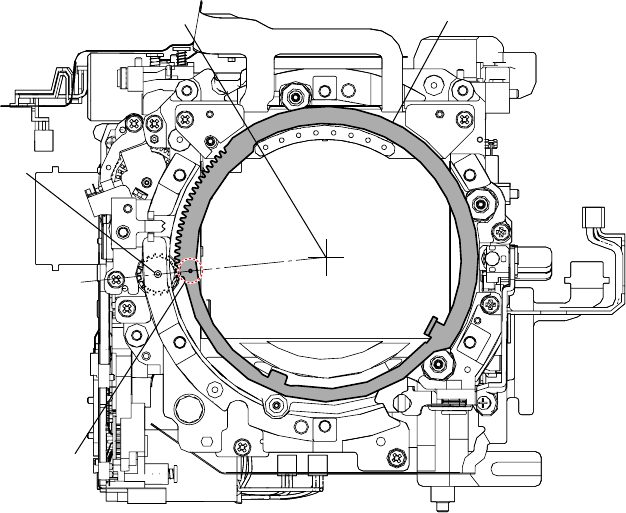

2-4. IRIS RING REMOVAL/INSTALLATION
Removal
Rotate the iris ring clockwise, and remove it at the stop position (iris-in end).
At this time, do not rotate the iris joint gear of the Aperture Unit.
Installation
1. With the Aperture Unit set in the charge position (see "2-6. Aperture Unit Charge Position Setting" ), install it on the front
frame set.
* The Aperture Unit has been set in the charge position, if it is not removed.
However, the iris ring must be in the removed state (where the iris joint gear is not rotated).
2. Install the iris ring with it's a punch mark aligned with a line that connects the iris joint gear shaft and the optical axis center.
2-5. APERTURE UNIT INSTALLATION
*The Aperture Unit is supplied by being set in the charge position (initial position), but if this position is disordered when the
Aperture Unit is removed, or if the charge position is to be set again, perform as follows.
*Refer to "2-6. Aperture Unit Charge Position Setting" for the confirm method at the charge position.
2-6. APERTURE UNIT CHARGE POSITION SETTING
1. Check that the Aperture Unit is in a free state.
2. After confirming that the Aperture Unit is in a free state, rotate the gear by 3 turns.
3. After rotating the gear by 3 turns, set the Aperture Unit where the holes in the gear and the Aperture Unit coincide. This
position is the charge position.
*Refer to "2-7. Aperture Unit Free Position Setting" for the setting and the confirm method at the free position.
Iris Ring
Optical Axis Center
Iris Joint Gear Shaft
Punch Mark
2-14
DSLR-A900_L2

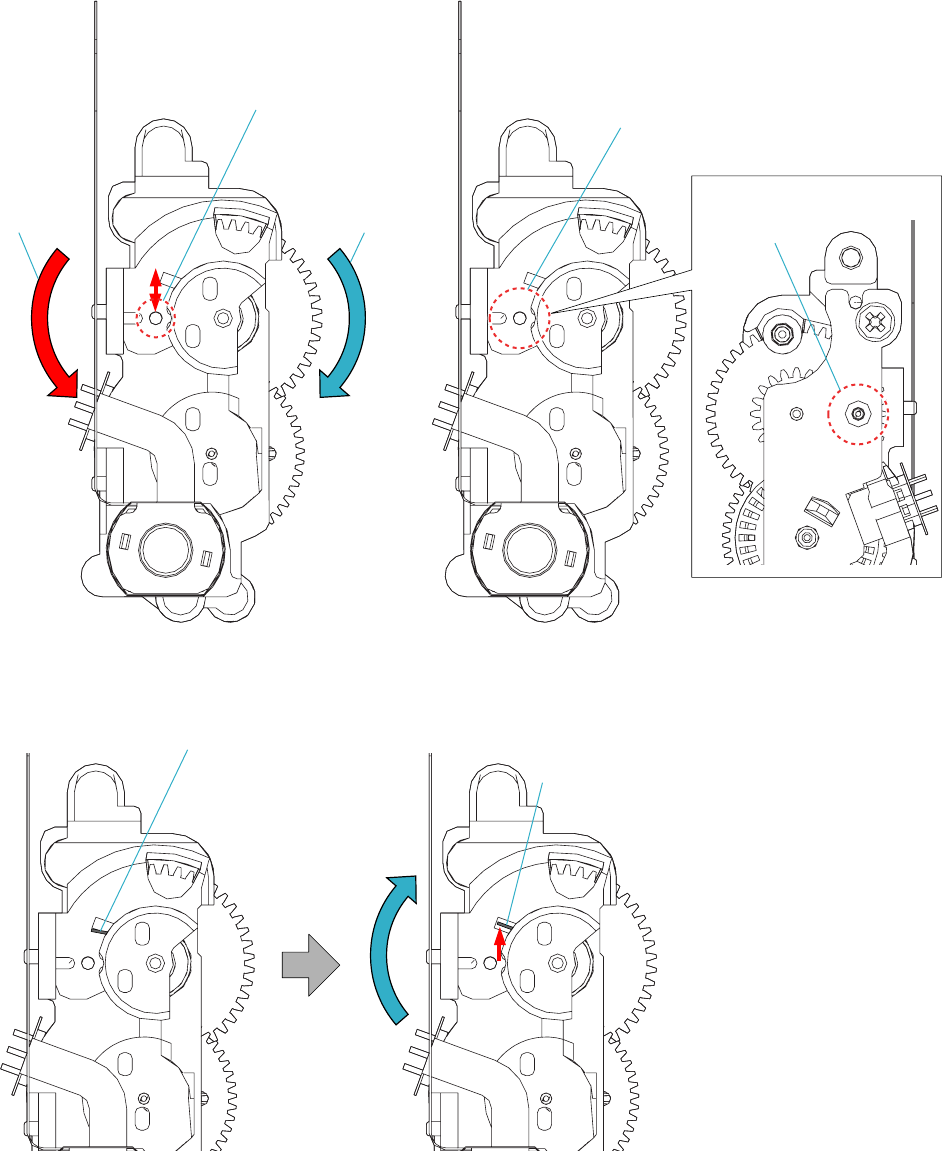

2-7. APERTURE UNIT FREE POSITION SETTING
1. Set the Aperture Unit to a free position once, if the gear was rotated accidentally and the charge position is disordered, or if
the charge position was shifted during disassembly.
In a free state, the edge of this spring
will move up and down about 1 mm if
the gear is moved a little.
Gear rotating
direction to make
the unit free
Gear rotating
direction to set
the charge position
In a free state, a hole in the gear almost
coincides with a hole in the Aperture Unit.
As viewed from gear
(Hole in the gear)
Note: The spring is deformed and cannot
be used if the gear is rotated too
much from a free state.
If the edge of spring is located downward,
rotate the gear in the arrow direction to
search a free position.
*In a free position, the edge of spring is
located upward.
First, check the spring edge position.
2-15
DSLR-A900_L2

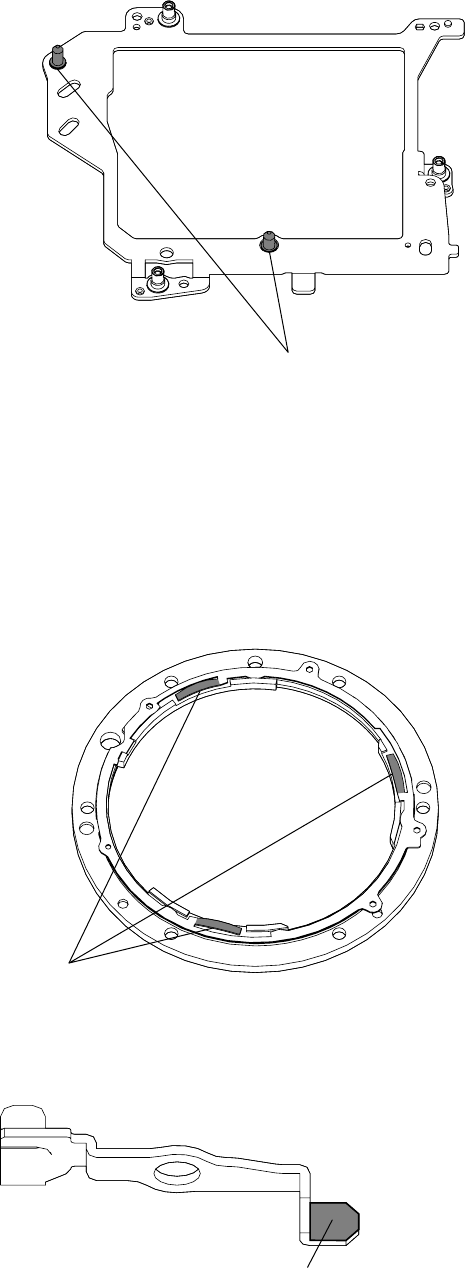

2-8. GREASE APPLICATION AREA
Grease uses G-15 (J-6082-619-A).
Grease uses G-85 (J-6082-626-A).
Coupler Joint Lever
Grease
Ring (SP)
Grease
Grease
Chassis Assy Unit
2-16
DSLR-A900_L2

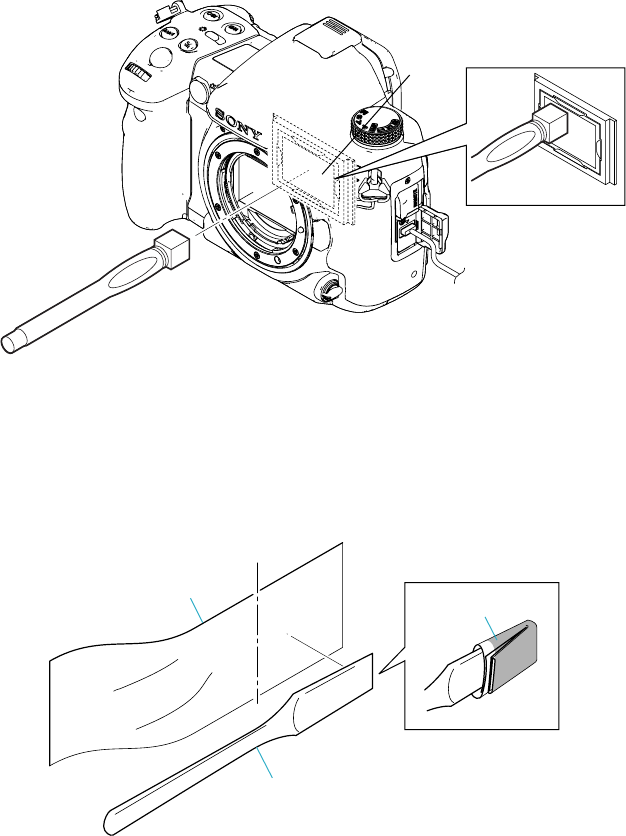

2-9. CLEANING PROCEDURE OF OLPF
<Preparation for Remedy>
If you use the new Jig (J-6082-663-A) below, make sure to clean the CCD Cleaning Jig (Tip) below before using, please.
Note: Protection sheet is for preventing the scratch of a surface on the Jig (Tip).
The protection sheet may be come off the Jig when you take the Jig from a bag, but it is no problem.

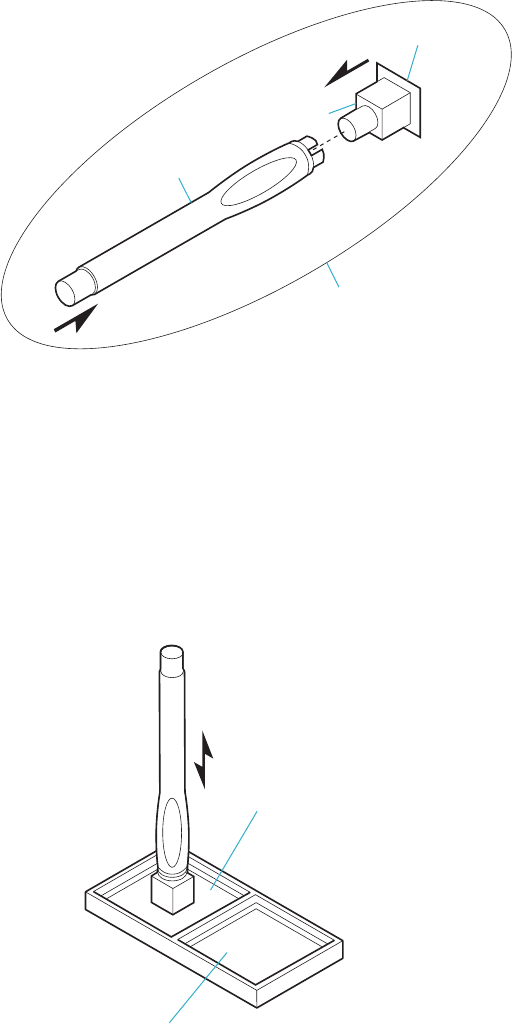

<Cleaning Procedure for Tip of CCD Cleaning Jig>
1. Put the two cleaning cloths on a tray like below.
1 Souse the one cleaning cloth in ethyl alcohl.
2 Put the other cleaning cloth on a tray as it is dry.
2. Dab the tip of CCD cleaning jig at the cleaning cloth of 1 5 or 6 times.
* Do not slide the tip from right to left or up and down while dabbing.
3. Dab the tip of CCD cleaning jig at the cleaning cloth of 2 5 or 6 times.
* Do not slide from right to left or up and down while dabbing.
4. Wait until the tip will be dried completely.
CCD Cleaning Jig (New)
(J-6082-663-A)
CCD Cleaning Jig
CCD Cleaning Jig (Tip)
Protection Sheet
1Souse the cleaning
cloth in ethyl alcohol.
2The dry cleaning cloth.
2-17E
DSLR-A900_L2
Cleaning Jig
(J-6082-635-A)
Cleaning Cloth
(J-6082-636-A)
Cut
EE3310
OLPF
<Cleaning Procedure for the OLPF>
1. Clean up the tip of CCD cleaning jig.
2. Set a camera to a cleaning mode.
3. Dab the tip of CCD cleaning jig at the OLPF, and pull up straight.
* Do not slide from right to left or up and down while dabbing.
4. Repeat “3” several times to clean up.
5. According to service manual, check if there is dirt on the CCD.
<ATTENTION>
If you cannot remove dirt with remedy above, cleaning by the following jig are used.
Soak a small amount of EE3310 (Liquid cleaner) after wrapping the cleaning cloth (J-6082-636-A) around the cleaning jig (J-
6082-635-A).
DSLR-A900_L2
HELP
HELP

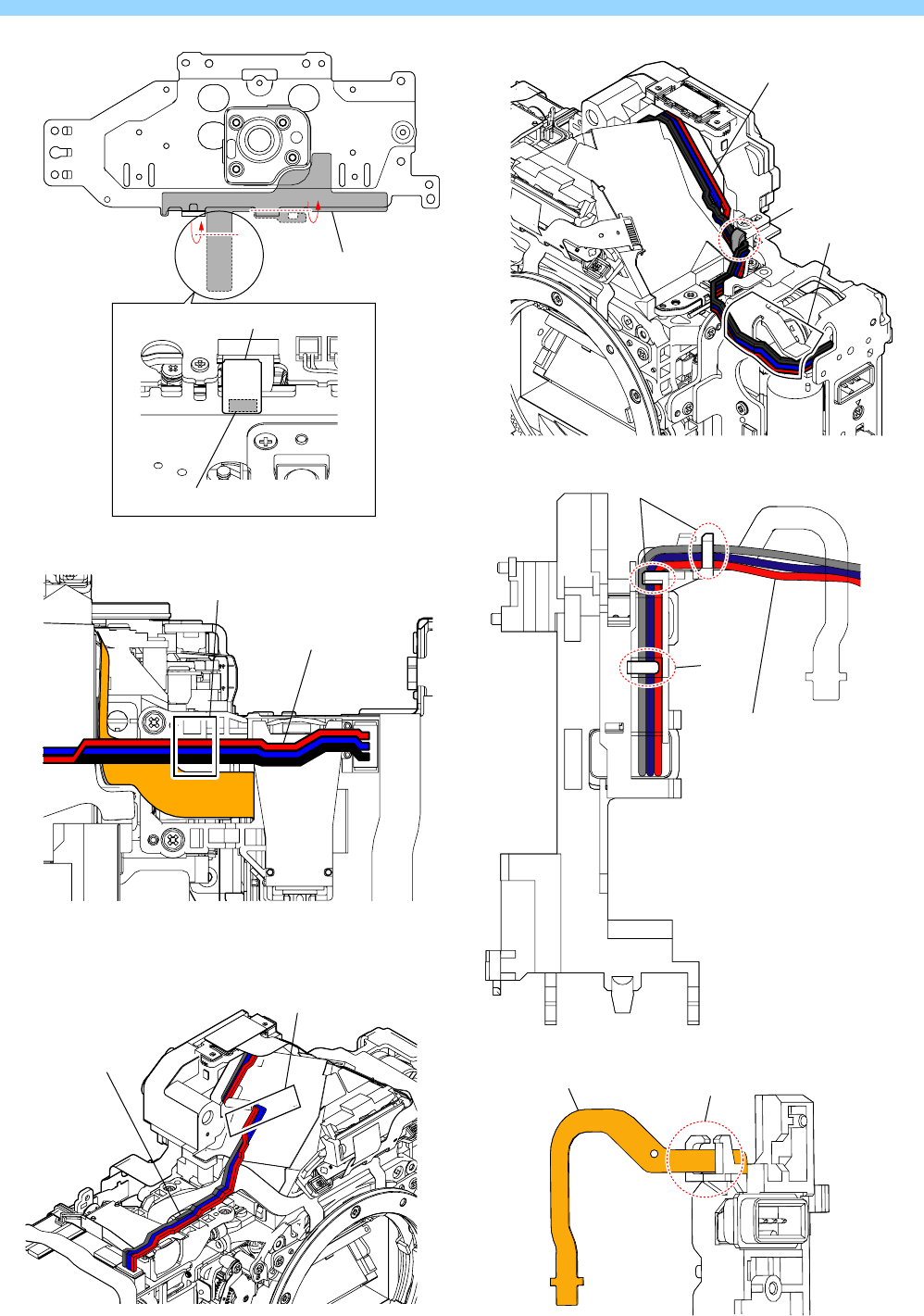

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
HELP 1:
Sheet (T)/BL Screen
BL Screen
Sheet (T)
HELP 2:
Control Switch Block (JY62300)
Control Switch Block (JY62300)
LCD Flexible Board
Back Light Flexible Board
HELP 3:
AF Driving/Mirror Charge Motor Harness
AF Driving Motor Harness
Mirror Charge Motor Harness
Bottom Frame Sheet
Rib Rib Rib
HELP 4:
Shutter Motor Harness
HELP 5:
Actuator Harness
Actuator Harness
Shutter Motor Harness
DSLR-A900_L2

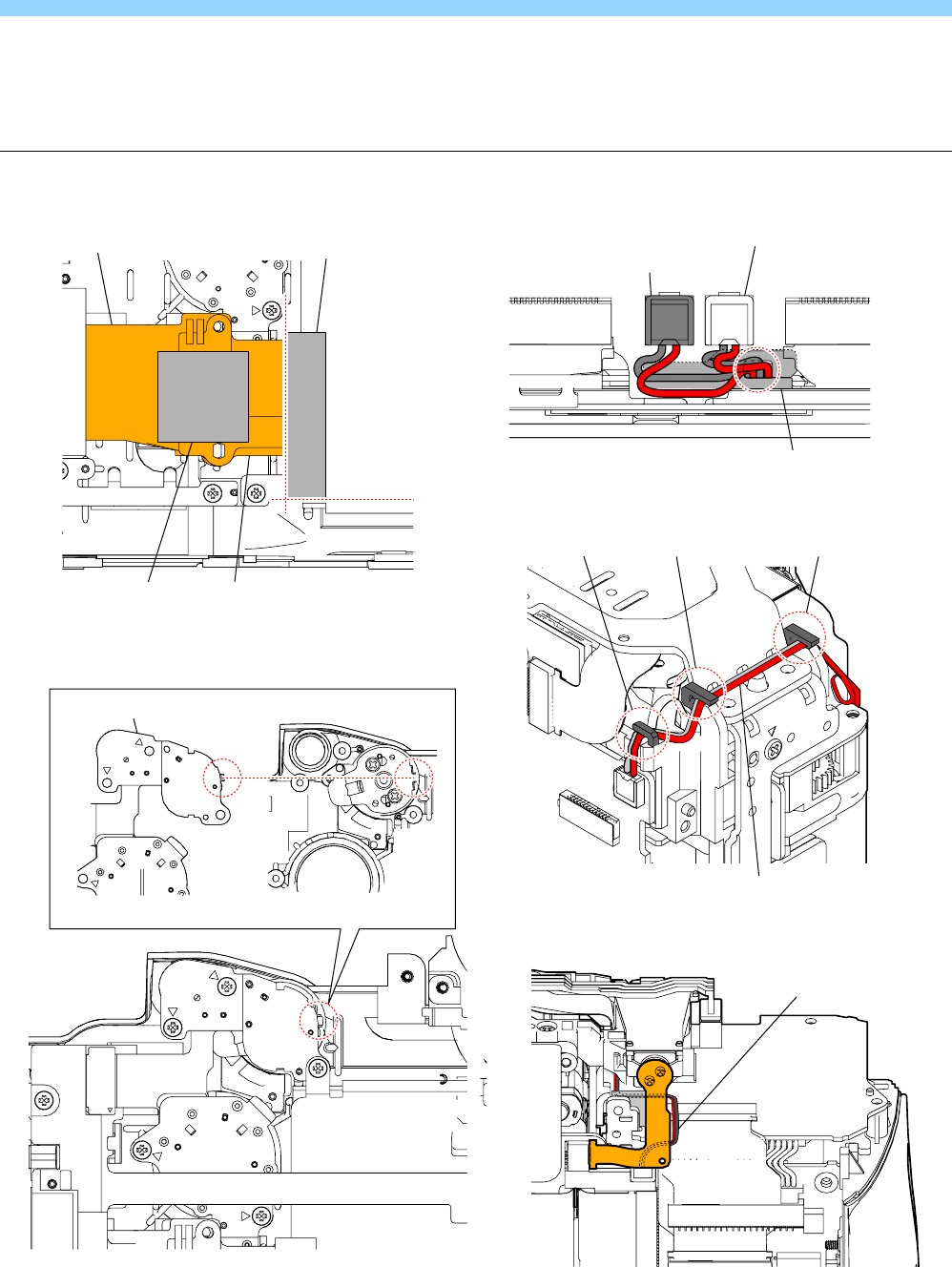

HELP
HELP 8: FP-893/FP-894 Flexible Board
FP-893 Flexible Board
FP-893 Flexible Board
FP-894 Flexible Board
FP-894 Flexible Board
Claw
Adhesive Tape
HELP 9: SLLK Contact Piece Unit Harness
SLLK Contact Piece Unit Harness
HELP 6: Synchronise Terminal Harness
Synchronise Terminal Harness
HELP 7: Control Switch Block (FS85100)
Control Switch Block
(FS85100)
DSLR-A900_L2
HELP
HELP 10:
Bottom Frame Sheet
Bottom Frame Sheet
Bottom Frame Sheet
Adhesive Sheet
HELP 11:
BD Tape 0710/DC Jack Harness
DC Jack Harness
DC Jack Harness
DC Jack Harness
BD Tape 0710
HELP 12:
Tape (ASCD)/DC Jack Harness
HELP 13:
BD Tape 1525/DC Jack Harness
BD Tape 1525
Tape (ASCD)
Rib
HELP 14:
DC Jack Harness
DC Jack Harness
Rib
Rib
HELP 15:

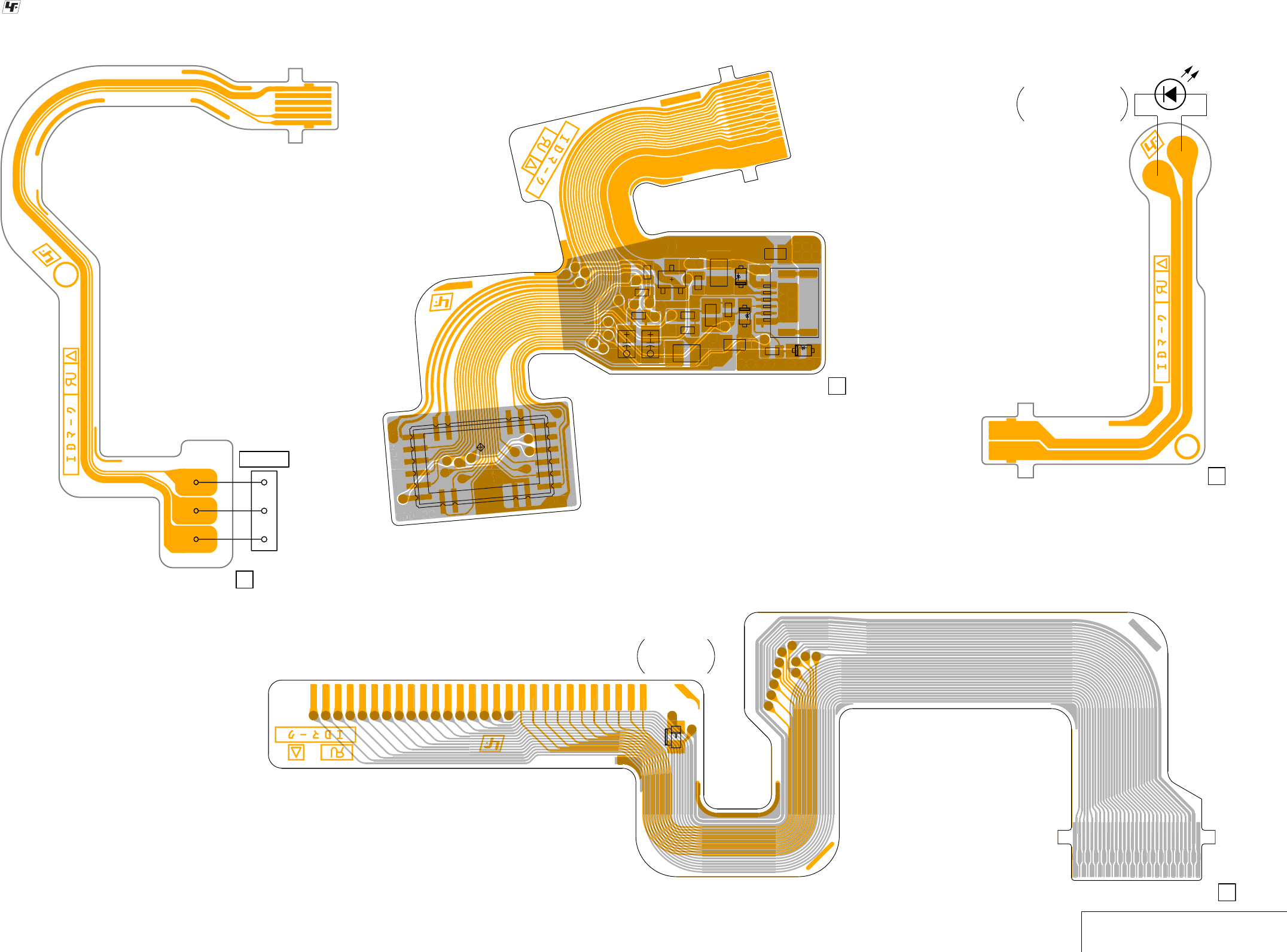

FP-898 Flexible Board
FP-898 Flexible Board Rib
DSLR-A900_L2
HELP
HELP 18:
AF Module Flexible Board
AF Module Flexible Board
Rib
HELP 20:
BD Penta Insulation Sheet
BD Penta Insulation Sheet
HELP 21:
Coupler Lever Tension SP
Coupler Lever Tension SP
Coupler Lever
RibScrew
B-50
(J-6082-615-A)
HELP 16:
BD Tape 0710/Actuator Harness
BD Tape 0710
Actuator Harness
HELP 19:
S Adjustment Screw
S Adjustment Screw
S Adjustment Screw S Adjustment Screw
HELP 17:
Tape (ASCD)/
GY-009/FP-896 Flexible Board
FP-896 Flexible Board
GY-009 Flexible Board
Tape (ASCD)
DSLR-A900_L2
HELP
HELP 23:
MB Flexible Protection Sheet
HELP 26:
MB IS-Flexible Protection Sheet
MB IS-Flexible Protection Sheet
HELP 25:
AP Flexible Protection Sheet
HELP 24:

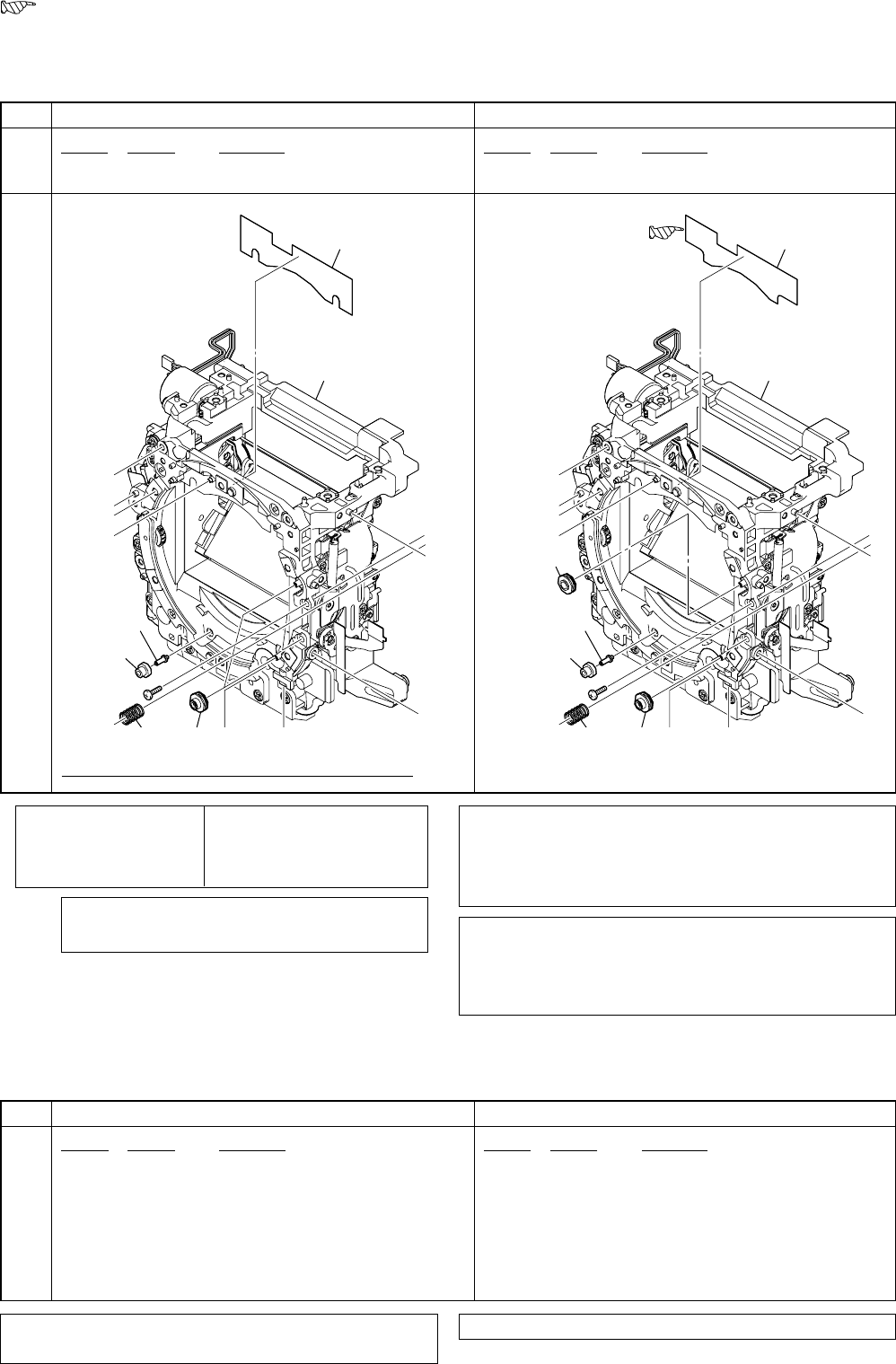

Mirror Charge Motor Unit
Installation Position of Gears Rib
OK NG
AP Flexible Protection Sheet
MB Flexible Protection Sheet
Boss
Boss
HELP 22:
MB Motor Harness Sheet
MB Motor Harness Sheet
DSLR-A900_L2
Link
Link

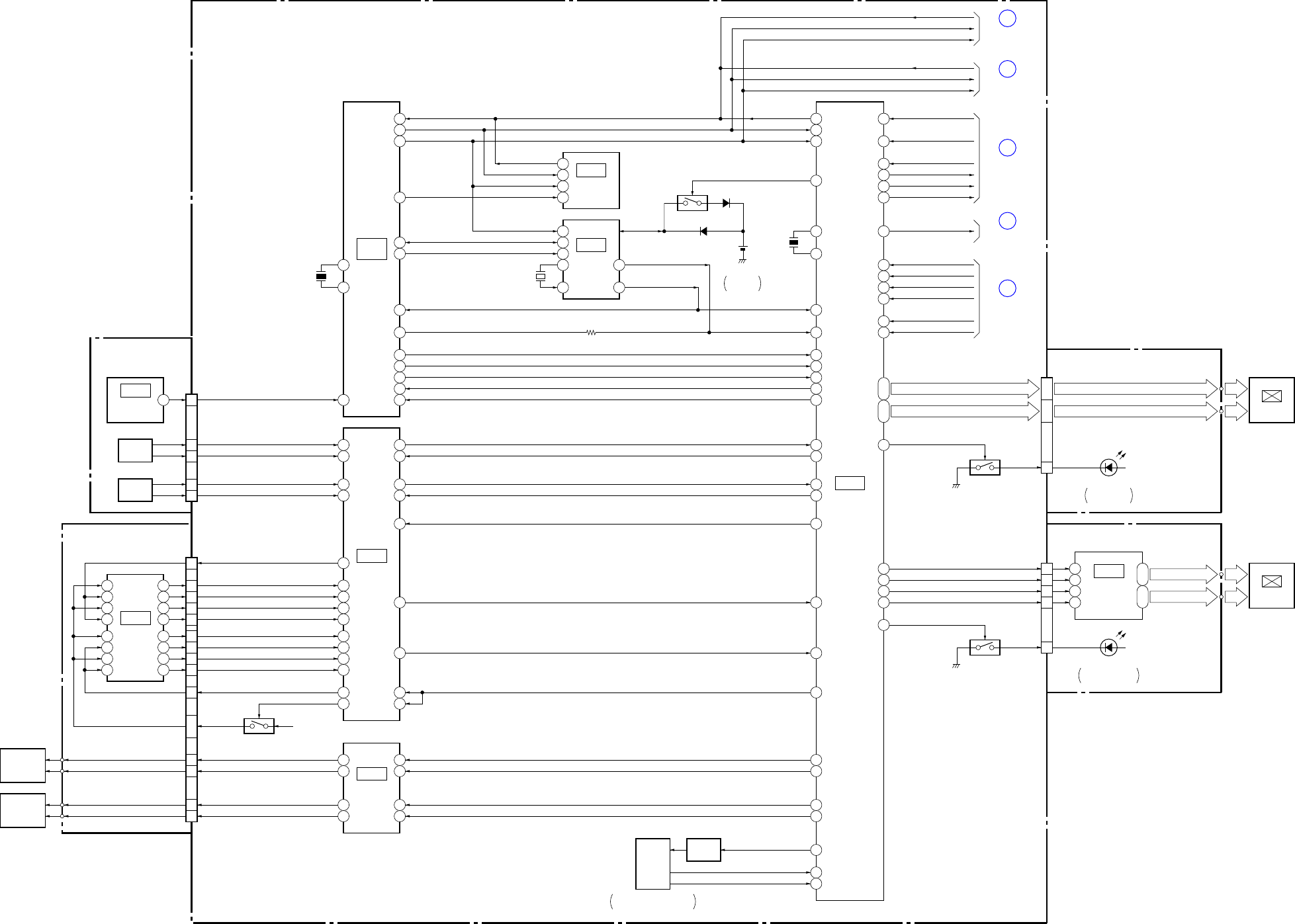

3. BLOCK DIAGRAMS
OVERALL BLOCK DIAGRAM (5/6)
OVERALL BLOCK DIAGRAM (6/6)
POWER BLOCK DIAGRAM (1/6)
OVERALL BLOCK DIAGRAM (4/6)
OVERALL BLOCK DIAGRAM (3/6)
OVERALL BLOCK DIAGRAM (2/6)
OVERALL BLOCK DIAGRAM (1/6)
POWER BLOCK DIAGRAM (5/6)
POWER BLOCK DIAGRAM (6/6)
POWER BLOCK DIAGRAM (4/6)
POWER BLOCK DIAGRAM (3/6)
POWER BLOCK DIAGRAM (2/6)
3-1
DSLR-A900_L2
3. BLOCK DIAGRAMS
3-1. OVERALL BLOCK DIAGRAM (1/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
A : VIDEO SIGNAL
CLOCK
GENERATOR
(7/26)
IC2102
AA5, W5, AA6, W6, AA7, W7,
AA9, W9, AA10, W10, AA11, W11
F24, G24, E24, G25,
F25, E25, C25, B25,
F26, E26, C26, B26,
A26, F27, E27, C27
AE12, AC14, AF12, AC12,
AD14, AE13, AD15, AC13,
AF13, AC16, AE14, AF14,
AF21, AE19, AC21, AA23
39, 36, 33, 30, 27, 24, 18, 15, 12, 9, 6, 3
CN5002 CN3102
Y5, V5, Y6, V6, Y7, V7,
Y9, V9, Y10, V10, Y11, V11
B22 - B17, A15 - A10A23 - A18, B16 - B11
38, 35, 32, 29, 26, 23, 17, 14, 11, 8, 5, 2
21
W8
20
V8
A16
A25
A17
E8
E6
E9
F9
D3
B8
B7
47
B9
45
C10
44
B10
46
C9
42
A10
49
D9
50
39, 36, 33, 30, 27, 24, 18, 15, 12, 9, 6, 338, 35, 32, 29, 26, 23, 17, 14, 11, 8, 5, 2
21
20
47
45
44
46
42
49
1
2
3
50
5 47
C8
CMOS_SLVDS_DP[00-11] E1_RIF_D[00-15]
CMOS_SLVDS_DN[00-11]
CMOS_SLVDS_CLKP
E1_RIF_CLK
A27, F28, E28, C28,
B28, A28, F29, E29,
C29, B29, F30, E30,
C30, B30, E31, C31
AF17, V23, AD19, AF18,
AE17, U23, AC20, AF19,
AE18, AD20, AF20, AD21,
AE20, AD23, AF23, AC24
B32 W23
E1_JIF_D[00-15]
E1_JIF_ACK
E23
XE1_RIF_HD
F23
AF5
AF9
AC11
XE1_RIF_VD
CMOS_SLVDS_CLKN
CMOS_SI
CMOS_SO
CMOS_SCK
XCMOS_CE
D1
D3
E1
C4
B34
B33
A32
A33
STAR_SI_E1
B25F13
XE1_RST
AE2E13
E1_BOOT
AF11
F12
E1_SPU_EN
B1
E11
AG1
E1_CAP_START
AC8E12
NZ_REL_EN_E1
A18
A18
AF7
IMG_SYSCLK_12M
IMG_SYSCLK_12M_E2
3 6
F34
G28
STAR_SO_E1
STAR_SCK_E1
STAR_CS_E1
PROCESSOR
3
(11/26 - 13/26)
IC2401
512M
SDRAM
(12/26)
IC2403
E33, E34, F31, F33,
F34, G29, G30, G31,
G33, G34, G35, H29,
H30, H31, H33, H34
AE12, AC14, AF12, AC12,
AD14, AE13, AD15, AC13,
AF13, AC16, AE14, AF14,
AF21, AE19, AC21, AA23
D35
E2_RIF_D[00-15]
E2_RIF_CLK
J34, J35, K30, K31,
K33, K34, L29, L30,
L31, L33, L34, M30,
M31, M33, M34, M35
AF17, V23, AD19, AF18,
AE17, U23, AC20, AF19,
AE18, AD20, AF20, AD21,
AE20, AD23, AF23, AC24
J33 W23
E2_JIF_D[00-15]
E2_JIF_ACK
D34
XE2_RIF_HD
D33
AF5
AF9
AC11
XE2_RIF_VD
D1
D3
E1
C4
E22
F21
G21
E21
STAR_SI_E2
B25C10
XE2_RST
AE2E10
E2_BOOT
AF11
F10
E2_SPU_EN
AC8F11
NZ_REL_EN_E2
STAR_SO_E2
STAR_SCK_E2
STAR_CS_E2
XCMOS_CLR
XCMOS_HS
XCMOS_VS
X5001
54MHz
W16
CMOS
IMAGER
IC5004
CN5001 CN3101
TH5001
1
IS-030 BOARD AM-015 BOARD (1/6)
FP-893 FLEXIBLE
BOARD
FP-894 FLEXIBLE
BOARD
10 - 13
15
16
(SHUTTER)
SHUTTER
UNIT
CONTROL
BLOCK
SHUTTER CHARGE
MOTOR
M901
MIRROR CHARGE
MOTOR
M902
MM
T11
T10
N11
N14
T7
U7
SHUTTER CHARGE
MOTOR DRIVE
(18/26)
IC4402 , Q4412 - Q4414
MIRROR CHARGE
MOTOR DRIVE
(18/26)
IC4401
SCM+ SC_M+
CN4518
X_ON XSHUTTER_X_SW
CN4508
1
2
5
7
CN4509
1C_MAG SH_1C
2C_MAG SH_2C
1ST_CURTAIN_MG
1ST_CURTAIN_MG
2ND_CURTAIN_MG
SREL(-) SHUTTER_RELEASE_MG- SHUTTER_RELEASE_MG
T6
SHUTTER_CHARGE_M_1
MIRROR_CHARGE_M_1
U6
18 N6
P6
P11
B14
MIRROR_CHARGE_M_2
19
6, 714, 15
D6
B3
A3
B2
D2
SHUTTER_CHARGE_M_2
MCM+ MC_M+
2
CN4525
MREL(-)
xMC_CAM_1
xMC_CAM_2
MIRROR_RELEASE_MG-
MCM- MC_M-
XSC_CAM_1
XSC_CAM_2
XSC_CAM_1
XSC_CAM_2
SHUTTER
DRIVE
Q4409
SHUTTER
RELEASE
Q4411
U10
MIRROR_RELEASE_MG
MIRROR
RELEASE
ACT901
ACTUATOR
Q4410
OVERALL (6/6)
(PAGE 3-6)
4
OVERALL (4/6)
(PAGE 3-4)
2
OVERALL (3/6)
(PAGE 3-3)
3
X1001
12MHz
E2_DDR2_D[00-31] E2_DDR2_D[00-15]
E2_DDR2_A[00-12], E2_DDR2_BA0, E2_DDR2_BA1
E2_DDR2_CLK
XCS_DDR2_E2
E2_DDR2_CKE
XE2_DDR2_CLK
E2_DDR2_CLK
XCS_DDR2_E2
E2_DDR2_CKE
XE2_DDR2_CLK
V26
W25
U24
U26
J8
K8
K2
L8
512M
SDRAM
(12/26)
IC2402
E2_DDR2_D[16-31]
J8
K8
K2
L8
1G
SDRAM
(5/26)
IC1201
NZ_DDR2_D[00-31]NZ_DDR2_D[00-07]
NZ_DDR2A_A[00-13], NZ_DDR2A_BA[0-2]
NZ_DDR2A_CLK
NZ_DDR2A_XCS
NZ_DDR2A_CKE
NZ_DDR2A_XCLK
Y35
W33
W30
W35
E8
F8
F2
G8
NZ_DDR2A_CLK
NZ_DDR2A_XCS
NZ_DDR2A_CKE
NZ_DDR2A_XCLK
E8
F8
F2
G8
1G
SDRAM
(5/26)
IC1203
NZ_DDR2_D[08-15]
1G
SDRAM
(5/26)
IC1202
NZ_DDR2_D[16-23]
NZ_DDR2B_A[00-13], NZ_DDR2B_BA[0-2]
NZ_DDR2B_CLK
NZ_DDR2B_XCS
NZ_DDR2B_CKE
NZ_DDR2B_XCLK
AL35
AL34
AM34
AK35
E8
F8
F2
G8
NZ_DDR2B_CLK
NZ_DDR2B_XCS
NZ_DDR2B_CKE
NZ_DDR2B_XCLK
E8
F8
F2
G8
1G
SDRAM
(5/26)
IC1204
NZ_DDR2_D[24-31]
XIMG_RESET
XIMG_RESETXIMG_RESET
XIMG_RESET
32M FLASH
(14/26)
IC2601
E2_SYS_D[00-15]
E2_SYS_A[01-22]
XCS_SYS_E2
B6 F1
B4
512M
SDRAM
(8/26)
IC2003
E1_DDR2_D[00-31] E1_DDR2_D[00-15]
E1_DDR2_A[00-12], E1_DDR2_BA0, E1_DDR2_BA1
E1_DDR2_CLK
XCS_DDR2_E1
E1_DDR2_CKE
XE1_DDR2_CLK
E1_DDR2_CLK
XCS_DDR2_E1
E1_DDR2_CKE
XE1_DDR2_CLK
V26
W25
U24
U26
J8
K8
K2
L8
512M
SDRAM
(8/26)
IC2002
E1_DDR2_D[16-31]
J8
K8
K2
L8
32M FLASH
(10/26)
IC2201
E1_SYS_D[00-15]
E1_SYS_A[01-22]
XCS_SYS_E1
B6
N5
L2
L1
STAR_SI_AS
STAR_SO_AS
STAR_SCK_AS
STAR_CS_AS
STAR_SI_AS
STAR_SO_AS
STAR_SCK_AS
STAR_CS_AS
L3
STAR_SI_CA M5
E_1ST_CURTAIN_START P2
STAR_SO_CA K2
STAR_SCK_CA K1
XLENS_RELEASE_SW_IMG C4
CAP_CTRL_IN B4
STAR_CS_CA K3
M4
B5
L1
M2
M14
M1
K6
F1
B4
CMOS_TEMP_1
DP00 - DP11
DM00 - DM11
DPCK
DMCK
SDO
SDI
SCK
XCE
XCLR
XHS
XVS
IMG_TEMP1
64M FLASH
(6/26)
IC1501
NZ_EMC_D[00-15]
NZ_EMC_A[00-22]
XNZ_EMC_CS
Y5 G1
NZ_EMC_CLK
V1 A3
XNZ_EMC_RESET
AA6
C4
AP4
XUPDATE_LED_ON
D1001
(F/W UPDATE)
XMSX_IN_CA
XCF_IN_CA
CF_TEMP
XCABLE_IN
XHDMI_HPD_IN
OVERALL (2/6)
(PAGE 3-2)
1
PROCESSOR
1
(1/26 - 6/26)
IC1001
(1/2)
MAIN CPU
(16/26)
IC4001
(1/5)
PROCESSOR
2
(7/26 - 9/26)
IC2001
(1/2)
05
MM
XMC_CAM_1
XMC_CAM_2
XMC_CAM_1
XMC_CAM_2
CN4512
(1/2)
AFM-003
FLEXIBLE
BOARD
(1/2)
MIRROR CHARGE
CAM DETECT
3-2
DSLR-A900_L2
3-2. OVERALL BLOCK DIAGRAM (2/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
A : VIDEO SIGNAL
PROCESSOR
2
(7/26 - 9/26)
IC2001
(2/2)
PROCESSOR
1
(1/26 - 6/26)
IC1001
(2/2)
LCD
BACKLIGHT
DRIVE
(23/26)
IC4711
LCD_DR[0-7]
LCD_CLKLCD_CLK
LCD_DG[0-7]
LCD_DB[0-7]
LCD_DR_0 - LCD_DR_7
LCD_DG_0 - LCD_DG_7
LCD_DB_0 - LCD_DB_7
DR0 - DR7
DG0 - DG7
DB0 - DB7
CN4511
(1/2)
44 - 51
36 - 4328 - 35
26 DCLK 36
XLCD_HD 24 XHD 35
XLCD_VD
XLCD_HD
XLCD_VD
1 4
7 6
XLCD_RSTXLCD_RST
BL_CTRL_PWM
PANEL_BL_A
PANEL_BL_K
BL+
CA_UNREG
23
12
14
XVD
XRST
34
SI 9
XSCK 10
XCS 8
LCD_SO 17
LCD_SCK 18
XCS_LCD
LCD_SO
LCD_SCK
XCS_LCD 16
11
1
BL-
15 2
CN7101
53 - 6045 - 5237 - 44
CONTROL SWITCH BLOCK
(PS85100) (1/2)
AM-015 BOARD (2/6)
3 inch
COLOR
LCD
MONITOR
LCD901
D4705
BL901
BACKLIGHT
V1
W4
U2
K1
M4
A2
C2
A25
SDIO_DATA0, DATA1 - DATA7
CN3208
4, 3, 5, 7, 13, 12, 14, 15
2
BS
8
19
SCLK
INS_SW2
XMSX_IN_CA
D3205
D1603
MSX_D[0-7]
MSX_BS
MSX_CLK
XMSX_IN_NZ
CF_A[00-10]
CF_D[00-15]
CN3205
33 - 4827 - 17
5
3
4
2
CN5201
33 - 4827 - 17
5
3
4
2
CN5202
21 - 23, 2 - 6, 47 - 49, 27 - 3120 - 14, 12 - 10, 8
41
26
25
XCF_IN_CA
XCF_IN_NZ
CF_TEMP
XCF_RESET
CF_A00 - CF_A10
CF_D00 - CF_D15
XCF_CD1 XCF_CD1
XCF_CD2
CF_TEMP
XCF_CD2
XCF_RESET XCF_RESET
CF_TEMP
A00 - A10
D00 - D15
-CD1
-CD2
-RESET
FP-890
FLEXIBLE
BOARD
MM-079 BOARD
HDMI
TRANSMITTER
(15/26)
IC3001
VIDEO AMP
(15/26)
IC3002
TX0± - TX2±
B5, A5, B6, A6,
B7, A7, B8, A8
USB_DATA±
B9, A9, B10, A10,
C9, C10, D9, D10
K2, K1
K5, K4, K8, K7, J10, K10
CN3202
8, 9, 5, 6, 2, 3
CN3207
11, 12
16
5, 7
19
2
C2
D1 TXC±
VIDEO_OUT
4
8
XAV_CABLE_IN
USB_VBUS
XVIDEO_CABLE_IN
DDC_SDA SDA
15
DDC_SCL SCL
C1
D2
3
4
H10
K3
G9
G10
F9
F10
5
HDMI_SDA
HDMI_SCL
HDMI_HPD_IN HPD
XCABLE_IN
XHDMI_HPD_IN
HDMI_DY[0-7]
HDMI_DUV[0-7]
HDMI_DE
HDMI_CLK
XHDMI_HD
XHDMI_VD
E1_VIDEOOUT
VAMP_EN
HDMI_INT
D3204
D3203
XMEDIA_CAP_DET
S3201
MEMORY CARD
COVER DETECT
USB_D±
XUSB_CABLE_IN
OVERALL (1/6)
(PAGE 3-1)
1
OVERALL (4/6)
(PAGE 3-4)
5
HDMI
OUT
USB/
VIDEO OUT
MEMORY
STICK DUO
CF
CompactFlash/
Microdrive
05
XHDMI_HPD_IN
Q3201
Q3202
K3, L2, M1, P4,
L3, R4, M2, M3
N1, N2, N3, T4,
P3, P1, P2, R3
R1
F1
L1
K2
AD5
AD1
F4
D2
C5
G2, G1
HDMI_SDA
N1 HDMI_SCL
XCABLE_IN
XHDMI_HPD_IN
USB_D±
XUSB_CABLE_IN
HDMI_SDA
HDMI_SCL
P1
CF_A00 - CF_A10
CF_D00 - CF_D15
TH5201
CF DETECT
(3/26)
IC1601
42
1
AL25, AN25, AJ24, AK24,
AL24, AN24, AK23, AL23,
AN23, AP23, AR23
AL21, AN21, AJ20, AK20,
AL20, AN20, AJ19, AK19,
AL19, AN19, AP19, AR19,
AJ18, AK18, AL18, AN18
AK22
AK5
AP18, AK17, AL17, AN17,
AP17, AK16, AL16, AN16
AP16
AR17
AN2, AK3
AL3
LCD_BLINKAS_E1_BLINK
AE6
D2101
V2, W3, W1, Y3,
V4, W2, Y1, AA3
AA1, AA2, AB3, Y2,
AB1, AC3, AB2, AC1
R2, T3, T2, U4,
U3, T1, V3, U1
3-3
DSLR-A900_L2
3-3. OVERALL BLOCK DIAGRAM (3/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
I/O CONTROLLER
(17/26)
IC4101
LOW-PASS
FILTER
(23/26)
IC4712
PHOTOMETRY
IC5901
J2
XCS_LMXCS_LM
1
14
2
4
2
MAIN CPU
(16/26)
IC4001
(2/5)
46
CN4507
(1/3)
40 FOCUS_POS_LED_K_7
39 FOCUS_POS_LED_K_6
38 FOCUS_POS_LED_K_5
36 FOCUS_POS_LED_K_4
35 FOCUS_POS_LED_K_3
34 FOCUS_POS_LED_K_2
33 FOCUS_POS_LED_K_1
LED_K_4
LED_K_3
LED_K_2
LED_K_1
LED_K_5
LED_K_6
LED_K_7
LED_K_4
LED_K_3
LED_K_2
LED_K_1
LED_K_5
LED_K_6
LED_K_7
54
56
58
60
62
64
66
4
5
6
7
8
9
11
LED
DRIVE
Q4101
N12
FOCUS_POS_LED_8
P12
A10
FOCUS_POS_LED_9
FOCUS_POS_LED_8
LED_K_9
LED_K_8
LED_K_9
LED_K_8
FOCUS_POS_LED_9 68
70
10
12
13
N1
7
8
EYE_SENSE_CTRLEYE_SENSE_CTRL
26
14
H4
15
4
5
6
3
EYE_SENSE_LEDEYE_SENSE_LED
40
19
LMCK
30
18
P9
U8
LM_MODE1LM_MODE1
LM_MODE2LM_MODE2
42
28
17
16
P8
LM_FINDLM_FIND
6
9
LMSIN
44
15
LM_OUT
CSLM
GRPON
FEN
LMCK
RWLM
MODE
FIND
LMSIN
IC_4001_SCK
IC_4001_SO
LMOUT D4
LM_OUT_LPF
4
11
CN5502
MA-453
FLEXIBLE
BOARD
(2/3)
MA-453
FLEXIBLE
BOARD (1/3)
CN5504
LED901
TOKO LED
AE-033 FLEXIBLE
BOARD
16
15
2
1
U3
T3
AF_M_2
AF_M_1
AF_M+
AF_M-
AFM+
AFM-
AF MOTOR
DRIVE
(18/26)
IC4403 CN4510
1
2
MM
M903
(AF MOTOR)
AF MOTOR
ROTATION
DETECT
PH6301
CN5603
xMF_PULSE_1
xMF_PULSE_2
MFP1
MFP2
AF_PI_E_2
AF_PI_E_1 9
10
2
1
SLK-004
FLEXIBLE
BOARD
XMF_PULSE1
XMF_PULSE2
XMF_PULSE1
XMF_PULSE2
AF_PI_E2
AF_PI_E1 55
53
47
45
EN-022
BOARD
AF MOTOR
POSITION DETECT
LED
DRIVE
Q5901
VP
CN5901
SE901
EYEPIECE
SENSORS
EYE-008
FLEXIBLE
BOARD
17
12
16
13
6
3
5
2
EYE_LED_A
EYE_SPC_A
EYE_LED_K
EYE_SPC_K
AM-015 BOARD (3/6)AF-117 FLEXIBLE
BOARD
AF CCD
IC5801
25 Vout AFCCD_VOUT
15
5DGO1 AFCCD_DGO1
1
6DGO2 AFCCD_DGO2
2
10 CLK AFCCD_CLOCK
8
11 STB AFCCD_STB
6
7SD0 AFCCD_SD0
3
8SD1 AFCCD_SD1
4
9
E4
B4
B8
G1
D8
U2
P2
R2
T2
SD2 AFCCD_SD2
5
CN4515
C1
CN4507
(2/3)
17
U13
XCS_LED
18
D10
FOCUS_POS_LED_CTRL
15
T13
LED_SCK 16
N13
LED_SO
42 AF_PI_E_2
41 AF_PI_E_1
E12
E13
46
AF_PULSE_2 45
AF_PULSE_1
D13
D16
XMF_PULSE_1
XMF_PULSE_2
XAFM_CAM_1
XAFM_CAM_1
R1
XAFM_CAM_2
XAFM_CAM_1
XAFM_CAM_2
xAFM_CAM_1
xAFM_CAM_2
XAFM_CAM_2
T1
CN4512
(2/2)
2
4
AFM-003
FLEXIBLE
BOARD (2/2)
TOP-004 FLEXIBLE
BOARD (1/3)
EN-023
BOARD
AF/MF
DETECT
APERTURE
MOTOR
ROTATION
DETECT
PH6201
IRIS_PI_E_2
CN6101
IRIS_PI_E_1
IRIS_PI_E_2
IRIS_PI_E_1
FM-
FM+
FM-
FM+
FM-
FM+
3
1
2
1
7, 89, 10
13, 1415, 16
10
8
AP-032
FLEXIBLE
BOARD
MM
M904
(APERTURE MOTOR)
16
15
2
1
N7
P7
IRIS_M+
IRIS_M-
IRIS_M_1
IRIS_M_2 APERTURE MOTOR
DRIVE
(18/26)
IC4404
44 IRIS_PI_E_2
43 IRIS_PI_E_1
D5
L2
L4
1
IRIS_PULSE_MONITOR 48
IRIS_PULSE_2 47
IRIS_PULSE_1
30
24
32
29 LENS_SO
LENS_MOUNT
LENS_SCK
LENS_SI
LSOUT
CSLNS
LSCK
LSIN
LENS_SO
XCS_LENS_MOUNT
LENS_SCK
LENS_SI 14
12
11
9
6
7
4
5
CN0504
46
45
48
47
CN4524
(1/2)
CN0505
(1/2)
FP-897
FLEXIBLE
BOARD
FP-895
FLEXIBLE
BOARD
(1/2)
DD-299
BOARD
(1/2)
LENS
CONTACTS
9H2 XCS_LENS
3
IC_4001_SO 12
IC_4001_SI
2
IC_4001_SCK
IC_4001_SO
IC_4001_SI
IC_4001_SCK
IC_4001_SO
IC_4001_SI
IC_4001_SCK
8
XLENS_RELEASE_SWXLENS_RELEASE_SW
CN5505
1XLENS_REL_SWxLENS_RELEASE_SW 71
XLENS_RELEASE_SW
(LENS RELEASE)
MB SLLK CONTACT
PIECE UNIT
F2OUT
F2IN
F3L
F3H
25
26
27
28
BUFFER
Q4110
LEVEL
SHIFT
Q4108, Q4109
EXT_FLASH_F2
EXT_FLASH_F3
3
EXT_FLASH_TRIGGEREXT_FLASH_TRIGGER
CN4523
(1/3)
F1
F2
F3
CN901
ACCESSORY
SHOE
5H1 XCS_IO
4J4 XCS_EXT_FL
OVERALL (6/6)
(PAGE 3-6)
6
OVERALL (1/6)
(PAGE 3-1)
3
OVERALL (4/6)
(PAGE 3-4)
7
XLENS_RELEASE_SW_IMG D4506
05
Q7201
3-4
DSLR-A900_L2

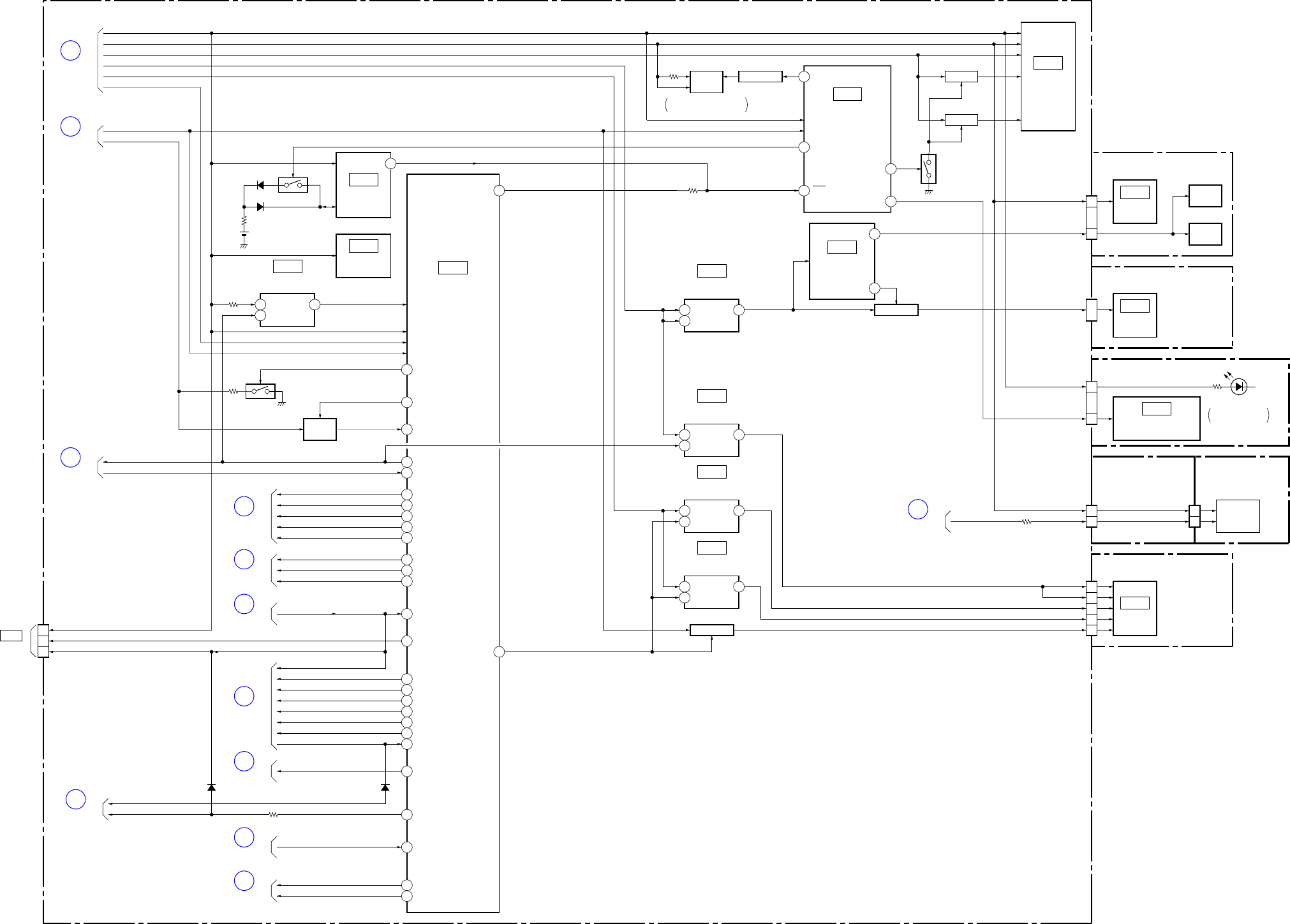

3-4. OVERALL BLOCK DIAGRAM (4/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
GY-009 FLEXIBLE
BOARD IF-161 FLEXIBLE BOARD
TOP-004 FLEXIBLE BOARD (2/3)HOL-005 FLEXIBLE
BOARD
YAW
SENSOR
ACT903
ACTUATOR
(YAW)
SE5702
REMOTE
SENSOR
IC5701
HALL
ELEMENT
IC7501
ANTI-SHAKE
ANALOG
MASTER
(20/26)
IC4301
ANTI-SHAKE
CONTROLLER,
SUB CPU
(19/26)
IC4201
DISPLAY PANEL
DRIVE
(2/2)
IC7301
ANTI-SHAKE
DRIVE
(21/26)
IC4801
4
G4 G6 42
23
98
25K2
G1
2 15
16
A3
C2
C16
GOUT_Y
PITCH
SENSOR
SE5701
Q4301
GOUT_P
GINB GYRO_OUT_YAW
1ST_CURTAIN_MG
XCS_AS
24
119
120
1
L17
XAS_ACTIVE
30J1 STOP_AS
31
P13
AS_BUSY
13
7
B15
P16
G4
G5
G2
R17
D17
32KHZ 32KHZ
32KHZ
32
N16
XAS_ENABLE
XCS_AS
XAS_ACTIVE
STOP_AS
AS_BUSY
XAS_ENABLE
90
M16
5
RTC_SIO
XCS_EEXCS_EE
CS_RTC
RTC_SIO
CS_RTC
IC_4001_SCK
IC_4001_SCK
IC_4001_SO
IC_4001_SI
IC_4001_SCK
IC_4001_SO
IC_4001_SI
IC_4001_SCK
IC_4001_SO
IC_4001_SI
XAS_RESET_BUFFEREDXAS_RESET
XRTC_DET_RESET
VDD
D1 40
YAW_POS_SENSE
E7 39
PITCH_POS_SENSE
BL_K
FINDER_LCD_BL
F3 41
GYRO_OUT_PITCH
H6 35
VREF_YAW
G3 34
VREF_PITCH
H8 22
GYRO_ON
F1 21
G7
HALL_ON
144 19
YAW_2
153 18
YAW_1
10 12
PITCH_2
11
8
711
28
45
PITCH_1
GYRO_OUT_YAW
YAW_POS_SENSE
PITCH_POS_SENSE
GYRO_OUT_PITCH
VREF_YAW
VREF_PITCH
GYRO_ON
HALL_ON
YAW_2
YAW_1
PITCH_2
PITCH_1
GINA
8
5
11
10
13
VBRA5
PIN_Y
POUT1P PINBHP
BR_Y2
BR_Y1
ACT902
ACTUATOR
(PITCH)
BR_P2
BR_P1
BR_Y2
BR_Y1
BR_P2
BR_P1
TRC_Y
PSPWR
AS_5.0V
IR_REMOTEIR_REMOTE
5
H4
VREF_Y GREFB1_COM
3
11
F2
VREF_P GREFA1_COM
9
1, 12
8 - 31
6
1B3
POUT1N PINBHN
11
9A4
POUT4P PINBLP
3
7B4
POUT4N PINBLN
8
6C5
POUT3P PINAHP
9
12 B6
POUT2P PINALP
4
14 A6
POUT2N PINALN
5
4B5
POUT3N PINAHN
10
2
16
2
19
15
13
14
14
CN4517
CN4504
CN4514
CN4523
(2/3)
6
8
9
109
107
108
43
44
XDIAL_1_A
XDIAL_1_B
XDIAL_2_A
XDIAL_2_B
VH_SENSE_LED_ON
VH_SENSE_1
VH_SENSE_2
3
C8
F8
PIN_P TRC_P
7
MAIN CPU
(16/26)
IC4001
(3/5)
LED
DRIVE
SLANT
SENSOR
Q4201PH4201
REAL TIME
CLOCK
(16/26)
IC4004
32K EEPROM
(16/26)
IC4003
49 - 72
SEG0 - SEG23
4 - 7
83 - 86
COM0 - COM3
SEG0 - SEG23
COM0 - COM3
SEG0 - SEG23
COM0 - COM3
1 - 20
36 - 39
SEG0 - SEG19
COM0 - COM3
Q4705
FINDER LCD
BACKLIGHT
PWM
LCD902
FINDER
LCD
CMOS_TEMP_1
STAR_SI_AS
99 STAR_SO_AS
100
STAR_SCK_AS
102
STAR_CS_AS
117
AS_E1_BLINK
X4201
4MHz
8
7
X4003
32.768kHz
HORIZONTAL/VERTICAL
POSITION DETECT
OVERALL (1/6)
(PAGE 3-1)
2
OVERALL (6/6)
(PAGE 3-6)
8
IC_4001_SCK
IC_4001_SO
IC_4001_SI
OVERALL (3/6)
(PAGE 3-3)
7
OVERALL (2/6)
(PAGE 3-2)
5
OVERALL (5/6)
(PAGE 3-5)
9
103
104
XKEY_MAT_IN_7
346
SUB_LCD_SO LCD_SO
184 45
SUB_LCD_SCK LCD_SCK
172 44
SUB_LCD_CS LCD_CS
2010 48
SUB_LCD_STANDBY LCD_CO
XKEY_MAT_IN_0
AM-015 BOARD (4/6)
05
1
1
2
IC_4001_SCK 6
IC_4001_SO 5
IC_4001_SI 2
12
3
4
D4002
BT901
LITHIUM
BATTERY
D4003
Q4002
LI_CHARGE_CTRL
A14
A15
X4001
10MHz
D101
FINDER
BACKLIGHT
LED_K
SUB_LCD_BL
27
21
Q4710
DISPLAY PANEL
BACKLIGHT
ON/OFF
D7301
DISPLAY PANEL
BACKLIGHT
LCD903
DISPLAY
PANEL
3-5
DSLR-A900_L2
3-5. OVERALL BLOCK DIAGRAM (5/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
XDIAL_1_A
XDIAL_1_B
XDIAL_2_A
XDIAL_2_B
BZ7201
(BUZZER)
BUZZER BUZZER
7
CN4523
(3/3)
1
CN7203
TOP-004 FLEXIBLE BOARD (3/3)
AM-015 BOARD (5/6)
CONTROL SWITCH BLOCK
(RL85100)
7
CN7202
CN7201
CONTROL SWITCH BLOCK
(TK85100)
CONTROL SWITCH BLOCK
(PS85100) (2/2)
CONTROL SWITCH BLOCK
(JY62300)
CONTROL SWITCH BLOCK
(MD85100)
CONTROL SWITCH BLOCK
(FS85100)
SHUTTER
BUTTON
XS1
2
14
15
12
13
11
10
9
23
22
24
8
25
1
2
9
XS2
xDIAL_1_A
6xDIAL_1_B
xDIAL_2_A
xDIAL_2_B
xOVR_COM
xOVR_SW
xDRIVE_COM
15 xISO/WB_COM
xMODE_DIAL_COM
xMODE_DIAL_B
8xDRIVE_SW
14 xWB_SW
13 xISO_SW
xDIAL_1_A
xDIAL_1_B
xDIAL_2_A
xDIAL_2_B
xKEY_MAT_SEL_2
xKEY_MAT_SEL_1
XKEY_MAT_SEL_2
26
2
5xMODE_DIAL_A
4xMODE_DIAL_C
3xKEY_MAT_SEL_4
XKEY_MAT_SEL_4
xKEY_MAT_IN_3 XKEY_MAT_IN_3
XKEY_MAT_IN_3
xKEY_MAT_IN_2
xKEY_MAT_IN_0
xKEY_MAT_IN_1
XKEY_MAT_IN_0
XKEY_MAT_IN_1
xPREVIEW_SW
xS1
xS2
XS1
XS2
CN4516
CN4511
(2/2)
CN7001
5
4xPREVIEW_COM
XKEY_MAT_SEL_0
XKEY_MAT_SEL_3
XS1
XS2
F2
B1
E1
F1
MAIN CPU
(16/26)
IC4001
(4/5)
S021
FRONT CONTROL
DIAL
12
11
S022
REAR CONTROL
DIAL
S001
(PREVIEW)
S003
(METERING MODE)
7
T12
U12
3
6
5
2
1
XDIAL_2_WAKE
B11
D11
XKEY_MAT_IN_2
A11
D12
T4
N5
XKEY_MAT_SEL_0 N4
XKEY_MAT_SEL_1
XKEY_MAT_SEL_1
XKEY_MAT_SEL_0
XKEY_MAT_SEL_4
XKEY_MAT_SEL_2
P4
U4
XKEY_MAT_IN_4
B12
XKEY_MAT_IN_5
A12
XKEY_MAT_IN_6
B13
XKEY_MAT_IN_7
XKEY_MAT_IN_7
XKEY_MAT_IN_0
A13
SWITCH
DETECT
(26/26)
IC4501 XDIAL_1_WAKE
D7205
D7206
D7202
D7201
D7212
D4503
xAF_MODE_SW_A
3xAF_MODE_SW_B
2xAF_MODE_COM
XKEY_MAT_SEL_1
XKEY_MAT_IN_4
xAF_AEL_COM
xJOY_STICK_U
xJOY_STICK_L
XKEY_MAT_IN_3 xAEL_SW
xAF_SW
1
8
7
4
XKEY_MAT_IN_6 9
XKEY_MAT_IN_7 10
XKEY_MAT_IN_5 6
11
XKEY_MAT_SEL_4 1
5
XKEY_MAT_SEL_2 3
14
15
16
xCUST_FUNC_COM 2
8
9
xJOY_STICK_C 7
xJOY_STICK_R 6
xJOY_STICK_COM
xLM_COM
4
11
xJOY_STICK_D
xLM_SW_A
12
13
1
xLM_SW_B
xCUSTOM_SW
10
xFUNCTION_SW
XPOWER_SW
5
+/-
S018
ISO
S017
WB
S019
DRIVE
S020
AEL/SLOW SYNC INDEX /
S002
AF/MF ENLARGE /
ON
r
OFF
ON
r
OFF
SteadyShot
S001
MENU
S7103
S7101
S7001
DISP
S7104
DELETE
POWER
S7105
N
S7106
C / HISTOGRAM
S005
Fn / IMAGE ROTATION
S006
v
b
z
B
V
S004
(MULTI-SELECTOR)
(EXPOSURE)
3
4xLCDBL_COM
xLCDBL_SW
DISPLAY PANEL
ILLUMINATION
S025
D4502
S001
(MODE DIAL)
S003
(FOCUS MODE)
D7003
D7002
D7001
D7006
D7007
D7005
D7101
D7102
D7004
OVERALL (4/6)
(PAGE 3-4)
9
OVERALL (6/6)
(PAGE 3-6)
10
05
3-6
DSLR-A900_L2
3-6. OVERALL BLOCK DIAGRAM (6/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
1
2
3
CN0502
CN0501
CN0505
(2/2)
B+ SWITCH
Q0501 - Q0505 BATT_UNREG
BATT_SIGBATT_IBBATT_IB
ACV_UNREG
LVDD0,
UNREG
UNREG+6.0V
EVER_3.3V
EVER_1.5V
IC_4001_3.3V/5.0V
IC_4001_6.0V
CMOS_-2.2V
CMOS_2.5V
CMOS_2.1V
MEDIA_3.3V
IMG_3.3V
IMG_1.8V_NZ
IMG_1.8V_4S
IMG_1.2V
AS_5.9V
BATT/XEXT
xDC_JACK_SENSExDC_JACK_SENSEXDC_JACK_SENSE
D0503
D0504
DD-299 BOARD (2/2)
FP-895
FLEXIBLE
BOARD
(2/2)
3
1, 24, 5
BT902
BATTERY
TERMINAL
+
S
–
DC IN
J902
DC CONTROL
(2/2)
IC0001
MAIN CPU
(16/26)
IC4001
(5/5)
DD_ON
CS_DD
IC_4001_SCK
IC_4001_SO
DDON_DD
XCS_DD
SCK_DD
SO_DD
M13
U16
T16
T15
T17
P17
L13
K13
N5
N7
IC_4001_SCK
IC_4001_SO
IC_4001_SCK
IC_4001_SO
XCS_HPY1XCS_HPY1
IC_4001_SI
IC_4001_SCK
IC_4001_SO
IC_4001_SI
DD_ON
CS_DD
DD_ON
CS_DD
XCA_RESET
XCA_RESET XCA_RESET CA_UNREG
M17
XIMG_RESET_OUT XIMG_RESET
10
16
17
13
14
15
42
36
35
39
38
37
BATTERY
DETECTOR
(22/26)
IC4601
3.7V DETECT
(23/26)
SYNCHRO
TERMINAL
CONTROL
IC4713
E4
51
B2
D5
C5
B5
B1
2
1
CN5602
CN5601
D5602
CN5503
FP-898
FLEXIBLE
BOARD
MA-453 FLEXIBLE BOARD (3/3)AM-015 BOARD (6/6)
FP-896
FLEXIBLE
BOARD
S1
1
37
39
31
80
S2
S1
S2
XS1
XS2
SYNC_TERMINAL_A
Q5603
J901
SYNCHRONISE
TERMINAL
UNIT
(to VERTICAL GRIP)
REMOTE
CN902
FLASH SYNC
K4
B10
15 xCS_VGXCS_VG
29
R16
C2
U14
D9
D1
E2
14 xCS_HPY2XCS_HPY2
13 IC_4001_SCK
27 12 IC_4001_SI
11 IC_4001_SO
25 10 xWAKE_BY_VGXWAKE_BY_VG
21 7 BATT_1_ONBATT_1_ON
19 6 BATT_1_SELBATT_1_SEL
17 5 BATT_2_ONBATT_2_ON
15 4 BATT_2_SELBATT_2_SEL
13 3 XIC_4601_RESET
xCS_VG
xCS_HPY2
IC_4001_SCK
IC_4001_SI
IC_4001_SO
IC_4001_SCK
IC_4001_SO
xWAKE_BY_VG
BATT_1_ON
BATT_1_SEL
BATT_2_ON
BATT_2_SEL
XIC_4601_RESETXIC_4601_RESET
XCS_VG
SYNC_TERMINAL_CTRLSYNC_TERMINAL_CTRL
XCS_HPY2
IC_4001_SI
XWAKE_BY_VG
BATT_1_ON
BATT_1_SEL
BATT_2_ON
BATT_2_SEL
9xS2xS2
OVERALL (5/6)
(PAGE 3-5)
10
OVERALL (3/6)
(PAGE 3-3)
6
OVERALL (4/6)
(PAGE 3-4)
8
OVERALL (1/6)
(PAGE 3-1)
4
CN4507
(3/3)
CN4524
(2/2)
05
D4704
3-7
DSLR-A900_L2
3-7. POWER BLOCK DIAGRAM (1/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
3
1
2
8
16
17
12
11
14
15
11
10
13
14
15
3
1, 24, 5
CN0502
CN0501
1 - 3
12, 13
25 - 30
45 - 51 35, 36
22 - 24
31 - 34
18, 19 43, 44
37 - 39
20, 21
CN0503
CN0505
B+ SWITCH
SWITCHING
Q0501 - Q0505
BATT_UNREG
BATT_SIG
AS_5.9V
IMG_1.2V
UNREG
xDC_JACK_SENSE
BATT_IB
IC_4001_3.3V_POWERON
CMOS_2.1V
MEDIA_3.3V
CMOS_2.5V
IC_4001_6.0V
UNREG+6.0V
DD_ON_2
DD_ON
CS_DD
IC_4001_SCK
IC_4001_SO
DD_ON
CS_DD
IC_4001_SCK
IC_4001_SO
ACV_UNREG
BATT/XEXT
D0503
D0504
D0005F0004 L0011
Q0011
SWITCHING
Q0009, Q0010
B+ SWITCH
Q0003, Q0008
SWITCHING
Q0001, Q0018
Q0012
Q0014, Q0015
F0003
F0006
DC CONTROL
(2/2)
VIN
SW
NGATE
IC0006
DC CONTROL
(2/2)
IC0001
-2.2V REG
(2/2)
IC0005
DC CONTROL
(1/2)
3.3V REG
(2/2)
IC0002
7
OUT10-1
C15
OUT9-1
A13
OUT9-2
A14
OUT10-2
B15
VS10
B14
DRUM_IN
E15
-INE10
D14
DIN
M13
CLK
L13
LD
K13
CTL1 N5
+INE10
C14
VR P4
+INE9
B12
-INE9
C12
5
8
VFB 2
RUN/SS 6
VS9
B13
CAP_IN
A11
L0002
IMG_1.8V_4S
IMG_1.8V_NZ
IMG_3.3V
L0010
L0001
IN1
H13
H15
PVDD1a
CMOS_-2.2V
EVER_3.3V
EVER_1.5V
IC_4001_3.3V/5.0V
H14
PVDD1b
J15
PVDD3a
IN2 E3
J14
PVDD3b
5VEE 3Vout
4SSV
6VIN 1VOUT
4ON/OFF
2Vor
IN6
N10
IN7 F3
IN8 C7
DVDD5
N15
VB B1
DVDD1 A1
PVDD11 A2
PVDD10 A3
PVDD12 A4
1CTL
A5 PVDD8a
B5 PVDD8b
P15
DVDD4
R5 AVDD1
M1 AVDD2
L1 AVDD3
N1 B_UNREG
P1 V_UNREG
R10
PVDD6a
P10
PVDD6b
F1 PVDD7a
F2 PVDD7b
F0002
E1 PVDD2a
E2 PVDD2b
F0001
A10
PVDD5a
B10
PVDD5b
F0005
R11
PVDD4a
P11
PVDD4b
G15
LX1a
G14
LX1b
L0003
D1LX2a
D2LX2b
L0004
K15
LX3a
K14
LX3b
A9LX5a
B9LX5b
L0007
R9LX6a
P9LX6b
G1LX7a
G2LX7b
D0001
D0004
IN3
J13
IN5 C8
IN4
N11
D0006,
D0007
D0003
DVDD2
A12
DVDD3
D15
5.0V REG
(2/2)
IC0003
4VIN
1CONT
3VOUT
1.5V REG
(2/2)
IC0004
6VIN 1VOUT
4ON/OFF
B+ SWITCH
Q0002, Q0004
DD-299 BOARD
BT902
BATTERY
TERMINAL
+
S
–
DC IN
J902
POWER (2/6)
(PAGE 3-8)
A
05
L0008
LEAK CURRENT
REDUCTION
Q0511 (1/2)
LEAK CURRENT
REDUCTION
Q0510 (2/2)
LEAK CURRENT
REDUCTION
Q0511 (2/2)
IC0502
A6LX8a
B6LX8b
L0009
5 - 8
LENS_PWR_ON_LOW
FP-897
FLEXIBLE
BOARD
LVDD1 LVDD1
LVDD0
LVDD1
LVDD0
13
CN0504
D0512 - D0514
Q0506
B+ SWITCH
XLVDD0_PWRON_SSM
XLVDD0_POWERON
D0516
D0515
Q0507
B+ SWITCH
F0502 LENS
CONTACTS
POWER (2/6)
(PAGE 3-8)
B
8
3
2
9
LVDD1
LENS_PWR_ON_LOW
XLVDD0_PWRON_SSM
XLVDD0_POWERON
L0006
LEAK CURRENT
REDUCTION
Q0510 (1/2)
1
3
4
–
+
F0501
Voltage selection of
IC_4001_3.3V_POWERON
IC_4001_3.3V/5.0V
HL
5.0V 3.3V
3-8
DSLR-A900_L2
3-8. POWER BLOCK DIAGRAM (2/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
BUFFER
(26/26)
IC4503
(26/26)
IC4502
MIRROR
CHARGE MOTOR
DRIVE
(18/26)
IC4401
SWITCH
DETECT
(26/26)
IC4501
BATTERY
DETECTOR
(22/26)
IC4601
Q4406
B+ SWITCH
UNREG
IC_4001_3.3V_POWER_ON
IC_4001_6.0V
AS_5.9V
3STBY
2PWM
F4415
AF MOTOR
DRIVE
(18/26)
IC4403
F4413
APERTURE
MOTOR DRIVE
(18/26)
IC4404
F4414
CA_UNREG
CA_UNREG
IC_4001_6.0V
CA_UNREG
CA_UNREG
EVER_3.3V
F4412
3.7V DETECT
(23/26)
IC4713
5VDD 1VOUT
13IB
3MD2
9VCONT
DA_OUT_AF_PI
3MD2
Q4407
B+ SWITCH VDA1
VDA0
AS_5.9V
XCA_RESET
13IB
XCA_RESET
E4 TxRx B2RESET
xDC_JACK_SENSE
FP-895 FLEXIBLE
BOARD
AM-015 BOARD (1/5)
IF-161
FLEXIBLE
BOARD
POWER (5/6)
(PAGE 3-11)
L
POWER (3/6)
(PAGE 3-9)
N
POWER (4/6)
(PAGE 3-10)
O
POWER (3/6)
(PAGE 3-9)
P
POWER (5/6)
(PAGE 3-11)
Q
POWER (3/6)
(PAGE 3-9)
R
POWER (5/6)
(PAGE 3-11)
S
POWER (3/6)
(PAGE 3-9)
MPOWER (3/6)
(PAGE 3-9)
X
POWER (6/6)
(PAGE 3-12)
F
POWER (5/6)
(PAGE 3-11)
G
POWER (4/6)
(PAGE 3-10)
E
POWER (3/6)
(PAGE 3-9)
D
POWER (3/6)
(PAGE 3-9)
C
POWER (3/6)
(PAGE 3-9)
H
POWER (6/6)
(PAGE 3-12)
K
CN4514
3
BL_A
CN4508
CN4525
4
C_COM
SH_COM
SREL(+)RELEASE_MG+
MREL(+)
EVER_3.3V
R4550
R4706
8
36
35
40
14
11
15
41
42
39
38
37
1 - 3
12, 13
18 - 21
1 - 7 16, 17
22 - 27
33, 34 8, 9
13 - 15
31, 32
POWER (1/6)
(PAGE 3-7)
A
POWER (1/6)
(PAGE 3-7)
B
BATT_IB
BATT_IB
IC_4001_3.3V_POWERON
XDC_JACK_SENSE
IC_4001_3.3V_POWER_ON
UNREG+6.0V
EVER_3.3V
EVER_1.5V
IC_4001_3.3V/5.0V
IC_4001_6.0V
UNREG+6.0V
EVER_3.3V
EVER_3.3V
EVER_1.5V
IC_4001_3.3V/5.0V
IC_4001_6.0V
CMOS_-2.2V
CMOS_2.5V
CMOS_2.1V
MEDIA_3.3V
UNREG
IMG_3.3V IMG_3.3V
IMG_3.3V
IMG_3.3V_NZ_USB
IMG_3.3V_POWER_ON
IMG_1.8V_POWER_ON
IMG_1.2V_POWER_ON
IMG_1.8V_NZ
IMG_1.8V_4S
IMG_1.2V
AS_5.9V
IC_4001_SO
IC_4001_SCK
CS_DD
DD_ON
DD_ON_2
CN4524
CN4520
IC_4001_3.3V
IC_4001_3.3V
AS_5.9V
IC_4001_6.0V
CMOS_-2.2V
CMOS_2.5V
CMOS_2.1V
MEDIA_3.3V
IC_4001_SO
IC_4001_SCK
CS_DD
DD_ON
DD_ON_2
41
2
IMG_1.8V_NZ
IMG_1.8V_4S
IMG_1.8V_NZ
IMG_1.2V
EVER_3.3V
Q4505, Q4509,
Q4512
B+ SWITCH Q4510
B+ SWITCH
Q4504, Q4508
B+ SWITCH
Q4503, Q4507
B+ SWITCH
Q4502, Q4506
B+ SWITCH
Q4511
B+ SWITCH
1
3
6
7
5
2
EVER_3.3V
EVER_4.5V
VREF_CAM
CA_UNREG
4.5V REG
(23/26)
IC4704
VIN
6ON/OFF
3VOUT
2, 5
3.3V REG
(23/26)
IC4707
VIN
6ON/OFF
3VOUT
2, 5
D4702
D4701
05
D101
FINDER
BACKLIGHT
SHUTTER CHAGE
MOTOR DRIVE
(18/26)
IC4402 , Q4412 - Q4414
9VCONT
DA_OUT_IRIS_PI
5.5V REG
(18/26)
IC4405
3VIN 1VOUT
1
5 - 8
CONTROL
BLOCK
SHUTTER UNIT
28 - 30
50
44
49
43
LENS_PWR_ON_LOW
POWER (3/6)
(PAGE 3-9)
J
POWER (4/6)
(PAGE 3-10)
I
XLVDD0_POWERON
XLVDD0_PWRON_SSM
LVDD1
LENS_PWR_ON_LOW
XLVDD0_PWR_ON
XLVDD0_PWR_ON_SSM
LVDD1
ACT901
ACTUATOR
Q4405
3-9
DSLR-A900_L2
3-9. POWER BLOCK DIAGRAM (3/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
MAIN CPU
(16/26)
IC4001
B1 PF0/KEY16/DREQ0
T15
P40/CS0/KEY24
REAL TIME
CLOCK
(16/26)
IC4004
ANTI-SHAKE
ANALOG MASTER
(20/26)
IC4301
ANTI-SHAKE
CONTROLLER,
SUB CPU
(19/26)
IC4201
ANTI-SHAKE
DRIVE
(21/26)
PITCH
SENSOR
SE5701
IC4801
HALL
ELEMENT
IC7501
AF CCD
IC5801
32K EEPROM
(16/26)
IC4003
Q4002
Q4708
VOLTAGE
DETECT
Q4301
B+ SWITCH
Q4701
B+ SWITCH
Q4201
LED DRIVE
Q4802, Q4804
LIMITER
AS_5.0V
IC_4001_6.0V
IC_4001_6.0V
UNREG+6.0V
UNREG+6.0V
VREF_CAM
AFCCD_POWER_ON
IC_4001_3.3V_POWER_ON
XAS_RESET_BUFFERED
XRTC_DET_RESET
LCD_VDD
LI_CHARGE_CTRL
VREF_CAM VREF_CAM
CA_UNREG
EVER_3.3V
IC_4001_3.3V
EVER_3.3V
IC_4001_3.3V
AS_5.9V
IC_4001_3.3V
IC_4001_3.3V
AS_5.9V
IC_4001_6.0V
UNREG+6.0V
EVER_3.3V
IC_4001_3.3V
AS_5.9V
Q4805, Q4806
LIMITER
DV5_HALL VBRA5
GVCCO_COM GY_VCC YAW
SENSOR
SE5702
EVER_3.3V
EVER_1.5V
EVER_1.5V
VREF_CAM
IC_4001_2.5V
BATT_AD_IN
BATT_CHK_CTRL
XPOWER_SW
A6 DA0
DA_OUT_AF_PI
A8 DA1
DA_OUT_IRIS_PI
P17
RESET
XCA_RESET
XCA_RESET
H14
TRST
TRST
XCA_RESET
TRST
EVER_3.3V
XCA_RESET
M16
PG4/TBD4 XAS_RESET
M17
PG5/TPD2
XIMG_RESET XIMG_RESET_OUT
T5 P06/D6/AD6
LENS_PWR_ON
B16
PA7/TB2IN1
LENS_PWR_ON_SSM
U5 P07/D7/AD7
LENS_LOGIC_PWR_ON
P5 P05/D5/AD5
LENS_PWR_ON_LOW
F5 P90/TB6OUT
IMG_1.2V_POWER_ON
F4 P91/TB7OUT
IMG_1.8V_POWER_ON
U15
P41/CS1/KEY25
IMG_3.3V_POWER_ON
L16
PG1/TPD1
B9 PD4/TBCOUT
FOCUS_POS_LED_PWM
U9 P25/A21/A5/TB4IN1
AF_ASSIST_LED_ON
T9 P24/A20/A4/TB4IN0
AF_ASSIST_LED_H
C1 PF2/KEY18/DREQ4
XLENS_RELEASE_SW
XLENS_RELEASE_SW_IMG
XDC_JACK_SENSE
T16
P42/CS2/KEY26
DD_ON
L14
PG0/TPD0
T14
P66/A14/TB4OUT
P65/A13/SCLK1/CTS1
E5 P72/AN2
IC_4001_3.3V_POWER_ON
N17
PG7/TPD7
DD_ON_2
U16
P43/CS3/KEY27
CS_DD G2 P95/SCLK2/CTS2
IC_4001_SCK G5 P93/TXD2
IC_4001_SO
D4003
D4002
R4053
R4736
R4717
BT901
(LITHIUM BATTERY)
F8PSPWR
E3GVCCO
109
P12/INT2
20P44/TOT0
110
P13/INT3
90 INIT
7 P34/ZIN0
SLANT
SENSOR
PH4201
R4204
HORIZONTAL/VERTICAL
POSITION DETECT
AM-015 BOARD (2/5)
HOL-005 FLEXIBLE BOARD
AF-117 FLEXIBLE BOARD
AP-032 FLEXIBLE
BOARD
AFM-003 FLEXIBLE
BOARD
GY-009 FLEXIBLE BOARD
7
REMOTE
SENSOR
IC5701
13
CN4517
CN6101
CN4512
R4530
R7305
CN4515
1, 12
Vdc1AFCCD_9.2V 11
Vdc2AFCCD_8.0V 17
VrefAFCCD_3.3V 13
Vcc5aAFCCD_5.0V 18
Vcc5d 10
CN4504
DISPLAY PANEL DRIVE
(2/2)
IC7301
EVER_3.3V
LCD_VDD
TOP-004 FLEXIBLE BOARD
16
6
CN4523
5.0V REG
(23/26)
IC4710
VIN
1
3
CTRL
4 VOUT
9.2V REG
(23/26)
IC4705
VIN
1
4
CTRL
5 VOUT
8.0V REG
(23/26)
IC4708
VIN
1
4
CTRL
5 VOUT
5.0V REG
(23/26)
IC4703
VIN
1
3
CTRL
4 VOUT
IRIS_PI_C APERTURE
MOTOR
ROTATION
DETECT
PH6201
11
VDA1 IRIS_PI_A 12 5
4
2.5V REG
(23/26)
IC4702
VDD
1
3
CE
4 VOUT
POWER (2/6)
(PAGE 3-8)
N
POWER (2/6)
(PAGE 3-8)
D
POWER (2/6)
(PAGE 3-8)
P
POWER (2/6)
(PAGE 3-8)
C
POWER (2/6)
(PAGE 3-8)
R
POWER (2/6)
(PAGE 3-8)
J
POWER (5/6)
(PAGE 3-11)
U
POWER (5/6)
(PAGE 3-11)
V
POWER (2/6)
(PAGE 3-8)
X
POWER (4/6)
(PAGE 3-10)
T
POWER (2/6)
(PAGE 3-8)
H
POWER (2/6)
(PAGE 3-8)
M
D4506
05
CN4513
2
1
7
CPC
(For Check)
DUMMY_LOAD_CTRL
Q4704
DUMMY LOAD
SWITCH
P14
D7301
DISPLAY PANEL
BACKLIGHT
VDCC 4
D4704
Q4801
3-10
DSLR-A900_L2
3-10.POWER BLOCK DIAGRAM (4/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
I/O CONTROLLER
(17/26)
IC4101
LOW-PASS
FILTER
(23/26)
IC4712
PHOTOMETRY
IC5901
SE901
LED901
Q4103
Q4105
B+ SWITCH
Q4706,
Q4707
R4716
R4719
AF ASSIST
LED CONTROL
Q4702, Q4703
AF ASSIST
LED DRIVE
SSM ACTIVE
SWITCH
LENS ACTIVE
SWITCH
IC_4001_3.3V/5.0V
IC_4001_3.3V/5.0V
EVER_3.3V
LENS_PWR_ON
XLVDD0_PWR_ON
Q4104
LENS_PWR_ON_SSM
XLVDD0_PWR_ON_SSM
LENS_LOGIC_PWR_ON
XLENS_RELEASE_SW
23LVSC7LV1C
8SLLK
D4101
6, 71 - 3
1 - 3
LVDD1
LVDD1
LED_ALED_A
XLENS_REL_SW xLENS_RELEASE_SW
MA-453 FLEXIBLE BOARD
FP-896 FLEXIBLE BOARD
AE-033 FLEXIBLE BOARD
EYE-008 FLEXIBLE BOARD
21
VDD
20
6
VCC
VP
EVER_3.3VEVER_3.3V
EVER_4.5V
CA_UNREG EYE_LED_A
XIC_4601_RESET
EVER_3.3VEVER_3.3V
XIC_4601_RESET (to VERTICAL GRIP)
3
CN5503
CN5502
CN5901
78
12, 14, 16
71
13
CN4507 Q5603
SYNCHRO
TERMINAL
CONTROL
TOKO
LED
EYEPIECE
SENSORS
POWER (2/6)
(PAGE 3-8)
O
POWER (3/6)
(PAGE 3-9)
T
POWER (2/6)
(PAGE 3-8)
E
Q5901
LED DRIVE
17IRED
IC_4001_3.3VIC_4001_3.3V
EVER_4.5V
CA_UNREG
XCA_RESET
Q4111, Q4112
R4539
B+ SWITCH
AS_5.9V
AS_5.9V
VDA0
VDA0
AF_ASSIST_LED_ON
AF_ASSIST_LED_H
FOCUS_POS_LED_PWM
AM-015 BOARD (3/5)
05
36, 3832, 34
8, 16
67
61, 63
SLK-004 FLEXIBLE BOARD
AF_PI_A
AF_PI_C
XIC_4601_RESET
AF_PI_A
AF_PI_C
5
8
CN5603
CN4503
CN5504
48, 50, 52
AF MOTOR
ROTATION DETECT
PH6301
D901
AF ILLUMINATOR/
SELF-TIMER
FP-889 FLEXIBLE BOARD
AF_LED_A
1
CN5505 (LENS RELEASE)
MB SLLK CONTACT
PIECE UNIT
POWER (2/6)
(PAGE 3-8)
I
3-11
DSLR-A900_L2
3-11.POWER BLOCK DIAGRAM (5/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
PROCESSOR
1
(1/26 - 6/26)
IC1001
PROCESSOR
2
(7/26 - 9/26)
IC2001
CF DETECT
(3/26)
IC1601
Q1602
Q1604
DISCHARGE
IMG_3.3V_NZ_USB L1801
L1001
L1802
IMG_1.8V_NZ_SLVDS
IMG_3.3V
EVER_3.3V
1G SDRAM
(5/26)
IC1201
1G SDRAM
(5/26)
IC1202
64M FLASH
(6/26)
IC1501
IMG_1.8V_NZ
IMG_1.8V_NZ
IMG_3.3V
MS_DISCHARGE
MS_3.3V_PWR_ON
MS_3.3V
L3002
L2304
L2305
IMG_1.2V
IMG_1.2V
L2301
L2303
L2302
1G SDRAM
(5/26)
IC1203
1G SDRAM
(5/26)
IC1204
B+ SWITCH
D1602
Q1603
Q1605
DISCHARGE
MEDIA_3.3V
CF_DISCHARGE
CF_3.3V_PWR_ON
XMEDIA_ACC_LED_ON
B+ SWITCH
Q3001 - Q3004
B+ SWITCH
Q1601
LED DRIVE
AJ3
GPIO_E__0
AJ2
GPIO_E__1
AJ6
GPIO_E__7
AJ5
GPIO_E__8
AN3
GPIO_E__2
XCF_RESET
AK22
CF_RESET
XIMG_RESET
XLENS_RELEASE_SW_IMG
XIMG_RESET
K6 XRESET
C4 GPIO_S__0
XE1_RST
HDMI_POWER_ON
F13
GPIO_E__16
B25
RESETx
J2CCDD6
C2SDD0
A25
GP3
XNZ_EMC_RESET
AA6
EMC_XRST C4 RESET
B4 RESET
D1001
(F/W UPDATE)
R1015
512M SDRAM
(8/26)
IC2002
512M SDRAM
(8/26)
IC2003
32M FLASH
(10/26)
IC2201
1.8V REG
(15/26)
IC3003
LCD BACKLIGHT
DRIVE
(23/26)
IC4711
HDMI
TRANSMITTER
(15/26)
IC3001
VIDEO
AMP
(15/26)
IC3002
IMG_1.8V_4S
IMG_1.8V_4S
IMG_3.3V
IMG_1.2V
IMG_1.8V_4S
5
CN3205
41
38
13
CN5202
49, 50 9, 16
5
CN5201
49, 50
CF_3.3V VCC
VCC
XCF_RESET -RESET
CF_3.3V
XCF_RESET
MS_3.3V VCC
1
CN3203
IMG_3.3V 3.3V
18
+5V
BL+
BL-
PANEL_BL_A
PANEL_BL_K
XPOWER_SWXPOWER_SW
MEDIA_ACC_LED_AMEDIA_ACC_LED_A
VDDIMG_3.3VIMG_3.3V
VDDIO
DE
IMG_1.8V_4SIMG_1.8V_4S
IC_4001_6.0V
CA_UNREG
5.0V REG
(25/26)
IC3201
5 VIN
CE
6OVP
4Vfb1EN
7SW
1 CNT
4VOUT
VOUT
FP-890 FLEXIBLE
BOARD
MM-079 BOARD
CONTROL SWITCH BLOCK
(PS85100)
D2 GPIO_E__4
C2 GPIO_E__5
C1 GPIO_E__6
B5 GPIO_E__20
C6 GPIO_E__21
C8 GPIO_E__24
C9 GPIO_E__25
C3 GPIO_S__14
CMOS_PWR_ON_6
CMOS_PWR_ON_1
CMOS_PWR_ON_5
CMOS_PWR_ON_3
CMOS_PWR_ON_4
CMOS_PWR_ON_8
CMOS_PWR_ON_7
CMOS_PWR_ON_2
D3201
D3202
3 inch
COLOR
LCD
MONITOR
BL901
BACKLIGHT
LCD901
2
XRSTXLCD_RST
XLCD_RST
11
1
33
32
CN4511 CN7101
24, 25
15
4
12
14
20
21
2
D7008
(ACCESS)
R7001
CPC
(For Check)
CF
CA_UNREG
BL_CTRL_PWM
L4701 D4705
POWER (3/6)
(PAGE 3-9)
V
POWER (2/6)
(PAGE 3-8)
S
POWER (2/6)
(PAGE 3-8)
Q
POWER (6/6)
(PAGE 3-12)
W
POWER (2/6)
(PAGE 3-8)
L
POWER (3/6)
(PAGE 3-9)
U
POWER (2/6)
(PAGE 3-8)
G
CN3208
MEMORY
STICK DUO
CN3202
HDMI
OUT
AM-015 BOARD (4/5)
CompactFlash/
Microdrive
05
XE2_RST
C10
GPIO_E__18
CLOCK
GENERATOR
(7/26)
IC2102
POWER
S7101
OFF
ON
3
1
VDD
4
PROCESSOR
3
(11/26 - 13/26)
IC2401
L2704
L2705
L2701
L2703
L2702
XIMG_RESET
B25
RESETx
B4 RESET
512M SDRAM
(12/26)
IC2402
512M SDRAM
(12/26)
IC2403
32M FLASH
(14/26)
IC2601
IMG_1.8V_4S
IMG_3.3V
IMG_1.8V_4S
IMG_3.3V
3-12E
DSLR-A900_L2

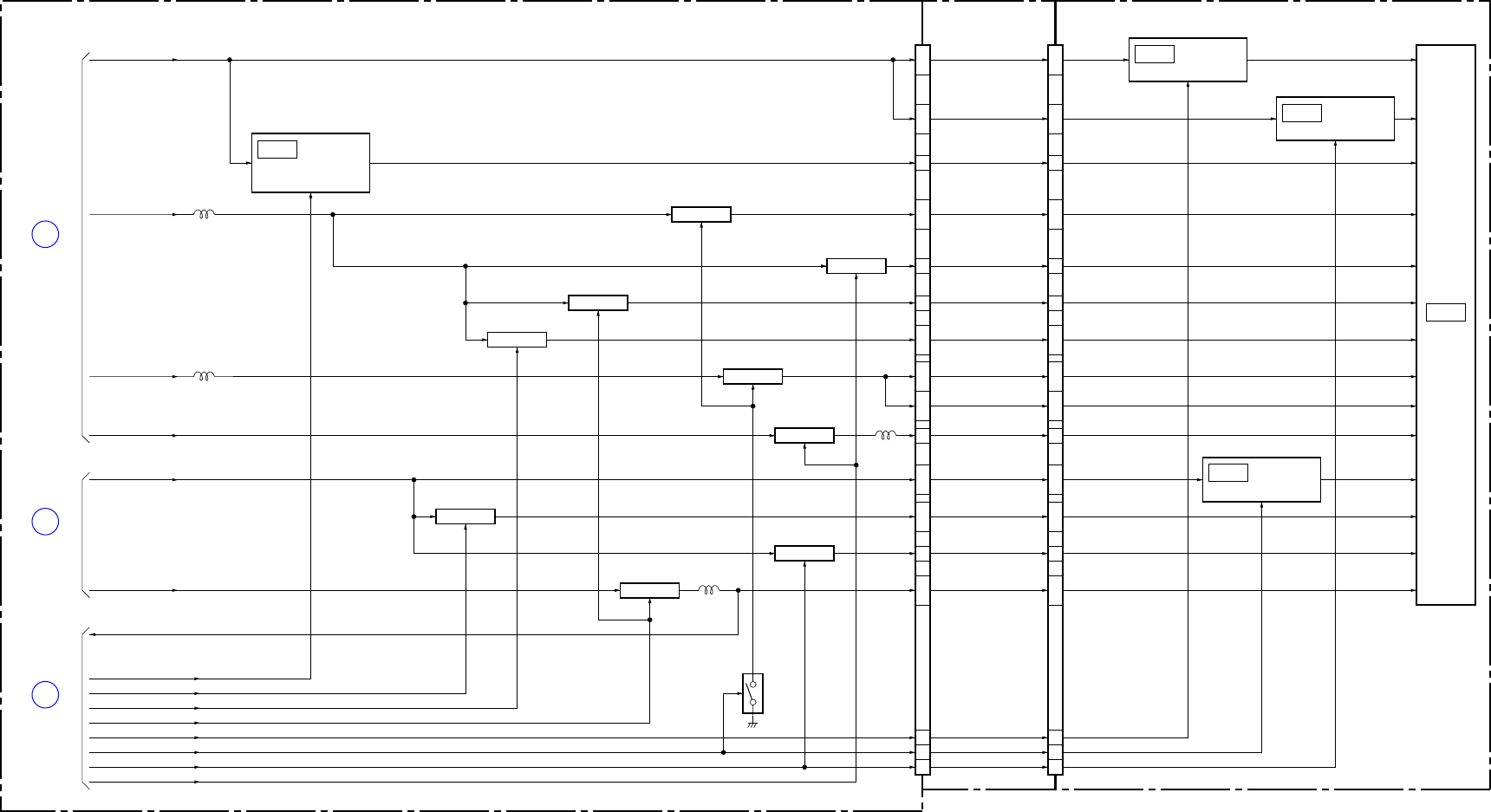

3-12.POWER BLOCK DIAGRAM (6/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
L3104
CMOS
IMAGER
IC5004
48, 49
2
4
3
14
VDDSV (A4.5V)
44, 45
VDDCM (A4.5V)
25, 26
VDDDA (A2.5V)
11, 127, 8
VDDCB (A2.0V)
33, 34
VDDSN (D2.0V)
40, 41
VDDSC (D2.5V)
37, 38
VDDIO (D3.3V)
29, 30
VDDCN (D2.0V)
CMOS_2.1V
CMOS_PWR_ON_6
IC_4001_6.0V
CMOS_PWR_ON_1
VDDLV (D1.8V)
CN5001CN3101
VDDSUB (4.5V)
18
VSSVRL (A-2.0V)
22
3, 4
50
48
49
38
7, 826, 27 40, 4144, 45 18, 1911, 1214, 1522, 23
20
VDDVRH (A3.0V)
32
34
16
PVLM (A2.5V)
36
30 VDDPL (PLL2.5V)
VDDSV_ON/GND
VDDCM_ON/MCK
VDDDA_ON/GND
CMOS_PWR_ON_5
2.5V REG
IC5003 , Q5001, Q5002
4.5V REG
(24/26)
IC3105 , Q3118, Q3122
IS-030 BOARDFP-893 FLEXIBLE
BOARD
Q3108, Q3111,
Q3121
B+ SWITCH
CMOS_PWR_ON_3
Q3104, Q3109,
Q3112, Q3127
B+ SWITCH
CMOS_PWR_ON_4
Q3116, Q3126
B+ SWITCH
CMOS_2.5V
Q3115, Q3125
B+ SWITCH
CMOS_-2.2V
CMOS_PWR_ON_8
Q3102, Q3114,
Q3120, Q3124,
Q3134
B- SWITCH
L3101
IMG_1.8V_NZ
IMG_1.8V_NZ_SLVDS
Q3105, Q3110,
Q3113, Q3129
B+ SWITCH
IMG_3.3V
CMOS_PWR_ON_7
Q3101, Q3119,
Q3123
B+ SWITCH
CMOS_PWR_ON_2
Q3107, Q3117,
Q3128
B+ SWITCH
POWER (2/6)
(PAGE 3-8)
K
POWER (2/6)
(PAGE 3-8)
F
POWER (5/6)
(PAGE 3-11)
W
AM-015 BOARD (5/5)
05
L3103
L3102
Q3130, Q3132,
Q3133
B+ SWITCH
4.5V REG
IC5002 , Q5004, Q5005
4.5V REG
IC5001 , Q5007, Q5008
Q3103
4-1
DSLR-A900_L2
4-1. FRAME SCHEMATIC DIAGRAMS
FRAME (1/2)
4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
FP-894 FLEXIBLE BOARD
250
151
1
250
51
16
1
6
116
116
1
280
79
116
12
34
12
34
250
151
116
2
1
30
31
1
1
18
18
16
2
1
14
15
1
15
1
31
12
34
120
1
226
27
250
151
12
34
16
250
151
1101918
11 17
20 21
22 23
24 25
IC1501
(Not supplied)
CN3101
CN3102
CN4503
CN4504
CN4507
CN4508
CN4509 CN4510
CN4511
CN4512
CN4514
CN4515 CN4516
CN4517
CN4518
CN4520
CN4523
CN4524
CN4525
CN3203
CN3205
CN3208
18
910
11 12
119
23
22
21
20
CN3207
USB/
VIDEO OUT
CN3202
HDMI
OUT
116
IC4003
(EEPROM)
BH4002
BATTERY
HOLDER
BT901
CN4513
13
114
250
1
1
1
14
1
51
51
51
CN0501
CN0504
CN0505
15
120
CN0502
CN0503
J902
DC IN
1
1
250
51
51
151
CN5201
50 26
25 1
52 51
1 2
CN5203
CN5202
CompactFlash/
Microdrive
250
1
1
1
51
51
1
51
1
51
51
250
151
CN5001
CN5002
1
1
10
1
10
16
CN6101
16
CN7201
127
116
16
CN7202
CN7203
HARNESS (DA-108)
B
To M903
AF MOTOR
(Page 4-2)
A
To MA-453 Flexible Board
(Page 4-2)
CN901
ACCESSORY SHOE
ZEBRA
RUBBER
CONNECTOR
CPC
(For Check)
CPC
(For Check)
BT901
LITHIUM BATTERY
BT902
BATTERY TERMINAL
+
S
–
LENS
CONTACTS
ACT901
ACTUATOR
ACT903
ACTUATOR
(YAW)
ACT902
ACTUATOR
(PITCH)
CONTROL
BLOCK
D901
AF ILLUMINATOR/
SELF-TIMER
LCD902
FINDER
LCD
MM
MM
MM
BL901
BACKLIGHT
LCD901
3 inch
COLOR LCD
MONITOR
LCD903
DISPLAY
PANEL
LEVEL3
AM-015 BOARD (SIDE A)
LEVEL3
DD-299 BOARD (SIDE A)
LEVEL3
DD-299 BOARD (SIDE B)
LEVEL3
AM-015 BOARD (SIDE B)
FP-895
FLEXIBLE
BOARD
FP-889
FLEXIBLE
BOARD
GY-009
FLEXIBLE
BOARD
IF-161
FLEXIBLE
BOARD
FP-890
FLEXIBLE
BOARD
AFM-003
FLEXIBLE
BOARD
AF-117
FLEXIBLE
BOARD
HOL-005 FLEXIBLE BOARD
TOP-004 FLEXIBLE
BOARD
AP-032
FLEXIBLE
BOARD
MM-079 BOARD (SIDE B)
IS-030 BOARD
MM-079 BOARD (SIDE A)
FP-897
FLEXIBLE
BOARD
FP-893 FLEXIBLE BOARD
MB BL CONTACT UNIT
VM IF LCD UNIT
MB MIRROR CHARGE
MOTOR UNIT
AP APERTURE UNIT
ALX-8510
(AF MODULE)
SLIDER UNIT
AF ASSIST LIGHT
BLOCK ASSY
OMEGA UNIT
SHUTTER
UNIT
M901
SHUTTER CHARGE
MOTOR
CONTROL
SWITCH
BLOCK
(FS85100)
CONTROL
SWITCH
BLOCK
(MD85100)
CONTROL
SWITCH
BLOCK
(TK85100)
CONTROL
SWITCH
BLOCK
(RL85100)
CONTROL
SWITCH
BLOCK
(PS85100)
CONTROL
SWITCH
BLOCK
(JY62300)
EN-023
BOARD
M904
APERTURE MOTOR
M902
MIRROR CHARGE
MOTOR
FRAME SCHEMATIC DIAGRAM (1/2)
4-2
DSLR-A900_L2 FRAME (2/2)
6
80 1
1 6
1
1
10
10
12
34
CN5602
CN902
FLASH SYNC
CN5603
CN5505
1
2
3
4
1
220
21
1
1
16
16
1
12
CN5601
CN5502
CN5503
CN5504
61
1
1
6
CN5901
21
1
A
To AM-015 Board
CN4507
(Page 4-1)
B
To AM-015 Board
CN4510
(Page 4-1)
MM
LED901
TOKO LED
SYNCHRONISE
TERMINAL
UNIT
SE901
EYEPIECE
SENSORS
to VERTICAL GRIP
AF DRIVING UNIT
VO PENTA UNIT
UNIT (EYE PIECE)
M903
AF MOTOR
MA-453
FLEXIBLE
BOARD
AE-033
FLEXIBLE
BOARD
EYE-008
FLEXIBLE
BOARD
FP-896 FLEXIBLE
BOARD
FP-898
FLEXIBLE
BOARD
SLK-004 FLEXIBLE BOARD
EN-022
BOARD
MB SLLK
CONTACT
PIECE UNIT
J901
REMOTE
FRAME SCHEMATIC DIAGRAM (2/2)
4-2. SCHEMATIC DIAGRAMS
DSLR-A900_L2
MM-079 BOARD (CF SLOT)
IS-030 BOARD (CMOS IMAGER)
MA-453 FLEXIBLE BOARD (1/2)
(CONNECTOR)
GY-009 FLEXIBLE BOARD
(GYRO SENSOR, REMOTE SENSOR)
AF-117 FLEXIBLE BOARD (AF CCD)
MA-453 FLEXIBLE BOARD (2/2)
(CONNECTOR)
HOL-005 FLEXIBLE BOARD
(HALL ELEMENT, ACTUATOR)
FP-898 FLEXIBLE BOARD (REMOTE JACK)
AE-033 FLEXIBLE BOARD (PHOTOMETRY)
IF-161 FLEXIBLE BOARD (FINDER)
EYE-008 FLEXIBLE BOARD (EYEPIECE)
SLK-004 FLEXIBLE BOARD (AF SENSOR)
FP-896 FLEXIBLE BOARD
(VERTICAL GRIP TERMINAL)
FP-889 FLEXIBLE BOARD
(AF ASSIST LIGHT)
AFM-003 FLEXIBLE BOARD
(AF/MF SWITCH, CHARGE CAM)
AP-032 FLEXIBLE BOARD
(APERTURE MOTOR)
FP-897 FLEXIBLE BOARD (LENS CONTACTS)
TOP-004 FLEXIBLE BOARD (2/2)
(DISPLAY PANEL DRIVE)
TOP-004 FLEXIBLE BOARD (1/2)
(BUZZER, ACCESSORY SHOE)
FP-893 FLEXIBLE BOARD
(AM-IS CONNECTION)
FP-894 FLEXIBLE BOARD
(AM-IS CONNECTION)
FP-895 FLEXIBLE BOARD
(AM-DD CONNECTION)
FP-890 FLEXIBLE BOARD
(AM-MM CONNECTION)
CONTROL SWITCH BLOCK (JY62300)
CONTROL SWITCH BLOCK (TK85100)
CONTROL SWITCH BLOCK (PS85100) (1/2)
CONTROL SWITCH BLOCK (PS85100) (2/2)
CONTROL SWITCH BLOCK (RL85100)
CONTROL SWITCH BLOCK (FS85100)
CONTROL SWITCH BLOCK (MD85100)
Link
Link
COMMON NOTE FOR SCHEMATIC DIAGRAMS
4-3
DSLR-A900_L2
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
(For schematic diagrams)
•All capacitors are in µF unless otherwise noted. pF : µ
µF. 50 V or less are not indicated except for electrolytics
and tantalums.
•Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
• Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum
capacitor, Because it is damaged by the heat.
• Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A2520
•Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
•Parts with ★ differ according to the model/destination.
Refer to the mount table for each function.
•All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
•Signal name
XEDIT → EDIT PB/XREC → PB/REC
•2: non flammable resistor
•5: fusible resistor
•C: panel designation
•A: B+ Line
•B: B– Line
•J: IN/OUT direction of (+,–) B LINE.
•C: adjustment for repair.
Kinds of capacitor
Case size
External dimensions (mm)
(ENGLISH)
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in
each block)
The components identified by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par une pièce portant le numéro
spécifie.
Precautions for Replacement of Imager
•If the imager has been replaced, carry out all the adjustments
for the camera section.
•As the imager may be damaged by static electricity from
its structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with
dusts nor exposed to strong light.
When indicating parts by reference number, please
include the board name.
(JAPANESE)
回路図共通ノート
（他に必要なノートは各ブロックに記載してあります）
【回路図ノート】
・ケミコン，タンタルを除くコンデンサで，耐圧50V以下のもの
はその耐圧を省略。単位はすべてμF（pはpF）。
・チップ抵抗で指示のないものは，1／10W以下。
kΩ＝1000Ω，MΩ＝1000kΩ
・チップ部品交換時の注意
取り外した部品は再使用せず，未使用の部品をご使用くださ
い。
タンタルコンデンサのマイナス側は熱に弱いため注意してくだ
さい。
・チップ部品には下記のように表示したものがあります。
 例 C 541 L 452
22U 10UH
TA A 2520
↑↑ ↑
種類 ケースサイズ 外形寸法（mm）
・抵抗，コンデンサ，ICなど定数にXXがあるものは，使用して
いない事を示しています。このため，使用していない回路が記
載されている事があります。
・★印のある部品は，機種などにより異なりますので機能別マウ
ント一覧表を参照してください。
・可変抵抗と半固定抵抗で，B特性の表示を省略。
・信号名表記について，下記のような場合があります。
XEDIT → EDIT     PB/XREC → PB/REC
・2は不燃性抵抗。
・1はヒューズ抵抗。
・Cはパネル表示名称。
・AはB＋ライン。
・BはB−ライン。
・JはBライン（＋，−）の入出力方向を示す。
・Cは調整名称。
お願い
図面番号で部品を指定するときは基板名又はブロック
を併せて指定して下さい。
イメージャ交換時の注意
・イメージャを交換した場合は，カメラ部の全調整を
行ってください。
・イメージャは構造上，静電気により破壊される恐れが
あるため，MOS ICと同様に注意して取り扱ってくだ
さい。
また，受光部にはゴミの付着，および強い光がはいる
ことのないように注意してください。
0印の部品，または0印付きの点線で囲まれた部品は，
安全性を維持するために重要な部品です。
従って交換時は，必ず指定の部品を使用して下さい。
4-4

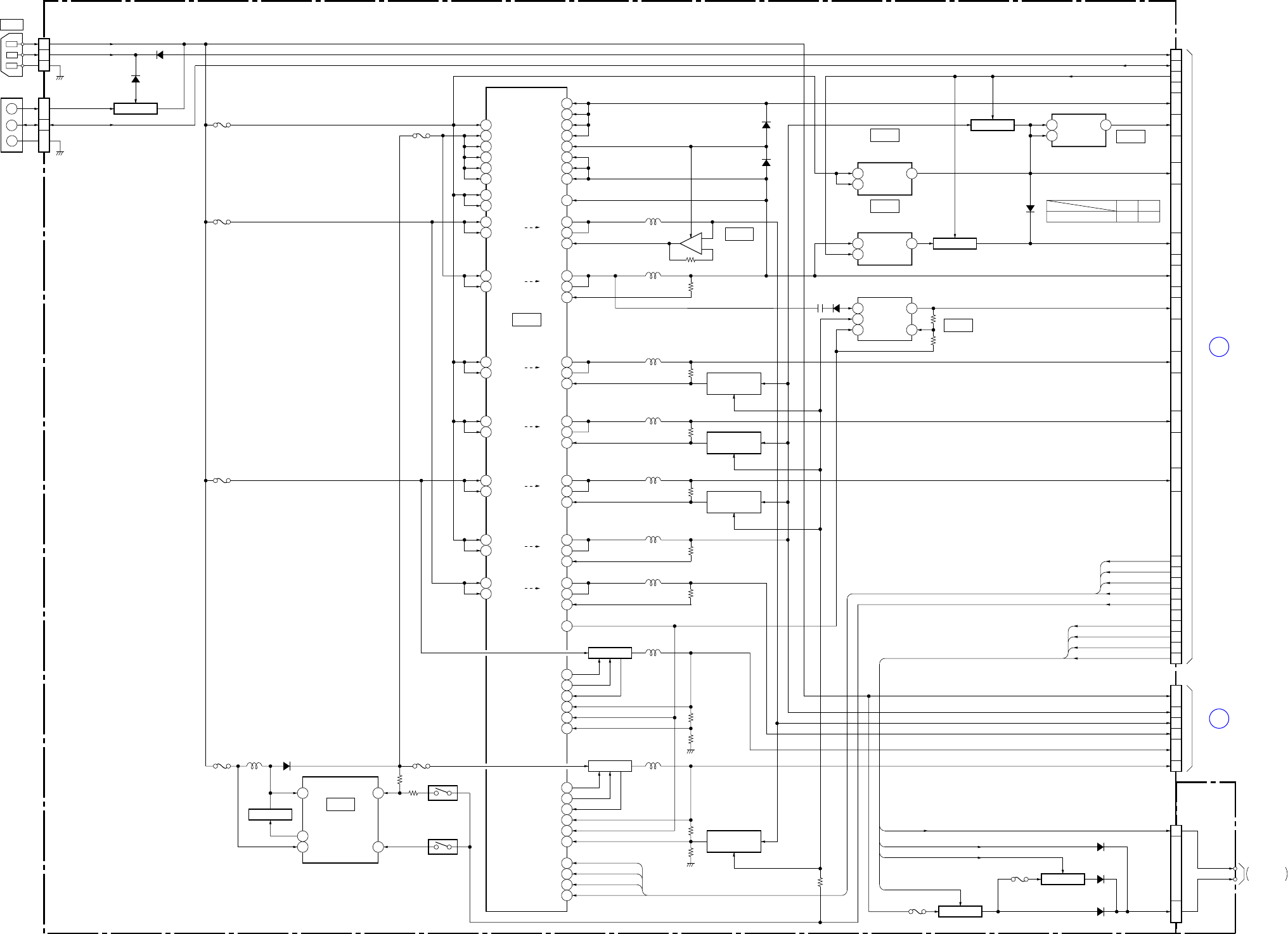

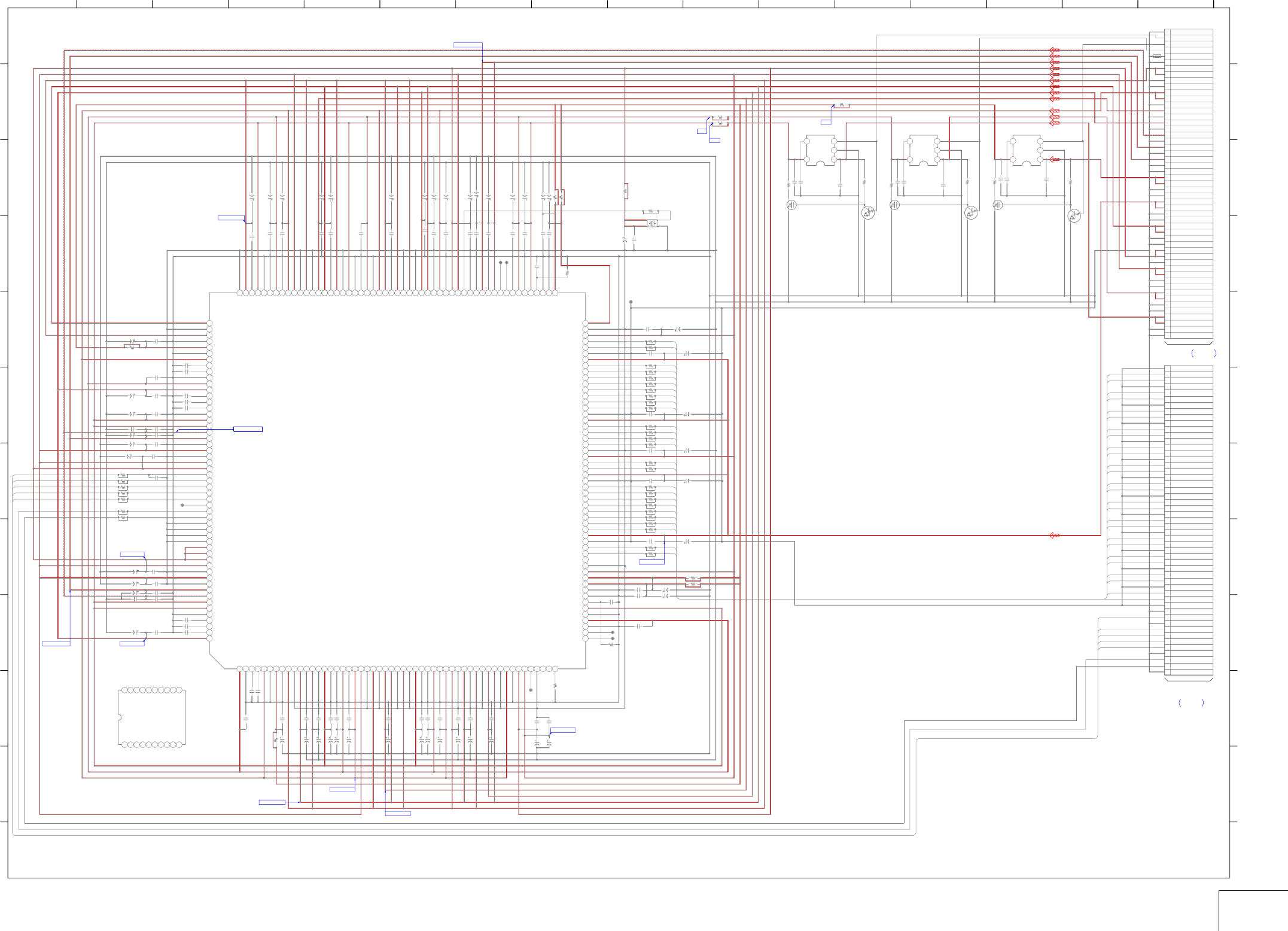

DSLR-A900_L2 IS-030
Note: IS-030 complete board and all mounted parts (including IC5004 (CMOS Imager))
are not supplied, but they are included in OMEGA unit.
B
C
9
A
I
H
F
5
F
L
3
H
K
G
13
J
C
7
A
62
I
E
16124
L
D
1
D
G
1511
K
B
E
14108
J
DM08
DM06
VDDCN_D2.0V
DP01
SDI
DP05
DM06
DP00
DM10
DM00
DM04
DP07
DM00
VSSVRL_A-2.0V
DP02
DM07
DP01
VDDPL_2.5V
DP07
DP09
SCK
VDDSUB_A4.5V
DP08
DM01
DM08
VDDSN_D2.0V
DP02
DM01
DPCK
DP11
VDDIO_D3.3V
DM05
DP09
DM02
SDO
DM09
DP03
DP03
VDDSC_D2.5V
VDDSC_D2.5V
DM09
XCLR
DP08
DP10
DM03
VDDVRH_A3.0V
VDDSV_A4.5V_1
DM10
DP04
DM02
DP00
DM11
DP06
DMCK
DM11
SDO
VDDCB_A2.0V
VDDCB_A2.0V
DM04
XCE
DP05
DP11
VDDDA_A2.5V_1
VDDDA_A2.5V_1
XCE
DP04
DM05
DP10
DM07
VDDLV_D1.8V
VDDLV_D1.8V
SDI
PVLM_A2.5V
DPCK
DM03
VDDCM_A4.5V
VDDCM_A4.5V
SCK
DMCK
DP06
XCLR
C5113 22u
6.3V
TH5001
C5011
0.033u 10V
C5087
4.7u
6.3V
C5060 0.1u
C5132
0.1u
C5039
0.1u
CL5115
R5025
XX
C5111
22u 6.3V
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
CL5190
C5148
0.47u
B
6.3V
CN5001 51P
1GND
2VDDSV_ON/GND
3VDDDA_ON/GND
4VDDCM_ON/MCK
5IMG_TEMP1
6GND
7VDDCN(D2.0V)
8VDDCN(D2.0V)
9GND
10 GND
11 VDDCB(A2.0V)
12 VDDCB(A2.0V)
13 GND
14 VDDSUB(4.5V)
15 GND
16 PVLM(A2.5V)
17 GND
18 VSSVRL(A-2.0V)
19 GND
20 VDDVRH(A3.0V)
21 GND
22 VDDPL(PLL2.5V)
23 GND
24 GND
25 VDDDA(A2.5V)
26 VDDDA(A2.5V)
27 GND
28 GND
29 VDDLV(D1.8V)
30 VDDLV(D1.8V)
31 GND
32 GND
33 VDDSN(D2.0V)
34 VDDSN(D2.0V)
35 GND
36 GND
37 VDDIO(D3.3V)
38 VDDIO(D3.3V)
39 GND
40 VDDSC(D2.5V)
41 VDDSC(D2.5V)
42 GND
43 GND
44 VDDCM(A4.5V)
45 VDDCM(A4.5V)
46 GND
47 GND
48 VDDSV(A4.5V)
49 VDDSV(A4.5V)
50 GND
51 GND
R5052 XX
C5038 0.1u
C5019 0.1u
C5002 1u
C5156 1u B
6.3V
C5059 0.1u
VDDCM0
VSSCM0
SUNBIAS0
COMPBIAS0
VDDCB0
VSSCB0
VDDDA0
VSSDA0
VDDCN0
VSSCN0
VDDSN0
VSSSN0
VDDCN1
VSSCN1
VDDSV1
VSSSV1
VSSCM1
VDDCM1
VSSCB1
VDDCB1
VDDSC2
VSSSC2
VDDCN2
VSSCN2
VDDSUB0
VDDSN1
VSSSN1
VDDCN3
VSSCN3
VDDSV2
VSSSV2
VSSCM2
VDDCM2
VSSCB2
VDDCB2
VDDCN4
EXRES
VSSSN3
NC
VDDSN3
NC
PVLM1
VSSSC3
VSSCN5
TOUT2
VDDCN5
VDDSC3
VSSSN2
VDDIO1
VDDSN2
VSSCB3
VSSCN4
VDDCB3
VDDSN7
VSSCN11
VDDCN11
VSSDA3
VDDDA3
VSSCB7
VDDCB7
COMPBIAS1
SUNBIAS1
VSSCM7
VDDCM7
PVLM3
TESTA1
VDRS
VDBS
VSSSV7
VDDSV7
VDDVD1
VSSVRL1
VDDVRH1
VSSSC9
VDDSC9
VSSSC10
VDDSC10
VDDIO3
XCLR
SCK
SDI
XCE
SDO
TOUT
XHS
XVS
TENABLE
TSCANEN
TESTD0
TESTD1
TESTD2
TESTD3
VDDIO0
VDDSC0
VSSSC0
VDDSC1
VSSSC1
VDDVRH0
VSSVRL0
VDDVD0
VDDSV0
VSSSV0
VDBN
VDRN
TESTA0
PVLM0
R5098 47
C5086
4.7u
6.3V
C5075
22u 6.3V
C5066 0.1u
C5003 0.1u
C5045 0.1u
R5054 XX
C5157
0.47u
B
6.3V
IC5002
TK71745SCL-G
123
4
Vref
Vout
5
R5115 XX
C5018 0.1u
C5083
CL5116
B10V
C5010 0.033u
XX
C5074
47u 6.3V
C5037
0.1u
B
10V
R5049 XX
R5047
XX
C5085
R5113 1M
Q5008
2SK354700LS0
C5149
0.22u
B
6.3V
C5014
0.1u
B
10V
C5093
4.7u
6.3V
C5016 0.1u
C5057 0.1u
C5047 0.1u
C5005 0.1u
C5055 0.1u
C5009 330p
C5030
0.1u
B
10V
C5029
0.1u
C5021 0.1u
C5036 0.1u
C5097
47u 6.3V
C5046 0.1u
R5111 100k
C5084
R5103 100k
C5147 1u B
6.3V
C5151
0.47u
B
6.3V
C5015 0.1u
C5035 0.1u
X5001 54MHz
1
43
2
CN5002 51P
1LVDSGND
2DM11
3DP11
4LVDSGND
5DM10
6DP10
7LVDSGND
8DM09
9DP09
10 LVDSGND
11 DM08
12 DP08
13 LVDSGND
14 DM07
15 DP07
16 LVDSGND
17 DM06
18 DP06
19 LVDSGND
20 DMCK
21 DPCK
22 LVDSGND
23 DM05
24 DP05
25 LVDSGND
26 DM04
27 DP04
28 LVDSGND
29 DM03
30 DP03
31 LVDSGND
32 DM02
33 DP02
34 LVDSGND
35 DM01
36 DP01
37 LVDSGND
38 DM00
39 DP00
40 LVDSGND
41 GND
42 XCLR
43 GND
44 SCK
45 SDI
46 XCE
47 SDO
48 GND
49 XHS
50 XVS
51 GND
C5112 47u 6.3V
C5095
10u
6.3V
IC5003
TK71725SCL-G
123
4
Vref
Vout
5
C5082 22u
6.3V
XX
C5133
47u
6.3V
CL5055
C5115 22u 6.3V
C5031 0.1u
R5012 XX
C5067 0.1u
C5020 0.1u
C5034 0.1u
C5155
0.22u
B
6.3V
C5078
10u 6.3V
C5013 XX
C5076
22u 6.3V
4.7u 6.3V
C5089 47u
6.3V
R5051 XX
C5092
4.7u
6.3V
Q5002
2SK354700LS0
C5054 0.1u
XX
R5002
XX
R5011
XX
C5091
4.7u
6.3V
R5109 XX
C5096
4.7u
6.3V
C5081
C5033 0.1u
CL5049
C5032 0.1u
B
10V
R5053 XX
C5001 1u
R5034 XX
R5102
47
XX
IC5001
TK71745SCL-G
123
4
Vref
Vout
5
R5099 47
C5077
22u 6.3V
R5114
1M
C5131
47u
6.3V
C5065 0.1u
C5122
4.7u
6.3V
C5146
0.22u
B
6.3V
CL5054
CL5222
R5050 XX
C5130
0.1u
C5073
0.1u
B
10V
C5114 4.7u 6.3V
R5001
XX
R5112 100k
Q5007
DTC114EMFS6T2L
XX
R5048 XX
R5027
9100
C5094
4.7u
6.3V
R5026 XX
C5150 1u B
6.3V
C5090
4.7u
6.3V
C5079
22u 6.3V
C5004 0.1u
IC5001, Q5007, Q5008
4.5V REG 4.5V REG
IC5002, Q5004, Q5005
2.5V REG
IC5003, Q5001, Q5002
CMOS IMAGER
IS-030 BOARD
Vin
GND
CE
Vin
GND
CE
R5020
R5024
R5018
R5023
R5017
R5022
R5019
R5021
XX
XX
XX
XX
XX
XX
XX
XX
R5007
R5003
R5006
R5015
R5014
R5013
R5005
R5010
R5008
R5016
R5004
R5009
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
C5088
10u
6.3V
C5027 0.1u
C5025 0.1u
C5024 0.1u
C5023 0.1u
C5028 0.1u
C5080 4.7u 6.3V
IC5004
IMX028BQR-13
(2/2)
CMOS IMAGER
VDDCN_D2.0V
VDDSUB_A4.5V
VDDSN_D2.0V
VDDIO_D3.3V
VDDSC_D2.5V
VDDSV_A4.5V_1
PVLM_A2.5V
VDDCM_A4.5V
Vin
GND
CE
R5061 XX
R5060 XX
R5030
R5031
R5032
R5028
R5033
VDDVREF1
VSSDA2
VSSVREF1
V113V1
VDDSV4
VSSSV4
VDDCM4
VSSCM4
AMON1S
AMON2S
VDDPL2
VSSPL2
VDDPL1
VSSPL1
VSSSC7
INCK
VDDSC7
VDDIO2
VSSCB4
VDDCB4
VSSSN4
VDDSN4
PVLM2
VSSCN6
VDDCN6
VSSSN5
VDDSN5
VSSCN7
VDDCN7
VDDCB5
VSSCB5
VDDCM5
VSSCM5
VSSSV5
VDDSV5
VSSCN8
VDDCN8
VSSSN6
VDDSN6
VDDSUB1
VSSCN9
VDDCN9
VSSSC8
VDDSC8
VDDCB6
VSSCB6
VDDCM6
VSSCM6
VSSSV6
VDDSV6
VSSCN10
VDDCN10
VSSSN7
AMON2N
AMON1N
VSSCM3
VDDCM3
VSSSV3
VDDSV3
V113V0
VSSVREF0
VSSDA1
VDDVREF0
VDDDA1
VDDSC4
VSSSC4
NC
DP00
DM00
VSSLV0
VDDLV0
DP01
DM01
DP02
DM02
DP03
DM03
DP04
DM04
VSSLV1
VDDLV1
DP05
DM05
VDDSC5
VSSSC5
DPCK
DMCK
DP06
DM06
VDDLV2
VSSLV2
DP07
DM07
DP08
DM08
DP09
DM09
DP10
DM10
VDDLV3
VSSLV3
DP11
DM11
VDDSC6
VSSSC6
VDDDA2
IC5004
IMX028BQR-13
(1/2)
CMOS IMAGER
05
C5061 0.1u
22u
10u
22u
22u
6.3V
6.3V
6.3V
6.3V
C5123
4.7u
6.3V
C5072
0.1u
B10V
C5007
0.1u B
10V
C5006
0.1u
C5008
0.1u B
10V
C5071 0.1u
C5118 22u 6.3V C5058 0.1u
C5119 4.7u
6.3V
C5070 0.1u
C5117 4.7u 6.3V
C5120 22u
C5069 0.1u
C5098 4.7u 6.3V
C5103
22u 6.3V
C5100 4.7u 6.3V
C5099 4.7u 6.3V
C5104 22u 6.3V
C5041 0.1u
C5102 22u 6.3V
C5101 10u 6.3V
C5043 0.1u
C5062 0.1u
C5042 0.1u
C5063 0.1u
C5040 0.1u
C5105 22u 6.3V
C5110 22u 6.3V
C5108 22u 6.3V
C5109 22u 6.3V
C5107 4.7u 6.3V
C5106 10u 6.3V
C5051 0.1u
C5050 0.1u
C5052 0.1u
C5048 0.1u
C5064 0.1u
C5056 0.1u C5012 330p 50V
C5068 0.1u
C5116
Q5001
DTC114EMFS6T2L
AA2
U13
Y1
Y16
AA16
W13
AA1
A1
AA15
V13 B16
A16
U15
A2
E4
B1
D7
A15
D10
E13
R3
N4
Y2
W2
P4
T3
R4
U3
V3
T4
W3
AA4
Y4
U4
AA5
Y5
Y3
AA3
W5
V5
AA6
Y6
W6
V6
AA7
Y7
W4
V4
W7
V7
AA8
Y8
W8
V8
AA9
Y9
V12
W12
W9
V9
AA10
Y10
W10
V10
AA11
Y11
AA13
Y13
W11
V11
AA12
Y12
W14
T13
V14
U14
R13
T14
P13
W15
Y15
N13
R14
AA14
Y14
V15
V16
T15
W16
U16
T16
R15
P14
P15
R16
N15
N14
M13
L13
M14
M15
L14
M16
L15
P16
N16
K14
K15
K13
J13
L16
K16
J14
J15
J16
H13
H14
H15
G15
H16
G16
G14
G13
F13
F14
F16
F15
E16
E15
D16
C16
D15
E14
D14
D13
C15
B15
C14
C13
B14
D12
C12
B13
B12
A14
A13
A12
A11
B11
C11
D11
A10
B10
C10
C9
B9
A9
D9
C8
B8
A8
D8
C7
B7
A7
D6
C6
B6
A6
A5
A4
A3
B5
B4
C5
D5
B3
C4
C3
B2
C2
D4
D3
E3
D2
C1
D1
E2
E1
F2
F1
F3
F4
G4
G3
G1
H1
G2
H2
H3
H4
J1
J2
J3
K1
L1
J4
K4
K2
K3
N1
P1
L2
M1
L3
V2
P2
U2
R1
V1
N2
T2
N3
W1
M4
U1
L4
T1
M3
R2
M2
P3
C5121
4.7u
6.3V
Q5004
DTC114EMFS6T2L
Q5005
2SK354700LS0
XX MARK:NO MOUNT
2.5V
4.5V
4.5V
VDDPL (PLL2.5V)
VDDIO (D3.3V)
VDDCB (A2.0V)
VDDCN (D2.0V)
VDDVRH (A3.0V) PVLM (A2.5V)
VDDSN (D2.0V)
VDDSUB (4.5V)
VDDSC (D2.5V)
VDDLV (D1.8V)
FP-893
of Level 2
LND001-LND051
Page 4-44
FLEXIBLE
FP-894
of Level 2
LND101-LND151
Page 4-44
FLEXIBLE
VSSVRL (A-2.0V)
DSLR-A900_L2
Schematic diagrams of the AM-015 and DD-299 boards are not shown.
Pages from 4-5 to 4-32 are not shown.
4-33
DSLR-A900_L2 MM-079
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
CF_D[13]
CF_D[15]
CF_D[14]
CF_D[07]
CF_D[06]
CF_A[02]
CF_D[02]
CF_A[01]
CF_D[05]
CF_TEMP
CF_TEMP
XCF_CD1
XCF_CD1
CF_D[11]
CF_D[03]
CF_D[04]
CF_D[12]
CF_D[08]
CF_D[09]
CF_D[10]
CF_D[01]
CF_D[00]
CF_A[00]
XCF_CD2
XCF_CD2
XCF_RESET
CF_DMARQ
CF_DMARQ
CF_INTRQ
CF_INTRQ
XCF_CS1
XCF_CS1
XCF_CS0
XCF_CS0
XCF_IOWR
XCF_IOWR
XCF_DMACK
XCF_DMACK
CF_3.3V
XCF_IORD
XCF_IORD
XCF_WE
XCF_WE
XCF_IORDY
XCF_DASP
XCF_DASP
XCF_PDIAG
XCF_PDIAG
XCF_IOIS16
XCF_IOIS16
XCF_ATASEL
XCF_ATASEL
CF_A[10]
CF_A[09]
CF_A[08]
CF_A[07]
CF_A[06]
CF_A[05]
CF_A[03]
C5203 0.1u
B10V
CN5202 50P
1GND
2D03
3D04
4D05
5D06
6D07
7-CS0
8A10
9-ATASEL
10 A09
11 A08
12 A07
13 VCC
14 A06
15 A05
16 A04
17 A03
18 A02
19 A01
20 A00
21 D00
22 D01
23 D02
24 -IOIS16
25 -CD2
26 -CD1
27 D11
28 D12
29 D13
30 D14
31 D15
32 -CS1
33 -VS1
34
-IORD/HSTROBE/-HDMARDY
35 -IOWR/STOP
36 -WE
37 INTRQ
38 VCC
39 -CSEL
40 -VS2
41 -RESET
42
IORDY/-DDMARDY/DSTROBE
43 DMARQ
44 -DMACK
45 -DASP
46 -PDIAG
47 D08
48 D09
49 D10
50 GND
5152
R5230 XX
TH5201
C5202 0.1u
B10V
CN5203 2P
1GND
2GND
C5204 XX
R5224
10k
R5226 4700
R5223 10k
R5228 10k
R5229 10k
R5227 5600
R5225 10k
R5217 33
R5204
22
R5206 22
R5210 82
R5214 33
R5216 82
R5218 82
R5219 82
R5201 XX
R5208 XX
R5203 XX
R5220 XX
R5221 XX
R5222 XX
C5201
XX
6.3V
R5231 XX
R5232
XX
C5205
4.7u
B6.3V
C5206
4.7u
B6.3V
CN5201 51P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
RB5201
33
1
2
3
4
5
6
7
8
RB5202
33
1
2
3
4
5
6
7
8
RB5203
33
1
2
3
4
5
6
7
8
RB5204
33
1
2
3
4
5
6
7
8
RB5205
33
1
2
3
4
5
6
7
8
XX MARK:NO MOUNT
CF SLOT
MM-079 BOARD
REG_GND
CF_TEMP
XCF_CD1
XCF_CD2
XCF_RESET
REG_GND
XCF_IORD
REG_GND
XCF_IORDY
REG_GND
CF_DMARQ
XCF_ATASEL
XCF_IOIS16
XCF_PDIAG
XCF_DASP
CF_INTRQ
CF_A10
CF_A09
CF_A08
CF_A06
CF_A07
CF_A05
CF_A03
CF_A01
CF_A04
CF_A02
CF_A00
XCF_CS1
XCF_CS0
XCF_WE
CF_IOWR
XCF_DMACK
CF_D15
CF_D00
CF_D11
CF_D01
CF_D10
CF_D05
CF_D09
CF_D04
CF_D14
CF_D13
CF_D03
CF_D08
CF_D02
CF_D07
CF_D06
CF_D12
CF_3.3V
CF_3.3V
REG_GND
CF_D[15]
CF_D[00]
CF_D[11]
CF_D[01]
CF_D[10]
CF_D[05]
CF_D[09]
CF_D[04]
CF_D[14]
CF_D[13]
CF_D[03]
CF_D[08]
CF_D[02]
CF_D[07]
CF_D[06]
CF_D[12]
CF_A[10]
CF_A[09]
CF_A[08]
CF_A[06]
CF_A[07]
CF_A[05]
CF_A[03]
CF_A[01]
CF_A[04]
CF_A[02]
CF_A[00]
EJECT LEVER
CF CARD
CompactFlash/
Microdrive
CF
CF_A[04]
XCF_RESET
FP-890
FLEXIBLE
LND101-LND151
Page 4-45
of Level 2
4-34
DSLR-A900_L2 AF-117
Note: IC5801 and AF-117 flexible complete board are not supplied,
but they are included in ALX-8510 (AF module).
AF-117 flexible board is replaced as ALX-8510 (AF module),
so that PRINTED WIRING BOARD is omitted.
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
VDC2
VOUT
VDC1
VREF
VGG
DGO1
DGO2
SD0
SD1
SD2
STB
CLK
VCC5A
REG_GND
REG_GND
REG_GND
REG_GND
VCC5D
1
AGND
2
Vcc5a
3
IC_1
4
IC_2
5
DGO1
6
DGO2
7
SD0
8
SD1
9
SD2
10
CLK
11
STB
12
IC_1
13
Vcc5d
14
DGND
1516171819202122232425262728
LND001
LND002
LND003
LND005
LND004
LND007
LND009
LND008
LND006
LND011
LND013
LND012
LND015
LND014
LND017
LND010
LND016
LND018
AF CCD
AF-117 FLEXIBLE BOARD
AM-015
(26/26)
Page 4-30
CN4515
of Level 3
pin17
pin18
pin2
pin1
Vcc5a
Vdc2
GND
GND
Vout
Vgg
Vcc5d
Vdc1
Vref
CLK
STB
GND
SD1
SD2
DGO2
GND
SD0
DGO1
IC5801
ILX160A
AF CCD
DGND
Vcc5d
Vdc1
Vgg
Voend
IC_1
IC_1
IC_1
IC_1
Vref
Vout
Vdo2
Vcc5a
AGND
4-35

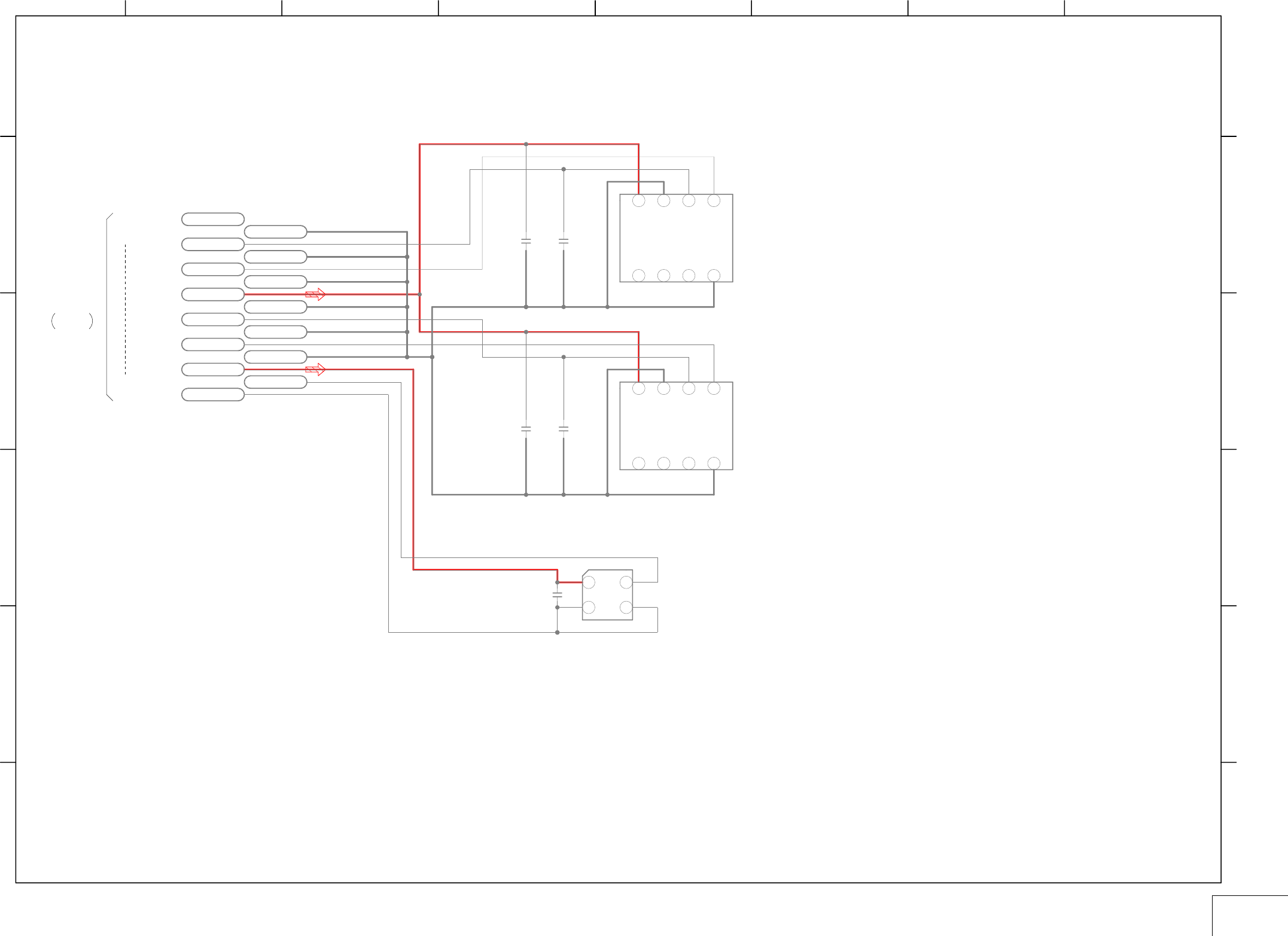

DSLR-A900_L2 GY-009
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
GOUT_Y
GOUT_P
VREF_Y
VREF_P
IC_4001_3.3V
GYVCC
IR_REMOTE
REG_GND
IR_GND
6.3V
B
10u
C5701
6.3V
B
10u
C5702
6.3V
B
10u
C5703
12
34
C5705
0.1u
B
16V
LND004
LND006
LND010
LND008
LND003
LND014
LND005
LND009
LND001
LND015
LND002
LND013
LND012
LND011
LND007
SE5701
1
NC
2
NC
3
NC
4
GND
5678
1
NC
2
NC
3
NC
4
GND
5678
6.3V
B
10u
C5704
VCC
GND
OUT
GND
PITCH SENSOR
GYRO SENSOR, REMOTE SENSOR
XX MARK:NO MOUNT
pin1
pin2
pin15
pin14
GY-009 FLEXIBLE BOARD
of Level 3
Page 4-30
CN4517
(26/26)
AM-015
VREF_Y
GOUT_Y
VREF_P
NC
REG_GND
IC_4001_3.3V
GOUT_P
GY_VCC
REG_GND
REG_GND
REG_GND
REG_GND
IR_REMOTE
REG_GND
REG_GND
VOUT
VREF
SLEEP
VDD
SE5702
YAW SENSOR
VOUT
VREF
SLEEP
VDD
IC5701
RS-770
REMOTE SENSOR
4-36
DSLR-A900_L2 HOL-005
Note: ACT902, ACT903, HOL-005 flexible complete board and all mounted parts are
not supplied, but they are included in slider unit.
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
BR_P2
BR_P1
BR_Y1
BR_Y2
VBRA5
VBRA5
POUT3P
POUT4N
PIN_P
PIN_Y
POUT4P
POUT2P
POUT2N
POUT1P
POUT3N
POUT1N
LND005
LND013
LND010
LND004
LND015
LND008
LND011
LND002
LND006
LND016
LND001
LND012
LND003
LND014
LND009
LND007
LND034
BR_Y2
LND033
BR_Y1
LND032
BR_P1
LND031
BR_P2
1
OUT1N
2
IN1P
3
IN3N
4
OUT3N
5
IN3P
6
OUT3P
7
OUT4N
8
IN4P
910111213141516
RB7501
1k
12
34
56
78
RB7502
1k
12
34
56
78
ACT902
ACTUATOR
(PITCH)
ACT903
ACTUATOR
(YAW)
HALL ELEMENT, ACTUATOR
XX MARK:NO MOUNT
pin15
pin16
pin2
pin1
HOL-005 FLEXIBLE BOARD
of Level 3
Page 4-30
CN4504
(26/26)
AM-015
VBRA5
POUT2P
PIN_P
BR_P2
PIN_Y
POUT3P
POUT1P
BR_Y1
POUT3N
VBRA5
BR_Y2
POUT2N
BR_P1
POUT4P
POUT4N
POUT1N
IC7501
HALL ELEMENT
HQ-8220-T5
OUT4P
IN4N
IN2P
OUT2P
IN2N
OUT2N
OUT1P
IN1N
4-37

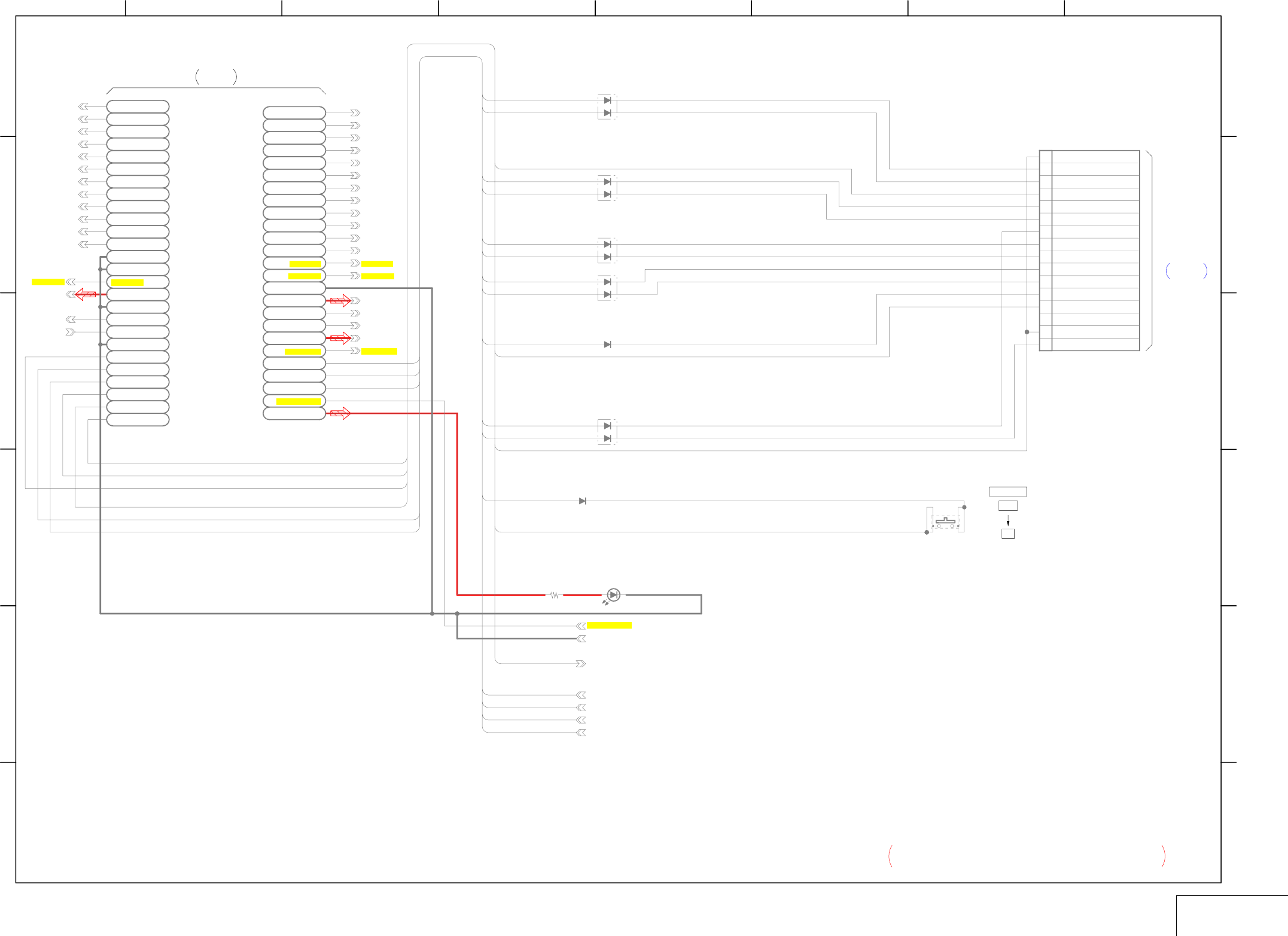

DSLR-A900_L2 MA-453 (1/2)
Note: VO PENTA unit (including LED901) is not included
in MA-453
flexible complete board.
Note: MB SLLK contact piece unit is not included
in MA-453 flexible complete board.
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
FOCUS_POS_LED_K_2
FOCUS_POS_LED_K_4
FOCUS_POS_LED_K_6
FOCUS_POS_LED_K_8
FOCUS_POS_LED_K_1
FOCUS_POS_LED_K_3
FOCUS_POS_LED_K_5
FOCUS_POS_LED_K_7
FOCUS_POS_LED_K_9
LM_FIND
LM_OUT
LM_MODE2
IC_4001_SCK
EYE_SENSE_LED
EVER_4.5V
XCS_VG
XCS_HPY2
IC_4001_SI
XWAKE_BY_VG
BATT_1_ON
BATT_1_SEL
BATT_2_ON
BATT_2_SEL
XIC_4601_RESET
XCS_LM
IC_4001_SO
EYE_SENSE_CTRL
LM_MODE1
FOCUS_POS_LED_K_5
FOCUS_POS_LED_K_7
FOCUS_POS_LED_K_2
FOCUS_POS_LED_K_3
FOCUS_POS_LED_K_1
FOCUS_POS_LED_K_4
FOCUS_POS_LED_K_8
FOCUS_POS_LED_K_9
EYE_SENSE_CTRL
IC_4001_SCK
LM_MODE2
IC_4001_SO
LM_MODE1
EYE_SENSE_LED
XCS_LM
LM_OUT
LM_FIND
EVER_4.5V
CA_UNREG
IC_4001_SCK
IC_4001_SO
FOCUS_POS_LED_K_6
FOCUS_POS_LED_A
FOCUS_POS_LED_A
PGND
XS2
XS1
XS2
SOL501
REG_GND
CN5503 16P
1REG_GND
2REG_GND
3 XIC_4601_RESET
4BATT_2_SEL
5BATT_2_ON
6BATT_1_SEL
7BATT_1_ON
8EVER_3.3V
9xS2
10 xWAKE_BY_VG
11 IC_4001_SO
12 IC_4001_SI
13 IC_4001_SCK
14 xCS_HPY2
15 xCS_VG
16 EVER_3.3V
CL5505
CL5506
CL5502
CL5503
CL5504
LND502
LED_K_8
LND503
LED_K_6
LND504
LED_K_4
LND505
LED_K_2
LND506
LED_A
LND507
LND508
REG_GND
LND517
EVER_4.5V
LND518
EYE_SENS_CTRL
LND519
LMCK
LND520
LM_MODE1
LND522
CA_UNREG
LND555
LM_PGND
LND524
LND525
SYNC_TERMINAL_CTRL
LND526
LND527
LND528
LND529
LND530
LND531
LND538
LED_K_7
LND539
LED_K_5
LND540
LED_K_3
LND541
LED_K_1
LND542
LED_A
LND543
LND547
REG_GND
LND548
XCS_LM
LND549
EYE_SENS_LED
LND550
LMSIN
LND551
LM_MODE2
LND552
LM_OUT
LND553
LM_FIND
LND558
IC_4001_3.3V
LND559
LND560
LND561
LND562
LND563
LND564
LND565
XPOWER_SW
XLENS_RELEASE_SW
XMF_PULSE_2
XMF_PULSE_1
AF_PI_A
AF_PI_E_1
AF_PI_C
AF_PI_E_2
LND532
LND533
LND534
LND535
LND536
LND537
LND571
LND572
LND573
LND574
LND509
LND510
LND511
LND512
LND513
LND514
LED_A
LND515
LND546
EVER_3.3V
LND545
EVER_3.3V
LND544
LND516
EVER_4.5V
LND521
CA_UNREG
LND556
LM_PGND
LND557
LM_PGND
LND554
LM_PGND
LND523
CA_UNREG
LND501
LED_K_9
LND566
REG_GND
LND568
LND569
REG_GND
LND570
LND575
LND576
LND577
LND578
LND579
LND580
SOL502
12
3
CN5505 2P
1xLENS_RELEASE_SW
2xLENS_RELEASE_GND
34
XLENS_RELEASE_SW
ESD_GND
LND567
REG_GND
CL5507
CN5504 12P
1
2
3
4
5
6
7
8
9
10
11
12
CN5502 21P
1PGND
2PGND
3PGND
4PGND
5PGND
6VP
7VP
8GND
9 FIND
10 GND
11 LMOUT
12 GND
13 CSLM
14 GRPON
15 LMSIN
16 MODE
17 RWLM
18 LMCK
19 FEN
20 VCC
21 VDD
CONNECTOR
XX MARK:NO MOUNT

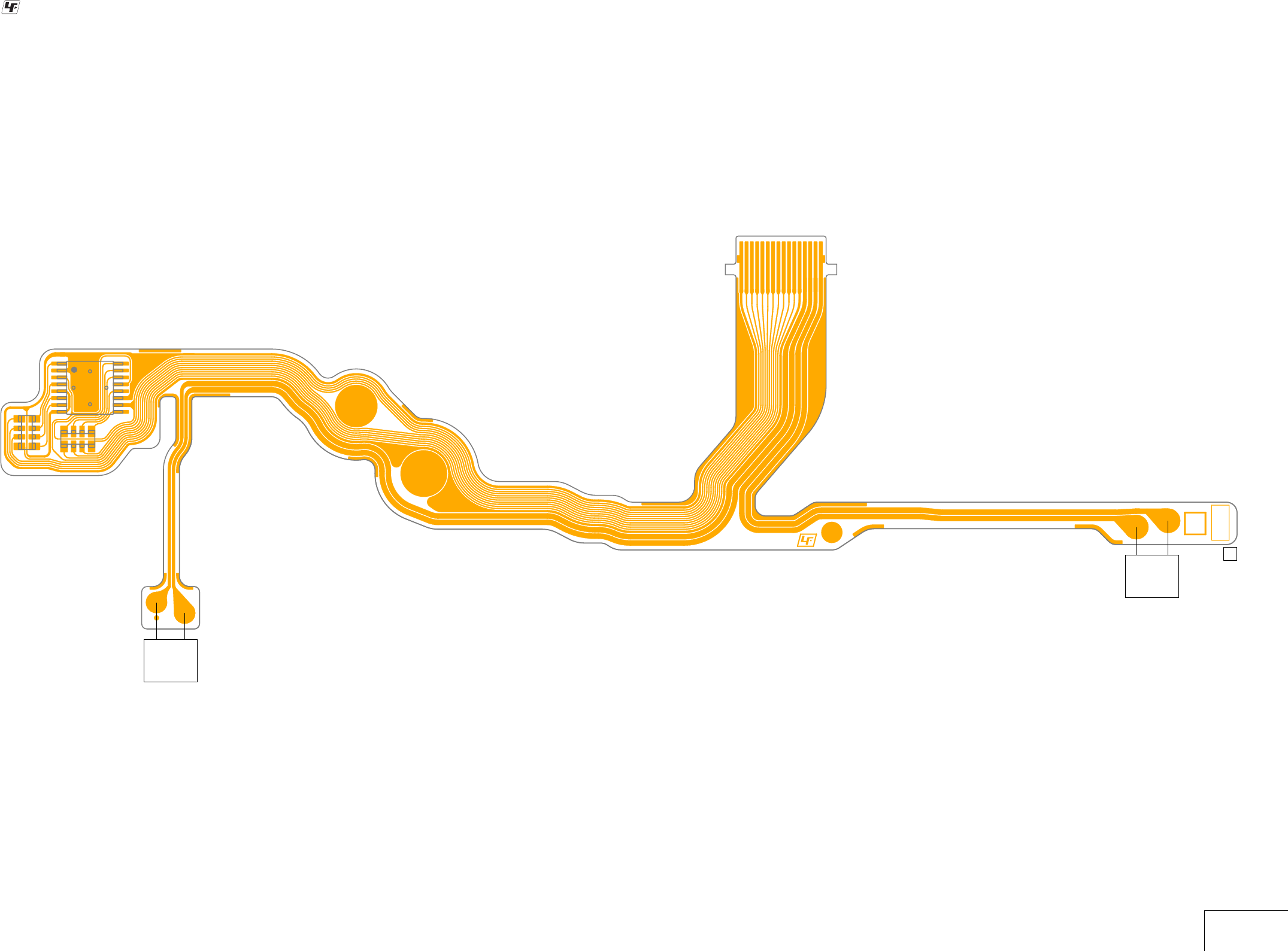

MA-453 FLEXIBLE BOARD (1/2)
(Page 4-30 of Level 3)
CN4507
AM-015 (26/26)
(1pin)
(2pin) (3pin)
(4pin)
(80pin)
(78pin) (77pin)
(79pin)
XS1
REG_GND
XCS_HPY2
IC_4001_SI
XWAKE_BY_VG
BATT_1_ON
BATT_2_ON
XIC_4601_RESET
XS2
XCS_VG
IC_4001_SCK
IC_4001_SO
REG_GND
BATT_1_SEL
BATT_2_SEL
XIRIS_OPEN_SENS
XLENS_REL_SW
XMF_PULSE2
XMF_PULSE1
AF_PI_C
AF_PI_A
AF_PI_E2
AF_PI_E1
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
AF_PI_C
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
SYNC_TERMINAL_CTRL
IC_4001_3.3V
XCS_VG
BATT_1_SEL
BATT_2_SEL
XIC_4601_RESET
BATT_2_ON
BATT_1_ON
XWAKE_BY_VG
IC_4001_SI
XCS_HPY2
TOKO LED
LED901
LED_A
LED_A
LED_A
LED_K_1
LED_K_2
LED_K_3
LED_K_4
LED_K_5
LED_K_6
LED_K_8
LED_K_7
LED_K_9
RELEASE
LENS
MB SLLK CONTACT PIECE UNIT
VO PENTA UNIT
D5501
XX
LND001-LND021
AE-033
FLEXIBLE
of Level 2
Page 4-39
LND037
of Level 2
Page 4-40
LND021-LND035,
FP-896
FLEXIBLE
4-38
DSLR-A900_L2 MA-453 (2/2), FP-898, SLK-004
Note: CN902 is not included in
MA-453 flexible complete board.
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
05
4
XS2
XS1
REG_GND
C5601
0.1u
B
25V
R5602
1k
CN5601 2P
1 SYNC_TERMINAL_A
2 SYNC_TERMINAL_B
34
R5601
15
5
43
2
1
LND601
ESD_GND
CN5602 6P
1S2
2S1
3NC
4NC
5NC
6GND
D5602
1
2
3BCR08AS-12A-B11H
CN5603 10P
1
2
3
4
5
6
7
8
9
10
ESD_GND
3
5
4
6
2
1
CONNECTOR
XX MARK:NO MOUNT
MA-453 FLEXIBLE BOARD (2/2)
xMF_PULSE_2
xMF_PULSE_1
xMF_PULSE_GND
xMF_PULSE_GND
AF_PI_A
AF_PI_K
AF_PI_K
AF_PI_C
AF_PI_E_1
AF_PI_E_2
XMF_PULSE_2
XMF_PULSE_1
AF_PI_E_2
AF_PI_E_1
AF_PI_A
AF_PI_C
TERMINAL
SYNCHRONISE
UNIT
Q5603
EMD3T2R
SYNCHRO TERMINAL
CONTROL
IC_4001_3.3V
SYNC_TERMINAL_CTRL
D5601
DF5A6.8FU(TE85R)
FLASH SYNC
CN902
SLK-004
LND054, LND055
of Level 2
Page 4-38
LND043-LND050,
FLEXIBLE
LND001-LND006
Page 4-38
FP-898
of Level 2
FLEXIBLE
Note: J901 is not included in
FP-898 flexible board.
A
3
C
2
B
1
B
C
A
05
4
S1
GND
S2
LND012
S1
LND005 NC
LND013
S2
LND002 S1
LND001 S2
LND006 GND
LND004 NC
LND011
GND
LND003 NC
pin1
pin2
pin5
pin6
REMOTE JACK
FP-898 FLEXIBLE BOARD
REMOTE
J901
Page 4-38
MA-453
of Level 2
CN5602
(2/2)
FLEXIBLE
Note: EN-022 board, SLK-004 flexible complete board and mounted part
are not supplied, but they are included in AF driving unit.
SLK-004 flexible board is replaced as AF driving unit,
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
XMF_PULSE_2
XMF_PULSE_1
XMF_PULSE_GND
LND047 AF_PI_E_1
LND046 AF_PI_E_2
LND045
xMF_PULSE_GND
LND049 AF_PI_K
LND043 xMF_PULSE_2
LND050 AF_PI_A
LND052
MFP1
LND051
GND
LND053
MFP2
LND048 AF_PI_C
LND044 xMF_PULSE_1
1
2
5
4
3
LND054
xMF_PULSE_GND
LND055 AF_PI_K
1PIN
10PIN
AF SENSOR
SLK-004 FLEXIBLE BOARD
PH6301
GP1S39J0000F
AF MOTOR
ROTATION DETECT
BOARD
EN-022
AF MOTOR
POSITION DETECT
of Level 2
(2/2)
CN5603
FLEXIBLE
Page 4-38
MA-453
4-39
DSLR-A900_L2 AE-033
Note: AE-033 flexible complete board and all mounted parts are
not supplied, but they are included in VO PENTA unit.
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
LM_FIND
LM_OUT
EVER_3.3V
EVER_4.5V
XCS_LM
EYE_SENSE_CTRL
IC_4001_SO
LM_MODE2
EYE_SENSE_LED
LM_MODE1
IC_4001_SCK
REG_GND
C5904
10u
B
6.3V
1
VDD
2
FEN
3
LMCK
4
RWLM
5
MODE
6
LMSIN
7
FIND
8
LMOUT
GND
9
AGND
10
11 12 13 14 15 16
17181920
R5902
3.3
C5905
0.0027u
B
50V
C5903
10u
6.3V
CN5901 6P
1REG_GND
2EYE_SPC_K
3EYE_SPC_A
4REG_GND
5EYE_LED_K
6EYE_LED_A
LND005 RWLM
LND013 FIND
LND010 GND
LND004 LMCK
LND015 VP
LND008 GRPON
LND011 LMOUT
LND017 PGND
LND002 VCC
LND006 MODE
LND016 VP
LND018 PGND
LND001 VDD
LND012 GND
LND003 FEN
LND014 GND
LND009 CSLM
LND019 PGND
C5901
0.1u
B
10V
R5906
330k
R5901
100k
R5903
27k
R5904
10k
R5905
22
R5909
XX
D5901
MAZS068G08S0
D5902
MAZS068G08S0
LND007 LMSIN
D5903
MAZS068G08S0
LND020 PGND
LND021 PGND
R5911
0R5912
XX
FB5901
pin1
pin2
pin21
pin20
XX MARK:NO MOUNT
PHOTOMETRY
AE-033 FLEXIBLE BOARD
Q5901
2SA1577-T106-R
LED DRIVE
IC5901
MA91843T
PHOTOMETRY
IRED
NC
VCC
VREG
VREF
ASPC
KSPC
GRPON
CSLM
FB
C5902
4.7u
10V
MA-453
FLEXIBLE
(1/2)
CN5502
of Level 2
Page 4-37
EYE-008
FLEXIBLE
LND001-LND006
of Level 2
Page 4-40
4-40
DSLR-A900_L2 EYE-008, FP-896, FP-889, FP-897
Note: SE901 and EYE-008 flexible board are not supplied,
but they are included in unit (eye piece).
EYE-008 flexible board is replaced as unit (eye piece),
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
EYE_SPC_A
EYE_SPC_K
EYE_LED_A
EYE_LED_K
REG_GND_1
REG_GND_2
LND006
LND005
LND004
LND002
LND003
LND001
LND011
EYE_LED_A
LND012
EYE_LED_K
LND014
EYE_SPC_K
LND013
EYE_SPC_A
LND015
REG_GND
LND016
REG_GND
pin1
pin2
pin6
pin5
EYEPIECE
EYE-008 FLEXIBLE BOARD
EYE_LED_A
EYE_LED_K
REG_GND
EYE_SPC_K
EYE_SPC_A
REG_GND
EYEPIECE
SE901
SENSORS
AE-033
Page 4-39
FLEXIBLE
CN5901
of Level 2
(PRINTED WIRING BOARD is omitted.)
A
3
C
2
B
1
B
C
A
05
4
LND009
LND011
BATT_1_SEL
LND003
xCS_HPY2
LND001
EVER_3.3V
LND002
xCS_VG
LND012
BATT_2_ON
LND010
BATT_1_ON
LND006
IC_4001_SO
LND013
BATT_2_SEL
LND008
xS2
LND015
REG_GND
LND014
XIC_4601_RESET
LND007
xWAKE_BY_VG
LND004
IC_4001_SCK
LND005
IC_4001_SI
LND021
LND031
LND027
LND030
LND029
LND028
LND023
LND035
LND026
LND034
LND024
LND022
LND025
LND032
LND033
LND016
REG_GND
LND037
pin15
pin16
pin2
pin1
(to VERTICAL GRIP)
VERTICAL GRIP TERMINAL
FP-896 FLEXIBLE BOARD
EVER_3.3V
EVER_3.3VEVER_3.3V
BATT_1_SEL
xWAKE_BY_VG
BATT_1_ON
xS2
xCS_HPY2
REG_GND
IC_4001_SO
XIC_4601_RESET
IC_4001_SCK
xCS_VG
IC_4001_SI
BATT_2_ON
BATT_2_SEL
REG_GND
of Level 2
MA-453
Page 4-37
(1/2)
CN5503
FLEXIBLE
Note: D901 and FP-889 flexible board are not supplied,
but they are included in AF assist light block assy.
A
3
C
2
B
1
B
C
A
05
4
AF_LED_K
AF_LED_A LND011
AF_LED_A
LND012
AF_LED_K
LND001 AF_LED_A
LND002 AF_LED_A
LND003 AF_LED_A
LND004 AF_LED_K
LND005 AF_LED_K
LND006 AF_LED_K
pin6
pin5
pin1
pin2
pin4
pin3
AF ASSIST LIGHT
FP-889 FLEXIBLE BOARD
of Level 3
AM-015
(26/26)
Page 4-30
CN4503
AF ILLUMINATOR/
SELF-TIMER
D901
Note: FP-897 flexible board is not supplied,
but this is included in MB BL contact unit.
FP-897 flexible board is replaced as MB BL contact unit,
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
LND013
LND014
LND031
LSIN
LND018 LND037
LVDD0
LND004
LND006
LND035
REG_GND
LND005
LND001
LND034
CSLNS
LND002
LND016
LND036
LSOUT
LND038
PGND
LND033
LSCK
LND003
LND012
LND017
LND032
LVDD1
LND015
LND011
pin14
pin1
LENS CONTACTS
FP-897 FLEXIBLE BOARD
of Level 3
Page 4-31
CN0504
(1/2)
DD-299
LENS
CONTACTS
PGND
PGND
LVDD0
LSCK
LSIN
LVDD1
LSOUT
REG_GND
LVDD0
CSLNS
PGND
LVDD0
LVDD0
PGND
4-41
DSLR-A900_L2 AFM-003, AP-032, IF-161
Note: EN-023 board, mirror charge cam detect, AFM-003 flexible board and mounted
part are not supplied, but they are included in MB mirror charge motor unit.
AFM-003 flexible board is replaced as MB mirror charge motor unit,
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
XAFM_CAM_1
XAFM_CAM_GND
XAFM_CAM_2
LND008
LND004
LND005
LND002
LND006
LND007
LND003
LND001
LND009
LND105
xAFM_CAM_GND
LND106
xAFM_CAM_2
LND104
xAFM_CAM_1
LND108
xMC_CAM_2
LND110
xMC_CAM_GND
LND107
xMC_CAM_1
LND012
LND011
LND010
LND015
LND013
LND014
CN6101 10P
1
2
3
4
5
6
7
8
9
10
LND016
pin15
pin2
pin1
pin16
AF/MF SWITCH, CHARGE CAM
AFM-003 FLEXIBLE BOARD
of Level 3
Page 4-30
CN4512
(26/26)
AM-015
FM-
IRIS_PI_A
IRIS_PI_C
IRIS_PI_K
FM+
FM+
IRIS_PI_E_1
IRIS_PI_E_2
FM-
XAFM_CAM_1
XAFM_CAM_GND
XAFM_CAM_2
XMC_CAM_2
XMC_CAM_GND
XMC_CAM_1
NC
IRIS_PI_E_2
IRIS_PI_K
IRIS_PI_E_1
IRIS_PI_A
IRIS_PI_C
NC
FM+
FM+
FM-
FM-
CAM DETECT
MIRROR CHARGE
AF/MF
DETECT
BOARD
EN-023
LND001-LND010
AP-032
FLEXIBLE
of Level 2
Page 4-41
Note: M904, AP-032 flexible complete board and mounted part are
not supplied, but they are included in AP aperture unit.
AP-032 flexible board is replaced as AP aperture unit,
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
IRIS_PI_E_2
IRIS_PI_K
IRIS_PI_C
IRIS_PI_E_1
FM-
FM+
IRIS_PI_A
LND009
LND011
FM+
LND008
LND002
LND007
LND003
LND006
LND001
LND010
LND005
LND004
LND012
FM-
1
2
5
4
3
pin10
pin9
pin1
pin2
APERTURE MOTOR
AP-032 FLEXIBLE BOARD
FM-
FM+
IRIS_PI_A
FM+
IRIS_PI_E_1
NC
IRIS_PI_C
FM-
IRIS_PI_E_2
IRIS_PI_K
M
MOTOR
APERTURE
M904
PH6201
GP1S39J0000F
APERTURE MOTOR
ROTATION DETECT
Page 4-41
of Level 2
FLEXIBLE
AFM-003
CN6101
Note: LCD902, IF-161 flexible complete board and mounted part are not supplied,
but they are included in VM IF LCD unit.
A
D
CC
D
B
E
A
B
3
05
F
2
F
E
1
SEG21
SEG20
SEG19
SEG18
SEG17
SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
COM3
COM2
COM1
COM0
BL_A
BL_K
SEG22
SEG23
LND001
LND002
LND003
LND004
LND005
LND006
LND007
LND013
LND008
LND011
LND014
LND012
LND010
LND009
LND017
LND016
LND018
LND015
LND019
LND021
LND020
LND024
LND028
LND022
LND023
LND027
LND025
LND026
LND121
SEG16
LND110
SEG5
LND126
SEG21
LND117
SEG12
LND112
SEG7
LND111
SEG6
LND118
SEG13
LND116
SEG11
LND123
SEG18
LND120
SEG15
LND119
SEG14
LND115
SEG10
LND113
SEG8
LND122
SEG17
LND109
SEG4
LND124
SEG19
LND108
SEG3
LND114
SEG9
LND125
SEG20
LND106
SEG1
LND105
SEG0
LND101
COM0
LND107
SEG2
LND104
COM3
LND102
COM1
LND103
COM2
LND204
LND205
LND207
SEG23
LND206
SEG22
OPEN
pin31
pin30
pin1
pin2
FINDER
IF-161 FLEXIBLE BOARD
of Level 3
CN4514
Page 4-30
(26/26)
AM-015
D101
SO-271 SYG-C-TS
BACKLIGHT
FINDER
SEG21
SEG19
SEG17
SEG15
SEG9
SEG11
SEG13
SEG5
SEG7
SEG3
SEG1
COM3
BL_A
COM1
SEG23
REG_GND (N.C.)
SEG20
SEG18
SEG16
SEG14
SEG8
SEG10
SEG12
SEG6
SEG4
SEG2
COM2
BL_K
SEG0
COM0
SEG22
FINDER
LCD902
LCD
4
4-42

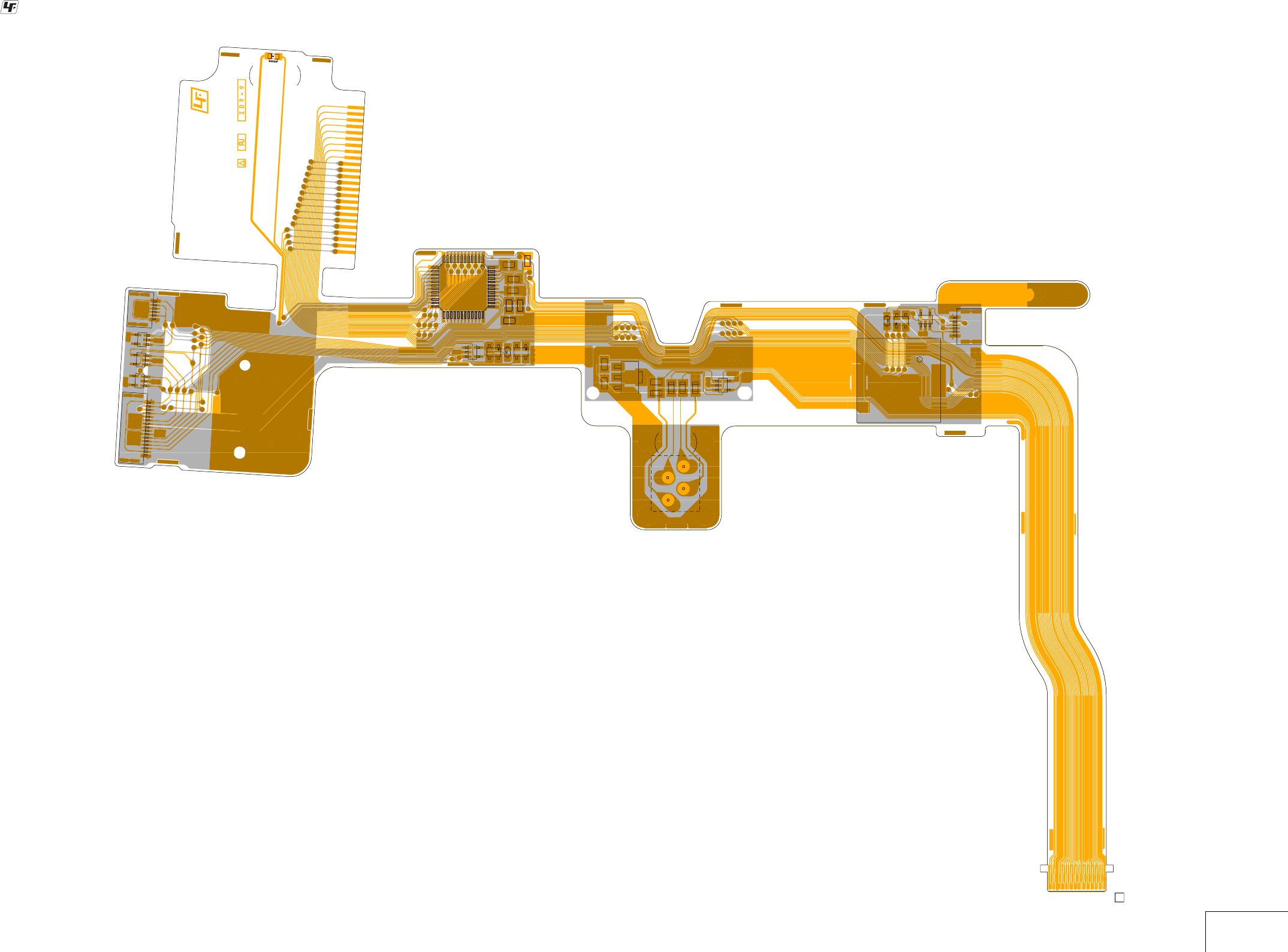

DSLR-A900_L2 TOP-004 (1/2)
Note: CN901 is not included in TOP-004
flexible complete board.
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
EXT_FLASH_TRIGGER
EXT_FLASH_F2
EXT_FLASH_F3
XKEY_MAT_IN_3
LCD_SCK
LCD_CS
LCD_CO
LCD_SO
LED_K
EVER_3.3V
BUZZER
XKEY_MAT_IN_1
XS1
XS1
XDIAL_2_B
XDIAL_2_B
XDIAL_2_A
XDIAL_2_A
XWB_SW
XDRIVE_SW
XLCDBL_SW
XOVR_SW
XKEY_MAT_SEL_1
XKEY_MAT_SEL_1
XDIAL_1_A
XDIAL_1_A
XDIAL_1_B
XDIAL_1_B
XISO_SW
XKEY_MAT_IN_2
XKEY_MAT_IN_0
XKEY_MAT_SEL_2
XKEY_MAT_SEL_2
REG_GND
REG_GND
XS2
XS2
XKEY_MAT_SEL_4
BZ7201
CN7201 6P
1NC
2xMODE_DIAL_COM
3xMODE_DIAL_C
4xMODE_DIAL_A
5xMODE_DIAL_B
6NC
CN7203 6P
1XS1
2XS2
3GND
4NC
5NC
6NC
D7201 RB520S-30FJTE61
D7202 RB48SKTK
23
14
D7205
RB48SKTK
23
1 4
D7206
RB48SKTK
23
14
D7211
DF5A6.8FU(TE85R)
5
43
2
1
D7209
XX
5
43
2
1
D7207
XX
5
43
2
1
D7208
XX
5
43
2
1
D7203
XX
5
43
2
1
D7210
XX
5
43
2
1
LCD_CS
LCD_SCK
LCD_SO
LED_K
REG_GND
LCD_CO
EVER_3.3V
FB7201
FB7203
FB7204
FB7202
LND005
LND024
LND020
LND019
LND007
LND706
LND013
LND003
LND004
LND702
F1
LND703
F2
LND704
F3
LND022
LND701
ESD_GND
LND001
LND006
LND014
LND025
LND015
LND016
LND018
LND017
LND002
LND010
LND008
LND707
LND023
LND009
LND705
GND
LND011
LND012
LND021
R7202
47k
R7203
XX
R7201
10k
CN7202 16P
1xOVR_COM
2xOVR_SW
3xLCDBL_COM
4xLCDBL_SW
5xDIAL_1_COM
6xDIAL_1_B
7xDIAL_1_A
8xDRIVE_SW
9xDRIVE_COM
10 xDIAL_2_COM
11 xDIAL_2_B
12 xDIAL_2_A
13 xISO_SW
14 xWB_SW
15 xISO/WB_COM
16 NC
LCD_VDD
(BUZZER)
BUZZER, ACCESSORY SHOE
XX MARK:NO MOUNT
TOP-004 FLEXIBLE BOARD (1/2)
SHOE
ACCESSORY
CN901
REG_GND
EVER_3.3V
xKEY_MAT_IN_1
xKEY_MAT_SEL_4
xKEY_MAT_SEL_2
REG_GND
xS1
EXT_FLASH_F2
EXT_FLASH_F3
xKEY_MAT_IN_2
BUZZER
xKEY_MAT_SEL_1
LED_K
REG_GND
LCD_SCK
LCD_SO
LCD_CS
LCD_CO
EXT_FLASH_TRIGGER
xDIAL_2_A
xDIAL_1_A
LCD_VDD
xKEY_MAT_IN_3
xDIAL_1_B
xDIAL_2_B
xS2
xKEY_MAT_IN_0
AM-015
(26/26)
of Level 3
Page 4-30
CN4523
pin26
pin27
pin2
pin1
Q7201
2SC4505T100
SWITCH
D7212
RB520S-30FJTE61
XMODE_DIAL_A
XMODE_DIAL_B
XMODE_DIAL_C
XKEY_MAT_SEL_4
SWITCH
of Level 2
(MD85100)
Page 4-49
CONTROL
CL001, LND002-LND006
BLOCK
(TK85100)
BLOCK
Page 4-49
SWITCH
of Level 2
CONTROL
LND001-LND016
Page 4-49
SWITCH
of Level 2
CONTROL
LND001-LND006
(RL85100)
BLOCK
4-43
DSLR-A900_L2 TOP-004 (2/2)
Note: LCD903 and zebra rubber connector are not included
in TOP-004
flexible complete board.
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
SEG11
SEG1
SEG12
SEG2
SEG13
SEG3
COM3
SEG14
SEG4
COM2
SEG15
SEG5
SEG16
SEG6
SEG17
SEG18
SEG19
COM1
SEG7
SEG8
SEG9
SEG10
SEG0
COM0
COM1
COM2
COM3
SEG0
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG19
SEG18
COM0
1
SEG0
2
SEG1
3
SEG2
4
SEG3
5
SEG4
6
SEG5
7
SEG6
8
SEG7
9
SEG8
10
SEG9
11
SEG10
12
SEG11
13
SEG12
14
SEG13
15
SEG14
16
SEG15
17
SEG16
18
SEG17
19
SEG18
20
SEG19
21
SEG20
22
SEG21
23
SEG22
24
SEG23
25
SEG24
26
SEG25
27
SEG26
28
SEG27
29
SEG28
30
SEG29
31
SEG30
32
SEG31
33
SEG32
34
SEG33
35
SEG34
36
COM0
37
COM1
38
COM2
39
COM3
40
VLCD
41
VDD
42
VSS
43
OSCIN
44
CSB
45
SCL
46
SD
47
TEST
48
INHb
LND074
SEG19
LND051
COM0
LND052
COM1
LND053
COM2
LND054
COM3
LND055
SEG0
LND056
SEG1
LND057
SEG2
LND058
SEG3
LND059
SEG4
LND073
SEG18
LND061
SEG6
LND062
SEG7
LND063
SEG8
LND064
SEG9
LND065
SEG10
LND066
SEG11
LND067
SEG12
LND068
SEG13
LND069
SEG14
LND070
SEG15
LND071
SEG16
LND072
SEG17
LND060
SEG5
R7303
XX
R7306
0
R7304
XX
R7307
XX
R7308
XX
C7301
0.1u
B
25V
R7305
220
XX MARK:NO MOUNT
DISPLAY PANEL DRIVE
TOP-004 FLEXIBLE BOARD (2/2)
DISPLAY
PANEL
LCD903
RUBBER
CONNECTOR
ZEBRA
IC7301
BU9795KV-E2
DISPLAY PANEL DRIVE
D7301
SML-A12WTT86J
BACKLIGHT
DISPLAY PANEL
LCD_SO
LCD_SCK
REG_GND
EVER_3.3V
LCD_CO
LCD_CS
LED_K
LCD_VDD
4-44

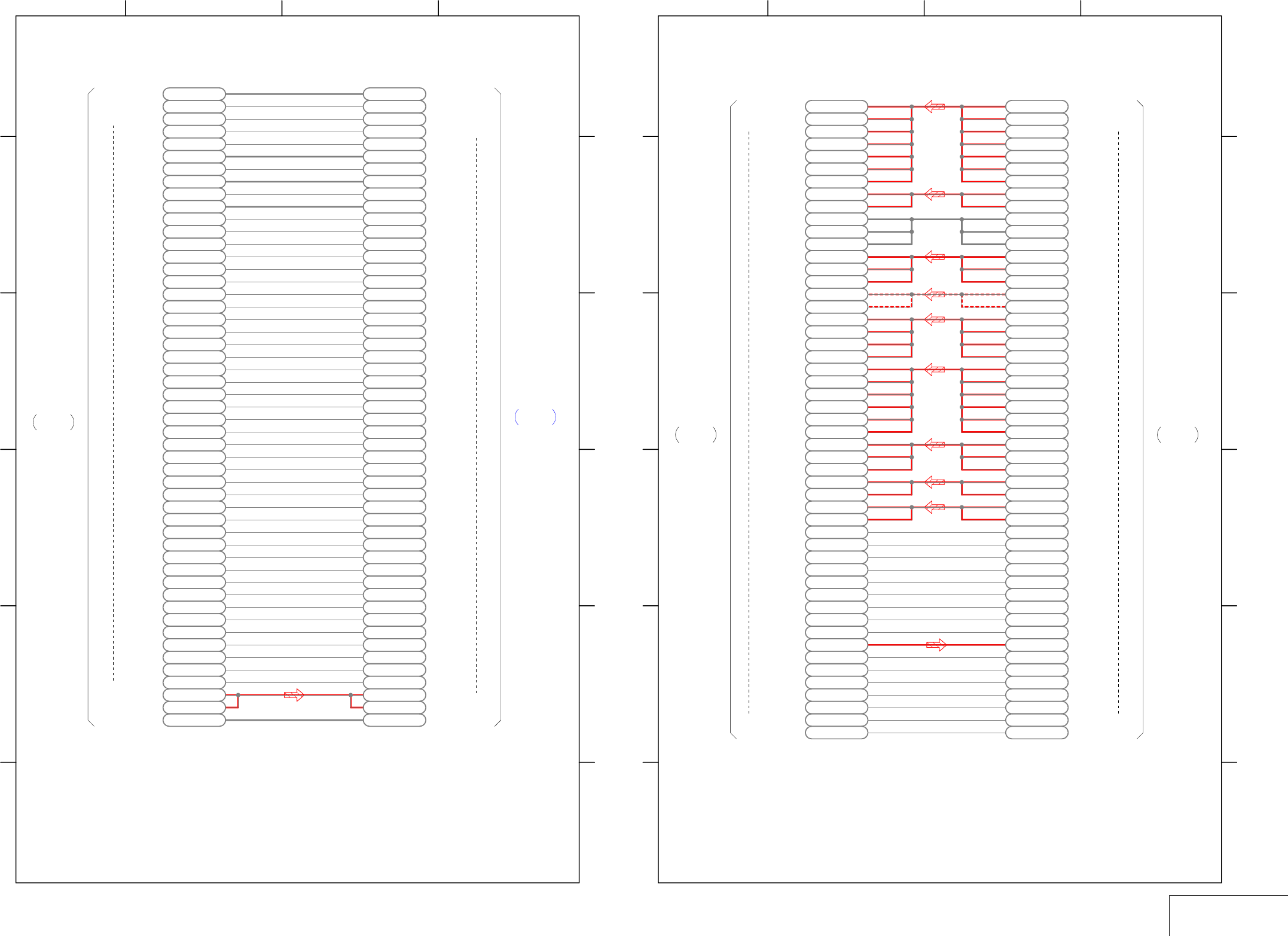

DSLR-A900_L2 FP-893, FP-894
(PRINTED WIRING BOARD is omitted.)
A
D
CC
D
B
E
A
B
3
05
F
2
F
E
1
LND010
GND
LND015
GND
LND043
GND
LND031
GND
LND008
VDDCN(D2.0V)
LND034
VDDSN(D2.0V)
LND048
VDDSV(A4.5V)
LND016
PVLM(A2.5V)
LND029
VDDLV(D1.8V)
LND023
GND
LND051
GND
LND019
GND
LND028
GND
LND049
VDDSV(A4.5V)
LND007
VDDCN(D2.0V)
LND001
GND
LND040
VDDSC(D2.5V)
LND006
GND
LND012
VDDCB(A2.0V)
LND005
IMG_TEMP1
LND050
GND
LND025
VDDDA(A2.5V)
LND041
VDDSC(D2.5V)
LND004
VDDCM_ON/MCK
LND030
VDDLV(D1.8V)
LND046
GND
LND026
VDDDA(A2.5V)
LND018
VSSVRL(A-2.0V)
LND003
VDDDA_ON/GND
LND022
VDDPL(PLL2.5V)
LND017
GND
LND020
VDDVRH(A3.0V)
LND042
GND
LND009
GND
LND035
GND
LND021
GND
LND033
VDDSN(D2.0V)
LND045
VDDCM(A4.5V)
LND013
GND
LND047
GND
LND036
GND
LND037
VDDIO(D3.3V)
LND044
VDDCM(A4.5V)
LND024
GND
LND027
GND
LND002
VDDSV_ON/GND
LND011
VDDCB(A2.0V)
LND014
VDDSUB(4.5V)
LND039
GND
LND038
VDDIO(D3.3V)
LND032
GND
LND124
LND150
LND103
LND134
LND133
LND149
LND127
LND125
LND122
LND148
LND145
LND107
LND102
LND141
LND117
LND116
LND113
LND101
LND111
LND104
LND120
LND110
LND129
LND147
LND140
LND114
LND130
LND115
LND142
LND123
LND136
LND106
LND139
LND146
LND143
LND109
LND151
LND137
LND112
LND138
LND126
LND131
LND135
LND119
LND144
LND105
LND132
LND118
LND108
LND121
LND128
pin50
pin51
pin1
pin2
pin1
pin2
pin51
pin50
AM-IS CONNECTION
FP-893 FLEXIBLE BOARD
of Level 3
Page 4-28
CN3101
(24/26)
AM-015
VDDDA_ON/GND
VDDSN(D2.0V)
VDDSV(A4.5V)
GND
VDDDA(A2.5V)
VDDCM(A4.5V)
VDDCN(D2.0V)
VDDSC(D2.5V)
GND
GND
GND
VDDCB(A2.0V)
VDDLV(D1.8V)
GND
GND
GND
GND
GND
GND
GND
VDDIO(D3.3V)
GND
GND
GND
IMG_TEMP1
GND
GND
GND
VDDSN(D2.0V)
VDDPL(PLL2.5V)
VDDSV(A4.5V)
VDDSV_ONGND
PVLM(A2.5V)
VDDCM_ON/MCK
VDDVRH(A3.0V)
GND
VDDSC(D2.5V)
VDDSUB(4.5V)
VDDLV(D1.8V)
GND
GND
GND
GND
VDDCB(A2.0V)
VDDIO(D3.3V)
VDDDA(A2.5V)
VDDCM(A4.5V)
GND
VSSVRL(A-2.0V)
VDDCN(D2.0V)
GND
4
Page 4-4
IS-030
CN5001
of Level 2
(PRINTED WIRING BOARD is omitted.)
A
D
CC
D
B
E
A
B
3
05
F
2
F
E
1
LND021
LND012
LND026
LND016
LND013
LND043
LND044
LND046
LND042
LND006
LND045
LND049
LND010
LND050
LND037
LND051
LND031
LND022
LND047
LND008
LND019
LND014
LND030
LND003
LND038
LND024
LND009
LND011
LND020
LND027
LND032
LND001
LND036
LND039
LND041
LND033
LND034
LND015
LND023
LND017
LND048
LND018
LND040
LND028
LND029
LND035
LND002
LND005
LND004
LND007
LND025
LND136
DP01
LND117
DM06
LND105
DM10
LND128
LVDSGND
LND142
XCLR
LND130
DP03
LND141
GND
LND150
XVS
LND139
DP00
LND147
SDO
LND102
DM11
LND149
XHS
LND103
DP11
LND132
DM02
LND125
LVDSGND
LND121
DPCK
LND109
DP09
LND148
GND
LND114
DM07
LND124
DP05
LND138
DM00
LND111
DM08
LND131
LVDSGND
LND145
SDI
LND108
DM09
LND134
LVDSGND
LND123
DM05
LND133
DP02
LND129
DM03
LND144
SCK
LND106
DP10
LND112
DP08
LND127
DP04
LND135
DM01
LND110
LVDSGND
LND151
GND
LND113
LVDSGND
LND120
DMCK
LND140
LVDSGND
LND146
XCE
LND116
LVDSGND
LND104
LVDSGND
LND119
LVDSGND
LND126
DM04
LND137
LVDSGND
LND115
DP07
LND122
LVDSGND
LND107
LVDSGND
LND118
DP06
LND101
LVDSGND
LND143
GND
pin51
pin50
pin1
pin2
pin51
pin50
pin1
pin2
AM-IS CONNECTION
FP-894 FLEXIBLE BOARD
of Level 3
Page 4-28
(24/26)
CN3102
AM-015
LVDSGND
DP00
DP09
LVDSGND
DP11
DP07
LVDSGND
DPCK
DM10
DP02
XHS
GND
GND
LVDSGND
GND
LVDSGND
DM08
LVDSGND
LVDSGND
DM03
DM01
DM05
DM06
SDO
SDI
DP04
LVDSGND
DM04
DP01
DM09
DP10
LVDSGND
XCE
XCLR
DM11
DP03
SCK
DM00
LVDSGND
DM07
LVDSGND
DM02
DMCK
LVDSGND
DP06
LVDSGND
LVDSGND
DP08
DP05
XVS
GND
4
CN5002
of Level 2
IS-030
Page 4-4
4-45
DSLR-A900_L2 FP-890, FP-895
(PRINTED WIRING BOARD is omitted.)
A
D
CC
D
B
E
A
B
34
05
F
2
F
E
1
LND001
LND002
LND003
LND004
LND005
LND006
LND007
LND008
LND009
LND010
LND011
LND012
LND013
LND014
LND015
LND016
LND017
LND018
LND019
LND020
LND021
LND022
LND023
LND024
LND025
LND026
LND027
LND028
LND029
LND030
LND031
LND032
LND033
LND034
LND035
LND036
LND037
LND038
LND039
LND040
LND041
LND042
LND043
LND044
LND045
LND046
LND047
LND048
LND049
LND050
LND051
LND147
CF_D06
LND148
CF_D12
LND126
CF_A02
LND127
CF_A00
LND101
REG_GND
LND150
CF_3.3V
LND129
XCF_CS0
LND138
CF_D05
LND128
XCF_CS1
LND130
XCF_WE
LND106
REG_GND
LND139
CF_D09
LND131
CF_IOWR
LND107
XCF_IORD
LND104
XCF_CD2
LND113
XCF_IOIS16
LND115
XCF_DASP
LND105
XCF_RESET
LND114
XCF_PDIAG
LND102
CF_TEMP
LND116
CF_INTRQ
LND122
CF_A05
LND125
CF_A04
LND103
XCF_CD1
LND117
CF_A10
LND123
CF_A03
LND124
CF_A01
LND135
CF_D11
LND151
REG_GND
LND132
XCF_DMACK
LND111
CF_DMARQ
LND149
CF_3.3V
LND133
CF_D15
LND108
REG_GND
LND112
XCF_ATASEL
LND109
XCF_IORDY
LND118
CF_A09
LND110
REG_GND
LND134
CF_D00
LND136
CF_D01
LND119
CF_A08
LND140
CF_D04
LND120
CF_A06
LND141
CF_D14
LND121
CF_A07
LND142
CF_D13
LND143
CF_D03
LND144
CF_D08
LND146
CF_D07
LND145
CF_D02
LND137
CF_D10
1pin
51pin
1pin
51pin
2pin
50pin
2pin
50pin
AM-MM CONNECTION
FP-890 FLEXIBLE BOARD
(25/26)
Page 4-29
CN3205
of Level 3
AM-015
REG_GND
CF_TEMP
XCF_CD1
XCF_CD2
XCF_RESET
REG_GND
XCF_IORD
REG_GND
XCF_IORDY
REG_GND
CF_DMARQ
XCF_ATASEL
XCF_IOIS16
XCF_PDIAG
XCF_DASP
CF_INTRQ
CF_A10
CF_A09
CF_A08
CF_A06
CF_A07
CF_A05
CF_A03
CF_A01
CF_A04
CF_A02
CF_A00
XCF_CS1
XCF_CS0
XCF_WE
CF_IOWR
XCF_DMACK
CF_D15
CF_D00
CF_D11
CF_D01
CF_D10
CF_D05
CF_D09
CF_D04
CF_D14
CF_D13
CF_D03
CF_D08
CF_D02
CF_D07
CF_D06
CF_D12
CF_3.3V
CF_3.3V
REG_GND
MM-079
Page 4-33
of Level 2
CN5201
(PRINTED WIRING BOARD is omitted.)
A
D
CC
D
B
E
A
B
3
05
F
2
F
E
1
LND001
MEDIA_3.3V
LND002
MEDIA_3.3V
LND003
MEDIA_3.3V
LND004
MEDIA_3.3V
LND005
MEDIA_3.3V
LND006
MEDIA_3.3V
LND007
MEDIA_3.3V
LND008
UNREG+6.0V
LND009
UNREG+6.0V
LND010
REG_GND
LND011
REG_GND
LND012
REG_GND
LND013
EVER_1.5V
LND014
EVER_1.5V
LND015
EVER_1.5V
LND016
CMOS_-2.2V
LND017
CMOS_-2.2V
LND018
CMOS_2.5V
LND019
CMOS_2.5V
LND020
CMOS_2.5V
LND021
CMOS_2.5V
LND022
CMOS_2.1V
LND023
CMOS_2.1V
LND024
CMOS_2.1V
LND025
CMOS_2.1V
LND026
CMOS_2.1V
LND027
CMOS_2.1V
LND028
EVER_3.3V
LND029
EVER_3.3V
LND030
EVER_3.3V
LND031
IC_4001_3.3V/5.0V
LND032
IC_4001_3.3V/5.0V
LND033
IC_4001_6.0V
LND034
IC_4001_6.0V
LND035
BATT_IB
LND036
xDC_JACK_SENSE
LND037
IC_4001_SO
LND038
IC_4001_SCK
LND039
CS_DD
LND040
IC_4001_3.3V_POWERON
LND041
DD_ON_2
LND042
DD_ON
LND043
XLVDD0_POWERON
LND044
LVDD1
LND045
LENS_SCK
LND046
LENS_SI
LND047
LENS_SO
LND048
LENS_MOUNT
LND049
LENS_PWR_ON_LOW
LND050
XLVDDO_PWRON_SSM
LND051
DETECT_4V
LND149
LND103
LND107
LND125
LND117
LND133
LND143
LND106
LND122
LND126
LND101
LND137
LND148
LND129
LND142
LND108
LND116
LND114
LND121
LND136
LND111
LND109
LND147
LND118
LND112
LND123
LND104
LND141
LND132
LND115
LND128
LND110
LND135
LND146
LND119
LND140
LND151
LND113
LND145
LND130
LND139
LND150
LND127
LND120
LND144
LND102
LND124
LND105
LND138
LND134
LND131
pin2
pin50
pin1
pin51
pin1
pin50
pin2
pin51
AM-DD CONNECTION
FP-895 FLEXIBLE BOARD
AM-015
of Level 3
CN4524
Page 4-30
(26/26)
of Level 3
CN0505
Page 4-31
(1/2)
DD-299
LENS_PWR_ON_LOW
MEDIA_3.3V
MEDIA_3.3V
CMOS_2.1V
CMOS_-2.2V
IC_4001_6.0V
XLVDD0_POWERON
MEDIA_3.3V
CMOS_2.1V
CMOS_2.1V
MEDIA_3.3V
IC_4001_SO
LENS_MOUNT
EVER_3.3V
DD_ON
UNREG+6.0V
CMOS_-2.2V
EVER_1.5V
CMOS_2.5V
xDC_JACK_SENSE
REG_GND
UNREG+6.0V
LENS_SO
CMOS_2.5V
REG_GND
CMOS_2.1V
MEDIA_3.3V
DD_ON_2
IC_4001_3.3V/5.0V
EVER_1.5V
EVER_3.3V
REG_GND
BATT_IB
LENS_SI
CMOS_2.5V
IC_4001_3.3V_POWERON
DETECT_4V
EVER_1.5V
LENS_SCK
EVER_3.3V
CS_DD
XLVDDO_PWRON_SSM
CMOS_2.1V
CMOS_2.5V
LVDD1
MEDIA_3.3V
CMOS_2.1V
MEDIA_3.3V
IC_4001_SCK
IC_4001_6.0V
IC_4001_3.3V/5.0V
4
4-46
DSLR-A900_L2 PS85100 (1/2)
CONTROL SWITCH BLOCK (PS85100) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
XKEY_MAT_IN_3
XKEY_MAT_IN_4
XKEY_MAT_IN_5
XKEY_MAT_IN_6
XKEY_MAT_IN_7
XKEY_MAT_IN_3
XKEY_MAT_IN_4
XKEY_MAT_IN_5
XKEY_MAT_IN_6
XKEY_MAT_IN_5
XKEY_MAT_IN_4
XKEY_MAT_IN_7
XKEY_MAT_IN_6
XKEY_MAT_SEL_2
XKEY_MAT_IN_4
XKEY_MAT_IN_5
XKEY_MAT_IN_6
XKEY_MAT_SEL_1
XKEY_MAT_SEL_0
XKEY_MAT_SEL_4
XKEY_MAT_SEL_4
D7001
RB48SKTK
23
14
D7002
RB48SKTK
23
14
D7006
RB520S-30FJTE61
D7003
RB48SKTK
23
1 4
D7005
RB48SKTK
23
14
PANEL_BL_A
XCS_LCD
LCD_SCK
IMG_3.3V
LCD_DB_0
LCD_DB_1
LCD_DB_4
LCD_DB_5
LCD_DG_0
LCD_DG_1
LCD_DG_4
LCD_DG_5
LCD_DR_0
LCD_DR_1
LCD_DR_4
LCD_DR_5
D7004
RB48SKTK
23
14
D7007
RB520S-30FJTE61
XKEY_MAT_SEL_2
XKEY_MAT_IN_4
XKEY_MAT_IN_5
XKEY_MAT_IN_7
REG_GND
R7001 220
XKEY_MAT_IN_6
CN7001 16P
1xCUSTOM_SW
2xCUST_FUNC_COM
3N.C.
4 xJOY_STICK_COM
5 xJOY_STICK_D
6 xJOY_STICK_R
7 xJOY_STICK_C
8 xJOY_STICK_U
9 xJOY_STICK_L
10 xFUNCTION_SW
11 xLM_SW_A
12 xLM_SW_B
13 xLM_COM
14 xAEL_SW
15 xAF_SW
16 xAF_AEL_COM
CL750
XKEY_MAT_SEL_2
CL747
CL748
CL746REG_GND
CL735
CL732LCD_DG_2
CL744
CL749
CL739
CL740LCD_DB_2
CL741
CL738LCD_DB_6
CL736LCD_DR_2
CL743REG_GND
CL726
CL727
CL742REG_GND
CL728LCD_SO
CL729REG_GND
CL733
CL737
CL731
CL734LCD_DR_6
CL730LCD_DG_6
CL745
CL751
XKEY_MAT_SEL_0
CL703
CL723XKEY_MAT_IN_4
CL722XKEY_MAT_IN_6
CL710LCD_DR_3
CL721
CL724
XKEY_MAT_SEL_4
CL706LCD_DG_3
CL720
CL709
CL719IMG_1.8V_4S
CL705
CL716
CL712LCD_DB_7
CL707
CL715
CL702
CL725
XKEY_MAT_SEL_1
CL713
CL704LCD_DG_7
CL714LCD_DB_3
CL717
CL711
CL718
CL708LCD_DR_7
CL701PANEL_BL_K
1
2
3
4
1pin 2pin
3pin
4pin
49pin
50pin
48pin
51pin
CONTROL SWITCH BLOCK
(PS85100) (1/2)
S7001
OFF
SteadyShot
ON
D7008
CL-196HR-CD-T
(ACCESS)
Page 4-30
AM-015
CN4511
of Level 3
(26/26)
IMG_1.8V_4S
PANEL_BL_K
LCD_SO
LCD_DB_2
LCD_DB_3
LCD_DB_6
LCD_DB_7
LCD_DG_2
LCD_DG_3
LCD_DG_6
LCD_DG_7
LCD_DR_2
LCD_DR_3
LCD_DR_6
LCD_DR_7
XLCD_VD
XKEY_MAT_IN_7
XKEY_MAT_IN_5
LCD_DR_4
XKEY_MAT_IN_3
LCD_DB_4
LCD_DB_0
PANEL_BL_A
LCD_DG_0
LCD_DR_0
LCD_DG_4
IMG_3.3V
XCS_LCD
MEDIA_ACC_LED_A
LCD_DR_5
LCD_DG_5
REG_GND
LCD_DG_1
LCD_DB_1
LCX_SCK
LCD_DB_5
LCD_DR_1
LCD_CLK
XLCD_HD
XLCD_RST
XPOWER_SW
XPOWER_SW
XKEY_MAT_SEL_0
XKEY_MAT_SEL_2
XKEY_MAT_IN_3
XKEY_MAT_IN_5
XKEY_MAT_IN_7
XKEY_MAT_SEL_1
XKEY_MAT_SEL_4
XKEY_MAT_IN_6
XKEY_MAT_IN_4
Page 4-48
SWITCH
of Level 2
CONTROL
CL001-CL016
(JY62300)
BLOCK
XLCD_VD
LCD_CLK
XLCD_HD
XLCD_RST
4-47
DSLR-A900_L2 PS85100 (2/2)
CONTROL SWITCH BLOCK (PS85100) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
Note: BL901 and LCD901 are not included
in control switch block (PS85100).
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
CN7101 61P
1BL+
3NC
5VCAMPH
7VCSH
9SI
11
13 TEST
15 OUT15V
17 GND
19 C50CF1P
21 C50CF2P
23 GND
25 VDD
27 C65CFP
29 C50LCFP
31 OUT50LV
33 DE
35
37 DB0
39 DB2
41 DB4
43 DB6
45 DG0
47 DG2
49 DG4
51 DG6
53 DR0
55 DR2
57 DR4
59 DR6
61 GND
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
C7108 1u B10V
PANEL_BL_K
REG_GND
LCD_DR_7
LCD_SCK
XCS_LCD
LCD_DR_5
LCD_DR_3
LCD_DR_1
LCD_DG_7
LCD_DG_5
LCD_DG_3
LCD_DG_1
LCD_DB_7
LCD_DB_5
LCD_DB_3
LCD_DB_1
D7102
RB48SKTK
23
14
D7101
RB48SKTK
23
14
C71142.2u C16V
IMG_1.8V_4S
C7111 1u B10V
C7116 1u
B10V
C7112
4.7u
B10V
C7113 1u B10V
C7110 1u B10V
C7109 1u B10V
C7107 1u B10V
C7115 1u B10V
C7104 1u B10V
C7102 1u B10V
C7101 1u B10V
C7105 1u
B10V
C7106 2.2u B10V
CL7106
CL7101 CL7105
CL7102
CL7103
CL7104
R7101
0C7103 XX B10V
R7102
XX
R7103 XX
1
2
3
4
CONTROL SWITCH BLOCK
(PS85100) (2/2)
REG_GND
XKEY_MAT_IN_4
XKEY_MAT_IN_5
XKEY_MAT_SEL_2
XKEY_MAT_IN_6
XKEY_MAT_IN_7
S7101
POWER
ON
OFF
S7105
S7104
S7106
DISP
DELETE
S7103
MENU
IMG_3.3V
LCD_DR_6
LCD_DR_4
LCD_DR_2
LCD_DR_0
LCD_DG_6
LCD_DG_4
LCD_DG_2
LCD_DG_0
LCD_DB_6
LCD_DB_4
LCD_DB_0
LCD_DB_2
LCD_SO
PANEL_BL_A
XRST
XHD
BL-
NC
VCAMPL
XCS
XSCK
SO
VREF
VGM
C50CF1N
C50CF2N
OUT50V
VDD
C65CFN
OUT65V
OUT50LCFN
VDDIO
DB1
DB3
DB5
DB7
DG1
DG3
DG5
DG7
DR1
DR3
DR5
DR7
DCLK
XVD
BACKLIGHT
BL901
LCD901
LCD
3 inch
MONITOR
COLOR
XX MARK:NO MOUNT
XLCD_RST
XPOWER_SW
XLCD_HD
XLCD_VD
LCD_CLK
4-48
DSLR-A900_L2 JY62300
Page 4-46
CN7001
(PS85100)
of Level 2
(1/2)
BLOCK
CONTROL
SWITCH
CONTROL SWITCH BLOCK (JY62300) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
A
7
FF
6
E
A
5
E
3421 8
CL014
CL005
CL004
CL012
CL006
CL001
CL013
CL011
S001
CL009
CL003
CL010
CL007
CL008
CL002
CL015
CL016
S004
pin16
pin15
pin1
pin2
ENLARGE IMAGE ROTATIONFn /
(JY62300)
CONTROL SWITCH BLOCK
D
C
B
D
C
B
05
AF/MF /
xAEL_SW
xJOY_STICK_D
xJOY_STICK_COM
xLM_SW_B
xJOY_STICK_R
xCUSTOM_SW
xLM_COM
xLM_SW_A
xJOY_STICK_L
N.C.
xFUNCTION_SW
xJOY_STICK_C
xJOY_STICK_U
xCUST_FUNC_COM
xAF_SW
xAF_AEL_COM
S003
(METERING MODE)
(MULTI-SELECTOR)
S002
AEL/SLOW SYNC
INDEX
/ S006 S005
CHISTOGRAM
/
4-49

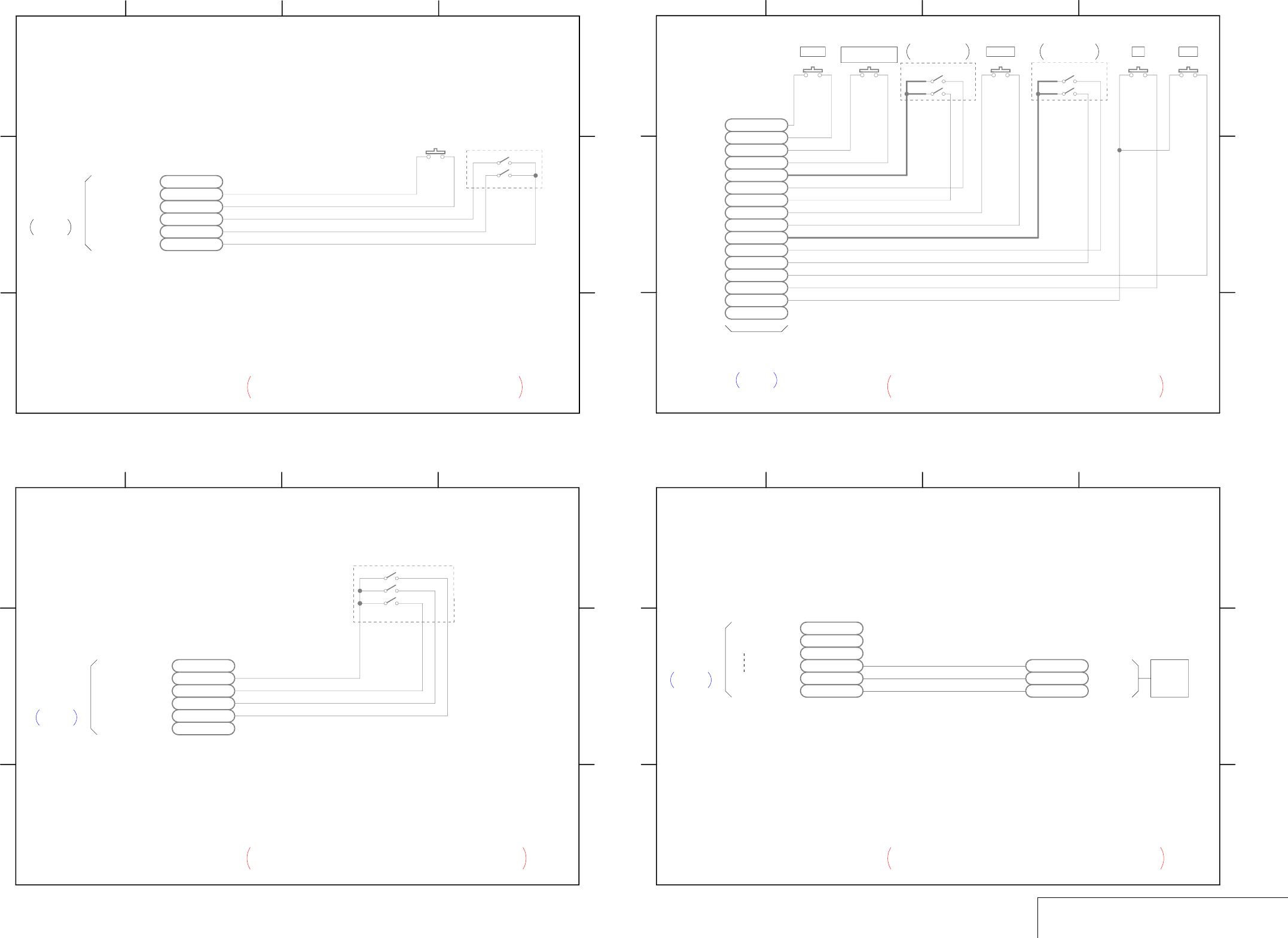

DSLR-A900_L2 FS85100, MD85100, TK85100, RL85100
CONTROL SWITCH BLOCK (FS85100) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
LND003
LND004
LND005
LND001
LND002
LND006
1pin
6pin
CONTROL SWITCH BLOCK
(FS85100)
Page 4-30
CN4516
of Level 3
AM-015
(26/26)
S001
(PREVIEW) S003
(FOCUS MODE)
xAF_MODE_SW_A
xPREVIEW_COM
xPREVIEW_SW
xAF_MODE_COM
xAF_MODE_SW_B
NC
CONTROL SWITCH BLOCK (MD85100) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
LND003
LND004
LND006
LND005
LND002
CL001
1PIN
6PIN
CONTROL SWITCH BLOCK
(MD85100)
xMODE_DIAL_C
xMODE_DIAL_A
NC
xMODE_DIAL_B
xMODE_DIAL_COM
NC
S001
(MODE DIAL)
CN7201
FLEXIBLE
TOP-004
(1/2)
Page 4-42
of Level 2
CONTROL SWITCH BLOCK (TK85100) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
LND010
LND001
LND009
LND004
LND003
LND011
LND005
LND006
LND002
LND012
LND007
LND008
LND014
LND013
LND015
LND016
1pin
2pin
16pin
15pin
(TK85100)
CONTROL SWITCH BLOCK
xWB_SW
xDRIVE_SW
xISO_SW
xDIAL_1_B
xDIAL_1_COM
xOVR_COM
xDIAL_1_A
xDIAL_2_COM
xDRIVE_COM
xOVR_SW
xDIAL_2_B
xDIAL_2_A
xLCDBL_COM
xLCDBL_SW
xWB/ISO_COM
NC
S018
(EXPOSURE)
+/-
S025
DISPLAY PANEL
ILLUMINATION
S021
FRONT CONTROL
DIAL
S020
DRIVE
S022
REAR CONTROL
DIAL
S019
WB
S017
ISO
Page 4-42
TOP-004
(1/2)
CN7202
FLEXIBLE
of Level 2
CONTROL SWITCH BLOCK (RL85100) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
A
3
C
2
B
1
B
C
A
05
4
LND001
LND003
LND102XS2
LND004
LND005
LND006
LND002
LND103COMMON
LND101XS1
pin2
pin1
pin5
pin6
CONTROL SWITCH BLOCK
(RL85100)
BUTTON
SHUTTER
XS1
GND
NC
NC
NC
XS2
of Level 2
TOP-004
Page 4-42
CN7203
(1/2)
FLEXIBLE
4-3. PRINTED WIRING BOARDS
DSLR-A900_L2
Link
Link
MM-079 BOARD
IS-030 BOARD
IF-161 FLEXIBLE BOARDHOL-005 FLEXIBLE BOARD
GY-009 FLEXIBLE BOARD
MA-453 FLEXIBLE BOARD
FP-898 FLEXIBLE BOARD
AE-033 FLEXIBLE BOARD
TOP-004 FLEXIBLE BOARD
FP-889 FLEXIBLE BOARD

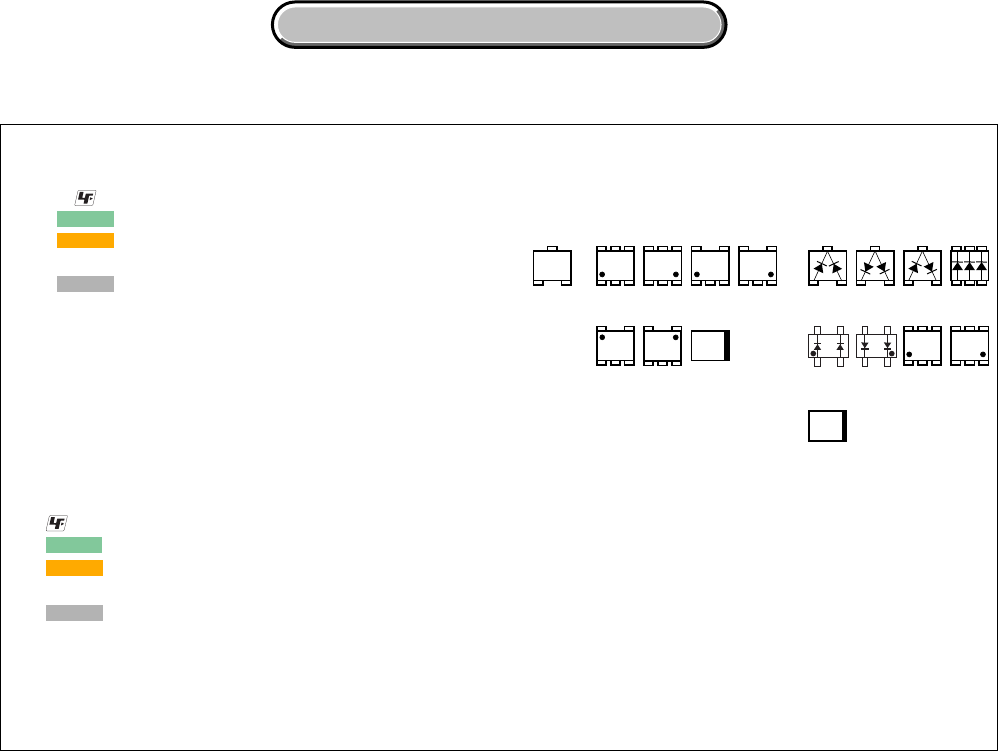

COMMON NOTE FOR PRINTED WIRING BOARDS
4-50
DSLR-A900_L2
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS
•: Uses unleaded solder.
•: Circuit board
: Flexible board
Pattern from the side which enables seeing.
: pattern of the rear side
(The other layers’ patterns are not indicated)
•Through hole is omitted.
•There are a few cases that the part printed on diagram
isn’t mounted in this model.
•C: panel designation
(ENGLISH)
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS
(JAPANESE)
21
3
21
3
21
3
345
21
123
654
EB
C
31
5
2
46
123
654
31
5
2
46
123
54
43
12
312
45
534
12
14
23
46
2
5
31
12
4
3
14
23
•Chip parts.
Transistor Diode
プリント図共通ノート
【プリント図ノート】
・ ：無鉛半田を使用しています。
・ ：基板
：フレキシブル配線板
見ている面側のパターン。
：裏側のパターン
（他のパターンについては表示されていません）
・スルーホールは省略。
・プリント図には，本機で使用していない部品が記載されている
場合があります。
・Cはパネル表示名称。
4-51
DSLR-A900_L2
IS-030 (8 layers)
: Uses unleaded solder.
IS-030
250
151
250
151
C
BE
C
BE
C
BE
123
45
123
45
123
45
A
A
A
P
P
P
A
A
P
A
A
P
A
A
P
P
A
P
A
A
P
P
A
A
CL5222
CN5001
CL5049
CN5002
CL5054
C5001
CL5055
C5002
C5003
C5004
Q5001
C5005
Q5002
C5006
C5007
Q5004
C5008
Q5005
C5009
Q5007
Q5008
C5010
C5011
C5012
C5013
C5014
C5015
C5016
C5018
C5019
C5020
C5021
C5023
C5024
C5025
C5027
C5028
R5001
C5029
R5002
R5003R5004
R5005R5006
R5007R5008
C5030
IC5001
R5009
C5031
IC5002
C5032
IC5003
C5033
C5034
C5035
C5036
C5037
R5010
C5038
R5011
C5039
R5012
R5013R5014
R5015R5016
R5017R5018
C5040
TH5001
R5019
C5041
C5042
C5043
C5045
C5046
C5047
R5020
C5048
R5021R5022
R5023R5024
R5025R5026
R5027
R5028
C5050
C5051
C5052
C5054
C5055
C5056
C5057
R5030
C5058
R5031
C5059
R5032
R5033
R5034
C5060
C5061
C5062
C5063
C5064
C5065
C5066
C5067
C5068
C5069
R5047 R5048
C5070
R5049
C5071
C5072
C5073
C5074
C5075
C5076
C5077
R5050
C5078
R5051
C5079
R5052
R5053
R5054
C5080
C5081
C5082
C5083
C5084
C5085
C5086
C5087
R5060
C5088
R5061
C5089
C5090
C5091
C5092
C5093
C5094
C5095
C5096
C5097
C5098
C5099
R5098
CL5115
R5099
CL5116
C5100
X5001
C5101
C5102
C5103
C5104
C5105
C5106
C5107
C5108
C5109
C5110
C5111
C5112
C5113
C5114
C5115
C5116
C5117
C5118
C5119
C5120
C5121
C5122
C5123
R5102
R5103
C5130
R5109
C5131
C5132
C5133
R5111
R5112
R5113
R5114
CL5190
R5115
C5146
C5147
C5148
C5149
C5150
C5151
C5155
C5156
C5157
D
GS
12
34
D
GS
D
GS
1-875-731- 11
IS-030 BOARD (SIDE A)
05
VDDCN (D2.0V)
VDDPL (PLL2.5V)
4.5V 4.5V
2.5V
VDDIO (D3.3V)
VDDVRH (A3.0V)
VSSVRL (A-2.0V)
VDDSN (D2.0V)
VDDCB (A2.0V)
VDDSUB (4.5V)
VDDSC (D2.5V)
VDDLV (D1.8V)
PVLM (A2.5V)
IC5004
AA16
AA15
AA14
AA13
AA12
AA11
AA10
AA9
AA8
AA7
AA6
AA5
AA4
AA3
AA2
AA1
Y16
Y15
Y14
Y13
Y12
Y11
Y10
Y9
Y8
Y7
Y6
Y5
Y4
Y3
Y2
Y1
W16
W15
W14
W13
W12
W11
W10
W9
W8
W7
W6
W5
W4
W3
W2
W1
V16
V15
V14
V13
V12
V11
V10
V9
V8
V7
V6
V5
V4
V3
V2
V1
U16
U15
U14
U13
U4
U3
U2
U1
T16
T15
T14
T13
T4
T3
T2
T1
R16
R15
R14
R13
R4
R3
R2
R1
P16
P15
P14
P13
P4
P3
P2
P1
N16
N15
N14
N13
N4
N3
N2
N1
M16
M15
M14
M13
M4
M3
M2
M1
L16
L15
L14
L13
L4
L3
L2
L1
K16
K15
K14
K13
K4
K3
K2
K1
J16
J15
J14
J13
J4
J3
J2
J1
H16
H15
H14
H13
H4
H3
H2
H1
G16
G15
G14
G13
G4
G3
G2
G1
F16
F15
F14
F13
F4
F3
F2
F1
E16
E15
E14
E13
E4
E3
E2
E1
D16
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
C16
C15
C14
C13
C12
C11
C10
C9
C8
C7
C6
C5
C4
C3
C2
C1
B16
B15
B14
B13
B12
B11
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
A16
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
1-875-731- 11
IS-030 BOARD (SIDE B)
05
Note: IS-030 complete board and all mounted parts (including IC5004 (CMOS Imager)) are not supplied,
but they are included in OMEGA unit.
DSLR-A900_L2
Printed wiring boards of the AM-015 and DD-299 boards are not shown.
Pages from 4-52 to 4-54 are not shown.
4-55
DSLR-A900_L2
MM-079 (4 layers)
: Uses unleaded solder.
MM-079
5026 251
52
51
TH5201
CN5203
CN5202
12
1-875-705- 11
MM-079 BOARD (SIDE A)
05
CF
CompactFlash/
Microdrive
CF CARD
EJECT LEVER
1
250
51
B
+
CN5201
C5201
C5202
C5203
C5204
C5205
C5206
R5201
R5203
R5204
R5206
R5208
R5210
R5214
R5216
R5217
R5218
R5219
R5220
R5221
R5222
R5223
R5224
R5225
R5226
R5227
R5228
R5229
R5230
R5231
R5232
RB5201 RB5202 RB5203
RB5204 RB5205
17
28
17
28
17
28
1-875-705- 11
MM-079 BOARD (SIDE B)
05
17
28
17
28
4-56
DSLR-A900_L2
GY-009 (2 layers)
: Uses unleaded solder.
GY-009
G
Y
-
0
0
9
>
P
I
<
43
12
SE5701
SE5702
C5701
C5702
C5703
C5704
C5705
IC5701
LND001LND002
LND003LND004
LND005LND006
LND007LND008
LND009LND010
LND011LND012
LND013LND014
LND015
8
1
5
4
8
1
5
4
1-875-707- 11
GY-009 FLEXIBLE BOARD
05
15 1
(YAW)
(PITCH)
4-57
DSLR-A900_L2
HOL-005 (1 layer)
: Uses unleaded solder.
HOL-005
R
HOL-005
>PI<
UL I D
MA R K
169
18
IC7501
LND001
LND002
LND003
LND004
LND005
LND006
LND007
LND008
LND009
LND010
LND011
LND012
LND013
LND014
LND015
LND016
LND031
LND032
LND033
LND034
RB7501
RB7502
Note: ACT902, ACT903, HOL-005 flexible complete board and all mounted
parts are not supplied, but they are included in slider unit.
1
2
7
8
1
2
7
8
1-875-722- 11
HOL-005 FLEXIBLE BOARD
05
ACT902
ACTUATOR
(PITCH)
ACT903
ACTUATOR
(YAW)
161
4-58
DSLR-A900_L2
MA-453 (2 layers)
: Uses unleaded solder.
MA-453
M
A
-
4
5
3
>
P
I
<
12
34
1 6
110
1
220
21
116
112
1
2
34
LND504
LND505
LND506
LND508
LND514
LND516
LND517
LND518
LND519
LND520
LND521
LND522
LND523
LND525
LND538
LND539
LND540
LND541
LND542
LND545
LND546
LND547
LND548
LND549
LND550
LND551
LND552
LND553
LND554
LND555
LND556
LND557
LND558
LND565
LND566
LND567
LND569
CN5601
CN5602
CN5603
C5601
D5601
D5602
R5601
R5602
CL5502 CL5503 CL5504
CL5505
CL5506
CL5507
SOL501
SOL502
CN5502
CN5503
CN5504
CN5505
D5501
LND501
LND502
LND503
Q5603
12
3
2
13
132
54
31
2
456
1-875-706- 11
MA-453 FLEXIBLE BOARD
05
LND507
LND509
LND510
LND511
LND512
LND513
LND515
LND524
LND526
LND527
LND528
LND529
LND530
LND531
LND532
LND533
LND534
LND535
LND536
LND537
LND543
LND544
LND559
LND560
LND561
LND562
LND563
LND564
LND568
LND570
LND571
LND572
LND573
LND574
LND575
LND576
LND577
LND578
LND579
LND580
LND601
80
1
4-59
DSLR-A900_L2
FP-898 (1 layer), AE-033 (2 layers), FP-889 (1 layer), IF-161 (2 layers)
: Uses unleaded solder.
FP-898, AE-033, FP-889, IF-161
>PI<
FP-898
LND001
LND002
LND003
LND004
LND005
LND006
LND011
LND012
LND013
1-875-730- 11
FP-898 FLEXIBLE BOARD
05
6
1
REMOTE
J901
Note: J901 is not included in
FP-898 flexible board.
>
P
I
<
>
P
I
<
<
A
E
-
0
3
3
>
P
I
<
1 6
P
P
17
10
20
7
6
11 16
1
FB5901
CN5901
C5901
C5902
C5903
C5904
Q5901
C5905
D5901
D5902
D5903
R5901
R5902
R5903
R5904
R5905
R5906
IC5901
R5909
R5911
R5912
B
C
E
1-875-720- 11
AE-033 FLEXIBLE BOARD
05
Note: AE-033 flexible complete board and all mounted
parts are not supplied, but they are included
in VO PENTA unit.
LND001
LND002
LND003
LND004
LND005
LND007
LND006
LND008
LND009
LND010
LND011
LND012
LND013
LND014
LND015
LND016
LND017
LND018
LND019
LND021
LND020
21
1
FP-889
>PI <
LND001
LND002
LND003
LND004
LND005
LND006
LND011
LND012
1-875-713- 11
FP-889 FLEXIBLE BOARD
05
6
1
D901
AF ILLUMINATOR/
SELF-TIMER
Note: D901 and FP-889 flexible board are not supplied,
but they are included in AF assist light block assy.
IF-161 >PI<
1-875-728
IF 161 PI
IF 161 PI
IF 161 >P
I
<
IF 161 P
I
<
<
I
IF 161 >P
IF-161 >
P
P
P
P
IF 161 >
P
P
P
P
IF-161 >
IF 161
>
>
>
28
8
>
>
28
8
28
8
>
>
IF 161
>
>
8
8
28
>
IF 161
8
8
8
6
7
2
7
2
7
2
IF 161
1
7
7
2
2
5
5
5
5
5-
7
5
5
-
5-
5
7
18
87
7
8
7
7
75
5
7
7
75
5
75
7
18
5
5
5
1
-8
-8
8
8
8
8
8
1
8
8
8
-8
1
1
1
1
1
1
1
1
LND120
LND121
LND122
LND123
LND124
LND125
LND126
LND206
LND207
D101
LND101
LND102
LND103
LND104
LND105
LND106
LND107
LND108
LND109
LND110
LND111
LND112
LND113
LND114
LND115
LND116
LND117
LND118
LND119
LND001LND002
LND003LND004
LND005LND006
LND007LND008
LND009LND010
LND204
LND011
LND205
LND012
LND013LND014
LND015LND016
LND017LND018
LND019LND020
LND021LND022
LND023LND024
LND025LND026
LND027LND028
AK
D101
FINDER
BACKLIGHT
1-875-728- 11
IF-161 FLEXIBLE BOARD
05
31 1
Note: IF-161 flexible complete board and mounted part are not
supplied, but they are included in VM IF LCD unit.
4-60E
DSLR-A900_L2
TOP-004 (2 layers)
: Uses unleaded solder.
TOP-004
T
O
P
-
0
0
4
1
-
8
7
6
-
0
8
5
>
P
I
<
112
3625
4813
37
24
1 6
116
1
6
LND701
LND702
LND703
LND704
LND705
LND706
LND707
C7301
FB7201
FB7202
FB7203
FB7204
D7301
AK
R7303
R7304
R7305
R7306
R7307
R7308
IC7301
BZ7201
LND001
LND002
LND003
LND004
LND005
LND006
LND007
LND008
LND009
LND010
LND011
LND012
LND013
LND014
LND015
LND016
LND017
LND018
LND019
LND020
LND021
LND022
LND023
LND024
LND025
CN7201
LND051
LND052
CN7202 CN7203
LND053
LND054
LND055
LND056
LND057
LND058
LND059
LND060
Q7201
LND061
LND062
LND063
LND064
LND065
LND066
LND067
LND068
LND069
LND070
LND071
LND072
LND073
LND074
D7201
D7202 D7203
R7201
D7205
R7202
D7206
R7203
D7207 D7208
D7209
D7210
D7211
D7212
127
C
BE
12
34
12
34
12
34
123
54
123
54
123
54
132
45
132
45
132
45
1-876-085- 11
TOP-004 FLEXIBLE BOARD
05
(BUZZER)
DISPLAY PANEL
BACKLIGHT
CN901
ACCESSORY
SHOE
Note: CN901 is not included in TOP-004
flexible complete board.
NOTE
DSLR-A900_L2
5. REPAIR PARTS LIST
ACCESSORIES
IS-030 BOARD
GY-009 FLEXIBLE BOARD
MM-079 BOARD
MA-453 FLEXIBLE BOARD TOP-004 FLEXIBLE BOARD
F
J
J
HC
Link
Link ELECTRICAL PARTS LIST
ELECTRICAL PARTS LIST
Link
Link
OVERALL SECTION-1
REAR COVER SECTION TOP COVER SECTION MAIN BOARD SECTION
OVERALL SECTION-2
TEBURE UNIT SECTION FRONT COVER SECTION
SIDE FRAME SECTION
EXPLODED VIEWS
EXPLODED VIEWS
NOTE: Characters A to Z of the electrical parts list indicate location of exploded views in which the desired part is shown.
SHUTTER SECTION
ABCD
EF H
I
G
BATTERY HOLDER SECTION
J
MIRROR BOX SECTION
(PENTA UNIT)
K
MIRROR BOX SECTION
(SUB UNIT-1)
L
MIRROR BOX SECTION
(SUB UNIT-2)
M
5. REPAIR PARTS LIST
5-1
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
(ENGLISH)
NOTE:
•-XX, -X mean standardized parts, so they may have some differences from
the original one.
•Items marked “*” are not stocked since they are seldom required for routine
service. Some delay should be anticipated when ordering these items.
•The mechanical parts with no reference number in the exploded views are not
supplied.
•Due to standardization, replacements in the parts list may be different from
the parts specified in the diagrams or the components used on the set.
•CAPACITORS:
uF: µF
•COILS
uH: µH
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
(JAPANESE)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
【使用上の注意】
•ここに記載されている部品は, 補修用部品であるため, 回路図及び
セットに付いている部品と異なる場合があります。
•-XX, -Xは標準化部品のため, セットに付いている部品と異なる場合
があります。
•*印の部品は常備在庫しておりません。
•コンデンサの単位でuFはμFを示します。
•抵抗の単位Ωは省略してあります。
金  被：金属被膜抵抗。
サンキン：酸化金属被膜抵抗。
•インダクタの単位でuHはμHを示します。
•半導体の名称でuA..., uPA..., uPB..., uPC..., uPD...等はそれぞれμ
A..., μPA..., μPB..., μPC..., μPD...を示します。
0印の部品，または0印付の点線で囲まれた部品は，
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
お願い
•Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet’s Color
(Silver) : Parts Color
•外装部品色表示
例：
(SILVER):セットの色を表す。
(Silver) : 部品の色を表す。
•Abbreviation
AR : Argentine model
AUS: Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
EE : East European model
HK : Hong Kong model
J: Japanese model
JE : Tourist model
KR : Korea model
NE : North European model
TH : Thai model
TW : Taiwan model
5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
DISASSEMBLY

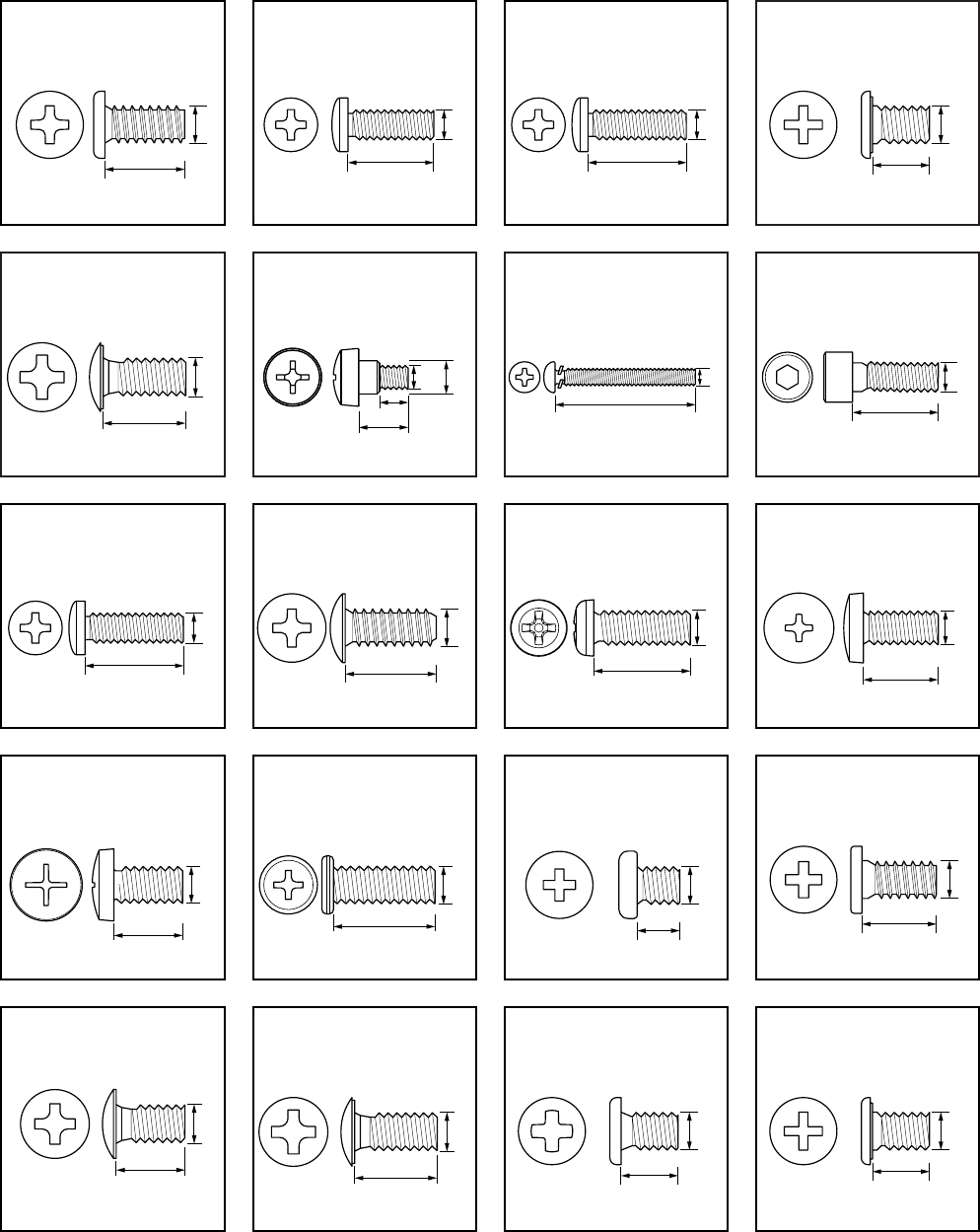

HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
12-894-387-01 SEAL, BODY CAP
22-688-728-02 CAP, BODY
33-269-762-01 DIAL, DIOPTER ADJUST
4X-2319-492-1 AC EYE HOOD ASSY
5X-2319-495-1 VM EYE PIECE FRAME ASSY
6X-2319-493-1 CV SIDE COVER ASSY
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#83 3-080-204-41 SCREW, TAPPING, P2 (Black)
#94 2-515-483-31 SCREW (M1.7), LOCK ACE, P2 (Black)
5-1-1. OVERALL SECTION-1
5-1. EXPLODED VIEWS
1
2
3
4
5
6
#94
#83
#94
#94
#12
#94
#94
#94
#94
#94
#94
#94
Main Board Section
(See page 5-5)
Top Cover Section
(See page 5-4)
Rear Cover Section
(See page 5-3)
5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2

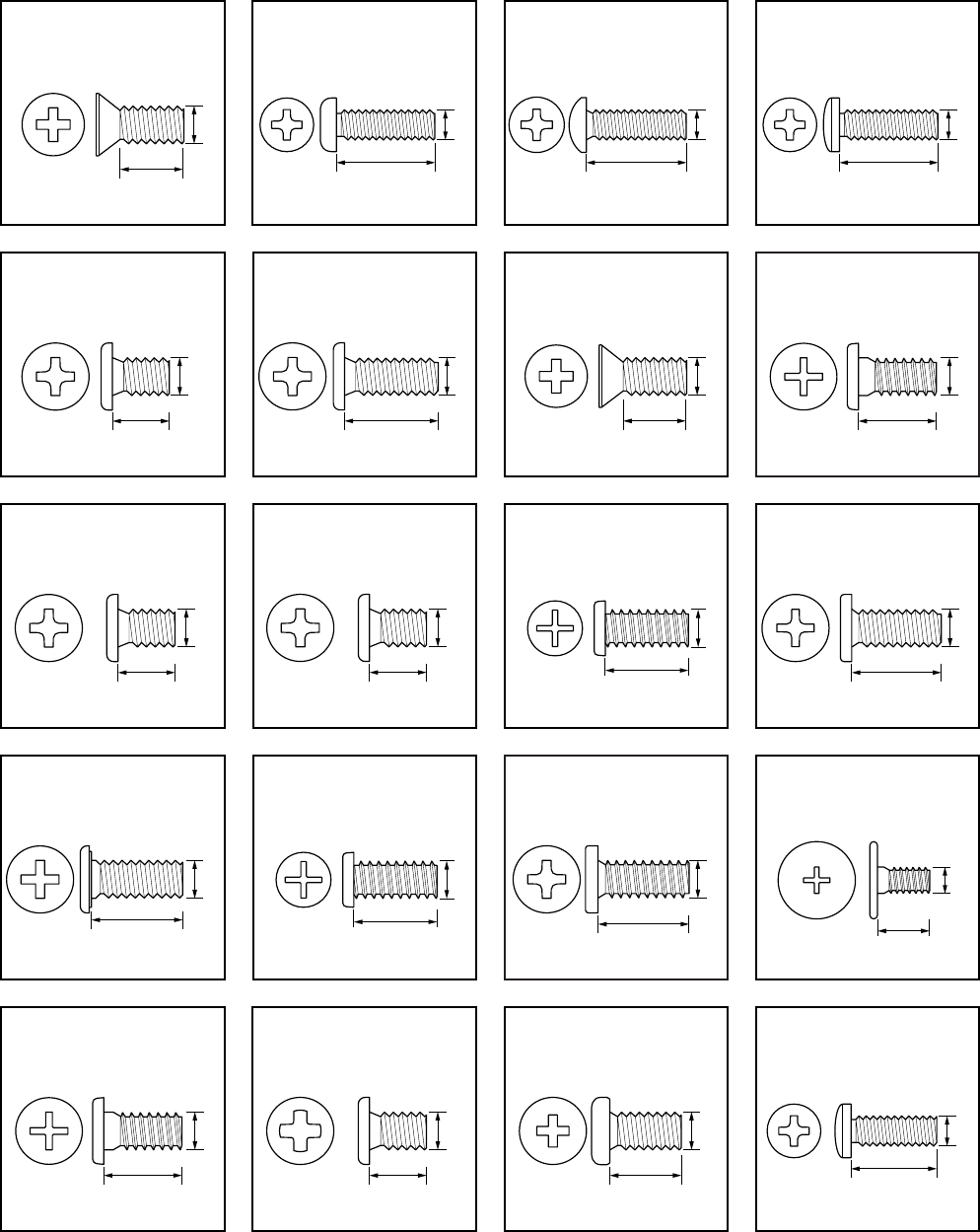

HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
51 1-480-662-11 SWITCH BLOCK, CONTROL (PS85100)
*52 3-280-675-01 SCREEN, BL
*53 4-110-965-01 CV WINDOW (ACCESS)
54 CAUTION SHEET (T)
55 1-480-183-11 SWITCH BLOCK, CONTROL (JY62300)
56 X-2319-520-1 CV REAR COVER ASSY
57 4-110-969-01 CV REAR RUBBER ADHESIVE SHEET
58 4-110-968-01 CV REAR RUBBER
59 4-110-971-01 CV ADHESIVE SHEET (LCD)
60 4-113-595-01 CV STOP CUSHION
61 4-110-966-01 CV LCD WINDOW
BL901 1-480-291-11 BLOCK, LIGHT GUIDE PLATE (3.0)
LCD901 8-753-286-94 ACX561AKA-1
#109 2-515-483-21 SCREW (M1.7), LOCK ACE, P2 (Black)
5-1-2. REAR COVER SECTION
ns: not supplied
#109
#109
#109
BL901
LCD901
ns
#109
#109
51
52
52
53 54
(15mm X 15mm)
55
56
57 58
59
61
60
ns
CAUTION:
For the part of 54, cut SHEET, INSULATING, CD (3-091-
260-01) into the desired length and use it.
CAUTION:
54番は，CD絶縁シート（3-091-260-01）を切って使用。
5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2

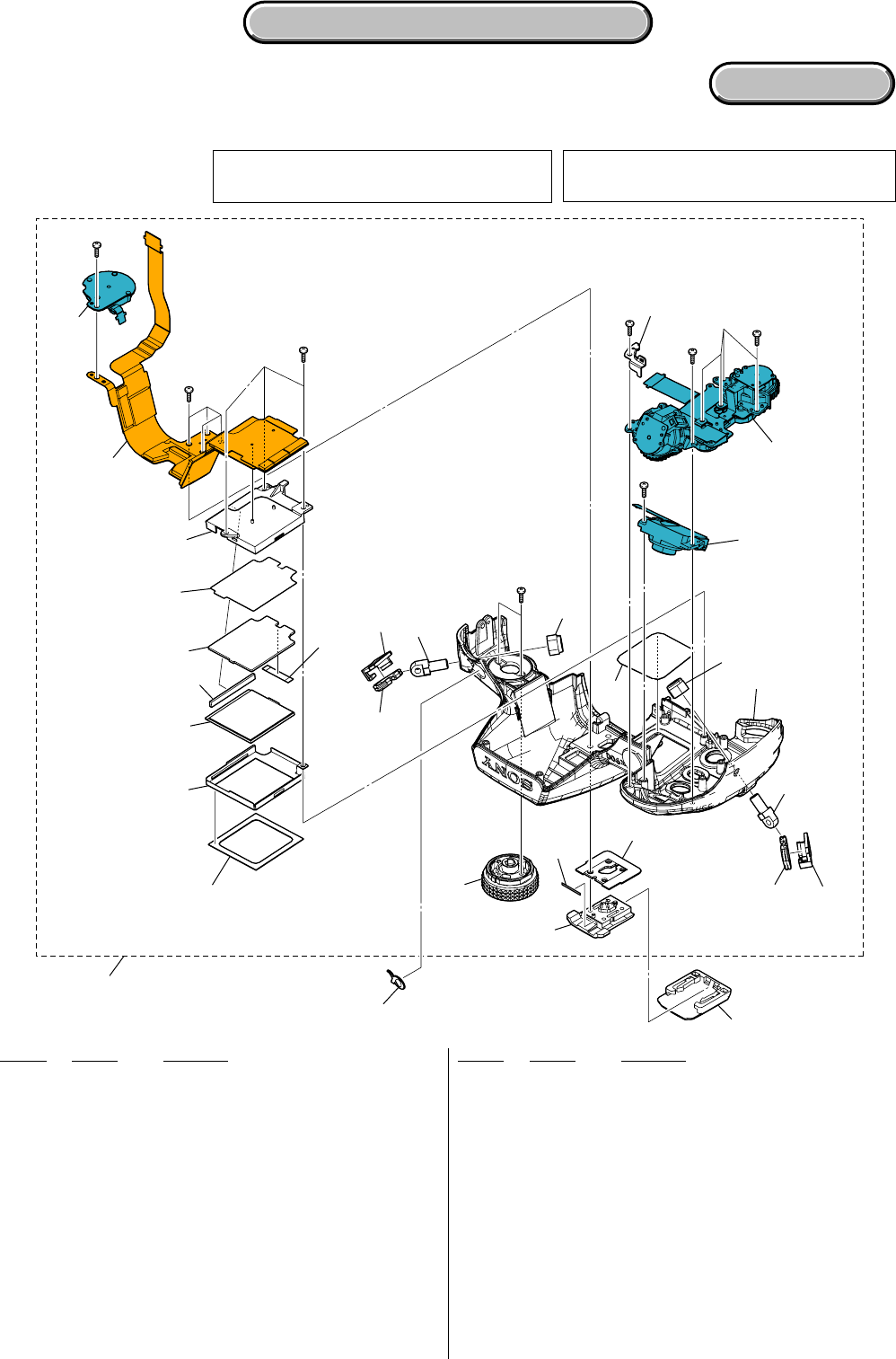

5-1-3. TOP COVER SECTION
ns: not supplied

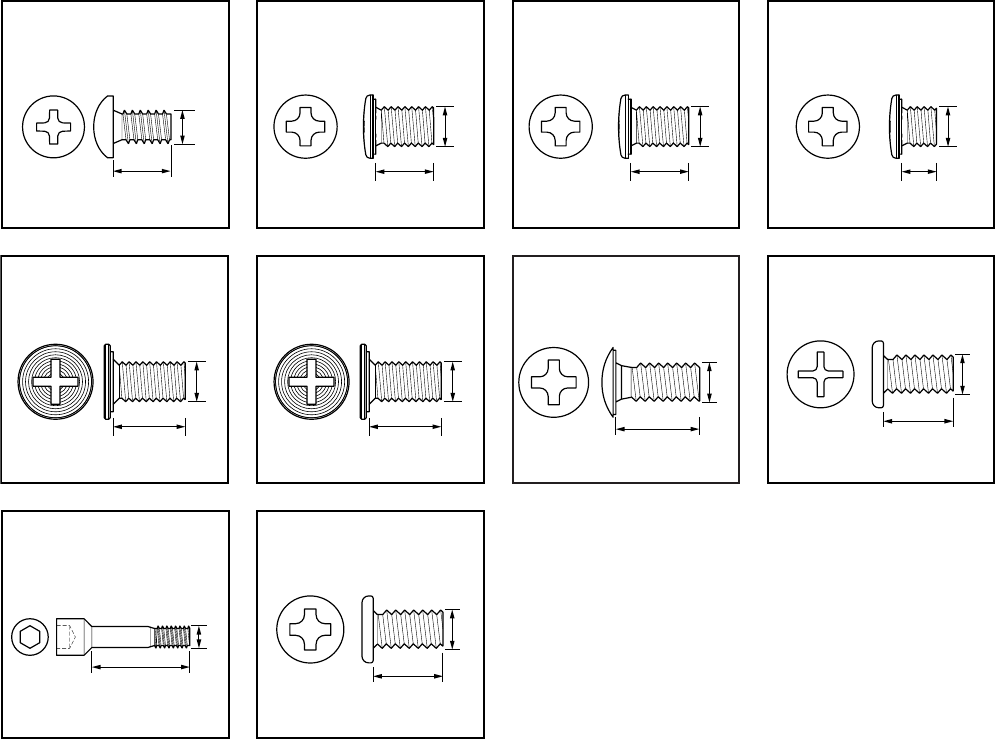

HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
101 A-1557-714-A CV TOP COVER BLOCK ASSY
102 1-480-660-11 SWITCH BLOCK, CONTROL (MD85100)
103 A-1557-729-A TOP-004 FLEXIBLE BOARD, COMPLETE
104 4-110-827-01 CV SUB LCD HOLDER
105 4-110-826-01 CV REFLECTION SHEET
106 4-110-825-01 CV LIGHT GUIDE PLATE
107 1-822-124-11 ZEBRA RUBBER CONNECTOR
108 4-110-828-01 CV LED REFLECTION SHEET
109 4-110-824-01 CV STATUS LCD RETAINER,
110 4-110-823-01 CV STATUS LCD CUSHION,
111 X-2319-505-1 CT MODE DIAL ASSY
*112 4-110-829-01 CV FRONT (G) HOOK
113 2-689-299-01 PLATE, SHOE PAVING
114 3-722-005-02 PAD, TRIANGLE BRACKET
115 3-269-823-01 EYELET, TRIANGLE
116 3-680-316-02 NUT (M4), STOPPER
117 4-110-832-01 CV SUB LCD WINDOW
118 1-480-663-11 SWITCH BLOCK, CONTROL (RL85100)
119 1-480-659-11 SWITCH BLOCK, CONTROL (TK85100)
120 3-269-855-01 EMBLEM, LOGO
121 2-688-767-02 COVER, SHOE
122 4-121-960-01 CV ACCESSORY SHOE SHEET (Note)
CN901 X-2179-803-2 SHOE ASSY, ACCESSORY
LCD903 1-802-715-11 DISPLAY PANEL, LIQUID CRYSTAL
#59 3-080-205-21 SCREW, TAPPING, P2 (Silver)
#76 2-666-551-11 SCREW, TAPPING, P2 (Silver)
#94 2-515-483-31 SCREW (M1.7), LOCK ACE, P2 (Black)
#94
#94
#76
#94
#94
#94
#94
#59
LCD903
CN901
ns
ns
ns
101
102
103
104
105
106
107
108
109
110 111
112
113
122
(Note)
114
114
115
115
116
116
117
118
119
120 121
Note: In the set to which the CV accessory shoe
sheet is not pasted, this part is unnecessary.
Note: CVアクセサリーシュートが貼られていな
いセットには，この部品は不要です。
5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2

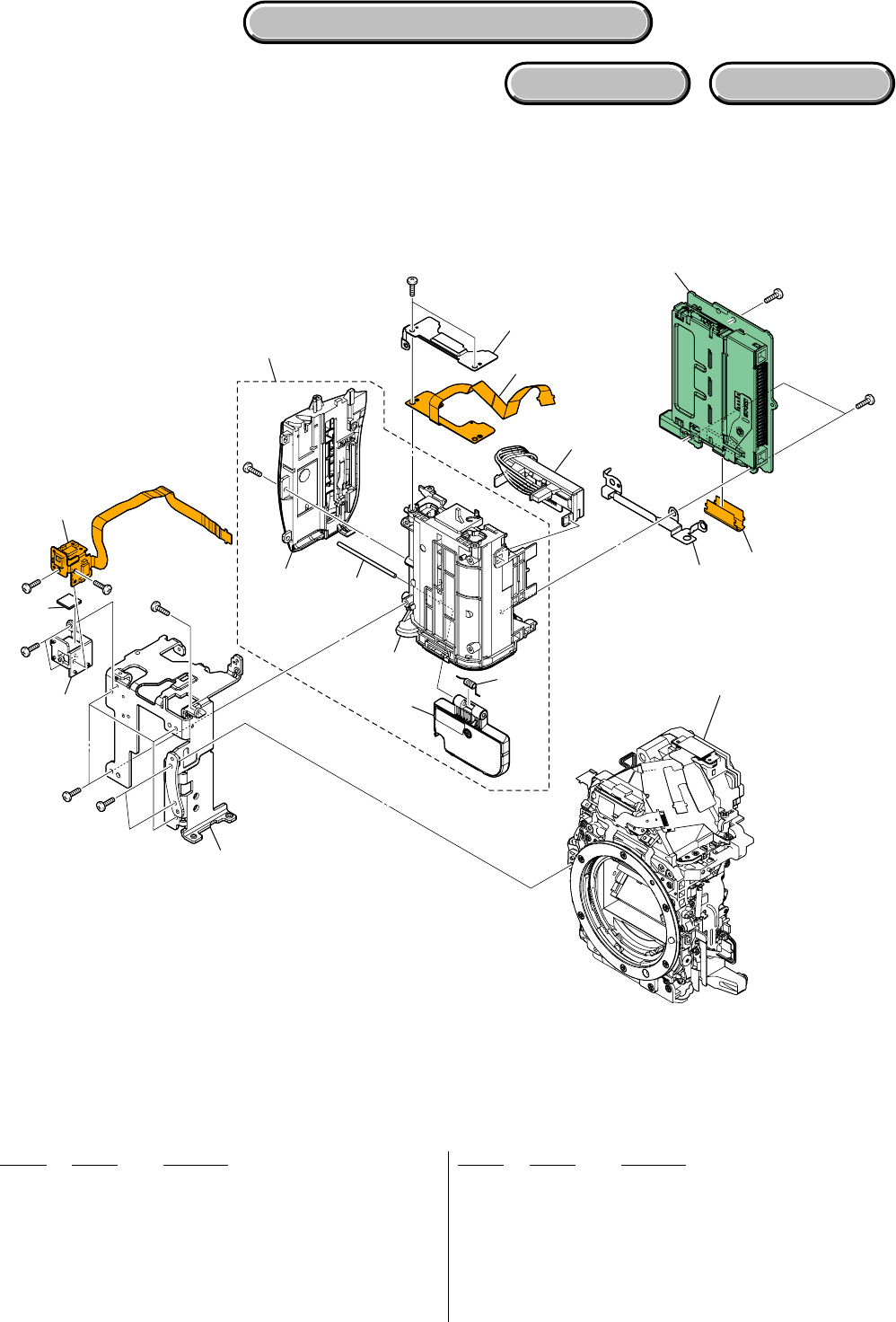

5-1-4. MAIN BOARD SECTION
ns: not supplied
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
151 A-1565-987-A AM-015 BOARD, COMPLETE (SERVICE)
152 4-110-791-01 BD LABEL (AM)
153 X-2319-494-1 CV USB COVER ASSY
0*BH4002 1-756-615-51 HOLDER, BATTERY (Note)
0BT901 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note)
#76 2-666-551-11 SCREW, TAPPING, P2 (Silver)
#109 2-515-483-21 SCREW (M1.7), LOCK ACE, P2 (Black)
AM-015
151
152
153
#109
ns
#76
#109
Overall Section-2
(See page 5-6)
BT901
(Note)
BH4002
(Note)
!
: BT901 (BATTERY, STORAGE, LITHIUM
)
Board on the mount position.
(See page 4-53 on Level 3)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Note: Replace the battery holder (BH4002) together when replac-
ing the lithium battery (BT901) on the AM-015 board. (The
battery holder removed once cannot be used again.)
When mounting these parts, mount new battery holder first
and attach new lithium battery next.
•Refer to page 5-1 for mark 0.
Note: AM-015基板のリチウム電池（BT901）を交換する場合は
バッテリホルダ（BH4002）も同時に新品に交換してくだ
さい。（一度使用したバッテリホルダは再使用できませ
ん。）
部品取り付けの際は，先にバッテリホルダを取り付けて
からリチウム電池を装着してください。
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
DISASSEMBLY
5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
5-1-5. OVERALL SECTION-2
ns: not supplied
HARDWARE LIST
DISASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
201 4-110-769-01 CV BOTTOM RUBBER
202 4-110-720-01 CV MAIN CAUTION LABEL
(US, CND, AEP, UK, E, AUS)
202 4-110-988-01 CV BOTTOM LABEL (HK, KR, CH, J)
*203 4-110-786-01 BD BACK FRAME
204 1-480-674-11 UNIT (EYE PIECE) (including SE901
(eyepiece sensors) and EYE-008 flexible board)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#59 3-080-205-21 SCREW, TAPPING, P2 (Silver)
#83 3-080-204-41 SCREW, TAPPING, P2 (Black)
#94 2-515-483-31 SCREW (M1.7), LOCK ACE, P2 (Black)
#109 2-515-483-21 SCREW (M1.7), LOCK ACE, P2 (Black)
201
202
#83
#94
#12
#94
#59
#59
#10
9
ns
#94
Te b ure Unit Section
(See page 5-7)
Side Frame Section
(See page 5-9)
Front Cover Section
(See page 5-8)
203
204
(including SE901 (eyepiece sensors)
and EYE-008 flexible board)
5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
5-1-6. TEBURE UNIT SECTION
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
251 X-2319-509-1 CHASSIS ASSY UNIT
252 4-110-892-01 SPRING, ADJUSTMENT AO
253 A-1566-052-A SLIDER UNIT (SERVICE) (including ACT902,
ACT903 and HOL-005 flexible board)
254 3-292-847-01 WASHER
*255 4-110-890-01 PLATE, LPF RETAINER
*256 4-110-889-01 SHEET, LPF MASK
257 1-875-717-11 FP-893 FLEXIBLE BOARD
258 1-875-718-11 FP-894 FLEXIBLE BOARD
259 3-274-513-01 TAPE (ASCD)
*260 4-110-891-01 PLATE FPC GUIDE
261 A-1557-766-A UNIT, OMEGA (including IC5004 (CMOS imager)
and IS-030 board) (Note 1, 2)
#76 2-666-551-11 SCREW, TAPPING, P2 (Silver)
#87 2-689-328-01 SCREW, CCD AO ADJUSTMENT (Black)
253
(including ACT902, ACT903 and
HOL-005 flexible board)
254
254
254
261
(including IC5004 (CMOS
imager) and IS-030 board
)
(Note 1, 2)
251
#87
#87
#87
#76
#76
#76
252
252
252 255
256
257
258
259
259
260
Note 1: Be sure to read “Precautions for Replacement of
Imager” on page 4-3 when changing the imager.
Note 1: イメージャの交換時は4-3ページの“イメージャ
交換時の注意”を必ずお読みください。
Note 2: Refer to “2-9. CLEANING PROCEDURE OF OLPF” on
page 2-16 for method of cleaning the OLPF.
Note 2: OLPFの清掃方法は2-16ページの“2-9. CLEANING PRO-
CEDURE OF OLPF”を参照してください。
5-8
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
HARDWARE LIST

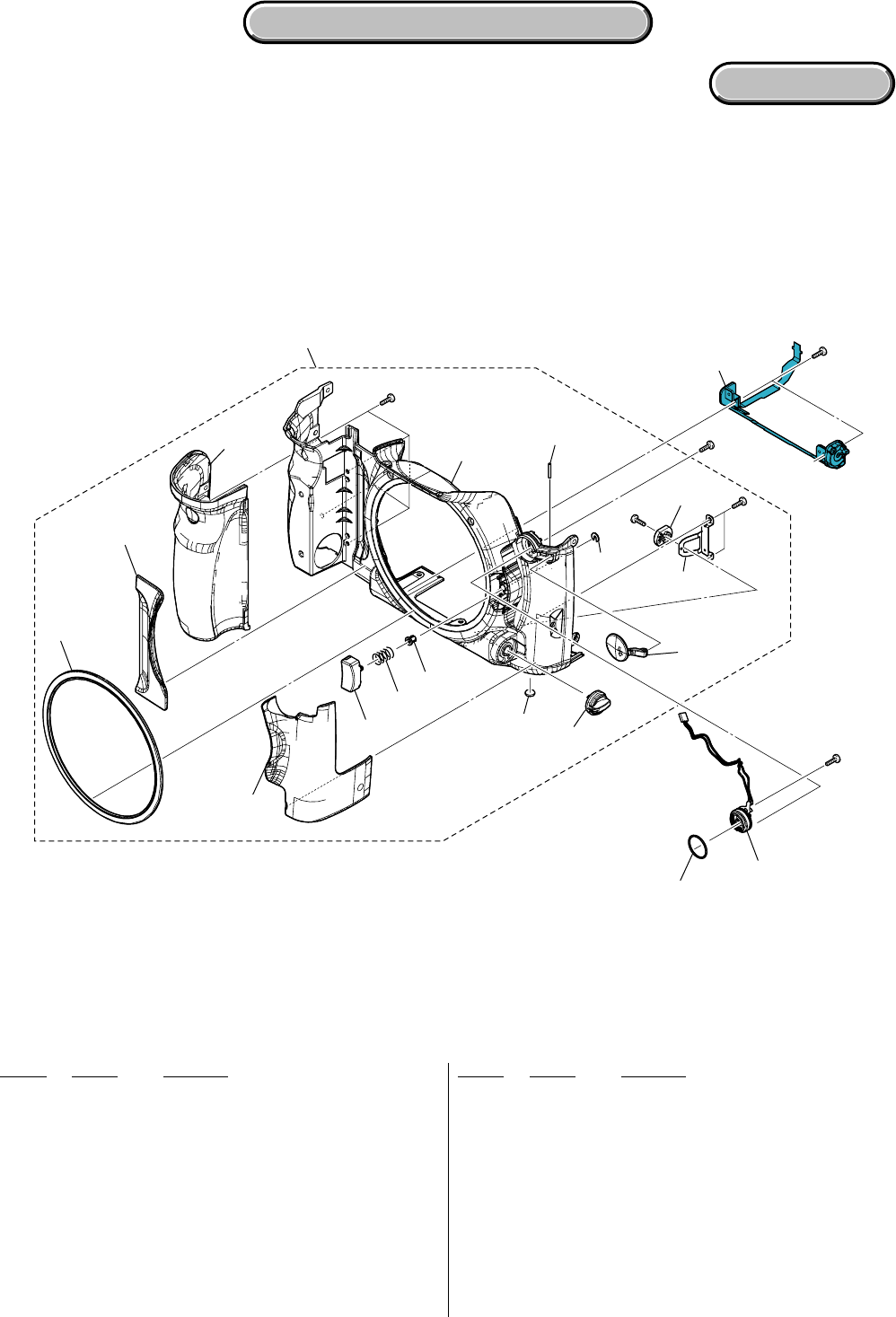

5-1-7. FRONT COVER SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
301 X-2319-519-1 CV FRONT COVER ASSY
*302 4-110-991-01 CV DECORATION RING
303 X-2319-510-1 CV BODY RUBBER (R) ASSY
304 X-2319-518-1 CV BODY RUBBER (L) ASSY
*305 4-110-899-01 CV LENS LOCK BUTTON
306 3-269-816-01 SPRING, COMPRESSION
*307 4-110-897-01 CV BUTTON SLEEVE
*308 4-110-896-01 CV SYNCHRO TERMINAL SHAFT
309 7-624-102-04 STOP RING 1.5, TYPE -E
*310 4-110-895-01 CV CLICK PLATE SPRING
311 4-110-894-01 CV SYNCHRO TERMINAL COVER
*312 4-110-898-01 CV MF KNOB
313 4-113-595-01 CV STOP CUSHION
314 X-2319-511-1 CV GRIP ASSY
315 3-269-900-01 O RING, SYNCHRO
316 1-480-661-11 SWITCH BLOCK, CONTROL (FS85100)
CN902 1-480-402-31 TERMINAL UNIT, SYNCHRONISE
(FLASH SYNC)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#109 2-515-483-21 SCREW (M1.7), LOCK ACE, P2 (Black)
#148 3-057-082-21 SCREW (M1.7), P2 (Silver)
302
301
303
314
304
305
307
306
308
309 310
311
312
313
315
316
#12
#109
CN902
#12
#109
#109
#148
ns
ns
5-9
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
HARDWARE LIST
5-1-8. SIDE FRAME SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
*351 4-110-784-01 BD BOTTOM FRAME
*352 4-110-794-01 BD BOTTOM FRAME SHEET
353 3-269-890-01 PLATE, TRIPOD
*354 4-118-743-01 BD TAPE 0710
355 3-274-513-01 TAPE (ASCD)
356 A-1557-725-A MA-453 FLEXIBLE BOARD, COMPLETE
357 1-875-730-11 FP-898 FLEXIBLE BOARD
*358 4-110-795-01 BD TAPE 1525
*359 4-110-787-01 BD JACK HOLDER
*360 4-110-785-01 BD SIDE FRAME
J901 1-480-041-11 REMOTE HOLDER (REMOTE)
0J902 1-821-194-31 JACK, DC (DC IN)
#76 2-666-551-11 SCREW, TAPPING, P2 (Silver)
#84 3-072-453-11 0 PLATE +P2 MAIN M2EG GRIP (Silver)
#109 2-515-483-21 SCREW (M1.7), LOCK ACE, P2 (Black)
DISASSEMBLY
351
352
353
354
354
355
355
356
357
358
359 360
#76
#109
#109 #84
#76
#76
#76
J902
#109 J901
Shutter Section
(See page 5-10)
• Refer to page 5-1 for mark 0.
5-10
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
HARDWARE LIST
5-1-9. SHUTTER SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
401 A-1557-726-A DD-299 BOARD, COMPLETE
402 A-1557-722-A AF ASSIST LIGHT BLOCK ASSY (including D901
(AF illuminator/self-timer)
and FP-889 flexible board)
403 1-966-182-11 HARNESS (DA-108)
404 1-875-721-11 FP-895 FLEXIBLE BOARD
405 1-788-739-11 SHUTTER
(including M901 (shutter charge motor))
406 3-274-513-01 TAPE (ASCD)
*407 4-118-743-01 BD TAPE 0710
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#76 2-666-551-11 SCREW, TAPPING, P2 (Silver)
#91 2-695-434-11 SCREW (T1.7), HEAD PAN TAPPING (Silver)
#109 2-515-483-21 SCREW (M1.7), LOCK ACE, P2 (Black)
DISASSEMBLY
402
(including D901 (AF illuminator/self-timer)
and FP-889 flexible board)
405
(including M901 (shutter
charge motor))
401
406
#76
#12
#91
#109
Battery Holder Section
(See page 5-11)
403 404
407
5-11
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
HARDWARE LIST
5-1-10. BATTERY HOLDER SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
451 X-2319-496-1 BD FRONT FRAME ASSY
*452 4-110-790-01 BD GYRO BASE
*453 4-110-793-01 BD JY CUSHION
454 A-1557-728-A GY-009 FLEXIBLE BOARD, COMPLETE
455 X-2319-521-2 BD BATTERY HOLDER ASSY
456 X-2179-804-1 LID ASSY, BATTERY CASE
457 X-2320-626-2 MEDIA LID HOLDER ASSY (SERVICE)
458 A-1557-727-A MM-079 BOARD, COMPLETE
459 1-875-714-11 FP-890 FLEXIBLE BOARD
460 1-875-726-11 FP-896 FLEXIBLE BOARD
0BT902 1-780-515-11 TERMINAL BOARD, BATTERY
#76 2-666-551-11 SCREW, TAPPING, P2 (Silver)
#109 2-515-483-21 SCREW (M1.7), LOCK ACE, P2 (Black)
DISASSEMBLY
• Refer to page 5-1 for mark 0.
451
#109
#109
#76
#76
#76
#76
#7
6
#76
#76
#76 ns
ns
ns
ns
ns
BT902
Mirror Box Section
(Penta Unit)
(See page 5-12)
452
453
454
455
456
457
460
458
459
5-12
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
HARDWARE LIST
5-1-11. MIRROR BOX SECTION (PENTA UNIT)
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
501 4-110-797-01 BD PENTA INSULATION SHEET
502 A-1556-575-A VO PENTA UNIT (including LED901 (TOKO LED)
and AE-033 flexible board)
503 A-1556-621-A VM IF LCD UNIT (including LCD902
(finder LCD) and IF-161 flexible board)
504 4-105-064-01 VO FOCUSING SCREEN (Note 1)
505 4-109-421-01 VM FOCUSING SCREEN HOLDER
*506 4-109-527-01 VM VB WASHER (T=0.03 mm) (Note 2)
*506 4-109-527-11 VM VB WASHER (T=0.05 mm) (Note 2)
*506 4-109-527-21 VM VB WASHER (T=0.1 mm) (Note 2)
*506 4-109-527-31 VM VB WASHER (T=0.15 mm) (Note 2)
*506 4-109-527-41 VM VB WASHER (T=0.2 mm) (Note 2)
507 4-110-796-01 BD G3 HOLDER CUSHION
508 3-270-085-01 ADJUSTMENT (SP), S
509 A-1357-328-A ALX-8510 (AF module)
(including AF-117 flexible board)
510 2-688-865-01 WASHER, S ADJUSTMENT
#5 3-080-204-01 SCREW, TAPPING, P2 (Black)
#59 3-080-205-21 SCREW, TAPPING, P2 (Silver)
#89 2-695-575-01 SCREW (T2), +P1 PAN TAPPNG (Silver)
#149 4-115-505-01 S ADJUSTMENT SCREW (8510) (Silver)
DISASSEMBLY
509
(including AF-117 flexible board)
503
(including LCD902
(finder LCD) and
IF-161 flexible
board)
502
(including LED901 (TOKO LED) and
AE-033 flexible board)
504
(Note 1)
506
(Note 2)
506
(Note 2)
501
507
#89
#149
#149 #149
ns
ns
#5
#59
#89 Mirror Box Section
(Sub Unit-1)
(See page 5-13)
505
508
508
508
510
510
510
Note 1: Refer to page 1-2 “1-5. METHOD OF EXCHANGING FOCUS-
ING SCREEN” when focusing screen are exchanged.
Note 2: These are washers use to adjust thickness when Viewfinder Back Adjustment is done.
Adjusting Item: “Viewfinder Back Adj.”
Note 2: ビューファインダーバック調整を行う際，厚さ調整のために使用するワッシャーです。
調整項目：「Viewfinder Back Adj.」
Note 1: 焦点板を交換する際は，1-5ページの「1-5. 焦点板の交換
方法」を参照してください。
5-13
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
HARDWARE LIST
5-1-12. MIRROR BOX SECTION (SUB UNIT-1)
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
551 A-1565-977-A MIRROR BOX SUB UNIT (SERVICE)
552 4-117-659-01 MB A MOUNT (851)
553 3-268-950-01 RING (SP)
*554 4-109-314-01 AP IRIS RING
555 3-268-943-01 PIN, LENS LOCK
556 3-268-956-01 PIN, LENS LOCK GUIDE
557 3-268-944-01 HOLDER, LENS LOCK PIN
558 3-268-945-01 SP, LENS LOCK
559 3-277-916-01 ROLLER (C), RING
560 3-268-951-01 SHAFT, RING ROLLER (C)
*561 4-109-316-01 AP RING ROLLER B
562 A-1556-573-A MB BL CONTACT UNIT
(including FP-897 flexible board)
*563 4-109-531-01 MB BL PROTECT SHEET
564 A-1556-571-A MB SLLK CONTACT PIECE UNIT
565 3-268-942-01 LEVER, COUPLER JOINT
566 3-268-941-01 SP, COUPLER LEVER TENSION
567 3-268-940-01 LEVER, COUPLER
568 2-689-289-01 SHAFT, COUPLER LEVER
569 X-2179-722-1 AF COUPLER ASSY
*570 4-109-315-01 AP RING ROLLER A
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#89 2-695-575-01 SCREW (T2), +P1 PAN TAPPNG (Silver)
#90 3-271-395-01 SCREW (M1.7), LEVER ADJUSTMENT (Silver)
#91 2-695-434-11 SCREW (T1.7), HEAD PAN TAPPING (Silver)
DISASSEMBLY
551
561
552
553
554
555 556
557
558
559 560
562
(including FP-897 flexible board)
563
564
565
566
567
568
569
570
#23
ns
#23
ns
#90
#91
Mirror Box Section
(Sub Unit-2)
(See page 5-14)
#89
#89
5-14
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A900_L2
HARDWARE LIST
5-1-13. MIRROR BOX SECTION (SUB UNIT-2)
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
601 A-1556-576-A AF DRIVING UNIT (including M903 (AF motor),
EN-022 board and SLK-004 flexible board)
*602 4-109-320-01 MB MOTOR HARNESS SHEET (A)
*603 4-109-319-01 AF GND PLATE
604 A-1556-572-B MB MIRROR BOX SUB UNIT
605 A-1556-574-A MB MIRROR CHARGE MOTOR UNIT
(including M902 (mirror charge motor),
AFM-003 flexible board and EN-023 board)
*606 4-109-322-01 MB FLEXIBLE PROTECTION SHEET
*607 4-109-323-01 MB IS-FLEXIBLE PROTECTION SHEET
*608 4-109-321-02 AP FLEXIBLE PROTECTION SHEET
609 A-1556-577-A AP APERTURE UNIT (including M904
(aperture motor) and AP-032 flexible board)
*610 4-109-317-01 AP IRIS JOINT GEAR
*611 4-118-743-01 BD TAPE 0710
ACT901 1-480-716-11 ACTUATOR
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
DISASSEMBLY
ACT901
605
(including M902 (mirror charge
motor), AFM-003 flexible board
and EN-023 board)
601
(including M903 (AF motor),
EN-022 board and SLK-004
flexible board)
609
(including M904 (aperture
motor) and AP-032 flexible board)
602
#23
#23
#23
#23
ns
#23
#23
#23
603
604
606
611
607
608
610
DSLR-A900_L2
Electrical parts list of the AM-015 and DD-
299 boards are not shown.
Pages from 5-15 to 5-25 are not shown.
5-26
Ref. No. Part No. Description Ref. No. Part No. Description
5-2. ELECTRICAL PARTS LIST
DSLR-A900_L2
A-1557-728-A GY-009 FLEXIBLE BOARD, COMPLETE
*******************************
< CAPACITOR >
C5701 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C5702 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C5703 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C5704 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C5705 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< IC >
IC5701 6-600-163-01 IC RS-770
< SENSOR >
SE5701 1-480-049-21 SENSOR, ANGULAR VELOCITY (PITCH)
SE5702 1-480-049-21 SENSOR, ANGULAR VELOCITY (YAW)
A-1557-766-A UNIT, OMEGA (Note)
(Not supplied) IS-030 BOARD, COMPLETE
**********************
(IS-030 complete board and all mounted parts (including IC5004 (CMOS
imager)) are not supplied, but they are included in OMEGA unit.)
A-1557-725-A MA-453 FLEXIBLE BOARD, COMPLETE
*******************************
< CAPACITOR >
C5601 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
< CONNECTOR >
*CN5502 1-817-698-81 CONNECTOR, FPC (ZIF) 21P
CN5503 1-816-646-61 FFC/FPC CONNECTOR (LIF) 16P
*CN5504 1-816-644-51 FFC/FPC CONNECTOR (LIF) 12P
*CN5505 1-820-332-11 HOUSING, CONNECTOR 2P
*CN5601 1-820-332-11 HOUSING, CONNECTOR 2P
CN5602 1-816-654-61 FFC/FPC CONNECTOR (LIF) 6P
*CN5603 1-816-643-51 FFC/FPC CONNECTOR (LIF) 10P
< DIODE >
D5601 8-719-078-81 DIODE DF5A6.8FU (TE85R)
*D5602 6-600-647-01 BCR08AS-12A-B11H
< TRANSISTOR >
*Q5603 6-550-010-01 TRANSISTOR EMD3T2R
< RESISTOR >
R5601 1-216-799-11 METAL CHIP 15 5% 1/10W
R5602 1-216-821-11 METAL CHIP 1K 5% 1/10W
A-1557-727-A MM-079 BOARD, COMPLETE
***********************
< CAPACITOR >
C5202 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5203 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
*C5205 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
*C5206 1-112-746-11 CERAMIC CHIP 4.7uF 10% 6.3V
< CONNECTOR >
*CN5201 1-821-501-11 CONNECTOR, FPC (ZIF) 51P
CN5202 1-818-139-11 PIN, CONNECTOR (CF CARD)
(CompactFlash/Microdrive)
*CN5203 1-821-457-11 CONNECTOR, CARD (COMPACT FLASH)
(CF CARD EJECT LEVER)
< RESISTOR >
R5204 1-218-933-11 METAL CHIP 22 5% 1/16W
R5206 1-218-933-11 METAL CHIP 22 5% 1/16W
R5210 1-218-940-11 METAL CHIP 82 5% 1/16W
R5214 1-218-935-11 METAL CHIP 33 5% 1/16W
R5216 1-218-940-11 METAL CHIP 82 5% 1/16W
R5217 1-218-935-11 METAL CHIP 33 5% 1/16W
R5218 1-218-940-11 METAL CHIP 82 5% 1/16W
R5219 1-218-940-11 METAL CHIP 82 5% 1/16W
R5223 1-218-965-11 METAL CHIP 10K 5% 1/16W
R5224 1-218-965-11 METAL CHIP 10K 5% 1/16W
R5225 1-218-965-11 METAL CHIP 10K 5% 1/16W
R5226 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R5227 1-218-962-11 METAL CHIP 5.6K 5% 1/16W
R5228 1-218-965-11 METAL CHIP 10K 5% 1/16W
R5229 1-218-965-11 METAL CHIP 10K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB5201 1-242-963-21 RES, NETWORK 33 (1005X4)
RB5202 1-242-963-21 RES, NETWORK 33 (1005X4)
RB5203 1-242-963-21 RES, NETWORK 33 (1005X4)
RB5204 1-242-963-21 RES, NETWORK 33 (1005X4)
RB5205 1-242-963-21 RES, NETWORK 33 (1005X4)
< THERMISTOR >
TH5201 1-804-949-11 THERMISTOR, NTC (SMD)
A-1557-729-A TOP-004 FLEXIBLE BOARD, COMPLETE
********************************
< BUZZER >
BZ7201 1-825-579-11 BUZZER, PIEZOELECTRIC
< CAPACITOR >
C7301 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
< CONNECTOR >
CN7201 1-816-654-61 FFC/FPC CONNECTOR (LIF) 6P
CN7202 1-816-646-61 FFC/FPC CONNECTOR (LIF) 16P
CN7203 1-816-654-61 FFC/FPC CONNECTOR (LIF) 6P
< DIODE >
D7201 8-719-069-29 DIODE RB520S-30FJTE61
D7202 8-719-074-08 DIODE MA4ZD03001S0
D7205 8-719-074-08 DIODE MA4ZD03001S0
GY-009 IS-030 MA-453 MM-079 TOP-004
Note: Be sure to read “Precautions for Replacement of
Imager” on page 4-3 when changing the imager.
Note: イメージャの交換時は4-3ページの“イメージャ交
換時の注意”を必ずお読みください。
5-27
Ref. No. Part No. Description Ref. No. Part No. Description
DSLR-A900_L2
D7206 8-719-074-08 DIODE MA4ZD03001S0
D7211 8-719-078-81 DIODE DF5A6.8FU (TE85R)
D7212 8-719-069-29 DIODE RB520S-30FJTE61
D7301 6-600-623-01 DIODE SML-A12WTT86J
(DISPLAY PANEL BACKLIGHT)
< FERRITE BEAD >
FB7201 1-414-760-21 INDUCTOR, FERRITE BEAD
FB7202 1-414-760-21 INDUCTOR, FERRITE BEAD
FB7203 1-414-760-21 INDUCTOR, FERRITE BEAD
FB7204 1-414-760-21 INDUCTOR, FERRITE BEAD
< IC >
*IC7301 6-713-079-01 IC BU9795KV-E2
< TRANSISTOR >
*Q7201 6-551-861-01 TRANSISTOR 2SC4505T100
< RESISTOR >
R7201 1-216-833-11 METAL CHIP 10K 5% 1/10W
R7202 1-216-841-11 METAL CHIP 47K 5% 1/10W
R7305 1-218-831-11 METAL CHIP 220 0.5% 1/10W
R7306 1-216-864-11 SHORT CHIP 0
TOP-004
5-28E
DSLR-A900_L2

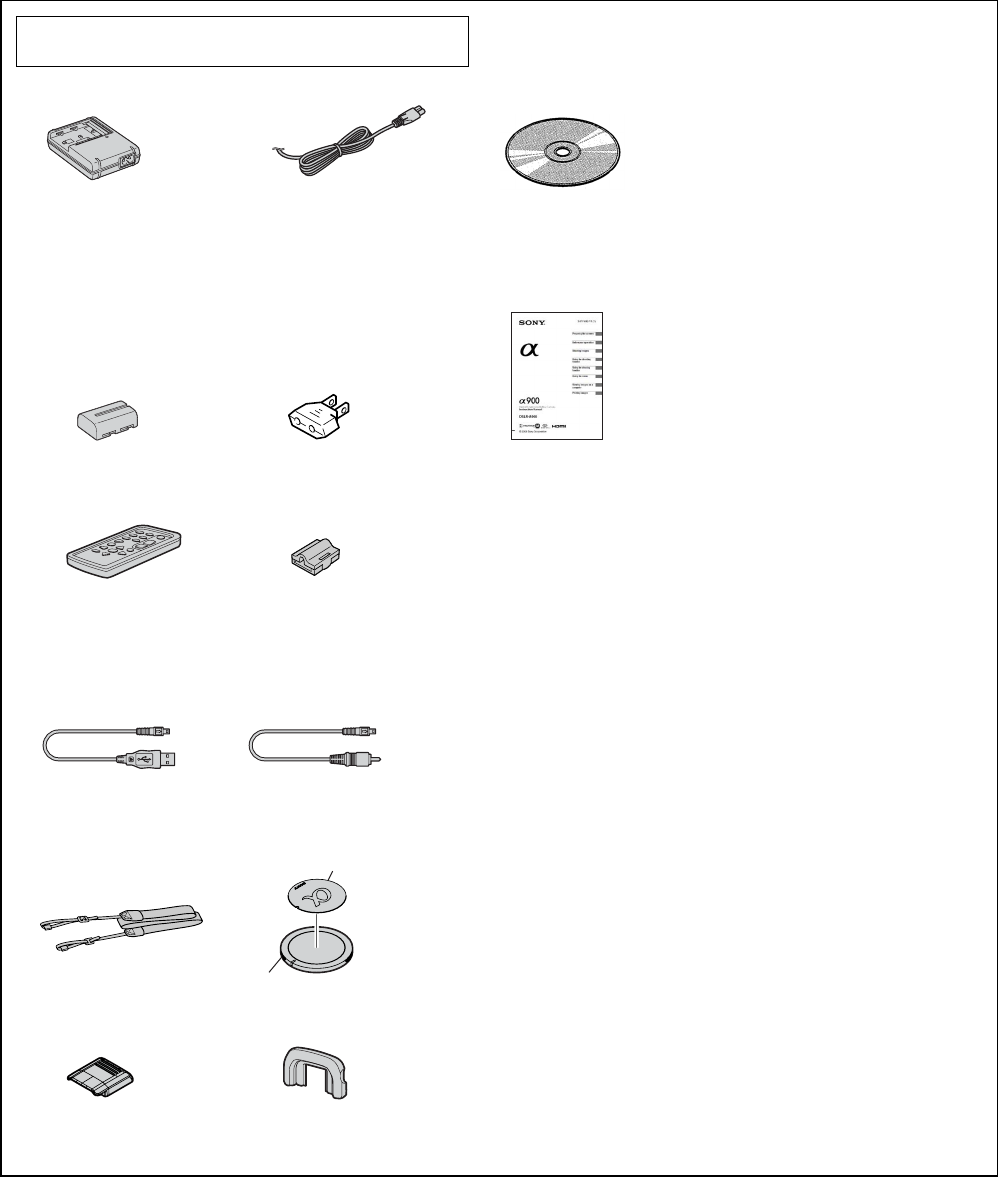

Checking supplied accessories.
• Refer to page 5-1 for mark 0.
Battery Charger
BC-VM10
01-479-742-21 (US, CND)
01-479-742-41
(EXCEPT US, CND)
Power Cord
01-555-074-91 (AUS)
01-790-107-61 (US, CND)
01-792-549-41 (J)
01-824-910-71 (AEP, E)
01-827-269-12 (UK, HK)
01-832-121-31 (CH)
01-833-892-21 (KR)
Conversion 2P Adaptor
01-569-008-12 (E)
Rechargeable Battery Pack
NP-FM500H
(Note)
USB Cable
1-834-311-31
Wireless Remote
Commander
(Remote Commander)
RMT-DSLR1
1-480-392-11
Video Cable
1-834-312-11
Accessory Shoe Cap
2-688-767-02
CD-ROM
(Application Software for α camera)
4-110-321-01
Operating instructions: Read This First
3-877-682-01
(JAPANESE) (J)
3-877-682
-11 (ENGLISH) (
EXCEPT KR, CH, J
)
3-877-682
-21 (FRENCH, ITALIAN) (CND, AEP)
3-877-682
-31 (SPANISH, PORTUGUESE) (AEP, E)
3-877-682
-41 (GERMAN, DUTCH) (AEP)
3-877-682
-51 (TRADITIONAL CHINESE, SIMPLIFIED CHINESE)
(E, HK)
3-877-682
-61 (RUSSIAN) (AEP)
3-877-682
-71 (ARABIC, PERSIAN) (E)
3-877-682
-81 (KOREAN) (KR)
3-877-682-91
(SIMPLIFIED CHINESE) (CH)
Body Cap
2-688-728-02
Body Cap Seal
2-894-387-01
Remote Commander Clip
3-273-459-11
Shoulder Strap
4-111-307-01
Eyecup
X-2319-492-1
Note: This item is supplied with the unit as an accessory, but is
not prepared as a service part.
LEVEL 2
SERVICE MANUAL
Ver. 1.1 2009.01
Sony EMCS Co.
9-852-609-81
2009A0500-1
© 2009.1
Published by Kohda TEC
• Change of Repair Parts
DSLR-A900_L2
SUPPLEMENT-1
File this supplement with the service manual.
(DI08-309)
DSLR-A900
RMT-DSLR1
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Japanese Model
DSLR-A900_L2
— 2 —
3. BLOCK DIAGRAMS

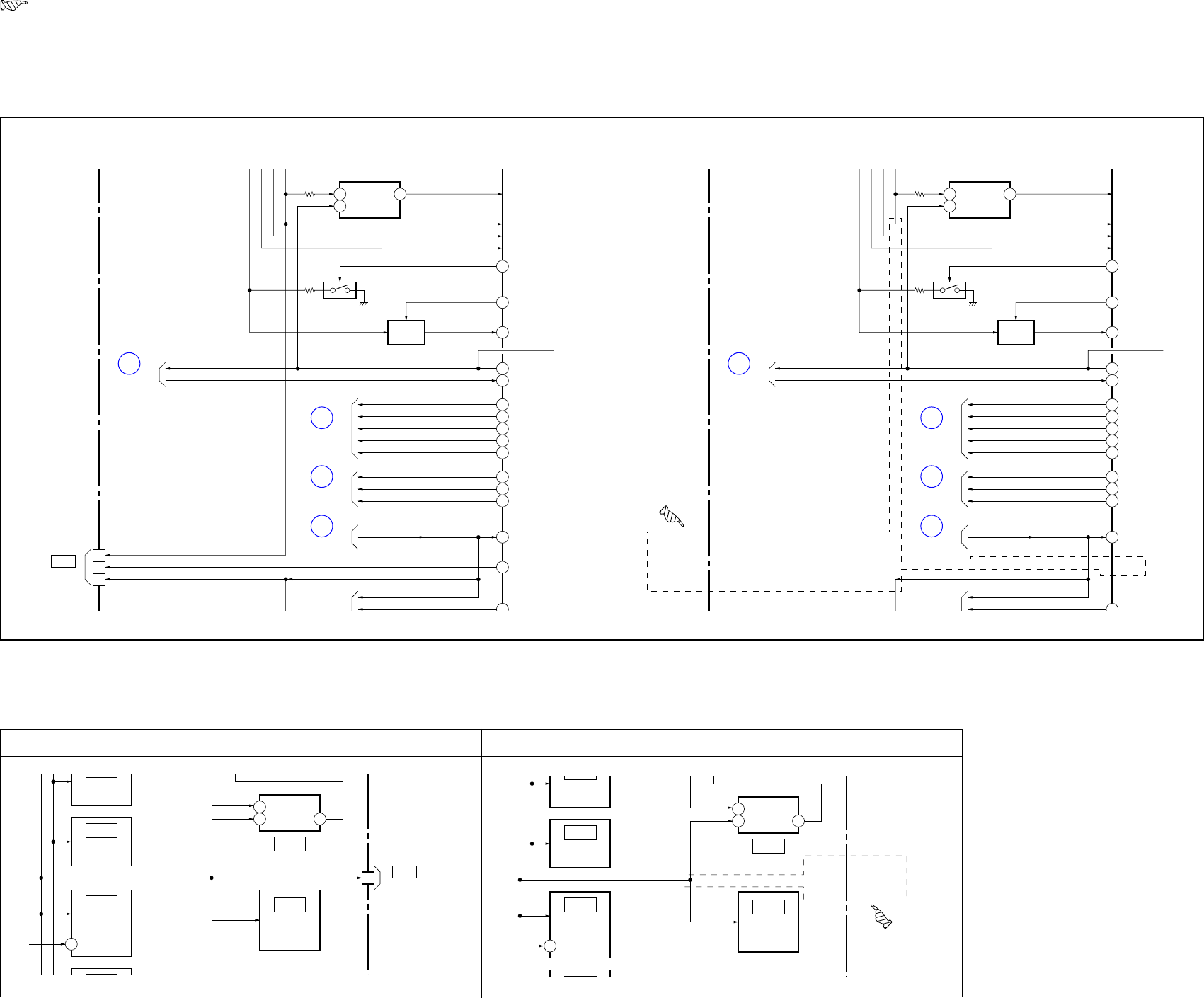

3-9. POWER BLOCK DIAGRAM (3/6)
(Service manual page 3-9)
: Points chenged portion.
MAIN
(16
/
T15
P40/CS0/KE
Y
Q4708
VOLTAGE
DETECT
EVER_3.3V
EVER_1.5V
VREF_CAM
IC_4001_2.5V
BATT_AD_IN
BATT_CHK_CTRL
P17
RESET
XCA_RESET
XCA_RESET
H14
TRST
TRST
XCA_RESET
TRST
EVER_3.3V
XCA_RESET
F5 P90/TB6OU
T
IMG_1.2V_POWER_ON
F4 P91/TB7OU
T
IMG_1.8V_POWER_ON
U15
P41/CS1/KE
Y
IMG_3.3V_POWER_ON
U9 P25/A21/A5/
AF_ASSIST_LED_ON
XDC_JACK_SENSE
T16
P42/CS2/KE
Y
DD_ON
L14
PG0/TPD0
T14
P66/A14/TB
4
P65/A13/SC
E5 P72/AN2
IC_4001_3.3V_POWER_ON
N17
PG7/TPD7
DD_ON_2
U16
P43/CS3/KE
Y
CS_DD G2 P95/SCLK2/
IC_4001_SCK G5 P93/TXD2
IC_4001_SO
R4736
R4717
(23/26)
VDD
1
3
CE
4VOUT
POWER (2/6)
(PAGE 3-8)
C
POWER (2/6)
(PAGE 3-8)
R
POWER (2/6)
(PAGE 3-8)
H
POWER (2/6)
(PAGE 3-8)
M
CN4513
2
1
7
CPC
(For Check)
DUMMY_LOAD_CTRL
Q4704
DUMMY LOAD
SWITCH
P14
MAIN
(16
/
T15
P40/CS0/KE
Y
Q4708
VOLTAGE
DETECT
EVER_3.3V
EVER_1.5V
VREF_CAM
IC_4001_2.5V
BATT_AD_IN
BATT_CHK_CTRL
P17
RESET
XCA_RESET
XCA_RESET
XCA_RESET
F5 P90/TB6OU
T
IMG_1.2V_POWER_ON
F4 P91/TB7OU
T
IMG_1.8V_POWER_ON
U15
P41/CS1/KE
Y
IMG_3.3V_POWER_ON
U9 P25/A21/A5/
AF_ASSIST_LED_ON
XDC_JACK_SENSE
T16
P42/CS2/KE
Y
DD_ON
L14
PG0/TPD0
T14
P66/A14/TB
4
P65/A13/SC
E5 P72/AN2
IC_4001_3.3V_POWER_ON
N17
PG7/TPD7
DD_ON_2
U16
P43/CS3/KE
Y
CS_DD G2 P95/SCLK2/
IC_4001_SCK G5 P93/TXD2
IC_4001_SO
R4736
R4717
(23/26)
VDD
1
3
CE
4VOUT
POWER (2/6)
(PAGE 3-8)
C
POWER (2/6)
(PAGE 3-8)
R
POWER (2/6)
(PAGE 3-8)
H
POWER (2/6)
(PAGE 3-8)
M
DUMMY_LOAD_CTRL
Q4704
DUMMY LOAD
SWITCH
P14
Former New
B4 RESET
512M SDRAM
(8/26)
512M SDRAM
(8/26)
IC2003
32M FLASH
(10/26)
IC2201
1.8V REG
(15/26)
IC3003
VIDEO
AMP
(15/26)
IC3002
IMG_3.3V
CE
VOUT 3
1
VDD
4
B4 RESET
512M SDRAM
(8/26)
512M SDRAM
(8/26)
IC2003
32M FLASH
(10/26)
IC2201
1.8V REG
(15/26)
IC3003
VIDEO
AMP
(15/26)
IC3002
1
CN3203
IMG_3.3V 3.3V
CE
VOUT
CPC
(For Check)
3
1
VDD
4
Former New
3-11.POWER BLOCK DIAGRAM (5/6)
(Service manual page 3-11)
— 3 —
DSLR-A900_L2

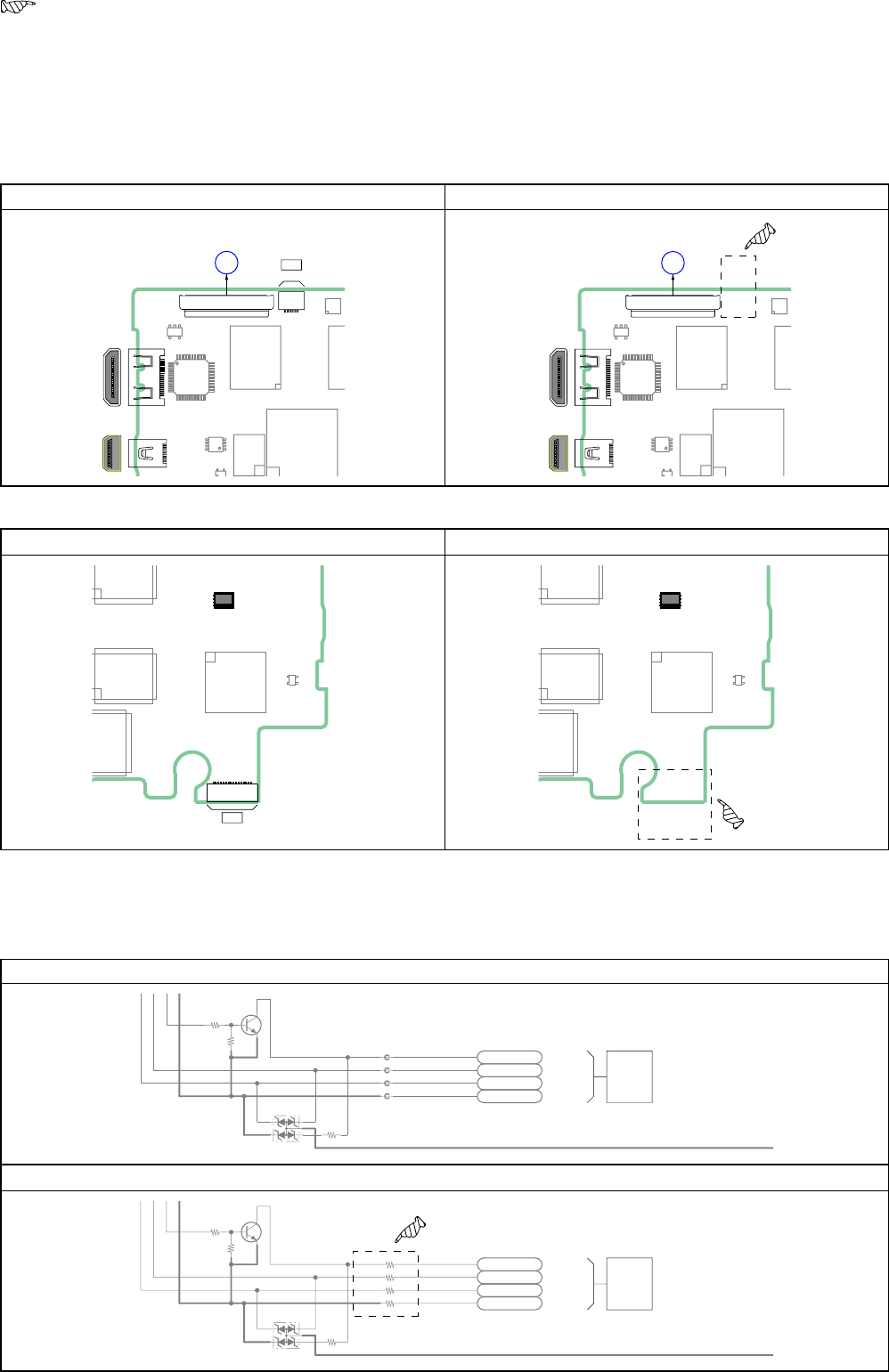

4-1. FRAME SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAM (1/2)
(Service manual page 4-1)
AM-015 BOARD (SIDE A)
4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
: Points changed portion.
Former New
1
280
79
16
CN4507 CN3203
18
910
11 12
119
23
22
21
20
CN3207
USB/
VIDEO OUT
CN3202
HDMI
OUT
A
To MA-453 Flexible Board
(Page 4-2)
CPC
(For Check)
1
280
79
CN4507
18
910
11 12
119
23
22
21
20
CN3207
USB/
VIDEO OUT
CN3202
HDMI
OUT
A
To MA-453 Flexible Board
(Page 4-2)
AM-015 BOARD (SIDE B)
Former New
116
IC4003
(EEPROM)
CN4513
CPC
(For Check)
IC4003
(EEPROM)
4-2. SCHEMATIC DIAGRAMS
TOP-004 FLEXIBLE BOARD (1/2) (BUZZER, ACCESSORY SHOE)
(Service manual page 4-42, Location E-5 to F-8)
Former
New
Note: CN901 is not included in TOP-004
flexible complete board.
D7211
DF5A6.8FU(TE85R)
5
43
2
1
FB7201
FB7203
FB7204
FB7202
0
0
0
0LND702
F1
LND703
F2
LND704
F3
LND705
GND
R7202
47k
R7203
XX
R7201
10k
SHOE
ACCESSORY
CN901
Q7201
2SC4505T100
SWITCH
Note: CN901 is not included in TOP-004
flexible complete board.
D7211
DF5A6.8FU(TE85R)
5
43
2
1
FB7201
FB7203
FB7204
FB7202 LND702
F1
LND703
F2
LND704
F3
LND705
GND
R7202
47k
R7203
XX
R7201
10k
SHOE
ACCESSORY
CN901
Q7201
2SC4505T100
SWITCH
— 4 —
DSLR-A900_L2
559
560
563
#23
Mirror Box Section
(Sub Unit-2)
(See page 5-14)
&
559
560
563
#23
Mirror Box Section
(Sub Unit-2)
(See page 5-14)
571
Page Former New
Ref. No. Part No. Description Ref. No. Part No. Description
*563 4-109-531-01 MB BL PROTECT SHEET *563 4-109-531-02 MB BL PROTECT SHEET
571 4-138-838-01 AP RING ROLLER D
5-13
5-1. EXPLODED VIEWS
5. REPAIR PARTS LIST
&: Points added portion.
: Points changed portion.
Page Former New
Ref. No. Part No. Description Ref. No. Part No. Description
TOP-004 Flexible Board
< FERRITE BEAD >
FB7201 1-414-760-21 INDUCTOR, FERRITE BEAD
FB7202 1-414-760-21 INDUCTOR, FERRITE BEAD
FB7203 1-414-760-21 INDUCTOR, FERRITE BEAD
FB7204 1-414-760-21 INDUCTOR, FERRITE BEAD
TOP-004 Flexible Board
< JUMPER RESISTOR >
FB7201 1-216-864-11 SHORT CHIP 0 (Note)
FB7202 1-216-864-11 SHORT CHIP 0 (Note)
FB7203 1-216-864-11 SHORT CHIP 0 (Note)
FB7204 1-216-864-11 SHORT CHIP 0 (Note)
5-27
5-2. ELECTRICAL PARTS LIST
Note: Short chips are mounted to the location where FB7201 to
FB7204 are printed.
Note: FB7201∼FB7204には短路がマウントされています。
5-5 0*BH4002 1-756-615-51 HOLDER, BATTERY (Note) 0BH4002 1-756-615-61 HOLDER, BATTERY (Note)
Note: Replace the battery holder (BH4002) together when replac-
ing the lithium battery (BT901) on the AM-015 board. (The
battery holder removed once cannot be used again.)
When mounting these parts, mount new battery holder first
and attach new lithium battery next.
Note: AM-015基板のリチウム電池（BT901）を交換する場合は
バッテリホルダ（BH4002）も同時に新品に交換してくだ
さい。（一度使用したバッテリホルダは再使用できませ
ん。）
部品取り付けの際は，先にバッテリホルダを取り付けて
からリチウム電池を装着してください。
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
0印の部品，または0印付の点線で囲まれた部品は，
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
HARDWARE LIST (1/8)
#1: M1.7 X 2.5
(Black)
2-635-562-11
2.5
1.7
#10: M1.7 X 4.0
(Silver)
2-599-475-31
1.6
1.7
#6: M1.4 X 1.7
(Silver)
2-598-474-01
1.7
1.4
#7: M1.7 X 1.6
(Black)
7-627-552-18
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
4.0
1.7
#5: M1.7 X 3.5 (Tapping)
(Black)
3-080-204-01
3.5
1.7
#4: M1.4 X 2.5 (Tapping)
(Dark Silver)
3-348-998-81
2.5
1.4
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
#9: M1.7 X 5.0 (Tapping)
(Silver)
3-078-890-21
5.0
1.7
#14: M1.7 X 2.5
(Silver)
2-599-475-11
#13: M1.7 X 2.5 (Tapping)
(Silver)
3-085-397-01
2.5
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
#8: M1.7 X 3.5 (Tapping)
(Silver)
3-078-890-01
3.5
1.7
4.0
1.7
5.0
2.5
#17: M1.7 X 1.5
(Silver)
2-586-389-01
2.5
1.7
#15: M1.4 X 1.5
(Silver)
3-062-214-01
1.5
1.4 1.4
#16: M1.4 X 2.5
(Silver)
2-586-337-01
1.5
3.5
1.7 2.2
#18: M1.4 X 2.5
(Silver)
2-635-591-21
2.5
1.4
#19: M1.2 X 4.0 (Tapping)
(Red)
3-086-156-21
4.0
1.2
#20: M1.4 X 3.0
(Silver)
2-635-591-31
3.0
1.4
HARDWARE LIST (2/8)
#21: M1.4 X 3.0
(Black)
2-662-396-21
3.0
1.4
#22: M1.7 X 5.0 (Tapping)
(Silver)
3-083-261-01
1.7
5.0
1.7
5.5
#23: M1.7 X 4.0 (Tapping)
(Black)
3-080-204-11
4.0
1.7
#24: B1.7 X 5.5 (Tapping)
(Black)
4-679-805-11
#25: M1.7 X 3.0
(Black)
2-635-562-21
3.0
1.7
#26: M1.4 X 2.0
(Silver)
2-635-591-11
2.0
1.4
#27: M1.4 X 2.0
(Black)
2-662-396-11
2.0
1.4
#28: M1.4 X 4.0 (Tapping)
(Silver)
3-348-998-61
1.4
4.0
#29: M1.4 X 2.5
(Black)
2-662-396-01
#31: M3.0 X 4.0
(Silver)
2-102-434-01
2.5
1.4
#30: M1.2 X 3.5 (Tapping)
(White)
3-086-156-11
3.5
1.2
#32: M2.0 X 4.5 (Tapping)
(Silver)
2-102-498-01
#33: M3.0 X 6.0
(Silver)
3-077-331-21
#35: M4.0 X 6.0 (Tapping)
(Silver)
3-975-291-02
#34: M3.0 X 8.0
(Black)
3-077-331-41
#36: M3.0 X 6.0
(Silver)
4-886-821-11
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
#38: M3.0 X 20.0 (Tapping)
(Silver)
7-685-651-79
#40: M2.0 X 4.0 (Tapping)
(Silver)
7-685-851-04
#39: M2.6 X 5.0 (Tapping)
(Black)
7-685-791-09
4.0
3.0
4.5
2.0
6.0
3.0
8.0
3.0 4.0
6.0 6.0
3.0
6.0
2.0
20.0
3.0
4.0
2.0
5.0
2.6
HARDWARE LIST (3/8)
#41: M3.0 X 8.0 (Tapping)
(Silver)
3-065-748-01
8.0
3.0
#42: M2.0 X 4.0 (Tapping)
(Silver)
7-628-253-00
2.0
4.0
#43: M1.7 X 4.0
(Red)
2-660-401-31
4.0
1.7
#46: M1.7 X 3.0
(Red)
2-660-401-11
#45: M1.4 X 2.5
(Silver)
2-587-151-01
#47: M1.4 X 3.0 (Tapping)
(Silver)
2-665-774-01
3.0
1.4
#44: M1.7 X 3.0 (Tapping)
(Silver)
3-078-890-61
3.0
1.7
3.0
1.7
2.5
1.4
#48: M1.7 X 2.5
(Silver)
3-973-497-91
2.5
1.7
#49: M2.0 X 4.0
(Black)
2-630-005-31
#50: M2.0 X 3.0
(Red)
2-891-494-11
#51: M2.0 X 2.5
(Silver)
3-073-686-01
#54: M1.75 X 6.0 (Tapping)
(Black)
3-318-203-11
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
#55: M2.0 X 4.0
(Silver)
2-655-582-11
#52: M2.0 X 4.0 (Tapping)
(Black)
3-080-206-11
#56: M2.0 X 3.5
(Silver)
3-067-187-11
4.0
2.0
3.0
2.0
2.5
2.0
5.0
2.0
4.0
2.0
6.0
1.75
4.0
2.0
3.5
2.0
#57: M1.7 X 4.0
(Black)
7-627-852-18
4.0
1.7
#58: M2.0 X 6.0 (Tapping)
(Silver)
3-719-408-11
6.0
2.0
#59: M2.0 X 5.0 (Tapping)
(Silver)
3-080-205-21
#60: M2.6 X 5.0
(Black)
3-061-062-11
5.0
2.0
5.0
2.6
HARDWARE LIST (4/8)
#61: M3.0 X 10.0
(Black)
7-682-549-09
10.0
3.0
#62: M2.0 X 3.0
(Silver)
3-080-202-21
3.0
2.0
#63: M5.0 X 12.5
(Black)
3-060-811-21
12.5
5.0
#64: M1.7 X 5.0 (Tapping)
(Silver)
2-666-551-21
5.0
1.7
#65: M1.4 X 3.5
(Silver)
2-635-591-01
3.5
1.4
#66: M1.4 X 1.4
(Silver)
2-635-591-41
1.4
1.4
#71: M1.4 X 2.0
(Red)
3-208-537-01
2.0
1.4
2.0
1.4
2.0
1.4
#67: M1.4 X 2.0
(Silver)
3-389-523-16
2.0
1.4
#68: M1.7 X 4.0
(Silver)
2-655-581-01
4.0
1.7
#72: M1.4 X 2.0
(Silver)
4-663-621-41
2.0
1.4
#69: M1.7 X 3.0
(Silver)
2-599-475-21
3.0
1.7
#70: M1.7 X 5.0
(Silver)
2-599-475-41
5.0
1.7
#75: M1.7 X 3.5 (Tapping)
(Silver)
2-666-551-01
#76: M1.7 X 4.0 (Tapping)
(Silver)
2-666-551-11
#73: M1.2 X 4.0 (Tapping)
(Black)
3-086-156-61
#74: M1.7 X 6.0 (Tapping)
(Silver)
2-666-551-31
#78: M1.4 X 3.5
(Red)
3-208-537-11
#79: M1.4X 2.0
(Silver)
2-587-151-11
#80: M1.4X 2.0
(Black)
3-279-411-01
6.0
1.7
3.5
1.7
4.0
1.7
4.0
1.2
#77: M1.2 X 5.0 (Tapping)
(Silver)
3-086-156-31
5.0
1.2
3.5
1.4
HARDWARE LIST (5/8)
#81: M1.7 X 2.5
(Silver)
2-515-756-01
2.5
1.7
#82: M1.4 X 1.4
(Silver)
3-272-251-01
1.4
1.4
#83: M1.7 X 7.0 (Tapping)
(Black)
3-080-204-41
#84: M2.0 X 3.0
(Silver)
3-072-453-11
#85: M1.7 X 2.5
(Black)
2-515-483-11
#86: M1.7 X 4.0 (Tapping)
(Silver)
2-695-434-21
4.0
1.7
#87: M1.6 X 5.3
(Black)
2-689-328-01
5.3
1.6
#88: M1.6 X 5.9 (Tapping)
(Silver)
2-689-015-01
5.9
1.6
#89: M2.0 X 5.5 (Tapping)
(Silver)
2-695-575-01
5.0
2.0
#90: M1.7 X 3.0
(Silver)
3-271-395-01
3.0
1.7
#91: M1.7 X 3.0 (Tapping)
(Silver)
2-695-434-11
#92: M2.0 X 3.9
(Black)
3-268-954-01
3.9
2.0
#93: M1.7 X 3.5 (Tapping)
(Silver)
3-254-082-01
#94: M1.7 X 4.0
(Black)
2-515-483-31
1.7
7.0 3.0
2.0
2.5
1.7
4.0
1.7
3.5
1.7
3.5
1.7
#95: M3.0 X 8.0 (Tapping)
(Black)
7-685-646-79
8.0
3.0
#99: M2.5 X 6.0 (Tapping)
(Silver)
3-776-750-02
6.0
2.5
#96: M1.4 X 2.5
(Silver)
2-587-151-21
2.5
1.4
#97: M1.4 X 2.5
(Black)
2-662-396-31
2.5
1.4
#98: M3.0 X 8.0
(Silver)
3-077-331-01
8.0
3.8
#100: M2.0 X 6.0
(Black)
3-080-203-51
6.0
2.0
HARDWARE LIST (6/8)
#101: M2.0 X 5.0
(Silver)
7-621-555-39
5.0
2.0
#107: M2.0 X 5.0
(Silver)
3-032-750-01
5.0
2.0
#108: M1.7 X 3.0 (Tapping)
(Black)
2-695-430-01
#111: M1.7 X 4.0 (Tapping)
(Black)
2-887-124-01
#102: M2.6 X 8.0
(Black)
7-621-284-30
8.0
2.6
#105: M2.0 X 4.0
(Red)
2-891-494-31
#106: M2.0 X 6.0
(Black)
3-713-786-11
#103: M2.6 X 10.0
(Silver)
7-685-794-09
10.0
2.6
#104: M3.0 X 8.0
(Black)
7-682-548-09
8.0
3.0
6.0
2.6
4.0
2.0
6.0
2.0
3.0
1.7
#109: M1.7 X 3.0
(Black)
2-515-483-21
3.0
1.7
3.0
2.0
#110: M2.0 X 3.0
(Black)
2-630-005-21
4.0
1.7
#114: M2.0 X 5.5 (Tapping)
(Silver)
2-698-464-01
5.5
2.0
#112: M1.4 X 5.0
(Black)
2-178-410-11
5.0
1.4
#113: M1.7 X 5.0
(Black)
2-635-562-41
5.0
1.7
#115: M1.4 X 3.5 (Tapping)
(Silver)
3-348-998-51
1.4
3.5
#116: M2.0 X 3.5 (Tapping)
(Silver)
2-695-435-01
3.5
2.0
#117: M1.7 X 4.5 (Tapping)
(Silver)
2-695-429-31
#118: M1.4 X 2.0
(Black)
2-655-580-01
4.5
1.7
2.0
1.4
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
#120: M2.6 X 6.0
(Silver)
7-621-770-67
HARDWARE LIST (7/8)
#121: M2.0 X 4.0 (Tapping)
(Silver)
3-080-205-11
#123: M4.0 X 8.0
(Black)
7-682-561-09
8.0
4.0
6.0
3.0
#122: M3.0 X 6.0
(Black)
7-682-547-09
#125: M1.4 X 3.0
(Black)
3-291-847-01
#129: M3.0 X 12.0
(Black)
7-682-550-09
4.0
2.0
2.0
12.0
1.7
4.0
#124: M1.7 X 2.0
(Silver)
2-599-475-01
#126: M2.9 X 3.5
(Black)
3-292-616-01
#134: M2.6 X 7.0
(Black)
3-299-572-01
#133: M3.0 X 6.0
(Black)
3-452-484-01
#131: M4.0 X 12.0
(Silver)
3-452-471-01
#130: M2.0 X 4.5 (Tapping)
(Silver)
3-732-817-11
#132: M2.6 X 6.0
(Black)
4-673-655-01
#127: M3.0 X 25.0
(Black)
7-682-654-09
#128: M4.0 X 12.0
(Black)
3-452-472-01
3.0
3.5
6.0
25.0
1.4 2.9 3.04.0
12.0
3.0
#135: M2.0 X 2.5
(Black)
7-627-553-28
2.5
7.0
12.0 6.0
6.0
2.0
2.6
4.0 2.6
3.0
4.5
2.0
#136: M1.4 X 4.0 (Tapping)
(Black)
3-065-509-11
#137: M1.7 X 3.0
(Black)
3-090-976-62
4.0
1.4
3.0
1.7
#138: M1.4 X 3.5
(Silver)
4-104-078-01
3.5
1.4
#139: M1.4 X 2.0
(Silver)
2-655-579-01
#140: M1.7 X 2.0
(Black)
2-635-562-01
2.0
1.4
2.0
1.7
HARDWARE LIST (8/8)
5.0
2.6
#141: M2.6 X 5.0 (Tapping)
(Silver)
7-685-791-01
#142: M1.4 X 2.0
(Silver)
4-111-392-01
2.0
1.4
#143: M1.4 X 2.0
(Black)
4-111-392-11
2.0
1.4
#144: M1.4 X 1.2
(Silver)
4-111-392-21
1.2
1.4
#145: M1.4 X 2.4
(Silver)
4-111-248-01
2.4
1.4
#146: M1.4 X 2.4
(Black)
4-111-248-11
2.4
1.4
3.5
1.4
#147: M1.4 X 3.5
(Black)
2-662-396-41
#148: M1.7 X 3.0
(Silver)
3-057-082-21
3.0
1.7
#149: M1.6 X 7.5 (Tapping)
(Silver)
4-115-505-01
7.5
1.6
#150: M1.4 X 3.0
(Black)
4-105-150-01
3.0
1.4
Revision History
Reverse
DSLR-A900_L2
Ver.
1.0
1.1
Date
2008.08
2009.01
History
Official Release
Supplement-1
(S1 DI08-309)
Contents
—
•Change of Repair Parts
S.M. revised: Page 2-10
S.M. Rev.
issued
—
Yes
985260932.pdf

Navigation menu
