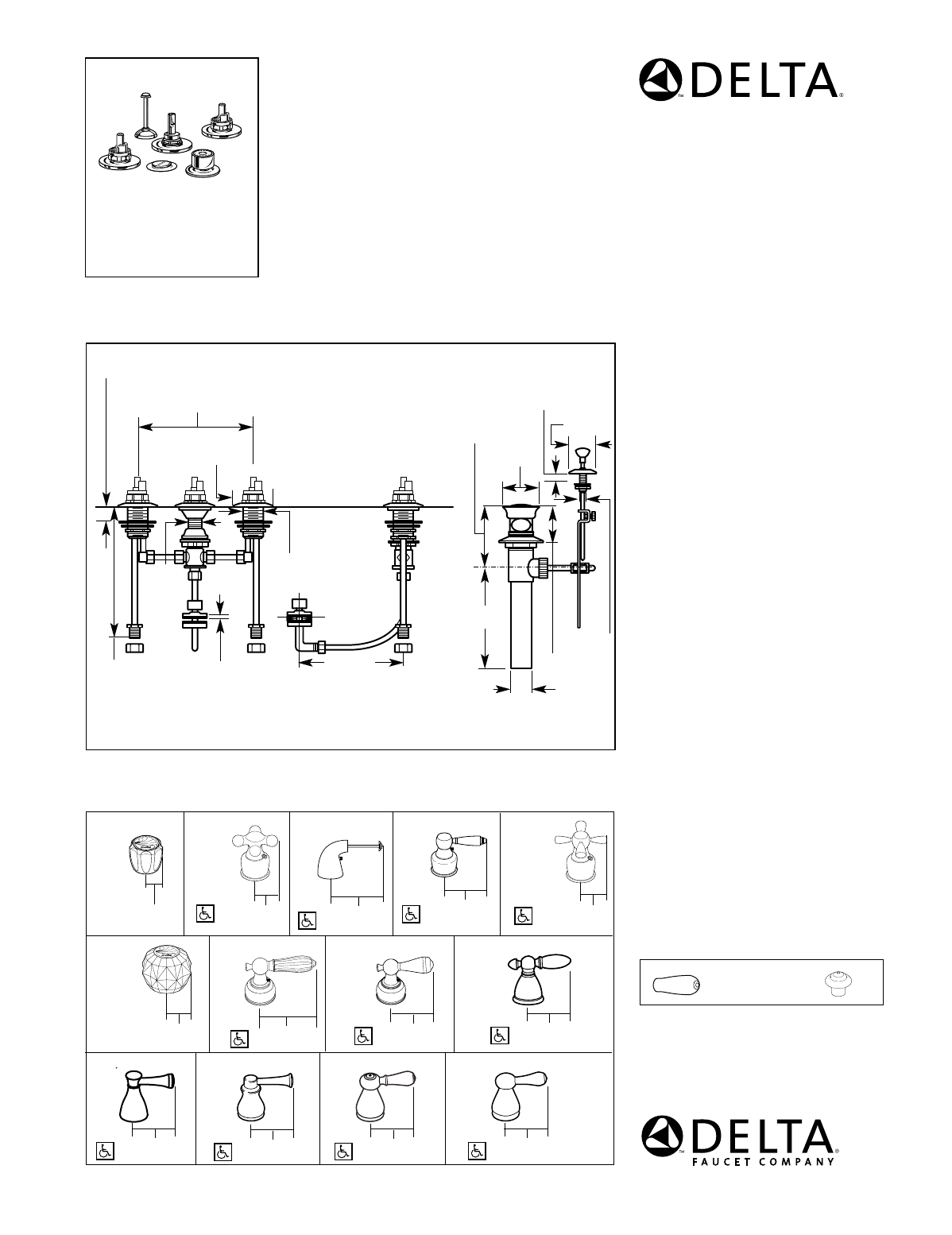

SPECIALTY
FAUCETS
■Three Handle Bidet Valve
■Four Hole Installation
Submitted Model No.: ________________________________________________
Specific Features: ___________________________________________________ STANDARD SPECIFICATIONS:
• Solid fabricated brass end valves.
• Widespread flexible mounting installation.
• LHP–Less Handle Program. See handle options below.
• Directional handle for rim flush or rosette spray.
• Control mechanism is a rotating cylinder type with
stainless steel plate and 180° rotation, with
replaceable non-metallic seats operating in
stainless steel lined sockets.
• Hot and cold stems are interchangeable.
• Temperature and volume controlled with handles.
• All operating parts shall be replaceable from the top.
• 3/8" O.D. copper tube inlets with
1/2"-14 NPSM adapters.
• Metal pop-up drain assembly.
• 2” (51 mm) diameter handle bases.
• Must order 2 RP handle kits to complete 33-LHP series
bidet faucets. One two-handle kit for hot and cold
valves and one single-handle kit for diverter valve.
33-LHP
DSP-S-33 Rev. B
A24▲
Available LHP Handle Accent
Options with Matching Lift Knobs
H11/H21▲H17/H27▲H26/H36▲
H24▲A24
Available LHP Handle Options
▲ Designate proper finish suffix
H31/H41▲
1 1/4"
(32 mm)
1 1/4"
(32 mm)
2 1/2"
(64 mm)
3 1/4"
(83 mm)
1 3/8"
(35 mm)
1 1/8"
(29 mm)
6"–8"
(152 mm–203 mm)
1 1/4" (32 mm)
Max. Deck Thickness
2"
(51 mm)
1"
(25 mm)
1 1/8"
(29 mm)
5"
(127 mm) 1/2" (13 mm)
Max. Thickness
● 1/2"-14 NPSM (female)
● 3/8" or 1/2" bullnose riser
11/16"
(17 mm)
18"
(457 mm)
Max.
2 1/8"
(54 mm)
1 3/4"
(44 mm)
3/8"
(10 mm)
1 5/8"–2 3/8"
(41 mm–60 mm)
3 3/8"
(86 mm)
4 5/8"
(117 mm)
0"–1"
(0 mm-25mm)
1 1/4"
(32 mm)
Dia.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book for
finish options and product availability.
H25▲
Indianapolis, Indiana 46280
A Division of Masco Corporation of Indiana
© 2006 Masco Corporation of Indiana
3.D.18
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
•5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
H212▲
3"
(76 mm)
H215▲
2 5/16"
(59 mm)
H216▲
3"
(76 mm)
H240▲
?"
(? mm)
H269▲
2 1/2"
(64 mm)
H277▲
2 1/2"
(64 mm)
H278▲
2 1/2"
(64 mm)
