• Conditional Access: The DTA-3050 provides
DVB-CSA and BISS encryption and AES conditional
access encrypt capabilities. DVB-CSA encryption is
available as xed key BISS or Simulcrypt based
interfaces compatible with most major DVB-CSA CAS
vendors. AES encryption includes support for Adtec's
OST for Transport and Verimatrix VCAS for residential
set top and computer-based decryption.
• Aggregation of ASI, or IP based SPTS or MPTS
services: The DTA-3050 provides ten ASI input ports
enabling it to aggregate locally encoded SPTS or
re-muxed MPTS from encoders, receivers, video
servers or other devices providing MPEG 2 Transport
via ASI and IP, or SMPTE310 and IP.
• IPTV: Gigabit Ethernet distribution of digital
television services includes MPTS, SPTS over UDP, RTP
for Set Top, or computer decoding and MPTS over
UDP or RTP for bundled distribution (Digital
Simulcast).
• ASI: Three port mirrored ASI output interface
provides integration with traditional distribution
methods including Cable, Satellite, and Terrestrial.
• SMPTE-310: An optional 2 port mirrored
SMPTE-310 output interface provides integration
with ATSC distribution.
• Flexible Conguration & Control: Controlling
and conguring the DTA-3050 is easy. Whether
using the integrated front panel keypad and LCD,
Terminal or remote Web page interface.
• DTV Electronic Program Guide: Create and
upload your own program listings for distribution
over ATSC, DVB, and IPTV applications using our
web-hosted DTVGuide electronic program guide
generator service. A very economical way to
instantly begin sending EIT data, DTVGuide requires
no additional equipment when paired with the DTA
and its built-in EIT injection carousel. The DTA
fetches EIT data which has been uploaded to
DTVGuide over the internet, and immediately
begins to inject the data into the transport stream.
features
Adtec Digital US Sales: 615.256.6619 International Sales 904.394.0389 www.adtecinc.com
04.07.09

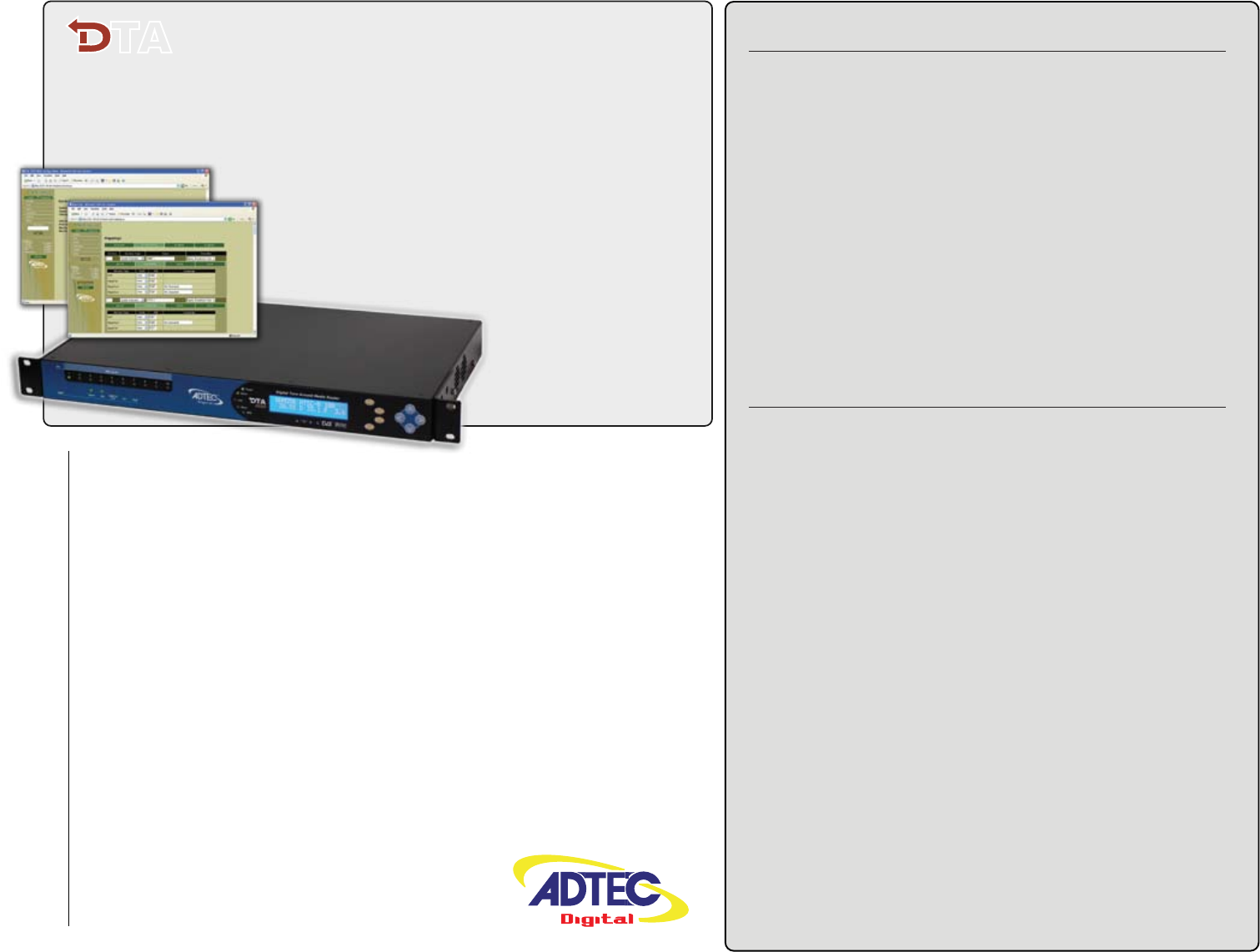

Digital Turn Around Router
Digital television service operators wishing to
aggregate and process MPEG, ATSC, Digicypher, or
DVB based services for traditional (satellite, cable,
terrestrial) services will find the DTA ideal. It boasts 10 ASI inputs. Each supporting
wire speed, a three-way mirrored ASI output, GIGE, and optional SMPTE-310.
Redundancy for ASI and SMPTE-310 is supported with an intelligent built in
relay-bypassed switch. The DTA-3050 is IPTV and BBTV
ready today, it supports multicast and unicast
configurations including SPTS/UDP, MPTS/UPD, MPEG
and DVB tables. Encryption support includes DVB-CSA
with Ethernet Simylcrypt, AES for use with Simylcrypt
compatible Conditional Access management Servers
(CAS) vendors. The DTA 3050 is
ideal for traditional and
next generation
television networks.
Options & Accessories
DTA-ASI-KEY: The DTA-3050 comes standard with 5
unlocked ASI ports. Additional ports (up to 5 more) can be
unlocked for use by purchasing a DTA-ASI-KEY.
DVB-CSA: Encryption Algorithm feature for DTA's. Capable
of encrypting 210 Mbs and is supported via ASI and IP
egress.
DVB-AES: AES Scrambling Algorithm feature for DTA's.
Capable of encrypting 210 Mbs. Used for IPTV with Verima-
trix server.
DTVGUIDE: Electronic Program Guide Service
Related Products
mediaHUB-HD 422:
High and Standard Definition Multi-CODEC Contribution and
Distribution Encoder
mediaHUB-HD Pro:
High and Standard Definition Contribution and Distribution
Encoder
edje-5110:
Real-Time Distribution Encoder
IPTVManage:
Enterprise Management Server
DTVManage:
Enterprise Management Server
3050
TA
Adtec Digital US Sales: 615.256.6619 International Sales 904.394.0389 www.adtecinc.com
Power: 70 – 240 VAC switching power supply; standard 3-pin computer power plug.
GigE: Gigabit Ethernet used for IP Egress
COM2 - Reserved: Reserved for redundancy switching
COM1 - Terminal: Back end serial port for Adtec service technicians
Fast Ethernet: 10/100 base T ethernet used for connecting to control interface
USB 2.0: Reserved for future use.
ASI Inputs (10): Asynchronous Serial Inputs for receiving programming
ASI Redundancy Input: Used to link 2 DTA-3050 units in tandem; one as primary, one as backup.
SMPTE Redundancy Input: Used to link 2 DTA-3050 units in tandem; one as primary, one as backup. (Optional)
Redundancy Tally: Used to hook up to an external alarm device
ASI Outputs (3): Triple Mirrored ASI Outputs
SMPTE 310 Outputs (2) Optional Mirrored SMPTE Output
Digital Turn Around Router
3050
TA

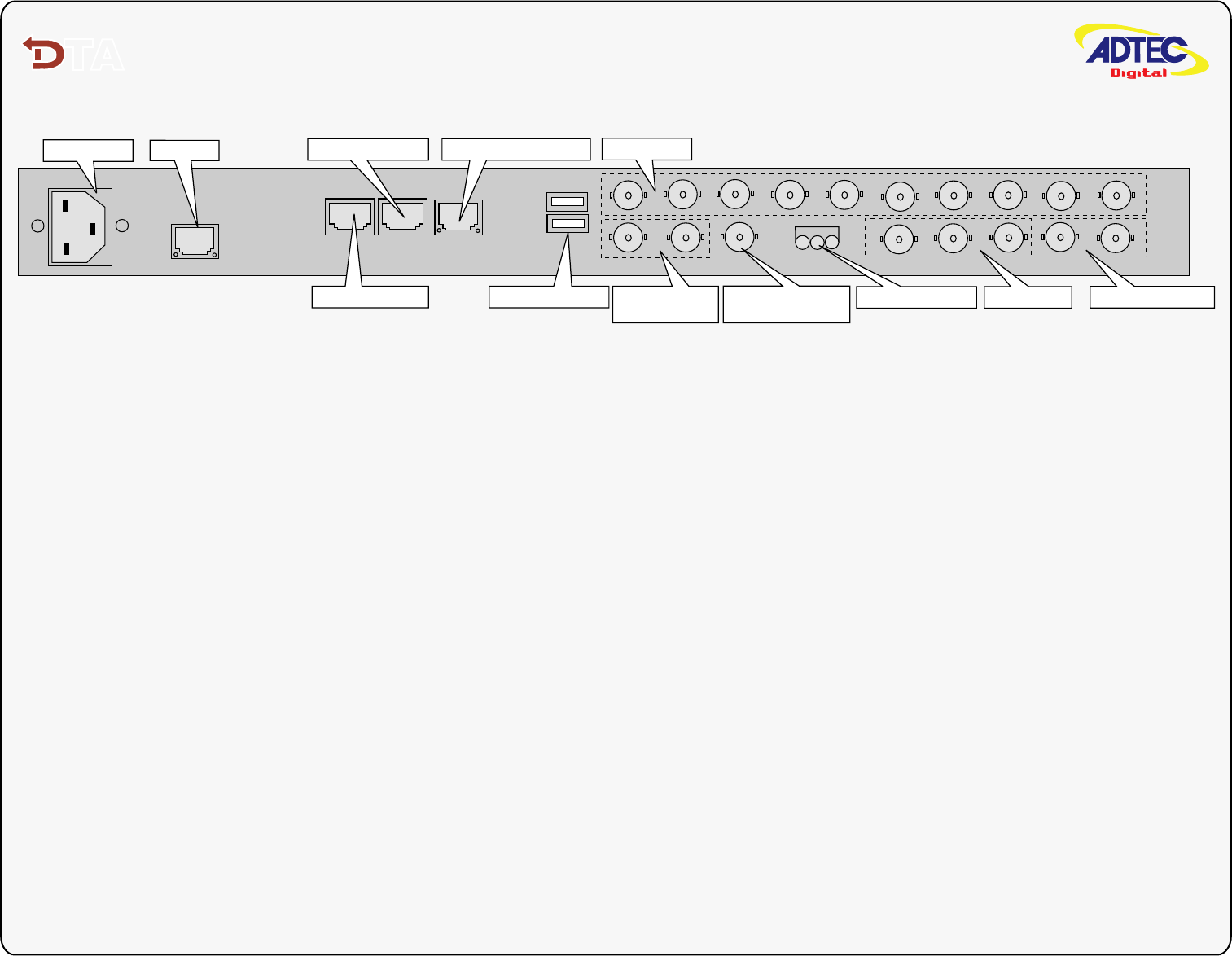

Power GigE COM1 - Terminal Fast Ethernet Interface ASI Inputs
USB 2.0 Interface ASI Redundancy
Inputs
SMPTE Redundancy
Input
Redundancy Tally ASI Outputs SMPTE 310 Outputs
COM2 - Reserved
Adtec Digital US Sales: 615.256.6619 International Sales 904.394.0389 www.adtecinc.com
This information may not, in whole or in part, be copied, photocopied, reproduced and translated, or reduced to any electronic medium or machine-readable form without prior consent in writing from Adtec Digital.
© 2009 Adtec Digital. DTA-3050 is a trademark of Adtec Digital. Other product and company names may be trademarks or registered trademarks of their respective companies. Specifications subject to change without written notice.
Front Panel
Tactile Raised Keypad Buttons:
Mode, Select, Enter, Escape, Up, Down,Left, Right
Blue Translucent LCD:
20 character by 2 row
Front Panel Host LEDs:
Power, Alarm, Link, Busy, MPE
Front Panel LEDs :
In: 1 - 10 ASI
Out: Alarm, ASI, SMPTE 310, CA, GigE
ASI Inputs
ASI x 10 (BNC)
188 or 204 Byte mode
SPTS or MPTS
210 Mbps per input
256 PIDs per input
Fill scrubbing on input
Input Modes:
Auto (Remap all services)
Manual (Add/Drop/Remap PID/Services)
Pass (Pass all services as-is)
MHP Injector SI Injector
Redundancy
1+1 Input N + 1, N + 2 Input
ASI x 2 (BNC inputs for auto switch)
No external controller required
Outputs
Gigabit Ethernet
- SPTS over UDP
- MPTS over UDP
Very low jitter
ASI (model is DTA 3050-ASI)
Mirrored (BNC x 3) Byte or Burst Mode
54 Mbs Byte
210 Mbs Burst Jitter less than 150 (nS)
SMPTE-310 (model is DTA 3050-SMPTE-310)
Mirrored (BNC x 2) Byte Mode only
19.39 Mbs fixed
SMPTE-310 option includes ASI
Table Processing
MPEG Tables:
PAT CAT (if CA is enabled) PMT
DVB Tables:
(Add/Drop/Remap DVB Services)
NIT SDT TDT/TOT EIT
ATSC Tables :
(Add/Drop/Remap ATSC Services)
VCT (Cable or Terrestrial) MGT STT RRT EIT (1-4)
DCII Tables:
(Add/Drop/Remap Digicypher services DVB/ATSC)
Conditional Access Encryption
DVB-Common Scrambling Algorithm (CSA)
DVB Simulcrypt TS 103 197 v 1.2.1
FIPS 140-2 hardware based random number
generator (RNG)
Approved 3rd Party CA Vendors include:
CSA: Irdeto, Conax, EuroCAS, KeyFly, Xcrypt
AES: Verimatrix
Host Platform
PowerPC
Adtec optimized Linux Kernel
10/100 Ethernet RJ-45 (Eth 0)
10/100/1000 Ethernet RJ-45 (Eth 1)
Serial Port (RJ-48)
USB 2.0 (2)
IEEE 1394 (Firewire)
N.C. / N.O. Tally Interface
XML Configuration
HTTP, FTP, Telnet, IP Logging, XCP
(Adtec encrypted layer 3 protocol)
Power
70-240 VAC switching power supply
50/60 Hertz
Rated at 94 Watts return nominal usage 20 watts
Physical
19 in. wide, 1.75 in. tall, 16 in. deep,
(483 x 44.5 x 406 mm)
1 Rack Unit
Weight 13lbs.
Environmental
Active cooling (Push pull Fans)
Operating: 0 to +50 degrees C
Storage: -30 to +65 degrees C
Less than 70% RH
Non-Condensing
Technical Specifications
Digital Turn Around Router
3050
