RRV3271 DV989

User Manual: DV989

Open the PDF directly: View PDF PDF.
Page Count: 120 [warning: Documents this large are best viewed by clicking the View PDF Link!]

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
DV-989AVi-S
RRV3271
DVD PLAYER
DV-989AVi-S
DV-989AVi-G
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Region No. Remarks
DV-989AVi-S WYXJ AC220–240V 2
DV-989AVi-S YXJRE AC220–240V 5
DV-989AVi-G HLXJ AC220-240V 3
DV-989AVi-S WPWXJ AC220–240V 4
For details, refer to "Important symbols for good services".
T-ZZR OCT. 2005 printed in Japan
DV-989AVi-S
2
1234
1234
C
D
F
A
B
E
SAFETY INFORMATION
WARNING !
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN
CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING
THE LIMIT FOR CLASS 1.
A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE
APPARATUS.
LASER DIODE CHARACTERISTICS
FOR DVD : MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 650 nm
FOR CD : MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 780 nm

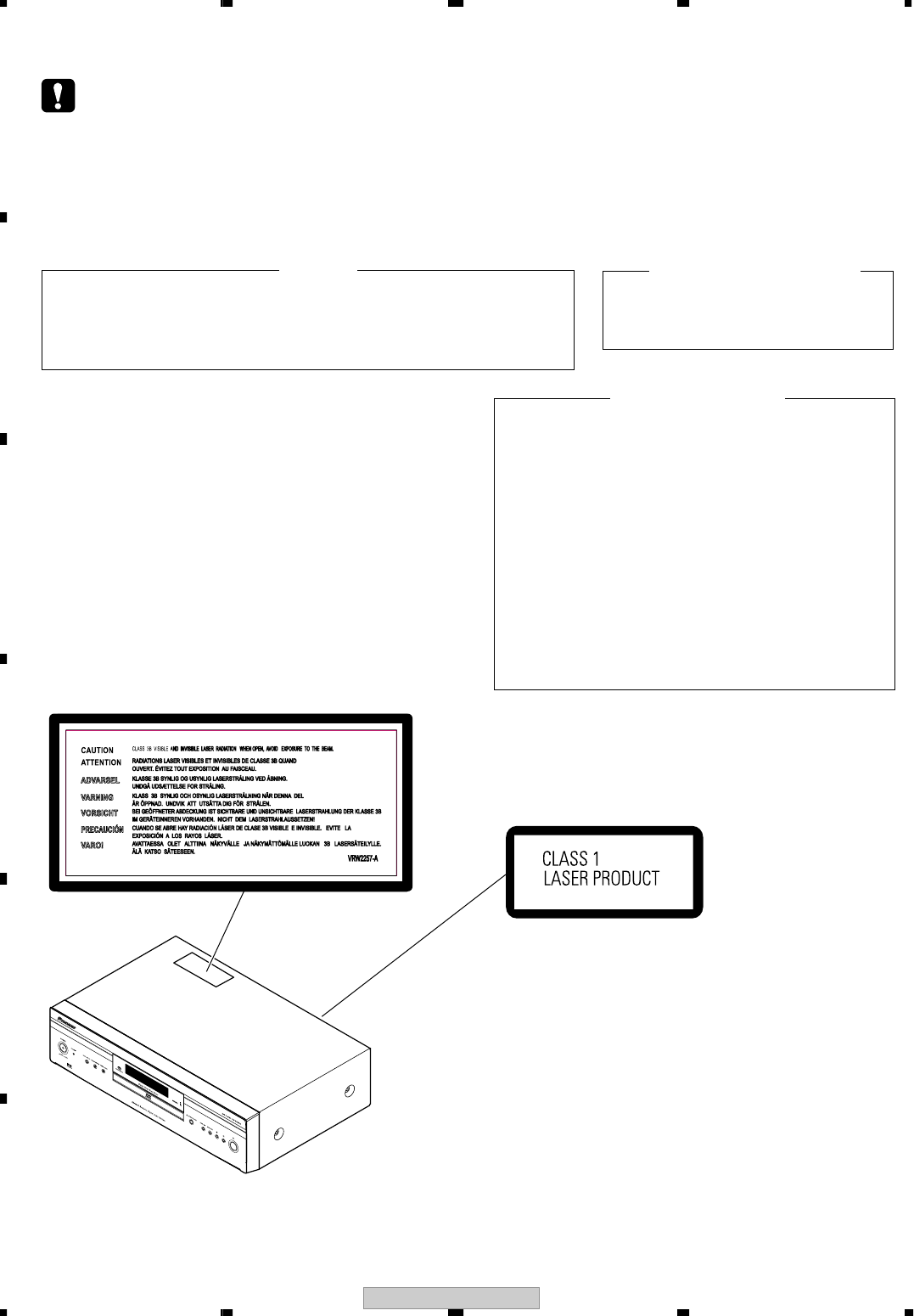

LABEL CHECK
(Printed on the Rear Panel)
Additional Laser Caution
∗ : See page 87.
1. Loading-status detection switch (S101 on the LOAB assy) are detected
by the microprocessor (IC601 in the DVDM assy).
• To permit the laser diode to oscillate, it is required to set the loading-
status detection switch for the clamp position (the center terminal of
S101 is shorted to +3V).
When the voltage of IC101-pin 21 is +3V, IC601 (microprocessor)
-pin 83 is +3V and IC601-pin 84 is +3V, 650nm laser diode for DVD
oscillates in the DVDM Assy.
When the voltage of IC101-pin 21 is +3V, IC601 (microprocessor)
-pin 83 is 0V (GND) and IC601-pin 84 is +3V, 780nm laser diode for
CD oscillates in the DVDM Assy.
In the test mode * , the laser diode oscillates when microprocessor
detects a PLAY signal, or when the PLAY key is pressed (S104 ON in
the FLKY assy), with the above requirements satisfied.
2. When the cover is open, close viewing through the objective lens with
the naked eye will cause exposure to the laser beam.
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it
-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been traine
d
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, yo
u
should not risk trying to do so and refer the repair to a qualified service technician.
DV-989AVi-S 3
5 678
5678
C
D
F
A
B
E
[Important Check Points for Good Servicing]
In this manual, procedures that must be performed during repairs are marked with the below symbol.
Please be sure to confirm and follow these procedures.
1. Product safety
Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by
following the safety instructions described in this manual.
1 Use specified parts for repair.
Use genuine parts. Be sure to use important parts for safety.
2 Do not perform modifications without proper instructions.
Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as
radio/TV interference and foreign noise.
3 Make sure the soldering of repaired locations is properly performed.
When you solder while repairing, please be sure that there are no cold solder and other debris.
Soldering should be finished with the proper quantity. (Refer to the example)
4 Make sure the screws are tightly fastened.
Please be sure that all screws are fastened, and that there are no loose screws.
5 Make sure each connectors are correctly inserted.
Please be sure that all connectors are inserted, and that there are no imperfect insertion.
6 Make sure the wiring cables are set to their original state.
Please replace the wiring and cables to the original state after repairs.
In addition, be sure that there are no pinched wires, etc.
7 Make sure screws and soldering scraps do not remain inside the product.
Please check that neither solder debris nor screws remain inside the product.
8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.
Damaged power cords may lead to fire accidents, so please be sure that there are no damages.
If you find a damaged power cord, please exchange it with a suitable one.
9 There should be no spark traces or similar marks on the power plug.
When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure
connections and suitable usage. Please exchange the power cord if necessary.
0 Safe environment should be secured during servicing.
When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.
Please pay attention to your surroundings and repair safely.
2. Adjustments
To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.
Adjustments should be performed in accordance with the procedures/instructions described in this manual.
4. Cleaning
For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper
cleaning should be performed to restore their performances.
3. Lubricants, Glues, and Replacement parts
Use grease and adhesives that are equal to the specified substance.
Make sure the proper amount is applied.
5. Shipping mode and Shipping screws
To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be
installed before shipment. Please be sure to follow this method especially if it is specified in this manual.
DV-989AVi-S
4
1234
1234
C
D
F
A
B
E
CONTENTS
SAFETY INFORMATION..................................................................................................................................... 2
1. SPECIFICATIONS ............................................................................................................................................ 5
2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6

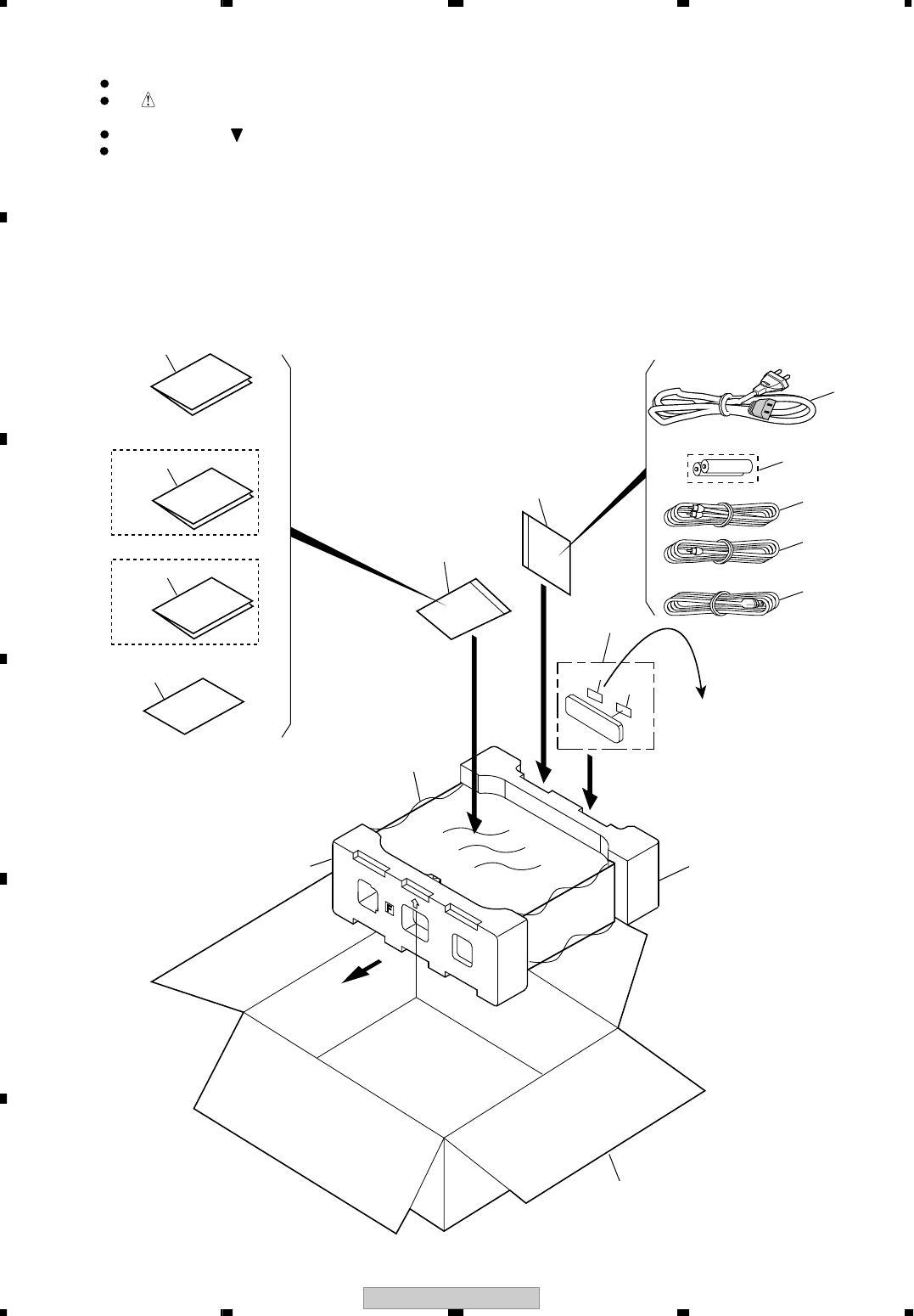

2.1 PACKING ................................................................................................................................................... 6

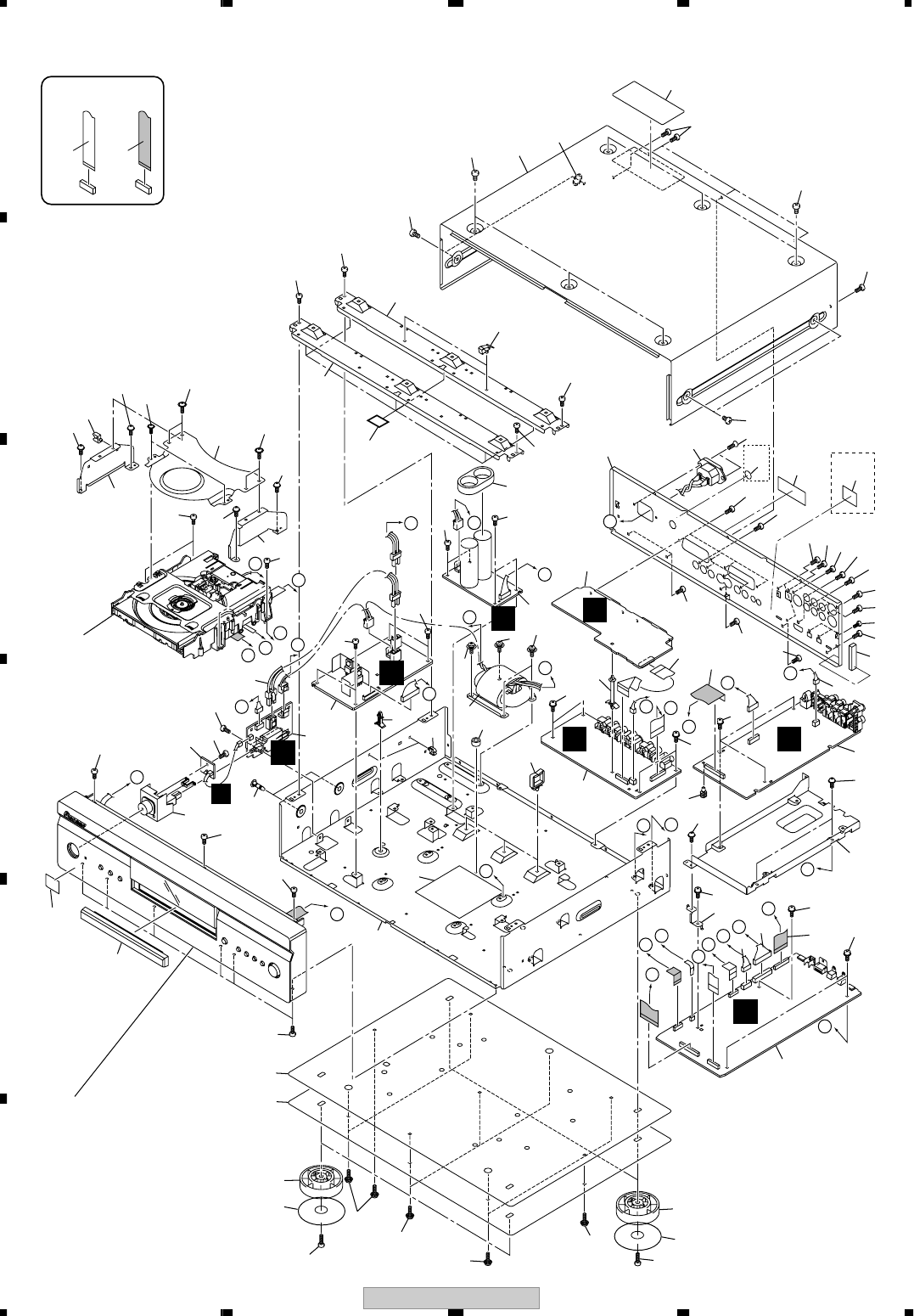

2.2 EXTERIOR SECTION................................................................................................................................ 8

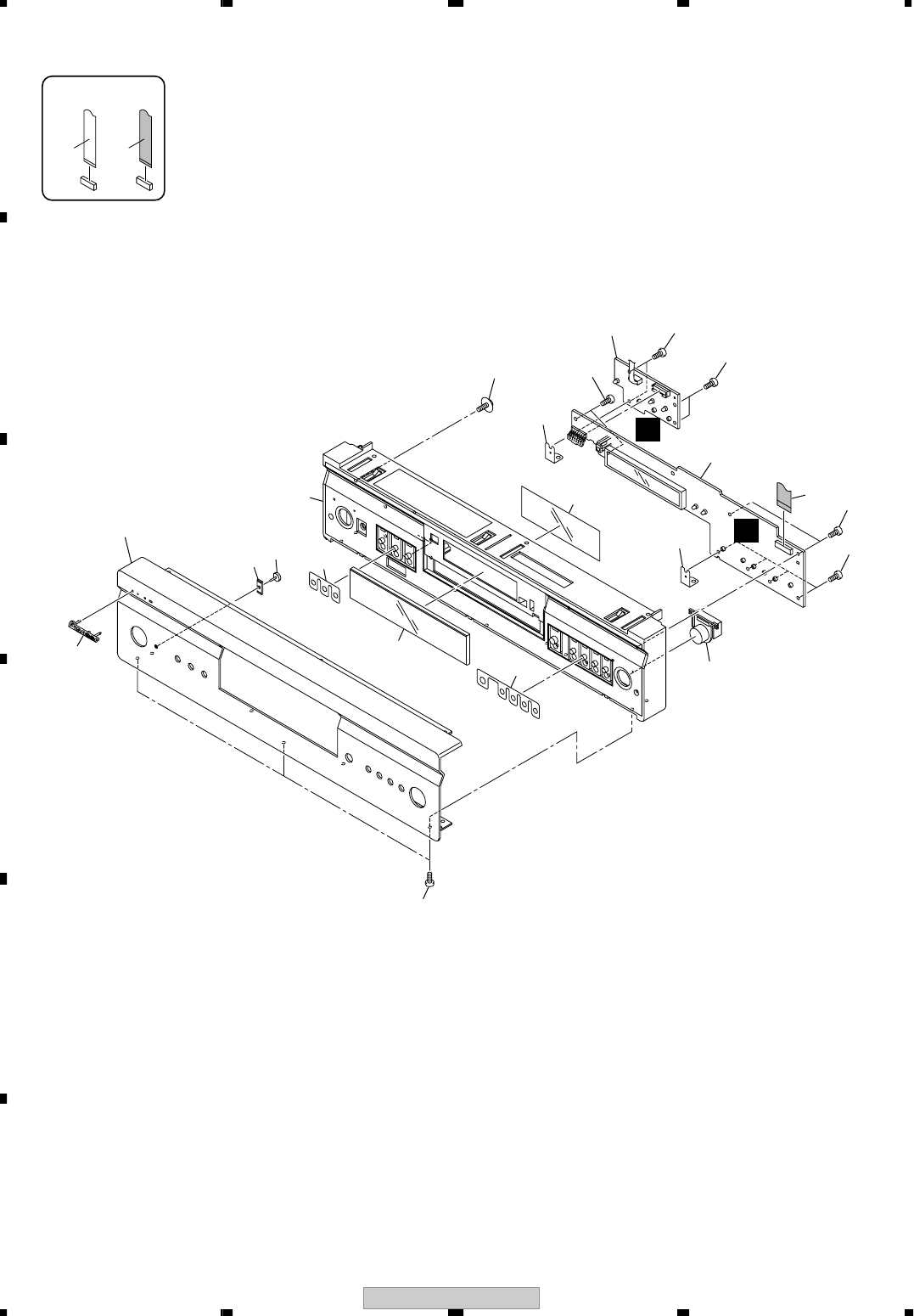

2.3 FRONT PANEL SECTION ....................................................................................................................... 10

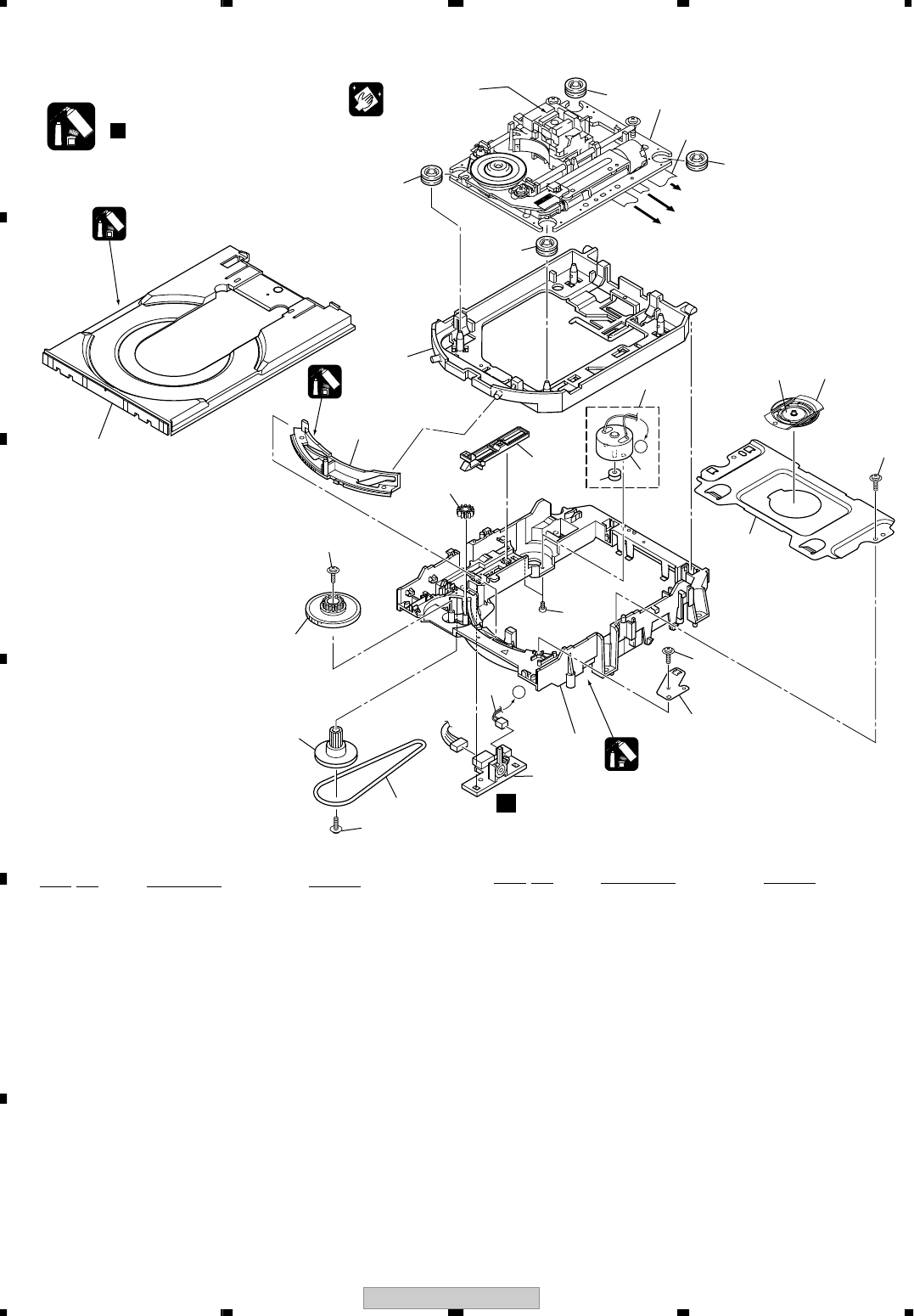

2.4 LOAD✲✹
MECHA. ASSY.......................................................................................................................... 12

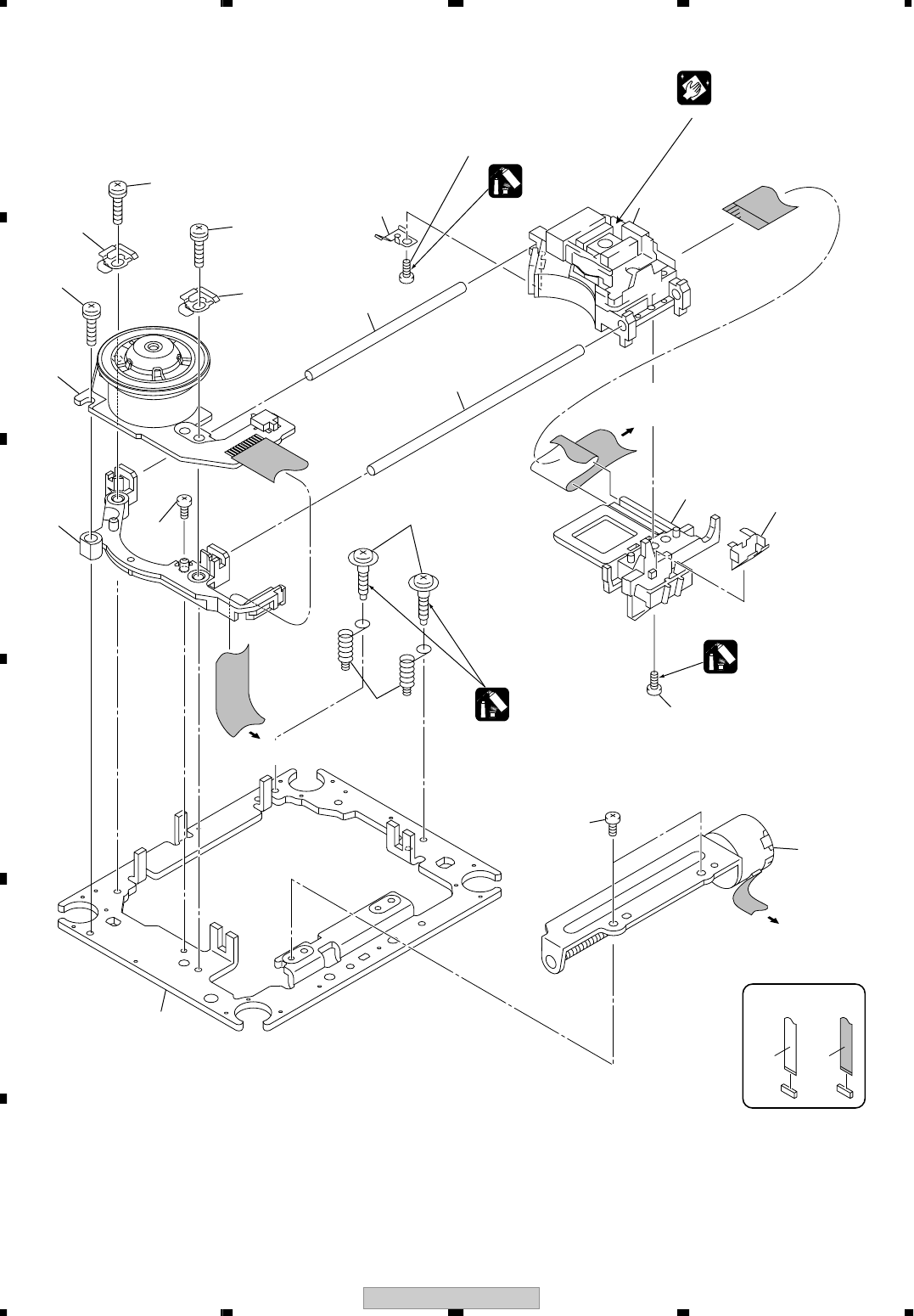

2.5 TRAVERSE MECHA. ASSY-S ................................................................................................................. 14
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..........................................................................................16

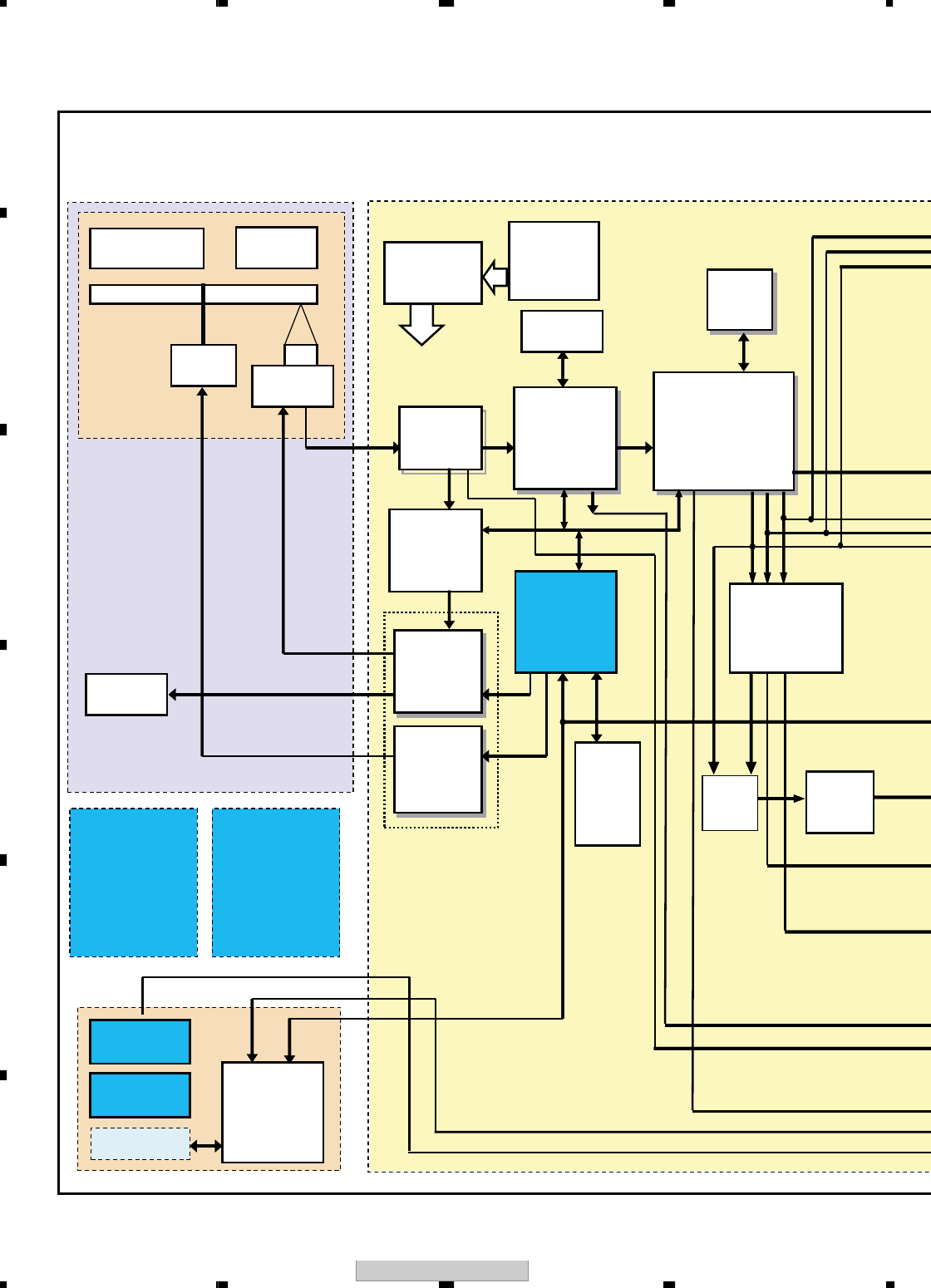

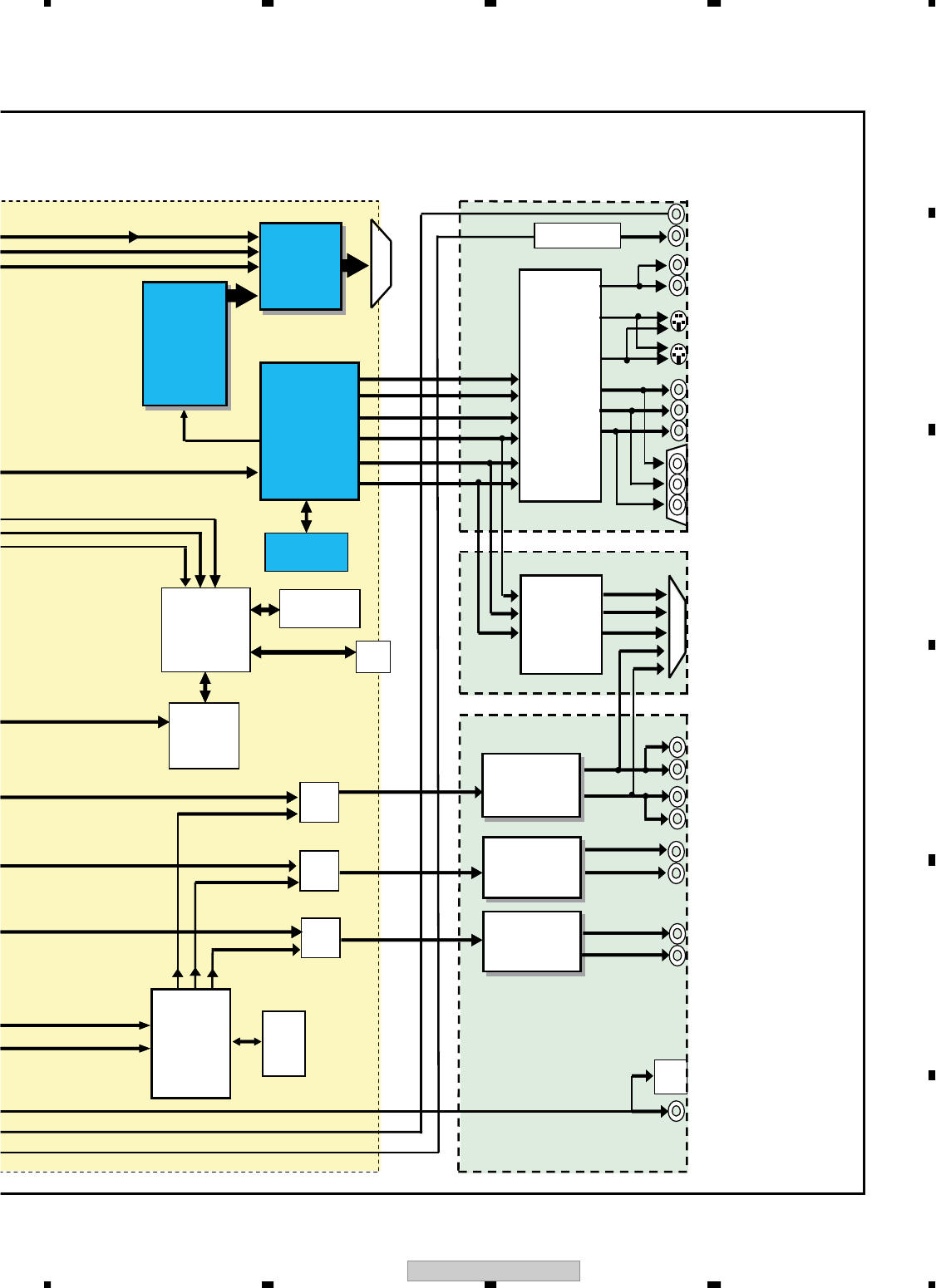

3.1 OVERAL BLOCK DIAGRAM.................................................................................................................... 16

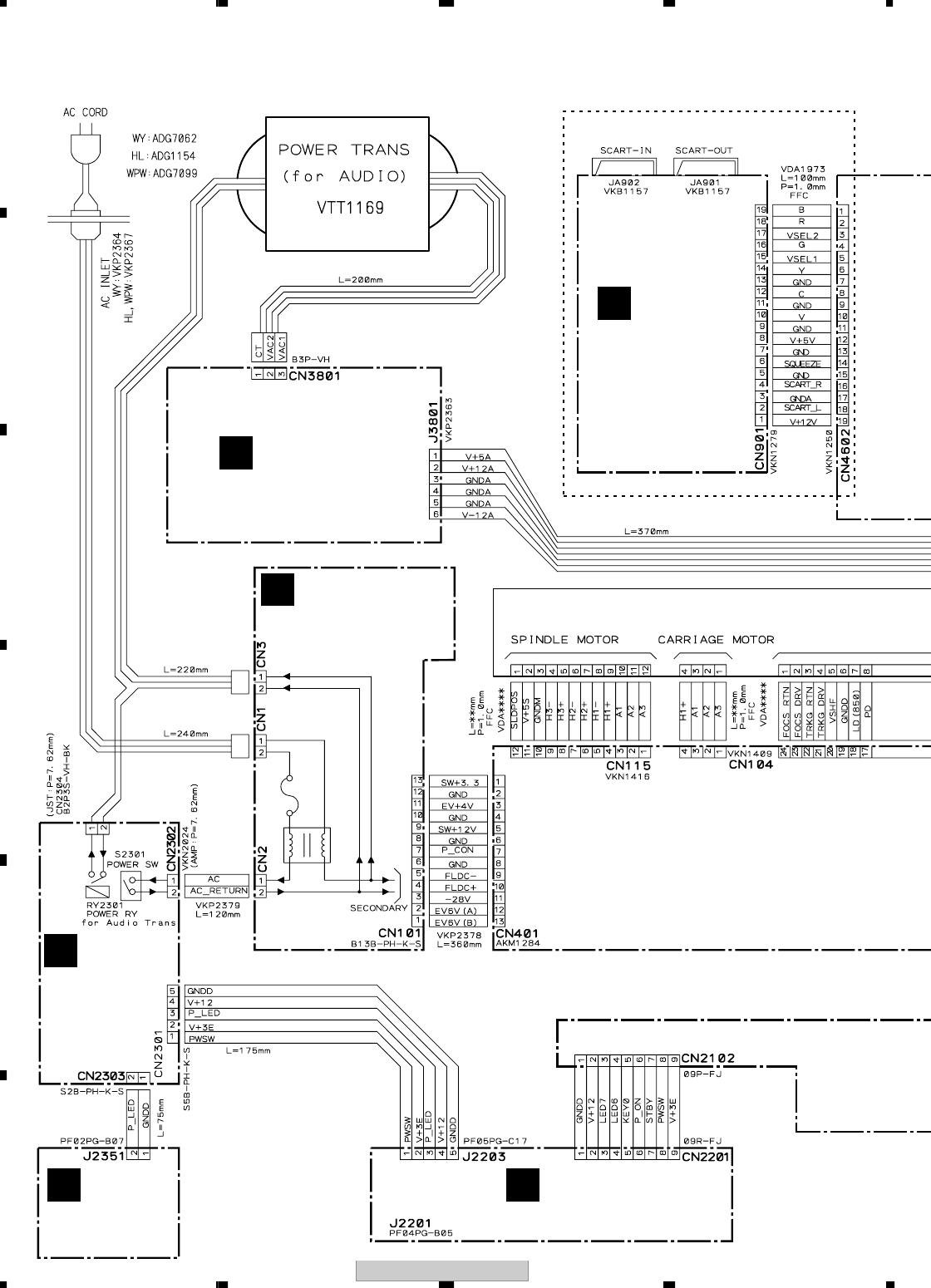

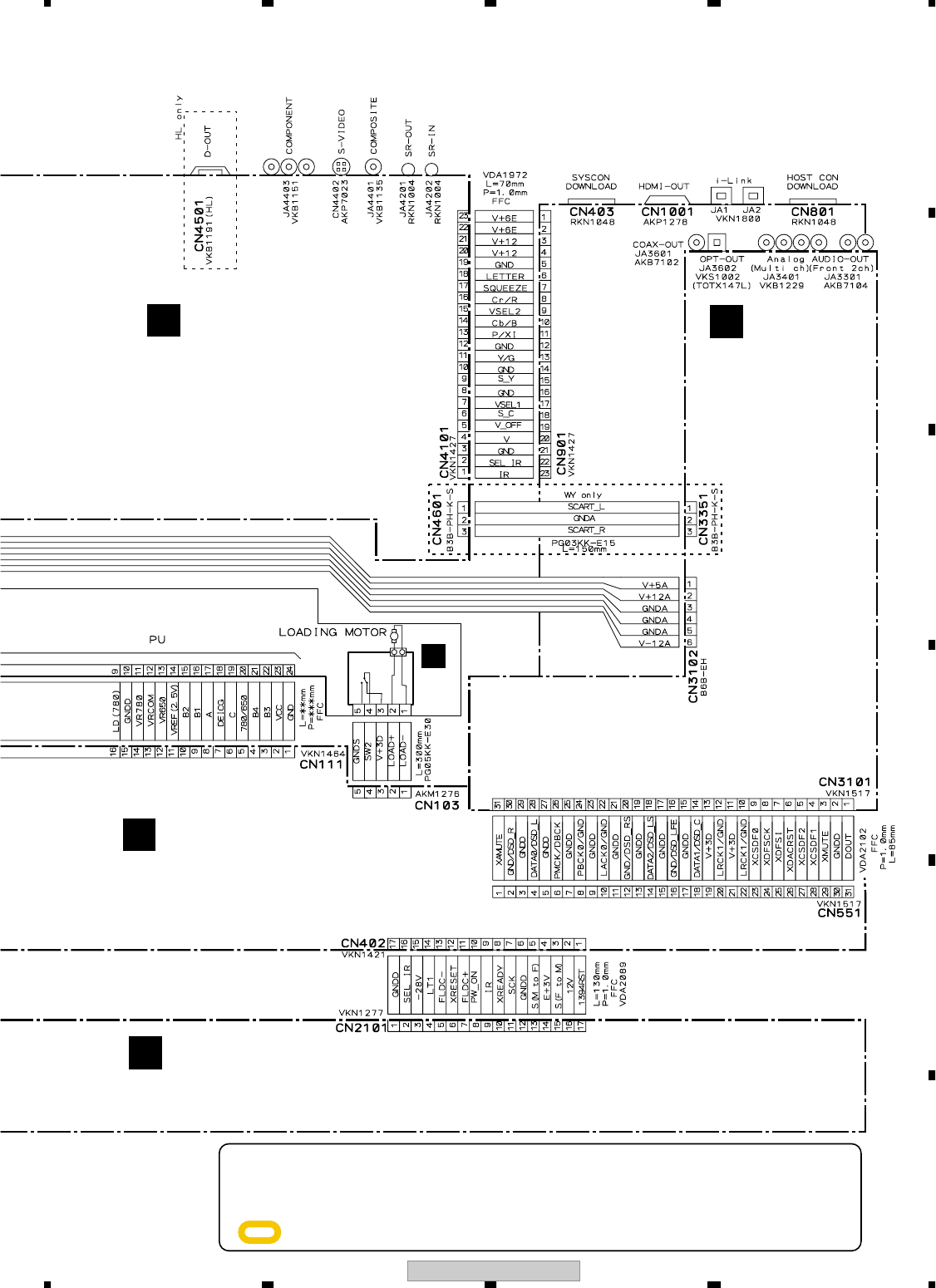

3.2 LOAB ASSY and OVERALL WIRING DIAGRAM..................................................................................... 18

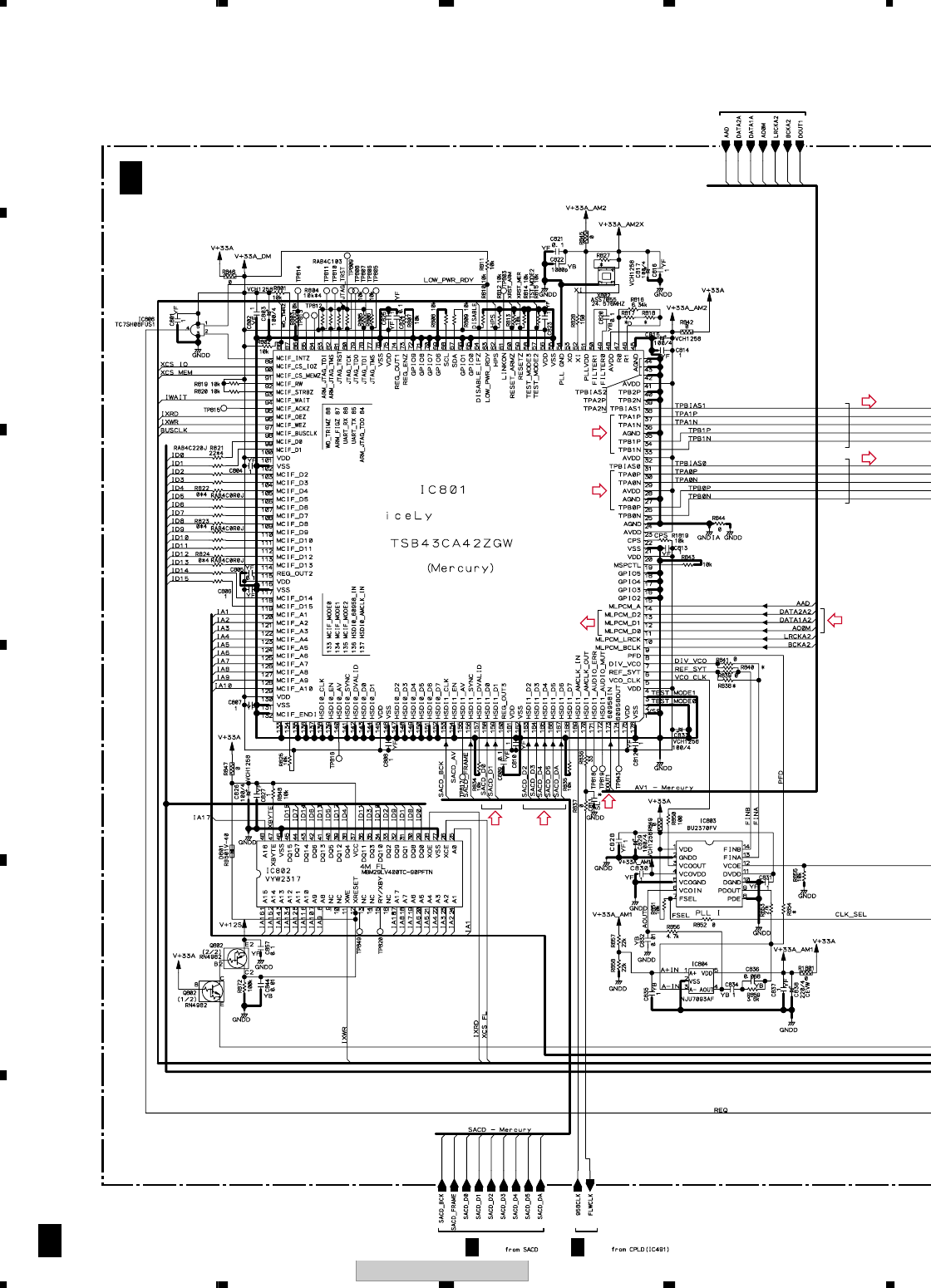

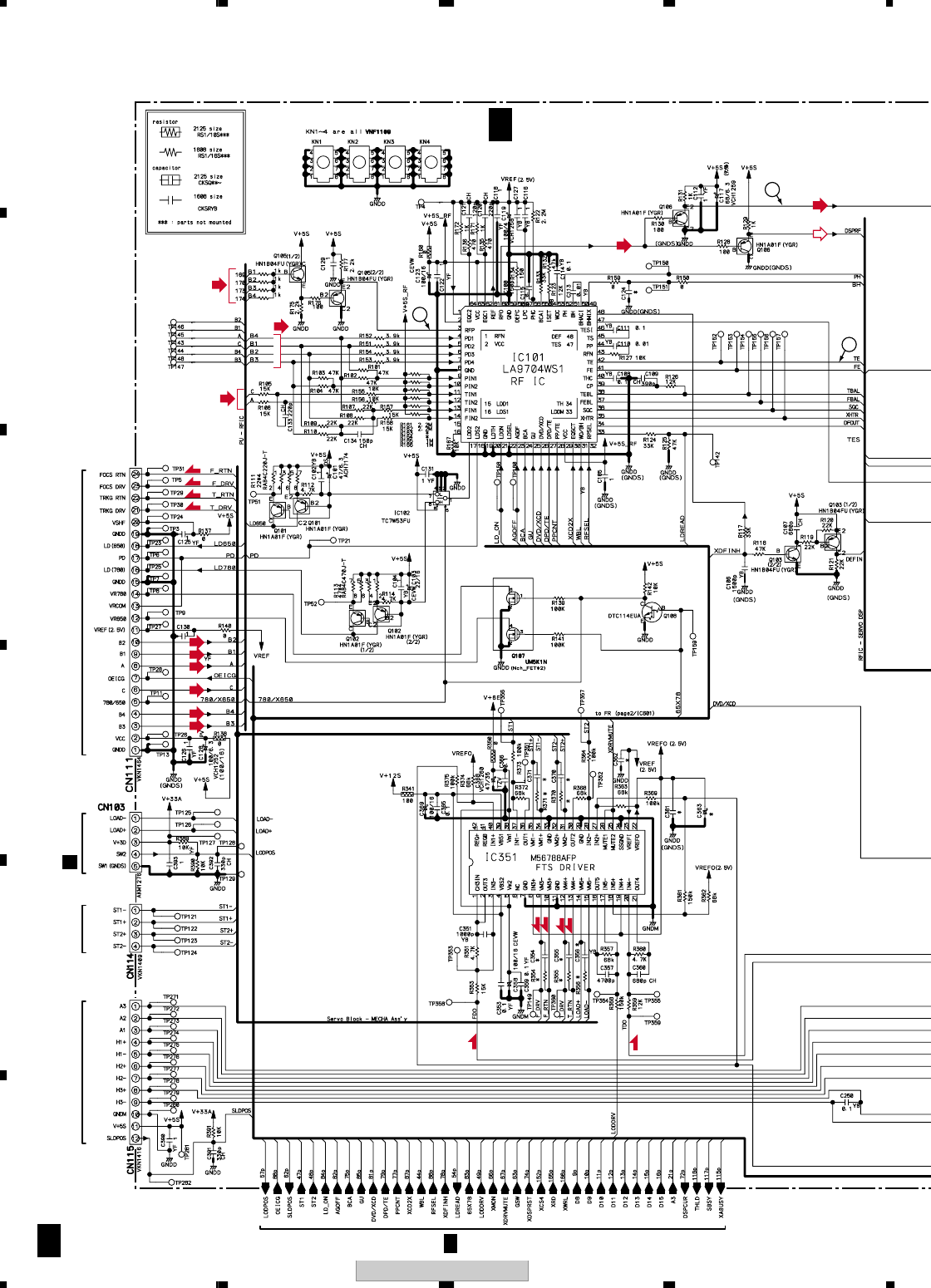

3.3 DVDM ASSY 1/6 [FTS BLOCK] ............................................................................................................... 20

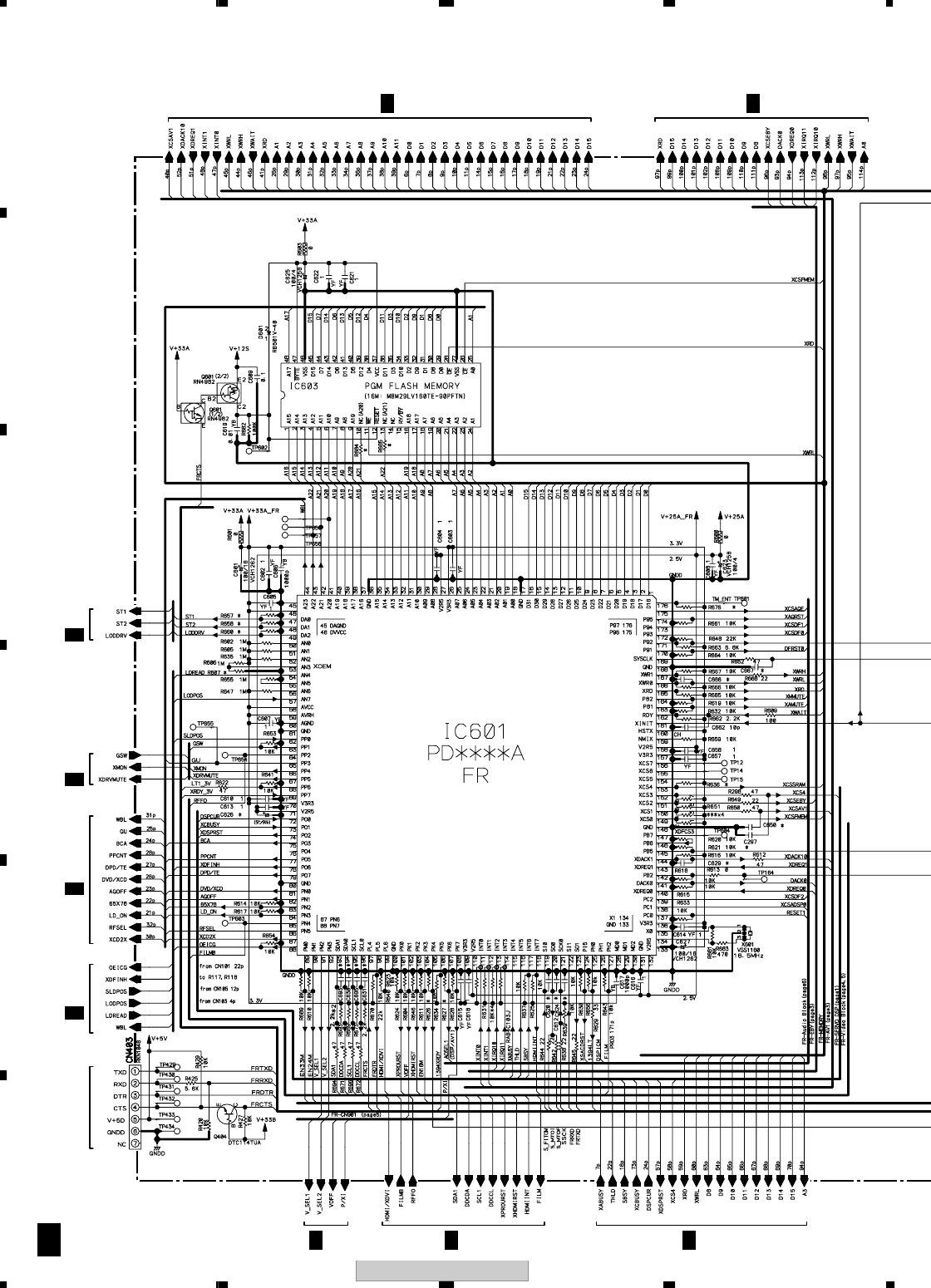

3.4 DVDM ASSY 2/6 [FR BLOCK] ................................................................................................................. 22

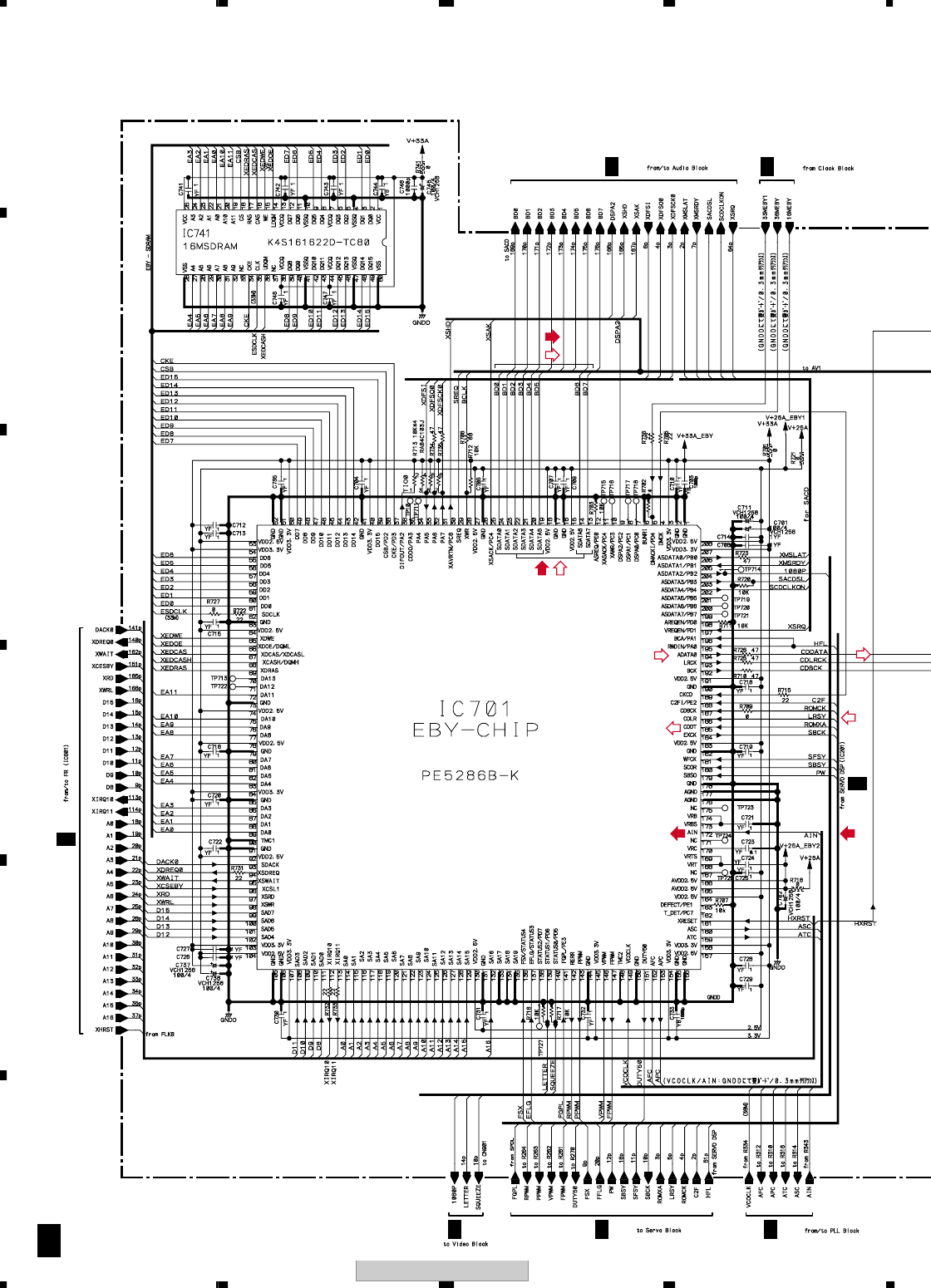

3.5 DVDM ASSY 3/6 [EBY/AV1 BLOCK] ....................................................................................................... 24

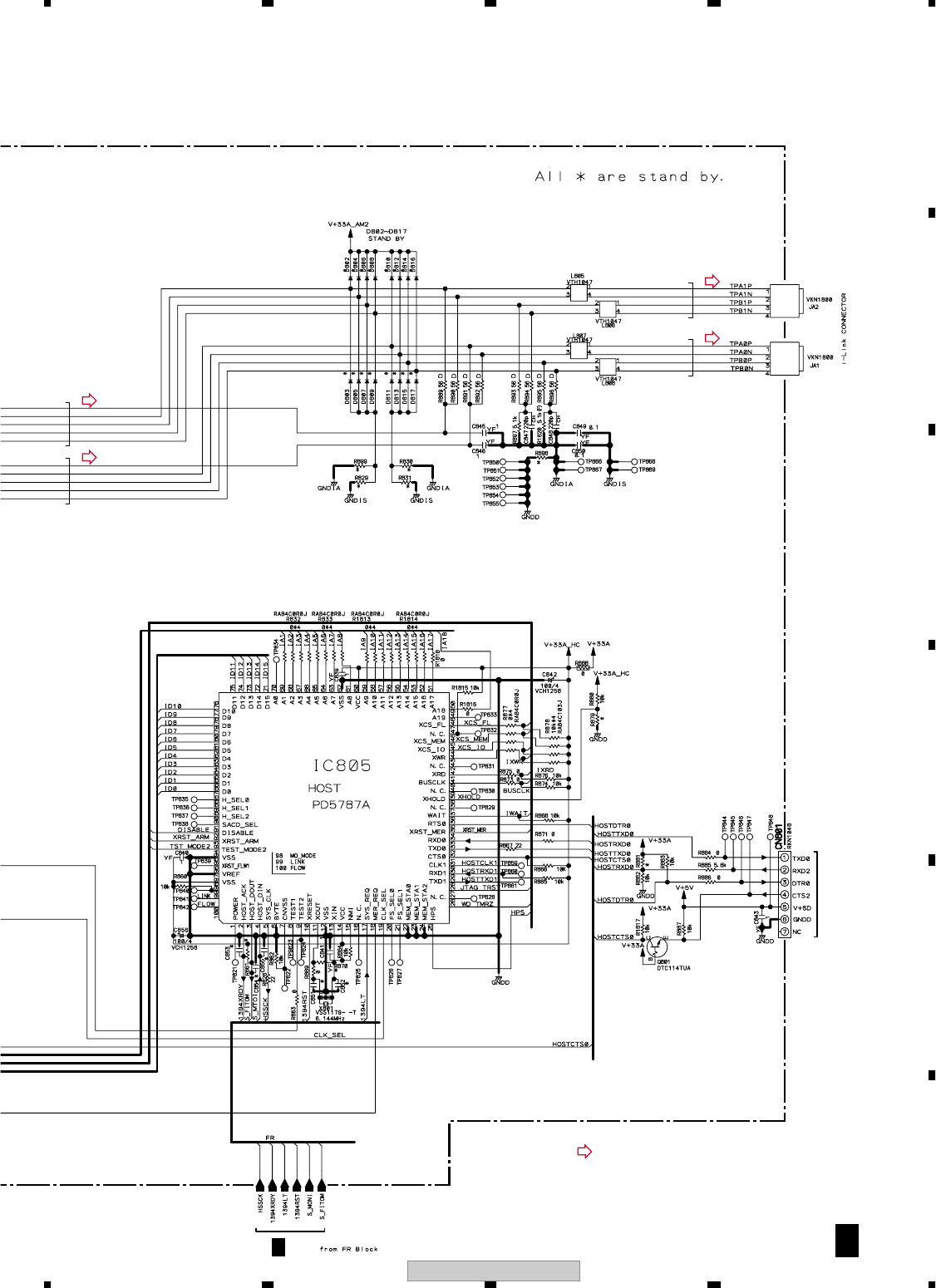

3.6 DVDM ASSY 4/6 [i.LINK BLOCK] ............................................................................................................ 26

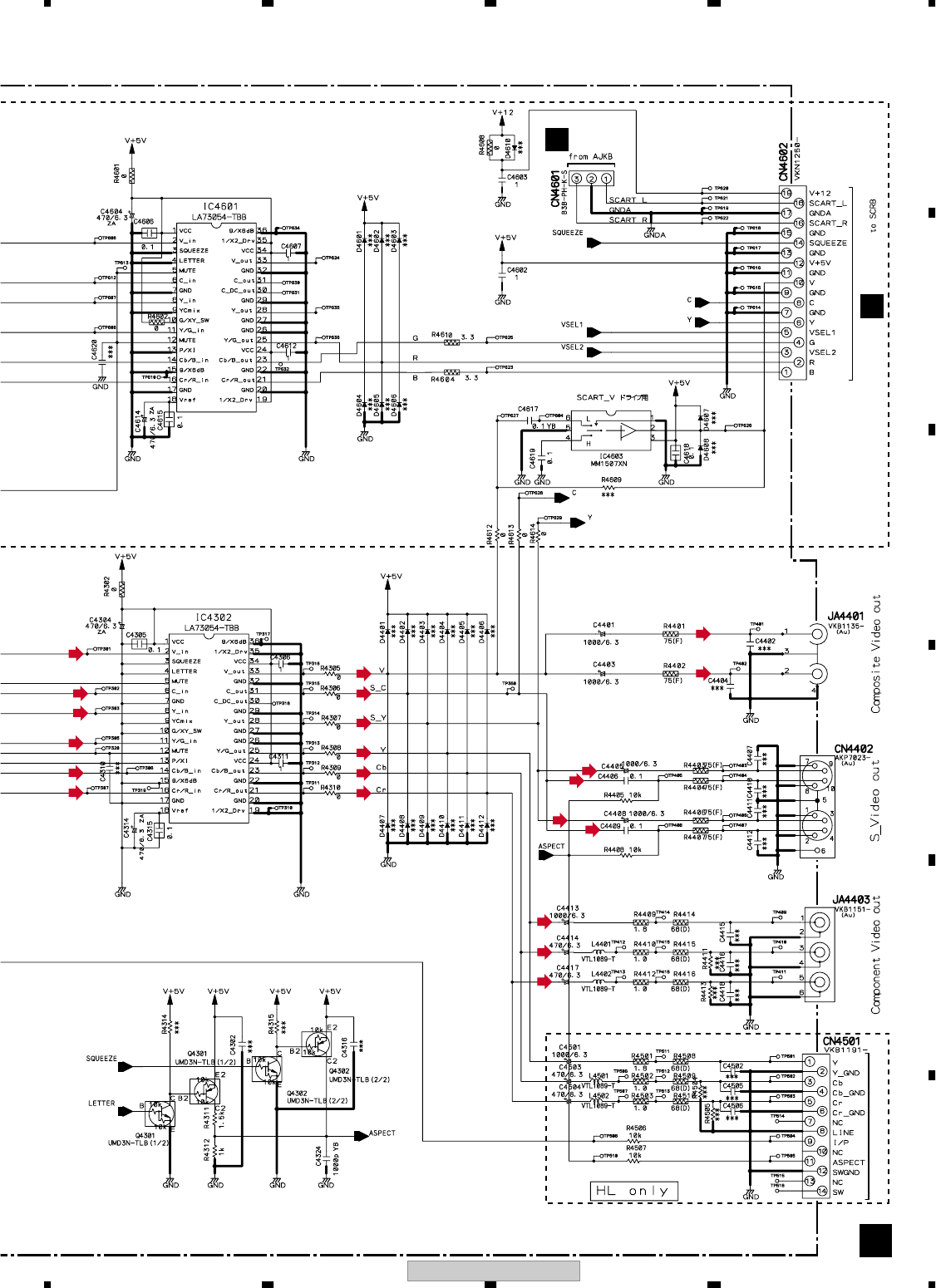

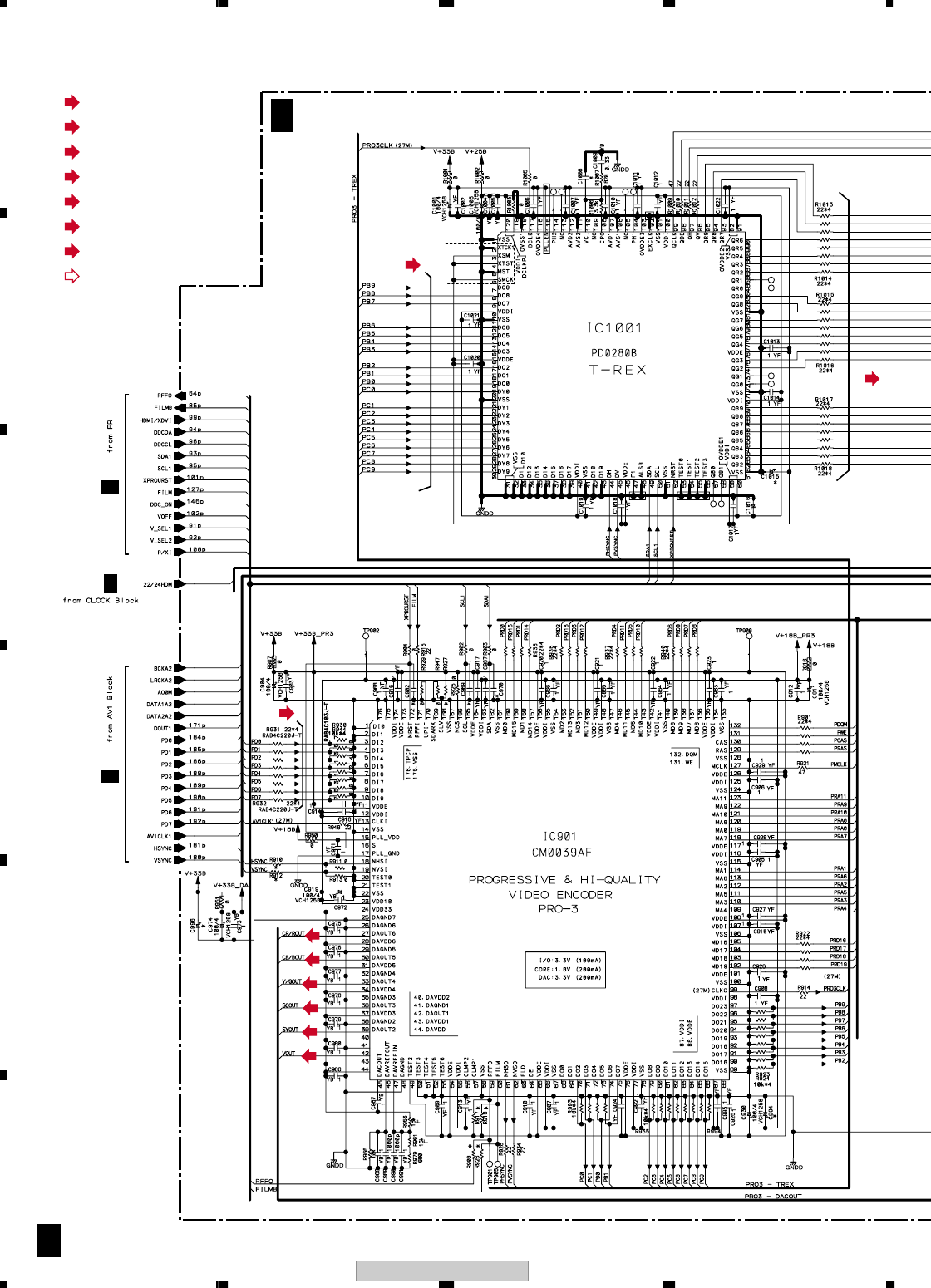

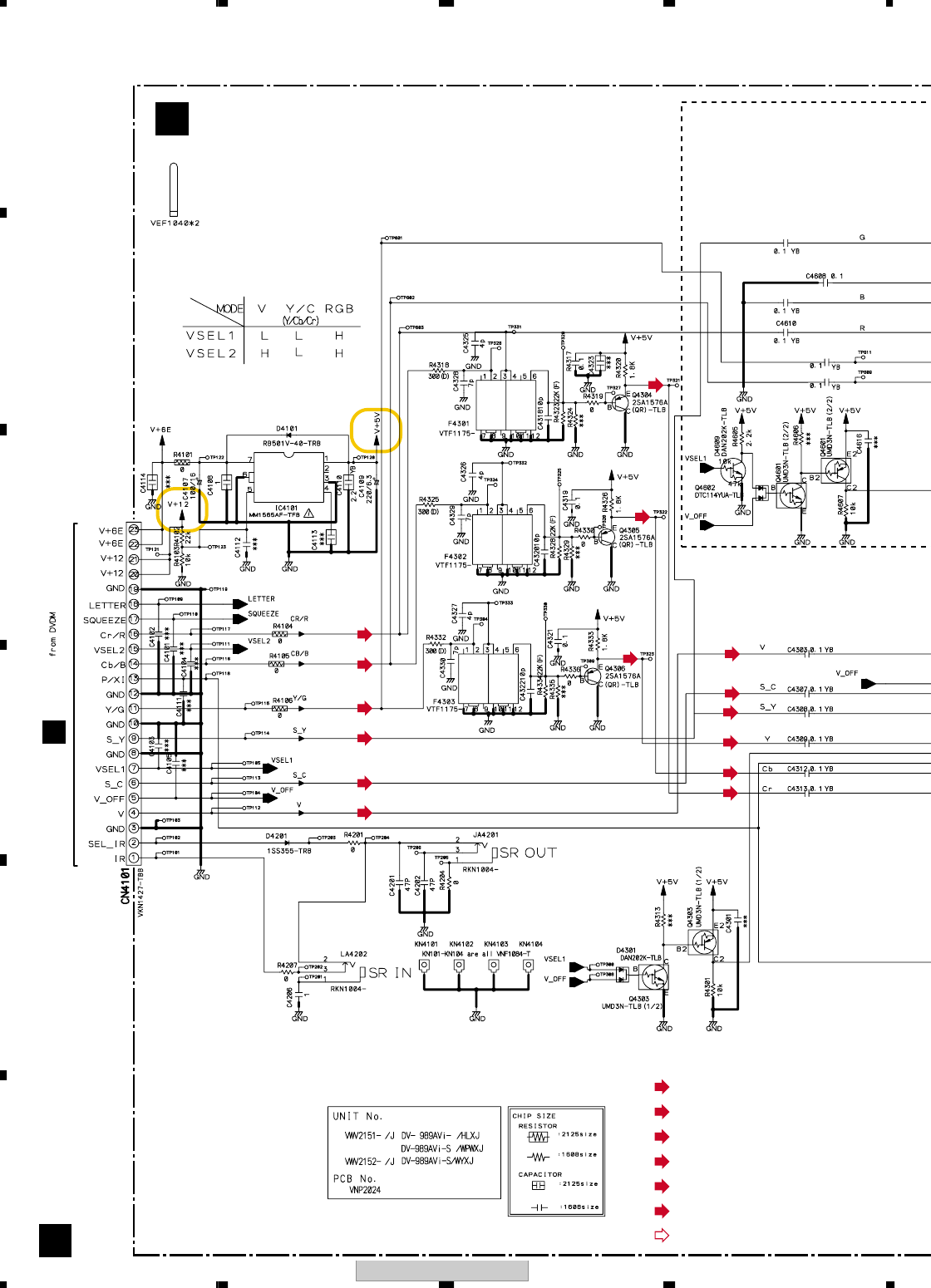

3.7 DVDM ASSY 5/6 [VIDEO BLOCK]........................................................................................................... 28

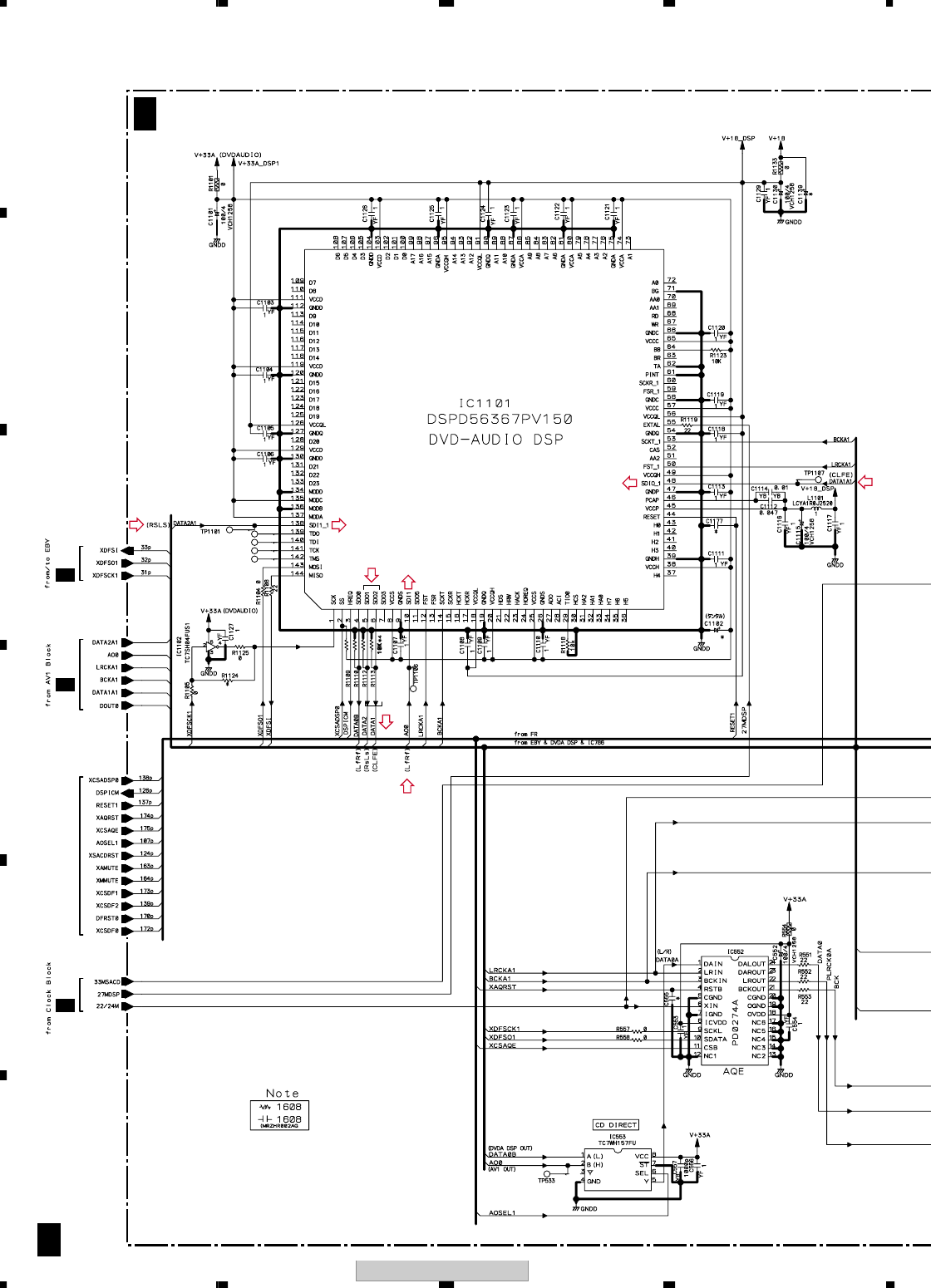

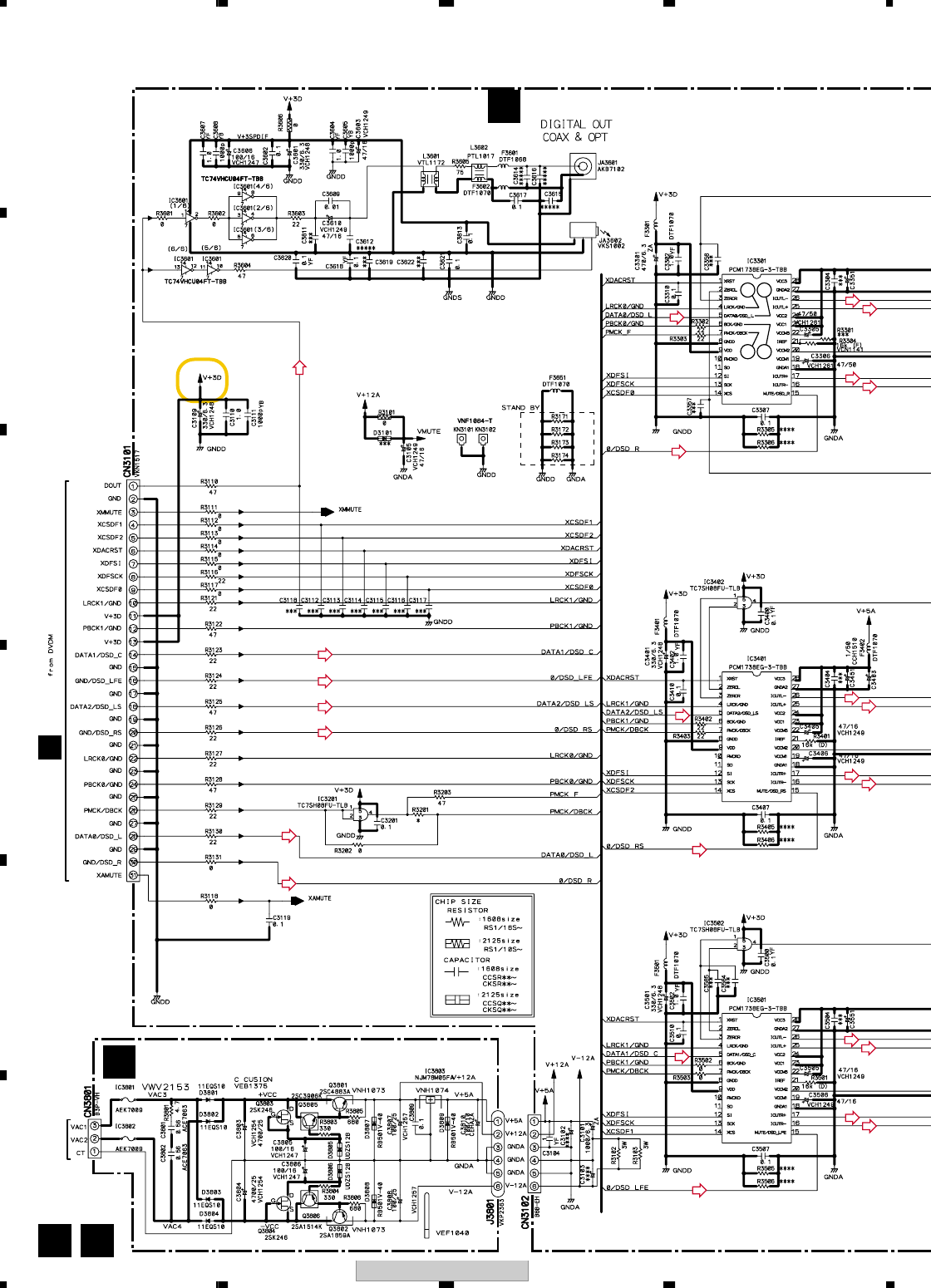

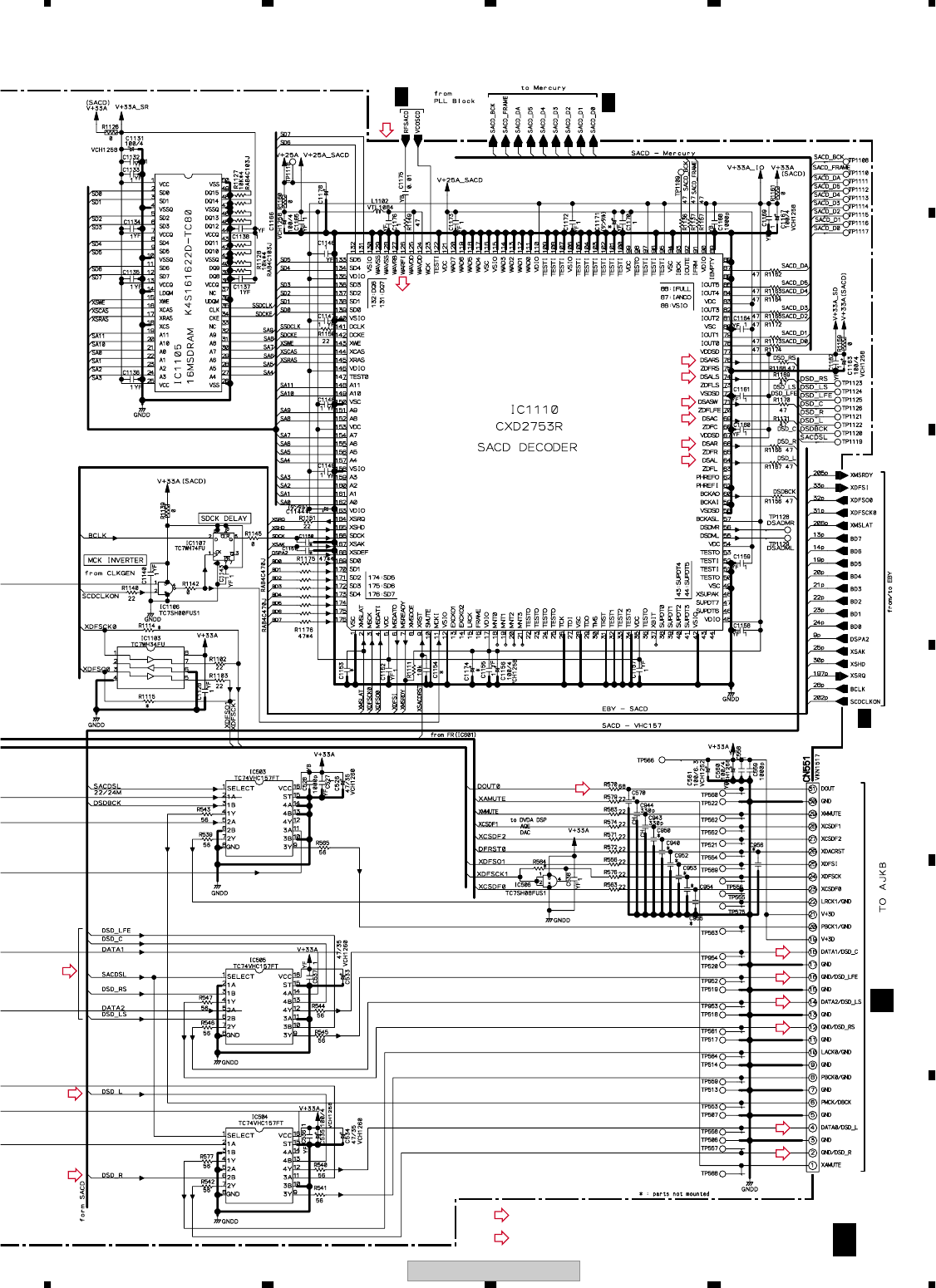

3.8 DVDM ASSY 6/6 [A-DSP/AQE/SACD BLOCK]........................................................................................30
3.9 AJKB ASSY ............................................................................................................................................. 32

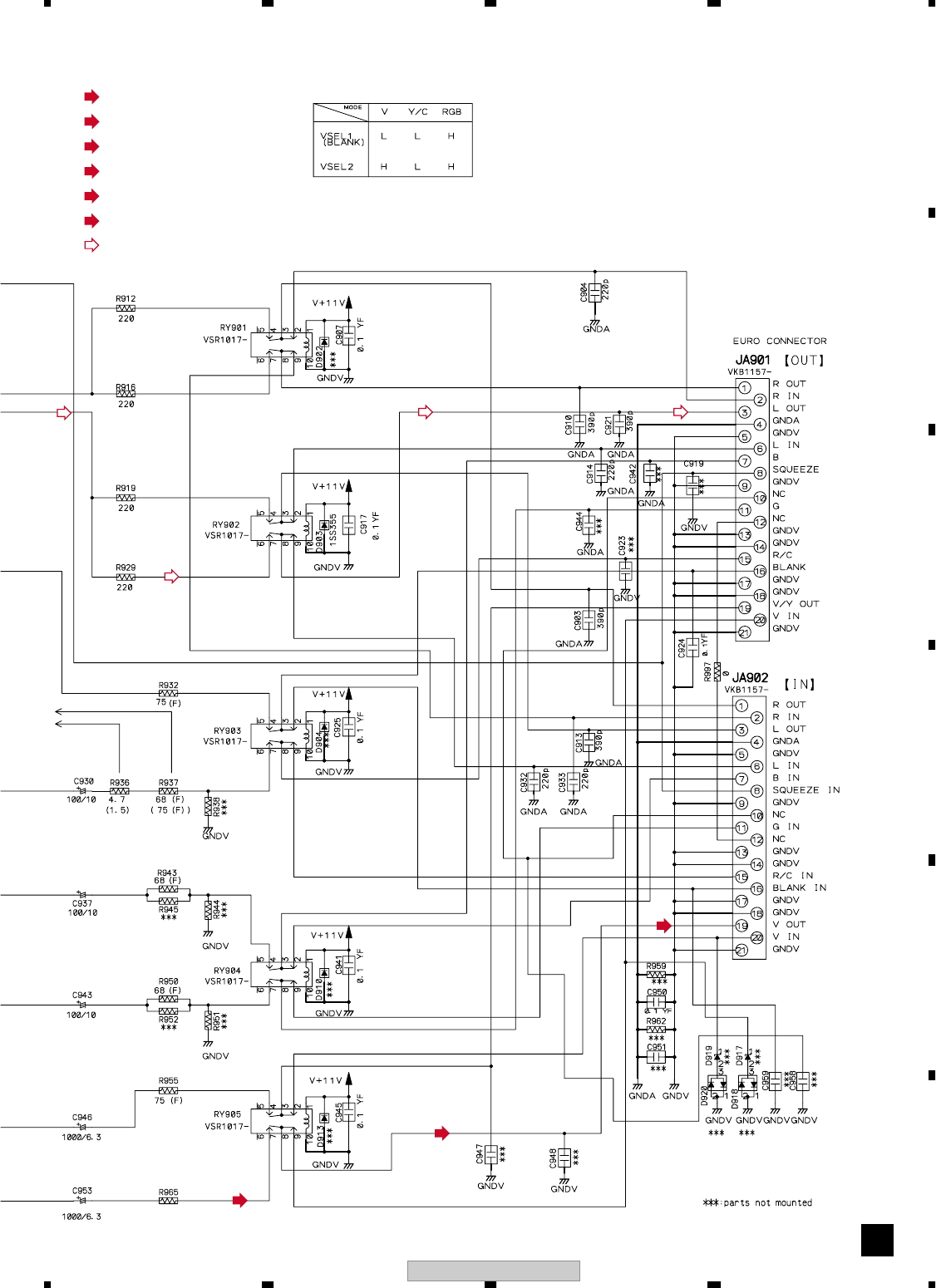

3.10 VJKB ASSY............................................................................................................................................ 34
3.11 FLKY, KEYB and MSWB ASSYS........................................................................................................... 36
3.12 SCRB ASSY (WYXJ5, YXJRE5 Only) ................................................................................................... 38

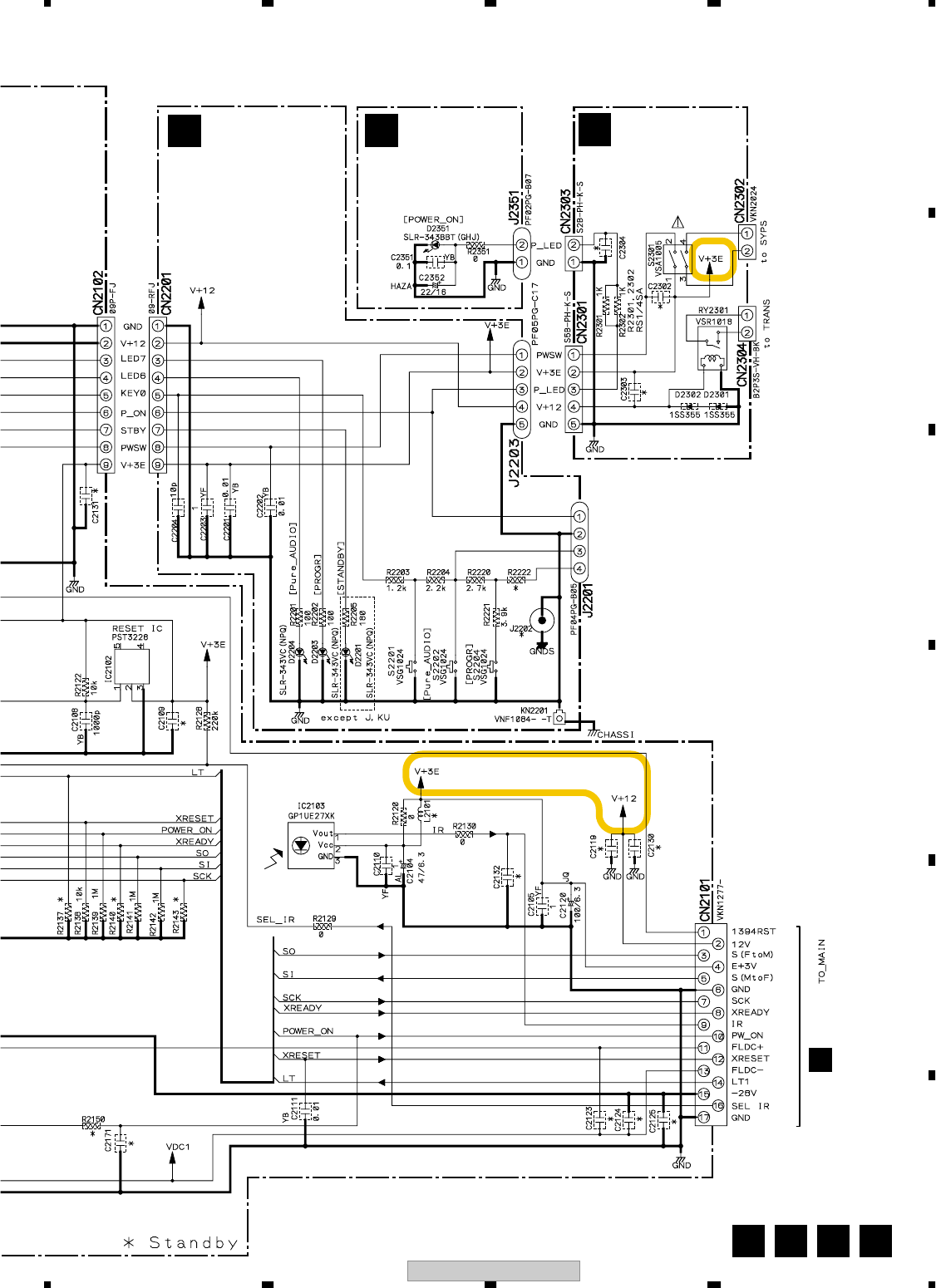

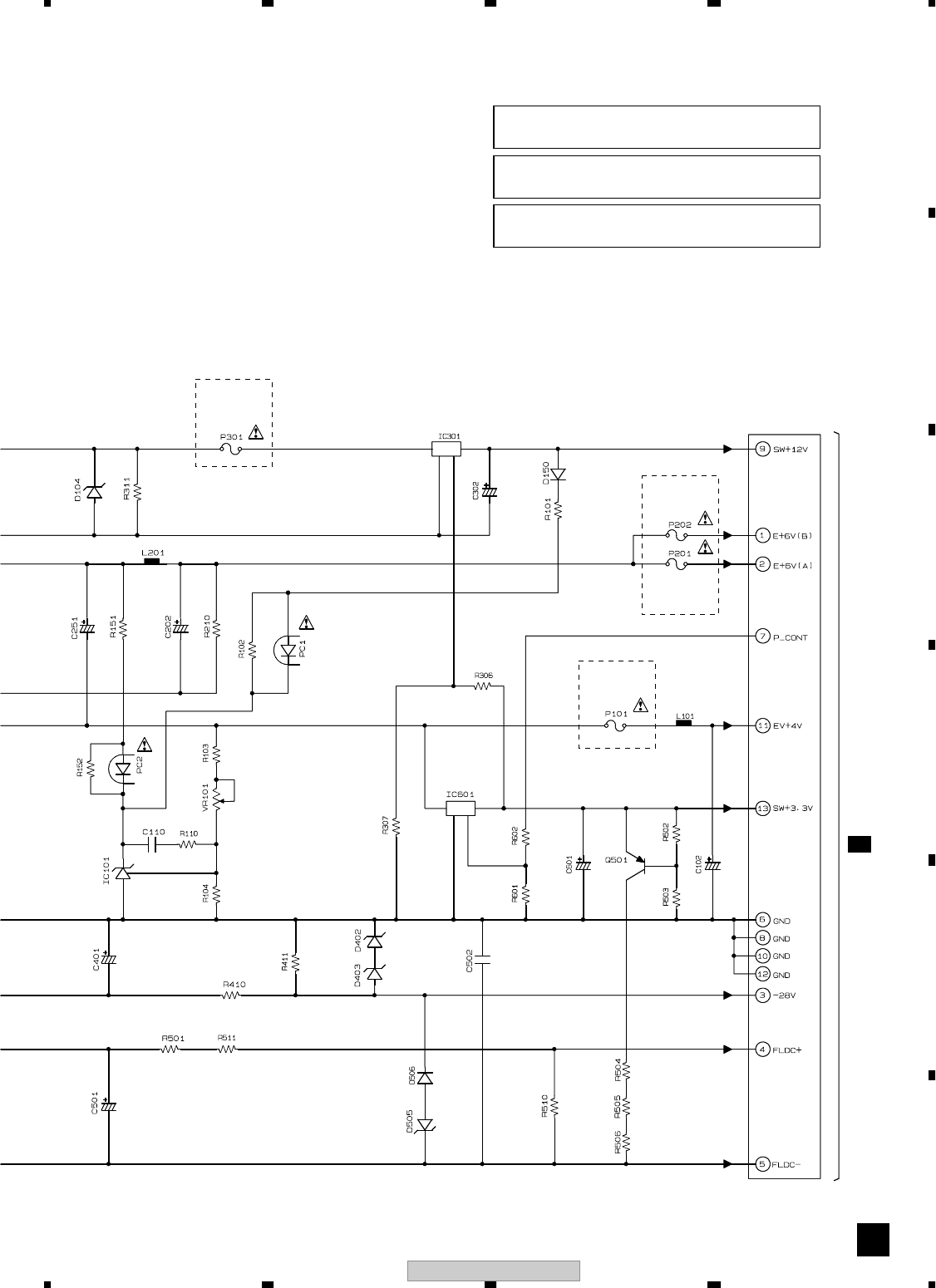

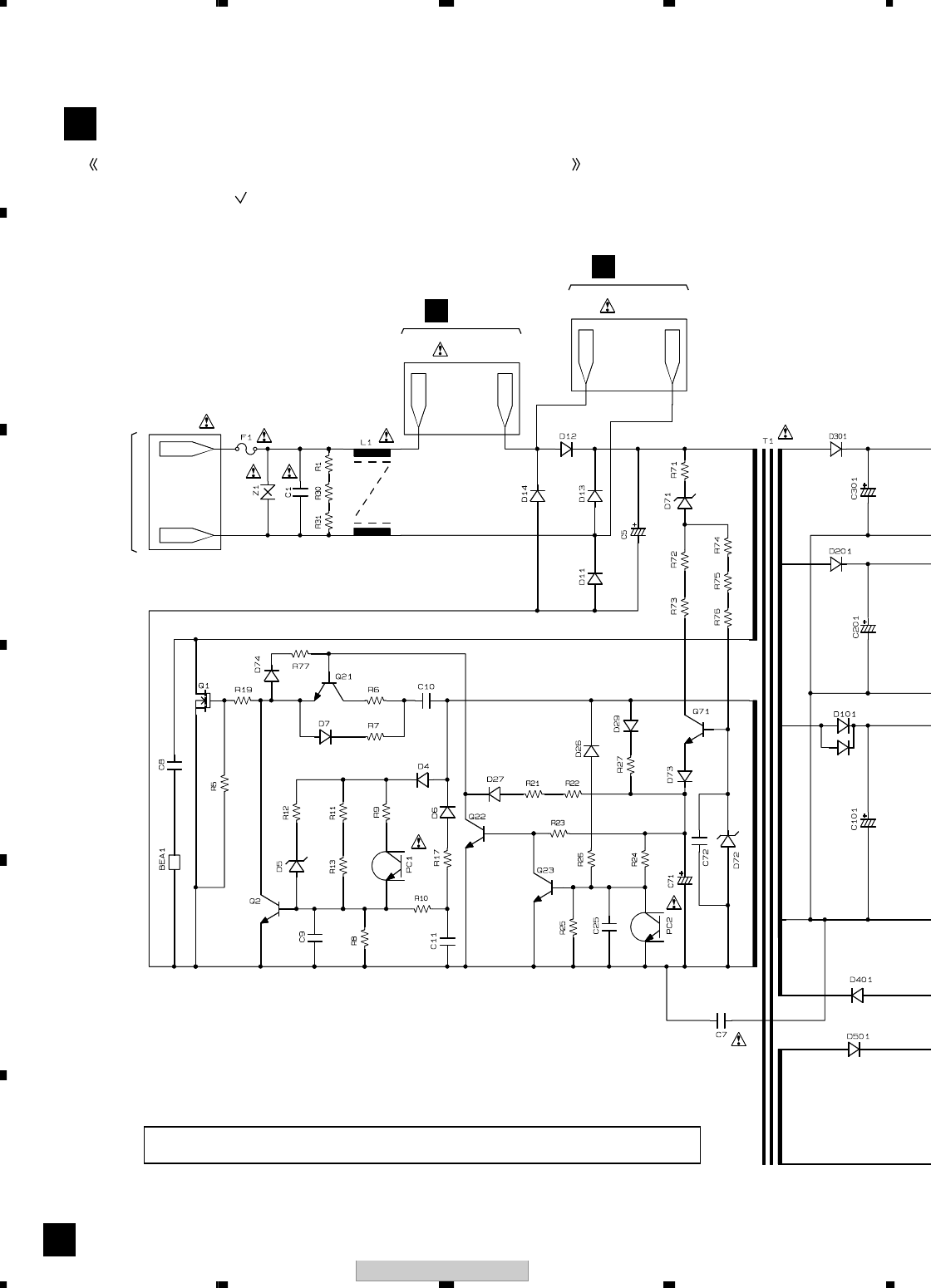

3.13 POWER SUPPLY UNIT.......................................................................................................................... 40

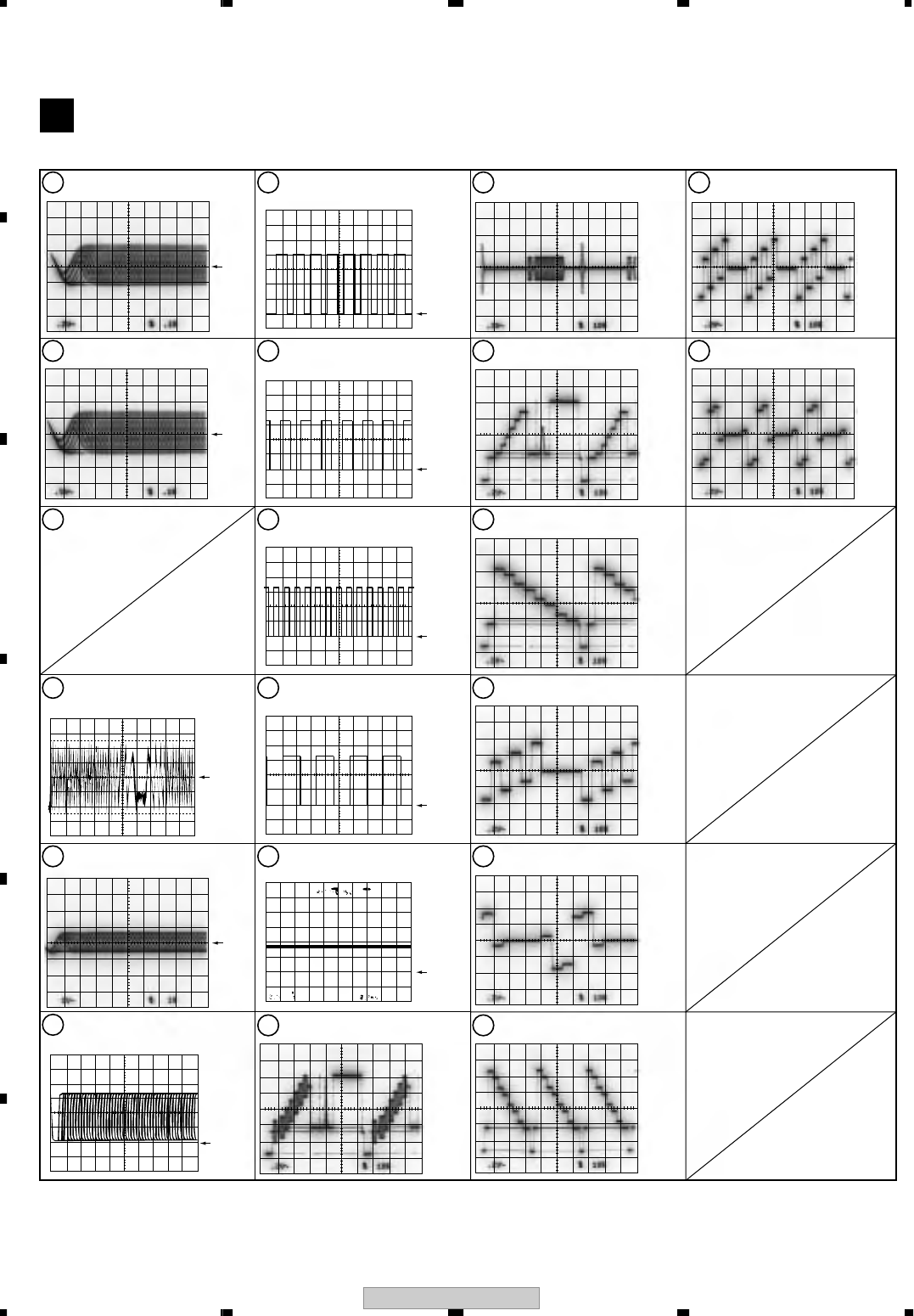

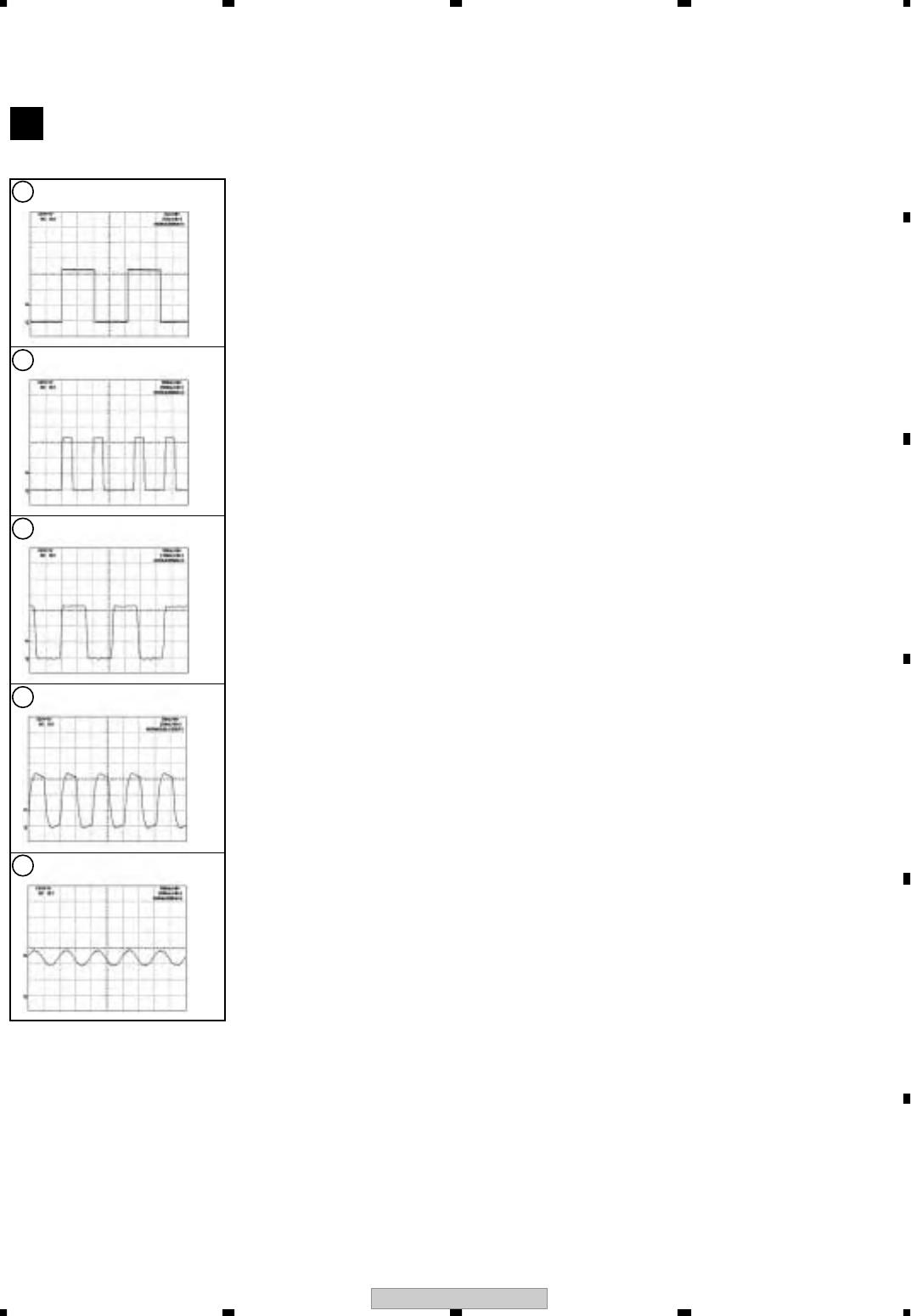

3.14 WAVEFORMS ........................................................................................................................................ 42

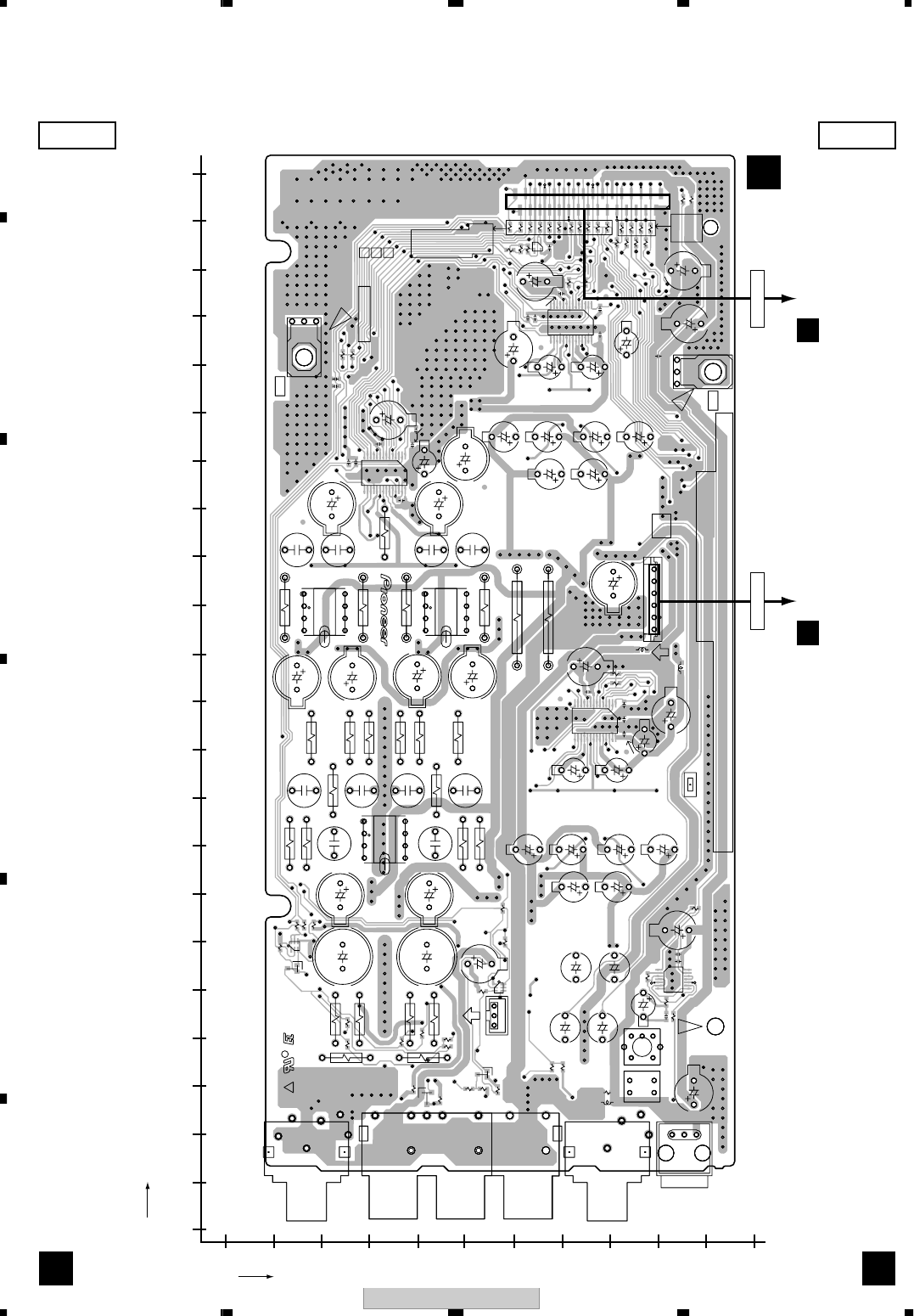

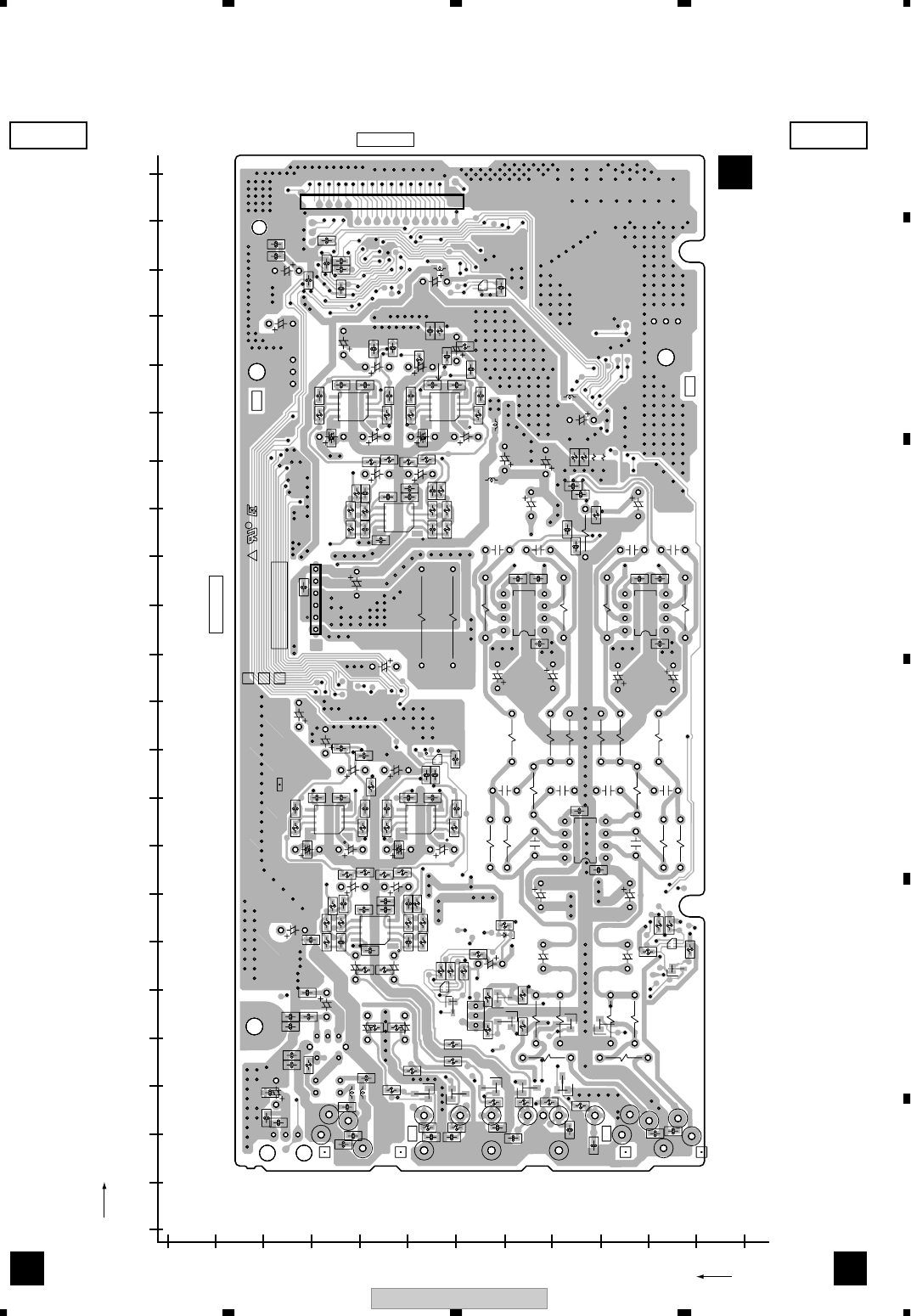

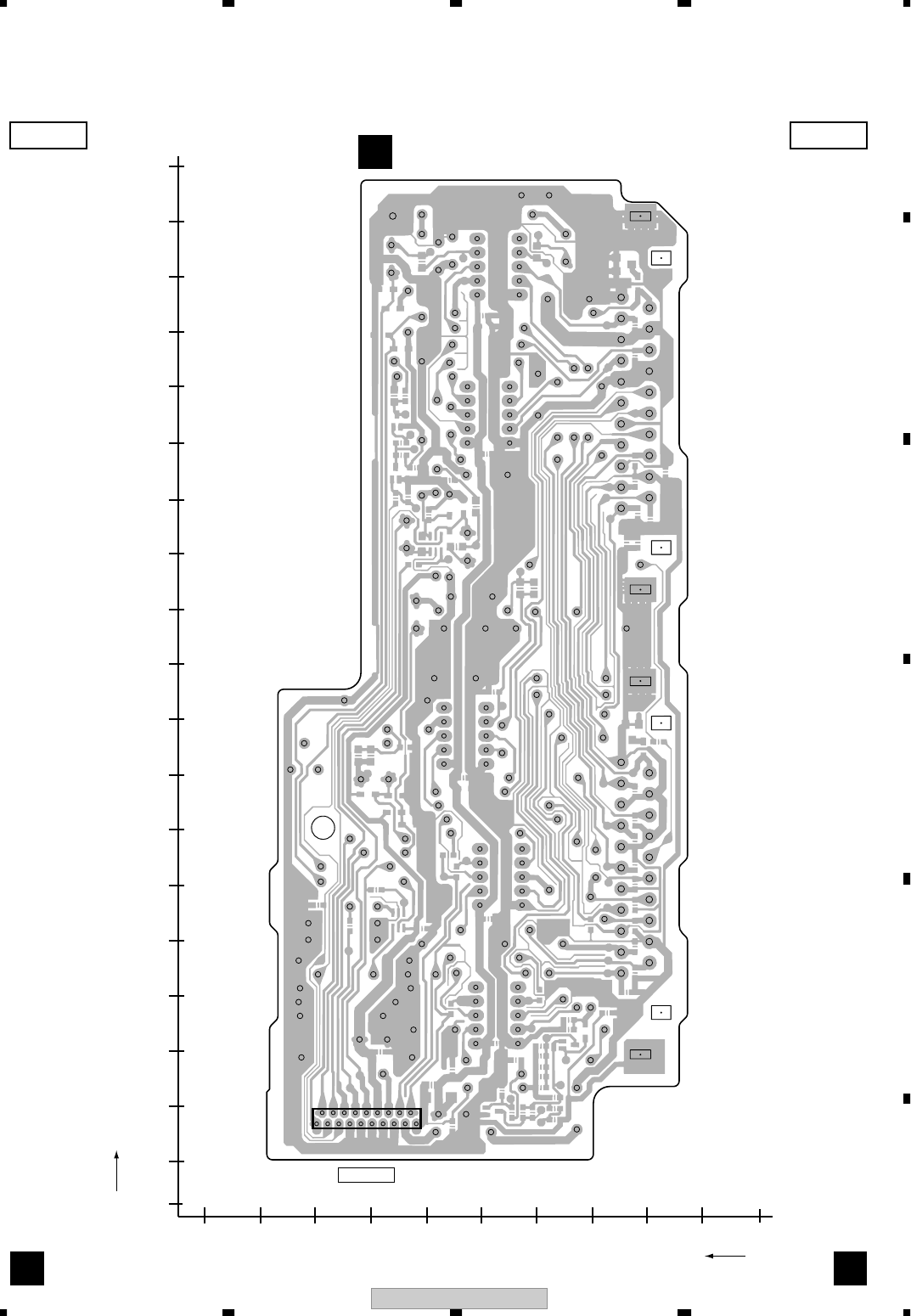

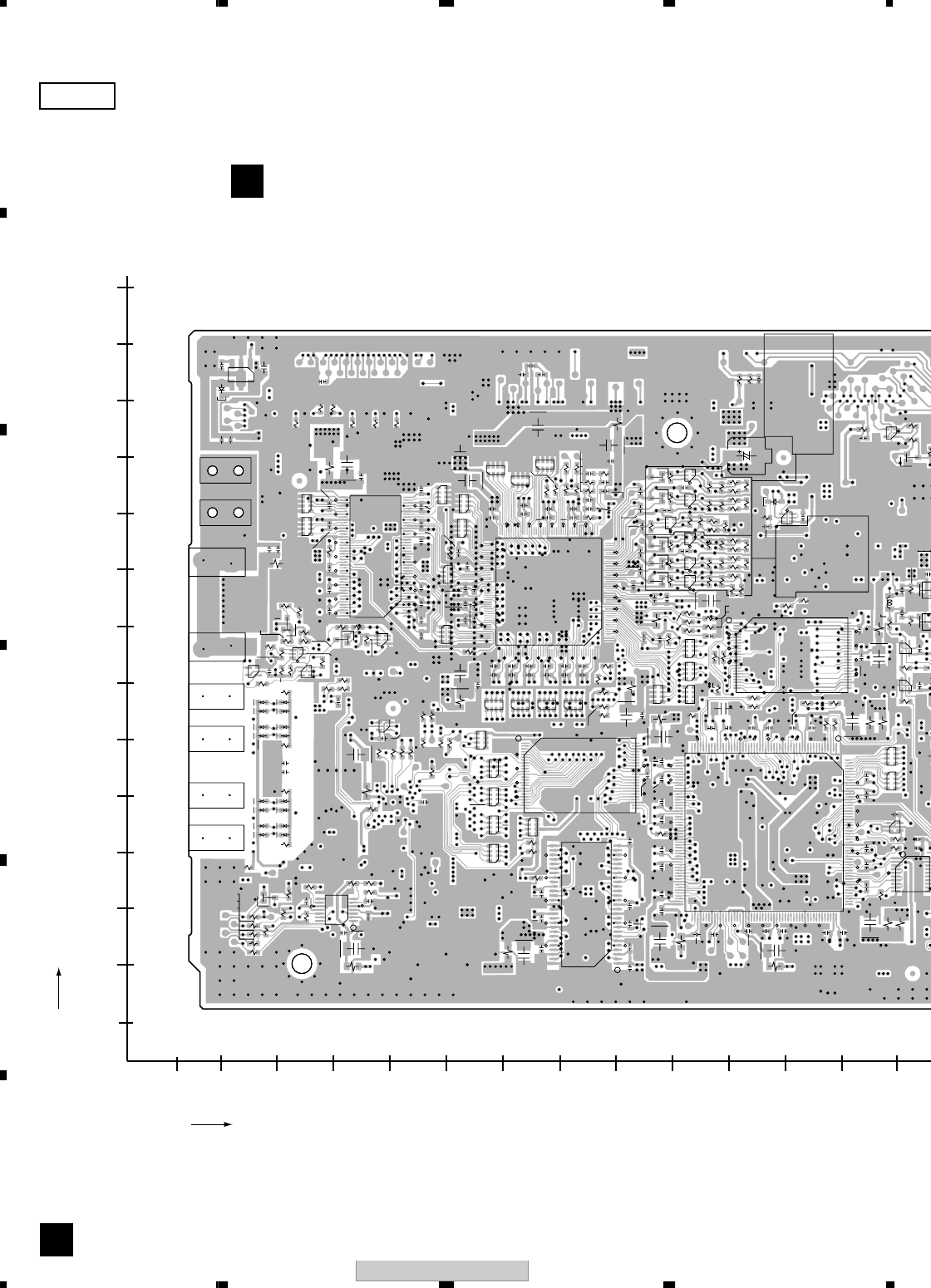

4. PCB CONNECTION DIAGRAM ..................................................................................................................... 45
4.1 LOAB ASSY............................................................................................................................................. 45

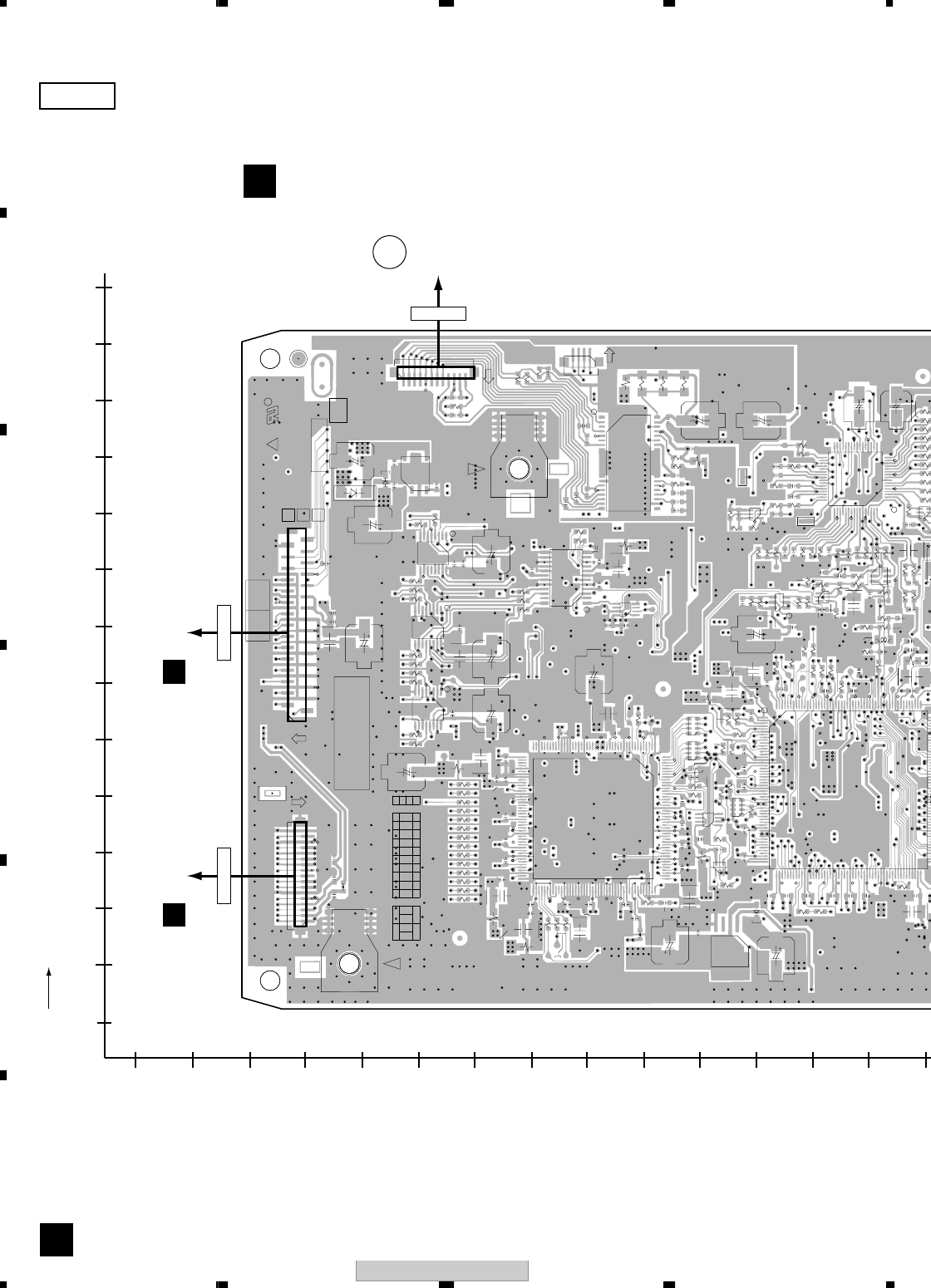

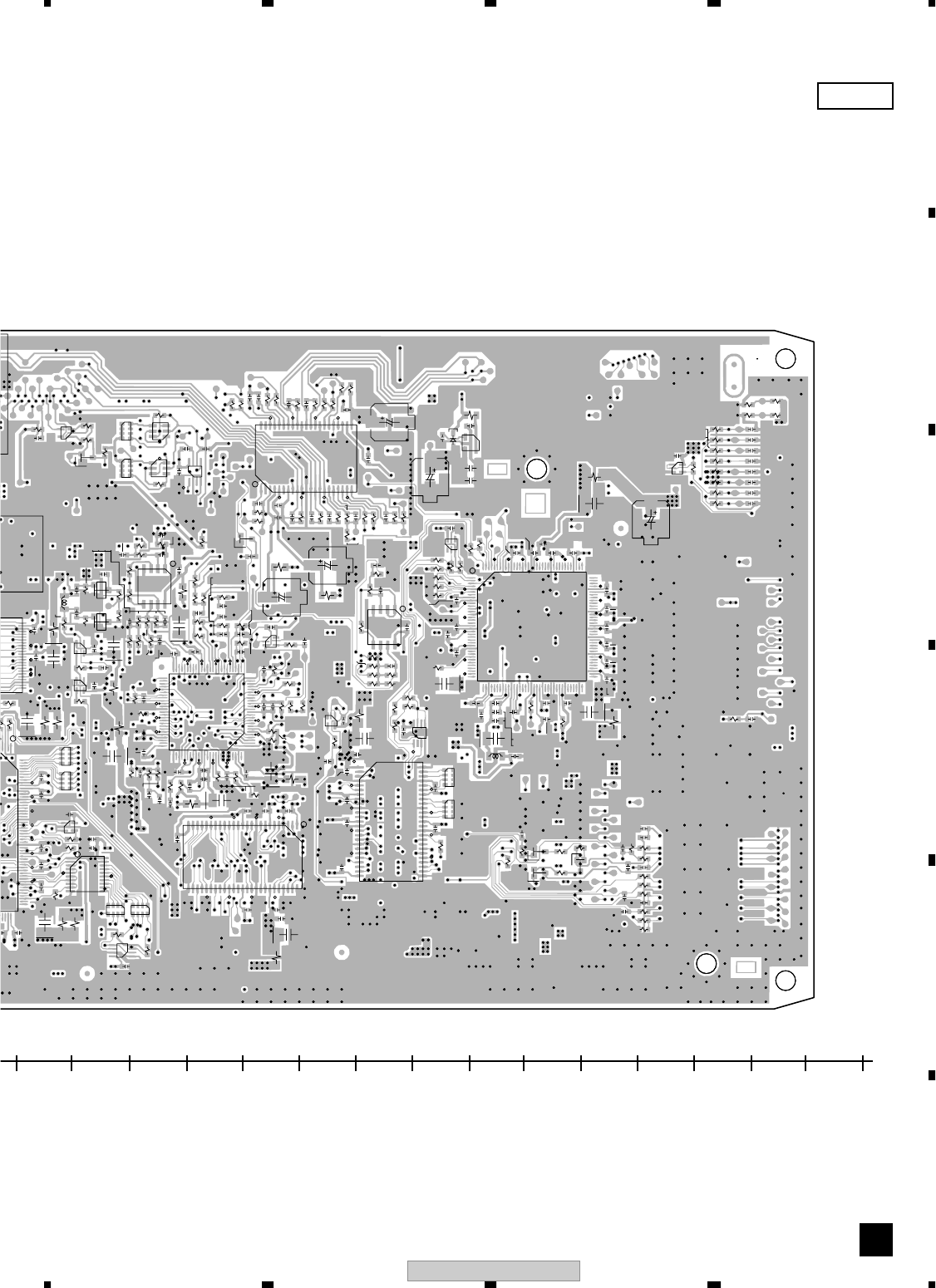

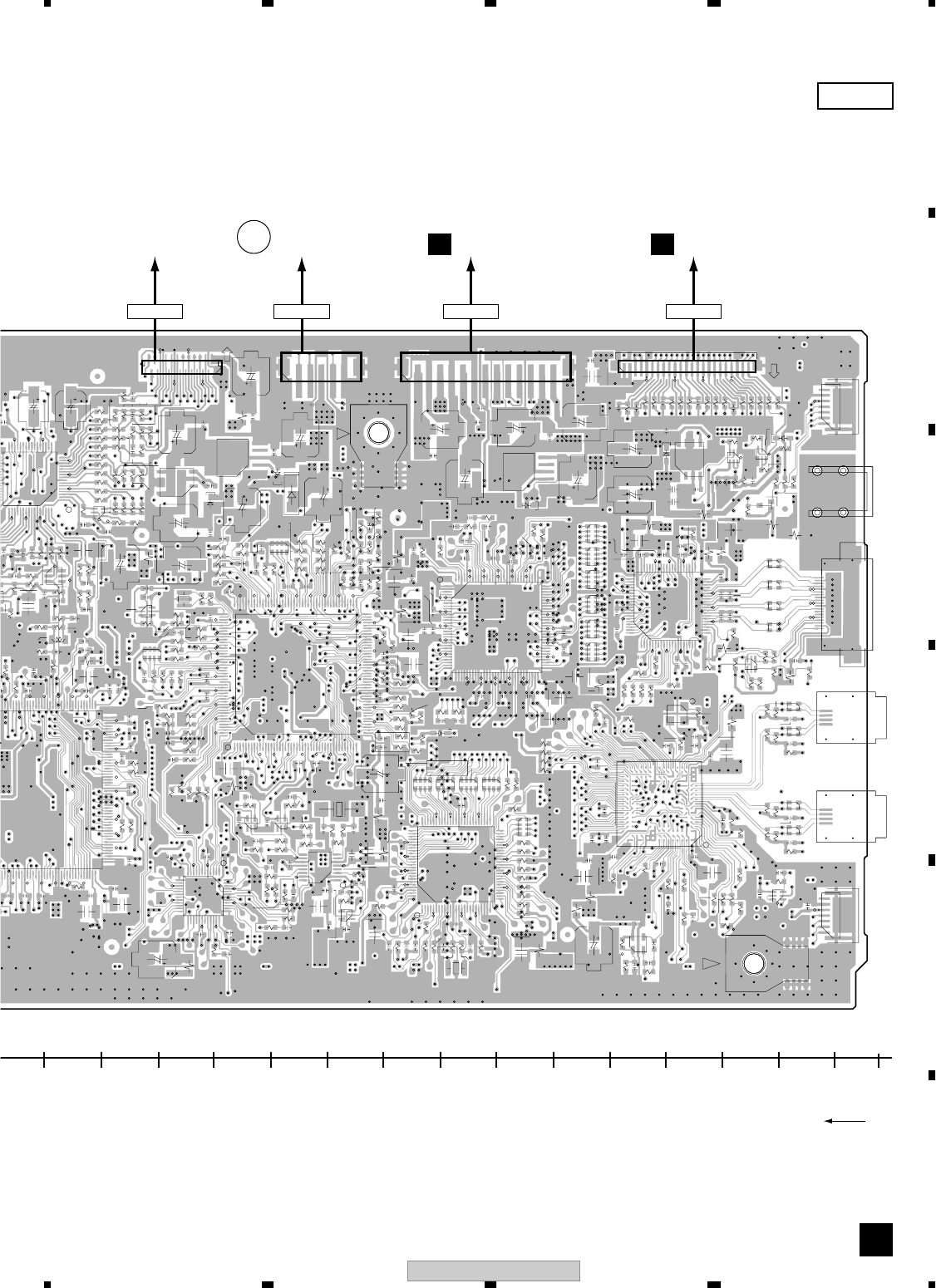

4.2 DVDM ASSY ............................................................................................................................................ 46
4.3 AJKB ASSY ............................................................................................................................................. 50
4.4 VJKB ASSY.............................................................................................................................................. 52

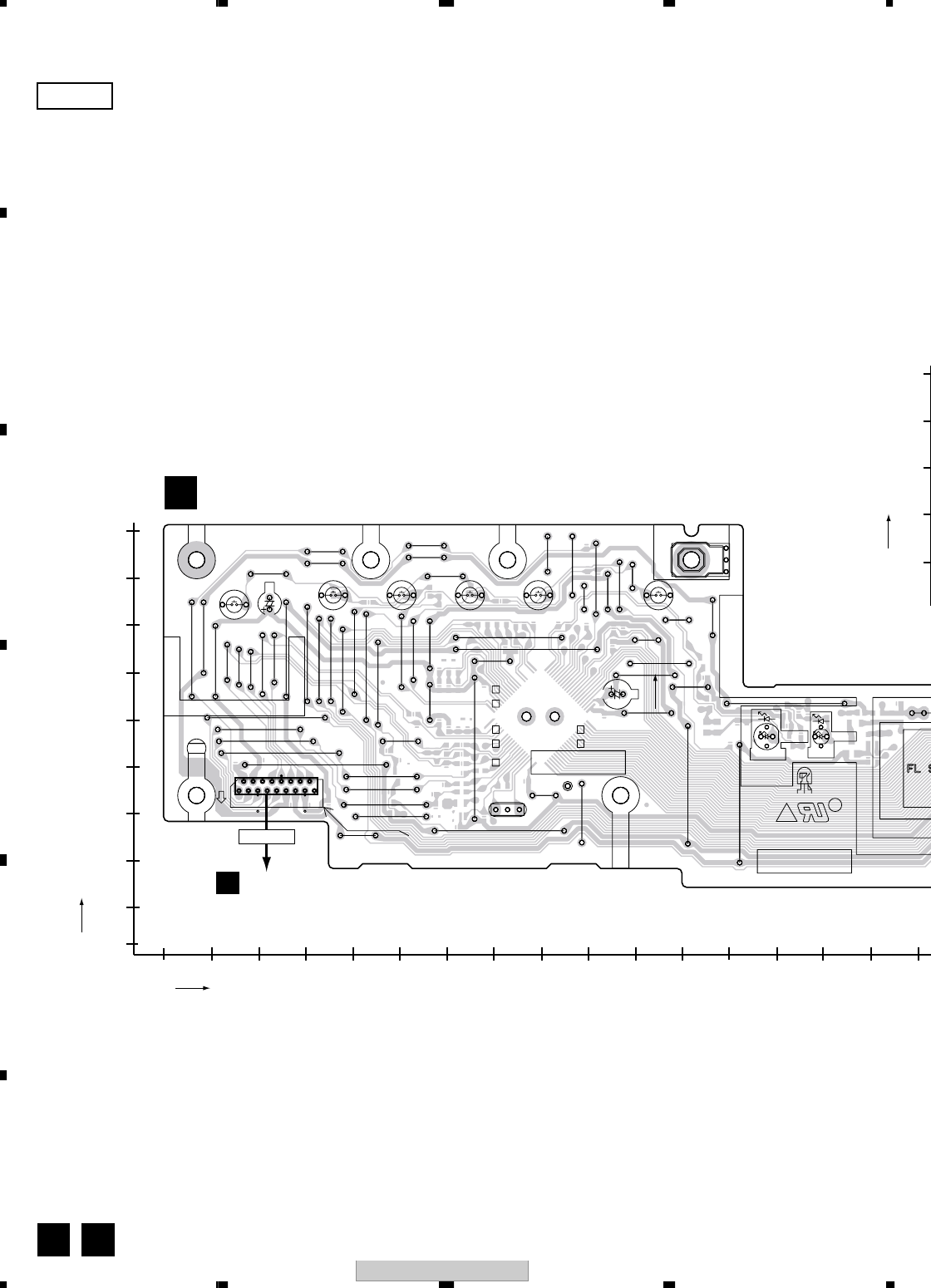

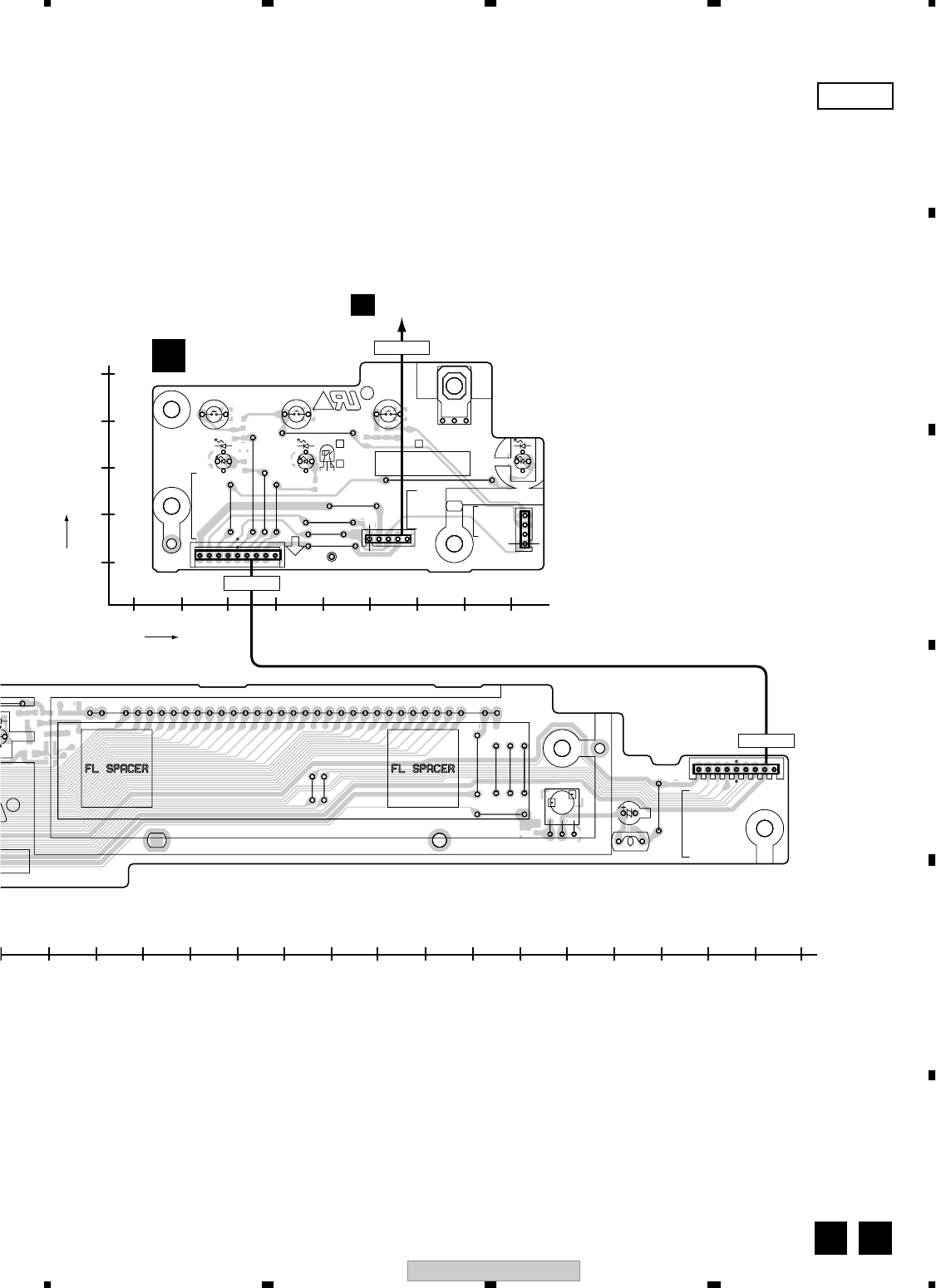

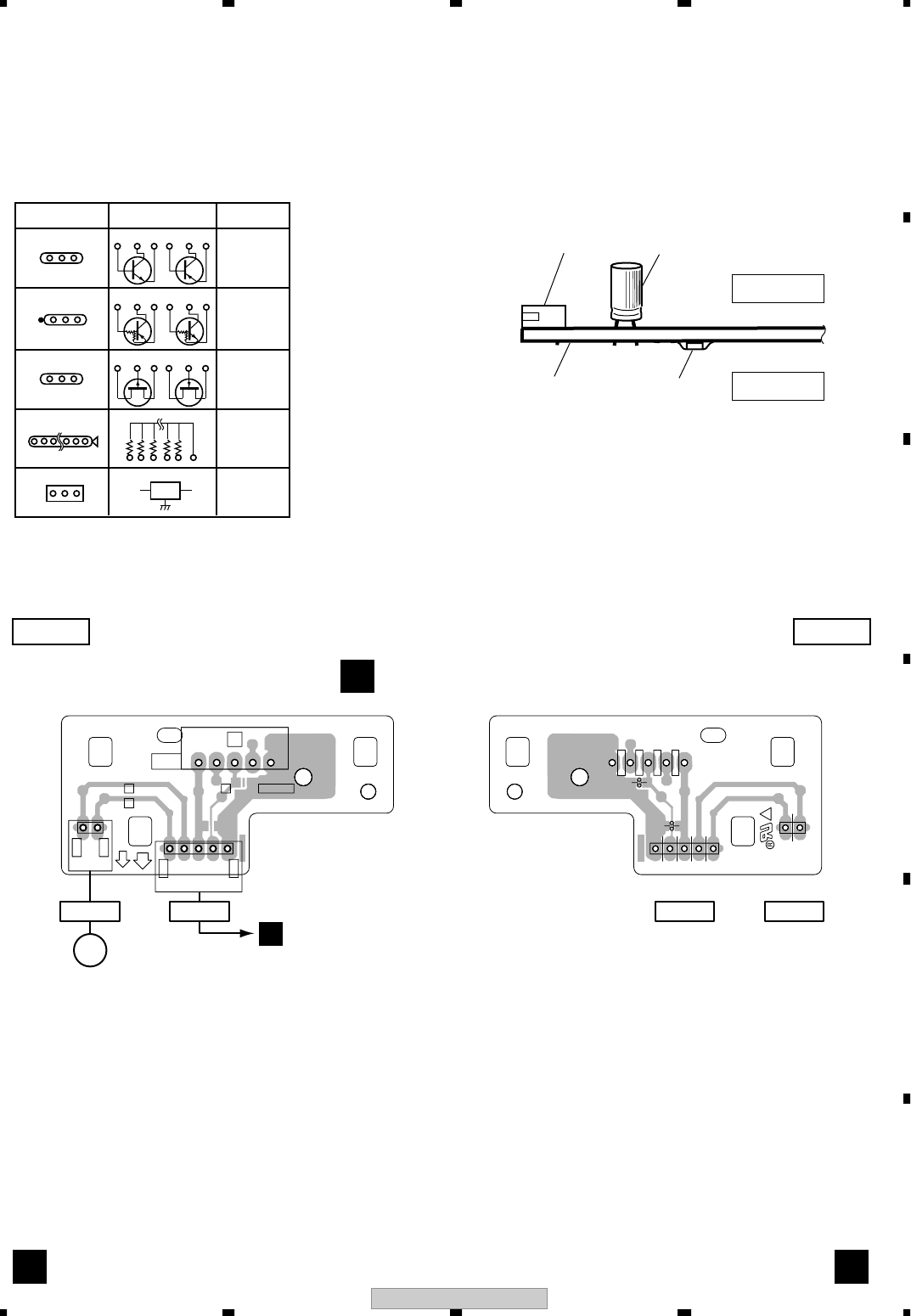

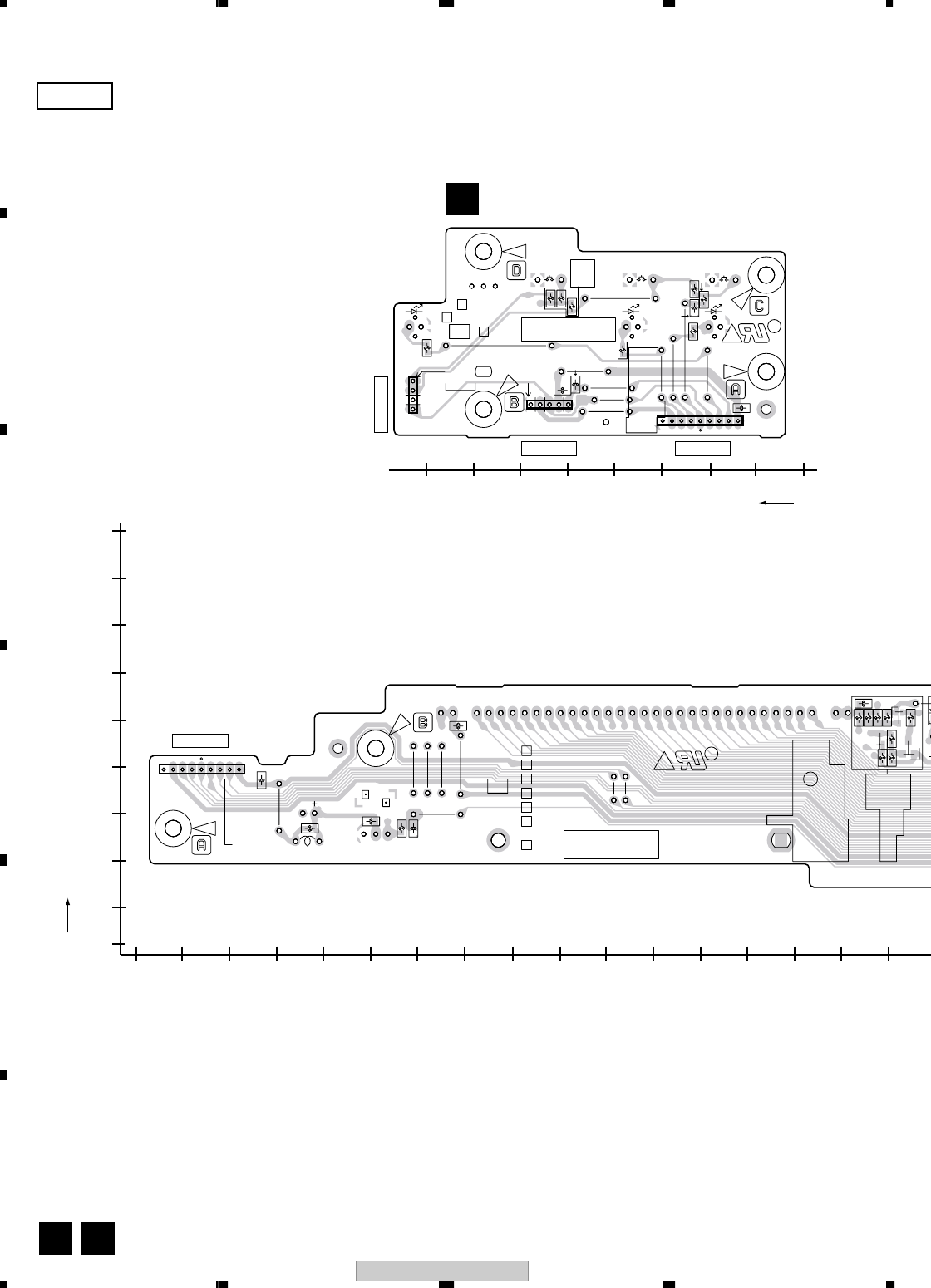

4.5 FLKY and KEYB ASSYS ......................................................................................................................... 54
4.6 SCRB ASSY ............................................................................................................................................ 58

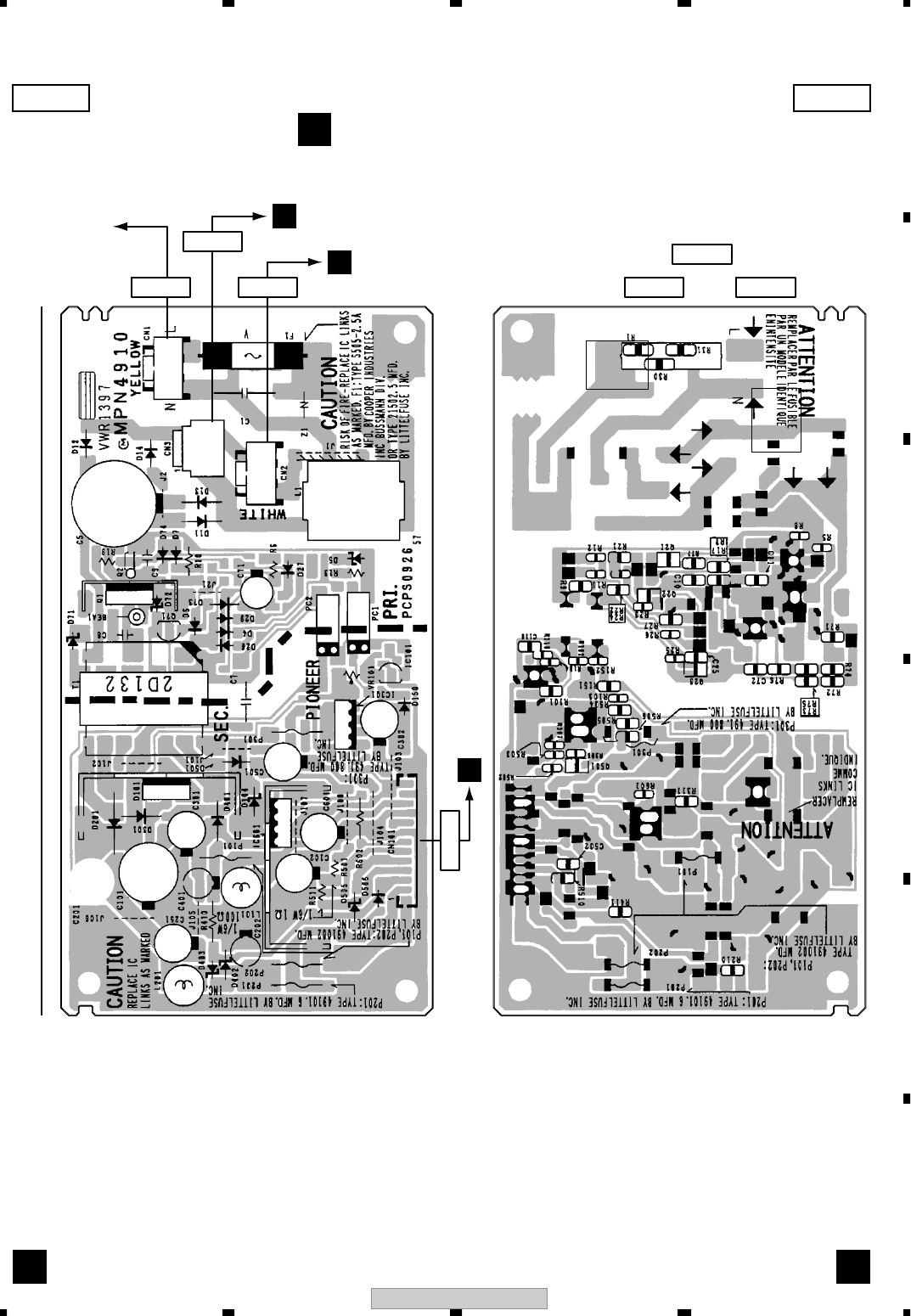

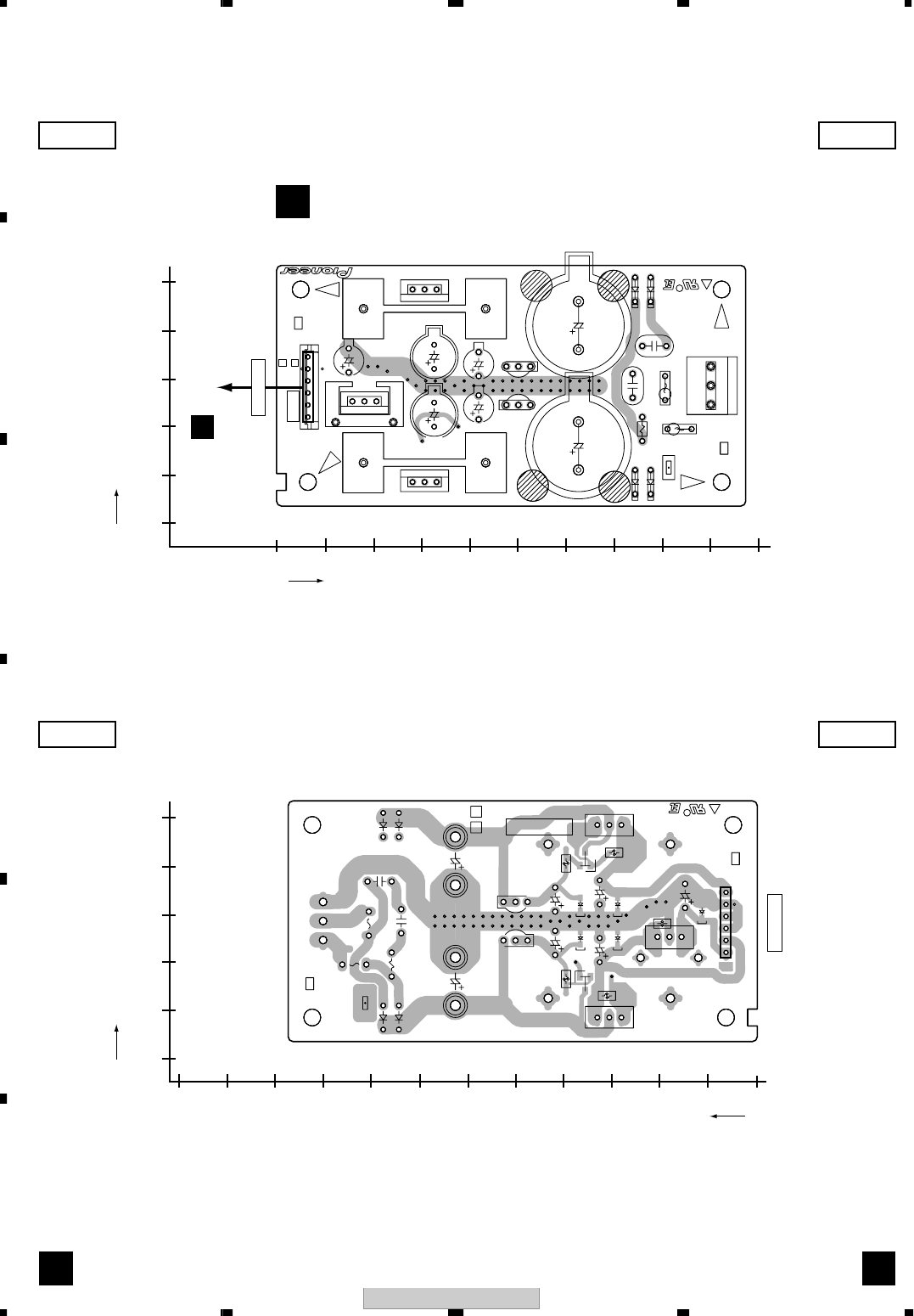

4.7 PS ASSY.................................................................................................................................................. 60
4.8 POWER SUPPLY UNIT............................................................................................................................ 61
5. PCB PARTS LIST ........................................................................................................................................... 62
6. ADJUSTMENT ............................................................................................................................................... 86
6.1 ADJUSTMENT ITEMS AND LOCATION ................................................................................................. 86

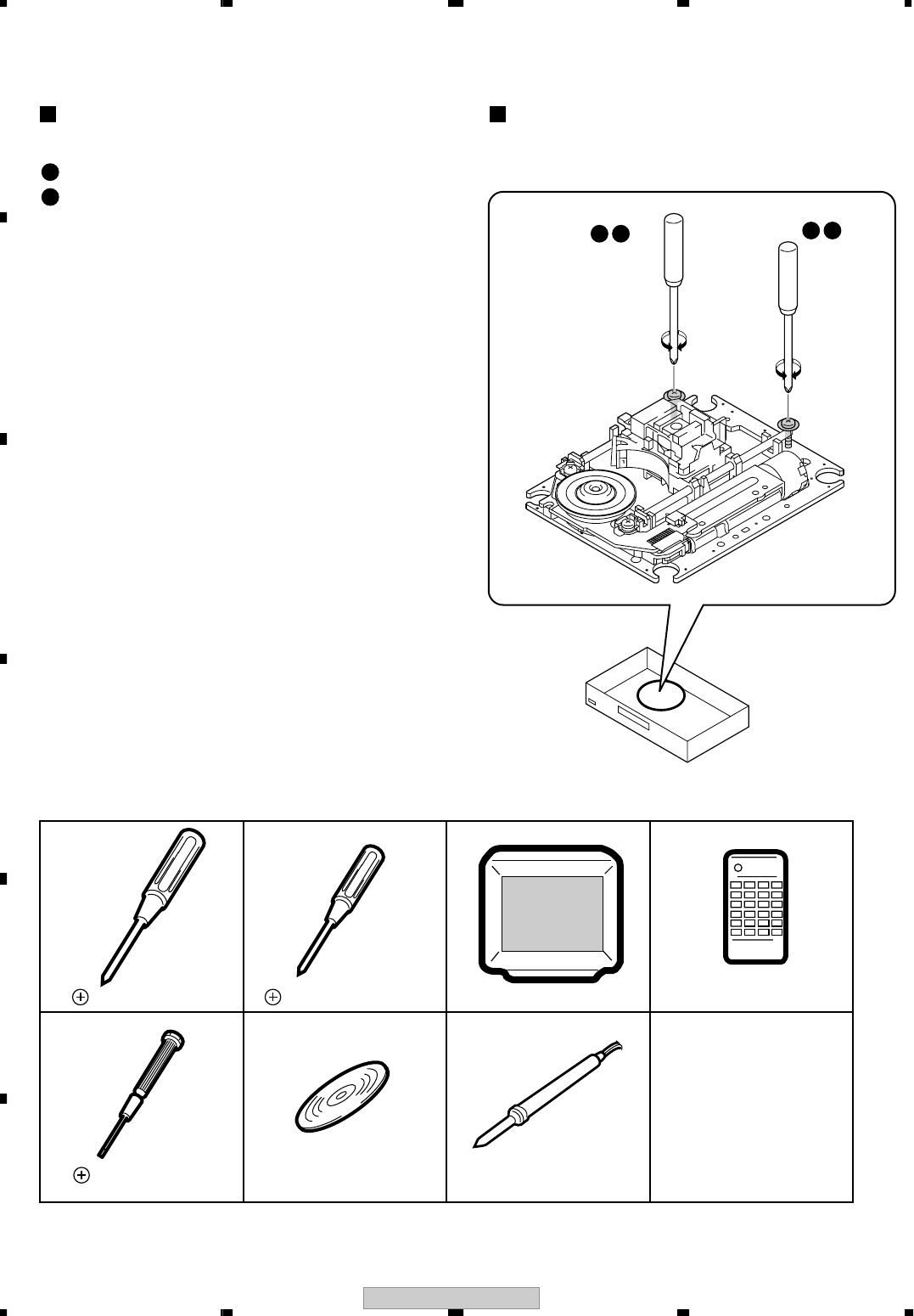

6.2 JIGS AND MEASURING INSTRUMENTS............................................................................................... 86
6.3 NECESSARY ADJUSTMENT POINTS ................................................................................................... 87

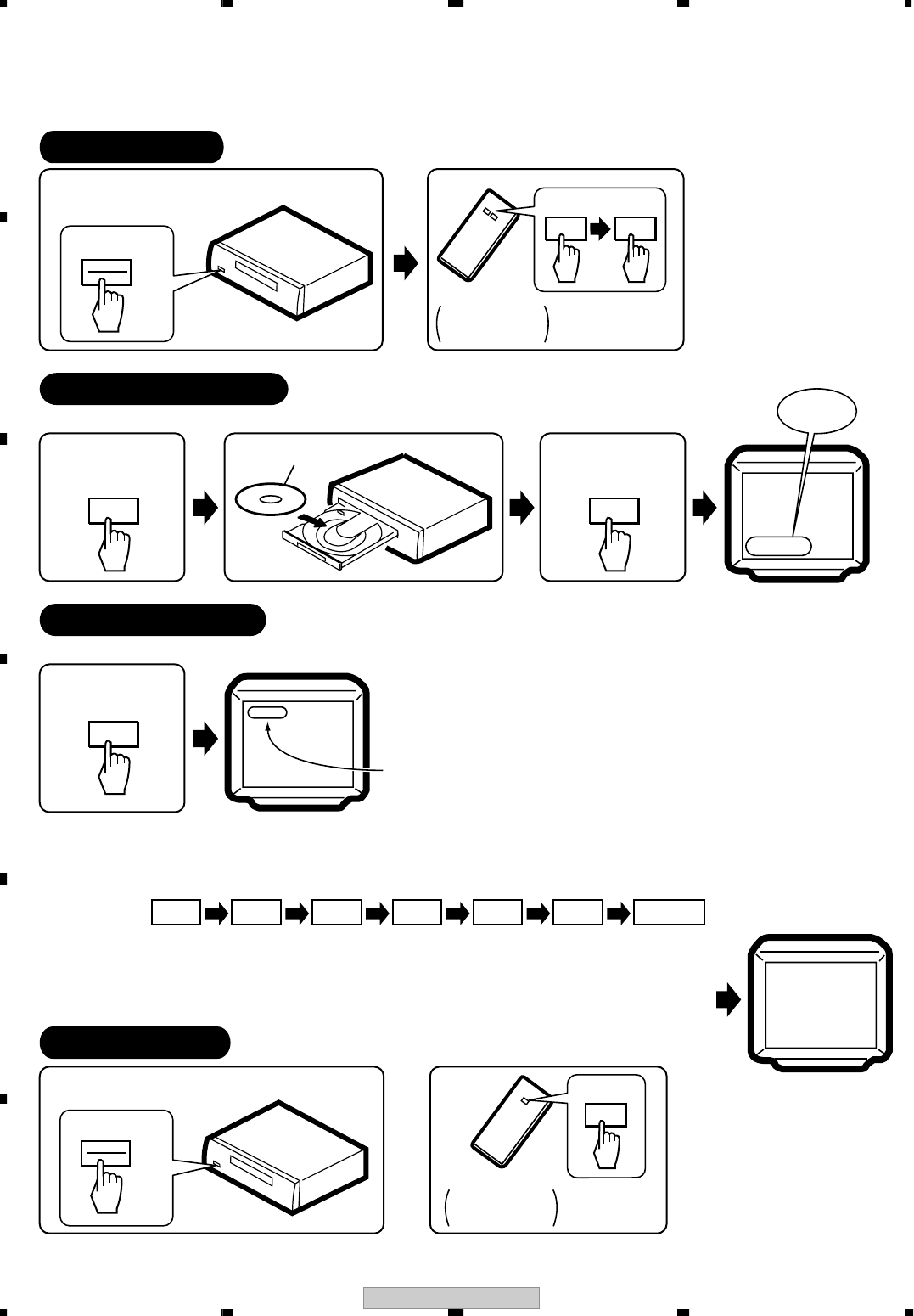

6.4 TEST MODE ............................................................................................................................................ 88
6.5 MECHANISM ADJUSTMENT.................................................................................................................. 89
7. GENERAL INFORMATION ............................................................................................................................. 91
7.1 DIAGNOSIS ............................................................................................................................................. 91
7.1.1 ID NUMBER AND ID DATA SETTING ............................................................................................... 91
7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE ............................................................... 93

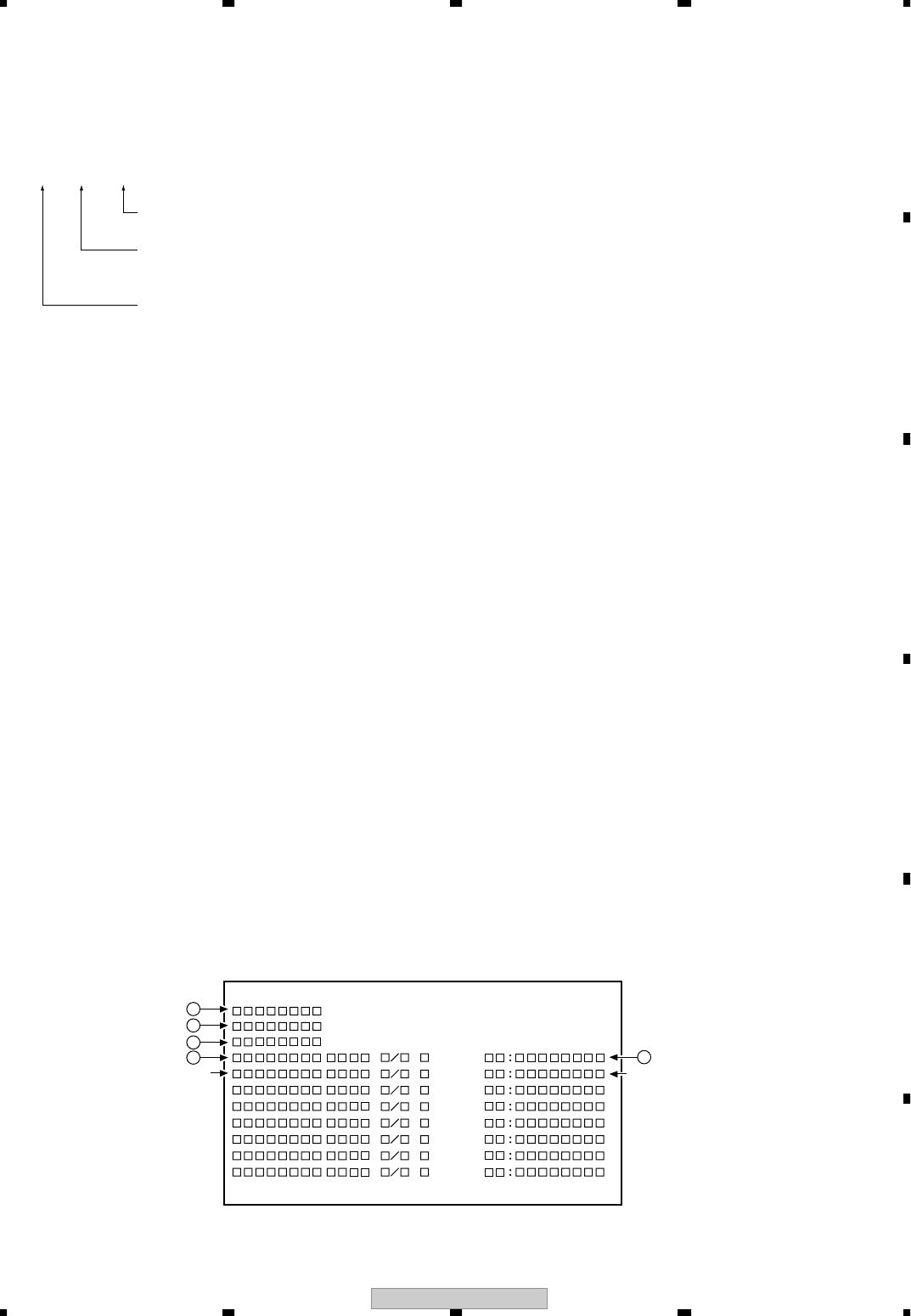

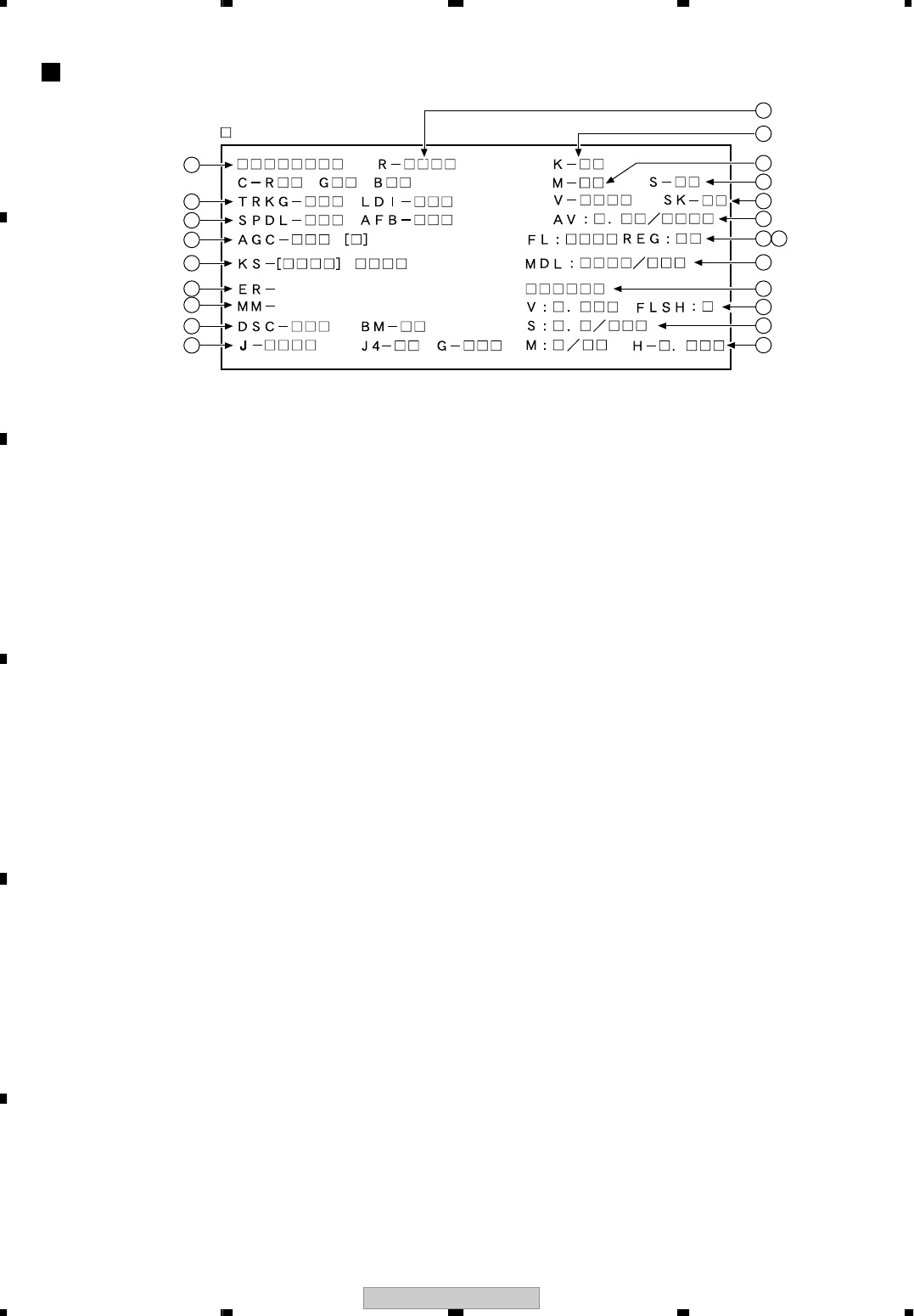

7.1.3 TEST MODE SCREEN DISPLAY ...................................................................................................... 94
7.1.4 SELF-DIAGNOSIS FUNCTION ......................................................................................................... 96
7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE ............................................................. 97
7.1.6 ERROR DISPLAY .............................................................................................................................. 98
7.1.7 TROUBLE SHOOTING.................................................................................................................... 101
7.1.8 FAILURE-TEST METHOD FOR THE HDMI TRANSMITTER IC..................................................... 103

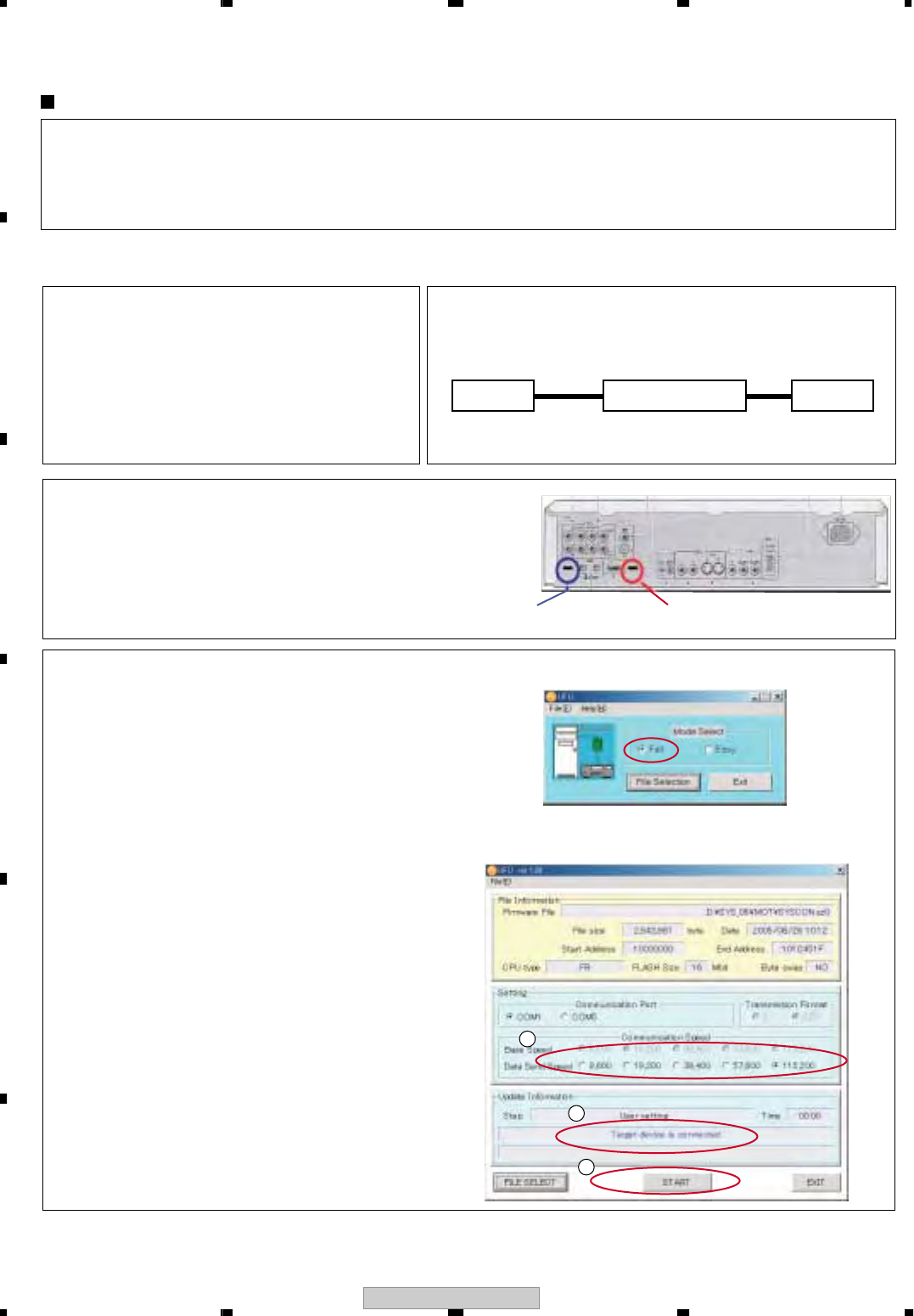

7.1.9 SERIAL-DOWNLOAD...................................................................................................................... 104

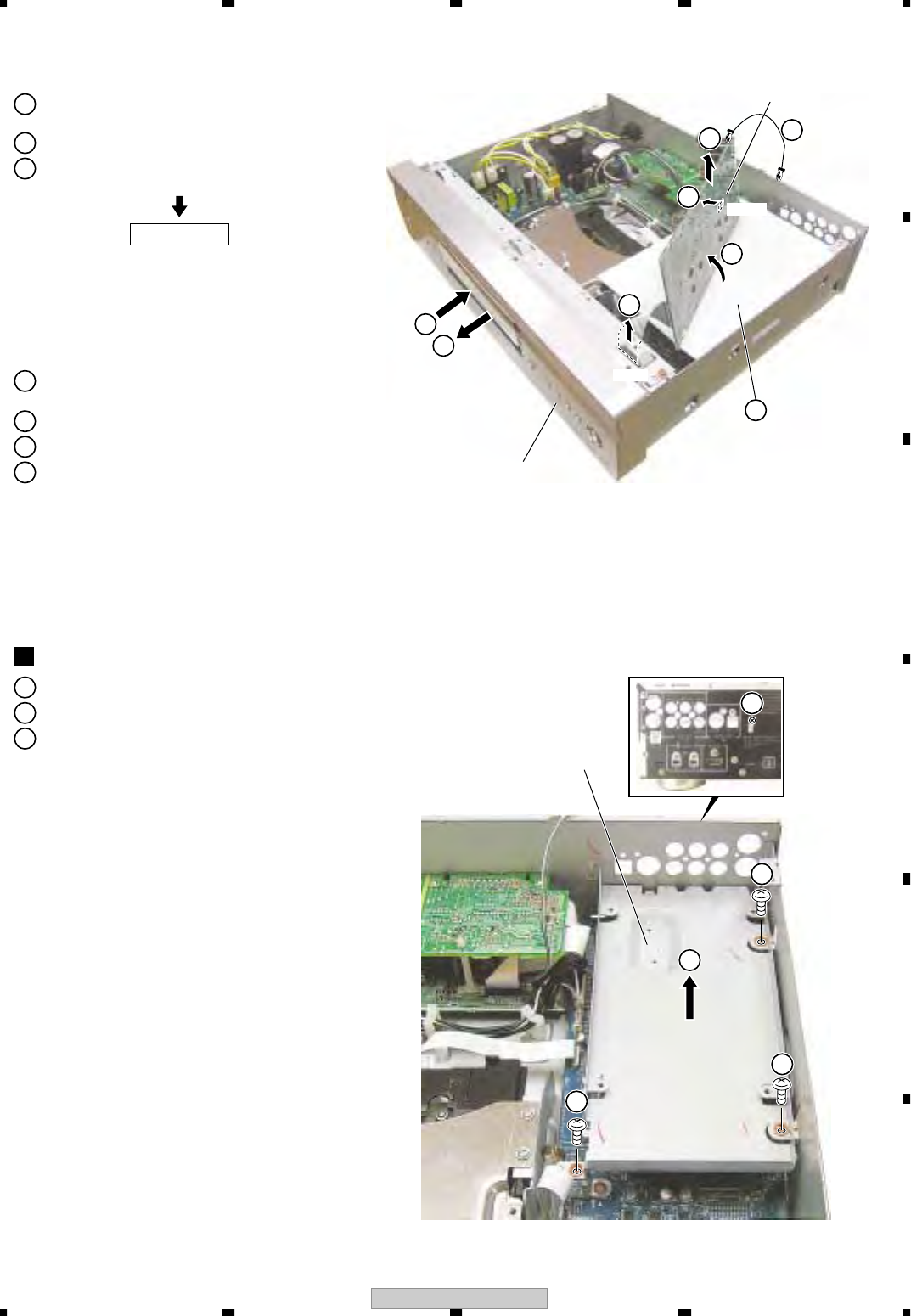

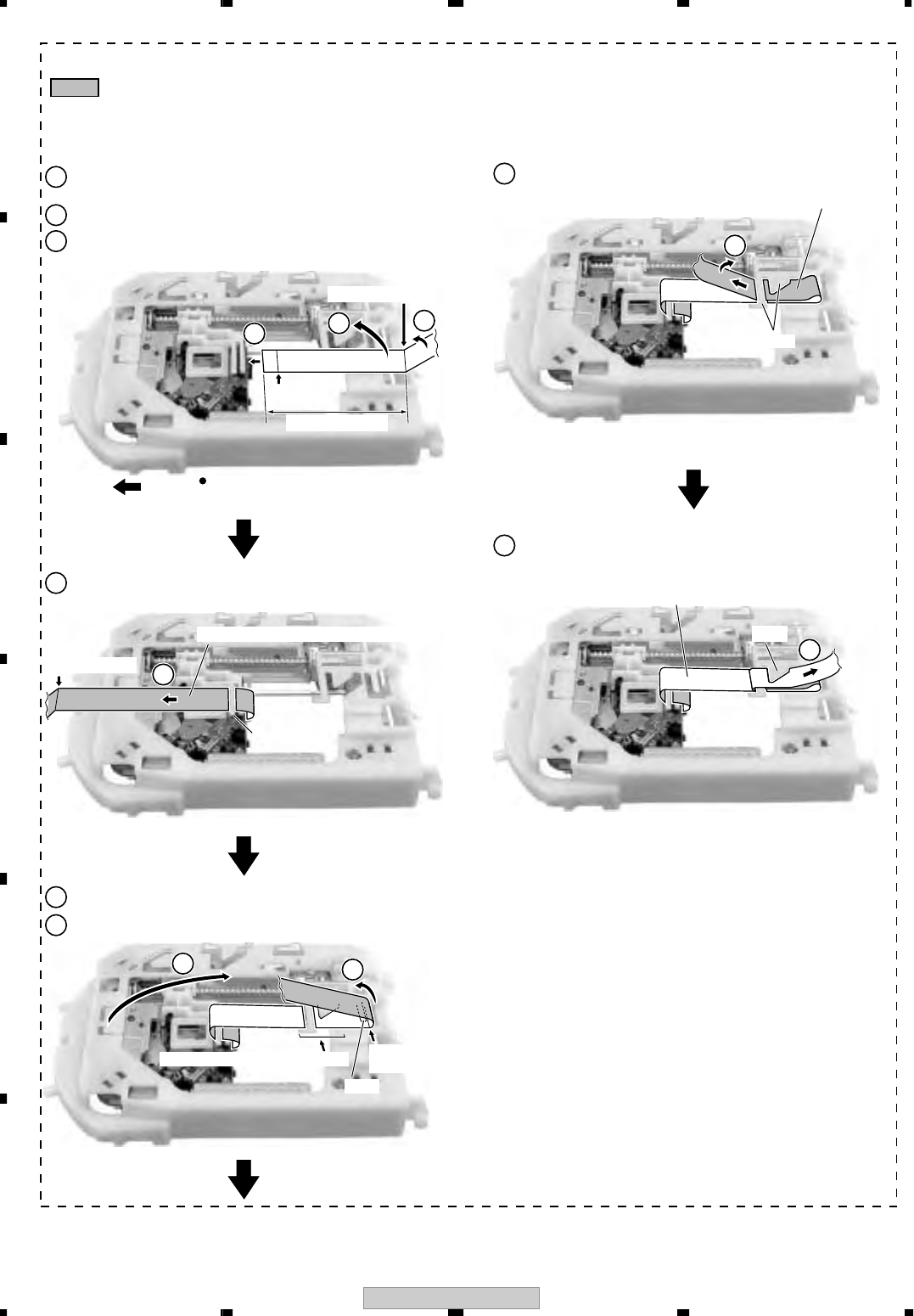

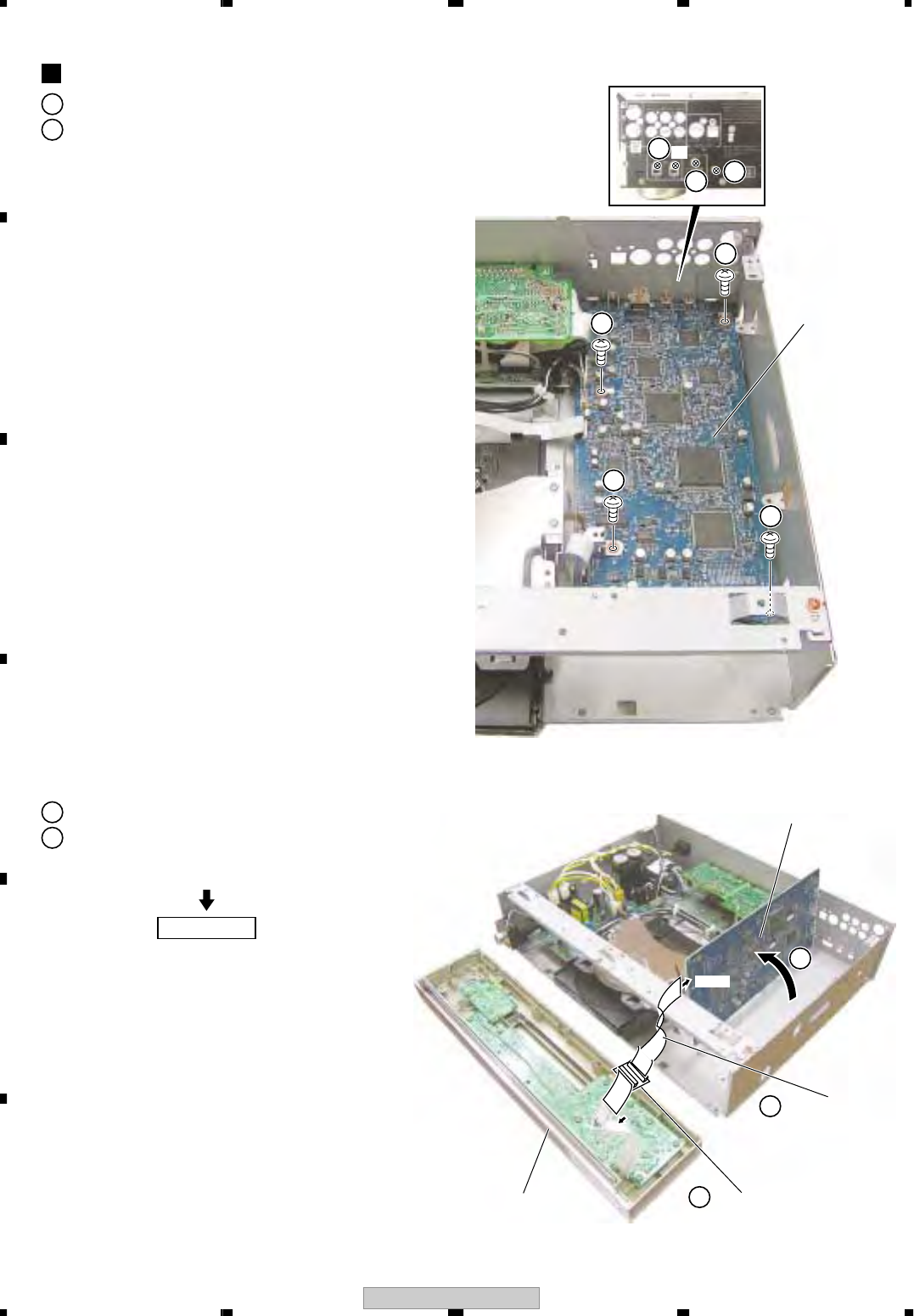

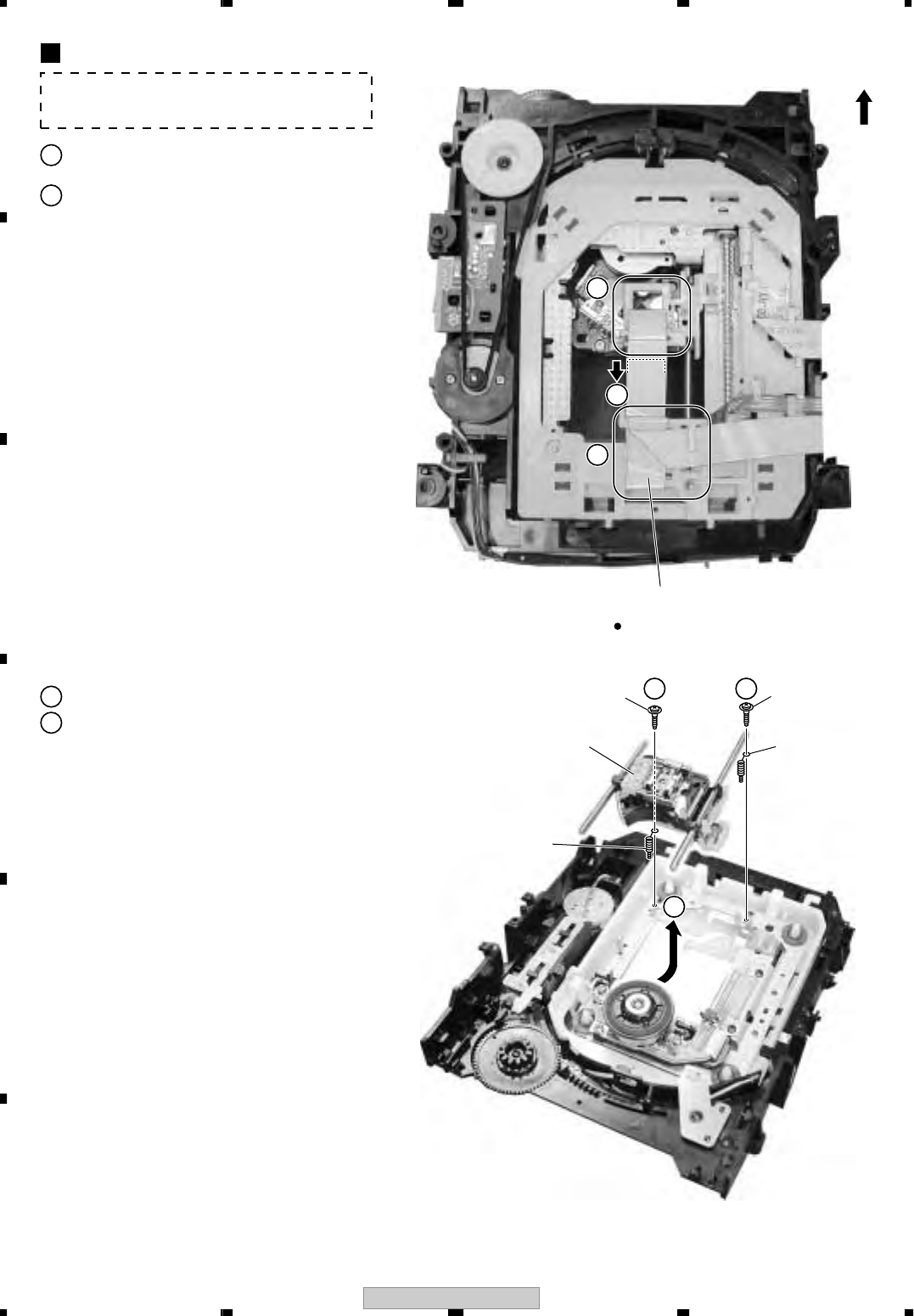

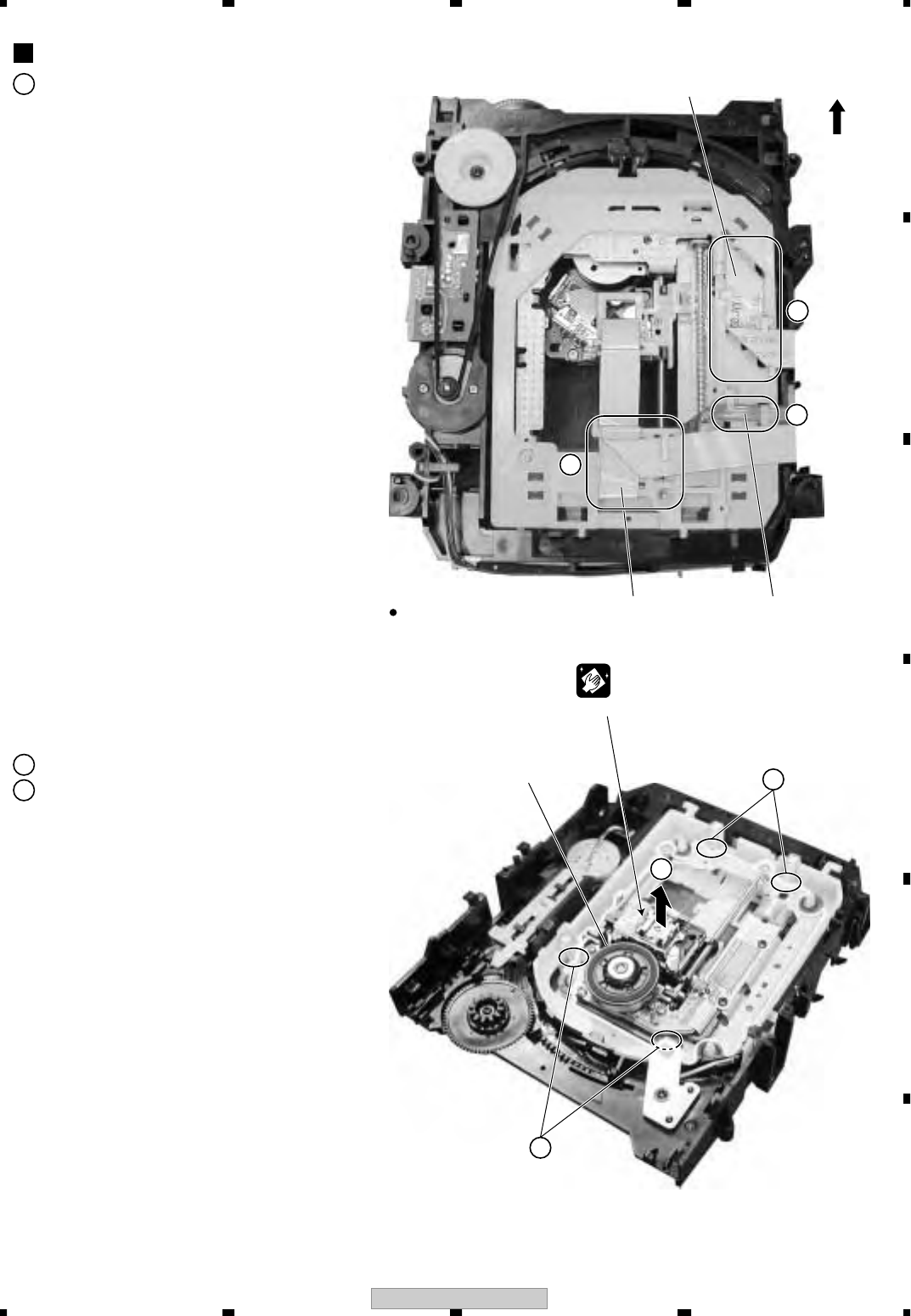

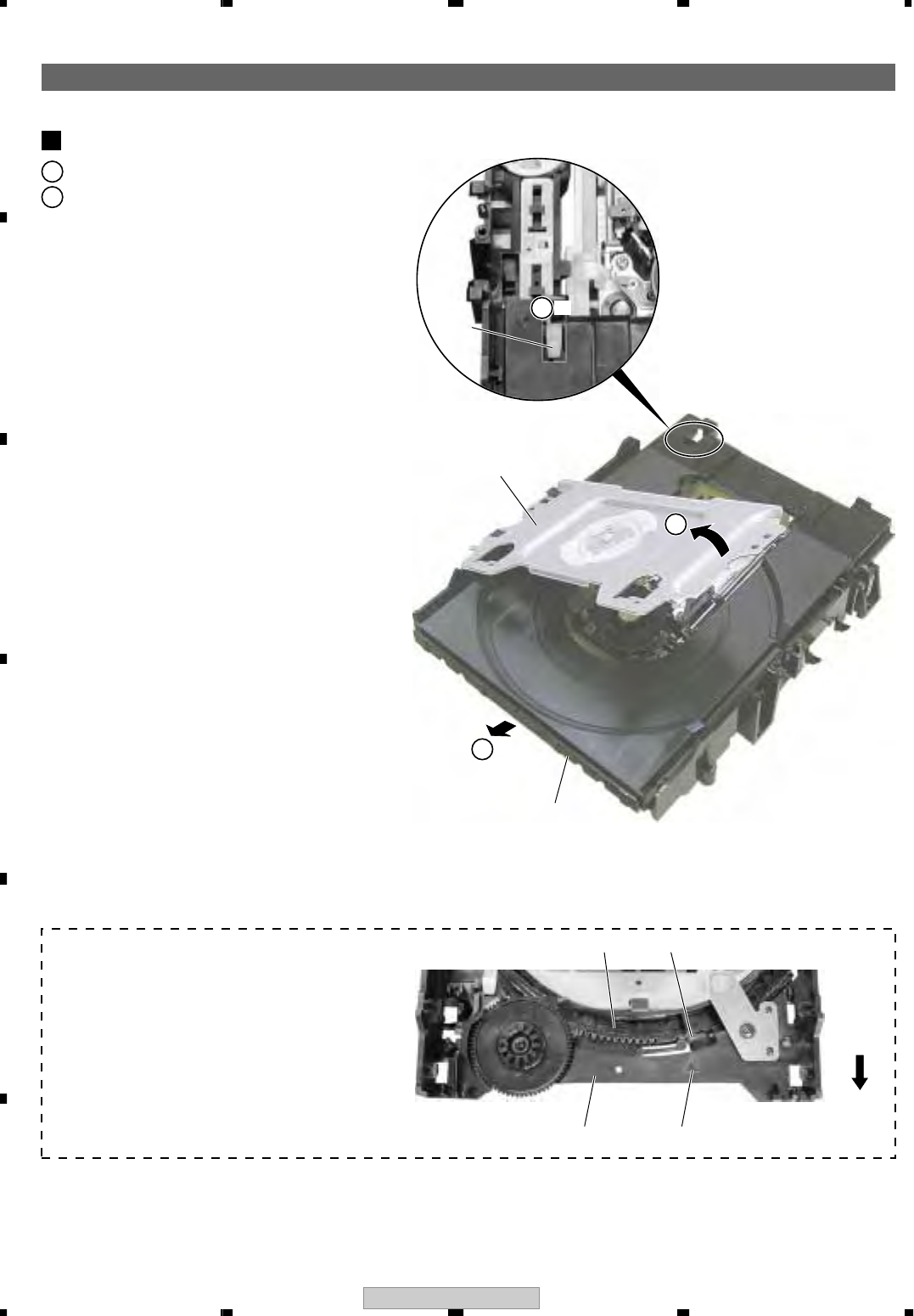

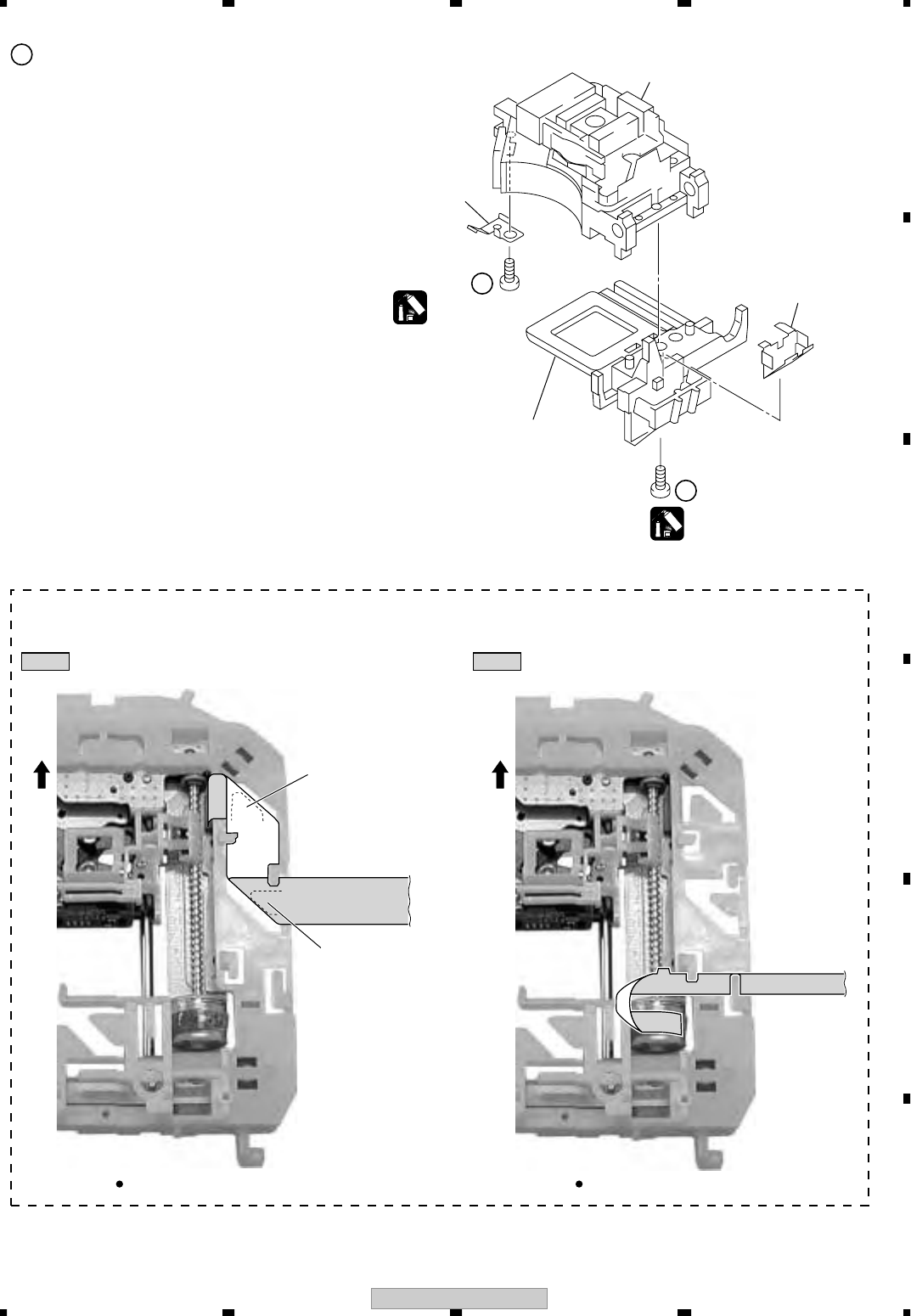

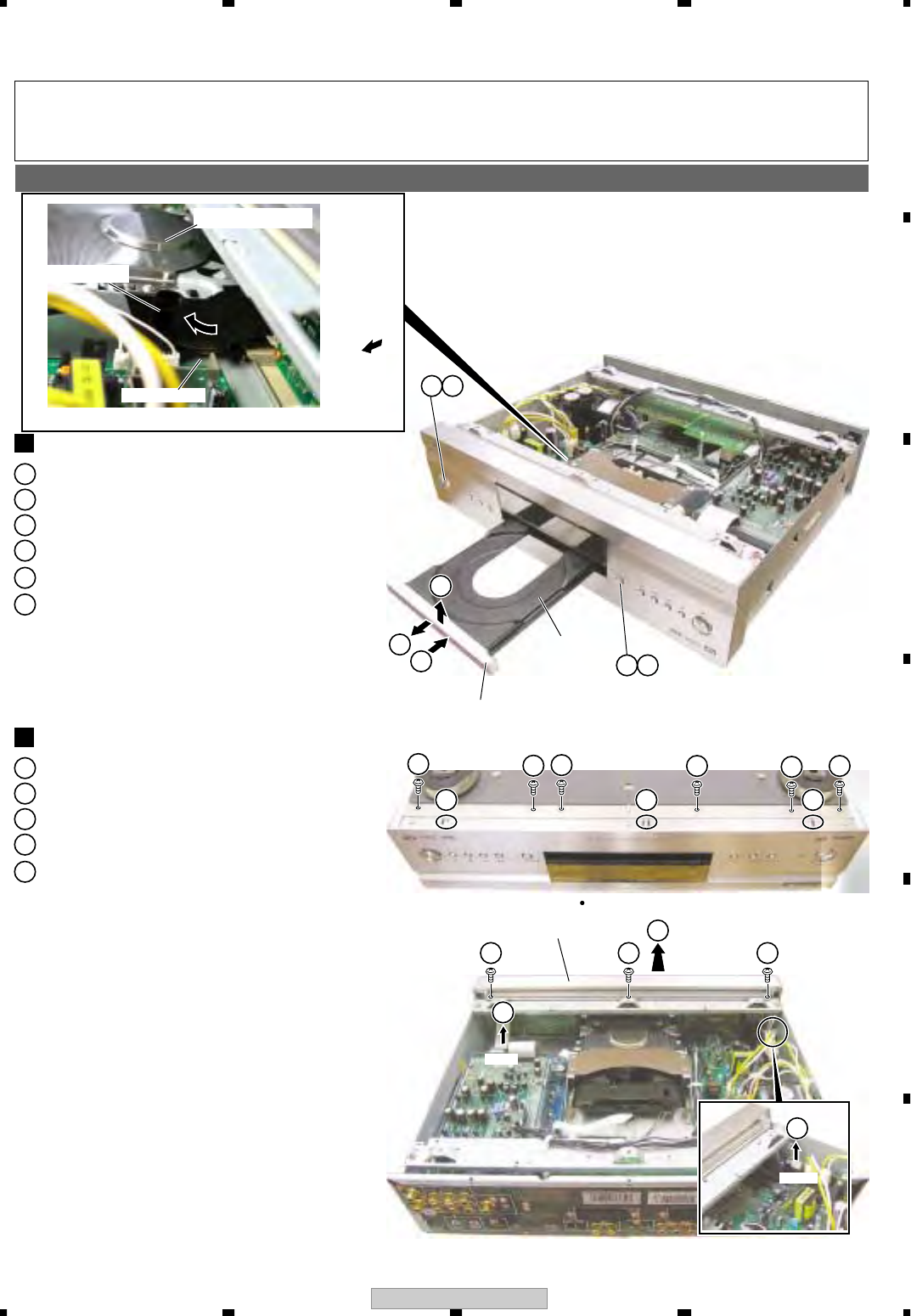

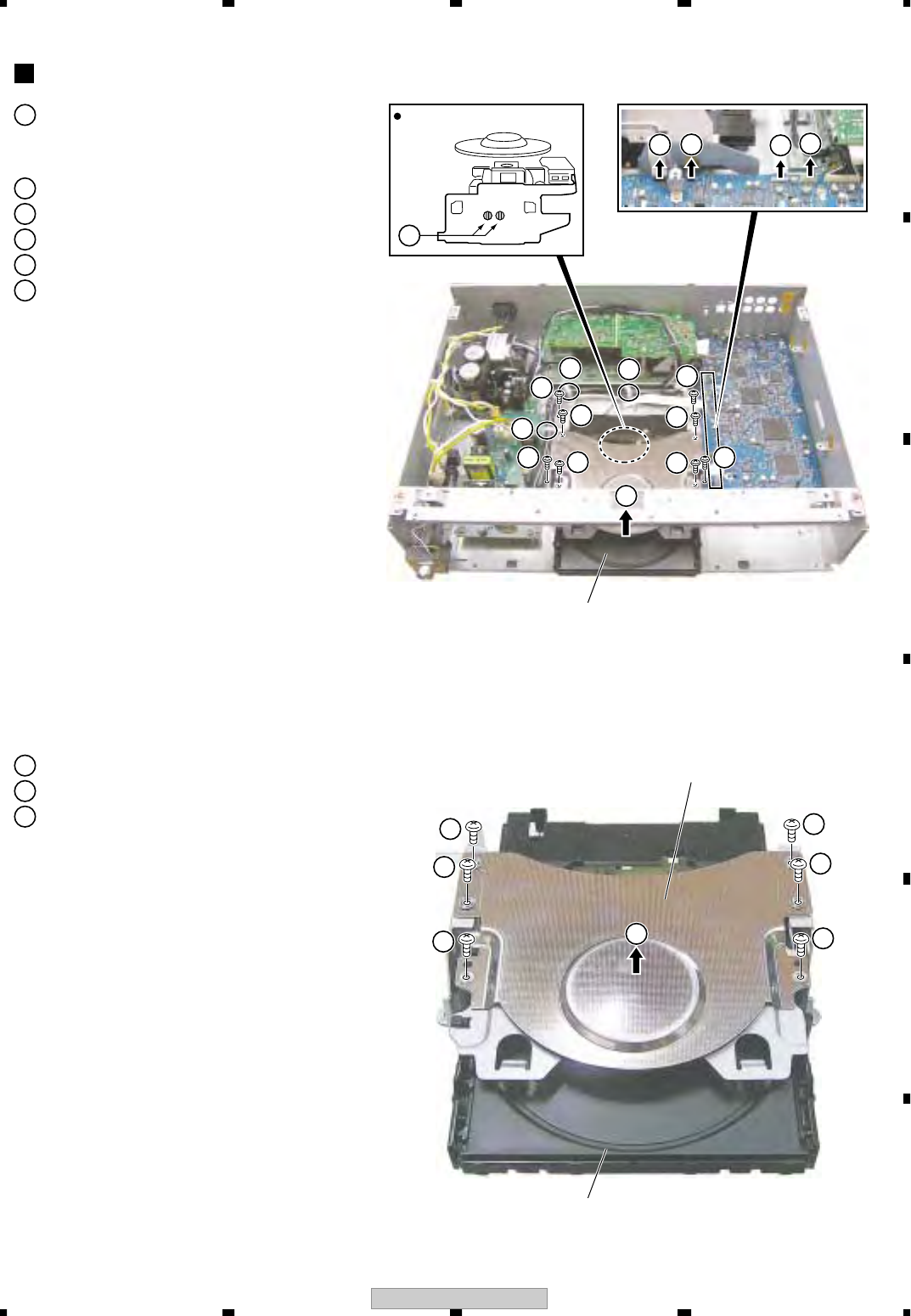

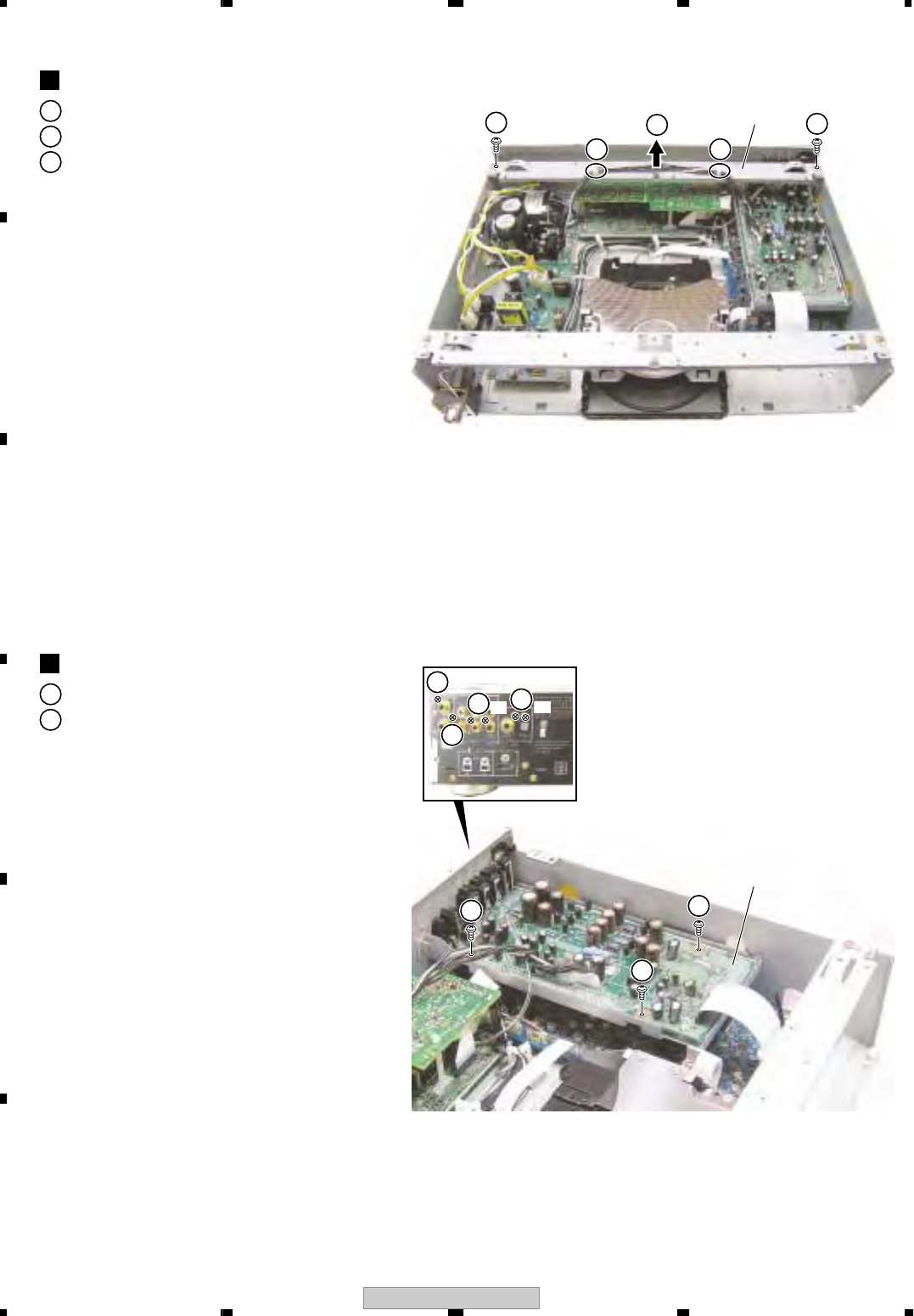

7.1.10 DISASSEMBLY.............................................................................................................................. 105

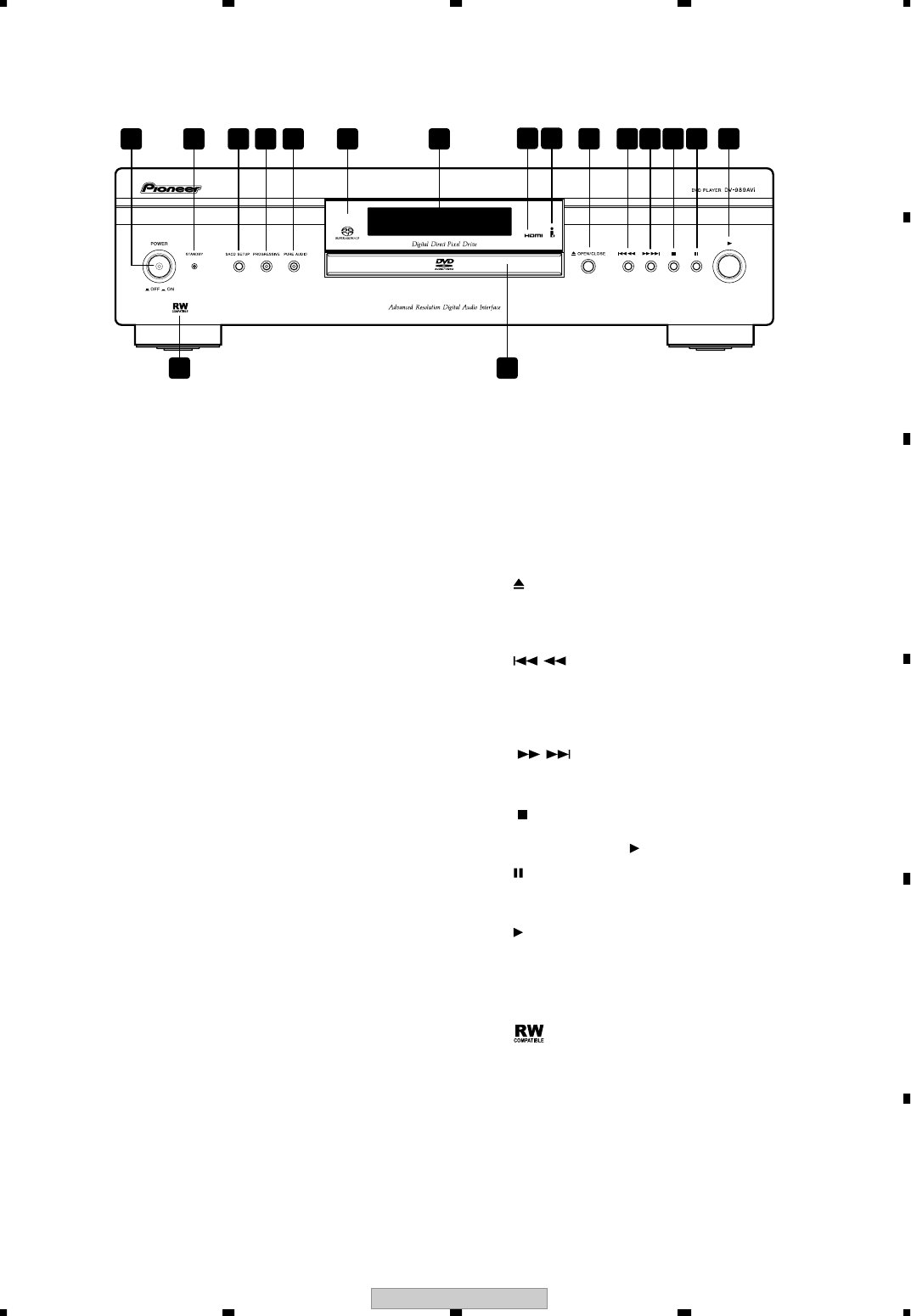

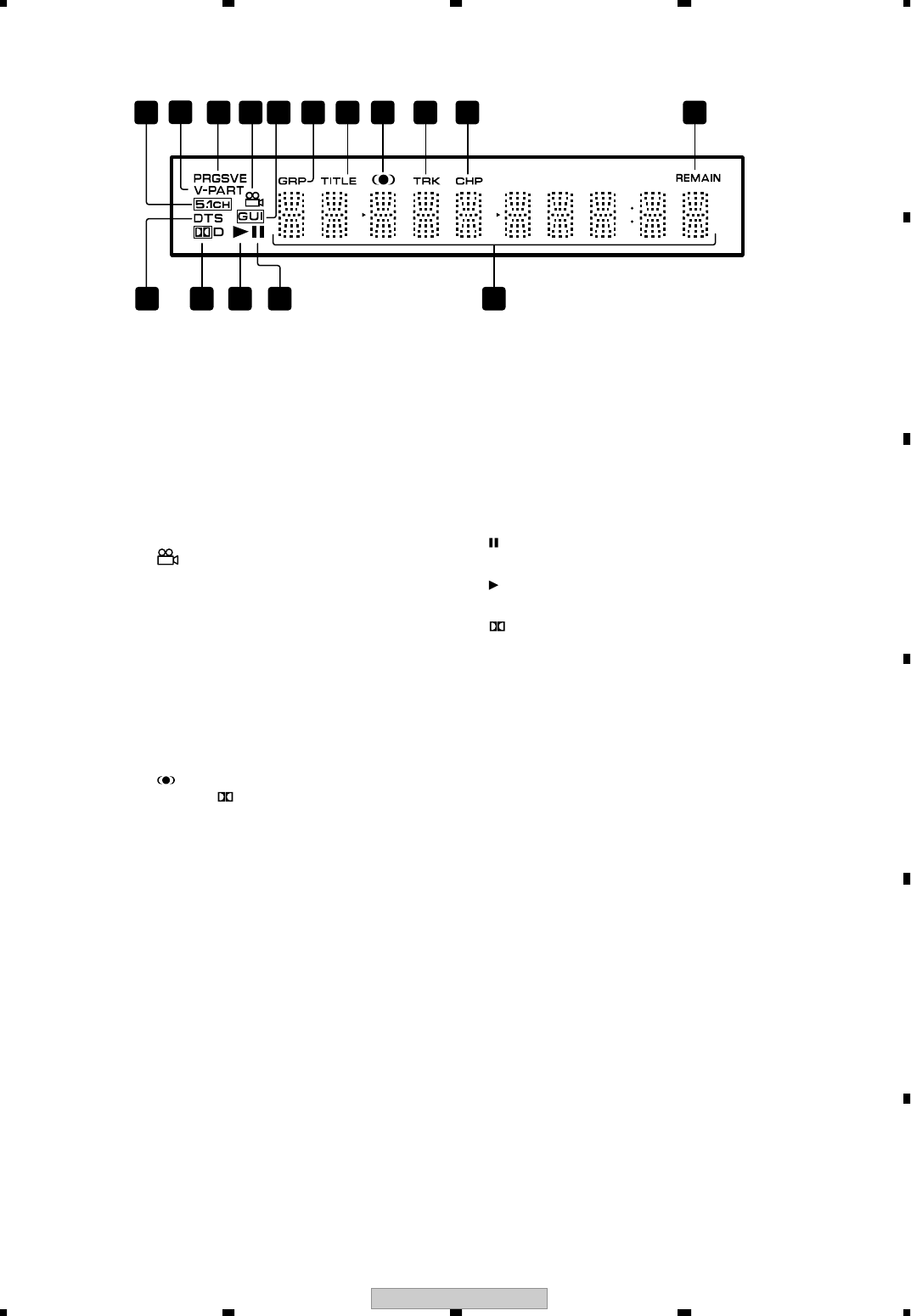

8. PANEL FACILITIES ...................................................................................................................................... 115
DV-989AVi-S 5
5 678
5678
C
D
F
A
B
E
1. SPECIFICATIONS
Specifications
General
System. . . . . . . . . . . . . . . . . . . . . . . . .DVD Player
Power requirements. . . . AC 220-240 V, 50/60 Hz
Power consumption. . . . . . . . . . . . . . . . . . . 25 W
Power consumption (standby) . . . . . . . . . . 0.3 W
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.0 kg
Weight. . . . . . . . . . . . . . . . . (HLXJ model) 10.0 kg
Dimensions. . . . 420 (W) x 117 (H) x 340 (D) mm
Operating temperature. . . . . . . . +5°C to +35°C
Operating humidity . . . . . . . . . . . . . . . 5% to 85%
(no condensation)
HDMI output
HDMI output
i.LINK output
i.LINK output . . . . . . . . . . . . . . . . . . . 4 pin (S400)
Component Video output (Y, P
B
, P
R
)
Output level . . . . . . . . . . . . . . . .Y: 1.0 Vp-p (75 Ω)
PB, PR: 0.7 Vp-p (75 Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA jacks
S-Video output
Y (luminance) - Output level . . . . . 1 Vp-p (75 Ω)
C (color) - Output level. . . . . . . 286 mVp-p (75 Ω)
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . S-Video jack
Video output
Output level . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω)
Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA jack
AV connector output
AV Connector (21-pin connector assignment)
AV connector output. . . . . . . . .21-pin connector
This connector provides the video and audio
signals for connection to a compatible color TV
or monitor.
PIN no.
1 . . . . . . . . . . . . . . . . . . . . . . . . . . . Audio 2/R out
3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .Audio 1/L out
4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND
7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B* out
8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Status
11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G* out
15 . . . . . . . . . . . . . . . . . . . . . . . . . . . R* or C* out
17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND
19 . . . . . . . . . . . . . . . . . . . . . .Video out or Y* out
21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND
*AV CONNECTOR 1 (RGB)-TV/AV Receiver is
output
Audio output (1 stereo pair)
Output level . . . . . . . . . . . . .During audio output
200 mVrms (1 kHz, –20 dB)
Number of channels. . . . . . . . . . . . . . . . . . . . . .2
Jacks. . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack
Audio output (multi-channel / L, R, C,
SW, LS, RS)
Output level . . . . . . . . . . . . . During audio output
200 mVrms (1 kHz, –20 dB)
Number of channels. . . . . . . . . . . . . . . . . . . . . .6
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack
Audio characteristics
Frequency response
. . . . . . . . . . . . . .4 Hz to 44 kHz(DVD fs: 96 kHz)
. . . . . . . 4 Hz to 88 kHz (DVD-Audio fs: 192 kHz)
S/N ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . .118dB
Dynamic range . . . . . . . . . . . . . . . . . . . . 108.8dB
Total harmonic distortion . . . . . . . . . . . 0.0008 %
Wow and flutter . . . . . . . . Limit of measurement
(0.001% W. PEAK) or lower
Digital output
Optical digital output . . . . . . Optical digital jack
Coaxial digital output . . . . . . . . . . . . . . RCA jack
Other terminals
Control in . . . . . . . . . . . . . . . . . . .Minijack (3.5ø)
Control out . . . . . . . . . . . . . . . . . .Minijack (3.5 ø)
Accessories
Stereo audio cable . . . . . . . . . . . . . . . . . . . . . . . .1
Video cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
4-pin S400 i.LINK cable . . . . . . . . . . . . . . . . . . . .1
Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

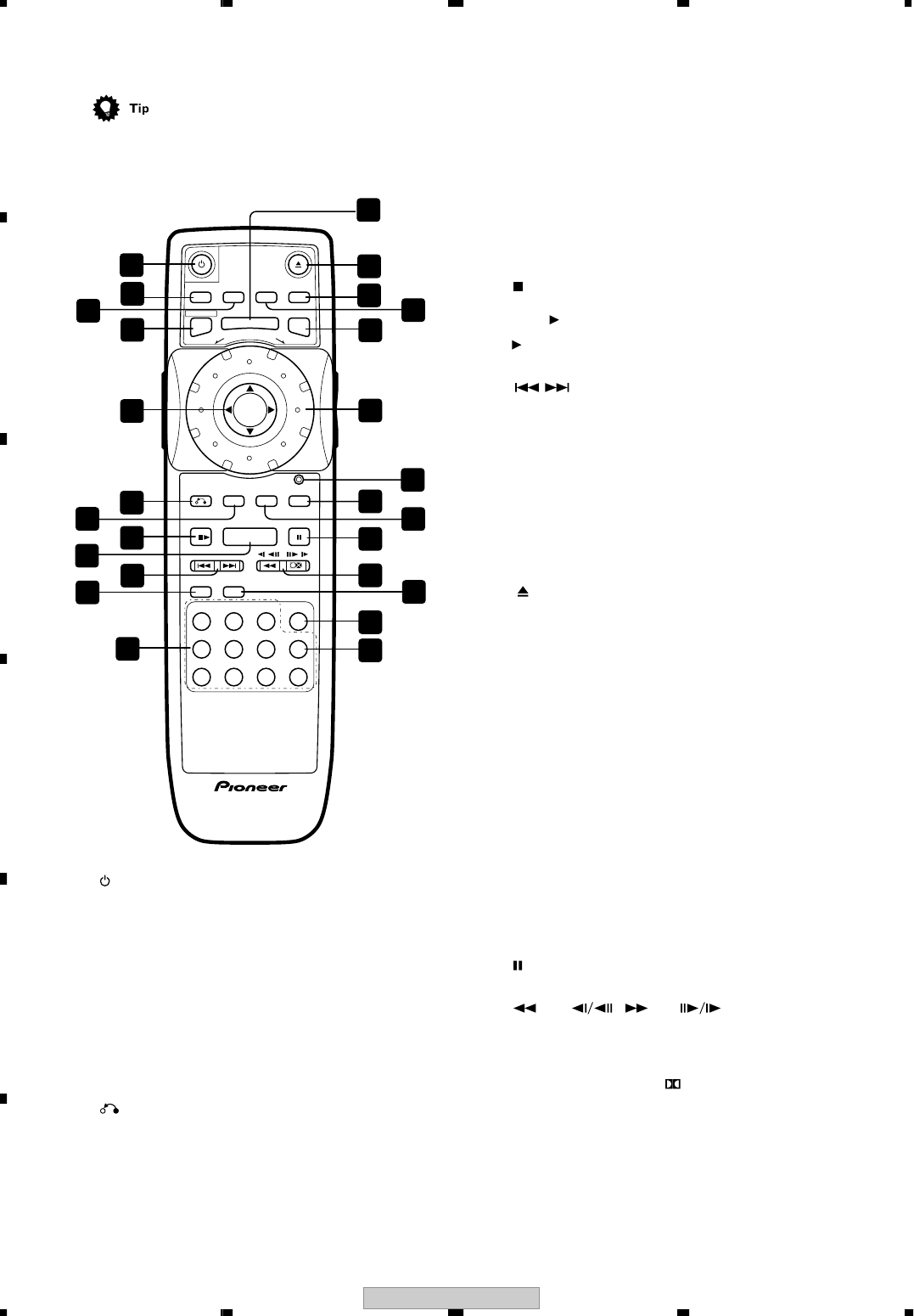

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . .1
AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . . 2
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . .1
These operating instructions
The specifications and design of this
product are subject to change without
notice, due to improvement.
. . . . . . . . . . . . . . . . . . . . . . . . 19 pin
DV-989AVi-S
6
1234
1234
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
8
7
15
17
3
5
4
12
12
1
6
9
10
11
2
Front side
16
13 14
DV-989AVi-S/YXJRE Only
DV-989AVi-S 7
5 678
5678
C
D
F
A
B
E
PACKING parts List
(2) CONTRAST TABLE
DV-989AVi-S/WYXJ, DV-989AVi-S/YXJRE, DV-989-AVi-G/HLXJ and DV-989AVi-S/WPWXJ are constructed the same
except for the following :
Mark No. Description Part No.
>
1 Power Cable See Contrast table (2)
NSP 2 Warranty Card See Contrast table (2)
3 Stereo Audio Cable (L = 1.5 m) VDE1064
4 Video Cable (L = 1.5 m) VDE1065
5 4-pin S400 i.LINK Cable VDE1076
(L = 1.5 m)
NSP 6 Dry Cell Battery See Contrast table (2)
7 Remote Control See Contrast table (2)
8 Battery Cover See Contrast table (2)
9 Operating Instructions See Contrast table (2)
10 Operating Instructions See Contrast table (2)
11 Operating Instructions See Contrast table (2)
12 Polyethylene Bag VHL1051
13 Pad F VHA1394
14 Pad R VHA1395
15 Packing Case See Contrast table (2)
16 Mirror Mat Sheet AHG7010
17 Remote Card See Contrast table (2)
Mark No. Description Part No.
Mark No. Symbol and Description DV-989AVi-S
/WYXJ
DV-989AVi-S
/YXJRE
DV-989AVi-G
/HLXJ
DV-989AVi-S
/WPWXJ
>
1 Power Cable ADG7062 ADG7062 ADG1154 ADG7099
NSP 2 Warranty Card ARY7065 ARY7065 Not used Not used
NSP 6 Dry Cell Battery VEM1021 VEM1021 VEM1031 VEM1031
7 Remote Control VXX2894 VXX2894 VXX2896 VXX2894
8 Battery Cover VNK4936 VNK4936 VNK4422 VNK4936
9 Operating Instructions (English, Spanish) VRD1205 Not used Not used Not used
9 Operating Instructions (English) Not used Not used VRB1402 VRB1402
9 Operating Instructions (Russia) Not used VRC1296 Not used Not used
10 Operating Instructions (French,German) VRD1206 Not used Not used Not used
10 Operating Instructions (Chinese) Not used Not used VRC1290 Not used
11 Operating Instructions (Italian,Dutch) VRD1207 Not used Not used Not used
15 Packing Case VHG2644 VHG2644 VHG2659 VHG2690
17 Remote Card (Russia) Not used Not used ARW7322 Not used
DV-989AVi-S
8
1234
1234
C
D
F
A
B
E
2.2 EXTERIOR SECTION
A
CONTACT SIDE
NON-CONTACT
SIDE
A
DE
O
Q
Q
O
MN
J
L
K
J
L
F
I
C
F
G
H
C
E
D
B
B
KM
P
P
GHI
N
Refer to
"2.3 FRONT PANEL SECTION".
47
27
56
56
48
24
23
23 48
48
37
55
4
9
28
56
860
51
51
59 51 59 61
51
59
59
52
59
59
16
59
57
2
59
32
57
33
59
57
31 57
13
11
57
1
59
15
32
58
53
58
55
14
21 18
36
6
5
55
55
35
48
49
30
49
54
48
48
18
34
55 48
17
55
51
39
45
59
43
59
59
38
59
26
19
50
53
53
53
53
19
50
25
22
29
37
57
40
3
12
55
59
56
59
62
48
41
42
10
7
Refer to
"2.4 LOADER MECHA. ASSY".
G
J
I
B
D
H
C
A
46
65 63
64
64
(YXJRE
Only)
(HLXJ
Only)
DV-989AVi-S 9
5 678
5678
C
D
F
A
B
E
EXTERIOR SECTION parts List
(2) CONTRAST TABLE
DV-989AVi-S/WYXJ, DV-989AVi-S/YXJRE, DV-989-AVi-G/HLXJ and DV-989AVi-S/WPWXJ are constructed the same
except for the following :
Mark No. Description Part No.
1 DVDM Assy VWS1601
2 AJKB Assy See Contrast table (2)
3 VJKB Assy See Contrast table (2)
4 PS Assy VWV2153
5 MSWB Assy VWG2548
>
6 POWER SUPPLY Unit VWR1397
NSP 7 LOADER MECHA. Assy VWT1218
>
8 AC Inlet Assy See Contrast table (2)
9 SCRB Assy See Contrast table (2)
10 Connector Assy(13P) VKP2378
11 Connector Assy PG05KK-E30
12 FFC (31P, AVKB) VDA2102
13 FFC (23P, VJKB) VDA1972
>
14 Power Transformer VTT1169
15 FFC (19P, SCRB) See Contrast table (2)
16 Connector Assy(3P) See Contrast table (2)
>
17 Housing Assy (2P) VKP2379
18 Mini Clamp AEC7373
19 Insulator See Contrast table (2)
20 • • • •
21 PCB Support VEC2184
NSP 22 PCB Holder PNW2029
NSP 23 Beam 989 VNE2408
24 Mini Clamp 2 AEC7507
NSP 25 Bottom Plate VNA2836
NSP 26 Bottom Plate 989B VNA2852
27 Bonnet See Contrast table (2)
28 Rear Panel See Contrast table (2)
NSP 29 Chassis 989 See Contrast table (2)
NSP 30 Mechanism Cover VNE2410
NSP 31 PCB Angle VNE2409
32 PCB Holder AJ VNE2330
33 Card Spacer AEC7214
NSP 34 MECHA Angle L VNE2411
NSP 35 MECHA Angle R VNE2412
36 Protection Barrier VEC2485
NSP 37 Spacer AEB7092
38 Tray Panel See Contrast table (2)
39 PLED Assy VWG2557
40 Wire Saddle VEC2310
41 Beam Spacer 989 VEC2499
42 Gasket 3*5*80 VEC2501
43 Power Button Assy See Contrast table (2)
44 • • • •
NSP 45 Energy Star Label See Contrast table (2)
NSP 46 ID Label Assy VXW1004
47 Laser Caution Label VRW2257
48 Screw 3x6 B T (FE) ABA1192
49 Screw IBZ30P080FTC
50 Screw BBZ30P100FCC
50 Screw (HLXJ Only)) BSZ40P200FCC
51 Screw PPZ30P080FCC
52 Screw PCZ26P060FCC
53 Screw (3x9 BT) ABA7101
54 Screw VBA1044
55 Screw BBZ30P080FCC
56 Screw BCZ40P060FNI
57 Screw (3x8 BT) ABA7017
58 Screw ABA1200
59 Screw BBT30P100FCC
60 Screw CBZ30P080FCC
61 Screw PCZ30P060FCC
62 Toothed Lock Washers WH40FNI
63 Region Label (YXJRE Only) VRW2259
64 Cushion See Contrast table (2)
NSP 65 SISIR Label (HLXJ Only) VRW2245
Mark No. Description Part No.
Mark No. Symbol and Description DV-989AVi-S
/WYXJ5
DV-989AVi-S
/YXJRE5
DV-989AVi-G
/HLXJ
DV-989AVi-S
/WPWXJ
2 AJKB Assy VWV2149 VWV2149 VWV2148 VWV2148
3 VJKB Assy VWV2152 VWV2152 VWV2150 VWV2151
>
8 AC Inlet Assy VKP2364 VKP2364 VKP2367 VKP2367
9 SCRB Assy VWV1992 VWV1992 Not used Not used
15 FFC (19P, SCRB) VDA1973 VDA1973 Not used Not used
16 Connector Assy(3P) PG03KK-E15 PG03KK-E15 Not used Not used
19 Insulator PNW2766 PNW2766 ANL7028 PNW2766
27 Bonnet VXX3077 VXX3077 VXX3078 VXX3077
28 Rear Panel VNA2837 VNA2837 VNA2841 VNA2873
NSP 29 Chassis 989 VNA2843 VNA2843 VNA2863 VNA2843
38 Tray Panel VNK5850 VNK5850 VNK5849 VNK5850
43 Power Button Assy VXA2724 VXA2724 VXA2725 VXA2724
NSP 45 Energy Star Label Not used Not used Not used AAX8022
64 Cushion PNM1339 PNM1339 AEC7224 PNM1339
DV-989AVi-S
10
1234
1234
C
D
F
A
B
E
2.3 FRONT PANEL SECTION
CONTACT SIDE
NON-CONTACT
SIDE
11
11
4
11
3
11
14
4
7
15
9(1/2)
9(2/2)
6
5
10 12
8
11
13
2
11
1
E
F
DV-989AVi-S 11
5 678
5678
C
D
F
A
B
E
FRONT PANEL SECTION parts List
(2) CONTRAST TABLE
DV-989AVi-S/WYXJ, DV-989AVi-S/YXJRE, DV-989-AVi-G/HLXJ and DV-989AVi-S/WPWXJ are constructed the same
except for the following :
Mark No. Description Part No.
1 FLKY Assy See Contrast table (2)
2 KEYB Assy VWG2558
3 FFC (17P, FLKB) VDA2089
4 Earth Plate S VNF1131
5 Pioneer Name Plate See Contrast table (2)
6 Aluminum Panel See Contrast table (2)
7 FL Filter VEC2482
8 D Window VEC2492
9 Panel Base Assy See Contrast table (2)
NSP 10 LED Lens VNK5073
11 Screw PPZ30P080FCC
12 Button Sheet L VED1014
13 Button Sheet R VED1015
14 Standby BTN V1 (P) See Contrast table (2)
15 Screw ABA7110
Mark No. Description Part No.
Mark No. Symbol and Description DV-989AVi-S
/WYXJ
DV-989AVi-S
/YXJRE
DV-989AVi-G
/HLXJ
DV-989AVi-S
/WPWXJ
1 FLKY Assy VWG2552 VWG2552 VWG2554 VWG2554
5 Pioneer Name Plate VAM1124 VAM1124 PAN1377 VAM1124
6 Aluminum Panel VAH1430 VAH1430 VAH1434 VAH1430
9 Panel Base Assy VXA2721 VXA2721 VXA2722 VXA2721
14 Standby BTN V1 (P) XAD3191 XAD3191 XAD3186 XAD3191
DV-989AVi-S
12
1234
1234
C
D
F
A
B
E
2.4 LOAD✲✹✲✹
✲✹✲✹
MECHA. ASSY
LOADER MECHA. ASSY parts List
A
A
22
1
2
4
3
10
21
11
15
19
14
20
13
12
20
20
20
18
16
17
7
8
9
5
6
6
6
6
Refer to
"2.5 TRAVERSE MECHA. ASSY-S".
Lubricating Oil
GYA1001
Daifree
GEM1036
Cleaning paper
GED-008
Refer to
" Application of Lubricant".
Note :
Lubricating Oil
GYA1001
To DVDM CN101 (Pickup Assy-S)
To DVDM CN104 (Stepping Motor)
To DVDM CN105 (Spindle Motor)
23
K
Mark No. Description Part No.
1 Traverse Mecha. Assy-S VXX2909
2 Loading Motor Assy VXX2912
3 Motor Pulley PNW1634
4 Motor VXM1107
5 Flexible Cable (24P) VDA1947
6 Floating Rubber VEB1351
7 Belt VEB1358
8 Stabilizer VNE2253
9 Loading Base VNL1917
10 Float Base DVD VNL1918
11 Drive Cam VNL1919
12 Gear Pulley VNL1921
13 Loading Gear VNL1922
14 Drive Gear VNL1923
15 SW Lever VNL1925
16 Clamper Plate VNE2342
17 Bridge VNE2343
18 Clamper VNL1924
19 Screw JGZ17P028FMC
20 Screw VBA1094
21 Tray VNL1920
NSP 22 LOAB Assy VWG2426
23 Connector Assy (2P) VKP2253
Mark No. Description Part No.
DV-989AVi-S 13
5 678
5678
C
D
F
A
B
E

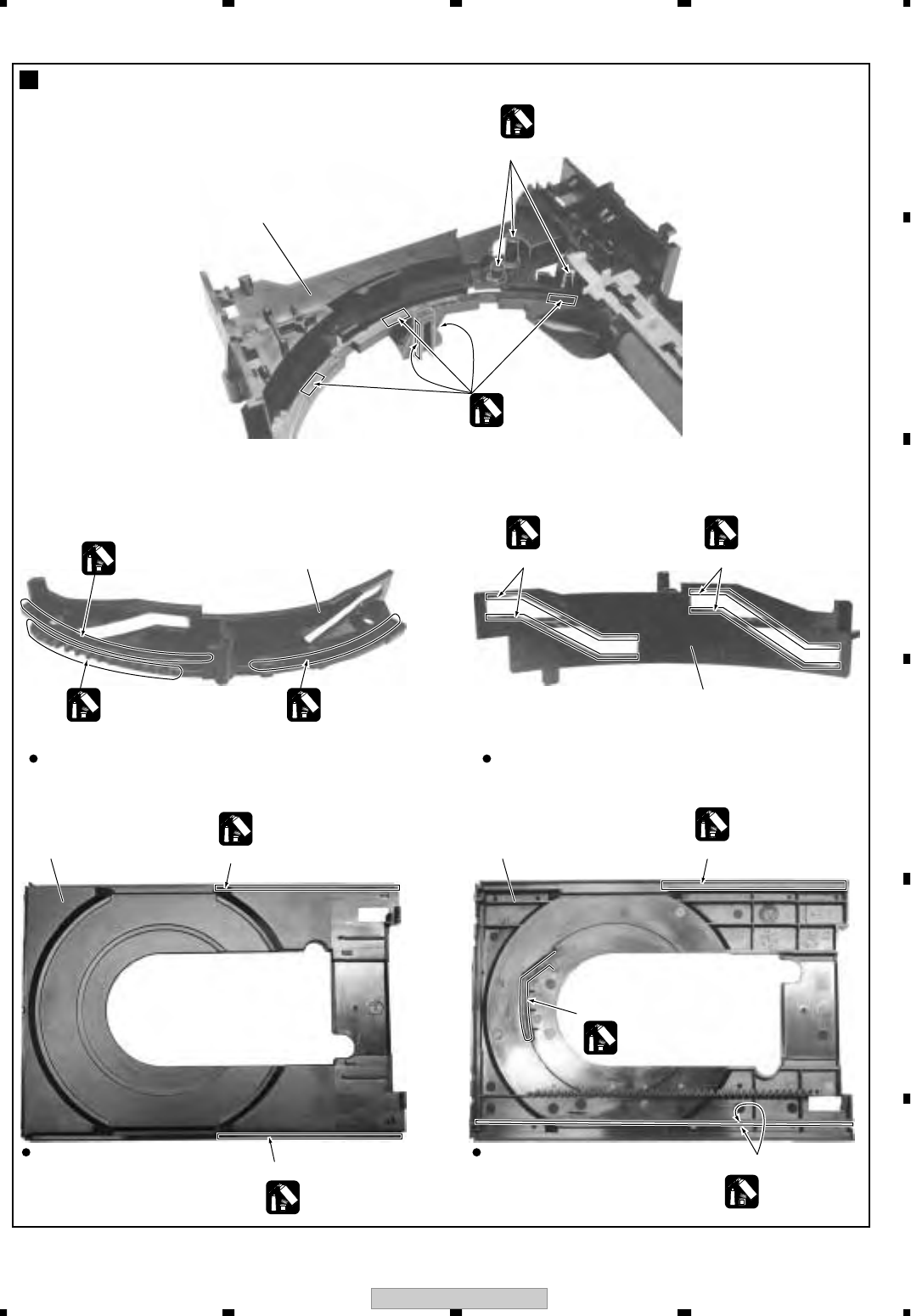

Application of Lubricant
Lubricating Oil
GYA1001
Around the shaft
No. 11
Loading Base
No. 23
Tray
No. 13
Drive Cam
No. 13
Drive Cam
No. 23
Tray
Front View Rear View
Daifree
GEM1036
Inner side of a ditch
Concave of unevenness
Top View Bottom View
Daifree
GEM1036
Daifree
GEM1036
Side of the rib
Lubricating Oil
GYA1001
Concave of unevenness
Daifree
GEM1036 Concave of unevenness
Daifree
GEM1036
Lubricating Oil
GYA1001
Lubricating Oil
GYA1001
Lubricating Oil
GYA1001
Inner side of a ditch
Lubricating Oil
GYA1001
Inner side of a ditch
Lubricating Oil
GYA1001
DV-989AVi-S
14
1234
1234
C
D
F
A
B
E
2.5 TRAVERSE MECHA. ASSY-S
To
DVDM CN104
(Stepping Motor)
To DVDM CN105
(Spindle Motor)
To
DVDM CN101
(Pickup Assy)
CONTACT SIDE
NON-CONTACT
SIDE
3
7
8
1
17
16
17
10
13
17
10
6
11
14
16
2
9
15 (Torque : 0.15 ± 0.01 N•m)
15 (Torque : 0.15 ± 0.01 N•m)
4 (Adjustment screw)
5
(Adjustment
spring)
Screw Tight
GYL1001
Silicone Adhesive
GEM1037
Silicone Adhesive
GEM1037
Cleaning paper
GED-008
Cleaning liquid
GEM1004
DV-989AVi-S 15
5 678
5678
C
D
F
A
B
E
TRAVERSE MECHA. ASSY-S parts List
Mark No. Description Part No.
1 Spindle Motor VXM1099
2 Stepping Motor VXM1101
3 Pickup Assy-S OXX8005
4 Skew Screw VBA1080
5 Skew Spring VBH1335
6 Guide Bar VLL1514
7 Sub Guide Bar VLL1515
8 Leaf Spring VNC1023
9 Joint Spring VNC1019
10 Support Spring VNC1020
NSP 11 Mecha.Chassis VNE2248
12 Damper Sheet VEB1335
13 Spacer VNL1913
14 Joint 03 VNL1949
15 Tapping Screw OBA8021
16 Screw BBZ20P050FZK
17 Screw PMA26P100FMC
DV-989AVi-S
16
1234
1234
C
D
F
A
B
E
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 OVERAL BLOCK DIAGRAM
DVDM BOARD
DVD
DECODER
(CPPM,CPRM)
EBY-CHIP
PE5286B
()
RF IC
LA9704W
5V
SERVO
DSP
LC78652W
5&3.3V
MPEG2 DECODER
MITSUBISHI AV1
(DVD-A,DTS,TPP)
(Progressive Scan)
M65776BFP
3.3V&1.8V
SYSTEM
CONTROL
CPU
FR30
PD6345A
CLK
Generator
SM8707DV
3.3V (NPC)
16M
SDRAM
16M
PGM
FLASH
MEMORY
3.3V
64M
SDRAM
3.3V
LOADING
MOTOR
DV-989AVi Block
Diagram
SPDL
MOTOR
PU
STEPPING
MOTOR
TRAVERSE PICK UP
FTS
DRIVER
M56788AFP
6&12V
SPDL
DRIVER
BA6664FM
6&5V
RF(SACD)
PD5787A
Power Supply
Board
(Murata)
FL
CONTROL
CPU
PE5314C
3.3V Counter
FL Tube
Display
KEY Board
IR(SHARP)
3V,H=12.9mm Board
Audio DSP
XCA56367PV150
3.3V&1.8V
AQE
PD0274A
CPLD IC
LC4032VAA
3.3V (Macnica)
AUDIO
TRANS
(Kitamura)
CD
Direct
SW
LA73054
FLKB
DV-989AVi-S 17
5 678
5678
C
D
F
A
B
E
VJKB BOARD
VIDEO OUTx2
S-VIDEO OUTx2
.
COMPONENT OUT
(Progressive/Interlace)
D1/D2 OUT
SCRB BOARD (WY Only)
SCART IN/OUT*2
FRONT Lchx2
FRONT Rchx2
REAR Lch
REAR Rch
SUBWOOFER
CENTER
OPTICAL OUT
COAXIAL OUT
AJKB BOARD
VIDEO
AMP
DRIVER
6ch OUT
LA73054
V
Y
SC
SY
Cb
Cr
192k,24bit,
2chDAC
PCM1738E
(BB
SL
SW
SR
C
3-5 Change
I/P Processer
&VIDEO
DAC
(PRO-3)
CM0039AF
(PVC)
1.8V&3.3V
192k,24bit,
2chDAC
PCM1738E
(BB
192k,24bit,
2chDAC
PCM1738E
(BB
64M
SDRAM
Cb/B
Cr/R
V
SY
SC
Mercury
TSB43CA-
42GGW
3.3V&1.8V
Host
CPU
PD5787A
PD5787A
4M
Flash ROM
SW/C
SW/C(SACD)
SL/SR
SL/ SR
SACD
FL/FR(SACD)
Y/G
SR IN
SR 0UT
FL/FR(AV1) SW
SW
SACD
Decoder
CXD2753R
3.3V&2.5V
(SONY)
16M
SDRAM
3.3V
SW/C(AV1)
SL/SR(AV1)
RESOLUTIO
N EXPO
lC
(T-REX)
PD0280B
3.3V&2.5V
HDMI TX
SiI9030
HDMI
connector
SW
i-Link
Connector
FL/FR
VIDEO
AMP
DRIVER
6ch OUT
LA73054
LA73054
B
G
R
FL
FR
DV-989AVi-S
18
1234
1234
C
D
F
A
B
E
3.2 LOAB ASSY and OVERALL WIRING DIAGRAM
SCRB ASSY
(VWV1992)
D
PS ASSY
(VWV2153)
I
LOADER ASSY
KEYB ASSY
(VWG2558)
F
MSWB ASSY
(VWG2548)
G
POWER SUPPLY
Unit
(VWR1397)
H
PLED ASSY
(VWG2557)
J
WYXJ, YXJRE Only
DV-989AVi-S 19
5 678
5678
C
D
F
A
B
E
CN602
1
2
CN601
CN602
+M
S101
LOADING
MOTOR ASSY
: VXX2872
VJKB ASSY
(WYXJ, YXJRE : VWV2152)
(HLXJ : VWV2150)
(WPWXJ : VWV2151)
B
DVDM ASSY
(VWS1601)
A
FLKY ASSY
(WYXJ, YXJRE : VWG2552)
(HLXJ, WPWXJ : VWG2554)
E
AJKB ASSY
(WYXJ, YXJRE
: VWV2149)
(HLXJ, WPWXJ
: VWV2148)
C
WYXJ, YXJRE Only
÷When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or
"PCB PARTS LIST".
÷The > mark found on some component parts indicates the importance of the safety factor
of the part. Therefore, when replacing, be sure to use parts of identical designation.
÷: The power supply is shown with the marked box.
LOAB ASSY
(VWG2426)
K
DV-989AVi-S
20
1234
1234
C
D
F
A
B
E
3.3 DVDM ASSY 1/6 [FTS BLOCK]
from / to FR (IC601)
RF_V
RF_A
RF
RF
RF
RF
RF
RF
RF
RF
RF
RF
F
F
T
T
F
F
F
T
T
T
1
2
4
A1/6
DVDM ASSY
(VWS1601)
to PU
CN601
to SPINDLE MOTOR
to
CARRIAGE
MOTOR
A1/6
2/6A
K
DV-989AVi-S 21
5 678
5678
C
D
F
A
B
E
to SACD (IC1110)
to AVI (IC751)
from Clock Block
from EBY (IC701)
: RF SIGNAL ROUTE
: AUDIO DATA SIGNAL ROUTE
: FOCUS SERVO LOOP LINE
: TRACKING SERVO LOOP LINE
: STEPPING SERVO LOOP LINE
F
AD
RF
: RF (VIDEO) SIGNAL ROUTE
RF_V
: RF (AUDIO) SIGNAL ROUTE
RF_A
RF_V
RF_V
RF_A
RF_A
RF_A
T
S
AD AD
F
T
5
6
7
89
1110
A1/6
3/6A
2/6A
3/6
A
3/6
A
3/6A
2/6A
6/6A
2/6A
DV-989AVi-S
22
1234
1234
C
D
F
A
B
E
3.4 DVDM ASSY 2/6 [FR BLOCK]
to Servo Block to RF IC (IC101) to SPDL DRIVER to FTS DRIVER
VYW2363
A2/6
3/6A3/6A3/6A3/6A
4/6A4/6A1/6A
3/6A3/6A
to EBYto AV1
from SERVO DSPto Video Block
to CN901
for FRASH
DV-989AVi-S 23
5 678
5678
C
D
F
A
B
E
A2/6
DVDM ASSY (VWS1601)
A2/6
4/6A5/6A
to FLKB ASSY from syps ASSY
3/6A
to EBY
to IC805
HOSTCON Serial
to FLKB
CN2101
ECN101
H
5/6A
3/6A
6/6A
6/6A
4/6
A
1/6
A3/6
A
6/6
A
3/6A
DV-989AVi-S
24
1234
1234
C
D
F
A
B
E
3.5 DVDM ASSY 3/6 [EBY/AV1 BLOCK]
RF_V
RF_V
AD
AD
DD
VD
AD
VD
AD
A3/6
6/6A2/6A
1/6A4/6A1/6A
2/6A
1/6
A
DV-989AVi-S 25
5 678
5678
C
D
F
A
B
E
AD
VD
: RF (VIDEO) SIGNAL ROUTE
RF_V
: VIDEO DATA SIGNAL ROUTE
: AUDIO DATA SIGNAL ROUTE
D: AUDIO (DIGITAL) SIGNAL ROUTE
D
D D
D
DD
D
D
D
VD
VD
AD
A3/6
DVDM ASSY (VWS1601)
A3/6
2/6A
1/6A
2/6A
6/6A
4/6A
4/6A
4/6A
DV-989AVi-S
26
1234
1234
C
D
F
A
B
E
3.6 DVDM ASSY 4/6 [i.LINK BLOCK]
Cb/B
: Cb/B SIGNAL ROUTE
Y/G
: Y/G SIGNAL ROUTE
Cr/R
: Cr/R SIGNAL ROUTE
S_Y
: S-VIDEO OUT Y SIGNAL ROUTE
S_C
: S-VIDEO OUT C SIGNAL ROUTE
V
Cb/B
Y/G
Cr/R
S_Y
S_C
V
: V SIGNAL ROUTE
VD
VD
VD
VD
: VIDEO DATA SIGNAL ROUTE
D
: AUDIO (DIGITAL) SIGNAL ROUTE
A4/6
DVDM ASSY (VWS1601)
A4/6
2/6A2/6A
2/6A
DV-989AVi-S 27
5 678
5678
C
D
F
A
B
E
Cr/R
Cb/B
Y/G
S_Y
S_C
V
D
D
16 19
15 18
17 20
14
12
13
A4/6
2/6A
CN4101
B
2/6A
HDMI CONNECTOR
DV-989AVi-S
28
1234
1234
C
D
F
A
B
E
3.7 DVDM ASSY 5/6 [VIDEO BLOCK]
D
D
D
D
D
D
D
D
D
A5/6
DVDM ASSY (VWS1601)
A5/6
6/6A2/6A
from AV1
DV-989AVi-S 29
5 678
5678
C
D
F
A
B
E
D: AUDIO (DIGITAL) SIGNAL ROUTE
D
D
D
D
A5/6
2/6A
for FRASH
DV-989AVi-S
30
1234
1234
C
D
F
A
B
E
3.8 DVDM ASSY 6/6 [A-DSP/AQE/SACD BLOCK]
D
D
D
D
D
D
D
D
A6/6
DVDM ASSY (VWS1601)
A6/6
3/6A3/6A2/6A
from FR
DV-989AVi-S 31
5 678
5678
C
D
F
A
B
E
D: AUDIO (DIGITAL) SIGNAL ROUTE
D
D
D
D
: RF (AUDIO) SIGNAL ROUTE
RF_A
RF_A
RF_A
D
D
D
D
D
D
D
D
D
D
D
D
A6/6
1/6A5/6
A
3/6A
CN3101
C
DV-989AVi-S
32
1234
1234
C
D
F
A
B
E
3.9 AJKB ASSY
180
180
D
D
D
D
D
D
D
D
D
D
D
D
D
24 23
21 22
AJKB ASSY(WYXJ,YXJRE :
VWV2149)
(HLXJ,WPWXJ :
VWV2148)
C
C I
CN551
A
from TRANS
PS ASSY (VWV2153)
I
DV-989AVi-S 33
5 678
5678
C
D
F
A
B
E
WY only
: AUDIO (DIGITAL) SIGNAL ROUTE
D
: AUDIO SIGNAL ROUTE
25
C
DV-989AVi-S
34
1234
1234
C
D
F
A
B
E
3.10 VJKB ASSY
C4621
C4624
C4622
C4623
G
Cr/R
Cb/B
Y/G
S_Y
S_C
V
Y/G
Cb/B
Cr/R
V
S_C
S_Y
Y
Cb
Cr
Cb/B : Cb/B SIGNAL ROUTE
Y/G : Y/G SIGNAL ROUTE
Cr/R : Cr/R SIGNAL ROUTE
S_Y : S-VIDEO OUT Y SIGNAL ROUTE
S_C : S-VIDEO OUT C SIGNAL ROUTE
V: V SIGNAL ROUTE
: AUDIO SIGNAL ROUTE
VJKB ASSY
(WYXJ,YXJRE:VWV2152)
(HLXJ : VWV2150)
(WPWXJ: VWV2151)
B
B
CN901
A
DV-989AVi-S 35
5 678
5678
C
D
F
A
B
E
V
S_C
S_Y
S_C
S_C
S_C
VV
V
S_Y
S_Y
S_Y
Y
Cb
Cr
Y
Cb
Cr
Y
Cb
Cr
B
CN901
D
CN3351
C
D-CONNECTOR
(WYXJ,YXJRE : VWV2152 Only)
DV-989AVi-S
36
1234
1234
C
D
F
A
B
E
3.11 FLKY, KEYB and MSWB ASSYS
EU
Regions
Singapore,Malaysia
Australia
Our company's product
Mechanical SW
Tact SW
Fluorescent character display tube
FL Cushion
G
FLKY ASSY (WYXJ,YXJRE : VWG2552)
(HLXJ,WPWXJ : VWG2554)
E
E
DV-989AVi-S 37
5 678
5678
C
D
F
A
B
E
KEYB
ASSY
(VWG2558)
F
F
MSWB
ASSY
(VWG2548)
G
PLED
ASSY
(VWG2557)
J
JGE
CN402
A
DV-989AVi-S
38
1234
1234
C
D
F
A
B
E
3.12 SCRB ASSY (WYXJ5, YXJRE5 Only)
V
V
V
V
SCRB ASSY (VWV1992)
WYXJ, YXJRE Only
D
CN4602
B
D
DV-989AVi-S 39
5 678
5678
C
D
F
A
B
E
Cb/B : Cb/B SIGNAL ROUTE
Y/G : Y/G SIGNAL ROUTE
Cr/R : Cr/R SIGNAL ROUTE
S_Y : S-VIDEO OUT Y SIGNAL ROUTE
S_C : S-VIDEO OUT C SIGNAL ROUTE
V
V
V
V
: V SIGNAL ROUTE
: AUDIO SIGNAL ROUTE
D
DV-989AVi-S
40
1234
1234
C
D
F
A
B
E
3.13 POWER SUPPLY UNIT
H
CN1
CN2
CN3
NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT
• In case of repairing, use the described parts only to prevent an accident.
• Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired.
• Please take care to keep the space, not touching other parts when replacing the parts.
POWER SUPPLY UNIT (VWR1397)
H
AC INLET
ASSY
CN2302
G
CN2304
G
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
CAUTION -
DV-989AVi-S 41
5 678
5678
C
D
F
A
B
E
H
CN101
CN401
A2/6
P301
AEK7063
800mA
P202
AEK7067
2.0A
P101
AEK7067
2.0A
P201
AEK7066
1.6A
CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY
LITTELFUSE INC. FOR P301 (AEK7063).
CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY
LITTELFUSE INC. FOR P201 (AEK7066).
CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY
LITTELFUSE INC. FOR P101 and P202 (AEK7067).
DV-989AVi-S
42
1234
1234
C
D
F
A
B
E
3.14 WAVEFORMS
1IC101-pin 3 (RF)
V: 200mV/div. H: 0.1µsec/div.
2Q106-emitter (RFO)
V: 500mV/div. H: 0.1µsec/div.
3
4IC101-pin 42 (Tracking Error)
(AI-Inner Tracking Off)
V: 500mV/div. H: 2msec/div.
5IC201 - pin 39 (EFM before slice)
V: 0.5V/div. H: 0.2µsec/div.
6IC201 - pin 1 (EFM)
V: 1V/div. H: 0.2µsec/div.
7IC251 - pin 24 (FG)
V: 1V/div. H: 5msec/div.
8Foot of R261 (FPWM)
V: 1V/div. H: 10µsec/div.
9Foot of R262 (VPWM)
V: 1V/div. H: 10µsec/div.
10 Foot of R263 (PPWM)
V: 1V/div. H: 0.2msec/div.
11 Foot of R264 (RPWM)
V: 1V/div. H: 5msec/div.
12 Foot of R968 (V)
V: 0.2V/div. H: 10µsec/div.
13 Foot of R959 (S_C)
V: 0.2V/div. H: 10µsec/div.
14 Foot of R963 (S_Y)
V: 0.2V/div. H: 10µsec/div.
19 Foot of R958 (Cb/B) [progressive]
V: 0.2V/div. H: 10µsec/div.
20 Foot of R957 (Cr/R) [progressive]
V: 0.2V/div. H: 10µsec/div.
15 Foot of R960 (Y/G) [interlace]
V: 0.2V/div. H: 10µsec/div.
16 Foot of R958 (Cb/B) [interlace]
V: 0.2V/div. H: 10µsec/div.
17 Foot of R957 (Cr/R) [interlace]
V: 0.2V/div. H: 10µsec/div.
18 Foot of R960 (Y/G) [progressive]
V: 0.2V/div. H: 10µsec/div.
GND
AC mode
GND
AC mode
GND
AC mode
GND
GND
GND
GND
GND
GND
GND
DVDM ASSY
A
Note : The encircled numbers denote measuring point in the schematic diagram.
Measurement condition
: No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 12 to 14 : DVD-REF-A1, T2-Chap.1
No. 5 : CD, ABEX-784 Track 1 No. 15 to 20 : DVD-REF-A1, T2-Chap.19
DV-989AVi-S 43
5 678
5678
C
D
F
A
B
E
21 IC301-pin 4 (LRCK)
V: 1V/div. H: 5µsec/div.
22 IC301-pin 5 (DATA0)
V: 1V/div. H: 500nsec/div.
IC301-pin 6 (BCK)
V: 1V/div. H: 100nsec/div.
23
24 IC301-pin 7 (PMCK)
V: 1V/div. H: 20nsec/div.
25 IC302 - pin 1 (Analog OUT)
V: 1V/div. H: 500µsec/div.
AJKB ASSY
C
Measurement condition
: No. 21 to 25 : DVD-REF-A1, T2-Chap.1
Note : The encircled numbers denote measuring point in the schematic diagram.
DV-989AVi-S
44
1234
1234
C
D
F
A
B
E
DV-989AVi-S 45
5 678
5678
C
D
F
A
B
E
4. PCB CONNECTION DIAGRAM
4.1 LOAB ASSY
SIDE A SIDE B
K K
C101
C102
V+3D
SW2
(V+5D)
LOAD-
LOAD+
PYKC F6
GND
51
51
CN601
CN602
12
CN601
CN602
S101
VNP1912-
VWG
LOAB
VWG2426-
5
1
12
15
(VNP1912-A)
LOAB ASSY
K
LOADING
MOTOR
ASSY
MCN103
A
CN601CN602 CN602CN601
NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams
Symbol In Schematic
Diagrams Part Name
BCE
D
D
G
G
S
S
BCE
BCE
DGS
BCEBCE
BCE
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board Chip Part
SIDE A
SIDE B
DV-989AVi-S
46
1234
1234
C
D
F
A
B
E

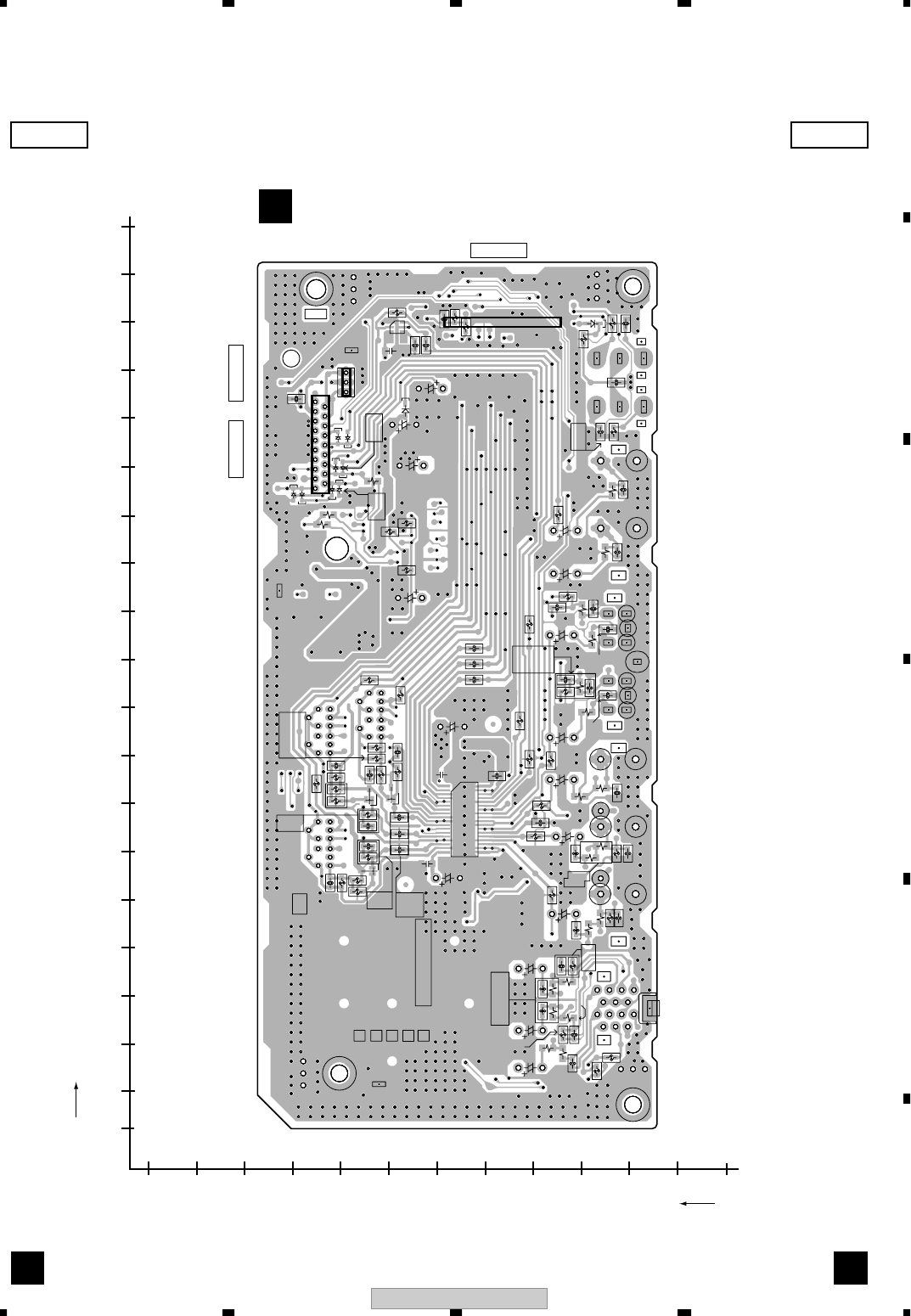

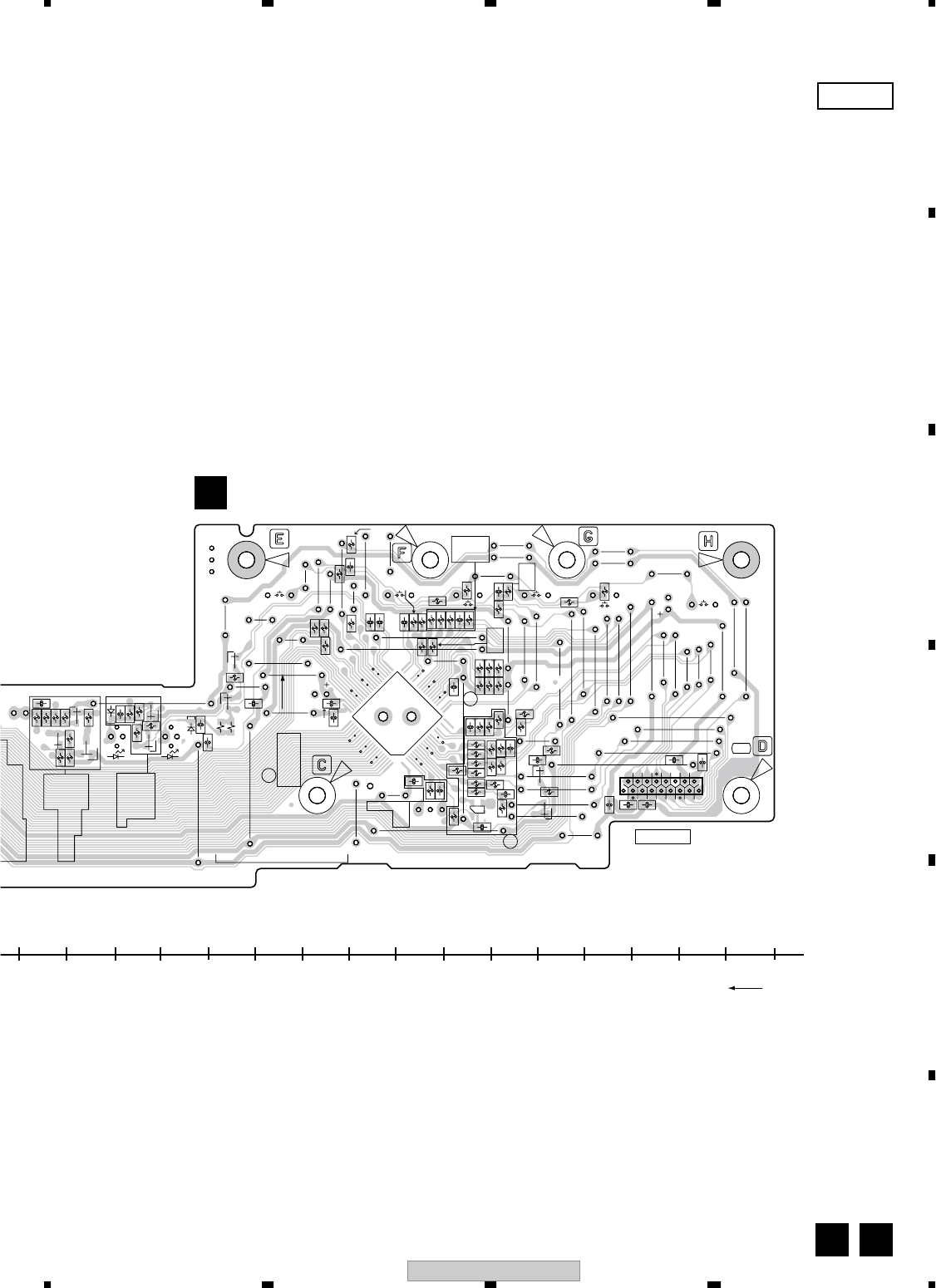

4.2 DVDM ASSY
R134
C108
C254
R252
C252
C255
C122
C120
R135
121
C114
R120
R121
C106
R119
R118
C107
C110
C109
R126
R129
R128
C103
R117
R342
R345
C330
C333
C335
R340
R333
C105
R131
R130
R343
L330
C256
R257
IC101
C358
R258
R259
R124
R125
TP1
TP2
C101
C241
R241
IC202
C250
C249
C248
R256
C247
C246
R255
C245
R254
C251
C253
C258
R251
R391
C391
IC211
R225
R218
R226
C233
C232
R227
C234
R228
C112
C390
R234
C113
R132
R133
C115
C116
R136
R127
C111
C118
C119
R123
R116
R115
R151
R154
R153
R152
Q103
Q106
Q104
CN115
CN114
R150
C117
R1162
R159
C124
R165
R166
R164
R163
R162
R161
C100
C127
R
167
R1136
R1157
R171 R172
KN1
KN2
C235
R253
C442
R206
C441
C440
D401
CN402
L1102
R205
R547
R546
R545
R543
R542
R539
R541
C528
C559
C557
C558
C750
D407
D408
L401
R734
R557
C708
C701
R710
R706
R701
C714
C710
R709
C439
C749
IC411
R703
R711
C711
C709
C707
C706
C704
C735
C713C712C715C718C720 C722
C727
C725
7
24
7
23
C721
C719 C716
R702
IC410
R712
R713
7
18
C702
R720
R721
R722
R725
R727
R726
C703
IC552
C554
C552
C553
R551
R552
R553
C555
R554
R577
C740
R736
C536
C527
IC505
CN551
C556
IC553
C1144
R565
R705
IC504
C737
C1174
C444
C443
R1172
R1163
R1174
R1175
R1111
R1171
R1170
R1169
R1176
C1152
C1153
C1154
C1155 C1157
R1168
R1167
C1156
C1158
R1164
R1166
R1165
C1140 C1143
C1159
R1140
R1142
IC1106
IC1107
R1145
C1151
C1150
R1139
R1151
R1156
C1149
C1160
C1147 C1148
C1161
C1162
C1163
R1159
C1164
IC1110
C1165
R1160
C1146
C1176
R1149
C1175
C1173
C1172
C1171
C1170 C1169
C1167
C1168
C1166
C445
R1161
C446
C1178
R1137
R544
R540
C537
R177
2
9
R715
IC503
R1173
C535
R723
R735
R558
C956
C526
C561
C533
C534
R731
C560
VNP2023-ADVDMSIDE A(2nd)
H
eat Resistance Pre-Flux
4
6
3
1
VWS1601
VWS1600
4
31
5
5
1
8
4
5
1
8
1
4
PC
A
VWS
29
14
15 28
30
contact
Side
Side
contact
Side
Side
contact
contact
33
32
17
16
1
64
49
48
12 1
14
117
104 157
1
208
52
53
1
4
5
7
1
1324
1
16 9
8
2
131
30
1
0123456789
0123
0
01
C
B
A
8
1
16 9
132
133
1
176
44
45
88
89
LF
18
9
16
R
FCICT
10
0
140
150
160
170
180
190
200
210
220
20 30 40 50 60 70 80 90 100 110 120 130
230
240
250
260
270
280
X
A
DVDM ASSY
A
SIDE A
CN3101
C
CN551
CN2101
E
CN402
CN115
SPIMDLE
MOTOR
M
DV-989AVi-S 47
5 678
5678
C
D
F
A
B
E
R134
C123
C328
C321
C125
R331
C128
C122
C120
R135
C121
R129
R128
C103
R106
R105
R342
R345
C330
C333
C335
R340
R333
C1
0
R138
R131
R130
R343
L330
IC304 R137
C101
R872
C241
R241
R228
C112
CN103
C126
C393
R234
R101
R102
R103
R104
R108
R107
R110
R109
C115
C116
R136
C119
R151
R154
R153
R152
R155
R156
R157
R158
C133
C134
Q106
Q104
CN111
C483
D901
C934
C461
C1066
C117
R165
R166
R164
R163
R162
R161
C100
C127
R167
R171 R172
C857
C662
R609
R642
C658
C657 C614
C616
C604 C603
R676
C615
R602
IC601
C602
C601
R626
C605
C607
C613
X601
R645
R617
C610
R298
C297
C650
R681
R650
C629
C666
R612
R605
R606 R607
R630
R620
R619
R623
R641
R614
R615
R637
R625
C623
C608
C618
R647
IC481
C481
X481
R485
L481
R481
R627
R403
R1012
C423 C421
C410
C403
R639
R616
R640
C484
R635
R460
R667
R665
R666
R662
R689
R659
R693
R694
R696
C693
C695
C405
R683
R655
R600
R601
R492
CN401
C422
IC403
C418
C414
C417
R1049
R1050
IC402
C415
C416
C413
IC491
C494
R628
R457
R420
R610
R611
R621
R624
R633
R632
R664
R663
R661
C1016
C1015
C1012
C1013
C1011
C1009
C1008
C1005
C1007
C1004
C1017
Q404
C1019
C1020
R456
C438
R634
D402
C493
R652
C487
C486
C485
C488
C491
R631
R651
R613
R618
C1052
C667
C427
C617
C606
R453
R454
R425
R452
R427
R429
R1073
L1051
L1053
L1052
D403
D405
D406
R1079
R1081
R1015
IC701
R710
R461
R709
R160
IC401
C71
8
C720 C722
C726
C727
C730 C731
C732
C733
C729
C728
C725
C724
C723
C721
C719
R716
R717
R718
C702
C435
C434
R
7
R955
R949
R946
R954
C1058
R952
C1021
R636
C1057
C626
C620
C612
R957
R959
R643
R646
R958
R963
R964
R965
R960
C942
C492
C941
C936
C495
C938
R969
R968
CN901
R644
C456
R982
C453
Q105
C437
C436
R176
Q941
R998
C452
R175
C945
C947
C948
C970 C969
C402
C1073
C1074
C1075 C1076
C1077
C1078
C471
C472
C473
C474
C1003
C1001
C475
C630
C631
R1016
R1017R1018 R1013R1014
R903
R902
R1006
R1005
IC1001
IC451
IC455
Q1052
R1009
Q901
R1001
R1002
L1054
R1010
R1057
R1053
R1055
R1051
R1052
R863
X801
C844
R861
R862
C841
R864
C843
R860
R865
CN801
C840
R867
R866
R869
R868
R871
R870
R873
R875
R464
R1816
R877
C856
C1061
C839
IC805
R1815
R888
C842
R880
R879
C854 C855
R832R833
R1813
R1814
R1818
R859
R858
C835
IC804
C834
C836
C837
C838 R1801
R857
R854
CN403
C737
C738
C833
C627
D801
R850
R848
C809
R837
R836
C852
C853
R604
C1060
C807
R825
C808
R834
C810
R835
C812
R840
R839
R838
R841
C851
C806
C813
R843
C845
C846
C847
C848
R844
R889
R890
R891
R892
R893
R894
R895
R1820
R897
R896
C804
L807L808
JA1
L806
R820
L805
JA2
R802
IC801
C814
C1022
C803
C802
R803
R805
C824
C825
R808
C823
R842
C815
R846
R801
C821
C822
X802
C816
D471
C1055
R174
R169
R170
R468
R466
R483
R482
R941
R491
R942
R945
C1069
C465 C463
C482
R459
C464
C451
Q802
R463
C1014
C1010
C1006
C1018
R455
R1078
R1074
C257
C462
C1051
C1056
C624
IC471
C1054
C496
C458
C454 R465
R177
C129
KN1051
C1002
R715
C1053
R1007
IC1051
IC454
R1004
R1003
R1066
R1011
R1058
R1054
R1067
R1068
C811
C1059
JA1001
R173
R467
R484
R943
R1069
R1070
R1082
R1086
R1087
R669
R670
R671
R672R673
R827
R828
C1067
C1068
KN3
KN4
R648
R1064
R826
R638
R622
R731
R733
R732
R657
R654
R658
C984
C985
R1077
R1065
3
Heat Resistanc
e
5
4
31
5
4
1
B
5
1
7
4
C
NP
Side
contact
contact
Side
80 61
60
41
40
21
20
1
32
17
16
1
64
49
15
2
123
24
88
89
45
44
176
1
133
132
9
8
1
16
113
7
5
4
1
13
12
1
48
37
36
25
24
104
105 156
157
23 1
1
120
91
90
61
60
31
30
4
3
1
5
17
75
51
50
26
25
1
100
76
54
31
17
4
31
5
119
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
Y
A
(VNP2023-A)
SIDE A
LOADING
MOTOR
M
PICKUP
ASSY-S
CN111 CN103 CN401
CN101
H
CN901
CN4101
B
DV-989AVi-S
48
1234
1234
C
D
F
A
B
E
C320
C322
L304
R1
3
R332
R330
R389
R390
R328
C315
R313
C
C329
R334 C33
6
D302
C392
C
IC303
R336
R1
4
IC306
C310
R315
R140
C130
C622
IC603
D601
R682
C609
C619
R728
R603
Q601
R684 R685
C799
C621
Q1054
Q1059
R1090
C411
C1071
C408
C412
C419
C428
D409
R1080
Q107
IC405
IC781
C782
C781
R704
R781
C791
IC751
C759
C760
C763
C764C769
C770
C773 C774
C775 C776 C777 C778 C779 C780
C772
C771
C765
C762
C761 C757C758
C755 C756
C753
C754
R760
R759
R757
R756
R758
C766
C752
C751
R761
C785
C786
C787
C788
C789
C783 C784
R762
C
C798
R763
C625
R934
R935
R932 R931
C946
Q108
Q909
R966
C971
R961
R937
R940 R936 R933
R944
C979
R950
R953
C980
R951
Q908
C976
C977
C978
Q910 Q911
C968
C975
C974
Q912
C967
C973
C972
Q907
Q913
C964 C966
R947
R948
Q914 Q915
R1201
R921
C959
C961C960
R923
R924
C962
C963
R929
R930
R922
R927
C965
C983
R925
R1202
C919
R914
R915
R928
R1203
R1204
R1205
R1206
C918
C930
C920C921C922C923
C929
R1207
Q905
R1208
C917
C937
R1209
R1210
C916
C928
Q904
C927
R1211
C981
R1212
R1213
R912
R910
R913
R911
C926
C935
C958
R920
R1214
C982
C933
C949
C925
IC902
C915
C924
C914
IC901
R919
C932
C931
R907
C904
C913
C903
C902
C905
C906
C907
C908
C909
C910
C911
R916
C912
R904
R1096
C901
Q1055
C957
C986
C987
C996
C988
C989
C990
C991
R1056
R886
R887
R882
R1817
R884
R885
R881
R883
R874
R876
R878
C995
C992
C832
R856
R852
C830
R851
C831
R853
R855
C739
IC802
C829
C827
C828
R849
IC803
C826
R729 R730
R847
R899
R829
R830
R831
R898
C805
C850
C849
R824
R823
R1819
D803
D805
D807
D809
D811
D813
D815
D817
R822
R821
R819
D802
D804 D806
D808
D816
D814
D812
D810
R765
IC806
C801
R804
R806
R809
C993
C820
R817
R818
R816
R807
R811
R810
R814 R813
R812
R815
C994
R845
C817
Q801
R78
7
R1097
R766
R1091
R1092
IC752
R1095
IC753
R1215
Q1057
R1216
Q1058
R1217
R1218
R1093
R1094
R1219
R1220
R1221
R1222
R1223
C734
R764
R1224
R1225
R1226
R1227
R1228
R1229
R1230
R1231
R1232
R1233
R1234
R1235
R1236
R1237
R1238
R1239
R1240
R1241
R1242
R1083
R901
R905
R906 R909
R994
C1070
R653
R1088 R1089
R917
R918
R926
R908
R979
C447
R668
R629
C448
R649
R993
R1098
R751
R752
R656
R660
C1072
C939
C951
R1075
IC1052
4
3
1
5
6
31
4
3
4
5
1
3
45
1
48
124
25
1
23
45
28 54
1
27
208
1
52
53
104
105
157
156
110
44
86
1
43
1
176
44
45
88
89 132
133
48
1
24
25
7
8
14
1
45
1
3
NP
45
31
10
0
10
0
20
30
40
50
60
70
80
90
100
110
120
130
20 30 40 50 60 70 80 90 100 110 120 130
X
Y
A
DVDM ASSY
A
SIDE B
DV-989AVi-S 49
5 678
5678
C
D
F
A
B
E
C320
C322
L304
R139
R329
R332
R330
IC302
C319
R318
R317
R316
C313
C317
R328
R322
C315
R313
R312
C314
R311 R310
R314
R221
C221
C222
C230
C215
R222 R223
C225
R224
C227
R229
R231
R232
C231
C217
C201
R268
R261
R262
R263 R264
C261
C216
R208
C212
C213
R210
R209
R201
R207
C204
C220
R219
C226
IC261
R266
R270
R271
C263
C265
R269
C207
C205
R204
C208
R202
R272
C266
C326
R211
C206 R203
R114
IC201
C299
R246
C332
R344
R214
R213
R212
C214
C329
R334 C336
R4
R2 R1
D302
C236
C237
R3
C324
IC303
D303
R335
R336
R353
C359
R358
R359
C360
R351
C357
R357
R360
C351
C353
IC351
C365
R372
R363
R373
R368
C361
R364
R361
R362
R354
C354
R355
C355
R356
C356
R371
C371
R370
C370
C366
C369
C368
R112
R374
R375
R369
R242
C242
R341
R141
R142
C429
IC306
C310
R315
R140
C200
C202
C130
R301
R236
R280
R220
R240
R260
C102 C104
R350
C312
C223
C224
C264
Q241
C431
R122
Q101
Q102
C459
C455
R215
R111
R113
C622
IC603
R414
R408
R603
R462
C426
R413
R412
R411
R410
R409
R401
C409
C407
C401
C406
R450
R448
Q402
R417
R418
IC404
C404
C799
C621
R451
D404
Q107
C432
R415
R1133
R707
C791
IC741
R741
C745
C743C742
C741
C746
C747
C744
C757
5
8
C755 C756
C753
C754
R759
R757
R756
R758
C752
C751
R762
C797
IC786
C798
C748
Q401
C625
R579
R563
R556
R570
R571
R572
R576
R574
C457
R583
Q108
C131
C944
C943
C950
C952
C953
C954
C955
R12
0
4R1211
C767
C570
IC452
IC453
IC102
R729
C1177
R730 R765
R786
C940
R1125
C1127
IC1102
C1136
R1124 R1150
R1109
R1112
R1110
C1108
C1109 C1110
R1118
C1135
C1137
R1113
C1107
C1134
C1138
R1108
IC1105
R1128
R1127
C1111
C1117
C1132
C1133
C1113
C1114
C1112
C1115
C1116
R1126
C1131
C1106
L1101
C1105
C1118
R1119
C1104
C1119
R1123
C1129
C1130
C1120
C1103
IC1101
C1125
C1124
C1123 C1122
C1121
R1101
C1101
C1102
C1126
C1139
R787
C430
R458
R449
R766
Q403
IC752
C460
IC753
R1223
R764
R1224
R1225
R1226
R1230
R1231
R1232
R1233
R1237
R1238
R1239
R1240
R753
R754
C362
C538
R564
R1104
R1102
C1128
C450
R1105
C466
R1103
C467
C449
IC1103
R1115
R649
C363
IC506
R1114
6
SIDE B(1st)
4
3
1
5
6
31
4
5
1
8
4
5
1
8
4
5
1
8
4
4
3
1
5
8
5
41
1
4
5
8
1
100
26
25
76
75
50
51
3
4
5
1
42 22
21
1
3
45
1
48 25
13
45
25
26 50
1
208
1
157
156
110
1120
4
31
5
13
4
5
50
1
25
26
108
109
1
144
36
37
72
73
3
1
54
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
A
(VNP2023-A)
SIDE B
DV-989AVi-S
50
1234
1234
C
D
F
A
B
E
4.3 AJKB ASSY
14
58
14
58 14
58
114
1528
NP NP
114
1528
NP NP
114
1528
1
3
13
54
1
2
31
30
16
71
14
8
NP NP
R
C3344
IC3321
Q3352
IC3331
C3343
C3324
C3345
C3321
C3323
C3305
C3306
C3105
C3335
IC3311
C3314
C3334
C3333
C3303
IC3301
C3301
C3331
C3313
R3603
R3602
C3609
C3610
R3601
C3601
R3606
C3602
C3311
C3101
C3447
C3421
C3437
C3406 C3405
C3403
IC3401
C3401
C3431
C3411
C3547
C3521
C3537
C3506 C3505
C3503
IC3501
C3501
C3531
C3511
C3109
R3112
R3111
R3115
R3116
R3117
R3118
R3123
R3124
R3125
R3126
R3127
R3130
R3131
R3128
C3302
C3502
C3402
C3404
C3504
C3304
C3307
C3407
R3304
R3474
R3374
R3313
R3314
R3323
R3324
R3341
R3344
R3345
R3342
R3332
R3335
R3334
R3331
R3333
R3336
R3346
R3343
R3347
R3337
R3453
R3463
R3563
R3553
R3368
R3358
R3366
R3356 R3367
R3357
R3352
R3362
R3351
R3354 R3364
R3361
R3114
R3122
R3121
R3129
CN3351
C3201
R3201
Q3472
Q3372
IC3201
C3510
C3410
C3310
R3110
R3371
R3372
R3373
R3471 R3472
R3473
R3202
R3113
KN3101
KN3102
R3302
R3303
R3402
R3403
R3502
R3503
R3173
R3174
C3607
C3608
C3603
C3606
Q3371
Q3471
C3351
C3451
C3551
CN3101
C3415
C3425
C3515C3525
C3338
C3438
C3538
CN3102
R3604
IC3601
JA3602
R3102
R3103
C3315
C3325
C3337
C3347
L3601
L3602
JA3601
JA3301
R3203
C3564
C3565
C3356
C3357
C3118
C3119
B1
JA3401
F3402
F3401
V+12A
1.DOUT
GND
XMMUTE
XCSDF1
XCSDF2
VWV
I-V
AJKB Ass'y
PARTS CONTAIN CHEMICALS WHICH ARETHIS PRODUCT CONTAINS LEAD IN
CAUSE CANCER, BIRTH DEFECTS OR OTHER
SECTION 25249.6 - PROPOSITION 65
SOLDER AND CERTAIN ELECTRICAL
WARNING
FRONT Lch
V+5A
V-12A
GNDA
GNDA
GNDA
REPRODUCTIVE HARM. HEALTH & SAFETY CODE
KNOWN TO THE STATE OF CALIFORNIA TO
XDACRST
XDFSI
XDFSCK
XCSDF0
LRCK1/GND
V+3D
PBCK1/GND
V+3D
DATA1/DSD_C
GND
GND/DSD_LFE
GND
DATA2/DSD_LS
GND
GND/DSD_RS
GND
LRCK0/GND
GND
PBCK0/GND
GND
PMCK/DBCK
GND
DATA0/DSD_L
GND
GND/DSD_R
XAMUTE
FR4 P
FRONT Rch
I-V
FILTER
SCART_R
SCART_L
GNDA
LF
VWV2148- /J
VWV2149- /J
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
90 100 110 120 130 140 150 160 170 180 190 200
230
X
Y
SIDE ASIDE A
J3801
I
CN3102
CN551
A
CN3101
AJKB ASSY
C
C C
(VNP2024-B)
DV-989AVi-S 51
5 678
5678
C
D
F
A
B
E
14
58 14
58
14
58
14
58
14
58 14
58
14
58
14
58 14
58
NP
13
45
13
45
1
6
NP
R
Q3362
C3322
D3101
Q3351
Q3361
Q3353
R3301
C3332
Q3363
C3613
C3611
C3312
Q3461
C3104
IC3421
Q3451
IC3431
C3422
IC3411
C3432
C3412
Q3561
IC3521
Q3551
IC3531
C3522
IC3511
C3532
C3512
C3112
C3113
R3101
C3507
R3401
R3501
R3381
R3382
R3574
R3384
R3383
R3531 R3534
R3532
R3535
R3542
R3545
R3541 R3544
R3431 R3434
R3432
R3435
R3442
R3445
R3441
R3444
R3433
R3443
R3436 R3446
R3533
R3536 R3546
R3543
R3547
R3537
R3437 R3447
R3451
R3452
R3462
R3461
R3552
R3562
R3551
R3561
R3355
R3365
R3353
R3363
C3110
C3308C3309
C3508
C3509
C3408 C3409
R3524
R3523
R3514
R3513
R3424
R3423
R3414
R3413
C3524
C3523
C3514
C3513
C3424
C3423
C3414
C3413
C3543
C3533
C3443
C3433
C3544
C3534
C3444
C3434
C3545
C3535
C3435
C3445
C3114
C3115
C3116
Q3572
Q3382
R3572
R3571
R3573
C3117
R3369
R3359
R3305
R3171
R3172
C3618
C3619
C3500
C3604
C3605
Q3571
C3400
IC3402
IC3502
C3111
C3416
C3426
C3516
C3526
C3339
C3439
C3539
R3306
C3612
R3605
C3614
C3615
C3616
R3505
R3506
C3316
C3326
Q3381
C3352
F3601
F3602
C3617
C3622
C3454
C3455
C3353
C3354
C3355
C3452
C3453
C3556
C3557
C3456
C3558
C3552 C3553
C3559
C3560
C3561
C3562
C3457
C3563
C3621
F3301
F3302
F3501
F3502
C3620
11
1
1
1
1
VWV
VWV2149- /J
VWV2148- /J
AJKB Ass'y
GND
PBCK0/GND
GND
PMCK/DBCK
GND
DATA0/DSD_L
GND
GND/DSD_R
XAMUTE
V+3D
DATA1/DSD_C
GND
GND/DSD_LFE
GND
DATA2/DSD_LS
GND
GND/DSD_RS
GND
LRCK0/GND
XMMUTE
XCSDF1
XCSDF2
XDACRST
XDFSI
XDFSCK
XCSDF0
LRCK1/GND
V+3D
PBCK1/GND
GND
1.DOUT
FR4 P
1.V+5A
V+12A
GNDA
6.V-12A
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
90100110120130140150160170180190200
210
230
X
Y
SIDE BSIDE B
CN3102
CN3101
AJKB ASSY
C
C C
(VNP2024-B)
DV-989AVi-S
52
1234
1234
C
D
F
A
B
E
4.4 VJKB ASSY
118
19
36
7
1
5
4
3
1
123
C4621
CN4501
C4504 C4503 C4501
C4417
C4414
JA4403
C4413
C4408
D4412
D4409
D4410
D4411
D4407 D4408
C4314
CN4402
C4405
C4310
C4403
D4406
D4405
D4404
D4403
D4401 D4402
C4304
C4401
C4615
C4614
Q4602
C4612
R4605
C4607
R4106
C4604
C4606
CN4602
IC4601
C4602
IC4101
C4107
C4109
JA4202 JA4201
CN4601
KN4101
KN4102
KN4103
KN4104
R4312 R4311
C4102
C4101
C4105
C4104
D4609
R4607
D4301
R4301
R4314 R4315
R4313
C4302
C4316
C4301
C4616
R4606
Q4301 Q4302
Q4303
Q4601
C4103
F4303
F4301
F4302
JA4401
CN4101
R4101
C4108
C4110
C4605
C4609
C4610
C4608
R4601
R4302
C4324
D4610
C4111
C4330
R4105
C4114
R4608
C4323
R4614
C4113
R4104
R4651
C4325
C4326
C4327
C4328
C4329
C4622
C4623
C4611
C4613C4624
FC
GNDA
V+6E
ICT
MC
PS
CONTACT
SIDE
White
19
B1
A
FR4 P
PC
C
D
VJKB Ass'y
B
SIDE
CONTACT
V+5V
VWV
VWV21**- /J
B2
V+5V
V+12
V+5V
VWV2151- /J
VWV2150- /J
VWV2152- /J
V+12
SCART_L
GNDA
SCART_R
GND
V+6E
V+6E
VSEL2
Cr/R
CGND
V
GND
V+5V
GND
SQUEEZE
B
R
VSEL2
G
VSEL1
Y
GND
1
P/XI
GND
Y/G
GND
S_Y
GND
V+12
V+12
GND
LETTER
SQUEEZE
1
IR
SEL_IR
GND
V
V_OFF
S_C
VSEL1
23
Cb/B
CAUTION
REPLACE WITH SAME TYPE
NO.491001 MFD. BY LITTEL FUSE
INC FOR IC3801,IC3802
ATTENTION
EN CAS DE REMPLACEMENT
DES FUSIBLES
N'UTILISER QUE LA
REFERENCE 491001 DE
CHEZ LITTEL FUSE INC.
10
0
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
20 30 40 50 60 70 80 90 100
X
Y
SIDE A
CN901
D
CN4602
CN3351
C
CN4601
VJKB ASSY
B
(VNP2024-B)
BB
SIDE A
CN901
A
CN4101
DV-989AVi-S 53
5 678
5678
C
D
F
A
B
E
36
19
18 1
119
1
2
3
1
2
3
1
6
3
4
LF
C4506
C4505
C4502
L4501
R4413
C4418
L4402
C4416 C4415
L4401
C4412
R4408
C4411
C4409
R4310
C4315
C4407
C4410
R4405
C4406
R4309
R4308
C4311
R4307
R4306
C4404
R4305
C4306 C4305
C4402
IC4302
C4603
D4603
D4602 D4601
D4606
D4605 D4604
IC4603
C4618
D4607
D4608
R4609
R4335
R4334
C4322
R4333
R4336
C4321 R4332
R4324
R4319
R4323
C4318
R4320
C4317
R4318
R4329
R4330
R4328
C4320
R4326
C4319
R4325
Q4304
Q4305
Q4306
D4201
R4201
R4204
R4207
C4201
C4202
C4206
C4619
C4617
C4303
C4307
C4308
C4309
C4312
C4313
R4401
R4411
R4402
R4403 R4404
R4406
R4407
R4409
R4410
R4412
R4501
R4502 R4503
C4620
D4101
R4416
R4612
R4415
R4508
R4613
R4102
C4112
R4103
R4650
R4414
R4507
R4505
R4504
R4506
L4502
R4510
R4509
R4602
R4603
R4604
R4610
V+5V
VJKB Ass'y
VWV2150- /J
VWV2151- /J
VWV21**- /J
GNDA
VWV2152- /J
VWV
10 0
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
2030405060708090100
110120
X
Y
SIDE B
CN4602 CN4601
VJKB ASSY
B
(VNP2024-B)
BB
SIDE B
CN4101
DV-989AVi-S
54
1234
1234
C
D
F
A
B
E
4.5 FLKY and KEYB ASSYS
117
1/2
VWG2549
VWG2551
VWG2555VWG2554
VWG2552
VWG
FLKY ASSY
R
VWG2550
PLAY PAUSE STOP
FWD REV
OPEN/
CLOSE
HDMI
I_link
1.1394RST
2.V+12
3.S(FtoM)
4.E+3V
5.S(MtoF)
6.GND
7.SCK
8.XREADY
9.IR
10.PW_ON
11.FLDC+
12.XRESET
13.FLDC-
14.LT1
15.-28V
16.SEL IR
17.GND
GND
GND
GND GND
GND
GND
GND
FLDC-
FLDC-
SCK
SCK
S(MtoF)
S(MtoF)
S(FtoM)
S(FtoM)
V+12
V+12
V+12
V+12
E+3V
E+3V
E+3V
E+3V
E+3V
E+3V
IR
FLDC+
FLDC+ FLDC+
FLDC+
FLDC+
1394RST
1394RST 1394RST
1394RST
-28V
-28V -28V
-28V
E+3V
XREADY
PW_ON
XRESET
LT1
SEL IR
KEY1
KEY0
KEY0
KEY1
KEY1
KEY1
E+3V
PW_ON
PW_ON
PW_ON
PW_ON
LED7
LED6
KEY0
STBY
PWSW
PC
CMK-P3X
W2146
W2136
W2122
W2126
W2123
W2130
W2150
W2117
W2141
W2115
W2109
W2145
W2108
W2120
W2116
S2103
S2105 S2106
S2102
W2133
W2134
X2101
C2112
W2151
S2104
W2138
W2152
W2149
S2101
D2103
CN2101
W2112
W2114
D2104
C2120 W2118
W2142
W2121
W2124
W2125
W2158
W2147
W2113
W2135
W2127
W2143
W2101
W2128
W2129
W2156
W2154
W2159
W2157
W2153
W2104
W2148
W2105
W2144 W2160
W2132
W2139
J2101
W2119
KN2101
W2110
W2140
W2137
W2111
W2102
W2106
W2161
W2131
W2103
W2155
W2107
10
0
10
0
20
30
40
50
60
70
80
90
20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
X
Y
60
70
80
90
100
Y
Y
E F
FLKY ASSY
E
SIDE A
CN402
A
CN2101
DV-989AVi-S 55
5 678
5678
C
D
F
A
B
E
1/2
91
19
4
1
5
1
Pure_AUDIO
PROGR VWG2558
R
VWG
VWG2553
KEYB ASSY
R
Pure_AUDIO PROGR SACD
M
I
STANDBY
2.V+12
3.LED7
4.LED6
5.KEY0
6.P_ON
7.STBY
8.PWSW
9.V+3E
1.P_LED
2.GND
3.KEY0
4.KEY0A
2.V+12
3.LED7
4.LED6
5.KEY0
6.P_LED
7.STBY
8.PWSW
9.V+3E
4.V+12
3.P_LED
2.V+3E
1.PWSW
GND
GND
GND
FLDC-
E+3V
IR
STBY
PWSW
STBY
LED7
LED6
KEY0
KEY0
V+3E
STBY
PWSW
P_LED
V+12
5.GND
1.GND
1.GND
X
CMK-P3X
V2101
L2101
W2166
W2165
W2168
W2167
W2208
C2104
W2207
D2103
S2201
S2202
IC2103
D2204 D2203
CN2102
CN2201
J2201
D2201
J2203
W2204
W2203
W2206
W2169
S2204
W2209
J2202
W2202
W2201
KN2201
W2205
W2163
W2162
W2164
W2210
4
0 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310
60
70
80
90
100
X
120 130 140 150 160 170 180 190 200
Y
E F
(VNP2022-B)
(VNP2022-B)
KEYB ASSY
F
SIDE A
CN2102
CN2101
CN2301
G
J2203
DV-989AVi-S
56
1234
1234
C
D
F
A
B
E
19
19
14
51
R
LF
LF R
VWG2549
VWG2558
A
VWG2550
VWG2551
VWG2552
VWG2554
VWG2555
VWG
VWG2553
VWG
GND
GND
GND
PWSW
STBY
FLDC-
E+3V
IR
STBY
KEY0
KEY0
LED6
LED7
P_LED
PWSW
V+3E
STBY
1.GND
V+12
1.GND
5.GND
CMK-P3X
CMK-P3X
2.V+12
3.LED7
4.LED6
5.KEY0
6.P_ON
7.STBY
8.PWSW
9.V+3E
2.V+12
3.LED7
4.LED6
5.KEY0
6.P_ON
7.STBY
8.PWSW
9.V+3E
1.PWSW
2.V+3E
3.P_LED
4.V+12
1.P_LED
2.GND
3.KEY0
4.KEY0A
C2131
C2132
C2133
C2134
C2204
R2195
R2136
R2134 R2135 R2142
R2126
R2127
R2194
R2133
R2122
R2144
R2145
R2146
R2138R2139
R2141
R2140
R2143
C2114
R2120
R2130
C2110
C2109
C2107
R2128
R2204
R2203
IC2102
R2149
R2150
R2148
R2147
C2111
R2202
R2201
Q2103
Q2105
Q2104
C2202
C2201
C2203
R2162
R2205
R2156
R2220
R2221
R2222
10
0
20
30
40
50
60
70
80
90
1
150160170180190200210220230240250260270280290300310
Y
X
120130140150160170180190200
F K
(VNP2022-B)
(VNP2022-B)
KEYB ASSY
F
SIDE B
CN2102
CN2101
J2201
J2203
DV-989AVi-S 57
5 678
5678
C
D
F
A
B
E
60
41
40
21
20
1
80
61
5
1
1
17
A
V+12
E+3V
B
B
1394RST
FLDC+
E+3V
XREADY
PW_ON
XRESET
LT1
SEL IR
-28V
LED7
STBY
PWSW
LED6
PW_ON
KEY0
PW_ON
KEY1
KEY0
E+3V
E+3V
KEY1
KEY1
FLDC+
FLDC+
1394RST 1394RST
PW_ON
-28V E+3V
GND
FLDC-
SCK
S(MtoF)
S(FtoM)
S(FtoM)
S(MtoF)
SCK
IR
V+12
PW_ON
E+3V
GND
GND
GND
GND
GND
GND
1394RST
E+3V
KEY1
KEY0
-28V
E+3V
-28V
V+12
FLDC+
V+12
FLDC-
FLDC+
1.1394RST
2.V+12
3.S(FtoM)
4.E+3V
5.S(MtoF)
6.GND
7.SCK
8.XREADY
9.IR
10.PW_ON
11.FLDC+
12.XRESET
13.FLDC-
14.LT1
15.-28V
16.SEL IR
17.GND
CN2101
C2133
R2106
R2113
R2103 R2110
R2104 R2111
R2114
R2142
R2108
IC2101
R2112
R2107
R2109R2102
R2118
R2119
C2102
C2113
R2144
R2145
R2146
R2137
R2138R2139
R2140
R2143
C2115
C2114
C2116
R2129
C2105
C2108
0
9
C2103
R2128
R2116
R2117
R2105
C2101
R2132
2
R2121
R2149
R2150
R2148
R2147
C2111
R2115
R2101
R2196
Q2103
Q2105
Q2104
Q2102
Q2101
R2123
R2191
R2151
R2152
D2101
C2117
R2181
R2182
R2183
D2102
C2118
R2125
C2161
R2161
Q2106
Q2107
R2124
R2131
R2153
C2130
C2123
C2124
C2125
C2119
C2121
C2122
C2106
C2171
R2162
R2155
R2156
C2126
Q2108
Q2109
R2154
10 0
2030405060708090100110120130140150160
X
Y
E F
FLKY ASSY
E
SIDE B
CN2101
DV-989AVi-S
58
1234
1234
C
D
F
A
B
E
4.6 SCRB ASSY
1
19
C946
C937
C930
C943
C934
C953
RY901
RY902 RY903
RY904
RY905
C908
CN901
C929
JA901 JA902
W913
W923
W971
W903
W914
W920
W962
W930
W963
W904
W905
W942
W934
W906
W949
W941
W922
W932
W918
W933
W921
W909
W901
W925
W911
W907
W908
W912
W931
W950
W910
W926
W937
W916
W927
W101
W929
W919
W956
W928
W954
W939
W938
W935
W936
W955
W915
W946
W951
W953
W917
W943
W966
W952
W970
W972
W960
W957
W961
W959
W967
W965
W944
W964
W969
W968
W973
W940
W902
W924
W999
W998
W945
W958
W947
W948
PYKC -
Production Code
PC
VWV1939-
GNDV
SCRB
GNDV
GNDV
GNDV
V+5V
VNP1918-B
GNDA
GNDV
GNDV
GNDV
VWV
SIDE
GNDV
GNDV
GNDV
GNDV
GNDV
V+5V
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
V+12V
UPPER
B
G
R
VSEL2
VSEL1
Y
C
V
V+12V
SQZ
GNDV
AUD.R
GNDA AUD.L
V+5V
J901
VWV1939-
1/4
1/4
10
0
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
20 30 40 50 60 70 80 90
X
Y
SIDE ASIDE A
CN4602
B
CN901
D D
(VNP1918-B)
SCRB ASSY
D
DV-989AVi-S 59
5 678
5678
C
D
F
A
B
E
10 0
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
2030405060708090
100
X
Y
SIDE BSIDE B
CN901
D D
(VNP1918-B)
SCRB ASSY
D
DV-989AVi-S
60
1234
1234
C
D
F
A
B
E
4.7 PS ASSY
13
1
6
R
D3806
D3807
D3805
D3808
D3809
R3803
R3804
C3809
Q3806
R3805
R3806
Q3805
VWV
VWV2153- /J
PS Ass'y
FR4 P
VAC1
VAC2
CT
1.V+5A
V+12A
GNDA
GNDA
GNDA
6.V-12A
13
16
R
CN3801
R3801
C3801
C3802
Q3801Q3802
D3801
IC3801
C3803
J3801
IC3802
D3802
D3803
D3804
C3805
C3806
C3807
C3808
C3810
C3804
Q3803
Q3804
IC3803
NON-NFB REGURATOR
VAC1
VAC2
CT
1.V+5A
2.V+12A
3.GNDA
4.GNDA
5.GNDA
6.V-12A
VWV2153- /J
VWV
NON-NFB REGURATOR
BOND BOND
BOND BOND
2SC4883A2SA1859A
FR4 P
AEK7009
AEK7009
PS Ass'y
10
0
180
190
200
210
220
20 30 40 50 60 70 80 90 100
230
X
Y
10 0
180
190
200
210
220
2030405060708090
100110120
230
X
Y
SIDE A SIDE A
SIDE B SIDE B
CN3102
C
J3801
PS ASSY
I
(VNP2024-B)
J3801
(VNP2024-B)
I I
DV-989AVi-S 61
5 678
5678
C
D
F
A
B
E
4.8 POWER SUPPLY UNIT
SIDE A SIDE B
H H
P101
P202
P201
P301
CN401
A
AC INLET
ASSY
CN101
CN1 CN2CN2
CN3 CN3
CN1
[VWR1397]
POWER SUPPLY UNIT
H
CN2302
G
CN2304
G
DV-989AVi-S
62
1234
1234
C
D
F
A
B
E
5. PCB PARTS LIST
77
77 LIST OF HOLE PCB ASSEMBLIES
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
561
473
R50
1R0
5621
NOTES:
560 Ω
47k Ω
0.5 Ω
1 Ω
RD1/4PU J
RD1/4PU J
RN2H K
RS1P K
56 x 10
1
47 x 10
3
R50
1R0
561
473
5.62k Ω
RN1/4PC F562 x 10
1
5621
Meaning of the figures and others in the parentheses in the parts list.
Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding
PC board.
IC 301 (A, 91, 111) IC NJM2068V
Mark Symbol and Description DV-989AVi-S
/WYXJ5
DV-989AVi-S
/YXJRE5
DV-989AVi-G
/HLXJ
DV-989AVi-S
/WPWXJ
NSP 1..FLKB ASSY VWM2350 VWM2350 VWM2354 VWM2354
2..MSWB ASSY VWG2548 VWG2548 VWG2548 VWG2548
2..FLKY ASSY VWG2552 VWG2552 VWG2554 VWG2554
2..PLED ASSY VWG2557 VWG2557 VWG2557 VWG2557
2..KEYB ASSY VWG2558 VWG2558 VWG2558 VWG2558
NSP 1..AVKB ASSY VWM2353 VWM2353 VWM2351 VWM2352
2..AJKB ASSY VWV2149 VWV2149 VWV2148 VWV2148
2..VJKB ASSY VWV2152 VWV2152 VWV2150 VWV2151
2..PS ASSY VWV2153 VWV2153 VWV2153 VWV2153
1..DVDM ASSY VWS1601 VWS1601 VWS1601 VWS1601
1..SCRB ASSY VWV1992 VWV1992 Not used Not used
NSP 1..LOADER MECHA ASSY VWT1218 VWT1218 VWT1218 VWT1218
NSP 2..LOAB ASSY VWG2426 VWG2426 VWG2426 VWG2426
Mark No. Description Part No.
ADVDM ASSY
MISCELLANEOUS
IC 101 (A,94 ,158 ) ASP IC LA9704WS1
IC 102 (B,95 ,157 ) IC TC7W53FU
IC 201 (B,53 ,159 ) DSP LSI LC78652W
IC 202 (A,97 ,198 ) SPINDLE DRIVER BA6664FM
IC 211 (A,72 ,171 ) VIDEO AMP IC TK15404M
IC 261 (B,68 ,190 ) OP-AMP IC BA4510F
IC 302 (B,75 ,149 ) OP-AMP IC BA4510F
IC 303 (B,64 ,136 ) LOGIC IC TC7SZU04FU
IC 304 (A,70 ,137 ) LOGIC IC TC7SZU04FU
IC 306 (B,57 ,136 ) LOGIC IC TC7SZU04FU
IC 351 (B,98 ,176 ) IC M56788AFP
>IC 401 (A,95 ,71 ) REGULATOR,IC PQ033EZ01ZP
>IC 402 (A,97 ,41 ) REGULATOR IC (5.0V) MM1565AF
>IC 403 (A,98 ,121 ) REGULATOR,IC PQ025EZ01ZP
>IC 404 (B,100 ,205 )
REGULATOR IC(3.3V)
MM1385EN
>IC 405 (B,112 ,19 ) REGULATOR IC NJM2880U1-05
>IC 410 (A,95 ,235 ) REGULATOR IC MM1561JF
>IC 411 (A,11 ,180 ) REGULATOR,IC PQ025EZ01ZP
IC 451 (A,17 ,102 ) LOGIC IC TC7SHU04FUS1
IC 452 (B,51 ,181 ) IC TC7SH08FUS1
IC 453 (B,65 ,170 ) LOGIC IC TC7SHU04FUS1
IC 454 (A,33 ,118 ) LOGIC IC TC7SHU04FUS1
IC 455 (A,33 ,113 ) LOGIC IC TC7SHU04FUS1
>IC 471 (A,93 ,132 ) REGULATOR IC MM1561JF
IC 481 (A,25 ,106 )
CLOCK GENERATE IC
SM8707HV
IC 491 (A,20 ,127 ) CPLD IC LC4032VAA
IC 503 (A,81 ,232 ) IC TC74VHC157FTS1
IC 504 (A,68 ,233 ) IC TC74VHC157FTS1
IC 505 (A,53 ,233 ) IC TC74VHC157FTS1
IC 506 (B,96 ,242 ) IC TC7SH08FUS1
IC 552 (A,76 ,209 ) AQE IC PD0274A
IC 553 (A,71 ,198 ) IC TC7WH157FU
IC 601 (A,59 ,111 )
SYSTEM CONTROL CPU
PD6345A
IC 603 (B,63 ,116 ) FLASH ROM VYW2363
IC 701 (A,39 ,159 )
DVD DATA PROCESSOR
PE5286B
IC 741 (B,27 ,165 ) IC HY57V161610ETP-8
IC 751 (B,31 ,111 ) MPEG2 DECODER IC M65776BFP
IC 752 (B,32 ,134 ) IC TC7SZ32FU
IC 753 (B,10 ,144 ) IC TC7WH125FU
IC 781 (B,18 ,80 ) SD-RAM(64M) HY57V641620ETP-H
IC 786 (B,24 ,138 ) IC TC74VHC541FTS1
Mark No. Description Part No.
DV-989AVi-S 63
5 678
5678
C
D
F
A
B
E
IC 801 (A,36 ,46 ) IEEE1394 PHY LINK TSB43CA42ZGW
IC 802 (B,41 ,79 ) FLASH ROM VYW2317
IC 803 (B,18 ,36 ) VCO IC BU2370FV
IC 804 (A,12 ,50 ) OP AMP IC NJU7093AF
IC 805 (A,25 ,82 ) MICROCOMPUTER PD5787A
IC 806 (B,50 ,44 ) IC TC7SH08FUS1
IC 901 (B,74 ,73 ) PROGRESSIVE IC CM0039AF
IC 902 (B,80 ,43 ) SDRAM(64M) K4S643232H-TC60
IC 1001(A,68 ,75 ) RESO EXP IC PD0280B
IC 1051(A,71 ,45 ) HDMI TRANSMITER SII9030CTU
IC 1101(B,68 ,216 ) DSP IC DSPD56367PV150
IC 1102(B,82 ,202 ) IC TC7SH04FUS1
IC 1103(B,49 ,196 ) IC TC7WH34FU
IC 1105(B,33 ,191 ) IC HY57V161610ETP-8
IC 1106(A,25 ,182 ) IC TC7SH00FUS1
IC 1107(A,33 ,183 ) IC TC7WH74FU
IC 1110(A,34 ,204 ) SACD DECODER CXD2753R
Q 101 (B,96 ,150 ) CHIP TRANSISTOR HN1A01F
Q 102 (B,102 ,150 ) CHIP TRANSISTOR HN1A01F
Q 103 (A,88 ,175 ) CHIP TRANSISTOR HN1B04FU
Q 104 (A,73 ,163 ) CHIP TRANSISTOR HN1C01FU
Q 105 (A,88 ,145 ) CHIP TRANSISTOR HN1B04FU
Q 106 (A,77 ,153 ) CHIP TRANSISTOR HN1A01F
Q 107 (B,102 ,134 )
NMOS FET TRANSISTOR
UM5K1N
Q 108 (B,98 ,138 ) CHIP TRANSISTOR DTC114EUA
Q 241 (B,83 ,166 ) CHIP TRANSISTOR DTC114EUA
Q 401 (B,28 ,218 ) TRANSISTOR(SC-70) 2SA1602A
Q 402 (B,24 ,218 ) TRANSISTOR(SC-70) 2SA1602A
Q 403 (B,25 ,225 ) TRANSISTOR 2SC4081
Q 404 (A,89 ,28 ) CHIP TRANSISTOR DTC114TUA
Q 601 (B,87 ,115 ) CHIP TRANSISTOR RN4982
Q 801 (B,20 ,24 ) CHIP TRANSISTOR DTC114TUA
Q 802 (A,20 ,25 ) CHIP TRANSISTOR RN4982
Q 901 (A,98 ,28 ) CHIP TRANSISTOR HN1C01FU
Q 904 (B,94 ,92 ) TRANSISTOR 2SA1576A
Q 905 (B,90 ,92 ) TRANSISTOR 2SA1576A
Q 907 (B,82 ,92 ) TRANSISTOR 2SA1576A
Q 908 (B,79 ,92 ) TRANSISTOR 2SA1576A
Q 909 (B,76 ,92 ) TRANSISTOR 2SA1576A
Q 910 (B,94 ,98 ) CHIP TRANSISTOR HN1B04FU
Q 911 (B,90 ,98 ) CHIP TRANSISTOR HN1B04FU
Q 912 (B,86 ,95 ) CHIP TRANSISTOR HN1B04FU
Q 913 (B,83 ,98 ) CHIP TRANSISTOR HN1B04FU
Q 914 (B,79 ,98 ) CHIP TRANSISTOR HN1B04FU
Q 915 (B,76 ,98 ) CHIP TRANSISTOR HN1B04FU
Q 941 (A,98 ,33 ) CHIP TRANSISTOR RN4982
Q 1052(A,61 ,30 )
NMOS FET TRANSISTOR
UM6K1N
Q 1054(B,63 ,29 ) CHIP TRANSISTOR HN1C01FU
Q 1055(B,68 ,27 ) TRANSISTOR 2SA1576A
Q 1057(B,65 ,37 ) DIGITAL TRANSISTOR DTC124EUA
Q 1058(B,60 ,30 ) CHIP TR (PNP X 2) UMB1N
D 302 (B,74 ,140 ) CHIP VARI-CAP DIOD EKV1870S
D 303 (B,68 ,140 ) CHIP VARI-CAP DIOD EKV1870S
D 401 (A,91 ,246 ) DIODE RB051L-40
D 402 (A,91 ,111 ) DIODE RB051L-40
D 403 (A,98 ,45 ) CHIP DIODE RB501V-40
D 404 (B,101 ,202 ) CHIP DIODE RB501V-40
D 406 (A,89 ,70 ) CHIP DIODE RB501V-40
D 408 (A,17 ,175 ) CHIP DIODE RB501V-40
D 409 (B,110 ,15 ) CHIP DIODE RB501V-40
Mark No. Description Part No.
D 601 (B,90 ,113 ) CHIP DIODE RB501V-40
D 801 (A,49 ,85 ) CHIP DIODE RB501V-40
D 901 (A,101 ,24 ) DIODE 1SS355
L 304 (B,72 ,133 ) CHIP COIL LCYA1R2J2520
L 401 (A,22 ,248 ) CHIP BEADS VTL1084
L 481 (A,14 ,105 ) CHIP BEADS VTL1084
L 805 (A,53 ,23 ) COIL VTH1047
L 806 (A,49 ,23 ) COIL VTH1047
L 807 (A,36 ,23 ) COIL VTH1047
L 808 (A,32 ,23 ) COIL VTH1047
L 1051(A,79 ,26 ) COIL ATH7022
L 1052(A,75 ,26 ) COIL ATH7022
L 1053(A,71 ,26 ) COIL ATH7022
L 1054(A,68 ,26 ) COIL ATH7022
L 1101(B,45 ,210 ) CHIP COIL LCYA1R0J2520
L 1102(A,13 ,196 ) CHIP BEADS VTL1084
JA 1 (A,34 ,12 ) 1394-TERMINAL VKN1800
JA 2 (A,52 ,12 ) 1394-TERMINAL VKN1800
JA 1001(A,72 ,13 ) HDMI CONNECTOR AKP1278
KN1 (A,99 ,217 )
EARTH METAL FITTING
VNF1109
KN2 (A,12 ,247 )
EARTH METAL FITTING
VNF1109
KN3 (A,98 ,96 )
EARTH METAL FITTING
VNF1109
KN4 (A,8 ,26 ) EARTH METAL FITTING VNF1109
KN1051(A,92 ,8 ) SCREW PLATE VNE1948
X 481 (A,35 ,103 )
CRYSTAL RESONATOR
VSS1172
X 601 (A,73 ,130 )
CERAMIC RESONATOR
VSS1160
X 801 (A,7 ,82 ) CERAMIC RESONATOR VSS1179
X 802 (A,52 ,43 )
CRYSTAL RESONATOR
ASS7055
CN103 (A,114 ,106 ) CONNECTOR AKM1276
CN111 (A,114 ,131 ) 24P CONNECTOR VKN1464
CN114 (A,114 ,206 ) 4P CONNECTOR VKN1409
CN115 (A,113 ,232 ) 12P CONNECTOR VKN1416
CN401 (A,114 ,77 ) CONNECTOR AKM1284
CN402 (A,24 ,256 ) 17P CONNECTOR VKN1421
CN403 (A,107 ,14 ) 07P CONNECTOR RKN1048
CN551 (A,68 ,256 ) 31P CONNECTOR VKN1517
CN801 (A,17 ,14 ) 07P CONNECTOR RKN1048
CN901 (A,114 ,42 ) 23P CONNECTOR VKN1427
2 PCB BINDER VEF1040
RESISTORS
R 1 (B,108 ,259 ) RS1/16S332J
R 2 (B,107 ,254 ) RS1/16S472J
R 4 (B,105 ,254 ) RS1/16S103J
R 101 (A,94 ,139 ) RS1/16S473J
R 102 (A,94 ,141 ) RS1/16S473J
R 103 (A,94 ,138 ) RS1/16S473J
R 104 (A,94 ,143 ) RS1/16S473J
R 105 (A,99 ,138 ) RS1/16S153J
R 106 (A,102 ,139 ) RS1/16S153J
R 107 (A,102 ,138 ) RS1/16S223J
R 108 (A,102 ,136 ) RS1/16S223J
R 109 (A,105 ,141 ) RS1/16S223J
R 110 (A,105 ,138 ) RS1/16S223J
R 111 (B,96 ,144 ) RAB4C220J
R 112 (B,93 ,150 ) RS1/16S472J
R 113 (B,102 ,144 ) RAB4C470J
R 114 (B,105 ,150 ) RS1/16S472J
R 115 (A,75 ,163 ) RS1/16S101J
R 116 (A,76 ,166 ) RS1/16S102J
Mark No. Description Part No.
DV-989AVi-S
64
1234
1234
C
D
F
A
B
E
R 117 (A,89 ,168 ) RS1/16S333J
R 118 (A,89 ,172 ) RS1/16S473J
R 119 (A,85 ,179 ) RS1/16S223J
R 120 (A,88 ,180 ) RS1/16S223J
R 121 (A,85 ,175 ) RS1/16S223J
R 122 (B,83 ,158 ) RS1/16S225J
R 123 (A,81 ,165 ) RS1/16S1202F
R 124 (A,98 ,167 ) RS1/16S333J
R 125 (A,100 ,167 ) RS1/16S473J
R 126 (A,96 ,168 ) RS1/16S123J
R 127 (A,93 ,172 ) RS1/16S103J
R 128 (A,81 ,154 ) RS1/16S101J
R 129 (A,75 ,157 ) RS1/16S102J
R 130 (A,81 ,152 ) RS1/16S101J
R 131 (A,74 ,153 ) RS1/16S102J
R 132 (A,81 ,167 ) RS1/16S4702F
R 133 (A,81 ,164 ) RS1/16S333J
R 134 (A,81 ,156 ) RS1/16S151J
R 135 (A,73 ,149 ) RS1/16S471J
R 136 (A,78 ,149 ) RS1/16S471J
R 137 (A,108 ,141 ) RS1/16S0R0J
R 138 (A,105 ,120 ) RS1/10S0R0J
R 139 (B,101 ,138 ) RS1/16S104J
R 140 (B,103 ,129 ) RS1/16S0R0J
R 141 (B,103 ,138 ) RS1/16S104J
R 142 (B,98 ,141 ) RS1/16S103J
R 150 (A,81 ,175 ) RS1/16S0R0J
R 151 (A,92 ,145 ) RS1/16S392J
R 152 (A,90 ,145 ) RS1/16S392J
R 153 (A,95 ,145 ) RS1/16S392J
R 154 (A,93 ,145 ) RS1/16S392J
R 155 (A,99 ,142 ) RS1/16S103J
R 156 (A,101 ,142 ) RS1/16S103J
R 157 (A,103 ,142 ) RS1/16S153J
R 158 (A,105 ,143 ) RS1/16S153J
R 159 (A,81 ,172 ) RS1/16S0R0J
R 160 (A,80 ,137 ) RS1/10S0R0J
R 161 (A,96 ,145 ) RS1/16S225J
R 162 (A,98 ,145 ) RS1/16S225J
R 165 (A,103 ,145 ) RS1/16S105J
R 166 (A,104 ,145 ) RS1/16S105J
R 167 (A,106 ,145 ) RS1/16S103J
R 169 (A,88 ,139 ) RS1/16S102J
R 170 (A,88 ,138 ) RS1/16S102J
R 171 (A,73 ,147 ) RS1/16S102J
R 172 (A,78 ,147 ) RS1/16S102J
R 173 (A,88 ,143 ) RS1/16S102J
R 174 (A,88 ,141 ) RS1/16S102J
R 175 (A,86 ,139 ) RS1/16S222J
R 176 (A,86 ,142 ) RS1/16S101J
R 177 (A,88 ,148 ) RS1/16S222J
R 202 (B,53 ,172 ) RS1/16S0R0J
R 203 (B,65 ,165 ) RS1/16S472J
R 204 (B,68 ,162 ) RS1/16S472J
R 205 (A,111 ,198 ) RS1/10S0R0J
R 206 (A,97 ,185 ) RS1/10S0R0J
R 207 (B,53 ,176 ) RS1/16S0R0J
R 208 (B,73 ,162 ) RS1/16S473J
R 209 (B,68 ,157 ) RS1/16S104J
R 210 (B,66 ,157 ) RS1/16S473J
Mark No. Description Part No.
R 211 (B,73 ,158 ) RS1/16S563J
R 212 (B,73 ,157 ) RS1/16S821J
R 213 (B,49 ,170 ) RS1/16S223J
R 214 (B,60 ,171 ) RS1/16S223J
R 215 (B,48 ,170 ) RS1/16S103J
R 218 (A,72 ,174 ) RS1/16S103J
R 219 (B,55 ,146 ) RS1/16S103J
R 220 (B,50 ,143 ) RS1/10S0R0J
R 221 (B,42 ,145 ) RS1/16S332J
R 222 (B,42 ,148 ) RS1/16S681J
R 223 (B,42 ,150 ) RS1/16S473J
R 224 (B,39 ,152 ) RS1/16S681J
R 225 (A,72 ,168 ) RS1/16S152J
R 226 (A,72 ,176 ) RS1/16S103J
R 227 (A,72 ,166 ) RS1/16S102J
R 228 (A,70 ,161 ) RS1/16S102J
R 229 (B,39 ,154 ) RS1/16S473J
R 231 (B,38 ,167 ) RS1/16S222J
R 232 (B,41 ,161 ) RS1/16S152J
R 234 (A,74 ,160 ) RS1/16S101J
R 236 (B,58 ,173 ) RS1/16S0R0J
R 240 (B,74 ,154 ) RS1/10S0R0J
R 241 (A,77 ,157 ) RS1/16S331J
R 242 (B,76 ,157 ) RS1/16S681J
R 246 (B,41 ,164 ) RS1/16S104J
R 251 (A,98 ,189 ) RS1/16S562J
R 252 (A,93 ,189 ) RS1/16S682J
R 253 (A,96 ,189 ) RS1/16S682J
R 257 (A,111 ,195 ) CHIP RESISTOR RS1/4SA1R0J
R 258 (A,111 ,192 ) CHIP RESISTOR RS1/4SA2R2J
R 259 (A,111 ,188 ) CHIP RESISTOR RS1/4SA2R2J
R 260 (B,41 ,174 ) RS1/10S0R0J
R 261 (B,58 ,188 ) RS1/16S154J
R 262 (B,59 ,188 ) RS1/16S104J
R 263 (B,61 ,188 ) RS1/16S224J
R 264 (B,62 ,188 ) RS1/16S154J
R 266 (B,58 ,191 ) RS1/16S184J
R 268 (B,59 ,191 ) RS1/16S104J
R 269 (B,68 ,186 ) RS1/16S103J
R 270 (B,77 ,189 ) RS1/16S153J
R 271 (B,74 ,188 ) RS1/16S153J
R 272 (B,68 ,165 ) RS1/16S332J
R 280 (B,36 ,156 ) RS1/10S0R0J
R 298 (A,59 ,134 ) RS1/16S470J
R 301 (B,57 ,142 ) RS1/10S0R0J
R 310 (B,65 ,149 ) RS1/16S104J
R 311 (B,68 ,148 ) RS1/16S104J
R 312 (B,65 ,145 ) RS1/16S103J
R 313 (B,68 ,147 ) RS1/16S153J
R 314 (B,65 ,147 ) RS1/16S223J
R 315 (B,54 ,136 ) RS1/16S470J
R 316 (B,82 ,147 ) RS1/16S223J
R 317 (B,80 ,147 ) RS1/16S153J
R 318 (B,78 ,145 ) RS1/16S103J
R 322 (B,73 ,145 ) RS1/16S103J
R 328 (B,68 ,150 ) RS1/16S102J
R 329 (B,73 ,143 ) RS1/16S332J
R 330 (B,74 ,137 ) RS1/16S104J
R 331 (A,68 ,137 ) RS1/16S104J
R 332 (B,68 ,133 ) RS1/16S471J
Mark No. Description Part No.
DV-989AVi-S 65
5 678
5678
C
D
F
A
B
E
R 333 (A,69 ,153 ) RS1/16S102J
R 334 (B,60 ,136 ) RS1/16S470J
R 335 (B,69 ,143 ) RS1/16S682J
R 336 (B,68 ,137 ) RS1/16S104J
R 340 (A,68 ,153 ) RS1/16S0R0J
R 341 (B,78 ,172 ) RS1/10S101J
R 342 (A,63 ,156 ) RS1/16S182J
R 343 (A,61 ,153 ) RS1/16S220J
R 344 (B,82 ,151 ) RS1/16S101J
R 345 (A,68 ,156 ) RS1/16S182J
R 350 (B,73 ,180 ) RS1/10S0R0J
R 351 (B,88 ,168 ) RS1/16S472J
R 353 (B,86 ,168 ) RS1/16S153J
R 357 (B,87 ,183 ) CHIP RESISTOR RS1/16S6802F
R 358 (B,84 ,183 ) CHIP RESISTOR RS1/16S1503F
R 359 (B,87 ,193 ) RS1/16S123J
R 360 (B,87 ,192 ) RS1/16S472J
R 361 (B,87 ,187 ) CHIP RESISTOR RS1/16S1503F
R 362 (B,87 ,188 ) CHIP RESISTOR RS1/16S6802F
R 363 (B,110 ,184 ) CHIP RESISTOR RS1/16S6802F
R 364 (B,107 ,181 ) RS1/16S1003F
R 368 (B,107 ,179 ) CHIP RESISTOR RS1/16S6802F
R 369 (B,110 ,183 ) RS1/16S1003F
R 372 (B,108 ,171 ) CHIP RESISTOR RS1/16S6802F
R 373 (B,108 ,169 ) RS1/16S1003F
R 374 (B,107 ,163 ) CHIP RESISTOR RS1/16S6802F
R 375 (B,107 ,165 ) RS1/16S1003F
R 389 (B,111 ,107 ) RS1/16S103J
R 390 (B,111 ,109 ) RS1/16S103J
R 391 (A,107 ,228 ) RS1/16S103J
R 401 (B,105 ,205 ) RS1/10S0R0J
R 403 (A,88 ,38 ) RS1/10S0R0J
R 408 (B,28 ,236 ) RS1/16S220J
R 409 (B,22 ,236 ) RS1/16S220J
R 410 (B,27 ,236 ) RS1/16S220J
R 411 (B,20 ,236 ) RS1/16S220J
R 412 (B,17 ,236 ) RS1/16S220J
R 413 (B,23 ,236 ) RS1/16S220J
R 415 (B,26 ,212 ) RS1/16S220J
R 417 (B,16 ,236 ) RS1/16S0R0J
R 420 (A,93 ,24 ) RS1/16S103J
R 425 (A,93 ,23 ) RS1/16S562J
R 427 (A,88 ,31 ) RS1/16S103J
R 429 (A,93 ,26 ) RS1/16S103J
R 448 (B,28 ,214 ) RS1/16S682J
R 449 (B,28 ,221 ) RS1/16S104J
R 450 (B,24 ,221 ) RS1/16S182J
R 451 (B,28 ,225 ) RS1/16S104J
R 452 (A,24 ,99 ) RS1/16S220J
R 453 (A,19 ,102 ) RS1/16S470J
R 454 (A,29 ,109 ) RS1/16S220J
R 455 (A,32 ,109 ) RS1/16S0R0J
R 456 (A,14 ,115 ) RS1/16S680J
R 458 (B,47 ,181 ) RS1/16S0R0J
R 459 (A,18 ,112 ) RS1/16S680J
R 460 (A,21 ,116 ) RS1/16S470J
R 462 (B,64 ,173 ) RS1/16S220J
R 463 (A,21 ,114 ) RS1/16S470J
R 464 (A,28 ,118 ) RS1/16S101J
R 466 (A,28 ,113 ) RS1/16S680J
Mark No. Description Part No.
R 467 (A,36 ,119 ) RS1/16S680J
R 468 (A,36 ,112 ) RS1/16S680J
R 481 (A,20 ,113 ) RS1/16S0R0J
R 482 (A,28 ,95 ) RS1/10S0R0J
R 483 (A,32 ,102 ) RS1/16S0R0J
R 484 (A,32 ,104 ) RS1/16S101J
R 485 (A,29 ,103 ) RS1/16S105J
R 491 (A,8 ,129 ) RS1/10S0R0J
R 492 (A,10 ,125 ) RS1/16S220J
R 539 (A,86 ,234 ) RS1/16S560J
R 540 (A,61 ,235 ) RS1/16S560J
R 541 (A,63 ,235 ) RS1/16S560J
R 542 (A,73 ,235 ) RS1/16S560J
R 543 (A,87 ,232 ) RS1/16S0R0J
R 544 (A,47 ,235 ) RS1/16S560J
R 545 (A,48 ,235 ) RS1/16S560J
R 546 (A,58 ,235 ) RS1/16S560J
R 547 (A,59 ,235 ) RS1/16S560J
R 551 (A,71 ,216 ) RS1/16S560J
R 552 (A,72 ,216 ) RS1/16S220J
R 553 (A,74 ,216 ) RS1/16S220J
R 554 (A,82 ,198 ) RS1/10S0R0J
R 556 (B,93 ,249 ) RS1/16S220J
R 557 (A,84 ,206 ) RS1/16S0R0J
R 558 (A,83 ,206 ) RS1/16S0R0J
R 563 (B,89 ,249 ) RS1/16S220J
R 565 (A,76 ,235 ) RS1/16S560J
R 570 (B,103 ,249 ) RS1/16S680J
R 571 (B,97 ,249 ) RS1/16S220J
R 572 (B,95 ,249 ) RS1/16S220J
R 574 (B,99 ,249 ) RS1/16S220J
R 576 (B,91 ,249 ) RS1/16S220J
R 577 (A,74 ,235 ) RS1/16S560J
R 579 (B,51 ,252 ) RS1/16S220J
R 583 (B,101 ,249 ) RS1/16S220J
R 600 (A,39 ,122 ) RS1/10S0R0J
R 601 (A,34 ,96 ) RS1/10S0R0J
R 602 (A,48 ,92 ) RS1/16S105J
R 603 (B,67 ,132 ) RS1/10S0R0J
R 604 (A,81 ,106 ) RS1/16S103J
R 605 (A,50 ,92 ) RS1/16S105J
R 606 (A,52 ,88 ) RS1/16S105J
R 609 (A,50 ,133 ) RS1/16S101J
R 610 (A,75 ,98 ) RS1/16S103J
R 611 (A,79 ,106 ) RS1/16S103J
R 612 (A,63 ,132 ) RS1/16S470J
R 613 (A,68 ,132 ) RS1/16S0R0J
R 614 (A,66 ,95 ) RS1/16S103J
R 615 (A,66 ,128 ) RS1/16S103J
R 616 (A,65 ,132 ) RS1/16S103J
R 617 (A,64 ,93 ) RS1/16S103J
R 618 (A,70 ,132 ) RS1/16S103J
R 619 (A,50 ,129 ) RS1/16S103J
R 620 (A,62 ,132 ) RS1/16S103J
R 621 (A,64 ,128 ) RS1/16S103J
R 622 (A,59 ,95 ) RS1/16S470J
R 623 (A,82 ,104 ) RS1/16S103J
R 624 (A,83 ,106 ) RS1/16S103J
R 625 (A,78 ,116 ) RS1/16S103J
R 628 (A,79 ,110 ) RS1/16S103J
Mark No. Description Part No.
DV-989AVi-S
66
1234
1234
C
D
F
A
B
E
R 629 (B,71 ,115 ) RS1/16S330J
R 630 (A,77 ,124 ) RS1/16S103J
R 631 (A,82 ,113 ) RAB4C103J
R 632 (A,52 ,129 ) RS1/16S103J
R 633 (A,67 ,128 ) RS1/16S103J
R 634 (A,81 ,110 ) RS1/16S103J
R 635 (A,51 ,92 ) RS1/16S105J
R 637 (A,78 ,114 ) RS1/16S103J
R 638 (A,80 ,124 ) RS1/16S220J
R 639 (A,82 ,124 ) RS1/16S103J
R 640 (A,81 ,101 ) RS1/16S103J
R 641 (A,58 ,92 ) RS1/16S103J
R 642 (A,82 ,120 ) RS1/16S220J
R 643 (A,75 ,124 ) RS1/16S103J
R 644 (A,80 ,120 ) RS1/16S220J
R 645 (A,78 ,124 ) RS1/16S220J
R 646 (A,78 ,106 ) RS1/16S103J
R 647 (A,55 ,92 ) RS1/16S105J
R 648 (A,39 ,131 ) RS1/16S223J
R 649 (B,54 ,124 ) RS1/16S220J
R 650 (A,59 ,136 ) RS1/16S470J
R 652 (A,44 ,129 ) RS1/16S470J
R 653 (B,57 ,103 ) RS1/16S103J
R 654 (A,73 ,96 ) RS1/16S103J
R 655 (A,53 ,92 ) RS1/16S105J
R 656 (B,72 ,118 ) RS1/16S103J
R 659 (A,53 ,134 ) RS1/16S103J
R 661 (A,38 ,128 ) RS1/16S103J
R 662 (A,52 ,133 ) RS1/16S222J
R 663 (A,38 ,129 ) RS1/16S682J
R 664 (A,38 ,133 ) RS1/16S103J
R 665 (A,49 ,129 ) RS1/16S103J
R 666 (A,47 ,129 ) RS1/16S103J
R 667 (A,46 ,129 ) RS1/16S103J
R 668 (B,54 ,119 ) RS1/16S220J
R 669 (A,80 ,96 ) RS1/16S223J
R 670 (A,85 ,99 ) RS1/16S223J
R 671 (A,78 ,98 ) RS1/16S470J
R 672 (A,87 ,96 ) RS1/16S470J
R 673 (A,84 ,96 ) RS1/16S222J
R 681 (A,73 ,126 ) RS1/16S103J
R 682 (B,87 ,112 ) RS1/16S104J
R 683 (A,73 ,127 ) RS1/16S471J
R 689 (A,76 ,96 ) RS1/16S103J
R 693 (A,75 ,102 ) RS1/16S222J
R 694 (A,75 ,101 ) RS1/16S470J
R 696 (A,82 ,98 ) RS1/16S470J
R 701 (A,55 ,183 ) RS1/10S0R0J
R 703 (A,46 ,179 ) RS1/16S103J
R 704 (B,50 ,122 ) RS1/16S470J
R 705 (A,51 ,178 ) RS1/16S220J
R 706 (A,38 ,181 ) RS1/16S680J
R 707 (B,52 ,147 ) RS1/16S103J
R 709 (A,57 ,160 ) RS1/16S0R0J
R 710 (A,60 ,163 ) RS1/16S470J
R 711 (A,63 ,167 ) RS1/16S103J
R 712 (A,39 ,180 ) RS1/16S103J
R 713 (A,36 ,178 ) RAB4C103J
R 715 (A,60 ,162 ) RS1/16S220J
R 716 (A,42 ,139 ) RS1/16S103J
Mark No. Description Part No.
R 717 (A,43 ,139 ) RS1/16S103J
R 718 (A,62 ,148 ) RS1/10S0R0J
R 720 (A,61 ,169 ) RS1/16S103J
R 721 (A,60 ,179 ) RS1/10S0R0J
R 722 (A,17 ,167 ) RS1/16S220J
R 723 (A,60 ,172 ) RS1/16S470J
R 725 (A,60 ,165 ) RS1/16S470J
R 726 (A,63 ,165 ) RS1/16S470J
R 727 (A,17 ,164 ) RS1/16S0R0J
R 728 (B,10 ,66 ) RS1/10S0R0J
R 729 (B,45 ,134 ) RAB4C101J
R 730 (B,40 ,134 ) RAB4C101J
R 731 (A,22 ,149 ) RS1/16S220J
R 732 (A,32 ,140 ) RS1/16S220J
R 733 (A,32 ,141 ) RS1/16S220J
R 734 (A,35 ,176 ) RS1/16S470J
R 735 (A,46 ,181 ) RS1/16S470J
R 736 (A,48 ,178 ) RS1/16S220J
R 741 (B,9 ,171 ) RS1/10S0R0J
R 751 (B,53 ,109 ) RS1/16S220J
R 752 (B,55 ,109 ) RS1/16S220J
R 753 (B,10 ,148 ) RS1/16S470J
R 754 (B,13 ,143 ) RS1/16S470J
R 756 (B,51 ,130 ) RS1/10S0R0J
R 757 (B,51 ,132 ) RS1/10S0R0J
R 758 (B,15 ,133 ) RS1/10S0R0J
R 759 (B,15 ,135 ) RS1/10S0R0J
R 760 (B,12 ,97 ) RS1/10S0R0J
R 761 (B,31 ,93 ) RS1/16S220J
R 762 (B,50 ,124 ) RS1/16S0R0J
R 763 (B,8 ,113 ) RS1/10S0R0J
R 764 (B,28 ,134 ) RS1/16S103J
R 765 (B,20 ,132 ) RS1/16S103J
R 766 (B,30 ,135 ) RS1/16S390J
R 781 (B,23 ,71 ) RS1/16S0R0J
R 786 (B,18 ,147 ) RAB4C470J
R 787 (B,18 ,143 ) RAB4C470J
R 801 (A,45 ,67 ) RS1/16S103J
R 802 (A,44 ,67 ) RS1/16S103J
R 803 (A,47 ,67 ) RS1/16S103J
R 804 (B,48 ,61 ) RAB4C103J
R 805 (A,53 ,58 ) RS1/16S103J
R 806 (B,47 ,56 ) RS1/16S103J
R 807 (B,47 ,54 ) RS1/16S103J
R 808 (A,51 ,52 ) RS1/16S103J
R 809 (B,45 ,49 ) RS1/16S103J
R 810 (B,52 ,53 ) RS1/16S103J
R 811 (B,45 ,47 ) RS1/16S103J
R 812 (B,45 ,46 ) RS1/16S103J
R 813 (B,47 ,51 ) RS1/16S103J
R 814 (B,52 ,51 ) RS1/16S103J
R 815 (B,45 ,43 ) RS1/16S103J
R 816 (B,57 ,34 ) CHIP RESISTOR RS1/16S6341D
R 819 (B,42 ,53 ) RS1/16S103J
R 820 (A,42 ,67 ) RS1/16S103J
R 821 (B,28 ,63 ) RAB4C220J
R 822 (B,38 ,63 ) RAB4C0R0J
R 823 (B,33 ,63 ) RAB4C0R0J
R 824 (B,43 ,63 ) RAB4C0R0J
R 825 (A,23 ,54 ) RS1/16S103J
Mark No. Description Part No.
DV-989AVi-S 67
5 678
5678
C
D
F
A
B
E
R 826 (A,14 ,88 ) RS1/16S220J
R 828 (A,47 ,43 ) RS1/16S151J
R 832 (A,40 ,88 ) RAB4C0R0J
R 833 (A,40 ,84 ) RAB4C0R0J
R 834 (A,25 ,49 ) RS1/16S103J
R 835 (A,22 ,45 ) RS1/16S103J
R 836 (A,22 ,42 ) RS1/16S330J
R 837 (A,16 ,42 ) RS1/16S0R0J
R 839 (A,19 ,33 ) RS1/16S0R0J
R 841 (A,15 ,34 ) RS1/16S0R0J
R 842 (A,51 ,33 ) RS1/10S0R0J
R 843 (A,31 ,32 ) RS1/16S103J
R 844 (A,33 ,33 ) RS1/16S0R0J
R 845 (B,38 ,41 ) RS1/10S0R0J
R 846 (A,20 ,58 ) RS1/10S0R0J
R 847 (B,51 ,93 ) RS1/10S0R0J
R 848 (A,48 ,88 ) RS1/16S103J
R 849 (B,8 ,38 ) RS1/10S0R0J
R 850 (A,19 ,37 ) RS1/16S101J
R 851 (B,22 ,38 ) RS1/16S103J
R 852 (B,22 ,42 ) RS1/16S0R0J
R 853 (B,22 ,31 ) RS1/16S273J
R 855 (B,16 ,30 ) RS1/16S103J
R 856 (B,21 ,42 ) RS1/16S472J
R 857 (A,12 ,53 ) RS1/16S223J
R 858 (A,8 ,52 ) RS1/16S223J
R 859 (A,7 ,48 ) RS1/16S362J
R 860 (A,18 ,96 ) RS1/16S103J
R 862 (A,11 ,88 ) RS1/16S103J
R 863 (A,11 ,86 ) RS1/16S0R0J
R 864 (A,11 ,78 ) RS1/16S103J
R 865 (A,17 ,70 ) RS1/16S103J
R 866 (A,18 ,70 ) RS1/16S103J
R 867 (A,20 ,70 ) RS1/16S220J
R 868 (A,23 ,70 ) RS1/16S103J
R 869 (A,11 ,83 ) RS1/16S0R0J
R 871 (A,22 ,70 ) RS1/16S0R0J
R 872 (A,23 ,25 ) RS1/16S104J
R 873 (A,28 ,70 ) RS1/16S0R0J
R 874 (B,28 ,70 ) RS1/16S103J
R 875 (A,29 ,70 ) RS1/16S0R0J
R 876 (B,29 ,70 ) RS1/16S103J
R 877 (A,32 ,70 ) RAB4C0R0J
R 878 (B,32 ,70 ) RAB4C103J
R 880 (A,25 ,70 ) RS1/16S103J
R 882 (B,12 ,21 ) RS1/16S103J
R 883 (B,17 ,26 ) RS1/16S103J
R 884 (B,10 ,21 ) RS1/16S0R0J
R 885 (B,13 ,21 ) RS1/16S562J
R 886 (B,15 ,21 ) RS1/16S0R0J
R 887 (B,16 ,21 ) RS1/16S103J
R 888 (A,10 ,68 ) RS1/10S0R0J
R 889 (A,53 ,27 ) CHIP RESISTOR RS1/16S56R0D
R 890 (A,52 ,26 ) CHIP RESISTOR RS1/16S56R0D
R 891 (A,35 ,27 ) CHIP RESISTOR RS1/16S56R0D
R 892 (A,35 ,26 ) CHIP RESISTOR RS1/16S56R0D
R 893 (A,48 ,27 ) CHIP RESISTOR RS1/16S56R0D
R 894 (A,48 ,26 ) CHIP RESISTOR RS1/16S56R0D
R 895 (A,31 ,27 ) CHIP RESISTOR RS1/16S56R0D
R 896 (A,30 ,26 ) CHIP RESISTOR RS1/16S56R0D
Mark No. Description Part No.
R 897 (A,45 ,23 ) RS1/16S5101F
R 901 (B,66 ,55 ) RAB4C220J
R 902 (A,53 ,85 ) RS1/16S0R0J
R 903 (A,53 ,82 ) RS1/16S0R0J
R 904 (B,67 ,98 ) RS1/16S0R0J
R 905 (B,91 ,54 ) RAB4C103J
R 906 (B,89 ,30 ) RAB4C103J
R 907 (B,54 ,58 ) RS1/10S0R0J
R 909 (B,85 ,30 ) RAB4C103J
R 911 (B,68 ,102 ) RS1/16S0R0J
R 913 (B,69 ,102 ) RS1/16S0R0J
R 914 (B,81 ,56 ) RS1/16S220J
R 915 (B,61 ,83 ) RS1/16S220J
R 916 (B,57 ,88 ) RS1/10S0R0J
R 919 (B,96 ,34 ) RS1/10S220J
R 920 (B,81 ,34 ) RS1/16S0R0J
R 921 (B,63 ,59 ) RS1/16S470J
R 922 (B,77 ,55 ) RAB4C220J
R 923 (B,85 ,58 ) RAB4C103J
R 924 (B,89 ,58 ) RAB4C103J
R 925 (B,56 ,83 ) RS1/16S0R0J
R 928 (B,92 ,74 ) RS1/16S220J
R 929 (B,58 ,82 ) RS1/16S0R0J
R 930 (B,56 ,93 ) RAB4C103J
R 931 (B,60 ,98 ) RAB4C220J
R 932 (B,64 ,98 ) RAB4C220J
R 933 (B,54 ,78 ) RAB4C220J
R 934 (B,92 ,73 ) RS1/16S220J
R 935 (B,93 ,68 ) RAB4C103J
R 936 (B,54 ,73 ) RAB4C220J
R 937 (B,54 ,68 ) RAB4C220J
R 940 (B,54 ,63 ) RAB4C220J
R 941 (A,93 ,33 ) RS1/16S222J
R 942 (A,93 ,31 ) RS1/16S153J
R 943 (A,95 ,28 ) RS1/16S473J
R 944 (B,56 ,98 ) RAB4C103J
R 945 (A,99 ,24 ) RS1/16S472J
R 946 (A,107 ,27 ) RS1/16S220J
R 947 (B,52 ,83 ) RS1/16S0R0J
R 948 (B,65 ,94 ) RS1/16S220J
R 949 (A,106 ,52 ) RS1/16S220J
R 950 (B,69 ,92 ) RS1/10S0R0J
R 951 (B,103 ,85 ) RS1/10S0R0J
R 952 (A,101 ,29 ) RS1/16S474J
R 953 (B,87 ,80 ) RS1/16S1802F
R 954 (A,107 ,25 ) RS1/16S220J
R 955 (A,107 ,30 ) RS1/16S220J
R 957 (A,107 ,47 ) RS1/16S0R0J
R 958 (A,107 ,43 ) RS1/16S0R0J
R 959 (A,107 ,32 ) RS1/16S0R0J
R 960 (A,107 ,38 ) RS1/16S0R0J
R 961 (B,92 ,80 ) RS1/16S1502F
R 963 (A,107 ,36 ) RS1/16S0R0J
R 964 (A,107 ,35 ) RS1/16S220J
R 965 (A,107 ,41 ) RS1/16S220J
R 966 (B,95 ,83 ) RS1/16S1002F
R 968 (A,107 ,28 ) RS1/16S0R0J
R 969 (A,107 ,44 ) RS1/16S220J
R 979 (B,93 ,80 ) RS1/16S681J
R 982 (A,107 ,49 ) RS1/16S220J
Mark No. Description Part No.
DV-989AVi-S
68
1234
1234
C
D
F
A
B
E
R 993 (B,96 ,73 ) RAB4C103J
R 994 (B,95 ,64 ) RAB4C103J
R 998 (A,100 ,33 ) RS1/16S473J
R 1001(A,70 ,92 ) RS1/10S0R0J
R 1002(A,80 ,93 ) RS1/10S0R0J
R 1003(A,81 ,88 ) RS1/16S0R0J
R 1004(A,60 ,38 ) RS1/16S0R0J
R 1005(A,81 ,85 ) RS1/16S0R0J
R 1006(A,87 ,77 ) RS1/16S332J
R 1007(A,85 ,80 ) RS1/16S821J
R 1009(A,82 ,71 ) RS1/16S470J
R 1010(A,81 ,69 ) RS1/16S220J
R 1011(A,85 ,68 ) RS1/16S220J
R 1012(A,84 ,67 ) RS1/16S220J
R 1013(A,84 ,58 ) RAB4C220J
R 1014(A,80 ,58 ) RAB4C220J
R 1015(A,76 ,58 ) RAB4C220J
R 1016(A,72 ,58 ) RAB4C220J
R 1017(A,67 ,58 ) RAB4C220J
R 1018(A,63 ,58 ) RAB4C220J
R 1049(A,58 ,30 ) RS1/16S0R0J
R 1050(A,62 ,26 ) RS1/16S0R0J
R 1051(A,86 ,48 ) RS1/10S0R0J
R 1052(A,81 ,38 ) RS1/10S0R0J
R 1053(A,81 ,35 ) RS1/10S0R0J
R 1054(A,57 ,57 ) RS1/10S0R0J
R 1055(A,64 ,35 ) RS1/10S0R0J
R 1057(A,61 ,47 ) RS1/16S220J
R 1058(A,59 ,50 ) RS1/16S220J
R 1064(A,66 ,33 ) CHIP RESISTOR RS1/16S4750F
R 1065(A,56 ,53 ) RS1/16S220J
R 1066(A,83 ,43 ) RS1/16S0R0J
R 1068(A,56 ,51 ) RS1/16S220J
R 1069(A,56 ,49 ) RS1/16S220J
R 1070(A,56 ,48 ) RS1/16S220J
R 1073(A,61 ,33 ) RS1/16S472J
R 1074(A,59 ,26 ) RS1/16S472J
R 1075(B,61 ,33 ) RS1/16S272J
R 1078(A,59 ,23 ) RS1/10S0R0J
R 1079(A,86 ,26 ) RS1/10S0R0J
R 1080(B,79 ,25 ) RS1/10S0R0J
R 1082(A,57 ,44 ) RS1/16S220J
R 1083(B,58 ,23 ) RS1/16S272J
R 1091(B,65 ,30 ) RS1/16S272J
R 1092(B,60 ,26 ) RS1/16S472J
R 1093(B,65 ,27 ) RS1/16S472J
R 1094(B,70 ,29 ) RS1/16S472J
R 1095(B,67 ,30 ) RS1/16S562J
R 1096(B,63 ,26 ) RS1/16S102J
R 1097(B,64 ,24 ) RS1/16S473J
R 1098(B,71 ,27 ) RS1/16S272J
R 1101(B,51 ,231 ) RS1/10S0R0J
R 1102(B,53 ,194 ) RS1/16S220J
R 1103(B,55 ,194 ) RS1/16S220J
R 1104(B,82 ,207 ) RS1/16S0R0J
R 1105(B,79 ,199 ) RS1/16S0R0J
R 1108(B,81 ,205 ) RS1/16S220J
R 1109(B,78 ,199 ) RS1/16S103J
R 1110(B,76 ,199 ) RS1/16S103J
R 1111(A,51 ,196 ) RS1/16S103J
Mark No. Description Part No.
R 1112(B,75 ,199 ) RS1/16S103J
R 1113(B,73 ,199 ) RS1/16S103J
R 1118(B,60 ,199 ) RS1/16S103J
R 1119(B,53 ,216 ) RS1/16S220J
R 1123(B,51 ,222 ) RS1/16S103J
R 1125(B,78 ,203 ) RS1/16S0R0J
R 1126(B,52 ,186 ) RS1/10S0R0J
R 1127(B,41 ,202 ) RAB4C103J
R 1128(B,35 ,202 ) RAB4C103J
R 1133(B,94 ,227 ) RS1/10S0R0J
R 1136(A,15 ,209 ) RS1/16S470J
R 1137(A,15 ,210 ) RS1/16S470J
R 1139(A,27 ,185 ) RS1/10S0R0J
R 1140(A,22 ,180 ) RS1/16S220J
R 1142(A,30 ,182 ) RS1/16S0R0J
R 1145(A,39 ,186 ) RS1/16S0R0J
R 1149(A,19 ,194 ) RS1/16S470J
R 1150(B,29 ,200 ) RS1/16S220J
R 1151(A,38 ,186 ) RS1/16S220J
R 1156(A,40 ,227 ) RS1/16S470J
R 1157(A,15 ,212 ) RS1/16S470J
R 1159(A,16 ,222 ) RS1/10S0R0J
R 1160(A,43 ,228 ) RS1/10S0R0J
R 1161(A,11 ,216 ) RS1/10S0R0J
R 1162(A,19 ,227 ) RS1/16S470J
R 1163(A,21 ,227 ) RS1/16S470J
R 1164(A,23 ,227 ) RS1/16S470J
R 1165(A,24 ,227 ) RS1/16S470J
R 1166(A,37 ,227 ) RS1/16S470J
R 1167(A,38 ,227 ) RS1/16S470J
R 1168(A,30 ,227 ) RS1/16S470J
R 1169(A,32 ,227 ) RS1/16S470J
R 1170(A,33 ,227 ) RS1/16S470J
R 1171(A,35 ,227 ) RS1/16S470J
R 1172(A,26 ,227 ) RS1/16S470J
R 1173(A,27 ,227 ) RS1/16S470J
R 1174(A,29 ,227 ) RS1/16S470J
R 1175(A,46 ,186 ) RAB4C470J
R 1176(A,50 ,186 ) RAB4C470J
R 1201(B,94 ,95 ) RS1/16S102J
R 1203(B,92 ,106 ) RS1/16S270J
R 1204(B,93 ,108 ) RS1/16S4700F
R 1205(B,93 ,106 ) CHIP RESISTOR RS1/16S2700F
R 1207(B,103 ,28 ) RS1/16S102J
R 1208(B,90 ,95 ) RS1/16S102J
R 1210(B,88 ,106 ) RS1/16S270J
R 1211(B,89 ,108 ) RS1/16S4700F
R 1212(B,90 ,106 ) CHIP RESISTOR RS1/16S2700F
R 1214(B,106 ,35 ) RS1/16S102J
R 1215(B,85 ,91 ) RS1/16S102J
R 1217(B,85 ,102 ) RS1/16S180J
R 1218(B,85 ,104 ) RS1/16S4700F
R 1219(B,86 ,102 ) CHIP RESISTOR RS1/16S2700F
R 1221(B,106 ,33 ) RS1/16S102J
R 1222(B,82 ,95 ) RS1/16S102J
R 1224(B,81 ,106 ) RS1/16S330J
R 1225(B,82 ,108 ) RS1/16S5600F
R 1226(B,83 ,106 ) RS1/16S3900F
R 1228(B,103 ,38 ) RS1/16S102J
R 1229(B,79 ,95 ) RS1/16S102J
Mark No. Description Part No.
DV-989AVi-S 69
5 678
5678
C
D
F
A
B
E
R 1231(B,78 ,106 ) RS1/16S330J
R 1232(B,79 ,108 ) RS1/16S5600F
R 1233(B,80 ,106 ) RS1/16S3900F
R 1235(B,103 ,43 ) RS1/16S102J
R 1236(B,76 ,95 ) RS1/16S102J
R 1238(B,74 ,106 ) RS1/16S330J
R 1239(B,74 ,107 ) RS1/16S5600F
R 1240(B,77 ,106 ) RS1/16S3900F
R 1242(B,103 ,46 ) RS1/16S102J
R 1801(A,18 ,61 ) RS1/10S0R0J
R 1813(A,40 ,80 ) RAB4C0R0J
R 1814(A,40 ,76 ) RAB4C0R0J
R 1815(A,40 ,72 ) RS1/16S103J
R 1816(A,35 ,72 ) RS1/16S0R0J
R 1817(B,20 ,27 ) RS1/16S103J
R 1818(A,40 ,73 ) RS1/16S0R0J
R 1819(B,35 ,42 ) RS1/16S103J
R 1820(A,28 ,23 ) RS1/16S5101F
CAPACITORS
C 100 (A,81 ,157 ) CCSRCH151J50
C 101 (A,107 ,150 )
CHIP OS CAPACITOR
ACH7174
C 102 (B,99 ,155 ) CKSRYB105K6R3
C 103 (A,107 ,157 )
CHIP ELECT.CAPACITOR
CEVW220M16
C 104 (B,99 ,158 ) CKSRYB105K6R3
C 105 (A,104 ,162 ) CKSRYB105K6R3
C 106 (A,88 ,172 ) CKSRYB152K50
C 107 (A,88 ,178 ) CCSRCH681J50
C 108 (A,94 ,172 ) CKSRYB104K16
C 109 (A,96 ,172 ) CCSRCH391J50
C 110 (A,93 ,168 ) CKSRYB103K50
C 111 (A,91 ,168 ) CKSRYB104K16
C 112 (A,73 ,155 ) CKSRYF105Z10
C 113 (A,81 ,170 ) CKSRYB103K50
C 114 (A,81 ,168 ) CKSRYB104K16
C 115 (A,81 ,162 ) CKSRYB104K16
C 116 (A,80 ,159 ) CKSRYB105K6R3
C 117 (A,71 ,158
) CAPACITOR(TANTARIUM)
VCH1259
C 118 (A,77 ,163 ) CKSRYF105Z10
C 119 (A,81 ,148 )
CAPACITOR(TANTARIUM)
VCH1258
C 120 (A,71 ,148 ) CCSRCH221J50
C 121 (A,75 ,148 ) CCSRCH121J50
C 122 (A,86 ,148 ) CKSRYF105Z10
C 123 (A,79 ,142 ) CEVW101M16
C 125 (A,108 ,139 ) CKSRYF105Z10
C 126 (A,105 ,118 ) CKSRYF105Z10
C 127 (A,80 ,161 ) CKSRYB105K6R3
C 128 (A,112 ,118 )
CHIP PV CAPACITOR
VCH1252
C 129 (A,84 ,144 ) CKSRYF105Z10
C 130 (B,101 ,129 ) CKSRYF105Z10
C 131 (B,95 ,154 ) CKSRYF105Z10
C 133 (A,99 ,139 ) CCSRCH221J50
C 134 (A,105 ,139 ) CCSRCH151J50
C 200 (B,60 ,169 ) CKSRYF105Z10
C 201 (B,37 ,161 )
CAPACITOR(TANTARIUM)
VCH1259
C 202 (B,53 ,169 ) CKSRYF105Z10
C 204 (B,53 ,170 ) CKSRYF105Z10
C 205 (B,45 ,142 )
CAPACITOR(TANTARIUM)
VCH1258
C 206 (B,63 ,165 ) CKSRYB472K50
Mark No. Description Part No.
C 208 (B,66 ,162 ) CKSRYB222K50
C 212 (B,71 ,162 ) CKSRYB104K16
C 213 (B,69 ,162 ) CKSRYB104K16
C 214 (B,41 ,162 ) CKSRYB472K50
C 215 (B,63 ,157 ) CKSRYF105Z10
C 216 (B,70 ,157 ) CKSRYB102K50
C 217 (B,63 ,153 ) CKSRYF105Z10
C 220 (B,55 ,148 ) CKSRYB103K50
C 221 (B,45 ,148 ) CKSRYF105Z10
C 222 (B,49 ,148 ) CKSRYF105Z10
C 223 (B,37 ,150 ) CKSRYB105K6R3
C 224 (B,38 ,148 ) CKSRYB105K6R3
C 225 (B,42 ,147 ) CKSRYB103K50
C 226 (B,42 ,153 ) CKSRYF105Z10
C 227 (B,36 ,152 ) CKSRYB104K16
C 230 (B,42 ,158 ) CKSRYF105Z10
C 231 (B,39 ,156 ) CKSRYB104K16
C 232 (A,68 ,168 ) CKSRYF105Z10
C 233 (A,66 ,175 ) CEVW101M16
C 234 (A,71 ,163 ) CKSRYB103K50
C 236 (B,42 ,166 ) CKSRYF105Z10
C 237 (B,42 ,170 )
CAPACITOR(TANTARIUM)
VCH1258
C 241 (A,77 ,160 ) CCSRCH560J50
C 242 (B,80 ,167 ) CKSRYB472K50
C 248 (A,91 ,205 ) CKSRYB104K16
C 249 (A,90 ,207 ) CKSRYB104K16
C 250 (A,89 ,209 ) CKSRYB104K16
C 251 (A,91 ,189 ) CKSRYB104K16
C 253 (A,99 ,187 ) CKSRYF105Z10
C 254 (A,104 ,185 ) CEVW101M16
C 255 (A,90 ,189 ) CKSRYB104K16
C 256 (A,104 ,191 ) CKSRYF105Z10
C 258 (A,94 ,189 ) CKSRYF105Z10
C 261 (B,61 ,191 ) CKSRYB103K50
C 263 (B,78 ,189 ) CKSRYB104K16
C 264 (B,74 ,189 ) CKSRYB105K6R3
C 265 (B,68 ,194 ) CKSRYF105Z10
C 266 (B,66 ,165 ) CKSRYB224K10
C 299 (B,41 ,158 ) CKSRYF105Z10
C 310 (B,57 ,139 ) CKSRYF105Z10
C 312 (B,80 ,151 ) CKSRYB105K6R3
C 313 (B,80 ,144 ) CKSRYB102K50
C 314 (B,65 ,150 ) CCSRCH150J50
C 315 (B,68 ,145 ) CKSRYB104K16
C 317 (B,68 ,151 ) CKSRYB104K16
C 319 (B,78 ,154 ) CKSRYF105Z10
C 320 (B,74 ,136 ) CKSRYB103K50
C 321 (A,74 ,137 ) CKSRYB103K50
C 322 (B,70 ,136 ) CKSRYB103K50
C 324 (B,77 ,140 ) CCSRCH331J50
C 326 (B,64 ,142 )
CAPACITOR(TANTARIUM)
VCH1258
C 328 (A,73 ,137 ) CKSRYF105Z10
C 329 (B,64 ,139 ) CKSRYF105Z10
C 330 (A,72 ,153 ) CKSRYB103K50
C 332 (B,84 ,151 ) CKSRYB104K16
C 351 (B,89 ,168 ) CKSRYB102K50
C 353 (B,87 ,171 ) CKSRYF104Z25
C 357 (B,87 ,185 ) CKSRYB472K50
C 358 (A,104 ,174 ) CEVW101M16
C 359 (B,89 ,171 ) CKSRYF104Z25
Mark No. Description Part No.
DV-989AVi-S
70
1234
1234
C
D
F
A
B
E
C 360 (B,87 ,190 ) CCSRCH681J50
C 363 (B,104 ,191 )
CHIP TZV CAPACITOR
VCH1260
C 365 (B,108 ,166 ) CKSRYF104Z25
C 366 (B,108 ,168 ) CKSRYF104Z25
C 368 (B,78 ,180 )
CHIP TZV CAPACITOR
VCH1260
C 369 (B,73 ,172 ) CEVW101M16
C 390 (A,108 ,228 ) CKSRYF105Z10
C 391 (A,105 ,228 ) CCSRCH331J50
C 392 (B,111 ,110 ) CCSRCH331J50
C 393 (A,107 ,108 ) CKSRYF105Z10
C 401 (B,94 ,198 ) CHIP PV CAPACITOR VCH1252
C 403 (A,94 ,81 ) CHIP TZV CAPACITOR VCH1260
C 404 (B,101 ,200 ) CKSRYB103K50
C 405 (A,104 ,60 )
CHIP TZV CAPACITOR
VCH1260
C 407 (B,96 ,205 ) CKSQYB225K10
C 408 (B,113 ,23 ) CKSQYB225K10
C 409 (B,103 ,205 ) CKSRYF105Z10
C 410 (A,104 ,78 ) CKSRYF104Z25
C 411 (B,101 ,17 ) CKSRYF105Z10
C 412 (B,101 ,15 ) CKSRYB102K50
C 413 (A,91 ,51 ) CHIP PV CAPACITOR VCH1252
C 414 (A,99 ,51 ) CEVW101M16
C 416 (A,92 ,44 ) CKSQYB225K10
C 418 (A,102 ,45 ) CKSRYF105Z10
C 419 (B,114 ,15 ) CKSRYF105Z10
C 421 (A,101 ,110 )
CHIP PV CAPACITOR
VCH1246
C 422 (A,89 ,120 ) CEVW101M16
C 426 (B,28 ,232 ) CKSRYB103K50
C 427 (A,106 ,78 ) CKSRYB102K50
C 428 (B,112 ,72 ) CKSRYB102K50
C 434 (A,103 ,72 ) CHIP PV CAPACITOR VCH1246
C 436 (A,93 ,61 ) CHIP PV CAPACITOR VCH1252
C 437 (A,103 ,85 ) CHIP PV CAPACITOR VCH1246
C 438 (A,98 ,86 ) CKSRYF105Z10
C 439 (A,86 ,243 ) CHIP PV CAPACITOR VCH1246
C 442 (A,97 ,239 ) CKSRYF105Z10
C 443 (A,97 ,246 )
CHIP ELECT.CAPACITOR
CEVW221M4
C 444 (A,11 ,190 ) CHIP PV CAPACITOR VCH1246
C 446 (A,9 ,172 ) CHIP PV CAPACITOR VCH1246
C 451 (A,14 ,102 ) CKSRYF105Z10
C 455 (B,51 ,183 ) CKSRYF105Z10
C 459 (B,68 ,170 ) CKSRYF105Z10
C 462 (A,33 ,121 ) CKSRYF105Z10
C 464 (A,33 ,116 ) CKSRYF105Z10
C 472 (A,103 ,127 ) CKSRYF105Z10
C 474 (A,86 ,131 ) CHIP PV CAPACITOR VCH1246
C 475 (A,102 ,132 )
CHIP ELECT.CAPACITOR
CEVW221M4
C 482 (A,21 ,105 ) CKSRYF105Z10
C 483 (A,28 ,98 )
CAPACITOR(TANTARIUM)
VCH1258
C 484 (A,27 ,101 ) CKSQYB225K10
C 485 (A,26 ,112 ) CKSRYF105Z10
C 486 (A,32 ,100 ) CCSRCH5R0C50
C 487 (A,32 ,106 ) CCSRCH5R0C50
C 488 (A,18 ,107 )
CAPACITOR(TANTARIUM)
VCH1258
C 491 (A,9 ,135 ) CHIP PV CAPACITOR VCH1246
C 493 (A,13 ,122 ) CKSRYF105Z10
C 494 (A,13 ,128 ) CKSRYF105Z10
C 495 (A,27 ,126 ) CKSRYF105Z10
C 496 (A,27 ,133 ) CKSRYF105Z10
C 527 (A,79 ,228 ) CKSRYF105Z10
Mark No. Description Part No.
C 528 (A,79 ,227 ) CKSRYB102K50
C 535 (A,62 ,228 )
CAPACITOR(TANTARIUM)
VCH1258
C 536 (A,68 ,228 ) CKSRYF105Z10
C 537 (A,52 ,229 ) CKSRYF105Z10
C 538 (B,98 ,242 ) CKSRYF105Z10
C 552 (A,78 ,199 )
CAPACITOR(TANTARIUM)
VCH1258
C 553 (A,79 ,203 ) CKSRYF105Z10
C 554 (A,78 ,215 ) CKSRYF105Z10
C 556 (A,68 ,198 ) CKSRYF105Z10
C 557 (A,68 ,201 ) CKSRYB102K50
C 558 (A,70 ,250 ) CKSRYF105Z10
C 559 (A,68 ,250 ) CKSRYB102K50
C 560 (A,65 ,250 )
CAPACITOR(TANTARIUM)
VCH1258
C 561 (A,65 ,244 ) CHIP PV CAPACITOR VCH1252
C 601 (A,42 ,96 ) CHIP TZV CAPACITOR VCH1262
C 602 (A,46 ,95 ) CKSRYF105Z10
C 603 (A,43 ,110 ) CKSRYF105Z10
C 604 (A,43 ,107 ) CKSRYF105Z10
C 605 (A,48 ,95 ) CKSRYF105Z10
C 606 (A,37 ,95 ) CKSRYB102K50
C 607 (A,55 ,96 ) CKSRYF105Z10
C 608 (A,42 ,118 ) CKSRYF105Z10
C 609 (B,87 ,118 ) CKSRYF104Z25
C 610 (A,61 ,93 ) CKSRYF105Z10
C 613 (A,63 ,95 ) CKSRYF105Z10
C 614 (A,69 ,126 ) CKSRYF105Z10
C 615 (A,75 ,109 ) CKSRYF105Z10
C 616 (A,74 ,122 ) CKSRYF105Z10
C 617 (A,82 ,117 ) CKSRYB102K50
C 618 (A,75 ,112 ) CKSRYF105Z10
C 619 (B,85 ,112 ) CKSRYB103K50
C 621 (B,62 ,128 ) CKSRYF105Z10
C 622 (B,67 ,128 ) CKSRYF105Z10
C 623 (A,43 ,123 )
CAPACITOR(TANTARIUM)
VCH1258
C 625 (B,62 ,132 )
CAPACITOR(TANTARIUM)
VCH1258
C 627 (A,78 ,131 )
CHIP TZV CAPACITOR
VCH1262
C 657 (A,55 ,126 ) CKSRYF105Z10
C 658 (A,58 ,126 ) CKSRYF105Z10
C 662 (A,49 ,133 ) CCSRCH100D50
C 701 (A,56 ,179 )
CAPACITOR(TANTARIUM)
VCH1258
C 702 (A,59 ,147 )
CAPACITOR(TANTARIUM)
VCH1258
C 703 (A,55 ,176 ) CKSRYB102K50
C 704 (A,32 ,177 ) CKSRYF105Z10
C 706 (A,39 ,177 ) CKSRYF105Z10
C 707 (A,43 ,177 ) CKSRYF105Z10
C 708 (A,57 ,171 ) CKSRYF105Z10
C 709 (A,46 ,177 ) CKSRYF105Z10
C 710 (A,52 ,176 ) CKSRYF105Z10
C 711 (A,60 ,176 )
CAPACITOR(TANTARIUM)
VCH1258
C 712 (A,20 ,170 ) CKSRYF105Z10
C 713 (A,20 ,173 ) CKSRYF105Z10
C 714 (A,58 ,173 ) CKSRYF105Z10
C 715 (A,20 ,166 ) CKSRYF105Z10
C 716 (A,56 ,163 ) CKSRYF105Z10
C 718 (A,20 ,162 ) CKSRYF105Z10
C 719 (A,56 ,158 ) CKSRYF105Z10
C 720 (A,20 ,155 ) CKSRYF105Z10
C 721 (A,60 ,157 ) CKSRYF105Z10
C 722 (A,20 ,158 ) CKSRYF105Z10
C 723 (A,65 ,148 ) CKSRYF104Z25
Mark No. Description Part No.
DV-989AVi-S 71
5 678
5678
C
D
F
A
B
E
C 724 (A,63 ,148 ) CKSRYF105Z10
C 725 (A,56 ,148 ) CKSRYF105Z10
C 726 (A,21 ,143 ) CKSRYF105Z10
C 727 (A,20 ,147 ) CKSRYF105Z10
C 728 (A,57 ,143 ) CKSRYF105Z10
C 729 (A,57 ,142 ) CKSRYF105Z10
C 730 (A,26 ,140 ) CKSRYF105Z10
C 731 (A,39 ,140 ) CKSRYF105Z10
C 732 (A,46 ,140 ) CKSRYF105Z10
C 733 (A,51 ,140 ) CKSRYB102K50
C 735 (A,27 ,177 ) CKSRYF105Z10
C 737 (A,17 ,148 )
CAPACITOR(TANTARIUM)
VCH1258
C 738 (A,18 ,141 )
CAPACITOR(TANTARIUM)
VCH1258
C 739 (B,12 ,93 )
CAPACITOR(TANTARIUM)
VCH1258
C 740 (A,20 ,250 ) CKSRYB104K16
C 741 (B,30 ,153 ) CKSRYF105Z10
C 742 (B,35 ,166 ) CKSRYF105Z10
C 743 (B,35 ,169 ) CKSRYF105Z10
C 744 (B,35 ,173 ) CKSRYF105Z10
C 745 (B,13 ,173 )
CAPACITOR(TANTARIUM)
VCH1258
C 746 (B,18 ,166 ) CKSRYF105Z10
C 747 (B,18 ,171 ) CKSRYF105Z10
C 748 (B,16 ,172 ) CKSRYB102K50
C 749 (A,23 ,250 ) CKSRYB105K6R3
C 750 (A,27 ,250 ) CKSRYB102K50
C 751 (B,51 ,127 )
CAPACITOR(TANTARIUM)
VCH1258
C 752 (B,15 ,130 )
CAPACITOR(TANTARIUM)
VCH1258
C 753 (B,41 ,129 ) CKSRYF105Z10
C 754 (B,38 ,129 ) CKSRYF105Z10
C 755 (B,28 ,129 ) CKSRYF105Z10
C 756 (B,25 ,129 ) CKSRYF105Z10
C 757 (B,13 ,125 ) CKSRYF105Z10
C 758 (B,13 ,122 ) CKSRYF105Z10
C 759 (B,50 ,120 ) CKSRYF105Z10
C 760 (B,50 ,116 ) CKSRYF105Z10
C 761 (B,14 ,115 ) CKSRYF105Z10
C 762 (B,14 ,112 ) CKSRYF105Z10
C 763 (B,50 ,112 ) CKSRYF105Z10
C 764 (B,50 ,109 ) CKSRYF105Z10
C 765 (B,14 ,108 ) CKSRYF105Z10
C 767 (B,8 ,144 ) CKSRYF105Z10
C 769 (B,50 ,105 ) CKSRYF105Z10
C 770 (B,50 ,102 ) CKSRYF105Z10
C 771 (B,13 ,103 ) CKSRYF105Z10
C 772 (B,13 ,99 ) CKSRYF105Z10
C 773 (B,44 ,93 ) CKSRYF105Z10
C 774 (B,41 ,93 ) CKSRYF105Z10
C 775 (B,37 ,93 ) CKSRYF105Z10
C 776 (B,33 ,93 ) CKSRYF105Z10
C 777 (B,28 ,93 ) CKSRYF105Z10
C 778 (B,25 ,93 ) CKSRYF105Z10
C 779 (B,20 ,93 ) CKSRYF105Z10
C 780 (B,17 ,93 ) CKSRYF105Z10
C 781 (B,9 ,69 )
CAPACITOR(TANTARIUM)
VCH1258
C 782 (B,11 ,72 ) CKSRYF105Z10
C 783 (B,20 ,72 ) CKSRYF105Z10
C 784 (B,16 ,72 ) CKSRYF105Z10
C 785 (B,7 ,88 ) CKSRYF105Z10
C 786 (B,11 ,88 ) CKSRYF105Z10
C 787 (B,15 ,88 ) CKSRYF105Z10
Mark No. Description Part No.
C 788 (B,18 ,88 ) CKSRYF105Z10
C 789 (B,30 ,88 ) CKSRYF105Z10
C 791 (B,34 ,134 ) CKSRYF105Z10
C 797 (B,28 ,138 ) CKSRYF105Z10
C 801 (B,48 ,44 ) CKSRYF105Z10
C 802 (A,26 ,59 ) CKSRYF105Z10
C 803 (A,23 ,60 )
CAPACITOR(TANTARIUM)
VCH1258
C 804 (A,30 ,56 ) CKSRYF105Z10
C 805 (B,37 ,51 ) CKSRYF104Z25
C 806 (A,35 ,56 ) CKSRYF105Z10
C 807 (A,30 ,58 ) CKSRYF105Z10
C 808 (A,27 ,54 ) CKSRYF105Z10
C 809 (A,18 ,45 ) CKSRYF104Z25
C 810 (A,26 ,46 ) CKSRYF105Z10
C 812 (A,27 ,40 ) CKSRYF105Z10
C 813 (A,33 ,35 ) CKSRYF105Z10
C 814 (A,44 ,37 ) CKSRYF105Z10
C 815 (A,45 ,34 )
CAPACITOR(TANTARIUM)
VCH1258
C 816 (A,50 ,38 ) CKSRYF105Z10
C 817 (B,45 ,39 )
CAPACITOR(TANTARIUM)
VCH1258
C 820 (B,54 ,36 ) CKSRYB104K16
C 821 (A,47 ,40 ) CKSRYF104Z25
C 822 (A,48 ,40 ) CKSRYB102K50
C 823 (A,47 ,45 ) CKSRYF105Z10
C 824 (A,51 ,56 ) CKSRYF104Z25
C 825 (A,43 ,57 ) CKSRYF105Z10
C 826 (B,48 ,93 )
CAPACITOR(TANTARIUM)
VCH1258
C 827 (B,41 ,91 ) CKSRYF105Z10
C 828 (B,13 ,37 ) CKSRYF105Z10
C 829 (B,11 ,39 )
CAPACITOR(TANTARIUM)
VCH1258
C 830 (B,16 ,41 ) CKSRYF105Z10
C 831 (B,19 ,30 ) CKSRYF105Z10
C 832 (B,19 ,42 ) CKSRYB103K50
C 833 (A,24 ,37 )
CAPACITOR(TANTARIUM)
VCH1258
C 834 (A,11 ,47 ) CKSRYB105K6R3
C 835 (A,8 ,51 ) CKSRYB105K6R3
C 836 (A,8 ,48 ) CKSRYB683K16
C 837 (A,15 ,50 ) CKSRYF105Z10
C 838 (A,11 ,58 )
CHIP ELECT.CAPACITOR
CEVW221M4
C 839 (A,36 ,81 ) CKSRYF105Z10
C 840 (A,21 ,93 ) CKSRYF105Z10
C 841 (A,15 ,82 ) CKSRYF105Z10
C 842 (A,10 ,71 )
CAPACITOR(TANTARIUM)
VCH1258
C 843 (A,18 ,20 ) CKSRYF105Z10
C 844 (A,24 ,25 ) CKSRYB103K50
C 845 (A,51 ,23 ) CKSRYF105Z10
C 846 (A,34 ,23 ) CKSRYF105Z10
C 847 (A,47 ,23 ) CCSRCH221J50
C 848 (A,29 ,23 ) CCSRCH221J50
C 849 (B,42 ,27 ) CKSRYF104Z25
C 850 (B,43 ,27 ) CKSRYF104Z25
C 856 (A,13 ,97 )
CAPACITOR(TANTARIUM)
VCH1258
C 857 (A,20 ,28 ) CKSRYF104Z25
C 901 (B,86 ,51 ) CKSRYF105Z10
C 903 (B,57 ,61 ) CKSRYF105Z10
C 904 (B,59 ,58 )
CAPACITOR(TANTARIUM)
VCH1258
C 905 (B,72 ,60 ) CKSRYF105Z10
C 906 (B,69 ,60 ) CKSRYF105Z10
C 907 (B,87 ,73 ) CKSRYF105Z10
C 908 (B,81 ,57 ) CKSRYF105Z10
Mark No. Description Part No.
DV-989AVi-S
72
1234
1234
C
D
F
A
B
E
C 909 (B,88 ,78 ) CKSRYF105Z10
C 910 (B,88 ,73 ) CKSRYF105Z10
C 911 (B,52 ,87 )
CAPACITOR(TANTARIUM)
VCH1258
C 912 (B,52 ,90 ) CKSRYF105Z10
C 913 (B,87 ,78 ) CKSRYF105Z10
C 914 (B,66 ,90 ) CKSRYF105Z10
C 915 (B,74 ,60 ) CKSRYF105Z10
C 916 (B,61 ,79 ) CKSRYF105Z10
C 917 (B,59 ,76 ) CKSRYF105Z10
C 918 (B,65 ,93 ) CKSRYF105Z10
C 919 (B,72 ,102 )
CAPACITOR(TANTARIUM)
VCH1258
C 920 (B,59 ,73 ) CKSRYF105Z10
C 921 (B,59 ,70 ) CKSRYF105Z10
C 922 (B,59 ,67 ) CKSRYF105Z10
C 923 (B,59 ,63 ) CKSRYF105Z10
C 924 (B,89 ,69 ) CKSRYF105Z10
C 925 (B,87 ,63 ) CKSRYF105Z10
C 926 (B,78 ,59 ) CKSRYF105Z10
C 927 (B,74 ,58 ) CKSRYF105Z10
C 928 (B,72 ,58 ) CKSRYF105Z10
C 929 (B,69 ,58 ) CKSRYF105Z10
C 930 (B,93 ,59 )
CAPACITOR(TANTARIUM)
VCH1258
C 931 (B,94 ,40 ) CKSRYF105Z10
C 932 (B,96 ,38 )
CAPACITOR(TANTARIUM)
VCH1258
C 933 (B,66 ,51 ) CKSRYF105Z10
C 934 (A,93 ,36 ) CKSRYF105Z10
C 935 (B,69 ,51 ) CKSRYF105Z10
C 936 (A,93 ,34 ) CKSRYF105Z10
C 937 (B,72 ,51 ) CKSRYF105Z10
C 939 (B,89 ,51 ) CKSRYF105Z10
C 941 (A,106 ,53 ) CCSRCH331J50
C 942 (A,107 ,39 ) CCSRCH331J50
C 943 (B,101 ,255 ) CCSRCH331J50
C 944 (B,51 ,255 ) CCSRCH331J50
C 945 (A,107 ,46 ) CCSRCH331J50
C 946 (B,111 ,33 ) CCSRCH331J50
C 947 (A,106 ,50 ) CCSRCH331J50
C 948 (A,106 ,33 ) CCSRCH331J50
C 949 (B,74 ,51 ) CKSRYF105Z10
C 951 (B,92 ,51 ) CKSRYF105Z10
C 957 (B,89 ,34 ) CKSRYF105Z10
C 958 (B,83 ,51 ) CKSRYF105Z10
C 959 (B,86 ,34 ) CKSRYF105Z10
C 960 (B,74 ,34 ) CKSRYF105Z10
C 961 (B,70 ,34 ) CKSRYF105Z10
C 963 (B,61 ,63 ) CKSRYF105Z10
C 964 (B,61 ,67 ) CKSRYF105Z10
C 965 (B,61 ,70 ) CKSRYF105Z10
C 966 (B,61 ,73 ) CKSRYF105Z10
C 967 (B,61 ,76 ) CKSRYF105Z10
C 968 (B,59 ,79 ) CKSRYF105Z10
C 971 (B,69 ,89 ) CKSRYF105Z10
C 972 (B,73 ,94 ) CKSRYB105K6R3
C 973 (B,97 ,84 ) CKSRYB105K6R3
C 974 (B,100 ,84 )
CAPACITOR(TANTARIUM)
VCH1258
C 975 (B,73 ,92 ) CKSRYB105K6R3
C 976 (B,75 ,88 ) CKSRYB105K6R3
C 977 (B,78 ,89 ) CKSRYB105K6R3
C 978 (B,81 ,89 ) CKSRYB105K6R3
C 979 (B,85 ,90 ) CKSRYB105K6R3
Mark No. Description Part No.
C 980 (B,88 ,89 ) CKSRYB105K6R3
C 981 (B,98 ,108 ) CEVW101M16
C 982 (B,92 ,97 ) CKSRYF105Z10
C 983 (B,88 ,94 ) CKSRYF105Z10
C 986 (B,92 ,89 ) CKSRYB105K6R3
C 987 (B,92 ,83 ) CKSRYB105K6R3
C 988 (B,95 ,80 ) CKSRYB105K6R3
C 989 (B,93 ,83 ) CKSRYB102K50
C 990 (B,90 ,80 ) CKSRYB102K50
C 991 (B,88 ,80 ) CKSRYB105K6R3
C 992 (B,88 ,69 ) CKSRYF105Z10
C 993 (B,88 ,63 ) CKSRYF105Z10
C 1001(A,66 ,91 )
CAPACITOR(TANTARIUM)
VCH1258
C 1002(A,67 ,88 ) CKSRYF105Z10
C 1003(A,75 ,93 )
CAPACITOR(TANTARIUM)
VCH1258
C 1004(A,81 ,90 ) CKSRYF105Z10
C 1005(A,76 ,90 ) CKSRYF105Z10
C 1006(A,80 ,81 ) CKSRYF105Z10
C 1007(A,83 ,81 ) CKSRYF105Z10
C 1009(A,85 ,83 ) CKSRYB334K10
C 1010(A,85 ,77 ) CKSRYF105Z10
C 1011(A,80 ,76 ) CKSRYF105Z10
C 1012(A,79 ,73 ) CKSRYF105Z10
C 1013(A,67 ,63 ) CKSRYF105Z10
C 1014(A,63 ,63 ) CKSRYF105Z10
C 1017(A,55 ,69 ) CKSRYF105Z10
C 1018(A,55 ,74 ) CKSRYF105Z10
C 1019(A,55 ,78 ) CKSRYF105Z10
C 1020(A,67 ,86 ) CKSRYF105Z10
C 1021(A,70 ,86 ) CKSRYF105Z10
C 1022(A,79 ,66 ) CKSRYF105Z10
C 1051(A,83 ,50 )
CAPACITOR(TANTARIUM)
VCH1258
C 1052(A,80 ,53 ) CKSRYF105Z10
C 1053(A,80 ,49 ) CKSRYF105Z10
C 1054(A,80 ,46 ) CKSRYF105Z10
C 1055(A,77 ,35 ) CKSRYF105Z10
C 1056(A,69 ,35 ) CKSRYF105Z10
C 1057(A,73 ,35 ) CKSRYF105Z10
C 1058(A,62 ,38 ) CKSRYF105Z10
C 1059(A,70 ,54 ) CKSRYF105Z10
C 1060(A,62 ,50 ) CKSRYF105Z10
C 1061(A,61 ,42 ) CKSRYF105Z10
C 1066(A,62 ,22 ) CKSRYF105Z10
C 1067(A,85 ,33 )
CAPACITOR(TANTARIUM)
VCH1258
C 1068(A,73 ,34 ) CKSRYB102K50
C 1069(A,69 ,34 ) CKSRYB102K50
C 1070(B,81 ,24 ) CKSRYF104Z25
C 1071(B,81 ,25 ) CKSRYF104Z25
C 1073(A,80 ,43 ) CKSRYF105Z10
C 1074(A,67 ,54 ) CKSRYF105Z10
C 1075(A,60 ,54 ) CKSRYF105Z10
C 1076(A,59 ,61 )
CAPACITOR(TANTARIUM)
VCH1258
C 1078(A,61 ,43 ) CKSRYF105Z10
C 1101(B,53 ,226 )
CAPACITOR(TANTARIUM)
VCH1258
C 1103(B,81 ,223 ) CKSRYF105Z10
C 1104(B,81 ,220 ) CKSRYF105Z10
C 1105(B,81 ,217 ) CKSRYF105Z10
C 1106(B,81 ,213 ) CKSRYF105Z10
C 1107(B,72 ,203 ) CKSRYF105Z10
C 1108(B,68 ,203 ) CKSRYF105Z10
Mark No. Description Part No.
DV-989AVi-S 73
5 678
5678
C
D
F
A
B
E
C 1109(B,66 ,201 ) CKSRYF105Z10
C 1110(B,63 ,203 ) CKSRYF105Z10
C 1111(B,54 ,206 ) CKSRYF105Z10
C 1112(B,54 ,210 ) CKSRYB473K50
C 1113(B,53 ,213 ) CKSRYF105Z10
C 1114(B,53 ,210 ) CKSRYB103K50
C 1115(B,48 ,210 )
CAPACITOR(TANTARIUM)
VCH1258
C 1116(B,51 ,210 ) CKSRYF105Z10
C 1117(B,45 ,213 ) CKSRYF105Z10
C 1118(B,51 ,219 ) CKSRYF105Z10
C 1119(B,54 ,219 ) CKSRYF105Z10
C 1120(B,54 ,223 ) CKSRYF105Z10
C 1121(B,58 ,229 ) CKSRYF105Z10
C 1122(B,61 ,229 ) CKSRYF105Z10
C 1123(B,64 ,229 ) CKSRYF105Z10
C 1124(B,68 ,229 ) CKSRYF105Z10
C 1125(B,71 ,229 ) CKSRYF105Z10
C 1126(B,74 ,229 ) CKSRYF105Z10
C 1127(B,85 ,202 ) CKSRYF105Z10
C 1128(B,49 ,193 ) CKSRYF105Z10
C 1129(B,82 ,218 ) CKSRYF105Z10
C 1130(B,89 ,227 )
CAPACITOR(TANTARIUM)
VCH1258
C 1131(B,48 ,187 )
CAPACITOR(TANTARIUM)
VCH1258
C 1132(B,45 ,185 ) CKSRYF105Z10
C 1133(B,42 ,183 ) CKSRYF105Z10
C 1134(B,37 ,183 ) CKSRYF105Z10
C 1135(B,33 ,183 ) CKSRYF105Z10
C 1136(B,25 ,183 ) CKSRYF105Z10
C 1137(B,32 ,199 ) CKSRYF105Z10
C 1138(B,39 ,199 ) CKSRYF105Z10
C 1140(A,28 ,182 ) CKSRYF105Z10
C 1143(A,30 ,185 ) CKSRYF105Z10
C 1146(A,25 ,188 ) CKSRYF105Z10
C 1147(A,29 ,188 ) CKSRYF105Z10
C 1148(A,32 ,188 ) CKSRYF105Z10
C 1149(A,37 ,188 ) CKSRYF105Z10
C 1152(A,49 ,194 ) CKSRYF105Z10
C 1155(A,49 ,200 ) CKSRYF105Z10
C 1156(A,52 ,201 )
CAPACITOR(TANTARIUM)
VCH1258
C 1157(A,49 ,209 ) CKSRYF105Z10
C 1158(A,44 ,219 ) CKSRYF105Z10
C 1159(A,41 ,219 ) CKSRYF105Z10
C 1160(A,34 ,219 ) CKSRYF105Z10
C 1161(A,30 ,219 ) CKSRYF105Z10
C 1162(A,23 ,220 ) CKSRYF105Z10
C 1163(A,20 ,220 )
CAPACITOR(TANTARIUM)
VCH1258
C 1164(A,26 ,219 ) CKSRYF105Z10
C 1165(A,41 ,221 ) CKSRYF105Z10
C 1166(A,44 ,224 )
CAPACITOR(TANTARIUM)
VCH1258
C 1167(A,14 ,216 )
CAPACITOR(TANTARIUM)
VCH1258
C 1168(A,17 ,215 ) CKSRYB102K50
C 1169(A,18 ,215 ) CKSRYF105Z10
C 1170(A,18 ,208 ) CKSRYF105Z10
C 1172(A,18 ,205 ) CKSRYF105Z10
C 1173(A,18 ,198 ) CKSRYF105Z10
C 1175(A,19 ,191 ) CKSRYB103K50
C 1176(A,16 ,197 ) CKSRYF105Z10
Mark No. Description Part No.
BVJKB ASSY
MISCELLANEOUS
>IC 4101(A,67 ,163 )
REGULATOR IC (5.0V)
MM1565AF
IC 4302(B,55 ,64 ) DVD VIDEO AMP LA73054
IC 4601(A,68 ,124 ) DVD VIDEO AMP LA73054
IC 4603(B,69 ,167 ) VIDEO SW IC MM1507XN
Q 4301(A,33 ,145 ) TRANSISTOR UMD3N
Q 4302(A,33 ,137 ) TRANSISTOR UMD3N
Q 4303(A,88 ,104 ) TRANSISTOR UMD3N
Q 4304(B,75 ,54 ) TRANSISTOR 2SA1576A
Q 4305(B,74 ,69 ) TRANSISTOR 2SA1576A
Q 4306(B,70 ,70 ) TRANSISTOR 2SA1576A
Q 4601(A,82 ,103 ) TRANSISTOR UMD3N
Q 4602(A,78 ,108 ) CHIP TRANSISTOR DTC114YUA
D 4101(B,67 ,149 ) CHIP DIODE RB501V-40
D 4201(B,28 ,167 ) DIODE 1SS355
D 4301(A,88 ,108 ) DIODE DAN202K
D 4609(A,83 ,108 ) DIODE DAN202K
L 4401(B,31 ,57 ) CHIP BEADS VTL1089
L 4402(B,31 ,41 ) CHIP BEADS VTL1089
F 4301(A,82 ,64 ) 12MHZ LPF(VIDEO) VTF1175
F 4302(A,82 ,87 ) 12MHZ LPF(VIDEO) VTF1175
F 4303(A,72 ,91 ) 12MHZ LPF(VIDEO) VTF1175
JA 4201(A,16 ,150 ) JACK RKN1004
JA 4202(A,16 ,160 ) JACK RKN1004
JA 4401(A,14 ,128 ) JACK VKB1135
JA 4403(A,14 ,59 ) JACK VKB1151
KN4101(A,78 ,177 )
WRAPPING TERMINAL
VNF1084
KN4102(A,27 ,173 )
WRAPPING TERMINAL
VNF1084
KN4103(A,22 ,12 )
WRAPPING TERMINAL
VNF1084
KN4104(A,88 ,9 )
WRAPPING TERMINAL
VNF1084
CN4101(A,47 ,168 ) 23P CONNECTOR VKN1427
CN4402(A,14 ,97 ) SOCKET AKP7023
CN4601(A,79 ,157 ) CONNECTOR POST B3B-PH
CN4602(A,86 ,133 ) 19P CONNECTOR VKN1250
PCB BINDERVEF1040
RESISTORS
R 4101(A,59 ,161 ) RS1/10S0R0J
R 4102(B,54 ,167 ) RS1/16S223J
R 4103(B,57 ,168 ) RS1/16S103J
R 4104(A,55 ,153 ) RS1/10S0R0J
R 4105(A,53 ,148 ) RS1/10S0R0J
R 4106(A,51 ,142 ) RS1/10S0R0J
R 4201(B,30 ,164 ) RS1/16S0R0J
R 4204(B,24 ,145 ) RS1/16S0R0J
R 4207(B,24 ,167 ) RS1/16S0R0J
R 4301(A,86 ,105 ) RS1/16S103J
R 4302(A,60 ,88 ) RS1/10S0R0J
R 4305(B,43 ,85 ) RS1/16S0R0J
R 4306(B,41 ,77 ) RS1/16S0R0J
R 4307(B,37 ,76 ) RS1/16S0R0J
R 4308(B,39 ,67 ) RS1/16S0R0J
R 4309(B,40 ,61 ) RS1/16S0R0J
R 4310(B,36 ,49 ) RS1/16S0R0J
R 4311(A,32 ,142 ) RS1/16S152J
R 4312(A,30 ,142 ) RS1/16S102J
R 4318(B,85 ,72 ) RS1/16S3000D
R 4319(B,77 ,49 ) RS1/16S0R0J
Mark No. Description Part No.
DV-989AVi-S
74
1234
1234
C
D
F
A
B
E
R 4320(B,75 ,56 ) RS1/16S182J
R 4323(B,80 ,51 ) RS1/16S2202F
R 4325(B,74 ,93 ) RS1/16S3000D
R 4326(B,75 ,65 ) RS1/16S182J
R 4328(B,81 ,73 ) RS1/16S2202F
R 4330(B,81 ,68 ) RS1/16S0R0J
R 4332(B,68 ,90 ) RS1/16S3000D
R 4333(B,68 ,74 ) RS1/16S182J
R 4334(B,73 ,77 ) RS1/16S2202F
R 4336(B,72 ,74 ) RS1/16S0R0J
R 4401(B,24 ,133 ) RS1/10S75R0F
R 4402(B,25 ,120 ) RS1/10S75R0F
R 4403(B,28 ,101 ) RS1/10S75R0F
R 4404(B,30 ,108 ) RS1/10S75R0F
R 4405(B,33 ,111 ) RS1/16S103J
R 4406(B,29 ,87 ) RS1/10S75R0F
R 4407(B,31 ,92 ) RS1/10S75R0F
R 4408(B,34 ,91 ) RS1/16S103J
R 4409(B,31 ,69 ) RS1/10S1R8J
R 4410(B,28 ,56 ) RS1/10S1R0J
R 4412(B,29 ,41 ) RS1/10S1R0J
R 4414(B,26 ,71 ) CHIP RESISTOR RS1/10S68R0D
R 4415(B,26 ,59 ) CHIP RESISTOR RS1/10S68R0D
R 4416(B,26 ,44 ) CHIP RESISTOR RS1/10S68R0D
R 4601(A,64 ,142 ) RS1/10S0R0J
R 4602(B,70 ,124 ) RS1/16S0R0J
R 4605(A,78 ,105 ) RS1/16S222J
R 4607(A,80 ,104 ) RS1/16S103J
R 4608(A,67 ,173 ) RS1/10S0R0J
R 4612(B,35 ,128 ) RS1/16S0R0J
R 4613(B,41 ,105 ) RS1/16S0R0J
R 4614(A,39 ,94 ) RS1/16S0R0J
R 4604(B,83 ,128 ) RS1/10S3R3J
R 4610(A,77 ,131 ) RS1/10S3R3J
CAPACITORS
C 4107(A,59 ,154 ) CEAT101M16
C 4108(A,65 ,158 ) CKSQYF105Z25
C 4109(A,70 ,146 ) CEAT221M6R3
C 4110(A,69 ,156 ) CKSQYB225K10
C 4112(B,59 ,168 ) CKSRYB102K50
C 4201(B,23 ,155 ) CCSRCH470J50
C 4202(B,26 ,145 ) CCSRCH470J50
C 4206(B,21 ,167 ) CKSRYF105Z10
C 4303(B,53 ,93 ) CKSRYB104K16
C 4304(A,60 ,84 ) ELECT. CAPACITOR CEHAZA471M6R3
C 4305(B,59 ,74 ) CKSQYF104Z25
C 4306(B,48 ,73 ) CKSRYF105Z10
C 4307(B,53 ,97 ) CKSRYB104K16
C 4308(B,53 ,100 ) CKSRYB104K16
C 4309(B,68 ,65 ) CKSRYB104K16
C 4311(B,39 ,64 ) CKSRYF105Z10
C 4312(B,68 ,61 ) CKSRYB104K16
C 4313(B,68 ,58 ) CKSRYB104K16
C 4314(A,60 ,52 ) ELECT. CAPACITOR CEHAZA471M6R3
C 4315(B,62 ,55 ) CKSQYF105Z16
C 4316(A,31 ,135 ) CKSRYF105Z10
C 4317(B,75 ,59 ) CKSRYF104Z25
C 4318(B,82 ,51 ) CCSRCH100D50
C 4319(B,75 ,63 ) CKSRYF104Z25
Mark No. Description Part No.
C 4320(B,81 ,75 ) CCSRCH100D50
C 4321(B,68 ,78 ) CKSRYF104Z25
C 4322(B,74 ,74 ) CCSRCH100D50
C 4324(A,32 ,89 ) CKSRYB102K50
C 4325(A,79 ,58 ) CCSRCH4R0C50
C 4326(A,79 ,82 ) CCSRCH4R0C50
C 4327(A,69 ,84 ) CCSRCH4R0C50
C 4328(A,79 ,64 ) CCSRCH7R0D50
C 4329(A,79 ,87 ) CCSRCH7R0D50
C 4330(A,69 ,90 ) CCSRCH7R0D50
C 4401(A,36 ,124 ) ELECT. CAPACITOR CEAT102M6R3
C 4403(A,36 ,115 ) ELECT. CAPACITOR CEAT102M6R3
C 4405(A,37 ,103 ) ELECT. CAPACITOR CEAT102M6R3
C 4406(B,35 ,108 ) CKSRYF104Z25
C 4408(A,37 ,81 ) ELECT. CAPACITOR CEAT102M6R3
C 4409(B,34 ,93 ) CKSRYF104Z25
C 4413(A,37 ,73 ) ELECT. CAPACITOR CEAT102M6R3
C 4414(A,36 ,61 ) ELECT. CAPACITOR CEAT471M6R3
C 4417(A,36 ,45 ) ELECT. CAPACITOR CEAT471M6R3
C 4602(A,80 ,145 ) CKSRYF105Z10
C 4603(B,89 ,152 ) CKSRYF105Z10
C 4604(A,63 ,138 ) ELECT. CAPACITOR CEHAZA471M6R3
C 4621(A,53 ,130 ) CKSRYB104K16
C 4606(A,67 ,133 ) CKSQYF104Z25
C 4607(A,72 ,134 ) CKSRYF105Z10
C 4608(A,59 ,128 ) CKSRYF104Z25
C 4624(A,55 ,126 ) CKSRYF104Z25
C 4610(A,57 ,123 ) CKSRYB104K16
C 4622(A,56 ,120 ) CKSRYF104Z25
C 4612(A,72 ,115 ) CKSRYF105Z10
C 4623(A,58 ,117 ) CKSRYB104K16
C 4614(A,63 ,110 ) ELECT. CAPACITOR CEHAZA471M6R3
C 4615(A,63 ,115 ) CKSQYF105Z16
C 4617(B,63 ,163 ) CKSRYB104K16
C 4618(B,70 ,162 ) CKSQYF104Z25
C 4619(B,65 ,163 ) CKSRYF104Z25
BVJKB ASSY [VWV2150]
MISCELLANEOUS
>IC 4101(A,67 ,163 )
REGULATOR IC (5.0V)
MM1565AF
IC 4302(B,55 ,64 ) DVD VIDEO AMP LA73054
Q 4301(A,33 ,145 ) TRANSISTOR UMD3N
Q 4302(A,33 ,137 ) TRANSISTOR UMD3N
Q 4303(A,88 ,104 ) TRANSISTOR UMD3N
Q 4304(B,75 ,54 ) TRANSISTOR 2SA1576A
Q 4305(B,74 ,69 ) TRANSISTOR 2SA1576A
Q 4306(B,70 ,70 ) TRANSISTOR 2SA1576A
D 4101(B,67 ,149 ) CHIP DIODE RB501V-40
D 4201(B,28 ,167 ) DIODE 1SS355
D 4301(A,88 ,108 ) DIODE DAN202K
L 4401(B,31 ,57 ) CHIP BEADS VTL1089
L 4402(B,31 ,41 ) CHIP BEADS VTL1089
L 4501(B,38 ,24 ) CHIP BEADS VTL1089
L 4502(B,38 ,29 ) CHIP BEADS VTL1089
F 4301(A,82 ,64 ) 12MHZ LPF(VIDEO) VTF1175
F 4302(A,82 ,87 ) 12MHZ LPF(VIDEO) VTF1175
F 4303(A,72 ,91 ) 12MHZ LPF(VIDEO) VTF1175
JA 4201(A,16 ,150 ) JACK RKN1004
JA 4202(A,16 ,160 ) JACK RKN1004
Mark No. Description Part No.
DV-989AVi-S 75
5 678
5678
C
D
F
A
B
E
JA 4401(A,14 ,128 ) JACK VKB1135
JA 4403(A,14 ,59 ) JACK VKB1151
KN4101(A,78 ,177 )
WRAPPING TERMINAL
VNF1084
KN4102(A,27 ,173 )
WRAPPING TERMINAL
VNF1084
KN4103(A,22 ,12 )
WRAPPING TERMINAL
VNF1084
KN4104(A,88 ,9 ) WRAPPING TERMINAL VNF1084
CN4101(A,47 ,168 ) 23P CONNECTOR VKN1427
CN4402(A,14 ,97 ) SOCKET AKP7023
CN4501(A,14 ,25 ) D-SOCKET(14P) VKB1232
PCB BINDER VEF1040
RESISTORS
R 4101(A,59 ,161 ) RS1/10S0R0J
R 4102(B,54 ,167 ) RS1/16S223J
R 4103(B,57 ,168 ) RS1/16S103J
R 4104(A,55 ,153 ) RS1/10S0R0J
R 4105(A,53 ,148 ) RS1/10S0R0J
R 4106(A,51 ,142 ) RS1/10S0R0J
R 4201(B,30 ,164 ) RS1/16S0R0J
R 4204(B,24 ,145 ) RS1/16S0R0J
R 4207(B,24 ,167 ) RS1/16S0R0J
R 4301(A,86 ,105 ) RS1/16S103J
R 4302(A,60 ,88 ) RS1/10S0R0J
R 4305(B,43 ,85 ) RS1/16S0R0J
R 4306(B,41 ,77 ) RS1/16S0R0J
R 4307(B,37 ,76 ) RS1/16S0R0J
R 4308(B,39 ,67 ) RS1/16S0R0J
R 4309(B,40 ,61 ) RS1/16S0R0J
R 4310(B,36 ,49 ) RS1/16S0R0J
R 4311(A,32 ,142 ) RS1/16S152J
R 4312(A,30 ,142 ) RS1/16S102J
R 4318(B,85 ,72 ) RS1/16S3000D
R 4319(B,77 ,49 ) RS1/16S0R0J
R 4320(B,75 ,56 ) RS1/16S182J
R 4323(B,80 ,51 ) RS1/16S2202F
R 4325(B,74 ,93 ) RS1/16S3000D
R 4326(B,75 ,65 ) RS1/16S182J
R 4328(B,81 ,73 ) RS1/16S2202F
R 4330(B,81 ,68 ) RS1/16S0R0J
R 4332(B,68 ,90 ) RS1/16S3000D
R 4333(B,68 ,74 ) RS1/16S182J
R 4334(B,73 ,77 ) RS1/16S2202F
R 4336(B,72 ,74 ) RS1/16S0R0J
R 4401(B,24 ,133 ) RS1/10S75R0F
R 4402(B,25 ,120 ) RS1/10S75R0F
R 4403(B,28 ,101 ) RS1/10S75R0F
R 4404(B,30 ,108 ) RS1/10S75R0F
R 4405(B,33 ,111 ) RS1/16S103J
R 4406(B,29 ,87 ) RS1/10S75R0F
R 4407(B,31 ,92 ) RS1/10S75R0F
R 4408(B,34 ,91 ) RS1/16S103J
R 4409(B,31 ,69 ) RS1/10S1R8J
R 4410(B,28 ,56 ) RS1/10S1R0J
R 4412(B,29 ,41 ) RS1/10S1R0J
R 4414(B,26 ,71 ) CHIP RESISTOR RS1/10S68R0D
R 4415(B,26 ,59 ) CHIP RESISTOR RS1/10S68R0D
R 4416(B,26 ,44 ) CHIP RESISTOR RS1/10S68R0D
R 4501(B,37 ,17 ) RS1/10S1R8J
Mark No. Description Part No.
R 4502(B,36 ,24 ) RS1/10S1R0J
R 4503(B,36 ,29 ) RS1/10S1R0J
R 4506(B,27 ,12 ) RS1/16S103J
R 4507(B,24 ,15 ) RS1/16S103J
R 4508(B,34 ,16 ) CHIP RESISTOR RS1/10S68R0D
R 4509(B,33 ,23 ) CHIP RESISTOR RS1/10S68R0D
R 4510(B,33 ,30 ) CHIP RESISTOR RS1/10S68R0D
CAPACITORS
C 4107(A,59 ,154 ) CEAT101M16
C 4108(A,65 ,158 ) CKSQYF105Z25
C 4109(A,70 ,146 ) CEAT221M6R3
C 4110(A,69 ,156 ) CKSQYB225K10
C 4112(B,59 ,168 ) CKSRYB102K50
C 4201(B,23 ,155 ) CCSRCH470J50
C 4202(B,26 ,145 ) CCSRCH470J50
C 4206(B,21 ,167 ) CKSRYF105Z10
C 4303(B,53 ,93 ) CKSRYB104K16
C 4304(A,60 ,84 ) ELECT. CAPACITOR CEHAZA471M6R3
C 4305(B,59 ,74 ) CKSQYF104Z25
C 4306(B,48 ,73 ) CKSRYF105Z10
C 4307(B,53 ,97 ) CKSRYB104K16
C 4308(B,53 ,100 ) CKSRYB104K16
C 4309(B,68 ,65 ) CKSRYB104K16
C 4311(B,39 ,64 ) CKSRYF105Z10
C 4312(B,68 ,61 ) CKSRYB104K16
C 4313(B,68 ,58 ) CKSRYB104K16
C 4314(A,60 ,52 ) ELECT. CAPACITOR CEHAZA471M6R3
C 4315(B,62 ,55 ) CKSQYF105Z16
C 4316(A,31 ,135 ) CKSRYF105Z10
C 4317(B,75 ,59 ) CKSRYF104Z25
C 4318(B,82 ,51 ) CCSRCH100D50
C 4319(B,75 ,63 ) CKSRYF104Z25
C 4320(B,81 ,75 ) CCSRCH100D50
C 4321(B,68 ,78 ) CKSRYF104Z25
C 4322(B,74 ,74 ) CCSRCH100D50
C 4324(A,32 ,89 ) CKSRYB102K50
C 4325(A,79 ,58 ) CCSRCH4R0C50
C 4326(A,79 ,82 ) CCSRCH4R0C50
C 4327(A,69 ,84 ) CCSRCH4R0C50
C 4328(A,79 ,64 ) CCSRCH7R0D50
C 4329(A,79 ,87 ) CCSRCH7R0D50
C 4330(A,69 ,90 ) CCSRCH7R0D50
C 4401(A,36 ,124 ) ELECT. CAPACITOR CEAT102M6R3
C 4403(A,36 ,115 ) ELECT. CAPACITOR CEAT102M6R3
C 4405(A,37 ,103 ) ELECT. CAPACITOR CEAT102M6R3
C 4406(B,35 ,108 ) CKSRYF104Z25
C 4408(A,37 ,81 ) ELECT. CAPACITOR CEAT102M6R3
C 4409(B,34 ,93 ) CKSRYF104Z25
C 4413(A,37 ,73 ) ELECT. CAPACITOR CEAT102M6R3
C 4414(A,36 ,61 ) ELECT. CAPACITOR CEAT471M6R3
C 4417(A,36 ,45 ) ELECT. CAPACITOR CEAT471M6R3
C 4501(A,43 ,13 ) ELECT. CAPACITOR CEAT102M6R3
C 4503(A,43 ,20 ) ELECT. CAPACITOR CEAT471M6R3
C 4504(A,43 ,33 ) ELECT. CAPACITOR CEAT471M6R3
BVJKB ASSY [VWV2151]
MISCELLANEOUS
Mark No. Description Part No.
DV-989AVi-S
76
1234
1234
C
D
F
A
B
E
>IC 4101(A,67 ,163 )
REGULATOR IC (5.0V)
MM1565AF
IC 4302(B,55 ,64 ) DVD VIDEO AMP LA73054
Q 4301(A,33 ,145 ) TRANSISTOR UMD3N
Q 4302(A,33 ,137 ) TRANSISTOR UMD3N
Q 4303(A,88 ,104 ) TRANSISTOR UMD3N
Q 4304(B,75 ,54 ) TRANSISTOR 2SA1576A
Q 4305(B,74 ,69 ) TRANSISTOR 2SA1576A
Q 4306(B,70 ,70 ) TRANSISTOR 2SA1576A
D 4101(B,67 ,149 ) CHIP DIODE RB501V-40
D 4201(B,28 ,167 ) DIODE 1SS355
D 4301(A,88 ,108 ) DIODE DAN202K
L 4401(B,31 ,57 ) CHIP BEADS VTL1089
L 4402(B,31 ,41 ) CHIP BEADS VTL1089
F 4301(A,82 ,64 ) 12MHZ LPF(VIDEO) VTF1175
F 4302(A,82 ,87 ) 12MHZ LPF(VIDEO) VTF1175
F 4303(A,72 ,91 ) 12MHZ LPF(VIDEO) VTF1175
JA 4201(A,16 ,150 ) JACK RKN1004
JA 4202(A,16 ,160 ) JACK RKN1004
JA 4401(A,14 ,128 ) JACK VKB1135
JA 4403(A,14 ,59 ) JACK VKB1151
KN4101(A,78 ,177 )
WRAPPING TERMINAL
VNF1084
KN4102(A,27 ,173 )
WRAPPING TERMINAL
VNF1084
KN4103(A,22 ,12 )
WRAPPING TERMINAL
VNF1084
KN4104(A,88 ,9 ) WRAPPING TERMINAL VNF1084
CN4101(A,47 ,168 ) 23P CONNECTOR VKN1427
CN4402(A,14 ,97 ) SOCKET AKP7023
PCB BINDER VEF1040
RESISTORS
R 4101(A,59 ,161 ) RS1/10S0R0J
R 4102(B,54 ,167 ) RS1/16S223J
R 4103(B,57 ,168 ) RS1/16S103J
R 4104(A,55 ,153 ) RS1/10S0R0J
R 4105(A,53 ,148 ) RS1/10S0R0J
R 4106(A,51 ,142 ) RS1/10S0R0J
R 4201(B,30 ,164 ) RS1/16S0R0J
R 4204(B,24 ,145 ) RS1/16S0R0J
R 4207(B,24 ,167 ) RS1/16S0R0J
R 4301(A,86 ,105 ) RS1/16S103J
R 4302(A,60 ,88 ) RS1/10S0R0J
R 4305(B,43 ,85 ) RS1/16S0R0J
R 4306(B,41 ,77 ) RS1/16S0R0J
R 4307(B,37 ,76 ) RS1/16S0R0J
R 4308(B,39 ,67 ) RS1/16S0R0J
R 4309(B,40 ,61 ) RS1/16S0R0J
R 4310(B,36 ,49 ) RS1/16S0R0J
R 4311(A,32 ,142 ) RS1/16S152J
R 4312(A,30 ,142 ) RS1/16S102J
R 4318(B,85 ,72 ) RS1/16S3000D
R 4319(B,77 ,49 ) RS1/16S0R0J
R 4320(B,75 ,56 ) RS1/16S182J
R 4323(B,80 ,51 ) RS1/16S2202F
R 4325(B,74 ,93 ) RS1/16S3000D
R 4326(B,75 ,65 ) RS1/16S182J
R 4328(B,81 ,73 ) RS1/16S2202F
R 4330(B,81 ,68 ) RS1/16S0R0J
R 4332(B,68 ,90 ) RS1/16S3000D
R 4333(B,68 ,74 ) RS1/16S182J
R 4334(B,73 ,77 ) RS1/16S2202F
Mark No. Description Part No.
R 4336(B,72 ,74 ) RS1/16S0R0J
R 4401(B,24 ,133 ) RS1/10S75R0F
R 4402(B,25 ,120 ) RS1/10S75R0F
R 4403(B,28 ,101 ) RS1/10S75R0F
R 4404(B,30 ,108 ) RS1/10S75R0F
R 4405(B,33 ,111 ) RS1/16S103J
R 4406(B,29 ,87 ) RS1/10S75R0F
R 4407(B,31 ,92 ) RS1/10S75R0F
R 4408(B,34 ,91 ) RS1/16S103J
R 4409(B,31 ,69 ) RS1/10S1R8J
R 4410(B,28 ,56 ) RS1/10S1R0J
R 4412(B,29 ,41 ) RS1/10S1R0J
R 4414(B,26 ,71 ) CHIP RESISTOR RS1/10S68R0D
R 4415(B,26 ,59 ) CHIP RESISTOR RS1/10S68R0D
R 4416(B,26 ,44 ) CHIP RESISTOR RS1/10S68R0D
CAPACITORS
C 4107(A,59 ,154 ) CEAT101M16
C 4108(A,65 ,158 ) CKSQYF105Z25
C 4109(A,70 ,146 ) CEAT221M6R3
C 4110(A,69 ,156 ) CKSQYB225K10
C 4112(B,59 ,168 ) CKSRYB102K50
C 4201(B,23 ,155 ) CCSRCH470J50
C 4202(B,26 ,145 ) CCSRCH470J50
C 4206(B,21 ,167 ) CKSRYF105Z10
C 4303(B,53 ,93 ) CKSRYB104K16
C 4304(A,60 ,84 ) ELECT. CAPACITOR CEHAZA471M6R3
C 4305(B,59 ,74 ) CKSQYF104Z25
C 4306(B,48 ,73 ) CKSRYF105Z10
C 4307(B,53 ,97 ) CKSRYB104K16
C 4308(B,53 ,100 ) CKSRYB104K16
C 4309(B,68 ,65 ) CKSRYB104K16
C 4311(B,39 ,64 ) CKSRYF105Z10
C 4312(B,68 ,61 ) CKSRYB104K16
C 4313(B,68 ,58 ) CKSRYB104K16
C 4314(A,60 ,52 ) ELECT. CAPACITOR CEHAZA471M6R3
C 4315(B,62 ,55 ) CKSQYF105Z16
C 4316(A,31 ,135 ) CKSRYF105Z10
C 4317(B,75 ,59 ) CKSRYF104Z25
C 4318(B,82 ,51 ) CCSRCH100D50
C 4319(B,75 ,63 ) CKSRYF104Z25
C 4320(B,81 ,75 ) CCSRCH100D50
C 4321(B,68 ,78 ) CKSRYF104Z25
C 4322(B,74 ,74 ) CCSRCH100D50
C 4324(A,32 ,89 ) CKSRYB102K50
C 4325(A,79 ,58 ) CCSRCH4R0C50
C 4326(A,79 ,82 ) CCSRCH4R0C50
C 4327(A,69 ,84 ) CCSRCH4R0C50
C 4328(A,79 ,64 ) CCSRCH7R0D50
C 4329(A,79 ,87 ) CCSRCH7R0D50
C 4330(A,69 ,90 ) CCSRCH7R0D50
C 4401(A,36 ,124 ) ELECT. CAPACITOR CEAT102M6R3
C 4403(A,36 ,115 ) ELECT. CAPACITOR CEAT102M6R3
C 4405(A,37 ,103 ) ELECT. CAPACITOR CEAT102M6R3
C 4406(B,35 ,108 ) CKSRYF104Z25
C 4408(A,37 ,81 ) ELECT. CAPACITOR CEAT102M6R3
C 4409(B,34 ,93 ) CKSRYF104Z25
C 4413(A,37 ,73 ) ELECT. CAPACITOR CEAT102M6R3
C 4414(A,36 ,61 ) ELECT. CAPACITOR CEAT471M6R3
C 4417(A,36 ,45 ) ELECT. CAPACITOR CEAT471M6R3
Mark No. Description Part No.
DV-989AVi-S 77
5 678
5678
C
D
F
A
B
E
CAJKB ASSY [vwv2149]
MISCELLANEOUS
IC 3201(A,155 ,212 ) IC TC7SH08FUS1
IC 3301(A,123 ,165 ) D/A CONVERTER IC PCM1738EG-3
IC 3311(A,115 ,132 ) IC OPA2134PA
IC 3321(A,140 ,132 ) IC OPA2134PA
IC 3331(A,128 ,85 ) IC OPA2134PA
IC 3401(A,167 ,114 ) D/A CONVERTER IC PCM1738EG-3
IC 3402(B,154 ,106 ) IC TC7SH08FUS1
IC 3411(B,177 ,93 ) OP-AMP IC NJM5532MD
IC 3421(B,158 ,93 ) OP-AMP IC NJM5532MD
IC 3431(B,167 ,70 ) OP-AMP IC NJM5532MD
IC 3501(A,162 ,196 ) D/A CONVERTER IC PCM1738EG-3
IC 3502(B,145 ,204 ) IC TC7SH08FUS1
IC 3511(B,172 ,179 ) OP-AMP IC NJM5532MD
IC 3521(B,153 ,179 ) OP-AMP IC NJM5532MD
IC 3531(B,162 ,156 ) OP-AMP IC NJM5532MD
IC 3601(A,183 ,60 ) IC TC74VHCU04FT
Q 3351(B,119 ,51 ) TRANSISTOR 2SD2114K
Q 3352(A,132 ,35 ) TRANSISTOR 2SD2114K
Q 3353(B,140 ,51 ) TRANSISTOR 2SD2114K
Q 3361(B,128 ,51 ) TRANSISTOR 2SD2114K
Q 3362(B,128 ,38 ) TRANSISTOR 2SD2114K
Q 3363(B,140 ,56 ) TRANSISTOR 2SD2114K
Q 3371(A,105 ,67 ) CHIP TRANSISTOR UMH9N
Q 3372(A,104 ,62 ) TRANSISTOR 2SA1576A
Q 3381(B,105 ,67 ) CHIP TRANSISTOR UMH9N
Q 3382(B,104 ,62 ) TRANSISTOR 2SA1576A
Q 3451(B,143 ,37 ) TRANSISTOR 2SD2114K
Q 3461(B,135 ,37 ) TRANSISTOR 2SD2114K
Q 3471(A,147 ,58 ) CHIP TRANSISTOR UMH9N
Q 3472(A,144 ,40 ) TRANSISTOR 2SA1576A
Q 3551(B,157 ,36 ) TRANSISTOR 2SD2114K
Q 3561(B,150 ,36 ) TRANSISTOR 2SD2114K
Q 3571(B,153 ,58 ) CHIP TRANSISTOR UMH9N
Q 3572(B,151 ,54 ) TRANSISTOR 2SA1576A
L 3601(A,179 ,48 ) COIL VTL1172
L 3602(A,179 ,36 ) COIL PTL1017
F 3301(B,127 ,181 ) CHIP BEADS DTF1070
F 3302(B,143 ,164 ) CHIP BEADS DTF1070
F 3401(A,177 ,128 ) CHIP BEADS DTF1070
F 3402(A,185 ,125 ) CHIP BEADS DTF1070
F 3501(B,154 ,208 ) CHIP BEADS DTF1070
F 3502(B,142 ,175 ) CHIP BEADS DTF1070
F 3601(B,172 ,36 ) CHIP MAGNET CORE DTF1068
F 3602(B,170 ,36 ) CHIP BEADS DTF1070
F 3651CHIP BEADS DTF1070
JA 3301(A,107 ,19 ) PIN JACK(2P) AKB7104
JA 3401(A,139 ,19 ) JACK VKB1229
JA 3601(A,170 ,19 ) PIN JACK(1P) AKB7102
JA 3602(A,186 ,19 ) OPT. LINK OUT VKS1002
KN3101(A,109 ,197 )
WRAPPING TERMINAL
VNF1084
KN3102(A,184 ,189 )
WRAPPING TERMINAL
VNF1084
CN3101(A,166 ,221 ) 31P CONNECTOR VKN1517
CN3102(A,179 ,145 ) CONNECTOR B6B-EH
CN3351(A,146 ,50 ) CONNECTOR POST B3B-PH
PCB BINDER VEF1040
Mark No. Description Part No.
RESISTORS
R 3101(B,140 ,71 ) RS1/16S0R0J
R 3102(A,157 ,125 )
METAL OXIDE RESISTOR
RS3LMF181J
R 3103(A,151 ,125 )
METAL OXIDE RESISTOR
RS3LMF181J
R 3110(A,185 ,222 ) RS1/16S470J
R 3111(A,179 ,216 ) RS1/16S0R0J
R 3112(A,178 ,213 ) RS1/16S0R0J
R 3113(A,177 ,216 ) RS1/16S0R0J
R 3114(A,176 ,213 ) RS1/16S0R0J
R 3115(A,175 ,216 ) RS1/16S0R0J
R 3116(A,174 ,213 ) RS1/16S220J
R 3117(A,173 ,216 ) RS1/16S0R0J
R 3118(A,149 ,216 ) RS1/16S0R0J
R 3121(A,172 ,213 ) RS1/16S220J
R 3122(A,170 ,216 ) RS1/16S470J
R 3123(A,168 ,216 ) RS1/16S220J
R 3124(A,166 ,216 ) RS1/16S220J
R 3125(A,164 ,216 ) RS1/16S470J
R 3126(A,162 ,216 ) RS1/16S220J
R 3127(A,160 ,216 ) RS1/16S220J
R 3128(A,158 ,216 ) RS1/16S470J
R 3129(A,156 ,216 ) RS1/16S220J
R 3130(A,154 ,216 ) RS1/16S220J
R 3131(A,152 ,216 ) RS1/16S0R0J
R 3202(A,153 ,212 ) RS1/16S0R0J
R 3203(A,149 ,211 ) RS1/16S470J
R 3302(A,117 ,190 ) RS1/16S220J
R 3303(A,115 ,190 ) RS1/16S220J
R 3304(A,123 ,158 )
CARBON FILM RESISTOR
VCN1141
R 3313(A,103 ,143 )
CARBON FILM RESISTOR
VCN1140
R 3314(A,119 ,143 )
CARBON FILM RESISTOR
VCN1140
R 3323(A,128 ,143 )
CARBON FILM RESISTOR
VCN1140
R 3324(A,144 ,143 )
CARBON FILM RESISTOR
VCN1140
R 3331(A,108 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3332(A,116 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3333(A,104 ,93 )
CARBON FILM RESISTOR
VCN1138
R 3334(A,107 ,93 )
CARBON FILM RESISTOR
VCN1139
R 3335(A,113 ,104 )
CARBON FILM RESISTOR
VCN1139
R 3336(A,120 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3337(A,118 ,47 )
CARBON FILM RESISTOR
VCN1136
R 3341(A,139 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3342(A,131 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3343(A,143 ,93 )
CARBON FILM RESISTOR
VCN1138
R 3344(A,140 ,93 )
CARBON FILM RESISTOR
VCN1139
R 3345(A,134 ,104 )
CARBON FILM RESISTOR
VCN1139
R 3346(A,127 ,105 )
CARBON FILM RESISTOR
VCN1138
R 3347(A,129 ,57 )
CARBON FILM RESISTOR
VCN1136
R 3351(A,113 ,57 )
CARBON FILM RESISTOR
VCN1137
R 3352(A,135 ,35 ) RS1/16S221J
R 3353(B,136 ,50 ) RS1/16S221J
R 3354(A,120 ,44 )
CARBON FILM RESISTOR
VCN1137
R 3355(B,131 ,34 ) RS1/16S221J
R 3356(A,116 ,51 ) RS1/16S102J
R 3357(A,136 ,46 ) RS1/16S102J
R 3358(A,136 ,47 ) RS1/16S102J
R 3359(B,144 ,49 ) RS1/16S0R0J
R 3361(A,134 ,57 )
CARBON FILM RESISTOR
VCN1137
R 3362(A,129 ,37 ) RS1/16S221J
R 3363(B,136 ,57 ) RS1/16S221J
R 3364(A,136 ,44 )
CARBON FILM RESISTOR
VCN1137
Mark No. Description Part No.
DV-989AVi-S
78
1234
1234
C
D
F
A
B
E
R 3365(B,124 ,34 ) RS1/16S221J
R 3366(A,127 ,47 ) RS1/16S102J
R 3367(A,116 ,46 ) RS1/16S102J
R 3368(A,131 ,49 ) RS1/16S102J
R 3369(B,144 ,56 ) RS1/16S0R0J
R 3371(A,107 ,71 ) RS1/16S102J
R 3372(A,105 ,71 ) RS1/16S472J
R 3373(A,109 ,71 ) RS1/16S332J
R 3374(A,102 ,67 ) RS1/16S103J
R 3381(B,108 ,71 ) RS1/16S102J
R 3382(B,106 ,71 ) RS1/16S472J
R 3383(B,110 ,66 ) RS1/16S332J
R 3384(B,102 ,66 ) RS1/16S103J
R 3401(B,168 ,100 ) RN1/16SE1602D
R 3402(A,171 ,121 ) RS1/16S220J
R 3403(A,171 ,123 ) RS1/16S220J
R 3413(B,170 ,91 ) RN1/16SE6200D
R 3414(B,184 ,91 ) RN1/16SE6200D
R 3423(B,151 ,91 ) RN1/16SE6200D
R 3424(B,165 ,91 ) RN1/16SE6200D
R 3431(B,176 ,75 ) RN1/16SE1201D
R 3432(B,173 ,82 ) RN1/16SE1201D
R 3433(B,177 ,68 ) RN1/16SE1201D
R 3434(B,177 ,72 ) CHIP METAL FILM R RN1/16SE1801D
R 3435(B,174 ,72 ) CHIP METAL FILM R RN1/16SE1801D
R 3436(B,169 ,82 ) RN1/16SE1201D
R 3437(B,169 ,62 ) RS1/16S223J
R 3441(B,158 ,76 ) RN1/16SE1201D
R 3442(B,161 ,82 ) RN1/16SE1201D
R 3443(B,157 ,68 ) RN1/16SE1201D
R 3444(B,157 ,72 ) CHIP METAL FILM R RN1/16SE1801D
R 3445(B,160 ,72 ) CHIP METAL FILM R RN1/16SE1801D
R 3446(B,165 ,82 ) RN1/16SE1201D
R 3447(B,165 ,62 ) RS1/16S223J
R 3451(B,151 ,43 ) RS1/16S221J
R 3452(B,142 ,34 ) RS1/16S221J
R 3453(A,144 ,37 ) RS1/16S102J
R 3461(B,151 ,46 ) RS1/16S221J
R 3462(B,136 ,34 ) RS1/16S221J
R 3463(A,141 ,37 ) RS1/16S102J
R 3471(A,148 ,75 ) RS1/16S102J
R 3472(A,148 ,68 ) RS1/16S472J
R 3473(A,144 ,57 ) RS1/16S332J
R 3474(A,147 ,37 ) RS1/16S103J
R 3501(B,158 ,189 ) RN1/16SE1602D
R 3502(A,165 ,205 ) RS1/16S0R0J
R 3503(A,162 ,205 ) RS1/16S0R0J
R 3513(B,165 ,177 ) RN1/16SE6200D
R 3514(B,179 ,177 ) RN1/16SE6200D
R 3523(B,146 ,177 ) RN1/16SE6200D
R 3524(B,160 ,177 ) RN1/16SE6200D
R 3531(B,171 ,161 ) RS1/16S122J
R 3532(B,168 ,167 ) RS1/16S122J
R 3533(B,172 ,153 ) RS1/16S122J
R 3534(B,172 ,157 )
CHIP METAL FILM R
RN1/16SE1801D
R 3535(B,169 ,157 )
CHIP METAL FILM R
RN1/16SE1801D
R 3536(B,164 ,168 ) RS1/16S122J
R 3537(B,167 ,50 ) RS1/16S223J
R 3541(B,153 ,161 ) RS1/16S122J
R 3542(B,156 ,168 ) RS1/16S122J
Mark No. Description Part No.
R 3543(B,152 ,153 ) RS1/16S122J
R 3544(B,152 ,157 ) CHIP METAL FILM R RN1/16SE1801D
R 3545(B,155 ,157 ) CHIP METAL FILM R RN1/16SE1801D
R 3546(B,160 ,167 ) RS1/16S122J
R 3547(B,163 ,50 ) RS1/16S223J
R 3551(B,164 ,37 ) RS1/16S221J
R 3552(B,156 ,29 ) RS1/16S221J
R 3553(A,160 ,42 ) RS1/16S102J
R 3561(B,159 ,41 ) RS1/16S221J
R 3562(B,150 ,29 ) RS1/16S221J
R 3563(A,158 ,42 ) RS1/16S102J
R 3571(B,153 ,62 ) RS1/16S102J
R 3572(B,151 ,62 ) RS1/16S472J
R 3573(B,146 ,65 ) RS1/16S332J
R 3574(B,149 ,62 ) RS1/16S103J
R 3601(A,188 ,75 ) RS1/16S0R0J
R 3602(A,178 ,60 ) RS1/16S0R0J
R 3603(A,182 ,55 ) RS1/16S220J
R 3604(A,183 ,52 ) RS1/16S470J
R 3605(B,181 ,42 ) RS1/16S750J
R 3606(A,187 ,222 ) RS1/16S0R0J
CAPACITORS
C 3101(A,171 ,145 ) ELECT. CAPACITOR CEHAZA102M6R3
C 3104(B,182 ,141 ) CKSRYF105Z10
C 3105(A,141 ,63 ) ELECT. CAPACITOR VCH1249
C 3109(A,183 ,207 ) ELECT. CAPACITOR CEHAZA471M6R3
C 3110(B,188 ,213 ) CKSRYF105Z10
C 3111(B,188 ,210 ) CKSRYB102K50
C 3201(A,158 ,212 ) CKSRYF105Z10
C 3301(A,122 ,176 ) ELECT. CAPACITOR CEHAZA471M6R3
C 3302(A,122 ,171 ) CKSRYF105Z10
C 3303(A,140 ,166 ) VCH1261
C 3305(A,135 ,161 ) VCH1261
C 3306(A,112 ,161 ) VCH1261
C 3307(A,129 ,171 ) CKSRYF104Z25
C 3308(B,108 ,143 ) CCSRCH331J50
C 3309(B,133 ,143 ) CCSRCH331J50
C 3310(A,130 ,174 ) CKSRYF104Z25
C 3311(A,105 ,125 ) VCH1257
C 3312(B,108 ,130 ) CKSRYF104Z25
C 3313(A,103 ,149 )
PORYPROPYLENE FILM C
VCE1051
C 3314(A,116 ,149 )
PORYPROPYLENE FILM C
VCE1051
C 3315(A,117 ,120 ) VCH1257
C 3316(B,112 ,143 ) CKSRYF104Z25
C 3321(A,130 ,125 ) VCH1257
C 3322(B,133 ,130 ) CKSRYF104Z25
C 3323(A,131 ,149 )
PORYPROPYLENE FILM
CVCE1051
C 3324(A,144 ,149 )
PORYPROPYLENE FILM
CVCE1051
C 3325(A,142 ,120 ) VCH1257
C 3326(B,137 ,143 ) CKSRYF104Z25
C 3331(A,114 ,80 ) VCH1257
C 3333(A,104 ,99 )
PORYPROPYLENE FILM
CVCE1052
C 3334(A,113 ,86 )
PORYPROPYLENE FILM
CVCE1051
C 3335(A,116 ,99 )
PORYPROPYLENE FILM
CVCE1051
C 3337(A,115 ,67 ) VCH1255
C 3338(A,133 ,80 ) VCH1257
C 3343(A,138 ,99 )
PORYPROPYLENE FILM
CVCE1052
C 3344(A,134 ,86 )
PORYPROPYLENE FILM
CVCE1051
Mark No. Description Part No.
DV-989AVi-S 79
5 678
5678
C
D
F
A
B
E
C 3345(A,126 ,99 )
PORYPROPYLENE FILM
CVCE1051
C 3347(A,132 ,67 ) VCH1255
C 3351(A,132 ,165 ) CCH1510
C 3400(B,150 ,106 ) CKSRYF104Z25
C 3401(A,163 ,125 ) ELECT. CAPACITOR VCH1248
C 3402(A,166 ,120 ) CKSRYF105Z10
C 3403(A,183 ,112 ) ELECT. CAPACITOR VCH1249
C 3405(A,174 ,103 ) ELECT. CAPACITOR VCH1249
C 3406(A,165 ,103 ) ELECT. CAPACITOR VCH1249
C 3407(A,173 ,114 ) CKSRYF104Z25
C 3408(B,179 ,98 ) CCSRCH331J50
C 3409(B,160 ,98 ) CCSRCH331J50
C 3410(A,173 ,117 ) CKSRYF104Z25
C 3411(A,184 ,87 ) ELECT. CAPACITOR VCH1247
C 3412(B,181 ,87 ) CKSRYF104Z25
C 3413(B,169 ,95 ) CCSRCH471J50
C 3414(B,184 ,95 ) CCSRCH471J50
C 3415(A,175 ,87 ) ELECT. CAPACITOR VCH1247
C 3416(B,174 ,98 ) CKSRYF104Z25
C 3421(A,165 ,87 ) ELECT. CAPACITOR VCH1247
C 3422(B,162 ,87 ) CKSRYF104Z25
C 3423(B,150 ,95 ) CCSRCH471J50
C 3424(B,165 ,95 ) CCSRCH471J50
C 3425(A,156 ,87 ) ELECT. CAPACITOR VCH1247
C 3426(B,155 ,98 ) CKSRYF104Z25
C 3431(A,174 ,79 ) ELECT. CAPACITOR VCH1247
C 3433(B,174 ,76 ) CCSRCH122J50
C 3434(B,174 ,68 ) CCSRCH471J50
C 3435(B,169 ,74 ) CCSRCH471J50
C 3437(A,171 ,65 ) ELECT. CAPACITOR CEANP470M16
C 3438(A,165 ,79 ) ELECT. CAPACITOR VCH1247
C 3443(B,160 ,76 ) CCSRCH122J50
C 3444(B,160 ,68 ) CCSRCH471J50
C 3445(B,165 ,74 ) CCSRCH471J50
C 3447(A,163 ,65 ) ELECT. CAPACITOR CEANP470M16
C 3451(A,177 ,107 ) CCH1510
C 3500(B,141 ,204 ) CKSRYF105Z10
C 3501(A,152 ,205 ) ELECT. CAPACITOR VCH1248
C 3502(A,160 ,202 ) CKSRYF105Z10
C 3503(A,150 ,188 ) ELECT. CAPACITOR VCH1249
C 3505(A,169 ,187 ) ELECT. CAPACITOR VCH1249
C 3506(A,160 ,187 ) ELECT. CAPACITOR VCH1249
C 3507(B,156 ,195 ) CKSRYF104Z25
C 3508(B,155 ,183 ) CCSRCH331J50
C 3509(B,174 ,183 ) CCSRCH331J50
C 3510(A,168 ,199 ) CKSRYF104Z25
C 3511(A,179 ,173 ) ELECT. CAPACITOR VCH1247
C 3512(B,176 ,172 ) CKSRYF104Z25
C 3513(B,164 ,181 ) CCSRCH471J50
C 3514(B,179 ,181 ) CCSRCH471J50
C 3515(A,170 ,173 ) ELECT. CAPACITOR VCH1247
C 3516(B,169 ,183 ) CKSRYF104Z25
C 3521(A,160 ,173 ) ELECT. CAPACITOR VCH1247
C 3522(B,157 ,172 ) CKSRYF104Z25
C 3523(B,145 ,181 ) CCSRCH471J50
C 3524(B,160 ,181 ) CCSRCH471J50
C 3525(A,151 ,173 ) ELECT. CAPACITOR VCH1247
C 3526(B,150 ,183 ) CKSRYF104Z25
C 3531(A,169 ,165 ) ELECT. CAPACITOR VCH1247
C 3533(B,169 ,161 ) CCSRCH122J50
Mark No. Description Part No.
C 3534(B,169 ,153 ) CCSRCH471J50
C 3535(B,164 ,160 ) CCSRCH471J50
C 3537(A,169 ,52 ) ELECT. CAPACITOR CEANP470M16
C 3538(A,160 ,165 ) ELECT. CAPACITOR VCH1247
C 3543(B,155 ,161 ) CCSRCH122J50
C 3544(B,155 ,153 ) CCSRCH471J50
C 3545(B,160 ,160 ) CCSRCH471J50
C 3547(A,161 ,52 ) ELECT. CAPACITOR CEANP470M16
C 3551(A,174 ,190 ) CCH1510
C 3601(A,189 ,196 ) ELECT. CAPACITOR VCH1248
C 3602(A,180 ,189 ) CKSRYF104Z25
C 3603(A,188 ,34 ) ELECT. CAPACITOR VCH1249
C 3604(B,190 ,31 ) CKSRYF105Z10
C 3605(B,189 ,36 ) CKSRYB102K50
C 3606(A,187 ,70 ) ELECT. CAPACITOR VCH1247
C 3607(A,184 ,65 ) CKSRYF105Z10
C 3608(A,184 ,64 ) CKSRYB102K50
C 3609(A,182 ,52 ) CKSRYB103K25
C 3610(A,177 ,57 ) ELECT. CAPACITOR VCH1249
C 3613(B,187 ,30 ) CKSRYF104Z25
C 3615(B,174 ,26 ) CKSRYF104Z25
C 3617(B,169 ,39 ) CKSRYF104Z25
C 3618(B,184 ,44 ) CKSRYF104Z25
C 3620(B,180 ,68 ) CKSRYF104Z25
C 3621(B,185 ,50 ) CKSRYF104Z25
CAJKB ASSY [VWV2148]
MISCELLANEOUS
IC 3201(A,155 ,212 ) IC TC7SH08FUS1
IC 3301(A,123 ,165 ) D/A CONVERTER IC PCM1738EG-3
IC 3311(A,115 ,132 ) IC OPA2134PA
IC 3321(A,140 ,132 ) IC OPA2134PA
IC 3331(A,128 ,85 ) IC OPA2134PA
IC 3401(A,167 ,114 ) D/A CONVERTER IC PCM1738EG-3
IC 3402(B,154 ,106 ) IC TC7SH08FUS1
IC 3411(B,177 ,93 ) OP-AMP IC NJM5532MD
IC 3421(B,158 ,93 ) OP-AMP IC NJM5532MD
IC 3431(B,167 ,70 ) OP-AMP IC NJM5532MD
IC 3501(A,162 ,196 ) D/A CONVERTER IC PCM1738EG-3
IC 3502(B,145 ,204 ) IC TC7SH08FUS1
IC 3511(B,172 ,179 ) OP-AMP IC NJM5532MD
IC 3521(B,153 ,179 ) OP-AMP IC NJM5532MD
IC 3531(B,162 ,156 ) OP-AMP IC NJM5532MD
IC 3601(A,183 ,60 ) IC TC74VHCU04FT
Q 3351(B,119 ,51 ) TRANSISTOR 2SD2114K
Q 3352(A,132 ,35 ) TRANSISTOR 2SD2114K
Q 3361(B,128 ,51 ) TRANSISTOR 2SD2114K
Q 3362(B,128 ,38 ) TRANSISTOR 2SD2114K
Q 3371(A,105 ,67 ) CHIP TRANSISTOR UMH9N
Q 3372(A,104 ,62 ) TRANSISTOR 2SA1576A
Q 3381(B,105 ,67 ) CHIP TRANSISTOR UMH9N
Q 3382(B,104 ,62 ) TRANSISTOR 2SA1576A
Q 3451(B,143 ,37 ) TRANSISTOR 2SD2114K
Q 3461(B,135 ,37 ) TRANSISTOR 2SD2114K
Q 3471(A,147 ,58 ) CHIP TRANSISTOR UMH9N
Q 3472(A,144 ,40 ) TRANSISTOR 2SA1576A
Q 3551(B,157 ,36 ) TRANSISTOR 2SD2114K
Q 3561(B,150 ,36 ) TRANSISTOR 2SD2114K
Q 3571(B,153 ,58 ) CHIP TRANSISTOR UMH9N
Mark No. Description Part No.
DV-989AVi-S
80
1234
1234
C
D
F
A
B
E
Q 3572(B,151 ,54 ) TRANSISTOR 2SA1576A
L 3601(A,179 ,48 ) COIL VTL1172
L 3602(A,179 ,36 ) COIL PTL1017
F 3301(B,127 ,181 ) CHIP BEADS DTF1070
F 3302(B,143 ,164 ) CHIP BEADS DTF1070
F 3401(A,177 ,128 ) CHIP BEADS DTF1070
F 3402(A,185 ,125 ) CHIP BEADS DTF1070
F 3501(B,154 ,208 ) CHIP BEADS DTF1070
F 3502(B,142 ,175 ) CHIP BEADS DTF1070
F 3601(B,172 ,36 ) CHIP MAGNET CORE DTF1068
F 3602(B,170 ,36 ) CHIP BEADS DTF1070
F 3651CHIP BEADS DTF1070
JA 3301(A,107 ,19 ) PIN JACK(2P) AKB7104
JA 3401(A,139 ,19 ) JACK VKB1229
JA 3601(A,170 ,19 ) PIN JACK(1P) AKB7102
JA 3602(A,186 ,19 ) OPT. LINK OUT VKS1002
KN3101(A,109 ,197 )
WRAPPING TERMINAL
VNF1084
KN3102(A,184 ,189 )
WRAPPING TERMINAL
VNF1084
CN3101(A,166 ,221 ) 31P CONNECTOR VKN1517
CN3102(A,179 ,145 ) CONNECTOR B6B-EH
PCB BINDER VEF1040
RESISTORS
R 3101(B,140 ,71 ) RS1/16S0R0J
R 3102(A,157 ,125 )
METAL OXIDE RESISTOR
RS3LMF181J
R 3103(A,151 ,125 )
METAL OXIDE RESISTOR
RS3LMF181J
R 3110(A,185 ,222 ) RS1/16S470J
R 3111(A,179 ,216 ) RS1/16S0R0J
R 3112(A,178 ,213 ) RS1/16S0R0J
R 3113(A,177 ,216 ) RS1/16S0R0J
R 3114(A,176 ,213 ) RS1/16S0R0J
R 3115(A,175 ,216 ) RS1/16S0R0J
R 3116(A,174 ,213 ) RS1/16S220J
R 3117(A,173 ,216 ) RS1/16S0R0J
R 3118(A,149 ,216 ) RS1/16S0R0J
R 3121(A,172 ,213 ) RS1/16S220J
R 3122(A,170 ,216 ) RS1/16S470J
R 3123(A,168 ,216 ) RS1/16S220J
R 3124(A,166 ,216 ) RS1/16S220J
R 3125(A,164 ,216 ) RS1/16S470J
R 3126(A,162 ,216 ) RS1/16S220J
R 3127(A,160 ,216 ) RS1/16S220J
R 3128(A,158 ,216 ) RS1/16S470J
R 3129(A,156 ,216 ) RS1/16S220J
R 3130(A,154 ,216 ) RS1/16S220J
R 3131(A,152 ,216 ) RS1/16S0R0J
R 3202(A,153 ,212 ) RS1/16S0R0J
R 3203(A,149 ,211 ) RS1/16S470J
R 3302(A,117 ,190 ) RS1/16S220J
R 3303(A,115 ,190 ) RS1/16S220J
R 3304(A,123 ,158 )
CARBON FILM RESISTOR
VCN1141
R 3313(A,103 ,143 )
CARBON FILM RESISTOR
VCN1140
R 3314(A,119 ,143 )
CARBON FILM RESISTOR
VCN1140
R 3323(A,128 ,143 )
CARBON FILM RESISTOR
VCN1140
R 3324(A,144 ,143 )
CARBON FILM RESISTOR
VCN1140
R 3331(A,108 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3332(A,116 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3333(A,104 ,93 )
CARBON FILM RESISTOR
VCN1138
R 3334(A,107 ,93 )
CARBON FILM RESISTOR
VCN1139
Mark No. Description Part No.
R 3335(A,113 ,104 )
CARBON FILM RESISTOR
VCN1139
R 3336(A,120 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3337(A,118 ,47 )
CARBON FILM RESISTOR
VCN1136
R 3341(A,139 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3342(A,131 ,115 )
CARBON FILM RESISTOR
VCN1138
R 3343(A,143 ,93 )
CARBON FILM RESISTOR
VCN1138
R 3344(A,140 ,93 )
CARBON FILM RESISTOR
VCN1139
R 3345(A,134 ,104 )
CARBON FILM RESISTOR
VCN1139
R 3346(A,127 ,105 )
CARBON FILM RESISTOR
VCN1138
R 3347(A,129 ,57 )
CARBON FILM RESISTOR
VCN1136
R 3351(A,113 ,57 )
CARBON FILM RESISTOR
VCN1137
R 3352(A,135 ,35 ) RS1/16S221J
R 3354(A,120 ,44 )
CARBON FILM RESISTOR
VCN1137
R 3355(B,131 ,34 ) RS1/16S221J
R 3356(A,116 ,51 ) RS1/16S102J
R 3357(A,136 ,46 ) RS1/16S102J
R 3361(A,134 ,57 )
CARBON FILM RESISTOR
VCN1137
R 3362(A,129 ,37 ) RS1/16S221J
R 3364(A,136 ,44 )
CARBON FILM RESISTOR
VCN1137
R 3365(B,124 ,34 ) RS1/16S221J
R 3366(A,127 ,47 ) RS1/16S102J
R 3367(A,116 ,46 ) RS1/16S102J
R 3371(A,107 ,71 ) RS1/16S102J
R 3372(A,105 ,71 ) RS1/16S472J
R 3373(A,109 ,71 ) RS1/16S332J
R 3374(A,102 ,67 ) RS1/16S103J
R 3381(B,108 ,71 ) RS1/16S102J
R 3382(B,106 ,71 ) RS1/16S472J
R 3383(B,110 ,66 ) RS1/16S332J
R 3384(B,102 ,66 ) RS1/16S103J
R 3401(B,168 ,100 ) RN1/16SE1602D
R 3402(A,171 ,121 ) RS1/16S220J
R 3403(A,171 ,123 ) RS1/16S220J
R 3413(B,170 ,91 ) RN1/16SE6200D
R 3414(B,184 ,91 ) RN1/16SE6200D
R 3423(B,151 ,91 ) RN1/16SE6200D
R 3424(B,165 ,91 ) RN1/16SE6200D
R 3431(B,176 ,75 ) RN1/16SE1201D
R 3432(B,173 ,82 ) RN1/16SE1201D
R 3433(B,177 ,68 ) RN1/16SE1201D
R 3434(B,177 ,72 ) CHIP METAL FILM R RN1/16SE1801D
R 3435(B,174 ,72 ) CHIP METAL FILM R RN1/16SE1801D
R 3436(B,169 ,82 ) RN1/16SE1201D
R 3437(B,169 ,62 ) RS1/16S223J
R 3441(B,158 ,76 ) RN1/16SE1201D
R 3442(B,161 ,82 ) RN1/16SE1201D
R 3443(B,157 ,68 ) RN1/16SE1201D
R 3444(B,157 ,72 ) CHIP METAL FILM R RN1/16SE1801D
R 3445(B,160 ,72 ) CHIP METAL FILM R RN1/16SE1801D
R 3446(B,165 ,82 ) RN1/16SE1201D
R 3447(B,165 ,62 ) RS1/16S223J
R 3451(B,151 ,43 ) RS1/16S221J
R 3452(B,142 ,34 ) RS1/16S221J
R 3453(A,144 ,37 ) RS1/16S102J
R 3461(B,151 ,46 ) RS1/16S221J
R 3462(B,136 ,34 ) RS1/16S221J
R 3463(A,141 ,37 ) RS1/16S102J
R 3471(A,148 ,75 ) RS1/16S102J
R 3472(A,148 ,68 ) RS1/16S472J
R 3473(A,144 ,57 ) RS1/16S332J
Mark No. Description Part No.
DV-989AVi-S 81
5 678
5678
C
D
F
A
B
E
R 3474(A,147 ,37 ) RS1/16S103J
R 3501(B,158 ,189 ) RN1/16SE1602D
R 3502(A,165 ,205 ) RS1/16S0R0J
R 3503(A,162 ,205 ) RS1/16S0R0J
R 3513(B,165 ,177 ) RN1/16SE6200D
R 3514(B,179 ,177 ) RN1/16SE6200D
R 3523(B,146 ,177 ) RN1/16SE6200D
R 3524(B,160 ,177 ) RN1/16SE6200D
R 3531(B,171 ,161 ) RS1/16S122J
R 3532(B,168 ,167 ) RS1/16S122J
R 3533(B,172 ,153 ) RS1/16S122J
R 3534(B,172 ,157 )
CHIP METAL FILM R
RN1/16SE1801D
R 3535(B,169 ,157 )
CHIP METAL FILM R
RN1/16SE1801D
R 3536(B,164 ,168 ) RS1/16S122J
R 3537(B,167 ,50 ) RS1/16S223J
R 3541(B,153 ,161 ) RS1/16S122J
R 3542(B,156 ,168 ) RS1/16S122J
R 3543(B,152 ,153 ) RS1/16S122J
R 3544(B,152 ,157 ) CHIP METAL FILM R RN1/16SE1801D
R 3545(B,155 ,157 ) CHIP METAL FILM R RN1/16SE1801D
R 3546(B,160 ,167 ) RS1/16S122J
R 3547(B,163 ,50 ) RS1/16S223J
R 3551(B,164 ,37 ) RS1/16S221J
R 3552(B,156 ,29 ) RS1/16S221J
R 3553(A,160 ,42 ) RS1/16S102J
R 3561(B,159 ,41 ) RS1/16S221J
R 3562(B,150 ,29 ) RS1/16S221J
R 3563(A,158 ,42 ) RS1/16S102J
R 3571(B,153 ,62 ) RS1/16S102J
R 3572(B,151 ,62 ) RS1/16S472J
R 3573(B,146 ,65 ) RS1/16S332J
R 3574(B,149 ,62 ) RS1/16S103J
R 3601(A,188 ,75 ) RS1/16S0R0J
R 3602(A,178 ,60 ) RS1/16S0R0J
R 3603(A,182 ,55 ) RS1/16S220J
R 3604(A,183 ,52 ) RS1/16S470J
R 3605(B,181 ,42 ) RS1/16S750J
R 3606(A,187 ,222 ) RS1/16S0R0J
CAPACITORS
C 3101(A,171 ,145 ) ELECT. CAPACITOR CEHAZA102M6R3
C 3104(B,182 ,141 ) CKSRYF105Z10
C 3105(A,141 ,63 ) ELECT. CAPACITOR VCH1249
C 3109(A,183 ,207 ) ELECT. CAPACITOR CEHAZA471M6R3
C 3110(B,188 ,213 ) CKSRYF105Z10
C 3111(B,188 ,210 ) CKSRYB102K50
C 3201(A,158 ,212 ) CKSRYF105Z10
C 3301(A,122 ,176 ) ELECT. CAPACITOR CEHAZA471M6R3
C 3302(A,122 ,171 ) CKSRYF105Z10
C 3303(A,140 ,166 ) VCH1261
C 3305(A,135 ,161 ) VCH1261
C 3306(A,112 ,161 ) VCH1261
C 3307(A,129 ,171 ) CKSRYF104Z25
C 3308(B,108 ,143 ) CCSRCH331J50
C 3309(B,133 ,143 ) CCSRCH331J50
C 3310(A,130 ,174 ) CKSRYF104Z25
C 3311(A,105 ,125 ) VCH1257
C 3312(B,108 ,130 ) CKSRYF104Z25
C 3313(A,103 ,149 )
PORYPROPYLENE FILM
CVCE1051
C 3314(A,116 ,149 )
PORYPROPYLENE FILM
CVCE1051
Mark No. Description Part No.
C 3315(A,117 ,120 ) VCH1257
C 3316(B,112 ,143 ) CKSRYF104Z25
C 3321(A,130 ,125 ) VCH1257
C 3322(B,133 ,130 ) CKSRYF104Z25
C 3323(A,131 ,149 )
PORYPROPYLENE FILM
CVCE1051
C 3324(A,144 ,149 )
PORYPROPYLENE FILM
CVCE1051
C 3325(A,142 ,120 ) VCH1257
C 3326(B,137 ,143 ) CKSRYF104Z25
C 3331(A,114 ,80 ) VCH1257
C 3333(A,104 ,99 )
PORYPROPYLENE FILM
CVCE1052
C 3334(A,113 ,86 )
PORYPROPYLENE FILM
CVCE1051
C 3335(A,116 ,99 )
PORYPROPYLENE FILM
CVCE1051
C 3337(A,115 ,67 ) VCH1255
C 3338(A,133 ,80 ) VCH1257
C 3343(A,138 ,99 )
PORYPROPYLENE FILM
CVCE1052
C 3344(A,134 ,86 )
PORYPROPYLENE FILM
CVCE1051
C 3345(A,126 ,99 )
PORYPROPYLENE FILM
CVCE1051
C 3347(A,132 ,67 ) VCH1255
C 3351(A,132 ,165 ) CCH1510
C 3400(B,150 ,106 ) CKSRYF104Z25
C 3401(A,163 ,125 ) ELECT. CAPACITOR VCH1248
C 3402(A,166 ,120 ) CKSRYF105Z10
C 3403(A,183 ,112 ) ELECT. CAPACITOR VCH1249
C 3405(A,174 ,103 ) ELECT. CAPACITOR VCH1249
C 3406(A,165 ,103 ) ELECT. CAPACITOR VCH1249
C 3407(A,173 ,114 ) CKSRYF104Z25
C 3408(B,179 ,98 ) CCSRCH331J50
C 3409(B,160 ,98 ) CCSRCH331J50
C 3410(A,173 ,117 ) CKSRYF104Z25
C 3411(A,184 ,87 ) ELECT. CAPACITOR VCH1247
C 3412(B,181 ,87 ) CKSRYF104Z25
C 3413(B,169 ,95 ) CCSRCH471J50
C 3414(B,184 ,95 ) CCSRCH471J50
C 3415(A,175 ,87 ) ELECT. CAPACITOR VCH1247
C 3416(B,174 ,98 ) CKSRYF104Z25
C 3421(A,165 ,87 ) ELECT. CAPACITOR VCH1247
C 3422(B,162 ,87 ) CKSRYF104Z25
C 3423(B,150 ,95 ) CCSRCH471J50
C 3424(B,165 ,95 ) CCSRCH471J50
C 3425(A,156 ,87 ) ELECT. CAPACITOR VCH1247
C 3426(B,155 ,98 ) CKSRYF104Z25
C 3431(A,174 ,79 ) ELECT. CAPACITOR VCH1247
C 3433(B,174 ,76 ) CCSRCH122J50
C 3434(B,174 ,68 ) CCSRCH471J50
C 3435(B,169 ,74 ) CCSRCH471J50
C 3437(A,171 ,65 ) ELECT. CAPACITOR CEANP470M16
C 3438(A,165 ,79 ) ELECT. CAPACITOR VCH1247
C 3443(B,160 ,76 ) CCSRCH122J50
C 3444(B,160 ,68 ) CCSRCH471J50
C 3445(B,165 ,74 ) CCSRCH471J50
C 3447(A,163 ,65 ) ELECT. CAPACITOR CEANP470M16
C 3451(A,177 ,107 ) CCH1510
C 3500(B,141 ,204 ) CKSRYF105Z10
C 3501(A,152 ,205 ) ELECT. CAPACITOR VCH1248
C 3502(A,160 ,202 ) CKSRYF105Z10
C 3503(A,150 ,188 ) ELECT. CAPACITOR VCH1249
C 3505(A,169 ,187 ) ELECT. CAPACITOR VCH1249
C 3506(A,160 ,187 ) ELECT. CAPACITOR VCH1249
C 3507(B,156 ,195 ) CKSRYF104Z25
C 3508(B,155 ,183 ) CCSRCH331J50
Mark No. Description Part No.
DV-989AVi-S
82
1234
1234
C
D
F
A
B
E
C 3509(B,174 ,183 ) CCSRCH331J50
C 3510(A,168 ,199 ) CKSRYF104Z25
C 3511(A,179 ,173 ) ELECT. CAPACITOR VCH1247
C 3512(B,176 ,172 ) CKSRYF104Z25
C 3513(B,164 ,181 ) CCSRCH471J50
C 3514(B,179 ,181 ) CCSRCH471J50
C 3515(A,170 ,173 ) ELECT. CAPACITOR VCH1247
C 3516(B,169 ,183 ) CKSRYF104Z25
C 3521(A,160 ,173 ) ELECT. CAPACITOR VCH1247
C 3522(B,157 ,172 ) CKSRYF104Z25
C 3523(B,145 ,181 ) CCSRCH471J50
C 3524(B,160 ,181 ) CCSRCH471J50
C 3525(A,151 ,173 ) ELECT. CAPACITOR VCH1247
C 3526(B,150 ,183 ) CKSRYF104Z25
C 3531(A,169 ,165 ) ELECT. CAPACITOR VCH1247
C 3533(B,169 ,161 ) CCSRCH122J50
C 3534(B,169 ,153 ) CCSRCH471J50
C 3535(B,164 ,160 ) CCSRCH471J50
C 3537(A,169 ,52 ) ELECT. CAPACITOR CEANP470M16
C 3538(A,160 ,165 ) ELECT. CAPACITOR VCH1247
C 3543(B,155 ,161 ) CCSRCH122J50
C 3544(B,155 ,153 ) CCSRCH471J50
C 3545(B,160 ,160 ) CCSRCH471J50
C 3547(A,161 ,52 ) ELECT. CAPACITOR CEANP470M16
C 3551(A,174 ,190 ) CCH1510
C 3601(A,189 ,196 ) ELECT. CAPACITOR VCH1248
C 3602(A,180 ,189 ) CKSRYF104Z25
C 3603(A,188 ,34 ) ELECT. CAPACITOR VCH1249
C 3604(B,190 ,31 ) CKSRYF105Z10
C 3605(B,189 ,36 ) CKSRYB102K50
C 3606(A,187 ,70 ) ELECT. CAPACITOR VCH1247
C 3607(A,184 ,65 ) CKSRYF105Z10
C 3608(A,184 ,64 ) CKSRYB102K50
C 3609(A,182 ,52 ) CKSRYB103K25
C 3610(A,177 ,57 ) ELECT. CAPACITOR VCH1249
C 3613(B,187 ,30 ) CKSRYF104Z25
C 3615(B,174 ,26 ) CKSRYF104Z25
C 3617(B,169 ,39 ) CKSRYF104Z25
C 3618(B,184 ,44 ) CKSRYF104Z25
C 3620(B,180 ,68 ) CKSRYF104Z25
C 3621(B,185 ,50 ) CKSRYF104Z25
DSCRB ASSY
MISCELLANEOUS
IC 901 (B,59,119) VIDEO SW IC MM1505XN
IC 902 (B,65,51) VIDEO SW IC MM1507XN
Q 901 (B,35,29) TRANSISTOR 2SC4081
Q 902 (B,48,17) TRANSISTOR 2SC4081
Q 904 (B,66,142) TRANSISTOR 2SA1576A
Q 905 (B,66,132) TRANSISTOR 2SC4081
D 901 (B,32,31) DIODE 1SS355
D 903 (B,49,24) DIODE 1SS355
D 905 (B,56,123) DIODE 1SS355
D 906 (B,54,126) DIODE 1SS355
D 907 (B,71,74) DIODE 1SS355
D 908 (B,66,74) DIODE 1SS355
D 909 (B,66,71) DIODE 1SS355
D 911 (B,63,69) DIODE 1SS355
D 912 (B,66,162) DIODE 1SS355
Mark No. Description Part No.
D 914 (B,68,165) DIODE 1SS355
D 915 (B,68,157) DIODE 1SS355
D 916 (B,65,155) DIODE 1SS355
D 999 (B,58,19) DIODE 1SR154-400
JA 901 (A,12,61) CONNECTOR VKB1157
JA 901 (A,87,61) CONNECTOR VKB1157
JA 902 (A,12,145) CONNECTOR VKB1157
JA 902 (A,87,145) CONNECTOR VKB1157
RY901 (A,51,54) RELAY VSR1017
RY902 (A,51,29) RELAY VSR1017
RY903 (A,53,138) RELAY VSR1017
RY904 (A,57,80) RELAY VSR1017
RY905 (A,51,164) RELAY VSR1017
CN901 (A,62,15) 19P CONNECTOR VKN1279
RESISTORS
R 902 (B,37,19) RS1/16S103J
R 903 (B,40,25) RS1/16S182J
R 904 (B,40,23) RS1/16S182J
R 905 (B,40,27) RS1/16S182J
R 906 (B,41,17) RS1/16S153J
R 909 (B,45,17) RS1/16S472J
R 911 (B,35,33) RS1/16S563J
R 912 (B,55,60) RS1/16S221J
R 916 (B,56,63) RS1/16S221J
R 919 (B,56,35) RS1/16S221J
R 923 (B,65,135) RS1/16S223J
R 924 (B,65,138) RS1/16S122J
R 927 (B,66,128) RS1/16S472J
R 928 (B,64,146) RS1/16S563J
R 929 (B,40,38) RS1/16S221J
R 932 (B,66,146) RS1/10S75R0F
R 936 (B,55,119) RS1/10S1R5J
R 937 (B,51,126) RS1/10S75R0F
R 943 (B,73,81) CHIP TYPE RESISTER RS1/10S68R0F
R 950 (B,43,111) CHIP TYPE RESISTER RS1/10S68R0F
R 955 (B,61,170) RS1/10S75R0F
R 965 (B,40,172) RS1/10S75R0F
R 970 (B,40,29) RS1/16S182J
R 971 (B,40,21) RS1/16S182J
CAPACITORS
C 901 (B,56,24) CKSRYF104Z25
C 902 (B,35,32) CKSRYF104Z25
C 903 (B,22,125) CCSRCH391J50
C 904 (B,23,42) CCSRCH221J50
C 907 (B,48,29) CKSRYF104Z25
C 909 (B,56,14) CKSRYF104Z25
C 910 (B,24,38) CCSRCH391J50
C 913 (B,23,131) CCSRCH391J50
C 914 (B,23,50) CCSRCH221J50
C 916 (B,62,133) CKSRYF104Z25
C 917 (B,49,52) CKSRYF104Z25
C 921 (B,23,47) CCSRCH391J50
C 924 (B,23,69) CKSRYF104Z25
C 925 (B,49,136) CKSRYF104Z25
C 927 (B,80,54) CCSRCH470J50
C 928 (B,63,116) CKSRYF104Z25
C 929 (A,64,124) CEAT101M10
Mark No. Description Part No.
DV-989AVi-S 83
5 678
5678
C
D
F
A
B
E
C 930 (A,53,121) CEAT101M10
C 932 (B,23,134) CCSRCH221J50
C 933 (B,20,124) CCSRCH221J50
C 935 (B,69,28) CKSRYF105Z10
C 936 (B,60,125) CKSRYF104Z25
C 937 (A,67,77) CEAT101M10
C 938 (B,74,50) CKSRYF104Z25
C 939 (B,69,57) CKSRYF104Z25
C 940 (B,61,50) CKSRYF104Z25
C 941 (B,54,77) CKSRYF104Z25
C 943 (A,62,104) CEAT101M10
C 945 (B,50,161) CKSRYF104Z25
C 946 (A,67,168) ELECT. CAPACITOR CEAT102M6R3
C 950 (B,22,120) CKSRYF104Z25
C 953 (A,35,175) ELECT. CAPACITOR CEAT102M6R3
EFLKY ASSY [VWG2552]
MISCELLANEOUS
IC 2101(B,80,48) FL CONTROL UCOM IC PE5314C
IC 2102(B,63,29) RESET IC PST3228
IC 2103(A,259,30)
REMOTE RECEIVER UNIT
GP1UE27XK
Q 2101(B,115,60) DIGITAL TRANSISTOR DTC124EUA
Q 2102(B,116,51) CHIP DIGITAL TRANS. DTA124EUA
Q 2108(B,50,36) DIGITAL TRANSISTOR DTC124EUA
Q 2109(B,49,29) CHIP DIGITAL TRANS. DTA124EUA
D 2103(A,138,44) LED(RED) SLI-343URW(RST)
D 2104(A,127,44) LED(BLUE) SLR-343BBT(GHJ)
KN2101(A,119,79)
WRAPPING TERMINAL
VNF1084
V 2101(A,245,49) FL TUBE VAW1089
S 2101(A,103,74) SWITCH VSG1024
S 2102(A,48,74) SWITCH VSG1024
S 2103(A,34,74) SWITCH VSG1024
S 2104(A,13,72) SWITCH VSG1024
S 2105(A,63,74) SWITCH VSG1024
S 2106(A,77,74) SWITCH VSG1024
X 2101(A,71,29) CERAMIC RESONATOR VSS1142
CN2101(A,16,33) 17P CONNECTOR VKN1277
CN2102(A,304,37) CONNECTOR 9P 09P-FJ
FL SPACER 989 VEC2487
RESISTORS
R 2105(B,92,79) RS1/16S103J
R 2106(B,135,45) RS1/16S0R0J
R 2107(B,75,63) RS1/16S0R0J
R 2109(B,59,59) RS1/16S0R0J
R 2110(B,63,59) RS1/16S0R0J
R 2111(B,61,59) RS1/16S0R0J
R 2113(B,71,69) RS1/16S0R0J
R 2114(B,59,71) RS1/16S103J
R 2115(B,57,75) RS1/16S0R0J
R 2116(B,44,73) RS1/16S122J
R 2117(B,36,75) RS1/16S222J
R 2118(B,65,75) RS1/16S272J
R 2119(B,72,73) RS1/16S392J
R 2120(B,273,25) RS1/16S0R0J
R 2121(B,69,69) RS1/16S0R0J
R 2122(B,68,27) RS1/16S103J
R 2123(B,73,69) RS1/16S0R0J
Mark No. Description Part No.
R 2125(B,118,46) RS1/10S182J
R 2126(B,61,46) RS1/16S332J
R 2127(B,63,46) RS1/16S472J
R 2128(B,59,48) RS1/16S224J
R 2129(B,53,49) RS1/16S0R0J
R 2130(B,254,25) RS1/16S0R0J
R 2131(B,115,46) RS1/10S182J
R 2132(B,137,49) RS1/16S121J
R 2133(B,63,42) RS1/16S101J
R 2134(B,67,37) RS1/16S101J
R 2135(B,63,34) RS1/16S101J
R 2136(B,63,32) RS1/16S101J
R 2138(B,58,42) RS1/16S103J
R 2139(B,58,38) RS1/16S105J
R 2141(B,63,36) RS1/16S105J
R 2142(B,59,34) RS1/16S105J
R 2146(B,157,48) RS1/16S0R0J
R 2151(B,77,68) RS1/16S103J
R 2152(B,90,68) RS1/16S103J
R 2155(B,47,41) RS1/16S0R0J
R 2161(B,65,69) RS1/16S103J
R 2162(B,151,48) RS1/16S0R0J
R 2191(B,90,85) RS1/16S103J
R 2194(B,63,40) RS1/16S0R0J
R 2195(B,63,38) RS1/16S101J
R 2196(B,73,33) RS1/16S0R0J
CAPACITORS
C 2101(B,90,80) CKSRYB102K50
C 2102(B,68,55) CKSRYF105Z10
C 2103(B,59,75) CKSRYB102K50
C 2104(A,272,28) CEAL101M6R3
C 2105(B,21,39) CKSRYF105Z10
C 2107(B,65,46) CKSRYB102K50
C 2108(B,71,33) CKSRYB102K50
C 2110(B,260,26) CKSRYF105Z10
C 2111(B,56,42) CKSRYB103K50
C 2113(B,94,51) CKSRYF105Z10
C 2115(B,77,35) CKSRYF105Z10
C 2116(B,94,48) CKSRYB104K25
C 2120(A,23,71) CEJQ101M6R3
C 2121(B,84,68) CKSRYB102K50
C 2122(B,86,68) CKSRYB102K50
C 2126(B,50,39) CKSRYB102K50
C 2161(B,67,69) CKSRYB102K50
EFLKY ASSY [VWG2554]
MISCELLANEOUS
IC 2101(B,80,48) FL CONTROL UCOM PE5314C
IC 2102(B,63,29) RESET IC PST3228
IC 2103(A,259,30)
REMOTE RECEIVER UNIT
GP1UE27XK
Q 2101(B,115,60) DIGITAL TRANSISTOR DTC124EUA
Q 2102(B,116,51) CHIP DIGITAL TRANS. DTA124EUA
Q 2108(B,50,36) DIGITAL TRANSISTOR DTC124EUA
Q 2109(B,49,29) CHIP DIGITAL TRANS. DTA124EUA
D 2103(A,138,44) LED(RED) SLI-343URW(RST)
D 2104(A,127,44) LED(BLUE) SLR-343BBT(GHJ)
KN2101(A,119,79)
WRAPPING TERMINAL
VNF1084
Mark No. Description Part No.
DV-989AVi-S
84
1234
1234
C
D
F
A
B
E
V 2101(A,245,49) FL TUBE VAW1089
S 2101(A,103,74) SWITCH VSG1024
S 2102(A,48,74) SWITCH VSG1024
S 2103(A,34,74) SWITCH VSG1024
S 2104(A,13,72) SWITCH VSG1024
S 2105(A,63,74) SWITCH VSG1024
S 2106(A,77,74) SWITCH VSG1024
X 2101(A,71,29) CERAMIC RESONATOR VSS1142
CN2101(A,16,33) 17P CONNECTOR VKN1277
CN2102(A,304,37) CONNECTOR 9P 09P-FJ
FL SPACER 989 VEC2487
RESISTORS
R 2105(B,92,79) RS1/16S103J
R 2106(B,135,45) RS1/16S0R0J
R 2107(B,75,63) RS1/16S0R0J
R 2109(B,59,59) RS1/16S0R0J
R 2110(B,63,59) RS1/16S0R0J
R 2111(B,61,59) RS1/16S0R0J
R 2113(B,71,69) RS1/16S0R0J
R 2114(B,59,71) RS1/16S103J
R 2115(B,57,75) RS1/16S0R0J
R 2116(B,44,73) RS1/16S122J
R 2117(B,36,75) RS1/16S222J
R 2118(B,65,75) RS1/16S272J
R 2119(B,72,73) RS1/16S392J
R 2120(B,273,25) RS1/16S0R0J
R 2121(B,69,69) RS1/16S0R0J
R 2122(B,68,27) RS1/16S103J
R 2123(B,73,69) RS1/16S0R0J
R 2125(B,118,46) RS1/10S182J
R 2126(B,61,46) RS1/16S682J
R 2127(B,63,46) RS1/16S272J
R 2128(B,59,48) RS1/16S224J
R 2129(B,53,49) RS1/16S0R0J
R 2130(B,254,25) RS1/16S0R0J
R 2131(B,115,46) RS1/10S182J
R 2132(B,137,49) RS1/16S121J
R 2133(B,63,42) RS1/16S101J
R 2134(B,67,37) RS1/16S101J
R 2135(B,63,34) RS1/16S101J
R 2136(B,63,32) RS1/16S101J
R 2138(B,58,42) RS1/16S103J
R 2139(B,58,38) RS1/16S105J
R 2141(B,63,36) RS1/16S105J
R 2142(B,59,34) RS1/16S105J
R 2146(B,157,48) RS1/16S0R0J
R 2151(B,77,68) RS1/16S103J
R 2152(B,90,68) RS1/16S103J
R 2155(B,47,41) RS1/16S0R0J
R 2161(B,65,69) RS1/16S103J
R 2162(B,151,48) RS1/16S0R0J
R 2191(B,90,85) RS1/16S103J
R 2194(B,63,40) RS1/16S0R0J
R 2195(B,63,38) RS1/16S101J
R 2196(B,73,33) RS1/16S0R0J
CAPACITORS
C 2101(B,90,80) CKSRYB102K50
C 2102(B,68,55) CKSRYF105Z10
C 2103"(B,59,75) " CKSRYB102K50
Mark No. Description Part No.
C 2104(A,272,28) CEAL101M6R3
C 2105(B,21,39) CKSRYF105Z10
C 2107(B,65,46) CKSRYB102K50
C 2108(B,71,33) CKSRYB102K50
C 2110(B,260,26) CKSRYF105Z10
C 2111(B,56,42) CKSRYB103K50
C 2113(B,94,51) CKSRYF105Z10
C 2115(B,77,35) CKSRYF105Z10
C 2116(B,94,48) CKSRYB104K25
C 2120(A,23,71) CEJQ101M6R3
C 2121(B,84,68) CKSRYB102K50
C 2122(B,86,68) CKSRYB102K50
C 2126(B,50,39) CKSRYB102K50
C 2161(B,67,69) CKSRYB102K5
FKEYB ASSY
MISCELLANEOUS
D 2201(A,201,79) LED(RED) SLR-343VC(NPQ)
D 2203(A,155,79) LED(RED) SLR-343VC(NPQ)
D 2204(A,138,79) LED(RED) SLR-343VC(NPQ)
J 2203(A,170,63) CONNECTOR ASS'Y PF05PG-C17
KN2201(A,186,88)
WRAPPING TERMINAL
VNF1084
S 2201(A,135,89) SWITCH VSG1024
S 2202(A,152,89) SWITCH VSG1024
S 2204(A,172,89) SWITCH VSG1024
CN2201(A,150,59) CONNECTOR 9P 09R-FJ
RESISTORS
R 2201(B,144,78) RS1/16S101J
R 2202(B,159,74) RS1/16S101J
R 2203(B,141,85) RS1/16S122J
R 2204(B,143,87) RS1/16S222J
R 2205(B,200,75) RS1/16S181J
R 2220(B,169,83) RS1/16S272J
R 2221(B,172,85) RS1/16S392J
CAPACITORS
C 2201(B,171,66) CKSRYB103K50
C 2202(B,169,67) CKSRYB103K50
C 2203(B,133,62) CKSRYF105Z10
GMSWB ASSY
MISCELLANEOUS
D 2301(B,315,71) DIODE 1SS355
D 2302(B,321,71) DIODE 1SS355
RY2301(A,315,84) POWER RELAY VSR1018
S 2301(A,262,70) POWER SWITCH VSA1005
CN2301(A,270,93) CONNECTOR S5B-PH
CN2302(A,283,83)
AMP U-P CONNECTOR
VKN2024
CN2303(A,255,89) CONNECTOR S2B-PH
CN2304(A,309,85) CONNECTOR B2P3S-VH-BK
RESISTORS
R 2301(B,263,88) RS1/4SA102J
R 2302(B,263,86) RS1/4SA102J
Mark No. Description Part No.
DV-989AVi-S 85
5 678
5678
C
D
F
A
B
E
H
POWER SUPPLY UNIT
OTHERS
>
P301 PROTECTOR(800mA) AEK7063
>
P201 PROTECTOR(1.6A) AEK7066
>
P101,P202 PROTECTOR(2.0A) AEK7067
I
PS ASSY
MISCELLANEOUS
IC 3801(A,86 ,197 ) PROTECTOR(1A) AEK7009
IC 3802(A,81 ,208 ) PROTECTOR(1A) AEK7009
IC 3803(A,21 ,203 ) IC NJM78M05FA
Q 3801(A,28 ,186 ) TRANSISTOR 2SC4883A
Q 3802(A,33 ,226 ) TRANSISTOR 2SA1859A
Q 3803(A,48 ,202 ) N-FET 2SK246
Q 3804(A,53 ,210 ) N-FET 2SK246
Q 3805(B,36 ,193 ) CHIP TRANSISTOR 2SC3906K
Q 3806(B,36 ,219 ) CHIP TRANSISTOR 2SA1514K
D 3801(A,75 ,184 ) SCHOTTKY DIODE 11EQS10
D 3802(A,78 ,184 ) SCHOTTKY DIODE 11EQS10
D 3803(A,75 ,224 ) SCHOTTKY DIODE 11EQS10
D 3804(A,78 ,224 ) SCHOTTKY DIODE 11EQS10
D 3805(B,37 ,203 ) DIODE UDZS12(B)
D 3806(B,37 ,210 ) DIODE UDZS12(B)
D 3807(B,29 ,203 ) CHIP DIODE RB501V-40
D 3808(B,29 ,210 ) CHIP DIODE RB501V-40
D 3809(B,12 ,208 ) CHIP DIODE RB501V-40
J 3801(A,7 ,200 )
6P CONNECTOR ASS'Y
VKP2363
CN3801(A,90 ,210 ) CONNECTOR B3P-VH
HEAT SINK VNH1073
C CUSION VEB1375
PCB BINDER VEF1040
SCREW PMH30P080FCC
HEAT SINK VNH1074
RESISTORS
R 3801(A,76 ,200 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
R 3803(B,40 ,194 ) RS1/16S331J
R 3804(B,40 ,218 ) RS1/16S331J
R 3805(B,31 ,191 ) RS1/16S681J
R 3806(B,30 ,220 ) RS1/16S681J
CAPACITORS
C 3801(A,74 ,209 )
AUDIO FILM CAPACITOR
ACE7063
C 3802(A,81 ,214 )
AUDIO FILM CAPACITOR
ACE7063
C 3803(A,63 ,189 ) VCH1254
C 3804(A,63 ,214 ) VCH1254
C 3805(A,42 ,199 ) ELECT. CAPACITOR VCH1247
C 3806(A,42 ,208 ) ELECT. CAPACITOR VCH1247
C 3807(A,33 ,198 ) VCH1257
C 3808(A,33 ,210 ) VCH1257
C 3809(B,20 ,206 ) CKSRYB104K16
C 3810(A,15 ,209 ) ELECT. CAPACITOR CEHAZA101M10
J
PLED ASSY
MISCELLANEOUS
D 2351(A,313,30) LED(BLUE) SLR-343BBT(GHJ)
J 2351(A,317,22) CONNECTOR ASS'Y PF02PG-B07
Mark No. Description Part No.
RESISTORS
R 2351(B,318,27) RS1/16S0R0J
CAPACITORS
C 2351(B,316,35) CKSRYB104K25
C 2352(A,319,36) ELECT. CAPACITOR CEHAZA220M16
K
LOAB ASSY [VWG2426]
SWITCHES and RELAYS
S101 REAF SWITCH VSK1011
OTHERS
CN601 KR CONNCTOR S5B-PH-K-S
CN602 KR CONNCTOR S2B-PH-K-S
PRINTED CIRCUT BOARD(LOAB) VNP1912
Mark No. Description Part No.
DV-989AVi-S
86
1234
1234
C
D
F
A
B
E
6. ADJUSTMENT
6.1 ADJUSTMENT ITEMS AND LOCATION
6.2 JIGS AND MEASURING INSTRUMENTS
1
1 2
2
Tangential
adjustment
screw
1 2
Radial
adjustment
screw
Adjustment Items
[Mechanism Part]
[Electrical Part]
Tangential and Radial Height Coarse Adjustment
DVD Jitter Adjustment
Electrical adjustments are not required.
Adjustment Points (Mechanism Part)
Cautions: After adjustment, adjustment screw locks with the
Screw tight.
Screwdriver (large) TV monitor
Precise screwdriver DVD test disc
(GGV1174)
Test mode remote control
unit (GGF1381)
Screw tight
(GYL1001)
Screwdriver (medium)
Soldering iron
DV-989AVi-S 87
5 678
5678
C
D
F
A
B
E
6.3 NECESSARY ADJUSTMENT POINTS
∗After adjustment, screw locks
with the Screw tight.
∗After adjustment, screw locks
with the Screw tight.
~, Ÿ
Ÿ
Mechanical
point
Electric
point
Mechanical
point
Electric
point
Mechanical
point
Electric
point
Mechanical
point
Electric
point
LOAB and DVDM ASSYS
Exchange Parts of Mechanism Assy
Exchange PCB Assy
When Adjustment Points
Exchange the Pickup
Exchange the Traverse Mechanism
Exchange the Spindle Motor
Exchange PC Board
DV-989AVi-S
88
1234
1234
C
D
F
A
B
E
6.4 TEST MODE
TEST MODE: ON
TEST MODE: DISC SET
DSC - &&&
GGF1381
Test mode
remote control
unit
GGF1381
Test mode
remote control
unit
<TRAY OPEN>
OPEN/CLOSE
(Player)
OPEN/CLOSE
(Player)
TEST MODE: PLAY
TEST MODE: OFF
An address is displayed
For example, when playback with # 30000
During PLAY Press keys in order
OR
ESC
030000
<PLAY>
< When playback with the target address of disc (DVD)>
TV/LDP
+10 3 0 0 0 0 CHP/TIM
ESC TEST
CHECK
DVD, CD
CAUTION:
Perform only trace, video and audio outputs
are nothing.
DVD disc
POWER
ON
OFF
POWER
DV-989AVi-S 89
5 678
5678
C
D
F
A
B
E

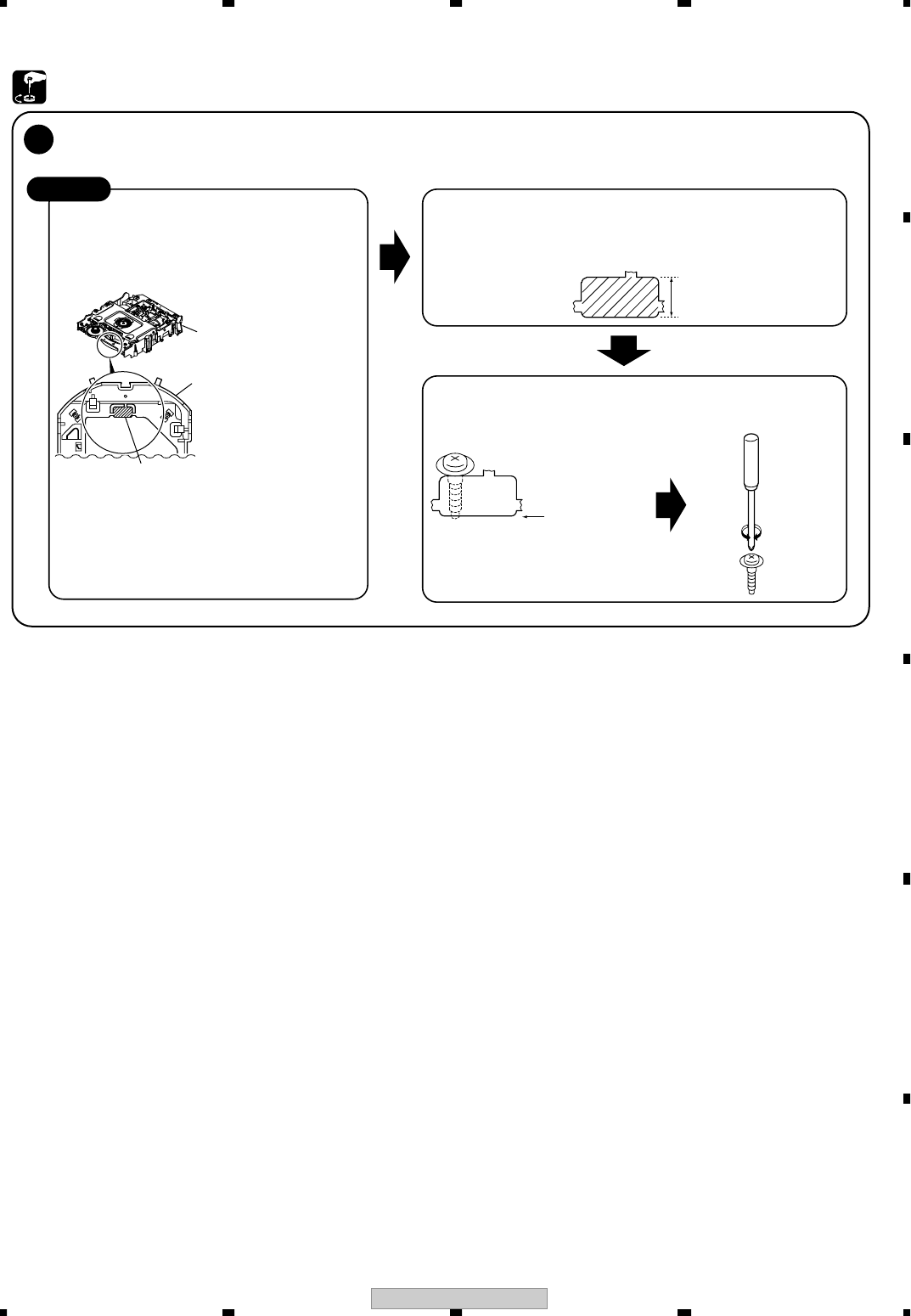

6.5 MECHANISM ADJUSTMENT
• Remove the Loading Mecha. Assy.
• Remove a Spacer for height adjustment
attached to the back side (shaded area)
of the Loading Mecha. Assy (Float Base)
with nippers.
Cautions:
Keep spacer for future use.
(used only for 2003 models)
Put a spacer between a Tangential (or Radial) adjustment
screw and Mechanism Base and turn each screw to adjust
the height. (Refer to "6.1 ADJUSTMENT ITEMS AND
LOCATION".)
START
Tangential and Radial Height Coarse Adjustment
1
Loading Mecha. Assy
7.3mm
Turn a flat side
into bottom
Spacer for Height adjustment
Float Base
Note:
Before removing the flexible cable for the
pickup, soldering of the pickup circuit is
necessary.
For details, see "7.1.10 DISASSEMBLY".
DV-989AVi-S
90
1234
1234
C
D
F
A
B
E
Player
Monitor
•Test mode
•Play the DVD test disc
at outer track
(around #200000)
•Play the DVD test disc
at inner track
(around #30000)
•Play the DVD test disc
at outer track
(around #200000)
Mechanism Assy
Adjust the Tangential
Adjustment Screw so that
jitter becomes minimum.
Mechanism Assy
Readjust the Tangential
Adjustment Screw so that
jitter becomes minimum.
Mechanism Assy
Adjust the Radial
Adjustment Screw so that
jitter becomes minimum.
Use disc: GGV1025
START

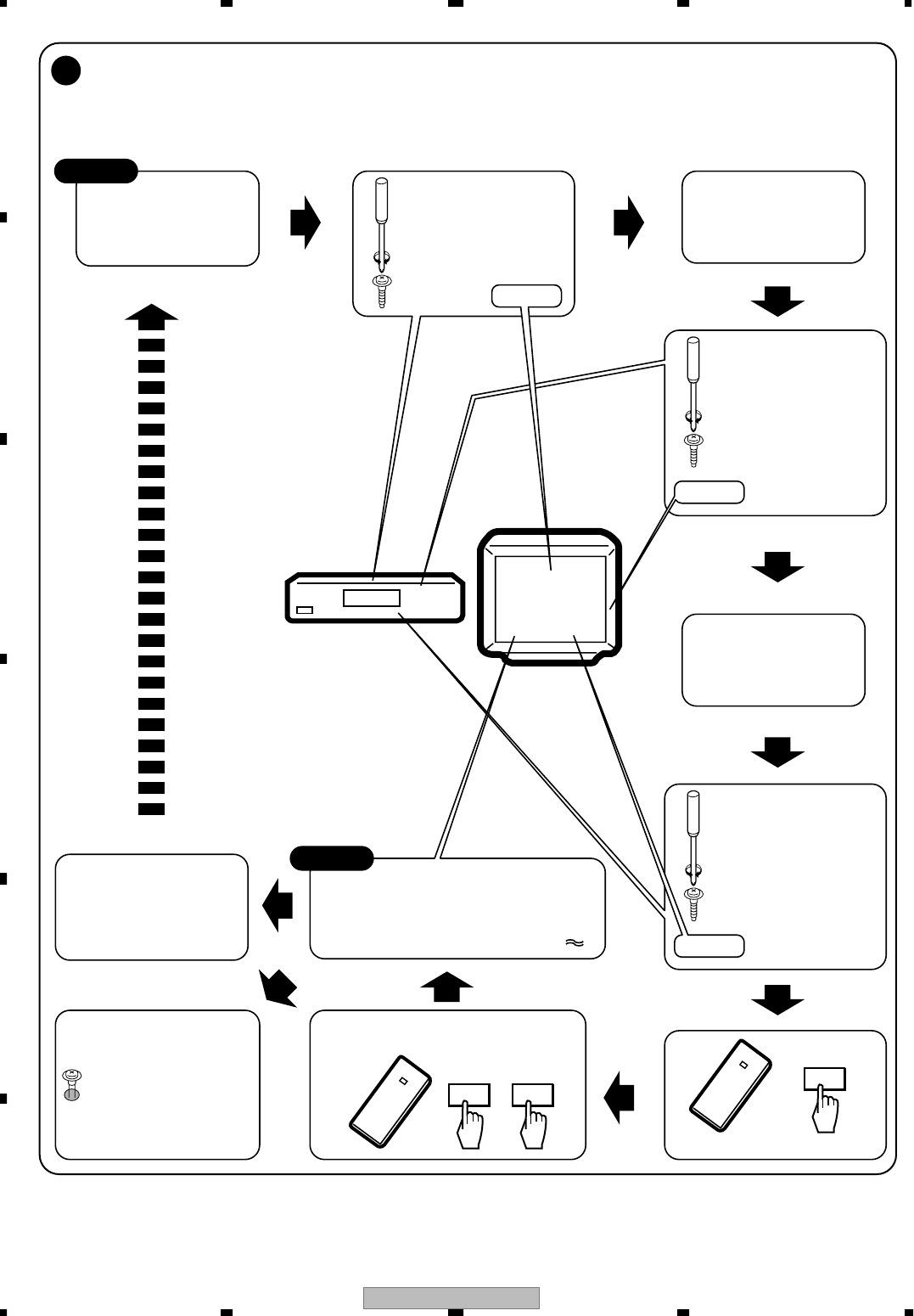

DVD Jitter Adjustment
2
J : - - - -
J : Min
J : Min
Test mode end
J : Min
ESC
Disc playback normally.
• The measurement of block error rate
If error rate is OK,
locks a root of
tangential and radial
adjustment screws with
the Screw tight.
Screw tight: GYL1001
Turn the POWER OFF in
case of NG once, and
perform the adjustment
once again.
Confirm the error rate that is
displayed "OK"
(Example ERROR RATE: 6.6oe - 6 OK )
5ESC
CHECK
NG
OK
• Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE".
• Jitter indication of the monitor is refererd to "7.1.3 TEST MODE SCREEN DISPLAY".
DV-989AVi-S 91
5 678
5678
C
D
F
A
B
E
7. GENERAL INFORMATION
7.1 DIAGNOSIS
7.1.1 ID NUMBER AND ID DATA SETTING
Entering the ID Number and ID Data for Players with DVD-Audio and DVD-RW
Compatibility
To enter the input mode, press ESC + STEREO in a status with
no ID number set, such as after FLASH-ROM downloading.
• Downloading FLASH-ROM is finished. (The latest version must be downloaded when a repair is made.)
• "No ID Number" is displayed on the screen or FL display immediately after the power is turned on or in Stop mode.
• If "No ID DATA" is displayed, the ID data must be entered.
Important: If no yellow label is found on the rear panel, write down the specified ID number by checking it according to "How
to confirm the ID number" shown below.
Note:
Be sure to enter the ID number in Stop mode.
Use the service remote control (GGF1381) for operations. Only opening/closing of the tray are performed from the player.
Use Disc No. : GGV1174
It is necessary with a player with DVD-audio and DVD-RW compatibility to set an individual number (ID number) and ID data. If the
number and data are not set correctly with the following procedure, operations in the future may not be guaranteed. You will find the ID
number to be set on the yellow label on the rear panel.
The Input is Necessary When:
How to Input the ID Number and ID Data
[Player's ID Number Setting]
ID Number ?
> - - - - - - - - -
<CLEAR> Exit
Input ID Number !
1
As number input is enabled when the unit enters the input
mode, input the 9-digit ID number.
(The entered number is also displayed on the FL display.)
2
2
[Player's ID Data Setting]
<CLEAR> Exit
Insert The ID Data Disc !
When the ID number has been registered, the unit enters the
ID data input mode. (The FL display indicates "NO ID DATA.")
In this condition, place the ID data disc on the tray and close
the tray using the CLOSE key "7/0" on the player.
4
4
[Player's ID Data Setting]
Loading The ID Data Disc !
While the data are being read, the message shown in the
figure at left is displayed on the screen.
(The FL display indicates "RD ID DATA.")
5
5
[Player's ID Number Setting]
ID Number ?
> 0 0 0 0 0 0 0 0 1 OK ?
<PLAY> Compare Mode
<SEARCH> Enter
Input ID Number !
After inputting the number, press SEARCH to register the ID
number.
3
3
DV-989AVi-S
92
1234
1234
C
D
F
A
B
E
How to Confirm the ID Number
How to Clear the ID Number
[Player's ID Data Setting]
Wait Rom Writing !
When the ID data have been read, the data are written to the
FLASH-ROM.
(The FL display indicates "WR ID DATA.")
6
6
[Player's ID Data Setting]
Rom Write OK !
<CLEAR> Exit
When the ID data have been written to the FLASH-ROM, the
message "Rom Write OK" is displayed on the screen.
(The FL display indicates "ID DATA OK.")
After confirming this message, press CLEAR to exit the input
mode.
7
8
7
8
[Player's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> * * * * * * * * *
<CLEAR> Exit
Input ID Number !
Press ESC + STEREO with an ID number set, and the unit
enters the ID number confirmation mode.
The set ID number is displayed on the screen (and on the FL
display), permitting you to confirm it.
To exit this mode, press CLEAR .
1
Press ESC + STEREO with an ID number set, and the unit
enters the ID number confirmation mode.
Input the same number as the ID number you have set.
1
2
2
3
2
3
[Player's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> * * * * * * * * *
<CLEAR> Exit
Input ID Number !
2
After inputting the number, press STOP .
Only when the entered number matches the set ID number, the
ID number is cleared and the unit exits this mode.
If the numbers do not match, you must return to step 2.
( STOP is not accepted until 9 digits are entered.)
3
[Player's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> 0 0 0 0 0 0 0 0 1 OK ?
<PLAY> Enter
<STOP> Memory Clear
Input ID Number !
3
DV-989AVi-S 93
5 678
5678
C
D
F
A
B
E
7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE
Character in bold : Item name
: Information display
Laser diode current value
Symptom
• Indicates "No Disc" in FL display.
• Player does not playback, etc..
This unit can confirm the laser diode current value (DVD: 650nm, CD: 780nm) of pickup on the Test Mode screen.
(Press the ESC → TEST keys in order on the test mode remote control unit (GGF1381) to enter the test mode.)
Note : When a DVD disc or a CD disc is played in the test mode, this function is effective.
Procedure of Self-Diagnosis
1Enter the Test mode.
2When diagnosing the 650nm laser diode:
Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.).
When diagnosing the 780nm laser diode:
Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.).
When let it turn on once again after performed 2 once,
After pressed REP.B key once
650nm: Press the → keys in order
780nm: Press the → keys in order
3Confirm the indicated value of the laser diode current (LDI). (Refer to following figure.)
4When indicated value is more than 140, pickup is defective. → Replacement is necessary
Replace the Traverse Mechanism Assy or Pickup.
TEST 1
TEST 1
TEST 4
TEST 4
It's effective in case of the following condition.
DV-989AVi-S
94
1234
1234
C
D
F
A
B
E
7.1.3 TEST MODE SCREEN DISPLAY
Display Specification of the Test Mode
Character in bold : Item name
: Information display
1
5
6
10
21
22
23
24
11
8
9
3
2
12
17
18
19
16
13 14
15
1 Address indication
The address being traced is displayed in number.
(as for the DVD, indication of decimal number is possible.)
DVD : ID indication (hexadecimal number, 8 digits)
[∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗]
CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗]
2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗]
In case of double code, display a 2nd code.
3 Main unit keycode indication [K – ∗ ∗]
4 Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗ ]
5 (1) Tracking status [TRKG – ∗ ∗ ∗]
Tracking on : [ON]
Tracking off : [OFF]
(2) Laser diode current value [LDI – ∗ ∗ ∗]
6 (1) Spindle status [SPDL – ∗ ∗ ∗]
Spindle accelerator and brake, free-runnimg [A/B]
FG servo [FG]
Rough, velocity phase servo [SRV]
Offset addition, rough, velocity phase servo [O_S]
(2) AFB status [AFB – ∗ ∗]
ON [ON ]
OFF [OFF]
7 Mechanism (loading) position value [M – ∗ ∗]
Unknown : [01] or [41]
Open state : [04]
Close state : [08]
During opening : [12]
During closing : [22]
8 Slider position [S – ∗ ∗ ∗ ∗]
CD TOC area : [IN ]
CD active area : [CD]
9 Output video system [V – ∗ ∗ ∗ ∗]
NTSC system : [NTSC]
PAL system : [PAL]
Automatic setting : [AUTO]
Scart terminal output [SK – ∗ ∗]
(Display only the WY model which can do the output setting
of scart terminal.)
VIDEO : [00]
S-VIDEO : [01]
RGB : [02]
0 (1) Disc sensing [DSC – ∗ ∗ ∗]
The type of discs loaded is displayed.
[DVD], [CD ], [VCD], [ ]
(2) CD 1/3 beam switch [BM – ∗ ∗ ]
- Jitter value [J – ∗ ∗ ∗ ∗]
Make the jitter four times, and renew it in every 0.5 second.
[J4 – ∗ ∗]
= Version of the AV-1 chip / version of firmware
[AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗]
~ Version of the FL controller [FL: ∗ ∗ ∗ ∗]
! Region setting of the player [REG: ∗]
Setting value : [1] to [6]
@ Destination setting of the FL controller
[MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗]
Four characters in the front represent the type of model.
Three characters in the back represent the destination code.
J: /J, K: /KU, /KC, /KU/KC, R: /RAM/RL/RD, LB: /LB,
WY: /WY
# Part number of the flash ROM and system controller
[∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗]
$ Version of the flash ROM [V: ∗. ∗ ∗ ∗]
Flash ROM size [FLSH = ∗]
% Revision of the system controller [S: ∗ . ∗ / ∗ ∗ ∗ ]
7
DV-989AVi-S 95
5 678
5678
C
D
F
A
B
E
^ (1) Revision of the DVD mechanism controller
[M: ∗ / ∗ ∗]
(2) Part number of the GUI-ROM (OEM model)
[GUI: ∗ ∗ ∗]
(3) HOST conversion [HOST: ∗ ∗ ∗]
* AGC setting [AGC – ∗ ∗ ∗ [∗] ]
AGC on : [AGC-ON]
AGC off : [AGC-OFF]
[1] : RFAGC on [0] : RFAGC off
( FTS servo IC information
DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ]
Displays the address (four digits) of the specified coefficient
and the setting value (four digits) with [TEST] and [9] keys.
) Error rate indication
1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ]
2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ]
_ Internal operation mode of mechanism controller
[MM – ∗ ∗ : ∗ ∗]
Internal mechanism mode (2 digits) and internal mechanism
step (2 digits) of the mechanism controller
DV-989AVi-S
96
1234
1234
C
D
F
A
B
E
7.1.4 SELF-DIAGNOSIS FUNCTION
Display screen of mechanism error history and self diagnosis result
2
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(h)
When enter the service mode, self diagnosis mode operates with the "ESC"+"CHP/TIM" keys automatically.
1 Mechanism Error History (past eight times of error is displayed)
Two columns of the beginning display the error status for mechanism controller.
(the details of error contents refer to "7.1.6 Error Display".)
Eight columns of the back display the count UP value (turned count up every 20msec) from the power-up.
Example) 32h ⋅
=. 1 sec, BB8h ⋅
=. 1 min, 2BF20h ⋅
=. 1 hour
In addition, when there was error after power-up immediately (till initial setting is completed), turn the most significant bit to ON.
2 Check Item Display of Self Diagnosis Function
a) AV1 Host Bus check (possible the check only during stop) (Read & Write process of an internal specific register)
AV_1 : OK
: −− ⇒not yet check
: HOST BUS NG ⇒HOST bus NG
b) Bus check between AV1 SDRAM (possible the check only during stop) (Read & Write process to the SDRAM)
AV_2 : OK
: −− ⇒ not yet check
: AV1-SDRAM BUS NG ⇒Bus NG between AV1 and SDRAM
c) DMA transfer port check from F.E. to AV1 (during stop, possible the check only in DVD or NO DISC)
(writing from F.E to SDRAM and reading of SDRAM)
AV_3 : OK
: −− ⇒not yet check
: FE-AV1 DMA NG ⇒Bus NG between F.E and SDRAM installed outside of AV1
d) Video encoder (ADV∗∗∗∗) check (Read of the specific register)
VE : OK
: NG ADV, ⇒ADV register reading NG
: NG > ADV, ⇒ADV communication NG of FR to video encoder
: NG > PRO ⇒Communication NG from EBY to progressive decoder
e) DSP check (Read of the specific register)
DSP : OK
: NG ⇒DASP NG
f) SACD check (Read of the specific register)
SACD : OK
: NG ⇒SACD NG
g) 1394 relation HOST controller check
HOST : OK
: NG ⇒HOST controller NG
h) 1394 relation Mercury CHIP check
MERC : OK
: NG ⇒Mercury CHIP NG
i) HOMI Transmitter IC check
HDMI : OK
: NG
j) HDMI Resolution Conversion IC(T-rex) check
TREX : OK
: NG
Display the mechanism error history and self diagnosis result by pressing the "CHP / TIM" key once again.
Afterwards press the "CHP / TIM" key with toggle and change the display.
(i)
(j)
1
HDMI
TREX
DV-989AVi-S 97
5 678
5678
C
D
F
A
B
E
7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE
Indication contents
1
2
3
4
• FL indication of EDC / ID error (short cut function)
Indicate it in FL with the "ESC"+"CX" keys (LD remote control unit).
Indication is released with the "ESC" key during display.
FL indication contents
0 0 / 0 0 / 0 1 ∗
Indicate number of the location that caused EDC and ID errors
Retry number of times at having caused ID error (error is indicated only in the occurring moment)
Retry number of times of the latest ID error in the ST system
Retry number of times at having caused EDC error (error is indicated only in the occurring moment)
Retry number of times of the latest EDC error in the ST system
∗ Mark: When even once causes AV1 error, lights.
• Screen display of the service mode
Indicate to the screen with the "ESC"+"CHP/TIM" keys.
Release the indication with the "ESC" key.
Indication contents
1ID Address
2DVD in playback: Error rate regular indication and exponent
indication
CD/VCD in playback indicates the number of correct frame of
C1 error /5 seconds.
3Self diagnosis indication
Indicate the self diagnosis result whether the F.E is normal.
Self Check : During FE checks
Self Check OK : Abnormality is not found in F.E.
Self Check Error : Abnormality is found in F.E.
Indicate the mechanism error history and self diagnosis result
by pressing the "CHP / TIM" key once again.
Afterwards press the "CHP / TIM" key with toggle and change
the display.
Indication of the mechanism error history and self diagnosis
result refer to "7.1.4 self diagnosis function".
4 Error information indication of the AV decoder
(a)
When a retry occurred in reading from the disc, a history
indicates the occurrence location and the occurrence reason.
History is indicated to past seven times.
Eight columns of the beginning show the physical address
which occurred of retry.
As for four columns of next, bitmap indicates EDC status. LSB
shows the first sector during a block and MSB shows a last
sector.
Following field indicates the retry number of times.
One digit in front of " / " shows number of times of the retry by
EDC Error which occurred in the same block in succession.
One digit after " / " shows number of times of the retry by ID
Check Error which occurred in the same block in succession.
" * " of last one digit shows the EDC Check NG Count Over.
" # " shows the ID Check NG Count Over.
When " * " and " # " are not indicated, show that data were
rightly readable by retry process.
(b)
Indicate the error information that detected with the Audio/Video
Decoder. When error occurred, a history indicates the
occurrence time and the occurrence reason. History is indicated
to past seven times.
Field in front of ":" indicates the error information of Audio/Video
Decoder.
(Indication information is different from Fujitsu Decoder with
Mitsubishi Decoder)
02 model is 656 series and 757 series is Mitsubishi model.
• Specification for the Audio/Video Decoder (M65773FP) model
of Mitsubishi
bit7: VLD Fatal Error detection
bit6: VLD Not Fatal Error detection
bit5: Number of Macro Block mismatch
bit4: Decode error
bit3: VLD Sequence Layer Fatal Error detection
bit2: VLD Picture Layer Fatal Error detection
bit1: VLD Slice Layer Fatal Error detection
bit0: Start-up Sequence Time-out Error detection
Following field in " : " indicates a value of STC (System Time
Clock) which detected the above Audio/Video Decoder error.
∗ When often perform the switch of debug screen, an error history
will be increased.
As for this, CPU power is used for update of OSD drawing,
symptoms occur so that control of VBR Buffer is not in time.
(a)
4
(b)
DV-989AVi-S
98
1234
1234
C
D
F
A
B
E
7.1.6 ERROR DISPLAY
FL Display Possible causes Operation of the unit
AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with
the specific audio.
CPU AERR CPU address error (Hardware is unusual.) No operation
DMA AERR DMA address error (Hardware is unusual.) No operation
FLASH ID Difference in versions of the internal ROM of the system controller and of the flash
ROM, or bus line failure or reverse installation No operation
FLASH WRP Write protect error of the flash ROM No operation
FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used
was used.) No operation
FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation
(Hardware is unusual.) No operation
FLASH SIZ Size error of the flash ROM (Use 4 or 8 M-bit.) No operation
GUI ROM ERROR Difference in version of GUI ROM and system controller software. Operate as the OSD model
ILLGAL The system controller fetched a code other than an operation code (Hardware is
unusual.) No operation
MECHA CPU Difference in version of the internal ROM of the mechanism controller and of the flash
ROM. No operation
RESERVE Undefined interrupt (Hardware is unusual.) No operation
SLOT Inappropriate slot command issued (Hardware is unusual.) No operation
FL Description of
Error Causes if with a DVD Causes if with a CD Operation of the Unit
11 Search timeout Search could not be complete within 7
seconds.
Search could not be complete within 7
seconds, and it could not enter the target
area within 7 seconds by VCD scan.
CD : Stops,
DVD: Continues operation
12 Search retry
error
More beyond the target while the read-in search was converging. A search could not
be completed after 3 retries while the unit was tracing 11 tracks. A search could not
be completed after retry when timeout occurs at read-in.
CD: Stops,
DVD: Continues operation
19 Tracing timeout
while converging Timeout (10.5 seconds) while tracing at
the stage of convergence of a search. Stop
1B Index 0 search
error
During Track (Index) Search, the search
for the beginning of a program could not
be completed within 3 seconds (20
seconds in the case of Index Search)
after positioning based on the TOC data
was completed.
Stop
1C
Embossment
plunge error
(only a model
corresponding to
RW)
Plunged into unreadable embossment of
DVD-RW player.
1. In wobble nothing (error
distinction) : search to
address 2E400h
2. In wobble existence:
Tray open
22
Timeout of slider
inner
circumference
Inside switch could not ON within 3 seconds. Stop
23
Timeout of slider
outer
circumference
Inside switch could not OFF within the following times:
at ATB: 2 seconds, at Backup: 2 or 2.02 seconds. Stop
33 No FOK pulse
during playback When the focus was deviated continuously 20 times.
Adjusts focus at the innermost
circumference and tries to
return to its position where the
error was generated (for 3
times),then opens.
If the same error persists after
one retry, the tray opens. (No
FOK pulse)
38 Disc-type-
sensing error
Were not able to playback from the disc distinction process.
PLAY or STOP was not completed by backup operation of the disc distinction.
Distinguished it from the blank disc in the ATB process completion.
Open
Error codes that are displayed on the FL display without using the remote control unit
Error codes that are displayed on the FL display by using the remote control unit
(Mechanism controller error)
To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the FL display
To display the error history: ESC + DISPLAY + One shot; Location of the display: TV screen
DV-989AVi-S 99
5 678
5678
C
D
F
A
B
E
FL Description of
Error Causes if with a DVD Causes if with a CD
Operation of the Unit
39 SGC converge
timeout SGC could not converge during detects the peak Open
41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command.
Disc distinction is not completed even if passes for 10 seconds after the spindle turned. Stop
48 Spindle FG transition
timeout
Did not reach to the rotating speed that ATB was
possible for less than 10 seconds. Did not reach aim
CAV lock speed (high: 10%, low: 50%) for less than 10
seconds. CAV process passed more than 5 seconds or
abnormal speed was detected. Spindle does not lock for
less than 3 seconds in the BCA read start or end.
Stops. (FG timeout)
49 Spindle PLL
transition timeout CAV process passed more than 5 seconds. Abnormal speed was detected.
Stops.
("73" is displayed during
starting process.)
4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB.
Stops.
("73" is displayed during
starting process.)
51
Auto sequence
timeout of peak
detection
ABUSY did not return within 1 second after the DDTCT
(peak detection) command was sent. Stop
52
Auto sequence
timeout of focus
jump down
ABUSY did not return within 30 mS after the FJMPD
(Focus jump 1 to 0) command was sent. Open
53
Auto sequence
timeout of focus
jump up
ABUSY did not return within 30 mS after the FJMPU
(Focus jump 0 to 1) command was sent. Open
54 Auto sequence
timeout of play AGC
ABUSY did not return within 50 mS after the GSUMON
(play-AGC-measuring) command was sent. Stop
55
Auto sequence
timeout of disc-type-
sensing
ABUSY did not return within 2 seconds after the
DJSRT (disc-sensing) command was sent. Stop
56 Auto sequence
timeout of ATB2
ABUSY did not return within 1 second after the
TBLOFS (Internal ATB after the completion of external
ATB) command was sent.
Stop
57
Auto sequence
timeout of tracking
servo ON
ABUSY did not return within 0.5 sec. after the TSON
(tracking servo ON) command was sent. Stop
58 Auto sequence
timeout of ATB1
ABUSY did not return within 0.2 sec. after the TBL
(external ATB) command was sent. Stop
59
Auto sequence
timeout of focus gain
adjustment
ABUSY did not return within 2 seconds after the FGN
(focus gain adjustment) command was sent. Stop
5A
Auto sequence
timeout of tracking
gain adjustment
ABUSY did not return within 2 seconds after TGN
(tracking gain adjustment) command was sent. Stop
5B
Auto sequence
timeout of offset
adjustment
ABUSY did not return within 1 second after the AVE
(offset adjustment) command was sent. Stop
5C
Auto sequence
timeout of
modulation factor
measurement
ABUSY did not return within 200 mS after the ADJMIR
(modulation factor measurement) command was sent. Stop
5D
Auto sequence
timeout of auto focus
bias
ABUSY did not return within 2 seconds after the AFB
(auto focus bias) command was sent. Stop
5F Auto sequence
already busy
A command could not be sent because ABUSY was
low. ABUSY did not return within 200 mS after TLV
command was sent.
Stop
62 Pause retry error Pause mode could not be restored within three retries
after it had been released. Continues operation
71 ID reading check
during playback An ID could not be read for 1 second or more. Stop
72
Subcode check
failure during
playback
No frame could be read for 3
seconds or more. Stop
73 ID can not read
during startup
An ID could not be read within 1 second after the AFB
tracking on.
Opens
(ID readout failure)
DV-989AVi-S
100
1234
1234
C
D
F
A
B
E
FL Description of
Error Causes if with a DVD Causes if with a CD Operation of the Unit
74 Subcode check
failure during startup
Subcode could not be read within 1
second after the tracking on.
Opens (Subcode readout
failure).
A1
Communication
timeout of DSP
command
A command could not be issued to DSP because
Command Busy (XCBUSY) was in force
(XCBUSY = L) for a specified time (about 200
µS).
Open
A2
Communication
timeout for reading
DSP coefficient
Command Busy (XCBUSY) was in force for a
specified time (about 200 µS) before and after a
coefficient read command was issued to DSP, or
the address echo-back after command issuance
did not match the setup address.
Open
A4
Communication
timeout for
continuously writing
DSP coefficient
Command Busy (XCBUSY) was in force for 200
µS during continuous coefficient writing, or before
and after a continuous write command was
issued to DSP.
Open
B1 Timeout error for
backup In the backup sequence, codes could not be read for fixed time. Stops
B2 Retry error for
backup Cannot close tracking even if performs backup fixed number of times. Stops
B3 Retry error for trace During tracing, do not restore after the runaway detection backup was performed
several times. Stops
C3 Detection of tracking
overcurrent
During playback, the overcurrent detection port was at L for 300 ms or more
continuously.
Stops (the mechanical
controller operates
independently).
(C5) Short-circuit test
corresponding error
After the overcurrent detection (C3 error), furthermore the overcurrent detection port
was at L for 300 mS or more continuously.
Turns off the power
instantly (No indication on
the FL display and no
writing to flash memory)
F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other
than Open by an external force. Closes
F6 Code reading NG
(PH code nothing) When Philips
code is not readable during LD
starting, and a code was not
readable after the slider moved to
FWD and REV directions slowly
each for five seconds.
(PRD) In the CD starting, when a
subcode of TOC part was not
readable, but the subcode of the
program area was readable.
Search, scan and special
playback prohibition,
Playback as playback
CD-R (PRD mode) as it is.
F8 Loading timeout
Loading or unloading could not be completed
within a specified time (about 10 seconds).
Though a portable cover is opening, when a
close command was issued from the system
controller.
Reverses the loading
direction. It timeout is
repeated upon retry, the
unit stops.
FC Focus
• Focus ON sequence could not be completed more
than two seconds.
• Auto sequence command was finished, actually
focus ON was not completed.
• Focus did not enter even if retried it eight times.
Stops wherever possible
then opens (stops in the
case of side B).
FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit
bit4=1 10 etc. Mechanism controller RAM
check sum error
No operation or it becomes debugging
indication if the power is able to ON.
bit3=1 08 etc. AV1 access error
(read, write NG)
bit2=1 04 etc. LSI11 access error
bit0=1 01 etc. SRAM access error
Error codes that are displayed on the FL display by using the remote control unit (Device error)
To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of left of the FL display
DV-989AVi-S 101
5 678
5678
C
D
F
A
B
E
7.1.7 TROUBLE SHOOTING
START
Is FL turn on ?
Is tray open ?
Is the indication
of FL normal ?
Power ON
Yes
Yes
Yes
No
No
No
Turn on the power again
after 2 - 3 minutes.
• Blow out micro-fuse on the POWER SUPPLY Unit.
(P202 and P301)
FL indication is dark or flickers.
Indicates the error message Refer to the section "7.1.6 ERROR DISPLAY".
• Tact-switches are damaged. (incase of only a key NG)
FLKY IC101-pin 22 is it around +1.2V when you pushed a POWER key?
• Wireless remote controller receiver or IR signal line or SEL IR signal line is damaged.
(incase of only a key of wireless remote controller NG)
Does FLKB IC101-pin 17 (SEL IR) and IR and SEL IR signal lines change 0V–3.3V
when you pushed a wireless remote controller key?
• Blow out fuse of the primary side
• As for P-CONT of POWER SUPPLY Unit is around 3.3V. Blow out micro-fuse on the
POWER SUPPLY Unit. (Check the each voltage.)
P202, P301 of POWER SUPPLY Unit is damaged.
• FL controller IC (IC101) or RESET IC (IC102) on the FLKY Assy is damaged.
Are IC101-pin 12 (RESET OUT) and pin 11 (POWER ON) "H" level together?
• Check the following connections :
POWER SUPPLY Unit - DVDM Assy
DVDM Assy - AJKB Assy
DVDM Assy - VJKB Assy
DVDM Assy - FLKY Assy
• Check each voltage regulators of DVDM Assy :
IC401-pin 3 (+3.3V), IC402-pin 1 (+5V), IC403-pin 3 (+2.5V), IC404-pin 4 (+3V),
IC405-pin 4 (+5V), IC410-pin 1 (+1.8V), IC411-pin 3 (+2.5V)
• Check each voltage (EV+6V, EV+4V, SW+3.3V, +12V, -28V, FLDC+ and FLDC-)
(If above voltage are not supplied, check the micro-fuse P101, P201, P202, P301.)
Are not there short and open-circuit between output connector of POWER SUPPLY
Unit and CN401 of DVDM Assy?
• R410 of POWER SUPPLY Unit is damaged. No -28V voltage appear.
• Short or open the zenner diode on the POWER
SUPPLY Unit. (D505)
• Check the address bus and data bus of signal
interface between FR CPU (IC601)–AV1 (IC751),
Eby-Chip (IC701) and Servo DSP (IC201).
• Check each voltage regulators of DVDM Assy :
IC401 (+3.3V) and IC403 (+2.5V)
Clock generator IC481 or crystal resonator X481 is damaged.
Check waveform of each pin whether IC481 does oscillation.
• Check the following connections :
DVDM Assy (CN103)- LOAB Assy (5P connector assy)
DVDM Assy CN105-pin 12 (INSIDE SW signal)
• Check the loading drive signal : IC351-pin 14, 15, 16
• Check the +6V and +12V power supply voltage
(If above voltage is not supplied, check the micro-fuse P202 and P301.)
DV-989AVi-S
102
1234
1234
C
D
F
A
B
E
Do the video and
sound come on?
or beeing damaged?
(noisy)
Yes
No
Refer to the section "7.1.6 ERROR DISPLAY".
Indicate the error message.
Carriage does
not move.
(Stepping positioning)
Yes
Yes
• Laser diode
does not light.
• Focus does
not in.
Yes
No
No
Spindle
does not turn.
No
OK
• Check the following connections and drive IC :
DVDM Assy CN104 (4P flexible cable)
Check the Stepping motor signals, IC351-pin 31, 32, 34, 35 and IC601-pin 47, 48.
• Check the +6V and +12V power supply voltage
(If above voltage is not supplied, check the micro-fuse P202 and P301.)
• Check the following connections and drive IC :
DVDM Assy CN105 (12P flexible cable)
Check the Spindle motor signals and IC251-each pins.
• Check the +6V and +12V power supply voltage
(If above voltage is not supplied, check the micro-fuse P202 and P301.)
• Check the following connections :
DVDM Assy - VJKB Assy
DVDM Assy - AJKB Assy
• Check voltage regulator of VJKB Assy IC701-pin 1 (+5V) for Video circuit,
Check voltage and transistors requlator of PS Assy Q3801(+12V), Q3802(-12V),
IC3803(+5V)for audio civcnit .
If the voltage is off, check micro fuse of PS Assy IC3801, IC3802.
• Check the interface of 16M SDRAM (IC741) for Eby-chip (IC701) and 64M SDRAM
(IC781) for AV1 (IC751).
• Check digital data of video and audio signals (audio signals: 3 line data, video signals:
8bit data) shown to each schematic diagram and an analog signal line.
In addition, check CLK.
audio system: 22/24MHz, video system: 27MHz
• Check the following connection, IC351, IC101, IC201 :
DVDM Assy CN101 - Pickup Assy (24P flexible cable)
IC351-pin 9, 10, IC101-pin41 and IC201-pin 32, 47 for Focus Drive
• Check the +6V and +12V power supply voltage and SW+5V
(If +6V voltage is not supplied, check the micro-fuse P101 and P102.)
• Check it whether the pickup is defectiveness.
Perform the section "7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE"
and check the LD current value.
C101 (for DVD LD) and C103 (for CD LD) of DVDM are missing.
• Regarding DVD LD (650nm) :
Check each signals of CN101-pin 17 (PD), pin 18 (LD Drive), IC101-pin 17 and Q101
Regarding CD LD (780nm) :
Check each signals of CN101-pin 17 (PD), pin 16 (LD Drive), IC101-pin 17 and Q102
PD: Power Diode (signal output)
DV-989AVi-S 103
5 678
5678
C
D
F
A
B
E
7.1.8 FAILURE-TEST METHOD FOR THE HDMI TRANSMITTER IC
•When replacing the DVDM Assy, see "7.1.10 DISASSEMBLY"
In a case where the HDMI video signal is not output
1
In a case where the HDMI audio signal is not output
2
Is the Pure Audio function turned ON?
(During Pure Audio mode, neither the HDMI signal nor the analog
video signal is output.)
Is the analog video signal output?
Turn the Pure Audio function OFF.
No
Yes
No
OKNG
Yes
Are the audio signals properly output from the optical outputs
and coaxial outputs (S/PDIF)?
Yes
No
Probe R1058 (S/PDIF) and R1057 (22-/24-MHz clock) with an
oscilloscope, and check if correct signals are output. The HDMI
transmitter IC (audio processing block) may be in failure.
No
The lines from R1058 (S/PDIF) and R1057 (22-/24-MHz clock)
are in failure.
(The optical-output and coaxial-output lines are OK.)
Check if the HOME MENU or VCD playback picture is displayed
when this unit is connected to a PC monitor equipped with a
DVI input.
Purpose: To check if the HDMI output line, including the
terminal, is in failure.
(An HDMI↔DVI conversion cable is required for checking.)
Failure test for the T-REX (IC1001: DVDM Assy)
Probe R1013-R1018 (22 ohms × 4, 6 sets), and R1009 (27-MHz
clock) with an oscilloscope, and check if the amplitude of each
signal changes between H (3.3 V) and L during VCD playback
and if the 27-MHz clock is output correctly.
NG
No
The T-REX or the line between the T-REX and the HDMI
transmitter IC may be in failure (replacement of the T-REX,
failure in any of the above resistors, defective soldering, signal
short-circuiting, or broken wires, etc.)
Turn the Pure Audio function OFF.
Is the Pure Audio function turned ON?
(During Pure Audio mode, the HDMI audio signal is not output.)
Yes
Yes
Is this unit connected to DVI equipment?
(Only a video signal is available with DVI equipment.)
Replace the DVDM Assy.
Check if the initialization process for HDCP, etc. is OK by
connecting this unit with a Pioneer Plasma Display equipped
with an HDMI input.
Yes
OK Replace the DVDM Assy.
Replace the DVDM Assy.
IC901 (DVDM Assy) and its peripheral circuits may be in failure.
No
The HDMI transmitter IC
(HDCP process block) may
be in failure.
The HDMI transmitter IC or
the line between the IC and
the output terminal may be
in failure.
The customer's monitor may not be compatible
with this unit. Confirm the name of manufacturer
and model of the monitor, and get a specific
description of the failure. Then look for an identical
case in a collection of past cases, or consult the
design section. In some cases, upgrading the
software or firmware for both the DVD player and
the monitor will solve the problem.
DV-989AVi-S
104
1234
1234
C
D
F
A
B
E
7.1.9 SERIAL-DOWNLOAD
[Note]
Note on download connectors of the DV-989AVi-S
Separate download connectors are provided on the unit for the
system controller and host controller. Be sure to connect to the PC
via the appropriate connector.
1Connect the 232C I/F jigs above way.
2
Turn on the PC and execute the UFU.exe file.
3Select the Firmware. ("sz0" file)
4
Turn on the DVD player
and start the downloading.
The message "Target has been connected/started."
will be displayed.
5Select the Communication Speed (Baud Rate)
a) Base Speed 19,200
b) Data Send Speed 115,200
6START
•
Downloading may fail because of a communication
error. In such a case, click on "START" again.
•
If downloading fails three times or more, there
may be other cause.
• It takes about 5 minutes to download the firmware.
SERIAL DOWNLOAD
[Procedures]
[Connection]
Connect as indicated in the figure below:
[Tools to be used]
[Purposes]
1. To upgrade the system controller and / or host controller.
2. This method is used when disc downloading fails.
PC This unitRS-232C I/F
RS-232C cable 7P FFC
5
4
6
• PC with a serial port
• RS-232C straight cable
• RS-232C I/F Special device (GGF1348)
• 7P FFC (VDA1681)
• Program for downloading (UFU.exe)
• Firmware
This unit For host controller For system controller
DV-989AVi-S 105
5 678
5678
C
D
F
A
B
E
7.1.10 DISASSEMBLY
Gear Pulley
05 LOADER Assy
Mechanism Cover
Loadig Base
1Remove the bonnet by removing the fifteen screws.
2Press the POWER button to turn on the power.
3Press the 0 OPEN/CLOSE button to open the tray.
4Remove the tray panel.
5Press the 0 OPEN/CLOSE button to close the tray.
6Press the POWER button to turn off the power.
Bonnet and Tray Panel
1
Diagnosis of the PCBs
1Remove the six screws.
2Remove the three screws.
3Disconnect the one connector and one flexible cables.
4Remove the three hooks.
5Remove the front panel section.
Front Panel Section
2
2 6
3
3
5
5
4
1
4
Tray panel
Tray
1
1
1
2 2 2
1
1
44
Bottom view
Front panel section
3
CN402
5
Note 1 : Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures
described here are common.
Note 2 : For performing the diagnosis shown below, the following jigs for service are required:
• 17P flexible cable for service (GGF1157) • Extension board (GGF1430)
CN2301
3
How to open the tray when the power cannot be on.
Tray open
Gear Pulley
LOADER Assy
Mechanism Cover
Loading Base
Turn the gear pulley clockwise as indicated. In the photo when the
tray opens a little, pull out by hand.
DV-989AVi-S
106
1234
1234
C
D
F
A
B
E
1Remove the two screws.
2Release the jumper wire from the two clamper.
3Remove the BEAM.
BEAM
BEAM 989
3
1Remove the six screws.
2Remove the three screws.
AJKB Assy
4
1
2
2
2
2
1
AJKB Assy
2
3
1
1
11
×2×2
DV-989AVi-S 107
5 678
5678
C
D
F
A
B
E
3Remove the AJKB Assy and stand it against the
other parts.
4Insert the insulation sheet.
5Re-attatch the front panel section.
7Disconnect the one connector and one flexible cables.
6Connect the rear-panel to outer of pinjack by wire.
(GND plate)
8Remove the AJKB Assy.
9Remove the front panel section.
Diagnosis
AJKB Assy
Insulation sheet
CN551
CN3351
Front panel section
PCB holder
3
4
6
7
6
8
5
9
1Remove the one screw.
2Remove the three screws.
3Remove the PCB holder.
PCB Holder
5
1
2
2
3
2
DV-989AVi-S
108
1234
1234
C
D
F
A
B
E
1Remove the four screws.
2Remove the four screws.
3Connect the 17P flexible cable and the extension board.
4Remove the DVDM Assy and stand it against the
other parts.
DVDM Assy
6
DVDM Assy
DVDM Assy
Front panel section
1
1
1
2
2
2
2
4
×2
Diagnosis
CN551
Extension board
(GGF1430)
3
17P flexible cable
(GGF1157)
3
DV-989AVi-S 109
5 678
5678
C
D
F
A
B
E
LOADER MECHA. Assy
7
Rear view
1
CD
1Short-circuit two points of C and D by soldering.
2Disconnect the one connector and three flexible cables.
3Release the jumper wire from the three clampers.
4Remove the four screws.
5Remove the four screws.
6Remove the LOADING MECHA. Assy.
7Remove the four screws.
8Remove the two screws.
9Remove the Mechanism Cover.
LOADER MECHA. Assy
Mechanism Cover
Note: After replacement, connect the flexible cable,
then remove the soldered joint (open). 2222
3
3
3
6
4
44 55
55
4
9
77
LOADER MECHA. Assy
7
8
7
8
DV-989AVi-S
110
1234
1234
C
D
F
A
B
E
1Remove the bridge.
2Pull out the tray, then remove it by pressing the hook.
Bridge and Tray
1
Front side
1
2-1
2-2
Loading base Triangle
Drive cam Pin
Hook
Bridge
Tray
Note when reinserting the tray
Removing the Traverse Mecha. Assy-S and Pickup Assy-S
When reinserting the tray, first align the triangle
printed on the loading base and the pin of the drive
cam, then insert the tray.
DV-989AVi-S 111
5 678
5678
C
D
F
A
B
E
1Dislodge the flexible cables from their factory
placement.
2Remove the four hooks.
3Remove the Traverse Mecha. Assy-S.
Traverse Mecha. Assy-S
2
× 2
Bottom view
Traverse Mecha. Assy-S
Flexible cable
for the pickup
Flexible cable
for the spindle motor
1
1
1
2
3
Flexible cable
for the stepping motor
Front side
× 2
2
Cleaning paper
GED-008
Cleaning liquid
GEM1004
DV-989AVi-S
112
1234
1234
C
D
F
A
B
E
1Dislodge the flexible cable for the pickup from its
packaged placement.
2Remove the flexible cable for the pickup.
3Remove the two adjustment screws and two adjustment springs.
4Remove the Pickup Assy-S.
Pickup Assy-S
3
Note: The Pickup Assy-S can be removed without
removing the Traverse Mecha. Assy-S.
(shown as Step ø.)
Bottom view
Flexible cable for the pickup
1
4
33
1
2
Front side
Pickup Assy-S
Adjustment screw
(Skew screw)
Adjustment screw
(Skew screw)
Adjustment spring
(Skew spring)
Adjustment spring
(Skew spring)
DV-989AVi-S 113
5 678
5678
C
D
F
A
B
E
5
5
5
Remove the two screws.
Silicone adhesive
GEM1037
Silicone adhesive
GEM1037
Pickup Assy-S
Note: The screws are secured with the silicone adhesive.
Make sure to apply the silicone adhesive after
reattaching the screws.
Leaf spring
Joint spring
Joint 03
: Conductive surface
Hook
Hook
Arrangement of the flexible cable
for the spindle motor
: Conductive surface
Arrangement of the flexible cable
for the stepping motor
Front side
Front side
Bottom view Bottom view
DV-989AVi-S
114
1234
1234
C
D
F
A
B
E
Front side
Note:
Be sure to move the Pickup Assy-S to the innermost perimeter.
: Conductive surface
Arrangement of the flexible cable for the pickup
2
21
3
7
Attach the flexible cable of the pickup to the connector.
1Fold the flexible cable inward at the position of the reference
line.
3Fold the flexible cable of the pickup with the backing inward.
7Pass the flexible cable below the hook, and fold it back.
8Fold the flexible cable back at the hook.
4Pass the flexible cable through the hook not allowing
any slack.
6Hook the part folded in Step 1 to the hook.
5Fold the flexible cable as indicated in the photo.
Hook
Bottom view
56
Make sure there is no slack in the cable
Reference line
Reference line
Backing
97mm ± 2mm
Reference
line
Hook
Pass the cable below the hook
Hook
8
Hook
Make sure that the cable does not have any slack
Make sure that the cable is loose
4
DV-989AVi-S 115
5 678
5678
C
D
F
A
B
E
8. PANEL FACILITIES
Front panel
1 POWER switch
Press to switch the player on (the power
indicator lights blue when the power is on) or
off. (The player can be put into standby using
the remote control.)
2 STANDBY indicator
Lights when in standby.
3 SACD SETUP button
Press to select which part of an SACD disc
you want to listen to – stereo audio (2ch
Area), multi-channel audio (Multi-ch Area)
and, for hybrid SACDs, standard CD audio
(CD Area).
4 PROGRESSIVE button/indicator
Press to switch the component video output
mode between progressive and interlace. The
indicator lights in progressive scan mode.
•This player is compatible with both PAL
and NTSC progressive scan formats.
However, your TV must also be
progressive scan compatible to take
advantage of this feature.
5 PURE AUDIO button/indicator
When the player is stopped, press to switch
off/on the front panel display and disable the
video and digital outputs*. Use this when you
want to hear audio from the analog outputs
with no interference from other signals (when
listening to a DVD-Audio disc, for example).
The indicator lights when the Pure Audio
feature is switched on.
* These include i.LINK, HDMI, and the
coaxial and optical digital outputs.
6 Remote control sensor
The remote control has a range of up to about
7m.
7 Display
8 HDMI indicator
Lights when this player is recognized by
another HDMl or DVI/HDCP compatible
component.
9 i.LINK indicator
Lights when this player is recognized by
another i.LINK compatible component.
10 OPEN/CLOSE
Press to open or close the disc tray (when in
standby, this button will also switch the power
on).
11 (reverse scan/skip)
•Press and hold for fast reverse scanning
•Press to jump back to the beginning of the
current chapter or track, then to previous
chapters/tracks
12 (forward scan/skip)
•Press and hold for fast forward scanning
•Press to jump to the next chapter or track
13 (stop)
Press to stop the disc (you can resume
playback by pressing (play)).
14 (pause)
Press to pause playback. Press again to
restart.
15 (play)
Press to start or resume playback (when in
standby, this button will also switch the power
on).
16 Disc tray
17
This mark indicates compatibility with DVD-
RW discs recorded on a DVD recorder in
Video Recording mode.
1110
98
321 54 76 12 13 14 15
1617
DV-989AVi-S
116
1234
1234
C
D
F
A
B
E
Rear panel
When connecting this player up to your TV, AV
receiver or other components, make sure that
all components are switched off and unplugged.
1 AUDIO OUT (2ch)
Two channel analog audio outputs for
connection to your TV, AV receiver or stereo system.
2 AUDIO OUT (5.1ch)
Multichannel analog audio outputs for
connection to an AV receiver with multi-channel inputs.
3 DIGITAL AUDIO OUT – OPTICAL /
COAXIAL
Digital audio outputs for connection to a PCM, Dolby
Digital, DTS and/or MPEG-compatible AV receiver.
4 AC IN
Connect the supplied power cord here, then
plug into a power outlet.
5 (AUDIO) – i.LINK connectors
4-pin, S400 i.LINK connectors for connection
to i.LINK-equipped receivers and other
components. Each i.LINK connector acts
simultaneously as both input and output.
6 HDMI OUT
HDMI output providing a high quality inter-face for
digital audio and video.
7 CONTROL IN / OUT
For passing remote control signals to other Pioneer
components.
8 VIDEO OUT (1&2)
Standard video output(s) that you can
connect to your TV or AV receiver using the
supplied audio/video cable.
9 S-VIDEO OUT (1&2)
S-Video output(s) that you can use instead of the
VIDEO OUT jacks.
10 COMPONENT VIDEO OUT
High quality video output for connection to a TV, monitor
or AV receiver that has compo-nent video inputs.
Connect using a commercially available three-way
component video cable.
Be careful to match the colors of the jacks
and cables for correct connection.
11 D1/D2 VIDEO OUT
(Except Australian model)
12 AV CONNECTORAV
CONNECTOR 1 (RGB)-TV/AV Receiver
Use a 21-pin SCART cable to connect to a TV or monitor
compatible with this type of connection.
Both audio (2 channel stereo) and video (Video,
S-video, and RGB) signals are output from
the AV CONNECTOR 1 (RGB)-TV .
AV CONNECTOR 2Use a 21-pin SCART cable
to connect to a VCR .
5 AC IN
Connect the supplied power cord here, then plug into
a power outlet. Refer to the illustration below when
doing so to make sure the neutral and live blades are
lined up properly.
AUDIO
OUT
(2ch)
AUDIO OUT
(5.1ch)
CONTROL
OPTICAL
COAXIAL
IN
R
LL
R
CENTER
SUB
WOOFER
SURROUNDFRONT
S-VIDEO
OUT
VIDEO
OUT COMPONENT VIDEO OUT
PBPR
Y
21 2
1
(AUDIO)
S400
DIGITAL AUDIO
OUT
HDMI OUT
OUT
AC IN
D1/D2
VIDEO OUT
1 2 3 4
10 119
7 85 6
Rear panel
AV CONNECTOR 1 (RGB)-TV/AV Receiver
AV CONNECTOR 2
OPTICALCOAXIAL
R
L
R
L
SUB
WOOFER
AUDIO
OUT
(2ch)
CENTERSURROUNDFRONT
AUDIO OUT
(5.1ch)
DIGITAL AUDIO
OUT
(AUDIO)
HDMI OUT
S400
21
21
VIDEO
OUT
S-VIDEO
OUT
COMPONENT VIDEO OUT
CONTROL
IN OUT PBPRY
AC IN
1 2 3 12 5
109
7 85 6
LIVE
L : Live
AC IN
NL
Power cord
• WYXJ,YXJRE
Only
• HLXJ,WPWXJ Only
NEUTRAL N : Neutral
DV-989AVi-S 117
5 678
5678
C
D
F
A
B
E
Display
1 5.1CH
Lights when analog 5.1 channel output is
selected.
2 V-PART
Lights when playing a video part of a DVD
disc.
3 PRGSVE
Lights when the video output is progressive
scan.
4
Lights during multi-angle scenes on a DVD
disc.
5 GUI (Graphical User Interface)
Lights when a menu is displayed on-screen.
6 GRP
Indicates that the character display is
showing a DVD-Audio group number.
7 TITLE
Indicates that the character display is
showing a DVD-Video title number.
8
Lights when V/TruSurround is active.
9 TRK
Indicates that the character display is
showing a track number.
10 CHP
Indicates that the character display is
showing a DVD chapter number.
11 REMAIN
Lights when the character display is showing
the time or number of tracks/titles/chapters
remaining.
12 Character display
13
Lights when a disc is paused.
14
Lights when a disc is playing.
15 D
Lights when a Dolby Digital soundtrack is
playing.
16 DTS
Lights when a DTS soundtrack is playing.
1
1516 1214 13
3 5 76 8 9 10 11
24
DV-989AVi-S
118
1234
1234
C
D
F
A
B
E
Remote control
Press the button on the right side of the remote to
illuminate buttons 6 to 9 and 20 to 22.
1 STANDBY/ON
Press to switch the player on or into standby.
2 DISPLAY
Press to display information about the disc playing.
3 AUDIO
Press to select the audio channel or language .
4 HOME MENU
Press to display (or exit) the on-screen display.
5 ENTER & Joystick
Use to navigate on-screen displays and menus.
Press ENTER to select an option or execute a command.
6 (RETURN)
Press to return to a previous menu screen.
7 V.ADJ (VIDEO ADJUST)
Press to display the Video Adjust menu.
8
Press to stop the disc (you can resume playback by
pressing (play)).
9
Press to start or resume playback.
10
Press to jump to the start of the previous / next chapter / track.
11 PLAY MODE
Press to display the Play Mode menu (You can also get to the
Play Mode menu by pressing HOME MENU and selecting Play
Mode).
12 Number buttons
13 MENU
Press to display a DVD disc menu, or the Disc Navigator if a
DVD-RW, CD, Video CD/Super VCD or MP3 disc is loaded.
14 OPEN/CLOSE
Press to open or close the disc tray.
15 ANGLE
Press to change the camera angle during DVD multi-angle
scene playback.
16 SUBTITLE
Press to select a subtitle display.
17 TOP MENU
Press to display the top menu of a DVD disc.
18 MULTI dial
Use for scanning and slow motion control.
19 Jog indicator
Lights when multi dial is in jog mode.
20 JOG (JOG MODE)
Press to put switch jog mode on/off. When on, use the MULTI
dial to advance or reverse frames.
21 FL (DIMMER)
Press to change the display brightness.
22
Press to pause playback; press again to restart.
23 and / and
Use for reverse / forward slow motion playback, frame reverse /
advance and reverse / forward scanning.
24 SURROUND
Press to activate/switch off V/TruSurround.
25 CLEAR
Press to clear a numeric entry.
26 ENTER
Press to select an option or execute a command.
/
/
HOME MENU
DISPLAY AUDIO SUBTITLE ANGLE
TOP MENU
OPEN /
CLOSE
MENU
– MULTI SPEED +
ENTER
VIDEO
ADJUST DIMMER JOG MODE
RETURN
V.ADJ F L JOG
PLAY MODESURROUND
0987
654
C321
CLEAR
E
ENTER
114
15 16
17
18
20 21
22
25
26
23
2
4
5
6
78
10
12
13
3
9
19
11 24
DV-989AVi-S 119
5 678
5678
C
D
F
A
B
E
DV-989AVi-S
120
1234
1234
C
D
F
A
B
E
7 Jigs list
Service Remote Control Unit GGF1381
DVD Data Disc GGV1174
diagnosis
Name Jig No. Remarks
diagnosis (ID data setting)
17P Flexible Cable GGF1157
Extension Board GGF1430
Diagnosis of DVDM Assy
Diagnosis of DVDM Assy
DVD Test Disc (DVD-Video) GGV1025 Check of DVD-Video
DVD Test Disc (DVD-Audio) GGV1070 Check of DVD-Audio
Lubricants and Glues list
Cleaning
Dyefree GEM1036 (ME-913A) Refer to "2.4 LOADER MECHA SECTION"
Grease GYA1001 (PN-397) Refer to "2.4 LOADER MECHA SECTION"
Grease GEM1018 (G-478B) Refer to "2.4 LOADER MECHA SECTION"
Sillicone Adhesive GEM1037 Refer to "2.5 TRAVERSE MECHA SECTION"
Screw Tight GYL1001 Refer to "2.5 TRAVERSE MECHA SECTION"
Name Lubricants and Glues No. RemarkName Lubricants and Glues No. Remark
• Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools:
Pickup leneses Cleaning liquid : GEM1004
Cleaning paper : GED-008 Refer to "2.5 TRAVERSE MECHA SECTION" , "7.1.10 DISASSEMBLY SECTION".
Position to be cleaned Cleaning tools RemarkPosition to be cleaned Cleaning tools Remark

Navigation menu
