Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di istruzioni

2SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating.

Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical

ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other

property. This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use with

incompatible components or augment product in any way without the approval of Horizon Hobby, Inc. This manual contains instruc-

tions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to

assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this

product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility

of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of

serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious

injury OR create a high probability of supercial injury.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc.

For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

WARNING AGAINST COUNTERFEIT PRODUCTS

Thank you for purchasing a genuine Spektrum product. Always purchase from a Horizon Hobby, Inc. authorized dealer

to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards,

but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM2 or

Spektrum.

WARRANTY REGISTRATION

Visit www.spektrumrc.com/registration today to register your product.

GENERAL NOTES

• Radio controlled models provide pleasurable skill challenges

and opportunity for increasing mastery of piloting.

• Models are hazardous when operated and maintained incor-

rectly.

• Always install and operate a radio control system correctly.

• Always pilot a model so the model is kept under control in

all conditions.

• Please seek help from an experienced pilot or your local

hobby store.

• Contact local or regional modeling organizations for guid-

ance and instructions about ying in your area.

• When working with a model, always power on transmitter

rst and power off the transmitter last.

• After a model is bound to a transmitter and the model is set

up in the transmitter, always bind the model to the transmit-

ter again to establish failsafe settings.

PILOT SAFETY

• Always make sure batteries are fully charged before ying.

• Time ights so you y safely and under control.

• Do a range check of the transmitter and the model before

ying a model.

• Make sure control surfaces correctly respond to transmitter

control before ying.

• Do NOT y a model near spectators, parking areas or any

other area that could result in injury to people or damage to

property.

• Do NOT y during adverse weather conditions. Poor visibility

can cause pilot disorientation and loss of control of a model.

Wind can cause loss of control and damage to a model.

Moisture and ice can damage a model.

• Do NOT point transmitter antenna directly at a model.

The signal coming from the tip of the antenna is weak by

comparison to the signal coming from other parts of the

antenna.

• When a ying model does not respond correctly to controls

(moving erratically or abnormally) land the model and cor-

rect the cause of the problem.

3SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

TABLE OF CONTENTS

DSMX .........................................................................4

Transmitter Functions

Charging Batteries...............................................6

Install Batteries ...................................................6

Binding .......................................................................7

Using transmitter ........................................................8

Antenna ......................................................................8

Main Screen ...............................................................8

Warning screens .........................................................8

Programming Guide

SETUP LIST ........................................................9

ADJUST LIST .......................................................9

Function Options Not Shared .............................10

MODEL TYPE ....................................................11

MODEL NAME ...................................................11

MONITOR ..........................................................11

REVERSE ...........................................................11

THRO CUT .........................................................11

WING TAIL MIX...................................................12

SWASH TYPE ....................................................12

D/R COMBI (Dual Rate Combination) .................12

TIMER ...............................................................13

RANGE CHECK ...................................................13

POWER SETTING ...............................................13

MODULATION TYPE ............................................13

MODEL SELECT .................................................14

D/R & EXPO (Dual Rate & Expo) .........................14

CONTRAST ........................................................14

COPY/RESET .....................................................14

TRAVEL ADJ (Travel Adjust) ................................15

SUB-TRIM .........................................................15

FLAPS ..............................................................15

GYRO ................................................................15

THRO CUR (Throttle Curve) ...............................16

PITC CUR (Pitch Curve) ......................................16

SWASH MIX .......................................................17

MIX 1 or MIX 2 ..................................................17

DIFFERENTIAL ...................................................18

REVO MIX (Revolution Mix) ................................18

Master/Slave Information

To operate the DX6i as a master: .......................18

To operate the DX6i as a slave: ..........................18

Failsafe .....................................................................19

Receiver and servo information

Receiver Installation ..........................................19

Servo Installation ...............................................20

Servo Precautions .............................................20

Power System Requirements ....................................20

Recommended Power System Guidelines .................20

Troubleshooting Guide ..............................................21

AMA National Model Aircraft Safety Code ..................21

FCC Information ........................................................22

FAA Information ........................................................22

Parts list ...................................................................22

Warranty and Repair Policy .......................................23

Parts Contact Information .........................................24

Compliance Information for the European Union ........24

Appendix

Control Stick Length Adjustment ........................25

Control Stick Tension Adjustment .......................25

Throttle Stick Ratchet Strip Installation ..............25

Servo Control ....................................................26

4SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

Spektrum launched the 2.4GHz RC revolution with its DSM2

technology. Since then millions of hobbyists the world over have

come to embrace 2.4 as the way to y. Spektrum leads the way

yet again with DSMX; the world’s rst wideband, frequency-agile

2.4GHz signal protocol.

How Does DSMX Work?

It’s a crowded 2.4GHz world out there and every 2.4GHz system

faces the same challenges. DSMX better equips you for these

challenges by combining the superior data capacity and interfer-

ence resistance of a wideband signal (like that used in DSM2)

with the agility of frequency shifts.

Compared to the wideband signal of DSMX, the narrow band

signal of other frequency hopping 2.4 transmitters is more likely

to suffer data loss in the event of on-channel interference. Think

of it as a river vs. a stream. It takes more interference to dam a

river than it does a stream.

As more and more 2.4 transmitters vie for the same number

of available channels, there is more interference and more of a

risk for data loss. By adding the agility of frequency shifts to the

superior interference resistance of a wideband signal, DSMX

is far less likely to suffer signicant data loss from on-channel

interference. The result is quicker connection times and superior

response in even the most crowded 2.4GHz environment.

NOTICE: While DSMX allows you to use more than 40 transmit-

ters simultaneously, when using DSM2 receivers, DSMX receiv-

ers in DSM2 mode or transmitters in DSM2 mode, do not use

more than 40 transmitters simultaneously.

DSMX Operational Differences

DSMX transmitters and receivers function nearly identically to

Spektrum DSM2 systems. Binding, setting the failsafe, recording

ight log data, as well as general use of the system is no differ-

ent than using any current Spektrum system.

Following are the operational differences:

Brownout Detection- Not Available on DSMX Receivers,

DSM2 receivers feature Brownout Detection that ashes the

receiver’s LED if a power interruption occurs. While DSMX

receivers have QuickConnect™ and recover instantly from a

power interruption, the architecture of DSMX prevents Brownout

Detection when operating in DSMX mode.

Flight Log Recording- Fades Higher than DSM2

Note that DSMX hops through the band while DSM2 nds two

quiet channels and remains on those channels. Consequently

because DSMX operates on quiet and noisy channels, it’s com-

mon to have more Antenna Fades than when using DSM2, when

used in busy 2.4GHz environments. When taking ight log data

readings, the Frames and Hold Data are important and should be

used a reference while Fades are insignicant due to the nature

of frequency hopping. A 10-minute ight will typically result in

less than 50 Frame Losses and no Holds.

Just How Good is DSMX?

In multiple tests, 100 DSMX systems were operated simultane-

ously for extended periods of time. During these tests each of the

100 systems was monitored in ight and on the ground. In every

test not a single case of RF link loss, latency increase or control

degradation was experienced or recorded.

Is DSMX Compatible with DSM2?

Yes. DSMX is fully compatible with all DSM2 hardware. In fact,

many pilots may nd the DSM2 equipment they have now is all

they will ever need. Even if a new DSMX transmitter eventually

comes along that they really want, all the DSM2 receivers they

have now will work with it.

It is important to note, however, that while DSMX is compatible

with DSM2, the only way to experience the full benets of DSMX

in a busy 2.4 environment is by pairing a DSMX transmitter with

a DSMX receiver.

Can DSM2 Transmitters be Upgraded to DSMX?

Yes. DX8 owners can simply download Spektrum AirWare™ v2.0

software from spektrumrc.com and update the rmware using

their SD card. DX6i transmitters manufactured after October

2010 can be upgraded using instructions provided on spektrum-

rc.com. All other DX6i DSM2 transmitters can be upgraded for

$75 by sending them to the Horizon Hobby service center. DSM2

receivers and transmitter modules cannot be upgraded to DSMX.

Does DSMX have ModelMatch and ServoSync?

Yes. DSMX will provide you with these and other exclusive Spek-

trum advantages you already enjoy with DSM2.

Want to know more about DSMX? Visit spektrumrc.com for com-

plete details on this as well as the many other reasons Spektrum

is the leader in 2.4.

DSMX

5SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

Function

AAntenna

BThrottle Cut

CMix/Throttle Hold (Mode 2)

Trainer/Bind (Mode 1)

DRudder Dual Rate (Mode 2)

Gear/Flight Mode (Mode 1)

EAileron Dual Rate

FAileron/Elevator Stick (Mode 2)

Aileron/Throttle Stick (Mode 1)

GElevator Trim (Mode 2)

Throttle Trim (Mode 1)

HAileron Trim

IRoller

JOn/Off Switch

Function

KCharge Port

LRudder Trim

MThrottle Trim (Mode 2)

Elevator Trim (Mode 1)

NThrottle/Rudder Stick (Mode 2)

Elevator/Rudder Stick (Mode 1)

OElevator Dual Rate

PGear/Flight Mode (Mode 2)

Rudder Dual Rate (Mode 1)

QTrainer/Bind (Mode 2)

Mix/Throttle Hold (Mode 1)

RFlap/Gyro

STrainer Port

TBattery Cover

Cursor

Press

3 seconds

Cursor

Press

3 seconds

Cursor

Press

3 seconds

Do not try to change transmitter from one mode to another.

Instead, send transmitter to the appropriate product support

ofce for mode change.

Note: The transmitter comes with a thin clear plastic lm

applied to some front panels for protection during shipping.

Humidity and use may cause this lm to come off

Carefully remove this lm as desired.

TRANSMITTER FUNCTIONS

6SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

TRANSMITTER BATTERIES

Install Batteries

This transmitter requires 4 AA batteries. Transmitters are sold

with and without batteries and a Spektrum charger.

1. Remove battery cover from the back of the transmitter.

2. Install batteries as shown where batteries t.

3. Install battery cover.

1. 2. 3.

• Read all safety precautions and literature prior to use of this

product

• Never allow minors to charge battery packs

• Never drop charger or batteries

• Never attempt to charge damaged batteries

• Never attempt to charge a battery pack containing different

types of batteries

• Never charge a battery if the cable has been pinched or

shorted

• Never allow batteries or battery packs to come into contact

with moisture at any time

• Never charge batteries in extremely hot or cold places (rec-

ommended between 50–80 degrees F or 10–27 degrees C)

or place in direct sunlight

• Always disconnect the battery after charging, and let the

charger cool between charges

• Always inspect a new battery before charging

• Always terminate all processes and contact Horizon Hobby

if the product malfunctions

• Always keep batteries and charger away from any material

that could be affected by heat (such as ceramic and tile), as

they can get hot

• Always end the charging process if the charger or battery

becomes hot to the touch or starts to change form (swell)

during the charge process

Failure to exercise caution while using this product and comply with the following warnings could result in

product malfunction, electrical issues, excessive heat, FIRE, and ultimately injury and property damage.

Charging Batteries

Rechargeable batteries can be recharged in the transmitter

using a 4.8-volt Spektrum charger. Improved battery reliability

requires a full charge for initial use. While the transmitter is

powered off, connect the transmitter charge port to the charger.

Charging must be done in a safe place NOT affected by the

usual heat that comes from a charger and batteries during

charging.

CAUTION: Use ONLY the 150mAh center pin negative

Spektrum adaptor (SPM9550) with your transmitter.

Note: The 4.8-volt charger recharges at a rate of 150mAh per

hour, so 4 1.2V 1500mAh batteries require approximately 10

hours for an initial charge.

CAUTION: Charge only rechargeable batteries. Non-re-

chargeable batteries may burst causing injury to persons

and/or damage to property.

Charger power outlet

terminals not shown.

Charger Pigtail for Transmitter

Spektrum Transmitter Charge Jack Polarity

BLACK TO POSITIVE

BLACK W/WHITE STRIPE TO NEGATIVE

7SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

BINDING

You must bind the receiver to the transmitter before it will operate. Binding is sharing identication codes between the receiver and

the active memory of the transmitter. Once bound, the receiver only connects to the transmitter when the previously bound model

memory is selected. You will need to rebind after the model is set in the transmitter to fully program the model’s failsafe positions. If

another model memory is selected, the receiver will not connect. This feature is called ModelMatch™ and prevents ying a model

using the wrong model memory.

HOLD SWITCH WHILE POWERING ON

Mode 2 Shown

1. 2. 3.

4. 5. 6.

5. 6.

HOLD SWITCH WHILE POWERING ON

Mode 2 Shown

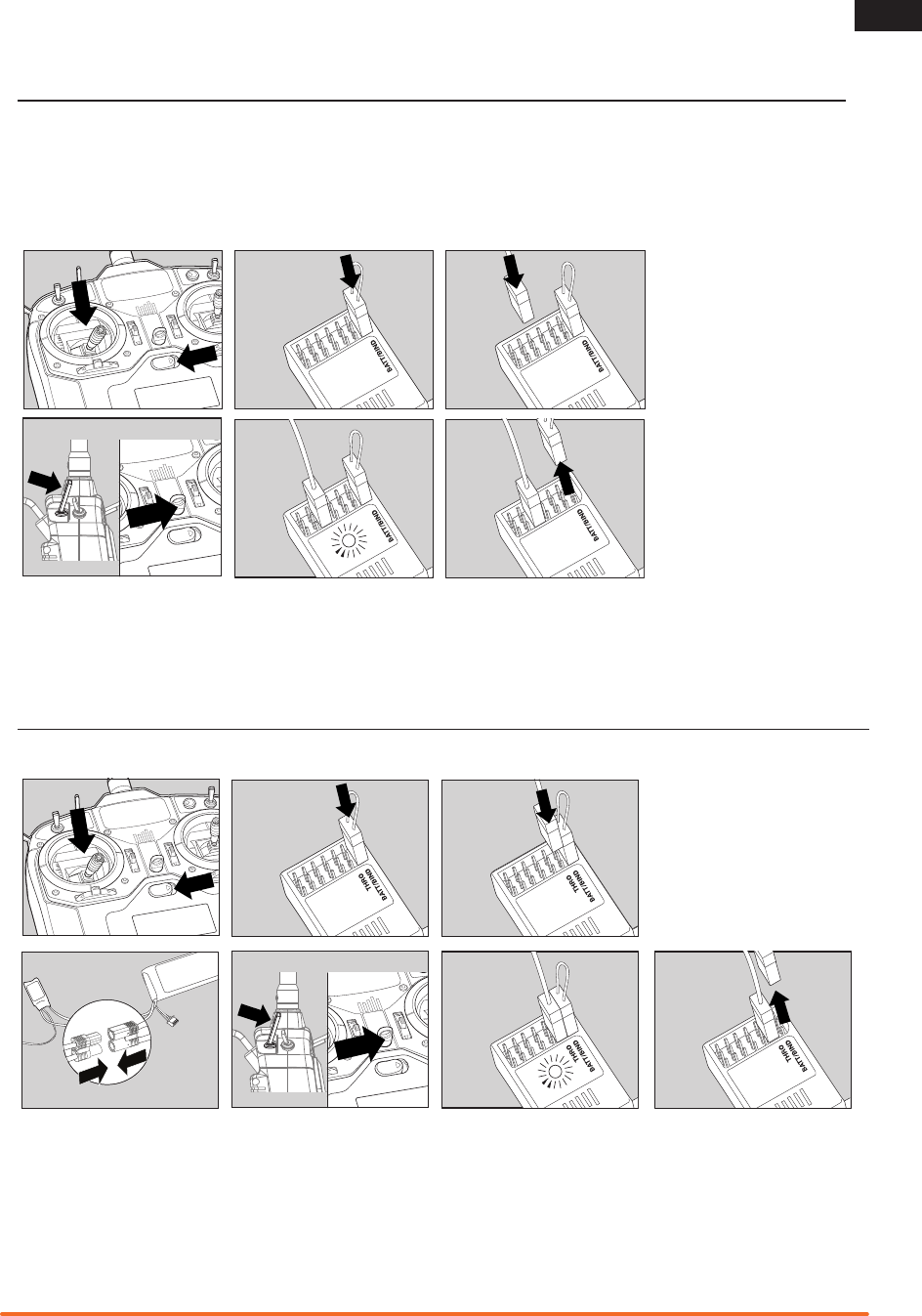

Binding using receiver and receiver battery

Binding using receiver and ESC

HOLD SWITCH WHILE POWERING ON

Mode 2 Shown

1. 2. 3.

4. 5. 6.

5. 6.

HOLD SWITCH WHILE POWERING ON

Mode 2 Shown

1. Lower throttle to lowest position and make sure the

transmitter is powered off

2. Insert bind plug into BATT/BIND (BIND/DATA) receptacle.

3. Insert receiver battery into ANY open receptacle.

Note: The receiver’s LED ashes when the receiver is ready to

bind.

4. While holding Trainer/Bind switch, power on transmitter.

5. Keep hold on trainer switch until receiver’s LED stays

illuminated; this indicates the receiver is bound to the

transmitter.

6. Remove bind plug from receiver.

1. Lower throttle to lowest position and make sure the

transmitter is powered off

2. Insert bind plug into BATT/BIND (BIND/DATA) receptacle.

3. Insert ESC plug into THRO receptacle.

4. Connect battery to ESC and turn on ESC switch, if available.

Note: The receiver’s LED ashes when the receiver is ready to

bind.

5. While holding Trainer/Bind switch, power on transmitter.

6. Keep hold on trainer switch until receiver’s LED stays

illuminated; this indicates the receiver is bound to the

transmitter.

7. Remove bind plug from receiver.

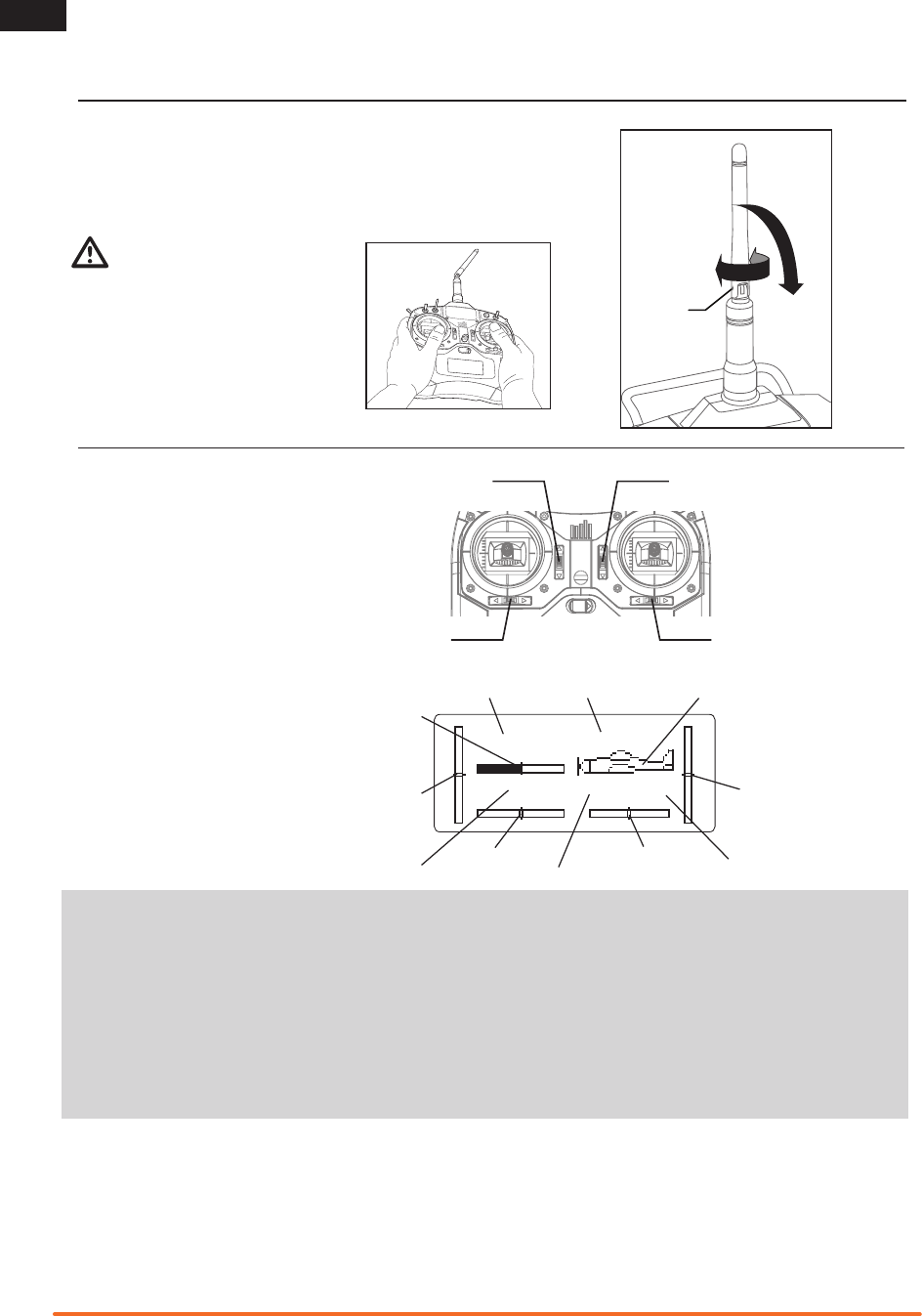

8SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

MUSTANG

5.0V

MDL6

DN06:00

BCD

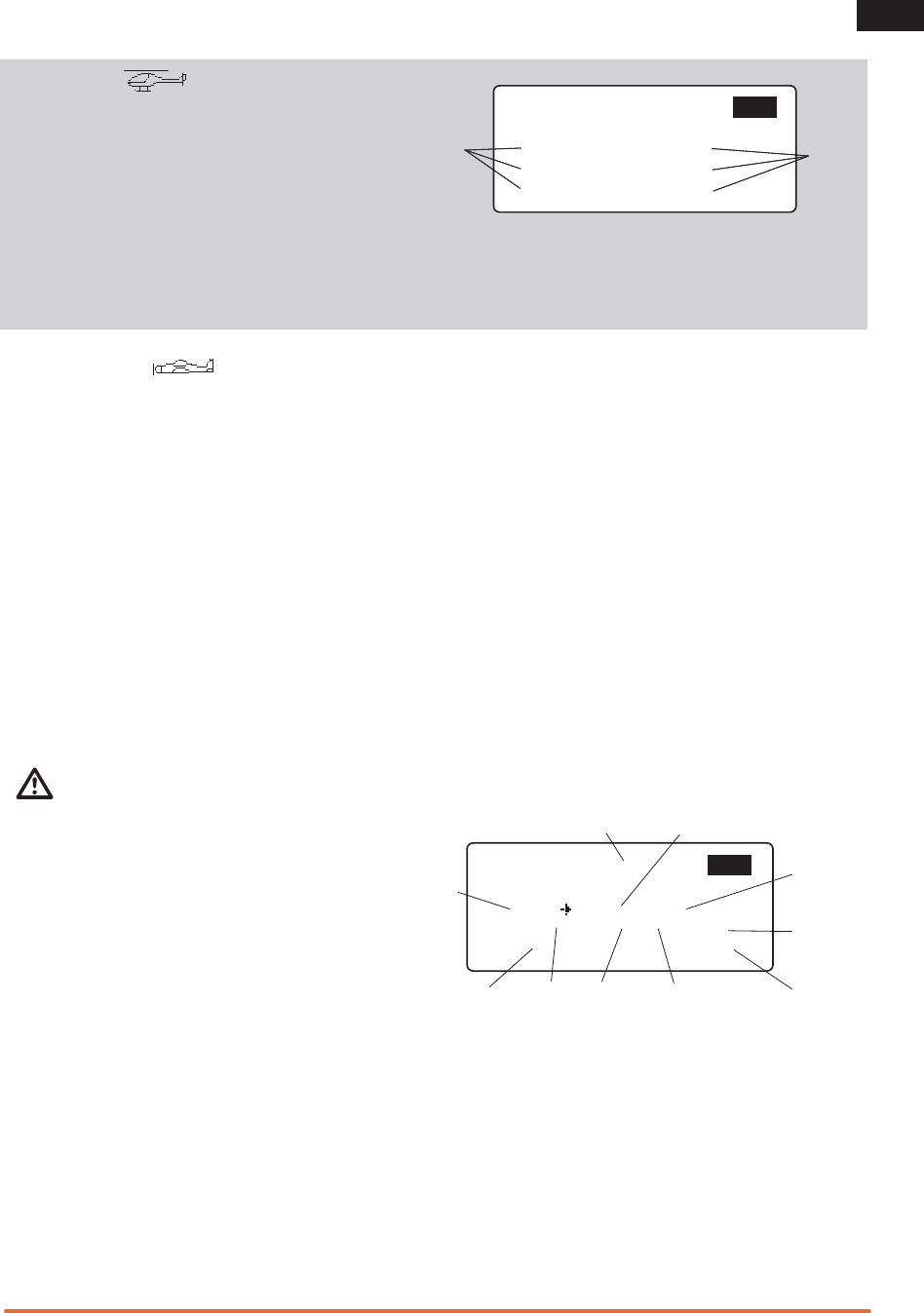

Main Screen

A Transmitter Battery Charge Level

B Model Memory

C Model Name

D Model Type

E Elevator Trim (Mode 2)

F Time Count

G Aileron Trim

H Time Count Direction

I Rudder Trim

J Transmitter Battery Charge Amount

(an alarm sounds and the screen ashes

when battery charge gets down to 4.1V.)

K Throttle Trim (Mode 2)

Warning Screen for Throttle Hold/Stunt Mode

If the Model Type is HELI and the F MODE or TH HOLD switch

are in the 1 position when the transmitter is powered on, the

alarm will sound. When the F MODE switch or THROTTLE HOLD

switch are on, an alarm sounds and warning shows on the LCD

screen. When all switches are moved to position 0, the display

returns to normal and the alarm stops.

Warning Screen for Low Transmitter Batteries

When the transmitter is powered on with low battery power (at

4.1-volts or less), a warning sounds and the screen ashes with

text to prevent use of the transmitter with low batteries. Power

off the transmitter and replace batteries to stop the sound and

ashing screen.

Warning screens

USING TRANSMITTER

Antenna

The transmitter antenna bends and turns at the hinge (A) and only bends

and turns to the front of the transmitter. The antenna cannot point to the

back of the transmitter. Turn antenna tip to point away from the model

and ground. Signals transmit strongest from the antenna shaft, not the tip.

WARNING: Do not pick up the

transmitter by the antenna. Do not

alter or put weight on the antenna. Damage

to antenna parts can decrease transmitter

signal strength, which can result in loss of

model control, injury or property damage.

9SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

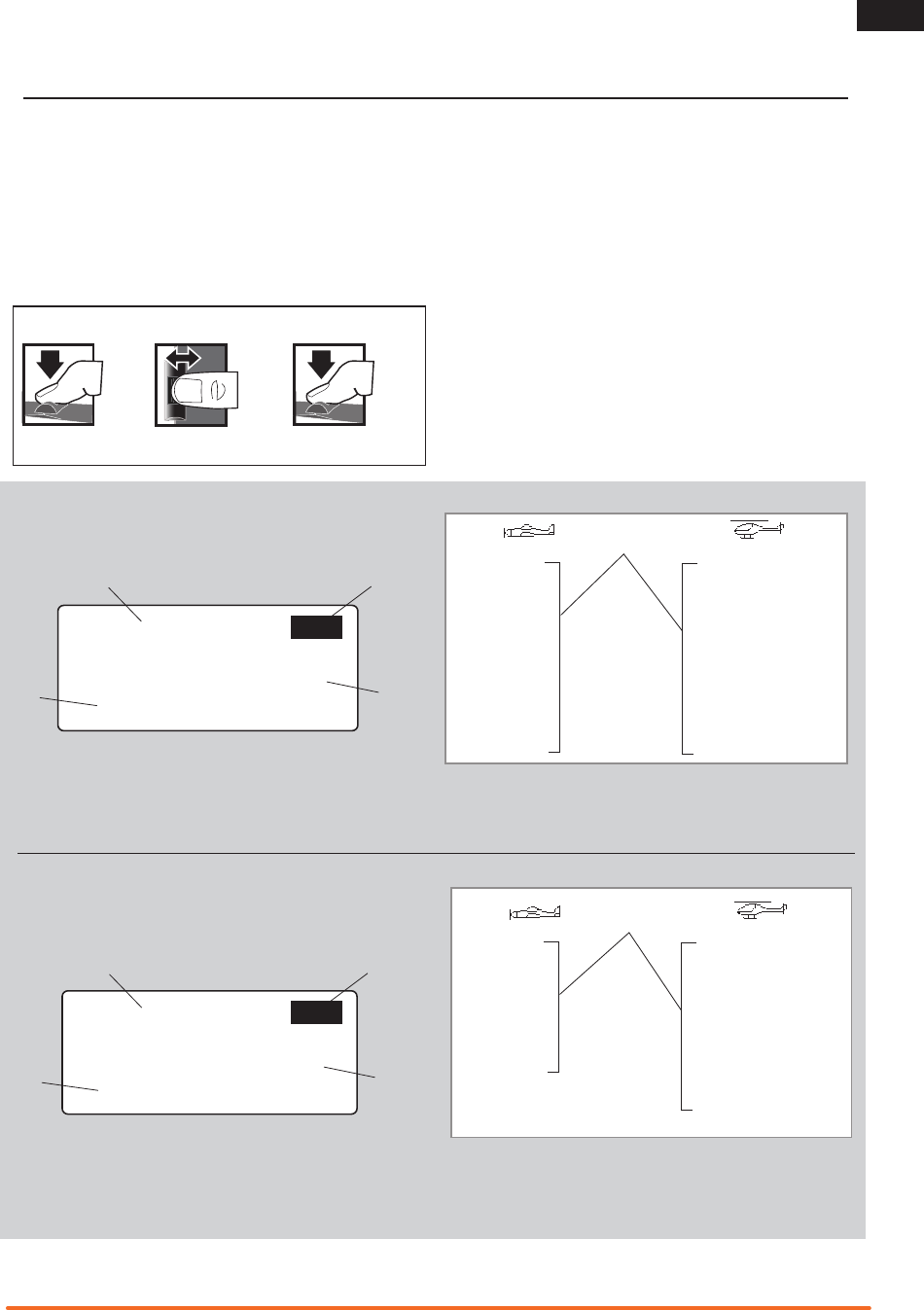

PROGRAMMING GUIDE

This manual describes airplane and helicopter software func-

tions. Some functions enable other functions. For example

within Model Type in the Setup list, you can choose between

Model Type ACRO and Model Type HELI. These then enable

the programming functions that follow Model Type according

to the model type you choose.

ADJUST LIST screen shows when roller is pressed after trans-

mitter is powered on.

SETUP LIST screen shows when roller is held down, transmit-

ter is powered on, then roller is released. This list contains

programming functions normally used only in initial setup of a

model, such as MODEL TYPE, REVERSE and MODEL NAME.

To access the SETUP LIST from the Main Screen, press and hold

roller for more than 3 seconds. Release roller so SETUP LIST

shows.

MAIN SCREEN shows when transmitter is powered on. This

screen shows active model memory MDL1 to MDL10 (these

can be ACRO and/or HELI models). This includes settings for the

model trim, battery charge (right of throttle, above rudder) and

timer choice (DN or UP) and the time limit.

ADJUST LIST

This screen is for access to functions that adjust control,

depending on the Model Type of the active model memory.

A Function name

B Screen title

C Navigation help: Next higher screen

D Function #

MODEL SELECT 1

D/R&EXPO 2

TRAVEL ADJ 3

SUB TRIM 4

FLAPS 5

MIX 1 6

MIX 2 7

DIFFERNTIAL 8

SETUP LIST 9

ACRO

MODEL SELECT 1

D/R&EXPO 2

TRAVEL ADJ 3

SUB TRIM 4

GYRO 5

THRO CUR 6

PITC CUR 7

SWASH MIX 8

MIX 1 9

MIX 2 10

REVO MIX 11

SETUP LIST 12

HELI

ACRO

MODEL TYPE 1

MODEL NAME 2

MONITOR 3

REVERSE 4

SWASH TYPE 5

THRO CUT 6

D/R COMBI 7

TIMER 8

RANGE CHECK 9

POWER SETTING 10

MODULATION TYPE 11

CONTRAST 12

COPY/RESET 13

ADJUST LIST 14

HELI

MODEL TYPE 1

MODEL NAME 2

MONITOR 3

REVERSE 4

THRO CUT 5

WING TAIL MIX 6

D/R COMBI 7

TIMER 8

RANGE CHECK 9

POWER SETTING 10

MODULATION TYPE 11

CONTRAST 12

COPY/RESET 13

ADJUST LIST 14

ADJUST LIST

MODEL SELECT

Main

MODEL SELECT 1

D/R&EXPO 2

TRAVEL ADJ 3

SUB TRIM 4

FLAPS 5

MIX 1 6

MIX 2 7

DIFFERNTIAL 8

SETUP LIST 9

ACRO

MODEL SELECT 1

D/R&EXPO 2

TRAVEL ADJ 3

SUB TRIM 4

GYRO 5

THRO CUR 6

PITC CUR 7

SWASH MIX 8

MIX 1 9

MIX 2 10

REVO MIX 11

SETUP LIST 12

HELI

ACRO

MODEL TYPE 1

MODEL NAME 2

MONITOR 3

REVERSE 4

SWASH TYPE 5

THRO CUT 6

D/R COMBI 7

TIMER 8

RANGE CHECK 9

POWER SETTING 10

MODULATION TYPE 11

CONTRAST 12

COPY/RESET 13

ADJUST LIST 14

HELI

MODEL TYPE 1

MODEL NAME 2

MONITOR 3

REVERSE 4

THRO CUT 5

WING TAIL MIX 6

D/R COMBI 7

TIMER 8

RANGE CHECK 9

POWER SETTING 10

MODULATION TYPE 11

CONTRAST 12

COPY/RESET 13

ADJUST LIST 14

SETUP LIST

This screen is for access to setup of model control, depending

on the Model Type of the active model memory.

A Function name

B Screen title

C Navigation help: Next higher screen

D Function #

SETUP LIST

MODEL TYPE

Main

B C

Turn

Press

Enter, Choose or

Exit

Move between options or

change value in an option

Hold for 3 seconds and release

to move to a higher screen

Turn Hold

Press

NAVIGATION

10 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

Acro

DIFFERNTIAL

INHIBIT

List

DIFFERNTIAL

DUALAILE RATE 0%

List

DUALAILEDUALAILE

FLAPS

MODEL TYPE

WING TAIL MIX

DIFFRNTIAL

MIX 2

MIX 1

REVERSE

THRO-N

ELEV-N

GEAR-N

AILE-N

RUDD-N

FLAP-N

List

TRAVEL ADJ

THRO 100%

ELEV 100%

GEAR 100%

AILE 100%

RUDD 100%

FLAP 100%

List

SUB TRIM

THRO 0

ELEV 0

GEAR 0

AILE 0

FLAP 0

RUDD 0

List

Heli

SWASH MIX

AILE - 75%

ELEV - 75%

PITCH + 85%

List SWASH MIX

INHIBIT

List

GYRO

RATE SW-F.MODE

0: 50.0%

1: 50.0%

List

GYRO

INH

List

1SERVO90°

CCPM 120°

GYRO GYRO

MODEL TYPE

SWASH TYPE

SWASH MIX

THRO CUR

PITC CUR

GYRO

MIX 2

MIX 1

REVERSE

THRO-N

ELEV-N

GYRO-N

AILE-N

RUDD-N

PITC-N

List

TRAVEL ADJ

THRO 100%

ELEV 100%

GYRO 100%

AILE 100%

RUDD 100%

PITC 100%

List

SUB TRIM

THRO 0

ELEV 0

GYRO 0

AILE 0

PITC 0

RUDD 0

List

REVO MIX

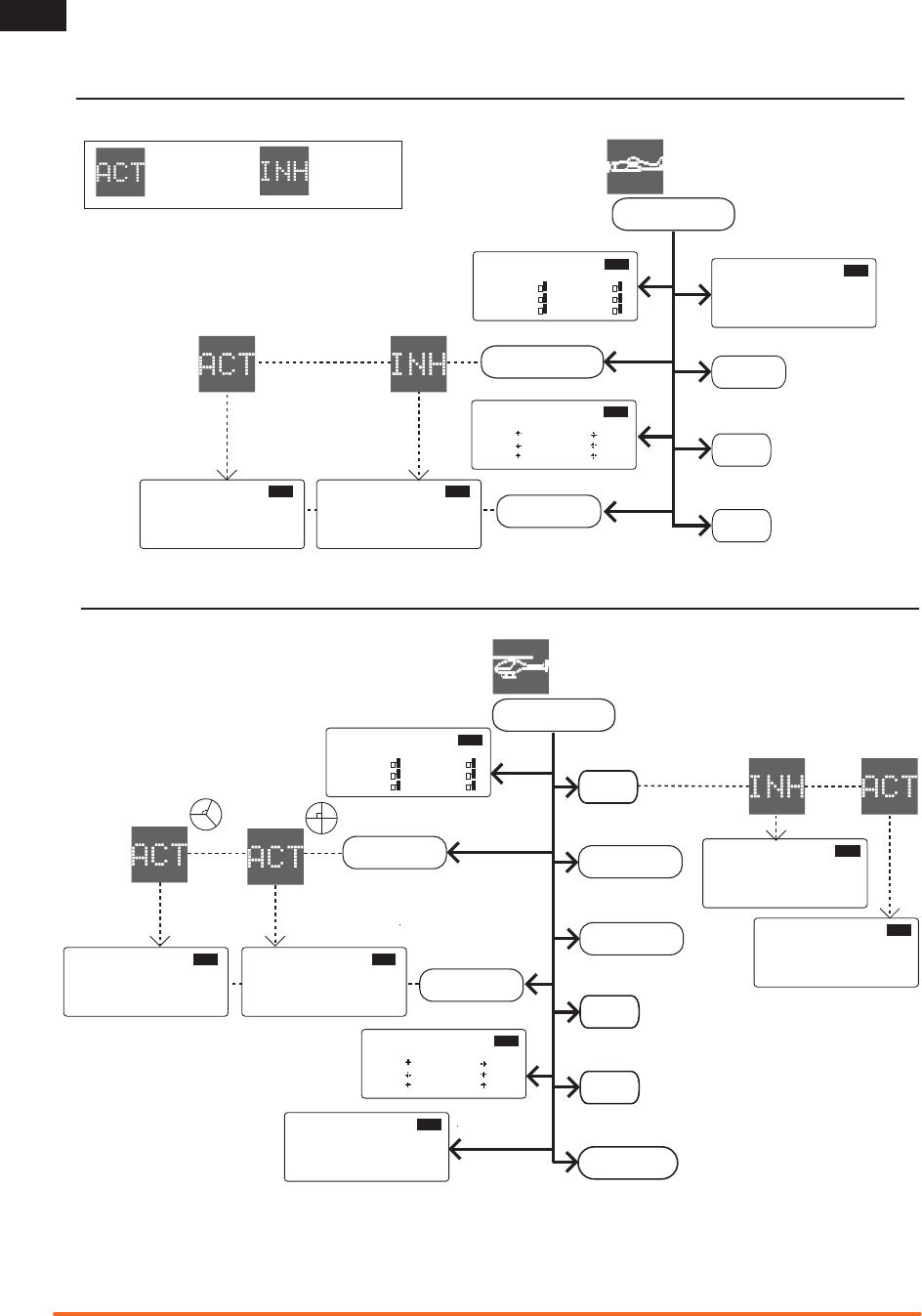

FUNCTION OPTIONS NOT SHARED BY THE MODEL TYPES

Inhibit

Activate

11SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

MODEL TYPE

This transmitter supports 2 model types: Airplane

(ACRO) and Helicopter (HELI). Model Type is stored

in a model memory.

CAUTION: When Model Type is changed, programming

for a model memory is erased and returned to factory

default settings.

A Options affecting other screens and Functions

MODEL TYPE

HELIACRO

List

MUSTANG

5.0V

MDL6

DN06:00

MODEL NAME

Model Name function assigns a name to a specic

memory, so the model memory is easier to identify.

The model memory number and a name is displayed

on the Main screen. The name lls 8 character

spaces chosen from spaces, symbols, numbers and letters.

A Active model memory number (1–10)

B Model name you designate

MODEL NAME

MODEL 6

MUSTANG

List

MUSTANG

5.0V

MDL6

DN06:00

REVERSE

Reverse function changes servo throw direction for all 6

channels. Movement of a control stick or switch is NOT

changed. Instead, a channel’s response to transmitter input

is reversed.

Note: Your aircraft manual may refer to this as changing

transmitter ight control directions in the Control Test/Re-

verse Controls section.

A Channels

B Servo direction N=normal, R=reverse

C This is PITC on HELI type, FLAP on ACRO type

D This is GYRO on HELI type, GEAR on ACRO type

REVERSE

THRO-N

ELEV-N

GEAR-N

AILE-N

RUDD-N

FLAP-N

List

THRO CUT

Thro Cut function activates (ACT) or inhibits (INH) the Throttle

Cut button. When an activated Throttle Cut button is pressed, the

throttle moves to the low throttle, low trim position for safe and

convenient shut down of the engine or removal of power to the

electric motor.

A Option (ACT or INH)

THRO CUT

POSITION - ACT

List

MONITOR

The Monitor functions shows channel movement and direction

when controls are moved. Throttle (THR), aileron (AIL), elevator

(ELE), rudder (RUD), channel 5 (CH5) and auxiliary (AUX)

show as arrows on a line.

A Stick or switch position (within programmed settings:

CCPM swash mix is shown here)

B Center position on marker line.

THROTTLE ALT prevents throttle trim from altering the

throttle position above half throttle. You can adjust trim

within the lower half of the throttle control range.THROTTLE

ALT keeps a throttle servo from being overdriven on the high

end of its control range.

CHANNEL MONITOR

SCREEN

ACRO HELI

1 Throttle

2 Aileron

3 Elevator

4 Rudder

THRO THRO

AILE AILE

ELEV ELEV

RUDD RUDD

GEAR GYRO

FLAP PITC

THR

AIL

ELE

RUD

CH5

AUX

[ ]

MONITOR List

AIL

THR

◊

ELE

RUD

CH5

AUX

◊

12 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

WING TAIL MIX

Wing Tail Mix function supports Normal, Dual Aileron, V-Tail and

Elevon (Delta) mixing. Refer to your model’s manual for recom-

mended settings. See Appendix for information about recom-

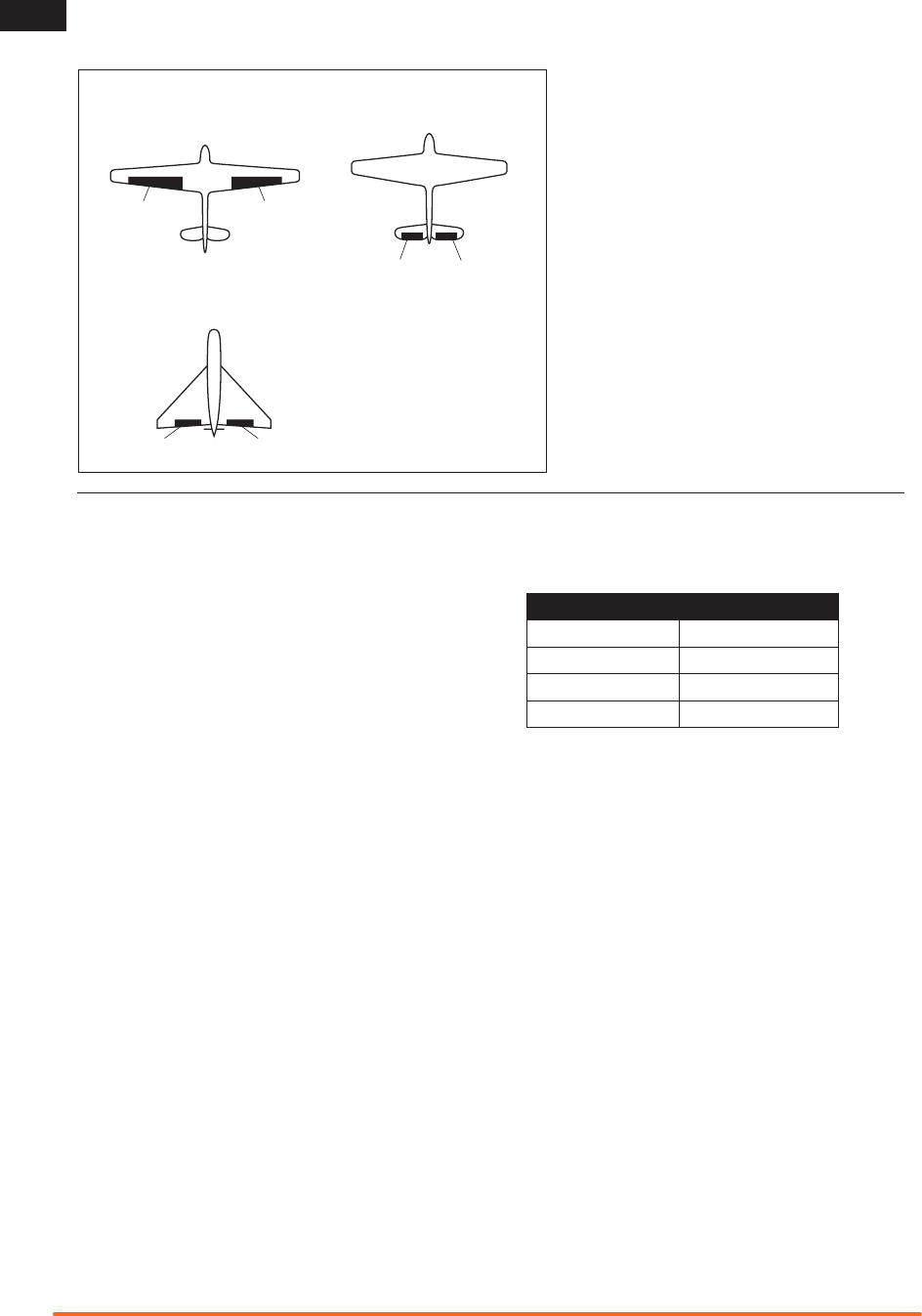

mended wing type servo installations on scratch built models.

Normal

This normal or default setting for airplanes is 1 servo channel

for aileron, 1 channel for elevator and 1 channel for the rudder.

These common wing and tail functions are enabled when you

set DUALAILE, ELEVON and V-TAIL at INH (inhibit).

Dual Aileron Wing Type Selection

Dual Aileron requires use of a servo for each aileron and sup-

ports use of ailerons as aps or spoilers. This function also

supports precise independent adjustment of up and down travel,

and independent sub-trim and differential for each aileron.

V-tail Selection

V-tail combines the elevator and rudder channels for pitch and

yaw control when using a V-tail equipped airplane. This function

also supports precise independent adjustment of up and down

travel, and independent sub-trim and dual rate adjustments for

V-tail control surfaces.

Elevon Wing Type Selection

Elevon (Delta) wing combines aileron and elevator functions for

precise control of roll and pitch.

Note: Delta or Elevon Mixing is for ying-wing airplanes and

uses 2 servos in the wing to control 2 trailing edge-control

surfaces for pitch and roll control.

Elevator stick input causes movement of the surfaces together

for up/down movement and pitch control. Aileron stick control

input causes movement of the surfaces in opposite directions

for roll control. Connect one tail servo to (ELE) and the other tail

servo to (AILE) in the receiver. Use individual functions such as

servo reversing, sub-trims, etc. for each servo to achieve correct

control surface movement. Use sub-trims for separate neutral

adjustments. Use dual rate function so you can independently

adjust elevator-versus-rudder travel.

A DUALAILE and V-TAIL can be ACT at the same time

B Options (INH or ACT)

C When ELEVON is ACT, DUALAILE and V-TAIL become INH

D When DUALAILE is ACT, you can adjust the DIFFRNTIAL

function value.

Note: When Flaperon or Delta Wing type is chosen, travel

adjustment is used to adjust individual servo throw, while com-

bined aileron travel is adjusted with the aileron dual rate. You

can also adjust aileron differential. Reverse switches are

applicable for each servo. Make neutral adjustments on each

servo using the SUB TRIM function.

WINGTAILMIX

DUALAILE INH

V-TAIL INH

ELEVON INH

List A

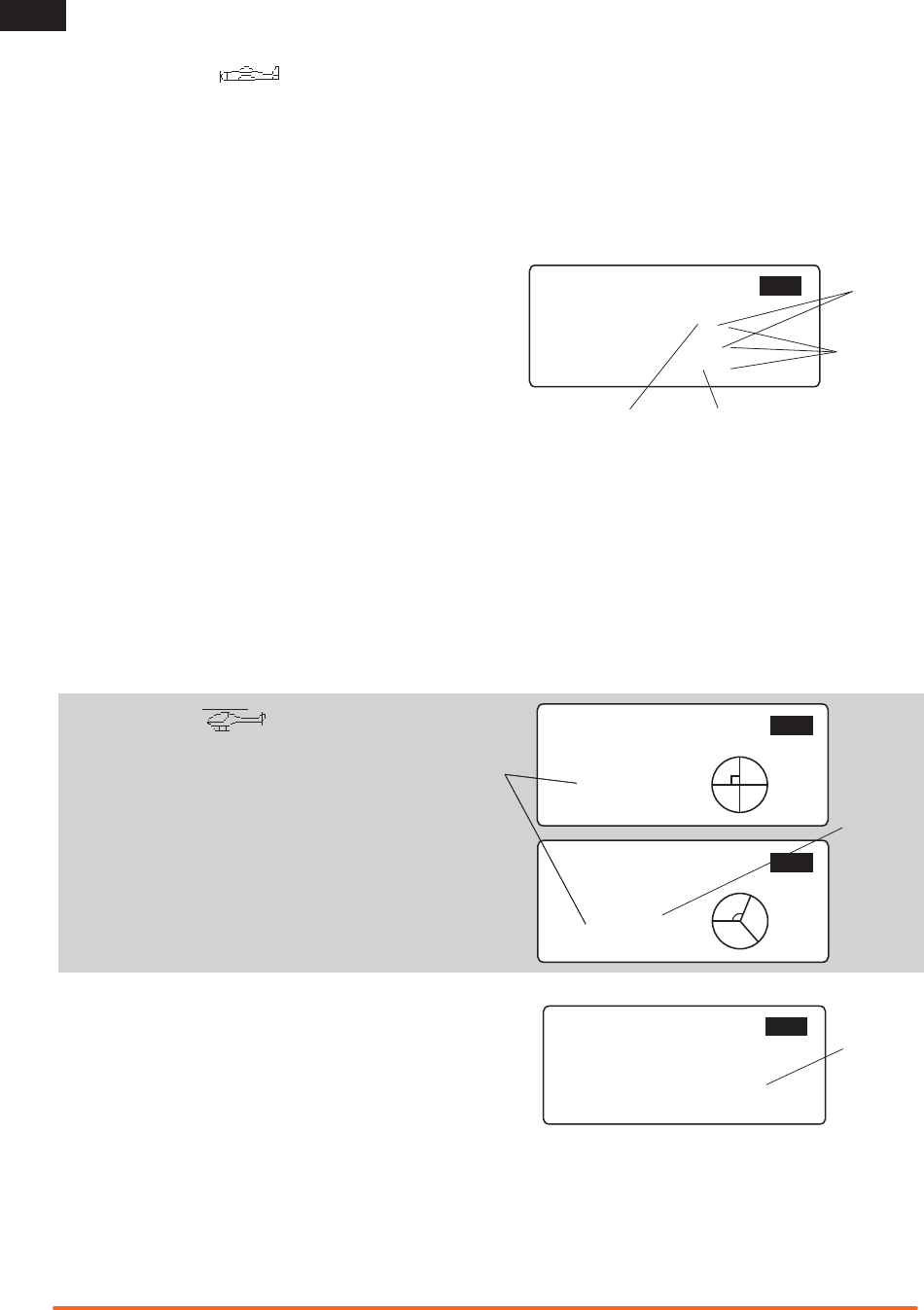

SWASH TYPE

Swash Type function supports 1 Servo: 90 degrees (standard

mechanical mix) and 3 Servo: CCPM 120 degrees.

Refer to your model’s manual for recommended settings.

Note: Choosing CCPM 120 enables SWASH MIX function.

A Helicopter swashplate conguration

B Choice of this type enables SWASH MIX

SWASH TYPE

1SERVO90°

List

SWASH TYPE

CCPM 120°

List

D/R COMBI (Dual Rate Combination)

The Dual Rate Combi function allows you to assign a switch

for combining D/R&EXPO. You can assign aileron, elevator and

rudder dual rate and exponential functions to 1 of 3 common

switches so dual rates/expo for all 3 channels is enabled by one

switch.

A Options (INH, AILE, ELEV or RUDD switches.

GEAR switch can be used in HELI mode.)

D/R COMBI

D/R SW: INH

List

13SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

TIMER

The Timer function includes a timer on the Main

screen and an audible alarm. When the time

expires, 5 beeps sound every 5 seconds.

Timer DOWN – This sets a countdown (from up

to 59 minutes and 50 seconds).

Timer UP – This sets a count-up timer (up to 59 minutes and 50

seconds). The start time is programmable. The default start of

00:00 is recommended.

When the Timer function is enabled, the timer displays on the

Main screen.

You can assign the Trainer Switch, Power On or Throttle Cut

button to stop, start and reset the timer.

Note: Reset the timer by holding the assigned starter for more

than 3 seconds.

A Timer direction (DOWN or UP) displays on Main screen

B Model memory number and name

C Optional value (Time Limit DOWN can be 59:50 to 0:00 and

UP can be 0:00 to 59:50 that displays on Main screen)

D Timer start switch (TRAINER, THRO CUT or INH)

Note: Timer UP count is helpful for recording sailplane ight

time. Timer DOWN count is helpful for setting an alarm for land-

ing a powered model before receiver power fully discharges.

TIMER

MDL6 MUSTANG

DOWN TIMER-06:00

SWITCH---TRAINER

List

MUSTANG

5.0V

MDL6

DN06:00

RANGE CHECK

Range Check function activates or inhibits use of the Trainer

switch to do a Range Check (which decreases transmitter output

power).

A Trainer/Range Check switch position (When switch is held,

ACT shows here)

1. Move the transmitter no less than 30 paces, approximately

90 feet (27m), from the model.

2. Face the model with the transmitter held in normal ying

position.

3. Activate Range Check in the transmitter screen.

4. Pull and hold the trainer switch on the top left side of the

transmitter (Mode 2) or on the top right side (Mode 1). This

causes reduced power output from the transmitter.

5. Model should respond to all transmitter control inputs while

the trainer switch is held.

6. If control issues exist, refer to your model’s manual for

troubleshooting guidance. When needed, contact the

appropriate Horizon Product Support ofce.

Advanced Range Testing

An advanced range test using a Flight Log (SPM9540) is recom-

mended for models built with a large amount of conductive

material and a receiver with a data port. Refer to the Flight Log

instructions for information about Range Testing.

RANGE CHECK

CHECK INH

List A

POWER SETTING

The Power Setting function adjusts transmitter power output to

conform to national standards.

Note: EU 328 is appropriate for most European countries

conforming to EU 300-328, while US 247 is for use in the

United States and countries outside the European Union (EU).The

France setting is for use in France.

NOTICE: The DX6i has a France RF setting that complies with

French regulations. Always use the France power setting when

operating the transmitter outdoors in France.

POWER SETTING

A-EU 328

List

MODULATION TYPE

The Modulation Type function allows you to assign a DSM modu-

lation type (DSM2 or DSMX) to your transmitter.

Note: There is no option to return to list. You must choose a

modulation type in order to return to the menu

A Option value (DSM2 or DSMX)

MODULATION TYPE

AUTO DSM-X ENABLE

DSMX AND DSM-2

STANDARD RECEIVERS.

14 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

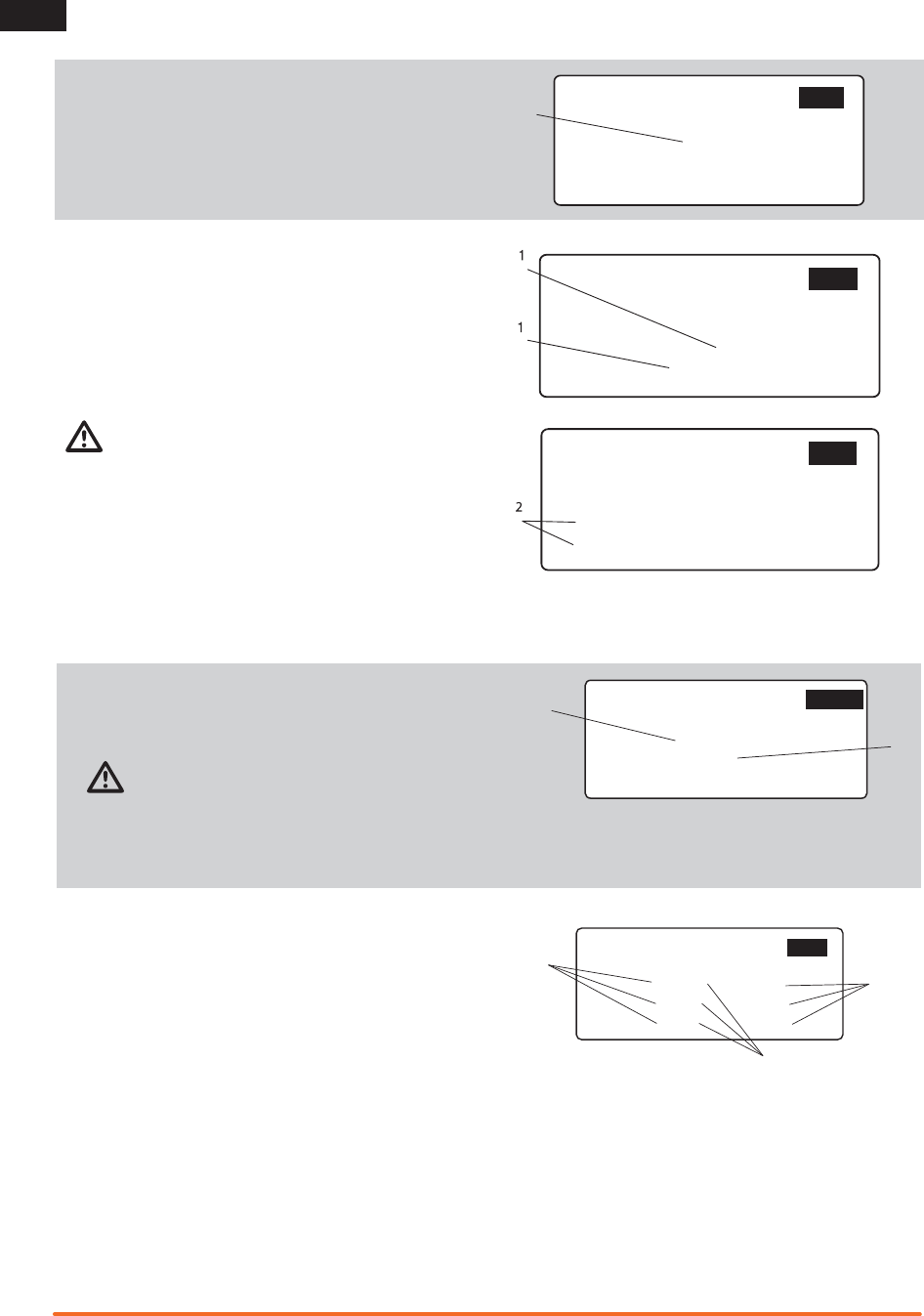

CONTRAST

The Contrast function adjusts the image on the LCD for visibility

in sunlight. The default value is 50%.

A Option value (0-100%)

CONTRAST

50%

List

COPY/RESET

The Copy/Reset function supports copying the active model memory

to any of the other 9 available model memories. This is useful for

setting up a model with different programming or to set up a similar

model.

A1 Option value (1-10, except for active model)

B1 Approval to delete destination model memory information

CAUTION: Model information saved in a memory is erased

when that model memory is copied over or reset to factory

default settings.

The RESET function removes all model programming from the cur-

rent model memory.

A2 Approval to delete model memory information, overwriting

memory with factory default settings.

NOTICE: If your DX6i was included in an RTF kit, factory default

settings will include programming. Using the RESET function will

erase this programming.

COPY/RESET

MODEL 6 MUSTANG

COPY

RESET

List

COPY/RESET

MODEL 6 MUSTANG

COPY TO 1

SURE? NO/YES

List

MODEL SELECT

Model Select function opens a model memory for control of a

model or adjustment of saved settings. If you haven’t pro-

grammed a model memory, all settings will be at factory default.

CAUTION: Do NOT change the model in Model Select

while operating a model. Change of the model interrupts

transmitter signal to a receiver and may cause a crash.

A Model memory number

B Model name

MODEL SELECT

MODEL 6

MUSTANG

List

D/R & EXPO (Dual Rate & Expo)

The Dual Rate and Exponential function supports programming

of 2 control rates. Dual Rates and Expos are available for aileron,

elevator and rudder channels. Changing Dual Rate value affects

maximum control authority and sensitivity of control. Increasing

the rate increases sensitivity of the controls. Changing Expo-

nential value affects sensitivity around center (neutral). You can

control Dual and Expo rates by respective D/R switches (aileron,

elevator and rudder) or by one common switch (Aileron D/R, El-

evator D/R, Rudder D/R or the Gear switch. See COMBI SWITCH

screen for combining D/R switches to one common switch).

You can adjust dual rate values from 0–100%. Factory default

settings are 100% for switch positions 0 and 1.

Note: Refer to your model’s manual for recommended rate

settings.

Exponential values are adjustable from -100% to +100%. The

factory default setting is 0% or INH (inhibit).

You can change either switch position to low or high rate by

putting the switch in the desired position and adjusting its value

in the D/R & EXPO screen.

A D/R switch position (0=low, 1=high)

B Exponential rate setting (-100 to 100%, with INH at 0)

C Rate setting (0 to 100%)

Note: A negative (-) Expo value increases sensitivity around

neutral, and a positive (+) Expo value decreases sensitivity

around neutral. A positive value usually desensitizes control

response around neutral.

D/R&EXPO

AILE 1 100% INH%

ELEV 1 100% INH%

RUDD 1 100% INH%

List

15SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

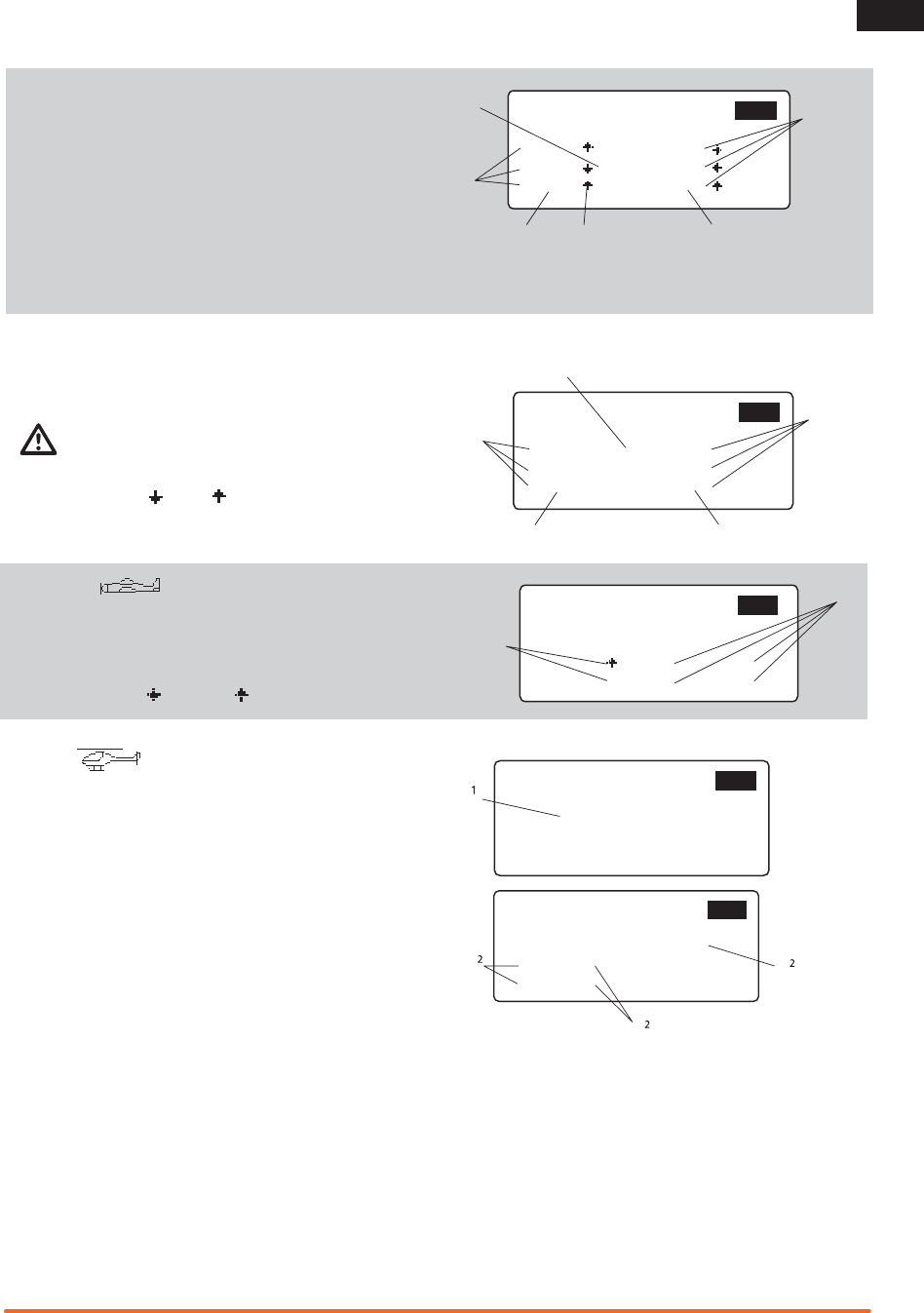

TRAVEL ADJ (Travel Adjust)

The Travel Adj function supports precise endpoint adjustments

in each direction for each of the 6 channels, independently. The

travel adjust range is from 0–125%. Available channels depend

on the Model Type of the active model memory.

A Channels

B Optional values

C FLAP on ACRO type and PITC on HELI type

D Arrows change direction by changing control stick or switch

positions.

E GEAR on ACRO type and GYRO on HELI type

TRAVEL ADJ

THRO 100%

ELEV 100%

GEAR 100%

AILE 100%

RUDD 100%

FLAP 100%

List

SUB-TRIM

The Sub-Trim function supports electronic adjustment or centering

of each servo. Sub-trim is adjustable for each of the 6 channels,

with a range of + or - 100% (+ or - 30 degrees servo travel).

CAUTION: Use only small sub-trim values so a servo’s

maximum travel is NOT overdriven.

A Channels

B Optional values ( 100 to 100)

C This is PITC on HELI type

D This is GYRO on HELI type

SUB TRIM

THRO 0

ELEV 0

GEAR 0

AILE 0

RUDD 0

FLAP 0

List

FLAPS

The Flaps function adjusts ap travel. The elevator column is an

optional ap to elevator mix in switch position 0 (NORM (normal))

and position 1 (LAND (landing)) mode.

A Flap/Gyro switch position shown by + (0=Norm, 1=Land)

B Position value ( 100 to 0 to 100)

FLAPS

FLAP ELEV

NORM 0 0

LAND 0 0

List

GYRO

Gyro function supports setting gain for gyros that have remote

gain ability, generally on a given switch, or can be tied in with

ight modes to allow further exibility. This function is not useful

on some helicopters, because it does not allow “stick priority”

mixing for stick override of the gyro function. A curve or multi-

point mix may allow greater exibility for some models. Refer to

your model’s manual for recommended gyro settings.

A1 Options (INH or ACT). Choosing ACT opens adjustable

values.

A2 FLAP/GYRO switch position

B2 Switch options (INH, GYRO or FMODE, F MODE opens op-

tion to make the switch position the same or opposite for

0=NORM and 1=STUNT)

C2 Optional values (0-100.0%)

A heading hold gyro (also known as Tail Lock) will hold dead

still a 60-size helicopter in a 20 to 30 mph crosswind. These

gyros separate gain from the rate of pirouette so you can run

maximum gain (holding the tail extremely well) and adjust pirou-

ette rate. The gyro keeps “memory” of the helicopter’s current

heading. When moved from this heading, the gyro returns the

helicopter to its heading from return. The strength of tail hold is

adjusted by the gyro gain (in some models, by a separate “tail

lock strength” adjustment).

GYRO

IHN

List

GYRO

RATE SW-F.MODE

0: 50.0%

1: 50.0%

List

16 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

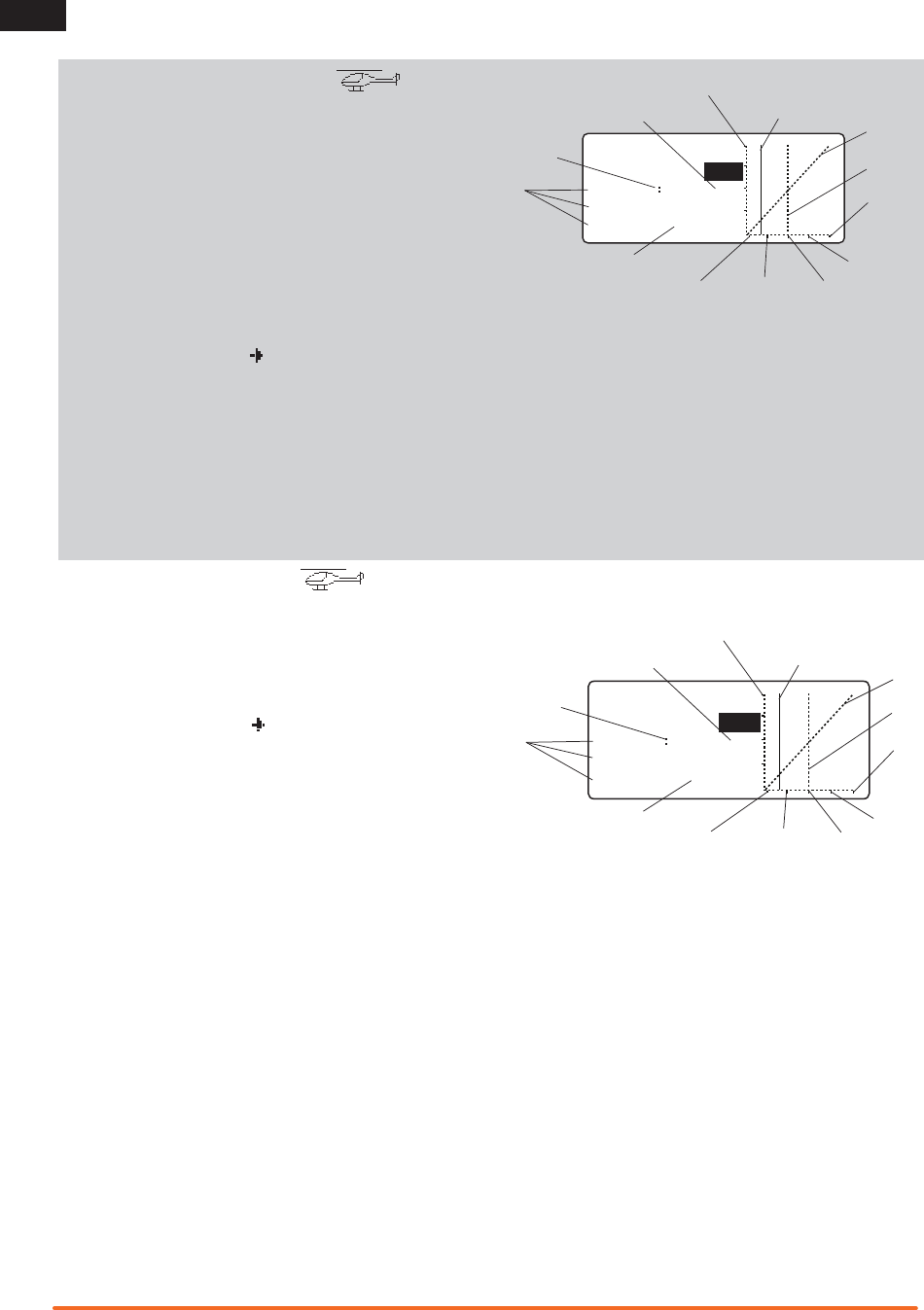

THRO CUR (Throttle Curve)

The Thro Cur function supports setting values for 5 positions

in the throttle response curve of 3 different modes: NORM

(Normal), STUNT and HOLD.

Note: In TH. HOLD, throttle curve is a at line representing a

hold condition. You can adjust this at the 5 positions (L, 2, 3, 4

and H).

The throttle trim switch is only active when the ight mode

switch is in the NORM (0) position. Throttle trim increases or

decreases engine/motor revolutions per minute (rpm) to achieve

a reliable idle in NORM. The throttle trim switch has no effect in

F MODE 1 (Stunt) or in TH. HOLD 1 (active).

A Flight Mode options

B Active option shown by

C Curve position name

D Percentage marker

E Control stick position line

F Curve graph

G Active/named position on curve

H H= Highest point of control stick movement (100% stick

position)

I 4 = Middle of the upper half of the control stick movement

(75% stick position)

J 3= Mid-point of control stick movement (50% stick position)

K 2= Middle of the lower half of the control stick movement

(25% stick position)

L L= Lowest point in control stick movement (0% throttle stick

position)

M Changeable value for point on curve. Refer to your model’s

manual for more information about recommended settings.

Note: Values shown in screen images will be different for cor-

rect model control.

THRO CUR

STUNT

HOLD 50.0%

List

NORM + POS 3

PITC CUR (Pitch Curve)

The Pitc Cur function supports setting values for 5 positions in

the pitch response curve of 3 different modes: NORM (Normal),

STUNT and TH. HOLD. Understanding throttle curve makes pitch

curve adjustment easier to understand. Refer to your model’s

manual for recommended settings.

A Flight Mode options

B Active option shown by

C Curve position name

D Percentage marker

E Control stick position line

F Curve graph

G Active/named position on curve

H H= Highest point of control stick movement (100% stick posi-

tion)

I 4 = Middle of the upper half of the control stick movement

(75% stick position)

J 3= Mid-point of control stick movement (50% stick position)

K 2= Middle of the lower half of the control stick movement

(25% stick position)

L L= Lowest point in control stick movement (0% throttle stick

position)

M Changeable value for point on curve. Refer to your model’s

manual for more information about recommended settings.

Note: Values shown in screen images will be different for correct

model control.

PITC CUR

NORM + POS 3

STUNT

HOLD 50.0%

List

17SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

MIX 1 or MIX 2

Mix 1 and 2 functions mix percentages between 2 channels, or

a channel with itself (THROTTLE cannot be mixed with itself or

as a slave).

You can program mixes so that stick or switch inputs control 2

or more servos.

The rst channel is the master channel; the second is the slave

channel. You can adjust directional mix values (U, D, L and R)

between -125% to +125%.

The mix can either be enabled (ON) all times or assigned to a

switch, enabling and disabling the mix as needed while operat-

ing a model. You can also link trim so that adjusting master

channel trim will also adjust slave channel trim.

When a mix is enabled and the assigned input control is moved,

the master channel sends output at the same time the slave

channel sends output.

Output is sent to the model in the direction and to the position

assigned in the Mix screen. Output sent to model will match

assignments in Mix screen.

CAUTION: Before ying a model, always do a check of

channel mix response by viewing channel results on the

Servo MONITOR screen.

SWITCH functions

You can use the following switches to turn Mixes on and off:

ON- Always on

GEAR- Gear switch forward (position 0)

FLAP- Flap switch down (position 1)

AIL D/R- Aileron Dual Rate switch up (position 0)

ELEV D/R- Elevator Dual Rate switch up (position 0)

MIX- Mix switch forward (position 0)

Mix Options

Aileron to Rudder: Causes rudder to move when ailerons

move. This helps with airplanes that have adverse movement

of the nose around the center axis (yaw) (right aileron results in

left nose movement (yaw)). When programming aileron to rudder

mix in the same direction, the airplane makes coordinated turns

using ailerons only.

Elevator to Flap: Causes aps (or aperons) to move when

elevator is moved, resulting in tighter looping maneuvers,

or to provide aileron reex for some 3D maneuvers such as

Harriers.

Dual Elevators: Requires Gear to Gear Mix of -100% to -100%

to inhibit (INH) Gear Channel Switch, then Elevator to Gear Mix

of +100% to +100% to activate the Gear channel to work as a

slave to the elevator channel. This makes dual elevator setups

possible.

Rudder to Aileron or Elevator: Eliminates roll and pitch cou-

pling (roll and pitch happening at the same time) when rudder is

applied. This is normally used to correct coupling in knife-edge

ight.

A Master channel (THRO, AILE, ELEV, RUDD, GEAR/GYRO or

FLAP/PITC)

B Function name: MIX 1 or MIX 2

C Slave channel (THRO, AILE, ELEV, RUDD, GEAR/GYRO or

FLAP/PITC)

D Activate (ACT) or inhibit (INH)

E Up or Right value option (-125% to +125%)

F Option for trim adjustment link

G U or R (U for THRO, ELEV, GEAR/GYRO and FLAP/PITC)

H Down or Left value option (-125% to +125%)

I D or L (D for THRO, ELEV, GEAR/GYRO and FLAP/PITC)

J Switch option: ON, FMODE, GYRO, AIL D/R or ELE D/R

MIX 1

THRO AILE ACT

RATE L 0% R 0%

SW ON TRIM INH

List

SWASH MIX

The Swash Mix function supports adjusting mix among the

CCPM swashplate servos, AILE (aileron), ELEV (elevator) and

PITC (pitch). Refer to your model’s manual for recommended

settings.

A Input

B Input values (-125 to +125%). (For example, when the

swashplate moves up when the control stick is moved down

and the channel’s swash mix value is positive, make the

channel’s value negative to make the swashplate move

down with the same stick movement. Servo reversing and

swash mix adjustment may be required on some models.)

Note: Values shown will vary from model to model.

SWASH MIX

AILE - 75%

ELEV - 75%

PITCH + 85%

List

18 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

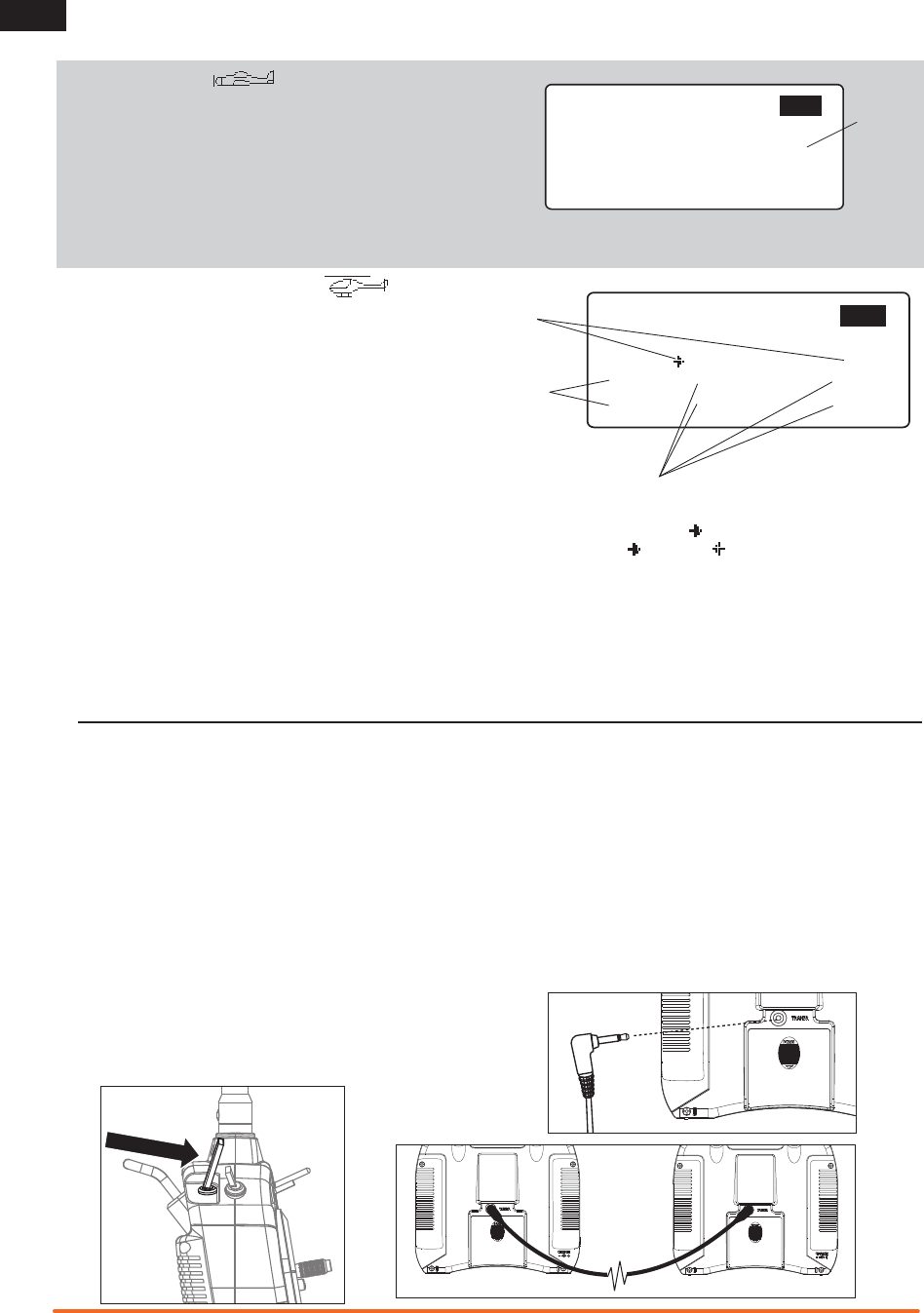

To operate the DX6i as a master:

• Transmitter batteries fully charged.

• Bind the transmitter to the model.

• Connect the trainer cord (SPM6805) to the back of the

transmitter.

• Make sure the slave transmitter batteries are fully charged.

• Make sure the slave transmitter is powered off; the slave

transmitter receives power when you connect the trainer

cord. At this point, the slave will not transmit a signal to the

model.

• Move and hold the master transmitter’s trainer switch to

give model control to a slave transmitter.

• The trainer switch is on the back left of the transmitter

(Mode 2, used in USA or on the right side on Mode 1 trans-

mitters).

• Release the trainer switch to give model control to the

master transmitter.

To operate the DX6i as a slave:

• Make sure transmitter batteries are fully charged.

• Make sure transmitter is powered ofF

• Connect the trainer cord between the master and slave

transmitters.

• The DX6i screen will show information, but the transmitter

will not send a signal to the model.

• Both transmitters must be programmed to control the

model.

NOTICE: You must set up a model the same in both transmitters

before using the trainer cord. The trainer cord does not copy

model control values from one transmitter to another.

MASTER/SLAVE INFORMATION

DIFFERENTIAL

The Differential function decreases the amount an aileron moves

down without affecting the amount the other aileron moves up.

This can decrease swerving (adverse yaw) tendencies during roll

maneuvers.

Differential is not available in this transmitter for ying-wing

airplanes (ELEVON option in WING TAIL MIX).

Note: Use of the Differential function requires choosing

DUALAILE in WING TAIL MIX function. A Option value (0-100%)

DIFFERNTIAL

DUALAILE RATE 0%

List

REVO MIX (Revolution Mix)

Revo Mix mixes tail rotor input and throttle/collective input to

counteract main rotor torque. This function has UP and DN

(down) revolution mixing for ight modes NORM and STUNT.

Move the F MODE switch to activate a ight mode.

Note: Use REVO MIX only for non-heading hold gyros.

Note: Move Throttle stick slowly. Ignore turning of helicopter

nose when rst moving throttle.

Adjust for middle-to-high throttle settings:

1. Put helicopter in a stable hover with tail rotor trim (rudder) at

center.

2. Increase throttle to start a stable climb.

3. When helicopter nose turns, change UP setting so nose

does NOT turn.

Adjust for middle-to-low throttle settings:

1. At a safe height, decrease throttle so helicopter falls slowly.

2. When helicopter nose turns, change DN setting so nose

does NOT turn.

A F Mode switch position ( = active)

B Option values ( 100 to 0 to 100)

C Direction of helicopter movement

REVO MIX

NORM STUNT

UP 0% UP 0%

DN 0% DN 0%

List

19SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

RECEIVER AND SERVO INFORMATION

When you bind your transmitter to a Spektrum receiver, you

program the receiver with Failsafe defaults. If the receiver loses

connection to the transmitter, the receiver goes to Failsafe,

operating in default control positions programmed at binding

(until connection is restored to the transmitter).

NOTICE: Failsafe varies among receivers. Before using a

receiver, read receiver’s instructions for Failsafe instructions and

information.

Failsafe

SmartSafe Failsafe, Hold Last Command Failsafe and

Pre-Connect Failsafe are set at binding.

These Failsafes can provide these benets:

• When only the receiver is powered on (no transmitter signal

is present), speed controller (ESC) does not arm and electric

motor is not powered on.

• If connection is lost, SmartSafe moves throttle to position set

at binding so electric motors power off or gas/glow engines

decrease to idle.

• If connection is lost, all channels (except for throttle channel)

hold the last command received from the transmitter. For

example, if the model is turning when the control connection

is lost, the model will keep turning until connection to the

transmitter returns.

CAUTION: Restrain model on the ground while binding

the receiver to a transmitter (which is setting Failsafe)

or doing a test of Failsafe. When Failsafe is not set correctly, a

model’s throttle may go to middle or full throttle.

How To Program

1. Keep bind plug in receiver bind port during binding.

2. Remove bind plug only after receiver connects to transmitter.

How To Test

Note: This test applies only to receivers with these features.

1. Power on receiver and make sure model responds with

throttle going to lowest setting.

2. Power on transmitter and wait for connection to the receiver.

3. Increase transmitter throttle then power off the transmitter.

4. Make sure model throttle goes to low setting and that all

controls hold the last command.

NOTICE: Before ying, ALWAYS make sure the transmitter and

receiver are bound for the correct failsafe.

FAILSAFE

Preset Failsafe

Note: Not all Spektrum receivers have Preset Failsafe.

Refer to your receiver’s instructions for Failsafe instructions

and information.

Preset Failsafe is useful for sailplanes. If there is a loss of signal,

spoilers can deploy to bring the model down, preventing yaway.

CAUTION: Restrain model on the ground while binding

the receiver to a transmitter (which is setting Failsafe)

or doing a test of Failsafe. When Failsafe is not set correctly, a

model’s throttle may go to middle or full throttle.

How To Program

1. Install the bind plug in the receiver bind port.

2. Power on the receiver.

3. Receiver LED will blink, indicating the receiver is

in bind mode.

4. Remove the bind plug from the receiver.

5. Receiver LED will continue blinking.

6. Move transmitter control sticks and switches to desired

failsafe positions (throttle to low position).

7. Move and hold transmitter bind switch in bind position.

8. Power on the transmitter.

9. The receiver and transmitter connect in less

than 15 seconds.

10. When the receiver connects to the transmitter, the receiver

LED will show a solid light, indicating bind.

11. Release the transmitter bind switch.

12. Remove bind plug from the receiver.

How To Test

1. Power on transmitter and wait 5 seconds.

2. Power on receiver.

3. After receiver connects to transmitter, increase transmitter

throttle then power off the transmitter.

4. Make sure model throttle goes to low setting and that all

controls go to preset positions.

Note: Some analog servos may coast a small amount, even

without a signal. This is normal.

Receiver Installation

Where supplied with the transmitter, install the primary receiver

in your model. Put the primary receiver in protective foam and

install the receiver in the model using rubber bands or hook-

and-loop straps. Use thick double-sided foam tape to install the

primary receiver in electric models or helicopters.

Install the remote receiver apart from the primary receiver to

improve RF path diversity (a receiver’s ability to detect a signal in

all conditions). Each receiver needs a different RF environment,

especially in aircraft containing conductive materials (such as

large gas engines, carbon ber, pipes, etc.) which block a radio

signal.

Install the remote receiver in the model using servo tape. Keep

primary and remote receiver antennas at least 2 inches (51mm)

apart. Move antennas so the wires are perpendicular to each

other, although this is not critical.

20 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

In airplanes, install the main receiver in the servo tray in the cen-

ter of the fuselage. Install the remote receiver in the servo tray

by the side of the fuselage or in the turtle deck (space behind

the canopy and in front of the vertical stabilizer).

In helicopters, install receivers in the servo tray, where there

is usually sufcient room for receiver separation. Where there

is not sufcient room, install a receiver on an external receiver

mount made of clear plastic.

Note: The DSMX DX6i is compatible with all current Spektrum

DSM2 and DSMX aircraft receivers, but NOT compatible with the

original DSM AR6000 receiver.

CAUTION: When using the DSMX DX6i with parkyer

receivers (the AR6100, AR6110, and AR6115), it’s

imperative that these receivers only be own in parkyer-type

aircraft (small electric airplanes or mini and micro helicopters).

Flying receivers designed for parkyers in larger aircraft could

cause loss of connection.

Servo Installation

Due to vibration, install servos using rubber grommets and

bushings in gas- and glow-powered models.

Do not over-tighten mounting screws.

Install servos using servo tape and glue in electric and non-

powered aircraft. See model instructions for installing servo(s)

in your model.

Servo Precautions

Do NOT lubricate servo gears or motors.

Do NOT overload retract servos during retracted or extended

conditions.

Always make sure servo arms and linkages can move freely over

the whole path of their intended travel. A blocked servo linkage

or servo arm can cause a servo to draw too much current so a

battery charge is quickly drained.

Always correct control surface vibration, such as “buzz” or “ut-

ter.” Vibration can destroy feedback potentiometers in servos.

Always install servos using rubber grommets and brass eyelets.

Do NOT over-tighten servo mounting screws. Doing so inhibits

the screws from dampening vibration.

Always make sure a servo arm is fully attached to the servo. Use

only supplied servo arm screws. Use of other sizes of screws or

screws from other manufacturers can result in damage to the

servo.

Always remove and discard “yellowed” or otherwise discolored

servo arms. Discoloration shows material may be brittle and can

break at any time, possibly causing an aircraft crash.

Always make sure model screws and linkages are tight. Vibration

loosens screws and linkages so that damage can result.

Power System Requirements

Set up and operate a model so power to the receiver is NEVER

interrupted while ying. This is especially critical on giant-scale

models that use several high-torque or high-current servos.

Power systems unable to provide minimum receiver voltage

in ight are the number-one cause of in-ight failures. Some

components that cause a receiver to have too little power supply

include:

• Receiver battery (number of cells, capacity, cell type, state of

charge)

• Switch harness

• Battery leads

• Regulator (where used),

• Power bus (where used)

While a Spektrum receiver’s minimum operational voltage is

3.5 volts, test your model to a minimum acceptable voltage of

4.8 volts during ground testing. This battery charge capacity

compensates for discharge during ight or for ight loads larger

than ground test loads.

CAUTION: We recommend that you DO NOT y a model

with battery charges at less than 5.3-volts.

Recommended Power System Guidelines

1. When setting up a large or complex aircraft with multiple

high-torque servos, use a current and voltmeter (Hangar 9

HAN172). Connect the volt-meter in an open channel port in

the receiver. With the system powered on, load the control

surfaces (apply pressure with your hand) while monitoring

voltage at the receiver. The voltage must remain above 4.8

volts when all servos are heavily loaded.

Note: The optional Spektrum Flight Log (SPM9540) has a

built-in voltmeter for doing this test. The Flight Log is compat-

ible with Spektrum receivers SPMAR9010, SPMAR9110 and

SPMAR7010 (AR7000).

2. With the current meter connected in line with the receiver

battery lead, load control surfaces (apply pressure with your

hand) while monitoring the current. The maximum continu-

ous current for a single heavy-duty servo/battery lead must

be no more than 3 amps, while short-duration current spikes

of up to 5 amps are acceptable. When your system draws

more than 3 amps continuous or 5 amps for short durations,

use multiple packs with multiple switches and multiple leads

connected to the receiver.

Note: The Flight Log cannot measure current draw (amps).

When the Flight Log is used to measure voltage, also use the

HAN172 current meter to measure the current draw of the

servos.

3. When using a voltage regulator, do the tests for 5 minutes or

more. Current passing through a regulator generates heat.

Resistance increases, causing heat to increase (thermal

runaway). While a regulator may provide adequate power for

a short time, test for longer to make sure it can keep voltage

consistent at signicant power levels.

4. Use multiple battery packs with multiple switch harnesses

on large aircraft or complex models (for example, airplanes

35% and larger or jets). In many cases, commercially avail-

able power boxes or busses must be used. No matter what

power systems are used, always do a test (described above)

to make sure the receiver is supplied with 4.8 volts or more

under all conditions.

5. Peak detection fast chargers may show a false full charge on

NiMH batteries. We recommend use of a charger that shows

an NiMH battery’s total charge capacity. Make sure NiMH

battery packs are fully charged when using any charger.

21SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

AMA NATIONAL MODEL AIRCRAFT SAFETY CODE

TROUBLESHOOTING GUIDE

Problem Possible Cause Solution

The system will

not connect

Transmitter and receiver are too near each other. Move transmitter 8 to 12 feet (2.4 to 3.6m) from receiver

Throttle channel is reversed Move away from large metal objects (vehicles, etc.)

Selected model is not bound in transmitter Make sure correct model is selected and that transmitter

is bound to the model

Transmitter accidentally put in bind mode so

receiver is no longer bound Rebind transmitter and receiver

The receiver goes

into failsafe mode a

short distance away

from the transmitter

Check the receiver antenna to be sure it is not cut or

damaged Replace or contact Horizon Product Support

Main and remote receivers too near each other Install main and remote receivers at least 2 inches

(51mm) apart and perpendicular to each other

Receiver quits

responding during

operation

Low battery voltage Completely recharge ﬂight battery

Loose or damaged wires or connectors between battery

and receiver

Do a check of the wires and connection between battery

and receiver. Repair or replace wires and/or connectors.

Receiver loses its

bind

Transmitter stand or tray could be pressing the bind but-

ton

If stand is pressing bind button, remove from stand and

rebind

Bind button pressed before transmitter powered on Rebind by performing binding instructions

Receiver blinking

at landing

Brownout occurred Check battery voltage

System powered on and connected then receiver pow-

ered off without powering off transmitter Power off transmitter when receiver is powered off

Receiver taking

longer than usual to

link with transmitter

Transmitter and receiver are operating on DSM2 DSM2 receivers can take longer to link with transmitter

Effective January 1, 2010

GENERAL

A model aircraft shall be dened as a non-human-carrying

aircraft capable of sustained ight in the atmosphere. It may not

exceed limitations established in this code and is intended to be

used exclusively for sport, recreation, and/or competition.

1. I will not willfully y my model aircraft in a careless or reck-

less manner, and will abide by this Safety Code and any

additional rules specic to ying sites.

2. I will yield the right-of-way to man-carrying aircraft and

will see and avoid all aircraft, utilizing a spotter when ap-

propriate. (See AMA Document #540-D on See and Avoid

Guidance.)

3. I will not y my model aircraft higher than approximately 400

feet above ground level, when within three (3) miles of an

airport without notifying the airport operator.

4. The maximum takeoff weight of a model aircraft, including

fuel, is 55 pounds, except for those own under the AMA

Experimental Aircraft Rules.

5. I will not y my model aircraft in sanctioned events, air

shows, or model demonstrations unless I have previously

proven that my aircraft, control system, and piloting skills are

adequate by successfully executing all maneuvers intended

or anticipated in the specic event. If I am not a procient

pilot, I will not y in these events unless assisted by an

experienced pilot.

6. I will not y my model aircraft unless it is identied with my

name and address, or AMA number, inside or afxed to the

outside of the model aircraft. This does not apply to model

aircraft own indoors.

7. I will not operate model aircraft with metal-blade propellers.

8. I will not operate model aircraft carrying pyrotechnic devices

which explode or burn, or any device, which propels a

projectile of any kind. Exceptions include Free Flight fuses

or devices that burn producing smoke and are securely at-

tached to the model aircraft during ight. Rocket motors up

to a G-series size may be used, provided they remain rmly

attached to the model aircraft during ight. Model rockets

may be own in accordance with the National Model Rock-

etry Safety Code; however, they may not be launched from

model aircraft. Ofcially designated AMA Air Show Teams

(AST) are authorized to use devices and practices as dened

within the Team AMA Program Document.

9. I will not operate my model aircraft while under the inuence

of alcohol or while using any drug which could adversely

affect my ability to safely control the model.

10. When and where required by rule, helmets must be

properly worn and fastened. They must be OSHA, DOT, ANSI,

SNELL or NOCSAE approved or comply with comparable

standards.

Please see your local or regional modeling association’s

guidelines for proper, safe operation of your model aircraft.

22 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

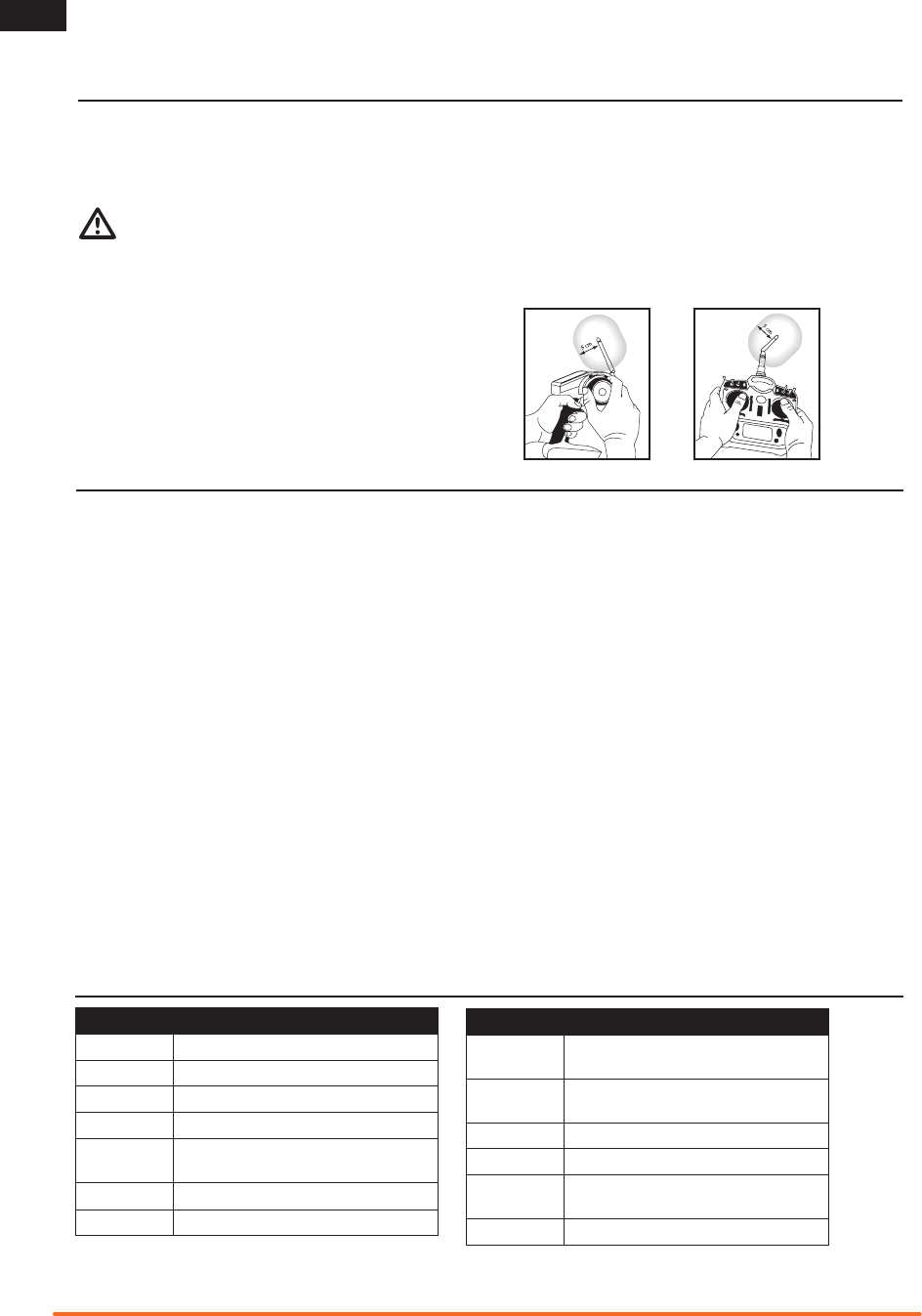

This device complies with part 15 of the FCC rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

This product contains a radio transmitter with wireless technol-

ogy which has been tested and found to be compliant with

the applicable regulations governing a radio transmitter in the

2.400GHz to 2.4835GHz frequency range.

Antenna Separation Distance

When operating your Spektrum transmitter, please be sure to

maintain a separation distance of at least 5 cm between your

body (excluding ngers, hands, wrists, ankles and feet) and the

antenna to meet RF exposure safety requirements as determined

by FCC regulations.

The illustrations below show the approximate 5 cm RF exposure

area and typical hand placement when operating your Spektrum

transmitter.

FCC INFORMATION

FAA INFORMATION

Purpose

This advisory outlines safety standards for operations of

model aircraft. We encourage voluntary compliance with

these standards.

Background

Attention has been drawn to the increase in model aircraft op-

eration. There is a need for added caution when operating free

ight and radio controlled craft in order to avoid creating a noise

nuisance or a potential hazard to full-scale aircraft and persons

and/or property on the surface.

Operating Standards

Modelers generally are concerned with safety and exercise good

judgment when ying model aircraft. However, in the interest of

safer skies, we encourage operators of radio controlled and free

ight models to comply with the following standards:

a. Exercise vigilance in locating full-scale aircraft (get help if

possible) so as not to create a collision hazard.

b. Select an operating site at sufcient distance from

populated areas so you do not create a noise problem or a

potential hazard.

c. Do not y higher than 400 feet above the surface.

d. Always operate more than three miles from the boundary

of an airport unless you are given permission to be closer

by the appropriate air trafc control facility in the case of an

airport for which a control zone has been designated or by

the airport manager in the case of other airports.

e. Do not hesitate to ask for assistance in complying with

these guidelines at the airport trafc control tower or air

route trafc control center nearest the site of your proposed

operation.

Information Provided By

Director, Air Trafc Service Federal Aviation Administration,

Washington, D.C.

PARTS LIST

Number Description

SPM9003 Battery Door, DX6i Painted

SPM9007 AIR Ratchet Strip DX6i, DX7

SPM9525 Spektrum 1500mAh NiMH AA (4)

SPM6830 Replacement Antenna: DX6i

SPM9526 150mAh Wall Charger with Transmitter

Adaptor

SPM6701 Spektrum Deluxe Transmitter Case, Aircraft

SPM6702 Spektrum Transmitter Case Foam

Number Description

SPM6706 Spektrum Deluxe Double Transmitter Case,

Aircraft

SPM6707 Spektrum Double Transmitter Case Foam,

Aircraft

SPM6803 Male/Female Universal Bind Plug

SPM9540 Spektrum Flight Log

HAN172 Digital Servo and Receiver Current Meter:

Hangar 9

SPM6805 Trainer Cord

23SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

Warranty Period

Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties

that the Products purchased (the “Product”) will be free from

defects in materials and workmanship for a period of 1 year

from the date of purchase by the Purchaser.

1 Year Limited Warranty

Horizon reserves the right to change or modify this war-

ranty without notice and disclaims all other warranties,

express or implied.

(a) This warranty is limited to the original Purchaser (“Pur-

chaser”) and is not transferable. REPAIR OR REPLACEMENT AS

PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY

OF THE PURCHASER. This warranty covers only those Prod-

ucts purchased from an authorized Horizon dealer. Third party

transactions are not covered by this warranty. Proof of purchase

is required for all warranty claims.

(b) Limitations- HORIZON MAKES NO WARRANTY OR REPRE-

SENTATION, EXPRESS OR IMPLIED, ABOUT NON-INFRINGEMENT,

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

OF THE PRODUCT. THE PURCHASER ACKNOWLEDGES THAT

THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL

SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S

INTENDED USE.

be that Horizon will, at its option, (i) repair or (ii) replace, any

Product determined by Horizon to be defective. In the event of

a defect, these are the Purchaser’s exclusive remedies. Horizon

reserves the right to inspect any and all equipment involved in a

warranty claim. Repair or replacement decisions are at the sole

discretion of Horizon. This warranty does not cover cosmetic

damage or damage due to acts of God, accident, misuse, abuse,

negligence, commercial use, or modication of or to any part

of the Product. This warranty does not cover damage due to

improper installation, operation, maintenance, or attempted

repair by anyone other than Horizon. Return of any Product by

Purchaser must be approved in writing by Horizon before ship-

ment.

Damage Limits

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUC-

TION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH

THE PRODUCT, WHETHER SUCH CLAIM IS BASED IN CONTRACT,

WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further, in no

event shall the liability of Horizon exceed the individual price of

the Product on which liability is asserted. As Horizon has no con-

trol over use, setup, nal assembly, modication or misuse, no

liability shall be assumed nor accepted for any resulting damage

or injury. By the act of use, setup or assembly, the user accepts

all resulting liability.

If you as the Purchaser or user are not prepared to accept the

liability associated with the use of this Product, you are advised

to return this Product immediately in new and unused condition

to the place of purchase.

Law: These Terms are governed by Illinois law (without regard to

conict of law principals).

Warranty Services

Questions, Assistance, and Repairs

Your local hobby store and/or place of purchase cannot provide

warranty support or repair. Once assembly, setup or use of the

Product has been started, you must contact Horizon directly. This

will enable Horizon to better answer your questions and service

you in the event that you may need any assistance. For ques-

tions or assistance, please direct your email to productsupport@

horizonhobby.com, or call 877.504.0233 toll free to speak to a

Product Support representative. You may also nd information on

our website at www.horizonhobby.com.

Inspection or Repairs

If this Product needs to be inspected or repaired, please use

the Horizon Online Repair Request submission process found

on our website or call Horizon to obtain a Return Merchan-

dise Authorization (RMA) number. Pack the Product securely

using a shipping carton. Please Note that original boxes may

be included, but are not designed to withstand the rigors of

shipping without additional protection. Ship via a carrier that

provides tracking and insurance for lost or damaged parcels, as

Horizon is not responsible for merchandise until it arrives and is

accepted at our facility. An Online Repair Request is available at

www.horizonhobby.com http://www.horizonhobby.com under the

Repairs tab. If you do not have internet access, please contact

Horizon Product Support to obtain a RMA number along with

instructions for submitting your product for repair. When calling

Horizon, you will be asked to provide your complete name, street

address, email address and phone number where you can be

reached during business hours. When sending product into

Horizon, please include your RMA number, a list of the included

items, and a brief summary of the problem. A copy of your origi-

nal sales receipt must be included for warranty consideration. Be

sure your name, address, and RMA number are clearly written

on the outside of the shipping carton.

Notice: Do not ship batteries to Horizon. If you have any

issue with a battery, please contact the appropriate

Horizon Product Support ofﬁce.

Warranty Inspection and Repairs

To receive warranty service, you must include your

original sales receipt verifying the proof-of-purchase date.

Provided warranty conditions have been met, your Product will

be repaired or replaced free of charge. Repair or replacement

decisions are at the sole discretion of Horizon.

Non-Warranty Repairs

Should your repair not be covered by warranty the repair

will be completed and payment will be required without

notiﬁcation or estimate of the expense unless the ex-

pense exceeds 50% of the retail purchase cost. By submit-

ting the item for repair you are agreeing to payment of the repair

without notication. Repair estimates are available upon request.

You must include this request with your repair. Non-warranty

repair estimates will be billed a minimum of ½ hour of labor.

In addition you will be billed for return freight. Horizon accepts

money orders and cashiers checks, as well as Visa, MasterCard,

American Express, and Discover cards. By submitting any item

to Horizon for inspection or repair, you are agreeing to Horizon’s

Terms and Conditions found on our website under the Repairs

tab.

WARRANTY AND REPAIR POLICY

24 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

WARRANTY AND SERVICE CONTACT INFORMATION

COMPLIANCE INFORMATION FOR THE EUROPEAN UNION

Declaration of Conformity

(in accordance with ISO/IEC 17050-1)

No. HH20090630U

Product(s): Spektrum DX6i Transmitter

Item Number(s): SPM6610E, SPM66101E,

SPMR6610E, SPMR66101E.

Equipment class: 2

The object of declaration described above is in conformity with the

requirements of the specications listed below, following the provi-

sions of the European R&TTE directive 1999/5/EC:

EN 60950 Safety

EN 300-328 Technical requirements for

Radio equipment.

EN 301 489-1, 301 489-17 General EMC requirements for

Radio equipment

Signed for and on behalf of:

Horizon Hobby, Inc.

Champaign, IL USA

June 30, 2009

Instructions for disposal of WEEE by users

in the European Union

This product must not be disposed of with

other waste. Instead, it is the user’s respon-

sibility to dispose of their waste equipment

by handing it over to a designated collections

point for the recycling of waste electrical and

electronic equipment. The separate collec-

tion and recycling of your waste equipment at the time of

disposal will help to conserve natural resources and ensure

that it is recycled in a manner that protects human health

and the environment. For more information about where

you can drop off your waste equipment for recycling, please

contact your local city ofce, your household waste disposal

service or where you purchased the product.

Steven A. Hall

Vice President

International Operations and Risk Management

Horizon Hobby, Inc.

Country of Purchase Horizon Hobby Address Phone Number / Email Address

United States of

America

Horizon Service Center

(Electronics and engines)

4105 Fieldstone Rd

Champaign, Illinois, 61822 USA

877-504-0233

Online Repair Request:

visit www.horizonhobby.com/repairs

Horizon Product Support

(All other products)

4105 Fieldstone Rd

Champaign, Illinois, 61822 USA

877-504-0233

productsupport@horizonhobby.com

United Kingdom Horizon Hobby Limited

Units 1-4 Ployters Rd

Staple Tye

Harlow, Essex

CM18 7NS, United Kingdom

+44 (0) 1279 641 097

sales@horizonhobby.co.uk

Germany Horizon Technischer Service Hamburger Str. 10

25335 Elmshorn, Germany

+49 4121 46199 66

service@horizonhobby.de

France Horizon Hobby SAS

14 Rue Gustave Eiffel

Zone d’Activité du Réveil Matin

91230 Montgeron

+33 (0) 1 60 47 44 70

infofrance@horizonhobby.com

Country of Purchase Horizon Hobby Address Phone Number / Email Address

United States Sales 4105 Fieldstone Rd

Champaign, Illinois, 61822 USA

800-338-4639

sales@horizonhobby.com

United Kingdom Horizon Hobby Limited

Units 1-4 Ployters Rd

Staple Tye

Harlow, Essex

CM18 7NS, United Kingdom

+44 (0) 1279 641 097

sales@horizonhobby.co.uk

Germany Horizon Hobby GmbH Hamburger Str. 10

25335 Elmshorn, Germany

+49 4121 46199 60

service@horizonhobby.de

France Horizon Hobby SAS

14 Rue Gustave Eiffel

Zone d’Activité du Réveil Matin

91230 Montgeron

+33 (0) 1 60 47 44 70

infofrance@horizonhobby.com

PARTS CONTACT INFORMATION

AT BG CZ CY DE

DK ES FI FR GR

HU IE IT LT LU

LV MT NL PL PT

RO SE SI SK UK

25SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

Throttle Stick Ratchet Strip Installation

1. Carefully remove and keep 6 screws and open transmitter

case.

2. Remove and keep 2 screws from existing ratchet strip.

3. Do not remove grease from plastic part under strip.

Note: Air Ratchet Strip (SPM9007) (A) with center bump is

for use with airplanes (ACRO). See illustrations.

4. Attach strip to gimbal using 2 screws.

5. Turn screws to get desired stick tension.

6. Carefully close transmitter case using 6 screws.

CAUTION: Make sure no wires or components are

pinched or damaged while installing back cover.

APPENDIX

Control Stick Length Adjustment

1. Adjust control stick length using a 1.5mm Allen wrench.

2. Turn the setscrew in the stick counterclockwise to loosen it.

Make stick shorter by turning it clockwise or longer by turn-

ing it counterclockwise.

3. After adjustment of stick length, tighten setscrew.

Control Stick Tension Adjustment

1. Remove batteries from transmitter.

2. Remove 6 screws from transmitter back cover using a #1

Phillips screwdriver.

3. Carefully remove transmitter’s back cover. Do not damage

internal components.

4. Adjust tension screw in brass bushing on end of ratchet strip

(counterclockwise to loosen, clockwise to tighten) using a #0

Phillips screwdriver See illustrations below.

5. Adjust tension screw for rudder, aileron or elevator gimbal

springs (counterclockwise to loosen, clockwise to tighten)

using a #0 Phillips screwdriver See illustrations below.

6. Install transmitter back cover using 6 screws.

CAUTION: Make sure no wires or components are

pinched or damaged while installing back cover.

Tighten

Loosen

Turn these

screws to

adjust control

stick tension.

26 SPEKTRUM DX6i • RADIO INSTRUCTION MANUAL

RECOMMENDED SERVO CONNECTIONS

V-Tail Type

Connection

Dual Aileron Wing Type Connection

Elevon

Wing Type

Connection

Recommended Servo Connections

Dual Aileron Wing

Type Connection

V-Tail Type

Connection

Elevon

Wing Type

Connection

A B

A AUX1 servo port (left aileron)

B AILE servo port (right aileron)

C ELEV servo port (left V-tail)

D RUDD servo port (right V-tail)

E AILE servo port (left aileron)

F ELEV servo port (right aileron)

Servo Control

For a delta wing or elevon wing setting, check the control throw

directions.

Begin by checking the aileron direction. With right aileron stick

movement, the right elevon should move up and the left elevon

should move down.

If the right elevon moves in the incorrect direction, reverse the

channel in the transmitter that the right elevon is plugged into.

If the left elevon moves in the incorrect direction, reverse that

channel in the transmitter.

Once both elevons move in the correct direction with aileron

stick movement, check the elevator direction. With up elevator,

both elevons should go up and vice versa.

If the elevator direction is incorrect, switch the servo channels in

the receiver.

The possible servo reversing options for a delta wing model are

below:

Aileron Elevator

Normal Reverse

Normal Normal

Reverse Reverse

Reverse Normal

DX6i Manual

DX6i-Manual_EN Spektrum DX6i 6-Channel DSMX Radio Transmitter with Receiver for RC Airplanes and Helicopters | Horizon Hobby

Navigation menu

Versions of this User Manual:

Views

Navigation
