SERVICE MANUAL
COPYRIGHT © 2008 Victor Company of Japan, Limited No.MB616<Rev.002>
2008/4
COMPACT COMPONENT SYSTEM
MB616<Rev.002>20084SERVICE MANUAL
DX-U10A, DX-U10US, DX-U10UX, DX-U10UG,
DX-U10UN, DX-U8US, DX-U8UX, DX-U8UG,
DX-U8UN, DX-U6US, DX-U6UX, DX-U6UG,
DX-U6UN, DX-U10UH
COPYRIGHT © 2008 Victor Company of Japan, Limited
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2 SPECIFIC SERVICE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

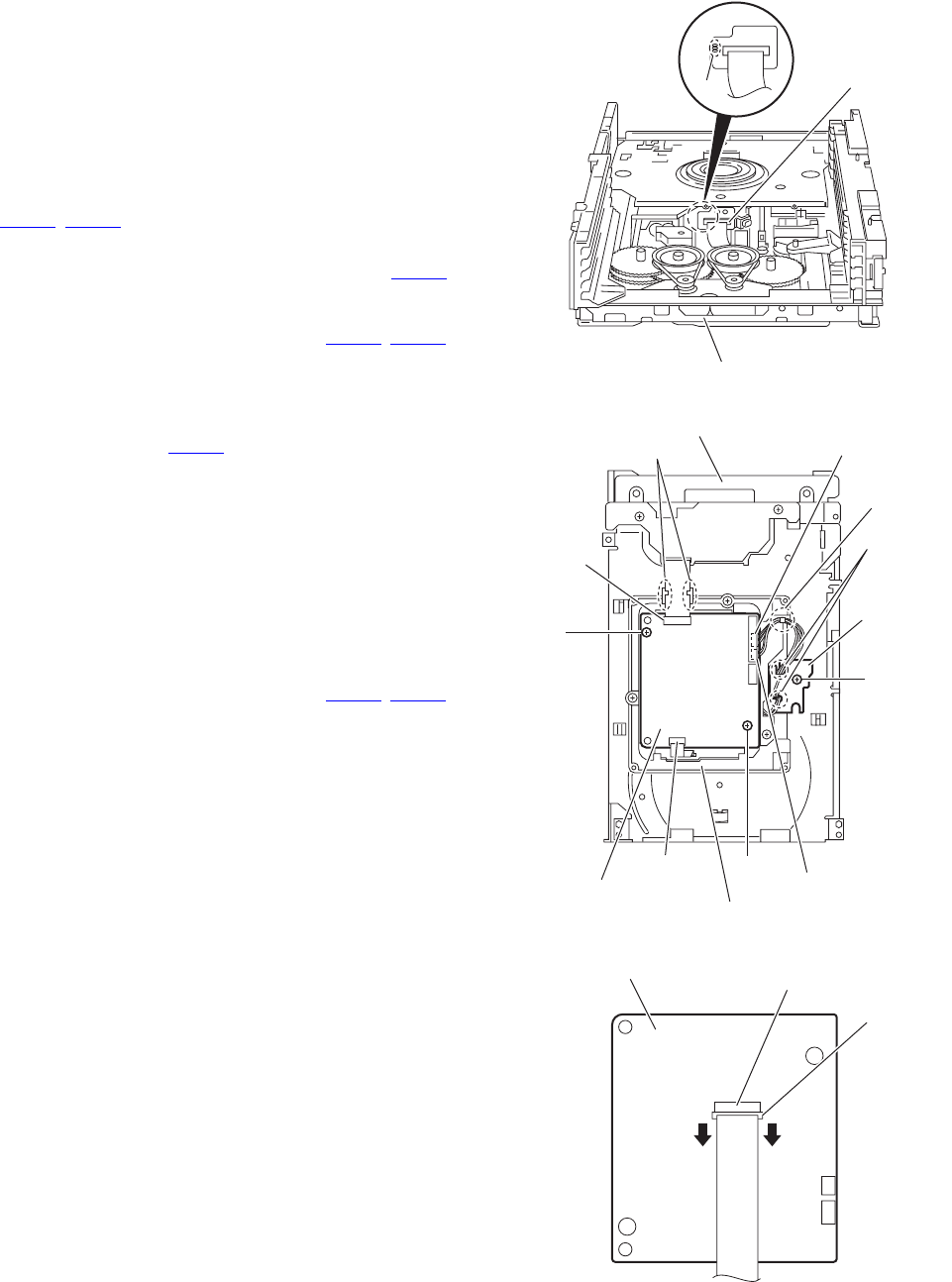

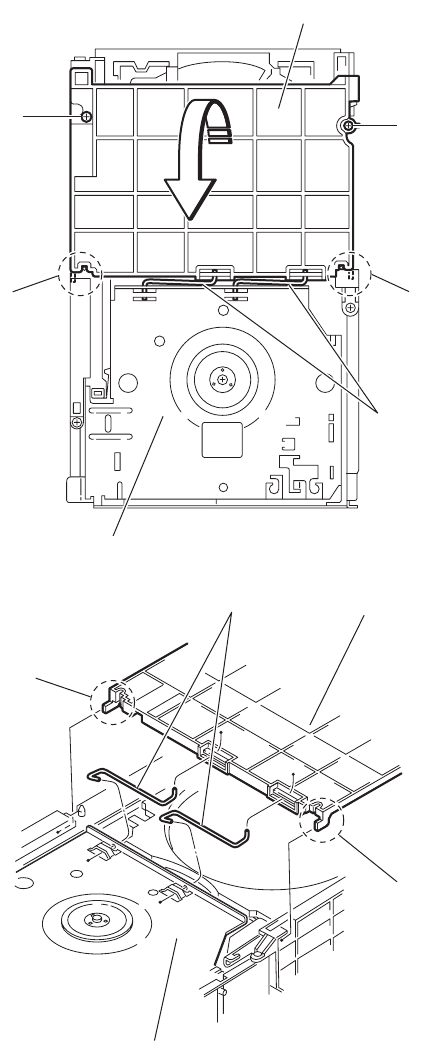

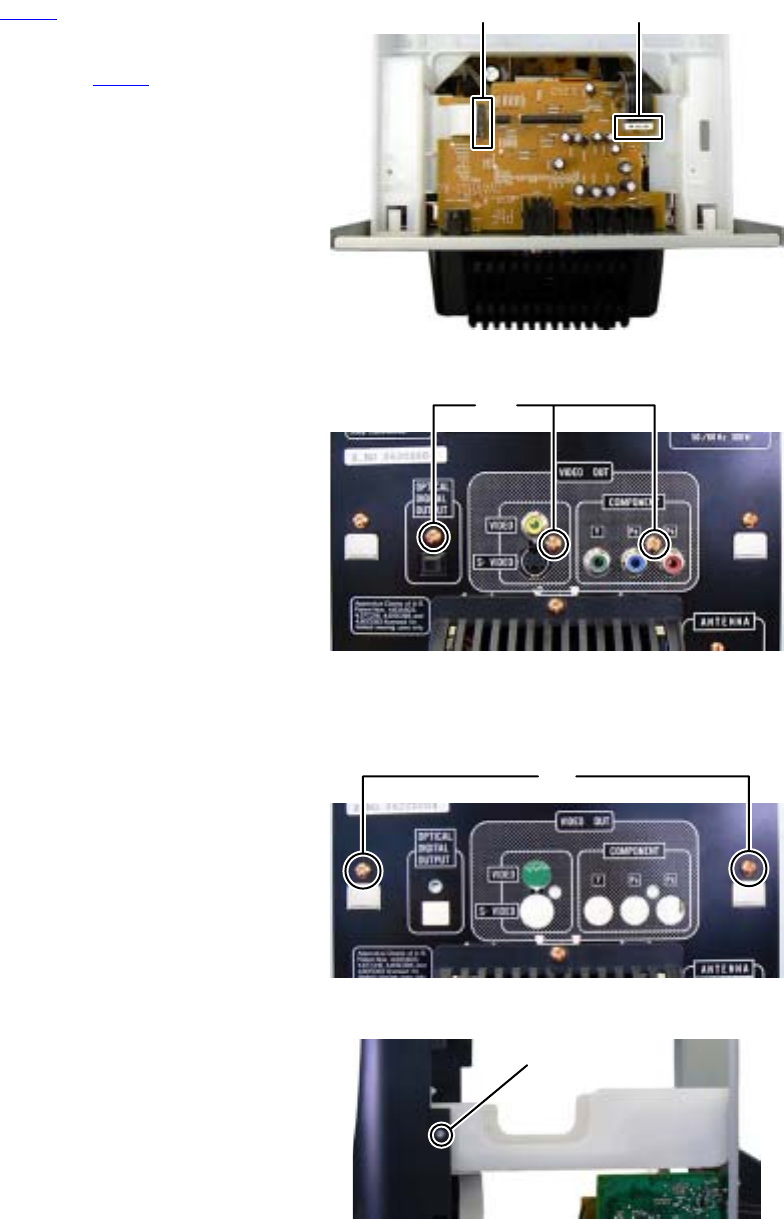

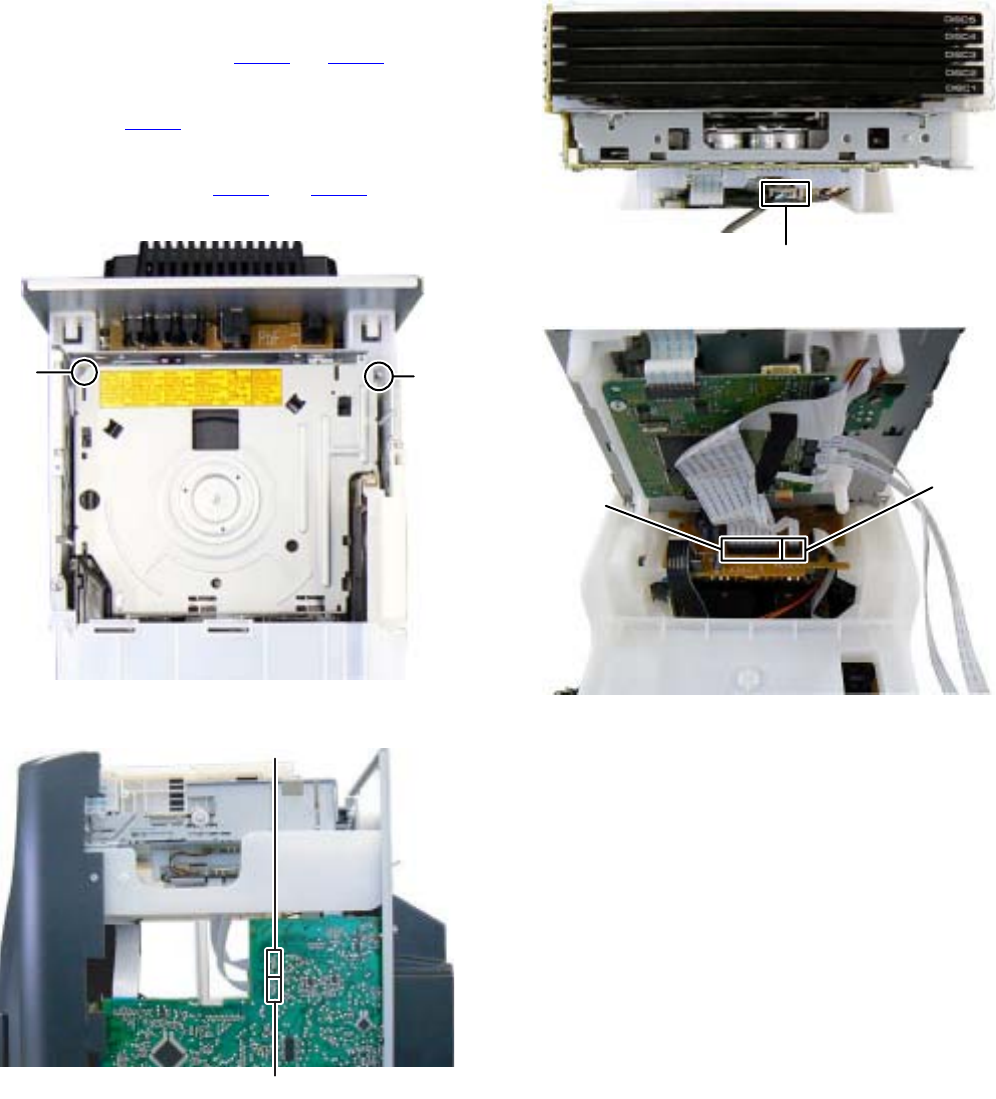

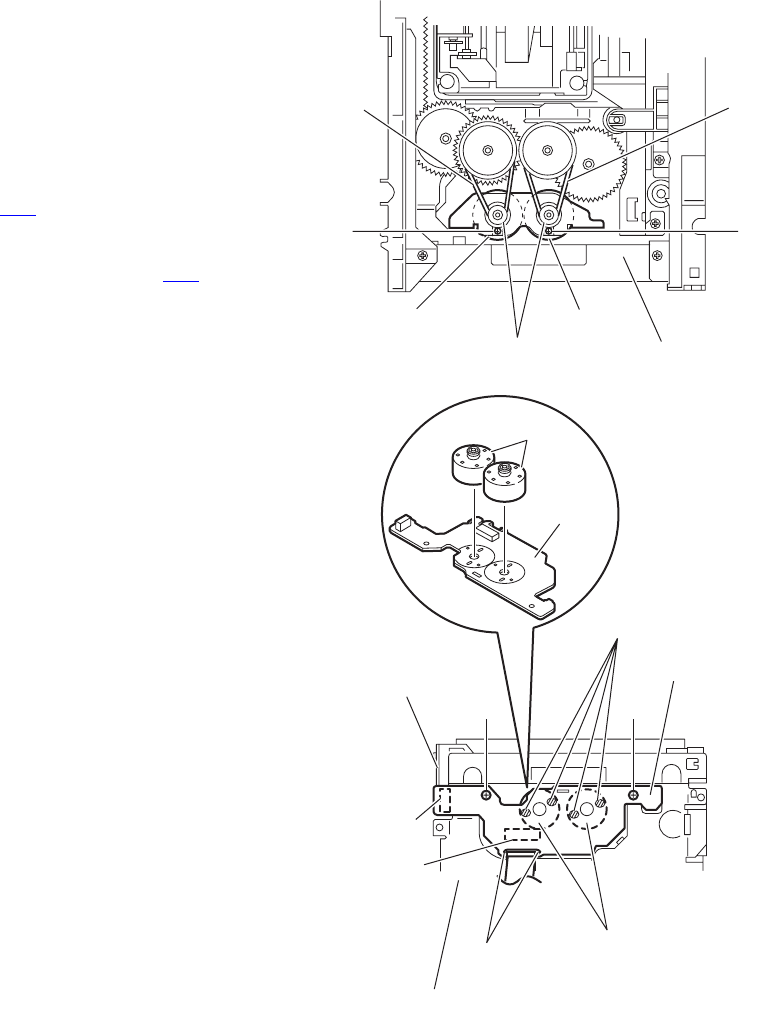

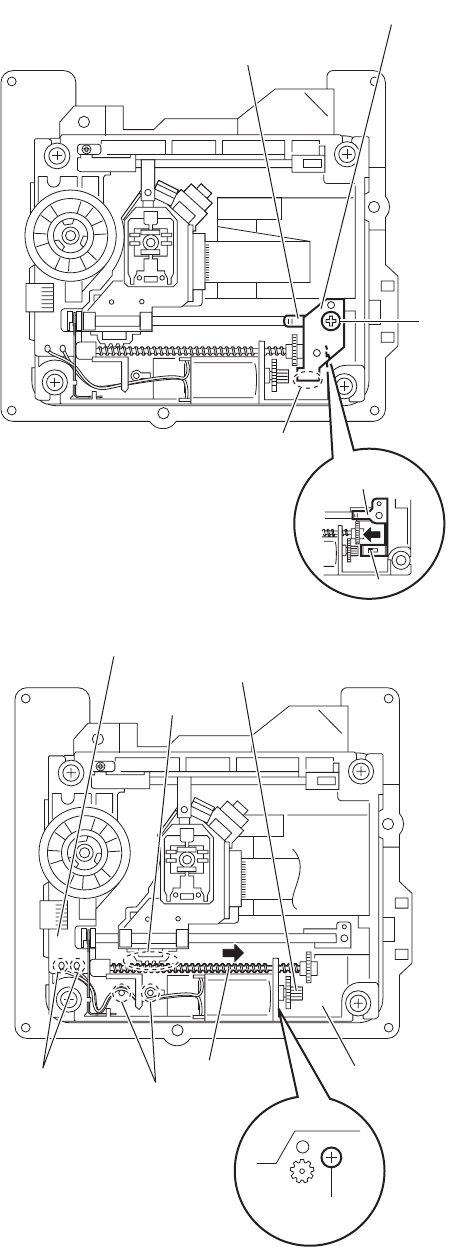

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
SUPER VIDEO
SUPER VIDEO
CA-DXU6
SP-DXU6F SP-DXU6F
SP-DXU10W
CA-DXU8
SP-DXU10F
SP-DXU10F
SP-DXU10W
SP-DXU8S
SP-DXU8S
SP-DXU10C
CA-DXU10
SP-DXU10F SP-DXU10F
SP-DXU10W SP-DXU10W
SP-DXU10S SP-DXU10S
SP-DXU10C
1-2 (No.MB616<Rev.002>)
SPECIFICATION
DX-U10/DX-U8
Measured at 1 kHz, with tape recording signal 400 mV
Design and specifications are subject to change without notice.
Amplifier section Output Power FRONT SPEAKERS 150 W per channel, min. RMS, driven into 4 Ω at 1 kHz with
no more than 10% total harmonic distortion.
CENTER SPEAKER CA-DXU10 140 W per channel, min. RMS, driven into 6 Ω at 1 kHz with
no more than 10% total harmonic distortion.
CA-DXU8 50 W per channel, min. RMS, driven into 6 Ω at 1 kHz with no
more than 10% total harmonic distortion.
SURROUND SPEAKERS CA-DXU10 130 W per channel, min. RMS, driven into 6 Ω at 1 kHz with
no more than 10% total harmonic distortion.
CA-DXU8 50 W per channel, min. RMS, driven into 6 Ω at 1 kHz with no
more than 10% total harmonic distortion.
SUBWOOFERS 150 W, min. RMS, driven into 4 Ω at 63 Hz with no more than
10% total harmonic distortion.
Digital output OPTICAL DIGITAL OUTPUT -21 dBm to -15 dBm (660 nm ±30 nm)
Digital input USB memory
Audio input sensitivity/
Impedance
AUX(STEREO) 400 mV/47 kΩ
MIC1/MIC2 3.0 mV/50 kΩ
VIDEO OUT Color system PAL/PAL PROG/NTSC/NTSC PROG selectable
VIDEO (composite) 1 V(p-p)/75 Ω
S-VIDEO Y (luminance) : 1 V(p-p)/75 Ω
C (chrominance, burst) : PAL : 0.3 V(p-p)/75 Ω
C (chrominance, burst) : NTSC : 0.286 V(p-p)/75 Ω
COMPONENT
(Interlace/Progressive)
(Y) : 1 V(p-p)/75 Ω
(PB/PR) : 0.7 V(p-p)/75 Ω
Speaker Terminals 4 Ω - 16 Ω (front speakers/subwoofers)
6 Ω - 16 Ω (surround/center speakers)
Tuner section FM tuning range 87.50 MHz - 108.00 MHz
AM (MW) tuning range 531 kHz - 1 710 kHz (at 9 kHz)
530 kHz - 1 710 kHz (at 10 kHz)
AM (MW) tuning range for Saudi Arabia 531 kHz to 1 602 kHz (9 kHz)
530 kHz to 1 600 kHz (10 kHz)
Disc/file player section Region codes Middle East: 2
South East Asia: 3
Central and South America, Australia: 4
Playable disc DVD Video/DVD Audio/CD/VCD/SVCD
CD-R/CD-RW (CD/VCD/SVCD/MP3/WMA/WAV/JPEG/
MPEG-1/MPEG-2/ASF/DivX format)
CD-ROM (MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/ASF/
DivX format)
DVD-R/-RW (DVD-VR/DVD Video/DVD Audio/MP3/WMA/
WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX format)
+R/+RW (DVD Video/DVD Audio/MP3/WMA/WAV/JPEG/
MPEG-1/MPEG-2/ASF/DivX format)
DVD-ROM (DVD Video/MP3/WMA/WAV/JPEG/MPEG-1/
MPEG-2/ASF/DivX format)
Playable file MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2, ASF, DivX for-
mat
Dynamic range 80 dB
Horizontal resolution 500 lines
Wow and flutter Immeasurable
USB storage section USB specification Compatible with USB 2.0 Full Speed
Compatible device Mass Storage Class
Compatible file system FAT16, FAT32
Bus power supply 5 V / 500 mA
Cassette deck section Frequency response: Normal (type I) 50 Hz - 14 000 Hz
Wow and flutter 0.15% (WRMS)
General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V ,
(adjustable with the voltage selector), 50 Hz / 60 Hz
Power requirement: For Australia AC 240 V , 50 Hz
Power consumption CA-DXU10 300 W (at operation) / 22 W (on standby)
CA-DXU8 270 W (at operation) / 21 W (on standby)
Dimensions (W/H/D) (approx.) 185 mm × 460 mm × 370 mm
Mass (approx.) CA-DXU10 11.5 kg
CA-DXU8 11.4 kg
(No.MB616<Rev.002>)1-3
DX-U6
Measured at 1 kHz, with tape recording signal 400 mV
Design and specifications are subject to change without notice.
Amplifier section Output Power FRONT SPEAKERS 150 W per channel, min. RMS, driven into 4 Ω at 1 kHz with no more
than 10% total harmonic distortion.
SUBWOOFER 150 W, min. RMS, driven into 4 Ω at 63 Hz with no more than 10% total
harmonic distortion.
Digital output OPTICAL DIGITAL OUTPUT -21 dBm to -15 dBm (660 nm ±30 nm)
Digital input USB memory
Audio input sensitivity/
Impedance
AUX 400 mV/47 kΩ
MIC1/MIC2 3.0 mV/50 kΩ
VIDEO OUT Color system PAL/PAL PROG/NTSC/NTSC PROG selectable
VIDEO (composite) 1 V(p-p)/75 Ω
S-VIDEO Y (luminance) : 1 V(p-p)/75 Ω
C (chrominance, burst) : PAL : 0.3 V(p-p)/75 Ω
C (chrominance, burst) : NTSC : 0.286 V(p-p)/75 Ω
COMPONENT
(Interlace/Progressive)
(Y) : 1 V(p-p)/75 Ω
(PB/PR) : 0.7 V(p-p)/75 Ω
Speaker Terminals 4 Ω - 16 Ω (main speakers/subwoofer)
16 Ω - 32 Ω (matrix surround speakers)
Tuner section FM tuning range 87.50 MHz - 108.00 MHz
AM (MW) tuning range 531 kHz - 1 710 kHz (at 9 kHz)
530 kHz - 1 710 kHz (at 10 kHz)
AM (MW) tuning range: For Saudi Arabia 531 kHz to 1 602 kHz (9 kHz)
530 kHz to 1 600 kHz (10 kHz)
Disc/file player section Region codes Middle East: 2
South East Asia: 3
Central and South America, Australia: 4
Playable disc DVD Video/DVD Audio/CD/VCD/SVCD
CD-R/CD-RW (CD/VCD/SVCD/MP3/WMA/WAV/JPEG/MPEG-1/
MPEG-2/ASF/DivX format)
CD-ROM (MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/ASF/DivX for-
mat)
DVD-R/-RW (DVD-VR/DVD Video/DVD Audio/MP3/WMA/WAV/
JPEG/MPEG-1/MPEG-2/ASF/DivX format)
+R/+RW (DVD Video/DVD Audio/MP3/WMA/WAV/JPEG/MPEG-1/
MPEG-2/ASF/DivX format)
DVD-ROM (DVD Video/MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/
ASF/DivX format)
Playable file MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2, ASF, DivX format
Dynamic range 80 dB
Horizontal resolution 500 lines
Wow and flutter Immeasurable
USB storage section USB specification Compatible with USB 2.0 Full Speed
Compatible device Mass Storage Class
Compatible file system FAT16, FAT32
Bus power supply 5 V / 500 mA
Cassette deck section Frequency response: Normal (type I) 50 Hz - 14 000 Hz
Wow and flutter 0.15% (WRMS)
General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V , (adjustable
with the voltage selector), 50 Hz / 60 Hz
Power requirement: For Australia AC 240 V , 50 Hz
Power consumption 200 W (at operation)
19 W (on standby)
Dimensions (W/H/D) (approx.) 185 mm × 460 mm × 370 mm
Mass (approx.) 10.5 kg
1-4 (No.MB616<Rev.002>)
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purpos-
es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per-
formed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us-
ing replacement components rated for higher voltage, watt-
age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser-
vice Manual. Electrical components having such features

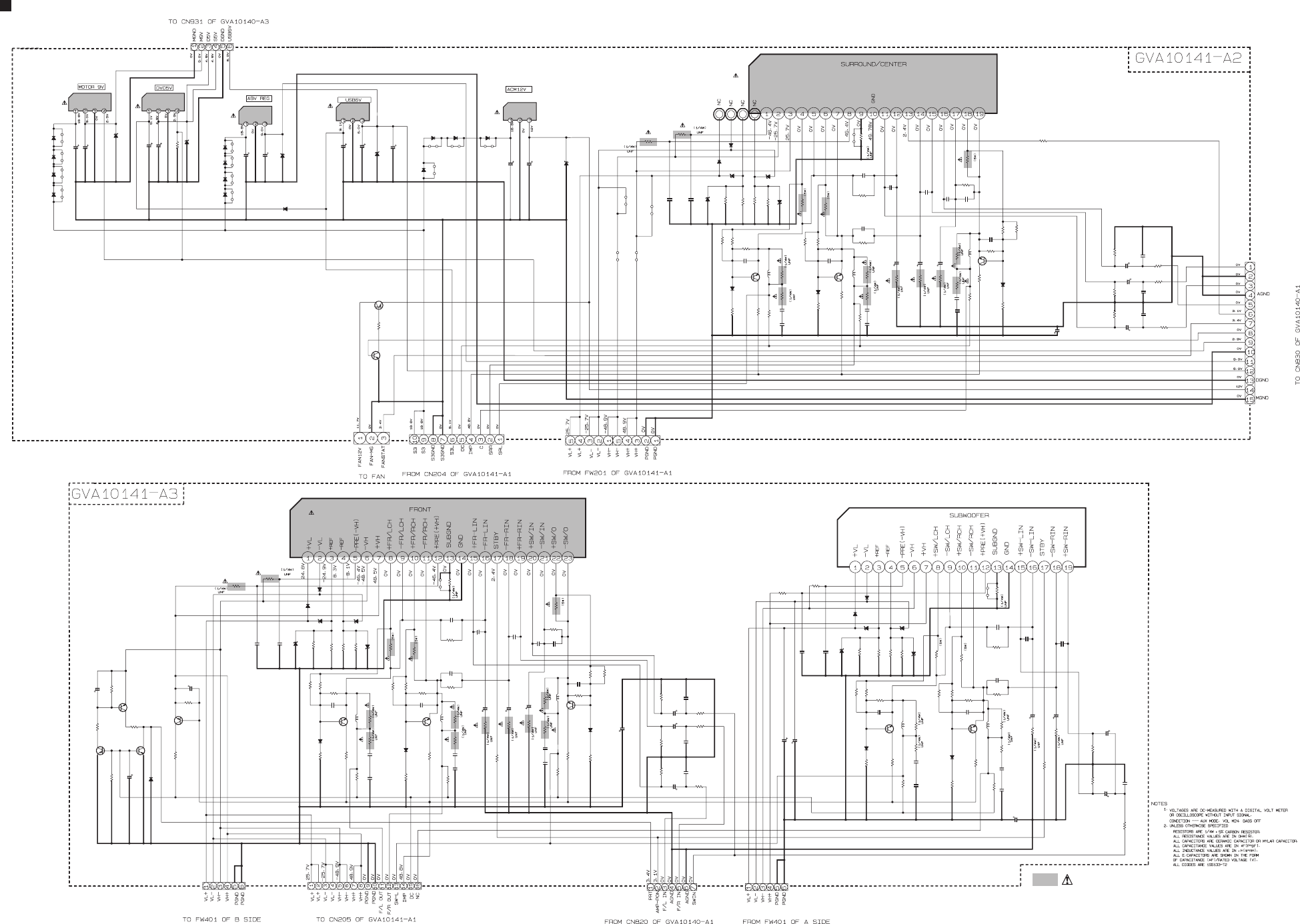

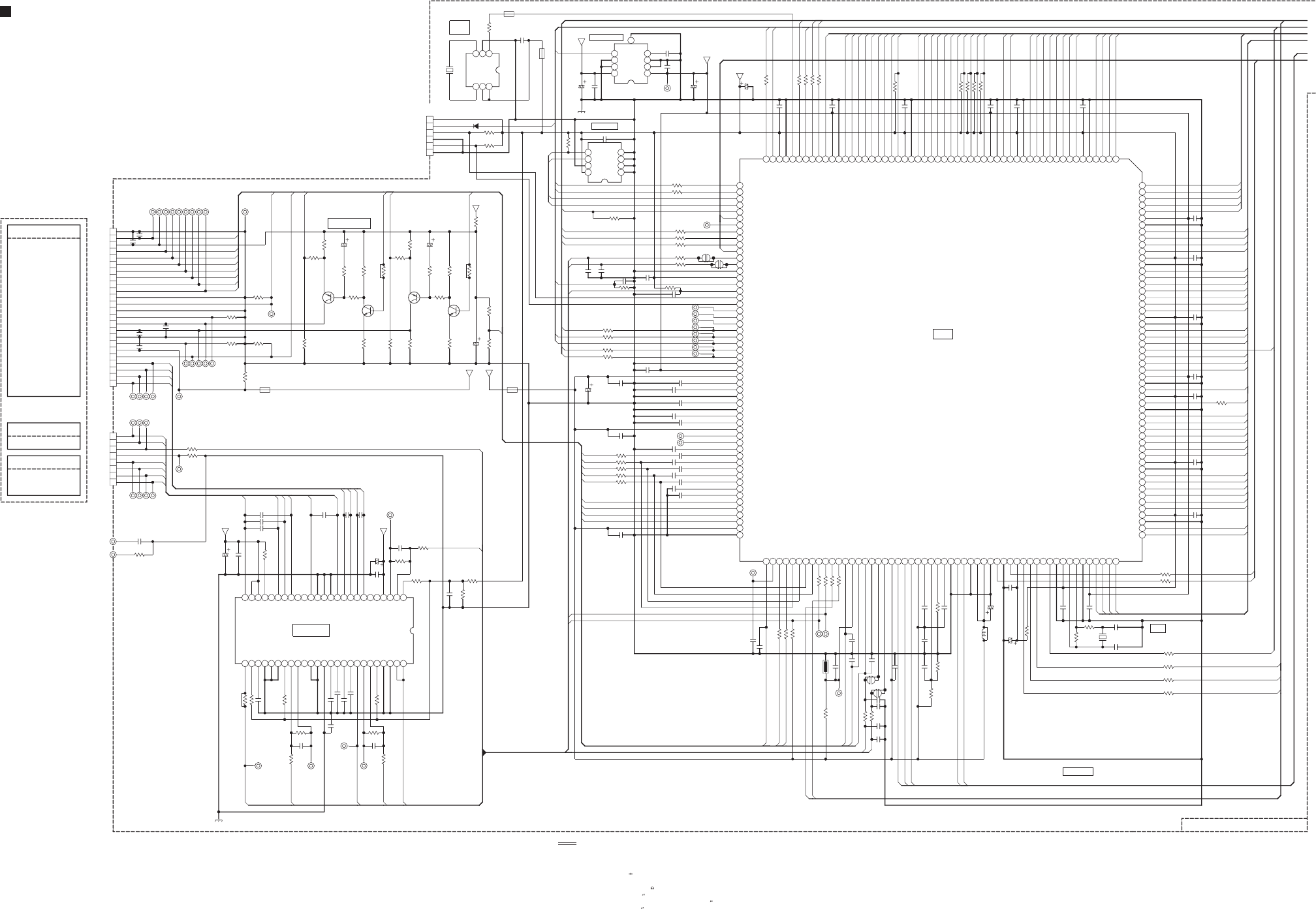

are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac-
teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem-
bling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isola-
tion check on the exposed metal parts of the product (an-
tenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular-
ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur-
rent must not exceed 0.5mA AC (r.m.s.).

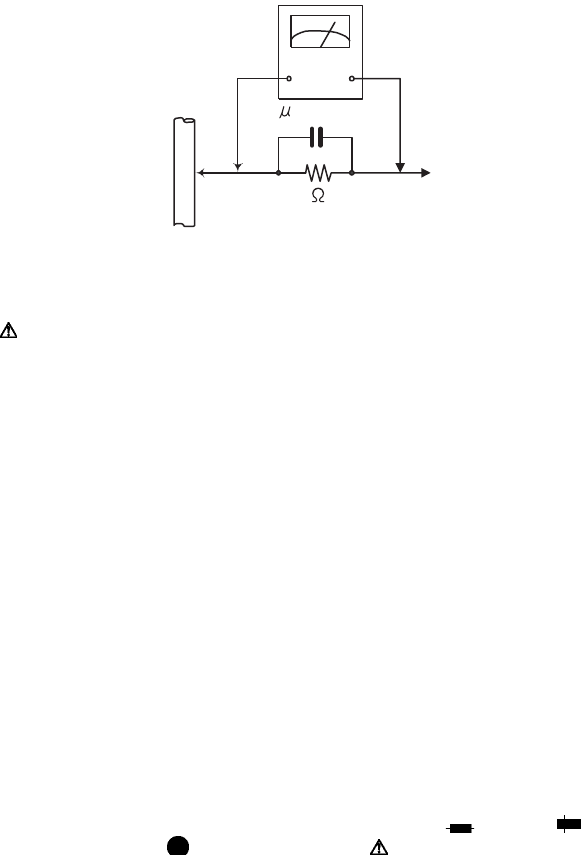

• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ω per volt or more sensitivity
in the following manner. Connect a 1,500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-
posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety

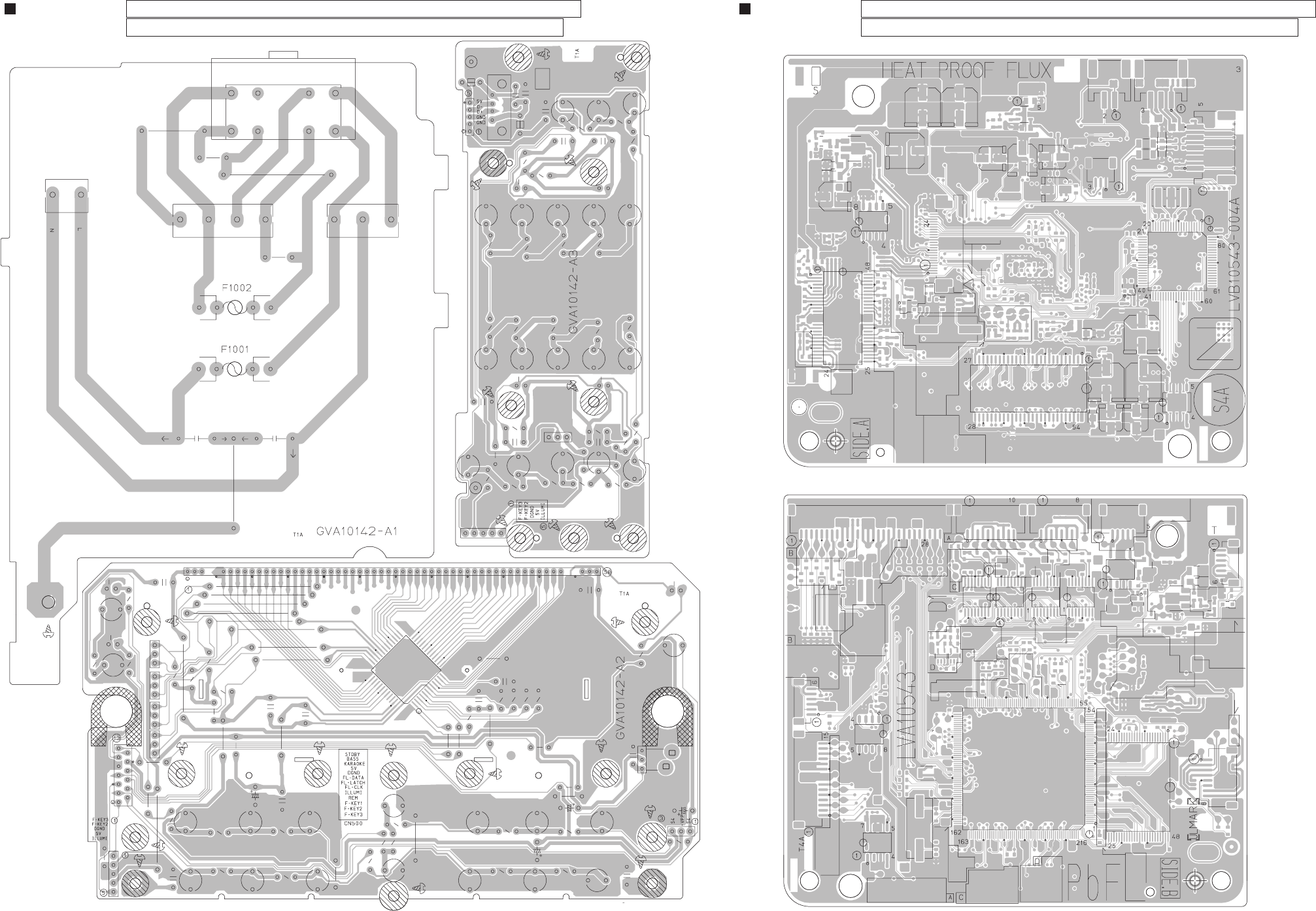

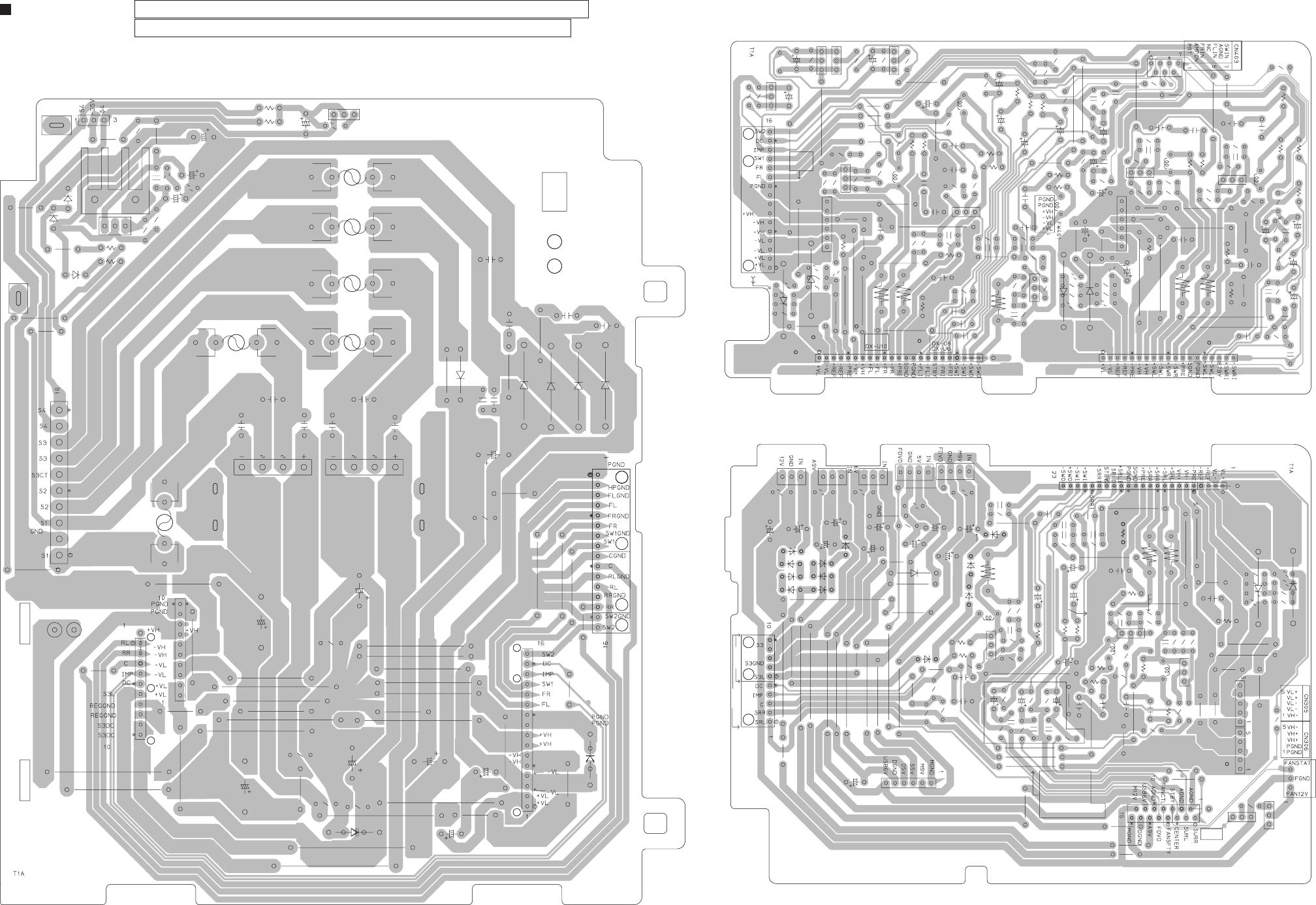

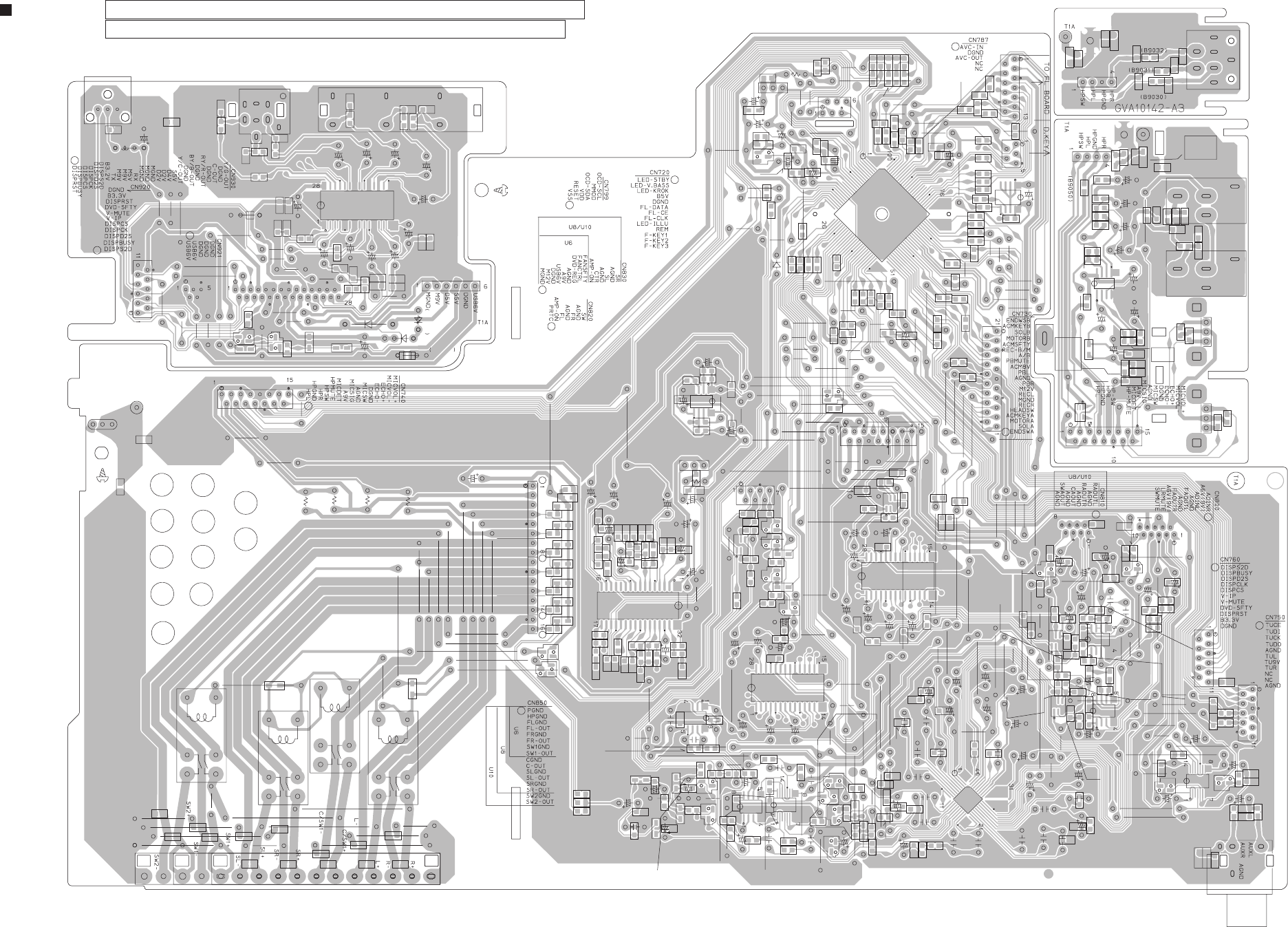

In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)

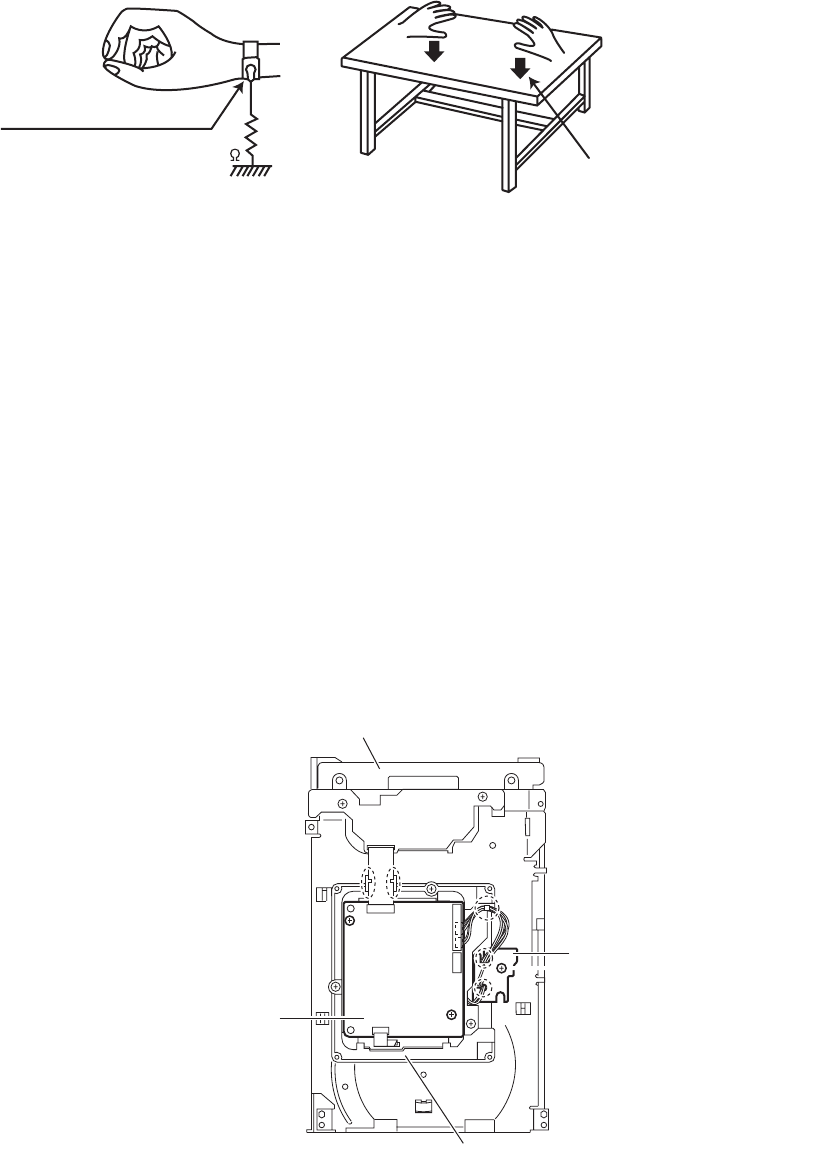

Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE
(No.MB616<Rev.002>)1-5
1.5 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.6 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

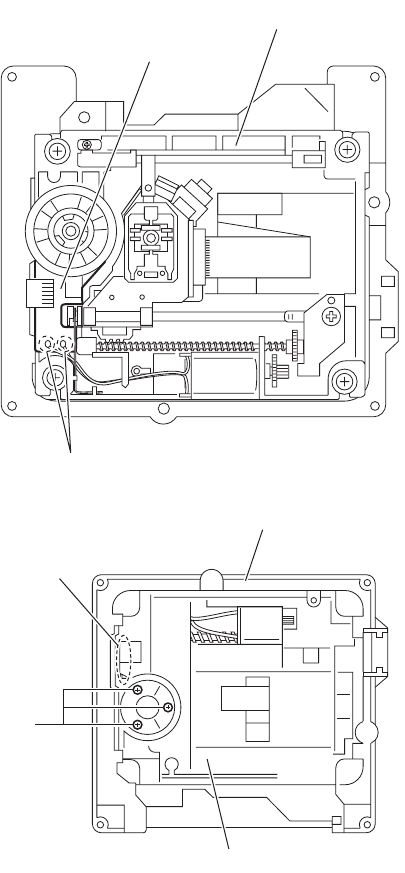

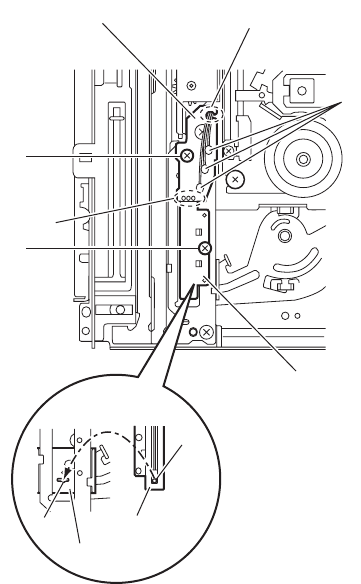

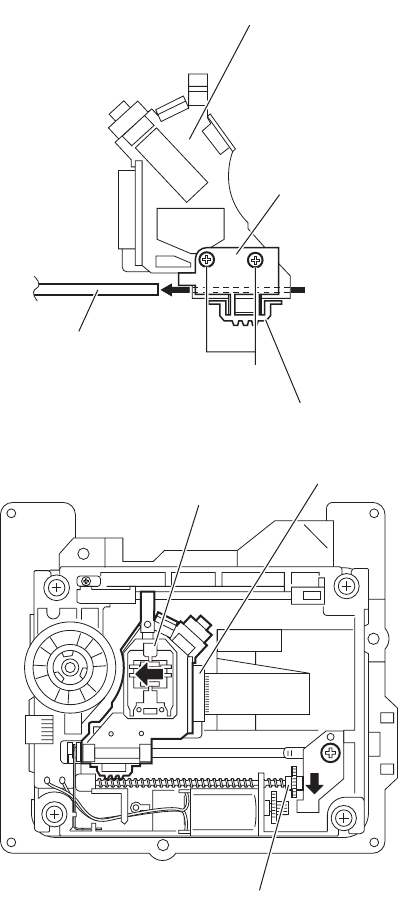

1.7 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land sections before the card wire is disconnected from the connecto on the servo board. (If the card wire
is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the card wire.
1M
Conductive material
(conductive sheet) or iron palate
(caption)
Anti-static wrist strap
DVD changer mechanism assembly
Switch board
DVD traverse mechanism assembly
DVD servo board
1-6 (No.MB616<Rev.002>)

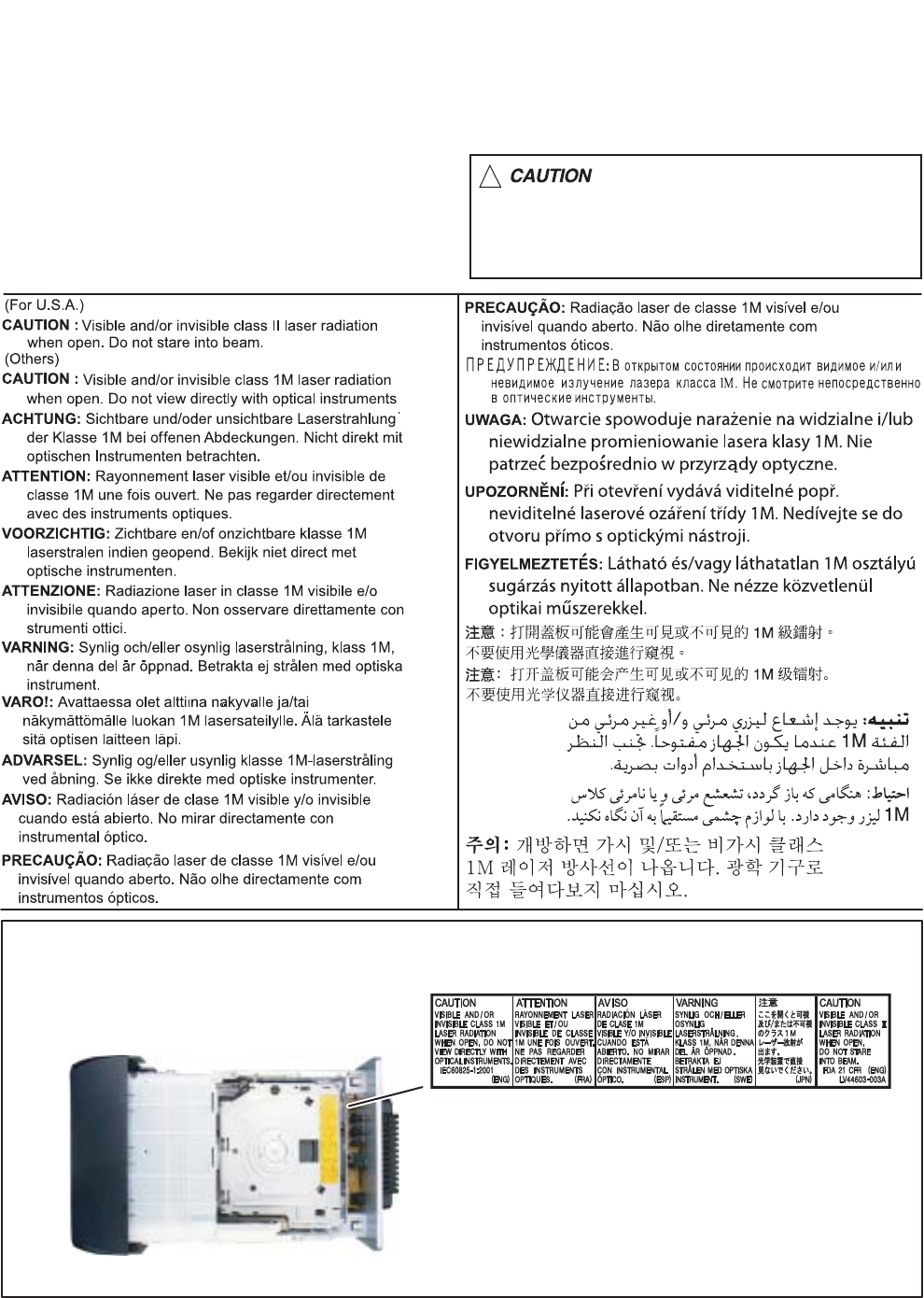

1.8 Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
REPRODUCTION AND POSITION OF LABELS and PRINT
!Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
WARNING LABEL and PRINT
(No.MB616<Rev.002>)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
1-8 (No.MB616<Rev.002>)
SECTION 3
DISASSEMBLY
3.1 Main body (Using figures are DX-U10)

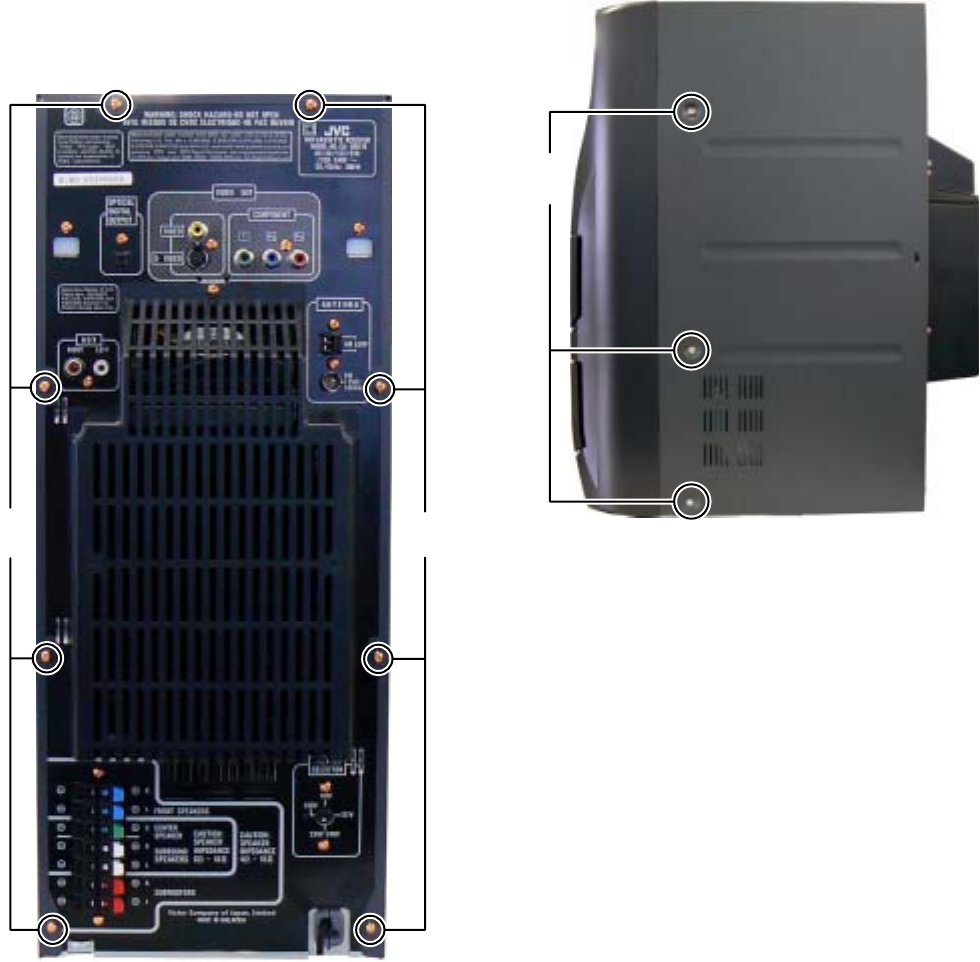

3.1.1 Removing the METAL COVER
(See Fig.1, 2)
(1) Remove the eight screws A attaching the METAL COVER.
(See Fig.1)
(2) Remove the six screws B attaching the both side of the
METAL COVER. (See Fig.2)
Fig.1
Fig.2
A
A
B
(No.MB616<Rev.002>)1-9
3.1.2 Removing the DVD CHANGER MECHANISM assembly
(See Fig.3 to 6)
(1) Remove the two screws C attaching the DVD MECHA-
NISM assembly. (See Fig.3)
(2) Disconnect the card wires from DVD MECHANISM assem-
bly connected to connector CN800 and CN810 of the MAIN
BOARD assembly. (See Fig.4)
(3) Disconnect the connector wire from USB board connected
to connector CN811 of the DVD BOARD assembly. (See
Fig.5)
(4) Disconnect the card wires from DVD BOARD assembly
connected to connector CN921 and CN930 of the VIDEO
board assembly. (See Fig.6)
Fig.3
Fig.4
Fig.5
Fig.6
CC
CN810
CN800
CN811
CN930
CN921
1-10 (No.MB616<Rev.002>)
3.1.3 Removing the VIDEO BOARD assembly
(See Fig.7, 8)
(1) Disconnect the card wire from MAIN BOARD assembly
connected to connector CN920 of the VIDEO BOARD as-
sembly. (See Fig.7)
(2) Disconnect the card wire from SURROUND AMP BOARD
assembly connected to connector CN931 of the VIDEO
BOARD assembly. (See Fig.7)
(3) Remove the three screws D attaching the VIDEO BOARD
assembly. (See Fig.8)
Fig.7
Fig.8
3.1.4 Removing the MECHA CHASSIS
(See Fig.9, 10)
(1) Remove the two screws E attaching the MECHA CHAS-
SIS. (See Fig.9)
(2) Remove the two screws F attaching the both side of
MECHA CHASSIS (See Fig.10)
Fig.9
Fig.10
CN920 CN931
D
E
F
(No.MB616<Rev.002>)1-11
3.1.5 Removing the REAR COVER with FAN
(See Fig.11, 12)
(1) Remove the One screw G attaching the REAR COVER.
(See Fig.11)
(2) Disengage six hooks a engaged REAR COVER. (See
Fig.11)
(3) Disconnect the connector wire from FAN connected to con-
nector CN304 of the SURROUND AMP BOARD assembly.
(See Fig.12)
Fig.11
Fig.12
G
hook
ahook
a
CN304
1-12 (No.MB616<Rev.002>)
3.1.6 Removing the TUNER PACK
(See Fig.13, 14)
(1) Disconnect the card wire from TUNER PACK connected to
connector CN750 of the MAIN BOARD assembly. (See
Fig. 13)
(2) Remove the two screws H attaching the TUNER PACK.
(See Fig.14)
Fig.13
Fig.14
CN750
H
(No.MB616<Rev.002>)1-13

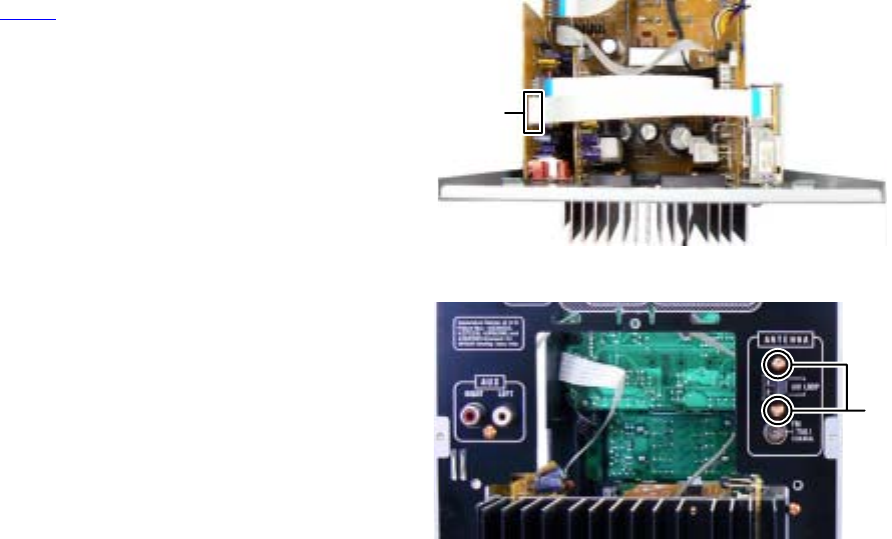

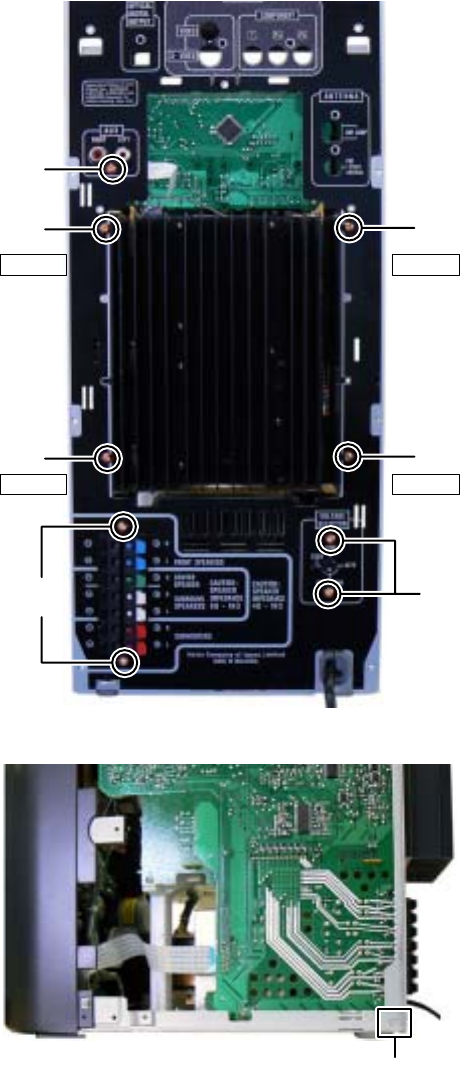

3.1.7 Removing the REAR PANEL
(See Fig.15, 16)
(1) Remove the four screws J attaching the HEAT SINK by or-
der. (See Fig.15)
(2) Remove the five screws K attaching the REAR PANEL.
(See Fig.15)
(3) Disengage two hooks b engaged both side of the REAR
PANEL. (See Fig.16)
Fig.15
Fig.16
order 1 order 2
order 3 order 4
J
J
J
J
K
K
K
hook b
1-14 (No.MB616<Rev.002>)

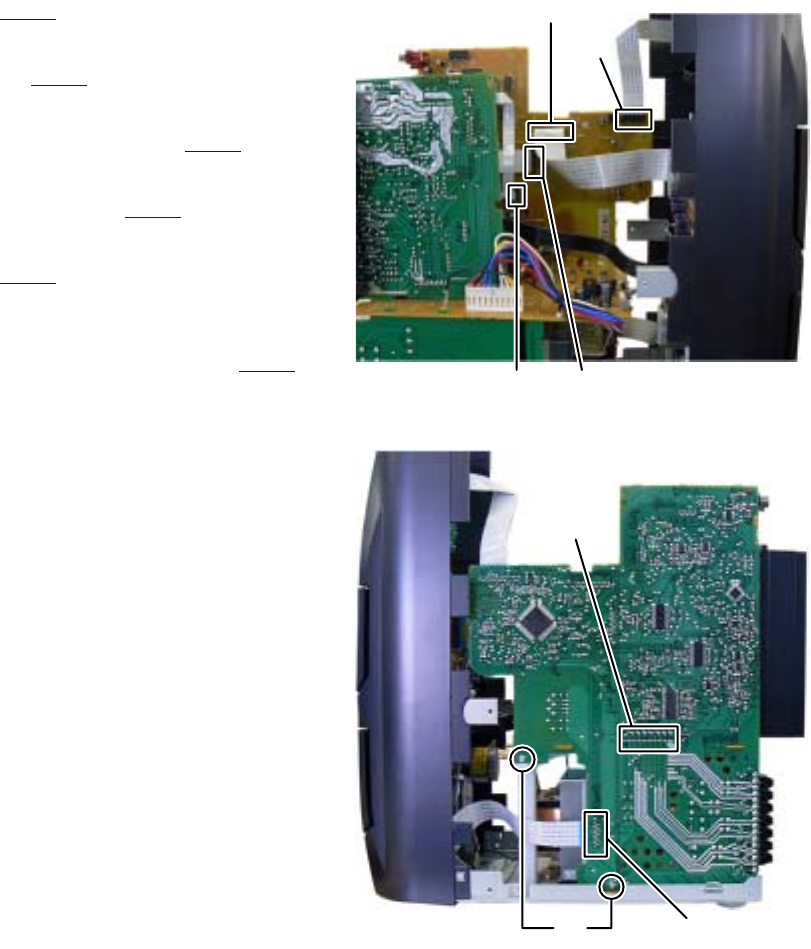

3.1.8 Removing the MAIN BOARD assembly
(See Fig.17, 18)
(1) Disconnect the card wire from FL BOARD assembly con-
nected to connector CN720 of the MAIN BOARD assem-
bly. (See Fig.17)
(2) Disconnect the card wire from CASSETTE MECHANISM A
connected to connector CN730 of the MAIN BOARD as-
sembly. (See Fig.17)
(3) Disconnect the card wire from SUBWOOFER AMP
BOARD assembly connected to connector CN820 of the
MAIN BOARD assembly. (See Fig.17)
(4) Disconnect the card wire from SURROUND AMP BOARD
assembly connected to connector CN830 of the MAIN
BOARD assembly. (See Fig.17)
(5) Disconnect the card wire from MIC BOARD assembly con-
nected to connector CN740 of the MAIN BOARD assem-
bly. (See Fig.18)
(6) Remove the two screws L attaching the MAIN BOARD as-
sembly. (See Fig.18)
(7) Disconnect the BOARD TO BOARD connector CN850
connected the MAIN BOARD assembly and REGULATOR
BOARD assembly. (See Fig.18) Fig.17
Fig.18
CN730
CN720
CN820 CN830
CN740
CN850
L
(No.MB616<Rev.002>)1-15

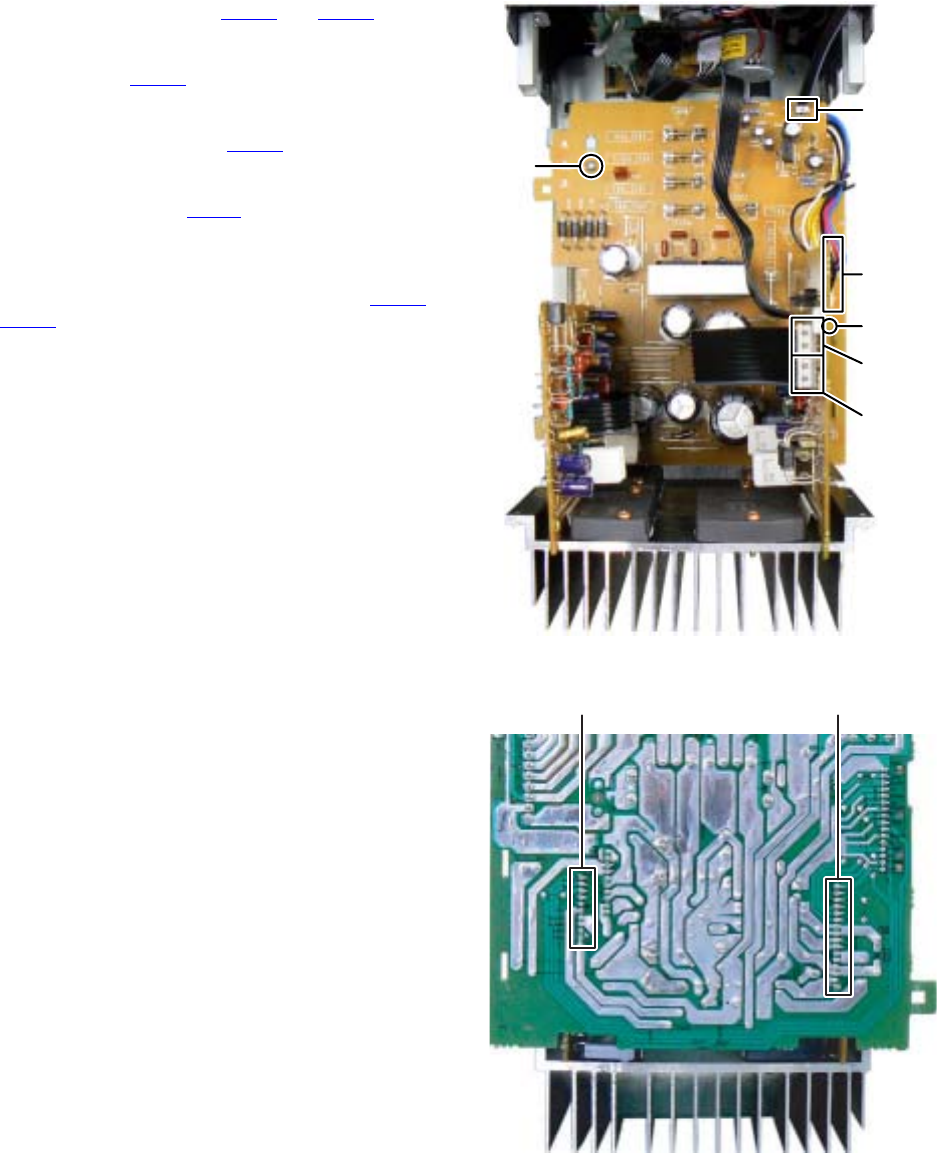

3.1.9 Removing the REGULATOR BOARD assembly
(See Fig.19, 20)
(1) Disconnect the card wire from REGULATOR BOARD as-
sembly connected to connector CN305 and CN306 of the
SURROUND AMP BOARD assembly. (See Fig.19)
(2) Disconnect the card wire from FL BOARD assembly con-
nected to connector CN207 of the REGULATOR BOARD
assembly. (See Fig.19)
(3) Disconnect the connector wire from TRANS BOARD as-
sembly connected to connector CN201 of the REGULA-
TOR BOARD assembly. (See Fig.19)
(4) Disconnect the EARTH WIRE from TRANS BOARD as-
sembly connected to pin PP201 of the REGULATOR
BOARD assembly. (See Fig.19)
(5) Remove the one screw M attaching the REGULATOR
BOARD assembly. (See Fig.19)
(6) Disconnect the BOARD TO BOARD connectors CN204
and CN205 connected to SURROUND AMP BOARD as-
sembly and SUBWOOFER AMP BOARD assembly. (See
Fig.20)
Fig.19
Fig.20
M
CN201
CN207
PP201
CN306
CN305
CN204 CN205
1-16 (No.MB616<Rev.002>)

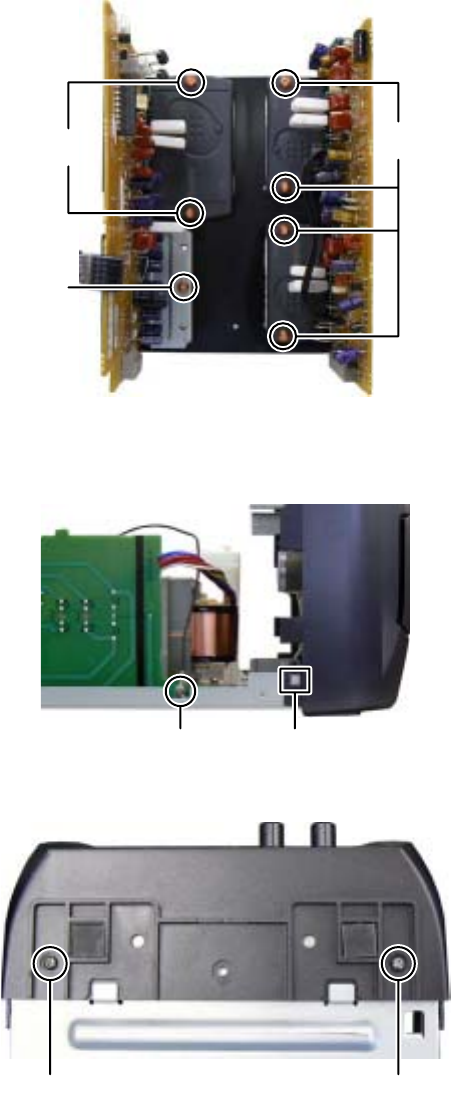

3.1.10 Removing the SURROUND AMP BOARD assembly
(See Fig.21)
(1) Remove the two screws N attaching the POWER AMP IC.
(2) Remove the one screw P attaching the IC BRACKET.
3.1.11 Removing the SUBWOOFER AMP BOARD assembly
(See Fig.21)
(1) Remove the four screws Q attaching the POWER AMP
ICs.
Fig.21
3.1.12 Removing the FRONT PANEL assembly
(See Fig.22, 23)
(1) Remove the one screw R attaching the EARTH WIRE from
MIC BOARD assembly. (See Fig.22)
(2) Remove the two screws S attaching the FRONT PANEL
assembly. (See Fig.23)
(3) Disengage two hooks c engaged both side of FRONT
PANEL assembly. (See Fig.22)
Fig.22
Fig.23
N
P
Q
R
hook c
SS
(No.MB616<Rev.002>)1-17
3.1.13 Removing the CASSETTE MECHANISM B
(SeeFig.24)
(1) Disconnect the card wire from CASSETTE MECHANISM B
connected to connector CN120 of the CASSETTE MECH-
ANISM BOARD assembly of the CASSETTE MECHA-
NISM A.
(2) Disconnect the connector wire from CASSETTE MECHA-
NISM B connected to connector CN200 of the CASSETTE
MECHANISM BOARD assembly of the CASSETTE
MECHANISM A.
(3) Remove the four screws T attaching the CASSETTE
MECHANISM B.
Fig.24
3.1.14 Removing the CASSETTE MECHANISM A
(See Fig.25)
(1) Remove the four screws U attaching the CASSETTE
MECHANISM A.
Fig.25
T
TT
T
CN200
CN210
U
UU
U
1-18 (No.MB616<Rev.002>)

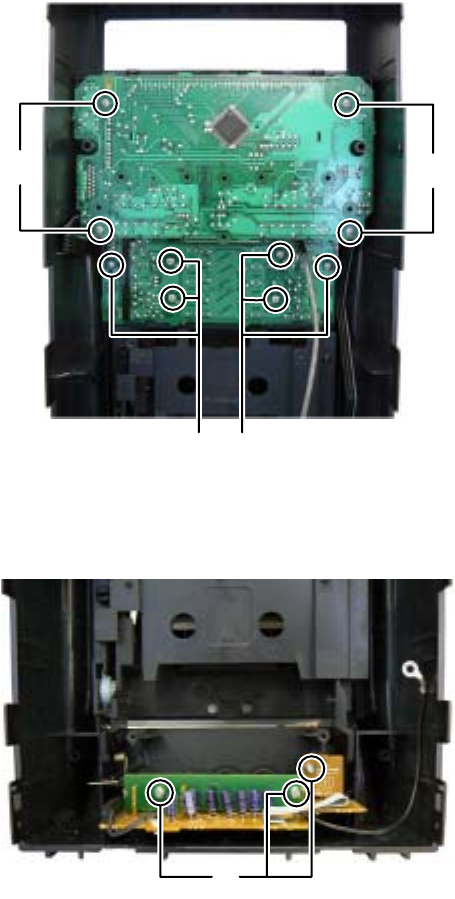

3.1.15 Removing the FL BOARD assembly and SWITCH BOARD assembly
(See Fig.26)
(1) Remove the four screws V attaching the FL BOARD as-
sembly.
(2) Remove the six screws W attaching the SWITCH BOARD
assembly.
Fig.26
3.1.16 Removing the MIC BOARD assembly
(See Fig.27)
(1) Remove the two volume knobs.
(2) Remove the three screws X attaching the MIC BOARD as-
sembly.
Fig.27
V
V
WW
X
(No.MB616<Rev.002>)1-19

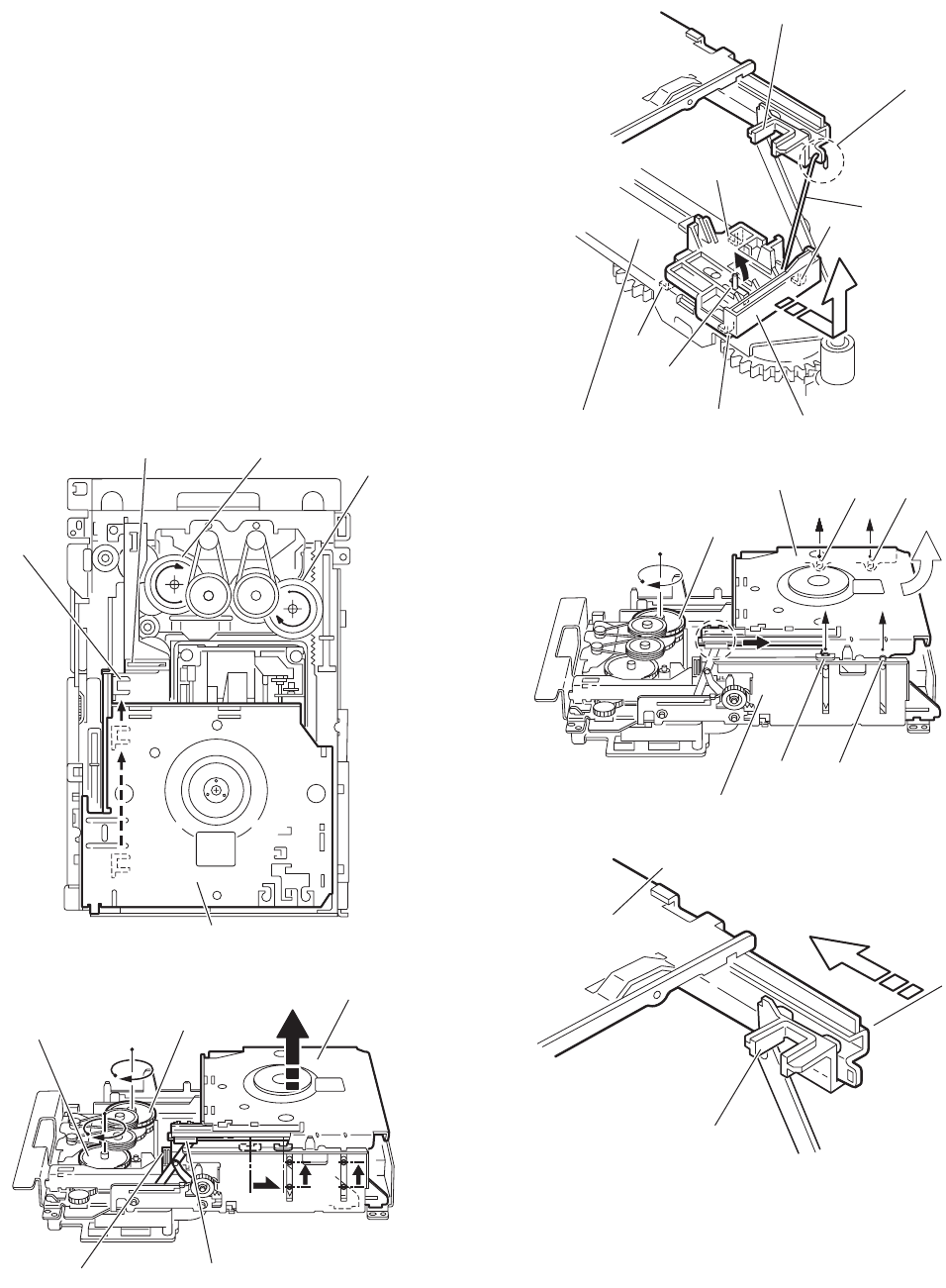

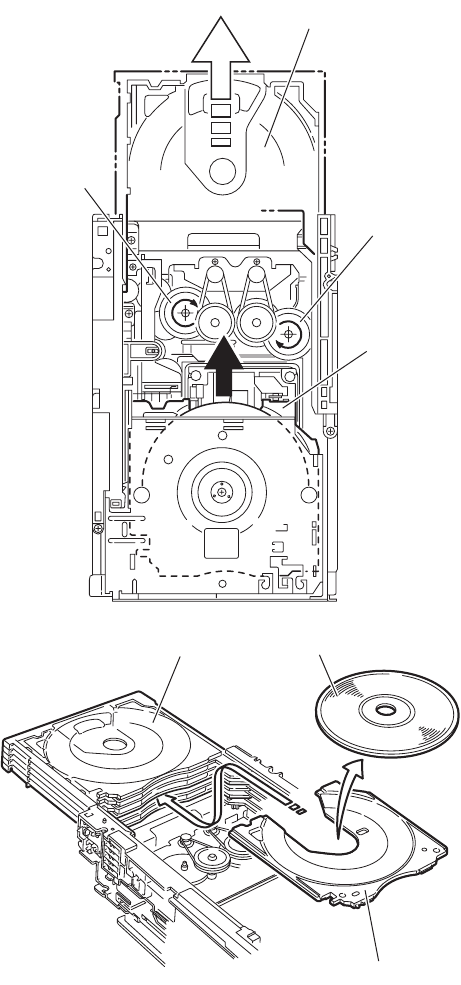

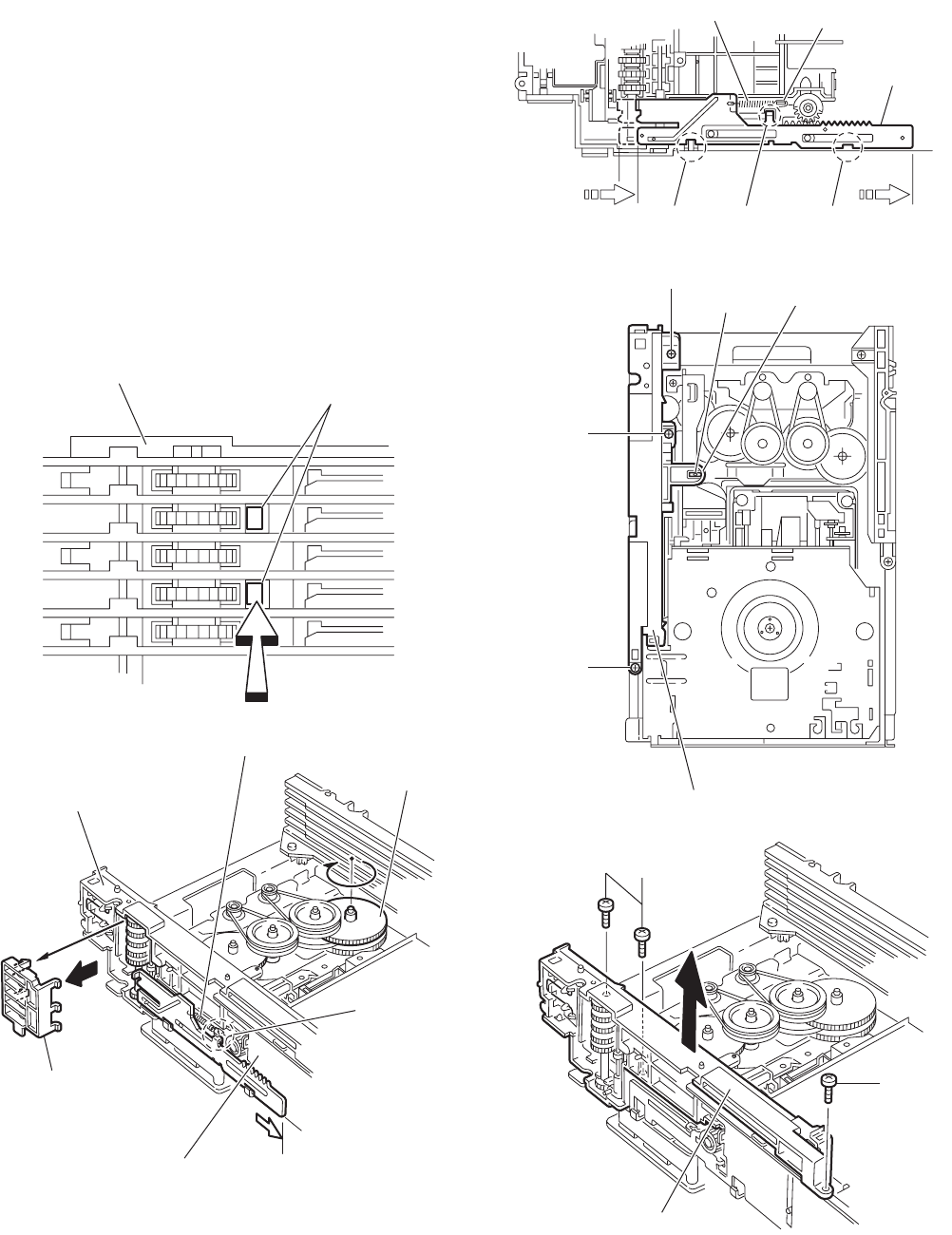

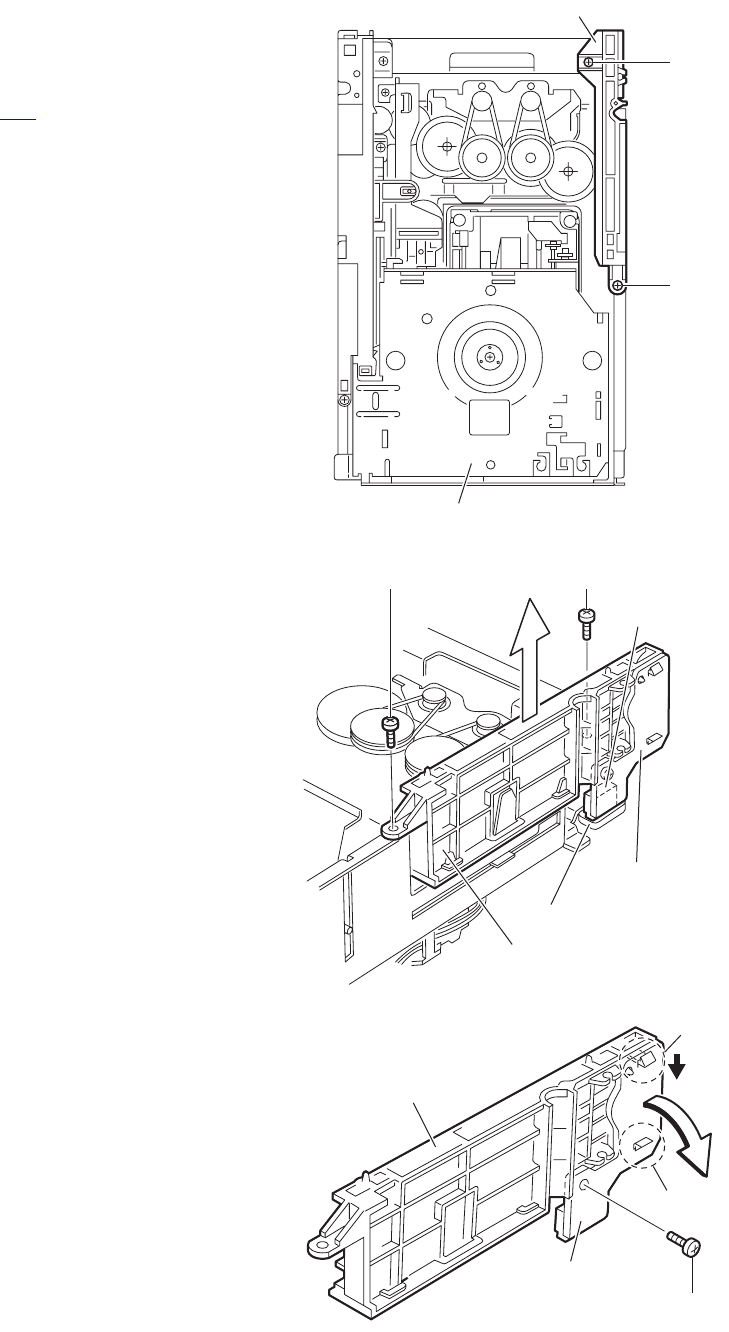

3.2 DVD changer mechanism assembly section
Remove the DVD changer mechanism assembly from the main body. (See "Removing the DVD changer mechanism assembly".)

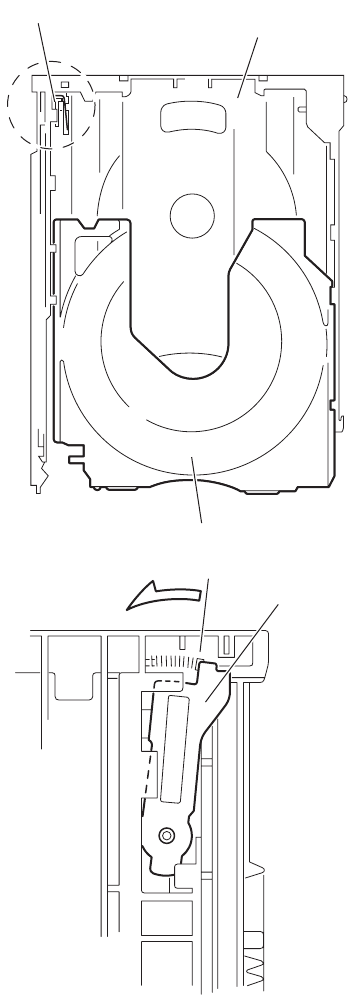

3.2.1 Removing the tray assemblies
(See Figs.1 to 5)
(1) From the top side of the main body, remove the two screws
A from the top cover and release the two joints a on the
both sides of the DVD changer mechanism assembly. (See
Figs.1 and 2.)
(2) Remove the two rods from the top cover and remove the
top cover from the lifter assembly. (See Figs.1 and 2.)
(3) Remove the open det. lever on the left side of the DVD
changer mechanism assembly. (See Fig.3.)
(4) From the right side of the DVD changer mechanism as-
sembly, draw out the tray assemblies toward the front while
pushing the part b of the side (R) assembly. (See Figs.4
and 5.)
Note:
The tray can be locked if all tray assemblies are at-
tached.
(5) From the topside of the DVD changer mechanism assem-
bly, move the stopper tabs c in the direction of the arrow
and release them. Pull out the tray assemblies from the
DVD changer mechanism assembly. (See Fig. 5.)
Note:
Remove the tray assembly from top tray 5 in order.
Reference:
When reattaching the tray assembly, or when removing the
disc remaining inside, refer to another section "3.3.15 Taking
out the disc in the play mode". Fig.1
Fig.2
Top cover
Lifter assembly
Rods
A
a
a
A
a
Rods Top cover
Lifter assembly
a
1-20 (No.MB616<Rev.002>)
Fig.3
Fig.4
Fig.5
Open det. leve
r
b
Tray assemblies Side(R) assembly
c
Tray assembly
(No.MB616<Rev.002>)1-21
3.2.2 Removing the DVD servo board
(See Figs.6 to 8)
Caution:
Solder the short land sections d on the DVD pickup before dis-
connecting the card wire extending from the DVD pickup. If
you do not follow this instruction, the DVD pickup may be dam-
aged.
(1) From the topside of the DVD changer mechanism assem-
bly, solder the short land sections d on the DVD pick up.
(See Fig.6.)
(2) From the bottom side of the DVD changer mechanism as-
sembly, disconnect the card wire from the connectors
(CN201, CN451) on the DVD servo board. (See Fig.7.)
Reference:
When connecting the card wire to the connector CN451,
pass it through the sections e on the DVD traverse
mechanism assembly. (See Fig.7.)
(3) Disconnect the wires from the connectors (CN452, CN453)
on the DVD servo board. (See Fig.7.)
(4) Remove the two screws B attaching the DVD servo board.
(See Fig.7.)
(5) From the reverse side of the DVD servo board, release the
lock of the connector CN101 in the direction of the arrow
and disconnect the card wire. (See Fig.8.)
Caution:
Unsolder the solders from the short land sections d after reas-
sembling. (See Fig.6.)
3.2.3 Removing the switch board
(See Fig.7)
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the screw C attaching the switch board on
the DVD changer mechanism assembly.
(2) Disconnect the wires from the connectors (CN452, CN453)
on the DVD servo board.
(3) Release the wires from the section f and remove the switch
board.
(4) Release the wires from the sections g and remove the
switch board.
Reference:
When reassembling, pass the wires through the sections (f, g)
as before.
Fig.6
Fig.7
Fig.8
DVD pickup
DVD changer mechanism assembly
d
C
DVD changer mechanism assembly
B
B
CN201
eCN453
CN451
Switch board
DVD traverse mechanism assembly
DVD servo board
f
g
CN452
DVD servo board CN101
Lock
1-22 (No.MB616<Rev.002>)
3.2.4 Removing the motor board
(See Figs.9 and 10)
(1) From the top side of the DVD changer mechanism assem-
bly, remove the two belts from the motor pulleys. (See
Fig.9.)
Note:
Take care not to attach grease on the belt.
(2) Remove the two screws D attaching the motors to the load-
er assembly. (See Fig.9.)
(3) From the bottom side of the DVD changer mechanism as-
sembly, remove the two screws E. (See Fig.10.)
(4) Disconnect the connector CN2 on the motor board from the
tray switch board and remove the motor board. (See
Fig.10.)
(5) Disconnect the card wire from the connector CN1 on the
forward side of the motor board. (See Fig.10.)
Note:
When connecting the card wire, let the card wire through the
slots h of the motor board. (See Fig.10.)
Reference:
You need not to remove the tray assemblies, and in such case,
move it.
3.2.5 Removing the motor
(See Fig. 10)
• Remove the motor board.
(1) From the reverse side of the motor board, unsolder the four
soldered sections i on the motor board.
(2) From the forward side of the motor board, remove the mo-
tors.
Fig.9
Fig.10
Motor Motor
Motor pulleys Loader assembly
Belt
Belt
D
D
E
h
CN2
Motors
i
CN1
E
Motor board
DVD changer mechanism assembly
Tray switch
board
Motors
Motor board
(No.MB616<Rev.002>)1-23
3.2.6 Removing the DVD traverse mechanism assembly
(See Fig.11)
• Remove the tray assemblies and DVD servo board.
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the three screws F attaching the DVD
traverse mechanism assembly.
(2) Remove the wires from the section j.
(3) Take out the DVD traverse mechanism assembly from the
DVD changer mechanism assembly.
Fig.11
F
F
j
F
DVD changer mechanism assembly
DVD traverse mechanism assembly
1-24 (No.MB616<Rev.002>)

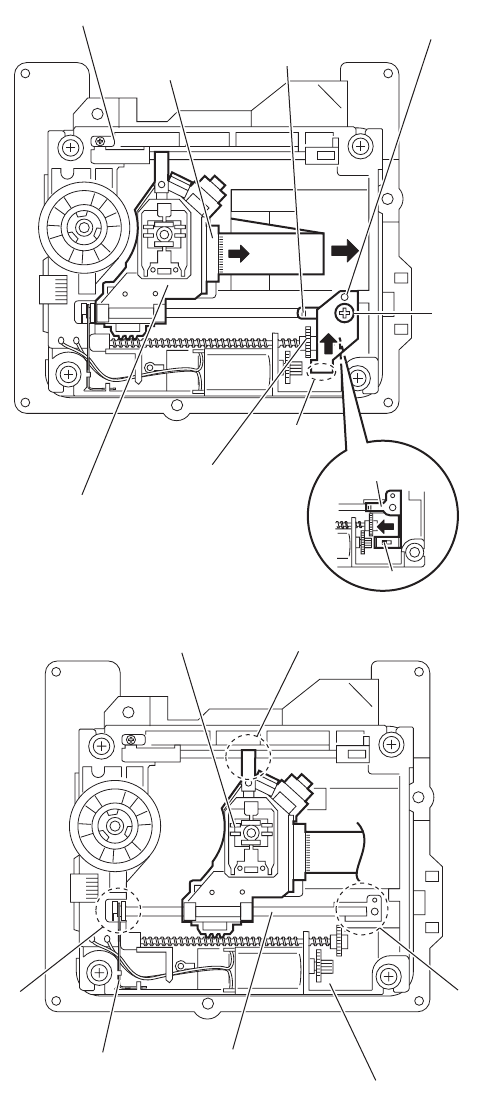

3.2.7 Removing the DVD pickup
(See Figs.12 to 14)
• Remove the tray assemblies, DVD servo board and DVD
traverse mechanism assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, release the lock of the connector on the DVD pickup
and disconnect the card wire in the direction of the arrow.
(See Fig.12.)
(2) Turn the screw shaft gear in the direction of the arrow 1 to
move the DVD pickup in the direction of the arrow 2. (See
Fig.12.)
(3) Remove the screw G attaching the feed bracket and re-
move the feed bracket from the sections k. (See Fig.12.)
(4) Release the claw m of the thrust spring in the direction of
the arrow and remove the thrust spring. (See Fig.12.)
(5) Remove the guide shaft from the sections (n, p) on the
C.TM chassis. (See Fig.13.)
(6) Remove the section q of the DVD pickup. (See Fig.13.)
(7) Remove the two screws H attaching the rack arm spring
and rack arm. (See Fig.14.)
(8) Pull the guide shaft from the DVD pickup in the direction of
the arrow. (See Fig.14.)
3.2.8 Attaching the DVD pickup
(See Figs.12 to 14)
(1) Attach the guide shaft to the DVD pickup and attach the
rack arm spring and rack arm with the screws H. (See
Fig.14.)
(2) Attach the section q of the DVD pickup to the C.TM chassis
first and attach the guide shaft to the sections (n, p). (See
Fig.13.)
Reference:
When attaching the guide shaft to the section p, attach it
under the rod spring. (See Fig.13.)
(3) Attach the thrust spring and feed bracket with the screw G.
(See Fig.12.)
(4) Turn the screw shaft gear in the direction of the arrow 1 to
move the DVD pickup in the direction of the arrow 2. (See
Fig.15.)
(5) Connect the card wire to the connector on the DVD pickup.
(See Fig.15.)
Fig.12
Fig.13
2
1
Thrust spring
Thrust spring
DVD pickup
Connector
Screw shaft gear
G
DVD traverse mechanism assembly
k
m
Feed bracket
DVD pickup
Guide shaft
C.TM chassis
n
p
Rod spring
q
(No.MB616<Rev.002>)1-25
Fig.14
Fig.15
DVD pickup
Rack arm
Rack arm spring
H
Guide shaft
2
2
2
1
Screw shaft gear
DVD pickup
Connector
1-26 (No.MB616<Rev.002>)
3.2.9 Removing the spindle motor board
(See Figs.16 and 17)
• Remove the tray assemblies, DVD servo board and DVD
traverse mechanism assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, remove the wires from the soldered sections r on the
spindle motor board. (See Fig.16.)
(2) From the bottom side of the DVD traverse mechanism as-
sembly, remove the three screws J attaching the spindle
motor board. (See Fig.17.)
Reference:
When attaching the spindle motor board, let the card wire
through the hole s on the C.TM chassis. (See Fig.17.)
Fig.16
Fig.17
r
Spindle motor board
DVD traverse mechanism assembly
J
C.TM chassis
DVD traverse mechanism assembly
s
(No.MB616<Rev.002>)1-27
3.2.10 Removing the feed motor
(See Figs.18 and 19)
• Remove the tray assemblies and DVD traverse mechanism
assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, remove the screw K attaching the feed bracket and re-
move the feed bracket from the sections t. (See Fig.18.)
(2) Release the claw u of the thrust spring in the direction of
the arrow and remove the thrust spring. (See Fig.18.)
(3) Remove the screw shaft from the section v and remove it
in the direction of the arrow. (See Fig.19.)
(4) Remove the middle gear. (See Fig.19.)
(5) Remove the screw L attaching the feed motor to the C.TM
chassis. (See Fig.19.)
(6) Remove the wires from the soldered sections w on the
spindle motor board. (See Fig.19.)
(7) Take out the feed motor from the motor base.
Reference:
After attaching the feed motor, pass the wires through the sec-
tions x on the C.TM chassis as before. (See Fig.19.)
Fig.18
Fig.19
Thrust spring
Thrust spring
K
t
u
Feed bracket
Spindle motor board
Screw shaft
Middle gear
C.TM chassis
v
x
w
L
1-28 (No.MB616<Rev.002>)
3.2.11 Removing the side (L) and tray switch board
(See Figs.20 to 22)
• Remove the tray assemblies.
(1) From the topside of the DVD changer mechanism assem-
bly, remove the two screws M attaching the side (L). (See
Fig.20.)
(2) From the left side of the DVD changer mechanism assem-
bly, disconnect the connector CN3 on the tray switch board
from the motor board and detach the side (L) in an upward
direction. (See Fig.21.)
(3) Remove the screw N attaching the tray switch board to the
side (L). (See Fig.22.)
(4) Release the joint tab y of the side (L) in the direction of the
arrow 1 and release the joint tab z while removing the tray
switch board in the direction of the arrow 2. (See Fig.22.)
Fig.20
Fig.21
Fig.22
M
SIde(L)
M
DVD changer mechanism assembly
CN3
Side(L)
MM
Motor board
Tray switch board
y
z
N
Tray switch board
Side(L) 1
2
(No.MB616<Rev.002>)1-29
3.2.12 Removing the side (R) assembly
(See Fig.23 to 27)
• Remove the tray assemblies and DVD servo board.
(1) From the inside of the side (R) assembly, release the two
tabs aa of the gear cover and remove the gear cover out-
ward. (See Figs.23 and 24.)
(2) From the right side of the DVD changer mechanism as-
sembly, remove the elevator spring attached to the hook
ab of the loader assembly. (See Figs.24 and 25.)
(3) From the top side of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the elevator cam
rearward. (See Fig.25.)
(4) Move the two slots ac and joint ad of the elevator cam and
remove the elevator cam outward. (See Fig.25.)
(5) Remove the three screws P and detaches the side (R) as-
sembly upward. (See Figs.26 and 27.)
Note:
When reattaching the side (R) assembly, make sure to fit the
shaft (part ae) into the slot of the select lever. (See Fig.26.)
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
aa
Side(R) assembly
Side(R) assembly
Elevator spring
Gear cover
ab
Gear 1
Loader assembly
Elevator cam
Elevator spring ab
ac acad
P
Side(R) assembly
P
P
ae Select lever
Side(R) assembly
P
P
1-30 (No.MB616<Rev.002>)
3.2.13 Removing the lifter assembly
(See Figs.28 to 32)
• Remove the tray assemblies, DVD servo board, side (L) and
side (R) assembly.
(1) From the top side of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the lifter assembly
upward. (See Figs.28 and 29.)
(2) Turn the gear 2 clockwise to move the hook toward the
front until it stops. (See Figs.28 and 29.)
(3) Move the hook stopper in the direction of the arrow 2 while
pushing the tab af of the hook stopper to unlock it in the di-
rection of the arrow 1 and release four joints ag to detach
from the rack holder. (See Fig.30.)
(4) Release the rod (L) from part ah. (See Fig.30.)
(5) Turn the gear 1 clockwise again to move the lifter assembly
upward. (See Fig.31.)
(6) Remove the lifter assembly from the DVD changer mecha-
nism assembly upward at the positions ai where the four
pins on the both sides of the lifter assembly fit to the notch-
es of the loader assembly. (See Fig.31.)
(7) Move the lifter assembly in the direction of the arrow and
release it from the hook. (See Fig.32.)
Fig.28
Fig.29
Fig.30
Fig.31
Fig.32
Gear 1
Lifter assembly
Hook
Hook stopper Gear 2
Gear 2 Gear 1
Hook
Hook stopper
Lifter assembly
Hook
Hook stopper
Rod(L)
ah
ag
ag
ag
ag
af
12
Rack holder
Gear 1
ai ai
ai ai
Lifter assembly
Loader assembly
Lifter assembly
Hook
(No.MB616<Rev.002>)1-31
3.2.14 Removing the sensor board and SV resistor
(See Fig.33)
• Remove the tray assemblies, side (L), side (R) assembly and
lifter assembly.
(1) Remove the solders from the soldered sections aj on the
sensor board and remove the wires.
(2) Remove the two screws Q and take out the sensor board
with the SV resistor.
Reference:
• Remove the soldered section ap on the sensor board as re-
quired.
• When reassembling, pass the wires through the slot ak of
the sensor board as before.
Note:
When reattaching the SV. resister, fit the projection am on the
bottom of the SV. resister into slot an of the sensor slider.
Fig.33
Q
Q
ap
Sensor board ak
SV resistor
am
an SV resistor
Slider
aj
1-32 (No.MB616<Rev.002>)
3.2.15 Taking out the disc in the play mode
(See Fig.34 to 37)
Reference:
Refer to "Removing the tray assemblies".
(1) From the top side of the DVD changer mechanism assem-
bly, remove the top cover.
(2) Unlock the tray assemblies and draw out the tray assem-
blies toward the front.
(3) From the top side of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the lifter assembly
upward. (See Fig.34.)
(4) Turn the gear 2 clockwise to move the sub tray remaining
inside the lifter assembly toward the front, then pull out.
(See Fig.34.)
(5) Take out the disc on the sub tray. (See Fig.35.)
(6) After clearing away the disc, insert the sub tray into the
main tray. (See Fig.36.)
Note:
When reattaching the sub tray, move the tray stopper on
the bottom of the main tray in the direction of the arrow
to lock the sub tray certainly. (See Figs.36 and 37.)
(7) Push the tray assembly toward the DVD changer mecha-
nism assembly and reattach.
Fig.34
Fig.35
Sub tray
Gear 1
Tray assembly
Gear 2
Tray assembly
Sub tray
Disc
(No.MB616<Rev.002>)1-33
Fig.36
Fig.37
Main tray
Sub tray
Tray stopper
Tray stoppe
r
1-34 (No.MB616<Rev.002>)
SECTION 4
ADJUSTMENT
4.1 Attention in service of DVD section
(1) When pickup, Flash ROM, DVD module board were changed, initialize EEPROM by all means.
(2) When full initialization was executed, execute learning with a DVD test disk by all means.
Test disc : VT-501, VT-502
Learning method : It is adjusted automatically by normal playback of a DVD test disc.
4.2 TO ENTER DVD TEST MODE.
4.3 TO EXIT DVD TEST MODE
During TEST MODE, press POWER key.
4.4 DVD MODULE EEPROM INITIALIZATION
4.5 DEVICE KEY CHECKSUM DISPLAY
4.6 DVD CHECK MODES
a) AC Power OFF.
b) Press and hold STOP + DVD PLAY keys on the front panel. Then AC power ON while holding these keys.
c) DVD Mecha will start in TEST MODE. The following will be display on the set.
xx = Destination information as follows; JC/1U/D/E/2U/3U/UB/UT/4U/UY/EE/UF
y = region number
v = study state information from MECHA-CON
w = initialization state from MECHA-CON
'v' Status
DVD Learned
'CD Learned
Initialize Status
'w' Status
y
xxwvT
0123
YNYN
YNYN
03
Normal Full
BLANK(0xFF)
Not Initialize
No
1)
2)
STEP NORMAL INITIALIZE FULL INITIALIZE
During DVD TEST MODE Press key on front panel.
System display -> w status w = 0 (Normal initialize)
Press STOP key on front panel and hold for 4 seconds.
w = 3 (Full initialize)
(KEY INDEX)
(DEVICE KEY INFO)
(DEVICE KEY CHECKSUM)
b) System will display as follows.
c) Press MENU again to enter DEVICE KEY CHECKSUM display for DVD-VR MODE (CPRM).
(KEY INDEX)
(DEVICE KEY INFO)
(DEVICE KEY CHECKSUM)
d) System will display as follows.
xMPxxC Px
xRM xxC Px
a) During TEST MODE, press MENU key on remocon to enter DEVICE KEY CHECKSUM display
for DVD-AUDIO (CPPM).
(TEST MODE, MODE STATUS, CHECK MODE)
i) During CHECK mode, press '1' key on REMOTE CONTROL to START PLAYBACK.
ii) During CHECK mode, press '2' key on REMOTE CONTROL to perform SEARCH TNO+1
iii) During CHECK mode, press '3' key on REMOTE CONTROL to perform SEARCH TNO-1
iv) During CHECK mode, press '4' key on REMOTE CONTROL to light up CD_LD and
display CD laser current.
(2 seconds)
Status: AA 00 cc cc jj jj
(2 seconds)
(Static)
v) During CHECK mode, press '5' key on REMOTE CONTROL to light up DVD_LD and
display DVD laser current. (2 seconds)
(Static)
vi) During CHECK mode, press '6' key on REMOTE CONTROL to enter DVD x 2 JITTER
MEASUREMENT MODE. (2 seconds)
(Static)
vii) During CHECK mode, press '7' key on REMOTE CONTROL to view DVD module EEPROM
content in -1 address step. (2 seconds)
(Static)
CHECK
BAY KCP LA
BOB E
WL
jcc jjc cj
CHE
CK
LD RSC DL
jcc jjc cj
DL RSD VL
jcc jjc cj
TXJI1
jcc jjc cj
PB DEEW
jcc jjc cj
D
a) Press MENU key again to enter CHECK MODE.
(No.MB616<Rev.002>)1-35
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.
viii) During CHECK mode, press '8' key on REMOTE CONTROL to view DVD module
EEPROM content in +1 address step.
(2 seconds)
(Static)
ix) During CHECK mode, press '9' key on REMOTE CONTROL to perform TEMPERATURE
SENSOR VALUE. (2 seconds)
(Static)
PE E
jcc jjc cj
EPM
T
jcc jjc cj
x) During CHECK mode, press '10' key on REMOTE CONTROL to perform SEARCH
DVD_DL PARALLEL DISC DESIGNATED POSITION and JITTER MEASUREMENT
(2 seconds)
(Static)
DD-D VL
jcc jjc cj
xi) During CHECK mode, press '0' key on REMOTE CONTROL to perform monitor output.
(2 seconds)
(Static)
xii) During CHECK mode, press '+10' key to INITIALIZE DVD module EEPROM.
NIMOT
jcc jjc cj
ITIN
xiii) During CHECK mode, press PLAY key on REMOTE CONTROL to start PLAYING
and obtain LASER CURRENT and JITTER value.
(2 seconds)
(Static)
RJTLSI
jcc jjc cj
xiv) During CHECK mode, press STOP key on REMOTE CONTROL to stop JITTER
measurement. (Static) jcc jjc cj
FDW
b) During CHECK mode, at any time press MENU key to exit CHECK mode and return to
starting screen of DVD TEST MODE.
OR
(No.MB616<Rev.002>)
VPT
Printed in Japan
Victor company of Japan, Limited
Audio/Video Systems category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
SCHEMATIC DIAGRAMS
DX-U10A,DX-U10US,DX-U10UX
DX-U10UG,DX-U10UN,DX-U8US
DX-U8UX,DX-U8UG,DX-U8UN
DX-U6US,DX-U6UX,DX-U6UG
DX-U6UN
Contents
Block diagrams

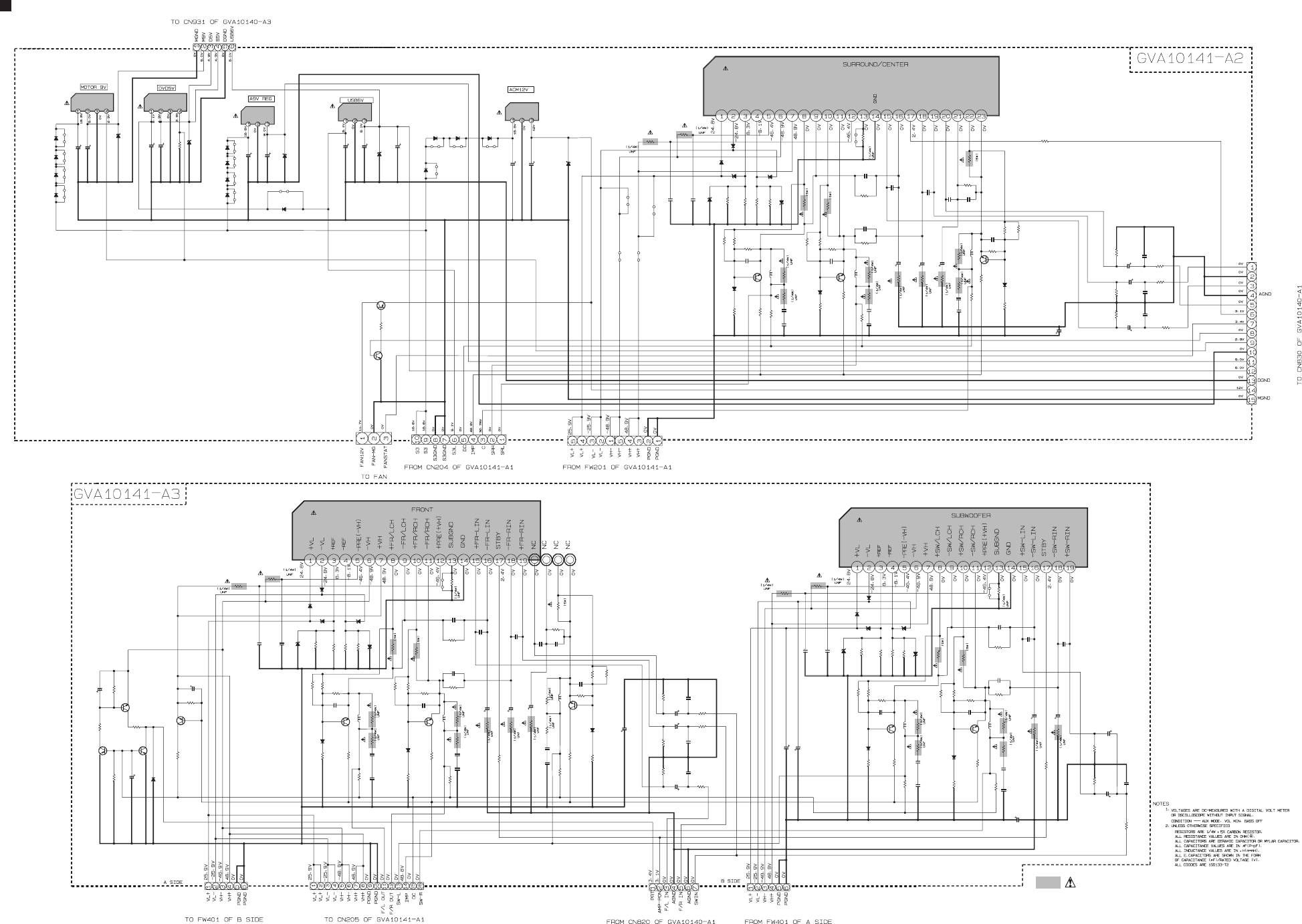

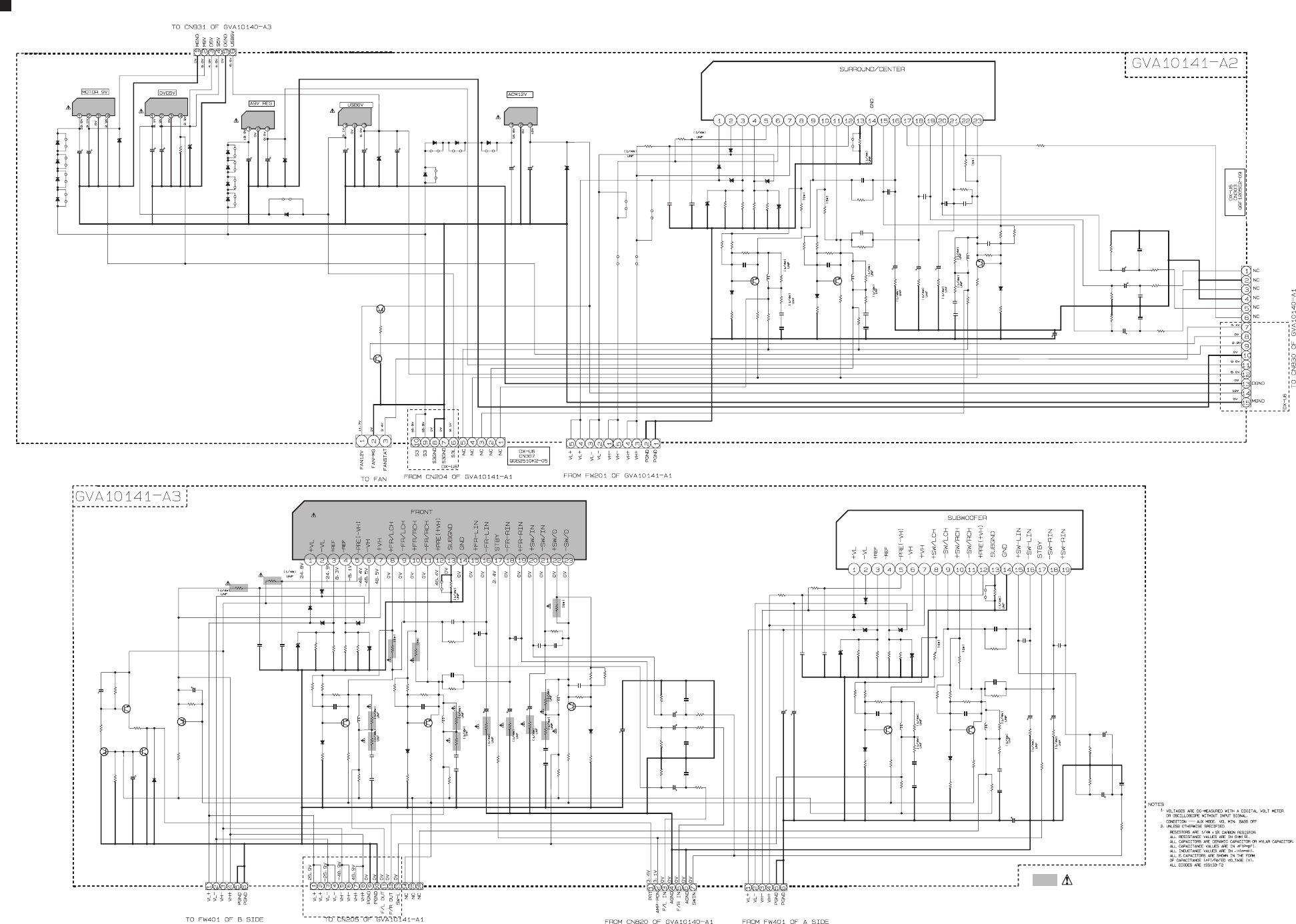

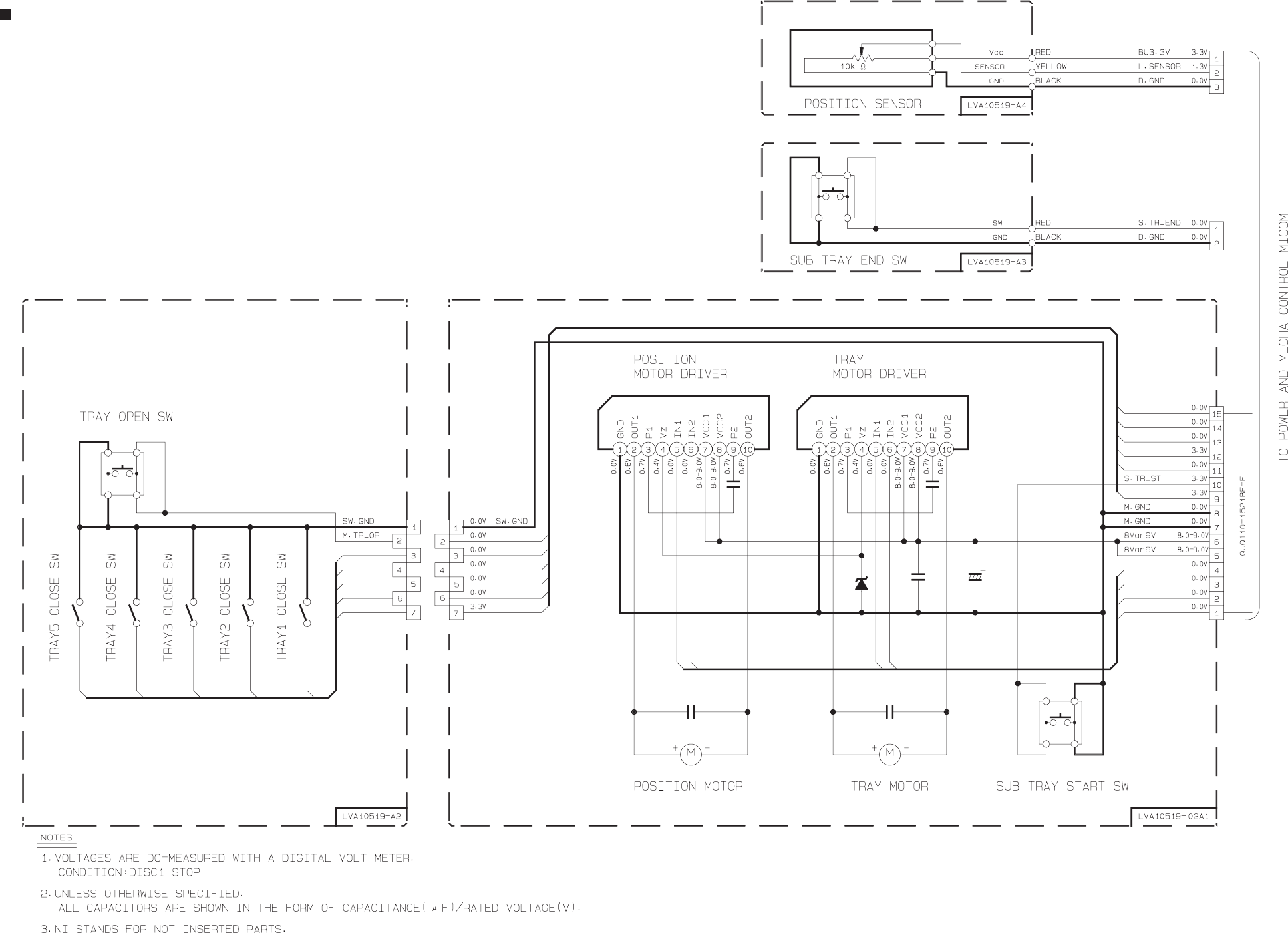

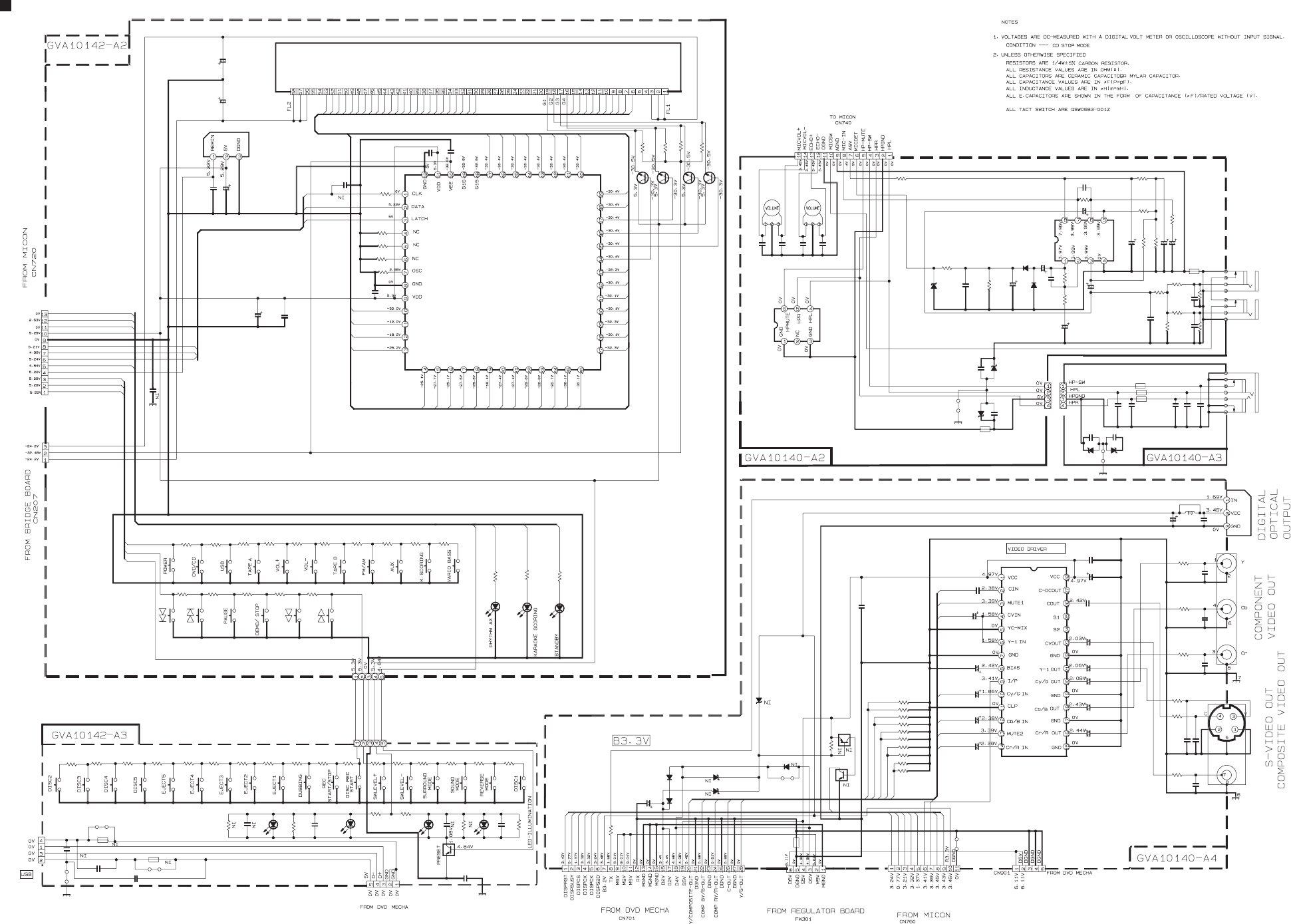

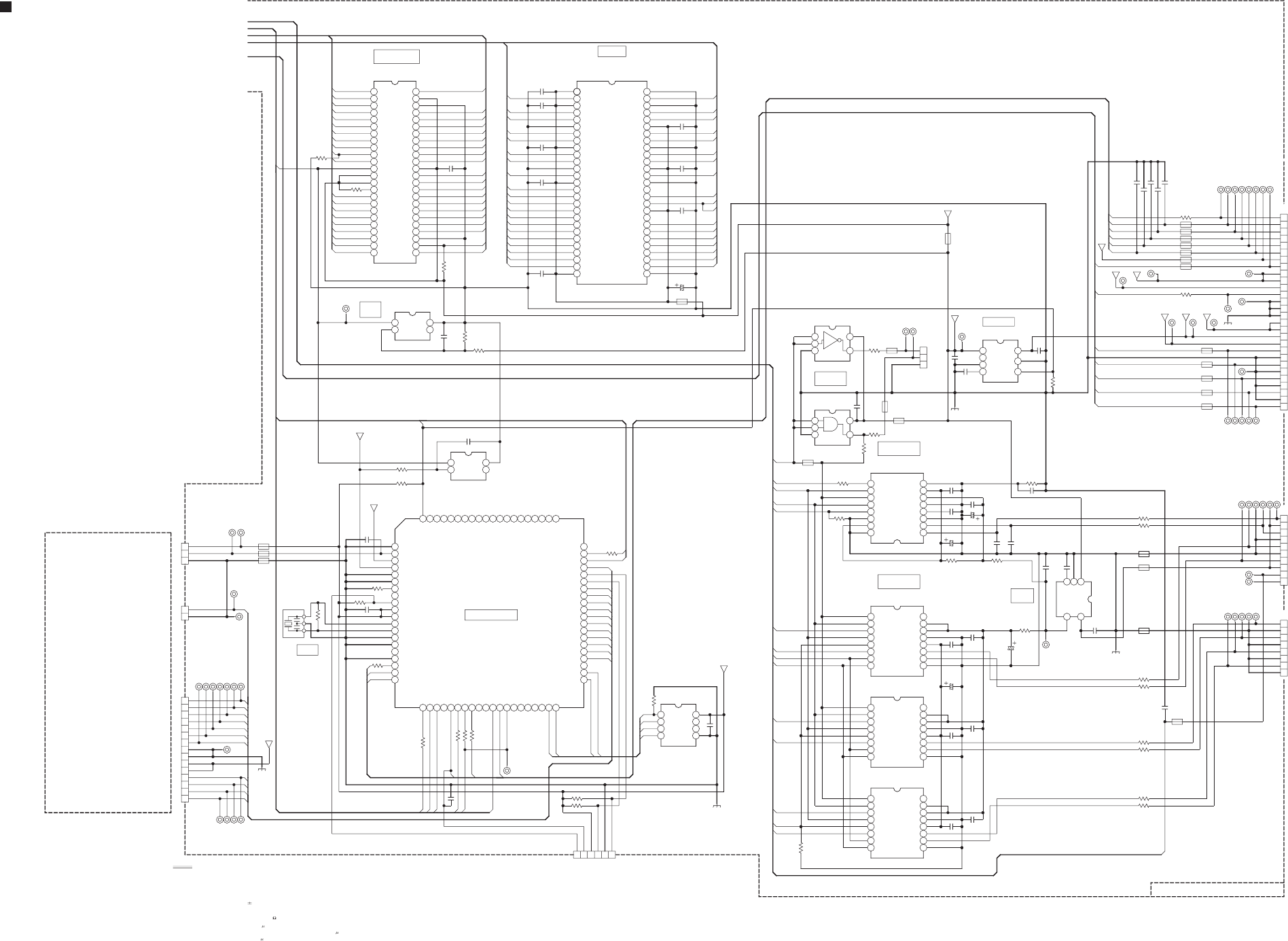

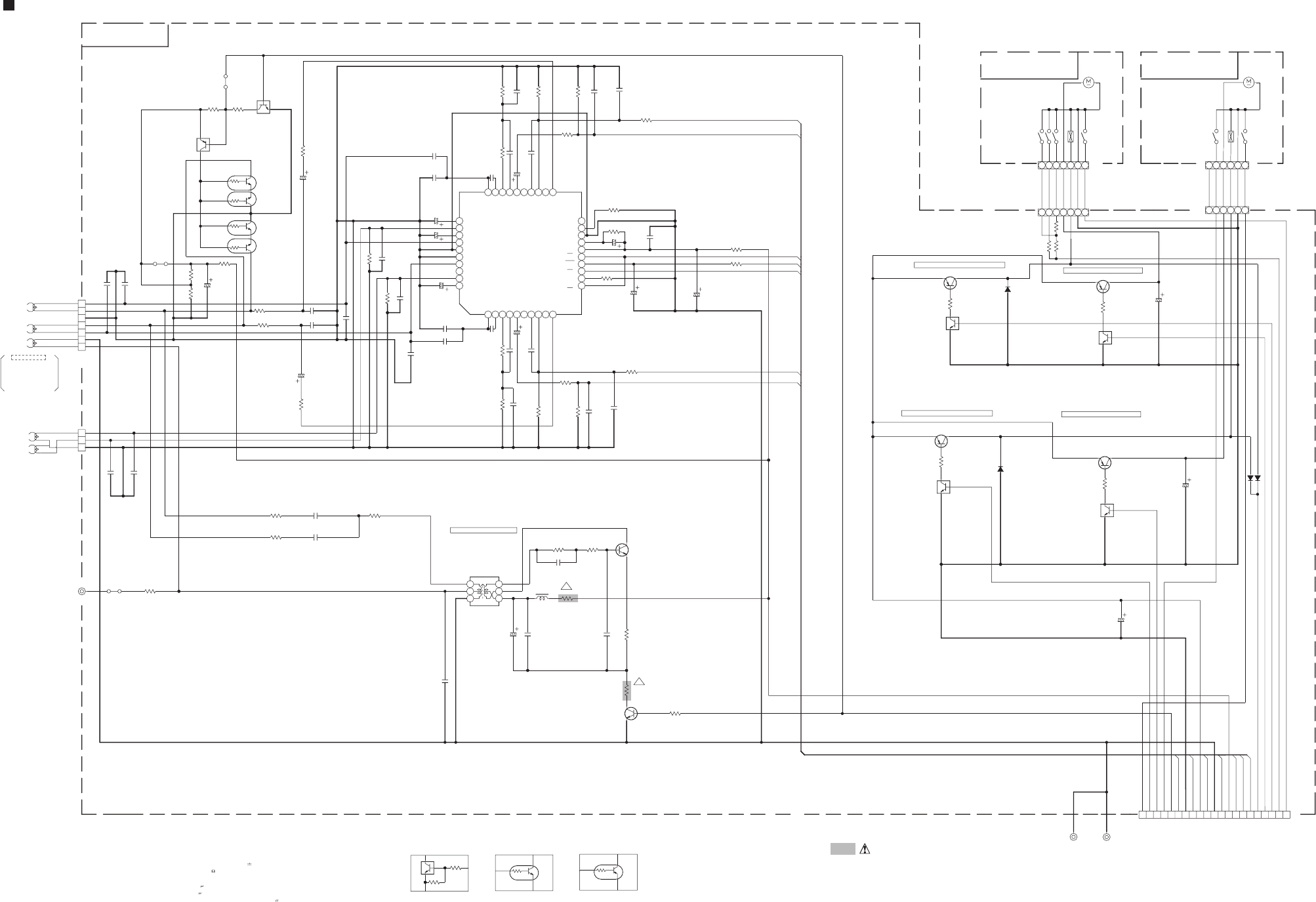

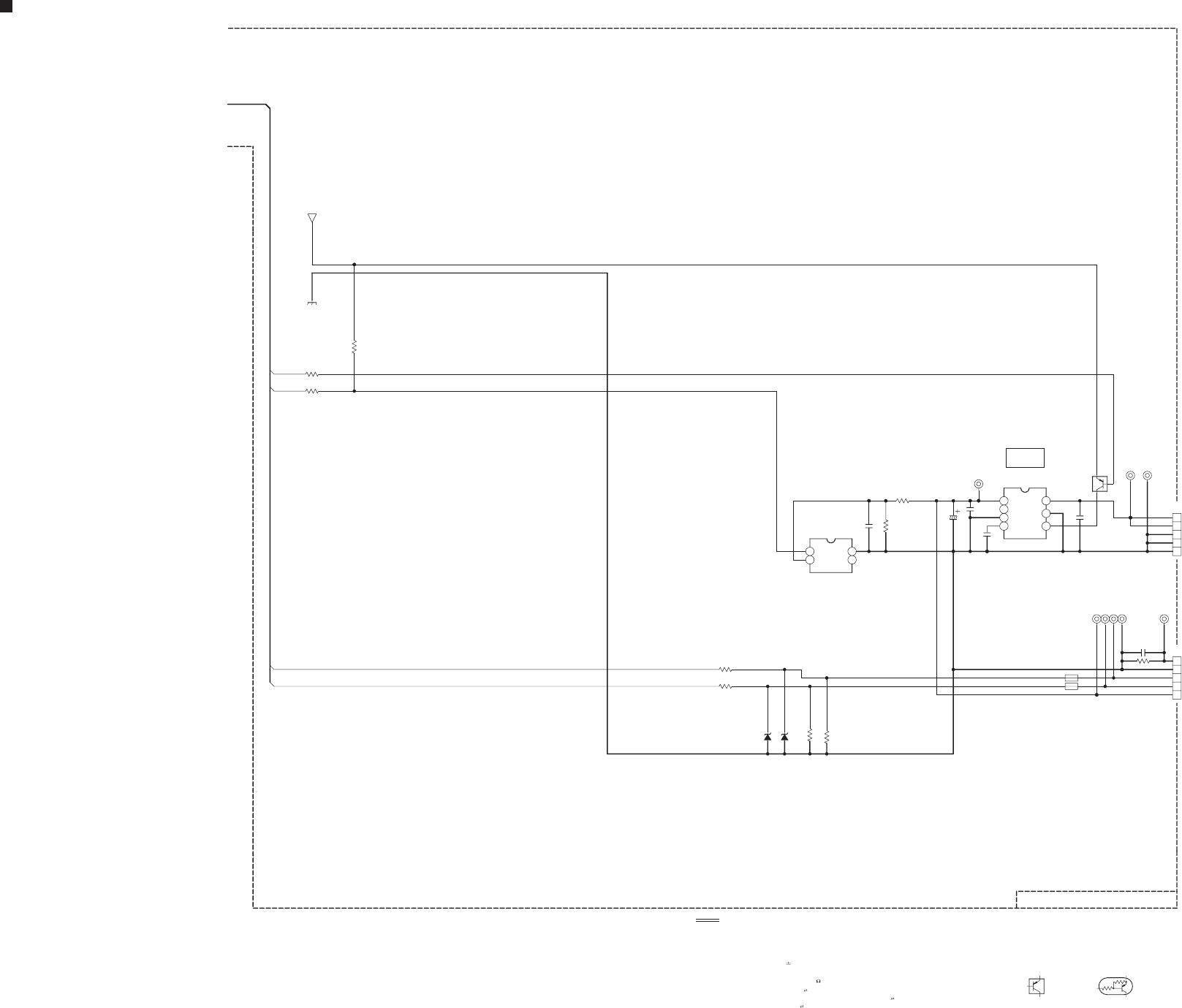

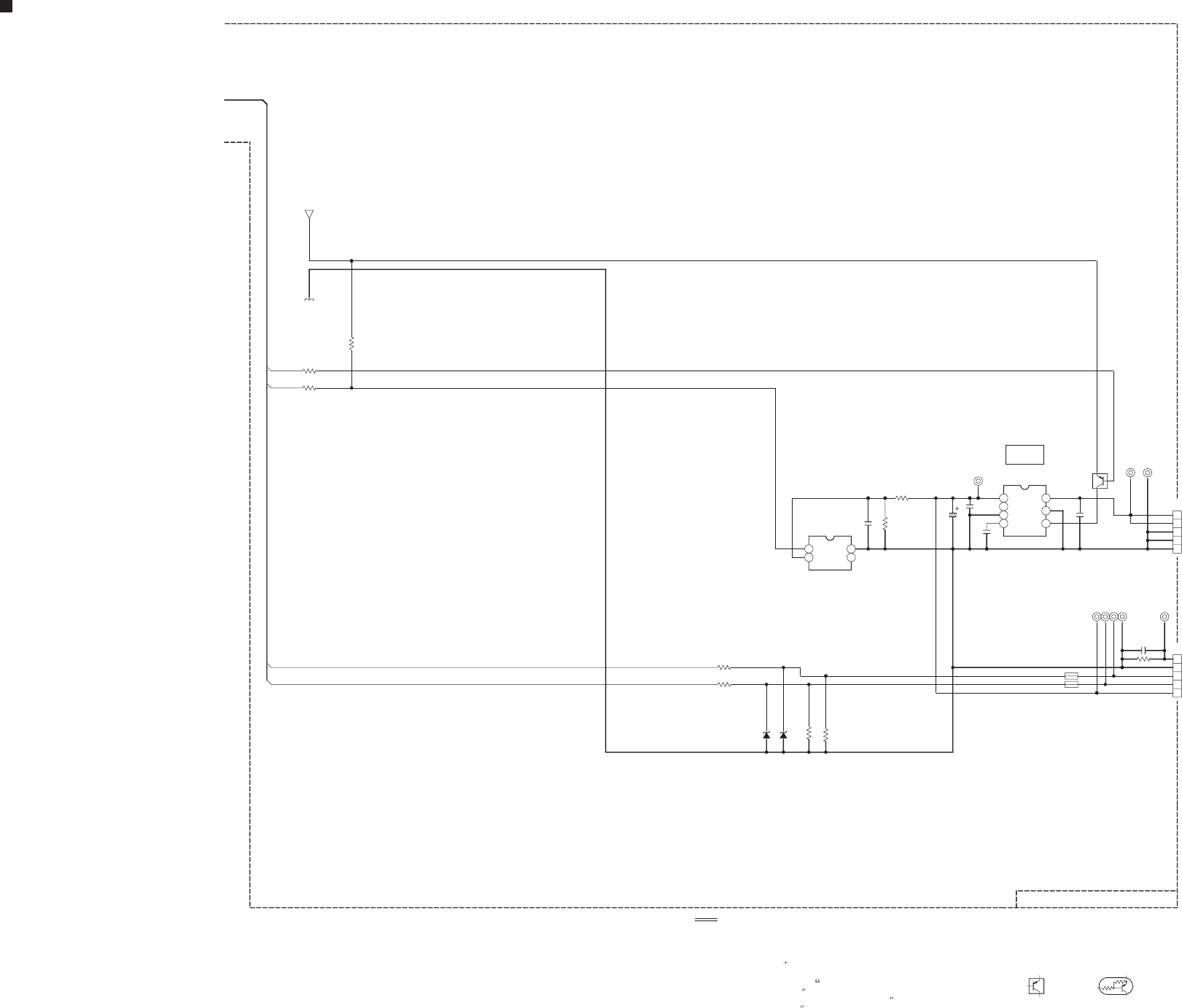

Standard schematic diagrams

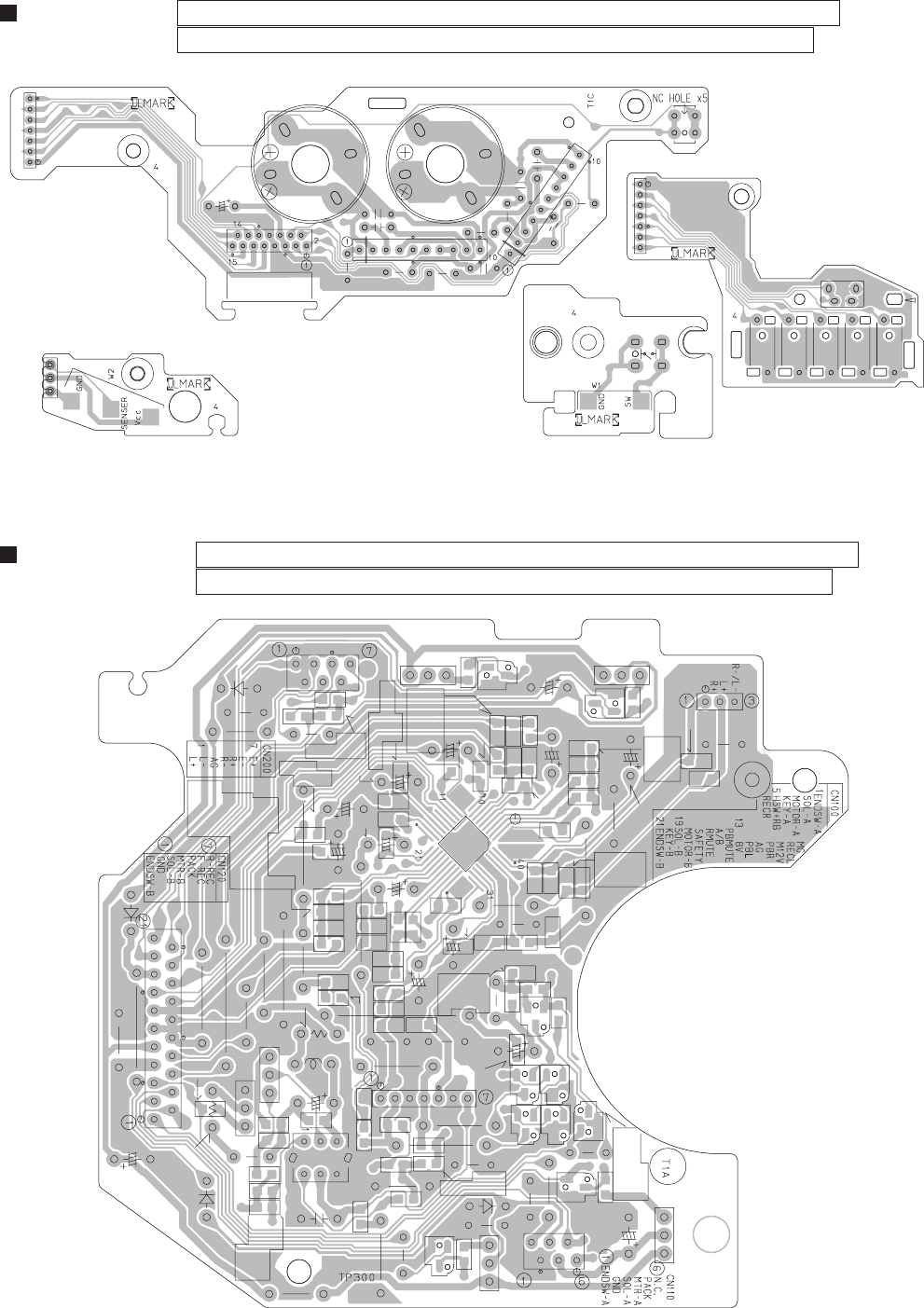

Printed circuit boards
2-1
2-2
2-16 to 19
CD-ROM No.SML200706
COMPACT COMPONENT SYSTEM
No.MB616SCH
2007/6
COPYRIGHT 2007 Victor Company of Japan, Limited.
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
SUPER VIDEO
SUPER VIDEO
CA-DXU6
SP-DXU6F SP-DXU6F
SP-DXU10W
CA-DXU8
SP-DXU10F
SP-DXU10F
SP-DXU10W
SP-DXU8S
SP-DXU8S
SP-DXU10C
CA-DXU10
SP-DXU10F SP-DXU10F
SP-DXU10W SP-DXU10W
SP-DXU10S SP-DXU10S
SP-DXU10C
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
2-1
BCK, LRCK, DACCK
DCLK, DDATA, DACPDN
MICIN
OUT
MIC_DA
MIC_CLK
MIC_FOUT
SW1, SW2
J700
SPEAKER
CENTER
(DX-U8,DX-U10)
PBL/R
PBL/R

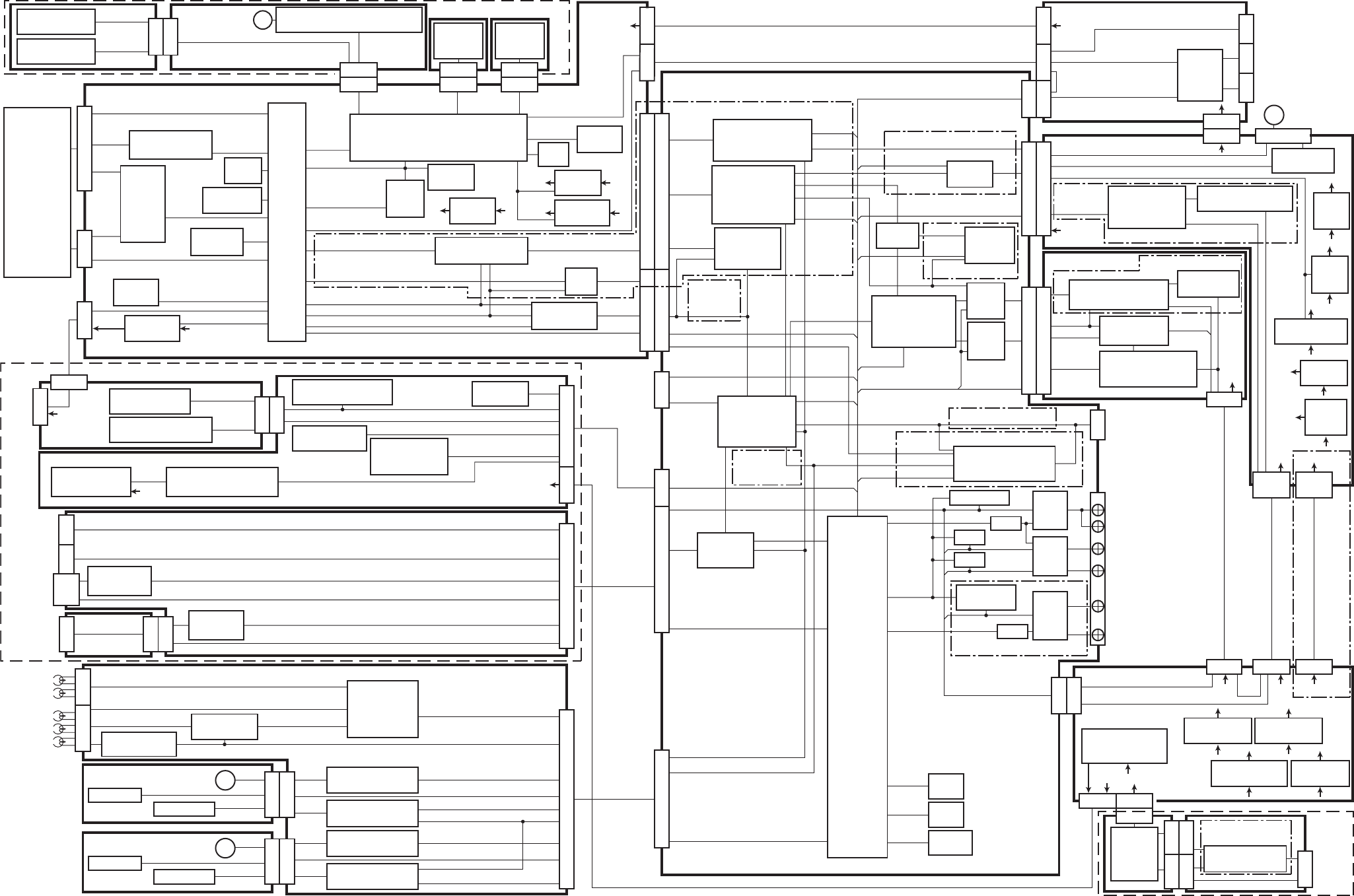

Block diagram
Q9002
HP MUTE
IC705
A5V REG.
IC304
A9V REG.
IC302
ACM12V
REG.
IC306
MOTOR9V REG.
IC305
DVD5V
REG.
IC303
USB6V
REG.
IC305
3.3V REG.
IC302
D1.2V REG.
CN302(CN303)
CN830
FW301
CN931
CN304
IC301(IC307)
SURROUND
/CENTER AMP.
Q3401,Q3501,Q3601
PROTECTOR
CN800 CN720 CN730CN740
REC/PB
ERASE
HEAD
IC200
AUDIO
SIGNAL
PROCESSOR
PBL/R
RECL/R
PBMUTE
REC-BM
A/B
RECL/R
Q300,Q301,L300
BIAS OSC
HSW+RECB(ACMSFTY)
RECOUT(L)/(R)
BIN(L)/(R)
AIN(L)/(R)
Q110,Q111
MOTOR DRIVE A
Q120,Q121
SOLENOID DRIVE A
Tape record and playback section
PB 2WAY
CN200
PB
HEAD
Q200 to Q204
REC MUTE
PACK, ENDSW-A
CN220
Q140,Q141
MOTOR DRIVE B
Q150,Q151
SOLENOID DRIVE B
R/P 2WAY
MTR-B
R-REC, F-REC
PACK, ENDSW-B
SOL-B
SWITCH
M
M
MTR-A
MTR-A MOTOR_A
ACMKEY_A, ENDSW_A
SOL-A
SOL-A SOL_A
HEADSW
SOLENOID
CN110
SWITCH
M
MTR-B MOTOR_B
ACMKEY_B, ENDSW_B
SOL-B
SOL_B
SOLENOID
CN120
CN100
IC510
REMOCON
REM
FL500
FL
IC500,Q5011 to Q5014
FL DRIVER FL display,LED,Key matrix,Remocon
D5004 to D5006
BASS/KARAOKE
/STANDBY LED
F-KEY2
F-KEY2, F-KEY3
LED-ILLU
S5011 to S5016
TAPE FUNCTION KEY
CN500
CN100
CN201
CN204 FW201
CN305
CN306
CN301
(CN307)
CN203
CN850
CN207
AC
INPUT
FAN MOTOR
CN101 CN102
S1000
VOLTAGE SWTCH
T1001
TRANS.
D2101
+/-VH BRIDGE
Q2300,Q2301
D2315,D2317
-35V REG./FL BIAS
D2001
+/-VL BRIDGE
FDVD, AMP-ON
FANSFTY, FANCTRL
SL, SR
CTR
AMP-ON
CTR
SL, SR
FDVD
VH+/-
VL+/-
FANCTRL
FANSFTY
CN901
JS901 J910
FW910
FW910
JS902
MICIN
MIC_CAL
J901
J902
MIC
VOLUME
ECHO
VOLUME
MIC1
MIC2 MICSW
MICVOL+/-
ECHO+/-
IC901
MIC AMP.
Microphone
USB,LED
Key matrix
Headphone
S5500 to S5517
DISC/TAPE KEY
FW501
FW501
FW500

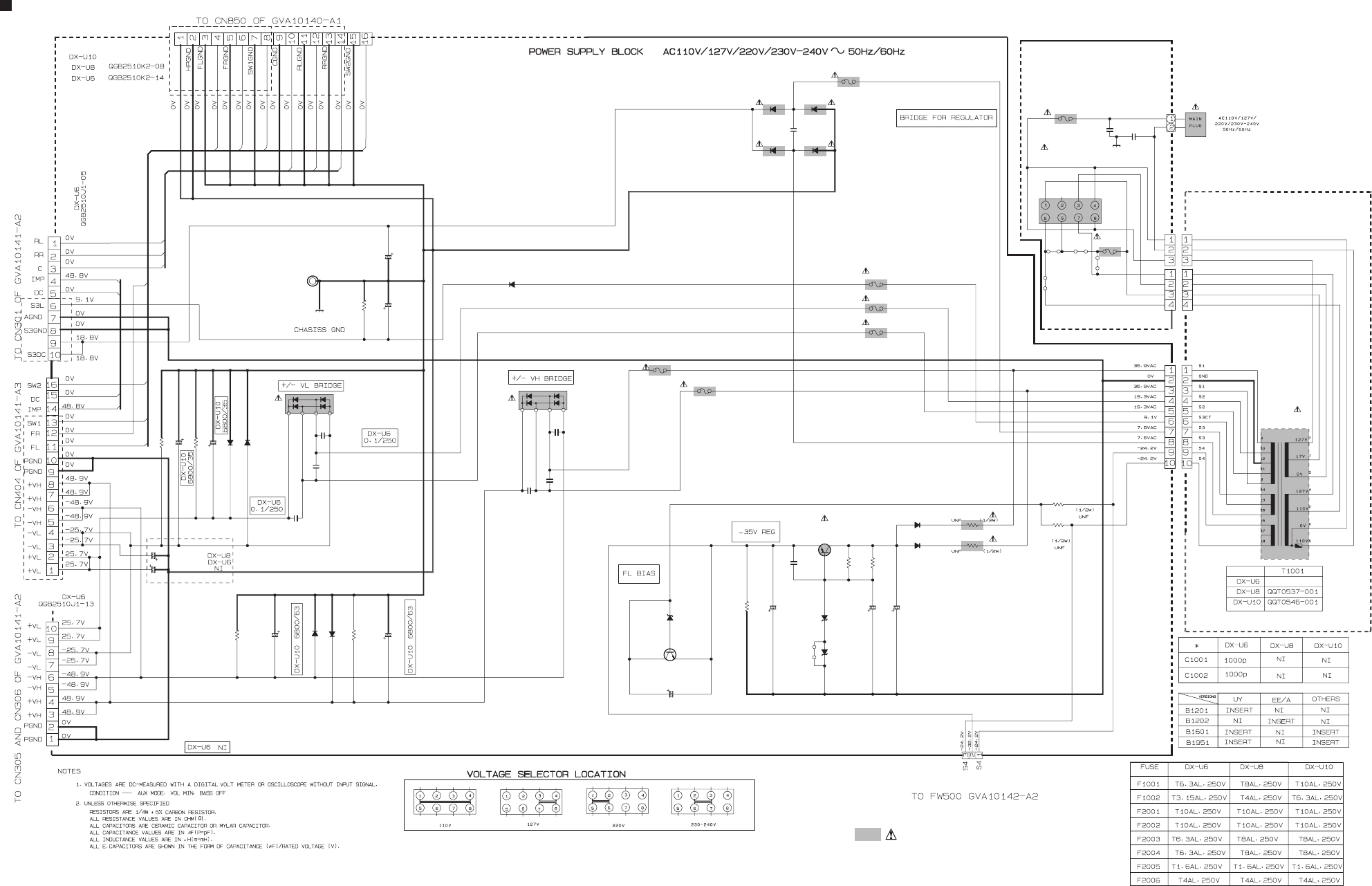

Primary
section

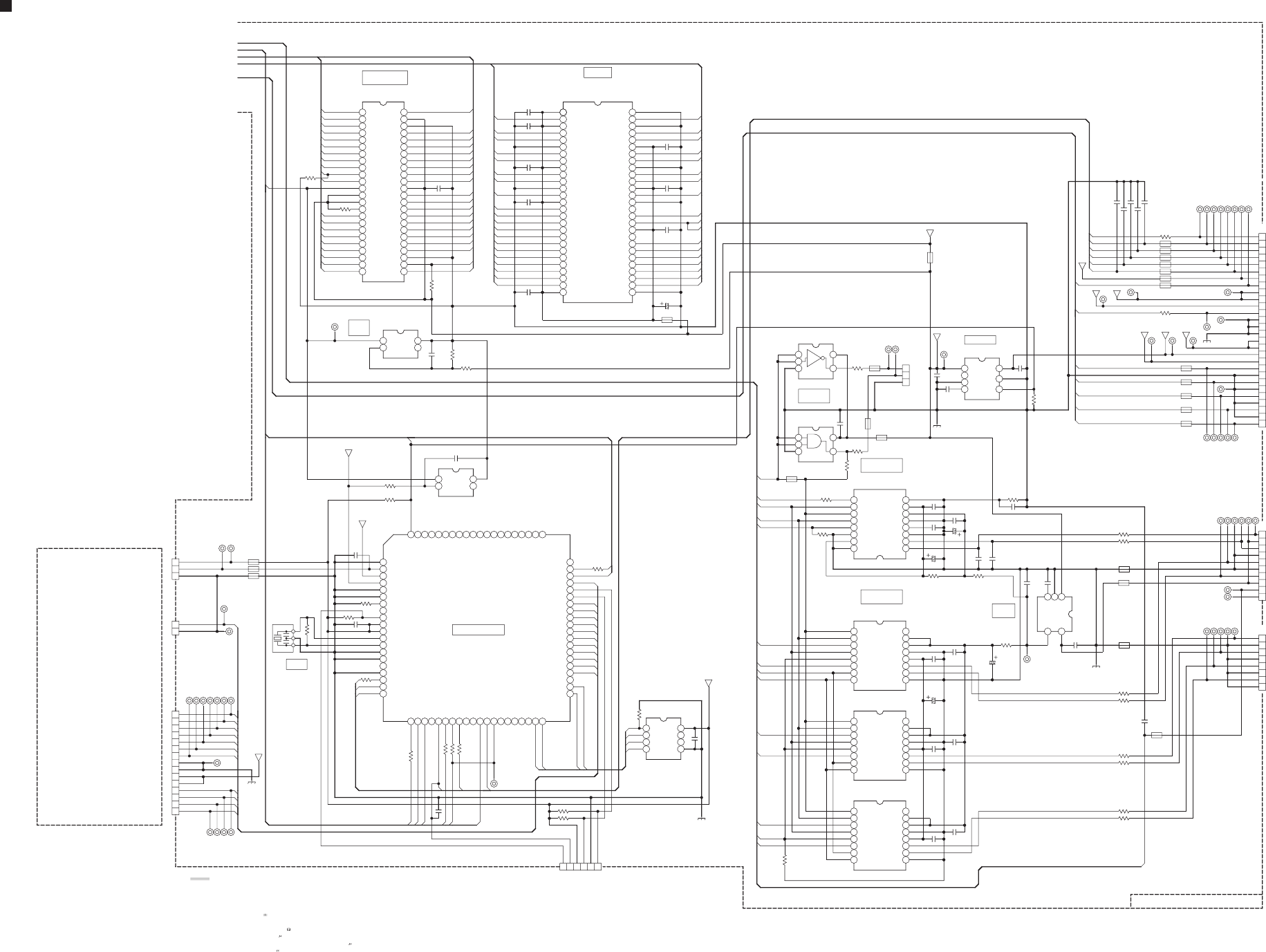

System control & Audio section
IC820
MAIN
E.VOLUME
IC830,IC831
Q8030 to Q8032
Q8130 to Q8132
AHB CCT/SW
Q8040
MAIN
SMUTE
IC881
SW LPF
IC870
Q8070,Q8071
SURR E.VOL/MUTE
IC880
C/SW E.VOL
Q8180
SW
SMUTE
Q8081
C SMUTE
Q8403
Q8404
SW LEVEL
IC800,IC801
DVD FRONT
/SW MIX
IC810,Q8211,Q8212
AUX/TAPE SWITCH
IC850
KARAOKE
CN750
TO
TUNER
MODULE
AUXL/R
FL, FR, SW1, SW2
FL, FR
DC
IMP
DC
IMP
SL, SR, C
J800
AUX IN
Q7080
RESET
TU_DI, TU_DO
TU_CE, TU_CLK
TUL/R
IC770
MICON
MICVOL+/-
ECHO+/-
MIC_CAL
MICSW
HPMUTE
HPSW
FRONT
SURROUND(DX-U6)
VOLOUTL/R
C
L
R
SW1
SW2
LEVELFB
AHBL, AHBH
AIBASS_SW
SMUTE
MAIN_DA
VOL_CLK
C/SW_DA
VOL_CLK
SW_LEV1
SW_LEV2
SURR_DA
VOL_CLK
AUX/TAPE
IC771
EEPROM
EEP_DA
EEP_CLK
RESET
X7700
8MHz
REM
F-KEY1 to 3
LED_ILLU
LED_STBY
LED_BASS
LED_KROK
FL_CLK
FL_DA
FL_LATCH
LED_STBY
LED_BASS, LED_KROK
RY712
SPK
RELAY
RY767
SPK
RELAY
SUBWOOFER1
SUBWOOFER2
(DX-U8,DX-U10)
CN205
CN404
DC
IMP
HEAD
PHONE
Amp & Regurator section
Bridge section
IC201
DRIVER
IC451
MECHA CONT.
IC301
DV5
IC505
SDRAM
IC510
EEPROM
IC509
FLASH
ROM
IC452
EEPROM
CN101
A, B, C, D, E, F, RF+, LPC1, LPC2
F+/-
T+/-
FM+/-
WOUT
VOUT
UOUT
COM
LD(CD)
LD(DVD)
CPURST
DISCSET
DISCSTP
SCS, UCS
UCLK
S2UDT
U2SDT
DVD tray control section
Front panel section
CN1
CN451
IC1, IC2
TRAY/POSITION MOTOR DRIVER
MTOP, MTCL
POSMUP
POSMDN
TRAY/POSITION
MOTOR
M
CN2
SW1 to SW5
TRAY CLOSE SW
SW6
TRAY OPEN SW
MOTPSW
CLSWT1 to 5
CN3
CLSWT1 to 5
MOTPSW, MTOP, MTCL
POSMUP, POSMDN
CN453
SW8
SUB TRAY
END SW
W1
R1
POSITION
SENSOR
W2
CN452
LSENSOR STEDSW
Q101 to Q104
LASER DRIVER
NEXCE, NEXOE, NEXWE
EXADT0 to 15
EXDT0 to 15
EXADR16 to 20
DISPRST
DISPBUSY
DISPCS
DISPCK
DISPD2S
DISPS2D
MA0 to 11, MDQ0 to 15
BA0, BA1, DQM0, DQM1
MCK, NCSM, NRAS
NCAS, NWE
TX, DAC1OUT to DAC5OUT
EPDI, EPDO
EPCS, EPSK
X302,IC303
48MHz
IC453
3.0V DET
IC801,Q801
5V REG.
X301
27MHz
X451
8MHz
CN201
LPCO1
LPCO2
CDLDCUR
DVDLDCUR
SPDRV
TRSDRV
FODRV
TRDRV
FG
SPMUTE
TRVSW
SDA
SCK
LRMUTE LRMUTE
DVD servo and system control section
IC701
FRONT DAC
IC702,IC703
REAR/C/SW DAC
FAOUTL/R
RAOUTL/R, CAOUT, SWAOUT
CAOUT
LOUT
ROUT
RVIN
SAOUT
SWAOUT
RECL/R
RAOUTL/R
CN702
CN810
CN703CN801
CN701
W580
CN811
J580
FAOUTL/R
ADINL/R
ADINL/R
AOUT1 to 2, DAC1CS, DAC2CS
AOUT0, DAC0CS
IC704
ADC
ADINL/RADIN, ADCPDN
USB
SMUTE
INL1, INR1
INL2
INR2
INL3
INR3
DVD
traverse
mechanism
Q3901,Q3902
FAN DRIVE
D7154
D7155,D7156
D7157
SW2
SW1
D7153
D7151,D7152
FL
FR
F-KEY1
F-KEY3, LED-ILLU
S5000 to S5010
FUNCTION KEY
D5500 to D5503,Q5500
ILLUMINATION LED
VH+/-
VL+/-
A6VA5V
D4V
P3.3V
S3.3V
D2V
DVDPWR
D1.2V
HPL/R
HPMUTE
HPL/R, HP-SW
HPSW
HPL/R
S3DC
S3DC
S3DC
S1
S1,S2,S3,S4,S3CT
S2
S1,S4
S4 S3
S3L
S3L
A9V
M12V
M9V
FL-35V
FL1
FL2
FL1(S4)
FL2(S4)
FL-35V
USB6V
A9V,M12V D5V
S5V
USB6V
VL+/-
VH+/-
VL+/-
VH+/-
VL+/-
VH+/-
USB6V
USB6V
NEN
USB5V
USB5V
D+/-
DP
DM
D2200 to D2203
BRIDGE for REG.
S3DC
S3DC
S3L
S3DC
S3L
S3CT
D2204
S3L BRIDGE
S3L
Used for except
Area suffix A
Used
for
except
DX-U6
Used for except DX-U6
Used for
DX-U6
Used for DX-U6
Used for
DX-U6
Used for DX-U6
Used for except DX-U6
Used for except DX-U6
Used for except DX-U6
Used for except DX-U6
Used for except DX-U6
AMP-ON
PRT
AMP-ON
CN403
CN820
IC401(IC403)
FRONT AMP.
IC402
SUBWOOFER AMP.
Q4901 to Q4904
Q4601,Q4701,Q4951
PROTECTOR
Q4101,Q4201
PROTECTOR
FL, FR
FL
FR
SW
SW
PRT
Amp section
Used for DX-U10
Q7000
F/SW_RLY
Q7010
SURROUND
(DX-U8,DX-U10)
SL
SR
SL
SR
C
RY734
RY756
SPK
RELAY
C/R_RLY
FL_CLK
FL_DA, FL_LATCH
P1 to 24
G1 to 14
PBMUTE, REC-B/M, A/B
ACMSFTY
MOTOR_A, ACMKEY_A
ENSW_A, SOL_A
HEADSW
MOTOR_B, ACMKEY_B
ENSW_B, SOL_B
CN930 CN920CN921
CN760
IC920
VIDEO
DRIVER
OPTICAL
DIGITAL OUT
TX
C, Y-1, Y-2, Cb, Cr
V_I/P, V_MUTE
Video & Digital output section
IC930 J921
COMPONENT
VIDEO OUT
J920
S/COMPOSITE
VIDEO OUT
Y
Cb
Cr
Y
C
CV
DISPRST, DISPBUSY, DISPCS
DISPCK, DISPD2S, DISPS2D
DISPRST, DISPBUSY, DISPCS
DISPCK, DISPD2S, DISPS2D,
V_I/P, V_MUTE
USB6V
D5V,S5V,USB6V,M9V
SL, SR, C
NOTES: (IC403) Used for DX-U10
NOTES: (CN303) Used for DX-U6
NOTES:
(CN307)
Used for
DX-U6
NOTES: (IC307) Used for DX-U8
2-2
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Standard schematic diagrams
Primary section
PP201
F2005
Q2301
Q2300 D2315
D2202
T1001
D2101
C1001
CN203
W201
C2305
B1951
CN207
B1201
D2317
F2002
D2001
CN201
FW201
R2308
R2307
F2001
R2306
C2010
C2011
F2006
R2300
C2007
CN205
F2003
D2201D2203
D2200
F2004
F1001
F1002
C2005
S1000
D2204
CN101
CN100
CN102
R2305
D2002
C2316
D2313
B1202
B1601
C2212
C1002
C2115
D2003
D2002
R2200
D2003
CN204
D2312
C2213
R2301
R2302
C2302
C2303
C2304
C2116
D2314
C2117
C2009
C2214
R2002
C2006
R2003
C2008
R2000
C2000
R2001
C2004
QNZ0104-001
KTC3203/OY/-T
KTA1046/Y/ 1N4003S-T5
1N5402M-20
QQT0536-001
GBU803
*
QGB2510K2-16
QUB070-22BXDM-E
10/50
QGD2504C1-03Z
1N4003S-T5
GBU803
QGA3901C1-10
QUM15A-18DGZ4-E
47
47
47
220/35
220/35
47
NI
QGB2510J1-16
1N5402M-201N5402M-20
1N5402M-20
NI
QSW0812-001
2A02-M
QGA7901C1-04
QGA7901C1-02
QGA7901C1-03
43K
2A02-M
220/100
NI
0.1/50
*
0.1/250
2A02-M
2A02-M
100K
2A02-M
QGB2510J1-10
MTZJ7.5B-T2
6800/16
43K
100K
22/50
22/50
0.01
NI
MTZJ36A-T2
NI
0.1/250
4700/35
100K
4700/35
100K
4700/35
100K
4700/63
100K
4700/63
S3DC
FLBIAS
FL-35V
SW2
RL
RR
C
SW1
FR
FL
PGND
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2-3
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
DC regulator/Audio output section (for DX-U10)
R3502
C3601
C3401
R4702
FW301
IC306
C4951
C4601
D3302
Q3901
D4502
IC305
CN301
C4903
C4702
C4701
C3502
Q4951
Q4701
D4501
R4602
CN404
D4506
CN304
C4602
Q4601
D4505
C3501
Q3601
Q3501
D3301
C4811
C4801
R4955
R4505
R4506
R4952
C4952
R3402
IC301
D3306
C3402
Q3401
C4806
D3305
R4905
C4404
C3221
R4705
R4605
R4801
C4803
C4802
C4804 R4803
C4812 R4811
C4813
C4805
R4903
C3211
R3605
IC304 IC303
IC302
R3305
R3306 R3307
R3602
C3602C3201
IC403
R3505R3405
R3202
C3212
C3202 R3201
C3222 R3203
R4202
IC402
C4101
D3822
D3823
D3824
D3825
D3812
D4002
D3813
D3815
C4202
D3814
C4201
Q4201
D4001
R4102
D4006
C4102
Q4101
D4005
C4311
C4301
R4005
R4006
D3207
FW401
FW401
C4405
R4205
R4105
C4302
CN306
C4312
C4313
CN403
B3110 B3111 B3112
CN305
R4610
R4710
R4950
R4508
CN302
C3822
B3104
R3410
R3510
R3610
R3606
R4008
R3503
R3603
R3609
R3504
R3509
R3507
R3508
R3608
C3812
D3701
R3607
D3811
R3604
R4960
R4703
R4953
R4959
R3308
B3103
R4704
R4709
R4707
R4708
R4958
R4957
R3411
R4954
Q4904
C3701
C3604
R4606
C4954
C4955
C3605
C3702
R3701
C3811
R4711
R4706
C4704
R3506
R3511
C4705
C4953
C4703
D4701
D4951
L4951
L4701
R4501
R4601
R4701
R4956
R4611
R4603
R4604
R4609
C3504
C3505
Q3902
C3832
C3603
D3832
C3503
D3501
R4607
R4608
C4604C4605
C3842
C4603
D3841
D4601
L4601
C3841
C3831
D3821
C3821
D3601
L3601
L3501
C4002
R3301
C4001
R4507
R3401
R3501
R3611
R3406
R3403
R3404
R3409
R4951
R3407
R3408
C3404
C3405
C3403
D3401
L3401
B3101
R4502
R4503
R4504
D4503
D4504
C4004
C4003
R4901
R4902
R4904
R4802 R4804
R4812
C4901
C4902
D4901
Q4902
Q4903
Q4901
B3102
R4906
R3601
R3302
R3303
R3304
D3303
D3304
C3104
B3100
C3213
R3205 R3204
C3223
R3206
C3203
B3603
B3205
B3204
B3203
R4110
R4210
B3108
R4203R4204
R4209
R4207
R4208
B3107
R4106
C3833
R4211
R4206
C4204C4205
C4203
D4201
D3842
D3843
L4201
D3844
R4001
R4101
R4201
D3845
R4111
R4103
R4104
R4109
C4502
R4107
R4108
C4104C4105
C4103
D4101
L4101
C4501
C3302
C3301
R4007
R4002
R4003
R4004
D4003
D4004
R4302
R4311
R4312
R3907
B3106B3105
B3109
56K
NI
NI
56K
QUM156-27DGZ4-E
KIA278R09PI
NI
NI
MTZJ15B-T2
KTA1271/0Y/-T
MTZJ15B-T2
PQ050RDC2SZF
QGB2510K2-10
10/50
3.3P
NI
3.3P
NI
KTC3199/GL/-T
MTZJ15B-T2
56K
QGB2510K2-16
1N5402M-20
QGA2501F1-03
3.3P
KTC3199/GL/-T
1N5402M-20
NI
KTC3199/GL/-T
KTC3199/GL/-T
MTZJ15B-T2
100P
100P
NI
100
100
NI
NI
56K
STK416-130-E
1N5402M-20
3.3P
KTC3199/GL/-T
NI
1N5402M-20
10K
1/50
220P
1K1K
1k
100P
10/63
NI NI
10/63 1k
100P
NI
10K
220P
1K
KIA7809API KIA78D06PI-U/P
KIA7812API
100
100 2K
56K
3.3P
220P
STK415-130-E
1K
1K
1k
10/63
10/63 1k
10/63 1k
56K
STK415-130-E
NI
NI
NI
NI
NI
NI
MTZJ15B-T2
NI
NI
3.3P
NI
NI
KTC3199/GL/-T
MTZJ15B-T2
56K
1N5402M-20
3.3P
KTC3199/GL/-T
1N5402M-20
100P
100P
100
100
NI
1/50
1K1K
10/63
QDG2504C1-05Z
10/63
470P
QGF1205F1-07
QGD2504C1-05Z
100K
100K
NI
NI
QGF1205C2-15
100/16
100K
100K
100K
2K
NI
10
10
270
10
330
47K
5.6K
5.6K
100/16
MTZJ6.2B-T2
47K
MTZJ11B-T2
10
NI
10
NI
NI
NI
10
220
47K
5.6K
NI
NI
2K
NI
KTA1268/GL/-T
47/25
0.1
2K
NI
NI
0.1
100/16
10K
22/50
2K
2K
0.1
2K
2K
0.1
NI
100/63
NI
0.39
6.8K
0.22
0.22
NI
2K
1010
220
0.1
0.1
KTC3199/GL/-T
100/16
47/25
MTZJ6.8B-T2
47/25
47K
5.6K
0.1
0.1
100/16
100/63
MTZJ13B-T2
0.39
22/50
47/25
MTZJ11B-T2
22/50
0.39
0.39
0.1/100
6.8K
0.1/100
2K
0.22
0.22
2K
2K
1010
330
NI
47K
5.6K
0.1
0.1
47/25
0.39
6.8K
6.8K
6.8K
MTZJ36B-T2
MTZJ36B-T2
220/35
220/35
10K
100K
100K
56k NI
56k
10/50
47/25
KTA1268/GL/-T
KTC3199/GL/-T
KTC3200/GL/-T
100K
0.22
6.8K
6.8K
6.8K
MTZJ36B-T2
MTZJ36B-T2
1/50
680P
56k 56k
680P
56k
680P
NI
NI
100K
100K
10
10
180
47K
5.6K
2K
2200/6.3
2K
2K
0.1
0.1
100/63
NI
NI
0.39
NI
6.8K
0.22
0.22
NI
2K
1010
180
0.1/100
47K
5.6K
0.1
0.1
100/63
0.39
0.1/100
0.1/100
0.1/100
2K
6.8K
6.8K
6.8K
MTZJ36B-T2
MTZJ36B-T2
56k
1k
56k
1K
USB6V
FANCTRL
FANSTAT
M12V
FDVD
SUR-R
CENTER
SUR-L
STBY
A9V
AGND
AGND
+VH
INP
STBYY
+C-IN
+SR-LIN
-C-IN
-VL
-VH
IN
INPUT
SGND
-SR-LIN
+SR-RIN
+VL
+REF
-REF
-SR-RIN
-PRE( -VH)
+C/O
+SR/RCH
+PRE( +VH)
+SR/LCH
-SR/LCH
-SR/RCH
-C/O
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2-4
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
DC regulator/Audio output section (for DX-U8)
R3502
C3601
C3401
R4702
FW301
IC306
C4951
C4601
D3302
Q3901
D4502
IC305
CN301
C4903
C4702
C4701
C3502
D4501
R4602
CN404
D4506
CN304
C4602
D4505
C3501
Q3601
Q3501
D3301
C4811
C4801
R4955
R4505
R4506
R4952
C4952
R3402
D3702
D3306
C3402
Q3401
C4806
D3305
R4905
C4404
C3221
R4705
R4605
R4801
C4803
C4802
C4804 R4803
C4812 R4811
C4813
C4805
R4903
C3211
R3605
IC304 IC303
IC302
R3305
R3306 R3307
R3602
C3602C3201
IC307
R3505R3405
R3202
C3212
C3202 R3201
C3222 R3203
R4202
IC402
C4101
D3822
D3823
D3824
D3825
D3812
D4002
D3813
D3815
IC401
C4202
D3814
C4201
Q4201
D4001
R4102
D3845
D4006
C4102
Q4101
D4005
C4311
C4301
R4005
R4006
FW401
FW401
C4405
R4205
R4105
C4302
CN306
C4312
C4313
CN403
B3110 B3111 B3112
CN305
R4610
R4710
R4950
R4508
CN302
C3822
B3104
R3410
R3510
R3610
R3606
R4008
R3503
R3603
R3609
R3504
R3509
R3507
R3508
R3608
C3812
D3701
R3607
D3811
R3604
R4960
R4703
R4953
R4959
R3308
B3103
R4704
R4709
R4707
R4708
R4958
R4957
R3411
R4954
Q4904
C3701
C3604
R4606
C4954
C4955
C3605
C3702
R3701
C3811
R4711
R4706
C4704
R3506
R3511
C4705
C4953
C4703
D4701
D4951
L4951
L4701
Q4951
Q4701
R4501
R4601
R4701
R4956
R4611
R4603
R4604
R4609
C3504
C3505
Q3902
C3832
C3603
D3832
C3503
D3501
R4607
R4608
C4604C4605
C3842
C4603
D3841
D4601
L4601
C3841
Q4601
C3831
D3821
C3821
D3601
L3601
L3501
C4004
R3301
C4003
R4507
R3401
R3501
R3611
R3406
R3403
R3404
R3409
R4951
R3407
R3408
C3404
C3405
C3403
D3401
L3401
B3101
R4502
R4503
R4504
D4503
D4504
R4901
R4902
R4904
R4802 R4804
R4812
C4901
C4902
D4901
Q4902
Q4903
Q4901
B3102
R4906
R3601
R3302
R3303
R3304
D3303
D3304
C3104
B3100
C3213
R3205 R3204
C3223
R3206
C3203
B3603
B3205
B3204
B3203
R4110
R4210
B3108
R4203R4204
R4209
R4207
R4208
B3107
R4106
R4211
R4206
C4204C4205
C4203
D4201
D3842
D3843
L4201
D3844
R4001
R4101
R4201
R4111
R4103
R4104
R4109
C3833
R4107
R4108
C4104C4105
C4103
D4101
L4101
C3002
C3301
R4007
C4002
R4002
R4003
R4004
D4003
D4004
C4001
C4502
C4501
R4302
R4311
R4312
R3907
B3106B3105
B3109
56K
NI
NI
56K
QUM156-27DGZ4-E
KIA278R09PI
NI
NI
NI
KTA1271/0Y/-T
MTZJ15B-T2
PQ050RDC2SZF
QGB2510K2-10
10/50
3.3P
NI
3.3P
MTZJ15B-T2
56K
QGB2510K2-16
1N5402M-20
QGA2501F1-03
3.3P
1N5402M-20
NI
KTC3199/GL/-T
KTC3199/GL/-T
NI
100P
100P
1K
100
100
56K
3.3P
56K
2A02-M
NI
3.3P
KTC3199/GL/-T
100P
NI
10K
1/50
220P
1K1K
1k
100P
10/63
10/63 1K
10/63 1k
100P
470P
10K
220P
1K
KIA7809API KIA78D06PI-U/P
KIA7812API
100
100 2K
56K
3.3P
220P
STK433-240-E
1K
1K
1k
10/63
10/63 1k
10/63 1k
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
STK416-130-E
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NINI
NI
NINI
NI
QDG2504C1-05Z
NI
NI
QGF1205F1-07
QGD2504C1-05Z
100K
100K
100K
NI
QGF1205C2-15
100/16
100K
100K
100K
2K
NI
10
10
270
10
330
47K
5.6K
5.6K
100/16
MTZJ6.2B-T2
47K
MTZJ11B-T2
10
2K
10
10
220
NI
10
220
47K
5.6K
5.6K
47K
2K
10
KTA1268/GL/-T
47/25
0.1
2K
0.1
0.1
0.1
100/16
10K
22/50
2K
2K
0.1
2K
2K
0.1
100/63
100/63
0.39
0.39
KTC3199/GL/-T
KTC3199/GL/-T
6.8K
0.22
0.22
2K
2K
1010
220
0.1
0.1
KTC3199/GL/-T
100/16
22/50
MTZJ6.8B-T2
10/50
47K
5.6K
0.1
0.1
100/16
100/63
MTZJ13B-T2
0.39
22/50
KTC3199/GL/-T
47/25
MTZJ11B-T2
22/50
0.39
0.39
NI
NI
NI
2K
0.22
0.22
2K
2K
1010
330
0.22
47K
5.6K
0.1
0.1
10/50
0.39
6.8K
6.8K
6.8K
MTZJ36B-T2
MTZJ36B-T2
10K
100K
100K
56k 56K
56k
10/50
47/25
KTA1268/GL/-T
KTC3199/GL/-T
KTC3200/GL/-T
100K
0.22
NI
NI
NI
NI
NI
1/50
680P
56k 56k
680P
56k
680P
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NINI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
2200/6.3
NI
NI
NI
NI
NI
NI
0.1/100
0.1/100
NI
NI
NI
NI
NI
NI
NI
NI
0.1/100
0.1/100
NI
NI
NI
1K
USB6V
FANCTRL
FANSTAT
M12V
FDVD
SUR-R
CENTER
SUR-L
STBY
A9V
AGND
AGND
+VL
INP
STBYY
+C-IN
-VL
IN
INPUT
-C-IN
SGND
+SR-LIN
-SR-LIN
+SR-RIN
-SR-RIN
-PRE( -VL)
+C/O
+SR/RCH
+PRE( +VL)
+SR/LCH
-SR/LCH
-SR/RCH
-C/O
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2-5
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
DC regulator/Audio output section (for DX-U6)
R3502
C3601
C3401
R4702
FW301
IC306
C4951
C4601
D3302
Q3901
D4502
IC305
CN301
C4903
C4702
C4701
C3502
D4501
R4602
CN404
D4506
CN304
C4602
D4505
C3501
Q3601
Q3501
D3301
C4811
C4801
R4955
R4505
R4506
R4952
C4952
R3402
IC301
D3306
C3402
Q3401
C4806
D3305
R4905
C4404
C3221
R4705
R4605
R4801
C4803
C4802
C4804 R4803
C4812 R4811
C4813
C4805
R4903
C3211
R3605
IC304 IC303 IC302
R3305
R3306 R3307
R3602
C3602C3201
D3702
R3505R3405
R3202
C3212
C3202 R3201
C3222 R3203
R4202
IC402
C4101
D3822
D3823
D3824
D3825
D3812
D4002
D3813
D3815
IC401
C4202
D3814
C4201
Q4201
D4001
R4102
D3845
D4006
C4102
Q4101
D4005
C4311
C4301
R4005
R4006
FW401
FW401
C4405
R4205
R4105
C4302
CN306
C4312
C4313
CN403
B3110 B3111 B3112
CN305
R4610
R4710
R4950
R4508
CN302
C3822
B3104
R3410
R3510
R3610
R3606
R4008
R3503
R3603
R3609
R3504
R3509
R3507
R3508
R3608
C3812
D3701
R3607
D3811
R3604
R4960
R4703
R4953
R4959
R3308
B3103
R4704
R4709
R4707
R4708
R4958
R4957
R3411
R4954
Q4904
C3701
C3604
R4606
C4954
C4955
C3605
C3702
R3701
C3811
R4711
R4706
C4704
R3506
R3511
C4705
C4953
C4703
D4701
D4951
L4951
L4701
Q4951
Q4701
R4501
R4601
R4701
R4956
R4611
R4603
R4604
R4609
C3504
C3505
Q3902
C3832
C3603
D3832
C3503
D3501
R4607
R4608
C4604C4605
C3842
C4603
D3841
D4601
L4601
C3841
Q4601
C3831
D3821
C3821
D3601
L3601
L3501
C4004
R3301
C4003
R4507
R3401
R3501
R3611
R3406
R3403
R3404
R3409
R4951
R3407
R3408
C3404
C3405
C3403
D3401
L3401
B3101
R4502
R4503
R4504
D4503
D4504
R4901
R4902
R4904
R4802 R4804
R4812
C4901
C4902
D4901
Q4902
Q4903
Q4901
B3102
R4906
R3601
R3302
R3303
R3304
D3303
D3304
C3104
B3100
C3213
R3205 R3204
C3223
R3206
C3203
B3603
B3205
B3204
B3203
R4110
R4210
C3833
B3108
R4203R4204
R4209
R4207
R4208
B3107
R4106
R4211
R4206
C4204C4205
C4203
D4201
D3842
D3843
L4201
D3844
R4001
R4101
R4201
C3302
R4111
R4103
R4104
R4109
C3301
R4107
R4108
C4104C4105
C4103
D4101
L4101
C4002
C4001
R4007
C4502
R4002
R4003
R4004
D4003
D4004
C45001
R4302
R4311
R4312
R3907
B3106B3105
B3109
NI
NI
NI
56K
QUM156-27DGZ4-E
KIA278R09PI
NI
NI
NI
KTA1271/0Y/-T
MTZJ15B-T2
PQ050RDC2SZF
NI
10/50
3.3P
NI
NI
MTZJ15B-T2
56K
QGB2510K2-13
1N5402M-20
QGA2501F1-03
3.3P
1N5402M-20
NI
NI
NI
NI
100P
100P
1K
100
100
56K
3.3P
NI
NI
NI
NI
NI
100P
NI
10K
1/50
NI
1K1K
1k
100P
10/63
10/63 1K
10/63 1k
100P
470P
10K
NI
NI
KIA7809API KIA78D06PI-U/P KIA7812API
NI
NI NI
NI
NINI
NI
1K
NI
NI
NI
NI NI
NI NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
STK416-130-E
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NINI
NI
NINI
NI
NI
NI
NI
QGF1205F1-07
NI
100K
100K
100K
NI
NI
100/16
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
100/16
MTZJ6.2B-T2
NI
MTZJ11B-T2
NI
2K
10
10
180
NI
10
220
47K
5.6K
5.6K
47K
NI
10
KTA1268/GL/-T
47/25
NI
2K
0.1
0.1
NI
100/16
10K
22/50
2K
2K
0.1
NI
NI
0.1
100/63
100/63
0.39
0.39
KTC3199/GL/-T
KTC3199/GL/-T
6.8K
0.22
0.22
2K
2K
1010
220
NI
NI
KTC3199/GL/-T
100/16
NI
MTZJ6.8B-T2
NI
47K
5.6K
0.1
0.1
100/16
100/63
MTZJ13B-T2
0.39
22/50
KTC3199/GL/-T
47/25
MTZJ11B-T2
22/50
NI
NI
NI
NI
NI
2K
NI
NI
NI
NI
NINI
NI
0.22
NI
NI
NI
NI
NI
NI
6.8K
6.8K
6.8K
MTZJ36B-T2
MTZJ36B-T2
10K
100K
100K
56k 56K
56k
10/50
47/25
KTA1268/GL/-T
KTC3199/GL/-T
KTC3200/GL/-T
100K
NI
NI
NI
NI
NI
NI
NI
NI
NI NI
NI
NI
NI
NI
NINI
NI
NI
NI
2200/6.3
NI
NI
NI
NI
NI
NI
NI
NI
NINI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
0.1/100
NI
NI
NI
NI
NI
0.1/100
NI
NI
NI
1K
USB6V
FANCTRL
FANSTAT
M12V
FDVD
A9V
AGND
+VH
INP
STBYY
+C-IN
+SR-LIN
-C-IN
-VL
-VH
IN
INPUT
SGND
-SR-LIN
+SR-RIN
+VL
+REF
-REF
-SR-RIN
-PRE( -VH)
+C/O
+SR/RCH
+PRE( +VH)
+SR/LCH
-SR/LCH
-SR/RCH
-C/O
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2-6
System control/External input/Source selector section
IC870
IC820
IC850
CN750
CN730
B7000
Q8000
Q8040
R8187
Q8070
Q8071
CN820
Q8081
C8100
C8000
R8100
R8000
C8202
R8206 R8205
R8203
C8203
R8003
R8103
R8102 C8101
C8001
RY712
R8104
J800
IC881
R8004
R8900
B7700
B7603
IC830
R8192
R8092
C8198 C8098
K8000
CN740
R8090
R8190
R8212
R8211
D7010
B7800
R8193
RY767
CN800
R8093
J700
C8120
C8020
C8023
CN810
C8122
C8121
C8021
C8022
C8221
R8221
C7843
C8514
RY734
C8527
CN850
IC770
C8212
C8518
C8517
C8523
C8520
IC831
IC810
R8037
C8222
R8810
C8170
C8070
C8080
R8070
C8172
C8072
R8172
C8176
C8076 C8272
C8074
C8174
C8220
R8174
C8030
C8130
R8030
R8031
R8130
R8131
R8032
R8132
Q8130
Q8030Q8031
Q8131
R8062
R8162
C8060
C8061
C8160
C8161
C8033
C8133
R8060
IC800
R8160
C8182
C8181
R8182
R8180
C8180
C8082
C8184
CN830
C8083
C8084
C8185
C8282
C8280
R8042
R8143
C8132
C8032
C8235
D8230 D8231
Q8524
Q8180
R8084
Q8403 Q8404
D7000
RY756
K8001
C8236
R7101
R7001
R7890
R7892
R7893
R7894
R7898
R7859
R7743
R7727
R7728
R7726
R7750
R7749
R7748
R7747
R7746
R7730
R7838
R7844
CN799
R7792
R7843
R8137
B7602
B7400
C7000
C7001
C7002
X7700
R7799
R7798
R7797
R7793
R7794
R7795
R7796
C7003
C7004
CN720
R7779
R7780
R7781
R7786
C7005
R7776
R7777
K7000
C7006
C8005
C8004
Q7084
CN760
C7789
C7889
Q7080
C7700
R7895
R7896
D7843
R7742
B7964
B7962
B7963
B7313
C8213
C8214
Q7000
Q7010
R8177
R8077
B7247
IC801
IC880
C8537
C7718
R8204
C8204
R8202
R8101
R8001
C8103
C8003
R8002
C8900
R8105
R8005
Q8900
R8006
R8106
D8131
C8090
D8090
D8091
R8091R8191
C8191 C8091
Q8211
Q8212
C8211
B7900
C8123 C8124
C8024
C8127
C8128
C8027
C8028
B7002
B7001
B7004
B7005
C8025
C8125
R8120
R8020
C8126
C8026
C8019
C8029
C8119
C8129
R8021
R8121
C8577
C8511
C8512
R8512
R8511
C8522
C8515
C8529
C8528
C8513 R8513
R8527
R8528
R8526
C8526
R8530
R8531
C8530
C8516
R8516
R8517
R8518
R8519
C8525
C8524
C8521
R8521
R8520
C8575
C8574
R8195
R8095
R8196
R8096
R8811
C8810
R8170
R8171R8071
R8072
C8201
C8200
C8270
C8519
R8074
R8175R8075
R8073 R8173
C8131 C8031
R8133 R8033
R8061
R8161
R8134
R8034
R8183
C8288
R8080
R8081
R8142
R8046R8146
R8043
C8332
R8036R8136
D8032D8132
R8035R8135
R8262
R8263
C8232
C8234
C8230
R8232
R8234
R8231
R8230
C8231
R8189
R8085
B7617
D8524
R8414
R8416
D8407
D8406
C7007
C7008
Q8080
C7009
R8523
R8524C8531
Q7742
R7804
R7818
R7811
R8292
R8291
R8293
C7050
D7050
R7050
R7151
R7152
D7151
D7152
D8031
R8260
R8261R8199 R8099
R8534
R8533
C8534
C8533
C8532
C8535
R8535
R8532
R7701
R7702
R7703
R7774
R7773
R7772
R7871
R7805
R7803
R7802
R7759
R7801
R7808
R7725 R7851
R7862
R7854
R7768
R7706
R7847
R7775
C7010
C8536
R7704
C7011
C7012
R7719
C7013
C7711
C7713
R7758
IC771
D7084
C7085 R7085 R7084
C8205
C7717
C7084
C7082
R7083
D7080
R7080
C7080
R7700
R7153
R7154
D7081
CN787
R7705
R7155
R7156
R7157
D7153
D7154
D7155
D7156
D7157
R7809
B7708
C8333
Q8032
Q8132
R7102
R7002
C8081
C8171
C8071
C7020
R8176
R8076
R8223
R2S15904SP-X
R2S15207FP-X
R2A15907SP-X
QGF1205F2-11
QGF1205C2-21
NI
KTC812-X
#
NI
KTC812-X
QGF1205C2-07
RT6N230C-X
10/63
10/63
#
#
10/63
10K 24K
22K
0.022/50
56K
56K22K 10/63
10/63
QSK0127-001
1K
QNN0420-001
NJM4565E-X
1K
NI
NJM4565E-X
36K
36K
NQR0627-004X
QGF1205F2-15
#
#
10K
22K
*1
0
QSK0127-001
QGF1036C2-10
0
QNB0191-001
10/63
10/63
4.7/50
QGF1036C2-08
4.7/50
4.7/50
4.7/50
4.7/50
0.047/50
10K
#
#
#
#
##
#
#
10/50
100P/50
QSK0127-001
100P/50
QGB2510J1-16
MN101EF16NXW
1/50
680P/50
100P/50
0.1/16
0.15/10 TC4066BFT-X
TC4066BFT-X
10K
220/25
4.7K
10/50
10/50
10/50
1K
10/50
10/50
NI
0.1/50
0.1/50
47/25
1/50
1/50
220/10
1K
#
#
#
#
#
#
#
#
#
#
2SC5938A/B/-X
2SC5938A/B/-X
#
#
#
#
#
#
22/63
22/63
#
NJM4565E-X
#
#
#
#
#
#
0.1/50
10/50
QGF1205C2-15
0.1/50
1/50
10/50
47/25
NI
#
2.2K
#
#
10/50
KTC3203/OY/-T
RT6N230C-X
1K
RT1N240C-X
RT1N240C-X
RT1P141C-X
NQR0627-004X
10/50
820
820
10K
10K
10K
10K
10K
10K
100
1K
1K
1K
1K
1K
1K
1K
1K
100
10K
10K
QGF1210G1-06
1K
NI
22K
*1
*1
NI
NI
NI
QAX0711-002Z
1K
1K
1K
1K
**
**
NI
NI
QGF1205F2-13
1K
1K
1K
1K
NI
1K
1K
NQR0627-004X
NI
NI
NI
KTC3203/OY/-T
2.2/50
QGF1205C2-11
100/16
0.01/50
RT1N141C-X
10/50
**
**
UDZW5.1B-X
0
100P/50
100P/50
RT3Y97M-X
RT3Y97M-X
1K
1K
UN2111-X UN2213-XUN2113-X UN2214-XUN2215-X
NJM4565E-X
R2S15904SP-X
100P/50
0.01/50
22K
0.022/50
10K
##
#
#
22K
NI
100K100K
NI
NI
NI
NI
NI
0.1/50
NI
NI
##
NI NI
RT1N441C-X
RT1N441C-X
NI
*1
4.7/50 10/50
10/50
NINI
10/63
10/63
#
#
#
#
1/50
4.7/50
0.01/50
20K
51K
47/25
1/50
1/50
680P/50
0.1/16 4.7K
15K
15K
15K
0.1/16
30K
30K
0.1/16
1/50
15K
15K
15K
10K
0.1/16
0.1/16
0.0015/50
91K
10K
1/50
1/50
0
0
NI
NI
4.7K
220/10
1K
100K
100K
NI
NI
NI
NI
0.1/50
1K
10K10K
2.2K 2.2K
##
#
#
#
#
43K
43K
#
NI
1K
100K
#
##
2.2K
NI
##
1K1K
51K1K
1/50
1/50
47/25
#
#
#
#
NI
10K10K
NI
UDZW5.6B-X
680
1.6K
UDZW2.4B-X
UDZW2.4B-X
NI
NI
NI
NI
4.7
560
1/50
10K
QSK0127-001
10K
4.7K
#
#
NI
4.7/50
UDZW5.1B-X
#
100K
100K
51K1K
10K 10K
9.1K
9.1K
0.027/50
NI
68P/50
68P/50
NI
330K
1K
1K
1K
1K
1K
1K
10K
10K
10K
10K
27K
10K
10K
1K
10K
10K
10K
1K
1K
100K
1K
NI
100P/50
1K
NI
NI
1K
NI
20P/50
18P/50
1K
BR24L08F-W-X
UDZW3.9B-X
NI 150 4.7
100/16
NI
4.7/50
NI
10K
NI
100K
100K
100K
1N4003S-T5
QGF1205F2-05
1K
100K
100K
100K
10K
NI
RT1N441C-X
RT1N441C-X
820
820
#
##
NI
1K
1K
10K
SMUTE
LRMUTE
MICSW
TU_CE
TU_DI
TU_CLK
TU_DO
HPMUTE
MIC_CAL
HPSW
MICVOL-
MICVOL+
ECHO-
PBMUTE
HEADSW
REC-B/M
A/B
SOL_B
MOTOR_B
ACMSFTY
ACMKEY_B
ENSW_B
ENSW_A
SOL_A
AUX/TAPE
MOTOR_A
ACMKEY_A
ECHO+
MIC_CLK
AHBL
MIC_DA
AHBH
AIBASS_SW
SURR_DA
VOL_CLK
MAIN_DA
VOL_CLK FL_DA
DISPBUSY
F/SW_RLY
C/R_RLY
LEVELFB
REM
AIBASS-SW
FANSFTY
PRT
DVD_REG
AUX%/TAPE
FANCTRL
AHBL
AHBH
SW_LEV1
SW_LEV2
TU_CE
TU_DO
AMP_ON
TU_DI
TU_CLK
C/SW_DALEVELFB
ACMKEY_B
MIC_CAL
F-KEY3
F-KEY1
LED_ILLU
FL_LATCH
FL_CLK
EEP_CLK
EEP_DA
LRMUTE
VOL_CLK
SURR_DA
SMUTE
F-KEY2
RESET
HEADSW
DVD_REG
PRT
AMP_ON
MIC_FOUT
VOL_CLK
C/SW_DA
SW_LEV2
SW_LEV1
FANCTRL
FANSFTY
AMP_ON
DVD_SFTY
RESET
REC-B/M
RESET
DVD_SFTY
V_MUTE
V_IP
LED_STBY
LED_KROK
LED_BASS
MOTOR_A
SOL_A
ENSW_A
ENSW_B
ACMKEY_A
A/B
PBMUTE
SOL_B
MOTOR_B
ACMSFTY
DISPRST
DVD_SFTY
DISPCS
V_MUTE
V_IP
DISPCS
DISPD2S
DISPS2D
DISPCLK
DISPRST
DISPCLK
DISPD2S
DISPS2D
MAIN_DA DISPBUSY
LED_KROK
MIC_DA EEP_DA
MICVOL+
EEP_CLK
HPMUTE
MIC_CLK
C/R_RLY
F/SW_RLY
MIC_FOUT
MICSW
HPSW
ECHO+
MICVOL-
ECHO-
REM
LED_STBY
FL_DA
FL_LATCH
FL_CLK
LED_BASS
F-KEY1
F-KEY2
F-KEY3
LED_ILLU
2-7
Video output/Mic circuit/FL display/User control key section
R9227
R9232
R9230
R9040
C9204
D9300
C9227
C9230
J921
C5010
R9218
R9221
R9224
C9218
C9221
C9224
C9209
J920
IC930
R9201
C9300
R5510
C9206
C9211
C9216
C9213
C9215
J901
R9202
R9203
R9204
R9205
K9300
R9021
R9022
R5512
J910
R9206
R9207
R9208
R5511
C9200
IC500
R9209
R9002
K9102
C9311
R9210
D9040
C9001
C9310
C5001
R5507
CN500
C5011
K9103
K9101
R5517
R5047
R5048
R5049
D5501
C5505
C5000
K9040
CN921
C5002
D5502
IC510
D5500
Q5500
R5010 R5011
J580
R5013R5012 R5014
W580
R5516
R5513 R5515
R5514
R5500 R5501 R5508
R5505
R5503
D5503
R5000
R5502 R5506
R5504
R5001
R5520
R5008
C9003
K5802
R5005R5003R5002 R5007R5006R5004
FW910
CN901
FW501
FW501
CN920
R5050
R5051
IC901
L9310
D9301
D9302
C5802
C5801
CN931
FW910
B9452
Q9300
Q9301
JS902
FL500
K9100
C9035
R9015
JS901
C9107
Q9002
FW500
R9013
R9011
C9008
C9108
D9102
D9103
C9232
B5801
B5802
C5800
R9035
K5801
R5009
R5509
C9004 R9003
C9201
C9223
C9220
C9106
C9217
R9310
C9231
S5511
R9004
J902
C9005
S5512
C9021C9022
C9226
C9101
C9102
C9104
C9103
C9229
R9001
R9041
C9042
C9041
D9304
D9041
C9000
R5518
W581
D9042
CN930
C5012
W910
C5006
C5007
C5003
C5502
C5009
R5043
D5006
C5501
S5011
S5012
S5013
D5004
D5005
S5014
S5015
S5016
S5517
S5515
S5516
S5514
S5513
S5500
S5509
S5501
S5502
C5008
R5035
R5036
S5000
S5507
S5508
S5503
R5519
S5009
S5504
S5506
S5505 S5001
S5002
S5010
D9101
S5007
S5008
S5003
S5004
S5006
S5005
C5503
C5504
D9303
R5521
D9310
R5522
W912
R5057
R9301
D9100
C9100
R9024
C9105
R5056
R5055
C9034
R5058
Q5014
R9014
R9012
C9010
C9009
Q5013
Q5011
Q5012
R9023
R9034
C9050
C9051
S5510
C9052
C9053
IC920
75
75
75
0
0.01/50
2A02-M
470/6.3
470/6.3
QNN0557-002
0.1
75
75
75
470/6.3
470/6.3
470/6.3
22/50
QNN0572-001
GP1FAV30TK0F
200
100/16
1K
1/50
1/50
0.1/16
1/50
1/50
QNS0285-001
NI
200
NI
200
QQR0621-001Z
4.7K
4.7K
3.9K
QNS0266-001
NI
200
NI
2.7K
470/6.3
PT6324-HT
200
1K
NQR0627-004X
NI
NI
MA111-X
0.1/50
NI
22/50
1.8K
QGF1205F2-13
100P
NQR0627-004X
NQR0627-004X
39
1K
82K
NI
SELU2E10C-P
0.1
22/50
NQR0267-004X
QGF1036C2-05
0.001
SELU2E10C-P
GP1UM281XKVF
SELU2E10C-P
KRC102M-T
1K 1K
QNZ0906-001
1.8K1.2K 2.2K
WJP0100-001A-E
56K
6.2K 18K
10K
56K 18K 1.2K
2.7K
6.2K
SELU2E10C-P
1K
10K 2.2K3.9K
1K
39
10K
0.1/50
QQR0621-001Z
2.7K1.8K1.2K 6.2K
3.9K
2.2K
QUM024-07Z4Z4-E
QGF1205C2-15
QUM155-10Z4Z4-E
QUM155-10Z4Z4-E
QGF1205C2-11
NI
NI
NJM4565E-X
NI
UDZW3.3B-X
UDZW2.0B-X
10000p
NI
QGD2501C1-06Z
QLF0188-001
NQR0627-004X
NI220
NI
RT3Y97M-X
QUM153-18DGZ4-E
10K
10K
1/50
NI
NI
NI
0.01/50
16K
QQR0621-001Z
18K
1K
47/25 510K
NI
100p
100p
0.1
100p
47
100p
1K
QNS0285-001
NI
0.0010.001
100p
0.001
0.001
3900P
3900P
100p
100K
100K
10/50
NI
MA111-X
2200p
10K
UDZS5.1B-X
QGF1036C2-28
0.1
100/10
0.1
10/25
0.1
100
SLR-343VC-T
0.01 SLI-343URC-W-T
SLI-343URC-W-T
100
100
NI
0.01
1N4003S-T5
UDZW3.0B-X
10k
10K
RT1P430C-XRT1N430C-X
680
QSW1230-001
NI
0.1
NI
0.001
10K
QSW1230-001
10K
0.1/50
10K
KRC107M-T
10K
10K
100/16
47/25
KRC107M-T
KRC107M-T
KRC107M-T
NI
2.7K
0.01/50
0.01/50
0.01/50
0.01/50
MM1623XF-X
Y-1
Cr
Cb
C
Y-2
VIDEO-MUTE
VIDEO-MUTE
FL-CLK
F-KEY3
G1
G4
G2
S4
REM
G3
G5
FL-LATCH
G6
LED-BASS
LED-KARAOKE
P24
P23
P22
P21
P20
P19
P18
F-KEY1
F-KEY2
DGND
P4
P3
P2
-VPP
LED-ILLUMINATION
F-KEY3
FL-DATA
5V
P1
FL-CLK
FL-DATA
FL-LATCH
D+
D-
LED-STANDBY
GND
S4
F-KEY1
F-KEY2
DISPRST
DVD-SAFETY
Y-2
C
DISPBUSY
Cr
DISPCS
DISPCK
DISPD2S
DISPS2D
DISPS2D
DISPBUSY
DISPD2S
DISPCK
DISPCS
LED-ILLUMINATION
Cb
Y-1
Y-1
Cb
VIDEO-MUTE
Cr
C
Y-2
I/P
DVD-SAFETY
LED-ILLUMINATION
5V
P1
P11
P2
P3
P4
P5
P14
P15
G14
G13
G12
G11
G10
G9
G8
G7
P16
P9
P8
P7
P17
P6
P16
P15
LED-BASS
LED-KARAOKE
P14
P13
P17
P12
P11
P10
P9
P8
P7
G14
G13
G12
P18
P6
P5
P19
P20
P21
P10
P24
P23
P22
G11
G10
F-KEY3
LED-STANDBY
D6V
G9
G8
G7
G6
G5
F-KEY2
DGND
DISPRST
P12
P13
2-8
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Cassette mechanism control section
8V
PBR
RECR
RECL
KEY-A
PBL
ENDSW-A
SAFETY
PBMUTE
A/B
RMUTE
M12V
SOL-A
MOTOR-A
MG
SOL-B
MOTOR-B
ENDSW-B
KEY-B
AG
HSW+RECB
A/B
PBMUTE
RECR
RECL
PBR
PBL
RMUTE
NI
C200
220
R226
NI
C217
390P/50
C207
1200P/50
C225
2.2/50
C213
2.2k
R123
Q110
KTA1271/OY/-T
100K
R208
D122
1N4003S-T5
100/16
C122
NI
C218
B143
24K
R227
1
2
3
4
5
6
7
NI
C201
NI
C208
10
R309
330P/50
C301
2.2k
R110
IC200
HA12237F-E
12345678910
11
12
13
14
15
16
17
18
19
20
21222324252627282930
31
32
33
34
35
36
37
38
39
40
D152
1N4003S-T5
4.7
R306
10K
R206
NI
Q205
15K
R300
15K
R301
0.01/50
C203
1200P/50
C202
5.1KR200
0.1/16
C206
9.1KR219
100
R207
5.1KR201
820P/50
C234
NI
R221
0.1/16
C204
30K
R205
0.1/16
C212
2.2K
R307
NIC239
NIC238
2.2/50
C205
Q200
RT1P430C-X
27KR204
TP300
330P/50
C300
L300
QQR1118-002
123
456
10/50
C211
18K
R113
4.7/25
C227
1.8K
R213
220/10
C209
Q150
KTA1296/Y/-T
820P/50C235
9.1K
R218
NI
R234
220P/50
C216
1/50
C210
4.7/25
C226
0.1/16
C214
100/16
C228
5.1K
R215
220P/50
C231
Q120
KTA1296/Y/-T
Q111
RT1N144C-X
NI
C229
1.8K
R202
5.1K
R214
0.01/50
C219
22K
R209
22/50
C220
NI
C230
1/50
C221
22/50
C222
1K
R217
1K
R216
Q300
KTC3203/OY/-T
0.0068/50
C224
30K
R211
2.2k
R153
390P/50
C215
10K
R302
470K
R308
27K
R212
D121
1N4003S-T5
D151
1N4003S-T5
CN220
WJK0243-001A-E
1
2
3
NI
C233
NI
C232
KRC107S-X
RT1N144C-X
0.027/10C303
NI
R235
Q121
RT1N144C-X
Q151
RT1N144C-X
Q301
KTC3203/OY/-T
0.0015/50
C307
0.022/50
C306
10K
NIC305
47K
100/16C304
2.2
R305
15K
R304
0.0068/50
C223
10/50
C110
L301
QQL244K-100Z
100
R303
CN120
QGF1205C2-07
1
2
3
4
5
6
7
36K
R115
8.2K
R114
10/50
C140
Q140
KTA1271/OY/-T
2.2k
R140
Q141
RT1N144C-X
2.4K
R203
2.4K
R210
WR1
WJZ0160-004A-E
CN100
QGF1205C2-21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
RT6N430C
Q201
RT6N430C
Q202
RT6N430C
Q204
RT6N430C
Q203
RT6N430C
CN200
QGA2001C1-07
1
2
3
4
5
6
7
NI
R222
CN110
QGF1205F2-06
1
2
3
4
5
6
1
2
3
4
5
6
B108
BUS
NI
R220
8.2K
R228
B131
NI
RT1P430C-X
PB-NF2(R)
PB-EQ(R)
PB-
EQOUT(R)
TAI(I)
(1/4W) FR
AIN(R)
NC
PBOUT(R)
NC
BIN(R)
RECIN(R)
ALC(R)
NC
RECOUT(R)
ALC ON/
GND
OFF
CR/NOR
A/B
(1/4W)UNF
MUTE ON/ OFF
VCC
ALC DET
GND
REC MUTE OFF/ON
Iref
TEST
RETURN
BIN(L)
RIP
AIN(L)
PB-NF1(L)
PB-NF2(L)
PB-EQ(L)
TAI(L)
PBOUT(L)
PBMUTE
A/B
RMUTE
ENDSW-B
SOL-B
F-REC
NC
RECIN(L)
ALC(L)
NC
RECOUT(L)
EQOUT(L)
BIAS OSC
NF1(R)
(8.2V)
9.0V
9.0V
(1.1V)
8.8V
(6.5V)
0V
0V
0V
RECORD PLAYBACK HEAD
SOLENOID DRIVE A
RECORDING CURRENT
NORM
GND
ERASE CURRENT
NORM 70mA
36uA
STANDARD
NOTES
1. VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER
BIAS FRQ
CHECK POINT
CONDITION MECHA STOP MODE
QAL0968-001
R+
L+
R-/L-
PLAYBACK HEAD
2. UNLESS OTHERWISE SPECIFIED
MOTOR DRIVE A
ALL INDUCTANCE VALUES ARE IN H(m=mH).
ALL CAPACITORS ARE CERAMIC CAPACITOR
GVA10149
OR MYLAR CAPACITOR.
ALL RESISTANCE VALUES ARE IN OHM( ).
ALL CAPACITANCE VALUES ARE IN F(P=pF).
ALL E.CAPACITORS ARE SHOWN IN THE FORM OF CAPACITANCE ( F)/RATED VOLTAGE (V).
(0V)
OR OSCILLOSCOPE WITHOUT INPUT SIGNAL.
CONNECT TO CHASSIS OF MECHA A & B
,RESISTORS ARE 1/10W 5% METAL GLAZE RESISTOR.
:
POLYPROPYLENE CAPACITOR
0V
0V
0V
0V
0V
0V
11.9V 1V
11.3V
11.4V
0V
0V
0V11.9V
11.4V
11.4V
0V
0V
8.8V
0V
(0V)
0V
(0V)
10
!
PACK
R-REC
MTR-B
ENDSW-A
SOL-A
PACK
GND
MTR-A
SOLENOID DRIVE B
11.9V 1V
11.3V
MOTOR DRIVE B
+- +-
4.7K
4.7K
4.7K
4.7K
!
4.7K
L-
L+
PBL
PBR
RECL
RECR
E+
E-
AG
R-
R+
NC
QAL0967-001
(PB 2WAY)
(R/P 2WAY)
4.7K
0V
0V
0V
11.9V 0V
11.4V
11.4V
0V
0V
TAPE A :TAPE B :
0V
0.84V
0.84V
0.84V
0.86V
0V
0V
0.84V
0.84V
0V
0V
0V
0V
0V
0V
0V
3.4V
0.6V
0V
0V
0V
0.6V
0V
3.5V
3V
3.5V
0V
3.5V
3.6V
3V
0V
0.6V
0V
0V
1.2V
0V
6.8V
7.2V
0V
0V
3V
0V
3V
3.6V
3.5V
0V
0V
3V
3.5V
0V
0.6V
3.5V
8V
8V
8V
8V
0V
0V
3.3V
0V
0V
3.3V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
1.9V
0V
0V
0V
0V
1V
1V
0V
0V
0V
0V
0V
0V
0V
2-9
DVD section (1/3) (for DX-U10, DX-U8)
FM+
F-
T+
TRSDRV
E
CDLDCUR
EXADT4
FODRV
EXADT5
WOUT
T-
C
EXADT6
CDLDCUR
COM
EXADT7
UOUT
F
EXADR17
EXDT3
RF+
MDQ4
F-
MDQ0
VOUT
MDQ1
MDQ13
MDQ14
LPC1
MDQ2
MA10
NWE
MDQ10
LPCO1 MDQ12
AD4
NCAS
B
MDQ5
LPC2
MDQ3
D
EXADT9
EXDT11
MA7
MA11
LPCO2
EXADT8
EXDT4
MA0
BA0
F+
FM-
EXADR19
MA6
DAC5OUT
MA9
VOUT
NEXWE
MA4
DAC4OUT
BA1
SPMUTE
MA3
DAC1OUT
MA8
D
RF+
T-
DAC2OUT
B
FM-
MDQ9
NEXOE
TRDRV
FM+
TRSDRV
MDQ6
NEXCE
COM
EXDT14
MDQ8
EXADT10
EXDT9
WOUT
DQM0
EXDT2
A
DQM1
EXDT10
DAC3OUT
VREFH
EXDT7
UOUT
EXDT15
F+
T+
EXADT0
EXADT2
EXADT3
FG
LPCO1
LPCO2
NRAS
NCSM
MA1
MA5
MA2
EXDT1
EXDT8
EXDT0
MDQ11
MDQ7
EXDT6
EXDT13
MCK
MDQ15
AD4
DVDLDCUR
EXDT5
EXDT12
DVDLDCUR
TRVSW
MCK
FODRV
TRDRV
U2SDT
SCS
S2UDT
UCLK
UCS
A
C
FG
CPURST
DCLK
DDATA
EXADR18
EXADT12
EXADT14
EXADT15
EXADR16
SPDRV
EXADT1
DAC1CS
EXADR20
DVDPWR
DM
DP
SCK
SDA
SCK
SDA
DAC0CS
NEN
NOC
DAC2CS
DACPDNDACPDN
LRCK
BCK
DACCK
TRVSW
SPMUTE
LRMUTE
AOUT2
AOUT1
AOUT0
CPURST
TX
RX
EXADT13
SPDRV
LPC1
EXADT11
ADCPDN
E
F
DISCSTP
DISCSET
VREFH
ADIN
NI
L301
X301
NAX0741-001X
TP292
10kR373
0.1
C322
12pC325
1k
R384
30k
R206
100R353
0.022
C211
NIR308
TP109
TP118
0.1
C318
22/6.3
C108
T
0.1
C335
30k
R340
1%
1C324
220R359
TP111
5.6k
R111
330
R117
24k
R220
TP112
27k
R204
0.1C334
10/6.3
C339
T
330R323
0.01
C203
NI
C386
18
R113
1/4W
Q104
2SC4617/R/-X
330R333
TP101
4.3k
R127
TP205
0.1C323
1k
R107
22k
R346
4.3k
R112
10k
R214
0.022C261
0.1
C383
0.1
C307
220R345
TP121
0.1C107
10k
R326
560p
C353
0.018
C337
0.1C348
220p
C201
0.1
C217
5.6k
R128
M9V
TP332
0.1
C310
220p
C202
TP316
1
C356
0.01
C393
220
R357
1k
R385
330R311
0.1
C309
0R336
0.1
C204
TP381
TP107
0.1C321
TP326
TP331
0.1
C374
TP116
K352
NQR0502-001X
IC201
LA6502-X
12345678910111249131415161718192021222324
25 26 27 28 29 30 31 32 33 34 35 36 50 37 38 39 40 41 42 43 44 45 46 47 48
1kR306
TP122
2.2
R106
0.1
C375
TP106
0R339
0.022C260
220
R360
CN301
NI
1
2
3
4
5
6
4.3k
R104
Q103
KTA1001/Y/-X
MGND
TP220
0R338
TP206
NI
C290
6.8k
R221
1kR376
TP103
0.1
C103
0.0056C338
0.1C333
TP119
0.1
C379
330R351
TP207
220R358
470
R116
1MR352
TP227
1k
R202
TP104
330R325
10k
R361
1
C341
TP201
C343
NI
470
R108
10kR259
Q101
KTA1001/Y/-X
0.1C256
TP337
C345
0.1
1
C340
TP226
0.1
C378
18k
R219
TP333
NI
R290
0.1
C101
0.015
C352
0.033C331
0.1C314
0.1
C305
100/16
C263
TP108
C344
NI
150p
C206
2.2
R114
0.1
C349
22
R303
27k
R205
NI
R363
10kR372
5.1k
R341
1%
TP202
NI
C377
TP231
TP204
220/6.3
C301
5.6k
R103
220R367
S5V
22/6.3
C106
T
270p
C205
TP327
TP329
100
R101
330R324
0.015C2581
C210
F
TP117
TP105
NI
C264
0.1
C306
TP221
2.2k
R342
1%
1
R125
0.1
C373
0
R335
10k
R213
0.1
C102
0.1 C313
330
R109
M5V
TP203
100
R102
47/6.3
C105
TP291
0.022C262
1
C371
F
TP328
NI
R110
C342
NI
TP110
0.1
C104
0.1
C315
100kR309
TP115
0.1C332
TP120
Q102
2SC4617/R/-X
0.015C259
0.1C319
0.1
C372
TP330
0.39
R251
1/2W
100
R310
TH301
NAD0025-103X
TP123
10k
R392
0.1
C330
TP208
TP315
10pC326
0.1C320
NIR257
NI
R118
100R383
20k
R347
1k
R115
18
R105
1/4W
47k
R207 560p
C354
0.47C251
TP102
47R362
0.0082C257
0.01
C351
CN201
QGF1016F8-08W
1
2
3
4
5
6
7
8
D301
NI
C316 0.1
C312
0.1
C350 0.01
R312 330
R322 330
1k
R329
CN101
QGF0523F3-24W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NI
C357
NIC358
470
R201
1kR316
NI
R369
NI
R368
0.1C347
IC301
MN2DS0018MA
EXDT1
1
EXDT9
2
EXDT2
3
EXDT10
4
VSS
5
VDD33
6
EXDT3
7
EXDT11
8
EXDT4
9
EXDT12
10
EXDT5
11
EXDT13
12
EXDT6
13
EXDT14
14
VSS
15
VDD33
16
EXDT7
17
EXDT15
18
VSS
19
VDD12
20
EXADR16
21
EXADT15
22
EXADT14
23
EXADT13
24
EXADT12
25
EXADT11
26
EXADT10
27
EXADT9
28
EXADT8
29
EXADR19
30
NEXWE
31
VSS
32
VDD33
33
EXADR18
34
EXADR17
35
EXADT7
36
EXADT6
37
EXADT5
38
EXADT4
39
EXADT3
40
EXADT2
41
EXADT1
42
VSS
43
VDD12
44
EXADR20
45
S0OUT
46
S0CLK
47
INT0
48
S1OUT
49
P5
50
VSS
51
VDD33
52
S2IN
53
S2OUT
54
S2CLK
55
P956
S3OUT57
S3CLK58
P1259
P1360
P1461
DRV562
DRV463
DRV364
DRV265
DRV166
DRV067
VSS68
VDD3369
NRST70
FG71
SCLOCK72
SDATA73
EXTRG074
EXTRG175
TRCCLK76
TRCDATA077
TRCDATA178
TRCDATA279
TRVDATA380
TRCST81
VSS82
VDD1283
AVDDD84
PLFIL185
VREFH786
AVSSD87
VREFL788
AVSSC89
CCAPA90
CDATA91
AVDDC92
ANAMONI193
ANAMONI294
RFINN95
RFINP96
VIN1RF97
VIN2RF98
VIN4RF99
VIN3RF100
VREFH5101
VREFL5102
LPC1103
LPCO1104
LPC2105
LPCO2106
AVDDB107
AVSSB108
VREFH
109
VHALF
110
VIN10
111
VIN9
112
VIN5
113
VIN6
114
VIN7
115
VIN8
116
VIN3
117
VIN4
118
VIN2
119
VIN1
120
AD0
121
AD1
122
AD2
123
AD4
124
AVSSH
125
PWM1
126
PWM0
127
AVDDH
128
DAC3OUT
129
DAC2OUT
130
DAC1OUT
131
AVDDF
132
COMP1
133
VREF
134
IREF1
135
COMP2
136
AVSSF
137
DAC4OUT
138
DAC5OUT
139
AVSSE
140
AVDDE
141
AVDDG
142
AVSSG
143
LOUT
144
AVSSI
145
ROUT
146
AVDDI
147
DACCK
148
SRCK
149
LRCK
150
ADOUT
151
IECOUT
152
VSS
153
VDD33
154
OSCI
155
OSCO
156
VSS
157
VDD12
158
MDQ15
159
MDQ0
160
MDQ14
161
MDQ1
162
MDQ13 163
MDQ2 164
VSS 165
VDD33 166
MDQ12 167
MDQ3 168
MDQ11 169
MDQ4 170
MDQ10 171
MDQ5 172
VSS 173
VDD33 174
MDQ9 175
MDQ6 176
MDQ8 177
MDQ7 178
DQM0 179
DQM1 180
NWE181
VSS 182
MCK 183
VDD33 184
MCKI 185
VSS 186
VDD12 187
NCAS 188
NRAS 189
NCSM 190
DQM2 191
DQM3 192
BA0 193
MA9 194
VSS 195
VDD33 196
BA1 197
MA8 198
MA10 199
MA7 200
MA0 201
MA6 202
MA1 203
VSS 204
VDD33 205
MA5 206
MA2 207
MA4 208
MA3 209
VSS 210
VDD12 211
EXADT0 212
NEXCE 213
NEXOE 214
EXDT0 215
EXDT8 216
470
R375
P3.3V
47/4
C302
0R348
0R337
0R334
C392
0.1
S3.3VS5V
K101
NQR0502-001X
TP324
TP323
D2V
DGND
TP321
9
1C304
IC302
MM1701CH-X
8
Vin
7
NC
6
NC
5
Cont
4
Cn
3
GND
2
NC
1
Vo
IC510
BR24L16F-W-X
8
VCC
7
WP
6
SCL
5
SDA
4
GND
3
A2
2
A1
1
A0
NIC336
0.1C564
1
C359
4.7kR541
0.01
C328
D1.2V
47/4C303
R705 0
R704 0
1kR307
K354
NQR0022-002X
22R318
X302
NAX0376-002X
IC303
XC2164A51FM-X
123
456
0.1
C370
K353
NQR0502-001X
TP334
10k
R371
R314
0
TP300
TP301
TP302
TP303
NI
R132
NI
R131
NI
R129
330R332
NI
R130
C391
NI
4.3kR304
OUT3F
0V
SPC1
DGND
AMP1IN-
SPRF
UOUT
9V
AMP3OUT
0V
SDATA
AMP1OUT
MCOM
0V
AMP2OUT
DGND
OUT3R
0V
OUT1F
for ICE
SPFC
VCC
MUTE1
VCC2
MECHA
OUT4F
AMPOUT
WOUT
0V
OUT1R
AMP2IN-
SPFGO
VOUT
MUTE3
MGND
VREF
0V
FR
0V
TEMPDET
0V
RESET
F
SGND
AMP4IN-
SPVCOIN
OUT2F
DRIVER
SPCX
MGND
SCLK
EEPROM
LASER
AMP2IN+
AMP3IN-
MGND
NC
VCC1
SPCTL
VHALF2
FODRV
SPDRV
TRSDRV
2SB1424/R/-W
AMP1IN+
0V
0V
2SB1424/R/-W
MGND
SPC2
AMPIN+
MUTE2
OUT4R
NC
or
DV5
AMPIN-
9V
NC
0V
BR
AMP4IN+
OUT2R
AMP3IN+
TRDRV
CHASSIS
or
DRIVER
27MHz
(LRMUTE/TDATA)
(S2UDT)
(DCLK)
(48MHz)
(SCS)
(U2SDT)
(DISCSTP)
(MONI1)
(MONI5)
(MONI0)
(MONI4)
(MONI3)
(MONI7)
(MONI2)
(MONI6)
(SPMUTE)
(TRSDRV)
(TRVSW)
(SPDRV)
(SDA)
(UCS)
(SCK)
(UCLK)
(DACPDN)
(DAC1CS)
(DAC2CS)
(AOUT0)
(AOUT1)
(AOUT2)
(ADIN)
LVA10543-601D (1/2)
GND
B
COM
VR(DVD)
FM+
VOUT
T+
FM-
A
C
E
VCC(HF)
T-
GND
LD(DVD)
SWGND
VCC
NC
+RF
F
GND
WOUT
UOUT
F-
LD(CD)
F+
VR(CD)
TRVSW
D
PD(CD)
PD(DVD)
VS
(DDATA)
(VCLKO)
1.2V
0V
0V
0V
D1.2V
3.9V
REG.
3.3V REG.
OSC
48MHz
Qo
VSSVDD
/XTXT
/INH
(NEN)
(NOC)
(DAC0CS)
(DISCSET)
(RX)
B
C
D
E
G
H
(H:L=MULTI:SEPA)
(H:L=USB:ADAC)
(14/15=L:H=64M)
(REF_MODE_SET)
SDRAM
(USB_PHY-)
(USB_PHY+)
(ADCPDN)
MECHA
QAL0786-***
ASS'Y
QAR0334-002
MOTORFEED
MOTOR
QAR0165-001
FXL-D20-11
(OPA-652PH*)
ASS'Y
SPINDLE
PICKUP
TRA
STOP
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
CERAMIC CAPACITOR
OF
OR
10V
NI STANDS FOR NOT INSERTED PARTS.
1.
,
ALL INDUCTANCE VALUES
1/16W
25V
3.
CAPACITANCE( F)ALL E.CAPACITORS ARE SHOWN IN THE FORM
NOTES
UNLESS OTHERWISE SPECIFIED.
METAL GLAZE RESISTOR.
disc
,50V
ALL RESISTORS ARE
16V
DVD
ARE IN H(m=mH).
A1
F(p=pF).ALL CAPACITANCE VALUES ARE IN
/RATED VOLTAGE (V).
6.3V
and mode.the
IN OHM( ).
in
,
2.
or
ALL RESISTANCE VALUES ARE
WITHOUT INPUT SIGNAL.
0.5%5%
VOLT METER
ALL CAPACITORS ARE
Tray
,
.
METAL GLAZE RESISTOR.
CONDITION ---
2-10
DVD section (2/3) (for DX-U10, DX-U8)
NEXCE
MDQ5
EXADT9
EXADT6
EXDT2
EXDT12
MDQ11
MA1
MDQ0
AOUT0
EXADR18
MDQ6
MDQ7
EXADT7
ADCPDN
DAC0CS
MA8
EXADT15
EXDT4
EXDT11
NRAS
MA5
EXDT13
EXDT15
MDQ2
MA4
MDQ1
EXADT11
MDQ15
EXDT6
EXDT8 NCSM
EXDT5
EXADT5
NCAS
MA2
EXDT14
DQM1
EXDT7
ADIN
EXDT3
EXADT12
EXDT0
EXDT9
EXADT14
EXADT10
EXADR16
NEXOE
MDQ4
NWE
DDATA
EXDT10
MDQ10
BA0
BCK
MDQ3
MDQ9
MA10
AOUT2
EXADT0
MDQ14
EXADT13
EXADT1
MDQ8
MA7
EXADT4
MDQ13
DACPDN
MA3
DAC1CS
EXADR19
EXADR17
DAC2CS
MDQ12
DACCK
DCLK
MA6
MA9
LRCK
AOUT1
EXDT1
EXADT2
NEXWE
EXADT8
EXADT3
MA0
DQM0
BA1
MA11
MCK
MCK
EXADR20
CPURST
DISPRST
STSTSW
CLSWT2
S2UDT
EPDI
CLSWT5
EPSK
STEDSW
UCLK
POSMUP
STEDSW
EPCS
DISPCS
MOTPSW
SCS
DISCSTP
EPDO
MOTPSW
POSMDN
DISPCK
MTOP
UCS
EPSK
DISPBUSY
CLSWT4
CLSWT4
MTCL
POSMDN
DISPS2D
MTCL
EPCS
CLSWT1
POSMUP
U2SDT
DISCSET
STSTSW
EPDO
DISPD2S
CLSWT3
CLSWT3
CLSWT2
EPDI
CLSWT1
MTOP
CLSWT5
CPURST
DVDPWR
DAC1OUT
DAC4OUT
DISPS2D
DISPBUSY
DAC2OUT
DAC5OUT
DAC3OUT
DISPCK
DISPD2S
DISPCS
RX
TX
DISPRST
LRMUTE
10/16
C706
P3.3V
470R727
IC707
NI
123
45
1
C741
F
470R725
IC704
AK5358AET-X
16 15 14 13 12 11 10 9
87654321
IC453
S-80830CNNB-G-W
12
34
NI
C728
100
R715
0.1
C563
10/16
C745
S3.3V
2.2
C381
NI
R399
IC705
MM1615AN-X
123
45
NI
C714
TP380
1k
R458
K749
0
0.1
C702
0.1
C742
NI
R462
0.001
C557
IC509
SG32A90TFIR3
484746454443424140393837363534333231302928272625
242322212019181716151413121110987654321
K713
NI
IC701
AK4387ET-X
161514131211109
87654321
2.2
R701
NI
C721
470R728
47k
R719
0.01
C455
IC703
AK4387ET-X
161514131211109
87654321
47kR718
NI
R711
IC305
MM1563DF-X
1234
567
0.1
C555
470R721
NI
C715
0.1
C551
0.1
C709
K720
NQR0022-002X
CN704
NI
1
2
3
K712
NI
K351
NQR0502-001X
2.2k
R716
NI
C561
0.01
C712
NI
R712
1
C380
47/6.3
C704
NI
R713
470R723
0.1
C708
100R714
22/6.3
C558
T
K501
NQR0502-001X
0.1
C740
0.1
C707
47k
R535
0.1
C743
1C713
0.1
C559
0
R741
470R724
IC702
AK4387ET-X
161514131211109
87654321
DGND
5.1
R742
IC706
NI
123
45
10/16
C744
0.1
C703
1
C711
470p
C382
NI
R530
0.1
C560
0.1
C701
TP761
0.1
C554
1
C562
F
NIR740
IC505
K4S641632K-UC75
27
VDD
28
VSS
29
A4
30
A5
31
A6
32
A7
33
A8
34
A9
35
A11
36
NC
37
CKE
38
CLK
39
UDQM
40
NC/RFU
41
VSS
42
DQ8
43
VDDQ
44
DQ9
45
DQ10
46
VSSQ
47
DQ11
48
DQ12
49
VDDQ
50
DQ13
51
DQ14
52
VSSQ
26
A3
25
A2
24
A1
23
A0
22
A10/AP
21
BA1
20
BA0
19
/CS
18
/RAS
17
/CAS
16
/WE
15
LDMQ
14
VDD
13
DQ7
12
VSSQ
11
DQ6
10
DQ5
9
VDDQ
8
DQ4
7
DQ3
6
VSSQ
5
DQ2
4
DQ1
3
VDDQ
2
DQ0
1
VDD
53
DQ15
54
VSS
10k
R531
K714
NI
TP727
TP726
TP467
AGND
TP462
R466
NI
TP461
D1.2V
TP452
TP471
R461 100
X451
NAX0248-001X
321
S3.3V
R459
NI
R463
100
R452 2.2k
TP474
R456
10k
CN452
QGA2001F6-02X
1
2
B3.3V
CN455
NI
1
2
3
4
5
6
IC451
MN101C61GNW
1
VREF-
2
LSENSOR
3
DET3.3V
4
DET1.2V
567
SM1/SM2
8
OUTC
9
VPP
10
VREF+
11
VDD
12
OSC2
13
OSC1
14
VSS
15
XI
16
XO
17
MMOD
18
DISPS2D
19
DISPD2S
20
DISPCK
21 S2UDT
22 U2SDT
23 UCLK
24
25 /RESET
26 SCS
27 CPURST
28 DISPBUSY
29
30
31 UCS
32 DISPCS
33 INT
34
35
36
37
38
39 EPCS
40 EPSK
41
EPDI
42
EPDO
43 44
STSTSW
45
CLSWT1
46
CLSWT2
47
CLSWT3
48
CLSWT4
49
CLSWT5
50
MTOPSW
51
STEDSW
52
MTOP
53
MTCL
54
POSMUP
55
FDATA
56
FCLOCK
57
POSMDN
58
DISCSTP
59
DISCSET
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80DVDPWR
TP457
R455
10k
CN453
QGA2001F6-03X
1
2
3
TP453
TP459
TP473
C453
0.1
M9V
IC452
BR93L56RF-W-X
8
VCC
7
NC
6
NC
5
GND
4
DO
3
DI
2
SK
1
CS
K456 0
TP456
R451
NI
K455 0
TP458
R465
1k
TP472
R453
10k
R457
100
R464
100
CN451
QGF1016F8-15W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
C456
NI
TP454
C451
0.1
C454
0.01
TP451
TP417
TP460
IC454
NI
12
34
DGND
R454
10k
TP455
K454 0
R460
NI
C452
0.1
MGND
TP751
TP752
D4VS5V
TP743
K732 0
K735 0
TP731
CN701
QGF1016F8-28W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
D2V
TP735
TP718
K752
NQR0022-002X
TP732
TP758
NIC735
K750
NQR0022-002X
TP733
TP756
NIC736
K754
NQR0022-002X
1kR731
M5V
K733 0
K758
NQR0022-002X
330R732
TP710
K738 NQR0022-005X
K734 0
TP708
K736 0
M9V
MGND
TP734
TP742
TP737
K737 0
NIC734
TP740
TP754
TP750
TP736
K756
NQR0022-002X
TP738
TP717
NIC733
NIC732
TP747
B3.3V
TP709
TP702
CN703
QGF1016F8-08W
1
2
3
4
5
6
7
8
TP701
TP703
TP722
TP723
TP721
TP728
TP704
TP711
TP707
TP725
TP705
CN702
QGF1016F8-10W
1
2
3
4
5
6
7
8
9
10
K748 0
K741 0
K744 0
BICK
3.3V
MCLK
NC
1.6V
NI STANDS FOR NOT INSERTED PARTS.
VCC
,
1.3V
25V
D9
0V
1.3V 3.3V
,
1.6V
VCC
CCLK
1.6V
A10
1.9V
1.6V
WITHOUT INPUT SIGNAL.
VSS
DGNG
0V
/OE
A3
D8
CKS1
.
2.7V
1.3V
DAC
LRCK
0.5%
SCLK
Vout
VCOM
METAL GLAZE RESISTOR.
2.4V
AOUTL
3.3V
PDN
1.7V
Cont
NOTES
D5
2.8V
0V
3.3V
A7
MCLK
1.7V
CCLK
0V
0V
ALL CAPACITANCE VALUES ARE IN
2.4V
mode
1.6V
REG
2.0V
DACCK+
1.3V
GND
0.7V
Cn
2.8V1.3V
AVDD
A8
FLASH ROM
VSS
CONDITION ---
Sub
VD
the
2.8V
A19
D11
A12
1.3V
1.0V
0.7V
LRCK
CKS0
D0A5
1.2V
3.3V
0V
0V
0.4V
A14
DACCK-
0.5V
P/S
Vin
ARE IN H(m=mH).
3.0V
6.0V
NC
0.1V
SDRAM
AOUTL
STOP
A5V
0.5V
PDN
0.7V
and
0V
VSS
in
3.3V
2.8V
ALL RESISTANCE VALUES ARE
0V
D4
DET
1.3V
D1
4.0V
3.3V
2.7V
1.6V
1.7V
ALL RESISTORS ARE
LRCK
2.3V
A20
ALL INDUCTANCE VALUES
DZF
AGND
SDTI
UNLESS OTHERWISE SPECIFIED.
METAL GLAZE RESISTOR.
A11
DZF
MCLK
CDTI
1
0.8V
2.4V
3.3V
0.6V
D14
/RATED VOLTAGE (V).
D15
6.3V
VA
*R/B
VSS
AVDD
P/S
VOLT METER
ALL CAPACITORS ARE
Tray
,
1.1V
0V
3.1V
GND
1.4V
2.7V
4.9V
Vout
NC
1.8V
CKS2
*/BYTE
2.0V
A1
A18
AINL
3.1V
ALL E.CAPACITORS ARE SHOWN IN THE FORM
3.2V
Noise
0V
3.0V
VSS
0V
F(p=pF).
D6
1.3V
DVDD
AVDD
AOUTL
SDTI
DZF
DACCK
VSS
3.3V
1.3V
MCLK
VCC
2.4V
50V
3.3V
D12
16V
0.9V
DVD
OUT
0.8V
CSN
3.1V
A6
1.5V
BICK
,
5.0V
AOUTR
BUFFER
A9
A16
10V
1/16W
0V
AOUTR
0V
3.3V
0.7V
CSN
REG
GND
1.1V
GND
3.
3.3V
CAPACITANCE( F)
D3
2.8V
disc
*/RST
A2
0V
2.0V
DIF
CCLK
VCOM
P/S
1.6V
D7
A17
0V
1.6V
BICK
A
VPP
1.6V
2.8V
2.7V
2.6V
3.3V
3.3V
IN OHM( ).
3.3V
AOUTR
1.8V
1.6V
PDN
DVDD
CDTI
Cont
0V
LVA10543-601D (2/3)
0V
Vin
VCOM
3.3V
0V
A13
0.9V
AINR
AUDIO
1.6V
3.9V
/CE
2.8V
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
2.7V
CERAMIC CAPACITOR
OF
OR
0V
0V
CDTI
0V
0V
D10
4.9V
1.8V
1.6V
D13
.
0V
DVDD
1.
A15
3.3V
VCOM
3.3V
D2
5%
AUDIO
0.4V
0V
or
LRCK
2.4V
1.6V
0.3V
/WE
A4
CSN
SDTI
VDD
0.9V
PDN
2.8V
ADC
2.
DGND
3.3V
SDOUT
A0
1.1V
C
B
D
E
G
0V
3.3V
3.3V
0V
3.3V
0V
8MHz
3.3V
3.3V
0V
0V
3.3V
3.3V
3.3V
3.3V
3.3V
0V
0V
0V
3.3V
3.3V
0V
0V
3.1V
0V
0V
0V
3.3V
0V
3.3V
0V
0V
0V
0V
3.3V
1.6V
3.3V
3.3V
0V
1.2V
3.3V
1.6V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
MECHA CONTOROLLER
1.2V
0V
0V
0V
3.3V
LVS20135-002A
See
CH5-BASE-1
LOADER ASS'Y
SYSTEM
for
DISPS2D
DISPRST
DGND
MGND
DISPCK
DAC5OUT
DGND
D2V
DAC2OUT
DISPBUSY
B3.3V
M9V or M5V
DISPCS
DAC4OUT
M9V
DAC3OUT
RX
TX
DACOUT1
S5V
D2V
DGND
DGND
MGND
D4V
DISPD2S
M9V
MGND
AGND
FAOUTL
AINL
AGND
RESERVED
AGND
RAOUTL
AGND
LRMUTE
AINR
AGND
A6V
A6V
FAOUTR
SWAOUT
CAOUT
AGND
RAOUTR
2-11
DVD section (3/3) (for DX-U10, DX-U8)
NEN
NOC
DP
DM
R811
33 1/2W
R814
15k
R813
15k
R812
33 1/2W
R859
1k
IC801
MM1565AF-X
1
Vout
2
NC
3
GND
4
Cn
5
Cont
6
Sub
7
Vin
1
C801
2.2
C802
TP803
470p
C804
CN801
QGF1016F8-05W
1
2
3
4
5
K811 0
K812 0
R861
47k
DGND
P3.3V
TP802
TP801
TP814
TP812
TP811
TP813
D811
NI
C803
220/6.3
D812
NI
IC891
NI
12
34
NI
R891
NI R892
NI
C891
R860
1k
CN811
QGA2001F6-05X
1
2
3
4
5
TP819
0R819
NI
C819
Q801
KRA104S-X
REG5V
VSS
VDD
OUT
NC
UN2113X
OR
LVA10543-601D (3/3)
6V0V
0V
0V
0V
ALL RESISTORS ARE
A
ALL INDUCTANCE VALUES
IN OHM( ).
UNLESS OTHERWISE SPECIFIED.
METAL GLAZE RESISTOR.METAL GLAZE RESISTOR.
50V
NOTES
.
47k
16V
2.
0.5%
DVD 1CONDITION ---
=
,
the
NI STANDS FOR NOT INSERTED PARTS.
mode
/RATED VOLTAGE (V).
6.3V,
UN2113-X
ALL CAPACITANCE VALUES ARE IN
,
25V 10V
1/16W
VOLT METER
ALL CAPACITORS ARE
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
Tray
, CERAMIC CAPACITOR
OF
ARE IN H(m=mH).
3.
OR
STOP
CAPACITANCE( F)
and
4.DIGITAL TRANSISTOR
disc .in
1.
ALL RESISTANCE VALUES ARE
47k
WITHOUT INPUT SIGNAL.
ALL E.CAPACITORS ARE SHOWN IN THE FORM
5%
F(p=pF).
or
H
2-12
DVD section (1/3) (for DX-U6)
FM+
F-
T+
TRSDRV
E
CDLDCUR
EXADT4
FODRV
EXADT5
WOUT
T-
C
EXADT6
CDLDCUR
COM
EXADT7
UOUT
F
EXADR17
EXDT3
RF+
MDQ4
F-
MDQ0
VOUT
MDQ1
MDQ13
MDQ14
LPC1
MDQ2
MA10
NWE
MDQ10
LPCO1 MDQ12
AD4
NCAS
B
MDQ5
LPC2
MDQ3
D
EXADT9
EXDT11
MA7
MA11
LPCO2
EXADT8
EXDT4
MA0
BA0
F+
FM-
EXADR19
MA6
DAC5OUT
MA9
VOUT
NEXWE
MA4
DAC4OUT
BA1
SPMUTE
MA3
DAC1OUT
MA8
D
RF+
T-
DAC2OUT
B
FM-
MDQ9
NEXOE
TRDRV
FM+
TRSDRV
MDQ6
NEXCE
COM
EXDT14
MDQ8
EXADT10
EXDT9
WOUT
DQM0
EXDT2
A
DQM1
EXDT10
DAC3OUT
VREFH
EXDT7
UOUT
EXDT15
F+
T+
EXADT0
EXADT2
EXADT3
FG
LPCO1
LPCO2
NRAS
NCSM
MA1
MA5
MA2
EXDT1
EXDT8
EXDT0
MDQ11
MDQ7
EXDT6
EXDT13
MCK
MDQ15
AD4
DVDLDCUR
EXDT5
EXDT12
DVDLDCUR
TRVSW
MCK
FODRV
TRDRV
U2SDT
SCS
S2UDT
UCLK
UCS
A
C
FG
CPURST
DCLK
DDATA
EXADR18
EXADT12
EXADT14
EXADT15
EXADR16
SPDRV
EXADT1
DAC1CS
EXADR20
DVDPWR
DM
DP
SCK
SDA
SCK
SDA
DAC0CS
NEN
NOC
DAC2CS
DACPDNDACPDN
LRCK
BCK
DACCK
TRVSW
SPMUTE
LRMUTE
AOUT2
AOUT1
AOUT0
CPURST
TX
RX
EXADT13
SPDRV
LPC1
EXADT11
ADCPDN
E
F
DISCSTP
DISCSET
VREFH
ADIN
NI
L301
X301
NAX0741-001X
TP292
10kR373
0.1
C322
12pC325
1k
R384
30k
R206
100R353
0.022
C211
NIR308
TP109
TP118
0.1
C318
22/6.3
C108
T
0.1
C335
30k
R340
1%
1C324
NIR359
TP111
5.6k
R111
330
R117
24k
R220
TP112
27k
R204
0.1C334
10/6.3
C339
T
330R323
0.01
C203
NI
C386
18
R113
1/4W
Q104
2SC4617/R/-X
330R333
TP101
4.3k
R127
TP205
0.1C323
1k
R107
22k
R346
4.3k
R112
10k
R214
0.022C261
0.1
C383
0.1
C307
220R345
TP121
0.1C107
10k
R326
560p
C353
0.018
C337
0.1C348
220p
C201
0.1
C217
5.6k
R128
M9V
TP332
0.1
C310
220p
C202
TP316
1
C356
0.01
C393
220
R357
1k
R385
330R311
0.1
C309
0R336
0.1
C204
TP381
TP107
0.1C321
TP326
TP331
0.1
C374
TP116
K352
NQR0502-001X
IC201
LA6502-X
12345678910111249131415161718192021222324
25 26 27 28 29 30 31 32 33 34 35 36 50 37 38 39 40 41 42 43 44 45 46 47 48
1kR306
TP122
2.2
R106
0.1
C375
TP106
0R339
0.022C260
NI
R360
CN301
NI
1
2
3
4
5
6
4.3k
R104
Q103
KTA1001/Y/-X
MGND
TP220
0R338
TP206
NI
C290
6.8k
R221
1kR376
TP103
0.1
C103
0.0056C338
0.1C333
TP119
0.1
C379
330R351
TP207
220R358
470
R116
1MR352
TP227
1k
R202
TP104
330R325
10k
R361
1
C341
TP201
C343
NI
470
R108
10kR259
Q101
KTA1001/Y/-X
0.1C256
TP337
C345
0.1
1
C340
TP226
0.1
C378
18k
R219
TP333
NI
R290
0.1
C101
0.015
C352
0.033C331
0.1C314
0.1
C305
100/16
C263
TP108
C344
NI
150p
C206
2.2
R114
0.1
C349
22
R303
27k
R205
NI
R363
10kR372
5.1k
R341
1%
TP202
NI
C377
TP231
TP204
220/6.3
C301
5.6k
R103
220R367
S5V
22/6.3
C106
T
270p
C205
TP327
TP329
100
R101
330R324
0.015C2581
C210
F
TP117
TP105
NI
C264
0.1
C306
TP221
2.2k
R342
1%
1
R125
0.1
C373
0
R335
10k
R213
0.1
C102
0.1 C313
330
R109
M5V
TP203
100
R102
47/6.3
C105
TP291
0.022C262
1
C371
F
TP328
NI
R110
C342
NI
TP110
0.1
C104
0.1
C315
100kR309
TP115
0.1C332
TP120
Q102
2SC4617/R/-X
0.015C259
0.1C319
0.1
C372
TP330
0.39
R251
1/2W
100
R310
TH301
NAD0025-103X
TP123
10k
R392
0.1
C330
TP208
TP315
10pC326
0.1C320
NIR257
NI
R118
100R383
20k
R347
1k
R115
18
R105
1/4W
47k
R207 560p
C354
0.47C251
TP102
47R362
0.0082C257
0.01
C351
CN201
QGF1016F8-08W
1
2
3
4
5
6
7
8
D301
NI
C316 0.1
C312
0.1
C350 0.01
R312 NI
R322 NI
1k
R329
CN101
QGF0523F3-24W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NI
C357
NIC358
470
R201
1kR316
NI
R369
NI
R368
0.1C347
IC301
MN2DS0018MA
EXDT1
1
EXDT9
2
EXDT2
3
EXDT10
4
VSS
5
VDD33
6
EXDT3
7
EXDT11
8
EXDT4
9
EXDT12
10
EXDT5
11
EXDT13
12
EXDT6
13
EXDT14
14
VSS
15
VDD33
16
EXDT7
17
EXDT15
18
VSS
19
VDD12
20
EXADR16
21
EXADT15
22
EXADT14
23
EXADT13
24
EXADT12
25
EXADT11
26
EXADT10
27
EXADT9
28
EXADT8
29
EXADR19
30
NEXWE
31
VSS
32
VDD33
33
EXADR18
34
EXADR17
35
EXADT7
36
EXADT6
37
EXADT5
38
EXADT4
39
EXADT3
40
EXADT2
41
EXADT1
42
VSS
43
VDD12
44
EXADR20
45
S0OUT
46
S0CLK
47
INT0
48
S1OUT
49
P5
50
VSS
51
VDD33
52
S2IN
53
S2OUT
54
S2CLK
55
P956
S3OUT57
S3CLK58
P1259
P1360
P1461
DRV562
DRV463
DRV364
DRV265
DRV166
DRV067
VSS68
VDD3369
NRST70
FG71
SCLOCK72
SDATA73
EXTRG074
EXTRG175
TRCCLK76
TRCDATA077
TRCDATA178
TRCDATA279
TRVDATA380
TRCST81
VSS82
VDD1283
AVDDD84
PLFIL185
VREFH786
AVSSD87
VREFL788
AVSSC89
CCAPA90
CDATA91
AVDDC92
ANAMONI193
ANAMONI294
RFINN95
RFINP96
VIN1RF97
VIN2RF98
VIN4RF99
VIN3RF100
VREFH5101
VREFL5102
LPC1103
LPCO1104
LPC2105
LPCO2106
AVDDB107
AVSSB108
VREFH
109
VHALF
110
VIN10
111
VIN9
112
VIN5
113
VIN6
114
VIN7
115
VIN8
116
VIN3
117
VIN4
118
VIN2
119
VIN1
120
AD0
121
AD1
122
AD2
123
AD4
124
AVSSH
125
PWM1
126
PWM0
127
AVDDH
128
DAC3OUT
129
DAC2OUT
130
DAC1OUT
131
AVDDF
132
COMP1
133
VREF
134
IREF1
135
COMP2
136
AVSSF
137
DAC4OUT
138
DAC5OUT
139
AVSSE
140
AVDDE
141
AVDDG
142
AVSSG
143
LOUT
144
AVSSI
145
ROUT
146
AVDDI
147
DACCK
148
SRCK
149
LRCK
150
ADOUT
151
IECOUT
152
VSS
153
VDD33
154
OSCI
155
OSCO
156
VSS
157
VDD12
158
MDQ15
159
MDQ0
160
MDQ14
161
MDQ1
162
MDQ13 163
MDQ2 164
VSS 165
VDD33 166
MDQ12 167
MDQ3 168
MDQ11 169
MDQ4 170
MDQ10 171
MDQ5 172
VSS 173
VDD33 174
MDQ9 175
MDQ6 176
MDQ8 177
MDQ7 178
DQM0 179
DQM1 180
NWE181
VSS 182
MCK 183
VDD33 184
MCKI 185
VSS 186
VDD12 187
NCAS 188
NRAS 189
NCSM 190
DQM2 191
DQM3 192
BA0 193
MA9 194
VSS 195
VDD33 196
BA1 197
MA8 198
MA10 199
MA7 200
MA0 201
MA6 202
MA1 203
VSS 204
VDD33 205
MA5 206
MA2 207
MA4 208
MA3 209
VSS 210
VDD12 211
EXADT0 212
NEXCE 213
NEXOE 214
EXDT0 215
EXDT8 216
470
R375
P3.3V
47/4
C302
0R348
0R337
0R334
C392
0.1
S3.3VS5V
K101
NQR0502-001X
TP324
TP323
D2V
DGND
TP321
9
1C304
IC302
MM1701CH-X
8
Vin
7
NC
6
NC
5
Cont
4
Cn
3
GND
2
NC
1
Vo
IC510
BR24L16F-W-X
8
VCC
7
WP
6
SCL
5
SDA
4
GND
3
A2
2
A1
1
A0
NIC336
0.1C564
1
C359
4.7kR541
0.01
C328
D1.2V
47/4C303
R705 0
R704 0
1kR307
K354
NQR0022-002X
22R318
X302
NAX0376-002X
IC303
XC2164A51FM-X
123
456
0.1
C370
K353
NQR0502-001X
TP334
10k
R371
R314
0
TP300
TP301
TP302
TP303
NI
R132
NI
R131
NI
R129
NIR332
NI
R130
C391
NI
4.3kR304
OUT3F
0V
SPC1
DGND
AMP1IN-
SPRF
UOUT
9V
AMP3OUT
0V
SDATA
AMP1OUT
MCOM
0V
AMP2OUT
DGND
OUT3R
0V
OUT1F
for ICE
SPFC
VCC
MUTE1
VCC2
MECHA
OUT4F
AMPOUT
WOUT
0V
OUT1R
AMP2IN-
SPFGO
VOUT
MUTE3
MGND
VREF
0V
FR
0V
TEMPDET
0V
RESET
F
SGND
AMP4IN-
SPVCOIN
OUT2F
DRIVER
SPCX
MGND
SCLK
EEPROM
LASER
AMP2IN+
AMP3IN-
MGND
NC
VCC1
SPCTL
VHALF2
FODRV
SPDRV
TRSDRV
2SB1424/R/-W
AMP1IN+
0V
0V
2SB1424/R/-W
MGND
SPC2
AMPIN+
MUTE2
OUT4R
NC
or
DV5
AMPIN-
9V
NC
0V
BR
AMP4IN+
OUT2R
AMP3IN+
TRDRV
CHASSIS
or
DRIVER
27MHz
(LRMUTE/TDATA)
(S2UDT)
(DCLK)
(48MHz)
(SCS)
(U2SDT)
(DISCSTP)
(MONI1)
(MONI5)
(MONI0)
(MONI4)
(MONI3)
(MONI7)
(MONI2)
(MONI6)
(SPMUTE)
(TRSDRV)
(TRVSW)
(SPDRV)
(SDA)
(UCS)
(SCK)
(UCLK)
(DACPDN)
(DAC1CS)
(DAC2CS)
(AOUT0)
(AOUT1)
(AOUT2)
(ADIN)
LVA10543-611D (1/2)
GND
B
COM
VR(DVD)
FM+
VOUT
T+
FM-
A
C
E
VCC(HF)
T-
GND
LD(DVD)
SWGND
VCC
NC
+RF
F
GND
WOUT
UOUT
F-
LD(CD)
F+
VR(CD)
TRVSW
D
PD(CD)
PD(DVD)
VS
(DDATA)
(VCLKO)
1.2V
0V
0V
0V
D1.2V
3.9V
REG.
3.3V REG.
OSC
48MHz
Qo
VSSVDD
/XTXT
/INH
(NEN)
(NOC)
(DAC0CS)
(DISCSET)
(RX)
B
C
D
E
G
H
(H:L=MULTI:SEPA)
(H:L=USB:ADAC)
(14/15=L:H=64M)
(REF_MODE_SET)
SDRAM
(USB_PHY-)
(USB_PHY+)
(ADCPDN)
MECHA
QAL0786-***
ASS'Y
QAR0334-002
MOTORFEED
MOTOR
QAR0165-001
FXL-D20-11
(OPA-652PH*)
ASS'Y
SPINDLE
PICKUP
TRA
STOP
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
CERAMIC CAPACITOR
OF
OR
10V
NI STANDS FOR NOT INSERTED PARTS.
1.
,
ALL INDUCTANCE VALUES
1/16W
25V
3.
CAPACITANCE( F)ALL E.CAPACITORS ARE SHOWN IN THE FORM
NOTES
UNLESS OTHERWISE SPECIFIED.
METAL GLAZE RESISTOR.
disc
,50V
ALL RESISTORS ARE
16V
DVD
ARE IN H(m=mH).
A1
F(p=pF).ALL CAPACITANCE VALUES ARE IN
/RATED VOLTAGE (V).
6.3V
and mode.the
IN OHM( ).
in
,
2.
or
ALL RESISTANCE VALUES ARE
WITHOUT INPUT SIGNAL.
0.5%5%
VOLT METER
ALL CAPACITORS ARE
Tray
,
.
METAL GLAZE RESISTOR.
CONDITION ---
2-13
DVD section (2/3) (for DX-U6)
NEXCE
MDQ5
EXADT9
EXADT6
EXDT2
EXDT12
MDQ11
MA1
MDQ0
AOUT0
EXADR18
MDQ6
MDQ7
EXADT7
ADCPDN
DAC0CS
MA8
EXADT15
EXDT4
EXDT11
NRAS
MA5
EXDT13
EXDT15
MDQ2
MA4
MDQ1
EXADT11
MDQ15
EXDT6
EXDT8 NCSM
EXDT5
EXADT5
NCAS
MA2
EXDT14
DQM1
EXDT7
ADIN
EXDT3
EXADT12
EXDT0
EXDT9
EXADT14
EXADT10
EXADR16
NEXOE
MDQ4
NWE
DDATA
EXDT10
MDQ10
BA0
BCK
MDQ3
MDQ9
MA10
AOUT2
EXADT0
MDQ14
EXADT13
EXADT1
MDQ8
MA7
EXADT4
MDQ13
DACPDN
MA3
DAC1CS
EXADR19
EXADR17
DAC2CS
MDQ12
DACCK
DCLK
MA6
MA9
LRCK
AOUT1
EXDT1
EXADT2
NEXWE
EXADT8
EXADT3
MA0
DQM0
BA1
MA11
MCK
MCK
EXADR20
CPURST
DISPRST
STSTSW
CLSWT2
S2UDT
EPDI
CLSWT5
EPSK
STEDSW
UCLK
POSMUP
STEDSW
EPCS
DISPCS
MOTPSW
SCS
DISCSTP
EPDO
MOTPSW
POSMDN
DISPCK
MTOP
UCS
EPSK
DISPBUSY
CLSWT4
CLSWT4
MTCL
POSMDN
DISPS2D
MTCL
EPCS
CLSWT1
POSMUP
U2SDT
DISCSET
STSTSW
EPDO
DISPD2S
CLSWT3
CLSWT3
CLSWT2
EPDI
CLSWT1
MTOP
CLSWT5
CPURST
DVDPWR
DAC1OUT
DAC4OUT
DISPS2D
DISPBUSY
DAC2OUT
DAC5OUT
DAC3OUT
DISPCK
DISPD2S
DISPCS
RX
TX
DISPRST
LRMUTE
10/16
C706
P3.3V
NIR727
IC707
NI
123
45
NI
C741
F
NIR725
IC704
NI
16 15 14 13 12 11 10 9
87654321
IC453
S-80830CNNB-G-W
12
34
NI
C728
100
R715
0.1
C563
NI
C745
S3.3V
2.2
C381
NI
R399
IC705
MM1615AN-X
123
45
NI
C714
TP380
1k
R458
K749
0
NI
C702
NI
C742
NI
R462
0.001
C557
IC509
SG32A90TFIR3
484746454443424140393837363534333231302928272625
24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
K713
NI
IC701
AK4387ET-X
161514131211109
87654321
2.2
R701
NI
C721
NIR728
NI
R719
0.01
C455
IC703
NI
161514131211109
87654321
47kR718
NI
R711
IC305
MM1563DF-X
1234
567
0.1
C555
470R721
NI
C715
0.1
C551
NI
C709
K720
NQR0022-002X
CN704
NI
1
2
3
K712
NI
K351
NQR0502-001X
NI
R716
NI
C561
0.01
C712
NI
R712
1
C380
47/6.3
C704
NI
R713
470R723
NI
C708
100R714
22/6.3
C558
T
K501
NQR0502-001X
0.1
C740
0.1
C707
47k
R535
NI
C743
1C713
0.1
C559
NI
R741
NIR724
IC702
NI
161514131211109
87654321
DGND
NI
R742
IC706
NI
123
45
NI
C744
NI
C703
1
C711
470p
C382
NI
R530
0.1
C560
0.1
C701
TP761
0.1
C554
1
C562
F
NIR740
IC505
K4S641632K-UC75
27
VDD
28
VSS
29
A4
30
A5
31
A6
32
A7
33
A8
34
A9
35
A11
36
NC
37
CKE
38
CLK
39
UDQM
40
NC/RFU
41
VSS
42
DQ8
43
VDDQ
44
DQ9
45
DQ10
46
VSSQ
47
DQ11
48
DQ12
49
VDDQ
50
DQ13
51
DQ14
52
VSSQ
26
A3
25
A2
24
A1
23
A0
22
A10/AP
21
BA1
20
BA0
19
/CS
18
/RAS
17
/CAS
16
/WE
15
LDMQ
14
VDD
13
DQ7
12
VSSQ
11
DQ6
10
DQ5
9
VDDQ
8
DQ4
7
DQ3
6
VSSQ
5
DQ2
4
DQ1
3
VDDQ
2
DQ0
1
VDD
53
DQ15
54
VSS
10k
R531
K714
NI
TP727
TP726
TP467
AGND
TP462
R466
NI
TP461
D1.2V
TP452
TP471
R461 100
X451
NAX0248-001X
321
S3.3V
R459
NI
R463
100
R452 2.2k
TP474
R456
10k
CN452
QGA2001F6-02X
1
2
B3.3V
CN455
NI
1
2
3
4
5
6
IC451
MN101C61GNW
1
VREF-
2
LSENSOR
3
DET3.3V
4
DET1.2V
567
SM1/SM2
8
OUTC
9
VPP
10
VREF+
11
VDD
12
OSC2
13
OSC1
14
VSS
15
XI
16
XO
17
MMOD
18
DISPS2D
19
DISPD2S
20
DISPCK
21 S2UDT
22 U2SDT
23 UCLK
24
25 /RESET
26 SCS
27 CPURST
28 DISPBUSY
29
30
31 UCS
32 DISPCS
33 INT
34
35
36
37
38
39 EPCS
40 EPSK
41
EPDI
42
EPDO
43 44
STSTSW
45
CLSWT1
46
CLSWT2
47
CLSWT3
48
CLSWT4
49
CLSWT5
50
MTOPSW
51
STEDSW
52
MTOP
53
MTCL
54
POSMUP
55
FDATA
56
FCLOCK
57
POSMDN
58
DISCSTP
59
DISCSET
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80DVDPWR
TP457
R455
10k
CN453
QGA2001F6-03X
1
2
3
TP453
TP459
TP473
C453
0.1
M9V
IC452
BR93L56RF-W-X
8
VCC
7
NC
6
NC
5
GND
4
DO
3
DI
2
SK
1
CS
K456 0
TP456
R451
NI
K455 0
TP458
R465
1k
TP472
R453
10k
R457
100
R464
100
CN451
QGF1016F8-15W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
C456
NI
TP454
C451
0.1
C454
0.01
TP451
TP417
TP460
IC454
NI
12
34
DGND
R454
10k
TP455
K454 0
R460
NI
C452
0.1
MGND
TP751
TP752
D4VS5V
TP743
K732 0
K735 0
TP731
CN701
QGF1016F8-28W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
D2V
TP735
TP718
K752
NQR0022-002X
TP732
TP758
NIC735
K750
NQR0022-002X
TP733
TP756
NIC736
K754
NQR0022-002X
1kR731
M5V
K733 0
K758
NQR0022-002X
330R732
TP710
K738 NQR0022-005X
K734 0
TP708
K736 0
M9V
MGND
TP734
TP742
TP737
K737 0
NIC734
TP740
TP754
TP750
TP736
K756
NQR0022-002X
TP738
TP717
NIC733
NIC732
TP747
B3.3V
TP709
TP702
CN703
NI
1
2
3
4
5
6
7
8
TP701
TP703
TP722
TP723
TP721
TP728
TP704
TP711
TP707
TP725
TP705
CN702
QGF1016F8-10W
1
2
3
4
5
6
7
8
9
10
K748 0
K741 NI
K744 0
BICK
3.3V
MCLK
NC
1.6V
NI STANDS FOR NOT INSERTED PARTS.
VCC
,
1.3V
25V
D9
0V
1.3V 3.3V
,
1.6V
VCC
CCLK
1.6V
A10
1.9V
1.6V
WITHOUT INPUT SIGNAL.
VSS
DGNG
0V
/OE
A3
D8
CKS1
.
2.7V
1.3V
DAC
LRCK
0.5%
SCLK
Vout
VCOM
METAL GLAZE RESISTOR.
2.4V
AOUTL
3.3V
PDN
1.7V
Cont
NOTES
D5
2.8V
0V
3.3V
A7
MCLK
1.7V
CCLK
0V
0V
ALL CAPACITANCE VALUES ARE IN
2.4V
mode
1.6V
REG
2.0V
DACCK+
1.3V
GND
0.7V
Cn
2.8V1.3V
AVDD
A8
FLASH ROM
VSS
CONDITION ---
Sub
VD
the
2.8V
A19
D11
A12
1.3V
1.0V
0.7V
LRCK
CKS0
D0A5
1.2V
3.3V
0V
0V
0.4V
A14
DACCK-
0.5V
P/S
Vin
ARE IN H(m=mH).
3.0V
6.0V
NC
0.1V
SDRAM
AOUTL
STOP
A5V
0.5V
PDN
0.7V
and
0V
VSS
in
3.3V
2.8V
ALL RESISTANCE VALUES ARE
0V
D4
DET
1.3V
D1
4.0V
3.3V
2.7V
1.6V
1.7V
ALL RESISTORS ARE
LRCK
2.3V
A20
ALL INDUCTANCE VALUES
DZF
AGND
SDTI
UNLESS OTHERWISE SPECIFIED.
METAL GLAZE RESISTOR.
A11
DZF
MCLK
CDTI
1
0.8V
2.4V
3.3V
0.6V
D14
/RATED VOLTAGE (V).
D15
6.3V
VA
*R/B
VSS
AVDD
P/S
VOLT METER
ALL CAPACITORS ARE
Tray
,
1.1V
0V
3.1V
GND
1.4V
2.7V
4.9V
Vout
NC
1.8V
CKS2
*/BYTE
2.0V
A1
A18
AINL
3.1V
ALL E.CAPACITORS ARE SHOWN IN THE FORM
3.2V
Noise
0V
3.0V
VSS
0V
F(p=pF).
D6
1.3V
DVDD
AVDD
AOUTL
SDTI
DZF
DACCK
VSS
3.3V
1.3V
MCLK
VCC
2.4V
50V
3.3V
D12
16V
0.9V
DVD
OUT
0.8V
CSN
3.1V
A6
1.5V
BICK
,
5.0V
AOUTR
BUFFER
A9
A16
10V
1/16W
0V
AOUTR
0V
3.3V
0.7V
CSN
REG
GND
1.1V
GND
3.
3.3V
CAPACITANCE( F)
D3
2.8V
disc
*/RST
A2
0V
2.0V
DIF
CCLK
VCOM
P/S
1.6V
D7
A17
0V
1.6V
BICK
A
VPP
1.6V
2.8V
2.7V
2.6V
3.3V
3.3V
IN OHM( ).
3.3V
AOUTR
1.8V
1.6V
PDN
DVDD
CDTI
Cont
0V
LVA10543-611D (2/3)
0V
Vin
VCOM
3.3V
0V
A13
0.9V
AINR
AUDIO
1.6V
3.9V
/CE
2.8V
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
2.7V
CERAMIC CAPACITOR
OF
OR
0V
0V
CDTI
0V
0V
D10
4.9V
1.8V
1.6V
D13
.
0V
DVDD
1.
A15
3.3V
VCOM
3.3V
D2
5%
AUDIO
0.4V
0V
or
LRCK
2.4V
1.6V
0.3V
/WE
A4
CSN
SDTI
VDD
0.9V
PDN
2.8V
ADC
2.
DGND
3.3V
SDOUT
A0
1.1V
C
B
D
E
G
0V
3.3V
3.3V
0V
3.3V
0V
8MHz
3.3V
3.3V
0V
0V
3.3V
3.3V
3.3V
3.3V
3.3V
0V
0V
0V
3.3V
3.3V
0V
0V
3.1V
0V
0V
0V
3.3V
0V
3.3V
0V
0V
0V
0V
3.3V
1.6V
3.3V
3.3V
0V
1.2V
3.3V
1.6V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
MECHA CONTOROLLER
1.2V
0V
0V
0V
3.3V
LVS20135-002A
See
CH5-BASE-1
LOADER ASS'Y
SYSTEM
for
DISPS2D
DISPRST
DGND
MGND
DISPCK
DAC5OUT
DGND
D2V
DAC2OUT
DISPBUSY
B3.3V
M9V or M5V
DISPCS
DAC4OUT
M9V
DAC3OUT
RX
TX
DACOUT1
S5V
D2V
DGND
DGND
MGND
D4V
DISPD2S
M9V
MGND
AGND
FAOUTL
AINL
AGND
RESERVED
AGND
RAOUTL
AGND
LRMUTE
AINR
AGND
A6V
A6V
FAOUTR
SWAOUT
CAOUT
AGND
RAOUTR
2-14
DVD section (3/3) (for DX-U6)
NEN
NOC
DP
DM
R811
33 1/2W
R814
15k
R813
15k
R812
33 1/2W
R859
1k
IC801
MM1565AF-X
1
Vout
2
NC
3
GND
4
Cn
5
Cont
6
Sub
7
Vin
1
C801
2.2
C802
TP803
470p
C804
CN801
QGF1016F8-05W
1
2
3
4
5
K811 0
K812 0
R861
47k
DGND
P3.3V
TP802
TP801
TP814
TP812
TP811
TP813
D811
NI
C803
220/6.3
D812
NI
IC891
NI
12
34
NI
R891
NI R892
NI
C891
R860
1k
CN811
QGA2001F6-05X
1
2
3
4
5
TP819
0R819
NI
C819
Q801
KRA104S-X
REG5V
VSS
VDD
OUT
NC
UN2113X
OR
LVA10543-611D (3/3)
6V0V
0V
0V
0V
ALL RESISTORS ARE
A
ALL INDUCTANCE VALUES
IN OHM( ).
UNLESS OTHERWISE SPECIFIED.
METAL GLAZE RESISTOR.METAL GLAZE RESISTOR.
50V
NOTES
.
47k
16V
2.
0.5%
DVD 1CONDITION ---
=
,
the
NI STANDS FOR NOT INSERTED PARTS.
mode
/RATED VOLTAGE (V).
6.3V,
UN2113-X
ALL CAPACITANCE VALUES ARE IN
,
25V 10V
1/16W
VOLT METER
ALL CAPACITORS ARE
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
Tray
, CERAMIC CAPACITOR
OF
ARE IN H(m=mH).
3.
OR
STOP
CAPACITANCE( F)
and
4.DIGITAL TRANSISTOR
disc .in
1.
ALL RESISTANCE VALUES ARE
47k
WITHOUT INPUT SIGNAL.
ALL E.CAPACITORS ARE SHOWN IN THE FORM
5%
F(p=pF).
or
H
2-15
Loader section
SW6
TP2
TP1
TP4
M2
TP3
W1
TP5
R1R1
W2
M1
SW8
IC2 IC1
C6C7
SW7
C2
D1
CN3
SW1
SW2
SW3
SW4
SW5
CN2
C3
C5
C1
CN1
QSW0854-002
QRA0164-001
WJM0330-002A-E
QVY0027-B14
WJM0331-001A-E
QRA0164-001
QSW0923-001
LB1641 LB1641
0.1/500.1/50
QSW0886-002
0.1/50
MTZJ6.2A-T2
QGB2024J1-07S
QSW0844-002
QSW0844-002
QSW0844-002
QSW0844-002
QSW0844-002
QGB2024K1-07S
0.01/50
0.01/50
100/16
QGF1036F1-15
TR5_CL
TR4_CL
TR3_CL
TR2_CL
TR1_CL TR1_CL
TR2_CL
TR3_CL
TR4_CL
TR5_CL
M.TR_OP
POS_UP
TR_OP
POS_DOWN
TR_CL
M.TR_OP
TR1_CL
TR5_CL
TR2_CL
TR4_CL
TR3_CL
TR_OP
TR1_CL
TR2_CL
TR3_CL
TR4_CL
TR5_CL
TR_CL
POS_DOWN
POS_UP
2-16
Main board
Printed circuit boards
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
C9200
C9201
C9204
C9206
C9209
C9211
C9213
C9215
C9216
C9217
C9218
C9220
C9221
C9223
C9224
C9226
C9227
C9229
C9230
C9231
C9232
C9300
C9310
C9311 CN920
CN921
CN930
D9300
D9301
D9302
D9310
IC920
IC930
J920
J921
L9310
Q9300
Q9301
R9201
R9202
R9203
R9204
R9205
R9206
R9207
R9208
R9209
R9210
R9218
R9221
R9224
R9227
R9230
R9232
R9300
R9301
R9310
D9303
B9001
K9301
B9000
CN931
D9304
B9002
K9300
K9310
C9233
K9102
K9101
K9100
D9103
D9102
C9107
C9108
W912
W913
C9101
C9102
C9103
C9104
C9105
FW910
J910
R9002
C9003
C9004
C9005
C9009
C9010
C9021
C9022
FW910
C9035
R9023
C9041
C9042
C9050
C9051
C9052
C9053
C9100
C9034
JS901
J902
J901
K9103
C9106
CN901
D9040
D9100
D9101
W911
Q9002
PP901
W910
K9040
D9042
D9041
R9001
R9003
R9004
R9011
R9012
R9013
R9014
R9015
R9021
R9022
R9034
R9035
R9040
R9041
R9024
C9008
C9001
C9000
IC901
JS902
C7000
C7001
C7002
C7003
C7004
C7005
C7006 C7007
C7008
C7009
C7010
C7011
C7012
C7013
C7050
C7080
C7082
C7084
C7085
C7700
C7711
C7713
C7717
C7718
C7843
C7789
C7889
C8000
C8001
C8003
C8019
C8020
C8021
C8022
C8023
C8024
C8025
C8026
C8027
C8028
C8029
EP700
C8031
CN787
C8060
C8061
C8070
C8072
C8074
C8076
C8080
C8082
C8083
C8084
C8090
C8091
C8098
C8100
C8101
C8103
C8119
C8120
C8121
C8122
C8123
C8124
C8125
C8126
C8127
C8128
C8129
C7020
C8131
C8081
C8160
C8170
C8172
C8174
C8176
C8180
C8181
C8182
C8184
C8185
C8191
C8198
C8200
C8201
C8202
C8203
C8204
C8212
C8213
C8214
C8220
C8221
C8222
C8230
C8231
C8232
C8234
C8270
C8272
C8280
C8282
C8288
C8332
C8511
C8513
C8514
C8515
C8516
C8517
C8518
C8519
C8520
C8521
C8522
C8523
C8524
C8525
C8526
C8527
C8528
C8529
C8530
C8531
C8532
C8533
C8534
C8535
C8536
C8537
C8133
C8235
C8236
C8574
C8575
C8577
C8810
C8900
R7804
CN740
CN750
CN760
R7818
CN800
CN810
CN820
CN830
CN850
D7000
D7010
D7050
D7080
D7081
D7084
D7151
D7152
D7153
D7154
D7155
D7156
D7157
D7843
D8031
D8032
D8090
D8091
D8131
D8132
D8230
D8231
D8406
D8407
D8524
IC771
IC800
IC801
IC820
IC830
IC850
IC870
IC880
IC881
J700
J800
K7000
K8000
Q7000
Q7010
Q7080
Q7084
Q7742
Q8000
Q8030
Q8031
Q8040
Q8070
Q8071
Q8080
Q8081
Q8130
Q8131
Q8180
Q8211
Q8212
Q8403
Q8404
Q8524
Q8900
R7001
R7101
R7050
R7080
R7083
R7084
R7085
IC810
R7151
R7152
R7153
R7154
R7155
R7156
R7157
R7700
R7701
R7702
R7703
R7705
R7719
R7706
R7704
R7725
R7726
R7727
R7728
R7730
R7746
R7742
R7743
R7747
R7748
R7749
R7750
R7759
R7768
R7772
R7773
R7774
R7775
R7776
R7777
CN720
R7779
R7780
R7781
R7786
R7792
R7793
R7794
R7795
R7796
R7797
R7798
R7799
R7801
R7802
R7803
R7805
R7808
R7844
R7838
R7847
R7862
R7859
R7854 R7851
R7871
R7890
R7892
R7893
R7894
R7895
R7896
R7898
R8000
R8001
R8002
R8003
R8004
R8005
R8006
R8020
R8021
R8030
R8031
R8032
R8033
R8034
R8035
R8036
R8042
R8043
R8046
R8060
R8061
R8062
R8070
R8071
R8072
R8073
R8074
R8075
R8080
R8081
R8084
R8085
R8090
R8091
R8092
R8093
R8095
R8096
R8099
R8100
R8101
R8102
R8103
R8104
R8105
R8106
R8120
R8121
R8130
R8131
R8132
R8133
R8134
R8135
R8136
R8142
R8143
R8146
R8160
R8161
R8162
R8170
R8171
R8172
R8173
R8174
R8175
R8180
R8182 R8183
R8187
R8189
R8190
R8191
R8192
R8193
R8195
R8196
R8199
R8202
R8203 R8204
R8205
R8206
R8211
R8212
R8221
R8230
R8231
R8232
R8234
R8260
R8261
R8262
R8263
R8291
R8292
R8293
R8414
R8416
R8511
R8512
R8513
R8516
R8517 R8518
R8519 R8520
R8521
R8523
R8524
R8526
R8527
R8528
R8530
R8531
R8532
R8533
R8534
R8535
R8810
R8811
R8900
RY712
RY734
RY767
X7700
CN799
B7000
C8171
R7809
K8001
C8211
R7811
C8205
B7001
B7002
B7004
B7005
C8033
C8161
IC851
C8512
Q8132
Q8032
R8037
C8333
R8137
B7003
IC770
R7002
R7102
R7758
R7843
CN730
C8071
C8130 C8030
C8503
R8503
R8504
C8501
C8502
R8501
R8500
W7000
R8502
C8500
R8506
R8505
C8005
C8004
R8223
R8076
R8077
R8176
R8177
IC831
RY756
C8132
C8032
(Video board)
(Main board)
2-17
Amplifier board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
(Bridge board)
(Amplifier 2 board)
(Amplifier 1 board)
C4001
C4002
C4101
C4102
C4103
C4104
C4105
C4201
C4202
C4203
C4204
C4205
C4301
C4302
C4311
C4312
C4313
C4404
C4405
C4501
C4502
C4601
C4602
C4603
C4604
C4605
C4701
C4702
C4703
C4704
C4705
C4801
C4802
C4803
C4804
C4805
C4806
C4811
C4812
C4813
C4901
C4902
C4903
C4951
C4952
C4953
C4954
C4955
IC403
D4001
D4002
D4003
D4004
D4005
D4006
D4101 D4201
D4501
D4502
D4503
D4504
D4505
D4506
D4601
D4701
D4901
D4951
FW402
IC401
IC402
L4101
L4201
L4601
L4701
L4951
Q4101
Q4201
Q4601
Q4701
Q4901
Q4902
Q4903
Q4904
Q4951
R4001
R4002
R4003
R4004
R4005
R4006
R4007
R4008
R4101
R4102
R4103
R4104
R4105
R4106
R4107
R4108
R4109
R4110
R4111
R4201
R4202
R4203
R4204
R4205
R4206
R4207
R4208
R4209
R4210
R4211
R4302
R4311
R4312
R4501
R4502
R4503
R4504
R4505
R4506
R4507
R4508
R4601
R4602
R4603
R4604
R4605
R4606
R4607
R4608
R4609
R4610
R4611
R4701
R4702
R4703
R4704
R4705
R4706
R4707
R4708
R4709
R4710
R4711
R4801
R4802
R4803
R4804
R4811
R4812
R4901
R4902
R4903
R4904
R4905
R4906
R4950
R4951
R4952
R4953
R4954
R4955
R4956
R4957
R4958
R4959
R4960
CN403
CN404
C4003
C4004
FW401
C3104
C3201
C3202
C3203
C3211
C3212
C3213
C3221
C3222
C3223
C3301
C3302
C3401
C3402
C3403
C3404
C3405
C3501
C3502
C3503
C3504
C3505
C3601
C3602
C3603
C3604
C3605
C3701
C3702
C3811
C3812
C3821
C3822 C3831
C3832
C3841
C3842
CN301
FW301
CN304
CN305 CN306
D3301
D3302
D3303
D3304
D3305
D3306
D3401
D3501
D3601
D3701
D3811
D3812
D3813
D3814
D3815
D3821
D3822
D3823
D3824
D3825
D3832
D3841
D3842
D3843
D3844
D3845
IC301
IC302
IC303
IC304
IC305
IC306
L3401
L3501
L3601
Q3401
Q3501
Q3601
Q3901
Q3902
R3201
R3202
R3203
R3204
R3205
R3206
R3301
R3302
R3303
R3304
R3305
R3306
R3307
R3308
R3401
R3402
R3403
R3404
R3405
R3406 R3407
R3408
R3409
R3410
R3411
R3501
R3502
R3503
R3504
R3505
R3506
R3507
R3508
R3509
R3510
R3511
R3601
R3602
R3603
R3604
R3605
R3606
R3607 R3608
R3609
R3610
R3611
R3701
R3907
IC307
CN302
CN303
C3833
CN307
D3702
C2000
C2004
C2005
C2006 C2007
C2008
C2009
C2115
C2116
C2117
C2212
C2213
C2214
C2302
C2303
C2304
C2305
C2316
CN201
CN203
CN204
CN205
CN207
D2001
D2200
D2201
D2202
D2203
D2204
D2312
D2313
D2314
D2315
D2316
D2317
Z2001
Z2003
Z2012
Z2009
Z2013
Z2015
C2215
Q2300
Q2301
R2000
R2001
R2002
R2003
R2200
R2300
R2301
R2302
R2305
R2307
R2308
Z2004
Z2002
Z2011
Z2010
Z2014
Z2016
C2216
C2010
D2101
C2011
HS201
R2306
C2217
C2218
PP205
HS202
C2219
D2002
D2003
D2004
D2005
FW201
CN206 CN202
PP201PP202
PP203
2-18
Display board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
DVD board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
(Primary board)
(FL board)
(Switch board)
forward side
reverse side
C1001 C1002
CN100
CN101 CN102
Z1002
Z1003
S1000
Z1001
Z1004
SP500
C5002
CN500
C5007
C5008
D5004
D5005
D5006
FW500
FW501
C5013
IC510
Q5011
R5000
R5001
R5002
R5003
R5004
R5005
R5006
R5007
R5008
R5009
R5010R5011
R5012
R5013
R5014
R5035
R5036
C5009
R5043
C5010
R5055
S5000
S5001
S5002
S5003
S5004
S5005
S5006
S5007
S5008
S5009
S5010
S5011
S5012
S5013
S5014
S5015
S5016
R5057
C5001
R5051
C5011
C5012
R5049
R5050
C5000
R5047
C5003
C5020
R5056
R5058
R5048
Q5014
C5006
Q5013Q5012
IC500
FL500
C5021
C5800
C5501
W551
D5500
D5501
J580
K5801
K5802
Q5500
R5500
R5501
R5502
R5503 R5504
R5505
R5506
R5507
R5508
R5509
R5510
R5511
R5512 R5513 R5514 R5515
R5516
R5517
R5518
S5500
S5501
S5502
S5503 S5504
S5505
S5506
S5507
S5508
S5509
S5510
S5511
S5512
S5513
S5514
S5515
S5516 S5517
W581
W580
D5502
C5802
C5801
D5503
R5519
R5520
C5502
R5521
FW501
R5522
C5503
C5504
C5505
R373
R384
R206
R353
C211
R308
C318
R340
R220
R204
C339
C203
R107
R346
R214
C261
R326
C353
C337
C201
C217
C202
C356 C393
R385
R311
R336
C204
K352
IC201
R106
R339
C260
R104
R338
R221
R376
C103
C338
C333
C341 C343
R108
R259
Q101
C256
R219
C101
C352
C331
C314
C263
C344
C206
R205
R372
R341
C301
R103
C106
C205
C258
C210
C264
R342
R335
R213
C102
R109
C105
C262
C371
R110
C342
C104
C332
Q102
C259
C319
R251
R310
TH301
R392
R257
R383
R347
R105
R207
C354
C251
C257
C351
C350
R312
CN101
C357
C358
R316
R369
C347
R375
C302
R348
R337
R334
IC302
C304
IC510
C336
C564
C359
R541
C328
C303
R705
R704
K354
R318
X302
IC303
C370
K353
R314
TP300
TP301
TP302
TP303
R131
C391
C706
IC453
C728
C563
C745
IC705
R458
K749
R462
C557
R719
C455
C555
C551
CN704
K351
R716
C561
C712
C704
C558
K501
C740
C713
C559
R741
R742
C744
C711
C560
C562
R740
IC505
R461
X451
R459
R452
CN452
IC451
CN453
R451
R457
R464
C456
C451 C454
IC454
R460
C452
K748
R811
R814
R813
R812
K811
K812
D811
C803
D812
CN811
R819
C819
R304
L301
X301
TP292
C322
C325
TP109
TP118
C108
C335
C324
R359
TP111
R111
R117
TP112
C334
R323
C386
R113
Q104
R333
TP101
R127
TP205
C323
R112
C383
C307
R345
TP121
C107
C348
R128
TP332
C310
TP316
R357
C309
TP381
TP107
C321
TP326
TP331
C374
TP116
R306
TP122
C375
TP106
R360
CN301
Q103
TP220
TP206
C290
TP103
TP119
C379
R351
TP207
R358
R116
R352
TP227
R202
TP104
R325
R361
TP201
TP337
C345
C340
TP226
C378
TP333
R290
C305
TP108
R114
C349
R303
R363
TP202
C377
TP231
TP204
R367
TP327
TP329
R101
R324
TP117
TP105
C306
TP221
R125
C373
C313
TP203
R102
TP291
TP328
TP110
C315
R309
TP115
TP120
C372
TP330 TP123
C330 TP208
TP315
C326
C320
R118
R115
TP102
R362
CN201
D301
C316 C312
R322
R329
R201
R368
IC301
C392
K101
TP324
TP323
TP321
R307
TP334
R371
R132
R129
R332
R130
R727
IC707
C741
R725
IC704
R715
C381
R399
C714
TP380
C702
C742
IC509
K713
IC701
R701
C721
R728
IC703
R718
R711
IC305
R721
C715
C709
K720
K712
R712
C380
R713
R723
C708
R714
C707
R535
C743
R724
IC702
IC706
C703
C382
R530
C701
TP761
C554
R531
K714
TP727
TP726
TP467
TP462
R466
TP461
TP452
TP471
R463 TP474
R456
CN455
TP457
R455
TP453
TP459
TP473
C453
IC452
K456
TP456
K455
TP458
R465
TP472
R453
CN451
TP454
TP451
TP417
TP460
R454
TP455
K454
TP751
TP752
TP743
K732
K735
TP731
CN701
TP735
TP718
K752
TP732
TP758
C735
K750
TP733
TP756
C736
K754
R731
K733
K758
R732
TP710 K738
K734
TP708
K736
TP734
TP742
TP737
K737
C734
TP740
TP754
TP750
TP736
K756
TP738 TP717
C733
C732
TP747
TP709
TP702
CN703
TP701
TP703
TP722
TP723
TP721
TP728
TP704
TP711
TP707
TP725
TP705
CN702
K741
K744
R859
IC801
C801
C802
TP803
C804
CN801
R861 TP802
TP801
TP814
TP812
TP811
TP813
IC891
R891
R892
C891
R860
TP819
Q801
2-19
Loader board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
Cassette board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
R1
TP3
TP5
TP4
IC2
IC1
C3
C5
D1
C1
C7
C6
SW7
C2
M2 M1
CN2
CN1
SW5
CN3
SW4SW3SW2
SW1
SW6
TP2
TP1
SW8
(Motor board)
(Sensor board)
(Switch board)
(Tray switch board)
C200
R226
C217
C207
C225
C213
R123
Q110
R208
D122
C122
C218
R227
C201
C208
R309
C301
R110
IC200
D152
R206
Q205
R300
R301
C203
C202
R200
C206
R219
R207
R201
C234
R221
C204
R205
C212
R307
C239
C238
C205
Q200
R222
R204
C300
L300
C211
R113
C227
R213
C209
Q150
C235
R218
R234
C216
C210
C226
C214
C228
R215
C231
Q120
Q111
C229
R202
R214
C219
R209
C220
C230
C221
C222
R217
R216
Q300
C224
R211
R153
C215
R302
R308
R212
R220
CN110
D121
D151 CN220
C233
C232
C303
R235
Q121
Q151
Q301
C307
R228
C306
C305
C304
R305
R304
C223
C110
L301
R303
R115
R114
C140
Q140
R140
Q141
R203
R210
WR1
CN100
Q201
Q202
Q204
Q203
CN200
CN120
R306
Victor Company of Japan, Limited
(No.MB616SCH)
Printed in Japan
VPT
Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
3-1
PARTS LIST
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Exploded view of general assembly and parts list (Block No.M1)(DX-U10)
Exploded view of general assembly and parts list(Block No.M2)(DX-U8)
Exploded view of general assembly and parts list(Block No.M3)(DX-U6)
DVD mechanism assembly and parts list (Block No.MJ)
DVD changer assembly and parts list (Block No.MK)(Except DX-U6)
DVD changer assembly and parts list (Block No.MT)(Only DX-U6)
Electrical parts list (Block No.01~10)
Packing materials and accessories parts list (Block No.M4)(DX-U10)
Packing materials and accessories parts list (Block No.M5)(DX-U8)
Packing materials and accessories parts list (Block No.M6)(DX-U6)
DX-U10A,DX-U10US,DX-U10UX
DX-U10UG,DX-U10UN,DX-U8US
DX-U8UX,DX-U8UG,DX-U8UN
DX-U6US,DX-U6UX,DX-U6UG
DX-U6UN,DX-U10UH
3- 2
3- 6
3-10
3-14
3-16
3-18
3-20
3-40
3-42
3-44
MB616PAR<Rev.002>
3-2

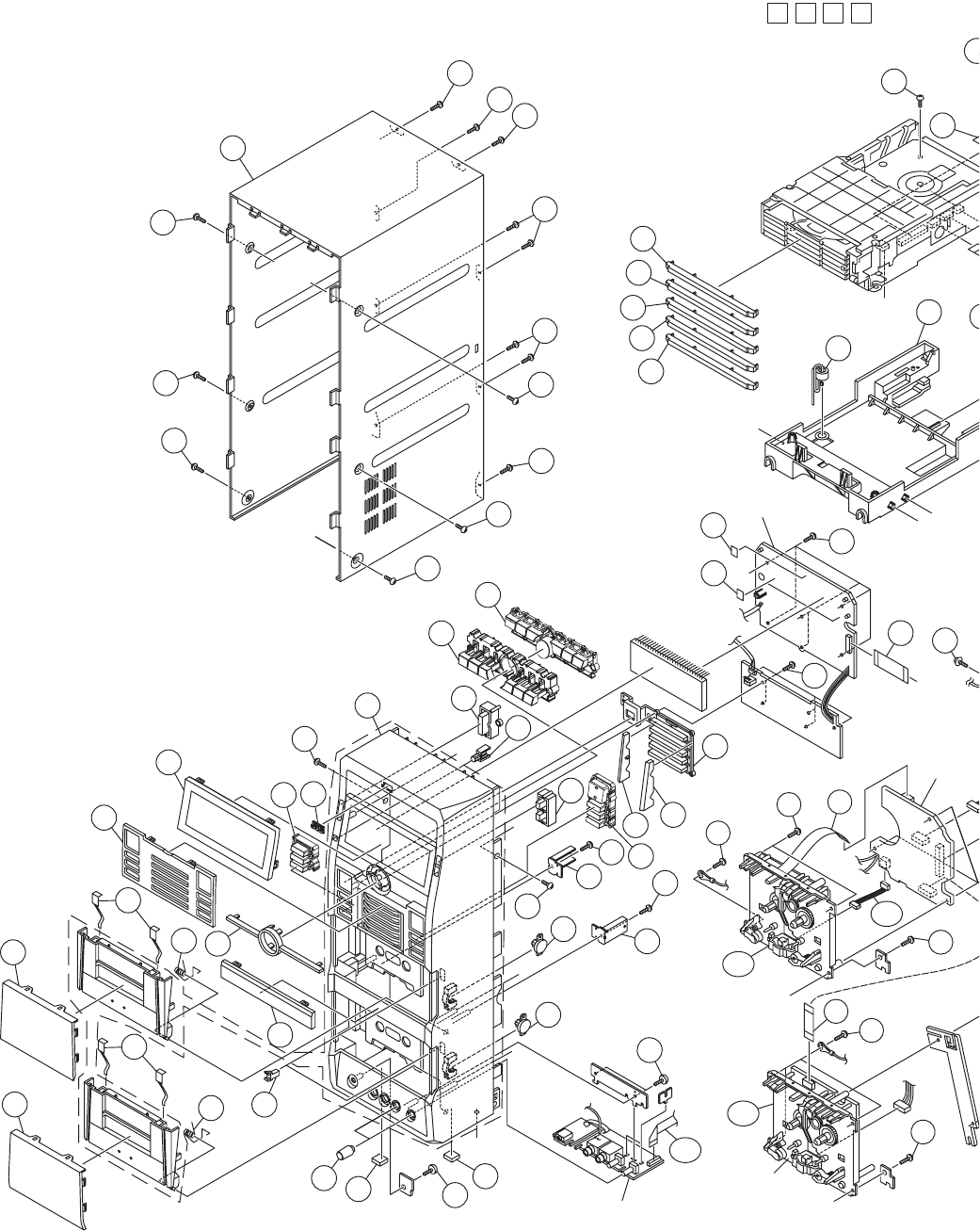

Exploded view of general assembly and parts list
Block No. MM
M
1
a
b
b
c
c
d
e
e
f
f
g
g
h
h
n
A
B
C
A
D
E
S
T
T
W
X
W
X
FL board
Cassete
A
Cassette B
Microphone amplifier board
<DX-U10>
61
53
54
9
9
9
8
7
6
5
37
38
21
83
30
30
84
84
84
84
84
84
31
31
32
32
101
89
88
27
27
55
26
100
46
45
99
22
23
20 19
12
28
28
29
29
41
41
41
41
41
15
11
13
14
10
18
16 2
3
17
4
36
1
42
35
40
40
39
42
39
24 24
86
87
111
112

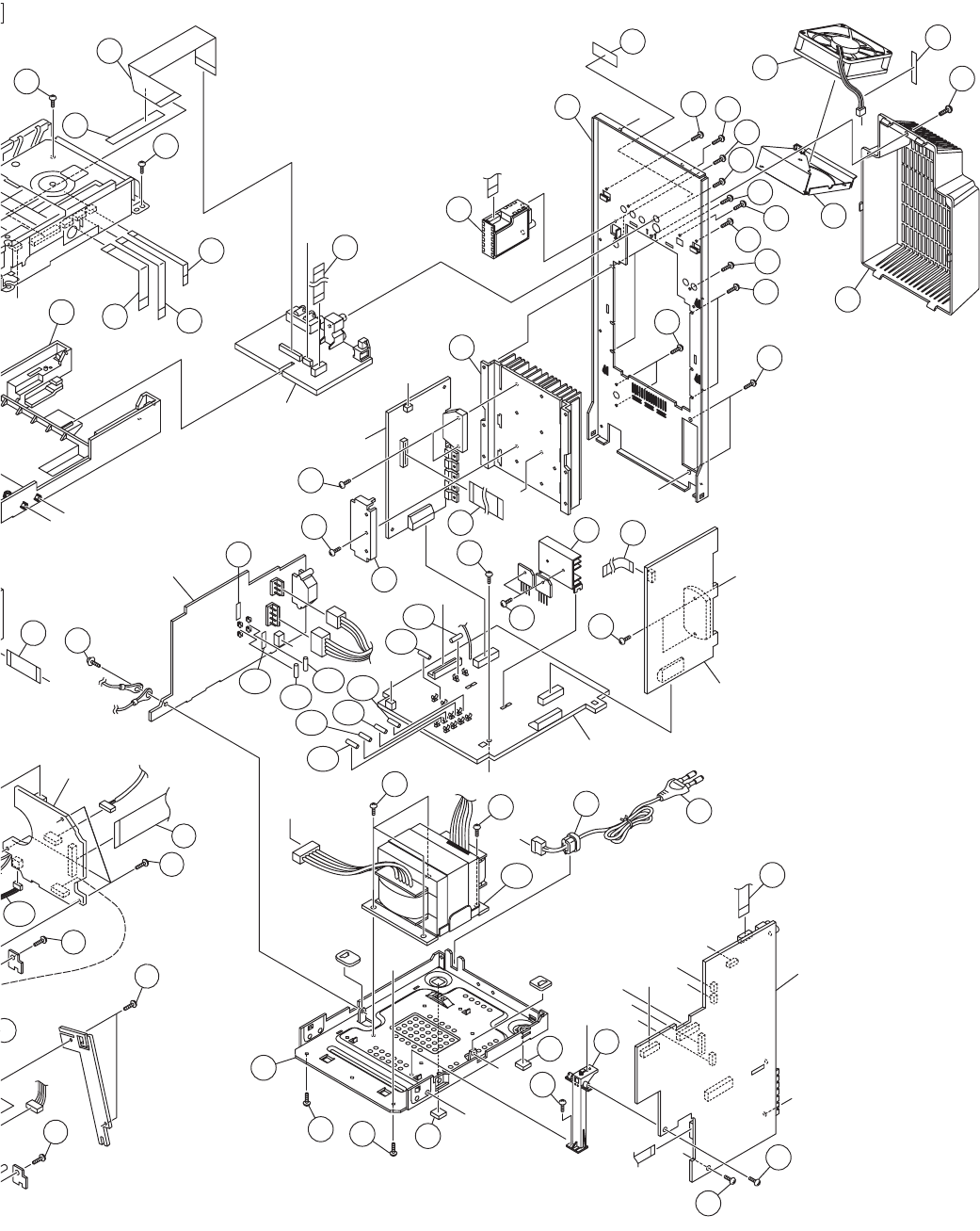

3-3
U
V
V
a
b
d
e
j
j
k
k
m
m
n
p
p
C
A
B
C
D
E
F
E
F
GH
G
H
J
J
L
L
M
M
N
N
P
P
Q
Q
R
S
R
S
T
U
Cassete A
Video board
Primary board
Bridge board
Main board board
Amplifier 2 board
Except A
Amplifier 1 board
64
61
50
49
48
51
52
102
47
103
104
105
106
107
60 59
108 109
62
63
58
58
53
53
54
93
96 97
92
56
25
25
57 57
67
95
73
82
81
74
75
75
76
71
72
68
69
70
66
65
91
90
101
34
98
33
26
94
80 79
78
77
80
99
4
1
41
41
85
44
43
110
3-4
General Assembly (DX-U10)
Block No. [M][1][M][M]
Symbol No. Part No. Part Name Description Local
1 GV10377-001A FRONT PANEL ASSY
2 GV40753-001A JVC BADGE
3 GV20464-003A FL LENS
4 GV20465-001A BUTTON LENS
5 GV31000-001A TRAY FITTING 1
6 GV31001-001A TRAY FITTING 2
7 GV31002-001A TRAY FITTING 3
8 GV31003-001A TRAY FITTING 4
9 GV31004-001A TRAY FITTING 5
10 GV31013-001A POWER BUT.ASSY
11 GV31014-001A KARAOKE BUT.ASS
12 GV20466-002A CENTER BUTTON
13 GV20467-001A BUTTON A
14 GV20468-001A BUTTON B
15 GV31007-002A SUBWFR BUTTON
16 GV31008-001A REC BUTTON
17 GV31009-002A VOL.RING FRAME
18 GV40738-001A REMOTE LENS
19 GV40739-001A DISC IND.(R)
20 GV40740-001A DISC IND.(L)
21 GV40741-003A MIC VOL.KNOB (x2)
22 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
23 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
24 GV40313-001A FELT SPACER (x2)
25 GV40313-002A FELT SPACER (x2)
26 GV10355-002A MECHA CHASSIS
27 QYSSSF3010ZA TAP SCREW M3 x 10mm(x2)
28 GV40754-001A METAL COVER BKT (x2)
29 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
30 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
31 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
32 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
33 QYSDSF2006ZA TAP SCREW M2 x 6mm(x3)
34 QYSDSF2006ZA TAP SCREW M2 x 6mm(x2)
35 GV40220-001A LATCH (x2)
36 GV31010-002A ORNAMENT LENS
37 GV20469-001A CASS.LENS (A)
38 GV20470-003A CASS.LENS (B) 10A,10UX,10UG
38 GV20470-001A CASS.LENS (B) 10US,10UN,10UH
39 GV40755-001A DOOR SPRING (x2)
40 GV40034-001A DAMPER ASSY (x2)
41 QYSBSF3010ZA TAP SCREW M3 x 10mm(x8)
42 VKY4180-401 CASSETTE SPRING (x4)
43 QZW0138-001 HEAT SINK HS201
44 QYSBST3008ZA TAP SCREW M3 x 8mm(x2)
45 QYSBSF3010ZA TAP SCREW M3 x 10mm
46 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
47 GV31011-006A HEAT SINK
48 QYSBSG3016EA TAP SCREW M3 x 16mm
49 GV40488-001A LEAF SPRING
50 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
51 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
52 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
53 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
54 GV30349-073A SPACER
55 QQR1804-001 FERRITE RING
56 GV10253-005A BOTTOM CHASSIS
57 QYSBSG3010ZA TAP SCREW M3 x 10mm(x2)
58 QYSDSTL4008EA TAP SCREW M4 x 8mm(x4)
59 QMPG150-244-JC POWER CORD(AST) 2.44m BLACK 10A
59 QMPK200-200-JD POWER CORD(EU) 2m BLACK 10US,10UX,10UG,10UN
59 QMPRB30-200-K2 POWER CORD(EU) 2m BLACK 10UH
60 QZW0033-001 STRAIN RELIEF
61 QYSBSGG3008EA TAP SCREW M3 x 8mm
62 GV30706-001A SUPPORT BKT
63 QYSBST3006ZA TAP SCREW M3 x 6mm
64 QYSBSF3010ZA TAP SCREW M3 x 10mm
65 QYSBSG3010ZA TAP SCREW M3 x 10mm
66 QYSBSF3010ZA TAP SCREW M3 x 10mm
67 GV10255-072A REAR PANEL 10A
67 GV10255-070A REAR PANEL 10US,10UN,10UH
67 GV10255-071A REAR PANEL 10UX,10UG
68 GV30686-002A FAN BKT
69 QAR0454-001 FAN
3-5
70 GV30349-026A SPACER
71 GV10263-002A REAR COVER
72 QYSBSGY3008EA TAP SCREW M3 x 8mm
73 QAU0492-001 TUNER
74 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
75 QYSBSGY3008EA TAP SCREW M3 x 8mm(x4)
76 QYSBSGY3008EA TAP SCREW M3 x 8mm
77 QYSBSGY3008EA TAP SCREW M3 x 8mm
78 QYSBSGY3008EA TAP SCREW M3 x 8mm
79 QYSBSGY3008EA TAP SCREW M3 x 8mm
80 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
81 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2) 10US,10UX,10UG,10UN,10UH
82 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
83 GV10254-005A/S/ METAL COVER
84 QYSBSGY3008EA TAP SCREW M3 x 8mm(x8)
85 GV30893-001A NUMBER LABEL
86 GV30349-077A SPACER
87 GV30349-049A SPACER (x2)
88 QUQU12-0606AJ-E FFC WIRE FC110 6pin 6cm
89 QUQU12-0710BJ-E FFC WIRE FC120 7pin 10cm
90 QUQU12-1515AJ-E FFC WIRE FC302 15pin 15cm
91 QUQU12-0712BJ-E FFC WIRE FC403 7pin 12cm
92 QUR110-0515AJ-E FFC WIRE FC921
93 QUR110-2821AJ-E FFC WIRE FC930
94 QUQU12-1113BJ-E FFC WIRE FC920 11pin 13cm
95 QUQU12-1116AJ-E FFC WIRE FC750 11pin 16cm
96 QUR110-1016AJ-E FFC WIRE FC800
97 QUR110-0816AJ-E FFC WIRE FC810
98 QUQU12-2118AJ-E FFC WIRE FC730 21pin 18cm
99 QUQU12-1317AJ-E FFC WIRE FC720 13pin 17cm
100 QUQU12-1516BJ-E FFC WIRE FC740 15pin 16cm
101 WJN0229-004A-E SHIELDWIRE
102 QMFZ051-100-J8 FUSE F2001 10A
103 QMFZ051-100-J8 FUSE F2002 10A
104 QMFZ051-8R0-J8 FUSE F2003 8A
105 QMFZ051-8R0-J8 FUSE F2004 8A
106 QMF51W2-1R6-J8 FUSE F2005 1.6A AC250V
107 QMF51W2-4R0-J8 FUSE F2006 4A AC250V
108 QMFZ051-100-J8 FUSE F1001 10A
109 QMF51W2-6R3-J8 FUSE F1002 6.3A AC250V
110 QQT0546-001 POWER TRANSF T1001
111 QAL0967-001 CASS MECHA ASSY
112 QAL0968-001 CASS MECHA ASSY
Symbol No. Part No. Part Name Description Local
3-6
Exploded view of general assembly and parts list
Block No. MM
M
2
a
b
b
c
c
d
e
e
f
f
g
g
h
h
n
A
B
C
A
D
E
S
T
T
W
X
W
X
FL board
Cassete
A
Cassette B
Microphone amplifier board
<DX-U8>
61
53
54
9
9
9
8
7
6
5
37
38
21
83
30
30
84
84
84
84
84
84
31
31
32
32
101
89
88
27
27
55
26
100
46
45
99
22
23
20 19
12
28
28
29
29
41
41
41
41
41
15
11
13
14
10
18
16 2
3
17
4
36
1
42
35
40
40
39
42
39
24 24
86
87
112
113

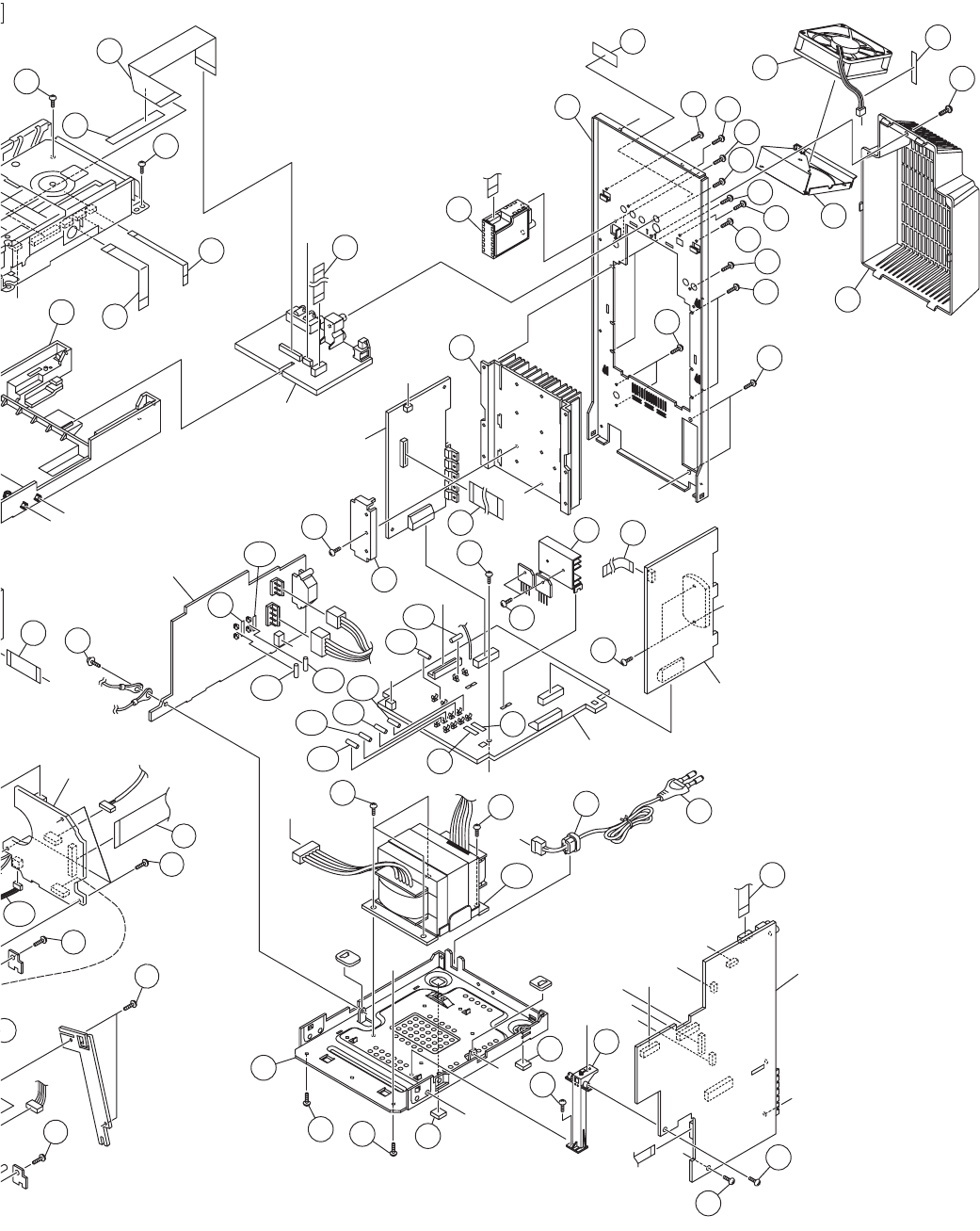

3-7
U
V
V
a
b
d
e
j
j
k
m
m
n
p
p
C
A
B
C
D
E
F
E
F
GH
G
H
J
J
L
L
M
M
N
N
P
P
Q
Q
R
S
R
S
T
U
Cassete A
Video board
Primary board
Bridge board
Main board board
Amplifier 2 board
Amplifier 1 board
k
64
61
50
49
48
51
102
47
103
104
105
106
107
60 59
108
109
62
63
58
58
53
53
54
93
96 97
92
56
25
25
57 57
67
95
73
82
81
74
75
75
76
71
72
68
69
70
66
65
91
90
101
34
98
33
26
94
80 79
78
77
80
99
4
1
41
41
85
44
43
110
111
52
3-8
General Assembly (DX-U8)
Block No. [M][2][M][M]
Symbol No. Part No. Part Name Description Local
1 GV10377-001A FRONT PANEL ASSY
2 GV40753-001A JVC BADGE
3 GV20464-002A FL LENS
4 GV20465-001A BUTTON LENS
5 GV31000-001A TRAY FITTING 1
6 GV31001-001A TRAY FITTING 2
7 GV31002-001A TRAY FITTING 3
8 GV31003-001A TRAY FITTING 4
9 GV31004-001A TRAY FITTING 5
10 GV31013-001A POWER BUT.ASSY
11 GV31014-001A KARAOKE BUT.ASS
12 GV20466-002A CENTER BUTTON
13 GV20467-001A BUTTON A
14 GV20468-001A BUTTON B
15 GV31007-002A SUBWFR BUTTON
16 GV31008-001A REC BUTTON
17 GV31009-002A VOL.RING FRAME
18 GV40738-001A REMOTE LENS
19 GV40739-001A DISC IND.(R)
20 GV40740-001A DISC IND.(L)
21 GV40741-003A MIC VOL.KNOB (x2)
22 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
23 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
24 GV40313-001A FELT SPACER (x2)
25 GV40313-002A FELT SPACER (x2)
26 GV10355-002A MECHA CHASSIS
27 QYSSSF3010ZA TAP SCREW M3 x 10mm(x2)
28 GV40754-001A METAL COVER BKT (x2)
29 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
30 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
31 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
32 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
33 QYSDSF2006ZA TAP SCREW M2 x 6mm(x3)
34 QYSDSF2006ZA TAP SCREW M2 x 6mm(x2)
35 GV40220-001A LATCH (x2)
36 GV31010-002A ORNAMENT LENS
37 GV20469-001A CASS.LENS (A)
38 GV20470-001A CASS.LENS (B) 8US,8UN
38 GV20470-003A CASS.LENS (B) 8UX,8UG
39 GV40755-001A DOOR SPRING (x2)
40 GV40034-001A DAMPER ASSY (x2)
41 QYSBSF3010ZA TAP SCREW M3 x 10mm(x8)
42 VKY4180-401 CASSETTE SPRING (x4)
43 QZW0138-001 HEAT SINK HS201
44 QYSBST3008ZA TAP SCREW M3 x 8mm(x2)
45 QYSBSF3010ZA TAP SCREW M3 x 10mm
46 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
47 GV31011-004A HEAT SINK
48 QYSBSG3016EA TAP SCREW M3 x 16mm
49 GV40488-001A LEAF SPRING
50 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
51 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
52 GV40691-023A FUSE LABEL
53 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
54 GV30349-073A SPACER
55 QQR1804-001 FERRITE RING
56 GV10253-005A BOTTOM CHASSIS
57 QYSBSG3010ZA TAP SCREW M3 x 10mm(x2)
58 QYSDSTL4008EA TAP SCREW M4 x 8mm(x4)
59 QMPK200-200-JD POWER CORD(EU) 2m BLACK
60 QZW0033-001 STRAIN RELIEF
61 QYSBSGG3008EA TAP SCREW M3 x 8mm
62 GV30706-001A SUPPORT BKT
63 QYSBST3006ZA TAP SCREW M3 x 6mm
64 QYSBSF3010ZA TAP SCREW M3 x 10mm
65 QYSBSG3010ZA TAP SCREW M3 x 10mm
66 QYSBSF3010ZA TAP SCREW M3 x 10mm
67 GV10255-066A REAR PANEL 8US,8UN
67 GV10255-067A REAR PANEL 8UX,8UG
68 GV30686-002A FAN BKT
69 QAR0454-001 FAN
70 GV30349-026A SPACER
71 GV10263-002A REAR COVER
72 QYSBSGY3008EA TAP SCREW M3 x 8mm
3-9
73 QAU0492-001 TUNER
74 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
75 QYSBSGY3008EA TAP SCREW M3 x 8mm(x4)
76 QYSBSGY3008EA TAP SCREW M3 x 8mm
77 QYSBSGY3008EA TAP SCREW M3 x 8mm
78 QYSBSGY3008EA TAP SCREW M3 x 8mm
79 QYSBSGY3008EA TAP SCREW M3 x 8mm
80 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
81 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
82 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
83 GV10254-005A/S/ METAL COVER
84 QYSBSGY3008EA TAP SCREW M3 x 8mm(x8)
85 GV30893-001A NUMBER LABEL
86 GV30349-077A SPACER
87 GV30349-049A SPACER (x2)
88 QUQU12-0606AJ-E FFC WIRE FC110 6pin 6cm
89 QUQU12-0710BJ-E FFC WIRE FC120 7pin 10cm
90 QUQU12-1515AJ-E FFC WIRE FC302 15pin 15cm
91 QUQU12-0712BJ-E FFC WIRE FC403 7pin 12cm
92 QUR110-0515AJ-E FFC WIRE FC921
93 QUR110-2821AJ-E FFC WIRE FC930
94 QUQU12-1113BJ-E FFC WIRE FC920 11pin 13cm
95 QUQU12-1116AJ-E FFC WIRE FC750 11pin 16cm
96 QUR110-1016AJ-E FFC WIRE FC800
97 QUR110-0816AJ-E FFC WIRE FC810
98 QUQU12-2118AJ-E FFC WIRE FC730 21pin 18cm
99 QUQU12-1317AJ-E FFC WIRE FC720 13pin 17cm
100 QUQU12-1516BJ-E FFC WIRE FC740 15pin 16cm
101 WJN0229-004A-E SHIELDWIRE
102 QMFZ051-100-J8 FUSE F2001 10A
103 QMFZ051-100-J8 FUSE F2002 10A
104 QMFZ051-8R0-J8 FUSE F 2003 8A
105 QMFZ051-8R0-J8 FUSE F2004 8A
106 QMF51W2-1R6-J8 FUSE F2005 1.6A AC250V
107 QMF51W2-4R0-J8 FUSE F2006 4A AC250V
108 QMFZ051-8R0-J8 FUSE F1001 8A
109 QMF51W2-4R0-J8 FUSE F1002 4A AC250V
110 QQT0537-001 POWER TRANSF T1001
111 GV40691-019A FUSE LABEL FL102
112 QAL0967-001 CASS MECHA ASSY
113 QAL0968-001 CASS MECHA ASSY
Symbol No. Part No. Part Name Description Local
3-10
Exploded view of general assembly and parts list
Block No. MM
M
3
a
b
b
c
c
d
e
e
f
f
g
g
h
h
n
A
B
C
A
D
E
S
T
T
W
X
W
X
FL board
Cassete
A
Cassette B
Microphone amplifier board
<DX-U6>
61
53
54
9
9
9
8
7
6
5
37
38
21
83
30
30
84
84
84
84
84
84
31
31
32
32
101
89
88
27
27
55
26
100
46
45
99
22
23
20 19
12
28
28
29
29
41
41
41
41
41
15
11
13
14
10
18
16 2
3
17
4
36
1
42
35
40
40
39
42
39
24 24
86
87
112
113
3-11
U
V
V
a
b
d
e
j
j
k
k
m
m
n
p
p
C
A
B
C
D
E
F
E
F
G
G
J
J
L
L
M
M
N
N
P
P
Q
Q
R
S
R
S
T
U
Cassete A
Video board
Primary board
Bridge board
Main board board
Amplifier 2 board
Amplifier 1 board
64
61
49
48
50
102
47
103
104
105
106
107
60 59
108 109
62
63
58 58
53
53
54
93
96
92
56
25
25
57 57
67
95
73
82
81
74
75
75
76
71
72
68
69
70
66
65
91
90
101
34
98
33
26
94
80 79
78
77
80
99
4
1
41
41
85
44
43
110
51
52
111
97
3-12
General Assembly (DX-U6)
Block No. [M][3][M][M]
Symbol No. Part No. Part Name Description Local
1 GV10377-001A FRONT PANEL ASSY
2 GV40753-001A JVC BADGE
3 GV20464-001A FL LENS
4 GV20465-001A BUTTON LENS
5 GV31000-001A TRAY FITTING 1
6 GV31001-001A TRAY FITTING 2
7 GV31002-001A TRAY FITTING 3
8 GV31003-001A TRAY FITTING 4
9 GV31004-001A TRAY FITTING 5
10 GV31013-001A POWER BUT.ASSY
11 GV31014-001A KARAOKE BUT.ASS
12 GV20466-001A CENTER BUTTON
13 GV20467-001A BUTTON A
14 GV20468-001A BUTTON B
15 GV31007-001A SUBWFR BUTTON
16 GV31008-001A REC BUTTON
17 GV31009-001A VOL.RING FRAME
18 GV40738-001A REMOTE LENS
19 GV40739-001A DISC IND.(R)
20 GV40740-001A DISC IND.(L)
21 GV40741-003A MIC VOL.KNOB (x2)
22 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
23 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
24 GV40313-001A FELT SPACER (x2)
25 GV40313-002A FELT SPACER (x2)
26 GV10355-002A MECHA CHASSIS
27 QYSSSF3010ZA TAP SCREW M3 x 10mm(x2)
28 GV40754-001A METAL COVER BKT (x2)
29 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
30 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
31 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
32 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
33 QYSDSF2006ZA TAP SCREW M2 x 6mm(x3)
34 QYSDSF2006ZA TAP SCREW M2 x 6mm(x2)
35 GV40220-001A LATCH (x2)
36 GV31010-001A ORNAMENT LENS
37 GV20469-001A CASS.LENS (A)
38 GV20470-001A CASS.LENS (B) 6US,6UN
38 GV20470-003A CASS.LENS (B) 6UX,6UG
39 GV40755-001A DOOR SPRING (x2)
40 GV40034-001A DAMPER ASSY (x2)
41 QYSBSF3010ZA TAP SCREW M3 x 10mm(x8)
42 VKY4180-401 CASSETTE SPRING (x4)
43 QZW0138-001 HEAT SINK
44 QYSBST3008ZA TAP SCREW M3 x 8mm(x2)
45 QYSBSF3010ZA TAP SCREW M3 x 10mm
46 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
47 GV31011-002A HEAT SINK
48 QYSBSG3016EA TAP SCREW M3 x 16mm
49 GV40488-001A LEAF SPRING
50 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
51 GV40691-022A FUSE LABEL FL203
52 GV40691-022A FUSE LABEL FL204
53 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
54 GV30349-073A SPACER
55 QQR1804-001 FERRITE RING
56 GV10253-005A BOTTOM CHASSIS
57 QYSBSG3010ZA TAP SCREW M3 x 10mm(x2)
58 QYSDSTL4008EA TAP SCREW M4 x 8mm(x4)
59 QMPK200-200-JD POWER CORD(EU) 2m BLACK
60 QZW0033-001 STRAIN RELIEF
61 QYSBSGG3008EA TAP SCREW M3 x 8mm
62 GV30706-001A SUPPORT BKT
63 QYSBST3006ZA TAP SCREW M3 x 6mm
64 QYSBSF3010ZA TAP SCREW M3 x 10mm
65 QYSBSG3010ZA TAP SCREW M3 x 10mm
66 QYSBSF3010ZA TAP SCREW M3 x 10mm
67 GV10255-062A REAR PANEL 6US,6UN
67 GV10255-063A REAR PANEL 6UX,6UG
68 GV30686-002A FAN BKT
69 QAR0454-001 FAN
70 GV30349-026A SPACER
71 GV10263-002A REAR COVER
72 QYSBSGY3008EA TAP SCREW M3 x 8mm
3-13
73 QAU0492-001 TUNER
74 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
75 QYSBSGY3008EA TAP SCREW M3 x 8mm(x4)
76 QYSBSGY3008EA TAP SCREW M3 x 8mm
77 QYSBSGY3008EA TAP SCREW M3 x 8mm
78 QYSBSGY3008EA TAP SCREW M3 x 8mm
79 QYSBSGY3008EA TAP SCREW M3 x 8mm
80 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
81 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
82 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
83 GV10254-005A/S/ METAL COVER
84 QYSBSGY3008EA TAP SCREW M3 x 8mm(x8)
85 GV30893-001A NUMBER LABEL
86 GV30349-077A SPACER
87 GV30349-049A SPACER (x2)
88 QUQU12-0606AJ-E FFC WIRE FC110 6pin 6cm
89 QUQU12-0710BJ-E FFC WIRE FC120 7pin 10cm
90 QUQU12-0915AJ-E FFC WIRE FC303 9pin 15cm
91 QUQU12-0712BJ-E FFC WIRE FC403 7pin 12cm
92 QUR110-0515AJ-E FFC WIRE FC921
93 QUR110-2821AJ-E FFC WIRE FC930
94 QUQU12-1113BJ-E FFC WIRE FC920 11pin 13cm
95 QUQU12-1116AJ-E FFC WIRE FC750 11pin 16cm
96 QUR110-1016AJ-E FFC WIRE FC800
97 GV40691-022A FUSE LABEL FL101
98 QUQU12-2118AJ-E FFC WIRE FC730 21pin 18cm
99 QUQU12-1317AJ-E FFC WIRE FC720 13pin 17cm
100 QUQU12-1516BJ-E FFC WIRE FC740 15pin 16cm
101 WJN0229-004A-E SHIELDWIRE
102 QMFZ051-100-J8 FUSE F2001 10A
103 QMFZ051-100-J8 FUSE F2002 10A
104 QMF51W2-6R3-J8 FUSE F2003 6.3A AC250V
105 QMF51W2-6R3-J8 FUSE F2004 6.3A AC250V
106 QMF51W2-1R6-J8 FUSE F2005 1.6A AC250V
107 QMF51W2-4R0-J8 FUSE F2006 4A AC250V
108 QMF51W2-6R3-J8 FUSE F1001 6.3A AC250V
109 QMF51W2-3R15-J8 FUSE F1002 3.15A AC250V
110 QQT0536-001 POWER TRANSF T1001
111 GV40691-018A FUSE LABEL FL102
112 QAL0967-001 CASS MECHA ASSY
113 QAL0968-001 CASS MECHA ASSY
Symbol No. Part No. Part Name Description Local
3-14

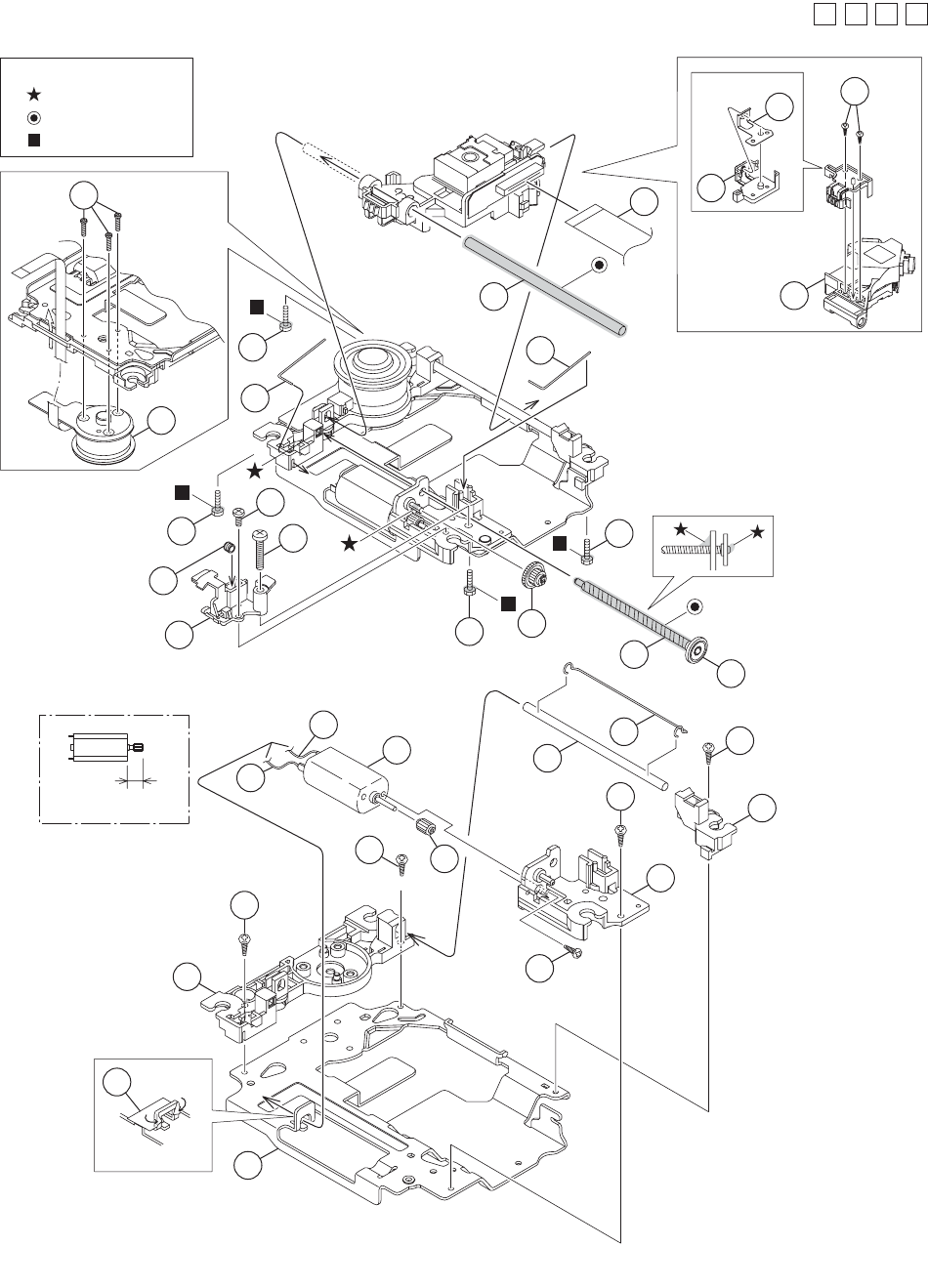

DVD mechanism assembly and parts list
Grease
=1401C
=JVS-1003
=JVG-31N
< Back side >
The parts without symbol number are not service.
FXL-D20-11M
+
7.0mm 0.2mm
-
Block No. MM
M
J
19
32
26
31
21 16
17
32
32 24
23
25
30
29
27
28
18
20
3
15
13
1
6
14
7
22
9
11
10
8
32
4
5
2
31
3
12
3-15
DVD mechanism
Block No. [M][J][M][M]
Symbol No. Part No. Part Name Description Local
1 LV22234-001A TM.CHASSIS
2 LV22294-001A C.SPINDLE BASE
3 QYSDST2005ZA TAP SCREW M2 x 5mm(x2)
4 LV36791-001A C.G.S.HOLDER
5 QYSDST2005ZA TAP SCREW M2 x 5mm
6 LV44041-002A GUIDE SHAFT
7 LV44479-001A BAR SPRING
8 LV22236-001A FEED HOLDER
9 QAR0165-001 FEED MOTOR
10 QUB549-05A1A1-E SIN TWIST WIRE
11 QUB544-05A1A1-E SIN TWIST WIRE
12 LV30225-0X5A SPACER
13 LV36557-001A F.M.GEAR
14 QYSPSPT2030MA SCREW M2 x 3mm
15 QYSDST2005ZA TAP SCREW M2 x 5mm
16 QAL0786-004 P.UP
17 LV22237-001A RACK ARM
18 LV36560-001A RACK ARM SPRING
19 QYSPSFU1740ZA TAP SCREW M1.7 x 4mm(x2)
20 QUQK05-2415AC-E FFC WIRE 24pin 15cm
21 LV44041-002A GUIDE SHAFT
22 LV36559-001A L.S.GEAR
23 LV41517-003A LEAD SCREW
24 LV36558-001A MIDDLE GEAR
25 LV36556-001A SPRING HOLDER
26 LV44623-001A COMP.SPRING
27 QYSDST2005ZA TAP SCREW M2 x 5mm
28 QYSDST2616MA TAP SCREW M2.6 x 16mm
29 QAR0334-002 S.MOTOR
30 QYSPSPU1775ZA SCREW M1.7 x 7.5mm(x3)
31 LV44042-001A ROD SPRING (x2)
32 LE40858-002A SPECIAL SCREW (x4)
3-16

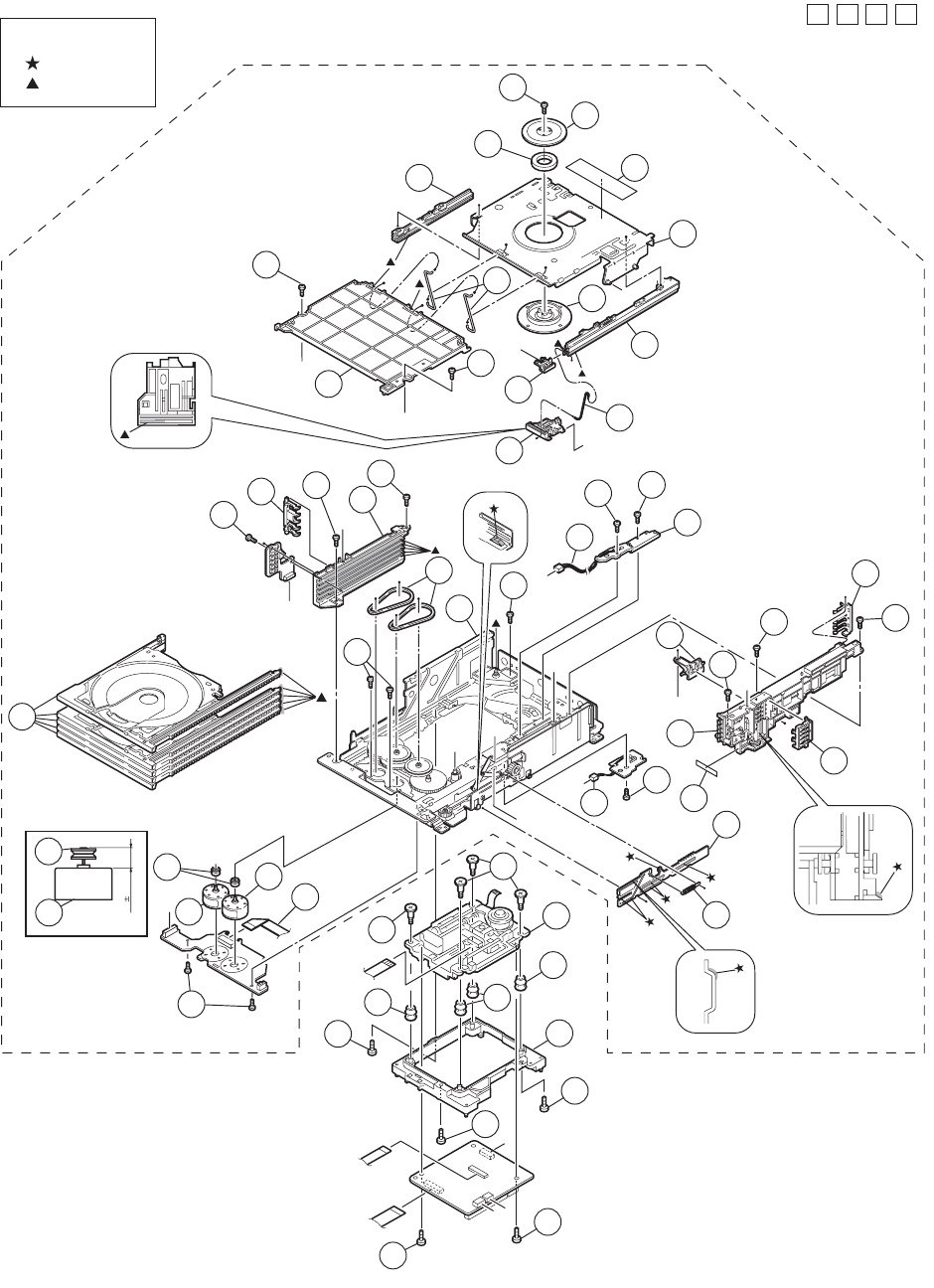

DVD changer mechanism assembly and parts list (Except DX-U6)
Grease
=JVG-31N
=JVS-1003
b
C
B
A
E
F
FMU-SB6-1M Block No. MM
M
K
d
G
C
d
B
c
cb
e
e
a
a
G
A
E
F
CH5-BASE-1M
The parts without symbol number are not service.
6.5mm 0.1mm
f
f
37
36
46
35
8
13
27
29
22 21
23
6
7
1
23
26
9
25
10
27
11
2
3
31
33
34
12
16
20
20
17
14
32
30
40
40
43
28
4
38
5
5
4
24
4
39
41
39
39
42
43
45
45
43
18
19
15
20
44
3-17
DVD changer mechanism (Except DX-U6)
Block No. [M][K][M][M]
Symbol No. Part No. Part Name Description Local
1 LV10913-001A LOADER ASSY
2 QVY0027-B14 S V RESISTOR
3 QYSDST2004Z SCREW 2mm x 4mm
4 QAR0164-001 MOTOR (x2)
5 LV42340-001A MOTOR PULLEY (x2)
6 LV41431-002A BELT (x2)
7 QYSPSPU1725N SCREW 1.7mm x 2.5mm(x2)
8 LV33965-004A LIFTER ASSY
9 LV33963-001A HOOK
10 LV33964-002A HOOK STOPPER
11 LV43285-001A ROD (L)
12 LV21408-002A RAIL(R)
13 LV21409-002A RAIL(L)
14 LV21520-004A SIDE(R) ASSY
15 LV33974-001A SELECT LEVER
16 LV33977-002A CLICK SPRING
17 LV33975-001A GEAR COVER
18 LV33976-001A ELEVATOR CAM
19 LV43287-001A ELEVATOR SPRING
20 QYSDST2605Z SCREW 2.6mm x 5mm(x3)
21 LV10749-002A SIDE(L)
22 LV33980-001A OPEN DET.LEVER
23 QYSDST2605Z SCREW 2.6mm x 5mm(x2)
24 LV10746-003A TRAY ASSY (x5)
25 LV10750-002A TOP COVER
26 LV43289-002A ROD (x2)
27 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
28 QYSDST2605Z SCREW 2.6mm x 5mm(x2)
29 QYSDSF2608Z SCREW 2.6mm x 8mm
30 QYSDST2605Z SCREW 2.6mm x 5mm
31 QYSDST2004Z SCREW 2mm x 4mm
32 WJM0330-002A E-SI C WIRE C-F
33 WJM0331-001A E-SI C WIRE C-F
34 LV32417-001A CLAMPER
35 LV42930-003A P.C.MAGNET
36 LV33992-001A DVD YOKE
37 LV41741-001A SPECIAL SCREW
38 QUQ110-1508BJ FFC WIRE
39 LV44043-001A INSULATOR (x4)
40 LV44045-001A SPECIAL SCREW (x4)
41 ------------ DVD TRAMECHA
42 LV11281-002A TM CB HOLDER
43 QYSDST2605ZA TAP SCREW M2.6 x 5mm(x3)
44 LV30227-044A SPACER
45 LV44209-001A WASHER SCREW (x2)
46 LV44603-003A LASER CAUTION
3-18
DVD changer mechanism assembly and parts list (Only DX-U6)
Grease
=JVG-31N
=JVS-1003
b
C
B
A
E
F
FMU-SB6-11M Block No. MM
M
T
d
G
C
d
B
c
cb
e
e
a
a
G
A
E
F
CH5-BASE-1M
The parts without symbol number are not service.
6.5mm 0.1mm
f
f
37
36
46
35
8
13
27
29
22 21
23
6
7
1
23
26
9
25
10
27
11
2
3
31
33
34
12
16
20
20
17
14
32
30
40
40
43
28
4
38
5
5
4
24
4
39
41
39
39
42
43
45
45
43
18
19
15
20
44
47
3-19
DVD changer mechanism (Only DX-U6)
Block No. [M][T][M][M]
Symbol No. Part No. Part Name Description Local
1 LV10913-004A LOADER ASSY
2 QVY0027-B14 S V RESISTOR
3 QYSDST2004ZA TAP SCREW M2 x 4mm
4 QAR0164-001 MOTOR (x2)
5 LV42340-001A MOTOR PULLEY (x2)
6 LV41431-002A BELT (x2)
7 QYSPSPU1725NA SCREW M1.7 x 2.5mm(x2)
8 LV33965-004A LIFTER ASSY
9 LV33963-001A HOOK
10 LV33964-002A HOOK STOPPER
11 LV43285-001A ROD (L)
12 LV21408-002A RAIL(R)
13 LV21409-002A RAIL(L)
14 LV21520-004A SIDE(R) ASSY
15 LV33974-002A SELECT LEVER
16 LV33977-002A CLICK SPRING
17 LV33975-001A GEAR COVER
18 LV33976-002A ELEVATOR CAM
19 LV43287-001A ELEVATOR SPRING
20 QYSDST2605ZA TAP SCREW M2.6 x 5mm(x3)
21 LV10749-002A SIDE(L)
22 LV33980-002A OPEN DET.LEVER
23 QYSDST2605ZA TAP SCREW M2.6 x 5mm(x2)
24 LV10746-006A TRAY ASSY (x5)
25 LV10750-003A TOP COVER
26 LV43289-003A ROD (x2)
27 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x2)
28 QYSDST2605ZA TAP SCREW M2.6 x 5mm(x2)
29 QYSDSF2608ZA TAP SCREW M2.6 x 8mm
30 QYSDST2605ZA TAP SCREW M2.6 x 5mm
31 QYSDST2004ZA TAP SCREW M2 x 4mm
32 WJM0330-002A-E E-SI C WIRE C-F
33 WJM0331-001A-E E-SI C WIRE C-F
34 LV32417-001A CLAMPER
35 LV42930-003A P.C.MAGNET
36 LV33992-001A DVD YOKE
37 LV41741-003A SPECIAL SCREW
38 QUQ110-1508BJ FFC WIRE 15pin 8cm
39 LV44043-001A INSULATOR (x4)
40 LV44045-001A SPECIAL SCREW (x4)
41 ------------ DVD TRAMECHA
42 LV11281-002A TM CB HOLDER
43 QYSDST2605ZA TAP SCREW M2.6 x 5mm(x3)
44 LV30227-044A SPACER
45 LV44209-001A WASHER SCREW (x2)
46 LV44603-003A LASER CAUTION
47 QYSDST2605ZA SCREW M2.6 x 5 mm
3-20
Electrical parts list
Main board
Block No. [0][1]
Symbol No.
Part No. Part Name Description Local
IC770 ------------ MICON IC
IC771 BR24L08F-W-X IC(DIGITAL)
IC800 NJM4565E-X IC 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
IC801 NJM4565E-X IC 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
IC810 TC4066BFT-X IC(DIGITAL) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
IC820 R2S15207FP-X IC
IC830 NJM4565E-X IC
IC831 TC4066BFT-X IC(DIGITAL)
IC850 R2A15907SP-X POWER IC
IC870 R2S15904SP-X IC 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
IC880 R2S15904SP-X IC 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
IC881 NJM4565E-X IC
IC901 NJM4565E-X IC
IC920 MM1623XF-X IC
IC930 GP1FAV30TK0F OPT
TRANSMITTER
Q7000 RT1N230C-X TRANSISTOR
Q7010 RT1N230C-X TRANSISTOR 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
Q7080 RT1N141C-X DIGI TRANSISTOR
Q7084 KTC3203/OY/-T TRANSISTOR
Q7742 RT1P141C-X DIGI TRANSISTOR
Q8030 2SC5938A/B/-X TRANSISTOR 10A,10US,10UX,
10UG,10UN,
10UH
Q8030 RT6N140C-X TRANSISTOR 8US,8UX,8UG,8
UN,6US,6UX,
6UG,6UN
Q8031 2SC5938A/B/-X TRANSISTOR
Q8032 RT1N441C-X TRANSISTOR
Q8040 KTC812T-X PAIR TRANSISTOR 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
Q8040 IMX9-W PAIR TRANSISTOR 10UH
Q8071 KTC812T-X PAIR TRANSISTOR 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN
Q8071 IMX9-W PAIR TRANSISTOR 10UH
Q8081 RT6N230C-X DIGI TRANSISTOR 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
Q8130 2SC5938A/B/-X TRANSISTOR 10A,10US,10UX,
10UG,10UN,
10UH
Q8130 RT6N140C-X TRANSISTOR 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
Q8131 2SC5938A/B/-X TRANSISTOR
Q8132 RT1N441C-X TRANSISTOR
Q8180 RT6N230C-X DIGI TRANSISTOR
Q8211 RT1N441C-X TRANSISTOR 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
Q8212 RT1N441C-X TRANSISTOR 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,1
0UH
Q8403 RT1N240C-X TRANSISTOR 6US,6UX,6UG,
6UN
Q8404 RT1N240C-X TRANSISTOR 6US,6UX,6UG,
6UN
Q8524 KTC3203/OY/-T TRANSISTOR
Q9002 RT3Y97M-X TR ARRAY
D7000 MA111-X SI DIODE
D7010 MA111-X SI DIODE 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
D7050 UDZW5.1B-X SB DIODE
D7080 MA111-X SI DIODE
D7081 1N4003S-T5 SI DIODE
D7084 UDZW3.9B-X Z DIODE
D7151 MA111-X SI DIODE
D7152 MA111-X SI DIODE
D7153 MA111-X SI DIODE
D7154 MA111-X SI DIODE 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
D7155 MA111-X SI DIODE 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
D7156 MA111-X SI DIODE 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
D7157 MA111-X SI DIODE 10A,10US,10UX,
10UG,10UN,
10UH
D7843 UDZW5.1B-X SB DIODE
D8031 MA111-X SI DIODE
D8032 MA111-X SI DIODE
D8131 MA111-X SI DIODE
D8132 MA111-X SI DIODE
D8230 MA111-X SI DIODE
D8231 MA111-X SI DIODE
D8406 UDZW2.4B-X Z DIODE 6US,6UX,6UG,
6UN
D8407 UDZW2.4B-X Z DIODE 6US,6UX,6UG,
6UN
D8524 UDZW5.6B-X Z DIODE
D9040 MA111-X SI DIODE
D9041 MA111-X SI DIODE
D9042 UDZW5.1B-X SB DIODE
D9303 1N4003S-T5 SI DIODE
D9304 1N4003S-T5 SI DIODE
C7050 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C7082 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C7700 QETN1HM-106Z E CAPACITOR 10uF 50V M
C7711 NCS31HJ-200X C CAPACITOR 20pF 50V J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
C7711 NDC31HJ-200X C CAPACITOR 20pF 50V J 10UH
C7713 NCS31HJ-220X C CAPACITOR 22pF 50V J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
C7713 NDC31HJ-220X C CAPACITOR 22pF 50V J 10UH
C7717 QETN1CM-107Z E CAPACITOR 100uF 16V M
C7718 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C7789 QETN1CM-107Z E CAPACITOR 100uF 16V M
C7843 QETN1HM-106Z E CAPACITOR 10uF 50V M
C7889 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8000 QTE1J46-106Z E CAPACITOR 10uF 63V 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
Symbol No.
Part No. Part Name Description Local
3-21
C8001 QTE1J46-106Z E CAPACITOR 10uF 63V
C8003 NDC31HJ-271X C CAPACITOR 270pF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8003 NDC31HJ-151X C CAPACITOR 150pF 50V J 8US,8UX,8UG,
8UN
C8019 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J 10A,10US,10UX,
10UG,10UN,1
0UH
C8019 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J 8US,8UX,8UG,
8UN
C8019 QFLC1HJ-273Z M CAPACITOR 0.027uF 50V J 6US,6UX,6UG,
6UN
C8020 QTE1J46-106Z E CAPACITOR 10uF 63V
C8021 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C8022 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C8023 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C8024 QETN1HM-106Z E CAPACITOR 10uF 50V M
C8025 QTE1J46-106Z E CAPACITOR 10uF 63V
C8026 QFG32AJ-472Z PP CAPACITOR 4700pF 100V J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
C8026 QFG32AJ-332Z PP CAPACITOR 3300pF 100V J 8US,8UX,8UG,
8UN
C8028 QFLC1HJ-683Z M CAPACITOR 0.068uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8028 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J 8US,8UX,8UG,
8UN
C8028 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 6US,6UX,6UG,
6UN
C8029 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8029 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J 8US,8UX,8UG,
8UN
C8029 QFLC1HJ-273Z M CAPACITOR 0.027uF 50V J 6US,6UX,6UG,
6UN
C8030 QFVF1HJ-154Z MF CAPACITOR 0.15uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8030 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
C8031 QFLC1HJ-823Z M CAPACITOR 0.082uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8031 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J 8US,8UX,8UG,
8UN
C8031 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 6US,6UX,6UG,
6UN
C8032 QTE1H53-106Z E CAPACITOR 10uF 50V 10A,10US,10UX,
10UG,10UN,
10UH
C8032 QTE1H53-226Z E CAPACITOR 22uF 50V 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
C8033 QTE1J46-226Z E CAPACITOR 22uF 63V
C8060 QFVF1HJ-274Z MF CAPACITOR 0.27uF 50V J
C8061 QFVF1HJ-124Z MF CAPACITOR 0.12uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8061 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
C8070 QETN1HM-106Z E CAPACITOR 10uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8071 NCB31HK-153X C CAPACITOR 0.015uF 50V K 10A,10US,10UX,
10UG,10UN,
10UH
C8072 QETN1HM-106Z E CAPACITOR 10uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8074 QETN1HM-105Z E CAPACITOR 1uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
Symbol No.
Part No. Part Name Description Local
C8076 QETN1HM-104Z E CAPACITOR 0.1uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8080 QETN1HM-106Z E CAPACITOR 10uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8081 NCB31HK-103X C CAPACITOR 0.01uF 50V K 10A,10US,10UX,
10UG,10UN,
10UH
C8082 QETN1HM-104Z E CAPACITOR 0.1uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8083 QETN1HM-104Z E CAPACITOR 0.1uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8084 QETN1HM-105Z E CAPACITOR 1uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8090 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C8100 QTE1J46-106Z E CAPACITOR 10uF 63V 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8101 QTE1J46-106Z E CAPACITOR 10uF 63V
C8103 NDC31HJ-271X C CAPACITOR 270pF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8103 NDC31HJ-151X C CAPACITOR 150pF 50V J 8US,8UX,8UG,
8UN
C8119 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8119 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J 8US,8UX,8UG,
8UN
C8119 QFLC1HJ-273Z M CAPACITOR 0.027uF 50V J 6US,6UX,6UG,
6UN
C8120 QTE1J46-106Z E CAPACITOR 10uF 63V
C8121 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C8122 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C8123 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C8124 QETN1HM-106Z E CAPACITOR 10uF 50V M
C8125 QTE1J46-106Z E CAPACITOR 10uF 63V
C8126 QFG32AJ-472Z PP CAPACITOR 4700pF 100V J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
C8126 QFG32AJ-332Z PP CAPACITOR 3300pF 100V J 8US,8UX,8UG,
8UN
C8128 QFLC1HJ-683Z M CAPACITOR 0.068uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8128 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J 8US,8UX,8UG,
8UN
C8128 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 6US,6UX,6UG,
6UN
C8129 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8129 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J 8US,8UX,8UG,
8UN
C8129 QFLC1HJ-273Z M CAPACITOR 0.027uF 50V J 6US,6UX,6UG,
6UN
C8130 QFVF1HJ-154Z MF CAPACITOR 0.15uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8130 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
C8131 QFLC1HJ-823Z M CAPACITOR 0.082uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8131 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J 8US,8UX,8UG,
8UN
C8131 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 6US,6UX,6UG,
6UN
C8132 QTE1H53-106Z E CAPACITOR 10uF 50V 10A,10US,10UX,
10UG,10UN,
10UH
Symbol No.
Part No. Part Name Description Local
3-22
C8132 QTE1H53-226Z E CAPACITOR 22uF 50V 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
C8133 QTE1J46-226Z E CAPACITOR 22uF 63V
C8160 QFVF1HJ-274Z MF CAPACITOR 0.27uF 50V J
C8161 QFVF1HJ-124Z MF CAPACITOR 0.12uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8161 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
C8170 QETN1HM-106Z E CAPACITOR 10uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8171 NCB31HK-153X C CAPACITOR 0.015uF 50V K 10A,10US,10UX,
10UG,10UN,
10UH
C8172 QETN1HM-106Z E CAPACITOR 10uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8174 QETN1HM-105Z E CAPACITOR 1uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8176 QETN1HM-104Z E CAPACITOR 0.1uF 50V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8180 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J 10A,10US,10UX,
10UG,10UN,
10UH
C8180 QFLC1HJ-153Z M CAPACITOR 0.015uF 50V J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
C8181 QFVF1HJ-124Z MF CAPACITOR 0.12uF 50V J 10A,10US,10UX,
10UG,10UN,10U
H
C8181 QFLC1HJ-683Z M CAPACITOR 0.068uF 50V J 8US,8UX,8UG,
8UN
C8181 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J 6US,6UX,6UG,
6UN
C8182 QFLC1HJ-123Z M CAPACITOR 0.012uF 50V J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
C8184 QTE1J46-106Z E CAPACITOR 10uF 63V 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8185 QTE1J46-106Z E CAPACITOR 10uF 63V
C8202 QTE1J46-106Z E CAPACITOR 10uF 63V 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8203 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8204 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8205 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C8212 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8213 NDC31HJ-101X C CAPACITOR 100pF 50V J
C8214 NDC31HJ-101X C CAPACITOR 100pF 50V J
C8220 QETN1AM-227Z E CAPACITOR 220uF 10V M
C8221 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C8222 QTE1E46-227Z E CAPACITOR 220uF 25V
C8230 QETN1EM-476Z E CAPACITOR 47uF 25V M
C8232 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8234 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8235 QETN1HM-106Z E CAPACITOR 10uF 50V M
C8236 QETN1HM-106Z E CAPACITOR 10uF 50V M
C8272 QETN1EM-476Z E CAPACITOR 47uF 25V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8282 QETN1EM-476Z E CAPACITOR 47uF 25V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C8511 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
Symbol No.
Part No. Part Name Description Local
C8512 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8513 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8514 NDC31HJ-101X C CAPACITOR 100pF 50V J
C8515 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8516 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8517 NDC31HJ-101X C CAPACITOR 100pF 50V J
C8518 NCB31HK-681X C CAPACITOR 680pF 50V K
C8519 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C8520 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C8521 NCB31HK-152X C CAPACITOR 1500pF 50V K
C8522 QETN1EM-476Z E CAPACITOR 47uF 25V M
C8523 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8524 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8525 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8526 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8527 NDC31HJ-101X C CAPACITOR 100pF 50V J
C8528 NCB31HK-681X C CAPACITOR 680pF 50V K
C8529 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8530 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8531 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8532 NDC31HJ-680X C CAPACITOR 68pF 50V J
C8534 NCB31EK-273X C CAPACITOR 0.027uF 25V K
C8535 NDC31HJ-680X C CAPACITOR 68pF 50V J
C8536 NDC31HJ-101X C CAPACITOR 100pF 50V J
C8574 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8575 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8577 QETN1HM-105Z E CAPACITOR 1uF 50V M
C8810 QETN1AM-227Z E CAPACITOR 220uF 10V M 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
C9000 NCB31HK-222X C CAPACITOR 2200pF 50V K
C9001 QETN1HM-104Z E CAPACITOR 0.1uF 50V M
C9003 QETN1HM-104Z E CAPACITOR 0.1uF 50V M
C9004 QETN1EM-476Z E CAPACITOR 47uF 25V M
C9008 QETN1HM-105Z E CAPACITOR 1uF 50V M
C9009 QETN1EM-476Z E CAPACITOR 47uF 25V M
C9010 QETN1CM-107Z E CAPACITOR 100uF 16V M
C9021 NCB31HK-102X C CAPACITOR 1000pF 50V K
C9022 NCB31HK-102X C CAPACITOR 1000pF 50V K
C9034 QETN1HM-104Z E CAPACITOR 0.1uF 50V M
C9035 NCS31HJ-470X C CAPACITOR 47pF 50V J
C9042 QETN1HM-106Z E CAPACITOR 10uF 50V M
C9050 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C9051 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C9052 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C9053 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C9100 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C9101 NCB31HK-102X C CAPACITOR 1000pF 50V K
C9102 NCB31HK-102X C CAPACITOR 1000pF 50V K
C9103 NCB31HK-392X C CAPACITOR 3900pF 50V K
C9104 NCB31HK-392X C CAPACITOR 3900pF 50V K
C9105 NCB31HK-102X C CAPACITOR 1000pF 50V K
C9106 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C9200 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C9204 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C9206 QETN1HM-105Z E CAPACITOR 1uF 50V M
C9209 QETN1HM-226Z E CAPACITOR 22uF 50V M
C9211 QETN1HM-105Z E CAPACITOR 1uF 50V M
C9213 QETN1HM-105Z E CAPACITOR 1uF 50V M
C9215 QETN1HM-105Z E CAPACITOR 1uF 50V M
C9216 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C9217 NDC31HK-101X C CAPACITOR 100pF 50V K
C9218 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C9220 NDC31HK-101X C CAPACITOR 100pF 50V K
C9221 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C9223 NDC31HK-101X C CAPACITOR 100pF 50V K
C9224 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C9226 NDC31HK-101X C CAPACITOR 100pF 50V K
C9227 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C9229 NDC31HK-101X C CAPACITOR 100pF 50V K
C9230 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C9231 NDC31HK-101X C CAPACITOR 100pF 50V K
C9232 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C9300 QETN1CM-107Z E CAPACITOR 100uF 16V M
R7001 QRZ0253-821X OMF TRANSISTOR 820
Ω
R7002 QRZ0253-821X OMF TRANSISTOR 820
Ω
Symbol No.
Part No. Part Name Description Local
3-23
R7050 NRSA63J-753X MG RESISTOR 75k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R7050 NRSA63J-623X MG RESISTOR 62k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R7080 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7084 QRJ146J-4R7X UNF C RESISTOR 4.7
Ω
1/4W J
R7085 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R7101 QRZ0253-821X OMF TRANSISTOR 820
Ω
R7102 QRZ0253-821X OMF TRANSISTOR 820
Ω
R7151 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7152 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7153 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7154 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R7155 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R7156 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R7157 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R7700 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7701 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7702 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7703 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7704 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7705 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7706 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R7719 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7725 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7726 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R7727 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R7728 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7730 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R7742 NRSA63J-302X MG RESISTOR 3k
Ω
1/16W J
R7743 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R7746 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7747 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7748 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7749 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7750 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7758 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7759 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R7768 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7772 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7773 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7774 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7775 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7776 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7777 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7779 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7780 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7781 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7786 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7792 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7793 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7794 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7795 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7796 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 6US,6UX,6UG,
6UN
R7797 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7798 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7799 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7801 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7802 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7803 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7804 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
R7805 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7808 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7809 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7811 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R7838 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7844 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7847 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7851 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7854 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7859 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7862 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7871 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7890 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7892 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7893 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7894 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R7895 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J 10UX,10UG,8UX,
8UG,6UX,6UG
R7896 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R7896 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J 6US,6UX,6UG,
6UN
R7898 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R8000 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8000 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8001 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8001 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8002 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8003 NRSA63J-563X MG RESISTOR 56k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8004 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R8005 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R8020 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8020 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8020 NRSA63J-302X MG RESISTOR 3k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8021 NRSA63J-302X MG RESISTOR 3k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8021 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8030 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8030 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8030 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8031 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R8032 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
R8032 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8033 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
R8033 NRSA63J-274X MG RESISTOR 270k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8034 NRSA63J-433X MG RESISTOR 43k
Ω
1/16W J
R8035 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R8036 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
Symbol No.
Part No. Part Name Description Local
3-24
R8036 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8037 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R8042 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8042 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8043 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R8046 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8046 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8060 NRSA63J-302X MG RESISTOR 3k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8060 NRSA63J-362X MG RESISTOR 3.6k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8061 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
R8061 NRSA63J-202X MG RESISTOR 2k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8062 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8062 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8070 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8071 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8073 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8074 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8075 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8076 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8077 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8080 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8081 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8084 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8085 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8090 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8090 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J 6US,6UX,6UG,
6UN
Symbol No.
Part No. Part Name Description Local
R8091 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8091 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8092 NRSA63J-363X MG RESISTOR 36k
Ω
1/16W J
R8093 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R8095 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R8099 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R8100 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8100 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8101 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8101 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8102 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8103 NRSA63J-563X MG RESISTOR 56k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8104 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R8105 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R8120 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8120 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8120 NRSA63J-302X MG RESISTOR 3k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8121 NRSA63J-302X MG RESISTOR 3k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8121 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8130 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8130 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8130 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8131 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R8132 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
R8132 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8133 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
R8133 NRSA63J-274X MG RESISTOR 270k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8134 NRSA63J-433X MG RESISTOR 43k
Ω
1/16W J
R8135 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R8136 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8136 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8137 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R8142 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8142 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8143 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R8146 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
Symbol No.
Part No. Part Name Description Local
3-25
R8146 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8160 NRSA63J-302X MG RESISTOR 3k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8160 NRSA63J-362X MG RESISTOR 3.6k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8161 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
R8161 NRSA63J-202X MG RESISTOR 2k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8162 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8162 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8170 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8171 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8173 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8174 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8175 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8176 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8177 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8180 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8180 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8180 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8182 NRSA63J-303X MG RESISTOR 30k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8182 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8183 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8183 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8187 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8187 NRSA63J-242X MG RESISTOR 2.4k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8187 NRSA63J-162X MG RESISTOR 1.6k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8189 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R8190 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8190 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J 6US,6UX,6UG,
6UN
Symbol No.
Part No. Part Name Description Local
R8191 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8191 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8192 NRSA63J-363X MG RESISTOR 36k
Ω
1/16W J
R8193 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R8195 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R8199 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R8202 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8203 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8204 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8205 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8206 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8211 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8212 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8221 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R8223 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8230 NRSA63J-302X MG RESISTOR 3k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8230 NRSA63J-512X MG RESISTOR 5.1k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8231 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8231 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J 8US,8UX,8UG,
8UN,6US,6UX,
6UG,6UN
R8232 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,6US,
6UX,6UG,6UN,
10UH
R8232 NRSA63J-753X MG RESISTOR 75k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8234 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8234 NRSA63J-753X MG RESISTOR 75k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8260 NRSA63J-513X MG RESISTOR 51k
Ω
1/16W J
R8261 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R8262 NRSA63J-513X MG RESISTOR 51k
Ω
1/16W J
R8263 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R8291 NRSA63J-623X MG RESISTOR 62k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8291 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J 8US,8UX,8UG,
8UN
R8291 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8292 NRSA63J-623X MG RESISTOR 62k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,
10UH
R8292 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J 8US,8UX,8UG,
8UN
Symbol No.
Part No. Part Name Description Local
3-26
R8292 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8414 NRSA63J-681X MG RESISTOR 680
Ω
1/16W J 6US,6UX,6UG,
6UN
R8416 NRSA63J-162X MG RESISTOR 1.6k
Ω
1/16W J 6US,6UX,6UG,
6UN
R8511 NRSA63J-513X MG RESISTOR 51k
Ω
1/16W J
R8512 NRSA63J-203X MG RESISTOR 20k
Ω
1/16W J
R8513 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R8516 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R8517 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R8518 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R8519 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R8520 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R8521 NRSA63J-913X MG RESISTOR 91k
Ω
1/16W J
R8523 QRJ146J-4R7X UNF C RESISTOR 4.7
Ω
1/4W J
R8524 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R8526 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R8527 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R8528 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R8530 NRSA63J-303X MG RESISTOR 30k
Ω
1/16W J
R8531 NRSA63J-303X MG RESISTOR 30k
Ω
1/16W J
R8532 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
R8533 NRSA63J-912X MG RESISTOR 9.1k
Ω
1/16W J
R8534 NRSA63J-912X MG RESISTOR 9.1k
Ω
1/16W J
R8810 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R8811 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
R9001 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R9002 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R9003 NRSA63J-514X MG RESISTOR 510k
Ω
1/16W J
R9004 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R9011 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R9012 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R9013 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R9014 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R9015 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R9021 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R9022 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R9034 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R9035 NRSA63J-163X MG RESISTOR 16k
Ω
1/16W J
R9040 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R9041 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R9201 NRSA63J-201X MG RESISTOR 200
Ω
1/16W J
R9203 NRSA63J-201X MG RESISTOR 200
Ω
1/16W J
R9205 NRSA63J-201X MG RESISTOR 200
Ω
1/16W J
R9207 NRSA63J-201X MG RESISTOR 200
Ω
1/16W J
R9209 NRSA63J-201X MG RESISTOR 200
Ω
1/16W J
R9218 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R9221 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R9224 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R9227 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R9230 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R9232 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R9310 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
CN720 QGF1205F2-13 CONNECTOR FFC/FPC (1-
13) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
CN720 QGF1208F1-13 CONNECTOR FFC/FPC (1-
13) 10UH
CN730 QGF1205C2-21 CONNECTOR FFC/FPC (1-
21) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
CN730 QGF1208C1-21 CONNECTOR FFC/FPC (1-
21) 10UH
CN740 QGF1205F2-15 CONNECTOR FFC/FPC (1-
15) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
Symbol No.
Part No. Part Name Description Local
CN740 QGF1208F1-15 CONNECTOR FFC/FPC (1-
15) 10UH
CN750 QGF1205F2-11 CONNECTOR FFC/FPC (1-
11) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
CN750 QGF1208F1-11 CONNECTOR FFC/FPC (1-
11) 10UH
CN760 QGF1205C2-11 CONNECTOR FFC/FPC (1-
11) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
CN760 QGF1208C1-11 CONNECTOR FFC/FPC (1-
11) 10UH
CN787 QGF1205F2-05 CONNECTOR FFC/FPC (1-5) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
CN787 QGF1208F1-05 CONNECTOR FFC/FPC (1-5) 10UH
CN799 QGF1210G1-06 CONNECTOR FFC/FPC (1-6) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
CN800 QGF1036C2-10 CONNECTOR FFC/FPC (1-
10)
CN810 QGF1036C2-08 CONNECTOR FFC/FPC (1-8) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
CN820 QGF1205C2-07 CONNECTOR FFC/FPC (1-7) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
CN820 QGF1208C1-07 CONNECTOR FFC/FPC (1-7) 10UH
CN830 QGF1205C2-15 CONNECTOR FFC/FPC (1-
15) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN
CN830 QGF1205C2-09 CONNECTOR FFC/FPC (1-9) 6US,6UX,6UG,
6UN
CN830 QGF1208C1-15 CONNECTOR FFC/FPC (1-
15) 10UH
CN850 QGB2510J1-16 CONNECTOR B-B (1-16) 10A,10US,10UX,
10UG,10UN,
10UH
CN850 QGB2510J1-14 CONNECTOR B-B (1-14) 8US,8UX,8UG,
8UN
CN850 QGB2510J1-08 CONNECTOR B-B (1-8) 6US,6UX,6UG,
6UN
CN901 QGF1205C2-15 CONNECTOR FFC/FPC (1-
15) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
CN901 QGF1208C1-15 CONNECTOR FFC/FPC (1-
15) 10UH
CN920 QGF1205C2-11 CONNECTOR FFC/FPC (1-
11) 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
CN920 QGF1208C1-11 CONNECTOR FFC/FPC (1-
11) 10UH
CN921 QGF1036C2-05 CONNECTOR FFC/FPC (1-5)
CN930 QGF1036C2-28 CONNECTOR FFC/FPC (1-
28)
CN931 QGD2501C1-06Z CONNECTOR (1-6)
FW910 QUM024-07Z4Z4-
E1.25 CONNECTOR
J700 QNB0317-001 SPK TERMINAL 10A,10US,10UX,
10UG,10UN,
10UH
J700 QNB0316-001 SPK TERMINAL 8US,8UX,8UG,
8UN
J700 QNB0318-001 SPK TERMINAL 6US,6UX,6UG,
6UN
J800 QNN0420-001 SURROUND JACK
J901 QNS0285-001 POWER IC
J902 QNS0285-001 POWER IC
J910 QNS0266-001 JACK
J920 QNN0572-001 PIN JACK
Symbol No.
Part No. Part Name Description Local
3-27
AMP board(DX-U10)
Block No. [0][2]
J921 QNN0557-002 PIN JACK
JS901 QSW1230-001 MIC ENCODER
JS902 QSW1230-001 MIC ENCODER
K7000 NQR0627-004X FERRITE
K8000 NQR0627-004X FERRITE
K8001 NQR0627-004X FERRITE 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
10UH
K9040 NQR0627-004X FERRITE
K9100 NQR0627-004X FERRITE
K9101 NQR0627-004X FERRITE
K9102 NQR0627-004X FERRITE
K9103 NQR0627-004X FERRITE
K9300 QQR0621-001Z COIL
PP901 QZW0112-001 WIRE CLAMP
RY712 QSK0127-001 RELAY 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
RY712 QSK0192-001 RELAY 10UH
RY734 QSK0127-001 RELAY 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN
RY734 QSK0192-001 RELAY 10UH
RY756 QSK0127-001 RELAY 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN
RY756 QSK0192-001 RELAY 10UH
RY767 QSK0127-001 RELAY 10A,10US,10UX,
10UG,10UN,8US,
8UX,8UG,8UN,
6US,6UX,6UG,
6UN
RY767 QSK0192-001 RELAY 10UH
X7700 QAX0711-002Z CRYSTAL 8.000000MHz
Symbol No.
Part No. Part Name Description Local
IC301 STK416-130-E IC
IC302 KIA7812API IC
IC303 KIA78D06PI-U/P IC
IC304 KIA7809API IC
IC305 PQ050RDC2SZF IC
IC306 KIA278R09PI IC
IC402 STK415-130-E IC
IC403 STK415-130-E IC
Q2300 KTA1046/Y/ TRANSISTOR
Q2301 KTC3203/OY/-T TRANSISTOR
Q3401 KTC3199/GL/-T TRANSISTOR
Q3501 KTC3199/GL/-T TRANSISTOR
Q3601 KTC3199/GL/-T TRANSISTOR
Q3901 KTA1271/OY/-T TRANSISTOR
Q3902 KTC3199/GL/-T TRANSISTOR
Q4101 KTC3199/GL/-T TRANSISTOR
Q4201 KTC3199/GL/-T TRANSISTOR
Q4601 KTC3199/GL/-T TRANSISTOR
Q4701 KTC3199/GL/-T TRANSISTOR
Q4901 KTC3200/GL/-T TRANSISTOR
Q4902 KTA1268/GL/-T TRANSISTOR
Q4903 KTC3199/GL/-T TRANSISTOR
Q4904 KTA1268/GL/-T TRANSISTOR
D2001 GBU803 BRIDGE DIODE
D2002 2A02-M DIODE
D2003 2A02-M DIODE
D2101 GBU803 BRIDGE DIODE
D2200 1N5402M-20 SI DIODE
D2201 1N5402M-20 SI DIODE
D2202 1N5402M-20 SI DIODE
D2203 1N5402M-20 SI DIODE
Symbol No.
Part No. Part Name Description Local
D2312 MTZJ7.5B-T2 Z DIODE
D2314 MTZJ36A-T2 Z DIODE
D2315 1N4003S-T5 SI DIODE
D2317 1N4003S-T5 SI DIODE
D3301 MTZJ18B-T2 Z DIODE
D3302 MTZJ18B-T2 Z DIODE
D3303 MTZJ36B-T2 Z DIODE
D3304 MTZJ36B-T2 Z DIODE
D3305 1N5402M-20 SI DIODE
D3306 1N5402M-20 SI DIODE
D3401 1SS133-T2 SI DIODE
D3501 1SS133-T2 SI DIODE
D3601 1SS133-T2 SI DIODE
D3701 MTZJ6.2B-T2 Z DIODE
D3811 MTZJ11B-T2 Z DIODE
D3821 MTZJ11B-T2 Z DIODE
D3832 MTZJ6.8B-T2 Z DIODE
D3841 MTZJ13B-T2 Z DIODE
D4001 MTZJ18B-T2 Z DIODE
D4002 MTZJ18B-T2 Z DIODE
D4003 MTZJ36B-T2 Z DIODE
D4004 MTZJ36B-T2 Z DIODE
D4005 1N5402M-20 SI DIODE
D4006 1N5402M-20 SI DIODE
D4101 1SS133-T2 SI DIODE
D4201 1SS133-T2 SI DIODE
D4501 MTZJ18B-T2 Z DIODE
D4502 MTZJ18B-T2 Z DIODE
D4503 MTZJ36B-T2 Z DIODE
D4504 MTZJ36B-T2 Z DIODE
D4505 1N5402M-20 SI DIODE
D4506 1N5402M-20 SI DIODE
D4601 1SS133-T2 SI DIODE
D4701 1SS133-T2 SI DIODE
D4901 1SS133-T2 SI DIODE
C2000 QEZ0581-688 E CAPACITOR 6800uF
C2004 QEZ0581-688 E CAPACITOR 6800uF
C2005 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2006 QEZ0786-688 E CAPACITOR 6800uF
C2007 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2008 QEZ0786-688 E CAPACITOR 6800uF
C2009 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2010 QETN1VM-227Z E CAPACITOR 220uF 35V M
C2011 QETN1VM-227Z E CAPACITOR 220uF 35V M
C2115 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2212 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2213 QETM1CM-688 E CAPACITOR 6800uF 16V M
C2214 QETM1VM-478 E CAPACITOR 4700uF 35V M
C2215 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2218 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2302 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2303 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2304 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C2305 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2316 QETM2AM-227 E CAPACITOR 220uF 100V M
C3104 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3201 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C3202 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3203 QDGB1HK-681Y C CAPACITOR 680pF 50V K
C3211 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C3212 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3213 QDGB1HK-681Y C CAPACITOR 680pF 50V K
C3221 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C3222 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3223 QDGB1HK-681Y C CAPACITOR 680pF 50V K
C3301 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C3302 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C3402 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C3403 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3404 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3405 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3502 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C3503 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3504 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3505 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3602 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C3603 QETN1EM-476Z E CAPACITOR 47uF 25V M
Symbol No.
Part No. Part Name Description Local
3-28
C3604 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3605 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3701 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3702 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3811 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3812 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3821 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3822 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3831 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3832 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3833 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M
C3841 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3842 QETN1CM-477Z E CAPACITOR 470uF 16V M
C4001 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C4002 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C4003 QETN1VM-227Z E CAPACITOR 220uF 35V M
C4004 QETN1VM-227Z E CAPACITOR 220uF 35V M
C4102 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4103 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4104 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4105 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4202 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4203 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4204 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4205 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4301 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4302 QTE1J46-106Z E CAPACITOR 10uF 63V
C4311 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4312 QTE1J46-106Z E CAPACITOR 10uF 63V
C4313 QCBB1HK-471Y C CAPACITOR 470pF 50V K
C4404 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4405 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4501 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C4502 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C4602 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4603 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4604 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4605 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4702 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4703 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4704 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4705 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4801 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4802 QTE1J46-106Z E CAPACITOR 10uF 63V
C4803 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4811 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4812 QTE1J46-106Z E CAPACITOR 10uF 63V
C4813 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4901 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4902 QETN1EM-476Z E CAPACITOR 47uF 25V M
C4903 QETN1HM-106Z E CAPACITOR 10uF 50V M
R2000 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2001 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2002 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2003 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2200 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2300 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2301 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R2302 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2305 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R2306 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2307 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2308 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R3201 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3202 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3203 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3204 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3205 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3206 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3301 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R3302 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R3303 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R3304 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R3305 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R3306 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R3307 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3401 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
Symbol No.
Part No. Part Name Description Local
R3402 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3403 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3404 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3405 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3406 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3407 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R3408 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R3409 QRJ146J-331X UNF C RESISTOR 330
Ω
1/4W J
R3410 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R3411 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3501 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R3502 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3503 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3504 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3505 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3506 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3507 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R3508 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R3509 QRJ146J-331X UNF C RESISTOR 330
Ω
1/4W J
R3510 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R3511 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3601 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R3602 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3603 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3604 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3605 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3606 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3607 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R3608 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R3609 QRJ146J-271X UNF C RESISTOR 270
Ω
1/4W J
R3610 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R3611 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3701 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R3907 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4001 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4002 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4003 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4004 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4005 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R4006 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R4007 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4101 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4102 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4103 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4104 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4105 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4106 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4107 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4108 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4109 QRJ146J-181X UNF C RESISTOR 180
Ω
1/4W J
R4110 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4111 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4201 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4202 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4203 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4204 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4205 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4206 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4207 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4208 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4209 QRJ146J-181X UNF C RESISTOR 180
Ω
1/4W J
R4210 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4211 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4302 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4311 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4312 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4501 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4502 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4503 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4504 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4505 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R4506 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R4507 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4601 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4602 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4603 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4604 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4605 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
Symbol No.
Part No. Part Name Description Local
3-29
AMP board(DX-U8)
Block No. [0][3]
R4606 QRE141J-561Y C RESISTOR 560
Ω
1/4W J
R4607 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4608 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4609 QRJ146J-221X UNF C RESISTOR 220
Ω
1/4W J
R4610 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4611 QRE141J-561Y C RESISTOR 560
Ω
1/4W J
R4701 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4702 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4703 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4704 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4705 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4706 QRE141J-561Y C RESISTOR 560
Ω
1/4W J
R4707 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4708 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4709 QRJ146J-221X UNF C RESISTOR 220
Ω
1/4W J
R4710 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4711 QRE141J-561Y C RESISTOR 560
Ω
1/4W J
R4801 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4802 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4811 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4812 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4901 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4902 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4903 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4904 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4905 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4906 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
L3401 QQLZ035-R39 COIL 0.39uH
L3401 QQLZ042-R45 COIL 0.45uH 10UH
L3501 QQLZ035-R39 COIL 0.39uH
L3501 QQLZ042-R45 COIL 0.45uH 10UH
L3601 QQLZ035-R39 COIL 0.39uH
L3601 QQLZ042-R45 COIL 0.45uH 10UH
L4101 QQLZ035-R39 COIL 0.39uH
L4101 QQLZ042-R45 COIL 0.45uH 10UH
L4201 QQLZ035-R39 COIL 0.39uH
L4201 QQLZ042-R45 COIL 0.45uH 10UH
L4601 QQLZ035-R39 COIL 0.39uH
L4601 QQLZ042-R45 COIL 0.45uH 10UH
L4701 QQLZ035-R39 COIL 0.39uH
L4701 QQLZ042-R45 COIL 0.45uH 10UH
CN201 QGA3901C1-10 CONNECTOR W-B (1-10)
CN203 QGB2510K2-16 CONNECTOR B-B (1-16)
CN204 QGB2510J1-10 CONNECTOR B-B (1-10)
CN205 QGB2510J1-16 CONNECTOR B-B (1-16)
CN207 QGD2504C1-03Z CONNECTOR (1-3)
CN301 QGB2510K2-10 CONNECTOR B-B (1-10)
CN302 QGF1205C2-15 CONNECTOR FFC/FPC (1-15)
CN302 QGF1208C1-15 CONNECTOR FFC/FPC (1-15) 10UH
CN304 QGA2501F1-03 CONNECTOR W-B (1-3)
CN305 QGD2504C1-05Z CONNECTOR (1-5)
CN306 QGD2504C1-05Z CONNECTOR (1-5)
CN403 QGF1205F2-07 CONNECTOR FFC/FPC (1-7)
CN403 QGF1208F1-07 CONNECTOR FFC/FPC (1-7) 10UH
CN404 QGB2510K2-16 CONNECTOR B-B (1-16)
FW201 QUM15A-18DGZ4-E WIRE
FW301 QUM156-27DGZ4-E CONNECTOR
FW401 QUM156-12Z4Z4-E FLAT WIRE
PP201 QNZ0104-001 POST PIN
PP203 QZW0112-001 WIRE CLAMP
Z2001 QNG0003-001Z FUSE CLIP
Z2002 QNG0003-001Z FUSE CLIP
Z2003 QNG0003-001Z FUSE CLIP
Z2004 QNG0003-001Z FUSE CLIP
Z2009 QNG0003-001Z FUSE CLIP
Z2010 QNG0003-001Z FUSE CLIP
Z2011 QNG0003-001Z FUSE CLIP
Z2012 QNG0003-001Z FUSE CLIP
Z2013 QNG0003-001Z FUSE CLIP
Z2014 QNG0003-001Z FUSE CLIP
Z2015 QNG0003-001Z FUSE CLIP
Z2016 QNG0003-001Z FUSE CLIP
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
IC302 KIA7812API IC
IC303 KIA78D06PI-U/P IC
IC304 KIA7809API IC
IC305 PQ050RDC2SZF IC
IC306 KIA278R09PI IC
IC307 STK433-240A-E IC
IC401 STK416-130-E IC
Q2300 KTA1046/Y/ TRANSISTOR
Q2301 KTC3203/OY/-T TRANSISTOR
Q3401 KTC3199/GL/-T TRANSISTOR
Q3501 KTC3199/GL/-T TRANSISTOR
Q3601 KTC3199/GL/-T TRANSISTOR
Q3901 KTA1271/OY/-T TRANSISTOR
Q3902 KTC3199/GL/-T TRANSISTOR
Q4601 KTC3199/GL/-T TRANSISTOR
Q4701 KTC3199/GL/-T TRANSISTOR
Q4901 KTC3200/GL/-T TRANSISTOR
Q4902 KTA1268/GL/-T TRANSISTOR
Q4903 KTC3199/GL/-T TRANSISTOR
Q4904 KTA1268/GL/-T TRANSISTOR
Q4951 KTC3199/GL/-T TRANSISTOR
D2001 GBU803 BRIDGE DIODE
D2002 2A02-M DIODE
D2003 2A02-M DIODE
D2101 GBU803 BRIDGE DIODE
D2200 1N5402M-20 SI DIODE
D2201 1N5402M-20 SI DIODE
D2202 1N5402M-20 SI DIODE
D2203 1N5402M-20 SI DIODE
D2312 MTZJ7.5B-T2 Z DIODE
D2314 MTZJ36A-T2 Z DIODE
D2315 1N4003S-T5 SI DIODE
D2317 1N4003S-T5 SI DIODE
D3401 1SS133-T2 SI DIODE
D3501 1SS133-T2 SI DIODE
D3601 1SS133-T2 SI DIODE
D3701 MTZJ6.2B-T2 Z DIODE
D3811 MTZJ11B-T2 Z DIODE
D3821 MTZJ11B-T2 Z DIODE
D3832 MTZJ6.8B-T2 Z DIODE
D3841 MTZJ13B-T2 Z DIODE
D4501 MTZJ18B-T2 Z DIODE
D4502 MTZJ18B-T2 Z DIODE
D4503 MTZJ36B-T2 Z DIODE
D4504 MTZJ36B-T2 Z DIODE
D4505 1N5402M-20 SI DIODE
D4506 1N5402M-20 SI DIODE
D4601 1SS133-T2 SI DIODE
D4701 1SS133-T2 SI DIODE
D4901 1SS133-T2 SI DIODE
D4951 1SS133-T2 SI DIODE
C2000 QEZ0581-478 E CAPACITOR 4700uF 63V M
C2004 QEZ0581-478 E CAPACITOR 4700uF 63V M
C2005 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2006 QETM1VM-478 E CAPACITOR 4700uF 35V M
C2007 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2008 QETM1VM-478 E CAPACITOR 4700uF 35V M
C2009 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2010 QETN1VM-227Z E CAPACITOR 220uF 35V M
C2011 QETN1VM-227Z E CAPACITOR 220uF 35V M
C2115 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2212 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2213 QETM1CM-688 E CAPACITOR 6800uF 16V M
C2214 QETM1VM-478 E CAPACITOR 4700uF 35V M
C2215 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2218 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2302 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2303 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2304 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C2305 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2316 QETM2AM-227 E CAPACITOR 220uF 100V M
3-30
C3104 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3201 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C3202 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3203 QDGB1HK-681Y C CAPACITOR 680pF 50V K
C3211 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C3212 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3213 QDGB1HK-681Y C CAPACITOR 680pF 50V K
C3221 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C3222 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3223 QDGB1HK-681Y C CAPACITOR 680pF 50V K
C3301 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C3302 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C3402 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C3403 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3404 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3405 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3502 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C3503 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3504 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3505 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3602 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C3603 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3604 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3605 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C3701 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3702 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3811 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3812 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3821 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3822 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3831 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3832 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3833 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M
C3841 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3842 QETN1CM-477Z E CAPACITOR 470uF 16V M
C4003 QETN1VM-227Z E CAPACITOR 220uF 35V M
C4004 QETN1VM-227Z E CAPACITOR 220uF 35V M
C4404 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4405 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4501 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C4502 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C4602 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4603 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4604 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4605 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4702 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4703 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4704 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4705 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4801 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4802 QTE1J46-106Z E CAPACITOR 10uF 63V
C4803 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4804 QTE1J46-106Z E CAPACITOR 10uF 63V
C4805 QCBB1HK-471Y C CAPACITOR 470pF 50V K
C4806 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4811 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4812 QTE1J46-106Z E CAPACITOR 10uF 63V
C4813 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4901 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4902 QETN1EM-476Z E CAPACITOR 47uF 25V M
C4903 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4952 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4953 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4954 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4955 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
R2000 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2001 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2002 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2003 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2200 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2300 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2301 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R2302 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2305 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R2306 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2307 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2308 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
Symbol No.
Part No. Part Name Description Local
R3201 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3202 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3203 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3204 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3205 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3206 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3305 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R3306 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R3307 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3401 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R3402 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3403 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3404 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3405 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3406 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3407 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R3408 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R3409 QRJ146J-331X UNF C RESISTOR 330
Ω
1/4W J
R3410 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R3411 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3501 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R3502 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3503 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3504 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3505 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3506 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3507 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R3508 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R3509 QRJ146J-331X UNF C RESISTOR 330
Ω
1/4W J
R3510 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R3511 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3601 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R3602 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R3603 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3604 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R3605 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R3606 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3607 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R3608 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R3609 QRJ146J-271X UNF C RESISTOR 270
Ω
1/4W J
R3610 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R3611 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R3701 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R3907 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4501 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4502 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4503 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4504 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4505 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R4506 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R4507 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4601 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4602 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4603 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4604 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4605 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4606 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4607 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4608 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4609 QRJ146J-221X UNF C RESISTOR 220
Ω
1/4W J
R4610 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4611 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4701 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4702 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4703 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4704 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4705 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4706 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4707 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4708 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4709 QRJ146J-221X UNF C RESISTOR 220
Ω
1/4W J
R4710 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4711 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4801 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4802 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4803 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4804 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4811 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
Symbol No.
Part No. Part Name Description Local
3-31
AMP board(DX-U6)
Block No. [0][4]
R4812 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4901 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4902 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4903 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4904 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4905 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4906 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4950 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4951 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4952 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4953 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4954 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4955 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4956 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4957 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4958 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4959 QRJ146J-221X UNF C RESISTOR 220
Ω
1/4W J
R4960 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
L3401 QQLZ035-R39 COIL 0.39uH
L3501 QQLZ035-R39 COIL 0.39uH
L3601 QQLZ035-R39 COIL 0.39uH
L4601 QQLZ035-R39 COIL 0.39uH
L4701 QQLZ035-R39 COIL 0.39uH
L4951 QQLZ035-R39 COIL 0.39uH
CN201 QGA3901C1-10 CONNECTOR W-B (1-10)
CN204 QGB2510J1-10 CONNECTOR B-B (1-10)
CN205 QGB2510J1-16 CONNECTOR B-B (1-16)
CN206 QGB2510K2-14 CONNECTOR B-B (1-14)
CN207 QGD2504C1-03Z CONNECTOR (1-3)
CN301 QGB2510K2-10 CONNECTOR B-B (1-10)
CN302 QGF1205C2-15 CONNECTOR FFC/FPC (1-15)
CN304 QGA2501F1-03 CONNECTOR W-B (1-3)
CN305 QGD2504C1-05Z CONNECTOR (1-5)
CN306 QGD2504C1-05Z CONNECTOR (1-5)
CN403 QGF1205F2-07 CONNECTOR FFC/FPC (1-7)
CN404 QGB2510K2-16 CONNECTOR B-B (1-16)
FW201 QUM15A-18DGZ4-E WIRE
FW301 QUM156-27DGZ4-E CONNECTOR
PP201 QNZ0104-001 POST PIN
PP203 QZW0112-001 WIRE CLAMP
Z2001 QNG0003-001Z FUSE CLIP
Z2002 QNG0003-001Z FUSE CLIP
Z2003 QNG0003-001Z FUSE CLIP
Z2004 QNG0003-001Z FUSE CLIP
Z2009 QNG0003-001Z FUSE CLIP
Z2010 QNG0003-001Z FUSE CLIP
Z2011 QNG0003-001Z FUSE CLIP
Z2012 QNG0003-001Z FUSE CLIP
Z2013 QNG0003-001Z FUSE CLIP
Z2014 QNG0003-001Z FUSE CLIP
Z2015 QNG0003-001Z FUSE CLIP
Z2016 QNG0003-001Z FUSE CLIP
Symbol No.
Part No. Part Name Description Local
IC302 KIA7812API IC
IC303 KIA78D06PI-U/P IC
IC304 KIA7809API IC
IC305 PQ050RDC2SZF IC
IC306 KIA278R09PI IC
IC401 STK416-130-E IC
Q2300 KTA1046/Y/ TRANSISTOR
Q2301 KTC3203/OY/-T TRANSISTOR
Q3901 KTA1271/OY/-T TRANSISTOR
Q3902 KTC3199/GL/-T TRANSISTOR
Q4601 KTC3199/GL/-T TRANSISTOR
Q4701 KTC3199/GL/-T TRANSISTOR
Q4901 KTC3200/GL/-T TRANSISTOR
Symbol No.
Part No. Part Name Description Local
Q4902 KTA1268/GL/-T TRANSISTOR
Q4903 KTC3199/GL/-T TRANSISTOR
Q4904 KTA1268/GL/-T TRANSISTOR
Q4951 KTC3199/GL/-T TRANSISTOR
D2001 GBU803 BRIDGE DIODE
D2002 2A02-M DIODE
D2003 2A02-M DIODE
D2101 GBU803 BRIDGE DIODE
D2200 1N5402M-20 SI DIODE
D2201 1N5402M-20 SI DIODE
D2202 1N5402M-20 SI DIODE
D2203 1N5402M-20 SI DIODE
D2312 MTZJ7.5B-T2 Z DIODE
D2314 MTZJ36A-T2 Z DIODE
D2315 1N4003S-T5 SI DIODE
D2317 1N4003S-T5 SI DIODE
D3701 MTZJ6.2B-T2 Z DIODE
D3811 MTZJ11B-T2 Z DIODE
D3821 MTZJ11B-T2 Z DIODE
D3832 MTZJ6.8B-T2 Z DIODE
D3841 MTZJ13B-T2 Z DIODE
D4501 MTZJ18B-T2 Z DIODE
D4502 MTZJ18B-T2 Z DIODE
D4503 MTZJ36B-T2 Z DIODE
D4504 MTZJ36B-T2 Z DIODE
D4505 1N5402M-20 SI DIODE
D4506 1N5402M-20 SI DIODE
D4601 1SS133-T2 SI DIODE
D4701 1SS133-T2 SI DIODE
D4901 1SS133-T2 SI DIODE
D4951 1SS133-T2 SI DIODE
C2000 QEZ0581-478 E CAPACITOR 4700uF 63V M
C2004 QEZ0581-478 E CAPACITOR 4700uF 63V M
C2005 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2006 QETM1VM-478 E CAPACITOR 4700uF 35V M
C2007 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2008 QETM1VM-478 E CAPACITOR 4700uF 35V M
C2009 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2010 QETN1VM-227Z E CAPACITOR 220uF 35V M
C2011 QETN1VM-227Z E CAPACITOR 220uF 35V M
C2115 QFZ0228-104Z M CAPACITOR 0.1uF 250V M
C2212 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2213 QETM1CM-688 E CAPACITOR 6800uF 16V M
C2214 QETM1VM-478 E CAPACITOR 4700uF 35V M
C2215 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2218 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2302 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2303 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2304 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C2305 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2316 QETM2AM-227 E CAPACITOR 220uF 100V M
C3701 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3702 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3811 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3812 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3821 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3822 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3831 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3832 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3833 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M
C3841 QETN1HM-226Z E CAPACITOR 22uF 50V M
C3842 QETN1CM-477Z E CAPACITOR 470uF 16V M
C4003 QETN1VM-227Z E CAPACITOR 220uF 35V M
C4004 QETN1VM-227Z E CAPACITOR 220uF 35V M
C4404 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4405 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4501 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C4502 QFZ0212-104Z M CAPACITOR 0.1uF 100V J
C4602 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4603 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4604 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4605 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4702 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4703 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4704 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4705 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
Symbol No.
Part No. Part Name Description Local
3-32
FL board
Block No. [0][5]
C4801 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4802 QTE1J46-106Z E CAPACITOR 10uF 63V
C4803 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4804 QTE1J46-106Z E CAPACITOR 10uF 63V
C4805 QCBB1HK-471Y C CAPACITOR 470pF 50V K
C4806 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4811 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4812 QTE1J46-106Z E CAPACITOR 10uF 63V
C4813 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C4901 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4902 QETN1EM-476Z E CAPACITOR 47uF 25V M
C4903 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4952 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K
C4953 QETN1JM-107Z E CAPACITOR 100uF 63V M
C4954 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C4955 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
R2000 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2001 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2002 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2003 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2200 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2300 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2301 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R2302 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R2305 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R2306 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2307 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R2308 QRK126J-470X UNF C RESISTOR 47
Ω
1/2W J
R3701 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R3907 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4501 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4502 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4503 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4504 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R4505 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R4506 QRJ146J-101X UNF C RESISTOR 100
Ω
1/4W J
R4507 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4601 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4602 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4603 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4604 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4605 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4606 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4607 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4608 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4609 QRJ146J-221X UNF C RESISTOR 220
Ω
1/4W J
R4610 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4611 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4701 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4702 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4703 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4704 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4705 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4706 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4707 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4708 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4709 QRJ146J-221X UNF C RESISTOR 220
Ω
1/4W J
R4710 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4711 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4801 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4802 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4803 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4804 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4811 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R4812 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4901 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4902 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4903 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4904 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4905 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R4906 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4950 QRE141J-104Y C RESISTOR 100k
Ω
1/4W J
R4951 QRZ0224-R22 EMIT RESISTOR 0.22
Ω
R4952 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R4953 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4954 QRJ146J-100X UNF C RESISTOR 10
Ω
1/4W J
R4955 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
Symbol No.
Part No. Part Name Description Local
R4956 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
R4957 QRE141J-473Y C RESISTOR 47k
Ω
1/4W J
R4958 QRE141J-562Y C RESISTOR 5.6k
Ω
1/4W J
R4959 QRJ146J-181X UNF C RESISTOR 180
Ω
1/4W J
R4960 QRE141J-202Y C RESISTOR 2k
Ω
1/4W J
L4601 QQLZ035-R39 COIL 0.39uH
L4701 QQLZ035-R39 COIL 0.39uH
L4951 QQLZ035-R39 COIL 0.39uH
CN201 QGA3901C1-10 CONNECTOR W-B (1-10)
CN202 QGB2510K2-08 CONNECTOR B-B (1-8)
CN204 QGB2510J1-05 CONNECTOR B-B (1-5)
CN205 QGB2510J1-13 CONNECTOR B-B (1-13)
CN207 QGD2504C1-03Z CONNECTOR (1-3)
CN303 QGF1205C2-09 CONNECTOR FFC/FPC (1-9)
CN304 QGA2501F1-03 CONNECTOR W-B (1-3)
CN307 QGB2510K2-05 CONNECTOR B-B (1-5)
CN403 QGF1205F2-07 CONNECTOR FFC/FPC (1-7)
CN404 QGB2510K2-13 CONNECTOR B-B (1-13)
FW301 QUM156-27DGZ4-E CONNECTOR
PP201 QNZ0104-001 POST PIN
PP203 QZW0112-001 WIRE CLAMP
Z2001 QNG0003-001Z FUSE CLIP
Z2002 QNG0003-001Z FUSE CLIP
Z2003 QNG0003-001Z FUSE CLIP
Z2004 QNG0003-001Z FUSE CLIP
Z2009 QNG0003-001Z FUSE CLIP
Z2010 QNG0003-001Z FUSE CLIP
Z2011 QNG0003-001Z FUSE CLIP
Z2012 QNG0003-001Z FUSE CLIP
Z2013 QNG0003-001Z FUSE CLIP
Z2014 QNG0003-001Z FUSE CLIP
Z2015 QNG0003-001Z FUSE CLIP
Z2016 QNG0003-001Z FUSE CLIP
Symbol No.
Part No. Part Name Description Local
IC500 PT6324-HT FL DRIVER
IC510 GP1UM281XKVF IR DETECT UNIT
Q5011 KRC107M-T DIGI TRANSISTOR
Q5012 KRC107M-T DIGI TRANSISTOR
Q5013 KRC107M-T DIGI TRANSISTOR
Q5014 KRC107M-T DIGI TRANSISTOR
Q5500 KRC102M-T DIGI TRANSISTOR
D5004 SLI-343U8RC-T LED
D5005 SLI-343U8RC-T LED
D5006 SLR-343VC-T LED
D5500 SELU2E10C-P LED 10A,10US,
10UX,10UG,
10UN,8US,
8UX,8UG,
8UN,6US,
6UX,6UG,
6UN
D5500 SELT2E10C-S LED 10UH
D5501 SELU2E10C-P LED 10A,10US,
10UX,10UG,
10UN,8US,
8UX,8UG,
8UN,6US,
6UX,6UG,
6UN
D5501 SELT2E10C-S LED 10UH
D5502 SELU2E10C-P LED 10A,10US,
10UX,10UG,
10UN,8US,
8UX,8UG,
8UN,6US,
6UX,6UG,
6UN
Symbol No.
Part No. Part Name Description Local
3-33
Cassette board
Block No. [0][6]
D5502 SELT2E10C-S LED 10UH
D5503 SELU2E10C-P LED 10A,10US,
10UX,10UG,
10UN,8US,
8UX,8UG,
8UN,6US,
6UX,6UG,
6UN
D5503 SELT2E10C-S LED 10UH
C1001 QCZ9134-102 C CAPACITOR 1000pF 6US,6UX,
6UG,6UN
C1002 QCZ9134-102 C CAPACITOR 1000pF 6US,6UX,
6UG,6UN
C5000 QER61HM-226Z E CAPACITOR 22uF 50V M
C5001 QER61HM-226Z E CAPACITOR 22uF 50V M
C5002 QDGB1HK-102Y C CAPACITOR 1000pF 50V K
C5003 QER61EM-106Z E CAPACITOR 10uF 25V M
C5006 QER61AM-107Z E CAPACITOR 100uF 10V M
C5007 QCBB1HK-104Y C CAPACITOR 0.1uF 50V K
C5009 QCBB1HK-104Y C CAPACITOR 0.1uF 50V K
C5010 QCBB1HK-104Y C CAPACITOR 0.1uF 50V K
C5012 QCBB1HK-104Y C CAPACITOR 0.1uF 50V K
C5501 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C5504 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C5802 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
R5000 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R5001 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R5002 QRE141J-122Y C RESISTOR 1.2k
Ω
1/4W J
R5003 QRE141J-182Y C RESISTOR 1.8k
Ω
1/4W J
R5004 QRE141J-222Y C RESISTOR 2.2k
Ω
1/4W J
R5005 QRE141J-272Y C RESISTOR 2.7k
Ω
1/4W J
R5006 QRE141J-392Y C RESISTOR 3.9k
Ω
1/4W J
R5007 QRE141J-622Y C RESISTOR 6.2k
Ω
1/4W J
R5008 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5009 QRE141J-183Y C RESISTOR 18k
Ω
1/4W J
R5010 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R5011 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R5012 QRE141J-122Y C RESISTOR 1.2k
Ω
1/4W J
R5013 QRE141J-182Y C RESISTOR 1.8k
Ω
1/4W J
R5014 QRE141J-222Y C RESISTOR 2.2k
Ω
1/4W J
R5035 QRE141J-161Y C RESISTOR 160
Ω
1/4W J
R5036 QRE141J-161Y C RESISTOR 160
Ω
1/4W J
R5043 QRE141J-271Y C RESISTOR 270
Ω
1/4W J
R5047 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5048 QRE141J-823Y C RESISTOR 82k
Ω
1/4W J
R5055 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5056 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5057 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5058 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5500 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R5501 QRE141J-183Y C RESISTOR 18k
Ω
1/4W J
R5502 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5503 QRE141J-622Y C RESISTOR 6.2k
Ω
1/4W J
R5504 QRE141J-392Y C RESISTOR 3.9k
Ω
1/4W J
R5505 QRE141J-272Y C RESISTOR 2.7k
Ω
1/4W J
R5506 QRE141J-222Y C RESISTOR 2.2k
Ω
1/4W J
R5507 QRE141J-182Y C RESISTOR 1.8k
Ω
1/4W J
R5508 QRE141J-122Y C RESISTOR 1.2k
Ω
1/4W J
R5509 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R5510 QRE141J-102Y C RESISTOR 1k
Ω
1/4W J
R5511 QRE141J-272Y C RESISTOR 2.7k
Ω
1/4W J
R5512 QRE141J-392Y C RESISTOR 3.9k
Ω
1/4W J
R5513 QRE141J-622Y C RESISTOR 6.2k
Ω
1/4W J
R5514 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5515 QRE141J-183Y C RESISTOR 18k
Ω
1/4W J
R5516 QRE141J-563Y C RESISTOR 56k
Ω
1/4W J
R5517 QRE141J-390Y C RESISTOR 39
Ω
1/4W J
R5518 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R5520 QRE141J-390Y C RESISTOR 39
Ω
1/4W J
R5522 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
CN100 QGA7901C1-02 CONNECTOR W-B (1-2)
CN101 QGA7901C1-04 CONNECTOR W-B (1-4)
CN102 QGA7901C1-03 CONNECTOR W-B (1-3)
Symbol No.
Part No. Part Name Description Local
CN500 QGF1205F2-13 CONNECTOR FFC/FPC (1-13) 10A,10US,
10UX,10UG,
10UN,8US,
8UX,8UG,
8UN,6US,
6UX,6UG,
6UN
CN500 QGF1208F1-13 CONNECTOR FFC/FPC (1-13) 10UH
FL500 QLF0188-001 FL TUBE
FW500 QUM153-25DGZ4-E FLAT WIRE
FW501 QUM155-11Z4Z4-E FLAT WIRE
J580 QNZ0906-001 USB JACK
S1000 QSW0812-001 VOLTAGE SWITCH 10US,10UX,
10UG,10UN,
8US,8UX,
8UG,8UN,
6US,6UX,
6UG,6UN,
10UH
S5000 QSW0683-001Z PUSH SW
S5001 QSW0683-001Z PUSH SW
S5002 QSW0683-001Z PUSH SW
S5003 QSW0683-001Z PUSH SW
S5004 QSW0683-001Z PUSH SW
S5005 QSW0683-001Z PUSH SW
S5006 QSW0683-001Z PUSH SW
S5007 QSW0683-001Z PUSH SW
S5008 QSW0683-001Z PUSH SW
S5009 QSW0683-001Z PUSH SW
S5010 QSW0683-001Z PUSH SW
S5011 QSW0683-001Z PUSH SW
S5012 QSW0683-001Z PUSH SW
S5013 QSW0683-001Z PUSH SW
S5014 QSW0683-001Z PUSH SW
S5015 QSW0683-001Z PUSH SW
S5016 QSW0683-001Z PUSH SW
S5500 QSW0683-001Z PUSH SW
S5501 QSW0683-001Z PUSH SW
S5502 QSW0683-001Z PUSH SW
S5503 QSW0683-001Z PUSH SW
S5504 QSW0683-001Z PUSH SW
S5505 QSW0683-001Z PUSH SW
S5506 QSW0683-001Z PUSH SW
S5507 QSW0683-001Z PUSH SW
S5508 QSW0683-001Z PUSH SW
S5509 QSW0683-001Z PUSH SW
S5510 QSW0683-001Z PUSH SW
S5511 QSW0683-001Z PUSH SW
S5512 QSW0683-001Z PUSH SW
S5513 QSW0683-001Z PUSH SW
S5514 QSW0683-001Z PUSH SW
S5515 QSW0683-001Z PUSH SW
S5516 QSW0683-001Z PUSH SW
S5517 QSW0683-001Z PUSH SW
SP500 GV40205-004A IC HOLDER
Z1001 QNG0003-001Z FUSE CLIP
Z1002 QNG0003-001Z FUSE CLIP
Z1003 QNG0003-001Z FUSE CLIP
Z1004 QNG0003-001Z FUSE CLIP
Symbol No.
Part No. Part Name Description Local
IC200 HA12237F-E IC
Q110 KTA1271/OY/-T TRANSISTOR
Q111 RT1N144C-X DIGI TRANSISTOR
Q120 KTA1296/Y/-T TRANSISTOR
Q121 RT1N144C-X DIGI TRANSISTOR
Q140 KTA1271/OY/-T TRANSISTOR
Q141 RT1N144C-X DIGI TRANSISTOR
Q150 KTA1296/Y/-T TRANSISTOR
Q151 RT1N144C-X DIGI TRANSISTOR
Q200 RT1P430C-X TRANSISTOR
Symbol No.
Part No. Part Name Description Local
3-34
DVD servo board(Except DX-U6)
Block No. [0][7]
Q201 RT6N430C-X TRANSISTOR
Q202 RT6N430C-X TRANSISTOR
Q203 RT6N430C-X TRANSISTOR
Q204 RT6N430C-X TRANSISTOR
Q300 KTC3203/OY/-T TRANSISTOR
Q301 KTC3203/OY/-T TRANSISTOR
D121 1N4003S-T5 SI DIODE
D122 1N4003S-T5 SI DIODE
D151 1N4003S-T5 SI DIODE
D152 1N4003S-T5 SI DIODE
C110 QETN1HM-106Z E CAPACITOR 10uF 50V M
C122 QETN1CM-107Z E CAPACITOR 100uF 16V M
C140 QETN1HM-106Z E CAPACITOR 10uF 50V M
C202 NCB31HK-122X C CAPACITOR 1200pF 50V K
C203 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C204 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C205 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C206 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C207 NCB31HK-391X C CAPACITOR 390pF 50V K
C209 QETN1AM-227Z E CAPACITOR 220uF 10V M
C210 QETN1HM-105Z E CAPACITOR 1uF 50V M
C211 QETN1HM-106Z E CAPACITOR 10uF 50V M
C212 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C213 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C214 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C215 NCB31HK-391X C CAPACITOR 390pF 50V K
C216 NCB31HK-221X C CAPACITOR 220pF 50V K
C219 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C220 QETN1HM-226Z E CAPACITOR 22uF 50V M
C221 QETN1HM-105Z E CAPACITOR 1uF 50V M
C222 QETN1HM-226Z E CAPACITOR 22uF 50V M
C223 NCB31HK-682X C CAPACITOR 6800pF 50V K
C224 NCB31HK-682X C CAPACITOR 6800pF 50V K
C225 NCB31HK-122X C CAPACITOR 1200pF 50V K
C226 QETN1EM-475Z E CAPACITOR 4.7uF 25V M
C227 QETN1EM-475Z E CAPACITOR 4.7uF 25V M
C228 QETN1CM-107Z E CAPACITOR 100uF 16V M
C231 NCB31HK-221X C CAPACITOR 220pF 50V K
C234 NCB31HK-821X C CAPACITOR 820pF 50V K
C235 NCB31HK-821X C CAPACITOR 820pF 50V K
C300 NCB31HK-331X C CAPACITOR 330pF 50V K
C301 NCB31HK-331X C CAPACITOR 330pF 50V K
C303 QFG32AJ-273Z PP CAPACITOR 0.027uF 100V J
C304 QETN1CM-107Z E CAPACITOR 100uF 16V M
C306 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C307 NCB31HK-152X C CAPACITOR 1500pF 50V K
R110 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R113 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J
R114 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R115 NRSA63J-363X MG RESISTOR 36k
Ω
1/16W J
R123 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R140 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R153 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R200 NRSA63J-512X MG RESISTOR 5.1k
Ω
1/16W J
R201 NRSA63J-512X MG RESISTOR 5.1k
Ω
1/16W J
R202 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R203 NRSA63J-242X MG RESISTOR 2.4k
Ω
1/16W J
R204 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R205 NRSA63J-303X MG RESISTOR 30k
Ω
1/16W J
R206 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R207 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R208 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R209 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R210 NRSA63J-242X MG RESISTOR 2.4k
Ω
1/16W J
R211 NRSA63J-303X MG RESISTOR 30k
Ω
1/16W J
R212 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R213 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R214 NRSA63J-512X MG RESISTOR 5.1k
Ω
1/16W J
R215 NRSA63J-512X MG RESISTOR 5.1k
Ω
1/16W J
R216 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R217 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R218 NRSA63J-912X MG RESISTOR 9.1k
Ω
1/16W J
R219 NRSA63J-912X MG RESISTOR 9.1k
Ω
1/16W J
R226 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R227 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
R228 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R300 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R301 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R302 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R303 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R304 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R305 NRSA63J-2R2X MG RESISTOR 2.2
Ω
1/16W J
R306 QRJ146J-4R7X UNF C RESISTOR 4.7
Ω
1/4W J
R307 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R308 NRSA63J-474X MG RESISTOR 470k
Ω
1/16W J
R309 QRZ9005-100X FUSI RESISTOR 10
Ω
L300 QQR1118-002 OSC COIL(BIAS)
L301 QQL244K-100Z COIL 10uH K
CN100 QGF1205C2-21 CONNECTOR FFC/FPC (1-21)
CN110 QGF1205F2-06 CONNECTOR FFC/FPC (1-6)
CN120 QGF1205C2-07 CONNECTOR FFC/FPC (1-7)
CN200 QGA2001C1-07 CONNECTOR W-B (1-7)
CN220 WJK0243-001A-E E-SIC WIRE CB
WR1 WJZ0160-004A-E S.WIRE
Symbol No.
Part No. Part Name Description Local
IC201 LA6502-X IC
IC301 MN2DS0018MA IC
IC302 MM1701CH-X IC
IC303 XC2164A51FM-X IC
IC305 MM1563DF-X IC
IC451 MN101C61GNW IC
IC452 BR93L56RF-W-X IC
IC453 S-80830CNNB-G-W IC
IC505 K4S641632K-UC75 IC
IC505 or K4S641632H-UC75 IC
IC509 ------------ IC(MICRO C ROM)
IC510 BR24L16F-W-X IC(DIGITAL)
IC701 AK4387ET-X IC
IC702 AK4387ET-X IC
IC703 AK4387ET-X IC
IC704 AK5358ET-X IC
IC704 or AK5358AET-X IC
IC705 MM1615AN-X IC
IC801 MM1565AF-X IC
Q101 KTA1001/Y/-X TRANSISTOR
Q101 or 2SB1424/R/-W TRANSISTOR
Q102 2SC4617/R/-X TRANSISTOR
Q103 KTA1001/Y/-X TRANSISTOR
Q103 or 2SB1424/R/-W TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q801 KRA104S-X DIGI TRANSISTOR
Q801 or UN2113-X TRANSISTOR
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C105 NEAF0JM-476X E CAPACITOR 47uF 6.3V M
C106 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C107 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C108 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C201 NDC31HJ-221X C CAPACITOR 220pF 50V J
C202 NDC31HJ-221X C CAPACITOR 220pF 50V J
C203 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C204 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C205 NCB31HK-271X C CAPACITOR 270pF 50V K
C206 NDC31HJ-151X C CAPACITOR 150pF 50V J
C210 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C211 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C217 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C251 NCB31AK-474X C CAPACITOR 0.47uF 10V K
Symbol No.
Part No. Part Name Description Local
3-35
C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C257 NCB31HK-822X C CAPACITOR 8200pF 50V K
C258 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C259 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C260 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C261 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C262 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C263 NEAF1CM-107X E CAPACITOR 100uF 16V M
C301 NEAF0JM-227X E CAPACITOR 220uF 6.3V M
C302 NEAF0GM-476X E CAPACITOR 47uF 4V M
C303 NEAF0GM-476X E CAPACITOR 47uF 4V M
C304 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C306 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C307 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C310 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C312 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C325 NDC31HJ-120X C CAPACITOR 12pF 50V J
C326 NDC31HJ-100X C CAPACITOR 10pF 50V J
C328 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C337 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C340 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C341 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C345 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C350 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C351 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C352 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C353 NCB31HK-561X C CAPACITOR 560pF 50V K
C354 NCB31HK-561X C CAPACITOR 560pF 50V K
C356 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C359 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C370 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C371 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C372 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C373 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C374 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C375 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C378 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C379 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C380 NCB21CK-105X C CAPACITOR 1uF 16V K
C381 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C382 NCB31HK-471X C CAPACITOR 470pF 50V K
C383 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C392 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C393 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C451 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C452 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C453 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C454 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C455 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C551 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C554 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C555 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C557 NCB31HK-102X C CAPACITOR 1000pF 50V K
C558 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
Symbol No.
Part No. Part Name Description Local
C559 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C560 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C562 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C563 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C564 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C701 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C703 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C704 NEAF0JM-476X E CAPACITOR 47uF 6.3V M
C706 NEAF1CM-106X E CAPACITOR 10uF 16V M
C707 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C708 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C709 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C711 NCB21CK-105X C CAPACITOR 1uF 16V K
C712 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C713 NCB21CK-105X C CAPACITOR 1uF 16V K
C740 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C741 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C742 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C743 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C744 NEAF1CM-106X E CAPACITOR 10uF 16V M
C745 NEAF1CM-106X E CAPACITOR 10uF 16V M
C801 NCB21CK-105X C CAPACITOR 1uF 16V K
C802 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C803 NEAF0JM-227X E CAPACITOR 220uF 6.3V M
C804 NCB31HK-471X C CAPACITOR 470pF 50V K
R101 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R102 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R103 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R104 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R105 NRS181J-180X MG RESISTOR 18
Ω
1/8W J
R106 NRSA63J-2R2X MG RESISTOR 2.2
Ω
1/16W J
R107 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R108 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R109 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R111 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R112 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R113 NRS181J-180X MG RESISTOR 18
Ω
1/8W J
R114 NRSA63J-2R2X MG RESISTOR 2.2
Ω
1/16W J
R115 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R116 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R117 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R125 NRSA63J-1R0X MG RESISTOR 1
Ω
1/16W J
R127 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R128 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R201 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R202 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R204 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R205 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R206 NRSA63J-303X MG RESISTOR 30k
Ω
1/16W J
R207 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R213 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R214 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R219 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J
R220 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R221 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R251 NRS125J-R39X MG RESISTOR 0.39
Ω
1/2W J
R259 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R303 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R304 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R306 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R307 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R309 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R310 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R311 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R312 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R314 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R316 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R318 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R322 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R323 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R324 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R325 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R326 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R329 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R332 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R333 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
3-36
DVD loading board(Except DX-U6)
Block No. [0][8]
R334 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R335 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R336 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R337 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R338 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R339 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R340 NRSA63D-303X MG RESISTOR 30k
Ω
1/16W D
R341 NRSA63D-512X MG RESISTOR 5.1k
Ω
1/16W D
R342 NRSA63D-222X MG RESISTOR 2.2k
Ω
1/16W D
R345 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R346 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R347 NRSA63J-203X MG RESISTOR 20k
Ω
1/16W J
R348 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R351 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R352 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R353 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R357 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R358 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R359 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R360 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R361 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R362 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R367 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R371 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R372 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R373 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R375 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R376 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R383 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R384 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R385 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R392 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R452 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R453 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R454 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R455 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R456 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R457 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R458 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R461 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R463 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R464 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R465 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R531 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R535 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R541 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R701 NRSA63J-2R2X MG RESISTOR 2.2
Ω
1/16W J
R704 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R705 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R714 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R715 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R716 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R718 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R719 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R721 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R723 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R724 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R725 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R727 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R728 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R731 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R732 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R741 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R742 NRSA63J-5R1X MG RESISTOR 5.1
Ω
1/16W J
R811 NRS181J-330X MG RESISTOR 33
Ω
1/8W J
R812 NRS181J-330X MG RESISTOR 33
Ω
1/8W J
R813 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R814 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R819 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R859 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R860 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R861 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
CN101 QGF0523F3-24W CONNECTOR FFC/FPC (1-24)
CN201 QGF1016F8-08W CONNECTOR FFC/FPC (1-8)
CN451 QGF1016F8-15W CONNECTOR FFC/FPC (1-15)
CN452 QGA2001F6-02X CONNECTOR W-B (1-2)
CN453 QGA2001F6-03X CONNECTOR W-B (1-3)
Symbol No.
Part No. Part Name Description Local
CN701 QGF1016F8-28W CONNECTOR FFC/FPC (1-28)
CN702 QGF1016F8-10W CONNECTOR FFC/FPC (1-10)
CN703 QGF1016F8-08W CONNECTOR FFC/FPC (1-8)
CN801 QGF1016F8-05W CONNECTOR FFC/FPC (1-5)
CN811 QGA2001F6-05X CONNECTOR W-B (1-5)
K101 NQR0502-001X FERRITE BEADS
K351 NQR0502-001X FERRITE BEADS
K352 NQR0502-001X FERRITE BEADS
K353 NQR0502-001X FERRITE BEADS
K354 NQR0022-002X FERRITE BEADS
K454 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K455 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K456 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K501 NQR0502-001X FERRITE BEADS
K720 NQR0022-002X FERRITE BEADS
K732 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K733 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K734 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K735 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K736 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K737 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K738 NQR0022-005X FERRITE BEADS
K741 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K744 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K748 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K749 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K750 NQR0022-002X FERRITE BEADS
K752 NQR0022-002X FERRITE BEADS
K754 NQR0022-002X FERRITE BEADS
K756 NQR0022-002X FERRITE BEADS
K758 NQR0022-002X FERRITE BEADS
K811 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K812 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
TH301 NAD0025-103X N THERMISTOR 10k
Ω
X301 NAX0741-001X CRYSTAL 27.000MHz
X302 NAX0376-002X CRYSTAL
X451 NAX0248-001X C OSCILLATOR 8.000MHz
Symbol No.
Part No. Part Name Description Local
IC1 LB1641 IC
IC2 LB1641 IC
D1 MTZJ6.2A-T2 Z DIODE
C1 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C2 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C3 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C5 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C6 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C7 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
CN1 QGF1036F1-15 CONNECTOR FFC/FPC (1-15)
CN2 QGB2024K1-07S CONNECTOR B-B (1-7)
CN3 QGB2024J1-07S CONNECTOR B-B (1-7)
SW1 QSW0844-001 PUSH SWITCH
SW2 QSW0844-001 PUSH SWITCH
SW3 QSW0844-001 PUSH SWITCH
SW4 QSW0844-001 PUSH SWITCH
SW5 QSW0844-001 PUSH SWITCH
SW6 QSW0854-002 PUSH SW
SW8 QSW0923-001 DETECT SWITCH
Symbol No.
Part No. Part Name Description Local
3-37
DVD servo board(Only DX-U6)
Block No. [0][9]
Symbol No.
Part No. Part Name Description Local
IC201 LA6502-X IC
IC301 MN2DS0018MA IC
IC302 MM1701CH-X IC
IC303 XC2164A51FM-X IC
IC305 MM1563DF-X IC
IC451 MN101C61GNW IC
IC452 BR93L56RF-W-X IC
IC453 S-80830CNNB-G-W IC
IC505 K4S641632K-UC75 IC
IC505 or K4S641632H-UC75 IC
IC509 ------------ IC(MICRO C ROM)
IC510 BR24L16F-W-X IC(DIGITAL)
IC701 AK4387ET-X IC
IC705 MM1615AN-X IC
IC801 MM1565AF-X IC
Q101 KTA1001/Y/-X TRANSISTOR
Q101 or 2SB1424/R/-W TRANSISTOR
Q102 2SC4617/R/-X TRANSISTOR
Q103 KTA1001/Y/-X TRANSISTOR
Q103 or 2SB1424/R/-W TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q801 KRA104S-X DIGI TRANSISTOR
Q801 or UN2113-X TRANSISTOR
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C105 NEAF0JM-476X E CAPACITOR 47uF 6.3V M
C106 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C107 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C108 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C201 NDC31HJ-221X C CAPACITOR 220pF 50V J
C202 NDC31HJ-221X C CAPACITOR 220pF 50V J
C203 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C204 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C205 NCB31HK-271X C CAPACITOR 270pF 50V K
C206 NDC31HJ-151X C CAPACITOR 150pF 50V J
C210 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C211 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C217 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C251 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C257 NCB31HK-822X C CAPACITOR 8200pF 50V K
C258 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C259 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C260 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C261 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C262 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C263 NEAF1CM-107X E CAPACITOR 100uF 16V M
C301 NEAF0JM-227X E CAPACITOR 220uF 6.3V M
C302 NEAF0GM-476X E CAPACITOR 47uF 4V M
C303 NEAF0GM-476X E CAPACITOR 47uF 4V M
C304 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C306 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C307 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C310 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C312 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C325 NDC31HJ-120X C CAPACITOR 12pF 50V J
C326 NDC31HJ-100X C CAPACITOR 10pF 50V J
C328 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C337 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C340 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C341 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C345 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C350 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C351 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C352 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C353 NCB31HK-561X C CAPACITOR 560pF 50V K
C354 NCB31HK-561X C CAPACITOR 560pF 50V K
C356 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C359 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C370 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C371 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C372 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C373 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C374 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C375 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C378 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C379 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C380 NCB21CK-105X C CAPACITOR 1uF 16V K
C381 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C382 NCB31HK-471X C CAPACITOR 470pF 50V K
C383 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C392 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C393 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C451 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C452 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C453 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C454 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C455 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C551 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C554 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C555 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C557 NCB31HK-102X C CAPACITOR 1000pF 50V K
C558 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C559 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C560 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C562 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C563 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C564 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C701 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C704 NEAF0JM-476X E CAPACITOR 47uF 6.3V M
C706 NEAF1CM-106X E CAPACITOR 10uF 16V M
C707 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C711 NCB21CK-105X C CAPACITOR 1uF 16V K
C712 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C713 NCB21CK-105X C CAPACITOR 1uF 16V K
C740 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C801 NCB21CK-105X C CAPACITOR 1uF 16V K
C802 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C803 NEAF0JM-227X E CAPACITOR 220uF 6.3V M
C804 NCB31HK-471X C CAPACITOR 470pF 50V K
R101 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R102 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R103 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R104 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R105 NRS181J-180X MG RESISTOR 18
Ω
1/8W J
R106 NRSA63J-2R2X MG RESISTOR 2.2
Ω
1/16W J
R107 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R108 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R109 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R111 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R112 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R113 NRS181J-180X MG RESISTOR 18
Ω
1/8W J
R114 NRSA63J-2R2X MG RESISTOR 2.2
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
3-38
R115 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R116 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R117 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R125 NRSA63J-1R0X MG RESISTOR 1
Ω
1/16W J
R127 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R128 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R201 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R202 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R204 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R205 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R206 NRSA63J-303X MG RESISTOR 30k
Ω
1/16W J
R207 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R213 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R214 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R219 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J
R220 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R221 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R251 NRS125J-R39X MG RESISTOR 0.39
Ω
1/2W J
R259 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R303 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R304 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R306 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R307 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R309 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R310 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R311 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R314 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R316 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R318 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R323 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R324 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R325 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R326 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R329 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R333 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R334 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R335 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R336 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R337 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R338 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R339 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R340 NRSA63D-303X MG RESISTOR 30k
Ω
1/16W D
R341 NRSA63D-512X MG RESISTOR 5.1k
Ω
1/16W D
R342 NRSA63D-222X MG RESISTOR 2.2k
Ω
1/16W D
R345 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R346 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R347 NRSA63J-203X MG RESISTOR 20k
Ω
1/16W J
R348 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R351 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R352 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R353 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R357 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R358 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R361 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R362 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R367 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R371 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R372 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R373 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R375 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R376 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R383 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R384 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R385 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R392 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R452 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R453 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R454 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R455 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R456 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R457 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R458 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R461 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R463 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R464 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R465 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R531 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R535 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
R541 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R701 NRSA63J-2R2X MG RESISTOR 2.2
Ω
1/16W J
R704 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R705 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R714 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R715 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R718 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R721 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R723 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R731 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R732 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R811 NRS181J-330X MG RESISTOR 33
Ω
1/8W J
R812 NRS181J-330X MG RESISTOR 33
Ω
1/8W J
R813 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R814 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R819 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R859 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R860 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R861 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
CN101 QGF0523F3-24W CONNECTOR FFC/FPC (1-24)
CN201 QGF1016F8-08W CONNECTOR FFC/FPC (1-8)
CN451 QGF1016F8-15W CONNECTOR FFC/FPC (1-15)
CN452 QGA2001F6-02X CONNECTOR W-B (1-2)
CN453 QGA2001F6-03X CONNECTOR W-B (1-3)
CN701 QGF1016F8-28W CONNECTOR FFC/FPC (1-28)
CN702 QGF1016F8-10W CONNECTOR FFC/FPC (1-10)
CN801 QGF1016F8-05W CONNECTOR FFC/FPC (1-5)
CN811 QGA2001F6-05X CONNECTOR W-B (1-5)
K101 NQR0502-001X FERRITE BEADS
K351 NQR0502-001X FERRITE BEADS
K352 NQR0502-001X FERRITE BEADS
K353 NQR0502-001X FERRITE BEADS
K354 NQR0022-002X FERRITE BEADS
K454 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K455 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K456 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K501 NQR0502-001X FERRITE BEADS
K720 NQR0022-002X FERRITE BEADS
K732 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K733 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K734 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K735 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K736 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K737 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K738 NQR0022-005X FERRITE BEADS
K744 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K748 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K749 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K750 NQR0022-002X FERRITE BEADS
K752 NQR0022-002X FERRITE BEADS
K754 NQR0022-002X FERRITE BEADS
K756 NQR0022-002X FERRITE BEADS
K758 NQR0022-002X FERRITE BEADS
K811 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K812 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
TH301 NAD0025-103X N THERMISTOR 10k
Ω
X301 NAX0741-001X CRYSTAL 27.000MHz
X302 NAX0376-002X CRYSTAL
X451 NAX0248-001X C OSCILLATOR 8.000MHz
Symbol No.
Part No. Part Name Description Local
3-39
DVD loading board(Only DX-U6)
Block No. [1][0]
Symbol No.
Part No. Part Name Description Local
IC1 LB1641 IC
IC2 LB1641 IC
D1 MTZJ6.2A-T2 Z DIODE
C1 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C2 QCBB1HK-104Y C CAPACITOR 0.1uF 50V K
C3 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C5 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C6 QCBB1HK-104Y C CAPACITOR 0.1uF 50V K
C7 QCBB1HK-104Y C CAPACITOR 0.1uF 50V K
CN1 QGF1036F1-15 CONNECTOR FFC/FPC (1-15)
CN2 QGB2024K1-07S CONNECTOR B-B (1-7)
CN3 QGB2024J1-07S CONNECTOR B-B (1-7)
SW1 QSW0844-001 PUSH SWITCH
SW2 QSW0844-001 PUSH SWITCH
SW3 QSW0844-001 PUSH SWITCH
SW4 QSW0844-001 PUSH SWITCH
SW5 QSW0844-001 PUSH SWITCH
SW6 QSW0854-002 PUSH SW
SW8 QSW0923-001 DETECT SWITCH
3-40
Packing materials and accessories parts list
Block No.
MM
M
4
The parts without symbol number are not service.
No additional / supplemental order of WARRANTY CARDs are available
<DX-U10>
Only A US,UN
A1,
A6,
A3, A4,
A7, A9,
A5,
P2 P2 P2
A1, A2,
A6,
A3, A4,
A8
A7,
A5,
A10
A1,
A6,
A3,
A4,
A8
A7,
A5,
P6 P3
P4
P5
A12
A13
A12
A14
A11
A14
A11
P1
UX,UG,UH
3-41
Packing and Accessories (DX-U10)
Block No. [M][4][M][M]
Symbol No. Part No. Part Name Description Local
A 1 QAL0014-003 AM LOOP ANT
A 1 or QAL0476-003 AM LOOP ANT 10UH
A 2 QAM0112-002 CONVERSION PLUG 10US,10UN
A 3 QAM0944-001 PIN CABLE
A 4 RM-SDXU10U REMOCON
A 5 QAL0457-001 ANT.WIRE
A 6 ------------ BATTERY 1.5V(x2)
A 7 GVT0210-001A INST BOOK ENG
A 8 GVT0210-005A INST BOOK CHI(PEKIN) 10US,10UN,10UH
A 8 GVT0210-006A INST BOOK ARA PER 10UX,10UG
A 9 ------------ WARRANTY CARD BT-56017-1 10A
A 10 ------------ WARRANTY CARD BT-56016-1 10A
A 11 ASL5MDXU6-EB01 SPK WITH BOX-F (x2)
A 12 ASLUDXU10-EB02 SPK WITH BOX-S (x2) 10A,10UX,10UG
A 12 ASLUDXU10-EB01 SPK WITH BOX-S (x2) 10US,10UN,10UH
A 13 ASL5CDXU8-EB01 SPK WITH BOX-C
A 14 ASL5WDXU8-EB01 SPK WITH BOX-WO (x2)
P 1 GV20484-002A CARTON ASSY. 10A,10US,10UN,10UH
P 1 GV20484-001A CARTON ASSY. 10UX,10UG
P 2 QPC02503515PB POLY BAG 25cm x 35cm
P 3 QPC07507530PB POLY BAG 75cm x 75cm
P 4 GV10378-001A CUSHION (TOP)
P 5 GV10379-001A CUSHION (BOT)
P 6 GV40168-015A SHEET
3-42
Packing materials and accessories parts list
Block No. MM
M
5
The parts without symbol number are not service.
<DX-U8>
UX,UG
US,UN
P2
P2
A1, A2,
A6,
A3, A4,
A8
A7,
A5, A1,
A6,
A3,
A4,
A8(Only UG)
A7,
A5,
P6 P3
P4
P5
P1
A10
A11
A10
A9
A12
A9
3-43
Packing and Accessories (DX-U8)
Block No. [M][5][M][M]
Symbol No. Part No. Part Name Description Local
A 1 QAL0014-003 AM LOOP ANT
A 2 QAM0112-002 CONVERSION PLUG 8US,8UN
A 3 QAM0944-001 PIN CABLE
A 4 RM-SDXU10U REMOCON
A 5 QAL0457-001 ANT.WIRE
A 6 ------------ BATTERY 1.5V(x2)
A 7 GVT0210-001A INST BOOK ENG
A 8 GVT0210-005A INST BOOK CHI(PEKIN) 8US,8UN
A 8 GVT0210-006A INST BOOK ARA PER 8UX,8UG
A 9 ASL5MDXU6-EB01 SPK WITH BOX-F (x2)
A10 ASL5UDXU8-EB01 SPK WITH BOX-S (x2) 8US,8UN
A10 ASL5UDXU8-EB02 SPK WITH BOX-S (x2) 8UX,8UG
A11 ASL5CDXU8-EB01 SPK WITH BOX-C
A12 ASL5WDXU8-EB01 SPK WITH BOX-WO
P 1 GV20483-002A CARTON ASSY. 8US,8UN
P 1 GV20483-001A CARTON ASSY. 8UX,8UG
P 2 QPC02503515PB POLY BAG 25cm x 35cm
P 3 QPC07507530PB POLY BAG 75cm x 75cm
P 4 GV10378-001A CUSHION (TOP)
P 5 GV10379-001A CUSHION (BOT)
P 6 GV40168-015A SHEET
3-44
Packing materials and accessories parts list
Block No.
MM
M
6
The parts without symbol number are not service.
<DX-U6>
UX,UG
US,UN
P2 P2
A1, A2,
A6,
A3, A4,
A8
A7,
A5,
A1,
A6,
A3,
A4,
A8
A7,
A5,
P6 P3
P4
P5
P1
A9
A9
A10
3-45
Packing and Accessories (DX-U6)
Block No. [M][6][M][M]
Symbol No. Part No. Part Name Description Local
A 1 QAL0014-003 AM LOOP ANT
A 2 QAM0112-002 CONVERSION PLUG 6US,6UN
A 3 QAM0944-001 PIN CABLE
A 4 RM-SDXU6U REMOCON
A 5 QAL0457-001 ANT.WIRE
A 6 ------------ BATTERY 1.5V(x2)
A 7 GVT0209-001A INST BOOK ENG
A 8 GVT0209-003A INST BOOK CHI(PEKIN) 6US,6UN
A 8 GVT0209-004A INST BOOK ARA PER 6UX,6UG
A 9 ASL5MDXU6-EB01 SPK WITH BOX-F (x2)
A10 ASL5WDXU6-EB01 SPK WITH BOX-WO
P 1 GV20482-002A CARTON ASSY. 6US,6UN
P 1 GV20482-001A CARTON ASSY. 6UX,6UG
P 2 QPC02503515PB POLY BAG 25cm x 35cm
P 3 QPC07507530PB POLY BAG 75cm x 75cm
P 4 GV10378-001A CUSHION (TOP)
P 5 GV10379-001A CUSHION (BOT)
P 6 GV40168-015A SHEET

Navigation menu
