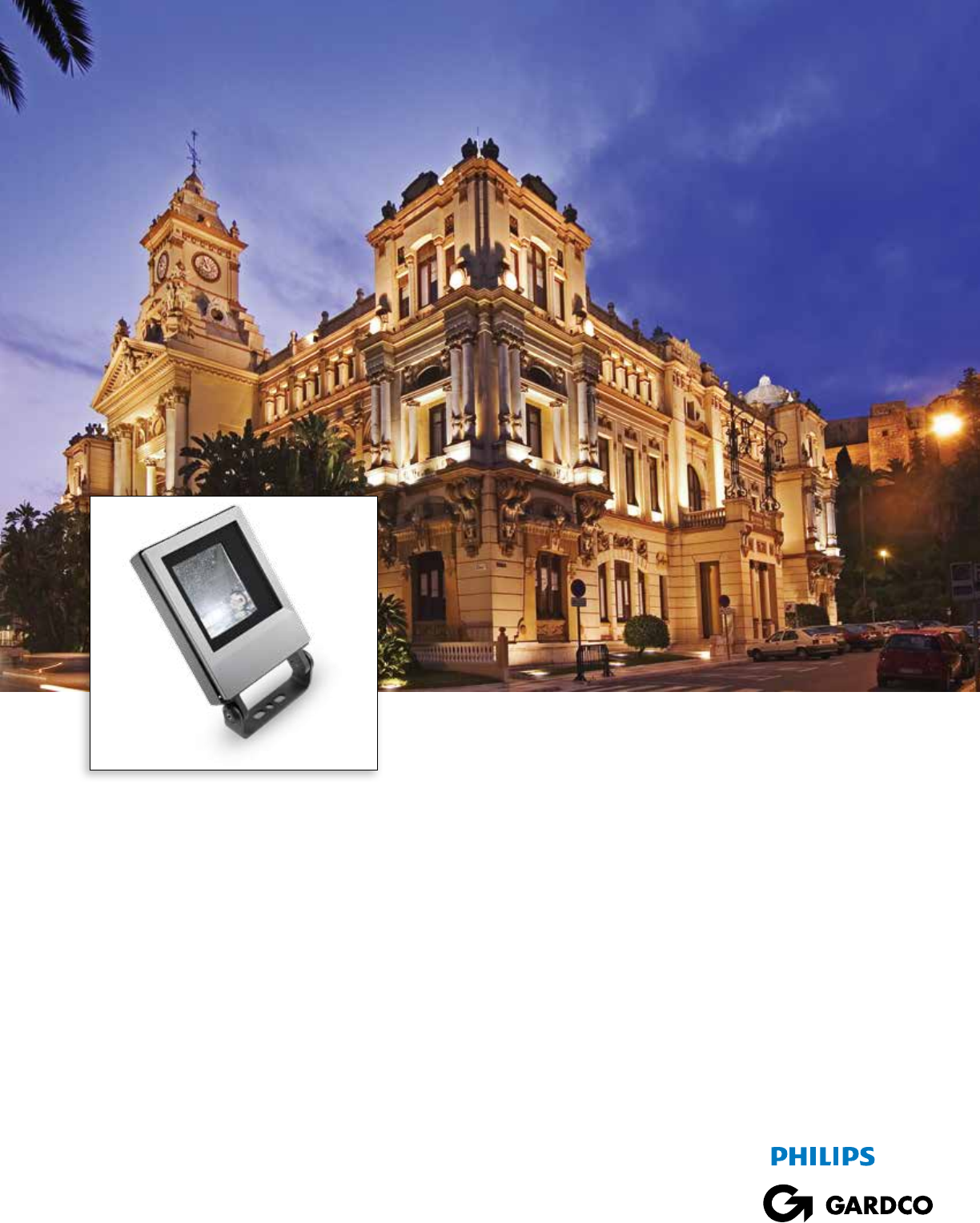

Painting with light
DecoFlood HID floodlight series DFS, specification architectural lighting
solutions to bring your design ideas to life
2
3

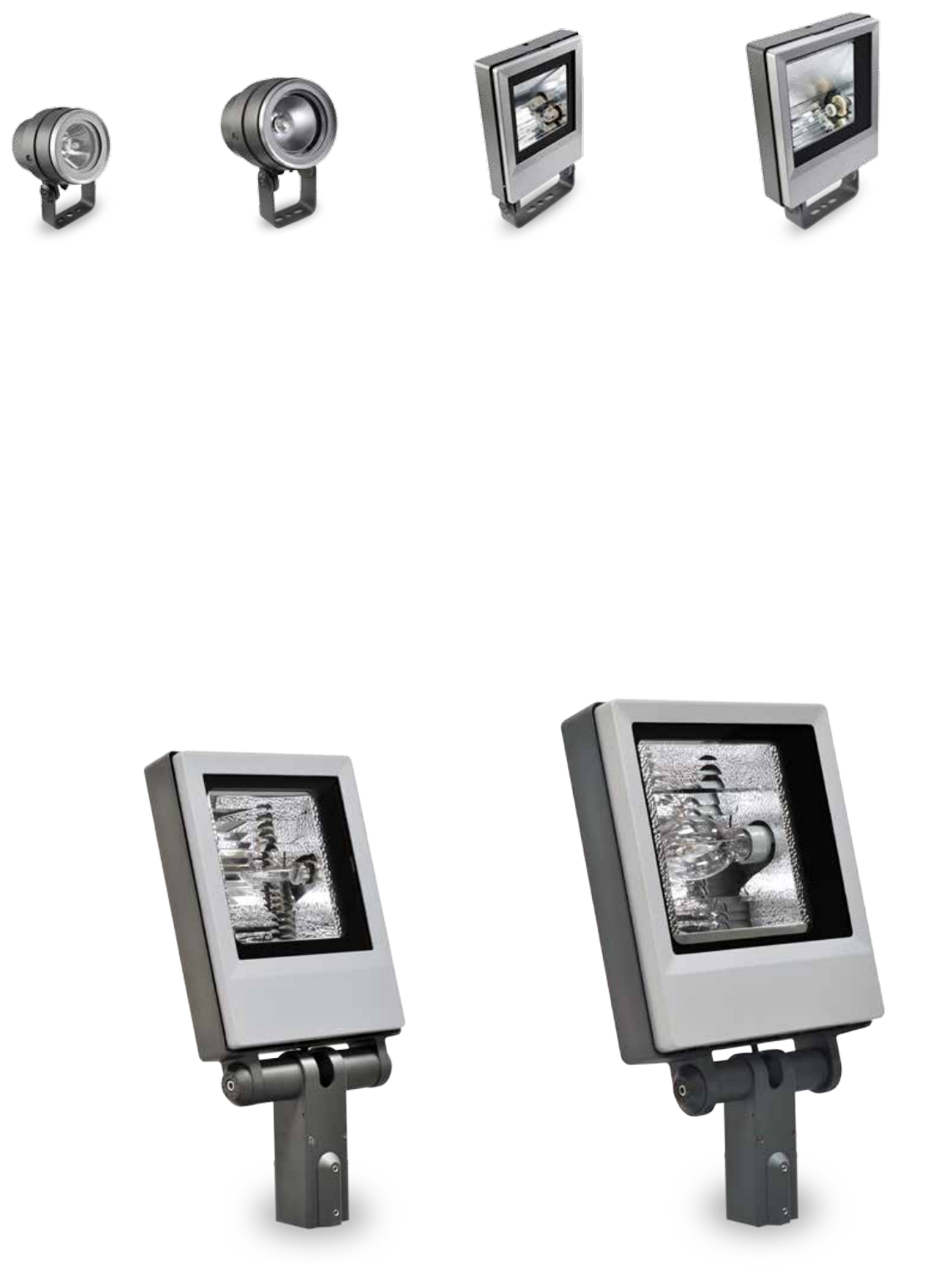

Full range of products for almost any application
The DecoFlood family of products provides you with design tools to tackle any design application no matter how big or small. Five
distinctive and fresh new housing designs that complement each other with family styling allowing you to mix and match products
to address all of your project’s requirements. A myriad of optical, lamp, lens, shielding and mounting options provide unparalleled
flexibility and precision optical control.

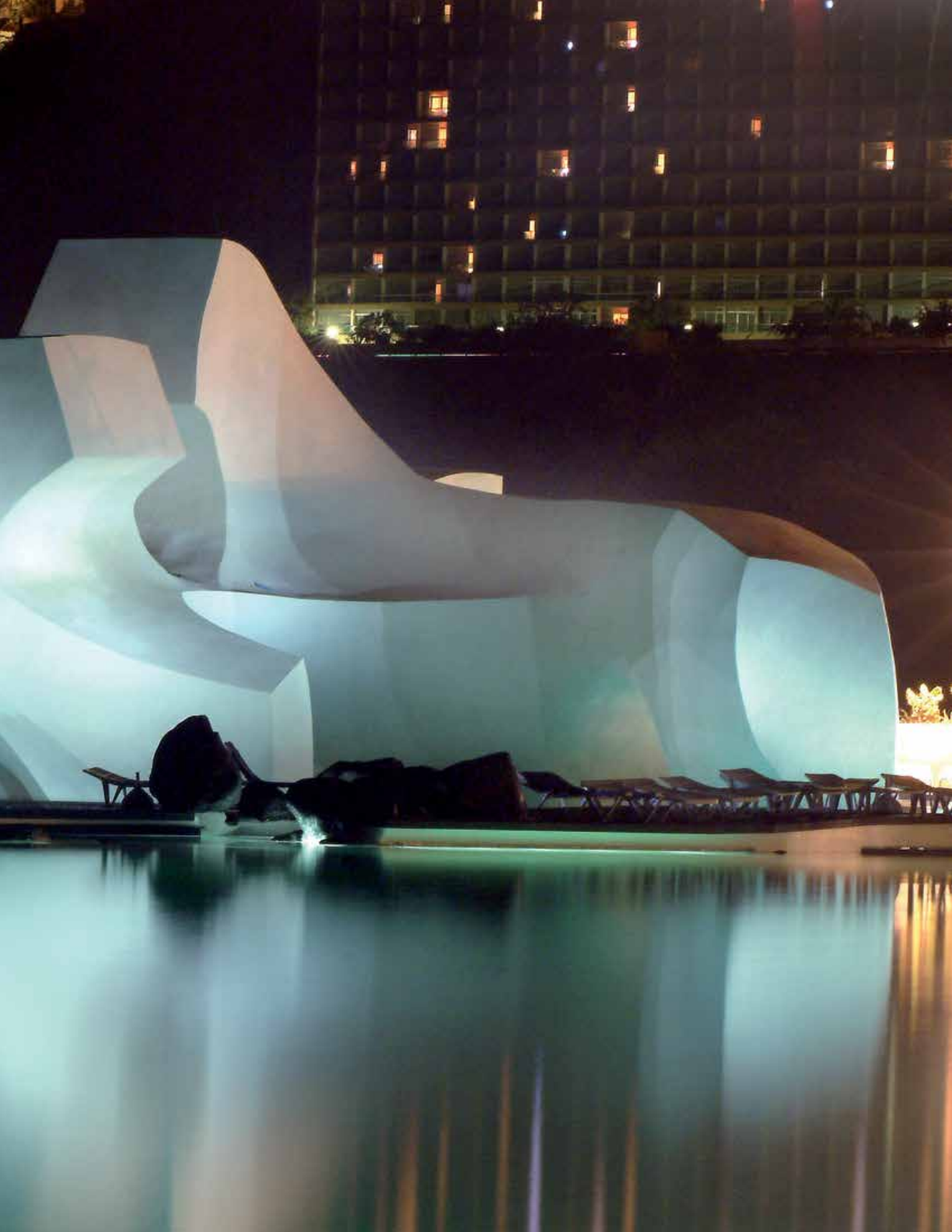

Buildings, monuments, bridges, signage, interiors, and more are brought to life at night without compromise to daytime aesthetic
as no other family of products can. Clean lines, simplistic styling and compact flat panel forms with a touch of elegance allows
DecoFlood to complement the architecture, instead of dominating the visual experience.
4
5
Our greatest artists rely on having an infinite palette of colors and
textures to bring their masterpieces to life. Instead of canvas and paint,
you work with structures and light as your medium of choice.
With a full range of DecoFlood products, optics, and design accessories at your
fingertips; you now have one of the widest range of precision lighting tools to design
your very own masterpiece with light.
Choose from hundreds of lamp and reflector combinations, including CosmoPolis
and MasterColor Elite, the latest in next generation HID lamp technology from
Philips. Still want more flexibility? Utilize multiple shielding accessories, colored and
spread lenses, and warming and cooling filters to help fine tune your design.
The DecoFlood family of luminaires is all about flexibility and simplicity. Use your
tools to create dramatic visual effects or subtle and inspiring highlights. Ideally
suited for both indoor and outdoor use, no application is too big or too small.
Painting with light has never been easier.

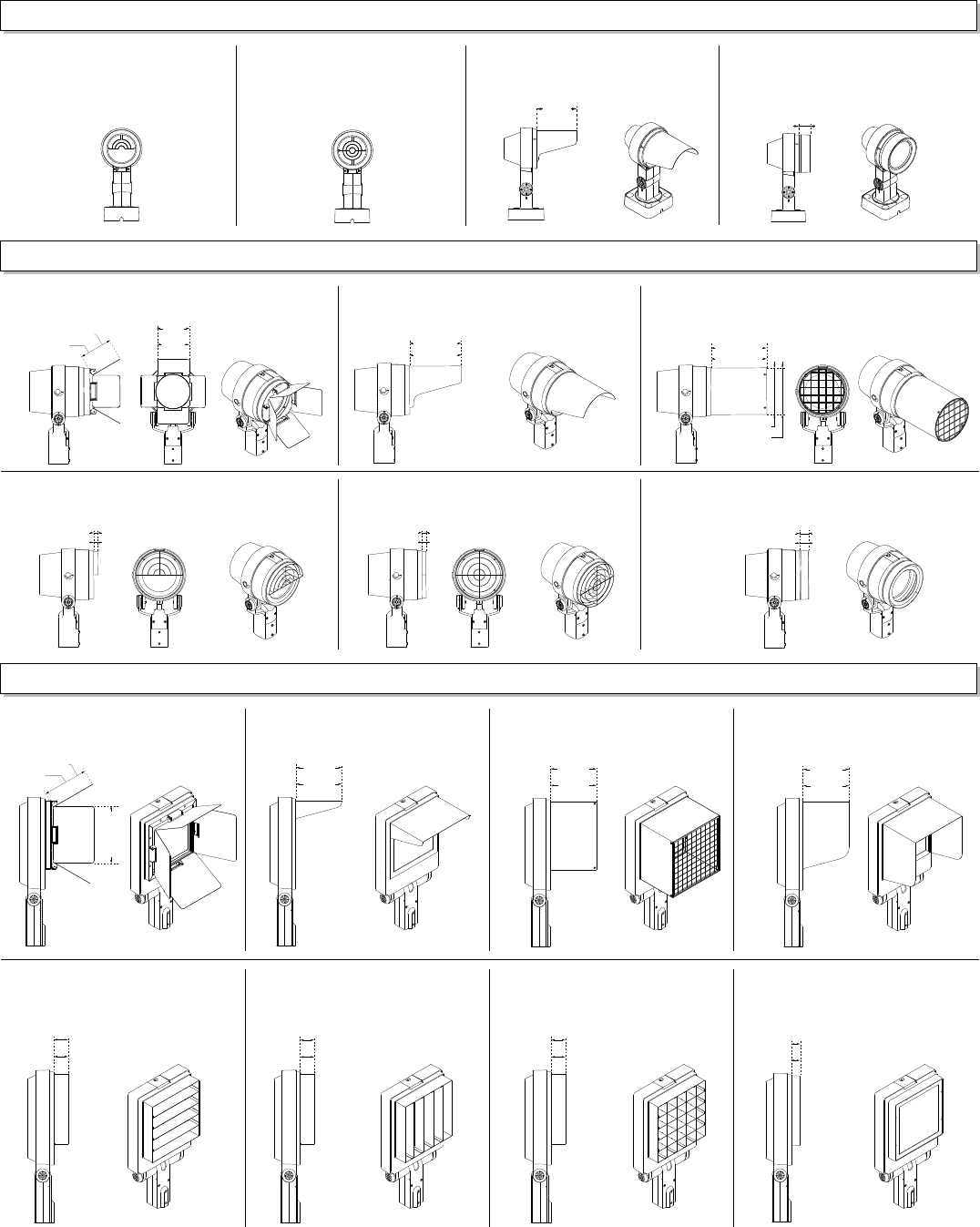

Create dramatic designs with
a wide variety of optical choices
DFS3 with beam softener & lens holder
6

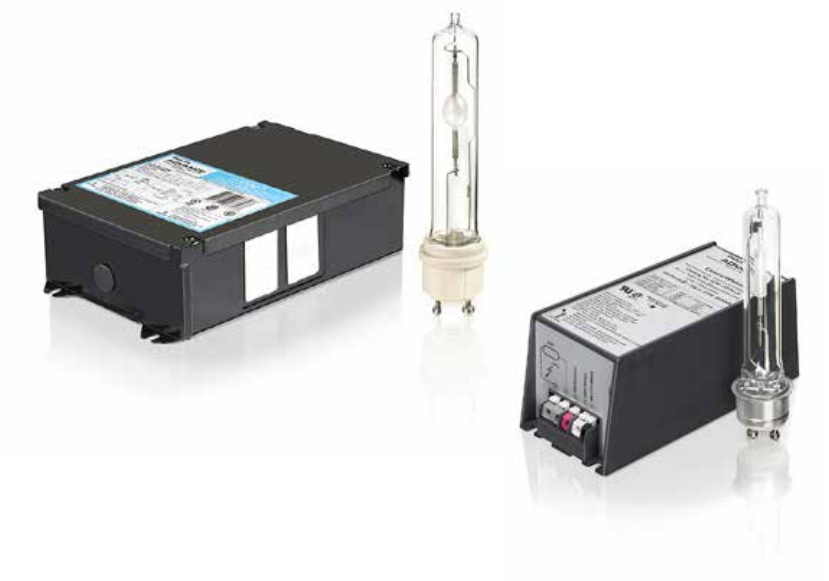

The innovative DecoFlood range is fitted with the latest in ceramic metal halide
technology, including the Philips CosmoPolis and MasterColor Elite systems to
help bring your designs to life while maximizing energy savings upwards of 50%.
CosmoPolis and MasterColor Elite systems combine ceramic metal halide lamps and an
optimized electronic ballast to maximize performance and energy savings over the life of the
entire system. Both systems offer improved efficiencies over traditional HID systems with lamp
efficacies up to 120 lumens per watt, while providing superior lumen maintenance (90% lumen
output @ 10K hours compared to 80% for traditional HID systems) and extended lamp life (up
to 30K hours compared to 20K for traditional HID systems). Ceramic metal halide lamps also
help to improve visibility and color accuracy with excellent coloring rendering characteristics.
CosmoPolis lamps offer a Color Rendering Index (CRI) rating of 70, while MasterColor Elite
lamps offer an amazing CRI of 90.
CosmoPolis and MasterColor Elite
technology available in DecoFlood
7
13
FPO
Power
(W)
Light
output
(Lm)
Luminous
efficacy
(Lm/W)
Operating
position
Average
lifetime
(Hrs)
Color
rendering
(CRI)
Color
temperature
(K)
CPO-TW 60W/728 White 60 6,900 115 Horizontal130,000170 2,800
CPO-TW 90W/728 White 90 10,450 116 Horizontal130,000170 2,800
CPO-TW 140W/728 White 140 16,500 118 Horizontal130,000170 2,800
CosmoPolis Lamp Specifications
Power
(W)
Light
output
(Lm)
Luminous
efficacy
(Lm/W)
Operating
position
Average
lifetime
(Hrs)
Color
rendering
(CRI)
Color
temperature
(K)
CDM Elite39/T6/930 39 3,500 90 Universal 12,000 90 3,000
CDM Elite70/T6/930 70 7,300 104 Universal 12,000 90 3,000
CDM Elite100/T6/930 100 11,000 110 Universal 15,000 90 3,000
CDM Elite150/T6/930 150 15,000 100 Universal 12,000 90 3,000
CDM Elite MW 210W/T9/930 210 24,200 115 Universal 30,000 90 3,000
CDM Elite MW 210W/T9/942 210 23,100 110 Universal 30,000 90 4,200
CDM Elite MW 315W/T9/930 315 37,800 120 Universal 30,000 90 3,000
CDM Elite MW 315W/T9/942 315 36,200 115 Universal 30,000 90 4,200
MasterColor Elite Lamp Specifications
Philips reserves the right to change specifications and dimensions without notice.
Lamp and electrical specifications / availability subject to change by manufacturer without notice.
Please refer to detailed lamp specification sheets for additional information and spec details.
1. CosmoPolis lamps are designed for use in the horizontal burning position. Use in a vertical orientation is subject to a decrease in the lamp's rated lamp life (see current lamp specification sheets for details).
8
Looking for that special effect to set your space apart from
the rest? Infinite possibilities are at your fingertips with
our gobo and framing projector cannon, available with our
DFS3G. Creativity can go as far as your imagination will take
you with precision image projection and light framing.
Sculpting with light
DFS3G Basic framing shutters
9

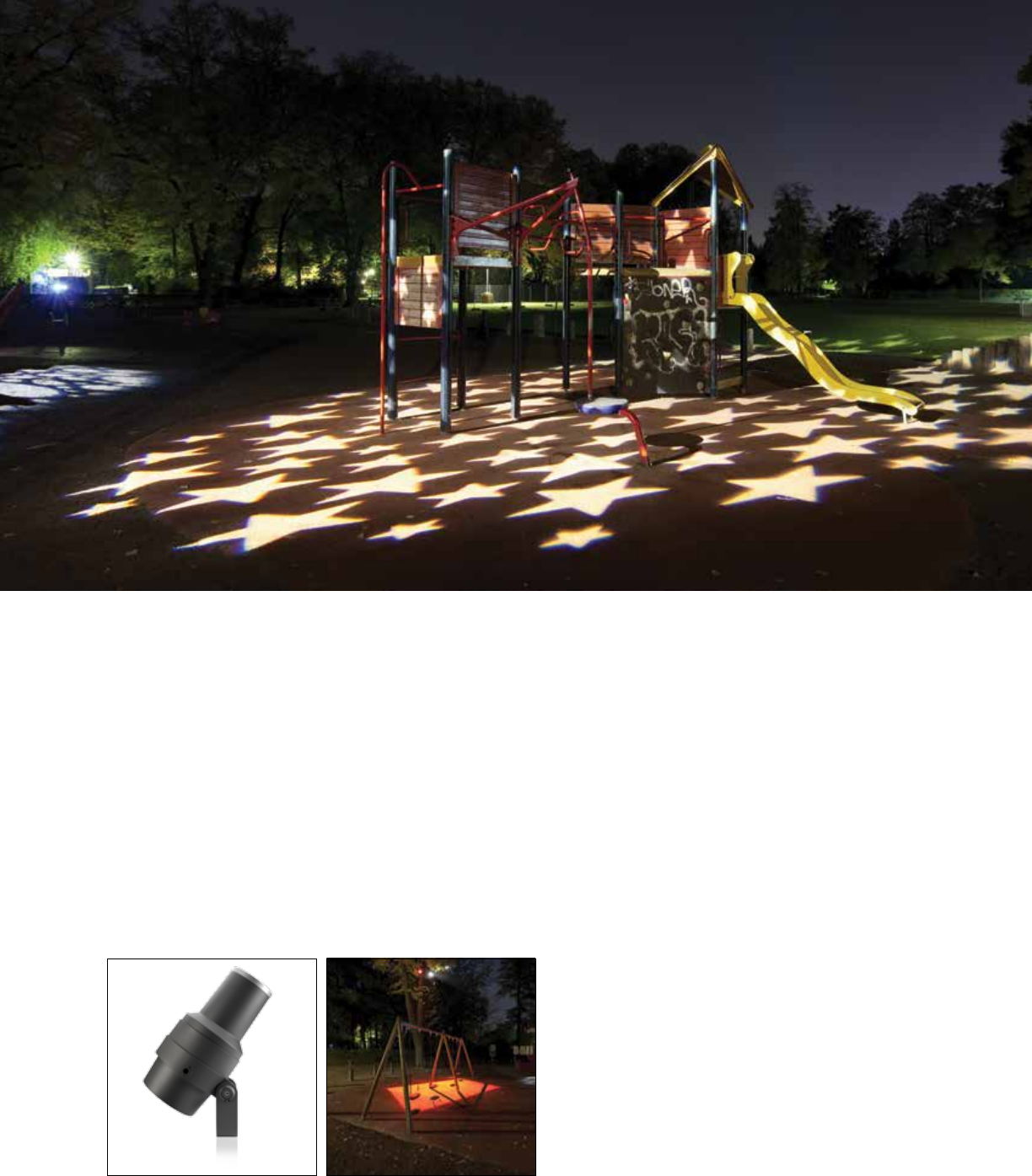

Gobo and framing projector
makes creating dramatic effects
simple and cost effective
Projection of text, logos, patterns and other images has never been
easier using standard or custom gobos. Avoid the cost of expensive
theatrical luminaires and design your vision with our gobo and framing
projector cannon.
Design your own gobo or choose from many standard, off-the-shelf, Size-A gobos to
create a special visual effect. Ideally suited for atriums, courtyards, walkways, facades,
or anywhere you want to grab some attention. Field adjustable shutters enable
accurate geometric framing of monochrome or colored beams through the use of
color filters. The gobo projector is designed specifically for the CDM-T 150W short
arctube T6 ceramic metal halide lamp for maximum performance and control, or
standard 70W T6 ceramic metal halide lamp when less punch is required. Creating an
eye-catching and dramatic visual experience has never been more simple and fun.
10

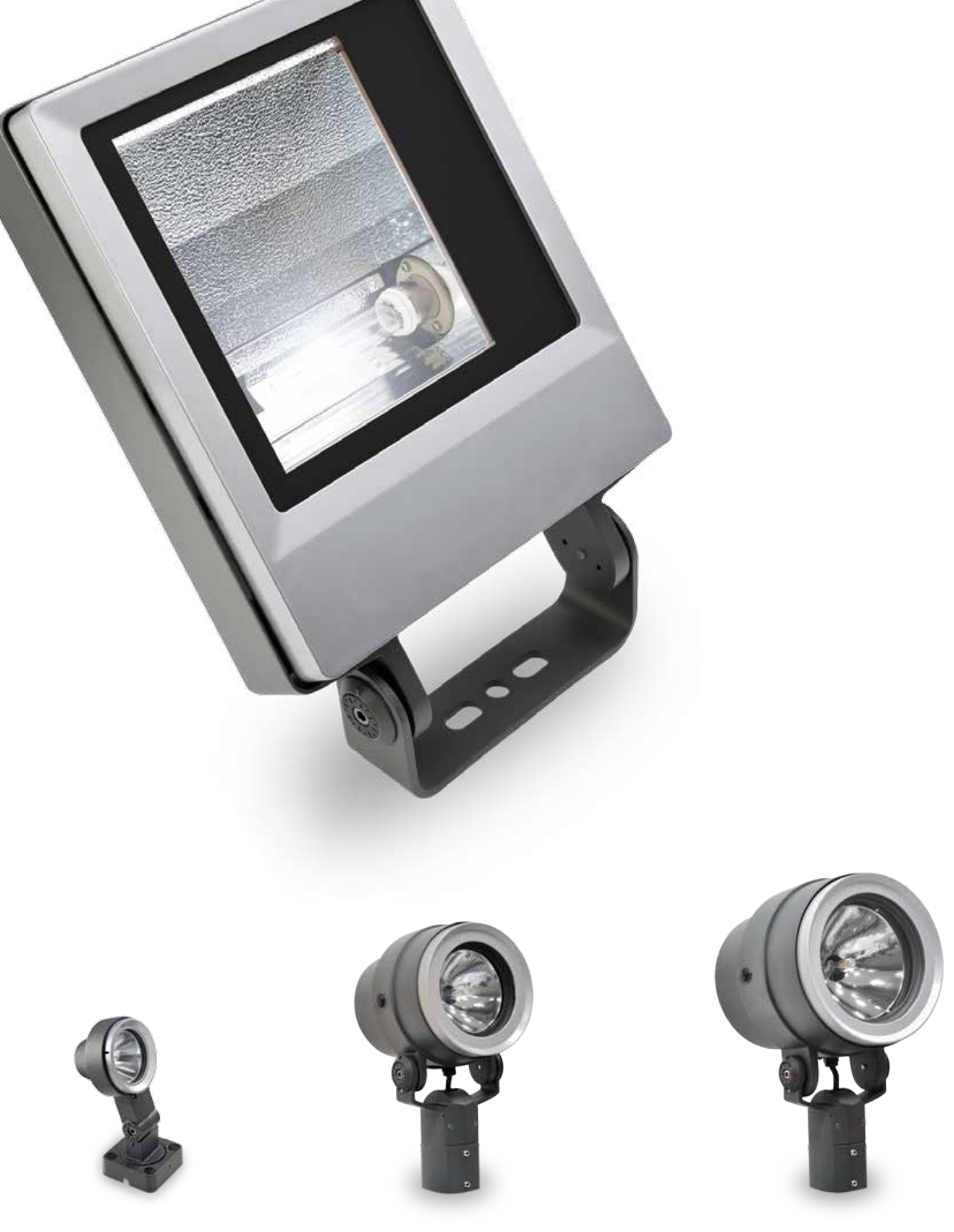

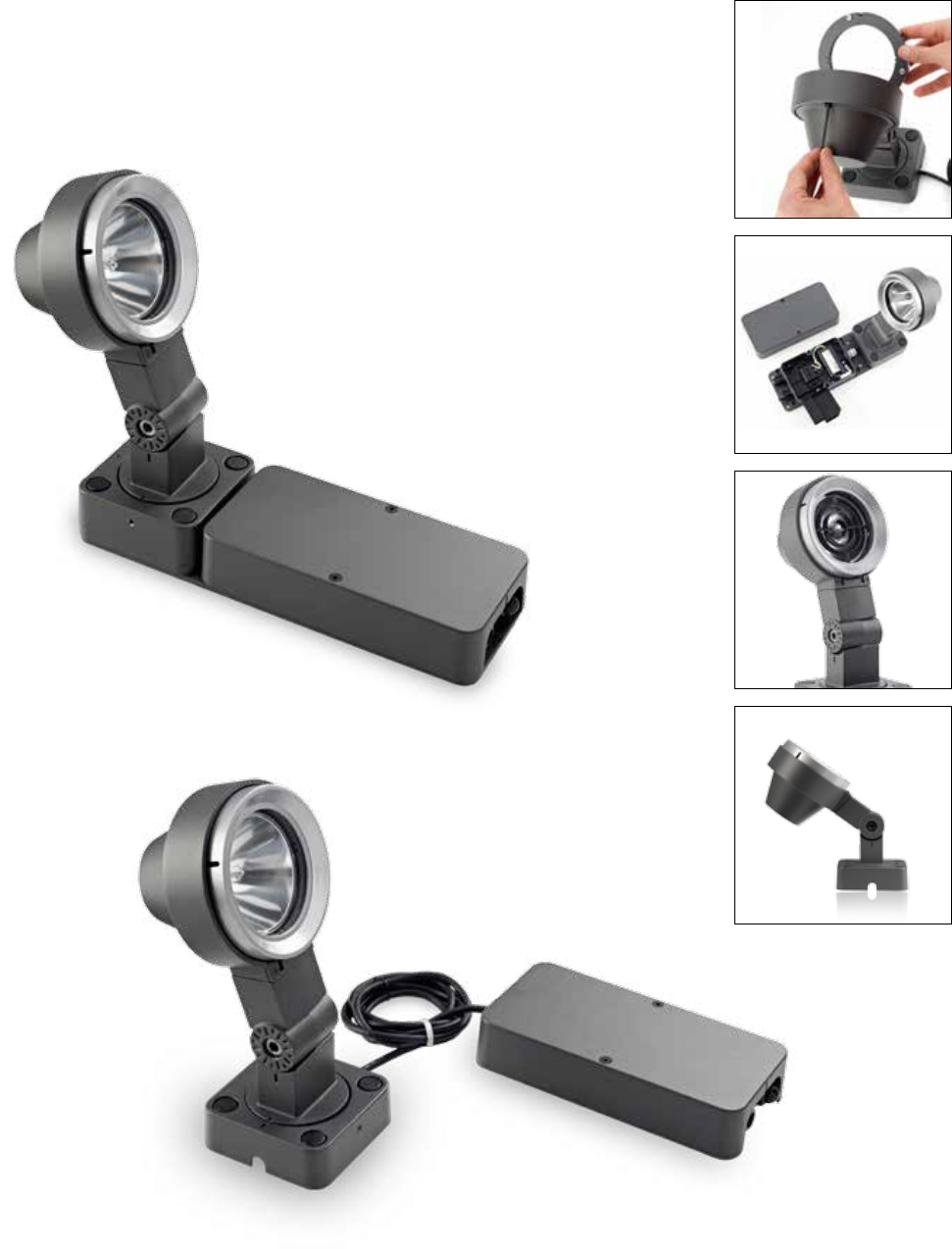

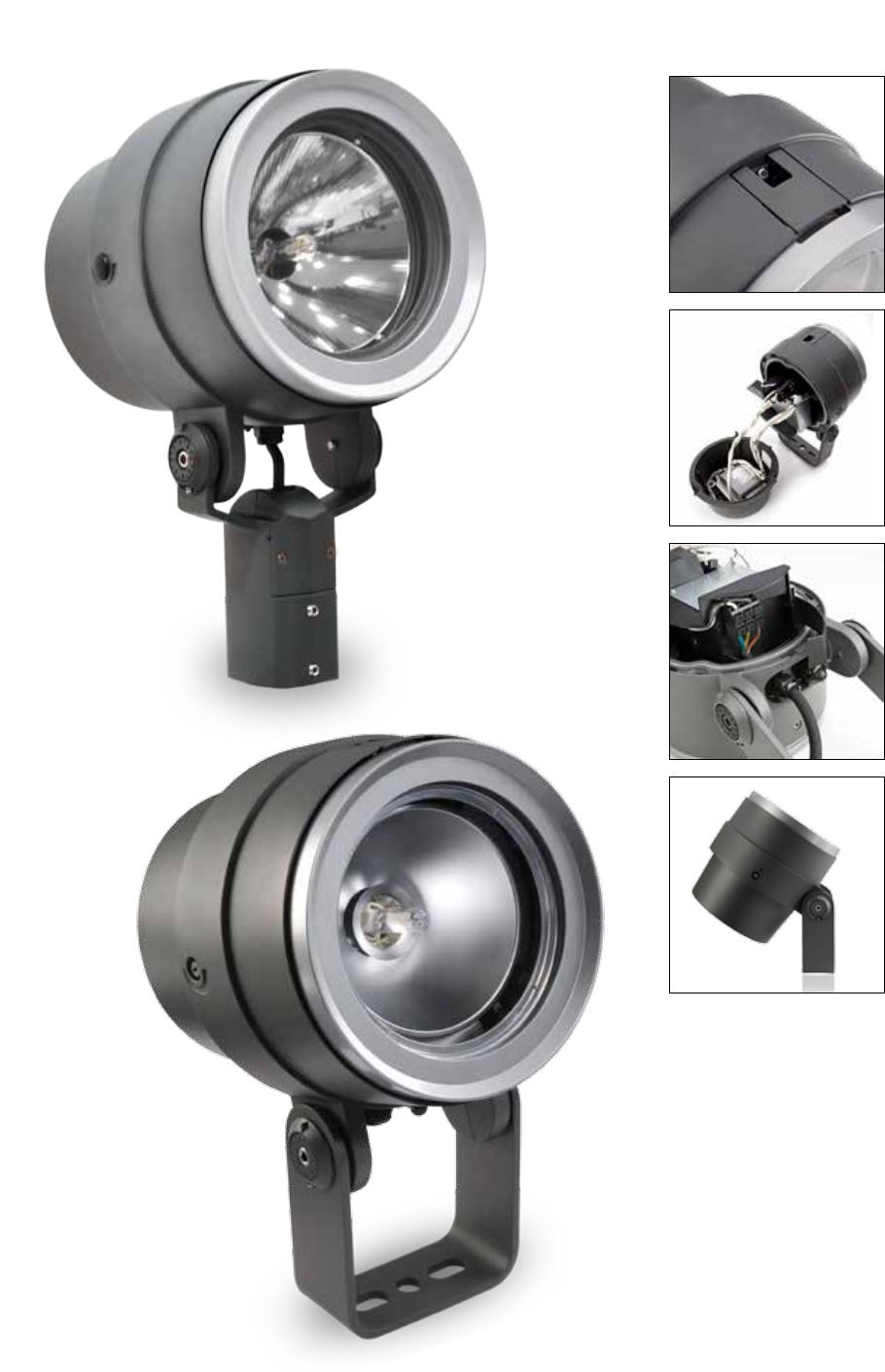

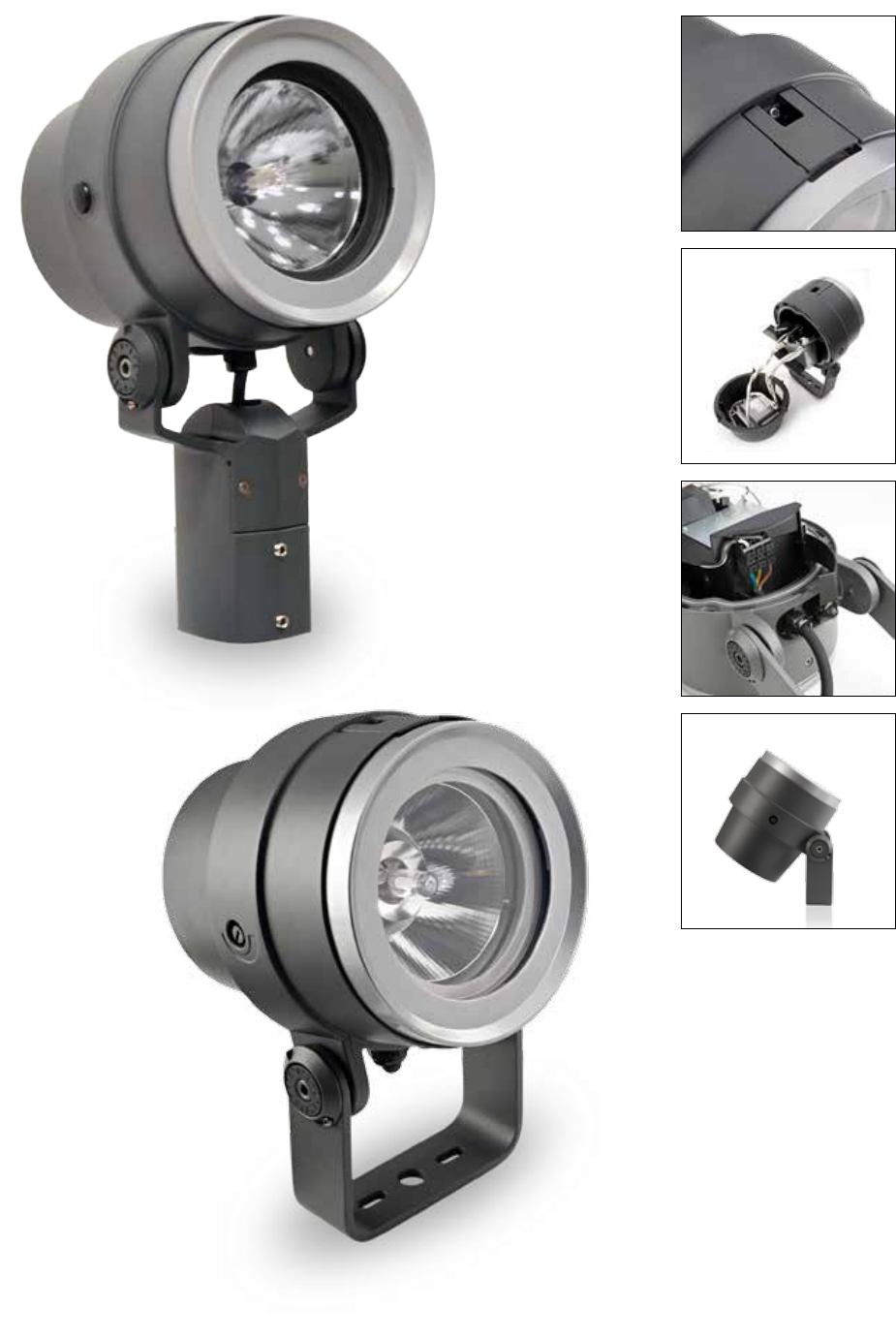

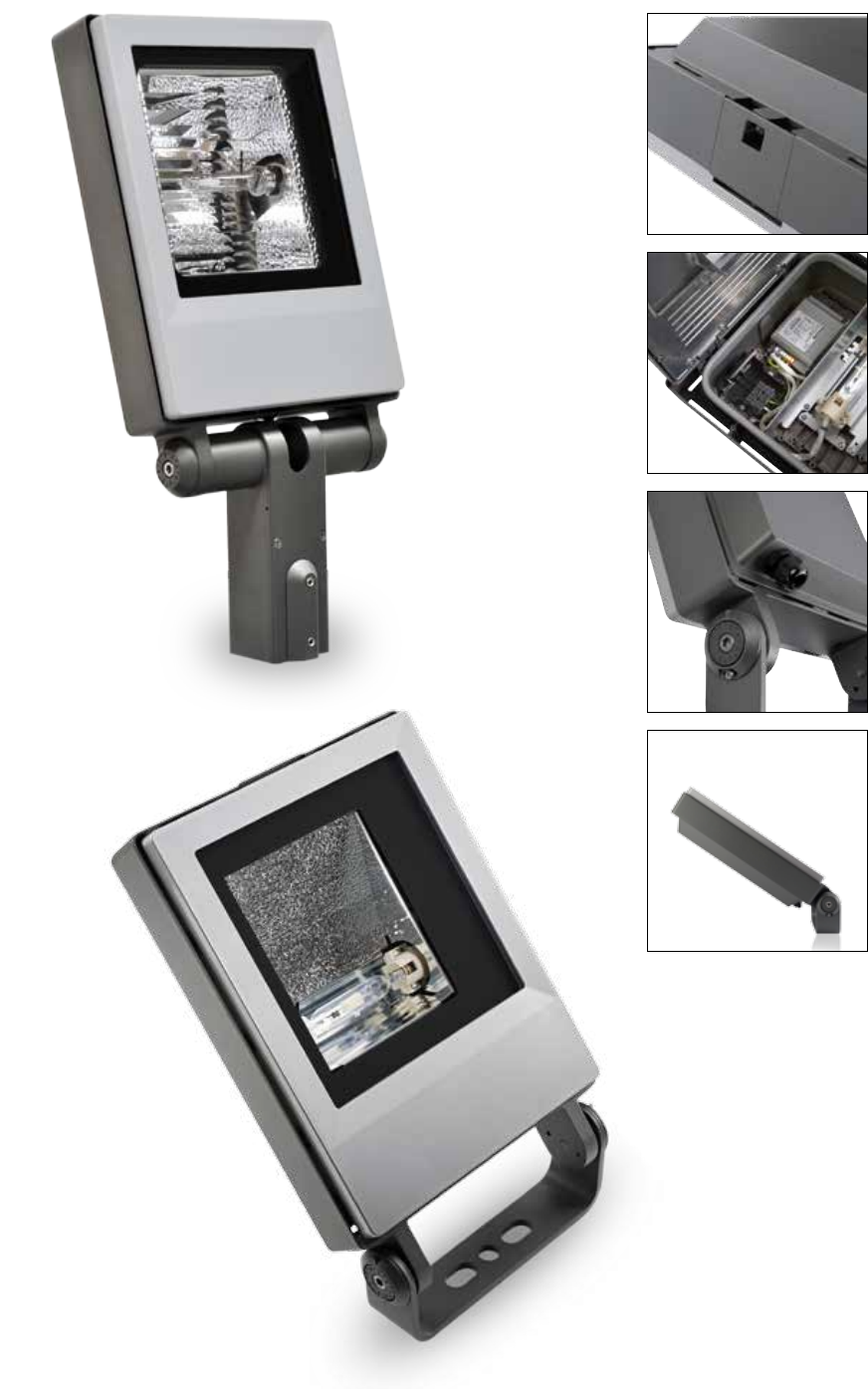

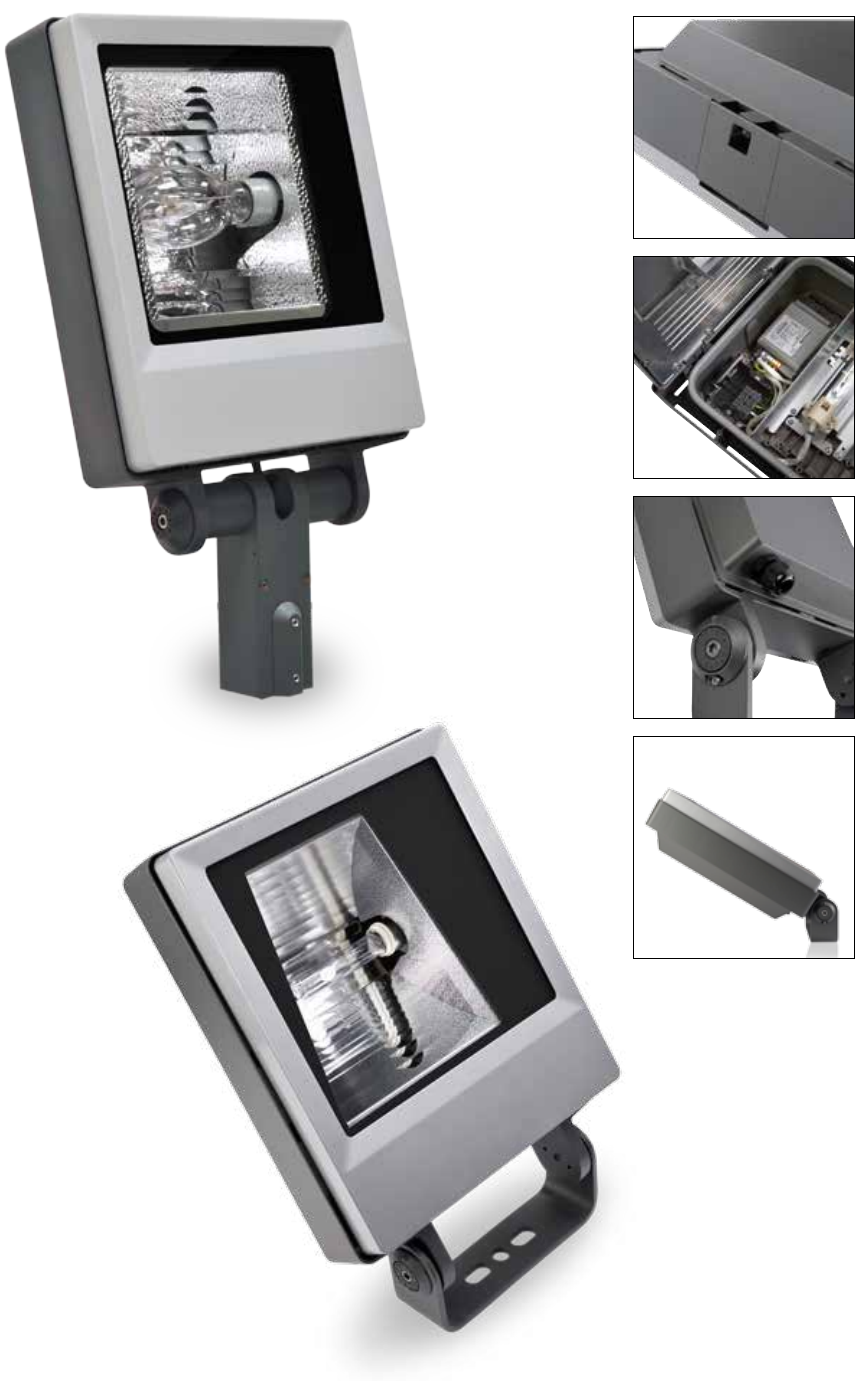

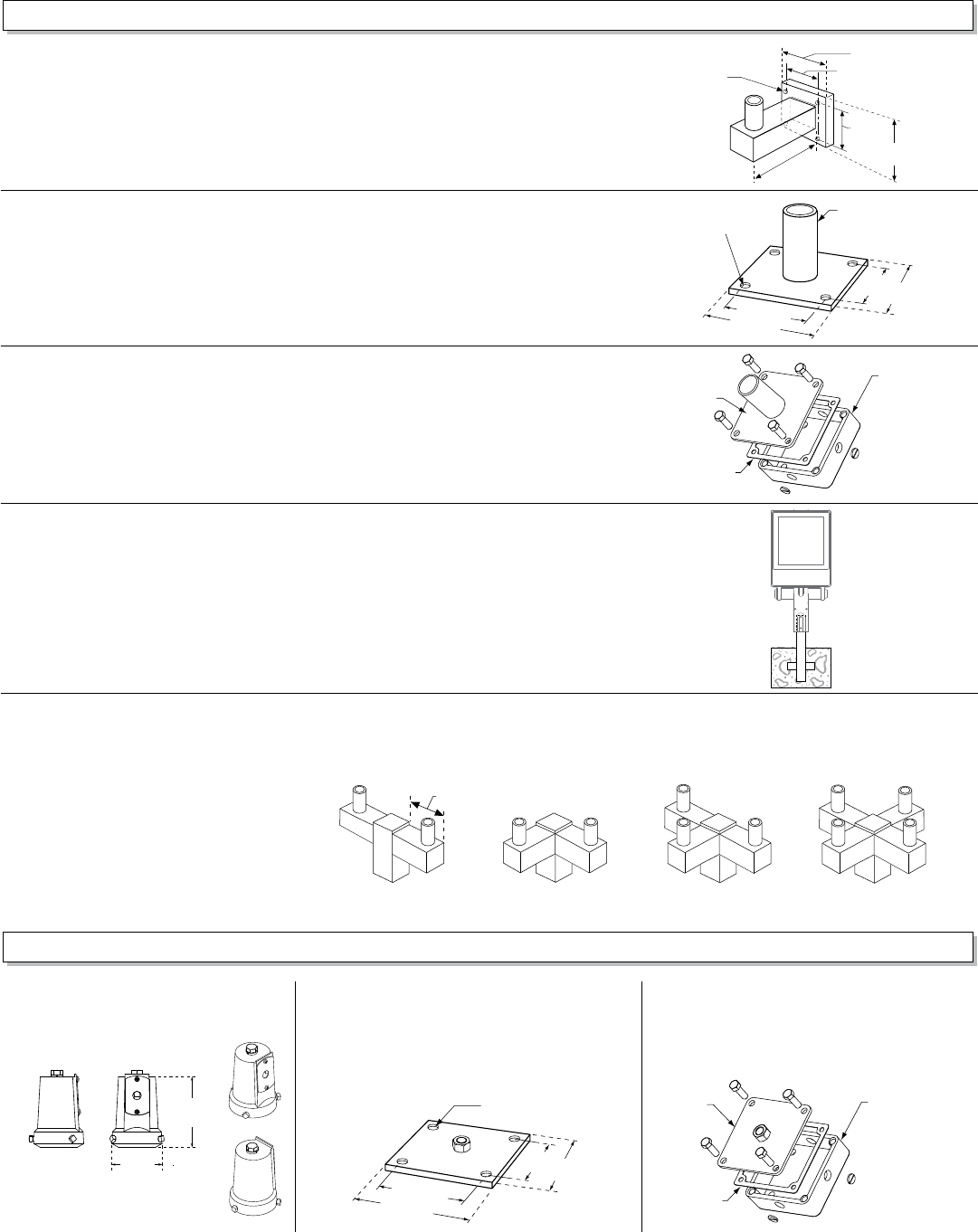

Unlike most products, DecoFlood is available with a swivel tenon
mount or yoke mount to provide you with the design flexibility you need.
Swivel Mount
DecoFlood maintains clean styling as the swivel is designed to mount to a 2” (2-3/8” O.D.) pipe
tenon or rigid conduit. Power can be directly run into the luminaire, eliminating the need for
exposed power cords and additional mounting hardware. Swivel mount includes an integral
splice compartment for ease of wiring.
Yoke Mount
Some fixture locations just don’t allow for tenon style mounting, or sometimes the need to
mount a floodlight is an after thought. In those instances it can be easier to just bolt the
product in place. Having a durable and flexible yoke mount system allows you to do just that, by
mounting the product in place using 1/2” or 3/4” thru bolts.
Do not be constrained by
a single mounting configuration

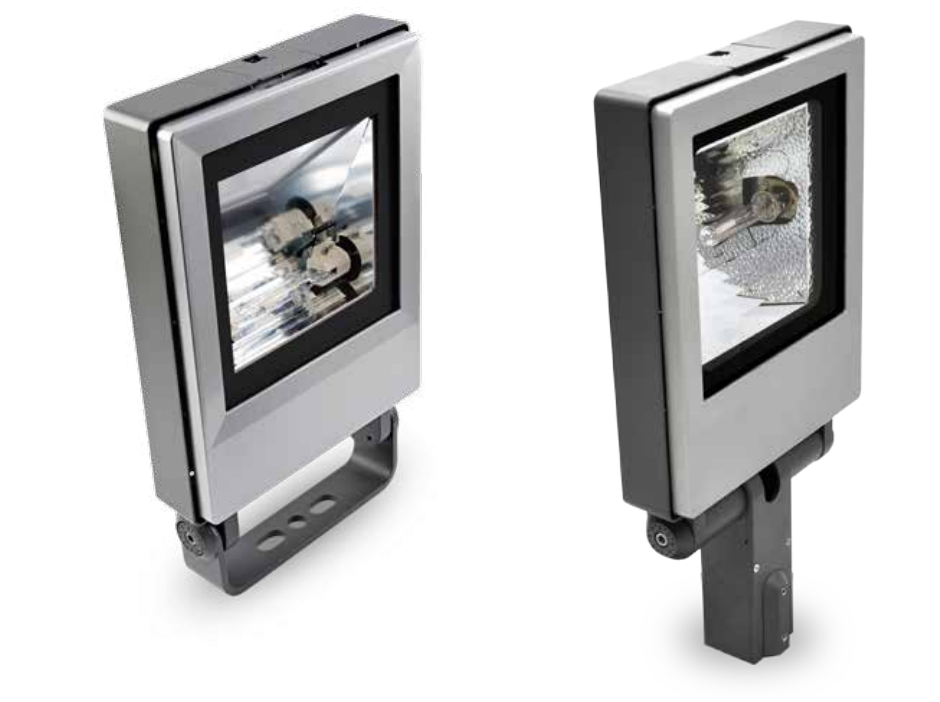

Yoke Mount Swivel Mount
11
Saving time helps to save dollars when it comes to installing luminaires, our
swivel mount allows you to do both.
Mounts Directly to any 2” Pipe Tenon
DecoFlood’s swivel mount can easily mount to any 2” (2-3/8” O.D.) pipe tenon or rigid
conduit mount that can feed power directly into the product. Simply place, orient and
tighten two set screws to lock the fixture in place.

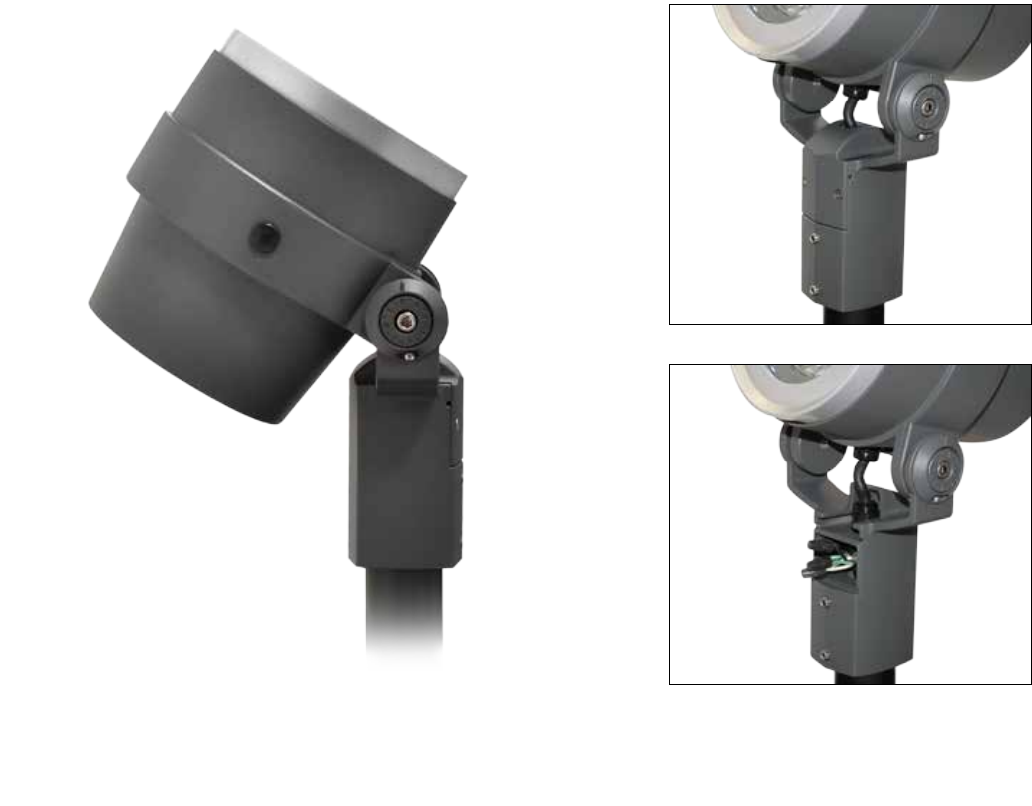

Integral Splice Compartment
Splice connections can be made inside the swivel’s dedicated UL recognized splice
compartment. Simply remove the access cover and make all of your wiring connections
directly within the swivel. Thus eliminating the need for an additional junction box to
help reduce installation time and save money.
Swivel mount allows for simple
installation and cost savings
Integral UL recognized splice compartment
12
Philips Gardco products not only look good, they also take an innovative
mechanical approach to ensure years of durable and reliable performance.
Outer Housing
The outer housing works as a barrier and watershed to protect the optical assembly from the
intrusion of contaminants like bugs, dirt and water. It protects the separate IP compartment
from direct exposure to the exterior elements compared to traditional products whose housing
is the IP compartment, while allowing water to freely pass between housings. This protects the
product from the harshest of outdoor elements, regardless of aiming or orientation.
Inner Housing & IP Compartment
By sealing to the internal housing, we create a separate dedicated internal IP compartment that
is able to carry an IP65 rating. This innovative approach helps to ensure the performance and
reliability of the DecoFlood range by not allowing external contaminants such as dirt to enter
the optic chamber, in turn effecting photometric performance. A dedicated breather designed
specifically for DecoFlood has been integrated to help prevent condensation from forming on the
glass due to the changes in temperature and outside moisture.
Door & Lens Frame Assembly
The door and lens frame assembly is designed to allow water to shed between the gasketed lens
and outer housing when aimed in the up position to help eliminate the pooling of water.
Double wall housing design feature
allows for IP65 rating
13

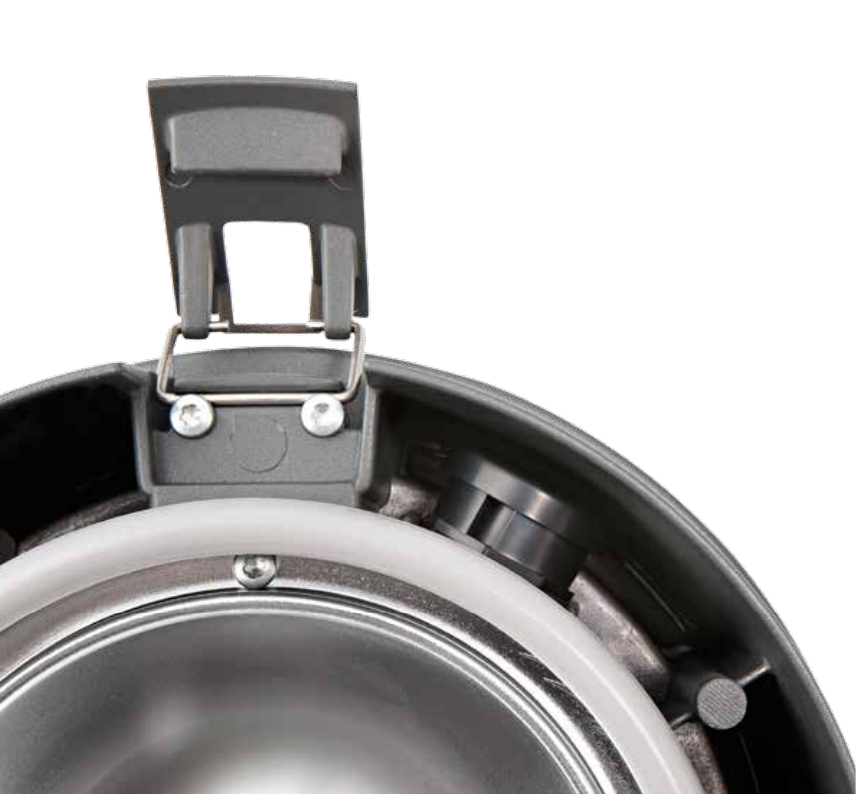

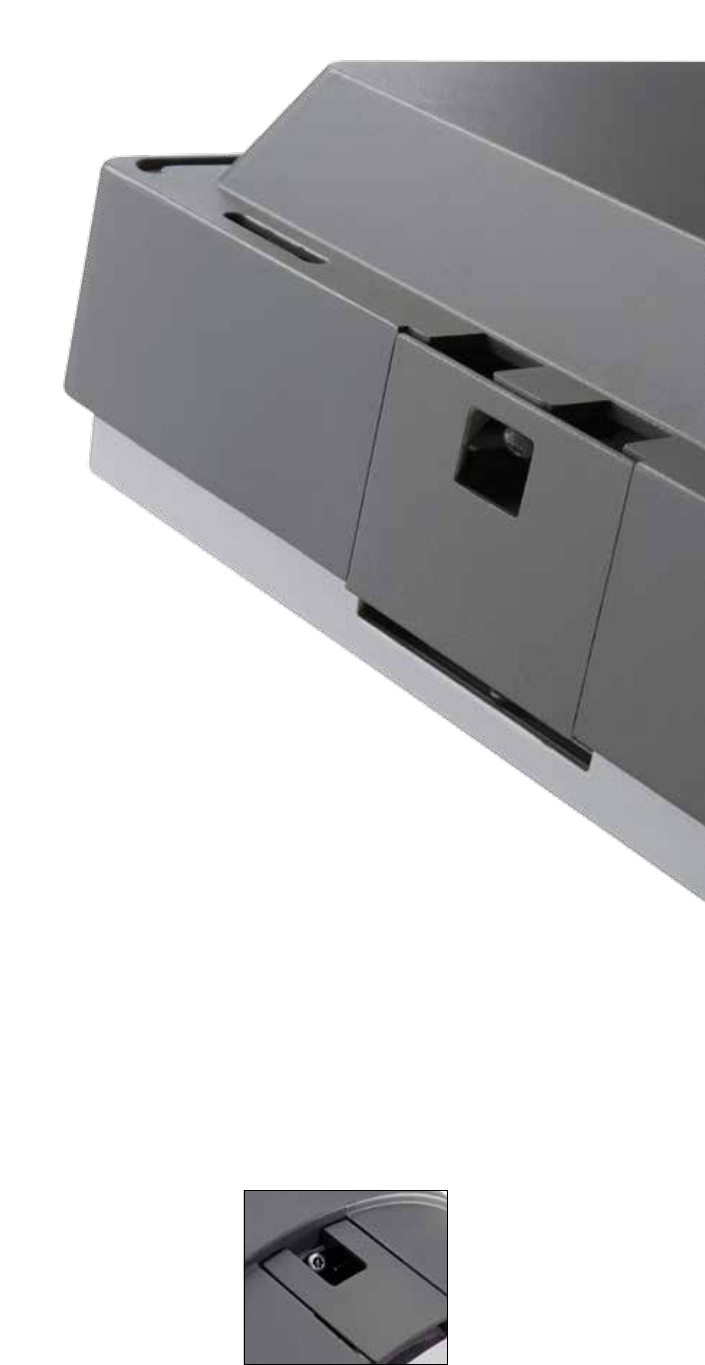

Time is money, especially when it comes to installation and routine maintenance.
DecoFlood includes an innovative latching system for tool-less access to help save
time and money.
Easy Tool-Less Access
The square and round DecoFlood products use a simple and easy finger latching system to
access the lamp compartment. This feature is extremely helpful when products are installed
in difficult to reach areas. The latch can be locked into place with a single fastener (including
tamper proof) for additional security. The products are delivered without the fastener installed
to help minimize installation time.
Tool-Less entry for easy lamp
access, maintenance and installation
Shown with tamper proof screw
14

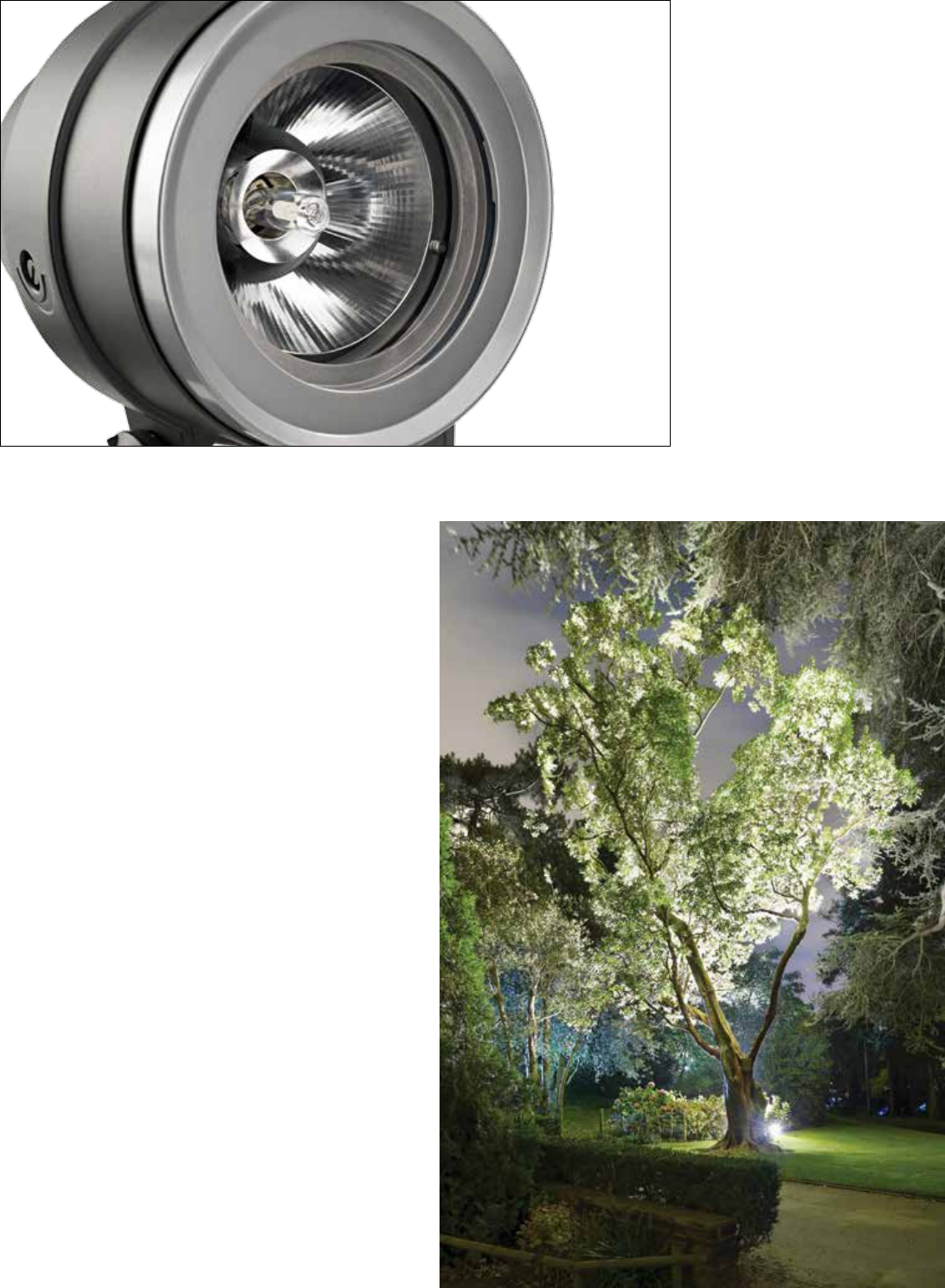

Simple and useful features like adjustable optics allow you to simply and
easily fine tune a design after installation.

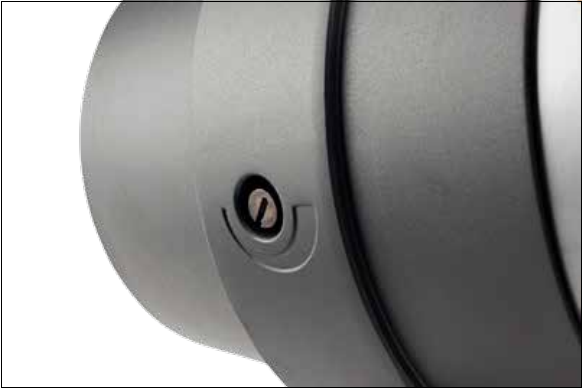

Single Turn Adjustment
The small and medium round DecoFlood products are available with fixed beam and
adjustable beam optics. The adjustable optics allow you to easily adjust the beam in
the field to create the desired effect. Simply turn the adjustment dial located on the
side of the housing to change the lamp's focal position with the optic until the desired
beam is achieved.
Adjustable optical system for
added design flexibility
15
Some designs cannot be
pinpointed using computer
software and are better suited to
be visually adjusted. Landscaping,
monuments, and columns are
just a few examples. Instead
of swapping optics in the field,
DecoFlood’s DFS2 and DFS3
adjustable optics provide
additional design flexibility. Easily
add lensing and shielding options
to fine tune even further to
create the desired effect.
Adjust the lamp’s axial
position with a simple
turn to shape the beam
in the field to create the
custom tuned result.
16

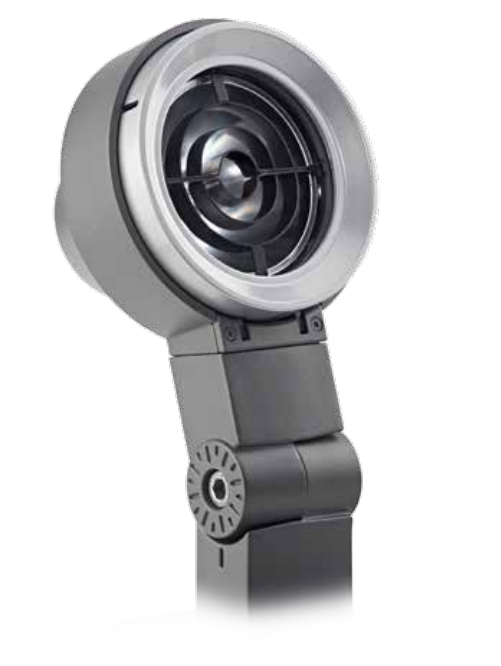

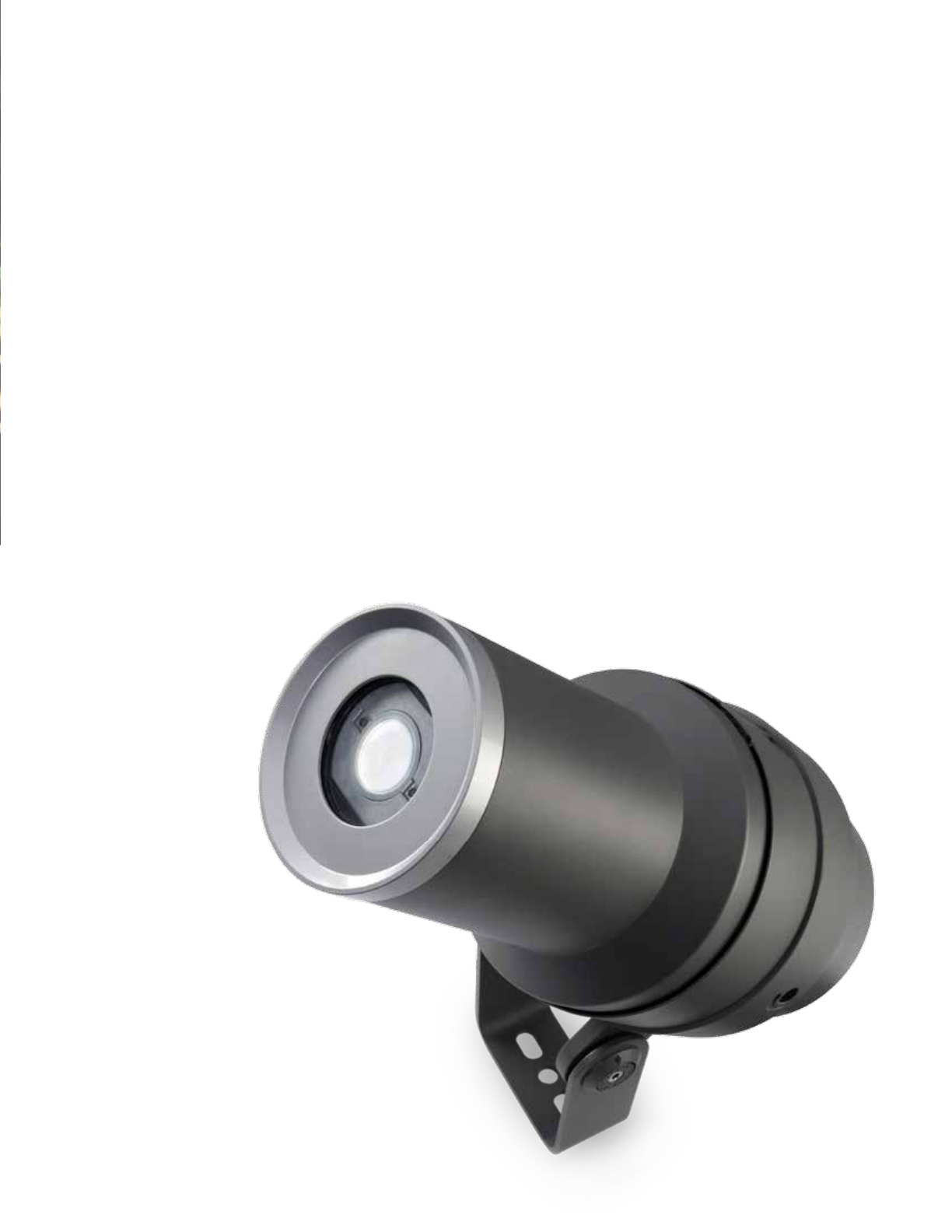

Integrated louvers within the DFS1 Mini-Spot not only look better, they simplify
and reduce installation time and help to eliminate environmental waste.
Integrated Louver Systems
The DFS1 Mini-Spot luminaire is a dynamic designer flood with a small compact and clean design.
The round louvers are integrated within the design of DFS1 versus external shielding. Not only
does it help to maintain the simple lines of the product visually, but we are able to eliminate
waste. Wasted time needed to install secondary shielding in the field. Wasted shipping costs of
having to ship multiple items. And most importantly we eliminate, you guessed it...waste itself.
Less cartons and packing materials equals less materials in our landfills.
A simple design element for the
eco-conscious designer with style
17

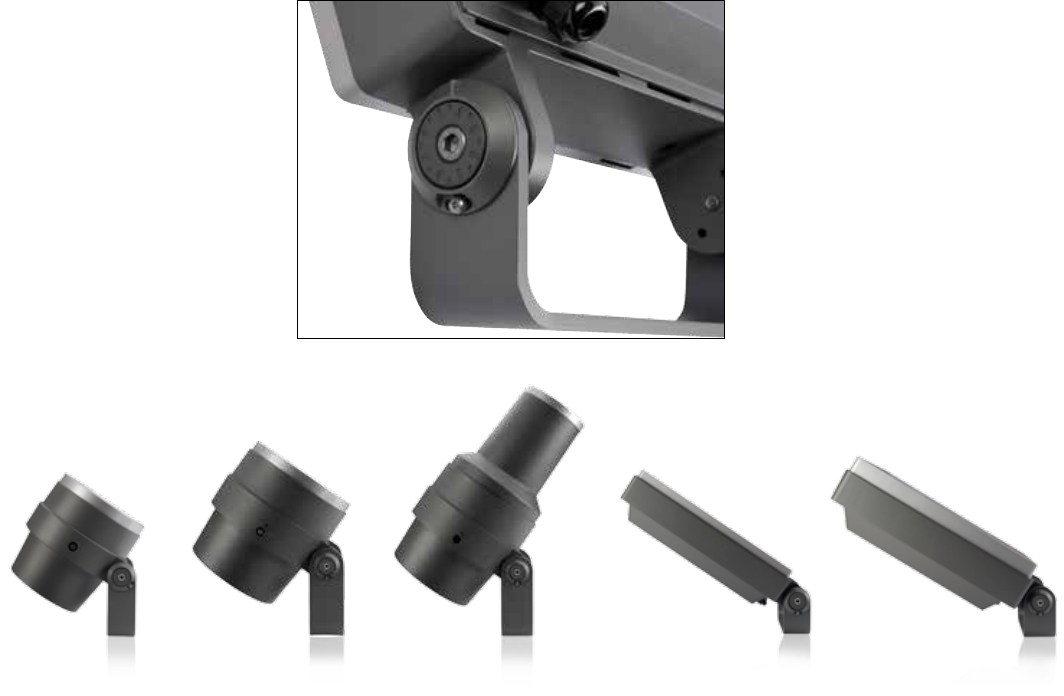

Product aiming is not always treated as an exact science, but now you can simply
do better than just close enough.
Memory Aiming Ring*
In a lot of applications, you will have multiple products that require the exact same aiming angle.
When dealing with precision optical systems, being just a little off can create some undesired
effects. A lot of care and time is spent during initial installation to get everything just right.
If you have to loosen the aiming screw to do routine maintenance, you can easily forget how to
re-aim the product. Since this is typically done during the day, visual re-aiming is just not practical.
DecoFlood’s memory aiming ring helps you to not forget. Simply loosen the outer screw and
align the raised mark to align with an internal mark. Remember this internal mark and simply
align the two marks when done to assure the aimed position is properly returned.
Products designed for you that help
to provide peace of mind
*Not available with DFS1 and DFS4/5 swivel mount products.
18
19
20

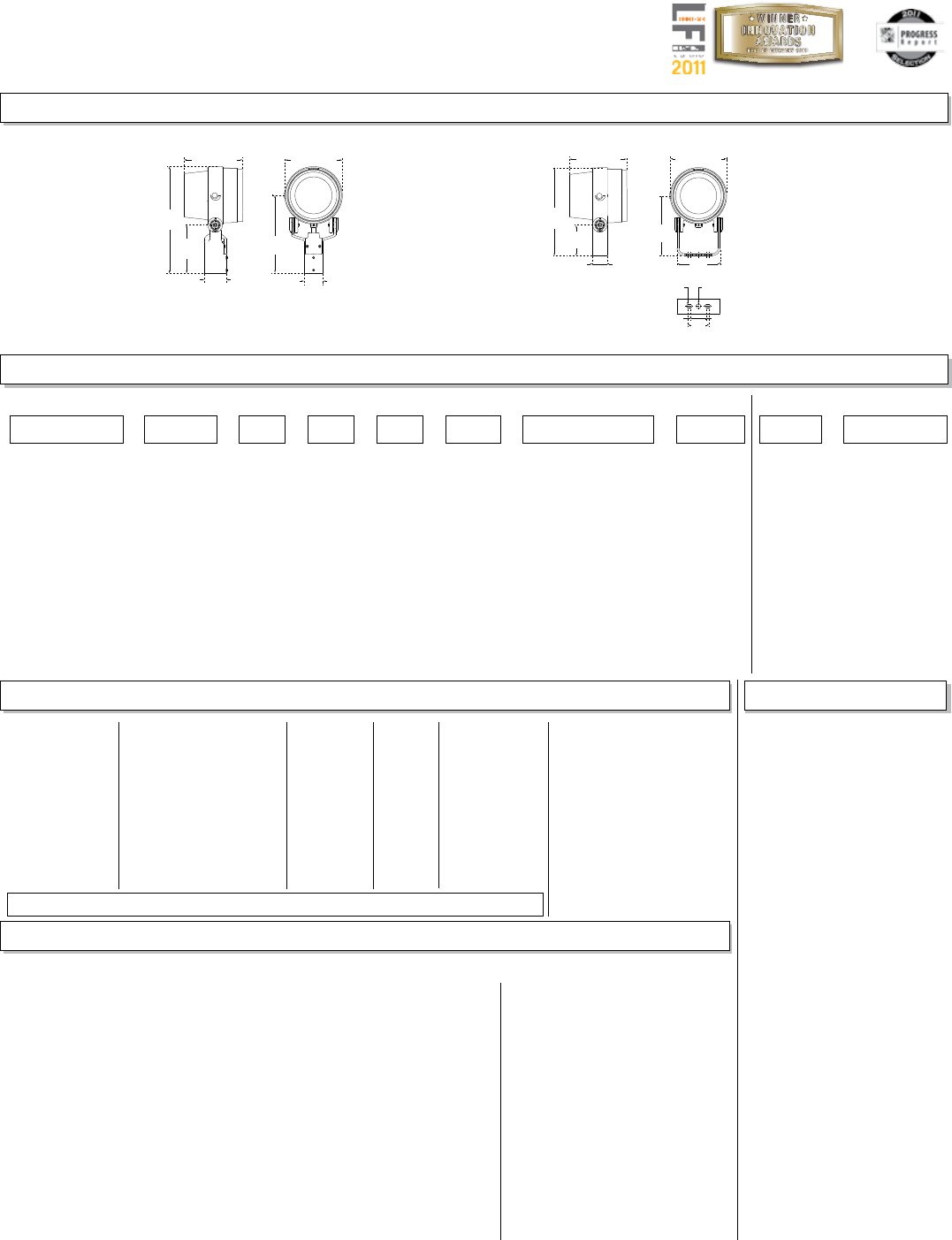

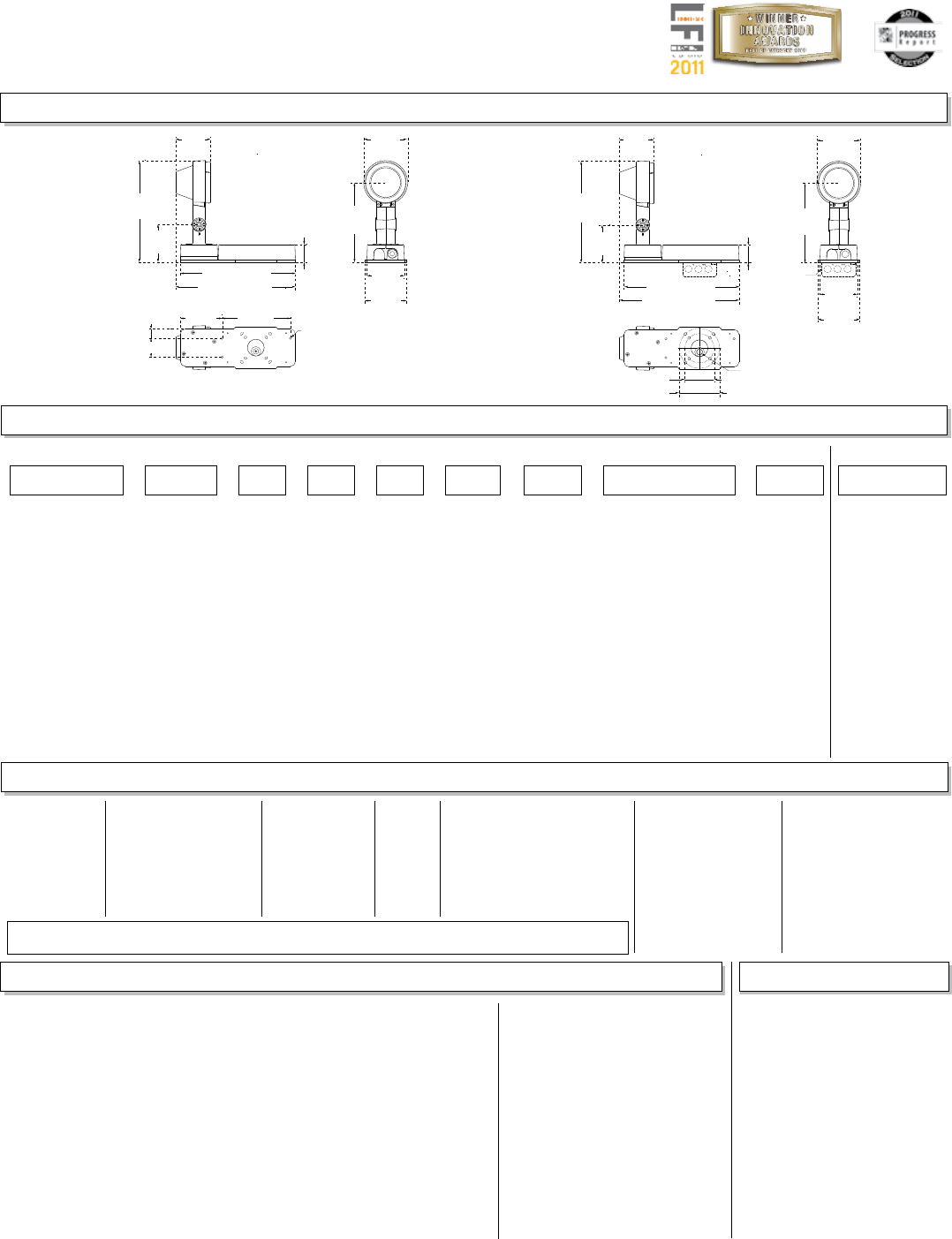

DFS1 Mini-Spot
DFS1-SV
DFS1-SVRB
21
DFS1
Ordering Matrix
Philips reserves the right to change specifications and dimensions without notice.
Lamp and electrical specifications / availability subject to change by manufacturer without notice.
Please refer to detailed specification sheets for additional information and spec details.
SGFBL
SGFLB
SGFYE
WAF1
WAF2
WAF3
SGFGN
SGFMG
COF2
COF3
COF4

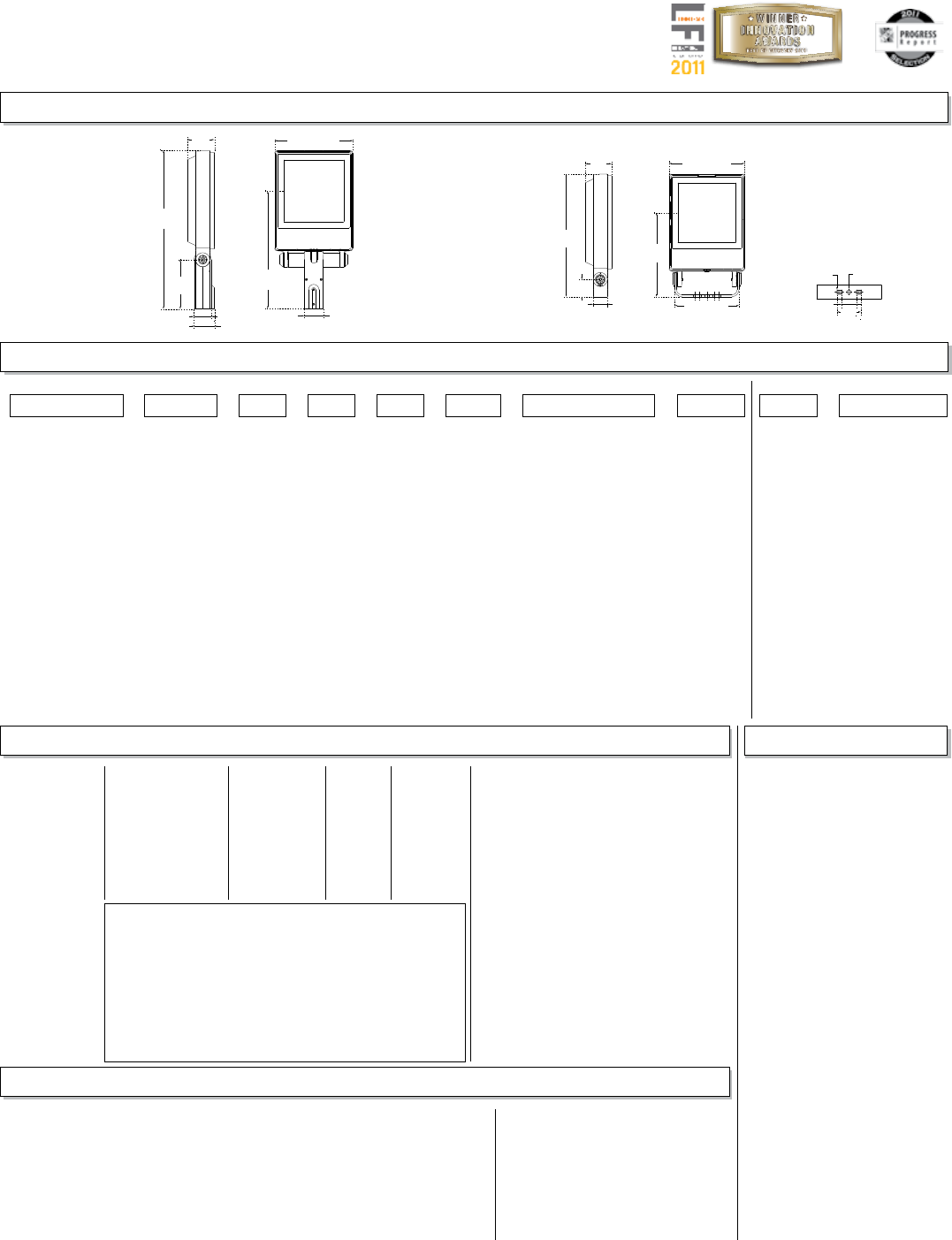

Dimensions
DecoFlood Mini-Spot
DFS1 Order Form
Philips Wide-Lite Professional Luminaires reserves the right to change specifications and dimensions without notice. Lamp and electrical specifications /
availability subject to change by manufacturer without notice. Please refer to detailed specification sheets for additional information and spec details.
1611 Clovis Barker Road • San Marcos, TX 78666 • Phone: 512.392.5821 • Fax: 512.753.1122 • www.wide-lite.com
© 2011 Philips Group
Bulletin No. WLSP0334A0211
DFS1-SV-PL DFS1-SV-SM
¨ HRL Half Round Louver
¨ RL Full Round Louver
Ordering Information (lamps are not included and must be ordered separately, contact factory for assistance if required)
Style
¨ SV Swivel Attached Box
(anchors by others)
¨ SVRB Swivel Remote Box
(anchors by others)
Finish
¨ TWO Two-Tone
(dark gray, silver)
¨ TBK Textured Black
¨ TDB Textured Dark Bronze
¨ TSA Textured Satin Aluminum
¨ TWHT Textured White
¨ TGN Textured Green
¨ TGR Textured Gray
¨ TPG Textured Philips Gray
¨ RAL(*) Specify Custom
RAL color number
¨ 120¨ DFS1P-22
¨ DFS1P-39
Ballast
¨ E Electronic
Voltage
ü
Distribution
¨ NB Narrow Beam
¨ MB Medium Beam
¨ WB Wide Beam
ü
Mounting
¨ PL Plate Mount
(anchors by others)
¨ SM Surface Mount
(to 4” J-Box by others)
(anchors by others)
Series
Lens Options
(includes lens holder, holds up to two lenses)
¨ BSO Beam Softener
¨ HLBSP Beam Spreader Horizontal
¨ VLBSP Beam Spreader Vertical
¨ SGFBL Solgel Blue Filter
¨ SGFLB Solgel Light Blue Filter
¨ SGFYE Solgel Yellow Filter
¨ SGFGN Solgel Green Filter
¨ SGFMG Solgel Magenta Filter
Accessories
(must be ordered separately)
¨ GS-DFS1 Glare Shield
(visor)
¨ WAF1 Warm n°1 Solgel Filter
¨ WAF2 Warm n°2 Solgel Filter
¨ WAF3 Warm n°3 Solgel Filter
¨ COF2 Cool n°2 Solgel Filter
¨ COF3 Cool n°3 Solgel Filter
¨ COF4 Cool n°4 Solgel Filter
Mini MasterColor (CMH Pulse Start)
Mini MasterColor
Color Temp Lenses1
Color Lenses1
Spread Lenses1
DFS1P-22
DFS1P-39
HRL
RL
TWO
TBK
TDB
TSA
TWHT
TGN
TGR
TPG
RAL(*)
PL
SM
SV
SVRB
120ENB
MB
WB
Notes: 1. Lens options include lens holder that can hold up to two lenses. Lens holder comes pre-attached to the fixture.
Photometry for the ‘BSO’ lens should be used for reference only. Lens performance can vary slightly due to manufacturing tolerances.
- --- - ---
Series/Source-Wattage Distribution Ballast Voltage Style Mounting Lens Options Finish AccessoriesOptions
GS-DFS1
Internal Shielding
Options
Internal Shielding
(pre-installed)
External Shielding
(shielding is black unless otherwise specified)
BSO
HLBSP
VLBSP
Spread Lenses
1
Color Lenses
1
Color Temp Lenses1

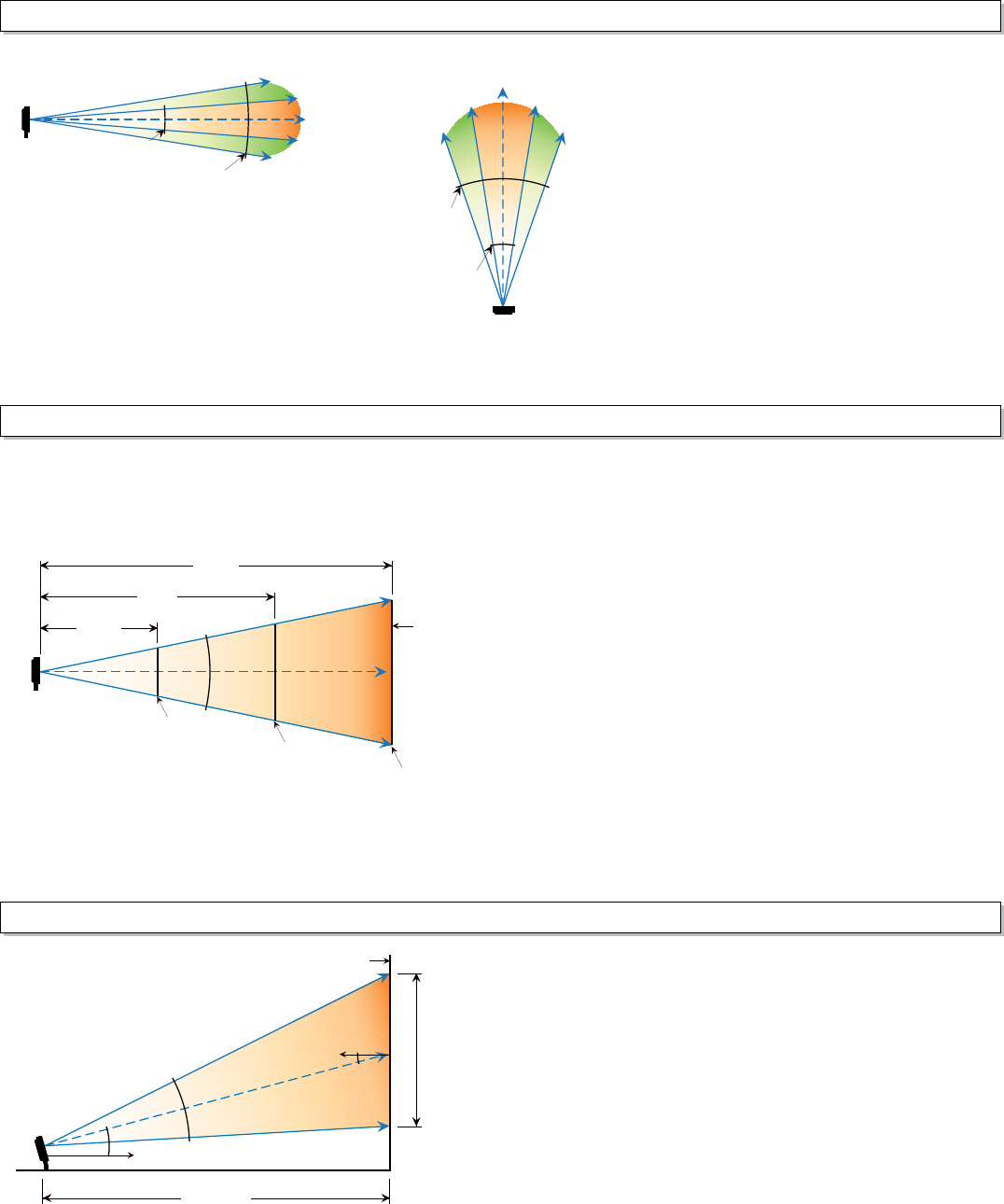

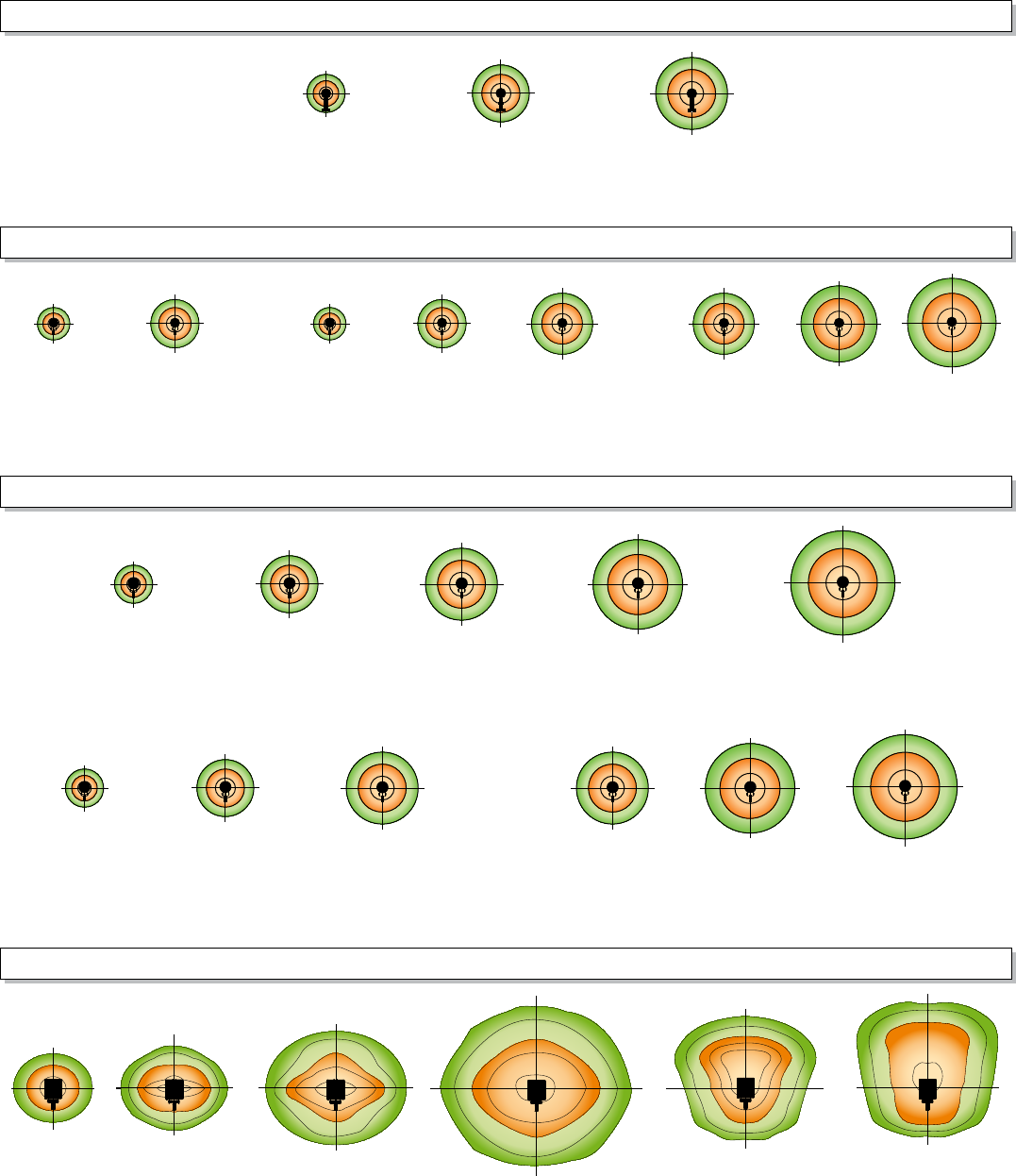

See optical data tables for specific
beam and candela information.
E 120
4.11
”
(10.44 cm)
14.25”
(36.20 cm)
13.71” (34.82 cm)
9.49”
(29.10 cm)
12.10”
(30.73 cm)
4.50”
(11.43 cm)
0.28” dia.
(7.11
mm)
(3X)
mounting
holes
2.12
”
(5.38 cm)
5.25
”
(13.33 cm)
4.45
”
(11.3 cm)
5.0
”
(12.7 cm)
5.0
”
(12.7 cm)
8.25
”
(20.96 cm)
1.1
0
”
(2.79 cm)
2.25”
(5.72 cm)
'SM' Surface Mount includes
thru-wire provision when mounting
to standard recessed 4" square or
octagonal j-box (by others)
Mounts to
standard
recessed 4"
square or
octagonal J-box
(by others)
4.11
”
(10.44 cm)
14.25”
(36.20 cm)
13.71” (34.82 cm)
9.49”
(29.10 cm)
12.10”
(30.73 cm)
4.50”
(11.43 cm)
2.12
”
(5.38 cm)
5.25
”
(13.33 cm)
4.45
”
(11.3 cm)
5.0
”
(12.7 cm)
4.75”
(12.07 cm)
3.5” (8.89 cm)
Please refer to product specification sheets for
details on Solgel Color Temp Lenses..
LANDSCAPE POOL & FOUNTAIN
22
DFS2 Small Round
DFS2-SV
DFS2-YK
23
DFS2
Ordering Matrix
Philips reserves the right to change specifications and dimensions without notice.
Lamp and electrical specifications / availability subject to change by manufacturer without notice.
Please refer to detailed specification sheets for additional information and spec details.
WMB-16.5-(F)
SMT-2-(F)
JB-VMT-(F)
SM-18-(F)
PTA-2180-16.5-(F)
PTA-2090-16.5-(F)
PTA-3090-16.5-(F)
PTA-4090-16.5-(F)
DecoFlood Small Round
DFS2 Order Form
Philips Wide-Lite Professional Luminaires reserves the right to change specifications and dimensions without notice. Lamp and electrical specifications /
availability subject to change by manufacturer without notice. Please refer to detailed specification sheets for additional information and spec details.
1611 Clovis Barker Road • San Marcos, TX 78666 • Phone: 512.392.5821 • Fax: 512.753.1122 • www.wide-lite.com
© 2011 Philips Group
Bulletin No. WLSP0335A0611
NBF
WBF
MBA
WBA

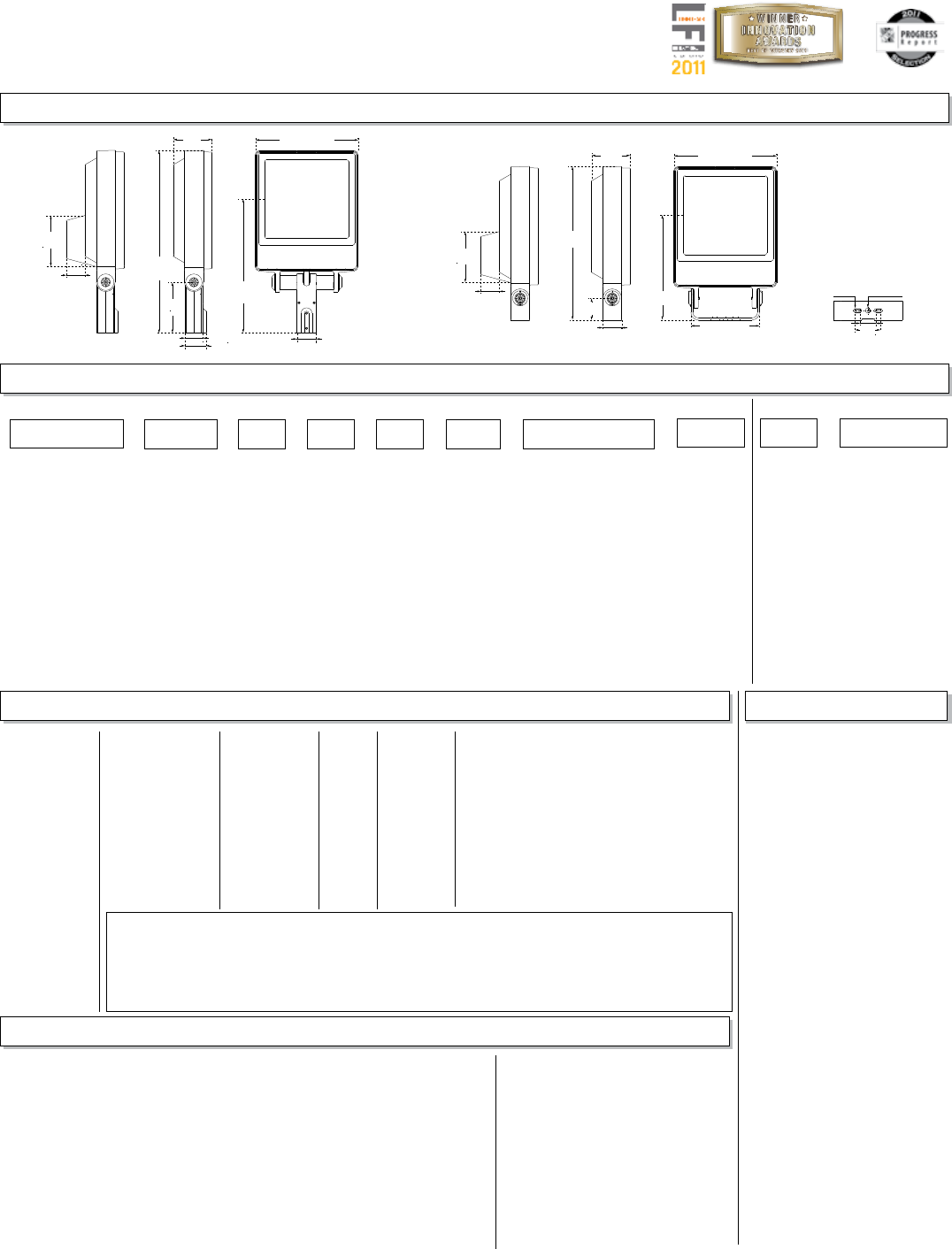

Dimensions
Ordering Information (lamps are not included and must be ordered separately, contact factory for assistance if required)
Style
Finish
¨ TWO Two-Tone
(dark gray, silver)
¨ TBK Textured Black
¨ TDB Textured Dark Bronze
¨ TSA Textured Satin Aluminum
¨ TWHT Textured White
¨ TGN Textured Green
¨ TGR Textured Gray
¨ TPG Textured Philips Gray
¨ RAL(*) Specify Custom
RAL color number
¨ 120
¨ 208
¨ 240
¨ 277
¨ 347
¨ DFS2PT-39
¨ DFS2PT-70
¨ DFS2E-39
¨ DFS2E-70
¨ DFS2E-100
Ballast VoltageDistribution
¨ NBF Narrow Beam
¨ WBF Wide Beam
¨ MBA Medium Beam
¨ WBA Wide Beam
Series
Lens Options
(includes lens holder, holds up to two lenses)
¨ BD-DFS2 Barn Doors
¨ GS-DFS2 Glare Shield
(visor)
¨ CN-DFS2 Cannon
(full snoot)
¨ HRL-DFS2 Half Round Louver
¨ RL-DFS2 Full Round Louver
Options
¨ F1 Single Fuse
(120/277/347V)
¨ F2 Double Fuse
(208/240V)
¨ F3 Double Fuse
(208/240V)
(Canadian double pull)
¨ BD Barn Doors
Available February 1, 2012
Accessories
(must be ordered separately)
T6 Ceramic Metal Halide
MasterColor Elite
Fixed Beam
Adjustable Beam
External Shielding Accessories
(black unless otherwise specified)
Swivel Mount Accessories
Yoke Mount Accessories
¨ WMB-16.5-(F)
Wall Mounting Bracket
¨ SMT-2-(F)
Surface Mounted Tenon
¨ JB -VMT-(F)
Junction Box with SMT-2
¨ SM-18-(F)
18” Stanchion Mount
¨ PTA-2180 -16. 5 -(F)
Pole Top Adaptor 2@180
¨ PTA-2090-16.5-(F)
Pole Top Adaptor 2@90
¨ PTA-3090-16.5-(F)
Pole Top Adaptor 3@90
¨ PTA-4090-16.5-(F)
Pole Top Adaptor 4@90
¨ MF4-(F)
Slip Fitter
(fits 2-3/8” O.D. tenon)
¨ BP-(F)
Surface Mount Base Plate
¨ JB-BP-(F)
Junction Box with BP
(F = specify finish)
¨ E
Electronic
- --- ----
T6 Ceramic Metal Halide
(Pulse Start) Spread Lenses1External ShieldingFixed Beam
Adjustable Beam
DFS2PT-39
DFS2PT-70
DFS2E-39
DFS2E-70
DFS2E-100
BD-DFS2
GS-DFS2
CN-DFS2
HRL-DFS2
RL-DFS2
TWO
TBK
TDB
TSA
TWHT
TGN
TGR
RAL(*)
SGFGN
SGFMG
COF2
COF3
COF4
SGFBL
SGFLB
SGFYE
WAF1
WAF2
WAF3
F1
F2
F3
BD
SV
YK
120
208
240
277
347
E
Series/Source-Wattage Distribution Ballast Voltage Style Options Lens Options Finish Accessories
¨ SV Swivel
¨ YK Yo k e
Standard cord length
is 3 ft.
Notes: 1. Lens options include lens holder that can hold up to two lenses. Lens holder comes pre-attached to the fixture.
Photometry for the ‘BSO’ lens should be used for reference only. Lens performance can vary slightly due to manufacturing tolerances.
¨ BSO Beam Softener
¨ HLBSP Beam Spreader Horizontal
¨ VLBSP Beam Spreader Vertical
¨ SGFBL Solgel Blue Filter
¨ SGFLB Solgel Light Blue Filter
¨ SGFYE Solgel Yellow Filter
¨ SGFGN Solgel Green Filter
¨ SGFMG Solgel Magenta Filter
Spread Lenses
1
Color Lenses
1
Color Temp Lenses1
See optical data tables for specific
beam and candela information.
BSO
HLBSP
VLBSP
9.35”
(23.75cm)
17.03”
(43.26cm)
7.72”
(19.61cm)
3.5”
(8.89cm)
9.18”
(23.32cm)
12.44”
(31.60cm)
3.0”
(7.62cm)
9.35”
(23.75cm)
9.18”
(23.32cm)
14.31”
(36.35cm)
5.0”
(12.7cm)
2.37”
(6.02cm)
9.72”
(24.69cm)
7.0”
(17.78cm)
2.5”
(6.35 cm)
3.5”
(8.89 cm)
0.56” dia. (2X)
(14.22 mm)
0.79” dia.
(20.06 mm)
DFS2-SV DFS2-YK
Swivel Mount
Yoke Mount
MF4-(F)
BP-(F)
JB-BP-(F)
Color Lenses1
Color Temp Lenses1
MasterColor Elite (CMH Pulse Start)
¨ WAF1 Warm n°1 Solgel Filter
¨ WAF2 Warm n°2 Solgel Filter
¨ WAF3 Warm n°3 Solgel Filter
¨ COF2 Cool n°2 Solgel Filter
¨ COF3 Cool n°3 Solgel Filter
¨ COF4 Cool n°4 Solgel Filter
E
ü
Please refer to product specification sheets for
details on Solgel Color Temp Lenses..
LANDSCAPE POOL & FOUNTAIN
24
DFS3 Medium Round
DFS3-SV
DFS3-YK
25
DFS3
Ordering Matrix
Philips reserves the right to change specifications and dimensions without notice.
Lamp and electrical specifications / availability subject to change by manufacturer without notice.
Please refer to detailed specification sheets for additional information and spec details.
- -
DecoFlood Medium Round
DFS3 Order Form
Philips Wide-Lite Professional Luminaires reserves the right to change specifications and dimensions without notice. Lamp and electrical specifications /
availability subject to change by manufacturer without notice. Please refer to detailed specification sheets for additional information and spec details.
1611 Clovis Barker Road • San Marcos, TX 78666 • Phone: 512.392.5821 • Fax: 512.753.1122 • www.wide-lite.com
© 2011 Philips Group
Bulletin No. WLSP0336A0911
¨ BSO Beam Softener
¨ HLBSP Beam Spreader Horizontal
¨ VLBSP Beam Spreader Vertical
¨ SGFBL Solgel Blue Filter
¨ SGFLB Solgel Light Blue Filter
¨ SGFYE Solgel Yellow Filter
¨ SGFGN Solgel Green Filter
¨ SGFMG Solgel Magenta Filter
SGFGN
SGFMG
COF2
COF3
COF4
SGFBL
SGFLB
SGFYE
WAF1
WAF2
WAF3
BSO
HLBSP
VLBSP
NBF
MBF
WBF1
WBF2
WBF3
MBA1
WBA1
NBG5
DFS3PT-391,7
DFS3PT-701
DFS3PT-1501
DFS3E-1001,2
DFS3E-1501,2
DFS3E-2102,3
DFS3P-70
DFS3P-100
DFS3P-150
DFS3S-704
DFS3S-1004
DFS3S-1504
DFS3G-705
DFS3G-1505

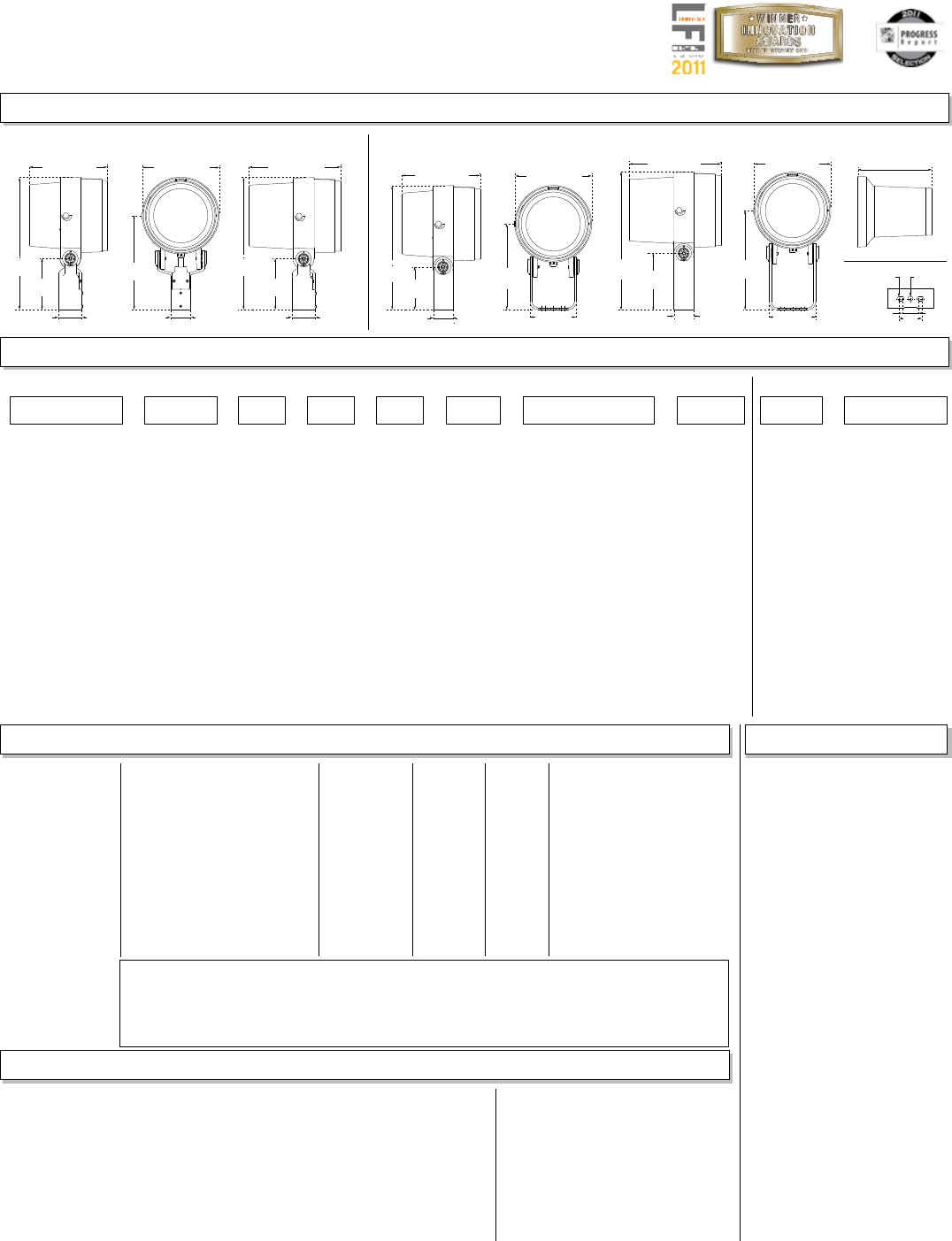

Dimensions
Ordering Information (lamps are not included and must be ordered separately, except for the DFS3G, contact factory for assistance if required)
Style
Finish
¨ 120
3
¨ 208
7
¨ 240
7
¨ 277
¨ 347
3,7
¨ 480
2,3,7
Ballast
¨ E
2
Electronic
¨ C
4,7
Core & Coil
--
-
VoltageDistribution
¨ NBF Narrow Beam
¨ MBF Medium Beam
¨ WBF1 Wide Beam 1
¨ WBF2 Wide Beam 2
¨ WBF3 Wide Beam 3
¨ MBA
1
Medium Beam
¨ WBA
1
Wide Beam
¨ NBG
5
Narrow Beam Gobo
Series
Lens Options
(includes lens holder, holds up to two lenses)
¨ BD-DFS3 Barn Doors
¨ GS-DFS3 Glare Shield
(visor)
¨ CN-DFS3 Cannon
(full snout)
¨ HRL-DFS3 Half Round Louver
¨ RL-DFS3 Full Round Louver
--
Options Accessories
(must be ordered separately)
Color Temp Lenses5,6
Color Lenses5,6
T6 Ceramic Metal Halide
(Pulse Start)
Spread Lenses5,6
MasterColor Elite
(CMH Pulse Start)
Swivel Mount
Yoke Mount
Fixed Beam
Adjustable Beam
External Shielding Accessories
5
(black unless otherwise specified)
Pulse Start Metal Halide
High Pressure Sodium
Fixed Beam
Adjustable Beam
MF4-(F)
BP-(F)
JB-BP-(F)
WMB-16.5-(F)
SMT-2-(F)
JB-VMT-(F)
SM-18-(F)
PTA-2180-16.5-(F)
PTA-2090-16.5-(F)
PTA-3090-16.5-(F)
PTA-4090-16.5-(F)
TWO
TBK
TDB
TSA
TWHT
TGN
TGR
TPG
RAL(*)
SV
YK
1203
2087
2407
277
3473,7
4802,5
E2
C4,7
¨
DFS3PT-39
1,7
¨
DFS3PT-70
1
¨
DFS3PT-150
1
¨
DFS3E-100
1,2
¨
DFS3E-150
1,2
¨
DFS3E-210
2,3
¨
DFS3P-70
¨
DFS3P-100
¨
DFS3P-150
¨
DFS3S-70
4
¨
DFS3S-100
4
¨
DFS3S-150
4
¨
DFS3G-70
5
¨
DFS3G-150
5
T6 Ceramic Metal Halide
MasterColor Elite
Pulse Start Metal Halide
High Pressure Sodium
Series/Source-Wattage Distribution Ballast Voltage Style Options Lens Options Finish
¨ SV
Swivel
¨ YK
Yo k e
Standard
cord
length
is 3 ft.
T6 CMH Gobo Projector
Gobo Projector
Notes:
1. Adjustable beam optics are only available with standard CMH and MasterColor Elite T6 lamps
(T9 210W MCE not available).
2. MasterColor Elite lamps are only available with electronic ballast option ‘E’. Electronic ballasts are
available in 120-347 V, not available in 480 V (see 210W MCE exceptions in note #3).
3. 210 W MCE is not available in 120, 347 and 480V.
4. High Pressure Sodium is only available with core & coil ballast option ‘C’. Core & coil ballasts
are available in 120-480V.
5. DFS3G option available April 1, 2012. DFS3G comes with lamp from the factory and requires ‘NBG’
optic. Shielding and lens options are not available with the DFS3G. Compatible with standard off-
the-shelf or custom Size-A metal gobos or Size-B images in a physical Size-A gobo. DFS3G-150
requires short arctube T6 lamp. DFS3G-70 uses standard T6 lamp.
6. Lens options include lens holder that can hold up to two lenses. Lens holder comes pre-attached to
the fixture. Photometry for the ‘BSO’ lens should be used for reference only. Lens performance can
vary slightly due to manufacturing tolerances.
7. 39 W T6 Ceramic Metal Halide not available in 308, 240, 347 or 480V with ‘C’ core & coil ballasts.
F1
F2
F3
BD
External Shielding5
-
External Shielding5
BD-DFS3
GS-DFS3
CN-DFS3
HRL-DFS3
RL-DFS3
Accessories
¨ WAF1 Warm n°1 Solgel Filter
¨ WAF2 Warm n°2 Solgel Filter
¨ WAF3 Warm n°3 Solgel Filter
¨ COF2 Cool n°2 Solgel Filter
¨ COF3 Cool n°3 Solgel Filter
¨ COF4 Cool n°4 Solgel Filter
Color Lenses
5,6
T6 CMH Gobo Projector
Gobo Projector
DFS3-SV DFS3-YK
¨ F1 Single Fuse
(120/277/347V)
¨ F2 Double Fuse
(208/240/480V)
¨ F3 Double Fuse
(208/240/480V)
(Canadian double pull)
¨ BD Barn Doors
Available February 1, 2012
External Shielding
5 (pre-attached)
See optical data tables for specific
beam and candela information.
Swivel Mount Accessories
Yoke Mount Accessories
¨ WMB-16.5-(F)
Wall Mounting Bracket
¨ SMT-2-(F)
Surface Mounted Tenon
¨ JB -VMT-(F)
Junction Box with SMT-2
¨ SM-18-(F)
18” Stanchion Mount
¨ PTA-2180 -16. 5 -(F)
Pole Top Adaptor 2@180
¨ PTA-2090-16.5-(F)
Pole Top Adaptor 2@90
¨ PTA-3090-16.5-(F)
Pole Top Adaptor 3@90
¨ PTA-4090-16.5-(F)
Pole Top Adaptor 4@90
¨ MF4-(F)
Slip Fitter (fits 2-3/8” O.D. tenon)
¨ BP-(F)
Surface Mount Base Plate
¨ JB-BP-(F)
Junction Box with BP
(F = specify finish)
¨ TWO Two-Tone
(dark gray, silver)
¨ TBK Textured Black
¨ TDB Textured Dark Bronze
¨ TSA Textured Satin Aluminum
¨ TWHT Textured White
¨ TGN Textured Green
¨ TGR Textured Gray
¨ TPG Textured Philips Gray
¨ RAL(*) Specify Custom
RAL color number
Color Temp Lenses5,6
Spread Lenses
5,6
20.0”
(48.69 cm) 14.19”
(36.04 cm)
7.72”
(19.61 cm)
3.5” (8.89 cm) 3.0” (7.62 cm)
11.81” (30.0 cm) 11.58” (29.41 cm)
20.0”
(48.69 cm)
14.19”
(36.04 cm)
7.72”
(19.61 cm)
3.5” (8.89 cm)
3.0” (7.62 cm)
13.90”
(35.31 cm)
11.58” (29.41 cm)
8.55”
(21.72 cm)
20.84”
(52.93 cm) 15.0”
(38.1 cm)
13.90”
(35.31 cm)
7.0”
(17.78 cm)
2.5”
(6.35 cm) 3.5”
(8.89 cm)
0.56” dia. (2X)
(14.22 mm) 0.79” dia.
(20.06 mm)
2.95”
(7.49 cm)
11.58” (29.41 cm)
8.55”
(21.72 cm)
20.84”
(52.93 cm) 15.0”
(38.1 cm)
13.90”
(35.31 cm)
7.0”
(17.78 cm)
2.5”
(6.35 cm) 3.5”
(8.89 cm)
0.56” dia. (2X)
(14.22 mm) 0.79” dia.
(20.06 mm)
2.95”
(7.49 cm)
11.58” (29.41 cm)
18.75”
(47.63 cm) 12.93”
(32.84 cm)
6.46”
(16.41 cm)
2.95”
(7.49 cm)
7.0
”
(
17.78 cm
)
2.5”
(6.35 cm) 3.5”
(8.89 cm)
0.56” dia. (2X)
(14.22 mm) 0.79” dia.
(20.06 mm)
11.58” (29.41 cm)
11.81” (30.0 cm)
DFS3E-210 only DFS3E-210 only DFS3G
Gobo adds 10.26”
(26.06 cm)
Please refer to product specification sheets for
details on Solgel Color Temp Lenses..
LANDSCAPE POOL & FOUNTAIN
26
DFS4 Medium Square
DFS4-SV
DFS4-YK
27
DFS4
Ordering Matrix
Philips reserves the right to change specifications and dimensions without notice.
Lamp and electrical specifications / availability subject to change by manufacturer without notice.
Please refer to detailed specification sheets for additional information and spec details.
DecoFlood Medium Square
DFS4 Order Form
Philips Wide-Lite Professional Luminaires reserves the right to change specifications and dimensions without notice. Lamp and electrical specifications /
availability subject to change by manufacturer without notice. Please refer to detailed specification sheets for additional information and spec details.
1611 Clovis Barker Road • San Marcos, TX 78666 • Phone: 512.392.5821 • Fax: 512.753.1122 • www.wide-lite.com
© 2011 Philips Group
Bulletin No. WLSP0337A1011
Color Lenses8
¨ DFS4PT-39 9
¨ DFS4PT-70
¨ DFS4PT-150
¨ DFS4C-60 1,2,3,7
¨ DFS4C-90 1,2,3,7
¨ DFS4C-140 1,2,3,7
¨ DFS4E-39 1,3
¨ DFS4E-70 1,3
¨ DFS4E-100 1,3
¨ DFS4E-150 1,3
¨ DFS4P-70
¨ DFS4P-100
¨ DFS4P-150
¨ DFS4S-70 4
¨ DFS4S-100 4
¨ DFS4S-150 4
SGFBL
SGFLB
SGFYE
WAF1
WAF2
WAF3
DFS4PT-399
DFS4PT-70
DFS4PT-150
DFS4C-601,2,3,7
DFS4C-901,2,3,7
DFS4C-1401,2,3,7
DFS4E-391,2,3
DFS4E-701,2,3
DFS4E-1001,2,3
DFS4E-1501,2,3
DFS4P-70
DFS4P-100
DFS4P-150
DFS4S-70
4
DFS4S-100
4
DFS4S-150
4
Dimensions
Ordering Information (lamps are not included and must be ordered separately, contact factory for assistance if required)
Style
Finish
¨
TWO Two-Tone (dark gray, silver)
¨
TBK Textured Black
¨
TDB Textured Dark Bronze
¨
TSA Textured Satin Aluminum
¨
TWHT Textured White
¨
TGN Textured Green
¨
TGR Textured Gray
¨
TPG Textured Philips Gray
¨
RAL(*)
Specify Custom RAL color number
¨
120 2
¨
208 9
¨
240 9
¨
277
¨
347 9
¨
480
1, 9
-
Ballast
¨
E
1 Electronic
¨
C
4,9 Core & Coil
--- -
Voltage
-
Distribution
¨
SP 5 Spot Beam
¨
NB Narrow Beam
¨
MB Medium Beam
¨
WB Wide Beam
¨
A45 Asymmetric 1
¨
A60 Asymmetric 2
Series
Lens Options
(includes lens holder, holds up to two lenses)
¨
BSO Beam Softener
¨
HLBSP Beam Spreader Horizontal
¨
VLBSP Beam Spreader Vertical
¨
SGFBL Solgel Blue Filter
¨
SGFLB Solgel Light Blue Filter
¨
SGFYE Solgel Yellow Filter
¨
SGFGN Solgel Green Filter
¨
SGFMG Solgel Magenta Filter
¨
WAF1 Warm n°1 Solgel Filter
¨
WAF2 Warm n°2 Solgel Filter
¨
WAF3 Warm n°3 Solgel Filter
¨
COF2 Cool n°2 Solgel Filter
¨
COF3 Cool n°3 Solgel Filter
¨
COF4 Cool n°4 Solgel Filter
--
Options
¨
F1 6 Single Fuse (120/277/347V)
¨
F2 6 Double Fuse (208/240/480V)
¨
F3 6 Double Fuse (208/240/480V) (Canadian double pull)
¨
PCB 1 Photocell Button (120-347V)
¨
CSR 3,5,6 Hot Quartz Restrike (no time delay)
¨
LQ 3,5,6 Litematic
Hot/Cold
Quartz Restrike
¨
LQ1 3,5,6 Litematic
Hot/Cold
Quartz Restrike
(separately wired)
¨
LS6 7 LumiStep 6 Dimming (Cosmo only)
¨
LS8 7 LumiStep 8 Dimming (Cosmo only)
¨
LS10 7 LumiStep 10 Dimming (Cosmo only)
¨
BD Barn Doors
Available Q1 - 2012
Accessories
(must be ordered separately)
Color Temp Lenses8
Color Lenses8
T6 Ceramic Metal Halide
(Pulse Start)
Spread Lenses
8
CosmoPolis
(CMH Pulse Start)
External Shielding
Swivel Mount
Yoke Mount
External Shielding Accessories
(black unless otherwise specified)
Swivel Mount Accessories
Yoke Mount Accessories
¨
WMB-16.5-(F)
Wall Mounting Bracket
¨
SMT-2-(F)
Surface Mounted Tenon
¨
JB-VMT-(F)
Junction Box with SMT-2
¨
SM-18-(F)
18” Stanchion Mount
¨
PTA-2180-16.5- (F)
Pole Top Adaptor 2@180
¨
PTA-2090-16.5-(F)
Pole Top Adaptor 2@90
¨
PTA-3090 -16.5 -(F)
Pole Top Adaptor 3@90
¨
PTA- 4090 -16.5 -(F)
Pole Top Adaptor 4@90
¨
MF4-(F)
Slip Fitter (fits 2-3/8” O.D. tenon)
¨
BP-(F)
Surface Mount Base Plate
¨
JB-BP-(F)
Junction Box with BP
(F = specify finish)
Pulse Start Metal Halide
MF4-(F)
BP-(F)
JB-BP-(F)
WMB-16.5-(F)
SMT-2-(F)
JB-VMT-(F)
SM-18-(F)
PTA-2180-16.5-(F)
PTA-2090-16.5-(F)
PTA-3090-16.5-(F)
PTA-4090-16.5-(F)
BD-DFS4
TS-DFS4
4S-DFS4
3S-DFS4
HL-DFS4
VL-DFS4
EC-DFS4
TWO
TBK
TDB
TSA
TWHT
TGN
TGR
TPG
RAL(*)
SGFGN
SGFMG
COF2
COF3
COF4
F16
F26
F36
PCB1
CSR3,5,6
LQ3,5,6
LQ13,5,6
LS67
LS87
LS107
BD
SV
YK
120
2
2089
2409
277
3479
4801,2,9
E1
C4,9
SP5
NB
MB
WB
A45
A60
T6 Ceramic Metal Halide
CosmoPolis
MasterColor Elite
Pulse Start Metal Halide
MasterColor Elite
(CMH Pulse Start)
Series/Source-Wattage Distribution Ballast Voltage Style Options Lens Options Finish Accessories
High Pressure Sodium
¨
SV Swivel
¨
YK Yo k e
Standard cord
length is 3 ft.
High Pressure Sodium
Notes:
1.
CosmoPolis & MasterColor Elite lamps are only available with electronic ballast option ‘E’. Electronic ballasts
are available in 120-347V, not available in 480V. (See 90 & 140 W CosmoPolis exception in note #2)
‘PCB’ is not available in 480V.
2. 90 & 140 W CosmoPolis not available in 120V. (available in 208-347V only)
3. Quartz restrike options
(‘CSR’, ‘LQ’, ‘LQ1’)
not available with Electronic Ballast (‘E’) option.
4. High Pressure Sodium is only available with core & coil option ‘C’. Core & coil ballasts available in 120-480V.
5. ‘SP’ optics not available with any restrike options (‘CSR’, ‘LQ’, ‘LQ1’).
All restrike options are 100 W quar tz max, and are not to exceed HID wattage.
6. Fusing is not available with any restrike options (‘CSR’, ‘LQ’, ‘LQ1’).
7. LumiStep dimming is only available with CosmoPolis lamp options.
8. Lens options include lens holder that can hold up to two lenses. Lens holder comes pre-attached to
the fixture. Photometry for the ‘BSO’ lens is for reference only. Performance can vary slightly due to
manufacturing tolerances.
9. 39 W T6 Ceramic Metal Halide not available in 208, 240, 347 or 480V with ‘C’ core & coil ballasts.
External Shielding
Spread Lenses
8Color Temp Lenses8
See optical data tables for specific
beam and candela information.
BSO
HLBSP
VLBSP
19.17”
(48.69 cm)
12.68”
(32.21 cm)
25.66”
(65.18 cm)
7.97”
(20.24 cm)
2.78”
(7.06 cm)
3.29”
(8.36 cm)
3.05”
(7.75 cm)
4.42”
(11.23 cm)
2.38” (6.05 cm)
4.42”
(11.23 cm)
20.57”
(52.25 cm)
2.88”
(7.32 cm)
12.68” (32.21 cm)
14.08”
(35.76 cm)
10.78” (27.38 cm)
4.0”
(10.16 cm)
2.5” (6.35 cm)
0.56” dia. (2X)
(14.22 mm) 0.79” dia.
(20.06 mm)
2.38” (6.05 cm)
4.42”
(11.23 cm)
20.57”
(52.25 cm)
2.88”
(7.32 cm)
12.68” (32.21 cm)
14.08”
(35.76 cm)
10.78” (27.38 cm)
4.0”
(10.16 cm)
2.5” (6.35 cm)
0.56” dia. (2X)
(14.22 mm) 0.79” dia.
(20.06 mm)
DFS4-SV DFS4-YK
External Shielding
(pre-attached)
¨
BD-DFS4 Barn Doors
¨
TS-DFS4 Top Shield (visor)
¨
4S-DFS4 Four Sided Shield
¨
3S-DFS4 Three Sided Shield
¨
HL-DFS4 Horizontal Louvers
¨
VL-DFS4 Vertical Louvers
¨
EC-DFS4 Eggcrate Louvers
Please refer to product specification sheets for
details on Solgel Color Temp Lenses..
LANDSCAPE POOL & FOUNTAIN
28
DFS5 Large Square
DFS5-SV
DFS5-YK
29
DFS5
Ordering Matrix
Philips reserves the right to change specifications and dimensions without notice.
Lamp and electrical specifications / availability subject to change by manufacturer without notice.
Please refer to detailed specification sheets for additional information and spec details.
DecoFlood Large Square
DFS5 Order Form
Philips Wide-Lite reserves the right to change specifications and dimensions without notice. Lamp and electrical specifications / availability
subject to change by manufacturer without notice. Please refer to detailed specification sheets for additional information and spec details.
1611 Clovis Barker Road • San Marcos, TX 78666 • Phone: 512.392.5821 • Fax: 512.753.1122 • www.wide-lite.com
© 2011 Philips Group
Bulletin No. WLSP0338A1011
¨
F15 Single Fuse (120/277/347V)
¨
F25 Double Fuse (208/240/480V)
¨
F35 Double Fuse (208/240/480V) (Canadian double pull)
¨
PCB1 Photocell Button (120-347V)
¨
CSR3,5 Hot Quartz Restrike (no time delay)
¨
LQ3,5 Litematic Hot/Cold Quartz Restrike
¨
LQ13,5 Litematic Hot/Cold Quartz Restrike (separately wired)
¨
BD Barn Doors (Available Q1-2012)
High Pressure Sodium
MasterColor Elite
Pulse Start Metal Halide
SGFGN
SGFMG
COF2
COF3
COF4
SGFBL
SGFLB
SGFYE
WAF1
WAF2
WAF3
DFS5E-2101,4
DFS5E-3151,4
DFS5P-2001,7
DFS5P-2501
DFS5P-3201
DFS5P-3501
DFS5P-4001
DFS5S-2502
DFS5S-4002
Dimensions
Ordering Information (lamps are not included and must be ordered separately, contact factory for assistance if required)
Style
Finish
-
Ballast
--- -
Voltage
-
Distribution
¨
SP
3 Spot Beam
¨
NB Narrow Beam
¨
MB Medium Beam
¨
WB Wide Beam
¨
A45 Asymmetric 1
¨
A60 Asymmetric 2
Series
Lens Options
(includes lens holder, holds up to two lenses)
--
Options Accessories
(must be ordered separately)
MasterColor Elite
External Shielding
Swivel Mount
Yoke Mount
MF4-(F)
BP-(F)
JB-BP-(F)
WMB-16.5-(F)
SMT-2-(F)
JB-VMT-(F)
SM-18-(F)
PTA-2180-16.5-(F)
PTA-2090-16.5-(F)
PTA-3090-16.5-(F)
PTA-4090-16.5-(F)
TWO
TBK
TDB
TSA
TWHT
TGN
TGR
TPG
RAL(*)
SV
YK
¨ DFS5P-2001,7
¨ DFS5P-2501
¨ DFS5P-3201
¨ DFS5P-3501
¨ DFS5P-4001
High Pressure Sodium
Series/Source-Wattage Distribution Ballast Voltage Style Options Lens Options Finish Accessories
¨
SV Swivel
¨
YK Yo k e
Standard
cord length
is 3 ft.
F15
F25
F35
PCB1
CSR3,5
LQ3,5
LQ13,5
BD
120
208
240
277
3477
4801,2,4
E1
C2,7
SP3
NB
MB
WB
A45
A60
External Shielding
Color Temp Lenses6
Color Lenses6
Spread Lenses
6
BD-DFS5
TS-DFS5
4S-DFS5
3S-DFS5
HL-DFS5
VL-DFS5
EC-DFS5
External Shielding (pre-attached)
Notes: 1. Electronic ballasts are available in 120-347V, not available in 480V. MasterColor Elite lamps are available with electronic ballast option ‘E’ only. ‘PCB’ is not available in 480V.
2. High Pressure Sodium is only available with core & coil option ‘C’. Core & coil ballasts are available in 120-480V.
3. ‘SP’ optics and Electronic Ballast Option (‘E’) not available with any restrike options (‘CSR’, ‘LQ’, ‘LQ1’).
4. MasterColor Elite options available in March 2012. MasterColor Elite not available in 480V.
5. Fusing is not available with any restrike options (‘CSR’, ‘LQ’, ‘LQ1’). All restrike options are 150W quartz max.
6. Lens options include lens holder that can hold up to two lenses. Lens holder comes pre-attached to the fixture.
Photometry for the ‘BSO’ lens should be used for reference only. Lens performance can vary slightly due to manufacturing tolerances.
7. DFS5P-200 (200w PSMH) is not available with ‘C’ core & coil ballast in 347V.
¨
120
¨
208
¨
240
¨
277
¨
3477
¨
4801,2,4
¨
E1 Electronic
¨
C
2,7 Core & Coil
See optical data tables for specific
beam and candela information.
BSO
HLBSP
VLBSP
Pulse Start Metal Halide
¨ DFS5S-250
2
¨ DFS5S-400
2
¨ DFS5E-210
1,4
¨ DFS5E-315 1,4
DFS5-SV DFS5-YK
21.03”
(53.42 cm)
28.68”
(72.85 cm)
7.97”
(20.24 cm)
3.05” (7.75 cm)
2.82” (7.16 cm) 3.29” (8.36cm)
16.14” (41.00 cm)
6.08”
(15.44 cm)
3.00”
(7.62 cm)
8.00”
(20.32 cm)
attached
MasterColor Elite
ballast box shown
16.46”
(41.81 cm)
24.11”
(61.24 cm)
3.40”
(8.64 cm)
2.95” (7.49 cm)
0.56” dia. (2X)
(14.22 mm)
0.79” dia.
(20.06 mm)
4.0”
(10.16 cm)
10.78” (27.38 cm)
2.5” (6.35 cm)
16.14” (41.00 cm)
6.08”
(15.44 cm)
3.00”
(7.62 cm)
8.00”
(20.32 cm)
16.46”
(41.81 cm)
24.11”
(61.24 cm)
3.40”
(8.64 cm)
2.95” (7.49 cm)
0.56” dia. (2X)
(14.22 mm)
0.79” dia.
(20.06 mm)
4.0”
(10.16 cm)
10.78” (27.38 cm)
2.5” (6.35 cm)
16.14” (41.00 cm)
6.08”
(15.44 cm)
3.00”
(7.62 cm)
8.00”
(20.32 cm)
External Shielding Accessories
(black unless otherwise specified)
Swivel Mount Accessories
Yoke Mount Accessories
¨
WMB-16.5-(F)
Wall Mounting Bracket
¨
SMT-2-(F)
Surface Mounted Tenon
¨
JB-VMT-(F)
Junction Box with SMT-2
¨
SM-18-(F)
18” Stanchion Mount
¨
PTA-2180-16.5- (F)
Pole Top Adaptor 2@180
¨
PTA-2090-16.5-(F)
Pole Top Adaptor 2@90
¨
PTA-3090 -16.5 -(F)
Pole Top Adaptor 3@90
¨
PTA- 4090 -16.5 -(F)
Pole Top Adaptor 4@90
¨
MF4-(F)
Slip Fitter (fits 2-3/8” O.D. tenon)
¨
BP-(F)
Surface Mount Base Plate
¨
JB-BP-(F)
Junction Box with BP
(F = specify finish)
¨
BD-DFS5 Barn Doors
¨
TS-DFS5 Top Shield (visor)
¨
4S-DFS5 Four Sided Shield
¨
3S-DFS5 Three Sided Shield
¨
HL-DFS5 Horizontal Louvers
¨
VL-DFS5 Vertical Louvers
¨
EC-DFS5 Eggcrate Louvers
Color Lenses6
¨
BSO Beam Softener
¨
HLBSP Beam Spreader Horizontal
¨
VLBSP Beam Spreader Vertical
¨
SGFBL Solgel Blue Filter
¨
SGFLB Solgel Light Blue Filter
¨
SGFYE Solgel Yellow Filter
¨
SGFGN Solgel Green Filter
¨
SGFMG Solgel Magenta Filter
¨
WAF1 Warm n°1 Solgel Filter
¨
WAF2 Warm n°2 Solgel Filter
¨
WAF3 Warm n°3 Solgel Filter
¨
COF2 Cool n°2 Solgel Filter
¨
COF3 Cool n°3 Solgel Filter
¨
COF4 Cool n°4 Solgel Filter
Spread Lenses
6Color Temp Lenses6
¨
TWO Two-Tone (dark gray, silver)
¨
TBK Textured Black
¨
TDB Textured Dark Bronze
¨
TSA Textured Satin Aluminum
¨
TWHT Textured White
¨
TGN Textured Green
¨
TGR Textured Gray
¨
TPG Textured Philips Gray
¨
RAL(*) Specify Custom
RAL color number
attached
MasterColor Elite
ballast box shown
Please refer to product specification sheets for
details on Solgel Color Temp Lenses..
LANDSCAPE POOL & FOUNTAIN
30
Shield & Lens Accessory Details
HRL Internal Half Round Louver
(ships installed)
GS-DFS1 Glare Shield (visor)
(must be ordered separately)
DFS1 Shield & Lens Accessory Details (refer to specific DFS1 product spec sheets for additional details)
RL Internal Full Round Louver
(ships installed)
External Lens Holder DFS1
(included with any lens option)
(can hold up to two different lenses at once)
(ships installed)
DFS2 & DFS3 Shield & Lens Accessory Details (refer to specific DFS2 or DFS3 product spec sheets for additional details)
BD-DFS2/3 Barn Doors
(must be ordered separately)
External Lens Holder DFS2/3
(included with any lens option)
(can hold up to two different lenses at once)
(ships installed)
GS-DFS2/3 Glare Shield (visor)
(must be ordered separately)
CN-DFS2/3 Cannon
(full snoot)
(must be ordered separately)
HRL-DFS2/3 Half Round Louver
(must be ordered separately)
RL-DFS2/3 Full Round Louver
(must be ordered separately)
DFS4 & DFS5 Shield & Lens Accessory Details (refer to specific DFS4 or DFS5 product spec sheets for additional details)
BD-DFS4/5 Barn Doors
(must be ordered separately)
TS-DFS4/5
Top Shield
(visor)
(must be ordered separately)
4S-DFS4/5 Four Sided Shield
(must be ordered separately)
Philips reserves the right to change specifications and dimensions without notice.
Lamp and electrical specifications / availability subject to change by manufacturer without notice.
Please refer to detailed specification sheets for additional information and spec details.
3S-DFS4/5 Three Sided Shield
(must be ordered separately)
HL-DFS4/5 Horizontal Louvers
(must be ordered separately)
4.45
”
(12.45 cm)
1.5
”
(3.81 cm)
8.80”
(22.35 cm)DFS2 =
12.0”
(30.48 cm)DFS3 =
DFS2 = 1.52”
(3.9 cm)
DFS3 = 1.57”
(4.0 cm)
9.60”
(24.38 cm)DFS2 =
12.0”
(30.48 cm)DFS3 =
8.00”
(20.32 cm)DFS2 =
10.25”
(26.04 cm)DFS3 =
8.00”
(20.23 cm)
DFS4 =
10.00”
(25.4 cm)
DFS5 =
8.0”
(20.23 cm)
DFS4 =
10.00”
(25.4 cm)
DFS5 =
2.40”
(6.10 cm)
DFS4 =
3.10”
(7.88 cm)
DFS5 =
2.40”
(6.10 cm)
DFS4 =
3.10”
(7.88 cm)
DFS5 =
2.40”
(6.10 cm)
DFS4 =
3.10”
(7.88 cm)
DFS5 =
5.50”
(13.97 cm)
DFS2 =
6.90”
(17.53 cm)
DFS3 =
5.50”
(13.97 cm)DFS2 =
6.90”
(17.53 cm)
DFS3 =
DFS2 = 0.75”
(1.91 cm)
DFS3 = 0.90”
(2.29 cm)
DFS2 = 0.75”
(1.91 cm)
DFS3 = 0.90”
(2.29 cm)
7.87”(19.99 cm)
9.87”
(25.07 cm)
11.77”
(29.9 cm)
DFS4 =
9.87”
(25.07 cm)
DFS5 =
DFS4 =
DFS5 =
8.00”
(20.23 cm)
DFS4 =
10.00”
(25.4 cm)
DFS5 =
1.57”
(3.99 cm)
DFS4 =
1.57”
(3.99 cm)
DFS5 =
External Lens Holder DFS4/5
(included with any lens option)
(can hold up to two different lenses at once)
(ships installed)
VL-DFS4/5 Vertical Louvers
(must be ordered separately)
EC-DFS4/5 Eggcrate Louvers
(must be ordered separately)
31
SMT-2-(F)
Surface Mounted Tenon
JB -VMT-(F)
Junction Box with SMT-2
SM-18-(F)
18” Stanchion Mount
PTA-2180 -16. 5 -(F)
Pole Top Adapter, 2@180
PTA-2090-16.5-(F)
Pole Top Adapter, 2@90
PTA-3090-16.5-(F)
Pole Top Adapter, 3@90
PTA-4090-16.5-(F)
Pole Top Adapter, 4@90
additional EPA:
additional EPA: additional EPA: additional EPA:
0.75
2 @ 180
1.2
2 @ 90
1.0
3 @ 90 1.5
4 @ 90
16.5”
(41.91cm)
gasket
JB
4.05”
square
mounting
pattern
4 x 0.56”
dia. hole
SMT-2
0.625”
dia.
(1.57cm)
4 pl. typ.
6.0”
(15.24cm)
5.0”
(12.70cm)
5.38”
(13.65cm)
4.0”
(10.16cm)
(41.91cm)
16.5”
0.56” dia. hole,
4 places typical
2-3/8” O.D.
Pipe Tenon
5.0”
6.0”
5.0”
(12.70 cm)
4.0”
(10.16 cm)
(12.70 cm)
(15.24cm)
2-3/8” O.D. vertical tenon welded to extruded
aluminum arm with removable end cap for wiring.
Arm is bolted to a cast aluminum plate that has
four 5/8” diameter mounting holes.
Suitable for mounting single luminaire only.
Mounting hardware by others.
2-3/8” O.D. aluminum tenon welded to a flat
aluminum plate with four 1/2” diameter mounting
holes.
Single floodlight may be pad mounted or wall
mounted.
Mounting hardware by others.
For mounting to flat surfaces when using surface
mount conduit.
Box has four 1/2” pipe entrances.
Mounting hardware by others.
Stanchion mounting allows stable positioning of
vertical tenon member in aggregate or substrate.
2-3/8” O.D. aluminum tenon welded to a 2-7/8”
stanchion.
Standard length: 18”
Vertically mounted 2-3/8” O.D. tenons welded to extruded aluminum arms with removable end cap for wiring.
Arms bolted to cast aluminum pole top bracket. Fits poles having a 2-3/8” O.D. x 4” vertical tenon.
Components shipped separately. Field assembly required.
Philips reserves the right to change specications and dimensions without notice.
Lamp and electrical specications / availability subject to change by manufacturer without notice.
Please refer to detailed specication sheets for additional information and spec details.
Philips reserves the right to change specifications and dimensions without notice.
Lamp and electrical specifications / availability subject to change by manufacturer without notice.
Please refer to detailed specification sheets for additional information and spec details.
Swivel Mount Accessory Details DFS2/3/4/5 (must be ordered separately) (F = specify finish)
Mounting Accessory Details
MF4-(F) Slip Fitter
(fits 2-3/8” O.D. tenon)
BP-(F) Surface Mount Base Plate
Flat aluminum plate with four 1/2” diameter
mounting holes. Single floodlight may be pad
mounted or wall mounted.
Mounting hardware by others.
JB-BP-(F) Junction Box with BP
For mounting to flat surfaces when
using surface mount conduit.
Box has four 1/2” pipe entrances.
Mounting hardware by others.
WMB-16.5-(F)
Wall Mounting Bracket
Yoke Mount Accessory Details DFS2/3/4/5 (must be ordered separately) (F = specify finish)
5.12”
(13.00 cm)
3.63”
(9.22 cm)
gasket
JB
4.05”
square
mounting
pattern
4 x 0.56”
dia. hole
BP
0.56” dia. hole,
4 places typical
5.0”
6.0”
5.0”
(12.70 cm)
4.0”
(10.16 cm)
(12.70 cm)
(15.24cm)
32
Floodlighting 101, basic design elements
50% Main Beam & 10% Field Beam Explained
Inverse Square Law
This is a simple calculation used to determine if an optic and lamp choice can
produce the level of illumination you require by simply aiming the fixture directly
straight at the targeted surface.
Fc = I / D2
Fc is the measured level of illuminance normal (90o) to the targeted surface.
I is the luminous intensity exiting the luminaire measured in Candela.
D is the distance in feet from fixture to the point of illumination to be measured.
Example 2
DFS5E-315-MB: 50% Beam = 83.9o x 23.9o (Ho x Vo), Candela (I) = 24,290 at 0o x 0o (Ho x Vo)
Floodlighting is a combination of art and science. The science part can be tricky without the use of computer software, but some general rules
of thumb can help guide you. With floodlighting, as the distance from the luminaire to the targeted surface increases, the effect of the optical
distribution is greatly affected. As the setback distance increases, the width of beam coverage increases while the levels of illumination inside the
beam angle decreases.
Fc (A) = 24,290 / 202 = 60.7 Fc Fc (B) = 24,290 / 402 = 15.2 Fc Fc (C) = 24,290 / 602 = 6.7 Fc
Inverse Square Cosine Law
In the real world, most floodlighting applications are not aimed straight at the
targeted surface but with some form of fixture tilt or aiming angle. This change in
angle in relation to the incident angle of the targeted surface will effect the level of
illuminance. This is related directly to the Cosine of the incident angle, and can be
evaluated using this simple calculation.
Fc = (I / D2) * Cos (Xi)
Fc is the measured level of illuminance normal (90o) to the targeted surface.
I is the luminous intensity exiting the luminaire measured in Candela.
D is the distance in feet from fixture to the point of illumination to be measured.
Xi is incident angle from the beam to the point of illumination to be measured.
Example 3
DFS5E-315-MB: 50% Beam = 83.9o x 23.9o (Ho x Vo), Candela (I) = 24,290 at 0o x 0o (Ho x Vo)
Fc (A) = (24,290 / 62.12) * Cos (15o) = 6.1 Fc
Inverse Square Law
50% Main Beam
The 50% beam is commonly referred to as the optical
main beam and is measured in H x V degrees. The
main beam is defined by the H x V angles, where 50%
of the distribution's maximum candela value (luminous
intensity) exits the luminaire.
10% Field Beam
The 10% beam is commonly referred to as the optical
field beam and is measured in H x V degrees. The field
beam is defined by the H x V angles where 10% of
the distribution's maximum candela value (luminous
intensity) exits the luminaire.
Example 1
DFS5P-400-SP: Max Candela (I) = 238,769 at 0o x 0o (Ho x Vo)
50% Main Beam = 18.3o x 8.9o (Ho x Vo), 50% of Max Candela (I) = 119,385 Cd
10% Field Beam = 38.2o x 18.2o (Ho x Vo), 10% of Max Candela (I) = 23,876 Cd
A B C
D=20’
D=40’
D=60’
50% Beam
Ver tical Coverage
8.5’ (@ D = 20’)
23.9º (V)
50% Beam
Ver tical Coverage
17.0’ (@ D = 40’) 50% Beam
Ver tical Coverage
25.5’ (@ D = 60’)
Targeted
Surface
24,290 Cd
at 0º x 0º (Hº x Vº)
♦♦♦
DFS5 is aimed 0˚ straight
10% Horizontal
Field Beam
38.2˚
23,876 Cd
119,385 Cd
238,769 Cd (max center beam Cd)
Horizontal beam spread
119,385 Cd (50% max Cd)
23,876 Cd (10% max Cd)
50% Horizontal
Main Beam
18.3˚
10% Vertical Field Beam
18.2˚
50% Vertical Main Beam
8.9˚
238,769 Cd
(max center beam Cd)
119,385 Cd
(50% max Cd)
119,385 Cd
23,876 Cd
23,876 Cd
(10% max Cd)
Vertical beam spread
D = 62.1’
Xi = 15˚
23.9º (V)
♦A
60’ setback
50% Beam
Ver tical Coverage
27.4’ (@ D = 60’)
DFS5 is aimed 15˚ up
Targeted
Surface
Inverse Square Cosine Law
33
General beam characteristics
DFS1 Distributions1
DFS2 Distributions1
DFS3 Distributions1
DFS4 & DFS5 Distributions1
WBF3
Wide Beam
Flood 3
61.2
o
x 61.8
o
98.5
o
x 98.8
o
WBF2
Wide Beam
Flood 2
42.0
o
x 42.3
o
69.9
o
x 70.3
o
WBF1
Wide Beam
Flood 1
21.5
o
x 21.5
o
42.7
o
x 42.8
o
MBF
Medium Beam
Flood
13.8
o
x 13.8
o
24.2
o
x 24.2
o
NBF
Narrow Beam
Flood
7.3
o
x 7.3
o
16.3
o
x 16.3
o
MBA (high)
Medium Beam
Adjustable Flood
25.4
o
x 25.4
o
41.5
o
x 41.5
o
MBA (mid)
Medium Beam
Adjustable Flood
13.2
o
x 13.2
o
25.6
o
x 25.7
o
MBA (low)
Medium Beam
Adjustable Flood
8.4
o
x 8.4
o
18.8
o
x 18.8
o
WBA (high)
Wide Beam
Adjustable Flood
55.0
o
x 55.0
o
88.9
o
x 88.9
o
WBA (mid)
Wide Beam
Adjustable Flood
36.6
o
x 36.6
o
61.3
o
x 61.3
o
WBA (low)
Wide Beam
Adjustable Flood
18.9
o
x 19.9
o
40.6
o
x 40.6
o
WBF
Wide Beam
Flood
16.8
o
x 16.7
o
32.3
o
x 32.4
o
NBF
Narrow Beam
Flood
8.9
o
x 8.9
o
19.5
o
x 19.4
o
MBA (high)
Medium Beam
Adjustable Flood
15.0
o
x 15.1
o
38.2
o
x 38.3
o
MBA (mid)
Medium Beam
Adjustable Flood
15.1
o
x 15.2
o
29.2
o
x 29.3
o
MBA (low)
Medium Beam
Adjustable Flood
8.3
o
x 8.3
o
19.0
o
x 19.1
o
WBA (high)
Wide Beam
Adjustable Flood
63.3
o
x 63.5
o
102.8
o
x 103.0
o
WBA (mid)
Wide Beam
Adjustable Flood
46.9
o
x 47.0
o
83.5
o
x 84.2
o
WBA (low)
Wide Beam
Adjustable Flood
22.1
o
x 22.1
o
47.6
o
x 47.7
o
MB
Medium Beam
Flood
84.3
o
x 26.0
o
141.0
o
x 125.6
o
NB
Narrow Beam
Flood
80.9
o
x 12.4
o
133.5
o
x 27.2
o
Spot
Spot Beam
8.1
o
x 6.4
o
21.9
o
x 15.8
o
A45
45
o
Asymmetric Beam
74.6
o
x 18.7
o
112.0
o
x 123.6
o
WB
Wide Beam
Flood
92.0
o
x 55.5
o
145.8
o
x 134.2
o
A60
60
o
Asymmetric Beam
78.1
o
x 29.8
o
111.7
o
x 127.4
o
WB
Wide Beam
22.0
o
x 22.0
o
58.0
o
x 58.0
o
MB
Medium Beam
16.0
o
x 16.0
o
35.9
o
x 35.9
o
NB
Narrow Beam
6.6
o
x 6.6
o
17.1
o
x 17.1
o
1. Shaded orange 50% Main Beams and shaded green 10% Field Beams are for visual reference only and are not to scale as beams may vary by lamp type and wattage choice.
Beam angles shown are for reference only and may vary by lamp type and wattage choice. Please see optical data tables on pages 34 - 39 for specific optical data and beam information.
Please contact factory for application engineering assistance.
Orange represents 50% Main Beam (H
o
x V
o
)
Green
represents 10% Field Beam (H
o
x V
o
)
34
DFS1 Optical Data
Cat No. Optic Initial
Lumens
Max
CD
50%
Main Beam
(hor.)
50%
Main Beam
(vert.)
10%
Field Beam
(hor.)
10%
Field Beam
(vert.)
NEMA
Beam
(hor.)
NEMA
Beam
(vert.)
Lamp
Type Base Lamp
Axis IES File #
DFS1P-22 NB 1,650 34,658 6.6° 6.6° 17.1° 17.1° 1H 1V BT-5 PGJ5 Axial DFS1P-22-NB.IES
MB 1,650 8,097 16.0° 16.0° 35.9° 35.9° 3H 3V BT-5 PGJ5 Axial DFS1P-22-MB.IES
WB 1,650 3,736 22.0° 22.0° 58.0° 58.0° 4H 4V BT-5 PGJ5 Axial DFS1P-22-WB.IES
DFS1P-39 NB 3,000 63,014 6.6° 6.6° 17.1° 17.1° 1H 1V BT-5 PGJ5 Axial DFS1P-39-NB.IES
MB 3,000 14,721 16.0° 16.0° 35.9° 35.9° 3H 3V BT-5 PGJ5 Axial DFS1P-39-MB.IES
WB 3,000 6,793 22.0° 22.0° 58.0° 58.0° 4H 4V BT-5 PGJ5 Axial DFS1P-39-WB.IES
Mini MasterColor (CMH Pulse Start)
DFS2 Optical Data
Cat No. Optic Initial
Lumens
Max
CD
50%
Main Beam
(hor.)
50%
Main Beam
(vert.)
10%
Field Beam
(hor.)
10%
Field Beam
(vert.)
NEMA
Beam
(hor.)
NEMA
Beam
(vert.)
Lamp
Type Base Lamp
Axis IES File #
DFS2PT-39 NBF 3,300 44,654 8.9° 8.9° 19.5° 19.4° 2H 2V T6 G12 Axial DFS2PT-39-NBF.IES
WBF 3,300 15,582 16.8° 16.7° 32.3° 32.4° 3H 3V T6 G12 Axial DFS2PT-39-WBF.IES
MBA (low) 3,300 39,166 8.3° 8.3° 19.0° 19.1° 2H 2V T6 G12 Axial DFS2PT-39-MBA-LOW.IES
MBA (mid) 3,300 16,216 15.1° 15.2° 29.2° 29.3° 3H 3V T6 G12 Axial DFS2PT-39-MBA-MID.IES
MBA (high) 3,300 10,611 15.0° 15.1° 38.2° 38.3° 3H 3V T6 G12 Axial DFS2PT-39-MBA-HIGH.IES
WBA (low) 3,300 8,385 22.1° 22.2° 47.6° 47.7° 4H 4V T6 G12 Axial DFS2PT-39-WBA-LOW.IES
WBA (mid) 3,300 2,925 46.9° 47.0° 83.5° 84.2° 5H 5V T6 G12 Axial DFS2PT-39-WBA-MID.IES
WBA (high) 3,300 1,816 63.3° 63.5° 102.8° 103.0° 6H 6V T6 G12 Axial DFS2PT-39-WBA-HIGH.IES
DFS2PT-70 NBF 6,600 89,308 8.9° 8.9° 19.5° 19.4° 2H 2V T6 G12 Axial DFS2PT-70-NBF.IES
WBF 6,600 31,163 16.8° 16.7° 32.3° 32.4° 3H 3V T6 G12 Axial DFS2PT-70-WBF.IES
MBA (low) 6,600 78,331 8.3° 8.3° 19.0° 19.1° 2H 2V T6 G12 Axial DFS2PT-70-MBA-LOW.IES
MBA (mid) 6,600 32,432 15.1° 15.2° 29.2° 29.3° 3H 3V T6 G12 Axial DFS2PT-70-MBA-MID.IES
MBA (high) 6,600 21,222 15.0° 15.1° 38.2° 38.3° 3H 3V T6 G12 Axial DFS2PT-70-MBA-HIGH.IES
WBA (low) 6,600 16,770 22.1° 22.2° 47. 6° 47.7° 4H 4V T6 G12 Axial DFS2PT-70-WBA-LOW.IES
WBA (mid) 6,600 5,850 46.9° 47.0° 83.5° 84.2° 5H 5V T6 G12 Axial DFS2PT-70-WBA-MID.IES
WBA (high) 6,600 3,632 63.3° 63.5° 102.8° 103.0° 6H 6V T6 G12 Axial DFS2PT-70-WBA-HIGH.IES
DFS2E-39 NBF 3,500 47,360 8.9° 8.9° 19.5° 19.4° 2H 2V T6 G12 Axial DFS2E-39-NBF.IES
WBF 3,500 16,526 16.8° 16.7° 32.3° 32.4° 3H 3V T6 G12 Axial DFS2E-39-WBF.IES
MBA (low) 3,500 41,539 8.3° 8.3° 19.0° 19.1° 2H 2V T6 G12 Axial DFS2E-39-MBA-LOW.IES
MBA (mid) 3,500 17,199 15.1° 15.2° 29.2° 29.3° 3H 3V T6 G12 Axial DFS2E-39-MBA-MID.IES
MBA (high) 3,500 11,254 15.0° 15.1° 38.2° 38.3° 3H 3V T6 G12 Axial DFS2E-39-MBA-HIGH.IES
WBA (low) 3,500 8,893 22.1° 22.2° 47.6° 47.7° 4H 4V T6 G12 Axial DFS2E-39-WBA-LOW.IES
WBA (mid) 3,500 3,102 46.9° 47.0° 83.5° 84.2° 5H 5V T6 G12 Axial DFS2E-39-WBA-MID.IES
WBA (high) 3,500 1,926 63.3° 63.5° 102.8° 103.0° 6H 6V T6 G12 Axial DFS2E-39-WBA-HIGH.IES
DFS2E-70 NBF 7,300 98,780 8.9° 8.9° 19.5° 19.4° 2H 2V T6 G12 Axial DFS2E-70-NBF.IES
WBF 7,30 0 34,468 16.8° 16.7° 32.3° 32.4° 3H 3V T6 G12 Axial DFS2E-70-WBF.IES
MBA (low) 7,300 86,639 8.3° 8.3° 19.0° 19.1° 2H 2V T6 G12 Axial DFS2E-70-MBA-LOW.IES
MBA (mid) 7,30 0 35,872 15.1° 15.2° 29.2° 29.3° 3H 3V T6 G12 Axial DFS2E-70-MBA-MID.IES
MBA (high) 7,300 23,473 15.0° 15.1° 38.2° 38.3° 3H 3V T6 G12 Axial DFS2E-70-MBA-HIGH.IES
WBA (low) 7,30 0 27,950 22.1° 22.2° 47.6° 47.7° 4H 4V T6 G12 Axial DFS2E-70-WBA-LOW.IES
WBA (mid) 7,30 0 6,471 46.9° 47.0° 83.5° 84.2° 5H 5V T6 G12 Axial DFS2E-70-WBA-MID.IES
WBA (high) 7,30 0 4,017 63.3° 63.5° 102.8° 103.0° 6H 6V T6 G12 Axial DFS2E-70-WBA-HIGH.IES
DFS2E-100 NBF 11,000 148,847 8.9° 8.9° 19.5° 19.4° 2H 2V T6 G12 Axial DFS2E-100 -NBF.IES
WBF 11,000 51,938 16.8° 16.7° 32.3° 32.4° 3H 3V T6 G12 Axial DFS2E-100-WBF.IES
MBA (low) 11,000 130,552 8.3° 8.3° 19.0° 19.1° 2H 2V T6 G12 Axial DFS2E-100-MBA-LOW.IES
MBA (mid) 11,000 54,054 15.1° 15.2° 29.2° 29.3° 3H 3V T6 G12 Axial DFS2E-100-MBA-MID.IES
MBA (high) 11,000 35,370 15.0° 15.1° 38.2° 38.3° 3H 3V T6 G12 Axial DFS2E-100-MBA-HIGH.IES
WBA (low) 11,000 27,950 22.1° 22.2° 47.6° 47.7° 4H 4V T6 G12 Axial DFS2E-100-WBA-LOW.IES
WBA (mid) 11,000 9,750 46.9° 47.0° 83.5° 84.2° 5H 5V T6 G12 Axial DFS2E-100-WBA-MID.IES
WBA (high) 11,000 6,053 63.3° 63.5° 102.8° 103.0° 6H 6V T6 G12 Axial DFS2E-100-WBA-HIGH.IES
T6 Ceramic Metal Halide (CMH Pulse Start)
MasterColor Elite (CMH Pulse Start)
Please contact factory for application engineering assistance. Visit our website for available shield and lens reports.
DFS1 can be aimed 67.5o up or 67.5o down when mounted to a horizontal surface.
Please see spec sheet for specific allowable aiming angle details.
DFS2-SV can be aimed 70.0o up or 57.5o down when mounted to a horizontal surface.
DFS2-YK can be aimed 90.0o up or 90.0o down when mounted to a horizontal surface.
Please see spec sheet for aiming diagram details.
Upº
Downº
0º
Upº
Downº
0º
35
DFS3 Optical Data
Cat No. Optic Initial
Lumens
Max
CD
50%
Main Beam
(hor.)
50%
Main Beam
(vert.)
10%
Field Beam
(hor.)
10%
Field Beam
(vert.)
NEMA
Beam
(hor.)
NEMA
Beam
(vert.)
Lamp
Type Base Lamp
Axis IES File #
DFS3PT-39 NBF 3,300 63,256 7.3° 7.3° 16.3° 16.3° 1H 1V T6 G12 Axial DFS3PT-39-NBF.IES
MBF 3,300 25,424 13.8° 13.8° 24.2° 24.2° 2H 2V T6 G12 Axial DFS3PT-39-MBF.IES
WBF1 3,300 9,301 21.5° 21.5° 42.7° 42.8° 3H 3V T6 G12 Axial DFS3PT-39-WBF1.IES
WBF2 3,300 3,437 42.0° 43.0° 69.9° 70.3° 4H 5V T6 G12 Axial DFS3PT-39-WBF2.IES
WBF3 3,300 2,002 61.2° 61.8° 98.5° 98.8° 5H 5V T6 G12 Axial DFS3PT-39-WBF3.IES
MBA (low) 3,300 52,888 8.4° 8.4° 18.8° 18.8° 2H 2V T6 G12 Axial DFS3PT-39-MBA-LOW.IES
MBA (mid) 3,300 25,719 13.2° 13.2° 25.6° 25.6° 2H 2V T6 G12 Axial DFS3PT-39-MBA-MID.IES
MBA (high) 3,300 8,428 25.4° 25.4° 41.5° 41.5° 3H 3V T6 G12 Axial DFS3PT-39-MBA-HIGH.IES
WBA (low) 3,300 13,009 18.9° 19.9° 40.6° 40.6° 3H 3V T6 G12 Axial DFS3PT-39-WBA-LOW.IES
WBA (mid) 3,300 5,068 36.6° 36.6° 61.3° 61.3° 4H 4V T6 G12 Axial DFS3PT-39-WBA-MID.IES
WBA (high) 3,300 2,574 55.0° 55.0° 88.9° 88.9° 5H 5V T6 G12 Axial DFS3PT-39-WBA-HIGH.IES
DFS3PT-70 NBF 6,600 126 ,513 7. 3° 7.3° 16.3° 16.3° 1H 1V T6 G12 Axial DFS3PT-70-NBF.IES
MBF 6,600 50,848 13. 8° 13.8° 24.2° 24.2° 2H 2V T6 G12 Axial DFS3PT-70-MBF.IES
WBF1 6,600 18,601 21.5° 21.5° 42.7° 42.8° 3H 3V T6 G12 Axial DFS3PT-70-WBF1.IES
WBF2 6,600 6,874 42.0° 43.0° 69.9° 70.3° 4H 5V T6 G12 Axial DFS3PT-70-WBF2.IES
WBF3 6,600 4,004 61.2° 61.8° 98.5° 98.8° 5H 5V T6 G12 Axial DFS3PT-70-WBF3.IES
MBA (low) 6,600 110,310 8.4° 8.4° 18.8° 18.8° 2H 2V T6 G12 Axial DFS3PT-70-MBA-LOW.IES
MBA (mid) 6,600 53,643 13.2° 13.2° 25.6° 25.6° 2H 2V T6 G12 Axial DFS3PT-70-MBA-MID.IES
MBA (high) 6,600 17,579 25.4° 25.4° 41.5° 41.5° 3H 3V T6 G12 Axial DFS3PT-70-MBA-HIGH.IES
WBA (low) 6,600 27,133 18.9° 19.9° 40.6° 40.6° 3H 3V T6 G12 Axial DFS3PT-70-WBA-LOW.IES
WBA (mid) 6,600 10,571 36.6° 36.6° 61.3° 61.3° 4H 4V T6 G12 Axial DFS3PT-70-WBA-MID.IES
WBA (high) 6,600 5,369 55.0° 55.0° 88.9° 88.9° 5H 5V T6 G12 Axial DFS3PT-70-WBA-HIGH.IES
DFS3PT-150 NBF 14,000 268,360 7.3° 7.3° 16.3° 16.3° 1H 1V T6 G12 Axial DFS3PT-150-NBF.IES
MBF 14,000 107,860 13.8° 13.8° 24.2° 24.2° 2H 2V T6 G12 Axial DFS3PT-150-MBF.IES
WBF1 14,000 39,458 21.5° 21.5° 42.7° 42.8° 3H 3V T6 G12 Axial DFS3PT-150-WBF1.IES
WBF2 14,000 14,580 42.0° 43.0° 69.9° 70.3° 4H 5V T6 G12 Axial DFS3PT-150-WBF2.IES
WBF3 14,000 8,494 61.2° 61.8° 98.5° 98.8° 5H 5V T6 G12 Axial DFS3PT-150-WBF3.IES
MBA (low) 14,000 211,553 8.4° 8.4° 18.8° 18.8° 2H 2V T6 G12 Axial DFS3PT-150-MBA-LOW.IES
MBA (mid) 14,000 102,877 13.2° 13. 2° 25.6° 25.6° 2H 2V T6 G12 Axial DFS3PT-150-MBA-MID.IES
MBA (high) 14,000 33,712 25.4° 25.4° 41.5° 41.5° 3H 3V T6 G12 Axial DFS3PT-150-MBA-HIGH.IES
WBA (low) 14,000 52,035 18.9° 19.9° 40.6° 40.6° 3H 3V T6 G12 Axial DFS3PT-150-WBA-LOW.IES
WBA (mid) 14,000 20,273 36.6° 36.6° 61.3° 61.3° 4H 4V T6 G12 Axial DFS3PT-150-WBA-MID.IES
WBA (high) 14,000 10,297 55.0° 55.0° 88.9° 88.9° 5H 5V T6 G12 Axial
DFS3PT-150-WBA-HIGH.IES
DFS3E-100 NBF 11,000 210,855 7.3° 7.3° 16.3° 16.3° 1H 1V T6 G12 Axial DFS3E-100-NBF.IES
MBF 11,000 84,747 13.8° 13.8° 24.2° 24.2° 2H 2V T6 G12 Axial DFS3E-100-MBF.IES
WBF1 11,000 31,002 21.5° 21.5° 42.7° 42.8° 3H 3V T6 G12 Axial DFS3E-100-WBF1.IES
WBF2 11,000 11,456 42.0° 43.0° 69.9° 70.3° 4H 5V T6 G12 Axial DFS3E-100-WBF2.IES
WBF3 11,000 6,674 61.2° 61.8° 98.5° 98.8° 5H 5V T6 G12 Axial DFS3E-100-WBF3.IES
MBA (low) 11,000 166,221 8.4° 8.4° 18.8° 18.8° 2H 2V T6 G12 Axial DFS3E-100-MBA-LOW.IES
MBA (mid) 11,000 80,832 13.2° 13.2° 25.6° 25.6° 2H 2V T6 G12 Axial DFS3E-100-MBA-MID.IES
MBA (high) 11,000 26,488 25.4° 25.4° 41.5° 41.5° 3H 3V T6 G12 Axial DFS3E-100-MBA-HIGH.IES
WBA (low) 11,000 40,885 18.9° 18.9° 40.6° 40.6° 3H 3V T6 G12 Axial DFS3E-100-WBA-LOW.IES
WBA (mid) 11,000 15,929 36.6° 36.6° 61.3° 61.3° 4H 4V T6 G12 Axial DFS3E-100-WBA-MID.IES
WBA (high) 11,000 11,032 55.0° 55.0° 88.9° 88.9° 5H 5V T6 G12 Axial DFS3E-100-WBA-HIGH.IES
T6 Ceramic Metal Halide (CMH Pulse Start)
MasterColor Elite (CMH Pulse Start)
Please contact factory for application engineering assistance. Visit our website for available shield and lens reports.
DFS3-SV (including DFS3G) can be aimed 82.5o up or 70.0o down when mounted to a horizontal surface.
DFS3-YK (including DFS3G) can be aimed 90.0o up or 90.0o down when mounted to a horizontal surface.
DFS3E-210-SV can be aimed 80.0o up or 70.0o down when mounted to a horizontal surface.
Please see spec sheet for specific allowable aiming angle details.
Upº
Downº
0º
36
DFS3 Optical Data (cont’d)
Cat No. Optic Initial
Lumens
Max
CD
50%
Main Beam
(hor.)
50%
Main Beam
(vert.)
10%
Field Beam
(hor.)
10%
Field Beam
(vert.)
NEMA
Beam
(hor.)
NEMA
Beam
(vert.)
Lamp
Type Base Lamp
Axis IES File #
DFS3E-150 NBF 15,000 287, 529 7.3° 7.3° 16.3° 16.3° 1H 1V T6 G12 Axial DFS3E-150-NBF.IES
MBF 15,000 115,565 13.8° 13.8° 24.2° 24.2° 2H 2V T6 G12 Axial DFS3E-150-MBF.IES
WBF1 15,000 42,276 21.5° 21.5° 42.7° 42.8° 3H 3V T6 G12 Axial DFS3E-150-WBF1.IES
WBF2 15,000 15,622 42.0° 43.0° 69.9° 70.3° 4H 5V T6 G12 Axial DFS3E-150-WBF2.IES
WBF3 15,000 9,101 61.2° 61.8° 98.5° 98.8° 5H 5V T6 G12 Axial DFS3E-150-WBF3.IES
MBA (low) 15,000 226,664 8.4° 8.4° 18.8° 18.8° 2H 2V T6 G12 Axial DFS3E-150-MBA-LOW.IES
MBA (mid) 15,000 110,225 13. 2° 13.2° 25.6° 25.6° 2H 2V T6 G12 Axial DFS3E-150-MBA-MID.IES
MBA (high) 15,000 36,120 25.4° 25.4° 41.5° 41.5° 3H 3V T6 G12 Axial DFS3E-150-MBA-HIGH.IES
WBA (low) 15,000 52,035 18.9° 18.9° 40.6° 40.6° 3H 3V T6 G12 Axial DFS3E-150-WBA-LOW.IES
WBA (mid) 15,000 21,721 36.6° 36.6° 61.3° 61.3° 4H 4V T6 G12 Axial DFS3E-150-WBA-MID.IES
WBA (high) 15,000 11,032 55.0° 55.0° 88.9° 88.9° 5H 5V T6 G12 Axial DFS3E-150-WBA-HIGH.IES
DFS3E-210 NBF 24,150 341,807 8.1° 8.1° 17.9 ° 17.9° 1H 1V T9 PGZ18 Axial DFS3E-210-NBF.IES
MBF 24,150 162,687 14.2° 14.2° 24.7° 24.8° 2H 2V T9 PGZ18 Axial DFS3E-210-MBF.IES
WBF1 24,150 60,150 21.7° 21.7° 43.7° 43.8° 3H 3V T9 PGZ18 Axial DFS3E-210-WBF1.IES
WBF2 24,150 18,525 50.1° 50.2° 85.2° 85.9° 5H 5V T9 PGZ18 Axial DFS3E-210-WBF2.IES
WBF3 24,150 11,516 69.2° 69.5° 103.2° 103.3° 6H 6V T9 PGZ18 Axial DFS3E-210-WBF3.IES
DFS3P-70 NBF 6,200 76,236 7.9° 7.9° 19.4° 19.3° 2H 2V ED17 MED Axial DFS3P-70-NBF.IES
MBF 6,200 28,767 15.7° 15.6° 27.1° 27.6° 2H 2V ED17 MED Axial DFS3P-70-MBF.IES
WBF1 6,200 14,179 22.5° 22.5° 44.7° 44.7° 3H 3V ED17 MED Axial DFS3P-70-WBF1.IES
WBF2 6,200 6,098 43.7° 43.6° 75.2° 75.6° 5H 5V ED17 MED Axial DFS3P-70-WBF2.IES
WBF3 6,200 3,742 62.5° 62.6° 100.6° 100.8° 6H 6V ED17 MED Axial DFS3P-70-WBF3.IES
DFS3P-100 NBF 9,500 116 ,813 7.9° 7.9° 19.4° 19.3° 2H 2V ED17 MED Axial DFS3P-100-NBF.IES
MBF 9,500 44,079 15.7° 15.6° 27.1° 27.6° 2H 2V ED17 MED Axial DFS3P-100- MBF.IES
WBF1 9,500 21,725 22.5° 22.5° 44.7° 44.7° 3H 3V ED17 MED Axial DFS3P-100-WBF1.IES
WBF2 9,500 9,344 43.7° 43.6° 75.2° 75.6° 5H 5V ED17 MED Axial DFS3P-100-WBF2.IES
WBF3 9,500 5,734 62.5° 62.6° 100.6° 100.8° 6H 6V ED17 MED Axial DFS3P-100-WBF3.IES
DFS3P-150 NBF 14,000 172,145 7.9° 7.9° 19.4° 19.3° 2H 2V ED17 MED Axial DFS3P-150 -NBF.IES
MBF 14,000 64,959 15.7° 15.6° 27.1° 27.6° 2H 2V ED17 MED Axial DFS3P-150 -MBF.IES
WBF1 14,000 32,017 22.5° 22.5° 44.7° 44.7° 3H 3V ED17 MED Axial DFS3P-150-WBF1.IES
WBF2 14,000 13,770 43.7° 43.6° 75.2° 75.6° 5H 5V ED17 MED Axial DFS3P-150-WBF2.IES
WBF3 14,000 8,450 62.5° 62.6° 100.6° 100.8° 6H 6V ED17 MED Axial DFS3P-150-WBF3.IES
DFS3S-70 NBF 6,300 43,979 8.3° 8.2° 26.7° 26.3° 2H 2V BD17 MED Axial DFS3S-70-NBF.IES
MBF 6,300 16,689 19.4° 20.4° 40.5° 41.1° 3H 3V BD17 MED Axial DFS3S-70-MBF.IES
WBF1 6,300 10,479 25.2° 25.2° 53.6° 53.7° 4H 4V BD17 MED Axial DFS3S-70-WBF1.IES
WBF2 6,300 5,812 38.6° 39.1° 87.6° 87.7° 5H 5V BD17 MED Axial DFS3S-70-WBF2.IES
WBF3 6,300 3,578 60.6° 61.0° 107.2° 107.3° 6H 6V BD17 MED Axial DFS3S-70-WBF3.IES
DFS3S-100 NBF 9,500 66,318 8.3° 8.2° 26.7° 26.3° 2H 2V BD17 MED Axial DFS3S-100-NBF.IES
MBF 9,500 25,165 19.4° 20.4° 40.5° 41.1° 3H 3V BD17 MED Axial DFS3S-100-MBF.IES
WBF1 9,500 15,802 25.2° 25.2° 53.6° 53.7° 4H 4V BD17 MED Axial DFS3S-100-WBF1.IES
WBF2 9,500 8,765 38.6° 39.1° 87.6° 87.7° 5H 5V BD17 MED Axial DFS3S-100-WBF2.IES
WBF3 9,500 5,396 60.6° 61.0° 107.2° 107.3° 6H 6V BD17 MED Axial DFS3S-100-WBF3.IES
DFS3S-150 NBF 16,000 111,692 8.3° 8.2° 26.7° 26.3° 2H 2V BD17 MED Axial DFS3S-150-NBF.IES
MBF 16,000 42,384 19.4° 20.4° 40.5° 41.1° 3H 3V BD17 MED Axial DFS3S-150-MBF.IES
WBF1 16,000 26,614 25.2° 25.2° 53.6° 53.7° 4H 4V BD17 MED Axial DFS3S-150-WBF1.IES
WBF2 16,000 14,762 38.6° 39.1° 87.6° 87.7° 5H 5V BD17 MED Axial DFS3S-150-WBF2.IES
WBF3 16,000 9,088 60.6° 61.0° 107.2° 107.3° 6H 6V BD17 MED Axial DFS3S-150-WBF3.IES
MasterColor Elite (CMH Pulse Start)
Pulse Start Metal Halide
High Pressure Sodium
Please contact factory for application engineering assistance. Visit our website for available shield and lens reports.
DFS3-SV (including DFS3G) can be aimed 82.5o up or 70.0o down when mounted to a horizontal surface.
DFS3-YK (including DFS3G) can be aimed 90.0o up or 90.0o down when mounted to a horizontal surface.
DFS3E-210-SV can be aimed 80.0o up or 70.0o down when mounted to a horizontal surface.
Please see spec sheet for specific allowable aiming angle details.
Upº
Downº
0º
37
DFS4 Optical Data
Cat No. Optic Initial
Lumens
Max
CD
50%
Main Beam
(hor.)
50%
Main Beam
(vert.)
10%
Field Beam
(hor.)
10%
Field Beam
(vert.)
NEMA
Beam
(hor.)
NEMA
Beam
(vert.)
Lamp
Type Base Lamp
Axis IES File #
DFS4PT-39 SP 3,300 47,795 8.1° 6.4° 21.9° 15.8° 2H 1V T6 G12 Horiz. DFS4PT-39-SP.IES
NB 3,300 4,367 80.9° 12.4° 133. 5° 27.2° 7H 2V T6 G12 Horiz. DFS4PT-39-NB.IES
MB 3,300 2,155 84.3° 26.0° 141.0° 125.6° 7H 6V T6 G12 Horiz. DFS4PT-39-MB.IES
WB 3,300 1,392 92.0° 55.5° 145.8° 134.2° 7H 7V T6 G12 Horiz. DFS4PT-39-WB.IES
A45 3,300 2,364 74.6° 18.7° 112.0° 123.6° 6H 6V T6 G12 Horiz. DFS4PT-39-A45.IES
A60 3,300 1,853 78.1° 29.8° 111.7° 127.4° 6H 6V T6 G12 Horiz. DFS4PT-39-A60.IES
DFS4PT-70 SP 6,600 95,590 8.1° 6.4° 21.9° 15.8° 2H 1V T6 G12 Horiz. DFS4PT-70-SP.IES
NB 6,600 8,733 80.9° 12.4° 133.5° 27.2° 7H 2V T6 G12 Horiz. DFS4PT-70-NB.IES
MB 6,600 4,309 84.3° 26.0° 141.0° 125.6° 7H 6V T6 G12 Horiz. DFS4PT-70-MB.IES
WB 6,600 2,783 92.0° 55.5° 145.8° 134.2° 7H 7V T6 G12 Horiz. DFS4PT-70-WB.IES
A45 6,600 4,729 74.6° 18.7° 112.0° 123.6° 6H 6V T6 G12 Horiz. DFS4PT-70-A45.IES
A60 6,600 3,705 78.1° 29.8° 111.7° 127.4° 6H 6V T6 G12 Horiz. DFS4PT-70-A60.IES
DFS4PT-150 SP 15,000 202,768 8.1° 6.4° 21.9° 15.8° 2H 1V T6 G12 Horiz. DFS4PT-150-SP.IES
NB 15,000 18,524 80.9° 12.4° 133.5° 27. 2° 7H 2V T6 G12 Horiz. DFS4PT-150-NB.IES
MB 15,000 9,140 84.3° 26.0° 141.0° 125.6° 7H 6V T6 G12 Horiz. DFS4PT-150-MB.IES
WB 15,000 5,905 92.0° 55.5° 145.8° 134.2° 7H 7V T6 G12 Horiz. DFS4PT-150-WB.IES
A45 15,000 10,031 74.6° 18.7° 112.0° 123.6° 6H 6V T6 G12 Horiz. DFS4PT-150-A45.IES
A60 15,000 7,860 78.1° 29.8° 111.7° 127.4° 6H 6V T6 G12 Horiz. DFS4PT-150-A60.IES
DFS4C-60 SP 6,900 70,801 9.8° 7.1° 29.4° 15.4° 3H 1V T6 PGZ12 Horiz. DFS4C-60-SP.IES
NB 6,900 9,174 80.7° 12.9° 133.9° 30.2° 7H 7V T6 PGZ12 Horiz. DFS4C-60-NB.IES
MB 6,900 4,886 84.6° 25.9° 140.4° 126.2° 7H 6V T6 PGZ12 Horiz. DFS4C-60-MB.IES
WB 6,900 2,798 93.5° 59.4° 145.4° 140.0° 7H 7V T6 PGZ12 Horiz. DFS4C-60-WB.IES
A45 6,900 5,265 75.0° 16.1° 109.9° 123.1° 6H 6V T6 PGZ12 Horiz. DFS4C-60-A45.IES
A60 6,900 3,803 75.6° 30.2° 109.7° 130.5° 6H 7V T6 PGZ12 Horiz. DFS4C-60-A60.IES
DFS4C-90 SP 10,450 107,2 28 9.8° 7.1° 29.4° 15.4° 3H 1V T6 PGZ12 Horiz. DFS4C-90-SP.IES
NB 10,450 13,894 80.7° 12.9° 133.9° 30.2° 7H 7V T6 PGZ12 Horiz. DFS4C-90-NB.IES
MB 10,450 7,399 84.6° 25.9° 140.4° 126.2° 7H 6V T6 PGZ12 Horiz. DFS4C-90-MB.IES
WB 10,450 4,237 93.5° 59.4° 145.4° 140.0° 7H 7V T6 PGZ12 Horiz. DFS4C-90-WB.IES
A45 10,450 8,519 75.0° 16.1° 109.9° 123.1° 6H 6V T6 PGZ12 Horiz. DFS4C-90-A45.IES
A60 10,450 5,759 75.6° 30.2° 109.7° 130.5° 6H 7V T6 PGZ12 Horiz. DFS4C-90-A60.IES
DFS4C-140 SP 16,500 169,307 9.8° 7.1° 29.4° 15.4° 3H 1V T6 PGZ12 Horiz. DFS4C-140-SP.IES
NB 16,500 21,938 80.7° 12.9° 133.9° 30.2° 7H 7V T6 PGZ12 Horiz. DFS4C-140 -NB.IES
MB 16,500 11,683 84.6° 25.9° 140.4° 126.2° 7H 6V T6 PGZ12 Horiz. DFS4C-140-MB.IES
WB 16,500 6,690 93.5° 59.4° 145.4° 140.0° 7H 7V T6 PGZ12 Horiz. DFS4C-140-WB.IES
A45 16,500 13,450 75.0° 16.1° 109.9° 123.1° 6H 6V T6 PGZ12 Horiz. DFS4C-140-A45.IES
A60 16,500 9,093 75.6° 30.2° 109.7° 130.5° 6H 7V T6 PGZ12 Horiz. DFS4C-140-A60.IES
DFS4E-39 SP 3,500 50,692 8.1° 6.4° 21.9° 15.8° 2H 1V T6 G12 Horiz. DFS4E-39-SP.IES
NB 3,500 4,631 80.9° 12.4° 133.5° 27.2° 7H 2V T6 G12 Horiz. DFS4E-39-NB.IES
MB 3,500 2,285 84.3° 26.0° 141.0° 125.6° 7H 6V T6 G12 Horiz. DFS4E-39-MB.IES
WB 3,500 1,476 92.0° 55.5° 145.8° 134.2° 7H 7V T6 G12 Horiz. DFS4E-39-WB.IES
A45 3,500 2,508 74.6° 18.7° 112.0° 123.6° 6H 6V T6 G12 Horiz. DFS4E-39-A45.IES
A60 3,500 1,965 78.1° 29.8° 111.7° 127.4° 6H 6V T6 G12 Horiz. DFS4E-39-A60.IES
DFS4E-70 SP 7,30 0 105,729 8.1° 6.4° 21.9° 15.8° 2H 1V T6 G12 Horiz. DFS4E-70-SP.IES
NB 7,30 0 9,659 80.9° 12.4° 133.5° 27.2° 7H 2V T6 G12 Horiz. DFS4E-70-NB.IES
MB 7,30 0 4,766 84.3° 26.0° 141.0° 125.6° 7H 6V T6 G12 Horiz. DFS4E-70-MB.IES
WB 7,30 0 3,079 92.0° 55.5° 145.8° 134.2° 7H 7V T6 G12 Horiz. DFS4E-70-WB.IES
A45 7,30 0 5,230 74.6° 18.7° 112.0° 123.6° 6H 6V T6 G12 Horiz. DFS4E-70-A45.IES
A60 7,300 4,098 78.1° 29.8° 111.7° 127.4° 6H 6V T6 G12 Horiz. DFS4E-70-A60.IES
T6 Ceramic Metal Halide (CMH Pulse Start)
MasterColor Elite (CMH Pulse Start)
CosmoPolis (CMH Pulse Start)
Please contact factory for application engineering assistance. Visit our website for available shield and lens reports.
DFS4-SV can be aimed 92.5o up or 92.5o down when mounted to a horizontal surface.
DFS4-YK can be aimed 90.0o up or 90.0o down when mounted to a horizontal surface.
Please see spec sheet for specific allowable aiming angle details.
Upº
Downº
0º
38
DFS4 Optical Data (cont’d)
Cat No. Optic Initial
Lumens
Max
CD
50%
Main Beam
(hor.)
50%
Main Beam
(vert.)
10%
Field Beam
(hor.)
10%
Field Beam
(vert.)
NEMA
Beam
(hor.)
NEMA
Beam
(vert.)
Lamp
Type Base Lamp
Axis IES File #
DFS4E-100 SP 11,000 159,317 8.1° 6.4° 21.9° 15.8° 2H 1V T6 G12 Horiz. DFS4E-100-SP.IES
NB 11,000 14,555 80.9° 12.4° 133.5° 27.2° 7H 2V T6 G12 Horiz. DFS4E-100-NB.IES
MB 11,000 7,182 84.3° 26.0° 141.0° 125.6° 7H 6V T6 G12 Horiz. DFS4E-100-MB.IES
WB 11,000 4,640 92.0° 55.5° 145.8° 134.2° 7H 7V T6 G12 Horiz. DFS4E-100-WB.IES
A45 11,000 7,881 74.6° 18.7° 112.0° 123.6° 6H 6V T6 G12 Horiz. DFS4E-100-A45.IES
A60 11,000 6 ,176 78.1° 29.8° 111.7° 127.4° 6H 6V T6 G12 Horiz. DFS4E-100-A60.IES
DFS4E-150 SP 15,000 217,251 8.1° 6.4° 21.9° 15.8° 2H 1V T6 G12 Horiz. DFS4E-150-SP.IES
NB 15,000 19,848 80.9° 12.4° 133.5° 27.2° 7H 2V T6 G12 Horiz. DFS4E-150-NB.IES
MB 15,000 9,793 84.3° 26.0° 141.0° 125.6° 7H 6V T6 G12 Horiz. DFS4E-150-MB.IES
WB 15,000 6,326 92.0° 55.5° 145.8° 134. 2° 7H 7V T6 G12 Horiz. DFS4E-150-WB.IES
A45 15,000 10,747 74.6° 18.7° 112.0° 123.6° 6H 6V T6 G12 Horiz. DFS4E-150 -A45.IES
A60 15,000 8,421 78.1° 29.8° 111.7° 127.4° 6H 6V T6 G12 Horiz. DFS4E-150-A60.IES
DFS4P-70 SP 6,200 89,797 8.1° 6.4° 21.9° 15.8° 2H 1V ED17 MED Horiz. DFS4P-70-SP.IES
NB 6,200 8,204 80.9° 12.4° 133. 5° 27.2° 7H 2V ED17 MED Horiz. DFS4P-70-NB.IES
MB 6,200 4,048 84.3° 26.0° 141.0° 125.6° 7H 6V ED17 MED Horiz. DFS4P-70-MB.IES
WB 6,200 2,615 92.0° 55.5° 145.8° 134.2° 7H 7V ED17 MED Horiz. DFS4P-70-WB.IES
A45 6,200 4,442 74.6° 18.7° 112.0° 123.6° 6H 6V ED17 MED Horiz. DFS4P-70-A45.IES
A60 6,200 3,481 78.1° 29.8° 111.7° 127.4° 6H 6V ED17 MED Horiz. DFS4P-70-A60.IES
DFS4P-100 SP 9,500 137,592 8.1° 6.4° 21.9° 15.8° 2H 1V ED17 MED Horiz. DFS4P-100-SP.IES
NB 9,500 12,570 80.9° 12.4° 133.5° 27.2° 7H 2V ED17 MED Horiz. DFS4P-100-NB.IES
MB 9,500 6,202 84.3° 26.0° 141.0° 125.6° 7H 6V ED17 MED Horiz. DFS4P-100-MB.IES
WB 9,500 4,007 92.0° 55.5° 145.8° 134.2° 7H 7V ED17 MED Horiz. DFS4P-100-WB.IES
A45 9,500 6,807 74.6° 18.7° 112.0° 123.6° 6H 6V ED17 MED Horiz. DFS4P-100-A45.IES
A60 9,500 5,334 78.1° 29.8° 111.7° 127.4° 6H 6V ED17 MED Horiz. DFS4P-100-A60.IES
DFS4P-150 SP 14,000 202,768 8.1° 6.4° 21.9° 15.8° 2H 1V ED17 MED Horiz. DFS4P-150-SP.IES
NB 14,000 18,525 80.9° 12.4° 133. 5° 27.2° 7H 2V ED17 MED Horiz. DFS4P-150-NB.IES
MB 14,000 9,140 84.3° 26.0° 141.0° 125.6° 7H 6V ED17 MED Horiz. DFS4P-150-MB.IES
WB 14,000 5,905 92.0° 55.5° 145.8° 134.2° 7H 7V ED17 MED Horiz. DFS4P-150-WB.IES
A45 14,000 10,031 74.6° 18.7° 112.0° 123.6° 6H 6V ED17 MED Horiz. DFS4P-150-A45.IES
A60 14,000 7,860 78.1° 29.8° 111.7° 127.4° 6H 6V ED17 MED Horiz. DFS4P-150-A60.IES
DFS4S-70 SP 6,300 34,225 15.6° 9.5° 40.1° 19.7° 3H 2V BD17 MED Horiz. DFS4S-70-SP.IES
NB 6,300 8,104 80.2° 12.4° 130.3° 65.4° 7H 4V BD17 MED Horiz. DFS4S-70-NB.IES
MB 6,300 4,474 84.0° 25.5° 137. 5° 129.4° 7H 6V BD17 MED Horiz. DFS4S-70-MB.IES
WB 6,300 2,672 91.2° 58.5° 142.7° 136 .3° 7H 7V BD17 MED Horiz. DFS4S-70-WB.IES
A45 6,300 5,010 74.6° 16.0° 109.7° 123.6° 6H 6V BD17 MED Horiz. DFS4S-70-A45.IES
A60 6,300 3,273 76.7° 31.7° 107.9° 129.1° 6H 6V BD17 MED Horiz. DFS4S-70-A60.IES
DFS4S-100 SP 9,500 51,610 15.6° 9.5° 40.1° 19.7° 3H 2V BD17 MED Horiz. DFS4S-100-SP.IES
NB 9,500 12,221 80.2° 12.4° 130.3° 65.4° 7H 4V BD17 MED Horiz. DFS4S-100-NB.IES
MB 9,500 6,746 84.0° 25.5° 137.5° 129.4° 7H 6V BD17 MED Horiz. DFS4S-100-MB.IES
WB 9,500 4,029 91.2° 58.5° 142.7° 136.3° 7H 7V BD17 MED Horiz. DFS4S-100-WB.IES
A45 9,500 7,554 74.6° 16.0° 109.7° 123.6° 6H 6V BD17 MED Horiz. DFS4S-100-A45.IES
A60 9,500 4,936 76.7° 31.7° 107.9° 129.1° 6H 6V BD17 MED Horiz. DFS4S-100-A60.IES
DFS4S-150 SP 16,000 86,921 15.6° 9.5° 40.1° 19.7° 3H 2V BD17 MED Horiz. DFS4S-150-SP.IES
NB 16,000 20,582 80.2° 12.4° 130.3° 65.4° 7H 4V BD17 MED Horiz. DFS4S-150-NB.IES
MB 16,000 11,362 84.0° 25.5° 137. 5° 129.4° 7H 6V BD17 MED Horiz. DFS4S-150 -MB.IES
WB 16,000 6,786 91.2° 58.5° 142.7° 136.3° 7H 7V BD17 MED Horiz. DFS4S-150-WB.IES
A45 16,000 12,773 74.6° 16.0° 109.7° 123.6° 6H 6V BD17 MED Horiz. DFS4S-150-A45.IES
A60 16,000 8,313 76.7° 31.7° 107.9° 129.1° 6H 6V BD17 MED Horiz. DFS4S-150-A60.IES
MasterColor Elite (CMH Pulse Start)
High Pressure Sodium
Pulse Start Metal Halide
Please contact factory for application engineering assistance. Visit our website for available shield and lens reports.
DFS4-SV can be aimed 92.5o up or 92.5o down when mounted to a horizontal surface.
DFS4-YK can be aimed 90.0o up or 90.0o down when mounted to a horizontal surface.
Please see spec sheet for specific allowable aiming angle details.
Upº
Downº
0º
39
DFS5 Optical Data
Cat No. Optic Initial
Lumens
Max
CD
50%
Main Beam
(hor.)
50%
Main Beam
(vert.)
10%
Field Beam
(hor.)
10%
Field Beam
(vert.)
NEMA
Beam
(hor.)
NEMA
Beam
(vert.)
Lamp
Type Base Lamp
Axis IES File #
DFS5E-210 SP 24,150 258,808 10.8° 9.1° 19.7° 17.0 ° 2H 1V T9 PGZ18 Horiz. DFS5E-210-SP.IES
NB 24,150 28,356 77.0° 13.9° 138.9° 32.2° 7H 3V T9 PGZ18 Horiz. DFS5E-210-NB.IES
MB 24,150 16,507 83.9° 23.9° 143.6° 117.5° 7H 6V T9 PGZ18 Horiz. DFS5E-210-MB.IES
WB 24,150 10,039 112. 2° 55.0° 149.6° 123.8° 7H 6V T9 PGZ18 Horiz. DFS5E-210-WB.IES
A45 24,150 15,778 83.2° 21.8° 135.7° 122.5° 7H 6V T9 PGZ18 Horiz. DFS5E-210 -A45.IES
A60 24,150 11,297 83.6° 40.8° 132.0° 128.1° 7H 6V T9 PGZ18 Horiz. DFS5E-210-A60.IES
DFS5E-315 SP 37,80 0 405,091 10.8° 9.1° 19.7° 17.0° 2H 1V T9 PGZ18 Horiz. DFS5E-315-SP.IES
NB 37,800 44,383 77.0° 13.9° 138.9 ° 32.2° 7H 3V T9 PGZ18 Horiz. DFS5E-315-NB.IES
MB 37,800 25,837 83.9° 23.9° 143.6° 117. 5° 7H 6V T9 PGZ18 Horiz. DFS5E-315-MB.IES
WB 37,800 15,713 112.2° 55.0° 149.6° 123.8° 7H 6V T9 PGZ18 Horiz. DFS5E-315-WB.IES
A45 37,80 0 24,698 83.2° 21.8° 135.7° 122.5° 7H 6V T9 PGZ18 Horiz. DFS5E-315-A45.IES
A60 37,80 0 17,682 83.6° 40.8° 132. 0° 128.1° 7H 6V T9 PGZ18 Horiz. DFS5E-315-A60.IES
DFS5P-200 SP 19,000 113,415 18.3° 8.9° 38.2° 18.2° 3H 2V T15 MOG Horiz. DFS5P-200-SP.IES
NB 19,000 23,824 77. 2° 12.7° 133.6° 30.6° 7H 3V T15 MOG Horiz. DFS5P-200-NB.IES
MB 19,000 11,789 85.3° 27.6° 140.6° 118.5° 7H 6V T15 MOG Horiz. DFS5P-200-MB.IES
WB 19,000 7,692 97.7° 57.0° 145.5° 126 .8° 7H 6V T15 MOG Horiz. DFS5P-200-WB.IES
A45 19,000 12,128 84.3° 21.5° 131.9° 126.6° 7H 6V T15 MOG Horiz. DFS5P-200-A45.IES
A60 19,000 9,113 82.6° 31.3° 126.3° 128.1° 6H 6V T15 MOG Horiz. DFS5P-200-A60.IES
DFS5P-250 SP 22,000 131,323 18.3° 8.9° 38.2° 18.2° 3H 2V ED28 MOG Horiz. DFS5P-250-SP.IES
NB 22,000 27, 586 77.2° 12.7° 133.6° 30.6° 7H 3V ED28 MOG Horiz. DFS5P-250 -NB.IES
MB 22,000 13,650 85.3° 27.6° 140.6° 118. 5° 7H 6V ED28 MOG Horiz. DFS5P-250-MB.IES
WB 22,000 8,906 97.7° 57.0 ° 145.5° 126.8° 7H 6V ED28 MOG Horiz. DFS5P-250-WB.IES
A45 22,000 15,283 84.3° 21.5° 131.9° 126 .6° 7H 6V ED28 MOG Horiz. DFS5P-250-A45.IES
A60 22,000 10,552 82.6° 31.3° 126.3° 128.1° 6H 6V ED28 MOG Horiz. DFS5P-250-A60.IES
DFS5P-320 SP 30,000 179,077 18.3° 8.9° 38.2° 18.2° 3H 2V ED28 MOG Horiz. DFS5P-320-SP.IES
NB 30,000 37,617 77.2° 12.7° 133.6° 30.6° 7H 3V ED28 MOG Horiz. DFS5P-320-NB.IES
MB 30,000 18,614 85.3° 27.6° 140.6° 118. 5° 7H 6V ED28 MOG Horiz. DFS5P-320-MB.IES
WB 30,000 12,145 97.7° 57.0° 145.5° 126.8° 7H 6V ED28 MOG Horiz. DFS5P-320-WB.IES
A45 30,000 19,149 84.3° 21.5° 131.9° 126.6° 7H 6V ED28 MOG Horiz. DFS5P-320-A45.IES
A60 30,000 14,390 82.6° 31.3° 126 .3° 128.1° 6H 6V ED28 MOG Horiz. DFS5P-320-A60.IES
DFS5P-400 SP 40,000 238,769 18.3° 8.9° 38.2° 18.2° 3H 2V ED28 MOG Horiz. DFS5P-400-SP.IES
NB 40,000 50,156 77. 2° 12.7° 133.6° 30.6° 7H 3V ED28 MOG Horiz. DFS5P-400-NB.IES
MB 40,000 24,818 85.3° 27. 6° 140.6° 118. 5° 7H 6V ED28 MOG Horiz. DFS5P-400-MB.IES
WB 40,000 16,193 97.7° 57.0 ° 145.5° 126.8° 7H 6V ED28 MOG Horiz. DFS5P-400-WB.IES
A45 40,000 25,532 84.3° 21.5° 131.9° 126.6° 7H 6V ED28 MOG Horiz. DFS5P-400-A45.IES
A60 40,000 19,186 82.6° 31.3° 126.3° 128.1° 6H 6V ED28 MOG Horiz. DFS5P-400-A60.IES
DFS5S-250 SP 27,000 102,411 17. 0° 8.1° 61.5° 21.3° 4H 2V E18 MOG Horiz. DFS5S-250-SP.IES
NB 27,000 34,582 77.3° 12.6° 128.1° 34.1° 6H 3V E18 MOG Horiz. DFS5S-250-NB.IES
MB 27,000 19,137 81.4° 25.0° 134.7° 131.3° 7H 7V E18 MOG Horiz. DFS5S-250-MB.IES
WB 27,000 10,926 88.2° 63.1° 142.2° 137.3° 7H 7V E18 MOG Horiz. DFS5S-250-WB.IES
A45 27,000 19,233 78.4° 19.0° 125.0° 125.8° 6H 6V E18 MOG Horiz. DFS5S-250-A45.IES
A60 27,000 14,320 77.4° 36.6° 121.1° 127.2° 6H 6V E18 MOG Horiz. DFS5S-250-A60.IES
DFS5S-400 SP 50,000 189,650 17.0° 8.1° 61.5° 21.3° 4H 2V E18 MOG Horiz. DFS5S-400-SP.IES
NB 50,000 64,041 77.3° 12.6° 128.1° 34.1° 6H 3V E18 MOG Horiz. DFS5S-400-NB.IES
MB 50,000 91,677 81.4° 25.0° 134.7° 131.3° 7H 7V E18 MOG Horiz. DFS5S-400-MB.IES
WB 50,000 20,234 88.2° 63.1° 142.2° 137.3° 7H 7V E18 MOG Horiz. DFS5S-400-WB.IES
A45 50,000 35,616 78.4° 19.0° 125.0° 125.8° 6H 6V E18 MOG Horiz. DFS5S-400-A45.IES
A60 50,000 26,519 77.4° 36.6° 121.1° 127.2° 6H 6V E18 MOG Horiz. DFS5S-400-A60.IES
MasterColor Elite (CMH Pulse Start)
High Pressure Sodium
Pulse Start Metal Halide
Please contact factory for application engineering assistance. Visit our website for available shield and lens reports.
DFS5-SV can be aimed 100.0o up or 100.0o down when mounted to a horizontal surface.
DFS5-YK can be aimed 90.0o up or 90.0o down when mounted to a horizontal surface.
Please see spec sheet for specific allowable aiming angle details.
Upº
Downº
0º
Document order number: PGc-1306BR
© 2013 Koninklijke Philips Electronics N.V. All rights reserved.
Specifications are subject to change without notice.
www.philips.com/luminaires
Philips Lighting Company
200 Franklin Square Drive
Somerset, NJ 08873
Phone: 855-486-2216
Philips Lighting Company
281 Hillmount Road
Markham ON, Canada L6C 2S3
Phone: 800-668-9008

Navigation menu
