Deployment Guide For Share Point 2013
User Manual:
Open the PDF directly: View PDF
.
Page Count: 1156 [warning: Documents this large are best viewed by clicking the View PDF Link!]
i
Deployment guide for
Microsoft SharePoint 2013
Microsoft Corporation
Published: October 2014
Author: Microsoft Office System and Servers Team (itspdocs@microsoft.com)
Abstract
This book provides deployment instructions for SharePoint 2013. The audiences for this book include
application specialists, line-of-business application specialists, and IT administrators who are ready to
deploy SharePoint 2013.
The content in this book is a copy of selected content in the SharePoint 2013 technical library as of the
publication date. For the most current content, see the technical library on the web.
ii
This document is provided “as-is.” Information and views expressed in this document, including URL
and other Internet website references, may change without notice. You bear the risk of using it.
Some examples depicted herein are provided for illustration only and are fictitious. No real association
or connection is intended or should be inferred.
This document does not provide you with any legal rights to any intellectual property in any Microsoft
product. You may copy and use this document for your internal, reference purposes.
© 2014 Microsoft Corporation. All rights reserved.
Microsoft, Access, Active Directory, Backstage, Bing, Excel, Groove, Hotmail, Hyper-V, InfoPath,
Internet Explorer, Office 365, OneNote, Outlook, PerformancePoint, PowerPoint, SharePoint,
Silverlight, OneDrive, Visio, Visio Studio, Windows, Windows Live, Windows Mobile,
Windows PowerShell, Windows Server, and Windows Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
The information contained in this document represents the current view of Microsoft Corporation on the
issues discussed as of the date of publication. Because Microsoft must respond to changing market
conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft
cannot guarantee the accuracy of any information presented after the date of publication.
iii
Contents
Getting help ............................................................................................................................................ 27
Overview of SharePoint 2013 installation and configuration .......................................................... 28
Physical architecture ......................................................................................................................... 29
Installation and configuration ........................................................................................................... 30
Deployment stages............................................................................................................................ 33
Prepare for installation of SharePoint 2013 ...................................................................................... 37
TechNet articles about how to prepare for SharePoint 2013 installation and initial
configuration ................................................................................................................................... 37
Additional resources about SharePoint 2013 installation and initial configuration .................. 38
Initial deployment administrative and service accounts in SharePoint 2013 ............................... 39
Required accounts ............................................................................................................................ 39
Account permissions and security settings in SharePoint 2013 .................................................... 43
About account permissions and security settings ........................................................................ 43
SharePoint administrative accounts ............................................................................................... 43
SharePoint service application accounts ....................................................................................... 45
SharePoint database roles ............................................................................................................... 48
WSS_SHELL_ACCESS database role ...................................................................................... 49
Group permissions ............................................................................................................................ 50
Configure SQL Server security for SharePoint 2013 environments ............................................. 87
Before you begin................................................................................................................................ 87
Configuring a SQL Server instance to listen on a non-default port ........................................... 88
Blocking default SQL Server listening ports .................................................................................. 90
Configuring Windows Firewall to open manually assigned ports ............................................... 90
Configuring SQL Server client aliases ........................................................................................... 91
Install prerequisites for SharePoint 2013 from a network share .................................................... 93
Installer switches and arguments .................................................................................................... 93
Download and combine the SharePoint 2013 prerequisites on a file share ............................ 94
Install the SharePoint 2013 prerequisites at the command prompt ........................................... 95
Install the SharePoint 2013 prerequisites by using an arguments file ...................................... 96
Install SharePoint 2013 ...................................................................................................................... 100
TechNet articles about how to install and configure SharePoint 2013 .................................... 100
Additional resources about how to install and configure SharePoint 2013 ............................ 102
Install SharePoint 2013 on a single server with a built-in database ........................................... 103
iv
Overview ........................................................................................................................................... 103
Before you begin.............................................................................................................................. 104
Install SharePoint 2013 .................................................................................................................. 104
Post-installation steps ..................................................................................................................... 110
Install SharePoint 2013 on a single server with SQL Server ....................................................... 111
Overview ........................................................................................................................................... 111
Before you install SharePoint 2013 on a single server .............................................................. 111
Install SharePoint 2013 on a single server .................................................................................. 112
Post-installation steps ..................................................................................................................... 120
Install SharePoint 2013 across multiple servers for a three-tier farm ......................................... 122
Overview ........................................................................................................................................... 122
Using the Microsoft SharePoint Products Preparation Tool .................................................. 125
Database server ........................................................................................................................... 125
Public updates and hotfix packages.......................................................................................... 125
Prepare the farm servers ................................................................................................................ 125
Install SharePoint 2013 on the farm servers ............................................................................... 126
Create and configure the farm ....................................................................................................... 127
Add web servers to the farm .......................................................................................................... 130
Post-installation steps ..................................................................................................................... 130
Install or uninstall language packs for SharePoint 2013 ............................................................... 132
About language IDs and language packs .................................................................................... 133
Downloading language packs ........................................................................................................ 134
Installing language packs on the web and application servers ................................................ 134
Uninstalling language packs .......................................................................................................... 136
Add web or application servers to farms in SharePoint 2013 ...................................................... 137
Before you add a web or application server to a SharePoint farm .......................................... 137
Front-end web server role ........................................................................................................... 140
Application server role ................................................................................................................. 140
Install prerequisite software ........................................................................................................... 141
Install the SharePoint software ...................................................................................................... 142
Add the new SharePoint server to the farm ................................................................................ 143
Configure the new server ............................................................................................................... 146
Add a database server to an existing farm in SharePoint 2013 .................................................. 147
Before you begin.............................................................................................................................. 147
Prepare the new database server ................................................................................................. 148
Configure and use the new database server .............................................................................. 149
Remove a server from a farm in SharePoint 2013 ........................................................................ 152
v
Removing a web server or application server from a SharePoint farm .................................. 153
Removing a database server from a SharePoint farm .............................................................. 154
Remove a database server, web server, or application server from a SharePoint farm by
using Central Administration ...................................................................................................... 154
Uninstall SharePoint 2013 ................................................................................................................. 157
Before you begin.............................................................................................................................. 157
Uninstall SharePoint 2013 .............................................................................................................. 158
Install and configure a virtual environment for SharePoint 2013 ................................................. 160
Articles about SharePoint 2013 virtualization with Hyper-V...................................................... 160
Use best practice configurations for the SharePoint 2013 virtual machines and Hyper-V
environment ...................................................................................................................................... 162
Introduction and scope ................................................................................................................... 163
Review the general best practice guidance for virtualization.................................................... 163
Best practice guidance for virtualization ................................................................................... 165
Configure the Hyper-V host computer .......................................................................................... 166
Install and configure virtual networking ........................................................................................ 167
Virtual network types ................................................................................................................... 168
Create and configure the virtual machines .................................................................................. 171
Configure the memory for the virtual machines .......................................................................... 172
Configure the processors for the virtual machines ..................................................................... 173
Configure the controllers and hard disks for the virtual machines ........................................... 173
Configure services and general settings ...................................................................................... 175
Configure SharePoint 2013 ............................................................................................................... 177
TechNet articles about how to configure settings for the server farm ..................................... 177
Additional resources about how to configure settings for the server farm .............................. 179
Service application and service management (SharePoint 2013) .............................................. 180
Configure authentication infrastructure in SharePoint 2013 ........................................................ 181
TechNet articles about how to configure authentication infrastructure ................................... 181
Configure forms-based authentication for a claims-based web application in SharePoint 2013
............................................................................................................................................................ 184
Before you begin.............................................................................................................................. 184
Process overview ............................................................................................................................ 185
Phase 1: Create a new web application that uses forms-based authentication with Central
Administration ............................................................................................................................... 185
Phase 2: Configure the Web.Config files for an LDAP membership provider ....................... 186
Create a new web application that uses forms-based authentication with Windows
PowerShell .................................................................................................................................... 191
vi
Configure SAML-based claims authentication with AD FS in SharePoint 2013 ....................... 194
Before you begin.............................................................................................................................. 194
Process overview ............................................................................................................................ 195
Phase 1: Install and configure an AD FS server ......................................................................... 195
Phase 2: Configure AD FS with the web application as a relying party .................................. 195
Phase 3: Configure SharePoint 2013 to trust AD FS as an identity provider ........................ 198
Phase 4: Configure web applications to use claims-based authentication and AD FS as the
trusted identity provider ............................................................................................................... 203
Configure server-to-server authentication in SharePoint 2013 .................................................... 207
TechNet articles about how to configure server-to-server authentication .............................. 207
Configure server-to-server authentication between SharePoint 2013 farms ............................. 209
Configure a SharePoint 2013 trust relationship with another farm .......................................... 210
Configure a SharePoint 2013 trust relationship with a farm that has no web applications .. 211
Configure an STS for HTTP ........................................................................................................... 213
Configure a synchronized STS name identifier .......................................................................... 214
Configure server-to-server authentication between SharePoint 2013 and Exchange Server
2013 ................................................................................................................................................... 216
Process overview ............................................................................................................................ 217
Configure server-to-server authentication between SharePoint 2013 and Lync Server 2013 220
Process overview ............................................................................................................................ 221
Configure app authentication in SharePoint Server 2013 ............................................................ 223
Process overview ............................................................................................................................ 223
Step 1. Configure the SharePoint Server 2013 app authentication trust ................................ 224
Configure SharePoint Server 2013 to trust the app ................................................................ 226
Step 2. Register the app with the Application Management service ....................................... 228
Step 3. Configure app permissions............................................................................................... 228
Configure client certificate authentication for SharePoint 2013 ................................................... 230
Configure client certificate authentication .................................................................................... 231
Replace the STS certificate for the on-premises environment .................................................... 233
Before you begin.............................................................................................................................. 233
Replace the STS certificate ........................................................................................................... 237
Next steps ......................................................................................................................................... 241
Implement SAML-based authentication in SharePoint Server 2013 .......................................... 242
Before you begin.............................................................................................................................. 242
Overview of SAML authentication ................................................................................................. 242
Concepts and terminology ............................................................................................................. 243
vii
SharePoint Server 2013 with Active Directory Federation Services 2.0 ................................. 243
Configure a SharePoint web application for SAML authentication .......................................... 243
Create a realm for employee access ........................................................................................ 244
Enable tracing for SharePoint Server 2013 claims .................................................................... 248
Trusted identity providers and user profile synchronization...................................................... 248
Using audiences with claims-based sites .................................................................................... 249
Migration of Windows claims authentication to SAML-based claims authentication in
SharePoint Server 2013 ................................................................................................................. 250
Identity migration ............................................................................................................................. 250
Migration of a web application.................................................................................................... 250
Implications of Claims Mode Authentication on service applications ......................................... 253
Business Connectivity Services and Secure Store Service ...................................................... 253
Migration ........................................................................................................................................ 254
Symptoms and Resolutions ........................................................................................................ 271
InfoPath Services ............................................................................................................................ 272
Managed Metadata Service ........................................................................................................... 272
Migration ........................................................................................................................................ 274
Troubleshooting ............................................................................................................................... 291
How to turn on and off the multiple metadata formats for JSON in SharePoint Server 2013 . 294
What is it? ......................................................................................................................................... 294
Turn on the multiple metadata formats feature ........................................................................... 294
Turn off the multiple metadata formats feature ........................................................................... 297
Configure availability and recovery solutions for SharePoint 2013 ............................................. 300
TechNet articles about installing and configuring high availability and disaster recovery
solutions......................................................................................................................................... 300
Configure SQL Server 2012 AlwaysOn Availability Groups for SharePoint 2013 .................... 301
Process overview ............................................................................................................................ 301
Before you begin.............................................................................................................................. 302
Detailed steps to configure an AlwaysOn Availability Group for SharePoint ......................... 305
Install SQL Server 2012 .............................................................................................................. 306
Enable AlwaysOn ......................................................................................................................... 307
About replicas and data synchronization .................................................................................. 309
Replica configuration requirements ........................................................................................... 309
Create and configure the availability group .............................................................................. 312
Use failover tests to validate the AlwaysOn installation ............................................................ 316
Monitor the AlwaysOn environment .............................................................................................. 316
Configure email integration for a SharePoint 2013 farm .............................................................. 318
viii
TechNet articles about email integration ..................................................................................... 318
Configure incoming email for a SharePoint 2013 farm ................................................................. 320
Before you begin.............................................................................................................................. 320
Install and configure the SMTP service ....................................................................................... 321
Configure incoming email in a basic scenario ............................................................................. 324
Configure incoming email in an advanced scenario .................................................................. 324
Prepare your environment for incoming email in an advanced scenario ................................ 328
Configure email drop folder permissions for the application pool identity account for a web
application .................................................................................................................................. 334
Configure email drop folder permissions for the logon account for the SharePoint Timer
service ........................................................................................................................................ 335
Are attachments missing from email messages that are sent to a SharePoint document
library? ........................................................................................................................................... 336
Configure outgoing email for a SharePoint 2013 farm .................................................................. 338
Before you begin.............................................................................................................................. 339
Install and configure the SMTP service ....................................................................................... 339
Configure outgoing email for a farm ............................................................................................. 342
Configure outgoing email for a specific web application ........................................................... 343
Configure services and service applications in SharePoint 2013 ............................................... 345
TechNet articles about how to configure services for SharePoint 2013 ................................. 345
Additional resources about how to configure services for SharePoint 2013 .......................... 347
Configure the Secure Store Service in SharePoint 2013 ............................................................. 348
Video demonstration (configuration) ............................................................................................ 348
Configure Secure Store .................................................................................................................. 349
Work with encryption keys ............................................................................................................. 350
Store credentials in Secure Store ................................................................................................. 352
Enable the audit log ........................................................................................................................ 356
Video demonstration (target applications) ................................................................................... 356
Create and configure a Search service application in SharePoint Server 2013 ....................... 358
Before you begin.............................................................................................................................. 358
How to create and configure a SharePoint Search service application .................................. 358
Step 1: Create accounts that are required for a SharePoint Search service application ..... 359
Step 2: Create a SharePoint Search service application .......................................................... 360
Step 3: Configure the SharePoint Search service application.................................................. 362
Step 4: Configure the SharePoint Search service application topology ................................. 364
Create a Search Center site in SharePoint Server 2013 .............................................................. 365
Before you begin.............................................................................................................................. 365
ix
Deploy people search in SharePoint Server 2013 ......................................................................... 368
People search prerequisites .......................................................................................................... 369
Set up people search ...................................................................................................................... 369
Add data for people search ............................................................................................................ 374
Crawl the profile store ..................................................................................................................... 375
Configure trust for search between two SharePoint Server 2013 farms .................................... 377
Configure result sources for search in SharePoint Server 2013 ................................................. 382
Before you begin.............................................................................................................................. 382
Create a result source .................................................................................................................... 383
Levels and permissions for result sources ............................................................................... 383
On the BASICS tab................................................................................................................... 386
On the SORTING tab .................................................................................................................. 386
On the TEST tab .......................................................................................................................... 387
Set a result source as default ........................................................................................................ 387
Customize search result types in SharePoint 2013 ....................................................................... 389
Turn on automated translation of documents in SharePoint Server 2013 ................................. 393
Before you begin.............................................................................................................................. 393
Supported file name extensions and maximum file sizes ......................................................... 394
Table: Supported file types and maximum file size limits for machine translation ............. 395
Step 1: Create a Machine Translation service application ........................................................ 395
Table: Database section properties .......................................................................................... 397
3. Table: Variables used in the New-SPTranslationServiceApplication cmdlet .................. 398
Step 2: Configure the Machine Translation Service ................................................................... 399
3. Table: Variables used in the Set-SPTranslationServiceApplication cmdlet .................... 402
Additional steps................................................................................................................................ 403
Supported browser accessibility features .................................................................................... 403
Configure Request Manager in SharePoint Server 2013 ............................................................. 405
Overview ........................................................................................................................................... 405
Scenarios .......................................................................................................................................... 406
Setup and Deployment ................................................................................................................... 406
Configuration .................................................................................................................................... 409
Windows PowerShell examples to enable routing and throttling .......................................... 410
Windows PowerShell examples routing target tasks .............................................................. 411
Request Routing .............................................................................................................................. 413
Request routing ............................................................................................................................ 414
Monitoring and maintenance ......................................................................................................... 416
Configure Business Connectivity Services solutions for SharePoint 2013 ................................ 418
x
About Business Connectivity Services installation scenarios ................................................... 418
Prerequisites .................................................................................................................................... 419
On-premises deployment ............................................................................................................... 419
Cloud-only deployment ................................................................................................................... 419

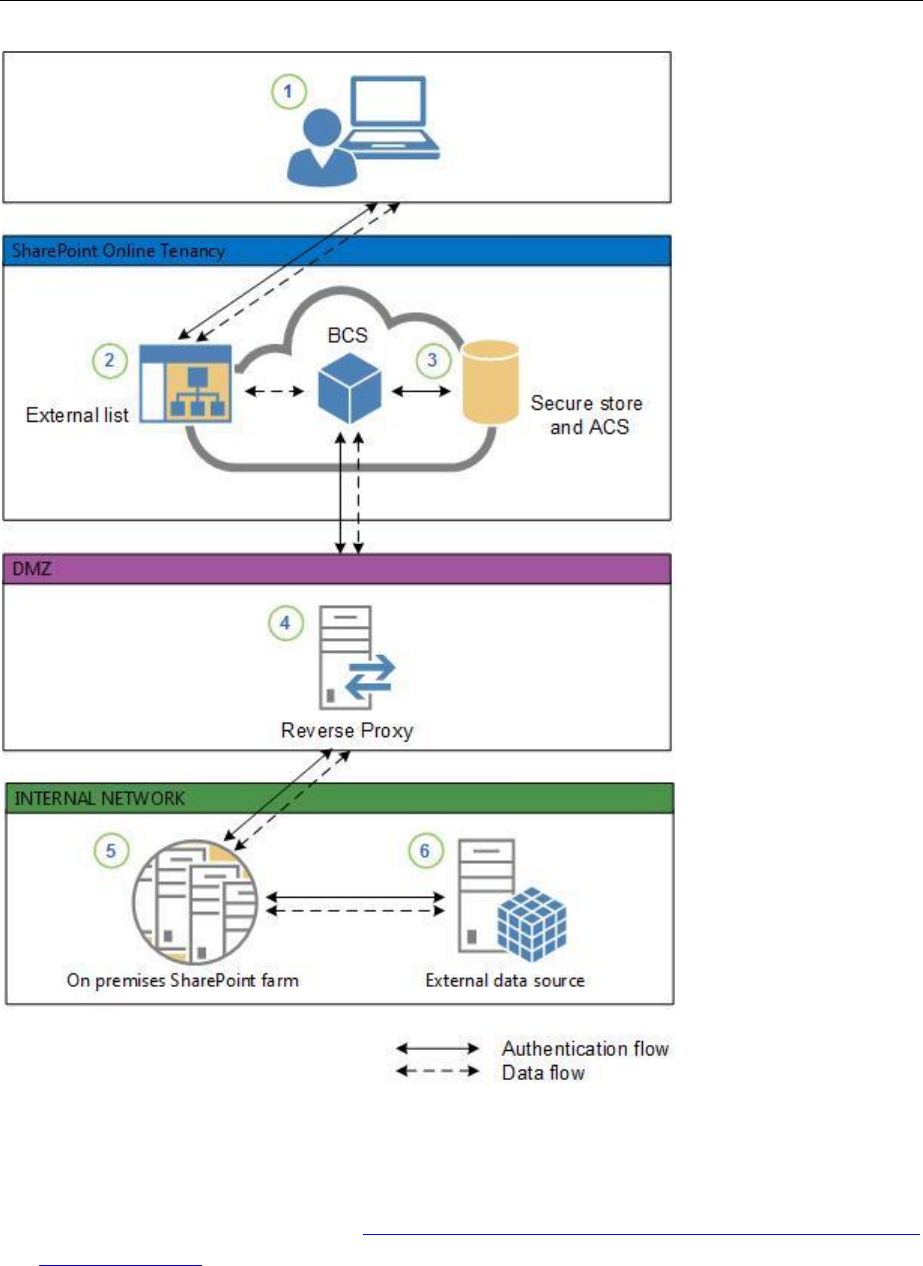

Hybrid deployment .......................................................................................................................... 419
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013 .............. 420
Before you begin.............................................................................................................................. 420
What these procedures help you deploy ..................................................................................... 421
How to use these procedures and a roadmap of the procedures ............................................ 423
Prerequisites for deploying a Business Connectivity Services on-premises solution in
SharePoint 2013 .............................................................................................................................. 425
On-premises scenario prerequisites ............................................................................................. 425
Preparing the environment ............................................................................................................. 426
Create database logins for a Business Connectivity Services on-premises solution in
SharePoint 2013 .............................................................................................................................. 427
Start the Business Data Connectivity service for a Business Connectivity Services on-
premises solution in SharePoint 2013 .......................................................................................... 429
Create the Business Data Connectivity service application in SharePoint 2013 ...................... 431
Set permissions on the BCS Metadata Store for a Business Connectivity Services on-
premises solution in SharePoint 2013 .......................................................................................... 434
Configure the Secure Store Service for a Business Connectivity Services on-premises solution
in SharePoint 2013 .......................................................................................................................... 436
Parameters for configuring the Secure Store Service for a Microsoft Business Connectivity
Services on-premises configuration .......................................................................................... 436
Create an external content type for a Business Connectivity Services on-premises solution in
SharePoint 2013 .............................................................................................................................. 439
Create and configure an external content type with SharePoint Designer 2013 ................... 440
Configure permission on an external content type for a Business Connectivity Services on-
premises solution in SharePoint 2013 .......................................................................................... 443
Create an external list for a Business Connectivity Services on-premises solution in
SharePoint 2013 .............................................................................................................................. 445
Manage user permissions on an external list for a Business Connectivity Services on-
premises solution in SharePoint 2013 .......................................................................................... 447
xi
Connect an external list to Outlook for a Business Connectivity Services on-premises solution
in SharePoint 2013 .......................................................................................................................... 449
Verify offline access and synchronization of external data in Outlook for a Business
Connectivity Services on-premises solution in SharePoint 2013 ............................................. 451
Deploy a Business Connectivity Services cloud-only solution in SharePoint 2013 .................. 452
Before you begin.............................................................................................................................. 452
What these procedures help you deploy ..................................................................................... 453
How to use these procedures ........................................................................................................ 455
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013 ......................... 456
Before you begin.............................................................................................................................. 457
What these procedures help you deploy ..................................................................................... 457
How to use these procedures ........................................................................................................ 460
Roadmap of the procedures .......................................................................................................... 462
Prepare the on-premises environment for the Business Connectivity Services hybrid scenario
............................................................................................................................................................ 466
Create an on-premises Secure Store Service target application for the Business Connectivity
Services hybrid scenario ................................................................................................................ 468
Create and configure a Secure Store target application ........................................................... 469
Create and configure an OData service endpoint for the Business Connectivity Services
hybrid scenario ................................................................................................................................. 471
Prepare the SharePoint Online environment for the Business Connectivity Services hybrid
scenario ............................................................................................................................................. 473
Configure permissions on the SharePoint Online BDC Metadata Store for the Business
Connectivity Services hybrid scenario ......................................................................................... 475
Validate external access to reverse proxy published URL for the Business Connectivity
Services hybrid scenario ................................................................................................................ 477
Prerequisites .................................................................................................................................... 478
Create and configure the connection settings object for the Business Connectivity Services
hybrid scenario ................................................................................................................................. 480
Prerequisites .................................................................................................................................... 481
Create and configure the external content type for the Business Connectivity Services hybrid
scenario ............................................................................................................................................. 483
Prerequisites .................................................................................................................................... 484
Deploy the Business Connectivity Services hybrid scenario as an external list ....................... 486
xii
Procedures in this section .............................................................................................................. 487
Extract an external content type to a BDCM file for the Business Connectivity Services hybrid
Scenario ............................................................................................................................................ 488
Import the BDCM file into SharePoint Online BDC Metadata Store for the Business
Connectivity Services hybrid scenario ......................................................................................... 490
Import a BDCM file into the SharePoint Online BDC Metadata Store .................................... 491
Create an external list for the Business Connectivity Services hybrid scenario ....................... 493
Deploy the Business Connectivity Services hybrid scenario as an app for SharePoint .......... 495
Procedures in this section .............................................................................................................. 496
Deploy an app for SharePoint to SharePoint Online by using Visual Studio for the Business
Connectivity Services hybrid scenario ......................................................................................... 497
Validate the Business Connectivity Services hybrid scenario ..................................................... 499
Configure eDiscovery in SharePoint Server 2013 ......................................................................... 503
Configure communication between SharePoint Server 2013 and Exchange Server 2013 . 503
Configure Search to crawl all discoverable content ................................................................... 504
Grant permissions ........................................................................................................................... 504
Create an eDiscovery center ......................................................................................................... 505
Configure site mailboxes in SharePoint Server 2013.................................................................... 506
Before you begin.............................................................................................................................. 506
Configure SharePoint for Site Mailboxes in SharePoint Server 2013 ..................................... 508
Establish OAuth Trust and Service Permissions on SharePoint Server 2013 ....................... 508
Configure Exchange Server 2013 for Site Mailboxes ................................................................ 517
Troubleshooting ............................................................................................................................... 517
Table of error codes for reference when you run a configuration checklist script .............. 517
Configure Exchange task synchronization in SharePoint Server 2013 ...................................... 522
Before you begin.............................................................................................................................. 522
Downloading and Installing Exchange Server Web Services API on SharePoint Server .... 523
Establish an OAuth trust on the Exchange Server ..................................................................... 525
Additional Information for Self-SSL............................................................................................... 526
Configure social computing features in SharePoint Server 2013 ................................................ 527
TechNet articles about configuring social computing features ................................................. 527
Additional resources about configuring social computing features .......................................... 528
Configure Exchange Autodiscover with a My Site Host URL in SharePoint Server 2013 ....... 530
Configure Exchange Autodiscover with a My Site Host URL ................................................... 531
xiii
Configure microblogging in SharePoint Server 2013 .................................................................... 537
TechNet articles about microblogging .......................................................................................... 537
Configure Following settings in SharePoint Server 2013 ............................................................. 538
Configure Following settings for My Sites ................................................................................... 538
Manage Feed Cache and Last Modified Time Cache repopulation in SharePoint Server 2013
............................................................................................................................................................ 540
Feed Cache settings on the User Profile Service application .................................................. 541
Table: Feed Cache parameters for a User Profile Service application................................ 541
Repopulate the Last Modified Time Cache by using timer jobs in Central Administration .. 542
Repopulate the Feed Cache and Last Modified Time Cache by using Windows PowerShell
cmdlets........................................................................................................................................... 543
Manage the Distributed Cache service in SharePoint Server 2013 ............................................ 545
Start and stop the Distributed Cache service .............................................................................. 546
Change the memory allocation of the Distributed Cache service ............................................ 547
Add or remove a server in a Distributed Cache cluster ............................................................. 549
Perform a graceful shutdown of the Distributed Cache service ............................................... 550
Change the service account .......................................................................................................... 551
Repair a cache host ........................................................................................................................ 551
Configure My Sites in SharePoint Server 2013.............................................................................. 553
Prerequisites .................................................................................................................................... 553
Create a My Site host site collection ............................................................................................ 555
Add a wildcard inclusion managed path to the web application ............................................... 556
Connect the web application to service applications ................................................................. 556
Enable self-service site creation for the web application .......................................................... 557
Configure My Site settings for the User Profile service application ......................................... 559
Enable the User Profile Service Application - Activity Feed Job .............................................. 561
Next steps ......................................................................................................................................... 562
Configure synchronization on all document libraries in SharePoint Server 2013 ..................... 565
Remove synchronization ................................................................................................................ 565
Add synchronization ........................................................................................................................ 566
Create and configure communities in SharePoint Server 2013................................................... 568
Before you begin.............................................................................................................................. 568
Create a Community Site ............................................................................................................... 569
Create a Community Portal ............................................................................................................ 570
Additional steps................................................................................................................................ 571
Enable or disable personal and social features for users or groups in SharePoint Server 2013
............................................................................................................................................................ 572
xiv
Enable users or groups to use personal and social features.................................................... 572
Remove recommendation Web Parts from My Sites in SharePoint Server 2013 .................... 574
Remove the Suggested sites to follow Web Part from a user's My Site ................................. 575
Remove the Suggested documents to follow Web Part from a user's My Site...................... 576
Synchronize and authenticate users from your on-premises Active Directory to Yammer and
Office 365 ......................................................................................................................................... 579
How to configure directory synchronization ................................................................................. 581
How to add a single sign-on .......................................................................................................... 581
Configure web content management solutions in SharePoint Server 2013 .............................. 583
Configure cross-site publishing in SharePoint Server 2013 ......................................................... 586
Before you begin.............................................................................................................................. 586
Create site collections for cross-site publishing .......................................................................... 587
Activate the Cross-Site Collection Publishing feature ............................................................... 587
Create content for authoring sites ................................................................................................. 588
Configure search for cross-site publishing .................................................................................. 593
Connect a publishing site to a catalog in SharePoint Server 2013 ............................................. 595
Before you begin.............................................................................................................................. 595
Connect a publishing site to a catalog ......................................................................................... 596
Disconnect a publishing site from a catalog ................................................................................ 599
Assign a category page and a catalog item page to a term in SharePoint Server 2013 ......... 601
Before you begin.............................................................................................................................. 601
Assign a category page and a catalog item page to a term ..................................................... 602
Configure Search Web Parts in SharePoint Server 2013 ............................................................ 604
Before you begin.............................................................................................................................. 605
Add a Content Search Web Part to a page ................................................................................. 605
Configure the query for a Content Search Web Part ................................................................. 606
Quick Mode (default) ................................................................................................................ 607
Advanced Mode ........................................................................................................................... 609
Configure the display templates for the Content Search Web Part ......................................... 612
Add a Refinement Web Part to a page ........................................................................................ 612
Configure the Refinement Web Part............................................................................................. 613
Change the refiner display name .................................................................................................. 614
Display refiner counts in a Refinement Web Part ....................................................................... 615
Configure the display templates for the Refinement Web Part ................................................ 616
Add a Taxonomy Refinement Panel Web Part to a page ......................................................... 616
Configure the Taxonomy Refinement Panel Web Part ............................................................. 617
xv
Add a Recommended Items Web Part to a page ....................................................................... 617
Configure the Recommended Items Web Part ........................................................................... 618
Configure the display templates for the Recommended Items Web Part ............................... 621
Configure refiners and faceted navigation in SharePoint Server 2013 ...................................... 622
Before you begin.............................................................................................................................. 623
Map a crawled property to a refinable managed property in SharePoint site collection
administration ............................................................................................................................... 624
Enable automatically created managed properties as refiners in SharePoint Central
Administration ............................................................................................................................... 625
Configure refiners for faceted navigation ..................................................................................... 627
Add JavaScript to a page to display refiners in the correct format .......................................... 630
Reference tables.............................................................................................................................. 632
Configure result sources for web content management in SharePoint Server 2013 ............... 634
Before you begin.............................................................................................................................. 634
Create a result source .................................................................................................................... 635
Levels and permissions for result sources ............................................................................... 635
On the BASICS tab ...................................................................................................................... 637
On the SORTING tab .................................................................................................................. 638
On the TEST tab .......................................................................................................................... 638
Set a result source as default ........................................................................................................ 639
Create query rules for web content management in SharePoint Server 2013 .......................... 641
Before you begin.............................................................................................................................. 642
Creating query rules at different levels in a SharePoint farm ................................................... 642
Levels and permissions for query rules .................................................................................... 643
Create a query rule.......................................................................................................................... 644
Create and display a result block .................................................................................................. 649
Display promoted results in a Content Search Web Part .......................................................... 652
Change ranked search results ...................................................................................................... 652
Make a query rule inactive ............................................................................................................. 654
Rank query rules.............................................................................................................................. 655
Configure recommendations and usage event types in SharePoint Server 2013 .................... 657
Before you begin.............................................................................................................................. 658
Create a custom usage event type ............................................................................................... 658
Record a custom usage event ....................................................................................................... 660
Record a default usage event ........................................................................................................ 664
Change the level of importance of a usage event type ............................................................. 668
Change the Recent time period for a usage event type ............................................................ 670
Enable and disable the logging of usage events of anonymous users ................................... 672
xvi
Get SiteId GUID and WebId GUID for a site ............................................................................... 675
Configure workflow in SharePoint Server 2013 ............................................................................. 677
Install and configure workflow for SharePoint Server 2013 ......................................................... 678
Overview ........................................................................................................................................... 678
Workflow Platform types available in SharePoint Server 2013 ............................................. 679
Before you begin.............................................................................................................................. 680
Install and configure SharePoint Server 2013 ............................................................................ 680
Install and configure Workflow Manager ...................................................................................... 681
Configure Workflow Manager to work with the SharePoint Server 2013 farm....................... 681
Validate the installation ................................................................................................................... 685
Troubleshooting ............................................................................................................................... 685
Install Workflow Manager certificates in SharePoint Server 2013 .............................................. 687
Configuration steps ......................................................................................................................... 687
Video series: Install and configure Workflow in SharePoint Server 2013 .................................. 690
Episode 1: Installation overview .................................................................................................... 690
Episode 2: Pre-install steps ........................................................................................................... 691
Episode 3: Install and configure Workflow Manager .................................................................. 691
Episode 4: Install and configure Workflow Manager Client ...................................................... 691
Episode 5: Configure the SharePoint farm with the workflow farm ......................................... 691
Episode 6: Test workflow ............................................................................................................... 692
Create a web application in SharePoint 2013 ................................................................................ 693
TechNet articles about how to create web applications ............................................................ 693
Create web applications that use classic mode authentication in SharePoint 2013 ................ 695
Before you begin.............................................................................................................................. 695
Create a web application that uses classic mode authentication with Windows PowerShell
........................................................................................................................................................ 696
Create claims-based web applications in SharePoint 2013 ......................................................... 699
Create a claims-based web application by using Central Administration ............................... 700
Create a claims-based web application by using Windows PowerShell ................................. 705
Create a classic-mode web application by using Windows PowerShell ................................. 706
Configure basic authentication for a claims-based web application in SharePoint 2013 ........ 708
Before you begin.............................................................................................................................. 708
Configure IIS to enable basic authentication ............................................................................... 709
Configure digest authentication for a claims-based web application in SharePoint 2013 ....... 711
Before you begin.............................................................................................................................. 711
xvii
Configure IIS to enable digest authentication ............................................................................. 712
Edit general settings on a web application in SharePoint 2013 .................................................. 714
Edit a web application by using Central Administration ............................................................. 714
Install and manage solutions for SharePoint 2013 ........................................................................ 718
TechNet articles about how to install and manage solutions.................................................... 718
Additional resources about how to install and manage solutions ............................................ 719
Install and manage apps for SharePoint 2013 ............................................................................... 721
Downloadable resources about apps for SharePoint ................................................................ 721
TechNet articles about apps for SharePoint ............................................................................... 721
Additional resources about apps for SharePoint ........................................................................ 723
Overview of apps for SharePoint 2013 ............................................................................................ 724
Where are apps for SharePoint hosted? ..................................................................................... 725
How are apps for SharePoint and SharePoint sites related? ................................................... 725

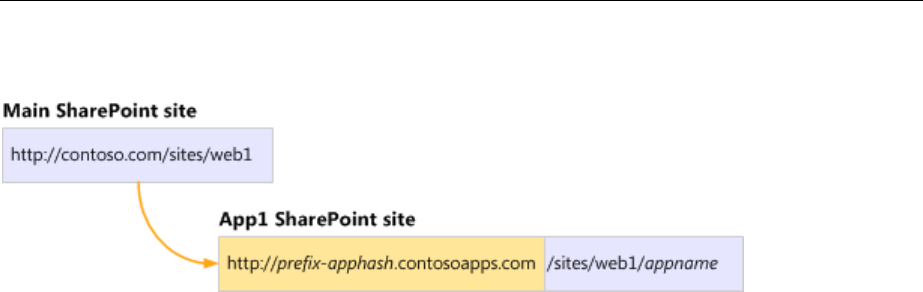

What is the URL for an app for SharePoint? ............................................................................... 725
Use and benefits of apps for SharePoint ..................................................................................... 726
Impacts of apps for SharePoint ..................................................................................................... 726
Plan for apps for SharePoint 2013 ................................................................................................... 728
Governance: determine the app for SharePoint policy for your organization ........................ 728
Plan app configuration settings ..................................................................................................... 731
Recommended logical architecture .............................................................................................. 734
Plan App Catalog ............................................................................................................................. 735
Plan to monitor apps ....................................................................................................................... 736
Plan for app licenses ....................................................................................................................... 737
Plan app permissions management in SharePoint 2013 .............................................................. 738
Introduction ....................................................................................................................................... 739
App permission request scopes .................................................................................................... 739
App permission requests ................................................................................................................ 740
App authorization policies .............................................................................................................. 742
Configure an environment for apps for SharePoint (SharePoint 2013) ...................................... 743
Before you begin.............................................................................................................................. 745
Configure the domain names in DNS (all hosting options) ....................................................... 745
Create a new wildcard SSL certificate ......................................................................................... 749
Configure the Subscription Settings and App Management service applications ................. 749
Configure the app URLs to use ..................................................................................................... 756
Configure the Internet-facing endpoints feature (Optional) ....................................................... 759
Manage the App Catalog in SharePoint 2013 ................................................................................ 761
xviii
Before you begin.............................................................................................................................. 761
Configure the App Catalog site for a web application ................................................................ 762
Configure app requests and SharePoint Store settings ............................................................ 763
Add apps to the App Catalog ......................................................................................................... 766
Remove apps from the App Catalog ............................................................................................ 767
Add apps for SharePoint to a SharePoint 2013 site ...................................................................... 768
Before you begin.............................................................................................................................. 768
Add apps for SharePoint to SharePoint sites .............................................................................. 769
Remove app for SharePoint instances from a SharePoint 2013 site ......................................... 773
Before you begin.............................................................................................................................. 773
Remove an app from a SharePoint site ....................................................................................... 774
Locate and remove app instances in all locations ...................................................................... 775
Monitor apps for SharePoint for SharePoint Server 2013 ............................................................ 779
Before you begin.............................................................................................................................. 780
Selecting apps to monitor in Central Administration .................................................................. 780
Monitoring app details in Central Administration ........................................................................ 781
Monitoring app details in a SharePoint site ................................................................................. 783
Monitor and manage app licenses in SharePoint Server 2013 ................................................... 785
Before you begin.............................................................................................................................. 785
Monitoring and managing app licenses ....................................................................................... 786
Enable apps in AAM or host-header environments for SharePoint 2013 .................................. 789
Prepare the environment ................................................................................................................ 790
Configure app domains .................................................................................................................. 790
Enable the feature ........................................................................................................................... 794
Enable the SharePoint Health Analyzer rule ............................................................................... 795
Special conditions and limitations ................................................................................................. 797
Upgrade to SharePoint 2013............................................................................................................. 798
Downloadable resources about upgrade ..................................................................................... 798
TechNet articles about upgrade .................................................................................................... 798
Additional resources about upgrade ............................................................................................. 799
Get started with upgrades to SharePoint 2013 .............................................................................. 801
Downloadable resources about upgrade to SharePoint 2013 .................................................. 801
TechNet articles about understanding upgrade .......................................................................... 801
Additional resources about upgrade to SharePoint 2013.......................................................... 803
What's new in SharePoint 2013 upgrade ........................................................................................ 804
In-place upgrade of the farm is not supported ............................................................................ 804
xix
Database-attach upgrade is available for some service application databases .................... 805
Deferred site collection upgrade ................................................................................................... 805
Site collection health checker ........................................................................................................ 806
Upgrade evaluation site collections .............................................................................................. 806
Notifications for life-cycle events ................................................................................................... 806
Throttles for site collection upgrade .............................................................................................. 806
True “SharePoint 2010” instead of visual upgrade ..................................................................... 807
Log files now in ULS format ........................................................................................................... 807
Overview of the upgrade process to SharePoint 2013 ................................................................. 808
Create the SharePoint 2013 farm ................................................................................................. 809
Copy the SharePoint 2010 Products databases ......................................................................... 809
Upgrade SharePoint 2010 Products databases and service applications .............................. 810
Upgrade SharePoint 2010 Products site collections .................................................................. 813
Upgrade overview videos for SharePoint 2013 .............................................................................. 817
Overview: SharePoint 2013 upgrade process ............................................................................ 817
Phase 1: Create the SharePoint 2013 farm ................................................................................ 817
Phase 2: Copy the databases to the new farm ........................................................................... 818
Phase 3: Upgrade the service applications ................................................................................. 818
Phase 4: Upgrade content databases .......................................................................................... 819
Phase 5: Upgrade site collections................................................................................................. 820
Services upgrade overview for SharePoint Server 2013 .............................................................. 821
Database attach upgrade with services ....................................................................................... 821
Considerations for specific services ............................................................................................. 823
Upgrade farms that share services (parent and child farms) to SharePoint 2013 .................... 825
Process for upgrading farms that share services ....................................................................... 825
Best practices for upgrading to SharePoint 2013 .......................................................................... 833
Best practices for testing upgrade ................................................................................................ 833
Best practices for upgrading to SharePoint 2013 ....................................................................... 834
Review supported editions and products for upgrading to SharePoint 2013 ............................ 837
Supported topologies ...................................................................................................................... 837
Supported editions for upgrade ..................................................................................................... 838
Supported cross-product upgrades .............................................................................................. 839
Plan for upgrade to SharePoint 2013 .............................................................................................. 841
TechNet articles about how to plan for upgrade ......................................................................... 841
Additional resources about how to plan for upgrade to SharePoint 2013 .............................. 842
Determine strategy for upgrade to SharePoint 2013 ..................................................................... 843
xx
How to minimize downtime during upgrade ................................................................................ 843
Special cases ................................................................................................................................... 844
Create a plan for current customizations during upgrade to SharePoint 2013 ......................... 846
Identify customizations in your environment ............................................................................... 846
Evaluate the customizations .......................................................................................................... 846
Considerations for specific customizations ................................................................................. 848
Ensure that future customizations follow best practices............................................................ 854
Plan for site collection upgrades in SharePoint 2013.................................................................... 855
Determine the site collections that farm administrators should upgrade ................................ 855
Plan settings for upgrade notifications, self-service upgrade, and site collection creation .. 856
Properties that control site collection upgrade and site creation .......................................... 857
Properties that control upgrade notifications ........................................................................... 858
Plan for upgrade evaluation sites .................................................................................................. 858
Timer jobs for upgrade evaluation site collections .................................................................. 859
Plan site collection upgrade throttling and queues ..................................................................... 860
Throttle levels for site collection upgrade ................................................................................. 860
About site collection modes ........................................................................................................... 863
Train site collection administrators ............................................................................................... 863
Plan for performance during upgrade to SharePoint 2013 ........................................................... 865
About upgrade performance for SharePoint 2013 ..................................................................... 865
Estimate the space that you must have for the upgrade ........................................................... 866
Estimate how long the upgrade will take ..................................................................................... 867
Environment performance after upgrade ..................................................................................... 872
Create a communication plan for the upgrade to SharePoint 2013 ............................................ 873
Who is a member of the upgrade team? ..................................................................................... 873
When and what to communicate to the upgrade team .............................................................. 875
When and what to communicate to site users ............................................................................ 876
Clean up an environment before an upgrade to SharePoint 2013 .............................................. 877
Items to clean up ............................................................................................................................. 877
How to make structural changes ................................................................................................... 882
Test and troubleshoot an upgrade to SharePoint 2013 ................................................................ 884
Downloadable resources about how to test and troubleshoot upgrade .................................. 884
TechNet articles about how to test and troubleshoot upgrade ................................................. 885
Additional resources about how to test and troubleshoot upgrade .......................................... 886
Use a trial upgrade to SharePoint 2013 to find potential issues .................................................. 887
Set up a test environment .............................................................................................................. 888
xxi
Identify and install customizations ................................................................................................ 890
Copy real data to the test environment and upgrade databases ............................................. 892
Review results after you upgrade databases .............................................................................. 893
Upgrade site collections and My Sites ......................................................................................... 894
Review results after you upgrade site collections ...................................................................... 894
Adjust your plans and test again ................................................................................................... 894
Troubleshoot database upgrade issues in SharePoint 2013 ....................................................... 896
General principles to identify issues ............................................................................................. 896
Common issues ............................................................................................................................... 897
Troubleshoot site collection upgrade issues in SharePoint 2013 ................................................ 903
Check upgrade status and log files............................................................................................... 903
Common issues ............................................................................................................................... 904
Branding issues that may occur when upgrading to SharePoint 2013 ....................................... 908
Custom CSS ..................................................................................................................................... 909
Custom theme .................................................................................................................................. 910
Copy and change a master page that ships with SharePoint 2013 ......................................... 911
Custom master page in a publishing site ..................................................................................... 911
Custom content placeholders on a custom master page .......................................................... 912
Restart a database-attach upgrade or a site collection upgrade to SharePoint 2013 ............. 914
Restart upgrade for a database by using Windows PowerShell .............................................. 914
Restart upgrade for a site collection ............................................................................................. 915
Upgrade databases from SharePoint 2010 to SharePoint 2013 ................................................. 918
Downloadable resources about upgrading databases .............................................................. 918
TechNet articles about upgrading databases ............................................................................. 918
Additional resources about upgrade ............................................................................................. 920
Checklist for database-attach upgrade (SharePoint 2013) .......................................................... 921
Prepare for upgrade ........................................................................................................................ 921
Pre-upgrade steps ....................................................................................................................... 922
Complete the database attach upgrade ....................................................................................... 923
Prepare the new environment .................................................................................................... 923
Back up and restore databases ................................................................................................. 926
Upgrade service application databases .................................................................................... 929
Create web applications .............................................................................................................. 933
Attach and upgrade content databases .................................................................................... 934
Complete post-upgrade steps ....................................................................................................... 935
Post upgrade steps for database attach upgrade ................................................................... 936
xxii
Create the SharePoint 2013 farm for a database attach upgrade .............................................. 939
Before you begin.............................................................................................................................. 941
Collect information and settings .................................................................................................... 941
Record the passphrase for the Secure Store service application ............................................ 942
Export the encryption key for the User Profile service application .......................................... 943
Install SharePoint 2013 in a new environment ........................................................................... 944
Configure service applications ...................................................................................................... 944
Configure farm settings .................................................................................................................. 946
Copy databases to the new farm for upgrade to SharePoint 2013 ............................................. 948
Before you begin.............................................................................................................................. 949
Set the earlier version databases to be read-only ...................................................................... 950
Back up the SharePoint 2010 Products databases by using SQL Server tools .................... 951
Copy the backup files to the SharePoint 2013 environment ..................................................... 953
Restore a backup copy of the database ...................................................................................... 953
Set the databases to read-write .................................................................................................... 954
Upgrade service applications to SharePoint 2013 ......................................................................... 956
Before you begin.............................................................................................................................. 957
About upgrading the service application databases .................................................................. 959
Start the service instances ............................................................................................................. 960
Upgrade the Secure Store service application ........................................................................... 962
Upgrade the Business Data Connectivity service application .................................................. 965
Upgrade the Managed Metadata service application ................................................................ 966
Upgrade the User Profile service application .............................................................................. 969
Upgrade the PerformancePoint Services service application .................................................. 973
Upgrade the Search service application ...................................................................................... 975
Verify that all of the new proxies are in the default proxy group .............................................. 979
Upgrade content databases to SharePoint 2013 ........................................................................... 982
Before you begin.............................................................................................................................. 983
Create web applications ................................................................................................................. 984
Reapply customizations .................................................................................................................. 985
Verify custom components ............................................................................................................. 986
Attach a content database to a web application and upgrade the database ......................... 988
Verification: Verify upgrade for the first database ...................................................................... 990
Attach the remaining databases .................................................................................................... 992
Verification: Verify upgrade for additional databases ................................................................ 993
Next steps ......................................................................................................................................... 993
Verify database upgrades in SharePoint 2013 ............................................................................... 995
Verify upgrade status for databases ............................................................................................. 995
xxiii
Validate the upgraded environment .............................................................................................. 996
Migrate from classic-mode to claims-based authentication in SharePoint 2013 ...................... 998
Convert SharePoint 2010 Products classic-mode web applications to claims-based
authentication in SharePoint 2010 Products and then upgrade to SharePoint 2013 ........ 998
Convert SharePoint 2010 Products classic-mode web applications to SharePoint 2013
claims-based web applications ................................................................................................ 1001
Convert SharePoint 2013 classic-mode web applications to claims-based web applications
...................................................................................................................................................... 1003
Migrate SharePoint 2010 Products classic-mode web applications to SharePoint 2013
classic-mode web applications ................................................................................................ 1005
Upgrade site collections to SharePoint 2013 ............................................................................... 1007
Downloadable resources how to upgrade site collections ...................................................... 1007
TechNet articles about how to upgrade site collections .......................................................... 1007
Additional resources about how to upgrade to SharePoint 2013 ........................................... 1008
Run site collection health checks in SharePoint 2013 ................................................................ 1009
Site collection health check rules ............................................................................................ 1010
Before you begin............................................................................................................................ 1011
Run the site collection pre-upgrade health checks by using Site Settings ........................... 1012
Run the site collection pre-upgrade health checks by using Windows PowerShell ............ 1012
Additional steps.............................................................................................................................. 1014
Upgrade a site collection to SharePoint 2013 .............................................................................. 1015
Create an upgrade evaluation site (Optional) ........................................................................... 1017
Upgrade a site collection .............................................................................................................. 1018
Verification ...................................................................................................................................... 1019
Additional steps.............................................................................................................................. 1020
Review site collections upgraded to SharePoint 2013 ................................................................ 1021
Checklists for reviewing upgraded sites ..................................................................................... 1022
Manage site collection upgrades to SharePoint 2013 ................................................................. 1028
Before you begin to upgrade site collections to SharePoint 2013 ......................................... 1028
Control upgrade notifications and self-service upgrade .......................................................... 1029
Control the compatibility range for site creation modes .......................................................... 1031
Control the queue for upgrades of sites to SharePoint 2013.................................................. 1035
Control site throttle settings for upgrade to SharePoint 2013 ................................................. 1037
Create upgrade evaluation site collections by using Windows PowerShell ......................... 1041
Upgrade site collections by using Windows PowerShell ......................................................... 1042
View upgrade status by using Windows PowerShell ............................................................... 1044
Upgrade My Sites to SharePoint Server 2013 ............................................................................. 1048
xxiv
Upgrading My Sites terms and concepts ................................................................................... 1048
Planning considerations for upgrading My Sites ...................................................................... 1049
Procedure to upgrade My Sites ................................................................................................... 1049
Upgrading the My Site Host ......................................................................................................... 1051
Upgrading the personal site collection ....................................................................................... 1051
Alternative procedure for upgrading My Sites ........................................................................... 1052
Alternative procedure for upgrading the personal site collection ........................................... 1052
Troubleshooting a My Site upgrade ............................................................................................ 1053
Advanced upgrade scenarios for SharePoint 2013 ..................................................................... 1055
TechNet articles about how to upgrade in advanced scenarios ............................................ 1055
Additional resources about upgrade ........................................................................................... 1056
Upgrade from Office SharePoint Server 2007 or Windows SharePoint Services 3.0 to
SharePoint Server 2013 or SharePoint Foundation 2013 ....................................................... 1057
Process overview .......................................................................................................................... 1057
Before you begin............................................................................................................................ 1061
Prepare to upgrade ....................................................................................................................... 1062
Prepare your farms........................................................................................................................ 1064
Perform the first upgrade .............................................................................................................. 1065
Verify the first upgrade .................................................................................................................. 1066
Perform the second upgrade ....................................................................................................... 1066
Verify the second upgrade ........................................................................................................... 1067
Upgrade site collections ............................................................................................................... 1067
Search-first migration from FAST Search Server for SharePoint 2010 to SharePoint Server
2013 ................................................................................................................................................. 1068
Introduction to search-first migration (SharePoint Server 2013) ............................................ 1068
Supported migration path ............................................................................................................. 1069
High-level search-first migration steps ....................................................................................... 1069
Summary of search-first migrated features ............................................................................... 1071
Features with limitations ............................................................................................................... 1072
How to upgrade an environment that uses content type syndication (SharePoint Server 2013)
.......................................................................................................................................................... 1075
Initial state ....................................................................................................................................... 1075
Back up the data and create a duplicate content type hub in the SharePoint 2010
environment ................................................................................................................................ 1077
Restore databases and upgrade the Managed Metadata service application and site
collections to SharePoint Server 2013 .................................................................................... 1080
Create additional Managed Metadata service applications and republish the content types
...................................................................................................................................................... 1083
Configure connections (proxies) ................................................................................................. 1086
xxv
Final state ....................................................................................................................................... 1089
Recommendations for how to manage content type syndication across the 2010 and 2013
farms ............................................................................................................................................ 1091
Deploy custom features to upgraded site collections in SharePoint Server 2013 .................. 1093
Things you need to know ............................................................................................................. 1094
Legacy custom features in a SharePoint Server 2013 farm ................................................ 1099
Supported scenarios ..................................................................................................................... 1099
Feature masking requirements ................................................................................................ 1106
Uninstalling a solution package ............................................................................................... 1109
Other Considerations .................................................................................................................... 1111
Deploy software updates for SharePoint 2013 ............................................................................. 1112
TechNet articles about software updates for SharePoint 2013 .............................................. 1112
Additional resources about software updates for SharePoint 2013 ...................................... 1113
Software updates overview for SharePoint 2013 ......................................................................... 1114
Before you begin............................................................................................................................ 1114
Terminology .................................................................................................................................... 1114
Features .......................................................................................................................................... 1116
Intended audience and scope ..................................................................................................... 1117
Software update process .............................................................................................................. 1117
Software update strategy ............................................................................................................. 1118
Software update deployment cycle ............................................................................................. 1118
Requirements and prerequisites .............................................................................................. 1119
Update strategy .......................................................................................................................... 1119
Downtime reduction ................................................................................................................... 1120
Common issues .......................................................................................................................... 1120
Document the environment ...................................................................................................... 1120
Manage customizations ............................................................................................................ 1120
Plan the update strategy ........................................................................................................... 1121
Make farm items ready for updates ......................................................................................... 1122
Build a test farm ......................................................................................................................... 1122
Evaluate techniques .................................................................................................................. 1122
Build or update farms ................................................................................................................ 1123
Deploy customizations .............................................................................................................. 1123
Reduce downtime ...................................................................................................................... 1123
Monitor progress ........................................................................................................................ 1123
Logged event failures ................................................................................................................ 1125
User interface or experience issues ........................................................................................ 1125
Data issues ................................................................................................................................. 1126
xxvi
Prepare to deploy software updates for SharePoint 2013 .......................................................... 1127
Verify account permissions and security settings ..................................................................... 1127
Determine an update approach ................................................................................................... 1127
Back up the environment .............................................................................................................. 1129
Document the environment .......................................................................................................... 1130
Determine whether related items need to be updated ............................................................. 1131
Obtain the software update and prepare the installation source (optional) .......................... 1131
Install a software update (SharePoint 2013) ................................................................................ 1133
Before you begin............................................................................................................................ 1133
Determine the update strategy .................................................................................................... 1134
Monitor installation progress ........................................................................................................ 1135
Initial state ....................................................................................................................................... 1135
Use the in-place method without backward compatibility........................................................ 1137
Use the in-place method with backward compatibility ............................................................. 1140
Use the database-attach method for high availability of existing content ............................. 1146
Install a software update on servers that host Search components ...................................... 1150
Update Workflow in SharePoint Server 2013 ............................................................................... 1155
Run cmdlets after software updates are installed .................................................................... 1155
Troubleshooting steps for workflow updates ............................................................................. 1156
27
Getting help
Topic Last Modified: 2012-06-27
Every effort has been made to ensure the accuracy of this book. This content is also available online in
the Office System TechNet Library, so if you run into problems you can check for updates at:
http://technet.microsoft.com/office
If you do not find your answer in our online content, you can send an email message to the Microsoft
Office System and Servers content team at:
itspdocs@microsoft.com
If your question is about Microsoft Office products, and not about the content of this book, please
search the Microsoft Help and Support Center or the Microsoft Knowledge Base at:
http://support.microsoft.com
28
Overview of SharePoint 2013 installation
and configuration
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-09
Summary: Learn about how to install and configure SharePoint Server 2013 or SharePoint Foundation
2013 in a farm.
Although SharePoint products farms vary in complexity and size, a combination of careful planning
and a phased deployment that includes ongoing testing and evaluation significantly reduces the risk of
unexpected outcomes. This article provides an overview for all types of SharePoint 2013 farm
deployment.
For a visual representation of the information in this article, see the SharePoint 2013 Products
Deployment model in the Technical diagrams for SharePoint 2013 topic. Related technical diagrams
include "Topologies for SharePoint 2013 and Services in SharePoint Server 2013".
In this article:
Concepts
Physical architecture
Installation and configuration
Deployment stages
Concepts
The logical result of SharePoint 2013's flexibility and richness can be a high degree of complexity
around installing and configuring SharePoint 2013 correctly. A fundamental understanding of the
following key structural elements in a SharePoint 2013 environment is required in order to correctly
deploy and support SharePoint 2013:
Server farm: The top-level element of a logical architecture design for SharePoint 2013.
Web application: An IIS Web site that is created and used by SharePoint 2013.
Content database: Provides storage Web application content. You can separate content into
multiple content databases at the site collection level.
29
Site collection: A set of Web sites that have the same owner and share administration settings.
Site: One or more related Web pages and other items (such as lists, libraries, and documents) that
are hosted inside a site collection.
For more information about these and other architectural components, see Plan logical architectures
for SharePoint 2013.
In addition to understanding the elements of a SharePoint 2013 environment and how they have to be
configured for your solution, you must consider the following additional factors: physical architecture,
installation and configuration, and the various stages of deployment.
Physical architecture
The physical architecture, which consists of one or more servers and the network infrastructure,
enables you to implement the logical architecture for a SharePoint 2013 solution. The physical
architecture is typically described in two ways: by its size and by its topology. Size, which can be
measured in several ways, such as the number of users or the number of documents, is used to
categorize a farm as small, medium, or large. Topology uses the idea of tiers or server groups to define
a logical arrangement of farm servers.
Size
Size uses the number of users and number of content items as a fundamental measure to indicate
whether a server farm is small, medium, and large, as follows:
A small server farm typically consists of at least two Web servers and a database server. One of
the Web servers hosts the Central Administration site and the other handles additional farm-
related tasks, such as serving content to users.
The small farm can be scaled out to three tiers using a dedicated application server in response to
the number of users, the number of content items, and the number of services that are required.
A medium server farm typically consists of two or more Web servers, two application servers, and
more than one database servers. We recommend that you start with the preceding configuration
and then scale out to accommodate the workload placed on the servers.
In scenarios where services are known to use a disproportionate amount of resources, you can
scale out the application tier. Performance data will indicate which services you should consider
off-loading to a dedicated server.
A large server farm can be the logical result of scaling out a medium farm to meet capacity and
performance requirements or by design before a SharePoint 2013 solution is implemented. A
30
three-tier topology environment typically uses dedicated servers on all the tiers. Additionally,
these servers are often grouped according to their role in the farm. For example, all client-related
services can be grouped onto one or two servers and then scaled out by adding servers to this
group as needed in response to user demand for these services.
Note:
The recommendation for scaling out a farm is to group services or databases with similar
performance characteristics onto dedicated servers and then scale out the servers as a
group. In large environments, the specific groups that evolve for a farm depend on the
specific demands for each service in a farm.
For specific numbers related to small, medium, and large farms, see Plan for performance and
capacity management in SharePoint Server 2013.
Topology
Topology uses tiers as a model for logically arranging farm servers according to the components that
they host or their roles in a server farm. A SharePoint 2013 farm is deployed on one, two, or three
tiers, as follows:
In a single-tier deployment, SharePoint 2013 and the database server are installed on one
computer.
In a two-tier deployment, SharePoint 2013 components and the database are installed on
separate servers. This kind of deployment maps to what is called a small farm. The front-end Web
servers are on the first tier and the database server is located on the second tier. In the computer
industry, the first tier is known as the Web tier. The database server is known as the database tier
or database back-end.
In a three-tier deployment, the front-end Web servers are on the first tier, the application servers
are on the second tier, which is known as the application tier, and the database server is located
on the third tier. A three-tier deployment is used for medium and large farms.
Installation and configuration
After you finish planning your solution you can create a SharePoint 2013 farm to host the solution.
The first step is to install SharePoint 2013 and create the farm that is required for the solution. The
process of preparing your environment consists of the following phases:
1. Prepare the servers
2. Create the farm
31
3. Configure settings, services, solutions, and sites
Note:
The farm that you create and deploy will undergo significant changes in size, topology, and
complexity as you move through the different deployment stages illustrated in the SharePoint
2013 Products Deployment model. This is typical and the expected result of a phased
deployment. This is why we recommend that you follow all of the stages described in the
"Deployment stages" section of this article.
Prepare the servers
In this phase, you get your servers ready to host the product. This includes the supporting servers and
the servers that will have SharePoint 2013 installed. The following servers must be configured to
support and host a farm:
Database server: The required version of SQL Server, including service packs and cumulative
updates must be installed on the database server. The installation must include any additional
features, such as SQL Analysis Services, and the appropriate SharePoint 2013 logins have to be
added and configured. The database server must be hardened and, if it is required, databases
must be created by the DBA. For more information, see:
Hardware and software requirements for SharePoint 2013
Configure SQL Server security for SharePoint 2013 environments
Application servers and front-end Web servers: The farm servers that will have SharePoint 2013
installed must be prepared as follows: verify that they meet the hardware requirements, have the
operating system hardened, have the required networking and security protocols configured, have
the SharePoint 2013 software prerequisites installed and hardened, and have the required
authentication configured. For more information, see:
System requirements for SharePoint 2013
"Installing software prerequisites" in Hardware and software requirements for SharePoint
2013
Plan security hardening for SharePoint 2013
Plan authentication in SharePoint 2013
Domain controller: The required farm accounts have to be configured for the domain and
directory synchronization must be configured.
32
Important:
SharePoint 2013 does not support installation on to a domain controller in a production
environment. A single label domain (SLD) names or single label forests is also not
supported. Because the use of SLD names is not a recommended practice, SharePoint
2013 is not tested in this scenario. Therefore, there may be incompatibility issues when
SharePoint 2013 is implemented in a single label domain environment. For more
information, see Information about configuring Windows for domains with single-label DNS
names and the DNS Namespace Planning Solution Center.
For information about required accounts, see:
Initial deployment administrative and service accounts in SharePoint 2013
Create the farm
In this phase, you install the product and configure each server to support its role in the farm. You also
create the configuration database and the SharePoint Central Administration Web site. The following
servers are required for a SharePoint 2013 farm:
Database server: Unless you plan to use DBA-created databases, the configuration database,
content database, and other required databases are created when you run the SharePoint
Products Configuration Wizard.
Application server: After you prepare the application server, install any additional components
that are required to support functions such as Information Rights Management (IRM) and decision
support. Install SharePoint 2013 on the server that will host SharePoint Central Administration
Web site and then run the SharePoint Products Configuration Wizard to create and configure the
farm.
Front-end Web server: Install SharePoint 2013 on each Web server, install language packs, and
then run the SharePoint Products Configuration Wizard to add the Web servers to the farm.
Note:
After you add and configure all the front-end Web servers, you can add any additional
application servers that are part of your topology design to the farm.
For more information about supported deployment scenarios, see Install SharePoint 2013.
Configure settings, services, solutions, and sites
In this phase, you prepare the farm to host your site content by completing the following tasks:
33
Configure services. For more information, see Configure services and service applications in
SharePoint 2013
Configure global settings. For more information, see Configure SharePoint 2013
Create and populate the sites. For more information, see Create a web application in SharePoint
2013
Note:
Farm configuration steps are not isolated to a specific tier in the server infrastructure.
Deployment stages
By deploying a SharePoint 2013 solution in stages, you gain the benefits that are provided by a
systematic approach, such as collecting performance and usage data that you can use to evaluate your
solution. Additional benefits include verifying your capacity management assumptions and identifying
issues before the farm is put into production.
We recommend that you deploy your farm in the following stages:
Planning
Development
Proof of concept
Pilot
User acceptance test
Production
Planning
Before you can deploy a farm, you must plan the solution that you want to deploy and determine the
infrastructure requirements, such as server resources and farm topology. When you finish the
planning stage, you should have documented the following:
An infrastructure design to support your solution
A detailed description of how you will implement the farm and the solution
A plan for testing and validating the solution
A site and solution architecture
34
An understanding of the monitoring and sustained engineering requirements to support the
solution
A record of how the solution will be governed
An understanding of how the solution will be messaged to the user to drive adoption of the
solution
We recommend that you use the planning resources and articles described in Plan for SharePoint
2013.
Important:
Resource and time issues may pressure you to be less rigorous during the planning stage. We
recommend that you try to be as diligent as possible because missed or lightly touched
planning elements can resurface as significant issues after you are in production. These issues
can create much additional work, consume unbudgeted resources, and potentially take away
from the success of your SharePoint 2013.
After the planning stage, you move through the following deployment stages, updating and revising
your plans, configurations, and topologies as you test.
Development
During the development stage you will deploy SharePoint 2013 on a single server or on multiple
servers to develop, test, evaluate, and refine the solution that you intend to implement. This
environment is scaled according to your needs during solution development and can be retained as a
scaled down environment for future development and testing. This is not a stable environment and
there are no service-level agreements.
Proof of concept
During the proof of concept stage, the objective is two-fold: to understand SharePoint 2013 and to
evaluate SharePoint 2013 in the context of how it can address your business needs. The first level of
product evaluation can be done by installing all of the product components on a single server. You do
a more extensive product evaluation by a proof-of-concept deployment.
A proof-of-concept deployment on a single server or on a small farm enables you to expand the scope
of your evaluation. In this deployment, non-IT staff is added to the evaluation team, which provides a
broader view of how SharePoint 2013 features might be actually be used in the organization. The
benefit of a proof-of-concept deployment is that you can collect data that can be used to refine your
original plan. This data—such as page views, user behavior patterns, and server resource
consumption—also enables you to start to build a benchmark for sizing your farm. A proof of concept
35
is also good when you evaluate service applications and determining what feature sets that you will
offer your end users.
It is important during the proof-of-concept stage that you understand the unique characteristics and
functionality of these features because this understanding will help you define your overall topology.
Be aware that a proof-of-concept deployment requires additional resources and extends the time
required to put SharePoint 2013 into production.
Tip:
Virtualization provides a good platform for evaluating SharePoint 2013 because a virtual
environment provides flexibility, rapid deployment capability, and the ability to roll back
virtual machines to previous states.
Pilot
A pilot is used to test your solution on a small scale. There are two approaches to using a pilot
deployment. In the first approach, the focus is on functional testing without using real data. By using
the second approach you test for production characteristics by using real data and have your pilot
users test different kinds of tasks. We recommend the second approach because of the broader scope
and real-world data that you can collect and use to refine your solution design.
A pilot deployment provides many benefits. It enables you to collect data that you can use to validate
the following aspects of your farm design:
Infrastructure design
Capacity management assumptions
Site and solution architecture
Solution usage assumptions
The pilot stage also enables you to determine additional data that should be collected to increase the
breadth and depth of your benchmarks. This is important if you want to assess the potential effect of
additional features or services that you want to add to the farm before the user acceptance test.
At the conclusion of the pilot deployment, you can use the data that you collect to adjust the various
components of the solution and its supporting infrastructure.
User acceptance test (UAT)
A user acceptance test deployment—also known as a pre-production environment—is used by
organizations as a transitional step from the pilot deployment to a production deployment. An
organization's business processes determine the scope, scale, and duration of user accept testing.
36
The topology of the pre-production environment should be the same as, or very similar to the planned
production topology. During user acceptance testing, the SharePoint 2013 solution is tested against a
subset or a complete copy of production data. This deployment stage provides a final opportunity for
performance tuning and validating operational procedures such as backups and restores.
Production
The final stage is rolling your farm into a production environment. At this stage, you will have
incorporated the necessary solution and infrastructure adjustments that were identified during the
user acceptance test stage.
Putting the farm into production requires you to complete the following tasks:
Deploy the farm.
Deploy the solution.
Implement the operations plan.
If required, deploy additional environments such as authoring and staging farms, and services
farms.
37
Prepare for installation of SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn about permissions, accounts, security settings, and what you have to do to prepare
your environment for SharePoint 2013.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about how to prepare for SharePoint 2013 installation and initial configuration.
TechNet articles about how to prepare for SharePoint
2013 installation and initial configuration
The following articles about how to prepare for SharePoint 2013 installation and initial configuration
are available to view online. Writers update articles on a continuing basis as new information becomes
available and as users provide feedback.
Content
Description
Initial deployment administrative
and service accounts in
SharePoint 2013
Provides information about the
administrative and service
accounts that are required for
an initial SharePoint 2013
installation.
Account permissions and
security settings in SharePoint
2013
Describes SharePoint 2013
administrative and services
account permissions. This article
discusses the following areas:
Microsoft SQL Server, the file
system, file shares, and registry
entries.
38
Content
Description
Configure SQL Server security
for SharePoint 2013
environments
Learn how to harden SQL Server
for SharePoint 2013
environments by using SQL
Server tools and Windows
Firewall.
Install prerequisites for
SharePoint 2013 from a network
share
Describes how to install
SharePoint 2013 prerequisites
from an offline shared network
location using the prerequisite
installer
(PrerequisiteInstaller.exe) tool.
Additional resources about SharePoint 2013 installation
and initial configuration
The following resources about SharePoint 2013 installation and initial configuration are available from
other subject matter experts.
Content
Description
Installation and Deployment
for SharePoint 2013
Resource Center
Capabilities and features in
SharePoint 2013 Resource
Center
Visit the Resource Center to
access videos, Community Sites,
documentation, and more.
39
Initial deployment administrative and
service accounts in SharePoint 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-06-11
Summary: Learn about the administrative and service accounts that are required to initially install
SharePoint 2013.
This article provides information about the administrative and service accounts that are required for
an initial SharePoint 2013 deployment. Additional accounts and permissions are required to fully
implement all aspects of a production farm.
Note:
For a complete list of permissions, see Account permissions and security settings in SharePoint
2013.
Important:
Do not use service account names that contain the symbol $.
Required accounts
To deploy SharePoint 2013 on a server farm, you must provide credentials for several different
accounts.
The following table describes the accounts that are used to install and configure SharePoint 2013.
40
Account
Purpose
Requirements
SQL Server service account
The SQL Server service
account is used to run SQL
Server. It is the service
account for the following SQL
Server services:
MSSQLSERVER
SQLSERVERAGENT
If you do not use the default
SQL Server instance, in the
Windows Services console,
these services will be shown
as the following:
MSSQL<InstanceName>
SQLAgent<InstanceName>
Use either a Local System account or
a domain user account.
If you plan to back up to or restore
from an external resource,
permissions to the external resource
must be granted to the appropriate
account. If you use a domain user
account for the SQL Server service
account, grant permissions to that
domain user account. However, if
you use the Network Service or the
Local System account, grant
permissions to the external resource
to the machine account
(<domain_name>\<SQL_hostname>).
The instance name is arbitrary and
was created when SQL Server was
installed.
41
Account
Purpose
Requirements
Setup user account
The Setup user account is
used to run the following:
Setup
SharePoint Products
Configuration Wizard
Domain user account.
Member of the Administrators
group on each server on which
Setup is run.
SQL Server login on the
computer that runs SQL Server.
Member of the following SQL
Server roles:
securityadmin fixed server
role
dbcreator fixed server role
If you run Windows PowerShell
cmdlets that affect a database, this
account must be a member of the
db_owner fixed database role for
the database.
42
Account
Purpose
Requirements
Server farm account or
database access account
The server farm account is
used to perform the following
tasks:
Configure and manage the
server farm.
Act as the application pool
identity for the SharePoint
Central Administration
Web site.
Run the Microsoft
SharePoint Foundation
Workflow Timer Service.
Domain user account.
Additional permissions are
automatically granted for the server
farm account on Web servers and
application servers that are joined to
a server farm.
The server farm account is
automatically added as a SQL Server
login on the computer that runs SQL
Server. The account is added to the
following SQL Server security roles:
dbcreator fixed server role
securityadmin fixed server role
db_owner fixed database role
for all SharePoint databases in
the server farm
Note:
We recommend that you install SharePoint 2013 by using least-privilege administration.
See also
Account permissions and security settings in SharePoint 2013
Installation and Deployment for SharePoint 2013 Resource Center
43
Account permissions and security settings
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-30
Summary: Learn about the permissions and security settings to use with a deployment of SharePoint
2013.
This article describes SharePoint administrative and services account permissions for the following
areas: Microsoft SQL Server, the file system, file shares, and registry entries.
Important:
Do not use service account names that contain the symbol $.
In this article:
About account permissions and security settings
Administrative accounts
Service application accounts
Database roles
Group permissions
About account permissions and security settings
The SharePoint Configuration Wizard (Psconfig) and the Farm Creation Wizard, both of which are run
during a Complete installation, configure many of the SharePoint baseline account permissions and
security settings.
SharePoint administrative accounts
One of the following SharePoint components automatically configures most of the SharePoint
administrative account permissions during the setup process:
The SharePoint Configuration Wizard (Psconfig).
The Farm Creation Wizard.
44
The SharePoint Central Administration web site.
Windows PowerShell.
Setup user administrator account
This account is used to set up each server in your farm by running the SharePoint Configuration
Wizard, the initial Farm Creation Wizard, and Windows PowerShell. For the examples in this article,
the setup user administrator account is used for farm administration, and you can use Central
Administration to manage it. Some configuration options, for example, configuration of the
SharePoint 2013 Search query server, require local administration permissions. The setup user
administrator account requires the following permissions:
It must have domain user account permissions.
It must be a member of the local administrators group on each server in the SharePoint farm.
This account must have access to the SharePoint databases.
If you use any Windows PowerShell operations that affect a database, the setup user
administrator account must be a member of the db_owner role.
This account must be assigned to the securityadmin and dbcreator SQL Server security roles
during setup and configuration.
Note:
The securityadmin and dbcreator SQL Server security roles might be required for this account
during a complete version-to-version upgrade because new databases might have to be
created and secured for services.
After you run the configuration wizards, machine-level permissions for the setup user administrator
account include:
Membership in the WSS_ADMIN_WPG Windows security group.
Membership in the IIS_WPG role.
After you run the configuration wizards, database permissions include:
db_owner on the SharePoint server farm configuration database.
db_owner on the SharePoint Central Administration content database.
45
Warning:
If the setup user administrator account cannot a log on to the computer running SQL Server,
the configuration wizards will not run correctly. If the account that you use to run the
configuration wizards does not have the appropriate special SQL Server role membership or
access as db_owner on the databases, the configuration wizards will not run correctly.
SharePoint farm service account
The server farm account, which is also referred to as the database access account, is used as the
application pool identity for Central Administration and as the process account for the SharePoint
Foundation 2013 Timer service. The server farm account requires the following permissions:
It must have domain user account permissions.
Additional permissions are automatically granted to the server farm account on web servers and
application servers that are joined to a server farm.
After you run Setup, machine-level permissions include:
Membership in the WSS_ADMIN_WPG Windows security group for the SharePoint Foundation
2013 Timer service.
Membership in WSS_RESTRICTED_WPG for the Central Administration and Timer service
application pools.
Membership in WSS_WPG for the Central Administration application pool.
After you run the configuration wizards, SQL Server and database permissions include:
Dbcreator fixed server role.
Securityadmin fixed server role.
db_owner for all SharePoint databases.
Membership in the WSS_CONTENT_APPLICATION_POOLS role for the SharePoint server farm
configuration database.
Membership in the WSS_CONTENT_APPLICATION_POOLS role for the SharePoint_Admin content
database.
SharePoint service application accounts
This section describes the service application accounts that are set up by default during installation.
46
Application pool account
The application pool account is used for application pool identity. The application pool account
requires the following permission configuration settings:
The following machine-level permission is configured automatically: The application pool account is a
member of WSS_WPG.
The following SQL Server and database permissions for this account are configured automatically:
The application pool accounts for Web applications are assigned to the SP_DATA_ACCESS role for
the content databases.
This account is assigned to the WSS_CONTENT_APPLICATION_POOLS role associated with the
farm configuration database.
This account is assigned to the WSS_CONTENT_APPLICATION_POOLS role associated with the
SharePoint_Admin content database.
Default content access account
Important:
Information in this section applies to SharePoint Server 2013 only.
The default content access account is used within a specific service application to crawl content,
unless a different authentication method is specified by a crawl rule for a URL or URL pattern. This
account requires the following permission configuration settings:
The default content access account must be a domain user account that has read access to
external or secure content sources that you want to crawl by using this account.
For SharePoint Server sites that are not part of the server farm, you have to explicitly grant this
account full read permissions to the web applications that host the sites.
This account must not be a member of the Farm Administrators group.
Content access accounts
Important:
Information in this section applies to SharePoint Server 2013 only.
Content access accounts are configured to access content by using the Search administration crawl
rules feature. This type of account is optional and you can configure it when you create a new crawl
47
rule. For example, external content (such as a file share) might require this separate content access
account. This account requires the following permission configuration settings:
The content access account must have read access to external or secure content sources that this
account is configured to access.
For SharePoint Server sites that are not part of the server farm, you have to explicitly grant this
account full read permissions to the web applications that host the sites.
Excel Services unattended service account
Important:
Information in this section applies to SharePoint Server 2013 only.
Excel Services uses the Excel Services unattended service account to connect to external data sources
that require a user name and password that are based on operating systems other than Windows for
authentication. If this account is not configured, Excel Services will not attempt to connect to these
types of data sources. Although account credentials are used to connect to data sources of operating
systems other than Windows, if the account is not a member of the domain, Excel Services cannot
access them. This account must be a domain user account.
My Sites application pool account
Important:
Information in this section applies to SharePoint Server 2013 only.
The My Sites application pool account must be a domain user account. This account must not be a
member of the Farm Administrators group.
The following machine-level permission is configured automatically: This account is a member of
WSS_WPG.
The following SQL Server and database permissions are configured automatically:
This account is assigned to the WSS_CONTENT_APPLICATION_POOLS role that is associated with
the farm configuration database.
This account is assigned to the WSS_CONTENT_APPLICATION_POOLS role that is associated with
the SharePoint_Admin content database.
The application pool accounts for web applications are assigned to the SP_DATA_ACCESS role for
the content databases
48
Other application pool accounts
The other application pool account must be a domain user account. This account must not be a
member of the Administrators group on any computer in the server farm.
The following machine-level permission is configured automatically: This account is a member of
WSS_WPG.
The following SQL Server and database permissions are configured automatically:
This account is assigned to the SP_DATA_ACCESS role for the content databases.
This account is assigned to the SP_DATA_ACCESS role for search database that is associated with
the web application.
This account must have read and write access to the associated service application database.
This account is assigned to the WSS_CONTENT_APPLICATION_POOLS role that is associated with
the farm configuration database.
This account is assigned to the WSS_CONTENT_APPLICATION_POOLS role that is associated with
the SharePoint_Admin content database.
SharePoint database roles
This section describes the database roles that installation sets up by default or that you can configure
optionally.
WSS_CONTENT_APPLICATION_POOLS database role
The WSS_CONTENT_APPLICATION_POOLS database role applies to the application pool account for
each web application that is registered in a SharePoint farm. This enables web applications to query
and update the site map and have read-only access to other items in the configuration database.
Setup assigns the WSS_CONTENT_APPLICATION_POOLS role to the following databases:
The SharePoint_Config database (the configuration database).
The SharePoint_AdminContent database.
Members of the WSS_CONTENT_APPLICATION_POOLS role have the execute permission for a subset
of the stored procedures for the database. In addition, members of this role have the select
permission to the Versions table (dbo.Versions) in the SharePoint_AdminContent database. For other
databases, the accounts planning tool indicates that access to read these databases is automatically
49
configured. In some cases, limited access to write to a database is also automatically configured. To
provide this access, permissions for stored procedures are configured.
WSS_SHELL_ACCESS database role
The secure WSS_SHELL_ACCESS database role on the configuration database replaces the need to add
an administration account as a db_owner on the configuration database. By default, the setup
account is assigned to the WSS_SHELL_ACCESS database role. You can use a Windows PowerShell
command to grant or remove memberships to this role. Setup assigns the WSS_SHELL_ACCESS role to
the following databases:
The SharePoint_Config database (the configuration database).
One or more of the SharePoint Content databases. This is configurable by using the Windows
PowerShell command that manages membership and the object that is assigned to this role.
Members of the WSS_SHELL_ACCESS role have the execute permission for all stored procedures for
the database. In addition, members of this role have the read and write permissions on all of the
database tables.
SP_READ_ONLY database role
The SP_READ_ONLY role should be used for setting the database to read only mode instead of using
sp_dboption. This role as its name suggests should be used when only read access is required for data
such as usage and telemetry data.
Note:
The sp_dboption stored procedure is not available in SQL Server 2012. For more information
about sp_dboption see sp_dboption (Transact-SQL).
The SP_READ_ONLY SQL role will have the following permissions:
Grant SELECT on all SharePoint stored procedures and functions
Grant SELECT on all SharePoint tables
Grant EXECUTE on user-defined type where schema is dbo
SP_DATA_ACCESS database role
The SP_DATA_ACCESS role is the default role for database access and should be used for all object
model level access to databases. Add the application pool account to this role during upgrade or new
deployments.
50
Note:
The SP_DATA_ACCESS role replaces the db_owner role in SharePoint 2013.
The SP_DATA_ACCESS role will have the following permissions:
Grant EXECUTE or SELECT on all SharePoint stored procedures and functions
Grant SELECT on all SharePoint tables
Grant EXECUTE on User-defined type where schema is dbo
Grant INSERT on AllUserDataJunctions table
Grant UPDATE on Sites view
Grant UPDATE on UserData view
Grant UPDATE on AllUserData table
Grant INSERT and DELETE on NameValuePair tables
Grant create table permission
Group permissions
This section describes permissions of groups that the SharePoint 2013 setup and configuration tools
create.
WSS_ADMIN_WPG
WSS_ADMIN_WPG has read and write access to local resources. The application pool accounts for the
Central Administration and Timer services are in WSS_ADMIN_WPG. The following table shows the
WSS_ADMIN_WPG registry entry permissions.
Key name
Permissi
ons
Inherit
Descript
ion
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Servic
es\VSS
Full
control
Not Applicable
Not
Applicabl
e
51
Key name
Permissi
ons
Inherit
Descript
ion
HKEY_LOCAL_MACHINE\Software\Microsoft\Office\15.0\R
egistration\{90150000-110D-0000-1000-0000000FF1CE}
Read,
write
Not Applicable
Not
Applicabl
e
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office
Server
Read
No
This key
is the
root of
the
SharePoi
nt 2013
registry
settings
tree. If
this key
is
altered,
SharePoi
nt 2013
functiona
lity will
fail.
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office
Server\15.0
Full
control
No
This key
is the
root of
the
SharePoi
nt 2013
registry
settings.
52
Key name
Permissi
ons
Inherit
Descript
ion
HKEY_LOCAL_MACHINE\Software\M
icrosoft\Office
Server\15.0\LoadBalancerSettings
Read, write
No
This
key
contain
s
settings
for the
docum
ent
convers
ion
service.
Alterin
g this
key will
break
docum
ent
convers
ion
functio
nality.
53
Key name
Permissi
ons
Inherit
Descript
ion
HKEY_LOCAL_MACHINE\Software\M
icrosoft\Office
Server\15.0\LauncherSettings
Read, write
No
This
key
contain
s
settings
for the
docum
ent
convers
ion
service.
Alterin
g this
key will
break
docum
ent
convers
ion
functio
nality.
HKEY_LOCAL_MACHINE\Software\M
icrosoft\Office Server\15.0\Search
Full control
Not
Applicab
le
Not
Applica
ble
HKEY_LOCAL_MACHINE\Software\M
icrosoft\Shared Tools\Web Server
Extensions\15.0\Search
Full control
Not
Applicab
le
Not
Applica
ble
54
Key name
Permissi
ons
Inherit
Descript
ion
HKEY_LOCAL_MACHINE\Software\M
icrosoft\Shared Tools\Web Server
Extensions\15.0\Secure
Full control
No
This
key
contain
s the
connec
tion
string
and the
ID of
the
configu
ration
databa
se to
which
the
machin
e is
joined.
If this
key is
altered,
the
ShareP
oint
2013
installa
tion on
the
machin
e will
not
functio
n.
55
Key name
Permissi
ons
Inherit
Descript
ion
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server Extensions\15.0\WSS
Full
control
Yes
This key
contains
settings
used
during
setup. If
this key
is
altered,
diagnosti
c logging
may fail
and
setup or
post-
setup
configura
tion may
fail.
The following table shows the WSS_ADMIN_WPG file system permissions.
File system path
Permission
s
Inherit
Description
%AllUsersProfile%\
Microsoft\SharePoint
Full control
No
This directory
contains the file-
system-backed cache
of the farm
configuration.
Processes might fail
to start and the
administrative
actions might fail if
this directory is
altered or deleted.
56
File system path
Permission
s
Inherit
Description
C:\Inetpub\wwwroot\wss
Full control
No
This directory (or the
corresponding
directory under the
Inetpub root on the
server) is used as the
default location for
IIS Web sites.
SharePoint sites will
be unavailable and
administrative
actions might fail if
this directory is
altered or deleted,
unless custom IIS
Web site paths are
provided for all IIS
Web sites extended
with SharePoint
2013.
57
File system path
Permission
s
Inherit
Description
%ProgramFiles%\Microsoft Office
Servers\15.0
Full control
No
This directory is the
installation location
for SharePoint 2013
binaries and data.
The directory can be
changed during
installation. All
SharePoint 2013
functionality will fail
if this directory is
removed, altered, or
removed after
installation.
Membership in the
WSS_ADMIN_WPG
Windows security
group is required for
some SharePoint
2013 services to be
able to store data on
disk.
%ProgramFiles%\Microsoft Office
Servers\15.0\WebServices
Read, write
No
This directory is the
root directory where
back-end Web
services are hosted,
for example, Excel
and Search. The
SharePoint 2013
features that depend
on these services will
fail if this directory is
removed or altered.
58
File system path
Permission
s
Inherit
Description
%ProgramFiles%\Microsoft Office
Servers\15.0\Data
Full control
No
This directory is the
root location where
local data is stored,
including search
indexes. Search
functionality will fail
if this directory is
removed or altered.
WSS_ADMIN_WPG
Windows security
group permissions
are required to
enable search to save
and secure data in
this folder.
%ProgramFiles%\Microsoft Office
Servers\15.0\Logs
Full control
Yes
This directory is the
location where the
run-time diagnostic
logging is generated.
Logging functionality
will not function
properly if this
directory is removed
or altered.
%ProgramFiles%\Microsoft Office
Servers\15.0\Data\Office Server
Full control
Yes
Same as the
parent folder.
%windir%\System32\drivers\etc\HO
STS
Read, write
Not
Applicabl
e
Not
Applicable
%windir%\Tasks
Full control
Not
Applicabl
e
Not
Applicable
59
File system path
Permission
s
Inherit
Description
%COMMONPROGRAMFILES%Micros
oft Shared\Web Server
Extensions\15
Modify
Yes
This directory
is the
installation
directory for
core
SharePoint
2013 files. If
the access
control list
(ACL) is
modified,
feature
activation,
solution
deployment,
and other
features will
not function
correctly.
%COMMONPROGRAMFILES%\Micro
soft Shared\Web Server
Extensions\15\ADMISAPI
Full control
Yes
This directory
contains the
SOAP services
for Central
Administratio
n. If this
directory is
altered,
remote site
creation and
other
methods
exposed in
the service
will not
function
correctly.
60
File system path
Permission
s
Inherit
Description
%COMMONPROGRAMFILES%\Micros
oft Shared\Web Server
Extensions\15\CONFIG
Full control
Yes
This directory
contains files used to
extend IIS Web sites
with SharePoint
2013. If this directory
or its contents are
altered, web
application
provisioning will not
function correctly.
%COMMONPROGRAMFILES%\Micros
oft Shared\Web Server
Extensions\15\LOGS
Full control
No
This directory
contains setup and
runtime tracing logs.
If the directory is
altered, diagnostic
logging will not
function correctly.
%windir%\temp
Full control
Yes
This directory is used
by platform
components on
which SharePoint
2013 depends. If the
access control list is
modified, Web Part
rendering and other
deserialization
operations might fail.
61
File system path
Permission
s
Inherit
Description
%windir%\System32\logfiles\ShareP
oint
Full control
No
This directory is used
by SharePoint Server
usage logging. If this
directory is modified,
usage logging will not
function correctly.
This registry key
applies only to
SharePoint Server.
%systemdrive\program
files\Microsoft Office Servers\15
folder on Index servers
Full control
Not Applicable
This permission is
granted for a
%systemdrive\progra
m files\Microsoft
Office Servers\15
folder on Index
servers.
WSS_WPG
WSS_WPG has read access to local resources. All application pool and services accounts are in
WSS_WPG. The following table shows WSS_WPG registry entry permissions.
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office
Server\15.0
Read
No
This key is the
root of the
SharePoint
2013 registry
settings.
62
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Office
Server\15.0\Diagnostics
Read, write
No
This key
contains
settings for
the
SharePoint
2013
diagnostic
logging.
Altering this
key will break
the logging
functionality.
HKEY_LOCAL_MACHINE\Software\Microsoft\Office
Server\15.0\LoadBalancerSettings
Read, write
No
This key
contains
settings for
the document
conversion
service.
Altering this
key will break
document
conversion
functionality.
HKEY_LOCAL_MACHINE\Software\Microsoft\Office
Server\15.0\LauncherSettings
Read, write
No
This key
contains
settings for
the document
conversion
service.
Altering this
key will break
document
conversion
functionality.
63
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server Extensions\15.0\Secure
Read
No
This key
contains the
connection
string and the
ID of the
configuration
database to
which the
machine is
joined. If this
key is altered,
the
SharePoint
2013
installation on
the machine
will not
function.
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server Extensions\15.0\WSS
Read
Yes
This key
contains
settings that
are used
during setup.
If this key is
altered,
diagnostic
logging may
fail and setup
or post-setup
configuration
may fail.
The following table shows the WSS_WPG file system permissions.
64
File system path
Permissi
ons
Inherit
Description
%AllUsersProfile%\
Microsoft\SharePoint
Read
No
This directory
contains the
file-system-
backed cache
of the farm
configuration.
Processes
might fail to
start and the
administrativ
e actions
might fail if
this directory
is altered or
deleted.
65
File system path
Permissi
ons
Inherit
Description
C:\Inetpub\wwwroot\wss
Read,
execute
No
This directory
(or the
correspondin
g directory
under the
Inetpub root
on the server)
is used as the
default
location for
IIS Web sites.
SharePoint
sites will be
unavailable
and
administrativ
e actions
might fail if
this directory
is altered or
deleted,
unless custom
IIS Web site
paths are
provided for
all IIS Web
sites
extended
with
SharePoint
2013.
66
File system path
Permissi
ons
Inherit
Description
%ProgramFiles%\Microsoft Office
Servers\15.0
Read,
execute
No
This directory
is the
installation
location for
the
SharePoint
2013 binaries
and data. It
can be
changed
during
installation.
All SharePoint
2013
functionality
will fail if this
directory is
removed,
altered, or
moved after
installation.
WSS_WPG
read and
execute
permissions
are required
to enable IIS
sites to load
SharePoint
2013 binaries.
67
File system path
Permissi
ons
Inherit
Description
%ProgramFiles%\Microsoft Office
Servers\15.0\WebServices
Read
No
This directory
is the root
directory
where back-
end Web
services are
hosted, for
example,
Excel and
Search. The
SharePoint
2013 features
that depend
on these
services will
fail if this
directory is
removed or
altered.
%ProgramFiles%\Microsoft Office
Servers\15.0\Logs
Read,
write
Yes
This directory
is the location
where the
runtime
diagnostic
logging is
generated.
Logging
functionality
will not
function
properly if
this directory
is removed or
altered.
68
File system path
Permissi
ons
Inherit
Description
%COMMONPROGRAMFILES%\Microso
ft Shared\Web Server
Extensions\15\ADMISAPI
Read
Yes
This directory
contains the
SOAP services
for Central
Administratio
n. If this
directory is
altered,
remote site
creation and
other
methods
exposed in
the service
will not
function
correctly.
%COMMONPROGRAMFILES%\Micro
soft Shared\Web Server
Extensions\15\CONFIG
Read
Yes
This directory
contains files used to
extend IIS Web sites
with SharePoint
2013. If this directory
or its contents are
altered, web
application
provisioning will not
function correctly.
%COMMONPROGRAMFILES%\Micro
soft Shared\Web Server
Extensions\15\LOGS
Modify
No
This directory
contains setup and
runtime tracing logs.
If the directory is
altered, diagnostic
logging will not
function correctly.
69
File system path
Permissi
ons
Inherit
Description
%windir%\temp
Read
Yes
This directory is used
by platform
components on
which SharePoint
2013 depends. If the
access control list is
modified, Web Part
rendering, and other
deserialization
operations may fail.
%windir%\System32\logfiles\ShareP
oint
Read
No
This directory is used
by SharePoint Server
usage logging. If this
directory is modified,
usage logging will not
function correctly.
The registry key
applies only to
SharePoint Server.
%systemdrive\program
files\Microsoft Office Servers\15
Read,
execute
Not
Applicabl
e
The permission is
granted for
%systemdrive\progra
m files\Microsoft
Office Servers\15
folder on Index
servers.
Local service
The following table shows the local service registry entry permission:
70
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Office
Server\15.0\LoadBalancerSettings
Read
No
This key
contains
settings for the
document
conversion
service.
Altering this
key will break
document
conversion
functionality.
The following table shows the local service file system permission:
File system path
Permissions
Inherit
Description
%ProgramFiles%\Microsoft
Office Servers\15.0\Bin
Read, execute
No
This directory is the
installed location of
the SharePoint 2013
binaries. All the
SharePoint 2013
functionality will fail if
this directory is
removed or altered.
71
Local system
The following table shows the local system registry entry permissions:
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Office
Server\15.0\LauncherSettings
Read
No
This key
contains
settings for
the document
conversion
service.
Altering this
key will break
document
conversion
functionality.
This registry
key applies
only to
SharePoint
Server.
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server Extensions\15.0\Secure
Full control
No
This key
contains the
connection
string and the
ID of the
configuration
database to
which the
machine is
joined. If this
key is altered,
the SharePoint
2013
installation on
the machine
will not
function.
72
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server
Extensions\15.0\Secure\FarmAdmin
Full control
No
This key
contains the
encryption key
that is used to
store secrets
in the
configuration
database. If
this key is
altered,
service
provisioning
and other
features will
fail.
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server Extensions\15.0\WSS
Full control
Yes
This key
contains
settings that
are used
during setup.
If this key is
altered,
diagnostic
logging may
fail and setup
or post-setup
configuration
may fail.
73
The following table shows the local file system permissions:
File system path
Permissions
Inherit
Description
%AllUsersProfile%\ Microsoft\SharePoint
Full control
No
This directory
contains the
file-system-
backed cache of
the farm
configuration.
Processes might
fail to start and
administrative
actions might
fail if this
directory is
altered or
deleted.
74
File system path
Permissions
Inherit
Description
C:\Inetpub\wwwroot\wss
Full control
No
This directory
(or the
corresponding
directory under
the Inetpub
root on the
server) is used
as the default
location for IIS
Web sites.
SharePoint sites
will be
unavailable and
administrative
actions might
fail if this
directory is
altered or
deleted, unless
custom IIS Web
site paths are
provided for all
IIS Web sites
extended with
SharePoint
2013.
75
File system path
Permissions
Inherit
Description
%COMMONPROGRAMFILES%\Microsoft
Shared\Web Server Extensions\15\ADMISAPI
Full control
Yes
This directory
contains the
SOAP services
for Central
Administration.
If this directory
is altered,
remote site
creation and
other methods
exposed in the
service will not
function
correctly.
%COMMONPROGRAMFILES%\Microsoft
Shared\Web Server Extensions\15\CONFIG
Full control
Yes
If this directory
or its contents
are altered,
Web
Application
provisioning will
not function
correctly.
%COMMONPROGRAMFILES%\Microsoft
Shared\Web Server Extensions\15\LOGS
Full control
No
This directory
contains setup
and run-time
tracing logs. If
the directory is
altered,
diagnostic
logging will not
function
correctly.
76
File system path
Permissions
Inherit
Description
%windir%\temp
Full control
Yes
This directory is
used by
platform
components on
which
SharePoint
2013 depends.
If the access
control list is
modified, Web
Part rendering,
and other
deserialization
operations
might fail.
77
File system path
Permissions
Inherit
Description
%windir%\System32\logfiles\SharePoint
Full control
No
This
directory
is used by
SharePoint
Server for
usage
logging. If
this
directory
is
modified,
usage
logging
will not
function
correctly.
This
registry
key
applies
only to
SharePoint
Server.
Network service
The following table shows the network service registry entry permission:
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Office
Server\15.0\Search\Setup
Read
Not Applicable
Not Applicable
78
Administrators
The following table shows the administrators registry entry permissions:
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server Extensions\15.0\Secure
Full control
No
This key
contains the
connection
string and the
ID of the
configuration
database to
which the
machine is
joined. If this
key is altered,
the SharePoint
2013
installation on
the machine
will not
function.
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server
Extensions\15.0\Secure\FarmAdmin
Full control
No
This key
contains the
encryption key
that is used to
store secrets
in the
configuration
database. If
this key is
altered,
service
provisioning
and other
features will
fail.
79
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server Extensions\15.0\WSS
Full control
Yes
This key
contains
settings that
are used
during setup.
If this key is
altered,
diagnostic
logging may
fail and setup
or post-setup
configuration
may fail.
The following table shows the administrators file system permissions:
File system path
Permissions
Inherit
Description
%AllUsersProfile%\ Microsoft\SharePoint
Full control
No
This directory
contains the
file-system-
backed cache of
the farm
configuration.
Processes might
fail to start and
administrative
actions might
fail if this
directory is
altered or
deleted.
80
File system path
Permissions
Inherit
Description
C:\Inetpub\wwwroot\wss
Full Control
No
This directory
(or the
corresponding
directory under
the Inetpub
root on the
server) is used
as the default
location for IIS
Web sites.
SharePoint sites
will be
unavailable and
administrative
actions might
fail if this
directory is
altered or
deleted, unless
custom IIS web
site paths are
provided for all
IIS web sites
that are
extended with
SharePoint
2013.
81
File system path
Permissions
Inherit
Description
%COMMONPROGRAMFILES%\Microsoft
Shared\Web Server Extensions\15\ADMISAPI
Full control
Yes
This directory
contains the
SOAP services
for Central
Administration.
If this directory
is altered,
remote site
creation and
other methods
exposed in the
service will not
function
correctly.
%COMMONPROGRAMFILES%\Microsoft
Shared\Web Server Extensions\15\CONFIG
Full control
Yes
If this directory
or its contents
are altered,
web application
provisioning will
not function
correctly.
%COMMONPROGRAMFILES%\Microsoft
Shared\Web Server Extensions\15\LOGS
Full control
No
This directory
contains setup
and runtime
tracing logs. If
the directory is
altered,
diagnostic
logging will not
function
correctly.
82
File system path
Permissions
Inherit
Description
%windir%\temp
Full control
Yes
This directory is
used by
platform
components on
which
SharePoint
2013 depends.
If the ACL is
modified, Web
Part rendering,
and other
deserialization
operations
might fail.
%windir%\System32\logfiles\SharePoint
Full control
No
This
directory
is used by
SharePoint
Server for
usage
logging. If
this
directory
is
modified,
usage
logging
will not
function
correctly.
This
registry
key
applies
only to
SharePoint
Server.
83
WSS_RESTRICTED_WPG
WSS_RESTRICTED_WPG can read the encrypted farm administration credential registry entry.
WSS_RESTRICTED_WPG is only used for encryption and decryption of passwords that are stored in the
configuration database. The following table shows the WSS_RESTRICTED_WPG registry entry
permission:
Key name
Permissions
Inherit
Description
HKEY_LOCAL_MACHINE\Software\Microsoft\Shared
Tools\Web Server
Extensions\15.0\Secure\FarmAdmin
Full control
No
This key
contains the
encryption key
that is used to
store secrets
in the
configuration
database. If
this key is
altered,
service
provisioning
and other
features will
fail.
84
Users group
The following table shows the users group file system permissions:
File system path
Permissions
Inherit
Description
%ProgramFiles%\Microsoft
Office Servers\15.0
Read, execute
No
This directory is the
installation location
for SharePoint 2013
binaries and data. It
can be changed
during installation.
All SharePoint 2013
functionality will fail
if this directory is
removed, altered, or
moved after
installation.
%ProgramFiles%\Microsoft
Office
Servers\15.0\WebServices\Root
Read, execute
No
This directory is the
root directory where
back-end root Web
services are hosted.
The only service
initially installed on
this directory is a
search global
administration
service. Some search
administration
functionality that
uses the server-
specific Central
Administration
Settings page will not
work if this directory
is removed or
altered.
85
File system path
Permissions
Inherit
Description
%ProgramFiles%\Microsoft
Office Servers\15.0\Logs
Read, write
Yes
This directory is the
location where the
run-time diagnostic
logging is generated.
Logging will not
function properly if
this directory is
removed or altered.
%ProgramFiles%\Microsoft
Office Servers\15.0\Bin
Read, execute
No
This directory is the
installed location of
SharePoint 2013
binaries. All of the
SharePoint 2013
functionality will fail
if this directory is
removed or altered.
All SharePoint 2013 service accounts
The following table shows the all SharePoint 2013 service accounts file system permission:
File system path
Permissions
Inherit
Description
%COMMONPROGRAMFILES%\Microsoft
Shared\Web Server
Extensions\15\LOGS
Modify
No
This directory
contains setup and
runtime tracing
logs. If this
directory is
altered, diagnostic
logging will not
function correctly.
All SharePoint
2013 service
accounts must
have write
permission to this
directory.
86
See also
Install and configure SharePoint 2013
87
Configure SQL Server security for
SharePoint 2013 environments
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-10-22
Summary: Learn how to improve the security of SQL Server for SharePoint 2013 environments.
When you install SQL Server, the default settings help to provide a safe database. In addition, you can
use SQL Server tools and Windows Firewall to add additional security to SQL Server for SharePoint
2013 environments.
In this article:
Before you begin
Configuring a SQL Server instance to listen on a non-default port
To configure a SQL Server instance to listen on a non-default port
Blocking default SQL Server listening ports
Configuring Windows Firewall to open manually assigned ports
To configure Windows Firewall to open manually assigned ports
Configuring SQL Server client aliases
To configure a SQL Server client alias
Before you begin
Before you begin this operation, review the following tasks about how to secure your server farm:
Block UDP port 1434.
Configure named instances of SQL Server to listen on a nonstandard port (other than TCP port
1433 or UDP port 1434).
88
For additional security, block TCP port 1433 and reassign the port that is used by the default
instance to a different port.
Configure SQL Server client aliases on all front-end web servers and application servers in the
server farm. After you block TCP port 1433 or UDP port 1434, SQL Server client aliases are
necessary on all computers that communicate with the computer that is running SQL Server.
Note:
Because SharePoint 2013 runs as websites in IIS, administrators and users depend on the
accessibility features that browsers provide. SharePoint 2013 supports the accessibility
features of supported browsers. For more information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Configuring a SQL Server instance to listen on a non-
default port
SQL Server provides the ability to reassign the ports that are used by the default instance and any
named instances. In SQL Server 2008 R2, and SQL Server 2012, you reassign the TCP port by using SQL
Server Configuration Manager. When you change the default ports, you make the environment more
secure against hackers who know default assignments and use them to exploit your SharePoint
environment.
To configure a SQL Server instance to listen on a non-default port
1. Verify that the user account that is performing this procedure is a member of either the sysadmin
or the serveradmin fixed server role.
2. On the computer that is running SQL Server, open SQL Server Configuration Manager.
3. In the navigation pane, expand SQL Server Network Configuration.
4. Click the corresponding entry for the instance that you are configuring.
89
The default instance is listed as Protocols for MSSQLSERVER. Named instances will appear as
Protocols for named_instance.
5. In the main window in the Protocol Name column, right-click TCP/IP, and then click Properties.
6. Click the IP Addresses tab.
For every IP address that is assigned to the computer that is running SQL Server, there is a
corresponding entry on this tab. By default, SQL Server listens on all IP addresses that are assigned
to the computer.
7. To globally change the port that the default instance is listening on, follow these steps:
For each IP address except IPAll, clear all values for both TCP dynamic ports and TCP
Port.
For IPAll, clear the value for TCP dynamic ports. In the TCP Port field, enter the port
that you want the instance of SQL Server to listen on. For example, enter 40000.
8. To globally change the port that a named instance is listening on, follow these steps:
For each IP address including IPAll, clear all values for TCP dynamic ports. A value of 0
for this field indicates that SQL Server uses a dynamic TCP port for the IP address. A blank
entry for this value means that SQL Server will not use a dynamic TCP port for the IP
address.
For each IP address except IPAll, clear all values for TCP Port.
For IPAll, clear the value for TCP dynamic ports. In the TCP Port field, enter the port
that you want the instance of SQL Server to listen on. For example, enter 40000.
9. Click OK.
A message indicates that that the change will not take effect until the SQL Server service is
restarted. Click OK.
10. Close SQL Server Configuration Manager.
11. Restart the SQL Server service and confirm that the computer that is running SQL Server is
listening on the port that you selected.
You can confirm this by looking in the Event Viewer log after you restart the SQL Server service.
Look for an information event similar to the following event:
Event Type:Information
Event Source:MSSQL$MSSQLSERVER
90
Event Category:(2)
Event ID:26022
Date:3/6/2008
Time:1:46:11 PM
User:N/A
Computer:computer_name
Description:
Server is listening on [ 'any' <ipv4>50000]
12. Verification: Optionally, include steps that users should perform to verify that the operation was
successful.
Blocking default SQL Server listening ports
Windows Firewall with Advanced Security uses Inbound Rules and Outbound Rules to help secure
incoming and outgoing network traffic. Because Windows Firewall blocks all incoming unsolicited
network traffic by default, you do not have to explicitly block the default SQL Server listening ports.
For more information, see Windows Firewall with Advanced Security and Configuring the Windows
Firewall to Allow SQL Server Access.
Configuring Windows Firewall to open manually
assigned ports
To access a SQL Server instance through a firewall, you must configure the firewall on the computer
that is running SQL Server to allow access. Any ports that you manually assign must be open in
Windows Firewall.
To configure Windows Firewall to open manually assigned ports
1. Verify that the user account that is performing this procedure is a member of either the sysadmin
or the serveradmin fixed server role.
2. In Control Panel, open System and Security.
3. Click Windows Firewall, and then click Advanced Settings to open the Windows Firewall with
Advanced Security dialog box.
91
4. In the navigation pane, click Inbound Rules to display the available options in the Actions pane.
5. Click New Rule to open the New Inbound Rule Wizard.
6. Use the wizard to complete the steps that are required to allow access to the port that you
defined in Configure a SQL Server instance to listen on a non-default port.
Note:
You can configure the Internet Protocol security (IPsec) to help secure communication to
and from your computer that is running SQL Server by configuring the Windows firewall.
You do this by selecting Connection Security Rules in the navigation pane of the Windows
Firewall with Advanced Security dialog box.
Configuring SQL Server client aliases
If you block UDP port 1434 or TCP port 1433 on the computer that is running SQL Server, you must
create a SQL Server client alias on all other computers in the server farm. You can use SQL Server
client components to create a SQL Server client alias for computers that connect to SQL Server.
To configure a SQL Server client alias
1. Verify that the user account that is performing this procedure is a member of either the sysadmin
or the serveradmin fixed server role.
2. Run Setup for SQL Server on the target computer, and install the following client components:
Connectivity Components
Management Tools
3. Open SQL Server Configuration Manager.
4. In the navigation pane, click SQL Native Client Configuration.
5. In the main window under Items, right-click Aliases, and select New Alias.
6. In the Alias - New dialog box, in the Alias Name field, enter a name for the alias. For example,
enter SharePoint_alias.
7. In the Port No field, enter the port number for the database instance. For example, enter 40000.
Make sure that the protocol is set to TCP/IP.
8. In the Server field, enter the name of the computer that is running SQL Server.
9. Click Apply, and then click OK.
92
10. Verification: You can test the SQL Server client alias by using SQL Server Management Studio,
which is available when you install SQL Server client components.
11. Open SQL Server Management Studio.
12. When you are prompted to enter a server name, enter the name of the alias that you created, and
then click Connect. If the connection is successful, SQL Server Management Studio is populated
with objects that correspond to the remote database.
13. To check connectivity to additional database instances from SQL Server Management Studio, click
Connect, and then click Database Engine.
See also
Securing SharePoint: Harden SQL Server in SharePoint Environments
How to: Configure a Windows Firewall for Database Engine Access
How to: Configure a Server to Listen on a Specific TCP Port (SQL Server Configuration Manager)
93
Install prerequisites for SharePoint 2013
from a network share
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-22
Summary: Learn how to how to install SharePoint 2013 prerequisites from an offline shared network
location by using the prerequisite installer (PrerequisiteInstaller.exe) tool.
Installing prerequisites from an offline location is typically required when the servers on which you
want to install SharePoint 2013 are isolated from the Internet. Even if this is not the case, installing
prerequisites from an offline central location enables you to make sure of farm server consistency by
installing a well-known and controlled set of images.
Note:
The Microsoft SharePoint Products Preparation Tool is a user interface built on
PrerequisiteInstaller.exe. The Microsoft SharePoint Products Preparation Tool accepts no user
input.
In this article:
Installer switches and arguments
Download and combine the SharePoint 2013 prerequisites on a file share
Install the SharePoint 2013 prerequisites at the command prompt
Install the SharePoint 2013 prerequisites using an arguments file
Known issues
Important:
The steps in this article apply to SharePoint Foundation 2013 and SharePoint Server 2013.
Installer switches and arguments
By using PrerequisiteInstaller.exe with switches and arguments, you control the versions of the
required software that are installed and the location from which they are installed.
PrequisiteInstaller.exe accepts single or multiple switch and argument pairs. A switch identifies the
prerequisite and the argument specifies the action and the location of the prerequisite.
A switch and argument pair uses the following format:
94
/switch: <path>
Where:
/switch is a valid switch to identify a prerequisite. For example, /SQLNCli: is the switch for the
Microsoft SQL Server 2008 R2 SP1 Native Client.
<path> is expressed as the path of a local file or the path of a file share, for example,
"C:\foldername\sqlncli.msi" or "\\<servername>\<sharename>\sqlncli.msi".
Each switch and its argument are separated by a colon and a space. The argument is enclosed in
quotation marks.
The switch and argument pairs can be passed to PrerequisiteInstaller.exe at the command prompt or
read from an arguments text file.
Download and combine the SharePoint 2013
prerequisites on a file share
The process for downloading and combining prerequisites consists of the steps that were described in
the following procedures.
To identify prerequisites
1. Refer to Hardware and software requirements for SharePoint 2013, which lists all the required
and optional software for SharePoint 2013. Additionally, this document provides the download
location for each prerequisite that is available for download on the Internet.
2. From the command prompt, navigate to the root of the SharePoint 2013 installation media or
folder location.
3. At the command prompt, type the following command and then press ENTER:
PrerequisiteInstaller.exe /?
This displays a list of the command-line options and switches and their corresponding arguments
for installing a prerequisite from the command-line.
Tip:
To copy the contents of the active About window to the Clipboard, press CTRL+C.
4. Verify that you have an accurate list of the required software. Compare the output from the
prerequisite installer to the list of prerequisites in step 1.
95
5. Download the prerequisites to a computer that has Internet access.
Next, follow these steps to create a central location that you can use for installing SharePoint 2013
prerequisites on all the farm servers.
To combine prerequisites
1. Create a shared folder on a computer that can be accessed by the servers on which the
prerequisites will be installed.
2. Copy the files that you downloaded from the Internet to the shared folder.
After you finish creating an available network location for the prerequisites, use the procedure in the
following section to install SharePoint 2013 prerequisites on a server.
Install the SharePoint 2013 prerequisites at the
command prompt
You can install one or more of the prerequisites from the command line using the following
procedure.
To install from the command line
1. From the Start menu, open the Command Prompt window using the Run as administrator
option.
2. Navigate to the SharePoint 2013 source directory.
3. Type the prerequisite program switch and corresponding argument for the program that you want
to install, and then press ENTER, for example:
PrerequisiteInstaller.exe /SQLNCli: "\\o15-sf-admin\SP_prereqs\sqlncli.msi"
Note:
To install more than one prerequisite, type each switch and argument pair. Be sure to
separate each pair by a space, for example:
PrerequisiteInstaller.exe /IDFX: "\\<path>\Windows6.1-KB974405-x64.msu" /sqlncli:
"\\<path>\sqlncli.msi" /Sync: "\\<path>\Synchronization.msi"
96
Install the SharePoint 2013 prerequisites by using an
arguments file
You can install the prerequisites from the file share using an arguments file that consists of switches
and corresponding path statements to the programs that have to be installed.
When you run PrerequisiteInstaller.exe with an arguments file, the following happens:
1. PrerequisiteInstaller.exe reads the argument file to verify that each switch is valid and that the
program identified in the path statement exists.
Note:
If you specify an argument, PrerequisiteInstaller.exe ignores the arguments file and only
processes the command-line argument.
2. PrerequisiteInstaller.exe scans the local system to determine whether any of the prerequisites are
already installed.
3. PrerequisiteInstaller.exe installs the programs in the argument file and returns one of the
following exit codes:
0 - Success
1 – Another instance of this application is already running
2 – Invalid command line parameter
1001 – A pending restart blocks installation
3010 – A restart is needed
4. If a prerequisite requires a restart, a 3010 code is generated and you are prompted to click Finish
to restart the system. The behavior of the installer after a 3010 code is different depending on
which of the following conditions are true on the computer:
If the component that requires a restart is already installed on the system, the 3010 code
is generated and the remaining prerequisites are installed. After the last prerequisite is
installed you are prompted to restart the system.
If the component that requires a restart is installed on the system by
PrerequisiteInstaller.exe, the installer generates the 3010 code, and the installation of the
remaining prerequisites is skipped. You are prompted to restart the system.
After the system restarts, PrerequisiteInstaller.exe starts to run again because the startup
file that is created before the restart contains a /continue flag.
97
Multiple components may require a restart. So PrerequisiteInstaller.exe may have to be
restarted several times. After a restart, PrerequisiteInstaller.exe ignores the arguments
file and attempts to download and install the remaining prerequisites from the Internet.
For more information, see Known issues.
Use the following procedure to create an arguments file.
To create an arguments file
1. Using a text editor, create a new text document named PrerequisiteInstaller.Arguments.txt. Save
this file to the same location as PrerequisiteInstaller.exe. This file will contain the switches and
arguments that are used when you run the Microsoft SharePoint Products Preparation Tool.
2. Using a text editor, edit PrerequisiteInstaller.Arguments.txt and provide file paths to the
installation source for each prerequisite switch by using the following syntax:
/switch: <path>
Where /switch is a valid switch and <path> is a path of the installation source.
The following example shows a complete arguments file that uses a file share as a common
installation point. Do not include carriage returns in your file.
/PowerShell:"<
path
>\WINDOWS6.1-KB2506143-x64.msu"
/NETFX:"<
path
>\netfx_full_x64.msi" /IDFX:"<
path
>\Windows6.1-KB974405-
x64.msu" /sqlncli: "<
path
>\sqlncli.msi" /Sync:
"<
path
>\Synchronization.msi"
/AppFabric:"<
path
>\WindowsServerAppFabricSetup_x64.exe"
/IDFX11:"<
path
>\MicrosoftIdentityExtensions-64.msi"
/MSIPCClient:"<
path
>\setup_msipc_x64.msi"
/WCFDataServices:"<
path
>\WcfDataServices.exe"
/KB2671763:"<
path
>\AppFabric1.1-RTM-KB2671763-x64-ENU.exe"
3. After you finish editing PrerequisiteInstaller.Arguments.txt, save your edits, and verify that this file
is in the same directory as PrerequisiteInstaller.exe.
Use the following procedure to install the prerequisites.
To install the prerequisites using an arguments file
1. Run PrerequisiteInstaller.exe at the command prompt to install the prerequisites.
Caution:
If you are prompted to click Finish to restart the system, do not do so. Instead, click
Cancel. For more information, see Known issues you continue with the next step.
2. Restart the system manually.
98
3. At the command prompt type the following command and then press Enter:
PrerequisiteInstaller.exe
Known issues
There are two known issues that affect the use of an arguments file:
Using line breaks in the arguments file
If you create an arguments file and use line breaks to put each switch and argument on a separate
line, the prerequisite installer fails. The workaround is to enter all the switch and argument pairs
on a single line.
After a computer restart, the arguments file is not used
After a restart, PrerequisiteInstaller.exe executes the startup command file, which contains a
/continue flag. The /continue flag forces the installer to ignore the arguments file.
You must prevent a restart by deleting the startup task in this command file by using one of the
following options:
Option 1
1. Run PrerequisiteInstaller.exe by double-clicking it. The program will display the first screen
with the list of prerequisites.
2. Click Cancel. PrerequisiteInstaller.exe deletes the startup task.
Option 2
1. From the Start menu, choose Run and then type regedit to open the registry.
2. Open the key
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Shell
Folders.
3. Check the value for "Common Startup". This shows the directory where the startup tasks are
listed.
4. Close the registry editor without making any changes.
5. Navigate to the startup directory, which is usually
<systemdir>\ProgramData\Microsoft\Windows\Start Menu\Programs\Startup.
6. Delete the startup task by deleting "SharePointServerPreparationToolStartup_0FF1CE14-0000-
0000-0000-000000000000.cmd".
100
Install SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Introduces articles that describe how to install SharePoint 2013 in various topologies, on
both physical and virtual environments.
Testing and implementing SharePoint 2013 solutions at different stages of the deployment life cycle
requires deployments in various topologies.
The following articles on TechNet provide information about how to deploy SharePoint 2013 on one
or more servers to create different topologies that you can use for testing and implementing
SharePoint 2013 solutions at different stages of the deployment life cycle.
TechNet articles about how to install and configure
SharePoint 2013
The following articles about how to install and configure SharePoint 2013 are available to view online.
Writers update articles on a continuing basis as new information becomes available and as users
provide feedback.
Content
Description
Install SharePoint 2013 on a single server with
SQL Server
Describes how to install SharePoint 2013 on a
single server. This deployment uses SQL Server
and can easily be scaled out to create two- and
three-tier farm topologies.
Install SharePoint 2013 on a single server with a
built-in database
Explains how to install SharePoint 2013 on a
single server. This deployment uses SQL Server
Express and is typically used for evaluating
SharePoint 2013.
101
Content
Description
Install SharePoint 2013 across multiple servers for
a three-tier farm
Describes how to install SharePoint 2013 on
multiple servers. This deployment uses SQL Server
and the resulting three-tier topology provides the
foundation for implementing any solution.
Install and configure a virtual environment for
SharePoint 2013
This article describes how to use Windows
PowerShell to install SharePoint 2013 in a Hyper-V
environment.
Install or uninstall language packs for SharePoint
2013
Describes language packs and how to download,
install, and uninstall them.
Add web or application servers to farms in
SharePoint 2013
Explains how to add a web or application server
to a farm. The procedures in this article apply to a
SharePoint 2013 farm that consists of at least two
tiers. They should not be used for converting a
single server deployment to a multiple server
farm.
Add a database server to an existing farm in
SharePoint 2013
Provides information about how to add a new
database server to an existing SharePoint 2013
farm.
Remove a server from a farm in SharePoint 2013
Describes how to remove a web server,
application server, or a database server from a
SharePoint 2013 farm.
Uninstall SharePoint 2013
Describes how to remove SharePoint 2013 from a
computer.
Install and configure a virtual environment for
SharePoint 2013
Learn about permissions, accounts, security
settings, and what you have to do to prepare your
Windows Server 2008 Hyper-V environment for
SharePoint 2013.
102
Additional resources about how to install and
configure SharePoint 2013
The following resources about how to install and configure SharePoint 2013 are available from other
subject matter experts.
Content
Description
Installation and Deployment for
SharePoint 2013 Resource
Center
Visit the Resource Center to
access videos, Community Sites,
documentation, and more.
See also
Capabilities and features in SharePoint 2013 Resource Center
Installation and Deployment for SharePoint 2013 Resource Center
103
Install SharePoint 2013 on a single server
with a built-in database
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to install SharePoint 2013 with a built-in database on a single server.
You can quickly publish a SharePoint site by deploying SharePoint 2013 on a single server that has a
built-in database. This configuration is useful if you want to evaluate SharePoint 2013 features and
capabilities, such as collaboration, document management, and search. This configuration is also
useful if you are deploying only a few websites and you want to minimize administrative overhead.
This article contains required information and procedures to install and configure SharePoint 2013
with a built-in database on a single server.
In this article:
Overview
Before you begin
Install SharePoint 2013
Post-installation steps
Important:
The steps in this article apply to SharePoint Foundation 2013 and SharePoint Server 2013. The
procedures in this topic install Microsoft SQL Server 2008 R2 SP1 Express Edition. However,
User Profile synchronization does not work with the Express Edition. If you intend to use User
Profile synchronization with SharePoint Server 2013, you must choose a different installation
scenario.
Overview
When you deploy SharePoint 2013 on a single server that has a built-in database by using the default
settings, Setup installs Microsoft SQL Server 2008 R2 SP1 Express Edition and the SharePoint product.
The SharePoint Products Configuration Wizard creates the configuration database and content
database for the SharePoint sites. Additionally, the SharePoint Products Configuration Wizard installs
the SharePoint Central Administration website and creates your first SharePoint site collection.
104
Note:
This article does not describe how to install SharePoint 2013 in a farm environment, or how to
upgrade from previous releases of SharePoint 2013. For more information about how to
install SharePoint 2013 on a single-server farm, see Install SharePoint 2013 on a single server
with SQL Server. For more information about how to install SharePoint 2013 on a multiple
server farm, see Install SharePoint 2013 across multiple servers for a three-tier farm. For more
information about upgrade, see Upgrade to SharePoint 2013.
Note:
The Distributed Cache service gives you a complete social computing experience. For more
information about the Distributed Cache service, see Overview of microblog features, feeds,
and the Distributed Cache service in SharePoint Server 2013, Manage the Distributed Cache
service in SharePoint Server 2013, Plan for feeds and the Distributed Cache service in
SharePoint Server 2013, and What's new in authentication for SharePoint 2013
Consider the following restrictions of this method of installation:
You cannot use this method on a domain controller or in a workgroup environment.
This method is not supported for production on a domain controller.
If your computer is in a workgroup, you cannot install AppFabric for Windows Server.
A Microsoft SQL Server 2008 R2 SP1 Express Edition database cannot be larger than 10 GB.
You cannot use user profile synchronization in this type of installation. If you want to use user
profile synchronization, you must use a server farm installation of SharePoint 2013. For more
information, see Install SharePoint 2013 on a single server with SQL Server or Install SharePoint
2013 across multiple servers for a three-tier farm, and Synchronize user and group profiles in
SharePoint Server 2013.
Before you begin
Before you begin installation, make sure that you have met all hardware and software requirements.
For more information, see Hardware and software requirements for SharePoint 2013. To make sure
that you perform a clean installation of SharePoint 2013, you must first remove any earlier version of
SharePoint 2013 and any pre-release prerequisites if installed.
Install SharePoint 2013
To install and configure SharePoint 2013, follow these steps:
105
1. Run the Microsoft SharePoint Products Preparation Tool.
2. Run Setup, which installs Microsoft SQL Server 2008 R2 SP1 Express Edition and the SharePoint
product.
3. Run the SharePoint Products Configuration Wizard, which installs and configures the configuration
database, the content database, and installs the SharePoint Central Administration website. This
wizard also creates your first SharePoint site collection.
4. Configure browser settings.
5. Perform post-installation steps.
Important:
To complete the following procedures, you must be a member of the Administrators group on
the computer on which you are installing SharePoint 2013.
Run the Microsoft SharePoint Products Preparation Tool
Because the prerequisite installer downloads components from the Microsoft Download Center, you
must have Internet access on the computer on which you are running the installer. Use the following
procedure to install software prerequisites for SharePoint 2013.
To run the Microsoft SharePoint Products Preparation Tool
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. In the folder where you downloaded the SharePoint 2013 software, locate and then run
prerequisiteinstaller.exe.
3. On the Welcome to the Microsoft SharePoint Products Preparation Tool page, click Next.
4. On the License Terms for software products page, review the terms, select the I accept the
terms of the License Agreement(s) check box, and then click Next.
5. On the Installation Complete page, click Finish.
6. After you complete the Microsoft SharePoint Products Preparation Tool, you must also install the
following:
KB 2554876
KB 2708075
106
KB 2759112
KB 2765317
Run Setup
The following procedure installs Microsoft SQL Server 2008 R2 SP1 Express Edition and the SharePoint
product. At the end of Setup, you can choose to start the SharePoint Products Configuration Wizard,
which is described later in this section.
To run Setup
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. On the SharePoint Server 2013 or SharePoint Foundation 2013 Start page, click Install
SharePoint Server or Install SharePoint Foundation.
3. On the Enter Your Product Key page, enter your product key, and then click Continue.
4. On the Read the Microsoft Software License Terms page, review the terms, select the I accept
the terms of this agreement check box, and then click Continue.
5. On the Server Type tab, click Standalone.
6. When Setup finishes, a dialog box prompts you to complete the configuration of your server.
Ensure that the Run the SharePoint Products Configuration Wizard now check box is selected.
7. Click Close to start the configuration wizard.
Note:
If Setup fails, check log files in the Temp folder of the user account that you used to run
Setup. Ensure that you are logged in using the same user account, and then type %temp%
in the location bar in Windows Explorer. If the path in Windows Explorer resolves to a
location that ends in a "1" or "2", you will have to navigate up one level to view the log
files. The log file name is SharePoint Server Setup (<time stamp
Run the SharePoint Products Configuration Wizard
Use the following procedure to install and configure the configuration database and the content
database, and install the SharePoint Central Administration website.
107
To run the SharePoint Products Configuration Wizard
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. If you have closed the SharePoint Products Configuration Wizard, you can access it by clicking
Start, point to All Programs, click SharePoint 2013 Products, and then click SharePoint 2013
Products Configuration Wizard. If the User Account Control dialog box appears, click
Continue.
3. On the Welcome to SharePoint Products page, click Next.
4. In the dialog box that notifies you that some services might have to be restarted during
configuration, click Yes.
5. On the Configuration Successful page, click Finish.
Note:
If the SharePoint Products Configuration Wizard fails, check the PSCDiagnostics log files,
which are located on the drive on which SharePoint 2013 is installed, in the
%COMMONPROGRAMFILES%\Microsoft Shared\Web Server Extensions\15\LOGS folder.
6. On the Template Selection page, select one of the following options, and then click OK:
In the Template Selection section, click a predefined template.
In the Solutions Gallery section, click Solutions Gallery, and customize your own site
template.
7. On the Set Up Groups for this Site page, specify who should have access to your site, and then
either create a new group or use an existing group for these users by doing one of the following:
To create a new group, click Create a new group, and then type the name of the group
and the members that you want to be part of this group.
To use an existing group, click Use an existing group, and then select the user group in
the Item list.
8. Click OK.
Note:
If you are prompted for your user name and password, you might have to add the SharePoint
Central Administration website to the list of trusted sites and configure user authentication
settings in Internet Explorer. You might also want to disable the Internet Explorer Enhanced
Security settings. If you see a proxy server error message, you might have to configure proxy
108
server settings so that local addresses bypass the proxy server. For more information about
how to configure browser and proxy settings, see Configure browser settings.
Configure browser settings
After you run the SharePoint Products Configuration Wizard, you should confirm that SharePoint 2013
works correctly by configuring additional settings in Internet Explorer.
If you are not using Internet Explorer, you might have to configure additional settings for your
browser. For information about supported browsers, see Plan browser support in SharePoint 2013.
To confirm that you have configured browser settings correctly, log on to the server by using an
account that has local administrative credentials. Next, connect to the SharePoint Central
Administration website. If you are prompted for your user name and password when you connect,
perform the following procedures:
Add the SharePoint Central Administration website to the list of trusted sites
Disable Internet Explorer Enhanced Security settings
If you receive a proxy server error message, perform the following procedure:
Configure proxy server settings to bypass the proxy server for local addresses
To add the SharePoint Central Administration website to the list of trusted sites
1. Verify that the user account that completes this procedure has the following credentials:
The user account is a member of the Administrators group on the computer on which you
are performing the procedure.
2. In Internet Explorer, on the Tools menu, click Internet Options.
3. On the Security tab, in the Select a zone to view or change security settings area, click
Trusted Sites, and then click Sites.
4. Clear the Require server verification (https:) for all sites in this zone check box.
5. In the Add this web site to the zone box, type the URL to your site, and then click Add.
6. Click Close to close the Trusted Sites dialog box.
7. Click OK to close the Internet Options dialog box.
109
To disable Internet Explorer Enhanced Security settings
1. Verify that the user account that completes this procedure has the following credentials:
The user account is a member of the Administrators group on the computer on which you
are performing the procedure.
2. Click Start, point to All Programs, point to Administrative Tools, and then click Server
Manager.
3. In Server Manager, select the root of Server Manager.
4. In the Security Information section, click Configure IE ESC.
The Internet Explorer Enhanced Security Configuration dialog box appears.
5. In the Administrators section, click Off to disable the Internet Explorer Enhanced Security
settings, and then click OK.
To configure proxy server settings to bypass the proxy server for local addresses
1. Verify that the user account that completes this procedure has the following credentials:
The user account is a member of the Administrators group on the computer on which you
are performing the procedure.
2. In Internet Explorer, on the Tools menu, click Internet Options.
3. On the Connections tab, in the Local Area Network (LAN) settings area, click LAN Settings.
4. In the Automatic configuration area, clear the Automatically detect settings check box.
5. In the Proxy Server area, select the Use a proxy server for your LAN check box.
6. Type the address of the proxy server in the Address box.
7. Type the port number of the proxy server in the Port box.
8. Select the Bypass proxy server for local addresses check box.
9. Click OK to close the Local Area Network (LAN) Settings dialog box.
10. Click OK to close the Internet Options dialog box.
110
Post-installation steps
After you install SharePoint 2013, your browser window opens to the SharePoint Central
Administration website of your new SharePoint site. Although you can start to add content to the site
or customize the site, we recommend that you first perform the following administrative tasks:
Configure usage and health data collection You can configure usage and health data collection
in your server farm. The system writes usage and health data to the logging folder and to the
logging database. For more information, see Configure usage and health data collection in
SharePoint 2013.
Configure diagnostic logging You can configure diagnostic logging that might be required after
initial deployment or upgrade. The default settings are sufficient for most situations, but
depending on the business needs and life cycle of the farm, you might want to change these
settings. For more information, see Configure diagnostic logging in SharePoint 2013.
Configure incoming e-mail You can configure incoming e-mail so that SharePoint sites accept
and archive incoming e-mail. You can also configure incoming e-mail so that SharePoint sites can
archive e-mail discussions as they occur, save e-mailed documents, and show e-mailed meetings
on site calendars. In addition, you can configure the SharePoint Directory Management Service to
provide support for e-mail distribution list creation and administration. For more information, see
Configure incoming email for a SharePoint 2013 farm.
Configure outgoing e-mail You can configure outgoing e-mail so that your Simple Mail Transfer
Protocol (SMTP) server sends e-mail alerts to site users and notifications to site administrators.
You can configure both the "From" e-mail address and the "Reply" e-mail address that appear in
outgoing alerts. For more information, see Configure outgoing email for a SharePoint 2013 farm.
Configure search settings You can configure search settings to crawl the content in SharePoint
2013.
See also
Installation and Deployment for SharePoint 2013 Resource Center
What's New in SharePoint 2013 Resource Center
111
Install SharePoint 2013 on a single server
with SQL Server
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-08-11
Summary: Learn how to install SharePoint 2013 on a single server.
A single server installation consists of one server that runs both SQL Server and SharePoint 2013. You
can install and configure SharePoint 2013 on a single server if you are hosting only a few sites for a
limited number of users or if you want to create a trial or development environment. This
configuration is also useful if you want to configure a farm to meet your needs first, and then add
servers to the farm at a later stage.
In this article:
Overview
Before you install SharePoint 2013 on a single server
Install SharePoint 2013 Products on a single server
Post-installation steps
Important:
The steps in this article apply to SharePoint Foundation 2013 and SharePoint Server 2013.
Overview
When you install SharePoint 2013 on a single server, you can configure SharePoint 2013 to meet your
specific needs. After you have completed setup and the SharePoint Products Configuration Wizard,
you will have installed binaries, configured security permissions, configured registry settings,
configured the configuration database, configured the content database, and installed the SharePoint
Central Administration web site. Next, you can choose to run the Farm Configuration Wizard to
configure the farm, select the services that you want to use in the farm, and create the first site
collection, or you can manually perform the farm configuration at your own pace.
Before you install SharePoint 2013 on a single server
Before you begin to install and configure SharePoint 2013, do the following:
112
Ensure that you are familiar with the operating-system guidelines described in Performance
Tuning Guidelines for Windows Server 2008 and Performance Tuning Guidelines for Windows
Server 2008 R2.
Ensure that you have met all hardware and software requirements. You must have a 64-bit
version of Windows Server 2008 R2 SP1. For server farms, you must also have a 64-bit version of
SQL Server 2008 R2 SP1. For more information about these requirements, such as specific updates
that you must install, see Hardware and software requirements for SharePoint 2013.
Ensure that you perform a clean installation of SharePoint 2013.
Ensure that you are prepared to set up the required accounts by using appropriate permissions.
For detailed information, see Initial deployment administrative and service accounts in SharePoint
2013.
Ensure the Max degree of parallelism is set to 1. For additional information about max degree of
parallelism see, Configure the max degree of parallelism Server Configuration Optionand Degree of
Parallelism
Note:
The Distributed Cache service gives you a complete social computing experience. For more
information about the Distributed Cache service, see Overview of microblog features, feeds,
and the Distributed Cache service in SharePoint Server 2013, Manage the Distributed Cache
service in SharePoint Server 2013, Plan for feeds and the Distributed Cache service in
SharePoint Server 2013, and What's new in authentication for SharePoint 2013
Security
As a security best practice, we recommend that you install SharePoint 2013 by using least-
privilege administration.
Install SharePoint 2013 on a single server
To install and configure SharePoint 2013 on a single server, you will follow these steps:
1. Run the Microsoft SharePoint Products Preparation Tool, which installs all prerequisites to use
SharePoint 2013.
2. Run Setup, which installs binaries, configures security permissions, and edits registry settings for
SharePoint 2013.
3. Run SharePoint Products Configuration Wizard, which installs and configures the configuration
database, installs and configures the content database, and installs the SharePoint Central
Administration web site.
113
4. Configure browser settings.
5. Run the Farm Configuration Wizard, which configures the farm, creates the first site collection,
and selects the services that you want to use in the farm.
6. Perform post-installation steps.
Important:
To complete the following procedures, the account that you use must be a member of the
Administrators group on the computer on which you are installing SharePoint 2013. For
information about user accounts, see Initial deployment administrative and service accounts in
SharePoint 2013.
Run the Microsoft SharePoint Products Preparation Tool
Because the prerequisite installer downloads components from the Microsoft Download Center, you
must have Internet access on the computer on which you are running the installer. Use the following
procedure to install software prerequisites for SharePoint 2013.
To run the Microsoft SharePoint Products Preparation Tool
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. In the folder where you downloaded the SharePoint 2013 software, locate and then run
prerequisiteinstaller.exe.
3. On the Welcome to the Microsoft SharePoint Products Preparation Tool page, click Next.
4. On the License Terms for software products page, review the terms, select the I accept the
terms of the License Agreement(s) check box, and then click Next.
5. On the Installation Complete page, click Finish.
6. After you complete the Microsoft SharePoint Products Preparation Tool, you must also install the
following:
KB 2554876
KB 2708075
KB 2759112
KB 2765317
114
Run Setup
The following procedure installs binaries, configures security permissions, and edits registry settings
for SharePoint 2013. At the end of Setup, you can choose to start the SharePoint Products
Configuration Wizard, which is described later in this section.
To run Setup
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. On the SharePoint Server 2013 Start page, click Install SharePoint Server.
3. On the Enter Your Product Key page, enter your product key, and then click Continue.
4. On the Read the Microsoft Software License Terms page, review the terms, select the I accept
the terms of this agreement check box, and then click Continue.
5. On the Server Type tab, click Complete.
The stand-alone option is used to install a single server that has a built-in database.
6. Optional: To install SharePoint 2013 at a custom location, or to store search index files at a custom
location, click the File Location tab, and then either type the custom location or click Browse to
find the custom location.
Note:
If you intend to use this computer as a search server, we recommend that you store the
search index files on a separate storage volume or partition. Any other search data that
needs to be stored is stored in the same location as the search index files. You can only set
this location at installation time.
7. Click Install Now.
8. When Setup finishes, a dialog box prompts you to complete the configuration of your server.
Ensure that the Run the SharePoint Products and Technologies Configuration Wizard now
check box is selected.
9. Click Close to start the configuration wizard.
Note:
If Setup fails, check log files in the Temp folder of the user account you used to run Setup.
Ensure that you are logged in using the same user account and then type %temp% in the
location bar in Windows Explorer. If the path in Windows Explorer resolves to a location that
115
ends in a "1" or "2", you have to navigate up one level to view the log files. The log file name is
SharePoint Server Setup (<time stamp>).
Run the SharePoint Products Configuration Wizard
Use the following procedure to install and configure the configuration database and the content
database, and to install the SharePoint Central Administration website.
To run the SharePoint Products Configuration Wizard
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. If you have closed the SharePoint Products Configuration Wizard, you can access it by clicking
Start, point to All Programs, click SharePoint 2013 Products, and then click SharePoint 2013
Products Configuration Wizard. If the User Account Control dialog box appears, click
Continue.
3. On the Welcome to SharePoint Products page, click Next.
4. In the dialog box that notifies you that some services might have to be restarted during
configuration, click Yes.
5. On the Connect to a server farm page, click Create a new server farm, and then click Next.
6. On the Specify Configuration Database Settings page, do the following:
a) In the Database server box, type the name of the computer that is running SQL Server.
b) In the Database name box, type a name for your configuration database or use the default
database name. The default name is SharePoint_Config.
c) In the Username box, type the user name of the server farm account. Ensure that you type
the user name in the format DOMAIN\user name.
Security
The server farm account is used to create and access your configuration database. It also acts
as the application pool identity account for the SharePoint Central Administration application
pool, and it is the account under which the Microsoft SharePoint Foundation Workflow Timer
service runs. The SharePoint Products Configuration Wizard adds this account to the SQL
Server Login accounts, the SQL Server dbcreator server role, and the SQL Server
securityadmin server role. The user account that you specify as the service account has to be
a domain user account. However, it does not have to be a member of any specific security
116
group on your front-end web servers or your database servers. We recommend that you
follow the principle of least-privilege and specify a user account that is not a member of the
Administrators group on your front-end web servers or your database servers.
d) In the Password box, type the user password.
7. Click Next.
8. On the Specify Farm Security Settings page, type a passphrase, and then click Next.
Although a passphrase resembles a password, it is usually longer to improve security. It is used to
encrypt credentials of accounts that are registered in SharePoint 2013. For example, the
SharePoint 2013 system account that you provide when you run the SharePoint Products
Configuration Wizard. Ensure that you remember the passphrase, because you must use it every
time that you add a server to the farm.
Ensure that the passphrase meets the following criteria:
Contains at least eight characters
Contains at least three of the following four character groups:
English uppercase characters (from A through Z)
English lowercase characters (from a through z)
Numerals (from 0 through 9)
Nonalphabetic characters (such as !, $, #, %)
9. On the Configure SharePoint Central Administration Web Application page, do the following:
a) Either select the Specify port number check box and type the port number that you want
the SharePoint Central Administration web application to use, or leave the Specify port
number check box cleared if you want to use the default port number.
b) Click either NTLM or Negotiate (Kerberos).
10. Click Next.
11. After you complete the SharePoint Products Configuration Wizard page, review your
configuration settings to verify that they are correct, and then click Next.
Note:
The Advanced Settings option is not available in SharePoint 2013.
117
12. On the Configuration Successful page, click Finish. When the wizard closes, setup opens the
web browser and connects to Central Administration.
If the SharePoint Products Configuration Wizard fails, check the PSCDiagnostics log files, which are
located on the drive on which SharePoint 2013 is installed, in the
%COMMONPROGRAMFILES%\Microsoft Shared\Web Server Extensions\15\LOGS folder.
If you are prompted for your user name and password, you might have to add the SharePoint
Central Administration web site to the list of trusted sites and configure user authentication
settings in Internet Explorer. You might also want to disable the Internet Explorer Enhanced
Security settings. If you see a proxy server error message, you might have to configure proxy
server settings so that local addresses bypass the proxy server. Instructions for configuring proxy
server settings are provided in the following section. For more information about how to
configure browser and proxy settings, see Configure browser settings.
Configure browser settings
After you run the SharePoint Products Configuration Wizard, you should confirm that SharePoint 2013
works correctly by configuring additional settings in Internet Explorer.
If you are not using Internet Explorer, you might have to configure additional settings for your
browser. For information about supported browsers, see Plan browser support in SharePoint 2013.
To confirm that you have configured browser settings correctly, log on to the server by using an
account that has local administrative credentials. Next, connect to the SharePoint Central
Administration web site. If you are prompted for your user name and password when you connect,
perform the following procedures:
Add the SharePoint Central Administration website to the list of trusted sites
Disable Internet Explorer Enhanced Security settings
If you receive a proxy server error message, perform the following procedure:
Configure proxy server settings to bypass the proxy server for local addresses
To add the SharePoint Central Administration website to the list of trusted sites
1. Verify that the user account that completes this procedure has the following credentials:
The user account is a member of the Administrators group on the computer on which you
are performing the procedure.
2. In Internet Explorer, on the Tools menu, click Internet Options.
118
3. On the Security tab, in the Select a zone to view or change security settings area, click
Trusted Sites, and then click Sites.
4. Clear the Require server verification (https:) for all sites in this zone check box.
5. In the Add this web site to the zone box, type the URL to your site, and then click Add.
6. Click Close to close the Trusted Sites dialog box.
7. Click OK to close the Internet Options dialog box.
To disable Internet Explorer Enhanced Security settings
1. Verify that the user account that completes this procedure has the following credentials:
The user account is a member of the Administrators group on the computer on which you
are performing the procedure.
2. Click Start, point to All Programs, point to Administrative Tools, and then click Server
Manager.
3. In Server Manager, select the root of Server Manager.
4. In the Security Information section, click Configure IE ESC.
The Internet Explorer Enhanced Security Configuration dialog box appears.
5. In the Administrators section, click Off to disable the Internet Explorer Enhanced Security
settings, and then click OK.
To configure proxy server settings to bypass the proxy server for local addresses
1. Verify that the user account that completes this procedure has the following credentials:
The user account is a member of the Administrators group on the computer on which you
are performing the procedure.
2. In Internet Explorer, on the Tools menu, click Internet Options.
3. On the Connections tab, in the Local Area Network (LAN) settings area, click LAN Settings.
4. In the Automatic configuration area, clear the Automatically detect settings check box.
5. In the Proxy Server area, select the Use a proxy server for your LAN check box.
6. Type the address of the proxy server in the Address box.
7. Type the port number of the proxy server in the Port box.
119
8. Select the Bypass proxy server for local addresses check box.
9. Click OK to close the Local Area Network (LAN) Settings dialog box.
10. Click OK to close the Internet Options dialog box.
Run the Farm Configuration Wizard
You have now completed setup and the initial configuration of SharePoint 2013. You have created the
SharePoint Central Administration web site. You can now create your farm and sites, and you can
select services by using the Farm Configuration Wizard.
To run the Farm Configuration Wizard
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. On the SharePoint Central Administration home page, on the Quick Launch, click Configuration
Wizards, and then click Launch the Farm Configuration Wizard.
3. On the Help Make SharePoint Better page, click one of the following options, and then click OK:
Yes, I am willing to participate (Recommended.)
No, I don’t want to participate.
4. On the Configure your SharePoint farm page, next to Yes, walk me through the configuration
of my farm using this wizard, click Start the Wizard.
5. On the Configure your SharePoint farm page, in the Service Account section, click the service
account option that you want to use to configure your services.
Security
For security reasons, we recommend that you use a different account from the farm
administrator account to configure services in the farm.
If you decide to use an existing managed account — that is, an account of which
SharePoint 2013 is aware — make sure that you click that option before you continue.
6. In the Services section, review the services that you want to use in the farm, and then click Next.
Note:
For more information, see Configure services and service applications in SharePoint 2013.
If you are using Office Web Apps, see Use Office Web Apps with SharePoint 2013.
120
7. On the Create Site Collection page, do the following:
a) In the Title and Description section, in the Title box, type the name of your new site.
b) Optional: In the Description box, type a description of what the site contains.
c) In the Web Site Address section, select a URL path for the site.
d) In the Template Selection section, in the Select a template list, select the template that
you want to use for the top-level site in the site collection.
Note:
To view a template or a description of a template, click any template in the Select a template
list.
8. Click OK.
9. On the Configure your SharePoint farm page, review the summary of the farm configuration,
and then click Finish.
Post-installation steps
After you install and configure SharePoint 2013, your browser window opens to the Central
Administration web site of your new SharePoint site. Although you can start adding content to the site
or customizing the site, we recommend that you first perform the following administrative tasks.
Configure usage and health data collection You can configure usage and health data collection
in your server farm. The system writes usage and health data to the logging folder and to the
logging database. For more information, see Configure usage and health data collection in
SharePoint 2013.
Configure diagnostic logging You can configure diagnostic logging that might be required after
initial installation or upgrade. The default settings are sufficient for most situations. Depending
upon the business needs and life-cycle of the farm, you might want to change these settings. For
more information, see Configure diagnostic logging in SharePoint 2013.
Configure incoming e-mail You can configure incoming e-mail so that SharePoint sites accept
and archive incoming e-mail. You can also configure incoming e-mail so that SharePoint sites can
archive e-mail discussions as they occur, save e-mailed documents, and show e-mailed meetings
on site calendars. In addition, you can configure the SharePoint Directory Management Service to
provide support for e-mail distribution list creation and administration. For more information, see
Configure incoming email for a SharePoint 2013 farm.
121
Configure outgoing email You can configure outgoing email so that your Simple Mail Transfer
Protocol (SMTP) server sends email alerts to site users and notifications to site administrators. You
can configure both the "From" email address and the "Reply" email address that appear in
outgoing alerts. For more information, see Configure outgoing email for a SharePoint 2013 farm.
Configure Search settings You can configure Search settings to crawl the content in SharePoint
2013.
See also
Capabilities and features in SharePoint 2013 Resource Center
Installation and Deployment for SharePoint 2013 Resource Center
122
Install SharePoint 2013 across multiple
servers for a three-tier farm
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-08-11
Summary: Learn how to install SharePoint 2013 to create a server farm that includes web servers, an
application server, and a database server.
A three-tier farm configuration consists of two front-end web servers, an application server, and a
database server. The deployment sequence and configurations that are described in this article are
based on recommended best practices. While the farm configuration is not complex, it provides a
fundamental infrastructure to implement a SharePoint 2013 solution on similar—or more
complex farms.
In this article:
Overview
Prepare the farm servers
Install SharePoint 2013 on the farm servers
Create and configure the farm
Add web servers to the farm
Post-installation steps
Overview
The basic steps in this deployment are as follows:
Ensure that you are familiar with the concept of a three-tier topology.
Ensure that you have done all the planning and preparatory work, such as verifying hardware and
software requirements.
Install the required software updates on all servers that will be part of the farm.
Install the SharePoint 2013 prerequisites on servers in the application and web tiers.
123
Install SharePoint 2013 on the application server and the web servers.
Create and configure the SharePoint farm.
Provision services.
Complete post-deployment tasks as required.
Topology overview
This topology is typically used for the medium and large farms described in Overview of SharePoint
2013 installation and configuration. In terms of performance, capacity, and scalability, a three-tier
topology is recommended over a two-tier topology. A three-tier topology provides the most efficient
physical and logical layout to support scaling out or scaling up, and it provides better distribution of
services across the member servers of the farm. The following illustration shows the three-tier
deployment that is described in this article.
Three-tier farm configuration
In the previous illustration, note the following:
124
You can add web servers to the web tier. These servers can be configured as conventional web
servers to handle user requests, or they can be configured to host dedicated query components or
other service components.
You can add farm servers to the application tier and configure them as dedicated servers that will
host the SharePoint Central Administration website or other services on the farm that require
dedicated resources or isolation from the web tier—for example, crawl components, query
components, and profile pages.
You can add database servers to the database tier to implement a stand-alone instance, database
mirroring, or a failover cluster. To configure the farm for high availability, database mirroring or a
failover cluster is required on the database tier.
Before you install SharePoint 2013 on multiple servers for a three-
tier farm
Before you begin to install and configure SharePoint 2013, do the following:
Ensure that you are familiar with the operating-system guidelines described in Performance
Tuning Guidelines for Windows Server 2008 and Performance Tuning Guidelines for Windows
Server 2008 R2.
Ensure that you have met all hardware and software requirements. You must have a 64-bit
version of Windows Server 2008 R2 SP1. For server farms, you must also have a supported 64-bit
version of SQL Server. For more information about these requirements, such as specific updates
that you must install, see Hardware and software requirements for SharePoint 2013.
Ensure that you perform a clean installation of SharePoint 2013.
Ensure that you are prepared to set up the required accounts by using appropriate permissions.
For detailed information, see Initial deployment administrative and service accounts in SharePoint
2013.
Note:
If your computer is in a Workgroup, you cannot install AppFabric for Windows Server.
Note:
The Distributed Cache service gives you a complete social computing experience. For more
information about the Distributed Cache service, see Overview of microblog features, feeds,
and the Distributed Cache service in SharePoint Server 2013, Manage the Distributed Cache
service in SharePoint Server 2013, Plan for feeds and the Distributed Cache service in
SharePoint Server 2013, and What's new in authentication for SharePoint 2013
125
Using the Microsoft SharePoint Products Preparation Tool
The Microsoft SharePoint Products Preparation Tool checks for the presence of prerequisites, and
installs and configures all required programs. The Microsoft SharePoint Products Preparation Tool
requires an Internet connection to download and configure SharePoint 2013 prerequisites. The
Microsoft SharePoint Products Preparation Tool runs when you start to install SharePoint 2013.
Database server
Ensure that SQL Server is updated to the required level and the TCP/IP protocol is enabled for the
network configuration.
Organizations whose database administrators operate independently from SharePoint administrators
will have to make sure that the correct version of SQL Server is available and updated to the required
level. In addition, you will have to request a DBA-created database.
For additional information about DBA databases, see Database types and descriptions (SharePoint
2013), Storage and SQL Server capacity planning and configuration (SharePoint Server 2013), and
Databases that support SharePoint 2013.
Ensure the Max degree of parallelism is set to 1. For additional information about max degree of
parallelism see Configure the max degree of parallism Server Configuration option and Degree of
Parallelism.
Public updates and hotfix packages
Ensure that public updates and the required hotfix packages are installed for the operating system,
SQL Server, and SharePoint 2013. We recommend that all servers be updated to the same software
version before you apply the public updates.
Prepare the farm servers
Before you install SharePoint 2013 , you must check for and install all the prerequisites on the
application server and the web servers by using the Microsoft SharePoint Products Preparation Tool.
Tip:
If you decide to install prerequisites manually, you can still run the Microsoft SharePoint
Products Preparation Tool to verify which prerequisites are required on each server.
Use the following procedure to install prerequisites on each server in the farm.
126
To run the Microsoft SharePoint Products Preparation Tool
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. In the folder where you downloaded the SharePoint 2013 software, locate and then run
prerequisiteinstaller.exe.
3. On the Welcome to the Microsoft SharePoint Products Preparation Tool page, click Next.
Note:
The preparation tool may have to restart the local server to complete the installation of
some prerequisites. The installer will continue to run after the server is restarted without
manual intervention. However, you will have to log on to the server again.
4. On the License Terms for software products page, review the terms, select the I accept the
terms of the License Agreement(s) check box, and then click Next.
5. On the Installation Complete page, click Finish.
6. After you complete the Microsoft SharePoint Products Preparation Tool, you must also install the
following:
KB 2554876
KB 2708075
KB 2759112
KB 2765317
Install SharePoint 2013 on the farm servers
After the prerequisites are installed, follow these steps to install SharePoint 2013 on each farm server.
The following procedure installs binaries, configures security permissions, and edits registry settings
for SharePoint 2013. At the end of Setup, you can choose to start the SharePoint Products
Configuration Wizard, which is described later in this article.
To run Setup
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
127
2. On the SharePoint 2013 Start page, click Install SharePoint Server.
3. On the Enter Your Product Key page, enter your product key, and then click Continue.
4. On the Read the Microsoft Software License Terms page, review the terms, select the I accept
the terms of this agreement check box, and then click Continue.
5. On the Choose the installation you want page, click Server Farm.
6. On the Server Type tab, click Complete.
7. Optional: To install SharePoint 2013 at a custom location, or to store search index files at a custom
location, click the File Location tab, and then either type the custom location or click Browse to
find the custom location.
Note:
As a best practice, we recommend that you install SharePoint 2013 on a non-system drive.
If you intend to use this computer as a search server, we recommend that you store the
search index files on a separate storage volume or partition. Any other search data that
needs to be stored, is stored in the same location as the search index files. You can only
set this location at installation time.
8. Click Install Now.
9. When the Setup program is finished, a dialog box prompts you to complete the configuration of
your server. Clear the Run the SharePoint Products and Technologies Configuration Wizard
now check box.
Note:
For consistency of approach, we recommend that you do not run the configuration wizard
until you have installed SharePoint 2013 all application and front-end web servers that will
participate in the server farm.
10. Click Close to finish Setup.
Create and configure the farm
To create and configure the farm, you run the SharePoint Products Configuration Wizard. This wizard
automates several configuration tasks, such as creating the configuration database, installing services,
and creating the Central Administration website. We recommend that you run the SharePoint
Products Configuration Wizard on the server that will host the SharePoint Central Administration
website before you run the wizard on the other servers in the farm.
128
To run the SharePoint Products Configuration Wizard and configure the farm
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. On the server that will host Central Administration (the application server), click Start, point to All
Programs, and then click SharePoint 2013 Products, and then click SharePoint 2013 Products
Configuration Wizard. If the User Account Control dialog box appears, click Continue.
3. On the Welcome to SharePoint Products page, click Next.
4. In the dialog box that notifies you that some services might have to be restarted during
configuration, click Yes.
5. On the Connect to a server farm page, click Create a new server farm, and then click Next.
6. On the Specify Configuration Database Settings page, do the following:
a) In the Database server box, type the name of the computer that is running SQL Server.
b) In the Database name box, type a name for your configuration database, or use the
default database name. The default name is SharePoint_Config.
c) In the Username box, type the user name of the server farm account in DOMAIN\user
name format.
Important:
The server farm account is used to create and access your configuration database. It also acts
as the application pool identity account for the SharePoint Central Administration application
pool, and it is the account under which the SharePoint Timer service runs. The SharePoint
Products Configuration Wizard adds this account to the SQL Server Login accounts, the SQL
Server dbcreator server role, and the SQL Server securityadmin server role. The user account
that you specify as the service account has to be a domain user account. However, it does not
have to be a member of any specific security group on your web servers or your database
servers. We recommend that you follow the principle of least-privilege, and specify a user
account that is not a member of the Administrators group on your front-end web servers or
your database servers.
d) In the Password box, type the user password.
7. Click Next.
8. On the Specify Farm Security Settings page, type a passphrase, and then click Next.
129
Although a passphrase resembles a password, it is usually longer to improve security. It is used to
encrypt credentials of accounts that are registered in SharePoint 2013. For example, the
SharePoint 2013 system account that you provide when you run the SharePoint Products
Configuration Wizard. Ensure that you remember the passphrase, because you must use it every
time that you add a server to the farm.
Ensure that the passphrase meets the following criteria:
Contains at least eight characters
Contains at least three of the following four character groups:
English uppercase characters (from A through Z)
English lowercase characters (from a through z)
Numerals (from 0 through 9)
Nonalphabetic characters (such as !, $, #, %)
9. On the Configure SharePoint Central Administration Web Application page, do the following:
a) Either select the Specify port number check box and type the port number that you want
the SharePoint Central Administration web application to use, or leave the Specify port
number check box cleared if you want to use the default port number.
Note:
If you want to access the SharePoint Central Administration website from a remote computer,
make sure that you allow access to the port number that you configure in this step. You do
this by configuring the inbound rule for SharePoint Central Administration v4 in Windows
Firewall with Advanced Security.
b) Click either NTLM or Negotiate (Kerberos).
10. Click Next.
11. On the Completing the SharePoint Products Configuration Wizard page, click Next.
12. On the Configuration Successful page, click Finish.
Note:
If the SharePoint Products Configuration Wizard fails, check the log files on the drive on
which SharePoint 2013 is installed, which are located in the
%COMMONPROGRAMFILES%\Microsoft Shared\Web Server Extensions\15\LOGS folder.
13. The Central Administration website will open in a new browser window.
130
On the Help Make SharePoint Better page, click one of the following options and then click OK.
a) Yes, I am willing to participate (Recommended).
b) No, I don’t wish to participate.
14. On the Initial Farm Configuration Wizard page, you have the option to use a wizard to configure
services or you can decide to configure services manually. For the purpose of this article, we use
the manual option. Click Cancel.
The choice that you make here is a matter of personal preference. The Farm Configuration Wizard
will configure some services automatically when you run it. However, if you configure services
manually, you have greater flexibility in designing your logical architecture.
For information about how to use the wizard to configure services, see Configure services and
service applications in SharePoint 2013. If you are using Microsoft Office Web Apps, see How
Office Web Apps work on-premises with SharePoint 2013.
Important:
If you are using a DBA-created database, you cannot use the Farm Configuration Wizard,
you must use SharePoint Products Configuration Wizard.
Add web servers to the farm
After you create the farm on the application server, you can add the servers for the web tier by
following the same process described earlier in this topic for installing SharePoint 2013 on the server
that hosts Central Administration. The only difference is that during setup, you are prompted to join
an existing farm. Follow the wizard steps to join the farm.
For additional information about how to add servers to a farm, see Add web or application servers to
farms in SharePoint 2013. This article also provides detailed information for the steps in the following
procedure.
Post-installation steps
After you install and configure SharePoint 2013, your browser window opens to the Central
Administration web site of your new SharePoint site. Although you can start adding content to the site
or customizing the site, we recommend that you first perform the following administrative tasks.
Configure usage and health data collection You can configure usage and health data collection
in your server farm. The system writes usage and health data to the logging folder and to the
logging database. For more information, see Configure usage and health data collection in
SharePoint 2013.
131
Configure diagnostic logging You can configure diagnostic logging that might be required after
initial installation or upgrade. The default settings are sufficient for most situations. Depending
upon the business needs and life-cycle of the farm, you might want to change these settings. For
more information, see Configure diagnostic logging in SharePoint 2013.
Configure incoming e-mail You can configure incoming e-mail so that SharePoint sites accept
and archive incoming e-mail. You can also configure incoming e-mail so that SharePoint sites can
archive e-mail discussions as they occur, save e-mailed documents, and show e-mailed meetings
on site calendars. In addition, you can configure the SharePoint Directory Management Service to
provide support for e-mail distribution list creation and administration. For more information, see
Configure incoming email for a SharePoint 2013 farm.
Configure outgoing email You can configure outgoing email so that your Simple Mail Transfer
Protocol (SMTP) server sends email alerts to site users and notifications to site administrators. You
can configure both the "From" email address and the "Reply" email address that appear in
outgoing alerts. For more information, see Configure outgoing email for a SharePoint 2013 farm.
Configure Search settings You can configure Search settings to crawl the content in SharePoint
2013.
See also
Capabilities and features in SharePoint 2013 Resource Center
Installation and deployment for SharePoint 2013 IT Pros Resource Center
132
Install or uninstall language packs for
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to download, install, and uninstall language packs for SharePoint 2013.
Language packs enable site owners and site collection administrators to create SharePoint sites and
site collections in multiple languages without requiring separate installations of SharePoint 2013. You
install language packs, which contain language-specific site templates, on web and application servers.
When an administrator creates a site or a site collection that is based on a language-specific site
template, the text that appears on the site or the site collection is displayed in the site template's
language. Language packs are typically used in multinational deployments where a single server farm
supports users in different locations, or when sites and web pages must be duplicated in one or more
languages.
If users are accessing Project Server 2013 in the SharePoint farm and have to view their project data in
another language, they will also have to install a corresponding Project Server 2013 language pack. For
more information about Project Server 2013 language packs, see Deploy language packs in Project
Server 2013
Word breakers and stemmers enable you to search efficiently and effectively across content on
SharePoint sites and site collections in multiple languages without requiring separate installations of
SharePoint 2013. Word breakers and stemmers are automatically installed on web and application
servers by Setup.
Important:
If you are uninstalling SharePoint 2013, you must uninstall all language packs before you
uninstall SharePoint 2013.
In this article:
About language IDs and language packs
Downloading language packs
Installing language packs on the web and application servers
Uninstalling language packs
133
About language IDs and language packs
Site owners or site collection administrators who create sites or site collections can select a language
for each site or site collection.
The language that they select has a language identifier (ID). The language ID determines the language
that is used to display and interpret text that is on the site or site collection. For example, when a site
owner creates a site in French, the site's toolbars, navigation bars, lists, and column headings appear
in French. Similarly, if a site owner creates a site in Arabic, the site's toolbars, navigation bars, lists,
and column headings appear in Arabic. In addition, the default left-to-right orientation of the site
changes to a right-to-left orientation to correctly display Arabic text.
The language packs that are installed on the web and application servers determine the list of
available languages that you can use to create a site or site collection. By default, sites and site
collections are created in the language in which SharePoint 2013 was installed. For example, if you
install the Spanish version of SharePoint 2013, the default language for sites, site collections, and web
pages is Spanish. If someone has to create sites, site collections, or web pages in a language other
than the default SharePoint 2013 language, you must install the language pack for that language on
the web and application servers. For example, if you are running the French version of SharePoint
2013, and a site owner wants to create sites in French, English, and Spanish, you must install the
English and Spanish language packs on the web and application servers.
By default, when a site owner creates a new web page in a site, the site displays text in the language
that is specified by the language ID.
Language packs are not bundled into multilingual installation packages. You must install a specific
language pack for each language that you want to support. Also, language packs must be installed on
each web and application server to make sure that that each web and application server can display
content in the specified language.
Important:
You cannot change an existing site, site collection, or web page from one language to another
by applying different language-specific site templates. After you use a language-specific site
template for a site or a site collection, the site or site collection always displays content in the
language of the original site template.
Only a limited set of language packs are available for SharePoint 2013.
Although a site owner specifies a language ID for a site, some user interface elements such as error
messages, notifications, and dialog boxes do not display in the language that was specified. This is
because SharePoint 2013 relies on several supporting technologies—for example, the Microsoft .NET
Framework, Microsoft Windows Workflow Foundation, Microsoft ASP.NET, and SQL Server—some of
which are localized into only a limited number of languages. If a user interface element is generated
134
by any of the supporting technologies that are not localized into the language that the site owner
specified for the site, the user interface element appears in English. For example, if a site owner
creates a site in Hebrew, and the .NET Framework component displays a notification message, the
notification message will not display in Hebrew because the .NET Framework is not localized into
Hebrew. This situation can occur when sites are created in any language except the following:
Chinese, French, German, Italian, Japanese, Korean, and Spanish.
Each language pack that you install creates a folder at %COMMONPROGRAMFILES%\Microsoft
Shared\Web server extensions\15\LAYOUTS\Locale_ID that contains language-specific data. In each
locale_ID folder, you must have only one HTML error file that contains the error information that is
used when a file cannot be found. Anytime a file cannot be found for any site in that language, this file
will be used. You can specify the file to use by setting the FileNotFoundPage for each web application.
In some cases, some text might originate from the original installation language, which can create a
mixed-language experience. This kind of mixed-language experience is typically seen only by content
creators or site owners and is not seen by site users.
Downloading language packs
Follow these steps for each language that you want to support. If you decide to download more than
one language, please be aware that a unique file that has a common name is downloaded for each
language. Therefore, make sure that you download each language pack to a separate folder on the
hard disk so that you do not overwrite a language pack of a different language.
Important:
By default, the Windows PowerShell Help files are installed in English (en-us). To view these
files in the same language as the operating system, install the language pack for the same
language in which the operating system was installed.
You can download language packs from the same location where you downloaded SharePoint 2013.
Installing language packs on the web and application
servers
After you install the necessary language files on the web and application servers, you can install the
language packs. Language packs are available as individual downloads (one download for each
supported language). If you have a server farm environment and you are installing language packs to
support multiple languages, you must install the language packs on each web and application server.
135
Important:
The language pack is installed in its native language. The procedure that follows is for the
English language pack.
To install a language pack
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. In the folder where you downloaded the language pack, run setup.exe.
3. On the Read the Microsoft Software License Terms page, review the terms, select the I accept the
terms of this agreement check box, and then click Continue.
4. The Setup wizard runs and installs the language pack.
5. Rerun the SharePoint Products Configuration Wizard by using the default settings. If you do not
run the SharePoint Products Configuration Wizard after you install a language pack, the language
pack will not be installed correctly.
The SharePoint Products Configuration Wizard runs in the language of the base installation of
SharePoint 2013, not in the language of the language pack that you just installed.
To rerun the SharePoint 2013 Configuration Wizard
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. Click Start, point to All Programs, click Microsoft SharePoint 2013 Products, and then click
SharePoint 2013 Products Configuration Wizard.
3. On the Welcome to SharePoint Products page, click Next.
4. Click Yes in the dialog box that alerts you that some services might have to be restarted during
configuration.
5. On the Modify Server Farm Settings page, click Do not disconnect from this server farm, and
then click Next.
6. If the Modify SharePoint Central Administration Web Administration Settings page appears,
do not change any of the default settings, and then click Next.
7. After you complete the Completing the SharePoint Products and Technologies Configuration
Wizard, click Next.
136
8. On the Configuration Successful page, click Finish.
9. After you install a new language pack and rerun the Rerun the SharePoint 2013 Configuration
Wizard, you must deactivate and then reactivate any language-specific features before you use
the new language pack.
When you install language packs, the language-specific site templates are installed in the
%COMMONPROGRAMFILES%\Microsoft Shared\Web server extensions\15\TEMPLATE\LanguageID
directory, where LanguageID is the Language ID number for the language that you are installing. For
example, the United States English language pack installs to the
%COMMONPROGRAMFILES%\Microsoft Shared\Web Server Extensions\15\TEMPLATE\1033
directory. After you install a language pack, site owners and site collection administrators can create
sites and site collections based on the language-specific site templates by specifying a language when
they are creating a new SharePoint site or site collection.
Uninstalling language packs
If you no longer have to support a language for which you have installed a language pack, you can
remove the language pack by using the Control Panel. Removing a language pack removes the
language-specific site templates from the computer. All sites that were created that have those
language-specific site templates will no longer work (the URL will produce a HTTP 500 - Internal server
error page). Reinstalling the language pack will make the site functional again.
You cannot remove the language pack for the version of SharePoint 2013 that you have installed on
the server. For example, if you are running the Japanese version of SharePoint 2013, you cannot
uninstall the Japanese language support for SharePoint 2013.
See also
Capabilities and features in SharePoint 2013 Resource Center
Installation and Deployment for SharePoint 2013 Resource Center
137
Add web or application servers to farms in
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-28
Summary: Learn how to add a server to an existing SharePoint 2013 farm so the server can later be
configured for use as a front-end web server or as an application server.
The procedures in this article apply to a SharePoint 2013 farm that consists of at least two tiers. This
article does not describe how to convert a single-server deployment to a multiple-server farm.
In this article:
Before you add a web or application server to a SharePoint farm
Install prerequisite software
Install the SharePoint software
Add the new SharePoint server to the farm
Configure the new server
Before you add a web or application server to a
SharePoint farm
Note:
Administrators typically use the SharePoint Central Administration website and the SharePoint
Management Shell to manage deployments. For information about accessibility for
administrators, see Accessibility for SharePoint 2013.
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
138
Accessibility features in SharePoint Products
Keyboard shortcuts
Touch
Determine server role
To add a new server to the farm, you must know its intended role to plan for additional or specialized
configurations and assess the potential effect of adding the server to a production environment.
Note:
A typical three-tier farm includes front-end web servers, an application server that also hosts
Central Administration, and a database server. The scope of this article is the front-end web
server and application server roles.
After you determine the role of the server in your farm topology, you must identify the services and
features that must be configured for the server to meet this role. This information will determine how
SharePoint 2013 is configured to provision the server for its role in either the web tier or the
application tier. For more information, see Manage service applications in SharePoint 2013.
The following illustration shows a SharePoint 2013 farm with two front-end web servers (Web-1 and
Web-2) that serve content. The only application server (App-1) hosts Central Administration and the
search components for the farm.
139
Options for adding a server to a farm
The following sections provide information about the general characteristics of the front-end web
server and application server roles.
140
Front-end web server role
The fundamental role of a front-end web server is to host web pages, web services, and the Web Parts
that are required to process requests from users. The web server directs these requests to the
application server, which returns the results to the front-end web server.
Application server role
By default, the server that hosts Central Administration in a three-tier farm is an application server.
You can add application servers to host services that can be deployed to a single server and used by all
the servers in a farm.
Services with similar usage and performance characteristics can be logically grouped on a server, and
if it is necessary, hosted on multiple servers if a scale out is required to respond to performance or
capacity requirements. For example, client-related farm services such as Word Services and Word
Viewer can be combined into a service group and hosted on a dedicated server. In addition, some
services, such as the Managed Metadata service, can be configured as service application that can be
used by other farms.
In the farm illustration, there are two options to add an application server.
In option A an additional server is configured to host an additional instance of all search
components. This will provide fault-tolerance for the search service.
In option B an additional server is configured to host a second index partition. This will enable
indexing of more than 10 million documents.
In a three-tier farm that is running enterprise search, dedicated application servers are typically
configured to host individual search components. For more information, see Manage the search
topology in SharePoint Server 2013.
Note:
Distributing search is not an option for SharePoint 2013, where only a single search instance is
permitted for each content database.
Additional tasks
Before you start to install prerequisite software, you have to complete the following:
Verify that the new server meets the hardware and software requirements described in Hardware
and software requirements for SharePoint 2013.
Verify that you have the minimum level of permissions that are required to install and configure
SharePoint 2013 on a new server. You must be a member of the Farm Administrators SharePoint
141
group and the Administrators group on the local server to complete the procedures in this article.
For more information, see Initial deployment administrative and service accounts in SharePoint
2013.
Verify that you know the name of the database server on the farm to which you are connecting,
and the name of the configuration database if you are adding the server by using Windows
PowerShell commands.
If you intend to use Windows PowerShell commands to add the server, verify that you meet the
following minimum memberships: SharePoint 2013 is installed.
Securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use SharePoint
2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server
administrator to request permissions. For additional information about Windows
PowerShell permissions, see Add-SPShellAdmin.
Document the location of the SharePoint 2013 binary and log files on the existing farm servers.
We recommend that the location of these files on the new server map to the locations used on
the other servers in the farm. For more information, see Configure diagnostic logging in
SharePoint 2013.
Important:
If you change the location of the trace log to a non-system drive, change the location on
all the servers in the farm. Existing or new servers cannot log data if the location does not
exist. In addition, you will be unable to add new servers unless the path that you specify
exists on the new server. You cannot use a network share for logging purposes.
Install prerequisite software
Before you can install SharePoint 2013 and add a server to the farm, you must check for and install all
the prerequisite software on the new server. You do this by using the Microsoft SharePoint Products
Preparation Tool, which requires an Internet connection to download and configure SharePoint 2013
prerequisites. If you do not have an Internet connection for the farm servers, you can still use the tool
to determine the software that is required. You will have to obtain installable images for the required
142
software. For download locations, see Access to applicable software in "Hardware and software
requirements (SharePoint 2013)."
Tip:
After you obtain a copy of the required software, we recommend that you create an
installation point that you can use to store the images. You can use this installation point to
install future software updates.
For detailed instructions about how to install the prerequisites, see Prepare the farm servers in the
article, Install SharePoint 2013 across multiple servers for a three-tier farm.
Install the SharePoint software
After you install the prerequisites, follow these steps to install SharePoint 2013 on the new server. For
detailed instructions about how to install SharePoint 2013, see Install SharePoint 2013 on a single
server with SQL Server.
To install SharePoint 2013
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. From the product media or a file share that contains the SharePoint 2013 Products installation
files, run Setup.exe.
3. On the Start page, click the link to install SharePoint 2013.
4. Review and accept the Microsoft License Terms.
5. On the Server Type tab, select Complete.
Note:
You can choose to install only the components that are required for a front-end web
server. However, if you perform a complete installation, you have more flexibility to re-
purpose the server role in the farm in the future.
6. Accept the default file location where SharePoint 2013 will be installed or change the installation
path in order to suit your requirements.
Tip:
As a best practice, we recommend that you install SharePoint 2013 on a drive that does
not contain the operating system.
143
7. When Setup finishes, a dialog box prompts you to run the SharePoint Products Configuration
Wizard. You can start the wizard immediately or from the Windows command prompt later.
Add the new SharePoint server to the farm
You add the new server to the farm by using one of the following procedures:
To add a server by using the SharePoint Products Configuration Wizard
To add a server by using Windows PowerShell
To add a new SharePoint 2013 server to the farm by using the SharePoint Products Configuration
Wizard
1. Verify that the user account that is performing this procedure is the Setup user account. For
information about the Setup user account, see Initial deployment administrative and service
accounts in SharePoint 2013.
2. Start the SharePoint 2013 Products Configuration Wizard.
For Windows Server 2008 R2:
On the new server, click Start, point to All Programs, click Microsoft SharePoint 2013
Products, and then click SharePoint 2013 Products Configuration Wizard.
For Windows Server 2012:
On the new server, on the Start screen, click SharePoint 2013 Products Configuration
Wizard.
If SharePoint 2013 Products Configuration Wizard is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Products
Configuration Wizard.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
3. On the Welcome to SharePoint Products page, click Next.
4. On the Connect to a server farm page, click Connect to an existing server farm.
5. Click Next.
144
6. On the Specify Configuration Database settings page, type the name of the instance of SQL
Server in the Database server box, and then click Retrieve Database Names.
7. Select the name of the configuration database in the Database name list, and then click Next.
8. On the Specify Farm Security Settings page, type the name of the farm passphrase in the
Passphrase box, and then click Next.
9. On the Completing the SharePoint Products Configuration Wizard page, click Next.
10. On the server that hosts Central Administration, click Manage servers in this farm to verify that
the new server is part of the farm.
Note:
You can also verify a successful server addition or troubleshoot a failed addition by
examining the log files. These files are located on the drive on which SharePoint 2013 is
installed, in the %COMMONPROGRAMFILES%\Microsoft Shared\Web Server
Extensions\15\LOGS folder. For more information, see Monitor health in SharePoint
2013.
11. On the Servers in Farm page, click the name of the new server. Use the list of available services
on the Services on Server page to start the services that you want to run on the new server.
12. Configure SharePoint 2013 so that the new server can accommodate the role for which it was
intended. For more information, see Configure the new server.
To add a new SharePoint 2013 server to the farm by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
145
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:Right-click
Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
3. At the Windows PowerShell command prompt, type the following command to connect the server
to a configuration database:
Connect-SPConfigurationDatabase -DatabaseServer "
<$DatabaseServer>
" -
DatabaseName "
<$RunSettings.ConfigurationDatabaseName>
" -Passphrase
"
<$Passphrase>
"
Where:
<$DatabaseServer> is the name of the server that hosts the configuration database
<$RunSettings.ConfigurationDatabaseName> is the name of the configuration database
<$Passphrase> is the passphrase for the farm
4. At the Windows PowerShell command prompt, type the following command to install the Help
File Collections:
Install-SPHelpCollection -All
5. At the Windows PowerShell command prompt, type the following command to install the Security
Resource for SharePoint 2013:
Initialize-SPResourceSecurity
6. At the Windows PowerShell command prompt, type the following command to install the basic
services:
Install-SPService
7. At the Windows PowerShell command prompt, type the following command to install all the
features:
146
Install-SPFeature -AllExistingFeatures
8. At the Windows PowerShell command prompt, type the following command to install application
content:
Install-SPApplicationContent
9. At the Windows PowerShell command prompt, type the following command to get a list of servers
in the farm.
Get-SPFarm | select Servers
Note:
You can also verify a successful server addition or troubleshoot a failed addition by
examining the log files. These files are located on the drive on which SharePoint 2013 is
installed, in the %COMMONPROGRAMFILES%\Microsoft Shared\Web Server
Extensions\15\LOGS folder. For more information, see Monitor health in SharePoint
2013.
10. Configure SharePoint 2013 so that the new server can accommodate the role for which it was
intended. For more information, see Configure the new server.
Configure the new server
The new server has no real functionality in the farm until you configure the services that are required
to support the role that you planned for the new server. For more information, see Configure services
and service applications in SharePoint 2013.
147
Add a database server to an existing farm
in SharePoint 2013
Applies to: SharePoint
Topic Last Modified: 2014-10-22
Summary: Learn how to add a new database server to an existing SharePoint farm.
You can add more database servers at any time to respond to business or operations requirements.
Because a database server contains the farm content, which can consist of diverse types of data and
can have a fast growing document collection, the size of the farm databases can grow quickly. Storage
capacity is often the key reason to add more database servers. Other reasons can include adding new
features, improving performance and high availability.
In this article:
Before you begin
Prepare the new database server
To provision the database server
Configure and use the new database server
To create a new web application
To move a site collection by using Windows PowerShell
Before you begin
Normally, all that is required to add a database server to an existing SharePoint farm is to set up and
configure a new database server and join it to the farm by referencing the new server when you add a
feature or move database content to the new server. SharePoint 2013 automatically allocates and
assigns new database resources as necessary when they are required.
Note:
In the case of high availability, this is typically implemented as part of the initial farm topology
design and deployment and is not included in this article. For more information about high
availability for SQL Server 2008 R2 and SQL Server 2012, see High Availability Solution
Overview and High Availability Solutions (SQL Server).
148
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
The procedures in this article are intended to show how to configure a new database server for a
specific task in SharePoint 2013.
Prepare the new database server
Before you can use the new database server, you must prepare it so that it can be used in a
SharePoint 2013 farm. Use the following steps as guidance to provision the new server.
Important:
IT policy may require a database administrator (DBA) to complete some or all steps in these
procedures.
To provision the database server
1. Verify that the user account that is performing this procedure is a member of the SQL Server
database dbcreator fixed server role, the Farm Administrators SharePoint group, and
Administrators group on the server.
2. Review Hardware and software requirements for SharePoint 2013
3. Install the operating system, and make sure that the following conditions are satisfied:
The disk configuration is the same as the existing server.
The operating system is updated to the same service pack or hotfix level as the existing
server.
4. Install the same version of SQL Server that is installed on the existing farm database server.
149
For information about how to install and configure SQL Server 2008 R2 with Service Pack 1 (SP1)
or SQL Server 2012 before you add them to an existing server farm, see SQL Server Installation
(SQL Server 2008 R2) or Quick-Start Installation of SQL Server 2012.
5. Configure SQL Server, and confirm the following:
The database collation is LATIN1_General_CI_AS_KS_WS.
A logon account is created for the SharePoint 2013 Setup user account. This account will
be the database owner for the new database.
6. Install the same SQL Server service packs and hotfixes that are installed on the existing database
server.
Configure and use the new database server
Use the following procedures as a guide to configure a new database server to host specific
SharePoint databases. This includes the following:
Create a new web application.
Move a site collection to the new server.
You can use either the SharePoint Central Administration website or Windows PowerShell to create a
new web application. You must use Windows PowerShell to move a site collection.
To create a new web application
1. Verify that the user account that is performing this procedure is a member of the SQL Server
database dbcreator fixed server role and the Farm Administrators SharePoint group.
2. Use the Application Management page in the SharePoint Central Administration website to create
a new web site.
3. Configure either classic mode authentication (Windows authentication) or claims-based
authentication.
4. Configure IIS to use either the existing web site or create a new web site and configure the
following settings:
Specify the port number that you want to use to access the web application.
Provide the URL you want to use to access the web application (optional).
Provide the path of the site directory on the server where the web site is hosted.
150
5. Configure authentication and encryption for your web by using the following options.
Negotiate (Kerberos) or NTLM authentication
Anonymous access to the web site
Secure Sockets Layer (SSL)
6. Provide a URL for the domain name for all sites that users will access in this web application.
7. Use the existing application pool or create a new one.
8. Configure security for the application pool (predefined or configurable).
9. Identify the database server, database name, and authentication method for your new web
application.
For detailed instruction, see Create a web application in SharePoint 2013.
To move a site collection by using Windows PowerShell
1. The SharePoint 2013 content database stores all site content for a farm, this includes the site
collection. Content databases can store more than one site collection. Whether you move a site
collection between database servers or between databases the procedure is the same. If the site
collection grows too large then it can be moved to a new content database using the same
procedure.
2. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets. For additional information about Windows PowerShell
permissions, see Add-SPShellAdmin.
3. Verify that the following conditions are true:
The destination content database exists.
The source content database and destination content database reside on the same
instance of SQL Server.
151
The source content database and destination content database are attached to the same
web application.
4. Determine the size of the source site collection and verify that the destination hard disk has at
least three times more free space than is required for the site collection.
Use the Get-SPSiteAdministration cmdlet to determine the size of a site collection. For more
information, see Get-SPSiteAdministration
5. Use the Move-SPSite cmdlet to move a site collection from the source content database to the
new content database. For more information, see Move-SPSite.
For detailed instructions, see Move site collections between databases in SharePoint 2013.
See also
Deploy Windows Server 2008 R2
Install and Deploy Windows Server 2012
SQL Server Installation (SQL Server 2008 R2)
Install SQL Server 2012
152
Remove a server from a farm in SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to remove a web server, application server, or database server from a
SharePoint 2013 farm.
There are three types of servers in a server farm running SharePoint 2013: web servers, application
servers, and database servers. The method that you use to remove a server from a SharePoint farm
varies depending on the type of server that you are removing from the farm.
In this article:
Removing a web server or application server from a SharePoint farm
Removing a database server from a SharePoint farm
Remove a database server, web server, or application server from a SharePoint farm by using
Central Administration
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support in SharePoint 2013
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
153
Removing a web server or application server from a
SharePoint farm
For information about uninstallation procedures that SharePoint 2013 supports, see Uninstall
SharePoint 2013.
Removing a server that contains a search topology component can affect future search activities. The
extent of that effect depends on the farm search topology. We recommend that you remove or
relocate any search topology components from a server before removing the server from the farm.
If you remove a server that hosts a crawl component, no index files are lost. However, you might
reduce or remove the capacity to crawl content.
You can lose index files in the following situations:
The farm has only one query component, and you remove the server that hosts the query
component.
You have configured the index to be partitioned and you delete the last query component in one
of the partitions. In this case, you will lose a portion of the index.
In either of these cases, a full crawl will have to be performed to re-create the index files.
You can deploy specific techniques to build fault tolerance into the search topology. If these
techniques are followed, the deliberate or unplanned removal of a server from the topology can be
absorbed without losing data and without affecting the ability to crawl or serve queries. (However,
performance can still be affected.) For more information, see Technical diagrams for SharePoint
2013.
Make sure that the server that you want to remove is not running any important site components. If
important services or components (such as a custom Web Part) are running on the server and are not
available on another server in the farm, removing the server can damage sites in the farm. For
example, if the server that you want to remove is the only application server in the farm that is
running the Business Data Connectivity service, removing the server can make any sites that rely on
that service stop working correctly.
Remove a web server or an application server from a farm by using
Control Panel
You can remove a web server or an application server from the server farm by uninstalling SharePoint
2013 from the server through Control Panel. When you uninstall SharePoint 2013 by using Control
Panel, you remove the program files and other information from the server.
154
To remove a web server or an application server from a farm by using Control Panel
1. Verify that the user account that completes this procedure has the following credentials:
The user account that performs this procedure is a member of the Administrators group
on the server.
2. Stop the services that are running on the server. For information about how to determine which
services are running on a specific server and stopping services, see Start or stop a service
(SharePoint 2013).
3. On the server that you want to remove from the farm, click Start, click Control Panel, and then
double-click Programs and Features.
4. In the list of currently installed programs, click SharePoint 2013, and then click Uninstall.
5. Click Continue at the confirmation prompt to uninstall the program.
Removing a database server from a SharePoint farm
To remove a database server from a farm without uninstalling SharePoint and therefore deleting the
data that was stored in the database, you must first move any databases that are hosted by that
server to another database server in the farm and then use Central Administration to remove the
database server from the farm.
You cannot remove a database server if it is the only database server available in the farm, or if it is
the database server that hosts the configuration database.
Caution:
If you uninstall SharePoint 2013 from the server that is running Central Administration, you
will be unable to administer the server farm until you configure another server in the farm to
host the Central Administration site.
Remove a database server, web server, or application
server from a SharePoint farm by using Central
Administration
If a web server or application server is no longer available, or if uninstalling SharePoint 2013 from
Control Panel is not possible, you can remove the web server or application server from the farm by
using the SharePoint Central Administration website. Removing a server from the farm by using
Central Administration does not uninstall SharePoint 2013 from the server, nor does it make any sites
155
on that server inaccessible. We recommend that you use the process described in Remove a web
server or an application server from a farm by using Control Panel to uninstall SharePoint 2013 instead
of using Central Administration to remove the server.
Removing the server from the farm by using Central Administration does not delete this information
from the server. Use the Central Administration procedure for removing database servers only, or for
removing a web server or an application server from the farm when the server is no longer available
to uninstall through Control Panel.
You can follow these steps to remove a web server, application server, or database server from the
farm. However, we recommend that you remove web servers and application servers from a farm by
using Control Panel, instead of by using Central Administration. For information, see To remove a web
server or an application server from a farm by using Control Panel.
Before you remove a database server from a farm, make sure that you have moved any databases
stored on that server to a different database server in your farm.
To remove a database server, web server, or application server from a SharePoint farm by using
Central Administration
1. Verify that the user account that completes this procedure has the following credentials:
The user account that performs this procedure is a member of the Farm Administrators
SharePoint group.
The user account that performs this procedure is a member of the Administrators group
on the server.
2. Stop the services that are running on the server. For information about how to determine which
services are running on a specific server and stopping services, see Start or stop a service
(SharePoint 2013).
3. On the SharePoint Central Administration website, in the System Settings section, click Manage
servers in this farm.
4. On the Servers in Farm page, locate the row that contains the name of the server that you want
to remove, and then click Remove Server.
5. In the warning that appears, click OK to remove the server or click Cancel to stop the operation.
The page updates, and the server that you removed no longer appears in the list of servers.
See also
Install SharePoint 2013
157
Uninstall SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-09
Summary: SharePoint Server 2013 and SharePoint Foundation 2013 support a limited set of methods
to uninstall.
You remove SharePoint 2013 by uninstalling it from Control Panel. When you uninstall SharePoint
2013, most files and subfolders in the installation folders are removed. However, some files are not
removed. Also,
Web.config files, index files, log files, and customizations that you might have are not
automatically removed when you uninstall SharePoint 2013.
SQL Server databases are detached but are not removed from the database server.
If you uninstall a single server that has a built-in database, SQL Server Express is not removed.
When you uninstall SharePoint 2013, all user data remains in the database files.
Before you begin
Before you begin this operation, confirm that you have uninstalled all language packs that are on the
server.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
158
Uninstall SharePoint 2013
Use this procedure to uninstall SharePoint 2013.
To uninstall SharePoint 2013
1. Verify that you are a member of the Farm Administrators group or a member of the
Administrators group on the local computer.
2. On the computer that runs SharePoint 2013, log on as a local or domain administrator.
3. Start Control Panel.
For Windows Server 2008 R2:
Click Start, and then click Control Panel.
For Windows Server 2012:
On the Start screen, click Control Panel.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
4. In the Programs area, click Uninstall a program.
5. In the Uninstall or change a program dialog box, click Microsoft SharePoint Server 2013.
6. Click Change.
7. On the Change your installation of Microsoft SharePoint Server 2013 page, click Remove, and
then click Continue.
A confirmation message appears.
8. Click Yes to remove SharePoint 2013.
A warning message appears.
9. Click OK to continue.
A confirmation message appears.
10. Click OK.
You might be prompted to restart the server.
159
Note:
If you did not remove the language template packs before you uninstalled and then
reinstalled SharePoint 2013, you must run Repair from the SharePoint Products Configuration
Wizard for each language template pack on the server. After the repair operation is complete,
you must restart the server. Finally, complete the language template pack configuration by
running the SharePoint Products Configuration Wizard.
See also
Add web or application servers to farms in SharePoint 2013
Remove a server from a farm in SharePoint 2013
Install SharePoint 2013 on a single server with a built-in database
Install SharePoint 2013 on a single server with SQL Server
Install SharePoint 2013 across multiple servers for a three-tier farm
Hardware and software requirements for SharePoint 2013
Installation and Deployment for SharePoint 2013 Resource Center
160
Install and configure a virtual environment
for SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-10-31
Summary: Learn about permissions, accounts, security settings, and what you have to do to prepare
your Windows Server 2008 Hyper-V environment for SharePoint 2013.
The following downloadable resources, articles on TechNet, and related resources provide
information about how to prepare Hyper-V to support a SharePoint 2013 virtual farm.
Articles about SharePoint 2013 virtualization with
Hyper-V
TechNet articles about SharePoint 2013 virtualization with Hyper-V
The following articles about virtualization in SharePoint 2013 are available to view online. Writers
update articles on a continuing basis as new information becomes available and as users provide
feedback.
Content
Provides
Use best practice configurations
for the SharePoint 2013 virtual
machines and Hyper-V
environment
Provides best practice guidance
to install and configure virtual
machines for a SharePoint 2013
farm and the Hyper-V
virtualization host computer.
Resources about Hyper-V installation and initial configuration
The following resources about Hyper-V are available from other subject matter experts.
161
Content
Description
Getting Business Done With
Virtualization
Visit the TechCenter to access
videos, community sites,
documentation, and more.
Virtualization: Prepare to
Virtualize
This TechNet Magazine article
provides an overview of the
preparation required to shift
applications to a virtual
environment.
Resources about SharePoint 2013 farms hosted on Azure
The following articles about how to deploy SharePoint 2013 on Azure Virtual Machines are available to
view online. Writers update articles on a continuing basis as new information becomes available and
as users provide feedback.
Content
Description
Content on MSDN
SharePoint 2013 on Azure
Infrastructure
Installing SharePoint 2013
on Azure Infrastructure
Services
Provides guidance to install
and configure a SharePoint
2013 farm in an Azure
environment.
This tutorial provides step by
step instructions to create
an Azure environment and
then deploy a SharePoint
farm on Azure Virtual
Machines.
162
Use best practice configurations for the
SharePoint 2013 virtual machines and
Hyper-V environment
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-10-22
Summary: Follow best practice recommendations to configure the SharePoint 2013 virtual machines
and the Windows Server 2008 Hyper-V infrastructure.
After you create a detailed architecture design and system specifications, you are ready to install and
configure the virtual environment for the SharePoint 2013 farm. To achieve the performance and
capacity goals that you identify in your detailed design and system specifications, you must have a
correctly configured virtual environment. One or more badly configured virtual machines or
virtualization hosts can significantly reduce performance.
This article discusses Windows Server 2008 Hyper-V technology configuration options and their
potential impact on the performance of the virtualization host computer, the virtual machines, and
the SharePoint 2013 farm in general. Key decision points and best practice configurations provide
guidance when you set up the virtual environment.
Important:
A wide range of features and installation options are available to set up and configure a
Hyper-V environment. Measurements focus on testing and guidance on the features and
configurations that provide quantifiable benefits and consider the known performance
characteristics of server roles in a SharePoint products farm.
In this article:
Introduction and scope
Review the general best practice guidance for virtualization
Configure the Hyper-V host computer
Install and configure virtual networking
Create and configure the virtual machines
Configure the memory for the virtual machines
163
Configure the processors for the virtual machines
Configure the controllers and hard disks for the virtual machines
Configure services and general settings
Introduction and scope
We recommend that you use a bottom up approach to configure the Hyper-V environment for the
SharePoint 2013 farm. Start with the Hyper-V host computer configuration and then work up to the
virtual layer to configure the virtual network components and the virtual machines.
Before you install and configure the Hyper-V environment, we recommend that you review the
following articles:
Hardware Considerations for Hyper-V in Windows Server 2008
Hyper-V Scalability in Windows Server 2012
Hyper-V Getting Started Guide
Article scope
Several aspects about how to configure a virtual environment that are not discussed in detail are
documented in separate articles. Detailed information about the following subjects is out of scope for
this article:
Business Continuity Management (high availability and disaster recovery) for a virtual
environment
Securing a virtual environment (options and best practices)
Review the general best practice guidance for
virtualization
When you install and configure virtualization for a SharePoint 2013 farm, every configuration choice
that you make and implement has an effect on all other parts of the virtual environment. Your primary
goal is to create intended consequences and positive effects. To achieve this goal you have to
understand the interaction between the virtual and the physical, the inherent constraints. You also
have to follow best practice guidance when you set up the virtual farm.
164
The first thing that you have to do before you install and configure your virtual environment is to
make sure that you install the latest version of the Hyper-V Best Practices Analyzer (BPA). You can get
this update from Update for Best Practices Analyzer for HYPER-V for Windows Server 2008 R2 x64
Edition (KB977238).
You can use Hyper-V Best Practices Analyzer to scan a server that is running the Hyper-V role and help
identify configurations that do not comply with the best practices of Microsoft for this role. BPA scans
the configuration of the physical computer, the virtual machines, and other resources, such as virtual
networking and virtual storage. No configuration changes are made by running the scan.
The scan results display the following information:
A list of issues that you can sort by severity
Recommended fixes for issues
Links to instructions
The best practices in the following table explain several aspects of virtualization and are not
necessarily specific to any virtualization technology.
Note:
Hyper-V partition terminology
Hyper-V provides three types of partitions: the root partition, the parent partition, and the
child partition. Each partition has its resources (memory and processor) and policies for device
use. The root partition is the original partition and it starts the hypervisor. The parent
partition calls the hypervisor to request the creation of new child partitions—the virtual
machines.
165
Best practice guidance for virtualization
Best practice
Description
Leave adequate memory for the Hyper-V
partitions.
Calculate the total memory requirements for all
the virtual machines on the host and ensure that
there is enough available memory to meet Hyper-
V partition requirements.
Important:
For SharePoint products virtual machines,
we recommend 4 GB of RAM or more for
host computer operations.
Do not use the parent partition for services other
than Hyper-V.
Do not run additional roles or services on the
parent partition. Run them on the virtual
machines instead because the parent is
differentiated for scheduling.
Do not store host computer system files on drives
that are used for Hyper-V storage.
To reduce disk contention, do not store system
files (for example, Pagefile.sys) on hard disks that
are dedicated to storing virtual machine data.
Use a minimum of two physical network adapters.
For better network management and
performance, dedicate one adapter to virtual
machine network traffic and use the other
adapter for virtualization host network traffic.
Do not oversubscribe the CPU on the
virtualization host computer.
Review the supported ratio of virtual processors
per logical processor and avoid oversubscribing
the host computer CPU. The optimum virtual
processor:logical processor ratio is 1:1. For more
information, see Configure the processors for the
virtual machines.
166
Best practice
Description
Do not cross Non-uniform memory access
(NUMA) boundaries.
Hyper-V spans NUMA nodes to assign physical
memory to a virtual machine; however, this does
reduce performance on the virtual machine. For
more information, see Configure the memory for
the virtual machines
Do not use snapshots in a production
environment.
Do not use snapshots for the virtual machines in a
SharePoint products production environment.
When you create a snapshot, Hyper-V creates a
new secondary drive for the virtual machine.
Write operations occur on the new drive and read
operations occur on both drives, which has the
same net affect as a differencing disk. Every
snapshot that you add reduces disk performance
further.
Configure the Hyper-V host computer
When you configure the Hyper-V host computer, we recommend that you consider the following
configuration options and best practices:
Close the operating system management windows.
Hyper-V Manager and Virtual Machine Connection sessions consume resources. For example,
Hyper-V manager causes Windows Management Instrumentation (WMI) activity in the parent
partition. When you close the Virtual Machine Connection Manager, video emulation is disabled,
which eliminate this source of resource consumption.
Avoid running programs such as anti-virus software on the parent partition.
Run them on the child partition if they are required.
Use hardware that supports Second Level Address Translation (SLAT).
SLAT is hardware that is optimized for virtualization improves virtual machine performance, and
reduces processing load on the Windows hypervisor. For more information, see Hyper-V: List of
SLAT-Capable CPUs for Hosts.
If your hardware supports Hyper-Threading, enable it.
167
Hyper-Threading splits the CPU pipeline in two and makes a single core look like two cores.
Install and configure virtual networking
Hyper-V provides the level of networking robustness and configuration options that you expect to see
in a physical networking environment. There are, of course, some limitations because you are dealing
with virtual devices.
We recommend that you refer to the following documentation to prepare to install and configure
virtual networking.
Understanding Networking with Hyper-V
How does basic networking work in Hyper-V?
Hyper-V: What are the uses for different types of virtual networks?
Understanding Hyper-V VLANs
Hyper-V VLANs Part II
Configuring Virtual Networks
Hyper-V virtual networks
You can create and configure a Hyper-V virtual network before you install and configure virtual
machines. In addition, you can create more than one virtual network on a Hyper-V host computer.
Note:
You cannot create more than one virtual network on a Hyper-V host computer if the computer
is running a Server Core installation of Windows Server 2008 or Windows Server 2008 R2.
Hyper-V provides three types of virtual networks that you can configure for virtual machines. The
following table provides a summary of these virtual networks and their characteristics.
168
Virtual network types
Type
Description
External
Provides a communication link between virtual
machines and a physical network by creating an
association to a physical network adapter on the
host computer. Dedicate one physical adapter to
this type of network.
For security purposes you can isolate traffic
between virtual machines and other computers
on the physical network by clearing the Allow
management operating system to share this
network adapter setting. However, you will be
unable to connect to the management operating
system remotely.
Internal
Provides a communications link between the host
computer and the virtual machines. This provides
a degree of isolation from external network traffic
and is typically used in a test environment where
you want to connect to the virtual machines by
using the management operating system.
Private
Provides a communications link between the
virtual machines. They are completely isolated
from the host computer and this type of virtual
network is often used to set isolated test
domains.
Important:
In a scenario where two internal (or private) virtual networks are created in Hyper-V and two
virtual machines are created on a separate IP subnet, these virtual machines cannot
communicate with one another. Because the virtual switch operates at layer 2 of the ISO/OSI
Network Model, you have to have a router to achieve routing at a higher level.
169
After you create your virtual network, you can specify the range of media access control (MAC)
addresses that are automatically assigned to the virtual network adapters. Hyper-V enables you to
provide static MAC addresses to a virtual adapter to avoid collisions on the network.
Tip:
John Howard's blog post, Hyper-V: MAC Address allocation and apparent network issues MAC
collisions can cause provides a very good explanation about MAC Address allocation and
associated network issues.
Windows Server 2008 R2 adds the option to configure MAC address spoofing (Enable Spoofing Of
MAC Addresses) in the virtual network adapter settings. For more information, see Configure MAC
Address Spoofing for Virtual Network Adapters.
Virtual local area networks (VLANs)
From a performance perspective, the ability to create virtual local area networks (VLANs) can provide
significant throughput gains. Because virtual machines on the same VLAN can communicate through
the virtual switch, network traffic is faster because it does not have to use the physical network
adapter. Another benefit of a VLAN configuration is the fact that, because it is software-based, a
virtual machine can easily be moved between hosts and still keeps its network configuration.
When you enable virtual LAN identification for the management operating system, you can assign a
VLAN identifier (ID), which is an integer that uniquely identifies a node that belongs to a particular
VLAN. If you use virtual LAN feature and a VLAN ID, note the following:
The physical adapters must support VLAN tagging and this feature has to be enabled.
Set the VLAN ID on either the virtual switch or on the virtual machine's network adapter instead of
the physical adapter.
You can assign only one VLAN ID on the virtual switch.
Network adapters and virtual network switches
Hyper-V provides two kinds of virtual network adapters that you can configure for a virtual machine: a
network adapter and a legacy network adapter.
A network adapter, also known as a synthetic adapter, is the preferred option for most virtual
machine configurations. The driver for this adapter is included with the integration services that
are installed with the Windows Server 2008 R2 guest operating system.
170
A legacy adapter emulates an Intel 21140-based PCI Fast Ethernet Adapter, which results in a
lower data transfer than the network adapter. A legacy network adapter also supports network-
based installations because it can boot to the Pre-Boot Execution Environment (PXE).
Unless you have to use a legacy adapter until you can install the virtual machine driver or have to do a
network boot, we recommend that you configure a virtual machine with a network adapter. If you do
have to use a legacy adapter for a network installation, you can always add a network adapter later,
and then delete the legacy adapter.
NIC teaming is the process of grouping several physical NICs into one logical NIC, which can be used
for network fault tolerance and transmit load balance. The process of grouping NICs is called teaming.
Teaming has two purposes:
Fault tolerance. Teaming more than one physical NIC to a logical NIC maximizes high availability.
Even if one NIC fails, the network connection does not stop and continues to operate on other
NICs.
Load balancing. Balancing the network traffic load on a server can enhance the functionality of
the server and the network. Load balancing within network interconnect controller (NIC) teams
enables distributing traffic among the members of a NIC team so that traffic is routed among all
available paths.
Note:
Windows Server 2008 Service Pack 2 (SP2) and Windows Server 2008 R2 have no restrictions
that are associated with NIC Teaming and the Failover Clustering feature. In Windows Server
2008, the Microsoft Failover Cluster Virtual Adapter is compatible with NIC Teaming and
enables it to be used on any network interface in a Failover Cluster.
Windows Server 2008 R2 adds important new capabilities that you should use in your Hyper-V
environment if your servers and network hardware support them. We recommend that you
investigate the following networking options:
Large Send Offload (LSO) and Checksum Offload (CSO). The virtual networks in Hyper-V support
LSO and CSO. In addition, if your physical network adapters support these capabilities, the virtual
traffic is offloaded to the physical network as necessary. Most network adapters support LSO and
CSO.
Jumbo frames. With Windows Server 2008 R2, jumbo frame improvements converge to support
up to 6 times the payload per packet. This increases overall throughput and reduces CPU
utilization for large file transfers. Physical networks and virtual networks support jumbo frames.
This includes switches and adapters.
171
Note:
For physical networks, all intervening network hardware such as switches must have
jumbo frame support enabled also.
TCP chimney. This lets virtual NICs in child partitions to offload TCP connections to physical
adapters that support it, which reduces CPU utilization and other overhead.
Virtual machine queue (VMQ). VMQ improves network throughput by distributing network traffic
for multiple VMs across multiple processors. This process reduces processor utilization by
offloading packet classification to the hardware and avoiding both network data copy and route
lookup on transmit paths. VMQ is compatible with most other task offloads and can coexist with
large send offload and jumbo frames.
Create and configure the virtual machines
Although Hyper-V supports several guest operating systems, SharePoint 2013 requires the 64-bit
edition of Windows Server 2008 R2 Service Pack 1 (SP1) Standard, Enterprise, or Data Center. For
more information about supported guest operating systems, see About Virtual Machines and Guest
Operating Systems
Hyper-V provides many configuration options and you can change a configuration, the amount of
memory for example, after the virtual machine is running as a SharePoint products farm server. With
the exception of adding a virtual hard disk drive for a SCSI controller, you have to shut down a virtual
machine before you can change its configuration.
Configure each virtual machine according to the requirements in Detailed design and system
specification process for a virtual SharePoint 2013 farm. Configure the following for each virtual
machine:
The BIOS setting to set the boot sequence (legacy network adapter, CD, IDE, or floppy disk)
The amount of memory
The number of virtual processors
The type and number of controllers
The type and number of hard disks
The type and number of network adapters
In addition to the previous configurations, you also have the option to configure a DVD drive, COM
ports, and a virtual floppy disk.
172
From a SharePoint products perspective, the primary configuration considerations are the memory,
processor, and hard disks.
Configure the memory for the virtual machines
Configure memory on a virtual machine as you typically do for an application that runs on a physical
server. The memory allocation must be sufficient to reasonably handle the load at ordinary and peak
times. For SharePoint virtual machines, insufficient memory is the main cause of performance issues.
Before you install and configure the virtual machines on a Hyper-V host computer, calculate how
much memory is available for the virtual machines. The root partition must have sufficient memory to
provide services such as I/O virtualization and management to support the child partitions. For
SharePoint products, we recommend that you allow a minimum of 4 GB of RAM for overhead on a
Hyper-V virtualization host computer.
After you factor in the 4 GB RAM reserve for the virtualization host, configure the virtual machines to
use the remaining memory.
Dynamic memory
Windows Server 2008 R2 SP1 has the option of configuring dynamic memory (with a minimum value
and maximum value) for virtual machines.
We do not support this option for virtual machines that run in a SharePoint 2013 environment. The
reason is that this implementation of dynamic memory does not work with every SharePoint feature.
For example, Distributed Cache and Search do not resize their caches when the allocated memory for
a virtual machine is dynamically changed. This can cause performance degradation, especially when
assigned memory is reduced.
173
Non-uniform memory access (NUMA)
A very import aspect of virtual machine memory configuration is Non-uniform memory access
(NUMA). NUMA is a memory design that speeds up memory access by partitioning physical memory
so each processor in a multi-CPU has its own memory. For example, in a system with 8 cores and 32
GB of RAM, each core or node has 4 GB of physical memory. If a virtual machine is configured to use 8
GB of RAM, the system has to use memory in another node. Because crossing the NUMA boundary
can reduce virtual performance by as much as 8%, it is a best practice to configure a virtual machine to
use resources from a single NUMA node. For more information about NUMA, refer to the following
articles:
Understanding Non-uniform Memory Access
Determining NUMA node boundaries for modern CPUs
NUMA Node Balancing
Configure the processors for the virtual machines
You can configure multiple virtual processors for a virtual machine, up to a limit of four processors.
You cannot configure more processors per virtual machine than there are logical (cores) processors on
the virtualization host. For example, given a dual core physical server, the limit is two virtual
processors for a virtual machine. Although Hyper-V supports up to eight virtual processors per core or
per thread, a configuration that exceeds this ratio (8:1) is known as being oversubscribed. For any
virtual machine that you use in a SharePoint 2013 farm, we recommend a ratio of 1:1. Oversubscribing
the CPU on the virtualization host can decrease performance, depending on how much the CPU is
oversubscribed. For more information, see Hyper-V VM Density, VP:LP Ratio, Cores and Threads
Configure the controllers and hard disks for the virtual
machines
You can use two controller options and several hard disk configurations for a virtual machine. Before
you configure storage for your virtual machines, read the following posts written by Jose Barreto, who
is a member of the File Server Team at Microsoft.
Storage options for Windows Server 2008 Hyper-V
More on Storage Options for Windows Server 2008 Hyper-V
You can select either Integrated Device Electronics or SCSI devices on virtual machines, as follows:
174
IDE devices: Hyper-V uses emulated devices with IDE controllers. You can have up to two IDE
controllers with two disks on each controller. The startup disk (also known as the boot disk) must
be attached to one of the IDE devices. The startup disk can be either a virtual hard disk or a
physical disk. Although a virtual machine must use an IDE device as the startup disk to start the
guest operating system, you have many options to choose from when you select the physical
device that will provide the storage for the IDE device.
SCSI devices: Each virtual machine supports up to 256 SCSI disks (four SCSI controllers with each
controller supporting up to 64 disks). SCSI controllers use a type of device that was developed
specifically for use with virtual machines and use the virtual machine bus to communicate. The
virtual machine bus must be available when the guest operating system is started. Therefore,
virtual hard disks that are attached to SCSI controllers cannot be used as startup disks.
Note:
Physical SCSI devices typically provide better I/O performance than physical IDE devices.
However, this is not the case for virtualized SCSI and IDE devices in Hyper-V. Support for
hot swappable hard disk drives, which the Hyper-V implementation of SCSI supports, is a
better reason for selecting SCSI drives than performance gains.
The version of Hyper-V released with Windows Server 2008 R2 provides significant improvements in
virtual hard disk performance. For more information, see Virtual Hard Disk Performance: Windows
Server 2008 / Windows Server 2008 R2 / Windows 7. For a summary of virtual machine drive options,
see the "How to choose your Hyper-V and VHD Storage Container Format" section of " Virtual Hard
Disk Performance: Windows Server 2008 / Windows Server 2008 R2 / Windows 7".
Hyper-V supports many storage options. For more information about the storage options, see
Planning for Disks and Storage.
You can use the following types of physical storage with a server that runs Hyper-V:
Direct-attached storage: You can use Serial Advanced Technology Attachment (SATA), external
Serial Advanced Technology Attachment (eSATA), Parallel Advanced Technology Attachment
(PATA), Serial Attached SCSI (SAS), SCSI, USB, and Firewire.
Storage area networks (SANs): You can use Internet SCSI (iSCSI), Fibre Channel, and SAS
technologies.
For more information, see Configuring Pass-through Disks in Hyper-V.
There is no generic storage solution for every virtual environment. Selecting the optimal virtual
machine drive option for your SharePoint 2013 servers requires research and extensive testing to
implement the best storage solution for your virtual environment. When you pick a storage solution
you must consider access performance, storage needs, and how much memory is used for the
advanced caching of virtual hard disk images.
175
Configure services and general settings
In a Hyper-V environment, you can specify the configuration of virtual networking and the
configuration for each virtual machine. Additionally, you can configure how each virtual machine
interacts with the Hyper-V host computer, and also the stop and restart behavior if the running state
of the virtual machine is interrupted.
Integration services
Hyper-V includes a software package for supported guest operating systems that improves integration
between the physical computer and the virtual machine. This package is known as integration
services. You should verify that the management operating system (which runs the Hyper-V role) and
virtual machines are running the same version of integration services. For more information, see
Version Compatibility for Integration Services.
For each virtual machine you can configure the following integration items between the virtual
machine and the virtualization host computer:
Operating system shutdown
Time synchronization
Data exchange
Heartbeat
Backup (volume snapshot)
Important:
Disable the time synchronization for each SharePoint virtual machine. SharePoint 2013
implements timer jobs extensively and the latency during time synchronization will cause
unpredictable results in the SharePoint environment.
Automatic stop and start
For each virtual machine you can configure automatic stop and start behavior if a physical computer
shuts down.
The options for stop are as follows:
Save the virtual machine state.
The current state of the virtual machine is saved. When the virtual machine is started, Hyper-V
attempts to restore the virtual machine to the state it was in.
176
Turn off the virtual machine.
This is the equivalent of pulling the power plug on a server.
Shut down the guest (virtual machine) operating system.
This is the equivalent of shutting down a computer by using the Windows Shut down option.
For a SharePoint products virtual machine, do not configure the virtual machine to save state. Virtual
machines that start from saved state will be out of synchronization with the other servers in the farm.
We recommend that you configure the virtual machine to use a shutdown because it minimizes that
chances that the virtual machine can be corrupted. When a shutdown happens, all timer jobs that are
running can finish, and there will be no synchronization issues when the virtual machine restarts.
The opposite of an automatic stop is an automatic start. Hyper-V provides the following startup
options when the physical server restarts:
Do nothing.
You have to start the virtual machine manually regardless of its state when the physical server
shut down.
Automatically start if the virtual machine was running when the service stopped.
Always start this virtual machine automatically.
Hyper-V starts the virtual machine regardless of its state when the physical server shut down.
We recommend that you select either of the first two options. Both options are acceptable. However,
the decision is ultimately up to the IT team that manages and maintains the virtual environment.
In addition to the previous start options, you can configure a startup time delay for a virtual machine.
We recommend that you do this to reduce resource contention on a virtualization host. However, if
your start option is to do nothing, this is not an issue.
See also
Use best practice configurations for the SharePoint 2013 virtual machines and Hyper-V environment
Overview of farm virtualization and architectures for SharePoint 2013
Installation and Deployment for SharePoint 2013 Resource Center
Capabilities and features in SharePoint 2013 Resource Center
177
Configure SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Lists articles that describe how to configure settings (such as services, authentication, and
specific features) after you install SharePoint 2013.
After you install SharePoint 2013, you must configure several additional settings to enable key
features in your farm. The articles in this section provide steps for configuring these settings.
TechNet articles about how to configure settings for
the server farm
The following articles about how to configure settings for the server farm are available to view online.
Writers update articles on a continuing basis as new information becomes available and as users
provide feedback.
Content
Description
Configure authentication
infrastructure in SharePoint 2013
These articles describe how to
configure the infrastructure for
user, server-to-server, and app
authentication.
Configure availability and
recovery solutions for SharePoint
2013
Learn about the options for
providing high availability and
disaster recovery solutions for
SharePoint 2013.
Configure email integration for a
SharePoint 2013 farm
These articles describe how to
configure incoming and outgoing
e-mail in the server farm.
178
Content
Description
Configure licensing in
SharePoint Server 2013
Learn about new licensing
functionality and how to
configure licensing in SharePoint
Server 2013.
Configure mobile accounts in
SharePoint 2013
Learn how to subscribe to SMS
alerts for your mobile device in
SharePoint Server 2013.
Configure Request Manager in
SharePoint Server 2013
Learn how Request Manager can
route and throttle incoming
requests to help improve
performance and availability.
Configure services and service
applications in SharePoint 2013
These articles describe how to
configure services and service
applications.
Configure usage and health
data collection in SharePoint
2013
Learn how to configure usage
and health data collection.
Configure Business Connectivity
Services solutions for SharePoint
2013
Find links to procedures to help
you install and configure
Business Connectivity Services
for SharePoint 2013 on-premises
and other scenarios.
Configure eDiscovery in
SharePoint Server 2013
Learn the steps to set up and
configure eDiscovery in
SharePoint Server 2013 and
Exchange Server 2013.
Configure Exchange task
synchronization in SharePoint
Server 2013
Configure Exchange Server 2013
and SharePoint Server 2013 for
task synchronization by using
the SharePoint Server 2013 Task
Synchronization feature.
179
Content
Description
Configure site mailboxes in
SharePoint Server 2013
Configure Exchange Server 2013
and SharePoint Server 2013 for
team email by using the
SharePoint Server 2013 Site
Mailboxes feature.
Configure social computing
features in SharePoint Server
2013
These articles describe how to
configure social computing
features. This includes My Sites,
Community Sites, and
microblogging in SharePoint
Server 2013.
Configure web content
management solutions in
SharePoint Server 2013
Learn how to configure
SharePoint web content
management solutions that use
cross-site collection publishing in
SharePoint Server 2013.
Configure workflow in
SharePoint Server 2013
Learn how to install and
configure Workflow Manager in
SharePoint Server 2013.
Additional resources about how to configure settings
for the server farm
The following resources about how to configure settings for the server farm are available from other
subject matter experts.
Content
Description
Installation and Deployment for
SharePoint 2013 Resource
Center
Visit the Resource Center to
access videos, community sites,
documentation, and more.
180
Service application and service
management (SharePoint 2013)
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn about service application infrastructure and how service applications and services
can be managed by farm administrators in SharePoint 2013.
In this section
About service applications and services in SharePoint 2013
Provides an introduction to the logical infrastructure of service applications and services.
Share service applications across farms in SharePoint 2013
Describes the process and cautions that are involved in sharing service applications across farms in
SharePoint 2013.
Start or stop a service (SharePoint 2013)
Describes how services can be started, stopped, and configured.
Manage service applications in SharePoint 2013
Describes how to manage, create, configure, and share service applications.
Configure automatic password change in SharePoint 2013
Learn about how to configure the automatic password changes in SharePoint 2013.
See also
Web applications management in SharePoint Server 2013
Technical diagrams for SharePoint 2013
181
Configure authentication infrastructure in
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-09-10
Summary: Find resources to help you configure the infrastructure for user, server-to-server, and app
authentication in SharePoint 2013.
The following articles on TechNet and related resources provide information about how to configure
authentication infrastructure.
TechNet articles about how to configure authentication
infrastructure
The following articles about how to configure authentication infrastructure in SharePoint 2013 are
available to view online. Writers update articles on a continuing basis as new information becomes
available and as users provide feedback.
Content
Description
Configure forms-based
authentication for a claims-based
web application in SharePoint
2013
Describes the steps to configure
forms-based authentication
using a Lightweight Directory
Access Protocol (LDAP)
membership provider.
Configure SAML-based claims
authentication with AD FS in
SharePoint 2013
Describes the steps to configure
Security Assertion Markup
Language (SAML)-based claims
authentication using Active
Directory Federation Services
(AD FS) 2.0.
182
Content
Description
Configure server-to-server
authentication in SharePoint
2013
These articles describe the steps
to configure server-to-server
authentication.
Configure app authentication in
SharePoint Server 2013
Describes the steps to configure
app authentication for
SharePoint Server 2013.
Configure client certificate
authentication for SharePoint
2013
Describes how to configure user
authentication with client
certificates.
Replace the STS certificate for
the on-premises environment
Learn how to replace a Security
Token Service (STS) certificate
for an on-premises farm in
SharePoint Server 2013.
Implement SAML-based
authentication in SharePoint
Server 2013
Learn how to implement SAML-
based authentication in
SharePoint 2013.
Migration of Windows claims
authentication to SAML-based
claims authentication in
SharePoint Server 2013
Learn how to migrate from
Windows claims authentication
to SAML-based authentication in
SharePoint 2013.
Implications of Claims Mode
Authentication on service
applications
Learn how to migrate Windows
claims authentication to SAML-
based authentication on service
applications in SharePoint 2013.
How to turn on and off the
multiple metadata formats for
JSON in SharePoint Server 2013
Learn how to turn on and off the
multiple metadata formats for
the JavaScript Object Notation
(JSON) feature in a SharePoint
Server 2013 environment.
184
Configure forms-based authentication for a
claims-based web application in SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-10-23
Summary: Learn how to configure forms-based authentication with an LDAP provider for a new
SharePoint 2013 web application.
This article provides guidance for configuring forms-based authentication for a SharePoint 2013 web
application that uses a Lightweight Directory Access Protocol (LDAP) membership provider. Forms-
based authentication is an identity management system that is based on ASP.NET membership and
role provider authentication. Forms-based authentication in SharePoint 2013 is a claims-based
authentication method. For more information about the use of forms-based authentication, see the
“Implementing forms-based authentication” section of Plan for user authentication methods in
SharePoint 2013.
Important:
The steps in this article apply to SharePoint Server 2013.
For a version of these procedures that are configured in a standardized test lab, see Test Lab Guide:
Demonstrate forms-based claims authentication for SharePoint Server 2013.
Before you begin
Before you begin this operation, you should be familiar with the concepts in Plan for user
authentication methods in SharePoint 2013.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
185
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
Process overview
This configuration has the following phases that must be performed in consecutive order:
Phase 1: Create a new Web application that uses forms-based authentication with Central
Administration
Phase 2: Configure the Web.Config files for an LDAP membership provider
Within each phase, the set of procedures must also be performed in consecutive order.
For an alternative to creating the new web application by using Central Administration, see Create a
new web application that uses forms-based authentication with Windows PowerShell.
Phase 1: Create a new web application that uses
forms-based authentication with Central
Administration
Perform the steps in the following procedure to create a web application that uses forms-based
authentication with Central Administration.
To create a new web application that uses forms-based authentication with Central Administration
1. Verify that the user account that is performing this procedure is a site collection administrator.
2. Start SharePoint 2013 Central Administration.
For Windows Server 2008 R2:
Click Start, click Microsoft SharePoint 2013 Products, and then click SharePoint 2013
Central Administration.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Central Administration.
If SharePoint 2013 Central Administration is not on the Start screen:
186
Right-click Computer, click All apps, and then click SharePoint 2013 Central
Administration.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. In Central Administration, in the Application Management section, click Manage web
applications.
4. In the Contribute group of the ribbon, click New.
5. In the Claims Authentication Types section of the Create New Web Application dialog box,
select Enable Forms Based Authentication (FBA).
6. Type a membership provider name in ASP.NET Membership provider name and a role manager
name in ASP.NET Role manager name.
In the example Web.Config files depicted in this article, the membership provider is membership
and the role manager is rolemanager.
7. Configure the other settings for this new web application as needed, and then click OK to create
it.
8. When prompted with the Application Created dialog box, click OK.
Phase 2: Configure the Web.Config files for an LDAP
membership provider
After you successfully create the new web application, modify the following Web.Config files in every
web front-end server in the farm:
The Central Administration web application Web.Config file
The Security Token Service Web.Config file
The new web application Web.Config file
Configure the Central Administration Web.Config file
The following procedure configures the Central Administration web site to recognize and use the new
forms-based membership provider and role manager.
187
To configure the Central Administration Web.Config file
1. Click Start, point to Administrative Tools, and then click Internet Information Services (IIS)
Manager.
2. In the console tree, open the server name, and then Sites.
3. Right-click the SharePoint Central Administration v4 site, and then click Explore.
4. In the folder window, double-click the Web.Config file.
5. In the <Configuration> section, find the <system.web> section and add the following
example entry:
<membership defaultProvider="AspNetSqlMembershipProvider">
<providers>
<add name="membership"
type="Microsoft.Office.Server.Security.LdapMembershipProvider,
Microsoft.Office.Server, Version=15.0.0.0, Culture=neutral,
PublicKeyToken=71e9bce111e9429c"
server="yourserver.com"
port="389"
useSSL="false"
userDNAttribute="distinguishedName"
userNameAttribute="sAMAccountName"
userContainer="OU=UserAccounts,DC=internal,DC=yourcompany,DC=distinguishedName
(of your userContainer)"
userObjectClass="person"
userFilter="(ObjectClass=person)"
scope="Subtree"
otherRequiredUserAttributes="sn,givenname,cn" />
</providers>
</membership>
<roleManager enabled="true" defaultProvider="AspNetWindowsTokenRoleProvider"
>
<providers>
<add name="roleManager"
type="Microsoft.Office.Server.Security.LdapRoleProvider,
Microsoft.Office.Server, Version=15.0.0.0, Culture=neutral,
PublicKeyToken=71e9bce111e9429c"
server="yourserver.com"
port="389"
useSSL="false"
groupContainer="DC=internal,DC=yourcompany,DC=distinguishedName (of
your groupContainer)"
groupNameAttribute="cn"
groupNameAlternateSearchAttribute="samAccountName"
groupMemberAttribute="member"
userNameAttribute="sAMAccountName"
dnAttribute="distinguishedName"
groupFilter="((ObjectClass=group)"
188
userFilter="((ObjectClass=person)"
scope="Subtree" />
</providers>
</roleManager>
In the preceding entry, substitute the following:
The name of your membership provider in <add name="membership".
The fully qualified domain name (FQDN) of your domain controller (your LDAP server) in
server="yourserver.com".
The distinguished name of your user container in
userContainer="OU=UserAccounts,DC=internal,DC=yourcompany,DC=distin
guishedName (of your userContainer)".
The name of your role manager in <add name="roleManager".
The distinguished name of your group container in
groupContainer="DC=internal,DC=yourcompany,DC=distinguishedName (of
your groupContainer)".
After you add this entry, save and close the Web.Config file.
Configure the Security Token Service Web.Config file
The following procedure configures the Security Token Service to recognize and use the new forms-
based membership provider and role manager.
To configure the Security Token Service Web.Config file
1. In the console tree of Internet Information Services (IIS) Manager, open the SharePoint Web
Services site.
2. In the console tree, right-click SecurityTokenServiceApplication, and then click Explore.
3. In the folder window, double-click the Web.Config file.
4. In the <Configuration> section, create a new <system.web> section and add the following
example entry:
<membership>
<providers>
<add name="membership"
type="Microsoft.Office.Server.Security.LdapMembershipProvider,
Microsoft.Office.Server, Version=15.0.0.0, Culture=neutral,
PublicKeyToken=71e9bce111e9429c"
server="yourserver.com"
port="389"
189
useSSL="false"
userDNAttribute="distinguishedName"
userNameAttribute="sAMAccountName"
userContainer="OU=UserAccounts,DC=internal,DC=yourcompany,DC=com"
userObjectClass="person"
userFilter="(&(ObjectClass=person))"
scope="Subtree"
otherRequiredUserAttributes="sn,givenname,cn" />
</providers>
</membership>
<roleManager enabled="true" >
<providers>
<add name="rolemanager"
type="Microsoft.Office.Server.Security.LdapRoleProvider,
Microsoft.Office.Server, Version=15.0.0.0, Culture=neutral,
PublicKeyToken=71e9bce111e9429c"
server="yourserver.com"
port="389"
useSSL="false"
groupContainer="DC=internal,DC=yourcompany,DC=com"
groupNameAttribute="cn"
groupNameAlternateSearchAttribute="samAccountName"
groupMemberAttribute="member"
userNameAttribute="sAMAccountName"
dnAttribute="distinguishedName"
groupFilter="(&(ObjectClass=group))"
userFilter="(&(ObjectClass=person))"
scope="Subtree" />
</providers>
</roleManager>
In the preceding entry, substitute the following:
The name of your membership provider in <add name="membership".
The FQDN of your domain controller (your LDAP server) in server="yourserver.com".
The distinguished name of your user container in
userContainer="OU=UserAccounts,DC=internal,DC=yourcompany,DC=com".
The name of your role manager in <add name="roleManager".
The distinguished name of your group container in
groupContainer="DC=internal,DC=yourcompany,DC=com".
After you add this entry, save and close the Web.Config file.
Configure the new web application Web.Config file
The following procedure configures the new web application to recognize and use the new forms-
based membership provider and role manager.
190
To configure the new web application Web.Config file
1. In the console tree of Internet Information Services (IIS) Manager, right-click the site that
corresponds to the name of the web applications that you just created, and then click Explore.
2. In the folder window, double-click the Web.Config file.
3. In the <Configuration> section, find the <system.web> section.
4. Find the <membership defaultProvider="i"> section and add the following example entry
to the <Providers> section:
<add name="membership"
type="Microsoft.Office.Server.Security.LdapMembershipProvider,
Microsoft.Office.Server, Version=15.0.0.0, Culture=neutral,
PublicKeyToken=71e9bce111e9429c"
server="yourserver.com"
port="389"
useSSL="false"
userDNAttribute="distinguishedName"
userNameAttribute="sAMAccountName"
userContainer="OU=UserAccounts,DC=internal,DC=yourcompany,DC=com"
userObjectClass="person"
userFilter="(&(ObjectClass=person))"
scope="Subtree"
otherRequiredUserAttributes="sn,givenname,cn" />
In the preceding entry, substitute the following:
The name of your membership provider in <add name="membership".
The FQDN of your domain controller (your LDAP server) in server="yourserver.com".
The distinguished name of your user container in
userContainer="OU=UserAccounts,DC=internal,DC=yourcompany,DC=com".
5. Find the <roleManager defaultProvider="c" enabled="true"
cacheRolesInCookie="false"> section and add the following example entry to the
<Providers> section:
<add name="roleManager"
type="Microsoft.Office.Server.Security.LdapRoleProvider,
Microsoft.Office.Server, Version=15.0.0.0, Culture=neutral,
PublicKeyToken=71e9bce111e9429c"
server="yourserver.com"
port="389"
useSSL="false"
groupContainer="DC=internal,DC=yourcompany,DC=com"
groupNameAttribute="cn"
groupNameAlternateSearchAttribute="samAccountName"
191
groupMemberAttribute="member"
userNameAttribute="sAMAccountName"
dnAttribute="distinguishedName"
groupFilter="(&(ObjectClass=group))"
userFilter="(&(ObjectClass=person))"
scope="Subtree" />
In the preceding entry, substitute the following:
The name of your role manager in <add name="roleManager".
The FQDN of your domain controller (your LDAP server) in server="yourserver.com".
The distinguished name of your group container in
groupContainer="DC=internal,DC=yourcompany,DC=com".
After you add the preceding entry, save and close the Web.Config file.
Warning:
Do not overwrite any existing entries in this Web.Config file.
Create a new web application that uses forms-based
authentication with Windows PowerShell
Perform the following procedure to create a web application that uses forms-based authentication
with Windows PowerShell.
To create a new web application that uses forms-based authentication with Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 Products cmdlets.
192
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. From the Windows PowerShell command prompt, type the following:
$ap = New-SPAuthenticationProvider -ASPNETMembershipProvider
<Membership
Provider Name>
-ASPNETRoleProviderName
<Role Manager Name>
$wa = New-SPWebApplication -Name
<Name>
-ApplicationPool
<ApplicationPool>
-ApplicationPoolAccount
<ApplicationPoolAccount>
-Url
<URL>
-Port
<Port>
-
AuthenticationProvider $ap
Example
$ap = New-SPAuthenticationProvider -Name "ClaimsForms" -
ASPNETMembershipProvider "membership" -ASPNETRoleProviderName
"rolemanager"
$wa = New-SPWebApplication -Name "FBA Web App" -ApplicationPool "Claims
App Pool" -ApplicationPoolAccount "internal\appool" -Url
http://contoso.com -Port 1234 -AuthenticationProvider $ap
Note:
The value of the ApplicationPoolAccount parameter must be a managed account on the
farm.
193
4. After you successfully create the new web application, modify the following Web.Config files:
The Central Administration web application Web.Config file
The Security Token Service Web.Config file
The new web application Web.Config file
5. After you change the Web.Config files, create a SPClaimsPrincipal and a site collection, as shown
in the following example:
$cp = New-SPClaimsPrincipal -Identity "membership:SiteOwner" -
IdentityType FormsUser
$sp = New-SPSite http://servername:port -OwnerAlias $cp.Encode() -
Template "STS#0"
For more information, see New-SPClaimsPrincipal.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
See also
Plan for user authentication methods in SharePoint 2013
Test Lab Guide: Demonstrate forms-based claims authentication for SharePoint Server 2013
194
Configure SAML-based claims
authentication with AD FS in SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-23
Summary: Learn how to configure Security Assertion Markup Language (SAML)-based claims
authentication using Active Directory Federation Services version 2.0 (AD FS).
The procedures in this article describe how to configure AD FS to act as an Identity Provider Security
Token Service (IP-STS) for a SharePoint 2013 web application. In this configuration, AD FS issues SAML-
based security tokens consisting of claims so that client computers can access web applications that
use claims-based authentication. You can use an alternative identity provider than AD FS, but it must
support the WS-Federation standard.
For information about why you would use SAML-based authentication, see Plan for user
authentication methods in SharePoint 2013.
You can use AD FS with the Windows Server 2012, Windows Server 2008, or Windows Server 2008 R2
operating systems to build a federated identity management solution that extends distributed
identification, authentication, and authorization services to web-based applications across
organization and platform boundaries. By deploying AD FS, you can extend your organization’s existing
identity management capabilities to the Internet.
For a version of these procedures that are configured in a standardized test lab, see Test Lab Guide:
Demonstrate SAML-based Claims Authentication with SharePoint Server 2013.
Before you begin
Before you begin this operation, you should be familiar with the concepts in the following article:
Plan for user authentication methods in SharePoint 2013
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
195
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
Process overview
This configuration has the following phases that must be performed in consecutive order:
Phase 1: Install and configure an AD FS server
Phase 2: Configure AD FS with the web application as a relying party
Phase 3: Configure SharePoint 2013 to trust AD FS as an identity provider
Phase 4: Configure web applications to use claims-based authentication and AD FS as the trusted
identity provider
Within each phase, the set of procedures must also be performed in consecutive order.
Phase 1: Install and configure an AD FS server
You must install and configure a server that runs AD FS 2.0. For more information, see the AD FS 2.0
Deployment Guide (http://go.microsoft.com/fwlink/p/?LinkId=191723).
Phase 2: Configure AD FS with the web application as
a relying party
This phase has the following procedures:
1. Configure AD FS for a relying party
2. Configure the claim rule
3. Export the token signing certificate
196
Configure AD FS for a relying party
Use the procedure in this section to configure a relying party. The relying party defines how the AD FS
recognizes the relying party application and issues claims to it.
To configure AD FS for a relying party
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the local computer. For additional information about accounts and group memberships,
see Understanding Local Users and Groups
2. On the AD FS server, open the Active Directory Federation Services (AD FS) 2.0 Management
console.
3. In the navigation pane, expand Trust Relationships, and then double-click the Relying Party
Trusts folder.
4. In the right pane, click Add Relying Party Trust.
This opens the Active Directory Federation Services (AD FS) 2.0 configuration wizard.
5. On the Welcome to the Add Relying Party Trust Wizard page, click Start.
6. Select Enter data about the relying party manually, and then click next.
7. Type a relying party name and then click Next.
8. Make sure Active Directory Federation Services (AD FS) 2.0 Profile is selected, and then click
Next.
9. Do not use an encryption certificate. Click Next.
10. Click to select the Enable support for the WS-Federation Passive protocol check box.
11. In the WS-Federation Passive protocol URL field, type the name of the web application URL,
and append /_trust/ (for example, https:// app1.contoso.com/_trust/). Click Next.
Note:
The name of the URL has to use Secure Sockets Layer (SSL).
12. Type the name of the relying party trust identifier (for example, urn:sharepoint:contoso), and
then click Add. Click Next. Note that this will be the realm value when you configure a new
SPTrustedIdentityTokenIssuer in Phase 3.
13. Select Permit all users to access this relying party. Click Next.
197
14. On the Ready to Add Trust page, there is no action required, click Next.
15. On the Finish page, click Close. This opens the Rules Editor Management console. Use this
console and the next procedure to configure the mapping of claims from your chosen directory
source to SharePoint 2013.
Configure the claim rule
Use the procedure in this step to send values of a Lightweight Directory Access Protocol (LDAP)
attribute as claims and specify how the attributes will map to the outgoing claim type.
To configure a claim rule
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the local computer. For additional information about accounts and group memberships,
see Default local groups
2. On the Issuance Transform Rules tab, click Add Rule.
3. On the Select Rule Template page, select Send LDAP Attributes as Claims. Click Next.
4. On the Configure Rule page, type the name of the claim rule in the Claim rule name field.
5. From the Attribute Store drop-down list, select Active Directory.
6. In the Mapping of LDAP attributes to outgoing claim types section, under LDAP Attribute,
select E-Mail-Addresses.
7. Under Outgoing Claim Type, select E-Mail Address.
8. Under LDAP Attribute, select User-Principal-Name.
9. Under Outgoing Claim Type, select UPN.
10. Click Finish, and then click OK.
Export the token signing certificate
Use the procedure in this section to export the token signing certificate of the AD FS server with which
you want to establish a trust relationship, and then copy the certificate to a location that SharePoint
2013 can access.
198
To export a token signing certificate
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the local computer. For additional information about accounts and group memberships,
see Default local groups
2. On the AD FS server, open the Active Directory Federation Services (AD FS) 2.0 Management
console.
3. In the navigation pane, expand Service, and then click the Certificates folder.
4. Under Token signing, click the primary token certificate as indicated in the Primary column.
5. In the right pane, click View Certificate link. This displays the properties of the certificate.
6. Click the Details tab.
7. Click Copy to File. This starts the Certificate Export Wizard.
8. On the Welcome to the Certificate Export Wizard page, click Next.
9. On the Export Private Key page, click No, do not export the private key, and then click Next.
10. On the Export File Format page, select DER encoded binary X.509 (.CER), and then click Next.
11. On the File to Export page, type the name and location of the file that you want to export, and
then click Next. For example, enter C:\ADFS.cer.
12. On the Completing the Certificate Export Wizard page, click Finish.
Phase 3: Configure SharePoint 2013 to trust AD FS as
an identity provider
This phase has the following procedures:
1. Exporting multiple parent certificates
2. Import a token signing certificate by using Windows PowerShell
3. Define a unique identifier for claims mapping by using Windows PowerShell
4. Create a new authentication provider
199
Exporting multiple parent certificates
To complete the configuration of the AD FS server, copy the .CER file to the computer that is running
AD FS.
The token signing certificate may have one or more parent certificates in its chain. If it does, every
certificate in that chain has to be added to the SharePoint 2013 list of trusted root authorities.
To determine whether one or more parent certificates exist, follow these steps.
Note:
These steps should be repeated until all certificates are exported up to the root authority
certificate.
To export multiple parent certificates
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the local computer. For additional information about accounts and group memberships,
see Default local groups
2. Open the Active Directory Federation Services (AD FS) 2.0 Management console.
3. In the navigation pane, expand Service, and then click the Certificates folder.
4. Under Token signing, click the primary token certificate as indicated in the Primary column.
5. In the right pane, click View Certificate link. This displays the properties of the certificate.
6. Click the Certification tab. This displays any other certificate(s) in the chain.
7. Click the Details tab.
8. Click Copy to File. This starts the Certificate Export Wizard.
9. On the Welcome to the Certificate Export Wizard page, click Next.
10. On the Export Private Key page, click No, do not export the private key, and then click Next.
11. On the Export File Format page, select DER encoded binary X.509 (.CER), and then click Next.
12. On the File to Export page, type the name and location of the file that you want to export, and
then click Next. For example, enter C:\adfsParent.cer.
13. On the Completing the Certificate Export Wizard page, click Finish.
200
Import a token signing certificate by using Windows PowerShell
Use this section to import the token signing certificates to the trusted root authority list that resides
on the SharePoint Server. This step must be repeated for every token signing certificate in the chain
until the root certification authority is reached.
To import a token signing certificate by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 Products cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
201
3. From the Windows PowerShell command prompt, import the parent certificate of the token
signing certificate (that is, the root authority certificate), as shown in the following syntax:
$root = New-Object
System.Security.Cryptography.X509Certificates.X509Certificate2("
<PathToPa
rentCert>
")
New-SPTrustedRootAuthority -Name "Token Signing Cert Parent" -Certificate
$root
4. From the Windows PowerShell command prompt, import the token signing certificate that was
copied from the AD FS server, as shown in the following syntax:
$cert = New-Object
System.Security.Cryptography.X509Certificates.X509Certificate2("
<PathToSi
gningCert>
")
New-SPTrustedRootAuthority -Name "Token Signing Cert" -Certificate $cert
For additional information about the New-SPTrustedRootAuthority cmdlet, see New-
SPTrustedRootAuthority
Define a unique identifier for claims mapping by using Windows
PowerShell
Use the procedure in this section to define a unique identifier for claims mapping. Typically, this
information is in the form of an e-mail address and the administrator of the trusted STS will have to
provide this information because only the owner of the STS knows which claim type will be always
unique for each user.
To define a unique identifier for claims mapping by using Windows PowerShell
1. From the Windows PowerShell command prompt, create the email address claim mapping, as
shown in the following syntax:
$emailClaimMap = New-SPClaimTypeMapping -IncomingClaimType
"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress" -
IncomingClaimTypeDisplayName "EmailAddress" -SameAsIncoming
2. From the Windows PowerShell command prompt, create the UPN claim mapping as shown in the
following syntax:
$upnClaimMap = New-SPClaimTypeMapping -IncomingClaimType
"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/upn" -
IncomingClaimTypeDisplayName "UPN" -SameAsIncoming
202
3. From the Windows PowerShell command prompt, create the role claim mapping as shown in the
following syntax:
$roleClaimMap = New-SPClaimTypeMapping -IncomingClaimType
"http://schemas.microsoft.com/ws/2008/06/identity/claims/role" -
IncomingClaimTypeDisplayName "Role" -SameAsIncoming
This claim mapping is used for server-to-server authentication scenarios. For more information,
see Plan for server-to-server authentication in SharePoint 2013.
4. From the Windows PowerShell command prompt, create the Primary SID claim mapping as shown
in the following syntax:
$sidClaimMap = New-SPClaimTypeMapping -IncomingClaimType
"http://schemas.microsoft.com/ws/2008/06/identity/claims/primarysid" -
IncomingClaimTypeDisplayName "SID" -SameAsIncoming
This claim mapping is used for server-to-server authentication scenarios.
For additional information about the New-SPClaimTypeMapping cmdlet, see New-
SPClaimTypeMapping
Create a new authentication provider
Use the procedure in this section to create a new SPTrustedIdentityTokenIssuer.
To create a new authentication provider by using Windows PowerShell
1. From the Windows PowerShell command prompt, create a new authentication provider, as shown
in the following syntax.
Note:
The $realm variable is the name of the relying party trust identifier configured in AD FS,
and the $cert variable is the one that was used from the Import a token signing
certificate by using Windows PowerShell section. The SignInUrl parameter is to the
AD FS server.
$realm = "urn:sharepoint:
<WebAppName>
"
$signInURL = "https://
<YourADFSServerName>
/adfs/ls"
$ap = New-SPTrustedIdentityTokenIssuer -Name
<ProviderName>
-Description
<ProviderDescription>
-realm $realm -ImportTrustCertificate $cert -
ClaimsMappings $emailClaimMap,$upnClaimMap,$roleClaimMap,$sidClaimMap -
SignInUrl $signInURL -IdentifierClaim $emailClaimmap.InputClaimType
203
Include $roleClaimMap and $sidClaimMap in the list of ClaimsMappings for server-to-server
authentication scenarios.
For additional information about the New-SPTrustedIdentityTokenIssuer cmdlet, see New-
SPTrustedIdentityTokenIssuer
Phase 4: Configure web applications to use claims-
based authentication and AD FS as the trusted identity
provider
This phase has the following procedures:
1. Associate an existing web application with the AD FS identity provider
2. Create a new web application with the AD FS identity provider
3. Enable token replay protection
Associate an existing web application with the AD FS identity
provider
To configure an existing web application to use SAML sign-in, the trusted identity provider in the
claims authentication type section must be changed.
To configure an existing web application to use the AD FS identity provider
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
2. In Central Administration, on the home page, click Application Management.
3. On the Application Management page, in the Web Applications section, click Manage web
applications.
4. Click the appropriate web application.
5. From the ribbon, click Authentication Providers.
6. Under Zone, click the name of the zone. For example, Default.
204
7. On the Edit Authentication page in the Claims Authentication Types section, select Trusted
Identity provider, and then click the name of your SAML provider (<ProviderName> from the
New-SPTrustedIdentityTokenIssuer command). Click OK.
8. Next, you must enable SSL for this web application. You can do this by adding an alternate access
mapping for the “https://” version of the web application’s URL and then configuring the web site
in the Internet Information Services (IIS) Manager console for an https binding. For more
information about how to set up SSL for IIS, see How to Setup SSL on IIS 7.0.
Create a new web application with the AD FS identity provider
When creating a new web application to use SAML sign-in, you must configure claims authentication
for the AD FS trusted identity provider. See Create claims-based web applications in SharePoint 2013
and do the following:
In the Security Configuration section of the New Web Application dialog box, for Use Secure
Sockets Layer (SSL), select Yes.
For information about how to set up SSL for IIS, see How to Setup SSL on IIS 7.0.
In the Claims Authentication Types section of the New Web Application dialog box, select
Trusted Identity provider, and then click the name of your SAML provider (<ProviderName> from
the New-SPTrustedIdentityTokenIssuer command).
Configure permissions to access the web application
To allow users to authenticate by using an email addresses as their SAML-based identity, as specified
in the New-SPTrustedIdentityTokenIssuer command with the -IdentifierClaim
$emailClaimmap.InputClaimType parameter, you must add their email addresses with appropriate
permissions to the web application.
Use the following procedure to configure a web application for permissions based on email addresses.
To configure a web application for permissions based on email addresses
1. In Central Administration, on the home page, click Application Management.
2. On the Application Management page, in the Web Applications section, click Manage web
applications.
3. Click the appropriate web application, and then click User Policy.
4. In Policy for Web Application, click Add Users.
5. In the Add Users dialog box, click the appropriate zone in Zones, and then click Next.
205
6. In the Add Users dialog box, click the Browse icon in the lower-right of the Users box.
7. In the Select People and Groups dialog box, type the email address of a user account in Find,
and then click the Search icon.
8. In the search results, click EmailAddress under the name of your AD FS identity provider, click the
email address of the user under Display Name, click Add, and then click OK.
9. In Permissions, click the appropriate level of permissions.
10. Repeat steps 6 through 9 for additional email addresses of users with the same level of
permissions.
11. Click Finish, and then click OK.
Enable token replay protection
To provide additional security for SharePoint 2013 web applications that use SAML-based claims
authentication, you can use the Windows Identity Foundation (WIF) token replay detection feature.
Token replay protection can prevent an attacker from trying to intercept and use a user’s security
token. For more information, see How To: Enable Token Replay Detection.
Use the procedure in this section to enable replay detection on a SharePoint web application that is
configured for SAML claims authentication.
To enable replay protection
1. On the server running SharePoint 2013, open the Internet Information Services (IIS) Manager
snap-in.
2. In the console tree of Internet Information Services (IIS) Manager, right-click the site that
corresponds to the name of the web application, and then click Explore.
3. In the folder window, double-click the Web.Config file.
4. In the <Configuration> section, find the <microsoft.identityModel> section.
5. Add the following as a new section to the <microsoft.identityModel> section:
<service>
<tokenReplayDetection enabled="true"
capacity="<NumberOfTokensToBeCached>"
expirationPeriod="<TokenCacheExpiration>">
</service>
in which:
206
<NumberOfTokensToBeCached> is the number of tokens to store in the token replay
detection cache.
<TokenCacheExpiration> is the time after which a token in the replay detection cache
is removed, in <hours>:<minutes>:<seconds> format.
6. Save your changes to the Web.Config file.
If the farm running SharePoint 2013 is behind a load balancer, enabling token replay detection
requires session affinity in your load balancer even though SharePoint 2013 web applications do not
require it. To avoid the session affinity requirement, use the information in ACS Security Guidelines.
See also
Authentication overview for SharePoint 2013
Plan for user authentication methods in SharePoint 2013
Test Lab Guide: Demonstrate SAML-based Claims Authentication with SharePoint Server 2013
Plan for server-to-server authentication in SharePoint 2013
207
Configure server-to-server authentication
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Find resources to help you configure server-to-server authentication for SharePoint 2013.
The following articles on TechNet and related resources provide information about how to configure
server-to-server authentication.
TechNet articles about how to configure server-to-
server authentication
The following articles about how to configure server-to-server authentication in SharePoint 2013 are
available to view online. Writers update articles on a continuing basis as new information becomes
available and as users provide feedback.
Content
Description
Configure server-to-server
authentication between
SharePoint 2013 farms
Describes the steps to configure
server-to-server authentication
between two SharePoint 2013
farms.
Configure server-to-server
authentication between
SharePoint 2013 and Exchange
Server 2013
Describes the steps to configure
server-to-server authentication
between SharePoint 2013 and
Exchange Server 2013.
Configure server-to-server
authentication between
SharePoint 2013 and Lync
Server 2013
Describes the steps to configure
server-to-server authentication
between SharePoint 2013 and
Lync Server 2013.
208
See also
Authentication overview for SharePoint 2013
Plan for server-to-server authentication in SharePoint 2013
209
Configure server-to-server authentication
between SharePoint 2013 farms
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-10-23
Summary: Learn how to configure server-to-server authentication between SharePoint 2013 farms.
The configuration details in this article describe how to configure server-to-server authentication
between SharePoint 2013 farms. For background information about server-to-server authentication,
see Plan for server-to-server authentication in SharePoint 2013.
Important:
Web applications that include server-to-server authentication endpoints for incoming server-
to-server requests, or that make outgoing server-to-server requests should be configured to
use Secure Sockets Layer (SSL). For information about how to create a web application to use
SSL, see Create claims-based web applications in SharePoint 2013. For information about
configuring HTTP support for server-to-server requests, see Configure an STS for HTTP.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
210
Configure a SharePoint 2013 trust relationship with
another farm
To service incoming server-to-server requests from another SharePoint 2013 farm, you must configure
the SharePoint 2013 farm to trust the sending farm. Use the Windows PowerShell New-
SPTrustedSecurityTokenIssuer cmdlet in SharePoint 2013 to configure the trust relationship by
specifying the JavaScript Object Notation (JSON) metadata endpoint of the sending farm.
To configure a SharePoint 2013 trust relationship with another farm
1. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
Securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. In the SharePoint 2013 environment on the farm that is receiving server-to-server requests, start
the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
211
3. At the Windows PowerShell command prompt, type the following command:
New-SPTrustedSecurityTokenIssuer -MetadataEndpoint
"https://<HostName>/_layouts/15/metadata/json/1" -Name "<FriendlyName>"
Where:
<HostName> is the name and port of any SSL-enabled web application of the farm that
will be sending server-to-server requests.
<FriendlyName> is a friendly name for the sending SharePoint 2013 farm.
4. Repeat step 3 for all SharePoint 2013 farms that will be sending server-to-server requests.
Note:
For more information, see New-SPTrustedSecurityTokenIssuer.
Configure a SharePoint 2013 trust relationship with a
farm that has no web applications
If you have a services-only farm or other type of farm that has no web applications, follow these steps
to configure a trust relationship with that farm.
To configure a trust relationship with a farm that has no web applications
1. On a server of the farm that has no web applications, export the SharePoint Security Token
Service certificate in the Computer Certificate store to a .CER file (without the private key).
2. Copy the .CER file to a location that can be accessed from the SharePoint farm that trusts the farm
with no web applications.
3. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
Securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
212
4. In the SharePoint 2013 environment of the farm that has no web applications, start the
SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
5. At the Windows PowerShell command prompt, type the following command:
Get-SPSecurityTokenServiceConfig
6. In the display of the Get-SPSecurityTokenServiceConfig command, note the string in the
NameIdentifier field after the "@" symbol. This is the NameID of the STS of this SharePoint farm.
7. On a server of the SharePoint farm that trusts the farm that has no web applications, start the
SharePoint 2013 Management Shell.
8. To add the SharePoint STS of the SharePoint farm that has no web applications as a trusted
security token issuer, use the following Windows PowerShell command:
New-SPTrustedSecurityTokenIssuer -name <hostname> -Certificate
"<CERLocation>" -RegisteredIssuerName "00000003-0000-0ff1-ce00-
000000000000@<NameID>" -Description "<FriendlyName>" -
IsTrustBroker:$false
Where:
<HostName>is the name of the farm that has no web applications.
<CERLocation> is the location of the exported .CER file from step 2.
<NameID> is the NameID string for the STS of the farm that has no web applications from
step 6.
213
<FriendlyName> is a friendly name for the farm that has no web applications
Configure an STS for HTTP
The recommended best practice for server-to-server authentication is to use SSL and an https-based
URL to send and receive requests. If you cannot host your web applications over SSL, the following
procedure describes how to configure the STS of a SharePoint farm to use HTTP.
To configure the STS to use HTTP
1. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
Securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. In the SharePoint 2013 environment on one of the servers in the farm, start the SharePoint 2013
Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
214
3. At the Windows PowerShell command prompt, type the following commands:
$c = Get-SPSecurityTokenServiceConfig
$c.AllowMetadataOverHttp = $true
$c.AllowOAuthOverHttp= $true
$c.Update()
Configure a synchronized STS name identifier
The recommended best practice for server-to-server authentication is that each server-to-server
application that establishes trust with a SharePoint farm must use a different certificate. In a cross-
farm SharePoint topology, if you have to use the same certificate across the farms, you have to also
set the name identifier of the SharePoint Security Token Service (STS) to be the same across those
farms. The following procedure describes how to synchronize the STS name identifier across two
SharePoint farms.
To synchronize the STS name identifier across SharePoint farms
1. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
Securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. In the SharePoint 2013 environment on one of the farms, start the SharePoint 2013 Management
Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
215
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
Get-SPSecurityTokenServiceConfig
4. In the display of the Get-SPSecurityTokenServiceConfig command, note the value of the
NameIdentifier field, which starts with “00000003-0000-0ff1-ce00-000000000000@”. This is the
name identifier of the SharePoint STS.
5. To set the name identifier of the SharePoint STS in the other SharePoint farm, use the following
Windows PowerShell commands on a server in that farm:
$config = Get-SPSecurityTokenServiceConfig
$config.NameIdentifier=<CommonNameIdentifier>
$config.Update();
Where <CommonNameIdentifier> is the value of the NameIdentifier field from step 4.
See also
Configure server-to-server authentication in SharePoint 2013
Authentication overview for SharePoint 2013
Plan for server-to-server authentication in SharePoint 2013
New-SPTrustedSecurityTokenIssuer
An Introduction to JavaScript Object Notation (JSON) in JavaScript and .NET
216
Configure server-to-server authentication
between SharePoint 2013 and Exchange
Server 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-10-23
Summary: Learn how to configure server-to-server authentication between SharePoint 2013 and
Exchange Server 2013.
Server-to-server authentication enables you to share resources that live on various servers in a
SharePoint farm and access services, such as Exchange Server 2013 and Lync Server 2013, which are
distributed among servers. Server-to-server authentication in SharePoint 2013 also supports resource
sharing and access with additional services that are compliant with the server-to-server authentication
protocol.
The configuration details in this article are about how to configure server-to-server authentication
between SharePoint 2013 and Exchange Server 2013.
Important:
Web applications that include server-to-server authentication endpoints for incoming server-
to-server requests, or that make outgoing server-to-server requests must be configured to use
Secure Sockets Layer (SSL). For information about how to create a web application to use SSL,
see Create claims-based web applications in SharePoint 2013.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
217
Touch
Process overview
This configuration has the following steps:
Configure the SharePoint 2013 server to trust the Exchange Server 2013 server
Configure permissions on the SharePoint 2013 server
Configure the Exchange Server 2013 server to trust the SharePoint 2013 server
Important:
Complete the procedures in the order in which they are presented in this article.
To configure the SharePoint 2013 server to trust the Exchange Server 2013 server
1. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
218
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following commands:
New-SPTrustedSecurityTokenIssuer -MetadataEndpoint
"https://<HostName>/autodiscover/metadata/json/1" -Name "<FriendlyName>"
Where:
<HostName> is the name or address of the Exchange Server 2013 server.
<FriendlyName> is a friendly name for the Exchange Server 2013 server.
To configure permissions on the SharePoint 2013 server
At the Windows PowerShell command prompt, type the following commands:
$exchange=Get-SPTrustedSecurityTokenIssuer
$app=Get-SPAppPrincipal -Site http://<HostName> -NameIdentifier
$exchange.NameId
$site=Get-SPSite http://<HostName>
Set-SPAppPrincipalPermission -AppPrincipal $app -Site $site.RootWeb -
Scope sitesubscription -Right fullcontrol -EnableAppOnlyPolicy
Where:
<HostName> is the name or address of the SharePoint 2013 server.
Note:
For more information, see Get-SPTrustedSecurityTokenIssuer, Get-SPAppPrincipal,
and Set-SPAppPrincipalPermission.
To configure the Exchange Server 2013 server to trust the SharePoint 2013 server
1. Start the Exchange Management Shell.
For Windows Server 2008 R2:
In the Exchange Server 2013 environment, on the Start menu, click All Programs, click
Microsoft Exchange Server 2013, and then click Exchange Management Shell.
For Windows Server 2012:
In the Exchange Server 2013 environment, on the Start screen, click Exchange
Management Shell.
219
If Exchange Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click Exchange Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
2. At the Windows PowerShell command prompt, type the following commands:
cd c:\'Program Files'\Microsoft\'Exchange Server'\V15\Scripts
.\Configure-EnterprisePartnerApplication.ps1 -AuthMetadataUrl
https://<HostName>/_layouts/15/metadata/json/1 -ApplicationType
SharePoint
Where:
<HostName> is the name and port of any SSL-enabled web application of the SharePoint
farm.
See also
Configure server-to-server authentication in SharePoint 2013
Plan for server-to-server authentication in SharePoint 2013
Configure Exchange for SharePoint eDiscovery Center
220
Configure server-to-server authentication
between SharePoint 2013 and Lync Server
2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-10-23
Summary: Learn how to configure server-to-server authentication between SharePoint 2013 and Lync
Server 2013.
Server-to-server authentication enables you to share resources that live on various servers in a
SharePoint farm and access services, such as Lync Server 2013 and Exchange Server 2013, which are
distributed among servers. Server-to-server authentication in SharePoint 2013 also supports resource
sharing and access to additional services that are compliant with the server-to-server authentication
protocol. For more information about the SharePoint server-to-server authentication protocol, see
OAuth 2.0 Authentication Protocol: SharePoint Profile (http://msdn.microsoft.com/en-
us/library/hh631177(office.12).aspx).
The configuration details in this article explain how to configure server-to-server authentication
between SharePoint 2013 and Lync Server 2013.
Important:
Web applications that include server-to-server authentication endpoints for incoming server-
to-server requests, or that make outgoing server-to-server requests must be configured to use
Secure Sockets Layer (SSL). For information about how to create a web application to use SSL,
see Create claims-based web applications in SharePoint 2013.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
221
Keyboard shortcuts
Touch
Process overview
This configuration has the following steps:
Configure the server that runs SharePoint 2013 to trust the server that runs Lync Server 2013
Configure the server that runs Lync Server 2013 to trust the server that runs SharePoint 2013
To configure the SharePoint 2013 server to trust the Lync Server 2013 server
1. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen, right-click Computer,
click All apps, and then click SharePoint 2013 Management Shell.
222
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following commands:
New-SPTrustedSecurityTokenIssuer -MetadataEndpoint
"https://
<HostName>
/metadata/json/1" -IsTrustBroker -Name "
<FriendlyName>
"
Where:
<HostName> is name or address of the server that runs Lync Server 2013.
<FriendlyName> is a friendly name for the server that runs Lync Server 2013.
To configure the Lync Server 2013 server to trust the SharePoint 2013 server
1. If you have not already done this, assign a server-to-server authentication certificate to Lync
Server 2013. Follow the instructions in Assigning a Server-to-Server Authentication Certificate to
Microsoft Lync Server 2013.
2. Configure the server that runs Lync Server 2013 for a new SharePoint partner application that
corresponds to the SharePoint farm. For the instructions in Configuring an On-Premises Partner
Application for Microsoft Lync Server 2013, change the metadata URL string in the embedded
script from:
http://atl-sharepoint-001.litwareinc.com/jsonmetadata.ashx
to:
https://<NameAndPort>/_layouts/15/metadata/json/1
Where:
<NameAndPort> is the host name or address and port of any SSL-enabled web application
of the SharePoint farm.
See also
Configure server-to-server authentication in SharePoint 2013
Plan for server-to-server authentication in SharePoint 2013
223
Configure app authentication in SharePoint
Server 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise
Topic Last Modified: 2014-09-13
Summary: Learn how to configure app authentication in SharePoint Server 2013.
When you use an app for SharePoint, an external component of the app might want to access
SharePoint resources. For example, a web server that is located on the intranet or the Internet might
try to access a SharePoint resource. When this occurs, SharePoint has to confirm the following:
The authentication of the identity of the app and the user on whose behalf the app is acting.
The authorization of the access for both the app and the user whose behalf the app is acting.
App authentication is the combination of these two confirmations.
This topic describes how to configure a SharePoint Server 2013 farm for app authentication by
configuring a trust, by registering the app with the Application Management service, and by
configuring app permissions.
Important:
SharePoint web applications that include app authentication endpoints for incoming requests
must be configured to use Secure Sockets Layer (SSL). For information about how to configure
SSL for a new web application, see Create claims-based web applications in SharePoint 2013.
Note:
This topic does not apply to SharePoint Foundation 2013.
Process overview
This configuration has the following steps that must be performed in consecutive order:
1. Configure the SharePoint Server 2013 app authentication trust.
2. Register the app with the Application Management service.
3. Configure app permissions.
For information about apps for SharePoint, see Overview of apps for SharePoint 2013.
224
Note:
Because SharePoint Server 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint Server 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Step 1. Configure the SharePoint Server 2013 app
authentication trust
There are two ways to configure an app authentication trust with SharePoint Server 2013:
If you have an Office 365 subscription and the app is also using Azure Active Directory for
authentication, you configure the SharePoint farm to trust the Azure Active Directory instance
that corresponds to your Office 365 subscription. You do not have to have an Office 365
subscription. You can obtain a Azure Active Directory account separately. For more information,
see Azure Active Directory. Azure Active Directory then acts as a common authentication broker
between the on-premises SharePoint farm and the app and as the online security token service
(STS). Azure Active Directory generates the context tokens when the app requests access to a
SharePoint resource.
In this case, configure SharePoint Server 2013 to trust Azure Active Directory.
If you do not have an Office 365 subscription or if the app does not use Azure Active Directory for
authentication, you must configure a server-to-server trust relationship between the SharePoint
farm and the app, known as a high-trust app. A high-trust app generates its own context tokens
when it requests access to a SharePoint resource. This must be done for each high-trust app that a
SharePoint farm must trust. For example, if multiple apps are running on one server and if they all
use different token signing certificates, you must create a separate trust with each one.
In this case, configure SharePoint Server 2013 to trust the app.
225
Configure SharePoint Server 2013 to trust Azure Active Directory
Use the following procedure to configure SharePoint Server 2013 to trust Azure Active Directory.
To configure a SharePoint Server 2013 trust relationship with Azure Active Directory
1. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint Server 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start screen, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
$New-SPTrustedSecurityTokenIssuer -MetadataEndpoint "
<Metadata endpoint
URL of Azure AD>
" -IsTrustBroker -Name "Azure AD"
Where:
226
<Metadata endpoint URL of Azure AD> is
https://accounts.accesscontrol.windows.net/<Azure AD domain name or realm
ID>/metadata/json/1.
4. Keep the Windows PowerShell command prompt open for the Register the app with the
Application Management service procedure.
Configure SharePoint Server 2013 to trust the app
Use the following procedure to configure SharePoint Server 2013 to trust the app.
To configure a SharePoint Server 2013 trust relationship with a high-trust app
1. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint Server 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. In Central Administration on the SharePoint Server 2013 server in the farm, on the Quick Launch,
click System Settings, and then click Manage services on server.
3. In the list of services on the server, make sure that that User Profile Service is started.
4. In Central Administration, on the Quick Launch, click Application Management, and then click
Manage service applications.
5. In the list of service applications, make sure that that the App Management Service and User
Profile Service Application are started.
6. Obtain a .CER version of the signing certificate of the high-trust app and store it in a location that
can be accessed during the rest of this procedure.
7. Verify that you are a member of the Administrators group on the server on which you are running
Windows PowerShell cmdlets.
securityadmin fixed server role on the SQL Server instance.
227
db_owner fixed database role on all databases that are to be updated.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint Server 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
8. Click Start menu, click All Programs, click SharePoint 2013 Products, and then click SharePoint
2013 Management Shell.
9. At the Windows PowerShell command prompt, type the following commands:
$appId = "
<AppID>
"
$spweb = Get-SPWeb "
<AppURL>
"
$realm = Get-SPAuthenticationRealm -ServiceContext $spweb.Site
$certificate = New-Object
System.Security.Cryptography.X509Certificates.X509Certificate2("
<CERFileP
ath>
")
$fullAppIdentifier = $appId + '@' + $realm
New-SPTrustedSecurityTokenIssuer -Name "
<FriendlyName>
" -Certificate
$certificate -RegisteredIssuerName $fullAppIdentifier
Where:
<AppID> is the client ID assigned to the high-trust app when it was created.
Important:
All of the letters in the AppID must be in lowercase.
<AppURL> is the URL to the high-trust app’s location on the app server.
<CERFilePath> is the path of the .CER version of the signing certificate of the high-trust
app.
<FriendlyName> is a friendly name that identifies the app.
10. Keep the Windows PowerShell command prompt open for the next procedure.
228
Step 2. Register the app with the Application
Management service
Use the following procedure to register the app with the Application Management service.
To register the app as a SharePoint app principal
1. At the Windows PowerShell command prompt, type the following command:
$appPrincipal = Register-SPAppPrincipal -NameIdentifier
$fullAppIdentifier -Site $spweb -DisplayName "
<DisplayName>
"
Where:
<DisplayName> is the name of the app as displayed in Central Administration.
2. Keep the Windows PowerShell command prompt open for the next procedure.
Step 3. Configure app permissions
Use the following Windows PowerShell command to add or change individual app permissions. Repeat
this procedure for as many times as needed to configure the permissions of the app.
To configure app permissions
At the Windows PowerShell command prompt, type the following command:
Set-AppPrincipalPermission -appPrincipal $appPrincipal -site $web -right
<Level>
-scope
<Scope>
Where:
<Level> is Read, Write, Manage, or FullControl.
<Scope> is Farm, Site collection, SharePoint Online, Web, Documents, List, or Library.
For more information, see Set-SPAppPrincipalPermission
For more information, see Plan app permissions management in SharePoint 2013.
See also
Plan app permissions management in SharePoint 2013
Plan for app authentication in SharePoint 2013
230
Configure client certificate authentication
for SharePoint 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-06-18
Summary: Learn how to configure SharePoint 2013 to support user authentication using a client
certificate.
Client certificate authentication enables web-based clients to establish their identity to a server by
using a digital certificate, which provides additional security for user authentication. SharePoint 2013
does not provide built-in support for client certificate authentication, but client certificate
authentication is available through Security Assertion Markup Language (SAML)-based claims
authentication. You can use Active Directory Federation Services (AD FS) 2.0 as your security token
service (STS) for SAML claims or any third-party identity management system that supports standard
security protocols such as WS-Trust, WS-Federation, and SAML 1.1.
Note:
For more information about SharePoint 2013 protocol requirements, see SharePoint Front-
End Protocols.
Claims-based authentication in SharePoint 2013 allows you to use different STSs. If you configure AD
FS as your STS, SharePoint 2013 can support any identity provider or authentication method that AD
FS supports, which includes client certificate authentication.
Note:
For more information about AD FS, see Active Directory Federation Services Overview.
For additional information on an overview of authentication in SharePoint, please see Plan for user
authentication methods in SharePoint 2013.
In the following figure, SharePoint 2013 is configured as a relying partner for an AD FS-based STS.
231
AD FS can authenticate user accounts for several different types of authentication methods, such as
forms-based authentication, Active Directory Domain Services (AD DS), client certificates, and smart
cards. When you configure SharePoint 2013 as a relying partner of AD FS, SharePoint 2013 trusts the
accounts that AD FS validates and the authentication methods that AD FS uses to validate those
accounts. This is how SharePoint 2013 supports client certificate authentication.
Configure client certificate authentication
The following topics explain how to configure SharePoint 2013 with client certificate authentication or
smart card authentication when you use AD FS as your STS:
1. Configure AD FS to support claims-based authentication.
For more information, see AD FS 2.0 - How to change the local authentication type
(http://go.microsoft.com/fwlink/p/?LinkId=212513).
2. Configure SharePoint 2013 to support SAML-based claims authentication using AD FS.
232
For more information, see Configure SAML-based claims authentication with AD FS in SharePoint
2013.
3. Create a web application that uses SAML-based claims authentication.
For more information, see Create claims-based web applications in SharePoint 2013.
Note:
These steps will be similar for a third-party STS.
See also
Configure SAML-based claims authentication with AD FS in SharePoint 2013
Planning and Architecture: AD FS 2.0
AD FS 2.0 Deployment Guide
Using Active Directory Federation Services 2.0 in Identity Solutions
233
Replace the STS certificate for the on-
premises environment
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-07-30
Summary: Learn how to replace a Security Token Service (STS) certificate for an on-premises farm in
SharePoint Server 2013.
This article describes how to replace the SharePoint security token service (STS) certificate in a
SharePoint Server farm.
When SharePoint Server is installed, the Security Token Service (STS) of the on-premises SharePoint
Server farm creates a default certificate to validate incoming tokens. When a trust relationship is
needed between two SharePoint Server farms, or when a farm is configured to participate in a hybrid
environment, you must use a common STS certificate between the trust members.
Before you begin
If you haven’t already done this, you have to either buy or create a new STS certificate. For production
environments, we recommend that you buy a new STS certificate from a public Certificate Authority
(CA). This gives you the highest level of certificate security, and reduces the possibility that a self-
signed certificate will have integration issues with other applications and services. You can use a self-
signed certificate for test or pilot environments.
Important:
Public certificates usually expire after 1 year. So plan in advance for certificate renewals to
avoid service interruptions. This certificate must be at least 2048 bit encryption. If a
certificate is purchased from a CA and you’re using it in a SharePoint hybrid environment, it
must be trusted by Azure AD, which is the directory service that is used by Office 365. The
good news is that most public root CAs are trusted by Azure AD.
Information to collect for the new certificate
When replacing the STS certificate on the SharePoint Server 2013 farm, you’ll have to know the
following information about the new STS certificate.
File name of the certificate (*.cer file) and the location where it’s stored.
234
File name of the certificate (*.pfx file) and the location where it’s stored.
STS certificate’s friendly name.
Password of the certificate.
If you’re configuring a SharePoint hybrid
environment, and you’ve already purchased a
certificate from a CA or created a self-signed
certificate, then these variables should be listed in
Table 4a of the worksheet.
Replace the certificate during a maintenance window
The last procedure in this article, which is done in PowerShell, restarts Internet Information Services
(IIS) and the SharePoint Timer (SPTimerV4) service. This will interrupt the service of your SharePoint
Server farm.
Caution:
Because the procedures are run on each front-end web and application server in the farm, it’s
important that you plan to do that procedure during a maintenance window.
About the STS certificate in a hybrid SharePoint Server environment
In a hybrid SharePoint Server environment, Azure Active Directory (AD) service acts as a trusted token
signing service for SharePoint Server, and uses the STS certificate as the signing certificate. But, Azure
AD, which is used as the directory service for Office 365, can’t use the default STS certificate as a
signing certificate because the trust chain of the default certificate is not supported by Azure AD.
Therefore, you must replace the default STS certificate on each front-end web and application
server in the SharePoint Server farm with either a certificate that’s issued by a public certification
authority (CA) or with a self-signed certificate.
Important:
This certificate must be at least 2048 bits encryption. If a certificate is purchased from a CA, it
must be trusted by Azure AD The good news is that most public root CAs are trusted by Azure
AD.
235
How to create a self-signed certificate
If you purchased your certificate from a CA or have already created a self-signed certificate, then go to
Replace the STS certificate. Otherwise, you can use the following procedures to create a self-signed
certificate.
In this step, you’ll create a new self-signed SSL certificate to use as your STS certificate. You'll create
the new certificate in two file formats:
.pfx, which contains the private key.
.cer, which does not contain the private key.
You’ll use the IIS Manager when you do this, as illustrated by the following figure.
This picture shows where to click in IIS manager to create a self-signed certificate
To generate a self-signed certificate as a Personal Information Exchange (.pfx) file and then export it as
a .cer file, use the IIS snap-in to follow these steps:
Create the self-signed certificate as a .pfx file
1. On a web server in your SharePoint Server farm, click Start -> Administrative Tools -> Internet
Information Services (IIS) Manager.
236
2. Click on the name of your server.
3. In the details pane, double-click Server Certificates under IIS.
4. In the Actions pane, click Create Self-Signed Certificate.
5. On the Specify Friendly Name page, specify a friendly name for the certificate, and then click
OK.
If you’re configuring a SharePoint hybrid
environment, record the certificates friendly
name in the STS Certificate Friendly Name row
of Table 4a of the worksheet.
6. In the details pane, right-click the new certificate, and then click Export.
7. In Export Certificate, specify a path and name to store the .pfx file for the certificate in Export to,
and a password for the certificate file in Password and Confirm password. This creates a .pfx file
that contains the private key.
If you’re configuring a SharePoint hybrid
environment, do the following:
Record the location and filename of this
certificate to the STS Certificate
path\filename (*.pfx file) row of table 4a of
the worksheet.
Record the password to the STS Certificate
Password row of table 4a of the worksheet.
8. Click Finish, and then click OK twice.
Export the self-signed certificate as a .cer file
1. On the same server, click Start -> Administrative Tools -> Internet Information Services (IIS)
Manager.
2. Click on the name of your server.
3. In the details pane, double-click Server Certificates (under IIS).
4. Right-click the new certificate you created in the last step, and then click View.
237
If you’re configuring a SharePoint hybrid
environment, the certificate’s friendly name is in
the STS Certificate Friendly Name row of Table
4a of the worksheet.
5. On the Details tab, click Copy to File.
6. Click Next on the wizard.
7. On the Export Private Key page, ensure that No, do not export the private key is selected and
then click Next.
8. On the Export File Format page, choose DER encoded binary X.509 (.CER), and then click Next.
9. On the Export Certificate page, type a path and file name for the .cer file, and then click Next.
If you’re configuring a SharePoint hybrid
environment, record the path and filename of this
certificate in the STS Certificate path\filename
(*.cer file) row of Table 4a of the worksheet.
10. Click Finish, and then click OK twice.
Replace the STS certificate
To replace the STS certificate on each server in the SharePoint Server 2013 farm, you have to
complete the following two procedures in the order shown:
Replace the STS certificate in the certificate store.
Update the settings of the SharePoint security token service (STS) identity provider.
Replace the STS certificate in the certificate store
To replace the STS certificate in the Windows certificate store, follow these steps on each server in the
SharePoint Server 2013 farm.
To replace the STS certificate in the certificate store
1. Verify that the user account running this procedure is a member of the Farm Administrators
group.
2. Click Start > Run.
238
3. Type mmc, and then press ENTER. If a User Account Control dialog box is displayed, click Yes.
4. Go to File > Add/Remove Snap-in > Certificates > Add > Computer account > Next > Finish,
and then click OK.
5. Click the plus sign to expand Certificates, right-click Trusted Root Certification Authorities > All
Tasks > Import.
6. Click Next. The Welcome to the Certificate Import Wizard dialog box is displayed.
7. Click Browse. Select the *.cer file name you want to import, click Open, and then click Next.
8. Under Certificate Store, click Place all certificates in the following store, make sure Trusted
Root Certification Authorities is chosen (as shown in the following picture) and then click Next.
9. Click Finish.
10. Repeat steps 1 through 9 on the other front-end web and application servers in the SharePoint
Server farm.
239
Update the settings of the SharePoint security token service (STS)
identity provider
In this procedure, you will update the settings of the STS service.
Caution:
Do this procedure during a maintenance window because after replacing the STS certificate on
each farm server, you need to restart IIS and the SharePoint timer service. This will interrupt
the service of your SharePoint Server 2013 farm.
To replace a STS certificate by using SharePoint 2013 Management Shell
1. Log on to a server in your SharePoint Server farm.
2. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
3. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
240
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
4. Copy the following values of the following variable declarations that are specific to your
organization, and then paste them into a text editor like Notepad.
<path to replacement certificate (.pfx file)>
e.g. c:\certificates\NewSTScert.pfx
<certificate password>
If you’re configuring a SharePoint hybrid environment, the following
variables are listed in these rows of Table 4a of the worksheet:
STS Certificate path\filename (*pfx file)
STS Certificate Password
5. At the Windows PowerShell command prompt, paste the following commands:
$pfxPath = "<path to replacement certificate (.pfx file)>"
$pfxPass = "<certificate password>"
$stsCertificate = New-Object
System.Security.Cryptography.X509Certificates.X509Certificate2 $pfxPath,
$pfxPass, 20
Set-SPSecurityTokenServiceConfig -ImportSigningCertificate
$stsCertificate
certutil -addstore -enterprise -f -v root $stsCertificate
iisreset
net stop SPTimerV4
net start SPTimerV4
Note:
These commands will not display any output if they are successful.
6. To validate this step, on each server in the farm, at the Windows PowerShell command prompt
type:
$stsCertificate |fl
In the output on the screen, confirm that the certificate has the new friendly name.
241
If you’re configuring a SharePoint hybrid environment, the friendly
name of this certificate should be listed in the STS Certificate
Friendly Name row of Table 4a of the worksheet.
7. Repeat steps 1 through 6 on each remaining front-end web and application server in the
SharePoint Server 2013 farm.
For more information about how to replace the STS certificate in a SharePoint Server 2013 farm, see
Configure the security token service (http://go.microsoft.com/fwlink/?LinkId=392352).
Next steps
If you aren’t configuring a SharePoint hybrid environment, then you’re done. Otherwise, you need to
also upload the STS certificate to the Office 365 tenant.
See also
Configure a hybrid topology for SharePoint Server 2013
Hybrid for SharePoint Server 2013
242
Implement SAML-based authentication in
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-04-23
Summary: Learn how to implement SAML-based authentication in SharePoint 2013.
Implement a Security Assertion Markup Language (SAML) security token for a Microsoft SharePoint
2013 claims-based web application.
In this article:
Overview of SAML authentication
Concepts and terminology
SharePoint Server 2013 with Active Directory Federation Services 2.0
Configure SharePoint Web Application for SAML Authentication
Enable Tracing for SharePoint Server 2013 Claims
Trusted Identity Providers and User Profile Synchronization
Using Audiences with Claims-Based Sites
Before you begin
SharePoint supports the accessibility features of common browsers to help you administer
deployments and access sites. For more information, see Accessibility for SharePoint 2013.
Overview of SAML authentication
In SAML claims mode, SharePoint 2013 accepts SAML tokens from a trusted external Security Token
Provider (STS), often known as a claims provider trust. A user who attempts to log on is directed to an
external claims provider (for example, the Windows Live ID claims provider), which authenticates the
user and produces a SAML token. SharePoint 2013 accepts and processes this token, augmenting the
claim and creating a claims identity object for the user.
243
Concepts and terminology
To understand the concepts and terminology that are used in SAML-based authentication, see Plan for
SAML token-based authentication.
SharePoint Server 2013 with Active Directory
Federation Services 2.0
This section describes how to configure Active Directory Federation Services (AD FS) to act as an
Identity Provider Security Token Service (IP-STS) for a SharePoint 2013 web application. In this
configuration, AD FS issues SAML-based security tokens consisting of claims so that client computers
can access web applications that use claims-based authentication.
For additional information about how to configure SAML-based claims authentication with AD FS, see
Configure SAML-based claims authentication with AD FS in SharePoint 2013.
Configure a SharePoint web application for SAML
authentication
This section discusses how to set up a new or existing Windows authentication web application to
support SAML.
Each authentication type has realms associated with it. For example:
urn:<customercode>:sp<webapptype> :<authusers>
For example, the value for the Contoso team web application for employee user could be similar to
the following:
urn:contoso:spteam:emp
Configure a new or existing Windows authentication web application
to support SAML
There are four steps that are needed to configure a new or existing web application to support SAML
claims:
1. Create a realm for employee access.
2. Add trusted certificates.
244
3. Create the trusted providers.
4. Associate them to a web application.
Create a realm for employee access
The following claim rules for the new realm are created:
Email
UPN
PrimarySID
GroupsSID
If the AD FS STS domain is configured by using additional claims, it will be ignored.
Add trusted certificates by using a Windows PowerShell script
1. Check that you meet the following minimum requirements:
See Add-SPShellAdmin.
Read about_Execution_Policies.
2. Copy the following variable declarations, and paste them into a text editor, like Notepad. Set input
values specific to your organization. You will use these values in Step 3. Save the file, and name it
Add-ADFSCerts.ps1.
## Settings you need to change for your organization before the script is
run ##
# ADFS and root certificate names
$adfsCertName = "<Input ADFS Cert Name>"
$MACertName = "< Input Machine Authority >"
$MIACertName = "< Input Certificate Authority >"
$RootCertName = "< Input Root name >"
3. Copy the following code, and paste it into Audiences.ps1 underneath the variable declarations
from Step 2.
# This script configures SharePoint 2013 with ADFS certificates and claim
type maps and creates a Trusted Identity Token Issuer that enables SAML
claims support in SharePoint web applications.
# The directory that contains this script
$ScriptDir = Split-Path -parent $MyInvocation.MyCommand.Path
245
# ADFS and root certificate names
$adfsCertName = "<Input ADFS Cert Name>"
$MACertName = "< Input Machine Authority >"
$MIACertName = "< Input Certificate Authority >"
$RootCertName = "< Input Root name >"
# The local file path, which points to the certificate used to sign token
requests (exported from the AD FS server)
$certFilePath = $ScriptDir + "\Certificates\"
# Build the certificates.
$adfsCertPath = $certFilePath + $adfsCertName + ".cer"
$MACertName = $certFilePath + $MACertName + ".cer"
$MIACertPath = $certFilePath + $MIACertName + ".cer"
$RootCertPath = $certFilePath + $BCTRCertName + ".cer"
# Import certificates to the SharePoint Trusted Root Authority. #
$adfsCert = $null
if($adfsCert -eq $null)
{
Write-Host "installing " $adfsCert
$adfsCert = New-Object
System.Security.Cryptography.X509Certificates.X509Certificate2($adfsCertPath)
# Install the certificate that was exported from the ADFS server.
New-SPTrustedRootAuthority -Name $adfsCertName -Certificate $adfsCert
New-SPTrustedRootAuthority -Name $MACertName -Certificate $MACertName
New-SPTrustedRootAuthority -Name $MIACertName -Certificate $MIACertPath
New-SPTrustedRootAuthority -Name $BCTRCertName -Certificate
$RootCertPath
}
Note:
You can use a different file name, but you must save the file as an ANSI-encoded text file
that has the extension .ps1.
4. On the Start menu, click All Programs > Microsoft SharePoint 2013 Products > SharePoint
2013 Management Shell.
5. Change the command prompt to the directory to which you saved the file.
6. At the Windows PowerShell command prompt, type the following command.
./Add-ADFSCerts.ps1
Create the trusted provider by using a Windows PowerShell script
1. Check that you meet the following minimum requirements:
246
See Add-SPShellAdmin.
Read about_Execution_Policies.
2. Copy the following variable declarations, and paste them into a text editor, such as Notepad. Set
input values specific to your organization. You will use these values in Step 3. Save the file, and
name it TrustedProviderConfiguration-Regular.ps1.
## Settings you need to change for your organization before the script is
run ##
# ADFS and root certificate names
$adfsCertName = "<Input ADFS Certificate Name>"
$MACertName = "< Input Machine Authority >"
$MIACertName = "< Input Certificate Authority >"
$RootCertName = "< Input Root name >"
3. Copy the following code, and paste it into Audiences.ps1 underneath the variable declarations
from Step 2.
# This script configures SharePoint 2013 with ADFS certificates and claim
type maps and creates a Trusted Identity Token Issuer that enables SAML
claims support in SharePoint web applications. These providers use the
UPN or EMail claim rule for the identity claim.
# The production ADFS redirect URL
$signInUrl = "https://sts.msft.net/adfs/ls/"
# The URL and realm for the partner web application
$webAppUri = "https://ppedrtest.mmsxl.com/"
$siteRealm = "urn:039d:spdr:emp"
# The directory that contains this script
$ScriptDir = Split-Path -parent $MyInvocation.MyCommand.Path
# The claim type schema used as the user identity, which uses the email
address as the UPN
$IdClaimType =
"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress"
$adfsCert = New-Object
System.Security.Cryptography.X509Certificates.X509Certificate2($adfsCertPath)
# The ADFS and root certificate names
$adfsCertName = "<Insert ADFS Certification Name>
# The local file path, which points to the certificate used to sign token
requests (exported from the AD FS server)
$certFilePath = $ScriptDir + "\Certificates\"
# Build the certificates.
$adfsCertPath = $certFilePath + $adfsCertName + ".cer"
247
$adfsCert = New-Object
System.Security.Cryptography.X509Certificates.X509Certificate2($adfsCertPath)
#---------------------------------------------------------------------------
---------------------------------------#
# Create or rebuild TrustedIdentityTokenIssuer. #
$tokenIdentityProviderName = "RegularUsers"
$TrustedIdentityTokenIssuerDescription = "SAML Provider for SharePoint"
foreach($issuer in Get-SPTrustedIdentityTokenIssuer)
{
if($issuer.Name -eq $tokenIdentityProviderName)
{
# Remove TrustedIdentityTokenIssuer (usually, to modify the ADFS
property maps) if it already exists?
Read-Host "Identity Token Issuer already exists. Remove and
reinstall it? Press CTRL+C to cancel."
Remove-SPTrustedIdentityTokenIssuer -Identity
$tokenIdentityProviderName
}
}
#Read-Host "Create a new SharePoint Trusted Identity Token Issuer?"
# Create the SharePoint Trusted Identity Token Issuer.
Write-Host "Creating SPTrustedIdentityTokenIssuer named "
$tokenIdentityProviderName
$ap = New-SPTrustedIdentityTokenIssuer `
-Name $tokenIdentityProviderName `
-Description $TrustedIdentityTokenIssuerDescription `
-realm $siteRealm `
-ImportTrustCertificate $adfsCert `
-SignInUrl $signInUrl `
-UseDefaultConfiguration `
-IdentifierClaimIs USER-PRINCIPAL-NAME `
-RegisteredIssuerName $siteRealm
# Add the partner site realm to the trusted provider.
$uri = new-object System.Uri($webAppUri)
$ap = Get-SPTrustedIdentityTokenIssuer $tokenIdentityProviderName
$ap.ProviderRealms.Add($uri,$siteRealm)
$ap.Update()
Note:
You can use a different file name, but you must save the file as an ANSI-encoded text file
that has the extension .ps1.
4. On the Start menu, click All Programs.
5. Click Microsoft SharePoint 2013 Products.
248
6. Click SharePoint 2013 Management Shell.
7. Change the command prompt to the directory to which you saved the file.
8. At the Windows PowerShell command prompt, type the following command.
./TrustedProviderConfiguration-Regular.ps1
Enable tracing for SharePoint Server 2013 claims
To enable tracing for SharePoint 2013, you can use the following ways:
Enable tracing in Windows Identity Foundation (WIF). For information about how to enable
tracing, see WIF Tracing.
Configure diagnostic logging in SharePoint 2013. For information about how to configure
diagnostic logging, see Configure diagnostic logging in SharePoint 2013.
Trusted identity providers and user profile
synchronization
This section describes the steps that let user profile synchronization use claims-based authentication
with a trusted identity provider.
When you configure a directory synchronization connection, you can specify the type of
authentication provider that will be used to access the imported profiles. In the case of a trusted
claims provider, you can also select the specific trusted provider configured in the farm.
To provide the user profile application with sufficient information to map the imported profiles to
authenticated users, you have to set the imported attributed to the corresponding authenticated
users identity claim. The claim is immutable. It cannot be changed after it is configured in the trusted
identity provider. To map users correctly, the user profile system must be informed of which of the
attributes it can import to be used as the identity claim. The key is to identify the identity claim for the
user profile system so that there is enough information to match the identity claim with the
corresponding profile entry. The Claim User Identifier property is used to establish the mapping.
The following figure identifies the Claim User Identifier property mapped to the mail incoming
attribute. This is an arbitrary claim that is specified in this implementation. Any claim can be used.
That claim must be the attribute that is presented as the identity claim from the trusted identity
provider.
249
The next profile import will result in users who are associated with the corresponding profile entries.
For additional information about user profile synchronization, see Overview of profile
synchronization in SharePoint Server 2013.
Using audiences with claims-based sites
This section describes how SAML claims work with the audiences feature in SharePoint 2013. By
default, synchronization support is available for AD DS and several Lightweight Directory Access
Protocol (LDAP) sources and from a Lightweight Directory Interchange Format (LDIF) file. For more
information, see Configure profile synchronization using a Lightweight Directory Interchange Format
(LDIF) file (SharePoint Server 2010). A problem is that the account name for most SAML claims users
is something like i:05:t|AD FS with roles|fred@contoso.com.
To take advantage of audiences, you need to create profiles for users either manually or through
custom code. Create the profiles with their proper claims attributes—for example, i:05:t|AD FS with
roles|fred@contoso.com as the account name—and then populate the other fields with data that you
want to use in your audiences.
After the profiles are created, audiences can be created. You can't use a user-based audience, such as
membership in a group, for the audience unless you implement custom code. It might be more
efficient to use the property-based audience.
See also
Claims-Based Identity Term Definitions
250
Migration of Windows claims
authentication to SAML-based claims
authentication in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-05-07
Summary: Learn how to migrate from Windows claims authentication to SAML-based authentication
in SharePoint 2013.
Identifies the steps required to migrate a web application that is going from Windows claims
authentication to SAML-based authentication in SharePoint 2013.
Identity migration
To run the identity migration, follow these steps:
Note:
These steps apply only to existing web applications.
Generate a skip list.
Run the migration against the web application that has one or more content databases.
Generate a skip list
A skip list is comma-separated values file (.csv file) that has records to exclude during the identity
migration. For example, it is necessary to exclude certain service applications or certain domain
accounts.
Migration of a web application
To migrate a web application to include all the content databases by using Windows PowerShell
1. Check that you have the following memberships:
The securityadmin fixed server role on the SQL Server instance.
The db_owner fixed database role on all databases that are to be updated.
251
The Administrators group on the server on which you are running Windows PowerShell
cmdlets.
Read about_Execution_Policies.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. To migrate a web application to include all content databases, type the following at the Windows
PowerShell command prompt.
$wa = Get-SPWebApplication -Identity <Name of web application>
$tp= Get-SPTrustedIdentityTokenIssuer "RegularUsers"
Convert-SPWebApplication -Identity $wa -TO CLAIMSTRUSTEDDEFAULT -FROM
CLAIMSWINDOWS -TrustedProvider $tp -sourceskiplist skip.csv
To migrate specific web applications and content databases by using Windows PowerShell
1. Check that you have the following memberships:
The securityadmin fixed server role on the SQL Server instance.
The db_owner fixed database role on all databases that are to be updated.
The Administrators group on the server on which you are running Windows PowerShell
cmdlets.
Read about_Execution_Policies.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. To migrate specific web applications and content databases, type the following at the Windows
PowerShell command prompt.
$database = Get-SPContentDatabase -Identity <DB_Name>
252
Convert-SPWebApplication -Identity $app -from CLAIMS-WINDOWS -to CLAIMS-
TRUSTED-DEFAULT -database $database -sourceskiplist skip.csv
Where:
<Identity> is the name of the content database—for example, DB_Name.
If you want to reverse the migration process, type the following at the Windows PowerShell command
prompt.
Convert-SPWebApplication -Identity $wa -From CLAIMS-TRUSTED-DEFAULT -To
CLAIMS-WINDOWS -SourceSkipList $skipFile -database $database
Note:
For more information, see Get-SPContentDatabase, Get-SPWebApplication, and Convert-
SPWebApplication.
See also
Implement SAML-based authentication in SharePoint Server 2013
253
Implications of Claims Mode
Authentication on service applications
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-05-29
Summary: Learn how to migrate Windows claims authentication to SAML-based authentication on
service applications in SharePoint 2013.
This article describes how to migrate Windows claims to SAML-based authentication on service
applications.
In this article:
Business Connectivity Services and Secure Store
InfoPath Services
Managed Metadata Service
Business Connectivity Services and Secure Store
Service
This section describes the steps to migrate a Windows claim identity stored in Microsoft Business
Connectivity Services and Secure Store Service databases to SAML-based identities.
Assumptions and prerequisites
Before you start the migration, review the following information about prerequisites:
SharePoint 2013 with the April 2014 Cumulative Update (CU) is installed.
SharePoint Server 2013.
Business Connectivity Services (BCS) and Secure Store exist and have NT authentication or
Windows claims identities.
The target environment is configured to use a supported SAML claims-based identity provider.
The migration will be performed by using the farm administrator credential.
254
The Migrate-BcsSssClaims.ps1 script migrates existing Windows claims identities that are
stored in a Business Connectivity Services database and Secure Store database.
Migration
To perform the migration of Windows claims-based identities that are stored in a Business
Connectivity Services database and Secure Store database, do the following:
1. Back up the existing BCS and Secure Store service database by using Microsoft SQL Server
Management Studio. Database backup and restore is the primary means to revert a failed
migration.
2. Create a migration skip list and custom map:
a) Open the Migrate-BcsSssClaims.ps1 script file by using Microsoft PowerShell ISE or an
editor like Notepad.
b) Find the $skipMigrationList variable. It contains the principals that must explicitly not be
migrated. Use commas to separate multiple principals. Here's an example:
$skipMigrationList = @("some_domain\do_not_migrate_account1",
"some_domain\do_not_migrate_account2").
c) Find the $customMapping variable. The custom mapping explicitly converts the identities
to the SAML code you specified. The following example migrates a user identity named
old_domain\old_username1 to the SAML identity username1@company.com and
old_domain\old_username2 to username2@partner.com:
$customMapping = @{ "old_domain\old_username1" = "username1@company.com";
"old_domain\old_username2" = "username2@partner.com"; }
3. The Migrate-BcsSssClaims.ps1 script performs a migration of all user and group principals in
Business Connectivity Services and Secure Store applications to the SAML claims-based
authentication provider.
Run the Migrate-BcsSssClaims script by using Windows PowerShell
a) Verify that you have the following memberships:
The securityadmin fixed server role on the SQL Server instance.
The db_owner fixed database role on all databases that are to be updated.
The Administrators group on the server on which you are running the Windows
PowerShell cmdlets.
255
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
b) Note:
The following script files (that is, Migrate-BcsClaims.ps1, Migrate-SSSClaims.ps1, and
Migrate-Helpers.ps1) need to be copied and saved in the same location as the Migrate-
BcsSssClaims.ps1 file. They are used when the Migrate-BcsSssClaims.ps1 file is run.
c) Copy the following code, paste into an editor like Notepad, and then save the file as
Migrate-BcsClaims.ps1.
#Description: Migrates an existing Windows claims stored in a
Business Connectivity Service database.
<#This script is used to migrate the identities stored in a Business
Connectivity Services database to a new one (which depends on the
parameter of MigrationCallback).
Steps:
* Get the database connection by using the Get-SPDatabase cmdlet.
1. Retrieve the Identities in the table.
2. For each Identity, convert it using the callback.
3. Update the Identity with the new value.
#>
#return: the new value
function Migrate-BcsClaims()
{
# Do we need the subscription ID and site parameters here?
[CmdletBinding(SupportsShouldProcess=$true, ConfirmImpact="High")]
param(
# The site subscription ID of the tenant whose user and group principals
in the Managed
# Metadata service applications are to be migrated to the new
authentication model.
[Parameter(Mandatory = $true, ParameterSetName = "tenant",
ValueFromPipeline = $true, HelpMessage = "What is the site subscription ID of
the tenant you want to migrate?")]
[ValidateNotNull()]
[Microsoft.SharePoint.PowerShell.SPSiteSubscriptionPipeBind]
$SiteSubscriptionId,
# A site collection whose user and group principals in the Managed
Metadata service
# application are to be migrated to the new authentication model. If the
site collection
# has a site subscription ID, use the -SiteSubscriptionId parameter
256
instead.
[Parameter(Mandatory = $true, ParameterSetName = "site",
ValueFromPipeline = $true, HelpMessage = "Which site collection do you wish to
migrate?")]
[ValidateNotNull()]
[ValidateScript({ $Site.SiteSubscription -eq $null })]
[Microsoft.SharePoint.PowerShell.SPSitePipeBind] $Site,
# The Managed Metadata web service to be migrated.
[Parameter(Mandatory = $true)]
[ValidateNotNull()]
[Microsoft.SharePoint.BusinessData.SharedService.BdcServiceApplication]
$WebServiceApplication,
# An IMigrateEntityCallback object that performs the entity
transformation.
#[Parameter(Mandatory = $true)]
#[ValidateNotNull()]
[Microsoft.SharePoint.Administration.Claims.IMigrateEntityCallback]
$Migrator,
# This parameter prevents the original principals from being deleted or
overwritten in the
# database when the migrated principals are written. By default this
parameter is false
# and the original principals are deleted. This parameter is useful for
a phased migration
# where it is necessary to keep the Managed Metadata service application
functioning for
# users connecting from both migrated and non-migrated tenants. After
all tenants
# have been migrated, the original principals can be deleted by re-
running this script
# with this parameter disabled. Note that for testing migrations, the -
WhatIf parameter can
# also be used to help ensure that no changes are committed to the
database.
[bool] $IfRetainOldPrincipals = $false
)
#
# Convert the old Identity to new one (the old one is Windows Claim type)
#
function ConvertOneIdentity([System.String]$oldValue)
{
if ($Migrator -eq $null)
{
Write-Log "No Migrator!"
$null
}
else
{
$migrationEntity = New-Object
Microsoft.SharePoint.Administration.SPMigrationEntity $oldValue
$result = $Migrator.ConvertEntity($script:migrationContext,
$migrationEntity)
257
if ($result -eq
[Microsoft.SharePoint.Administration.SPMigrateEntityCallbackResult]::Success)
{
$newValue = $migrationEntity.MigratedName
return $newValue
}
elseif ($result -eq
[Microsoft.SharePoint.Administration.SPMigrateEntityCallbackResult]::Failure)
{
Write-Log "Error: cannot convert $oldValue"
}
elseif ($result -eq
[Microsoft.SharePoint.Administration.SPMigrateEntityCallbackResult]::AlreadyMigr
ated)
{
Write-Log "Already been migrated: $oldValue"
}
elseif ($result -eq
[Microsoft.SharePoint.Administration.SPMigrateEntityCallbackResult]::Skipped)
{
Write-Log "Skipped to migrate: $oldValue"
}
}
return $null
}
#
# Start of main logic
#
$script:migrationContext = New-Object
Microsoft.SharePoint.Administration.Claims.SPClaimMigrationContext($WebServiceAp
plication.Service)
#
# In MinDB we will use Content Database, not the database for the service
application.
#
#
$db = $WebServiceApplication.Database
if ($db -eq $null)
{
Write-Log "Cannot find BDC database".
return
}
# default BDC schema is 'dbo', but in MinDB we will use 'bcs'
$dbSchema = "dbo"
$sqlConnStr = $db.DatabaseConnectionString
$sqlReadStmt = "SELECT * FROM [$dbSchema].[AR_MetadataObjectSecurity]"
$sqlUpdateStmt = "UPDATE [$dbSchema].[AR_MetadataObjectSecurity] SET
IdentityName=@newIdentityValue WHERE ID=@id"
$sqlInsertStmt = "INSERT INTO [$dbSchema].[AR_MetadataObjectSecurity]
(MetadataObjectId, IdentityName, DisplayName, RawSid, Rights, SettingId) VALUES
258
(@metadataObjectId, @newIdentityValue, @displayName, @rawSid, @rights,
@settingId)"
$connection = New-Object System.Data.SqlClient.SqlConnection $sqlConnStr
$connection.Open()
# To read existing data
$sqlReadCmd = $connection.CreateCommand()
$sqlReadCmd.CommandText = $sqlReadStmt
$SqlAdapter = New-Object System.Data.SqlClient.SqlDataAdapter
$SqlAdapter.SelectCommand = $SqlReadCmd
$DataSet = New-Object System.Data.DataSet
$SqlAdapter.Fill($DataSet)
# Read ends;
$sqlUpdateCmd = New-Object System.Data.SqlClient.SqlCommand
$sqlUpdateCmd.Connection = $connection
if ($IfRetainOldPrincipals -eq $false)
{
$sqlUpdateCmd.CommandText = $sqlUpdateStmt
}
else
{
$sqlUpdateCmd.CommandText = $sqlInsertStmt
}
$transaction = $connection.BeginTransaction()
$sqlUpdateCmd.Transaction = $transaction
ForEach ($row in $DataSet.Tables[0].Rows)
{
$id = $row["Id"]
$oldValue = $row["IdentityName"]
$info = "Converting: $oldValue`t DisplayName: " + $row["DisplayName"] +
"`t ID=$id"
Write-Log $info
# Convert to get new value
$newValue = ConvertOneIdentity $oldValue
if ($newValue -eq $null)
{
continue
}
# Run update
Write-Log ("Get new value ($newValue) for claim: $oldValue")
Try
{
$sqlUpdateCmd.Parameters.Clear()
if ($IfRetainOldPrincipals -eq $false)
{
$null =
259
$sqlUpdateCmd.Parameters.AddWithValue("@newIdentityValue", $newValue)
$null = $sqlUpdateCmd.Parameters.AddWithValue("@id", $id)
}
else
{
$null =
$sqlUpdateCmd.Parameters.AddWithValue("@metadataObjectId",
$row["MetadataObjectId"])
$null =
$sqlUpdateCmd.Parameters.AddWithValue("@newIdentityValue", $newValue)
$null = $sqlUpdateCmd.Parameters.AddWithValue("@displayName",
$row["DisplayName"])
$null = $sqlUpdateCmd.Parameters.AddWithValue("@rawSid",
$row["RawSid"])
$null = $sqlUpdateCmd.Parameters.AddWithValue("@rights",
$row["Rights"])
$null = $sqlUpdateCmd.Parameters.AddWithValue("@sttingId",
$row["SettingId"])
}
# Log output
Write-Log "Update DB: $($sqlUpdateCmd.CommandText) with new
identity: $newValue"
if ($pscmdlet.ShouldProcess("Run update DB command")) {
$rc = $sqlUpdateCmd.ExecuteNonQuery()
if ($rc -eq 0)
{
Write-Log "Failed to add/set new value"
}
}
}
Catch [System.Exception]
{
Write-Log ("Failed to add/set new value; error:
$($_.Exception.Message)")
}
Finally
{
# do nothing
}
}
$sqlUpdateCmd.Dispose()
# Commit and Close at last.
$transaction.Commit()
$connection.Close()
}
d) Copy the following code, paste it into Notepad, and then save the file as Migrate-
SSSClaims.ps1.
# Description: Migrates the existing Windows claims stored in a
Secure Store Service Application database.
function Migrate-SecureStoreClaims
260
{
[CmdletBinding(SupportsShouldProcess=$true,
ConfirmImpact="High")]
param(
# The site subscription ID of the tenant whose user and
group principals in the Managed
# Metadata service application are to be migrated to the new
authentication model.
[Parameter(Mandatory = $true, ParameterSetName = "tenant",
ValueFromPipeline = $true, HelpMessage = "What is the site
subscription ID of the tenant you want to migrate?")]
[ValidateNotNull()]
[Microsoft.SharePoint.PowerShell.SPSiteSubscriptionPipeBind]
$SiteSubscriptionId,
# A site collection whose user and group principals in the Managed
Metadata service
# application are to be migrated to the new authentication model. If the
site collection
# has a site subscription ID, use the -SiteSubscriptionId parameter
instead.
[Parameter(Mandatory = $true, ParameterSetName = "site",
ValueFromPipeline = $true, HelpMessage = "Which site collection do you want to
migrate?")]
[ValidateNotNull()]
[ValidateScript({ $Site.SiteSubscription -eq $null })]
[Microsoft.SharePoint.PowerShell.SPSitePipeBind] $Site,
# The Managed Metadata web service to be migrated.
[Parameter(Mandatory = $true)]
[ValidateNotNull()]
[Microsoft.SharePoint.Administration.SPIisWebService] $WebService,
# An IMigrateEntityCallback object that performs the entity
transformation.
# [Parameter(Mandatory = $true)]
# [ValidateNotNull()]
[Microsoft.SharePoint.Administration.Claims.IMigrateEntityCallback]
$Migrator,
#
[bool] $IfRetainOldPrincipals = $false,
# If set to True, will NOT handle Unpartitioned Secure Store service
application
[bool] $IfSkipUnPartitionedSecureStore
)
#
# Start of functions
#
# Migrate one claim
# Return: SPClaim
function Migrate-
261
Claim([Microsoft.Office.SecureStoreService.Server.SecureStoreServiceClaim]$sssCl
aim)
{
$claimType = $sssClaim.ClaimType
$claimValue = $sssClaim.ClaimValue
Write-Log "Migrating claim: $claimValue"
$migrationEntity = New-Object
Microsoft.SharePoint.Administration.SPMigrationEntity $claimValue
if ($migrationEntity.AuthenticationType -eq
[Microsoft.SharePoint.Administration.SPWebApplication+AuthenticationMethod]::Win
dows)
{
$sourceName = $claimValue
$ifSourceReady = $false
if ($claimValue -match "^S-\d-\d+-(\d+-){1,14}\d+$")
{
#SID?
if ($claimType.ToLower().Contains("groupsid"))
{
Write-Log "Need to translate Group SID $claimValue to
Security claim..."
$spClaim =
[Microsoft.SharePoint.Administration.Claims.SPActiveDirectoryClaimProvider]::Cre
ateSecurityGroupClaim($claimValue)
$sourceName = $spClaim.ToEncodedString()
Write-Log "Translated Security claim is: $sourceName"
$ifSourceReady = $true
}
else
{
Write-Log "Need to translate SID $claimValue to Windows NT
account ..."
$objSID = New-Object
System.Security.Principal.SecurityIdentifier $claimValue
$objUser = $objSID.Translate(
[System.Security.Principal.NTAccount])
if (!$?)
{
Write-Log "Cannot convert SID $claimValue"
return $null
}
$sourceName = $objUser.Value
Write-Log "Translated to NT account $ntAccount"
}
}
if ($ifSourceReady -eq $false)
{
# Convert "DOMAIN\account" -> "i:0#.w|DOMAIN\account"
Write-Log "Need to convert NT account $ntAccount to Windows SAM
account ..."
$claimsPrincipal = New-SPClaimsPrincipal -IdentityType
WindowsSamAccountName -Identity $sourceName
$sourceName = $claimsPrincipal.ToEncodedString()
262
if (!$?)
{
Write-Log "Cannot convert NT account $ntAccount"
return $null
}
}
Write-Log "Account has been converted; new value is: $sourceName"
$migrationEntity = New-Object
Microsoft.SharePoint.Administration.SPMigrationEntity $sourceName
}
#>
# Convert
if ($Migrator -eq $null)
{
Write-Log "No Migrator! Cannot do migration."
return $null
}
$result = $Migrator.ConvertEntity($script:migrationContext,
$migrationEntity)
if ($result -eq
[Microsoft.SharePoint.Administration.SPMigrateEntityCallbackResult]::Success)
{
$newName = $migrationEntity.MigratedName
$newValue =
[Microsoft.SharePoint.Administration.Claims.SPClaimProviderManager]::Local.Decod
eClaim($newName)
Write-Log "Converted to new claim: $newValue, with name $newName"
return $newValue
}
else
{
Write-Log ("Cannot convert ( $claimType ) type claim: $claimValue;
Converting result is $result")
}
return $null
}
#
# Convert a SecureStoreServiceClaim to SPClaim
#
function
ConvertSssClaimToSPClaim([Microsoft.Office.SecureStoreService.Server.SecureStore
ServiceClaim]$sssClaim)
{
return New-Object Microsoft.SharePoint.Administration.Claims.SPClaim
$sssClaim.ClaimType, $sssClaim.ClaimValue, "System.String",
$sssClaim.ClaimIssuer
}
#
# Migrate a group of claims
# Return: new claims array
function Migrate-
263
SssClaims([Microsoft.Office.SecureStoreService.Server.SecureStoreServiceClaim[]]
$oldClaims)
{
if ($oldClaims -eq $null -or ($oldClaims.Count -le 0))
{
Write-Log("No claim to migrate")
return $null
}
#Write-Log "`n Migrating claims:"
#Write-Log ($oldClaims)
$newClaims = New-Object System.Collections.ArrayList
$oldClaims | ForEach {
# Write-Log $_
$oldClaim = $_
$newClaim = Migrate-Claim($oldClaim)
if ($newClaim)
{
# add new claim
$null = $newClaims.Add($newClaim)
}
if ( ($IfRetainOldPrincipals -eq $true) -or ($newClaim -eq $null))
{
# remain the old claim when RetainOldPrincipals is set to true
or cannot get the new claim
$existingClaim = ConvertSssClaimToSPClaim($oldClaim)
$null = $newClaims.Add($existingClaim)
}
}
return $newClaims
}
#
# Migrate one target application (Secure Store Application)
# Return: none
#
function Migrate-
OneApp([Microsoft.Office.SecureStoreService.PowerShellCmdlet.SPSecureStoreApplic
ation]$ssApp)
{
<#
[System.Collections.Generic.List[Microsoft.Office.SecureStoreService.Server.Secu
reStoreServiceClaim]]
#>
Write-Log ("Migrating Target Application: " +
$ssApp.TargetApplication.ApplicationId + "`n`n")
$taClaims = $ssApp.TargetApplicationClaims
$adminClaims = $taClaims.AdministratorClaims
$groupClaims = $taClaims.GroupClaims
$redeemClaims = $taClaims.TicketRedeemerClaims
264
if ($adminClaims)
{
Write-Log "`nMigrating existing Admin Claims..."
$adminClaims | ft
$newAdminClaims = Migrate-SssClaims $adminClaims
"`nNew Admin Claims:"
$newAdminClaims | ft
}
else
{
Write-Log "`nNo admin claims"
}
if ($groupClaims)
{
Write-Log "`nMigrating existing Group Claims..."
$groupClaims | ft
$newGroupClaims = Migrate-SssClaims $groupClaims
"`nNew Group Claims:"
$newGroupClaims | ft
}
else
{
Write-Log "`nNo group claims"
}
if ($redeemClaims)
{
Write-Log "`nMigrating existing Ticket Redeemer Claims..."
$redeemClaims | ft
$newRedeemClaims = Migrate-SssClaims $redeemClaimsClaims
"`nNew Redeem Claims:"
$newRedeemClaims | ft
}
else
{
Write-Log "`nNo Ticket Redeemer claims"
}
# To Update setting
Write-Log "`nUpdating SPSecureStoreApplication..."
if ($pscmdlet.ShouldProcess("Run command of Set-
SPSecureStoreApplication?")) {
Set-SPSecureStoreApplication -Identity $ssApp -Administrator
$newAdminClaims -CredentialsOwnerGroup $newGroupClaims -TicketRedeemer
$newRedeemClaims
}
Write-Log ("`nEnd of migration of " +
$ssApp.TargetApplication.ApplicationId + "`n")
}
265
#
# Start of main logic:
#
$script:migrationContext = New-Object
Microsoft.SharePoint.Administration.Claims.SPClaimMigrationContext($WebService)
# Get Secure Store Applications (target applications)
$serviceContext = Get-SPServiceContext -Site $Site
$ssApps = Get-SPSecureStoreApplication -ServiceContext $serviceContext -All
$ssApps | % { Migrate-OneApp($_) }
}
e) Copy the following code, paste into an editor like Notepad, and then save the file as
Migrate-Helpers.ps1.
# Filename: Migrate-Helpers.ps1
# Description: Helper functions for migrating Business Connectivity
Services and Secure Store Services claims.
function Write-Log($message)
{
Write-Host $message
}
#
# Get Service Context for the migration
# The variables are defined in main script
#
function Get-ServiceContext()
{
if ($SiteSubscriptionId -ne $null)
{
Write-Log "Finding SPServiceContext for SiteSubscription
$($SiteSubscriptionId.Id)"
$siteSubscription = Get-SPSiteSubscription -Identity $SiteSubscriptionId
if (!$?)
{
Write-Log "Cannot find site subscription for:
$($SiteSubscriptionId.Id)"
return $null
}
$serviceContext = Get-SPServiceContext -SiteSubscription
$siteSubscription
if (!$?)
{
Write-Log "Cannot get service context for site subscription id
$($SiteSubscriptionId.Id)"
return $null
}
266
return $serviceContext
}
elseif ($Site -ne $null)
{
if ($Site.SiteSubscription -ne $null)
{
Write-Log "Site collection $($Site.Url) has a site subscription. Run
this script with -SiteSubscriptionId $($Site.SiteSubscription.Id)."
return $null
}
Write-Log "Using SPServiceContext for site collection $($Site.Url)"
$serviceContext = Get-SPServiceContext -Site $Site
return $serviceContext
}
return $null
}
f) Copy the following code, paste it into Notepad, and then save the file as Migrate-
BcsSssClaims.ps1.
#Description: Migrates the existing Windows claims stored in
Business Connectivity Services database and Secure Store Service
database.
<#
.SYNOPSIS
Performs a migration of all user and group principals in Business Connectivity
Services and Secure Store Service Applications to their equivalents under the
configured SAML claims authentication provider.
.DESCRIPTION
This script is provided to allow customers to customize their SAML claims
migration based on their existing SharePoint 2013 deployment.
It supports limited customization, primarily through variables that the
customer can modify to adapt the script to their requirements. These
variables are in the "User-configurable Parameters" section of this script.
The script iterates through all term store objects (including groups, term
sets, and terms) in the given Business Connectivity Services and Secure Store
Service. If any term store
object has an associated user or group principal that belongs to the tenant
identified by the -SiteSubscriptionId parameter, the script converts that
principal to its equivalent under the SAML claims authentication provider.
If the Managed Metadata service is not part of a tenant environment, as is
common in the case of on-premises deployments, the script may instead be
invoked by passing an SPSite object using the -Site parameter.
.EXAMPLE
Migrate-BcsSssClaims -Site "http://sharepoint.contoso.com"
#>
267
[CmdletBinding(SupportsShouldProcess=$true, ConfirmImpact="High")]
param(
# A site collection with no site subscription. If the site collection has a
# site subscription, use the -SiteSubscriptionId parameter instead.
[Parameter(Mandatory = $true, ParameterSetName = "site", ValueFromPipeline =
$true, HelpMessage = "Which site collection do you wish to migrate?")]
[ValidateNotNull()]
[ValidateScript({ $Site.SiteSubscription -eq $null })]
[Microsoft.SharePoint.PowerShell.SPSitePipeBind] $Site,
# We need to have a name for SAML identity provider.
# When it is empty, we assume there's only one provider in the farm.
#[Parameter(Mandatory = $true, ParameterSetName = "IdentityProviderName",
ValueFromPipeline = $false, HelpMessage = "What's the name for SAML Identity
Provider?")]
[System.String] $IdentityProviderName = $null,
# This parameter prevents the original principals from being deleted or
overwritten in the
# database when the migrated principals are written. By default this
parameter is false
# and the original principals are deleted. This parameter is useful for a
phased migration
# where it is necessary to keep the Managed Metadata service application
functioning for
# users connecting from both migrated and non-migrated tenants. Once all
tenants
# have been migrated, the original principals can be deleted by re-running
this script
# with this parameter disabled. Note that for testing migrations, the -
WhatIf parameter can
# also be used to help ensure that no changes are committed to the database.
# [Parameter(Mandatory = $false, ParameterSetName = "IfRetainOldPrincipals",
ValueFromPipeline = $true, HelpMessage = "Do you want to remain the old
principals?")]
[bool] $IfRetainOldPrincipals = $false,
# If set to True, will NOT handle UnPartitioned Secure Store service
application
[bool] $IfSkipUnPartitionedSecureStore
)
#------------------------------------------------------------------------------
# User-configurable Parameters
# Define any principals that must explicitly NOT be migrated; use commas to
# separate multiple principals.
$skipMigrationList = @("some_domain\do_not_migrate_account1",
"some_domain\do_not_migrate_account2",
"True",
"windows",
"002C\test-cr-02" )
$customMapping = @{ "old_domain\old_username1" = "username1@company.com"; #
migrates to e.g. i:0e.t|authprovider|username1@company.com
"old_domain\old_username2" = "username2@partner.com"; #
268
migrates to e.g. i:0e.t|authprovider|username2@partner.com
}
# Loads the SAML claims identity provider. This assumes there is only one
provider.
$identityProviders = Get-SPTrustedIdentityTokenIssuer
$identityProvider = $null
if ($identityProviders.Count -eq 1)
{
$identityProvider = $identityProviders[0]
}
elseif ($identityProviders.Count -gt 1)
{
# Loop the providers
$identityProviders | % {
if ($_.Name -ne $IdentityProviderName)
{
return; # in fact it works as continue
}
$identityProvider = $_
}
}
if ($identityProvider -eq $null)
{
$tmp = "."
if ($IdentityProviderName)
{
$tmp = " named $IdentityProviderName."
}
Write-Host "Cannot find trusted identity token issuer$tmp"
Exit
}
else
{
Write-Host "Find trusted identity token issuer: $($identityProvider.Name)"
}
#------------------------------------------------------------------------------
# Migration script
# Load the migration script
. .\Migrate-Helpers.ps1
. .\Migrate-BcsClaims.ps1
. .\Migrate-SSSClaims.ps1
$config = New-Object
Microsoft.SharePoint.Administration.Claims.SPClaimsMigrationConfiguration
$skipMigrationList |
% { $null = $config.SourceSkipMigrationList.Add($_) }
# Create the pre-configured mapping data
$customMapping.Keys |
% {
269
$value = $customMapping[$_]
$mappingData = New-Object
Microsoft.SharePoint.Administration.SPMigrationMappingData($value, $value)
$config.MappingData.Add($_, $mappingData)
}
# Create a basic migration configuration
$trustedConfigArgs = @($identityProvider.Name, $config.FarmIdMappings,
$config.SourceSkipMigrationList, $config.MappingData)
$trustedConfig = New-Object
Microsoft.SharePoint.Administration.Claims.SPTrustedClaimsMigrationConfiguration
$trustedConfigArgs
$migrator = New-Object
Microsoft.SharePoint.Administration.Claims.SPWindowsToTrustedBackedByActiveDirec
toryMigration $trustedConfig
#
# 1. Process Secure Store; TypeName: Secure Store Service Application
#
$serviceApps = Get-SPServiceApplication | Where-Object { $_.TypeName -match
"Secure Store Service Application" }
Write-Log "Found $($serviceApps.Count) Secure Store Service Application(s) `n`n"
$serviceApps |
% {
if ($IfSkipUnPartitionedSecureStore -eq $true -and
($_.Properties["Microsoft.Office.Server.Utilities.SPPartitionOptions"] -eq
"UnPartitioned"))
{
Write-Log ("We won't process Un-Partitioned Secure Store Service
Application named " + $_.Name)
return
}
Write-Log "`nConnecting to $_ `n"
$service = $_.Service
# start migration
Migrate-SecureStoreClaims -WebService $service -Migrator $migrator -Site
$Site -IfRetainOldPrincipals $IfRetainOldPrincipals -
IfSkipUnPartitionedSecureStore $IfSkipUnPartitionedSecureStore -
WhatIf:$WhatIfPreference;
Write-Log "`nDisconnecting from $_ `n"
}
#
# 2. Process BCS; TypeName: Business Data Connectivity Service Application
# We will deal with database directly.
#
270
$serviceApps = Get-SPServiceApplication | Where-Object { $_.TypeName -match
"Business Data Connectivity Service Application" }
Write-Log "Found $($serviceApps.Count) Business Connectivity Service
Application(s) `n`n"
$serviceApps |
% {
Write-Log "`nConnecting to $_ `n"
$serviceApp = $_
# start migration
Migrate-BcsClaims -WebServiceApplication $serviceApp -Migrator $migrator
-Site $Site -IfRetainOldPrincipals $IfRetainOldPrincipals -
WhatIf:$WhatIfPreference;
Write-Log "`nDisconnecting from $_ `n"
}
$serviceApps = $null
$migrator = $null
$trustedConfig = $null
$trustedConfigArgs = $null
$config = $null
$skipMigrationList = $null
g) On the Start menu, click All Programs.
h) Click Microsoft SharePoint 2013 Products.
i) Click SharePoint 2013 Management Shell.
j) At the Windows PowerShell command prompt, type the following command.
Migrate-BcsSssClaims -Site "http://sharepoint.mycompany.com" -
IdentityProviderName "Your SAML identity provider name"
Where:
Site is the root URL of the SharePoint Server.
IdentityProviderName is the name of a SAML identity token issuer. To get a list of all
known token issuers, use the Get-SPTrustedIdentityTokenIssuer cmdlet.
IfRetainOldPrincipals prevents the original NT authentication and Windows claims
identities from being deleted in the database during the migration.
IfSkipUnPartitionedSecureStore does not perform migration for identities of an
unpartitioned Secure Store Service application.
WhatIf is used to test the migration. No changes are committed to the database.
4. Run IISReset.
271
Troubleshooting
This section lists the known symptoms and resolutions that can help when you migrate a Business
Connectivity Services or Secure Store identity to a SAML claims environment. If none of these
suggestions resolve the problem and any changes already committed to the service database need to
be reverted, the service database can be restored from its backup (taken in step 1 of the migration
steps).
Symptoms and Resolutions
Here are some known symptoms and resolutions:
The migration scripts require a SharePoint 2013 Management Shell. If running the script generates
errors like Unable to find type [Microsoft.SharePoint.*], chances are that the snap-ins for
Windows PowerShell have to be loaded. These snap-ins (that is, Add-PsSnapin
Microsoft.SharePoint.PowerShell) are already loaded if the script is run from SharePoint 2013
Management Shell. After the snap-ins are loaded, rerun the script.
The migration script will write information to a log file. The log file will help you understand the
issue and has four possible outcomes:
Success: The converted value is displayed.
Failure: This value can be returned for many different reasons. One example is if the identity
doesn't belong to the migrating domain. This is an example of a common error message you
be see displayed: Error; cannot convert i:0e.t|regularusers|name@domain.
AlreadyMigrated: The entity is already a valid SAML claims principal name and requires no
change.
Skipped: The identity is in the skipped list of the migration configuration, which is located in
the $skipMigrationList variable of the migration script Migrate-BcsSssClaims.ps1. This is an
example of a common error message you be see displayed: Skipped to migrate:
i:0#.w|domain\name.
Conversion failures: These occur when a principal name encountered in the database cannot be
mapped to the corresponding principal name under the new authentication provider. There can
be several reasons for this, as illustrated in the following table.
272
Reason
Resolution
The entity (person or group) is no longer with the
company or organization.
This is the most common case. After migration, in
the SharePoint Central Administration website,
remove the metadata permission from Business
Connectivity Services and Secure Store services.
The entity has a new principal name that cannot
be mapped from the old name by the identity
provider. This can arise, for example, if a person
gets married and his or her name changes.
After migration, in the SharePoint Central
Administration website, remove the metadata
permission from the Business Connectivity
Services and Secure Store services, and then add
the metadata permission again.
InfoPath Services
InfoPath is supported in SAML, but Web Service Connections to SharePoint services that require
authentication are not supported. Examples of these unsupported Web Service Connections include
the User Profile Service Web Service.
Managed Metadata Service
This section details the steps needed to migrate the Managed Metadata service database from a
Windows claims (or NT authentication) identity provider to a SAML claims identity provider. The
migration is executed in-place. It modifies the Taxonomy database, and the database cannot be used
in the old environment afterward.
The Managed Metadata service stores principal names for authenticated entities in the service
database. These are used to control access for roles like Term Store Administrators, Group Managers,
Group Contributors, Term Set Owners, and Term Owners. They are also used to provide change
notifications to entities like Term Set Stakeholders. If a Managed Metadata service application is
provisioned after configuring (or migrating) the web application with SAML claims, the Managed
Metadata Service will store principal names in the correct format, and all the above access checks and
notifications will work correctly without any extra configuration or migration steps.
However, if a Managed Metadata service is initially deployed when the web application is configured
to use a different identity provider (that is, NT authentication or Windows claims), the web application
will be migrated to a SAML claims-based identity provider. The migration process detailed in the
Migration section must be executed for the service database to support the new provider.
The following table shows what principal names for individual users and security groups look like for
different identity providers:
273
Identity provider
Principal name (first line is a sample user;
second line is the security group)
NTLM
DOMAIN\username
s-1-5-21-2146773085-903363285-719344707-
1309461
Windows claims
i:0#.w|DOMAIN\username
c:0+.w|s-1-5-21-2146773085-903363285-
719344707-1309461
SAML claims (Trusted)
i:0e.t|providername|username@domain.com
c:0e.t|providername|s-1-5-21-2146773085-
903363285-719344707-1309461
Assumptions and Prerequisites
Before you start the migration, review the following information about prerequisites:
SharePoint 2013 with the April 2014 Cumulative Update (CU) is installed.
The Service Application Management and the SharePoint Central Administration website will not
be migrated and will continue to the existing authentication model (likely NT Authentication or
Windows claims).
Central Administration and Service Application Management will continue to the existing
authentication model (likely NT Authentication or Windows claims)—that is, these will not be
migrated.
The target environment is configured to use a supported SAML claims-based authentication
provider.
The migration script updates the Managed Metadata service database by directly running SQL
queries against the database. It is recommended that the Managed Metadata service be stopped
during the migration.
The migration must be performed by using credentials that can execute update scripts against the
Managed Metadata service database (that is, the Service Application account).
274
The migration process uses the following Windows PowerShell script: Convert-
ManagedMetadataServiceToTrusted.ps1 (known as the Convert script).
Migration
To perform the migration to SAML claims-based authentication, do the following:
1. In the SharePoint Central Administration website, stop the Managed Metadata service.
2. Back up all existing active Managed Metadata service databases available to the tenant that is
being migrated. Database backup and restore is the primary means to revert a failed migration.
3. Optionally create a skip file. This is a text file that contains principal names that must not be
migrated. It contains one principal name per row.
DOMAIN1\usertobeskipped1
DOMAIN1\usertobeskipped2
4. The Convert script performs the migration for a specified web application. Use the WhatIf
parameter to perform a test run. A test run is exactly like a full migration except it does not write
updates to the database.
Run the Convert script by using Windows PowerShell
a) Verify that you have the following memberships:
The securityadmin fixed server role on the SQL Server instance.
The db_owner fixed database role on all databases that are to be updated.
The Administrators group on the server on which you are running the Windows
PowerShell cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
b) Copy the following code, paste it into Notepad, and then save the file as Convert-
ManagedMetadataServiceToTrusted.ps1.
# Description: Migrates principal names in the Managed Metadata
275
Service database
# for a web application or site collection to SAML-based claim
authentication.
<#
.SYNOPSIS
Converts all principal names in the Managed Metadata Service (MMS) database for
a
web application or site collection from NT Authentication or Windows claims to
SAML claims.
.DESCRIPTION
This script migrates all user or security group principal names stored in the
MMS database from the NT Authentication / Windows claims identity provider
format to the
SAML claims identity provider format.
If the -WhatIf parameter is specified, no changes are committed to the database.
.EXAMPLE
Convert-ManagedMetadataServiceToTrusted -WebApplication http://app.contoso.com -
TokenIssuer "CorpUsers"
Converts the principal names in the MMS database belonging to the web
application to SAML claims.
.EXAMPLE
Convert-ManagedMetadataServiceToTrusted -Site
http://app.contoso.com/sites/teamsite -TokenIssuer "CorpUsers"
Converts the principal names in the MMS database belonging to the site
collection's web application to SAML claims.
#>
[CmdletBinding(SupportsShouldProcess=$true, ConfirmImpact="High")]
param(
# The web application whose user and group principals are in the Managed
Metadata
# service application that are to be migrated to the SAML claims identity
provider.
[Parameter(Mandatory = $true, ParameterSetName = "webApp", ValueFromPipeline
= $true, HelpMessage = "Which web application do you wish to migrate?")]
[Alias("WebApplication")]
[ValidateNotNull()]
[Microsoft.SharePoint.PowerShell.SPWebApplicationPipeBind]
$WebApplicationPipeBind,
# A site collection belonging to the tenant whose user and group principals
are in the
# Managed Metadata service application that are to be migrated to the new
identity provider.
[Parameter(Mandatory = $true, ParameterSetName = "site", ValueFromPipeline =
$true, HelpMessage = "Which site collection do you wish to migrate?")]
[Alias("Site")]
[ValidateNotNull()]
[Microsoft.SharePoint.PowerShell.SPSitePipeBind] $SitePipeBind,
276
[Parameter(Mandatory = $true, HelpMessage = "Which identity token issuer
should the script use?")]
[Alias("TokenIssuer", "IdentityTokenIssuer")]
[ValidateNotNullOrEmpty()]
[string] $IdentityTokenIssuerName,
# The path to a file containing the principal names that must NOT be
migrated.
# Each row in the file must contain exactly one principal name.
[Parameter(Mandatory = $false)]
[ValidateScript({ ![string]::IsNullOrEmpty($_) -and (Test-Path -Path $_ -
PathType Leaf) })]
[string] $SkipFile = $null
)
#--------------------------------------------------------------------------
# Script variables
#
# Context objects needed for migration
[Microsoft.SharePoint.Administration.SPWebApplication] $script:WebApplication =
$null
[Microsoft.SharePoint.Administration.SPDatabase] $script:Database = $null
[Microsoft.SharePoint.Administration.Claims.SPClaimMigrationContext]
$script:MigrationContext = $null
[Microsoft.SharePoint.Administration.Claims.IMigrateEntityCallback]
$script:Migrator = $null
# Partition ID
$script:PartitionIds = @()
$script:PartitionId = $null
$script:DefaultPartitionId = [GUID]"0C37852B-34D0-418E-91C6-2AC25AF4BE5B"
# Log formatting
[string] $script:Prefix = [String]::Empty
[string] $script:PrefixToken = " "
[bool] $script:PrefixEnabled = $true
# Tracking
$script:Counters = @{} # Dictionary of counters
$script:FailureCounts = @{} # Map of principal name -> failure count
$script:Total = 0
$script:Current = 0
# Log files
$script:MigrationLog = "ManagedMetadataMigration_{0}.log" -f (Get-Date -f
yyyy-MM-dd_hh-mm-ss)
$script:FailedMigrationsLog = "ManagedMetadataFailedMigrations_{0}.log" -f (Get-
Date -f yyyy-MM-dd_hh-mm-ss)
# SQL Regexes
$script:WindowsClaimsRegex = "i:0__w|%"
$script:ClaimsRegex = "i:0__t|%"
# Query templates
$script:SelectQueryTemplates = @{
"ECMPermission" = "SELECT PrincipalName, PartitionId, GroupId,
Rights " +
277
"FROM [dbo].[ECMPermission] " +
"WHERE PartitionId = '{0}' " +
"AND PrincipalName NOT LIKE '{1}' " +
"AND PrincipalName NOT LIKE 'SiteCollection%'";
"ECMTermSetOwner" = "SELECT DISTINCT Owner " +
"FROM [dbo].[ECMTermSet] " +
"WHERE PartitionId = '{0}' " +
"AND Owner NOT LIKE '{1}'" +
"AND Owner <> ''" +
"AND Owner <> ' '" +
"AND Owner <> 'NT AUTHORITY\IUSR'";
"ECMTermSetStakeholder" = "SELECT DISTINCT Stakeholders " +
"FROM [dbo].[ECMTermSet] " +
"WHERE PartitionId = '{0}' " +
"AND Stakeholders <> '' " +
"AND Stakeholders <> ' ' " +
"AND Stakeholders <> 'NT AUTHORITY\IUSR'";
}
$script:UpdateQueryTemplates = @{
"ECMPermission" = "UPDATE [dbo].[ECMPermission] " +
"SET PrincipalName = '{2}' " +
"WHERE PartitionId = '{0}' " +
"AND PrincipalName = '{1}'";
"ECMTermSetOwner" = "UPDATE [dbo].[ECMTermSet] " +
"SET Owner = '{2}' " +
"WHERE PartitionId = '{0}' " +
"AND Owner = '{1}'";
"ECMTermSetStakeholder" = "UPDATE [dbo].[ECMTermSet] " +
"SET Stakeholders = '{2}' " +
"WHERE PartitionId = '{0}' " +
"AND Stakeholders = '{1}'";
}
#--------------------------------------------------------------------------
# Joblet interface
#
function ShouldExecute()
{
$shouldExecute = $false
try
{
Write-Log ("Is -WhatIf specified? {0}" -f $WhatIfPreference)
$buildVersion = (Get-SPFarm).BuildVersion
Write-Log "Detected Microsoft SharePoint version
$($buildVersion.ToString())"
if ($buildVersion.Major -eq 15 -and $buildVersion.Build -lt 4605)
{
Write-LogError "Claims migration for the Managed Metadata service
application is only supported for Microsoft SharePoint 2013 with April 2014 CU
(build 15.0.4605.*) or later."
278
return $false
}
# Require farm admin privileges to perform migration.
# This check only works if the current authentication mode is Windows
Authentication (claims or NTLM)
if (-not
[Microsoft.SharePoint.Administration.SPFarm]::Local.CurrentUserIsAdministrator($
true))
{
Write-LogError "Managed Metadata service claims migration requires
farm administrator privileges. Re-run this script as a farm admin."
return $false
}
$script:PartitionIds = Resolve-PartitionIds
if (-not $script:PartitionIds -or $script:PartitionIds.Count -eq 0)
{
Write-LogError "Unable to resolve partition ID."
return $false
}
Write-Log ("Migration scoped to {0} partition IDs" -f
$script:PartitionIds.Count)
$script:Migrator = Create-Migrator
if (-not $script:Migrator)
{
Write-LogError "Unable to create migration object."
return $false
}
$script:MigrationContext = New-Object
Microsoft.SharePoint.Administration.Claims.SPClaimMigrationContext($script:WebAp
plication)
if (!$? -or $script:MigrationContext -eq $null)
{
Write-LogError ("Unable to create SPClaimMigrationContext for web
application '{0}'." -f $script:WebApplication.Name)
return $false
}
$shouldExecute = $true
}
catch [Exception]
{
Write-LogError ("Exception in ShouldExecute: {0}" -f
$_.Exception.Message)
Write-LogError ("Stack trace: {0}" -f $_.ScriptStackTrace)
}
Write-Log "ShouldExecute Convert-ManagedMetadataServiceToTrusted?
$shouldExecute"
return $shouldExecute
}
function Execute([Microsoft.SharePoint.Administration.SPDatabase] $database)
{
try
279
{
Write-Log "Executing Convert-ManagedMetadataServiceToTrusted"
Write-Log "Start Time: $(Get-Date)"
$duration = Measure-Command {
Migrate-Database $_.Database
}
Write-Log "Finish Time: $(Get-Date)"
Write-Log ("Duration: {0:n3} seconds" -f $duration.TotalSeconds)
}
catch [Exception]
{
Write-LogError ("Exception in Execute: {0}" -f $_.Exception.Message)
Write-LogError ("Stack trace: {0}" -f $_.ScriptStackTrace)
}
finally
{
Reset-Indent
Write-Counters
Write-FailedMigrationSummary
Write-Log "Finished executing Convert-ManagedMetadataServiceToTrusted"
}
}
#--------------------------------------------------------------------------
# Logging helpers
#
function Write-Log([string]$message, [switch]$Indent, [switch]$UnIndent,
[switch]$NoNewline, [switch]$NoPrefix, [switch]$NoOutput)
{
if ($Indent) { Indent-Log }
$script:PrefixEnabled = -not $NoPrefix
if ($PrefixEnabled) { $log = $Prefix + $message } else { $log = $message }
Write-Host -NoNewline:$NoNewLine $log
if (-not $NoOutput) { Write-Output $log | Out-File -Append -WhatIf:$false -
FilePath $script:MigrationLog }
$script:PrefixEnabled = -not $NoNewline
if (Test-Path function:\Write-GridLog) { Write-GridLog -Status OK $log }
if ($UnIndent) { UnIndent-Log }
}
function Write-LogError([string]$message, [switch]$Indent, [switch]$UnIndent)
{
if ($Indent) { Indent-Log }
$log = $Prefix + "ERROR: " + $message
Write-Error $log
Write-Output $log | Out-File -Append -WhatIf:$false -FilePath
$script:MigrationLog
if ($UnIndent) { UnIndent-Log }
}
function Write-FailedMigration([string]$principalName)
{
# Write the failed migration details to the log file
$principalName |
Out-File -Append -WhatIf:$false -FilePath $script:FailedMigrationsLog
}
280
function Indent-Log()
{
$script:Prefix += $PrefixToken
}
function UnIndent-Log()
{
$len = $Prefix.Length - $PrefixToken.Length
if ($len -gt 0) {
$script:Prefix = $Prefix.Substring(0, $len)
} else {
$script:Prefix = [string]::Empty
}
}
function Reset-Indent()
{
$script:Prefix = [String]::Empty
}
function Increment([string]$Name, [int]$Count = 1)
{
$script:Counters.$Name += $Count
}
function Increment-Counter($Name, [int]$Count = 1)
{
if ($Name.GetType().Name -eq "SPMigrateEntityCallbackResult") { Increment -
Name "Convert_$Name" -Count $Count }
else { Increment -Name $Name -Count $Count }
}
function Increment-Counters($Names, [int]$Count = 1)
{
$Names | % { Increment-Counter -Name $_ -Count $Count }
}
function Reset-Counter($name)
{
$script:Counters.$name = 0
}
function Write-Counters()
{
Write-Log "----------------------------------------------------"
Write-Log "Counters:"
$script:Counters.Keys |
Sort-Object |
% { Write-Log -Indent -UnIndent ("{0,-34}: {1,7}" -f $_,
$script:Counters.$_) }
Write-Log "----------------------------------------------------"
}
function Write-FailedMigrationSummary()
{
if ((-not $script:FailureCounts) -or ($script:FailureCounts.Count -eq 0)) {
Write-LogError "No failed conversions"; return }
if ($script:FailureCounts.Count -ge 10) { $n = 10 } else { $n =
281
$script:FailureCounts.Count }
Write-Log "Top $n Failed Conversions:"
$sortedFailures = $script:FailureCounts.GetEnumerator() |
sort -Descending -Property Value |
select -First 10 |
% { Write-Log -Indent -UnIndent $_.Key }
Write-Log "----------------------------------------------------"
}
#--------------------------------------------------------------------------
# Script Helpers
#
function Load-SkipFile([System.Collections.Generic.HashSet[string]] $SkipList,
[string] $Filename)
{
if (-not $Filename) { Write-Log "No skip file specified (OK)"; return }
Write-Log -NoNewline "Loading list of principal names to skip from $Filename
..."
# Each line contains a single principal name, that is,
# OLDDOMAIN1\skipuser1
# OLDDOMAIN1\skipuser2
# ...
Get-Content -ReadCount 1000 -Path $Filename |
% { $_ } |
% {
$added = $SkipList.Add($_)
if (-not $added) { Write-Log ("Duplicate entry found in skip list:
{0} (ignoring)" -f $_) }
}
Write-Log " Done"
Write-Log ("Loaded {0} principal names that will not be migrated" -f
$SkipList.Count)
}
function Create-Migrator()
{
$config = New-Object
Microsoft.SharePoint.Administration.Claims.SPClaimsMigrationConfiguration
Load-SkipFile -SkipList $config.SourceSkipMigrationList -Filename $SkipFile
# Find the claims identity provider
$identityProvider = Get-SPTrustedIdentityTokenIssuer
$IdentityTokenIssuerName
if (-not $identityProvider)
{
Write-LogError ("Could not find identity token issuer with name '{0}'" -
f $IdentityTokenIssuerName)
return $null
}
# Create a claims migration configuration
$configArgs = @($identityProvider.Name, $config.FarmIdMappings,
$config.SourceSkipMigrationList, $config.MappingData)
$trustedConfig = New-Object
282
Microsoft.SharePoint.Administration.Claims.SPTrustedClaimsMigrationConfiguration
$configArgs
# Construct the SAML claims migration object
$migrator = New-Object
Microsoft.SharePoint.Administration.Claims.SPWindowsToTrustedBackedByActiveDirec
toryMigration $trustedConfig
$canMigrate = $migrator.IntializaForWebApplication($script:WebApplication)
if (-not $canMigrate)
{
Write-LogError "SPWebApplication '{0}' is not in a good state for
migration." -f $script:WebApplication.Name
return $null
}
$script:Config = $config
return $migrator
}
function Resolve-PartitionIds()
{
$partitionIds = @()
if ($WebApplicationPipeBind)
{
$script:WebApplication = $WebApplicationPipeBind.Read()
$script:WebApplication.SiteSubscriptions |
% {
$identifier = $_.Id
$partitionIds += $identifier.Id
}
if ((Get-SPFarm).BuildVersion.Major -eq 15) { $partitionIds +=
$script:DefaultPartitionId }
}
elseif ($SitePipeBind)
{
$site = $SitePipeBind.Read()
if ($site)
{
$script:WebApplication = $site.WebApplication
if ($site.SiteSubscription) { $partitionIds +=
$site.SiteSubscription.Id }
else { $partitionIds += $script:DefaultPartitionId }
}
}
return $partitionIds
}
function Execute-SelectQuery([string] $SelectQuery, [string] $Extractor)
{
$results = @()
try
{
$connection = New-Object System.Data.SqlClient.SqlConnection
283
$script:Database.DatabaseConnectionString
$connection.Open()
$command = $connection.CreateCommand()
$command.CommandText = $SelectQuery
$dataAdapter = New-Object System.Data.SqlClient.SqlDataAdapter($command)
$dataSet = New-Object System.Data.DataSet
$rowsFetched = $dataAdapter.Fill($dataSet)
Write-Log "Fetched $rowsFetched rows from database"
$dataSet.Tables[0].Rows |
% { $results += Invoke-Expression $Extractor }
}
finally
{
$connection.Close()
}
return $results
}
function Execute-UpdateQuery([string] $UpdateQuery)
{
$rowsAffected = 0
try
{
$connection = New-Object System.Data.SqlClient.SqlConnection
$script:Database.DatabaseConnectionString
$connection.Open()
$command = $connection.CreateCommand()
$command.CommandText = $UpdateQuery
$rowsAffected = $command.ExecuteNonQuery()
}
finally
{
$connection.Close()
}
return $rowsAffected
}
function Write-MigratedName($Names, [string]$QueryTemplate)
{
Write-Log ("Writing {0} migrated value(s) to database" -f $Names.Count)
$totalRowsAffected = 0
$Names.Keys |
% {
$query = Invoke-Expression $QueryTemplate
Write-Log "Query: $query"
if ($PSCmdlet.ShouldProcess("Commit changes to database (Y/N)?"))
{
$rowsAffected = Execute-UpdateQuery -Database $database -
UpdateQuery $query
284
Increment-Counter "Updates_Executed"
Increment-Counter -Name "RowsUpdated" -Count $rowsAffected
$totalRowsAffected += $rowsAffected
}
Increment-Counter "Updates"
}
Write-Log ("Successfully written {0} migrated value(s) to database; {1}
row(s) affected." -f $Names.Length, $totalRowsAffected)
}
#--------------------------------------------------------------------------
# Migration Methods
#
function Migrate-Database([Microsoft.SharePoint.Administration.SPDatabase]
$database)
{
Write-Log ("Processing database {0}" -f $database.Name)
if ($database.Type -ne
"Microsoft.SharePoint.Taxonomy.MetadataWebServiceDatabase")
{
Write-LogError ("Database is not a Managed Metadata Service Database.
{0}" -f $database.Type)
return
}
$script:Database = $database
$script:PartitionIds | % {
$script:PartitionId = $_
Write-Log ("Migrating partition ID {0}" -f $script:PartitionId)
Migrate-Permissions
Migrate-TermSetOwners
Migrate-TermSetStakeholders
Write-Log ("Finished migrating partition ID {0}" -f $script:PartitionId)
$script:PartitionId = $null
}
$script:Database = $null
}
function Migrate-Permissions()
{
# Get all the principal names from the ECMPermission table
$query = ($script:SelectQueryTemplates.ECMPermission -f $script:PartitionId,
$script:ClaimsRegex)
$principalNames = Execute-SelectQuery -SelectQuery $query -Extractor
"(`$_.PrincipalName)"
Write-Log ("Found {0} principal names in the ECMPermission table" -f
$principalNames.Length)
# Convert the principal names; result is a map of old -> new
$newPrincipalNames = Convert-PrincipalNames $principalNames
285
# Update the ECMPermissions table with the new principal names
Write-MigratedName -Names $newPrincipalNames -QueryTemplate
"(`$script:UpdateQueryTemplates.ECMPermission -f '$script:PartitionId', `$_,
`$Names[`$_])"
}
function Migrate-TermSetOwners()
{
# Get all the owner names from the ECMTermSet table
$query = ($script:SelectQueryTemplates.ECMTermSetOwner -f
$script:PartitionId, $script:ClaimsRegex)
$owners = Execute-SelectQuery -SelectQuery $query -Extractor "(`$_.Owner)"
Write-Log ("Found {0} term set owners" -f $owners.Length)
# Convert the owner names
$newOwners = Convert-PrincipalNames $owners
Write-MigratedName -Names $newOwners -QueryTemplate
"(`$script:UpdateQueryTemplates.ECMTermSetOwner -f '$script:PartitionId', `$_,
`$Names[`$_])"
}
function Migrate-TermSetStakeholders([GUID]$partitionId)
{
# Get all the stakeholder names from the ECMTermSet table
$query = ($script:SelectQueryTemplates.ECMTermSetStakeholder -f
$script:PartitionId)
$stakeholders = Execute-SelectQuery -SelectQuery $query -Extractor
"(`$_.Stakeholders)"
Write-Log ("Found {0} term sets with non-empty stakeholders" -f
$stakeholders.Length)
$script:Total = $stakeholders.Length
$script:Current = 0
$updatedStakeholders = @{}
$stakeholders |
? { -not [string]::IsNullOrWhiteSpace($_) } |
% {
$script:Current++
$names = @()
$oldNames = $_
Write-Log -Indent "Stakeholders: $oldNames"
$oldNames.Split(";",
[System.StringSplitOptions]::RemoveEmptyEntries) |
% {
# Convert the stakeholder name
$name = Convert-PrincipalName $_
if ($name) { $names += $name }
else { $names += $_ }
}
$newNames = $names -join ";"
if ($newNames.Length -gt 1000)
{
Write-LogError ("Stakeholders string length is {0}. Maximum
supported length is 1000." -f $newNames.Length, $termSetId)
286
$newNames = $oldNames
}
Write-Log -Indent -UnIndent -NoNewLine "=> Migrated Stakeholders: "
if ($newNames -eq $oldNames) { Write-Log -UnIndent -NoPrefix "(no
change)" }
else
{
Write-Log -UnIndent -NoPrefix $newNames
$updatedStakeholders.Add($oldNames, $newNames)
}
}
Write-MigratedName -Names $updatedStakeholders -QueryTemplate
"(`$script:UpdateQueryTemplates.ECMTermSetStakeholder -f '$script:PartitionId',
`$_, `$Names[`$_])"
}
#--------------------------------------------------------------------------
# Identity API
#
function Convert-PrincipalNames($oldPrincipalNames = @())
{
Write-Log ("Converting {0} principal names (total)" -f
$oldPrincipalNames.Length)
$script:Total = $oldPrincipalNames.Length
$script:Current = 0
$results = @{}
$oldPrincipalNames |
? { -not [string]::IsNullOrEmpty($_) } | # Filter null/empty
Sort-Object -Unique | # Case-insensitive
% {
$script:Current++
$newPrincipalName = Convert-PrincipalName $_
if ($newPrincipalName -and
$newPrincipalName -ne $_) { $results.Add($_, $newPrincipalName)
}
}
Write-Log ("Found conversions for {0} of {1} principal names" -f
$results.Count, $oldPrincipalNames.Length)
return $results
}
function Convert-PrincipalName([string] $principalName)
{
# Skip names that start with "SiteCollectionId:"
if ($principalName -match "^SiteCollectionId:") { Increment-Counter
"SiteCollection"; return $principalName }
$migrationEntity = Get-ClaimsMigrationEntity($principalName)
try
{
# Convert "i:0#.w|DOMAIN\account" ->
"i:0e.t|authprovider|email@company.com"
$result = $Migrator.ConvertEntity($script:MigrationContext,
287
$migrationEntity)
Increment-Counter $result
}
catch [Exception]
{
$result =
[Microsoft.SharePoint.Administration.SPMigrateEntityCallbackResult]::Failure
Increment-Counter "Convert_Exception"
}
if ($result -eq
[Microsoft.SharePoint.Administration.SPMigrateEntityCallbackResult]::Success)
{
$newPrincipalName = $migrationEntity.MigratedName
$resultString = $newPrincipalName
}
else
{
$newPrincipalName = $principalName
$resultString = "[$result]"
if ($result -eq
[Microsoft.SharePoint.Administration.SPMigrateEntityCallbackResult]::Failure)
{
$script:FailureCounts[$principalName.ToLowerInvariant()]++
Write-FailedMigration $principalName
if ($DeleteUnmigratedPrincipals)
{
$newPrincipalName = $null
$resultString += " (delete)"
}
}
}
$inputString = $principalName
$log = "{2,11}: {0,-56} -> {1}" -f $inputString, $resultString, ("{0}/{1}" -
f $script:Current, $script:Total)
Write-Log $log
return $newPrincipalName
}
function Get-ClaimsMigrationEntity([string] $principalName)
{
$migrationEntity = New-Object
Microsoft.SharePoint.Administration.SPMigrationEntity($principalName)
if ($migrationEntity.AuthenticationType -eq
[Microsoft.SharePoint.Administration.SPWebApplication+AuthenticationMethod]::Win
dows)
{
# Convert "DOMAIN\account" -> "i:0#.w|DOMAIN\account"
$claimsPrincipalName = Convert-
WindowsPrincipalNameToClaimsPrincipalName($principalName)
$migrationEntity = New-Object
Microsoft.SharePoint.Administration.SPMigrationEntity($claimsPrincipalName)
}
288
return $migrationEntity
}
function Is-SecurityGroup([string] $principalName)
{
# Match "s-1-5-..." (i.e. only return true for SIDs)
return ($principalName -match "^s-[-\d]+$")
}
function Convert-WindowsPrincipalNameToClaimsPrincipalName([string]
$principalName)
{
$claim = $null
if (Is-SecurityGroup $principalName)
{
# Convert "s-1-5-..." -> "c:0+.w|s-1-5-..."
$claim =
[Microsoft.SharePoint.Administration.Claims.SPActiveDirectoryClaimProvider]::Cre
ateSecurityGroupClaim($principalName)
}
else
{
# Convert "DOMAIN\account" -> "i:0#.w|DOMAIN\account"
$claim = New-SPClaimsPrincipal -IdentityType WindowsSamAccountName -
Identity $principalName
}
return $claim.ToEncodedString()
}
#--------------------------------------------------------------------------
# Script Execution
#
$serviceApps = Get-SPServiceApplication | Where-Object { $_.TypeName -match
"Managed Metadata Service" }
Write-Output "Found $($serviceApps.Count) Managed Metadata Service
Application(s)"
$serviceApps |
% {
$service = $_.Service
if (ShouldExecute)
{
Write-Log ("Migrating {0} ({1})" -f $service, $service.Id)
Execute $_.Database
Write-Log ("Migration of {0} ({1}) completed" -f $service,
$service.Id)
}
}
c) On the Start menu, click All Programs.
d) Click Microsoft SharePoint 2013 Products.
e) Click SharePoint 2013 Management Shell.
289
f) At the Windows PowerShell command prompt, type the following command.
./Convert-ManagedMetadataServiceToTrusted.ps1 -WebApplication <web-
application-url> -TokenIssuer <token-issuer-name> -SkipFile <path-
to-skip-file> -WhatIf
Where:
WebApplication is the URL of the web application whose data in the service
application database is to be migrated.
TokenIssuer is the name of a SAML identity token issuer. To get a list of all known
token issuers, use the Get-SPTrustedIdentityTokenIssuer cmdlet.
SkipFile is the path to the skip file created in step 3 above. This parameter is optional.
The script displays detailed output of everything it is doing. This output is also written
to the file ManagedMetadataMigration_<timestamp>.log in case it needs to be
reviewed later. This is what the beginning of the script output looks like:
Detected Microsoft SharePoint version 15.0.4605.1002
Migration scoped to 1 partition IDs
No skip file specified (OK)
No mapping file specified (OK)
ShouldExecute Convert-TenantManagedMetadataServiceToTrusted? True
Migrating MetadataWebService (0fa9be29-e920-4b16-953e-4211ca6bc673)
Executing Convert-TenantManagedMetadataServiceToTrusted
Start Time: 04/15/2014 17:06:58
Processing database MMS
Migrating partition ID 0c37852b-34d0-418e-91c6-2ac25af4be5b
Fetched 18 rows from database
Found 18 principal names in the ECMPermission table
Converting 18 principal names (total)
5. The migration of each principal name can result in one of four possible outcomes:
290
Success: The converted value is displayed.
Failure: This value can be returned for many different reasons. See Troubleshooting to
diagnose these.
AlreadyMigrated: The entity is already a valid SAML claims principal name and requires
no change.
Skipped: The particular entity was in the skip list (see step 3 at the beginning of this
section).
The outcomes are displayed next to each user conversion, as illustrated in the following
table:
1/18:
i:0e.t|corpusers|testpa01@domain.com
[AlreadyMigrated]
2/18:
i:0#.w|002c\testpa02
[Failure]
3/18:
i:0#.w|test\testaccount
[Skipped]
4/18:
i:0#.w|002c\testpa04
i:0e.t|corpusers|testpa04@domain.com
6. The script also produces the failure log (ManagedMetadataFailedMigrations_<timestamp>.log)
containing all the principal names that returned a Failure result. This log contains one principal
name per row:
002c\testpa02
002c\olduser2
otherdomain\otheruser
7. At the end of the script, a short report is generated:
Counters:
Value
Convert_AlreadyMigrated
1
Convert_Failure
4
Convert_Skipped
1
Convert_Success
13
Updates
13
291
Counters:
Value
Top 4 Failed Entities
otherdomain\otheruser
N/A
otherdomain\unknownuser1
N/A
otherdomain\unknownuser2
N/A
otherdomain\unknownuser3
N/A
The key numbers in this report are the Convert_Success and Convert_Failure counts. For each
conversion that results in a failure, there will be an entry in the
ManagedMetadataFailedMigrations_*.log file (see step 6.)
8. If failed conversions are reported, analyze the failure log (see step 6) to determine which users
failed. When you are confident that the correct users are being migrated, re-run the script without
the WhatIf parameter. This will commit the changes to the database.
9. Restart the Managed Metadata service disabled in step 1.
10. Run Iisreset on any front-end web servers to clear any entries in the Permissions Cache in the
Managed Metadata Service.
Troubleshooting
This section will list known symptoms and resolutions that can help when you migrate a managed
metadata service to a SAML claims environment. If none of these suggestions resolve the problem,
and any changes already committed to the service database need to be reverted, the service database
can be restored from its backup (taken in step 2 of the previous migration steps).
Symptoms and Resolutions
Here are some known symptoms and resolutions:
The migration scripts require SharePoint 2013 Management Shell. If running the script generates
errors like Unable to find type [Microsoft.SharePoint.*], chances are that the snap-ins for
Windows PowerShell have to be loaded. These snap-ins (that is, Add-PsSnapin
Microsoft.SharePoint.PowerShell) are already loaded if the script is run from SharePoint 2013
Management Shell. Once the snap-ins are loaded, re-run the script.
292
Conversion failures- These occur when a principal name encountered in the database cannot be
mapped to the corresponding principal name under the new authentication provider. There can
be several reasons for this, as illustrated in the following table:
Reason
Resolution
The entity (person or group) is no longer with the
company or organization.
This is the most common case. After migration, go
to the term store manager and edit the group or
term set to assign the correct permissions.
Otherwise, if the entity can safely be skipped, add
the principal name to the skip file (see step 3 in
the Migration section).
The entity has a new principal name that cannot
be mapped from the old name by the identity
provider. This can arise, for example, if a person
gets married and his or her name changes.
After migration, go to the term store manager
and edit the group or term set to assign the
correct permissions.
The entity is a system or farm administrator
account.
These accounts must remain under NT
Authentication or Windows claims. Add these to
the skip file (see step 3 in the Migration section).
The entity cannot be migrated for any other
reason.
If the entity cannot be skipped (see step 3 in the
Migration section), go to the term store manager
after migration and edit the group or term set to
assign the correct permissions.
Note:
This can also be done by using Windows
PowerShell using the Taxonomy Public
Object Model.
If the script failed during ordinary execution due to a database timeout or lock, simply re-run the
script with exactly the same parameters (assuming the other query holding the lock has
completed). The script is fully re-entrant. It will reprocess every entry, but it will execute updates
only on entities that have not already been migrated.
The term store manager uses people picker controls in the user interface to render and edit users
and groups. In some cases when multiple authentication providers are enabled, the control might
not correctly resolve user names when saving changes made to the term store, group, term set, or
term properties. This is a known issue, and the workaround is to remove and re-add all the
293
entities to the people picker control again and then save. Changes to all other properties on the
page will then also be saved.
If there are any unresolved problems with the migration, be sure to save the output log and failure log
from the Convert script. Also extract the Unified Logging System (ULS) logs for the time period
between the time stamps reported in the output log. These logs will be necessary to analyze the
problem. For additional information about how to configure ULS logging, see View diagnostic logs in
SharePoint 2013.
See also
Implement SAML-based authentication in SharePoint Server 2013
294
How to turn on and off the multiple
metadata formats for JSON in SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-09-10
Summary: Learn how to turn on and off the multiple metadata formats for the JavaScript Object
Notation (JSON) feature in a SharePoint Server 2013 environment.
The multiple metadata formats can be turned on in a SharePoint Server 2013 with Service Pack 1 (SP1)
environment.
What is it?
The multiple metadata formats are multiple verbosity levels of metadata returned by OData when
JSON is requested and added to the OData endpoint on SharePoint Server 2013 with Service Pack 1
(SP1) and SharePoint Online. For additional information about the different formats available, see
JSON Light support in REST SharePoint API released. You can also turn on this feature for your on-
premises environments. You use a Windows PowerShell script to turn on the feature across your farm.
The script turns on the feature across all existing sites and any new sites that you create.
Note:
Windows PowerShell is the only way to turn on the multiple metadata formats feature in
SharePoint Server 2013 with Service Pack 1 (SP1).
Note:
For changes in the script to take effect, an app pool recycle is required and immediately
happens in the script.
Turn on the multiple metadata formats feature
To turn on the multiple metadata formats feature by using a Windows PowerShell script
1. Verify that you have the following memberships:
The securityadmin fixed server role on the SQL Server instance.
295
The db_owner fixed database role on all databases that are to be updated.
The Administrators group on the server on which you are running Windows PowerShell
cmdlets.
It is a good idea that you are at the computer that is running the SharePoint Central
Administration website.
All computers must have SharePoint Server 2013 with Service Pack 1 (SP1) installed as
well as WCF Data Services 5.6 installed and in the Global Access Cache (GAC). You can get
WCF Data Services installed by running the prerequisite installer that was updated with
SharePoint Server 2013 with Service Pack 1 (SP1), or you can download the MSI directly at
WCF Data Services and install it by using the following command: WcfDataServices.exe
/quiet GacRuntime=1.
Note:
If you use the WCF graphical installer, you must choose Option to place the assemblies in the
GAC folder or you'll not have the features that are available to you.
You must read about_Execution_Policies
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. Use a text editor, such as Notepad, to create a text file by pasting the following code into the file.
$configOwnerName = "JSONLightDependentAssembly"
$spWebConfigModClass
="Microsoft.SharePoint.Administration.SPWebConfigModification"
$dependentAssemblyPath ="configuration/runtime/*[local-name()='assemblyBinding'
and namespace-uri()='urn:schemas-microsoft-com:asm.v1']"
$dependentAssemblyNameStart ="*[local-name()='dependentAssembly'][*/@name='"
$dependentAssemblyNameEnd =
"'][*/@publicKeyToken='31bf3856ad364e35'][*/@culture='neutral']"
$dependentAssemblyValueStart = "<dependentAssembly><assemblyIdentity name='"
$dependentAssemblyValueEnd ="' publicKeyToken='31bf3856ad364e35'
culture='neutral' /><bindingRedirect oldVersion='5.0.0.0' newVersion='5.6.0.0'
/></dependentAssembly>"
$edmAssemblyName ="Microsoft.Data.Edm"
$odataAssemblyName ="Microsoft.Data.Odata"
$dataServicesAssemblyName ="Microsoft.Data.Services"
296
$dataServicesClientAssemblyName ="Microsoft.Data.Services.Client"
$spatialAssemblyName ="System.Spatial"
$assemblyNamesArray =
$edmAssemblyName,$odataAssemblyName,$dataServicesAssemblyName,$dataServicesClien
tAssemblyName, $spatialAssemblyName
Add-PSSnapin Microsoft.SharePoint.Powershell
$webService = [Microsoft.SharePoint.Administration.SPWebService]::ContentService
################ Adds individual assemblies ####################
For ($i=0; $i -lt 5; $i++)
{
echo "Adding Assembly..."$assemblyNamesArray[$i]
$dependentAssembly = New-Object $spWebConfigModClass
$dependentAssembly.Path=$dependentAssemblyPath
$dependentAssembly.Sequence =0 # First item to be inserted
$dependentAssembly.Owner = $configOwnerName
$dependentAssembly.Name =$dependentAssemblyNameStart +
$assemblyNamesArray[$i] + $dependentAssemblyNameEnd
$dependentAssembly.Type = 0 #Ensure Child Node
$dependentAssembly.Value = $dependentAssemblyValueStart +
$assemblyNamesArray[$i] + $dependentAssemblyValueEnd
$webService.WebConfigModifications.Add($dependentAssembly)
}
###############################################################
echo "Saving Web Config Modification"
$webService.Update()
$webService.ApplyWebConfigModifications()
echo "Update Complete"
3. Save the file and add the .ps1 extension, such as JSON.ps1.
Note:
You can use a different file name, but you must save the file as an ANSI-encoded text file
with a .ps1 extension.
4. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
297
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
5. Change to the directory where you saved the file.
6. At the Windows PowerShell command prompt, type the following command.
./JSON.ps1
Turn off the multiple metadata formats feature
If you find the need to remove the feature from your installation, you can do so easily by running a
script to remove the entry that was placed. This disables the feature across all computers and forces
all requests to use the verbose metadata format again.
To turn off the multiple metadata formats feature by using a Windows PowerShell script
1. Verify that you have the following memberships:
The securityadmin fixed server role on the SQL Server instance.
The db_owner fixed database role on all databases that are to be updated.
The Administrators group on the server on which you are running Windows PowerShell
cmdlets.
You must read about_Execution_Policies
(http://go.microsoft.com/fwlink/p/?LinkId=193050).
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
298
2. Use a text editor, such as Notepad, to create a text file by pasting the following code into the file.
$configOwnerName = "JSONLightDependentAssembly"
Add-PSSnapin Microsoft.SharePoint.Powershell
$webService = [Microsoft.SharePoint.Administration.SPWebService]::ContentService
$webService.WebConfigModifications | ft
$configs = $webService.WebConfigModifications | Where-Object {$_.Owner -eq
$configOwnerName }
foreach ($config in $configs) {
echo "Removing Assembly..."$config.Name
$webService.WebConfigModifications.Remove($config)
}
echo "Saving Web Config Modification"
if($configs.length -ne 0)
{
$webService.Update()
$webService.ApplyWebConfigModifications()
}
echo "Update Complete"
3. Save the file and add the .ps1 extension, such as JSON_Remove.ps1.
Note:
You can use a different file name, but you must save the file as an ANSI-encoded text file
with a .ps1 extension.
4. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click SharePoint 2013 Products, and then click
SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
299
5. Change to the directory where you saved the file.
6. At the Windows PowerShell command prompt, type the following command:
./JSON_Remove.ps1
300
Configure availability and recovery
solutions for SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn about the options for providing high availability and disaster recovery solutions for
SharePoint 2013.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about installing and configuring high availability and disaster recovery solutions
for a SharePoint 2013 farm.
The articles in this section assume that you are familiar with the concepts and terms presented in High
availability and disaster recovery concepts in SharePoint 2013 and Plan for high availability and
disaster recovery for SharePoint 2013.
TechNet articles about installing and configuring high
availability and disaster recovery solutions
The following articles about high availability and disaster recovery solutions are available to view
online. Writers update articles on a continuing basis as new information becomes available and as
users provide feedback.
Content
Description
Configure SQL Server 2012
AlwaysOn Availability Groups for
SharePoint 2013
Describes how to install and
configure a SQL Server 2012
AlwaysOn Availability Group for
a SharePoint farm.
301
Configure SQL Server 2012 AlwaysOn
Availability Groups for SharePoint 2013
Applies to: SharePoint Server 2013 Enterprise, SharePoint Server 2013
Topic Last Modified: 2014-10-22
Summary: Learn how to create and configure a SQL Server 2012 AlwaysOn Availability Group for a
SharePoint 2013 farm.
This article provides the required information and detailed procedures to create and configure a SQL
Server 2012 AlwaysOn Availability Group for a SharePoint 2013 farm.
Important:
The steps in this article apply to both SharePoint Foundation 2013 and SharePoint Server
2013. With both of these products these steps are to deploy a new SharePoint farm and do
not cover upgrading from SQL Server 2008 R2 to SQL Server 2012.
Configuring AlwaysOn Availability group is illustrated in the following poster —Microsoft Azure: Deploy
SharePoint with SQL Server AlwaysOn.
In this article:
Process overview
Before you begin
Detailed steps to configure an AlwaysOn Availability Group for SharePoint
Use failover tests to validate the AlwaysOn installation
Monitor the AlwaysOn environment
Process overview
We recommend the following installation sequence and key configuration steps to deploy a
SharePoint farm that uses an AlwaysOn availability group:
Select or create a Windows Server failover cluster.
Install SQL Server 2012 on each cluster node.
Create and configure an availability group.
302
Install and configure SharePoint 2013.
Add the SharePoint databases to the availability group.
Test failover for the availability group.
Before you begin
A SQL Server 2012 AlwaysOn Availability Group is not just a combination of database mirroring and
database clustering. It is a completely new high availability and disaster recovery feature that co-exists
with existing high availability and disaster recover options such as mirroring and log shipping.
Before you begin deployment, review the following information about SQL Server AlwaysOn, the
technologies that support AlwaysOn, and SharePoint 2013:
Knowledge and skill requirements
AlwaysOn Availability Group concepts
Hardware and software requirements
Permissions
Knowledge and skill requirements
To implement SQL Server AlwaysOn Availability Groups as a high availability and disaster recovery
solution, several technologies interact and have to be installed and configured correctly. We
recommend that the team responsible for setting up an AlwaysOn environment for SharePoint
products has a working knowledge of, and hands-on skills with the following technologies:
Windows Server Failover Clustering (WSFC) services
SQL Server 2012
SharePoint 2013
SQL Server AlwaysOn Availability Group concepts
A SQL Server Availability Group enables you to specify a set of databases that you want to fail over
together as a single entity. When an availability group fails over to a target instance or target server,
all the databases in the group fail over also. Because SQL Server 2012 can host multiple availability
groups on a single server, you can configure AlwaysOn to fail over to SQL Server instances on different
servers. This reduces the need to have idle high performance standby servers to handle the full load of
the primary server, which is one of the many benefits of using availability groups.
303
An availability group consists of the following components:
Replicas, which are a discrete set of user databases called availability databases that fail over
together as a single unit. Every availability group supports one primary replica and up to four
secondary replicas.
A specific instance of SQL Server to host each replica and to maintain a local copy of each
database that belongs to the availability group.
Replicas and failover
The primary replica makes the availability databases available for read-write connections from clients
and sends transaction log records for each primary database to every secondary replica. Each
secondary replica applies transaction log records to its secondary databases.
All replicas can run under asynchronous-commit mode, or up to three of them can run under
synchronous-commit mode. For more information about synchronous and asynchronous commit
mode, see Availability Modes (AlwaysOn Availability Groups).
Note:
Database issues, such as a database becoming suspect due to a loss of a data file, deletion of a
database, or corruption of a transaction log do not cause failovers.
Read the following articles to learn required and important concepts about SQL Server AlwaysOn
technology:
For details about the benefits of AlwaysOn Availability Groups and an overview of AlwaysOn
Availability Groups terminology, see AlwaysOn Availability Groups (SQL Server).
For detailed information about prerequisites, see Prerequisites, Restrictions, and
Recommendations for AlwaysOn Availability Groups (SQL Server). This article contains the
following information:
Windows Server system requirements and recommendations
SQL Server instance prerequisites and restrictions
Important:
You can install SQL Server 2012 on Windows Server core to improve security and
reduce maintenance, but you cannot install SharePoint 2013 on Windows Server core.
For more information, see Server Core for Windows Server 2008 R2. For information
about server core and Windows Server 2012, see Windows Server Installation Options.
Prerequisites and restrictions for using a SQL Server Failover Cluster Instance (FCI) to host an
availability replica
304
Availability group prerequisites and restrictions
Availability database prerequisites and restrictions
Windows Server Failover Clustering
To create and use SQL Server 2012 AlwaysOn Availability Groups, you have to install SQL Server 2012
on a Windows Server Failover Clustering (WSFC) cluster. For more information, see Windows Server
Failover Clustering (WSFC) with SQL Server.
Although configuring a WSFC cluster is out of the scope for this article, you should be aware of the
following requirements before you install and configure a cluster:
All the cluster nodes must be in the same Active Directory Domain Services (AD DS) domain.
Each availability replica in an availability group must reside on a different node of the same
Windows Server Failover Clustering (WSFC) cluster.
The cluster creator must have the following accounts and permissions:
Have a domain account in the domain where the cluster will exist.
Have local administrator permissions on each cluster node.
Have Create Computer objects and Read All Properties permissions in AD DS. For more
information, see Failover Cluster Step-by-Step Guide: Configuring Accounts in Active
Directory.
A very important aspect of configuring failover clustering and AlwaysOn is determining the quorum
votes that are needed for the cluster nodes.
Failover clustering is based on a voting algorithm where more than one half of the voters, or quorum,
must be online and able to communicate with each other. Because a given cluster has a specific
number of nodes and a specific quorum configuration, the cluster service is able to determine what
constitutes a quorum. The cluster service will stop on all the nodes if the number of voters drops
below the required majority.
For more information, see WSFC Quorum Modes and Voting Configuration (SQL Server) and
Configure Cluster Quorum NodeWeight Settings.
305
SharePoint Foundation 2013 and SharePoint Server 2013
Some SharePoint 2013 databases do not support SQL Server AlwaysOn Availability Groups. We
recommend that you review the Supported high availability and disaster recovery options for
SharePoint databases (SharePoint 2013) before you configure an AlwaysOn environment. You should
also review the Hardware and software requirements for SharePoint 2013 article.
Detailed steps to configure an AlwaysOn Availability
Group for SharePoint
The following illustration shows a SharePoint 2013 farm (SPHA_farm) that uses an availability group
named SP_AG1. We'll use SPHA_farm as reference example in our steps to configure AlwaysOn.
306
Prepare the Windows Server cluster environment
Obtain access to or create a three node Windows Server Failover Clustering (WSFC) cluster that you
can use to install SQL Server 2012 on each cluster node. The following reference material provides
guidance and detailed steps to configure a Windows Server failover cluster:
Failover Clusters in Windows Server 2008 R2.
This page provides links to Getting Started, Deployment, Operations, and Troubleshooting articles
for Windows Server 2008 R2.
Failover Clustering Overview.
This page provides links to Getting Started, Deployment, Operations, and Troubleshooting articles
for Windows Server 2012.
Prepare the SQL Server environment
Before you can create an Availability Group for SharePoint Foundation 2013 or SharePoint Server
2013, you must prepare the SQL Server 2012 environment. To prepare the environment, complete the
following tasks:
Install the SQL Server prerequisites.
Install SQL Server.
Enable AlwaysOn.
When you prepare the database server environment you must consider SharePoint 2013 database
requirements. Refer to the following articles before you install SQL Server:
Hardware requirements—database servers
Install SharePoint 2013
Configure SQL Server security for SharePoint 2013 environments
Supportability regarding SQL collation for SharePoint Databases and TempDB. (This guidance in
this article also applies to SharePoint 2013.)
Install SQL Server 2012
To install SQL Server 2012
1. Install SQL Server 2012 prerequisites on each cluster node.
307
For more information, see Prerequisites, Restrictions, and Recommendations for AlwaysOn
Availability Groups (SQL Server).
2. Install SQL Server on each cluster node.
For more information, see Installation for SQL Server 2012.
Enable AlwaysOn
You must enable AlwaysOn for each database server in the cluster.
Note:
You can enable AlwaysOn by using SQL Server Management Studio, Transact-SQL, or Windows
PowerShell 3.0.
To enable AlwaysOn
1. Your logon account must have the permission levels to create an availability group. The account
must have membership in the db_owner fixed database role and either CREATE AVAILABILITY
GROUP server permission, CONTROL AVAILABILITY GROUP permission, ALTER ANY AVAILABILITY
GROUP permission, or CONTROL SERVER permission.
2. Log on to the server that will host the primary replica and start SQL Server Configuration Manager.
3. In Object Explorer, select SQL Server Services, right-click SQL Server (<instance name>), where
<instance name> is the name of a local server instance for which you want to enable AlwaysOn
Availability Groups, and then click Properties.
4. Select the AlwaysOn High Availability tab.
5. Select the Enable AlwaysOn Availability Groups check box, and then click OK.
6. Although the change is saved you must manually restart the SQL Server service (MSSQLSERVER) to
commit the change. The manual restart enables you to choose a restart time that is best for your
business requirements.
7. Repeat the previous steps to enable AlwaysOn for SQL Server on the other cluster nodes.
For more information, see Enable and Disable AlwaysOn Availability Groups (SQL Server)
(http://go.microsoft.com/fwlink/p/?LinkId=267140).
Create and configure the availability group
Depending on the SQL Server 2012 environment where you plan to create the Availability Group, you
might have to create a temporary database to before you create the Availability Group.
308
The process that creates an availability group requires you to provide a name for the availability group
and then select an eligible user database on the connected server instance as an availability database.
Note:
To be eligible to be added to an availability group, a database must be a user database.
System databases can’t belong to an availability group. For more information, see the
"Availability Database Prerequisites and Restrictions" section of Prerequisites, Restrictions,
and Recommendations for AlwaysOn Availability Groups (SQL Server) and see Creation and
Configuration of Availability Groups (SQL Server).
If there no user databases are on the instance of the connected server, which is the case in our
example, you need to create one.
Use the following procedure to create a temporary user database that will be a temporary primary
replica for the group.
To create a temporary user database
1. Make sure that your logon account has the correct permissions for this task. You require one of
the following permissions in the master database to create the new database:
CREATE DATABASE
CREATE ANY DATABASE
ALTER ANY DATABASE
2. Log on to the server that will host the primary replica, which is SP-SRV1 in our example.
3. Start Management Studio.
4. In Object Explorer, right-click Databases and then click New Database.
5. In the New Database dialog box, type the Database name:, which is "TemporaryUserDB" for this
example.
Because this is a temporary database that you delete after you create the availability group, you
can use the default settings. Click OK.
Because the New Availability Group Wizard will not create an availability group unless the user
database was backed up, you have to back up the temporary database.
6. In Object Explorer expand Databases and right-click the temporary database that you just
created. Pick Tasks and then choose Back Up.
309
7. In the Back Up Database dialog box, click OK to accept all the default settings and create the
back up.
About replicas and data synchronization
About replicas
Every availability replica is assigned an initial role—either the primary role or the secondary role,
which the availability databases of that replica inherit. The role of a given replica determines whether
it hosts read-write databases or read-only databases, the type of failover and whether it uses
synchronous commit or asynchronous commit.
The following table shows the information that you have to provide for each replica, either when you
first create the availability group, or when you add secondary replicas.
Replica configuration requirements
Replica information
Description
Server Instance
Displays the name of the instance of the server
that will host the availability replica.
Initial Role
Indicates the role that the new replica will first
perform: Primary or Secondary.
Automatic Failover (Up to 2)
Indicates the type of failover that the replica uses:
automatic or manual.
Synchronous Commit (Up to 3)
Indicates the type of commit that is used for the
replica.
310
Replica information
Description
Readable Secondary
Indicates whether a secondary replica can be
read.
The configuration options are unavailable for read
access, read-only, and read-only intent. For more
information, see Readable Secondary Replicas
(AlwaysOn Availability Groups).
Important:
Readable secondary replicas are
supported for runtime usage if you install
the SharePoint 2013 April 2014
cumulative update (CU) package or
better. For more information about this
CU, see Office 2013 cumulative update for
April 2014
Note:
When you add replicas to a group, you will also provide the endpoint for each replica and
configure backup preferences. For more information, see Specify the Endpoint URL When
Adding or Modifying an Availability Replica (SQL Server) and Backup on Secondary Replicas
(AlwaysOn Availability Groups).
Data synchronization
As part of the availability group creation process, you have to make an exact copy of the data on the
primary replica and install the copy on the secondary replica. This is the initial data synchronization for
the Availability Group. For more information, see Select Initial Data Synchronization Page (AlwaysOn
Availability Group Wizards).
A network share must exist and must be accessed by all the nodes in the AlwaysOn configuration to
do the initial data synchronization between all the cluster nodes that host a replica. For more
information, see Network Shares Extension and File Services.
The following restrictions exist when you use the New Availability Group wizard to start data
synchronization:
311
If the file paths on the secondary replica location differ from the file paths on the primary location,
you have to start data synchronization manually.
If any secondary database exists on a secondary replica, you have to manually delete the
secondary databases before you start data synchronization in the New Availability Group.
However, if you want to use existing secondary databases, exit the New Availability Group wizard
and start data synchronization manually.
To use the availability group wizard to synchronize data, you have to have a backup share that all
the replicas can write to. You can specify the share by browsing to it or by entering its fully
qualified universal naming convention (UNC) path name, \\Systemname\ShareName\Path\, in the
Specify a shared network location accessible by all replicas box.
For each database in the availability group, the Start Data Synchronization page shows the progress
of the following operations:
Creating a full database backup of the primary database on the network share.
Restoring these backups to the secondary replica location.
These restore operations both use RESTORE WITH NORECOVERY option and leave the new
secondary database in the RESTORING state.
Joining the secondary database to the availability group.
This step puts the secondary database in the ONLINE state and starts data synchronization for this
database.
Login replication
SharePoint logins that are created by using the same approach as in previous releases of SQL Server
are not replicated in an availability group. This occurs because login information is stored in the
MasterDB database, which is not replicated. Although the farm accounts are created when replicas
are synchronized, login information is not available after a failover.
If you have already created an availability group and synchronized the primary and secondary replicas,
the workaround is to manually copy the logins from the primary replica to the secondary replicas.
SQL Server 2012 introduces the concept of Users with Passwords for Contained Databases. The
database itself stores all the database metadata and user information, and a user who is defined in
this database does not have to have a corresponding login. The information in this database is
replicated by the availability group and is available after a failover. For more information, see
Contained Databases.
312
Important:
If you create a new SharePoint login to use for an existing availability group, make sure to add
the login to the contained database so it is replicated to each server that is hosting a SQL
Server instance for the availability group. For example, if you create another application pool
for a Web App and give it a new identity (an application pool account that you have not used),
then you need to add that account as a login.
Create and configure the availability group
Use the following procedure to create an availability group on the primary replica, which is SP-SRV1 in
our example.
Create the availability group
1. Make sure that your logon account has the required permissions to create an availability group.
This requires membership in the db_owner fixed database role and either CREATE AVAILABILITY
GROUP server permission, CONTROL AVAILABILITY GROUP permission, ALTER ANY AVAILABILITY
GROUP permission, or CONTROL SERVER permission.
2. Log on to the server that will host the primary replica and start SQL Server Management Studio.
3. To start the New Availability Group Wizard, right-click AlwaysOn High Availability and then click
New Availability Group Wizard.
4. Click Next to advance to the Specify Name page. Enter SP-AG1 as the name of the new
availability group in the Availability group name: box.
This name must be: a valid SQL Server identifier, unique on the Windows Server Failover
Clustering cluster and unique on the domain.
5. On the Select Databases page, all user databases that are eligible to become the primary
database for the new availability group are listed on the User databases on this instance of
SQL Server grid. Select TemporaryUserDB, and then click Next.
6. On the Specify Replicas page, use the following tabs to configure the replicas for SP-AG1:
Replicas, Endpoints, and Backup Preferences.
7. An availability group listener is a virtual network name that provides client connectivity to the
database a given availability group. Availability group listeners direct incoming connections to the
primary replica or to a read-only secondary replica. The listener provides fast application failover
after an availability group fails over. For more information, see Availability Group Listeners, Client
Connectivity, and Application Failover (SQL Server).
313
On the Listener tab, configure an availability group listener for our example, use the name
AGListener.
Important:
Intermittent, unusually high latency might occur when you use availability groups that
have replicas that are deployed on multiple subnets.
As a best practice, connections to SharePoint availability groups in a multi-subnet
environment should configure specifyMultiSubnetFailover=True to avoid issues caused by
high network latency. For more information, see Supporting Availability Group Multi-
Subnet Failovers.
You cannot directly specify MultiSubnetFailover=True because a SharePoint client cannot directly
modify a connection string. You must use Windows PowerShell to set this value on the
MultiSubnetFailover database property. The following example shows how to do this.
C#
$dbs = Get-SPDatabase | ?{$_.MultiSubnetFailover -ne $true}
foreach ($db in $dbs)
{
$db.MultiSubnetFailover = $true
$db.Update()
}
8. Select the desired configuration for each instance in the Selected instances grid, and then click
Next.
9. Click Finish to create the availability group.
10. The Select Initial Data Synchronization page lets you select a synchronization preference and
specify the shared network location that all replicas can access. For our environment accept the
default, Full, which performs full database and log backups. Click Next.
11. The Validation page of the wizard displays the results of six checks before it lets you continue
with availability group creation. If all checks pass, click Next to continue. If any tests fail, you
cannot continue until you correct the error and then click Re-run Validation to run the validation
tests again. When all the tests pass, click Next to continue.
12. On the Summary page, verify the configuration of the replica that you are adding, and then click
Finish to save it. To change the configuration, click Previous to return to previous wizard pages.
314
Install and configure SharePoint 2013
At this point in the process, you can install SharePoint 2013 and create the farm. Use the following
procedure as a guide to install and configure SharePoint 2013.
Note:
For detailed installation and configuration instructions, see Prepare for installation of
SharePoint 2013 and Install SharePoint 2013.
To install SharePoint 2013
1. Copy the SharePoint 2013 program files to a local disk on the computer where you plan to install
SharePoint products or to a network file share.
2. Run the Microsoft SharePoint Products Preparation Tool to install all the prerequisites to set up
and use SharePoint 2013.
3. Run Setup to install binaries, configure security permissions, and edit registry settings for
SharePoint 2013.
4. Run the SharePoint Products Configuration Wizard to install and configure the configuration
database, install and configure the content database, and install the SharePoint Central
Administration website.
5. On the Specify Configuration Database Settings page, in the Database server box, type
AGListener as the name of the computer that is running SQL Server.
Important:
To provide automatic failover, you must specify the name of the availability group listener
as the name of the database for SharePoint 2013.
Add SharePoint databases to the availability group
To finalize setup of AlwaysOn for a SharePoint 2013 farm, add the SharePoint databases to the
availability group and synchronize secondary replicas to the primary replica.
Important:
Only add the databases that are supported for use with a SQL Server AlwaysOn Availability
Group. For more information, see Supported high availability and disaster recovery options
for SharePoint databases (SharePoint 2013)
On the server that hosts the primary replica, you have to run the Add Databases to Availability Group
wizard to add all the SharePoint databases to the availability group. The following procedure is the
same as the procedure that we described to create the availability group.
315
To add SharePoint databases to the availability group
1. Log on to the server that will host the primary replica and start SQL Server Management Studio.
The account that that you use must be a member of the Local Administrators group for each
server where you install SharePoint 2013
In addition, the account must have at least one of the following permissions:
ALTER AVAILABILITY GROUP permission on the availability group
CONTROL AVAILABILITY GROUP permission
ALTER ANY AVAILABILITY GROUP permission
CONTROL SERVER permission
To join a database to availability group requires membership in the db_owner fixed
database role.
2. In Object Explorer, browse to, and if it is necessary expand the Availability Groups.
3. Right-click the example group, SP-AG1, and then click Add Database.
4. On the Select Databases page, all user databases that are eligible to become the primary
database for the new availability group are listed on the User databases on this instance of
SQL Server grid. Use the checkboxes to select all the databases that you want to add to the
group, and then click Next.
5. The Select Initial Data Synchronization page lets you select a synchronization preference and
specify the shared network location that all replicas can access. For our environment we'll accept
the default, Full, which performs full database and log backups. Click Next.
6. The Validation page of the wizard displays the results of six checks before it lets you continue
with availability group creation. If any tests fail, you cannot continue until you correct the error
and then click Re-run Validation to run the validation tests again. When all the tests pass, click
Next to continue.
7. On the Summary page, verify the configuration of the replica that you are adding, and then click
Finish to keep it. To change the configuration, click Previous to return to previous wizard pages.
Important:
Databases that you add to a SharePoint farm are not automatically added to the availability
group. You must add them by using the steps described in this article or by using scripts to
automate the procedure.
316
Use failover tests to validate the AlwaysOn installation
After you synchronize the SharePoint data with the secondary replicas, the final step is to test failover.
You must run extensive failover tests to make sure that the behavior of the AlwaysOn environment is
as expected and that you completely understand the configuration requirements and procedures
related to SQL Server 2012 Availability Groups. These tests include and are not limited to the
following:
Verify that all the farm services and features are completely functional.
Verify that SharePoint 2013 data is preserved and not corrupted.
Test availability group failover by using either the planned manual failover described in Perform a
Planned Manual Failover of an Availability Group (SQL Server) or the forced manual failover described
in Perform a Forced Manual Failover of an Availability Group (SQL Server).
You can perform either of the previous failovers by using the Failover Wizard in SQL Server
Management Studio, Transact-SQL, or Windows PowerShell in SQL Server 2012.
Note:
In an Active-Active failover cluster scenario where there are multiple SharePoint instances can
fail over to each other you must ensure that each server has enough capacity to handle the
local workload and the workload from the failed server.
Monitor the AlwaysOn environment
You have to monitor an AlwaysOn environment for performance, health, and capacity.
Performance
New performance objects, SQLServer:Database Replica and SQLServer:Availability Replica, are
available to monitor an AlwaysOn environment.
Health and capacity
For general health monitoring you can use the Availability Groups Dashboard to obtain the health of
the availability groups in the system. We recommend that you refer to the following posts on the
official SQL Server AlwaysOn team blog to fully understand AlwaysOn health monitoring.
The AlwaysOn Health Model Part 1 -- Health Model Architecture
The AlwaysOn Health Model Part 2 -- Extending the Health Model
318
Configure email integration for a
SharePoint 2013 farm
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Use these TechNet articles to learn how to configure incoming and outgoing email for a
SharePoint 2013 farm.
The following articles on TechNet provide information about email integration. After you install
SharePoint 2013, you can configure incoming and outgoing email. These optional settings are useful if
you want to work with email in the server farm.
TechNet articles about email integration
The following articles about email integration are available to view online. Writers update articles on a
continuing basis as new information becomes available and as users provide feedback.
319
Content
Description
Configure incoming email for a
SharePoint 2013 farm
This article describes how to
configure incoming email so that
SharePoint 2013 sites accept
and archive incoming email. It
also describes how to configure
incoming email so that
SharePoint sites can archive
email discussions as they
happen, save attachments, and
show meetings that were sent
and received by email on site
calendars. In addition, this
article describes how to
configure the SharePoint
Directory Management Service
to provide support for email
distribution list creation and
management.
Configure outgoing email for a
SharePoint 2013 farm
This article describes how to
configure outgoing email so that
your Simple Mail Transfer
Protocol (SMTP) server sends
email alerts to site users and
notifications to site
administrators.
320
Configure incoming email for a SharePoint
2013 farm
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to install and configure the SMTP service, prepare your environment, and
configure incoming email for a SharePoint 2013 farm.
This article describes how to configure incoming email for SharePoint 2013. This article also describes
how to install and configure the SMTP service that you must use to enable incoming email.
When incoming email is enabled, SharePoint sites can receive and store email messages and
attachments in lists and libraries. This article describes two scenarios, one basic and one advanced.
The basic scenario applies to a single-server farm environment and is recommended if you want to use
default settings. The advanced scenario applies to a single-server farm or a multiple-server farm and
contains several advanced options from which to choose. For more information, see Plan incoming
email for a SharePoint farm in SharePoint 2013.
In this article:
Before you begin
Install and configure the SMTP service
Configure incoming email in a basic scenario
Configure incoming email in an advanced scenario
Prepare your environment for incoming email in an advanced scenario
Are attachments missing from email messages that are sent to a SharePoint document library?
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
321
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Before you begin this operation, review the following information about prerequisites:
Your system is running SharePoint 2013.
You have read Plan incoming email for a SharePoint farm in SharePoint 2013.
For the basic scenario, each SharePoint front-end web server must be running the Simple Mail
Transfer Protocol (SMTP) service and the SharePoint Foundation Web Application service.
For the advanced scenario, you can use one or more servers in the server farm to run the SMTP
service and to have a valid SMTP server address. Alternatively, you must know the name of a
server outside the farm that is running the SMTP service and the location of the email drop folder.
If you have not installed and configured the SMTP service and do not choose to use an email drop
folder, you must complete the steps in Install and configure the SMTP service before you configure
incoming email.
Install and configure the SMTP service
Incoming email for SharePoint 2013 uses the SMTP service. You can use the SMTP service in one of
two ways. You can install the SMTP service on one or more servers in the farm, or administrators can
provide an email drop folder for email that is forwarded from the service on another server. For more
information about the email drop folder option, see Plan incoming email for a SharePoint farm in
SharePoint 2013.
Install the SMTP service
If you are not using a drop folder for email, the SMTP service must be installed on every front-end web
server in the farm that you want to configure for incoming email. To install the SMTP service, use the
Add Features Wizard in Server Manager. After you complete the procedure, the SMTP service is
installed on the front-end web server.
322
To install the SMTP service
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the front-end web server.
2. Click Start, point to Administrative Tools, and then click Server Manager.
3. In Server Manager, click Features.
4. In Features Summary, click Add Features to open the Add Features Wizard.
5. On the Select Features page, select SMTP Server.
6. In the Add Features Wizard dialog box, click Add Required Roll Services, and then click Next.
7. On the Confirm Installation Selections page, click Install.
8. On the Installation Results page, ensure that the installation finished successfully, and then click
Close.
Install IIS 6.0 Management tools
To manage the SMTP service on Windows Server 2008 and Windows Server 2008 R2, you must use
Internet Information Services (IIS) 6.0 Manager.
To install IIS 6.0 Manager
1. Verify that you have the following administrative credentials:
You must be a member of the Administrators group on the front-end web server.
2. Click Start, point to Administrative Tools, and then click Server Manager.
3. In Server Manager, click Roles.
4. In Application Server section, click Add Role Services.
5. On the Select Role Services page, select Management Tools and IIS 6 Management
compatibility, and then click Install.
Configure the SMTP service
After you install the SMTP service, you configure it to accept email from the mail server for the
domain. You can decide to accept relayed email from all servers except those that you specifically
exclude. Alternatively, you can block email from all servers except those that you specifically include.
You can include servers individually, in groups by subnet, or in groups by domain.
323
After you configure the service, set it to start automatically.
To configure the SMTP service
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the front-end web server.
2. Click Start, point to Administrative Tools, and then click Internet Information Services (IIS) 6.0
Manager.
3. In IIS Manager, expand the server name that contains the SMTP server that you want to configure.
4. Right-click the SMTP virtual server that you want to configure, and then click Start.
5. Right-click the SMTP virtual server that you want to configure, and then click Properties.
6. On the Access tab, in the Access control area, click Authentication.
7. In the Authentication dialog box, verify that Anonymous access is selected.
8. Click OK.
9. On the Access tab, in the Relay restrictions area, click Relay.
10. To enable relaying from any server, click All except the list below.
11. To accept relaying from one or more specific servers, follow these steps:
a) Click Only the list below.
b) Click Add, and then add servers one at a time by IP address, or in groups by using a subnet
or domain.
c) Click OK to close the Computer dialog box.
12. Click OK to close the Relay Restrictions dialog box.
13. Click OK to close the Properties dialog box.
To set the SMTP service to start automatically
1. Click Start, point to Administrative Tools, and then click Services.
2. In Services, right-click Simple Mail Transfer Protocol (SMTP), and then select Properties.
3. In the Simple Mail Transfer Protocol (SMTP) Properties dialog box, on the General tab, in the
Startup type list, select Automatic.
324
4. Click OK.
Configure incoming email in a basic scenario
You can use the following procedure to configure incoming email in a basic scenario by selecting the
Automatic settings mode and using the default settings. After you complete the procedure, users can
send email to lists and libraries.
To configure incoming email in a basic scenario
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the server that is running the SharePoint Central Administration website.
2. In Central Administration, click System Settings.
3. On the System Settings page, in the E-Mail and Text Messages (SMS) section, click Configure
incoming e-mail settings.
4. If you want to enable sites on this server to receive email, on the Configure Incoming E-Mail
Settings page, in the Enable Incoming E-Mail section, click Yes.
5. Select the Automatic settings mode.
6. In the Incoming E-Mail Server Display Address section, in the E-mail server display address
box, type a display name for the email server, for example, mail.fabrikam.com.
7. Use the default settings for all other sections, and then click OK.
After you configure incoming email, users who have Manage Lists permissions can configure email–
enabled lists and document libraries.
Configure incoming email in an advanced scenario
You can use the following procedure to configure incoming email in an advanced scenario by selecting
the Advanced settings mode and additional options that you want to use for your incoming email
environment. After you complete the procedure, users can send email to lists and libraries.
You can also use the Automatic settings mode in an advanced scenario. In the Automatic settings
mode, you can select to receive email that has been routed through a safe-email server application. In
the Advanced settings mode, you can instead specify a drop folder. For more information, see Plan
incoming email for a SharePoint farm in SharePoint 2013.
Several of these steps mention prerequisite procedures that are documented in Prepare your
environment for incoming email in an advanced scenario later in this article.
325
To configure incoming email in an advanced scenario
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the server that is running the SharePoint Central Administration website.
2. In Central Administration, click System Settings.
3. On the System Settings page, in the E-Mail and Text Messages (SMS) section, click Configure
incoming e-mail settings.
4. If you want to enable sites on this server to receive email, on the Configure Incoming E-mail
Settings page, in the Enable Incoming E-Mail section, click Yes.
5. Select the Advanced settings mode.
You can specify a drop folder instead of using an SMTP server.
Note:
You can also select the Automatic settings mode and select whether to use Directory
Management Service and whether to accept email from all email servers or from several
specified email servers. For more information, see Plan incoming email for a SharePoint
farm in SharePoint 2013.
6. If you want to connect to Directory Management Service, in the Directory Management Service
section, click Yes.
If you select this option, you must first configure Active Directory Domain Services (AD DS). If you
use Exchange Server, you must also configure the DNS Manager and add an SMTP connector. For
more information, see Configure AD DS to be used with Directory Management Service, Configure
DNS Manager, and Add an SMTP connector in Microsoft Exchange Server 2010 later in this
article.
a) In the Active Directory container where new distribution groups and contacts will be
created box, type the name of the container in the format OU=ContainerName,
DC=domain, DC=com, where ContainerName is the name of the OU in AD DS, domain is
the second-level domain, and com is the top-level domain.
The application pool identity account for Central Administration must be delegated the
Create, delete, and manage user accounts task for the container. Access is configured in
the properties for the OU in AD DS.
b) In the SMTP mail server for incoming mail box, type the name of the SMTP mail server.
The server name must match the FQDN in the A resource record entry for the mail server
in DNS Manager.
326
c) To accept messages only from authenticated users, click Yes for Accept messages from
authenticated users only. Otherwise, click No.
d) To enable users to create distribution groups from SharePoint sites, click Yes for Allow
creation of distribution groups from SharePoint sites. Otherwise, click No.
e) Under Distribution group request approval settings, select the actions that will require
approval. Actions include the following:
Create new distribution group
Change distribution group e-mail address
Change distribution group title and description
Delete distribution group
7. If you want to use a remote Directory Management Service, select Use remote and complete the
remainder of this step. Otherwise, click No and proceed to step 8.
If you select this option and you are using Exchange Server, you must configure the DNS Manager
and add an SMTP connector. For more information, see Configure DNS Manager and Add an
SMTP connector in Microsoft Exchange Server 2010 later in this article. The AD DS has most likely
already been configured, so you do not need to do this.
a) In the Directory Management Service URL box, type the URL of the Directory
Management Service that you want to use. The URL is typically in the following format:
http://server:adminport/_vti_bin/SharePointEmailWS.asmx.
b) In the SMTP mail server for incoming mail box, type the name of the SMTP mail server.
The server name must match the FQDN in the A resource record entry for the mail server
in DNS Manager on the domain server.
c) To accept messages from authenticated users only, click Yes for Accept messages from
authenticated users only. Otherwise, click No.
d) To allow creation of distribution groups from SharePoint sites, click Yes for Allow
creation of distribution groups from SharePoint sites. Otherwise, click No.
8. In the Incoming E-Mail Server Display Address section, in the E-mail server display address
box, type a display name for the email server (for example, mail.fabrikam.com). You typically use
this option together with the Directory Management Service.
327
Tip:
You can specify the email server address that is displayed when users create an incoming
email address for a list or group. Use this setting together with Directory Management
Service to provide an email server address that is easy to remember.
9. In the E-Mail Drop Folder section, in the E-mail drop folder box, type the name of the folder
from which the Windows SharePoint Services Timer service retrieves incoming email from the
SMTP service. This option is available only if you selected Advanced settings mode. If you select
this option, ensure that you configure the necessary permissions to the email drop folder. For
more information, see Configure permissions to the email drop folder later in this article.
It is useful to have a dedicated email drop folder if the default email drop folder is full or almost
full.
Ensure that the logon account for the SharePoint Timer service has Modify permissions on the
email drop folder. For more information, see To configure e-mail drop folder permissions for the
logon account for the SharePoint Timer service later in this article.
10. In the Safe E-Mail Servers section, select whether you want to accept email from all email
servers or from specific email servers.
This option is available only if you selected Automatic settings mode.
11. Click OK.
After you configure incoming email, site administrators can configure email–enabled lists and
document libraries.
If you selected Directory Management Service, contact addresses that are created for document
libraries appear automatically in Active Directory Users and Computers. The addresses are displayed in
the OU of AD DS for SharePoint 2013 and must be managed by the administrator of AD DS. The AD DS
administrator can add more email addresses for each contact. For more information about AD DS, see
Using Active Directory Service in the TechNet Library.
Alternatively, you can configure the computer running Exchange Server by adding a new Exchange
Server Global recipient policy. The policy automatically adds external addresses that use the second-
level domain name and not the subdomain or host name for SharePoint 2013. For more information
about how to manage Exchange Server, see Recipient Configuration Node in the Exchange Server
Technical Library.
328
Prepare your environment for incoming email in an
advanced scenario
Before you configure incoming email in an advanced scenario, you need to perform additional
procedures depending on how you want your incoming email environment to work.
If you want to use Directory Management Service, you must first configure AD DS, and if you use
Exchange Server, you must also configure the DNS Manager and add an SMTP connector.
If you want to use a specific email drop folder, ensure that you configure the necessary permissions to
the email drop folder.
In this section:
Configure AD DS to be used with Directory Management Service
Configure DNS Manager
Add an SMTP connector in Microsoft Exchange Server 2010
Configure permissions to the email drop folder
Configure AD DS to be used with Directory Management Service
If you plan to use Directory Management Service, you should first create an organizational unit (OU)
and make the necessary configurations in AD DS.
To use Directory Management Service on a SharePoint farm, you must configure the application pool
identity account for the SharePoint Central Administration website to have the Create, delete, and
manage user accounts user right to the container that you specify in AD DS. The preferred way to do
this is by assigning the right to the application pool identity account for the SharePoint Central
Administration website. An AD DS administrator must set up the OU and assign the Create, delete,
and manage user accounts right to the container. The advantage of using Directory Management
Service on a remote server farm is that you do not have to assign rights to the OU for multiple farm
service accounts.
The following procedures are performed on a domain controller that runs Windows Server 2008 with
DNS Manager. In some deployments, these applications might run on multiple servers in the same
domain.
329
To create an OU in AD DS
1. Verify that the user account that is performing this procedure is a member of the Domain
Administrators group or a delegated authority for domain administration on the domain controller
that is running DNS Manager.
2. Click Start, point to Administrative Tools, and then click Active Directory Users and
Computers.
3. In Active Directory Users and Computers, right-click the folder for the second-level domain that
contains your server farm, point to New, and then click Organizational Unit.
4. Type the name of the OU, and then click OK.
After you create the OU, you must delegate the Create, delete, and manage user accounts right
to the container of the OU to manage the user accounts.
To delegate the right to the application pool identity account for Central Administration
1. Verify that the user account that is performing this procedure is a member of the Domain
Administrators group or the Enterprise Administrators group in AD DS, or a delegated authority
for domain administration.
2. In Active Directory Users and Computers, find the OU that you created.
3. Right-click the OU, and then click Delegate control.
4. On the Welcome page of the Delegation of Control Wizard, click Next.
5. On the Users and Groups page, click Add, and then type the name of the application pool identity
account that the Central Administration uses.
6. In the Select Users, Computers, and Groups dialog box, click OK.
7. On the Users or Groups page of the Delegation of Control Wizard, click Next.
8. On the Tasks to Delegate page of the Delegation of Control Wizard, select the Create, delete, and
manage user accounts check box, and then click Next.
9. On the last page of the Delegation of Control Wizard, click Finish to exit the wizard.
To create and delete child objects, you must also delegate Create all Child Objects and Delete all
Child Objects control of the OU to the application pool identity account for Central Administration.
After you complete this procedure, the application pool identity account for Central Administration
has Create all Child Objects and Delete all Child Objects control on the OU, and you can enable
incoming email.
330
To delegate Create all Child Objects and Delete all Child Objects control of the OU to the application
pool identity account for Central Administration
1. Verify that the user account that is performing this procedure is a member of the Domain
Administrators group or the Enterprise Administrators group in AD DS, or a delegated authority
for domain administration.
2. Right-click the OU, and then click Delegate control.
3. In the Delegation of Control Wizard, click Next.
4. Click Add, and then type the name of the application pool identity account for Central
Administration.
5. Click OK.
6. Click Next.
7. On the Tasks to Delegate page of the Delegation of Control Wizard, select Create a custom task
to delegate, and then click Next.
8. Click This folder, existing objects in this folder, and creation of new objects in this folder, and
then click Next.
9. In the Permissions section, select Create all Child Objects and Delete all Child Objects.
10. Click Next.
11. On the last page of the Delegation of Control Wizard, click Finish to exit the wizard.
Delegating Create all Child Objects and Delete all Child Objects control of the OU to the application
pool identity account for Central Administration enables administrators to enable email for a list. After
these controls have been delegated, administrators cannot disable email for the list or document
library because the Central Administration account tries to delete the contact from the whole OU
instead of from the list.
To avoid this problem, you must add Delete Subtree permissions for the application pool identity
account for Central Administration. Use the following procedure to add these permissions. After this
procedure is complete, you can disable incoming email for a list.
To add Delete Subtree permissions for the application pool identity account for Central
Administration
1. Verify that the user account that is performing this procedure is a member of the Domain
Administrators group or the Enterprise Administrators group in AD DS, or a delegated authority
for domain administration.
331
2. In Active Directory Users and Computers, click the View menu, and then click Advanced
Features.
3. Right-click the OU, and then click Properties.
4. In the Properties dialog box, click the Security tab, and then click Advanced.
5. In the Permission Entries area, double-click the application pool identity account for Central
Administration.
If the application pool identity account is listed more than once, select the first one.
6. In the Permissions area, select Allow, for Delete Subtree.
7. Click OK to close the Permissions dialog box.
8. Click OK to close the Properties dialog box.
9. Click OK to close Active Directory Users and Computers.
After you add these permissions, you must restart Internet Information Services (IIS) for the farm.
For more information, see Active Directory Users, Computers, and Groups in the TechNet Library.
Configure DNS Manager
If you are using Exchange Server and are routing email internally in your organization, you must create
a host (A) resource record in DNS Manager to associate DNS domain names of computers (or hosts) to
their IP addresses. Your organization might already have a configured DNS Manager and an A resource
record. If not, then use the following procedure.
To create an A resource record for a subdomain
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the local computer.
2. In DNS Manager, select the forward lookup zone for the domain that contains the subdomain for
SharePoint 2013.
3. Right-click the zone, and then click New Host (A or AAAA).
4. In the New Host dialog box, in the Name text box, type the host or subdomain name for
SharePoint 2013.
5. In the Fully qualified domain name (FQDN) text box, type the FQDN for the server that is
running SharePoint 2013. This is typically in the format subdomain.domain.com.
332
6. Ensure that the domains that are listed under the SMTP server in IIS match the FQDN of the server
that receives email. If they do not match, you must create a local domain. For instructions, see To
create a local domain later in this article.
7. In the IP address text box, type the IP address to which you want the FQDN to resolve.
8. Click Add Host.
9. In the message that confirms the creation of the host record, click OK.
10. In the New Host dialog box, click Done.
The A resource record now appears in DNS Manager.
If you use the E-mail server display address option and if the email address to which you are
sending email messages is not the same as your server name, you must create a local domain.
To create a local domain
1. Click Start, point to Administrative Tools, and then click Internet Information Services (IIS) 6.0
Manager.
2. In IIS Manager, expand the SMTP server.
3. Right-click Domains, and on the Action menu, point to New, and then click Domain.
4. In the New SMTP Domain Wizard dialog box, select Alias, and then click Next.
5. In the Domain Name area, in the Name box, type the address of the mail that is to be received by
this domain.
This address must be the same as the one that you specified in step 4 in To create an A resource
record for a subdomain, and in step 6b in To configure incoming email in an advanced scenario.
6. Click Finish.
7. In the message that confirms the creation of the host record, click OK.
8. Restart the SMTP server so that all email messages that are still in the Queue folder move to the
Drop folder. The messages are then sent by the Windows SharePoint Services Timer service to
their destination list or library.
Note:
If you are routing email from outside your organization to an SMTP server, you must use an
MX record. For more information, see Add a mail exchanger (MX) resource record to a zone in
the Windows Server Technical Library.
333
Add an SMTP connector in Microsoft Exchange Server 2010
An SMTP connector gives you more control over the message flow in your organization. Other reasons
to use an SMTP connector are to set delivery restrictions or to specify a specific address space. If you
use Exchange Server to route incoming email to SharePoint lists and libraries, you must have an SMTP
connector so that all mail that is sent to the SharePoint domain uses the servers that are running the
SMTP service.
Use the following procedure to add an SMTP connector in Exchange Server. After you complete the
procedure, the SMTP connector ensures that incoming email messages are sent to the correct list and
library in the farm.
To add an SMTP connector in Exchange Server
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the server that is running Exchange Server.
2. In Exchange Management Console, expand the Organization Configuration group, right-click Hub
Transport, point to New Send Connector.
The New Send Connector wizard appears.
3. On the Introduction page, do the following and then click Next:
a) In the Name box, type a name for the SMTP connector.
b) In the Select the intended use for this Send connector box, select the Custom usage
type for the connector.
4. On the Address Space page, click Add, and then click SMTP Address Space.
5. In the SMTP Address Space dialog box, do the following:
a) In the Address box, type an email domain for the connector.
b) In the Cost box, assign an appropriate cost. By default, the cost is 1.
6. Click OK to return to the Address Space page, and then click Next.
7. On the Network settings page, select Use domain name system (DNS) "MX" records to route
mail automatically, and then click Next.
8. On the Source Server page, click Next.
The Source server page only appears on Hub Transport servers. By default, the Hub Transport
server that you are currently working on is listed as a source server.
334
9. On the New Connector page, review your options and then click New to create the new send
connector.
10. On the Completion page, ensure that the send connector was created, and then click Finish.
In the Hub Transport pane, you can see that the send connector has been enabled automatically.
For more information, see Create an SMTP Send Connector in the Exchange Server Technical Library.
Configure permissions to the email drop folder
You can specify a particular email drop folder, which enables SharePoint 2013 to retrieve incoming
email from a network share on another server. You can use this option if you do not want to use an
SMTP service. However, the drawback of using this option is that SharePoint 2013 cannot detect
configuration changes on the remote email server that is delivering email to the drop folder. The
result is that SharePoint 2013 cannot retrieve email if the location of the email messages has changed.
However, this feature is useful if the default email drop folder is full or almost full.
If you specified an email drop folder, you must ensure that the application pool identity accounts for
Central Administration and for the web application have the required permissions to the email drop
folder.
Configure email drop folder permissions for the application pool identity
account for a web application
If your deployment uses different application pool identity accounts for Central Administration and for
one or more web applications, each application pool identity account must have permissions to the
email drop folder. If the application pool identity account for the web application does not have the
required permissions, email will not be delivered to document libraries on that web application.
In most cases, when you configure incoming email and select an email drop folder, permissions are
added for the following worker process groups:
WSS_Admin_WPG, which includes the application pool identity account for Central Administration
and the logon account for the SharePoint Timer service, and has Full Control permissions.
WSS_WPG, which includes the application pool accounts for web applications, and has Read &
Execute, List Folder Contents, and Read permissions.
In some cases, these groups might not be configured automatically for the email drop folder. For
example, if Central Administration is running as the Network Service account, the groups or accounts
that are needed for incoming email will not be added when the email drop folder is created. Check to
determine whether these groups have been added automatically to the email drop folder. If the
335
groups have not been added automatically, you can add them or add the specific accounts that are
required.
To configure email drop folder permissions for the application pool identity account for a web
application
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the server that contains the email drop folder.
2. In Windows Explorer, right-click the drop folder, click Properties, and then click the Security tab.
3. On the Security tab, under the Group or user names box, click Edit.
4. In the Permissions for Windows Explorer dialog box, click Add.
5. In the Select Users, Computers, or Groups dialog box, in the Enter the object names to select
box, type the name of the worker process group or application pool identity account for the web
application, and then click OK.
This account is listed on the Identity tab of the Properties dialog box for the application pool in
IIS.
6. In the Permissions for User or Group box, next to Modify, select Allow.
7. Click OK.
Configure email drop folder permissions for the logon account for the
SharePoint Timer service
Ensure that the logon account for the Windows SharePoint Services Timer service has Modify
permissions on the email drop folder. If the logon account for the service does not have Modify
permissions, email–enabled document libraries will receive duplicate email messages.
To configure email drop folder permissions for the logon account for the SharePoint Timer service
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the server that contains the email drop folder.
2. In Windows Explorer, right-click the drop folder, click Properties, and then click the Security tab.
3. On the Security tab, under the Group or user names box, click Edit.
4. In the Permissions for Windows Explorer dialog box, click Add.
5. In the Select Users, Computers, or Groups dialog box, in the Enter the object names to select
box, type the name of the logon account for the SharePoint Timer service, and then click OK.
336
This account is listed on the Log On tab of the Properties dialog box for the service in the
Services snap-in.
6. In the Permissions for User or Group box, next to Modify, select Allow.
7. Click OK.
Are attachments missing from email messages that are
sent to a SharePoint document library?
If attachments are missing from email messages that are sent to a SharePoint document library, it
might be because you associated the document library with an email address. When you do this,
Directory Management Service may not add the following two attributes to the user associated with
the email address:
internet Encoding = 1310720
mAPIRecipient = false
You must use Active Directory Service Interfaces (ADSI) to manually add these two missing attributes.
On servers that are running Windows Server 2008 or Windows Server 2008 R2, ADSI Edit is installed
when you configure a server as a domain controller by installing the AD DS role. You can also install
Windows Server 2008 Remote Server Administration Tools (RSAT) on domain member servers or
stand-alone servers. For more information, see Installing or Removing the Remote Server
Administration Tools Pack in the Windows Server Technical Library.
To add attributes by using ADSI Edit
1. Click Start, and then click Run.
2. In the Run dialog box, type Adsiedit.msc, and then click OK.
3. In the ADSI Edit window, expand ADSI Edit, expand Domain [DomainName], expand
DC=DomainName, DC=com, and then expand CN=Users.
4. Right-click the user name to which you want to add the missing attributes, and then click
Properties.
5. In the Properties dialog box, double-click Internet Encoding on the Attribute Editor tab.
6. In the Integer Attribute Editor dialog box, type 1310720 in the Value box, and then click OK.
7. In the Properties dialog box, double-click mAPIRecipient on the Attribute Editor tab.
338
Configure outgoing email for a SharePoint
2013 farm
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to install and configure the SMTP service and configure outgoing email for a
SharePoint 2013 farm.
This article describes how to configure outgoing email for a farm or for a specific web application for
SharePoint 2013. This article also describes how to install and configure the SMTP service that you
must use to enable outgoing email.
After you have installed SharePoint 2013 and completed the initial configuration of your server farm,
you can configure outgoing email. Doing so enables users to create alerts to track such site items as
lists, libraries, and documents. In addition, site administrators can receive administrative messages
about site administrator issues, such as the information that site owners have exceeded their
specified storage space. For more information, see Plan outgoing email for a SharePoint farm in
SharePoint 2013.
To configure outgoing email for a specific web application, first configure the default outgoing email
for all web applications in the farm. If you configure the outgoing email for a specific web application,
that configuration will override the default configuration for all web applications in the farm.
Important:
You cannot configure outgoing email by using Windows PowerShell.
In this article:
Before you begin
To install the SMTP service
To install IIS 6.0 Management tools
To configure the SMTP service
To set the SMTP service to start automatically
To configure outgoing email for a farm by using Central Administration
To configure outgoing email for a specific web application by using Central Administration
339
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Before you begin this operation, review the following information about prerequisites:
Your computer is running SharePoint 2013.
One or more servers in the server farm are running the Simple Mail Transfer Protocol (SMTP)
service and have a valid SMTP server address. Alternatively, you must know the name of a server
outside the farm that is running the SMTP service.
If you have not installed and configured the SMTP service, before you configure outgoing email you
must complete the steps in:
Install and configure the SMTP service
Install and configure the SMTP service
Before you can enable outgoing email, you must determine which SMTP server to use. This SMTP
server must be configured to allow anonymous SMTP email submissions. The SMTP server can be a
server in the farm or outside the farm.
Note:
If your organization does not allow anonymous SMTP email messages to be sent by using
Exchange Server, you can use a local SMTP server in the SharePoint farm that accepts
anonymous email messages. The local SMTP server automatically authenticates the messages
and then forwards them to the computer that’s running Exchange Server.
340
Install the SMTP service
To install the SMTP service, use the Add Features Wizard in Server Manager. The wizard creates a
default SMTP configuration. You can customize this default SMTP configuration to meet the
requirements of your organization.
If you already have the SMTP service installed on a server, skip to Configure the SMTP service later in
this article.
To install the SMTP service
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the front-end web server.
2. Click Start, point to Administrative Tools, and then click Server Manager.
3. In Server Manager, click Features.
4. In Features Summary, click Add Features to open the Add Features Wizard.
5. On the Select Features page, select SMTP Server.
6. In the Add Features Wizard dialog box, click Add Required Roll Services, and then click Next.
7. On the Confirm Installation Selections page, click Install.
8. On the Installation Results page, ensure that the installation is complete, and then click Close.
Configure the SMTP service
After you install the SMTP service, you configure it to send email messages from servers in the farm.
You can decide to send relayed email messages to all servers except those that you specifically
exclude. Alternatively, you can block messages to all servers except those that you specifically include.
You can include servers individually or in groups by subnet or domain.
If you enable anonymous access and relayed email messages, you increase the possibility that the
SMTP server will be used to relay unsolicited commercial email messages (spam). It is important to
limit this possibility by carefully configuring mail servers to help protect against spam. One way that
you can do this is by limiting relayed email messages to a list of specific servers or to a domain, and by
preventing relayed email messages from all other servers.
341
Note:
To manage the SMTP service on Windows Server 2008, you must use Internet Information
Services (IIS) 6.0 Manager. Ensure that you install IIS 6.0 Management tools in Server
Manager.
To install IIS 6.0 Management tools
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the front-end web server.
2. Click Start, point to Administrative Tools, and then click Server Manager.
3. In Server Manager, click Roles.
4. In the Application Server section, click Add Role Services.
5. On the Select Role Services page, select Management Tools and IIS 6 Management
compatibility, and then click Install.
To configure the SMTP service
1. Verify that the user account that is performing this procedure is a member of the Administrators
group on the front-end web server.
2. Click Start, point to Administrative Tools, and then click Internet Information Services (IIS) 6.0
Manager.
3. In IIS Manager, expand the server name that contains the SMTP server that you want to configure.
4. Right-click the SMTP virtual server that you want to configure, and then click Start.
5. Right-click the SMTP virtual server that you want to configure, and then click Properties.
6. On the Access tab, in the Access control area, click Authentication.
7. In the Authentication dialog box, verify that Anonymous access is selected.
8. Click OK.
9. On the Access tab, in the Relay restrictions area, click Relay.
10. To enable relayed email messages to any server, click All except the list below.
11. To accept relayed email messages from one or more specific servers, follow these steps:
a) Click Only the list below.
342
b) Click Add, and then add servers one at a time by IP address, or in groups by using a subnet
or domain.
c) Click OK to close the Computer dialog box.
12. Click OK to close the Relay Restrictions dialog box.
13. Click OK to close the Properties dialog box.
Ensure that the SMTP service is running and set to start automatically. To do this, use the following
procedure.
To set the SMTP service to start automatically
1. Click Start, point to Administrative Tools, and then click Services.
2. In Services, right-click Simple Mail Transfer Protocol (SMTP), and then select Properties.
3. In the Simple Mail Transfer Protocol (SMTP) Properties dialog box, on the General tab, in the
Startup type list, select Automatic.
4. Click OK.
Configure outgoing email for a farm
You can configure outgoing email for a farm by using the SharePoint Central Administration website.
Use the following procedures to configure outgoing email. After you complete the procedures, users
can track changes and updates to individual site collections. In addition, site administrators can, for
example, receive notices when users request access to a site.
To configure outgoing email for a farm by using Central Administration
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators group on the server that is running the SharePoint Central Administration website.
2. In Central Administration, click System Settings.
3. On the System Settings page, in the E-Mail and Text Messages (SMS) section, click Configure
outgoing e-mail settings.
4. On the Outgoing E-Mail Settings page, in the Mail Settings section, type the SMTP server name
for outgoing email (for example, mail.example.com) in the Outbound SMTP server box.
5. In the From address box, type the email address as you want it to be displayed to email
recipients.
343
6. In the Reply-to address box, type the email address to which you want email recipients to reply.
7. In the Character set list, select the character set that is appropriate for your language.
8. Click OK.
Configure outgoing email for a specific web
application
You can configure outgoing email for a specific web application by using the Central Administration
website. Use the following procedures to configure outgoing email.
Note:
To configure outgoing email for a specific web application, first configure the default outgoing
email for all web applications in the farm. If you configure the outgoing email for a specific
web application, that configuration will override the default configuration for all web
applications in the farm.
To configure outgoing email for a specific web application by using Central Administration
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators group on the server that is running the SharePoint Central Administration website.
2. In Central Administration, in the Application Management section, click Manage web
applications.
3. On the Web Applications Management page, select a web application, and then in the General
Settings group on the ribbon, click Outgoing E-mail.
4. On the Web Application Outgoing E-Mail Settings page, in the Mail Settings section, type the
name of the SMTP server for outgoing email (for example, mail.fabrikam.com) in the Outbound
SMTP server box.
5. In the From address box, type the email address (for example, the site administrator alias) as you
want it to be displayed to email recipients.
6. In the Reply-to address box, type the email address (for example, a help desk alias) to which you
want email recipients to reply.
7. In the Character set list, click the character set that is appropriate for your language.
8. Click OK.
345
Configure services and service applications
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Introduces articles that describe how to configure services for SharePoint 2013.
In SharePoint 2013, you can configure individual services independently, and you can implement only
the services that your organization needs.
Deployed services are named service applications. A service application provides a resource that you
can share across sites in a farm or sometimes across multiple farms, and users can access them
through a hosting web application. Service applications are associated to web applications by service
application connections.
For more information about service applications and services, see Technical diagrams for SharePoint
2013. If you plan to use Office Web Apps, you must install and configure them to work with
SharePoint 2013. For more information, see How Office Web Apps work on-premises with
SharePoint 2013.
The following articles on TechNet and related resources provide information about how to configure
services for SharePoint 2013.
TechNet articles about how to configure services for
SharePoint 2013
The following articles about how to configure services for SharePoint 2013 are available to view
online. Writers update articles on a continuing basis as new information becomes available and as
users provide feedback.
Content
Description
Configure Excel Services in SharePoint Server
2013
Deploy Excel Services to a SharePoint Server 2013
farm by creating an Excel Services service
application by using Central Administration.
346
Content
Description
Configure a Business Intelligence Center in
SharePoint Server 2013
Create a Business Intelligence Center in
SharePoint Server 2013 by using the Business
Intelligence Center enterprise template and
creating a new site collection.
Turn on automated translation of documents in
SharePoint Server 2013
The Machine Translation Service in SharePoint
2013 lets users automatically translate
documents. This topic describes how to create a
Machine Translation Service Application and
configure the Machine Translation Service by
using Central Administration, or Windows
PowerShell.
Configure PerformancePoint Services
(SharePoint Server 2013)
Configure PerformancePoint Services in
SharePoint Server 2013 before you make it
available to users
Create and configure a Search service application
in SharePoint Server 2013
This article describes how to create and configure
a SharePoint Search service application so that
you can crawl content and provide search results
to users.
Manage the search topology in SharePoint
Server 2013
Learn how to retrieve, clone, add, move, remove
and activate search components in the search
topology using Windows PowerShell. Use these
procedures to scale out or scale down the search
topology of the Search service application
Create a Search Center site in SharePoint Server
2013
This article describes how to create a SharePoint
Search Center site and grant site access to users.
Deploy people search in SharePoint Server 2013
Learn how to set up SharePoint people search so
that users can find people in the organization and
the documents that they have authored.
Configure result sources for search in SharePoint
Server 2013
Learn how to create and manage result sources
for SharePoint Search service applications, and for
SharePoint sites and site collections.
347
Content
Description
Customize search result types in SharePoint 2013
Create and configure custom search result types
in SharePoint 2013 so that users can readily
distinguish and preview different kinds of items in
a list of search results.
Configure the Secure Store Service in SharePoint
2013
This article describes the SharePoint 2013 Secure
Store Service operations that solution designers
can use to create target applications that map
user and group credentials to the credentials of
external data sources.
Administer the User Profile service in SharePoint
Server 2013
Learn how to configure and administer the User
Profile service and User Profile Synchronization
service.
Visio Graphics Service administration in
SharePoint Server 2013
Learn how to create, configure, list, or delete Visio
Services service applications by using Central
Administration or Windows PowerShell.
Share service applications across farms in
SharePoint 2013
Describes the process and cautions that are
involved in sharing service applications across
farms.
Additional resources about how to configure services
for SharePoint 2013
The following resources about how to configure services for SharePoint 2013 are available from other
subject matter experts.
Content
Description
Installation and Deployment for
SharePoint 2013 Resource
Center
Visit the Resource Center to
access videos, Community Sites,
documentation, and more.
348
Configure the Secure Store Service in
SharePoint 2013
Applies to: SharePoint Server 2013 Enterprise
Topic Last Modified: 2014-04-30
Summary: Configure storage of authorization credentials in Secure Store Service on a SharePoint
Server 2013 farm. A video demonstration is included.
This article describes how to configure the Secure Store Service on a SharePoint Server 2013 farm.
Secure Store has important planning considerations associated with it. Be sure to read Plan the Secure
Store Service in SharePoint Server 2013 before you begin the procedures in this article.
In this article:
Video demonstration (configuration)
Configure Secure Store
Work with encryption keys
Store credentials in Secure Store
Create a target application
Set credentials for a target application
Enable the audit log
Video demonstration (target applications)
Video demonstration (configuration)
This video shows the steps involved in setting up a Secure Store Service service application service
application in SharePoint Server 2013, as described in this article.
Video: Configure the Secure Store Service in SharePoint 2013
349
Configure Secure Store
To configure Secure Store, you perform the following steps:
1. Register a managed account in SharePoint Server 2013 to run the Secure Store application pool.
2. Start the Secure Store Service on an application server in the farm.
3. Create a Secure Store Service service application.
To run the application pool, you must have a standard domain account. No specific permissions are
required for this account. Once the account has been created in Active Directory, follow these steps to
register it with SharePoint Server 2013.
To register a managed account
1. On the SharePoint Central Administration Web site home page, in the left navigation, click
Security.
2. On the Security page, in the General Security section, click Configure managed accounts.
3. On the Managed Accounts page, click Register Managed Account.
4. In the User name box, type the name of the account.
5. In the Password box, type the password for the account.
6. If you want SharePoint Server 2013 to handle changing the password for the account, select the
Enable automatic password change box and specify the password change parameters that you
want to use.
7. Click OK.
Once you have configured the registered account, you must start the Secure Store Service on an
application server in the farm. Because Secure Store deals with sensitive information, we recommend
that you use a separate application server just for the Secure Store Service for better security.
To start the Secure Store Service
1. On the Central Administration home page, in the System Settings section, click Manage services
on server.
2. Above the Service list, click the Server drop-down list, and then click Change Server.
3. Select the application server where you want to run the Secure Store Service.
4. In the Service list, click Start next to Secure Store Service.
350
Once the service is started, you must create a Secure Store Service service application. Use the
following procedure to create the service application.
To create a Secure Store Service service application
1. On the Central Administration home page, in the Application Management section, click Manage
service applications.
2. On the Manage Service Applications page, click New, and then click Secure Store Service.
3. In the Service Application Name box, type a name for the service application (for example,
Secure Store Service).
4. In the Database Server box, type the instance of SQL Server where you want to create the Secure
Store database.
Note:
Because the Secure Store database contains sensitive information, we recommend that
you deploy the Secure Store database to a different instance of SQL Server from the rest
of SharePoint Server 2013.
5. Select the Create new application pool option and type a name for the application pool in the
text box.
6. Select the Configurable option, and, from the drop-down list, select the account for which you
created the managed account earlier.
7. Click OK.
The Secure Store Service has now been configured. The next step is to generate an encryption key for
encrypting the Secure Store database.
Work with encryption keys
Before using the Secure Store Service, you must generate an encryption key. The key is used to
encrypt and decrypt the credentials that are stored in the Secure Store Service database.
Generate an encryption key
The first time that you access the Secure Store service application, your only option is to generate a
new encryption key. Once the key has been generated, the rest of the Secure Store functionality
becomes available.
351
To generate a new encryption key
1. On the Central Administration home page, in the Application Management section, click Manage
service applications.
2. Click the Secure Store service application.
3. In the Key Management group, click Generate New Key.
4. On the Generate New Key page, type a pass phrase string in the Pass Phrase box, and type the
same string in the Confirm Pass Phrase box. This pass phrase is used to encrypt the Secure Store
database.
Important:
A pass phrase string must be at least eight characters and must have at least three of the
following four elements:
Uppercase characters
Lowercase characters
Numerals
Any of the following special characters
“! " # $ % & ' ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _ ` { | } ~
Important:
The pass phrase that you enter is not stored. Make sure that you write this down and store it
in a safe place. You must have it to refresh the key, such as when you add a new application
server to the server farm.
5. Click OK.
For security precautions or as part of regular maintenance you may decide to generate a new
encryption key and force the Secure Store Service to be re-encrypted based on the new key. You can
use this same procedure to do this.
Caution:
You should back up the database of the Secure Store Service application before generating a
new key.
Refresh the encryption key
Refreshing the encryption key propagates the key to all the application servers in the farm. You may
be required to refresh the encryption key if any of the following things are true:
352
You add a new application server to the server farm.
You restore a previously backed up Secure Store Service database and have since changed the
encryption key.
You receive an "Unable to get master key" error message.
You have upgraded your farm from SharePoint Server 2010.
To refresh the encryption key
1. On the Central Administration home page, in the Application Management section, click Manage
service applications.
2. Click the Secure Store service application.
3. In the Key Management group, click Refresh Key.
4. In the Pass Phrase box, type the pass phrase that you first used to generate the encryption key.
This phrase is either the pass phrase that you used when you initialized the Secure Store Service
service application or one that you used when you created a new key by using the Generate a
New Key command.
5. Click OK.
Store credentials in Secure Store
Storing credentials in Secure Store is accomplished by using a Secure Store target application. A target
application maps the credentials of a user, group, or claim to a set of encrypted credentials stored in
the Secure Store database. After a target application is created, you can associate it with an external
content type or application model, or use it with a business intelligence service application such as
Excel Services or Visio Services to provide access to an external data source. When a SharePoint Server
2013 service application calls the target application, Secure Store confirms that the user making the
request is an authorized user of the target application and then retrieves the encrypted credentials.
The credentials are then used on the user's behalf by the SharePoint Server 2013 service application.
To create a target application, you must do the following:
1. Create the target application itself, specifying the type of credentials that you want to store in the
Secure Store database, the administrators for the target application, and the credential owners.
2. Specify the credentials that you want to store.
353
Create a target application
Target applications are configured on the Secure Store Service Application page in Central
Administration. Use the following procedure to create a target application.
To create a target application
1. On the Central Administration home page, in the Application Management section, click Manage
service applications.
2. Click the Secure Store service application.
3. In the Manage Target Applications group, click New.
4. In the Target Application ID box, type a text string.
This is the unique string that you will use externally to identify this target application.
5. In the Display Name box, type a text string that will be used to display the identifier of the target
application in the user interface.
6. In the Contact Email box, type the e-mail address of the primary contact for this target
application.
This can be any legitimate e-mail address and does not have to be the identity of an administrator
of the Secure Store Service application.
7. When you create a target application of type Individual (see below), you can implement a custom
Web page that lets users add individual credentials for the destination data source. This requires
custom code to pass the credentials to the target application. If you did this, type the full URL of
this page in the Target Application Page URL field. There are three options:
Use default page: Any Web sites that use the target application to access external data
will have an individual sign-up page that was added automatically. The URL of this page
will be
http:/<samplesite>/_layouts/SecureStoreSetCredentials.aspx?TargetAppId=<TargetApplic
ationID>, where <TargetApplicationID> is the string typed in the Target Application ID
box. By publicizing the location of this page, you can enable users to add their credentials
for the external data source.
Use custom page: You provide a custom Web page that lets users provide individual
credentials. Type the URL of the custom page in this field.
None: There is no sign-up page. Individual credentials are added only by a Secure Store
Service administrator who is using the Secure Store Service application.
354
8. In the Target Application Type drop-down list, choose the target application type: Group, for
group credentials, or Individual, if each user is to be mapped to a unique set of credentials on the
external data source.
Note:
There are two primary types for creating a target application:
Group, for mapping all the members of one or more groups to a single set of credentials
on the external data source.
Individual, for mapping each user to a unique set of credentials on the external data
source.
9. Click Next.
10. Use the Specify the credential fields for your Secure Store Target Application page to
configure the various fields which may be required to provide credentials to the external data
source. By default, two fields are listed: Windows User Name and Windows Password.
To add an additional field for supplying credentials to the external data source, on the Specify the
credential fields for your Secure Store Target Application page, click Add Field.
By default, the type of the new field is Generic. The following field types are available:
Field
Description
Generic
Values that do not fit in any of the other
categories.
User Name
A user account that identifies the user.
Password
A secret word or phrase.
PIN
A personal identification number.
Key
A parameter that determines the functional
output of a cryptographic algorithm or cipher.
Windows User Name
A Windows user account that identifies the user.
Windows Password
A secret word or phrase for a Windows account.
Certificate
A certificate.
Certificate Password
The password for the certificate.
355
To change the type of a new or existing field, click the arrow that appears next to the type
of the field, and then select the new type of field.
Note:
Every field that you add will be required to have data when you set the credentials for this
target application.
You can change the name that a user sees when interacting with a field. In the Field
Name column of the Specify the credential fields for your Secure Store Target
Application page, change a field name by selecting the current text and typing new text.
When a field is masked, each character that a user types is not displayed but is replaced
with a mask character such as the asterisk "*". To mask a field, click the check box for that
field in the Masked column of the page.
To delete a field, click the delete icon for that field in the Delete column of the page.
When you have finished editing the credential fields, click Next.
11. In the Specify the membership settings page, in the Target Application Administrators Field,
list all users who have access to manage the target application settings.
12. If the target application type is group, in the Members field, list the user groups to map to a set of
credentials for this target application.
13. Click OK to complete configuring the target application.
Set credentials for a target application
After creating a target application, an administrator of that target application can set credentials for it.
These credentials are used by the calling application to provide access to an external data source. If
the target application is of type Individual, you can also enable users to supply their own credentials.
To set credentials for a target application
1. On the Central Administration home page, in the Application Management section, click Manage
service applications.
2. Click the Secure Store service application.
3. In the target application list, point at the target application for which you want to set credentials,
click the arrow that appears, and then, in the menu, click Set credentials.
If the target application is of type Group, type the credentials for the external data source.
Depending on the information that is required by the external data source, the fields for setting
credentials will vary.
356
If the target application is of type Individual, type the user name of the individual who will be
mapped to this set of credentials on the external data source, and type the credentials for the
external data source. Depending on the information that is required by the external data source,
the fields for setting credentials will vary.
4. Click OK.
Once you have set the credentials for the target application, it is ready to be used by a SharePoint
Server 2013 service such as Business Connectivity Services or Excel Services.
Enable the audit log
Audit entries for the Secure Store service are stored in the Secure Store Service database. By default,
the audit log file is disabled.
An audit log entry stores information about a Secure Store Service action, such as when it was
performed, whether it succeeded, why it failed if it didn't succeed, the Secure Store Service user who
performed it, and optionally the Secure Store Service user on whose behalf it was performed.
Therefore, a valid reason to enable an audit log file is to troubleshoot an authentication issue.
To enable the audit log by using Central Administration
1. On the Central Administration home page, in the Application Management section, click Manage
service applications.
2. Select the Secure Store service application. (That is, select the service application, but do not click
the link to go to the Secure Store Service application settings page.)
3. On the ribbon, click Properties.
4. From the Enable Audit section, click to select the Audit log enabled box.
5. To change the number of days that entries will be purged from the audit log file, specify a number
in days in the Days Until Purge field. The default value is 30 days.
6. Click OK.
Video demonstration (target applications)
This video shows the steps necessary to configure a Secure Store service application.
Note:
This video uses SharePoint Server 2010. Target applications function in the same way in
SharePoint Server 2013.
357
Video: How target applications are used in Secure Store
See also
Secure Store Service cmdlets in SharePoint 2013
358
Create and configure a Search service
application in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-03-26
Summary: Learn how to create and configure a SharePoint Search service application so that you can
crawl content and provide search results to users.
Before you begin
If you used the Farm Configuration Wizard after you installed SharePoint Server 2013, a Search service
application might have been created at that time. To verify whether a Search service application
exists, you can click Manage service applications in the Application Management section on the
Central Administration home page. For the remainder of this article, it is assumed that a Search
service application does not exist yet, and that therefore you must create one.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
How to create and configure a SharePoint Search
service application
When you deploy and configure a Search service application, you perform the following main tasks:
359
1. Create accounts — Certain domain user accounts are required specifically for a Search service
application.
2. Create a Search service application — A Search service application provides enterprise search
features and functionality.
3. Configure the Search service application — Basic configuration of a Search service application
includes configuring a default content access account, an email contact, and content sources.
4. Configure the Search service application topology — You can deploy search components on
different servers in the farm. You can also specify which instance of SQL Server is used to host the
search-related databases.
Step 1: Create accounts that are required for a
SharePoint Search service application
The following table lists the accounts that are required when a Search service application is created.
Account
Description
Notes
Search service
Windows user credentials for
the SharePoint Server Search
service, which is a Windows
service
This setting applies to all Search
service applications in the farm.
You can change this account at
any time by clicking Configure
service accounts in the
Security section on the Central
Administration home page.
Search Admin Web Service
application pool
Search Query and Site
Settings Web Service
application pool
Windows user credentials
For each of these accounts, you
can use the same credentials
that you specified for the Search
service. Or, you can assign
different credentials to each
account according to the
principle of least-privilege
administration.
360
Account
Description
Notes
Default content access
Windows user credentials for
the Search service application to
use to access content when
crawling
We recommend that you specify
a separate account for the
default content access account
according to the principle of
least-privilege administration.
The accounts that you use for the Search service, the Search Admin Web Service application pool, and
the Search Query and Site Settings Web Service application pool must be registered as managed
accounts in SharePoint Server 2013 so that they are available when you create the Search service
application. Use the following procedure to register each of these accounts as a managed account.
To register a managed account
1. On the Central Administration home page, in the Quick Launch, click Security.
2. On the Security page, in the General Security section, click Configure managed accounts.
3. On the Managed Accounts page, click Register Managed Account.
4. On the Register Managed Account page, in the Account Registration section, type the user name
and password that you want to use as credentials for the service account.
5. If you want SharePoint Server 2013 to manage password changes for this account, select the
Enable automatic password change check box and configure the parameters for automatic
password change.
6. Click OK.
Step 2: Create a SharePoint Search service application
Each Search service application has a separate content index. You can create multiple Search service
applications if you want to have different content indexes for different sets of content. For example, if
you want to segregate sensitive content (such as employee benefits information) into a separate
content index, you can create a separate Search service application to correspond to that set of
content.
Note:
Each Search service application has its own search topology. If you create more than one
Search service application in a farm, we recommend that you allocate dedicated servers for
the search topology of each Search service application. Deploying several Search service
361
applications to the same servers will significantly increase the resource requirements (CPU
and memory) on those servers.
Use the following procedure to create a Search service application.
To create a Search service application
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators group for the farm for which you want to create the service application.
2. On the Central Administration home page, in the Application Management section, click Manage
service applications.
3. On the Manage Service Applications page, on the ribbon, click New, and then click Search Service
Application.
4. On the Create New Search Service Application page, do the following:
a) Accept the default value for Service Application name, or type a new name for the
Search service application.
b) In the Search Service Account list, select the managed account that you registered in the
previous procedure to run the Search service.
c) In the Application Pool for Search Admin Web Service section, do the following:
i. Select the Create new application pool option, and then specify a name for the
application pool in the Application pool name text box.
ii. In the Select a security account for this application pool section, select the
Configurable option, and then from the list select the account that you registered to
run the application pool for the Search Admin Web Service.
d) In the Application Pool for Search Query and Site Settings Web Service section, do the
following:
i. Choose the Create new application pool option, and then specify a name for the
application pool in the Application pool name text box.
ii. In the Select a security account for this application pool section, select the
Configurable option, and then from the list select the account that you registered to
run the application pool for the Search Query and Site Settings Web Service.
5. Click OK.
362
Step 3: Configure the SharePoint Search service
application
You configure a Search service application on the Search Administration page for that service
application. Use the following procedure to go to the Search Administration page for a particular
Search service application.
To go to the Search Administration page
1. Verify that the user account that is performing this procedure is an administrator for the Search
service application that you want to configure.
2. On the home page of the Central Administration website, in the Application Management
section, click Manage service applications.
3. On the Manage Service Applications page, click the Search service application that you want to
configure.
On the Search Administration page, configure the settings as described in the following sections:
Specify the default content access account
Specify the contact email address
Create content sources
Specify the default content access account
When you create a Search service application, the account that you specify for the Search service is
automatically configured as the default content access account. The crawler uses this account to crawl
content that does not have an associated crawl rule that specifies a different account. For the default
content access account, we recommend that you specify a domain user account that has read access
to as much of the content that you want to crawl as possible. You can change the default content
access account at any time. For more information, see Use the default content access account to
crawl most content in Best practices for crawling in SharePoint Server 2013.
If you have to crawl certain content by using a different account, you can create a crawl rule and
specify a different account for crawling. For information about how to create a crawl rule, see Manage
crawl rules in SharePoint Server 2013.
Use the following procedure to specify the default content access account.
363
To specify the default content access account
1. On the Search Administration page, in the System Status section, click the link in the Default
content access account row.
2. In the Default Content Access Account dialog box, in the Account box, type the account that
you created for content access in the form domain\user name.
3. Type the password for this account in the Password and Confirm Password boxes.
4. Click OK.
Specify the contact email address
The Search service writes the contact email address to the logs of crawled servers. The default contact
email address, someone@example.com, is a placeholder. We recommend that you change this to an
account that an external administrator can contact when a crawl might be contributing to a problem
such as a decrease in performance on a server that the search system is crawling.
Use the following procedure to specify the contact email address.
To specify the contact email address
1. On the Search Administration page, in the System Status section, click the link for the Contact e-
mail address.
2. In the Search E-mail Setting dialog box, in the E-mail Address box, type the email address that
you want to appear in the logs of servers that are crawled by the search system.
3. Click OK.
Create content sources in a SharePoint Search service application
In order for users to be able to get search results, the search system must first crawl the
corresponding content. Crawling requires at least one content source. A content source is a set of
options that you use to specify the type of content to crawl, the starting URLs to crawl, and when and
how deep to crawl. When a Search service application is created, a content source named "Local
SharePoint sites" is automatically created and configured for crawling all SharePoint sites in the local
server farm, and for crawling user profiles. You can create content sources to specify other content to
crawl and how the system will crawl that content. For more information, see Add, edit, or delete a
content source in SharePoint Server 2013. However, you do not have to create other content sources
if you do not want to crawl content other than the SharePoint sites in the local farm.
364
If you choose the Standalone installation option when you install SharePoint Server 2013, a full crawl
of all SharePoint sites in the farm is automatically performed after installation and an incremental
crawl is scheduled to occur every 20 minutes after that. If you choose the Server Farm installation
option when you install SharePoint Server 2013, no crawls are automatically scheduled or performed.
In the latter case, you must either start crawls manually or schedule times for crawls to be performed.
For more information, see the following articles;
Start, pause, resume, or stop a crawl in SharePoint Server 2013
Best practices for crawling in SharePoint Server 2013
Step 4: Configure the SharePoint Search service
application topology
When you create a Search service application, the SharePoint Server Search service is started on the
application server that is hosting the Central Administration website, and search components are
deployed to that server. If you have more than one application server in your farm, you can deploy
additional search components on other application servers, depending on your requirements. You can
deploy multiple instances of certain components. For more information, see the following articles:
Manage the search topology in SharePoint Server 2013
Plan enterprise search architecture in SharePoint Server 2013
See also
Create a Search Center site in SharePoint Server 2013
365
Create a Search Center site in SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-03-07
Summary: Learn how to create a Search Center site and grant site access to users in SharePoint
Server 2013.
A Search Center site, or Search Center, provides an interface for users to submit search queries and
view search results. A Search Center site is the top-level site of a site collection that a farm
administrator creates by using the Enterprise Search Center template or Basic Search Center template.
Before you begin
Depending on the kind of installation that you performed and the site collection template that you
selected at that time, the farm might already have a Search Center site. To check this, browse to the
top-level site for the site collection that you created during installation. In either case, you can create
a Search Center site and grant users access to it by using the procedures in this article.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
To create a SharePoint Search Center site
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators group.
366
2. On the home page of the Central Administration website, in the Application Management
section, click Create site collections.
3. On the Create Site Collection page, do the following:
a) In the Web Application section, select a web application to contain the new site
collection. To use a web application other than the one that is displayed, click the web
application that is displayed, and then click Change Web Application.
b) In the Title and Description section, in the Title box, type the name for the new Search
Center site. Optionally, type a description in the Description box.
c) In the Web Site Address section, for the part of the URL immediately after the web
application address, select /sites/, or select a managed path that was previously defined,
and then type the final part of the URL.
Note the address of the new Search Center for future reference.
d) In the Template Selection section, do the following:
i. In the Select the experience version drop-down list, select 2013 to create a Search
Center site that provides the SharePoint Server 2013 user experience, or select 2010
to create a Search Center site that provides the SharePoint 2010 Products user
experience.
For more information, see Search user interface improvements in What's new in
search in SharePoint Server 2013.
ii. In the Select a template subsection, click the Enterprise tab, and then do one of the
following:
If you are using SharePoint Foundation 2013, select the Basic Search Center
template.
Otherwise, if you are using SharePoint Server 2013, select the Enterprise Search
Center template.
e) In the Primary Site Collection Administrator section, in the User name box, type the
user name of the primary site collection administrator for this site collection in the form
domain\user name.
f) (Optional) In the Secondary Site Collection Administrator section, type the user name of
a secondary site collection administrator in the form domain\user name.
g) In the Quota Template section, select No Quota.
367
A Search Center site is not intended to be a data repository. Therefore, you do not have to
select a quota template.
h) Click OK.
4. On the Top-Level Site Successfully Created page, click the link to the Search Center site that you
created.
After you create the Search Center site, you must grant site access to users so that they can perform
search queries and view search results. Use the following procedure to grant site access to users.
To grant access to the SharePoint Search Center
1. Verify that the user account that is performing this procedure is a member of the Owners group
on the Search Center site.
2. In a web browser, go to the Search Center site.
3. Open the Site menu by clicking the gear icon in the upper-right portion of the page, and then click
Shared with.
4. In the Shared With dialog box, click Invite people.
5. In the Share <SearchCenterName> dialog box, in the Enter users separated with semicolons
text box, type the names of the Windows user groups and Windows users to whom you want to
grant permissions for submitting queries and viewing search results in the Search Center.
For example, to grant access to the Search Center to all Windows users, type NT
Authority\authenticated users.
6. Click Show options.
7. Clear the Send an email invitation check box.
8. In the Select a group or permission level drop-down list, select <SearchCenterName> Visitors
[Read].
9. Click Share.
See also
Create and configure a Search service application in SharePoint Server 2013
Manage the Search Center
368
Deploy people search in SharePoint Server
2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-07-17
Summary: Learn how to make people search work in SharePoint Server 2013.
People search is a SharePoint feature that allows users to get information about people in the
organization and to get links to the documents that they have authored. Users can access this feature
by entering a search query in the enterprise Search Center search box and clicking the link for the
Peoplesearch vertical.
A search vertical filters search results so that only a certain subset of all relevant results is displayed.
SharePoint Server 2013 provides four preconfigured search verticals: Everything, People,
Conversations, and Videos. You can see the links for these search verticals in the Search Navigation
Web Part, which is below the search box in the enterpirse Search Center, as shown in the following
screen shot.
When a user enters a search query in the search box and then clicks one of the search-vertical links,
the Search system returns search results that correspond to that search vertical only. For example, if
the user enters Microsoft Azure in the search box and then selects the People search-vertical link,
the Search system returns only search results that are people in your organization who are involved
with Microsoft Azure.
This article describes the prerequisites that you must complete to make people search possible, and
addresses other considerations related to making people search work.
In this article:
People search prerequisites
Set up people search
Add data for people search
Crawl the profile store
369
Note:
Regarding accessibility: SharePoint supports the accessibility features of common browsers to
help you administer deployments and access sites. For more information, see Accessibility for
SharePoint 2013.
People search prerequisites
People search has the following prerequisites:
A Search service application must be running in the farm. For more information, see Create and
configure a Search service application in SharePoint Server 2013. The farm must also have a
Search Center that uses the Enterprise Search Center template. For more information, see Create
a Search Center site in SharePoint Server 2013.
A Managed Metadata service application must be running in the farm. For more information, see
Overview of managed metadata service applications in SharePoint Server 2013.
User profile synchronization must be configured in the farm. If this has not been done yet, at a
minimum you must complete the following procedures that are described in Synchronize user and
group profiles in SharePoint Server 2013:
Phase 0: Configure the farm
Phase 1: Start the User Profile synchronization service
For more information, see Overview of profile synchronization in SharePoint Server 2013 and
Plan profile synchronization for SharePoint Server 2013.
Set up people search
To set up people search, you must configure My Sites settings and configure crawling.
Configure My Sites settings
You configure My Sites for a User Profile service application to specify the My Site host location and
other settings. For more information, see Plan for My Sites in SharePoint Server 2013 and Configure
My Site settings for the User Profile service application.
After you configure My Sites settings, the next step is to configure crawling.
370
Configure crawling
When you configure My Sites, the default content access account for search is automatically given
Retrieve People Data for Search Crawlers permissions in the User Profile service application. If you
want to use a different content access account to crawl the profile store, you must make sure that the
account has permissions to crawl the profile store. Use the following procedure to grant access to the
profile store for a different account.
To grant access to an account to crawl the profile store
1. Verify that the user account that is performing this procedure is an administrator for the Search
service application.
2. Start SharePoint 2013 Central Administration.
For Windows Server 2008 R2:
Click Start, click Microsoft SharePoint 2013 Products, and then click SharePoint 2013
Central Administration.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Central Administration.
If SharePoint 2013 Central Administration is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Central
Administration.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. In Central Administration, in the Application Management section, click Manage service
applications.
4. On the Manage Service Applications page, click the row that contains the User Profile service
application, and then in the ribbon, click Administrators.
5. In the Administrators for User Profile Service Application dialog box, in the To add an account
box, type a user account in the form domain\user name.
6. Click Add.
7. In the Permissions list, select the Retrieve People Data for Search Crawlers check box.
8. Click OK.
371
After you give the account access to crawl the profile store, you must create a crawl rule to specify
that you want to use that account when you crawl the profile store. Use the following procedure to
create a crawl rule for this purpose.
To create a crawl rule to authenticate to the User Profile service application
1. Verify that the user account that is performing this procedure is an administrator for the Search
service application.
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. On the Manage Service Applications page, click the Search service application for which you
want to create a crawl rule.
4. On the Search Administration page, in the Quick Launch, in the Crawling section, click Crawl
Rules.
5. On the Manage Crawl Rules page, click New Crawl Rule.
6. In the Path section, in the Path box, type the start address for the User Profile service application
in the form sps3://My_Site_host_URL, where My_Site_host_URL is the URL for the Web
application where you deployed the My Sites site collection.
If the web application where you deployed the My Sites site collection uses Secure Sockets Layer
(SSL), then type the start address in the form sps3s://My_Site_host_URL.
7. Click Use regular expression syntax for matching this rule if you want to use regular expression
syntax in the path.
8. In the Crawl Configuration section, select Include all items in this path.
9. In the Specify Authentication section, select Specify a different content access account.
10. In the Account box that appears, type the user account to which you gave access to the profile
store in the form domain\user name.
11. Type the password for the account that you specified in the Password and Confirm Password
boxes.
12. Clear the Do not allow Basic Authentication check box only if you want to allow the user
account credentials to be sent as plaintext.
372
Note:
You should not clear the Do not allow Basic Authentication check box unless you are
using SSL to encrypt the website traffic. For more information, see Plan for user
authentication methods in SharePoint 2013.
13. Click OK.
For more information, see Manage crawl rules in SharePoint Server 2013.
When you configure My Sites, the starting URL to crawl the profile store (sps3://My_Site_host_URL or
sps3s://My_Site_host_URL) is automatically added to the preconfigured content source Local
SharePoint Sites. We recommend that you remove the URL of the profile store from the
preconfigured content source and then create a separate content source to crawl only the profile
store. This allows you to crawl the profile store on a different schedule from other crawls.
Use the following procedure to remove the URL of the profile store from the preconfigured content
source.
To remove the profile store URL from the preconfigured content source
1. Verify that the user account that is performing this procedure is an administrator for the Search
service application.
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. On the Manage Service Applications page, click Search Service Application.
4. On the Search Administration page, in the Quick Launch, in the Crawling section, click Content
Sources.
5. On the Manage Content Sources page, click the link to the preconfigured content source (Local
SharePoint sites).
6. In the Start Addresses section, remove the URL for the profile store (sps3://My_Site_host_URL
or sps3s://My_Site_host_URL, where My_Site_host_URL is the URL for the web application where
you deployed the My Sites site collection).
7. Click OK.
Use the following procedure to create a content source that specifies how to crawl the profile
store. For more information, see Add, edit, or delete a content source in SharePoint Server 2013.
373
To create a content source that specifies how to crawl the profile store
1. Verify that the user account that is performing this procedure is an administrator for the Search
service application.
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. On the Manage Service Applications page, click Search Service Application.
4. On the Search Administration page, in the Quick Launch, in the Crawling section, click Content
Sources.
5. On the Manage Content Sources page, click New Content Source.
6. On the Add Content Source page, in the Name section, type a name for this content source.
7. In the Content Source Type section, ensure that SharePoint Sites is selected.
8. In the Start Addresses section, type the start address in the form sps3://My_Site_host_URL,
where My_Site_host_URL is the URL for the web application where you deployed the My Sites
site collection.
If the web application where you deployed the My Sites site collection uses SSL, then type the
start address in the form sps3s://My_Site_host_URL.
9. In the Crawl Settings section, leave the default value of Crawl everything under the host name
for each start address.
10. In the Crawl Schedules section, do the following:
Select Enable Continuous Crawls or Enable Incremental Crawls.
A continuous crawl automatically provides maximum freshness for the content source
without an incremental crawl schedule. For more information, see Manage continuous
crawls in SharePoint Server 2013.
If you select Enable Incremental Crawls, create an incremental crawl schedule.
Optionally create a schedule for full crawls.
11. If you selected Enable Incremental Crawls, in the Content Source Priority section, select the
priority for this content source.
Note:
The Content Source Priority section does not appear when you specify the content source
type as SharePoint Sites and you select Enable Continuous Crawls.
374
12. Click OK.
Add data for people search
To get the best results from people search, you should add as much information as you can by adding
user profiles to the profile store and adding information to My Sites.
Add user profiles to the profile store
Before you can obtain meaningful people search results, you must add user profiles to the User Profile
service application. You can do this in the following ways:
Import user profiles from the directory service. For more information, see the following articles:
Plan profile synchronization for SharePoint Server 2013
Synchronize user and group profiles in SharePoint Server 2013
Configure profile synchronization by using SharePoint Active Directory Import in SharePoint
Server 2013
Copy user profiles from one farm to another by using the User Profile Replication Engine (UPRE).
For more information, see Use UPRE to replicate user profiles across multiple farms in
SharePoint Server 2013.
Add user profiles manually.
Synchronize with an external data source by using the Business Data Connectivity service. For
more information, see Phase 3: Configure connections and import data from business systems in
the article Synchronize user and group profiles in SharePoint Server 2013.
Important:
For a test environment, we recommend that you do not synchronize the profile store to a
directory service or other external data source that is in a production environment. Instead,
create a copy of the directory service and synchronize the copy with the profile store.
Use the following procedure to view the user profiles in the User Profile service application.
To view a list of user profiles in the User Profile service application
1. Verify that the user account that is performing this procedure is an administrator for the User
Profile service application.
375
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. On the Manage Service Applications page, click the User Profile service application.
4. On the Manage Profile Service page, in the People section, click Manage User Profiles.
5. On the Manage User Profiles page, in the Find profiles box, type the name of the domain of
which the users are members.
Do not type the fully qualified domain name. For example, if users are members of the
Contoso.com domain, type Contoso in the Find profiles box.
6. Click Find.
Add information to My Sites
My Sites keep information in the User Profile service application databases. The User Profile service
application stores much of the information that appears in results for people search. People search
results become more useful as users add more information to their My Sites.
The first time that a user accesses their My Site, also known as their personal site, a My Site is created
for them and a profile is automatically added to the User Profile service application.
To add information to a user's My Site, log on as a user for whom a user profile was created in the
User Profile service application, and then go to that user’s My Site. In the user’s My Site, you can
provide information about the user’s expertise and interests. To see how the information that you
added affects the people search results that appear, perform a crawl of the profile store, and then
search on the user's name.
Crawl the profile store
You are now ready to crawl the profile store. For information about how to start the crawl, see Start,
pause, resume, or stop a crawl in SharePoint Server 2013.
Note:
We recommend that you crawl the profile store and wait about two hours after the crawl
finishes before you start the first crawl of the preconfigured content source (that is, local
SharePoint sites). After the crawl of the profile store finishes, the search system generates a
list to standardize people's names. This is so that when a person's name has different forms in
search results, the results are displayed in a single group corresponding to one name. For
example, all documents authored by Anne Weiler or A. Weiler or alias AnneW can be
displayed in the search results in a result block that is labeled "Documents by Anne Weiler".
376
Similarly, all documents authored by any of those identities can be displayed under the
heading "Anne Weiler" in the refinement panel if "Author" is one of the categories there.
For information about how to view the status of a crawl, see Start, pause, resume, or stop a
crawl.
See also
Create and configure a Search service application in SharePoint Server 2013
Administer the User Profile service in SharePoint Server 2013
Overview of profile synchronization in SharePoint Server 2013
Manage user profile synchronization in SharePoint Server 2013
Plan for My Sites in SharePoint Server 2013
Manage crawling in SharePoint Server 2013
Add, edit, or delete a content source in SharePoint Server 2013
377
Configure trust for search between two
SharePoint Server 2013 farms
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-07-16
Summary: Configure a SharePoint Server 2013 content farm that receives search queries to trust the
SharePoint Server 2013 farm that sends the queries.
To configure an on-premises SharePoint Server 2013 content farm to return results from its search
index to a separate on-premises SharePoint Server 2013 farm, you must perform the following two
main procedures:
1. In the farm that will receive the search queries, configure trust of the farm that will send the
queries by doing the following:
Configure a server-to-server trust relationship by using the Open Authorization 2.0 (OAuth
2.0) web authorization protocol.
Enable the farm that receives the queries to return search results from all of its web
applications that host content.
2. In the farm that will send the search queries, create a result source that does each of the
following:
Specifies Remote SharePoint as the protocol.
Specifies the address of any root site collection in the SharePoint farm that will receive the
search queries.
For more information, see Configure result sources for search in SharePoint Server 2013.
Note:
After you create the result source, you expose the search results that it provides by using it in
a Web Part or a query-rule action. In this way, users of the farm that is sending search queries
can see results from the farm that is receiving the queries. For more information, see
Understanding result sources for search in SharePoint Server 2013.
This article describes how to perform the first procedure in the list above: how to configure the farm
that receives search queries to trust the farm that sends the queries.
For brevity in this article, the following terms are used:
378
SendingFarm
An on-premises SharePoint Server 2013 farm that
has a search service that sends search queries to
ReceivingFarm.
ReceivingFarm
An on-premises SharePoint Server 2013 content
farm that has a search index that receives search
queries from SendingFarm. In this article, it is
assumed that ReceivingFarm has at least one web
application that hosts content.
In order for SendingFarm to be able to get search results from the search index in ReceivingFarm, the
farms must have the following characteristics:
Each farm is a SharePoint Server 2013 on-premises deployment.
User profiles in the two farms are synchronized. For more information, see Server-to-server
authentication and user profiles in SharePoint Server 2013.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
To configure ReceivingFarm to trust SendingFarm
1. Verify that the account that performs this procedure is a member of the following groups:
Farm Administrators group in ReceivingFarm.
Administrators group on the server on which you are running Windows PowerShell
cmdlets.
379
An administrator of that server can use the Add-SPShellAdmin cmdlet to grant someone
permission to use SharePoint 2013 cmdlets. When you run the Add-SPShellAdmin
cmdlet, you must have membership in the securityadmin fixed server role on the SQL
Server instances, and you must have membership in the db_owner fixed database role on
all databases that are to be updated. For more information, see Add-SPShellAdmin.
Contact your system administrator or SQL Server administrator to request these
memberships if you do not have them.
2. On a server in ReceivingFarm, start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
In the SharePoint 2013 environment, on the Start menu, click All Programs, click
Microsoft SharePoint 2013 Products, and then click SharePoint 2013 Management
Shell.
For Windows Server 2012:
In the SharePoint 2013 environment, on the Start page, click SharePoint 2013
Management Shell.
If SharePoint 2013 Management Shell is not on the Start page, right-click Computer,
click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. On a server in ReceivingFarm, run the following commands at a Windows PowerShell command
prompt. The commands use the OAuth 2.0 web authorization protocol to configure a server-to-
server trust, so that ReceivingFarm will trust SendingFarm.
# Create a trusted security token issuer
$i = New-SPTrustedSecurityTokenIssuer -Name "SendingFarm" -
IsTrustBroker:$false -MetadataEndpoint
"https://<SendingFarm_web_application>/_layouts/15/metadata/json/1"
# Configure trust of the token-signing certificate'
# by adding the trust used to sign oAuth tokens'
# to the list of trusted root authorities'
# in ReceivingFarm
New-SPTrustedRootAuthority -Name "SendingFarm" -MetadataEndPoint
https://<SendingFarm_web_application>/_layouts/15/metadata/json/1/rootcer
tificate
Where:
https://<SendingFarm_web_application> is any SSL-enabled web application in SendingFarm
380
Important:
Web applications that include server-to-server authentication endpoints for incoming
server-to-server requests, or that make outgoing server-to-server requests, should be
configured to use Secure Sockets Layer (SSL). For information about how to configure a
web application to use SSL, see Create claims-based web applications in SharePoint 2013.
For information about how to configure HTTP support for server-to-server requests, see
Configure an STS for HTTP in Configure server-to-server authentication in SharePoint
2013.
4. On a server in ReceivingFarm, at a Windows PowerShell command prompt, run the following
command:
# Use $realm to store the string'
# that comes after the "@" character'
# in the value of $i.NameId
$realm = $i.NameId.Split("@")
5. On a server in ReceivingFarm, at a Windows PowerShell command prompt, run the following
commands to enable all web applications in ReceivingFarm to return search results to
SendingFarm:
$s1 = Get-SPSite -Identity https://<ReceivingFarm_web_application>
$sc1 = Get-SPServiceContext -Site $s1
# Set up an authentication realm for'
# a web application that hosts content in ReceivingFarm
Set-SPAuthenticationRealm -ServiceContext $sc1 -Realm $realm[1]
# Get a reference to the application principal'
# for that web application in Farm B
$p = Get-SPAppPrincipal -Site https://<ReceivingFarm_web_application> -
NameIdentifier $i.NameId
# Grant rights to the application principal'
# that SendingFarm will use'
# when it sends queries to ReceivingFarm
Set-SPAppPrincipalPermission -Site
https://<ReceivingFarm_web_application> -AppPrincipal $p -Scope
SiteCollection -Right FullControl
Where:
https://<ReceivingFarm_web_application> is an SSL-enabled web application in ReceivingFarm.
6. Repeat the previous step (step 5) for each web application in ReceivingFarm that hosts content
that you want to search.
381
See also
Configure server-to-server authentication in SharePoint 2013
Authentication overview for SharePoint 2013
Plan for server-to-server authentication in SharePoint 2013
Plan for server-to-server authentication in SharePoint 2013
Setting Up an oAuth Trust Between Farms in SharePoint 2013
Getting a Full Result Set from a Remote SharePoint Index in SharePoint 2013
An Introduction to JavaScript Object Notation (JSON) in JavaScript and .NET
382
Configure result sources for search in
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-04-23
Summary: Learn how to create and manage result sources in SharePoint Server 2013.
Result sources limit searches to certain content or to a subset of search results. SharePoint Server
2013 provides 16 pre-defined result sources. The pre-configured default result source is Local
SharePoint Results. You can specify a different result source as the default. For more information,
see Understanding result sources for search in SharePoint Server 2013.
In this article:
Before you begin
Create a result source
Set a result source as default
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
383
Create a result source
You can create a result source for a Search service application, a site collection, or a site. The following
table shows the permissions that are required to create a result source at each level, and where the
result source can be used.
Levels and permissions for result sources
When you create a result
source at this level
You must have this
permission
The result source can be used
in
Search service application
Search service application
administrator
All site collections in web
applications that consume the
Search service application
Site collection
Site collection administrator
All sites in the site collection
Site
Site owner
The site
To create a result source
1. Depending on the level at which you want to create the result source, do one of the following:
To create a result source for a Search service application:
Verify that the user account that performs this procedure is an administrator on the
Search service application.
In Central Administration, in the Application Management section, click Manage
service application.
Click the Search service application for which you want to create a result source.
On the Search Administration page for the Search service application, on the Quick
Launch, in the Queries and Results section, click Result Sources.
To create a result source for a site collection:
Verify that the user account that performs this procedure is an administrator for the
site collection.
On the Settings menu for the site collection, click Site Settings.
384
On the Site Settings page, in the Site Collection Administration section, click
Search Result Sources.
To create a result source for a site:
Verify that the user account that performs this procedure is a member of the Owners
group for the site.
On the Settings menu for the site, click Site Settings.
On the Site Settings page, in the Search section, click Result Sources.
2. On the Manage Result Sources page, click New Result Source.
3. On the Add Result Source page, in the General Information section, do the following:
a) In the Name box, type a name for the result source.
b) In the Description box, type a description of the result source.
4. In the Protocol section, select one of the following protocols for retrieving search results:
Local SharePoint, the default protocol, provides results from the search index for this
Search service application.
Remote SharePoint provides results from the index of a search service in another farm.
Important:
To use the Remote SharePoint protocol to get search results in one SharePoint Server 2013
on–premises farm from the index of another SharePoint Server 2013 on–premises farm, you
must configure the farm that receives the queries to trust the farm that sends the queries. For
information about how to do this, see Configure trust for search between two SharePoint
Server 2013 farms.
OpenSearch provides results from a search engine that uses the OpenSearch 1.0/1.1
protocol.
Exchange provides results from Exchange Server 2013 through a SharePoint 2013
eDiscovery Center. Click Use AutoDiscover to have the search system find an Exchange
Server 2013 endpoint automatically, or type the URL of the Exchange web service to
retrieve results from — for example, https://contoso.com/ews/exchange.asmx.
Note:
The Exchange protocol only enables you to discover Exchange Server 2013 content, and only
from a SharePoint 2013 eDiscovery Center. For more information, see "Configure
385
communication between SharePoint Server 2013 and Exchange Server 2013" in Configure
eDiscovery in SharePoint Server 2013.
The Exchange Web Services Managed API must be installed on the computer on which the
search service is running. For more information, see Optional software in Hardware and
software requirements for SharePoint 2013.
5. In the previous step (step 4), if you selected either Local SharePoint or Remote SharePoint for
the protocol, then in the Type section, select SharePoint Search Results to search the whole
index, or select People Search Results to enable query processing that is specific to people
search.
6. If you selected Remote SharePoint for the protocol in step 4 of this procedure, then in the
Remote Service URL section, type the address of the root site collection of the remote
SharePoint farm.
7. If you selected OpenSearch 1.0/1.1 for the protocol in step 4 of this procedure, then in the
Source URL section, type the URL of the OpenSearch source.
8. If you selected Exchange for the protocol in step 4 of this procedure, then in the Exchange
Source URL section, type the URL of the Exchange web service — for example,
https://contoso.com/ews/exchange.asmx.
9. In the Query Transform section, do one of the following:
Leave the default query transform (searchTerms) as is. In this case, the query will be
unchanged since the previous transform.
Type a different query transform in the text box. For more information, see Understanding
query transforms.
Use the Query Builder to configure a query transform by doing the following:
Click Launch Query Builder.
In the Build Your Query dialog box, optionally build the query by specifying filters,
sorting, and testing on the tabs as shown in the following tables.
386
On the BASICS tab
Keyword filter
You can use keyword filters to add pre-defined query
variables to the query transform. You can select pre-
defined query variables from the drop-down list, and
then add them to the query by clicking Add keyword
filter.
For an overview of query variables, see Query
variables in SharePoint Server 2013.
Property filter
You can use property filters to query the content of
managed properties that are set to queryable in the
search schema.
You can select managed properties from the
Property filter drop-down list. Click Add property
filter to add the filter to the query.
On the SORTING tab
Sort results
In the Sort by menu, you can select a managed
property from the list of managed properties that are
set as sortable in the search schema, and then select
Descending or Ascending. To sort by relevance,
that is, to use a ranking model, select Rank. You can
click Add sort level to specify a property for a
secondary level of sorting for search results.
Note:
Sorting of search results is case sensitive.
Ranking Model
If you selected Rank from the Sort by list, you can
select the ranking model to use for sorting.
Dynamic ordering
You can click Add dynamic ordering rule to specify
additional ranking by adding rules that change the
order of results within the result block when certain
conditions are satisfied.
387
On the TEST tab
Query text
You can view the final query text, which is based on
the original query template, the applicable query
rules, and the variable values.
Click Show more to display the
options in the following rows of
this table.
Query template
You can view the query as it is defined in the BASICS
tab or in the text box in the Query transform section
on the Add Result Source page.
Query template variables
You can test the query template by specifying values
for the query variables.
10. On the Add Result Source page, in the Credentials Information section, select the
authentication type that you want for users to connect to the result source.
Set a result source as default
You can set any result source as the default result source. Specifying a result source as default can
make it easier to edit the query in Search Web Parts. For example, when you add a Content Search
Web Part to a page, the Web Part automatically uses the default result source. For more information,
see Configure Search Web Parts in SharePoint Server 2013.
To set a result source as default
1. Perform the appropriate procedures in the following list depending on the level at which the
result source was configured.
If the result source was created at the Search service application level, do the following:
Verify that the user account that performs this procedure is an administrator for the
Search service application.
In Central Administration, in the Application Management section, click Manage
service applications.
Click the Search service application for which you want to set the result source as
default.
388
On the Search Administration page, in the Queries and Results section, click Result
Sources.
If the result source is at the site collection level, do the following:
Verify that the user account that performs this procedure is an administrator for the
site collection administrator.
On the Settings menu for the site collection, click Site Settings.
On the Site Settings page, in the Site Collection Administration section, click
Search Result Sources.
If the result source is at the site level, do the following:
Verify that the user account that performs this procedure is a member of the Owners
group for the site.
On the Settings menu for the site, click Site Settings.
On the Site Settings page, in the Search section, click Result Sources.
2. On the Manage Result Sources page, point to the result source that you want to set as default,
click the arrow that appears, and then click Set as Default.
See also
Query variables in SharePoint Server 2013
389
Customize search result types in SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Online
Topic Last Modified: 2014-07-16
Create and configure custom search result types in SharePoint 2013 so that users can readily
distinguish and preview different kinds of items in a list of search results.
A search result type is a rule that causes distinct kinds of search results to be displayed in different
ways. It consists of the following:
One or more characteristics or conditions to compare each search result against, such as the result
source or content type of the search result
A display template to use for search results that meet the conditions. The display template
controls the way in which all results that meet the conditions appear and behave on a search
results page.
The search system has preconfigured result types that it uses by default. You can view them on the
Manage Result Types page. For example, a preconfigured result type named Person specifies that if a
search result comes from the result source Local People Results, then use the People Item display
template to display the result. The People Item display template shows certain user-profile
information in the search result and provides links in the hover panel for documents that the person
has authored.
As a site collection administrator or site owner, you can use the default result types as starting points
for creating custom result types. For example, the pre-configured Microsoft Excel result type
specifies the condition that the file extension of the search result is XLS or XLSX. You could copy this
result type and customize it so that it also includes the condition that the value of the ContentType
managed property is Sales Report. That way, users will readily be able to identify certain Excel search
results as sales reports.
You could also customize the default Excel Item display template for this purpose. A display template
specifies how to display managed properties of a search result, such as item title, file extension, path,
and summary. This helps users to distinguish results easily. The display template also controls how a
document or site will appear in the preview pane (also called the hover panel) to the right of the
search result. This helps users to know whether a search result will be useful to them before they click
the result to open it. For example, the Excel Item display template can display relevant charts,
worksheets, and tables from an Excel document in the hover panel and enable users to go directly to
390
those sections in the document. For more information about display templates for search result types,
see:
Result types and display templates that are used to display search results in SharePoint Server
2013
Display template reference in SharePoint Server 2013
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
Create and configure a custom search result type
1. Go to the Manage Result Types page by doing one of the following:
If you want to create a result type for a site collection:
Ensure that you are an administrator for the site collection.
In the site collection, go to Settings > Site settings, and then in the Site Collection
Administration section, click Search Result Types.
If you want to create a result type for a site:
Ensure that you are a site owner for the site.
On the site, go to Settings > Site settings, and then in the Search section, click
Result Types.
2. To create a result type, do one of the following on the Manage Result Types page:
Click New Result Type.
391
In the list of existing result types, click the name of a result type, such as Person, and then
click Copy so that you can modify the copy to create a new result type.
Tip:
When you create a result type, we recommend that you use the copy method, so that the
settings in an existing result type can help guide you through the configuration process.
3. On the Add Result Type page, in the General Information section, in the Give it a name text box,
type a name for the new result type.
4. On the Add Result Type page, in the Conditions section, do the following:
a) In the Which source should results match? drop-down list, select a result source such
as All Sources or Documents.
For any given search result, this condition will be met if the search result is from the result
source that you selected from this drop-down list.
b) (Optional) In the What types of content should match? drop-down list, do the following:
i. Select a type of content, such as Microsoft Word.
Note:
If you do not select a type of content, all results from the result source that you specified (in
the Which source should results match? section) will match this result type.
ii. As many times as appropriate, click Add Value and select another type of content.
5. (Optional) On the Add Result Type page, expand the Show more conditions section, and then do
the following:
a) In the Which custom properties should match? section, the items in the Select a
property drop-down list are retrievable managed properties. Select a property that you
want the search system to perform a match on, such as Author.
b) In the second drop-down list, specify the operator, such as Equals any of.
c) In the text box, specify the value against which the search system should search for a
match.
Separate multiple values with semicolons. Alternatively, as many times as appropriate,
click Add Value and type another value in the new text box that appears.
For example, if you select the Author property and you select the operator Equals any of,
then if you specify multiple values such as Kara and Silas, the condition will be “author
equals Kara or Silas”.
392
d) To add another property to match, click Add Property.
6. On the Add Result Type page, in the Actions section, do the following:
a) In the What should these results look like? drop-down list, click a display template such
as Office Document Item or PDF Item.
Display templates for search results are in the Search folder in the master page gallery for
the site collection. The Display template URL box automatically displays the URL of the
display template that corresponds to the display template that you selected.
b) Select the Optimize for frequent use check box if you expect this result type to appear
frequently in search results.
See also
Result types and display templates that are used to display search results in SharePoint Server 2013
Display template reference in SharePoint Server 2013
393
Turn on automated translation of
documents in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to turn on the Machine Translation Service in SharePoint Server 2013 to let site
owners automatically translate documents.
On a publishing site collection that uses variations, site owners can choose to export a file and have it
translated by a person (human translation), or they can choose to have it be translated automatically
(machine translation). By default, the Machine Translation Service is turned off. Turning it on is a two-
step process:
Step 1: Create a Machine Translation service application.
Step 2: Configure the Machine Translation Service.
This article describes how to do both steps by using either the SharePoint Central Administration
website or Windows PowerShell.
In this article:
Before you begin
Supported file name extensions and maximum file sizes
Step 1: Create a Machine Translation service application
Step 2: Configure the Machine Translation Service
Additional steps
Supported browser accessibility features
Before you begin
Before you perform these procedures, review the following information about prerequisites:
The App Management service application must be started in Central Administration. For more
information, see Configure an environment for apps for SharePoint (SharePoint 2013).
394
If the Machine Translation Service is in one farm and the User Profile service is in another farm,
you must configure server-to-server authentication. For more information, see Configure server-
to-server authentication between SharePoint 2013 farms.
There must be a User Profile service application proxy in the default proxy group for the farm, and
the User Profile service application must be started and configured by using Central
Administration or by using Windows PowerShell. For more information, see Create, edit, or delete
User Profile service applications in SharePoint Server 2013.
The server from which machine translations will be run must be able to connect to the Internet.
If you plan to use Central Administration to create the service application, verify that you are a
member of the Farm Administrators SharePoint group and the Administrators group on the
computer that is running Central Administration.
If you plan to use Windows PowerShell to create the service application, you must have the
following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Supported file name extensions and maximum file
sizes
The Machine Translation Service translates files up to a certain size, as shown in the following table.
395
Table: Supported file types and maximum file size limits for machine
translation
File type
File extensions
Maximum file size
Microsoft Word document
parser
.doc
.docm
.docx
.dot
.dotm
.dotx
.rtf
524,288 KB
HTML parser
.aspx
.htm
.html
.xhtm
.xhtml
15,360 KB
Plain text parser
.txt
15,360 KB
XLIFF parser
.xlf
15,360 KB
The maximum character count for Microsoft Word documents is 10,000,000.
Step 1: Create a Machine Translation service
application
The following two procedures describe how to create a Machine Translation service application. One
uses Central Administration, and the other uses Windows PowerShell.
396
To create a Machine Translation service application by using Central Administration
1. On the Central Administration home page, in the Application Management section, choose
Manage service applications.
2. On the ribbon, choose New, and then choose Machine Translation Service.
3. In the Create New Machine Translation Service Application pane, type a name for the service
application.
4. In the Application Pool section, do one of the following:
Choose Use existing application pool, and then select the application pool that you want
to use from the drop-down list.
Choose Create a new application pool, type the name of the new application pool, and
then under Select a security account for this application pool, do one of the following:
Choose Predefined to use a predefined security account, and then select the security
account from the drop-down list.
Choose Configurable to specify a new security account to be used for an existing
application pool. You can create an account by choosing the Register new managed
account link.
Important:
The account that is used by the application pool must also have Full Control permissions to
the User Profile service application. If you create an application pool and a new account,
ensure that you add the account to the list of accounts that can use the User Profile service
application, and grant Full Control permissions to the account. For more information, see
Restrict or enable access to a service application (SharePoint 2013).
5. If you'll provide hosting services for other sites, and the sites that use it have site subscriptions,
select Run in partitioned mode.
6. Select Add this service application's proxy to the farm's default proxy list. If you have multiple
web applications and want them to use different sets of services, clear this check box.
7. In the Database section, specify the database server, database name, and authentication method
for the new service application as described in the following table. The database is used to hold
the work items for the Machine Translation service.
397
Table: Database section properties
Item
Action
Database Server
Type the name of the database server and SQL
Server instance that you want to use in the format
ServerName\Instance. You can also use the
default entry.
Database Name
Type a unique name for the database.
Database Authentication
Select the authentication that you want to use by
doing one of the following:
To use Windows authentication, leave this
option selected. We recommend this option
because Windows authentication
automatically encrypts the password when it
connects to SQL Server.
To use SQL authentication, choose SQL
authentication. In the Account box, type the
name of the account that you want the
service application to use to authenticate to
the SQL Server database, and then type the
password in the Password box.
Note:
The SQL authentication option sends a
password that is not encrypted to SQL
Server. We recommend that you use SQL
authentication only if you force protocol
encryption to SQL Server or encrypt
network traffic by using IPsec.
8. Choose OK.
9. Start the Machine Translation Service. For more information, see Start or stop a service
(SharePoint 2013).
398
To create a Machine Translation service application by using Windows PowerShell
1. On the Start menu, go to All Programs > Microsoft SharePoint 2013 Products > SharePoint
2013 Management Shell.
2. At the Windows PowerShell command prompt, type the following syntax:
New-SPTranslationServiceApplication -Name "
<ServiceApplicationName>
" -
DatabaseName "
<DatabaseName>
" -DatabaseServer "
<DatabaseServer>
" -
ApplicationPool "
<ApplicationPoolName>
" -Default
The following table describes the variables used in the New-SPTranslationServiceApplication
cmdlet.
3. Table: Variables used in the New-SPTranslationServiceApplication
cmdlet
Variable name
Description
<ServiceApplicationName>
The name of the new Machine Translation service
application.
<DatabaseName>
The name of the database that will host the
Machine Translation Service logs. To create a
database, provide a new unique name.
<DatabaseServer>
The name of the database server that will hold
the work items for the Machine Translation
Service.
399
Variable name
Description
<ApplicationPoolName>
The name of an existing application pool in which
the new Machine Translation Service should run.
Important:
The account that is used by the
application pool must also have Full
Control permissions to the User Profile
service application. If you create an
application pool and a new account,
ensure that you add the account to the
list of accounts that can use the User
Profile service application, and grant it
Full Control permissions. For more
information, see Restrict or enable access
to a service application (SharePoint
2013).
Example
New-SPTranslationServiceApplication -Name "Machine Translation Service
Application" -DatabaseName "MachineTranslationDB" -DatabaseServer
"ContosoDBServer" -ApplicationPool "ContosoAppPool" -Default
4. Start the Machine Translation Service. For more information, see Start or stop a service
(SharePoint 2013).
For more information, see New-SPTranslationServiceApplication.
Step 2: Configure the Machine Translation Service
The following two procedures describe how to configure the Machine Translation Service. One uses
Central Administration, and the other uses Windows PowerShell.
Caution:
Changing the default settings for the Machine Translation Service can potentially affect server
performance. For example, increasing item size limits can result in the translation job taking
longer to run, and increasing the number of processes will consume more resources on the
server. Carefully consider any possible server effects before you change these settings.
400
To configure the Machine Translation Service by using Central Administration
1. On the Central Administration home page, in the Application Management section, choose
Manage service applications.
2. On the Manage Service Applications page, choose the link that corresponds to the name of the
Machine Translation service application.
3. On the Machine Translation Service page, in the Enabled File Extensions section, clear the
check box for any file name extensions that you want to disable. By default, all file name
extensions are enabled.
4. In the Item Size Limits section, do the following:
In the Maximum file size for binary files in KB. Microsoft Word documents are binary
files box, type the maximum file size (100–524,288), in KB, for binary files. The default is
51,200. Files that exceed this limit won't be translated.
In the Maximum file size for text files in KB. Plain-text, HTML, and XLIFF documents
are text files box, type the maximum file size (100–15,360), in KB, for text files. The
default is 5,120. Files that exceed this limit won't be translated.
In the Maximum character count for Microsoft Word documents box, type the
maximum character count (10,000–10,000,000) for Word documents. The default is
500,000.
5. In the Online Translation Connection section, do one of the following:
Choose Use default internet settings. This is the default.
Choose Use the proxy specified, and type a web proxy server and port number.
Note:
If you change this setting, you must stop and restart the Machine Translation Service after you
configure it.
6. In the Translation Processes section, type the number of translation processes (1–5). The
default is 1.
Note:
If you change this setting, you must stop and restart the Machine Translation Service after
you configure it.
7. In the Translation Throughput section, do the following:
In the Frequency with which to start translations (minutes) box, type the frequency
with which groups of translations are started, in minutes (1–59). The default is 15.
401
In the Number of translations to start (per translation process) box, type the number
of translations (1–1,000) per process. This number represents the number of translations
started per process every time translations are started. The default is 200.
8. In the Maximum Translation Attempts section, type the maximum number of times (1–10) a
translation is tried before its status is set to Failed. The default is 2.
9. In the Maximum Synchronous Translation Requests section, type the maximum number of
synchronous translation requests (0–300). The default is 10.
Note:
You can also set this value to 0 so that no synchronous jobs are accepted.
10. In Translation Quota > Maximum number of items which can be queued in a 24-hour period,
do one of the following:
Choose No limit. This is the default.
Choose Limit per 24 hours, and then type the maximum number of items (100–
1,000,000) that can be queued in a 24-hour period.
11. If you'll provide hosting services for other sites, and the sites that use it have site subscriptions, in
Translation Quota > Maximum number of items which can be queued in a 24-hour period per
site subscription, do one of the following:
Choose No limit. This is the default.
Choose Limit per 24 hours, and then type the maximum number of items (100–
1,000,000) that can be queued in a 24-hour period per site subscription.
12. In the Completed Job Expiration Time section, do one of the following:
Choose Days, and then type the number of days (1–1,000) completed jobs are kept in the
job history log. The default is 7.
Choose No expiration.
13. In the Recycled Threshold section, type the number of documents (1–1,000) to be converted
before the conversion process is restarted. The default is 100.
Note:
If you change this setting, you must stop and restart the Machine Translation Service after
you configure it.
14. In the Office 97-2003 Document Scanning section, specify whether to disable security scanning
for Office 97–2003 documents. Only enable this setting if you trust the documents that will be
converted. The default is No.
402
15. Choose OK.
16. If you changed any settings in steps 5, 6, 11, or 13 that require you to restart the Machine
Translation Service, restart the service now. For more information, see Start or stop a service
(SharePoint 2013).
To configure the Machine Translation Service by using Windows PowerShell
1. On the Start menu, go to All Programs > Microsoft SharePoint 2013 Products > SharePoint
2013 Management Shell.
2. At the Windows PowerShell command prompt, type the following syntax:
Set-SPTranslationServiceApplication -Identity "
<ServiceApplicationName>
" -
EnableAllFileExtensions -UseDefaultlnternetSettings -TimerJobFrequency
<TimerJobFrequency>
-MaximumTranslationAttempts
<MaximumTranslationAttempts>
-JobExpirationDays
<JobExpirationDays>
-
MaximumSyncTranslationRequests
<MaximumSyncTranslationRequests>
-
RecycleProcessThreshold
<RecycleProcessThreshold>
-DisableBinaryFileScan
<DisableBinaryFileScan>
The following table describes the variables used in the Set-SPTranslationServiceApplication
cmdlet.
3. Table: Variables used in the Set-SPTranslationServiceApplication cmdlet
Variable name
Description
<ServiceApplicationName>
The name of the Machine Translation service
application.
<TimerJobFrequency>
The frequency, in minutes (1–59), with which
groups of translations are started.
<MaximumTranslationAttempts>
The maximum number of times (1–10) a
translation is tried before its status is set to
Failed.
<JobExpirationDays>
The number of days (1–1,000) completed jobs are
kept in the job history log.
<MaximumSyncTranslationRequests>
The maximum number of synchronous translation
requests (0–300).
403
Variable name
Description
<RecycleProcessThreshold>
The number of documents (1–1,000) to be
converted before the conversion process is
restarted.
<DisableBinaryFileScan>
Either 0 (false) or 1 (true).
Example
Set-SPTranslationServiceApplication -Identity "Machine Translation
Service Application" -EnableAllFileExtensions -UseDefaultlnternetSettings
-TimerJobFrequency 30 -MaximumTranslationAttempts 3 -JobExpirationDays 14
-MaximumSyncTranslationRequests 20 -RecycleProcessThreshold 300 -
DisableBinaryFileScan 1
4. If you changed any of the following parameters, restart the service now: KeepAliveTimeout,
MaximumTranslationTime, TotalActiveProcesses, RecycleProcessThreshold,
WebProxyAddress, MachineTranslationAddress, or UseDefaultInternetSettings. For
more information, see Start or stop a service (SharePoint 2013).
For more information, see Set-SPTranslationServiceApplication.
Additional steps
If the account that is used by the application pool that was assigned to the Machine Translation
service application differs from the one used by the User Profile service application, you must add
it to the list of accounts that can use the User Profile service application and grant it Full Control
permissions. For more information, see Restrict or enable access to a service application
(SharePoint 2013).
The Microsoft Translator Hub is an extension of Microsoft Translator and lets you build automatic
language translation systems that integrate with your website. After you build a custom system,
the Test System page on the Projects tab in the Microsoft Translator Hub displays a category ID.
You can configure the Machine Translation Service to use the custom translation system by
passing the category ID in the MachineTranslationCategory parameter. For more
information about the Microsoft Translator Hub, see About Microsoft Translator Hub.
Supported browser accessibility features
Because SharePoint 2013 runs as websites in Internet Information Services (IIS), administrators and
users depend on the accessibility features that browsers provide. SharePoint 2013 supports the
accessibility features of supported browsers. For more information, see the following resources:
405
Configure Request Manager in SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how Request Manager in SharePoint Server 2013 can route and throttle incoming
requests to help improve performance and availability.
Request Manager is functionality in SharePoint Server 2013 that enables administrators to manage
incoming requests and determine how SharePoint Server 2013 routes these requests.
In this article:
Overview
Scenarios
Setup and Deployment
Configuration
Request Routing
Monitoring and Maintenance
Overview
Request Manager uses configured rules to perform the following tasks when it encounters requests:
Deny potentially harmful requests from entering a SharePoint farm.
Route good requests to an available server.
Manually optimize performance.
Information that administrators or an automated process provide to Request Manager determine the
effectiveness of routed requests.
To learn about how to use performance data to plan and manage the capacity of a SharePoint Server
2013 environment, see Capacity management and sizing overview for SharePoint Server 2013
406
Scenarios
The following table describes possible scenarios and resolutions that Request Manager can address.
Area
Scenario
Resolution
Reliability and performance
Routing new requests to web
front end with low performance
can increase latency and cause
timeouts.
Request Manager can route to
front-end web servers that have
better performance, keeping low
performance front-end web
servers available.
Requests from users and bots
have equal priority.
Prioritize requests by throttling
requests from bots to instead
serve requests from end-users).
Manageability, accountability,
and capacity planning
SharePoint Server fails or
generally responds slowly, but
it’s difficult to identify the cause
of a failure or slowdown.
Request Manager can send all
requests of a specific type, for
example, Search, User Profiles,
or Office Web Apps, to specific
computers. When a computer is
failing or slow, Request Manager
can locate the problem.
All front-end web servers must
be able to handle the requests
because they could be sent to
any front-end web server.
Request Manager can send
multiple or single requests to
front-end web servers that are
designated to handle them.
Scaling limits
Hardware scaling limited by load
balancer
Request Manager can perform
application routing and scale out
as needed so that a load
balancer can quickly balance
loads at the network level.
Setup and Deployment
Request Manager's task is to decide two things: a SharePoint farm will accept a request, and if the
answer is "yes", to which front-end web server SharePoint Server will send it. The three major
407
functional components of Request Manager are Request Routing, Request Throttling and Prioritizing,
and Request Load Balancing. These components determine how to handle requests. Request Manager
manages all requests on a per-web-application basis. Because Request Manager is part of the
SharePoint Server 2013 Internet Information Services (IIS) module, it only affects requests that IIS
hosts.
When a new request is received, Request Manager is the first code that runs in a SharePoint farm.
Although Request Manager is installed during setup of SharePoint Server on a front-end web server,
the Request Management service is not enabled. You can use the Start-SPServiceInstance and Stop-
SPServiceInstance cmdlets to start and stop the Request Management service instance respectively or
the Manage services on server page on the SharePoint Central Administration website. You can use
the RoutingEnabled or ThrottlingEnabled parameters of the Set-
SPRequestManagementSettings Windows PowerShell cmdlet to change properties of Request
Manager.
Note:
There is no user interface to configure properties of Request Manager. The Windows
PowerShell cmdlet is the only way to perform this task.
Request Manager has two supported deployment modes: Dedicated and Integrated.
Dedicated mode
Figure 1 shows a dedicated mode deployment.
Figure 1: Dedicated mode
408
A set of front-end web servers is dedicated to managing requests exclusively. The front-end web
servers that are dedicated to Request Manager are in their own farm that is located between the
hardware load balancers (HLBs) and the SharePoint farm. The HLBs send all requests to the Request
Manager front-end web servers. Request Manager that runs on these front-end web servers decides
to which SharePoint front-end web servers it will send the requests and then routes the requests.
Depending on the routing and throttling rules, Request Manager might ignore some requests without
sending them to another server. The SharePoint front-end web servers do their normal tasks in
processing requests and then send responses back through the front-end web servers that run
Request Manager and to the clients.
Note that all farms are set up as SharePoint farms. All front-end web servers in Figure 1 are SharePoint
front-end web servers, each of which can do the same work as any other. The difference between the
farms is that the Request Manager front-end web servers have Request Manager enabled.
Dedicated mode is good for larger-scale deployments when physical computers are readily available.
The ability to create a separate farm for Request manager provides two benefits: Request Manager
and SharePoint processes do not compete for resources and you can scale out one without having to
also scale out the other. This allows you to have more control over the performance of each role.
Request Manager and SharePoint processes do not compete for resources.
You can scale out each farm separately, which provides more control over the performance of
each farm.
409
Integrated mode
Figure 2 shows an integrated mode deployment.
Figure 2: Integrated mode
In an integrated mode deployment, all SharePoint front-end web servers run Request Manager.
Hardware load balancers send requests to all front-end web servers. When a front-end web server
receives a request, Request Manager decides how to handle it:
Allow it to be processed locally.
Route it to a different front-end web server.
Deny the request.
Integrated mode is good for small-scale deployments when many physical computers are not readily
available. This mode lets Request Manager and the rest of SharePoint Server to run on all computers.
This mode is common for on-premises deployments.
Configuration
Request Manager has two configurable parts: General settings and Decision information. General
settings are parameters that make Request Manager ready to use, such as enabling or disabling
Request Routing and Request Throttling and Prioritizing. Decision information is all of the information
that is used during the routing and throttling processes, such as routing and throttling rules.
Note:
You configure Request Manager on a farm and functionality occurs at a web application level.
410
General settings
By default, request routing and request throttling and prioritizing are enabled. You use the Set-
SPRequestManagementSettings cmdlet to change the properties of request routing, request
throttling and prioritizing, and select a routing weight scheme.
The table describes the configuration situation and Windows PowerShell syntax to use.
Windows PowerShell examples to enable routing and throttling
Situation
Windows PowerShell syntax
Enable routing and throttling for all web
applications
Get-SPWebApplication | Set-
SPRequestManagementSettings -
RoutingEnabled $true -
ThrottlingEnabled $true
Enable routing with static weighting for all web
applications
Get-SPWebApplication | Get-
SPRequestManagementSettings | Set-
SPRequestManagementSettings -
RoutingEnabled $true -
ThrottlingEnabled $false -
RoutingWeightScheme Static
In some situations, multiple front-end web servers will be suitable destinations for a particular
request. In this case, by default, SharePoint Server selects one server randomly and uniformly.
One routing weight scheme is static-weighted routing. In this scheme, static weights are associated
with front-end web servers so that Request Manager always favors a higher static weight during the
selection process. This scheme is useful to give added weight to more powerful front-end web servers
and produce less strain on less powerful ones. Each front-end web server will have a static weight
associated with it. The values of the weights are any integer value, where 1 is the default. A value less
than 1 represents lower weight, and greater than 1 represents higher weight.
Another weighting scheme is health-weighted. In health-weighted routing, front-end web servers that
have health scores closer to zero will be favored, and fewer requests will be sent to front-end web
servers that have a higher health score values. The health weights run from 0 to 10, where 0 is the
healthiest and therefore will get the most requests. By default, all front-end web servers are set to
411
healthy, and therefore, will have equal weights. SharePoint's health score based monitoring system
assigns weight to server and send a health score value as a header in the response to a request.
Request Manager uses same health score and stores it in local memory.
Decision information
Decision information applies to routing targets, routing rules, and throttling rules.
Routing targets
Request routing determines the routing targets that are available when a routing pool is selected for a
request. The scope of routing targets is currently for front-end web servers only, but Request
Manager’s design does not exclude routing to application servers, too. A list of front-end web servers
in a farm is automatically maintained by using the configuration database. An administrator who
wants to change that list, typically in dedicated mode, has to use the appropriate routing cmdlets to
get, add, set, and remove routing targets.
The following table describes the various routing target tasks and the associated Windows PowerShell
syntax to use.
Windows PowerShell examples routing target tasks
Task
Windows PowerShell syntax
Return a list of routing targets for all available
web applications.
Get-SPWebApplication | Get-
SPRequestManagementSettings | Get-
SPRoutingMachineInfo -Availability
Available
412
Task
Windows PowerShell syntax
Add a new routing target for a specified web
application.
Note:
IIS log files will contain all HTTP requests.
For additional information about IIS
logging, see IIS Logging
$web=Get-SPWebApplication -Identity
<URL of web application>
$rm=Get-SPRequestManagementSettings -
Identity $web
Add-SPRoutingMachineInfo -
RequestManagementSettings $rm -Name
<MachineName> -Availability Available
Where
<URL of web application> is the URL of the
web application to which you're adding a new
routing target.
<MachineName> is the name of the server
that hosts the web application.
Edit an existing routing target’s availability and
static weight for a specified web application
$web=Get-SPWebApplication -Identity
<URL of web application>
$rm=Get-SPRequestManagementSettings -
Identity $web
$m=Get-SPRoutingMachineInfo -
RequestManagementSettings $rm -Name
<MachineName>
Set-SPRoutingMachineInfo -Identity $m
-Availability Unavailable
Where
<URL of web application> is the URL of the
web application for which you're editing an
existing routing target’s availability and static
weight.
413
Task
Windows PowerShell syntax
Remove a routing target from a specified web
application
Note:
You cannot remove front-end web servers
that are in the farm. Instead, you can use
the Availability parameter of the Set-
SPRoutingMachineInfo cmdlet to make
them unavailable.
$web=Get-SPWebApplication -Identity
<URL of web application>
$rm=Get-SPRequestManagementSettings -
Identity $web
$m=Get-SPRoutingMachineInfo -
RequestManagementSettings $rm -Name
<MachineName>
Remove-SPRoutingMachineInfo -Identity
$M
Where
<URL of web application> is the URL of the
web application from which you're removing
a routing target.
Routing and throttling rules
Request routing and request throttling and prioritizing are decision algorithms that use rules to
prescribe many actions. The rules determine how Request Manager handles requests.
Rules are separated into two categories, routing rules and throttling rules, which are used in
request routing and request throttling and prioritizing, respectively. Routing rules match criteria and
route to a machine pool. Throttling rules match criteria and throttle based on known health score of a
computer.
Request Routing
Request processing is all operations that occur sequentially from the time that Request Manager
receives a new request to the time that Request Manager sends a response to the client.
Request processing is divided into the components:
request routing
incoming request handler
request throttling and prioritizing
414
request load balancing
Incoming request handler
The role of the incoming request handler is to determine whether Request Manager should process a
request. If request throttling and prioritizing is disabled and the Request Manager queue is empty,
Request Manager directs the request to SharePoint Server that is running on the current front-end
web server. If request throttling and prioritizing is enabled, request throttling and prioritizing
determines whether the request should be allowed or denied on the current front-end web server.
The processes steps of the incoming request handler are as follows:
1. Request is determined if it should be throttled or routed
2. For routed requests, load balance algorithm is run
3. Request routed to load balancer endpoint
Request routing and Request throttling and prioritizing only run if it is enabled and is routed once per
farm. Request load balancer only runs if a request has been determined as routable. The outgoing
request handler only runs if the request has to be sent to a different front-end web server. The role of
the outgoing request handler is to send the request to the selected front-end web server, wait for a
response, and send the response back to the source.
Request routing
The role of request routing is to select a front-end web server to route a request. By using no routing
rules that are defined, the routing scheme is as easy as randomly selecting an available front-end web
server.
The algorithm of request routing is defined by two parts: request-rule matching and front-end web
server selection.
Request rule matching
Every rule has one or more match criteria, which consist of three things: match property, match type,
and match value.
The following table describes the different types of match properties and match types:
415
Match property
Match type
Hostname
RegEx
URL
Equals
Port number
Starts with
MIME Type
Ends with
For example, an administrator would use the following match criteria to match http://contoso
requests: Match Property=URL; Match value= http://contoso; Match type=RegEx
Front-end web server selection
The front-end web server selection uses all routing rules, whether they match or do not match a given
request. Rules that match have machine pools, a request sends load balanced to any machine in any
matching rule’s machine pool. If a request does not match any request, it sends load balanced to any
available routing target.
Request routing and prioritizing
For routing requests that use the health-based monitoring system, the role of request routing and
prioritizing is to reduce the routing pool to computers that have a good health score to process
requests. If request routing is enabled, the routing pool is whichever front-end web server is selected.
If request routing is disabled, the routing pool only contains the current front-end web server.
Request routing and prioritizing can be divided into two parts: request-rule matching and front-end
web server filtering. Request-rule matching happens exactly like in request routing. Front-end web
server filtering uses the health threshold parameter from the throttling rules in combination with
front-end web server health data to determine whether the front-end web servers in the selected
routing pool can process the given request.
The front-end web server filtering process follows these steps:
1. The routing pool is either the current front-end web server or one or more front-end web servers
that request routing selects.
2. All matching rules are checked to find the smallest health threshold value.
3. Remove front-end web servers in the routing pool that have health scores greater than or equal to
the smallest health threshold value.
416
For example, request routing is disabled and the current front-end web server has a health score of 7
and a rule “Block OneNote” without a health threshold (that is, health threshold = 0) is created.
The routing pool is the current front-end web server that has a health threshold equal to zero (0). So,
the smallest threshold that the front-end web server can serve is zero. Because the current front-end
web server has health score of 7, Request Manager denies and removes the request.
Request load balancing
The role of request load balancing is to select a single target to which to send the request. Request
load balancing uses the routing weight schemes to select the target. All routing targets begin with a
weight of 1. If static weighting is enabled, request load balancing uses the static weights set of each
routing target to adjust the weights and the value can be valid integer number. If health weighting is
enabled, request load balancing uses health information to add weight to healthier targets and
remove weight from less healthy targets.
Monitoring and maintenance
Monitoring and logging are keys to managing requests from Request Manager.
The rules that matched.
The rules that did not match.
The final decision of the request.
Decisions might include useful information such as the following.
Was the request denied?
Which front-end web server was selected and from which routing pool>
Did the request succeed or fail and why?
How long did each part, routing, throttling, and waiting for front-end web server to respond,
take?
An administrator can use this information to adjust the routing and throttling rule sets to optimize the
system and correct problems. To help you monitor and evaluate your farm's performance, you can
create a performance monitor log file and add the following SharePoint Foundation Request Manager
Performance counters:
417
Counter name
Description
Connections Current
The total number of connections that are
currently open by Request Manager.
Connections Reused / Sec
The number of connections per second that are
reused when the same client connection makes
another request without closing the connection.
Routed Requests / Sec
The number of routed requests per second. The
instance determines the application pool and
server for which this counter tracks.
Throttled Requests / Sec
The number of throttled requests per second.
Failed Requests / Sec
The number of failed requests per second.
Average Processing Time
The time to process the request that is, the time
to evaluate all the rules and determine a routing
target.
Last Ping Latency
The last ping latency (that is, Request Manager's
PING feature) and the instance determine which
application pool and machine target.
Connection Endpoints Current
The total number of endpoints that are connected
for all active connections.
Routed Requests Current
The number of unfinished routed requests. The
instance determines which application pool and
machine target.
Along with creating a performance monitor log file, the verbose logging level can be enabled by using
the following Windows PowerShell syntax:
Set-SPLogLevel "Request Management" -TraceSeverity Verbose
418
Configure Business Connectivity Services
solutions for SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Find links to procedures to help you install and configure SharePoint 2013 Business
Connectivity Services (BCS) for the on-premises, cloud-only, and hybrid solutions, and other scenarios.
This article is your starting place for the procedures to install common Microsoft Business Connectivity
Services scenarios for SharePoint 2013. The Business Connectivity Services solution that you deploy
will most likely look different from the solutions presented here, but you can model your installation
on these examples. Also, you can select the individual procedures from here to build your own
procedural documents for your Business Connectivity Services solution scenario.
About Business Connectivity Services installation
scenarios
Every Business Connectivity Services solution is unique because each business has unique data
integration problems that it solves with Business Connectivity Services. The solutions can range from
something simple and straightforward that a power user or IT professional (who has the appropriate
permissions) can perform by themselves, to complex solutions that require developer, IT professional,
and end-user solution development involvement. This guide presents the configuration procedures in
common scenarios.
On-premises deployment All the Business Connectivity Services components are under your
organizations control behind your firewall.
Cloud-only deployment All the Business Connectivity Services components are in SharePoint
Online.
Hybrid deployment SharePoint Online uses Business Connectivity Services to connect to data that
lives in the cloud.
419
Prerequisites
Before you begin with any Business Connectivity Services scenario configuration, make sure that you
have read Overview of Business Connectivity Services in SharePoint 2013 and completed the steps in
Plan a Business Connectivity Services solution in SharePoint 2013.
On-premises deployment
The procedures in Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
show you how to deploy a solution that involves the following:
A Business Connectivity Services infrastructure that is on your corporate network.
Information workers who access the Business Connectivity Services solution are on your corporate
network.
External content that is surfaced in SharePoint as an external list.
External content that is synchronized into Outlook for offline use.
Accessing external data that is in SQL Server database on your corporate network.
SharePoint Designer 2013 to create the external content type for the SQL Server data source.
The Secure Store Service to manage mapping of user credentials to group credentials for accessing
the external systems.
Cloud-only deployment
The procedures in Deploy a Business Connectivity Services cloud-only solution in SharePoint 2013
show you how to deploy a solution that involves a Business Connectivity Services infrastructure that is
in SharePoint Online.
Hybrid deployment
The procedures in Deploy a Business Connectivity Services hybrid solution in SharePoint 2013 shows
you how to publish on-premises data to an external list or app for SharePoint in SharePoint Online.
See also
Plan for Business Connectivity Services in SharePoint 2013
420
Deploy a Business Connectivity Services
on-premises solution in SharePoint 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: How to install Business Connectivity Services (BCS) to access an on-premises SQL Server
external data source, surface external data in SharePoint lists, and take external data offline in
Outlook.
The following scenario shows you how to create a no-code business solution in Microsoft Business
Connectivity Services (BCS) by using the SQL Server AdventureWorks sample database. You learn how
to:
Configure the accounts, and groups that you need to securely access the external data source.
Configure the permission on the external data source, the external content type and the external
lists.
Create and configure an external content type.
Create an external list that makes the external data available to users.
Connect the external list to Outlook to make the external data available when the user is offline.
This article includes the overview, roadmap, and any conceptual information that is needed.
In this article:
Before you begin
What these procedures help you deploy
How to use these procedures and a roadmap of the procedures
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
421
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
What these procedures help you deploy
Business Connectivity Services is a centralized infrastructure in SharePoint 2013 and Office 2013 that
enables you to integrate data that is not in SharePoint products and Office 2013 into SharePoint
products and Office 2013. BCS implementations take many different forms, including the on-premises
form. These procedures show you how to install and configure BCS to integrate data from an on-
premises SQL data source into a SharePoint products external list and into Outlook. For the purposes
of building out this scenario, we use the AdventureWorks sample SQL database. The solution looks as
shown in the following diagram.
422
Figure: On-premises BCS solution
1. A user goes to an external list on a SharePoint site. The external list creates a request for data by
using the user’s Windows credentials.
2. The request is sent to the BDC runtime in the SharePoint farm.
423
3. The BDC runtime accesses the external content type for the list (in the BDC Metadata Store) to see
how to access the external system and which operations can be performed. By using either the
user’s credentials or the credentials from the Secure Store (as defined in the external content
type), the BDC runtime passes the request to a connector that can handle the request, in this case
the SQL connector.
4. The SQL connector accesses the external data source and retrieves the data, and applies any
formatting and filtering as specified in the external content type. The data is passed back through
the request chain to the list where the user can interact with it.
5. The user wants to take this data on a portable computer in Outlook so the user can use the
Connect to Outlook feature on the external list to take the data offline.
6. The Click Once installation runs and installs the required BDC model on the client. This lets the
BDC Client-Side Runtime access the external data directly.
7. Outlook then connects to the external data by using the configuration in the BDC model and
synchronizes it into an Outlook SharePoint external list, formatted as a contacts list.
8. The user can then interact with the contact data, and any changes that the user makes can be
written back to the external data source either by an on-demand synch or by waiting six hours for
the automated synchronization.
How to use these procedures and a roadmap of the
procedures
The steps to completely deploy this scenario are presented in smaller procedures. Some of the
procedures are on TechNet, some are on Office.com, and some are on MSDN. Each procedure is
numbered indicating its position in the overall sequence. At the beginning and end of each procedure,
links direct you to the preceding and following steps. The following list contains links to all of the
procedures, in proper order, for your reference. You must follow them in sequence to build out the
scenario. You can also use these procedures individually to build out your own unique scenarios.
When you are assembling individual procedures to build out your own scenarios, be sure to test the
entire set of procedures, in order, in a lab setting before you attempt them in production.
1. Prerequisites for deploying a Business Connectivity Services on-premises solution in SharePoint
2013
2. Create database logins for a Business Connectivity Services on-premises solution in SharePoint
2013
3. Start the Business Data Connectivity service for a Business Connectivity Services on-premises
solution in SharePoint 2013
424
4. Create the Business Data Connectivity service application in SharePoint 2013
5. Set permissions on the BCS Metadata Store for a Business Connectivity Services on-premises
solution in SharePoint 2013
6. Configure the Secure Store Service for a Business Connectivity Services on-premises solution in
SharePoint 2013
7. Create an external content type for a Business Connectivity Services on-premises solution in
SharePoint 2013
8. Configure permission on an external content type for a Business Connectivity Services on-premises
solution in SharePoint 2013
9. Create an external list for a Business Connectivity Services on-premises solution in SharePoint
2013
10. Manage user permissions on an external list for a Business Connectivity Services on-premises
solution in SharePoint 2013
11. Connect an external list to Outlook for a Business Connectivity Services on-premises solution in
SharePoint 2013
12. Verify offline access and synchronization of external data in Outlook for a Business Connectivity
Services on-premises solution in SharePoint 2013
See also
Configure Business Connectivity Services solutions for SharePoint 2013
425
Prerequisites for deploying a Business
Connectivity Services on-premises solution
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: How to prepare your environment to install Business Connectivity Services (BCS) in an on-
premises configuration in SharePoint 2013.
Before you start your installation of the on-premises Microsoft Business Connectivity Services (BCS)
scenario, you must have these software and infrastructure requirements in place.
Important:
This is Step 1 in the Business Connectivity Services On-Premises scenario deployment
procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013.
On-premises scenario prerequisites
A fully functional SharePoint 2013 server farm with a Web Application and site collection
A fully functioning instance of SQL Server 2008 with Service Pack 1 (SP1) and Cumulative Update 2
or SQL Server 2008 R2
SharePoint Designer 2013
Outlook 2013 client
You have an account that has permissions to administer the Business Data Connectivity Service
Application
You have an account that has permissions to administer the Secure Store Service service
application
Download the AdventureWorks sample database from Codeplex downloads for SQL Server. This
database must be installed and functioning on your SQL Server
426
Create an Active Directory directory Service (AD DS) security group and add the users who will be
using this BCS solution, for example create a group that is named AdventureWorksBCSUsers
The AdventureWorks sample database is developed and published by Microsoft. The
AdventureWorks sample database is prepopulated with a large quantity of fictitious data from a
fictitious company, AdventureWorks Cycles. We are using the AdventureWorks sample database here
so we have a concrete example for illustrating the installation and configuration of the on-premises
BCS scenario.
Tip:
If you have problems attaching the database file by using the Attach command, in the Attach
databases dialog box, and remove the reference to the log file in the bottom pane before you
click OK.
Preparing the environment
How to download and install the AdventureWorks sample database
1. From a browser, go to AdventureWorks sample database and download the
AdventureWorks2008R2_Data.mdf file.
2. Install the Adventure Works2008R2 sample database by following the procedures in the “Readme
for AdventureWorks 2008 R2 Sample Database” section of the SQL Server Samples Readme (en-
US) page.
Important:
Link to Step 2Create database logins for a Business Connectivity Services on-premises
solution in SharePoint 2013 of the Business Connectivity Services On-Premises scenario
deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
427
Create database logins for a Business
Connectivity Services on-premises solution
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: How to prepare the SQL Server logins for Business Connectivity Services (BCS) on-premises
scenario deployment in SharePoint 2013.
Microsoft Business Connectivity Services (BCS) requires an account that it can use to access the
external data source. The account must have the necessary permissions on the external data source to
perform all the operations that your BCS solution might require. For ease of configuration and ongoing
management, you can map a group of SharePoint products users to a single shared account on the
external data source.
In this procedure, you create a SQL Server login and then assign that login to a user account on the
AdventureWorks sample database. You will use Secure Store Service services to map a group of
SharePoint 2013 users to the single shared account in a later procedure.
Important:
This is Step 2 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 1 Prerequisites for deploying a Business Connectivity Services on-premises solution in
SharePoint 2013 of the Business Connectivity Services On-Premises scenario deployment
procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Create a SQL Server login
1. Start SQL Server Management Studio.
2. In the Object Explorer, expand the <database server name>, expand Security, and then expand
Logins.
3. Right-click Logins, and then click New Login
428
4. In the Login Name box, enter SharePointGroupAccount.
5. Select SQL Server authentication, and then enter and confirm a password.
6. In the Default database box, select AdventureWorks2008R2, and then click OK.
Create a SQL Server user on the AdventureWorks database
1. In the Object Explorer, expand Databases, expand AdventureWorks2008R2, expand Security,
and then expand Users.
2. Right-click Users, and then click New User.
3. Under the Login Name, with the User name box pre-selected, in the first box, enter
AdventureWorksUser
4. In the second box, click Browse, in the Select Login dialog box, click Browse, select the SQL
Server account, SharePointGroupAccount, and then click OK twice.
5. Under Database Role membership, select db_owner.
6. Click OK.
7. Close SQL Server Management Studio.
Important:
Link to Step 3Start the Business Data Connectivity service for a Business Connectivity Services
on-premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
429
Start the Business Data Connectivity
service for a Business Connectivity Services
on-premises solution in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: How to start the Business Data Connectivity service for a SharePoint 2013 server farm.
The Business Data Connectivity Service must be running for you to create any BCS based business
solution. Use this procedure to start or stop the Business Data Connectivity Service
Important:
This is Step 3 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 2 Create database logins for a Business Connectivity Services on-premises solution in
SharePoint 2013 of the Business Connectivity Services
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Start the Business Data Connectivity service
1. Open the SharePoint Central Administration website for the server farm that contains your BCS
solution.
2. On the Quick Launch, click System Settings.
3. On the System Settings page, under Servers, click Manage services on server.
4. Check the value in the Server field. If the server name shown there is not the server that you
want running the Business Data Connectivity Service on, click on the down arrow, click Change
Server and select the correct server.
5. If necessary, next to Business Data Connectivity Service, under the Action column, click Start.
Note:
If you need to stop the Business Data Connectivity Service after starting it, next to Business
Data Connectivity Service in the Action column click Stop.
431
Create the Business Data Connectivity
service application in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: How to create the Business Data Connectivity service application for SharePoint 2013 for a
Business Connectivity Services on-premises configuration.
Microsoft Business Connectivity Services is a SharePoint 2013 service application. You must create it if
it was not created during your farms initial configuration.
Important:
This is Step 4 in the Business Connectivity Services on-premises scenario deployment
procedures.
Link to Step 3 Start the Business Data Connectivity service for a Business Connectivity Services
on-premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Create a new Business Data Connectivity Services service application
1. Open the SharePoint Central Administration website for your farm with a Farm administrator
account. This must be the farm in which you started the Business Data Connectivity Service in
the Start the Business Data Connectivity service for a Business Connectivity Services on-premises
solution in SharePoint 2013 procedure.
2. On the Quick start, click, Application Management.
3. On the Application Management page under Service Applications, click Manage service
applications.
4. If an instance of the Business Data Connectivity Service Application that you will use for this
solution is already there, you can skip the rest of this procedure. If not, follow the rest of this
procedure to create one.
5. On the SERVICE APPLICATIONS tab, click New and click Business Data Connectivity Service.
432
6. Configure the setting in the Create New Business Data Connectivity Service Application
configuration page as follows:
a) In the Service Application Name box enter the name you want the service to appear as
on the Manage Service Applications page. This BCS service application can be used by
multiple BCS solutions.
b) In the Database area, leave the prepopulated values for Database Server, Database
Name, and Database authentication, which is Windows authentication (recommended)
unless you have specific design needs to change them.
c) If you have SQL Server database mirroring configured and you want to include the Business
Data Connectivity Service database in mirroring, provide the name of the failover database
server in the Failover Database Server box.
d) If you have not already created a new application pool for your service applications, enter
a name for a new application pool in the Application pool name box, for example,
“SharePointServiceApps”. You can use this application pool for all your service
applications. For more information on planning, creating and configuring service
applications, see Manage service applications in SharePoint 2013.
e) Select the account that you configured in the Prerequisites for deploying a Business
Connectivity Services on-premises solution in SharePoint 2013 procedure as the SharePoint
products application services account in the Configurable drop down.
7. Click OK to create the new Business Data Connectivity Service Application and click OK again.
8. Select the row that the Business Data Connectivity Service Application is in, not the proxy
row.
9. Click Administrators in the Operations area and add any accounts that you want to be able to
administer the Business Data Connectivity service application granting them full control. When
these individuals open Central Administration they will only be able to administer the Business
Data Connectivity service application.
Important:
Link to Step 5Set permissions on the BCS Metadata Store for a Business Connectivity Services
on-premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
433
Manage service applications in SharePoint 2013
434
Set permissions on the BCS Metadata Store
for a Business Connectivity Services on-
premises solution in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: How to configure permissions on the Business Connectivity Services (BCS) Metadata Store
for SharePoint 2013 for an on-premises configuration.
The BCS Metadata Store holds external content types, external systems and BDC model definitions for
the BCS Service Application. In this procedure you configure administrative permissions on the
Metadata Store and everything that it will contain.
Important:
This is Step 5 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 4 Create the Business Data Connectivity service application in SharePoint 2013 of the
Business Connectivity Services On-Premises scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Set permissions on the Business Connectivity Services Metadata Store
1. Open the SharePoint Central Administration website with either a Farm administrator account or
an account that has been delegated permissions to administer the Business Data Connectivity
Service Applications.
2. On the Quick Launch, click Application Management.
3. On the Application Management page, under Service Applications, click Manage service
applications.
4. In the list of services, select the row of the Business Data Connectivity Service Application that
you created in Create the Business Data Connectivity service application in SharePoint 2013 and
then click Manage and then Set Metadata Store Permissions.
435
5. Enter the Farm Administrator account and any other delegate administrators if you have them
and then click Add.
6. For each account or group that you added that is an administrator of the Business Data
Connectivity Service Application, select the Edit, Execute, Selectable In Clients, and Set
Permissions checkboxes.
7. Select the Propagate permissions to all BDC Models, External Systems and External Content
Types in the BDC Metadata Store. Doing so will overwrite existing permissions checkbox.
For more information on setting permissions on the BDC Metadata Store, see Overview of
Business Connectivity Services security tasks in SharePoint 2013.
8. Click OK.
Note:
Edit is a highly privileged permission that is required to create or modify external content
types in the Business Data Connectivity metadata store. Execute permission is required to
query the external content type.
Important:
Link to Step 6Configure the Secure Store Service for a Business Connectivity Services on-
premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
Overview of Business Connectivity Services security tasks in SharePoint 2013
436
Configure the Secure Store Service for a
Business Connectivity Services on-premises
solution in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Link to a configuration of the Secure Store Services for a Business Connectivity Services
(BCS) on-premises solution in SharePoint 2013.
The Secure Store Service stores the credentials that Microsoft Business Connectivity Services uses to
access the AdventureWorks external data source and performs credential mapping between your
users accounts and the credentials used to access the external data source.
Important:
This is Step 6 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 5 Set permissions on the BCS Metadata Store for a Business Connectivity Services
on-premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Parameters for configuring the Secure Store Service
for a Microsoft Business Connectivity Services on-
premises configuration
In this procedure you perform all the steps in Configure the Secure Store Services in SharePoint 2013
Preview article. You must perform the steps in the Configure the Secure Store Services in SharePoint
2013 article with these parameters from start to finish.
437
Configure Secure Store Service for on-premises Business Connectivity Services
1. Perform all the steps in Configure the Secure Store Services in SharePoint 2013 Preview with the
following parameters.
2. Open the SharePoint Central Administration website for the server farm that your Secure Store
Service is in with an account that has Farm Administrator permissions.
3. In the Configure the Secure Store Services in SharePoint 2013 Preview article, perform all
procedures in the Configure Secure Store section with these parameters
a) For the Register Managed Account, User name type in the name of the service account
that you created in the Prerequisites for deploying a Business Connectivity Services on-
premises solution in SharePoint 2013 procedure.
b) Do not select the Enable automatic password change box.
4. Perform the “To start the Secure Store Service” procedure
5. Perform the “To create a Secure Store Service application" procedures using these parameters
a) In the Service Application Name box enter the name you want the service to appear as
on the Manage Service Applications page.
b) In the Database area, leave the prepopulated values for Database Server, Database
Name, and Database authentication, which is Windows authentication (recommended)
unless you have specific design needs to change them.
c) If you have SQL Server database mirroring configured and you want to include the Secure
Store Service in mirroring, provide the name of the failover database server in the Failover
Database Server box.
d) For the Configurable dropdown, select the account that you registered as a managed
account earlier in this procedure.
6. Perform the steps in the Work with encryption keys section with these parameters:
a) Don’t perform the procedures in the “Refresh the encryption key” sub-section
7. Read the Store credentials in Secure Store section and perform the Create a target application
procedure using these parameters.
a) In the Target Application ID box type in a string for the target application; this is not the
display name. For example type in AWTargetAppID.
438
b) In the Display Name box, enter the display name you want, for example Adventure
Works Target Application ID.
c) In the Target Application Type dropdown, select Group (which indicates the mapping of
many credentials to one credential). In this case, the Target Application Page URL is not
needed and automatically selects to None.
d) On the Create New Secure Store Target Application page, under Field Name, change
Windows User Name to SQL User Name, and Windows Password to SQL Password.
e) Under Field Type change Windows User Name to User Name and change Windows
Password to Password.
f) In the Target Application Administrators add the accounts that you want to be
administrators of the Target Application. Note that the Farm Administrator has access by
default.
g) In the Members box, add the names of the users whom you want to allow access to the
external data source. For this example use the AdventureWorksBCSUsers security group
you created in Prerequisites for deploying a Business Connectivity Services on-premises
solution in SharePoint 2013.
8. Perform the steps in the Set credentials for a target application procedure using these parameters:
a) In the SQL User Name box, type AdventureWorksUser which is the name SQL Server
account you created in Create database logins for a Business Connectivity Services on-
premises solution in SharePoint 2013.
b) In the SQL Password, and Confirm SQL Password boxes type the password for that
account, which is actually the password for the SharePointGroupAccount account that you
created in Create database logins for a Business Connectivity Services on-premises
solution in SharePoint 2013.
Important:
Link to Step 7Create an external content type for a Business Connectivity Services on-
premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
Configure the Secure Store Services in SharePoint 2013 Preview
439
Create an external content type for a
Business Connectivity Services on-premises
solution in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: How to create and configure an external content type for the Business Connectivity
Services (BCS) on-premises scenario deployment in SharePoint 2013.
These procedures walk you through building an external content type for Business Connectivity
Services using SharePoint Designer 2013 without writing any code. You will learn how to discover a
SQL Server database, connect to the database table, and then return the required data. You will
create an external content type named Customers that is based on the Customer view in the
AdventureWorks sample database. This article uses the procedures in How to: Create external content
types for SQL Server in SharePoint 2013 Preview. You must open that article and perform the steps
there using the parameters given in the matching sections of this article.
Note:
The sections in this article match the sections in the How to: Create external content types
for SQL Server in Sharepoint 2013.
Important:
This is Step 7 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 6 Configure the Secure Store Service for a Business Connectivity Services on-
premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises scenario
deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
440
Create and configure an external content type with
SharePoint Designer 2013
Define general information
1. Open How to: Create external content types for SQL Server in SharePoint 2013 Preview
2. Create a new external content type named AWcustomers with a display name of
AdventureWorks Customers.
Define general and Office behaviors
1. Set the Office Item Type to Contact. The Office Item Type determines the Outlook behavior you
want to attach to the external content type. In this case, this AWCustomer external content type
behaves like a native Contact Item in Outlook.
2. In the Offline Sync for External List checkbox, make sure Enabled is selected, which is the
default.
Note:
If you disable this option, then the SharePoint Connect to Outlook ribbon command is not
available for an external list.
Create a connection to the external data
1. Add a connection using SQL Server as the External Data Source Type.
2. In the Set the Database Server box, enter <The name of the database server> and in the Set the
Database Name box, enter AdventureWorks2008R2. Optionally, in the Name box, enter
AdventureWorks Sample Database.
3. Select Connect with Impersonated Custom Identity.
4. In the Secure Store Application ID box, enter AWTargetAppID.
Warning:
If you are prompted to enter a user name and password for AWTargetAppID it may be
because when you created the SharePointGroupAccount SQL login, you did not uncheck the
User must change password at next login option. To fix this, you must change the password
via SQL query ALTER LOGIN <LoginName> WITH PASSWORD =
'<originalpassword>'
441
Select a table, view, or routine and Define Operation
1. In the AdventureWorks Sample Database select the vIndividualCustomer view and right click
Create All Operations.
Note:
Create All Operations is a convenient way to define all basic methods of operations (Create,
Read, Read List, Update, and Delete).
Tip:
Always read carefully the messages in the Errors and Warnings pane. They provide useful
information to confirm your actions or troubleshoot any issues.
Add columns
1. In the Parameters Configuration dialog box, by default all columns are selected. To remove
unnecessary columns, clear the checkboxes next to the following columns: Suffix and
Demographics.
2. For the BusinessEntityID select the Map to Identifier value.
Note:
Uncheck the Required box to prevent it from being updated but select the Read Only
checkbox, which is needed to retrieve items so you can update other fields.
Map Outlook fields and set up the external item picker control
1. For the FirstName, LastName, EmailAddress, and PhoneNumber fields, do the following:
2. Click and highlight the field.
3. Under properties, in the Office property dropdown, select the appropriate matching field:
FirstName to First Name (FirstName), LastName to Last Name (LastName), and
PhoneNumber to Primary Telephone Phone Number (PrimaryTelephonePhoneNumber),
EmailAddress to EmailAddress1 (Email1Address).
Note:
Unmapped fields, depending on the number, are displayed as extended properties. For
two to five fields they are listed as Adjoining meaning that they are appended to the
form region at the bottom of an Outlook form's default page. For six or more fields they
are listed as Separate and are added as a new page to an Outlook.
4. For the following fields, BusinessEntityID, FirstName, LastName, and EmailAddress click and
highlight the field, and then under Properties, click Show in Picker.
442
Define filters
1. Create a Comparison filter named ByRegion, use CountryRegionName for the value.
2. Under Properties, next to Default Value, enter Canada.
3. Create Limit filter named AWLimit, use BusinessEntityID for the Filter Field
4. Set the default value to 200
Tip:
Click the Errors and Warnings pane and make sure there are no more errors or warnings.
Set the Title field for an external list and complete the external content type
1. Set BusinessEntityID as the Title and save the external content type.
Important:
Link to Step 8Configure permission on an external content type for a Business Connectivity
Services on-premises solution in SharePoint 2013 of the Business Connectivity Services On-
Premises scenario deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
How to: Create external content types for SQL Server in SharePoint 2013 Preview
443
Configure permission on an external
content type for a Business Connectivity
Services on-premises solution in
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Configure permission on an external content type for a Business Connectivity Services
(BCS) on-premises scenario deployment in SharePoint 2013.
To configure user access and permissions to the external content type:
Important:
This is Step 8 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 7 Create an external content type for a Business Connectivity Services on-premises
solution in SharePoint 2013 of the Business Connectivity Services On-Premises scenario
deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Set up permissions to the external content type
1. Open the Central Administration page for your site.
2. On the Quick Launch, click Application Management.
3. On the Application Management page, under Service Applications, click Manage service
applications.
4. In the list of services, click your Business Data Connectivity (BDC) Service.
5. Click AWCustomers.
6. On the ribbon, click Set Object Permissions.
444
7. Enter the user accounts to which you want to grant permissions, and then click Add. For this
example, you would add the security group that was created in Prerequisites for deploying a
Business Connectivity Services on-premises solution in SharePoint 2013
AdventureWorksBCSUsers.
8. Select the user accounts that you just added, and then select Execute check box.
9. Select the Propagate permissions to all BDC Models, External Systems and External Content
Types in the BDC Metadata Store check box to overwrite existing permissions.
10. Click OK.
The external content type is now available for use in SharePoint and Office products to the
appropriate users.
Important:
Link to Step 9Create an external list for a Business Connectivity Services on-premises solution
in SharePoint 2013 of the Business Connectivity Services On-Premises scenario deployment
procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
445
Create an external list for a Business
Connectivity Services on-premises solution
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Create an external list, set its permissions and configure a view for a Business Connectivity
Services (BCS) on-premises scenario deployment in SharePoint 2013.
An external list is a key building block for SharePoint solutions based on external data. You can read
and write external data with the familiar experience of using a SharePoint list. An external list looks
and behaves a lot like a native list, but there are some differences in behavior. For example, you can
create views and use calculated values with formulas, but not attach files or track versions. For this
exercise, you create the external list in the browser because that is a common approach. This article
uses the procedures in Create an external list on Office.com. You must open that article and perform
the steps there using the parameters given in the matching sections of this article.
Important:
This is Step 9 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 8 Configure permission on an external content type for a Business Connectivity
Services on-premises solution in SharePoint 2013 of the Business Connectivity Services On-
Premises scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Create an external list
1. Open Create an external list
2. Create an external list named AdventureWorksCustomers using the AWCustomers external
content type.
Create a view of an external list
1. Create a view for the external list AdventureWorksCustomers. For this example use
ByRegionData Source Filter.
446
2. Make it the default view, and select your own Sort, Filter, and Limit values.
Important:
Link to Step 10Manage user permissions on an external list for a Business Connectivity
Services on-premises solution in SharePoint 2013 of the Business Connectivity Services On-
Premises scenario deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
Create an external list
447
Manage user permissions on an external
list for a Business Connectivity Services on-
premises solution in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: How to configure permissions on external lists for a Business Connectivity Services (BCS)
on-premises scenario deployment in SharePoint 2013.
Once you or an appropriate user has created the external list, it’s important to make sure that you set
appropriate permissions for other users. If the subsite that contains the external list inherits
permissions from its parent site, then you may inadvertently give permission to inappropriate users. In
this example, permissions are given to the AdventureWorksBCSUsers group.
Important:
This is Step 10 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 9 Create an external list for a Business Connectivity Services on-premises solution in
SharePoint 2013 of the Business Connectivity Services On-Premises scenario deployment
procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Manage user permissions to the external list
1. On the List tab, in the Settings group, click List Settings.
2. Under Permissions and Management, click Permissions for this list...
3. Apply permissions to the list as you have planned them.
The following table summarizes the default external list permissions for SharePoint user groups:
448
Name
Permission levels
Excel Services Viewers
View Only
<Site Name> Members
Edit
<Site Name> Owners
Full Control
<Site Name> Visitors
Read
Important:
Link to Step 11Connect an external list to Outlook for a Business Connectivity Services on-
premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
449
Connect an external list to Outlook for a
Business Connectivity Services on-premises
solution in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Create a connection between an external list and Outlook in a Business Connectivity
Services (BCS) on-premises scenario deployment in SharePoint 2013.
The external list contains customer data mapped to Outlook contacts for which you enabled Offline
Sync for External List, so you can connect the list with Outlook 2013. Once connected, you can view,
edit, and print the data using the familiar Outlook user interface. This article mirrors the procedures in
Connect an external list to Outlook on Office.com. Refer to that article for more information on
connecting an external list to Outlook.
Important:
This is Step 11 in the Business Connectivity Services On-Premises scenario deployment
procedures.
Link to Step 10 Manage user permissions on an external list for a Business Connectivity Services
on-premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013.
Synchronize the external list with Outlook
1. Open the SharePoint 2013 site that contains the external list. In the ribbon, on the List tab, in the
Connect & Export group, click Connect to Outlook.
2. In the Microsoft Office Customization Installer dialog box, click Install. The installation should
take a minute or two.
3. Once the installation is complete, click Close.
450
Important:
Link to Step 12Verify offline access and synchronization of external data in Outlook for a
Business Connectivity Services on-premises solution in SharePoint 2013 of the Business
Connectivity Services On-Premises scenario deployment procedures.
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
Connect an external list to Outlook
451
Verify offline access and synchronization of
external data in Outlook for a Business
Connectivity Services on-premises solution
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: How to work offline with external data in Outlook for a Business Data Connectivity (BCS)
on-premises scenario deployment in SharePoint 2013.
Important:
This is Step 12 in the Microsoft Business Connectivity Services On-Premises scenario
deployment procedures. This is the last step in the installation procedures for this scenario
Link to Step 11 Connect an external list to Outlook for a Business Connectivity Services on-
premises solution in SharePoint 2013Create an external list for a Business Connectivity Services
on-premises solution in SharePoint 2013 of the Business Connectivity Services On-Premises
scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services on-premises
solution in SharePoint 2013
Update customer data offline and refresh it online
1. To take Outlook 2013 offline, click Send/Receive, and in the Preferences group, click Work
Offline.
2. Make a change or two to one of the AdventureWorks customers.
3. To bring Outlook 2013 back online, click Send/Receive, and in the Preferences group, click Work
Online.
4. To synchronize the data, on the navigation pane, right-click the <Team Site Name>
AWCustomers external list and then click Sync now
See also
Deploy a Business Connectivity Services on-premises solution in SharePoint 2013
452
Deploy a Business Connectivity Services
cloud-only solution in SharePoint 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-10-14
Summary: How to configure Business Connectivity Services (BCS) in SharePoint Online to access Azure
SQL Database.
The following scenario shows how to create a Microsoft Business Connectivity Services solution in
SharePoint Online to access Azure SQL Database. You will learn how to:
Configure the Business Connectivity Services in SharePoint Online.
Configure a Secure Store Service target application to map credentials between SharePoint Online
and SQL Database.
Create an external content type by using SharePoint Designer 2010.
Create an external list in SharePoint Online.
Grant permissions to manage the external content type.
In this article:
Before you begin
What these procedures help you deploy
How to use these procedures
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
453
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
What these procedures help you deploy
Business Connectivity Services is a shared service in SharePoint Online. In SharePoint Online you can
make external data visible through external lists or through apps for SharePoint. In this example, we
use external lists. The solution looks as shown in the following diagram.
Figure: Cloud-only BCS solution
454
1. The user logs on to SharePoint Online and opens an external list that the user has rights to.
2. The Business Data Connectivity service runtime queries the external content type for the list in the
Business Data Connectivity service metadata store to learn how to access the external system,
which operations can be performed, and which credentials to use. The external content type tells
the Business Data Connectivity service runtime to retrieve the necessary credentials from the
Secure Store.
3. The Business Data Connectivity service runtime passes the request (SOAP over HTTP) to the
endpoint of the SQL Azure Windows Communication Foundation (WCF) service.
4. The SQL Azure service returns the data in a SOAP envelope.
455
5. The SharePoint Online site displays the external list in the user’s browser. The user can then
perform all the configured operations on the data source for which the user has permissions.
How to use these procedures
The steps to completely deploy this scenario are presented on Office.com at Make an External List
from a SQL Azure table with Business Connectivity Services and Secure Store.
See also
Configure Business Connectivity Services solutions for SharePoint 2013
456
Deploy a Business Connectivity Services
hybrid solution in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Online
Topic Last Modified: 2014-09-13
Summary: Learn how to configure the Business Connectivity Services (BCS) hybrid scenario to access
on-premises data through SharePoint Online.
Note:
This documentation is preliminary and subject to change.
The Microsoft Business Connectivity Services (BCS) hybrid deployment scenario allows you to securely
publish on-premises data to an external list or app for SharePoint in SharePoint Online. From there,
users can view and edit the data, depending on the permissions that they have.
The BCS hybrid scenario requires the successful deployment of either a one-way inbound or a two-
way SharePoint hybrid configuration. For more information about how to plan and configure a
SharePoint Server 2013 hybrid environment, see Hybrid for SharePoint Server 2013.
Warning:
To configure a hybrid SharePoint environment, you must have a combination of expert skills
and significant hands-on experience with SharePoint Server 2013, SharePoint Online, and
related products and technologies. We recommend that you engage Microsoft Consulting
Services to provide technical guidance and support during the design and deployment of your
hybrid environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
Warning:
You must have a successful implementation of the base SharePoint hybrid scenario before you
can continue with the BCS hybrid implementation. If you don’t, see Hybrid for SharePoint
Server 2013.
In this scenario, you will learn how to:
Configure your on-premises environment so that you can securely publish confidential business
data to your SharePoint Online tenancy.
Create and configure an OData service endpoint and an external content type with Visual Studio
2012.
457
Prepare your SharePoint Online tenancy to host an app for SharePoint or an external list, which
makes the external data available to your extranet users.
Create a connection settings object that tells Business Connectivity Services in SharePoint Online
how to connect to the on-premises OData service endpoint.
Deploy an app for SharePoint or external list to your SharePoint Online tenancy.
Validate and troubleshoot the BCS hybrid scenario.
In this article:
Before you begin
What these procedures help you deploy
How to use these procedures
Roadmap of the procedures
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint products
Keyboard shortcuts
Touch
What these procedures help you deploy
Business Connectivity Services (BCS) is a centralized infrastructure in SharePoint Server 2013, Office
2013, and SharePoint Online that enables you to integrate data that is not in SharePoint products or
Office 2013 into SharePoint products. BCS implementations take many forms. This includes this hybrid
form that uses SharePoint Online and SharePoint 2013 on-premises. These procedures show how to
458
install and configure BCS to integrate data from an on-premises OData service endpoint into a
SharePoint Online tenancy. For this scenario, we use the AdventureWorks sample SQL database and
create an OData service head for the database. The solution looks as shown in the following diagram.
For more information about SharePoint hybrid configurations and how data and authentication flow
in the SharePoint BCS hybrid solution, see Hybrid for SharePoint Server 2013.
Figure: Hybrid BCS solution
459
1. An information worker logs on to the SharePoint Online tenancy by using the information worker's
federated account and opens an app for SharePoint or external list that needs data from an on-
premises OData data source. OData is an open protocol that is used to query and update data. For
more information about OData, see Introducing OData: Data Access for the Web, the cloud, mobile
devices, and more in the MSDN Library.
460
2. The external list creates a request for the data and sends it to Business Connectivity Services.
Business Connectivity Services looks at the connection settings object to see how to connect to
the data source and which credentials to use.
3. Business Connectivity Services retrieves two sets of credentials:
a) The Secure Channel certificate from the Secure Store in SharePoint Online. This is used for
SharePoint Online authentication to the reverse proxy.
b) An OAuth token from the Azure AD Service. This is used for user authentication to the
SharePoint 2013 on-premises farm. You gain access to the Azure AD service with your
SharePoint Online subscription. It is a security token service that manages security tokens
for users of SharePoint Online. For more information about the Access Control Service, see
Access Control Service 2.0 in the MSDN Library. For more information about OAuth, see
OAuth 2.0 on the web.
4. Business Connectivity Services sends an HTTPS request to the published endpoint for the data
source. The request includes the client certificate from the Secure Store, the OAuth token, and a
request for the data. The reverse proxy authenticates the request by using the client certificate
and forwards it to the on-premises SharePoint 2013 farm. For more information about publishing
SharePoint to the Internet, see SharePoint publishing solution guide in the Forefront Technical
Library.
5. The on-premises farm retrieves the user’s cloud identity from the OAuth token (for example,
user123@contoso.com), and through the Client Side Object Model (CSOM) code, maps it to the
on-premises identity (for example, contoso\user123). The on-premises credentials are mapped to
credentials that have access to the external data via a Secure Store target application.
6. The on-premises Business Connectivity Services forwards the request to the OData Service
endpoint. The OData Service authenticates the request (via IIS) and returns the data, which is
passed back through the chain to the external list for the user to work with.
Video: Watch a demonstration of the BCS hybrid scenario
How to use these procedures
The steps to completely deploy this scenario are presented in smaller procedures. Some of the
procedures are on TechNet, some are on Office.com, and some are on MSDN. Each procedure is
numbered indicating its position in the overall sequence. At the beginning and end of each procedure,
461
links direct you to the previous and following steps. The following list contains links to all of the
procedures, in the required order, for your reference. Be aware that this list includes the steps to
deploy an external list and an app for SharePoint. You can deploy one or the other or both, depending
on your needs. You should skip the steps for whichever configuration you don’t want to deploy. You
must follow them in sequence to build out the scenario. You can also use these procedures
individually for your own unique scenarios. When you assemble individual procedures to build out
your own scenarios, it is important that you test the complete set of procedures, in order, in a lab
setting before you try them in production.
If you want to deploy only the BCS hybrid scenario by using an external list, perform all the procedures
in the following order:
Prepare the on-premises environment for the Business Connectivity Services hybrid scenario
Create an external list for the Business Connectivity Services hybrid scenario
Validate the Business Connectivity Services hybrid scenario
If you want to deploy only the BCS hybrid scenario by using an app for SharePoint, perform all the
procedures in the following order:
Prepare the on-premises environment for the Business Connectivity Services hybrid scenario
Create an external list for the Business Connectivity Services hybrid scenario
Deploy the Business Connectivity Services hybrid scenario as an app for SharePoint
Validate the Business Connectivity Services hybrid scenario
If you want to use both external lists and an app for SharePoint, perform all of the steps in order and
do not skip any steps.
462
Roadmap of the procedures
Step number
Link to procedure
Description of
procedure
Where the procedure
is performed
1
Prepare the on-
premises environment
for the Business
Connectivity Services
hybrid scenario
Prepare the on-
premises account that
you use to access the
OData service endpoint
(ODataAccount) and the
Windows group
(ODataGroup) that you
use to control access to
the OData service
endpoint.
In your on-premises
Active Directory
domain.
2
Create an on-premises
Secure Store Service
target application for the
Business Connectivity
Services hybrid
scenario
Associate the security
group (ODataGroup) to
the account (Account)
that you created in step
1 via a Secure Store
Service target app.
In your on-premises
Secure Store.
3
Create and configure an
OData service endpoint
for the Business
Connectivity Services
hybrid scenario
Create the OData
service endpoint, assign
permissions, and verify
that the OData service
endpoint is publishing
the external data.
You create the OData
endpoint with Visual
Studio 2012 in your on-
premises environment,
and you browse to it
from inside your
company intranet.
4
Prepare the SharePoint
Online environment for
the Business
Connectivity Services
hybrid scenario
Identify or create the
SharePoint Online site
where users will
interact with the
external data, and
create an App Catalog,
if it is necessary.
Prepare a site in your
SharePoint Online
tenancy for the app for
SharePoint or external
list.
463
Step number
Link to procedure
Description of
procedure
Where the procedure
is performed
5
Configure permissions
on the SharePoint
Online BDC Metadata
Store for the Business
Connectivity Services
hybrid scenario
Prepare the Business
Data Connectivity (BDC)
Metadata store for
manually imported
BDCM models.
You set permissions on
the BDC metadata store
in your SharePoint
Online tenancy.
6
Validate external access
to reverse proxy
published URL for the
Business Connectivity
Services hybrid
scenario
Browse to the
externally published
address, and log on as a
federated user.
You browse to the
externally published
site through the
Internet from a client
computer that is
outside your company
intranet.
7
Create and configure
the connection settings
object for the Business
Connectivity Services
hybrid scenario
Create a connection
settings object that BCS
in your SharePoint
Online tenancy will use
to connect to the on-
premises OData service
endpoint.
You create the
connection settings
object in your
SharePoint Online
tenancy.
8
Create and configure
the external content
type for the Business
Connectivity Services
hybrid scenario
Use Visual Studio 2012
to create and configure
the external content
type for the OData
service endpoint.
You create the external
content type with
Visual Studio 2012 from
inside your company
intranet.
9.0
Deploy the Business
Connectivity Services
hybrid scenario as an
external list
If you are creating an
external list for the on-
premises data, follow
steps 9.1, 9.2, and 9.3.
9.1
Extract an external
content type to a BDCM
file for the Business
Connectivity Services
hybrid Scenario
Manually extract the
BDCM model to a file,
and prepare to import it
into your SharePoint
Online tenancy.
In Visual Studio 2012 in
your on-premises
environment.
464
Step number
Link to procedure
Description of
procedure
Where the procedure
is performed
9.2
Import the BDCM file
into SharePoint Online
BDC Metadata Store for
the Business
Connectivity Services
hybrid scenario
Import the BDCM into
the BDC metadata store
of your SharePoint
Online tenancy.
In the metadata store
of your SharePoint
Online tenancy.
9.3
Create an external list
for the Business
Connectivity Services
hybrid scenario
Create an external list,
and associate it with
the external content
type that you imported
in step 9.2. After you
finish this step, go to
Validate the Business
Connectivity Services
hybrid scenario.
You create this list in
the SharePoint Online
site that you prepared
in step 4.
10.0
Deploy the Business
Connectivity Services
hybrid scenario as an
app for SharePoint
If you are deploying an
app for SharePoint for
users to access the
external data, follow
steps 10.0 and 10.1.
10.1
Deploy an app for
SharePoint to
SharePoint Online by
using Visual Studio for
the Business
Connectivity Services
hybrid scenario
Deploy the app for
SharePoint to the App
Catalog. After you finish
this step, go to Validate
the Business
Connectivity Services
hybrid scenario.
You use Visual Studio
2012 from your on-
premises environment
to automatically deploy
the app for SharePoint.
11
Validate the Business
Connectivity Services
hybrid scenario
Validate read and write
access to the on-
premises data through
your external list or app
for SharePoint, and test
security.
From the external list or
app for SharePoint in
the site that you
prepared in Step 4.
465
See also
Hybrid for SharePoint Server 2013
Plan SharePoint Server 2013 hybrid
Install and configure SharePoint Server 2013 hybrid
466
Prepare the on-premises environment for
the Business Connectivity Services hybrid
scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to prepare the on-premises account and security group to control access to an
OData endpoint for the Business Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
This example of the Microsoft Business Connectivity Services (BCS) hybrid scenario shows you how to
use standard Windows domain security to control access to the on-premises OData service endpoint.
You configure one domain account with which to access the OData service endpoint, and one global
security group for your federated user accounts. Then, you map the group to the account by using a
Secure Store Service target application.
Important:
This is Step 1 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to the previous article Deploy a Business Connectivity Services hybrid solution in
SharePoint 2013.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
467
To prepare on-premises security for the BCS hybrid scenario
1. Identify all the user accounts in your on-premises domain that need to use the BCS hybrid solution
and make sure that they are federated accounts. You will add these accounts to a domain global
security group later in this procedure.
2. In your on-premises domain, create a service account that will access the OData service endpoint.
These procedures use an account named ODataAccount. For more information about how to
create a domain-based account, see Create a New User Account in the Windows Server TechNet
Library.
3. In your on-premises domain, create a global security group. These procedures use a group named
ODataGroup. For more information about how to create a global security group, see Create a
New Group in the Windows Server TechNet Library.
4. Add the accounts that you identified in step 1 to the ODataGroup. For more information about
how to add users to a global security group, see Add a Member to a Group in the Windows Server
TechNet Library.
Important:
Link to Step 2 Create an on-premises Secure Store Service target application for the Business
Connectivity Services hybrid scenario of the Business Connectivity Services hybrid scenario
deployment procedures.
See also
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
Create an on-premises Secure Store Service target application for the Business Connectivity Services
hybrid scenario
468
Create an on-premises Secure Store
Service target application for the Business
Connectivity Services hybrid scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to create and configure the on-premises Secure Store Service target application
for the Business Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
The Secure Store Service provides a database that is used to store credentials. These credentials
usually consist of a user identity and password, but can also contain other fields that you define. For
example, SharePoint Server 2013 can use the Secure Store database to store and retrieve credentials
for access to external data sources. The Secure Store provides support for storing multiple sets of
credentials for multiple back-end systems. For more information about the Secure Store, see Plan the
Secure Store Service in SharePoint Server 2013.
In the Prepare the on-premises environment for the Business Connectivity Services hybrid scenario
procedure, you added all the users that will use your BCS hybrid solution to the ODataGroup and
created the ODataAccount. Later in this scenario, you will configure security on the OData service
endpoint so that only the ODataAccount has access to it, aside from administrative accounts. In this
procedure, you link the ODataGroup to the ODataAccount by using a Secure Store target application
ID. This way, users can only access the OData service endpoint through only one account, the
ODataAccount. Users get access to that account only by virtue of their membership in the
ODataGroup, which you control administratively.
469
Important:
This is Step 2 in the Business Connectivity Services Hybrid scenario deployment procedures.
Link to Step 1 Prepare the on-premises environment for the Business Connectivity Services
hybrid scenario of the Business Connectivity Services hybrid scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
Create and configure a Secure Store target application
In this procedure, you create and configure the on-premises Secure Store target application named
ODataApp for the BCS hybrid scenario. The name ODataApp is used for demonstration purposes. You
can use any name of your choice. This procedure assumes that the Secure Store Service service
application is already configured on your on-premises farm. If you haven’t configured the Secure Store
Service service application, you must complete the procedures in Configure the Secure Store Service
in SharePoint 2013 before you continue.
To create and configure a Secure Store target application
1. Open the SharePoint Central Administration website for your on-premises server farm by using a
user account that is a member of the Farm Administrators group. In the Manage service
applications section, click Secure Store Service.
2. In Configure the Secure Store Service in SharePoint 2013, read Store credentials in Secure Store,
and then perform the Create a target application procedure by using these parameters:
a) In the Target Application ID box, type a string for the target application. This is not the
display name; for example, ODataApp.
b) In the Display Name box, type the display name you want; for example, ODataApp.
c) In the Contact E-mail box, type a contact email address.
d) In the Target Application Type drop-down list, select Group. This indicates the mapping
of many user credentials or a security group to one credential. In this case, the Target
Application Page URL is not needed and automatically selects None.
e) On the Create New Secure Store Target Application page, for both Field Name and
Field Type, accept the default values of Windows User Name and Windows Password.
f) In the Target Application Administrators field, add the Farm Administrators account and
an account that has farm administrator rights. In the Members field, add the domain
470
security group you are using to control access to the BCS hybrid scenario solution; for
example, ODataGroup.
3. In Configure the Secure Store Service in SharePoint 2013, perform the Set credentials for a target
application procedure by using these parameters:
a) In the Windows User Name box, type the account name for the account that will have
access to the OData service endpoint in domain\username format that you configured in
Prepare the on-premises environment for the Business Connectivity Services hybrid
scenario; for example, Adventureworks\ODataAccount.
b) In the Windows Password and Confirm Windows Password fields, type the password
for the account.
Tip:
If you need to change the password in the future, and you open this target application ID to
edit it, the current account and password is not displayed.
Important:
Link to Step 3 Create and configure an OData service endpoint for the Business Connectivity
Services hybrid scenario of the Business Connectivity Services hybrid scenario deployment
procedures.
See also
Prepare the on-premises environment for the Business Connectivity Services hybrid scenario
Create and configure an OData service endpoint for the Business Connectivity Services hybrid scenario
Configure the Secure Store Service in SharePoint 2013
Plan the Secure Store Service in SharePoint 2013
471
Create and configure an OData service
endpoint for the Business Connectivity
Services hybrid scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to configure an OData service endpoint for a SQL database for the Business
Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
The Business Connectivity Services (BCS) hybrid scenario supports connecting only to an OData source.
If your external data already has an OData service endpoint, then you can skip the creating an OData
service endpoint portions of this procedure. You will still need to configure permissions on the service
endpoint for the ODataAccount. For the purposes of these procedures, we use the Adventureworks
sample SQL Server database (AdventureWorks 2012 LT sample database script and the
AdventureWorks 2012 LT sample data) as the data source and create an OData service endpoint to
make the data available to the BCS hybrid solution. You use Visual Studio 2012 to create and configure
the OData service.
Important:
This is Step 3 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 2 Create an on-premises Secure Store Service target application for the Business
Connectivity Services hybrid scenario of the Business Connectivity Services hybrid scenario
deployment procedures.
472
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
To create and configure the OData service endpoint
1. Perform the procedures in How to: Create an OData data service that sends notifications to BCS in
SharePoint 2013 in the MSDN Library. You will need the on-premises account that was configured
in Prepare the on-premises environment for the Business Connectivity Services hybrid scenario to
secure the service endpoint in Internet Information Services (IIS) 7.0. For example, these
procedures use an account named ODataAccount.
2. When you finish creating the OData service endpoint, go to Prepare the SharePoint Online
environment for the Business Connectivity Services hybrid scenario.
Important:
Link to Step 4 Prepare the SharePoint Online environment for the Business Connectivity
Services hybrid scenario of the Business Connectivity Services hybrid scenario deployment
procedures.
See also
Create an on-premises Secure Store Service target application for the Business Connectivity Services
hybrid scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
AdventureWorks 2012 LT sample database script
AdventureWorks 2012 LT sample data
473
Prepare the SharePoint Online environment
for the Business Connectivity Services
hybrid scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Prepare the SharePoint Online site and App Catalog for the Business Connectivity Services
(BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
The BCS hybrid scenario securely publishes sensitive on-premises data to select users of a SharePoint
Online tenancy. You can present the data either through a SharePoint Online external list or through
an app for SharePoint. In either case, you must identify or create a site in your tenancy through which
the data will be offered. If you choose to use an app for SharePoint, you must also have a SharePoint
Online App Catalog configured.
Important:
This is Step 4 in the Business Connectivity Services hybrid scenario deployment procedures
Link to Step 3 Create and configure an OData service endpoint for the Business Connectivity
Services hybrid scenario of the Business Connectivity Services hybrid scenario deployment
procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
474
To prepare the SharePoint Online site and App Catalog
1. Identify or create a site in your SharePoint Online tenancy for your external list or app for
SharePoint. Ensure that all the federated users who will be using the BCS hybrid solution are
added to the Members group for access to the site. For more information about how to create a
site in SharePoint Online, see Create a Site on Office.com. For more information about how to
plan sites and manage users, see Plan site and manage users also on Office.com.
2. Before you can deploy an app for SharePoint to a site in your SharePoint Online tenancy, you must
enable the App Catalog. For more information about how to enable and configure the App Catalog
in SharePoint Online, see Use the App Catalog to make custom business apps available for your
SharePoint Online environment on Office.com.
Note:
This scenario shows you how to directly deploy your app for SharePoint into the site you
have prepared. It is also possible to deploy your app for SharePoint into the App Catalog.
Important:
Link to Step 5 Configure permissions on the SharePoint Online BDC Metadata Store for the
Business Connectivity Services hybrid scenario of the Business Connectivity Services hybrid
scenario deployment procedures.
See also
Create and configure an OData service endpoint for the Business Connectivity Services hybrid scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
Configure permissions on the SharePoint Online BDC Metadata Store for the Business Connectivity
Services hybrid scenario
Create a Site
Plan site and manage users
475
Configure permissions on the SharePoint
Online BDC Metadata Store for the
Business Connectivity Services hybrid
scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: How to configure permission on the SharePoint Online Business Data Connectivity service
(BDC) Metadata Store for the Business Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
The Business Data Connectivity service (BDC) Metadata Store holds external content types, external
systems, and BDC model definitions for the BDC Service Application. In this procedure, you configure
administrative permissions on the Metadata Store and everything that it will contain. Later in this
scenario, if you are using the manual import of the external content type method, you will be using
the BDC Metadata Store. This external content type will be available across your entire tenancy. If you
will only be using the automated deployment of an app for SharePoint, then you will not use the BDC
Metadata Store, and the external content type is scoped to the app only.
Important:
This is Step 5 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 4 Prepare the SharePoint Online environment for the Business Connectivity
Services hybrid scenario of the Business Connectivity Services hybrid scenario deployment
procedures.
476
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
To set permissions on the BDC Metadata Store in SharePoint Online
1. Open the SharePoint Online Administration Center by using an administrative account.
2. On the Quick Launch, click BCS, then click Manage BDC Models and External Content Types.
3. Click Set Metadata Store Permissions, and add All Authenticated Users with at least Execute
permissions. This will allow all users who authenticate to your SharePoint Online tenancy to use
the external content types stored in the Metadata Store.
4. Select the Propagate permissions to all BCS Models, External Systems and External Content
Types in the BDC Metadata Store. Doing so will overwrite existing permissions check box.
For more information about how to set permissions on the BDC Metadata Store, see Overview of
Business Connectivity Services security tasks in SharePoint 2013.
5. Click OK.
Important:
Link to Step 6 Validate external access to reverse proxy published URL for the Business
Connectivity Services hybrid scenario of the Business Connectivity Services hybrid scenario
deployment procedures.
See also
Prepare the SharePoint Online environment for the Business Connectivity Services hybrid scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
Validate external access to reverse proxy published URL for the Business Connectivity Services hybrid
scenario
Overview of Business Connectivity Services security tasks in SharePoint 2013
477
Validate external access to reverse proxy
published URL for the Business
Connectivity Services hybrid scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: How to confirm access to the external URL of the on-premises SharePoint 2013 farm for
the Business Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
At this point in deploying the Business Connectivity Services (BCS) hybrid scenario, you should confirm
that you can access your on-premises SharePoint 2013 farm that has been configured to receive
hybrid calls from SharePoint Online. This site was already configured in the Configure a hybrid
topology for SharePoint Server 2013 procedures. Its URL is the one you published through your
reverse proxy.
Important:
This is Step 6 in the Business Connectivity Services hybrid scenario deployment procedures
Link to Step 5 Configure permissions on the SharePoint Online BDC Metadata Store for the
Business Connectivity Services hybrid scenario of the Business Connectivity Services hybrid
scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
478
Prerequisites
Before you begin this procedure, make sure you have the following:
The external URL, for example, if your on-premises farm web application was configured with an
alternate access mapping of “hybridexternal.sharepoint.com” and you published out
“https://hybridexternal.sharepoint.com” through the reverse proxy, you will use
“https://hybridexternal.sharepoint.com” for this procedure. For more information, see Extend
the primary web application and configure AAM.
A computer to browse from that is in the extranet. For example, use a computer that is not on
your corporate network and is not a member of your corporate domain.
The Secure Channel certificate that is stored in the SharePoint Online Secure Store Service target
application. This target application was configured in the Configure a hybrid topology for
SharePoint Server 2013 procedures. In the example it was named SecureChannelTargetApp.
You will need the password for the certificate as well. For more information, see Create and
install certificates.
The credentials of a federated account.
To confirm access to external URL
1. Copy the certificate to your extranet computer, and then click the certificate. You will be
prompted for the certificate password. This adds the certificate to your personal certificate store.
2. Open a web browser and browse to the externally published URL of your on-premises farm. You
should be prompted for credentials. If not, check your browser settings and make sure that your
logged on credentials are not being automatically passed.
3. Provide the credentials of the federated user. This log on must succeed and you should see the
published site. If this does not work, contact the administrators who set up your hybrid
infrastructure. Do not proceed any further with the BCS hybrid scenario until this issue is resolved.
Important:
Link to Step 7 Create and configure the connection settings object for the Business
Connectivity Services hybrid scenario of the Business Connectivity Services hybrid scenario
deployment procedures.
See also
Configure permissions on the SharePoint Online BDC Metadata Store for the Business Connectivity
Services hybrid scenario
480
Create and configure the connection
settings object for the Business
Connectivity Services hybrid scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: How to configure a connection settings object in SharePoint Online for the Business
Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
Your external list or app for SharePoint will send requests for external data to Microsoft Business
Connectivity Services (BCS) in SharePoint Online just as it would in a SharePoint 2013 Server
implementation. And just as in a SharePoint 2013 Server implementation, BCS will broker all
communication with the external system and the external data source. However, unlike a SharePoint
2013 Server implementation, BCS in SharePoint Online needs additional information to establish the
connection to the external system and the OData source. This configuration information is provided in
a SharePoint Online connection settings object.
Important:
This is Step 7 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 6 Validate external access to reverse proxy published URL for the Business
Connectivity Services hybrid scenario of the Business Connectivity Services hybrid scenario
deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
481
Prerequisites
Before you begin this procedure, make sure you have the following:
The URL or published service endpoint of the on-premises OData service that you configured in
Create and configure an OData service endpoint for the Business Connectivity Services hybrid
scenario.
The Secure Store Service target application ID that you configured in Create an on-premises
Secure Store Service target application for the Business Connectivity Services hybrid scenario. This
is the one that stores the mapping between ODataGroup and ODataAccount. For example the
ODataApp.
The Internet-facing URL that Office 365 uses to connect to the service address and that was
published by the reverse proxy. This is the address that you used to browse to the external service
in Validate external access to reverse proxy published URL for the Business Connectivity Services
hybrid scenario with the addition of /_vti_bin/client.svc.
The Secure Store target application ID for the Secure Channel certificate in the Secure Store the
Office 365 users use to connect to the Internet-facing URL. This is the target application ID you
configured in Configure SharePoint Online, for example SecureChannelTargetApp.
To configure the connection settings object for the BCS hybrid scenario
1. Open the SharePoint Online Administration Center by using an administrator account, and on the
Quick Launch, click bcs.
2. Click Manage connections to on-premises services.
3. Click Add.
4. Give the connection settings object a name.
Important:
Keep track of this name; you will use it when you create the external content type in
Create and configure the external content type for the Business Connectivity Services
hybrid scenario.
5. In the Service Address box, type the URL of the OData service endpoint that you created in
Create and configure an OData service endpoint for the Business Connectivity Services hybrid
scenario.
6. For this scenario, select the Use credentials stored in Sharepoint on-premises as the
authentication option, and then type the name of target application ID that holds the group to
482
account mapping. In this scenario, it is ODataApp that you created in Create an on-premises
Secure Store Service target application for the Business Connectivity Services hybrid scenario.
7. In the Authentication Mode drop-down list, select Impersonate Window’s Identity.
8. In the Internet-facing URL box, type the external URL with the /_vti_bin/client.svc extension. For
example https://hybridexternal.sharepoint.com/_vti_bin/client.svc.
9. In the Secure Store Target Application ID box, type the ID of the target application that holds
the Secure Channel certificate. For example SecureChannelTargetApp.
10. Click Create.
Important:
Link to Step 8 Create and configure the external content type for the Business Connectivity
Services hybrid scenario of the Business Connectivity Services hybrid scenario deployment
procedures.
See also
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
Create an on-premises Secure Store Service target application for the Business Connectivity Services
hybrid scenario
Create and configure an OData service endpoint for the Business Connectivity Services hybrid scenario
Validate external access to reverse proxy published URL for the Business Connectivity Services hybrid
scenario
Create and configure the external content type for the Business Connectivity Services hybrid scenario
Configure a hybrid topology for SharePoint Server 2013
Configure identity management for a hybrid topology in SharePoint Server 2013
483
Create and configure the external content
type for the Business Connectivity Services
hybrid scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: How to create an external content type for an OData source by using Visual Studio 2012 to
support the Business Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
In every Business Connectivity Services (BCS) solution, the external content type defines the external
data to SharePoint 2013. It includes descriptions of how the data is structured, how it is secured, the
specific portions of the external data that you want to interact with, and the permitted operations.
When an external list or app for SharePoint or business data Web Part makes a request for external
data, the Business Data Connectivity service refers to the external content type for the list or app or
Web Part to understand how to communicate with the external data source.
In the BCS hybrid scenario, only OData sources are supported and the preferred way to make an
external content type for an OData source is to use Visual Studio 2012. Visual Studio 2012 simplifies
the external content type creation process by directly connecting to the OData source, reading it, and
building the external content type XML for you. Once created, you have to make some minor changes
to the XML, such as inserting which connection settings object to use and removing some of the
boilerplate code, before you can deploy it to your SharePoint Online tenancy for use in the BCS hybrid
scenario.
484
Important:
This is Step 8 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 7 Create and configure the connection settings object for the Business
Connectivity Services hybrid scenario of the Business Connectivity Services hybrid scenario
deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
Prerequisites
Before you begin this procedure, make sure you have the following:
Visual Studio 2012 installed on a computer that on your corporate network.
The OData service endpoint URL
Microsoft Office Tools for Visual Studio 2012
To create an external content type for the BCS hybrid scenario
1. Complete the steps in How to: Create an external content type from an OData source in SharePoint
2013 in the MSDN Library. When you are done creating the external content type, you will need to
decide how it will be deployed, either by using Visual Studio 2012 F5 deployment, or by extracting
the external content type from a .app package and importing it manually by using SharePoint
Online Administration Center. Return to Deploy the Business Connectivity Services hybrid
scenario as an external list if you are going to manually import the external content type into the
SharePoint Online BCS Metadata Store, or return to Deploy the Business Connectivity Services
hybrid scenario as an app for SharePoint if you are going to use Visual Studio 2012 automation to
deploy an app for SharePoint to your site in SharePoint Online.
If you are deploying manually, first follow the steps in How to: Convert an App-Scoped
External Content Type to Tenant-Scoped in the MSDN Library to extract the BDC model
file. Once you have the model file, return to Deploy the Business Connectivity Services
hybrid scenario as an external list to manually import it into the SharePoint Online BCS
Metadata Store.
If you are using Visual Studio 2012 to deploy the app for SharePoint, return to Deploy the
Business Connectivity Services hybrid scenario as an app for SharePoint.
Important:
Link to Step 9.0 Deploy the Business Connectivity Services hybrid scenario as an external list
of the Business Connectivity Services hybrid scenario deployment procedures.
485
See also
Create and configure the connection settings object for the Business Connectivity Services hybrid
scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
Deploy the Business Connectivity Services hybrid scenario as an external list
Deploy the Business Connectivity Services hybrid scenario as an app for SharePoint
How to: Create and external content type from an OData source in SharePoint 2013
486
Deploy the Business Connectivity Services
hybrid scenario as an external list
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Find links to procedures to help you manually extract a Business Data Connectivity model,
import the model into SharePoint Online, and manually create an external list to surface the on-
premises data.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
On-premises data can be integrated in to your SharePoint Online tenancy either through an external
list or an app for SharePoint. The procedures in this section show you how to integrate the external
data by using an external list. After you complete these procedures, you can go to Validate the
Business Connectivity Services hybrid scenario.
Important:
This is Step 9.0 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 8 Create and configure the external content type for the Business Connectivity
Services hybrid scenario of the Business Connectivity Services hybrid scenario deployment
procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
487
Procedures in this section
Link to procedure
Description of procedure
Where the procedure is
performed
Extract an external content type
to a BDCM file for the Business
Connectivity Services hybrid
Scenario
Manually extract the BDCM
model to a file and prepare to
import it into your SharePoint
Online tenancy.
In your on-premises
environment, by using Visual
Studio 2012.
Import the BDCM file into
SharePoint Online BDC
Metadata Store for the Business
Connectivity Services hybrid
scenario
Import the BDCM model into the
BDC Metadata Store of your
SharePoint Online tenancy.
In the Metadata Store of your
tenancy, by using SharePoint
Online.
Create an external list for the
Business Connectivity Services
hybrid scenario
Create an external list and
associate it with the external
content type that you imported
in Import the BDCM file into
SharePoint Online BDC
Metadata Store for the Business
Connectivity Services hybrid
scenario. After you finish this
step, go to Validate the Business
Connectivity Services hybrid
scenario.
Important:
Link to Step 9.1 Extract an external content type to a BDCM file for the Business Connectivity
Services hybrid Scenario of the Business Connectivity Services hybrid scenario deployment
procedures.
See also
Create and configure the external content type for the Business Connectivity Services hybrid scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
Extract an external content type to a BDCM file for the Business Connectivity Services hybrid Scenario
488
Extract an external content type to a BDCM
file for the Business Connectivity Services
hybrid Scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Link to how to manually extract an external content type to a BDCM file for the Business
Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
The external content type that you configured in Create and configure the external content type for the
Business Connectivity Services hybrid scenario must be manually extracted and saved as a file with a
.bcdm extension. This is done by using Visual Studio 2012. The procedure for doing this is How to:
Convert an App-Scoped External Content Type to Tenant-Scoped in the MSDN Library. After you
complete the steps in How to: Convert an App-Scoped External Content Type to Tenant-Scoped
procedure, return to Import the BDCM file into SharePoint Online BDC Metadata Store for the
Business Connectivity Services hybrid scenario.
Important:
This is Step 9.1 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 9.0 Deploy the Business Connectivity Services hybrid scenario as an external
list of the Business Connectivity Services hybrid scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
489
To extract an external content type to a BDCM model
1. Follow the steps in How to: Convert an App-Scoped External Content Type to Tenant-Scoped.
Important:
Link to Step 9.2 Import the BDCM file into SharePoint Online BDC Metadata Store for the
Business Connectivity Services hybrid scenario of the Business Connectivity Services hybrid
scenario deployment procedures.
See also
Deploy the Business Connectivity Services hybrid scenario as an external list
Create and configure the external content type for the Business Connectivity Services hybrid scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
How to: Convert an App-Scoped External Content Type to Tenant-Scoped
490
Import the BDCM file into SharePoint
Online BDC Metadata Store for the
Business Connectivity Services hybrid
scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: How to import an external content type as a BDCM file into a SharePoint Online Business
Data Connectivity service (BDC) Metadata Store.
Note:
This documentation is preliminary and subject to change.
When you import a BDCM model into the BDC metadata service, you are creating an external content
type. This external content type is available for tenant-wide use.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
Important:
This is Step 9.2 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 9.1 Extract an external content type to a BDCM file for the Business Connectivity
Services hybrid Scenario of the Business Connectivity Services hybrid scenario deployment
procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
491
Import a BDCM file into the SharePoint Online BDC
Metadata Store
Before you begin this procedure, make sure you have the following:
The .bdcm file that you extracted in Extract an external content type to a BDCM file for the
Business Connectivity Services hybrid Scenario.
An account with administrative rights to your SharePoint Online tenancy and administrative rights
to the BDC Metadata Store.
Important:
When you import the BDC Model file into SharePoint Online, you must be logged in to the
SharePoint Online administrator site as a federated account (an account imported to Office
365 from On-Premise using Directory Sync). This federated account should also be given
Global Administrator rights in Office 365. When importing the BDC Model to configure Hybrid
BCS, certain calls are made to On-premise SharePoint Server 2013 that will require you use a
federated user account. Be aware the account must also have a populated user profile in your
On-Premise SharePoint Server 2013 farm.
This procedure requires that all previous procedures in this scenario have been completed
successfully, that the core hybrid infrastructure is working correctly, and that bidirectional
communication between SharePoint Online and your on-premises SharePoint 2013 farm for hybrid is
working.
To import a BDCM file into the SharePoint Online BDC Metadata Store
1. Log on to your SharePoint Online tenancy by using an administrative account, and then open the
SharePoint Online Administration Center.
2. In the Quick Launch, click bcs.
3. Under business connectivity services, click Manage BDC Models and External Content
Types.
4. On the Edit tab, click Import.
5. Click Browse, and then browse to the .bdcm file that you exported in Extract an external content
type to a BDCM file for the Business Connectivity Services hybrid Scenario.
6. Leave the default selections for File Type and Advanced Settings, and then click Import. During
the import, BCS validates the XML in the model, queries the connection settings object, and
connects to the on-premises OData source.
492
Important:
Link to Step 9.3 Create an external list for the Business Connectivity Services hybrid scenario
of the Business Connectivity Services hybrid scenario deployment procedures.
See also
Extract an external content type to a BDCM file for the Business Connectivity Services hybrid Scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
Create an external list for the Business Connectivity Services hybrid scenario
493
Create an external list for the Business
Connectivity Services hybrid scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: How to create an external list in SharePoint Online for the Business Connectivity Services
(BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
Important:
This is Step 9.3 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 9.2 Import the BDCM file into SharePoint Online BDC Metadata Store for the
Business Connectivity Services hybrid scenario of the Business Connectivity Services hybrid
scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
To create an external list for the BCS hybrid scenario
1. Open the site that you prepared in Prepare the SharePoint Online environment for the Business
Connectivity Services hybrid scenario by using an account that has site owner permissions and is a
federated account.
2. On the Quick Launch, click Site Contents, and then click add an app.
3. Click External List, and then provide a name for the list.
494
4. Click the Select External Content Type link next to the External Content Type box.
5. Select the external content type that you created in Import the BDCM file into SharePoint Online
BDC Metadata Store for the Business Connectivity Services hybrid scenario, click OK, and then
click Create.
6. Open the external list and confirm that your external data is displayed.
Important:
Link to Step 11 Validate the Business Connectivity Services hybrid scenario of the Business
Connectivity Services hybrid scenario deployment procedures.
See also
Import the BDCM file into SharePoint Online BDC Metadata Store for the Business Connectivity
Services hybrid scenario
Prepare the SharePoint Online environment for the Business Connectivity Services hybrid scenario
Import the BDCM file into SharePoint Online BDC Metadata Store for the Business Connectivity
Services hybrid scenario
495
Deploy the Business Connectivity Services
hybrid scenario as an app for SharePoint
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Find links to procedures to help you use Visual Studio 2012 automation to deploy your app
for SharePoint for the Business Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
On-premises data can be integrated in to your SharePoint Online tenancy through either an app for
SharePoint or an external list. The procedure in this section shows you how to integrate the external
data by using an app for SharePoint. After you complete this procedure, you can go to Validate the
Business Connectivity Services hybrid scenario.
Important:
This is Step 10.0 in the Business Connectivity Services hybrid scenario deployment procedures
Link to the previous step, Step 8 Create and configure the external content type for the
Business Connectivity Services hybrid scenario of the Business Connectivity Services hybrid
scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
496
Procedures in this section
Link to procedure
Description of procedure
Where the procedure is
performed
Deploy an app for SharePoint to
SharePoint Online by using
Visual Studio for the Business
Connectivity Services hybrid
scenario
Deploy the app for SharePoint to
SharePoint Online. After you
finish this step, go to Validate
the Business Connectivity
Services hybrid scenario.
You use Visual Studio 2012 from
your on-premises environment
to automatically deploy the app
for SharePoint.
Important:
Link to Step 10.1 Deploy an app for SharePoint to SharePoint Online by using Visual Studio for
the Business Connectivity Services hybrid scenario of the Business Connectivity Services
hybrid scenario deployment procedures.
See also
Validate the Business Connectivity Services hybrid scenario
Deploy an app for SharePoint to SharePoint Online by using Visual Studio for the Business
Connectivity Services hybrid scenario
497
Deploy an app for SharePoint to
SharePoint Online by using Visual Studio
for the Business Connectivity Services
hybrid scenario
Applies to: SharePoint Server 2013, SharePoint Online
Topic Last Modified: 2013-12-18
Summary: How to deploy your app for SharePoint to your SharePoint Online site by using Visual
Studio for the Business Connectivity Services (BCS) hybrid scenario.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
Visual Studio 2012 includes automation that you can use to deploy apps for SharePoint directly to
SharePoint. This procedure contains links to the latest procedures in the MSDN Library. After you have
completed that procedure, return to Validate the Business Connectivity Services hybrid scenario.
Important:
This is Step 10.1 in the Business Connectivity Services hybrid scenario deployment procedures.
Link to Step 10.0 Deploy the Business Connectivity Services hybrid scenario as an app for
SharePoint of the Business Connectivity Services hybrid scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
To deploy an app for SharePoint by using Visual Studio
498
1. Follow Deploying apps for SharePoint 2013 using Business Connectivity Services Hybrid
Connections.
Important:
Link to Step 11 Validate the Business Connectivity Services hybrid scenario of the Business
Connectivity Services hybrid scenario deployment procedures.
See also
Deploy the Business Connectivity Services hybrid scenario as an app for SharePoint
Validate the Business Connectivity Services hybrid scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
499
Validate the Business Connectivity Services
hybrid scenario
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-03-04
Summary: How to validate the Business Connectivity Services (BCS) hybrid solution is working.
Note:
This documentation is preliminary and subject to change.
Warning:
To configure a hybrid SharePoint environment, you need a combination of expert skills and
significant hands-on experience with SharePoint Server 2013, SharePoint Online, and related
products and technologies. We recommend that you engage Microsoft Consulting Services to
provide technical guidance and support during the design and deployment of your hybrid
environment.
For more information about Microsoft Consulting Services, see Microsoft Services.
Now that you have created an external list or deployed an app for SharePoint in SharePoint Online,
you need to test the security you put in place. Every account that will be accessing and manipulating
the external data must have three properties:
It must have user or greater permissions to the SharePoint Online site and the external list or app
for SharePoint.
It must be a federated account.
It must be a member of the on-premises global security group that you are using to control access
to the OData service endpoint. For example, it must be a member of ODataGroup.
In this procedure, you will open the SharePoint Online site and the external list or app for SharePoint
with four different accounts.
Important:
This is Step 11, the last step in the Business Connectivity Services hybrid scenario deployment
procedures.
500
Link to Step 9.3 Create an external list for the Business Connectivity Services hybrid scenario if
you did the manual import of the BDCM and manually created an external list of the Business
Connectivity Services hybrid scenario deployment procedures.
Link to Step 10.1 Deploy an app for SharePoint to SharePoint Online by using Visual Studio for
the Business Connectivity Services hybrid scenario if you did the automated deployment of an
app for SharePoint by using Visual Studio 2012 of the Business Connectivity Services hybrid
scenario deployment procedures.
For a list of all the procedures in order, see Deploy a Business Connectivity Services hybrid
solution in SharePoint 2013.
To validate security on the BCS hybrid
1. Identify or create one account for each of the account types listed in the following table.
Account
Expected outcome
Troubleshooting step
Account A
Has site/list/app
permissions.
Is federated.
Is a member of the on-
premises global security
group (ODataGroup).
External data displayed and
editable.
If the external data does not
display or you cannot edit it,
check the site permissions, your
federation setup, and the
membership of your on-
premises global security group;
for example, the ODataGroup.
Account B
Does not have site/list/app
permissions.
Is federated.
Is a member of the on-
premises global security
group (ODataGroup).
External data does not display.
If the external data does display
and you can edit it, check the
site/list/app permissions.
501
Account
Expected outcome
Troubleshooting step
Account C
Has site/list/app
permissions.
Is not federated (is an Office
365 account only).
Cannot be added to the on-
premises global security
group (ODataGroup).
External data does not display.
If the external data does display
and you can edit it, check your
federation setup and
membership of your on-
premises global security group
(Odata Group).
Account D
Has site/list/app
permissions.
Is federated.
Is not a member of your on-
premises global security
group (ODataGroup).
External data does not display.
If the external data does display
and you can edit it, check the
membership of your on-
premises global security group
(ODataGroup) and the
permissions that you set on the
OData service endpoint that you
configure in Prepare the
SharePoint Online environment
for the Business Connectivity
Services hybrid scenario
2. Open (by using In-Private browsing if possible) the SharePoint Online site that contains the
external list or app for SharePoint by using each of the accounts in turn. Be sure to completely log
out and close your browser in between tests.
3. If you don’t see the expected outcome, refer to the troubleshooting step in the previous table, fix
the issue, and repeat all four tests until you achieve the expected outcome.
If you see the error message:
ResourceBudgetExceeded, sending throttled status code.
Exception=Microsoft.SharePoint.SPResourceBudgetExceededException: ResourceBudgetExceeded
at Microsoft.SharePoint.SPResourceTally.Check(Int32 value) at
Microsoft.SharePoint.SPAggregateResourceTally.Check(SPResourceKind kind, Int32 value) at
Microsoft.SharePoint.Client.SPClientServiceHost.OnBeginRequest()
You can either remove the throttling:
$webapp = Get-SPWebApplication -Identity http://<URL of your on-premises
farm>
502
$rule =
$webapp.AppResourceTrackingSettings.Rules.Get([Microsoft.SharePoint.SPResour
ceKind]::ClientServiceRequestDuration)
$rule.Remove()
Or change the throttling value:
$webapp = Get-SPWebApplication -Identity http://<URL of your on-premises
farm>
$webapp.
AppResourceTrackingSettings.Rules.Add([Microsoft.SharePoint.SPResourceKind]:
:ClientServiceRequestDuration, 150000, 150000)
$webapp.AppResourceTrackingSettings.WindowCount = 10
$webapp.AppResourceTrackingSettings.WindowSize =
[System.TimeSpan]::FromSeconds(30)
$webapp.Update()
where the 150000 means 150 seconds.
See also
Create an external list for the Business Connectivity Services hybrid scenario
Deploy an app for SharePoint to SharePoint Online by using Visual Studio for the Business
Connectivity Services hybrid scenario
Deploy a Business Connectivity Services hybrid solution in SharePoint 2013
Prepare the SharePoint Online environment for the Business Connectivity Services hybrid scenario
503
Configure eDiscovery in SharePoint Server
2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn the steps to set up and configure eDiscovery in SharePoint Server 2013 and
Exchange Server 2013.
This article identifies the steps that are required to configure eDiscovery in SharePoint Server 2013.
When you complete the steps that are listed in this article, users will be able to create and work with
eDiscovery cases.
Before you configure eDiscovery, you should understand the concepts that are presented in the article
Overview of eDiscovery and in-place holds in SharePoint Server 2013, and you should have
completed the planning process that is described in the article Plan for eDiscovery in SharePoint
Server 2013.
The tasks that you must perform to configure eDiscovery are the following:
Configure communication between SharePoint Server 2013 and Exchange Server 2013.
Configure Search to crawl all discoverable content.
Grant permissions.
Create an eDiscovery Center.
Configure communication between SharePoint Server
2013 and Exchange Server 2013
If you will use a SharePoint eDiscovery Center to discover content in Exchange Server, you must
configure SharePoint Server 2013 and Exchange Server to interact.
Important:
To discover content in Exchange Server from a SharePoint eDiscovery Center, you must be
running Exchange Server 2013.
Perform the following steps:
504
1. Ensure that the Exchange Web Service managed API is installed on every front-end server that is
running SharePoint Server 2013. For more information about the Exchange Web Service managed
API, see Hardware and software requirements for SharePoint 2013.
2. Configure a trust relationship between SharePoint Server 2013 and Exchange Server. For
information about how to configure the trust relationship, see Configure server-to-server
authentication in SharePoint 2013.
3. If you want content from Lync Server 2013 to be discoverable, configure Lync Server 2013 to
archive to Exchange Server 2013. For information about how to configure Lync Server 2013
archiving, see Microsoft Lync Server 2013 Archiving Deployment Guide.
4. Perform the eDiscovery configuration steps for Exchange. For information about how to configure
Exchange Server 2013 for eDiscovery, see Configure Exchange for SharePoint eDiscovery Center.
Configure Search to crawl all discoverable content
Content is only discoverable if it is crawled and indexed by the Search service application that is
associated with the web application that the eDiscovery Center is in. You should have identified this
Search service application when you planned for eDiscovery. To configure the Search service
application to crawl the appropriate content, follow these steps:
1. If content in Exchange Server 2013 must be discoverable, add Exchange Server 2013 as a result
source. For information about how to configure a result source, see Configure result sources for
search in SharePoint Server 2013.
2. Ensure that all websites that contain discoverable content are being crawled. For information
about how to configure a location to be crawled, see Add, edit, or delete a content source in
SharePoint Server 2013.
3. Ensure that all file shares that contain discoverable content are being crawled. For information
about how to configure a location to be crawled, see Add, edit, or delete a content source in
SharePoint Server 2013.
Grant permissions
The article Plan for eDiscovery in SharePoint Server 2013 recommends that you create a security
group to contain all users of the eDiscovery Center. After you create the security group, grant the
security group permissions to access all discoverable content.
505
Note:
The article Plan for eDiscovery in SharePoint Server 2013 explains the different ways of
granting permissions to discoverable content. You should have chosen to grant permissions at
the web application level or at the site collection level.
1. If you will grant permissions at the web application level, create a user policy that gives the
security group full read permissions for each web application that contains discoverable content.
For information about how to create a policy for a web application, see Manage permission
policies for a web application in SharePoint 2013.
Note:
When you change permissions at the web application level, Search re-crawls all of the
content in the web application.
2. If you will grant permissions at the site collection level, make the security group a site collection
administrator for each site collection that contains discoverable content. For information about
how to add a site collection administrator, see Add or change a site collection administrator.
Important:
A site collection administrator must add the security group as an additional site collection
administrator by using the Site Settings menu. You cannot use Central Administration to
make a security group a site collection administrator
3. Ensure that the security group has permissions to access all file shares and other websites that
contain discoverable content.
4. If you will use a SharePoint eDiscovery Center to discover content in Exchange Server, grant the
security group permissions to access Exchange Server mailboxes. For information about how to
grant permissions in Exchange, see Configure Exchange for SharePoint eDiscovery Center.
5. Grant the security group permissions to view the crawl log. For information about how to grant
permissions to access the crawl log, see Set-SPEnterpriseSearchCrawlLogReadPermission.
Create an eDiscovery center
An eDiscovery Center is a site collection from which users can create and manage eDiscovery cases. To
create an eDiscovery Center, follow the procedure in the article Create a site collection in SharePoint
2013, and choose the eDiscovery Center site collection type from the Enterprise tab. Be aware that
an eDiscovery Center must be in a web application that supports claims authentication.
506
Configure site mailboxes in SharePoint
Server 2013
Applies to: SharePoint Server 2013, Exchange Server 2013
Topic Last Modified: 2013-12-18
Summary: Configure Exchange Server 2013 and SharePoint Server 2013 for team email by using the
SharePoint Server 2013 Site Mailboxes feature.
This article describes how to configure Site Mailboxes in SharePoint Server 2013 and Exchange Server
2013. The Site Mailboxes feature provides SharePoint Server 2013 users with team email on a
SharePoint site. Site Mailboxes also provides links to SharePoint document libraries in Outlook 2013,
enabling users to share files and email messages with other members of a team that are working on a
joint project.
Before you begin
Before you begin this operation, review the following information about prerequisites:
Site Mailboxes requires Exchange Server 2013.
Any previous version of Exchange Web Services (EWS) will need to be uninstalled from the
SharePoint servers.
Note:
You may need to determine if a previous version of EWS is installed. If so, please run the
Check-SiteMailboxConfig script referenced below. Your version should be 15.0.516.25 or
above.
Site Mailboxes feature requires that user profile synchronization be configured in the farm. For
information about configuring user profile synchronization, see Plan user profiles and identities
(SharePoint Server 2013), and Manage user profile synchronization in SharePoint Server 2013.
Site Mailboxes feature requires that the app management service application be configured in the
farm. For information about configuring the app management service application, see New-
SPAppManagementServiceApplication.
Secure Sockets Layer (SSL) configured for the Default Zone is a requirement for web applications
that are deployed in scenarios that support server-to-server authentication and app
authentication. This is such a scenario. As a prerequisite for configuring Site Mailboxes, the
507
computer that is running SharePoint Server must have SSL configured. For more information, see
Create claims-based web applications in SharePoint 2013 and follow the steps for creating an SSL
site collection and server certificate.
Note:
You may need to import the Exchange Server SSL certificate from Exchange 2013 to
SharePoint 2013, and from SharePoint 2013 to Exchange 2013. This is only necessary if the
certificate is not trusted for the API endpoints (such as a Self-SSL Certificate in a lab
environment).
To import an untrusted SSL certificate to a new server:
Open Internet Explorer and navigate to Outlook Web App (if the deployment is on SharePoint
Server) or the SSL SharePoint site (if the deployment is on Exchange Server):
https://<ExServerName>/owa or https://<SP_FQDN>.
Accept to trust the certificate by clicking Continue to website.
Click Certificate Error info in Internet Explorer next to the Address bar, and then click View
Certificates.
Select Install Certificate and then select Place all certificates in the following store.
Select the checkbox to show physical stores.
Install the certificate to Trusted Root Certification Authorities > Local Computer.
In order to perform these procedures, you must be a member of the SharePoint and Exchange
Server administrator groups and have an operational Exchange Server with end-user mailboxes.
A SharePoint backup solution will not incorporate Exchange site mailboxes. An Exchange
administrator will need to ensure timely backups of site mailboxes are taking place.
Users who access files in a SharePoint document library from a Site Mailbox must have the
document library configured as a trusted site in their browser or a warning will appear that asks
the user if she or he wants to trust the file.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
508
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Configure SharePoint for Site Mailboxes in SharePoint
Server 2013
The first step in configuring Site Mailboxes is to install the Exchange Server Web Services API on each
web front-end (WFE) server in the SharePoint Server 2013 farm.
Install Exchange Web Services API on SharePoint Server
1. Download EWSManagedAPI.msi from the Microsoft Download Center
(http://www.microsoft.com/en-us/download/details.aspx?id=35371) and save it to a folder on
each WFE server.
2. Open a command window as administrator and navigate to the folder where you saved
EWSManagedAPI.msi.
3. Run the following command:
msiexec /i EwsManagedApi.msi
addlocal="ExchangeWebServicesApi_Feature,ExchangeWebServicesApi_Gac"
4. Reset IIS from the command line by typing IISReset.
Establish OAuth Trust and Service Permissions on
SharePoint Server 2013
The next step is to copy the following two scripts. The first should be saved as Set-
SiteMailboxConfig.ps1 and the second should be saved as Check-SiteMailboxConfig.ps1.
Set-SiteMailboxConfig.ps1:
# .SYNOPSIS
#
# Set-SiteMailboxConfig helps configure Site Mailboxes for a SharePoint farm
#
# .DESCRIPTION
509
#
# Establishes trust with an Exchange Server, sets Site Mailbox settings and
enables Site Mailboxes for a farm.
#
# .PARAMETER ExchangeSiteMailboxDomain
#
# The FQDN of the Exchange Organization where Site Mailboxes will be created
#
# .PARAMETER ExchangeAutodiscoverDomain
#
# [Optional] The FQDN of an Exchange Autodiscover Virtual Directory
#
# .PARAMETER WebApplicationUrl
#
# [Optional] The URL of a specific web application to configure. If not
specified all Web Applications will be configured
#
# .PARAMETER Force
#
# [Optional] Indicate that the script should ignore any configuration issues
and enable Site Mailboxes anyway
#
Param
(
[Parameter(Mandatory=$true)]
[ValidateNotNullOrEmpty()]
[string]$ExchangeSiteMailboxDomain,
[Parameter(Mandatory=$false)]
[ValidateNotNullOrEmpty()]
[string]$ExchangeAutodiscoverDomain,
[Parameter(Mandatory=$false)]
[ValidateNotNullOrEmpty()]
[string]$WebApplicationUrl,
[Parameter(Mandatory=$false)]
[switch]$Force
)
$script:currentDirectory = Split-Path $MyInvocation.MyCommand.Path
if($WebApplicationUrl -ne $NULL -and $WebApplicationUrl -ne "")
{
$webapps = Get-SPWebApplication $WebApplicationUrl
}
else
{
$webapps = Get-SPWebApplication
}
if($webapps -eq $NULL)
{
if($WebApplicationUrl -ne $NULL)
{
Write-Warning "No Web Application Found at $($WebApplicationUrl). Please
510
create a web application and re-run Set-SiteMailboxConfig"
}
else
{
Write-Warning "No Web Applications Found. Please create a web
application and re-run Set-SiteMailboxConfig"
}
return
}
$rootWeb = $NULL
foreach($webapp in $webapps)
{
if($rootWeb -eq $NULL)
{
$rootWeb = Get-SPWeb $webApp.Url -EA SilentlyContinue
}
}
if($rootWeb -eq $NULL)
{
Write-Warning "Unable to find a root site collection. Please create a root
site collection on a web application and re-run Set-SiteMailboxConfig"
return
}
$exchangeServer = $ExchangeAutodiscoverDomain
if($exchangeServer -eq $NULL -or $exchangeServer -eq "")
{
$exchangeServer = "autodiscover.$($ExchangeSiteMailboxDomain)"
}
Write-Host "Establishing Trust with Exchange Server: $($exchangeServer)"
$metadataEndpoint = "https://$($exchangeServer)/autodiscover/metadata/json/1"
$exchange = Get-SPTrustedSecurityTokenIssuer | Where-Object {
$_.MetadataEndpoint -eq $metadataEndpoint }
if($exchange -eq $NULL)
{
$exchange = New-SPTrustedSecurityTokenIssuer -Name $exchangeServer -
MetadataEndPoint $metadataEndpoint
}
if($exchange -eq $NULL)
{
Write-Warning "Unable to establish trust with Exchange Server
$($exchangeServer). Ensure that $($metadataEndpoint) is accessible."
if($ExchangeAutodiscoverDomain -eq $NULL -or $ExchangeAutodiscoverDomain -eq
"")
{
Write-Warning "If $($metadataEndpoint) does not exist you may specify an
alternate FQDN using ExchangeAutodiscoverDomain."
511
}
return
}
Write-Host "Granting Permissions to Exchange Server: $($exchangeServer)"
$appPrincipal = Get-SPAppPrincipal -Site $rootWeb.Url -NameIdentifier
$exchange.NameId
Set-SPAppPrincipalPermission -AppPrincipal $appPrincipal -Site $rootWeb -Scope
SiteSubscription -Right FullControl -EnableAppOnlyPolicy
Write-Host
Write-Host
Write-Host "Verifying Site Mailbox Configuration"
$warnings = & $script:currentDirectory\Check-SiteMailboxConfig.ps1 -
ReturnWarningState
if($warnings -and -not $Force)
{
Write-Warning "Pre-requisites not satisfied. Stopping Set-SiteMailboxConfig.
Use -Force to override"
return
}
elseif($warnings)
{
Write-Warning "Pre-requisites not satisfied. -Force used to override"
}
foreach($webapp in $webapps)
{
Write-Host "Configuring Web Application: $($webapp.Url)"
Write-Host "Setting Exchange Site Mailbox Domain to
$($ExchangeSiteMailboxDomain)"
$webapp.Properties["ExchangeTeamMailboxDomain"] = $ExchangeSiteMailboxDomain
if($ExchangeAutodiscoverDomain -ne $NULL -and $ExchangeAutodiscoverDomain -
ne "")
{
Write-Host "Setting Exchange Autodiscover Domain to
$($ExchangeAutodiscoverDomain)"
$webapp.Properties["ExchangeAutodiscoverDomain"] =
$ExchangeAutodiscoverDomain;
}
$webapp.Update()
}
$feature = Get-SPFeature CollaborationMailboxFarm -Farm -ErrorAction Ignore
if($feature -eq $NULL)
{
Write-Host "Enabling Site Mailboxes for Farm"
Enable-SPFeature CollaborationMailboxFarm
}
else
{
Write-Host "Site Mailboxes already enabled for Farm"
}
512
Check-SiteMailboxConfig.ps1:
Param
(
[Parameter(Mandatory=$false)]
[ValidateNotNullOrEmpty()]
[switch]$ReturnWarningState
)
Add-PSSnapin Microsoft.SharePoint.Powershell
$anyWarnings = $false
Write-Host "Step 1: Checking for Exchange Web Services"
try
{
$assm = [System.Reflection.Assembly]::Load("Microsoft.Exchange.WebServices,
Version=15.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35")
if($assm.GlobalAssemblyCache)
{
Write-Host -Foreground Green "Found Exchange Web Services in Global
Assembly Cache"
Write-Host "Exchange Web Services Version:
$([System.Diagnostics.FileVersionInfo]::GetVersionInfo($assm.Location).FileVersi
on)"
}
else
{
Write-Warning "Unable to find Exchange Web Services in Global Assembly
Cache"
$anyWarnings = $true
}
}
catch
{
Write-Warning "Unable to find Exchange Web Services in Global Assembly
Cache"
$anyWarnings = $true
}
Write-Host
Write-Host
Write-Host "Step 2: Checking for https web application"
$webapps = Get-SPWebApplication -EA SilentlyContinue
$rootWeb = $NULL
if($webapps -ne $NULL)
{
$sslWebAppExists = $false
foreach($webapp in $webapps)
{
if($rootWeb -eq $NULL)
513
{
$rootWeb = Get-SPWeb $webApp.Url -EA SilentlyContinue
}
if(-not $webapp.Url.StartsWith("https://"))
{
Write-Warning "Web Application at $($webapp.Url) does not use HTTPS.
Site Mailboxes will not work on this Web Application."
}
else
{
$sslWebAppExists = $true
Write-Host -Foreground Green "Found Web Application at
$($webapp.Url) that uses HTTPS"
}
}
if(-not $sslWebAppExists)
{
Write-Warning "At least one Web Application must be configured for HTTPS
in the default zone."
$anyWarnings = $true
}
}
else
{
Write-Warning "No Web Applications Found. Please create a web application
and re-run Check-SiteMailboxConfig"
$anyWarnings = $true
if($ReturnWarningState)
{
return $anyWarnings
}
return;
}
if($rootWeb -eq $NULL)
{
Write-Warning "Unable to find any Sites. Please create a root site
collection on a web application and re-run Check-SiteMailboxConfig"
$anyWarnings = $true
if($ReturnWarningState)
{
return $anyWarnings
}
return;
}
# Get App Permissions Management Objects
$appPrincipalManager =
[Microsoft.SharePoint.SPAppPrincipalManager]::GetManager($rootWeb)
$appPrincipalPermissionsManager = New-Object -TypeName
Microsoft.SharePoint.SPAppPrincipalPermissionsManager -ArgumentList $rootWeb
Write-Host
Write-Host
Write-Host "Step 3: Checking for trusted Exchange Servers"
514
$trustedIssuers = Get-SPTrustedSecurityTokenIssuer
$trustedIssuerHosts = @()
if($trustedIssuers -ne $NULL)
{
$foundTrustedIssuer = $false
foreach($trustedIssuer in $trustedIssuers)
{
if($trustedIssuer.RegisteredIssuerName.StartsWith("00000002-0000-0ff1-
ce00-000000000000@"))
{
if($trustedIssuer.IsSelfIssuer)
{
$foundTrustedIssuer = $true
$uri = New-Object -TypeName System.Uri -ArgumentList
$trustedIssuer.MetadataEndPoint
Write-Host -Foreground Green "Found trusted Exchange Server at
$($uri.Host)"
$appPrincipalName =
[Microsoft.SharePoint.SPAppPrincipalName]::CreateFromNameIdentifier($trustedIssu
er.RegisteredIssuerName)
$appPrincipal =
$appPrincipalManager.LookupAppPrincipal([Microsoft.SharePoint.SPAppPrincipalIden
tityProvider]::External, $appPrincipalName);
if($appPrincipal -ne $NULL)
{
$isValidAppPrincipal = $true;
if($appPrincipalPermissionsManager.GetAppPrincipalSiteSubscriptionContentPermiss
ion($appPrincipal) -eq
[Microsoft.SharePoint.SPAppPrincipalPermissionKind]::FullControl)
{
Write-Host -Foreground Green "Exchange Server at
$($uri.Host) has Full Control permissions"
}
else
{
Write-Warning "Exchange Server at $($uri.Host) does not
have Full Control permissions"
$isValidAppPrincipal = $false;
$anyWarnings = $true
}
if($appPrincipalPermissionsManager.IsAppOnlyPolicyAllowed($appPrincipal))
{
Write-Host -Foreground Green "Exchange Server at
$($uri.Host) has App Only Permissions"
}
else
515
{
Write-Warning "Exchange Server at $($uri.Host) does not
have App Only Permissions"
$isValidAppPrincipal = $false;
$anyWarnings = $true
}
if($isValidAppPrincipal)
{
$trustedIssuerHosts += $uri.Host
}
}
else
{
Write-Warning "Unable to get App Principal for $($uri.Host).
Unable to check permissions for this Exchange Server"
$anyWarnings = $true
}
}
else
{
Write-Warning "Found trusted Exchange Server at $($uri.Host) but
it is not a Self Issuer"
$anyWarnings = $true
}
}
}
if(-not $foundTrustedIssuer)
{
Write-Warning "Unable to find any trusted Exchange Servers"
$anyWarnings = $true
}
}
else
{
Write-Warning "Unable to find any trusted Exchange Servers"
$anyWarnings = $true
}
Write-Host
Write-Host
Write-Host "Step 4: Report current Site Mailbox Configuration"
if($webapps -ne $NULL)
{
foreach($webapp in $webapps)
{
Write-Host
Write-Host "Web Application Site Mailbox Configuration: $($webapp.Url)"
Write-Host "Exchange Site Mailbox Domain:
$($webapp.Properties["ExchangeTeamMailboxDomain"])"
if($webapp.Properties["ExchangeAutodiscoverDomain"] -ne $NULL)
{
Write-Host "Exchange Autodiscover Domain:
$($webapp.Properties["ExchangeAutodiscoverDomain"])"
516
}
}
}
Write-Host
Write-Host "Trusted Exchange Services: $([String]::Join(", ",
$trustedIssuerHosts))"
$feature = Get-SPFeature CollaborationMailboxFarm -Farm -ErrorAction Ignore
if($feature -eq $NULL)
{
Write-Host -ForegroundColor Red "Site Mailboxes are NOT enabled for Farm"
}
else
{
Write-Host -ForegroundColor Green "Site Mailboxes are enabled for Farm"
}
if($ReturnWarningState)
{
return $anyWarnings
}
Save the two .ps1 files to the same folder on a SharePoint 2013 WFE server, as one script calls the
other during execution. In a Windows PowerShell window (right-click the PowerShell icon and choose
Run As Administrator to open), navigate to the folder containing the .ps1 files and run the Set-
SiteMailboxConfig.ps1 script. This allows users to do the following:
Retrieve and install the Exchange metadata, giving the Exchange service principal full control
permissions to the SharePoint site subscription
Enable the site mailbox feature in the SharePoint environment
(optional) Set the Exchange site mailbox target domain, if DNS for the domain has not been
configured for AutoDiscover
The Check-SiteMailboxConfig.ps1 is called as part of the Set-SiteMailboxConfig script, and it confirms
that the configuration has been successful (it can also be run separately).
The format should be as follows:
.\Set-SiteMailboxConfig.ps1 -ExchangeSiteMailboxDomain <Domain> -ExchangeAutodiscoverDomain
[Exchange Server] -WebApplicationUrl [URL]
Where <Domain> equals the FQDN of the domain your Exchange Server is in, and <Exchange Server>
is the Exchange Server that you intend to connect to. This is a required parameter.
Optional parameters are [Exchange Server], which is the Exchange Server you intend to connect to
(this is needed ifAutodiscover is not enabled or properly configured) and [URL], which would be a
517
specific URL that you may be configuring (typically used in an environment with SSL and non-SSL web
applications).
Example: .\Set-SiteMailboxConfig.ps1 -ExchangeSiteMailboxDomain tailspintoys.com -
ExchangeAutodiscoverDomain exchange1.tailspintoys.com -WebApplicationUrl
https://tailspintoys.comIf you encounter an error while running the script, refer to the
"Troubleshooting" section later in this article for guidance.
Configure Exchange Server 2013 for Site Mailboxes
The final step is to establish OAuth trust, and service permissions, on the Exchange server.
Establish OAuth Trust and Service Permission on Exchange
1. On your instance of Exchange Server open the Exchange Management PowerShell window as
Administrator and change to the "C:\Program Files\Microsoft\Exchange Server\V15\Scripts"
directory.
2. Run the following command:
.\Configure-EnterprisePartnerApplication.ps1 -ApplicationType Sharepoint
-AuthMetadataUrl https://<SP_FQDN>/_layouts/15/metadata/json/1
Where <SP_FQDN> is the URL to the SharePoint SSL root site collection that you want to
configure.
Troubleshooting
Please review the following table if you encounter issues.
Table of error codes for reference when you run a configuration checklist script
Error Code
Error
Notes
0
NoError
Review Prerequisites.
518
Error Code
Error
Notes
1
ExchangeClientNotAvailable
EWS client was not found on
the SharePoint WFE. Run the
Check script and ensure the
entries are properly in the
GAC; you may need to reinstall
the EWS client.
2
UnsupportedVersion
EWS client version is
incompatible with SharePoint.
Run the Check script to ensure
the version meets minimum
requirements. Alternatively,
the Exchange server may be
2010 or earlier.
3
InvalidUser
The TeamMailboxDomain
parameter is not a valid FQDN
or SMTP address.
4
UnauthorizedUser
The script received a 401 from
the Exchange Server, review
the Exchange setup steps.
5
ServerBusy
Exchange timed out during
AutoDiscovery. It should be
intermittent, please retry, but
if it is persistent, follow-up
with the Exchange
Administrator.
6
URLNotAvailable
AutoDiscovery failed to return
a URL for ECP/OWA, which
means typically that the EWS
client version is incompatible
with SharePoint. It may also
mean Site Mailboxes are not
enabled on Exchange, which
would require follow-up with
the Exchange Administrator.
519
Error Code
Error
Notes
7
OAuthNotSupported
Unsuccessful in generating an
OAuth token on behalf of
SharePoint. This is typically
caused by claims-based
authentication being disabled
on the SharePoint web
application.
8
OAuthException
An error occurred during the
OAuth handshake between
SharePoint and Exchange. This
is typically caused by server to
server configuration issues,
such as a realm value
mismatch on either side,
certificate issues for Exchange
or SharePoint, etc. Review
certificates and attempt to
establish or reestablish trust.
9
InvalidAutodiscoverDomain
The AutoDiscover domain
property is not set to a valid
FQDN.
10
UnknownError
An unknown error condition
has occurred. Run the Check
script and confirm that a valid,
trusted instance of SharePoint
is available, review
prerequisites, confirm
AutoDiscover has been set-up
properly with the Exchange
Administrator.
520
Error Code
Error
Notes
101
OAuthNotSupportedOverHttp
If this error is thrown, your
web application’s default zone
is not set to SSL, and
AllowOauthoverHttp is also
set to false. Run the Check
script to ensure that any web
application you intend to host
site mailboxes are set with SSL
in the default zone, as
outlined in the prerequisites.
102
AssociatedOwnersGroupNull
One or both of the default
Owners and Members groups
for the site have been deleted.
Each of these two default
groups are required to exist on
any site where users install
site mailboxes. A site
administrator should be able
to direct a site owner to
recreated these required
groups.
103
ExchangeTeamMailboxDomainNotSet
The
ExchangeTeamMailboxDomain
property has not been set.
104
ExchangeAppPrincipalNotFound
No Exchange app principals
were found to be trusted.
Typically, this means the New-
SPTrustedSecureTokenService
step was missed. Run the
Check script and ensure that
the app principal URL(s)
outputted are the correct
one(s).
521
Error Code
Error
Notes
105
ExchangeAppPrincipalMissingPermissions
The Exchange app principal
being connected to doesn’t
have the right permissions on
the SharePoint farm. Run the
Check script and ensure that
the Exchange app principal has
the required permissions on
the farm.
522
Configure Exchange task synchronization in
SharePoint Server 2013
Applies to: SharePoint Server 2013 Enterprise
Topic Last Modified: 2014-02-25
Summary: Configuring Exchange Server 2013 and SharePoint Server 2013 for task synchronization by
using the SharePoint Server 2013 Task Synchronization feature.
Configuring task Synchronization can be relatively complex. By following the guidance below, you
should be able to quickly configure task synchronization between your Exchange Server 2013,
SharePoint Server 2013 and Project Server 2013 environments. This is great functionality for any
business, because you are able to integrate tasks from different applications into one application, like
Outlook 2013 or SharePoint MySites.
Note:
It’s possible you came here looking for the OOF Integration between Project Server and
Exchange topic. If that’s the case, see Exchange Server calendar OOF integration with Project
Server 2013.
Before you begin
What you need to know before you begin:
For SharePoint, User profile synchronization needs to be up and running, this typically means
having a User Profile service application working in Central Administration, with the
synchronization service running as well. There’s further reading on this ate the following links:
Plan user profiles and identities (SharePoint Server 2013), and Manage user profile
synchronization in SharePoint Server 2013.
You’ll also need to have the Work Management service application running for your SharePoint
farm.
For discovering task additions and changes, you need to have the Search service application
running as well, and set for incremental or continuous crawling. For more information, you can
read Create and configure a Search service application in SharePoint Server 2013.
It’s very important that you have Secure Sockets Layer (SSL) running for your SharePoint web
application, this is required for security reasons (if you’re browsing to a site where the URL starts
523
with http, that’s using SSL). If you’re not familiar with SSL, the Create claims-based web
applications in SharePoint 2013 can help. If you’re in a test environment and you’re using self-
SSL, I’ve put the steps for this at the bottom of this article.
You’ll probably want to have MySites enabled for SharePoint, to see tasks in one place in
SharePoint. You can also view them in Outlook.
Task Synchronization requires Exchange Server 2013, with end-user mailboxes.
When taking the actions below, make sure you’re logged in as a member of the SharePoint and
Exchange Server administrator groups.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Downloading and Installing Exchange Server Web
Services API on SharePoint Server
We’ll start by getting a copy of the EWSManagedAPI.msi from the Microsoft Download Center
(http://www.microsoft.com/en-us/download/details.aspx?id=35371). Download this to each
application server (App server) in your SharePoint environment. These are the servers which users
browse to when going to your SharePoint site. This component is needed for SharePoint and Exchange
to be able to have this cross-product functionality. You need to install the EWSManagedAPI.msi file via
a command-line window. Open that window as an administrator, then make sure you change
directories as needed to get to the location of the downloaded file. You’ll need to run this one line of
script once you’re there, exactly as you see it below:
msiexec /i EwsManagedApi.msi
addlocal="ExchangeWebServicesApi_Feature,ExchangeWebServicesApi_Gac"
524
This will start the EWS API 2.0. wizard, where you’ll be able to accept the license agreement terms and
then get to the following screen.
Leave the install folder at the default, unless you need to put it somewhere else (like a different drive).
You can choose the Everyone radio button for install. And that’s it! Go ahead and choose Next to have
the install proceed.
525
You get to look at this while the install happens. Once the install completes, you close out of the
wizard.
Now that the wizard’s completed successfully, you’ll need to run an IISReset on each of the machines
you installed to, before you can do the next step. You can do this in the same Administrator command
window you ran the script from, just type IISReset and hit Enter to proceed.
Establish an OAuth trust on the Exchange Server
What we need to do now is to establish an OAuth trust on the Exchange Server. This is a one-way trust
that lets Exchange know the SharePoint environment is safe to partner with in this way.
Run this script (It’s installed with Exchange, so it’s already there) from the Exchange Management
Shell on all Exchange Mailbox servers in your organization from this location, "C:\Program
Files\Microsoft\Exchange Server\V15\Scripts.":
.\Configure-EnterprisePartnerApplication.ps1 -ApplicationType Sharepoint -
AuthMetadataUrl https://<SP_FQDN>/_layouts/15/metadata/json/1
526
Note:
In the above script, <SP_FQDN> is a placeholder, so you need to put in your SharePoint root
site collection’s URL there. So if you browse to your site via https://tailspintoys.com then
that’s what you’d put there, with the /_layouts/15/metadata/json/1 added afterward.
The script will run, creating the accounts and permissions necessary for the trust, and then give you a
succeeded message. If you happen to have created a similar trust in the past you may get a message
saying that a trust also exists, but the script is smart enough to create a new trust for you.
Well, that’s it. Task Synchronization is configured for your users to start using. You can find more
information in My Tasks Aggregation in SharePoint Server and Exchange Task Integration.
Additional Information for Self-SSL
I mentioned up above that you might need to manually trust a certificate if you’re setting up self-SSL.
That just means that the SSL certificate generated in a server’s IIS isn’t going to be recognized on a
different server, so there’s a manual way to get it to work.
On each Exchange server needing permission, open Internet Explorer.
Browse to your SharePoint site that’s running with a self-SSL certificate (it will start with https).
When you are prompted that the site’s unsafe, choose Continue to website.
When you get to the site, there should be a Certificate Error item by the address bar in IE, select
that.
The View Certificates option should then become available, select that.
Choose the Install Certificate option.
Then choose Place all certificates in the following store.
Check the Show physical stores checkbox.
Now install the certificate to Trusted Root Certification Authorities > Local Computer.
Now that certificate will be trusted on the local computer.
527
Configure social computing features in
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-10-21
Summary: Learn how to configure social computing features in SharePoint 2013, including My Sites,
Community Sites, and microblogging.
SharePoint Server 2013 implements features that make enterprise social computing and collaboration
easier. Social networking tools, such as My Sites, and social content technologies, such as microblogs,
are examples of social computing features. These features enable users to easily capture and share
the knowledge and expertise that is needed to do their work. This sharing of information encourages
collaboration, improves innovation, and targets relevant content to the people who have to see it. You
can adapt content to each user while enabling administrators to set policies to protect privacy.
TechNet articles about configuring social computing
features
The following articles about how to configure social computing features in SharePoint Server 2013 are
available to view online. Writers update articles on a continuing basis as new information becomes
available and as users provide feedback.
Content
Description
Configure Exchange
Autodiscover with a My Site Host
URL in SharePoint Server 2013
Learn how to configure
Exchange Autodiscover to find a
user's SharePoint My Site URL.
Configure microblogging in
SharePoint Server 2013
Learn how to configure
microblogging in SharePoint
Server 2013.
Configure My Sites in SharePoint
Server 2013
Learn how to set up My Sites in
SharePoint Server 2013.
528
Content
Description
Configure synchronization on all
document libraries in SharePoint
Server 2013
Learn how to add and remove
synchronization from all
document libraries in SharePoint
Server 2013.
Create and configure
communities in SharePoint
Server 2013
Learn how to set up Community
Sites in SharePoint Server 2013.
Enable or disable personal and
social features for users or
groups in SharePoint Server
2013
Learn how to configure user
permissions for personal and
social features in SharePoint
Server 2013.
Remove recommendation Web
Parts from My Sites in
SharePoint Server 2013
Learn how to remove the
Suggested sites to follow and
Suggested documents to
follow Web Parts in SharePoint
Server 2013.
Synchronize and authenticate
users from your on-premises
Active Directory to Yammer and
Office 365
Add your on-premises Active
Directory users to your Yammer
network or Office 365
subscription. Let users log on
quickly with a single sign-on.
Integrate Yammer with on-
premises SharePoint 2013
environments
Learn how to add Yammer
functionality to your SharePoint
environment or how to replace
SharePoint Newsfeeds with
Yammer.
Additional resources about configuring social
computing features
The following resources about how to configure social computing features in SharePoint Server 2013
are available from other subject matter experts.
529
Content
Description
What's New in SharePoint 2013
Resource Center
Visit the Resource Center to
access videos, community sites,
documentation, and more.
Integrate Yammer with on-
premises SharePoint 2013
environments
Learn how to remove SharePoint
2013 social entry points in the
user interface and install the
Yammer app for SharePoint.
530
Configure Exchange Autodiscover with a
My Site Host URL in SharePoint Server
2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-02-20
Summary: Learn how to configure Exchange Autodiscover to find a user's SharePoint My Site URL.
In SharePoint Server 2013, a My Site gives users rich social networking and collaboration features that
enable content sharing, discussions, and other features for users to do their jobs. The Exchange Server
2013 Autodiscover service configures profile settings on mail clients and mobile devices based on a
supplied user name and password. The Autodiscover service can also be configured to allow for a
simpler, seamless configuration experience to a My Site for Office 2013 client integration. For
example, Office 2013 client and mobile phone apps can use Exchange Autodiscover to find a user's My
Site based on the My Site Host URL stored in Active Directory Domain Services (AD DS). Instead of
identifying and entering the My Site Host URL, a user’s email address and password are the only
requirements to configure and provision client functionality for:
OneDrive for Business — Open and save a document to your OneDrive for Business location.
Access a Newsfeed on a device.
Office Hub — Set up the application on your Windows Phone.
This article provides the steps necessary to update AD DS with your My Site Host URL in SharePoint
Server 2013. It also details the steps necessary to retrieve or remove the current My Site Host URL if
you need to see the current value or replace it respectively.
Important:
Before you proceed to the next section, you must already have your SharePoint Server 2013
and Exchange Server 2013 environments installed and configured. Additionally, you need to
set up and configure My Sites in SharePoint Server 2013. For more information about how to
implement My Sites and retrieve your My Site Host URL, see Configure My Sites in SharePoint
Server 2013.
531
Configure Exchange Autodiscover with a My Site Host
URL
To update AD DS with the My Site Host URL, you must run a script on an Exchange Server computer by
using the Exchange Management Shell. This procedure helps you create the Windows PowerShell
script, and then run the script to update AD DS with the specified URL value. This procedure also
provides the optional steps to verify and remove a My Site Host URL entry if needed. For more
information about how to run scripts, see Scripting with the Exchange Management Shell in the
Exchange Server 2013 Technical Library.
To configure Exchange Autodiscover with a My Site Host URL
1. On an Exchange Server 2013 computer, copy the contents of the following script into Notepad.
Save this file to any location and use a .ps1 extension to designate it as a Windows PowerShell
script. Finally, rename the file SetMySiteHostURLInAD.ps1.
function PrintUsage
{
@"
NAME:
SetMySiteHostURLInAD.ps1
SYNOPSIS:
The purpose of this script is to set My Site Host URL in Active Directory.
This URL will be returned through Exchange Autodiscover.
MySiteHostURL - URL of My Site Host to set in Active Directory.
Or use -get to get My Site Host URL from Active Directory.
Or use -remove to remove My Site Host URL from Active Directory.
SYNTAX:
SetMySiteHostURLInAD.ps1 "MySiteHostURL" | -get | -remove
EXAMPLES:
SetMySiteHostURLInAD.ps1 "http://my"
SetMySiteHostURLInAD.ps1 -get
SetMySiteHostURLInAD.ps1 -remove
"@
}
function GetConfigurationNamingContextPath
{
return GetEntryProperty "LDAP://RootDSE" "configurationNamingContext"
}
function GetExchangePath
{
param([string]$configurationNamingContextPath)
532
return "LDAP://CN=Microsoft Exchange,CN=Services," +
$configurationNamingContextPath
}
function GetOrganizationContainerPath
{
param([string]$exchangePath)
[string]$organizationContainerPath = ""
([ADSI] $exchangePath).Children | foreach {
if (!$organizationContainerPath -and $_.SchemaClassName -eq
"msExchOrganizationContainer") {
$organizationContainerPath = $_.Path
}
}
return $organizationContainerPath
}
function GetEntryProperty
{
param([string]$entryPath, [string]$propertyName)
$entry = [ADSI] $entryPath
[string]$value = ""
trap {
continue
}
$value = $entry.Get($propertyName)
return $value
}
function SetEntryProperty
{
param([string]$entryPath, [string]$propertyName, [string]$propertyValue)
$entry = [ADSI] $entryPath
if (!$propertyValue)
{
$entry.PutEx(1, $propertyName, $null)
}
else
{
$entry.Put($propertyName, $propertyValue)
}
trap {
Write-Host "`nError setting property" -ForegroundColor Red
continue
}
$entry.SetInfo()
}
533
function AddOrReplaceOrRemoveMySiteHostURL
{
param([string]$old, [string]$url)
[string]$separator = ";"
[string]$label = "SPMySiteHostURL" + $separator
if (!$old)
{
if (!$url)
{
return ""
}
else
{
return $label + $url
}
}
[int]$labelPosition = $old.IndexOf($label)
if ($labelPosition -eq -1)
{
if (!$url)
{
return $old
}
else
{
if ($old[$old.Length - 1] -eq $separator)
{
return $old + $label + $url
}
else
{
return $old + $separator + $label + $url
}
}
}
[int]$valuePosition = $labelPosition + $label.Length
[int]$nextLabelPosition = $old.IndexOf($separator, $valuePosition)
if ($nextLabelPosition -eq -1)
{
if (!$url)
{
if ($labelPosition -eq 0)
{
return ""
}
else
{
return $old.Substring(0, $labelPosition - 1)
}
}
else
{
return $old.Substring(0, $valuePosition) + $url
534
}
}
if (!$url)
{
return $old.Substring(0, $labelPosition) +
$old.Substring($nextLabelPosition + 1)
}
else
{
return $old.Substring(0, $valuePosition) + $url +
$old.Substring($nextLabelPosition)
}
}
if ($args.Count -ne 1)
{
Write-Host "`nError: Required argument missing or too many arguments" -
ForegroundColor Red
PrintUsage
exit
}
if ($args[0] -eq "-?" -or $args[0] -eq "-h" -or $args[0] -eq "-help")
{
PrintUsage
exit
}
[string]$url = ""
if ($args[0] -ne "-r" -and $args[0] -ne "-remove")
{
$url = $args[0]
}
Write-Host "`nSetting My Site Host URL in Active Directory..."
[string]$configurationNamingContextPath = GetConfigurationNamingContextPath
Write-Host "`nConfiguration Naming Context path:
$configurationNamingContextPath"
[string]$exchangePath = GetExchangePath $configurationNamingContextPath
Write-Host "`nExchange path: $exchangePath"
[string]$organizationContainerPath = GetOrganizationContainerPath $exchangePath
Write-Host "`nOrganization Container path: $organizationContainerPath"
[string]$propertyName = "msExchServiceEndPointURL"
Write-Host "`nProperty name: $propertyName"
[string]$old = GetEntryProperty $organizationContainerPath $propertyName
Write-Host "`nOld value: $old"
if (!$url)
{
Write-Host "`nRemoving value"
}
elseif ($url -eq "-g" -or $url -eq "-get")
535
{
Write-Host ""
exit
}
else
{
Write-Host "`nAdding or replacing value: $url"
}
[string]$new = AddOrReplaceOrRemoveMySiteHostURL $old $url
Write-Host "`nNew value: $new"
SetEntryProperty $organizationContainerPath $propertyName $new
Write-Host ""
2. On the Start menu, click All Programs.
3. Click Microsoft Exchange Server 2013.
4. Click Exchange Management Shell.
5. In the Exchange Management Shell, navigate to the directory where you have saved the script and
run the script with your specified My Site Host URL. For example, if you have a host URL of
http://server/sites/contoso, the syntax might look like the following in the Exchange Management
Shell:
[PS] C:\> c:\SetMySiteHostURLInAD.ps1 http://server/sites/contoso
6. Press ENTER to run the script and update AD DS with the My Site Host URL.
7. To verify that the correct URL was updated, run the following command:
[PS] C:\> c:\SetMySiteHostURLInAD.ps1 -get
Note:
Optionally, you can remove a My Site Host URL by entering the command [PS] C:\>
c:\SetMySiteHostURLInAD.ps1 -remove.
Once you have configured the My Site Host URL, you can also verify the value in SharePoint 2013
Central Administration. From Application Management, go to Manage service applications, to User
Profile Service Application (or other chosen name for User Profile Service Application), to My Site
Settings, and finally to Setup My Sites. On the My Site Settings page, you will see that the My Site
Host URL in Active Directory field is populated with your entry.
537
Configure microblogging in SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Use these TechNet articles to learn how to configure microblogging in SharePoint 2013.
The following articles on TechNet provide information about microblogging in SharePoint 2013. Before
you configure microblogging, make sure that you have completed the steps in Configure My Sites in
SharePoint Server 2013.
TechNet articles about microblogging
The following articles about microblogging are available to view online. Writers update articles on a
continuing basis as new information becomes available and as users provide feedback.
Content
Description
Configure Following settings in
SharePoint Server 2013
Learn how to configure
Following settings for My Sites in
SharePoint 2013.
Manage Feed Cache and Last
Modified Time Cache
repopulation in SharePoint
Server 2013
Learn how to manage
repopulation of the Feed Cache
and Last Modified Time Cache in
SharePoint 2013.
Manage the Distributed Cache
service in SharePoint Server
2013
Learn how to configure and
manage the Distributed Cache
service in SharePoint 2013.
See also
Configure social computing features in SharePoint Server 2013
538
Configure Following settings in SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to configure Following settings for My Sites in SharePoint Server 2013.
In SharePoint Server 2013, following is a user-initiated action that indicates the user's interest in a
specific document, person, site, or tag. When users follow an item, new activities about that item
appear in the users’ newsfeeds on their My Sites. Users view all their followed items from their My
Sites.
Configure Following settings for My Sites
Use this procedure to configure Following settings for My Sites.
Note:
Using lower limits can slightly improve performance. Also, by using lower limits, users will
follow higher priority documents, people, or sites.
To configure Following settings for My Sites
1. Verify that you have the following administrative credentials:
To configure Following settings for the User Profile service application, you must be a
member of the Farm Administrators group on the computer running the SharePoint
Central Administration website or a service application administrator for the User Profile
service application.
2. In Central Administration, in the Application Management section, in the Service Applications
group, click Manage service applications.
3. In the list of service applications, select the User Profile service application.
4. In the Operations group, click Manage.
5. On the Manage Profile Service page, in the My Sites Settings section, click Manage Following.
6. In the Maximum number of followed people box, type the maximum number of people that a
user can follow from the user’s My Site.
539
7. In the Maximum number of followed documents box, type the maximum number of documents
that a user can follow from the user’s My Site.
8. In the Maximum number of followed sites box, type the maximum number of sites that a user
can follow from the user’s My Site.
9. Click OK.
540
Manage Feed Cache and Last Modified
Time Cache repopulation in SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to manage repopulation of the Feed Cache and Last Modified Time Cache in
SharePoint Server 2013.
SharePoint Server 2013 feeds require the Feed Cache and Last Modified Time Cache. The Feed Cache
maintains recent conversations and activities of entities. The Last Modified Time Cache maintains the
last modified time for all items in the Feed Cache. The Distributed Cache service manages both the
Feed Cache and the Last Modified Time Cache.
System events, such as a server shutting down unexpectedly physical events such as electrical power
spikes can affect the Distributed Cache service. Additionally, an administrator who performs
maintenance and operational tasks can take an application server that runs the Distributed Cache
service offline. This results in the resetting and emptying of the Feed Cache and the Last Modified
Time Cache. In this situation, repopulation of the recent conversations and activities of entities occurs.
Repopulation occurs in two stages:
1. Load last modified time information for recent conversations and activities.
2. Load recent conversations and activities.
Note:
In the case of planned maintenance and operations, an administrator can preserve cache data
by using the graceful shutdown procedure. For more information, see Graceful shutdown of
the Distributed Cache service in Manage the Distributed Cache service in SharePoint Server
2013.
To manage the repopulation process, SharePoint Server 2013 includes the Feed Cache Repopulation
Job timer job. When the Feed Cache Repopulation Job timer job runs, it first checks whether the
Feed Cache and Last Modified Time Cache are empty. If they are empty, it starts repopulating the last
modified time information for recent conversations and activities in the Last Modified Time Cache.
After the timer job finishes the Last Modified Time Cache repopulation, the Feed Cache is populated
with recent conversations and activities the next time any user accesses a feed in SharePoint Server
2013.
541
In this article:
Feed Cache settings on the User Profile Service application
Using timer jobs in Central Administration to repopulate the Last Modified Time Cache
Using PowerShell cmdlets to repopulate the Feeds Cache and Last Modified Time Cache
Feed Cache settings on the User Profile Service
application
An administrator might configure properties on the User Profile Service application that changes the
default behavior of the Feed Cache in SharePoint Server 2013. For example, the maximum number of
posts per entity that can be stored in the Feed Cache is set to a default value of 500. When this
maximum value is reached, the Feed Cache will delete 200 posts to allow the entity to continue
posting. Updating these properties might take 5 to 10 minutes to take effect because this is the time it
takes to propagate. Other content following limits can take 5 to 10 minutes if you have more than one
server.
The following table lists parameters to set for the Feed Cache on a User Profile Service application.
Table: Feed Cache parameters for a User Profile Service application
Feed Cache settings on the User Profile
Service application
Description
Default
value
FeedCacheTTLHours
The default Time To Live of entries in feed
cache in hours. For example, setting this
property to 168 (hours) will store entries in
the Feed Cache for 7 days.
168
FeedCacheLastModifiedTimeTtlDeltaHours
Additional time added to keep
FeedCacheTTLHours for LMT entries. LMT
items are kept for 14 days. 7 days for
FeedCacheTTLHours plus 7 days for
FeedCacheLastModifiedTimeTtlDeltaHours.
168
FeedCacheObjectCountLimit
The maximum number of posts for a given
entity that can exist in feed cache.
500
542
Feed Cache settings on the User Profile
Service application
Description
Default
value
FeedCacheRoomForGrowth
The amount of posts to delete when the
number of posts for a given entity reaches
FeedCacheObjectCountLimit.
200
Use the following cmdlet with these parameters to make changes to the Feed Cache settings on the
User Profile Service application:
For example, to set the FeedCacheTTLHours parameter, run the following cmdlet:
$upa = Get-SPServiceApplication | where {$_.TypeName -Like "User Profile
Service Application"}
$upa.FeedCacheTTLHours = 96
$upa.Update()
Where 96 represents the number of hours entities will stay in the Feed Cache.
The following cmdlets are available to force repopulation of the Feed Cache and the Last Modified
Time Cache:
Update-SPRepopulateMicroblogLMTCache. This cmdlet must be run first.
Update-SPRepopulateMicroblogFeedCache.
Repopulate the Last Modified Time Cache by using
timer jobs in Central Administration
The User Profile Service Application - Feed Cache Repopulation Job repopulates the Last
Modified Time Cache if the Distributed Cache service resets and becomes empty. Also, after you
configure My Sites, users will not see posts appearing in their consolidated newsfeed if the User
Profile Service Application - Feed Cache Repopulation Job timer job is not configured to run. By
default, the User Profile Service Application - Feed Cache Repopulation Job timer job is
configured to run every 5 minutes.
Use this procedure to configure the User Profile Service Application - Feed Cache Repopulation
Job timer job to monitor the Feed Cache and Last Modified Time Cache for repopulation.
543
Important:
Do not change the default settings of this timer job if you plan to use social features in
SharePoint Server 2013. Do not disable this timer job. If this timer job is disabled and a
repopulation is required, it will re-enable itself and run.
To configure the User Profile Service Application - Feed Cache Repopulation Job
1. Verify that you have the following administrative credentials:
To configure timer jobs, you must be a member of the Farm Administrators group on the
computer running the SharePoint Central Administration website.
2. In Central Administration, on the Monitoring page, click Review job definitions.
3. On the Job Definitions page, in the View list, select All.
4. Use the arrows at the bottom of the page to locate the feed cache repopulation job for the User
Profile service application on your server farm. The job name is in the format
User_Profile_service_name - Feed Cache Repopulation Job, where User_Profile_service_name
is the name that you specified for the User Profile service application.
5. On the Edit Timer Job page, in the Recurring Schedule section, select the interval that you want
the job to run. Available intervals are Minutes, Hourly, Daily, Weekly, and Monthly. Selecting a
shorter interval, such as Minutes or Hourly, ensures that checks for an empty cache is performed
more frequently. Selecting a longer interval, such as Daily, Weekly, or Monthly, reduces the
number of times the job runs. However, it also means that performing cache repopulation checks
are done fewer times. We recommend that this timer job runs on shorter intervals.
6. Click Enable.
7. Optionally, click Run Now to run the job immediately without waiting for the next scheduled
interval.
Repopulate the Feed Cache and Last Modified Time
Cache by using Windows PowerShell cmdlets
You can use Windows PowerShell cmdlets to perform the repopulation of the Feed Cache and the Last
Modified Time Cache. To perform repopulation, we recommend that you configure the User Profile
Service Application - Feed Cache Repopulation Job timer job as described above. This is because
the timer job first checks to see whether the cache is empty and then repopulates the cache as
necessary, whereas the Windows PowerShell cmdlets force a repopulation of the cache. However, in
some instances, using the Windows PowerShell cmdlets is the only way to repopulate the cache.
These instances include the following:
544
After attaching a new content database and the cache is not repopulating.
After restoring a content database.
The following cmdlets are available to force repopulation of the Feed Cache and the Last Modified
Time Cache:
Update-SPRepopulateMicroblogLMTCache. This cmdlet must be run first.
Update-SPRepopulateMicroblogFeedCache.
See also
Configure microblogging in SharePoint Server 2013
545
Manage the Distributed Cache service in
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-06-30
Summary: Learn how to configure and manage the Distributed Cache service in SharePoint Server
2013.
To perform management and operational tasks on the Distributed Cache service in SharePoint Server
2013, an administrator must perform specific, ordered procedures. This article describes how to
conduct several management and operational tasks on the Distributed Cache service.
Important:
The Distributed Cache service can end up in a nonfunctioning or unrecoverable state if you do
not follow the procedures that are listed in this article. In extreme scenarios, you might have
to rebuild the server farm. The Distributed Cache depends on Windows Server AppFabric as a
prerequisite. Do not administer the AppFabric Caching Service from the Services window in
Administrative Tools in Control Panel. Do not use the applications in the folder named
AppFabric for Windows Server on the Start menu.
Important:
Do not use service account names that contain the symbol $.
To learn more about planning, installing, and configuring the Distributed Cache service in a
SharePoint Server 2013 farm, see the model Planning and using the Distributed Cache service.
546
In this article:
Start and stop the Distributed Cache service
Change the memory allocation of the Distributed Cache service
Add or remove a server in a Distributed Cache cluster
Perform a graceful shutdown of the Distributed Cache service
Change the service account
Repair a cache host
Start and stop the Distributed Cache service
An administrator that performs maintenance and operational tasks might need to start and stop the
Distributed Cache service. Some of these tasks include the following:
Changing the default configuration of the server farm at installation time. The Distributed Cache
service is started on all SharePoint servers at installation time. An administrator might want to
stop the Distributed Cache service on some servers in the farm.
Updating the server and there is only one Distributed Cache server in the SharePoint Server 2013
farm.
Stopping the cache results in partial data loss. The Feed Cache depends on the Distributed Cache
service. Tags and document activities are saved only to the Feed Cache. Tags and document activities
are not persisted to content databases. When the Distributed Cache service is stopped, tags and
document activities are lost. When the Distributed Cache service is started, repopulation occurs when
the feed cache repopulation timer job runs. For more information, see Manage Feed Cache and Last
Modified Time Cache repopulation in SharePoint Server 2013. One way to maintain the tags and
document activities is to use the method described in Graceful shutdown of the Distributed Cache
service later in this article. When the graceful shutdown of the Distributed Cache service method is
used, all cache data is moved from one server to another server before the Distributed Cache service
is stopped.
Note:
If your cache hosts are part of a cache cluster, do not start or stop the Distributed Cache
service as described here. Instead, see Adding or removing a server in a Distributed Cache
cluster later in this article.
547
To start and stop the Distributed Cache service by using Central
Administration
1. In Central Administration, click Application Management.
2. In Service Applications, click Manage Services on Server.
3. On the Services on Server page, locate the Distributed Cache service.
4. If the Distributed Cache service is started and you want to stop the service, under Action, click
Stop. If the Distributed Cache service is stopped and you want to start the service, under Action,
click Start.
To start the Distributed Cache service by using SharePoint 2013
Management Shell
At the SharePoint Management Shell command prompt, run the following command:
$instanceName ="SPDistributedCacheService Name=AppFabricCachingService"
$serviceInstance = Get-SPServiceInstance | ? {($_.service.tostring()) -eq
$instanceName -and ($_.server.name) -eq $env:computername}
$serviceInstance.Provision()
To stop the Distributed Cache service by using SharePoint 2013
Management Shell
At the SharePoint Management Shell command prompt, run the following command:
$instanceName ="SPDistributedCacheService Name=AppFabricCachingService"
$serviceInstance = Get-SPServiceInstance | ? {($_.service.tostring()) -eq
$instanceName -and ($_.server.name) -eq $env:computername}
$serviceInstance.Unprovision()
Change the memory allocation of the Distributed
Cache service
When SharePoint Server 2013 is installed, it assigns the Distributed Cache service 10 percent of the
total physical memory on the server. The Distributed Cache service uses half of that memory
allocation for data storage (also known as cache size), and the other half of that memory allocation is
548
used for memory management overhead. When the cached data grows, the Distributed Cache service
uses the entire 10 percent of the allocated memory.
You should increase the memory allocation of the Distributed Cache service in these scenarios:
When you add physical memory to the server. The Distributed Cache service does not
automatically recalculate the 10% memory allocation, so when you increase the total physical
memory on the server, you have to manually increase the Distributed Cache service's memory
allocation.
When your server farm has a dedicated Distributed Cache server. Use the following method to
calculate how much memory can be assigned to the Distributed Cache service:
1. Determine the total physical memory on the server. For this example, we will use 16 GB as the
total physical memory available on the server.
2. Reserve 2 GB of memory for other processes and services that are running on the cache host.
For example, 16 GB – 2 GB = 14 GB. This remaining memory is allocated to the Distributed
Cache service.
3. Take half of the remaining memory, and convert it to MB. For example, 14 GB/2 = 7 GB or
7168 MB. This is the cache size of the Distributed Cache service.
4. Use the following procedure to update the memory allocation accordingly.
Change the memory allocation of the Distributed Cache
Use this procedure to reconfigure the memory allocation of the cache size of the Distributed Cache
service.
1. (Optional) To check the existing memory allocation for the Distributed Cache service on a server,
run the following command at the SharePoint Management Shell command prompt:
Use-CacheCluster
Get-AFCacheHostConfiguration -ComputerName
ComputerName
-CachePort
"22233"
Where:
ComputerName is the computer name of the server that you are running the SharePoint
Management Shell cmdlet on.
2. Stop the Distributed Cache service on all cache hosts. To stop the Distributed Cache service, go to
Services on Server in Central Administration, and Stop the Distributed Cache service on all cache
hosts in the farm.
549
3. To reconfigure the cache size of the Distributed Cache service, run the following command one
time only on any cache host at the SharePoint Management Shell command prompt:
Update-SPDistributedCacheSize -CacheSizeInMB
CacheSize
Where:
CacheSize is the cache size's memory allocation assignment in MB. In the previous
example, the cache size was calculated at 7168 MB for a server with 16 GB of total
memory.
4. Restart the Distributed Cache service on all cache hosts. To restart the Distributed Cache service,
go to Services on Server in Central Administration, and Start the Distributed Cache service on all
cache hosts in the farm.
Add or remove a server in a Distributed Cache cluster
An administrator can add or remove a server to a cache cluster, or might want to remove a server
from the cache cluster, perform some operational or maintenance tasks on the server, and then rejoin
or add the server to the cache cluster. When removing the server, the Distributed Cache service is
stopped, then unregistered from the server. Unregistering the Distributed Cache service means that
an administrator will not see the Distributed Cache service listed on the Services on Server page in
Central Administration. Similarly, when a server is added, the Distributed Cache service is registered
and then is started on the server. Registering the Distributed Cache service means that an
administrator will see the Distributed Cache service listed on the Services on Server page in Central
Administration.
Use the following procedures to add and remove a server from a cache cluster. These SharePoint
Management Shell cmdlets are run on the server being added or removed.
Note:
Before performing the following procedures, ensure the firewall allows Inbound ICMP
(ICMPv4) traffic through it. For more information, see Firewall configuration considerations.
Add a server to the cache cluster and starting the Distributed Cache
service by using SharePoint 2013 Management Shell
At the SharePoint Management Shell command prompt, run the following command:
Add-SPDistributedCacheServiceInstance
550
Remove a server from the cache cluster by using SharePoint 2013
Management Shell
At the SharePoint Management Shell command prompt, run the following command:
Remove-SPDistributedCacheServiceInstance
Important:
This procedure will stop the cache service and nonpersisted cached data will be lost. If you
want to keep the cached data, use the graceful shutdown procedure that is described in the
next section, and then run the Remove-SPDistributedCacheServiceInstance cmdlet. The
Remove-SPDistributedCacheServiceInstance cmdlet involves stopping and disabling the
underlying AppFabric Caching service. Do not restart the AppFabric Caching service other than
by running the Add-SPDistributedCacheServiceInstance cmdlet.
Perform a graceful shutdown of the Distributed Cache
service
In a SharePoint Server 2013 farm, a cache cluster exists when one or more cache hosts run the
Distributed Cache service. In a SharePoint Server 2013 farm, one cache exists, and the cache spans the
cache cluster. An administrator can take a cache host out of the cluster to perform operational or
maintenance tasks on the server, such as applying updates to the server. To prevent data loss
associated with the removal of the cache host from the cache cluster, an administrator must first run
the graceful shutdown procedure before removing the cache host from the cache cluster. The graceful
shutdown procedure is run on the cache host being removed from the cache cluster. This cache host
stores a portion of the cached data. The graceful shutdown procedure transfers all cached data from
the cache host on which the graceful shutdown procedure is being run on to another cache host in the
farm. The transfer process takes 15 minutes or more to run depending on how many items exist in the
cache. When the transfer process is complete, removing the cache host by using the Remove-
SPDistributedCacheServiceInstance cmdlet does not result in any data loss.
To perform a graceful shutdown of the Distributed Cache by using
SharePoint 2013 Management Shell
At the SharePoint Management Shell command prompt, run the following command:
Stop-SPDistributedCacheServiceInstance -Graceful
Remove-SPDistributedCacheServiceInstance
551
Note:
To rejoin or add the server to the cache cluster, run the Add-
SPDistributedCacheServiceInstance cmdlet.
Change the service account
When the server farm is first configured, the server farm account is set as the service account of the
AppFabric Caching service. The Distributed Cache service depends on the AppFabric Caching service.
To change the service account of the AppFabric Caching service to a managed account:
1. Create a managed account. For more information, see Configure automatic password change in
SharePoint 2013.
2. Set the Managed account as the service account on the AppFabric Caching service. At the
SharePoint Management Shell command prompt, run the following command:
$farm = Get-SPFarm
$cacheService = $farm.Services | where {$_.Name -eq
"AppFabricCachingService"}
$accnt = Get-SPManagedAccount -Identity
domain_name\user_name
$cacheService.ProcessIdentity.CurrentIdentityType = "SpecificUser"
$cacheService.ProcessIdentity.ManagedAccount = $accnt
$cacheService.ProcessIdentity.Update()
$cacheService.ProcessIdentity.Deploy()
Where Domain_name\user_name is the domain name and user name of the managed account.
Repair a cache host
During installation, configuration, or maintenance activities, the Distributed Cache service might enter
a non-functioning state. Evidence of a malfunctioning Distributed Cache service will appear in Health
Rules in Central Administration, or when users use features in SharePoint Server 2013 that rely on the
Distributed Cache. For example, the Newsfeed on a user's My Site will start reporting errors. Also,
administrators might receive the error message "cacheHostInfo is null" when they run SharePoint
Management Shell cmdlets to manage the Distributed Cache service.
Use the following procedure to restore a non-functioning Distributed Cache host.
1. At the SharePoint Management Shell command prompt, run the Get-SPServiceInstance cmdlet to
list all services on all servers in the server farm. Make note of the GUID in the ID property of the
Distributed Cache service on the server that you are repairing. The Get-SPServiceInstance cmdlet
552
lists all services on all servers in the server farm. Ensure that you note the correct GUID from the
server that you are repairing.
2. At the SharePoint Management Shell command prompt, run the following command:
$s = Get-SPServiceInstance
GUID
$s.delete()
Where GUID is the GUID of the Distributed Cache service noted in step 1.
3. At the SharePoint Management Shell command prompt, run Add-
SPDistributedCacheServiceInstance to reinstall and start the Distributed Cache service on the
cache host that you are repairing.
See also
Plan for feeds and the Distributed Cache service in SharePoint Server 2013
553
Configure My Sites in SharePoint Server
2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-07-03
Summary: Learn how to set up and configure My Sites in SharePoint Server 2013.
This article describes how to set up My Sites in SharePoint Server 2013. Like other tasks in SharePoint
Server, there are multiple ways to complete a task. This article provides ordered tasks with
prerequisites and procedures to help you set up My Sites in your enterprise.
Before you set up My Sites, ensure that you understand the concepts and terminology in My Sites
overview (SharePoint Server 2010) and Plan for My Sites in SharePoint Server 2013.
We recommend that you perform all of the procedures in the order listed for best results, although
not all of them are required.
In this article:
Prerequisites
Create a My Site host site collection
Add a wildcard inclusion managed path to the Web application
Connect the Web application to service applications
Enable self-service site creation for the Web application
Configure My Site settings for the User Profile service application
Enable the User Profile Service Application - Activity Feed Job
Next Steps
Prerequisites
Because My Sites have dependencies on other service applications and features in SharePoint Server
2013, ensure that you meet the prerequisites in this section before you perform the procedures in this
task.
554
Note:
My Sites are hosted by a web application and rely on a User Profile service application. Both
are described in this section. My Sites also requires a managed metadata service application.
We recommend that you also have a Search service application to use with My Sites, but this
is not required. Without the Search service application, some My Sites functionality is
affected. For more information, see Related service applications in Plan for My Sites in
SharePoint Server 2013.
Web application
Although you can use an existing web application, for optimal performance and security, we
recommend that you create the My Site host site collection in a dedicated web application. For more
information, see Create a Web application (SharePoint Server 2010).
Important:
If a My Site host site collection was created during initial deployment and configuration, we
recommend that you do not use it because it was created in the default web application.
Delete this site collection, and create a new web application that is dedicated to hosting My
Sites. Then create a new My Site host site collection in the dedicated web application.
User Profile service application and profile synchronization
Ensure you have a User Profile service application that you want to use for My Sites. If you do not,
follow the steps in Create, edit, or delete User Profile service applications in SharePoint Server 2013
to create one.
Important:
Although the Create New User Profile service application dialog box requests information in
the My Site Host URL and Personal Site Location sections, for this task, remove any default
values and leave those fields blank when you create the User Profile service application.
Additionally, you can select any of the options in Site Naming Format. These settings will be
configured separately later in this task.
Optionally, configure profile synchronization if you want to synchronize user and group profile
information that is stored in the SharePoint Server 2013 profile database with profile information that
is stored in a directory service or business system. For more information, see Plan profile
synchronization for SharePoint Server 2013.
555
Create a My Site host site collection
The My Site host site collection is a site collection that uses the Enterprise site template named My
Site Host. This site collection must be created in the web application that you want to host My Sites.
Generally, this site collection can be created at the root path of the web application, although it can
be created as an explicit inclusion managed path deeper in the URL as long as there is a site collection
created at the web application root. For more information about how to select the path for the My
Site host collection, see My Sites architecture in Plan for My Sites in SharePoint Server 2013.
To create a My Site host site collection
1. Verify that you have the following administrative credentials:
To create a My Site host site collection, you must be a member of the Farm
Administrators group on the computer running the SharePoint Central Administration
website or a service application administrator for the services related to My Sites. If you
are a service application administrator, you must also have permission to create site
collections in the web application that you dedicate to host My Sites.
2. In Central Administration, click Application Management, and then click Create site collections.
3. On the Create Site Collection page, in the Web Application section, ensure that the selected
web application is the web application that you want to host My Sites. If it is not, expand the list,
and then click Change Web Application. In the Select Web Application dialog box, select a
different web application.
4. In the Title and Description section, type a title and description for the site collection.
5. In the Web Site Address section, select the URL where you want this site collection created.
Generally, you should use the default path (which is displayed as / in the user interface), which is
the root of the web application. For more information about this path, see My Sites architecture
in Plan for My Sites in SharePoint Server 2013.
6. In the Template Selection section, in the Select experience version list, select 2013. Then, on
the Enterprise tab, click My Site Host.
7. In the Primary Site Collection Administrator section, and optionally in the Secondary Site
Collection Administrator section, type an account in the format domain\username to specify an
administrator for the site collection.
8. Optionally, in the Quota Template section, select a quota template for the My Site host site
collection. This quota template does not affect the individual site collections that users create for
their My Sites. For more information, see Planning for storage requirements in Plan for My Sites
in SharePoint Server 2013.
556
9. Click OK. Copy this site collection URL for later reference.
Add a wildcard inclusion managed path to the web
application
The wildcard inclusion managed path is the path under which separate site collections are created for
a user's My Site. Creation of the site collection occurs the first time that a user views the user’s My
Site. This functionality is available only when self-service site creation is also enabled. Enabling self-
service site creation is discussed later in this article. For more information about managed paths, see
Define managed paths (SharePoint Server 2010).
To add a wildcard inclusion managed path to the web application
1. Verify that you have the following administrative credentials:
To add managed paths, you must be a member of the Farm Administrators group on the
computer running the SharePoint Central Administration website.
2. In Central Administration, click Application Management, and then click Manage Web
applications.
3. On the Web Applications Management page, select the web application that you created to host
My Sites.
4. On the Web Applications tab, in the Manage group, click Managed Paths.
5. In the Define Managed Paths dialog box, in the Add a New Path section, in the Path box, type
the path that you want to append to the URL namespace, and then select Wildcard inclusion. For
example, if your web application URL is http://mysites.contoso.com/ and you want users'
individual site collections created under a path named "personal", type personal in the Path box.
Separate My Sites site collections will be created for each user under
http://mysites.contoso.com/personal/.
6. Click Add Path, and then click OK.
7. Copy this managed path for later reference.
Connect the web application to service applications
The web application that hosts My Sites must be connected to service applications in SharePoint
Server 2013. The User Profile service application is required for My Sites. The managed metadata
557
service application and Search service application are highly recommended. For more information, see
My Sites architecture in Plan for My Sites in SharePoint Server 2013.
Additionally, if you have other SharePoint sites from which you want users to be able to access their
My Site and About Me links from the upper-right corner menu, connect the web applications of those
sites to the User Profile service application.
To connect the web application to service applications
1. Verify that you have the following administrative credentials:
To connect a web application to a service application, you must be a member of the Farm
Administrators group on the computer running the SharePoint Central Administration
website.
2. In Central Administration, in the Application Management section, click Manage Web
applications.
3. On the Web Applications Management page, select the web application that you created to host
My Sites.
4. On the Web Applications tab, in the Manage group, click Service Connections.
5. In the Configure Service Application Associations dialog box, in the Edit the following group
of connections list, select default if the default group contains the service applications that you
want to connect to the web application.
If you choose [Custom], select any service applications to which you want to connect the
web application, including the User Profile service application, the managed metadata
service application, and the Search service application.
6. Click OK.
Enable self-service site creation for the web application
Self-service site creation enables the automatic creation of a separate site collection for users when
they first view their My Site.
To enable self-service site creation for the web application
1. Verify that you have the following administrative credentials:
To enable self-service site creation, you must be a member of the Farm Administrators
group on the computer running the SharePoint Central Administration website.
558
2. In Central Administration, in the Application Management section, click Manage Web
applications.
3. On the Web Applications page, select the web application that you created to host My Sites.
4. On the Web Applications tab, in the Security group, click Self-Service Site Creation.
5. In the Self-Service Site Creation Management dialog box, in Site Collections, select On.
Optionally, in Quota template to apply, select a quota template.
6. In Start a Site, choose one of the following options:
a) Prompt users to create a team site under so users can create team sites from their My
Site to use site feeds.
b) Be hidden from users if you do not want users to create team sites from their My Sites to
use site feeds.
7. Click OK to finish.
Perform these additional steps to configure permissions for users to create team sites from their My
Sites to use site feeds.
1. In the Policy group, click Permission Policy.
2. On Manage Permission Policy Levels dialog box, click Add Permission Policy Level.
3. Type a name for the permission policy.
4. Under Permissions, in Site Permissions, select the Grant option for Create Subsites - Create
subsites such as team sites, Meeting Workspace sites, and Document Workspace sites.
5. Click Save.
6. In the Policy group, click User Policy.
7. On Policy for Web Application dialog box, click Add Users.
8. On Add Users, in Zones select (All Zones), then click Next.
9. In Choose Users, enter the user names of the users that you want to create team sites from their
My Site to use site feeds. If all users can create team sites from their My Site to use site feeds,
click the Browse icon. In Select People and Groups, click All Users, then click Everyone. Click
Add, and then click OK.
10. In the Choose Permissions section, select the name of the Permission Policy created
previously.
559
11. Click Finish, and then click OK.
Configure My Site settings for the User Profile service
application
After you have a My Site host site collection and wildcard inclusion managed path configured for My
Sites, you can update the My Sites settings in the User Profile service application. Most of these
settings are configured during initial deployment and only change infrequently during maintenance
operations afterward.
To configure My Site settings for the User Profile service application
1. Verify that you have the following administrative credentials:
To configure My Site settings for the User Profile service application, you must be a
member of the Farm Administrators group on the computer running the SharePoint
Central Administration website or a service application administrator for the User Profile
service application.
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. Click the User Profile service application that you connected to the web application hosting My
Sites earlier in this task.
4. On the Manage Profile Service page, in the My Site Settings section, click Setup My Sites.
5. On the My Sites Settings page, in the Preferred Search Center section, specify settings for the
search center to direct users to when they search for people or documents from their About Me
profile page. If you do not have a search center set up yet, you can skip this step and complete it
later. For more information, see Search service application in Plan for My Sites in SharePoint
Server 2013.
6. In the My Site Host section, type the URL of the My Site host site collection that you created
earlier in this task.
7. The My Site Host URL in Active Directory section uses Exchange Autodiscover to allow client
and mobile phone applications to find a user's SharePoint Server 2013 My Site. For more
information, see Configure Exchange Autodiscover with a My Site Host URL in SharePoint Server
2013
560
8. In the Personal Site Location section, type the wildcard inclusion managed path you configured
earlier in this task. By default, personal is prepopulated in the box. However, if you chose a
different path for your wildcard inclusion managed path, replace personal with your path.
9. In the Site Naming Format section, select a naming format for the My Sites site collections that
will be created when users view their My Sites for the first time. For more information about
these formats, see My Sites architecture in Plan for My Sites in SharePoint Server 2013.
10. In the Language Options section, there is an option to specify whether users can select a
preferred language for their My Site. However, the current behavior is to default to the
installation language for SharePoint. For more information about multilingual sites, see Plan for
multilingual sites (SharePoint Server 2010). For more information about language packs, see About
language IDs and language packs in Install or uninstall language packs for SharePoint 2013.
11. In the Read Permission Level section, specify the users or groups that can view other users’ My
Sites when they are created. By default, this includes all authenticated users. However, you can
select a more specific group or users depending on the needs of your deployment.
12. In the Security Trimming Options section, specify how system generated posts are checked for
permissions before they are displayed in feeds and on the Tags and Notes page.
13. In the Newsfeed section, enable system generated posts to the feed on My Sites by selecting
Enable activities in My Site newsfeeds. This option is selected by default. This is important in
hosted environments where tenants can share the same User Profile service but have different
requirements on whether they can enable newsfeeds for their users.
When upgrading from a SharePoint Server 2010 server farm that uses the newsfeed and tags and
notes, you enable these legacy features on your SharePoint Server 2013 server farm by selecting
Enable SharePoint 2010 activity migration.
14. In the E-mail Notifications section, specify an email address to use as the sender email address
for My Site email notifications. This account does not have to be a real monitored email address. If
you want to receive notifications for newsfeed activities, such as replies to your posts or when
someone follows you, select Enable newsfeed email notifications.
Important:
You must add the IP address of the farm's outbound SMTP server to the safe list in
Exchange Server 2013 to prevent My Site email notifications from being sent to the Junk
folder. For more information about safe lists in Exchange Server 2013, see Understanding
Connection Filtering in the Exchange Server Technical Library.
15. In the My Site Cleanup section, specify a new owner of a My Site if the existing My Site user is
removed from the profile database. For example, if a user leaves the company and is no longer in
the profile database, the user’s My Site will be deleted together with any content. However,
561
before it is deleted, a new owner can recover any important content. Select Enable access
delegation for the My Site cleanup job to first attempt to assign ownership of the My Site to the
user’s manager. If no manager is found, the My Site is assigned to the user specified in Secondary
Owner. The new owner has two weeks to retrieve content from the My Site before it is deleted.
16. In the Privacy Settings section, select Make My Sites Public to make all users' My Sites public.
This option is not selected by default.
Note:
When a user's My Site is public, the user's list of followers, the user's list of people they
are following, and all activities (including new follow notifications, social tagging and
rating of content, birthdays, job title changes, workplace anniversary, updating Ask Me
About, posting on a note board, and new blog posts) will be public. Any policies set within
People and Privacy on the Manage Policies page is overridden.
17. Click OK.
For more information about additional timer jobs for My Sites, see Planning for jobs and schedules in
Plan for My Sites in SharePoint Server 2013.
Enable the User Profile Service Application - Activity
Feed Job
The User Profile Service Application - Activity Feed Job creates system generated posts in the
feeds for the following events:
Following a tag
Tagging an item
Birthday celebration
Job title change
Workplace anniversary
Updates to Ask Me About
Posting on a note board
After you configure My Sites, enable the User Profile Service Application - Activity Feed Job so
that users receive system generated posts in the Newsfeed on their My Sites.
562
There are other timer jobs related to My Sites that you might want to review and change default
settings for. For more information about jobs related to My Sites functionality, see Planning for jobs
and schedules in Plan for My Sites in SharePoint Server 2013.
To enable the User Profile Service Application - Activity Feed Job
1. Verify that you have the following administrative credentials:
To configure timer jobs, you must be a member of the Farm Administrators group on the
computer running the SharePoint Central Administration website.
2. In Central Administration, click Monitoring, and then click Review job definitions.
3. On the Job Definitions page, in the View list, select Service. The Service list appears.
If the Service list does not display User Profile Service, in Service, click No selection,
then click Change Service. On the Select Service page, use the arrows in the upper-right
corner to locate User Profile Service, and then click it. The Job Definitions page updates
with the User Profile service jobs.
4. Click the activity feed job for the User Profile service application that you created in Prerequisites
earlier in this article. The job name is in the format User_Profile_service_name - Activity Feed
Job, where User_Profile_service_name is the name that you specified for your User Profile service
application.
5. On the Edit Timer Job page, in the Recurring Schedule section, select the interval that you want
the job to run. Available intervals are Minutes, Hourly, Daily, Weekly, and Monthly. Selecting a
shorter interval, such as Minutes or Hourly, ensures that activities appear on users' My Site
newsfeeds more frequently. However, it increases load on the system depending on how many
activities are available. Selecting a longer interval, such as Daily, Weekly, or Monthly, reduces the
number of times the job runs and processes feeds. However, it also means that users receive less
frequent updates to activities in their newsfeeds.
6. Click Enable.
7. Optionally, click Run Now to run the job immediately without waiting for the next scheduled
interval.
Next steps
After you configure My Sites by using the procedures in this article, consider whether you require the
following optional procedures:
Configure trusted My Site host locations
563
Configure links to Office client applications
Add personalization site links on My Sites (SharePoint Server 2010)
Start related services
Configure Microblogging
Configure trusted My Site host locations
Trusted My Site Host Locations is an optional feature that prevents a user from creating more than
one My Site in an organization with multiple User Profile service applications. For more information,
see Add or delete a trusted My Site host location (SharePoint Server 2010).
Configure links to Office client applications
Users’ My Sites are convenient locations for users to save files that they work on in Office client
applications, such as Word, Excel, and PowerPoint. After you configure an environment for My Sites,
you can add a link to the Favorite Links section that users see when they save documents in the Save
As dialog box in Office client applications. Users can then select their My Site and save files to the
Documents library available on their My Site. For more information, see Add or delete links to Office
client applications (SharePoint Server 2010).
Add personalization site links on My Sites
If your organization wants to provide important information to users, it can do so by adding
personalization site links to a user's My Site. For more information, see Add or delete personalization
site links on My Sites.
Start related services
If the related services for My Sites have not been started yet, start them so that My Sites functionality
is available in your environment. For more information, see Manage services on the server
(SharePoint Server 2010).
Configure microblogging
Setting up My Sites is the first step in configuring microblog features in SharePoint Server 2013. For
more information about how to configure microblogging features in SharePoint Server 2013, see
Configure microblogging in SharePoint Server 2013.
564
See also
Plan for My Sites in SharePoint Server 2013
Plan user profiles in SharePoint Server 2013
Overview of the User Profile service application in SharePoint Server 2013
Plan profile synchronization for SharePoint Server 2013
Synchronize user and group profiles in SharePoint Server 2013
Configure personal and social features for My Sites in SharePoint Server 2013 Preview
Manage My Sites settings (SharePoint Server 2010)
Resource Center: Social Computing in SharePoint Server 2013
565
Configure synchronization on all document
libraries in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-02-20
Summary: Learn how to add or remove synchronization from all document libraries in SharePoint
Server 2013.
In SharePoint Server 2013, if a client workstation has Office 2013 installed, users can synchronize files
that are stored in document libraries with their client workstations, and vice versa. The OneDrive for
Business Windows Sync client performs the synchronization of files between document libraries and
the client workstation. When the OneDrive for Business Windows Sync client synchronizes files to a
client workstation, users take their files offline from SharePoint Server, work on them while offline,
and then synchronize them with their document library when they reconnect to SharePoint Server
2013. Depending on your IT policy, users may not be allowed to take files offline from SharePoint
Server and you must prohibit file synchronization. The following procedures explain how a farm
administrator can add or remove synchronization on all document libraries on all sites in SharePoint
Server 2013.
Important:
The following PowerShell cmdlets either add or remove synchronization from all document
libraries in SharePoint Server 2013. Site collection administrators can manually change the
Offline Client Availability setting under Site Settings after these PowerShell cmdlets are run.
Select and educate site collection administrators appropriately because a site collection
administrator who changes the Offline Client Availability setting may violate your corporate
IT policy.
Remove synchronization
Use the following procedure to remove synchronization on all document libraries on all sites in
SharePoint Server 2013. Running the following PowerShell cmdlet sets the Offline Client Availability
setting to No on all sites in SharePoint Server 2013, and removes the Sync button from the ribbon.
To remove synchronization from all document libraries
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
566
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, run the following command:
Get-SPSite -limit all | get-SPWeb -limit all | Foreach { $_.Title =
$_.Title; $_.ExcludeFromOfflineClient=1; $_.Update() }
Add synchronization
Use the following procedure to add synchronization to all document libraries on all sites in SharePoint
Server 2013. By default, synchronization is enabled on all document libraries. Running the following
PowerShell cmdlet sets the Offline Client Availability to Yes on all sites in SharePoint Server 2013,
and adds the Sync button on the ribbon.
To add synchronization to all document libraries
1. Verify that you have the following memberships:
567
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, run the following command:
Get-SPSite -limit all | get-SPWeb -limit all | Foreach { $_.Title =
$_.Title; $_.ExcludeFromOfflineClient=0; $_.Update() }
See also
Overview of OneDrive for Business in SharePoint Server 2013
568
Create and configure communities in
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to create Community Sites and Community Portals in SharePoint Server 2013.
You can create Community Sites and Community Portals in SharePoint Server 2013. Community Sites
provide a discussion forum experience in the SharePoint environment. The Community Portal provides
a directory of Community Sites for users to browse and search for communities of interest. Before you
create Community Sites and Community Portals, understand the concepts and planning process in
Overview of communities in SharePoint Server 2013 and Plan for communities in SharePoint Server
2013.
Important:
The steps in this article apply to SharePoint Server 2013.
In this article:
Before you begin
Create a Community Site
Create a Community Portal
Additional steps
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint Products
569
Keyboard shortcuts
Touch
Before you begin this operation, review the following information about prerequisites:
Verify that you have met the requirements in Phase 3: Plan the solution in Plan for communities
in SharePoint Server 2013.
Create a Community Site
Use the following procedure to create a Community Site at the site collection level in SharePoint
Server 2013.
To create a Community Site
1. Verify that you have the following administrative credentials:
To create a site collection by using the Community Site template, you must be a member
of the Farm Administrators group on the computer running the SharePoint Central
Administration website or a service application administrator. If you are a service
application administrator, you must also have permission to create site collections in the
web application in which you create the Community Site.
2. In Central Administration, click Application Management, and then click Create site collections.
3. On the Create Site Collection page, in the Web Application section, ensure that the selected
web application is the web application in which you want to create the Community Site. If it is not,
expand the list, and then click Change Web Application. In the Select Web Application dialog
box, select a different web application.
4. In the Title and Description section, type a title and description for the site collection.
5. In the Web Site Address section, select the URL where you want this site collection created.
6. In the Template Selection section, in the Select experience version list, select 2013. Then, on
the Collaboration tab, click Community Site.
7. In the Primary Site Collection Administrator section, and optionally in the Secondary Site
Collection Administrator section, type an account in the format domain\username to specify an
administrator for the site collection.
8. Optionally, in the Quota Template section, select a quota template.
9. Click OK.
570
10. Verification: After the site collection is created successfully, click the link to open the Community
Site.
Create a Community Portal
Use the following procedure to create a Community Portal in SharePoint Server 2013. Community
Portals can be created at only the site collection level.
To create a Community Portal
1. Verify that you have the following administrative credentials:
To create a site collection by using the Community Portal template, you must be a
member of the Farm Administrators group on the computer running the SharePoint
Central Administration website or a service application administrator. If you are a service
application administrator, you must also have permission to create site collections in the
web application in which you create the Community Portal.
2. In Central Administration, click Application Management, and then click Create site collections.
3. On the Create Site Collection page, in the Web Application section, ensure that the selected
web application is the web application in which you want to create the Community Portal. If it is
not, expand the list, and then click Change Web Application. In the Select Web Application
dialog box, select a different web application.
4. In the Title and Description section, type a title and description for the site collection.
5. In the Web Site Address section, select the URL where you want this site collection created.
6. In the Template Selection section, in the Select experience version list, select 2013. Then, on
the Enterprise tab, click Community Portal.
7. In the Primary Site Collection Administrator section, and optionally in the Secondary Site
Collection Administrator section, type an account in the format domain\username to specify an
administrator for the site collection.
8. Optionally, in the Quota Template section, select a quota template.
9. Click OK.
10. Verification: After the site collection is created successfully, click the link to open the Community
Portal.
571
Additional steps
After you have created a Community Site or a Community Portal, consider the following additional
steps to complete the configuration:
Create additional Community Sites as needed. You might create them at the site collection level,
as in this procedure, or create them at the site level depending on what you determined during
the planning phase.
Configure permissions for your Community Sites to make them private, closed, or open. For more
information, see Community types in Plan for communities in SharePoint Server 2013.
Customize the Community Site. In particular, update the icon, title, and description of the site so
that the Community Portal displays distinct information for each Community Site.
Run a search crawl so that it indexes the new site or sites, and populates the Community Portal
with Community Sites. No communities appear on the portal until you run a crawl. Configure the
incremental crawl schedule so that the Community Portal continues to display any new
Community Sites, and so that members can search within communities and the portal.
See also
Overview of communities in SharePoint Server 2013
Plan for communities in SharePoint Server 2013
572
Enable or disable personal and social
features for users or groups in SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to configure user permissions for personal and social features in SharePoint
Server 2013.
Farm Administrators or service administrators of a User Profile service application control who can
create My Sites, and use personal and social features. For example, you might want a subset of users
in an organization to be able to create My Sites, so you enable the Create Personal Site permission
for those users. For more information, see Overview of the User Profile service application in
SharePoint Server 2013.
Important:
Before you decide which permission to grant users or groups of users, first review the
permission descriptions and how the combination of these permissions affects the My Site
user experience. For more information, see Plan users and user permissions in Plan for My
Sites in SharePoint Server 2013.
Before you perform this procedure, confirm the following:
A User Profile service application is running in the farm. For more information, see Create, edit, or
delete User Profile service applications in SharePoint Server 2013.
Enable users or groups to use personal and social
features
Use this procedure to configure the user permissions for personal and social features.
To enable users or groups to use personal and social features
1. Verify that you have the following administrative credentials:
To use the SharePoint Central Administration website to enable users or groups to use
personal and social features, you must be a member of the Farm Administrators group, or
573
you must have been delegated permission to administer the User Profile service
application that is running in the farm. For more information, see Delegate administration
of User Profile service applications in SharePoint Server 2013.
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. In the list of service applications, click User Profile Service Application.
4. On the Manage Profile Service: User Profile Service Application page, in the People group,
click Manage User Permissions.
5. On the Permissions for User Profile Service Application page, type or select a user or group
account, and then click Add.
6. In the Permissions for box, check the feature or features that you want the user or group to be
able to use, and then click OK.
See also
Plan for My Sites in SharePoint Server 2013
574
Remove recommendation Web Parts from
My Sites in SharePoint Server 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise
Topic Last Modified: 2013-12-18
Summary: Learn how to remove the Suggested sites to follow and Suggested documents to
follow Web Parts in SharePoint Server 2013.
In SharePoint Server 2013, My Sites include Web Parts to display recommended sites and documents
for users to follow. These Web Parts are called Suggested sites to follow and Suggested
documents to follow. The information in these Web Parts originates from the search index. If you
have not configured indexing on your farm, the Web Parts will not display anything. The
recommendations for Suggested sites to follow and Suggested documents to follow are
influenced by:
People, sites, and documents you already follow.
A site that is followed by many people.
The values of the Ask Me About and Followed #Tags properties on the user profile.
Any documents that you recently modified.
Sites followed by people that you follow.
Note:
If users do not update their user profile settings, documents viewed recently by three or more
people are recommended to the user.
Depending on your company's policies and procedures, you may not want recommendations made to
users about which sites and documents they should follow. An administrator cannot turn off the
recommendations feature on the My Site. Instead, an administrator must remove the Suggested
sites to follow and Suggested documents to follow Web Parts from the My Site.
Note:
All recommendations made in the Suggested sites to follow and Suggested documents to
follow Web Parts are security trimmed.
575
Remove the Suggested sites to follow Web Part from a
user's My Site
Use the following procedure to remove the Suggested sites to follow Web Part from a user's My
Site.
To remove the Suggested sites to follow Web Part from a user's My Site
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, enter the following command:
576
Add-PsSnapin Microsoft.SharePoint.PowerShell
[System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SharePoint.W
ebPartPages")
[System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SharePoint.P
ublishing")
$useraccount = "
useraccount
"
$url = "http://" + [System.Net.Dns]::GetHostName() + "/my/personal/" +
$useraccount
$site = get-spsite $url
$web = $site.RootWeb
$pageUrl= "Social/Sites.aspx"
$webPartManager = $web.GetLimitedWebPartManager($pageUrl,
[System.Web.UI.WebControls.WebParts.PersonalizationScope]::Shared);
$webPart = $webPartManager.WebParts | where-object {
$_.WebBrowsableObject.GetType().Name -eq "ProjectSearchBrowseWebpart" }
if($webPart -ne $null)
{
$webPartManager.DeleteWebPart($webPart)
}
$web.Update();
Where:
$useraccount is set to the user's Active Directory account name for the user whose My
Site the Web Part is being removed from.
Remove the Suggested documents to follow Web Part
from a user's My Site
Use the following procedure to remove the Suggested documents to follow Web Part from a user's
My Site.
To remove the Suggested documents to follow Web Part from a user's My Site
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
577
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, enter the following command:
Add-PsSnapin Microsoft.SharePoint.PowerShell
[System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SharePoint.W
ebPartPages")
[System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SharePoint.P
ublishing")
$useraccount = "
useraccount
"
$url = "http://" + [System.Net.Dns]::GetHostName() + "/my/personal/" +
$useraccount
$site = get-spsite $url
$web = $site.RootWeb
$pageUrl= "Social/FollowedContent.aspx"
$webPartManager = $web.GetLimitedWebPartManager($pageUrl,
[System.Web.UI.WebControls.WebParts.PersonalizationScope]::Shared);
$webPart = $webPartManager.WebParts | where-object {
$_.WebBrowsableObject.GetType().Name -eq "ProjectSearchBrowseWebpart" }
if($webPart -ne $null)
{
$webPartManager.DeleteWebPart($webPart)
579
Synchronize and authenticate users from
your on-premises Active Directory to
Yammer and Office 365
Applies to: Yammer, SharePoint Server 2013, Office 365
Topic Last Modified: 2013-12-18
Summary: Add your on-premises Active Directory users to your Yammer network or Office 365
subscription. Let users log on quickly with a single sign-on.
Yammer Enterprise supports Active Directory synchronization to help you manage who has access to
Yammer. This way, you can make sure that information within your company’s social network stays
secure. Active Directory synchronization makes adding and removing users automatic in Yammer by
syncing data with your company directory. This article discusses how to set up Active Directory
synchronization with Yammer and Office 365. It also discusses how to use single sign-on for Yammer
and Office 365.
Starting state: there are users in your on-premises Active Directory that aren’t in your public Yammer
network.
After you sync, the users in Yammer will be updated to include all users in your on-premises
environment. Existing Yammer network users who are not in Active Directory, such as partners who
were invited as guests, will continue to be in the Yammer network. Note that Directory Sync for
Yammer only creates user accounts. It does not synchronize passwords from those accounts. Yammer
uses email accounts to identify users in its network.
580
If you have Office 365, you can also sync users from Active Directory to Office 365 to keep all of your
networks up to date. Use separate synchronization processes to sync users to each environment.
581
How to configure directory synchronization
Configuring environments and synchronizing users is complex. You’ll need a separate server to do the
synchronization work from Active Directory to each environment (Yammer and Office 365). The
synchronization servers should not be a domain controller or any other server that runs extremely
important software, such as your email server or DNS host, because performance will slow during the
synchronization. Directory synchronization is ongoing. The one-time full synchronization that you
perform is followed by incremental synchronizations that happen automatically every hour by default.
The following table provides links to other articles and resources to help you with the process of
synchronizing.
To configure directory synchronization for:
Follow the steps in these articles:
Yammer
Admin Corner: Directory Sync in the Yammer
Success Center
Office 365
Office 365 DirSync Content Map
Also see the FAQ – Directory Synchronization tool.
If you run into trouble, you can post a message in
the Directory integration services forum for Office
365.
How to add a single sign-on
You might also want to configure a single sign-on so that users can switch between your on-premises
environment and Yammer or Office 365 without having to log on in more than one place. Again, there
are several steps to follow to get the single sign-on working.
The following table provides links to other articles and resources to help you with the process of
configuring single sign-on.
582
To configure single sign-on for:
Follow the steps in these articles:
Yammer
Admin Corner: Single Sign-On in the Yammer
Success Center
How to sign in to the Yammer Desktop Application
or a Yammer mobile app when SSO is enabled
Office 365
Office 365 SSO Content Map
If you run into trouble, you can post a message in
the Directory integration services forum for Office
365.
After you’ve completed the previous steps, your Active Directory users will be in your Yammer
network and in Office 365. And they will be able to easily log on to Yammer and Office 365 from your
on-premises environment.
583
Configure web content management
solutions in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to install and configure SharePoint web content management solutions that use
cross-site collection publishing.
The articles that are listed in the following table describe how to set up cross-site publishing features
in a SharePoint Server 2013 environment.
Content
Description
Configure cross-site publishing in
SharePoint Server 2013
Learn how to create site
collections for cross-site
publishing, activate the Cross-
Site Collection Publishing
feature, create and manage
term sets for tagging content on
authoring sites, create catalog
content by using SharePoint
lists, share a library or list as a
catalog, and configure search
settings for cross-site publishing.
Connect a publishing site to a
catalog in SharePoint Server
2013
Learn how to connect a
publishing site to a library or list
that is shared as a catalog.
Assign a category page and a
catalog item page to a term in
SharePoint Server 2013
Learn how to assign a category
page and a catalog item page to
a term in term store
management.
584
Content
Description
Configure Search Web Parts in
SharePoint Server 2013
Learn how to configure the
following Web Parts that use
search technology in a
publishing environment:
Content Search Web Part
Refinement Panel Web Part
Taxonomy Refinement Panel
Web Part
Recommended Items Web
Part
Configure refiners and faceted
navigation in SharePoint Server
2013
Learn how to map a crawled
property to a refinable managed
property, enable a managed
property as a refiner, and
configure faceted navigation.
Configure result sources for web
content management in
SharePoint Server 2013
Learn how to create and manage
result sources for SharePoint
Search service applications, and
for SharePoint sites and site
collections.
Create query rules for web
content management in
SharePoint Server 2013
Learn how to improve search
results by creating and
managing query rules for
SharePoint Search service
applications, and for SharePoint
sites and site collections.
586
Configure cross-site publishing in
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn to create and tag catalog content in authoring sites and configure search settings for
cross-site publishing in SharePoint Server 2013.
Before you configure cross-site publishing, make sure that you understand the concepts and
terminology in Plan for cross-site publishing in SharePoint Server 2013.
In this article:
Before you begin
Create site collections for cross-site publishing
Activate the Cross-Site Collection Publishing feature
Create and manage term sets for tagging content on authoring sites
Create catalog content by using SharePoint lists
Share a library or list as a catalog
Make a term set available to other site collections
Configure search for cross-site publishing
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
587
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Create site collections for cross-site publishing
In a cross-site collection publishing scenario where content is reused across site collections, you must
have at least two site collections, one for authoring content and one for publishing content. Before
you create the site collections, review the following information:
"Plan site collections and site structure for SharePoint authoring sites" in Plan authoring sites for
cross-site publishing in SharePoint Server 2013.
"Plan site collections and site structure for SharePoint publishing sites" in Plan publishing sites for
cross-site publishing in SharePoint Server 2013.
For information about how to create a site collection by using either Central Administration or
Windows PowerShell, see Create a site collection in SharePoint 2013.
Activate the Cross-Site Collection Publishing feature
Before you can use cross-site collection publishing to reuse content across site collections, you have to
activate the Cross-Site Collection Publishing feature on the authoring site collection.
Note:
If you used the Product Catalog Site Collection template to create the authoring site
collection, you do not have to do this operation. By default, the Cross-Site Collection
publishing feature is active when you create a site collection by using the Product Catalog Site
Collection template.
To activate the Cross-Site Collection Publishing feature
1. Verify that the user account that performs this procedure is a site collection administrator on the
authoring site collection.
2. On the top-level site of the authoring site collection, on the Settings menu, click Site Settings.
3. On the Site Settings page, in the Site Collection Administration section, click Site collection
features.
4. On the Site Collection Features page, next to Cross-Site Collection Publishing, click Activate.
588
Note:
Deactivating the Cross-Site Publishing feature on an authoring site will not remove the
contents of a connected catalog from a publishing site. By deactivating this feature, you will
no longer be able to modify existing catalog settings, or connect other publishing sites to
catalogs within the site collection. To remove contents of a connected catalog from a
publishing site, you have to disconnect the publishing site from the catalog. For more
information, see Disconnect a publishing site from a catalog.
Create content for authoring sites
Before you create content for authoring sites, review "Plan term sets for tagging content on authoring
sites" and "Plan catalog content for authoring sites" in Plan authoring sites for cross-site publishing in
SharePoint Server 2013.
Create and manage term sets for tagging content on authoring sites
You create and manage term sets by using the Term Store Management Tool. For information about
how to create and manage term sets, see the following articles:
Set up a new term set
Create and manage terms in a term set
After you have created a term set, you have to make it available for tagging content. If you used the
Product Catalog Site Collection template to create the authoring site collection, and you have created
a term set in this site collection, you do not have to do this operation. By default, new term sets
created in the Product Catalog site collection are available for tagging content.
To make a term set available for tagging content
1. Verify that the user account that performs this procedure is a member of the Owners SharePoint
group on the authoring site that contains the catalog.
2. On the authoring site, on the Settings menu, click Site Settings.
3. On the Site Settings page, in the Site Administration section, click Term store management.
4. In the TAXONOMY TERM STORE section, click the term set that you want to make available for
tagging.
5. Click the INTEDED USE tab, and then select Available for Tagging.
6. Click Save.
589
Create catalog content by using SharePoint lists
When you create catalog content by using SharePoint lists, we recommend that you create site
columns for the lists in which you want to maintain your catalog content. This is because managed
properties are automatically created for site columns, and you can use these managed properties
when defining queries for you catalog content on a publishing site. If you have several lists, we
recommend that you create a site content type for each list, and then associate the appropriate site
columns to this site content type. If you want to use managed navigation to display catalog content on
a publishing site, you also have to create at least one term set as described in Create and manage
term sets for tagging content on authoring sites. The tagging term set must be tied to a site column
that is a Managed Metadata data type.
For information about how to create site content types and site columns, see the following articles:
Create or customize a content type
Create a site column
Create a managed metadata column
If you have large amounts of data in external business systems — for example, an ERP system —
consider importing this data into one or more SharePoint lists. SharePoint Server 2013 does not have
a solution for importing list content. However, you can develop custom import tools — for example,
by using Windows PowerShell. For a set of example Windows PowerShell scripts that you can use to
import list content for cross-site publishing, see Import list content to Products list for SharePoint 2013
Preview. The example scripts import content only to a site collection that was created by using the
Product Catalog Site Collection template.
Share a library or list as a catalog
Before you share a library or list as a catalog, verify that the Cross-Site Collection Publishing feature is
activated for the site collection. If you used the Product Catalog Site Collection template to create the
site collection, the Cross-Site Collection Publishing feature is already active. For all other types of site
collections, you must activate the Cross-Site Collection Publishing feature before you can continue
with the following steps. For more information, see Activate the Cross-Site Collection Publishing
feature in MOSS_1st_CurrentVer earlier in this article.
By default, anonymous access is enabled when you share a library or list as a catalog. If you have
connected a publishing site to the catalog, and you don't want anonymous users to be able to view
and search content that was added to the search index from this catalog, you should disable
anonymous access.
590
Important:
In addition to enabling anonymous access for a catalog, you must enable anonymous access
for the web application and publishing site so that anonymous users can search and view the
content. For more information, see Create claims-based web applications in SharePoint 2013.
To share a library or list as a catalog
1. Verify that the user account that performs this procedure is a member of the Owners group on
the site that contains the library or list that you want to share.
2. Browse to the library or list that you want to share, and then do one of the following:
To share a library, click the LIBRARY tab, and then, on the ribbon, in the Settings group,
click Library Settings.
To share a list, click the LIST tab, and then, on the ribbon, in the Settings group, click List
Settings.
3. On the Settings page, in the General Settings section, click Catalog Settings.
4. On the Catalog Settings page, in the Catalog Sharing section, select the Enable this library as
a catalog check box.
5. In the Anonymous Access section, if you want don't want anonymous users to view and search
this content, click Disable anonymous access.
6. In the Catalog Item URL Fields section, in the Available fields box, select up to five fields that
uniquely identify an item in the library or list, and then click Add.
After you connect a publishing site to this catalog, the fields that you specified as catalog item URL
fields appear as part of the friendly URL. (See the example that follows this procedure.)
7. In the Navigation Hierarchy section, select the column that is associated with the term set that
you want to use as a navigation term set for catalog pages. After you connect a publishing site to
this library or list to show catalog content, the value of the column that you selected appears as
part of the friendly URL (see the example that follows this procedure).
Note:
You only have to make a selection in this section if you want to use managed navigation to
display catalog content on a publishing site.
8. Click OK.
Note:
After you share a library or list as a catalog, the content source that contains the catalog
must be crawled. You don't have to start a full crawl. This is because an incremental crawl
591
or a continuous crawl also adds the content to the search index. For more information,
see Start, pause, resume, or stop a crawl in SharePoint Server 2013.
In this example, let's say that you have a list that contains data for different electronic products. The
following items were specified when the list was shared as catalog:
Electronic products
Audio
Car audio
MP3
Computers
Laptops
Desktops
Each item in the shared list is associated with a value from this term set in the Item Category Managed
Metadata site column. For more information about Managed Metadata columns, see Create a
Managed Metadata column.
The following table describes how site columns and their corresponding values in the previous list are
combined to create friendly URLs for catalog content when you connect a publishing site collection to
this list.
Product title
Item Category
Item Number
Friendly URL to an item when the
catalog is connected to a
publishing site
Proseware 50W Car
Radio
Car audio
1010101
<site>/audio/car-audio/1010101
Contoso 4GB
Portable MP3
Player M450
MP3
4020102
<site>/audio/mp3/4020102
AdventureWorks
Laptop8.9 E0890
Laptops
7030906
<site>/computers/laptops/7030906
592
Product title
Item Category
Item Number
Friendly URL to an item when the
catalog is connected to a
publishing site
WWI Desktop
PC2.33 X2330
Desktops
7030906
<site>/computers/desktops/3030802
Make a term set available to other site collections
After you create a term set on the authoring site collection, you have to make it available to publishing
site collections. You can make a term set available to all site collections or to specific site collections.
To make a term set available to all site collections
1. Verify that the user account that performs this procedure is a member of the Owners SharePoint
group on the authoring site that contains the catalog.
2. On the authoring site, on the Settings menu, click Site Settings.
3. On the Site Settings page, in the Site Administration section, click Term store management. If
the user that performs this procedure is already a member of the Term Store Administrators
group, you can skip to step 7.
4. In the Term Store Management Tool, verify that Managed Metadata Service is selected.
5. In the Term Store Administrator section, type one or more user names.
6. Click Save.
7. Right-click Managed Metadata Service, and then select New Group.
8. Type the name of the global term set that you want to create, and then press Enter.
9. Refresh the page.
10. Right-click the term set that you want to make available to all site collections, and then click Move
Term Set.
11. In the Term Set Move dialog box, click the global term set that you want to move the term set to,
and then click OK.
12. Refresh the page.
593
To make a term set available to specific site collections
1. Verify that the user account that performs this procedure is a member of the Owners SharePoint
group on the authoring site that contains the catalog.
2. On the authoring site, on the Settings menu, click Site Settings.
3. On the Site Settings page, in the Site Administration section, click Term store management.
4. In the Term Store Management Tool, click the group that contains all term sets within the site
collection.
5. In the Site Collection Access section, type the URLs of the site collections to which you want to
make the term set available — for example, http://<site>/sites/products.
6. Click Save.
Configure search for cross-site publishing
Because cross-site publishing depends on search, you have to create a content source and manage
crawling for SharePoint cross-site publishing sites.
A content source specifies what, when, and how content should be crawled. When a Search service
application is created, a content source named Local SharePoint sites is created and is automatically
configured to crawl all SharePoint sites in the local server farm. You can create additional content
sources to specify other content to crawl and define how SharePoint should crawl that content. You
do not have to create a separate content source for catalog content in order to make content
available to other site collections. However, it is easier to maintain crawl schedules when you have
separate content sources for the different content that you want users to view and search.
The ability to enable continuous crawls is a new crawl schedule option in SharePoint 2013. When you
enable continuous crawls, any changes that are made to content within the specified content source is
picked up automatically by the crawler and added to the search index. A continuous crawl starts at set
intervals. The default interval is 15 minutes, but you can set continuous crawls to occur at shorter
intervals by using Windows PowerShell.
For information about how to create a new content source and manage crawling in Central
Administration, see the following articles:
Add, edit, or delete a content source in SharePoint Server 2013
Start, pause, resume, or stop a crawl in SharePoint Server 2013
Manage continuous crawls in SharePoint Server 2013
594
Reindex catalog content
Some actions — for example, doing search schema management to enable refiners — require a full
reindex of the content source that contains the catalog for the changes to be added to the search
index. A site collection administrator can independently of the Search service application
administrator indicate that a catalog should be fully reindexed during the next scheduled crawl of the
catalog.
To reindex catalog content
1. Verify that the user account that performs this procedure is a member of the Site collection
administrators group on the site that contains the catalog.
2. Browse to the catalog, and then do one of the following:
If you want to perform a full crawl of a catalog in a library, click the LIBRARY tab, and
then, on the ribbon, in the Settings group, click Library Settings.
If you want to perform a full crawl of a catalog in a list, click the LIST tab, and then, on the
ribbon, in the Settings group, click List Settings.
3. On the Settings page, in the General Settings section, click Advanced settings.
4. On the Advanced Settings page, in the Reindex List section, click Reindex List, and then click
Reindex List to confirm that you want the catalog to be reindexed during the next scheduled
crawl.
5. Click OK.
Note:
The full reindex of the catalog will be performed during the next scheduled crawl.
See also
Automatically created managed properties in SharePoint Server 2013
http://blogs.technet.com/b/tothesharepoint/archive/2013/02/14/how-to-set-up-a-product-centric-
web-site-in-sharepoint-2013.aspx
595
Connect a publishing site to a catalog in
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to connect a publishing site collection to a library or list that is shared as a
catalog.
To show content from a library or list that is shared as a catalog, you must connect the publishing site
collection to the catalog. When you connect a publishing site collection to a catalog, the following
occurs:
The catalog content is integrated into the publishing site collection.
The term set used by the catalog is integrated into the term set of the publishing site collection.
A category page and an item details page are created for the catalog pages.
Friendly URL is created for the item details page.
A result source is created for the catalog.
In this article:
Before you begin
Connect a publishing site to a catalog
Disconnect a publishing site from a catalog
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
596
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Before you connect the publishing site collection to a catalog, review the information in Plan category
pages and item detail pages. Also verify the following:
The publishing site that you connect to a catalog uses managed navigation. By default, site
collections that are created by using the Publishing Portal Site Collection template use managed
navigation.
The library or list was shared as a catalog, as described in Share a library or list as a catalog.
A full crawl of the content source that contains the catalog was performed, as described in
Configure search for cross-site publishing in MOSS_1st_CurrentVer.
The term set that is used by the catalog is available to the publishing site collection, as described
in Make a term set available to other site collections.
Note:
If you want to extend the web application for your publishing site, for example to support
different authentication providers, extend the web application before you do this procedure.
If you extend the web application after you've connected to a catalog, the friendly URLs to
your catalog items will be broken.
Connect a publishing site to a catalog
To connect a publishing site to a catalog
1. Verify that the user account that completes this procedure is a member of the Owners SharePoint
group on the publishing site collection.
2. On the publishing site collection, on the Settings menu, click Site Settings.
3. On the Site Settings page, in the Site Administration section, click Manage catalog
connections.
4. On the Manage catalog connections page, click Connect to a catalog. A list of available catalogs
appears. Note that only catalogs that have been crawled will appear.
597
5. On the line that contains the catalog that you want to connect to, click Connect. You can also
search for a specific catalog by typing the catalog name in the search field.
6. On the Catalog Source Settings page, in the Connection Integration section, do one of the
following:
To make catalog content available to the publishing site and integrate the catalog tagging
term set into the publishing site navigation term set, select Integrate the catalog into my
site. When you select this option, use the following steps to specify at which level the
term sets should be integrated, specify the URL for the catalog item details page, and
select category pages and catalog item pages.
To make the catalog content available to the publishing site, select Connect, but do not
integrate the catalog. You should select this option if you want to use content from the
library to create individual catalog item pages.
Either option creates a result source for the catalog.
7. In the Navigation Hierarchy section, specify the term from which the catalog tagging term set
should be integrated into the publishing site navigation term set. The catalog navigation column
that you previously configured in Share a library or list as a catalog appears by default. The fields
in this section are optional. Therefore, if you don't change the fields in this section, the catalog
tagging term set will be integrated from the root term. If you want to integrate the catalog tagging
term set from a different term, do the following:
Next to the Root term of hierarchy box, click Browse for a valid choice.
In the Select: Add Terms dialog box, click the term that corresponds to the level from
which you want to integrate the catalog tagging term set, click Select, and then click OK.
To integrate the root term that is the parent of the selected term in the publishing site
navigation term set, select the Include root term in site navigation check box.
Note:
All items in the catalog must be tagged with a term from the specified catalog tagging term
set. If this is not done, site navigation will not work as intended for all items.
8. In the Navigation Position section, specify the term in the publishing site navigation term set
where the catalog tagging term set should be integrated. Do one of the following:
To integrate the catalog tagging term set to the root term of the publishing site navigation
term set, click Add to navigation root.
To integrate the catalog tagging term set to a term below the root term of the publishing
site navigation term set, click Select an alternate location in site navigation, and then
do the following:
598
Click Browse for a valid choice to display the publishing site navigation term set.
In the Select: Add Terms dialog box, click the term that corresponds to the level from
which you want to integrate the catalog tagging term set, click Select, and then click OK.
9. If you want changes to the catalog tagging term set to be updated on the publishing site, in the
Navigation Pinning section, select the Pin terms to site navigation check box. By default, this
option is selected. If you clear this check box, changes made to the catalog tagging term set are
not reflected on the publishing site navigation.
10. In the Catalog Item URL Behavior section, specify what you want the URL of the catalog item to
do by selecting one of the following options:
To point the URL of the catalog item to an item details page, select Make URLs relative to
this site. When you select this option, you have to specify a catalog item URL format as
described in the next step. This also means that the content that you can display on the
item details page has to come from the search index.
To have the catalog item URL point to the item in the source catalog, select Make URLs
point to source catalog. When you select this option, you do not have to specify a
catalog item URL format. Note that when you select this option, anonymous users are not
able to access and view the item in the source catalog.
11. In the Catalog Item URL Format section, select which properties the URL of the item details page
should contain by doing one of the following:
To use the field that you specified as Primary Key the when you shared the library or list as
a catalog as described in Share a library or list as a catalog, select Use the default URL
format provided by the catalog source. By default, this option is already selected.
Note:
All items in the catalog must have values for the specified field. Site navigation will not work
as intended for items with missing values.
To manually define a format for the URL, select Manually define a URL format, and then
type in a URL. You should select this option only if you have created an item details page
and the items in your catalog are not tagged with a term from a catalog tagging term set.
Type the URL in the following format: /<Folder of item details page>/<Name of item details
page>.aspx? <Managed property name>=[Managed property value] — for example,
/Pages/itemdetails.aspx?TitleProperty=[Title].
To construct a custom URL based on catalog properties, select Construct a URL format
from catalog properties, and then do the following:
In the Available Fields list, select up to five fields, and then click Add.
599
Important:
Fields of site column type Number will not create a valid URL. All items in the catalog must
have values for the specified fields. Site navigation will not work as intended for items with
missing values.
12. In the Category Page section, do one of the following:
To have SharePoint Server 2013 automatically create a new Category page for your
catalog content, click Create a new page, and then select a master page. The page will be
added to the Pages library with the name Category-<catalog tagging term set name>. The
page will not be published automatically.
To use a Category page that was already created, select Use an existing page, and then
specify the location of the page.
13. In the Item Page section, do one of the following:
To have SharePoint Server 2013 automatically create a new Item page for your catalog
content, click Create a new page, and then select a master page. The page will be added
to the Pages library with the name CatalogItem-<catalog tagging term set name>. The
page will not be published automatically.
To use an already created Item page, select Use an existing page, and specify the
location of this page.
14. Click OK.
Disconnect a publishing site from a catalog
If you want to remove the content of a connected catalog from a publishing site, you have to
disconnect the publishing site from the catalog.
Important:
If you have integrated a catalog tagging term set into the publishing site navigation term set,
the tagging terms will not be removed from the navigation when you disconnect from the
catalog. To remove the tagging terms from the navigation, you have to delete the terms in
Term Store Management. For more information, see Create and manage terms in a term set
Also, if you had SharePoint Server 2013 automatically create a category page and an item details page
for the catalog pages, these will not be deleted from the Pages library when you disconnect from the
catalog.
600
To disconnect a publishing site from a catalog
1. Verify that the user account that completes this procedure is a member of the Owners SharePoint
group on the publishing site collection.
2. On the Site Settings page, in the Site Administration section, click Manage catalog
connections.
3. On the Manage catalog connections page, a list of connected catalogs appears.
4. On the line that contains the catalog that you want to disconnect, click Disconnect, and then
Disconnect to verify that you want to disconnect the catalog.
See also
Blog post: Connect your publishing site to a catalog
601
Assign a category page and a catalog item
page to a term in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to assign a category page and a catalog item page to a term in term store
management.
Category pages and catalog item pages are page layouts that you can use to show structured content
consistently across a site. They are often used when displaying catalog content on a site that uses
managed navigation. This saves you from having to create many individual pages for content that you
want to show in the same manner across your site. You can assign a category page or a catalog item
page to all terms in a term set, or to specific terms in a term set. For more information, see "Catalog
pages and catalog item pages" in Overview of cross-site publishing in SharePoint Server 2013.
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Before you assign a category page and a catalog item page in term store management, verify the
following:
The publishing site is using managed navigation. By default, site collections that are created by
using the Publishing Portal Site Collection template use managed navigation.
602
You have created a navigation term set in term store management as described in Create and
manage terms in a term set.
You have created a category page and a catalog item page.
Important:
If you have connected a publishing site to a catalog and selected to integrate the catalog into
the publishing site as described in Connect a publishing site to a catalog in SharePoint Server
2013, the category page and catalog item page configurations that you specified are displayed
in term store management.
Assign a category page and a catalog item page to a
term
By default, when you assign a category page to a term, the page that you specify will also be assigned
to the children of the term unless you specify a different page to be used on all the children of a term.
Note:
You should only assign catalog item pages to a term if the term set is used as a tagging term
set for catalog content.
To assign a category page and a catalog item page to a term
1. Verify that the user account that performs this procedure is a member of the Owners SharePoint
group on the site.
2. On the site, on the Settings menu, click Site Settings.
3. On the Site Settings page, in the Site Administration section, click Term store management.
4. On the Term Store Management Tool page, in the TAXONOMY TERM STORE section, click the
term to which you want to assign a category page and a catalog item page.
5. Click the tab TERM-DRIVEN PAGES.
6. To assign a category page to a term, in the Target Page Settings section, select the check box
Change target page for this term, and then type the URL of the category page that you want to
assign to the term. Or you can click the Browse button, and then go to the category page that you
want to assign to the term.
7. To assign a category page to the children of a term, select the check box Change target page for
the children of this term, and then type the URL of the category page that you want to assign to
603
the children of the term. Or, you can click the Browse button, and then go to the category page
that you want to assign to the children of the term.
8. To assign a catalog item page for catalog items that are tagged with the current term, select
Change Catalog Item Page for this category, and then type the URL of the catalog item page
that you want to assign to catalog items that are tagged with the term. Or you can click the
Browse button, and then go to the catalog item page that you want to assign to catalog items
that are tagged with the term.
9. To assign a catalog item page for catalog items that are tagged with a child of the current term,
select Change Catalog Item Page, and then type the URL of the catalog item page that you want
to assign to catalog items that are tagged with children of the term. Or you can click the Browse
button, and then go to the catalog item page that you want to assign to catalog items tagged with
children of the term.
See also
Blog post: Assign a category page and a catalog item page to a term
604
Configure Search Web Parts in SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-04-11
Summary: Learn how to configure the different Web Parts that use search technology in a publishing
environment.
Web Parts that use search technology to show content in a publishing environment (referred to in this
article as Search Web Parts) show content that was crawled and added to the search index, as
described in "Understanding how content is added to and managed in the search index" in Overview
of cross-site publishing in SharePoint Server 2013. These Web Parts have queries defined in them,
and when users browse to a page that contains a Web Part that uses search technology, the Web Part
issues the query automatically. The query result is then displayed in the Web Part. You can modify the
query in the search Web Part to fit your content needs.
In this article:
Before you begin
Add a Content Search Web Part to a page
Configure the query for a Content Search Web Part
Configure the display templates for the Content Search Web Part
Add a Refinement Web Part to a page
Configure the Refinement Web Part
Display refiner counts in a Refinement Web Part
Change the refiner display name
Configure the display templates for the Refinement Panel Web Part
Add a Taxonomy Refinement Panel Web Part to a page
Configure the Taxonomy Refinement Panel Web Part
Add a Recommended Items Web Part to a page
605
Configure the Recommended Items Web Part
Configure the display templates for the Recommended Items Web Part
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
There are many Search Web Parts available in SharePoint Server 2013. These Web Parts have
predefined queries, such as what type of content to search for, where to search for content, and how
to show content. For information about different Search Web Parts, see "Plan to add search Web
Parts to pages" in Plan publishing sites for cross-site publishing in SharePoint Server 2013. Many of
the Search Web Parts use result sources and have query rules that are applied to them. Result sources
narrow the scope of search results that are retrieved. A query rule is a set of conditions that will cause
the query to be changed in a specific way. For more information about result sources and query rules,
see Plan result sources and query rules.
To customize how search results appear in Search Web Parts — for example, to show an image
followed by a title in bold to the right of the image — you modify display templates. The two types of
display templates that are most relevant to Search Web Parts are control display templates and item
display templates.
Add a Content Search Web Part to a page
To add a Content Search Web Part to a page
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
606
2. Browse to the page where you want to add the Web Part.
3. Click the Settings menu, and then click Edit page.
4. In the Web Part Zone where you want to add the Web Part, click Add a Web Part.
5. In the Categories list, click Content Rollup.
6. In the Parts list, click Content Search, and then click Add.
Configure the query for a Content Search Web Part
You can use the Content Search Web Part in Quick Mode and create a query by selecting options from
a list of existing result sources, or you can switch to Advanced Mode to create your own custom query
by using Keyword Query Language (KQL). Use the Advanced Mode only if you know KQL and the
functionality that is enabled for the managed properties.
To configure the query for a Content Search Web Part
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page that contains the Content Search Web Part that you want to configure.
3. Click the Settings menu, and then click Edit Page.
4. In the Web Part, click the Content Search Web Part Menu arrow, and then click Edit Web Part.
5. In the Web Part tool pane, in the Properties section, in the Search Criteria section, click Change
query.
6. On the BASICS tab, do one of the following:
To define your query by using Quick Mode, select options as described in the following
table:
607
Quick Mode (default)
Select a query
Select a result source to specify which
content should be searched. If you have
shared a document library or list as
catalog, the catalog result source will be
displayed in this drop-down list. By
default, this is set to Recently changed
items (System).
Restrict results by app
Select an option from the list to restrict
results to a specific site, library, list, or
URL. By default, this is set to Current
site.
608
Restrict by tag
You can limit results to content that is
tagged with a term from a term set.
Select one of the following options:
Don’t
restrict by
any tag
Search results will not be
limited based on tags
(default).
Restrict
by
navigation
term of
current
page
Search results will be
limited to content that is
tagged with the term of
the current page. The
current tag is displayed as
the last part of the
friendly URL. This option
is only meaningful for
sites that use managed
navigation.
Restrict
by current
and child
navigation
Search results will be
limited to content that is
tagged with the term of
the current page
(displayed as the last part
of the friendly URL), and
content that is tagged
with sub-terms of the
current page. This option
is only meaningful for
sites that use managed
navigation.
Note:
In a cross-site
publishing
scenario, this
selection will only
work when the
result source
selected in the
Select a query
section is the
catalog result
source that is
created when a
publishing site is
connected to a
609
To create your own query by using Keyword Query Language (KQL), click Switch to
Advanced Mode. For information about KQL, see Keyword Query Language (KQL) syntax
reference. When you configure the query in Advanced Mode, you can also use query
variables. Query variables are placeholders for values that change dynamically depending
on the context of the page when the page that contains the Content Search Web Part is
being displayed. The correct information is inserted dynamically from the context the
query is sent to the index. Examples of query variables are {User.Name}, which represents
the name of the user who is viewing the page, or {searchBoxQuery}, which represents the
query that a user typed in a search box. Select options as described in the following table:
Advanced Mode
Select a query
Select a result source to specify which content should be
searched.
Default result source is Local SharePoint Results
(System).
Keyword filter
You can use keyword filters to add query variables to
your query. See Query variables in SharePoint Server
2013 for a list of available query variables.
You can select pre-defined query variables from the
drop-down list, and then add them to the query by
clicking Add keyword filter.
Property filter
You can use property filters to query the content of
managed properties that are set to queryable in the
search schema.
You can select managed properties from the Property
filter drop-down list. Click Add property filter to add the
filter to the query.
610
Query text
Type your query by using Keyword Query Language
(KQL), or use the Keyword filter and Property filter lists
to build the query.
The keyword query can consist of free-text keywords,
property filters, or operators. Use braces to enclose
query variables. The query variables will be replaced with
an actual value when the query is run.
Keyword queries have a maximum length of 2,048
characters.
7. The REFINERS tab lists the managed properties that are enabled as refiners in the search
schema. You can specify that the search results returned in the Content Search Web Part should
be limited to one or more values from the refiners. Click a refiner in the list, and then click Apply
to add it to the query.
Click Show more if you want to define grouping of results. Under Group results, you can specify
that the results should be grouped based on one or more managed properties. This is useful when
you are displaying several variants for a given item, and want to group them under a single result.
8. On the SORTING tab, you can specify how search results should be sorted.
This tab is available only if you use Advanced Mode. If you use Quick Mode, you can define
sorting options in the result source.
In the Sort by drop-down list, select a managed property from the list of managed properties that
are set as sortable in the search schema, and then select Descending or Ascending. For example,
to sort by relevance (that is, to use a ranking model) select Rank.
To add more sorting levels, click Add sort level.
Note:
Sorting of search results is case sensitive.
If you selected Rank from the Sort by list, you can select which ranking model to use for sorting in
the Ranking Model list.
Under Dynamic ordering, you can specify additional ranking by adding rules that will change the
order of results when certain conditions apply. Click Add dynamic ordering rule, and then specify
conditional rules.
9. On the SETTINGS tab, specify the settings that are listed in the following table.
611
Query Rules
Select whether to use Query Rules or not.
URL Rewriting
Select if the URL rewrite to the item details page should
continue to be relative for each catalog item as defined when
you set up the catalog connection. If you select Don’t rewrite
URLs, the URLs for catalog items are pointed directly to the
library item of the connected catalog.
Loading Behavior
Select when the search results returned by the Content Search
Web Part appear on the web page. The default option is Sync
option: Issue query from the server. By using this loading
behavior, queries are issued from the server, and the search
results are included in the page response that is sent back
from SharePoint. If you select Async option: Issue query
from the browser, the queries will be issued from the end-
users browser after the complete page is received. This option
may be considered for secondary content on a page — for
example Recommendations or Popular Items.
Priority
Select the level that best describes the relative importance of
content that is displayed by this Web Part in relation to other
Search Web Parts. If SharePoint Server 2013 is running under
heavy load, the queries will be run according to their priority.
10. On the TEST tab, you can preview the query that is sent by the Content Search Web Part.
Query text
Shows the final query that will be run by the Content Search
Web Part. It is based on the original query template where
dynamic variables are substituted with current values. Other
changes to the query may have to be made as part of query
rules.
Click Show more to display additional information.
Query template
Shows the content of the query template that is applied to the
query.
Refined by
Shows the refiners applied to the query as defined on the
REFINERS tab.
Grouped by
Shows the managed property on which search results should
be grouped as defined on the REFINERS tab.
612
Applied query rules
Shows which query rules are applied to the query.
The Query template variables section shows the query variables that will be applied to the query,
and the values of the variables that apply to the current page. You can type other values to test
the effect they will have on the query. Click the Test Query button to preview the search results.
You can also test how the query works for different user segment terms. Click Add user segment
term to add terms to be added to the query. Click the Test query button to preview the search
results.
Query text
Shows the final query that will be run by the Content Search
Web Part. It is based on the original query template where
dynamic variables are substituted with current values. Other
changes to the query may have to be made as part of query
rules.
Configure the display templates for the Content
Search Web Part
When you connect a publishing site to a catalog, the default control display template for the Content
Search Web Part on your category page is List with Paging (named Control_ListWithPaging in the
Master Page Gallery).
The default item display template for the Content Search Web Part is Picture on top, 3 lines on bottom
(named Item_Picture3Lines in the Master Page Gallery). If you want to use other display templates on
your category page, you can change them by changing the settings for the Content Search Web Part.
For information on how to customize and create your own display templates, see SharePoint 2013
Design Manager display templates
Add a Refinement Web Part to a page
You can add refiners to a page to narrow the items that are shown in a Content Search Web Part, and
help users quickly browse to specific content. Refiners are based on managed properties from the
search index. To display refiners on a page, you must first enable the managed property that you want
to use as a refiner, and then add a Refinement Web Part to the page where you want the refiners to
appear. You can configure the Refinement Web Part for two types of refiners: Stand-alone refiners
and Refiners for faceted navigation. For more information about the different refiner types, see Plan
refiners and faceted navigation in Plan search for cross-site publishing sites in SharePoint Server
2013.
613
Before you begin this procedure, verify the following:
The managed properties that you want to use as refiners are enabled as refinable managed
properties as described in "Map a crawled property to a refinable managed property in SharePoint
site collection administration" or "Enable automatically created managed properties as refiners in
SharePoint Central Administration " in Configure refiners and faceted navigation in SharePoint
Server 2013.
You have done a full crawl of the content source that contains the managed properties that are
enabled as refiners, or indicated that your catalog should be fully reindexed during the next
scheduled crawl of the catalog as described in "Configure search for cross-site publishing" in
Configure cross-site publishing in SharePoint Server 2013.
If you are using refiners for faceted navigation, you have configured the refiners as described in
"Add refiners to a term set" in Configure refiners and faceted navigation in SharePoint Server
2013.
To add a Refinement Web Part to a page
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page where you want to add the Web Part.
3. Click the Settings menu, and then click Edit Page.
4. In the Web Part Zone where you want to add the Web Part, click Add a Web Part.
5. In the Categories list, select Search.
6. In the Parts list, select Refinement, and then click Add.
Configure the Refinement Web Part
To configure the Refinement Part
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page that contains the Refinement Web Part that you want to configure.
3. Click the Settings menu, and then click Edit Page.
4. In the Web Part, click the Refinement Web Part Menu arrow, and then click Edit Web Part.
614
5. You can configure the Web Part for stand-alone refiners or for refiners for faceted navigation by
using the following procedures,
To configure the Web Part for stand-alone refiners:
a) In the Web Part tool pane, in the Properties for Search Refinement section, verify that the
Choose Refiners in this Web Part is selected.
b) Click Choose Refiners…
c) On the Refinement configuration page, from the Available refiners section, use the buttons
to select which refiners should be added to the term set, and also in which order that they
should be displayed. If you have specified an alias for a refinable managed property, this alias
is displayed in the Configuration for section.
d) In the Configuration for section, set the configuration for how every refiner appears.
Note:
If you have a single language site, you can change the refiner display name in the Display
name section. For multilingual sites, you have to change the refiner display language as
described in Change the refiner display name.
To configure the Web Part for refiners for faceted navigation:
e) In the Web Part tool pane, in the Properties for Search Refinement section, select the
option Use the refinement configuration defined in the Managed Navigation term set.
Change the refiner display name
When you add a Refinement Web Part, the name of the managed property that is enabled as a refiner
will be used as display name for the refiner. In many cases, the managed property name is not user-
friendly — for example, RefinableString00 or ColorOWSTEXT. You can change the display name of the
refiner by changing a java script file in the master page gallery.
To change the refiner display name
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. On the Settings menu, click Site Settings.
3. On the Site Settings page, in the Web Designer Galleries section, click Master pages and page
layouts.
4. On the Master Page Gallery page, click Display Templates.
615
5. On the Display Templates page, click Language Files.
6. On the Language Files page, click the folder that contains the language that you want to change
the refiner display name for.
7. Open the CustomStrings.js file.
8. Add one line to the file for each managed property that is enabled as a refiner for which you want
to change the display name byusing the following syntax:
"rf_RefinementTitle_ManagedPropertyName": "Sample Refinement Title for
ManagedPropertyName"
For example, you can add the following line to change the display name for the managed property
RefinableInt00 to Price:
"rf_RefinementTitle_RefinableInt00": "Price".
Display refiner counts in a Refinement Web Part
When you add a Refinement Web Part to a page, by default, the Web Part will not show refiner
counts — that is, the number of items for each refiner value. For example, if you have enabled the
managed property Color as a refiner, the refiner values will only show colors such as Red, Green, and
Blue. You can add refiner counts by changing a value in an HTML file so that the refiner values are
shown as Red (10), Green (12), and Blue (8).
To add refiner counts to the Refinement Web Part
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. On the Settings menu, click Site Settings.
3. On the Site Settings page, in the Web Designer Galleries section, click Master pages and page
layouts.
4. On the Master Page Gallery page, click Display Templates.
5. On the Display Templates page, click Filters.
6. Open the Filter_Default.html file.
7. Change the value for ShowCounts to true.
616
Configure the display templates for the Refinement
Web Part
The display templates for the Refinement Web Part can be found in the Master Page Gallery.
To view display templates for the Refinement Web Part
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. On the Settings menu, click Site Settings.
3. On the Site Settings page, in the Web Designer Galleries section, click Master pages and page
layouts.
4. On the Master Page Gallery page, click Display Templates.
5. On the Display Templates page, click Filters.
For information on how to customize and create your own display templates, see SharePoint 2013
Design Manager display templates.
Add a Taxonomy Refinement Panel Web Part to a
page
Before you begin this procedure, verify the following:
The managed properties that you want to use as refiners are refiner-enabled as described in "Map
a crawled property to a refinable managed property in SharePoint site collection administration"
or "Enable automatically created managed properties as refiners in SharePoint Central
Administration " in Configure refiners and faceted navigation in SharePoint Server 2013.
You have done a full crawl of the content source that contains the managed properties that are
enabled as refiners as described in "Configure search for cross-site publishing" in Configure cross-
site publishing in SharePoint Server 2013.
If you are using refiners for faceted navigation, you have configured the refiners as described in
Configure refiners and faceted navigation in SharePoint Server 2013.
617
To add a Taxonomy Refinement Panel Web Part to a page
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page where you want to add the Web Part.
3. Click the Settings menu, and then click Edit Page.
4. In the Web Part Zone where you want to add the Web Part, click Add a Web Part.
5. In the Categories list, select Search.
6. In the Parts, select Taxonomy Refinement Panel, and then click Add.
Configure the Taxonomy Refinement Panel Web Part
To configure the Taxonomy Refinement Panel Web Part
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page where you have the Taxonomy Refinement Panel Web Part that you want to
configure.
3. On the Settings menu, click Edit Page.
4. In the Web Part, click the Taxonomy Refinement Panel Web Part Menu arrow, and then click
Edit Web Part.
5. In the Web Part tool pane, in the Properties section, in the Query section, on the Refinement
Target menu, select the Web Part you want to associate with the Taxonomy Refinement Panel
Web Part.
6. In the Web Part tool pane, in the Properties section, in the Query section, on the Refiner menu,
select the managed property that you have specified for Managed Navigation.
Add a Recommended Items Web Part to a page
You can use the Recommended Items Web Part to show content recommendations based how users
have previously interacted with the site. For example, you can add this Web Part to a Catalog Item
page. If a user views a specific item, this Web Part will display other items that users have previously
viewed, such as "Users who viewed this item also viewed these items.” For more information about
618
recommendations, see Plan usage analytics, usage events and recommendations in Plan search for
cross-site publishing sites in SharePoint Server 2013.
To add a Recommended Items Web Part to a page
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page where you want to add the Web Part.
3. Click the Settings menu, and then click Edit Page.
4. In the Web Part Zone where you want to add the Web Part, click Add a Web Part.
5. In the Categories list, click Search-Driven Content.
6. In the Parts list, click Recommended Items, and then click Add.
Configure the Recommended Items Web Part
To configure the query for a Recommended Items Web Part
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page where you have the Recommended Items Web Part that you want to
configure.
3. On the Settings menu, click Edit Page.
4. In the Web Part, click the Recommended Items Web Part Menu arrow, and then click Edit Web
Part.
5. In the Web Part tool pane, in the Properties section, in the Search Criteria section, click Change
query.
6. On the BASICS tab, define your query by selecting options described in the following table.
619
Get recommended items for
From the drop-down list, select from which value
recommendations should be displayed. In a catalog scenario,
this will often be A token from a URL. If you select this
option, you will also have to select which URL token you
want to obtain recommendations for.
For example, let's say that you want to obtain
recommendations for items in your catalog. You have a
catalog item page where you display your catalog items, and
the item number is part of your friendly URL — for example,
www.contoso/audio/mp3/4010101. (4010101 represents the
item number.) When you want to obtain recommendations
for a token from the URL, you should select {URLToken.1}
(4010101) from the second drop-down list.
Restrict results by app
Use this drop-down list to specify a scope for the search
results.
Restrict results by content type
Use this drop-down list to limit the search results to a specific
content type.
If there are too few recommended
items
If you don’t have much usage data — for example, if your site
is fairly new, or if the items do not have recommendations to
display — this Web Part will not display any search results. In
order for the Web Part to display recommendations even
though not enough user data has cumulated, you can select
the option to Select a query to fill in with additional
results.
7. The REFINERS tab lists the managed properties that are set as refiner-enabled in the search
schema. You can specify that the search results returned in the Recommended Items Search Web
Part should be limited to one or more values from the refiners. Click a refiner in the list, and then
click Apply to add it to the query.
Click Show more if you want to define grouping of results. Under Group results, you can specify
that the results should be grouped based on one or more managed properties.
8. On the SETTINGS tab, specify the following:
620
Query Rules
Select whether to use Query Rules or not.
URL Rewriting
Select if the URL rewrite to the item details page should
continue to be relative for each catalog item as defined
when you set up the catalog connection. If you select Don’t
rewrite URLs, the URLs for your catalog items are pointed
directly to the library item of the connected catalog.
Loading Behavior
Select when the search results returned by the
Recommended Items Web Part should be displayed on the
web page. The default option is Display the page and web
party simultaneously. By using this loading behavior,
queries are issued from the server, and the search results
are included in the page response that is sent back from
SharePoint. If you select Display the page and web part
independently, the queries will be issued from the end-
users browser after the complete page is received. This
option may be considered for secondary content on a
page — for example, Recommendations or Popular Items
Priority
Select the level that best describes the relative importance
of content that is displayed by this Web Part in relation to
other Search Web Parts. If SharePoint Server 2013 is
running under heavy load, the queries will be run according
to their priority.
9. On the TEST tab, you can preview the query that is sent by the Recommended Items Web Part.
Query text
Shows the content of the query template that is applied to
the query.
Click Show more to display additional information.
Refined by
Shows the refiners applied to the query as defined in the
REFINERS tab.
Grouped by
Shows the managed property on which search results
should be grouped as defined in the REFINERS tab.
Applied query rules
Shows which query rules are applied to the query.
621
In the Query template variables section, the selections that you made on the BASIC tab are
displayed. In addition, you can type additional values for testing as outlined in the following table.
Click the Test query button to preview the search results.
{RecsURL}*
Shows the token you selected when specifying for which
value recommendations should be displayed.
{Scope}*
Shows the scope that you selected for the search results.
{ContentTypeID}*
Shows the content type that you selected for the search
results.
You can also test how the query works for different user segment terms. Click Add user segment
term for testing to add terms to be added to the query. Click the Test query button to preview
the search results.
Query text
Shows the final query that will be run by the Recommended
Items Web Part. It is based on the original query template
where dynamic variables are substituted with current
values. Other changes to the query may have be made as
part of query rules.
Configure the display templates for the Recommended
Items Web Part
The default control display template for the Recommended Items Search Web Part is List (known as
Control_List in the Master Page Gallery).
The default item display template for the Recommended Items Web Part is Recommended Items:
Picture on top, 3 lines (known as Item_RecommendationsClickLogging in the Master Page Gallery).
When a user clicks a link that is displayed in the Recommended Items Web Part, the default display
template logs a Recommendations Clicked usage event.
For information on how to customize and create your own display templates, see SharePoint 2013
Design Manager display templates
See also
Query variables in SharePoint Server 2013
Blog series: How to set up a product-centric website in SharePoint Server 2013
622
Configure refiners and faceted navigation
in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-02-10
Summary: Learn how to map a crawled property to a refinable managed property, enable a managed
property as a refiner, and configure refiners for faceted navigation.
You can add refiners to a page to help users quickly browse to specific content. Refiners are based on
managed properties from the search index. To use managed properties as refiners, the managed
properties must be enabled as refiners, or crawled properties must be mapped to managed properties
that are enabled as refiners.
Faceted navigation is the process of browsing for content by filtering on refiners that are tied to
category pages. Faceted navigation lets you specify different refiners for category pages, even when
the underlying page displaying the categories is the same. For information about category pages, see
"Category pages and catalog item pages" in Overview of cross-site publishing in SharePoint Server
2013.
Important:
You can apply faceted navigation only to publishing sites that use managed navigation.
In this article:
Before you begin
Map a crawled property to a refinable managed property in SharePoint site collection administration
Enable automatically created managed properties as refiners in SharePoint Central Administration
Enable a term set for faceted navigation
Add refiners to a term set
Set intervals for refiner values
Add JavaScript to a page to display refiners in the correct format
Reference tables
623
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Review the information in "Plan refiners and faceted navigation" in Plan search for cross-site
publishing sites in SharePoint Server 2013.
About configuring refiners for different data types
When a catalog is crawled, SharePoint Server 2013 automatically creates managed properties for all
site columns that contain values. These automatically created managed properties use the Text data
type. To make sure that refiners that use the Number, Currency, Integer, and Date and Time data
types are displayed in the correct format, you can do one of the following:
1. Use the procedure that is described in Map a crawled property to a refinable managed property in
SharePoint site collection administration. This procedure can be performed by site collection
administrators. We recommend that you use this procedure for all data types.
2. Create a managed property, add the type code to the property name, and then enable it as a
refiner. This procedure can only be performed by an administrator of the Search service
application. For more information, see To create a managed property, add type code to the name,
and enable it as a refiner.
3. Add JavaScript to the page where the refiners are displayed. For more information, see Add
JavaScript to a page to display refiners in the correct format.
624
Map a crawled property to a refinable managed
property in SharePoint site collection administration
Site collection administrators can configure refiners because the search schema has many managed
properties that are enabled as refiners by default. These managed properties are listed in the
following table. Before site collection administrators can use these managed properties as refiners on
their web pages, they must map the appropriate crawled property to the managed property that is
enabled as a refiner. To make it easier to work with these properties when doing additional refiner
configuration in Term Store Management, you can specify a user-friendly alias name for the managed
property.
For an overview of managed properties that are enabled as refiners by default, see Managed
properties that are enabled as refiners by default.
Note:
This procedure is performed on the authoring site collection.
To map a crawled property to a refinable managed property
1. Verify that the user account that performs this procedure is a site collection administrator on the
authoring site collection.
2. On the authoring site collection, on the Settings menu, click Site settings.
3. On the Site Settings page, in the Site Collection Administration section, click Search Schema.
4. On the Managed Properties page, in the Managed property filter box, type the name of a
refinable managed property — for example, RefinableString00 — and then click the arrow.
5. In the Property Name column, click the refinable managed property that you want to edit.
6. To specify an alias of the refinable managed property to use when you configure refiners for
faceted navigation, on the Edit Managed Property page, type a user-friendly name in the Alias
box.
Important:
For properties that use the data type Managed Metadata, the alias must consist of the
type code, owstaxId, followed by the property name. For example, for a property named
Color that uses the Managed Metadata data type, the alias for the refinable managed
property must be owstaxIdColor.
7. In the Mappings to crawled properties section, click Add a Mapping.
625
8. In the Crawled property selection dialog box, find the crawled property that you want to map to
the refinable managed property in the list, or search for it by typing the name of the crawled
property in the box, and then clicking Find.
Important:
When you search for a crawled property, you may find two crawled properties that
represent the same content. For example, a site column of type Text named Color will
during crawl discover two crawled properties: ows_Color and ows_q_TEXT_Color.
Crawled properties that begin with either ows_r<four letter code>, ows_q<four letter
code>, or ows_taxId are automatically created crawled properties. When you select a
crawled property to map to a refinable managed property, make sure that you don't map
the automatically created crawled property. Instead, always map the crawled property
that begins with ows_.
For more information about automatically created crawled properties, see Automatically
created managed properties in SharePoint Server 2013.
9. Click OK.
10. On the Edit Managed Property page, click OK.
Note:
To configure refiners in Web Parts or in Term Store Management, you must start a full crawl
of the content source that contains the refinable managed properties. For more information,
see Configure search for cross-site publishing.
Enable automatically created managed properties as
refiners in SharePoint Central Administration
All automatically created managed properties use the Text data type. To make sure that that the
refiners are displayed in the correct format, you should only enable an automatically created managed
property as a refiner if it is based on a site column that uses the data type Text, Managed Metadata,
or Person or Group. For other data types, you must create a managed property, add the type code to
the property name, and enable the managed property as a refiner.
For more information about automatically created managed properties, see Automatically created
managed properties in SharePoint Server 2013.
To enable an automatically created managed property as a refiner
1. Verify that the user account that performs this procedure is an administrator of the Search service
application.
626
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. On the Manage Service Applications page, click the Search service application in which you want
to enable the managed property as a refiner.
4. On the Search Administration page, in the Quick Launch, under Queries and Results, click
Search Schema.
5. On the Managed Properties page, in the Managed property filter box, type the name of the
managed property that you want to enable as refiner, and then click the arrow.
6. In the Property Name column, click the managed property that you want to edit.
7. On the Edit Managed Property page, in the Refinable section, select either Yes – active or Yes –
latent. If you select Yes - latent, you can switch the refiner to active later without having to do a
full crawl.
8. Click OK.
Note:
To configure refiners in Web Parts or in Term Store Management, you must complete a full
crawl of the content source that contains the refinable managed properties. For more
information, see Configure search for cross-site publishing.
To create a managed property, add type code to the name, and enable a managed property as a
refiner
1. Verify that the user account that performs this procedure is an administrator of the Search service
application.
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. On the Manage Service Applications page, click the Search service application in which you want
to create a managed property.
4. On the Search Administration page, in the Quick Launch, under Queries and Results, click
Search Schema.
5. On the Managed Properties page, click New Managed Property.
6. On the New Managed Property page, in the Property name box, in the Name and description
section, type the name of the new managed property, followed by the appropriate type code. For
an overview of type codes, see Type codes.
627
7. In the Type section, select the appropriate data type.
8. In the Main characteristics section, set the following selections:
Queryable
Refinable: Yes - active or Yes - latent
You can also specify additional settings in this section.
9. In the Mappings to crawled properties section, click Add a mapping.
10. In the Crawled property selection dialog box, find the crawled property that you want to map to
the managed property in the list, or search for it by typing the name of the crawled property in
the box, and then clicking Find.
Important:
When you search for a crawled property, you may find two crawled properties that
represent the same content. For example, a site column of type Date and Time named
Created will during crawl discover two crawled properties: ows_Created and
ows_q_DATE_Created. Crawled properties that begin with either ows_r<four letter
code>,ows_q<four letter code> or ows_taxId are automatically created crawled properties.
When you select a crawled property to map to a managed property, make sure that you
don't map the automatically created crawled property. Instead, always map the crawled
property that begins with ows_.
11. Click OK.
Note:
To configure refiners in Web Parts or in Term Store Management, you must complete a full
crawl of the content source that contains the refinable managed properties. For more
information, see Configure search for cross-site publishing.
Configure refiners for faceted navigation
Before you start the procedures in this section, verify the following:
On the authoring site, a library or list is shared as a catalog, as described in Share a library or list as
a catalog.
The required managed properties are enabled as refiners, as described in Map a crawled property
to a refinable managed property in SharePoint site collection administration and Enable
automatically created managed properties as refiners in SharePoint Central Administration.
628
A full crawl was completed for the content source that contains the refinable managed properties,
as described in Configure search for cross-site publishing.
Enable a term set for faceted navigation
To configure refiners for faceted navigation, you must first enable the relevant term set for faceted
navigation. This procedure is performed on the authoring site collection.
To enable a term set for faceted navigation
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the authoring site collection.
2. On the authoring site collection, on the Settings menu, click Site settings.
3. On the Site Settings page, in the Site Administration section, click Term store management.
4. In the TAXONOMY TERM STORE section, click to select the term set that you want to enable for
faceted navigation.
5. Click the INTENDED USE tab, and then select Use this Term Set for Faceted Navigation.
6. Click Save.
Add refiners to a term set
When configuring refiners for faceted navigation, you can add refiners to all terms in a term set or to
specific terms in a term set. This procedure is performed on the authoring site collection.
To add refiners to all terms in a term set
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the authoring site collection.
2. On the authoring site collection, on the Settings menu, click Site settings.
3. On the Site Settings page, in the Site Administration section, click Term store management.
4. In the TAXONOMY TERM STORE section, click the term set that you have enabled for faceted
navigation.
5. Click the FACETED NAVIGATION tab, and then click Customize refiners.
6. On the Refinement Configuration page, in the Available refiners section, use the buttons to
select which refiners should be added to the term set, and also to specify the order in which you
629
want the refiners to appear. If you have specified an alias for a refinable managed property, this
alias is displayed in the Configuration section.
7. In the Configuration for section, specify how you want each refiner to appear.
8. Click OK to close the Refinement Configuration page, and then click Save.
To add refiners to specific terms in a term set
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the authoring site collection.
2. On the authoring site collection, on the Settings menu, click Site settings.
3. On the Site Settings page, in the Site Administration section, click Term store management.
4. In the TAXONOMY TERM STORE section, click the term set that you have enabled for faceted
navigation, and then click the term to which you want to add term-specific refiners.
5. Click the FACETED NAVIGATION tab, and then click Stop inheriting.
6. Click FACETED NAVIGATION tab, and then click Customize refiners.
7. On the Refinement Configuration page, in the Available refiners section, use the buttons to
select which refiners should be added to the term set, and also to specify the order in which you
want the refiners to appear. If you have specified an alias for a refinable managed property, this
alias is displayed in the Configuration section.
8. In the Configuration for section, specify how you want each refiner to appear.
9. Click OK to close the Refinement Configuration page, and then click Save.
Set intervals for refiner values
For refiners that contain numeric values, you can present the numeric values within different
intervals. For example, if you want end-users to be able to refine based on price, it would be useful to
specify different price ranges instead of showing all available prices as separate refiners. This
procedure is performed in the authoring site collection.
To set ranges for refiner values
1. Add refiners to a term set as described in Add refiners to a term set earlier in this article.
2. On the Refinement Configuration page, in the Selected refiners section, click the refiner that
you want to set ranges for.
630
3. In the Configuration for section, for Intervals, select Custom, and then type the ranges in the
Thresholds box.
4. Click OK to close the Refinement Configuration page, and then click Save.
Additional steps
To show refiners on a page, you must add a Refinement Panel Web Part to the page where you want
the refiners to appear. For more information, see Configure Search Web Parts in SharePoint Server
2013.
Add JavaScript to a page to display refiners in the
correct format
To make sure that refiners that use the Number, Currency, Integer, and Date and Time data types are
displayed in the correct format, you can add JavaScript to the page where the refiners are displayed.
You can add the JavaScript by adding a Content Editor Web Part, which you then hide from being
displayed on the page.
Note that there are two methods depending on whether you are using the default display template,
Filter_Default, or another display template in your Refinement Web Part.
To add JavaScript to a page to display refiners in the correct format when you are using the default
display template
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page where the refiners are displayed.
3. Click the Settings menu, and then click Edit page.
4. In a Web Part Zone, click Add a Web Part.
5. In the Categories list, click Media and Content.
6. In the Parts list, click Content Editor, and then click Add.
7. In the Web Part, click Click here to add new content, and type one of the following two code
strings:
# To ensure correct refiner formatting by using type code:
Srch.ValueInfo.overrideRenderingForProperty( "<ManagedPropertyName>",
"Property<TypeCode>" );
631
# To ensure correct refiner formatting by using a managed properties that is
enabled as a refiner by default:
Srch.ValueInfo.overrideRenderingForProperty("<ManagedPropertyName>",
"<DefaultRefinableManagedProperty>");
Where:
<ManagedPropertyName> is the name of the managed property that is enabled as a
refiner, for example CreatedOWSDATE.
<TypeCode> is a seven letter code indicating the data type, for example OWSDATE. For
an overview of type codes, see Type codes.
<DefaultRefinableManagedProperty> is the name of a managed property that is enabled
as a refiner by default, for example RefinableDate00. For an overview of managed
properties that are enabled as refiners by default, see Managed properties that are
enabled as refiners by default.
8. In the Web Part, click the Content Editor Web Part Menu arrow, and then click Edit Web Part.
9. In the Web Part tool pane, expand the Layout section, and then select the check box Hidden.
10. Click OK.
To add JavaScript to a page to display refiners in the correct format when you are not using the
default display template
1. Verify that the user account that performs this procedure is a member of the Designers
SharePoint group on the publishing site collection.
2. Browse to the page where the refiners are displayed.
3. Click the Settings menu, and then click Edit page.
4. In a Web Part Zone, click Add a Web Part.
5. In the Categories list, click Media and Content.
6. In the Parts list, click Content Editor, and then click Add.
7. In the Web Part, click Click here to add new content, and then type the following code strings:
# To ensure correct refiner formatting by using type code:
Srch.ValueInfo.overrideRefinementTemplateForProperty("<ManagedPropertyNam
e>", "Property<TypeCode>", "~sitecollection/<PathToDisplayTemplate>" );
# To ensure correct refiner formatting by using a managed properties that is
enabled as a refiner by default:
Srch.ValueInfo.overrideRefinementTemplateForProperty("<ManagedPropertyName>",
632
"<DefaultRefinableManagedProperty>", "~sitecollection/<PathToDisplayTemplate>"
);
Where:
<ManagedPropertyName> is the name of the managed property that is enabled as a
refiner, for example CreatedOWSDATE.
<TypeCode> is a seven letter code indicating the data type, for example OWSDATE. For
an overview of type codes, see Type codes.
<DefaultRefinableManagedProperty> is the name of a managed property that is enabled
as a refiner by default, for example RefinableDate00. For an overview of managed
properties that are enabled as refiners by default, see Managed properties that are
enabled as refiners by default.
<PathToDisplayTemplate> is the path of the display template that you are using in the
Refinement Web Part, for example catalogs\masterpage\Display
Templates\Filters\MyDisplayTemplate.js.
8. In the Web Part, click the Content Editor Web Part Menu arrow, and then click Edit Web Part.
9. In the Web Part tool pane, expand the Layout section, and then select the check box Hidden.
10. Click OK.
Reference tables
Managed properties that are enabled as refiners by default
Managed property name
Data type for mapping.
RefinableDate00 - RefinableDate19
Values contain dates.
RefinableDecimal00 - RefinableDecimal09
Values contain numbers with maximum three
decimals.
RefinableDouble00 - RefinableDouble09
Values contain numbers with more than three
decimals.
RefinableInt00 - RefinableInt49
Values are whole numbers.
633
Managed property name
Data type for mapping.
RefinableString00 - RefinableString99
Values are strings. This includes values that use
the data type Text, Person or Group, Managed
Metadata, Choice and Yes/No
Type codes
Site column type
Type code
Example of managed property
name with type code
Number
OWSNMBR
ManagedPropertyNameOWSNMBR
Currency
OWSCURR
ManagedPropertyNameOWSCURR
Date and Time
OWSDATE
ManagedPropertyNameOWSDATE
Integer*
OWSINTG
ManagedPropertyNameOWSINTG
*Column creation not available through user interface.
See also
Configure Search Web Parts in SharePoint Server 2013
Automatically created managed properties in SharePoint Server 2013
Configure search for cross-site publishing
Blog post: Configure refiners for faceted navigation
634
Configure result sources for web content
management in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-06-17
Result sources limit searches to certain content or to a subset of search results. SharePoint Server
2013 provides 16 pre-defined result sources. The pre-configured default result source is Local
SharePoint Results. You can specify a different result source as the default. In addition to the pre-
configured result sources, SharePoint Server 2013 automatically creates a result source when you
connect a publishing site to a catalog, and adds it to the result sources in the publishing site. This
result source limits search results to the URL of the catalog. For more information about result
sources, see "Plan result sources and query rules" in Plan search for cross-site publishing sites in
SharePoint Server 2013.
In this article:
Before you begin
Create a result source
Set a result source as default
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
635
We recommend that you set up the publishing site, integrate a catalog, and configure category and
catalog item pages before you begin to create result sources. This is because you can then more easily
test and verify how the different result sources apply to the different Search Web Parts that you have
on the site.
Create a result source
You can create a result source for a Search service application, a site collection, or a site. The following
table shows the permissions that are required to create a result source at each level, and where the
result source can be used.
Levels and permissions for result sources
When you create a result
source at this level
You must have this
permission
The result source can be used
in
Search service application
Search service application
administrator
All site collections in web
applications that consume the
Search service application
Site collection
Site collection administrator
All sites in the site collection
Site
Site owner
The site
To create a result source
1. Depending on the level at which you want to create the result source, do one of the following:
To create a result source for a Search service application:
Verify that the user account that performs this procedure is an administrator on the
Search service application.
In Central Administration, in the Application Management section, click Manage
service application.
Click the Search service application for which you want to create a result source.
On the Search Administration page for the Search service application, on the Quick
Launch, in the Queries and Results section, click Result Sources.
636
To create a result source for a site collection:
Verify that the user account that performs this procedure is a site collection
administrator on the publishing site collection.
On the publishing site collection, on the Settings menu, click Site Settings.
On the Site Settings page, in the Site Collection Administration section, click
Search Result Sources.
To create a result source for a site:
Verify that the user account that performs this procedure is a member of the Owners
group on the publishing site.
On the publishing site, on the Settings menu, click Site Settings.
On the Site Settings page, in the Search section, click Result Sources.
2. On the Manage Result Sources page, click New Result Source.
3. On the Add Result Source page, in the General Information section, do the following:
a) In the Name box, type a name for the result source.
b) In the Description box, type a description of the result source.
4. In the Protocol section, select one of the following protocols for retrieving search results:
Local SharePoint, the default protocol, provides results from the search index for this
Search service application.
Remote SharePoint provides results from the index of a search service in another farm.
Important:
To use the Remote SharePoint protocol to get search results in one SharePoint Server 2013
on–premises farm from the index of another SharePoint Server 2013 on–premises farm, you
must configure the farm that receives the queries to trust the farm that sends the queries. For
information about how to do this, see Configure trust for search between two SharePoint
Server 2013 farms.
OpenSearch provides results from a search engine that uses the OpenSearch 1.0/1.1
protocol.
The Exchange protocol only enables you to discover Exchange Server 2013
contentvides results from Microsoft Exchange Server 2013 through a SharePoint 2013
eDiscovery Center. Click Use AutoDiscover to have the search system find an Exchange
637
Server 2013 endpoint automatically, or type the URL of the Exchange web service to
retrieve results from — for example, https://contoso.com/ews/exchange.asmx.
Note:
The Exchange protocol only enables you to discover Exchange Server 2013 content, and only
from a SharePoint 2013 eDiscovery Center. For more information, see "Configure
communication between SharePoint Server 2013 and Exchange Server 2013" in Configure
eDiscovery in SharePoint Server 2013.
The Exchange Web Services Managed API must be installed on the computer on which the
search service is running. For more information, see Optional software in Hardware and
software requirements for SharePoint 2013.
5. In the Type section, select SharePoint Search Results to search the whole index, or People
Search Results to enable query processing that is specific to people search.
6. In the Query Transform field, do one of the following:
Leave the default query transform (searchTerms) as is. In this case, the query will be
unchanged since the previous transform.
Type a different query transform in the text box.
Use the Query Builder to configure a query transform by doing the following:
Click Launch Query Builder.
In the Build Your Query dialog box, optionally build the query by specifying filters,
sorting, and testing on the tabs as shown in the following tables.
On the BASICS tab
Keyword filter
You can use keyword filters to add pre-defined query
variables to the query transform. You can select pre-defined
query variables from the drop-down list, and then add them
to the query by clicking Add keyword filter.
For an overview of query variables, see Query variables in
SharePoint Server 2013.
638
Property filter
You can use property filters to query the content of
managed properties that are set to queryable in the search
schema.
You can select managed properties from the Property filter
drop-down list. Click Add property filter to add the filter to
the query.
On the SORTING tab
Sort results
In the Sort by menu, you can select a managed property
from the list of managed properties that are set as sortable
in the search schema, and then select Descending or
Ascending. To sort by relevance, that is, to use a ranking
model, select Rank. You can click Add sort level to specify a
property for a secondary level of sorting for search results.
Note:
Sorting of search results is case sensitive.
Ranking Model
If you selected Rank from the Sort by list, you can select the
ranking model to use for sorting.
Dynamic ordering
You can click Add dynamic ordering rule to specify
additional ranking by adding rules that change the order of
results within the result block when certain conditions are
satisfied.
On the TEST tab
Query text
You can view the final query text, which is based on the
original query template, the applicable query rules, and the
variable values.
Click Show more to
display the options in the
following rows of this
table.
639
Query template
You can view the query as it is defined in the BASICS tab or
in the text box in the Query transform section on the Add
Result Source page.
Query template variables
You can test the query template by specifying values for the
query variables.
7. On the Add Result Source page, in the Credentials Information section, select the
authentication type that you want for users to connect to the result source.
Set a result source as default
You can set any result source as the default result source. Specifying a result source as default can
make it easier to edit the query in Search Web Parts. For example, when you add a Content Search
Web Part to a page, the Web Part automatically uses the default result source. For more information,
see Configure Search Web Parts in SharePoint Server 2013.
To set a result source as default
1. Perform the appropriate procedures in the following list depending on the level at which the
result source was configured.
If the result source was created at the Search service application level, do the following:
Verify that the user account that performs this procedure is an administrator for the
Search service application.
In Central Administration, in the Application Management section, click Manage
service applications.
Click the Search service application for which you want to set the result source as
default.
On the Search Administration page, in the Queries and Results section, click Result
Sources.
If the result source is at the site collection level, do the following:
Verify that the user account that performs this procedure is a site collection
administrator on the publishing site collection.
On the publishing site collection, on the Settings menu, click Site Settings.
640
On the Site Settings page, in the Site Collection Administration section, click
Search Result Sources.
If the result source is at the site level, do the following:
Verify that the user account that performs this procedure is a member of the Owners
group on the publishing site.
On the publishing site, on the Settings menu, click Site Settings.
On the Site Settings page, in the Search section, click Result Sources.
2. On the Manage Result Sources page, point to the result source that you want to set as default,
click the arrow that appears, and then click Set as Default.
See also
Configure Search Web Parts in SharePoint Server 2013
Query variables in SharePoint Server 2013
641
Create query rules for web content
management in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-04-11
Summary: Learn how to improve search results by creating and managing query rules.
Without using any custom code, Search service application administrators, site collection
administrators, and site owners can help searches respond to the intent of users by creating query
rules. In a query rule, you specify conditions and correlated actions. When a query meets the
conditions in a query rule, the search system performs the actions specified in the rule to improve the
relevance of the search results, such as by narrowing results or changing the order in which results are
displayed. For example, a query rule condition could be that a term in a query matches a particular
term in a SharePoint term set, or that a query is frequently performed on a particular result source in
a search system, such as videos. When the query rule condition is satisfied, a correlated action could
be to show a specific item at the top of the search results. Say you have an intranet site where all
company events are maintained in a library that you have shared as a catalog, and you want to
promote a first-aid seminar. To do this, you create a query rule that boosts the first-aid seminar to the
top of the search results when someone searches for "seminar" or "event."
You can configure query rules for one or more result sources, and you can specify the time period
during which the query rule is active.
For more information about query rules, see Plan result sources and query rules in Plan search for
cross-site publishing sites in SharePoint Server 2013.
In this article:
Before you begin
Creating query rules at different levels in a SharePoint farm
Create a query rule
Create and display a result block
Change ranked search results
Make a query rule inactive
Display promoted results in a Content Search Web Part
642
Rank query rules
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
We recommend that you set up your site, integrate a catalog, and set up your category pages and
catalog item pages before you begin to create query rules. This is because you can then more easily
test and verify how the different query rules apply to the different Search Web Parts you have on your
site.
Creating query rules at different levels in a SharePoint
farm
You can create a query rule for a Search service application, a site collection, or a site. The following
table shows the permissions that are required to create a query rule in each case, and where the
query rule can be used.
643
Levels and permissions for query rules
When you create a query rule
at this level
You must have this
permission
The query rule can be used in
Search service application
Search service application
administrator
All site collections in web
applications that consume the
Search service application
Site collection
Site collection administrator
All sites in the site collection
Site
Site owner
The site
To add or edit a query rule, you must go to the Manage query rules page. Depending on the level at
which you are creating the query rule, use one of the following procedures to go to the Manage query
rules page.
To go to the Manage query rules page for a Search service application
1. Verify that the user account that performs this procedure is an administrator for the Search
service application.
2. In Central Administration, in the Application Management section, click Manage service
applications.
3. Click the Search service application to which you want to add query rules.
4. On the Search Administration page for the Search service application, in the Quick Launch, in the
Queries and Results section, click Query Rules.
To go to the Manage query rules page for a publishing site collection
1. Verify that the user account that performs this procedure is a site collection administrator for the
publishing site collection.
2. On the publishing site collection, on the Settings menu, click Site Settings.
3. On the Site Settings page, in the Site Collection Administration section, click Search Query
Rules.
644
To go to the Manage query rules page for a site
1. Verify that the user account that performs this procedure is a member of the Owners group for
the site.
2. On the Settings menu for the site, click Site Settings.
3. On the Site Settings page, in the Site Administration section, click Query Rules.
Create a query rule
To create a query rule
1. On the Manage Query Rules page, in the Select a Result Source menu, select a result source for
the new query rule.
2. Click New Query Rule.
3. On the Add Query Rule page, in the General Information section, in the Rule name field, type
the name for the query rule.
4. Click to expand the Context section.
5. In the Context section, select one of the following:
To apply the query rule to all result sources, select All sources.
To apply the query rule to one or more specific result sources, select One of these
sources. By default, the result source that you specified in step 1 is selected. To add a
result source for the query rule, do the following:
Click Add Source. In the Add Source dialog box, select a result source, and then click
Save.
6. To restrict the query rule to categories —for example, that a query rule should fire only when a
term from your managed navigation term set is included in the query — click Show more
conditions, and then specify the following:
To restrict the query rule to a category, click Add category. In the Import from
Taxonomy dialog box, select a term that when you include it in a query will cause the
query rule to fire, and then click Save.
To restrict the query rule to a user segment, do the following:
Click Add User Segment.
In the Add User Segment dialog box, in the Title field, type the title for this rule.
645
In the Import from taxonomy dialog box, select a term that represents a user
segment that will cause the query rule to fire when it appears in a query.
Click Save
7. In the Query Conditions section, select one of the conditions listed in the following table.
Note:
When you create query rules for catalog pages that have Web Parts that use search
technology (described in this article as Search Web Parts), and you want the query that is
configured in the Web Parts to act as the query condition, click Remove Condition, and
then go to step 8. You should also do this if you want a query rule to fire every time that a
user types anything in a search box.
Query condition
Description
Configuration
Example
Query Matches
Keyword Exactly
Select this option if you
want the query rule to
fire when a query
exactly matches a word
or phrase that you
specify.
In the Query exactly
matches one of these
phrases text box, type
one or more phrases
separated by
semicolons.
You type "picture; pic"
in the Query contains
one of these phrases
box. The query rule will
fire when a user types
"picture" or "pic" in a
search box. The rule will
not fire if a user types
"pictures" or "sunny
picture."
646
Query condition
Description
Configuration
Example
Query Contains Action
Term
Select this option if you
want the query rule to
fire when a query
contains a term that
indicates something
that the user wants to
do. The term must be at
the beginning or end of
the query.
Specify the action term
that will cause the
query rule to fire by
doing one of the
following:
Select Action term
is one of these
phrases, and type
one or more
phrases.
Select Action term
is an entry in this
dictionary, and
then click Import
from taxonomy. In
the Import from
taxonomy dialog
box, select a term
from a term set,
and then click Save.
You type the word
"download" in the
Action term is one of
these phrases text
box. When a user types
"download Contoso
Electronics datasheet"
in a search box, the
user is probably not
searching for a
document that contains
the words "download,"
"Contoso,"
"Electronics," and
"datasheet." Instead,
the user is probably
trying to download a
Contoso Electronics
datasheet. When a user
types "download
Contoso Electronics
datasheet" in a search
box, the query rule
fires, and only the
words "Contoso,"
"Electronics," and
"datasheet" are passed
to the search index.
647
Query condition
Description
Configuration
Example
Query Matches
Dictionary Exactly
Select this option if you
want the query rule to
fire when the query
exactly matches a
dictionary entry.
From the Query
contains an entry in
this dictionary menu,
select a dictionary. To
specify a different
dictionary, click Import
from taxonomy, and
then from the Import
from taxonomy dialog
box, select a term from
a term set, and then
click Save.
In an Internet business
scenario, you have a
term set named Brands
that contains all brand
names within your
catalog. The query rule
will fire when a user
types a name that
matches a term from
the Brands term set.
Query More Common
in Source
Select this option if you
want the query rule to
fire if the query was
frequently issued by
users on a different
result source that you
specify.
In the Query is more
likely to be used in
this source menu,
select a result source.
In the Query is more
likely to be used in
this source menu, you
select Local Video
Results. The query rule
will fire if a user types
the word "training" in a
search box and that
word was frequently
typed in a search box in
the Videos vertical.
648
Query condition
Description
Configuration
Example
Result Type
Commonly Clicked
Select this option if you
want the query rule to
fire if other users
frequently clicked a
particular result type
after they typed the
same query.
In the Commonly
clicked results match
result type menu,
select a result type.
In an Internet business
scenario, you have a
catalog of electronic
products. Each product
has a PDF datasheet. So
when users query for a
specific product, the
search results will
return two result types:
one that links to the
page that has the
product details, and
one that links to the
PDF datasheet. You can
create a query rule that
will fire if the system
over time recognizes
that users frequently
click the search result
for the PDF datasheet.
When you know the
type of content the user
is looking for, you can
specify an action for
this query rule.
Advanced Query Text
Match
Select this option if you
want to use a regular
expression, a phrase, or
a dictionary entry that
will cause the query
rule to fire.
To match all phone
numbers that are in a
certain format, you
specify a regular
expression in the Query
matches this regular
expression box.
To match all phone
numbers that are in the
format nnn-nnn-nnnn,
you specify the regular
expression
"\(?(\d{3})\)?-?(\d{3})-
(\d{4})".
To add conditions, click Add Alternate Conditions.
Note:
The rule will fire when any condition is true.
649
8. In the Actions section, specify the action to take when the query rule fires. Specify one of the
following:
To promote individual results so that they appear towards the top of search results, click
Add Promoted Result (in SharePoint 2010 Products this was called Best Bets). In the Add
Promoted Result dialog box, in the Title field, type the name that you want to give this
promoted result. In the URL field, type the URL of the result that should be promoted.
Render the URL as a banner instead of as a hyperlink. Click Save.
You can add several individual promoted results. When there is more than one promoted
result, you can specify the relative ranking.
To promote a group of search results, click Add Result Block. For more information, see
Create and display a result block later in this article.
To change ranked search results, click Change ranked results by changing the query.
For more information, see Change ranked search results later in this article.
9. To make the query rule active during a particular time period, click Publishing, and then specify
the period.
Create and display a result block
A result block is several search results that are displayed as a group. In the same manner as you can
promote a specific result, you can promote a result block when a specified query condition applies.
For example, you can create a result block named Yellow items for all catalog items that have the color
yellow. In an Internet business scenario where you have a catalog of electronic products and you want
to promote yellow mp3 players, you can create a query rule that fires for all items that are tagged
with the term mp3 players, where the action is to display the result block Yellow items.
Result blocks are automatically displayed in the Search Results Web Part. To display results from a
result block in a Content Search Web Part, you have to configure it to display the result block.
When you configure the query condition for a result block, you can use query variables. Query
variables are placeholders for values that you don't know when you specify the query. However, when
the query is run, this information is known and can be used when the system sends the query to the
index. Examples are {User.Name}, which represents the display name of the user who typed the
query, or {searchBoxQuery}, which represents the query that a user typed in a search box. When you
use Query Builder to configure the query, a list of query variables is shown. (See step 3 in the
following procedure.)
650
To create a result block
1. In step 8 of the previous procedure, on the Add Query Rule page, in the Actions section, click
Add Result Block.
2. In the Block Title section, in the Title field, type a name for the result block.
3. In the Query section, to specify the query, click Launch Query Builder. In Query Builder, specify
the following:
On the BASIC tab, select options from the following lists to define the query for the result
block:
Select a query
Select a result source to specify which content should
be searched.
Keyword filter
You can use keyword filters to add query variables to
your query. See Query variables in SharePoint Server
2013 for a list of available query variables.
You can select pre-defined query variables from the
drop-down list, and then add them to the query by
clicking Add keyword filter.
Property filter
You can use property filters to query the content of
managed properties that are set to queryable in the
search schema.
You can select managed properties from the Property
filter drop-down list. Click Add property filter to add
the filter to the query.
On the SORTING tab, you can specify how search results within your result block should
be sorted. In the Sort by drop-down list:
To sort by managed properties that are set as sortable in the search schema, select a
managed property from the list, and then select Descending or Ascending. To add more
sorting levels, click Add sort level.
Note:
Sorting of search results is case sensitive.
To sort by relevance rank, select Rank, and then do the following:
651
In the Ranking Model list, select which ranking model to use for sorting search results
(this selection is optional).
In the Dynamic ordering section, to specify additional ranking by adding rules that will
change the order of search results when certain conditions apply, click Add dynamic
ordering rule, and then specify conditional rules.
On the TEST tab, you can preview the query that is sent.
Query text
Shows the final query that will be run by the Content
Search Web Part. It is based on the original query
template where dynamic variables are substituted with
current values. Other changes to the query may have
to be made as part of query rules.
Click Show more to display additional information.
Query template
Shows the content of the query template that is
applied to the query.
Query template variables
Shows the query variables that will be applied to the
query, and the values of the variables that apply to the
current page. You can type other values to test the
effect they will have on the query. Click the Test Query
button to preview the search results.
4. In the Query section, in the Configure Query box, in the Search this Source drop-down list,
select the result source to which this result block should be applied.
5. In the Query section, in the Items drop-down list, select how many results to show in the result
block.
6. Click to expand the Settings section.
The result block will only display the number of search results that you specified in the previous
step. However, you can add a SHOW MORE link at the bottom of the result block that will show
all search results for the result block. To add a SHOW MORE link, select "More" link goes to the
following URL, and then type a URL. You can use query variables in this URL — for example,
http://www.<site>/search/results.aspx?k={subjectTerms}.
7. In the Routing section, in the field under Label for routing to a Content Search Web Part, type
a label for routing the result block to a Content Search Web Part, or select an existing label. You
652
will use this label in the following procedure, To configure a Content Search Web Part to display a
result block.
8. Click OK.
To configure a Content Search Web Part to display a result block
1. Add a Content Search Web Part to a page as described in "Add a Content Search Web Part to a
page" in Configure Search Web Parts in SharePoint Server 2013.
2. In the Web Part, click the Content Search Web Part Menu arrow, and then click Edit Web Part.
3. In the Web Part tool pane, in the Properties section, expand the Settings section.
4. In the Settings section, from the Result Table list, select the label of the result block that you
want to display. The label is what you specified in step 7 in the previous procedure, To create a
result block.
5. To use the query results that are returned from another Web Part on the page as input when
displaying the result block, from the Query results provided by list, select a Web Part.
Note:
When displaying a result block in a Content Search Web Part, paging of search results is not
supported through the Control Display Template.
Display promoted results in a Content Search Web Part
To display promoted results in a Content Search Web Part
1. Add a Content Search Web Part to a page as described in "Add a Content Search Web Part to a
page" in Configure Search Web Parts in SharePoint Server 2013.
2. In the Web Part, click the Content Search Web Part Menu arrow, and then click Edit Web Part.
3. In the Web Part tool pane, in the Properties section, expand the Settings section.
4. In the Settings section, in the Result Table list, select SpecialTermResults.
Change ranked search results
The ranking model calculates a ranking order of search results. You can change this ranking by
promoting or demoting items within the search results. For example, for a query that contains
"download toolbox," you can create a query rule that recognizes the word "download" as an action
term, and change the ranked search results to promote a URL of a particular download site on your
653
intranet. You can also change the sorting order of the search results dynamically, based on several
variables such as file name extension or specific keywords. Changing ranked search results by
changing the query has the advantage that the results are security trimmed and refinable. Moreover,
the search results will not appear if the document is no longer available.
To change ranked search results by changing the query
1. From step 8 of the procedure Create a query rule, on the Add Query Rule page, in the Actions
section, click Change ranked results by changing the query.
2. In the Build Your Query dialog box, specify the following:
On the BASIC tab, select options from the following lists to change ranked search results:
Select a query
Select a result source to specify which content should
be searched.
Keyword filter
You can use keyword filters to add query variables to
your query. See Query variables in SharePoint Server
2013 for a list of available query variables.
You can select pre-defined query variables from the
drop-down list, and then add them to the query by
clicking Add keyword filter.
Property filter
You can use property filters to query the content of
managed properties that are set to queryable in the
search schema.
You can select managed properties from the Property
filter drop-down list. Click Add property filter to add
the filter to the query.
On the SORTING tab, you can specify how search results should be sorted by doing the
following:
In the Sort by drop-down list:
To sort by managed properties that are set as sortable in the search schema, select a
managed property from the list, and then select Descending or Ascending. To add more
sorting levels, click Add sort level.
Note:
Sorting of search results is case sensitive.
654
To sort by relevance rank, select Rank, and then do the following:
In the Ranking Model list, select which ranking model to use for sorting search results
(this selection is optional).
In the Dynamic ordering section, to specify additional ranking by adding rules that will
change the order of search results when certain conditions apply, click Add dynamic
ordering rule, and then specify conditional rules.
On the TEST tab, you can preview the query.
Query text
Shows the final query that will be run by the Content
Search Web Part. It is based on the original query
template where dynamic variables are substituted
with current values. Other changes to the query may
have to be made as part of query rules.
Click Show more to display additional information.
Query template
Shows the content of the query template that is
applied to the query.
Query template variables
Shows the query variables that will be applied to the
query, and the values of the variables that apply to
the current page. You can type other values to test
the effect they will have on the query. Click the Test
Query button to preview the search results.
Make a query rule inactive
Query rules that are created at the Search service application level are inherited by site collections
and sites that are in web applications that consume the Search service application. Similarly, query
rules that are created at the site collection level are inherited by sites in the site collection. If you don't
want a query rule to apply to a site that inherits it, you can set the query rule as inactive for the site.
To make a query rule inactive on a site
1. Verify that the user account that performs this procedure is a member of the Owners group on
the publishing site.
2. On the publishing site collection, on the Settings menu, click Site Settings.
3. In the site collection, in the Settings menu, click Site Settings.
655
4. On the Site Settings page, in the Search section, click Query Rules.
5. On the Manage Query Rules page, on the Select a Result Source menu, select the result source
that contains the query rule that you want to make inactive.
6. In the Name column, point to the query rule that you want to make inactive, click the arrow that
appears, and then click Make Inactive.
Rank query rules
When multiple query rules are active for a Search service application, a site collection, or a site, more
than one rule can fire for a query that is performed at that level. By default, the rules do not fire in a
prescribed order. You can control the order in which the rules fire by adding the query rules that you
create to query groups. To do this, you select rules to add to a group, and then you specify the order
in which the rules in the group will fire if they are triggered. You can also prevent query rules that rank
lowest in a group from firing even if they are triggered.
To rank query rules for a site collection
1. Verify that the user account that performs this procedure is a site collection administrator for the
publishing site collection.
2. On the publishing site collection, on the Settings menu, click Site Settings.
3. On the Site Settings page, in the Site Collection Administration section, click Search Query
Rules.
4. On the Manage Query Rules page, on the Select a Result Source menu, select the result source
that contains the query rules that you want to group.
5. For each query rule that you created that you want to add to a group, point to the rule and select
the check box.
Note:
Query rules that you created for this site collection are listed in the Defined for this site
collection section.
6. Click Order Selected Rules.
7. In the Order Selected Rules dialog box, do either of the following, and then click OK:
Select Move rules to new group with this name, and then type a name for the group.
Select Move rules to existing group and select a group in the drop-down list.
656
8. On the Manage Query Rules page, do the following:
a) To change the order in which a rule in a group will fire if it is triggered, change the numeric
order of the rule.
b) To prevent query rules that are ranked lowest in the group from firing, in the row for the
group's query rule that should fire last, in the Actions column, in the Continue/Stop drop-
down list, select Stop.
See also
Plan to transform queries and order results in SharePoint 2013
Query variables in SharePoint Server 2013
657
Configure recommendations and usage
event types in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-10-22
Usage events enable you to track how users interact with items on your site. Items can be documents,
sites, or catalog items. When a user interacts with an item on your site, SharePoint Server 2013
generates a usage event for this action. For example, if you want to monitor how often a catalog item
is viewed from a mobile phone, you can track this activity.
This article describes how to create custom usage event types, and how to add code to record custom
usage events so that they can be processed by the analytics processing component.
You can use the data that is generated by usage events to show recommendations or popular items
on your site. This article also explains how to influence how recommendations are shown by changing
the level of importance for a specific usage event type. For more information, see "Plan usage
analytics, usage events and recommendations" in Plan search for cross-site publishing sites in
SharePoint Server 2013.
You can view the statistics for all usage event types in Popularity Trends and Most Popular Items
reports. For more information, see View usage reports in SharePoint Server 2013.
In this article:
Before you begin
Create a custom usage event type
Record a custom usage event
Record a default usage event
Change the level of importance of a usage event type
Change the Recent time period for a usage event type
Enable and disable the logging of usage events of anonymous users
Get SiteId GUID and WebId GUID for a site
658
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Create a custom usage event type
There are three default usage event types in SharePoint 2013. You can create up to twelve custom
usage event types by using Windows PowerShell.
To create a custom usage event type
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
659
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To get a site at the root site collection level:
$Site = Get-SPSite "http://localhost"
# To get a site below the root site collection level:
$Site = Get-SPSite "http://localhost/sites/<SiteName>"
# To create a custom usage event type:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$EventGuid = [Guid]::NewGuid()
$EventName = "<EventTypeName>"
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
$newEventType = $tenantConfig.RegisterEventType($EventGuid, $EventName, "")
$tenantConfig.Update($SSP)
Where:
<SiteName> is the name of the site for which you want to create a custom usage event.
<EventTypeName> is the name of the new custom usage event type that you want to
create — for example, BuyEventType.
This procedure creates a random GUID for the usage event type. Use this GUID when you
add code to record the custom usage event, as described in Record a custom usage event.
Important:
It can take up to three hours for a custom usage event type to become available in the system.
However, to speed up the process, you can alternatively restart the SharePoint Timer Service.
660
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
Record a custom usage event
After you have created a custom usage event type, as described in Create a custom usage event type,
you have to add code to the place where the event occurs — for example, when a page loads, or when
a user clicks a link or a button. This data is then sent to the analytics processing component, where it
is recorded and processed.
If you are using cross-site publishing, where you show catalog content on a publishing site, you must
record the usage event on the URL of the indexed item, and override some site settings. For example,
if you have a catalog in an authoring site that you have published on a publishing site, when a user
interacts with a catalog item on the publishing site, this usage event must be recorded on the item in
the authoring site. Furthermore, the code that you add to record the usage event must override the
SiteId and the WebId of the publishing site, and be replaced with the SiteId and the WebId of the
authoring site.
To add code to record a custom usage event
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
661
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To view GUIDs for all usage event types:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$SSP.GetAnalyticsEventTypeDefinitions([Guid]::Empty, 3) | ft
4. In an HTML editor, open the file where the custom usage event should be logged — for example, a
display template for a Content Search Web Part, and add the following code:
window.Log<CustomUsageEventType>ToEventStore = function(url)
{
ExecuteOrDelayUntilScriptLoaded(function()
{
var spClientContext = SP.ClientContext.get_current();
var eventGuid = new SP.Guid("<GUID>");
SP.Analytics.AnalyticsUsageEntry.logAnalyticsAppEvent(spClientContext,
eventGuid, url);
spClientContext.executeQueryAsync(null,
Function.createDelegate(this, function(sender, e){ alert("Failed to log
event for item: " + document.URL + " due to: " + e.get_message()) }));
}, "SP.js");
}
<CustomUsageEventType> is the name of the custom event — for example,
BuyEventType.
<GUID> is the numeric ID of the usage event type — for example, 4e605543-63cf-4b5f-
aab6-99a10b8fb257.
5. In an HTML editor, open the file that refers to the custom usage event, and add the following
code:
662
# The example below shows how a custom usage event type is referred to
when a button is clicked:
<button
onclick="Log<CustomUsageEventType>ToEventStore('<URL>')"></button>
Where:
<CustomUsageEventType> is the name of the custom event type.
<URL> is the full URL of the item to which the usage event should be logged — for
example, http://contoso.com/faq.
To add code to record a custom usage event and override site settings
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
663
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To view GUIDs for all usage event types:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$SSP.GetAnalyticsEventTypeDefinitions([Guid]::Empty, 3) | ft
4. In an HTML editor, open the file where the custom usage event should be logged — for example, a
display template for a Content Search Web Part. The following example shows how to override
the current SiteId, WebId and UserId.
window.Log<CustomUsageEventType>ToEventStore = function(url, siteIdGuid,
webIdGuid, spUser)
{
ExecuteOrDelayUntilScriptLoaded(function()
{
var spClientContext = SP.ClientContext.get_current();
var eventGuid = new SP.Guid("<GUID>");
SP.Analytics.AnalyticsUsageEntry.logAnalyticsAppEvent2(spClientContext,
eventGuid, url, webIdGuid, siteIdGuid, spUser);
spClientContext.executeQueryAsync(null,
Function.createDelegate(this, function(sender, e){ alert("Failed to log
event for item: " + document.URL + " due to: " + e.get_message()) }));
}, "SP.js");
}
Where:
<CustomUsageEventType> is the name of the custom event type — for example,
BuyEventType.
<GUID> is the numeric ID of the usage event type — for example, 4e605543-63cf-4b5f-
aab6-99a10b8fb257.
5. In an HTML editor, open the file that refers to the custom usage event type, and add the following
code:
# The example below shows how a custom usage event type is referred to
when the "Buy!" button is clicked:
<button onclick="Log<CustomUsageEventType>ToEventStore('<URL>', new
SP.Guid('{<SiteId GUID>}'), new SP.Guid('{<WebId GUID>}'),
'<UserName>')">Buy!</button>
664
Where:
<CustomUsageEventType> is the name of the custom event type — for example,
BuyEventType.
<URL> is the URL found in the managed property OriginalPath.
<SiteId GUID> is the SiteId GUID of the authoring site. For information about how to get
the SiteId GUID, see Get SiteId GUID and WebId GUID for a site.
<WebId GUID> is the WebId GUID of the authoring site. For information about how to get
the WebId GUID, see Get SiteId GUID and WebId GUID for a site.
<UserName> can be a cookie ID that is used to identify users on a site that has anonymous
users.
Record a default usage event
If you want to add code that refers to a default usage event type — for example, views, you have to
add code to the place where the event occurs.
If you are using cross-site publishing, which shows catalog content on a publishing site, you must
record the usage event on the URL of the indexed item, and override some site settings. For example,
if you have a catalog in an authoring site that you have published on a publishing site, when a user
interacts with a catalog item on the publishing site, this usage event must be recorded on the item in
the authoring site. Furthermore, the code that you add to record the usage event must override the
SiteId and WebId of the publishing site, and be replaced with the SiteId and WebId of the authoring
site.
To add code to record a default usage event
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
665
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To view EventTypeId for all usage event types:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$SSP.GetAnalyticsEventTypeDefinitions([Guid]::Empty, 3) | ft
4. In an HTML editor, open the file where the custom usage event should be logged — for example, a
display template for a Content Search Web Part, and add the following code:
window.Log<DefaultUsageEventType>ToEventStore = function(url)
{
ExecuteOrDelayUntilScriptLoaded(function()
{
var spClientContext = SP.ClientContext.get_current();
SP.Analytics.AnalyticsUsageEntry.logAnalyticsEvent(spClientContext,
<EventTypeId>, url);
spClientContext.executeQueryAsync(null,
Function.createDelegate(this, function(sender, e){ alert("Failed to log
event for item: " + document.URL + " due to: " + e.get_message()) }));
}, "SP.js");
}
666
Where:
<DefaultUsageEventType> is the name of the default usage event type — for example,
Views.
<EventTypeId> is the numeric ID of the usage event type — for example, 1.
5. In an HTML editor, open the file that refers to the default usage event, and add the following
code:
# The example below shows how a default usage event type is referred to
on a page load:
<body onload="Log<DefaultUsageEventType>ToEventStore('<URL>')">
Where:
<DefaultUsageEventType> is the name of the default usage event type — for example,
Views.
<URL> is the full URL of the item to which the usage event should be logged, — for
example, http://contoso.com/careers
6. Save the file.
To add code to record a default usage event and override site settings
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
667
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To view EventTypeId for all usage event types:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$SSP.GetAnalyticsEventTypeDefinitions([Guid]::Empty, 3) | ft
4. In an HTML editor, open the file where the custom usage event should be logged — for example, a
display template for a Content Search Web Part. The example below shows how to override the
current SiteId, the WebId and the UserId.
window.Log<DefaultUsageEventType>ToEventStore = function(url, siteIdGuid,
webIdGuid, spUser)
{
ExecuteOrDelayUntilScriptLoaded(function()
{
var spClientContext = SP.ClientContext.get_current();
SP.Analytics.AnalyticsUsageEntry.logAnalyticsEvent(spClientContext,
<EventTypeId>, url, webIdGuid, siteIdGuid, spUser);
spClientContext.executeQueryAsync(null, Function.createDelegate(this,
function(sender, e){ alert("Failed to log event for item: " +
document.URL + " due to: " + e.get_message()) }));
}, "SP.js");
}
Where:
<DefaultUsageEventType> is the name of the default event type — for example, Views.
<EventTypeId> is the numeric ID of the usage event type — for example, 1.
668
5. In an HTML editor, open the file that refers to the default usage event type, and add the following
code:
# The example below shows how a default usage event type is referred to
on a page load:
<body onload="Log<DefaultUsageEventType>ToEventStore('<URL>', new
SP.Guid('{<SiteId GUID>}'), new SP.Guid('{<WebId GUID>}'),
'<UserName>')">
Where:
<DefaultUsageEventType> is the name of the default event type — for example, Views.
<URL> is the URL in the managed property OriginalPath.
<SiteId GUID> is the SiteId GUID of the authoring site. For information on how to get the
SiteId GUID, see Get SiteId GUID and WebId GUID for a site.
<WebId GUID> is the WebId GUID of the authoring site. For information on how to get the
WebId GUID, see Get SiteId GUID and WebId GUID for a site.
<UserName> can be a cookie ID that is used to identify users on a site that has anonymous
users, for example.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
Change the level of importance of a usage event type
The usage event type property, RecommendationWeight, is a numeric value that shows the level of
importance of a usage event type compared to other usage event types that are used in the
recommendations calculation. The default Views usage event type has a preconfigured
RecommendationWeight value of 1. The other default usage event types, Recommendations
displayed, and Recommendations clicked, and all custom usage event types, have a
RecommendationWeight value of 0. To increase the importance of a usage event type in the
recommendations calculation, change the value of the RecommendationWeight parameter. The
highest level of importance available is 10.
To change the level of importance of a usage event type
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
669
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To view EventTypeId for all usage event types:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$SSP.GetAnalyticsEventTypeDefinitions([Guid]::Empty, 3) | ft
# To get a usage event type:
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
$event = $tenantConfig.EventTypeDefinitions | where-object { $_.EventTypeId -eq
<EventTypeId> }
# To change the importance level of a usage event type:
$event.RecommendationWeight = <RecommendationWeightNumber>
$tenantConfig.Update($SSP)
# To verify the changed importance level for the usage event type:
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
670
$event = $tenantConfig.EventTypeDefinitions | where-object { $_.EventTypeId -eq
<EventTypeId> }
$event
Where:
<EventTypeId> is the numeric ID of the usage event type for which you want to change
the weight — for example, 256.
<RecommendationWeightNumber> is the level of importance that you want to apply to
the user event type — for example, 4.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
Change the Recent time period for a usage event type
The usage event type property RecentPopularityTimeframe is a numeric value that defines the
Recent time period in the Most Popular Items report. The Most Popular Items report shows the most
popular items per usage event type for all items in a library or list — for example, the most viewed
items in a library or list. The report can be sorted by the time periods Recent or Ever. By default, the
Recent time period is set to the last 14 days for each usage event. You can change this to a time
period between one and 14 days.
To change the Recent time period for a usage event type
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
671
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To view EventTypeId for all usage event types:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$SSP.GetAnalyticsEventTypeDefinitions([Guid]::Empty, 3) | ft
# To get a usage event type:
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
$event = $tenantConfig.EventTypeDefinitions | where-object { $_.EventTypeId -eq
<EventTypeId> }
# To change the Recent time span for a usage event type:
$event.RecentPopularityTimeFrame = <TimeFrame>
$tenantConfig.Update($SSP)
# To verify the changed Recent time frame for the usage event type:
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
$event = $tenantConfig.EventTypeDefinitions | where-object { $_.EventTypeId -eq
<EventTypeId> }
$event
Where:
<EventTypeId> is the numeric ID of the usage event type for which you want to change
the Recent time frame — for example, 256.
672
<TimeFrame> is the new Recent time frame that you want to apply to the user event type
— for example, 7.
Note:
The system updates any changes to the Recent time period only after the Usage Analytics
Timer Job has run.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
Enable and disable the logging of usage events of
anonymous users
Users that are browsing the contents of a site without being connected to an account are known as
anonymous users. Only the Views event type is enabled for the logging of anonymous users. By
default, the logging of custom usage events is disabled for anonymous users.
To enable the logging of usage events of anonymous users
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
673
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To view EventTypeId for all usage event types:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$SSP.GetAnalyticsEventTypeDefinitions([Guid]::Empty, 3) | ft
# To get a usage event type:
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
$event = $tenantConfig.EventTypeDefinitions | where-object { $_.EventTypeId -eq
<EventTypeId> }
# To enable the logging of anonymous users:
$event.Options =
[Microsoft.Office.Server.Search.Analytics.EventOptions]::AllowAnonymousWrite
$tenantConfig.Update($SSP)
# To verify that the logging of anonymous users has been enabled, i.e. that the
Options property is set to AllowAnonymousWrite:
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
$event = $tenantConfig.EventTypeDefinitions | where-object { $_.EventTypeId -eq
<EventTypeId> }
$event
Where:
<EventTypeId> is the numeric ID of the usage event type that you want to enable for the
logging of anonymous users — for example, 256.
To disable the logging of usage events of anonymous users
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
674
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To view EventTypeId for all usage event types:
$SSP = Get-SPEnterpriseSearchServiceApplicationProxy
$SSP.GetAnalyticsEventTypeDefinitions([Guid]::Empty, 3) | ft
# To get a usage event type:
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
$event = $tenantConfig.EventTypeDefinitions | where-object { $_.EventTypeId -eq
<EventTypeId> }
# To disable the logging of anonymous users:
$event.Options = [Microsoft.Office.Server.Search.Analytics.EventOptions]::None
$tenantConfig.Update($SSP)
# To verify that logging of anonymous users has been disabled, i.e. that the
Options property is set to None:
$tenantConfig = $SSP.GetAnalyticsTenantConfiguration([Guid]::Empty)
675
Where:
<EventTypeId> is the numeric ID of the usage event type that you want to disable for the
logging of anonymous users — for example, 256.
Note:
For the default usage event type Views, you cannot disable the logging of anonymous users.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
Get SiteId GUID and WebId GUID for a site
You can use the following PowerShell commands to get the SiteId GUID and the WebId GUID for a site.
To get SiteId GUID and WebId GUID for a site
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
676
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
# To get the SiteId GUID and the WebId GUID for a root site collection:
$site = Get-SPSite "<RootSiteURL>"
$web = $site.RootWeb
$site.id
$web.id
# To get the WebId GUID for a site below the root site collection:
$site = Get-SPSite "<RootSiteURL>"
$web = $site.OpenWeb("<SubSiteLocation>")
$web.id
Where:
<RootSiteURL> is the URL of the root site that you want to get the SiteId GUID and the
WebId GUID of — for example, http://contoso.com/sites/catalog.
<SubSiteLocation> is the remainder of the URL path to the subsite after the root site URL.
For example, if your root site URL is http://contoso.com/sites/catalog, and your subsite URL
is http://contoso.com/sites/catalog/products, type products for this placeholder.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
See also
View usage reports in SharePoint Server 2013
How to display recommendations and popular items on a SharePoint Server 2013 site
677
Configure workflow in SharePoint Server
2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to install and configure the SharePoint 2013 Workflow platform in SharePoint
Server 2013. This section includes step-by-step procedures and videos.
This section describes how to configure workflow in SharePoint Server 2013.
In this section:
Install and configure workflow for SharePoint Server 2013 This article describes how to install and
configure the SharePoint 2013 Workflow platform to work with SharePoint Server.
Install Workflow Manager certificates in SharePoint Server 2013 Secure Sockets Layer (SSL)
certificates are used to provide encrypted communication between SharePoint Server 2013 and
Workflow Manager. This article describes how to install the SSL certificates.
Update Workflow in SharePoint Server 2013 This article describes the process for updating
Workflow Manager and SharePoint Server with Cumulative Updates.
Video series: Install and configure Workflow in SharePoint Server 2013 This article contains a six-
part series that walks through the process of installing and configuring the SharePoint 2013
Workflow Platform by using Secure Sockets Layer (SSL).
678
Install and configure workflow for
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-08-06
Summary: Learn how to install and configure workflow in SharePoint Server 2013.
This article contains the information and procedures required to configure workflow in SharePoint
Server 2013.
In this article:
Overview
Before you begin
Install and configure SharePoint Server 2013
Install and configure Workflow Manager
Configure Workflow Manager to work with the SharePoint Server 2013 farm
Validate the installation
Troubleshooting
Important:
The steps in this article apply to SharePoint Server 2013. The SharePoint 2013 Workflow
platform is not supported in SharePoint Foundation 2013.
Note:
You can watch a video series that walks through the process of installing and configuring the
SharePoint Server 2013 Workflow platform. To view the videos, see Video series: Install and
configure Workflow in SharePoint Server 2013
Overview
A new option exists when you build a workflow for SharePoint Server 2013. This option is called
Platform Type. The figure shows the Platform Type option when you are creating a new workflow by
using SharePoint Designer 2013.
679
Figure: SharePoint 2013 includes three workflow platform options.
The only platform available when you first install SharePoint Server 2013 is the SharePoint 2010
Workflow platform. The SharePoint 2013 Workflow platform and the Project Server platform require
additional steps. The three workflow platforms are outlined in the following table.
Workflow Platform types available in SharePoint Server 2013
Platform Type
Platform Framework
Requirements
SharePoint 2010 Workflow
Windows Workflow Foundation
3
Installs automatically with
SharePoint 2013 Products.
680
Platform Type
Platform Framework
Requirements
SharePoint 2013 Workflow
Windows Workflow Foundation
4
Requires SharePoint Server 2013
and Workflow Manager.
Note:
Workflow Manager
must be downloaded
and installed separately
from SharePoint Server
2013. It does not install
automatically when you
install SharePoint Server
2013.
SharePoint 2013 Workflow –
Project Server
Windows Workflow Foundation
4
Requires SharePoint Server
2013, Workflow Manager, and
Project Server 2013.
To learn more about workflow development with SharePoint Designer 2013 and other aspects of
workflow, see the Workflow in SharePoint 2013 Resource Center.
Before you begin
Before you begin installation, make sure that you have met all hardware and software requirements
for both SharePoint Server 2013 and Workflow Manager. For more information, see Hardware and
software requirements for SharePoint 2013.
Important:
The steps in this article apply to SharePoint Server 2013. The SharePoint 2013 Workflow
platform is not supported in SharePoint Foundation 2013.
Install and configure SharePoint Server 2013
You must install and configure SharePoint Server 2013. To do so, see Install and deploy SharePoint
2013.
681
Note:
The SharePoint 2010 Workflow platform installs automatically when you install SharePoint
Server 2013. The SharePoint 2013 Workflow platform requires Workflow Manager and must
be installed separately and then configured to work with your SharePoint Server 2013 farm.
Install and configure Workflow Manager
You must install and configure Workflow Manager. To do so, see Installing and Configuring Workflow
Manager 1.0.
Configure Workflow Manager to work with the
SharePoint Server 2013 farm
You must consider the following two key factors before configuring Workflow Manager to work with
SharePoint Server 2013.
Is Workflow Manager installed on a server that is part of the SharePoint farm?
Will communication between Workflow Manager and SharePoint Server 2013 use HTTP or
HTTPS?
These factors translate into four scenarios. Each scenario configures a SharePoint Server 2013 farm to
communicate and function with the Workflow Manager farm. Follow the scenario that matches your
circumstance.
1: Workflow Manager is installed on a server that
is part of the SharePoint 2013 farm.
Communication takes place by using HTTP.
2: Workflow Manager is installed on a server that
is part of the SharePoint 2013 farm.
Communication takes place by using HTTPS.
3: Workflow Manager is installed on a server that
is NOT part of the SharePoint 2013 farm.
Communication takes place by using HTTP.
4: Workflow Manager is installed on a server that
is NOT part of the SharePoint 2013 farm.
Communication takes place by using HTTPS.
Note:
For security reasons, we recommend HTTPS for a production environment.
682
Tip:
For information about least-privilege configuration, see Least Privilege Configuration for
Workflow Manager with SharePoint Server 2013.
To configure Workflow Manager on a server that is part of the SharePoint 2013 farm and on which
communication takes place by using HTTP
1. Log on to the computer in the SharePoint Server 2013 farm where Workflow Manager was
installed.
2. Open the SharePoint Management Shell as an administrator. This is accomplished by right-clicking
the SharePoint 2013 Management Shell and choosing Run as administrator.
3. Run the Register-SPWorkflowService cmdlet.
Example:
Register-SPWorkflowService -SPSite "http://myserver/mysitecollection" -
WorkflowHostUri "http://workflow.example.com:12291" -AllowOAuthHttp
4. Log on to each server in the SharePoint Server 2013 farm.
Each server in the SharePoint Server 2013 farm must have the Workflow Manager Client installed.
Note:
When you install Workflow Manager on a server it automatically installs the Workflow
Manager Client on that server. You will still need to install the Workflow Manager Client
on any additional servers. For example, if you have a farm that contains five servers and
you install Workflow Manager on one of those servers you will still need to install the
Workflow Manager Client on the four additional servers.
5. Install the Workflow Manager Client on each server in the SharePoint farm.
Download and install the Workflow Manager Client here:
http://go.microsoft.com/fwlink/p/?LinkID=268376
To configure Workflow Manager on a server that is part of the SharePoint 2013 farm and on which
communication takes place by using HTTPS
1. Determine if you need to install Workflow Manager certificates in SharePoint.
Under some circumstances, you have to obtain and install Workflow Manager certificates. If your
installation requires that you obtain and install these certificates, you must complete that step
before continuing. To learn whether you need to install certificates, and for instructions, see Install
Workflow Manager certificates in SharePoint Server 2013.
683
2. Log into the computer in the SharePoint Server 2013 farm where Workflow Manager was
installed.
3. Open the SharePoint Management Shell as an administrator. This is accomplished by right-clicking
the SharePoint 2013 Management Shell and choosing Run as administrator.
4. Run the Register-SPWorkflowService cmdlet.
Example:
Register-SPWorkflowService -SPSite "https://myserver/mysitecollection" -
WorkflowHostUri "https://workflow.example.com:12290"
5. Log on to each server in the SharePoint Server 2013 farm.
Each server in the SharePoint Server 2013 farm must have the Workflow Manager Client installed.
Note:
When you install Workflow Manager on a server it automatically installs the Workflow
Manager Client on that server. You will still have to install the Workflow Manager Client
on any additional servers. For example, if you have a farm that contains five servers and
you install Workflow Manager on one of those servers you will still need to install the
Workflow Manager Client on the four additional servers.
6. Install the Workflow Manager Client on each server in the SharePoint farm.
Download and install the Workflow Manager Client here:
http://go.microsoft.com/fwlink/p/?LinkID=268376
To configure Workflow Manager on a server that is NOT part of the SharePoint 2013 farm and on
which communication takes place by using HTTP
1. Log on to each server in the SharePoint Server 2013 farm.
2. Install the Workflow Manager Client on each server in the SharePoint farm.
Before you can run the workflow pairing cmdlet, you must install Workflow Manager Client on
each of the servers in the SharePoint farm.
Download and install the Workflow Manager Client here:
http://go.microsoft.com/fwlink/p/?LinkID=268376
3. Open the SharePoint Management Shell as an administrator. This is accomplished by right-clicking
the SharePoint 2013 Management Shell command and choosing Run as administrator.
4. Run the Register-SPWorkflowService cmdlet. The cmdlet should be run only once and can be
run from any of the servers in the SharePoint farm.
684
Example:
Register-SPWorkflowService -SPSite "http://myserver/mysitecollection" -
WorkflowHostUri "http://workflow.example.com:12291" -AllowOAuthHttp
Important:
You must install the Workflow Manager Client on each server in the SharePoint farm
before you run the pairing cmdlet.
To configure Workflow Manager on a server that is NOT part of the SharePoint 2013 farm and on
which communication takes place by using HTTPS
1. Determine whether you need to install Workflow Manager certificates in SharePoint 2013.
Under some circumstances, you have to obtain and install Workflow Manager certificates. If your
installation requires that you obtain and install these certificates, you must complete that step
before continuing. To learn whether you need to install certificates, and for instructions, see Install
Workflow Manager certificates in SharePoint Server 2013.
2. Log on to each server in the SharePoint Server 2013 farm.
3. Install the Workflow Manager Client on each server in the SharePoint farm.
Before you can run the workflow pairing cmdlet, you must install Workflow Manager Client on
each of the servers in the SharePoint farm.
Download and install the Workflow Manager Client here:
http://go.microsoft.com/fwlink/p/?LinkID=268376
4. Open the SharePoint Management Shell as an administrator. This is accomplished by right-clicking
the SharePoint 2013 Management Shell command and choosing Run as administrator.
5. Run the Register-SPWorkflowService cmdlet.
Example:
Register-SPWorkflowService -SPSite "https://myserver/mysitecollection" -
WorkflowHostUri "https://workflow.example.com:12290"
Important:
You must install the Workflow Manager Client on each server in the SharePoint farm
before you run the pairing cmdlet.
685
Validate the installation
Use these steps to validate that you have successfully installed and configured the required
components.
To validate the installation
1. Add a user to your SharePoint site, and grant the user Site Designer permissions.
2. Install SharePoint Designer 2013 and create a workflow based on the SharePoint 2013 Workflow
platform. For more information, see Creating a workflow by using SharePoint Designer 2013 and
the SharePoint 2013 Workflow platform.
3. Run this workflow from the SharePoint user interface.
Troubleshooting
For security reasons, the Setup account cannot be used to create a workflow based on the SharePoint
2013 Workflow platform. If you try to create a workflow based on the SharePoint 2013 Workflow
platform by using SharePoint Designer 2013, you receive a warning that the list of workflow actions do
not exist, and the workflow is not created.
The user who deploys and runs a workflow must be added to the User Profile service. Check the User
Profile service application page in Central Administration to confirm that the user you are using to
validate workflow installation is in the User Profile service.
You can determine which ports SharePoint Server 2013 and Workflow Manager are using for both
HTTP and HTTPS by using IIS Manager as shown in the figure.
Figure: Use IIS Manager to view the ports used by Workflow Manager
686
Workflow Manager communicates by using TCP/IP or Named Pipes. Make sure that the appropriate
communication protocol is enabled on the SQL Server instance that hosts the Workflow Manager
databases.
The SQL Browser Service must be running on the SQL Server instance that hosts the Workflow
Manager databases.
The System Account cannot be used to develop a workflow.
To troubleshoot SharePoint Server 2013, see Troubleshooting SharePoint 2013.
See also
Installation and Deployment for SharePoint 2013 Resource Center
What's New in SharePoint 2013 Resource Center
Workflow Resource Center
687
Install Workflow Manager certificates in
SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to configure SSL certificates for encrypted communication between Workflow
Manager and SharePoint Server 2013.
Secure Socket Layer (SSL) is an encrypted communication protocol which uses encryption certificates.
Workflow Manager and SharePoint Server 2013 can communicate in a secure manor using SSL. This
article describes the steps required to setup and configure SSL certificates.
Configuration steps
The following sections provide instructions for configuring SSL communication with Workflow
Manager and SharePoint Server 2013.
Enable SSL
Enable Secure Sockets Layer (SSL) in IIS Manager. For guidance on completing the configuration, see
the following:
Configuring SSL in IIS Manager
How to Set Up SSL on IIS 7
Install Workflow Manager certificates in SharePoint
Under some circumstances, you must obtain and install Workflow Manager "issuer" certificates on
SharePoint Server 2013. Here are the circumstances where you must install Workflow Manager
certificates:
1. If SSL is enabled either on SharePoint Server 2013 (which is not the default) or on Workflow
Manager (which is the default), AND
2. If SharePoint Server 2013 and Workflow Manager do not share a Certificate Authority, AND
3. If Workflow Manager is configured to generate self-signed certificates (which is the default).
688
Note:
Product trial, workflow development, and troubleshooting are easier if SSL is not enabled.
However, communication between SharePoint Server 2013 and Workflow Manager is not
encrypted if SSL is not enabled. For this reason, SSL should be enabled for production
configurations.
To obtain and export certificates from the Workflow Manager server
1. On a computer that has Workflow Manager installed, choose IIS Manager, Sites. Right-click
Workflow Management Site, and then choose Edit Bindings.
2. Choose the https port, and then choose Edit. Choose the View button in the SSL Certificate
section.
3. To export the issuer certificate, do the following:
a) In the Certificate window, choose the Certification path tab.
b) Select root certification path and choose View.
c) On the Details tab, choose Export Certificate, and take the default options in the export
wizard.
d) Give the exported certificate file a friendly name.
To install certificates on SharePoint Server 2013
1. Copy the issuer certificate to your SharePoint Server 2013 computer.
2. Add the certificates to the Windows Certificate store.
3. For each certificate, do the following:
a) Double-click the file to open and view the certificate.
b) On the certificate, choose the Install Certificate button to start the installation wizard.
c) In the wizard, choose Place all certificates in the following store, and then choose
Trusted Root Certification Authorities.
4. Add the certificates to SharePoint Server by going to the SharePoint Management shell and
running the New-SPTrustedRootAuthority cmdlet. Do this for each certificate file.
See also
Installation and Deployment for SharePoint 2013 (Resource Center)
690
Video series: Install and configure
Workflow in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-07-08
Summary: Videos that demonstrate the installation and configuration of workflow in SharePoint
Server 2013.
This six-part video series walks through the installation and configuration of the SharePoint 2013
Workflow Platform where communication between the SharePoint farm and the Workflow farm is
using Secure Sockets Layer (SSL).
In this article:
Episode 1: Installation overview
Episode 2: Pre-install steps
Episode 3: Install and configure Workflow Manager
Episode 4: Install and configure Workflow Manager Client
Episode 5: Configure the SharePoint farm with the workflow farm
Episode 6: Test workflow
Episode 1: Installation overview
This video provides an overview of the installation and configuration process for Workflow in
SharePoint Server 2013. (time: 1:15)
This video provides an overview of the installation and configuration process for Workflow in
SharePoint Server 2013.
691
Episode 2: Pre-install steps
This video provides a walkthrough of the pre-install steps that must be completed before installing
and configuring Workflow in SharePoint Server 2013. (time: 5:12)
This video provides a walkthrough of the pre-install steps that must be completed before
installing and configuring Workflow in SharePoint Server 2013.
Episode 3: Install and configure Workflow Manager
This video provides a walkthrough of the installation and configuration of Workflow Manager. (time:
10:15)
This video provides a walkthrough of the installation and configuration of Workflow Manager.
Episode 4: Install and configure Workflow Manager
Client
This video provides a walkthrough of the installation of the Workflow Manager Client in the
SharePoint farm. (time: 3:40)
This video provides a walkthrough of the installation of the Workflow Manager Client in the
SharePoint farm.
Episode 5: Configure the SharePoint farm with the
workflow farm
This video provides a walkthrough on how to pair the SharePoint farm with the Workflow farm in
order to enable the SharePoint 2013 Workflow Platform. (time: 3:00)
692
This video provides a walkthrough on how to pair the SharePoint farm with the Workflow farm in
order to enable the SharePoint 2013 Workflow Platform.
Episode 6: Test workflow
This video provides a walkthrough of testing the SharePoint 2013 Workflow Platform by using
SharePoint Designer 2013 once it has been installed. (time: 7:43)
This video provides a walkthrough of testing the SharePoint 2013 Workflow Platform using
SharePoint Designer 2013 once it has been installed.
See also
Getting started with SharePoint Server 2013 workflow
Workflow in SharePoint Server 2013 Resource Center
Workflow development in SharePoint Designer 2013 and Visio 2013
Workflow Manager
693
Create a web application in SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: SharePoint 2013 web applications isolate content for specific types of users within your
site collections.
The following downloadable resources, articles on TechNet, and related resources provide
information about how to create web applications.
Introduction
A SharePoint 2013 web application is composed of an Internet Information Services (IIS) web site that
acts as a logical unit for the site collections that you create. Before you can create a site collection, you
must first create a Web application. Each web application is represented by a different IIS web site
with a unique or shared application pool. You can assign each web application a unique domain name.
This helps prevent cross-site scripting attacks. When you create a new web application, you also
create a new content database and define the authentication method used to connect to the
database. In addition, you define an authentication method to be used by the IIS Web site in
SharePoint 2013.
TechNet articles about how to create web applications
The following articles about how to create web applications are available to view online. Writers
update articles on a continuing basis as new information becomes available and as users provide
feedback.
Content
Description
Create web applications that use
classic mode authentication in
SharePoint 2013
Explains how to create a web
application that uses classic
mode (Windows-classic)
authentication in SharePoint
2013.
694
Content
Description
Create claims-based web
applications in SharePoint 2013
Illustrates how to create
SharePoint 2013 web
applications that use claims-
based authentication or classic-
mode authentication.
Configure basic authentication
for a claims-based web
application in SharePoint 2013
Explains how to configure basic
authentication for a web
application that uses claims-
based authentication in
SharePoint 2013.
Configure digest authentication
for a claims-based web
application in SharePoint 2013
Explains how to configure digest
authentication for a web
application that uses claims-
based authentication in
SharePoint 2013.
Edit general settings on a web
application in SharePoint 2013
Illustrates how to change
general settings for a SharePoint
2013 web application in Central
Administration.
695
Create web applications that use classic
mode authentication in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-09
Summary: Learn how to create a web application that uses classic mode (Windows-classic)
authentication in SharePoint 2013.
In SharePoint 2013, claims-based authentication is the default and preferred method of user
authentication and is required to take advantage of server-to-server authentication and app
authentication. In Central Administration, you can only configure claims-based authentication when
you manage web applications. You can also use Windows PowerShell cmdlets. The use of classic mode
authentication, also known as Windows classic authentication, is discouraged in SharePoint 2013 and
you can only create or configure web applications for classic mode authentication with Windows
PowerShell cmdlets.
Important:
Office Web Apps can be used only by SharePoint 2013 web applications that use claims-based
authentication. Office Web Apps rendering and editing will not work on SharePoint 2013 web
applications that use classic mode authentication. If you migrate SharePoint 2010 web
applications that use classic mode authentication to SharePoint 2013, you must migrate them
to claims-based authentication to allow them to work with Office Web Apps. For more
information, see Use Office Web Apps with SharePoint 2013.
To use Windows claims-based authentication instead (recommended), see Create claims-based web
applications in SharePoint 2013. To convert a web application that uses classic mode to use claims-
based authentication, see Migrate from classic-mode to claims-based authentication in SharePoint
2013.
Important:
The steps in this article apply to both SharePoint Foundation 2013 and SharePoint Server
2013.
Before you begin
Before you perform this procedure, confirm the following:
Your system is running SharePoint 2013.
696
You have determined the design of your logical architecture.
For additional information, see Logical architecture components in SharePoint Server 2013.
You have planned authentication for your web application.
For additional information, see Plan for user authentication methods in SharePoint 2013.
If you use Secure Sockets Layer (SSL), you must associate the SSL certificate with the web
application's IIS website after the IIS website is created. For more information about how to set up
SSL, see How to Setup SSL on IIS 7.0. SSL is required by default for web applications that are used
in server-to-server authentication and app authentication scenarios.
You understand host-named site collections.
For more information, see Host-named site collection architecture and deployment (SharePoint
2013).
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
Create a web application that uses classic mode
authentication with Windows PowerShell
Perform the following procedure to use Windows PowerShell to create a web application that uses
classic mode authentication.
To create a web application that uses classic mode authentication with Windows PowerShell
1. Verify that you have the following memberships:
697
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 Products cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
3. At the Windows PowerShell command prompt, type the following command:
New-SPWebApplication -Name
<Name>
-ApplicationPool
<ApplicationPool>
-
AuthenticationMethod
<WindowsAuthType>
-ApplicationPoolAccount
<ApplicationPoolAccount>
-Port
<Port>
-URL
<URL>
Where:
<Name> is the name of the new web application.
<ApplicationPool> is the name of the application pool.
698
< WindowsAuthType > is either “NTLM” or “Kerberos”. Kerberos is recommended.
<ApplicationPoolAccount> is the user account that this application pool will run as.
<Port> is the port on which the web application will be created in IIS.
<URL> is the public URL for the web application.
Example
New-SPWebApplication -Name "Contoso Internet Site" -ApplicationPool
"ContosoAppPool" -AuthenticationMethod "Kerberos" -
ApplicationPoolAccount (Get-SPManagedAccount "CONTOSO\jdoe") -Port
80 -URL "https://www.contoso.com"
For more information, see New-SPWebApplication.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
After this procedure is complete, you can create one or more site collections for this web application.
For more information, see Create a site collection in SharePoint 2013.
After you successfully create the web application, when you open the Central Administration page,
you see a health rule warning that indicates that one or more web applications is enabled with classic
authentication mode. This is a reflection of our recommendation to use claims-based authentication
instead of classic mode authentication.
See also
Create claims-based web applications in SharePoint 2013
Plan for user authentication methods in SharePoint 2013
Configure Web Server Security (IIS 7)
699
Create claims-based web applications in
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Illustrates how to create SharePoint 2013 web applications that use claims-based
authentication or classic-mode authentication.
Claims-based authentication is a requirement to enable the advanced functionality of SharePoint
2013. This article explains how to use either Central Administration or Windows PowerShell to create
a SharePoint 2013 web application that uses claims-based authentication. Claims-based
authentication is a requirement for web applications that are deployed in scenarios that support
server-to-server authentication and app authentication. However, this article also provides guidance
for using Windows PowerShell to create classic-mode web applications if you have a specific scenario
that cannot support claims-based authentication. Be aware that classic-mode authentication is
deprecated in this release, and it will not be available in the next version. For more information, see
Plan for server-to-server authentication in SharePoint 2013
Important:
Secure Sockets Layer (SSL) is a requirement for web applications that are deployed in
scenarios that support server-to-server authentication and app authentication.
You can create a web application by using the SharePoint Central Administration website or Windows
PowerShell. You typically use Windows PowerShell to create a web application. If you want to
automate the task of creating a web application, which is common in enterprises, use Windows
PowerShell. After you complete the procedure, you can create one or several site collections.
In this article:
Create a claims-based web application by using Central Administration
Create a claims-based web application by using Windows PowerShell
Create a classic-mode web application by using Windows PowerShell
Note:
The steps in this article apply to both SharePoint Foundation 2013 and SharePoint Server
2013.
700
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint Products
Keyboard shortcuts
Touch
Create a claims-based web application by using
Central Administration
Use the procedure described in this section to create a new claims-based SharePoint 2013 web
application using the Central Administration.
To create a claims-based web application by using Central Administration
1. Verify that you have the following administrative credentials:
To create a web application, you must be a member of the Farm Administrators
SharePoint group.
2. Start SharePoint 2013 Central Administration.
For Windows Server 2008 R2:
Click Start, click Microsoft SharePoint 2013 Products, and then click SharePoint 2013
Central Administration.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Central Administration.
If SharePoint 2013 Central Administration is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Central
Administration.
701
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
3. On the Central Administration Home page, click Application Management.
4. On the Application Management page, in the Web Applications section, click Manage web
applications.
5. In the Contribute group of the ribbon, click New.
6. On the Create New Web Application page, in the IIS Web Site section, you can configure the
settings for your new web application by selecting one of the following two options:
Click Use an existing IIS web site, and then select the web site on which to install your
new web application.
Click Create a new IIS web site, and then type the name of the web site in the Name box.
In the Port box, type the port number you want to use to access the web application. If
you are using an existing web site, this field contains the current port number.
Note:
The default port number for HTTP access is 80, and the default port number for HTTPS access
is 443.
Optional: In the IIS Web Site section, in the Host Header box, type the host name (for
example, www.contoso.com) that you want to use to access the web application.
Note:
You do not need to populate this field unless you want to configure two or more IIS web sites
that share the same port number on the same server, and DNS has been configured to route
requests to the same server.
In the Path box, type the path to the IIS web site home directory on the server. If you are
creating a new web site, this field contains a suggested path. If you are using an existing
web site, this field contains the current path of that web site.
7. In the Security Configuration section, choose whether or not to Allow Anonymous access and
whether or not to Use Secure Sockets Layer (SSL).
Important:
Secure Sockets Layer (SSL) is a requirement for web applications that are deployed in
scenarios that support server-to-server authentication and app authentication. In general,
we strongly recommend using SSL for web applications.
702
In the Security Configuration section, click Yes or No for the Allow Anonymous
options. If you choose to Yes, visitors can use the computer-specific anonymous access
account (that is, IIS_IUSRS) to access the web site.
Note:
If you want users to be able to access any site content anonymously, you must enable
anonymous access for the entire web application zone before you enable anonymous access
at the SharePoint site level. Later, site owners can configure anonymous access for their sites.
If you do not enable anonymous access at the web application level, site owners cannot
enable anonymous access at the site level.
In the Security Configuration section, click Yes or No for the Use Secure Sockets Layer
(SSL) options. If you choose Yes, you must request and install an SSL certificate to
configure SSL. For more information about how to set up SSL, see How to Setup SSL on
IIS 7.0.
8. In the Claims Authentication Types section, select the authentication method that you want to
use for the web application.
To enable Windows authentication, select Enable Windows Authentication and, in the
drop-down menu, select NTLM or Negotiate (Kerberos). We recommend using Negotiate
(Kerberos).
If you do not want to use Integrated Windows authentication, clear Integrated Windows
authentication.
Note:
If you do not select Windows Authentication for at least one zone of this web application,
crawling for this web application will be disabled.
If you want users' credentials to be sent over a network in a nonencrypted form, select
Basic authentication (credentials are sent in clear text).
Note:
You can select basic authentication or integrated Windows authentication, or both. If you
select both, SharePoint 2013 offers both authentication types to the client web browser. The
client web browser then determines which type of authentication to use. If you only select
Basic authentication, ensure that SSL is enabled. Otherwise, a malicious user can intercept
credentials.
To enable forms-based authentication, select Enable Forms Based Authentication
(FBA), and then enter the ASP.NET Membership provider name and the ASP.NET Role
manager name.
703
Note:
If you select this option, ensure that SSL is enabled. Otherwise, a malicious user can intercept
credentials.
If you have set up Trusted Identity Provider authentication by using Windows PowerShell,
the Trusted Identity provider check box is selected.
9. In the Sign In Page URL section, choose one of the following options to sign into SharePoint
2013:
Select Default Sign In Page URL to redirect users to a default sign-in web site for claims-
based authentication.
Select Custom Sign In page URL and then type the sign-in URL to redirect users to a
customized sign-in web site for claims-based authentication.
10. In the Public URL section, type the URL for the domain name for all sites that users will access in
this web application. This URL will be used as the base URL in links that are shown on pages within
the web application. The default URL is the current server name and port, and it is automatically
updated to reflect the current SSL, host header, and port number settings on the page. If you
deploy SharePoint 2013 behind a load balancer or proxy server, then this URL may need to be
different than the SSL, host header, and port settings on this page.
The Zone value is automatically set to Default for a new web application. You can change the
zone when you extend a web application.
11. In the Application Pool section, do one of the following:
Click Use existing application pool, and then select the application pool that you want to
use from the drop-down menu.
Click Create a new application pool, and then type the name of the new application
pool, or keep the default name.
Click Predefined to use a predefined security account for this application pool, and then
select the security account from the drop-down menu.
Click Configurable to specify a new security account to be used for an existing application
pool.
Note:
To create a new account, click the Register new managed account link.
12. In the Database Name and Authentication section, choose the database server, database name,
and authentication method for your new web application, as described in the following table.
704
Item
Action
Database Server
Type the name of the database server and SQL Server instance
you want to use in the format <SERVERNAME\instance>. You
can also use the default entry.
Database Name
Type the name of the database, or use the default entry.
Database Authentication
Select the database authentication to use by doing one of the
following:
To use Windows authentication, leave this option selected.
We recommend this option because Windows
authentication automatically encrypts the password when
it connects to SQL Server.
To use SQL authentication, click SQL authentication. In
the Account box, type the name of the account that you
want the web application to use to authenticate to the SQL
Server database, and then type the password in the
Password box.
Note:
SQL authentication sends the SQL authentication
password to SQL Server in an unencrypted format.
We recommend that you only use SQL
authentication if you force protocol encryption to
SQL Server to encrypt your network traffic by using
IPsec.
13. If you use database mirroring, in the Failover Server section, in the Failover Database Server
box, type the name of a specific failover database server that you want to associate with a content
database
14. In the Service Application Connections section, select the service application connections that
will be available to the web application. In the drop-down menu, click default or [custom]. You
use the [custom] option to choose the service application connections that you want to use for
the web application.
15. In the Customer Experience Improvement Program section, click Yes or No.
16. Click OK to create the new web application.
705
Create a claims-based web application by using
Windows PowerShell
Use the procedure in this section to create a new claims-based SharePoint 2013 web application using
Windows PowerShell.
To create a claims-based web application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running Windows PowerShell
cmdlets.
You must read about_Execution_Policies.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 15 Products cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. To create a claims-based authentication provider, from the Windows PowerShell command
prompt, type the following:
$ap = New-SPAuthenticationProvider
3. To create a claims-based web application, from the Windows PowerShell command prompt, type
the following:
New-SPWebApplication -Name <Name>
-ApplicationPool <ApplicationPool>
-ApplicationPoolAccount <ApplicationPoolAccount>
-URL <URL> -Port <Port> -AuthenticationProvider $ap
Where:
<Name> is the name of the new web application that uses claims-based authentication.
<ApplicationPool> is the name of the application pool.
706
<ApplicationPoolAccount> is the user account that this application pool will run as.
<URL> is the public URL for this web application.
<Port> is the port on which the web application will be created in IIS.
Note:
For more information, see New-SPWebApplication.
The following example creates an https claims-based web application, using the current
user credentials and the current machine name:
$ap = New-SPAuthenticationProvider
New-SPWebApplication -Name "Contoso Internet Site" -URL
"https://www.contoso.com" -Port 80
-ApplicationPool "ContosoAppPool"
-ApplicationPoolAccount (Get-SPManagedAccount "DOMAIN\jdoe")
-AuthenticationProvider $ap -SecureSocketsLayer
Note:
After you have created the web site, you must configure SSL in IIS for this newly created web
site. For more information about how to set up SSL, see How to Setup SSL on IIS 7.0.
Create a classic-mode web application by using
Windows PowerShell
Use the procedure in this section to create a new classic-mode SharePoint 2013 web application using
Windows PowerShell.
To create a classic-mode web application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running Windows PowerShell
cmdlets.
You must read about_Execution_Policies.
2. From the Windows PowerShell command prompt, type the following:
New-SPWebApplication -Name <Name>
-ApplicationPool <ApplicationPool>
707
-AuthenticationMethod <WindowsAuthType>
-ApplicationPoolAccount <ApplicationPoolAccount>
-Port <Port> -URL <URL>
Where:
<Name> is the name of the new web application that uses classic-mode authentication.
<ApplicationPool> is the name of the application pool.
<WindowsAuthType> is either “NTLM” or “Kerberos”. Kerberos is recommended.
<ApplicationPoolAccount> is the user account that this application pool will run as.
<Port> is the port on which the web application will be created in IIS.
<URL> is the public URL for the web application.
Note:
For more information, see New-SPWebApplication.
Note:
After you successfully create the web application, when you open the Central Administration
page, you see a health rule warning that indicates that one or more web applications is
enabled with classic authentication mode. This is a reflection of our recommendation to use
claims-based authentication instead of classic mode authentication.
See also
Create web applications that use classic mode authentication in SharePoint 2013
Extend claims-based web applications in SharePoint 2013
Install and deploy SharePoint 2013 for IT Pros Resource Center
708
Configure basic authentication for a
claims-based web application in SharePoint
2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to configure basic authentication for a web application that uses claims-based
authentication in SharePoint 2013.
You can configure basic authentication for one or more zones in a SharePoint 2013 claims-based web
application. A web application is an Internet Information Services (IIS) web site that SharePoint 2013
creates and uses. Zones represent different logical paths for gaining access to the network services
that are available within the same web application. Within each web application, you can create up to
five zones. A different web site in IIS represents each zone. Use zones to enforce different access and
policy conditions for large groups of users. To configure basic authentication for one or more zones in
a SharePoint 2013 web application, use IIS Manager console, instead of SharePoint Central
Administration.
Before you begin
Before you perform this procedure, confirm the following:
Your system is running SharePoint 2013.
Basic authentication requires previously assigned Windows account credentials for user access.
You understand basic authentication for web traffic.
Basic authentication enables a web browser to provide credentials when the browser makes a
request during an HTTP transaction. Because user credentials are not encrypted for network
transmission but are sent over the network in plaintext, we do not recommend that you use basic
authentication over an unsecured HTTP connection. To use basic authentication, you should
enable Secure Sockets Layer (SSL) encryption for the web site; otherwise, the credentials can be
intercepted by a malicious user.
709
Note:
Because SharePoint 2013 runs as websites in IIS, administrators and users depend on the
accessibility features that browsers provide. SharePoint 2013 supports the accessibility
features of supported browsers. For more information, see the following resources:
Plan browser support (http://go.microsoft.com/fwlink/p/?LinkId=246502)
Accessibility for SharePoint 2013
Accessibility features in SharePoint Products
(http://go.microsoft.com/fwlink/p/?LinkId=246501)
Keyboard shortcuts (http://go.microsoft.com/fwlink/p/?LinkID=246504)
Touch (http://go.microsoft.com/fwlink/p/?LinkId=246506)
Configure IIS to enable basic authentication
Use the IIS Manager console to configure IIS to enable basic authentication for one or more of the
following zones for a claims-based web application:
Default
Intranet
Extranet
The Default zone is the zone that is first created when a web application is created. The other zones
are created by extending a web application. For more information, see Extend claims-based web
applications in SharePoint 2013.
To configure IIS to enable basic authentication
1. Verify that you a member of the Administrators group on the server on which you are configuring
IIS.
2. Click Start, point to Administrative Tools, and then click Internet Information Services (IIS)
Manager to start IIS Manager console.
3. Expand Sites in the console tree, and then click the IIS web site that corresponds to the web
application zone on which you want to configure basic authentication.
4. In Features View, in IIS, double-click Authentication.
5. In Features View, in Authentication, right-click Basic Authentication, and then click Enable.
710
6. Right-click Basic Authentication, and then click Edit.
7. In the Edit Basic Authentication Settings dialog box, in the Default domain text box, type the
appropriate default domain.
The default domain is the name of a domain against which you want users to be authenticated
when they do not provide a domain name.
8. In the Realm text box, type the appropriate realm, and then click OK.
The realm is a DNS domain name or an IP address that will use the credentials that are
authenticated against your internal Windows domain. Configuring a realm name for basic
authentication is optional.
The web site is now configured to use basic authentication.
You can also configure basic authentication when you create a web application in SharePoint Central
Administration by selecting Basic authentication (password is sent in clear text) in the Claims
Authentication Types section of the Create New Web Application dialog box. For more information,
see Create claims-based web applications in SharePoint 2013.
Security
In the Claims Authentication Types section of the Create New Web Application dialog box,
you can select Integrated Windows authentication, Basic authentication (password is sent in
clear text), or both. If you select both, SharePoint 2013 will offer both authentication types to
the client web browser. The client web browser then determines the type of authentication to
use. If you only select Basic authentication (password is sent in clear text), make sure that
you enable SSL for this web application.
See also
Configure digest authentication for a claims-based web application in SharePoint 2013
Plan for user authentication methods in SharePoint 2013
Extend claims-based web applications in SharePoint 2013
711
Configure digest authentication for a
claims-based web application in SharePoint
2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to configure digest authentication for a web application that uses claims-based
authentication in SharePoint 2013.
You can configure digest authentication for one or more zones in a SharePoint 2013 claims-based web
application. A web application is an Internet Information Services (IIS) web site that SharePoint 2013
creates and uses. Zones represent different logical paths for gaining access to the same web
application. Within each web application, you can create up to five zones. A different web site in IIS
represents each zone. Use zones to enforce different access and policy conditions for large groups of
users. To configure digest authentication for one or more zones in a SharePoint 2013 web application,
use IIS Manager console instead of SharePoint Central Administration.
Unlike basic authentication, digest authentication encrypts user credentials to increase security. User
credentials are sent as an MD5 message digest in which the original user name and password cannot
be determined. Digest authentication uses a challenge/response protocol that requires the
authentication requestor to present valid credentials in response to a challenge from the server. To
authenticate against the server, the client has to supply an MD5 message digest in a response that
contains a shared secret password string. The MD5 Message-Digest Algorithm is described in RFC
1321. For access to RFC 1321, see The Internet Engineering Task Force
(http://go.microsoft.com/fwlink/p/?LinkId=159913).
Before you begin
Before you perform this procedure, confirm the following:
Your system is running SharePoint 2013.
The user and IIS server must be members of, or trusted by, the same domain.
Users must have a valid Windows user account stored in Active Directory Domain Services (AD DS)
on the domain controller.
712
The domain must use a Windows Server 2008 or Windows Server 2008 R2 domain controller.
You understand digest authentication for web traffic.
For more information, see What is Digest Authentication?
(http://go.microsoft.com/fwlink/p/?LinkId=209085).
Note:
Because SharePoint 2013 runs as websites in IIS, administrators and users depend on the
accessibility features that browsers provide. SharePoint 2013 supports the accessibility
features of supported browsers. For more information, see the following resources:
Plan browser support (http://go.microsoft.com/fwlink/p/?LinkId=246502)
Accessibility for SharePoint 2013
Accessibility features in SharePoint Products
(http://go.microsoft.com/fwlink/p/?LinkId=246501)
Keyboard shortcuts (http://go.microsoft.com/fwlink/p/?LinkID=246504)
Touch (http://go.microsoft.com/fwlink/p/?LinkId=246506)
Configure IIS to enable digest authentication
Use IIS Manager console to configure IIS to enable digest authentication for one or more of the
following zones for a claims-based web application:
Default
Intranet
Extranet
The Default zone is the zone that is first created when a web application is created. The other zones
are created by extending a web application. For more information, see Extend claims-based web
applications in SharePoint 2013.
To configure IIS to enable digest authentication
1. Verify that you are a member of the Administrators group on the server on which you are
configuring IIS.
2. Click Start, point to Administrative Tools, and then click Internet Information Services (IIS)
Manager to start IIS Manager console.
713
3. Expand Sites in the console tree, and then click the IIS web site that corresponds to the web
application zone on which you want to configure digest authentication.
4. In Features View, in IIS, double-click Authentication.
5. In Features View, in Authentication, right-click Digest Authentication, and then click Enable.
6. Right-click Digest Authentication, and then click Edit.
7. In the Edit Digest Authentication Settings dialog box, in the Realm text box, type the
appropriate realm, and then click OK.
The realm is a DNS domain name or an IP address that will use the credentials that have been
authenticated against your internal Windows domain. You must configure a realm name for digest
authentication.
The web site is now configured to use digest authentication.
See also
Configure basic authentication for a claims-based web application in SharePoint 2013
Plan for user authentication methods in SharePoint 2013
Extend claims-based web applications in SharePoint 2013
714
Edit general settings on a web application
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-10-22
Summary: Illustrates how to make changes to general settings for a SharePoint 2013 web application
in Central Administration.
Note:
The steps in this article apply to both SharePoint Foundation 2013 and SharePoint Server
2013.
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint Products
Keyboard shortcuts
Touch
Edit a web application by using Central Administration
Use the procedure described in this section to edit a SharePoint 2013 web application using the
Central Administration.
To edit a web application by using Central Administration
1. Verify that you have the following administrative credentials:
To edit a web application, you must be a member of the Farm Administrators SharePoint
group.
2. Start SharePoint 2013 Central Administration.
715
For Windows Server 2008 R2:
Click Start, click Microsoft SharePoint 2013 Products, and then click SharePoint 2013
Central Administration.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Central Administration.
If SharePoint 2013 Central Administration is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Central
Administration.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. On the Central Administration home page, click Application Management.
4. On the Application Management page, in the Web Applications section, click Manage web
applications.
5. Click on the web application that you want to edit.
6. In the ribbon, from the WEB APPLICATIONS tab, click General Settings, and do the following:
To change the default time zone for sites that are created on the web application, in the
Default Time Zone section, from the Select time zone drop-down list, select a time zone.
To change the user settings provider for sites that are created on the web application, in
the User Settings Provider section, from the Select User Settings Provider drop-down
list, select a user settings provider.
To change the default quota template for site collections created on the web application,
in the Default Quota Template section, from the Select quota template drop-down list,
select a quota template.
To disable person name actions and online presence information from being shown on
sites on the web application, in the Person Name Actions and Presence Settings
section, from Enable additional actions and Online Status for members, select No.
To disable alerts for sites in on the web application, in the Alerts section, from Alerts on
this server are, select No. If you don't want to disable alerts completely, but want to limit
the number of alerts a user can create, change the settings for Maximum number of
alerts that a user can create accordingly.
To disable RSS feeds for sites on the web application, in the RSS Settings section, from
Enable RSS feeds, select No.
716
To disable the MetaWeblog API for the web application, in the Blog API Settings section,
from Enable Blog API, select No.
The Metablog API allows SharePoint blog entries to be written, modified, or removed
through web services. If Accept user name and password from the API is Yes, then the
credentials to manage the blog post are sent in clear text, unless SSL to the web app is
configured. If Accept user name and password from the API is set to No, SharePoint
authorization for the web app is used.
To change the browser file handling so that the browser automatically executes web
content, in the Browser File Handling section, select Permissive.
To disable security validation for sites on the web application, in the Web Page Security
Validation section, from Security validation is, select Off. To change the expiration time
for a security validation, change the settings for Security validation expires accordingly.
To disable the ability to send users their user name and password by e-mail, in the Send
User Name and Password in E-Mail section, from Send user name and password,
select No.
To deny pages in the _Layouts folder to reference site master pages for sites on the web
application, in the Master Page Settings for Application _Layouts Page, from
Application _Layout pages reference site master pages, select No.
To turn off recycle bins on sites in the web application, in the Recycle Bin section, from
Recycle Bin Status, select Off. Alternatively, you can change when items in recycle bins
should be deleted by changing the settings for Delete items in the Recycle Bin and
Second stage Recycle Bin.
To change the maximum allowed size of content uploads to a site in the web application,
in the Maximum Upload Size section, change the number in Maximum upload size
accordingly.
To disable the collection of web site analytics for sites in the web application, in the
Customer Experience Improvement Program section, from Enable Customer
Experience Improvement Program, select No.
To enable usage cookies to be used for anonymous users on sites in the web application,
in the Usage Cookie section, from Usage Cookie Status, select On.
Important:
Local legal restrictions might apply when you enable usage cookies on sites that have
anonymous users.
7. To save you changes to this web application, click OK.
718
Install and manage solutions for
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to install solutions or components that were customized by developer or web
designers to a SharePoint 2013 environment.
The process to install custom site elements and solution packages in SharePoint 2010 Products and
SharePoint 2013 has not changed significantly. Detailed content about how to install custom elements
is available in the SharePoint Server 2010 technical library in the following section Deploy
customizations - overview (SharePoint Server 2010). To install solution packages, you can use a new
parameter, CompatibilityLevel, to install the solution to the latest version directories, or to use only
the current version tracked in the cab file. For more information, see Install-SPSolution.
To add functionality to SharePoint sites in SharePoint 2013, you can use apps for SharePoint. For more
information about apps for SharePoint, see Install and manage apps for SharePoint 2013.
TechNet articles about how to install and manage
solutions
The following articles about how to install and manage solutions are available to view online. Writers
update articles on a continuing basis as new information becomes available and as users provide
feedback.
Content
Description
Deploy customizations -
overview (SharePoint Server
2010)
Overview article and detailed
content about how to install
custom elements for SharePoint
Server 2010. Applies to both
SharePoint 2010 Products and
SharePoint 2013.
719
Content
Description
Sandboxed solutions
administration (SharePoint
Server 2010)
Content about how to manage
sandboxed solutions for
SharePoint Server 2010. Applies
to both SharePoint 2010
Products and SharePoint 2013.
Features and solutions cmdlets
in SharePoint 2013
List Windows PowerShell
cmdlets that help you manage
features and solutions in a
SharePoint 2013 farm.
Additional resources about how to install and manage
solutions
The following resources about how to install and manage solutions are available from other subject
matter experts.
Content
Description
SharePoint 2013 Tech Center
Visit the TechCenter to access
videos, community sites,
documentation, and more.
SharePoint developer center
Find resources for building
solutions on SharePoint 2013.
This includes how-to articles,
code samples, and the
SharePoint SDK.
721
Install and manage apps for SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-28
Summary: The following resources provide information about apps for SharePoint, the SharePoint
Store, and the App Catalog and how to install, manage, and monitor apps.
Downloadable resources about apps for SharePoint
Download the following content for information about apps for SharePoint.
Content
Description
SharePoint 2013: App Overview
for IT Pro model
Model poster describing apps
from an IT Pro perspective.
TechNet articles about apps for SharePoint
The following articles about apps are available to view online. Writers update articles on a continuing
basis as new information becomes available and as users provide feedback.
Content
Description
Overview of apps for SharePoint 2013
Read an overview of apps for SharePoint from an
IT Pro perspective.
Plan for apps for SharePoint 2013
Understand what you need to plan for before you
support apps for SharePoint.
Plan for app authentication in SharePoint 2013
Learn how to plan for app authentication in
SharePoint 2013.
722
Content
Description
Plan app permissions management in SharePoint
2013
App permissions management enforces security
and provides the additional functionality that
apps enable on SharePoint 2013 sites.
Configure an environment for apps for SharePoint
(SharePoint 2013)
Follow these steps to configure your environment
to support apps for SharePoint.
Configure app authentication in SharePoint Server
2013
Learn how to configure app authentication in
SharePoint 2013.
Manage the App Catalog in SharePoint 2013
Follow these steps to configure and manage the
App Catalog and configure SharePoint Store rules.
Add apps for SharePoint to a SharePoint 2013 site
Learn how to install an app for SharePoint from
the App Catalog or SharePoint Store.
Remove app for SharePoint instances from a
SharePoint 2013 site
Learn how to remove an app for SharePoint from
a site collection.
Monitor apps for SharePoint for SharePoint Server
2013
Follow these steps to specify which apps for
SharePoint to monitor, and then monitor the
apps.
Monitor and manage app licenses in SharePoint
Server 2013
Learn how SharePoint farm administrators assign,
monitor, and manage the app for SharePoint
licenses in SharePoint Server 2013.
Back up apps for SharePoint in SharePoint 2013
Learn how to back up apps for SharePoint either
as part of a normal farm backup or individually.
Restore apps for SharePoint in SharePoint 2013
Learn how to restore apps for SharePoint in
SharePoint 2013.
Enable apps in AAM or host-header environments
for SharePoint 2013
Learn how to enable app domains for alternate
access mappings or host-header web application
environments after installing the March 2013
Public Update.
723
Additional resources about apps for SharePoint
The following resources about apps for SharePoint are available from other subject matter experts.
Content
Description
Installation and Deployment for
SharePoint 2013 Resource
Center
Visit the Resource Center to
access videos, community sites,
documentation, and more.
Content on MSDN
Overview of apps for
SharePoint
Important aspects of the app
for SharePoint architecture
and development landscape
Build apps for SharePoint
SharePoint developer center
Articles about apps for
SharePoint in the SharePoint
Server 2013 Software
Development Kit
724
Overview of apps for SharePoint 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-05-19
Summary: The apps for SharePoint are a powerful, easy way to add functionality to a SharePoint site.
Understand how they work, how they are integrated with SharePoint sites, and how they are isolated
from your site content.
The apps for SharePoint provide a new method to deliver specific information or functionality to a
SharePoint site. An app for SharePoint is a small, easy-to-use, stand-alone app that solves a specific
end-user or business need. Site owners can discover and download apps for SharePoint from a public
SharePoint Store or from their organization's internal App Catalog and install them on their
SharePoint sites. These apps for SharePoint integrate the best of the web with SharePoint 2013. They
do not replace SharePoint features and solution packages, which customize or enhance SharePoint
sites. Unlike features and solutions, which farm or site collection administrators have to install, apps
for SharePoint are stand-alone applications that owners of sites can add to their SharePoint sites. The
apps for SharePoint have a simple lifecycle - they can be installed, upgraded, and uninstalled by site
owners.
The following are examples of apps for SharePoint that site owners could add to their sites:
An app that provides event planning tools.
An app that provides a shopping cart experience for a site.
An app that sends a note of recognition for good work (kudos) to someone in the organization.
Microsoft will host and control a public SharePoint Store, where developers will be able to publish and
sell their custom apps for SharePoint. End users and IT professionals will be able to obtain these
custom apps for personal or corporate use. This SharePoint Store will handle the end-to-end
acquisition experience from discovery to purchase, upgrades, and updates.
Company-developed and approved apps can also be deployed to an organization's internal App
Catalog hosted on SharePoint 2013 or SharePoint Online. This controls the visibility of apps within
organizations.
Important:
This article applies to both SharePoint Foundation 2013 and SharePoint Server 2013.
725
Where are apps for SharePoint hosted?
There are several options for hosting apps for SharePoint.
Provider-hosted
Hosted in a SharePoint environment
Combinations of these options.
Depending on the hosting option, the app can contain different elements and take advantage of
different components.
No matter the hosting option for the app, if you want users to be able to install and use apps for
SharePoint in your environment, you will have to configure your environment to support them.
For more information about hosting options, see the SharePoint 2013 developer documentation.
How are apps for SharePoint and SharePoint sites
related?
Site owners can add apps for SharePoint to their sites. If an app contains SharePoint components,
those components are stored in a subweb of the site that is automatically created when you install the
app. Apps have their own, isolated URLs, which are separate from the URL for the site that contains
the app. If the app is Provider-hosted the app components are stored in those locations.
What is the URL for an app for SharePoint?
By default, apps are deployed to their own web site in a special, isolated domain name, instead of in
the same domain name as your farm. Processes run under that domain name and do not affect the
SharePoint sites. This difference in domain names provides a layer of isolation for the apps. The use of
a different domain name from the SharePoint sites prevents cross-site scripting between the apps and
sites and unauthorized access to users' data.
Each installation of an app has a unique URL in your environment. You determine the template for
that URL (by specifying a domain name and an app prefix), and then app URLs are automatically
generated based on that template. Paths for the apps are based on the URL for the site where they
are installed. When you install an app to a site, a subweb of that site is created to host the app
content. The subweb for the app is hierarchically below the site collection, but has an isolated unique
host header instead of being under the site's URL. The following diagram shows the relationship
between the site's URL and the app's URL:
726
Illustration of URL for an app for SharePoint
In this diagram, the Main SharePoint Site is the site on which the user installed the app. The App1
SharePoint Site is a subweb of the Main site that contains the app and its components. The URL for
the App1 SharePoint site is based on that of the Main SharePoint site. However, it is in a different
domain, has a prefix-apphash at the beginning, and has an app name at the end for the subweb name.
The prefix-apphash part of the URL is designed to support multi-tenant environments. In a multi-
tenant environment, each tenant has its name that is combined with the apphash to provide a unique
domain name for the app. If you are not in a multi-tenant environment, you can use the same app
prefix for all URLs.
Use and benefits of apps for SharePoint
The apps for SharePoint allow users to add quick functionality to their site without your intervention.
Unlike templates, features, and solutions, which an IT administrator must deploy, site owners can add
apps for SharePoint to their sites or remove them. Because apps for SharePoint are limited in scope to
a subweb and have an isolated URL, they do not interact with the rest of your farm or open your
environment to cross-site scripting risks.
Your organization can develop its own apps for SharePoint. You can make apps for SharePoint
available from the SharePoint Store, and you can make these apps available in the App Catalog so that
users know which apps for SharePoint are approved for use in your environment. Users can easily
update apps for SharePoint with new versions when they become available.
Impacts of apps for SharePoint
Supporting apps for SharePoint in your environment does require a configuration change to your
environment. There are two main considerations:
Requirements for supporting apps for SharePoint You must be running the Subscription
Settings and App Management service applications to use apps for SharePoint. You must create
the DNS domain to contain the URLs for apps for SharePoint in your environment.
727
Plan for capacity Each app for SharePoint that is installed creates a subweb under the site on
which it is installed with its own URL. This means that environments that contain many apps for
SharePoint will have many additional subwebs. Be sure to consider this when planning for capacity
for your farm.
For more information about these and other considerations, see Plan for apps for SharePoint 2013
and Configure an environment for apps for SharePoint (SharePoint 2013).
See also
Install and manage apps for SharePoint 2013
Plan for apps for SharePoint 2013
Configure an environment for apps for SharePoint (SharePoint 2013)
728
Plan for apps for SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Determine your organization’s policy about how to use and develop governance for apps
for SharePoint 2013. Plan the App Catalog, app URLs, and how to monitor and license apps.
The apps for SharePoint provide a new method to deliver specific information or functionality to a
SharePoint site. An app for SharePoint is a small, easy-to-use, stand-alone productivity app that solves
a specific end-user need. Before you allow site owners to install apps in a SharePoint environment,
you must plan how you want to support them. You have to determine your organization's policy
around apps for SharePoint, plan your configuration settings, and determine how to manage and
monitor the apps. This article discusses key decisions and helps you understand the choices to make
as you plan to support apps for SharePoint.
For more conceptual information about apps for SharePoint, see Overview of apps for SharePoint
2013.
Note:
One of the feature updates of the March 2013 Public Update for SharePoint 2013 enables you
to use multiple app domains in SharePoint 2013 environments with alternate access mapping
or host-header web application configurations. For more information, see Enable apps in AAM
or host-header environments for SharePoint 2013.
Governance: determine the app for SharePoint policy
for your organization
The first decision about apps for SharePoint is the extent to which you want to use them in your
organization and the policy for using them. The following questions can help you frame your
discussion about your policy:
Do you want site owners to be able to install and use apps for SharePoint?
If so, keep reading and shaping your policy.
If not, then you can use settings in the SharePoint Store to control whether site owners can
purchase apps from the SharePoint Store. You cannot block site owners from viewing the
SharePoint Store. However, you can prevent them from purchasing or downloading apps for
729
SharePoint. If you choose to prevent site owners from installing apps for SharePoint from the
SharePoint Store, you should create a policy statement and advise site owners that you have
chosen not to support apps for SharePoint. Otherwise, the only message to site owners will be
an error when they try to install an app for SharePoint.
Do you want to restrict or control the apps for SharePoint that site owners can install and use?
If so, you can do one or both of the following:
Set up an App Catalog to provide a set of apps for SharePoint that site owners can install and
use.
Use the App Request feature to control the purchasing and licensing of apps for SharePoint.
In which environments do you want apps for SharePoint to be available? For example, intranet,
extranet, or Internet environments?
You should decide which environments are appropriate for using apps for SharePoint and
configure the settings for apps for SharePoint only in those farms or for those web applications.
Do you want to control who can purchase apps for SharePoint?
No explicit setting prevents a site owner from purchasing an app for SharePoint. However, you can
create a request process that requires site owners to submit a request that your organization
reviews to make sure that appropriate persons make purchases.
Do you want to control who can install apps for SharePoint?
At the minimum, a user must have the Manage Web site and Create Subsites permissions to install
an app for SharePoint. By default, these permissions are available only to users who have the Full
Control permission level or who are in the Site Owners group.
Do you want to provide specific apps for SharePoint in your environment?
Add apps for SharePoint for your own organization to the App Catalog.
How many and which apps for SharePoint do you want to monitor?
You must explicitly select the apps for SharePoint to monitor for a farm.
Note:
The ability to monitor apps for SharePoint is not available for SharePoint Foundation
2013.
The following illustration summarizes these governance choices.
730
Governance choices for apps for SharePoint
These choices change whether site owners in your environment can purchase and install or add apps
from the SharePoint Store or the App Catalog. The following illustration shows the results of these
choices for site owners.
Flowchart with decisions about purchasing apps
731
Plan app configuration settings
Before you use apps for SharePoint in your environment, you have to configure your environment to
support them. If you don’t configure your environment, site owners who try to install and use apps for
SharePoint receive error messages. For all apps for SharePoint, you must set up a Domain Name
Services (DNS) domain name to provide a host name for the installed apps. By using a separate
domain name, apps for SharePoint are separated from SharePoint sites to prevent unauthorized
access to user data and to reduce the possibility of cross-site scripting attacks. The use of separate
URLs for apps for SharePoint and SharePoint sites is called app isolation. You also need a DNS record
so that the domain name can get correctly resolved. You can create one of two of the following types
of DNS records for app for SharePoint URLs:
A wildcard Canonical Name (CNAME) record that points to the host domain assigned to the
SharePoint farm.
732
A wildcard A record that points to the IP address for the SharePoint farm.
Choose the type of record to use to point from the app domain to the SharePoint farm domain.
The following illustration shows the types of records that you can use to point from the app domain to
the SharePoint farm domain.
Illustration of a type of record that points from the app domain to a SharePoint farm domain
In addition to setting up the DNS domain to support apps in your environment, you also have to
configure the following:
SSL Certificates
If you are using SSL to help secure traffic, you must create a wildcard certificate to use for all app
URLs. Wildcard certificates cost about the same as five individual certificates. So, you can quickly
justify the cost of a wildcard if you expect to use more than five instances of apps for SharePoint
in your environment.
Important:
Each instance of an app for SharePoint that is installed has its own URL. Therefore, if you
only have one app for SharePoint in your environment, but the app is installed on six
different sites, then you will have six different app URLs.
The Subscription Settings and App Management service applications
These services support apps in your environment by storing the data needed to run apps in the
farm. The Subscription Settings service and the App Management Service store app licenses, app
principals, app users, app registrations, and so on.
The app URLs to use
733
Each app has a unique URL in your environment. You determine the template for that URL, and
then app URLs are automatically generated by using the prefix and domain that you specify. For
example, prefix-Apphash.ContosoApps.com/sites/web1/appname.
The Configure an environment for apps for SharePoint (SharePoint 2013) article describes how to
configure these settings.
Determine the domain name to use
Each app for SharePoint has a unique URL, which is made up of the app domain plus a prefix and an
Apphash. The format is as follows: prefix-Apphash.domain.com. The Apphash is an arbitrarily-assigned
unique identifier for each app for SharePoint. These URLs are generated automatically depending on
the settings that you specify. You do not have to create or manage these URLs separately; instead you
configure a wildcard entry in DNS to provide the URLs for all apps.
Note:
The examples in this section use an Internet-style domain name for clarity. This does not imply
that you must expose your apps to the Internet. Note that for actual hosting environments
you must still organize a DNS routing strategy within your intranet and optionally configure
your firewall.
When you choose the domain name and prefixes to use for your environment, consider the following:
Use a unique domain name, not a subdomain
For security reasons, the domain name that you choose should not be a subdomain of the root
domain name that hosts other applications. This is because other applications that run under that
host name might contain sensitive information that is stored in cookies that might not be
protected. Code can set or read cookies across different domains that are under the same
domain. A malicious developer could use code in an app for SharePoint to set or read information
in a cookie on the root domain from the app for SharePoint subdomain. If a malicious app
accessed that cookie information, then you could have an information leak. Internet Explorer
honors the settings that SharePoint sites use to protect against this issue. However, you should
still use a domain for apps that is separate from your other domains. For example, if the
SharePoint sites are at Contoso.com, do not use Apps.Contoso.com. Instead use a unique name
such as Contoso-Apps.com. This is not to say that you should never use a subdomain if you have
business reasons to do this. However, consider all potential security risks.
The app domain should be in the Internet or Restricted sites security zone in Internet
Explorer
For security reasons, we recommend that you configure the app domain to be in either the
Internet or Restricted sites security zone in Internet Explorer options, and not in the Intranet
734
zone or Trusted sites zone. Internet Explorer security settings for the Intranet zone or Trusted
sites zone do not provide a sufficient level of isolation of apps from user data in SharePoint sites.
For single tenant environments, use the same prefix for all apps
If your environment is only used for your own organization and does not host SharePoint sites for
other organizations, you configure a prefix that all app for SharePoint URLs in your environment
use. For example, you can set the prefix to a word like default so that each app for SharePoint has
a URL such as default-Apphash.Contoso-Apps.com.
For multi-tenancy environments, use unique prefixes for each tenant's apps
If your environment has multiple tenants (in other words, you host SharePoint sites for multiple
clients), you must be able to identify the URLs that each tenant or client in your environment uses.
So, you set the URL prefix to indicate the client's name or the client's site's name. For example,
suppose that A. Datum Corporation hosts SharePoint sites for Fabrikam and Fourth Coffee under
the adatum.com hosting domain (for example, Fabrikam.Adatum.com and
FourthCoffee.Adatum.com). You should set the prefix for your hosted sites so that they are
created as Fabrikam-Apphash.AdatamApps.com and FourthCoffee-Apphash.AdatamApps.com.
Important:
If you are in a multi-tenancy environment, you must use the Set-SPAppDomain cmdlet in
Windows PowerShell to configure the URL and prefix. For more information, see Configure
the app URLs to use.
Keep prefixes short and simple
Prefixes must be less than 48 characters and cannot contain special characters or dashes.
All URLs will be in the default zone
If you are using alternate access mapping on a web application, you cannot use apps for
SharePoint. Apps for SharePoint cannot use multiple zones in alternate access mapping. By
default, all apps for SharePoint are available only in the default zone. Consider using host header
site collections instead of alternate access mapping; apps for SharePoint are fully supported for
host header site collections.
Recommended logical architecture
As a best practice, we recommend that you use a single web application that uses host-named site
collections (host headers) instead of multiple web applications that use path-named site collections in
your environment. When you use multiple web applications and path-named site collections you
might have to complete additional configuration steps to guarantee that requests for apps for
SharePoint are routed to the correct web application. For more information about host-named site
735
collections and logical architecture, see SharePoint 2013 design samples: Corporate portal and
extranet sites.
Plan App Catalog
If you decide to provide approved apps for SharePoint for site owners to install, you can configure the
App Catalog to contain those apps for SharePoint. The App Catalog is a special site that contains the
apps for SharePoint that site owners can install.
The following illustration shows the difference between the App Catalog and the SharePoint Store,
and how the on premises IT professional can control which apps a site owner can install.
Contrasts the SharePoint Store and the App Catalog.
736
You can have more than one App Catalog in your farm, one for each web application in your farm. To
configure the App Catalog for a web application, you just have to supply the names of the site
collection administrators who you want to use for the App Catalog site. After you create the App
Catalog, the site collection administrators can upload apps for SharePoint to it.
To plan App Catalog settings, determine the following:
Which web applications will need an App Catalog.
This goes together with your decisions about your policy for supporting apps for SharePoint in the
SharePoint environment. If you have different types of sites (intranet, extranet, Internet) on
different web applications in your farm, you can determine whether you want an App Catalog for
each of those web applications.
Who to add as the site collection administrators for the App Catalog.
The App Catalog is a site inside a web application that can only be accessed from a link in Central
Administration or directly by using the URL.
Plan to monitor apps
Important:
This section applies only to SharePoint Server 2013.
App monitoring is not available in SharePoint Foundation 2013.
App monitoring is not supported for SharePoint Server 2013 on-premise, multi-tenancy
environments.
SharePoint 2013 Farm administrators can monitor apps for SharePoint to track the usage data and
results, and any errors that occur. The Farm administrator must add apps to the Monitor Apps page in
SharePoint on-premises in order for the apps to appear in the list. The maximum number of apps that
can be monitored on the Monitor Apps page is limited to 100.
The Monitor Apps page requires the following search analytics and usage file import timer jobs to be
active:
ECM analytics timer job name: Usage Analytics timer job for Search Service
Usage DB timer job name: Microsoft SharePoint Foundation Usage Data Import
737
Plan for app licenses
SharePoint 2013 does not enforce app licenses. Developers who build apps must add code that
retrieves license information and then addresses users. SharePoint 2013 provides the storage and
together with SharePoint Store web services the app license renewal. SharePoint Store handles
payments for the licenses, issues the correct licenses, and provides the process to verify license
integrity. Note that licensing only works for apps that are distributed through the SharePoint Store.
Apps that you purchase from another source and apps that you develop internally must implement
their own licensing mechanisms. SharePoint 2013 supports the following app licenses formats:
License Type
Duration
User Limit
Free
Perpetual
Unlimited
Trial
30, 60, 120 Days, or Unlimited
Number per user or Unlimited
Paid per user
Perpetual
Number per user
Paid unlimited users (site
license)
Perpetual
Unlimited
See also
Install and manage apps for SharePoint 2013
Overview of apps for SharePoint 2013
Configure an environment for apps for SharePoint (SharePoint 2013)
Enable apps in AAM or host-header environments for SharePoint 2013
738
Plan app permissions management in
SharePoint 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-10-14
Summary: App permissions management enforces security and enables the additional functionality
that apps provide on SharePoint 2013 sites.
The purpose of app permissions management is to manage the ability of apps to access and use
internal SharePoint 2013 resources and perform tasks on behalf of users. For app authentication,
SharePoint 2013 relies on a trusted token service named the Azure Access Control Service (ACS) to
issue time- and scope-limited access tokens for apps. In SharePoint 2013, the ACS acts as the app
identity provider. The app authentication process verifies a claim that an app makes and asserts that
the app can act on behalf of an authenticated SharePoint 2013 user. The authorization process verifies
that an authenticated app has permission to access a specified resource and perform a defined
function. You can configure SharePoint 2013 to process app permissions and enable anyone who
enters an anonymous web site, for example, to view and fill out a form that requests additional
information about a product or service. You can also allow a SharePoint 2013 site owner, or a user
with elevated permissions, to purchase and install an app that a defined set of internal SharePoint
2013 users can access. For example, a site owner can purchase and install an expense report app for a
workgroup, and the members of the workgroup can use the app to access data in SharePoint 2013
document libraries and generate expense reports. For more information about apps, see Overview of
apps for SharePoint 2013.
In this article:
App permission request scopes
App permission requests
App authorization policies
To plan the management of SharePoint 2013 app permissions, you have to determine the specific
SharePoint 2013 resources that the app will need to access, and where those resources reside. You
also have to determine the minimum permission level that will be required to enable the app to
function correctly. In addition, you have to determine the appropriate app authorization policy to
ensure that the app functions correctly and complies with specified authorization requirements.
739
Introduction
SharePoint 2013 apps provide a wide variety of powerful tools and enhanced functionality that can
increase the usefulness of your SharePoint 2013 deployment. When you decide to support the
implementation of SharePoint 2013 apps within your deployment, you need to determine who will be
installing the apps and who will be using them. You also need to determine the appropriate scope and
permission levels for each app, based on how the app is intended to be used.
This article explains how to decide which scope, permission level, and authorization policy to use for
the various types of SharePoint 2013 apps you plan to deploy, depending on how the app is going to
be used and who is going to use the app. This article does not explain how to create or configure
SharePoint 2013 apps.
App permission request scopes
SharePoint 2013 apps use app permission request scopes and permission requests to specify the level
at which the app is intended to run, and the permission level that is assigned to the app. The app
permission request scope indicates the location within the SharePoint 2013 hierarchy where a
permission request will apply. SharePoint 2013 supports the following permission request scopes:
SPSite Defines the app permission request scope as a SharePoint 2013 site collection.
SPWeb Defines the app permission request scope as a SharePoint 2013 web site.
SPList Defines the app permission request scope as a SharePoint 2013 list.
Tenancy Defines the app permission request scope as a SharePoint 2013 tenancy.
If an app is granted permission to one scope, the permission also applies to the children of that scope.
For example, if an app is granted permission to a web site by using the SPWeb scope, the app is also
granted permission to each list (SPList scope) that is contained within the SPWeb scope and all list
items within each list. Because permission requests are made without information about the topology
of the site collection where the app is installed, the scope is expressed as a type rather than as the
URL of a specific instance. These scope types are expressed as URIs. Content database related
permissions are organized under this URI: http://sharepoint/content. The following table provides an
URI example for each app permission request scope.
Scope
URI
SPSite
http://sharepoint/content/sitecollection/
740
Scope
URI
SPWeb
http://sharepoint/content/sitecollection/web
SPList
http://sharepoint/content/sitecollection/web/list
Tenancy
http://<sharepointserver>/<content>/<tenant>/
App permission requests
App permission requests are collections of permissions that enable apps to perform specific tasks.
SharePoint 2013 includes four app permission request levels.
The following table lists the four app permission requests that you can assign to a SharePoint 2013
app.
Permission request
Description
Permissions included
Read-Only
Enables apps to view pages, list
items, and download
documents.
View Items
Open Items
View Versions
Create Alerts
Use Self-Service Site
Creation
View Pages
741
Permission request
Description
Permissions included
Write
Enables apps to view, add,
update, and delete items in
existing lists and document
libraries.
Read-Only permissions, plus:
Add Items
Edit Items
Delete Items
Delete Versions
Browse Directories
Edit Personal User
Information
Manage Personal Views
Add/Remove Personal Web
Parts
Update Personal Web Parts
Manage
Enables apps to view, add,
update, delete, approve, and
customize items or pages within
a web site.
Write permissions, plus:
Manage Lists
Apply Themes and Borders
Apply Style Sheets
Full Control
Enables apps to have full control
within the specified scope.
All permissions
There are important security implications when you assign a permission request level to a SharePoint
2013 app. The permission request level must be adequate to allow the app to function correctly and
complete every aspect of the task it is designed to perform. However, it is also important to make sure
that the assigned permission request level does not exceed the minimum requirements to complete
the task. For example, the Read-Only app permission request level is adequate for a SharePoint 2013
app that is gathering and rendering data in response to a query. However, the Write app permission
request level will be required for a SharePoint 2013 app that is intended to add new data or update
existing data in a SharePoint 2013 library.
742
App authorization policies
In addition to determining the app permission request scope and the app permission request level for
each app you deploy, you must also determine which app authorization policy is appropriate.
SharePoint 2013 provides the following app authorization policies:
User and app policy When you assign the user and app policy to a SharePoint 2013 app, the
content database authorization checks succeed only if both the current user and the app have
sufficient permissions to perform the actions that the app is designed to perform. The user and
app policy is required when a SharePoint 2013 site has an embedded IFRAME that links to a
SharePoint Store app, and the app calls back to SharePoint 2013 to access SharePoint 2013
resources on behalf of the user. For example, this is a requirement when a SharePoint Store app
that does not run within SharePoint 2013 needs to act on behalf of a user to access the user's
resources.
App-only policy When you assign the app-only policy to a SharePoint 2013 app, the content
database authorization checks succeed if the app has sufficient permissions to perform the actions
that the app is designed to perform, whether or not the current user (if there is a current user) has
the same permissions. The app-only policy is required when the app is not acting on behalf of a
user.
User-only policy When you assign the user-only policy, the content database authorization
checks succeed if the user has sufficient permissions to perform the action that the app is
designed to perform. The user-only policy is required when a user is accessing their own
resources.
See also
App Management Service cmdlets in SharePoint 2013
743
Configure an environment for apps for
SharePoint (SharePoint 2013)
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-10-24
Summary: Configure domain names, service applications, and URLs for apps for SharePoint 2013.
To enable users to install and use apps for SharePoint in their sites, you must configure your
environment to support them. This article describes how to configure your environment to support
apps. Use the Plan for apps for SharePoint 2013 article to review options and determine the values to
use for configuration settings in this article.
Important:
The steps in this article apply to both SharePoint Foundation 2013 and SharePoint Server
2013.
One of the feature updates of the March 2013 Public Update for SharePoint 2013 enables you
to use multiple app domains in SharePoint 2013 environments with alternate access mapping
or host-header web application configurations. For more information, see Enable apps in AAM
or host-header environments for SharePoint 2013.
The following illustration summarizes the steps to take to configure an environment for apps for
SharePoint.
Overview of how to configure an environment for apps for SharePoint
744
These configuration steps result in example app URLs such as the following:
http://Apps-12345678ABCDEF.ContosoApps.com/sites/SiteName/App1Name/Pages/Home.aspx
https://Apps-
3456789BCDEFG.ContosoApps.com/sites/SiteName/WebName/App2Name/Default.aspx
This article contains instructions for completing these steps.
745
Before you begin
You must purchase a domain name from a domain name provider for your apps, for example,
ContosoApps.com.
You must be a member of the Farm Administrators group to perform the steps in this article. For
some steps, you must also be a domain administrator on the domain controller.
Confirm that the SharePoint Administration (spadmin) and SharePoint Timer (sptimer) services are
running.
To verify this, click Start, point to Administrative Tools, and then click Services. In the Services
list, verify that the SharePoint Administration and SharePoint Timer services are running.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Configure the domain names in DNS (all hosting
options)
You must configure a new name in Domain Name Services (DNS) to host the apps. To help improve
security, the domain name should not be a subdomain of the domain that hosts the SharePoint sites.
For example, if the SharePoint sites are at Contoso.com, consider ContosoApps.com instead of
App.Contoso.com as the domain name. For more information, see Plan for apps for SharePoint 2013.
When an app is provisioned, it provisions a unique DNS domain name (for example, Apps-
12345678ABCDEF.ContosoApps.com, where 12345678ABCDEF is a unique identifier for the app).
You need a wildcard Canonical Name (CNAME) entry for your DNS domain to support these unique
names.
746
Depending on your configuration (for example, if you are using WINS forward lookup), you might have
to create a new forward lookup zone first, or you can start with a wildcard CNAME entry in the same
zone as the SharePoint site domain. In the following procedures, you create a forward lookup zone,
and then create a wildcard alias record for the DNS domain name that allows for individual apps to
create unique domain names within your app domain. In these procedures, we use DNS Manager for
Windows Server 2008 R2. For more information about DNS server in Windows Server 2008 R2, see
DNS Server. If you have a different type of DNS server, follow the procedures in the documentation
for that server type.
To create a forward lookup zone for the app domain name
1. Verify that the user account that performs this procedure is a domain.administrator on the
domain controller.
2. Click Start, point to Administrative Tools, and then click DNS.
3. In DNS Manager, right-click Forward Lookup Zones, and then click New Zone.
4. In the New Zone Wizard, click Next.
5. In the Zone Type page, accept the default of Primary zone, and then click Next.
6. In the Active Directory Zone Replication Scope page, select the appropriate replication method
for your environment (the default is To all DNS servers in this domain), and then click Next.
7. In the Zone Name page, in the Zone name box type the name for your new app domain name
(for example, ContosoApps.com), and then click Next.
The New Zone Wizard shows the new domain name for apps.
747
8. On the Dynamic Update page, select the appropriate type of dynamic updates for your
environment (the default is Do not allow dynamic updates), and then click Next.
9. On the Completing the New Zone Wizard page, review the settings, and then click Finish.
For more information about how to create a forward lookup zone, see Add a Forward Lookup Zone.
You have now created a forward lookup zone (and a domain name) to use for apps in your
environment.
To create a wildcard Alias (CNAME) record for the new domain name
1. Verify that the user account that performs this procedure is a domain administrator on the
domain controller.
2. In DNS Manager, under Forward Lookup Zones, right-click the new app domain name, and then
click New Alias (CNAME).
3. In the New Resource Record dialog box, in the Alias name (uses parent domain if left blank)
box, type *.
The Fully qualified domain name (FQDN) box displays *. followed by the domain name that you
created for apps. For example, *.ContosoApps.com or *.Contoso-Apps.com.
748
4. Next to the Fully qualified domain name (FQDN) for target host box, type the FQDN of the
server that hosts the SharePoint sites.
For example, SharePoint.Contoso.com.
Or:
a) Next to the Fully qualified domain name (FQDN) for target host box, click Browse and
navigate to the Forward Lookup Zone for the domain that hosts the SharePoint sites.
For example, Contoso.com.
b) And then navigate to the record that points to the server that hosts the SharePoint site.
For example, SharePoint.
New Resource Record dialog box shows the wildcard alias for the app domain and
the FQDN of the server that hosts the SharePoint sites.
5. Click OK.
749
For more information about how to create a wildcard alias record in DNS Manager, see Add an Alias
(CNAME) Resource Record to a Zone.
You can verify the new domain name and alias by pinging them.
To verify the new domain name
1. Verify that the user account that is performing this procedure is a domain administrator on the
domain controller.
2. Click Start, and then click Command Prompt.
3. At the command prompt, type ping followed by a subdomain of the domain that you created, and
then press ENTER.
For example, ping Apps-12345678ABCDEF.contosoapps.com
If the ping command returns the correct IP address, then your wildcard for the domain name was
configured successfully.
Create a new wildcard SSL certificate
If you are using Secure Sockets Layer (SSL) for the SharePoint sites in your environment, or if you use
any apps that use data external to the SharePoint sites, you should use SSL for your apps. To use SSL,
you create an SSL certificate for your app domain (for example, ContosoApps.com).
The domain should be added in the form of a wildcard (for example, *.ContosoApps.com). You need a
wildcard certificate instead of individual certificates because each installed app has its own
subdomain.
Note:
You can make a certificate request from your SharePoint server through Internet Information
Services (IIS). Take a look at the steps for generating the request here Request an Internet
Server Certificate (IIS 7) , and for installing an internet server certificate , here Install an
Internet Server Certificate (IIS 7). Consult the documentation at your Certificate Authority on
how to get and download your certificate.
Configure the Subscription Settings and App
Management service applications
Apps rely on the App Management and Microsoft SharePoint Foundation Subscription Settings service
applications. These service applications use the multi-tenancy features to provide app permissions
750
and create the subdomains for apps. Therefore, even if you are not hosting multiple tenants, you must
still establish a name for the default tenant for your environment (any SharePoint site that is not
associated with a tenant will be in the default tenant).
Note:
You can use the SharePoint Central Administration website to set the default tenant name
(also known as the app prefix) for non-hosting environments. You must use Windows
PowerShell to configure tenant names for hosting environments. You perform the steps to set
the app prefix in the next section, Configure the app URLs to use.
To configure these services, you first start the services in Central Administration. After the services are
started, you use Windows PowerShell to create the Subscription Settings service application, and then
use either Windows PowerShell or Central Administration to create the App Management service
application.
To start the Subscription Settings and App Management services in Central Administration
1. Verify that you are a member of the farm administrators group in Central Administration.
2. In SharePoint 2013 Central Administration, click System Settings.
3. On the System Settings page, under Servers, click Manage services on server.
4. On the Services on Server page, next to App Management Service, click Start.
5. On the Services on Server page, next to Microsoft SharePoint Foundation Subscription Settings
Service, click Start.
6. Verify that the App Management and Microsoft SharePoint Foundation Subscription Settings
services are running. The following illustration shows the Services on Server page where you can
verify that the App Management and Subscription Settings services are running.
Services on Server showing the App Management and Subscription Settings services
running.
751
To configure the Subscription Settings service application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 15 Products cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
752
5. First you must establish the application pool, run as account, and database settings for the
services. Use a managed account for the SPManagedAccount (which will be used for the
application pool runas account).
At the Windows PowerShell command prompt, type the following commands, and press ENTER
after each one to create the application pool:
$account = Get-SPManagedAccount "
<AccountName>
"
# Gets the name of the managed account and sets it to the variable
$account for later use.
Where:
<AccountName> is the name of the managed account in the SharePoint farm.
$appPoolSubSvc = New-SPServiceApplicationPool -Name
SettingsServiceAppPool -Account $account
# Creates an application pool for the Subscription Settings service
application.
# Uses a managed account as the security account for the
application pool.
# Stores the application pool as a variable for later use.
6. At the Windows PowerShell command prompt, type the following commands, and press ENTER
after each one to create the new service application and proxy:
$appSubSvc = New-SPSubscriptionSettingsServiceApplication -
ApplicationPool $appPoolSubSvc -Name SettingsServiceApp -DatabaseName
<SettingsServiceDB>
# Creates the Subscription Settings service application, using the
variable to associate it with the application pool that was created
earlier.
# Stores the new service application as a variable for later use.
Where:
<SettingsServiceDB> is the name of the Subscription Settings service database.
$proxySubSvc = New-SPSubscriptionSettingsServiceApplicationProxy -
ServiceApplication $appSubSvc
# Creates a proxy for the Subscription Settings service
application.
For more information, see Get-SPManagedAccount, New-SPServiceApplicationPool, New-
SPSubscriptionSettingsServiceApplication, New-SPSubscriptionSettingsServiceApplicationProxy.
You can use either Windows PowerShell or Central Administration to create and configure the App
Management service application. The following procedures provide the steps for each method.
753
To configure the App Management service application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 15 Products cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. First you must establish the application pool, run as account, and database settings for the
services. Use a managed account for the SPManagedAccount (which will be used for the
application pool runas account).
At the Windows PowerShell command prompt, type the following commands, and press ENTER
after each one to create the application pool:
$account = Get-SPManagedAccount "
<AccountName>
"
# Gets the name of the managed account and sets it to the variable
$account for later use.
Where:
<AccountName> is the name of the managed account in the SharePoint farm.
$appPoolAppSvc = New-SPServiceApplicationPool -Name
AppServiceAppPool -Account $account
# Creates an application pool for the Application Management
service application.
# Uses a managed account as the security account for the
application pool.
# Stores the application pool as a variable for later use.
754
6. At the Windows PowerShell command prompt, type the following commands, and press ENTER
after each one to create the new service application and proxy:
$appAppSvc = New-SPAppManagementServiceApplication -ApplicationPool
$appPoolAppSvc -Name AppServiceApp -DatabaseName
<AppServiceDB>
# Creates the Application Management service application, using the
variable to associate it with the application pool that was created
earlier.
# Stores the new service application as a variable for later use.
Where:
<AppServiceDB> is the name of the App Management service database.
$proxyAppSvc = New-SPAppManagementServiceApplicationProxy -
ServiceApplication $appAppSvc
# Creates a proxy for the Application Management service
application.
For more information, see Get-SPManagedAccount, New-SPServiceApplicationPool, New-
SPAppManagementServiceApplication and New-SPAppManagementServiceApplicationProxy.
To create the App Management service application in Central Administration
1. In SharePoint 2013 Central Administration, on the Application Management page, click Manage
service applications.
2. On the ribbon, click New, and then click App Management Service.
3. In the New App Management Service Application page, in the Service Application Name box,
type the name for the service application.
4. In the Database section, in the Database Server box, type the instance of SQL Server where you
want to store the database, or use the default server.
5. In the Database Name box, type a database name, or use the default name.
The database name must be unique.
6. Under Database authentication, select the authentication that you want to use by doing one of
the following:
If you want to use Windows authentication, leave this option selected. We recommend
this option because Windows authentication automatically encrypts the password when it
connects to SQL Server.
755
If you want to use SQL authentication, click SQL authentication. In the Account box, type
the name of the account that you want the service application to use to authenticate to
the SQL Server database, and then type the password in the Password box.
Note:
In SQL authentication, an unencrypted password is sent to SQL Server. We recommend that
you use SQL authentication only if you force protocol encryption to SQL Server or encrypt
network traffic by using IPsec.
7. In the Failover Database Server section, if you want to use a failover database server, specify the
server name.
8. In the Application Pool section, do one of the following:
Click Use existing application pool, and then select the application pool that you want to
use from the drop-down list.
Click Create a new application pool, type the name of the new application pool, and
then under Select a security account for this application pool do one of the following:
Click Predefined to use a predefined security account, and then select the security
account from the drop-down list.
Click Configurable to specify a new security account to be used for an existing application
pool. You can create a new account by clicking the Register new managed account link.
9. In the Create App Management Service Application Proxy section, leave the Create App
Management Service Application Proxy and add it to the default proxy group check box
selected.
10. Click OK.
The following illustration shows the App Management service application and proxy that were
created.
Manage Service Applications page showing the App Management service application and
proxy.
756
Now you must start the service on the server.
11. In SharePoint 2013 Central Administration, click System Settings.
12. On the System Settings page, under Servers, click Manage services on server.
13. On the Services on Server page, next to App Management Service, click Start.
Configure the app URLs to use
In this section, you create the app domain prefix and the tenant name to use for apps in your
environment. The app URL points to your app domain and a prefix that determines how each app is
named. If you host multiple tenants in your environment, you must use Windows PowerShell to
configure the app URLs.
Use the following procedure to configure app URLs for non-hosting (single tenant) environments by
using Central Administration.
To configure app URLs
1. In Central Administration, click Apps.
2. On the Apps page, click Configure App URLs.
3. In the App domain box, type the isolated domain that you created for hosting apps.
For example, ContosoApps.com or Contoso-Apps.com.
4. In the App prefix box, type a name to use for the URL prefix for apps.
757
For example, you could use “apps” as the prefix so that you would see a URL for each app such as
“apps-12345678ABCDEF.ContosoApps.com”. The following illustration shows the Configure App
URLs page after you have filled in the App domain and prefix.
The Configure App URLs page in Central Administration shows the App domain and App
prefix.
5. Click OK.
6. If you will install apps and you have changed the App prefix (also known as the site subscription
name), you must perform additional steps that involve restarting the World Wide Web Publishing
Service (WWW Service) that hosts the apps.
Important:
Restarting the WWW Service will also restart the IIS Admin Service and the Windows
Process Activation Service. This will also shut down all Web sites and applications that
depend on these services and they may lose existing state and will be unavailable until the
services successfully restart. You should plan to perform these steps during a planned
maintenance time.
To complete the App prefix rename tasks, perform these steps:
a) Stop the SharePoint Timer service.
b) Restart the World Wide Web Publishing Service that hosts the apps.
c) Start the SharePoint Timer service.
Use the following procedure to configure app URLs for multi-tenant hosting environments.
758
To configure app URLs by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 15 Products cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following commands and press ENTER
after each one:
Set-SPAppDomain
<appDomain>
Set-SPAppSiteSubscriptionName -Name "app" -Confirm:$false
Where:
<appDomain> is the domain name that you created.
6. If you will install apps and you have changed the App prefix (also known as the site subscription
name), you must perform additional steps that involve restarting the World Wide Web Publishing
Service (WWW Service) that hosts the apps.
Important:
Restarting the WWW Service will also restart the IIS Admin Service and the Windows
Process Activation Service. This will also shut down all Web sites and applications that
depend on these services and they may lose existing state and will be unavailable until the
services successfully restart. You should plan to perform these steps during a planned
maintenance time.
759
To complete the App prefix rename tasks, perform these steps:
a) Stop the SharePoint Timer service.
b) Restart the World Wide Web Publishing Service that hosts the apps.
c) Start the SharePoint Timer service.
For more information, see Set-SPAppSiteSubscriptionName and Set-SPAppDomain.
Configure the Internet-facing endpoints feature
(Optional)
The SharePoint Store contains apps for SharePoint intended for use with sites that require Internet-
facing endpoints. By default, these apps are not available (greyed out and cannot be purchased)
because they are incompatible with most sites. However, if your farm is configured to allow internet-
facing end points, you can turn on the Internet-facing endpoints feature to show these apps in the
SharePoint Store. You turn this feature on in Central Administration.
To configure Internet-facing endpoints for apps
1. In Central Administration, click Application Management.
2. On the Application Management page, click Manage Web applications.
3. On the Manage Web Applications page, select the web application that you want to change.
4. On the ribbon, click Manage Features.
5. In the feature list, next to Apps that require accessible internet facing endpoints, click
Activate.
6. Click OK.
See also
Plan for apps for SharePoint 2013
Install and manage apps for SharePoint 2013
Plan app permissions management in SharePoint 2013
Configure app authentication in SharePoint Server 2013
Enable apps in AAM or host-header environments for SharePoint 2013
760
Plan for app authentication in SharePoint 2013
761
Manage the App Catalog in SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-05-09
Summary: You can configure and manage an App Catalog for SharePoint environments to control
access to available apps.
You can store apps for SharePoint and Office apps for your organization’s internal use in an App
Catalog site. This article contains an overview of the App Catalog site and shows how to configure the
App Catalog for a web application.
In this article:
Before you begin
Configure an App Catalog for a web application
Configure app requests
Add apps to the App Catalog
Remove apps from the App_Catalog
Before you begin
Before you begin:
Before you configure and use the App Catalog, a member of the Farm Administrators group must
configure the environment to support apps for SharePoint. For more information, see Configure
an environment for apps for SharePoint (SharePoint 2013).
You must be a member of the Farm Administrators group to perform the steps in this article.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
762
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Configure the App Catalog site for a web application
The App Catalog site is a special site collection on a web application. Because each web application
can have an App Catalog site, a farm can have more than one App Catalog site.
When you create an App Catalog site, you get two libraries for apps:
Apps for SharePoint
Apps for Office
Because an App Catalog is scoped to a web application, all apps that you want to make available for a
web application have to be in the App Catalog site collection for that web application. You create the
App Catalog site collection from SharePoint Central Administration.
To create an App Catalog site collection for a web application
1. Verify that the user account that is performing this procedure is a member of the Farm
administrators group.
2. In Central Administration, on the Apps page, in the App Management section, click Manage App
Catalog.
If no App Catalog exists for the farm, the Web Application page opens, so you can select a web
application.
3. On the Web Application page, select the web application for which you want to create a catalog.
4. In the App Catalog Site section, select Create a new app catalog site, and then click OK.
5. On the Create App Catalog page, in the Title box, type a title for the App Catalog site.
6. In the Description box, type the description for the site.
7. In the URL box, fill in the URL to use for the site.
763
8. In the Primary Site Collection Administrator section, in the User Name box, type the user who will
manage the catalog.
Only one user name can be entered. Security groups are not allowed.
9. In the End Users section, in the Users/Groups box, type the names of the users or groups that
you want to be able to browse the catalog.
Added users or groups have read access to the App Catalog site. You can add multiple user names
and security groups. Users must be added as End Users to be able to browse the App Catalog from
their site collections.
10. In the Select a quota template list box, select the quota template to use for the site.
11. Click OK.
To view an App Catalog site collection from Central Administration
1. Verify that the user account that is performing this procedure is a member of the Farm
administrators group and has Read permission to the App Catalog site.
2. In Central Administration, on the Apps page, in the App Management section, click Manage App
Catalog.
3. On the Manage App Catalog page, verify that the web application that is selected is the web
application you want to manage.
If you want to switch to a different web application, click the down arrow next to the Web
application URL to change to a different web application.
4. Under Site URL click the link to open the App Catalog for that web application.
Configure app requests and SharePoint Store settings
Farm administrators can determine whether users can purchase apps from the SharePoint Store. This
setting is at the web application scope. If users cannot purchase apps, they can still browse the
SharePoint Store, and request an app. Farm administrators and the App Catalog site owner can view
and respond to app requests.
To configure SharePoint Store settings
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators group.
764
2. In Central Administration, on the Apps page, in the SharePoint and Office Store section, click
Configure Store Settings.
3. On the SharePoint Store Settings page, verify that the selected web application is the web
application that you want to configure.
If you want to switch to a different web application, click the down arrow next to the web
application URL to change to a different web application.
4. To allow or prevent purchases, select an option for Should end users be able to get apps from
the SharePoint Store?
Select Yes to allow users to purchase apps.
Select No to prevent purchases but allow users to request apps.
5. To allow or prevent apps for Office from the Office Store to be started when a user opens a
document in the browser, select an option for Should apps for Office from the store be able to
start when documents are opened in the browser?
Select Yes to allow apps for Office from the Office Store to start.
Select No to prevent apps for Office from the Office Store from starting.
6. Click OK.
When users request an app for SharePoint from the SharePoint Store, users can request a specific
number of licenses and provide a justification for the purchase of the app for SharePoint. Submitted
requests are added to the App Requests list in the App Catalog of the web application that contains a
user’s site collection. The app request includes the following fields:
Requested by The user name of the person requesting the app for SharePoint.
Title The title of the app for SharePoint.
Seats and Site License The number of licenses the user requested for that app for SharePoint.
Justification The reason why the app for SharePoint would be useful for the organization.
Status By default, the status is set to New for new requests. The person who reviews the request
can change the status to Pending, Approved, Declined, Withdrawn, Closed as Approved, or Closed
as Declined.
View App Details A link to the app details page in the SharePoint Store.
Approver Comments The person who reviews the request can add comments for the requestor.
765
To view and manage app requests from the SharePoint Store Settings page
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators group and is a member of the site Owners or Designers group for the App Catalog.
2. In Central Administration, on the Apps page, in the SharePoint and Office Store section, click
Configure Store Settings.
3. On the SharePoint Store Settings page, verify that the selected web application is the web
application that you want to configure.
If you want to switch to a different web application, click the down arrow next to the web
application URL to change to a different web application.
4. In the App Requests section, click Click here to view app requests.
The App Requests list in the App Catalog site opens.
5. Select a request in the list, and then click the Edit button.
6. Review the details of the request.
Note:
At this time, the View app details link in the request details opens the SharePoint Store
home page, instead of the details page for the app. Search for the app in the SharePoint
Store to find more information about the app.
7. Change the Status to the appropriate value - Approved if you want to user to be able to purchase
the app, or Declined if you do not want to allow the purchase.
8. Add comments in the Approver Comments box, and then click Save.
To view a request, requestors can go to the Add an App page in their site collection, and then click
Your Requests.
To view and manage app requests from the App Catalog site
1. Verify that the user account that is performing this procedure is a member of the site Owners or
Designers group for the App Catalog.
2. On the App Catalog site, click the App Requests list.
3. Select a request in the list, and then click the Edit button.
4. Review the details of the request.
766
Note:
At this time, the View app details link in the request details opens the SharePoint Store
home page, instead of the details page for the app. Search for the app in the SharePoint
Store to find more information about the app.
5. Change the Status to the appropriate value - Approved if you want to user to be able to purchase
the app, or Declined if you do not want to allow the app to be purchased.
6. Add any comments in the Approver Comments box, and then click Save.
To view a request, requestors can go to the Add an App page in their site collection, and then click
Your Requests.
Add apps to the App Catalog
After you have configured the App Catalog, you can add apps that users can then install to their
SharePoint sites or use in their Office documents.
To add an app to the App Catalog
1. Verify that the user account that is performing this procedure is a member of the site Owners or
Designers group for the App Catalog.
2. On the App Catalog site, click the Apps for SharePoint list.
On the Apps for SharePoint page, click new item.
3. In the Choose a file box, click Browse, and then locate the folder that contains the app that you
want to upload.
Tip:
You can also click Upload files using Windows Explorer instead to drag and drop an app
for SharePoint into the App Catalog.
4. Select the app, and then click Open.
5. Click OK to upload the app.
6. In the Item details box, verify the Name, Title, Short Description, Icon URL, and other settings for
the app.
Be sure that the Enabled check box is selected so that users can see the app in their sites.
You can select the Featured check box to list the app in the Featured content view of the App
Catalog.
767
7. Click Save.
You can also categorize apps in the App Catalog. To add categories, edit the Category field for the App
Catalog list and add the category names you want to use.
You can preview how the app will appear to users.
Remove apps from the App Catalog
If you no longer want to offer a particular app to your users, you can remove it from the App Catalog.
Removal does not uninstall or remove the app from sites to which it has been added. It merely
removes the app from the App Catalog, and users cannot add the app to other sites.
To remove an app from the App Catalog
1. Verify that the user account that is performing this procedure is a member of the site Owners or
Designers group for the App Catalog.
2. On the App Catalog site, click the Apps for SharePoint list.
3. On the Apps for SharePoint page, select the app that you want to remove.
4. In the ribbon, on the Files tab, click Delete Document to remove the app.
5. In the dialog box, click OK to confirm that you want to send the item to the site Recycle Bin.
The app is removed.
See also
Install and manage apps for SharePoint 2013
Overview of apps for SharePoint 2013
Plan for apps for SharePoint 2013
768
Add apps for SharePoint to a SharePoint
2013 site
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-07-15
Summary: Site owners can add apps for SharePoint to SharePoint sites so that they and other users
of the site can use the app.
Site owners can add apps for SharePoint from the SharePoint Store or an App Catalog to their sites.
Adding an app installs an instance of that app to the site. In addition, several lists, libraries, and other
SharePoint components, which are also called apps in SharePoint 2013, are available to add to a site.
Before you begin
Before you begin this operation, review the following information about prerequisites and
permissions:
Before a user can add an app for SharePoint, a member of the Farm Administrators group must
configure the environment to support apps for SharePoint. For more information, see Configure
an environment for apps for SharePoint (SharePoint 2013).
A user must have the Manage Web site and Create Subsites permissions to add an app for
SharePoint. By default, these permissions are available only to users who have the Full Control
permission level or who are in the site Owners group.
When a user adds an app for SharePoint, the app requests permissions that it needs to function
(for example, access to Search, or to create a list). Users who do not have those permissions are
informed that they do not have sufficient permissions and the app cannot be added. The user can
contact a site or farm administrator to see if the administrator can add the app.
A user logged in to a site as the system account cannot install an app. The system account cannot
import app licenses because that could result in performance problems.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
769
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
Add apps for SharePoint to SharePoint sites
Site owners can add apps for SharePoint from the following sources to their sites:
from the list of apps already available for a site (default apps, such as standard lists and libraries,
and apps that have been purchased already).
from the App Catalog.
from the SharePoint Store.
The following procedures provide steps for adding apps from these sources.
To add an app from the list of available apps in a site
1. Verify that the user account that is performing this procedure is a member of the site Owners
group.
2. On the home page, under Get started with your site, click Add lists, libraries, and other apps.
If the Get started with your site control does not appear on the home page, click the Settings
icon, and click View Site Contents, and then on the Site Contents page, click Add an App.
3. In the Your Apps list, click the app you want to add.
4. Follow the instructions to Trust the app (if it is a custom component) or Name the app (if it is a
SharePoint component).
The app for SharePoint is added and appears in the Apps section of your Site Contents list.
To add an app from an App Catalog
1. Verify that the user account that is performing this procedure is a member of the site Owners
group.
770
2. On the home page, under Get started with your site, click Add lists, libraries, and other apps.
If the Get started with your site control does not appear on the home page, click the Settings icon,
and click View Site Contents, and then on the Site Contents page, click Add an App.
3. Click FromName.
Where Name is the name of your organization's App Catalog. For example, "From Contoso".
Tip:
Apps marked as Featured in the App Catalog will also appear in the main list of Apps.
4. Click the app you want to add.
5. In the Grant Permission to an App dialog box, if you trust the app, click Allow Access.
The app for SharePoint is added and appears in Apps section of your Site Contents list.
To add an app from the SharePoint Store
1. Verify that the user account that is performing this procedure is a member of the site Owners
group.
2. On the home page, under Get started with your site, click Add lists, libraries, and other apps.
If the Get started with your site control does not appear on the home page, click the Settings icon,
and click View Site Contents, and then on the Site Contents page, click Add an App.
3. Click SharePoint Store.
4. Browse the SharePoint Store to find an app that you want.
5. Click the app you want to add.
6. Click Details, and then click Buy It.
7. Follow the steps to log in and purchase the app, if required.
8. In the Grant Permission to an App dialog box, if you trust the app, click Allow Access.
The app for SharePoint is added and appears in the Apps section of your Site Contents list.
You can also install an app by using Windows PowerShell. First, you import the app package from the
file system, and then install it to the site collection. The following procedure contains a script to
perform these steps.
771
To install an app by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Site Owners group on the site collection to which you want to install the app.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command to import the app
and then press ENTER:
$spapp = Import-SPAppPackage -Path
Path to app
-Site
URL
-Source
Source
# Imports the app and sets a variable that you can use to identify the
app when you install it in the next step.
Where:
772
Path to app is the path to the app you want to import on the file system.
URL is URL for the site collection to which you want to import the app.
Source is one of the following: Marketplace, CorporateCatalog, DeveloperSite,
ObjectModel, RemoteObjectModel, or InvalidSource.
4. At the question Are you sure you want to perform this action?, type Y to import the app.
The app is imported and information about the app, including the Asset ID, version string, and
Product ID is displayed.
5. At the Windows PowerShell command prompt, type the following command to add the app to a
site and then press ENTER:
Install-SPApp -Web
URL
-Identity $spapp
# Installs the app to the subweb you specify.
# Uses the $spapp variable you set previously to identify that app you
want to install.
Where:
URL is URL for the site or subweb to which you want to install the app.
For more information, see Import-SPAppPackage and Install-SPApp.
See also
Install and manage apps for SharePoint 2013
Overview of apps for SharePoint 2013
773
Remove app for SharePoint instances from
a SharePoint 2013 site
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise, SharePoint
Foundation 2013
Topic Last Modified: 2014-07-28
Summary: When administrators remove apps for SharePoint from SharePoint sites, the apps are
uninstalled and functionality is no longer available to users.
In this article:
Before you begin
Remove an app from a SharePoint site
Locate and remove app instances in all locations
Before you begin
Before you begin this task, review the following information about permissions:
A user must have the Manage Web site permission to remove an app for SharePoint. By default,
this permission is only available to users with the Full Control permission level or who are in the
site Owners group.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013
Keyboard shortcuts
Touch
774
Remove an app from a SharePoint site
Site owners can remove apps for SharePoint from their sites. Several circumstances might influence
farm administrators and site owners to remove apps from their sites. For example, an app for
SharePoint may no longer be needed or could become too much of a distraction to employees. The
following procedures provide steps for removing (or uninstalling) an app.
Note:
When you remove an app, the data for that app will no longer be available.
To remove an app from a SharePoint site
1. Verify that the user account that is performing this procedure is a member of the Site owners
group.
2. On the site, on the Settings menu, click View Site Contents.
3. In the Apps section, point to the app that you want to remove, click …, and then click Remove.
4. Click OK to confirm that you want to remove the app.
Before you use the following procedure, be sure to get the title for the app that you want to remove.
To remove an app by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Site Owners group on the site collection to which you want to install the app.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 15 Products cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
775
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products,
and then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
3. At the Windows PowerShell command prompt, type the following commands, and press ENTER
after each one:
$instances = Get-SPAppInstance -Web
<URL>
# Gets all apps installed to the subsite you specify.
$instance = $instances | where {$_.Title -eq '
<app_title>
'}
# Sets the $instance variable to the app with the title you supply.
Uninstall-SPAppInstance -Identity $instance
# Uninstalls the app from the subsite.
Where:
<URL> is the path site collection or subsite that contains the app.
<app_title> is the title of the app you want to remove.
4. At the question Are you sure you want to perform this action?, type Y to uninstall the app.
For more information, see Get-SPAppInstance, Uninstall-SPAppInstance.
Locate and remove app instances in all locations
An app for SharePoint in the App Catalog is available for users to install. Consequently, users can
install apps for SharePoint on many sites. An administrator who wants to remove a specific app might
find it difficult to locate all instances of an app.
This section provides two Windows PowerShell scripts that farm administrators and site owners can
use to find all locations for a specific app and then uninstall all instances from every location. Use the
first script to locate all instances of a specific app in a SharePoint environment. Then use the second
script to uninstall all instances of the app from the SharePoint environment.
776
Note:
When you remove an app, the data for that app will no longer be available.
To locate specific apps by using Windows PowerShell (save as script and run script)
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running Windows PowerShell
cmdlets.
You must read about_Execution_Policies.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. Open the Get all App instances for a specific App on a specific web application script sample on
the TechNet Gallery.
3. Copy the code from the sample to a text editor and save the file as “Get-AppInstances.ps1”
4. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products,
and then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
777
5. Change to the directory where you saved the file.
6. At the Windows PowerShell command prompt, type the following command:
./ Get-AppInstances.ps1 -productId
<ProductId>
-webAppUrl
<webAppUrl>
Where:
<ProductId> is the GUID ID of the App
and <webAppUrl> is the full URL of the web application.
To uninstall specific apps from all locations by using Windows PowerShell (save as script and run
script)
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running Windows PowerShell
cmdlets.
You must read about_Execution_Policies.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. Open the Remove all App instances for a specific App on a specific web application script sample
on the TechNet Gallery.
3. Copy the code from the sample to a text editor and save the file as “Remove-App.ps1”
4. Save the file as Remove-App.ps1.
5. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
778
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012 R2 and Windows Server
2012.
6. Change to the directory where you saved the file.
7. At the Windows PowerShell command prompt, type the following command:
./ Remove-App.ps1 -productId
<ProductId>
-webAppUrl
<webAppUrl>
Where:
<ProductId> is the GUID ID of the App
<webAppUrl> is the full URL of the web application.
For more information, see Get-SPSite.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
See also
Install and manage apps for SharePoint 2013
Overview of apps for SharePoint 2013
Add apps for SharePoint to a SharePoint 2013 site
Use Windows PowerShell to administer SharePoint 2013
779
Monitor apps for SharePoint for SharePoint
Server 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise
Topic Last Modified: 2013-12-18
Summary: Learn how administrators and site owners can monitor the health and usage details for
apps for SharePoint in SharePoint Server 2013.
You can use the SharePoint Central Administration website to add and remove apps for SharePoint
and check details and errors.
Important:
The steps in this article apply to SharePoint Server 2013 only.
App monitoring is not available in SharePoint Foundation 2013.
App monitoring is not supported for SharePoint Server 2013 on-premise, multi-tenancy
environments.
In this article:
Before you begin
Selecting apps to monitor in Central Administration
To add an app to the monitor apps list
To remove an app from the monitor apps list
Monitoring app details in Central Administration
To view the app usage details in Monitored Apps
To view the app error details in Monitored Apps
Monitoring app details in a SharePoint site
To view the app usage details in a SharePoint site
780
Before you begin
Before you can monitor apps, a member of the Farm Administrators group must configure the
environment to support apps for SharePoint. For more information, see Configure an environment for
apps for SharePoint (SharePoint 2013).
You must be a member of the Farm Administrators group or the site Owners group to perform the
steps in this article.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Selecting apps to monitor in Central Administration
The Monitored Apps page displays the apps for SharePoint that a Farm Administrator monitors. Each
app for SharePoint that is listed on this page includes details to help an administrator monitor
performance. For example, each app for SharePoint provides the following properties: Name, Status,
Source, Licenses in Use, Licenses Purchased, Install Locations, and Runtime Errors. A Farm
Administrator chooses to add, remove, and monitor apps for SharePoint.
Important:
The Monitor Apps page requires the following search analytics and usage file import timer
jobs to be active:
ECM analytics timer job name: Usage Analytics timer job for Search Service
Usage DB timer job name: Microsoft SharePoint Foundation Usage Data Import
781
To add an app to the monitor apps list
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
2. In Central Administration, click General Application Settings.
3. On the General Application Settings page, in the Apps section, click Monitor Apps.
4. On the Monitored Apps page, in the Action group of the ribbon, click Add App.
Note:
If the App Catalog is not already created, or if the App Management Service application
and app domain settings are not configured correctly the Add App dialog may create an
error.
5. Select the checkbox for the app that you want to monitor, or type a name in the Search for app
name box, and then click the Search icon.
6. On the search results page, select the app that you want to monitor.
Note:
Apps that you add to the Monitored Apps list previously are not displayed in the search
results.
7. Click Add App.
The app now appears in the list of monitored apps.
To remove an app from the monitor apps list
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
2. On the Monitored Apps page, select the checkbox next to the app that you want to remove.
3. In the Manage group of the ribbon, click Remove App.
Monitoring app details in Central Administration
This section explains how farm administrators can monitor and understand the apps for SharePoint
details. There are multiple ways that an administrator can view the error and usage details for apps
for SharePoint. By selecting an app in the Monitored Apps page, an administrator can use the ribbon
to access the error or usage details for that app. An administrator can also click an app in the list on
the Monitored Apps page to open the app details page and access the same error or usage details.
782
The app usage and app error details data that is in the app monitoring pages can be delayed for up to
29 hours. The app details depend on when the ECM analytics timer job is scheduled to run. When the
timer job runs, it collects events for the previous day. For example, if the timer job is scheduled to run
at 5 A.M., then the most recent events that are collected are from 11:59 P.M. the previous day. An
event that occurs at 12:01 A.M. will not appear in the app details pages until up to 29 hours later.
Note that if you view the app error details page for a specific instance of an app, the number of errors
for the app is synchronized with the error messages in the list. This occurs because the number of
errors appears in the app error details page instead of the events that are processed by the ECM
analytics timer job.
Note:
Be aware that in the Monitored Apps page, the error dialog box can show more errors than
are counted. The errors are counted every 24 hours, but the error messages are processed
more often. As a result, the error dialog box can show error messages that are generated in
the current day before the count is updated at the end of the day.
To view the app usage details in Monitored Apps
4. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
5. On the Monitored Apps page, click the app that you want to view.
A new page opens and displays detailed information about the app, such as the following:
licensing, errors, installations, and usage.
Note:
The administrator can also select an app in the monitored apps list and in the App Details
group of the ribbon, click View Details.
6. In the Usage section, click Days, Months, or Years to change the chart to those time frames.
To view the app error details in Monitored Apps
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
2. On the Monitored Apps page, click the number in the Runtime Errors column for the app you want
to view.
Note:
The administrator can also select an app in the monitored apps list and in the App Details
group of the ribbon, click View Errors.
783
3. The App Monitoring Details dialog appears with information about each error for that app. You
can use the Correlation ID to find the errors in the error log.
4. Click the URL in the Location column to view more error details for this app.
5. On the App Monitoring Details page, click the number next to Runtime Errors.
6. The App Monitoring Details dialog appears and includes a list of all Runtime Errors for this app, the
time each error occurred, and the Correlation ID.
Note:
The app error list can help you determine if you want to remove the app because there
are too many errors or if the app is working as it should.
Monitoring app details in a SharePoint site
This section explains how site owners can monitor and understand the usage of apps for SharePoint. A
site owner can view the error and usage details for apps for SharePoint by selecting an app in the Site
Contents page and then clicking Monitor in the app dialog box.
Note:
Be aware that in the app details page, the error dialog box can show more errors than are
counted. The errors are counted every 24 hours, but the error messages are processed more
often. As a result, the error dialog box can show error messages that are generated in the
current day before the count is updated at the end of the day.
To view the app usage details in a SharePoint site
1. Verify that the user account that is performing this procedure is a member of the site Owners
group.
2. On the Site Contents page, in the quick launch pane, click Apps.
A new page opens and displays all of the apps that are installed on this site.
3. On the Apps page click the icon next to the app you want to monitor and then click Details in the
callout.
The App Details page appears for the selected app and the site owner can see the details for
licenses, errors Installs and usage.
4. In the Errors section, click the number next to Install Errors, Runtime Errors, or Upgrade Errors to
see the error details.
784
For example, click the number next to Runtime Errors and the Runtime Errors dialog appears. This
includes a list of all Runtime Errors for this app, the time each error occurred, and the Correlation
ID.
This app error list can help you determine if you want to remove the app because there are too
many errors or if the app is working as it should.
Note:
The app errors that appear in this list have occurred within the previous four days.
5. In the Usage section, click Days, Months, or Years to change the chart to those time frames.
The chart displays two bars for each time period that represents the number of times the app has
been launched and the number of specific users that use this app each day.
Note:
If the app uses connections to external data sources through Business Connectivity
Services, a graph that shows the number of calls made to the external data sources is also
shown. Dates that appear in the Usage and BCS Calls graphs are in Coordinated Universal
Time (UTC).
See also
Plan for apps for SharePoint 2013
785
Monitor and manage app licenses in
SharePoint Server 2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise
Topic Last Modified: 2013-12-18
Summary: Learn how SharePoint farm administrators assign, monitor, and manage the app for
SharePoint licenses in SharePoint Server 2013.
You can use the SharePoint Central Administration website to monitor and manage licenses for the
apps for SharePoint. Licenses for apps for SharePoint are digital sets of verifiable information that
state the user rights for a app for SharePoint. All apps that are distributed through the SharePoint
Store are the only apps that have built-in licenses that SharePoint Server 2013 recognizes.
Members of the Farm Administrators group manage licenses for apps and can also assign license
managers for others to manage app for SharePoint licenses.
Important:
The steps in this article apply to SharePoint Server 2013 only.
Before you begin
Before you can monitor and manage app licenses you must configure your environment to support
apps for SharePoint. You must be a member of the Farm Administrators group to perform these steps.
For more information, see Configure an environment for apps for SharePoint (SharePoint 2013).
Important:
We support only one App Management Service Application per farm. This helps ensure that
the app license feature functions correctly.
Before you begin this operation, review the following information about what SharePoint Server 2013
does and does not provide for apps for SharePoint licensing:
SharePoint Server 2013 provides:
Storefront to obtain apps
Storage and renewal of app for SharePoint licenses
User Interface (UI) to assign users to specific app for SharePoint licenses
786
APIs for developers to query for license information
SharePoint Server 2013 does not enforce app for SharePoint licenses.
Developers must add code in their apps for SharePoint to retrieve license information and react
accordingly.
All app for SharePoint licenses are bound to a specific SharePoint Server 2013 deployment but can
be transferred to a different SharePoint Server 2013 deployment three times.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Monitoring and managing app licenses
A farm administrator or a license manager can check the licenses for all apps for SharePoint on the
App Licenses page. It is important to track the number of licenses that are available for each app for
SharePoint so that users do not exceed this number. An administrator can assign additional users to a
app for SharePoint license, purchase additional licenses for an app, and also add managers to a
license. For more information about how to monitor apps for SharePoint see, Monitor apps for
SharePoint for SharePoint Server 2013.
To view app license details
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group or a license manager.
2. In Central Administration, click Apps.
3. On the Apps page, in the Store section, click Manage App Licenses.
787
4. On the Manage App Licenses page, click an app for SharePoint in the list to view the license
details.
The Manage App License page shows detailed licensing information. This includes the name of
the app, the developer, and current license details.
5. In the top section, click the drop-down arrow in the dialog box to see purchase details for the
selected app for SharePoint.
The app details include the following information:
Number of licenses available for users
License type
App purchaser name
6. At the end of the dialog box, a farm administrator can view the app details.
Click View in Store to see the app details.
In the People with a License (number of licenses available)section, the number of
available licenses and a list of the people who currently have licenses for this App are
shown.
In the License Managers section, all app managers are listed.
To add users to the app license
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
2. On the Manage App Licenses page, click an app for SharePoint for which you want to add users.
3. In the People with a License section, click assign people.
4. In the dialog box that appears below, enter the user name that you want to add and then, click
Add User.
The user name is added to the list at the bottom of this section and the number of available
licenses for this app is refreshed for the selected app for SharePoint.
To purchase more app licenses
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
788
2. On the Manage App Licenses page, click an app for SharePoint for which you want to purchase
more licenses.
3. In the People with a License section, click buy more licenses.
4. The SharePoint Store opens with the specific app showing the details with links to purchase
additional licenses. Choose the number of Apps you want to purchase and then click OK.
To remove app licenses
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
2. On the Manage App Licenses page, click an app for SharePoint for which you want to remove
licenses.
3. In the top section, under the app for SharePoint name, at the end of the dialog box, click Remove
this License.
4. Verification: Optionally, include steps that users should perform to verify that the operation was
successful.
To recover app licenses
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
2. On the Manage App Licenses page, click an app for SharePoint for which you want to recover
licenses.
3. In the top section, under the app name, at the end of the dialog box, click Recover License.
The app for SharePoint details show any changes the administrator has made.
To add a license manager
1. Verify that the user account that is performing this procedure is a member of the Farm
Administrators SharePoint group.
2. On the Manage App License page, in the License Managers section, click add manager.
Below the License Managers section, the new App manager appears in the list.
See also
Overview of apps for SharePoint 2013
789
Enable apps in AAM or host-header
environments for SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013, Microsoft SharePoint technologies
Topic Last Modified: 2014-07-28
Learn how to enable app domains for alternate access mappings or host-header web application
environments after installing the March 2013 Public Update.
One of the feature updates of the March 2013 Public Update for SharePoint 2013 enables you to use
multiple app domains in SharePoint 2013 environments with alternate access mapping or host-header
web application configurations. Before the Public Update, you could only host one app domain and it
had to be in the Default zone. You could not use the app domain on alternate access mappings or
host-header web application configurations. The Public Update enables you to configure an app
domain for each web application zone and use alternate access mapping and host-header web
application configuration. For more information about apps for SharePoint 2013, see, Overview of
apps for SharePoint 2013.
Although the Public Update automatically installs the necessary pieces, the feature is not enabled by
default. To use the new feature, you must prepare the environment, enable the feature, and configure
the app domains and zones.
Important:
To enable and use this feature, you have to use a reverse proxy to allow traffic for the app
domains. The Public Update does not install or configure the reverse proxy. You must set up
the reverse proxy. For more information about how to set up a reverse proxy for SharePoint
2013, refer to the proxy hardware manufacturer’s documentation.
Note:
You can only enable and configure this feature by using Windows PowerShell.
The March 2013 Public Update for SharePoint 2013 installs the following new Windows
PowerShell cmdlets:
New-SPWebApplicationAppDomain
Get-SPWebApplicationAppDomain
Remove-SPWebApplicationAppDomain
To complete the process, follow the procedures consecutively.
790
In this article:
Prepare the environment
Configure app domains
Enable the feature
Enable the SharePoint Health Analyzer rule
Special conditions and limitations
Prepare the environment
You must configure the farm-level app domain. For more information, see Configure an environment
for apps for SharePoint (SharePoint 2013).
Configure app domains
To use the enabled feature, you have to configure the app domains, create DNS entries with specific
routing rules, and then enable the feature. Use the following procedures to create the DNS entries
and routing rules, and to add, remove, or alter app domains. You only have to run the configuration
one time for each app domain in each zone on every web application. To enable the feature, see
Enabling the feature later in this article.
Note:
Apps domains can be shared across web applications if the zone, application pool identity, and
authentication schemes match. For example suppose that webappA is configured to use the
Default zone and webappB is also configured to use the Default zone. In addition, both web
applications use the same application pool identity, and both web applications use NTLM. In
this scenario, the web applications can share a single app domain.
Important:
Ensure that the domains follow the same guideline for the wildcard DNS entry and SSL cert as
the farm app domain. For more information see, Configure an environment for apps for
SharePoint (SharePoint 2013).
You must also create DNS entries for each app domain, including a routing rule. For more
information about how to do this, see Configure an environment for apps for SharePoint
(SharePoint 2013).
Because the SharePoint 2013 backup and restore process does not restore the alternate
access mapping or host-header web application configuration, we recommend that you use a
791
script to perform the configuration. If necessary, you can restore settings by running the script
again.
In this section:
To configure app domains by using Windows PowerShell
To remove app domains by using Windows PowerShell
To alter app domain settings by using Windows PowerShell
To configure app domains by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
792
3. At the Windows PowerShell command prompt, type the following command:
New-SPWebApplicationAppDomain -AppDomain
<AppDomain>
-WebApplication
<WebApplicationID>
-Zone
<Zone>
-Port
<Port>
-SecureSocketsLayer
Where:
<AppDomain> is the URI of the app domain.
This parameter is required.
<WebApplicationID> is the GUID, URI, or name of the web application for which the app
domain is being configured.
This parameter is required.
<Zone> is the security zone to which the app domain will be assigned. Possible values are
“Default”, “Intranet”, “Internet”, “Custom”, or “Extranet”. If no value is specified
“Default” will be applied.
This parameter is optional.
<Port> is the IIS port number to which the app domain will be assigned. If no value is
specified, the same port that is used by the web application for the zone will be applied.
This parameter is optional.
-SecureSocketsLayer is a parameter to specify that the app domain will use Secured
Sockets Layer (SSL) security. If no value is specified, no SSL security will be used.
This parameter is optional.
To remove app domains by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
793
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
Remove-SPWebApplicationAppDomain -WebApplication
<WebApplicationID>
-Zone
<Zone>
Where:
<WebApplicationID> is the GUID, URI, or name of the web application for which the app
domains will be removed.
This parameter is required.
<Zone> is the security zone from which the app domain will be removed. Possible values
are “Default”, “Intranet”, “Internet”, “Custom”, or “Extranet”. If no value is specified, all
of the app domains for the web application will be removed.
This parameter is optional.
To alter app domains settings by using Windows PowerShell
1. To alter the settings for an app domain, such as after the authentication scheme of the zone is
changed, you must use the Remove –SPWebApplicationAppDomain cmdlet to remove the app
domain and then use the New –SPWebApplicationAppDomain cmdlet to re-create it. For more
information about how to use these cmdlets, see the sections earlier in this article.
794
Enable the feature
To use the feature, you must first configure the app domains and then enable the feature. Use the
following procedures to enable or disable the feature.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
To enable feature by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
795
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
Important:
Executing these commands will briefly interrupt Internet Information Services (IIS) 7.0.
$contentService =
[Microsoft.SharePoint.Administration.SPWebService]::ContentService
$contentService.SupportMultipleAppDomains = $true
$contentService.Update()
Iisreset
To disable the feature, at the Windows PowerShell command prompt, type the following
command:
Important:
Executing these commands will briefly interrupt IIS 7.0.
$contentService =
[Microsoft.SharePoint.Administration.SPWebService]::ContentService
$contentService.SupportMultipleAppDomains = $false
$contentService.Update()
Iisreset
Enable the SharePoint Health Analyzer rule
A SharePoint Health Analyzer (SPHA) rule is also installed with the feature but it is not enabled by
default. This rule helps you detect any configuration problems that might occur with app domains. Use
the procedure below to enable this SPHA rule.
796
To enable the SharePoint Health Analyzer rule by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
Get-SPHealthAnalysisRule WebApplicationAppDomainsConfigurationTest |
Enable-SPHealthAnalysisRule
For more information, see Get-SPHealthAnalysisRule or Enable-SPHealthAnalysisRule.
797
Special conditions and limitations
The feature in the Public Update has some special conditions and limitations. Review this list before
you create app domains to ensure that the app domains are created correctly. The list might also help
you troubleshoot problems when you create app domains:
You cannot add an app domain to a zone that does not exist. Ensure that the zone exists, or create
it, before you add app domains to the zone.
To share an app domain across two web applications, the web applications must share the same
application pool identity and both have to be configured to use the same zone and authentication
scheme.
You cannot use IIS ports that are already being used when you configure app domains.
If the app domain is configured to use secure sockets layer (SSL) you must configure the app
domain to use a wildcard certificate and bind the SSL to a different port from the web application
SSL port.
You cannot use both the -Identity and -WebApplication parameters at the same time with the
Get-SPWebApplicationAppDomain Windows PowerShell cmdlet. You can use either parameter
by itself but not both together.
If the app domain is associated with multiple web applications, the Get-
SPWebApplicationAppDomain Windows PowerShell cmdlet returns an ambiguous error when
you use the –Identity parameter. The error message is: Get-SPWebApplicationAppDomain :
Cannot find an SPAppDomain object with AppDomain: <Domain>.
You must enable the feature before you can use an app domain that you create. If you use the
New-SPWebApplicationAppDomain Windows PowerShell cmdlet to create an app domain
before you enable the feature, the cmdlet will create the app domain. You must enable the
feature before you can use the app domain. To simplify the process, ensure that you enable the
feature before you create app domains. You can use the Get-
SPWebApplicationAppDomain Windows PowerShell cmdlet to confirm successful creation of
app domains
See also
Configure an environment for apps for SharePoint (SharePoint 2013)
Overview of apps for SharePoint 2013
798
Upgrade to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to plan, prepare, and perform an upgrade to SharePoint 2013.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about performing an upgrade to SharePoint 2013.
Downloadable resources about upgrade
Download the following content for information about upgrade.
Content
Description
SharePoint 2013 - Upgrade
Process model
Describes the steps in the
process for a database-attach
upgrade.
SharePoint 2013 - Test Your
Upgrade Process model
See a visual display of
information about how to test
the upgrade process.
SharePoint 2013 Upgrade
Worksheet
Use this worksheet to record
information about your
environment while you test
upgrade.
TechNet articles about upgrade
The following articles about upgrade are available to view online. Writers update articles on a
continuing basis as new information becomes available and as users provide feedback.
799
Content
Description
Get started with upgrades to SharePoint 2013
Find resources to help you understand how to
upgrade databases and site collections from
SharePoint 2010 Products to SharePoint 2013.
Plan for upgrade to SharePoint 2013
Find resources about how to plan to upgrade
from SharePoint 2010 Products to SharePoint
2013.
Test and troubleshoot an upgrade to SharePoint
2013
Find resources about how to test and
troubleshoot an upgrade from SharePoint 2010
Products to SharePoint 2013.
Upgrade databases from SharePoint 2010 to
SharePoint 2013
Find resources to help you perform the steps to
upgrade databases from SharePoint 2010
Products to SharePoint 2013.
Upgrade site collections to SharePoint 2013
Find out how to upgrade a site collection to
SharePoint 2013.
Advanced upgrade scenarios for SharePoint 2013
Learn how to upgrade to SharePoint 2013 in
advanced scenarios, such as from Office
SharePoint Server 2007 or Windows SharePoint
Services 3.0, from FAST Search Server, or when
using content type syndication.
Additional resources about upgrade
The following resources about upgrade are available from other subject matter experts.
Content
Description
Upgrade and Migration Resource
Center for SharePoint 2013
Products
Visit the Resource Center to find
additional information about
upgrades to SharePoint 2013.
801
Get started with upgrades to SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Find resources to help you understand how to upgrade databases and site collections from
SharePoint 2010 Products to SharePoint 2013.
The first step in any upgrade process is to learn about the process itself so that you can plan and
prepare appropriately. These articles help you understand how the process of upgrading from
SharePoint 2010 Products to SharePoint 2013 works. These articles also include overviews of how to
upgrade service applications.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about understanding upgrade for SharePoint 2013.
Downloadable resources about upgrade to SharePoint
2013
Download the following content for information about upgrade.
Content
Description
SharePoint 2013 Products
Preview - Upgrade Process
model
Describes the steps in the
process for a database attach
upgrade
TechNet articles about understanding upgrade
The following articles about understanding upgrade are available to view online. Writers update
articles on a continuing basis as new information becomes available and as users provide feedback.
802
Content
Description
What's new in SharePoint 2013
upgrade
Find out about new
requirements, approaches, and
features that are available for
upgrading to SharePoint 2013.
Overview of the upgrade process
to SharePoint 2013
Get a visual overview of the
steps involved in performing an
upgrade.
Upgrade overview videos for
SharePoint 2013
View this series of short
overview videos to understand
how upgrade works for
SharePoint 2013.
Services upgrade overview for
SharePoint Server 2013
SharePoint 2010 Products
included several service
applications, some of which
have databases that can be
upgraded when you upgrade to
SharePoint 2013. Find out which
service application databases
can be upgraded and what steps
that you must take before,
during, and after upgrade for
your service applications.
Upgrade farms that share
services (parent and child farms)
to SharePoint 2013
In SharePoint Server 2010, it was
possible to configure parent
farms and child farms to share
services. In such an
environment, the parent farm
hosts one or more service
applications from which one or
more child farms consume
services. Learn how to approach
upgrading these environments
to SharePoint Server 2013.
803
Content
Description
Best practices for upgrading to
SharePoint 2013
Get off to the right start - review
these best practices for testing
and performing an upgrade to
SharePoint 2013.
Review supported editions and
products for upgrading to
SharePoint 2013
Understand the requirements
for upgrade. And if you are
planning to change SKUs or
products during upgrade,
understand which upgrade paths
are supported.
Additional resources about upgrade to SharePoint
2013
The following resources about upgrade to SharePoint 2013 are available from other subject matter
experts.
Content
Description
Upgrade and migration for
SharePoint 2013 IT Pros
Resource Center
Visit the Resource Center to
access videos, community sites,
documentation, and more.
See also
Upgrade to SharePoint 2013
Plan for upgrade to SharePoint 2013
804
What's new in SharePoint 2013 upgrade
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: SharePoint 2013 includes new upgrade features, such as upgrade for service applications,
a site health checker, and upgrade for site collections.
SharePoint 2013 does not support in-place upgrade for an existing environment. You must use the
database-attach upgrade method to upgrade your databases to a new environment that is based on
SharePoint 2013. Also, to provide more flexibility to farm administrators and site administrators, the
upgrade process has changed to separate upgrade of the software and databases from upgrade of the
sites.
In-place upgrade of the farm is not supported
An upgrade to SharePoint Server 2010 or SharePoint Foundation 2010 provided an option to install
the new version over the earlier version on the same hardware. This was called an in-place upgrade.
During this process, the complete installation (both databases and sites) was upgraded in a fixed
order. Although this was a simple method, in-place upgrade presented problems in performance and
control for a farm administrator. There was no way to control the order in which content is upgraded,
and a failure in a particular site collection could stop the whole process.
The database-attach upgrade method offers more flexibility, more control, and a better success rate.
Therefore, in-place upgrade is not supported for SharePoint 2013 and database-attach upgrade is the
only supported upgrade method.
To use a database attach upgrade, you complete the following tasks
1. Create and configure a new farm that is separate from the old farm
2. Copy the content and services databases to the new farm
3. Upgrade the data and sites
You can upgrade the content databases in any order and upgrade several databases at the same time
to speed up the overall process.
For more information, see Overview of the upgrade process to SharePoint 2013.
805
Database-attach upgrade is available for some service
application databases
For the SharePoint 2013, you can use the database attach upgrade method to upgrade the following
service application databases:
Business Data Connectivity
This service application is available for both SharePoint Server 2013 and SharePoint Foundation
2013.
Managed Metadata
This service application is available only for SharePoint Server 2013.
PerformancePoint
This service application is available only for SharePoint Server 2013.
Secure Store
This service application is available only for SharePoint Server 2013.
User Profile (Profile, Social, and Sync databases)
This service application is available only for SharePoint Server 2013.
Search administration
This service application is available only for SharePoint Server 2013.
For more information, see Services upgrade overview for SharePoint Server 2013.
Deferred site collection upgrade
In SharePoint 2010 Products, farm administrators use either the in-place upgrade process to upgrade
sites immediately, or the command line to upgrade all sites at the same time or individually. In
SharePoint 2013, farm administrators can now allow site collection owners to upgrade their sites to
the new user interface on their own timeline. The commands for upgrading a site collection are on the
Site Settings page in the Site Collection Administration section. There are also Windows PowerShell
cmdlets to upgrade site collections to the new user interface. For more information, see Plan for site
collection upgrades in SharePoint 2013, Upgrade a site collection to SharePoint 2013and Manage site
collection upgrades to SharePoint 2013.
806
Site collection health checker
Site collection owners or administrators can use a site collection health checker to detect any
potential issues with their site collections and address them before they upgrade sites to the new
version. The checker is available after upgrade also to detect any health issues on an ongoing basis.
Note that some issues can be repaired automatically, but others require manual steps to repair.
During a site collection upgrade, if the checker finds issues that can be repaired automatically, they
are repaired at that time. For more information, see Run site collection health checks in SharePoint
2013.
Upgrade evaluation site collections
In SharePoint 2013, the upgrade of the software and data was separated from the upgrade of the site.
This means that the sites can truly remain running in SharePoint 2010 mode until a site owner or
administrator explicitly upgrades the site to the new user interface. Site collection owners can request
an evaluation site, which is a separate copy of the site, to review the new interface and functionality.
After they have reviewed the site and made necessary changes in their original site, they can then
upgrade their sites to the new version. Evaluation sites are set to automatically expire and be deleted.
For more information, see Plan settings for upgrade evaluation sites, Create an upgrade evaluation
site, and Manage site collection upgrades to SharePoint 2013.
Notifications for life-cycle events
An email message and a status bar notification in a site collection notifies site collection owners when
an upgrade is available. Site collection owners can create an evaluation site from email and control
the expiration and deletion of that site by using email also. A status bar notification in the site
collection also informs all users if a site is in read-only mode. For more information, see Determine
whether site collection owners are notified about upgrades and plan settings for upgrade notifications
and Manage site collection upgrades to SharePoint 2013.
Throttles for site collection upgrade
To make sure that site collection upgrades do not cause an outage on your farm, there are throttles
built in at the web application, database, and content level. This means that even if 100 site collection
owners decide to upgrade their site collections at the same time, only some are run at the same time,
and the rest are put into a queue to run later. For more information, see Plan site collection upgrade
throttling and queues and Manage site collection upgrades to SharePoint 2013.
807
True “SharePoint 2010” instead of visual upgrade
Visual upgrade in SharePoint 2010 Products lets site owners and administrators see what their site
would be like in the new user interface. However, it is not a true preview because the site itself has
already been upgraded to the new functionality. Consequently, some Web Parts or other elements do
not display correctly.
SharePoint 2013 can host sites in both SharePoint 2010 and SharePoint 2013 modes. The installation
contains both SharePoint 2010 and SharePoint 2013 versions of the following types of elements:
Features, site templates, site definitions, and Web Parts
The directories on the file system are duplicated in both the 14 and 15 paths, for example:
Web Server Extensions/14/TEMPLATE/Features
Web Server Extensions/15/TEMPLATE/Features
IIS support directories:
_Layouts, _Layouts/15
_ControlTemplates, _ControlTemplates/15
Solution deployment, which lets legacy solutions work in 2010 mode
Note that existing SharePoint 2010 Products solutions can be deployed to SharePoint 2013 and
continue to function for 2010 sites, usually without requiring any changes.
Because of these directories, you can continue hosting unupgraded sites in an upgraded environment
until all site collections are ready to upgrade. For more information, see About site collection modes.
Log files now in ULS format
The format of the upgrade, upgrade error, and site upgrade log files now comply with the Unified
Logging System (ULS) conventions for easier review. For more information, see Verify database
upgrades in SharePoint 2013.
See also
Capabilities and features in SharePoint 2013 Resource Center
Upgrade and Migration Resource Center for SharePoint 2013 Products
808
Overview of the upgrade process to
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn about the process of upgrading databases, service applications, My Sites, and site
collections to SharePoint 2013.
To upgrade from SharePoint 2010 Products to SharePoint 2013, you use the database-attach method
to upgrade. In the database-attach method, you first create and configure a SharePoint 2013 farm.
Then you copy the content and service application databases from the SharePoint 2010 Products
farm, and then attach and upgrade the databases. This upgrades the data to the new version. Site
owners can then upgrade individual site collections.
Figure: The sequence of upgrade stages
This article helps you understand the upgrade sequence so that you can plan an upgrade project. To
get detailed steps for an upgrade, see Upgrade databases from SharePoint 2010 to SharePoint 2013
and Upgrade site collections to SharePoint 2013.
Important:
This article applies to both SharePoint Foundation 2013 and SharePoint Server 2013, except
for information about how to upgrade My Sites and specific service applications that are only
in SharePoint Server 2013.
Watch the SharePoint 2013 Upgrade: Overview video
809
Create the SharePoint 2013 farm
The first stage in the upgrade process creates the new SharePoint 2013 farm:
1. A server farm administrator installs SharePoint 2013 to a new farm. The administrator configures
farm settings and tests the environment.
2. A server farm administrator sets the SharePoint 2010 Products farm to read-only so that users can
continue to access the old farm while upgrade is in progress on the new farm.
Figure: Create new farm, set old farm to read-only
Copy the SharePoint 2010 Products databases
The second stage in the upgrade process copies the databases to the new environment. You use SQL
Server Management Studio for these tasks.
1. With the farm and databases in read-only mode, a server farm administrator backs up the content
and service application databases from the SQL Server instance on the SharePoint 2010 Products
farm.
810
2. The server farm administrator restores a copy of the databases to the SQL Server instance on the
SharePoint 2013 farm and sets the databases to read-write on the new farm.
Figure: Use SQL Server tools to copy databases
Upgrade SharePoint 2010 Products databases and
service applications
The third stage in the upgrade process upgrades the databases and service applications.
1. A server farm administrator configures the service applications for the new farm. The following
service applications have databases that you can upgrade during this process:
SharePoint Server 2010 and SharePoint Foundation 2010
Business Data Connectivity service application
811
SharePoint Server 2010 only
Managed Metadata service application
PerformancePoint Services service application
Search service application
Secure Store Service application
User Profile service application
2. A server farm administrator creates a web application on the SharePoint 2013 farm for each web
application on the SharePoint 2010 Products farm.
Figure: Create web applications for upgrade
3. A server farm administrator installs all server-side customizations.
Figure: Copy customizations to the new farm
812
4. A server farm administrator then attaches the content databases to the new farm and upgrades
the content databases for those web applications.
Figure: Upgrade the databases by using Windows PowerShell
5. A server farm administrator confirms that the upgrade is successful.
813
Upgrade SharePoint 2010 Products site collections
The final stage in the upgrade process is to upgrade the site collections. In SharePoint 2013, site
owners are in charge of upgrading their sites. The upgrade process for My Sites is slightly different
from for other types of site collections.
Upgrade My Sites
Important:
This section applies to SharePoint Server 2013 only.
A server farm administrator upgrades the My Site host and then individual users can upgrade their My
Sites or the farm administrator can upgrade them by using Windows PowerShell. The following
illustration shows four stages for the My Site host and My Sites during the upgrade process.
Figure: Stages in upgrading My Sites
814
1. The My Site host has not been upgraded. My Sites cannot be upgraded yet.
2. A server farm administrator has upgraded the My Site host. No My Sites have been upgraded.
815
3. Some users have upgraded their My Sites.
4. All My Sites have been upgraded.
Note:
A server farm administrator can choose to force an upgrade of My Sites without waiting for
users to upgrade them. For details and steps, read Upgrade site collections to SharePoint
2013.
Upgrade other SharePoint 2010 Products site collections
Owners of all other site collections can start to upgrade their sites as soon as they see a notification on
their site's home page that the new version is available. The following illustration shows four stages
for a site collection during the upgrade process.
Stages in upgrading site collections
816
1. The site owner runs the site collection health checks to determine readiness for upgrade. The site
owner addresses issues before they continue with the next step.
2. Optionally, the site owner requests an upgrade evaluation site collection. A timer job runs to
create the site collection and the site owner receives an email message when the evaluation site
collection is ready. The site owner previews the new user interface. After several days or weeks,
the evaluation site collection expires and is deleted by a timer job.
A server farm administrator can determine the length of time before expiration.
3. When the site owner is ready, the site owner starts the upgrade process. The site collection health
checks are run again automatically. The site owner must address issues before upgrading. If health
checks return no issues, the upgrade starts.
4. When upgrade is complete, the site owner sees the Upgrade Status page that contains the status
and a link to the upgrade logs. The site owner reviews the site to make sure that everything works
correctly.
Note:
A server farm administrator can also force specific site collections to be upgraded without
waiting for the site owners to upgrade them. For details and steps, read Upgrade site
collections to SharePoint 2013.
See also
Upgrade databases from SharePoint 2010 to SharePoint 2013
Upgrade site collections to SharePoint 2013
Upgrade to SharePoint 2013
Get started with upgrades to SharePoint 2013
Plan for upgrade to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
817
Upgrade overview videos for SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: View this series of short overview videos to understand how upgrade works for SharePoint
2013.
The following six videos (each video is less than five minutes) can help you understand how to
upgrade to SharePoint 2013.
Overview: SharePoint 2013 upgrade process
This video provides a brief overview of the upgrade process for SharePoint 2013 (video 1 of 6).
Watch the SharePoint 2013 Upgrade: Overview video
Related resources
Resource
Description
Overview of the upgrade process to SharePoint
2013
Learn about how to upgrade databases, service
applications, My Sites, and site collections to
SharePoint 2013.
Phase 1: Create the SharePoint 2013 farm
This video provides a quick explanation of how to create a farm for use in an upgrade to SharePoint
2013 (video 2 of 6).
Watch the SharePoint 2013 Upgrade: Phase 1 video
818
Related resources
Resource
Description
Create the SharePoint 2013 farm for a database
attach upgrade
Create and configure a SharePoint 2013 farm so
that you can upgrade databases from SharePoint
2010 Products.
Phase 2: Copy the databases to the new farm
This video provides a quick explanation of how to copy SharePoint 2010 databases to a SharePoint
2013 farm for upgrade (video 3 of 6).
Watch the SharePoint 2013 Upgrade: Phase 2 video
Related resources
Resource
Description
Copy databases to the new farm for upgrade to
SharePoint 2013
Copy SharePoint 2010 Products content and
service databases to a SharePoint 2013 farm so
that you can upgrade the data to SharePoint
2013.
Phase 3: Upgrade the service applications
This video provides a quick explanation of how to upgrade service applications to SharePoint 2013
(video 4 of 6).
819
Watch the SharePoint 2013 Upgrade: Phase 3 video
Related resources
Resource
Description
Upgrade service applications to SharePoint 2013
Upgrade service applications (Business
Connectivity Services, Managed Metadata, Secure
Store, User Profiles, Search) to SharePoint 2013.
Phase 4: Upgrade content databases
This video provides a quick explanation of how to upgrade content databases to SharePoint 2013
(video 5 of 6).
Watch the SharePoint 2013 Upgrade: Phase 4 video
Related resources
Resource
Description
Upgrade content databases to SharePoint 2013
Learn how to upgrade content databases from
SharePoint 2010 Products to SharePoint 2013.
Migrate from classic-mode to claims-based
authentication in SharePoint 2013
Convert SharePoint 2010 Products or SharePoint
2013 classic-mode web applications to claims-
based authentication or create new claims-based
web applications in SharePoint 2013.
820
Phase 5: Upgrade site collections
This video provides a quick explanation of how to upgrade site collections to SharePoint 2013 (video 6
of 6).
Watch the SharePoint 2013 Upgrade: Phase 5 video
Related resources
Resource
Description
Upgrade a site collection to SharePoint 2013
Learn how site collection administrators can
preview a copy of their sites in SharePoint 2013
mode, and then upgrade their sites.
See also
Upgrade to SharePoint 2013
Checklist for database-attach upgrade (SharePoint 2013)
Video demos and training for SharePoint 2013
Upgrade and Migration Resource Center for SharePoint 2013 Products
821
Services upgrade overview for SharePoint
Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-07-03
Summary: Create a plan to upgrade data for service applications when you upgrade from SharePoint
Server 2010 to SharePoint Server 2013.
The upgrade process for SharePoint Server 2013 uses the database attach upgrade method. When you
move your databases to a new farm and upgrade the content, you must create your services
infrastructure in the new farm, and configure the services appropriately for your new farm and new
version. The following service applications have databases that can be upgraded when you upgrade
from SharePoint Server 2010 to SharePoint Server 2013:
Business Data Connectivity service application
Managed Metadata service application
PerformancePoint Services service application
Search service application
Secure Store Service application
User Profile service application
Attaching and upgrading these databases configures these service applications. Settings for other
services will have to be reconfigured when you upgrade.
Important:
The content in this article about the Business Data Connectivity service application applies to
both SharePoint Foundation 2013 and SharePoint Server 2013. Other services are available
only in SharePoint Server 2013.
Database attach upgrade with services
You must create the service applications on your new farm before you upgrade your content
databases. The steps included in the installation guide above describe how to use the Farm
Configuration Wizard to enable all service applications. Some service applications can be upgraded by
822
using a service application database upgrade. If you want to upgrade these service applications by
upgrading the service application databases, you should not use the Farm Configuration Wizard to
configure these service applications when you set up your new farm.
The following service applications can be upgraded by performing a services database upgrade:
Business Data Connectivity service
The Business Data Connectivity service uses a database to store information about external data.
This database must be upgraded as part of a services database attach upgrade. This service
application is also available in SharePoint Foundation 2013.
Managed Metadata service
The Managed Metadata service uses a database to store metadata information. This database
must be upgraded as part of a services database attach upgrade. You must attach and upgrade the
database for this service and for the User Profile service before you can upgrade any My Sites.
PerformancePoint services
PerformancePoint Services use a database to store information. This database must be upgraded
as part of a services database attach upgrade.
Search
In SharePoint Server 2010, the Search service application Administration database contains
settings for the Search service application such as content sources, crawl rules, start addresses,
server name mapping, and federated locations. You can upgrade a Search service application
Administration database from SharePoint Server 2010 to SharePoint Server 2013 by using a
database attach approach.
You cannot use the database attach approach to upgrade any other search databases, such as
crawl databases or property databases. (These databases are re-created when you perform a full
crawl in the new farm.) Also, the upgrade process does not preserve or upgrade logical
components of the SharePoint Server 2010 farm topology. After you perform the upgrade, you
must manually re-create a topology as appropriate for the requirements of the organization.
Secure Store service
The Secure Store Service uses a database to store information. This database must be upgraded as
part of a services database attach upgrade. You have to upgrade the data for this service
application so that any connections from Excel Services Application and Business Connectivity
Services can work with existing passwords.
User Profile service
823
The User Profile service uses databases to store profile, social, and sync information. These
databases must be upgraded as part of a services database attach upgrade. You have to attach
and upgrade the databases for this service and for the Managed Metadata service before you can
upgrade any My Sites.
Note:
My Sites are not available in SharePoint Foundation 2010 or SharePoint Foundation 2013.
Specifically, the following service application databases can be upgraded:
Service application
Default database name
Business Data Connectivity
BDC_Service_DB_ID
Managed Metadata
Managed Metadata Service_ID
PerformancePoint
PerformancePoint Service Application_ID
Search Administration
Search_Service_Application_DB_ID
Secure Store
Secure_Store_Service_DB_ID
User Profile: Profile and Social databases
User Profile Service Application_ProfileDB_ID
User Profile Service Application_SocialDB_ID
User Profile Service Application_SyncDB_ID
The steps to upgrade these service application databases are included in Upgrade content databases
to SharePoint 2013.
Considerations for specific services
The following services in SharePoint Server 2013 also require additional steps to enable and configure
when you upgrade:
Excel Services
You can enable this service by using the Farm Configuration Wizard, but you must make sure that
you re-create all trusted data connections. For more information, see Manage Excel Services
trusted data providers (SharePoint Server 2013).
InfoPath Forms Service
824
This service is not part of the Farm Configuration Wizard. If you want to use this service, you can
use the Configure InfoPath Forms Services link on the General Application Settings page in
SharePoint Central Administration to configure it. If you want to continue using form templates
from your previous environment, you can export any administrator-deployed form templates (.xsn
files) and data connection files (.udcx files) from your SharePoint Server 2010 environment, and
then import them to your new SharePoint Server 2013 environment by using the Export-
SPInfoPathAdministrationFiles Windows PowerShell cmdlet. If the URL of the new server differs
from the URL of the previous server, you can run the Update-SPInfoPathAdminFileUrl Windows
PowerShell cmdlet to update links that are used in the upgraded form templates. For more
information, see Configure InfoPath Forms Services (SharePoint Server 2010).
Office Web Apps
If you installed Office Web Apps with SharePoint 2010 Products, Office Web Apps will not be
available after you upgrade to SharePoint 2013 Products. You must deploy Office Web Apps
Server and then connect SharePoint 2013 Products it to after the content databases are upgraded.
You do not have to wait until the site collections are upgraded because Office Web Apps Server
supports both the 2010 and 2013 site collection modes in SharePoint 2013 Products. For more
information, see Office Web Apps Server.
See also
Overview of the upgrade process to SharePoint 2013
Upgrade content databases to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
825
Upgrade farms that share services (parent
and child farms) to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Understand how to upgrade environments that include services farms to SharePoint 2013.
Some services in SharePoint 2010 Products can be shared across multiple farms. A services farm hosts
services such as Business Data Connectivity service, Search, and User Profiles that other farms
consume. When you upgrade to SharePoint 2013, you first upgrade the services farm, and then
upgrade the farms that consume those services. This article describes how to upgrade farms that
share services.
Before you begin, make sure that you have reviewed the overall upgrade process described in
Overview of the upgrade process to SharePoint 2013.
Note:
This article applies to both SharePoint Server 2013 and SharePoint Foundation 2013.
However, only the Business Data Connectivity service is available in SharePoint Foundation
2013. The other services are available only in SharePoint Server 2013.
Process for upgrading farms that share services
To upgrade farms that share services, you follow these steps:
1. Starting status: services farm and content farm running SharePoint 2010 Products
In your SharePoint 2010 Products environment, you have one or more content farms that use services
from a services farm. The services farm provides cross-farm services and Enterprise Search indexes the
content on the content farm.
Pre-upgrade state: 2010 content and services farms
826
2. Create the SharePoint 2013 services farm
Create a new farm to host the service applications, and install and configure SharePoint 2013.
Create 2013 Services farm
3. Upgrade the Search service application and optionally index the content in the SharePoint
2010 Products content farm
Upgrade the Search service application administration database and run a search crawl against the
SharePoint 2010 Products content farm to create the index.
Upgrade the Search service application
827
4. Upgrade the other service applications.
Upgrade the databases for the other service applications.
Upgrade other service applications
828
5. Switch the services connection to SharePoint 2013 services farm
Change the SharePoint 2010 Products content farm to consume services from the SharePoint 2013
services farm and retire the SharePoint 2010 Products services farm.
Switch connection to 2013 services farm
829
6. Create SharePoint 2013 content farm
Create a new farm to host content, and install and configure SharePoint 2013.
Create 2013 content farm
830
7. Upgrade and index the 2013 content farm
Upgrade the data in the SharePoint 2013 content farm. Configure it to consume services from the
SharePoint 2013 services farm. Index the SharePoint 2013 content farm.
Upgrade and index the 2013 content farm
831
8. Retire the SharePoint 2010 Products content farm
Now that the SharePoint 2013 content farm uses services from a SharePoint 2013 services farm, you
can retire the SharePoint 2010 Products content farm.
Retire 2010 content farm
If more than one content farm uses services from the SharePoint 2010 Products services farm, repeat
steps 5 through 7 for the remaining content farms until all farms are upgraded and are using services
from SharePoint 2013. Except for the order of steps in this process, the process to create and upgrade
each farm follows the database-attach upgrade steps outlined in Upgrade content databases to
832
SharePoint 2013. This process does not explain how to upgrade site collections. For more information
about how to upgrade sites, see Upgrade site collections to SharePoint 2013.
See also
Upgrade content databases to SharePoint 2013
Overview of the upgrade process to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
833
Best practices for upgrading to SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Understand how to get the most out of testing upgrade and how to guarantee a smooth
upgrade to SharePoint 2013.
To increase your chances of a successful and faster upgrade to SharePoint 2013, follow these best
practices to test and complete an upgrade.
Best practices for testing upgrade
To understand your environment before you upgrade it, and to plan for the time that an upgrade will
require, you should try one or more trial upgrades. The goal of testing upgrade is to find and fix issues
and develop confidence in the outcome before the real upgrade. To develop an accurate trial of the
upgrade process from SharePoint 2010 Products to SharePoint 2013, follow these best practices:
1. Know what is in your environment. Do a full survey first.
Document the hardware and software in your environment, where server-side customizations are
installed and used, and the settings that you need. This helps you plan the trial environment and
also helps you recover if upgrade fails. A worksheet is available to record information about your
environment. Download the worksheet at SharePoint 2013 Products Preview Upgrade Worksheet.
2. Make your test environment as similar as possible to your real environment.
If possible, use the same kind of hardware and use the same settings, the same URLs, and so on to
configure it. Minimize the differences between your test environment and your real environment.
As you introduce more differences, you are likely to spend time resolving unrelated issues to make
sure that they will not occur during the actual upgrade.
3. Use real data.
Use copies of your actual databases to run the tests. When you use real data, you can identify
trouble areas and also determine upgrade performance. You can also measure how long different
upgrade sequences and actions take on different kinds of data. If you cannot test all the data, test
a representative subset of the data. Make sure that you find issues with the different kinds and
sizes of sites, lists, libraries, and customizations that are present in your environment. If you
834
cannot test all data because of storage concerns, try going over the data in several passes,
removing the old trial copies before going on to the next batch.
4. Run multiple tests.
A single test can tell you whether you will encounter big problems. Multiple tests will help you
find all the issues that you might face and help you estimate a more accurate timeline for the
process. By running multiple tests, you can determine the following:
The upgrade approaches that will work best for your environment
The downtime mitigation techniques that you should plan to use
How the process or performance may change after you address the issues that you
uncovered in your first tests
Your final test pass can help you validate whether you have addressed the errors and are
ready to upgrade your production environment.
5. Do not ignore errors or warnings.
Even though a warning is not an error, a warning could lead to problems in the upgrade process.
Resolve errors, but also investigate warnings to make sure that you know the results that a
warning might produce.
6. Test the upgraded environment, not just the upgrade process.
Check your service applications and run a search crawl and review the log files.
For more information about how to test upgrade, see Use a trial upgrade to SharePoint 2013 to find
potential issues and the SharePoint 2013 Products Preview - Test Your Upgrade Process model.
Best practices for upgrading to SharePoint 2013
To guarantee a smooth upgrade from SharePoint 2010 Products to SharePoint 2013, follow these best
practices:
1. Ensure that the environment is fully functioning before you begin to upgrade.
An upgrade does not solve problems that already exist in your environment. Therefore, make sure
that the environment is fully functioning before you start to upgrade. For example, if you are not
using web applications, unextend them before you upgrade. If you want to delete a web
application in Internet Information Services (IIS), unextend the web application before you delete
it. Otherwise, SharePoint 2013 will try to upgrade the web application even though it does not
835
exist, and the upgrade will fail. If you find and solve problems beforehand, you are more likely to
meet the estimated upgrade schedule.
2. Perform a trial upgrade on a test farm first.
Copy your databases to a test environment and perform a trial upgrade. Examine the results to
determine the following:
Whether the service application data was upgraded as expected
The appearance of upgraded sites
The time to allow for post-upgrade troubleshooting
The time to allow for the upgrade process
Try a full search indexing crawl. For more information, see Use a trial upgrade to
SharePoint 2013 to find potential issues.
3. Plan for capacity.
Ensure that you have enough disk, processor, and memory capacity to handle upgrade
requirements. For more information about system requirements, see System requirements for
SharePoint 2013. For more information about how to plan the disk space that is required for
upgrade, see Plan for performance during upgrade to SharePoint 2013 and Plan for performance
and capacity management in SharePoint Server 2013
4. Clean up before you upgrade
Issues in your environment can affect the success of upgrade, and unnecessary or very large
amounts of data can affect upgrade performance for both databases and site collections. If you
don't need something in your environment, consider removing it before upgrade. If there are
issues detected, try to resolve them before you start to upgrade. For more information, see Clean
up an environment before an upgrade to SharePoint 2013.
5. Back up your databases.
Perform a full backup of your databases before you upgrade. That way, you can try upgrade again
if it fails.
6. Optimize your environment before upgrade.
Be sure to optimize your SharePoint 2010 Products environment to meet any limits or restrictions,
either from your business or governance needs or from the SharePoint 2013 boundaries and limits
before upgrade. This will help reduce errors during the upgrade process and prevent broken lists
or sites after upgrade. For more information about limits in the product, see Software boundaries
836
and limits for SharePoint 2013. For more information about large lists and how to address the
lower limit on site collections, see Clean up an environment before an upgrade to SharePoint
2013.
7. (Optional) Set the original databases to read-only if you want to keep your original environment
available while you upgrade.
If you expect a long outage period while you upgrade, you can set the databases in the original
environment to read-only. Users can continue to access the data but cannot change it. For more
information, see Upgrade content databases to SharePoint 2013.
8. After upgrade, review the Upgrade Status page and upgrade logs to determine whether you must
address issues. Then review the upgraded sites.
The Upgrade Status page reports on the upgrade progress, and the upgrade logs list any errors or
warnings that occurred during the upgrade process. Verify all the sites and test them before you
consider the upgrade finished. For more information, see Verify database upgrades in SharePoint
2013 and Review site collections upgraded to SharePoint 2013.
9. Defer upgrade for site collections until you can get updated customizations to support 2013 mode.
If you wait until the customizations are available, you can complete the initial upgrade of database
and services without significantly affecting use of the existing sites in 2010 mode.
10. Make sure that the appropriate service pack or update is applied to your 2010 environment. If you
are using remote blog storage (RBS) in your environment, you must be running Service Pack 1 for
SharePoint 2010 Products in your environment before you start the upgrade process.
See also
Upgrade to SharePoint 2013
Get started with upgrades to SharePoint 2013
Plan for upgrade to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
837
Review supported editions and products
for upgrading to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-05-07
Summary: Understand the editions or versions of SharePoint 2010 Products that you can upgrade to
specific editions or versions of SharePoint 2013.
When you plan an upgrade process, make sure that you verify that the intended upgrade path is
supported. This article describes the editions and products that are supported and unsupported to
upgrade to SharePoint 2013.
Be aware that in-place upgrade is not supported for upgrades to SharePoint 2013. This includes
upgrades across editions, such as from SharePoint Foundation 2013 to SharePoint Server 2013. For
more information, see What's new in SharePoint 2013 upgrade.
Important:
Upgrade from a pre-release version of SharePoint 2013 to the release version of SharePoint
2013 is not supported.
Pre-release versions are intended for testing only and should not be used in production
environments. Upgrading from one pre-release version to another is also not supported.
Supported topologies
For SharePoint 2013, the only upgrade method is the database-attach upgrade method. Because this
method upgrades the databases instead of installing in place over an existing environment, you can
attach the databases from a stand-alone installation to server farm (Complete) installation if you want
to expand your environment.
Figure: Upgrade to either stand-alone or server farm (Complete) topologies
838
Before you create your new SharePoint 2013 environment and attach and upgrade the databases,
determine the type and size of the environment that you need.
Physical topology guidance
The SQL Server topology — in addition to network, physical storage, and caching considerations — can
significantly affect system performance. To learn more about how to map your solution design to the
farm size and hardware that will support your business goals, see Plan for performance and capacity
management in SharePoint Server 2013. For more information about requirements, see System
requirements for SharePoint 2013.
Supported editions for upgrade
The following table lists the editions available for SharePoint Server 2010 and the supported and
unsupported ending editions when you upgrade to SharePoint Server 2013. Note that in-place
upgrade is not supported. Database-attach upgrade is the only supported upgrade method.
839
Starting edition
Supported ending edition
Unsupported ending edition
SharePoint Server 2010,
Standard edition
SharePoint Server 2013,
Standard edition
SharePoint Server 2013,
Enterprise edition
You can convert to Enterprise
edition after upgrade.
SharePoint Server 2010,
Enterprise Edition
SharePoint Server 2013,
Enterprise edition
SharePoint Server 2013,
Standard edition.
SharePoint Server 2010, Trial
edition
SharePoint Server 2013, Trial
edition
SharePoint Server 2013, full
product (either edition)
You can’t upgrade directly from
a trial version to the full product,
but you can convert to the full
product after upgrade.
Supported cross-product upgrades
The following table lists which Microsoft server products can be upgraded to SharePoint Foundation
2013 or SharePoint Server 2013. Note that in-place upgrade is not supported. Database-attach
upgrade is the only supported upgrade method.
Starting product
Supported ending products
Unsupported ending product
SharePoint Foundation 2010
SharePoint Foundation 2013
SharePoint Server 2013
SharePoint Foundation 2013
SharePoint Server 2013
SharePoint Server 2010
SharePoint Server 2013
SharePoint Foundation 2013
SharePoint Server 2013
SharePoint Server 2013
SharePoint Foundation 2013
Search Server 2010
SharePoint Server 2013
SharePoint Foundation 2013
840
Starting product
Supported ending products
Unsupported ending product
Project Server 2010 with
SharePoint Server 2010,
Enterprise Edition
Project Server 2013 with
SharePoint Server 2013,
Enterprise Edition
841
Plan for upgrade to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Find resources about how to plan to upgrade from SharePoint 2010 Products to SharePoint
2013.
In order to have a successful upgrade to SharePoint 2013, you must plan for the upgrade. This section
contains articles that help you plan and prepare for upgrading from SharePoint 2010 Products to
SharePoint 2013.
To understand how the upgrade process works, see the articles in Get started with upgrades to
SharePoint 2013.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about how to plan for upgrade.
TechNet articles about how to plan for upgrade
The following articles about how to plan for upgrade are available to view online. Writers update
articles on a continuing basis as new information becomes available and as users provide feedback.
Content
Description
Determine strategy for upgrade to SharePoint
2013
Understand how to minimize downtime and plan
for special cases during an upgrade to SharePoint
2013.
Create a plan for current customizations during
upgrade to SharePoint 2013
Learn how to identify and evaluate the
customizations in your environment, and
determine whether you will upgrade them, and
how.
Plan for site collection upgrades in SharePoint
2013
Plan to upgrade site collections to SharePoint
2013. Plan for upgrade evaluation sites,
notifications, and throttling.
842
Content
Description
Plan for performance during upgrade to
SharePoint 2013
Understand upgrade performance and how to
plan for the space and time that is required to
upgrade to SharePoint 2013.
Create a communication plan for the upgrade to
SharePoint 2013
Create a plan to coordinate and communicate
with the upgrade team, site owners and users,
and stakeholders.
Clean up an environment before an upgrade to
SharePoint 2013
Make sure that your environment is in a healthy
state, and delete unnecessary items before you
upgrade to SharePoint 2013.
Additional resources about how to plan for upgrade to
SharePoint 2013
The following resources about how to plan for upgrade to SharePoint 2013 are available from other
subject matter experts.
Content
Description
Upgrade and Migration in
SharePoint 2013 Resource
Center
Visit the Resource Center to
access videos, community sites,
documentation, and more.
See also
Get started with upgrades to SharePoint 2013
Upgrade to SharePoint 2013
Upgrade databases from SharePoint 2010 to SharePoint 2013
Upgrade site collections to SharePoint 2013
843
Determine strategy for upgrade to
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Understand how to minimize downtime and plan for special cases during an upgrade to
SharePoint 2013.
When you upgrade your environment to SharePoint 2013, you want to limit how much downtime that
users experience. You might also have a special case that you must address during upgrade. This
article describes how to minimize downtime and work with these special cases.
In addition to the information in this article, make sure that you read Review supported editions and
products for upgrading to SharePoint 2013 to understand exactly which upgrade situations are valid
and lead to successful upgrades.
How to minimize downtime during upgrade
The following table lists the techniques that you can use during upgrade to reduce the time that users
cannot access their content or to potentially increase upgrade performance.
Read-only databases You can use read-only databases to continue to provide read-only access
to content during the upgrade process. For this approach, you set the databases to read-only on
the original farm while the upgrade is in progress on another farm. This method reduces perceived
downtime for users. Also, if you encounter a problem with upgrade, you can restore the read-only
farm to read-write and restore access to users while you rework your plans before you try
upgrade again.
Parallel database upgrades You can attach and upgrade multiple databases at a time to speed
up the upgrade process overall. The maximum number of parallel upgrades depends on your
hardware. This results in faster overall upgrade times for your environment. However, you must
monitor the progress and your servers to make sure that the performance is acceptable, and for
large databases, parallel upgrades can be slower than single upgrades.
For more information about upgrade performance, see Plan for performance during upgrade to
SharePoint 2013 and Use a trial upgrade to SharePoint 2013 to find potential issues.
844
The instructions for using these techniques are included in Upgrade content databases to SharePoint
2013.
Special cases
You might have other requirements or additional goals that you want to achieve when you perform an
upgrade. The following table lists special cases and describes how to approach upgrade for each case.
Case
Upgrade approach
Upgrading an environment that uses forms-based
authentication?
Additional steps are required to upgrade when
you are using forms-based authentication. For
more information, see Configure forms-based
authentication for a claims-based web application
in SharePoint 2013.
Upgrading very large databases?
In general, very large databases — especially
databases that have a large number or large size
of document versions inside them — take longer
to upgrade than smaller databases. However, the
complexity of the data determines how long it
takes to upgrade, not the size of the database
itself. If the upgrade process times out, it is
usually because of connection issues. For more
information about how long upgrade might take
for your environment, see Plan for performance
during upgrade to SharePoint 2013.
Upgrading from the server products in the Office
2007 release?
Use a database attach upgrade method to
upgrade to SharePoint 2010 Products, and then
upgrade to SharePoint 2013.
Upgrading from SharePoint Foundation 2010 to
SharePoint Server 2013?
Attach and upgrade the content databases from
SharePoint Foundation 2010 to SharePoint Server
2013.
845
Case
Upgrade approach
Changing languages?
You have two choices, depending on whether a
single site or your whole environment is changing
languages:
To change the multiple user interface (MUI)
language for a specific site, upgrade in the
same language, and then install the new
language pack and change to that language.
Caution:
You must have the appropriate
language packs installed to upgrade
any sites based on a localized site
definition. If you do not have the new
language pack, the sites will not be
available. Wait for the new language
packs to be released before you try to
upgrade those sites.
To change the installation language for your
environment, set up your new environment in
the new language, and then attach and
upgrade your databases in the new language.
See also
Plan for performance during upgrade to SharePoint 2013
Review supported editions and products for upgrading to SharePoint 2013
Use a trial upgrade to SharePoint 2013 to find potential issues
Overview of the upgrade process to SharePoint 2013
846
Create a plan for current customizations
during upgrade to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-04-11
Summary: Identify all customizations in your environment and determine what to change or remove
as you upgrade to SharePoint 2013.
If you have extensively customized your sites based on SharePoint 2010 Products, you must determine
how you want to handle your customizations when you upgrade to SharePoint 2013. Your approach
will vary based on the extent of the customizations, the kind of customization, the complexity of your
site, and your goals for upgrading. Before you upgrade, you must identify and then evaluate the
customizations in your environment and determine whether you will upgrade them, and how.
Identify customizations in your environment
As part of an upgrade testing process, you should create an inventory of the server-side
customizations in your environment (solutions, features, Web Parts, event handlers, master pages,
page layouts, CSS files, and so on). For more information about how to identify customizations, see
Use a trial upgrade to SharePoint 2013 to find potential issues.
You can use the Upgrade Planning worksheet to list specific customizations and then record the results
of your evaluation in the next section.
Evaluate the customizations
After you have identified the customizations, think about the potential upgrade effect of each one.
The following table describes types of customizations and the kind of effect they can have during
upgrade.
847
Category of customization
Types of customizations
Potential effect on upgrade
Visually-affecting
Master pages
Themes
Web Pages
Web Parts
Custom JavaScript
Custom CSS files
Should not affect database
upgrade.
For site upgrades: likely to work
well in 2010 mode, but need
changes to work in 2013 mode.
Test carefully in both modes.
Data structure affecting
Content types
List types
Web templates
Site definitions
Can affect database upgrade if
content or list type names
conflict with new content or list
types in the product, or if
templates or definitions are
missing.
Non-visually affecting
Web services
Windows services
HTTP handler
HTTP module
Might not be compatible with
SharePoint 2013. Test carefully
to determine effect. Be
prepared to remove or replace.
Now that you know what customizations that you have, and what type that they are, you can decide
what to do about them. The following questions can help you evaluate the customizations:
Is the customization still valuable?
Does it serve a useful business need?
Is it widely deployed and used?
Does it do something that you cannot do with standard features in the product?
Is the customization well-designed?
Is it built on supported, predefined site definitions?
Does it follow best practices for customizations?
848
Is it a supported kind of customization, or does it introduce risk into your environment?
As you evaluate every customization, you can also think about your overall approach for
customizations. You can choose from among these options:
Keep the customizations, don't upgrade the sites You can continue to run the site in 2010
mode in the upgraded environment. Although you can use this approach to keep the same
functionality, you will be unable to take advantage of the features and capabilities that are
available in the new version. Use this approach only temporarily - eventually you must address the
issue (such as before an upgrade to the next version of the product).
Replace or redo the customizations If you want to use new functionality, plan to redesign your
sites, or are significantly changing the information architecture, the upgrade is your opportunity to
start over with new features, a new look, or a new organization. When you replace or redo
customizations, you can take advantage of the new capabilities, change your design slightly if you
want, or move to a more manageable design.
Discard the customizations Replace the customizations by using default functionality. You can
reset pages to the default site definitions and remove any Web Parts or features that you no
longer want to support. In fact, the site collection health-checker checks for unghosted pages and
can reset the pages to the default versions. If you decide to discard any customizations, you must
fix any issues that result from removing the customizations in the sites that used them. You can
use your customizations inventory to determine which sites require this kind of attention before
or after upgrade.
Considerations for specific customizations
In addition to your overall decision about how to treat customizations in your environment during
upgrade, you must examine specific types of customizations to determine whether you must perform
any additional actions to make them work in the upgraded environment.
The following table lists some common customizations and a recommendation for addressing that
kind of customization.
849
Customization type
Recommendation
Site definition
Migrate sites to a supported, predefined site
definition, then apply custom features by using
solution deployment.
You can also continue to use a custom site
definition. You do not have to create a new site
definition that is based on SharePoint 2013.
However, if you must perform custom upgrade
actions for the definition, you might have to
create an upgrade definition file for that site
definition. For more information, see Upgrade
Definition Files on MSDN.
Custom site templates
If you have custom site templates (a site template
that has been customized and saved as a WSP
template) that you want to continue to use after
you upgrade to SharePoint 2013, you must plan to
recreate them in 2013 mode before you upgrade
your site collection. You have to create them
again because custom site templates apply to
specific versions and don’t always look or work
the same way in subsequent versions.
Furthermore, if you used a template to make
various 2010 sites, they could all require manual
adjustments to ensure that they work and render
properly in SharePoint 2013.
"Fabulous 40" application templates
Microsoft is not creating new versions of these
templates. Environments that contain sites based
on these templates can be upgraded as long as
the templates are installed. But there might be
issues when you try to upgrade the site
collections. Make sure that you test each site
before you upgrade the production environment.
For more information, see Troubleshoot database
upgrade issues in SharePoint 2013.
Feature
Evaluate, then redesign or redeploy if it is
necessary.
850
Customization type
Recommendation
Workflows and server controls
Depends on the solution. Contact the vendor to
discover whether there is an updated solution. If a
workflow is compatible with the new version,
redeploy.
Event handler
Most event handlers will continue to work
without changes. However, if the code for the
event handler makes calls to APIs which were
deprecated, you will have to rewrite it, and then
redeploy it as a feature.
Managed paths (inclusions/exclusions)
Re-create inclusions to make sure that you can
access all site collections under those paths.
Exclusions were not used in SharePoint 2010
Products. If you had any remaining from an earlier
version, they do not have to be re-created.
Themes
Re-create your themes following the SharePoint
2013 theming guidance, or select a new theme
available in SharePoint 2013.
For more information, see Branding issues that
may occur when upgrading to SharePoint 2013.
Master pages and CSS files
Rework to accommodate the new user
experience. For more information, see Branding
issues that may occur when upgrading to
SharePoint 2013.
JavaScript
Test to determine whether any actions are
required. In some cases, you might have to adjust
the scripts to work with the new page model.
Verify that it works in both 2010 and 2013 modes.
Search provider or security trimmer
Test to determine whether any actions are
required.
851
Customization type
Recommendation
Web Parts
Test to determine whether any actions are
required. You might have to adjust the Web Parts
to work with strict XHMTL mode.
Test to verify that there have not been changes to
any object models or Web services that you call
from the Web Part.
If a Web Part is located on a page but not in a
Web Part Zone (so that it is, basically, HTML code
embedded directly in a page), it will not work if
you reset the page to the default template. There
is a site collection health rule that will identify
files in this status inside a site collection. There is
a link from that rule to the page where they can
reset to template.
Services
Test to determine whether any actions are
required. Redesign or adjust code, as needed.
Authentication providers
Test to determine whether any actions are
required. Redeploy the provider with the same
provider name (exactly. This includes the letter
case) on a test farm and make sure that it works
correctly.
852
Customization type
Recommendation
Custom search solutions that use SQL syntax
Rework to use FQL syntax and KQL syntax.
Custom search solutions in SharePoint Server
2013 do not support SQL syntax. Search in
SharePoint Server 2013 supports FQL syntax and
KQL syntax for custom search solutions. You
cannot use SQL syntax in custom search solutions
using any technologies. This includes the query
server object model, the client object model, and
the Search REST service. Custom search solutions
that use SQL syntax with the index server object
model and the Query web service that were
created in SharePoint Server 2010 will not work
when you upgrade them to SharePoint Server
2013. Queries submitted via these applications
will return an error. For more information about
how to use FQL syntax and KQL syntax, see
Keyword Query Language (KQL) syntax reference
and FAST Query Language (FQL) syntax
reference.
While you are reviewing customizations in your environment, you should also make sure that the
environment is not using any features or elements that are deprecated. For example, Web Analytics
from SharePoint 2010 Products are not available in SharePoint 2013 and you should turn them off
before upgrading. Also, SQL Server Search queries are not available in SharePoint 2013. For more
information, see Changes from SharePoint 2010 to SharePoint 2013.
Some methods of deploying customizations might require additional steps in SharePoint 2013. The
following table lists issues that you might encounter for specific methods of deploying customizations.
Deployment method
Recommendation
Customizations deployed as MSI files
Contact the vendor for updated files. Most likely,
you will have to get a replacement file compatible
with SharePoint 2013.
853
Deployment method
Recommendation
Manually deployed features, files, or changes
You can re-deploy them to the equivalent
directory in SharePoint 2013. However, consider
packaging them into a deployable solution
package for easier administration.
Sandboxed solutions
No special steps. Sandboxed solutions are
upgraded with the content databases.
Solution packages
Deploy to SharePoint 2013 again. Make sure that
you deploy it to the appropriate directory (/14 or
/15), depending on the version.
Note that you can no longer add partial trust
solution packages to the \bin directory. Any files
deployed to the \bin directory must be full trust.
Be sure to test any such solutions to make sure
that deploying them in full trust does not
introduce security vulnerabilities. Also, update
any deployment scripts to make sure that they
specify the correct trust level.
For more information, see Install-SPSolution.
Administrator-deployed form templates
You must extract them from SharePoint Server
2010 and redeploy them to SharePoint Server
2013. For more information, see Services upgrade
overview for SharePoint Server 2013.
The following kinds of customizations are not supported. If you have any of these customizations in
your environment, you must replace them by using a supported kind of customization before you can
upgrade. Otherwise, you might experience upgrade issues that cannot be fixed:
Predefined files, features, or site definitions that were changed.
Warning:
Some predefined file types — such as document icons or actions — can be carried forward
in a supportable way, although this does not occur automatically. Do not copy over the
old version files as that can cause other issues, instead, make the same changes to the
new version file Modifications to other predefined files, such as server-side ASPX pages,
will be lost during upgrade if you reset to the site template or if you don't make the same
854
changes in the new version files. Depending on the files that were changed and the extent
of these changes, the upgrade experience can vary significantly.
SharePoint databases that were changed, either by directly changing data or changing the
schema. This includes adding or removing triggers, tables, views, or indexes.
If you have any of these kinds of customizations, remove them and replace them with supported
customizations before you attempt to upgrade. This is a best practice for helping to make sure that
not only your current upgrade will work, but any future upgrades will go more smoothly. Changing
predefined files and databases will remain unsupported.
Ensure that future customizations follow best practices
Ensure that your environment performs well and follows best practices. Deploy only those
customizations that follow the best practices as described on the following page on MSDN: Developer
Best Practices Resource Center.
See also
Best practices for upgrading to SharePoint 2013
Use a trial upgrade to SharePoint 2013 to find potential issues
Deploy custom features to upgraded site collections in SharePoint Server 2013
Upgrade and Migration in SharePoint 2013 Resource Center
855
Plan for site collection upgrades in
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Explains how plan to upgrade site collections to SharePoint 2013 and how to plan for
upgrade evaluation sites, notifications, and throttling in SharePoint 2013.
When you upgrade from SharePoint 2010 Products to SharePoint 2013, site collections are not
upgraded when you upgrade the content databases to a new version. The upgrade process is split to
allow site collection administrators to decide when to upgrade their site collections. For a visual
overview of the upgrade process, see Overview of the upgrade process to SharePoint 2013.
Server farm administrators can control settings for upgrading site collections, such as settings for
upgrade evaluation site collections, notifications, and upgrade throttling. This article helps you plan
the settings to use to controlling the upgrade of a site collection.
Determine the site collections that farm administrators
should upgrade
By default, site collection administrators are in charge of when they upgrade their site collections, and
they perform the upgrade themselves. However, under certain circumstances a farm administrator
should probably perform the upgrade. For example, for sites that meet the following characteristics,
the upgrade team at the farm level should perform tests before upgrade, and potentially upgrade the
site collection:
Extremely important sites
If a site is very important to your business, farm administrators should carefully test it before they
upgrade it, and then upgrade it themselves to make sure that the site collection is available for
users as quickly as possible.
Very large sites
By default, if a site collection administrator starts to upgrade a site that is larger than 10 MB or
with more than 10 subsites, the site is added to the upgrade queue, instead of being upgraded
immediately. For very large site collections (larger than 10 GB), we recommend that you have a
856
farm administrator upgrade the site collections instead of allowing the site collection
administrators to start the upgrade. This way, the farm administrators can test these sites and
then monitor the progress of the upgrade.
Highly-customized sites
Carefully test sites that are based on custom site definitions or that have many other
customizations before you upgrade them. If there are issues with server-side customizations, then
farm administrators should address them, test again, and then perform the upgrade so that they
can troubleshoot any issues that occur. If there are issues with the design of a site, a designer and
site collection administrator can address them.
Farm administrators can upgrade sites by using Windows PowerShell. For more information, see
Upgrade a site collection to SharePoint 2013.
Plan settings for upgrade notifications, self-service
upgrade, and site collection creation
When a site collection is available to upgrade, a status bar on a site indicates that site collection
administrators can upgrade it. They can choose to upgrade the site collection then, or be reminded
later.
Farm administrators can determine whether to allow site collection administrators to upgrade their
sites at all. You can set a property to prevent the site collection administrators from starting to
upgrade, which also turns off the notification in the status bar. Then you can perform the upgrades
yourself by using Windows PowerShell. If you choose to upgrade some sites centrally, you should have
a plan to decide when each site will be upgraded and who will verify the site after upgrade.
Although administrators can upgrade all site collections immediately, we do not recommend this, for
the following reasons:
You would risk that some sites would have unforeseen issues that you'd have to address. This
could create or prolong an outage.
A high volume of issues could arrive at your helpdesk or troubleshooting process when users start
to work with upgraded sites at the same time.
You can control settings for site collection upgrade and site creation. You can determine the following:
Whether the site collection administrator can upgrade the site collection.
Which mode (2010 or 2013, or both) can be used when a user creates a site collection.
857
For example, you might want users to keep creating 2010 mode sites for a while, until most of site
collections are upgraded, or you might want to force new sites to be created in 2013 mode so that
you don't have to upgrade them later.
Properties that control site collection upgrade and site creation
Property
Description
SPSite.AllowSelfServiceUpgrade
Determines whether an upgrade notification can
be set for a site collection.
Default is true - notifications are set
automatically.
If set to false, the upgrade notification will not
appear on the status bar.
SPWebApplication.CompatibilityRange
Determines in which modes a site collection can
be created. For example, 2010 mode (14) or 2013
mode (15). The following ranges are available:
OldVersions Use this range to enable users
to create only 2010 mode sites.
NewVersion Use this range to enable users
to create only 2013 mode sites.
AllVersions Use this range to enable users to
create either 2010 or 2013 mode sites.
You can use these ranges or set your range by
using the New-Object command to set the
Microsoft.Shareoint.SPCompatibilityRange
property.
For more information about how to set these properties, see Manage site collection upgrades to
SharePoint 2013.
You can also control settings upgrade notifications. You can determine the following:
Whether to add a link to more information from the Upgrading now status bar.
858
How many days to wait before reminding a site collection administrator about upgrade if they
choose Remind me later on the status bar.
If a user clicks Remind me later, the current date is added to the number that is set for the
UpgradeReminderDelay and the notification is hidden until that new date occurs. For example, if
the setting is 30, then the notification will appear 30 days from the current date.
The following properties control site collection upgrade notifications:
Properties that control upgrade notifications
Property
Description
SPWebApplication.UpgradeMaintenanceLink
Adds another link to the upgrading now status
message so that users can follow it, and find more
information.
Default is empty.
SPWebApplication.UpgradeReminderDelay
Sets the number of days to suspend the upgrade
notification in the status bar after a user clicks
Remind me later.
Default is 30 days.
If set to 0, then the upgrade notification is not
removed from the status bar and the notification
cannot be set to Remind me later.
For more information about how to set these properties, see Manage site collection upgrades to
SharePoint 2013.
Plan for upgrade evaluation sites
Site collection administrators can request a preview of their site collection. This preview site is called
an upgrade evaluation site collection. An upgrade evaluation site collection enables site collection
administrators to see their site’s content in a new, separate copy of the site that is running on the
SharePoint 2013. Unlike visual upgrade in SharePoint Server 2010, the upgrade evaluation site
collection is a complete copy of the site collection. It is separate from the original and has its own URL.
Actions that the site collection administrators perform in the upgrade evaluation site collection do not
859
affect the original site. Both the original site and the upgrade evaluation site are available for search,
and timer jobs that run for all site collections also run on the upgrade evaluation sites.
When a site collection administrator requests an evaluation site collection, the request is added to a
timer job (known as "Create Upgrade Evaluation Site Collections") which runs one time per day. This
timer job creates a full copy of the site collection at a unique URL. Upgrade evaluation site collections
are set to expire automatically and be deleted. The default time for expiration is 30 days, which can be
configured by setting a value for the web application or by changing a value on the evaluation site
collection itself.
Farm administrators can choose to prevent users from creating upgrade evaluation sites by setting the
SPSite.AllowSelfServiceUpgradeEvaluation property for a site collection.
Timer jobs create and delete upgrade evaluation sites. The following timer jobs are used:
Timer jobs for upgrade evaluation site collections
Job name
Description
When run
Create Upgrade Evaluation Site
Collections (job-create-upgrade-
eval-sites)
Creates upgrade evaluation
sites.
Runs daily, between 1:00 and
1:30 AM
Delete Upgrade Evaluation Site
(job-delete-upgrade-eval-sites)
Deletes expired upgrade
evaluation sites and sends
notifications for sites near their
expiration date.
Runs daily, between 1:00 and
1:30 AM
Upgrade site collections (job-
upgrade-sites)
Upgrades site collections in the
queue for a content database.
Runs every 1 minute
You can decide when and how often these timer jobs run, and you can also run them manually.
How the upgrade evaluation site collections are created
The Create Upgrade Evaluation Site Collections job timer collects the list of site collections that were
queued for evaluation sites, and then copies the sites to new URLs and Site IDs. It also adds the sites
to the upgrade queue so that they will be picked up by the Upgrade Site Collections timer job later. To
create the copy of the site:
860
1. If you have an Enterprise version of SQL Server, the Create Upgrade Evaluation Site Collections job
timer takes a snapshot of the database and reads the data from the snapshot to a destination
database (with the source database being the default target). This doesn’t affect the read-only
status of the source site throughout the whole process.
2. For other versions of SQL Server that do not have snapshot capabilities, the Create Upgrade
Evaluation Site Collections job timer backs up a site collection and restores it to a new URL. This
makes the source site read-only for the whole duration of the process.
The Upgrade Site Collections job collects the list of site collections that were queued for upgrade and
then upgrades the queued sites from oldest to newest. The recently added evaluation site is then
upgraded (or at least upgrade is tried).
Plan site collection upgrade throttling and queues
To make sure that site collection upgrades do not cause an outage on your farm, there are throttles
built in at the web application, database, and content level. This means that even if 100 site collection
administrators decide to upgrade their site collections at the same time, only some are run at the
same time, and the rest are put into a queue to run later.
Site collection upgrades are throttled:
Throttle levels for site collection upgrade
Level
Maximum number
of site collections
that can be
upgraded at a time
Property that controls the throttle setting
Web application
Default is 5 per web
application instance.
Additional requests
are queued.
SPWebApplication.SiteUpgradeThrottleSettings
AppPoolConcurrentUpgradeSessionLimit
Content database
Default is 10 per
content database.
Additional requests
are queued.
SPContentDatabase.ConcurrentSiteUpgradeSessionLimit
861
Level
Maximum number
of site collections
that can be
upgraded at a time
Property that controls the throttle setting
Content of a site
collection (size and
number of subwebs)
Default is that a site
that is more than 10
MB, or has more
than 10 subwebs,
cannot be upgraded
in a self-service
manner by the site
collection
administrator, but
must be upgraded by
the farm
administrator.
SPWebApplication.SiteUpgradeThrottleSettings
UsageStorageLimit and SubwebCountLimit
The following illustration shows the relationship between the web application and content database
upgrade throttle limits.
Upgrade throttles and the site upgrade queue for web applications and content databases
862
In this illustration, the content database contains fifteen sites, and all sites were requested to start
upgrade.
1. Because of the web application throttle limit, only five sites can start to upgrade for web
application 1 - instance 1 on Web server 1.
2. An additional five sites start to upgrade on web application 1 - instance 2 on Web server 2.
3. Because of the content database throttle, five sites are sent to the upgrade queue to wait their
turn.
You can use the default throttling settings, or you can specify your own values for how many site
collections can be upgraded at the same time. Farm administrators can also override throttle settings
863
when they upgrade a site by using Windows PowerShell. Exercise caution when you change these
values and make sure that you verify the settings that you want to use in a test environment before
you implement them in production. If you increase throttling too much, you could create
performance problems in your environment. For example, too many parallel upgrades could affect site
rendering. For information about how to change these settings, see Manage site collection upgrades
to SharePoint 2013.
About site collection modes
In order to make it possible to upgrade site collections separately from upgrading content databases,
SharePoint 2013 introduces the concept of site collection "modes" (also known as compatibility levels).
Site collections are in 2010 mode in the new environment until they are specifically upgraded to 2013
mode. You can create new site collections in either mode. Although farm administrators can configure
this setting, the default setting is to create sites in 2010 mode). When a site collection is in 2010
mode, the user interface resembles the SharePoint 2010 Products interface, and only features that
were available in SharePoint 2010 Products are enabled. In 2013 mode, the interface and features are
updated to SharePoint 2013.
You have to make sure that the solution packages, features, and other custom components are
available for both site modes. For more information, see Create a plan for current customizations
during upgrade to SharePoint 2013.
Train site collection administrators
It is important to train users about how to upgrade their site collections and how to review their sites
in an upgrade evaluation site collection. Educated users are prepared and know what to expect, which
will minimize helpdesk support and frustrations.
Inform users about changes and new features. Also, let them know about possible issues that they can
expect. For instance, they might have issues with customizations, such as pages that do not display
correctly. For information about general upgrade issues, see Review site collections upgraded to
SharePoint 2013 and Troubleshoot site collection upgrade issues in SharePoint 2013.
Explain to site collection administrators that their upgrade evaluation sites are copies, and any
changes they make there will not persist in their upgraded sites. There is also a notification bar in the
preview site that indicates that it is a copy.
By default, site collection administrators control upgrade for their sites. They can use upgrade
evaluation site collections to preview the new user interface and features. This gives them time to
make sure that everything works correctly, and they can address any issues in their original site before
upgrading it. When site collection administrators are ready, they can upgrade their sites.
864
We recommend that you have a plan and set a time limit for how long to allow site collection
administrators to postpone upgrade of their sites. For example, each site collection administrator may
be given 90 days to work with his or her site collection administrators to evaluate and then upgrade
their sites. This time limit makes sure that users are given a reasonable time to become familiar with
the new user interface and to resolve any issues in their sites. Ensure that you communicate the time
limit to the users, and that they know that you can force through an upgrade of all sites. Also, you can
use a Windows PowerShell command to check the compatibility level for sites in a content database
so that you can see how many sites are in 2010 mode and how many are in 2013 mode. For more
information, see Manage site collection upgrades to SharePoint 2013.
It is important to tell site collection administrators that as long as sites use the 2010 mode, new
features will not be available. However, as soon as sites are upgraded to the new version, application
features automatically appear.
See also
Manage site collection upgrades to SharePoint 2013
Overview of the upgrade process to SharePoint 2013
Upgrade site collections to SharePoint 2013
Run site collection health checks in SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
865
Plan for performance during upgrade to
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Understand upgrade performance and how to plan for the space and time that is required
to upgrade to SharePoint 2013.
An important part of planning an upgrade from SharePoint 2010 Products to SharePoint 2013 is
determining how long the upgrade process will take and how much storage space will be required.
Every environment is unique and includes different hardware capabilities and different database and
site characteristics. The space and the length of time required to run an upgrade will vary greatly
depending on your environment. The best way to estimate these factors is to perform one or more
trial upgrades, and then review the space and time that it took. For more information about how to
perform a trial upgrade, see Use a trial upgrade to SharePoint 2013 to find potential issues.
About upgrade performance for SharePoint 2013
One of the main reasons that database upgrade and site collection upgrade are now separate actions
for SharePoint 2013 is to give you more control over upgrade performance.
How upgrade works for SharePoint 2010 Products
During an upgrade to SharePoint 2010 Products, when the database was upgraded, all of the site
collections in that database were also upgraded. That meant that for certain steps, such as
activating features or updating the Quick Launch control, the upgrade process needed to perform
the step repeatedly for each site collection in a database before the database upgrade was
completed.
Upgrade process for SharePoint 2010 Products
866
How upgrade works for SharePoint 2013
When you upgrade to SharePoint 2013, the database upgrade no longer starts these site-specific
steps. Therefore, the database upgrade stage is much faster. Some tests have found that a
database can be upgraded to SharePoint 2013 in two-thirds of the time that it took to upgrade the
same data to SharePoint 2010 Products. These site-specific steps must still be performed.
However, they are performed only when the site collection is upgraded, and then only for that
site. Because each site collection is upgraded independently, you can manage the performance
effect of those upgrades on your environment.
Upgrade process for SharePoint 2013 Products
For SharePoint 2013, you can control the performance effect of site collection upgrades by controlling
how many sites can be upgraded at a time. There is a site collection upgrade queue that maintains a
list of site collections currently requested to be upgraded. And there are throttles on the content
database and web application levels to control how many site collection upgrades can occur at a time.
For more information about these controls, see Plan for site collection upgrades in SharePoint 2013
and Manage site collection upgrades to SharePoint 2013.
In addition to planning for performance during upgrade, you must also plan for the performance of
your production environment after upgrade. Test your planned environment to make sure that you
can support your environment by using the hardware that you have planned.
Estimate the space that you must have for the
upgrade
As the databases are upgraded, they expand temporarily. Also, many transactions occur while the
upgrade process runs. Therefore, you must make sure that the log files have room to expand to
accommodate the changes that are occurring. Therefore, you have to plan for growth in both the
databases and the log files.
867
Database growth
Because of the changes in table structures in the new version, the databases grow temporarily while
the data is reorganized. This space can be recovered after upgrade, but you should make sure that
there is room for the databases to grow up to 50 percent larger than their current sizes during
upgrade (be aware that after upgrade, you can reduce the database again to recover much of this
space).
You should also make sure that there is room on your database servers for your databases to grow
over time with typical use. To check how large your databases currently are, use Enterprise Manager
in SQL Server.
Transaction log growth
In addition to database space, you must also have room for the transaction log files for the databases.
These log files must grow quickly to accommodate the number of changes occurring in the databases
In very large environments, there is a possibility that the default growth rate for the transaction log
files (10 percent) is not enough to keep up with the upgrade process. This can cause a time-out. Again,
a trial upgrade is the best way to determine whether the transaction log files can keep up with the
upgrade process. If your environment is very large, or if the process timed out during a trial upgrade,
consider expanding the SQL Server transaction log files beforehand to make sure that you have room
for the number of transactions that must be processed. For more information about how to expand
the SQL Server transaction logs, see Expanding a Database (SQL Server 2008 R2).
Estimate how long the upgrade will take
With your disk space estimates in hand, and some testing done, you can now calculate a rough
estimate of how long the actual upgrade process will take. Upgrade times vary widely among
environments. The performance for an upgrade depends greatly on the hardware being used, the
complexity of the sites, and the particular characteristics of your implementation. For example, if you
have many large document libraries, these may take longer to upgrade than a simpler site.
Factors that influence performance for upgrade are described in the following list.
Environment factors The following factors can affect the performance for both database and site
collection upgrade:
Simultaneous upgrades
SQL Server disk input/output per second
868
SQL Server database to disk layout
SQL Server temporary database optimizations
SQL Server CPU and memory characteristics
Web server CPU and memory characteristics
Network bandwidth and latency
Database factors The following factors can affect the performance of database upgrade. The
number of:
Site collections
Subwebs
Lists
Rowspan within lists
Document versions (number and size)
Documents
Links
Plus the overall database size itself.
Site collection factors The following factors can affect the performance of site collection
upgrade. The number of:
Subwebs
Lists
Activated upgrading features
Document versions (number and size)
Documents
Links
How your data is structured can affect how long it takes to upgrade it. For example, 10,000 lists with
10 items each will have a longer upgrade time than 10 lists with 10,000 items. The actions required to
upgrade the list infrastructure must be performed for each list, regardless of the number of items.
869
Therefore, more lists equals more actions. The same goes for most of the items under database
factors or site collection factors.
The structure of your hardware can also have a big effect on performance. Generally, the database
server performance is more important than web server performance, but underpowered hardware or
connectivity issues at either tier can significantly affect upgrade performance. Web servers have a
significant part to play in database upgrade performance, mainly by issuing the commands to make
data and structural changes in the databases. The database servers have to process those changes and
work with a large set of data for every command. Web server performance becomes a bigger issue
during site collection upgrade, when the upgrade process iterates several actions for each site
collection (which might occur for multiple site collections at a time). Site collection upgrade also
affects the database server as each action must occur in SQL Server.
The best way to estimate overall time is to do a trial upgrade of the data, and then review the upgrade
log files. The log files contain the duration for an upgrade — look for Total Elapsed Time at the bottom
of the upgrade log file. Use this time to estimate the duration for your full set of content. You can also
use the log files to check your progress during the upgrade process. The upgrade.log file is located at
%COMMONPROGRAMFILES%\Microsoft Shared\web server extensions\15\LOGS.
To determine durations from the logs, examine:
The times spent in each upgrade sequence per log.
The times spent per upgrade action instance per log.
The minimum, maximum, and average times.
Make sure that you separate out the database upgrade times from time that is spent upgrading site
collections for accurate planning. Perform multiple trial upgrades to guarantee more accurate data.
Then collate the data from multiple tests to determine likely performance per sequence, action, and
database. You can use the Get-SPUpgradeActions cmdlet in Windows PowerShell to see how many
actions occur for the farm. For more information, see Get-SPUpgradeActions.
The estimate you arrive at based on your trial upgrade is for the actual upgrade process for the data. It
does not include all of the steps that you have to perform before and after this step, which can take
more time than the upgrade of the data itself. When estimating how long the upgrade will take, in
addition to the time that is required for data to be processed, you must also estimate how long the
activities during the upgrade phases will take.
Consider the following factors:
Creating custom elements Upgrading Web Parts or re-doing custom templates to take
advantage of new features will take some time. The process of creating custom elements should
begin early, during the evaluation phase of your project.
870
Backing up the databases You must perform a full backup — not a differential backup — of
your databases for a database-attach upgrade. For large environments, this step can take
significant time. In particular, if you are backing up to a network location, network latency issues
can slow this process down.
Creating service applications and configuring services Creating service applications and
configuring services does not take long. However, if you must contact a database administrator to
create the databases for you before you create service applications, you might need a day or two
of lead time.
Running a search crawl on all content For large sites, this step can take more than 24 hours.
Unless you run a crawl, searches cannot return results because the index is not upgraded.
Verifying the environment after upgrade For large environments, it can take a while to verify
the environment and check the site collections to make sure that they are in a good state before
you allow users access to them. For more information, see Verify database upgrades in SharePoint
2013.
For site collection upgrade, consider the following factors:
Verifying sites and making changes Allow enough time for users to validate their sites after
the upgrade. This may take several days. For more information, see Review site collections
upgraded to SharePoint 2013.
Additional factors in your environment can also contribute to longer upgrade times. They include the
following:
Very large document libraries A document library with more than 250,000 documents all in the
root of the document library (instead of in folders) will take a long time to upgrade, and the
upgrade might not be successful. Following the guidelines for using folders to break up large
document libraries can help you manage the library size. For example, if you rearrange the same
document library so that the 250,000 documents are divided into 125 folders, it should upgrade
more easily.
Very large databases Databases larger than 100 GB can take a long time to upgrade.
If you have content databases that are larger than 100 GB and include mixed site types (such as
My Sites and team sites together with published sites), we recommend that you divide them up
into smaller databases that contain a consistent type of data before you run the upgrade.
Note:
My Sites are available only with SharePoint Server, not SharePoint Foundation.
871
You can use the Move-SPSite Windows PowerShell cmdlet to move sites between databases. For
more information, see Move-SPSite.
Be sure that you are following the capacity planning guidelines from the previous and new
versions before you attempt the upgrade. If you have exceeded the guidelines for best
performance, the upgrade process might take longer, or it might fail (for example, the process
might time out repeatedly on the same large document library). If your deployment does not
meet the recommended capacity guidelines, consider whether you have to do some work to meet
those guidelines before you try the upgrade. Again, a trial upgrade can help you with that
decision.
Wide lists (lists with many columns)
Wide lists are lists with more columns than fit in a single rowspan in the content database. These
lists can take longer to process during upgrade, or might not upgrade. For more information, see
Clean up an environment before an upgrade to SharePoint 2013.
Sites with many subwebs
Site collections that contain hundreds or thousands of subwebs will take much longer to process
during site collection upgrade. For example, a site collection with thousands of subwebs might
take many hours instead of many minutes, or longer, to upgrade.
Communications requirements
You have to notify the users and your team of the upgrade schedule, and give them time to do
their tasks. For more information, see Create a communication plan for the upgrade to SharePoint
2013.
Managing system center alerts and alarms
You have to monitor system performance during upgrade, but you will not have to monitor
specific features. Pause any unnecessary alarms and alerts from Microsoft Systems Center
Operations Manager or Microsoft Operations Manager, and then turn them on again after
upgrade.
Turning SQL Server mirroring and log shipping (or AlwaysOn Availability Groups) on/off
You should turn off mirroring and log shipping before you upgrade, and then turn them on again
after you are sure that your environment is running correctly after the upgrade. We recommend
that you do not run mirroring or log shipping during upgrade, because this creates additional load
on the servers that are running SQL Server and also wastes resources mirroring or shipping
temporary data.
This also applies to AlwaysOn Availability Groups in SQL Server 2012.
872
Test the upgrade process to discover how long it may take, then create a schedule for the upgrade
operations and test that to determine your timeline. You should include the time that that is required
to do the pre-upgrade and post-upgrade steps in your operations timeline: If it takes 5 hours to back
up your databases, you must include that time in your timeline. Also include buffer time in case you
have to restore or recover — you should determine both your planned outage (realistic case) and your
emergency outage (worst case) timelines.
Environment performance after upgrade
After you complete an upgrade, the environment will likely experience some lag in performance as it
works through the changes. Make sure that you confirm the actual performance against your
expected performance after upgrade to make sure that your new farm is performing within
acceptable bounds. Check SQL Server responsiveness: is the disk queue length too long? Are CPU and
memory usage too high? Also look for web and application server responsiveness: is the number of
requests per second (RPS) acceptable? What about page load time (initial and secondary page
requests). Review your overall environment performance and make adjustments as needed.
See also
Use a trial upgrade to SharePoint 2013 to find potential issues
Overview of the upgrade process to SharePoint 2013
Best practices for upgrading to SharePoint 2013
Plan for upgrade to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
873
Create a communication plan for the
upgrade to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Communicate timelines, requirements, and how to obtain help with site owners and users
during upgrade to SharePoint 2013.
It is important that you communicate with users during the upgrade process from SharePoint 2010
Products to SharePoint 2013. Site users have to know what to expect when they visit their sites again
after you have upgraded the environment. Site owners have to know how they can help prepare for
upgrade and what they have to do to upgrade their site collections in SharePoint 2013 and My Sites in
SharePoint Server 2013. Both site users and site owners have to know when the upgrade will occur. As
part of the planning process, determine the following:
Who are the members of the upgrade team, what other stakeholders are involved, and who will
be affected by the upgrade?
What information must the upgrade team have, and when?
What information must site users and other stakeholders have, and when?
This article describes how to create a communication plan so that the upgrade team, stakeholders,
and users know what to expect before, during, and after the upgrade.
Who is a member of the upgrade team?
For small deployments in which sites were not customized extensively, the upgrade team might
consist of only one person. For larger deployments, on the other hand, several people with different
roles can be required, as described in the following list:
Server administrators Server administrators perform most of the upgrade tasks. There must be
at least one server administrator on the upgrade team because running the Setup wizard requires
someone who is a member of the Administrators group on each front-end web server.
Note:
Farm administrators might not be local administrators for the server.
874
Database administrators If you have a separate database administration team, you must
coordinate with them to schedule the upgrade and perform the upgrade.
Server security teams You must coordinate with your security teams, such as the Active
Directory Domain Services (AD DS) team, to verify accounts and permissions or to take advantage
of the new policy settings that you can apply for SharePoint 2013.
Network teams You must coordinate with the network teams, especially if you must switch DNS
to point to your new farm, or add the new servers to the network infrastructure.
Client deployment team Communicate with client deployment teams to coordinate
deployments of new client and server applications. Client deployment might have to occur before
you upgrade, or it might be an option for users after their sites are upgraded.
Services administrators You must communicate with the administrators for service
applications, such as the Business Data Connectivity service, to make sure that they are ready for
the upgrade and they can review or reconfigure the appropriate settings in the new version.
IT or application Helpdesk leadership and personnel If you have a helpdesk for your company,
make sure that they know about the timing for the upgrade and are prepared for questions after
upgrade. Helpdesk should be a key stakeholder for planning and testing so that they can be
understand the potential changes from an upgrade and the effect that it will have on users.
Site collection owners You must notify site collection owners when the upgrade process is
about to occur. Warn them about any issues that you find when you run the pre-upgrade checker
or when you upgrade their sites. You must also communicate with site collection owners about
their role in upgrade. Site collection owners can upgrade their own sites in SharePoint 2013. Site
collection owners can run health checks and review upgrade evaluation sites before they upgrade
their sites.
Site designers and developers and third-party solution providers If you have custom
templates, Web Parts, Web services, or other custom elements that are associated with your sites,
you must work with the associated site designers and developers or third-party solution providers.
Because custom elements can fail or perform differently in an upgraded environment, you have to
make sure that designers or developers can create new versions of these custom elements or
verify that these elements were upgraded correctly. Because their work can have a big influence
on the upgrade schedule, work with these stakeholders early in the process. For more information
about potential issues with custom elements, see Use a trial upgrade to SharePoint 2013 to find
potential issues.
Site users Although you do not have to include site users in making decisions about the upgrade
process, you must tell site users when it will occur and what they should expect.
875
Sponsors and other stakeholders Other people in your organization might be involved in the
upgrade planning process. Make sure that you include them in your communication plan
appropriately.
Note:
An upgrade team can include one or more members in each role, depending on your
organization.
When and what to communicate to the upgrade team
In general, the server administrators and service application administrators set the timeline for
upgrade, and site owners are notified only when the process is about to begin. However, because
team members have their own tasks to perform at particular points in the overall upgrade process, it
is very important that you have a solid plan to communicate the progress of the upgrade to all team
members so that everyone knows when it is time to perform their particular tasks.
The whole upgrade team must work together to determine the dates and times to perform the
upgrade. We recommend that you choose an upgrade window to occur when site usage is lowest. For
small single-server deployments, upgrade may be completed in less than a day. Larger deployments
can take more time, up to a weekend. There is no way to determine the precise length of time that
will be required to upgrade any particular site collection. Because of this, it is very important to
communicate with other team members involved in the upgrade process in addition to users. The day
or days that you choose for upgrading should be far enough in the future that the upgrade team has
enough time to complete all of the preliminary steps. When you plan the timeline, make sure that you
schedule time to validate the upgraded sites and time to implement any changes or do any work to re-
brand sites.
It is important to communicate with site owners, designers, and developers at the following points
during the upgrade process:
Before the trial upgrade so that they know the general timeline and their roles in the process.
After you perform a trial upgrade to find issues. For example, issues such as customized site
templates or custom Web Parts should be reported to the appropriate site owner, designer, or
developer before you schedule the upgrade, to give them time to investigate the issues and take
preliminary steps. Or a developer might decide that it would be prudent to rebuild a Web Part
before the upgrade occurs. And site owners might want to note any customizations that were
done to their sites, such as site templates and changes to core Active Server Page Extension
(ASPX) files.
After the environment is upgraded so that they can review the sites and make any changes that
are needed.
876
When you are ready for them to upgrade their site collections.
When and what to communicate to site users
It is equally important to communicate with the users of the sites to tell them about the following
issues:
When the environment will be upgraded In particular, you must also inform them if their sites
will be unavailable during the upgrade.
When their sites will upgraded Site collection owners should communicate to their site users
about the timeline for upgrading the site collection. If you, as a server farm administrator, are
upgrading a site, you should communicate when that will occur.
How the upgrade might affect them and what they should know about the new
environment For example, the site will look different and function slightly differently in the new
user interface. You can also point them to available content, such as What's New articles or
training materials, to learn about the new version. For more information about feature changes,
see Explore SharePoint 2013 and Capabilities and features in SharePoint 2013.
How to obtain help If they find an issue with their site after upgrade, how can they obtain help
in addressing it?
You can use the new system status bar in the site collections to notify users of these items. For more
information about how to set notifications for the status bar, see Determine whether site collection
administrators are notified about upgrades and plan settings for upgrade notifications in the article Plan
for site collection upgrades in SharePoint 2013.
See also
Get started with upgrades to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
877
Clean up an environment before an
upgrade to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Make sure that your environment is in a healthy state, and delete unnecessary items
before you upgrade to SharePoint 2013.
Before you start to upgrade from SharePoint 2010 Products to SharePoint 2013, you should make sure
that your environment is functioning in a healthy state and that you clean up any content that you do
not have to upgrade. You can also take the time to remove or rearrange content so that you will have
the structure that you want after you perform the upgrade.
Items to clean up
Many of these items can be removed or repaired by using Stsadm command-line tool or Windows
PowerShell cmdlets.
Important:
To use the Stsadm command-line tool, you must be a member of the Administrators group on
the local computer.
To use Windows PowerShell cmdlets in the SharePoint 2013 Management Shell, you must
have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Delete unused or underused site collections and subwebs
You do not want to upgrade content that you do not have to keep. If it was unused for a long time and
is not needed in the future, back it up, and then delete it to free storage and administrative resources,
improve upgrade performance, and reduce upgrade risk. Be sure to communicate with site owners or
organizational contacts regarding the site status — you want to make sure that the site is not needed
878
before you delete it (for example, you do not want to delete sites that are required for compliance,
such as emergency procedures, even though they may not be frequently updated).
For more information about how to delete site collections and subwebs, see the following articles:
Remove-SPSite
Remove-SPWeb
Check large lists (lists with lots of data)
By default, large list query throttling is turned on in SharePoint 2010 Products. This behavior has not
changed in SharePoint 2013. If a list is very large, and users use a view or perform a query that
exceeds the limit or throttling threshold, the view or query will not be permitted. If you are upgrading
content from the server products in the Office 2007 release, check any large lists and have the site
owner or list owner address the issue. For example, they can create indexed columns with filtered
views, organize items into folders, set an item limit on the page for a large view, or use an external list.
For more information about large list throttling and how to address issues with large lists, see Manage
lists and libraries with many items on Office Online.
Delete excess columns from wide lists (lists with too many columns)
or remove wide lists
Wide lists are lists with more columns than fit in a single rowspan in the content database. During
upgrade, the underlying storage in the database is changed to a sparse table structure, and a very
wide list can cause upgrade to fail. Use the Test-SPContentDatabase command in Windows
PowerShell to look for wide lists in the content databases and then remove excess columns, or
remove the wide list before you upgrade.
For more information about maximum column sizes in a list, see Column limits.
Consider moving site collections into separate databases
If you have 5,000 or more site collections in a database, consider breaking them out into multiple
databases. In SharePoint 2010 Products, there was a default warning at 9,000 site collections and a
hard limit at 15,000 site collections. In SharePoint 2013, these values change to 2,000 site collections
for the warning and 5,000 site collections for the limit. To avoid errors during upgrade or broken sites
after upgrade, we recommend that you move some site collections into separate databases. If you
have multiple content databases, you can also speed up an upgrade process by upgrading multiple
databases in parallel.
879
For more information about site collection limits, see Content database limits. For more information
about how to move site collections to a new database, see Move site collections between databases
in SharePoint 2013.
Remove extraneous document versions
Large numbers of document versions can slow down an upgrade significantly. If you do not have to
keep multiple versions, you can have users delete them manually or use the object model to find and
remove them. For more information about how to programmatically remove extraneous versions, see
Versions Web Service on MSDN.
Remove unused templates, features, and Web Parts
First, verify that no sites are using the template, feature, or Web Part. You can use the Stsadm -o
EnumAllWebs operation with the -includefeatures and -includewebparts parameters to identify
these customizations in your environment. This operation identifies Web Parts, features, event
handlers, and setup files that are being used in your environment. The EnumAllWebs command also
specifies which files are used by which sites. Changes were made to the EnumAllWebs command in
the February 2011 Cumulative update to make it return both site collection and web-level features.
For more information, and to get the cumulative update, see Description of the SharePoint Foundation
2010 cumulative update package (SharePoint Foundation server-package): March 3, 2011.
You can remove a feature during site collection upgrade. Simple features can also be removed by
deprecating them in the template. You can use feature upgrade to remove more complex features.
For more information, see Upgrading Features and Feature Upgrade Overview on MSDN.
For more information about how to identify customizations in your environment, see Use a trial
upgrade to SharePoint 2013 to find potential issues. If customizations are not being used, delete them.
For more information about how to manage these kinds of customizations, see Features and
Templates and Solutions and Web Part Packages on MSDN.
Remove PowerPoint Broadcast sites
These sites and site templates are not available in SharePoint 2013 because the Office Web Apps
Server are now installed separately from the SharePoint 2013 environment. Sites based on these
templates will not work in SharePoint 2013. Remove these types of sites before you upgrade.
You can use the Get-SPSite Windows PowerShell command together with the following options to
find these sites:
Get-SPSite | Where-Object{$_.RootWeb.Template -eq "PowerPointBroadcast#0"}
This will return all sites that use that template.
880
You can also use the Get-SPSite and Remove-SPSite Windows PowerShell commands together with
the following options to remove these sites:
Get-SPSite | Where-Object{$_.RootWeb.Template -eq "PowerPointBroadcast#0"} |
Remove-SPSite
Be sure to back up these sites before you remove them. For more information, see Get-SPSite and
Remove-SPSite.
Remove FAST Search Center sites
You cannot upgrade FAST Search Center sites to the 2013 experience. Existing FAST Search Center
sites can continue to work in 2010 mode after upgrade. If you want the new functionality, you must
create new Enterprise Search Center sites in 2013 mode.
Finish Visual Upgrades in SharePoint 2010 Products
During an upgrade from the server products in the Office 2007 release to SharePoint 2010 Products,
you could allow site owners to use Visual Upgrade to keep sites in the old experience on the upgraded
environment. When you upgrade to SharePoint 2013, all sites that are still in the old experience in
SharePoint 2010 Products are automatically upgraded to the 2010 experience. If you want the
opportunity to address any issues and review the sites before they are switched to the new
experience, upgrade them to the new experience in your SharePoint 2010 Products environment and
review them before you upgrade them to SharePoint 2013. We recommend that you finish visual
upgrades before you upgrade to SharePoint 2013. Finishing visual upgrades before you upgrade
provides the following benefits:
You can address issues while you still have the server products in the Office 2007 release
components available.
You can have users be involved in reviewing and fixing issues in their sites.
You can roll back to the old experience temporarily if it is necessary. You cannot roll back when
you are in the SharePoint 2013 experience.
You avoid adding potential errors to the upgrade process. The fewer operations occurring during
upgrade, the better. Trying to troubleshoot errors is more difficult when you have more processes
involved. And users might think that upgrade has caused an issue when it's really the experience
changing to the new version. If you have an issue with how the site interface is displaying, how
will you know whether it is an old issue from the site that was forced through visual upgrade, a
problem with the 2010 mode in SharePoint 2013, or a problem with a new CSS file?
881
To check for sites in the old experience, on the SharePoint 2010 Products environment, you can use
the Get-SPSite Windows PowerShell command.
To check for and upgrade sites still in the old experience in the SharePoint 2010 Products environment
by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2010 Products.
4. Click SharePoint 2010 Management Shell.
5. At the Windows PowerShell command prompt, type the following command to return all site
collections that are in or have subwebs in the old experience:
Get-SPSite | ForEach-Object{$_.GetVisualReport()}
6. At the Windows PowerShell command prompt, type the following command to upgrade those
sites to the new experience:
Get-SPSite | ForEach-Object{$_.VisualUpgradeWebs()}
For more information, see Get-SPSite and Manage visual upgrade (SharePoint Server 2010).
Repair data issues
Make sure that you repair all issues in your databases or site content before you upgrade. In
particular, check the following items:
Check databases for corrupted data
882
Clean up your databases to remove any orphaned sites or other corrupted data, such as a
corrupted list. Consider defragmenting if you have removed sites or subsites from the database.
For more information, see:
Databaserepair: Stsadm operation
Forcedeletelist: Stsadm operation
Check databases for duplicate or orphaned site collections
Make sure that site collections exist in only one content database. Occasionally, site collections
can leave behind duplicate or orphaned references in old content databases if they are moved to
new databases, or if a copy of a database was attached to the farm, or if there was an error when
a site collection was provisioned. If a site collection is referenced in more than one content
database or there is more than one instance of the site collection in a content database, it can
cause issues when you upgrade by using the database attach upgrade method. If you upgrade a
duplicate version of the site collection first, the site map in your configuration database might end
up pointing to that version of the site instead of the current version.
Before you upgrade, use the Enumallwebs operation in stsadm command-line tool to discover
which sites are in which content databases and compare the results. Also, examine each site
collection in the results and check whether it is listed as missing in the site map. Being listed as
missing indicates that it is an orphaned site. For more information, see Enumallwebs: Stsadm
operation. If you find duplicate or orphaned sites, you can use the Remove-SPSite cmdlet in
Windows PowerShell to remove the duplicate or orphaned sites from the database.
For more information, see Remove-SPSite.
Check variations
In publishing environments, check for any variations that must be fixed. For more information, see
Variationsfixuptool: Stsadm operation.
How to make structural changes
To make structural changes to your environment, such as moving site collections or changing how
your databases are allocated, you can use the following methods:
Move-SPSite Use this to move site collections between databases. If a database is very large or
contains lots of site collections, you can move sites to address this to make upgrade more
efficient. Also, you can move all collaboration sites into one database and all My Sites into another
to make the upgrade administration easier for those different sets of sites. You can also use this
operation to divide large databases if they contain multiple site collections. This can also help
increase upgrade efficiency.
883
For more information, see Move-SPSite.
Export-SPWeb and Import-SPWeb Use this method to move subwebs or site collections inside
a farm or between farms. For more information, see Export-SPWeb and Import-SPWeb.
See also
Use a trial upgrade to SharePoint 2013 to find potential issues
Best practices for upgrading to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
884
Test and troubleshoot an upgrade to
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Find resources about how to test and troubleshoot an upgrade from SharePoint 2010
Products to SharePoint 2013.
Before you upgrade from SharePoint 2010 Products to SharePoint 2013, you should take time to test
an upgrade process and understand the issues that you might face in an actual upgrade. After you
perform a test upgrade, or after you upgrade your actual databases, you might find issues that have to
be addressed. After you address issues, you can restart the upgrade to try again.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about how to test and troubleshoot upgrade.
Downloadable resources about how to test and
troubleshoot upgrade
Download the following content for information about how to test and troubleshoot upgrade.
Content
Description
SharePoint 2013 Products
Preview - Test Your Upgrade
Process model
See a visual display of
information about how to test
the upgrade process.
SharePoint 2013 Products
Preview Upgrade Worksheet
Use this worksheet to record
information about your
environment while you test
upgrade.
885
TechNet articles about how to test and troubleshoot
upgrade
The following articles about how to test and troubleshoot upgrade are available to view online.
Writers update articles on a continuing basis as new information becomes available and as users
provide feedback.
Content
Description
Use a trial upgrade to SharePoint 2013 to find
potential issues
Find out how to plan for success by testing
upgrade by using your actual data in either a
physical or virtual environment.
Troubleshoot database upgrade issues in
SharePoint 2013
Follow these recommendations to troubleshoot
any issues that occur during database-attach
upgrade. You can also look up common issues and
discover how to address them.
Troubleshoot site collection upgrade issues in
SharePoint 2013
Follow these recommendations to troubleshoot
any issues that occur during a site collection
upgrade. You can also look up common issues and
discover how to address them.
Branding issues that may occur when upgrading to
SharePoint 2013
Learn how to address issues with branding in an
upgraded site, such as custom CSS, custom
themes, and custom master pages and page
layouts.
Restart a database-attach upgrade or a site
collection upgrade to SharePoint 2013
If you encounter errors during upgrade, you can
address them by using the troubleshooting article,
and then use this article to restart or resume
upgrade.
886
Additional resources about how to test and
troubleshoot upgrade
The following resources about how to test and troubleshoot upgrade are available from other subject
matter experts.
Content
Description
Upgrade and Migration Resource
Center for SharePoint 2013
Products
Visit the Resource Center to find
additional information about
upgrades to SharePoint 2013.
See also
Best practices for upgrading to SharePoint 2013
Clean up an environment before an upgrade to SharePoint 2013
Plan for performance during upgrade to SharePoint 2013
887
Use a trial upgrade to SharePoint 2013 to
find potential issues
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Prepare for upgrade to SharePoint 2013 by testing the upgrade process on copies of real
data.
Before you start an upgrade from SharePoint 2010 Products to SharePoint 2013, you should test the
upgrade process to make sure that you know exactly what you have to do to have a successful
upgrade. A trial upgrade to test the process can reveal the following issues:
Whether an upgrade plan will work or if you must make adjustments.
The customizations that are in your environment so that you can plan to deal with them during
upgrade.
Whether you should upgrade your hardware to make an upgrade run more efficiently and more
quickly.
The timing for upgrade, or how long upgrade will take for your environment.
What you must plan for, operationally — for example, resources to have available.
In addition, you can use the trial upgrade to become familiar with the upgrade tools and the process
itself so that you know what to expect when you perform the actual process. Through testing, you can
discover the following issues:
What does the upgrade user interface look like? How do you know when you have finished one
phase and are moving through another?
Where are the log files, and how do you read them? What information do they provide?
Whether you must adjust any scripts or commands that are used during the upgrade process,
especially if you are relying on any scripts that were used in upgrading to SharePoint 2010
Products.
Whether you have the right plan to address any outages.
This article describes basic steps for testing upgrade, and it gives recommendations for reviewing the
results and adjusting an upgrade plan based on what you learn during the tests.
888
In addition, the following resources can be helpful when you test the upgrade process:
SharePoint 2013 Upgrade Worksheet
Download the SharePoint 2013 Products Preview Upgrade Worksheet and use it to record
information about your environment while you test upgrade.
SharePoint 2013 - Test Your Upgrade Process model
Download the SharePoint 2013 Products Preview - Test Your Upgrade Process model poster to
see a visual display of information about how to test the upgrade process.
See best practices for testing the upgrade process in Best practices for upgrading to SharePoint
2013.
Set up a test environment
You can use either virtual or physical hardware to test the upgrade process. Every environment is
unique. Therefore, there are no general guidelines for how long upgrade will take or how difficult a
particular customization will be to upgrade. The best way to gauge how upgrade will go is to perform a
series of trial upgrades.
Here are some things to consider when you create your test environment:
Make your test farm as similar as possible to your real farm — for example, hardware, software,
and available space.
Use the same URLs in your test farm as in your real farm. Otherwise, you will waste time
diagnosing issues that relate to the URLs that will not occur in the real upgrade. You can do this by
using the same URLs and testing only from computers that have host file changes.
Use the different computer names for your web and application servers.
This will prevent Active Directory Domain Services (AD DS) conflicts.
Use separate servers that run SQL Server for your test farm
If you are using the same servers that run SQL Server for your test and production farm, you can
affect the performance of your production farm while you run your tests. We recommend that
you use different SQL Server computers (not just instances) for your production and test farms.
Use the same database names in your test environment.
889
That way, you can validate any scripts that you use to manage your environment. Again, make
sure that you use separate servers that are running SQL Server or you risk affecting your
production environment.
Be sure that you transfer all the settings and customizations to the test environment. The section
Identify and install customizations provides information about collecting this information.
Make sure that actions that you take in the test environment do not affect the live environment. Be
cautious with the following:
External data connections
Even though you are working with a copy of the environment, the link to the data source is real.
Changes that you make to the data in the test environment affect the production environment.
Running commands against a live database still in production
Make sure that you use copies of your databases for testing, not a live version in your production
environment. For example, if you run Test-SPContentDatabase against a live database, instead
of a copy, you might affect performance on your production environment.
Using a virtual test environment
When you test by using a virtualized environment, you do not have to have lots of hardware. You can
replicate your environment by using just two servers that are running Hyper-V. One server has images
for the front-end web servers and application servers, and the other server has images for the
database servers.
However, virtual environments might not have the same performance metrics as physical
environments. If your production environment is physical, you must consider this difference when you
calculate the time that is required to upgrade your production environment. Generally, you can get
better performance estimates if you use a physical server for SQL Server. Make sure that it has similar
performance specifications to your server that runs SQL Server in your production environment.
Distribution of servers in a virtual test environment
890
Using a physical test environment
When you test by using a physical environment, you must replicate your proposed production server
farm environment as closely as possible. If you simplify the number of front-end web servers,
application servers, or database servers too much, you will not have an accurate estimate of how long
the upgrade process will take. You may not account for complications that arise from interactions
between servers in the same role (such as SQL Server transactions). If you have multiple servers in a
role in your proposed production farm, use at least two servers for that role in the test farm to test for
such issues.
Distribution of servers in a physical test environment
Identify and install customizations
To have an accurate test process, you must find all the customizations in your current environment
and copy them to the test environment. For more information about the types of customizations that
you have to identify, see Create a plan for current customizations during upgrade to SharePoint 2013.
Use the Stsadm –o enumallwebs operation on all content databases in your SharePoint 2010
Products environment to identify specific customizations in subsites. This operation lists an ID for
each site collection and subsite in your environment and the templates that the site relies on. For
more information, see Enumallwebs: Stsadm operation.
Use a tool such as WinDiff (a tool that is provided with most Microsoft operating systems) to
compare your production environment servers with your test farm servers. You can use this tool
to see which files exist on your servers and the differences between them.
Check the web.config files for any changes, and look in the SafeControls element to find any
custom controls.
Use the SharePoint Diagnostics Tool (SPDiag) to find deployed solutions. For more information,
see SharePoint Diagnostics Tool (SPDiag).
891
Create a list of all customizations that you find. Identify the source of the customizations, if it is
possible. For example, are there third-party add-ins or templates that were customized in-house?
After you identify the source, you can then check for updated or upgraded versions of the
customizations. Download the SharePoint 2013 Products Preview Upgrade Worksheet and record
information about your environment, based on your research on your customizations.
Tip:
Whom do you contact about customizations that you did not create?
Contact Microsoft if you have problems with a template that you downloaded from the
Microsoft website.
Contact your third-party solution vendor if you have problems with a template or component
that they supplied you for the earlier version. An upgraded version may be available.
After you identify all the customizations, copy them to the appropriate servers in your test farm.
Ensure that the following customizations are deployed:
Solutions - by default legacy solutions are deployed to the /14 directories. Use the
CompatibilityLevel parameter when you install the solutions to deploy them to the /15
directories. For more information, see Install-SPSolution.
Custom Master Pages
Custom JavaScript
Custom CSS files (including those for themes)
Custom workflow actions (must be included in actions file)
Confirm large list query throttling settings to make sure that large lists are displayed as expected.
When you test customizations, use the following guidance:
Check for visual changes.
Check for behavioral changes.
Test in both 2010 and 2013 mode site collections.
Look for any language or resource loading issues.
This is an issue that can occur when customizations exist in 2010 mode and new customizations
replace them in 2013 mode. Because there is only one global directory for language resources,
there can be an issue loading the correct file. Make sure that replacement 2013 customizations
892
include the 2010 resources so that the customizations can continue to work correctly in both
modes.
Validate that upgrade did not affect customizations. Ensure that customizations do not block site
collection upgrade.
You can use the Test-SPContentDatabase Windows PowerShell cmdlet before you attach a database
to SharePoint 2013 to determine whether any customizations are missing from the environment. Run
this command for each database after you restore the databases to your database server but before
you run the upgrade. Note that this cmdlet runs silently — it will not return any output unless there is
an issue found.
Copy real data to the test environment and upgrade
databases
You cannot achieve your testing goals unless you use your actual data. Use the Microsoft SQL Server
backup and restore tools to create a copy of your content and services databases.
There is no better way to tell what may occur during upgrade than to perform the test on a copy of all
the data. However, this might not always be a realistic option for initial testing. You can test in phases
by testing one database at a time (if the databases are large) so that you can make sure that you test
whatever is unique about that dataset. Or, you can assemble a subset of data from representative
sites in your environment. If you want to first test by using a subset of your data, be sure that the
subset has the following characteristics:
The data subset contains sites that are typical of the sites that you support in your environment.
The size and complexity of the data subset closely resembles the actual size and complexity of
your environment.
Important:
Testing a subset of your data does not produce a valid benchmark for how long it will take to
process the whole volume of data for your environment.
After you copy the data, take a first pass through the upgrade process to see what happens. This is
just the preliminary round. Follow the steps in Upgrade content databases to SharePoint 2013 to try
the database attach upgrade process.
When you test the upgrade process, make sure that you test services that are shared across farms.
Consider all states, such as the following:
A SharePoint Server 2010 farm connected to a SharePoint Server 2013 services farm.
893
A SharePoint Server 2013 farm connected to a SharePoint Server 2013 services farm.
Different version farms for different services.
Use the test environment to find any security, configuration, compatibility, and performance issues for
service applications.
Review results after you upgrade databases
After your test upgrade has finished, you can review the results and revisit your plans. Look at the log
files, look at the upgraded sites, and review your customizations. How did upgrade work for your
environment? What did you discover? What do you have to rethink about the upgrade plan?
Review the log files
Review the upgrade log file and the upgrade error log file (generated when you run the upgrade). The
upgrade log file (.log) and the upgrade error log file (.err) are located at
%COMMONPROGRAMFILES%\Microsoft Shared\Web server extensions\15\LOGS. The log files are
named in the following format: Upgrade-YYYYMMDD-HHMMSS-SSS.log, where YYYYMMDD is the
date and HHMMSS-SSS is the time (hours in 24-hour clock format, minutes, seconds, and
milliseconds).
The format of the log files complies with the Unified Logging System (ULS) conventions. To review the
log files to find and troubleshoot issues, start at the top of the files. Errors or warnings may be
repeated if they occur for several site collections in the environment, or if they block the upgrade
process completely. For example, if you cannot connect to the configuration database, the upgrade
process will try (and fail) several times and these tries will be listed in the log file.
Review sites in 2010 mode
Verify that the site collections that were not upgraded work as expected in 2010 mode. Sites should
look and behave as they did in SharePoint 2010 Products. Some changes are expected. For example,
Office Web Apps and the web analytics features have changed in SharePoint Server 2013 and sites
that used these features will be affected. For information about specific things to look for, see Review
site collections upgraded to SharePoint 2013.
Run upgrade again, if it is necessary
If you have to, you can restart the upgrade process for a database by using the Upgrade-
SPContentDatabase Windows PowerShell cmdlet. For more information about this cmdlet, see
Upgrade-SPContentDatabase. For more information, see Restart a database-attach upgrade or a site
collection upgrade to SharePoint 2013.
894
Upgrade site collections and My Sites
After you have tested and validated upgrade for the content and services databases, you can test the
upgrade process for site collections. Follow the steps in Upgrade site collections to SharePoint 2013 to
test the site collection upgrade process. If you have My Sites in your environment, see Overview of the
upgrade process to SharePoint 2013 for more information about the process of upgrading them.
Note:
Content about My Sites applies only to SharePoint Server 2013.
Review results after you upgrade site collections
Review upgraded sites visually to identify any issues that have to be addressed before you run the
upgrade process on your production environment. For more information about specific things to look
for, see Review site collections upgraded to SharePoint 2013.
Review the site collection upgrade log files to check for any issues, starting from the top down. Check
the summary section near the end of the log file to see a count of issues and the actual upgrade status
(if there is no status, that means that the upgrade process failed and site upgrade must be retried).
The site collection log files are stored both in the site collection itself (in the _catalogs/Upgrade
document library), and on the file system. The file system log file has more information if you want
details about issues. The file system version of the site upgrade log file is located at
%COMMONPROGRAMFILES%\Microsoft Shared\Web server extensions\15\LOGS. The log files are
named in the following format: SiteUpgrade-YYYYMMDD-HHMMSS-SSS.log, where YYYYMMDD is
the date and HHMMSS-SSS is the time (hours in 24-hour clock format, minutes, seconds, and
milliseconds).
Adjust your plans and test again
Repeat the testing process until you are sure that you have found all the issues that you may face and
that you know how to deal with them. Your goal is to know what your plan is if it is 4:00 P.M. on
Sunday, you have to be back online Monday morning, and it is not going well. Is there a point of no
return? Test your fallback plan and make sure that it works before you begin your real upgrade.
See also
Best practices for upgrading to SharePoint 2013
Plan for performance during upgrade to SharePoint 2013
Upgrade databases from SharePoint 2010 to SharePoint 2013
896
Troubleshoot database upgrade issues in
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to address problems that may occur after you upgrade a database to
SharePoint 2013.
Even after you test the upgrade process to identify potential issues, you might experience unexpected
issues during an upgrade from SharePoint 2010 Products to SharePoint 2013. If you experience issues
after upgrade, the sooner you detect and fix them, the better the end-user experience will be.
This article includes a list of common issues and describes general principles to help you identify and
address upgrade issues. After you identify and address the issues, you can resume upgrade. For more
information about how to resume upgrade, see Restart a database-attach upgrade or a site collection
upgrade to SharePoint 2013.
General principles to identify issues
Check the upgrade status to see where upgrade stopped (if it did stop), and check log files to find
errors or warnings. Next, address the issues that you find before you resume the upgrade.
First, check upgrade status and log files
Upgrade status indicators and log files indicate what went wrong during the upgrade process. We
recommend that you carefully review all the errors that were logged in the upgrade log files. Warnings
might not always indicate an issue, but you should review them all to determine whether any of them
are likely to cause even more issues.
1. Review the Upgrade Status page in the SharePoint Central Administration website.
For more information about how to check upgrade status, see Verify database upgrades in
SharePoint 2013.
2. Review the following log files:
The upgrade error log file and the upgrade log file (which contains more detailed
information than the upgrade error log file).
897
ULS or trace log files.
These files are stored in the %COMMONPROGRAMFILES%\Microsoft Shared\Web Server
Extensions\15\LOGS folder and are named Servername_YYYYMMDD-MMSS.log.
The application event log file.
This file can be viewed by using the Event Viewer.
For more information about the upgrade log files, see Verify database upgrades in
SharePoint 2013. For more information about the trace log file, see Trace Logs on MSDN.
Then, address issues in order
Some issues have more effect than others. For example, a missing server-side file can cause many
seemingly unrelated errors at the site level.
Address issues in the following order:
1. Missing server-side files or customizations, such as features or Web Parts.
Be sure to install all server-side customizations, such as features, Web Parts, and so on. Be sure to
install customizations to the correct location in your new farm. For example, additional style
sheets that you must have for SharePoint 2010 Products should be installed in the /14 path, not
the new /15 path so that site collections that you have not upgraded can use them. Also, make
sure that that you transfer all unique settings from the Web.config files for each web application
to the new servers.
2. Configuration issues in the server farm, web application, or service applications, such as managed
paths or service applications that are not started.
3. Additional issues that you discover on a site-by-site basis, starting with high-profile or very
important sites.
As you identify and fix the top-level issues, you can try to run upgrade again to see whether any issues
that occurred later in the upgrade process have also been fixed.
Common issues
Check to see whether any of the following issues cause an upgrade error or warning.
Q: I want to upgrade from a pre-release version of SharePoint 2013
898
A: Upgrade from a pre-release version of SharePoint 2013 to the release version of SharePoint
2013 is not supported.
Pre-release versions are intended for testing only and should not be used in production
environments. Upgrading from one pre-release version to another is also not supported.
Q: The log says I have missing templates, features, or other server-
side customizations
A: Identify all server-side customizations and install them before you upgrade
One common error during upgrade is missing server-side files — either files that were installed with
SharePoint 2010 Products or customized files. When you prepared for upgrade, you should have
created an inventory of the server-side customizations (such as site definitions, templates, features,
Web Parts, assemblies) that your sites required. Check this inventory to make sure that all the files
that are needed for your customizations are installed in your new environment.
You can use the test-spcontentdatabase Windows PowerShell cmdlet before you upgrade the
database to identify missing files. You can also use the enumallwebs operation in Stsadm.exe to
identify server-side customizations that are being used.
In the upgrade log files, you may see errors such as the following:
ERROR Found Reference Count web(s) using missing web template Site Template Identifier (lcid:
Site Template Language Code) in ContentDatabase Content Database Name.
ERROR Found a missing feature Id = [Feature Identifier]
WARNING File [Relative File Path] is referenced [Reference Count] times in the database, but is
not installed on the current farm.
WARNING WebPart class [Web Part Identifier] is referenced [Reference Count] times in the
database, but is not installed on the current farm.
WARNING Assembly [Assembly Path] is referenced in the database, but is not installed on the
current farm.
WARNING Feature could not be upgraded. Exception: Feature definition id 'Feature Identifier'
could not be found.
If you can obtain a missing server-side file or dependency, install it, and then run upgrade again for
the affected sites. If the file or dependency (such as a Web Part) was deprecated, you have to
investigate whether you want to rebuild the site, page, or Web Part to use a different template,
feature, or Web Part. If you can redo the customization by using dependencies that were not
899
deprecated, you can run upgrade again for the affected sites. If you cannot remove the dependency,
you cannot upgrade the site.
After you install the missing file or dependency, use the test-SPContentDatabase Windows
PowerShell cmdlet on a test server to determine whether any other files for that database are missing.
If you only run upgrade again, the error might not appear in the log files, even though it might still be
occurring.
Q: The log file says that something is not right with my farm, web
application, or service application configuration settings
A: Verify your farm and web application settings.
A: Create and start missing service applications
A: Verify that managed paths (included paths) are configured correctly for each web application.
In the upgrade log files, you may see errors such as the following:
ERROR Template Template Id: SPSite Id=Site Id could not be accessed due to exception. Skipping
SPWeb Id=Web Id for template upgrade. Exception: System.IO.FileNotFoundException: The site
with the id Site Id could not be found.
This error indicates that a managed path is missing. Add the managed path for the site collection
into the web application and restart upgrade for the content database that contains this site
collection.
Q: I see errors and warnings during upgrade about connectivity or
corruption
A: Verify your power connections and connection to the network and to SQL Server. Loss of
connectivity to data sources can cause errors. If your servers cannot connect to the databases,
they cannot be upgraded.
A: Clean up orphaned sites, lists, and other database corruptions before you try upgrade again.
For more information about how to clean up data issues, see Clean up an environment before an
upgrade to SharePoint 2013.
In the upgrade log files, you may see errors such as the following:
WARNING The orphaned sites could cause upgrade failures.
900
ERROR Database [Content Database Name] contains a site (Id = [Site Collection Identifier], Url =
[Site Collection URL]) that is not found in the site map.
Fix any orphaned items or database corruptions, and then run upgrade again.
Q: I ran out of disk space
A: Free some space, or increase the size of the transaction log file before you resume upgrade. If
you run out of space (for example, for transaction log files on your database servers), upgrade
cannot continue.
For more information, see Managing the Size of the Transaction Log File.
Q: I see an error about authentication
A: Make sure that the web application is using the right authentication method.
A mismatch in authentication methods can cause problems when you upgrade. The following
resources can help if you have a mismatch between authentication methods:
Classic-to-claims authentication
Make sure that the web applications that you created in SharePoint 2013 use the same
authentication method that was used in SharePoint 2010 Products. Claims-based authentication is
the default authentication method for web applications in SharePoint 2013. If the web application
was using classic mode, you can either update it to claims before you upgrade the database, or
create the web application in classic mode and then migrate it to claims. For more information
about how to change to claims authentication in SharePoint 2010 Products, see Migrate from
classic-mode to claims-based authentication in SharePoint 2013. For more information about how
to create a web application that uses classic mode, and then migrating to claims, see Create web
applications that use classic mode authentication in SharePoint 2013 and Migrate from classic-
mode to claims-based authentication in SharePoint 2013
Forms-based authentication
Additional steps are necessary if you are upgrading an environment that uses forms-based
authentication. Follow the steps in Configure forms-based authentication for a claims-based web
application in SharePoint 2013 to upgrade forms-based authentication providers.
Q: SQL Server says I don't have permissions
A: If you receive an error about an unknown account, or if a database is not upgraded, check the
permissions for the database. In particular, between instances of SQL Server, make sure that you
verify that security is configured correctly. Check that the login accounts that you use have the
901
appropriate fixed roles and permissions on the databases, and that they will still be valid if you
upgrade across domains.
A: Make sure the account that you use to attach the databases is a member of the db_owner
fixed database role for the databases that you want to upgrade.
Q: A database will not upgrade
A: Verify that the database is not set to read-only. You cannot upgrade a database that is set to
read-only. Make sure that you set the databases to read-write before you attach and upgrade the
databases.
Q: I changed a database name during restore, but I cannot find the
files that have that name
A: When you rename a database at restore time, you must also rename the database and log file
names in the file system (the MDF and LDF files) so that they match.
Q: I cannot back up the Search service application Administration
database
A: Before you can back up the Search service application Administration database, you must stop
the Search service on your SharePoint Server 2010 farm. To stop the Search service, on the
original farm, on the Start menu, click Administrative Tools, and then click Services. Right-click
SharePoint Server Search 14, and then click Stop. Be sure to start the service again after you
back up the database.
Q: Trusted connections are not working for Excel Services after
upgrade
A: You must manually create all trusted data connections for Excel Services after upgrade.
Q: My workflows are no longer associated correctly
A: Verify that the Workflow Auto Cleanup timer job is turned off. If you had disabled the
Workflow Auto Cleanup timer job in your SharePoint 2010 Products environment, make sure that
you disable this timer job in the new environment also. If this timer job is enabled in the new
environment and disabled in the SharePoint 2010 Products environment, you might lose workflow
associations when you upgrade.
902
Q: I migrated users from classic authentication to claims-based
authentication after upgrade. But some users have information that
is out of date
A: For issues with user profiles, make sure that that the User Profile to SharePoint Full
Synchronization job was run.
If you started the User Profile to SharePoint Full Synchronization job (either automatically or
manually) before the migration process was complete, some users might not be migrated. You can
run the following cmdlet in Windows PowerShell after the migration is complete to clear the sync
data, and then you can run the User Profile to SharePoint Full Synchronization job again to include
the additional users.
$database = Get-SPContentDatabase "
DatabaseName
"
[Microsoft.Office.Server.UserProfiles.WSSProfileSynch]::ClearSyncDataForC
ontentDatabase($database)
Where DatabaseName is the name of the content database for the site collection associated with
the out-of-date user profile.
A: Verify that the user exists in the Active Directory domain.
If the user does not exist, you can designate the user as deleted in the UserInfo table. If the user
does exist, you can run the migration again. For more information, see Migrate from classic-mode
to claims-based authentication in SharePoint 2013.
See also
Use a trial upgrade to SharePoint 2013 to find potential issues
Verify database upgrades in SharePoint 2013
Review site collections upgraded to SharePoint 2013
Restart a database-attach upgrade or a site collection upgrade to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
903
Troubleshoot site collection upgrade issues
in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to address problems that may occur after you upgrade a site to SharePoint
2013.
When you upgrade a site collection to SharePoint 2013, errors can occasionally occur. This article
helps you understand those errors and address them.
For more information about how to review UI issues in sites, see Review site collections upgraded to
SharePoint 2013.
Check upgrade status and log files
Upgrade status indicators and log files should give you an indication of what went wrong during the
upgrade process. We recommend that you carefully review all the errors in the upgrade log files.
Warnings might not always indicate an issue, but you should review them all to determine whether
any of them are likely to cause even more issues.
1. Review the upgrade status page for your site collection.
On the Site Settings page for the site collection, in the Site Collection Administration section,
click Site collection upgrade. On the Site Collection Upgrade page, click Review Site
Collection Upgrade Status.
2. If pages don’t render, check the Site Settings page. If the Site Settings page works and the
upgrade has succeeded, there might be issues with the master page or home page. If the Site
Settings page doesn’t work, check the site collection upgrade log file for information about the
problem.
3. Review the site collection upgrade log files. You can review the site collection upgrade logs from
the following locations:
For site collection administrators: There are also log files for site collection upgrade
stored inside the site collection itself, in the Maintenance Logs catalog at
(http://<SiteName>/_catalogs/MaintenanceLogs/YYYYMMDD-HHMMSS-SSS.txt , where
904
YYYYMMDD is the date and HHMMSS-SSS is the time (hours in 24-hour clock format,
minutes, seconds, and milliseconds).
For farm administrators: The site collection upgrade log file and the upgrade error log
file are located at %COMMONPROGRAMFILES%\Microsoft Shared\Web server
extensions\15\LOGS. The logs are named in the following format: SiteUpgrade-
YYYYMMDD-HHMMSS-SSS.log, where YYYYMMDD is the date and HHMMSS-SSS is
the time (hours in 24-hour clock format, minutes, seconds, and milliseconds). These file
system logs have more information if you want details about issues.
Common issues
Check to see whether any of the following issues are causing an upgrade error, a warning, or a
problem in your site.
Q: I don't see a UI control on the page that used to be there
A: Reset the page to the default version (that is, reghost it).
Making changes to the site UI can cause problems in site upgrades. If a page was customized to place
a UI control in a non-standard location, you can reset the page to the default version to recover the
control.
To reset the page, you can use the Reset to site definition link under Site Actions on the Site
Settings page or use the Reset to Template command in SharePoint Designer.
Q: The view on a large list is not working any longer
A: Create indexed columns, folders, or new views for large lists. You might have to add the
indexed column to your existing views.
If a list is very large, and users use a view or perform a query that exceeds the limit or throttling
threshold, the view or query will not be permitted. You can create indexed columns with filtered
views, organize items into folders, set an item limit on the page for a large view, or use an external list.
For more information about large list throttling and how to address issues with large lists, see Manage
lists and libraries with many items on Office Online.
Q: I see an error about a duplicate content type name
A: Rename content types or fields that conflict with default names.
Occasionally, custom elements (such as a content type) may have a name that conflicts with a name in
the new version.
905
In the upgrade log files, you may see an error such as the following:
Failed to activate site collection features on site Site Url. Exception: A duplicate content type
name "name" was found.
This error indicates that a third-party content type was added to the specified site in SharePoint
Server 2010. During upgrade to SharePoint Server 2013 its name conflicted with the default content
type by the same name. Rename the third-party content type in the specified site to a different name
and run upgrade again. For more information, see Create or customize a content type on Office Online.
Note:
Either renaming or removing a content type can cause any customizations dependent on that
content type to stop working.
Q: My site looks ugly, doesn't behave as expected, or I see script
errors
A: Either edit the page or reset the page to the default version, or remove or replace the custom
files.
A problem with custom or inline JavaScript or CSS files can cause these issues. For more
information, see Branding issues that may occur when upgrading to SharePoint 2013.
Q: Custom content in my site disappeared or doesn't work
A: Change the master page, or change the content so that it doesn't require specific zones.
The master page might have different zone layouts and the content might no longer reference it
correctly. As a last resort, you can also reset the page to the default version. However, if you reset
the page, you might lose zone specific content. For more information, see Branding issues that
may occur when upgrading to SharePoint 2013.
Q: I receive an error that says a control or page cannot render
A: Do one of the following:
If a Web Part was added that is not installed, contact the farm administrator to have it
installed. If is a Web Part that is no longer available or not supported, then use the Web Part
maintenance view to remove the Web Part from the page (remove, do not just close the Web
Part).
If a page was directly edited, either edit it again to remove the control or Web Part or reset
the page to the default version.
906
A Web Part or other control might have been added to the page that is not installed or is no
longer supported. Either a Web Part was added to a zone or the page was directly edited to
add a control or Web Part reference directly inline (possibly on a master page).
A SharePoint feature may need to be activated. For more information, see Enable or disable
site collection features and Open and use the Web Part Maintenance Page on Office Online.
Q: I receive an error that I cannot create a subsite based on a site
template because the site template uses the 2010 experience
version and my site collection is in the 2013 experience version
A: Recreate the site template in the 2013 experience.
To recreate the site template, create a new subsite based on the 2013 experience, customize it
again to match the template that you had, and then save the customized subsite as a template (on
the Site Settings page, click Save site as template).
Q: I receive an error when I try to upgrade a FAST Search Center site
to the 2013 experience
A: Recreate the site by using the Enterprise Search Center template.
FAST Search Center sites cannot be upgraded to the 2013 experience. Existing FAST Search Center
sites can continue to work in 2010 mode after upgrade. If you want the new functionality, you
must create new Enterprise Search Center sites in 2013 mode.
Q: My custom branding doesn't look right or there are issues in my
upgraded site
A: Create an evaluation site collection, and then re-create the master page in the SharePoint 2013
site.
To support the new faster, more fluid UI in SharePoint 2013, changes have been made to the default
master pages and CSS files. For this reason, you cannot apply a master page created in SharePoint
2010 to a site in SharePoint 2013. However, when you upgrade your SharePoint 2010 site to
SharePoint 2013, the master page is reset to use the default master page in SharePoint 2013.
Therefore, after upgrade, your site will not appear with its custom branding.
907
To resolve this, you should first create an evaluation site collection, and then re-create the master
page in the SharePoint 2013 site. For more information, see Branding issues that may occur when
upgrading to SharePoint 2013.
Q: My upgraded site does not render at all; instead, I see an
“unexpected error” with a correlation ID
A: Your custom branding may use a custom master page that contains a custom content placeholder.
If your custom master page contains a custom content placeholder, and if custom page layouts also
contain this custom content placeholder, then an error may prevent the home page of your site from
rendering at all after upgrade. Instead, after upgrade, you may see the error message “An unexpected
error has occurred.” For more information, see Branding issues that may occur when upgrading to
SharePoint 2013.
See also
Review site collections upgraded to SharePoint 2013
Upgrade a site collection to SharePoint 2013
Troubleshoot database upgrade issues in SharePoint 2013
Use a trial upgrade to SharePoint 2013 to find potential issues
Upgrade and Migration in SharePoint 2013 Resource Center
908
Branding issues that may occur when
upgrading to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Learn how to address issues with branding, such as custom CSS, custom themes, and
custom master pages, and custom page layouts in an upgraded site.
SharePoint 2013 introduces a new user interface that is lightweight, fast, and fluid. This UI is built by
using new CSS styles, themes, and master pages. To get this new experience, you must upgrade to the
new UI. But the significant changes that were made to support the new UI may break the upgrade
story for some scenarios where you use custom branding.
In SharePoint 2010 Products, you may have branded your site in one of several different ways:
Applying a custom style sheet to your site that overrides the SharePoint default styles.
Applying a custom theme (THMX file) to your site.
Copying and changing a master page that is included with SharePoint 2013.
Creating a completely new custom master page in a publishing site, where the custom master
page uses custom styles and is referenced by custom page layouts.
When you upgrade your site collection to SharePoint 2013, these types of customizations will not
work as is because the default CSS styles, themes, and master pages have changed. Instead, you must
create your custom branding again. This requires you to use the new styles, themes, or master pages
available in SharePoint 2013, and then apply the newly re-created design to the upgraded site
collection.
Changes to the default SharePoint styles, themes, and master pages were necessary to create a faster
and more fluid user interface, and to make subsequent upgrades more predictable.
For this reason, if your site collection contains custom branding, we recommend that, before you
upgrade, you first create an evaluation site collection where you can test and re-create your custom
branding in a SharePoint 2013 environment. For more information about an evaluation site collection,
see Create an upgrade evaluation site (Optional).
The following sections list branding issues that may occur when you upgrade to SharePoint 2013.
909
Custom CSS
The most common way to apply custom branding to a SharePoint 2010 Products site is to create a CSS
file that contains styles that override the default SharePoint styles.
To make the new UI faster and more fluid, SharePoint 2013 introduced fundamental changes in how
CSS is implemented:
CSS file sizes are reduced.
Nesting of CSS selectors is limited.
CSS inheritance is used whenever possible.
Classes are defined in only one place.
Related classes are grouped in the CSS file.
Inline styles and the !mportant declaration are not used because they cannot be overridden.
Styles use a consistent structure and naming convention.
In SharePoint 2013, styles use a consistent structure and naming convention.
NAMING PART
MS-
<FEATURE>-
<NAME>
Explanation
Indicates this is a
Microsoft class.
The name of the
feature with which this
item is associated, or
“core” if it’s used as
part of the core UI.
A descriptive name of
the item, such as title,
link, and so on
Because of these changes in how SharePoint 2013 implements CSS, when you upgrade, custom CSS
styles will not be applied to your site. To resolve this, you should first create an evaluation site
collection and then use that site as the environment where you can identify the new SharePoint 2013
styles that you have to override. Create a CSS file for these styles, and then apply that CSS to your
upgraded site.
910
Custom theme
In SharePoint 2010 Products, you can use an Office program such as PowerPoint 2010 to create a
THMX file. Then you can upload that theme file to SharePoint 2010 Products and apply the theme to
your site.
In SharePoint 2013, the theming engine was improved so that theming is faster and more flexible, and
so that themes can be more easily upgraded moving forward. The theming model uses comment-style
markup in the CSS and then replaces parts of the CSS based on parameters such as fonts and color
schemes that users select. Themes in SharePoint 2013 are defined by XML files:
SPColor.xml defines the color palette, in which slots now have semantic names so that it’s more
clear what UI elements will be affected when you change a color value. Also, themes now support
setting opacity.
SPFont.xml defines the font scheme and supports multiple languages, web-safe fonts, and web
fonts.
But there is no support to upgrade a THMX file from SharePoint 2010 Products to SharePoint 2013. If
you applied a custom theme to the SharePoint 2010 Products site, when you upgrade to SharePoint
2013, the theme files remain in place. But the theme is no longer applied to the site, and the site
reverts to the default theme.
To resolve this, you should first create an evaluation site collection and then use the new theming
features in SharePoint 2013 to create the theme again. For more information about the new themes,
see the following articles on MSDN:
Themes overview in SharePoint 2013
How to: Deploy a custom theme in SharePoint 2013
Color palettes and fonts in SharePoint 2013
How to: Create a master page preview file in SharePoint 2013
Important:
Moving forward, if you want to use custom branding, and if you want that branding to work
after future upgrades, we recommend that you use themes to implement your design.
Themes will have upgrade support when future updates are available. If themes don’t work
for your scenario or you must have more extensive branding, we recommend that you use a
publishing site together with Design Manager. But understand that if you invest in building
custom master pages and page layouts, you may have to rework or update your design files
during and after each SharePoint upgrade.
911
Copy and change a master page that ships with
SharePoint 2013
In SharePoint 2010 Products, a common way to make minor customizations to the UI is to copy and
change a master page that ships with SharePoint 2010 Products. For example, you might change the
master page to remove or hide capabilities from users.
When you upgrade a SharePoint 2010 Products site to SharePoint 2013, the master page is reset to
use the default master page in SharePoint 2013. Therefore, after upgrade, your site will display its
custom branding. The custom master page that was created in SharePoint 2010 Products still lives in
the site, but you should not apply the old master page to the new site because the new site will not
display as expected.
To support the new UI in SharePoint 2013, changes were made to the default master pages. For this
reason, you cannot apply a master page that was created in SharePoint 2010 Products to a site in
SharePoint 2013.
To resolve this, you should first create an evaluation site collection, and then create the master page
again in the SharePoint 2013 site. After you verify that the new master page works as expected, move
the master page to the new site collection and apply it to the site. If the sites are publishing sites, you
can use Design Manager to export and then import the master page as part of a design package.
Otherwise, you can move the master page as part of a sandboxed solution or by uploading the file to
the master page gallery.
Important:
SharePoint Foundation 2013 does not support publishing sites. You'll need SharePoint Server
2013 to use publishing sites.
Custom master page in a publishing site
If you want a fully branded site such as a corporate communications intranet site, you use a publishing
site that has a fully custom master page and custom page layouts that are attached to the custom
master page.
When you upgrade a SharePoint 2010 Products site to SharePoint 2013, the master page is reset to
use the default master page in SharePoint 2013. Therefore, after upgrade, your site will not display its
custom branding. The custom master page and page layouts created in SharePoint 2010 Products still
live in the site, but you should not apply the old master page to the new site because the new site will
not display as expected.
912
To resolve this issue, you should first create an evaluation site collection that is a publishing site, and
then create the master page again in the SharePoint 2013 site. After you verify that the new master
page works as expected, complete the following steps:
1. Export the master page as part of a design package.
2. Import the design package into the new site collection,
3. Apply the new master page to the site.
Custom content placeholders on a custom master
page
Important:
If your custom master page contains a custom content placeholder, and if custom page
layouts also contain this custom content placeholder, an error may prevent the home page of
your site from rendering at all after upgrade. Instead, after upgrade, you may see the error
message: “An unexpected error has occurred.”
To determine whether you have this issue, you can create an evaluation site collection that is also a
publishing site, and then set the master page to the master page that ships with SharePoint 2013. If
the site still displays, you don’t have this issue. If the site doesn’t display and you get an “unexpected
error” with a correlation ID, you likely have this issue.
To resolve this issue, do the following:
1. Create an evaluation site collection that is a publishing site collection.
2. Create a SharePoint 2013 master page.
3. Add the custom content placeholder to the 2013 master page.
4. Apply the new master page to the site.
5. Create a page layout that does not contain the custom content placeholder.
The page layout will be associated with the new master page that was applied to the site.
6. Change all the pages that use the old page layout to use the new page layout.
You can manually edit each page individually in the browser and use the option on the Ribbon, or
you can use the client-side object model for SharePoint to update pages programmatically.
7. Delete the old page layout that contains the custom content placeholder.
913
We recommend that you do not add custom content placeholders to your custom master page or
page layouts.
See also
Troubleshoot site collection upgrade issues in SharePoint 2013
Review site collections upgraded to SharePoint 2013
Upgrade a site collection to SharePoint 2013
Run site collection health checks in SharePoint 2013
Overview of Design Manager in SharePoint 2013
914
Restart a database-attach upgrade or a site
collection upgrade to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to restart a database-attach upgrade or a site collection upgrade to SharePoint
2013.
In some cases, you might have to restart upgrade to finish a database-attach upgrade from SharePoint
2010 Products to SharePoint 2013. For example: if a template or language pack is missing from the
environment, or if you lose the connection to SQL Server, you will have to resolve the issue and then
restart upgrade. You might also need to retry or restart a site collection upgrade if it was unable to
complete.
Note:
One frequent cause of failures during upgrade is that the environment is missing customized
features, solutions, or other elements. Be sure that any custom elements that you must have
are installed on your front-end web servers before you start the upgrade process. You can use
the test-spcontentdatabase Windows PowerShell cmdlet to identify any custom elements
that your sites might be using. For more information, see Identify and install customizations in
the article "Use a trial upgrade to find potential issues."
Restart upgrade for a database by using Windows
PowerShell
If the upgrade ran into issues during the database-attach upgrade, you can restart the upgrade
process for the database after you have addressed the issue by using a Windows PowerShell cmdlet.
To restart upgrade for a database by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
915
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt (PS C:\>), type the following command:
upgrade-spcontentdatabase
<Name>
Where:
Name is the database name that you want to upgrade.
You can also use the -id parameter and provide the database GUID instead of a database
name. You can run the following cmdlet to find the GUID for a content database:
Get-SPContentDatabase -Identity
<content_database_name>
For more information, see Upgrade-SPContentDatabase and Get-SPContentDatabase.
Restart upgrade for a site collection
If upgrade ran into issues during a site collection upgrade, you can restart the upgrade process for the
site collection after you have addressed the issue. You can use either the Site Settings page or a
Windows PowerShell cmdlet to restart upgrade for a site collection.
To restart upgrade for a site collection
1. Verify that the user account that performs this procedure is a site collection administrator.
2. On the Site Settings page for the site collection, in the Site Collection Administration section,
click Site collection upgrade.
3. On the Site Collection Upgrade page, click Upgrade this Site Collection.
This option starts to upgrade your site collection. A box opens to verify that you want to start the
process.
916
4. Click I’m ready to start the actual upgrade.
Note:
The site collection health checks are run automatically in repair mode before the upgrade
starts. The results from the health checks are included in the upgrade log for the site
collection. If there is an error, you must address it before you can continue to upgrade.
The upgrade starts, and the Upgrade status page for the site collection is displayed. This page
automatically updates while the upgrade is in progress and displays information about the
process, such as the following:
Errors or warnings
When the upgrade started
Where you can find the upgrade log file
After the upgrade is complete, the Upgrade status page is displayed in the new user
interface with the message, Upgrade Completed Successfully.
5. Click Let’s see the new site to go to the home page.
Farm administrators can restart upgrade by using Windows PowerShell.
To restart upgrade for a site collection by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
917
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Upgrade-SPSite
<http://site>
-VersionUpgrade [-Unthrottled]
Where:
<http://site> is the URL for the site collection.
Add the option -Unthrottled option to skip the site collection upgrade queue and start the
upgrade immediately.
For more information, see Upgrade-SPSite.
See also
Upgrade to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
918
Upgrade databases from SharePoint 2010
to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-06-30
Summary: Find resources to help you perform the steps to upgrade databases from SharePoint 2010
Products to SharePoint 2013.
After you learn about the upgrade process, plan for your upgrade, and test your upgrade process by
following the steps in the articles in Test and troubleshoot an upgrade to SharePoint 2013, you are
ready to perform a database-attach upgrade to SharePoint 2013. Follow the steps in this section for
both a trial upgrade and your actual upgrade for your production farm.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about upgrading databases to SharePoint 2013.
Downloadable resources about upgrading databases
Download the following content for information about upgrading databases.
Content
Description
SharePoint 2013 Products
Preview - Upgrade Process
model
Describes the steps in the
process for a database-attach
upgrade
TechNet articles about upgrading databases
The following articles about how to upgrade databases are available to view online. Writers update
articles on a continuing basis as new information becomes available and as users provide feedback.
919
Content
Description
Checklist for database-attach
upgrade (SharePoint 2013)
Use this checklist to make sure
that you follow all necessary
steps as you prepare for
upgrade, perform the upgrade,
and perform post-upgrade steps.
Create the SharePoint 2013 farm
for a database attach upgrade
Create and configure a
SharePoint 2013 farm so that
you can upgrade databases from
SharePoint 2010 Products.
Copy databases to the new farm
for upgrade to SharePoint 2013
Copy SharePoint 2010 Products
content and service databases to
a SharePoint 2013 farm so that
you can upgrade the data to
SharePoint 2013.
Upgrade service applications to
SharePoint 2013
Upgrade service applications
(Business Connectivity Services,
Managed Metadata, Secure
Store, User Profiles, Search) to
SharePoint 2013.
Upgrade content databases to
SharePoint 2013
Learn how to upgrade content
databases from SharePoint 2010
Products to SharePoint 2013.
Verify database upgrades in
SharePoint 2013
Verify that the upgrade for your
databases has succeeded and
that you are ready to begin to
upgrade sites.
Migrate from classic-mode to
claims-based authentication in
SharePoint 2013
Convert SharePoint 2010
Products or SharePoint 2013
classic-mode web applications to
claims-based authentication or
create new claims-based web
applications in SharePoint 2013.
920
Additional resources about upgrade
The following resources about upgrade to SharePoint 2013 are available from other subject matter
experts.
Content
Description
Upgrade and Migration Resource
Center for SharePoint 2013
Products
Visit the Resource Center to find
additional information about
upgrades to SharePoint 2013.
What’s New in SharePoint 2013
Products Resource Center
Visit the Resource Center to
learn about what’s new in
SharePoint 2013.
See also
Test and troubleshoot an upgrade to SharePoint 2013
Plan for upgrade to SharePoint 2013
Overview of the upgrade process to SharePoint 2013
921
Checklist for database-attach upgrade
(SharePoint 2013)
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Use this checklist as you upgrade from SharePoint 2010 Products to SharePoint 2013.
This checklist helps you confirm that you follow all the steps that you must follow as you prepare for
upgrade, perform the upgrade, and perform post-upgrade steps. This checklist applies only to upgrade
of the content and service application databases. It does not apply to upgrade of My Sites or other site
collections. For more information, see Upgrade site collections to SharePoint 2013.
In this article:
Prepare for upgrade
Perform the upgrade
Perform post-upgrade steps
Some steps include notes about how long that step might take. These rough estimates only give you a
relative idea of the duration of the step. To discover how much time each step will take for your
environment, we recommend that you perform trial upgrades in a test environment. For more
information, see Use a trial upgrade to SharePoint 2013 to find potential issues and Plan for
performance during upgrade to SharePoint 2013.
Important:
The steps in this article apply to both SharePoint Foundation 2013 and SharePoint Server
2013, except for the steps about how to upgrade the service applications, which apply mostly
to SharePoint Server 2013 (the Business Data Connectivity service application applies to both).
Prepare for upgrade
Follow these steps in order before you start an upgrade to SharePoint 2013:
922
Pre-upgrade steps
Step
Notes
[ ]
Create an inventory of server-
side customizations in the
environment
Create an inventory of the
server-side customizations in
your environment (solutions,
features, Web Parts, event
handlers, master pages, page
layouts, CSS files, and so on).
Record all customizations
needed for your environment in
the upgrade worksheet.
Detailed steps: Identify and
install customizations in the "Use
a trial upgrade to find potential
issues" article.
Complete this step for the whole
environment. Check each web
server to make sure that you
don't miss any customizations.
Keep the inventory up to date as
you prepare for the upgrade.
[ ]
Clean up your environment
Before you begin to upgrade,
make sure that your
environment is functioning in a
healthy state and that you clean
up any content that you do not
have to upgrade. Clean up any
orphaned sites or data, address
any large lists and large ACLs,
remove extraneous document
versions, and remove any
unused templates, features and
Web Parts.
Detailed steps: Clean up an
environment before an upgrade
to SharePoint 2013.
Complete this step one time for
the whole environment.
This process might take days or
weeks to finish.
923
Step
Notes
[ ]
Test the upgrade process
Try out upgrade in a test
environment to find any issues
and determine how long your
actual upgrade might take.
Detailed steps: Use a trial
upgrade to SharePoint 2013 to
find potential issues
Perform this step multiple times,
until you are prepared to
perform the actual upgrade.
Complete the database attach upgrade
Follow these steps in order while you upgrade the content and service application databases for your
environment.
Prepare the new environment
Step
Notes
[ ]
Install and configure SharePoint 2013
and any language packs
Install the prerequisite software, and
then install and configure SharePoint
2013.
Complete these steps on
each server in your farm.
This step might take one
hour or more, depending on
the number of servers are in
your environment.
924
Step
Notes
[ ]
Configure service applications
Enable and configure the services that
you need in your new environment.
Do not configure the following service
applications - you will configure them
while you upgrade their databases later
in the process:
Business Data Connectivity service
Managed Metadata service
PerformancePoint services
Search
Secure Store service
User Profile service
Complete this step one time
for the whole environment.
925
Step
Notes
[ ]
Configure general farm settings
Reapply any general farm settings that
you must have from your previous farm
— such as blocked file types, e-mail
setting, and quota settings — and add
users or groups to the Farm
Administrators group. Configure new
settings such as usage and health data
collection, diagnostic logging, and
mobile accounts.
Important:
If you had disabled the
Workflow Auto Cleanup timer
job in your SharePoint 2013
environment, make sure that
you disable this timer job in
your new environment also. If
this timer job is enabled in the
new environment and disabled
in the previous version
environment, you might lose
workflow associations when you
upgrade. For more information
about this timer job, see Disable
preservation of workflow history
(SharePoint Server 2010).
Complete this step one time
for the whole environment.
Detailed steps for this phase: Create the SharePoint 2013 farm for a database attach upgrade.
926
Back up and restore databases
Step
Notes
[ ]
Record the passphrase for the
Secure Store service
application
The Secure Store service
application uses a passphrase to
encrypt information. You must
record this passphrase so that
you can use it in the new
environment.
Complete this step one time for
each Secure Store service
application in the environment.
[ ]
Set the previous version
databases to be read-only
If you want your original
environment to remain available
to users in a read-only state, set
the databases to read-only
before you back them up.
Complete this step for each
content database in your
environment.
Depending on your organization,
you might need a database
administrator to complete this
step.
927
Step
Notes
[ ]
Back up databases
Back up all the content
databases and the following
service application databases
before you begin the database
attach upgrade process:
Business Data Connectivity
Managed Metadata
PerformancePoint
Search Administration
Secure Store
User Profile: Profile, Social,
and Sync databases
Complete this step for each
content database and supported
service application database in
your environment.
This step can take an hour,
several hours, or longer,
depending on your dataset and
your environment.
Depending on your organization,
you might need a database
administrator to complete this
step.
[ ]
Export the encryption key for
the User Profile service
application
The User Profile Service service
application requires an
encryption key that is stored
separately from the database
and is needed if you want to
upgrade the User Profile Sync
database.
Complete this step one time for
each User Profile service
application in the environment.
928
Step
Notes
[ ]
Restore a backup copy of the
databases
Restore the databases from the
backup.
Complete this step for each
content database and supported
service application database in
your environment.
This step can take an hour or
longer, depending on your
dataset and your environment.
Depending on your organization,
you might need a database
administrator to complete this
step.
[ ]
Set the restored databases to
be read-write
Before you can attach and
upgrade the databases that you
copied to the new environment,
you must set them to read-
write.
Complete this step for each
content database and supported
service application database in
your environment.
Depending on your organization,
you might need a database
administrator to complete this
step.
Detailed steps for this phase: Copy databases to the new farm for upgrade to SharePoint 2013
929
Upgrade service application databases
Step
Notes
[ ]
Start the service application
instances
Start the following service instances
from Central Administration:
Business Data Connectivity service
Managed Metadata service
PerformancePoint services
Secure Store service
User Profile service
Start the instance of the Search service
application by using Windows
PowerShell.
Complete this step one time
for the whole environment.
[ ]
Upgrade the Secure Store service
application
Use Windows PowerShell to create the
new service application and upgrade the
database, create a proxy and add it to
the default proxy group, and then
restore the passphrase from the
previous environment.
Complete this step one time
for each Secure Store service
application in the previous
environment.
930
Step
Notes
[ ]
Upgrade the Business Data
Connectivity service application
Use Windows PowerShell to create the
new service application and upgrade the
database. You do not have to create a
proxy for the Business Data Connectivity
service application.
Note:
The Business Data Connectivity
service application is available
in both SharePoint Foundation
2013 and SharePoint Server
2013.
Complete this step one time
for each Business Data
Connectivity service service
application in the previous
environment.
[ ]
Upgrade the Managed Metadata
service application
Use Windows PowerShell to create the
new service application and upgrade the
database, and then create a proxy and
add it to the default proxy group. You
must upgrade the Managed Metadata
service application before you can
upgrade the User Profile service
application.
Complete this step one time
for each Managed Metadata
service application in the
previous environment.
931
Step
Notes
[ ]
Upgrade the User Profile service
application
Use Windows PowerShell to create the
new service application and upgrade the
database, and then create a proxy and
add it to the default proxy group. After
you have created the User Profile
service application, you must import the
Microsoft Identity Integration Server
Key (MIIS) encryption key. Finally, you
can start the User Profile
Synchronization service.
Complete this step one time
for each User Profile service
application in the previous
environment.
[ ]
Upgrade the PerformancePoint
Services service application
Use Windows PowerShell to create the
new service application and upgrade the
database, and then create a proxy and
add it to the default proxy group.
Complete this step one time
for each PerformancePoint
Services service application
in the previous environment.
932
Step
Notes
[ ]
Upgrade the Search service
application
Use Windows PowerShell to create the
new service application and upgrade the
database, and then create a proxy and
add it to the default proxy group.
Note:
This step applies to only
SharePoint Server 2013.
Although SharePoint
Foundation 2013 includes
search functionality, it is not the
same Search service application
that is in SharePoint Server
2013 and it cannot be
upgraded.
Complete this step one time
for each Search service
application in the previous
environment.
[ ]
Verify that all of the new proxies are
in the default proxy group
Use the Get-
SPServiceApplicationProxyGroup
cmdlet to verify that all of the service
application proxies are in the default
proxy group.
Complete this step one time
for the whole environment.
Detailed steps for this phase: Upgrade service applications to SharePoint 2013.
933
Create web applications
Step
Notes
[ ]
Create and configure web
applications
Create a web application for
each web application that
existed in the old environment.
Complete this step one time for
the whole environment.
[ ]
Reapply server-side
customizations
Manually transfer all server-side
customizations to your new
farm. Refer to the inventory that
you created in the upgrade
worksheet to make sure that
you install all components that
your sites depend on to work
correctly. When you install
solutions, make sure that you
add it to the appropriate path
(/14 or /15). If you want a
solution to be available to both
paths, install it two times, and
the second time use the
CompatibilityLevel parameter
when you install it, and it will be
installed to the /15 path.
Make sure that you reapply
customizations to all web
servers in the farm.
[ ]
Verify custom components
Use the Test-
SPContentDatabase Windows
PowerShell cmdlet to verify that
you have all the custom
components that you need for
that database.
Complete this step for each
content database in your
environment.
Running the cmdlet takes only a
few minutes, but addressing
issues might take longer.
934
Detailed steps for this phase: Upgrade content databases to SharePoint 2013.
Attach and upgrade content databases
Step
Notes
[ ]
Attach a content database to a
web application
Attach the content database
that contains the root site
collection first. For My Sites,
attach the content database that
contains the My Site host before
attaching databases that contain
the My Sites.
You must perform this action
from the command line. Use the
Mount-
SPContentDatabaseWindows
PowerShell cmdlet.
Complete this step for one
content database in your
environment.
This step might take several
minutes or several hours,
depending on your dataset and
hardware on the web servers,
database servers, and storage
subsystem.
[ ]
Verify upgrade for the first
database
Verify that upgrade succeeded
for the first database, and
review the site to see whether
there are any issues.
Detailed steps: Verify database
upgrades in SharePoint 2013.
Complete this step for the
content database that you just
attached.
935
Step
Notes
[ ]
Attach remaining databases
Attach and upgrade the
remaining content databases in
your environment. You must
complete this action from the
command line.
Complete this step for each of
the remaining content databases
in your environment.
This step might take several
minutes or several hours,
depending on your dataset,
whether you are upgrading
multiple databases in parallel,
and the hardware on the web
servers, database servers, and
storage subsystem.
[ ]
Monitor upgrade progress
Use the Upgrade Status page in
the SharePoint Central
Administration website to
monitor progress as your
databases are upgraded.
Detailed steps: Verify database
upgrades in SharePoint 2013.
Complete this step for each
content database that you
upgrade.
This step might take several
minutes, an hour, several hours,
or days, depending on your
content.
[ ]
Verify upgrade for the
remaining database
Verify that upgrade succeeded
for the remaining databases.
Detailed steps: Verify database
upgrades in SharePoint 2013.
Complete this step for each of
the remaining content databases
in your environment.
This step might take several
minutes, an hour, several hours,
or days, depending on your
content.
Detailed steps for this phase: Upgrade content databases to SharePoint 2013.
Complete post-upgrade steps
Follow these steps in order after you perform a database-attach upgrade.
936
Post upgrade steps for database attach upgrade
Step
Notes
[ ]
Verify that site collections are
working as expecting in 2010
mode
Review the site collections and
make sure that they work in
2010 mode before you begin to
upgrade any site collections. You
can use a similar review list as
the one provided for upgraded
sites in Checklists for reviewing
upgraded sites
Complete this step one time for
your whole environment.
[ ]
Migrate user accounts to
claims authentication, if it is
necessary
By default, new web
applications in SharePoint 2013
use claims authentication. If you
were using classic authentication
in the previous environment,
you must migrate the users to
claims authentication. For more
information, see Migrate from
classic-mode to claims-based
authentication in SharePoint
2013.
Complete this step one time for
every web application that has
changed authentication
methods.
937
Step
Notes
[ ]
Update links that are used in
any upgraded InfoPath form
templates
For a database-attach upgrade,
you exported and imported all
InfoPath form templates in your
environment when you created
the new environment. After
upgrade, you can now update
the links that are used in those
upgraded form templates to
point to the correct URLs by
using a Windows PowerShell
cmdlet.
For more information, see
Configure InfoPath Forms
Services (SharePoint Server
2010).
Complete this step one time for
your whole environment.
[ ]
Configure your Search
topology
The architecture for the Search
service has changed for
SharePoint Server 2013. Plan
and configure your Search
topology to suit your
environment and the new
architecture. For more
information, see Scale search
for Internet Sites in SharePoint
Server 2013 and Manage the
search topology in SharePoint
Server 2013.
Complete this step one time for
your whole environment.
938
Step
Notes
[ ]
Start a full crawl
After all content is upgraded and
all settings are configured, you
can start a full search crawl of
your content. For more
information, see Start, pause,
resume, or stop a crawl in
SharePoint Server 2013.
Complete this step one time for
your whole environment.
A full crawl can take several
hours or days to complete,
depending on how much
content is in your environment.
[ ]
Back up your farm
Back up your farm so that you
have a current backup of your
upgraded environment before
you start to upgrade site
collections. For more
information, see Back up farms
in SharePoint 2013.
Complete this step one time for
your whole environment.
See also
Create the SharePoint 2013 farm for a database attach upgrade
Copy databases to the new farm for upgrade to SharePoint 2013
Upgrade service applications to SharePoint 2013
Upgrade content databases to SharePoint 2013
Overview of the upgrade process to SharePoint 2013
Upgrade site collections to SharePoint 2013
Troubleshoot database upgrade issues in SharePoint 2013
939
Create the SharePoint 2013 farm for a
database attach upgrade
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Create and configure a SharePoint 2013 farm so that you can upgrade databases from
SharePoint 2010 Products.
When you upgrade from SharePoint 2010 Products to SharePoint 2013, you must use a database
attach upgrade, which means that you upgrade only the content for your environment and not the
configuration settings. Before you can upgrade the content, you must configure a new server or server
farm by using SharePoint 2013. This article lists the items that you have to configure when you create
that new environment.
Phase 1 of the upgrade process: Create SharePoint 2013 farm
940
This is the first phase in the process to upgrade
SharePoint 2010 Products data and sites to
SharePoint 2013. The process includes the
following phases that must be completed in
order:
1. Create the SharePoint 2013 farm for a
database attach upgrade (this phase)
2. Copy databases to the new farm for upgrade
to SharePoint 2013
3. Upgrade service applications to SharePoint
2013
4. Upgrade content databases to SharePoint
2013
5. Upgrade site collections to SharePoint 2013
For an overview of the whole process, see
Overview of the upgrade process to SharePoint
2013 and the Upgrade Process model Download
the upgrade process model| Use Zoom.it to view
the upgrade process model.
Important:
Although this article applies to both SharePoint Foundation 2013 and SharePoint Server 2013,
the following sections apply only to SharePoint Server 2013:
The section explains how to export the encryption key for the User Profile service application.
The section explains how to configure service applications, except for the Business Data
Connectivity service application which applies to SharePoint Foundation 2013 and SharePoint
Server 2013.
Watch the SharePoint 2013 Upgrade: Phase 1 video
941
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Before you create the SharePoint 2013 farm, review the following information and take any
recommended actions.
Make sure that the hardware and software that you are using meets the requirements in
Hardware and software requirements for SharePoint 2013.
Make sure that you have appropriately planned your logical and physical architecture to support
the features and functionality that you want in the SharePoint 2013 farm. For more information,
see the Architecture design for SharePoint 2013 IT pros Resource Center.
Make sure that you have planned for sufficient performance and capacity for the SharePoint 2013
farm. For more information, see Plan for performance and capacity management in SharePoint
Server 2013.
Ensure that you are prepared to set up the required accounts by using appropriate permissions.
For detailed information, see Initial deployment administrative and service accounts in SharePoint
2013.
Collect information and settings
Before you start to upgrade, you must collect information and settings about your existing
environment. You have to know what is in your SharePoint 2010 Products environment before you
can start to build your SharePoint 2013 environment. Gather information such as the following:
Alternate access mappings
942
Authentication providers and authentication modes that are being used
Quota templates
Managed paths
Self-service site management settings
Incoming and outgoing e-mail settings
Customizations
You can use the Upgrade Planning worksheet to record information and settings about your
SharePoint 2010 Products environment.
You also have to turn off or remove services or components in the SharePoint 2010 Products
environment that could cause errors in the upgrade process. The following services or components
should be removed or stopped before you back up your databases:
Web Analytics The architecture for the Web Analytics service application is different in
SharePoint 2010 Products. The presence of SharePoint Server 2010 Web Analytics information in
your content databases could cause an error during upgrade. Stop the Web Analytics service
application before you back up the content databases. Features and web parts from Web
Analytics in SharePoint Server 2010 will not exist in SharePoint Server 2013, even for a site
collection in 2010 mode. Remove any Web Analytics web parts or features from SharePoint Server
2010 site collections before upgrade.
For more information about this change to Web Analytics, see Changes from SharePoint 2010 to
SharePoint 2013.
PowerPoint Broadcast Sites The Office Web Apps have changed into a separate server product,
Office Web Apps Server, which can serve multiple SharePoint farms for viewing and editing
documents. Because of this change, PowerPoint Broadcast sites cannot be upgraded to SharePoint
Server 2013. For more information about how to install and use Office Web Apps Server with
SharePoint 2013, see Configure Office Web Apps for SharePoint 2013.
Record the passphrase for the Secure Store service
application
The Secure Store service application uses a passphrase to encrypt information. You have to know what
this passphrase is so that you can use it in the new environment. Otherwise, you will not have access
943
to the information in the Secure Store. If you do not know the passphrase, you can refresh the key,
and then back up the Secure Store database. For more information, see Working with encryption keys.
Export the encryption key for the User Profile service
application
The User Profile Service service application requires an encryption key that is stored separately from
the database and is needed if you want to upgrade the User Profile Sync database. You must export
the Microsoft Identity Integration Server Key (MIIS) encryption key from your SharePoint Server 2010
environment. You will import this exported key to the SharePoint Server 2013 environment after you
upgrade the User Profile service application databases. By default, the key is located on the server
that is running SharePoint Server 2010 and that is hosting the Microsoft Forefront Identity Manager
services in the following directory: <root directory drive>\Program Files\Microsoft Office
Servers\14.0\Synchronization Service\Bin.
Important:
This section applies only to SharePoint Server 2013, not SharePoint Foundation 2013.
To export the encryption key for the User Profile service application
1. Verify that you have the following memberships:
Administrators group on the server on which you are running the command.
2. Open the Command Prompt window, and then change to the following folder:
%Program Files%\Microsoft Office Servers\14.0\Synchronization Service\Bin\
3. To export the key, type the following at the command prompt, and then press ENTER:
miiskmu.exe
4. In the Microsoft Identity Integration Server Key Management Utility wizard, verify that Export key
set is selected, and then click Next.
5. In the Account Name box, type the account name for the farm administrator.
6. In the Password box, type the password for the farm administrator.
7. In the Domain box, type the domain that contains the farm administrator account, and then click
Next.
8. In the Specify export file name and location box, type or click browse to select the path and file
name to use for the exported key, and then click Next.
944
The key is exported as a file that has a .BIN file name extension.
9. Verify the information, and then click Finish.
A message appears indicating that the key was successfully exported.
10. Click Close to close the Microsoft Identity Integration Server Key Management Utility.
For more information, see Back up a User Profile Service application (SharePoint Server 2010).
Install SharePoint 2013 in a new environment
Before you can upgrade your databases, you must use SharePoint 2013 to configure a new server or
server farm. The first step in creating your new environment is to install SharePoint Server 2013 or
SharePoint Foundation 2013 and configure your new server or server farm. You must do the following:
1. Run the Microsoft SharePoint Products Preparation Tool to install all required software.
2. Run Setup to install the product.
3. Install all language packs that you want in your environment.
Note:
For more information about how to install available language packs, see Install or uninstall
language packs for SharePoint 2013.
4. Run the SharePoint Products Configuration Wizard to configure your server or servers.
Important:
Some service applications can be upgraded by using a service application database
upgrade. If you want to upgrade these service applications by upgrading the service
application databases, do not use the Farm Configuration Wizard to configure these
service applications when you set up your new farm.
For step-by-step instructions for these tasks, see Install SharePoint 2013.
Configure service applications
You must create the service applications on your new farm before you upgrade your content
databases. There are some service applications that can be upgraded from SharePoint 2010 Products
to SharePoint 2013. The steps in Install SharePoint 2013 describe how to use the Farm Configuration
Wizard to enable all service applications. However, you should not use the Farm Configuration Wizard
to enable the service applications that you want to upgrade.
945
The following service applications can be upgraded by performing a services database upgrade:
Business Data Connectivity service
Managed Metadata service
PerformancePoint services
Search
Secure Store service
User Profile service
For an overview of how to upgrade these service applications, see Services upgrade overview for
SharePoint Server 2013. The steps that you must follow to upgrade these service application
databases are included in the Upgrade service application databases section.
The following services in SharePoint Server 2013 also require additional steps to enable and configure
when you upgrade:
Excel Services
You can use the Farm Configuration Wizard to enable this service, but you must make sure that
you create all trusted data connections again. For more information, see Configure Excel Services
in SharePoint Server 2013.
InfoPath Forms Service
This service is not part of the Farm Configuration Wizard. To use this service, use the Configure
InfoPath Forms Services link on the General Application Settings page in Central
Administration to configure it. To continue to use form templates from your previous
environment, export all administrator-deployed form templates (.xsn files) and data connection
files (.udcx files) from your SharePoint Server 2010 environment, and then import them to your
new SharePoint Server 2013 environment. For more information, see Configure InfoPath Forms
Services (SharePoint Server 2010)
Office Web Apps
Office Web Apps Server is a new stand-alone server product that delivers Office Web Apps
functionality on your private network. You install and managed it separately from SharePoint
Server 2013. It cannot be installed on the same server or virtual machine instance as SharePoint
2013. For more information, see Deploy Office Web Apps Server.
946
Configure farm settings
The next step in creating the new environment is to apply general farm settings. You must manually
reapply configuration settings from your SharePoint 2010 Products farm, such as the following:
Incoming and outgoing e-mail settings
For more information, see Configure incoming email for a SharePoint 2013 farm and Configure
outgoing email for a SharePoint 2013 farm.
All farm–level security and permission settings, such as adding user or group accounts to the Farm
Administrators group
Blocked file types
For more information, see Manage blocked file types in SharePoint 2013.
And you must configure all new farm-level settings that you want to use, such as the following:
Usage and health data collection
For more information, see Configure usage and health data collection in SharePoint 2013.
Diagnostic logging
For more information, see Configure diagnostic logging in SharePoint 2013.
Settings and schedules for timer jobs
Important:
If you had disabled the Workflow Auto Cleanup timer job in your SharePoint 2010 Products
environment, make sure that you disable this timer job in your new environment also. If this
timer job is enabled in the new environment and disabled in the SharePoint 2010 Products
environment, you might lose workflow associations when you upgrade. For more information
about this timer job, see Disable preservation of workflow history (SharePoint Server
2010)Disable preservation of workflow history (SharePoint Server 2010).
In a standard installation, the next step would be to create web applications. However, for upgrade,
you create web applications later in the process, after you upgrade the service application databases.
For more information, see Create web applications.
947
This is the first phase in the process to upgrade
SharePoint 2010 Products data and sites to
SharePoint 2013.
Next phase: Copy databases to the new farm
for upgrade to SharePoint 2013
For an overview of the whole process, see
Overview of the upgrade process to SharePoint
2013.
See also
Copy databases to the new farm for upgrade to SharePoint 2013
Upgrade service applications to SharePoint 2013
Upgrade content databases to SharePoint 2013
Checklist for database-attach upgrade (SharePoint 2013)
Services upgrade overview for SharePoint Server 2013
Upgrade farms that share services (parent and child farms) to SharePoint 2013
Troubleshoot database upgrade issues in SharePoint 2013
Upgrade and Migration Resource Center for SharePoint 2013 Products
948
Copy databases to the new farm for
upgrade to SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Copy SharePoint 2010 Products content and service databases to a SharePoint 2013 farm
so that you can upgrade the data to SharePoint 2013.
When you upgrade from SharePoint 2010 Products to SharePoint 2013, you must use a database
attach upgrade, which means that you upgrade only the content for your environment and not the
configuration settings. After you have configured a new SharePoint 2013 environment, you can copy
the content and service application databases from the SharePoint 2010 Products environment to the
SharePoint 2013 environment. You use a backup and restore process to copy the database, and you
can also choose to set the databases to read-only in the SharePoint 2010 Products environment so
that users can continue to access their information, but not change it. This article contains the steps
that you take to copy the databases.
Phase 2 of the upgrade process: Copy databases to the new farm
949
This is the second phase in the process to upgrade
SharePoint 2010 Products data and sites to
SharePoint 2013. The process includes the
following phases that must be completed in
order:
1. Create the SharePoint 2013 farm for a
database attach upgrade
2. Copy databases to the new farm for upgrade
to SharePoint 2013 (this phase)
3. Upgrade service applications to SharePoint
2013
4. Upgrade content databases to SharePoint
2013
5. Upgrade site collections to SharePoint 2013
For an overview of the whole process, see
Overview of the upgrade process to SharePoint
2013 and the Upgrade Process model Download
the upgrade process model| Use Zoom.it to view
the upgrade process model.
Important:
Although this article applies to both SharePoint Foundation 2013 and SharePoint Server 2013,
the sections about how to back up and restore service application databases apply only to
SharePoint Server 2013. (The exception is the section about the Business Data Connectivity
service application which applies to SharePoint Foundation 2013 and SharePoint Server 2013).
Watch the SharePoint 2013 Upgrade: Phase 2 video
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
950
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Before you copy the databases, review the following information and take any recommended actions.
Make sure that the account that you use to copy the databases has access to SQL Server
Management Studio on both the SharePoint 2010 Products and SharePoint 2013 environments
and has access to a network location that can be accessed from both environments to store the
copies of the databases.
Make sure that the account that you use to set the databases to read-only and read-write is a
member of the db_owner fixed database role for the content databases that you want to
upgrade.
Before you back up the databases, check for and repair all database consistency errors.
For more information, see Database maintenance for SharePoint Server 2010.
Make sure that the appropriate service pack or update is applied to your 2010 environment. If you
are using remote blog storage (RBS) in your environment, you must be running Service Pack 1 for
SharePoint 2010 Products in your environment before you start the upgrade process.
Set the earlier version databases to be read-only
To maintain user access to your original environment, set the SharePoint 2010 Products databases to
read-only before you back up the databases. Even if you don’t want to maintain access over the long
term, set the databases to read-only to make sure that you capture all the data in the backup so that
you restore and upgrade the current state of the environment without allowing additional changes to
be made. If the databases are set to read-only, users can continue to view content. However, they will
be unable to add or change content.
Important:
Perform this step in the SharePoint 2010 Products environment.
951
To set a database to read-only by using SQL Server tools
1. Verify that the user account that is performing this procedure is a member of the db_owner fixed
database role for the databases.
2. In SQL Server Management Studio, in Object Explorer, connect to an instance of the Database
Engine, expand the server, and then expand Databases.
3. Find the database that you want to configure to be read-only, right-click the database, and then
click Properties.
4. In the Database Properties dialog box, in the Select a page section, click Options.
5. In the details pane, under Other options, in the State section, next to Database Read-Only, click
the arrow, and then select True.
You can use Transact-SQL to configure the READ_ONLY database availability option. For more
information about how to use the SET clause of the ALTER DATABASE statement, see Setting
Database Options.
Back up the SharePoint 2010 Products databases by
using SQL Server tools
You back up the databases in SQL Server Management Studio. A backup copy of the database
guarantees that you have the data in a safe state if you must enable the original farm again and is
required for a database-attach upgrade. Repeat the procedure for the following databases in the
SharePoint 2010 Products server farm:
All content databases (default database name: WSS_Content_ID
The following service application databases:
Service application
Default database name
Business Data Connectivity
BDC_Service_DB_ID
Managed Metadata
Managed Metadata Service_ID
PerformancePoint
PerformancePoint Service Application_ID
Search Administration
Search_Service_Application_DB_ID
Secure Store
Secure_Store_Service_DB_ID
952
Service application
Default database name
User Profile: Profile, Social, and Sync databases
User Profile Service Application_ProfileDB_ID
User Profile Service Application_SocialDB_ID
User Profile Service Application_SyncDB_ID
The Business Data Connectivity service application is available in both SharePoint Foundation 2010
and SharePoint Server 2010. The other service applications are available only in SharePoint Server
2010. Although SharePoint Foundation 2010 includes search functionality, it is not the same
Search service application that is in SharePoint Server 2010 and it cannot be upgraded.
You do not have to back up the configuration or admin content databases, because you recreated
these databases when you set up the SharePoint 2013 server farm. Upgrading the configuration or
admin content databases and the Central Administration site collection is not supported.
After you complete this procedure, you will have created backups of the read-only content databases.
Important:
Perform this step in the SharePoint 2010 Products environment.
To back up a database by using SQL Server tools
1. Verify that the user account that is performing this procedure is a member of the db_owner fixed
database role for the databases.
2. In Management Studio, in Object Explorer, connect to an instance of the Database Engine, expand
the server, and then expand Databases.
3. Right-click the database that you want to back up, point to Tasks, and then click Back Up.
The Back Up Database dialog box appears.
4. In the Source area, in the Database box, verify the database name.
5. In the Backup type box, select Full.
6. Under Backup component, select Database.
7. In the Backup set area, in the Name box, either accept the backup set name that is suggested or
type a different name for the backup set.
8. In the Destination area, specify the type of backup destination by selecting Disk or Tape, and
then specify a destination. To create a different destination, click Add.
953
9. Click OK to start the backup process.
Repeat the previous procedure to back up all the content and appropriate service application
databases that SharePoint 2010 Products uses in your environment.
Important:
Before you can back up the Search service application Administration database, you must stop
the Search service on your SharePoint Server 2010 farm. To stop the Search service, on the
original farm, on the Start menu, click Administrative Tools, and then click Services. Right-
click SharePoint Server Search 14, and then click Stop. Be sure to start the service again after
you back up the database.
Copy the backup files to the SharePoint 2013
environment
Copy the backup files that you created in the previous procedure from the SharePoint 2010 Products
environment to the SharePoint 2013 environment.
Restore a backup copy of the database
After you configure the new SharePoint 2013 server farm, you can restore the backup copies of the
databases to SQL Server. Start with one database, and then verify that the restoration has worked
before you restore the other databases.
Important:
Be sure to keep a copy of your original backups in reserve, just in case upgrade fails and you
have to troubleshoot and try again.
Perform this step in the SharePoint 2013 environment.
To restore a backup copy of a database by using SQL Server tools
1. Verify that the user account that is performing this procedure is a member of the db_owner fixed
database role for the databases.
2. After you connect to the appropriate instance of the SQL Server 2008 Database Engine, in Object
Explorer, expand the server name.
3. Right-click Databases, and then click Restore Database.
The Restore Database dialog box appears.
954
4. In the Restore Database dialog box, on the General page, type the name of the database to be
restored in the To database list.
Tip:
When you type the name for the restored database, you do not have to use the original
name. If you want to change the database name from a name with a long GUID to a
shorter, friendlier name, this is an opportunity to make that change. Be sure to also
change the database and log file names in the file system (the MDF and LDF files) so that
they match.
5. In the To a point in time text box, keep the default (Most recent possible).
6. To specify the source and location of the backup sets to restore, click From device, and then use
the ellipsis (...) to select the backup file.
7. In the Specify Backup dialog box, in the Backup media box, be sure that File is selected.
8. In the Backup location area, click Add.
9. In the Locate Backup File dialog box, select the file that you want to restore, click OK, and then,
in the Specify Backup dialog box, click OK.
10. In the Restore Database dialog box, under Select the backup sets to restore grid, select the
Restore check box next to the most recent full backup.
11. In the Restore Database dialog box, on the Options page, under Restore options, select the
Overwrite the existing database check box.
12. Click OK to start the restore process.
Set the databases to read-write
You cannot upgrade a database that is set to read-only. You must set the databases back to read-write
on your SharePoint 2013 farm before you attach and upgrade them.
Important:
Perform this step in the SharePoint 2013 environment.
955
To set a database to read-write by using SQL Server tools
1. In SQL Server Management Studio, in Object Explorer, connect to an instance of the Database
Engine, expand the server, and then expand Databases.
2. Select the database that you want to configure to be read-write, right-click the database, and then
click Properties.
3. In the Database Properties dialog box, in the Select a page section, click Options.
4. In the details pane, under Other options, in the State section, next to Database Read-Only, click
the arrow, and then select False.
This is the second phase in the process to upgrade
SharePoint 2010 Products data and sites to
SharePoint 2013.
Next phase: Upgrade service applications to
SharePoint 2013
For an overview of the whole process, see
Overview of the upgrade process to SharePoint
2013.
See also
Create the SharePoint 2013 farm for a database attach upgrade
Upgrade service applications to SharePoint 2013
Upgrade content databases to SharePoint 2013
Checklist for database-attach upgrade (SharePoint 2013)
Services upgrade overview for SharePoint Server 2013
Upgrade farms that share services (parent and child farms) to SharePoint 2013
Troubleshoot database upgrade issues in SharePoint 2013
Upgrade and Migration Resource Center for SharePoint 2013 Products
956
Upgrade service applications to SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-10-23
Summary: Upgrade service applications (Business Connectivity Services, Managed Metadata, Secure
Store, User Profiles, Search) to SharePoint 2013.
When you upgrade from SharePoint 2010 Products to SharePoint 2013, you must use a database
attach upgrade, which means that you upgrade only the content for your environment and not the
configuration settings. After you have configured the SharePoint 2013 environment, and copied the
content and service application databases, you can upgrade the service applications to SharePoint
2013. This article contains the steps that you take to upgrade the service applications.
Phase 3 of the upgrade process: Upgrade service applications
957
This is the third phase in the process to upgrade
SharePoint 2010 Products data and sites to
SharePoint 2013. The process includes the
following phases that must be completed in
order:
1. Create the SharePoint 2013 farm for a
database attach upgrade
2. Copy databases to the new farm for upgrade
to SharePoint 2013
3. Upgrade service applications to SharePoint
2013 (this phase)
4. Upgrade content databases to SharePoint
2013
5. Upgrade site collections to SharePoint 2013
For an overview of the whole process, see
Overview of the upgrade process to SharePoint
2013 and the Upgrade Process model Download
the upgrade process model| Use Zoom.it to view
the upgrade process model.
Important:
Although this article applies to both SharePoint Foundation 2013 and SharePoint Server 2013,
the sections about how to upgrade service applications apply only to SharePoint Server 2013.
(The exception is the section about how to upgrade the Business Data Connectivity service
application which applies to SharePoint Foundation 2013 and SharePoint Server 2013).
Watch the SharePoint 2013 Upgrade: Phase 3 video
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
958
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Before you create the SharePoint 2013 farm, review the following information and take any
recommended actions.
Make sure that you have configured a SharePoint 2013 farm, recorded the Secure Store
passphrase, and backed up the User Profile Synchronization encryption key. For more information,
see Create the SharePoint 2013 farm for a database attach upgrade.
Make sure that the account that you use to perform the steps in this article is a member of the
Farm administrators group in Central Administration.
Decide which service application pool to use for the upgraded service applications. The
procedures below use the default application pool for service applications which is "SharePoint
Web Services Default". You can view a list of available service application pools by using the Get-
SPServiceApplicationPool cmdlet in Windows PowerShell. Or you can create a service
application pool by using the New-SPServiceApplicationPool cmdlet. For more information, see
Get-SPServiceApplicationPool and New-SPServiceApplicationPool.
Tip:
Throughout this article, variables (such as $applicationPool, $sss, $upa, and so on) are used in
the Windows PowerShell cmdlets to save time and effort. You do not have to use these
variables if you would prefer not to. However, if you do not use these variables, you must use
IDs for the service applications and service application proxies when you specify the identity
parameters. Each procedure has information about the variables used, or the alternate
cmdlets to use to look up any IDs that are required.
Also, many procedures in this article include a step to set the $applicationPool variable. If you
are performing all of these procedures in the same session of Windows PowerShell, and you
want to use the same application pool for all service applications, you do not have to repeat
this step in each procedure. Instead, you can set this variable once at the beginning and use it
throughout the procedures in this article.
959
About upgrading the service application databases
To upgrade a service application database, you create a new service application and provide the name
of the existing database to use for the new service application. As the service application is created,
the database is upgraded. This process has several steps.
1. Start the service instances
The first step is to start service instances for the five service applications that you can upgrade:
the Business Data Connectivity service, Managed Metadata Web Service, PerformancePoint
Services service, Secure Store service, User Profile service, and Search service. Most of these
service instances can be started from Central Administration. However the SharePoint Server
Search service instance must be started by using Windows PowerShell.
2. Create the service applications and upgrade the databases
After you have started the service instances, the next step is to create the service applications and
upgrade the databases. You must use Windows PowerShell to restore the service application
databases.
3. Create proxies for the service applications
After you have upgraded the service application databases, you create the proxies for the service
applications and add them to the default proxy group. You must create proxies for the following
service applications:
Managed Metadata service application
Search service application
Secure Store service application
PerformancePoint Services service application
User Profile service application
The Business Data Connectivity service application automatically creates a proxy and
assigns it to the default proxy group when you create the service application.
4. Verify that the proxies are in the default group
The following sections provide procedures to complete these steps.
Note:
The Business Data Connectivity service application is available for upgrade both from
SharePoint Foundation 2010 to SharePoint Foundation 2013 and SharePoint Server 2010 to
960
SharePoint Server 2013. The other service applications are available for upgrade only from
SharePoint Server 2010 to SharePoint Server 2013. Although SharePoint Foundation 2013
includes search functionality, it is not the same Search service application that is in SharePoint
Server 2013 and it cannot be upgraded.
Start the service instances
The following procedures start the service instances.
To start service application instances from Central Administration
1. Start SharePoint 2013 Central Administration.
For Windows Server 2008 R2:
Click Start, click Microsoft SharePoint 2013 Products, and then click SharePoint 2013
Central Administration.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Central Administration.
If SharePoint 2013 Central Administration is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Central
Administration.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
2. In SharePoint 2013 Central Administration, on the Application Management page, in the Service
Applications section, click Manage Services on Server.
3. Next to the Business Data Connectivity service, click Start.
4. Next to the Managed Metadata Web Service, click Start.
5. Next to the PerformancePoint Services service, click Start.
6. Next to the Secure Store Service, click Start.
7. Next to the User Profile Service, click Start.
The Search service instance must be started by using Windows PowerShell because you cannot start it
from Central Administration unless a Search Service application already exists.
961
To start the Search service instance by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. To start the Search service instance, at the Windows PowerShell command prompt, type the
following commands and press ENTER after each one:
$SearchInst = Get-SPEnterpriseSearchServiceInstance
# Stores the identity for the Search service instance on this server as a
variable
Start-SPServiceInstance $SearchInst
# Starts the service instance
For more information, see Get-SPEnterpriseSearchServiceInstance and Start-SPServiceInstance.
962
Upgrade the Secure Store service application
To upgrade the Secure Store service application, you create the new service application and upgrade
the database, create a proxy and add it to the default proxy group, and then restore the passphrase
from the previous environment.
To upgrade the Secure Store service application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. To store the application pool that you want to use as a variable for this service application, at the
Windows PowerShell command prompt, type the following command:
963
$applicationPool = Get-SPServiceApplicationPool -Identity '
SharePoint Web
Services default
'
Where:
SharePoint Web Services default is the name of the service application pool that will
contain the new service applications. This is the default service application pool. You can
specify a different service application pool.
This cmdlet sets the service application pool as a variable that you can use again in the
cmdlets that follow. If you have multiple application pools and have to use a different
application pool for a particular service application, repeat this step in the procedure to
create each service application to use the appropriate application pool.
4. To upgrade the Secure Store service application, at the Windows PowerShell command prompt,
type the following command:
$sss = New-SPSecureStoreServiceApplication -Name '
Secure Store
' -
ApplicationPool $applicationPool -DatabaseName '
SecureStore_Upgrade_DB
' -
AuditingEnabled
Where:
SecureStore is the name that you want to give the new Secure Store service application.
$applicationpool is the variable that you set earlier to identify the service application pool
to use.
Tip:
If you do not use the variable $applicationPool, then you must specify the name of an existing
service application pool in the format 'Application Pool Name'. To view a list of service
application pools, you can run the Get-SPServiceApplicationPool cmdlet.
SecureStore_Upgrade_DB is the name of the service application database that you want
to upgrade.
This command sets a variable, $sss, that you use when you create the proxy later.
For more information, see New-SPSecureStoreApplication.
5. Type the following command to create a proxy for the Secure Store service application:
$sssp = New-SPSecureStoreServiceApplicationProxy -Name
ProxyName
-
ServiceApplication $sss -DefaultProxyGroup
Where:
ProxyName is the proxy name that you want to use.
964
$sss is the variable that you set earlier to identify the new Secure Store service
application.
Tip:
If you do not use the variable $sss, then you must use an ID to identify the Secure Store
service application instead of a name. To find the ID, you can run the Get-
SPServiceApplication cmdlet to return a list of all service application IDs.
DefaultProxyGroup adds the Secure Store service application proxy to the default proxy
group for the local farm.
This command sets a variable, $sssp, for the service application proxy that you use when
you restore the passphrase.
For more information, see New-SPSecureStoreServiceApplicationProxy.
After you create the Secure Store service application and the proxy, you have to refresh
the encryption key. For information about how to refresh the encryption key, see Refresh
the encryption key.
6. Type the following command to restore the passphrase for the Secure Store service application:
Update-SPSecureStoreApplicationServerKey -Passphrase
<Passphrase>
-
ServiceApplicationProxy $sssp
Where:
<Passphrase> is the Passphrase for the Secure Store service application from your
previous environment.
$sssp is a variable that you set earlier to identify the new Secure Store service application
proxy.
Tip:
If you do not use the variable $sssp, then you must use an ID to identify the Secure Store
service application proxy instead of a name. To find the ID, you can run the Get-
SPServiceApplicationProxy cmdlet to return a list of all service application proxy IDs.
For more information, see Update-SPSecureStoreApplicationServerKey.
965
Upgrade the Business Data Connectivity service
application
To upgrade the Business Data Connectivity service application, you create the new service application
and upgrade the database. You do not have to create a proxy for the Business Data Connectivity
service application. The Business Data Connectivity service application automatically creates a proxy
and assigns it to the default proxy group when you create the service application.
Note:
The Business Data Connectivity service application is available in both SharePoint Foundation
2013 and SharePoint Server 2013.
To upgrade the Business Data Connectivity service application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
966
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. To store the application pool that you want to use as a variable for this service application, at the
Windows PowerShell command prompt, type the following command:
$applicationPool = Get-SPServiceApplicationPool -Identity '
SharePoint Web
Services default
'
Where:
SharePoint Web Services default is the name of the service application pool that will
contain the new service applications.
This cmdlet sets the service application pool as a variable that you can use again in the
cmdlets that follow. If you have multiple application pools and have to use a different
application pool for a particular service application, repeat this step in the procedure to
create each service application to use the appropriate application pool.
4. To upgrade the Business Data Connectivity service application, at the Windows PowerShell
command prompt, type the following command:
New-SPBusinessDataCatalogServiceApplication -Name '
BDC Service
' -
ApplicationPool $applicationPool -DatabaseName '
BDC_Service_DB
'
Where:
BDC Service is the name that you want to give the new Business Data Connectivity
service application.
$applicationpool is the variable that you set earlier to identify the service application pool
to use.
Tip:
If you do not use the variable $applicationPool, then you must specify the name of an existing
service application pool in the format 'Application Pool Name'. To view a list of service
application pools, you can run the Get-SPServiceApplicationPool cmdlet.
BDC_Service_DB is name of the service application database that you want to upgrade.
For more information, see New-SPBusinessDataCatalogServiceApplication.
Upgrade the Managed Metadata service application
To upgrade the Managed Metadata service application, you create the new service application and
upgrade the database, and then create a proxy and add it to the default proxy group. You must
967
upgrade the Managed Metadata service application before you can upgrade the User Profile service
application.
To upgrade the Managed Metadata service application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. To store the application pool that you want to use as a variable for this service application, at the
Windows PowerShell command prompt, type the following command:
$applicationPool = Get-SPServiceApplicationPool -Identity '
SharePoint Web
Services default
'
Where:
968
SharePoint Web Services default is the name of the service application pool that will
contain the new service applications.
This cmdlet sets the service application pool as a variable that you can use again in the
cmdlets that follow. If you have multiple application pools and have to use a different
application pool for a particular service application, repeat this step in the procedure to
create each service application to use the appropriate application pool.
4. To upgrade the Managed Metadata service application, at the Windows PowerShell command
prompt, type the following command:
$mms = New-SPMetadataServiceApplication -Name '
Managed Metadata Service
Application
' -ApplicationPool $applicationPool -DatabaseName '
Managed
Metadata Service_DB
'
Where:
Managed Metadata Service Application is the name that you want to give the new
Managed Metadata service application.
$applicationpool is the variable that you set earlier to identify the service application pool
to use.
Tip:
If you do not use the variable $applicationPool, then you must specify the name of an existing
service application pool in the format 'Application Pool Name'. To view a list of service
application pools, you can run the Get-SPServiceApplicationPool cmdlet.
Managed Metadata Service_DB is name of the service application database that you want
to upgrade.
This command sets a variable, $mms, that you use when you create the proxy later.
For more information, see New-SPMetadataServiceApplication.
5. At the Windows PowerShell command prompt, type the following command to create a proxy for
the Managed Metadata service application:
New-SPMetadataServiceApplicationProxy -Name
ProxyName
-ServiceApplication
$mms -DefaultProxyGroup
Where:
ProxyName is the proxy name that you want to use.
$mms is the variable that you set earlier to identify the new Managed Metadata service
application.
969
Tip:
If you do not use the variable $mms, then you must use an ID to identify the Managed
Metadata service application proxy instead of a name. To find the ID, you can run the Get-
SPServiceApplication cmdlet to return a list of all service application IDs.
DefaultProxyGroup adds the Managed Metadata service application proxy to the default
proxy group for the local farm.
For more information, see New-SPMetadataServiceApplicationProxy.
Upgrade the User Profile service application
To upgrade the User Profile service application, you create the new service application and upgrade
the database, and then create a proxy and add it to the default proxy group and then start the User
Profile Synchronization service. After you have created the User Profile Service service application,
you must import the Microsoft Identity Integration Server Key (MIIS) encryption key.
Note:
You must upgrade the Managed Metadata service application before you can upgrade the
User Profile service application.
To upgrade the User Profile service application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
970
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. To store the application pool that you want to use as a variable for this service application, at the
Windows PowerShell command prompt, type the following command:
$applicationPool = Get-SPServiceApplicationPool -Identity '
SharePoint Web
Services default
'
Where:
SharePoint Web Services default is the name of the service application pool that will
contain the new service applications.
This cmdlet sets the service application pool as a variable that you can use again in the
cmdlets that follow. If you have multiple application pools and have to use a different
application pool for a particular service application, repeat this step in the procedure to
create each service application to use the appropriate application pool.
4. To upgrade the User Profile service application, at the Windows PowerShell command prompt,
type the following command:
$upa = New-SPProfileServiceApplication -Name '
User Profile Service
Application
' -ApplicationPool $applicationPool -ProfileDBName '
User
Profile Service Application_ProfileDB
' -SocialDBName '
User Profile Service
Application_SocialDB
'
-ProfileSyncDBName '
User Profile Service Application_SyncDB
'
Where:
User Profile Service Application is the name that you want to give the new User Profile
service application.
$applicationpool is the variable that you set earlier to identify the service application pool
to use.
971
Tip:
If you do not use the variable $applicationPool, then you must specify the name of an existing
service application pool in the format 'Application Pool Name'. To view a list of service
application pools, you can run the Get-SPServiceApplicationPool cmdlet.
User Profile Service Application_ProfileDB is name of the User Profile service application
Profile database that you want to upgrade.
User Profile Service Application_SocialDB is name of the User Profile service application
Social database that you want to upgrade.
User Profile Service Application_SyncDB is name of the User Profile service application
Sync database that you want to upgrade.
Note:
The SocialDBName and ProfileSyncDBName parameters are optional. Use these parameters if
you have Social and Sync databases that you want to upgrade. If you do not specify these
parameters, new Social and Sync databases are created for you.
This command sets a variable, $upa, that you use when you create the proxy later.
For more information, see New-SPProfileServiceApplication.
5. Type the following command to create a proxy for the User Profile service application:
New-SPProfileServiceApplicationProxy -Name
ProxyName
-ServiceApplication
$upa -DefaultProxyGroup
Where:
ProxyName is the proxy name that you want to use.
$upa is the variable that you set earlier to identify the new User Profile service
application.
Tip:
If you do not use the variable $upa, then you must use an ID to identify the User Profile
service application instead of a name. To find the ID, you can run the Get-
SPServiceApplication cmdlet to return a list of all service application IDs.
DefaultProxyGroup adds the User Profile service application proxy to the default proxy
group for the local farm.
For more information, see New-SPProfileServiceApplicationProxy.
After you have created the User Profile Service service application, you can start the User Profile
Synchronization service.
972
Start the User Profile Synchronization service
1. Start SharePoint 2013 Central Administration.
For Windows Server 2008 R2:
Click Start, click Microsoft SharePoint 2013 Products, and then click SharePoint 2013
Central Administration.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Central Administration.
If SharePoint 2013 Central Administration is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Central
Administration.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
2. In Central Administration, on the System Settings page, under Servers click Manage services on
Server.
3. Next to the User Profile Synchronization Service, click Start.
4. In the Select the User Profile Application section, select the User Profile service application that
you upgraded.
5. In the Service Account Name and Password section, type the account name and password to
use for the User Profile Synchronization service.
After you have started the User Profile Synchronization service, you must import the Microsoft
Identity Integration Server Key (MIIS) encryption key. Import this key to the following directory: <root
directory drive>\Program Files\Microsoft Office Servers\15.0\Synchronization Service\Bin.
To import the encryption key for User Profile service application
1. Verify that you have the following memberships:
Administrators group on the server on which you are running the command.
2. Open the Command Prompt window, and then change to the following folder:
%Program Files%\Microsoft Office Servers\15.0\Synchronization Service\Bin\
3. To import the key, type the following at the command prompt, and then press ENTER:
973
miiskmu.exe /e
Path
{0E19E162-827E-4077-82D4-E6ABD531636E}
Where:
Path is the path and file name for the key that you want to import.
You might also have to enter a user name and password. These are the credentials for the
farm administrator.
Important:
Use the GUID as specified. This GUID is fixed.
For more information, see Install a software update (SharePoint Server 2010).
Upgrade the PerformancePoint Services service
application
To upgrade the PerformancePoint Services service application, you create the new service application
and upgrade the database, and then create a proxy and add it to the default proxy group.
To upgrade the PerformancePoint Services service application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
974
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. To store the application pool that you want to use as a variable for this service application, at the
Windows PowerShell command prompt, type the following command:
$applicationPool = Get-SPServiceApplicationPool -Identity '
SharePoint Web
Services default
'
Where:
SharePoint Web Services default is the name of the service application pool that will
contain the new service applications.
This cmdlet sets the service application pool as a variable that you can use again in the
cmdlets that follow. If you have multiple application pools and have to use a different
application pool for a particular service application, repeat this step in the procedure to
create each service application to use the appropriate application pool.
4. To upgrade the PerformancePoint Services service application, at the Windows PowerShell
command prompt, type the following command:
$pps = New-SPPerformancePointServiceApplication -Name '
PerformancePoint
Service
' -ApplicationPool $applicationPool -DatabaseName '
PerformancePoint
Service Application_DB
'
Where:
PerformancePoint Service is the name that you want to give the new PerformancePoint
Services service application.
$applicationpool is the variable that you set earlier to identify the service application pool
to use.
Tip:
If you do not use the variable $applicationPool, then you must specify the name of an existing
service application pool in the format 'Application Pool Name'. To view a list of service
application pools, you can run the Get-SPServiceApplicationPool cmdlet.
975
PerformancePoint Service Application_DB is name of the PerformancePoint Services
service application database that you want to upgrade.
This command sets a variable, $pps, that you use when you create the proxy later.
For more information, see New-SPProfileServiceApplication.
5. Type the following command to create a proxy for the PerformancePoint Services service
application:
New-SPPerformancePointServiceApplicationProxy -Name
ProxyName
-
ServiceApplication $pps -Default
Where:
ProxyName is the proxy name that you want to use.
$pps is the variable that you set earlier to identify the new PerformancePoint Services
service application.
Tip:
If you do not use the variable $pps, then you must use an ID to identify the PerformancePoint
Services service application instead of a name. To find the ID, you can run the Get-
SPServiceApplication cmdlet to return a list of all service application IDs.
Default adds the PerformancePoint Services service application proxy to the default proxy
group for the local farm.
For more information, see New-SPPerformancePointServiceApplicationProxy.
Upgrade the Search service application
To upgrade the Search service application, you create the new service application and upgrade the
database, and then create a proxy and add it to the default proxy group.
Note:
This section applies to only SharePoint Server 2013. Although SharePoint Foundation 2013
includes search functionality, it is not the same Search service application that is in SharePoint
Server 2013 and it cannot be upgraded.
To upgrade the Search service application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
976
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. To store the application pool that you want to use as a variable for this service application, at the
Windows PowerShell command prompt, type the following command:
$applicationPool = Get-SPServiceApplicationPool -Identity '
SharePoint Web
Services default
'
Where:
SharePoint Web Services default is the name of the service application pool that will
contain the new service applications.
This cmdlet sets the service application pool as a variable that you can use again in the
cmdlets that follow. If you have multiple application pools and have to use a different
application pool for a particular service application, repeat this step in the procedure to
create each service application to use the appropriate application pool.
977
4. To upgrade the Search service application, at the Windows PowerShell command prompt, type
the following command:
$searchInst = Get-SPEnterpriseSearchServiceInstance -local
# Gets the Search service instance and sets a variable to use in the next
command
Restore-SPEnterpriseSearchServiceApplication -Name
'
<SearchServiceApplicationName>
' -applicationpool $applicationPool -
databasename '
<SearchServiceApplicationDBName>
' -databaseserver
<ServerName>
-
AdminSearchServiceInstance $searchInst
Where:
SearchServiceApplicationName is the name of the Search service application.
$applicationpool is the variable that you set earlier to identify the service application pool
to use.
Tip:
If you do not use the variable $applicationPool, then you must specify the name of an existing
service application pool in the format 'Application Pool Name'. To view a list of service
application pools, you can run the Get-SPServiceApplicationPool cmdlet.
SearchServiceApplicationDBName is the name of the Search service application
Administration database that you want to upgrade.
$searchInst is the variable that you set to identify the new Search Service application
instance.
Note:
A Search service application upgrade might fail because of an issue that occurs during
upgrade, such as network or SQL Server latency. If an error message appears during the
Search service application upgrade, do the following:
a) Delete the Search Administration database that you were trying to upgrade.
b) Using the backup copy that you made of the Search Administration database, repeat the
following procedures in this article for the Search service application only:
i. Restore a backup copy of the database
ii. Set the databases to read-write
c) Upgrade the Search service application by typing the command again at the Windows
PowerShell command prompt.
978
For more information, see Restore-SPEnterpriseSearchServiceApplication.
You must follow several steps to create the Search service application proxy and add it to
the default proxy group. You must complete separate actions to find the ID for the Search
service application, create the new proxy, get the proxy ID, and then add the proxy to the
default proxy group.
5. Type the following command to get the ID for the Search service application and store it as a
variable:
$ssa = Get-SPEnterpriseSearchServiceApplication
For more information, see Get-SPEnterpriseSearchServiceApplication.
6. Type the following command to create a proxy for the Search service application:
New-SPEnterpriseSearchServiceApplicationProxy -Name
ProxyName
-
SearchApplication $ssa
Where:
ProxyName is the proxy name that you want to use.
$ssa is the variable that you set earlier to identify the new Search service application.
Tip:
If you do not use the variable $ssa, then you must use an ID to identify the Search service
application instead of a name. To find the ID, you can run the Get-SPServiceApplication
cmdlet to return a list of all service application IDs.
For more information, see New-SPEnterpriseSearchServiceApplicationProxy.
7. Type the following command to get the Search service application proxy ID for the proxy you just
created and set it as the variable $ssap:
$ssap = Get-SPEnterpriseSearchServiceApplicationProxy
For more information, see Get-SPEnterpriseSearchServiceApplicationProxy.
8. Type the following command to add the Search service application proxy to the default proxy
group:
Add-SPServiceApplicationProxyGroupMember -member $ssap -identity " "
Where:
979
$ssap is the variable that you set earlier to identify the ID for the proxy you just created
for the Search service application.
Tip:
If you do not use the variable $ssap, then you must use an ID to identify the Search service
application proxy instead of a name. To find the ID, you can run the Get-
SPServiceApplicationProxy cmdlet to return a list of all service application proxy IDs.
You use an empty identity parameter (" ") to add it to the default group.
For more information, see Add-SPServiceApplicationProxyGroupMember.
Verify that all of the new proxies are in the default
proxy group
Use the following procedure to verify that the steps to create the proxies and add them to the default
proxy group worked.
To verify that all of the new proxies are in the default proxy group by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
980
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following commands:
$pg = Get-SPServiceApplicationProxyGroup -Identity " "
$pg.Proxies
Where:
$pg is a variable you set to represent the default proxy group.
You use an empty identity parameter (" ") to specify the default proxy group.
This returns a list of all proxies in the default proxy group, their display names, type
names, and IDs.
For more information, see Get-SPServiceApplicationProxyGroup.
Now that the service applications are upgraded, you can start the process to upgrade the content
databases. The first step in that process is to create the web applications that are needed for each
content database.
This is the third phase in the process to upgrade
SharePoint 2010 Products data and sites to
SharePoint 2013.
Next phase: Upgrade content databases to
SharePoint 2013
For an overview of the whole process, see
Overview of the upgrade process to SharePoint
2013.
981
See also
Create the SharePoint 2013 farm for a database attach upgrade
Copy databases to the new farm for upgrade to SharePoint 2013
Upgrade content databases to SharePoint 2013
Checklist for database-attach upgrade (SharePoint 2013)
Services upgrade overview for SharePoint Server 2013
Upgrade farms that share services (parent and child farms) to SharePoint 2013
Troubleshoot database upgrade issues in SharePoint 2013
Upgrade and Migration Resource Center for SharePoint 2013 Products
982
Upgrade content databases to SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-10-23
Summary: Learn how to upgrade content databases from SharePoint 2010 Products to SharePoint
2013.
When you upgrade from SharePoint 2010 Products to SharePoint 2013, you must use a database
attach upgrade, which means that you upgrade only the content for your environment and not the
configuration settings. After you have configured the SharePoint 2013 environment, copied the
content and service application databases, and upgraded the service applications, you can attach and
upgrade the content databases to SharePoint 2013. This article explains the steps you take to attach
and upgrade the content databases to SharePoint 2013.
This article does not provide steps for how to upgrade a site collection. The process to upgrade site
collections is separate from the process for upgrading the databases. For steps to upgrade a site
collection, see Upgrade site collections to SharePoint 2013.
Phase 4 of the upgrade process: Upgrade content databases
983
This is the fourth phase in the process to upgrade
SharePoint 2010 Products data and sites to
SharePoint 2013. The process includes the
following phases that must be completed in
order:
1. Create the SharePoint 2013 farm for a
database attach upgrade
2. Copy databases to the new farm for upgrade
to SharePoint 2013
3. Upgrade service applications to SharePoint
2013
4. Upgrade content databases to SharePoint
2013 (this phase)
5. Upgrade site collections to SharePoint 2013
For an overview of the whole process, see
Overview of the upgrade process to SharePoint
2013 and the Upgrade Process model Download
the upgrade process model| Use Zoom.it to view
the upgrade process model.
Important:
This article applies to both SharePoint Foundation 2013 and SharePoint Server 2013.
Watch the SharePoint 2013 Upgrade: Phase 4 video
Before you begin
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
984
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
Before you attach and upgrade the content databases, review the following information and take any
recommended actions.
Make sure that the account that you use to attach the databases is a member of the db_owner
fixed database role for the content databases that you want to upgrade.
Make sure that the account that you use to create web applications is a member of the Farm
administrators group in Central Administration.
Create web applications
Create a web application for each web application that existed in the SharePoint 2010 Products
environment. For each web application, do the following:
Use the same URL (including name, port, and host header) and configure alternate-access
mapping settings.
If you use a different URL, Office applications might not be redirected correctly to the new URLs
and all bookmarks to the old URLs will not work.
Use the same authentication method.
For example, if you use Windows Classic authentication in your old environment, and you want to
continue to use it, then you must create a web application that uses Windows Classic
authentication. Because claims-based authentication is now the default option for SharePoint
2013, you must use Windows PowerShell to create a web application that uses Windows Classic
authentication. For more information, see Create web applications that use classic mode
authentication in SharePoint 2013 and Create claims-based web applications in SharePoint 2013.
Alternatively, you can migrate to claims authentication. For more information, see Migrate from
classic-mode to claims-based authentication in SharePoint 2013.
Recreate included paths.
Recreate quota templates.
985
Configure email settings for the web application.
For more information, see Configure email integration for a SharePoint 2013 farm.
Enable self-service site creation for any web application that used it in the previous environment.
Recreate any self-service site creation settings.
Create the managed path for the My Sites (/personal) on the web application that hosts My Sites.
My Sites are available in SharePoint Server only.
Recreate any web application policies or other web application settings that you had configured in
the previous environment.
Reapply customizations
One frequent cause of failures during upgrade is that the new environment does not have customized
features, solutions, or other elements. Make sure that all custom elements from the SharePoint 2010
Products environment are installed on your front-end web servers before you upgrade any content
databases.
In this step, you manually transfer all customizations to your new farm. Make sure to install any
components that your sites depend on to work correctly, such as the following:
Custom site definitions
Custom style sheets, such as cascading style sheets, and images
Custom Web Parts
Custom Web services
Custom features and solutions
Custom assemblies
Web.config changes (such as security)
Ensure that you transfer all unique settings from the Web.config files for each web application to
the new servers.
Administrator-approved form templates (.xsn files) and data connection files (.udcx files) for
InfoPath. InfoPath is available in SharePoint Server 2010 only.
Any other components or files on which your sites depend.
986
SharePoint 2013 can host sites in both SharePoint 2010 Products and SharePoint 2013 modes. The
installation for SharePoint 2013 contains both SharePoint 2010 Products and SharePoint 2013 versions
of many elements. The directories on the file system are duplicated in both the 14 and 15 paths, for
example:
Web Server Extensions/14/TEMPLATE/Features
Web Server Extensions/15/TEMPLATE/Features
There are also two versions of the IIS support directories: _Layouts, _Layouts/15 and
_ControlTemplates, _ControlTemplates/15.
Be sure to install customizations to the correct location in your new farm. For example, additional
style sheets for SharePoint 2010 Products should be installed in the /14 path, not the new /15 path so
that site collections that you haven’t upgraded can use them. If you want a solution to be available to
both paths, install it two times, and the second time use the CompatibilityLevel parameter when you
install it, and it will be installed to the /15 path. For more information, see Install-SPSolution.
For more information about how to update customizations for use in SharePoint 2013, see
Redeploying Customizations and Solutions in SharePoint Foundation 2010 and SharePoint Server
2010. For more information about how to deploy customizations to your environment, see Install and
manage solutions for SharePoint 2013.
Verify custom components
To make sure that you have identified all custom components for your environment, use the Stsadm -
o enumallwebs operation in the SharePoint 2010 Products environment and use the includefeatures
and includewebparts parameters. This operation can report the templates, features, Web Parts, and
other custom elements that are used for each site. For more information about how to use the
enumallwebs operation, see Enumallwebs: Stsadm operation (Office SharePoint Server) and Clean up
an environment before an upgrade to SharePoint 2013.
You can also use the Get-SPWeb Windows PowerShell cmdlet in your SharePoint 2010 Products
environment to see template that are associated with each site and then verify that the template is
installed in your SharePoint 2013 environment. For more information about this operation, see Get-
SPWeb.
Before you attach the content databases to the web applications, use the Test-
SPContentDatabase Windows PowerShell cmdlet to verify that you have all the custom components
that you must have for that database.
To verify custom components are available by using Windows PowerShell
1. Verify that you have the following memberships:
987
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
Test-SPContentDatabase -Name
DatabaseName
-WebApplication
URL
Where:
DatabaseName is the name of the database that you want to test.
URL is the URL for the web application that will host the sites.
For more information, see Test-SPContentDatabase.
988
Attach a content database to a web application and
upgrade the database
When you attach a content database, you upgrade the database and add the site collections in that
database to the web application that you specify. However, for SharePoint 2013, the process does not
upgrade the site collections.
When you attach a content database, for a web application that spans multiple content databases,
make sure that you attach the content database that contains the root site collection first. When you
attach a content database, include the root site for the web application in the first content database
that you attach. In other words, before you continue, examine the root of the web application in the
SharePoint 2010 Products server farm to determine the first site collection. After you attach the
database that contains the root site, attach the other content databases for the web application in any
order. You do not have to create any site collections to store the content before you attach the
database. This process attaches the content databases and the site collections inside that database.
Make sure that you do not add new site collections until you have restored all the content databases.
Tip:
Each site collection in a content database has a GUID that is registered in the configuration
database and associated with the site collection. Therefore, you cannot add the same site
collection two times to the farm, even in separate web applications. Although you can
successfully attach the database in this situation, you will be unable to browse to the site
collection.
If you must have a copy of a site collection in the same farm, first attach the database that
contains the site collection to a separate farm, and then use the Backup-SPSite and Restore-
SPSite Windows PowerShell cmdlets to copy the site collection to the other farm. The backup
and restore process creates a new GUID for the site collection. For more information about
these cmdlets, see Backup-SPSite and Restore-SPSite.
For My Sites, attach the content database that contains the My Site host before attaching databases
that contain the My Sites.
By default, when you created the web applications in the new SharePoint 2013 environment, a
content database was created for each web application. You can ignore these default databases until
after you have attached your SharePoint 2010 Products databases, and then you can delete the
default databases.
989
Important:
If you are moving the content databases across domains or forests or to another environment
that has different service accounts, make sure that the permissions for the service accounts
are still correct before you attach the databases.
You must use the Mount-SPContentDatabase cmdlet to attach a content database to a web
application. Using the SharePoint Central Administration pages to attach a content database is not
supported for upgrading.
Ensure that the account that you use to attach the databases is a member of the db_owner fixed
database role for the content databases that you want to upgrade.
Note:
One frequent cause of failures during upgrade is that the environment is missing customized
features, solutions, or other elements. Be sure that all custom elements from the SharePoint
2010 Products environment are installed on your front-end web servers in the SharePoint
2013 environment before you start the upgrade process. Use the test-
spcontentdatabase Windows PowerShell cmdlet to identify custom elements that your sites
might be missing.
To attach a content database to a web application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
990
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command and then press
ENTER:
Mount-SPContentDatabase -Name
DatabaseName
-DatabaseServer
ServerName
-
WebApplication
URL
Where:
DatabaseName is the name of the database that you want to upgrade.
ServerName is server on which the database is stored.
URL is the URL for the web application that will host the sites.
For more information, see Mount-SPContentDatabase.
Tip:
To upgrade from SharePoint Foundation 2010 to SharePoint Server 2013, attach the
SharePoint Foundation 2010 content databases directly to the SharePoint Server 2013
environment. Just follow the same steps in this article, but use the SharePoint Foundation
2010 databases and a SharePoint Server 2013 farm. The upgrade process will upgrade the
version and the product at the same time.
Verification: Verify upgrade for the first database
After you attach a database, you can use the Upgrade Status page in Central Administration to check
the status of upgrade on your databases. After the upgrade process is complete, you can review the
upgrade log file to see whether upgrade produced issues. You can use a Windows PowerShell cmdlet
to check the upgrade status for all the content databases. For more information about verifying and
troubleshooting upgrade, see Verify database upgrades in SharePoint 2013 and Troubleshoot
database upgrade issues in SharePoint 2013.
991
To view the Upgrade Status page
Verify that the user account that is performing this procedure is a member of the db_owner fixed
database role for the databases.
In Central Administration, click Upgrade and Migration, and then click Check upgrade status.
To view the upgrade log file
The upgrade error log file and the upgrade log file are located at
%COMMONPROGRAMFILES%\Microsoft Shared\web server extensions\15\LOGS. The upgrade log
file contains more detailed information than the upgrade error log. Be sure to check the summary
at the bottom of the log files for information about the overall status and a count of the warnings
and errors in the file.
The logs are text files named in the following format:
Upgrade-YYYYMMDD-HHMMSS-SSS-error.log
Upgrade-YYYYMMDD-HHMMSS-SSS.log
Where
YYYYMMDD is the date
HHMMSS-SSS is the time (hours in 24-hour clock format, minutes, seconds, and milliseconds)
An example for an upgrade error log is Upgrade-20120105-132126-374-error.log, and an
example for an upgrade log is Upgrade-20120105-132126-374.log.
Note:
The format of the upgrade log for SharePoint 2013 is based on the same structure as
ULS.
The upgrade log file includes the name of the content database being upgraded.
To view upgrade status for all databases by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
992
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. Start the SharePoint 2013 Management Shell.
For Windows Server 2008 R2:
On the Start menu, click All Programs, click Microsoft SharePoint 2013 Products, and
then click SharePoint 2013 Management Shell.
For Windows Server 2012:
On the Start screen, click SharePoint 2013 Management Shell.
If SharePoint 2013 Management Shell is not on the Start screen:
Right-click Computer, click All apps, and then click SharePoint 2013 Management Shell.
For more information about how to interact with Windows Server 2012, see Common
Management Tasks and Navigation in Windows Server 2012.
3. At the Windows PowerShell command prompt, type the following command:
Get-SPContentDatabase | ft Name, NeedsUpgradeIncludeChildren
This cmdlet returns a table-style list of databases in your farm and indicates whether the database
needs an upgrade to SharePoint 2013.
Attach the remaining databases
After you restore the first content database and verify success, you can continue to restore and
upgrade other databases. You can perform parallel database attach upgrades to upgrade more than
one database at a time. Use separate Command Prompt windows to run multiple upgrades. It is
recommended that you separate the start time for each new database upgrade session by several
minutes to prevent issues with temporary locks set for the web application during attachment.
Otherwise you might receive an error on the upgrade session. The wait time to clear temporary locks
varies depending on the number of site collections, or the speed of the database server hardware.
993
Verification: Verify upgrade for additional databases
After you upgrade all additional databases, view the Upgrade Status page to monitor progress and
verify that the upgrade process is complete. Review the log file to identify any other issues.
Next steps
After you upgrade the databases, you might want to perform additional steps to make sure that your
farm is ready for use. For example:
Verify that site collections are working as expecting in 2010 mode.
Visually review site collections. You can use a similar review list as the one provided for upgraded
sites in Checklists for reviewing upgraded sites.
Migrate user accounts to claims authentication, if it is necessary.
By default, new web applications in SharePoint 2013 use claims authentication. If you were using
classic authentication in the previous environment, you must migrate the users to claims
authentication. For more information, see Migrate from classic-mode to claims-based
authentication in SharePoint 2013.
Update links that are used in any upgraded InfoPath form templates.
For a database-attach upgrade, you exported and imported all InfoPath form templates in your
environment when you created the new environment. After upgrade, you can now update the
links that are used in those upgraded form templates to point to the correct URLs by using a
Windows PowerShell cmdlet.
For more information, see Configure InfoPath Forms Services (SharePoint Server 2010).
InfoPath is available in SharePoint Server only.
Configure your Search topology
The architecture for the Search service has changed for SharePoint Server 2013. Plan and
configure your Search topology to suit your environment and the new architecture. For more
information, see Scale search for Internet Sites in SharePoint Server 2013 and Manage the
search topology in SharePoint Server 2013.
Perform a full crawl
For more information, see Start, pause, resume, or stop a crawl in SharePoint Server 2013.
994
Back up your farm
For more information, see Back up farms in SharePoint 2013.
Although SharePoint Foundation 2013 includes search functionality, it is not the same Search
service application that is in SharePoint Server 2013. These steps apply only to SharePoint Server
2013.
After your farm is ready, you can enable access to users, and then start to upgrade site collections. For
information about how to upgrade site collections, see Upgrade site collections to SharePoint 2013.
This is the fourth phase in the process to upgrade
SharePoint 2010 Products data and sites to
SharePoint 2013.
Next phase: Upgrade site collections to
SharePoint 2013
For an overview of the whole process, see
Overview of the upgrade process to SharePoint
2013.
See also
Create the SharePoint 2013 farm for a database attach upgrade
Copy databases to the new farm for upgrade to SharePoint 2013
Upgrade service applications to SharePoint 2013
Checklist for database-attach upgrade (SharePoint 2013)
Upgrade site collections to SharePoint 2013
Overview of the upgrade process to SharePoint 2013
Services upgrade overview for SharePoint Server 2013
Upgrade farms that share services (parent and child farms) to SharePoint 2013
Troubleshoot database upgrade issues in SharePoint 2013
Upgrade and Migration Resource Center for SharePoint 2013 Products
What’s New in SharePoint 2013 Products Resource Center
995
Verify database upgrades in SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to verify when a database-attach upgrade to SharePoint 2013 has finished, and
identify any problems that may have occurred.
After you upgrade databases to SharePoint 2013, you must verify that the content was successfully
upgraded to the new version. You can verify the status of the database-attach upgrade (is it still in
progress, or has it been completed successfully or with errors or failures?) to see whether issues
remain for you to address. When you follow these steps as part of a trial upgrade, you can use them
to identify customizations that have to be reworked before you attempt to upgrade your production
environment. When you upgrade your production environment, it is even more important that you
know whether the upgrade has completed and what issues remain to be addressed.
In some cases, you might have to restart upgrade to finish upgrading your databases. For more
information about how to restart upgrade, see Restart a database-attach upgrade or a site collection
upgrade to SharePoint 2013. For information about how to restart a site collection upgrade, see
Manage site collection upgrades to SharePoint 2013.
Verify upgrade status for databases
You can use the following methods to verify upgrade:
Use the Upgrade Status page in Central Administration
This page lists all farm, service, or content database upgrades and their statuses. This includes a
count of errors or warnings.
Review the log files to look for errors or warnings
If upgrade was not successfully completed, you can view the log files to find the issues, address
them, and then restart the upgrade process.
Review the log files for database attach upgrade
To verify that upgrade has succeeded, you can review the following log and error files:
996
The upgrade log file and the upgrade error log file.
Review the upgrade log file and the upgrade error log file (generated when you run the upgrade).
The upgrade log file and the upgrade error log file are located at
%COMMONPROGRAMFILES%\Microsoft Shared\Web server extensions\15\LOGS. The logs are
named in the following format: Upgrade-YYYYMMDD-HHMMSS-SSS.log, where YYYYMMDD is
the date and HHMMSS-SSS is the time (hours in 24-hour clock format, minutes, seconds, and
milliseconds). The upgrade error log file combines all errors and warnings in a shorter file and is
named Upgrade-YYYYMMDD-HHMMSS-SSS-error.log.
The format of the log files complies with the Unified Logging System (ULS) conventions. To review
the log files to find and troubleshoot issues, start at the top of the files. Errors or warnings may be
repeated if they occur for several site collections in the environment, or if they block the upgrade
process completely. For example, if you cannot connect to the configuration database, the
upgrade process will try (and fail) several times and these tries will be listed in the log file.
If you find blocking issues in the log file, you can resolve the issues and then restart upgrade to
continue with the process.
Check upgrade status for databases
The Upgrade Status page lists the upgrade sessions and gives details about the status of each
session — whether it succeeded or failed, and how many errors or warnings occurred for each server.
The Upgrade Status page also includes information about the log and error files for the upgrade
process and suggests remedies for issues that might have occurred.
To view upgrade status in SharePoint Central Administration
1. Verify that you have the following administrative credentials:
To use SharePoint Central Administration, you must be a member of the Farm
Administrators group.
2. On the Central Administration home page, in the Upgrade and Migration section, click Check
upgrade status.
Validate the upgraded environment
After you determine whether upgrade was completed successfully, validate your environment. Review
the following items:
Service applications
Are they configured correctly?
997
Are the service application proxies configured the way that you want?
Do you have to create new connections between farms?
Site collections
Are sites that were not upgraded working as expected in 2010 mode?
Are all features associated with the sites working?
Search
Run a crawl, and review the log files.
Run search queries, and verify that the queries work as expected and provide appropriate
results. Twenty-four hours later, view the query reports and look for issues.
Search for people and profiles.
Check any Search customizations to make sure that they work as expected.
See also
Restart a database-attach upgrade or a site collection upgrade to SharePoint 2013
Troubleshoot database upgrade issues in SharePoint 2013
Upgrade a site collection to SharePoint 2013
Review site collections upgraded to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
998
Migrate from classic-mode to claims-based
authentication in SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Convert SharePoint 2010 Products or SharePoint 2013 classic-mode web applications to
claims-based authentication or create new claims-based web applications in SharePoint 2013.
Claims-based authentication is an essential component to enable the advanced functionality of
SharePoint 2013. To move classic-mode web applications from SharePoint 2010 Products to
SharePoint 2013, you can convert them to claims-based web applications within SharePoint 2010
Products, and then migrate them to SharePoint 2013. The procedures in this article illustrate various
supported scenarios.
The Windows PowerShell Convert-SPWebApplication cmdlet in SharePoint 2013 converts classic-
mode web applications to claims-based web applications.
Warning:
After you convert a web application to claims-based authentication, you cannot revert it to
classic-mode authentication.
Convert SharePoint 2010 Products classic-mode web
applications to claims-based authentication in
SharePoint 2010 Products and then upgrade to
SharePoint 2013
In SharePoint 2010 Products, complete the following procedure to convert an existing web application
to claims-based authentication. After you convert the web application to claims-based authentication,
complete the additional step to migrate the web application to SharePoint 2013. To complete this
procedure, you need the following information:
The URL of the web application that you are converting: http://yourWebAppUrl
A user account to set as a site administrator: yourDomain\yourUser
999
To convert a SharePoint 2010 Products web application to claims-based
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running Windows PowerShell
cmdlets.
You must read about_Execution_Policies
(http://go.microsoft.com/fwlink/p/?LinkId=193050).
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. From the Windows PowerShell command prompt, type the following to set the specified user
account as an administrator for the site:
$WebAppName = "http://
<yourWebAppUrl>
"
$wa = get-SPWebApplication $WebAppName
$wa.UseClaimsAuthentication = $true
$wa.Update()
Where:
<yourWebAppUrl> is the URL of the web application.
3. From the Windows PowerShell command prompt, type the following to configure the policy to
enable the user to have full access:
$account = "yourDomain\yourUser"
$account = (New-SPClaimsPrincipal -identity $account -identitytype
1).ToEncodedString()
$wa = get-SPWebApplication $WebAppName
$zp = $wa.ZonePolicies("Default")
$p = $zp.Add($account,"PSPolicy")
$fc=$wa.PolicyRoles.GetSpecialRole("FullControl")
$p.PolicyRoleBindings.Add($fc)
$wa.Update()
1000
For more information, see Get-SPWebApplication.
4. From the Windows PowerShell command prompt, type the following to perform user migration:
$wa.MigrateUsers($true)
5. After user migration completes, type the following from the Windows PowerShell command
prompt to perform provisioning:
$wa.ProvisionGlobally()
For more information, see New-SPClaimsPrincipal.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included
to support compatibility with previous product versions.
After you complete the previous procedures, you might experience one or more of the following
issues:
Users who submit valid credentials when accessing the migrated web application might be
notified that they do not have permissions. If this occurs, the portalsuperuseraccount
property and the portalsuperreaderaccount property of the web application were probably
configured prior to migration. If this is the case, update the portalsuperuseraccount property
and the portalsuperreaderaccount property to use the new claims-based account name.
After migration, you can find the new claims-based account name in the web application policy for
the migrated web application.
If existing alerts are not invoked after migration, you might have to delete and recreate the alerts.
If Search crawl does not function on the web application after migration, make sure that the
Search crawl account lists the new converted account name. If the new converted account name
is not listed, you must manually create a new policy for the crawl account.
To migrate a claims-based SharePoint 2010 Products web application to SharePoint 2013
1. In SharePoint 2013, create a claims-based web application. For more information, see Create
claims-based web applications in SharePoint 2013.
2. Attach the two existing SharePoint 2010 Products content databases to the newly created
SharePoint 2013 claims-based web application. For more information, see Attach or detach
content databases in SharePoint 2013.
1001
Note:
When you attach the SharePoint 2010 Products content databases to the SharePoint 2013
claims-based web application, the databases will be upgraded to the SharePoint 2013
database format. You have to verify that the content databases work correctly after you
attach them.
Convert SharePoint 2010 Products classic-mode web
applications to SharePoint 2013 claims-based web
applications
In SharePoint 2013, complete the following procedure to convert an existing SharePoint 2010
Products classic-mode web application to a SharePoint 2013 web application that uses claims-based
authentication.
To convert a SharePoint 2010 Products classic-mode web application to a SharePoint 2013 claims-
based authentication
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running Windows PowerShell
cmdlets.
You must read about_Execution_Policies
(http://go.microsoft.com/fwlink/p/?LinkId=193050).
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. In the SharePoint 2013 environment, on the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
1002
4. Click SharePoint 2013 Management Shell.
5. Change to the directory where you saved the file.
6. At the Windows PowerShell command prompt, type the following command:
New-SPWebApplication -name "ClassicAuthApp" -Port 100 -ApplicationPool
"ClassicAuthAppPool" -ApplicationPoolAccount (Get-SPManagedAccount
"
<domainname>
\
<user>
")
Where:
<domainname>\<user> is the domain to which the server belongs and the name of the
user account.
7. Attach the two existing SharePoint 2010 Products content databases to the new SharePoint 2013
classic-mode web application. For more information, see Attach or detach content databases in
SharePoint 2013.
Note:
When you attach the SharePoint 2010 Products content databases to the SharePoint 2013
classic-mode web application, the databases are upgraded to the SharePoint 2013
database format. You have to verify that the content databases work correctly after you
have attached them.
8. From the Windows PowerShell command prompt, type the following:
Convert-SPWebApplication -Identity
<yourWebAppUrl>
-To Claims
-RetainPermissions [ -Force]
Where:
<yourWebAppUrl> is the URL of the web application.
Note:
Convert-SPWebApplication converts the web application to claims-based authentication. You
have to verify that the users can access the web application after you have converted it.
9. If necessary, attach a third SharePoint 2010 Products content database to the new SharePoint
2013 classic-mode web application, and verify that the content database working correctly after
you have attached it.
10. From the Windows PowerShell command prompt, type the following:
Convert-SPWebApplication -Identity
yourWebAppUrl
-To Claims
-RetainPermissions [ -Force]
1003
Verify that users can access the web application after you have converted it to claims-based
authentication.
For more information, see New-SPWebApplication, Get-SPManagedAccount, and Convert-
SPWebApplication.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
Convert SharePoint 2013 classic-mode web
applications to claims-based web applications
In SharePoint 2013, complete the following procedures to first create a classic-mode Web application,
and then convert it to claims-based authentication.
To create a classic-mode Web application in SharePoint 2013
Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running Windows PowerShell cmdlets.
You must read about_Execution_Policies (http://go.microsoft.com/fwlink/p/?LinkId=193050).
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server
administrator to request permissions. For additional information about Windows
PowerShell permissions, see Permissions and Add-SPShellAdmin.
From the Windows PowerShell command prompt, type the following:
New-SPWebApplication -Name <Name>
-ApplicationPool <ApplicationPool>
-AuthenticationMethod <WindowsAuthType>
1004
-ApplicationPoolAccount <ApplicationPoolAccount>
-Port <Port> -URL <URL>
Where:
<Name> is the name of the new web application that uses classic-mode authentication.
<ApplicationPool> is the name of the application pool.
<WindowsAuthType> is either “NTLM” or “Kerberos”. Kerberos is recommended.
<ApplicationPoolAccount> is the user account that this application pool will run as.
<Port> is the port on which the web application will be created in IIS.
<URL> is the public URL for the web application.
Note:
For more information, see New-SPWebApplication.
Note:
After you successfully create the web application, when you open the Central
Administration page, you see a health rule warning that indicates that one or more
web applications is enabled with classic authentication mode. This is a reflection of
our recommendation to use claims-based authentication instead of classic mode
authentication.
To convert a SharePoint 2013 classic-mode web application to claims-based authentication
From the Windows PowerShell command prompt, type the following:
Convert-SPWebApplication -Identity "http://
<servername>
:port" -To Claims
-RetainPermissions [-Force]
Where:
<servername> is the name of the server.
Verify that users can access the web application after you have converted it to claims-based
authentication.
For more information, see New-SPWebApplication, Get-SPManagedAccount, and Convert-
SPWebApplication.
1005
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
Migrate SharePoint 2010 Products classic-mode web
applications to SharePoint 2013 classic-mode web
applications
In SharePoint 2013, complete the following procedure to create a classic-mode web application, and
then migrate an existing SharePoint 2010 Products classic-mode Web application to SharePoint 2013.
To migrate a SharePoint 2010 Products classic-mode web application to SharePoint 2013
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running Windows PowerShell
cmdlets.
You must read about_Execution_Policies
(http://go.microsoft.com/fwlink/p/?LinkId=193050).
Add memberships that are required beyond the minimums above.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Permissions and Add-SPShellAdmin.
2. From the Windows PowerShell command prompt, type the following:
New-SPWebApplication -name "ClassicAuthApp" -Port 100 -ApplicationPool
"ClassicAuthAppPool" -ApplicationPoolAccount (Get-SPManagedAccount
"
<domainname>
\
<user>
")
Where:
1006
<domainname>\<user> is the domain to which the server belongs and the name of the
user account.
3. Attach the two existing SharePoint 2010 Products content databases to the new SharePoint 2013
classic-mode web application. Verify that the content databases work correctly after you have
attached them. For more information, see Attach or detach content databases in SharePoint
2013.
For more information, see New-SPWebApplication and Get-SPManagedAccount.
Note:
We recommend that you use Windows PowerShell when performing command-line
administrative tasks. The Stsadm command-line tool has been deprecated, but is included to
support compatibility with previous product versions.
See also
Create claims-based web applications in SharePoint 2013
Create web applications that use classic mode authentication in SharePoint 2013
1007
Upgrade site collections to SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Find out how to upgrade a site collection to SharePoint 2013.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about upgrading site collections to SharePoint 2013.
Downloadable resources how to upgrade site
collections
Download the following content for information about how to upgrade site collections.
Content
Description
SharePoint 2013 Products
Preview - Upgrade Process
model
Describes the steps in the
process for a database-attach
upgrade.
TechNet articles about how to upgrade site collections
The following articles about how to upgrade site collections are available to view online. Writers
update articles on a continuing basis as new information becomes available and as users provide
feedback.
Content
Description
Run site collection health checks in SharePoint
2013
Run the site collection health checks to verify your
site is running well. Check each site before you
upgrade to SharePoint 2013.
1008
Content
Description
Upgrade a site collection to SharePoint 2013
Site collection administrators can preview a copy
of their sites in SharePoint 2013 mode, and then
upgrade their sites.
Review site collections upgraded to SharePoint
2013
Review site collections after you have upgraded
them to SharePoint 2013.
Manage site collection upgrades to SharePoint
2013
Farm administrators manage the upgrade queue
and throttling settings and upgrade site
collections to SharePoint 2013.
Additional resources about how to upgrade to
SharePoint 2013
The following resources about upgrade to SharePoint 2013 are available from other subject matter
experts.
Content
Description
Upgrade and Migration Resource
Center for SharePoint 2013
Products
Visit the Resource Center to find
additional information about
upgrades to SharePoint 2013.
What’s New in SharePoint 2013
Products Resource Center
Visit the Resource Center to
learn about what’s new in
SharePoint 2013.
See also
Upgrade to SharePoint 2013
1009
Run site collection health checks in
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Run the site collection health checks on each site to find issues before you upgrade to
SharePoint 2013.
SharePoint 2013 includes a set of rules that you can run against a site collection to verify that it is
working as expected. These rules are part of the site collection health checks. You can run the health
checks from the Site Settings page or by using Windows PowerShell.
If you are upgrading a site collection to SharePoint 2013, the first step in the process is to run the
health checks.
Upgrade step 1: Run site collection health checks
For a visual overview of the entire upgrade process, see Overview of the upgrade process to
SharePoint 2013.
You run the health checks manually to prepare for an upgrade. In addition, the health checks are run
automatically in repair mode when you start to upgrade a site collection. You can also run the health
checks at any time to verify that a site is working as expected. The site collection pre-upgrade health
checks examine a site collection and list potential upgrade issues, such as missing or unsupported
elements. For example, the results itemize customized files so that you can identify the custom file
and reset it to the default template in the site definition, if you want. After you run the checks, a
report lists potential issues. The report also has information about how to address the issues.
The site collection health checker includes the following rules:
1010
Site collection health check rules
Rule name
Description
Rule ID
Conflicting Content Types
This rule checks for conflicts
between existing content types
and content types that are
created when you upgrade the
site to SharePoint 2013. A
conflict occurs when both
content types have the same
name.
befe203b-a8c0-48c2-b5f0-
27c10f9e1622
Customized Files
This rule checks for any files that
were customized (or unghosted)
in the site collection or subsites.
When run in repair mode, it can
reset the page to the default
(reghost the file).
cd839b0d-9707-4950-8fac-
f306cb920f6c
Missing Galleries
This rule checks for all default
galleries and reports if any are
missing from the site collection
or subsites.
ee967197-ccbe-4c00-88e4-
e6fab81145e1
Missing Parent Content Types
This rule checks for missing
parent content types. If a
missing parent content type is
found, you can either delete the
orphaned content type or
associate the orphaned content
type with a different parent
content type.ge
a9a6769f-7289-4b9f-ae7f-
5db4b997d284
Missing Site Templates
This rule checks to make sure
that the template the site is
based on is available and reports
if any elements are missing.
5258ccf5-e7d6-4df7-b8ae-
12fcc0513ebd
1011
Rule name
Description
Rule ID
Unsupported Language Pack
References
This rule checks to make sure
that the language packs that are
used by the site collection exist
and are referenced correctly by
the site collection.
99c946f7-5751-417c-89d3-
b9c8bb2d1f66
Unsupported MUI References
This rule checks to make sure
that the multi-user interface
elements that are used by the
site collection exist and are
referenced correctly by the site
collection.
6da06aab-c539-4e0d-b111-
b1da4408859a
Before you begin
This is the first step in upgrading a site collection. Before you upgrade a site collection, you must have
already configured the environment that uses SharePoint 2013 and upgraded the databases. For more
information about these steps, see Upgrade content databases to SharePoint 2013.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
1012
Run the site collection pre-upgrade health checks by
using Site Settings
Site collection owners can run the site collection health checks from the Site Settings page in their
site collections.
To run the pre-upgrade checks for a site collection
1. Verify that the user account that performs this procedure is a site collection administrator.
2. On the Site Settings page for the site collection, in the Site Collection Administration section,
click Site collection health checks.
3. On the Run site collection health checks page, click Start checks.
A report lists all checked issues and issues that you should resolve.
4. Resolve all issues, and then click Try it again to verify that you fixed them.
Run the site collection pre-upgrade health checks by
using Windows PowerShell
Farm administrators can use the following Windows PowerShell cmdlets to run the site collection
health checks and to repair issues: Test-SPSite Repair-SPSite.
To run the site collection health checks in test mode by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Either a site collection administrator or be granted full read (for test mode) for the web
application by policy. For more information about permission policies for web
applications, see Manage permission policies for a web application in SharePoint 2013.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
1013
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Test-SPSite -Identity
<SiteURL>
[-Rule
<RuleID>
]
Where:
<SiteURL> is URL for the site collection you want to check.
<RuleID> is ID for a specific rule that you want to run.
To run the site collection health checks in repair mode by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Either a site collection administrator or be granted full control (for repair mode) for the
web application by policy. For more information about permission policies for web
applications, see Manage permission policies for a web application in SharePoint 2013.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
1014
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Repair-SPSite -Identity
<SiteURL>
[-Rule
<RuleID>
]
Where:
<SiteURL> is URL for the site collection you want to repair.
<RuleID> is ID for a specific rule that you want to run.
Additional steps
If you are performing an upgrade to SharePoint 2013, you can start the site collection upgrade after
you have addressed all issues from the health checks. You can create an upgrade evaluation site to try
the new user interface for your site, or you can upgrade your site collection directly. To learn about
how to create evaluation site collections or upgrade a site collection, see Upgrade a site collection to
SharePoint 2013.
See also
Plan for upgrade to SharePoint 2013
Overview of the upgrade process to SharePoint 2013
Upgrade a site collection to SharePoint 2013
Upgrade to SharePoint 2013
1015
Upgrade a site collection to SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how site collection administrators can preview a copy of their sites in SharePoint
2013 mode, and then upgrade their sites.
After a server farm administrator has upgraded the databases, site collection administrators can
upgrade individual site collections. When site collection administrators first browse to their sites after
the database has been upgraded, a notification bar at the top of the site indicates that their sites can
be upgraded. The choices are to Start now or Remind me later. Start now begins the site collection
upgrade process.
To upgrade a site collection, site collection administrators complete the following steps:
1. Run the site collection health checks to verify the site is ready to upgrade. For more information,
see Run site collection health checks in SharePoint 2013.
2. Create an upgrade evaluation site to preview the differences between versions. (Optional)
3. Upgrade the site collection.
4. Verify that upgrade was successful and the site works as expected. For more information, see
Review site collections upgraded to SharePoint 2013.
This article discusses the second and third steps, and includes procedures for performing these tasks
from Site Settings. For information about using Windows PowerShell cmdlets to upgrade sites from
the command line, see Manage site collection upgrades to SharePoint 2013.
Upgrade step 2: Request evaluation site collection and Step 3: Upgrade the site
1016
For a visual overview of the upgrade process, including site collection upgrade, see Overview of the
upgrade process to SharePoint 2013. For more information about how farm administrators can
control site collection upgrades, see Manage site collection upgrades to SharePoint 2013. For more
conceptual information about site upgrade, including how to plan for upgrade, see Plan for site
collection upgrades in SharePoint 2013.
Watch the SharePoint 2013 Upgrade: Phase 5 video
Important:
If you upgrade from SharePoint Server 2010 to SharePoint Server 2013, there are special
considerations for My Sites. (My Sites are not available in SharePoint Foundation 2013.) Make
sure that you upgrade the My Site Host site collection before you allow users to access their
individual My Sites in SharePoint Server 2013. This makes sure that the server software and
database changes are complete so that users can upgrade their individual My Sites
successfully.
A user can upgrade his or her My Site by following the steps to upgrade a site collection later
in this article, or a farm administrator can upgrade My Sites by using Windows PowerShell.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
1017
Plan browser support (http://go.microsoft.com/fwlink/p/?LinkId=246502)
Accessibility for SharePoint 2013
Accessibility features in SharePoint Products
(http://go.microsoft.com/fwlink/p/?LinkId=246501)
Keyboard shortcuts (http://go.microsoft.com/fwlink/p/?LinkID=246504)
Touch (http://go.microsoft.com/fwlink/p/?LinkId=246506)
Create an upgrade evaluation site (Optional)
As a site collection administrator, you can request a preview of your site collection; this is called an
upgrade evaluation site collection. An upgrade evaluation site collection enables you to see your site’s
content in a new, separate copy of the site that is running on the SharePoint 2013. Unlike visual
upgrade in SharePoint Server 2010, the upgrade evaluation site collection is a complete copy of the
site collection, separate from the original. Actions that you take in the upgrade evaluation do not
affect the original site.
When you request an evaluation site collection, the request is added to a Timer job (named "Create
Upgrade Evaluation Site Collections") which runs once a day. You will receive an e-mail message when
the upgrade evaluation site is available. This might take up to 24 hours. The message includes a link to
the evaluation site. Upgrade evaluation site collections are set to automatically expire (after 30 days
by default). If yours expires before you have finished evaluating the changes, you can request another
upgrade evaluation site collection.
To request an upgrade evaluation site collection
1. Verify that the user account that performs this procedure is a site collection administrator.
2. On the Site Settings page for the site collection, in the Site Collection Administration section,
click Site collection upgrade.
3. On the Step up to SharePoint 2013 page, click Try a demo upgrade.
This option starts the process of generating an upgrade evaluation site collection.
4. In the Create Upgrade Evaluation Site Collection box, click Create Upgrade Evaluation Site
Collection.
A box opens and informs you that a demo site request was received.
5. Click Close to close the box.
1018
You will receive an e-mail message when the upgrade evaluation is available. The e-mail message
will contain a link to the site collection. Review the site and confirm that your site collection will
look and behave as expected in the new user interface.
After you have reviewed the upgrade evaluation and made any necessary changes in your original site
based on your evaluation, you can upgrade your site collection.
Farm administrators can use Windows PowerShell to request an upgrade evaluation site collection.
For more information, see Manage site collection upgrades to SharePoint 2013.
Upgrade a site collection
After you run the pre-upgrade checks and optionally review an upgrade evaluation site collection, you
can upgrade your site collection to SharePoint 2013.
Important:
You cannot upgrade FAST Search Center sites to the 2013 experience. Existing FAST Search
Center sites can continue to work in 2010 mode after upgrade. If you want the new
functionality, you must create new enterprise Search Center sites in 2013 mode.
To enable users to preview Word or PowerPoint search results in a SharePoint 2013 Search
Center, do each of the following:
Before you upgrade content site collections, upgrade the SharePoint Server 2010 enterprise
Search Center site collection to 2013 mode.
Ensure that SharePoint 2013 is configured to use Office Web Apps. For more information, see
Deploy Office Web Apps Server and Configure Office Web Apps for SharePoint 2013.
To upgrade a site collection
1. Verify that the user account that performs this procedure is a site collection administrator.
2. On the Site Settings page for the site collection, in the Site Collection Administration section,
click Site collection upgrade.
3. On the Site Collection Upgrade page, click Upgrade this Site Collection.
This option starts the process of upgrading your site collection. A box opens to verify that you
want to start the process.
4. Click I’m ready to start the actual upgrade.
1019
Note:
The site collection health checks are run automatically in repair mode before the upgrade
starts. The results from the health checks are included in the upgrade log for the site
collection. If there is an error, you must address it before you can continue to upgrade.
The upgrade starts, and the Upgrade status page for the site collection is displayed. This page
automatically updates while the upgrade is in progress and displays information about the
process, such as the following:
Errors or warnings
When the upgrade started
Where you can find the upgrade log file
After the upgrade is complete, the Upgrade status page is displayed in the new user
interface with the message, Upgrade Completed Successfully.
5. Click Let’s see the new site to go to the home page.
Farm administrators can use Windows PowerShell to upgrade a site collection. For more information,
see Manage site collection upgrades to SharePoint 2013.
Verification
To verify that upgrade has succeeded, check the Upgrade status page for the site collection.
View upgrade status in Site Settings
Site collection administrators can view the Upgrade Status page in Site Settings to verify that upgrade
has succeeded for a site collection.
To view upgrade status in Site Settings
1. Verify that the user account that performs this procedure is a site collection administrator.
2. On the Site Settings page for the site collection, in the Site Collection Administration section,
click Site collection upgrade.
3. On the Site Collection Upgrade page, click Review Site Collection Upgrade Status.
The Upgrade Status page for the site collection is displayed.
Farm administrators can use Windows PowerShell to view site collection upgrade status. For more
information, see Manage site collection upgrades to SharePoint 2013.
1020
Additional steps
Next, review your upgraded site collection to be sure that everything is working as expected. For more
information see Review site collections upgraded to SharePoint 2013.
See also
Manage site collection upgrades to SharePoint 2013
Plan for site collection upgrades in SharePoint 2013
Overview of the upgrade process to SharePoint 2013
Run site collection health checks in SharePoint 2013
Review site collections upgraded to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
1021
Review site collections upgraded to
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn what to look for when you review site collections after you upgrade to SharePoint
2013 and find tips to address issues.
Use these steps in your test environment to identify any issues before you upgrade your production
environment. And review your upgraded sites to fix any issues after you have upgraded a site
collection.
When you perform tests before upgrading your environment:
Begin by validating high-impact or high-profile sites, and then move on to lower-priority sites. As
part of the planning process, you should have identified which sites are high-impact and high-
profile and require immediate attention, and which can wait a bit longer.
To verify basic functionality, create a new site collection by using a representative set of lists,
libraries, Web Parts, and so on. Review the new site to make sure that the common, basic
elements of your sites are working.
If pages do not render, you can check the Site Settings page by going directly to the URL (http://
siteurl/_layouts/settings.aspx). If the Site Settings page works and the upgrade has succeeded,
there might be issues with the master page or home page. If the Site Settings page does not
work, go to the site collection upgrade log file to see whether you can get more information about
the problem.
You can review the site collection upgrade logs from the following locations:
For site collection administrators: There are also log files for site collection upgrade stored
inside the site collection itself, in the Maintenance Logs catalog at
(http://<SiteName>/_catalogs/MaintenanceLogs/YYYYMMDD-HHMMSS-SSS.txt , where
YYYYMMDD is the date and HHMMSS-SSS is the time (hours in 24-hour clock format, minutes,
seconds, and milliseconds).
For farm administrators: The site collection upgrade log file and the upgrade error log file are
located at %COMMONPROGRAMFILES%\Microsoft Shared\Web server extensions\15\LOGS. The
logs are named in the following format: SiteUpgrade-YYYYMMDD-HHMMSS-SSS.log, where
1022
YYYYMMDD is the date and HHMMSS-SSS is the time (hours in 24-hour clock format, minutes,
seconds, and milliseconds). These file system logs have more information if you want details about
issues.
Use the following checklists to review your upgraded sites and look for issues for either trial upgrades
or upgrades in a production environment.
Checklists for reviewing upgraded sites
Web Parts
The following table lists issues with Web Parts that can occur after upgrade and how to address them.
Tip:
To test your Web Parts quickly, you can build a new Web Part page that contains all the
custom Web Parts before you test an upgrade, and then review the page for any missing or
broken Web Parts after the trial upgrade.
What to check
What to do if there is a problem
Do all the Web Parts from your original site
appear in your upgraded site?
If a Web Part zone exists in a customized
(unghosted) page, but not in the site definition,
the Web Parts from that Web Part zone may have
been moved into the bottom zone on the page
during the upgrade.
Either in Edit Mode for the page in the browser or
in SharePoint Designer 2013, look for missing
Web Parts in the bottom zone or other zones, or
check whether the Web Parts were closed. For
more information about how to work with Web
Parts and Web Part zones in SharePoint Designer
2013, see the SharePoint Designer Help system.
Are there any broken Web Parts pages and are
the Web Parts displayed correctly (in the correct
zone, location, and size)?
Either in Edit Mode for the page in the browser or
in SharePoint Designer 2013, drag the Web Part
into the correct zone or modify the Web Part
properties to correct any sizing or positioning
problems.
1023
What to check
What to do if there is a problem
Are there any extra or missing Web Parts?
Open the page either in Edit Mode for the page in
the browser or in SharePoint Designer 2013. If
you see additional Web Parts on your page, look
for closed or inactive Web Parts on the original
version of the page. Were the closed or inactive
Web Parts opened by the upgrade process? If so,
you can modify the Web Part properties to close
these Web Parts.
If Web Parts are missing, look for errors in
SharePoint Designer 2013 such as "Error
Rendering Control" or "Missing Assembly." These
errors indicate that the Web Part was not
installed or was configured incorrectly for the new
environment and must be reinstalled or
reconfigured.
Do the Web Parts work correctly?
Open the page either in Edit Mode for the page in
the browser or in SharePoint Designer 2013, and
look for errors that indicate that a component or
service is missing. Make sure that any
components or services that the Web Parts rely
on exist in the upgraded site. Particularly for the
database attach upgrade approach, you must
make sure that you have installed all the
components or services that you must have for
your Web Parts, and that you have configured
them correctly (for example, you have configured
the Web.config Safe Controls list).
Update and redeploy any Web Parts that exist but
no longer function correctly.
Are any Web Parts pages still checked out?
If you check out a page to make changes, make
sure that you check in the page again.
Are your Excel Web Access Web Parts working
correctly? Did you create your connections again
correctly? Are external data sources still working?
Verify all connections and external data sources.
1024
Tip:
If you have problems with a Web Part, append ?contents=1 to the end of the URL syntax
(http:// siteurl/default.aspx?contents=1), and then press ENTER. This opens the Web Part
Maintenance page where you can remove and repair the broken Web Part.
Large lists
By default, large list query throttling is turned on in SharePoint 2013. If a list is very large, and users
use a view or perform a query that exceeds the limit or throttling threshold, the view or query will not
be permitted. Check any large lists in your environment and have the site administrator or list owner
address the issue. For example, they can create indexed columns with filtered views, organize items
into folders, set an item limit on the page for a large view, or use an external list. For more
information about large list throttling and how to address issues with large lists, see Manage lists and
libraries with many items on Office Online.
Styles and appearance
The following table lists common issues with the style and appearance of your web site after upgrade
and how to address them.
Tip:
Most of the issues in this section can be resolved by correcting the links to an item.
What to check
What to do if there is a problem
Are all the images on your pages displayed
correctly?
Verify or fix the links to the images.
Are the appropriate cascading style sheet colors
and styles used in the appropriate locations?
Verify or fix the links to the cascading style sheet
file. Verify the link on the master page.
Theme choices are different in SharePoint 2013 –
which theme do you want to use?
Your site's home page, or other pages on your
site, may look different after the site is upgraded.
You may have to re-create or revise a theme and
reapply it.
Do you have any JavaScript controls that are not
working?
Verify or fix the links to the controls.
1025
What to check
What to do if there is a problem
Are your pages displayed correctly in the
browser?
Verify that any HTML on the page is in strict
XHTML mode.
Are any script errors displayed on any pages?
Verify the scripts and links, and verify that any
HTML is in strict XHTML mode.
Customized (unghosted) pages
Customized (also known as unghosted) pages are pages that were edited and are now unique versions
of the pages for the site, instead of the default template pages. The following table lists issues with
customized pages that can occur after upgrade and how to address them.
What to check
What to do if there is a problem
Are your customizations still in place?
Determine whether you have only one issue or a
larger problem with the whole page.
If you added a brand-new page to your original
site (for example, if you replaced Default.aspx
with a different file instead of changing the
existing Default.aspx file), the new page has no
association with the site definition. Therefore, it
might not resemble the other pages on the
upgraded site — nor can it be reset to resemble
them. If you want your customized page to have
the same appearance and behavior as the other
pages on your site, consider creating a brand-new
page that is based on the site definition and then
transferring your customizations to that new
page.
1026
What to check
What to do if there is a problem
Can you still access the editing controls on the
pages?
If you customized the editing controls (for
example, the Site Actions link or the Edit Page link
in SharePoint 2010 Products), check whether they
still appear. If they don't appear, you can replace
them with the editing controls of the new version
by resetting the page to the default version.
Use the Reset to Template command in
SharePoint Designer to reset the page to the
default version (also known as reghosting). After
you have restored the default page, you can then
reapply your customizations in the browser by
applying a different master page, or by reapplying
the customizations in SharePoint Designer.
Are your customizations still appropriate in the
new environment, or do you want to update to
the new functionality and look?
If you want the new functionality and features,
you must reset any customized pages to use the
template. Resetting the page basically discards
the customizations and attaches your page to the
appropriate master page. Any customizations that
you want can then be transferred to the master
page instead of being stored in individual pages.
Use the Reset to Template command in
SharePoint Designer to reset the page to the
default version (that is, reghost it). After you have
restored the default page, you can then reapply
your customizations in the browser by applying a
different master page, or by reapplying the
customizations in SharePoint Designer.
Are any pages still checked out?
If you check out a page to make changes, make
sure that you check in the page again.
See also
Upgrade a site collection to SharePoint 2013
Troubleshoot site collection upgrade issues in SharePoint 2013
1028
Manage site collection upgrades to
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-07-03
Summary: Learn how farm administrators can manage the upgrade queue and throttling settings and
upgrade site collections to SharePoint 2013.
Even though site collection administrators can now upgrade their own sites to SharePoint 2013, server
farm administrators can still control when and whether a site collection is upgraded by managing the
upgrade queue. You can also view and manage the upgrade throttling settings for a web application or
content database to manage your farm's performance for site collection upgrades.
Before you begin to upgrade site collections to
SharePoint 2013
Farm administrators can control settings for site collection upgrade, such as notifications, throttling,
and the upgrade queue, and can upgrade site collections by using Windows PowerShell. Before you
change these settings or upgrade a site collection, you should understand the settings and the
implications for making changes. For more information about the settings for site collection upgrade,
see Plan for site collection upgrades in SharePoint 2013. For information about how to upgrade a site
collection from the Site Settings page, see Upgrade a site collection to SharePoint 2013.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
Touch
1029
Control upgrade notifications and self-service upgrade
When a site collection is available to upgrade, site collection administrators see a status bar on their
sites indicating that they can upgrade them. They can choose to upgrade the site collection then or be
reminded later. You can control settings for these notifications and control whether site collection
administrators can upgrade their site collections. For more information about these properties, see
Determine whether site collection administrators are notified about upgrades and plan settings for
upgrade notifications.
To view the upgrade notification and self-service upgrade settings by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following commands to view the upgrade
notification settings for a web application:
$wa=Get-SPWebApplication
<URL>
$wa.UpgradeReminderDelay
$wa.UpgradeMaintenanceLink
Where:
<URL> is URL for the web application that you want to check.
This command returns the Upgrade reminder delay setting for the specified web
application.
1030
6. At the Windows PowerShell command prompt, type the following command to view the self-
service upgrade setting for a site collection:
$site=Get-SPSite
<URL>
$site.AllowSelfServiceUpgrade=
<Value>
Where:
<URL> is URL for the site collection that you want to affect.
<Value> is either 'true' to allow site collection administrators to upgrade the site, or 'false'
to not show them the notification and not allow them to upgrade.
For more information, see Get-SPWebApplication and Get-SPSite.
To change the upgrade notification and self-service upgrade settings for a web application by using
Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command to change the
upgrade notification settings for a web application:
$wa=Get-SPWebApplication
<URL>
$wa.UpgradeReminderDelay=
<Value>
$wa.UpgradeMaintenanceLink='
<LinkURL>
'
1031
Where:
<URL> is URL for the web application that you want to affect.
<Value> is the numeric value that you want to set for the delay (for example, 10 for 10
days).
<LinkURL> is a link where the user can find more information.
6. At the Windows PowerShell command prompt, type the following command to change the self-
service upgrade setting for a site collection:
$site=Get-SPSite
<URL>
$site.AllowSelfServiceUpgrade=
<Value>
Where:
<URL> is URL for the site collection that you want to affect.
<Value> is either 'true' to allow site collection administrators to upgrade the site, or 'false'
to not show them the notification and not allow them to upgrade.
For more information, see Get-SPWebApplication and Get-SPSite.
Control the compatibility range for site creation modes
You can control which mode (2010 or 2013, or both) can be used when a user creates a site collection.
The CompatibilityRange property on a web application controls the site modes available for a web
application. You can view or change the settings for CompatibilityRange by using Windows
PowerShell.
To view the compatibility range for site creation modes for a web application by using Windows
PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
1032
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following commands to view the
compatibility range settings for a web application:
$wa=Get-SPWebApplication
<URL>
# Stores the web application at that URL as a variable
$wa.CompatibilityRange
# Returns the CompatibilityRange for the specified web application
Where:
<URL> is URL for the web application that you want to check.
This command returns the compatibility range for the specified web application. For
example:
MaxCompatibilityLevel MinCompatibilityLevel
DefaultCompatibilityLevel Singular
--------------------- --------------------- --------------------
----- --------
15 14
15 False
6. At the Windows PowerShell command prompt, type the following commands to view the
maximum, minimum, and default settings for a specific range:
[Microsoft.SharePoint.SPCompatibilityRange]::
<RangeName>
Where:
RangeName is one of the following values: OldVersions, NewVersion, AllVersions.
This command returns the compatibility range for the specified value. For example, for
NewVersion:
MaxCompatibilityLevel MinCompatibilityLevel
DefaultCompatibilityLevel Singular
1033
--------------------- --------------------- --------------------
----- --------
15 15
15 True
For more information, see Get-SPWebApplication.
To change compatibility range for site creation modes for a web application by using Windows
PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command to change the
compatibility range settings to a specific range:
$wa=Get-SPWebApplication
<URL>
# Stores the web application at that URL as a variable
$wa.CompatibilityRange =
[Microsoft.SharePoint.SPCompatibilityRange]::
<RangeName>
# Specifies which range to use
$wa.Update()
# Updates the CompatibilityRange setting to use only the range you
specified
$wa.CompatibilityRange
# Returns the new CompatibilityRange for the web application
1034
Where:
<URL> is URL for the web application that you want to change.
RangeName is one of the following values: OldVersions, NewVersion, AllVersions.
6. At the Windows PowerShell command prompt, type the following command to change the values
for the CompatibilityRange manually:
$wa=Get-SPWebApplication
<URL>
# Stores the web application at that URL as a variable
$range = New-Object
Microsoft.SharePoint.SPCompatibilityRange(
<Integer>
,
<Integer>
)
# Creates a new compatibility range from
<Integer>
to
<Integer>
$wa.CompatibilityRange = $range
# Specifies which range to use
$wa.Update()
#Updates the CompatibilityRange setting to use only the range you
specified with $range
$wa.CompatibilityRange
# Returns the new CompatibilityRange for the web application
Where:
<URL> is URL for the web application that you want to change.
Integer is a number to use as the minimum or maximum value. For example, (14,15) would
set the MinCompatibilityLevel to 14 (2010) and the MaxCompatibilityLevel to 15 (2013).
The DefaultCompatibilityLevel is automatically set to the lower of the
MaxCompatibilityLevel and the current major version (for example, 15).
This command sets and then returns the range that you specified. For example:
MaxCompatibilityLevel MinCompatibilityLevel
DefaultCompatibilityLevel Singular
--------------------- --------------------- -------------------
------ --------
15 14
15 False
For more information, see Get-SPWebApplication.
1035
Control the queue for upgrades of sites to SharePoint
2013
Every site that is set to upgrade is added to the queue, even if it is processed immediately. A site is
removed from the queue after it is upgraded, or if it has encountered an error that must be addressed
by a site collection or server administrator. If an unexpected failure occurs during the process (such as
a power outage or service interruption), the site remains in the queue and the timer service will try
the upgrade again automatically. Server farm administrators can manage the queue to remove a site
from the queue, add a site to the queue, or upgrade a site manually.
Server farm administrators can manage the queue to do the following:
Determine site collections that are in the upgrade queue.
Each web application has its own upgrade queue. You can show the sites that are in the queue for
a specific content database associated with that web application.
See all sites that are currently being upgraded.
You can view the queue and filter it to show only the sites that are currently being upgraded for a
specific content database.
Add a site collection to the upgrade queue.
If you want to upgrade a site collection, you can add it to the queue.
Remove a site collection from the upgrade queue.
You can remove a site collection from the upgrade queue. Stop the timer job, remove the site
from the queue, and then restart the timer job to resume upgrade for the remaining sites in the
queue. You cannot remove a site collection from the queue if it is currently being upgraded.
The following procedure contains steps to view and manage the site collection upgrade queue.
To manage the upgrade queue by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
1036
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. To view all site collections in the queue for a content database, at the Windows PowerShell
command prompt, type the following command:
Get-SPSiteUpgradeSessionInfo -ContentDatabase
<DatabaseName>
-
ShowInProgress -ShowCompleted -ShowFailed |ft
Where:
<DatabaseName> is name of the database that you want to check. You can also use the
GUID for the database instead of the name.
For more information, see Get-SPSiteUpgradeSessionInfo.
6. To see all sites that are currently being upgraded, at the Windows PowerShell command prompt,
type the following command:
Get-SPSiteUpgradeSessionInfo -ContentDatabase
<DatabaseName>
-
ShowInProgress
Where:
<DatabaseName> is name of the database that you want to check. You can also use the
GUID for the database instead of the name.
For more information, see Get-SPSiteUpgradeSessionInfo.
7. To see whether a particular site is in the queue, at the Windows PowerShell command prompt,
type the following command:
Get-SPSiteUpgradeSessionInfo -Site
<http://site>
Where:
<http://site> is URL for the site collection you want to add to the upgrade queue.
1037
For more information, see Get-SPSiteUpgradeSessionInfo.
8. To add a site collection to the upgrade queue, at the Windows PowerShell command prompt, type
the following command:
Upgrade-SPSite
<http://site>
-VersionUpgrade -QueueOnly
Where:
<http://site> is URL for the site collection you want to add to the upgrade queue.
For more information, see Upgrade-SPSite.
9. To remove a site collection from the upgrade queue, at the Windows PowerShell command
prompt, type the following command:
Remove-SPSiteUpgradeSessionInfo -Identity
<URL>
Where:
<URL> is URL for the site collection you want to add to the upgrade queue.
For more information, see Remove-SPSiteUpgradeSessionInfo.
Control site throttle settings for upgrade to SharePoint
2013
You can view and change the upgrade throttle settings for a content database and web application by
viewing and setting the SPContentDatabase.ConcurrentSiteUpgradeSessionLimit and
SPWebApplication.SiteUpgradeThrottleSettings properties. For descriptions of the properties that
control throttle levels and the default values, see Plan for site collection upgrades in SharePoint 2013.
For more information about web application properties, see SPWebApplication Properties. For more
information about content database properties, see SPContentDatabase Properties.
The following procedure provides steps to view upgrade throttling settings for a web application.
To view the upgrade throttle settings for a web application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
1038
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
$wa = Get-SPWebApplication
<URL>
$wa.SiteUpgradeThrottleSettings
Where:
<URL> is URL for the web application that you want to check.
This command returns the set of throttling settings for the specified web application. For
example:
AppPoolConcurrentUpgradeSessionLimit : 5
UsageStorageLimit : 10
SubwebCountLimit : 10
Name :
TypeName :
Microsoft.SharePoint.Administration.SPSiteUpgradeThrottleSettings
DisplayName :
Id : ca76dda0-7050-4c6b-a126-
05917da39f8a
Status : Online
Parent : SPWebApplication Name=SharePoint -
80
Version : 8222
Properties : {}
Farm : SPFarm
Name=SharePoint_ConfigUpgradedPersistedProperties : {}
For more information, see Get-SPWebApplication.
You can change the upgrade throttle settings for a web application. The following procedure provides
steps to change the upgrade throttling settings for a web application.
1039
To change the upgrade throttle settings for a web application by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
$wa=Get-SPWebApplication
<URL>
$wa.SiteUpgradeThrottleSettings.AppPoolConcurrentUpgradeSessionLimit=
<Val
ue>
$wa.SiteUpgradeThrottleSettings.UsageStorageLimit=
<Value>
$wa.SiteUpgradeThrottleSettings.SubwebCountLimit=
<Value>
Where:
<URL> is URL for the web applications that you want to affect.
Value is the numeric value that you want to set for that limit (for example, 8).
This command changes the throttling settings for a web application to the value that you
supply.
For more information, see Set-SPWebApplication.
The following procedure provides steps to view upgrade throttling settings for a content database.
To view the throttle settings for a content database by using Windows PowerShell
1. Verify that you have the following memberships:
1040
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
$db = Get-SPContentDatabase
<DatabaseName>
# Stores the database name as a variable to use in the next command
$db.ConcurrentSiteUpgradeSessionLimit
# Returns the value for the limit for that database
Where:
<DatabaseName> is name of the database that you want to check. You can also use the
GUID for the database instead of the name.
This command returns the set of throttling settings for the specified content database.
For more information, see Get-SPContentDatabase.
You can change the upgrade throttle settings for a content database. The following procedure
provides steps to change the upgrade throttling settings for a content database.
To change the throttle settings for a content database by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
1041
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following commands:
$db = Set-SPContentDatabase
<DatabaseName>
# Stores the database name as a variable to use in the next command
$db.ConcurrentSiteUpgradeSessionLimit=
<value>
# Changes the limit to the value you specify.
Where:
<DatabaseName> is name of the database that you want to affect. You can also use the
GUID for the database instead of the name.
<value> is a numeric value to set the property to, such as 9.
This command changes the throttling settings for the specified content database to the
value that you supply.
For more information, see Set-SPContentDatabase.
Create upgrade evaluation site collections by using
Windows PowerShell
Site collection administrators can request a preview of their site collection. This preview site is called
an upgrade evaluation site collection. Farm administrators can request an upgrade evaluation site
collection by using Windows PowerShell.
1042
To request an upgrade evaluation site collection by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
Either a site collection administrator or be granted full control (for repair mode) for the
web application by policy. For more information about permission policies for web
applications, see Manage permission policies for a web application in SharePoint 2013.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Request-SPUpgradeEvaluationSiteCollection -identity
URL to site
Where:
URL to site is the URL to a site collection in 2010 mode.
For more information, see Request-SPUpgradeEvaluationSite.
Upgrade site collections by using Windows PowerShell
You can upgrade a single site collection or all site collections in a specific database by using Windows
PowerShell.
To upgrade a single site collection in a database by using Windows PowerShell
1. Verify that you have the following memberships:
1043
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Upgrade-SPSite
<http://site>
-VersionUpgrade [-Unthrottled]
Where:
<http://site> is the URL for the site collection.
Add the option -Unthrottled option to skip the site collection upgrade queue and start the
upgrade immediately.
This cmdlet upgrades the specific site collection to 2013 mode. For more information, see Upgrade-
SPSite.
To upgrade all site collections in a database, use Windows PowerShell. However, because sites can
continue to run in 2010 mode in the SharePoint 2013 environment, this is not a necessary procedure
for most environments. If you do choose to upgrade all site collections immediately, site collection
owners do not have an opportunity to use an upgrade evaluation site to preview the new user
interface or change their original site before upgrading. We do not recommend that you upgrade all
site collections immediately as part of your initial upgrade. However, you might want to upgrade all
site collections after some time has passed and all customizations were verified in 2013 mode.
To upgrade all site collections in a database by using Windows PowerShell
1. Verify that you have the following memberships:
1044
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Get-SPSite -ContentDatabase
<DBName>
-Limit All | Upgrade-SPSite -
VersionUpgrade -QueueOnly
Where:
<DBName> is the name of the content database for which you want to upgrade all site
collections.
The -QueueOnly parameter adds the site collections to the upgrade queue. This allows
the timer job to perform parallel upgrades when it is possible and can save time. The sites
are upgraded in the order in which they are added to the queue.
This cmdlet upgrades all site collections in the specific content database to 2013 mode.
View upgrade status by using Windows PowerShell
You can view upgrade status for all databases, for a single site collection, or for all site collections.
To view upgrade status for a single site collection by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
1045
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Get-SPSiteUpgradeSessionInfo -Site
<http://site>
Where:
<http://site> is the URL of the site collection.
This cmdlet returns the upgrade status for the specified site collection together with
information about the upgrade session and a link to the log files for more information. For
more information, see Get-SPSiteUpgradeSessionInfo.
6. Or, you can use the following command to view the information about a specific site collection
upgrade:
$sc = Get-SPSite
<http://site>
# Sets a variable for the site collection
$sc.CompatibilityLevel
# Returns the compatibility level for the site collection (either 14 or
15 for 2010 or 2013 mode)
$sc.UpgradeInfo
# Returns the upgrade information for the site collection
Where:
<http://site> is the URL of the site collection.
1046
This command returns the compatibility level and upgrade information (such as a pointer
to the log file) for the specified site collection. If the compatibility level is "15," then it has
been upgraded to 2013 mode. For more information, see Get-SPSite.
To view upgrade status for a single database by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Get-SPSiteUpgradeSessionInfo -ContentDatabase
<DatabaseName>
-
ShowInProgress -ShowCompleted -ShowFailed
Where:
<DatabaseName> is the name of the database that you want to check.
This cmdlet returns any site collections that have an upgrade in progress, completed, or
failed and lists their status, plus a link to the log files for more information. You can use
only one parameter to find only in progress, completed, or failed upgrades. For more
information, see Get-SPSiteUpgradeSessionInfo.
To view upgrade status for all site collections by using Windows PowerShell
1. Verify that you have the following memberships:
securityadmin fixed server role on the SQL Server instance.
1047
db_owner fixed database role on all databases that are to be updated.
Administrators group on the server on which you are running the Windows PowerShell
cmdlets.
An administrator can use the Add-SPShellAdmin cmdlet to grant permissions to use
SharePoint 2013 cmdlets.
Note:
If you do not have permissions, contact your Setup administrator or SQL Server administrator
to request permissions. For additional information about Windows PowerShell permissions,
see Add-SPShellAdmin.
2. On the Start menu, click All Programs.
3. Click Microsoft SharePoint 2013 Products.
4. Click SharePoint 2013 Management Shell.
5. At the Windows PowerShell command prompt, type the following command:
Get-SPSite -Limit All
This cmdlet returns the URL for all site collections in the environment and the compatibility level (14
or 15) for each site collection.
See also
Plan for site collection upgrades in SharePoint 2013
Upgrade a site collection to SharePoint 2013
Overview of the upgrade process to SharePoint 2013
Run site collection health checks in SharePoint 2013
Upgrade site collections to SharePoint 2013
Review site collections upgraded to SharePoint 2013
Upgrade and Migration in SharePoint 2013 Resource Center
1048
Upgrade My Sites to SharePoint Server
2013
Applies to: SharePoint Server 2013 Standard, SharePoint Server 2013 Enterprise
Topic Last Modified: 2014-02-20
Summary: Learn how to upgrade My Sites in SharePoint Server 2013.
My Sites are site collections owned by the user for the user to store their documents, connect with
other users, follow and discover content, and so on. Upgrading My Sites differs from upgrading other
site collections because My Sites consist of both the shared My Site Host site collection (also known as
the My Site Host) and the My Site personal site collection (also known as the personal site collection).
My Site Host. The My Site Host is a special site collection shared among all My Site users. The My
Site Host is used to show the profile (person.aspx) and newsfeed pages (default.aspx) on the My
Site. The My Site Host is also used for storing the user profile photos.
Personal site collection. In SharePoint Server 2010, the personal site collection was used to store
a user’s documents. In SharePoint Server 2013, the personal site collection contains OneDrive for
Business, followed content, and so on.
Upgrading My Sites terms and concepts
Compatibility range settings. The compatibility range settings control which user interface mode
sites are created or displayed in (2010 user interface mode or 2013 user interface mode). The
compatibility range settings allow administrators to separate the upgrade of site collections from
the upgrade of content databases. To control the user interface mode, an administrator can set
the MinCompatibilityLevel and the MaxCompatibilityLevel properties on a web application. For
more information, see Manage site collection upgrades to SharePoint 2013
Mixed user interface modes. During an upgrade, a user’s My Site may display both the
SharePoint Server 2010 and SharePoint Server 2013 master pages. When this happens, the My
Site is displaying mixed user interface modes which may cause confusion for users. The mixed user
interface modes are affected by the combination of the version of the My Site Host, and the
compatibility range settings. When experiencing the mixed user interface modes on My Sites,
users will not lose any data.
1049
Important:
If you follow the section titled Procedure to upgrade My Sites, you will not encounter mixed
user interface modes.
Planning considerations for upgrading My Sites
Before you start to upgrade from SharePoint Server 2010 to SharePoint Server 2013, you should
carefully plan your upgrade process. The following list discusses some considerations when planning a
My Site upgrade.
Before upgrading the My Site Host and the personal site collections, you must upgrade the
Managed Metadata service application, and then the User Profile Service application. For more
information, see Services upgrade overview for SharePoint Server 2013
Some enterprises have multiple farms that may include a services farm. In these environments,
typically, one server farm, known as the enterprise services farm, publishes cross-farm shared
services, and the other farms consume those shared services. In some cases, the User Profile
Service application will be shared from the services farm, while a separate farm that consumes the
shared User Profile Service application contains the My Sites. When you upgrade this type of
configuration, you must upgrade the User Profile Service application on the services farm first,
before you upgrade the My Sites farm. For more information, see Social feature support in
SharePoint Server 2013
Consider whether you have to upgrade from classic-mode to claims-based authentication in
SharePoint Server 2013. For more information, see Migrate from classic-mode to claims-based
authentication in SharePoint 2013
Important:
This list highlights some important things to consider when you perform an upgrade of My
Sites. For a detailed discussion on upgrades, see Get started with upgrades to SharePoint 2013
Procedure to upgrade My Sites
The following list summarizes some of the upgrade activities for a My Site upgrade only. For more
information about upgrades, see Upgrade to SharePoint 2013
Important:
Once you upgrade your My Site Host and personal site collections, you cannot undo the
upgrade.
1050
Important:
Some of the items in the following list require additional steps to be performed. These
additional steps are discussed in the sections that follow this procedure. It is recommended
when upgrading the entire server farm, that you also upgrade My Sites.
1. Install and configure a new SharePoint Server 2013 farm. For more information, see Create the
SharePoint 2013 farm for a database attach upgrade.
2. Copy the SharePoint Server 2010 My Site content database, Social database, Sync database
(optional), Profile database, and Managed Metadata service database to the SQL Server that
supports your SharePoint Server 2013 farm. You will need db_owner permissions to perform this
step. For more information, see Copy databases to the new farm for upgrade to SharePoint 2013
and Create the SharePoint 2013 farm for a database attach upgrade.
3. Create the new service applications that you need for the SharePoint Server 2013 farm. Do not
create the User Profile Service application and the Managed Metadata service application.
You must upgrade these service applications, which is described in the next step. You must
however start the User Profile Service and Managed Metadata service from Manage Services on
Server.
4. Upgrade the Managed Metadata service and User Profile service applications using the
database attach method. For more information, see Upgrade service applications to SharePoint
2013. Ensure the My Site Host URL field on the User Profile Service application is left blank
because this field will be updated during the upgrade process. For more information, see
Configure My Site settings for the User Profile service application
5. Create the web application for the My Sites using the default content database. To ensure the
storage requirements of your users are met, you should review the site quota on the My Sites web
application.
6. Set the compatibility range settings for site creation on the My Sites web application. Use
MinCompatibilityLevel = 15 and MaxCompatibilityLevel= 15 for your compatibility range
settings.
7. Install customizations.
8. Run the Test-SPContentDatabase cmdlet to make sure that all customizations and language
packs are installed on the server before upgrading the My Site content databases. This cmdlet
must be run against all My Sites content databases. After running this cmdlet, you'll get a report
on your environment. Ensure you review all items in this report as some reported items may
prevent you from moving onto the next step.
1051
9. Run the Mount-SPContentDatabase cmdlet. Note: this does not upgrade any of the personal site
collections at this point. After this step is complete, the My Sites will still be displayed as
SharePoint Server 2010 My Sites.
10. Check the configuration of the self-service site creation and managed paths settings on the My
Sites web application to ensure the correct configuration settings are applied to the web
application. For more information, see Configure My Sites in SharePoint Server 2013.
11. Verify that the My Site Host URL field on the User Profile Service application has the correct URL
users should use to access the My Sites web application. For more information, see Configure My
Site settings for the User Profile service application.
12. Upgrade the My Site Host from a SharePoint Server 2010 My Site host to a SharePoint Server 2013
My Site Host (discussed in the section titled Upgrading the My Site Host).
13. Upgrade the personal site collections (discussed in the section titled Upgrading the personal site
collection).
Warning:
During the upgrade process, users will see some visual changes occurring on their My Sites
until the upgrade process is complete. You should inform your users and helpdesk
administrators that this experience is expected.
Upgrading the My Site Host
To upgrade a SharePoint Server 2010 My Site host to a SharePoint Server 2013 My Site host, run the
following command at the SharePoint 2013 Management Shell command prompt:
Upgrade-SPSite http://MySiteHostURL -versionupgrade
Where:
http://MySiteHostURL is the URL of the My Site Host.
Upgrading the personal site collection
The personal site collections are upgraded automatically when a user visits their My Site. The
SharePoint Server 2013 My Site Host has a hidden, automatic upgrade web part on it. When a user
visits the My Site Host, and if the compatibility range settings allow 2013 user interface mode, an
automatic upgrade of the user’s My Site starts. This upgrade process is performed per user and may
take some time to finish.
1052
Alternative procedure for upgrading My Sites
You may have constraints that restrict you from upgrading your My Sites to SharePoint Server 2013
My Sites. For example, you are upgrading your entire server farm but you have customizations on your
My Sites that you have not tested on SharePoint Server 2013. In this scenario, you may not want to
upgrade your My Sites until you complete your testing.
If you want to upgrade your server farm but keep your My Sites as SharePoint Server 2010 My Sites,
change the previous procedure for upgrading My Sites as follows:
Step 6: Use MinCompatibilityLevel = 14 and MaxCompatibilityLevel= 14 for your compatibility
range settings on the My Sites web application.
Step 12: do not perform this step.
Step 13: do not perform this step.
When you are ready to perform the upgrade of your My Sites:
Set MinCompatibilityLevel = 15 and MaxCompatibilityLevel= 15 for your compatibility range
settings on the My Sites web application.
Upgrade the My Site Host as described in Step 12
Upgrade the personal site collections as described in Step 13
Important:
Once you upgrade your My Sites to SharePoint Server 2013 My Sites, you cannot revert to
SharePoint Server 2010 My Sites.
Alternative procedure for upgrading the personal site
collection
Administrators may choose these alternate methods of upgrading the personal site collections if they
do not want their users experiencing the automatic upgrade of their My Site on their first visit to the
My Site Host:
Forced upgrade. If you use the forced upgrade path, users will not experience an automatic
upgrade the first time they visit their My Site. Instead, their My Site will already be upgraded for
them. A farm administrator can perform a forced upgrade of all My Sites in the farm by running
the following command at the SharePoint 2013 Management Shell command prompt:
1053
Get-SPSite -limit all |where {$_.CompatibilityLevel -eq '14'} | where
{$_.RootWeb.WebTemplateId -eq 21} | upgrade-spsite -versionupgrade
Important:
Before performing a forced upgrade, you should confirm that the My Site Host was
upgraded successfully. You can verify this by either making sure that the My Site Host has
the SharePoint Server 2013 user interface, or by inspecting the ULS logs to make sure that
no errors were encountered during the upgrade process.
Warning:
Using the forced upgrade approach may take lots of time to complete depending on the
number of My Sites you are upgrading. This will affect your server farm’s performance and
the farm will be in read-only mode during the complete upgrade process.
Deferred site collection upgrade. The deferred site collection upgrade process uses the
compatibility range settings to allow administrators to upgrade their databases and keep their site
collections in SharePoint Server 2010 mode. When the compatibility range settings allow both
2010 user interface mode and 2013 user interface mode (MinCompatibilityLevel = 14 and
MaxCompatibilityLevel= 15), the owner of the My Site will see a red banner at the top of their My
Site. From the banner, they can request an evaluation site collection of their My Site to preview
before upgrading to the SharePoint Server 2013 user interface. The evaluation site cannot be
converted to a regular My Site because it is a temporary site which will eventually be deleted. The
deferred site collection upgrade path is performed per user.
Warning:
Using the deferred site collection upgrade may result in the mixed user interface mode
issue. Be sure to stage and test your upgrade carefully before you do this in production.
When you encounter the mixed user interface mode on your My Sites, new users who do
not have a My Site cannot create new My Sites.
Troubleshooting a My Site upgrade
If users are experiencing issues, such as mixed user interface modes or they cannot upgrade their My
Site to the SharePoint Server 2013 user interface mode, verify that the following steps were
completed:
The My Site Host was upgraded to a SharePoint Server 2013 My Site Host.
The compatibility range settings allow site creation in 2013 user interface mode.
The SPSite.CanUpgrade property on the personal site collection of the user requesting the
upgrade is set to true. An administrator may allow or restrict certain site collections from being
upgraded by setting this property at the site collection level.
1054
Note:
The upgrade of the personal site collection is not an instant process. The My Site is added to
an upgrade queue. When the upgrade starts, the My Site remains available to use during the
upgrade process. Users can work on their documents throughout the upgrade process. The
My Site Host and personal site collection will display mixed user interface modes until the
upgrade is complete.
See also
Update-SPProfilePhotoStore
Upgrade a site collection
1055
Advanced upgrade scenarios for
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-04-11
Summary: Learn how to upgrade to SharePoint 2013 in advanced scenarios, such as from Office
SharePoint Server 2007 or Windows SharePoint Services 3.0, from FAST Search Server, or when using
content type syndication.
The following downloadable resources, articles on TechNet, video recordings, and related resources
provide information about how to upgrade to SharePoint 2013 in advanced scenarios.
TechNet articles about how to upgrade in advanced
scenarios
The following articles about how to upgrade in advanced scenarios are available to view online.
Writers update articles on a continuing basis as new information becomes available and as users
provide feedback.
Content
Description
Upgrade from Office SharePoint Server 2007 or
Windows SharePoint Services 3.0 to SharePoint
Server 2013 or SharePoint Foundation 2013
Learn how to use the database-attach method to
upgrade from Windows SharePoint Services 3.0 or
Office SharePoint Server 2007 to SharePoint 2013.
Search-first migration from FAST Search Server
for SharePoint 2010 to SharePoint Server 2013
Learn how to perform a search-first migration
from Microsoft FAST Search Server 2010 for
SharePoint to Microsoft SharePoint Server 2013.
How to upgrade an environment that uses content
type syndication (SharePoint Server 2013)
Upgrade the Managed Metadata service
application and site collections that use content
type syndication and share the service
applications to the old farm.
1056
Content
Description
Deploy custom features to upgraded site
collections in SharePoint Server 2013
Learn supported scenarios for deploying custom
features to upgraded site collections in a
SharePoint Server 2013 farm that has been
upgraded from SharePoint Server 2010.
For descriptions of additional cross-product upgrade paths that are allowed, see the following articles:
Review supported editions and products for upgrading to SharePoint 2013
Determine strategy for upgrade to SharePoint 2013
Additional resources about upgrade
The following resources about upgrade are available from other subject matter experts.
Content
Description
Upgrade and Migration Resource
Center for SharePoint 2013
Products
Visit the Resource Center to find
additional information about
upgrades to SharePoint 2013.
1057
Upgrade from Office SharePoint Server
2007 or Windows SharePoint Services 3.0
to SharePoint Server 2013 or SharePoint
Foundation 2013
Applies to: Windows SharePoint Services 3.0, SharePoint Server 2013, SharePoint Server 2007,
SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to use the database-attach method to upgrade from Windows SharePoint
Services 3.0 or Office SharePoint Server 2007 to SharePoint 2013.
You cannot upgrade directly from the server products in the Office 2007 release to SharePoint 2013.
The changes between versions are too great, and the hardware requirements differ so much between
versions that a direct upgrade is not possible or supported. However, you can perform a series of
database-attach upgrades to first upgrade your content to SharePoint 2010 Products and then to
SharePoint 2013. This article describes how to perform these sequential database-attach upgrades.
Note:
During this whole process, your old environment should be offline or in read-only mode to
prevent users from making changes in the old environment while you upgrade. After you
finish and validate the upgrade, you can grant access to users in the SharePoint 2013
environment.
Process overview
Because this upgrade approach combines two upgrade processes that are already documented in the
TechNet library, this article describes how the steps from each process fit together into the overall
process. It does not provide details for every step, because those steps are available in the following
articles:
Perform a database attach upgrade to SharePoint Server 2010 and Checklist for database attach
upgrade (SharePoint Server 2010)
Upgrade databases from SharePoint 2010 to SharePoint 2013 and Checklist for database-attach
upgrade (SharePoint 2013)
1058
These combinations of articles and this roadmap give you the information to perform the sequential
database-attach upgrades.
Important:
Make sure that you test this whole process in a test environment before you upgrade your
actual live content. For more information about how to test an upgrade processes, see the
following content:
For SharePoint 2010 Products see the Use a trial upgrade to find potential issues (SharePoint
Server 2010) article and the Test your upgrade process model on TechNet.
For SharePoint 2013 see the Use a trial upgrade to SharePoint 2013 to find potential issues
article and the Test your upgrade process model on TechNet.
Upgrade sequence
To upgrade your content across the two versions, follow these steps.
1. Prepare to upgrade
a) Prepare your original farm. Be sure that you have installed the latest software updates for
Windows SharePoint Services 3.0 or Office SharePoint Server 2007. You must have Service
Pack 2 at a minimum before you run the pre-upgrade checker and make an inventory of
all the customizations on the Upgrade worksheet for SharePoint Server 2010.
For a list of available updates for Windows SharePoint Services 3.0 and Office SharePoint
Server 2007, see Updates for SharePoint Products and Technologies.
b) Set up a small, temporary farm that is running SharePoint Foundation 2010 or SharePoint
Server 2010 depending on whether you're upgrading from Windows SharePoint Services
3.0 or Office SharePoint Server 2007. Ensure that the latest service packs and updates are
installed on this temporary farm. For information about requirements, Review required
hardware and software.
For a list of updates available for SharePoint Foundation 2010 and SharePoint Server 2010,
see Updates for SharePoint 2010 Products.
c) Set up your full SharePoint Foundation 2013 or SharePoint Server 2013 farm, and verify
that it is configured and running correctly.
2. First upgrade: Upgrade the content to SharePoint 2010 Products
a) Use SQL Server to make a backup of the content databases on the Windows SharePoint
Services 3.0 or Office SharePoint Server 2007 farm, restore the backups to the SharePoint
Foundation 2010 or SharePoint Server 2010 farm, and then take the old farm offline.
1059
b) Attach the copies of the content databases to the SharePoint Foundation 2010 or
SharePoint Server 2010 farm and upgrade them (optionally, you can upgrade them in
parallel).
c) Verify that the content was upgraded and that the SharePoint Foundation 2010 or
SharePoint Server 2010 farm is working correctly.
3. Second upgrade: Upgrade the content to SharePoint 2013
a) Use SQL Server to make a backup of the content databases on the SharePoint Foundation
2010 or SharePoint Server 2010 farm, and then restore them to the SharePoint Foundation
2013 or SharePoint Server 2013 farm.
b) Attach the copies of the content databases to the SharePoint Foundation 2013 or
SharePoint Server 2013 farm and upgrade them (optionally, you can upgrade them in
parallel).
c) Verify that the content was upgraded and that the SharePoint Foundation 2013 or
SharePoint Server 2013 farm is working correctly.
d) Upgrade the site collections.
4. Start serving requests on the SharePoint 2013 farm
The following diagrams illustrate this process:
The process to upgrade to SharePoint 2010 Products:
Upgrade from the server products in the Office 2007 release to SharePoint 2010 Products.
1060
The process to upgrade to SharePoint 2013:
Upgrade from SharePoint 2010 Products to SharePoint 2013.
1061
Before you begin
Before you begin an upgrade, review the following information about permissions, hardware
requirements, and software requirements. Follow the specified steps to install or configure
prerequisite software or to change settings.
Note:
Because SharePoint 2013 runs as websites in Internet Information Services (IIS),
administrators and users depend on the accessibility features that browsers provide.
SharePoint 2013 supports the accessibility features of supported browsers. For more
information, see the following resources:
Plan browser support
Accessibility for SharePoint 2013
Accessibility features in SharePoint 2013 Products
Keyboard shortcuts
1062
Touch
Review required permissions
When you create your temporary environment for SharePoint Foundation 2010 or SharePoint
Server 2010, you must have the appropriate permissions. For more information, see Plan for
administrative and service accounts (SharePoint Foundation 2010) or Plan for administrative and
service accounts (SharePoint Server 2010).
When you create and configure your destination SharePoint Foundation 2013 or SharePoint
Server 2013 farm, you must have the appropriate permissions. For more information, see Plan for
administrative and service accounts in SharePoint 2013.
Review required hardware and software
When you create your temporary environment for SharePoint Foundation 2010 or SharePoint
Server 2010, you must meet specific hardware and software requirements. For more information,
see Hardware and software requirements (SharePoint Foundation 2010) or Hardware and software
requirements (SharePoint Server 2010).
When you create and configure your destination SharePoint 2013 farm, you must meet different
hardware and software requirements. For more information, see Hardware and software
requirements for SharePoint 2013.
In some environments, you must coordinate procedures that move databases to a separate farm with
the database administrator. Make sure that you follow all applicable policies and guidelines for
handling databases.
Prepare to upgrade
Because you perform two upgrades, you must understand every step that is involved in the upgrade
to SharePoint 2010 Products and the upgrade to SharePoint 2013. The following content helps you
understand these upgrade processes:
Prepare to upgrade to SharePoint 2010 Products
For SharePoint Server 2010:
Read the About the upgrade process (SharePoint Server 2010) chapter and the Plan and prepare
for upgrade (SharePoint Server 2010) chapter on TechNet.
In particular, read the following articles:
1063
Upgrade process overview (SharePoint Server 2010)
Review system requirements for upgrade (SharePoint Server 2010)
Review upgrade best practices (SharePoint Server 2010)
Determine how to handle customizations (SharePoint Server 2010)
Read the Perform pre-upgrade steps (SharePoint Server 2010) chapter on TechNet. You must
perform the following step for a database-attach upgrade:
Run the pre-upgrade checker (SharePoint Server 2010)
Important:
Follow these steps on your existing Office SharePoint Server 2007 farm.
For SharePoint Foundation 2010:
Read the About the upgrade process (SharePoint Foundation 2010) chapter and the Plan and
prepare for upgrade (SharePoint Foundation 2010) chapter on TechNet.
In particular, read the following articles:
Upgrade process overview (SharePoint Foundation 2010)
Review system requirements for upgrade (SharePoint Foundation 2010)
Review upgrade best practices (SharePoint Foundation 2010)
Determine how to handle customizations (SharePoint Foundation 2010)
Read the Perform pre-upgrade steps (SharePoint Foundation 2010) chapter on TechNet. You must
perform the following step for a database-attach upgrade:
Run the pre-upgrade checker (SharePoint Foundation 2010)
Important:
Follow these steps on your existing Windows SharePoint Services 3.0 farm.
Prepare to upgrade to SharePoint 2013
Plan and prepare for upgrade. Read the Get started with upgrades to SharePoint 2013 chapter and
the Plan for upgrade to SharePoint 2013 chapter on TechNet.
In particular, read the following articles:
Overview of the upgrade process to SharePoint 2013
1064
Best practices for upgrading to SharePoint 2013
Create a plan for current customizations during upgrade to SharePoint 2013
Plan for performance during upgrade to SharePoint 2013
Clean up an environment before an upgrade to SharePoint 2013
Prepare your farms
In this step, you follow the pre-upgrade steps on your existing farm, create your temporary farm for
the upgrade to SharePoint Foundation 2010 or SharePoint Server 2010, and create your destination
SharePoint Foundation 2013 or SharePoint Server 2013 farm. Use the following steps and related
content when you prepare your farm for the upgrades.
Run the pre-upgrade checker
For information, see Run the pre-upgrade checker (SharePoint Foundation 2010) or Run the pre-
upgrade checker (SharePoint Server 2010).
Create the temporary SharePoint 2010 Products farm
In a virtual or physical environment, create a temporary small farm that is running SharePoint
Foundation 2010 or SharePoint Server 2010 depending on whether you're upgrading from Windows
SharePoint Services 3.0 or Office SharePoint Server 2007. You will use this farm to upgrade your
content to SharePoint Foundation 2010 or SharePoint Server 2010 on the way to SharePoint
Foundation 2013 or SharePoint Server 2013.
Tip:
For best results, we recommend that you apply the latest updates to the environment. For a
list of available updates, see Updates for SharePoint 2010 Products.
1. Download the software for the temporary farm.
You can use the trial version of SharePoint Foundation 2010 or SharePoint Server 2010 in
this temporary environment if you do not have a license agreement for the full product.
You can use the trial version or 180 days. Download the trial version at Download
Microsoft SharePoint Server 2010.
You can download SharePoint Foundation 2010 at Microsoft SharePoint Foundation 2010
2. Install all language template packs that your sites need. For more information, see Deploy
language packs (SharePoint Foundation 2010) or Deploy language packs (SharePoint Server
2010).
1065
3. To configure the farm, use the appropriate farm settings for your environment and reinstall all of
the customizations that your content needs. You must create web applications on the temporary
farm for every web application that you had in your original farm. The URL for the new web
applications should match either the source farm URLs or the destination farm URLs. Otherwise,
you might add references to additional temporary URLs to the content. Ideally, you should use the
same URLs for the source farm and destination farm so that the temporary farm URLs are
identical. This includes the port numbers.
For more information about how to configure the farm, see Prepare the new SharePoint
Foundation 2010 environment for a database attach upgrade or Prepare the new SharePoint
Server 2010 environment for a database attach upgrade.
Set up your full SharePoint 2013 farm
This is the farm you will use for your production environment eventually. Therefore, make sure that
you plan your infrastructure appropriately to support the solution that you are hosting. For more
information about how to plan your server farm, see Plan for SharePoint 2013.
1. Create your farm on 64-bit hardware with database servers that run a 64-bit version of SQL Server
2008 R2 with Service Pack 1 (SP1) or SQL Server 2012. For more information, see Install
SharePoint 2013.
2. Install all language template packs that your sites need. For more information, see Install or
uninstall language packs for SharePoint 2013.
3. To configure the farm, use the appropriate farm settings for your environment and reapply all of
the customizations that your content needs. Again, you must create web applications on the
destination farm for every web application that you had in your original farm.
For specific information about how to create and configure a server farm for a database-attach
upgrade, see Create the SharePoint 2013 farm for a database attach upgrade.
Perform the first upgrade
After you have set up and configured your farms, you are ready to upgrade your content databases to
SharePoint Foundation 2010 or SharePoint Server 2010.
Important:
Run the pre-upgrade checker and review the report so that you can address any potential
issues on your temporary farm before you upgrade the content. For more information, see
Run the pre-upgrade checker (SharePoint Foundation 2010) or Run the pre-upgrade checker
(SharePoint Server 2010).
1066
To perform a database-attach upgrade, follow these steps:
1. Back up the content databases.
Content databases are any databases that use the "_content" suffix.
2. Restore the backed-up copies to your temporary farm.
3. Attach the databases to the web applications to start the upgrade process. You can attach
databases in parallel to speed up the upgrade process.
For complete information and steps to follow, see Attach databases and upgrade to SharePoint Server
2010.
After upgrade, you might have to perform additional steps for specific services. For more information,
see Attach databases and upgrade to SharePoint Foundation 2010 or Perform post-upgrade steps for a
database attach upgrade (SharePoint Server 2010).
Verify the first upgrade
To verify the upgrade, do the following:
Review the upgrade log file.
Validate the upgraded environment.
Review the upgraded sites to make sure that they still work as expected and that all Web Parts
and other custom elements work correctly.
For more information, see Verify upgrade and review upgraded sites (SharePoint Foundation 2010) or
Verify upgrade and review upgraded sites (SharePoint Server 2010).
Perform the second upgrade
After you have verified that your sites work correctly, you can start the upgrade to SharePoint 2013.
To perform the database-attach upgrade, follow these steps:
1. Back up the content databases.
2. Restore the backed-up copies to your destination farm.
3. Attach the databases to the web applications to start the upgrade process. You can attach
databases in parallel to speed up the upgrade process.
1067
For complete information and steps to follow, see Upgrade databases from SharePoint 2010 to
SharePoint 2013.
Verify the second upgrade
To verify the upgrade, do the following:
Review the upgrade log file.
Validate the upgraded environment.
For more information, see Verify database upgrades in SharePoint 2013.
Upgrade site collections
In SharePoint 2013, site collection upgrade is a separate process from upgrading the content
databases. After you have upgraded your environment, either the site collection administrator or the
farm administrator can upgrade each site collection. For more information, see Upgrade site
collections to SharePoint 2013.
See also
Downloadable book: Upgrading to SharePoint Server 2010
Downloadable book: Upgrading to Microsoft SharePoint Foundation 2010
Upgrade and migration Resource Center for SharePoint Foundation 2010
Resource Center: Upgrade and Migration for SharePoint Server 2010
Upgrade and Migration Resource Center for SharePoint 2013 Products
1068
Search-first migration from FAST Search
Server for SharePoint 2010 to SharePoint
Server 2013
Applies to: SharePoint Server 2013, FAST Search Server 2010 for SharePoint
Topic Last Modified: 2013-12-18
This article describes how to perform a search-first migration from Microsoft FAST Search Server 2010
for SharePoint to SharePoint Server 2013.
Introduction to search-first migration (SharePoint
Server 2013)
Upgrading from FAST Search Server 2010 for SharePoint to SharePoint Server 2013 provides significant
improvements in enterprise search capabilities. However, policy or resource constraints in an
organization may pose challenges that prevent or postpone a complete upgrade. Even if your
organization is not ready to perform a complete upgrade from FAST Search Server 2010 for
SharePoint, you can take advantage of new SharePoint Server 2013 search capabilities by performing
a search-first migration.
To be able to configure and use certain features, such as Result sources, you must perform a full
migration of your farm from FAST Search Server 2010 for SharePoint to SharePoint Server 2013.
When you've completed a search-first migration, you run your system in "mixed mode." Mixed mode
is when a FAST Search Server 2010 for SharePoint Enterprise Search Center is used to consume
SharePoint Server 2013 search. Users can still use the FAST Search Server 2010 for SharePoint
Enterprise Search Center, but queries will be sent to the SharePoint Server 2013 index.
Running your system in mixed mode means that you do not upgrade the content of your farm or the
site collection to SharePoint Server 2013. The FAST Search Server 2010 for SharePoint farm can
continue to provide other FAST Search Server 2010 for SharePoint functionality for your organization.
FAST Search Server 2010 for SharePoint features, such as content databases and the Business Data
Catalog, are not migrated or upgraded as part of a search-first migration. Functionality that is not
related to search does not have to be configured in the new SharePoint Server 2013 farm. Some FAST
Search Server 2010 for SharePoint features will only work in backward compatibility mode.
Your organization can complete the product upgrade at any time.
1069
Note:
Due to the many architectural changes between FAST Search Server 2010 for SharePoint and
SharePoint Server 2013, not all configurations and features can be migrated. If you are unsure
of the implications of a migration from FAST Search Server 2010 for SharePoint to SharePoint
Server 2013, we strongly recommend that you contact a trusted Microsoft partner or
Microsoft Consulting Services for guidance.
For more information, see:
Features with limitations
FAST Search Server 2010 for SharePoint deprecated features
Supported migration path
Search-first migration supports only the partial migration of search capabilities from a FAST Search
Server 2010 for SharePoint farm to a SharePoint Server 2013 farm.
High-level search-first migration steps
1070
Make sure that you have a FAST Search Server 2010 for SharePoint production farm with at least one
Search service application. This production farm must also be configured and operating with
enterprise search functionality.
To complete a search-first migration
1. Install SharePoint Server 2013 on a single server with an additional dedicated SQL Server.
See also: Install SharePoint 2013 on a single server with SQL Server
2. On the SharePoint Server 2013 SQL Server, install:
Microsoft .NET Framework version 4.5
PowerShell Snapins for SQL Server
3. On the FAST Search Server 2010 for SharePoint farm, back up these databases:
FAST Search Administration database
FAST Content Search Service Application database
FAST Query Search Service Application database
4. Download the search-first migration scripts from TechNet Gallery. For details and guidance on
using these scripts, refer to the PDF included in the download package.
Edit the environment variables in the scripts.
Save and copy the scripts to the SQL Server and to the SharePoint Server 2013 server.
5. On the SharePoint Server 2013 SQL Server, run the search-first migration scripts.
6. On the SharePoint Server 2013 server, run the search-first migration scripts.
7. Build out the new SharePoint Server 2013 farm topology. For instructions on how to do this, see
Manage the search topology in SharePoint Server 2013.
8. On the SharePoint Server 2013, start crawling.
Note:
For information about limitations, see Features with limitations.
1071
Summary of search-first migrated features
Feature name
Migrated
Crawled properties
Yes
Custom managed properties created in addition
to the default set
Yes
New mappings to default managed properties
Yes
Content sources
Yes
Crawl rules
Yes
Crawl schedules
Yes
Scopes and scope filters
In most cases, scopes and scope filters work
after migration, but you cannot edit or change
them.
Scope filters usually contain Path: or Site:
restrictions. SharePoint Server 2013 does not
tokenize the URLs. When you apply a scope
filter, you might not obtain the same results
after migrating to SharePoint Server 2013.
If the migration is complete, that is to say, if
both content source and front end are
upgraded to SharePoint Server 2013, Result
sources replace the Scopes feature.
Yes
Federated locations
Yes
Best Bets
Yes
Visual Best Bets
Visual Best Bets are converted to Best Bets
Synonyms tied to Best Bets and Visual Best Bets
Yes
1072
Feature name
Migrated
Synonyms used for query expansion
No
Promotions and demotions
No
Inclusion and exclusion dictionaries (entity
extraction, spellcheck)
No
Optional processing dictionaries
No
Content processing extensibility
No
Large scale index configuration
No
Managed properties for "people search"
No
Business Connectivity Services (BCS) connector
and its associated configuration
No
Custom connectors and their associated
configuration
No
Rank profile
Note:
A FAST Search Server 2010 for SharePoint
rank profile can't be converted to a
SharePoint Server 2013 ranking model.
No
Features with limitations
When you run SharePoint Server 2013 in mixed mode, certain features will function with limitations.
You’ll have to use manual workarounds for these features to work correctly. The following sections
explain:
Limitations when you migrate from FAST Search Server 2010 for SharePoint Search Center to
SharePoint Server 2013
Limitations after a full migration to SharePoint Server 2013
1073
Limitations when you migrate from FAST Search Server 2010 for
SharePoint Search Center to SharePoint Server 2013
Feature name
Limitation
Document previews
Document previews is not a backward compatible
feature because SharePoint Server 2013 can't
render Document previews that are generated by
a FAST Search Server 2010 for SharePoint content
farm.
Duplicate documents link in the search results
page
The Duplicate documents link is displayed in the
search results page. However, it displays no
duplicate documents when it is clicked. To avoid
confusion, you can disable this link by editing the
XSLT file in the Core results Web Part.
Author refiner
The Author managed property was redefined and
replaced by the managed property
DisplayAuthor in SharePoint Server 2013. The
migration script migrates the Author refiner
without changing it. To make the Author refiner
work, you must manually edit the XSLT in the
refinement panel, and change the Author to
DisplayAuthor.
Site refiner
In SharePoint Server 2013, the managed property
SPSiteURL is used to populate the site refiner. If
there are problems with the site refiner after
migration, verify that:
The properties Basic:4 and
ows_SPSiteURL are mapped to SPSiteURL.
RespectPriority of SPSiteUrl is set to
true.
See also FAST Search Server 2010 for SharePoint
deprecated features.
1074
Limitations after a full migration to SharePoint Server 2013
Feature name
Limitation
Best Bets
SharePoint Server 2013 does not support Best
Bets. The feature’s been replaced by query rules.
Best Bets are not automatically converted to
query rules, so you have to create new query
rules.
Front end
It isn’t possible to automatically upgrade the FAST
Search Server 2010 for SharePoint front end.
1075
How to upgrade an environment that uses
content type syndication (SharePoint
Server 2013)
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-06-30
Summary: Upgrade the Managed Metadata service application and site collections that use content
type syndication and share the service applications to the old farm.
Content type syndication, or content type publishing, occurs when you publish a content type from a
content type "hub" site collection to one or more "consuming" site collections. For more information,
see Introduction to content types and content type publishing and Plan to share terminology and content
types (SharePoint Server 2010).
Suppose that you use content type syndication in SharePoint Server 2010. Now you want to upgrade
to SharePoint Server 2013, but you want to upgrade some site collections now and others later. In this
situation, you have to follow a specific process to make sure that all content types can continue to
work across versions.
Content type syndication uses the backup and restore mechanism in SharePoint Server to publish the
content types across site collections. And backup and restore does not work across versions in the
following scenarios:
Between 2010 and 2013
Between sites in 2010 mode on a 2013 farm and those in 2013 mode on a 2013 farm
For this reason, you have to set up sharing with multiple Managed Metadata service applications and
proxies to be able to publish content types to each site collection in the appropriate version. A proxy is
a connection that associates a service application with a web application.
Initial state
This article uses a specific example environment to show how to configure the service applications
and connections (proxies) before you upgrade the site collections. At the start, this example
environment contains the following components:
A Managed Metadata service application
1076
A site collection based on the Document Center template
This site collection acts as a content type hub (ContentTypeHub1) that contains the document and
document set content types.
Two consuming site collections that are also based on the Document Center template
The content type hub publishes documents and document set content types to these site
collections.
The following illustration shows this example environment before the start of the upgrade process.
SharePoint 2010 farm with content type syndication
Here is more information about this illustration:
The Managed Metadata service application has a Content Type Hub property that is set to point to
the ContentTypeHub1 site collection.
For information about how to share content types, see Plan to share terminology and content
types (SharePoint Server 2010).
1077
The following Managed Metadata connection properties are selected:
This service application is the default storage location for Keywords.
This service application is the default storage location for column specific term sets.
Consumes content types from the Content Type Gallery at <URL>.
Push-down Content Type Publishing updates from the Content Type Gallery to sub-sites
and lists using the content type.
For information about connection properties, see Managed metadata connections and Update
a managed metadata service connection.
A document content type (Doc1) and a document set content type (DocSet1) were published from
ContentTypeHub1 to the two consuming sites.
For information about publishing content types, see Publish a content type from a content
publishing hub.
Both consuming site collections contain document libraries that use the two content types, and
documents that are based on the two published content types are stored in those libraries.
Back up the data and create a duplicate content type
hub in the SharePoint 2010 environment
If you want to continue to use any of the consuming site collections in the 2010 environment but
upgrade others, you must upgrade your environment so that you have a 2010 version of the content
type hub and a 2013 version. The following illustration and list describe the steps to take to back up
the databases and sites in preparation for upgrade, and to create a duplicate content type hub to
continue service site collections in the SharePoint 2010 environment.
Original server farm for SharePoint Server 2010
1078
1. Use SQL Server Management Studio to back up the database for the Managed Metadata service
application.
1079
Name the backup something that you can remember, such as ManagedMetadata2010DB.bak. For
information, see Back up the SharePointAll_2nd_14 databases by using SQLServer_2nd_NoVer
tools.
2. Use SQL Server Management Studio to back up the database or databases that contain the
content type hub and consuming site collections.
Name the backup something that you can remember, such as 2010ContentHubDB.bak.
3. Use Central Administration or the Backup-SPSite Windows PowerShell cmdlet to perform a site
collection backup of the original content type hub.
For more information, see Back up a site collection in SharePoint Server 2010.
Clear the following Managed Metadata connection properties:
This service application is the default storage location for Keywords.
This service application is the default storage location for column specific term sets.
Consumes content types from the Content Type Gallery at <URL>.
Push-down Content Type Publishing updates from the Content Type Gallery to sub-
sites and lists using the content type.
For information about connection properties, see Update a managed metadata service
connection.
4. Create a web application to host a duplicate of the content type hub.
For information, see Create a web application (SharePoint Server 2010).
5. Use the Restore-SPSite Windows PowerShell cmdlet to restore a copy of the original content
type hub. Use the following syntax:
Restore-SPSite <URL> -path <path>
Where:
<URL> is the URL for the new web application.
<path> is the path of the backup file.
For information, see Restore a site collection in SharePoint Server 2010.
After you restore the site collection, you can change the name to ContentTypeHub2.
1080
6. Use SQL Server Management Studio to back up the database that contains the duplicate content
type hub.
You now have SQL Server backups of the databases for the Managed Metadata service application,
the consuming site collections, and a copy of the content type hub (now in a separate database from
the consuming site collections). In the next section, you create and configure the 2013 farm, restore
these databases, and upgrade them to 2013.
Restore databases and upgrade the Managed
Metadata service application and site collections to
SharePoint Server 2013
Now you can create the SharePoint Server 2013 environment, and restore the databases that you
backed up from the 2010 environment. After you restore them in SQL Server Management Studio, you
can upgrade the Managed Metadata service application, upgrade the content databases, and create
the site collections.
The following illustration shows the steps to follow to restore and upgrade the databases and site
collections to the 2013 environment.
Note:
Make sure that no other managed metadata service applications are in the 2013 environment.
New SharePoint 2013 farm
1081
1. Use SQL Server Management Studio to restore the databases for the Managed Metadata service
application and the two content databases for the original content type hub (ContentTypeHub1)
and consuming sites, and the duplicate content hub.
2. Use Windows PowerShell to create a Managed Metadata service application and use the restored
database. This upgrades the information from the Managed Metadata service application in the
1082
original farm and also creates a connection (or proxy) for the new Managed Metadata service
application (Managed Metadata 1).
For information, see Upgrade the Managed Metadata service application.
3. For the new Managed Metadata connection (proxy), in Central Administration, clear the following
properties:
This service application is the default storage location for Keywords.
This service application is the default storage location for column specific term sets.
Consumes content types from the Content Type Gallery at <URL>.
Push-down Content Type Publishing updates from the Content Type Gallery to sub-
sites and lists using the content type.
For more information, see Update a managed metadata service connection.
4. Create a web application to host the upgraded content type hub (ContentTypeHub1) and
consuming site collections. Be sure to use the same authentication method as was used in the
2010 environment.
For information, see Create web applications.
5. Test, and then attach the content database that contains the original content type hub
(ContentTypeHub1) and consuming site collections to upgrade the database.
For information, see Verify custom components and Attach a content database to a web application
and upgrade the database.
Note:
When you upgrade the content database, the site collections remain in 2010 mode in the
2013 farm. Do not upgrade the site collections to 2013 mode yet. You upgrade the site
collections later in this process.
6. Use the Set-SPMetadataServiceApplication Windows PowerShell cmdlet to configure the
upgraded Managed Metadata service application to point to the upgraded content type hub. Use
the following syntax:
Set-SPMetadataServiceApplication -Identity "<ServiceApplication>" -HubURI
"<HubURI>"
For information, see Set-SPMetadataServiceApplication.
7. Upgrade the ContentTypeHub1 site collection to 2013 mode.
1083
For information, see Upgrade a site collection.
8. Upgrade the content database that contains the duplicate content type hub (ContentTypeHub2 in
the old farm) and name it ContentTypeHub3. Leave the ContentTypeHub3 in 2010 mode.
For information, see Attach a content database to a web application and upgrade the database.
At this point, you have the following site collections in the 2013 environment:
Site collection
Site collection mode (version)
Description
ContentTypeHub1
2013 mode
Content type hub for sites in
2013 mode
ContentTypeHub3
2010 mode
Content type hub for sites in
2010 mode
ConsumingSite1
2010 mode
Consumes shared content types
ConsumingSite2
2010 mode
Consumes shared content types
Create additional Managed Metadata service
applications and republish the content types
Now you are ready to create the Managed Metadata service applications that will serve content type
hubs and consuming site collections running in 2010 mode in both the 2010 farm and the 2013 farm.
After you create and configure those service applications, you share the Managed Metadata service
application that is used for sites in 2013 mode (and that also serves as the term store for both farms)
(Managed Metadata 1), and the Managed Metadata service application that is used for sites in the
2010 farm (Managed Metadata 3). After you share the service applications, you can republish the
content types in both farms.
The following illustration shows the steps to create additional Managed Metadata service applications
and republish the content types. All of these steps are performed in the new 2013 farm.
Create Managed Metadata service applications and re-publish content types.
1084
1. In Central Administration, create a Managed Metadata service application (Managed Metadata 2)
and set the Content Type Hub property to the duplicate content type hub in the new farm
(ContentTypeHub3).
1085
When you use Central Administration to create a Managed Metadata service application, the
Managed Metadata connection (proxy) is created at the same time as the service application. For
more information, see Create a managed metadata service application.
For the new Managed Metadata connection, clear the following properties:
This service application is the default storage location for Keywords.
This service application is the default storage location for column specific term sets.
Consumes content types from the Content Type Gallery at <URL>.
Push-down Content Type Publishing updates from the Content Type Gallery to sub-
sites and lists using the content type.
For more information, see Update a managed metadata service connection.
2. In Central Administration, create a Managed Metadata service application (Managed Metadata 3)
and set the Content Type Hub property to the original content type hub in the 2010 environment
(ContentTypeHub1 in the 2010 farm).
When you use Central Administration to create a Managed Metadata service application, the
Managed Metadata connection (proxy) is created at the same time as the service application. For
more information, see Create a managed metadata service application.
For the new Managed Metadata connection, clear the following properties:
This service application is the default storage location for Keywords.
This service application is the default storage location for column specific term sets.
Consumes content types from the Content Type Gallery at <URL>.
Push-down Content Type Publishing updates from the Content Type Gallery to sub-
sites and lists using the content type.
For more information, see Update a managed metadata service connection.
3. Share the Managed Metadata 1 and Managed Metadata 3 service applications to the 2010
environment.
Do not share Managed Metadata 2 with the 2010 environment. It is used only for sites in the 2013
farm.
For more information, see Share service applications across farms in SharePoint 2013.
At this stage, the 2010 environment has two additional connections (proxies), one for each service
application that was shared in the previous step.
1086
4. Republish the content types in the 2013 environment:
On the 2013 content type hub that was upgraded to 2013 mode (ContentTypeHub1),
republish all of the content types that were published before (Doc1 and DocSet1).
On the 2013 duplication content type hub that is in 2010 mode (ContentTypeHub3),
republish all of the content types that were published before (Doc1 and DocSet1).
For more information, see Publish a content type from a content publishing hub.
5. Republish the content types in the 2010 environment:
On the 2010 content type hub (ContentTypeHub2), republish all of the content types that
were published before (Doc1 and DocSet1).
Configure connections (proxies)
The final phase in the process is to configure the connections (proxies) for all of the Managed
Metadata service applications.
The following illustration shows the connections (proxies) between the farms and the order in which
they are configured.
Configure connections (or proxies) for the Managed Metadata service applications across the
2010 and 2013 farms
1087
1. On the 2010 farm, on the Manage Service Applications page in Central Administration, set the
following properties for the Connection to the Managed Metadata service (Managed Metadata 3):
Consumes content types from the Content Type Gallery at <URL>.
1088
Push-down Content Type Publishing updates from the Content Type Gallery to sub-
sites and lists using the content type.
This enables ContentTypeHub2 in the 2010 farm to consume content types that are
published through the Managed Metadata 3 service application.
2. On the 2010 farm, on the Manage Service Applications page in Central Administration, set the
following properties for the Connection to the Managed Metadata service (Managed Metadata 1):
This service application is the default storage location for Keywords.
This service application is the default storage location for column specific term sets.
This enables ContentTypeHub2 in the 2010 farm to consume terms from the term store in
the Managed Metadata 1 service application.
3. On the 2013 farm, for the connection (Managed Metadata 3) for the 2010 mode content type hub
(ContentTypeHub3), clear the following properties:
This service application is the default storage location for Keywords.
This service application is the default storage location for column specific term sets.
Consumes content types from the Content Type Gallery at <URL>.
Push-down Content Type Publishing updates from the Content Type Gallery to sub-
sites and lists using the content type.
This causes ContentTypeHub3 to be unable to consume any resources from the Managed
Metadata 3 service application. Managed Metadata 3 is only used to provide content type
syndication to the 2010 farm.
4. On the 2013 farm, for the connection (Managed Metadata 2) for the duplicate content type hub
(ContentTypeHub3), select the following properties:
Consumes content types from the Content Type Gallery at <URL>.
Push-down Content Type Publishing updates from the Content Type Gallery to sub-
sites and lists using the content type.
This enables ContentTypeHub3 on the 2013 farm to consume content types that are
published through the Managed Metadata 2 service application.
5. On the 2013 farm, for the connection for the upgraded content type hub (Managed Metadata 1),
select the following properties:
This service application is the default storage location for Keywords.
1089
This service application is the default storage location for column specific term sets.
Consumes content types from the Content Type Gallery at <URL>.
Push-down Content Type Publishing updates from the Content Type Gallery to sub-
sites and lists using the content type.
This enables ContentTypeHub1 and any consuming sites in 2013 mode on the 2013 farm
to consume content types that are published through the Managed Metadata 1 service
application, and all content type hubs can consume terms from the term store in the
Managed Metadata 1 service application.
Final state
When you have finished, the Managed Metadata connections (proxies) should be as seen in the
following illustration:
New server farm for SharePoint Server 2013
1090
Where:
Managed Metadata 1 is the service application that is used for content type syndication for the
consuming sites in the 2013 farm that are in 2013 mode. This service application is also used for
all term store operations in both the 2010 and 2013 farm.
Managed Metadata 2 is the service application that is used for content type syndication for the
consuming sites in the 2013 farm that are still in 2010 mode.
1091
Managed Metadata 3 is the service application that is used for content type syndication for the
consuming sites in the 2010 farm.
Recommendations for how to manage content type
syndication across the 2010 and 2013 farms
Now that you have two environments (2010 and 2013) that share content types, you must be careful
how you manage shared content types when you create or change a shared content type.
When you add a content type, you must make sure that the content type ID is the same on all three
Content Type Hubs. To do this, follow this procedure:
1. On the 2013 farm, on the ContentTypeHub1, manually create the new content type and publish it.
2. Identify the content type ID for that content type.
Tip:
You can use Windows PowerShell or the object model to extract the content type ID by
using code. The content type ID is also encoded in the URL for the content type in the
Content Type gallery. So an easier way to find the content type ID is to navigate to the
Content Type Gallery for a site, and then click the content type. The URL to that content
type contains a parameter, ctype, which is in fact the content type ID for that content
type. For example, ctype=0x010100C0EE90869D5B8B46A4448713A9F8984C.
3. Create a content type that uses that ID on both of the other content type hubs (ContentTypeHub2
and ContentTypeHub3), and then publish it.
To create a content type that has a specific ID, you can't use the user interface. You have to use
XML or the object model. For more information, see Creating Content Types.
When you add a new field to a content type, make sure that the field ID is the same on all three
Content Type Hubs. To do this, follow this procedure:
1. On the 2013 farm, on the ContentTypeHub1, manually create the new field for the content type
and republish the content type.
2. Use the object model or Windows PowerShell to extract the SchemaXML property of the
SPContentType.
3. Add the extracted property to the corresponding content type on both of the other content type
hubs (ContentTypeHub2 and ContentTypeHub3).
1092
4. Republish the updated content type from the other content type hubs (ContentTypeHub2 and
ContentTypeHub3).
The following article on MSDN provides an example of how to use the object model to manipulate
content types: SPContentType class.
1093
Deploy custom features to upgraded site
collections in SharePoint Server 2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2014-09-05
Summary: Learn supported scenarios for deploying custom features to upgraded site collections in a
SharePoint Server 2013 farm that has been upgraded from SharePoint Server 2010.
This article describes how to deploy custom features through solution packages to a SharePoint Server
2013 farm that has been upgraded from SharePoint Server 2010. It includes information and
procedures for supported scenarios. It also introduces feature masking.
In this article:
Things you need to know
Who needs to read this and why
Windows PowerShell cmdlets that you need to be familiar with
Overview of deploying a solution package
Supported scenarios
Scenario 1: Legacy solution for SharePoint 2010 compatibility mode, and functionality is
expected to remain the same when upgraded to SharePoint 2013
Scenario 2: Legacy solution for SharePoint 2010 compatibility mode, but rebuilt the solution to
incrementally add functionalities for SharePoint 2013
Scenario 3: Legacy solution for SharePoint 2010 compatibility mode, and build a new solution
to implement new functionalities for SharePoint Server 2013
Uninstalling a solution package
Other Considerations
Deploy a feature in site collections using mixed mode
Master Page Considerations
1094
Things you need to know
This section describes prerequisite information that you need to know before you start. This includes
the following:
Who needs to read this and why
Windows PowerShell cmdlets that you need to be familiar with
Overview of deploying a solution package
Who needs to read this and why
This article is for IT professionals who must work with developers to deploy and maintain full-trust
code based custom features across multiple site collections on a SharePoint Server 2013 farm. You
should read this article to learn how you can use legacy custom features when you upgrade to
SharePoint Server 2013, and what to do to help ensure that they work seamlessly for your users when
site collections are upgraded from compatibility mode. It links to additional articles that provide more
details for your developers.
After a SharePoint Server 2010 farm is upgraded to SharePoint Server 2013, all site collections run in
SharePoint 2010 compatibility mode. They remain in this mode until each site collection is upgraded
to SharePoint 2013 mode. This way, your users can use the SharePoint Server 2010 user interface and
functionality they’re familiar with until you upgrade the individual site collection. You can also use the
legacy custom features that you might have used in SharePoint Server 2010. You eventually will want
to upgrade your site collections to SharePoint 2013 mode to take advantage of the new features and
functionality it provides. When you make this upgrade, custom features that worked in SharePoint
2010 compatibility mode might no longer work. You need to make sure that there is continuity across
SharePoint modes with the same features that are being used. This article describes how to do this.
Windows PowerShell cmdlets that you need to be familiar with
For the purposes of this article, you should be familiar with the following Windows PowerShell
cmdlets:
Name
What does this do?
Example
herflinkAdd-SPSolution
Adds the solution to the farm’s
solution store.
Add-SPSolution -
LiteralPath
c:\contoso_solution.wsp
1095
Name
What does this do?
Example
herflinkInstall-SPSolution
Deploys a solution that has been
added to the farm’s solution
store.
Install-SPSolution -
Identity
contoso_solution.wsp -
GACDeployment -
CompatibilityLevel 15
herflinkUninstall-SPSolution
Retracts a deployed solution.
Uninstall-SPSolution -
Identity
contoso_solution.wsp
herflinkRemove-SPSolution
Removes a deployed solution.
Remove-SPSolution -
Identity
contoso_solution.wsp
Note:
For more information about how to use Windows PowerShell and the minimum permissions
required to run a Windows PowerShell for SharePoint cmdlet, see Use Windows PowerShell
to administer SharePoint 2013.
Overview of deploying a solution package
To understand the following sections, you should understand how a custom feature is deployed to a
SharePoint Server 2013 farm.
When you upgrade from SharePoint Server 2010 to a SharePoint Server 2013 farm, adding your
custom features is an important step.
Figure: Add custom features in the upgrade process
You can use a solution package to add your customizations to the new farm. A solution package is a
distribution package that delivers your custom SharePoint Server 2013 development work to the web
1096
servers or the application servers in your server farm. You can use solutions to package and deploy
custom features, site templates, web templates, layout pages, web parts, cascading style sheets, and
timer jobs.
To deploy a solution package to a SharePoint Server 2013 farm, you need to:
1. Add the solution package to the farm. Use the Add-SPSolution Windows PowerShell cmdlet to
upload the SharePoint solution package to the farm. This adds the solution to the farm’s solution
store, located in the farm’s configuration database.
2. Deploy the solution package to the farm. Use the Install-SPSolution Windows PowerShell
cmdlet to deploy the SharePoint solution package to the farm. This unpacks the solution package
and copies all files that are contained with a custom feature to a “Feature” directory located on
the farm’s front-end web server. A subfolder for each custom feature is created and includes a
Feature.xml file. This file defines the feature’s base properties and the elements bound to it, as
well as one or more element manifest files (elements.xml) that define the elements that make up
the feature.
Note:
For more information about how to deploy a solution package to a SharePoint Server 2013
farm, see Install and manage solutions for SharePoint 2013.
The Install-SPSolution Windows PowerShell cmdlet also includes a compatibility-level parameter to
deploy the solution package to locations in the root folder that are designated for either SharePoint
2010 mode or SharePoint 2013 mode site collections. These are the “14” and “15” root folders (hives),
and when you deploy the solution, files such as features, layout files, images, and control templates
are added here.
Figure: SharePoint 2010 and 2013 Root folders
1097
You should also be aware that when you deploy a solution package to a SharePoint Server 2013 farm,
some files are copied to specific locations regardless of the compatibility level. For more details about
where files are copied to, see Planning Deployment of Farm Solutions for SharePoint 2013.
Site collections in either mode in the farm point to their corresponding hive so that they can use the
custom features that are provided in the solution package.
Figure: Deploy legacy custom features after you upgrade to SharePoint Server 2013
1098
The custom feature might have been tested to work correctly in both SharePoint 2010 and SharePoint
2013 mode. If so, the feature assembly files can be identical. For example, if the custom feature,
1099
Feature1, is known to work in SharePoint 2013 and SharePoint 2010 modes, the same solution
package can be used to deploy the same custom feature (Feature1) to the “14” and “15” folders.
However, if testing shows that the legacy custom feature might not work in site collections in
SharePoint 2013 mode, you might need to make the following changes:
Update the solution package to include conditional logic that enables functionality that is based
on SharePoint site collection mode.
Create a new and separate solution package with updated functionality for the feature when it is
used by upgraded site collections.
Feature masking involves using a new and separate solution package for the same feature for
upgraded sites and site collections (when a feature is scoped to a site or site collection). Feature
masking allows upgraded site collections to automatically find and use the correct custom feature
assemblies. This way, your users can seamlessly use the same custom feature.
Legacy custom features in a SharePoint Server 2013 farm
When you use legacy custom features in a SharePoint Server 2013 farm, you might find yourself in one
of the following three situations:
The custom feature provided by the solution package currently works for site collections in SharePoint
2010 mode. It also works for site collections in SharePoint 2013 mode.
The custom feature provided by the solution package currently works for site collections in SharePoint
2010 mode. It also works for site collections in SharePoint 2013 mode. You should also account for
additional custom feature functionality that you might want to incrementally add in the future for site
collections in SharePoint 2013 mode.
The custom feature provided by the solution package currently works for site collections in SharePoint
2010 mode. But it doesn’t work for site collections in SharePoint 2013 mode.
Supported scenarios
When you deploy custom features to a SharePoint Server 2013 farm that has been upgraded from
SharePoint Server 2010, three different deployment scenarios are supported:
1100
Scenario 1
Legacy solution for SharePoint 2010 compatibility
mode, and functionality is expected to remain the
same when upgraded to SharePoint 2013 mode.
Scenario 2
Legacy solution for SharePoint 2010 compatibility
mode, but rebuilt the solution to incrementally
add functionality for SharePoint 2013 mode.
Scenario 3
Legacy solution for SharePoint 2010 compatibility
mode, and build a new solution to implement
new functionality for SharePoint Server 2013.
Note:
For details about where solution package files are installed in the farm based on compatibility
level, see the TechNet blog post, Planning Deployment of Farm Solutions for SharePoint 2013.
Scenario 1: Legacy solution for SharePoint 2010 compatibility mode,
and functionality is expected to remain the same when upgraded to
SharePoint 2013
In this scenario, the custom feature that is provided through the solution package currently works
correctly in site collections in SharePoint 2010 compatibility mode. Additionally, it’s expected to work
when the site collection is upgraded to SharePoint 2013 mode. For example, a custom Web Part was
created for SharePoint 2010. It was tested to work in SharePoint 2013 without a change to the code.
You know that you can add it to your SharePoint Server 2013 farm, and it works for users in site
collections in SharePoint 2010 compatibility mode and when you upgrade the site to SharePoint 2013.
Because the custom feature is expected to work in both SharePoint modes, you can use the same
custom feature assemblies. However, it’s important to deploy the solution package for both
SharePoint modes, which you can do with a parameter when you’re using the Install-SPSolution
cmdlet. Feature masking is not used in this scenario because site collections in both modes use the
same code (duplicate feature assemblies located in the corresponding 2010 and 2013 mode folders).
The steps for this scenario include the following:
1. Create the solution package containing the custom feature.
2. Add the solution package to the farm. You can do this through the Add-SPSolution Windows
PowerShell cmdlet. For example:
Add-SPSolution -LiteralPath c:\Solution.wsp
1101
3. Deploy the solution package.
a) Deploy the solution package for SharePoint 2010 compatibility. You can do this by using
the Install-SPSolution Windows PowerShell cmdlet. Make sure to set the –
CompatibilityLevel parameter to 14. For example:
Install-SPSolution -Identity Solution.wsp -CompatibilityLevel 14 -
GAC ...
b) Deploy the solution package for SharePoint 2013 compatibility. You can do this by using
the Install-SPSolution Windows PowerShell cmdlet. Make sure to set the –
CompatibilityLevel parameter to 15. For example:
Install-SPSolution -Identity Solution.wsp -CompatibilityLevel 15 -
GAC ...
Note:
The –CompatibilityLevel parameter in Install-SPSolution Windows PowerShell cmdlet also
allows you the option to install a solution package to both the 14 and 15 root directories at
the same time. You can do this by using the values of “14,15” or “All”. For example:
Install-SPSolution -Identity Solution.wsp -CompatibilityLevel 14, 15 -GAC
...
For more information about the –CompatibilityLevel parameter in the Install-SPSolution Windows
PowerShell cmdlet, see herflinkInstall-SPSolution.
1102
Note:
When you use the Install-SPSolution command to install both SharePoint modes, use the
same solution name and ID.
Scenario 2: Legacy solution for SharePoint 2010 compatibility mode,
but rebuilt the solution to incrementally add functionalities for
SharePoint 2013
In this scenario, the custom feature works correctly in SharePoint Server 2010. You want to build a
solution package by adding this feature to a SharePoint Server 2013 farm, but you also want to make
1103
sure that you can incrementally add functionality for site collections in SharePoint 2013 mode that are
using this solution package. For example, a custom Web Part was created for SharePoint 2010. It was
tested to work in SharePoint 2013 without a change to the code. However, you know that you might
want to add additional functionality for your SharePoint 2013 users, but you still want to use the same
feature assemblies to allow for backward compatibility.
Because the custom feature is expected to work in both SharePoint modes, you can use the same
custom feature assemblies. You must install the solution package for both SharePoint modes as you
did for the previous scenario. The key difference in this scenario is that the solution package must
include logic that enables feature functionality that is conditionally based on site collection
compatibility.
For example, let’s say you have a method named Sample() implemented in a custom feature that was
designed for SharePoint 2010. If you want to change its implementation in SharePoint 2013 mode,
your code should include conditional logic that uses the SPSite.CompatibilityLevel property:
void Sample()
{
if (site.CompatibilityLevel == 14) { /*Existing O14 implementation*/}
else {/*New O15 implementation*/}}
}
By doing this, the same feature assembly serves both SharePoint 2010 and SharePoint 2013 versions
of the feature. Feature masking isn’t used in this scenario either because you’re not only using the
same feature assembly but also the same solution package. The same files for the custom feature are
copied to the “14” and “15” \Template\Features directories. For more information, see the “Planning
Considerations” section of the TechNet blog post, Planning Deployment of Farm Solutions for
SharePoint 2013.
The steps for this scenario include the following:
1. Create the solution package containing the custom feature. Include conditional logic that enables
feature functionality that is based on site collection compatibility.
2. Add the solution package to the farm. You can do this by using the Add-SPSolution Windows
PowerShell cmdlet. For example:
Add-SPSolution -LiteralPath c:\Solution.wsp
3. Deploy the solution package.
a) Deploy the solution package for SharePoint 2010 compatibility. You can do this by using
the Install-SPSolution Windows PowerShell cmdlet. Make sure to set the –
CompatibilityLevel parameter to 14. For example:
1104
Install-SPSolution -Identity Solution.wsp -CompatibilityLevel 14 -
GAC ...
b) Install the solution package for SharePoint 2013 compatibility. You can do this by using
the Install-SPSolution Windows PowerShell cmdlet. Make sure to set the –
CompatibilityLevel parameter to 15. For example:
Install-SPSolution -Identity Solution.wsp -CompatibilityLevel 15 -
GAC ...
Note:
The –CompatibilityLevel parameter in Install-SPSolution Windows PowerShell cmdlet also
allows you the option to install a solution package to both the 14 and 15 root directories at
the same time. You can do this by using the values of “14,15” or “All”. For example:
Install-SPSolution -Identity Solution.wsp -CompatibilityLevel 14, 15 -GAC
...
For more information about the –CompatibilityLevel parameter in the Install-SPSolution Windows
PowerShell cmdlet, see herflinkInstall-SPSolution.
1105
Note:
When you use the Install-SPSolution command to install for both SharePoint modes, use the
same solution name and ID.
Scenario 3: Legacy solution for SharePoint 2010 compatibility mode,
and build a new solution to implement new functionalities for
SharePoint Server 2013
In this scenario, the custom feature is known to work correctly in SharePoint Server 2010, but it’s
known not to work in SharePoint Server 2013. You need to create a new and separate solution
1106
package in which the functionality of the custom feature has been fixed to work correctly in
SharePoint Server 2013. In this scenario, you have two different solution packages with different
feature assemblies. This scenario uses feature masking. As users are moved from compatibility mode
to SharePoint 2013, they are “masked” from the fact that the custom feature they are using has
moved from one different code base to another.
In this scenario, you need to add and deploy two separate solution packages that contain two
different feature assemblies. Both versions of the feature must have the same name, feature ID, and
feature manifest location, even though the feature assemblies and resources are different.
Feature masking requirements
Requireme
nt
Same
or
differen
t
Solution Package – 2010 mode
example
Solution Package – 2013 mode
example
Solution
package
names
Differen
t
POC14
POC15
Solution
package
IDs
Differen
t
000000-0000-0000-0000-
000000000000
11111111-1111-1111-1111-
111111111111
Feature
name
Same
Feature1
Feature1
Feature ID
Same
12345
12345
Feature
XML folder
names
Same
POC15\Features\Feature1.feature\
POC15\Features\Feature1.feature\
Feature
manifest
location
Same
POC15_Feature1\Feature1.Template.
xml
POC15_Feature1\Feature1.Template.
xml
Figure: Solution packages for feature masking
1107
The steps for this scenario include the following:
1. Create two different solution packages with different names. The versions of the feature that
you’re deploying must have the same feature name and ID.
2. Add the solution package for SharePoint 2010 compatibility to the farm. You can do this through
the Add-SPSolution Windows PowerShell cmdlet. For example:
Add-SPSolution -LiteralPath c:\POC14.wsp
1108
3. Add the solution package for SharePoint 2013 compatibility to the farm. You can also do this
through the Add-SPSolution Windows PowerShell cmdlet. For example:
Add-SPSolution -LiteralPath c:\POC15.wsp
4. Deploy the solution package for SharePoint 2010 compatibility. You can do this through the
Install-SPSolution Windows PowerShell cmdlet. Make sure to set the –CompatibilityLevel
parameter to 14. For example:
Install-SPSolution -Identity POC14.wsp -CompatibilityLevel 14 -GAC ...
5. Install the solution package for SharePoint 2013 compatibility. You can also do this through the
Install-SPSolution Windows PowerShell cmdlet. Make sure to set the –CompatibilityLevel
parameter to 15. For example:
Install-SPSolution -Identity POC15.wsp -CompatibilityLevel 15 -GAC ...
1109
Uninstalling a solution package
You will no longer need the legacy solution package you deployed for SharePoint 2010 compatibility
mode site collections once all site collections have been upgraded to SharePoint 2013 mode. When
this happens, the legacy solution package can be retracted and removed from your SharePoint Server
1110
2013 farm. You can do this through the Uninstall-SPSolution and Remove-SPSolution Windows
PowerShell cmdlets.
Important:
We recommend using the Uninstall-SPSolution Windows PowerShell cmdlet when retracting
a solution from a SharePoint Server 2013 farm. Retracting a solution through Central
Administration will retract the solution from both the SharePoint 2010 and SharePoint 2013
root folders by default. This is especially important to note when you are using feature
masking to deploy a custom feature.
To retract and remove the solution package
1. Retract the SharePoint 2010 mode solution package from the farm: You can do this through the
Uninstall-SPSolution Windows PowerShell cmdlet. For example:
Uninstall-SPSolution -Identity POC14.wsp -CompatibilityLevel 14
Important:
Make sure to use the –CompatibilityLevel parameter to “14” to retract the solution
package for 2010 compatibility mode only. For example: Uninstall-SPSolution
POC14.wsp -CompatibilityLevel 14
2. Remove the solution package from the farm’s solution store: You can do this through the
Remove-SPSolution Windows PowerShell cmdlet. For example:
Remove-SPSolution -Identity POC14.wsp
1111
Other Considerations
This section includes information on additional considerations, including the following:
Deploy a feature in site collections using mixed mode
Master Page considerations
Deploy a feature in site collections using mixed mode
If your custom feature is farm or web application scoped, you can deploy it even though not all site
collections within the farm or web application have been upgraded to SharePoint 2013 compatibility
mode.
For web application scoped features, if the root site collection has not been upgraded, you won’t be
able to activate the feature using the Install-SPSolution PowerShell cmdlet. You must instead use the
SharePoint Central Administration site to activate the feature.
Master Page Considerations
Regarding branding customizations, custom master pages are reset by default to seattle.master after a
site collection upgrade in SharePoint Server 2013. If you are using the feature masking scenario, you
need to reset any custom master pages that you have created for SharePoint 2013 site collections. For
details about how to do this, see the MSDN article Use Feature upgrade to apply new SharePoint
Server 2013 master pages when upgrading from SharePoint 2010.
Note:
For more information about the branding considerations you need to make when you upgrade
site collections in SharePoint Server 2013, see Branding issues that may occur when upgrading
to SharePoint 2013.
See also
Create a plan for current customizations during upgrade to SharePoint 2013
SharePoint 2013 and SharePoint Online solution pack for branding and site provisioning
Branding issues that may occur when upgrading to SharePoint 2013
1112
Deploy software updates for SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to prepare for, download, install, and then configure software updates and
patches for SharePoint 2013.
Microsoft periodically releases software updates for SharePoint 2013. The following articles on
TechNet and related resources provide information about the software update process for SharePoint
2013.
TechNet articles about software updates for SharePoint
2013
The following articles about software updates for SharePoint 2013 are available to view online.
Writers update articles on a continuing basis as new information becomes available and as users
provide feedback.
Content
Description
Software updates overview for
SharePoint 2013
Provides an overview of the
software update process for
SharePoint 2013.
Prepare to deploy software
updates for SharePoint 2013
Helps you determine which
approach to use to update the
servers or server farms in your
environment, and lists the steps
that you must take before you
can start to install the update.
1113
Content
Description
Install a software update
(SharePoint 2013)
Learn how to install a software
update on servers in a
SharePoint farm.
Additional resources about software updates for
SharePoint 2013
The following resources about software updates for SharePoint 2013 are available from other subject
matter experts.
Content
Description
Installation and Deployment for
SharePoint 2013 Resource
Center
Visit the Resource Center to
access videos, community sites,
documentation, and more.
1114
Software updates overview for SharePoint
2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Learn how to deploy a software update to a SharePoint 2013 farm.
Administrators update SharePoint 2013 to deploy or update assemblies that provide functionality and
to upgrade databases. A successful update follows a methodical approach that minimizes
interruptions in service. Review information in this article to learn about the process before you begin
the update process.
In this article:
Terminology
Improvements and new features
Intended audience and scope
Software update process
Software update strategy
Software update deployment cycle
Before you begin
Before you begin the software update process, review the following information about permissions,
hardware requirements, and software requirements.
Account permissions and security settings in SharePoint 2013
Hardware and software requirements for SharePoint 2013
Terminology
To understand how to implement software updates in SharePoint 2013, it is important to understand
the terminology for the core components.
1115
Term
Definition
Comment
Cumulative Update (CU)
A CU is a rollup update that
contains all previous critical on-
demand hotfixes to date.
Additionally, a CU contains fixes
for issues that meet the hotfix
acceptance criteria. These
criteria may include the
availability of a workaround, the
effect on the customer, the
reproducibility of the problem,
the complexity of the code that
must be changed, or other
reasons.
patch
A compiled, executable installer
file that contains updates to one
or more products. Examples of
packages are the executable
(.exe) files that you download to
install a service pack, cumulative
update (CU), or hotfix. Packages
are also known as MSI files.
software update
A software update is any update,
update rollup, service pack,
feature pack, critical update,
security update, or hotfix that is
used to improve or to fix a
software product that is
released by Microsoft
Corporation.
1116
Term
Definition
Comment
upgrade
Process by which you change an
environment to use a newer
version of software. You can
upgrade to a minor release, such
as an update or patch, or to a
major release. An upgrade to a
minor release is called a build-
to-build upgrade. An upgrade to
a major release is called a
version-to-version upgrade.
In SharePoint 2013, for build-to-
build upgrades, you can use
either in-place or database-
attach methods. For version-to-
version upgrade, only database-
attach is supported. For more
information about version-to-
version upgrade, see Overview
of the upgrade process to
SharePoint 2013. For an
overview of the steps for in-
place and database-attach
upgrade for build-to-build
upgrades, see Install a software
update (SharePoint 2013)
For a complete list of terminology about software updates, see Description of the standard terminology
that is used to describe Microsoft software updates.
Features
SharePoint 2013 has features that facilitate the end-to-end software update experience. Some of
these features are as follows:
Backward compatibility between an updated services farm and non-updated content farm.
There is full support for automatic updates that use Windows Server Update Services (WSUS),
Windows Update, and Microsoft Update.
Note:
An automatic update copies the binary files to the farm servers, but you must complete
the software update by running the upgrade on the servers.
Administrators can use the SharePoint Central Administration website or Windows PowerShell to
monitor the status of an update.
1117
Intended audience and scope
Information in this article is for all IT professionals who maintain SharePoint 2013. However, specific
instructions to install a software update are intended for IT professionals who have to deploy software
updates on a farm of servers that host SharePoint 2013.
Information in this article applies to the following products:
SharePoint 2013
SharePoint 2013 language pack
Microsoft Filter Pack
Note:
The process that installs software updates in stand-alone environments of SharePoint 2013 is
a simpler process than the process that installs software updates in a server farm and does
not require all the steps that are required for a server farm.
Software update process
The process that deploys updates in a SharePoint 2013 environment is a two-phase process: patching
and build-to-build upgrade.
Each phase has specific steps and results. It is possible to postpone the build-to-build upgrade phase.
Caution:
Although we try to ensure the highest level of backwards compatibility, the longer you run in
such a state, the greater the chance of finding a case where farm behavioral issues might
occur.
Patch phase
The patch phase has two steps, the patch deployment step and the binaries deployment step. During
the patch deployment step, new binary files are copied to the server running SharePoint 2013.
Services that use files that the patch has to replace are temporarily stopped. Stopping services
reduces the requirement to restart the server to replace files that are being used. However, in some
instances you have to restart the server.
The second step in the patch phase is the binaries deployment step. In this step, the installer copies
support dynamic link library (.dll) files to the appropriate directories on the server that is running
SharePoint 2013. This step ensures that all the web applications are running the correct version of the
1118
binary files and will function correctly after the update is installed. The update phase is complete after
the binaries deployment step.
The next and final phase to deploy software updates is the build-to-build upgrade phase. This phase
modifies database schemas, updates objects in the farm, and updates site collections.
Build-to-build upgrade phase
After you finish the patch phase, you must complete the update installation by starting the build-to-
build upgrade phase. The build-to-build upgrade phase is task intensive and, therefore, takes the most
time to finish. The first action is to upgrade all the SharePoint processes that are running. After you
upgrade the processes, the databases are crawled and upgraded. After you complete a farm upgrade
on one server, you have to complete the process on all other servers to maintain incompatibility.
Software update strategy
The update strategy that you select is based primarily on one of the following factors:
The amount of downtime that is acceptable to install the update.
The additional staff and computing resources that are available to reduce downtime.
As you determine your update strategy, consider how the strategy enables you to manage and control
the update.
In terms of downtime reduction, the following options, ordered from most to least downtime, are
available:
Install the update and do not postpone the upgrade phase.
Install the update and postpone the upgrade phase.
Software update deployment cycle
The cycle that is used for upgrading SharePoint 2013 farms and servers also applies to deploying
software updates, which are a subset of an upgrade phase. We recommend that you use the update
cycle in the following illustration as a guide to deploy software updates.
1119
Learn
During this phase of the cycle, you learn about requirements to install the update. This information
also affects new servers that you want to update and then add to the farm.
Requirements and prerequisites
First, ensure that the system can be provisioned as a farm server. For more information, see
Hardware and software requirements for SharePoint 2013. Ensure that any server that you plan to
update is running the same version of the operating system as the other farm servers. This includes
updates, service packs, and security hotfixes.
Update strategy
Determine the strategy that you want to use to update the farm. Depending on your requirements,
you can use one of the following strategies:
In-place
Database-attach
1120
For more information about the update strategy to use, see Install a software update (SharePoint
2013)
Downtime reduction
Research and assess the options that are available to reduce downtime. First, check for missing
dependencies, which may extend the amount of downtime. Identify all the dependencies for the
update and either address these dependencies before you start to deploy the update, or factor the
additional time into your schedule. Consider using read-only content databases and doing parallel
upgrades to reduce downtime.
Common issues
Identify and address common issues such as missing or out-of-date dependencies and lack of space on
the servers where you will install the update.
Prepare
To prepare for the software update, document the environment and plan an update strategy to
ensure that the update will go as planned in the expected downtime window.
Document the environment
You document the environment to determine what is unique in your farm. You can use several
techniques to gather information about your farm, such as manual inspection, comparisons by using
WinDiff, and Windows PowerShell commands.
Document, as appropriate, the following elements of the environment:
Farm topology and site hierarchy
Language packs and filter packs that are installed
Customizations that could be affected by the update
Manage customizations
Customizations are typically one of the top issues during a farm upgrade or software update. Identify
your farm customizations and determine whether they might be affected by the update. If in doubt,
err on the side of caution and determine how you will manage the customizations. You must ensure
that customizations will work after the software update. You can use the Stsadm
ExportIPFSAdminObjects command to collect and export InfoPath administrator deployed forms
only.
1121
Plan the update strategy
During the Learn phase of the update cycle, you should have determined an update strategy and the
required downtime minimization. In addition to determining hardware, space, and software
requirements, you must include the following in your update strategy:
The update sequence for the farm servers
The order of operations
The downtime limits and how you plan to reduce downtime
A rollback process if there is a major problem
Tip:
Clean up the farm environment before you deploy the update. The benefits of a cleanup are
improved update installation performance and the elimination of potential issues during and
after the software update. For more information, see Clean up an environment before an
upgrade to SharePoint 2013.
The two final requirements for the update strategy are a communication plan and an update
schedule.
It is important to communicate with site owners and users about what to expect during an upgrade.
An administrator should inform users about downtime and the risk that the upgrade may take longer
than expected or that some sites may need some rework after upgrade. For more information, see
Create a communication plan for the upgrade to SharePoint 2013.
Create a benchmark schedule for update operations that contains the start times of operations that
are related to the update deployment. At a minimum, the plan should include the following
operations:
Back up the farm.
Start the update of the farm servers.
Start the upgrade of the farm databases.
Stop the upgrade and resume operations in the non-upgraded farm.
Resume the upgrade, if it is required.
Verify that the environment is completely working, either as the original version if you rolled back
or the new version if you completed the upgrade.
1122
Make farm items ready for updates
Ensure that farm items are ready for the update. Farm items are ready if they are backed up,
documented, or updated to ensure that the update can be installed. Verify that the following aspects
of a farm are ready for updates:
Solutions
Features
Site definitions
Web Parts
Test
The rigor, thoroughness, and detail of your tests determine the success or failure of the software
update deployment. In a production computer environment, there are no safe shortcuts, and there
are consequences from insufficient testing. For more information, see Use a trial upgrade to
SharePoint 2013 to find potential issues.
Build a test farm
Build a test farm that represents the production environment. We recommend that you use a copy of
the production data to determine potential problem areas and monitor overview system performance
during the upgrade. The key indicator is the length of time it takes from the beginning to the end of
the deployment process. This should include backup and validation. You can incorporate this
information in the update schedule.
If possible, use hardware in the test environment that has equivalent performance capabilities to the
production servers.
Tip:
Consider the use of a test farm in a virtual environment. After you finish the tests, you can
shut down the virtual farm and use it later for future updates.
Evaluate techniques
A test farm also enables you to evaluate the techniques that you plan to use to update the production
environment. In addition to testing and assessing your downtime reduction strategy, you can refine
update monitoring. This is especially important in the areas of validating and troubleshooting the
software update.
1123
Implement
The update strategy that you use determines whether you have to build a new farm or deploy the
update on the current farm servers.
Build or update farms
Whether you build a new farm or do an in-place update, the most important farm elements to
consider are as follows:
Content
Services
Service applications
Deploy customizations
Use solutions whenever possible so that you can deploy individual files or components.
Reduce downtime
Reduce downtime by using techniques such as read-only databases and update parallelism. For more
information, see the "How to minimize downtime during upgrade" section in Determine strategy for
upgrade to SharePoint 2013.
Monitor progress
The refined techniques that you use to monitor the software update in the test environment apply
when you deploy the update in the production environment. Use the Upgrade and Migration page in
Central Administration to monitor available status indicators. This feature enables live monitoring and
provides a single location to view the patch status for all farm servers. Additionally, you can use the
Upgrade and Migration page to view the update status for individual servers and the status and type
of farm databases. Finally, when you use Central Administration to monitor updates, you can identify
farm servers that you must update.
The following tables describe the status information that is available in Central Administration.
Status value
Description
Hyperlink
No action required
Farm server does not currently
require any action to be taken
by the administrator.
No hyperlink
1124
Status value
Description
Hyperlink
Installation required
Farm server is missing an .msi
file that is set to mandatory for
all farm servers or has a patch
level below the individual farm-
wide effective patch version.
Hyperlink to the Patch
Deployment State page
Upgrade in progress
Farm server is currently
undergoing an upgrade
operation.
Hyperlink to the Upgrade
Status page
Upgrade available
Farm server is running in
backward-compatibility mode.
Hyperlink to the Upgrade and
Migration page
Upgrade required
Farm server is outside the
backward-compatibility mode
range with one or more
databases.
Hyperlink to the Upgrade and
Migration page
Upgrade blocked
If an upgrade is available and
any farm server requires
installation, the remaining
servers that do not require
installation will be set to this
status unless they are currently
undergoing an upgrade.
Hyperlink to the Patch
Deployment State page
Installed
Indicates that no action is
required
Not applicable
Missing/Required
Displayed if a product is required
on each server or if a patch for a
specific .msi file is located on
one server but not on the server
for which this status is shown
Not applicable
Missing/Optional
Displayed if a product is not
required on each server
Not applicable
1125
Status value
Description
Hyperlink
Superseded
Displayed if an update is no
longer required on a server
because a newer patch
supersedes it
Not applicable
Log files and Windows PowerShell commands are other tools to monitor the update process.
Important:
Remember to monitor the length of time that the update is taking. Compare current update
processes against the benchmark schedule to determine whether the update will meet the
downtime window. If not, communicate this information to users of the farm.
Validate
You can start to validate the success of the update during the implementation phase and continue
validation after the update is implemented.
Logged event failures
Review the event logs to discover issues that occurred during the deployment. Resolve these issues
and then resume or restart the update as appropriate. For more information about event log files, see
Configure diagnostic logging in SharePoint 2013.
User interface or experience issues
Any user interface or user experience issues will surface on site pages. These issues mainly occur
during a version-to-version upgrade. Look for the following issues:
Unghosted files that are, ASP.NET (.aspx) pages that a user has modified within the site collection,
and now behave differently than expected or have rendering issues caused by recent upgrades of
the files on the server.
User interface version mismatch
HTML and XHTML compliance
Other issues may include missing templates, user identifiers, and content issues such as large lists.
1126
Data issues
Data issues result from the condition of the farm databases and can include all or some of the
following:
Connectivity issues to data sources
Database corruption
Orphaned items
Hidden column data
In some cases you can troubleshoot minor issues and then resume or restart the update. Be prepared
to roll back the update if you cannot resolve issues.
1127
Prepare to deploy software updates for
SharePoint 2013
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2013-12-18
Summary: Determine an approach to use to update servers or server farms in your environment, and
learn how to prepare for updates before you install them.
This article describes the required and recommended tasks to complete before you install software
updates on servers in a SharePoint 2013 farm.
Read and follow these sections sequentially to prepare for updates:
Verify account permissions and security settings
Determine an update approach
Back up the environment
Document the environment
Determine whether related items need to be updated
Obtain the software update and prepare the installation source (optional)
Verify account permissions and security settings
Verify that you have the required account permissions and know the security settings that are in place
on the farm. For more information, see Account permissions and security settings in SharePoint 2013.
Determine an update approach
There are two basic options for deploying a software update on a farm: in-place and database-attach.
Note:
Because the action of installing a software update is related to a software upgrade,
documentation about software upgrades applies to deploying software updates.
Here are the differences between the two update approaches:
1128
In-place update: This approach is easier. With this method, the amount of required downtime is
directly related to the size and complexity of the farm. You have two choices for an in-place
update:
In-place without backward compatibility – You install an update on all the farm servers at the
same time and upgrade content. Backward compatibility between update versions on
different servers enables you to install the update binary files and postpone update
completion to a later time. You cannot reduce downtime using this method. It depends
entirely upon the size and complexity of the farm.
In-place with backward compatibility – You install an update in stages and use postponed
upgrade (that is, do not run the upgrade process on the databases or site collections) with
backward compatibility to reduce downtime.
Database attach: This approach is more complex than an in-place update, and it requires more
personnel and hardware resources. This update method uses a new farm to install updates while
users continue to work with existing content on the original farm.
When you use either the in-place with backward compatibility method or the database-attach
method, you can use a postponed upgrade. You can choose to upgrade the content databases first
and then the farm and servers afterward.
We recommend that you use the following flowchart, which presents the key decision points and
subsequent actions, to determine an update approach to use.
1129
You can use either the SharePoint Products Configuration Wizard or Windows PowerShell cmdlets to
upgrade your content with any method that you choose to use to update your servers
Back up the environment
To ensure that you can recover the existing environment if an update fails, we recommend that you
back up the SharePoint 2013 environment before you start to install the update. A failed software
update can be caused by factors other than the update process, such as the following:
Media failure
User errors (such as deleting a file by mistake)
Hardware failures (such as a damaged hard disk or permanent loss of a server)
1130
Power failures
Natural disaster
You can back up all or part of a farm. The following list summarizes the farm components that you can
back up individually:
Configuration settings
Web applications
Service applications
Search
Secure store service
Site collections
Logs
Apps
For more information about how to determine what you need to back up and the method to use, see
Prepare to back up and restore farms in SharePoint 2013. After you determine the farm elements
that you will back up, refer to the articles listed in Backup solutions in SharePoint 2013. These articles
provide detailed instructions and guidance to back up all or part of a farm.
Important:
Test the farm backups before you start to deploy the software update. You have to be sure
that these backups are valid so that you can recover if there is a hardware failure or data
corruption during the update process.
Document the environment
Be sure to document the farm, including all custom components in the farm, in case you need to
rebuild. For more information about how to create an inventory of customizations, see Create a plan
for current customizations during upgrade to SharePoint 2013. In addition, document unique things
about your farm, such as the following:
Large lists
Sites that have large access control lists (ACLs)
Sites that are critical to your organization
1131
Setting for alternate access mappings
Internet Information Services (IIS) settings that apply to the web application (that is, URL, port
numbers, and so on.)
Web application security (web application policies and authorization providers)
Web.config
Changes to Docicons.xml and AllowedFileTypes
Other service or web application related settings that you have customized
A list of these items will help you more quickly validate your environment after you apply an update.
Determine whether related items need to be updated
Consider whether the following related items need to be updated when you update your farm:
Filter packs
Language packs
All these items are updated separately from an update of SharePoint 2013. Check to see if any
updates to these items are available, and evaluate whether you want to apply the updates to your
farm when you apply the updates for SharePoint 2013. Language packs are usually only updated when
service packs are released.
Obtain the software update and prepare the
installation source (optional)
If the servers on which you want to install SharePoint 2013 are isolated from the Internet, it is usually
necessary to install software updates from an offline location. Even if the servers are not isolated, if
you install software updates from an offline central location, you can ensure farm server consistency
by installing a well-known and controlled set of images. Use the following procedure to prepare a
software update for installation on a farm server.
You do not need to complete this procedure if you are downloading and installing the update directly
to your servers.
To prepare an installation source
1. Download the software update that you want to install.
1132
2. Extract the software update to a shared location by using the following command:
<package> /extract: <path>
The /extract switch prompts you to provide a folder name for the files. Here's an example of a
folder name for x64 systems:
sps-kb999999-x64-fullfile-en-us.exe /extract:<\\computername\updateshare\Updates>
3. Copy the extracted files from the shared location to an Updates folder that you create on the
computer where you want to start to install the update.
Note:
You must use the name Updates for this updates folder. If you use the
SupdateLocation="path-list" property to specify a different location, Setup stops
responding.
You can now use this location as an installation point, or you can create an image of this source that
you can save to media or save as an ISO file.
Slipstream package
In server farm deployments, all web servers must have the same software update version applied. This
means that, before you add a new web server to an existing server farm, the new web server must
have the same software updates as the rest of the web servers in your server farm. Likewise, when
you create a farm, all servers in the farm must have the same software updates. To make sure that all
new servers have the same software updates applied, we recommend that you create an installation
source that contains a copy of the release version of the software and software updates that match
those installed on your server farm (also known as a slipstreamed installation source). When you run
Setup from this updated installation source, the new web server will have the same software update
version as the rest of the web servers in your server farm. For more information, see Create an
installation source that includes software updates (SharePoint Server 2010).
See also
Deploy software updates for SharePoint 2013
Install a software update (SharePoint 2013)
1133
Install a software update (SharePoint 2013)
Applies to: SharePoint Server 2013, SharePoint Foundation 2013
Topic Last Modified: 2014-10-14
Summary: Install a software update to perform a build-to-build upgrade on servers in a SharePoint
2013 farm.
In this article:
Before you begin
Determine the update strategy
Monitor installation progress
Initial state
Use the in-place method without backward compatibility
Use the in-place method with backward compatibility
Use the database attach method for high availability of existing content
Before you begin
Before you begin the software update process, review the following information about permissions,
hardware requirements, software requirements, and update processes.
Account permissions and security settings in SharePoint 2013
Hardware and software requirements for SharePoint 2013
Software updates overview for SharePoint 2013
Prepare to deploy software updates for SharePoint 2013
To perform the procedures in this article, you must have the following memberships and roles:
securityadmin fixed server role on the SQL Server instance
db_owner fixed database role on all databases that are to be updated
Local administrator on the server on which you run the Windows PowerShell cmdlets
1134
Before you install an update, verify that the following conditions are satisfied:
All front-end web servers are load balanced together and are in rotation with the load balancer.
All farm servers are operating properly. For Search, you can view server status by using the
Windows PowerShell cmdlet Get-SPEnterpriseSearchStatus or by going to Central Administration >
Manage Service Applications > Search_service_application_name.
All databases are active and operating properly.
Do not start the update if any of the preceding conditions are not satisfied. Resolve all issues before
you continue.
SharePoint 2013 can handle certain upgrade failures after the patching phase finishes. However, if the
build-to-build upgrade fails, you might have to restore from a backup. Therefore, make sure that you
perform a full backup before you start the update process. After the restore is complete, you can
resume the update. Completed tasks do not run again. For more information, see the following
resources:
Back up the environment in Prepare to deploy software updates for SharePoint 2013
Test and troubleshoot an upgrade to SharePoint 2013
Determine the update strategy
Before you start to deploy a software update, verify that the update strategy that you plan to use is
optimal for your SharePoint 2013 environment. There are several factors, such as downtime
reduction, cost, and complexity that determine the strategy to use to deploy a software update. Use
the flowchart in the Determine an update approach section of Prepare to deploy software updates for
SharePoint 2013 to determine the update strategy that you want to use: in-place, database-attach, or
a combination. For more information about how the database-attach process works, see the diagrams
in Overview of the upgrade process to SharePoint 2013.
Note:
Certain links in this article go to content that is about version-to-version upgrade rather than
build-to-build upgrade. However, the general process is similar for the two types of upgrade.
For example, the database upgrade phase is essentially the same for build-to-build upgrade
and version-to-version upgrade.
1135
Monitor installation progress
Monitor the process that deploys updates to verify that the update is proceeding as planned. There
might be issues that block the update or that result in an updated farm that has elements that do not
work as expected. Pay extra attention to database synchronization and customizations.
We recommend that you use the Upgrade and Migration page in Central Administration as the
primary tool to view product and patch installation status, data status, and update status in real time.
After Setup runs, you can also view the log files and use Windows PowerShell to check installation
progress.
Initial state
The following illustration shows the farm topology that is used as an example for each patching
scenario that is described in this article.
1136
When you are ready to continue, perform only one of the following procedures in this article to install
the update:
Use the in-place method without backward compatibility
Use the in-place method with backward compatibility
Use the database attach method for high availability of existing content
1137
Use the in-place method without backward
compatibility
In this scenario you disable incoming requests to the front-end web servers, thus effectively shutting
down the entire farm. Then you install the update on all the farm servers. This strategy combines the
update and the build-to-build upgrade phase that is described in the Software update process section
of Software updates overview for SharePoint 2013.
The following illustration shows the steps that are required to install the update on the farm. You can
use the illustration as a guide as you go through the steps in the procedure that follows ("To install an
update without backward compatibility").
1138
To install an update without backward compatibility
1. Notify users that the farm will not be available while you are installing the update.
1139
2. Remove all web servers (WEB-1 to WEB-4) from rotation in the load balancer, or pause the load
balancer to stop incoming requests to the servers.
3. Run the update executable file to install the update on the application server that hosts Central
Administration (APP-1).
4. Run the update executable file to install the update on all other application servers that host
Search components (APP-2). To do this, perform the procedure Update servers that host Search
components during farm downtime which appears later in this article, and then return to the next
step in this procedure. Do not run the SharePoint Products Configuration Wizard on these servers
at this time.
5. Review the upgrade log files to verify that all the application servers were updated successfully.
The upgrade log file and the upgrade error log file are located at
%COMMONPROGRAMFILES%\Microsoft Shared\Web server extensions\15\LOGS. Upgrade log file
names are in the following format: Upgrade-YYYYMMDD-HHMMSS-SSS.log, where YYYYMMDD
is the date and HHMMSS-SSS is the time (hours in 24-hour clock format, minutes, seconds, and
milliseconds). The upgrade error log file combines all errors and warnings in a shorter file that is
named Upgrade-YYYYMMDD-HHMMSS-SSS-error.log.
6. Log on to the first web server (WEB-1).
7. Run the executable file to install the update on the web server.
8. Run the executable file to install the update on the remaining web servers (WEB-2, WEB-3, and
WEB-4).
9. Review the upgrade log files to verify that all the web servers were updated successfully.
10. Run the SharePoint Products Configuration Wizard on the Central Administration server (APP-1).
This will upgrade the configuration database and upgrade each content database. For information
about how to run the wizard, see Create and configure the farm in the article Install SharePoint
2013 across multiple servers for a three-tier farm.
11. Run the SharePoint Products Configuration Wizard on the other application servers.
12. Run the SharePoint Products Configuration Wizard on the first web server (WEB-1).
Note:
Run the configuration wizard to ensure that if an update fails for a specific server, the
error is not propagated to the other web servers. For example, a failed update for one
server could make the update fail for one or more site collections.
13. Repeat the preceding step for each remaining web server.
1140
14. Verify update completion and success. For more information, see Verify database upgrades in
SharePoint 2013.
15. Add the web servers (WEB-1 to WEB-4) to the rotation in the load balancer, or start the load
balancer to enable incoming requests to the servers.
16. Notify users that the farm is available. You are finished installing the update and using this article.
Use the in-place method with backward compatibility
This scenario takes advantage of the backward compatibility of SharePoint 2013 and the deferred
upgrade feature to reduce the farm downtime that is required to deploy a software update. However,
downtime is not completely eliminated. The sites and services will not be available while the database
content is being upgraded.
This update scenario uses two phases to install the update on farm servers. These phases are as
follows:
1. Install the update on the farm servers.
2. Perform a build-to-build upgrade to complete the patching process.
Important:
During the update phase, the farm can continue to be in production with minimal downtime.
However, during the build-to-build upgrade phase, the farm will be unavailable. If users
attempt to access content while the farm is upgrading, the result could be failed upgrades or
excessive slowdowns in the upgrade process because of resource contention and locking. Such
an attempt is unsupported and untested.
For more information, see the Software update process section in Software updates overview for
SharePoint 2013.
Update phase
The following illustration shows the steps that are required to install the update on the farm. You can
use the illustration as a guide as you go through the steps in the following procedure, "To install the
update".
1141
To install the update
1. Remove half of the web servers (WEB-1 and WEB-2) from rotation in the load balancer, or pause
the load balancer to stop incoming requests to the servers.
2. On each web server that is out of the load-balancing rotation (WEB-1 and WEB-2), run the
executable file to install the update. Do not run the SharePoint Products Configuration Wizard on
1142
these servers. Verify that these web servers were updated successfully by reviewing the upgrade
log files.
The upgrade log file and the upgrade error log file are located at
%COMMONPROGRAMFILES%\Microsoft Shared\Web server extensions\15\LOGS. Upgrade log file
names are in the following format: Upgrade-YYYYMMDD-HHMMSS-SSS.log, where YYYYMMDD
is the date and HHMMSS-SSS is the time (hours in 24-hour clock format, minutes, seconds, and
milliseconds). The upgrade error log file combines all errors and warnings in a shorter file that is
named Upgrade-YYYYMMDD-HHMMSS-SSS-error.log.
3. Remove the remaining web servers (WEB-3 and WEB-4) from rotation in the load balancer, or
pause the load balancer to stop incoming requests to the servers.
4. Add the updated web servers (WEB-1 and WEB-2) back into the load-balancing rotation.
5. On each web server that is out of the load-balancing rotation, run the executable file to install the
update. Do not run the SharePoint Products Configuration Wizard on these servers at this time.
Verify that both of the web servers were updated successfully by reviewing the upgrade log files.
6. Add the updated web servers (WEB-3 and WEB-4) back to the load-balancing rotation.
7. Install the update on all application servers that host Search components (APP-1 and APP-2). To
do this, perform the procedure Update servers that host Search components with minimal
downtime which appears later in this article, and then return to the next step in this procedure. Do
not run the SharePoint Products Configuration Wizard at this time.
8. If your farm has additional application servers that do not host Search components, run the
update executable file to install the update on these servers. Do not run the SharePoint Products
Configuration Wizard on these servers at this time.
9. Review the upgrade log files to verify that these application servers were updated successfully.
At this point in the process, the databases and other components such as settings, features, and site-
level data must still be upgraded because the SharePoint Products Configuration Wizard was not run
on any of the farm servers. However, the farm should be capable of running in backward compatibility
mode.
Upgrade phase
The following illustration shows the steps that upgrade the farm servers to finish the patching process.
During this process, the sites that are being upgraded will not be available to users.
1143
Use the preceding illustration as a guide to follow the steps in the following procedure.
Important:
Monitor the status of the upgrade on each server before you upgrade the next server in the
sequence. We recommend that you create a backup of the farm before you begin to upgrade.
1144
The following procedure shows all the steps to upgrade the farm. You can upgrade all components
within the same outage window, or you can take some smaller outage windows and upgrade separate
parts of the farm at different times. If you want to break up the upgrade stage, you can upgrade the
following components in separate outage windows:
Services
If the software update contains updates to services that must be applied, you can upgrade the
service, and then resume operating the farm (step 8 in the following procedure) until it is possible
to take a longer farm outage to complete the content and farm upgrade.
Content databases
You can take a short farm outage to upgrade only a few content databases (steps 3 and 4 in the
following procedure) each time and then resume farm operation (step 8 in the following
procedure). You can repeat the process over successive outage windows until you upgrade all
content and the farm servers are ready to be upgraded.
You can also upgrade individual content databases in parallel for a very small number of content
databases at the same time. However, do not attempt to upgrade too many content databases in
parallel because it will slow down the overall upgrade process and extend the outage time. We
recommend that you do not upgrade more than two content databases on the same SQL Server
volume at a time. Start the upgrade for each content database that will occur in parallel several
minutes apart to prevent lock contention as the upgrade process starts. In addition, limit the
number of content databases that you upgrade on a single web server or application server. Each
additional upgrade process will consume a relatively large amount of resources. The typical
number of content databases that you can upgrade per web server or application server is four
databases. However, be sure not to exceed the number of databases that are being upgraded per
SQL Server volume, no matter which web server or application server originates the upgrade.
To upgrade the farm
1. Remove the web servers (WEB-1 to WEB-4) from rotation in the load balancer, or pause the load
balancer to stop incoming requests to the servers.
Important:
The sites and services will not be available until upgrade is complete and the servers are
returned to an active load-balancing state.
2. Upgrade specific services, as needed.
Some updates might also require you to run additional Windows PowerShell cmdlets to upgrade
specific service applications. Notes for a software update might indicate that you have to upgrade
1145
a specific service so that it will continue to operate after patching. This applies to a service that
cannot operate in backward compatibility mode, for example.
You can create a short offline period to upgrade the service without having to upgrade the
complete farm. The additional Windows PowerShell cmdlets to upgrade specific service
applications should be in the notes if this is required.
3. (Optional) Use the Windows PowerShell Upgrade-SPContentDatabase cmdlet to upgrade each
content database. For more information, see Upgrade-SPContentDatabase.
This is an optional step, but it will help ensure that all content databases are upgraded first. It has
the advantage of enabling some parallelism to reduce the outage time. If it is not performed, all
remaining non-upgraded content databases will be upgraded serially when you run the SharePoint
Products Configuration Wizard to upgrade the farm servers.
Important:
Run the Upgrade-SPContentDatabase cmdlet for each database. You can run this cmdlet
from any of the upgraded web servers or application servers. Note that the content for
each database will be unavailable while this process is running on that database.
4. On the Central Administration server (APP-1), do one of the following:
Run the SharePoint Products Configuration Wizard
Run the following commands at the Windows PowerShell command prompt:
cd \Program Files\Common Files\Microsoft Shared\web server
extensions\15\bin
.\PSConfig.exe -cmd upgrade -inplace b2b
Important:
The SharePoint Products Configuration Wizard also starts an immediate upgrade of the
configuration database and all other databases that are not already upgraded. Because it is
likely that the content databases are the only databases that have already been upgraded, as
described in the previous step, all the service application databases are also upgraded in this
step. Your sites will not be available while this process runs.
5. Run the SharePoint Products Configuration Wizard or PSConfig (as in step 4 of this procedure) on
the remaining application server (APP-2).
6. Run the SharePoint Products Configuration Wizard or PSConfig (as in step 4 of this procedure) on
the web servers (WEB-1 to WEB-4).
1146
7. Verify update completion and success. For more information, see Verify database upgrades in
SharePoint 2013.
8. Add the upgraded web servers (WEB-1 to WEB-4) back into rotation in the load balancer.
You are finished installing the update and using this article.
Use the database-attach method for high availability of
existing content
To ensure high availability for existing content, this scenario uses read-only databases on the existing
farm. You install the update on a new farm and route user traffic to the new farm after updates are
complete.
The following illustration shows the sequence of steps to follow to install the update on a new farm by
using the database attach method. For more information, see Upgrade content databases to
SharePoint 2013.
1147
Use the preceding illustration as a guide to follow the recommended steps in the following procedure.
1148
To install the update by using the database-attach method
1. Create a new farm where you will install the software update. This farm does not require front-
end web servers. For more information, see Create the SharePoint 2013 farm for a database
attach upgrade.
Note:
If the original farm uses a database mirror, configure mirroring after you deploy the
software update on the new farm.
2. Configure the databases on the existing farm so that they are in a read-only state.
Note:
If the existing farm is mirrored, pause mirroring before setting the databases to read-only.
For more information about how to configure read-only databases, see the "Set the Previous
Version Databases to Be Read-Only (Database Attach with Read-Only Databases)" section in
Upgrade content databases to SharePoint 2013 and Run a farm that uses read-only databases in
SharePoint 2013.
3. Configure the service application databases on the existing farm so that they are in a read-only
state. This prevents unexpected changes to service applications.
4. If you are patching the User Profile Service service application database, which is not in SharePoint
Foundation 2013, you must export the User Profile Synchronization Service encryption key from
the old database and then import the key to the new database. This key is also known as the
Microsoft Identity Integration Server (MIIS) key, the Synchronization Service encryption key, and
the Forefront Identity Manager 2010 (FIM 2010) key. If you do not export and then import the key
correctly, the Synchronization Service will not start. To export the encryption key, complete these
steps:
a) Use farm administrator credentials to log on to the computer that contains the old User
Profile Service service application database.
b) Open the Command Prompt window, and then change to the following folder:
%Program Files%\Microsoft Office Servers\15.0\Synchronization Service\Bin\
c) Type the following command, and then press Enter:
miiskmu.exe /e <Path>
Where <Path> is the full path of the file to which you want to export the key.
1149
5. Back up the content databases on the existing farm. For more information, see Plan for backup
and recovery in SharePoint 2013.
6. To import the encryption key, perform these steps:
a) Use farm administrator credentials to log on to the computer that contains the new User
Profile Service service application database.
b) Attempt to start the User Profile Synchronization service. Because you have not yet
imported the encryption key, the service will not start. Confirm that the service did not
start by using the ULS log or by making sure that the status of the service is Stopped.
c) Open the Command Prompt window, and then change to the following folder:
%Program Files%\Microsoft Office Servers\15.0\Synchronization Service\Bin\
d) Type the following command, and then press Enter:
miiskmu.exe /i <Path> {0E19E162-827E-4077-82D4-E6ABD531636E}
Where <Path> is the full path of the file to which you exported the key.
e) (Optional) To check that the encryption key was imported correctly, at the command
prompt, type the following command, and then press Enter:
miiskmu.exe /c {0E19E162-827E-4077-82D4-E6ABD531636E}
7. Restore the content databases to the new database server.
8. Create service applications on the new farm for each existing service application in the old farm.
Duplicate all the settings from your existing farm.
9. Use the database-attach method to create the databases on the new farm. For more information,
see Upgrade databases from SharePoint 2010 to SharePoint 2013 and Attach and restore a read-
only content database in SharePoint 2013.
10. Verify that there are no issues with the new farm.
11. Enable the new farm as the production farm by configuring DNS to point to the new farm or by
making sure that the new farm is load balanced. Verify that users can access the new farm.
12. Allow time for users to switch from cached DNS, and then decommission the old farm.
13. Verify update completion and success. For more information, see Verify database upgrades in
SharePoint 2013.
You are finished installing the update and using this article.
1150
Install a software update on servers that host Search
components
Perform the procedures in this section only when they are pointed to from other procedures in this
article. This includes the following procedures which are in this section:
Update servers that host Search components during farm downtime
Update servers that host Search components with minimal downtime
Determine server availability groups for update with minimal downtime
Update servers that host Search components during farm downtime
1. Pause the Search service application by typing the following commands at the Windows
PowerShell command prompt:
$ssa=Get-SPEnterpriseSearchServiceApplication
Suspend-SPEnterpriseSearchServiceApplication -Identity $ssa
2. On each server that hosts one or more Search components, stop the Search-related Windows
services in the following order:
a) SPTimerV4
b) Osearch15
c) SPSearchHostController
Important:
Verify that each service is stopped before you stop the next service.
3. On each server that hosts one or more Search components, run the update executable file to
install the update.
4. On each server that hosts one or more Search components, start the Search-related Windows
services in the following order:
a) SPSearchHostController
b) Osearch15
c) SPTimerV4
1151
5. Verify that all Search components become active after the update by typing the following
command at the Windows PowerShell command prompt:
Get-SPEnterpriseSearchStatus -SearchApplication $ssa | where {$_.State -
ne "Active"} | fl
Rerun the command until no Search components are listed in the output.
6. Resume the Search service application by typing the following command at the Windows
PowerShell command prompt:
Resume-SPEnterpriseSearchServiceApplication -Identity $ssa
7. Verify that the farm is crawling updated content and able to index new and modified documents.
To do this, you can add or modify an item in a site collection, perform a crawl for the Local
SharePoint sites content source, and then perform a search for the item and verify that it appears
in the search results.
Update servers that host Search components with minimal downtime
1. Divide the servers that host Search components into two availability groups to minimize
downtime during their update and build-to-build upgrade. (As long as one of the groups is active
and healthy, the farm can serve queries and crawl and index content.) For instructions about how
to divide the servers into two availability groups, see the procedure Determine server availability
groups for update with minimal downtime later in this article.
2. Pause the Search service application by typing the following command at the Windows PowerShell
command prompt:
Suspend-SPEnterpriseSearchServiceApplication -Identity $ssa
3. On each server in server availability group 1, stop the Search-related Windows services in the
following order:
a) SPTimerV4
b) Osearch15
c) SPSearchHostController
Important:
Verify that each service is stopped before you stop the next service.
4. On each server in availability group 1, run the update executable file to install the update.
1152
5. On each server in availability group 2, stop the Search-related Windows services in the same order
that was prescribed for stopping them for availability group 1. Again, it is important to verify that
each service is stopped before you stop the next service.
6. On each server in availability group 1, start the Search-related Windows services in the following
order:
a) SPSearchHostController
b) Osearch15
c) SPTimerV4
7. Wait until all Search components associated with availability group 1 are active. To determine
which components are active, type the following command at the Windows PowerShell command
prompt:
Get-SPEnterpriseSearchStatus -SearchApplication $ssa | where {$_.State -
eq "Active"} | fl
Rerun the command until all Search components that are associated with availability group 1 are
listed in the output.
8. On each server in availability group 2, run the update executable file to install the update.
9. On each server in availability group 2, start the Search-related Windows services in the same order
that was prescribed for starting them for availability group 1.
10. Wait until all Search components associated with availability group 2 are active. To determine
which components are active, type the following command at the Windows PowerShell command
prompt:
Get-SPEnterpriseSearchStatus -SearchApplication $ssa | where {$_.State -
eq "Active"} | fl
Rerun the command until all Search components that are associated with availability group 2 are
listed in the output.
11. Resume the Search service application by typing the following command at the Windows
PowerShell command prompt:
Resume-SPEnterpriseSearchServiceApplication -Identity $ssa
1153
12. Verify that the farm is crawling updated content and able to index new and modified documents.
To do this, you can add or modify an item in a site collection, perform a crawl for the Local
SharePoint sites content source, and then perform a search for the item and verify that it appears
in the search results.
Determine server availability groups for update with minimal downtime
1. Start a SharePoint 2013 Management Shell on any server in the farm.
2. Determine the primary Search administration component and the server that hosts the
component by typing the following commands at the Windows PowerShell command prompt:
$ssa=Get-SPEnterpriseSearchServiceApplication
Get-SPEnterpriseSearchStatus -SearchApplication $ssa | where { (($_.State
-ne "Unknown") -and ($_.Name -match "Admin")) } | ForEach {if (Get-
SPEnterpriseSearchStatus -SearchApplication $ssa -Component $_.Name -
Primary) { Get-SPEnterpriseSearchTopology -SearchApplication $ssa -active
| Get-SPEnterpriseSearchComponent -identity $($_.Name) } }
3. Determine the set of servers in availability group 1. These servers must fulfill the following three
requirements:
The set must contain one or more, but not all, of the following types of Search
components:
Content processing component
Query processing component
Analytics processing component
Crawl component
Index component
The set must contain one or more, but not all, of the index components for each index
partition.
The set must contain a Search administration component that is not the primary
component that was identified in step 2 in this procedure.
4. Determine the set of servers in availability group 2. This set must contain all remaining servers
that host Search components, including the server that hosts the primary Search administration
component that was identified in step 2 of this procedure.
1155
Update Workflow in SharePoint Server
2013
Applies to: SharePoint Server 2013
Topic Last Modified: 2013-12-18
Summary: Walks through the steps required to keep workflow up to date in SharePoint Server 2013.
Run cmdlets after software updates are installed
It is important that any Cumulative Updates (CU) for SharePoint Server 2013 and Workflow Manager
are installed in a coordinated fashion. After an update has been performed, several Windows
PowerShell cmdlets must be run in order to maintain the connection between the SharePoint Server
2013 farm and the Workflow Manager farm.
Run the following Windows PowerShell cmdlets as an administrator from the SharePoint
Administration Shell after the updates have been installed for SharePoint Server 2013, Workflow
Manager, and Workflow Manager Client.
Important:
The latest update level must be installed on SharePoint Server 2013, Workflow Manager, and
Workflow Manager Client before you run the update cmdlets.
$credential = [System.Net.CredentialCache]::DefaultNetworkCredentials
$site = Get-SPSite(<siteUri>)
$proxy = Get-SPWorkflowServiceApplicationProxy
$svcAddress = $proxy.GetWorkflowServiceAddress($site)
Copy-SPActivitiesToWorkflowService -WorkflowServiceAddress $svcAddress -
Credential $credential -Force $true
Note:
Because workflow supports environments with multiple Site Subscriptions, the $site Site
Collection address determines the proper configuration location for
workflow settings.
1156
Troubleshooting steps for workflow updates
Make sure all components are on the latest patch level. This includes SharePoint Server 2013,
Workflow Manager, and Workflow Manager Client.
Verify the $proxy connection settings using the following commands:
$proxy = Get-SPWorkflowServiceApplicationProxy
$site = Get-SPSite(<siteUri>)
$proxy.GetWorkflowServiceAddress($site)
Inspect any errors displayed in the SharePoint Designer user interface or any errors shown in the
SharePoint Workflow Status user interface.
