MQTT
OpenEVSE – Developers Guide
http://www.openevse.com
1
Developers Guide
Read and save these instructions prior to installing and operating your Charging Station. Retain this
installation guide for maintenance and troubleshooting information. If you have further questions,
contact Customer Service at support@openevse.com.
WARNING: To reduce the risk of fire, electric shock, and serious bodily injury, observe the
following:
• Installation work and electrical wiring must be done by qualified person(s) in accordance with
all applicable codes and standards.
• When cutting or drilling into structure, do not damage electrical wiring and other hidden
utilities.
• Use this device only in the manner intended.
CAUTION: The installation of this charging Station must be in accordance with all national and
local electrical codes.
CAUTION: Exercise caution and common sense when powering the device. Do not connect to a
damaged power source.
WARNING: Power must be disconnected before installation and servicing, cleaning, and other
user-maintenance. Failure to disconnect power creates risk of fire, electric shock, and serious
bodily injury.
CAUTION: The product warranty will not cover equipment damage or failure that is caused by
improper installation or operation.
WARNING: Do not install in an environment that is excessively dusty, conductive, corrosive, or
gas-filled, is exposed to open flames (e.g., gas-burning stoves), is near strong chemicals or
solvents, or where there is excessive heat, shock, or vibration.
CAUTION: This charging station is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the charging station by a
person responsible for their safety. Children should be supervised to ensure that they do not
play with the charging station.
Developers Guide
2
Contents
License ......................................................................................................................................................... 3
MQTT ........................................................................................................................................................... 4
Prerequisites............................................................................................................................................ 4
MQTT Setup ............................................................................................................................................ 4
MQTT Publish ........................................................................................................................................ 5
MQTT Subscribe ..................................................................................................................................... 6
Advanced RAPI over MQTT .................................................................................................................... 7
OpenEVSE Remote API......................................................................................................................... 7
Station Commands ................................................................................................................................. 9
Set Commands ...................................................................................................................................... 10
Get Commands ..................................................................................................................................... 12

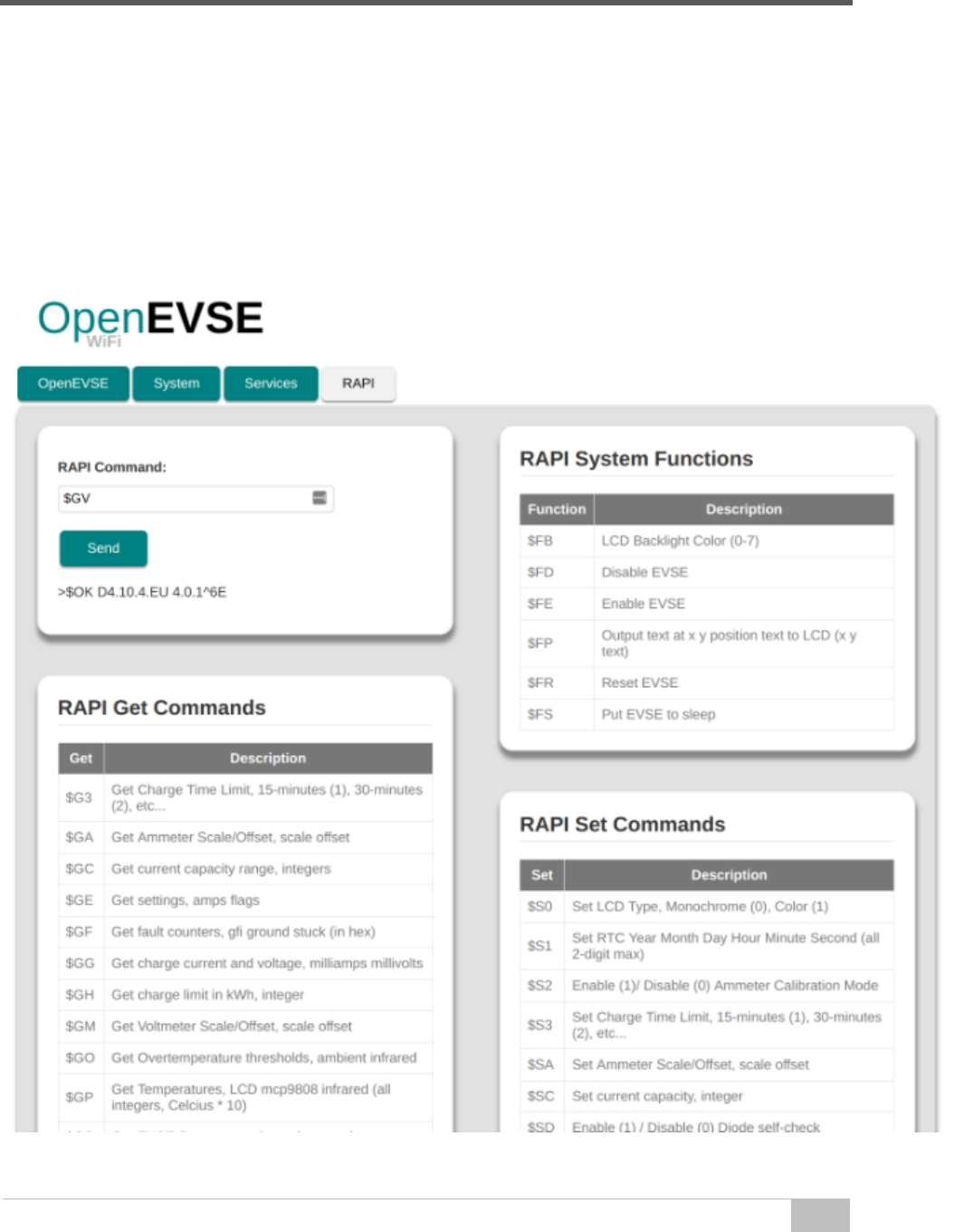

RAPI over WiFi ........................................................................................................................................ 14
Additional Resources .............................................................................................................................. 15
3
Developers Guide
License
This manual was written by OpenEVSE LLC and is released under the Creative Commons 3.0
with Attribution, share alike license.
OpenEVSE is a open project with source materials freely shared. OpenEVSE may be used for
commercial purposes in accordance with the following licenses:
OpenEVSE Code license – GNU General Public License v3
http://www.gnu.org
OpenEVSE Content license (including this document) – Creative Commons 3.0 with
Attribution Share alike (CC 3.0 BY-SA)
http://creativecommons.org/licenses/by-sa/3.0/
The OpenEVSE Project and Source code has been evaluated by the Open Source Hardware
Foundation and meets the requirements for Open Hardware. The registration number for
OpenEVSE is US000028.
Developers Guide
4
MQTT
Prerequisites
• OpenEVSE controller with firmware 4.8.0 or higher
• OpenEVSE WiFi with firmware 3.7.4 or higher
• Connected to an Access Point with network access
• MQTT Broker on the network
MQTT Setup
• Using a web browser enter the IP address of your OpenEVSE WiFi
5
Developers Guide
• Click the Services tab
• Click the “Enable MQTT” Checkbox
• Enter the IP Address or hostname for the MQTT Broker
• Enter the Username and Password for the MQTT Broker
• Enter the <base-topic> OpenEVSE will publish. Default openevse
MQTT Publish
Once connected to a MQTT Broker, OpenEVSE will publish the many commonly used values at
regular intervals.
Structure - <base-topic>/<sub-topic> <value>
Default - <base-topic> openevse
Published - <sub-topic>
Published to broker every 30 seconds
openevse/amp Measured current in milliamps
openevse/wh Calculated watthours for the current session
openevse/temp1 Sensor value in 10th degree C (if installed)
openevse/temp2 Sensor value in 10th degree C (if installed)
openevse/temp3 Sensor value in 10th degree C (if installed)
openevse/pilot Pilot current sent to vehicle in Amps (6-80)
openevse/state EVSE State 1–Ready, 2-Connected, 3-Charging, 4-Error
openevse/freeram WiFi free Ram
openevse/divertmode Divert Mode 1–Normal, 2–Eco Divert
Published to broker every 5 seconds
openevse/chargerate Calculated power available from Grid I/E Topic
openevse/grid_ie Last Value received on Grid I/E Topic
openevse/divert_update Time since received on Grid I/E Topic
Developers Guide
6
MQTT Subscribe
Grid I/E Topic:
<topic>/<subtopic> defined in OpenEVSE WiFi interface. Example emon\emonpi\power1
OpenEVSE will subscribe to an energy topic and adjust charging power based an available
energy. Available energy must be represented in negative watts. Example: A residence is
producing 1077 watts of excess energy from a solar system, the solar/energy monitoring system
should publish -1077 to MQTT on the topic OpenEVSE was set to subscribe.
Divert Mode:
Divert mode can be enabled or disabled over MQTT, OpenEVSE subscribes to the <base-
topic>/divertmode/set.
<base-topic>/divertmode/set Divert Mode 1–Normal, 2–Eco Divert
7
Developers Guide
Advanced RAPI over MQTT
OpenEVSE subscribes to a <base-topic>/rapi/in topic and will execute commands, check
status and change settings. Commands received over MQTT are sent to the OpenEVSE
controller via serial using the OpenEVSE Remote API (RAPI). Responses from the OpenEVSE
controller are published to <base-topic>/rapi/out/.
Commands - <base-topic>/rapi/in/<command>
Response - <base-topic>/rapi/out/<response>
OpenEVSE Remote API
OpenEVSE Remote API (RAPI) is a simple lightweight communications protocol. RAPI allows
the user/application to:
• Execute Commands
• Get Status
• Change Settings
• Debug
RAPI is designed to work in any communications environment including high loss connections
such as wireless. RAPI provides optional features to ensure reliable communications:
• Command/Response
• Checksum (NONE, SUM, XOR [recommended])
• Sequence ID
RAPI documentation is located in the OpenEVSE Source Code, file rapi_proc.h on Github Link.
XOR checksum (recommended)
$cc pp^xk\r
No checksum (FOR Experimentation ONLY)
$cc pp\r
Checksum + Sequence ID
$cc pp :ss^xk\r
Structure
Developers Guide
8
$= start of RAPI command
cc = 2-letter command
pp = parameters
xk = 2-hex-digit checksum - 8-bit XOR of all characters before '^'
ss = optional 2-hex-digit sequence id - response will echo the
sequence id - ss CANNOT be 00, which is reserved as an
invalid value
\r = carriage return = 13d = 0x0D
Response format
$OK [optional parameters] [:ss]^xk\r – success
$NK [optional parameters] [:ss]^xk\r – failure
Checksum and Sequence ID are only present if send with the command
Asynchronous notification messages
$ST state\r - EVSE state transition - sent whenever EVSE state changes
state: EVSE_STATE_xxx
$WF mode\r - Request client WiFi mode:
WIFI_MODE_XXX
9
Developers Guide
Station Commands
Station commands can control the availability of the charging station or change the properties of
the station such as LCD color or text.
Enable/Disable/Sleep
FS puts the charging station in a “not ready” normal state (pilot high PWM off)
FD disables the station in a “not ready” error state (pilot low PWM off)
FE enables the station in a “ready” state (pilot high PWM on if connected)
Text on LCD
F0 0 Disable display updates to give RAPI control of display
FP Write desired message to LCD
F0 1 Enable display updates to give OpenEVSE controller control of display
Command
Parameter
RAPI + XOR
Response
Description
F0
0
$F0 0^42
$OK^20
Disable display updates
1
$F0 1^43
$OK^20
Enable display updates
F1
$F1^53
$OK^20
simulate button press
Developers Guide
10
FB
0
$FB 0^30
$OK^20
LCD Backlight OFF
1
$FB 1^31
$OK^20
LCD Backlight RED
2
$FB 2^32
$OK^20
LCD Backlight GREEN
3
$FB 3^33
$OK^20
LCD Backlight YELLOW
4
$FB 4^34
$OK^20
LCD Backlight BLUE
5
$FB 5^35
$OK^20
LCD Backlight VIOLET
6
$FB 6^36
$OK^20
LCD Backlight TEAL
7
$FB 7^37
$OK^20
LCD Backlight WHITE
FD
$FD^26
$OK^20
Disable EVSE
FE
$FE^27
$OK^20
Enable EVSE
FP
text
$FP 0 0 Hello
World^32
$OK^20
Print Text to LCD
FR
$FR^30
$OK^20
Reset EVSE
FS
$FS^31
$OK^20
Sleep EVSE
Set Commands
Set commands change common firmware and behavior options such as setting the station
timers, Service Level and charge current.
Maximum Current
SC sets the stations maximum charge current and adjusts the pilot signal duty cycle advertised
to the vehicle. This setting can be adjusted dynamically as desired, the vehicle must comply.
The default action is to save new current capacity to EEPROM. If frequent changes are expected,
a V flag should be appended to the command to prevent the changed from being saved to
EEPROM.
Minimum and Maximum charge currents can compiled into firmware, for enhanced security
these cannot be modified over RAPI. Modification requires re-flashing firmware via an Inline
Serial Programmer (ISP). If the commanded setting is outside the defined range RAPI will
return $NK and the current setting.
If OpenEVSE is currently experiencing an over temperature event, raising current capacity will
fail and return $NK and the current setting.
Service Level
SL sets the Service level on the display and uses the current set in EEPROM. This should be set
based on the capabilities of the station and the input service.
For countries with single phase 220-240v power Service level should be set to L2.
11
Developers Guide
In the United states or other countries with split phase power 120 or 240v the service level can
be set to auto. OpenEVSE will detect power on each line and determine if the power is 120v or
240v.
Timers
ST will set standard Start (hour and minute) and Stop (hour and minute) timers. OpenEVSE will
sleep outside of the set time. Sleep can be overridden by pressing the button or sending the F1
command to simulate a button press. Once the Start time has occurred the station will wake and
begin charging if a vehicle is attached.
Session Limits
Limits can be defined for the current charging session based on time (charge for 2hours and 30
minutes) or energy added in kWh (add only 10kwh). S3 sets a time limit in 15 minute
increments. S3 10 would set the station to charge for 150 minutes (2 hours and 30 minutes). SH
sets the kwh limit. SH 10 will add a maximum of 10kwh to the vehicle.
Parameter
Parameter
RAPI + XOR
Description
S0
0
$S0 0^57
Set Display type Monochrome
1
$S0 1^56
Set Display type Color
S1
yr mo dy hr mn
sc
$S1 18 10 18 12 30
00
Set RTC clock 2018 Oct 18 12:30:00
S2
0
$S2 0^55
Read Ammeter only while charging
1
$S2 1^54
Read Ammeter in all states
S3
0 - 255
$S3 4^50
Session Limit x * 15 minutes
S4
0
$S4 0^53
Socket Unlock (IF enabled and Installed)
1
$S4 1^52
Socket Lock (IF enabled and Installed)
SA
scale
offset
$SA 182 0^3D
Current Measurement Calibration
SC
amps
$SC 24^12
Set Current and Save to EEPROM
V
$SC 24 V^64
Set current and DO NOT Save to EEPROM
SH
kwh
$SH 10^1E
Session Limit kwh (Ex stop after 10kwh)
SK
0
$SK 0^2C
Set Station kwh Total to 0
SL
1
$SL 1^2A
Service Level 1
2
$SL 2^29
Service Level 2
A
$SL A^5A
Autodetect Service level - US split phase
ST
starthr mn
endhr mn
$ST 0 0 0 0^23
Set Start and End Timers
Developers Guide
12
Get Commands
Get commands retrieve status the current state, settings and values of sensors.
Power and Energy
GG will get the current measured power output in milliamps. GU will get the Usage statistics
for the current session and total as calculated by the OpenEVSE controller.
Temperature
GP will get the temperatures from any installed temperature sensor is 10th of a degree C. Most
OpenEVSE Stations have just 1 sensor installed.
RAPI + ck
Response
Description
G0
$G0^53
$OK 0^30
Get EV connected State - Disconnected
$OK 1^31
Get EV connected State - Connected
$OK 2^32
Get EV connected State - Unknown
G3
$G3^50
$OK count
Get Session time limit count * 15 minutes
G4
$OK 0^30
Get Lock Status - Unlocked
$OK 1^30
Get Lock Status - Locked
GA
$GA^22
$OK scale offset
Get Ammeter Calibration Settings
GC
$GC^20
$OK minamp maxamp
Get controllers Min and Max Current
GD
$GD^27
$OK starthr min endhr mn
Get Charge Timer Start and End time
GE
$GE^26
$OK amp flags(hex)
Get Current and settings
GF
$GF^25
$OK gfi nognd stkrly
Get Fault Counters GFI Ground and Stuck Relay
GG
$GG^24
$OK milliamps -1
Get measured current in milliamps
GH
$GH^2B
$OK kwh
Get Session charge limit in kwh
GO
$GO^2C
$OK ambient ir
Get Overtemperature threshold 10th °C
GP
$GP^33
$OK ds3231 mpc9808 tmp7
Get Temperature from sensors -2560 = not installed
GS
$GS^30
$OK state elapsed
Get EVSE State and elapsed charge time
GT
$GT^37
$OK yr mo dy hr mn sc
Get Time Year Month Day Hour Minute Second
GU
$GU^36
$OK wattsec wtotal
Get Energy session watt seconds and total kwh
GV
$GV^35
$OK firmware protocol
Get EVSE firmware and protocol version
13
Developers Guide
Debugging
Feature
Parameter
RAPI + XOR
Response
Description
FF
D
0
$FF D 0^50
$OK^20
Feature Diode Check Disable
D
1
$FF D 1^51
$OK^20
Feature Diode Check Enable
E
0
$FF E 0^51
$OK^20
Feature Command Echo Disable
E
1
$FF E 1^50
$OK^20
Feature Command Echo Enable
F
0
$FF F 0^52
$OK^20
Feature GFI Self Test Disable
F
1
$FF F 1^53
$OK^20
Feature GFI Self Test Enable
G
0
$FF G 0^53
$OK^20
Feature GMI Disable
G
1
$FF G 1^52
$OK^20
Feature GMI Enable
R
0
$FF R 0^46
$OK^20
Feature Stuck Relay Test Disable
R
1
$FF R 1^47
$OK^20
Feature Stuck Relay Test Enable
T
0
$FF T 0^40
$OK^20
Feature Temperature Monitoring Disable
T
1
$FF T 1^41
$OK^20
Feature Temperature Monitoring Enable
V
0
$FF V 0^42
$OK^20
Feature Vent Required Check Disable
V
1
$FF V 1^43
$OK^20
FeatureVent Required Check Enable
T0
amp
$T0 75
$OK
Set Fake Charging Current
Z0
delay hold
Relay delay and hold PWM duty cycle
Z0 FOR TESTING RELAY_AUTO_PWM_PIN ONLY
Z0 closems holdpwm
closems(dec) = # ms to apply DC to relay pin
holdpwm(dec) = pwm duty cycle for relay hold 0-255
15
Developers Guide
Additional Resources
Online Solutions, Forums and Trouble Tickets
http://support.openevse.com
E-mail support@openevse.com
Online Guides
http://guides.openevse.com
Store
http://store.openevse.com
Website
http://www.openevse.com
Source Code - Firmware - Schematics, etc.
https://github.com/openevse
