Development Guide for NMF Ground applications
Page 2/18
Development Guide for NMF Ground applications
Date Issue Rev
Title
Issue
Author
Approved by
Reason for change
Issue
Revision
Date
Issue
Revision
Reason for change
Date
Pages
Paragraph(s)
Page 3/18
Development Guide for NMF Ground applications
Date Issue Rev
Table of contents:
1 INTRODUCTION ............................................................................................................................. 4
2 REFERENCES ................................................................................................................................. 4
2.1 Referenced Documents ...................................................................................................................................................... 4
3 NMF GROUND APPLICATIONS ...................................................................................................... 5
4 BUILD THE NANOSAT MO FRAMEWORK ...................................................................................... 5
5 DEVELOP AN NMF GROUND APPLICATION .................................................................................. 6
5.1 Creating a project ............................................................................................................................................................... 6
5.2 Initializing the Ground MO Adapter ................................................................................................................................. 7
5.3 Access to services’ consumer stubs ................................................................................................................................... 9
5.4 Easy retrieval of COM Events ............................................................................................................................................ 9
5.5 Monitor and Control integration ..................................................................................................................................... 10
5.5.1 Simple Commanding Interface ..................................................................................................................................... 10
5.5.2 Acquiring Parameter Values ........................................................................................................................................... 11
5.5.3 Listening to Alerts .......................................................................................................................................................... 12
5.5.4 Listening for Action execution stages ........................................................................................................................... 13
6 TESTING THE APPLICATION ........................................................................................................ 13
6.1 Test it using the Monolithic Provider .............................................................................................................................. 14
6.2 Test it using the Monolithic Provider .............................................................................................................................. 15
7 HANDS-ON ACTIVITIES ................................................................................................................ 15
7.1 Activity 1 ........................................................................................................................................................................... 15
7.2 Activity 2 ........................................................................................................................................................................... 15
8 FAQ ...............................................................................................................................................16
8.1 How to convert from a Java primitive data type to a MAL data type and vice versa? .................................................. 16
8.2 How to change the transport layer? ................................................................................................................................ 16
9 MAL ATTRIBUTE DATA TYPES ...................................................................................................... 17
Page 4/18
Development Guide for NMF Ground applications
Date Issue Rev
1 INTRODUCTION
This document explains how to develop a NMF Ground application using the NanoSat MO
Framework. The developer is welcomed to read the “Quick Start” guide before reading this
document.
This document was produced as part of the NanoSat MO Framework Software
Development Kit (SDK).
It is very important to always gather feedback from the developers in order to improve the
framework. For that reason, an area online was create where developers are encouraged to
report bugs, problems, suggest new ideas or improvements:
https://github.com/CesarCoelho/BUG_REPORTS_NANOSAT_MO_FRAMEWORK/issues
The NanoSat MO Framework is available online on GitHub under an open source licence.
Additionally, it will also be available on Maven Central in order to facilitate the project
dependencies resolution.
The NanoSat MO Framework implementation was developed in Java and as a minimum
requirement, Java version 6 is necessary in order to run the software.
The developer is suggested to use NetBeans IDE during the software development process.
2 REFERENCES
2.1 Referenced Documents
Ref.
Title
Code
Issue
Date
[RD1]
NanoSat MO Framework: Achieving On-board Software
Portability
<<To Be Defined>>
May 2016
[RD2]
CCSDS Mission Operations Services on OPS-SAT
IAA-B10-1301
April 2015
[RD2]
NanoSat MO Framework – Quick Start
Feb 2015
Page 5/18
Development Guide for NMF Ground applications
Date Issue Rev
3 NMF GROUND APPLICATIONS
An NMF Ground application is a ground software application designed to take advantage
of the NMF. From a technical point of view, it uses the Ground MO Adapter in order to
establish connections to a remote entity.
There are two main types of NMF Ground applications:
Generic Monitor and Control Systems
Dedicated to a specific NMF App
A Generic Monitor and Control System can connect to an NMF App and interact with the
services that are available in the framework.
An NMF Ground application dedicated to a specific NMF App can be developed in order to
have the specific behavior between the consumer and provider. An example would be an
automated set of operations with multiple conditions that allow the creation of advanced
procedures.
4 BUILD THE NANOSAT MO FRAMEWORK
The software development platform NetBeans is suggested to be used for software
development.
The NanoSat MO Framework Java implementation modules are available in Maven Central
and therefore it is not necessary to build them for developing a simple NMF App.
However it is still possible to build the whole NMF’s Java implementation by doing the
following steps:
1. In Netbeans, open the project: “NMF_POM”
2. Built the project: “NMF_POM”
3. In Netbeans, open the project: “NMF_CORE”
4. Built the project: “NMF_CORE”
NMF Apps use the implementation of the NanoSat MO Connector in order to connect to
the NanoSat MO Supervisor and also to be visible from ground. The NMF Apps source code
examples can now be built.
Page 6/18
Development Guide for NMF Ground applications
Date Issue Rev
5 DEVELOP AN NMF GROUND APPLICATION
5.1 Creating a project
The software development platform NetBeans is suggested to be used for the development
of NMF Ground applications. The SDK includes many source code examples in:
src/DEMO_PROJECTS_GROUND
A possible way of creating a project is by duplicating an already existing one from the
folder mentioned above. However, for the sake of completeness, the information below
explains the relevant information for creating a project without duplicating an already
existing one.
To create an NMF Ground applications, the GROUND_MO_ADAPTER needs to be added
as dependency.
For a mavenized project, this corresponds to adding the following code in the POM file of
the project:
<dependencies>
<dependency>
<groupId>int.esa.ccsds.mo</groupId>
<artifactId>GROUND_MO_ADAPTER</artifactId>
</dependency>
</dependencies>
Please notice that the snip above does not explicitly define the version of the Ground MO
Adapter. The reason is that the snip comes from a project that uses the NMF_POM as
parent POM:
<parent>
<groupId>int.esa.ccsds.mo</groupId>
<artifactId>NMF_POM</artifactId>
<version>1</version>
<relativePath/>
</parent>
After defining the dependency mentioned above, it is necessary to have the
consumer.properties file in the same folder where the execution of the application will take
place. Examples are present in source code demo folders mentioned on the first paragraph.
Please edit the following tags of the consumer.properties file:
a. helpertools.configurations.MOappName
b. helpertools.configurations.OrganizationName
c. helpertools.configurations.MissionName
d. helpertools.configurations.NetworkZone
e. helpertools.configurations.DeviceName
Page 7/18
Development Guide for NMF Ground applications
Date Issue Rev
An example of this file is presented below:
5.2 Initializing the Ground MO Adapter
The initialization of the Ground MO Adapter is done using the connection details from a
certain provider. Essentially there are 2 options:
1. Use a ProviderSummary object (Directory service)
2. Use a ConnectionConsumer object
Please notice that: The Ground MO Adapter does not exchange any actual information with
the provider upon initialization. The initialization only allocates on the consumer side, the
necessary resources for the connection with the provider.
Page 8/18
Development Guide for NMF Ground applications
Date Issue Rev
For the first case, the ProviderSummary object can be obtained from the lookupProvider
operation of the Directory service.
The Ground MO Adapter implementation includes a static method to do the lookup from
the Directory service: retrieveProvidersFromDirectory.
An example is presented below:
try {
ProviderSummaryList providers =
GroundMOAdapterImpl.retrieveProvidersFromDirectory(DIRECTORY_URI);
if (!providers.isEmpty()) {
// Connect to provider on index 0
GroundMOAdapterImpl gma = new GroundMOAdapterImpl(providers.get(0));
} else {
Logger.getLogger(Demo.class.getName()).log(Level.SEVERE,
"The returned list of providers is empty!");
}
} catch (MALException ex) {
Logger.getLogger(Demo.class.getName()).log(Level.SEVERE, null, ex);
} catch (MalformedURLException ex) {
Logger.getLogger(Demo.class.getName()).log(Level.SEVERE, null, ex);
} catch (MALInteractionException ex) {
Logger.getLogger(Demo.class.getName()).log(Level.SEVERE, null, ex);
}
For the second case, the ConnectionConsumer object can be obtained from a file. In order
to parse a file containing the connection details, the loadURIs method from the
ConnectionConsumer class can be used.
An example is presented below:
ConnectionConsumer connection = new ConnectionConsumer();
try {
connection.loadURIs();
} catch (MalformedURLException ex) {
Logger.getLogger(Demo.class.getName()).log(Level.SEVERE,
"The URIs could not be loaded.", ex);
}
GroundMOAdapterImpl moGroundAdapter = new GroundMOAdapterImpl(connection);
}
Page 9/18
Development Guide for NMF Ground applications
Date Issue Rev
5.3 Access to services’ consumer stubs
After initializing the Ground MO Adapter, it is possible to access all the services’ consumer
stubs.
The Ground MO Adapter includes getters for the 5 sets of services:
COM services
Common services
M&C services
Platform services
Software Management services
For example, to reach the Parameter service of the M&C services set:
ParameterConsumerServiceImpl parameterService =
gma.getMCServices().getParameterService();
5.4 Easy retrieval of COM Events
Receiving COM Events is done by registering on the Event service using the
monitorEventRegister method. The EventAdapter class that needs to be extended for this
method is confusing and prone to error because the different COM Object fields are passed
inside different fields of the published message.
To simplify the mechanism mentioned above, the Ground MO Adapter provides a simple
mechanism to receive COM Events from the Event service.
An example for receiving the events of the Event service with the simple mechanism:
gma.getCOMServices().getEventService().addEventReceivedListener(subscription,
new EventReceivedAdapter());
In the example above, the EventReceivedAdapter extends the EventReceivedListener class
and this is the adapter that will be called upon receiving a COM Event:
public class EventReceivedAdapter extends EventReceivedListener {
@Override
public void onDataReceived(EventCOMObject eventCOMObject) {
// Do something
}
}
Page 10/18
Development Guide for NMF Ground applications
Date Issue Rev
By selecting different subscription keys, it is possible to select which COM Events one is
going to receive. This is important because the subscription should always select exactly
what we want to receive in order to save bandwidth between the consumer and provider.
To subscribe to all COM Events (not recommended), it is possible to is use the
subscriptionWildcard method of the ConnectionConsumer class:
// Subscribe to all Events
final Subscription subscription = ConnectionConsumer.subscriptionWildcard();
It is always better to fine tune the subscription to receive the COM Events only from a
certain service. This can be done by using the generateSubscriptionCOMEvent method
from the HelperCOM class. The generateSubscriptionCOMEvent method takes an
ObjectType object as argument which contains 3 fields (area, service, version) that allow
the selection of the service that emitted the Event.
An example is presented below for a subscription that selects the Events generated from
the Apps Launcher service:
Subscription subscription = HelperCOM.generateSubscriptionCOMEvent(
"CloseAppEventListener",
AppsLauncherHelper.APP_OBJECT_TYPE);
In the example below, the object type of an App COM object was selected from the
AppsLauncherHelper class because the first 3 fields of the COM Object always match its
corresponding service.
5.5 Monitor and Control integration
This section covers the monitor and control functionalities provided by the NanoSat MO
Connector, this includes the simple commanding interface for parameters and actions,
acquisition of parameter values, listening for alerts and listening for the execution progress
of actions.
5.5.1 Simple Commanding Interface
The Simple Commanding Interface is implemented by the Ground MO Adapter and it
simplifies the commanding with a provider, specifically, setting parameters and invoking
actions.
The disadvantage of using this adapter is the loss of some functionality and the loss in the
ability to express specific MAL data types, for example, an ‘Identifier’ type.
Page 11/18
Development Guide for NMF Ground applications
Date Issue Rev
The “Set and Command” demo (which is available in folder:
DEMO_PROJECTS_GROUND\demo-ground-set_and_command\) includes an example
of these operations in use:
gma = new GroundMOAdapterImpl(connection);
// Set a parameter with a string value
String parameterValue = "The parameter was set!";
gma.setParameter("A_Parameter", parameterValue);
// Send a command with a Double argument
Double value = 1.35565;
Double[] values = new Double[1];
values[0] = value;
gma.invokeAction("An_Action", values);
Please notice: The “Hello World” demo application can be used for setting the parameter
and the “5 stages action” demo application can be used for invoking the “Go” action.
Although these operations facilitate the development of code, it is advised to use the
operations that exist directly in the M&C services interface in order to set parameters and
invoke actions.
5.5.2 Acquiring Parameter Values
There are 2 possible ways of acquiring parameters:
1. On Request
2. Receiving them asynchronously (and/or periodically)
The implementation code will be different depending on the chosen way. The Ground MO
Adapter supports both types but their implementation is different.
For the first case, acquiring a parameter value on request can be done using the getValue
operation of the Parameter service.
gma = new GroundMOAdapterImpl(connection);
ParameterStub parameterService =
gma.getMCServices().getParameterService().getParameterStub();
ParameterValueDetailsList paramValue = parameterService.getValue(paramInstIds);
For the second case, acquiring a parameter value when receiving them asynchronously can
be done using the monitorValue operation or using the simplified version available on the
Ground MO Adapter.
Page 12/18
Development Guide for NMF Ground applications
Date Issue Rev
The monitorValue operation can be used from:
gma = new GroundMOAdapterImpl(connection);
ParameterStub parameterService =
gma.getMCServices().getParameterService().getParameterStub();
parameterService.monitorValueRegister(subscription, adapter);
Where the adapter object would extend the ParameterAdapter class and override the
monitorValueNotifyReceived method. One example of such extension is present in the
ParameterPublishedValues class of the CTT application.
This method might be too complex for a complete Newbie therefore a simpler adapter was
created in order to facilitate the development. The SimpleDataReceivedListener class
includes one method to be overridden in order to receive the parameter values together
with their respective names.
One example is presented in the “Ground Zero” demo:
gma = new GroundMOAdapterImpl(connection);
gma.addDataReceivedListener(new DataReceivedAdapter());
Where the DataReceivedAdapter class extends the SimpleDataReceivedListener:
class DataReceivedAdapter extends SimpleDataReceivedListener {
@Override
public void onDataReceived(String parameterName, Serializable data) {
Logger.getLogger(DemoGround0.class.getName()).log(Level.INFO,
"\nParameter name: {0}" + "\n" + "Data content:\n{1}",
new Object[]{parameterName, data.toString()});
}
}
5.5.3 Listening to Alerts
The Alert service uses the Event service to publish its alerts.
This means that the procedures to listen to alerts are the same as presented in section 5.4.
The subscription object is presented below as example:
Subscription subscription = HelperCOM.generateSubscriptionCOMEvent(
"AlertEventListener",
AlertHelper.ALERTEVENT_OBJECT_TYPE);
The ‘10 seconds Alert’ demo can be used as provider in order to test the correct reception
and handling of the alerts on the consumer side.
Page 13/18
Development Guide for NMF Ground applications
Date Issue Rev
5.5.4 Listening for Action execution stages
The execution stages of the actions are published via the Activity Tracking service that uses
the COM Event service.
This means that the procedures to listen to the execution stages of the actions are the same
as presented in section 5.4.
The subscription object is presented below as example:
Subscription subscription = HelperCOM.generateSubscriptionCOMEvent(
"ActivityTrackingListener",
ActivityTrackingHelper.EXECUTION_OBJECT_TYPE);
The ‘5 stages Action’ demo can be used as provider in order to test the correct reception
and handling of the activity tracking events on the consumer side.
Please notice:
There is a difference between “progress stages” and “execution stages”. The execution
stages contain all the progress stages and 2 additional stages: initial stage and final stage.
The following table shows the relation between the “progress stages” and “execution
stages” for the “5 stages Action” demo:
initial
stage
progress stages
final
stage
1
2
3
4
5
1
2
3
4
5
6
7
execution stages
Please notice that if one checks the Execution COM object from the Event service, the
object body will only hold the “execution stage” of the action and not the “progress stage”
sent via the reportActionExecutionProgress method on the provider side.
6 TESTING THE APPLICATION
After the application is compiled, one can use the Playground environment which already
include a set of predeveloped NMF Apps and then connect to them.
Another option is to use the “Monolithic Provider” demo available in the src folder. This
application is connected to a simulator and allows data to be acquired.
Page 14/18
Development Guide for NMF Ground applications
Date Issue Rev
6.1 Test it using the Monolithic Provider
One can start the “NanoSat MO Supervisor” application by running the shortcut on the
following path:
(Windows machine) Playground\apps\NanoSat_MO_Supervisor\runSupervisor.bat
or:
(Linux machine) Playground/apps/NanoSat_MO_Supervisor/runSupervisor.sh
One can start the Consumer Test Tool by running the shortcut on the following path:
(Windows machine) CTT\runCTT.bat
or:
(Linux machine) CTT/runCTT.sh
One can now use CTT to connect to the NanoSat MO Supervisor and start the NMF Apps
that are available. This is done by going to the Apps Launcher tab, select the application to
be started and pressing runApp:

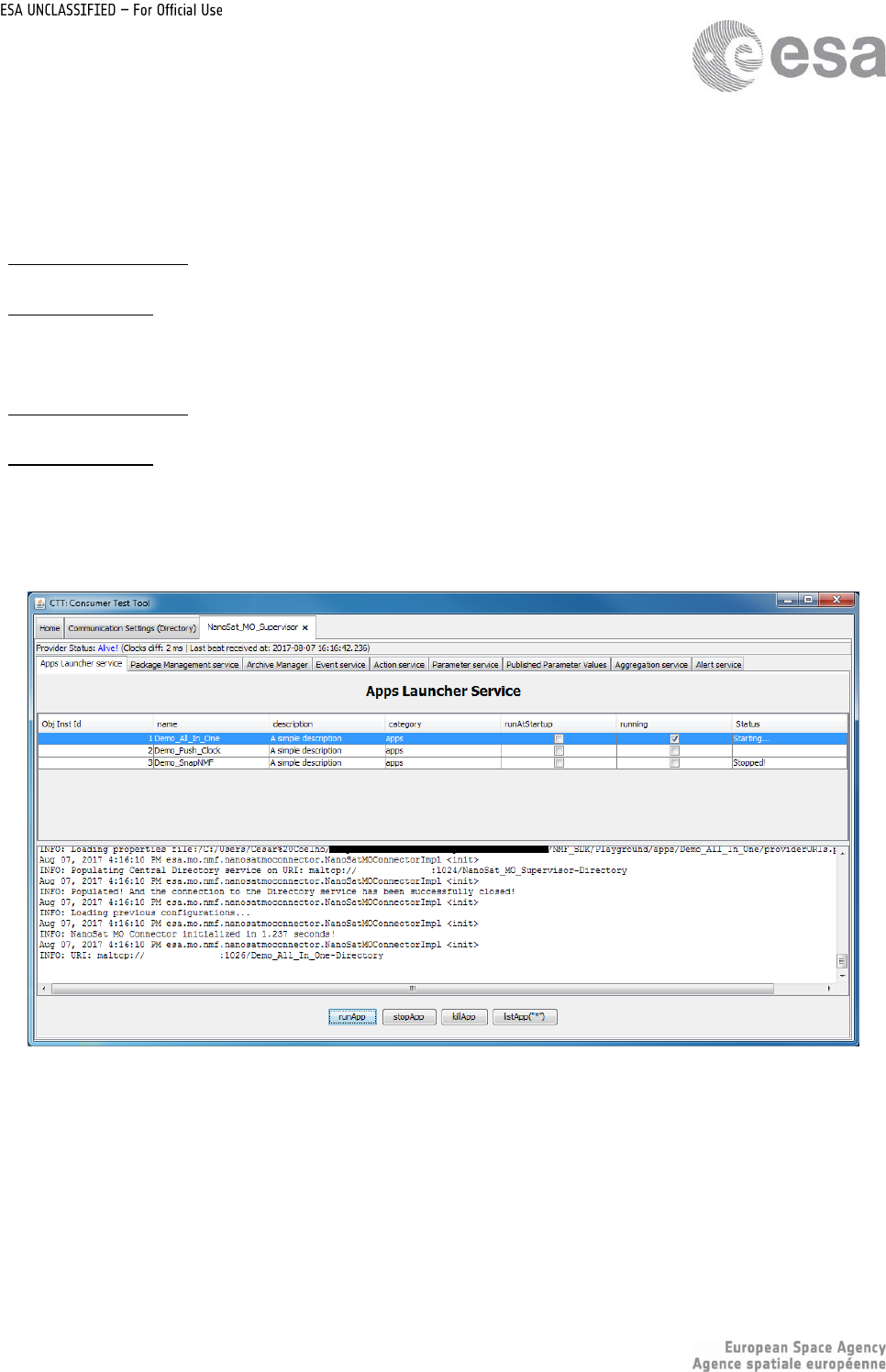

Figure 1: Apps Launcher service from the NanoSat MO Supervisor
After initializing the NMF App to be used for the testing, one can start the NMF Ground
application that connects to it.
It is possible to change the behavior of the simulation by using the Software Simulator
client tool available on the Software_Simulator_Client folder.
Page 15/18
Development Guide for NMF Ground applications
Date Issue Rev
6.2 Test it using the Monolithic Provider
For using the “Monolithic Provider” demo, the developer must compile the project in the
src folder and run the bat or sh script available.
It is possible to change the behavior of the simulation by using the Software Simulator
client tool available on the Software_Simulator_Client folder.
7 HANDS-ON ACTIVITIES
7.1 Activity 1
Create a project named: activity1
Write a small application that connects to the Hello World App and sets the string “This is
my first NMF Ground application!” to the parameter: “A_Parameter”.
Execute the application and use CTT to double check that the parameter was set correctly.
7.2 Activity 2
Create a project named: activity2
Write a small application that listens to the execution stages and prints them on the screen
after the action “Go” is called from the “5 stages Action” demo.
Page 16/18
Development Guide for NMF Ground applications
Date Issue Rev
8 FAQ
8.1 How to convert from a Java primitive data type to a MAL
data type and vice versa?
The “MO Helper Tools” comes with the NanoSat MO Framework and it is a toolbox that
facilitates many of the common functionalities needed during the development of MO-
related software.
In the class esa.mo.helpertools.helpers.HelperAttributes there are two methods:
To convert from Java primitive data type to a MAL data type:
public static Object javaType2Attribute(Object obj);
To convert from MAL data type to a Java primitive data type:
public static Object attribute2JavaType(Object obj);
8.2 How to change the transport layer?
Add a transport.properties file in the NMF App folder with the desired transport. Then,
change the provider.properties file to point to this new file:
# NanoSat MO Framework transport configuration
helpertools.configurations.provider.transportfilepath=transport.properties
Page 17/18
Development Guide for NMF Ground applications
Date Issue Rev
9 MAL ATTRIBUTE DATA TYPES
Please notice that there are static methods already available: javaType2Attribute and
attribute2JavaType in the esa.mo.helpertools.helpers.HelperAttributes class in order to
convert from and to Java primitive data types. However, if the developer intends to use the
MAL-specific data types, this section will aid that process.
To create a new MAL Attribute data type, the process is straightforward for most of the
Attributes, for example:
new Identifier("TheIdentifierString");
Please notice that the MAL Attributes containing an already existing name like the java
primitive type, need an extra encapsulation in order to become MAL data types. The
“Union” type must be used for: Boolean, Integer, Long, String, Double, Float, Byte, Short.
These are marked with a red asterisk * in the table.
Java primitive Integer type must be wrapped into a MAL Union type:
new Union((Integer) obj);
MAL Attributes
Name
Short
Form Part
Description
Blob
1
The Blob structure is used to store binary object attributes. It is a
variable-length, unbounded, octet array. The distinction
between this type and a list of Octet attributes is that this type
may allow language mappings and encodings to use more
efficient or appropriate representations.
Boolean*
2
The Boolean structure is used to store Boolean attributes.
Possible values are ‘True’ or ‘False’.
Duration
3
The Duration structure is used to store Duration attributes. It
represents a length of time in seconds. It may contain a
fractional component.
Float*
4
The Float structure is used to store floating point attributes
using the IEEE 754 32-bit range. Three special values exist for
this type: POSITIVE_INFINITY, NEGATIVE_INFINITY, and
NaN (Not A Number).
Double*
5
The Double structure is used to store floating point attributes
using the IEEE 754 64-bit range. Three special values exist for
this type: POSITIVE_INFINITY, NEGATIVE_INFINITY, and
NaN (Not A Number).
Identifier
6
The Identifier structure is used to store an identifier and can be
used for indexing. It is a variable-length, unbounded, Unicode
string.
Page 18/18
Development Guide for NMF Ground applications
Date Issue Rev
Octet
7
The Octet structure is used to store 8-bit signed attributes. The
permitted range is -128 to 127.
UOctet
8
The UOctet structure is used to store 8-bit unsigned attributes.
The permitted range is 0 to 255.
Short*
9
The Short structure is used to store 16-bit signed attributes. The
permitted range is -32768 to 32767.
UShort
10
The UShort structure is used to store 16-bit unsigned attributes.
The permitted range is 0 to 65535.
Integer*
11
The Integer structure is used to store 32-bit signed attributes.
The permitted range is -2147483648 to 2147483647.
UInteger
12
The UInteger structure is used to store 32-bit unsigned
attributes. The permitted range is 0 to 4294967295.
Long*
13
The Long structure is used to store 64-bit signed attributes. The
permitted range is -9223372036854775808 to
9223372036854775807.
ULong
14
The ULong structure is used to store 64-bit unsigned attributes.
The permitted range is 0 to 18446744073709551615.
String*
15
The String structure is used to store String attributes. It is a
variable-length, unbounded, Unicode string.
Time
16
The Time structure is used to store absolute time attributes. It
represents an absolute date and time to millisecond resolution.
FineTime
17
The FineTime structure is used to store high-resolution absolute
time attributes. It represents an absolute date and time to
picosecond resolution.
URI
18
The URI structure is used to store URI addresses. It is a
variable-length, unbounded, Unicode string.

Navigation menu
