ALLEN & HEATH Ltd.
KERNICK INDUSTRIAL ESTATE
PENRYN CORNWALL TR10 9LU
TEL 01326 372070
DRAWING

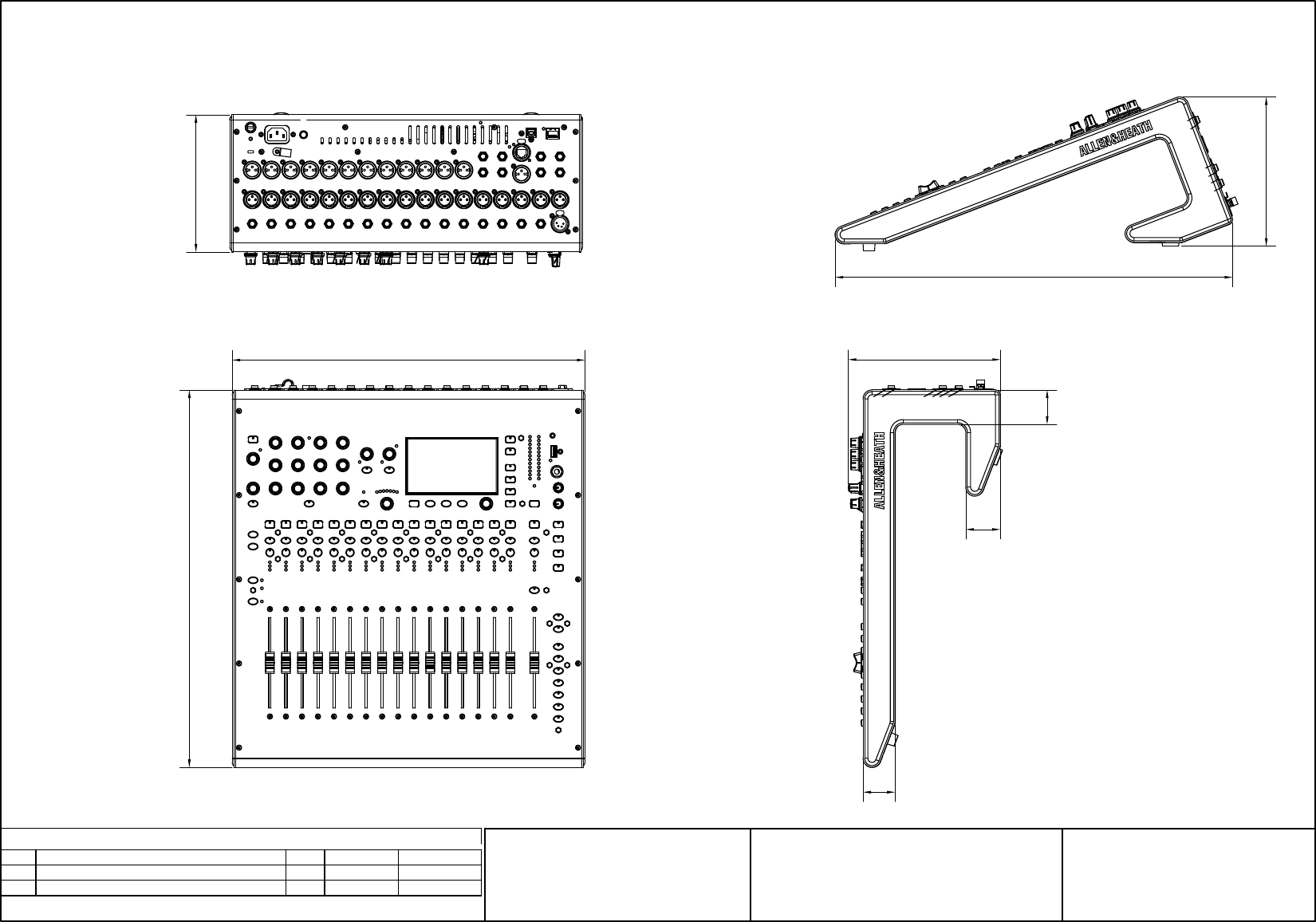

Qu-16 DIMENSIONS AND WEIGHTS
REVISION HISTORY
REV DESCRIPTION DATE APPROVED
A 07/11/2013 NM
WEIGHT UNPACKED = 10Kg / 22Lbs
WEIGHT PACKED = 13.5Kg / 30Lbs
BOX DIMS = 605mm X 675mm X 340mm
190
43
43
40
496
186
D 18/06/2014 CD
ORIGIN
171
440
471
