ZISB420DM – GE Monogram 42" Built-In Refrigerator
with Dispenser and Water Filter
41-1/2
7"
5"
Electrical
Area
84 1/2" max
83 1/2" min
Finished
Opening 74" From Floor
to Bottom
of Electrical
24"
5" 5" 3 1/2"
Water Supply
3 1/2"
42" Models 18"
THE INSTALLATION SPACE
19"
13"
23-7/8"
Behind
Frame
26-5/8"
130° Door Swing 90° Door Swing

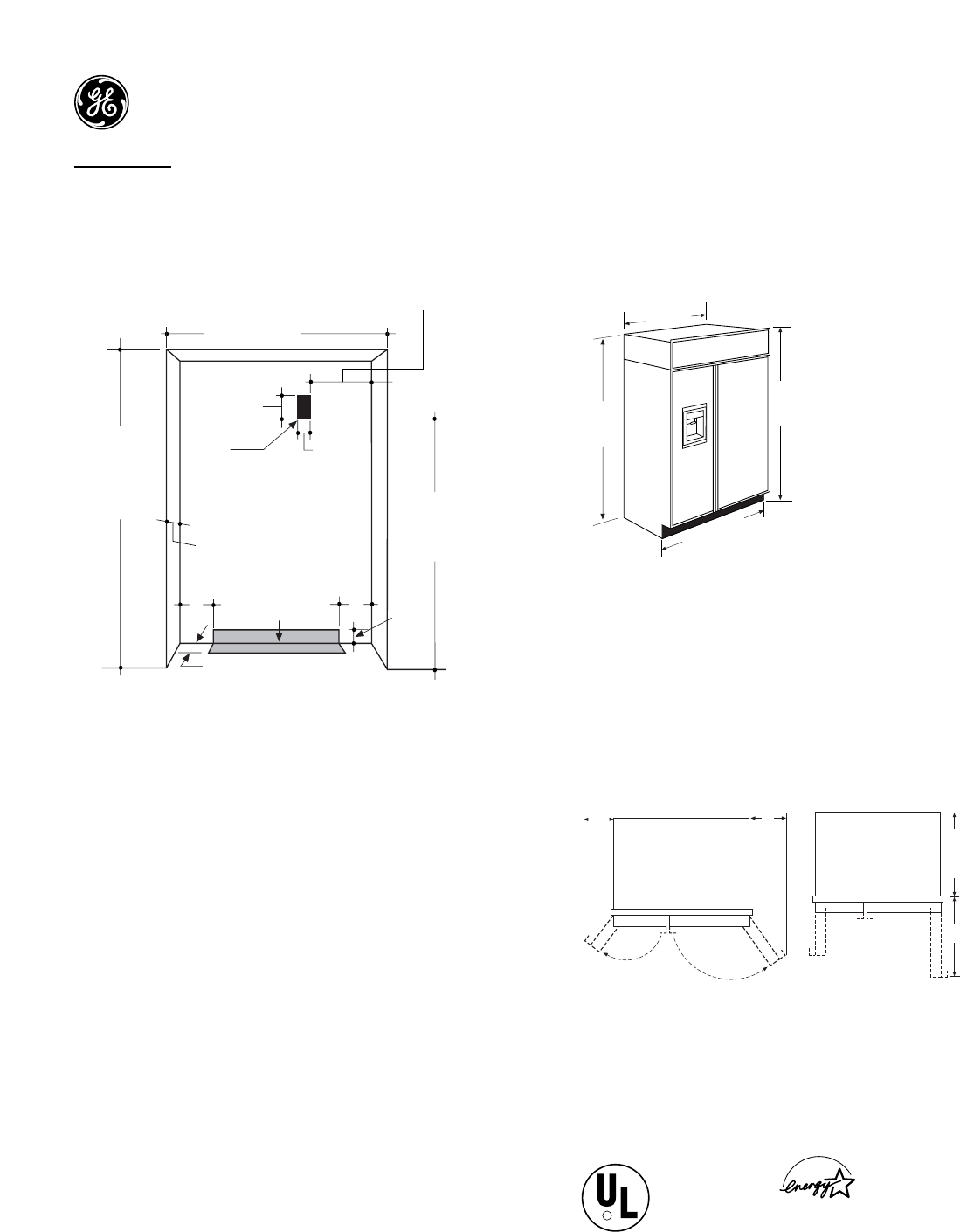

Water And Electrical Locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24".
Designed for industry standard flush installation. The refrigerator
will project forward, slightly beyond adjacent cabinetry, depending
on your installation.
The cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed
the 24" installation depth shown. The top case trim overlaps
the bottom of the soffit.
Frameless cabinets:
The case trim overlaps cabinets at the top and sides.
Therefore, frameless cabinets may require filler strips to
prevent interference with cabinet door swing. The opening
must allow for filler strips.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or back wall.
The water line should be 1/4" O.D. copper tubing between
the cold water line and water connection location, long
enough to extend to the front of the refrigerator. Installation
of an easily accessible shut off valve in the water line
is recommended.
*84" From
Floor to
Top Frame
42"
Frame to Frame
41"
Case Width
*83-1/2"
at
Rear
*Shipping height.
The refrigerator
can be adjusted to fit
into a cutout that is
83-1/2" min. to 84-1/2"
max. height. Note
that the top case
trim at the front is
1/2" higher and will
overlap upper
cabinetry or soffit.
Use leveling legs
and wheels for
height adjustment.
As an ENERGY STAR
®
Partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
Product Clearances
These refrigerators are equipped with a 2 position door stop.
The factory set 130° door swing can be adjusted to 90° if
clearance to adjacent cabinets or walls is restricted.
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
4" minimum clearance is required when door swing is adjusted
to 90°. If the 90° door stop position is used, pan access is
maintained, but pan removal is restricted.
For answers to your Monogram,
® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Monogram.
™
ZISB420DM – GE Monogram 42" Built-In Refrigerator
with Dispenser and Water Filter

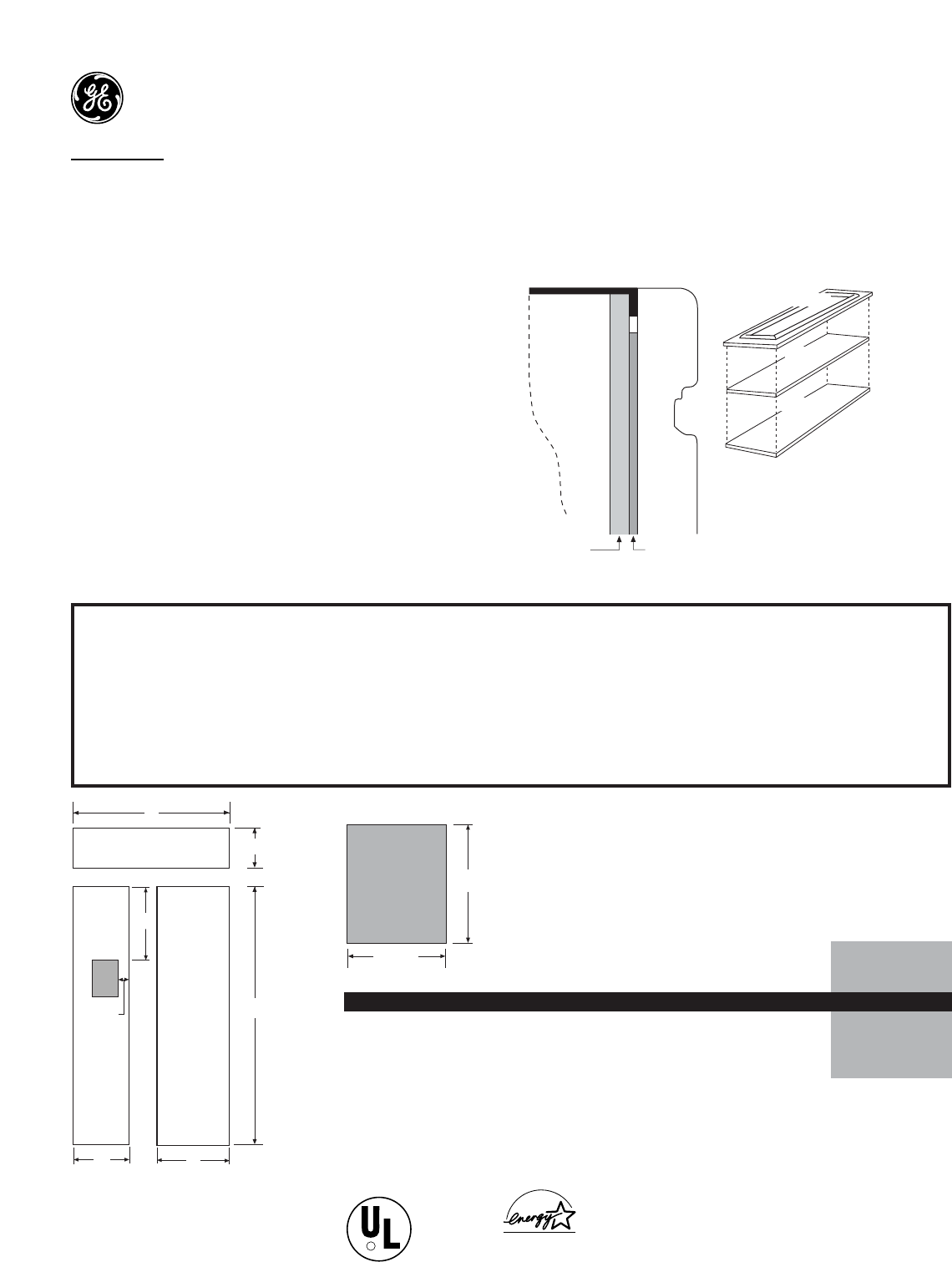

1/4" FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they must
be cut to the dimensions shown. The panels will
slide into the frame on the door and grille.
If the custom panel is less than 1/4" thick and it
fits loosely in the door frame it can be backed up
with a piece of filler material or foam tape to
improve the fit.
IMPORTANT NOTE: Maximum weight for fresh food panel is
50 pounds and 30 pounds for freezer panel.
IMPORTANT NOTE – Dispenser Models
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
• If the panel is less than 0.250" thick a noticeable gap
may be created around the dispenser trim. Foam
tape may be applied on the door to improve the fit.
• If the panel is more than 0.250" thick, the dispenser
trim cannot be secured to the door.
Fresh Food
Panel
Freezer
Panel
24-9/16
14-9/16
17-13/16
3-1/8
39-7/8
9-1/2
Grille Panel
68-3/8
Dispenser
Cutout
9-5/8"
Dispenser Cutout
15-3/8"
The framed panel
must be 1/4" nominal
thickness to fit the
dispenser trim.
SIDE PANELS
Side panels must be used whenever
the sides of the refrigerator will be
exposed. The 1/4" side panels will
slip into the side case trim. Order
the side panels from the cabinet
manufacturer.
* Depending on installation height.
*84"
2-9/16"
24"
*3" to 4"
As an ENERGY STAR
®
Partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
For answers to your Monogram,
® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Specification Revised 8/03
110170
Monogram.
™
ZISB420DM – GE Monogram 42" Built-In Refrigerator
with Dispenser and Water Filter
3/4" OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may
be installed on trimmed models. The overlay panel
must be secured to a 1/4" thick backer panel which
slides into the trim. A spacer panel 0.10" thick must
be placed between the overlay and backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to
right and top to bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay
panel and secure with glue and screws. Screws
must be countersunk into the backer panel.
3/4"
Overlay
Panel
1/4"
Backer
Panel
Door
.10"
Spacer
Spacer Panel
Overlay Panel
Backer Panel
.250" + .10" + .750" = 1.100" Total Panel Thickness
NOTE: Left-to-right offset
is not always equal to
top-to-bottom offset.
IMPORTANT NOTE – Dispenser Models
The refrigerator is supplied with two dispenser trims, one
for framed panels and one for overlay panels. The overlay
dispenser trim is designed to fit a total panel thickness
of 1.100".
• If the panel is less than 1.100" a noticeable gap may be
created around the dispenser trim.
• If the panel is more than 1.100" the dispenser trim cannot
be secured to the door.
• The overlay panel must be constructed according to the
specifications shown to achieve the correct total thickness.
• Alternative panel construction methods such as securing a
3/4" panel to a 1/4" backer panel cannot be used. Another
method, routing a 3/4" thick panel on all sides cannot be
used. These methods will not result in the required 1.100"
panel thickness.
Fresh Food
Panel
Freezer
Panel
E
D
F
G
A
B
Grille Panel
C
Dispenser
Cutout
9-5/8"
Dispenser Cutout
15-3/8"
ABCD EF G
1/4” Backer Panel 39-7/8 9-1/2 68-3/8 14-9/16 24-9/16
.10” Spacer Panel 39 8-5/8 67 13-1/4 23-1/4
3/4" Overlay Panel 40-1/8 9-3/4 68-5/8 14-13/16 24-13/16 17-15/16 3-1/8
*Dispenser
Cutout Position
*Cut the dispenser opening after the backer, spacer and
overlay panels have been assembled.
IMPORTANT NOTE: Maximum total weight for assembled fresh
food panel is 50 pounds and 30 pounds for freezer panel.
As an ENERGY STAR
®
Partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
For answers to your Monogram,
® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Specification Revised 8/03
110170
Monogram.
™
ZISB420DM – GE Monogram 42" Built-In Refrigerator
with Dispenser and Water Filter

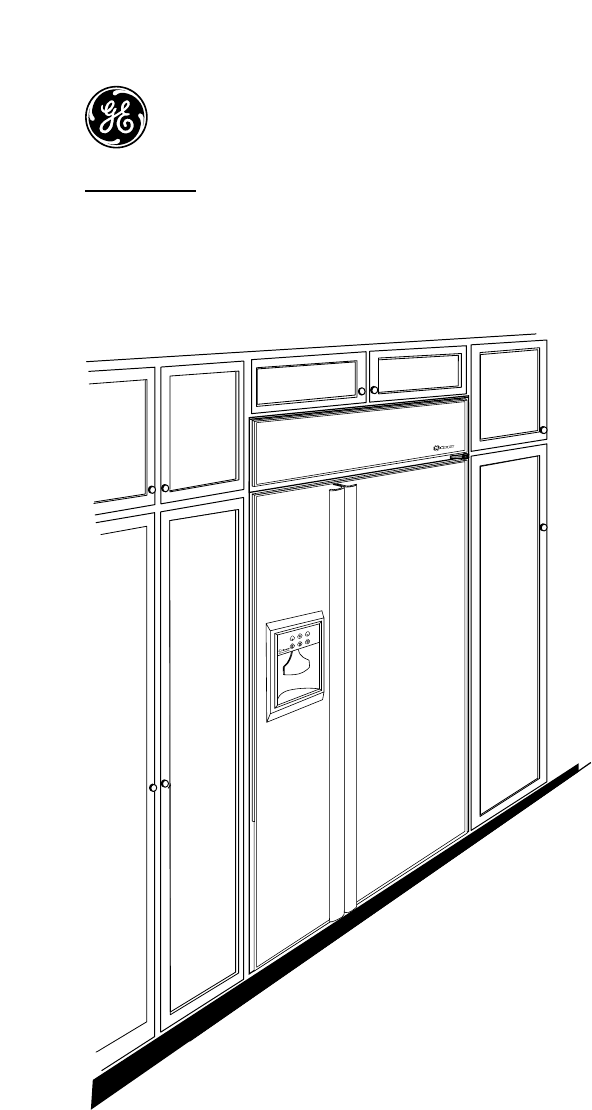

Framed panels
You may install 1/4" thick custom panels from your cabinet
manufacturer. The decorative panel slides into the factory
installed trim. Or, order black, white and stainless steel
accessory panels from your Monogram dealer.
Framed Panel Standard Door Handles
Door Handles
The standard supplied handles can be adjusted to accommodate
both framed or overlay panels. Custom handles of your choice,
supplied by your cabinet maker can also be installed. If desired,
you may order ZKHSS2 Monogram stainless steel tubular
handle kit.
Optional Accessory Kits
ZKHSS2: Monogram Tubular Stainless Steel handles designed
to fit overlay panels.
Accessory Panels
White, black and stainless steel accessory panels are available
from your Monogram dealer. Panels are cut to size and ready
to install.
Overlay panels
You may also choose to install custom overlay panels from
your cabinet manufacturer. This design provides a seamless
appearance which integrates smoothly with surrounding cabinetry.
Standard Door Handles
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
Side Panels
Side panels must be used whenever the sides of the refrigerator
will be exposed.
Models White Black Stainless
Acrylic Acrylic Steel
ZISW480D ZPW480D ZPS480D
ZISB480D ZPB480D ZPS480D
ZIS480N ZPW480N ZPB480N ZPS480N
ZISW420D ZPW420D ZPS420D
ZISB420D ZPB420D ZPS420D
ZIS420N ZPW420N ZPB420N ZPS420N
ZISW360D ZPW360D ZPS360D
ZISB360D ZPB360D ZPS360D
ZIS360N ZPW360N ZPB360N ZPS360N
Standard supplied handles shown in 1/4" panel position. Standard supplied handles shown in 3/4" overlay panel position.
Specification Revised 8/03
110170
As an ENERGY STAR
®
Partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
For answers to your Monogram,
® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Monogram.
™
ZISB420DM – GE Monogram 42" Built-In Refrigerator
with Dispenser and Water Filter

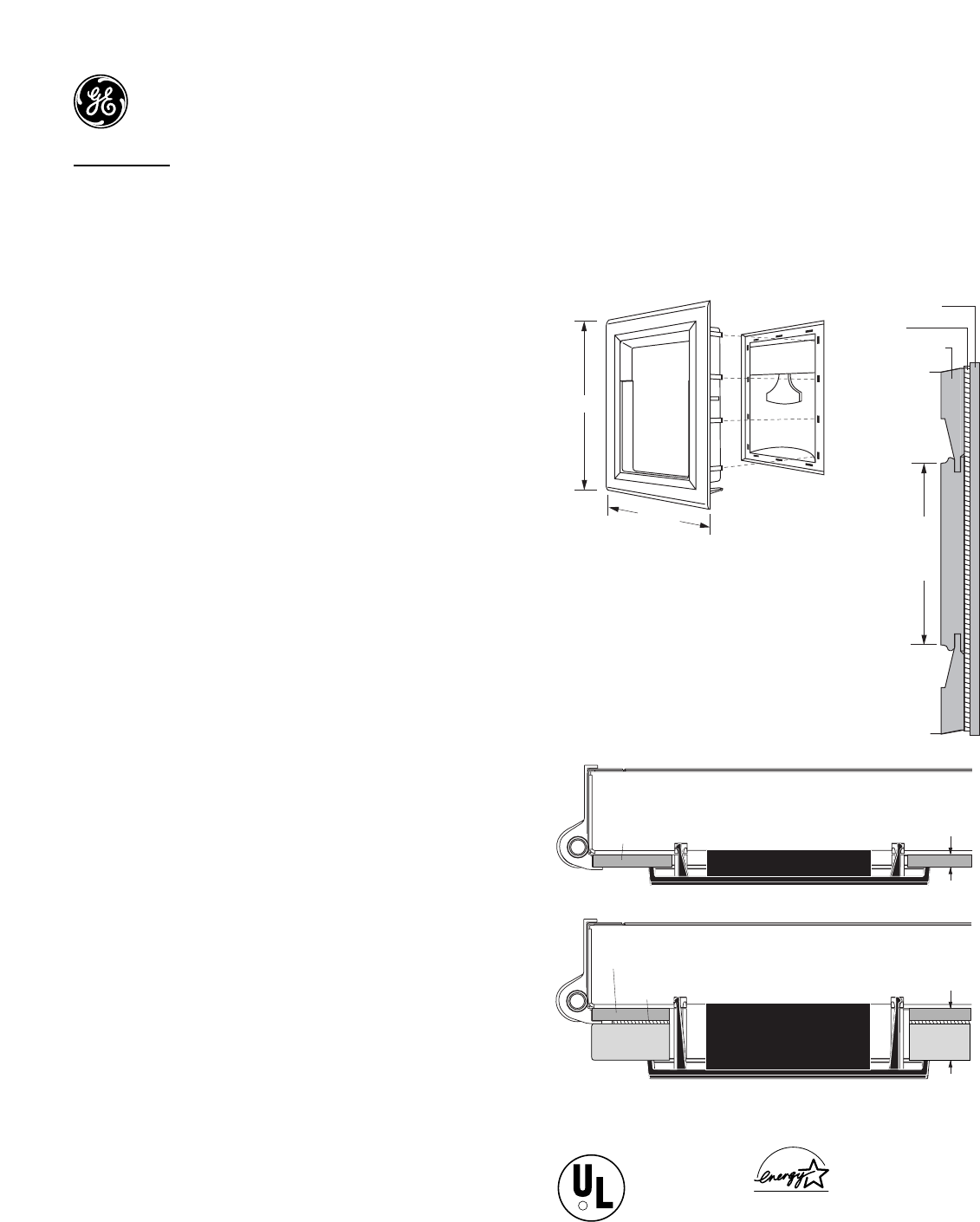

DISPENSER MODELS:
RAISED OVERLAY PANEL DESIGN
When a raised panel design is to be used, a
custom wide middle rail is required to accept
the dispenser trim.
• The middle rail must be wide enough to allow
for the dispenser trim to overlap the opening.
• The middle rail must be 1.100" total thickness
to accept the dispenser trim.
1/4" Backer Panel
.10" Spacer
3/4" Overlay Panel
Wide
Middle
Rail is
Required
1/4" FRAMED PANEL
• The dispenser trim fits over the custom panel and
snaps into the freezer door.
• The clips will not engage the door if the panel is more
than 0.250" thick.
• If the panel is less than 0.250" thick, a noticeable gap
may be created around the dispenser trim.
3/4" OVERLAY PANEL
• The dispenser trim fits over the custom panel and
snaps into the freezer door.
• The clips will not engage the door if the panel is more
than 1.100" thick.
• If the panel is less than 1.100" thick, a noticeable gap
may be created around the dispenser trim.
Dispenser
Trim
16-3/4"
10-5/8"
DISPENSER TRIM FIT EXAMPLES:
(NOT TO SCALE)
1/4"
Framed
Panel
1/4" Backer Panel
.10" Spacer
Panel
1/4" Dispenser Trim
3/4" Overlay Dispenser Trim
3/4" Overlay
Panel
FREEZER DOOR
FREEZER DOOR
0.250"
Thick
1.100"
Total Thickness
Ice / Water Dispenser
Ice / Water Dispenser
As an ENERGY STAR
®
Partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
For answers to your Monogram,
® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Specification Revised 8/03
110170
Specification Revised 8/03
110170
Monogram.
™
CONTROL
LOCK
DOOR
ALARM
Features and Benefits
•ENERGY STAR®Qualified
•26.1 cu. ft. Capacity (Fresh Food 16.3 cu. ft./
Freezer 9.8 cu. ft.)
•Exterior Proximity Sensor Dispenser with Cubes,
Crushed Ice and Chilled Water
•GE SmartWater™Filtration System
•Climate Control Drawer with Express Chill,
Express Thaw and Select Temp
•Sealed Adjustable Humidity Produce Pan with
Easy Access Lid and Full Extension Slides
•Sealed High Humidity Produce Pan with
Full Extension Slides
•Adjustable Sealed Deli Pan with Full Extension Slides
• 3 Adjustable, 1 Fixed Spill-Proof Glass
Fresh Food Shelves
•Gallon Door Storage
•4 Adjustable Door Bins
•2 Sealed Dairy Compartments
•Wine Caddy
•Glass-Covered Butter Dish
•Freezer Multi-Shelf Halogen Light Tower
•4 Adjustable Wire Freezer Shelves
•2 Utility Baskets with Full Extension Slides
•3 Adjustable Freezer Door Bins
•Slide-Out Can Rack
•Automatic Icemaker
•Removable Ice Storage Bin
• Model ZISW420DM – White Dispenser
• Model ZISB420DM – Black Dispenser
ZISB420DM – GE Monogram 42" Built-In Refrigerator
with Dispenser and Water Filter

Navigation menu
