GE Profile™and GE®

Clothes Care

• first washer that communicates with the drye• remarkable efficiency • better clothes care • 2004 product specifications

Presenting the largest capacity pair available.

GEAppliances.com 3

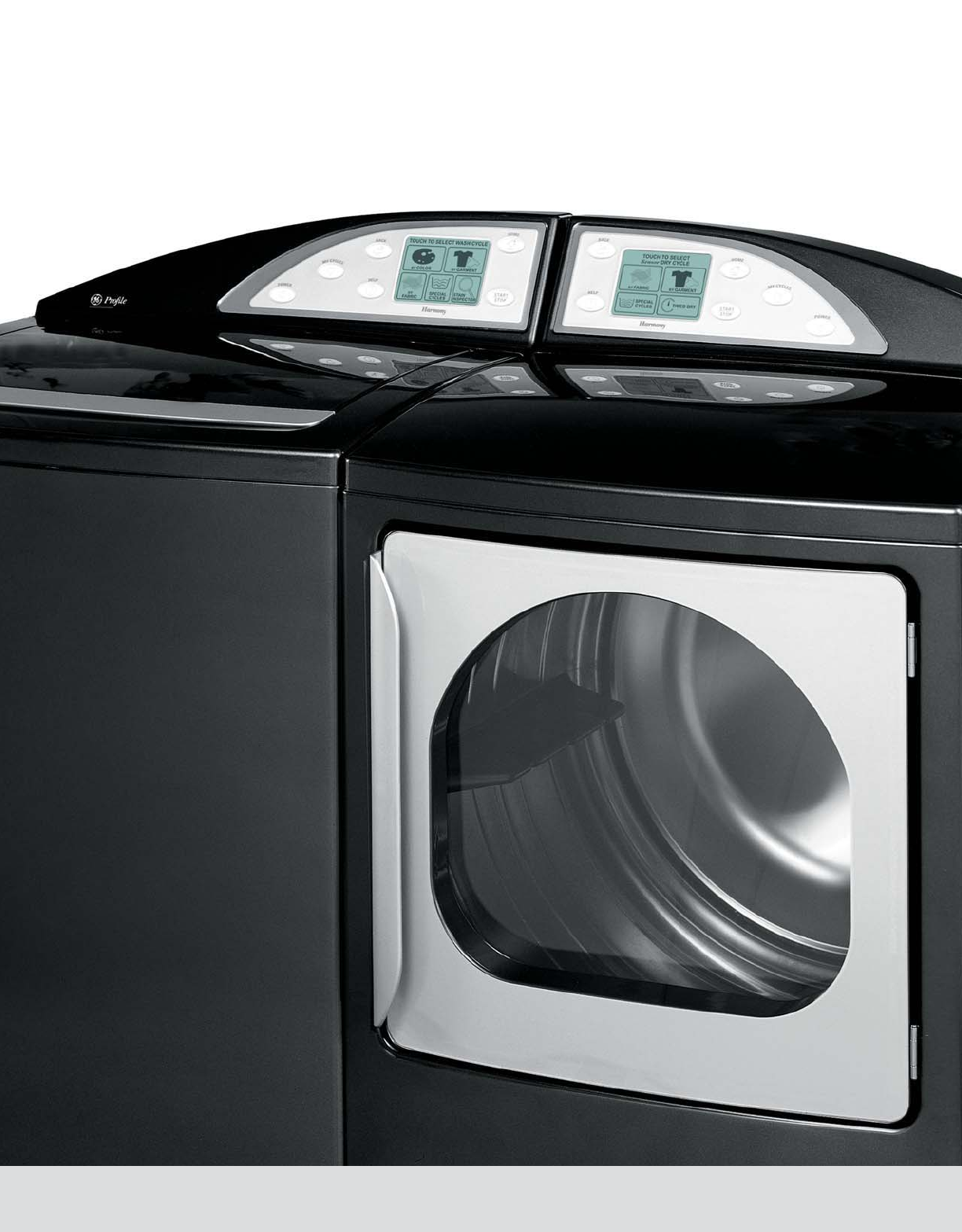

The new GE Profile Harmony™clothes care system has

frontload wash performance with topload convenience.

The HydroWash™system provides thorough, yet gentle,

cleaning action. And the DuoDry™system delivers

unmatched drying performance. What’s more, with

spacious stainless steel interiors, the Harmony

clothes care system is the largest capacity pair

available. There’s simply nothing quite like it.

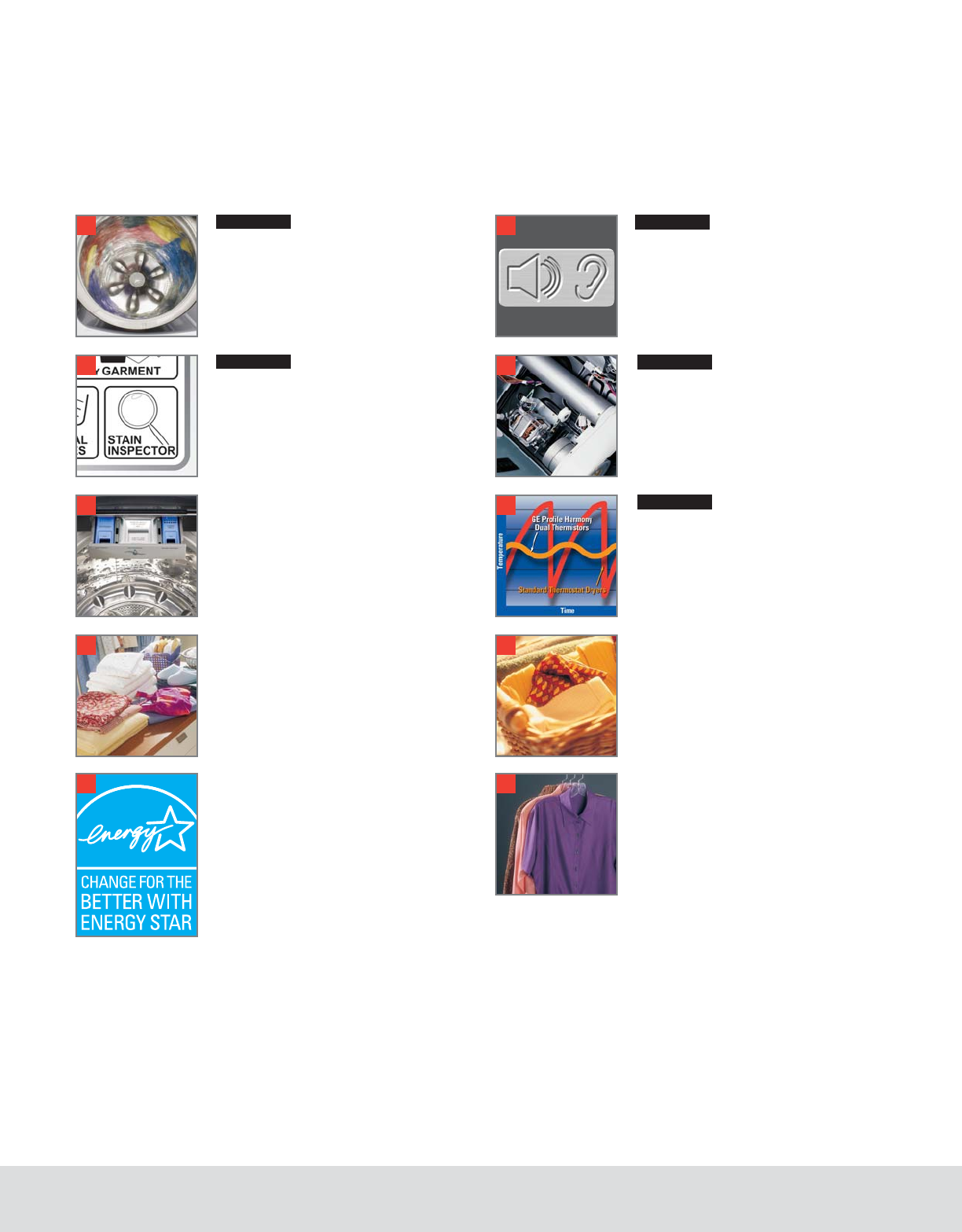

Feature Gallery

Models shown WPGT9350CPL/DPGT750EC/GCPL

Models can easily be reversed.

GEAppliances.com

Not all features available on all models. 5

Communication

The washer communicates

electronically with the dryer, which

then presets dry cycles for better

clothes care, increased time savings

and greater convenience.

DuoDry™system

Uses dual motors and dual thermistors

to quickly and consistently dry clothes.

It’s the fastest premium dryer you

can buy.

Only GE has it!

Stain Inspector™system

Treats more than 65 common stains,

from grass stains to grease. It’s the

best stain removal system available.*

*Based on a number of stains treated with automatic

settings matching soil, fabric type and garment color.

Dual electronic thermistors

Continually monitor air temperatures

to provide even heat for optimal drying

performance. And a variable heater

delivers constant heat, eliminating

extreme temperature changes.

2 7

Washer features Dryer features

HydroWash™System

Achieves frontload wash performance

with topload convenience. It gently

and thoroughly cleans almost all types

of clothes, without agitation.

ENERGY STAR®-qualified

As and ENERGY STAR partner, GE

has determined that the appliances

marked with the ENERGY STAR logo

meet the ENERGY STAR guidelines

for energy efficiency.

Flow-thru™dispenser system

Releases the cleaning solution, fabric

softener, additives and bleach at just

the right time to improve performance

and save you time.

4.0 cu. ft.** King-size

stainless steel basket

Makes room for more items which

means less time doing the laundry.

Only GE has it!

Only GE has it! Only GE has it!

Only GE has it!

Adaptive cool-down

Warm air is gradually exhausted

from the drum while clothes are

gently tumbled with cool air to

reduce wrinkling.

King-size stainless steel drum

Handles king-size items and

family-size loads, which means

fewer loads per week.

**Washes equivalent amount of clothes as 4.0 cu. ft. agitator machine, per IEC ratios.

Bold = feature upgrade from previous model. *Washes equivalent amount of clothes as 4.0 cu. ft. agitator machine per IEC ratios.

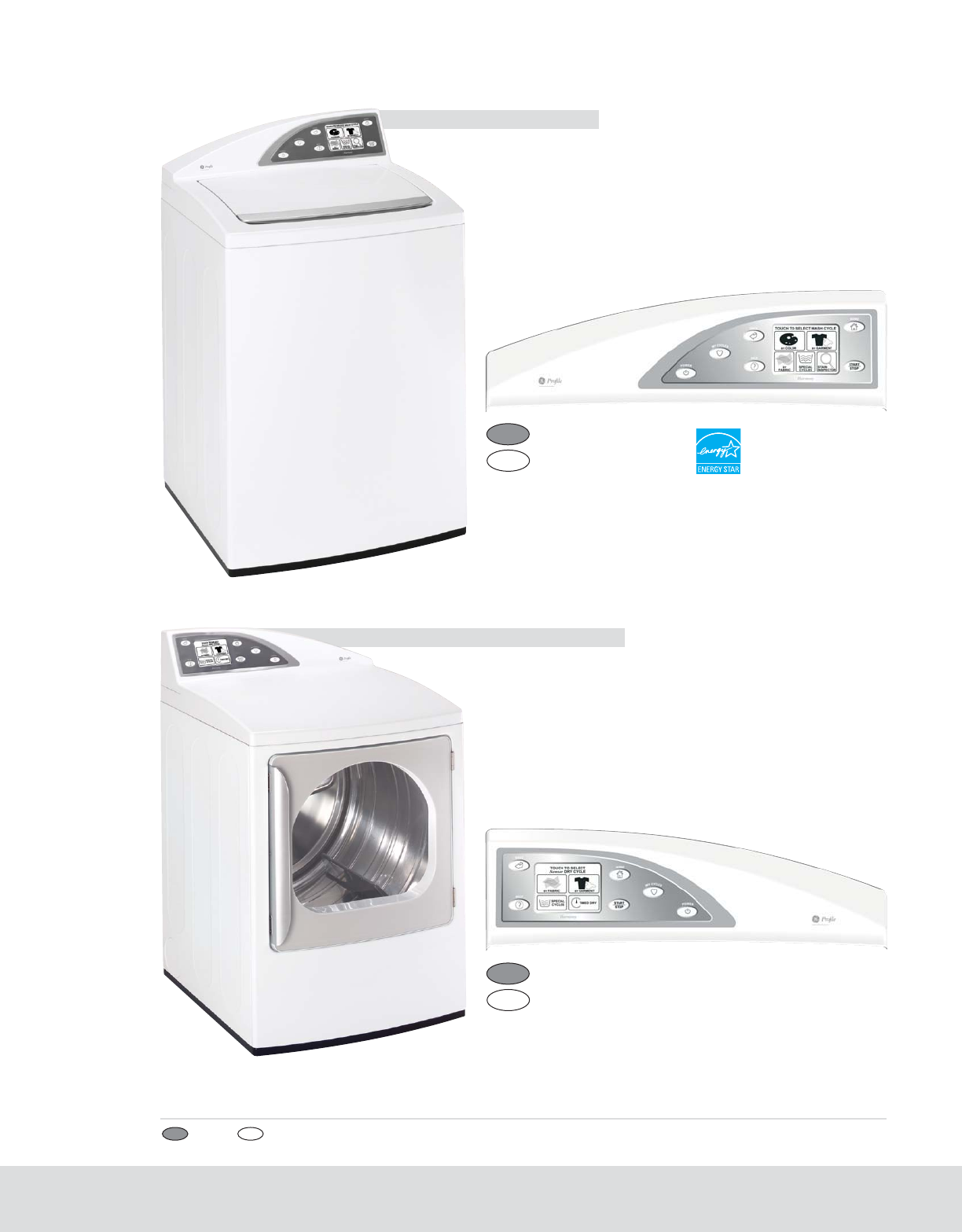

Clothes Care System

Platinum White

WPGT9350C

GE Profile Harmony™4.0 cu. ft.*

King-Size Capacity Washer

• Full electronic controls with touchscreen

• Direct-drive motor with adaptive spin speed combinations

• HydroWash™system with Infusor™

• Flow-Thru™dispensing system

• Stain Inspector™system

• Stainless steel basket

• Adaptive water levels

• 1010-RPM spin speed

WPGT9350CPL

WPGT9350CWW

DPGT750EC/GC

GE Profile Harmony 7.3 cu. ft.

King-Size Capacity Dryer

• Full electronic controls with touchscreen

• DuoDry™System

• Delicate Cycle with extra-low heat setting

• Stainless steel drum

• 5 heat selections

• Adaptive cool-down

• Wrinkle care extended tumble

•Venting capability of up to 150 ft. of equivalent ducting

DPGT750ECPL (Electric)

DPGT750GCPL (Gas)

DPGT750ECWW (Electric)

DPGT750GCWW (Gas)

GEAppliances.com 7

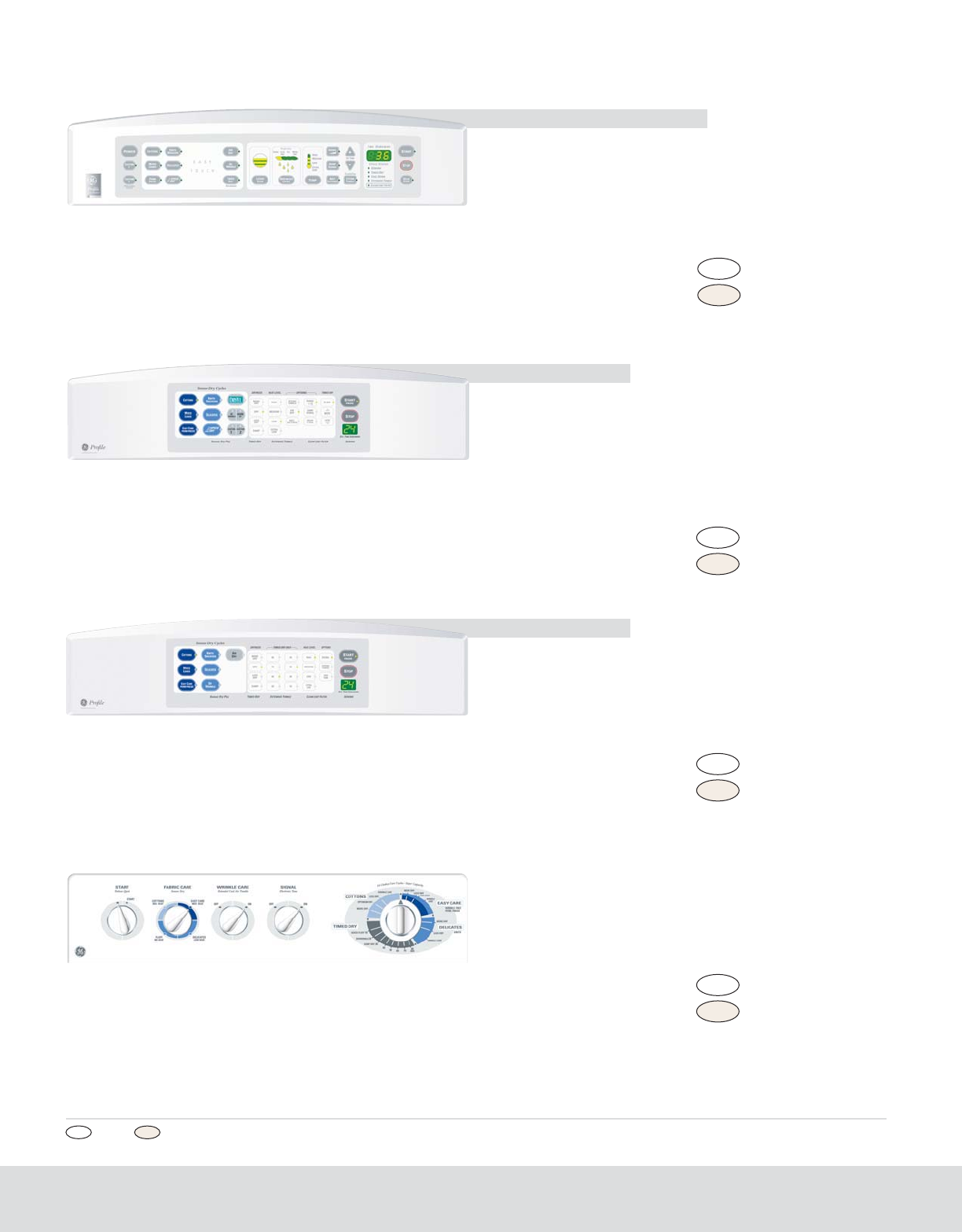

Washers and Dryers

WPRB9220D

GE Profile 3.5 cu. ft. King-Size Capacity Washer

• Stainless steel basket

•Full electronic controls with

Adaptive Logic System™

with user-friendly icons

• Variable speed motor

• 35 wash/spin speed combinations

• Multiple wash cycles

• Stain wash cycle

• Speed Wash

• 800-RPM spin speed

WPRB9110D

GE Profile 3.5 cu. ft. King-Size Capacity Washer

• Stainless steel basket

• Full electronic controls with

Adaptive Logic System and

LED readout

•Variable speed motor

•10 wash/spin speed combinations

• Multiple wash cycles

•Stain wash cycle

•Speed Wash

•Ultra handwash cycle

WPRB8050D

GE Profile 3.5 cu. ft. King-Size Capacity Washer

• Stainless steel basket

•Full electronic controls with

Adaptive Logic System and

LED readout

• 6 wash/spin speed combinations

•Multiple wash cycles

• Handwash cycle

•PerfecTemp Plus

•Presoak cycle

• Auto 2nd rinse

WWRE6260D

GE 3.5 cu. ft. King-Size Capacity Washer

• Stainless steel basket

• Rotary electronic controls with cycle status lights

• 6 wash/spin speed combinations

• 26 wash cycles

• Handwash cycle

• PerfecTemp

• Bleach and fabric softener

dispensers

• 4 water levels

WPRB9110DWW

WPRB9110DCC

WWRE6260DWW

WWRE6260DCC

WPRB8050DWW

WPRB8050DCC

WPRB9220DWW

WPRB9220DCC

White Bisque

Bold = feature upgrade from previous model.

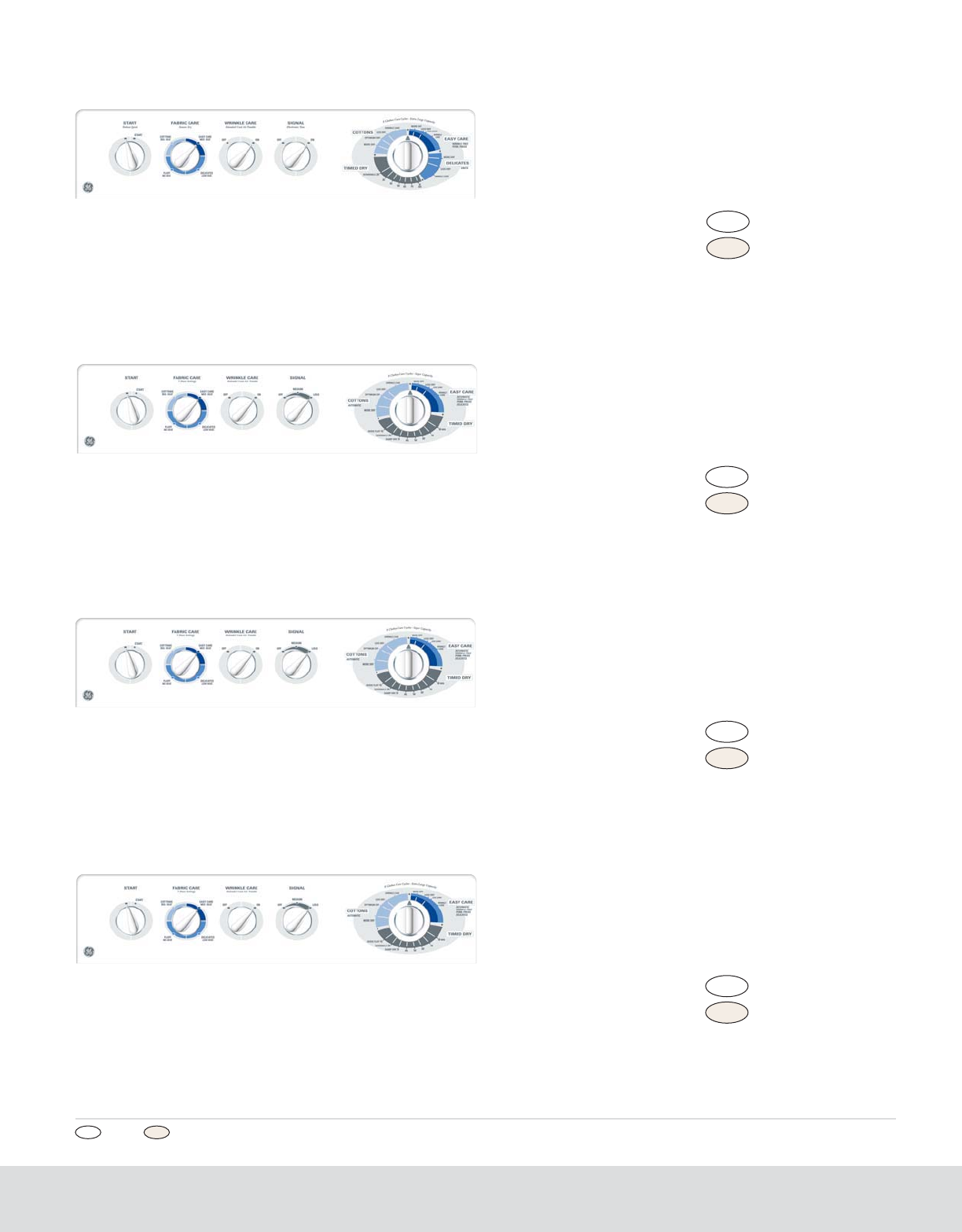

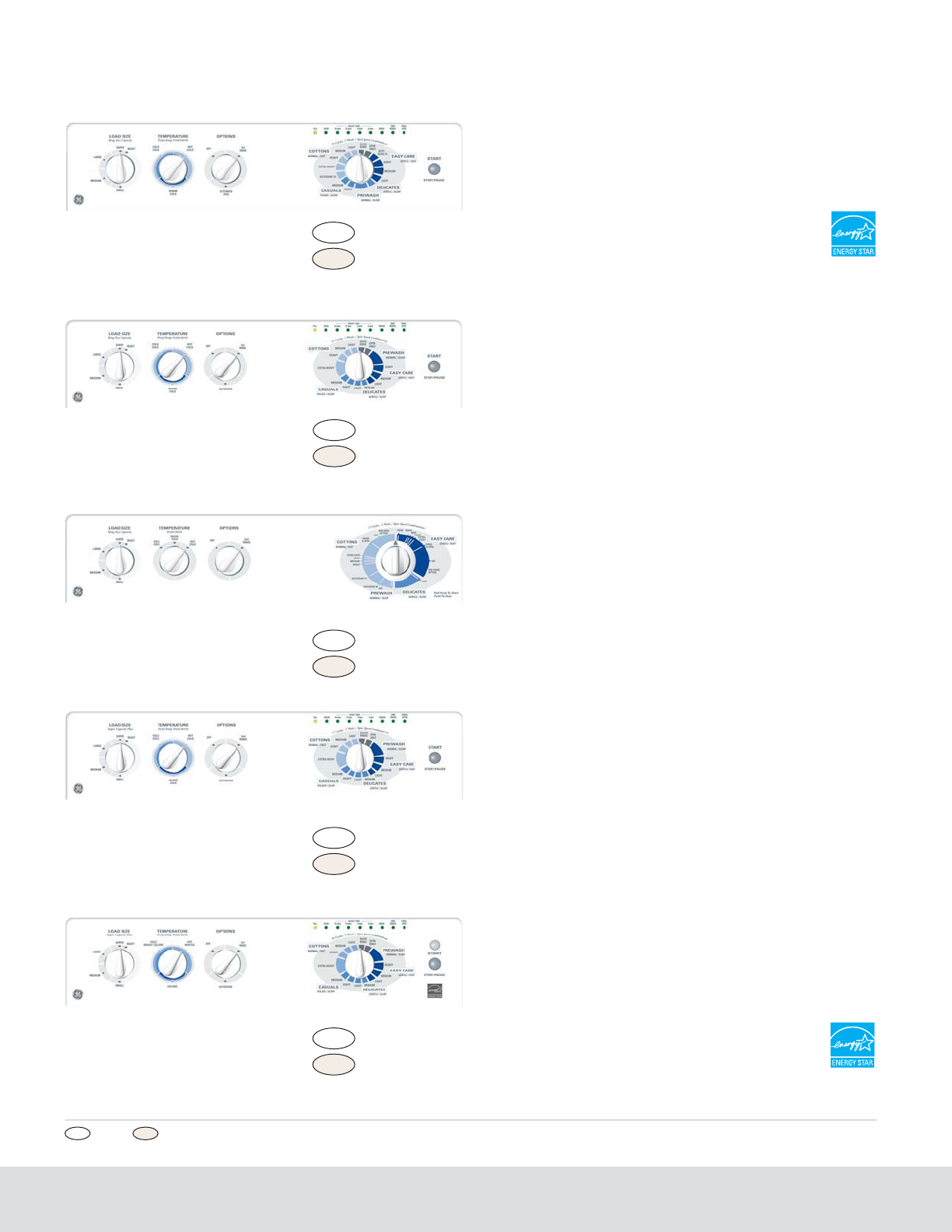

Washers and Dryers

WWRE5240D

GE 3.5 cu. ft. King-Size Capacity Washer

• Stainless steel basket • PerfecTemp

•Rotary electronic controls with • Bleach and fabric softener

cycle status lights dispensers

•5 wash/spin speed combinations • 4 water levels

•24 wash cycles

WWSE5240D

GE 3.2 cu. ft. Super Capacity Plus Washer

• Rotary electronic controls with • Bleach and fabric softener

cycle status lights •dispensers

• 5 wash/spin speed combinations • 4 water levels

• 24 wash cycles • Optional auto soak

• PerfecTemp

WHSE5240D

GE 3.2 cu. ft. Super Capacity Plus Washer

•Energy-Star qualified •PerfecTemp

•Rotary electronic controls with • Bleach and fabric softener

cycle status lights dispensers

•5 wash/spin speed combinations • 4 water levels

•24 wash cycles

WWSE5240DWW

WWSE5240DCC

WHSE5240DWW

WHSE5240DCC

WJRR4170E

GE 3.5 cu. ft. King-Size Capacity Washer

•Stainless steel basket • 4 water levels

• Rotary electromechanical controls • Auto Soak (locked)

• 4 wash/spin speed combinations • Auto 2nd rinse

• 17 wash cycles

• Bleach and fabric softener

dispensers

Available May 2004

WJRR4170EWW

WJRR4170ECC

WWRE5240DWW

WWRE5240DCC

WHRE5260E

GE 3.5 cu. ft. King-Size Capacity Washer

• Rotary electronic controls with • PerfecTemp

cycle status lights • Bleach and fabric softener

• 5 wash/spin speed combinations dispensers

•26 cycles • 4 water levels

WHRE5260EWW

WHRE5260ECC

White Bisque

GEAppliances.com 9

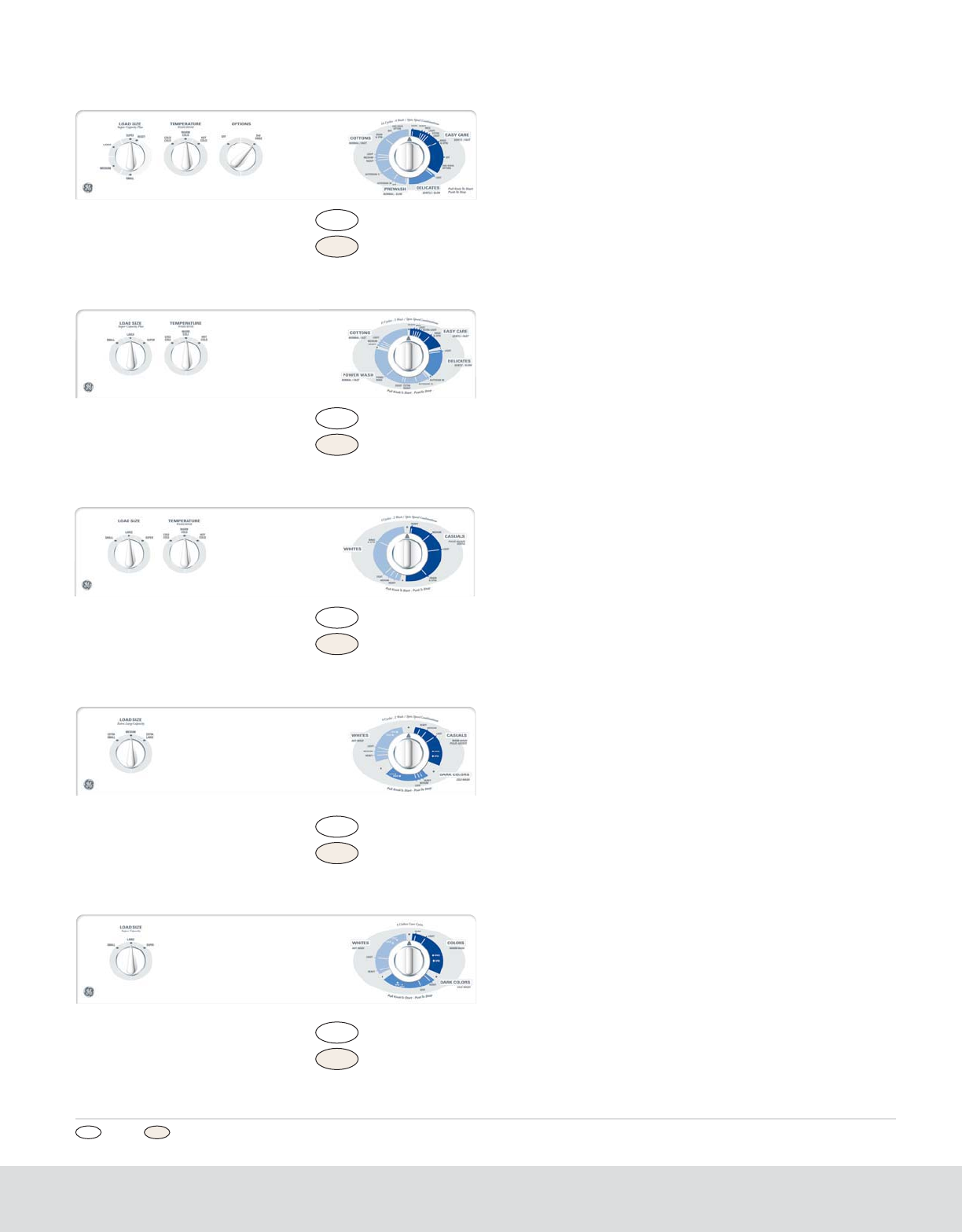

WBSR3140D

GE 3.2 cu. ft. Super Capacity Plus Washer

• Rotary electromechanical controls • 3 water levels

•3 wash/spin speed combinations •GentlePower™agitator

•14 wash cycles • Rinse and Spin

• Bleach and fabric softener

dispensers

WDSR2080D

GE 3.2 cu. ft. Super Capacity Washer

• Rotary electromechanical controls • Bleach dispenser

• 2 pulse wash/spin speed • 3 water levels

combinations • FlexCare™agitator

• 8 wash cycles • Spin Only option

WVSR1060D

GE 3.2 cu. ft. Super Capacity Washer

• Rotary electromechanical controls • 3 water levels

• 1 wash/spin speed combination • 3 wash/rinse temperatures

• 6 wash cycles • Quiet-By-Design

• FlexCare agitator • Color lid instructions

WDSR2080DWW

WDSR2080DCC

WVSR1060DWW

WVSR1060DCC

WBSR3140DWW

WBSR3140DCC

WBXR2090D

GE 2.7 cu. ft. Extra-Large Capacity Washer

• Rotary electromechanical controls • 3 water levels

•2 pulse wash/spin speed • FlexCare agitator

combinations • Quiet-By-Design™

•9 wash cycles • Color lid instructions

WBXR2090DWW

WBXR2090DCC

WJSR4160D

GE 3.2 cu. ft. Super Capacity Plus Washer

• Rotary electromechanical controls • 4 water levels

•4 wash/spin speed combinations •Auto Soak (locked)

•16 wash cycles • Auto 2nd rinse

• Bleach and fabric softener

dispensers

WJSR4160DWW

WJSR4160DCC

White Bisque

Bold = feature upgrade from previous model.

Washers and Dryers

DPSB613ED/GD

GE Profile 7.0 cu. ft. Super Capacity Dryer

•Stainless steel drum

•Sensor Dry Plus

•Full electronic controls with

Adaptive Logic System and LED readout

•5 heat selections

• Interior dryer light

•Multiple dry cycles

•Luxury quiet performance

•Variable end-of-cycle signal

DPSB619ED/GD

GE Profile 7.0 cu. ft. Super Capacity Dryer

• Stainless steel drum

• Sensor Dry Plus

• Full electronic controls with

Adaptive Logic System and LED readout

• Speed Dry

• 5 heat selections

• Interior dryer light

• Multiple dry cycles, including

custom options

•Antibacterial cycle

• Luxury quiet performance

DWSR405EB/GB

GE 7.0 cu. ft. Super Capacity Dryer

• Sensor Dry

• Delicate cycle with extra-low heat setting

• DuraDrum™

• 4 heat selections

• Wrinkle care extended tumble

• Interior dryer light

•10 dry cycles

DPSB619EDWW (Electric)

DPSB619GDWW (Gas)

DPSB619EDCC (Electric)

DPSB619GDCC (Gas)

DWSR405EBWW (Electric)

DWSR405GBWW (Gas)

DWSR405EBCC (Electric)

DWSR405GBCC (Gas)

DPSB613EDWW (Electric)

DPSB613GDWW (Gas)

DPSB613EDCC (Electric)

DPSB613GDCC (Gas)

DPSB620EC/DPSB620GC

GE Profile 7.0 cu. ft. King-Size Capacity Dryer

• Stainless steel drum

•Perfect Dry™system

•Dual-thermistor heat management

• Full electronic controls with

Adaptive Logic System with

user-friendly icons

•Delicate cycle with

extra-low heat setting

•Speed Dry

• 5 heat selections

DPSB620ECWW (Electric)

DPSB620GCWW (Gas)

DPSB620ECCC (Electric)

DPSB620GCCC (Gas)

White Bisque

GEAppliances.com 11

DWXR485EB/GB

GE 6.0 cu. ft. Extra- Large Capacity Dryer

•Sensor Dry Plus

• DuraDrum

• 4 heat selections

• Wrinkle care extended tumble

• Interior dryer light

• 8 dry cycles

• Deluxe quiet performance

DRSR483ED/GD

GE 7.0 cu. ft. Super Capacity Dryer

•Stainless steel drum

• Auto Dry

• 4 heat selections

• Wrinkle care extended tumble

• Interior dryer light

• 8 dry cycles

• Variable end-of-cycle signal

DWXR483EB/GB

GE 6.0 cu. ft. Extra-Large Capacity Dryer

• Auto Dry

• DuraDrum interior

• 4heat selections

•Wrinkle care extended tumble

• Interior dryer light

•8 dry cycles

• Quiet-By-Design™

DWSR483EB/GB

GE 7.0 cu. ft. Super Capacity Dryer

• Auto Dry

• DuraDrum

• 4 heat selections

• Wrinkle care extended tumble

• Interior dryer light

• 8 dry cycles

• Variable end-of-cycle signal

• Available as a long vent version

model DLSR483EE/GE

DRSR483EDWW (Electric)

DRSR483GDWW (Gas)

DRSR483EDCC (Electric)

DRSR483GDCC (Gas)

DWXR483EBWW (Electric)

DWXR483GBWW (Gas)

DWXR483EBCC (Electric)

DWXR483GBCC (Gas)

DWSR483EBWW (Electric)

DWSR483GBWW (Gas)

DWSR483EBCC (Electric)

DWSR483GBCC (Gas)

DWXR485EBWW (Electric)

DWXR485GBWW (Gas)

DWXR485EBCC (Electric)

DWXR485GBCC (Gas)

White Bisque

Bold = feature upgrade from previous model.

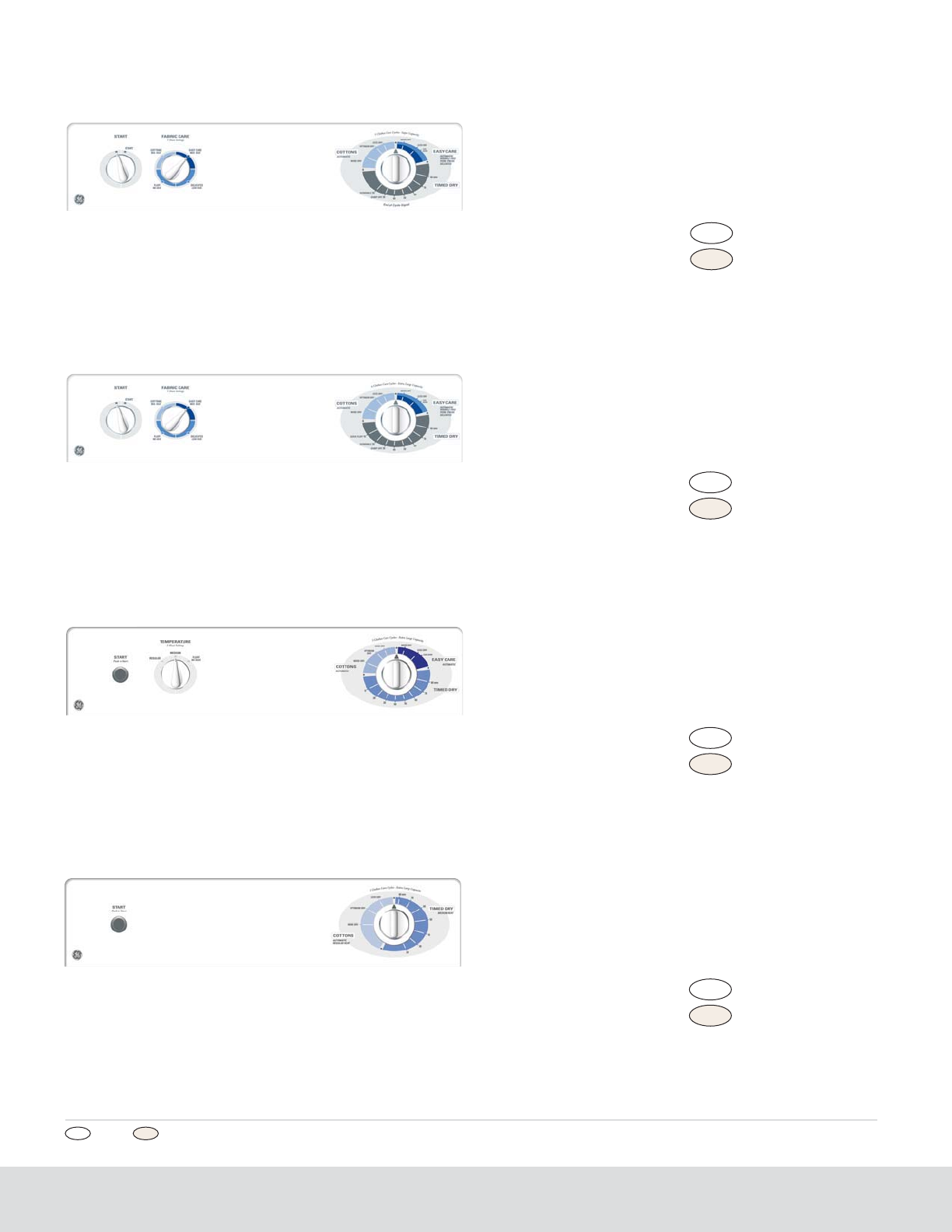

Washers and Dryers

DBLR333EE/GE

5.8 cu. ft. Extra-Large Capacity Dryer

• Auto Dry

• DuraDrum interior

•3 heat selections

•3 dry cycles

• Quiet-By-Design

• Reverse-A-Door

• Upfront lint filter

Available July 2004

DBXR463ED/GD

GE 6.0 cu. ft. Extra-Large Capacity Dryer

• Auto Dry

• DuraDrum interior

•4 heat selections

• Interior dryer light

•6 dry cycles

• Quiet-By-Design

•Fixed end-of-cycle signal

DVLR223EE/GE

GE 5.8 cu. ft. Extra-Large Capacity Dryer

• Auto Dry

•DuraDrum interior

• 2 heat selections

• 2 dry cycles

• Quiet-By-Design

• Reverse-A-Door

• Upfront lint filter

Available July 2004

DBXR463EDWW (Electric)

DBXR463GDWW (Gas)

DBXR463EDCC (Electric)

DBXR463GDCC (Gas)

DVLR223EEWW (Electric)

DVLR223GEWW (Gas)

DVLR223EECC (Electric)

DVLR223GECC (Gas)

DBLR333EEWW (Electric)

DBLR333GEWW (Gas)

DBLR333EECC (Electric)

DBLR333GECC (Gas)

DBSR453ED/GD

GE 7.0 cu. ft. Super Capacity Dryer

• Auto Dry

• DuraDrum™ interior

• 4 heat selections

• Interior dryer light

• 5 dry cycles

• Quiet-By-Design™

• Fixed end-of-cycle signal

DBSR453EDWW (Electric)

DBSR453GDWW (Gas)

DBSR453EDCC (Electric)

DBSR453GDCC (Gas)

White Bisque

GEAppliances.com 13

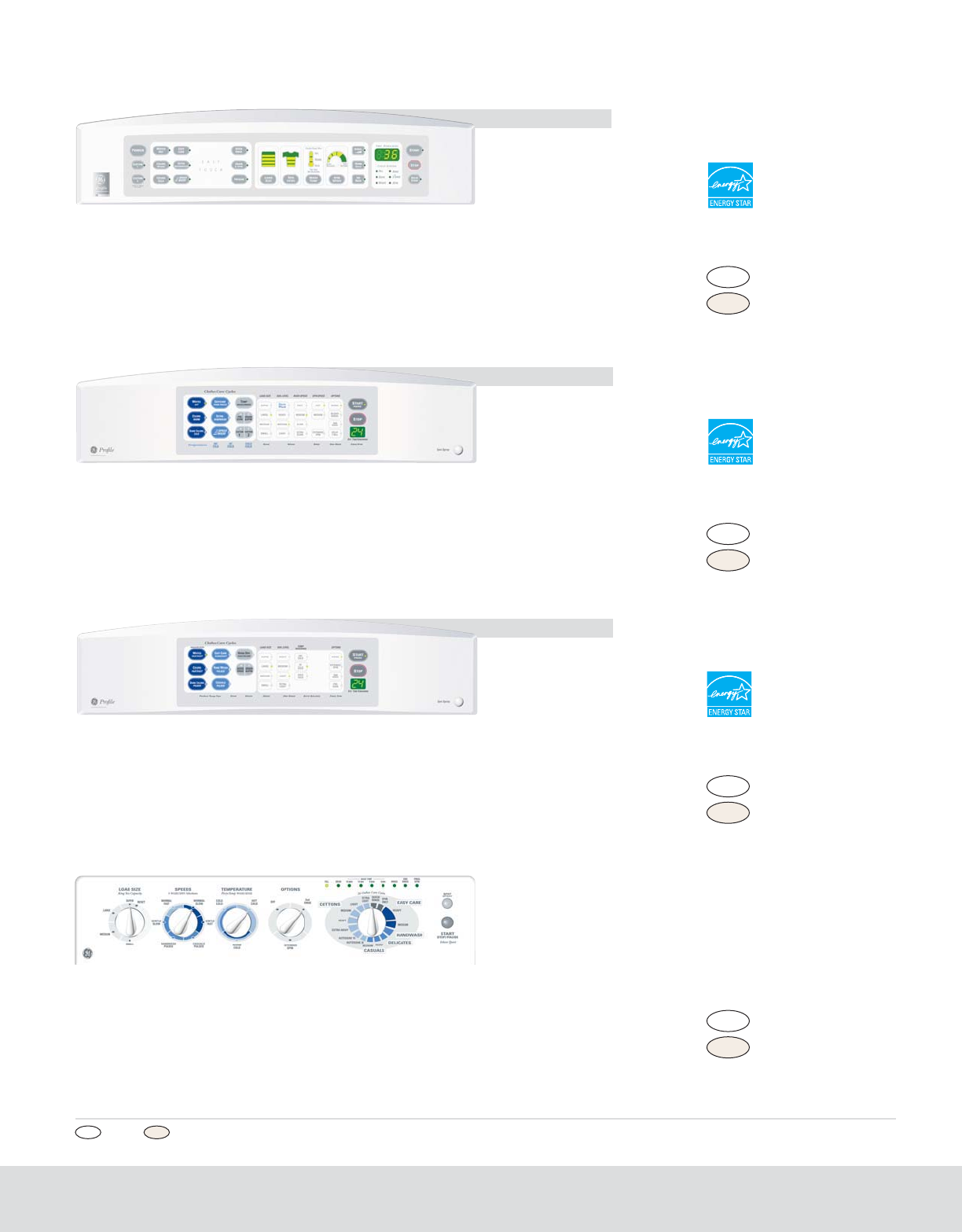

WPXH214A

GE Profile™Front-Loading Washer

• 3.1 IEC extra-large capacity

• Adaptive water levels

• Timed dispensers

• 14 wash cycles

• 950-RPM spin speed

• Fixed end-of-cycle signal

• Auto 2nd rinse

• Delicate cycle

DPXH46EA/GA

GE Profile Front-Loading Dryer

• 5.7 cu. ft. extra-large capacity dryer

• Rotary controls with Sensor Dry

• Under-the-counter and stacked

installation options

• Painted steel drum interior

•6 dry cycles

• Fixed end-of-cycle signal

•Optional wrinkle care

WSXH208A

GE Front-Loading Washer

• 3.1 IEC extra-large capacity

• Adaptive water levels

• Timed dispeners

• 8 wash cycles

• Adjustable end-of-cycle signal

• Auto 2nd rinse

• Delicate cycle

DSXH43EA/GA

GE Front-Loading Dryer

• 5.7 cu. ft. extra-large capacity dryer

• Rotary controls

• Under-the-counter and stacked installation options

• Painted steel drum interior

• 3 dry cycles

• Adjustable end-of-cycle signal

• 4 temperature options DSXH43EAWW (Electric)

DSXH43GAWW (Gas)

WSXH208AWW

DPXH46EAWW (Electric)

DPXH46GAWW (Gas)

DPXH46EACC (Electric)

DPXH46GACC (Gas)

WPXH214AWW

WPXH214ACC

White Bisque

Bold = feature upgrade from previous model.

Washers and Dryers

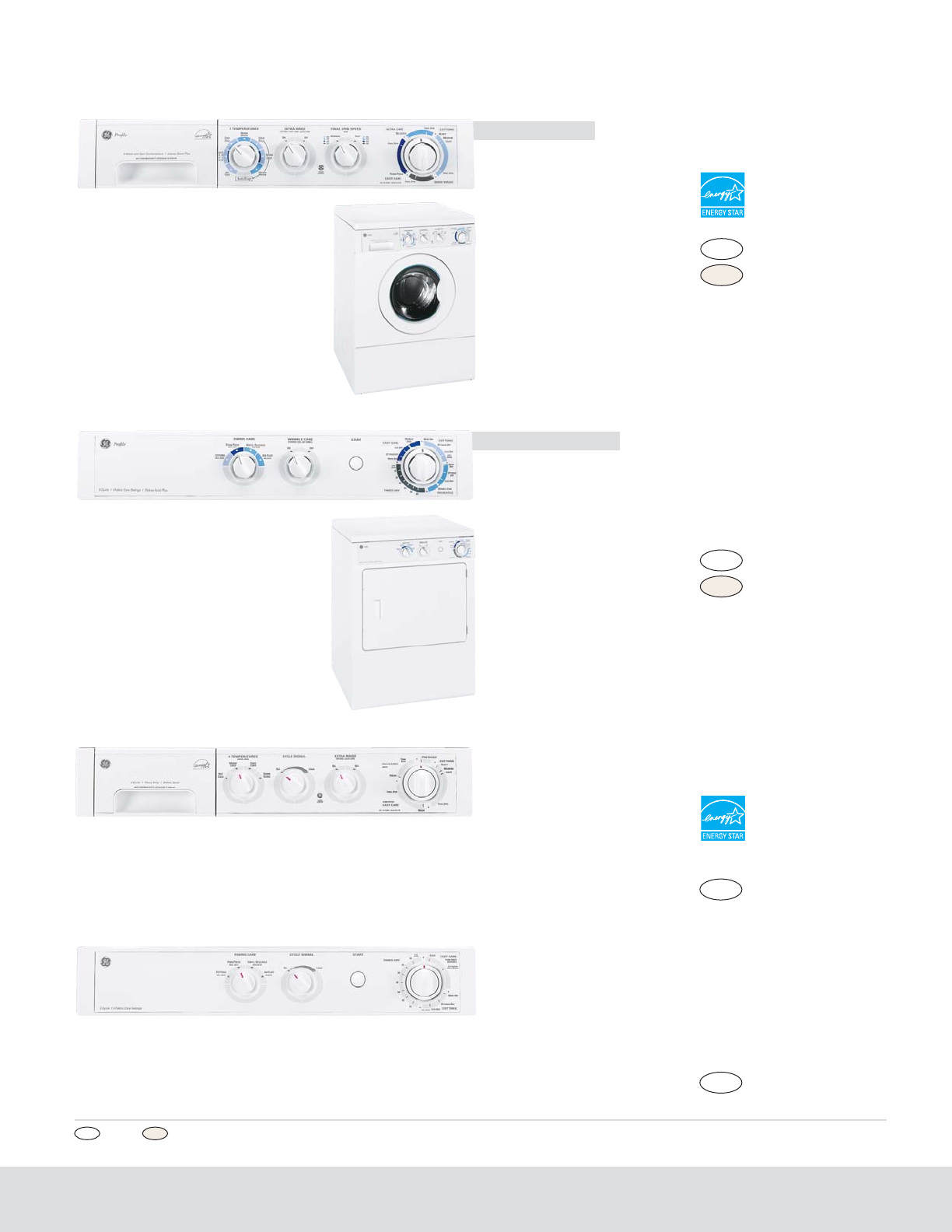

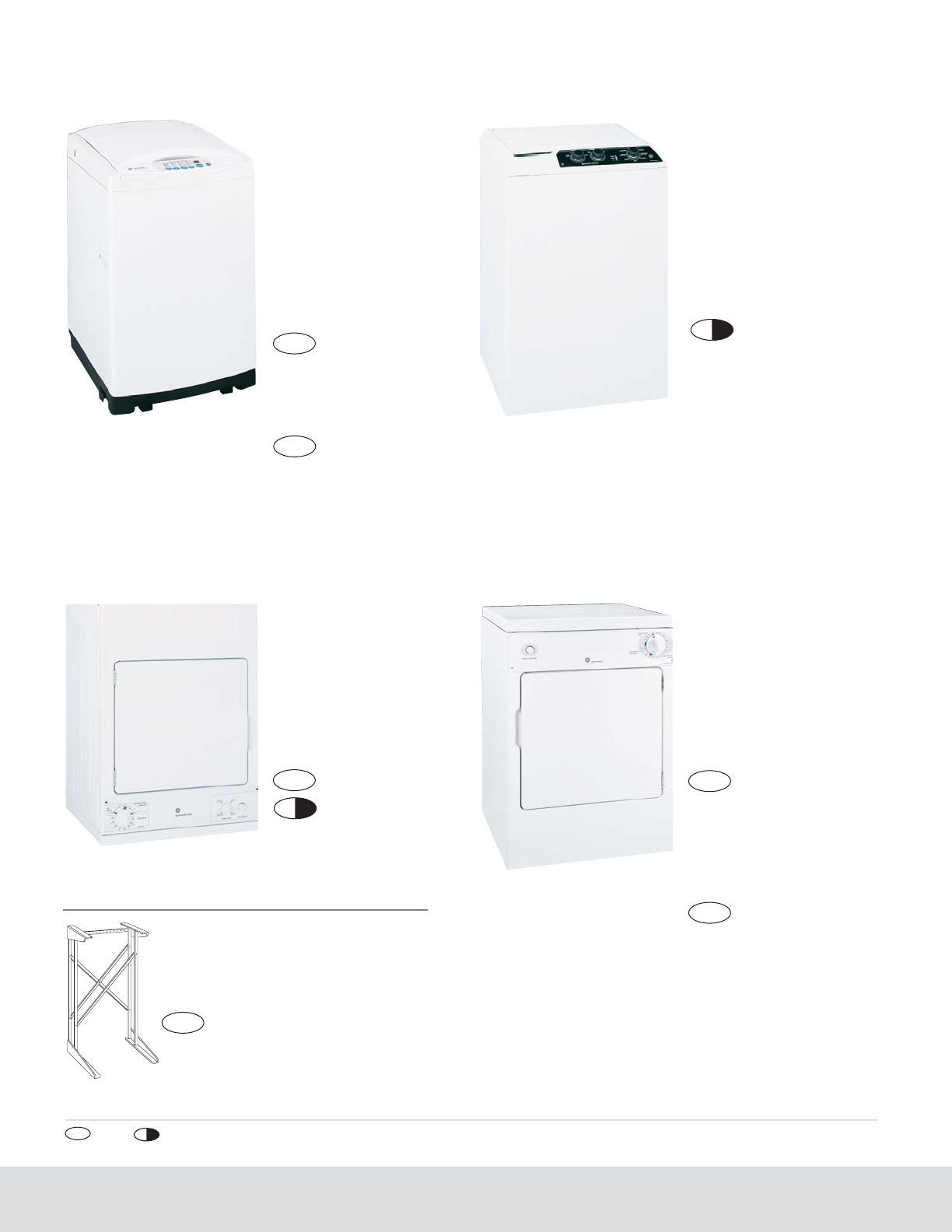

WSLS1100D

Similar to the WSLP1100D,

except is a stationary model.

WSLP1100D

GE 120V Portable

Topload Washer

• 2.5 cu. ft. extra-large capacity

• Stainless steel basket

• Electronic one-touch controls

with LED read-out

• One-touch load sensing

• 10 wash cycles

• 3 wash/rinse temperatures

• 1 wash/spin speed

• 4 water levels

WSLP1100DWW

WSKS2060W

GE 120V Stationary

Topload Washer

• 2.0 cu. ft. large capacity

• 2 wash/spin speeds

• 6 wash cycles

• 3 wash/rinse temperatures

• 4 water levels

• Bleach dispenser

• Quiet pump

• PermaTuf®II basket

WSKS2060WWH

WSLS1100DWW

DSKS433EB

GE 240V

Stationary Dryer

• 3.6 cu. ft. capacity

• Auto dry

• 4 heat selections

• 3 dry cycles

• Rotary controls

• Upfront lint filter

DSKP333EC

GE 120V

Portable Dryer

• 3.6 cu. ft. capacity

• 3 dry cycles

• 3 heat selections (Timer)

• DuraDrum™interior

• Quiet-By-Design

• Portable model

DSDR24D

GE Stack Rack

For use with portable or stationary Spacemaker

washers and stationary dryers.

DSKP333ECWW

DSDR24D

DSKS433EBWW

DSKS433EBWH

DSKS333ECWW

DSKS333EC

Similar to the DSKP333EC,

except is a stationary model and

controls are located at bottom of

unit for rack or wall installation.

White

White with black controls

GEAppliances.com 15

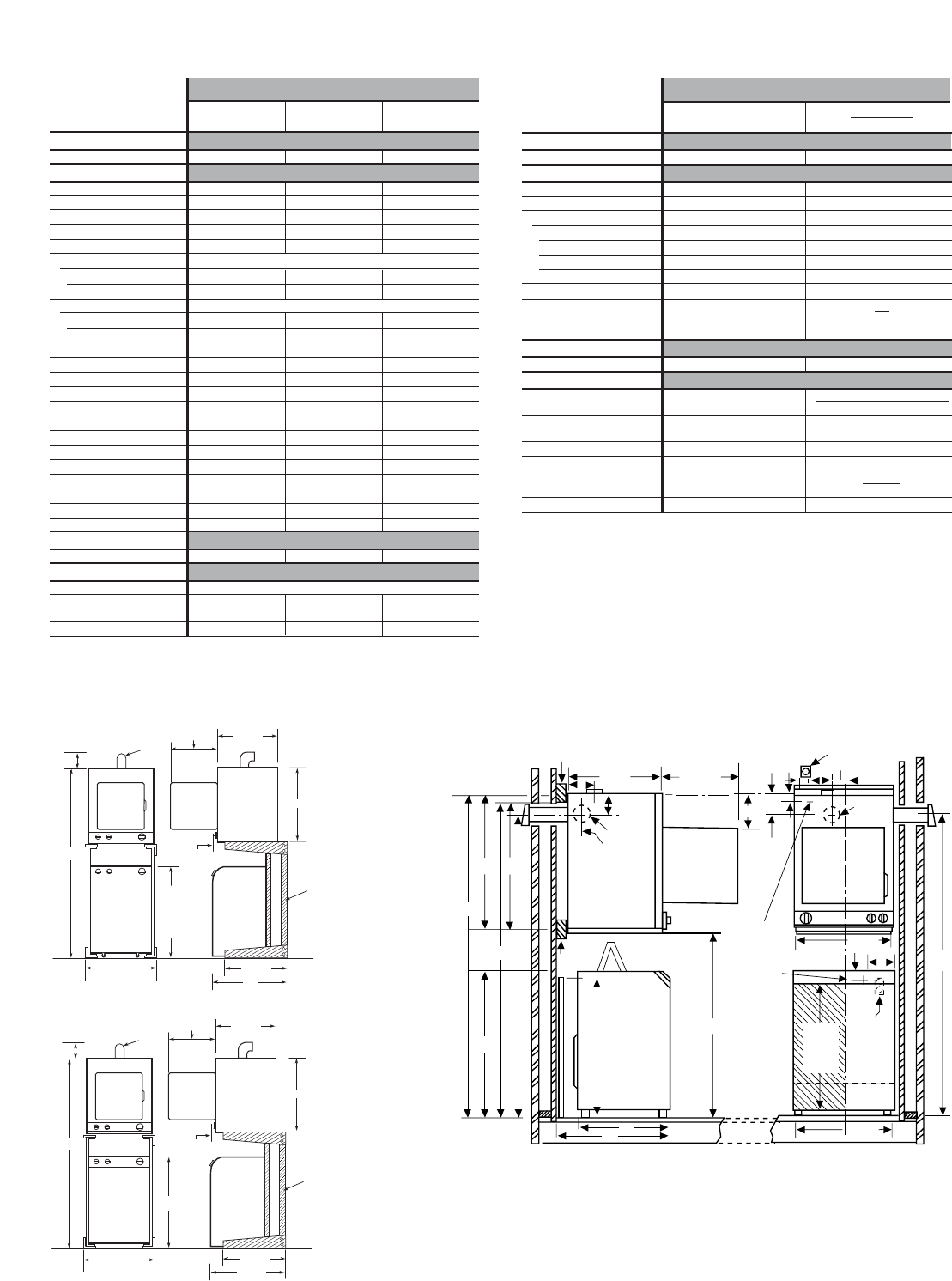

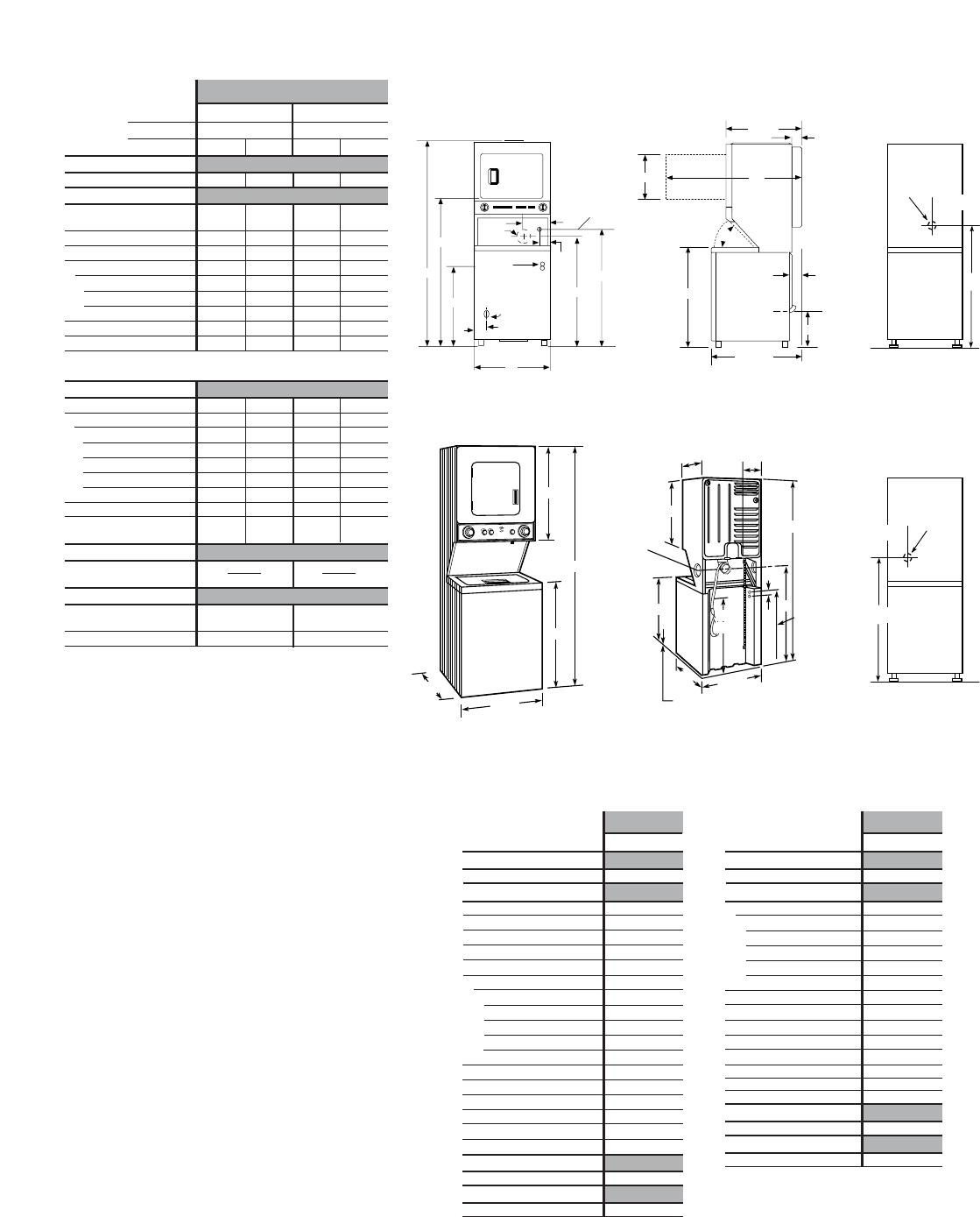

WSM2700D

GE®Full-Size 27"

Unitized Washer/Dryer

• 2.7 cu. ft. extra-large capacity

• 1 wash/spin speed

• 3 wash cycles

• 3 wash/rinse temperatures

• 3 water levels

• Electromechanical controls

WSM2420D

GE 24" Unitized

Washer/Dryer

• 1.9 cu. ft. large capacity

• 2 wash/spin speed combinations

• 3 wash cycles

• 3 wash/rinse temperatures

• 3 water levels

• Electromechanical controls

WSM2700DWW (Electric)

WSM2780DWW (Gas)

WSM2700DCC (Electric)

WSM2420DWW (Electric)

WSM2480DWW (Gas)

WSM2420DCC (Electric)

White Bisque

White with black controls

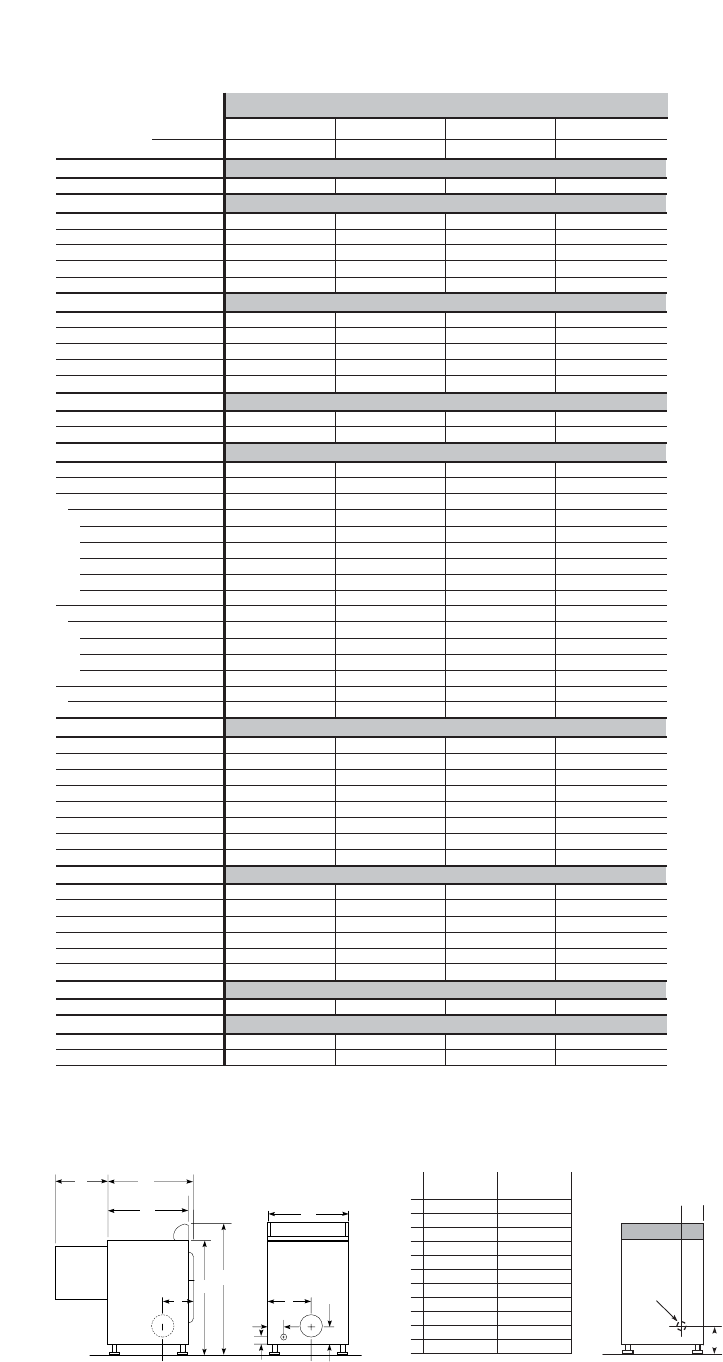

GE Profile™Washers

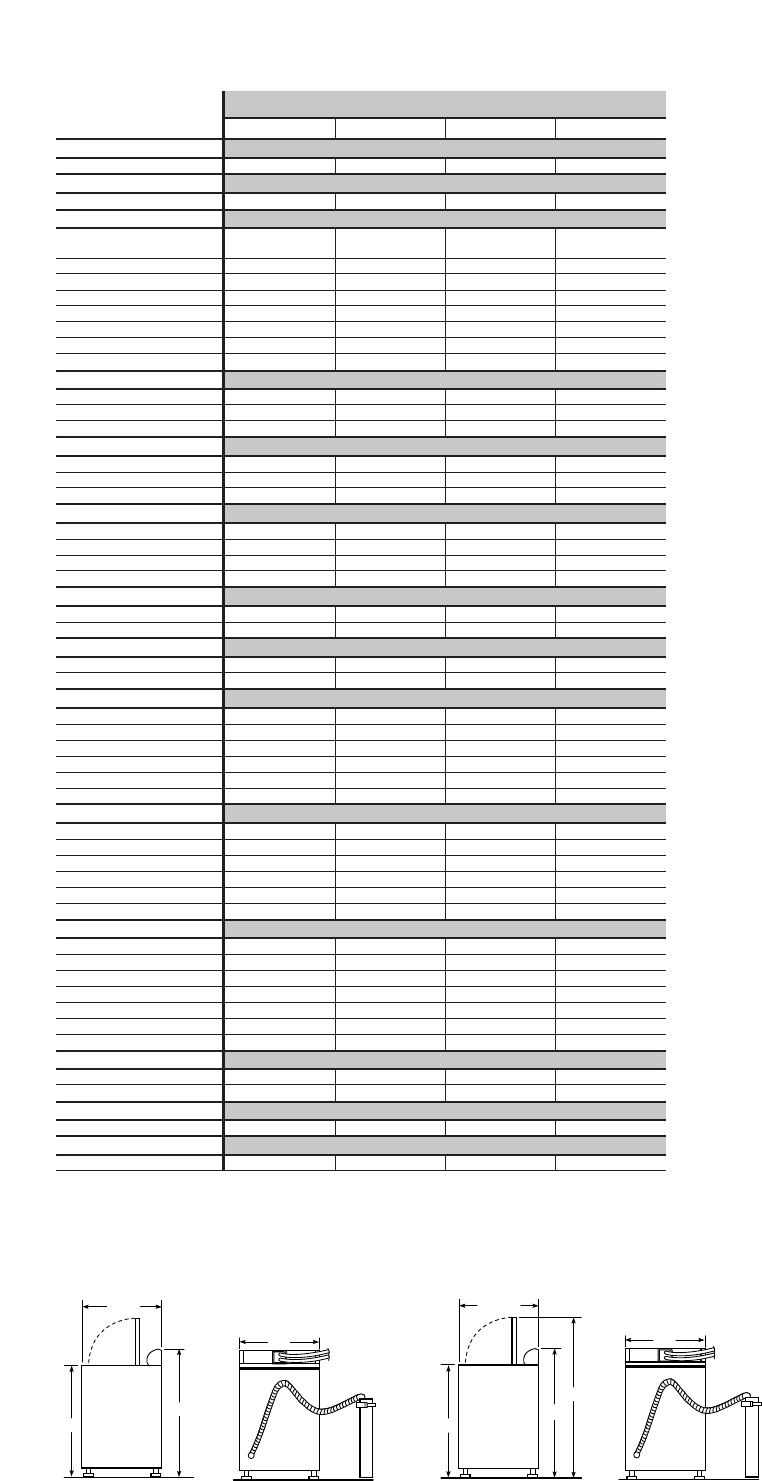

Washer Dimensions (in inches)

GE Profile Harmony™Washer

Washer Specifications

Circuit Requirements:

An individual, properly grounded branch circuit,

with a three-prong grounding-type receptacle,

protected by a 15- or 20-amp circuit breaker or

time-delay fuse is required.

Electrical Rating:

115V, 60Hz, 10A

Washer Note:

Washer wall outlet must be located within 36"

of service cord entry. Wall outlet must not be

located behind dryer.

25-1/2

Side View

Rear View

35.9

28.2

43.1

Side View

Rear View

GE Profile

WPGT9350C WPRB9220D WPRB9110D WPRB8050D

Capacity

Capacity cu. ft. 4.0* King-size 3.5 King-size 3.5 King-size 3.5 King-size

Energy

ENERGY STAR®●● ● ●

Controls

LCD touchscreen

Electronic display With icons ●●

Status indicators LCD display LED LED LED

Cycle countdown LCD LED ●●

Adaptive capabilities Water levels Cycle time Cycle time Cycle time

Water temp system RighTemp PerfecTemp Plus PerfecTemp Plus PerfecTemp Plus

Wash/rinse temps 4 3 3 3

Water levels Adaptive fill 5 4 4

Spot spray ●●

Wash System

Wash basket Stainless steel Stainless steel Stainless steel Stainless steel

Wash mechanism Infusor™ GentlePower™ Agitator GentlePower Agitator GentlePower Agitator

Wash/spin combinations Multiple Multiple 10 6

Drive System

Variable-speed motor Direct drive ●●

Transmission Steel Steel Steel

Maximum spin speed 1010 RPM 800 RPM 630 RPM 630 RPM

Dispensers

Bleach Flow-Thru™ timed ●●●

Fabric softener Flow-Thru timed ●●●

Detergent Flow-Thru timed

Wash Boost Flow-Thru timed

Signals

End-of-cycle Variable Variable Variable ●

Add bleach Variable Variable Variable

Wash Cycles

Number of cycles Multiple Multiple Multiple Multiple

Custom cycles 6 2 2

Cycle Selections

Whites ●● ● ●

Colors ●● ● ●

Dark colors ●● ● ●

Easy care ●● ● ●

Handwash ●Ultra Ultra Pulsed

Specialty cycles Multiple Casuals - pulsed

Program Options

Stain wash Stain Inspector™ ●●

Extra heavy soil Super Clean

Heavy soil ●● ● ●

Medium soil ●● ● ●

Light soil ●● ● ●

Extra light soil ● ●

Special Cycles

Delay start ●● ●

Speed wash Quick Clean ●●

Prewash ●●●

2nd rinse ●● ● ●

Extended spin ●●●

Rinse and spin ●● ● ●

Spin only ●● ● ●

Additional Features

Quiet performance Supreme Luxury Luxury Luxury

Color lid instructions ●● ● ●

Appearance

Colors available** PL, WW WW, CC WW, CC WW, CC

Weights & Dimensions

Approx. shipping weight (lbs.) 155 175 175 175

*Washes equivalent amount of clothes as 4.0 cu. ft. agitator machine per IEC ratios.

**PL = Dark Platinum, WW = White on white, CC = Bisque on bisque.

GEAppliances.com

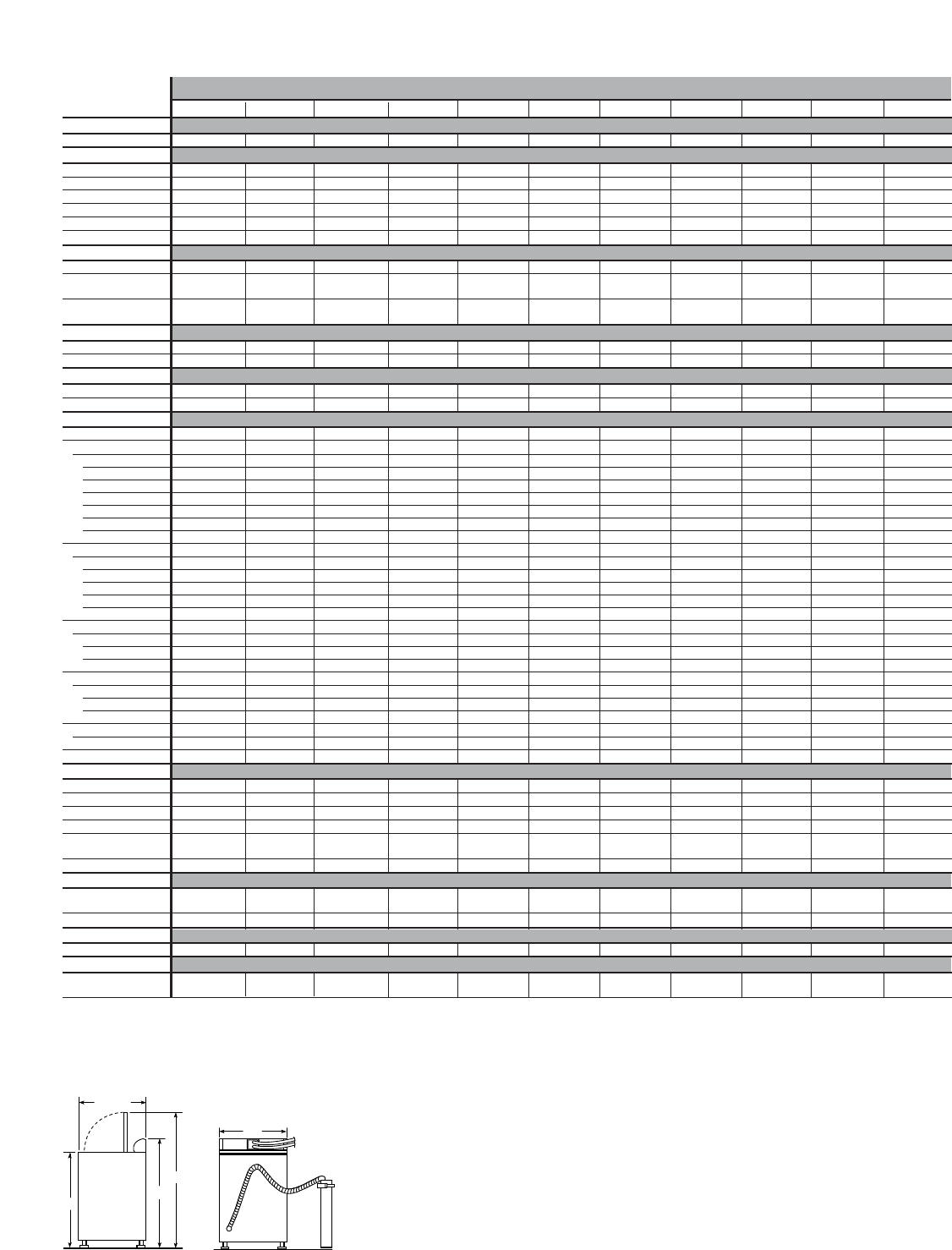

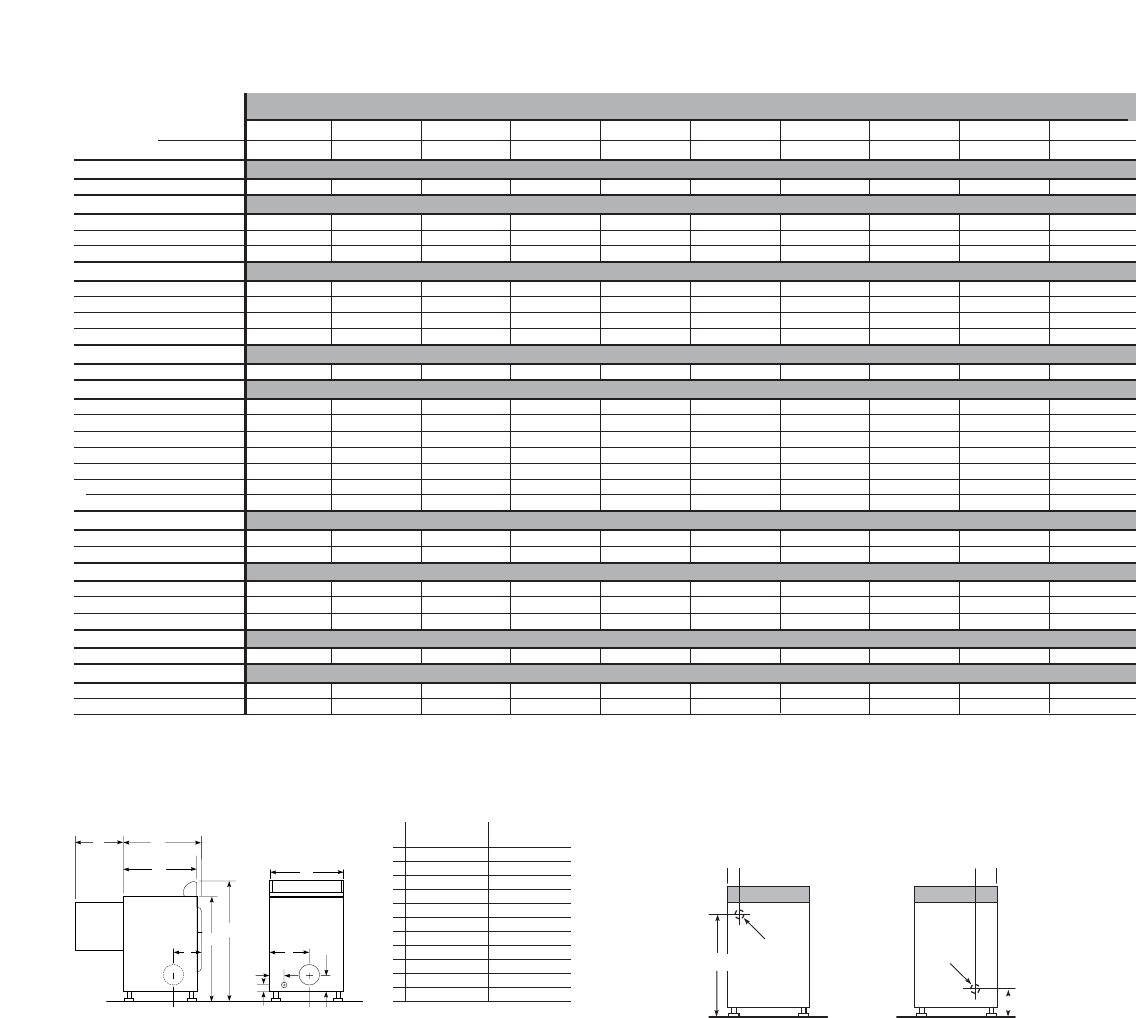

GE®Washers

Washer Dimensions

(in inches)

Washer Specifications

Circuit Requirements:

An individual, properly grounded branch circuit,

with a three-prong grounding-type receptacle,

protected by a 15- or 20-amp circuit breaker or

time-delay fuse is required.

Electrical Rating:

115V, 60Hz, 10A

Washer Note:

Washer wall outlet must be located within 36"

of service cord entry. Wall outlet must not be

located behind dryer.

25-1/2

Side View

Rear View

WWRE6260D WHRE5260E WWRE5240D WJRR4170E WWSE5240D WHSE5240D WJSR4160D WBSR3140D WDSR2080D WBXR2090D WVSR1060D

Capacity

Capacity cu. ft. 3.5 King-size 3.5 King-size 3.5 King-size 3.5 King-size 3.2 Super Plus 3.2 Super Plus 3.2 Super Plus 3.2 Super Plus 3.2 Super 2.7 Extra-large 3.2 Super

Controls

Rotary electronic ●●●Rotary ●●Rotary Rotary Rotary Rotary Rotary

Status indicators Status lights Status lights Status lights Status lights Status lights

Water temp system PerfecTemp PerfecTemp PerfecTemp PerfecTemp PerfecTemp

Wash/rinse temps 3 333333333 locked 3 locked

Water levels 4 4444443333

Spot spray ●

Wash System

Wash basket Stainless steel Stainless steel Stainless steel Stainless steel ExtrAction™ ExtrAction ExtrAction ExtrAction PermaTuf™ II PermaTuf II PermaTuf II

GentlePower™ GentlePower GentlePower GentlePower GentlePower GentlePower GentlePower GentlePower FlexCare™ FlexCare FlexCare

Wash mechanism Agitator Agitator Agitator Agitator Agitator Agitator Agitator Agitator Agitator Agitator Agitator

Wash/spin

combinations 6 55455432-pulsed 2-pulsed 1

Drive System

Transmission Steel Steel Steel Steel Steel Steel Steel Steel Steel Steel Steel

Maximum spin speed 630 RPM 630 RPM 630 RPM 630 RPM 630 RPM 630 RPM 630 RPM 630 RPM 630 RPM 630 RPM 630 RPM

Dispensers

Bleach ●●●●●●●●●

Fabric softener ●●●●●●●●

Wash Cycles

Number of cycles 26 26 24 17 24 24 16 14 8 9 6

Cottons Regular ● ●●●●●●●Whites Whites Whites

Auto soak (30 min.) ●●●●

Auto soak (15 min.) ●● ● ●●

Extra heavy soil ●●●●●●

Heavy soil ●●●●●●●●●●●

Medium soil ●●●●●●●●●●

Light soil ●●●●●●●●●●●

Extra light ●●

Easy Care ●●●●●●●● Dark colors Colors

Auto soak (15 min.) ●● ●

Heavy soil ●●●●●●●● ●●

Medium soil ●●●●●●●● ●

Light soil ●●●●●●● ●●

Extra light soil ●●●

Casuals - Pulsed ●●● ●● ●●

Heavy soil ●●● ●● ●●

Medium soil ●●● ●● ●●

Light soil ●●

Delicate ●●●●●● Dark colors

Heavy soil ●

Medium soil ●●● ●●

Light soil ●●●●●● ●

Handwash - Pulsed ●

Medium soil ●

Hang to Dry/Prewash ●● ● ●

Special Cycles

Prewash ●●

2nd rinse ●●●●●●●●

Soak option ●●●

Extended spin ●●

Rinse & spin

(Quick rinse) ●●●●●●●●●

Spin only ●●●●●●● ●

Additional Features

Quiet-By- Quiet-By- Quiet-By Quiet-By- Quiet-By- Quiet-By- Quiet-By- Quiet-By- Quiet-By- Quiet-By-

Quiet performance Deluxe Design™ Design Design Design Design Design Design Design Design Design

Color lid instructions ●●●●●●●●●●●

Appearance

Colors available* WW, CC WW, CC WW, CC WW, CC WW, CC WW, CC WW, CC WW WW, CC WW WW

Weights & Dimensions

Approx. shipping

weight (lbs.) 175 160 175 160 160 160 160 160 160 160 160

*WW = White on white, CC = Bisque on bisque.

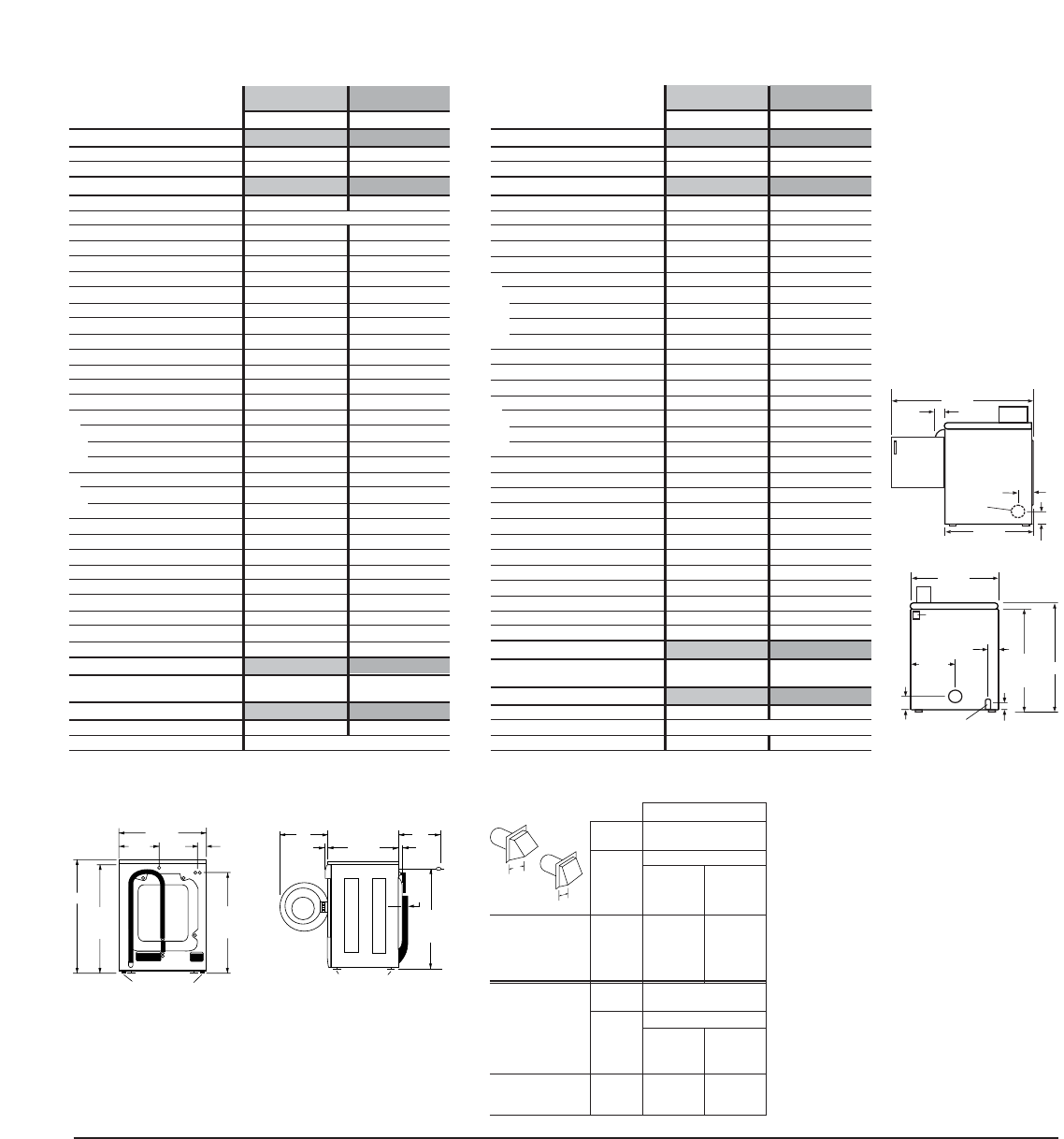

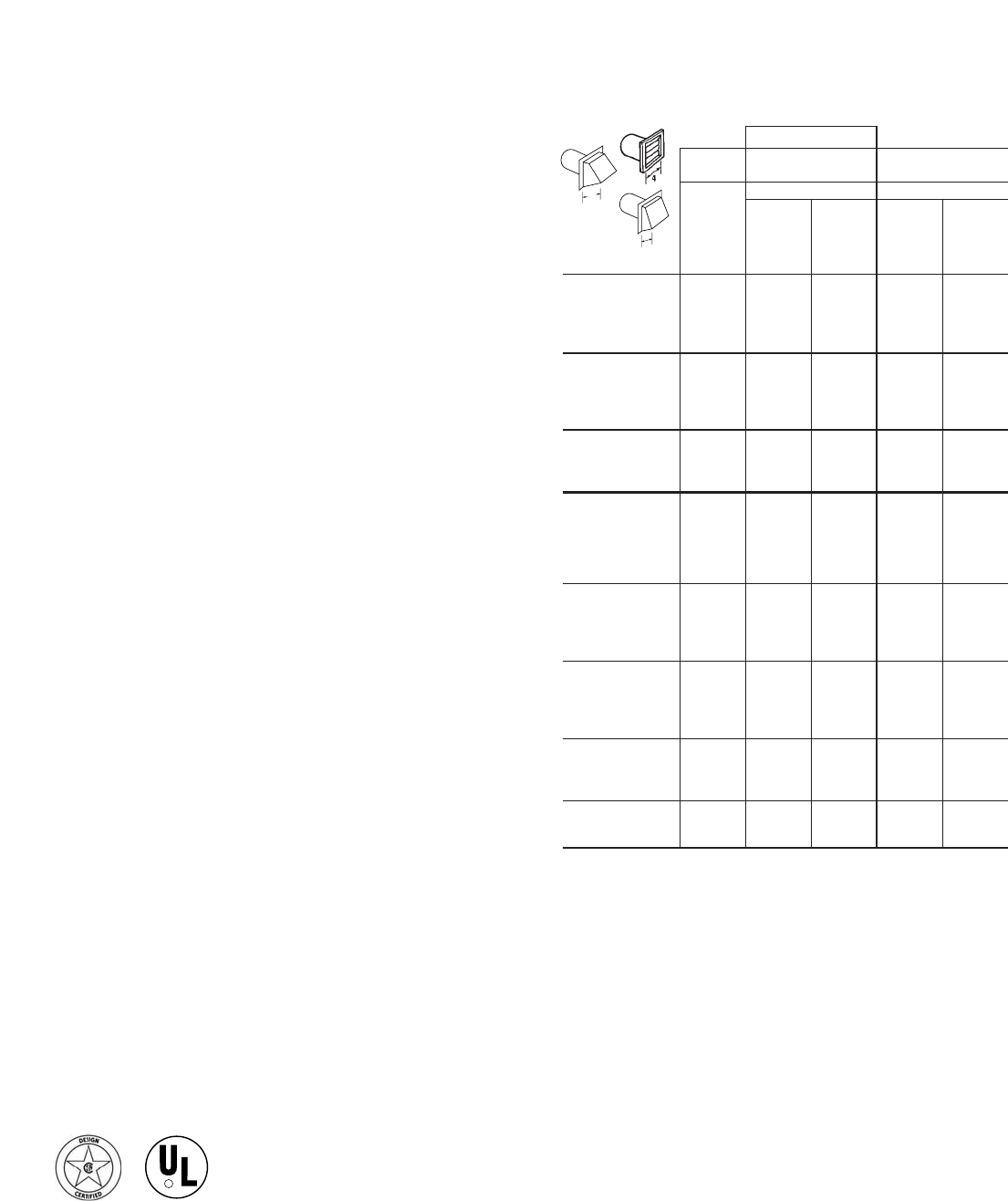

GE Profile™Dryers

Dryer Specifications

Exhaust Options:

Electric:4-way via rear, right, left and bottom.

Gas: For 7.0 and 7.3 cu. ft. dryers, when viewed from

the front of the unit, exhaust 3-way via rear, left and

bottom. Dryer is shipped exhausted to the rear. Alternate

exhausting knockouts are supplied.

Circuit Requirements:

Electric: An individual, properly grounded branch circuit,

protected by a 30-amp circuit breaker or a time-delay

fuse is required.

Electric Dryer Rating:

240V, 6000W, 28.5A, 60Hz—7.3 cu. ft. dryer

240V, 5600W, 24A, 60Hz—7.0 cu. ft. dryers

208V, 4400W, 22A, 60Hz—7.0 cu. ft. dryers

Gas: An individual, properly grounded branch circuit,

with a three-prong grounding-type receptacle, protected

by a 15- or 20-amp circuit breaker or a time-delay fuse

is required.

NEMA Receptacle Codes:

3 prong dryer cord/30A/4' long (cat #WX9X2) is for

NEMA10-30R receptacle.

4 prong dryer cord/30A/4' long (cat #WX9X18) is for

NEMA14-30R receptacle.

Gas Dryer Electric Rating:

120V, 60Hz, 6A

Gas (BTU/HR): 22,000 for 6.0 cu. ft. and 7.0 cu. ft. dryers

and 25,000 for 7.3 cu. ft. dryers. Factory-equipped for

natural gas. Tested for LP gas. LP gas supply requires an

optional conversion kit: 7.0 cu. ft. model kit is WE25X0217

and 7.3 cu. ft. model kit is WE25X10014. Have a qualified

gas technician install a conversion kit. See dryer ducting

information for proper installation.

Note: Dryer wall outlet must be located within 36" of

service cord entry and accessible when dryer is mounted

in position.

Note: GE Profile Harmony™7.3 cu. ft. dryer elbow kit,

Pub. No. 14-A003, is available at additional cost.

Note: An extra length (10-ft.) communication cable,

Pub. No. 14-A013, is available at additional cost.

Dryer Dimensions

(in inches)

GE Profile

7.0 cu. ft. 7.3 cu. ft.

Capacity Capacity

A27 27

B25-1/2* 26-1/2

C42 43-1/4

D28-1/4 29

E23 -1/2 22-1/2

F11-1/2 13

G3 -1/2 3 -1/2

H23

J2 -1/2 2 -1/2

K36 37-1/4

L8-1/2 3-1/2

*24-1/2" from the edge of the side

panel to the front. 25-1/2" from

front to edge of end caps.

Electric DPGT750EC DPSB620EC DPSB619ED DPSB613ED

Gas DPGT750GC DPSB620GC DPSB619GD DPSB613GD

Capacity

Capacity cu. ft. 7.3 King-size 7.0 King-size 7.0 Super 7.0 Super

Controls

Electronic ●●●●

Status indicators LCD LED LED LED

Cycle countdown LCD LED LED LED

Adaptive logic ●●●●

Heat selections 5 5 5 5

Dry System

Clothing moisture sensor DuoDry™ Sensor Dry Plus Sensor Dry Plus Sensor Dry Plus

Temperature sensor Thermistors Thermistors Thermostat Thermostat

Dryer drum Stainless steel Stainless steel Stainless steel Stainless steel

Drum baffles Dark Platinum White White White

Dual motors ●

Signals

End-of-cycle Variable Variable Variable Variable

Damp dry Variable Variable

Dry Cycles

Number of cycles Multiple Multiple Multiple Multiple

Custom cycles 6 2 2

Cycle Selections

Cottons ●●●●

Mixed loads ●●●●

Easy care ● ●●●

Knits sweaters ●●●●

Delicates ●●●●

Specialty cycles Multiple

Program Options

More dry ●●●●

Dry ● ●●●

Less dry ●●●●

Damp dry ●●●●

Timed Dry

Time control Electronic Electronic Electronic Electronic

Special Cycles

Speed dry ●●

Antibacterial cycle ●●

Dryel®cycle ●●●

Delay start ●●●

Add time option ●●●●

Dewrinkle ●●●●

Quick Fluff (no heat) ●●

Warm up ●●

Additional Features

Quiet performance Supreme Luxury Luxury Luxury

Quiet drum ●●●

Deluxe dryer rack ● ●●●

Dryer interior light ●●●●

Extended venting capability Up to 150 ft.

Clean lint filter reminder ●●●●

Appearance

Colors available* PL, WW WW, CC WW, CC WW, CC

Weights & Dimensions

Approx. shipping weight–elec. (lbs.) 155 122 125 125

Approx. shipping weight–gas (lbs.) 156 127 129 129

*PL = Dark Platinum, WW = White on white, CC = Bisque on bisque.

5''

Power

Cord Hole

4-1/2''

Side View Rear View Back View

Power Cord Locations

7.0 cu. ft. Dryers

GEAppliances.com

GE®Dryers

Dryer Specifications

Exhaust Options:

Electric:4-way via rear, right, left and bottom, except

for DLSR483 which is exhausted 3-way via rear, right

and bottom.

Gas: For 5.8, 6.0 and 7.0 cu. ft. dryers, when viewed

from the front of the unit, exhaust 3-way via rear, left

and bottom, except for DLSR483 which is exhausted

2-way via rear and bottom. Dryer is shipped exhausted

to the rear. Alternate exhausting knockouts are supplied.

Circuit Requirements:

Electric: An individual, properly grounded branch

circuit, protected by a 30-amp circuit breaker or a

time-delay fuse is required.

Electric Dryer Rating:

240V, 5600W, 24A, 60Hz—5.8, 6.0, 7.0 cu. ft. dryers

208V, 4400W, 22A, 60Hz—5.8, 6.0, 7.0 cu. ft. dryers

Gas: An individual, properly grounded branch circuit,

with a three-prong grounding-type receptacle, protected

by a 15- or 20-amp circuit breaker or a time-delay fuse

is required.

Gas Dryer Electric Rating:

120V, 60Hz, 6A

Gas (BTU/HR): 22,000 for 5.8, 6.0 and 7.0 cu. ft. dryers.

Factory-equipped for natural gas. Tested for LP gas. LP

gas supply requires an optional conversion kit: 5.8, 6.0

and 7.0 cu. ft. model kit is WE25X0217. Have a qualified

gas technician install a conversion kit. See dryer ducting

information for proper installation.

Dryer Note: Dryer wall outlet must be located within

36" of service cord entry and accessible when dryer is

mounted in position.

5.8 & 6.0 cu. ft. 7.0 cu. ft.

Capacity Capacity

A27 27

B25-1/2* 25-1/2*

C42 42

D25-3/4 28-1/4

E23-1/2 23 -1/2

F11-1/2 11-1/2

G3-1/2 3 -1/2

H22

J2-1/2 2 -1/2

K36 36

L5-1/4 8-1/2

*24-1/2" from the edge of the side

panel to the front. 25-1/2" from

front to edge of end caps.

Dryer Dimensions (in inches)

Side View Rear View

Electric DWSR405EB DWXR485EB DRSR483ED DWSR483EB DLSR483EE DWXR483EB DBSR453EB DBXR463ED DBLR333EE DVLR223EE

Gas DWSR405GB DWXR485GB DRSR483GD DWSR483GB DLSR483GE DWXR483GB DBSR453GB DBXR463GD DBLR333GE DVLR223GE

Capacity

Capacity cu. ft. 7.0 Super 6.0 Extra-large 7.0 Super 7.0 Super 7.0 Super 6.0 Extra-large 7.0 Super 6.0 Extra-large 5.8 Extra-large 5.8 Extra-large

Controls

Rotary ●●●● ● ● ●●●●

Heat selections 4 4 4 4 4 4 4 4 3 2

Long vent capability up to 150 ft

Dry System

Clothing moisture sensor Sensor Dry Plus Sensor Dry Plus

Temperature sensor Thermostat Thermostat Thermostat Thermostat Thermostat Thermostat Thermostat Thermostat Thermostat Thermostat

Dryer drum DuraDrum™ DuraDrum Stainless Steel DuraDrum DuraDrum DuraDrum DuraDrum DuraDrum DuraDrum DuraDrum

Drum baffles White White White White White White White White White White

Signals

End-of-cycle Deluxe Deluxe Variable Variable Variable Variable Fixed Fixed

Dry Cycles

Number of cycles 10 8 8 8 8 8 5 6 3 2

Cottons ●●●●● ● ●●●●

Easy care ●●●●● ● ●●●

Optional wrinkle care ●●●● ● ●

Damp dry ●●●●●●●

Timed Dry

Time control 80 min. 80 min. 80 min. 80 min. 80 min. 80 min. 80 min. 80 min. 80 min. 80 min.

Special Cycles

Dewrinkle ●●●●● ● ●●

Quick Fluff (no heat) ●●●●● ●

Additional Features

Quiet performance Deluxe Deluxe Quiet-by-Design™ Quiet-by-Design Quiet-by-Design Quiet-by-Design Quiet-by-Design Quiet-by-Design Quiet-by-Design Quiet-by-Design

Deluxe dryer rack ●

Dryer interior light ●●●●● ● ●●

Appearance

Colors available* WW/CC WW/CC WW/CC WW/CC WW/CC WW/CC ** WW/CC WW/CC WW/CC WW

Weights & Dimensions

Approx. shipping weight–elec. (lbs.) 119 112 119 119 120 112 119 112 112 112

Approx. shipping weight–gas (lbs.) 125 115 125 125 125 115 125 115 115 115

*WW = White on white, CC = Bisque on bisque.

**DWXR483GB available in White on white only.

Power Cord Locations

5.7 cu. ft. Dryers 5.8, 6.0 and 7.0 cu. ft. Dryers

2''

Power

Cord Hole

30-1/2''

5''

Power

Cord Hole

4-1/2''

Back View Back View

Dryer Exhausting Information

For complete information see installation instructions packed with dryer.

Important Note: To convert a 5.7 cu. ft. dryer from rear exhaust to bottom or side venting,

Pub. No. 14-A018 is required. To convert a 7.3 cu. ft. dryer from rear exhaust to bottom or

side venting, Pub. No. 14-A003 is required. 6.0 cu. ft. and 7.0 cu. ft. dryers do not require

additional parts to convert to bottom or side venting. Note: An extra length (10-ft.)

communication cable is available at additional cost, Pub. No. 14-A013.

Ducting Materials

For best performance, this dryer should be vented with 4" diameter all-rigid metal exhaust

duct. If “all-rigid metal” duct cannot be used, then “flexible all-metal” venting can be used,

but it will reduce the maximum recommended duct length.

The following kit or parts are available from your local service organization.

Kit WX8X75—7' aluminum duct and 4' hood, short tail.

(OR individual parts):

WX8X65 7' aluminum flex duct only

WX8X58 4' clamps (2)

WX8X67 4' exhaust hood

See installation instructions for complete information.

Exhaust length calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to the

side or bottom of dryer, add one turn.

2. The maximum length of 4" rigid (aluminum or galvanized) duct which can be tolerated

is shown in the table.

The maximum lengths for flexible ducts are less than for rigid duct.

See table in installation instructions. A turn of 45° or less may be ignored.

Two 45° turns within the duct length should be treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Exhausting the dryer to the outside is strongly recommended to prevent large amounts

of moisture and lint from being blown into the room. Gas dryers or any dryer located in a

closet must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire

hazard or moisture could cause damage. Never terminate the exhaust into a common duct

or plenum with a kitchen exhaust, since the combination of lint and grease could create a

fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird

nesting, etc. The wall cap must also be located at least 12" above the ground or any other

obstruction with the opening pointed down. Other terminations, such as louvered wall

boxes, are acceptable provided they are equivalent to a 4" opening dampered wall cap.

Special Installation Requirements

Alcove or Closet Installation

• If your dryer is approved for installation in an alcove or closet, it will be stated on a

label on the dryer back.

• The dryer MUST be exhausted to the outdoors. See installation instructions.

• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:

0" either side

3" front and rear

• Minimum vertical space from floor to overhead cabinets, ceilings, etc., is 52".

• Closet doors must be louvered or otherwise ventilated and must contain a minimum

of 60 sq. in. of open area equally distributed. If this closet contains both a washer and

a dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.

• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.

Bathroom or Bedroom Installation

• The dryer MUST be exhausted to the outdoors. See installation instructions.

• The installation must conform with the local codes, or in the absence of local codes,

with the National Fuel Gas Code, ANSI Z223.

Minimum Clearances other than Alcove or Closet Installations

• Minimum clearances to combustible surfaces:

0" both sides

3" rear

Side or Bottom Exhaust

• For 7.3 cu. ft. models, order kit Pub. No. 14-A003

• For 7.0 or 6.0 cu. ft. models, see installation instructions

• For 5.7 cu. ft. models, order kit Pub. No. 14-A018

For more information on venting kits and accessories, please call 1-800-GE-CARES.

Listed by

Underwriters

Laboratories

Dryer Exhausting Information—Use Metal Duct Only

Vertical and Horizontal Ducting

0 150 ft. 127 ft. 75 ft. 52 ft.

1 140 ft. 117 ft. 65 ft. 42 ft.

2 130 ft. 107 ft. 55 ft. 32 ft.

7.3 Capacity Electric 3 120 ft. 97 ft. 45 ft. 22 ft.

and Gas Dryers 4 110 ft. 87 ft. 35 ft. 12 ft.

0 90 ft. 60 ft. 55 ft. 45 ft.

1 60 ft. 45 ft. 40 ft. 30 ft.

7.0 and 6.0 2 45 ft. 35 ft. 30 ft. 20 ft.

Capacity Models 3 35 ft. 25 ft. 20 ft. 15 ft.

all Electric Dryers 4 25 ft. 15 ft. 15 ft. 10 ft.

0 90 ft. 60 ft. 55 ft. 45 ft.

7.0 and 6.0 1 60 ft. 45 ft. 40 ft. 30 ft.

Capacity Models 2 45 ft. 35 ft. 30 ft. 20 ft.

all Gas Dryers 3 35 ft. 25 ft. 20 ft. 15 ft.

0 150 ft. 125 ft. 55 ft. 45 ft.

1 135 ft. 115 ft. 52 ft. 42 ft.

2 125 ft. 105 ft. 49 ft. 39 ft.

3 115 ft. 95 ft. 46 ft. 36 ft.

4 105 ft. 85 ft. 43 ft. 33 ft.

DLSR483E/G 5 95 ft. 75 ft. 40 ft. 30 ft.

0 60 ft. 48 ft. 30 ft. 18 ft.

1 52 ft. 40 ft. 22 ft. 14 ft.

2 44 ft. 32 ft. 14 ft. 10 ft.

5.7 Capacity Electric 3 32 ft. 24 ft. — —

and Gas Dryers 4 28 ft. 16 ft. — —

Spacemaker ®Models

DSKS433EB 0 46 ft. 37 ft. 30 ft. 24 ft.

DSKS333EC 1 38 ft. 30 ft. 25 ft. 20 ft.

DSKP333EC 2 31 ft. 22 ft. 20 ft. 14 ft.

WSM2780D 3 24 ft. 15 ft. 16 ft. 10 ft.

0 56 ft. 42 ft. 30 ft. 22 ft.

1 46 ft. 36 ft. 22 ft. 14 ft.

Spacemaker Model 2 34 ft. 28 ft. 16 ft. 10 ft.

WSM2700D 3 32 ft. 18 ft. 10 ft. 5 ft.

Spacemaker Models 0 43 ft. 36 ft. 30 ft. 24 ft.

WSM2420D 1 33 ft. 26 ft. 24 ft. 18 ft.

WSM2480D 2 23 ft. 16 ft. 16 ft. 10 ft.

Number

90°

Turns

Maximum Length of 4"

Dia. Rigid Metal Duct

Maximum Length of 4"

Dia. Flexible Metal Duct

Exhaust Hood Type Exhaust Hood Type

Domestic

Dryer Models

4" Opening

2-1/2"

Opening

4" Opening

2-1/2"

Opening

Best Performance

2-1/2

GEAppliances.com

Front-Loading Washer Front-Loading Matching Dryer

Special Installation Requirements

Undercounter Installation

• Accessory mounting kits are required for undercounter

installation. To order, call 1-800-848-7722.

Washer—Order Pub. No. 14-A037

Dryer—Order Pub. No. 14-A008

Stacked Installation

• Brackets for stacking dryer are included as part of the

dryer. See dryer Use & Care for details.

Alcove or Closet Installation

• If your dryer is approved for installation in an alcove

or closet, it will be stated on a label on the dryer back.

• The dryer MUST be exhausted to the outdoors.

See EXHAUST INFORMATION on previous page.

• Minimum clearances between dryer cabinet and adjacent

walls or other surfaces are:

0" either side

3" front and rear

• Minimum vertical space from floor to overhead cabinets,

ceilings, etc., is 52".

• Closet doors must be louvered or otherwise ventilated and

must contain a minimum of 60 sq. in. of open area equally

distributed. If this closet contains both a washer and a dryer,

doors must contain a minimum of 120 sq. in. of open area

equally distributed.

• No other fuel-burning appliance shall be installed in the

same closet with a gas dryer.

Bathroom or Bedroom Installation

• The dryer MUST be exhausted to the outdoors.

See EXHAUST INFORMATION on previous page.

• The installation must conform with the local codes, or in

the absence of local codes, with the National Fuel Gas

Code, ANSI Z223.

Minimum Clearances other than Alcove or

Closet Installations

• Minimum clearances to combustible surfaces:

0" both sides

3" rear

For more information on venting kits and accessories,

please call 1-800-GE-CARES.

Dryer Exhausting Information—

Use Metal Duct Only

0 60 ft. 48 ft.

1 52 ft. 40 ft.

2 44 ft. 32 ft.

Front Loading 3 32 ft. 24 ft.

Dryers 4 28 ft. 16 ft.

0 30 ft. 18 ft.

Front Loading 1 22 ft. 14 ft.

Dryers 2 14 ft. 10 ft.

Number

90°

Turns

Number

90°

Turns

Maximum Length of

4" Dia. Rigid Metal Duct

Maximum Length of

4" Dia. Flexible Metal Duct

Exhaust Hood Type

4" Opening

2-1/2"

Opening

4" Opening

2-1/2"

Opening

2-1/2

Best Performance

Under

Counter

34-5/8"

26-3/4

11-3/4 2-7/8

Water

Inlets

31-5/8"

Roller Wheels

REAR VIEW

Adjustable Legs

Power

Cord

33-1/2"

SIDE VIEW

124-3/43/4

1-1/2

Washer Dimensions (in inches)

Dryer Dimensions

(in inches)

DPXH46EA/GA DSXH43EA/GA

Capacity

Capacity Extra-large Extra-large

Cubic feet 5.7 5.7

Features

Tumble drying ●●

Time dry cycles 1 1

Auto dry cycles 5 2

Sensor Dry ●

ColorLogic ●

Temperature options 4 4

Regular/Cottons ●●

Medium/Perm. Press ●●

Low/Delicates ●●

Air Fluff/No Heat (Cool Down) ●●

Wrinkle Care cycle 2

Moisture sensor ●

Drying rack ●●

Auto Dry Cycles

Cottons ●●

Easy Care ●●

Knits/Delicate ●

Cool Down ●●

Quick clean lint screen ●●

End-of-cycle signal Fixed Adjustable

Dryer interior light ●●

Reverse-A-Door ●●

Dura finish top and drum ●●

Spill-Saver top ●●

Poly tumbling vanes ●●

Leveling legs ●●

100% front serviceable ●●

Exhaust options (Electric/Gas) 4/3 4/3

Heavy-duty suspension system ●●

Appearance

White on white,

Colors available Bisque on bisque White on white

Weights & Dimensions

Approx. shipping wt. (Elec/Gas) (lbs.) 116 116

Flexible installation Undercounter, stacked, side-by-side

LP conversion kit WE25X10016 WE25X10016

SIDE VIEW

25-3/4

47-1/2

4-3/4

Optional

Vent Knockout

Door Open

90°

4-3/8

3/4

REAR VIEW

26-7/8

3-3/4

Under

Counter

34-5/8"

3/16"

Gas Pipe Connection

Electric

Connection

2-9/16

13-9/16

Dryer Specifications

Exhaust Options:

Electric:4-way via rear, right, left and bottom.

Gas: For 5.7 cu. ft. dryers, when viewed from the front

of the unit, exhaust 3-way via rear, right and bottom.

Dryer is shipped exhausted to the rear.

Exhaust Elbow Kit:

Order Pub. No. 14-A018.

Electrical Requirements:

240V, 3 Wire, 5600W, 24A, 60 Hz

208V, 3 Wire, 4400W, 22A, 60 Hz

Gas Requirements: 120V, 60 Hz, 6A

See Pub. No. 49-9963-2 for installation information.

Washer Specifications

Circuit Requirements: An individual, properly grounded branch circuit,

with a three-prong grounding-type receptacle, protected by a 15- or 20-amp

circuit breaker or time-delay fuse is required.

Electrical Requirements: 120V, 60 Hertz, 12.0 Amps

See Pub. No. 31-2819 for installation information.

GE Profile

WPXH214A WSXH208A

Capacity

Capacity Extra-large Extra-large

Cubic feet 3.1 IEC 3.1 IEC

Features

ENERGY STAR®●●

Total water usage Approx. 25 gallons maximum

Wash/rinse temperatures 7 4

Water levels Auto. adjustment Auto. adjustment

Standard rinse cycles 4 3

Motor speeds Variable Variable

ColorLogic™ ●

Combinations* HC, WW, WC, CC HC, WW, WC, CC

Detergent dispenser (liquid/powder) ●●

Bleach dispenser ●●

Fabric softener dispenser ●●

End-of-cycle signal Fixed Adjustable

Final spin/speed selections 4 Automatic

Number of wash cycles 14 8

Cotton

Heavy Soil ●●

Medium Soil ●●

Light Soil ●●

Easy Care

Medium Soil/Perm. Press ●●

Light Soil/Wrinkle Free ●

Delicates/Ultra Care ●●

Pre-Wash ●

Quick Wash ●

Extra-Rinse Cycle/Auto Option 3 2

Max. spin speed 950 850

AutoTemp ●

Noise package Deluxe Standard

Leveling legs ●●

Stainless steel wash basket ●●

Appearance

White on white,

Colors available Bisque on bisque White on white

Weights & Dimensions

Approx. shipping weight (lbs.) 217 217

Flexible installation Undercounter, stacked, side-by-side

*HC = Hot-Cold, WW = Warm-Warm, WC = Warm-Cold, CC = Cold-Cold.

GE®

GE Profile™

Spacemaker®Portable/Stationary Models

GE®

Individual Stationary Portable Stationary

Spacemaker Washers WSLS1100D WSLP1100D WSKS2060W

Capacity

Capacity 2.5 Extra-large 2.5 Extra-large 2.0 Large

Features

Wash/spin speed combinations 1 1 2

Wash/rinse temperatures 3 3 3

Water levels 4 4 4

Number of cycles 10 10 6

Cycle countdown Digital Digital

Regular

Heavy Soil ●●●

Medium Soil ●●●

Perm. Press

Medium Soil ●●●

Light Soil ●●●

Delicates ●●●

Spin only ●●●

One-touch load sensing ●●

Automatic cool down ●●

Bleach dispenser ●●●

Fabric softener dispenser ●●

Automatic detergent dispenser ●●

Lint filter 2 Removable 2 Removable ●

Washer lid type Bifold Bifold Solid

Quiet pump ●●●

Easy-roll rollers ●

Unicouple connector ●

Basket material Stainless steel Stainless steel Porcelain-on-steel

Appearance

Colors available* WW WW White w/granite-look top

Weights & Dimensions

Circuit requirements 120V, 60 Hertz, 15 or 20 Amps

Dimensions 37-1/2†x 23-5/8 38 x 23-5/8 34-1/4 x 22-1/4

(HxWxD in inches)** x 26 x 26 x 24

Approx. shipping wt. (lbs.) 114 116 109

*Colors available: WW = White on white.

**Depth measured from front of control knob.

†With leveling legs extended.

Individual DSKP333EC*

Spacemaker Dryers DSKS433EB DSKS333EC

Capacity

Capacity (cu. ft.) 3.6 3.6

Features

Dry control Automatic Automatic

Heat selections 4 3 (timer)

Number of dry cycles 3 3

Auto. Perm. Press & Delicate ●

Auto. Reg. ●●

Timed Regular (min.) 140 150

Air Fluff (min.) (Heat selection) 30

Separate start switch ●●

Top

Control location Mid-band Mid-band

Lint filter Upfront Upfront

Appearance

Colors available** WW, WH WW

Weight & Dimensions

4 way – Rear, Bottom, Left, Right

Exhaust options*** 4-Way 4 way – Rear, Top, Left, Right

240/208V†, 120V,

Circuit requirements 60 Hertz, 30 Amp 60 Hertz, 15 Amp

Power cord No Cord 6 feet

Dimensions (HxWxD in inches) 33-1/4 x 23-7/8 x 24-1/2 33-1/4 x 23-7/8 x 24-1/2

Wall-mount kit —

(available at additional cost) WMK-35 WMK-35

Approx. shipping wt. (lbs.) 108 108

*DSKP333EC dryer comes equipped with casters and stationary leveling legs.

**Colors available: WW = White on white, WH = White with black controls.

***DSKS433EB and DSKS333EC are shipped exhausted through the top.

†Rear-mounted outlet on DSKS433EB (120V, 60 Hertz, 10 Amp) DSKS433EB and DSKS333EC approved

for use with washer/dryer stack rack DSDR24D.

Circuit Requirements: An individual, properly grounded branch circuit of the proper voltage and frequency

as specified on the rating plate, with no other appliances or fixtures in circuit, is required.

Top Vent Installation Dimensions (in inches) Wall-Mount Installation Dimensions (in inches)

20" Max.

Opening

120V 20A or

208-240V 30A

3-3/4

Rear

Exhaust

5-1/8

74-1/8

78 74-1/8

Service

Cord

Entry at

Bank of

Appliances

R.H

EXH

5-1/8

4" Dia.

Exhaust

3-1/8

Both

Sides

33-1/4

79-1/4

2 x 4

24-1/2

DSKS433

DSKS333

WSLP1100

WSLS1100

Standpipe

33" Minimum

If Less Than 33"

Use Syphon

Break Kit

WH49X228

23-7/8

120V

15 or 20A

1-1/2

23-5/8

Standpipe

& Faucets

33" Min.

WSLP1100A

Portable

Washer

WSLS1100A

Stationary

Washer

DSKS433EB and

DSKS333EC

Dryer

Stack Rack

DSDR24D

22-7/8

1-5/8

5-1/2

77-3/4

38"

WSLP1100A

Portable

37-1/2"

WSLS1100A

Stationary

24-1/2 25-1/2

Top

Vent

5-1

33-1/4

ack

24D

WSLP1100A

Stationary

Washer

DSKS333EC

Dryer

Stack Rack

DSDR24D

22-7/8

1-5/8

5-1/2

77-3/4

25-1/2

Top

Vent

31-1/2

24-1/2

33-1/4

GEAppliances.com

Unitized GE Spacemaker Washers and Dryers

Electrical Requirements for Unitized Spacemaker Dryers

WSM2700D: Electric Dryer—This appliance should be connected

to an individual, properly grounded branch circuit with 120/240V or

120/208V single-phase 60 Hz electrical service and should be

protected by 30-amp time-delay fuses or circuit breakers. This

appliance is manufactured with neutral connected to the frame.

Power cord should be purchased separately.

WSM2420D: Electric Dryer—This appliance should be connected

to an individual, properly grounded branch circuit with 120/240V

single-phase 60Hz electrical service and should be protected by

30-amp time-delay fuses or circuit breakers. This appliance is

manufactured with the neutral connected to the frame. Power

cord should be purchased separately.

NOTE: THESE APPLIANCES ARE NOT APPROVED FOR 120-VOLT

OPERATION.

WSM2480D: Gas Dryer—This appliance should be connected to

an individual, properly grounded branch circuit with a three-prong

grounding-type receptacle and 120-volt single-phase 60 Hz electrical

service and should be protected by 15- or 20-amp time-delay fuses

or circuit breakers. This appliance is equipped with a 6-foot long

flexible U.L. listed 20-amp power cord to match a 15-amp receptacle.

Gas Rated input 10,500 BTU/HR. Factory equipped for natural gas.

Tested for LP gas.

WSM2780D: Gas Dryer—This appliance should be connected to an

individual branch circuit with 120-volt single-phase 60 Hz electrical

service and should be protected by 20-amp time-delay fuses or

circuit breakers. This appliance is equipped with a 4-foot long

flexible U.L. listed 20-amp power cord to match a 20-amp receptacle.

Gas Rated input 20,000 BTU/HR. Factory equipped for natural gas.

LP gas supply requires a conversion kit.

Kits: WSM2780D—WE25X206

WSM2480D—WE25X0219

Have a qualified gas technician install a conversion kit before use.

Exhaust Information

See “Dryer Exhausting Information” on page 20.

For complete information see installation instructions packed

with the product.

Electric WSM2700D WSM2420D

Gas WSM2780D WSM2480D

Washer Washer Dryer Washer Dryer

Capacity

Capacity Extra-large Extra-large Compact Compact

Features

Wash/spin speed

combinations 1 2

Wash/rinse temperatures 3 3

Water levels 3 3

Number of wash cycles 3 3

Regular ●●

Perm. Press ●●

Delicates ●●

Unbalanced load control ●●

Lint filter ●●

Dryer

Features

Automatic dry control ●●

Number of dry cycles 4 4

Auto Regular ●●

Auto Perm. Press ●

Delicates ●

Timed ●●

Air Fluff ●●

Control location Mid-band Mid-band

Rear/

Exhaust options Rear Sides

Appearance

WW, CC WW, CC

Colors available* WW WW

Weight & Dimensions

Dimensions 75-1/2 x 27 71-3/4 x 23-7/8

(HxWxD in inches) x 30 -13/16** x 27 -1/4**

Approx. shipping wt. (lbs.) 300 238

*WW = White on white, CC = Bisque on bisque

**Depth dimension assumes water hook-up is recessed in the wall.

Note: The third prong on the WSM2780D plug configuration is a flat spade

type rather than a typical round probe. It requires a matching wall outlet.

GE®Models WSM2700D and WSM2780D

Dimensions (in inches)

Models WSM2420D and WSM2480D

Dimensions (in inches)

theewndcnnfnkjtheewndcnnfnkj

theewnd

theewndtheewnd

theewnd

theewndtheewnd

thee

theewnd

35theewndcnnfnkj

Floor line

Distance from

vent to back 4-1/2

28-5/8

Water

inlet-

cold

1" For leveling legs

32-1/8

27-1/4 23-7/8

27-5/8

71-3/4

32-1/2

23-7/8

27-5/8

27-1/4

71-3/4

1-1/2

21-5/16 8

Drain

27-1/2

Power Cord Location

Model WSM2700

Back View

Power

Cord Hole

41''

12-1/2''

Model WSM2420

Back View

Power

Cord Hole

41-1/2''

9-1/2''

Vent

(rear

only)

9-3/8

75-1/2

54-5/16

29-7/16

41-1/4

5-1/4

3-3/4

Drain outlet

(rear)

Water inlets

(rear)

Gas sup

pipe (rea

36-1/16

11-7/16

16-1/4

25-1/4 2-1/2

4-13/16

30-13/16

Gas supply

pipe (rear)

Power Cord Location

Non-Coin-Op Commercial Washers and Dryers

GE Dryer

WNRD2050D

Capacity

Capacity (cu. ft.) 3.5 Stainless steel

Features

Motor 2-speed

Wash/spin speed combinations 3

Wash/rinse temperatures 3

Water levels 4

Digital cycle countdown ●

Number of wash cycles 5

White cottons ●

Colored cottons ●

Bright colors ●

Permanent Press ●

Delicate ●

Spin only ●

Bleach dispenser ●

Fabric softener dispenser ●

Quiet performance Deluxe quiet

Lid instructions ●

LED indicators ●

Appearance

Colors available White

Weights & Dimensions

Approx. shipping weight (lbs.) 160

GE Washer

DNCD450EA/GA

Capacity

Capacity (cu. ft.) Super (7.0)

Features

Dry cycles 5

Cottons/high heat ●

Mixed loads/ high heat ●

Perm press/ medium heat ●

Knits/low heat ●

Delicates/extra low heat ●

Temperatures 4

Air dry ●

Digital cycle countdown ●

Quiet performance Hush quiet

Lockable lint filter ●

LED indicators ●

Door swing Reversible

Drum material White DuraDrum

Appearance

Colors available White

Weights & Dimensions

Approx. shipping weight (lbs.) 125

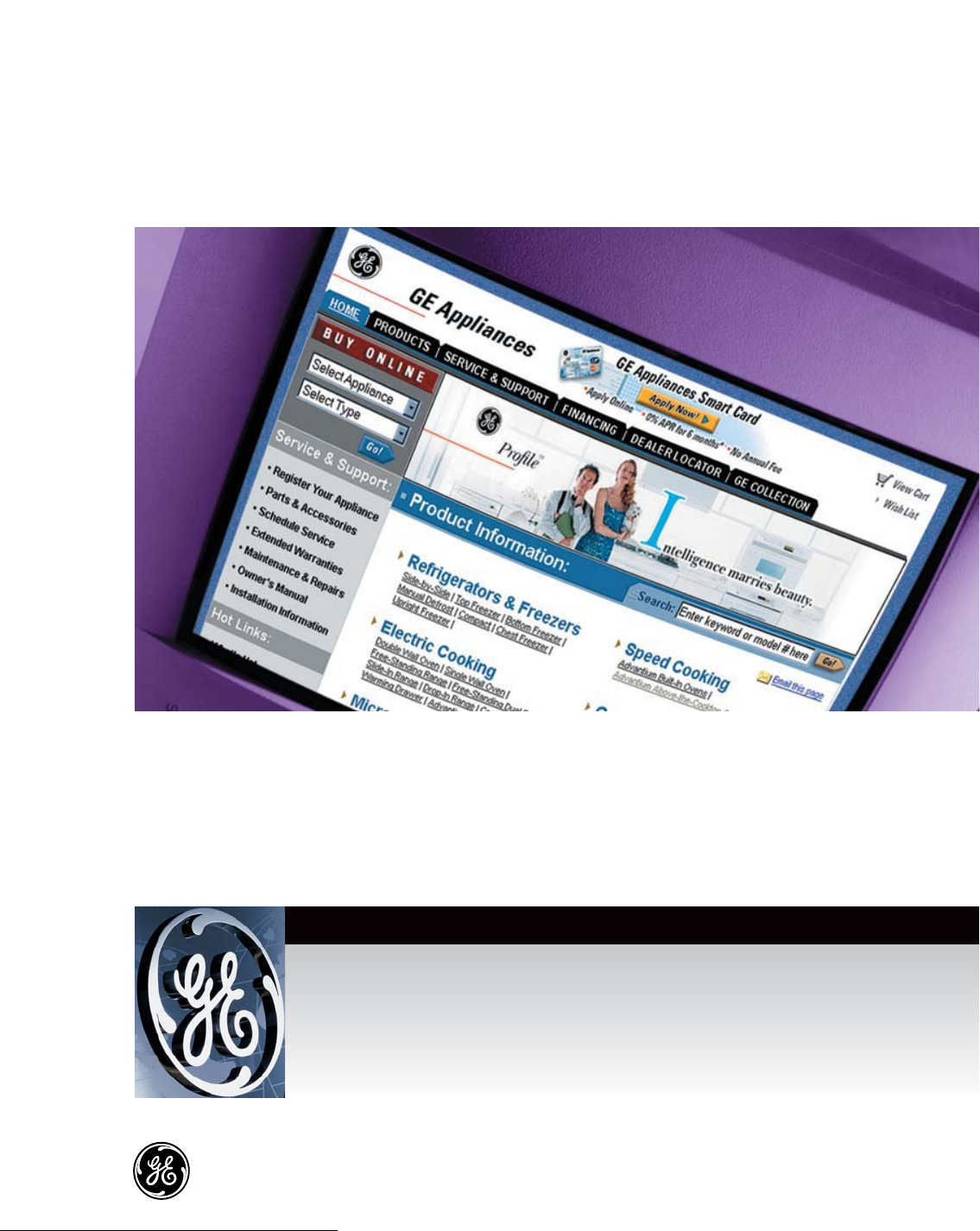

GE Appliances web site — 16 million visitors a year!

Visit us at GEAppliances.com

Everything you need to know about GE products is here. Access

up-to-date information, find out “what’s new,” obtain dimensions,

get installation tips and more. Extremely user-friendly, this one-stop

site lets you research by brand, category or model number and

even buy online through a local GE dealer.

GE Answer Center®saves you time. 800.626.2000

This 24-hour-a-day, 7-day-a-week service provides

answers on product features, installation,

service and more.

For more than a century, GE has been committed to producing innovative products

that change the way people live. The result of thorough research and rigorous testing,

GE appliances are designed for years of dependable performance.

Today, the GE tradition of quality and innovation continues.

A Century of Quality and Innovation

Answers that click!

GE puts everything you need at your fingertips.

GE Appliances

GEAppliances.com

GE Consumer Products

GE Company

Louisville, Kentucky 40225

GE has a policy of continuous improvement of its products

and reserves the right to change materials and specifications

without notice.

Pub. No. 14-S234 PC36862

Before purchasing an appliance, read important information about

its estimated annual energy consumption or energy efficiency

rating that is available from your retailer or GEAppliances.com

14 S234 GE SPACEMAKER WSLS1100D
