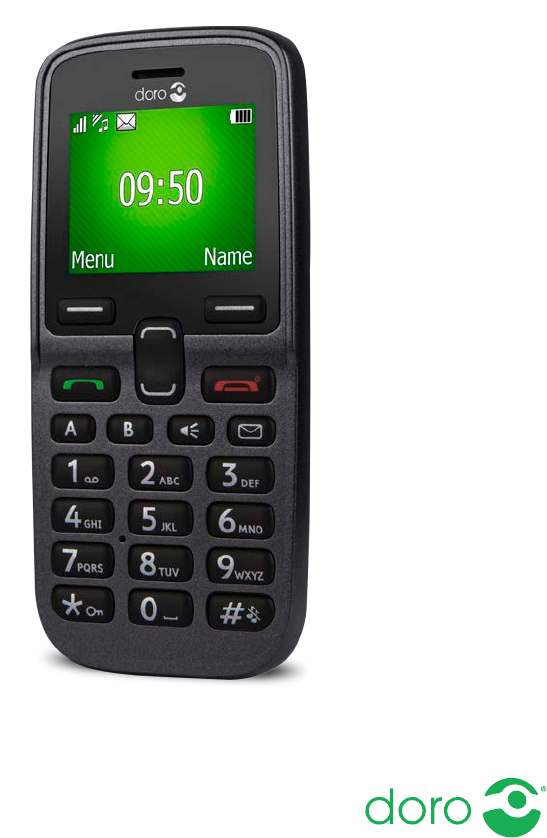

Doro 5030

2

4

3

5

7

9

6

10

12

11

13

14

15

17 18

8

16

1

Doro 5030

19

The items supplied with your phone might vary depending on the soft-

ware and accessories available in your region or offered by your service

provider. You can obtain additional accessories from your local Doro deal-

er. The supplied accessories provide the best performance with your

phone.

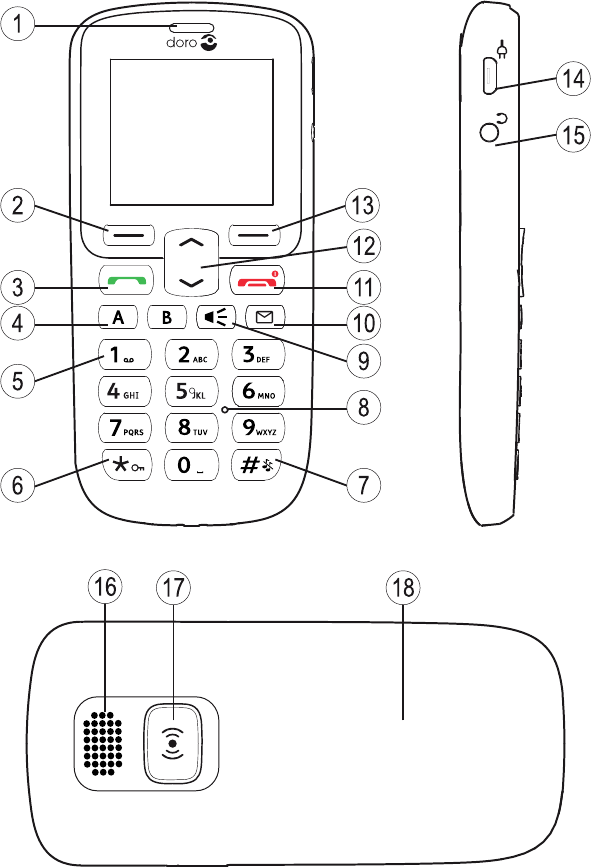

1. Earpiece

2. Left selection button

3. Call button

4. Speed dials

5. Voice mail

6. Keypad lock

7. Silent/Input method

8. Microphone

9. Torch shortcut

10. Message shortcut

11. End call/Power on/off

12. Arrow buttons

13. Right selection button

14. Charging socket

15. Headset socket

16. Loudspeaker

17. Assistance button

18. Battery cover

19. Lanyard hold (lanyard is not

included)

English

Contents

Congratulations on your purchase ............................................................... 1

Get started..................................................................................................... 1

Insert the SIM card and battery ........................................................... 1

Charge the phone.................................................................................. 2

Get to know your phone................................................................................ 2

Assistive functions................................................................................. 2

Turn the phone on and off .................................................................... 3

Start-up wizard ...................................................................................... 3

Navigate the phone ....................................................................... 3

Enter text ........................................................................................ 4

Phone settings....................................................................................... 5

Calls................................................................................................................ 7

Make a call............................................................................................. 7

Call from the phonebook ...................................................................... 8

Receive a call......................................................................................... 8

Volume control....................................................................................... 8

Call options ............................................................................................ 9

Speed dial ...................................................................................... 9

SOS calls ..............................................................................................10

Call log..................................................................................................10

Call settings .........................................................................................10

Phonebook...................................................................................................14

Add contact..........................................................................................14

Manage phonebook contacts.............................................................14

Phonebook settings ............................................................................15

ICE (In Case of Emergency) ...........................................................16

Assistance button .................................................................................. 17

Make an assistance call ..................................................................... 17

Activation .............................................................................................18

Number list ..........................................................................................18

Activate text messages (SMS) ............................................................19

Assistance settings .............................................................................19

Messages.....................................................................................................20

Create and send text message (SMS) ...............................................20

Outbox and Sent..................................................................................20

English

Message settings ................................................................................21

Connectivity .................................................................................................24

Network setup ..................................................................................... 24

Bluetooth®............................................................................................24

Sound & Display ..........................................................................................26

Audio setup .....................................................................................26

Tone setup (ringtone) ..........................................................................26

Ringtone volume .............................................................................26

Silent ....................................................................................................26

Alert type.............................................................................................. 27

Extra tone.............................................................................................27

Wallpaper.............................................................................................27

Text size ........................................................................................27

Idle display...........................................................................................28

LCD backlight.......................................................................................28

Brightness ....................................................................................28

Additional functions ....................................................................................28

Alarm....................................................................................................28

Calendar...............................................................................................29

Daily reminder .....................................................................................29

Calculator.............................................................................................30

FM radio...............................................................................................30

Torch.....................................................................................................32

Status...................................................................................................32

Reset settings......................................................................................32

Display status symbols .......................................................................33

Display main symbols .........................................................................33

Troubleshooting...........................................................................................34

Safety instructions.......................................................................................36

Network services and costs................................................................36

Operating environment .......................................................................36

Medical units .......................................................................................36

Areas with explosion risk ....................................................................37

Li-ion battery........................................................................................37

Protect your hearing............................................................................37

Emergency calls...................................................................................38

GPS/Location based functions ..........................................................38

Vehicles................................................................................................38

English

Protect your personal data .................................................................38

Malware and viruses...........................................................................39

Care and maintenance ...............................................................................39

Warranty.......................................................................................................40

Specifications .............................................................................................. 41

Copyright and other notices................................................................ 41

Hearing aid compatibility ....................................................................42

Specific Absorption Rate (SAR) ..........................................................43

Correct disposal of this product .........................................................43

Correct disposal of batteries in this product .....................................44

Declaration of Conformity...................................................................44

FCC/IC..........................................................................................................44

FCC notice............................................................................................44

RF exposure information (SAR) ..........................................................45

English

Congratulations on your purchase

Doro 5030 is a good-looking phone bringing you widely spaced, convex

keys, predictive text, direct memories and an SMS button for easy dialling

and texting. A crisp colour display and enhanced sound simplify usage

even more. Other practical features include a torch, reminders, wake-up

alarm, vibrating ringer and one-touch assistance dialling with SMS alerts.

For more information about accessories or other Doro products please

visit www.doro.com.

Get started

Insert the SIM card and battery

IMPORTANT!

Turn off the phone and disconnect the charger before removing the

battery cover.

1 2 3

1. Remove the battery cover and the battery if it is already installed.

2. Insert the SIM card as shown, by gently sliding it into the holder.

Take care not to scratch or bend the contacts on the SIM card.

3. Insert the battery by sliding it into the battery compartment with the

contacts facing downwards to the right. Replace the battery cover.

1

English

Charge the phone

CAUTION

Only use batteries, chargers and accessories that have been approved

for use with this particular model. Connecting other accessories may

be dangerous and may invalidate the phone's type approval and

warranty.

When the battery is running low, is displayed and a warning signal is

heard.

1. Connect the mains adapter to a wall socket and to the charging

socket y. The battery charge indicator is animated while charg-

ing. It takes approximately 3 hours to fully charge the battery. When

the charger is connected to the phone, is displayed briefly, and

when it is disconnected.

2. When charging is completed, is displayed on the screen.

If the phone is turned off when the charger is connected to the

phone only the battery charge indicator will be shown on the display.

Note! To save power the LCD backlight goes off after a while. Press any

button to illuminate the display. Full battery capacity will not be reached

until the battery has been charged 3–4 times. Batteries degrade over

time, which means that call time and standby time will normally

decrease with regular use.

Save energy

When you have fully charged the battery and disconnected the charger

from the device, unplug the charger from the wall socket.

Get to know your phone

Assistive functions

Use the symbols below to guide you through supporting sections in the

manual.

Seeing Handling

Hearing Safety

2

English

Turn the phone on and off

1. Press and hold on the phone to turn it on or off. Confirm with

Yes to power off.

2. If the SIM card is valid but protected with a PIN code (Personal Iden-

tification Number), PIN is displayed. Enter the PIN code and press

OK (upper left corner of keypad). Delete with Clear ( upper

right corner of keypad).

Note! If PIN and PUK codes were not provided with your SIM card, please

contact your service provider.

Attempts: #shows the number of PIN attempts left. When no more at-

tempts remain, PIN blocked is displayed. The SIM card must then be un-

locked with the PUK code (Personal Unblocking Key).

1. Enter the PUK code and confirm with OK.

2. Enter a new PIN code and confirm with OK.

3. Re-enter new PIN code and confirm with OK.

Start-up wizard

When starting the phone for the first time, you can use the Start-up wiz-

ard to set some basic settings.

•Press Yes to change or No if you do not want to change.

The default language is determined by the SIM card. See Phone settings,

p.5 on how to change language, time and date.

Tip: You can run the start-up wizard later if you want. From standby

mode, press Menu Settings General Start-up wizard.

Navigate the phone

Standby (idle mode)

When the phone is ready to use, and you have not keyed in any charac-

ters, the phone is in standby.

•Press to return to standby mode.

•Press left selection button to access the phone Menu or right

selection button Name to access your saved contacts in the

phonebook.

Tip: You can always press to return to standby.

3

English

Scroll

•Use the arrow buttons / to scroll in menus.

Step-by-step instructions

The arrow ( ) indicates next action in step-by-step instructions. To con-

firm an action, press OK. To select an item, scroll or highlight the item us-

ing / and then press OK.

Example:

•Press Menu Phonebook -New contact- Add.

To perform the example on your Doro 5030 you should do the following:

1. Press Menu, scroll to Phonebook and press OK.

2. Select -New contact- and press Add.

Enter text

Enter text manually

Select character

•Press a numerical key repeatedly until the desired character is

shown. Wait a few seconds before entering the next character.

Special characters/smileys

1. Press *for a list of special characters.

2. Select the desired character with / and press OK to confirm.

Move the cursor within text

•Use / to move the cursor within the text.

Upper case, lower case and numerals

•Press #to choose between upper case, lower case and numerals.

See Input mode, p.5.

Change writing language

1. Press and hold #for a list of available languages.

2. Select language with / and press OK to confirm.

Enter text with predictive text

In some languages you can use the Smart ABC (eZiType™) input method

which uses a dictionary to suggest words.

4

English

•Press each key once, even if the displayed character is not the one

you want. The dictionary will suggest words based on the keys you

have pressed.

Example

1. Press 3,7,3,3to write the word “Fred”. Complete the word be-

fore looking at the suggestions.

2. Use / to view the suggested words.

3. Press Select and continue with the next word.

Alternatively, press 0to continue with the next word.

4. If none of the suggested words are correct, use manual input mode.

Note! See Predictive text, p.21 for more information.

Input mode

•Press #to change input mode. The icon on the top left of the dis-

play indicates the input mode.

Abc Sentence case with predictive text

ABC UPPER CASE with predictive text

abc lower case with predictive text

Abc Sentence case

ABC UPPER CASE

abc lower case

123 Numerals

Phone settings

Time & date

Set the time and date

1. Press Menu Settings General Time & date:

•Set time to enter the time (HH:MM).

•Set date to enter the date (DD/MM/YYYY).

2. Press OK to confirm.

5

English

Tip: You can also set the phone to automatically update the time and

date according to the current time zone. In Time & date select Auto time

On. Automatic update of date and time does not change the time you

have set for the alarm clock or the calendar. They are in local time.

Updating may cause some alarms you have set to expire depending on

network support and subscription.

Set the time and date format

1. Press Menu Settings General Time & date Set

format:

•Time format 12 hours or 24 hours.

•Date format and select the desired date format.

2. Press OK to confirm.

Language

The default language for the phone menus, messages, etc. is determined

by the SIM card. You can change this to any other language supported by

the phone.

1. Press Menu Settings General Language.

2. Use / to select a language.

3. Press OK to confirm.

Block function

1. Press Menu Settings General Block function.

2. Select each function you want to disable and press Off.

3. Press Done to confirm.

PIN code options

1. Press Menu Settings Security SIM lock:

•On to activate the PIN code. You need to enter the PIN code

every time the phone is started.

•Off to deactivate the PIN code.

IMPORTANT!

If enabling Off-mode and the SIM card is lost or stolen, it is

unprotected.

•Automatic to start the phone without the PIN code. The phone

remembers it automatically, but if the SIM card is moved to

6

English

another phone (lost or stolen) the PIN code needs to be entered

when the phone is started.

2. Press OK to confirm.

Change PIN code

1. Press Menu Settings Security Passwords PIN.

2. Enter current PIN code and press OK.

3. Enter new PIN and press OK. Repeat to confirm.

Keypad lock

You can lock the keypad to prevent the keys being accidentally pressed,

for example, when your phone is in your handbag.

Incoming calls can be answered by pressing even if the keypad is

locked. During the call, the keypad is unlocked. When the call is ended or

rejected, the keypad is locked again.

•Press and hold *to lock/unlock the keypad.

Note! The main local emergency number can be dialled without

unlocking the keypad.

Activate

1. Press Menu Settings Security Keypad lock:

•Auto keylock to select the time delay for automatic keypad

locking.

•Unlock mode to select Single key to unlock the keypad with *

or Dual key to lock/unlock with right selection button (Name/

Unlock) and *.

2. Press OK to confirm.

Calls

Make a call

1. Enter the phone number including the area code. Delete with Clear.

2. Press to make a call. Press Abort to cancel the call.

3. Press to end the call.

Tip: For international calls, always use +before the country code for best

operation. Press *twice for the international prefix +.

7

English

Call from the phonebook

1. Press Name to open the phonebook.

2. Use / to scroll through the phonebook, or quick search by

pressing the key corresponding to the first letter of the entry, see En-

ter text , p.4.

3. Press Options Call to dial the selected entry. If needed, select

the number.

Alternatively, press to dial.

4. Press Abort or to cancel the call.

Receive a call

1. Press to answer, or press Silent to switch off the ringsignal

and then Reject to reject the call (busy signal).

Alternatively, press to reject the call directly.

2. Press to end the call.

Volume control

Use / to adjust the sound volume during a call. The volume level is

indicated on the display. If you use a hearing aid or have hearing difficul-

ties when using the telephone in a noisy environment, you can customise

the phone's audio settings, see Audio setup , p.26.

Silent

Silent is a fixed profile with Keypad tone, Message tone and Ringtone dis-

abled, while Vibration, Tasks, Daily reminder and Alarm are unchanged.

•Press and hold shortcut button #to activate/deactivate silent

mode.

Headset

When a headset is connected, the internal microphone in the phone is

automatically disconnected. If available, use the answer key on the head-

set to answer and end calls.

CAUTION

Using a headset at high volume may damage your hearing. Adjust the

volume level carefully when using a headset.

8

English

Call options

During a call the selection buttons1( ) give access to additional

functions.

Options (left selection button)

•Volume to adjust the volume.

•Hold/Retrieve to hold/retrieve the current call.

•End single call to end the current call (same as ).

•New call to call another number (Conference).

•Phonebook to search the phonebook.

•Messages to write or read text messages.

•Mute to disable the microphone.

SPK on (right selection button)

The loudspeaker allows you to speak without holding the phone close to

the ear.

1. Press SPK on to activate. Speak clearly into the phone microphone

at a maximum distance of 1 m. Use / to adjust the loud-

speaker volume.

2. Press SPK off to return to normal mode.

Note! Loud background noises (music, etc.) may interfere with the sound

quality.

Speed dial

Use A–B,0and 2–9to speed dial an entry from standby.

•Press and hold the corresponding key to speed dial.

Add speed dial numbers

1. Press Menu Settings Phonebook Speed dial.

2. Select AAdd and select an entry from the phonebook.

3. Press OK to confirm.

4. Repeat to add speed dial entries for buttons B,0,2–9.

9

1. Selection buttons have multiple functions. The current function is shown

above the selection button on the display.

English

Tip: To edit or delete an existing entry, select it and press Options

Edit or Delete.

SOS calls

As long as the phone is switched on, it is always possible to place an SOS

call by entering the main local emergency number for your present loca-

tion followed by .

Some networks accept calls to emergency numbers without a valid SIM

card. Contact your service provider for more information.

Call log

Received, missed and dialled calls are saved in a combined call log.

20 calls of each type can be stored in the log. For multiple calls related to

the same number, only the most recent call is saved.

1. Press .

Alternatively, press Menu Call log.

2. Use / to select:

Received call

Dialled call

Missed call

3. Press to dial, or Options:

•Call to call the contact.

•View to show details for the selected call.

•Send SMS to send a text message.

•Delete to delete the call.

•Delete all to delete all calls in the call log.

•Save to save the number in the phonebook Create new cre-

ate new contact, or Update update existing contact.

Call settings

Voice mail

If your subscription includes an answering service, callers can leave a

voice mail message when you cannot answer a call. Voice mail is a

10

English

network service and you may need to subscribe to it first. For more infor-

mation and for the voice mail number, contact your service provider.

1. Press Menu Settings Phonebook Voice mail.

2. Select Empty Add:

•Phonebook to add a contact from the phonebook. Press OK to

confirm.

•Manual and enter name and number. When done, press Save.

To edit or delete an existing entry, select it and press Options Edit/

Delete.

Call voice mail

•Press and hold shortcut button 1.

Tip: If activated reminder in the messages settings, a reminder signal will

be heard after 10 minutes if not listening to new voice mail messages,

see Reminder , p.23.

Call time

During a call, the duration of the call is shown. You can check the dura-

tion of your calls.

1. Press Menu Settings Calls Call time:

•Last call to show the elapsed time of the most recent call.

•Outgoing calls to show the elapsed time of all made calls.

•Received calls to show the elapsed time of all received calls.

•Reset all Yes to reset all.

2. Press OK to confirm.

Call waiting

You can handle more than one call at a time, put the current call on hold

and answer the incoming call. When activated, an alert tone is heard if

there is an incoming call while talking.

•During a call, press Options Answer.

Activate call waiting

1. Press Menu Settings Calls Call setup.

2. Select Call waiting Activate.

11

English

3. Press OK to confirm.

Tip: Repeat and select Deactivate to disable call waiting, or Query status

to display if call waiting is active or not.

Answer mode

1. Press Menu Settings Calls Answer mode.

2. Select Any key On to be able to answer incoming calls by press-

ing any button (exemption ).

3. Press OK to confirm.

Call divert

You can divert calls to an answering service or to another phone number.

Set up which calls should be diverted. Select a condition and press OK,

then select Activate,Deactivate or Query status for each.

1. Press Menu Settings Calls Call setup Call divert:

•Voice calls to divert all voice calls.

•Unreachable to divert incoming calls if the phone is turned off

or out of range.

•No reply to divert incoming calls if unanswered.

•If busy to divert incoming calls if the line is busy.

•Cancel diverts to cancel all call divert settings.

2. Press OK to confirm.

Caller ID

Display or hide your phone number on the recipient's phone when you

call.

1. Press Menu Settings Calls Call setup Caller ID:

•Set by network to use default setting by the network.

•Hide ID to never show your number.

•Send ID to always show your number.

2. Press OK to confirm.

Call barring

Your phone can be restricted to disallow certain types of calls.

12

English

Note! A password is needed to apply call barring. Contact your service

provider to get the password.

1. Press Menu Settings Calls Call setup Call barring.

2. Select Outgoing calls:

•All calls to answer incoming calls but not calling.

•Internat.calls to block calls to international numbers.

•Int. except home to block international calls except to the coun-

try associated with the SIM card.

3. Press OK to confirm.

4. Select Incoming calls:

•All calls to call but not to receive incoming calls.

•When roaming to block incoming calls while roaming (operating

in other networks).

5. Press OK to confirm.

6. Select Cancel all to cancel all call barring (password needed). Press

OK to confirm.

Fixed dial (FDN)

You can limit calls to certain numbers saved on the SIM card. The list of

allowed numbers is protected by your PIN2-code.

Note! The PIN2-code is needed to apply fixed dial. Contact your service

provider to get the PIN2-code.

1. Press Menu Settings Security Fixed dial:

•Mode On to enable or Off to disable.

•Fixed numbers Add and enter the first allowed number.

Alternatively, select an entry and press Options Add,Edit or

Delete.

2. If needed, enter PIN2 and press OK to confirm.

Note! You can save parts of phone numbers. For example, if you save

01234, allows calls to all numbers starting with 01234. It is possible to

place an SOS call by entering the main local emergency number followed

by even when fixed dial is activated. When fixed dial is activated

you are not allowed to view or manage any phone numbers saved on the

SIM card. You are not able to send any text messages either.

13

English

Phonebook

The phonebook can store 100 entries with 3 phone numbers in each

entry.

Add contact

1. Press Menu Phonebook -New contact- Add.

2. Enter a Name for the contact, see Enter text , p.4. Delete

with Clear.

3. Use / to select Mobile,Home or Office and enter the

phone number(s) including the area code.

4. When done, press Save.

Tip: For international calls, always use +before the country code for best

operation. Press *twice for the international prefix *.

Manage phonebook contacts

1. Press Menu Phonebook.

2. Select a contact, then press Options:

•Call to call the contact.

•Send SMS to create text message. See Create and send text

message (SMS), p.20.

•View to show details for the selected contact. Phone = stor-

age set to Phone and SIM = storage set to SIM, see Phone-

book storage, p.15.

•Edit to edit the contact. Use / to scroll. Delete with Clear.

When done, press Save.

•Add to add contact.

•Top 10 to set the entry as one of the first 10 contacts listed in

the phonebook. See Top 10 , p.15.

•Delete to delete the selected contact or Delete all to delete all

contacts. Press Yes to confirm or No to abort.

•Copy all From SIM to copy all phonebook contacts from the

SIM card to the phone memory, or From phone to copy all con-

tacts from the phone memory to the SIM card. Press Yes to con-

firm or No to abort.

14

English

•Send vCard Send by SMS to send the selected phonebook

contact as a vCard via text message. Enter the phone number

of the recipient.

Alternatively use / to scroll through the phonebook, or

quick search by pressing the key corresponding to the first let-

ter of the entry, see Enter text , p.4. Press OK to send.

•Send vCard Send by Bluetooth to send the selected phone-

book contact as a vCard via Bluetooth®. See Bluetooth®, p.24.

3. Press OK to confirm.

Phonebook settings

Top 10

Set an entry as one of the first 10 contacts listed in the phonebook.

1. Press Menu Settings Calls Top 10.

2. Select one of the empty entries and press Add.

3. Use / to scroll through the phonebook, or quick search by

pressing the key corresponding to the first letter of the entry.

4. Press OK to save the selected entry, or press Back to discard

changes.

Tip: You can also add an entry from the phonebook. Select the

contact and press Options Top 10.

Delete a top 10 entry

•Select the entry in the top 10 list and press Options Delete.

Phonebook storage

1. Press Menu Settings Phonebook Storage:

•SIM to save up to 3 phone numbers and one e-mail address per

contact.

•Phone to save 100 contacts with 3 phone numbers each Mo-

bile,Home,Office. As well as one e-mail address, and Phone-

book picture to assign images to contacts and Ringtone to

assign specific ringtones to contacts.

2. Press OK to confirm.

15

English

Note! Number and length of the phone numbers/contacts that can be

stored will vary depending on SIM card/service provider preferences.

Owner number

The phone number assigned to your SIM card is saved as Owner number

if this is allowed by the card.

Add numbers

1. Press Menu Phonebook Owner number Empty Add.

2. Enter name and number, see Enter text , p.4.

3. When done, press OK.

ICE (In Case of Emergency)

First responders can access additional information such as medical infor-

mation from the victim's phone in case of emergency. In the event

of a trauma, it is critical to have this information as early as possible to in-

crease the chances of survival. All fields are optional, but the more infor-

mation provided the better.

1. Press Menu Phonebook ICE.

2. Use / to scroll the list of entries.

3. Press Edit to add or edit information in each entry, see Enter text

, p.4. Delete with Clear.

ID

•Name: enter your name.

•Birth: enter your date of birth.

•Height: enter your height.

•Weight: enter your weight.

•Address enter your home address.

•Language: enter your preferred language.

•Insurance: enter your insurance provider and policy number.

Contact 1:,Contact 2: and Doctor:

•Press Options to Add or Delete a contact from the phonebook,

or Save to accept the current entry.

If possible, add your relationship to your ICE contacts in the

phonebook, such as “ICE Wife Mary Smith”.

Important info

16

English

•Condition: enter any medical conditions or medical devices (e.g.

diabetic, pacemaker).

•Allergies: enter any known allergies (e.g. penicillin, bee stings).

•Blood type: enter your blood type.

•Vaccination: enter any relevant vaccination.

•Medication: enter any medication that you are treated with.

•Other info: enter other information (e.g. organ donor, living will,

consent to treat).

4. When done, press Save.

Assistance button

CAUTION

When an assistance call is activated the phone is pre-set to handsfree/

speakerphone mode. Do not hold the device near your ear when the

handsfree mode is in use, because the volume may be extremely loud.

The assistance button allows easy access to contact your predefined help

numbers (Number list) should you need help. Make sure that the assis-

tance function is activated before use, enter recipients in the numbers

list and edit the text message.

Make an assistance call

1. When help is needed, press and hold the assistance button for 3

seconds, or press it twice within 1 second.

The assistance call begins after a delay of 5 seconds. In this time

you can prevent a possible false alarm by pressing .

2. An assistance text message (SMS) is sent to all recipients.

3. The first recipient in the list is called. If the call is not answered with-

in 25 seconds, the next number is called. Calling is repeated 3 times

or until the call is answered, or until is pressed.

Note! Some private security companies can accept automatic calls from

their clients. Always contact the security company before using their

phone number. Programming '999' into the assistance button is blocked.

Tip: The assistance function may be configured so that the recipient of

the call must press 0(zero) to confirm, in order to stop the alarm

sequence. See Confirm with "0", p.19.

17

English

IMPORTANT!

Information to the recipient of an assistance call, when Confirm with

"0" is activated.

•After receiving the assistance message, each number in the

Number list is called sequentially.

•To confirm the assistance call, the recipient needs to press 0.

•If the recipient doesn’t press 0within 60 seconds (after

answering) the call will be disconnected and the next number

in the sequence will be called.

•If the recipient presses 0within 60 seconds, the call is

confirmed and no further call attempts will be made

(assistance sequence interrupted).

Activation

Select how to activate the assistance function using the assistance

button.

1. Press Menu Settings Assistance Activation:

•On Normal to press and hold the button for approximately 3

seconds, or press it twice within 1 second.

•On (3) to press the button 3 times within 1 second.

•Off to disable the assistance button.

2. Press OK to confirm.

Number list

Add numbers to the list that is called when the assistance button is

pressed.

IMPORTANT!

Always inform recipients in the Number list that they are listed as your

assistance contacts.

1. Press Menu Settings Assistance Number list.

2. Select Empty Add Phonebook to add a contact from the

phonebook.

Alternatively, press Manual to add names or numbers manually. See

Add contact, p.14.

3. Press OK to confirm.

18

English

4. Repeat until you have 5 contacts (maximum).

Tip: To edit or delete an existing entry, select it and press Options

Edit or Delete.

Activate text messages (SMS)

A text message can be sent to the contacts in the numbers list when the

assistance button is pressed.

Activation

1. Press Menu Settings Assistance SMS Activation:

•On to send a text message before calling.

•Off to call without sending a text message first.

2. Press OK to confirm.

Create assistance message

1. Press Menu Settings Assistance SMS Message.

2. Select Edit and write the message, see Enter text , p.4.

3. Press OK to confirm.

Note! You must write a message if you activate the SMS function.

Assistance settings

Confirm with "0"

You can activate the Confirm with "0" function. This is especially recom-

mended if there is a risk that the assistance call is answered by a voice

mail or answering service. If the recipient doesn’t press 0within 60 sec-

onds the call will be disconnected and the next number in the sequence

will be called. If the recipient presses 0within 60 seconds, the call is

confirmed and no further call attempts will be made (assistance se-

quence interrupted).

1. Press Menu Settings Assistance Confirm with "0".

2. Select On to enable, or Off to disable.

3. Press OK to confirm.

Signal type

Select the notification signal type for the assistance sequence.

1. Press Menu Settings Assistance Signal type:

19

English

•High to use loud signals (default).

•Low to use one low signal.

•Silent no sound indication, like a normal call.

2. Press OK to confirm.

Messages

Create and send text message (SMS)

Note! Before you can send any text messages, you need to save your

message centre number. The number to your service centre is supplied

by your service provider and is usually set on the SIM card. If not, you can

enter the number yourself.

1. Press the shortcut button ,

or press Menu Messages Write message.

2. Write your message, see Enter text , p.4, then press To.

3. Select a recipient from Phonebook.

Alternatively, select Enter number to add recipient manually and

press Done.

4. Press Add to add more recipients.

Tip: You can modify the recipients by selecting one, press Options

Edit/Delete/Delete all.

5. When done, press Send.

Note! If you choose to add multiple recipients, you will be charged for

each recipient (maximum 10). For international calls, always use +

before the country code for best operation. Press *twice for the

international prefix +.

Outbox and Sent

Text message unread Text message sent

Text message read Text message unsent

1. Press shortcut button .

Alternatively press Menu Messages.

2. Select Inbox,Outbox or Sent.

3. Select a message and press Read. Use / to scroll up/down.

20

English

4. Press Options:

•Reply to write your reply, then press Send. The message is sent

immediately.

•Call to call the contact.

•Delete to delete or Delete all to delete all. Press Yes to delete

or No to return.

•Forward to forward the message. Edit the message (if desired),

then press Send.

•Use number Call to call the selected number.

•Details to view details of the message.

5. Press OK to confirm.

Message settings

Predictive text

1. Press Menu Settings Messages Predictive text.

2. Select On (default) to enable, or Off to disable.

3. Press OK to confirm.

Writing language

1. Press Menu Settings Messages Writing language.

2. Select language with / .

3. Press OK to confirm.

Tip: During text input, press and hold #for a list of available languages.

Write speed

You can change the speed at which keypad characters repeat before the

cursor moves on to the next character.

1. Press Menu Settings Messages.

2. Select Write speed Slow,Normal or Fast.

3. Press OK to confirm.

Memory status

1. Press Menu Settings Messages.

21

English

2. Select Memory status to display the percentage of memory space

used on the SIM card and in the phone memory. Phone memory can

store up to 200 messages.

3. Press Back to return.

Storage

1. Press Menu Settings Messages Storage:

•SIM (default) to store messages on the SIM card.

•Phone to store messages in the phone memory.

2. Press OK to confirm.

SMS centre

1. Press Menu Settings Messages SMS centre Edit.

2. Enter the service centre number. Press Clear to delete.

3. Press OK to confirm.

Input method

With Input method you can select to write your text messages with spe-

cial, distinguishing language specific characters (Unicode) or to write with

more simple characters. Automatic allows special characters. Special

characters takes up more space and the size of each message is re-

duced to 70 characters. GSM alphabet converts any special character to

plain alphabet characters, e.g. Î becomes I. Each message can contain

160 characters.

1. From SMS settings, select Input method:

•Automatic (default) to allow special characters.

•GSM alphabet to convert any special character to plain alpha-

bet characters.

•Information function description.

2. Press OK to confirm.

Cell broadcast

You can receive messages on various topics from your service provider,

such as weather or traffic conditions in a particular region. For available

channels and relevant channel settings, contact your service provider.

Cell broadcast messages cannot be received when the device is roaming.

1. Press Menu Settings Messages Cell broadcast:

22

English

•Activation to turn information On or Off.

•Read messages to read the message.

•Languages to select language On or Off.

•Channel settings to select from which channels to receive/sub-

scribe messages. Use the options Subscribe,Cancel subscrip-

tion,Add,Edit and Delete to define your channels.

2. Press OK to confirm.

Reminder

The reminder alerts you once if you haven't checked your messages or

listened to your voice mail within 10 minutes from receipt. When notified,

press to end the notification and no more reminder is heard.

1. Press Menu Settings Messages Reminder.

2. Select On to enable, or Off to disable.

3. Press OK to confirm.

Vibration

The text message vibration alert is several short vibrations.

1. Press Menu Settings Messages Vibration.

2. Select Messages:

•Short (4 seconds)

•Long (12 seconds)

3. Press OK to confirm.

Note! If Alert type is set to Ring only the phone will not vibrate.

Delivery report

You can select if you want the phone to notify you when your text mes-

sage has reached the recipient.

Note! Contact your service provider for detailed subscription costs before

activating.

1. Press Menu Settings Messages Delivery report:

2. Select On to enable, or Off to disable.

3. Press OK to confirm.

23

English

Delete

Delete all messages or all within a folder.

1. Press Menu Settings Messages Delete.

2. Select Inbox,Outbox,Sent or Delete all Yes to delete all

messages.

Connectivity

Network setup

Your phone automatically selects your (service providers) home network

if this is within range. Contact your service provider for more information.

1. Press Menu Settings General Network setup.

2. Select one of the following options and press OK to confirm:

•New search to perform new search if connection is lost.

•Select network to view available network, a list of available net-

work operators is displayed (after a short delay). Select desired

operator.

•Network mode to select another network. Select Automatic to

select network automatically or Manual to select network

manually.

Services

This menu may contain pre-programmed services from your network pro-

vider depending on network support and subscription.

•Press Menu Settings General Services.

Bluetooth®

You can connect wirelesses to other Bluetooth®compatible devices such

as headsets or other phones.

IMPORTANT!

When you are not using Bluetooth®connectivity, turn off Function on/

off or Visibility. Do not pair with an unknown device.

Activate Bluetooth®

1. Press Menu Settings Bluetooth Function on/off On.

2. Press OK to confirm.

24

English

Bluetooth®settings

Visibility

1. Press Menu Settings Bluetooth Visibility On.

2. Press OK to confirm.

Note! To prevent other devices from finding your device, select Off. Even

if you select Off, paired devices can still detect your device.

Device name

1. Press Menu Settings Bluetooth Device name.

2. Enter the name your Doro 5030 should appear with for other Blue-

tooth®devices.

3. Press Done to confirm.

Search device

1. Press Menu Settings Bluetooth Search device.

2. Select a device from the list and press Bond to connect.

If Bluetooth®is not enabled, press Yes to activate.

3. When connecting to another Bluetooth®device you need a shared

password. Enter the password and press OK.

My device

Add new devices or view saved.

1. Press Menu Settings Bluetooth My device.

2. Select device from the list and press Options:

•Rename to change the name of the device.

•Delete to delete the device from the list.

•Delete all to delete all devices from the list.

3. Press OK to confirm.

Audio path

1. Press Menu Settings Bluetooth Audio path:

•Phone to answer incoming calls with the phone.

•Forward BT to forward incoming calls to the Bluetooth®device.

2. Press OK to confirm.

25

English

Sound & Display

Note! Silent needs to be set to Off to access Tone setup, Volume, Alert

type and Extra tone.

Audio setup

If you use a hearing aid or have hearing difficulties when using the device

in a noisy environment, you can adjust the audio settings.

1. Press Menu Settings Sound Audio setup:

•Normal for normal hearing in normal conditions (default).

•High for moderate hearing impairment or use in a very noisy

environment.

•HAC mode for use with hearing aid.

2. Press OK to confirm.

Note! Try different settings to find the one that suits your hearing the

best.

Tone setup (ringtone)

Select a ringtone with the best tone curve adjustments and frequencies

to best fit your needs.

1. Press Menu Settings Sound Tone setup Ringtone.

2. Use / to select one of the available melodies, the melody is

played.

3. Press OK to confirm or Back to discard changes.

Tip: Set up the Alarm,Message tone,Keypad tone,Power on and Power

off in the same way.

Ringtone volume

1. Press Menu Settings Sound Volume.

2. Use / to change the ringtone volume.

3. Press OK to confirm.

Silent

1. Press Menu Settings Sound Silent.

2. Select On to enable, or Off to disable.

26

English

3. Press OK to confirm.

Tip: From standby mode, press and hold shortcut button #to activate or

deactivate silent mode.

Alert type

Select to use ringtone and/or vibration for incoming calls.

1. Press Menu Settings Sound Alert type:

•Ring only for ringtone only.

•Vib. only for vibration only.

•Vib. and ring for vibration and ringtone.

•Vib. then ring to start with vibration and adds ringtone after a

short while.

•Silent for no sound or vibration, the display light is lit.

2. Press OK to confirm.

Extra tone

You can select to enable warning and error tones to alert you of low bat-

tery power, phone and SIM card errors, etc.

1. Press Menu Settings Sound.

2. Select Extra tone Warning or Error.

3. Select On to enable, or Off to disable.

4. Press Done to save.

Wallpaper

1. Press Menu Settings Display Wallpaper.

2. Use / to display available wallpapers.

3. Press OK to confirm.

Text size

You can adjust the text size for the menu and messages.

1. Press Menu Settings Display.

2. Select Text size Normal or Large.

3. Press OK to confirm.

27

English

Idle display

In standby mode the display can show clock only, clock and the service

provider, or all information.

1. Press Menu Settings Display.

2. Select Idle display Clock only,Clock & Operator,All info or No

information.

3. Press OK to confirm.

LCD backlight

Select the delay time for the display backlight.

1. Press Menu Settings Display.

2. Select LCD backlight 15 sec.,30 sec. or 1 min.

3. Press OK to confirm.

Brightness

You can adjust the brightness of the display.

1. Press Menu Settings Display.

2. Select Brightness Level 1,Level 2 or Level 3.

3. Press OK to confirm.

Additional functions

Alarm

1. Press Menu Alarm On.

2. Enter the alarm time using the keypad and press OK to confirm.

•Select Single to set one single alarm.

•Select Repeated to repeat the same alarm time several days.

Scroll through the list of days and press On to enable or Off to

disable the alarm for each day.

3. Press Save to confirm.

Tip: To edit an alarm, press Edit or Off to stop the alarm.

Snooze or stop

When the alarm sounds:

•Select Stop to stop.

28

English

•Select Snooze to repeat after 9 minutes.

Note! The alarm will work even when the phone is powered off. Do not

power on your phone if wireless phone use is prohibited or when it may

cause interference or danger.

Calendar

Add task

1. Press Menu Organiser Calendar Options Add task.

2. Enter date, then press .

3. Enter time, then press .

4. Enter subject, see Enter text , p.4.

5. When done, press OK.

Options

1. Press Menu Organiser Calendar Options:

•Select View to show tasks for the selected date.

•Select Jump to date and enter the date.

2. Press OK to confirm.

View all

1. Press Menu Organiser Calendar.

2. Select a task and press Options View all.

3. Press Options Edit,Delete or Delete all.

4. Press OK to confirm.

Note! The calendar reminders will work even when the phone is powered

off. Do not power on your phone if wireless phone use is prohibited or

when it may cause interference or danger.

Daily reminder

1. Press Menu Organiser Daily reminder Add.

2. Enter time, then press .

3. Enter subject, see Enter text , p.4

4. Press OK to confirm.

Snooze or stop

When the alarm sounds:

29

English

•Select Silent OK to stop.

•Select Snooze to repeat after 9 minutes.

Note! The reminder will work even when the phone is powered off. Do not

power on your phone if wireless phone use is prohibited or when it may

cause interference or danger.

Tip: For more options select an existing entry, and press Options Skip

reminder,Add,Edit,Delete or Delete all.

Calculator

The Calculator can perform basic mathematical operations.

1. Press Menu Calculator.

2. Enter the first number. Use #to enter decimal points.

3. Use the arrow buttons to select an operation (+, -, x, ÷) and press OK.

4. Enter the next number and press OK.

5. Repeat steps 2–4 as necessary.

Select =and press OK to calculate the result.

FM radio

The FM radio has a frequency range from 87.5 to 108.0 MHz. To lis-

ten to the radio you need to connect a compatible headset that works as

antenna.

Turning the radio on

1. Connect a headset to the headset socket .

2. Press Menu FM radio. The radio is turned on. The tuned fre-

quency is displayed.

3. Select channel using or .

Tip: Press to return to standby mode. The radio will continue to play.

Volume

1. Press Menu FM radio Options Volume.

2. Use or to adjust the volume.

3. Press OK to confirm.

30

English

Save frequency

1. Press Menu FM radio Options Save frequency.

2. Enter a name for the new channel, see Enter text , p.4.

3. When done, press OK.

Switch off

•Press Menu FM radio Options Switch off.

Tip: Disconnecting the headset will also turn off the radio.

Loudspeaker

1. Press Menu FM radio Options Loudspeaker On.

2. Select On.

3. Use / to adjust the sound volume.

4. To turn off, select Off.

Channel list (editing the channel list)

1. Press Menu FM radio Options Channel list.

2. Select the channel you wish to edit and press Options:

•Play to play the selected channel.

•Delete to delete the channel. Press Yes to confirm or No to re-

turn to the channel list.

•Edit to edit the channel name, then press to edit the fre-

quency, use #to enter the decimal point. When done, press

Save.

3. Press Yes to confirm.

Manual input (change the search mode)

1. Press Menu FM radio Options Manual input:

•Fine tune to tune manually with or .

•Auto search to use automatic station search with or .

2. Press OK to confirm.

Note! This will overwrite all previously saved channels.

Auto save

1. Press Menu FM radio Options.

2. Select Auto save to automatically install available radio stations in

channels 1-9.

31

English

3. Press OK to confirm.

Note! This will overwrite all previously saved channels.

Torch

1. Press Menu Torch.

2. Select Off to power off.

Tip: Press and hold shortcut button to power on the torch. Release to

power off.

Torch settings

1. Press Menu Settings General Torch.

2. Select Time:

•1 min to power off automatically after 1 min.

•5 min to power off automatically after 5 min.

•No limit to power of manually.

3. Select Sound:

•Select On to enable, or Off (default) to disable.

4. Press OK to confirm.

Note! The torch will drain the battery very quickly. Remember to power

off the torch after use.

Status

Scroll through the Status list to get further information about the

icons shown on top of your display. Icons shown on the display varies de-

pending on your phone status.

1. Press Menu More Status.

2. Use or to scroll the list.

3. Press Back to return to standby mode.

Reset settings

1. Press Menu Settings Security.

2. Select Reset settings to reset the phone settings. All the changes

that you have made to the phone settings will be reset to default

settings.

3. Enter the phone code and press OK to reset.

32

English

Tip: The default phone code is 1234.

Reset all

1. Press Menu Settings Security.

2. Select Reset all to delete phone settings and content such as con-

tacts, number lists and messages (SIM memory is not affected).

3. Enter the phone code and press OK to reset.

Tip: The default phone code is 1234.

Display status symbols

Signal strength No network coverage

Ring only Voice mail message

received

Ring + vibration Alarm active

Vibration only Battery level

Silent Call divert activated

Roaming (in other network) Bluetooth on, visible to

others

Missed call Bluetooth on, invisible to

others

Headset connected Bluetooth connected

5Unread text message/SMS

Display main symbols

Mute Charger connected

Message sending success Charger removed

Message sending failed Headset in

Error Headset out

Warning Speaker on

33

English

Query Speaker off

Done (confirmed) Incoming call

New message Outgoing call

Battery level low Call ended

Searching Missed call. Press Read to

see the missed calls.

Assistance button call Call on-hold

vCard message Outgoing SOS call

Volume control Processing, please wait

Troubleshooting

Phone cannot be switched on

Battery charge low Connect the power adapter and charge the bat-

tery for 3 hours. Full battery capacity is reached

after the battery has been charged 3–4 times.

Battery incorrectly

installed

Check the installation of the battery.

Failure to charge the battery

Battery or charger

damaged

Check the battery and charger.

Battery should only be

charged in temperatures

between 0 °C and 40 °C

Improve the charging environment.

Charger incorrectly con-

nected to phone or

power socket

Check the charger connections.

34

English

Standby time decreases

Battery charge capacity

too low

Install a new battery.

Too far from base sta-

tion, phone is constantly

searching for signal

Searching the network consumes battery power.

Find a place with a stronger signal, or tempora-

rily turn off the phone.

Failure to place or receive calls

Call barring activated Deactivate call barring. If this does not solve the

problem, contact your service provider.

PIN code not accepted

Wrong PIN code entered

too many times

Enter the PUK code to change the PIN code, or

contact your service provider.

SIM card error

SIM card damaged Check the condition of the SIM card. If it is dam-

aged, contact your service provider.

SIM card incorrectly

installed

Check the installation of the SIM card. Remove

the card and reinstall it.

SIM card dirty or damp Wipe the contact surfaces of the SIM card with a

clean cloth.

Failure to connect to network

SIM card invalid Contact your service provider.

No coverage of GSM

service

Contact your service provider.

Weak signal

Too far from base

station

Try again from another location.

Network congestion Try calling at a later time.

Echo or noise

Regional problem from

bad network relay

Hang up and redial. This may switch to another

network relay.

35

English

Failure to add a contact

Phonebook memory full Delete contacts to free up memory.

Failure to set a function

Function not supported

or subscribed from

network

Contact your service provider.

Safety instructions

CAUTION

The unit and the accessories can contain small parts. Keep all of the equipment out

of the reach of small children.

The mains adapter is the disconnect device between the product and mains power.

The mains socket outlet must be close to the equipment and easily accessible.

Network services and costs

Your device is approved for use on the GSM 900/1800/1900 MHz networks. To use the

device, you need a subscription with a service provider.

Using network services may result in traffic costs. Some product features require sup-

port from the network, and you may need to subscribe to them.

Operating environment

Follow the rules and laws that apply wherever you are, and always turn off the unit

whenever its use is prohibited or can cause interference or hazards. Only use the unit in

its normal user position.

Parts of the unit are magnetic. The unit can attract metal objects. Do not keep credit

cards or other magnetic media near the unit. There is a risk that information stored on

them can be erased.

Medical units

The use of equipment that transmits radio signals, for example, mobile phones, can in-

terfere with insufficiently protected medical equipment. Consult a doctor or the manu-

facturer of the equipment to determine if it has adequate protection against external

radio signals, or if you have any questions. If notices have been put up at health care fa-

cilities instructing you to turn off the unit while you are there, you should comply. Hospi-

tals and other health care facilities sometimes use equipment that can be sensitive to

external radio signals.

36

English

Implanted medical devices

To avoid potential interference, manufacturers of implanted medical devices recom-

mend a minimum separation of 15 cm between a wireless device and the medical de-

vice. Persons who have such devices should:

•Always keep the wireless device more than 15 cm from the medical device.

•Should not carry the phone in a breast pocket.

•Hold the wireless device to the ear opposite the medical device.

If you have any reason to suspect that interference is taking place, turn the phone off

immediately If you have any questions about using your wireless device with an im-

planted medical device, consult your health care provider.

Areas with explosion risk

Always turn off the unit when you are in an area where there is a risk of explosion. Fol-

low all signs and instructions. There is a risk of explosion in places that include areas

where you are normally requested to turn off your car engine. In these areas, sparks

can cause explosion or fire which can lead to personal injury or even death.

Turn off the unit at filling stations, and any other place that has fuel pumps and auto re-

pair facilities.

Follow the restrictions that apply to the use of radio equipment near places where fuel

is stored and sold, chemical factories and places where blasting is in progress.

Areas with risk for explosion are often – but not always – clearly marked. This also ap-

plies to below decks on ships; the transport or storage of chemicals; vehicles that use

liquid fuel (such as propane or butane); areas where the air contains chemicals or par-

ticles, such as grain, dust or metal powder.

Li-ion battery

This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack

is handled improperly.

WARNING

Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns,

do not disassemble, crush, puncture, short external contacts, expose to temperature

above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used

batteries according to the local regulations or reference guide supplied with your

product.

Protect your hearing

This device has been tested to comply with the Sound Pressure Level requirement laid

down in the applicable EN 50332-1 and/or EN 50332-2 standards.

37

English

WARNING

Excessive exposure to loud sounds can cause hearing damage. Exposure

to loud sounds while driving may distract your attention and cause an

accident. Listen to a headset at a moderate level, and do not hold the

device near your ear when the loudspeaker is in use.

Emergency calls

IMPORTANT!

Mobile phones use radio signals, the mobile phone network, the terrestrial network

and user-programmed functions. This means that connection cannot be guaranteed

in all circumstances. Therefore, never rely only on a mobile phone for very important

calls such as medical emergencies.

GPS/Location based functions

Some products provide GPS/Location based functions. Location determining functional-

ity is provided “As is”. No representation or warranty are made as to the accuracy of

such location information. Use of location-based information by the device may not be

uninterrupted or error free and may additionally be dependent on network service avail-

ability. Please note that functionality may be reduced or prevented in certain environ-

ments such as building interiors or areas adjacent to buildings.

CAUTION

Do not use GPS functionality in a manner which causes distraction from driving.

Vehicles

Radio signals can affect electronic systems in motor vehicles (for example, electronic

fuel injection, ABS brakes, automatic cruise control, air bag systems) that have been in-

correctly installed or are inadequately protected. Contact the manufacturer or its repre-

sentative for more information about your vehicle or any additional equipment.

Do not keep or transport flammable liquids, gases or explosives together with the unit

or its accessories. For vehicles equipped with air bags: Remember that air bags fill with

air with considerable force.

Do not place objects, including fixed or portable radio equipment in the area above the

airbag or the area where it might expand. Serious injuries may be caused if the mobile

phone equipment is incorrectly installed and the airbag fills with air.

It is prohibited to use the unit in flight. Turn off the unit before you board a plane. Using

wireless telecom units inside a plane can pose risks to air safety and interfere with tele-

communications. It may also be illegal.

Protect your personal data

Protect your personal data and prevent leakage or misuse of sensitive information

38

English

•While using your device, be sure to back up important data.

•When disposing of your device, back up all data and then reset your device to pre-

vent misuse of your personal information.

•Carefully read the permissions screen when downloading applications. Be particu-

larly cautious with applications that have access to many functions or to a signifi-

cant amount of your personal information.

•Check your accounts regularly for unapproved or suspicious use. If you find any

sign of misuse of your personal information, contact your service provider to delete

or change your account information.

•In the event your device is lost or stolen, change the passwords on your accounts

to protect your personal information.

•Avoid using applications from unknown sources and lock your device with a pattern,

password, or PIN.

Malware and viruses

To protect your device from malware and viruses, follow these usage tips. Failure to do

so may result in damages or loss of data that may not be covered by the warranty

service.

•Do not download unknown applications.

•Do not visit untrusted websites.

•Delete suspicious messages or email from unknown senders.

•Set a password and change it regularly.

•Deactivate wireless features, such as Bluetooth, when not in use.

•If the device behaves abnormally, run an antivirus program to check for infection.

•Run an antivirus program on your device before you launch newly-downloaded ap-

plications and files.

•Do not edit registry settings or modify the device’s operating system.

Care and maintenance

Your unit is a technically advanced product and should be treated with the greatest care.

Negligence may void the warranty.

•Protect the unit from moisture. Rain, snow, humidity, and all types of liquids can

contain substances that corrode the electronic circuits. If the unit gets wet, you

should immediately power off the phone, remove the battery and allow the unit to

dry completely before you replace it.

•Do not use or keep the unit in dusty, dirty environments. The unit’s moving parts

and electronic components can be damaged.

•Do not keep the unit in warm places. High temperatures can reduce the lifespan

for electronic equipment, damage batteries and distort or melt certain plastics.

•Do not keep the unit in cold places. When the unit warms up to normal tempera-

ture, condensation can form on the inside and can damage the electronic circuits.

•Do not try to open the unit in any other way than that which is indicated here.

39

English

•Do not drop or shake the unit. If it is treated roughly the circuits and precision me-

chanics can be broken.

•Do not use strong chemicals to clean the unit.

•Do not disassemble, open, crush, bend, deform, puncture or shred.

•Do not modify or remanufacture, attempt to insert foreign objects into the battery,

immerse or expose to water or other liquids, expose to fire, explosion or other

hazard.

•Only use the battery for the system for which it is specified.

•Only use the battery with a charging system that has been qualified with the system

per IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of

fire, explosion, leakage, or other hazard.

•Do not short circuit a battery or allow metallic conductive objects to contact battery

terminals.

•Replace the battery only with another battery that has been qualified with the sys-

tem per this standard, IEEE-Std-1725. Use of an unqualified battery may present a

risk of fire, explosion, leakage or other hazard.

•Promptly dispose of used batteries in accordance with local regulations.

•Battery usage by children should be supervised.

•Improper battery use may result in a fire, explosion or other hazard.

For devices that utilize a USB port as a charging source, the device's user manual shall

include a statement that the device shall only be connected to CTIA certified adapters,

products that bear the USB-IF logo or products that have completed the USB-IF compli-

ance program.

The advice applies to the unit, battery, power adapter and other accessories. If the

phone is not working as it should, please contact the place of purchase for service.

Don’t forget the receipt or a copy of the invoice.

Warranty

This product is guaranteed for a period of 12 months from the date of purchase. In the

unlikely event of a fault occurring during this period, please contact the place of pur-

chase. Proof of purchase is required for any service or support needed during the guar-

antee period.

This guarantee will not apply to a fault caused by an accident or a similar incident or

damage, liquid ingress, negligence, abnormal usage, non-maintenance or any other cir-

cumstances on the user’s part. Furthermore, this guarantee will not apply to any fault

caused by a thunderstorm or any other voltage fluctuations. As a matter of precaution,

we recommend disconnecting the charger during a thunderstorm.

Batteries are consumables and are not included in any guarantee.

This guarantee does not apply if batteries other than DORO original batteries are used.

40

English

Specifications

Network: GSM 900/1800/1900 MHz

Dimensions 117 mm x 53 mm x 14 mm

Weight 78 g (including battery)

Battery 3.7 V / 800 mAh Li-ion battery

Operating ambient

temperature

Min: 0°C (32°F)

Max: 40°C (104°F)

Charging ambient

temperature

Min: 0°C (32°F)

Max: 40°C (104°F)

Storage temperature Min:–20°C (–4°F)

Max: 60°C (140°F)

Copyright and other notices

Bluetooth®is a registered trademark of Bluetooth SIG, Inc.

vCard is a trademark of the Internet Mail Consortium.

eZiType™is a trademark of Zi Corporation.

Wi-Fi is a trademark or a registered trademark of the Wi-Fi Alliance.

microSD is a trademark of SD Card Association.

Java, J2ME and all other Java-based marks are trademarks or registered trademarks of

Sun Microsystems, Inc. in the United States and other countries.

The contents of this document are provided "as is". Except as required by applicable

law, no warranties of any kind, either express or implied, including, but not limited to,

the implied warranties of merchantability and fitness for a particular purpose, are made

in relation to the accuracy, reliability or contents of this document. Doro reserves the

right to revise this document or withdraw it at any time without prior notice.

Google, Google Maps™, Gmail, Google Calendar, Google Checkout, Hangouts, YouTube,

the YouTube logo, Picasa and Android are trademarks or registered trademarks of Goo-

gle, Inc.

This product is licensed under the MPEG-4 visual and AVC patent portfolio licenses for

the personal and noncommercial use of a consumer for (i) encoding video in compli-

ance with the MPEG-4 visual standard ("MPEG-4 video") or the AVC standard ("AVC vid-

eo") and/or (ii) decoding MPEG- 4 or AVC video that was encoded by a consumer

engaged in a personal and non-commercial activity and/or was obtained from a video

provider licensed by MPEG LA to provide MPEG-4 and/or AVC video. No license is

granted or shall be implied for any other use. Additional information including that relat-

ing to promotional, internal and commercial uses and licensing may be obtained from

MPEG LA, L.L.C. See www.mpegla.com. MPEG Layer-3 audio decoding technology li-

censed from Fraunhofer IIS and Thomson.

Other product and company names mentioned herein may be the trademarks of their

respective owners.

41

English

Any rights not expressly granted herein are reserved. All other trademarks are property

of their respective owners.

To the maximum extent permitted by applicable law, under no circumstances shall Doro

or any of its licensors be responsible for any loss of data or income or any special, inci-

dental, consequential or indirect damages howsoever caused.

Doro does not provide a warranty for or take any responsibility for the functionality, con-

tent, or end-user support of third-party apps provided with your device. By using an app,

you acknowledge that the app is provided as is. Doro does not make any representa-

tions, provide a warranty, or take any responsibility for the functionality, content, or end-

user support of third-party apps provided with your device.

Content copyright

The unauthorised copying of copyrighted materials is contrary to the provisions of the

Copyright Laws of the United States and other countries. This device is intended solely

for copying non-copyrighted materials, materials in which you own the copyright, or ma-

terials which you are authorised or legally permitted to copy. If you are uncertain about

your right to copy any material, please contact your legal advisor.

Hearing aid compatibility

Note! For hearing aid compatibility, turn off Bluetooth connectivity.

This phone is hearing aid compatible. Hearing aid compatibility is not a guarantee that

a specific hearing aid will work with a specific phone. Mobile phones contain radio

transmitters that may interfere with hearing aid performance. This phone has been

tested for use with hearing aids, for some of the wireless technologies that it uses, but

there may be some newer wireless technologies that have not been tested yet for use

with hearing aids. To ensure that a specific hearing aid works well with this phone, test

them together before making a purchase.

The standard for hearing aid compatibility contains two types of ratings:

•M: To use your hearing aid in this mode, make sure that your hearing aid is set to

"M-mode" or acoustic coupling mode, and position the phones receiver near the

hearing aid’s built-in microphone. For the best results, try using the phone in differ-

ent positions relative to your hearing aid—for example, placing the receiver slightly

above the ear may result in better performance for hearing aids with microphones

positioned behind the ear.

•T: To use your hearing aid in this mode, make sure that your hearing aid is set to "T-

mode" or telecoil coupling mode (not all hearing aids have this mode). For the best

results, try using the phone in different positions relative to your hearing aid—for ex-

ample, placing the receiver slightly below or in front of the ear may result in better

performance.

Your device meets the M3/T4 level rating.

42

English

Specific Absorption Rate (SAR)

This device meets applicable international safety requirements for exposure to radio

waves. Your mobile device is a radio transmitter and receiver. It is designed not to ex-

ceed the limits for exposure to radio waves (radio frequency electromagnetic fields) rec-

ommended by international guidelines from the independent scientific organization

ICNIRP (International Commission of Non-Ionizing Radiation Protection).

The radio wave exposure guidelines use a unit of measurement known as the Specific

Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg averaged over 10

grams of tissue and include a substantial safety margin designed to assure the safety

of all persons, regardless of age and health.

Tests for SAR are conducted using standard operating positions with the device trans-

mitting at its highest certified power level in all tested frequency bands. The highest

SAR values under the ICNIRP guidelines for this device model are:

Head SAR: 0.65 W/kg

Body SAR: 1.00 W/kg

During normal use, the SAR values for this device are usually well below the values sta-

ted above. This is because, for purposes of system efficiency and to minimize interfer-

ence on the network, the output power of your mobile device is automatically decreased

when full power is not needed for the call. The lower the power output of the device, the

lower its SAR value.

This device meets RF exposure guidelines when used against the head or when posi-

tioned at least 0.5 cm away from the body. When a carry case, belt clip or other form of

device holder is used for body-worn operation, it should not contain metal and should

provide at least the above stated separation distance from the body.

The World Health Organization (WHO) has stated that current scientific information does

not indicate the need for any special precautions when using mobile devices. If you are

interested in reducing your exposure, they recommend you reduce your usage or use a

hands-free accessory to keep the device away from your head and body.

Correct disposal of this product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or manual indicates that the product and its

electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with

other household waste. To prevent possible harm to the environment or human health

from uncontrolled waste disposal, please separate these items from other types of

waste and recycle them responsibly to promote the sustainable reuse of material re-

sources. Household users should contact either the retailer where they purchased this

product, or their local government office, for details of where and how they can take

these items for environmentally safe recycling. Business users should contact their

43

English

supplier and check the terms and conditions of the purchase contract. This product and

its electronic accessories should not be mixed with other commercial wastes for dis-

posal. This product is RoHS compliant.

Correct disposal of batteries in this product

(Applicable in countries with separate collection systems)

The marking on the battery, manual or packaging indicates that the battery in this prod-

uct should not be disposed of with other household waste. Where marked, the chemical

symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above

the reference levels in EC Directive 2006/66. If batteries are not properly disposed of,

these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries

from other types of waste and recycle them through your local, free battery return

system.

Declaration of Conformity

Doro hereby declares that Doro 5030 conforms to the essential requirements and other

relevant regulations contained in the Directives 1999/5/EC (R&TTE) and 2011/65/EU

(RoHS). A copy of the Declaration of Conformity is available at www.doro.com/dofc.

FCC/IC

FCC notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is en-

couraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment to an outlet on a circuit different from that to which the re-

ceiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

44

English

The FCC can require you to stop using your unit if such interference cannot be

eliminated.

Doro has not approved any changes or modifications to this device by the user. Any

changes or modifications could void the user’s authority to operate the equipment.

RF exposure information (SAR)

THIS DEVICE MEETS FCC LIMITS FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the

limits for exposure to radio waves (radio frequency electromagnetic fields) adopted by

the Federal Communications Commission (FCC). These limits include a substantial

safety margin designed to assure the safety of all persons, regardless of age and health.

The radio wave exposure guidelines use a unit of measurement known as the Specific

Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6 W/kg.

Tests for SAR are conducted using standard operating positions with the device trans-

mitting at its highest certified power level in all tested frequency bands. The highest

SAR values under the FCC guidelines for this device model are:

Head SAR: 0.813 W/kg

Body SAR: 1.010 W/kg

During use, the actual SAR values for this device are usually well below the values sta-

ted above. This is because, for purposes of system efficiency and to minimize interfer-

ence on the network, the operating power of your mobile device is automatically

decreased when full power is not needed for the call. The lower the power output of the

device, the lower its SAR value.

Body-worn SAR testing has been carried out at a separation distance of 1.0 cm. To meet

RF exposure guidelines during body-worn operation, the device should be positioned at

least this distance away from the body.

Organizations such as the World Health Organization and the US Food and Drug Admin-

istration have suggested that if people are concerned and want to reduce their expo-

sure, they could use a hands-free accessory to keep the wireless device away from the

head and body during use, or reduce the amount of time spent using the device.

While there may be differences between the SAR levels of various phones and at vari-

ous positions, they all meet the government requirement. The FCC has granted an

Equipment Authorization for this model phone with all reported SAR levels evaluated as

in compliance with the FCC RF exposure guidelines. SAR information on this model

phone is on file with the FCC and can be found under the Display Grant section of

http://www.fcc.gov/oet/ea/fccid after searching on FCC ID: WS5DFB0060

45

Model: DFB-0060

Doro 5030 (2021,2031)

FCC ID: WS5DFB0060

English

Version 1.2 0984© 2016 Doro AB. All rights reserved.

www.doro.com REV 16436 — STR 20160504
