SERVICE

MANUAL

E311 / E311MS

CONVECTION OVEN

Max Series

S/N Begins 258733

Revision 4/F3535

September, 2004

Manual P/N M0ME311

-2-

Revision 4/F3535 ©Moffat Ltd, June 2004

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY

QUALIFIED PERSONS ONLY.

-3-

Revision 4/F3535 ©Moffat Ltd, June 2004

CONTENTS

This manual is designed to take a more in depth look at the E311 convection oven for the purpose of

making the unit more understandable to service people.

There are settings explained in this manual that should never require to be adjusted, but for completeness

and those special cases where these settings are required to change, this manual gives a full explanation

as to how, and what effects will result.

IMPORTANT: MAKING ALTERATIONS MAY VOID WARRANTIES AND APPROVALS.

SECTION PAGE NO.

1. SPECIFICATIONS........................................................................................................................... 5

2. INSTALLATION............................................................................................................................. 10

3. OPERATION.................................................................................................................................. 12

3.1 Description of Controls—Not US/Can Models

3.2 Description of Controls—US/Can Models Only

3.3 Explanation of Control System

4. MAINTENANCE ............................................................................................................................ 16

4.1 Cleaning

4.2 Routine Procedures

5. TROUBLE SHOOTING GUIDE ..................................................................................................... 18

6. SERVICE PROCEDURES............................................................................................................. 21

6.1 Fault Diagnosis

6.2 Access

6.3 Replacement

6.4 Adjustment / Calibration

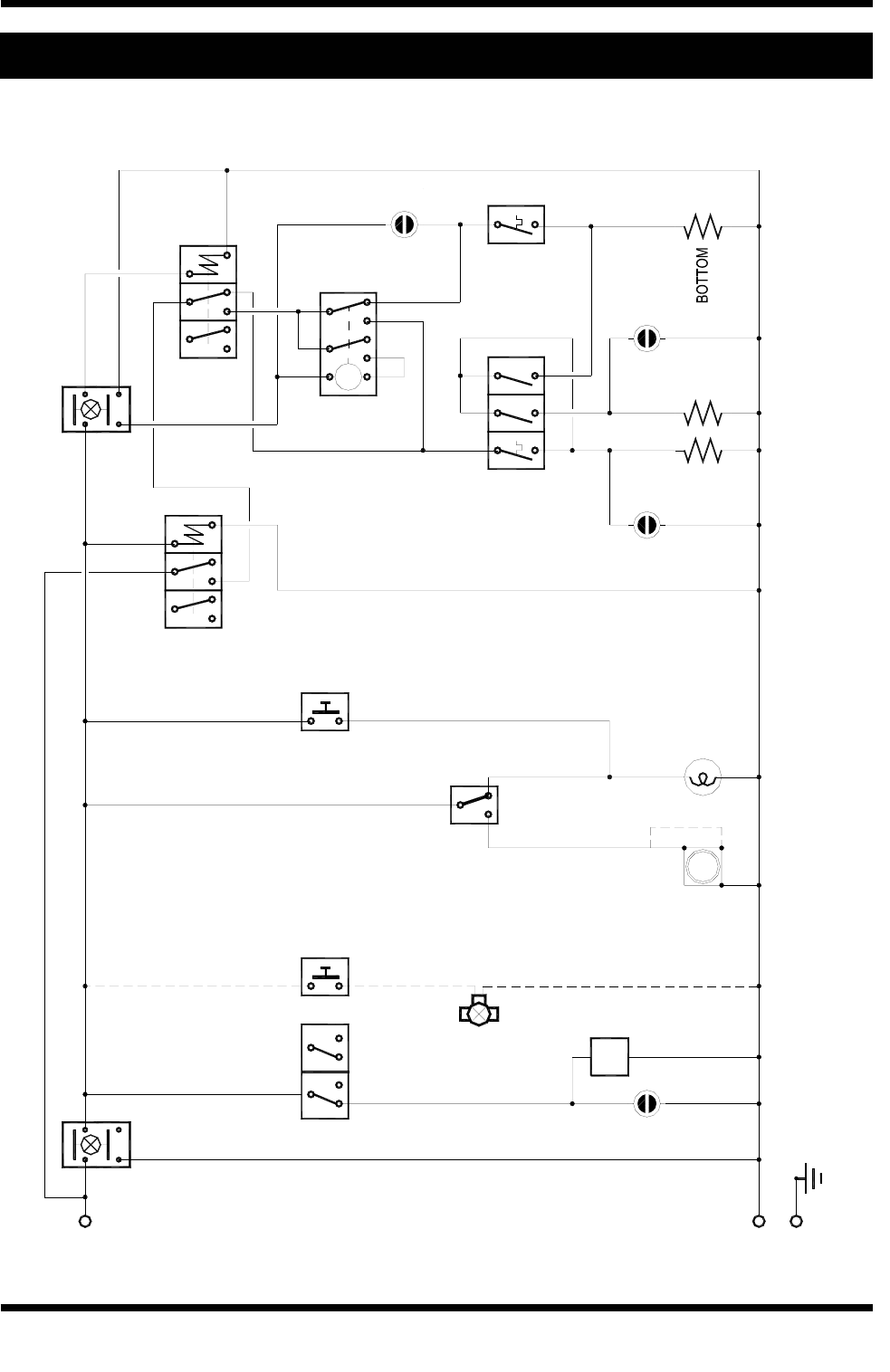

7. ELECTRICAL SCHEMATICS ....................................................................................................... 39

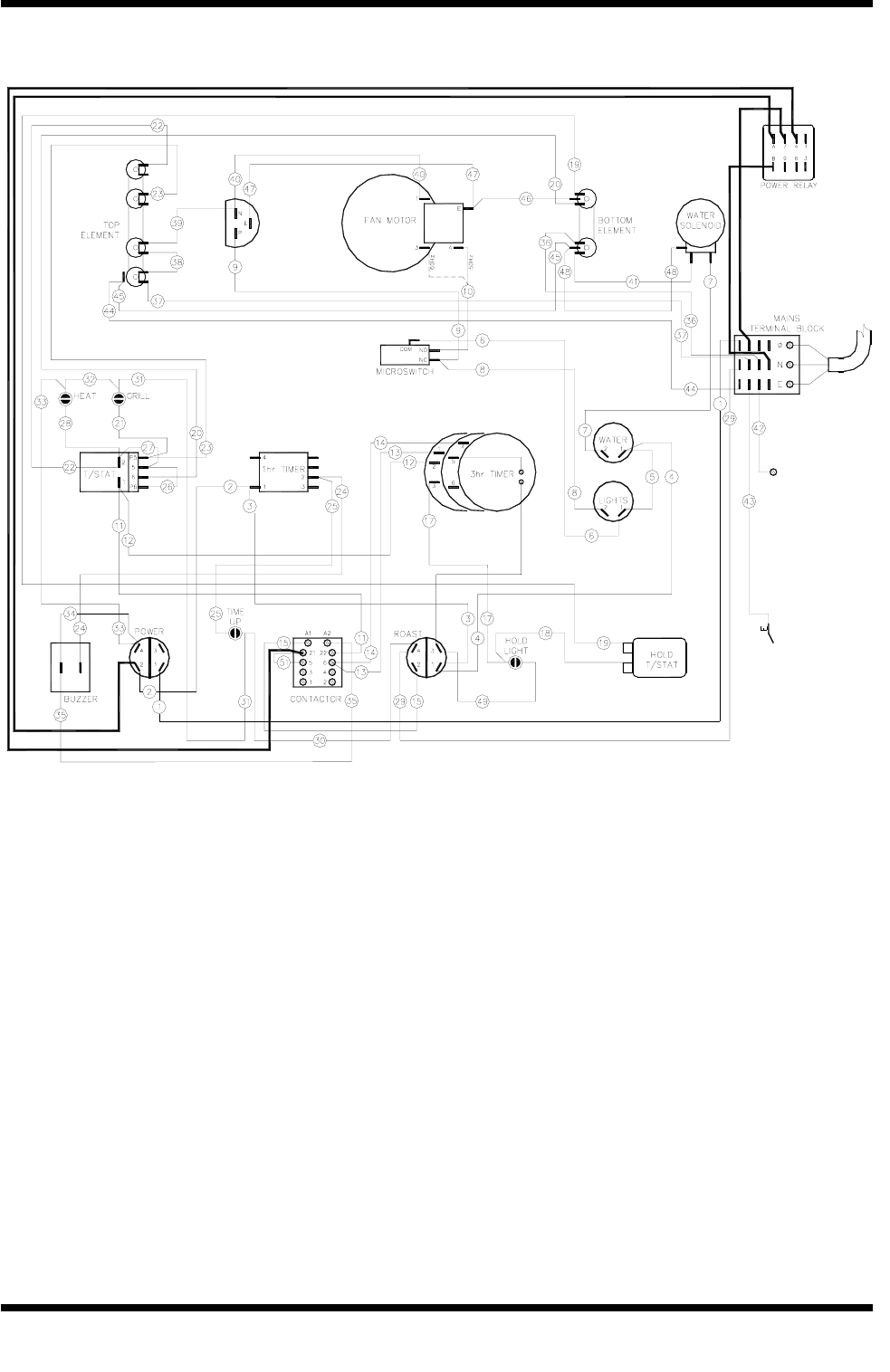

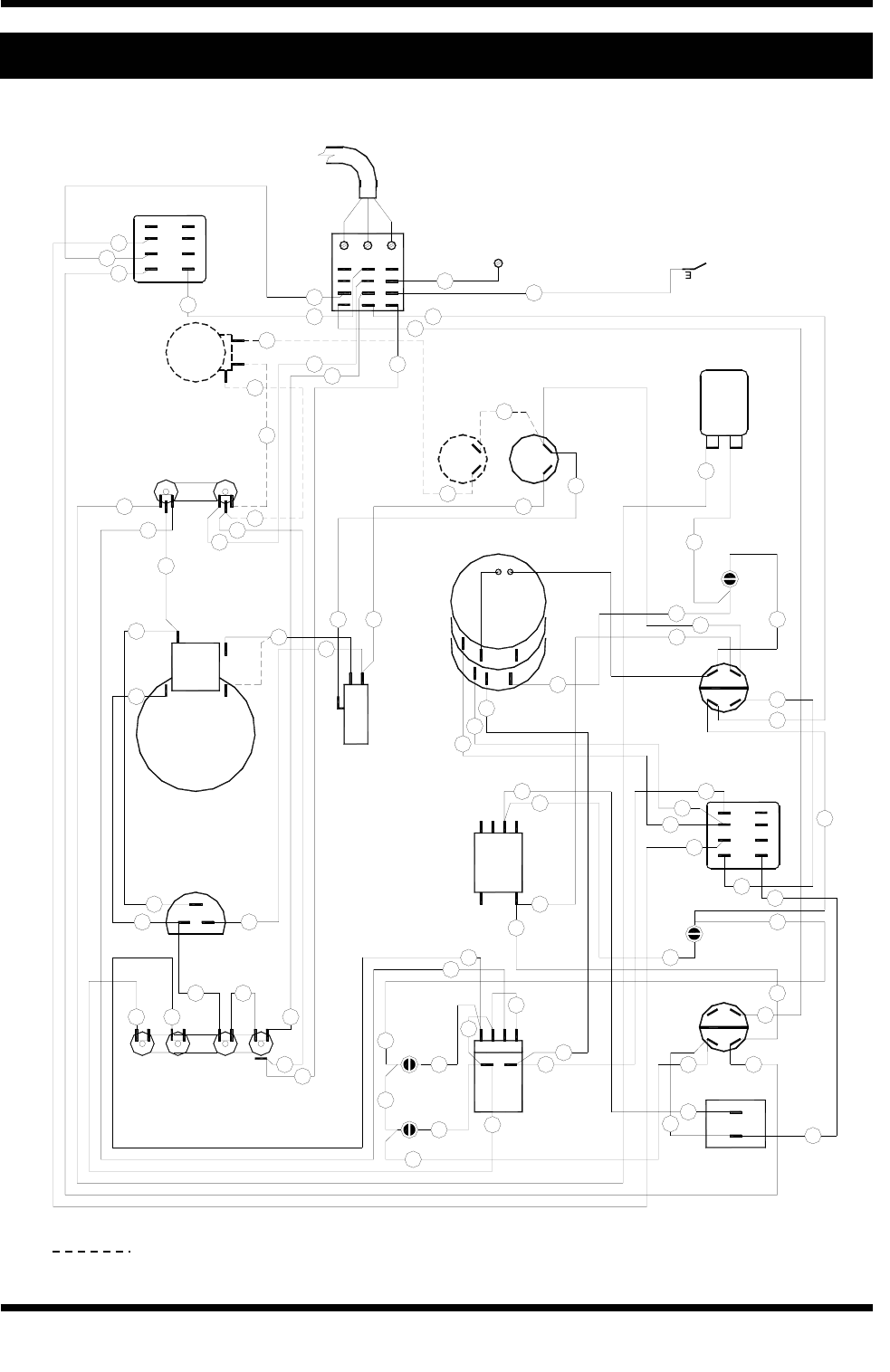

8. ELECTRICAL WIRING DIAGRAMS ............................................................................................. 41

9. SPARE PARTS ............................................................................................................................. 43

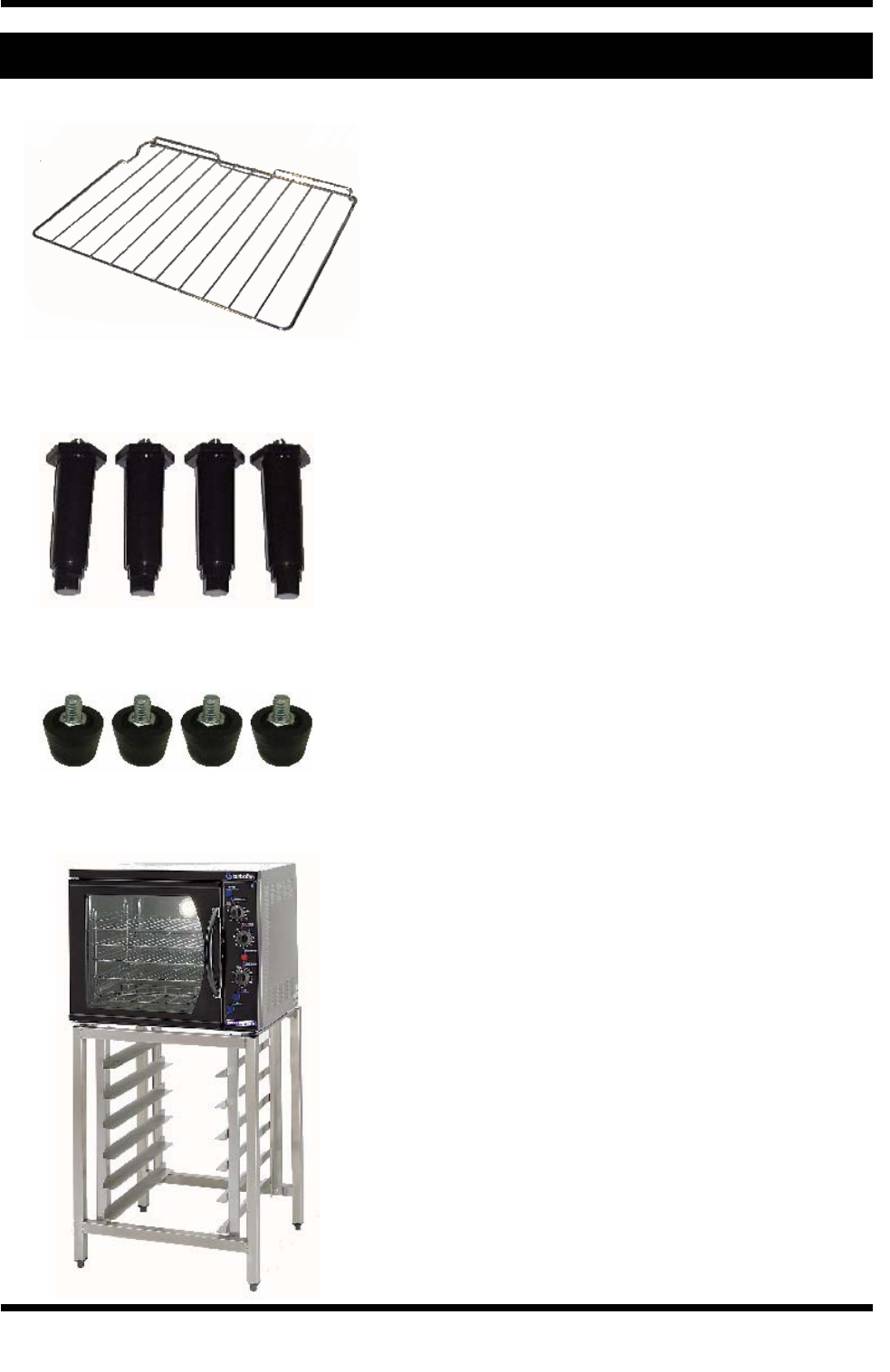

10. ACCESSORIES / OPTIONS.......................................................................................................... 45

11. PARTS DIAGRAM......................................................................................................................... 46

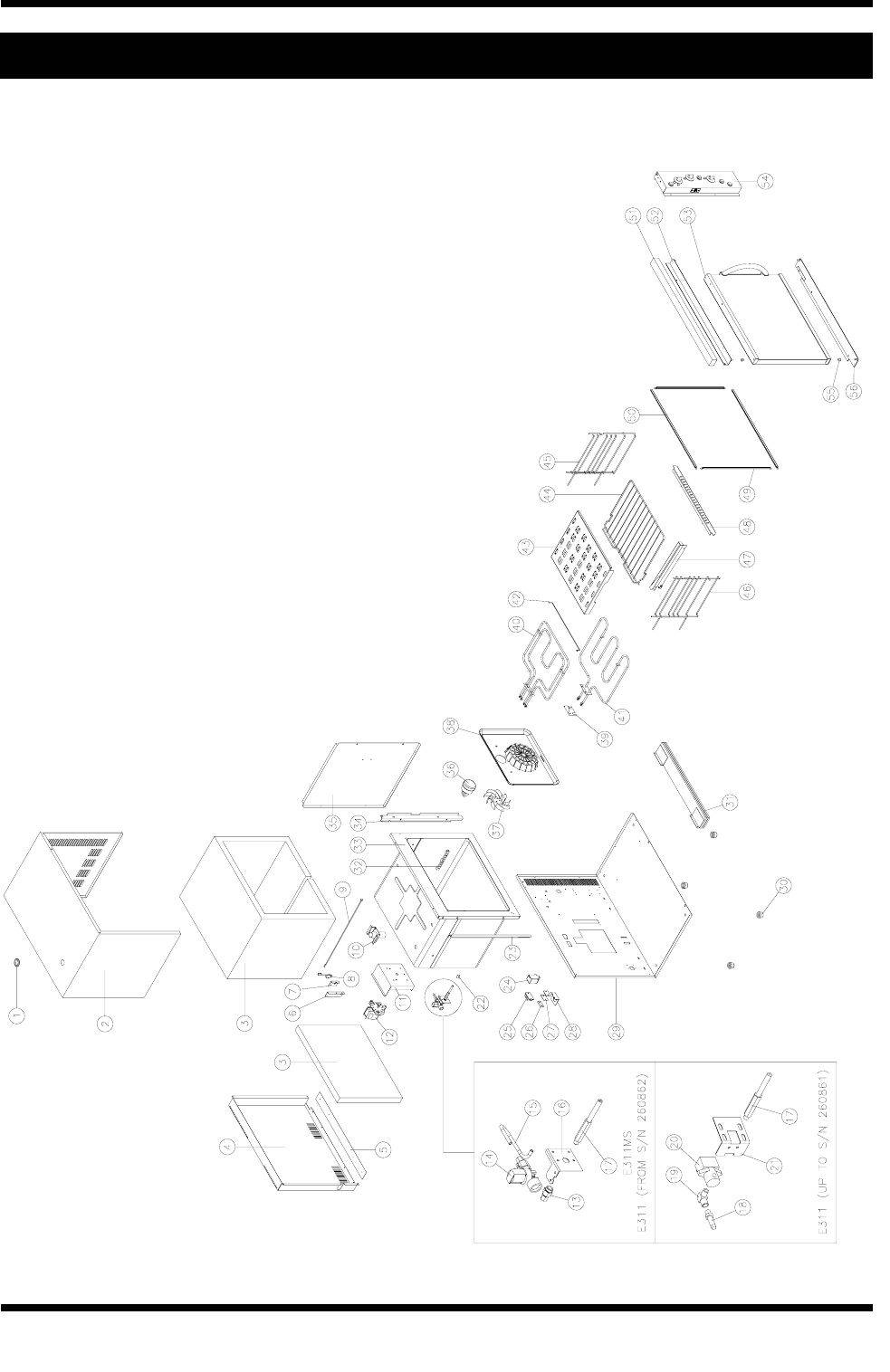

11.1 Main Assembly

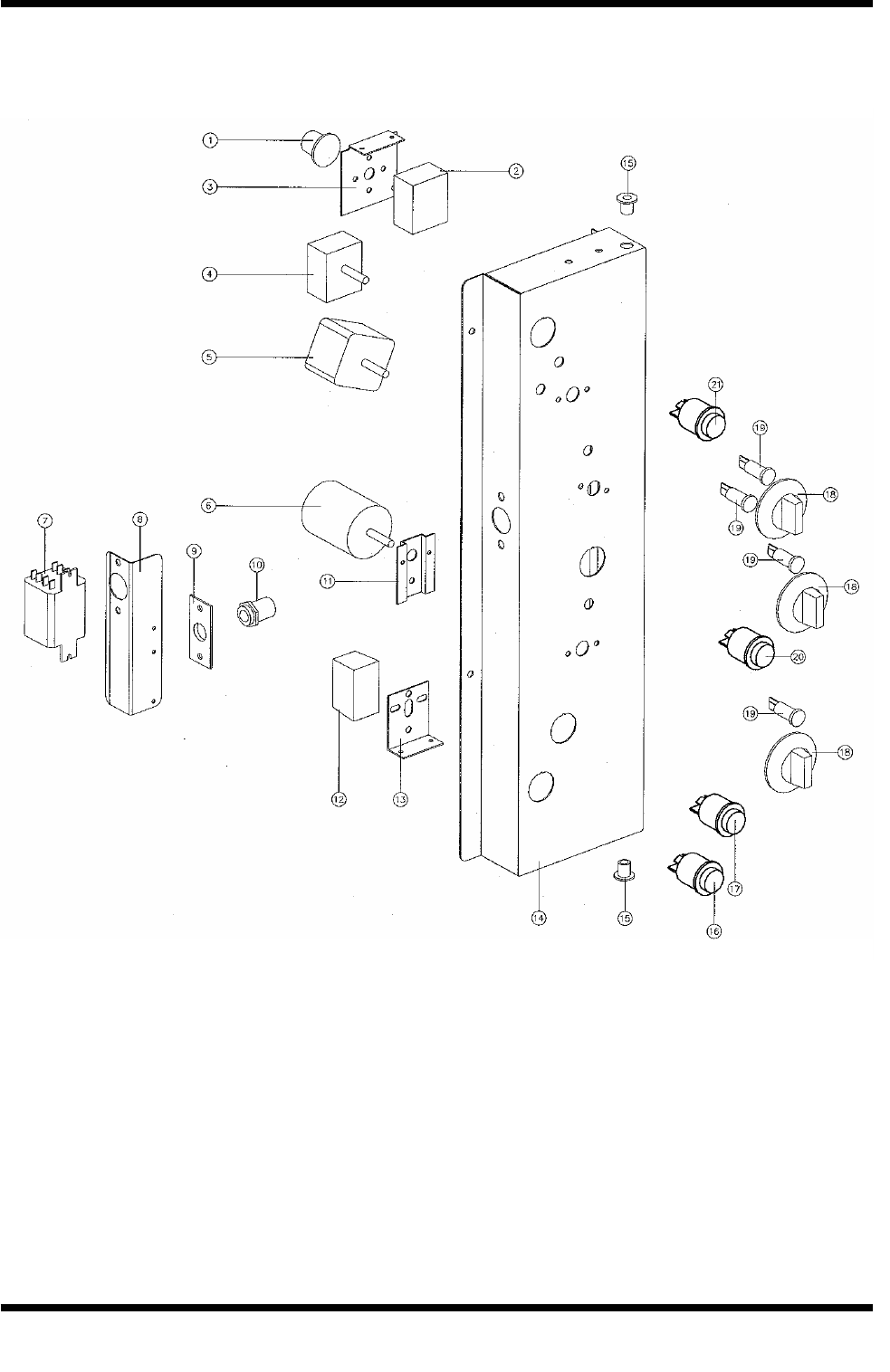

11.2 Control Panel Assembly

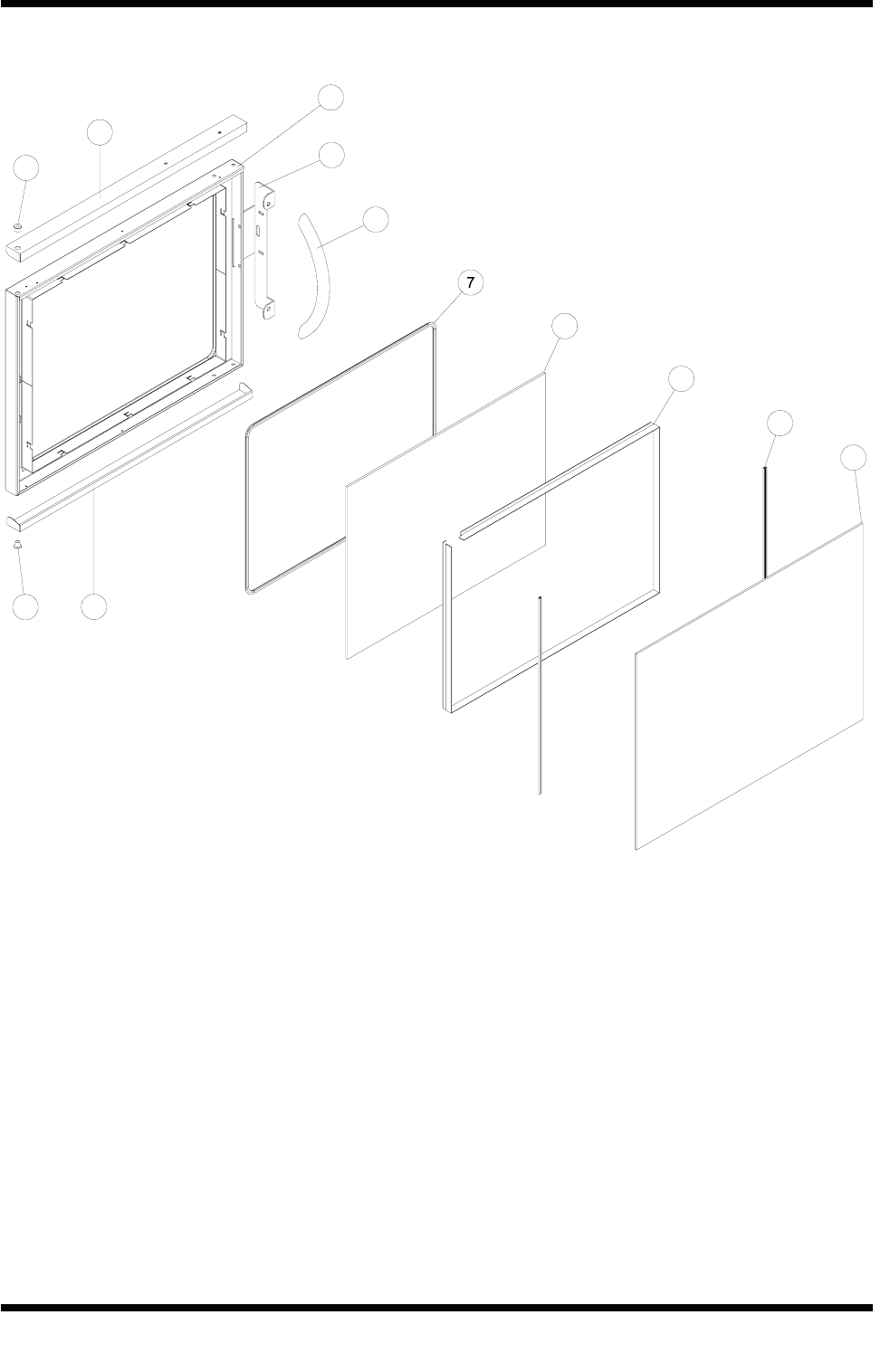

11.3 Glass Door Assembly

11.4 Stainless Steel Door Assembly

-4-

Revision 4/F3535 ©Moffat Ltd, June 2004

12. SERVICE CONTACTS .................................................................................................................. 54

APPENDIX A. POWER RELAY UPGRADE KIT.................................................................................... 56

-5-

Revision 4/F3535 ©Moffat Ltd, June 2004

600

ELECTRICAL ENTRY

580

120

796

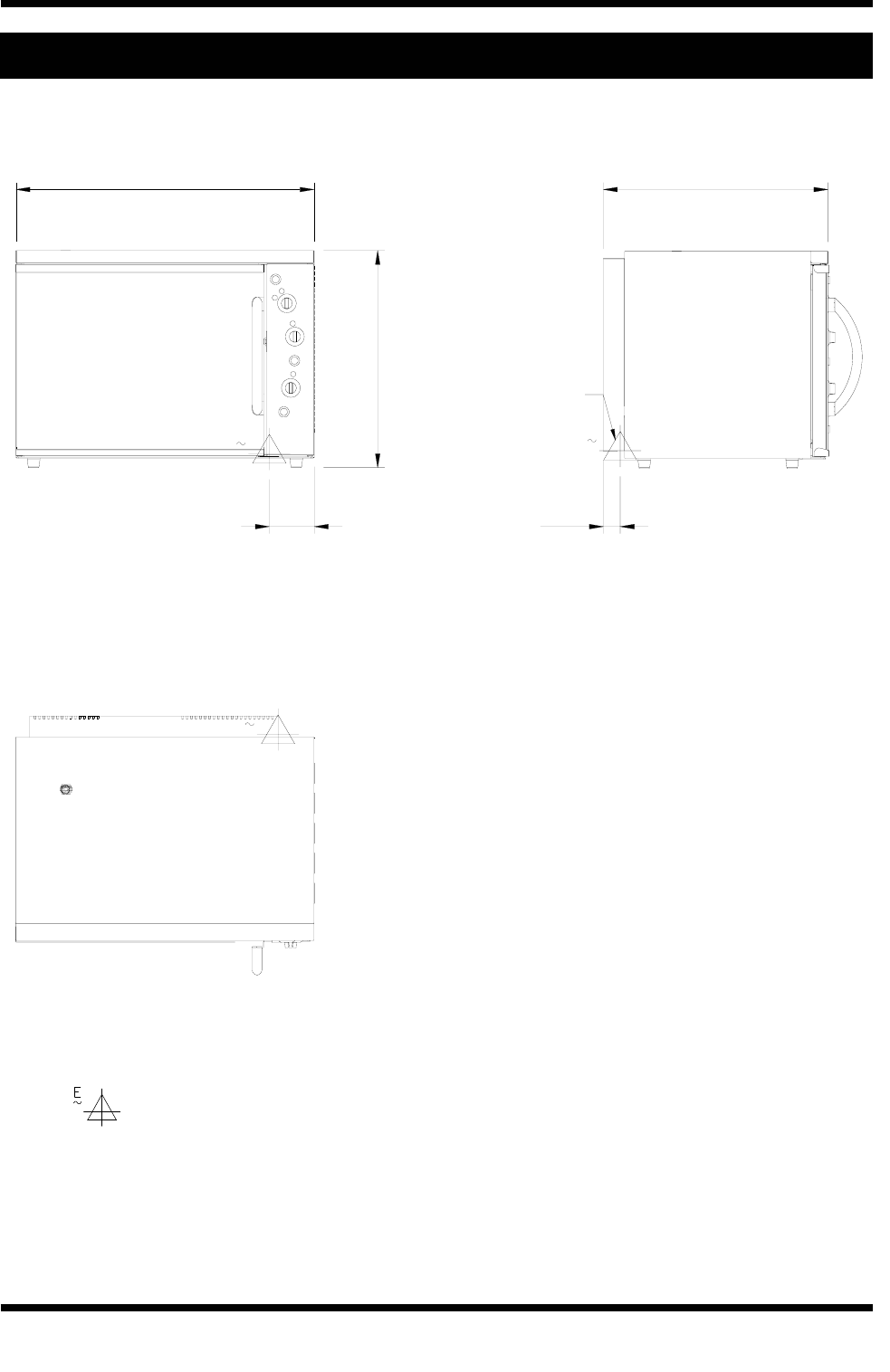

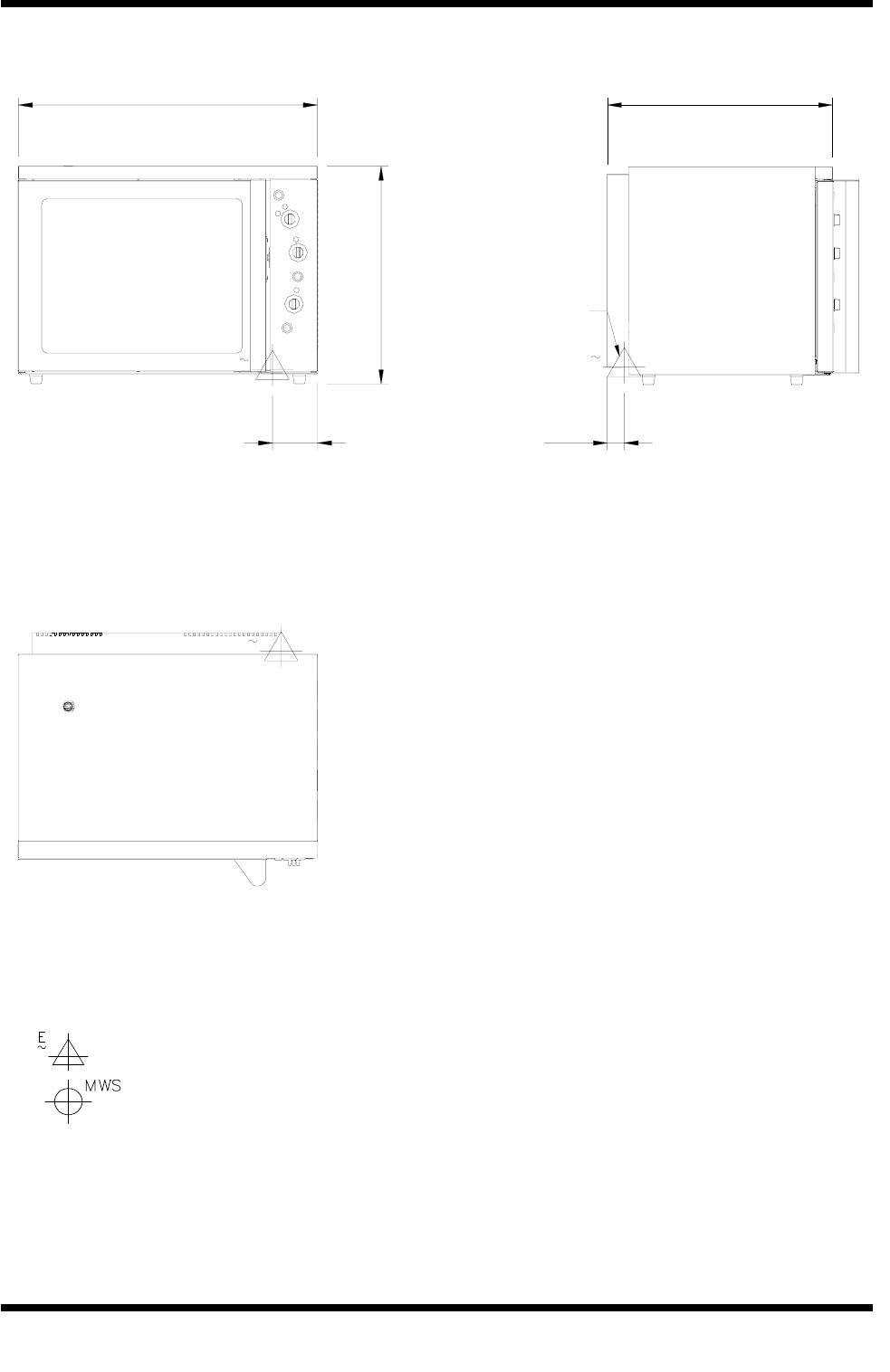

1. SPECIFICATIONS

MODEL: E311 - NOT US/CAN

LEGEND

- Electrical connection entry point

FRONT

PLAN

SIDE

Dimensions shown in millimetres.

-6-

Revision 4/F3535 ©Moffat Ltd, June 2004

ELECTRICAL ENTRY

WATER ENTRY

235

227

313

8"43

MODEL: E311 - US/CAN ONLY

LEGEND

- Electrical connection entry point

- Water entry - 9mm / 3/8” I.D male hose connection

FRONT

PLAN

SIDE

Dimensions shown in inches.

-7-

Revision 4/F3535 ©Moffat Ltd, June 2004

120

796

600

ELECTRICAL ENTRY

580

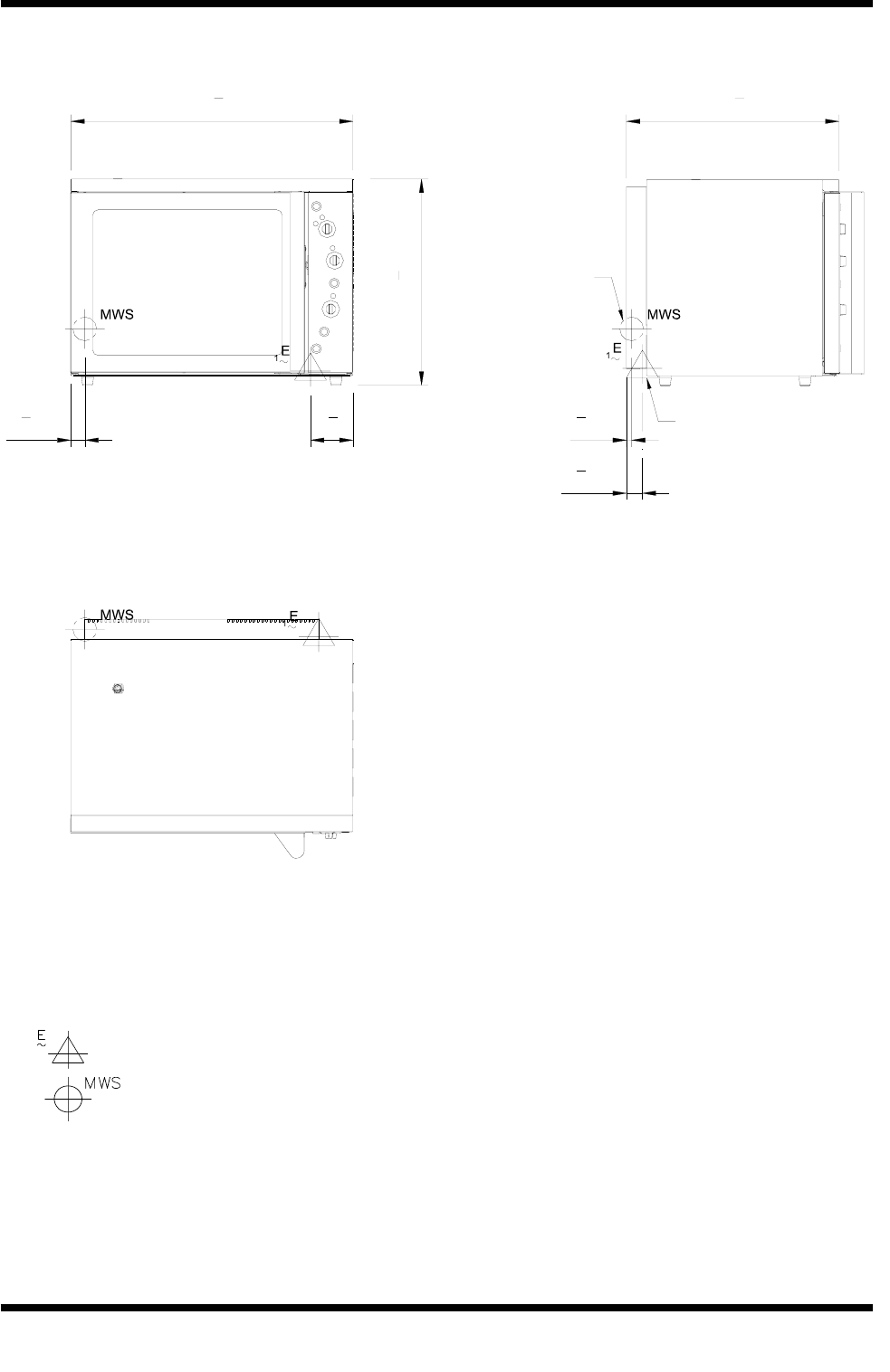

MODEL: E311MS NOT US/CAN

LEGEND

- Electrical connection entry point

- Water entry - 9mm / 3/8” I.D male hose connection

FRONT

PLAN

SIDE

Dimensions shown in millimetres.

-8-

Revision 4/F3535 ©Moffat Ltd, June 2004

WATER ENTRY

235

ELECTRICAL ENTRY

227

313

8"43

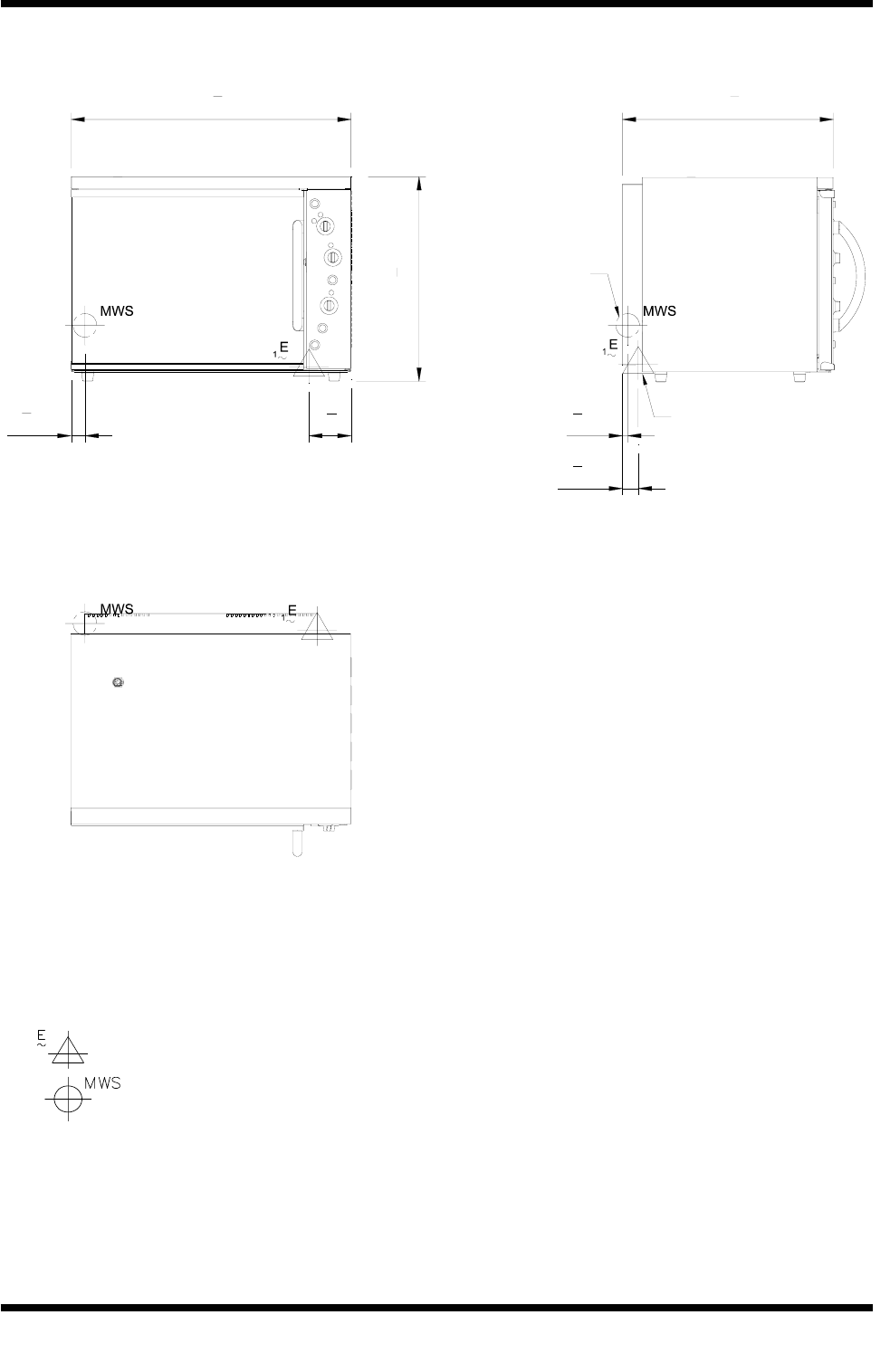

MODEL: E311MS - US/CAN ONLY

LEGEND

- Electrical connection entry point

- Water entry - 9mm / 3/8” I.D male hose connection

FRONT

PLAN

SIDE

Dimensions shown in inches.

-9-

Revision 4/F3535 ©Moffat Ltd, June 2004

LOCATION

To ensure correct ventilation for the motor and

controls the following minimum installation

clearances are to be adhered to:

Top 200mm / 8”

Rear 25mm / 1”

Left-hand side 25mm / 1”

Right-hand side 25mm / 1”

OVEN INTERNAL DIMENSIONS

Width 544 mm / 21.4”

Height 418 mm / 16.5”

Depth 432 mm / 17”

Oven Volume 0.12 m³ / 4.25 ft³

OVEN RACK SIZE

Width 530 mm / 20 7/8”

Depth: 370 mm / 14 1/2”

ELECTRICAL SUPPLY SPECIFICATION

OPTIONS

208 V AC 60 Hz, 14.6 A, 3.2kW @ 208 V

220-240 V AC 60 Hz, 13.0 A, 3.1kW @ 240 V

208-220 V AC 50 Hz, 14.6 A, 3.2kW @ 220 V

230-240 V AC 50 Hz, 13.0 A, 3.1kW @ 240 V

ELECTRICAL PLUG SPECIFICATION

REQUIREMENTS

Australia 3-pin 250V 15A, AS/NZ 3112

Canada 3-pin 250V 15A, NEMA 6-15

New Zealand 3-pin 250V 15A, AS/NZ 3112

United Kingdom 3-pin 250V 13A fused, BS 1363A

United States 3-pin 250V 15A, NEMA 6-15

Other Countries 3-pin 250V 13A minimum, type

to meet country standards

WATER SUPPLY CONNECTION

(US/CAN ONLY)

Max Pressure 550 kPa / 5.5 bar / 80 psi

Min Pressure 100 kPa / 1.0 bar / 15 psi

-10-

Revision 4/F3535 ©Moffat Ltd, June 2004

Should changing of the cord be necessary, gain

access to the electrical connection terminal block

and strain relief by removing the back panel (four

screws).

WATER CONNECTION - US/CAN ONLY

A cold water supply should be fitted to the

water inlet (9mm / 3/8” hose connection) which is

located on the rear of the left hand side of the

unit.

Connect water supply - Max inlet pressure 80psi /

550kPa.

Turn on water supply to check for leaks.

It is most important that the oven is installed

correctly and that the operation is correct

before use. Installation shall comply with local

electrical, health and safety requirements.

BEFORE CONNECTION TO THE POWER

SUPPLY

Unpack and check unit for damage and report

any damage to the carrier and dealer. Report

any deficiencies to your dealer. Fit the feet which

are packed inside the oven. Fit door handle to

oven door. Check that the available power

supply is correct to that shown on the rating plate

located on the right-hand side panel (refer figure

2.3).

208 V AC 60 Hz, 14.6 A, 3.2kW @ 208 V

220-240 V AC 60 Hz, 13.0 A, 3.1kW @ 240 V

208-220 V AC 50 Hz, 14.6 A, 3.2kW @ 220 V

230-240 V AC 50 Hz, 13.0 A, 3.1kW @ 240 V

LOCATION

To ensure correct ventilation for the motor and

controls the following minimum installation

clearances are to be adhered to:

Top 200mm / 8”

Rear 25mm / 1”

Left-hand side 25mm / 1”

Right-hand side 25mm / 1”

2. INSTALLATION

IMPORTANT: THE OVEN VENT

LOCATED ON THE CABINET TOP MUST

NEVER BE OBSTRUCTED.

WARNING: THIS APPLIANCE MUST BE GROUNDED.

DOUBLE STACKING UNITS

When it is desired to mount one unit on top of

another the 31mm (1¼") high spacer feet must be

used. These short feet should be screwed on,

and the unit lifted on top of the bottom unit, where

it locates safely under its own weight, for normal

applications.

BEFORE USE

Operate the oven for about 1 hour at 200°C (400°

F) to remove any fumes or odours which may be

present.

ELECTRICAL CONNECTION

E311 convection ovens are supplied with

pre-fitted cords. Ensure unit is fitted with the

correct cord and plug for the installation (refer

specifications section).

IMPORTANT: MAXIMUM INLET WATER

PRESSURE IS 550 kPa / 80 psi.

Figure 2.1

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY

QUALIFIED PERSONS ONLY.

Position the oven in its allocated working

position. Use a spirit level to ensure the oven is

level from side to side and front to back. (If this is

not carried out, uneven cooking could occur).

The feet/legs used with bench or floor mounting

or provided with stands are adjustable and will

require adjusting in levelling the unit. It should be

positioned so the operating panel and oven

shelves are easily reachable for loading and

unloading.

L1 L2 Ground

Phase Neutral

RED

BROWN

BLACK GREEN/YELLOW

GREEN

WARNING: THIS APPLIANCE MUST

BE GROUNDED / EARTHED

BLACK

BLUE

WHITE

-11-

Revision 4/F3535 ©Moffat Ltd, June 2004

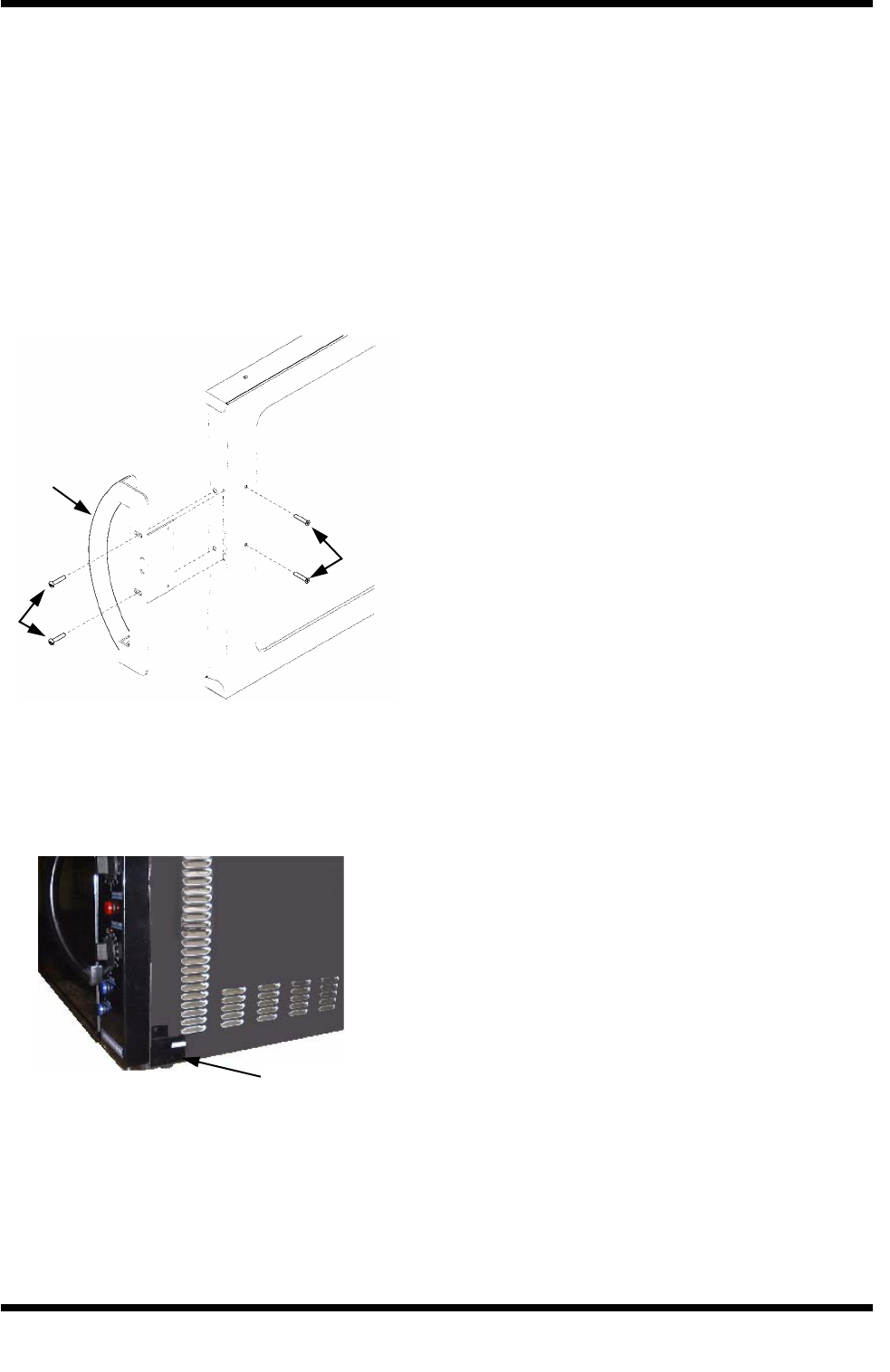

DOOR HANDLE INSTALLATION

1. Open oven door.

2. Remove two screws (item 2).

3. Remove the two screws (item 3) from the

handle (item 1).

4. Install the handle bracket through the slot on

the door side.

5. Screw in the two screws (item 2) fully, then

fully screw in the previous two screws (item

3). Ensure that they are tight.

Figure 2.2

Figure 2.3

RATING PLATE LOCATION

The rating plate for the E311 convection oven is

located at the bottom left corner of the RH side

panel.

Rating Plate

-12-

Revision 4/F3535 ©Moffat Ltd, June 2004

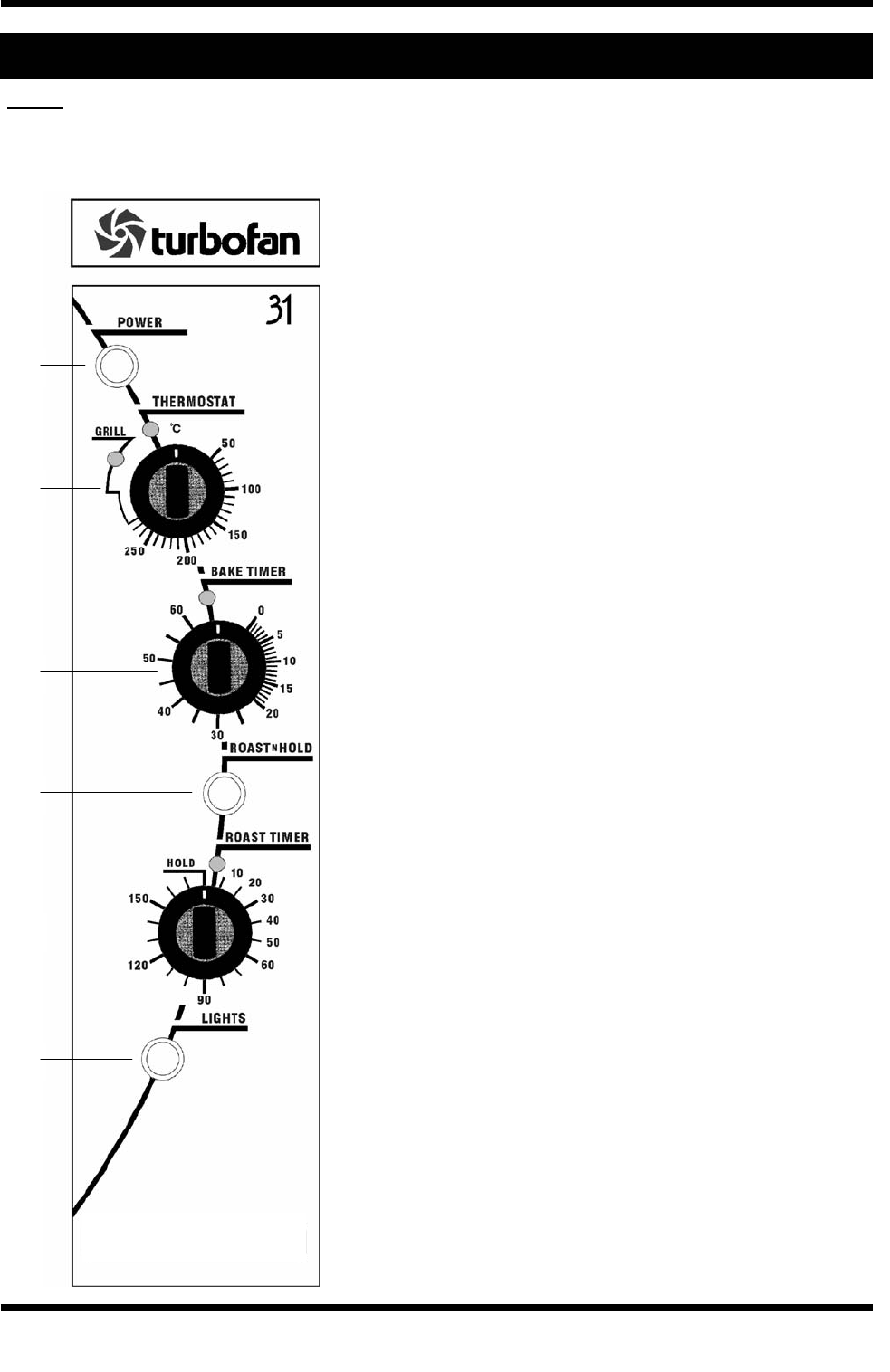

3.1 DESCRIPTION OF CONTROLS—NOT US/CAN MODELS

1. POWER

Depress to switch power on or off (switch

illuminates when power is on).

2. THERMOSTAT

Temperature range 50 - 280°C.

Indicator illuminates when elements are cycling

ON to maintain set temperature.

GRILL POSITION - The GRILL indicator will

illuminate indicating that the GRILL function has

been set. The HEATING indicator will also

illuminate whenever the elements are on.

3. BAKE TIMER

1 Hour bake timer.

(Indicator illuminates when “time up” (0) is

reached, and buzzer sounds).

4. ROAST N HOLD

Depress switch to activate ’ROAST N HOLD’

function (Switch illuminates when ON).

5. ROAST TIMER

3 Hour roast timer.

Indicator illuminates when “time up” (0) is

reached, and product held at 75°C.

6. LIGHT SWITCH

Push switch to activate oven light.

(Light illuminates while button latched in the down

position) (From S/N 258733 “E311MS” models)

(From S/N 260862 “E311” models).

(Light illuminates while button depressed) (Up to

S/N 260861).

3. OPERATION

NOTE: A full user’s operation manual is supplied with the product and can be used for further referencing

of installation, operation and service.

-13-

Revision 4/F3535 ©Moffat Ltd, June 2004

1. POWER

Depress to switch power on or off (switch

illuminates when power is on).

2. THERMOSTAT

Temperature range 120 - 550°F.

Indicator illuminates when elements are cycling

ON to maintain set temperature.

BROIL POSITION - The BROIL indicator will

illuminate indicating that the BROIL function has

been set. The HEATING indicator will also

illuminate whenever the elements are on.

3. BAKE TIMER

1 Hour bake timer.

(Indicator illuminates when “time up” (0) is

reached, and buzzer sounds).

4. ROAST N HOLD

Depress switch to activate ’ROAST N HOLD’

function (Switch illuminates when ON).

5. ROAST TIMER

3 Hour roast timer.

Indicator illuminates when “time up” (0) is

reached, and product held at 167°F.

6. STEAM SWITCH

Push switch to activate water injection (Water

injects into oven while the button is depressed).

7. LIGHT SWITCH

Push switch to activate oven light.

(Light illuminates while button latched in the down

position) (From S/N 258733 “E311MS” models)

(From S/N 260862 “E311” models).

(Light illuminates while button depressed) (Up to

S/N 260861).

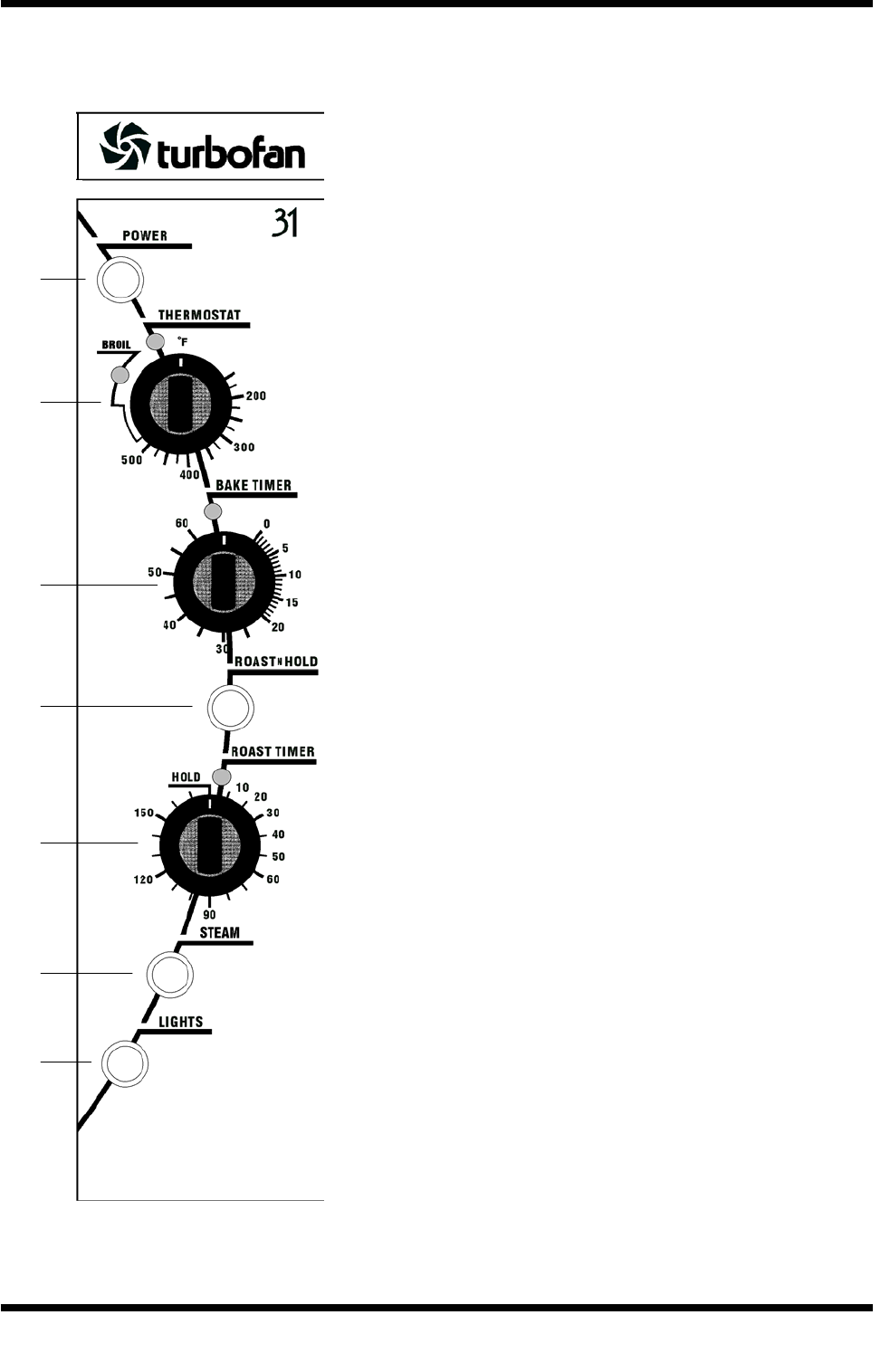

3.2 DESCRIPTION OF CONTROLS—US/CAN MODELS ONLY

-14-

Revision 4/F3535 ©Moffat Ltd, June 2004

3.3 EXPLANATION OF CONTROL

SYSTEM

The E311 Turbofan convection oven features

multi-function operator controls for which a

correct understanding of their operation is

required before carrying out any service or fault

repair work. The control device functions are

explained as follows:

A power switch on the control panel isolates all

power to the controls of the oven. With the power

switch Off all functions of the oven are

inoperable.

NOTE: The supply voltage is fed directly to the

input side of the power relay whenever the

electrical supply is on.

With the power switch On (illuminated) power is

directly supplied to the 60 minute bake timer,

steam (water injection) switch, door microswitch,

light switch, and the hold switch circuit. (On units

manufacture prior to serial number 232053 power

is also supplied directly to the temperature control

circuit). Accordingly the oven circulation fan will

operate when the door is closed, and with door

open the oven light will come on and the circula-

tion fan will shut down, as these are controlled via

the door microswitch. The control panel light

switch will turn the oven light on when the door is

closed. On units from S/N 260862 the switch is

latching and will activate the light while latched in

the down position. On units prior to S/N 260861

the switch is momentary and will need to be held

in to activate the light.

The 60 minute timer is a mechanical timer and

can therefore be operated with the oven’s power

switch On or Off. However, only with the oven’s

power switch On will the switch contacts of the 60

minute timer turn on the time-up buzzer and

illuminate the time-up indicator on the control

panel. The buzzer and time-up indicator provide

indication that the time setting has run down to

zero and at this point will remain On continuously

until the 60 minute timer has been manually set

back to the Off (vertical) position. The 60 minute

timer does not control any other part of the oven’s

operating system as this timer is independent of

the temperature control and heating system.

US/Canada only: The steam (water injection)

switch on the control panel can be operated

whenever the power switch is On. The switch is

momentary and when depressed, will operate the

electric solenoid valve at the rear of the oven and

inject water into the water trough at the bottom of

the left hand side rack in the oven. Releasing the

steam button will close the solenoid valve. This

feature is used to instantaneously add moisture

into the oven cavity, or to introduce a reservoir of

water in the water trough to maintain humidity in

the oven chamber and minimise product’s

moisture loss during cooking.

For units manufactured from serial number

232054, power to the temperature control circuit

and elements is supplied via a power relay

located near the terminal block at the rear of the

unit. Although the power relay has two poles with

changeover contacts, only the normally closed

contact on one pole is used - the other is

redundant. When the power switch on the control

panel is switched on the power relay is energised

and the normally open contact is closed,

providing power to the temperature control circuit.

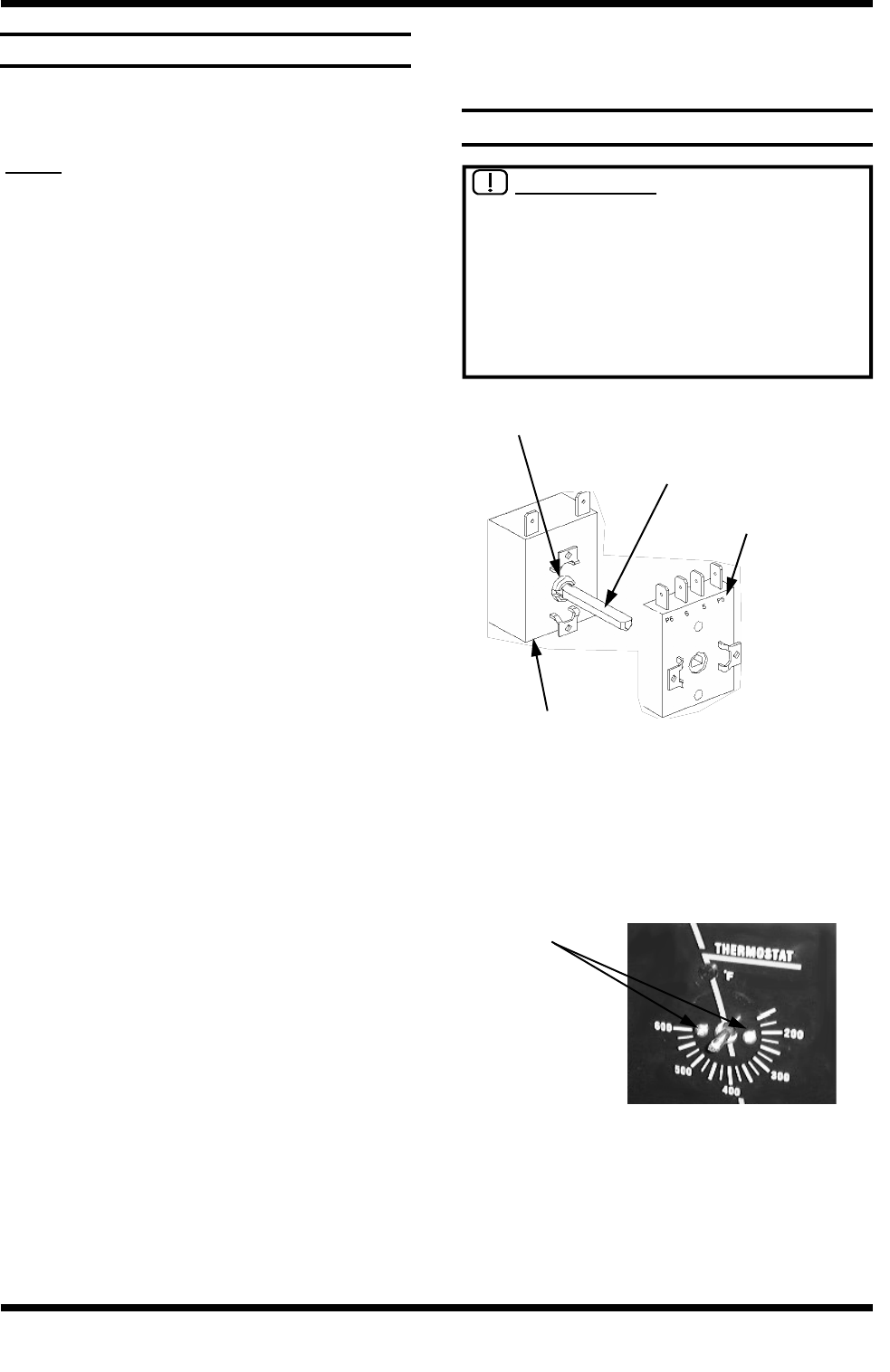

The temperature control of this oven is with a

capillary type thermostat which can be set to a

required cooking temperature, or set to the Grill/

Broil position to provide top browning or grilling/

broiling in the oven.

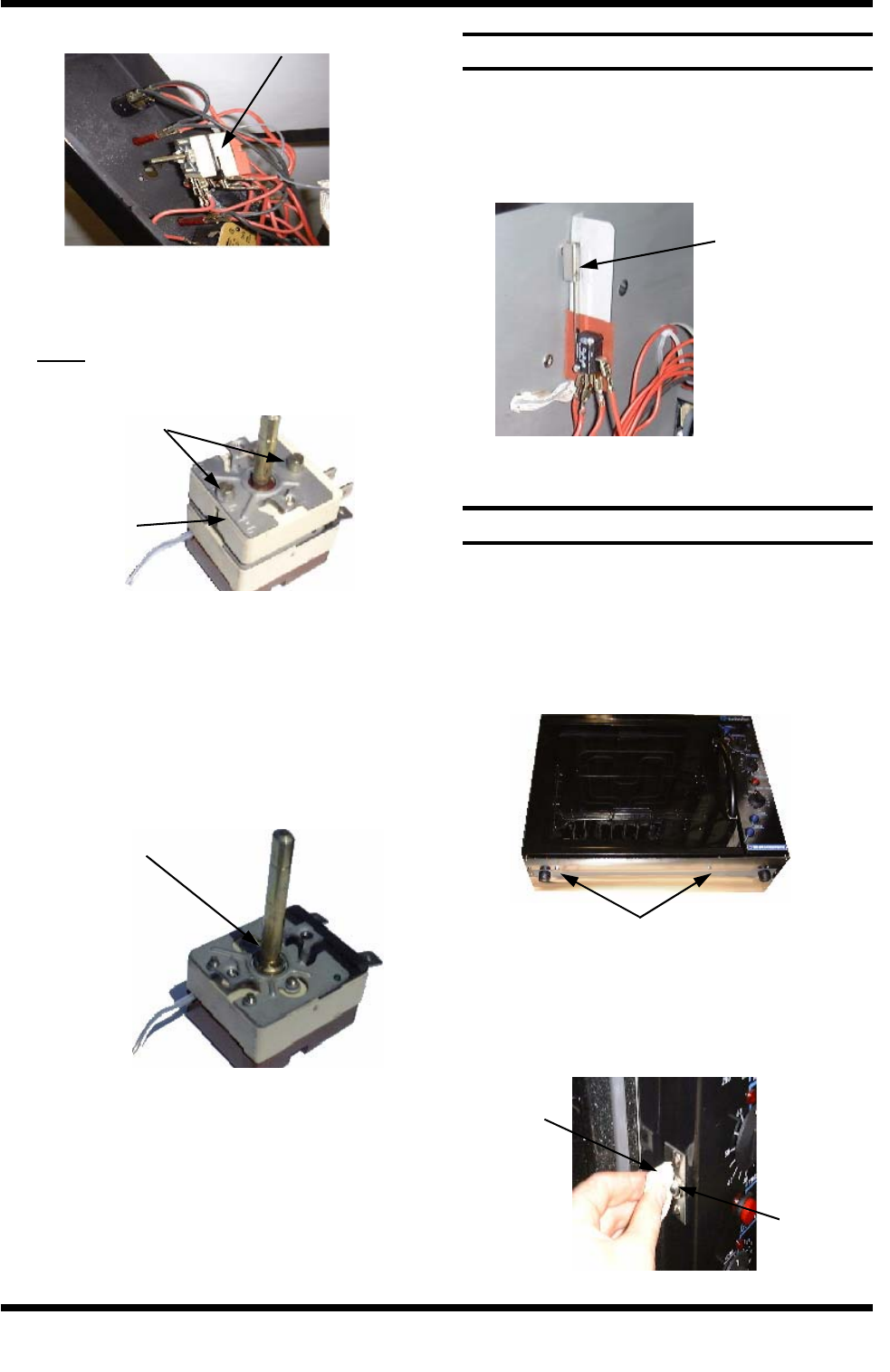

The thermostat switch has a separate switch

body assembled onto the front from the shaft

assembly and when the thermostat is set to a

cooking temperature, one set of contacts is

closed to switch power from the oven thermostat

to the bottom heating element in the oven. The

second switch contact of this switch assembly

remains open in this setting and isolates power

from the top element inner coil. The top element

outer coil is directly switched on from the oven

thermostat. Accordingly only the top outer

element and the bottom element are used when a

cooking temperature is selected. The control

panel indicator light above the thermostat knob

cycles On and Off with the thermostat to indicate

when the elements are on and the oven is

heating.

When the thermostat control is set to the Grill

position the first switch contact opens and the

second switch contact closes. This arrangement

allows power to be provided to the top element

inner coil when the thermostat is On, and isolates

power from going to the bottom heating element.

The top element outer coil which is directly fed

from the oven thermostat switch is therefore On

in conjunction with the top element inner coil

when the thermostat is set to the Grill position.

As both the top inner and outer element coils are

thermostatically controlled, the elements will cycle

On/Off with the door closed as the thermostat

setting in the Grill position is 300°C (600°F). If the

Grill position is selected with the door open, the

elements will remain On continuously and the

-15-

Revision 4/F3535 ©Moffat Ltd, June 2004

circulation fan will be turned Off. The control

panel Grill indicator will illuminate when the

thermostat is set to the Grill position and will cycle

On and Off with the main heating indicator light.

The E311 Turbofan convection oven features a

Roast-and-Hold system which can be used to

automatically set the oven to a fixed holding

temperature at the end of a timed cooking period.

From serial number 232054: When the Roast-

and-Hold switch is turned On the switch will

illuminate and turn on a relay found on the inside

of the control panel. (This relay has two poles

with changeover contacts, but only one pole is

used). When this relay is switched On the

normally closed contact opens, isolating the

normal power supply to the oven thermostat and

the normally open contact closes supplying power

to the 3 hour roast timer.

To serial number 232053: When the Roast-and-

Hold switch is turned On the switch will illuminate

and turn on a mini-contactor found on the inside

of the control panel. When this relay is switched

On a normally closed switch pole on the contactor

is open and the normal power supply to the oven

thermostat is isolated. A second normally open

switch pole is closed and this provides power to

the 3 hour roast timer.

If the roast timer is in the Hold (vertical) position

the timer switch contacts will be in their normally

closed position and supply power directly to the

Hold thermostat located behind the control panel.

The Hold thermostat is factory set to 75°C (167°

F) and will directly supply power to the bottom

heating element as required to maintain its preset

temperature.

If the main thermostat is turned On, power will

also be supplied to the top outer element coil

through the first switch contact of the thermostat

front switch assembly. In this case the

thermostat heating light will also cycle On/Off as

the Hold thermostat maintains temperature.

In the Roast-and Hold mode the 3 hour timer can

be set to a selected roasting time. During this

time period the normally open switch contacts of

the timer are closed. The timer has two change

over switches and in this position one is used to

supply power to its timing motor and the other is

used to switch power directly to the main oven

thermostat. During the 3 hour timer run-down

period the oven temperature will be controlled by

the main oven thermostat to the set temperature

and operate as previously described.

When the 3 hour timer has run down and reached

the Hold position the two switch contacts change

over to their normally closed position which

isolates power from the timer motor and the oven

thermostat. It also switches power back to the

oven hold thermostat. At this point the

temperature control is now maintained by the

hold thermostat as previously described. To

cancel the hold circuit the Roast-and-Hold switch

is turned Off. This turns off the contactor which

removes power from the 3 hour timer and closes

the contactor pole on the contactor that feeds the

main oven thermostat.

The factory preset hold thermostat can be

adjusted as required to change the holding

temperature if necessary. Refer Service section

for this procedure.

The following Troubleshooting Guide should be

used to identify any incorrect oven operation. On

correct identification of the operating fault the

Troubleshooting Guide will make reference to the

corrective action required, or refer to the Fault

Diagnosis section and/or Service section to assist

in correction of the fault.

-16-

Revision 4/F3535 ©Moffat Ltd, June 2004

IMPORTANT: THIS UNIT IS NOT

WATER PROOF.

DO NOT USE A WATER JET SPRAY TO

CLEAN INTERIOR OR EXTERIOR OF THIS

UNIT.

WARNING: ALWAYS TURN THE

POWER SUPPLY OFF BEFORE

CLEANING.

EXTERIOR

Clean with a good quality stainless steel cleaning

compound. Harsh abrasive cleaners may

damage the surface.

INTERIOR

Ensure that the oven chamber is cool. Do not use

wire brushes, steel wool or other abrasive

materials. Clean the oven regularly with a good

quality oven cleaner. Take care not to damage

the fan or the tube at the right side of the oven

which controls the thermostat.

OVEN RACKS

To remove, slide out to the stop position, raise

the front edge up, and lift out.

SIDE RACKS

Undo the thumbscrew (anti-clockwise rotation)

securing rack to oven wall, swing rack towards

centre of oven to disengage location pin at front

of side, and pull rack forward to remove. To

replace, engage rack in rear holes, swing towards

side of oven to engage in front hole, and replace

thumbscrew.

FAN BAFFLE

To remove, unscrew the oven lamp glass and lift

the baffle out. To replace, locate the bottom edge

of the baffle over the bottom element terminal

plate and secure in place with the oven lamp

glass.

4. MAINTENANCE

OVEN SEALS

To remove, hold at their centre point and pull

forward until they unclip. Remove side seals first,

then top and bottom. The seals may be washed

in the sink, but take care not to cut or damage

them. To replace, ensure that the lip is facing the

oven opening. Fit the top and bottom seals first,

then the side seals.

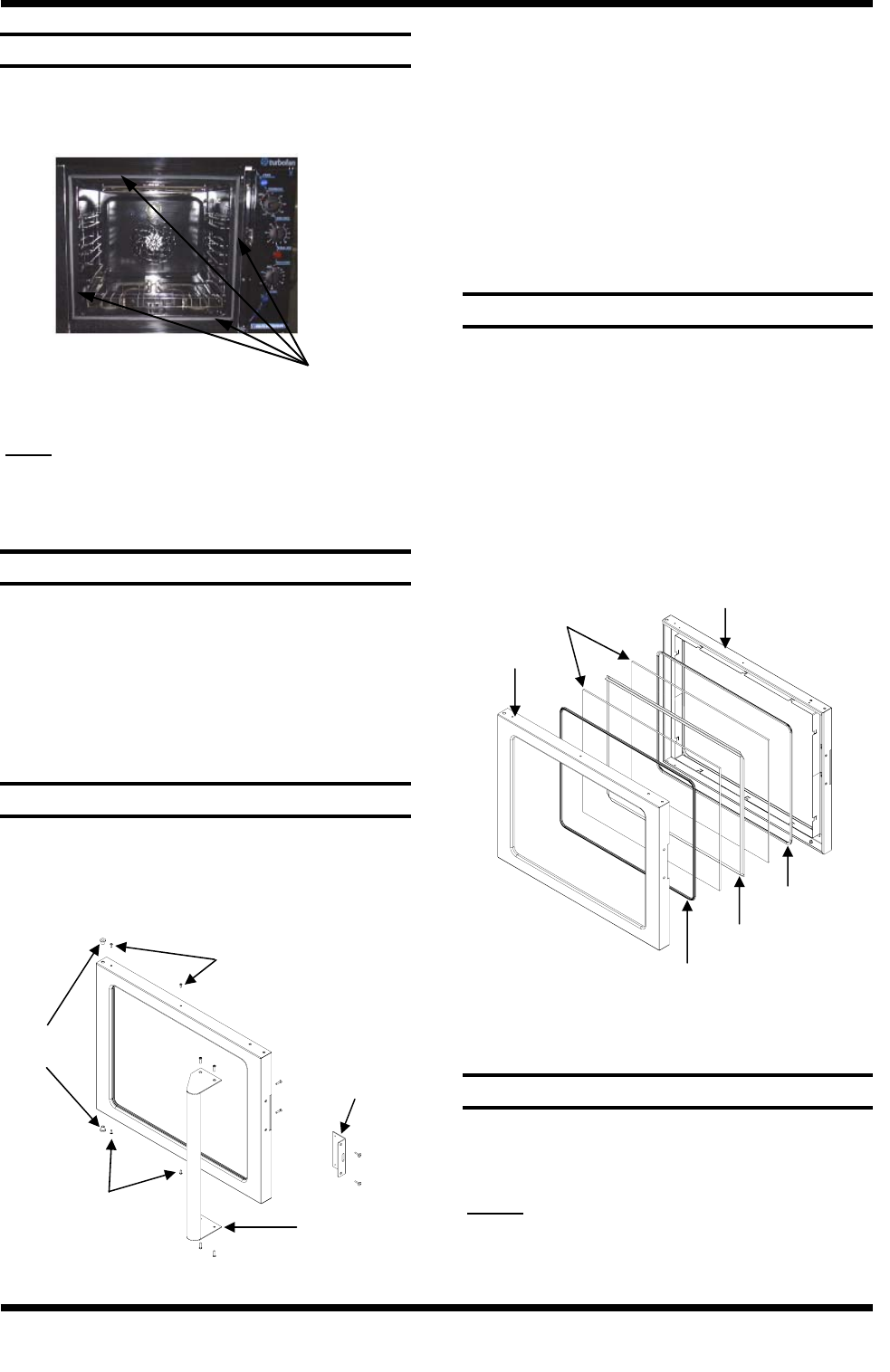

OVEN DOOR GLASS

Clean with conventional glass cleaners

IMPORTANT: DO NOT OVER- TIGHTEN

THE LAMP GLASS.

4.1 CLEANING

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY

QUALIFIED PERSONS ONLY.

-17-

Revision 4/F3535 ©Moffat Ltd, June 2004

4.2 ROUTINE PROCEDURES

PROCEDURE INTERVAL

DOOR SEALS Check for deterioration. 12 months

DOOR PIVOT BUSHES Check for wear. 12 months

DOOR CATCH Ensure that catch is adjusted such that the door closes

properly.

12 months

ELEMENTS Check that element resistances are correct to their rating

(refer 6.3.13)

12 months

WATER NOZZLE

(US/CAN ONLY)

Check for liming / scale build-up in water nozzle. 12 months

-18-

Revision 4/F3535 ©Moffat Ltd, June 2004

5. TROUBLE SHOOTING

FAULT POSSIBLE CAUSE REMEDY

THE OVEN DOES NOT

OPERATE / START

The mains isolating switch on the

wall, circuit breaker or fuses are

“off” at the power board.

The power switch on the oven is

off.

Incorrect electrical supply.

(Refer fault diagnosis 6.1.1)

Power switch on unit faulty.

(Refer fault diagnosis 6.1.1)

Turn on.

Depress switch. Switch will

illuminate.

Ensure electrical supply correct.

Replace.

(Refer service section 6.3.4)

FAN DOESN’T OPERATE Door not closed.

(Fan only operates with door

closed).

Door microswitch out of

adjustment.

(Refer fault diagnosis 6.1.2)

Door microswitch faulty

(Refer fault diagnosis 6.1.2)

Fan motor faulty.

(Refer fault diagnosis 6.1.2)

Wiring.

Close door.

Adjust.

(Refer service section 6.4.2)

Replace.

(Refer service section 6.3.2)

Replace.

(Refer service section 6.3.18

Check and tighten any loose

wiring.

OVEN LIGHT NOT

ILLUMINATING - DOOR OPEN

OVEN LIGHT NOT

ILLUMINATING - DOOR CLOSED

Blown bulb.

No power to light.

(Refer fault diagnosis 6.1.3)

Blown bulb.

Light switch faulty.

(Refer fault diagnosis 6.1.4)

Replace.

(Refer service section 6.3.1)

Replace.

(Refer service section 6.3.1)

Replace.

(Refer service section 6.3.4)

NO WATER INJECTION /

STEAM—US/CAN ONLY

Water not turned on.

Oven water nozzle blocked.

Fault with water valve.

(Refer fault diagnosis 6.1.5)

Steam switch faulty.

Turn water on at water supply.

Remove, clean or replace. (Refer

service section 6.3.15)

Service or replace as required.

(Refer service section 6.3.13,

6.3.14)

Replace.

(Refer service section 6.3.4)

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY

QUALIFIED PERSONS ONLY.

-19-

Revision 4/F3535 ©Moffat Ltd, June 2004

FAULT POSSIBLE CAUSE REMEDY

CONTINUOUS WATER OUT OF

OVEN WATER NOZZLE—

US/CAN ONLY

With oven on only—Electrical fault.

(Refer fault diagnosis 6.1.6)

With oven on or off—Fault with

water valve.

Correct electrical fault.

Service or replace as required.

(Refer service section 6.3.13,

6.3.14)

60 MINUTE TIMER WILL NOT

TIME DOWN

60 MINUTE TIMER

INACCURATE BELOW 20

MINUTES

60 MINUTE TIMER NO TIME UP

BUZZER

60 MINUTE TIMER NO TIME UP

INDICATOR

Timer faulty.

Timer not set correctly.

Zero (time up) position not set

correctly.

Buzzer faulty.

(Refer fault diagnosis 6.1.7)

Timer not switching on buzzer.

(Refer fault diagnosis 6.1.7)

Indicator faulty.

(Refer fault diagnosis 6.1.8)

Replace.

(Refer service section 6.3.7)

For timer settings below 20

minutes, always rotate past 20

minutes, then back to desired

time.

(Refer service section 6.4.5

Replace.

(Refer service section 6.3.6)

Replace.

(Refer service section 6.3.7)

Replace.

(Refer service section 6.3.3)

NO HEAT Power relay faulty (From S/N

232054 only).

(Refer fault diagnosis 6.1.9)

Hold relay/mini contactor faulty.

(Refer fault diagnosis 6.1.9)

Thermostat faulty

(Refer fault diagnosis 6.1.9)

Replace.

(Refer service section 6.3.5)

Replace.

(Refer service section 6.3.11)

Replace.

(Refer service section 6.3.9)

NO TEMPERATURE

CONTROL

Thermostat faulty

(Refer fault diagnosis 6.1.10)

Replace.

(Refer service section 6.3.9)

SLOW RECOVERY Oven in ‘Roast ‘n Hold’ mode.

Overloading of oven.

Electrical supply incorrect.

Fan not working.

Thermostat calibration.

(Refer fault diagnosis 6.1.11)

Element(s) not working.

Switch off ‘Roast ‘n Hold’.

Reduce oven loading.

Check supply voltage is as per

rating plate voltage.

Check fan operation.

Correct calibration.

(Refer service section 6.4.1)

Correct element fault.

(Refer Fault: Top element, Fault:

Bottom element)

-20-

Revision 4/F3535 ©Moffat Ltd, June 2004

FAULT POSSIBLE CAUSE REMEDY

BOTTOM ELEMENT NOT

WORKING

TOP ELEMENT NOT

WORKING (IN BAKE MODE—

NOT GRILL / BROIL MODE)

Element faulty (blown).

(Refer fault diagnosis 6.1.12)

Element faulty / blown.

(Refer fault diagnosis 6.1.13)

Replace.

(Refer service section 6.3.16)

Replace.

(Refer service section 6.3.16)

GRILL NOT WORKING

GRILL INDICATOR LIGHT NOT

WORKING

Element faulty / blown.

(Refer fault diagnosis 6.1.15)

Indicator faulty.

(Refer fault diagnosis 6.1.16)

Replace.

(Refer service section 6.3.16)

Replace.

(Refer service section 6.3.3)

ROAST TIMER (180 MINUTE)

WILL NOT TIME DOWN

NO HOLD INDICATOR

HOLDING TEMPERATURE

INCORRECT

Roast ’n’ Hold switch not

depressed.

No power to timer / timer faulty.

(Refer fault diagnosis 6.1.17)

‘Roast ‘n Hold’ switch faulty.

(Refer fault diagnosis 6.1.17)

Faulty indicator.

(Refer fault diagnosis 6.1.18)

Faulty timer.

(Refer fault diagnosis 6.1.18)

Hold thermostat set

temperature incorrect

Hold thermostat faulty.

(Refer fault diagnosis 6.1.19)

Depress switch. Switch will

illuminate.

Correct electrical fault / replace

timer.

(Refer service section 6.3.8)

Replace.

(Refer service section 6.3.4)

Replace.

(Refer service section 6.3.3)

Replace.

(Refer service section 6.3.8)

Adjust to correct temperature.

(Refer service section 6.4.4)

Replace.

(Refer service section 6.3.10)

DOOR DOES NOT CLOSE Tray in way of door.

Door seal obstruction.

Door handle installed incorrectly.

Door ball catch setting incorrect.

Door pivot bushes / pins worn.

Correctly position tray in rack.

Correctly install door seal.

(Refer service section 6.3.22)

Fit correctly.

(Refer installation section)

Adjust.

(Refer service section 6.4.3)

Replace.

(Refer service section 6.3.23)

DOOR SEAL LEAKS Door seal damaged.

Door seal incorrectly fitted.

Door ball catch setting incorrect.

Door pivot bushes / pins worn.

Replace.

(Refer service section 6.3.22)

Correctly install door seal.

(Refer service section 6.3.22)

Adjust.

(Refer service section 6.4.3)

Replace.

(Refer service section 6.3.23)

-21-

Revision 4/F3535 ©Moffat Ltd, June 2004

SECTION PAGE NO.

6.1 FAULT DIAGNOSIS ....................................................................................................................... 23

6.1.1 Oven Does Not Operate / Start ..................................................................................... 23

6.1.2 Fan Does Not Operate .................................................................................................. 23

6.1.3 Oven Light Not Illuminating—Door Open...................................................................... 23

6.1.4 Oven Light Not Illuminating—Door Closed ................................................................... 23

6.1.5 No Water Injection / Steam—US/Can Only................................................................... 23

6.1.6 Continuous Water Out Of Oven Water Nozzle—US/Can Only ..................................... 24

6.1.7 60 Minute Timer No Time Up Buzzer............................................................................ 24

6.1.8 60 Minute Timer No Time Up Indicator ......................................................................... 24

6.1.9 No Heat ......................................................................................................................... 24

6.1.10 No Temperature Control ............................................................................................... 25

6.1.11 Slow Recovery .............................................................................................................. 25

6.1.12 Bottom Element Not Working........................................................................................ 25

6.1.13 Top Element Not Working (In Bake Mode—Not Grill / Broil)......................................... 26

6.1.14 No Thermostat Heating Indicator .................................................................................. 26

6.1.15 Grill Not Working ........................................................................................................... 26

6.1.16 Grill Indicator Not Working ............................................................................................ 26

6.1.17 Roast Timer (180 Minute) Will Not Time Down............................................................. 26

6.1.18 No Hold Indicator .......................................................................................................... 27

6.1.19 Holding Temperature Incorrect ..................................................................................... 27

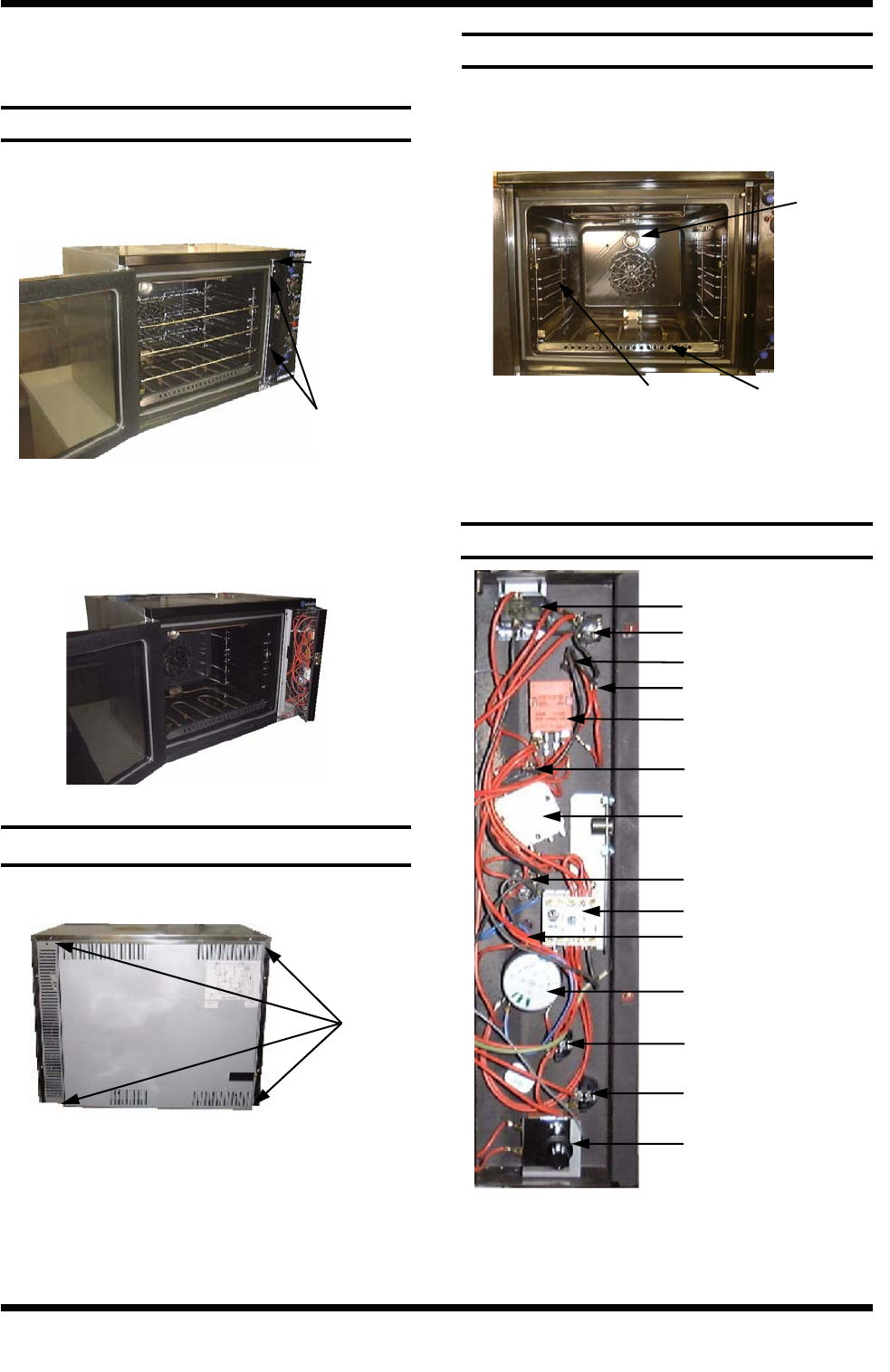

6.2 ACCESS ......................................................................................................................................... 28

6.2.1 Control Panel................................................................................................................. 28

6.2.2 Service Panel (Rear Panel)........................................................................................... 28

6.2.3 Baffle ............................................................................................................................. 28

6.2.4 Control Panel (Rear) .....................................................................................................28

6.3 REPLACEMENT............................................................................................................................. 29

6.3.1 Light Bulb / Glass .......................................................................................................... 29

6.3.2 Door Microswitch........................................................................................................... 29

6.3.3 Indicator Neon Light ...................................................................................................... 29

6.3.4 Power / Roast / Lights / Water Switches ....................................................................... 29

6.3.5 Power Relay (From S/N 232054) .................................................................................. 29

6.3.6 Buzzer ........................................................................................................................... 30

6.3.7 Bake Timer.................................................................................................................... 30

6.3.8 Roast Timer................................................................................................................... 30

6.3.9 Thermostat .................................................................................................................... 30

6.3.10 Hold Thermostat............................................................................................................ 31

6.3.11 Hold Relay (From S/N 232054)..................................................................................... 31

6.3.12 Mini-Contactor (To S/N 232054) ................................................................................... 31

6.3.13 Water Solenoid—US/Can Only ..................................................................................... 32

6.3.14 Water Solenoid Cleaning—US/Can Only...................................................................... 32

6.3.15 Spray Nozzle—US/Can Only ........................................................................................ 33

WARNING: ENSURE POWER SUPPLY IS SWITCHED OFF BEFORE SERVICING.

6. SERVICE PROCEDURES

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY

QUALIFIED PERSONS ONLY.

-22-

Revision 4/F3535 ©Moffat Ltd, June 2004

6.3.16 Elements .......................................................................................................................33

6.3.17 Fan ................................................................................................................................ 33

6.3.18 Motor ............................................................................................................................. 33

6.3.19 Outer Glass (E311) ....................................................................................................... 34

6.3.20 Inner Glass (E311) ........................................................................................................34

6.3.21 Inner Glass Seal (E311) ................................................................................................34

6.3.22 Door Seals.....................................................................................................................35

6.3.23 Door Pivot Bushes.........................................................................................................35

6.3.24 Outer Glass (E311MS) .................................................................................................. 35

6.3.25 Inner Glass (E311MS)...................................................................................................35

6.3.26 Outer Glass Seal (E311MS).......................................................................................... 35

6.3.27 Inner Glass Seal (E311MS)........................................................................................... 36

6.4 ADJUSTMENT / CALIBRATION....................................................................................................36

6.4.1 Thermostat Calibration ..................................................................................................36

6.4.2 Door Microswitch Adjustment........................................................................................ 37

6.4.3 Door Alignment..............................................................................................................37

6.4.4 Hold Temperature Adjustment ...................................................................................... 38

6.4.5 60 Minute Timer Zero Position Adjustment ................................................................... 38

-23-

Revision 4/F3535 ©Moffat Ltd, June 2004

6.1 FAULT DIAGNOSIS

Incorrect electrical supply

Check that the voltage across phase and

neutral (L1 and L2) terminals of terminal block is

the voltage as stated on the unit’s electrical rating

plate.

If incorrect, check electrical connection of supply

wiring and / or check electrical supply.

6.1.1 OVEN DOES NOT OPERATE / START

Power switch faulty

Check if power switch latches. If the switch does

not latch, then switch is faulty—replace.

With switch latched, check voltage across

terminal one to terminal three or four. If there is

no voltage, check for fault in wiring.

Check voltage across terminal two to terminal

three or four. If there is no voltage, then switch is

faulty—replace.

NOTE: When power switch is latched, it should

illuminate if operating correctly.

6.1.2 FAN DOESN’T OPERATE

Microswitch out of adjustment

Open oven door and manually depress door

microswitch actuator at top right of oven. If this

activates the fan, then the microswitch actuator

arm at rear of oven requires adjustment.

Microswitch faulty

Check voltage across microswitch terminals to

neutral.

With the door closed there should be power to the

com terminal and the n.o. terminal.

With the door open there should be power to the

com terminal and the n.c. terminal.

If not, microswitch is faulty—replace.

Fan motor faulty

Check the supply voltage across motor terminals.

6.1.3 OVEN LIGHT NOT ILLUMINATING—

DOOR OPEN

No power to light

Check the supply voltage across lamp housing

terminals at rear of oven. If the voltage is correct,

replace the bulb (if faulty). If the bulb is OK,

check lamp housing. Replace if faulty.

If there is no voltage, open oven door and

manually depress door microswitch actuator at

top right of oven. If this activates the fan, then

the microswitch actuator arm at rear of oven

requires adjustment.

Check voltage across micro-switch terminals to

neutral.

With the door closed there should be power to the

com terminal and the n.o. terminal.

With the door open there should be power to the

com terminal and the n.c. terminal.

If not, microswitch is faulty—replace.

6.1.4 OVEN LIGHT NOT ILLUMINATING—

DOOR CLOSED

Light switch faulty

Check voltage to the bottom terminal of the

switch. If there is no voltage, then check wiring.

With switch depressed, check voltage at top

terminal. If there is no voltage, then replace the

switch.

If voltage is correct, then check wiring to light.

Alternately, perform a continuity test across the

terminals with the light switch depressed.

NOTE: Units from S/N 260862 use a latching

type switch.

Units up to S/N 260861 use a

momentary type switch.

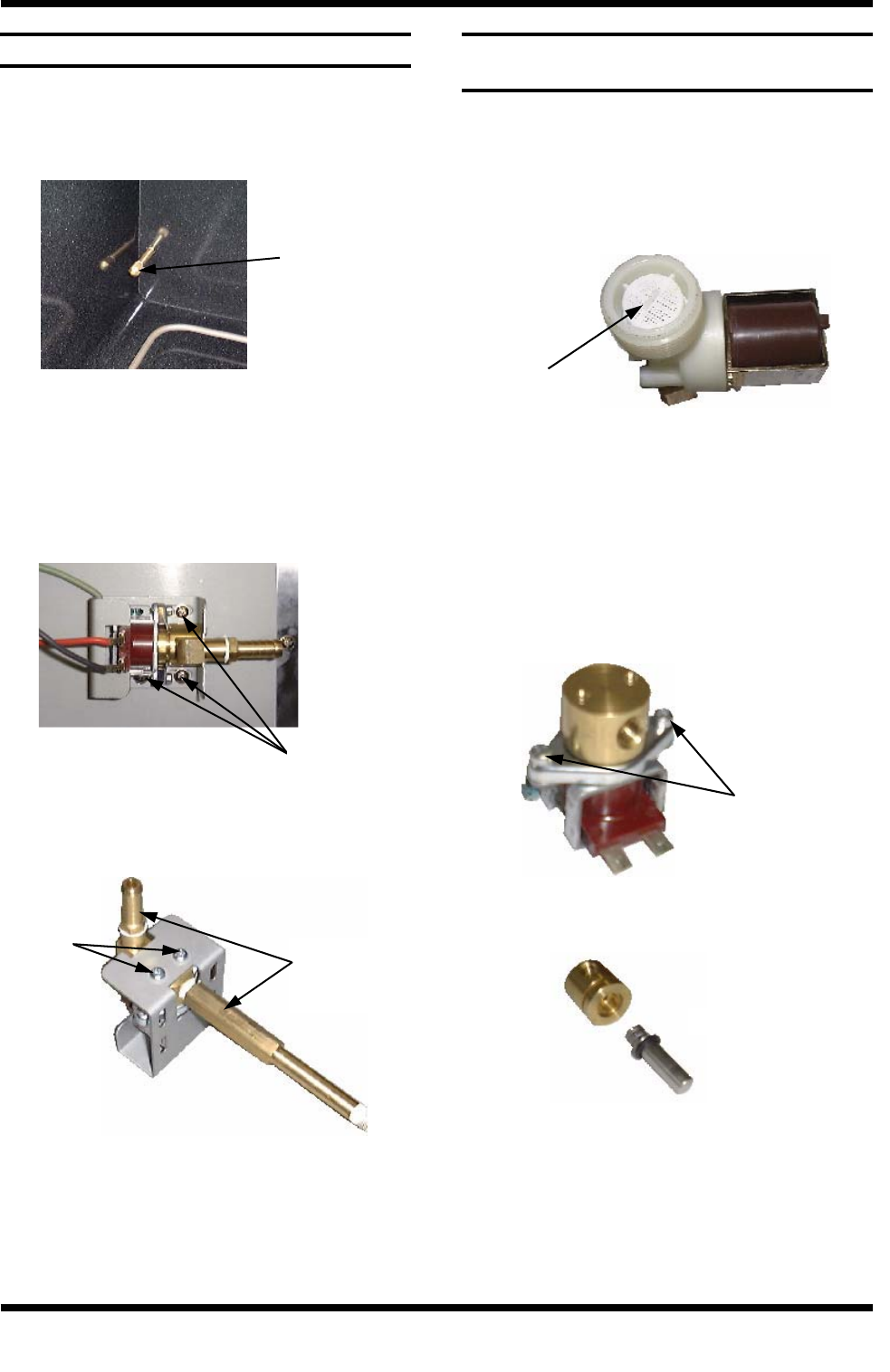

6.1.5 NO WATER INJECTION / STEAM

(US/CANADA ONLY)

Fault with water valve

Check voltage supply across the water valve

solenoid coil with the steam switch depressed. If

there is no power supply then check the control

panel steam switch.

Microswitch

n.o.

com

n.c.

Figure 6.1.1

If there is no voltage then check the electrical

connections of supply wiring.

If voltage is correct then check the oven fan for

free rotation. Remove any obstruction.

If fan is free to spin and the voltage supply is cor-

rect, then the motor is faulty—replace.

-24-

Revision 4/F3535 ©Moffat Ltd, June 2004

Check voltage to the bottom terminal of the

switch. If there is no voltage, then check wiring.

With switch depressed, check for voltage at top

terminal. If there is no voltage then replace

switch. If voltage correct, check wiring to

solenoid coil.

If the power supply to the coil is correct,

disconnect wiring to coil and check the

resistance of the coil windings.

Correct coil resistance: 2500 ohms

NOTE: If open circuit / high resistance, then the

coil is faulty—replace.

If coil resistance is correct, rewire and listen for

an audible solenoid click when the steam switch

is depressed.

If solenoid can be heard functioning, and oven

water nozzle is not blocked, then remove

water solenoid and fittings and check for

blockages.

6.1.6 CONTINUOUS WATER OUT OF OVEN

WATER NOZZLE (US/CANADA ONLY)

Water solenoid electrical fault

With control panel steam switch not

depressed, check for power supply across

solenoid coil. If there is power to the coil, then

check wiring and steam switch (refer 6.1.5).

6.1.7 60 MINUTE TIMER NO TIME UP BUZZER

Buzzer faulty

With timer in ‘zero’ position, check the buzzer at

top of control panel (inside) for voltage across

terminals. If voltage is correct then buzzer is

faulty—replace.

If there is no voltage, then check wiring.

Timer not switching on buzzer

With timer in zero position, check voltage to top

connection (terminal 1) and bottom connection

(terminal 2) of timer. If there is no voltage at

terminal 1 then check wiring.

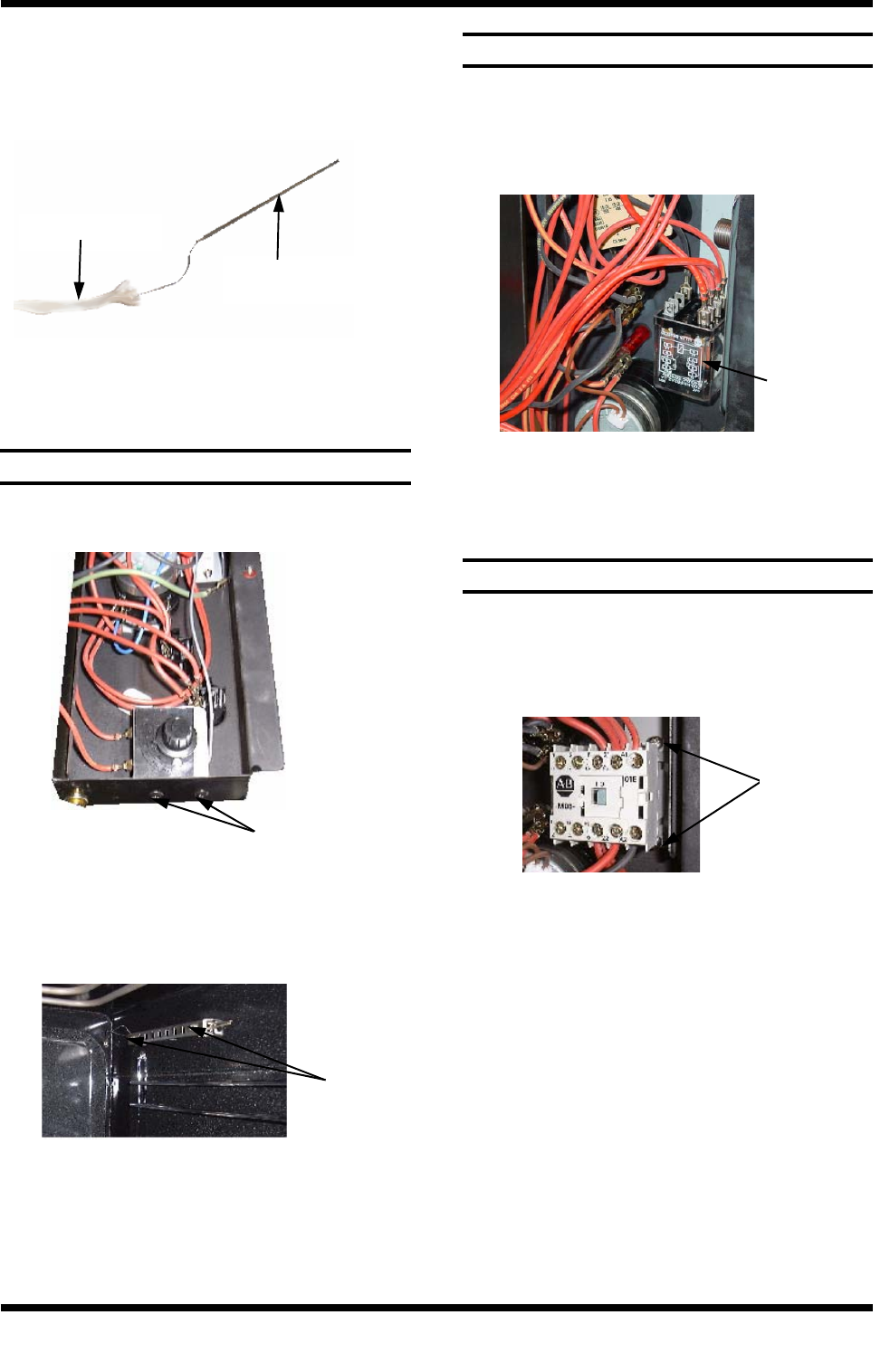

6.1.9 NO HEAT

Power relay faulty - From S/N 232054

Check voltage to terminal 7 on power relay (on

rear panel of oven). If there is no voltage then

check wiring to the relay.

6.1.8 60 MINUTE TIMER NO TIME UP

INDICATOR

Indicator faulty

With the timer in the zero position, check for

voltage across the indicator light. If correct, then

the indicator light is faulty—replace.

If there is no voltage then check wiring.

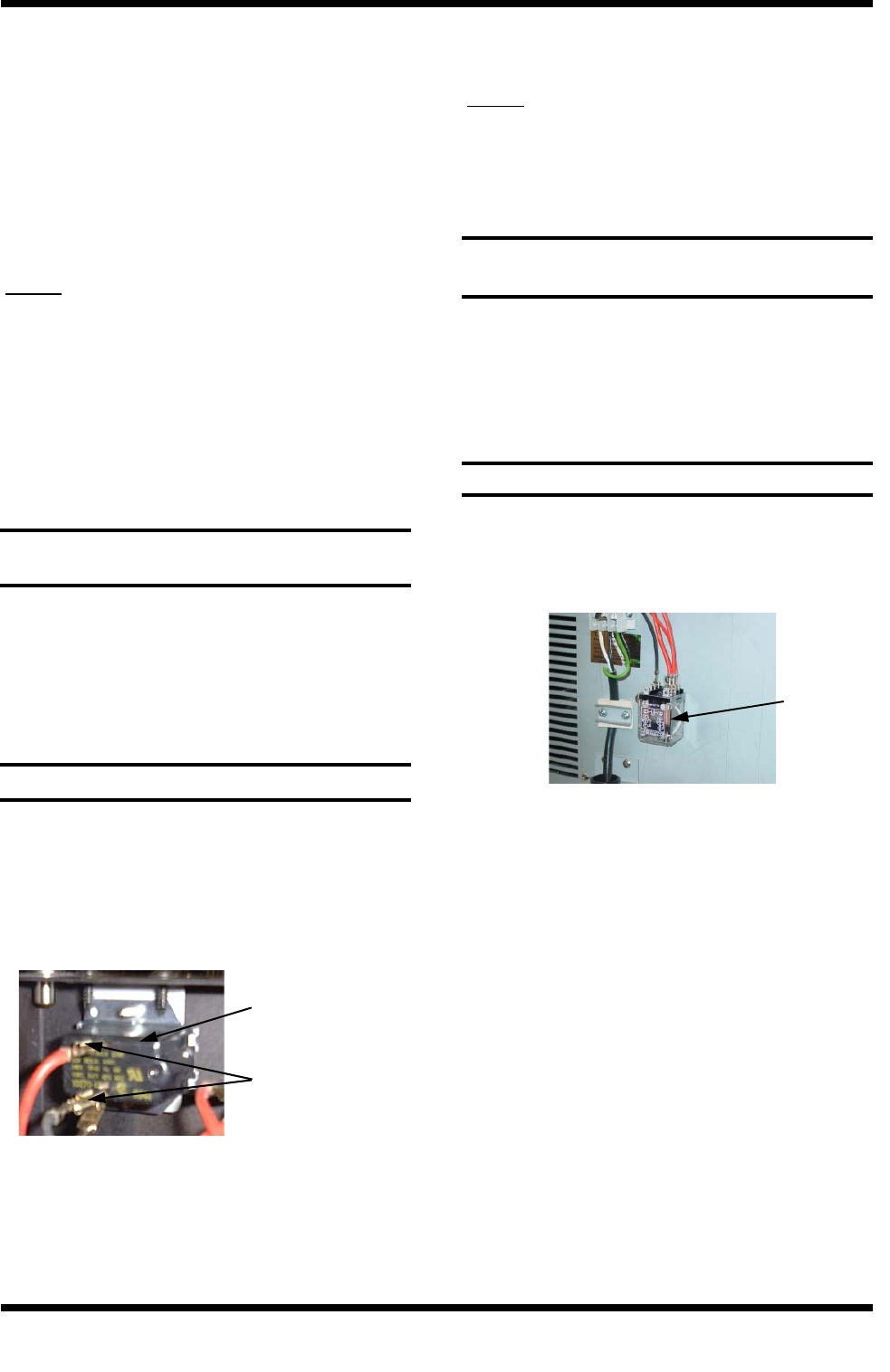

Buzzer

Buzzer Terminals

Figure 6.1.2

If no voltage at terminal 2 then timer is faulty—

replace.

NOTE: Timer will continue to run for

approximately three minutes below zero.

Buzzer and time up indicator will

continue until the timer manually

switched off (to vertical position).

Hold relay faulty - From S/N 232054

Check voltage to terminal 1 on oven

thermostat. If there is no voltage then check

voltage at terminals 1 and 7 on hold relay (inside

control panel). If there is no voltage to terminal 7

then check wiring. If there is no voltage at

terminal 1 then check that the relay is not

energised (i.e. there should be no power between

terminals A and B on the relay). If the relay is not

energised, and there is no voltage at terminal 1

Power

Relay

Figure 6.1.3

Ensure that the power switch on the unit is turned

on, and check for voltage at terminal 4 of the

power relay. If there is no voltage at 4 then check

that the relay is energised (i.e. voltage between

terminals A and B. If not then check wiring. If

there is voltage and there is no power at terminal

4 then the relay is faulty - replace.

If there is voltage at terminal 4 then check the

hold relay and the thermostat (refer below).

-25-

Revision 4/F3535 ©Moffat Ltd, June 2004

Thermostat faulty

Set thermostat to 200°C or 400°F. Check the

voltage out of terminal two on the thermostat. If

there is no voltage then the thermostat is faulty—

replace.

If the voltage is correct and the heating light is on

then check all wiring to elements.

6.1.10 NO TEMPERATURE CONTROL

Thermostat faulty

With thermostat in off (vertical) position, the

heating indicator should be off. If not then the

thermostat is faulty—replace.

Check that the thermostat phial is in correct

location and check for broken capillary tube—

replace if damaged.

Place an accurate digital thermometer probe in

centre of oven. Set thermostat to 180°C or

355°F. Close the oven door and allow oven

thermostat to regain temperature. If temperature

overshoots by 50°C and continues, switch off and

replace.

6.1.11 SLOW RECOVERY

Thermostat out of calibration

Place an accurate digital thermometer probe in

centre of oven. Set thermostat to 180°C or 355°

F. Close the oven door and allow oven

thermostat to cycle on and off twice. Record

oven centre temperature for the next thermostat

on and off cycle. The thermostat should cycle on

and off between 165°C and 195°C or 330°F and

385°F when set to the above temperature. If

oven temperature is outside these ranges, then

the thermostat requires recalibration.

NOTE: Thermostat cycling span should be ±15°

C or 27°F

6.1.12 BOTTOM ELEMENT NOT WORKING

Element faulty (blown)

With the thermostat on and heating check voltage

across bottom element terminals at rear of oven.

If the voltage is correct then check the current

draw of element. If there is no current draw then

element is faulty—replace.

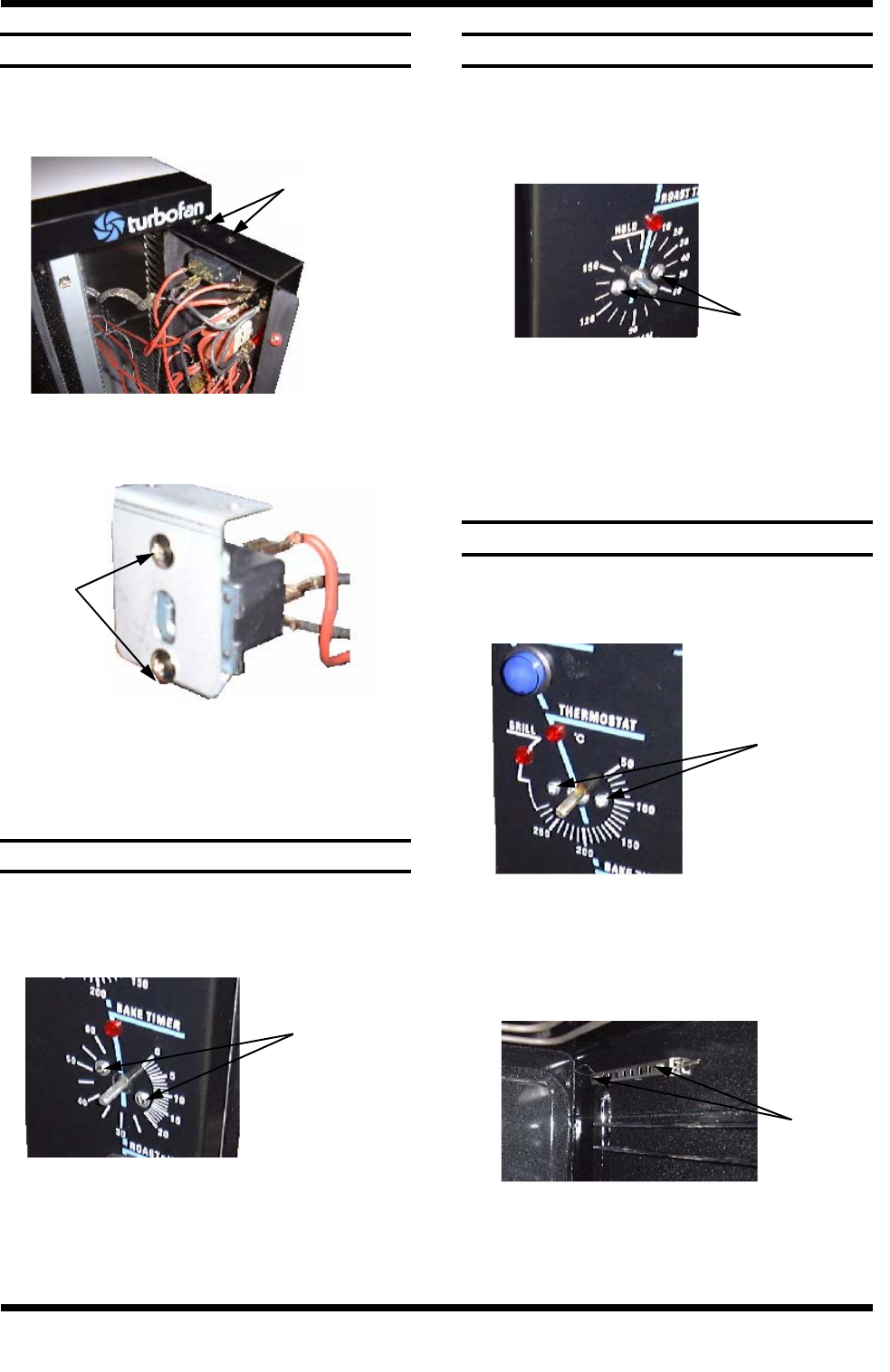

Figure 6.1.6

Bottom Element

Terminals

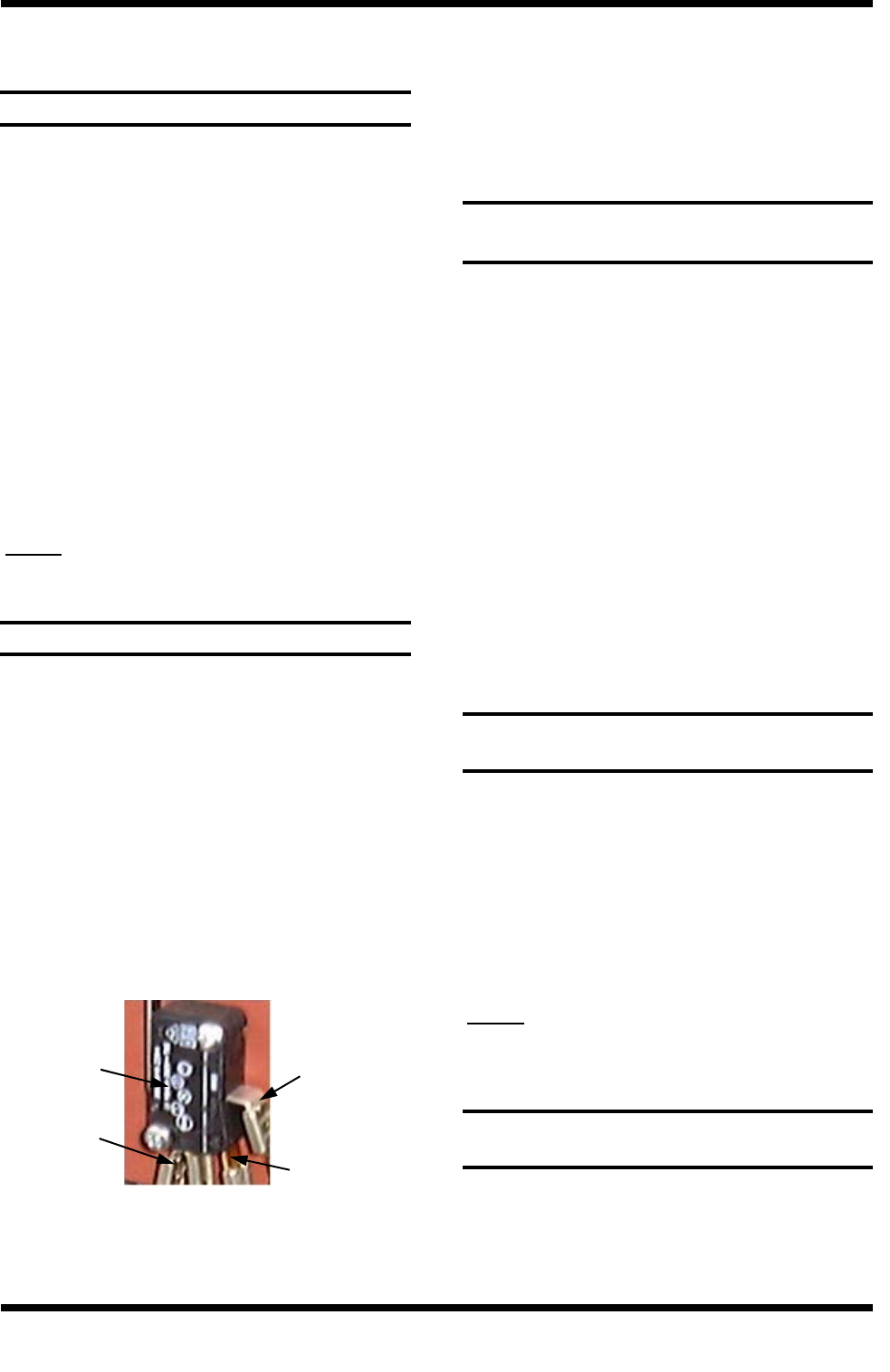

Hold mini-contactor faulty - to S/N 232053

Check voltage to terminal 1 on oven thermostat.

If there is no voltage then check voltage through

terminal 21 and 22 on mini contactor (inside

control panel). If there is no voltage to terminal

21 then check wiring. If there is no voltage to

terminal 22 then check that the contact indicator

on centre of the contactor is in ‘0’ position. If

indicator is in ‘0’ position and there is no voltage

to 21 then replace contactor.

If indicator is in the ‘1’ position then check the

voltage across contactor coil terminals A1 and

A2.

NOTE: There should be no voltage across these

terminals when ‘Roast ‘n Hold’ is not

selected.

If the indicator is in position ‘1’ with no voltage

across A1 and A2 then the contactor is faulty—

replace.

Contact

Indicator

Terminal A1

Terminal 21

Terminal 22

Terminal A2

Figure 6.1.5

Figure 6.1.4

then the relay is faulty - replace.

NOTE: The relay should only be energised when

the ’Roast ’n Hold’ switch is depressed.

If there is voltage at terminal 1 then check all

wiring to the thermostat.

-26-

Revision 4/F3535 ©Moffat Ltd, June 2004

Element faulty / blown

NOTE: In bake mode (50—270°C or 100—550°F)

the outer coil only of the top element assembly

operates. The inner coil works only when in grill

or broil mode.

With thermostat on and heating check voltage

across top element terminals at rear of oven. If

voltage is correct then check current draw of the

element. If there is no current draw then the

element is faulty—replace.

If there is no voltage check voltage is being sup-

plied to the top element from terminal two on the

switch block mounted to front of thermostat.

If voltage is correct then check wiring.

NOTE: Top outer element current draw:

208V : 3.8A ± 5%

220—240V: 3.5A ± 5%

6.1.13 TOP ELEMENT NOT WORKING (IN

BAKE MODE—NOT GRILL / BROIL)

Indicator faulty

Check the voltage across the indicator terminals.

If the voltage is correct then the indicator is

faulty—replace.

If there is no voltage then check wiring.

6.1.14 NO THERMOSTAT HEATING

INDICATOR

Element faulty / blown

With thermostat in grill or broil position (fully

clockwise), check that the grill indicator on the

control panel indicates. If not, then check the

voltage at terminal P5 on the thermostat switch

(fig 6.4.1). If there is no voltage check that the

switch has power on terminal 5. If there is power

at terminal 5, but not at P5 when thermostat is in

grill position, then the switch is faulty—replace

thermostat assembly.

6.1.15 GRILL NOT WORKING

Indicator faulty

Check the voltage across the indicator terminals.

If the voltage is correct then indicator is faulty—

replace.

If there is no voltage then check wiring.

6.1.16 GRILL INDICATOR NOT WORKING

No power to timer

Check the voltage at terminal 5 on underside of

the 180 minute timer.

Check that one lead of timer motor is connected

to terminal 5 of timer and the other lead is

connected to neutral of ‘Roast ’n Hold’ switch.

If voltage at terminal 5 is correct and wiring is

correct then the timer motor is faulty—replace

timer.

If there is no power at terminal 5 check for power

supply at terminal 4 of timer. If there is voltage at

terminal 4 and not at terminal 6 with timer set,

then timer switch is faulty—replace timer.

6.1.17 ROAST TIMER (180 MINUTE) WILL NOT

TIME DOWN

If there is no voltage then check voltage is

being supplied to bottom element from terminal 6

on switch block mounted to the front of the

thermostat (fig 6.4.1). If no voltage at 6 then

check for voltage at terminal P6. If power to P6

(and none to 6), then the thermostat is faulty—

replace.

NOTE: Correct bottom element current draw:

208 V : 9.6A ± 5%

220—240V: 8.7A ± 5%

From Serial Number 232054:

If no voltage at terminal 4, check the relay

behind the control panel is energised (i.e.

voltage across terminals A and B). If there is

no voltage then check wiring from the hold

switch. If there is voltage then check that

there is voltage at terminal 4 and terminal 7 of

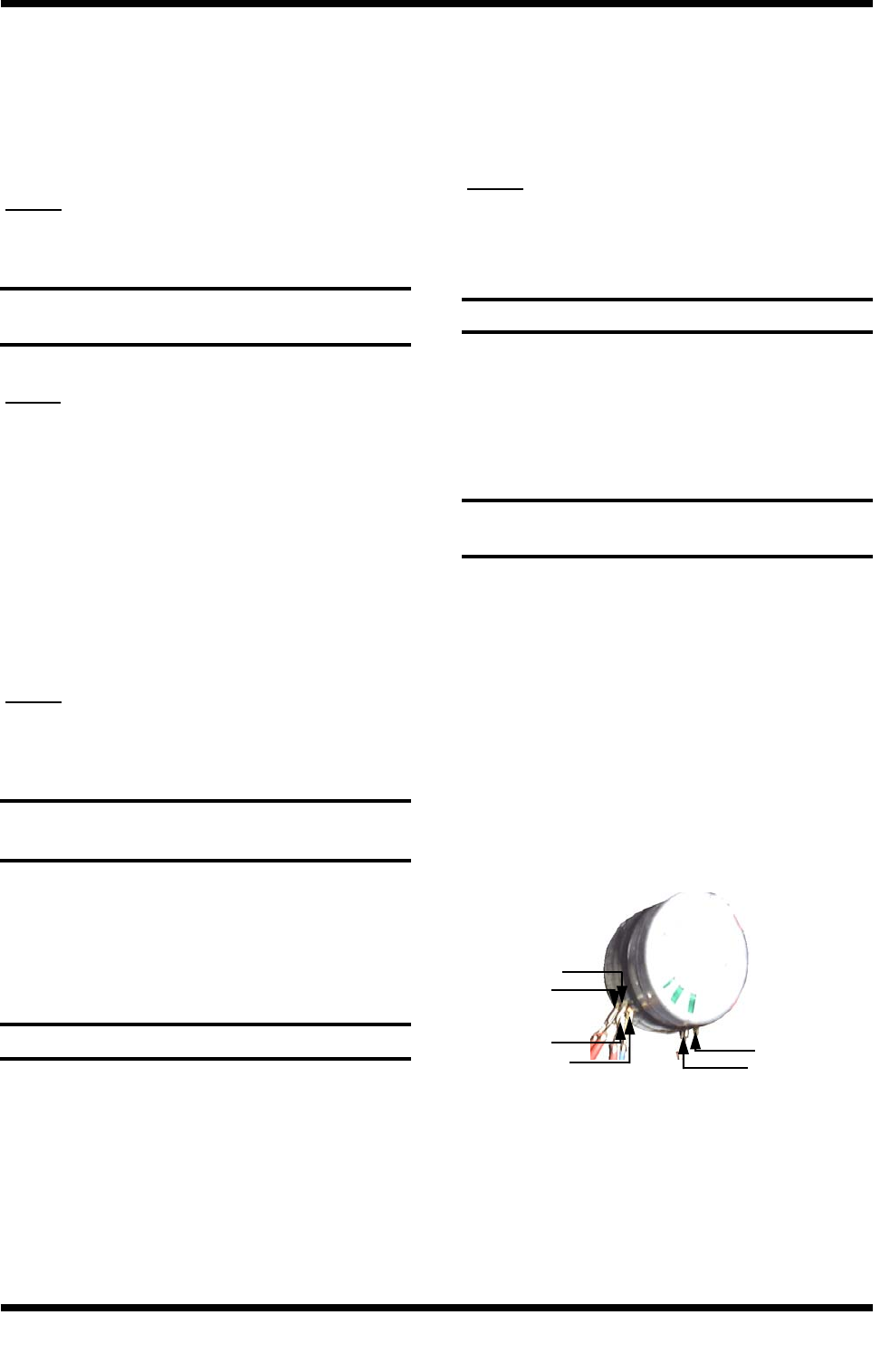

Figure 6.1.7

Terminal 4

Terminal 1

Terminal 2

Terminal 5 Terminal 3

Terminal 6

If grill indicator is illuminated, but the top inner grill

element is not functioning, check the voltage at

the top inner element coils at rear of oven. If the

voltage is correct then check current draw of

element. If there is no current draw then element

is faulty—replace.

NOTE: Top inner element current draw:

208 V: 8.7A ± 5%

220—240 V: 7.8A ± 5%

-27-

Revision 4/F3535 ©Moffat Ltd, June 2004

Indicator faulty

Check the voltage across the indicator terminals.

If the voltage is correct then the indicator is

faulty—replace.

If there is no voltage then check wiring.

6.1.18 NO HOLD INDICATOR

‘Roast ‘n Hold’ switch faulty

Check if the switch latches. If the switch does not

latch then the switch is faulty—replace.

With the switch latched, check voltage across

terminal 1 to terminal 3 or 4. If there is no voltage

then check for fault in wiring.

Check voltage across terminal 2 to terminal 3 or

4. If there is no voltage then switch is faulty—

replace.

NOTE: When the switch is latched, it should

illuminate if operating correctly.

Timer faulty

Check the voltage at terminal 3 of timer, with

timer in hold position. If the voltage is correct

then check wiring.

If there is no voltage then check voltage at

terminal 1 of timer. If there is voltage at 1, but no

voltage at terminal 3 with timer in hold

position, then timer switch is faulty—replace.

Hold thermostat faulty

With the power switch on and illuminated, ‘Roast

‘n Hold’ switch on and illuminated, and the roast

(180 minute) timer set to hold, check that the hold

indicator is illuminated.

With a cold oven (ie room temperature) check

that the top outer and bottom oven elements only

are heating. Test the voltage across the bottom

element and top element terminals at the rear of

oven. If the voltage is correct then refer Fault:

Bottom element not working (trouble shooting

section).

NOTE: If the main thermostat is set to off

(vertical) position and ‘Roast ‘n Hold’

mode is selected, then only the bottom

element will heat.

If there is no voltage at the element terminals,

check the voltage at terminal 2 (top) of the hold

thermostat at bottom rear of control panel (fig

6.3.12). If there is no voltage then check wiring.

If the voltage is correct, and the thermostat is

adjusted above oven temperature, then check for

output voltage at terminal 1 (bottom). If there is

no voltage and the thermostat will not switch on

then the thermostat is faulty—replace.

If the voltage is correct but the bottom element is

not working then check wiring.

6.1.19 HOLDING TEMPERATURE INCORRECT

the hold relay. If there is voltage at 7, but

none at 4 (and the relay is energised) then

relay is faulty - replace. If no voltage at 7 then

check wiring.

To Serial Number 232053:

If no voltage at terminal 4, then check mini

contactor behind control panel is latched to the

‘1’ position. If contactor is in ‘1’ position then

check wiring.

If contactor is in ‘0’ position when ‘Roast ‘n

Hold’ switch illuminated then check the voltage

across terminals A1 and A2 of mini contactor

(fig 6.1.3). If the voltage is correct but the

contactor in the off (‘0’) position then the

contactor is faulty—replace.

If there is no voltage across A1 and A2 then

check wiring.

-28-

Revision 4/F3535 ©Moffat Ltd, June 2004

Element

Guard

Lamp

Cover

Side

Rack

Four

Screws

6.2 ACCESS

6.2.1 CONTROL PANEL

1) Open the oven door. Remove microswitch

button by pulling straight off.

2) Undo the two screws now visible.

1) Undo the four screws holding the panel.

6.2.2 SERVICE (REAR) PANEL

1) Remove trays, racks, element guard and left

hand side rack.

2) Undo lamp cover.

6.2.3 BAFFLE

3) Panel is now free to hinge along right hand

side. When closing the panel ensure wires

and capillary tube are clear of metal or other

terminals.

Figure 6.2.1

Microswitch

Button

Two

Screws

2) Remove panel.

Figure 6.2.2

Figure 6.2.3

3) Remove baffle.

Figure 6.2.4

6.2.4 CONTROL PANEL—REAR

Buzzer

Power Switch

Heating Indicator

Grill / Broil Indicator

Thermostat

Bake Time Up

Indicator

Roast‘n Hold Switch

Hold Relay / Mini Contactor

Roast ‘n Hold Time

Up Indicator

Roast Timer (180 minute)

Steam Switch

(US/Can only)

Light Switch

(US/Can only)

Hold Thermostat

Bake Timer (60 minute)

Figure 6.2.5

/ Light Switch

(Not US/Can)

-29-

Revision 4/F3535 ©Moffat Ltd, June 2004

Two Screws

6.3 REPLACEMENT

6.3.1 LIGHT BULB / GLASS

6.3.2 DOOR MICROSWITCH

1) Unscrew lamp cover.

1) Remove service panel (refer 6.2.2).

2) Remove two screws holding microswitch to

bracket.

6.3.3 INDICATOR NEON LIGHT

1) With control panel open (refer 6.2.1) remove

the wires from the back of the neon.

6.3.4 POWER / ROAST / LIGHTS / WATER

SWITCHES

1) With control panel open (refer 6.2.1)

remove the wires from the back of the switch,

noting their positions.

2) Unscrew bulb out of fitting.

3) Screw in replacement bulb.

4) Ensure seal fitted. Screw lamp cover into

holder with baffle fitted (do not over tighten).

Lamp

Cover

Figure 6.3.1

3) Transfer wires to new micro-switch and

re-assemble.

4) Adjust microswitch (refer 6.4.2).

Figure 6.3.2

2) From back push neon through front of panel

rotating clockwise.

3) Push new neon in from front of panel, and

reconnect wires.

2) From back push switch through front of panel.

3) Push new switch in from front of panel, and

reconnect wires.

Neon

Wires

Switch

Wires

Figure 6.3.3

Figure 6.3.4

6.3.5 POWER RELAY (FROM S/N 232054)

1) Remove service panel (refer 6.2.2).

2) Remove the two screws securing the relay to

the rear panel.

3) Transfer the wires to the new relay.

4) Secure the relay to the rear panel with two

screws and replace the service panel.

Power

Relay

Figure 6.3.5

-30-

Revision 4/F3535 ©Moffat Ltd, June 2004

Two

Screws

Two Screws

Two

Screws

Two Screws

6.3.6 BUZZER

1) Remove control panel (refer 6.2.1).

2) Remove two screws holding buzzer bracket

to panel.

6.3.7 BAKE TIMER

1) Remove bake timer knob by pulling it firmly

away from control panel.

2) Open control panel (refer 6.2.1) and undo two

screws securing timer.

3) Withdraw and remove two screws holding

buzzer to bracket.

4) Transfer wires to new buzzer.

5) Reassemble in reverse order.

Figure 6.3.6

Figure 6.3.7

6.3.8 ROAST TIMER

1) Remove roast timer knob by pulling it firmly

away from control panel.

2) Open control panel (refer 6.2.1) and undo two

screws securing timer.

6.3.9 THERMOSTAT

1) Pull knob off front of thermostat

2) Open control panel (refer 6.2.1) and undo two

screws securing thermostat.

3) Transfer wires to new timer.

4) Withdraw old timer and insert new timer,

securing with screws.

5) Replace knob.

3) Transfer wires to new timer.

4) Withdraw old timer and insert new timer,

securing with screws.

5) Replace knob.

Two Screws

Figure 6.3.8

Two Screws

Figure 6.3.9

3) Transfer wires to new thermostat.

4) Remove service panel (refer 6.2.2) and from

inside of oven loosen two screws holding

thermostat phial bracket.

Figure 6.3.10

Figure 6.3.11

-31-

Revision 4/F3535 ©Moffat Ltd, June 2004

Two Screws

6.3.10 HOLD THERMOSTAT

8) Re-assemble in reverse order.

Figure 6.3.12

1) Open control panel (refer 6.2.1) and undo two

screws securing hold thermostat bracket.

2) Transfer wires to new thermostat.

3) Remove service panel (refer 6.2.2) and from

inside of oven loosen the thermostat phial

bracket.

4) Withdraw old thermostat phial through rear of

oven.

5) Insert new thermostat.

6) Re-assemble in reverse order.

Two

Screws

Figure 6.3.14

Figure 6.3.13

6.3.12 MINI-CONTACTOR (TO S/N 232053)

1) Open control panel (refer 6.2.1) and transfer

wires from old mini-contactor to new

contactor.

2) Remove two screws securing old mini-

contactor to control panel.

Figure 6.3.16

3) Secure new mini-contactor to control panel

using two screws.

Two Screws

6.3.11 HOLD RELAY (FROM S/N 232054)

1) Open control panel (refer 6.2.1) and

transfer wires from old hold relay to new

relay.

2) Remove two screws securing the old hold

relay to control panel.

Figure 6.3.15

3) Secure new hold relay to the control panel

using two screws.

Hold Relay

Fibreglass Sleeve

Thermostat Phial

5) Withdraw old thermostat phial through rear of

oven.

6) Remove fibreglass sleeve from old thermostat

and fit it to replacement thermostat.

7) Insert new thermostat.

-32-

Revision 4/F3535 ©Moffat Ltd, June 2004

6.3.13 WATER SOLENOID (US/CAN ONLY)

1) Ensure water supply is turned off.

2) Inside the oven remove the baffle (refer

6.2.3), then unscrew the water injection

nozzle.

3) With the service panel removed (refer 6.2.2)

remove the wires from the solenoid.

4) Disconnect hose fitting.

5) Unscrew the three screws holding solenoid

bracket to the rear of unit and remove valve

assembly.

Figure 6.3.17

Figure 6.3.18

Water Injection

Nozzle

Three Screws

6) On suitable work surface, remove brass

piping connections (1/2” spanner) and two

screws (on bracket) and extract solenoid.

7) Secure new solenoid with screws, and

re-assemble. Check that flow direction as

marked on valve is correct (flow into spray

nozzle).

Brass

Connections

Two

Screws

6.3.14 WATER SOLENOID CLEANING

(US/CAN ONLY)

1) Remove water solenoid (refer 6.3.13).

2) Remove the two screws securing the bracket

to the solenoid.

Two Screws

3) Remove the valve assembly.

Figure 6.3.20

4) Clean the valve assembly, removing all dirt

and grime from the valve seat.

5) Reassemble the valve assembly and

solenoid.

Figure 6.3.21

Valve Assembly

Figure 6.3.19

Figure 6.3.15

1) Disconnect water supply from the water

solenoid.

2) Remove the sieve from the water valve

assembly by pulling firmly away from the

assembly with a pair of pliers.

Sieve

4) Clean the sieve, removing all dirt and grime.

5) Replace the sieve and reconnect the water

supply.

Units manufactured from S/N 258733

Units manufactured up to S/N 258732

-33-

Revision 4/F3535 ©Moffat Ltd, June 2004

Bottom Element

Two Screws

Top Element

One Screw

Centre Nut

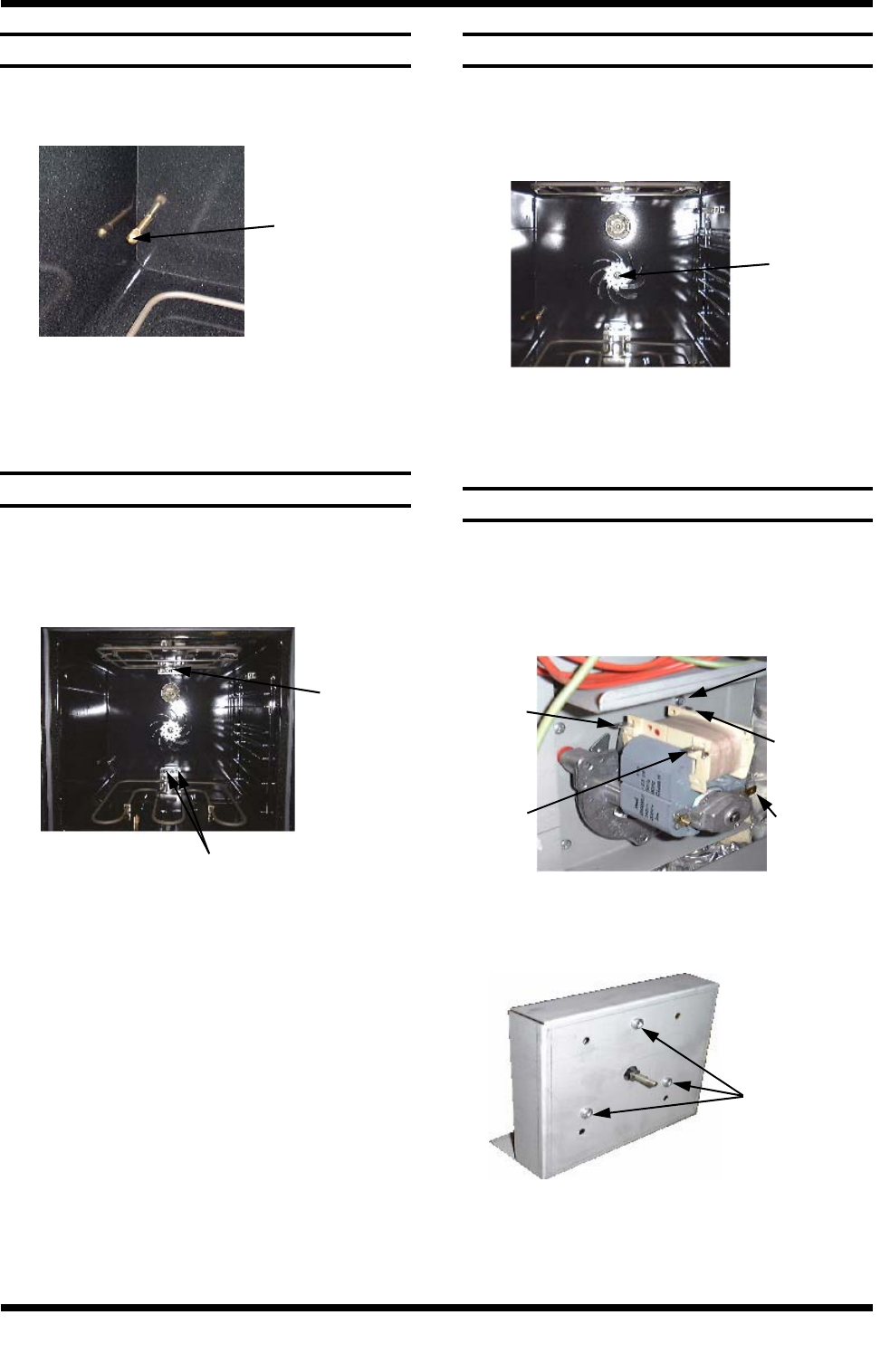

6.3.18 MOTOR

6.3.17 FAN

6.3.16 ELEMENTS

6.3.15 SPRAY NOZZLE (US/CAN ONLY)

1) Inside the oven remove the LH side rack and

baffle (refer 6.2.3), then unscrew the water

injection nozzle.

1) With service panel and baffle removed (refer

6.2.2 and 6.2.3) remove the wires from the

element(s).

2) Unscrew the element from inside the oven.

1) With service panel and baffle removed (refer

6.2.2 and 6.2.3) undo the centre nut.

NOTE: LH thread - Turn clockwise to loosen.

1) Remove fan (refer 6.3.17) and then remove

the wires that go to the motor.

2) Undo the four screws holding the motor

bracket in place (from the outside) and

remove motor assembly.

Figure 6.3.22

Water Injection

Nozzle

2) Clean or replace as required, ensuring debris

free on re-assembly. 2) Replace and re-assemble in reverse order.

Figure 6.3.24

Figure 6.3.23

208 V Top Inner Element 24.5 ohms

Top Outer Element 55.3 ohms

Bottom Element 22.5 ohms

220 - 240V Top Inner Element 29.5 ohms

Top Outer Element 66.5 ohms

Bottom Element 27.3 ohms

Element Ratings ±5%

3) Pull element carefully to remove.

4) Replace and re-assemble in reverse order.

Figure 6.3.25

Screws (4)

3) Remove three screws holding motor to

bracket and remove motor.

4) Replace and re-assemble in reverse order.

5) Ensure wire connections are correct to the

voltage supply—60 Hz / 50 Hz (fig 6.3.23)

Figure 6.3.26

Three Screws

60 Hz

Terminal

50 Hz

Terminal Earth /

Ground

Neutral

-34-

2 Screws

Two Screws

Two

Screws

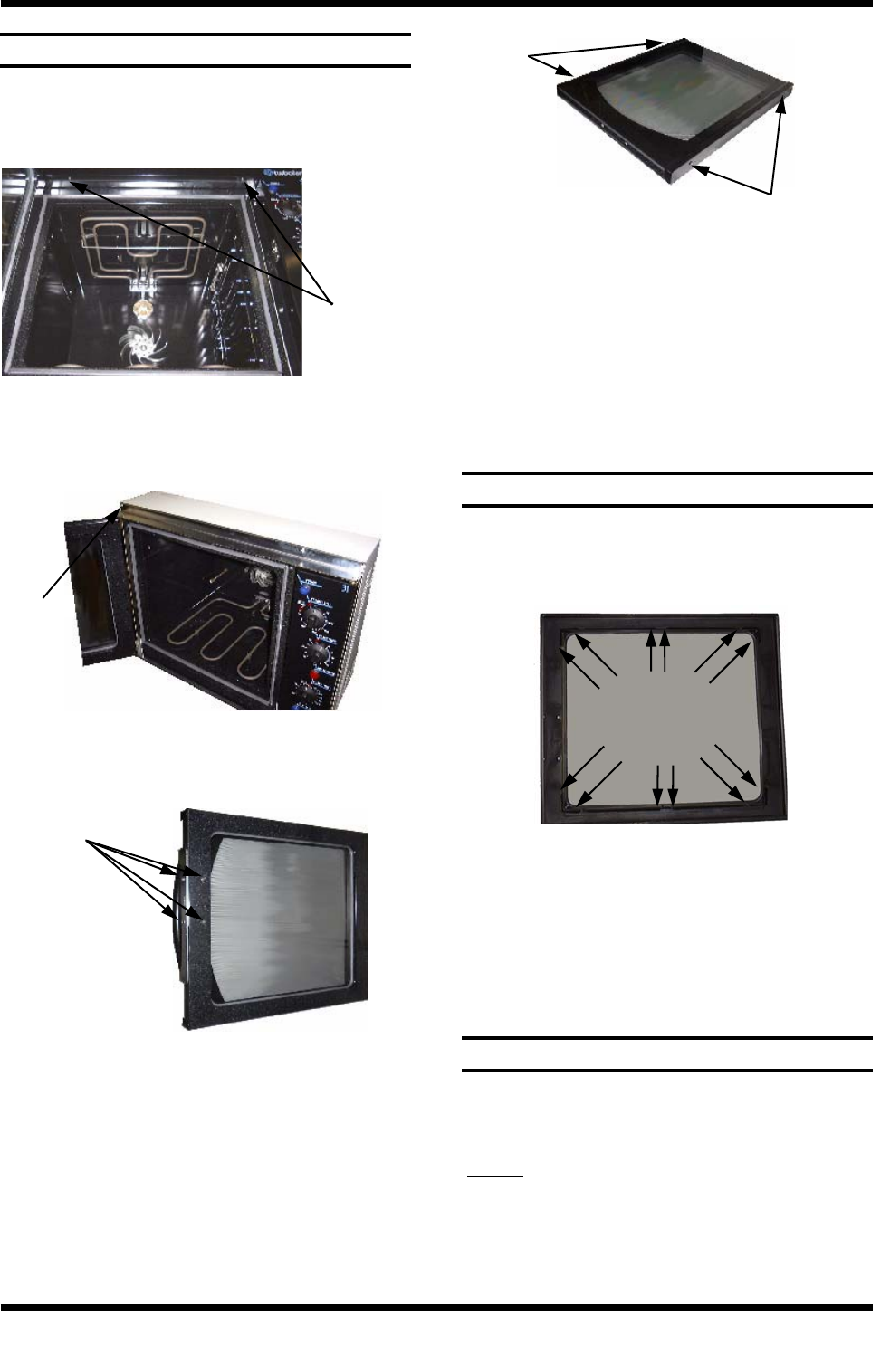

6.3.20 INNER GLASS (E311)

6.3.19 OUTER GLASS (E311)

1) Open door

2) Undo two screws securing Turbofan cover

plate to oven, and remove cover plate.

1) Remove the outer glass as above. Uncrimp

the retaining lugs of the window spacer and

remove the spacer and glass.

3) Remove LH screw whilst supporting the door.

Lift bracket and remove door from oven.

2) To replace, ensure the silicone rubber seal

has not been displaced. Clean the glass and

refit it. Place the window spacer in position

and crimp the retaining lugs over to hold the

glass in place. Refit outer glass as above.

Retaining

Lugs

Figure 6.3.31

4) Remove screws securing door handle.

Figure 6.3.28

Figure 6.3.27

LH Screw

5) Remove two screws in top trim and two

screws in bottom trim of door, and remove

trim panels.

Screws

Figure 6.3.29

6) Lift outer glass away from door.

7) To replace, ensure that the two silicone

rubber seals are in place on the left hand and

right hand side of the door frame. Clean the

inside of the glass and refit it, ensuring that

the silicone rubber seals cover the outer

edges of the glass. Refit the bottom trim.

Figure 6.3.30

6.3.21 INNER GLASS SEAL (E311)

1) Remove the door inner glass (refer 6.3.20).

2) The inner glass seal can now be removed and

replaced.

NOTE: When fitting new seal, ensure join is at

top of door.

-35-

Door Seals

6.3.22 DOOR SEALS

1) Open oven door.

2) To remove, hold at their centre point and pull

forward until they unclip

3) Refit new seals.

Note: Fit top and bottom seals first, with the open

side of the seal facing downwards. Fit side

seals with open side facing outwards.

Figure 6.3.32

6.3.23 DOOR PIVOT BUSHES

1) Remove door as per steps one to three of

section 6.3.19.

2) Door bushes can now be removed and

replaced.

3) Reinstall door by reversing steps one to three

of section 6.3.19.

6.3.24 OUTER GLASS (E311MS)

Door Pivot

Bushes Door Catch

Plate

(4 screws)

Top Door

Screws

Door Handle

(4 screws)

Bottom Door

Screws

1) Remove door as per steps one to three of

section 6.3.19.

2) Remove door bushes, catch plate (4 screws),

handle (4 screws), top and bottom screws (4).

Figure 6.3.33

3) Place door on bench with door outer facing

up. Lift door outer up removing it from door

assembly. Remove outer glass.

4) To replace, clean inner and outer glass,

ensure the silicone rubber seal has not been

displaced and refit door outer. Reassemble in

reverse order.

5) Reinstall door by reversing steps one to three

of section 6.3.19.

6.3.25 INNER GLASS (E311MS)

Door Glass

Door Outer

Door Inner

Outer Seal

Glass Clamp

Inner Seal

Figure 6.3.34

1) Remove outer glass as per steps one to three

of section 6.3.23

2) Uncrimp the retaining tags and remove glass

clamp.

3) Remove inner glass.

4) To replace, ensure the silicone rubber seal

has not been displaced. Clean the glass and

refit it. Place the glass clamp in position and

crimp the retaining tags over to hold the glass

in place. Refit outer glass as above.

6.3.26 OUTER GLASS SEAL (E311MS)

1) Remove the door outer glass (refer 6.3.24).

2) The outer glass seal can now be removed

and replaced.

NOTE: When fitting new seal, ensure join is at

top of door.

-36-

Thermostat Shaft

Grill/Broil Switch

IMPORTANT: IF THE OVEN

TEMPERATURE NEEDS TO BE INCREASED,

ENSURE THAT THE THERMOSTAT IS IN THE

‘OFF’ POSITION BEFORE CARRYING OUT

ADJUSTMENT.

IF OVEN TEMPERATURE NEEDS TO BE

DECREASED, ENSURE THERMOSTAT IS IN

THE ‘MAX’ TEMPERATURE POSITION

BEFORE CARRYING OUT ANY ADJUSTMENT.

1) Turn off power.

2) Remove thermostat knob by pulling it firmly

away from control panel.

3) Open control panel (refer 6.2.1). Remove two

screws on control panel holding thermostat.

4) The thermostat can now be removed.

Figure 6.4.2

Screws

Calibration Nut

Thermostat

Figure 6.4.1

6.4.1 THERMOSTAT CALIBRATION

6.4 ADJUSTMENT / CALIBRATION6.3.27 INNER GLASS SEAL (E311MS)

1) Remove the door inner glass (refer 6.3.25).

2) The inner glass seal can now be removed and

replaced.

NOTE: When fitting new seal, ensure join is at

top of door.

-37-

5) Carefully remove two screws holding Grill/

Broil switch to thermostat.

HINT: Tape Grill/Broil switch assembly

together before removal to prevent it from

springing apart.

7) Adjust the calibration nut located at the base

of the thermostat shaft.

To increase oven temperature, turn

calibration nut anticlockwise.

To decrease oven temperature, turn

calibration nut clockwise.

Adjustment of the calibration nut by 1°

angular will alter oven temperature by

approximately 2°C (3.6°F).

8) Reassemble Grill/Broil switch onto the

thermostat and fit assembly back onto control

panel.

9) Turn on power and recheck oven thermostat

calibration.

10) Repeat procedure if necessary.

Screws

Grill/Broil

Switch

Figure 6.4.4

Calibration Nut

Figure 6.4.3

Thermostat

6.4.3 DOOR ALIGNMENT

6.4.2 DOOR MICROSWITCH ADJUSTMENT

1) Open oven door.

2) Remove service panel (refer 6.2.2).

3) With fingers, bend actuator arm of

microswitch so that switch operates when

door is in closed position.

1) Alignment of the door can be achieved by

loosening the two hex head bolts securing the

bottom plate to the oven body. The plate may

now be moved sideways or in / out to achieve

correct door alignment. (Door should be

parallel to bottom plate and touching oven

seal evenly). When correct tighten bolts.

2) To adjust the door catch, loosen locknut and

turn the slot (using the tool supplied with the

unit); anticlockwise to increase roller height,

clockwise to decrease roller height.

Actuator Arm

Figure 6.4.6

Locknut

Figure 6.4.8

Two Hex Head Bolts

Figure 6.4.7

Adjustment

Tool

Figure 6.4.5

-38-

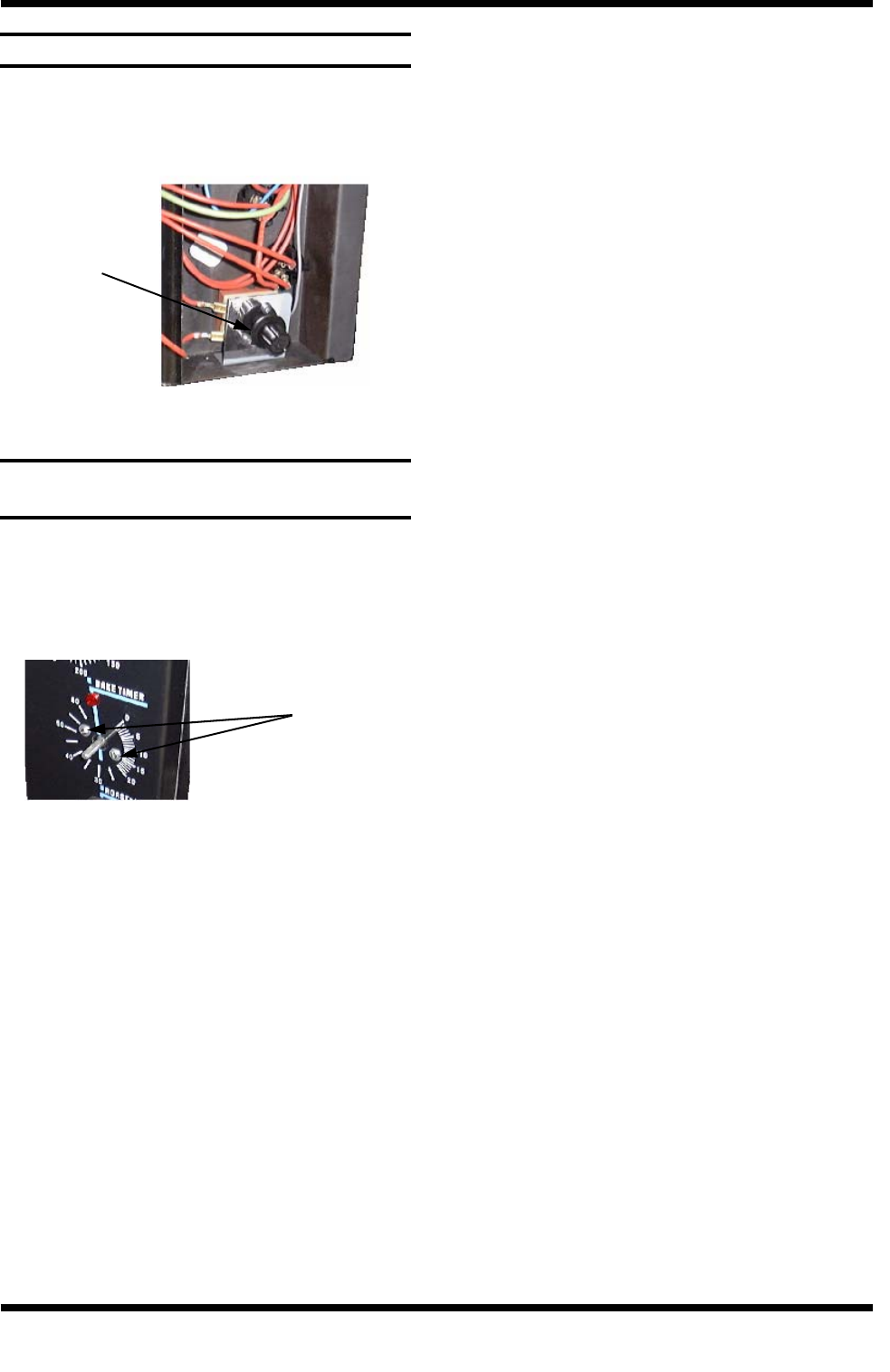

6.4.4 HOLD TEMPERATURE ADJUSTMENT

1) The hold temperature of the oven can be

adjusted by turning the hold thermostat dial to

the desired hold temperature. This dial is

located inside the control panel.

Hold Thermostat

Dial

Figure 6.4.9

6.4.5 60 MINUTE TIMER ZERO POSITION

ADJUSTMENT

1) Remove 60 minute timer knob by pulling it

firmly away from control panel.

2) Open control panel (refer 6.2.1). Loosen two

screws on control panel holding 60 minute

timer.

Two Screws

Figure 6.4.10

3) The timer can now be rotated as required to

ensure that the buzzer sounds at the zero

position.

-39-

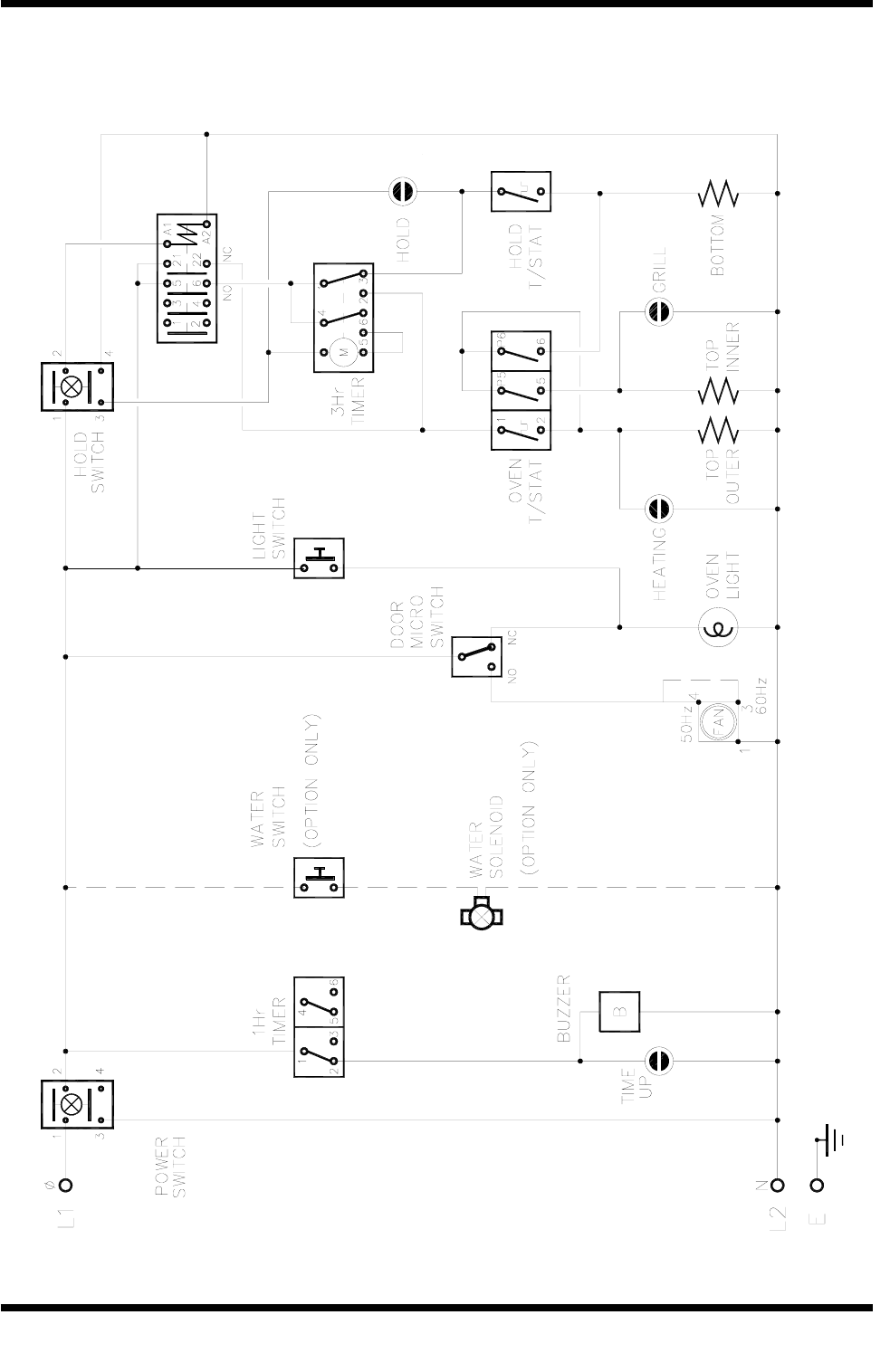

7. ELECTRICAL CIRCUIT SCHEMATICS

LIGHT

SWITCH

NO NC

1 2

163

POWER

RELAY 3 46

HOLD SWITCH

WATER

SWITCH

(OPTION ONLY)

WATER

SOLENOID

(OPTION ONLY)

HOLD

RELAY

L2 N

TIME

BUZZER

TIMER

SWITCH

POWER

3 4

1Hr

Ø1 2

60Hz

T/STAT

HOLD

LIGHT

OVEN

HEATING

50Hz

FAN

SWITCH

MICRO

NO NC

DOOR

OVEN

OUTER

TOP

T/STAT 2

INNER

TOP

GRILL

TIMER

3Hr

1P5 P6

2 3

From Serial Number 232054

-40-

To Serial Number 232053

-41-

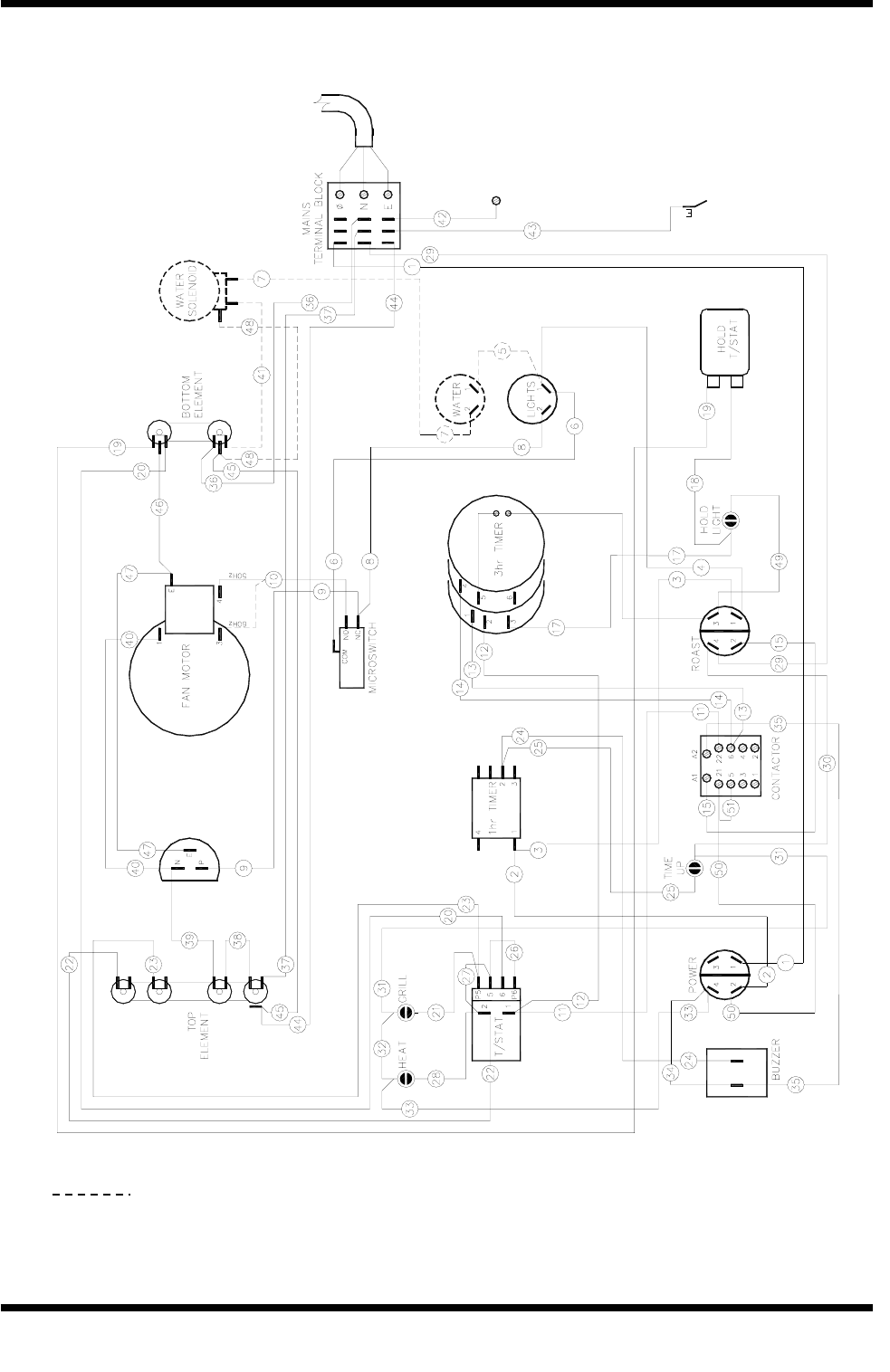

8. ELECTRICAL WIRING DIAGRAMS

From Serial Number 232054

3hr TIMER

LIGHT

HOLD

BUZZER

POWER

T/STAT

29 15 49

TIME

1hr TIMER

ROAST

33 HEAT

GRILL

ELEMENT

TOP

45 37

MICROSWITCH

COM NO

FAN MOTOR

60Hz

50Hz

WATER

T/STAT

HOLD

8LIGHTS

2 1

ELEMENT

BOTTOM

MAINS

TERMINAL BLOCK

SOLENOID

WATER

POWER RELAY

HOLD RELAY

Dotted lines indicate wiring used only on models with water injection.

-42-

Dotted lines indicate wiring used only on models with water injection.

To Serial Number 232053

-43-

9. SPARE PARTS

PART NO DESCRIPTION

CONTROLS

021473 Switch - Power

024562 Power Relay (From S/N 232054)

024563 Power Relay Upgrade Kit (To S/N 232053)

017121 Thermostat

020823 Knob - Thermostat / Bake Timer

020849 Neon Indicator

011760 Bake Timer

011794 Buzzer

021476 Switch - ‘Roast n Hold’

011419 ‘Roast n Hold’ Timer (50Hz)

011983 ‘Roast n Hold’ Timer (60Hz)

021472 ‘Roast n Hold’ Timer Knob

024773 Light Switch - Latching (From S/N 260862)

021474 Light Switch - Momentary (To S/N 260861)

024562 Hold Relay (From S/N 232054)

022281 Hold Relay (To S/N 232053)

018223 Hold Thermostat

002990 Microswitch

003002 Oven Lamp Glass

003434 Silk Gasket

013521 Oven Lamp - 40W Miniature Edison Screw (E311)

014218 Oven Lamp - 25W Miniature Edison Screw (E311MS)

MOTOR & ELEMENTS

003113 Oven Top Element 208 Volts

003114 Oven Bottom Element 208 Volts

011604 Oven Top Element 240 Volts

003074 Oven Bottom Element 240 Volts

013431 Fan Motor

013432 Oven Fan

STEAM SYSTEM (OPTION ONLY)

021474 Steam Switch

012781 Water Solenoid

DOOR

014225 Oven Door Seal Strip Side

023257 Oven Door Seal Strip Top / Bottom

021469 Handle Assembly (E311)

021468 Handle (E311)

025499 Handle (E311MS)

021465 Handle Bracket (E311)

023264 Door Outer Glass (E311)

023263 Door Inner Glass (E311), Door Glass (All)(E311MS)

011005 Door Catch (E311)

025501 Door Catch Plate (E311MS)

025502 Door Bush (E311MS)

-44-

RACKS

023255 Oven Side Rack LH

023256 Oven Side Rack RH

023254 Oven Rack

004874 Bottom Element Guard

004595 Fan Baffle

-45-

10. ACCESSORIES

OVEN RACKS (PART NO 23254)

100 MM (FOUR INCH) FOOT OPTION (PART

NO 13048)

A25 / A311 STAINLESS STEEL STAND

25 MM (ONE INCH) FOOT OPTION (PART NO

13908)

-46-

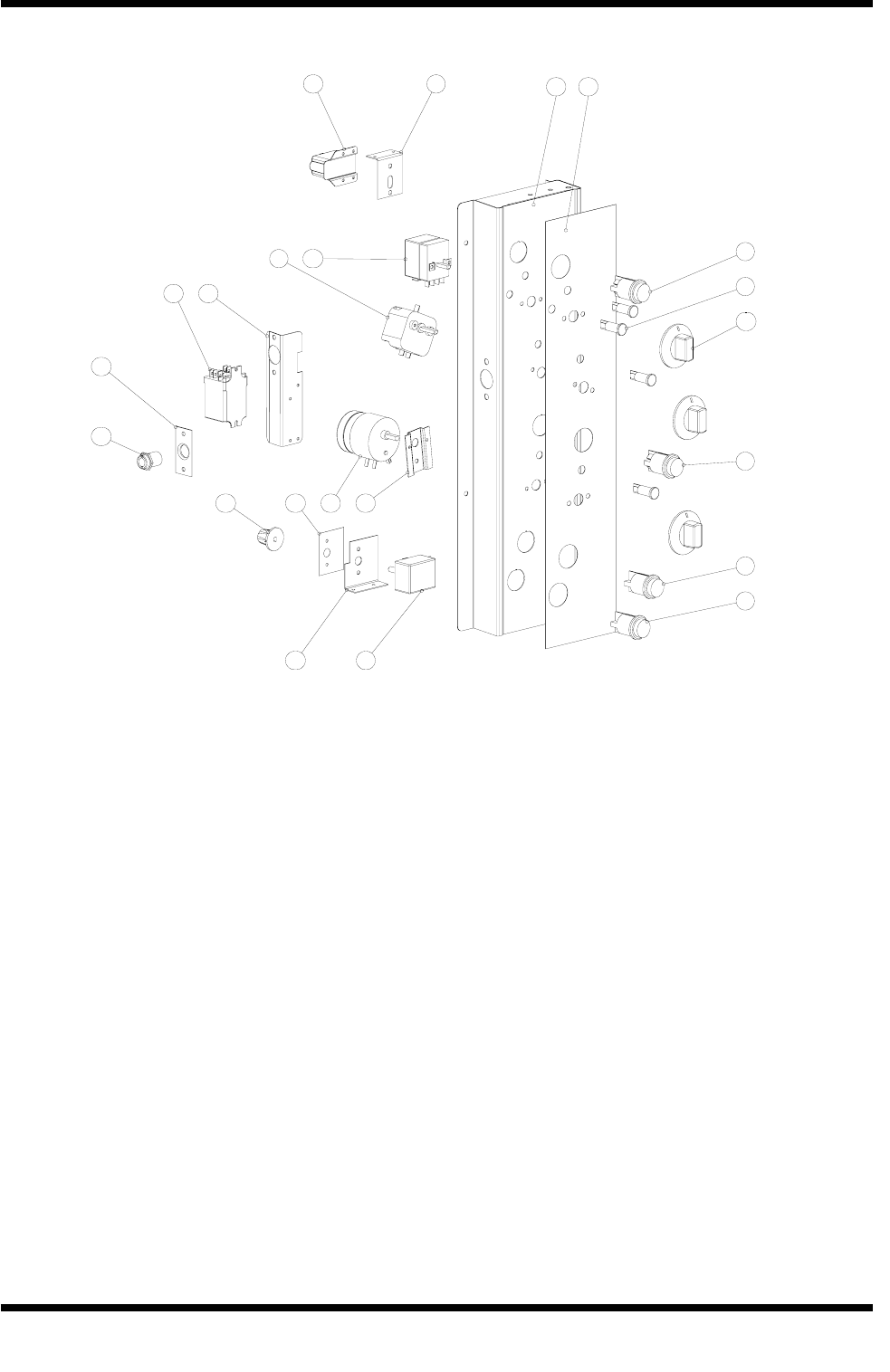

11. PARTS DIAGRAMS

11.1 MAIN ASSEMBLY

-47-

Pos Part No. Description

1 010761 GROMMET (E311 FROM S/N 260862; E311MS)

2 025548 WRAPPER (E311 FROM S/N 260862; E311MS)

023242 WRAPPER (E311 UP TO S/N 260861)

3 090414 INSULATION

4 025549 COVER PANEL (E311 FROM S/N 260862; E311MS)

023276 COVER PANEL (E311 UP TO S/N 260861)

5 023277 COVER PANEL PLATE

6 011412 MICROSWITCH BRACKET

7 011389 MICROSWITCH INSULATOR

8 002990 MICROSWITCH

9 003012 ACTUATOR ROD

011410 MICROSWITCH BUTTON (NOT ILLUSTRATED)

10 025528 VENT TUBE (E311 FROM S/N 260862; E311MS)

023275 VENT TUBE (E311 UP TO S/N 260861)

11 003016 MOTOR MOUNTING PLATE

12 013431 MOTOR

13 025092 MOUNTING BUSH (US/CAN ONLY) (FROM S/N 258733)

011286 OLIVE (US/CAN ONLY) (FROM S/N 258733)

011287 NUT (US/CAN ONLY) (FROM S/N 258733)

14 020851 WATER SOLENOID (US/CAN ONLY) (FROM S/N 258733)

020869 CONNECTOR 3/8”F x 1/4” COMP (US/CAN ONLY) (FROM S/N 258733)

15 025546 WATER TUBE (US/CAN ONLY) (FROM S/N 258733)

16 025545 SOLENOID MOUNTING PLATE (US/CAN ONLY) (FROM S/N 258733)

17 012784 SOLENOID EXTENSION (US/CAN ONLY)

18 012782 HOSE CONNECTOR (US/CAN ONLY) (UP TO S/N 258732)

19 011634 ELBOW (US/CAN ONLY) (UP TO S/N 258732)

20 012781 SOLENOID VALVE (US/CAN ONLY) (UP TO S/N 258732)

21 019208 SOLENOID MOUNTING BRACKET (US/CAN ONLY) (UP TO S/N 258732)

22 012785 INJECTOR (US/CAN ONLY) (UP TO S/N 258732)

23 011404 L.H OVEN SUPPORT

24 024562 POWER RELAY (FROM SERIAL NUMBER 232054)

024563 POWER RELAY UPGRADE KIT (TO SERIAL NUMBER 232053)

25 013586 TERMINAL BLOCK

26 002138 CABLE CLAMP

27 002441 INSULATOR

28 018251 CABLE ENTRY CLAMP BRACKET

29 023241 BODY

30 013048 LEG - 4" (100 mm)

013908 FOOT ASSEMBLY - 1" (25 mm)

31 004594 COUNTERWEIGHT (UK ONLY)

32 017770 PHIAL GUARD

33 004870 OVEN INNER

34 011413 R.H OVEN SUPPORT

35 011407 SIDE INSULATION PANEL

36 013520 OVEN LIGHT ASSEMBLY

003434 SILK GASKET

013521 LAMP 40W (E311)

014218 LAMP 25W (E311MS)

003002 LIGHT GLASS

37 013432 FAN

38 004595 FAN BAFFLE

39 003123 BAFFLE BRACKET

40 003113 TOP ELEMENT 208 - 220V

011604 TOP ELEMENT 230 - 240V

41 003074 BOTTOM ELEMENT 230 - 240V

003114 BOTTOM ELEMENT 208 - 220V

42 003219 ELEMENT SUPPORT

43 004993 ELEMENT COVER (E311 FROM S/N 260862; E311MS)

-48-

44 023254 OVEN RACK

45 023256 OVEN SIDE RACK - RH

46 023255 OVEN SIDE RACK - LH

47 012787 WATER TROUGH (US/CAN ONLY)

48 004874 BOTTOM ELEMENT GUARD

49 014225 OVEN SEAL ASSEMBLY - VERTICAL

003028 VERTICAL SEAL - 455mm

50 023257 OVEN SEAL ASSEMBLY - HORIZONTAL

023278 HORIZONTAL SEAL - 584mm

51 004877 PIVOT COVER - BLACK (E311 ONLY)

004994 PIVOT COVER - ST/ST (E311MS ONLY)

52 023243 PIVOT SUPPORT - TOP ASSEMBLY

53 ---------- DOOR ASSEMBLY (REFER SECTION 11.3 & 11.4)

54 ---------- CONTROL ASSEMBLY (SEE SECTION 11.2)

55 025502 DOOR BUSH (E311 FROM S/N 260862; E311MS)

(ALSO USED ON CONTROL PANEL PIVOT)

013610 DOOR BUSH (E311 UP TO S/N 260861)

(ALSO USED ON CONTROL PANEL PIVOT)

56 023245 PIVOT SUPPORT - BOTTOM ASSEMBLY

-49-

11.2 CONTROL PANEL ASSEMBLY

11.2.1 E311 CONTROL PANEL

Pos Part No. Description

1 018224 HOLD THERMOSTAT KNOB

2 018223 HOLD THERMOSTAT

3 021538 HOLD THERMOSTAT BRACKET (AFFIX 018209 LABEL)

4 017121 THERMOSTAT 50-300 ºC

5 011760 TIMER - 1 Hr

6 011419 TIMER - 3 Hr (240V 50 Hz)

011983 TIMER - 3 Hr (240V 60 Hz)

7 024562 HOLD RELAY (FROM SERIAL NUMBER 232054)

022281 HOLD MINI-CONTACTOR (TO SERIAL NUMBER 232053)

8 021536 RELAY / CONTACTOR BRACKET

9 018789 BALL CATCH PLATE

10 011005 BALL CATCH & LOCKNUT

11 021442 TIMER MOUNTING PANEL

12 011794 BUZZER

-50-

13 021537 BUZZER MOUNTING BRACKET

14 004873 CONTROL PANEL BAKBAR °C

004872 CONTROL PANEL BLUE SEAL °C

004729 CONTROL PANEL MOFFAT °F

15 013610 DOOR BUSH

16 024773 LIGHT SWITCH - LATCHING (USA/CAN ONLY) (FROM S/N 258733)

021474 LIGHT SWITCH - MOMENTARY (USA/CAN ONLY) (UP TO S/N 258732)

17 024773 LIGHT SWITCH - LATCHING (NOT USA/CAN) (FROM S/N 260862)

021474 LIGHT SWITCH - MOMENTARY (NOT USA/CAN) (UP TO S/N 260861)

021474 STEAM SWITCH (USA/CAN ONLY)

18 020823 THERMOSTAT / TIMER KNOBS

19 020849 INDICATOR LIGHT

20 021476 ROAST ‘N’ HOLD SWITCH

21 021473 POWER SWITCH

-51-

13 14

910 11 12

4 3

1 2

15 16

11.2.2 E311MS CONTROL PANEL

Pos Part No. Description

1 011794 BUZZER

2 021537 BUZZER MOUNTING BRACKET

3 017121 THERMOSTAT

4 011760 60 MINUTE TIMER

5 021536 RELAY MOUNTING BRACKET

6 024562 HOLD RELAY

7 018789 BALL CATCH PLATE

8 011005 BALL CATCH

9 018224 HOLD THERMOSTAT KNOB

10 018209 HOLD THERMOSTAT LABEL

11 011419 THREE HOUR TIMER - 50Hz

011983 THREE HOUR TIMER - 60Hz

12 021442 TIMER MOUNTING PANEL

13 021538 HOLD THERMOSTAT BRACKET

14 018223 HOLD THERMOSTAT

15 025544 CONTROL PANEL WA (BAKBAR / BLUE SEAL)

025503 CONTROL PANEL WA (MOFFAT)

16 025531 CONTROL PANEL OVERLAY (BAKBAR - °C)

025532 CONTROL PANEL OVERLAY (BLUE SEAL °C)

025530 CONTROL PANEL OVERLAY (MOFFAT - °F)

17 021473 POWER SWITCH

18 020849 INDICATOR LIGHT

19 020823 KNOB

20 021476 ‘ROAST N HOLD’ SWITCH

21 024773 LIGHT SWITCH (NOT USA/CAN)

021474 STEAM SWITCH (USA/CAN ONLY)

22 024473 LIGHT SWITCH (USA/CAN ONLY)

-52-

11.3 GLASS DOOR ASSEMBLY (E311)

Pos Part No. Description

1 025502 DOOR BUSH (FROM S/N ******)

(ALSO USED ON CONTROL PANEL PIVOT)

013610 DOOR BUSH (UP TO S/N ******)

(ALSO USED ON CONTROL PANEL PIVOT)

2 023615 TOP TRIM

3 023616 BOTTOM TRIM

4 004992 DOOR INNER (FROM S/N ******)

004875 DOOR INNER (UP TO S/N ******)

5 021465 HANDLE BRACKET (HANDLE ASSEMBLY 021469)

6 021468 HANDLE (HANDLE ASSEMBLY 021469)

7 090200 SILICON EXTRUSION - 1.90M

8 023263 DOOR INNER GLASS

9 004876 DOOR GLASS CLAMP ANGLE

10 090225 SILICON EXTRUSION - 0.96M

11 023264 DOOR OUTER GLASS

-53-

Pos Part No. Description

1 004992 DOOR INNER

2 023263 DOOR GLASS

3 025498 GLASS CLAMP ANGLE

4 090200 INNER GLASS SEAL EXTRUSION

5 090201 OUTER GLASS SEAL EXTRUSION

6 090415 INSULATION 38mm

7 025504 DOOR OUTER PANEL WA

8 025502 PIVOT BUSH

9 025501 DOOR CATCH PLATE

10 025499 DOOR HANDLE

11.4 ST/ST DOOR ASSEMBLY (E311MS only)

-54-

11. SERVICE CONTACTS

AUSTRALIA

VICTORIA - MOFFAT PTY

HEAD OFFICE AND MAIN WAREHOUSE

740 Springvale Road Tel (03) 9518 3888

Mulgrave VIC 3170 Fax (03) 9518 3838

Spare Parts Department Free Call 1800 337 963

Fax (03) 9518 3895

NEW SOUTH WALES - MOFFAT PTY

Unit 8/142 James Ruse Drive

Rosehill NSW 2142

Spare Parts Free Call 1800 337 963

Fax (03) 9518 3895

QUEENSLAND - MOFFAT PTY

30 Prosperity Place

Geebung QLD 4034

Spare Parts Free Call 1800 337 963

Fax (03) 9518 3895

SOUTH AUSTRALIA - MOFFAT PTY

28 Greenhill Rd Tel (08) 8274 2116

Wayville SA 5034

Spare Parts Free Call 1800 337 963

WESTERN AUSTRALIA - MOFFAT PTY

PO Box 689 Tel (08) 9305 8855

Joondalup Business Centre WA 6027

Spare Parts Free Call 1800 337 963

NATIONAL COVERAGE FOR 24 HOUR SERVICE OR MAINTENANCE DIAL

FREE CALL 1800 622 216 (AUSTRALIA ONLY)

CANADA

Lessard Agencies Limited Tel (416) 766 2764

PO Box 97 Fax (416) 760 0394

Stn “D” Free Call 1 888 537 7273

Toronto, ONT M6P 3J5

NEW ZEALAND

CHRISTCHURCH - MOFFAT LTD

16 Osborne St Free Call 0800 Moffat

PO Box 10-001 (0800 663 328)

Christchurch

Spare Parts Tel (03) 389 1007

Fax (03) 389 1276

AUCKLAND - MOFFAT LTD

4 Waipuna Road Tel (09) 574 3150

Mt Wellington Fax (09) 574 3159

Auckland

Spare Parts Free Call 0800 Moffat

(0800 663 328)

-55-

UNITED KINGDOM

BLUESEAL LTD

Units 6-7 Mount St Business Park Tel 0121-327 5575

Mount Street Fax 0121-327 9711

Nechells

Birmingham B7 5QU

England

UNITED STATES OF AMERICA

MOFFAT INC.

3765 Champion Blvd

Winston-Salem Tel 1-800-551 8795

NC27115 Fax 336 661 9546

NATIONAL COVERAGE FOR SERVICE OR MAINTENANCE DIAL

FREE CALL 1800 551 8795 (USA ONLY)

-56-

Power switch

Mini-contactor

Kit (part no. 024563) includes:

1 x Power relay

2 x Screw - 8 x 3/8 truss

1 x 160mm black wire

1 x 180mm red wire

1 x 950mm red wire

1 x 1050 red wire

Assembly Instructions: (THE ELECTRICAL SUPPLY MUST BE DISCONNECTED)

1) Remove the rear service panel.

2) Mark and drill 2x ø3.5mm holes as per figure 1.

3) Mount relay to holes with 2 screws provided.

(NOTE: Terminals on relay must face

upwards).

4) Connect 160mm black wire to vacant neutral

(L2) terminal on terminal block and to terminal

B on relay.

5) Connect short (180mm) red wire to vacant

phase (L1) terminal on terminal block and to

terminal 7 on relay.

6) Connect long thick red wire (950mm) to power

relay terminal 4 and remaining long thin wire

(1050mm) to relay terminal A. Feed these

wires through the plastic bush in the rear of the

oven and into the control cavity.

7) Loosen screws and open the control panel.

8) Remove and discard wire from terminal 2 on

the power switch to terminal 21 on the mini

contactor inside the control panel.

Locate end of thick red wire previously fed into

control cavity and connect to terminal 21 of the

contactor.

9) Locate long thin red wire and connect to

terminal 2 on the power switch.

10) Close and fasten control panel taking care not

to trap any wires.

11) Replace and fasten rear service panel.

Figure 1

Figure 2

185

APPENDIX A. POWER RELAY UPGRADE KIT

-57-

Circuit schematic (new wires shown in bold):

Figure 3

Moffat E311/E311MS Service Manual E35 Series E311MS Spm

Navigation menu

Versions of this User Manual:

Views

Navigation
