E96f+SB 1 (VS10794) Service Manual E96
User Manual: E96
Open the PDF directly: View PDF
.
Page Count: 59
Service Manual
ViewSonic E96f+SB-1
Model No. VS10794
19” Digital Controlled Color Monitor
(E96f+SB-1_SM Rev. 1a Dec. 2005)
ViewSonic® 381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583
Copyright
Copyright © 2005 by ViewSonic Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of ViewSonic Corporation.
Disclaimer
ViewSonic makes no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims any warranty of merchantability or fitness for any particular purpose. Further,
ViewSonic reserves the right to revise this publication and to make changes from time to time in the contents
hereof without obligation of ViewSonic to notify any person of such revision or changes.
Trademarks
Optiquest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.
Revision History
Revision SM Editing Date ECR Number Description of Changes Editor
1a 12/13/05 Initial Release Sophia Kao
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
i
TABLE OF CONTENTS
1. Precautions and Safety Notices 1
2. Specification 3
3. Front Panel Function Control Description 6
4. Circuit Description 10
5. Adjusting Procedure 13
6. Trouble Shooting Flow Chart 18
7. Recommended Spare Parts List 24
8. Exploded Diagram And Spare Parts List 39
9. Block Diagram 41
10. Schematic Diagrams 50
11. PCB Layout Diagrams 54
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
ii
1. Precautions and Safety Notices
WARNING!
This service information is designed for experience repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service
a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians.
Any attempt to service or repair the product or products dealt within this service information by anyone else
could result in serious injury or death.
1. CAUTION
No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly
familiar with all of the following safety checks and servicing guide lines.
2. SAFETY CHECK
Care should be taken while servicing this CRT display because of the high voltage used in the deflection circuits.
These voltages are exposed in such areas as the associated flyback and yoke circuits.
3. FIRE & SHOCK HAZARD
3-1 Insert an isolation transformer between the CRT display and AC power line before servicing the chassis.
3-2 In servicing pay attention to original lead dress especially in the high voltage circuit. If a short circuit is found,
replace all parts which have been overheated as a result of the short circuit.
3-3 All the protective devices munt be reinstalled per original design.
3-4 Soldering must be inspected for possible cold solder joints, frayed leads, damaged insulation, solder splashes or
sharp solder points. Be certain to remove all foreign material.
4. LEAKAGE CURRENT COLD CHECK
4-1 Unplug the AC cord and connect a jumper between the two prongs on the plug.
4-2 Turn the CRT display power switch “on”.
4-3 Measure the resistance value with an ohmmeter between the jumpered AC plug and each exposed metallic part on
the CRT display such as the metal frame, screwheads, control shafts, etc. When the exposed metallic part has a
return path to the chassis, the reading should be 1.8 megohm minimum.
5. LEAKAGE CURRENT HOT CHECK
5-1 Plug the AC cord directly into the AC outlet. Do not use an isolation transformer during this check.

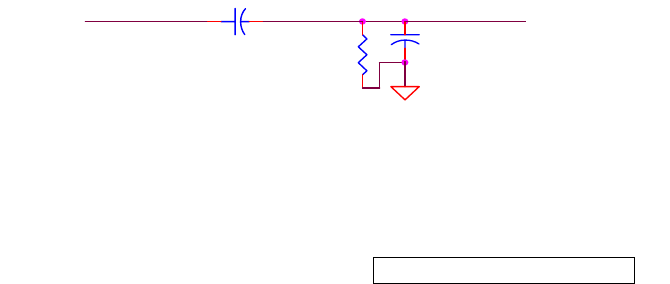

5-2 Connect a 1500 ohm, 10 watt resistor, paralleled by a 0.15uF capacitor between each exposed metallic part and a

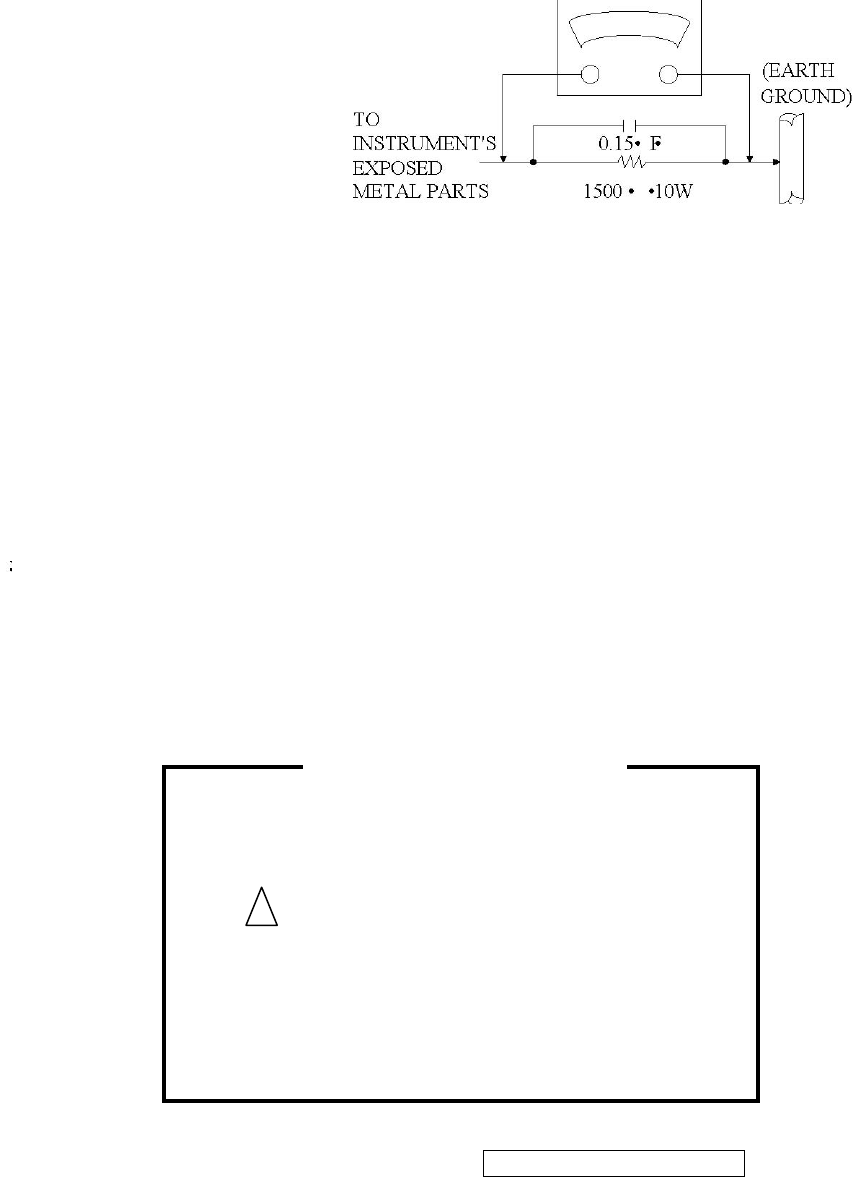

good earth ground (as shown in Fig.1).
5-3 Use an AC voltmeter with 1000 ohm/volt or more sensitivity and measure the AC voltage across the
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
1
2
combination 1500 ohm resistor and 0.15uF capacitor.
5-4 Move the resistor connection to each exposed metallic part and measure the voltage.
5-5 Reverse the polarity of the AC plug in the AC outlet and repeat the above measurement.
5-6 Voltage measured must not exceed 7.5 volt RMS, from any exposed metallic part to ground A leakage current
tester may be used in the above hot check, in which case any current measured must not exceed 5.0 milliamp. In
the case of a measurement exceeding the 5.0 milliamp value, a rework is required to eliminate the chance of shock
hazard.
Note： High voltage is present when this CRT display is operating. Always discharge the anode of the picture tube to the
display chassis to prevent shock hazard.
AC VOLTMETER
Fig. 1
6. IMPLOSION PROTECTION
Picture tubes are equipped with an integral implosion protection system, but care should be taken to avoid damage and
scratching during installation. Use only Panasonic replacement picture tubes.
7. X-RADIATION
WARNING：The only potential source of X-Radiation is the picture tube. However when the high voltage circuit is
operating properly there is no possibility of X-Radiation problem. The basic precaution which must be exercised is to
keep the high voltage at the following factory-recommended level.
Note It is important to use an accurate periodically calibrated high voltage meter.
7-1 The procedure for adjusting high voltage is shown on page 12.
7-2 If can not be adjust 25.0 KV at immediate service is required to prevent the possibility of premature
component failure.
7-3 To prevent X-Radiation possibility it is essential to use the specified picture tube
There are special components used in this CRT displays which are
important for safety. These parts are identified by the international
symbol
on the schematic diagram and on the replacement parts
list. It is essential that these critical parts should be replaced with
manufacture’s specified parts to prevent X-RADIATION, shock, fire,
or other hazards. Do not modify the original design or this will void
the original parts and labor guarantee.
！
IMPORTANT SAFETY NOTICE
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
2
2. Specification
1. CRT : 46CM(19") 90° Deflection, Shadow Mask Flat ,29mm Neck, flat high contrast CRT, 0.21mm(H) / 0.25mm
(D) dot pitch, Non-Glare Screen
2. Viewable image Size: 45.9CM (18") diagonal
3. Display Color: Unlimited Colors
4. External Controls:
Power On/Off, OSD key, Function knob: Contrast, Brightness, Degauss, H-Size, H-Center, V-Center, V-Size, ZOOM,
Pincushion, Trapezoid, Pin-Balance, Parallelogram, Rotation, Color Temperature, H-Moire Reduce, V-Morie,
Memory Recall, Language, ViewMeter,OSD position select
5. Input Video Signal
Timing #1 #2 #3 #4 #5
Resolution 640*480 640*480 640*400 800*600 1024*768
H(KHz) 31.347 43.269 31.469 53．000 60.023
V(Hz) 60 85.008 70.086 85．000 75.029
Timing #6 #7 #8 #9
Resolution 1024*768 1280*1024 1600*1200 1152*870
H(KHz) 69．000 79.976 75．000 68.680
V(Hz) 85．000 75.025 60．000 75.000
6. Display Size
Horizontal Display Size, Primary Preset 352 mm +/- 4 mm
Horizontal Display Size, Other Presets 352 mm +/- 4 mm
Vertical Display Size, Primary Preset 264 mm +/- 4 mm
Vertical Display Size, Other Presets 264 mm +/- 4 mm
Display Size Adjustment All preset modes shall expand to full screen size.
7. Scanning Frequencies
Horizontal: 30KHz ~ 86KHz
Vertical: 50 Hz ~ 160 Hz
8. Factory Preset Timings: 9
User Timings: 10
9. Misconvergence
A Zone: 0.25 mm Max.
B Zone: 0.35 mm Max.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
3
10. Video Bandwidth: 210 MHz
11. Power Source:
Switching Mode Power Supply
AC 90 ~264V, 50/60Hz Universal Type
12. Operating Temperature: 0°C to 40°C Ambient
13. Humidity: 5% to 95% Relative, Non-Condensing
14. Weight: 18.0 kgs / 39.7 (lbs) (Net), 21.2 kgs / 46.7 (lbs) (Gross)
15. Dimensions
Machine Package
Width: 445 mm (17.6 inches) 540 mm
Height: 424 mm (16.7 inches)
378 mm (14.9 inches) w/o base 530 mm
Depth: 465 mm (18.3 inches) 570mm
16. External Connection:
15 Pin D-sub Connector
AC Power Cord
17. Power Consumption Modes :
On <75W typical (Green LED)
Sleep <4W(Amber LED)
Off <2W
18. Regulatiory/Safety
UL/CUL, FCC-B, CB, CE, DHHS, ICES 003, NOM, TUV/GS, TUV/Ergo, MPRII, GOST-R, SASO, BSMI, CCC,
PSB, Argentina-TUV/S, EPA Energy Star (Y2005 tier1)
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
4
OPERATING INSTRUCTIONS
This procedure gives you instructions for installing and using the Color display.
1. Position the display on the desired operation and plug the power cord into a convenient AC outlet. Three-wire
power cord must be shielded and is provided as a safety precaution as it connects the chassis and cabinet to the
electrical conduit ground. If the AC outlet in your location does not have provisions for the grounded type plug,
the installer should attach the proper adapter to ensure a safe ground potential.
2. Connect the 15-pin color display shielded signal cable to your signal system device and lock both screws on the
connector to ensure firm grounding. The connector information is as follow:

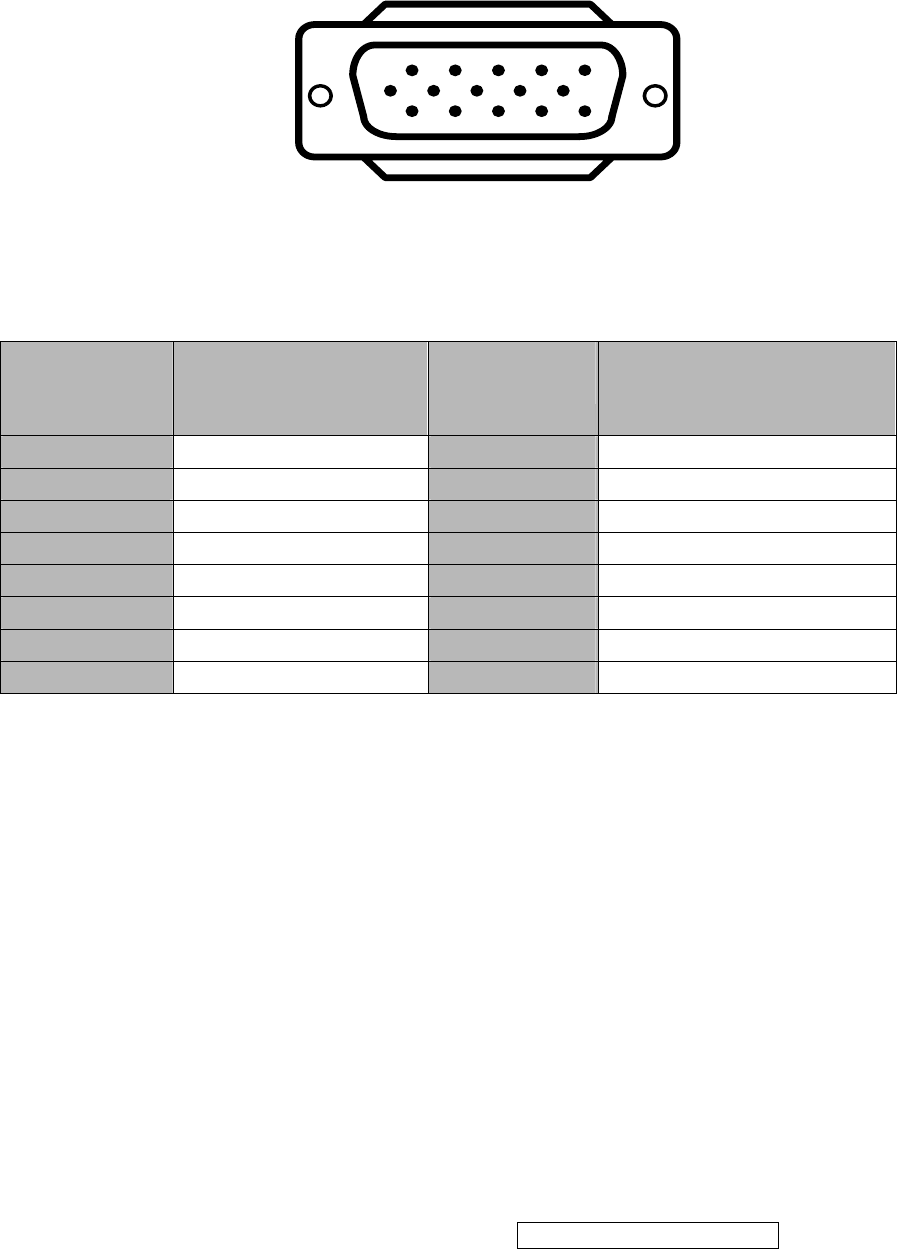

15 - Pin Color Display Signal Cable
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1. RED-V 9. 5V From PC
2. GREEN-V 10. Sync GND
3. BLUE-V 11. NC
4. NC 12. SDA
5. GND 13. H- SYNC
6. GND-R 14. V- SYNC
7. GND-G 15. SCL
8. GND-B
3. Apply power to the display by turning the power switch to the "ON" position and allow about thirty seconds for
display tube warm-up. The Power-On indicator lights when the display is on.
4. With proper signals feed to the display, a pattern or data should appear on the screen, adjust the brightness and
contrast to the most pleasing display.
5. This monitor has power saving function following the VESA DPMS. Be sure to connect the signal cable to the PC.
6. If your color display requires service, it must be returned with the power cord.
1
6
11 15
5
10
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
5
3. Front Panel Function Control Description
Adjusting the Screen Image

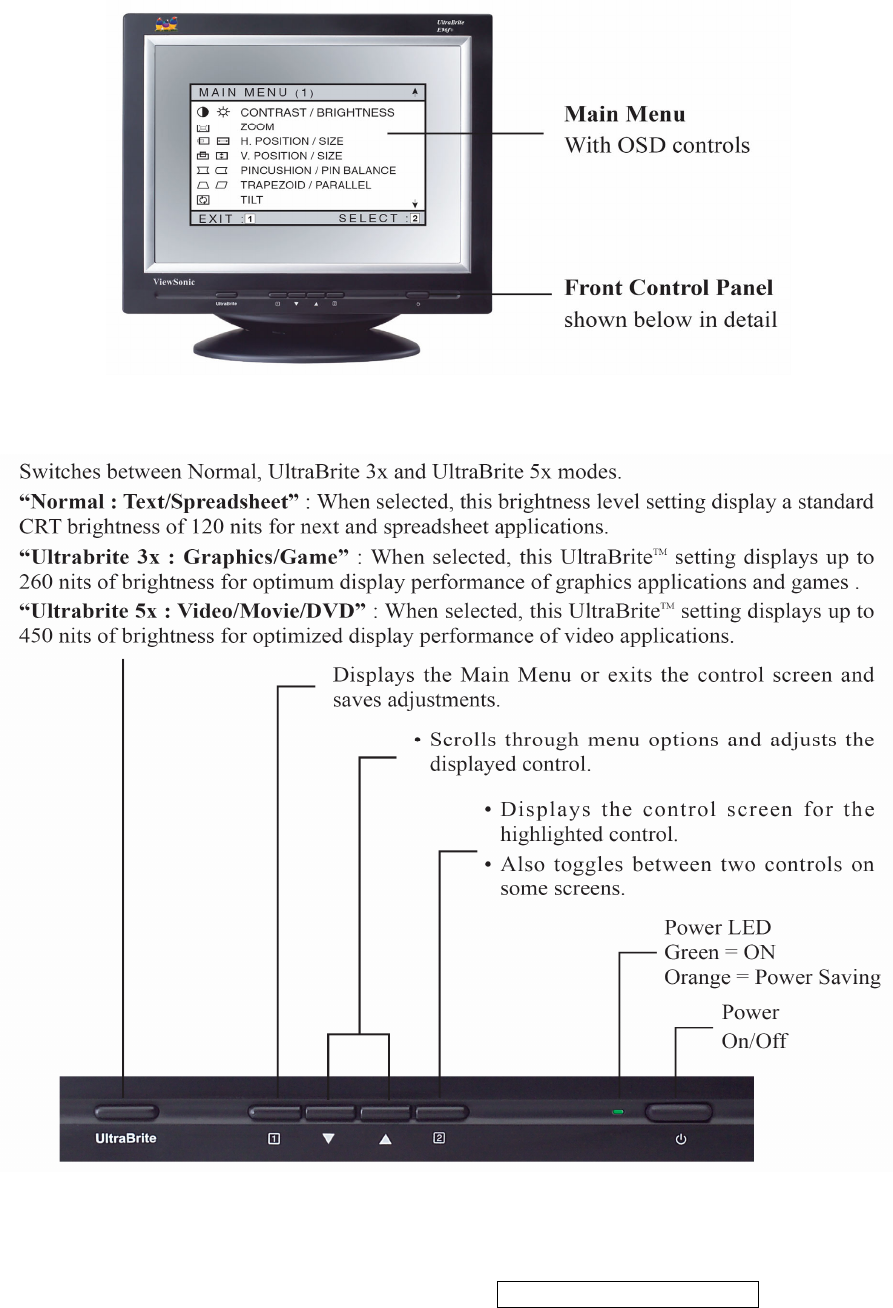

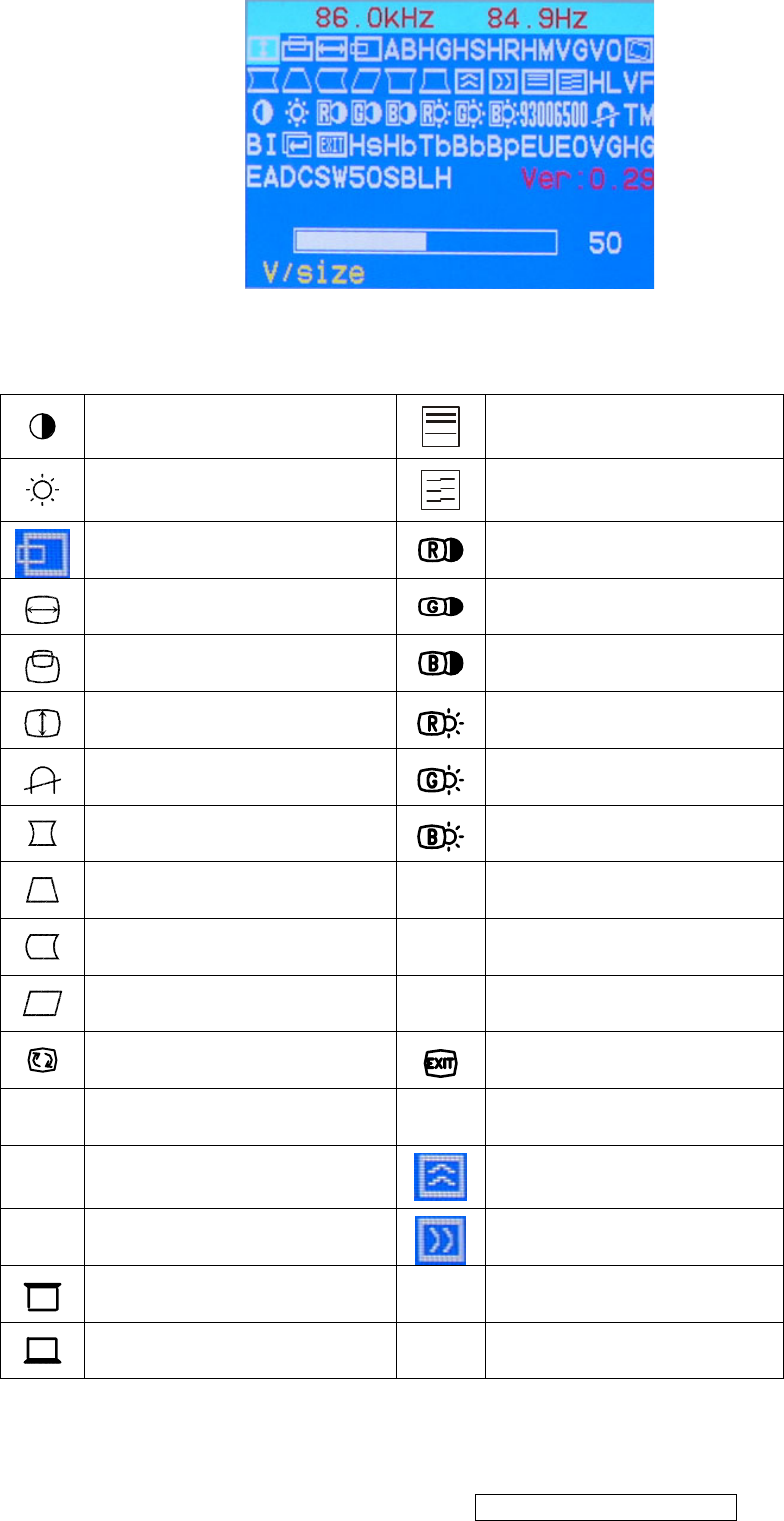

Use the buttons on the front control panel to display and adjust the OSD controls .The OSD controls are explained at the top of
the next page and are defined in “Main Menu Controls” on page 8.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
6
OSD Lock Settings
You have the option of using the On Screen Display (OSD) locking feature, OSD LOCK, to prevent unwanted changes
to the current image settings.
• OSD Lock: Press and hold the [1] button on the face of the monitor for 10 seconds. The message "OSD LOCK" will then
display briefly, indicating that the OSD image settings are now locked.
• OSD Unlock: Press and hold the [1] button again for 10 seconds. The message "OSD UNLOCK" will then display
briefly, indicating that the OSD image settings are now unlocked.
Do the following to adjust the screen image:

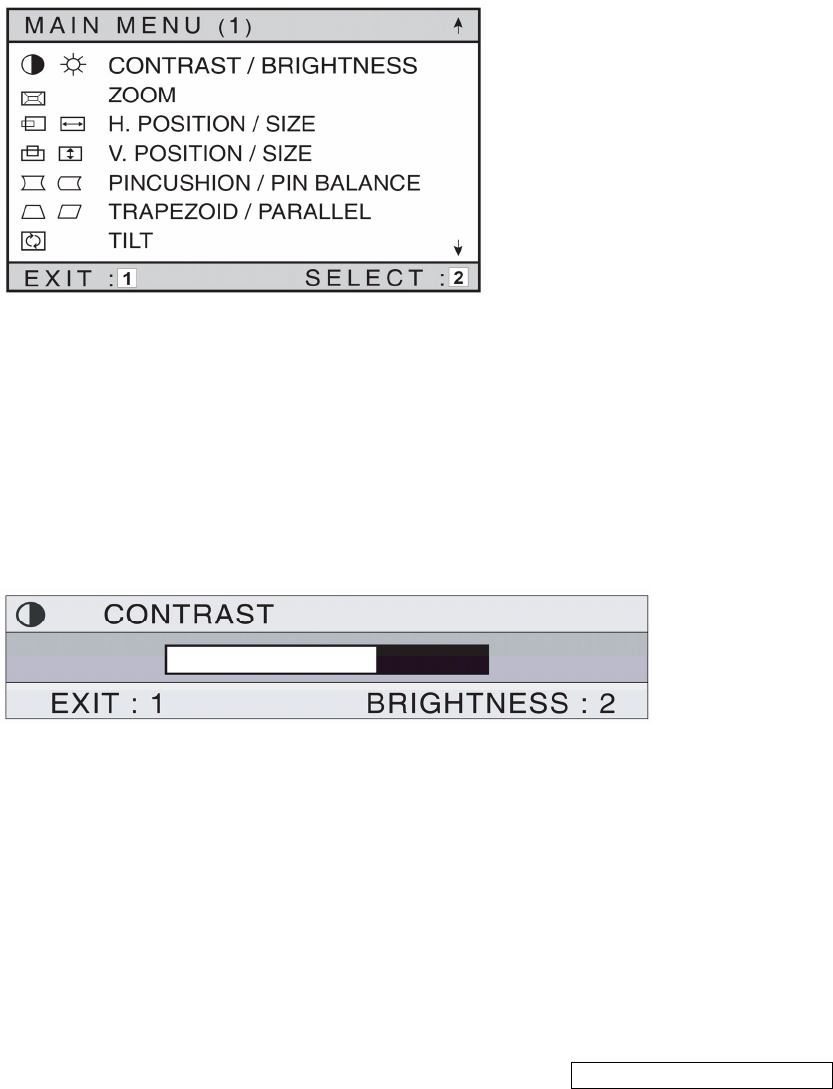

1 To display the Main Menu, press button [1].
2 To select a control you want to adjust, press the arrow buttons on the front control panel of your monitor and scroll
through the choices. When the desired control is highlighted, press button [2].
NOTE: Some controls on the Main Menu are listed in pairs, such as Contrast/Brightness. Display control screen (sample
shown in step 3 below). Press button [2] to toggle to the next control in the pair.
3 To adjust the setting, such as CONTRAST in the sample below, press the arrow buttons.
4 To save the control setting and Exit the menu press button [1] twice.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
7
Main Menu Controls
Adjust the menu items shown below by using the up and down buttons.
Control Explanation
Brightness adjusts the background black level of the screen image
ZOOM expands and contracts the entire screen image
Horizontal Position moves the screen image left or right.
Vertical Size adjusts the height of the screen image.
Horizontal Size adjusts width of the screen image.
Vertical Position moves the screen image up or down.
Pincushion curves the vertical sides of the screen image.
Pin Balance curves the vertical edges of the screen image to the left or right.
Trapezoid adjusts the top and bottom of the screen image until they have equal length.
Parallel slants the vertical edges of the screen image until they are parallel.
Tilt rotates the entire screen image.
Contrast adjusts the difference between the image background (black level)
and the foreground (white level).
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
8
Control Explanation
Degauss removes the build-up of magnetic fields that can cause irregular colors to
appear around the edges of screen images. There are two ways to degauss the display:
automatically by turning the monitor on, or manually by selecting the Degauss
control from the menu. With Degauss selected from the menu, press button [2] to
degauss the monitor manually.
Important: Do not degauss repeatedly. Doing so can be harmful to the
display. Wait at least 20 minutes (before selecting this control again.
ViewMatch
®
Color provides several color options: several preset color temperatures and User
Color which allows you to adjust red (R), green (G), and blue (B). The factory setting for this
product is 9300K (9300° Kelvin).
9300K — Adds blue to the screen image for cooler white (used in most office settings with
fluorescent lighting).
6500K — Adds red to the screen image for warmer white and richer red.
5000K — Adds blue and green to the screen image for a darker color.
User Color — Individual adjustments for red, green, and blue.
Moire reduces interference patterns that appear as ripples, waves, or unwanted background
color textures. Interference patterns of this type are most noticeable when viewing images
having closely spaced lines or finely detailed patterns.
Language allows you to choose from among several languages for the menus and
control screens: English, French, German, Italian, and Spanish.
Memory Recall returns adjustments to the original factory settings if the display is operating
in a factory preset timing mode listed in this user guide.
Exception: This control does not affect changes made with the User Color control.
OSD Position allows you to move the on-screen display menus and control screens.
ViewMeter displays the frequencies (horizontal and vertical) coming from the graphics
card of the computer.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
9
4. Circuit Description

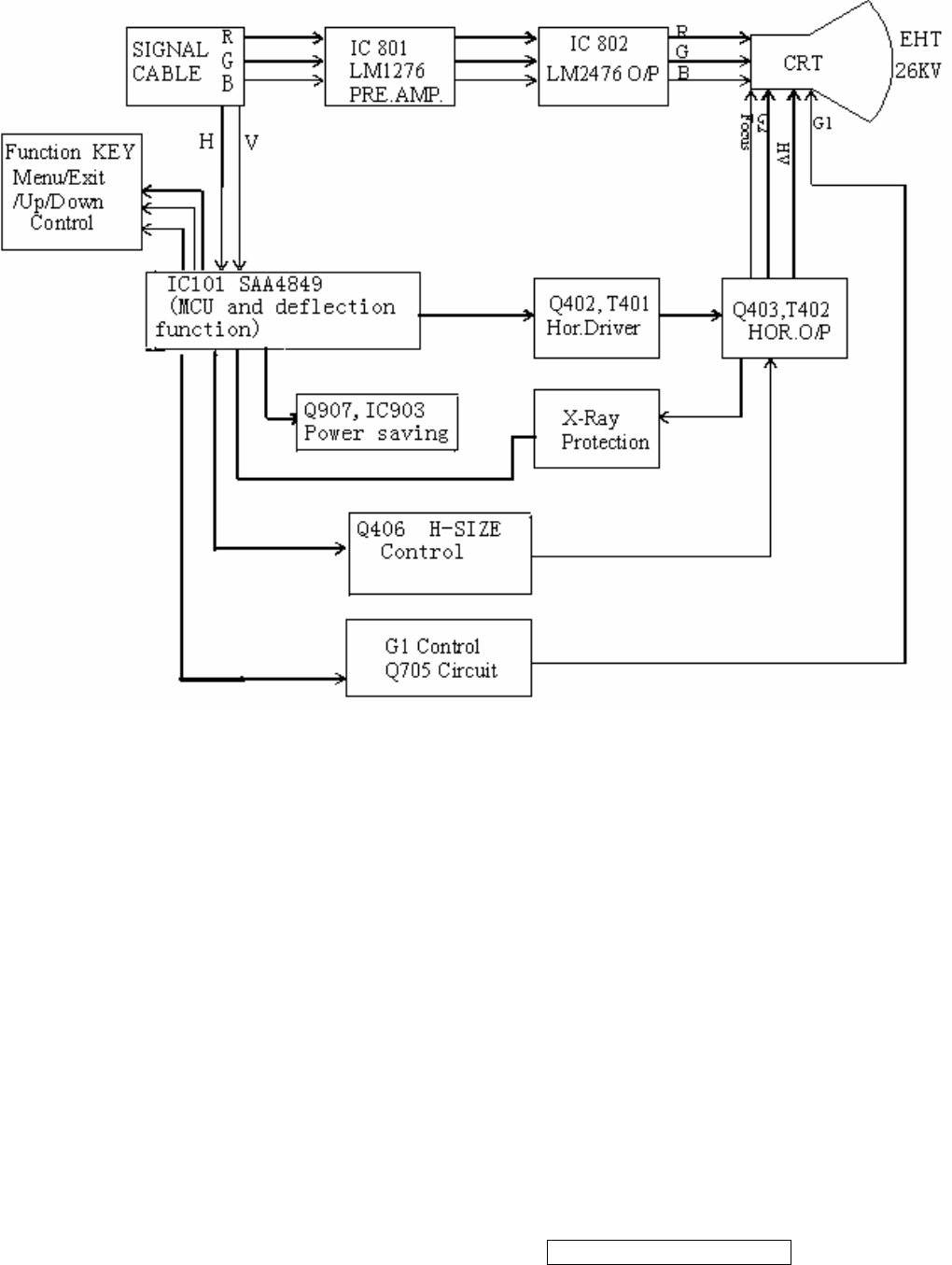

4-1 MICRO CONTROLLER AND DEFLECTION CIRCUIT
MICRO Controller

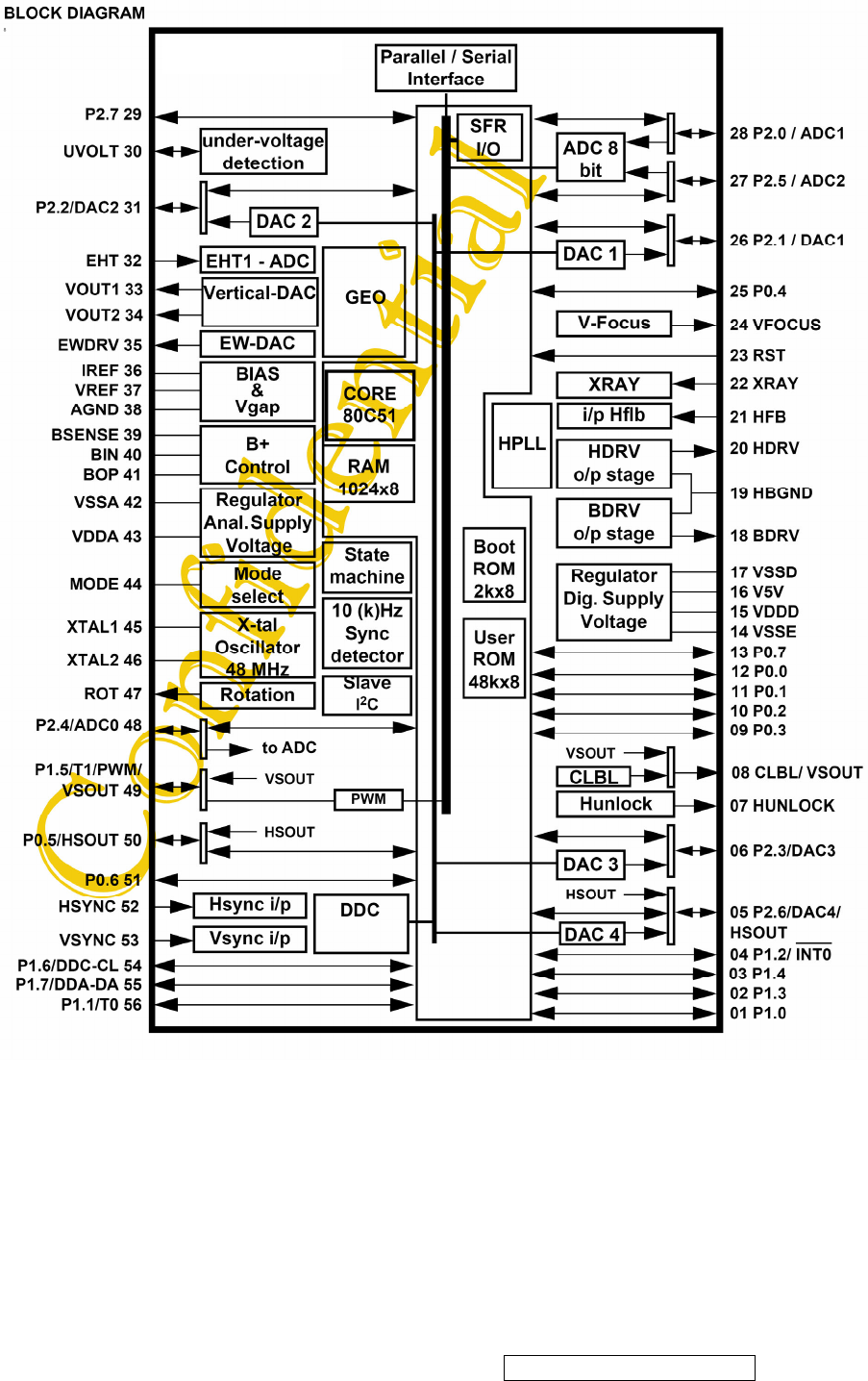

The micro controller(IC101) core is a 80C51 type. The micro clock frequency of 12 Mhz is derived from the Xtal
oscillator,which is running at 48MHz. The DDC interface is suitable to handle DDC2 by a modified hardware I2C-bus
interface .Standard high current ports,3 ADC pouts with voltage inputs and 4 static standard 8 bit DAC outputs (low
interference) and one PWM output for digital control application are implemented. The central processing unit (CPU)
manipulates operands in two memory spaces.These are the 1024byte internal data memory(consisting of 256 bytes
standard RAM and 768 bytes AUX-RAM) and 48K-byte internal program memory . The programmemory of the
SAA4849 consists of 48K bytes ROM.
The SAA4849P provides sync. Processing with full auto sync. Capability, a flexible SMPS block and an extensive
set of geometry control facilities. Further the IC generates the drive waveforms for DC coupled vertical boosters to the
TDA4863A.
H/V sync signals processor
The functions of the sync processor include polarity detection, H-SYNC & V-SYNC signals counting, Programmable
SYNC signals output, free running signal generator. Pin52/Pin53 are for the H-SYNC and V-SYNC input. and the
polarity are setting in the positive. When no signal input, the Pin49 will output a 75Hz V-SYNC free run signal. The
Pin18/20will output a 60KHz H-SYNC free run signal. for the monitor testing use.
Reset Circuit(pin23)
There are three ways possible to invoke a reset and initialize the SAA4849 micro controller part:
Via power-on reset circuit
Via watchdog timer overflow(only micro controller reset)
Via deflection reset after start up(only micro controller reset)
The reset pin(pin23) is connected to a Schmitt trigger for nose reduction. A reset is accomplished by holding the Reset pin
HIGH.
2.7K
R153
+
22U
C145
0.1UF
C102
5V RST Pin23
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
10
x-ray protection
The x-ray ptotection(pin22) input XRAY provides a voltage detector with a precise voltage input for X-ray
protection .If the input voltage at XRAY exceeds the upper threshold for 150us to 300us,the system is forced to shut down
by switching off vertical,H-and B-drive signals.There are two different ways to handle the system in case of XRAY
occurrence:
1. If the xray latch enable bit UCXRAY[2] was set to “0” during startup the system will shut down without any interference
of the uC.The deflection controller is set to ldle mode.Restart of the system only possible due to seitching power off/power
on.
2. If register bit UCXRAY[2] was set to “1”,micro controller interaction is allowed .If the micro controller doesn’t interrupt
the system,the system will shut down to ldle mode.For any interaction of the micro controller the XRAY occurrence has to
be acknowledged by the micro controller by clearing the bit SY-STATUS[2].The micro controller take over the control of
the handling via software.The actual xray pin status can be read through bit SY-STATUS[1].
Quartz Oscillator(pin45,pin46)
The quartz oscillator circuit is available on pins XTAL1(input) and XTAL2(output) and works together with an external
48MHz 3rd overtone quartz.As a result the quartz oscillator is always running on 48MHz.Other quartz crystal frequencies
than 48 MHz cannot be used.External capacitors on XTAL1 and XTAL2 are not allowed.
B+ Control Function Block
The B+control block of the SAA4849 has the same behaviour as the TDA4856 with adapted threshol voltages.The
circuit allows the user to choose the trigger edge of the HDRV signal and the polarity of the output stage via I2C-Bus.
The B+ control function block of the SAA4849 consists of an Operational Transconductance Amplifier(OTA), a
voltage comparator,a flip-flop and a discharge circuit. This configuration allows easy application for different B+ control
concepts.
HPLL
The horizontal part contains a PLL,which works over the full frequency range from 25kHz to 140 kHz.This range can be
reduced by a ower and an upper frequency limit(Write Once Registers HPMAX and HPMIN).Via I2C bus the number of
48MHz clock cycles is sent through the register.The slewing speed during mode change is also programmable in a write once
register (HSLEW)
After the clocks for the HPLL are switched on,the HPLL starts with a fixed freerunning frequency of 60 kHz.The
H-drive pulses are not active and the start up procedure is inhibited.The default setting of register bit HCONTROL [0] will
cause the HPLL to slew ,not switch.to the freerunning frequency defined in the I2C register HPFREE( the default value is also
60 kHz).Independent on H-syncs which are possibly present.the HPLL will slew to that freerunning frequency.To achieve an
always defined starting point for the startup procedure,this procedure cannot be interrupted.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
11
4-2 TRANSISTOR & DIODE CIRCUIT
LOCATION
CIRCUIT FUNCTION DESCRIPTION
BD901 Bridge Rectifier for AC Source
D910 Clamp Diode for snub CKT
D919 Rectifier for Output Voltage
D922 Rectifier for Output Voltage
D923 Rectifier for Output Voltage
D930 Rectifier for Output Voltage
D918 Rectifier for Output Voltage

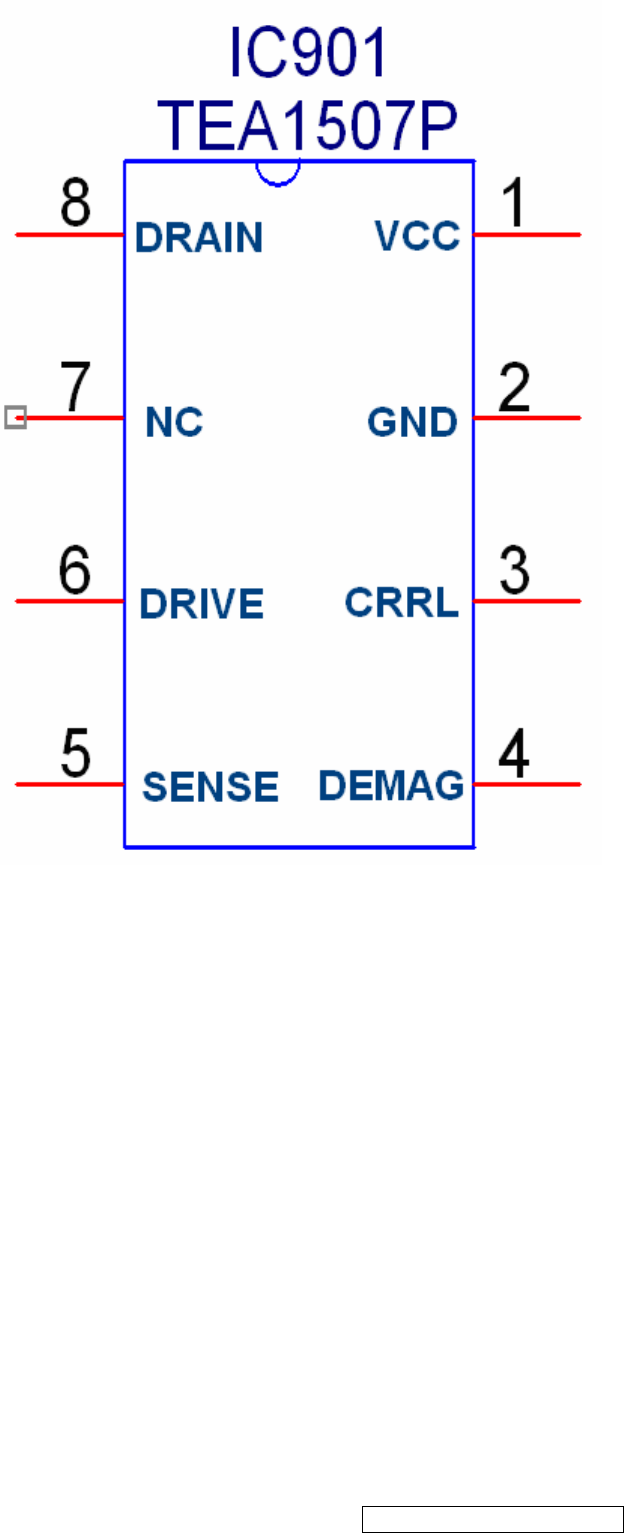

IC901 Power IC for Switching Power Control.
Q937, Q937 Use for Power Saving
Q912, Q920 Push-Pull Topology to Drive Q911
Q913 Degaussing Switcher Transistor
IC903 5V Regulator IC
Q403 HOR. Driver Transistor
Q417,Q418,Q416,Q420 Horizontal s correction control MOSFET
Q406 Transistor for H-Size Control
Q705 Brightness Control CKT
Q742 V-Dynamic focus CKT
Q402 Q403 Driver MOSFET
Q901 MOS FET for Switching Power Control.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
12
5. Adjusting Procedure
5-1 ADJUSTMENT CONDITIONS AND PRECAUTIONS
1. Approximately 30 minutes should be allowed for warm up before proceeding.
2. Adjustments should be undertaken only on those necessary elements since most of them have been carefully preset
at the factory.
5-2 MAIN ADJUSTMENTS
NO.
FUNCTION LOCATION DESIGNATION
1. 14V ADJ PCB - MAIN VR903
2. B + ADJ PCB - MAIN VR902
3. SCREEN ADJ FLY BACK TRANS T402 SCREEN VR
4. FOCUS ADJ FLY BACK TRANS T402 FOCUS
VR1&VR2
5. ABL ADJ PCB - MAIN AB in factory OSD
6.
FUNCTION ADJ -MENU
PCB - MAIN (SW101)
-UP ▲ PCB - MAIN (SW102)
-DOWN ▼ PCB - MAIN (SW103)
-SELECT
PCB - MAIN (SW104)
5-3 ADJUSTMENT METHOD
1. 14V, B + & HV voltage adjustment:
A. Chroma-2000 Signal generator or PC equivalent set mode 1, VGA 640X480 pattern 1.0.
B. Connect a DC Volt meter between TP901 and ground, then adjust VR903to be 14VDC.
C. Connect a DC Volt meter between TP902 and ground, then adjust VR902 to be 65.5 VDC.
2. Factory preset Timings Adjustment:
A. Press Key to show OSD window press Up or Down Key to switch the functional controls.
B. Press the Up Key to select the "ZOOM" function, then press the MENU Key. While do not release the MENU Key
until the OSD window changed to the Factory preset window.
C. The Factory preset window contains the following functional controls. Select one of the control. Then press the
Up/Down Key to adjust its value for the optimum picture.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
13
CONTRAST V-LINEARITY
BRIGHTNESS V-LINEARITY
H-CENTER R-GAIN
H-SIZE G-GAIN
V-CE NT ER B-GAIN
V-SI ZE R-BIAS
DEGAUSS G-BIAS
PINCUSHION R-BIAS
TRAPEZOID 9300 COLOR TEMPERATURE
PIN-BALANCE 6500 COLOR TEMPERATURE
PARALLELOGRAM 50 COLOR TEMPERATURE
ROTATION OSD EXIT
HD H-DRIVER COMPENSATION VG MAX V-SIZE GAIN RANGE
HG H-SIZE GAIN H-MOIRE REDUCE
HS SUB H-SIZE V-MOIRE REDUCE
TOP CORNER HL H-Linearity Modify
BOTTOM CORNER VF V-FOCUS ADJUST
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
14
HR V-HV Variation rate ajust TM BURN IN TIME
HM MAX H-SIZE RANGE BI SET BURN-IN
Hs SUB H-SIZE Bb BOTTOM BALANCE
Hb H-SIZE WAVE BALANCE Bp B+ VOLTAGE ADJUST
Tb TOP BALANCE EU EHT CURRENT
EO EHT OFFSET EA EHT AUTO ADJUST
VG MAX V-SIZE GAIN RANGE DC video IC dc off set
HG H-SIZE GAIN SW H-frequency select
SB HIGH BRIGHTNESS SELECT LH Brightness Save
RETURN VO V-CENTER OFFSET
D. To switches the input signal to the other Timing Mode. Please follow step A ~ C to get the optimum picture.
E. Select the " " RETURN function and press the MENU Key, then the Factor Preset window will be returned
to the original OSD window.(user's operating condition)
F. The setting data of the CONTRAST, BRIGHTNESS, PIN-BALANCE, PARALLELOGRAM, ROTATION,
COLOR TEMPERATURE are common mode saved in the memory. Don't needed adjust it individual at every
timing Mode and save in the memory.
3. White Balance, Luminance adjustment:
A. Press MENU Key to show OSD menu ,and press the down Key to select the "size/center" function, then press the
menu Key to enter second menu, press the down key to select “ ”(zoom) about 10S,,then enter into factory setting
area for modulation.
B. Set R,G,B gain DAC value for 30, R ,G ,B bias DAC value for 30.
C. Raster Pattern, Brightness & contrast ratio MAX, adjust G2,make Y=3.0±0.3 cd/m2 , adjust R or B bias, make
x=260±10, y=290±1,then save it into 9300K,6500K,5000K color temprature.
D. Set the value of LH is 3.
E. Small white screen appears ,make brightness DAC value for 100, adjust R or G or B gain, make x=346±10,
y=359±10, Y=340~360 cd/m2 ,then save it into 5000K color temprature .
F. Small white screen appears ,make brightness DAC value for 100,adjust R or G or B gain, make x=313±10,
y=329±10, Y=340~360 cd/m2 ,then save it into 6500K color temprature .
G. Small white screen appears ,make brightness DAC value for 100,adjust R or G or B gain, make x=283±10,
y=297±10, Y=455~470 cd/m2 ,then save it into 9300K color temprature.
H. Set SB for 2.
J. Raster Pattern, contrast ratio max,adjust brightness value, make Y=0.25~0.3cd/m2.
K. Select the 5000 color temprature ,brightness cut off,repeat step E, make x=346±10, y=359±10, Y=298±10
cd/m2 ,then save it into 5000K color temprature .
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
15
L. Select the 6500 color temprature , brightness cut off, repeat step E, make x=313±10, y=329±10, Y=298±10
cd/m2 ,then save it into 6500K color temprature .
M. Select the 9300 color temprature , brightness cut off, repeat step E, make x=283±10, y=297±10, Y=300±15
cd/m2 ,then save it into 9300K color temprature.
N. Set SB value for 2
O. Select the 5000 color temprature ,brightness cut off,repeat step E, make x=346±10, y=359±10, Y=155±5
cd/m2 ,then save it into 5000K color temprature .
P. Select the 6500 color temprature , brightness cut off, repeat step E, make x=313±10, y=329±10, Y=155±5
cd/m2 ,then save it into 6500K color temprature .
Q. Select the 9300 color temprature , brightness cut off, repeat step E, make x=283±10, y=297±10, Y=155±5
cd/m2 ,then save it into 9300K color temprature.
R. Select the white screen appears,brightness cut off, contrast ratio MAX, adjust VR701, make Y=102±5 cd/m2 .
S. After modulation, it’s necessary to check if the white balance accords with the normal specification. If not, which
needs reset.
REMARK: 1.Adjust white Balance , fix to G Bias;
2. white Balance test spec.
4. Focus Adjustment:
A. under 1024×768 Fv: 85Hz with character full page.
B. Adjust brightness to center and contrast to max.
C. Then adjust focus VR1 to a fine vertical line.
D. Adjust focus VR2 to a fine horizontal line.
E. Repeat step C & D.then fix the Focus VR, G2 VR .
5. Purity Adjustment
A. Be sure that the display is not being exposed to any external magnetic fields.
B. Ensure that the spacing between the Purity, Convergence, Magnet, (PCM), assembly and the CRT stem is 29mm.
(See below diagram)
C. Produce a complete, red pattern on the display. Adjust the purity magnet rings on the PCM assembly to obtain a
complete field of the color red. This is done by moving the two tabs in such a manner that they advance in an
opposite direction but at the same time to obtain the same angle between the two tabs, which should be
approximately 180'.
D. Check the complete blue and complete green patterns to observe their respective color purity. Make minor
adjustments if needed.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
16

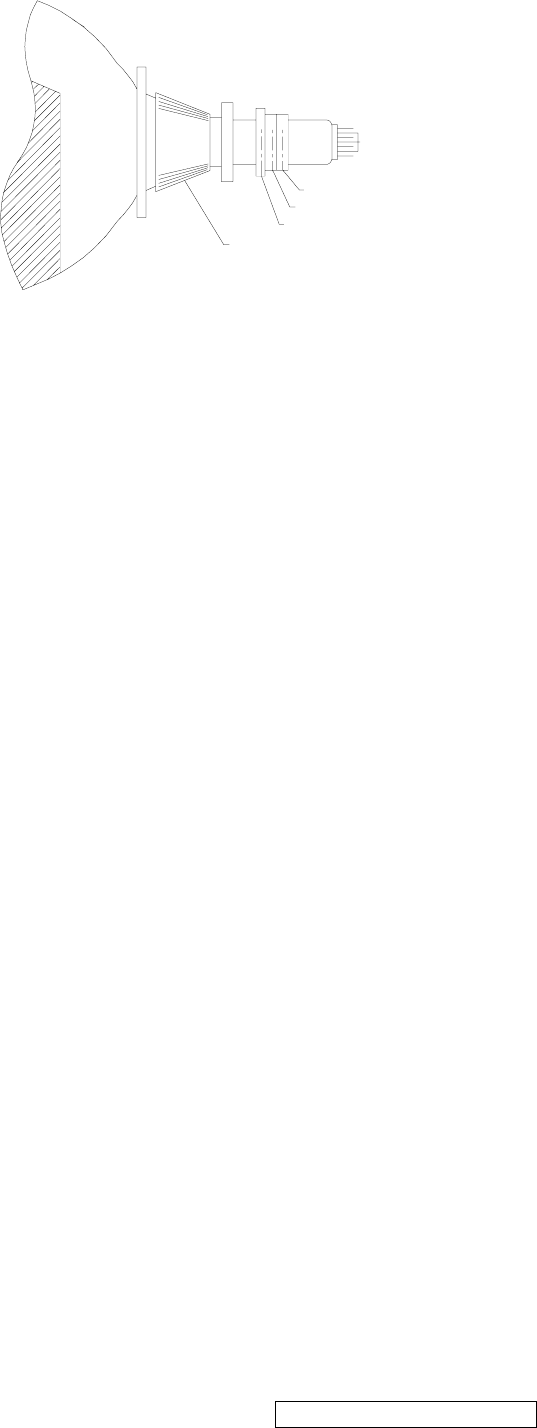

RELATIVE PLACEMENT OF TYPICAL COMPONENTS
Purity Magnets
Deflection Yoke
4-pole Convergence Magnets
6-pole Convergence Magnets
6. Convergence adjustment
A. Produce a magenta crosshatch on the display.
B. Adjust the focus for the best overall focus on the display.
Also adjust the brightness to the desired condition.
C. Vertical red and blue lines are converged by varying the angle between the two tabs of the 4 pole magnets on the
PCM assembly. (See above diagrams)
D. Horizontal red and blue lines are converged by varying the two tabs together, keeping the angle between them
constant.
E. Produce a white crosshatch pattern on the display.
F. Vertical green and magenta lines are converged by varying the angle between the two tabs of the 6-pole magnets.
G. Horizontal green and magenta lines are converged by varying the two tabs together, keeping the angle between
them constant.
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
17
6. Trouble Shooting Flow Chart
6-1. NO RASTER, CRT RELATIVE CIRCUIT PROBLEMS
6-2. ABNORMAL DDC (PLUG & PLAY)
O
K
N
G
CHECK IC101 PIN 16 VOLTAGE ABOUT 5V
CHECK SIGNAL CABLE
CHECK IC902 GOOD OR FAIL
OR H802 PIN 2
,
4 DATA OUTPUT
CHECK MAIN BOARD POWER
SUPPLY: 12V, 180V, 83V, -12V, 6.3V
PLEASE CHECK HIGH VOLTAGE OF
CRT ABOUT 25.5~26.5KV
PLEASE CHECK POWER SAVING
CIRCUIT OR POWER SUPPLY
CIRCUIT.
ENTER POWER OR POWER CIRCUIT
FAIL.
CHECK THE HEATER VOLTAGE AT CRT
SOCKET ABOUT 6.3V
CHECK THE 6.3V SUPPLY CIRCUIT:
Q906,ZD902
CHECK THE CIRCUIT OF PIN 18/20 OF
IC101
CHECK G2 VOLTAGE ABOUT 550~650V CHECK FBT
CHECK THE G1 VOLTAGE ABOUT –16V
AT BRIGHTNESS MAX
CHECK THE G1 CONTROL CIRCUIT:
Q705 RELATIVE CIRCUIT
CHECK THE CATHODE VOLTAGE ABOUT
60V
CRT FAIL
NG
OK
OK
OK
OK
OK
NG
NG
NG
NG
NG
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
18
6-3. ABNORMAL VIDEO LEVEL ON SCREEN
6-4. NO SIGNAL ON SCREEN
CHECK THE VOLTAGE AT PIN10/14/17/22
OF IC801 ABOUT 5V CHECK 5V SUPPLY CIRCUIT
CHECK THE SIGNAL OUT ABOUT 0.7VP-P CHECK SIGNAL CABLE OR
INTERFACE CARD
CHECK THE CLAMP PULSE OF IC801 PIN27 CHECK THE RELATIVE CIRCUIT OF
IC801 PIN27
CHECK THE VOLTAGE OF IC801 PIN23/24/25
ABOUT 4VP-P
CHECK THE RELATIVE CIRCUIT OF
IC801 PIN23/25/24 OR THE IC801
FAIL
CHECK THE RELATIVE CIRCUIT OF IC802
O
K
O
K
O
K
O
K
N
G
N
G
N
G
N
G
NG
CHECK THE VOLTAGE AT PIN10/14/17/22
OF IC801 ABOUT 5V CHECK 5V SUPPLY CIRCUIT
CHECK THE VOLTAGE OF IC801
PIN23/24/25 ABOUT 4VP-P
CHECK THE RELATIVE CIRCUIT OF
IC801 PIN23/25/24 OR THE IC801
FAIL
CHECK THE VOLTAGE OF IC802 PIN12
ABOUT 83V AND IC802 PIN2 ABOUT 12V
CHECK THE 83V&12V SUPPLY
CIRCUIT OR MAIN BOARD
CHECK THE VOLTAGE OF CRT CATHODE
ABOUT 50VP-P
CHECK THE RELATIVE CIRCUIT OF
IC802 OUT PUT
CHECK THE VOLTAGE GO G2 ABOUT
550V~650V CHECK FBT RELATIVE CIRCUIT
OK
OK
OK
OK
NG
NG
NG
NG
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
19
6-5. NO BLANKING
N
G
OK
CHECK THE RELATIVE
CIRCUIT OF BLANKING
CHECK THE RELATIVE CIRCUIT
CHECK G1 RELATIVE CIRCUIT
CHECK R821 ON VIDEO PCB,
FBT PIN 5 ON MAIN PCB
OF FBT
6-6. ABNORMAL HORIZONTAL WIDTH OF VIDEO
CHECK THE VOLTAGE OF IC101 PIN16
ABOUT 5VDC
CHECK RELATIVE CIRCUIT OF
IC902(LM7805)
CHECK THE WAVEFORM OF IC101 PIN20
ABOUT 3VP-P
CHECK RELATIVE CIRCUIT OF
IC101 PIN20
CHECK THE COLLECTOR VOLTAGE OF
Q402 ABOUT 12VP-P
CHECK Q402/T401 RELATIVE
CIRCUIT
CHECK THE COLLECTOR VOLTAGE OF
Q403 ABOUT 1100V
CHECK FBT/D408/C418/C419
OK
OK
OK
NG
NG
NG
NG
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
20
6-7. ABNORMAL HORIZONTAL WIDTH OF VIDEO
6-8.ABNORMAL HORIZONTAL LINEARITY
AND IC101 PIN9,10,11
CHECK L401, Q426, Q420, Q427
6-9.ABNORMAL VERTICAL SIZE
OK
N
G
OK
N
G
READJUST V-SIZE FUNCTION VALUE
RELATIVE CIRCUIT
CHECK VERT. OSC CIRCUIT
RELATIVE CIRCUIT
N
G
READJUST V-SIZE FUNCTION VALUE
CHECK THE VOLTAGE OF IC101
RELATIVE CIRCUIT
CHECK IC101 PIN33,34
CHECK THE IC601 PIN1 ABOUT 11.8V
PIN 4 ABOUT -12V
CHECK D601, C605
READJUST H-SIZE FUNCTION CHECK RELATION CIRCUIT OF Q406
CHECK B+ VOLTAGE ABOUT 125.5V AT
H-FREQUENCY=68KHZ CHECK B+ SUPPLY CIRCUIT
CHECK THE HIGH VOLTAGE ABOUT
25.5~26.5V
REFERENCE TO ITEM7
NG
NG
OK
OK
NG
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
21
6-10.VERTICAL CENTER
NG
READJUST V-CENTER
RELATIVE CKT
CHECK IC401 AND IC601
6-11. SIDE-PIN CUSHION DISTORTION
READJUST FOCUS CONTROL
NG CHECK FOCUS CONTROL UNIT,
FOCUS LEAD WIRE, CRT SOCKET & CRT
6-12. POOR FOCUS
READJUST FOCUS CONTROL
N
G CHECK FOCUS CONTRO
L
FOCUS LEAD WIRE, CRT SOCKET & CRT
CHECK IC101 AND IC601 RELATIVE
CIRCUIT
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
22
6-13. POWER SUPPLY TROUBLE SHOOTING CHART
BEFORE CHECK SW.REG. PLEASE REFER TO THE POWER SUPPLY BLOCK DIAGRAM
POWER SUPPLY OUTPUT: (A) VARIABLE OUTPUT : 60V
(B) CONSTANT OUTPUT : 6.3V, 12V,83V，180.V，－12V
BEAD SET ABNORMAL VARIABLE OUTPUT
N
G
O
K
N
G
O
K
O
K
N
G
N
G
O
K
O
K
O
K
N
G
O
K
N
G
YES
N
O
CHECK BRIDGE
RECTIFIED
CHECK START C.K.T
CHECK IC101
CHECK D925
CHECK Q911
Q911 FAILURE
CHECK IC901
CHECK AC LINE
VOLT 120V OR 220V
CHECK F901, SW901
CHECK LINE RECTIFIED
& SMOOTHED VOLT
CHECK SENSE RESISTENCE
IC901 FAILURE
CHECK T901 O/P
MAKE SURE THAT
THE VARIABLE
O
K
OUTPUT IS NOT SHORTED
R936
PIN39,40,41, B+
DRIVER
6.5V CIRCUIT OUTPUT
IC101 PIN30(ABOUT5V)
CHECK 56V, 12V
CHECK THE 56V OUTPUT
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
23
Rev: 1a
Serial No. Prefix: PTD
Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number# Q'ty
1
Accessories:
POWER CORD
（
-G
）
A-00004050
89C414A18N IS
E089A
1
3
CHASSIS FOR B985D-1VSC
（
-G
）
B-00004530
CMB985D1NVSC
1
5
CRT BAORD
（
-G
）
B-00004532
CRB985D1NVSC
1
7
BASE
C-00004373
34C 741 QD L
1
8
FRONT PANEL
C-00004534
34C6285AFK F
1
9
BACK COVER
C-00004524
34C6286 FK F
1
10
Cables:
SIGNAL CABLE
CB-00004535
89C 71B8MCHB5
1
11
Documentation:
CD MANUAL
（
E96f+SB-G
）
DC-00004536
70CD920709 1B
1
13
IC TEA1507P
E-00004060
56C 625500 S
IC901
1
14
IC SAA4849PS
E-00004059
56C1125575 X
IC101
1
15
IC TDA4863A/PHILIPS
E-00002874
56C 584 1A
IC601
1
16
IC LM1276
E-00004538
56C 366520
IC801
1
17
IC LM2476
E-00004061
56C 551525
IC802
1
18
TRANSISTOR STP9NK70Z
E-00004071
57C 724502
Q901
1
19
TRANSISTOR 2SJ584LS
E-00004070
57C 751 4
Q911
1
20
TRANSISTOR MOSFET
E-00004066
57C 600 14
Q417,Q418,Q416,Q420
1
21
TRANSISTOR IRF630M/S.T
E-00004069
57C 600 21
Q406
1
22
TRANSISTOR PHILIPS 1500V/12A BU252
E-00004067
57C 705 7 A
Q403
1
23
TRANSFORMER LITAI
E-00004539
80C995D 1 L2
T901
1
24
DRIVE TRANSFORMER
E-00004063
79C 167118 LC
T401
1
25
FBT,SHAMPO
E-00004540
79C 793 1ALB
T402
1
26
DRIVER TRANSFORMER
E-00001632
79C 167124 HB
T403
1
27
INDUCTOR COIL
E-00004074
73C 147542 H
L401
1
28
PTCR 9OHM+-20% 220V WAL
E-00002725
61C 52 27 4W
PR901
1
29
FUSE 4A 250V LF-618 004
E-00002695
84A 7H400 SL
F901
1
30
CAPACITOR 150UF 450V
E-00001201
67C 3015115X
C907
1
31
NTCR 10OHM+-20% 5A THIN
E-R-0405-0377
61C 58 9T
NR901
1
32
DIODE U4KB80R
E-00004072
93C 50460 16
BD901
1
33
DIODE SBYV26C
E-00004541
93C106050652T
D919
1
34
DEGAUSSING COIL
E-00004542
750A1697 77BAG
NA
1
35
CHOKE COIL
E-00004062
73C 253513 H
L906
1
36
INDUCTOR 150UH +-10% FOR TDK
E-00002875
73C 253 69 T
L405
1
37
IC M24C08-WBN6P
E-00002717
56C1133508
IC102
1
38
PICTURE TUBE 19" MPRII CRT ASS'Y
E-00004543
750A55379852AV
E750A
1
39
SCREW
HW-00002750
B1C1035 10 47
1
40
SCREW 4X7(FOR AC)
HW-00002758
D1C1140 7128
1
41
SCREW
HW-00002749
Q1C 340 16 47
1
42
Miscellaneous:
Rear Bracket
HW-00004075
15C5659500 2
1
43
CARTON
P-00004544
44C6925709 2A
1
44
P-00004077
44C6932 1
1
45
P-00004078
44C6932 2
1
46
PE BAG FOR MONITOR
P-00004101
45C 76 20 RN
1
Remark 1: Above listed items are examples, supplier can expand the rows to add more necessary items.
Remark 2: All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic
Corporation. This is to eliminate repeated cross checks of each item between this version and prior versions.
EPS CUSHION
RECOMMENDED SPARE PARTS LIST (E96f+SB-1G)
Description
Board Assembly:
Cabinets:
Electronic Components :
Hardware:
Packing Material:
ViewSonic Model Number: VS10794-1G
7. Recommended Spare Parts List
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
24
Rev: 1a
Serial No. Prefix: PTE
Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number# Q'ty
2
Accessories:
POWER CORD
（
-P
）
A-00004529
89C402A18N LS
E089A
1
4
CHASSIS FOR B985D-1VSC
（
-P
）
B-00004531
CMB985D1NVW
1
6
CRT BAORD
（
-P
）
B-00004533
CRB985D1NVSC
1
7
BASE
C-00004373
34C 741 QD L
1
8
FRONT PANEL
C-00004534
34C6285AFK F
1
9
BACK COVER
C-00004524
34C6286 FK F
1
10
Cables:
SIGNAL CABLE
CB-00004535
89C 71B8MCHB5
1
12
Docuemtations:
CD MANUAL
（
E96f+SB-P
）
DC-00004537
70CD920709 1A
1
13
IC TEA1507P
E-00004060
56C 625500 S
IC901
1
14
IC SAA4849PS
E-00004059
56C1125575 X
IC101
1
15
IC TDA4863A/PHILIPS
E-00002874
56C 584 1A
IC601
1
16
IC LM1276
E-00004538
56C 366520
IC801
1
17
IC LM2476
E-00004061
56C 551525
IC802
1
18
TRANSISTOR STP9NK70Z
E-00004071
57C 724502
Q901
1
19
TRANSISTOR 2SJ584LS
E-00004070
57C 751 4
Q911
1
20
TRANSISTOR MOSFET
E-00004066
57C 600 14
Q417,Q418,Q416,Q420
1
21
TRANSISTOR IRF630M/S.T
E-00004069
57C 600 21
Q406
1
22
TRANSISTOR PHILIPS 1500V/12A BU252
E-00004067
57C 705 7 A
Q403
1
23
TRANSFORMER LITAI
E-00004539
80C995D 1 L2
T901
1
24
DRIVE TRANSFORMER
E-00004063
79C 167118 LC
T401
1
25
FBT,SHAMPO
E-00004540
79C 793 1ALB
T402
1
26
DRIVER TRANSFORMER
E-00001632
79C 167124 HB
T403
1
27
INDUCTOR COIL
E-00004074
73C 147542 H
L401
1
28
PTCR 9OHM+-20% 220V WAL
E-00002725
61C 52 27 4W
PR901
1
29
FUSE 4A 250V LF-618 004
E-00002695
84A 7H400 SL
F901
1
30
CAPACITOR 150UF 450V
E-00001201
67C 3015115X
C907
1
31
NTCR 10OHM+-20% 5A THIN
E-R-0405-0377
61C 58 9T
NR901
1
32
DIODE U4KB80R
E-00004072
93C 50460 16
BD901
1
33
DIODE SBYV26C
E-00004541
93C106050652T
D919
1
34
DEGAUSSING COIL
E-00004542
750A1697 77BAG
NA
1
35
CHOKE COIL
E-00004062
73C 253513 H
L906
1
36
INDUCTOR 150UH +-10% FOR TDK
E-00002875
73C 253 69 T
L405
1
37
IC M24C08-WBN6P
E-00002717
56C1133508
IC102
1
38
PICTURE TUBE 19" MPRII CRT ASS'Y
E-00004543
750A55379852AV
E750A
1
39
SCREW
HW-00002750
B1C1035 10 47
1
40
SCREW 4X7(FOR AC)
HW-00002758
D1C1140 7128
1
41
SCREW
HW-00002749
Q1C 340 16 47
1
42
Miscellaneous:
Rear Bracket
HW-00004075
15C5659500 2
1
43
CARTON
P-00004544
44C6925709 2A
1
44
P-00004077
44C6932 1
1
45
P-00004078
44C6932 2
1
46
PE BAG FOR MONITOR
P-00004101
45C 76 20 RN
1
Remark 1: Above listed items are examples, supplier can expand the rows to add more necessary items.
Remark 2:
ViewSonic Model Number: VS10794-1P
All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic
Corporation. This is to eliminate repeated cross checks of each item between this version and prior versions.
EPS CUSHION
RECOMMENDED SPARE PARTS LIST (E96f+SB-1P)
Description
Board Assembly:
Cabinets:
Electronic Components :
Hardware:
Packing Material:
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
25
ViewSonic Model Number: VS10794-1G/P
Rev: 1a
Serial No. Prefix: PTD / PTE
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
1#N/A 95C 201 69032 WIRE
B1-B2
1
2E-00004072 93C 50460 16 U4KB80R
BD901
1
3#N/A 67C 305470 3T 47UF +-20% 16V
C100
1
4#N/A 65C 450104 3T 0.1UF 50V Y5V
C101
1
5#N/A 65C 450104 3T 0.1UF 50V Y5V
C102
1
6#N/A 65C 450104 3T 0.1UF 50V Y5V
C103
1
7#N/A 67C 309101 3T 100UF +-20% 16V
C104
1
8#N/A 65C 444102 5T 1000 PF 10% 50V Y5P
C105
1
9#N/A 65C 444102 5T 1000 PF 10% 50V Y5P
C106
1
10 E-C-0404-4629 65C 44210113T 100PF +-5% NPO 50V
C107
1
11 #N/A 65C 444222 5T 2200PF 10% Y5P 50V
C109
1
12 E-C-0404-4629 65C 44210113T 100PF +-5% NPO 50V
C110
1
13 #N/A 65C 450104 7T
0.1UF +80-20% 50V Y5V
C111
1
14 #N/A 67C 309101 3T 100UF +-20% 16V
C113
1
15 #N/A 65C 444102 5T
1000 PF 10% 50V Y5P
C114
1
16 #N/A 67C 305478 7T 0.47UF +-20% 50V
C115
1
17 #N/A 64C 45G2221AT .0022UF +-2% 100V
C116
1
18 #N/A 64C178J152 1T 1500PF 100V +-5%
C117
1
19 #N/A 67C 309109 7T
1.0UF +-20% 50V
C118
1
20 #N/A 67C 309100 3T
10UF +-20% 16V
C119
1
21 #N/A 65C 450104 3T 0.1UF 50V Y5V
C120
1
22 E-C-0404-4629 65C 44210113T 100PF +-5% NPO 50V
C121
1
23 E-C-0404-4629 65C 44210113T 100PF +-5% NPO 50V
C122
1
24 #N/A 65C 450103 7T 10000PF/50V Y5V +80% -2
C123
1
25 #N/A 65C 444222 5T 2200PF 10% Y5P 50V
C124
1
26 E-00003625 95C 90 23 JUMPER
C126
0
27 #N/A 65C 44447213T 4700PF +-10% Z5P 50V
C127
1
28 #N/A 65C 444102 5T 1000 PF 10% 50V Y5P
C130
1
29 #N/A 65C 44233013T 33PF +-5% NPO 50V
C131
1
30 #N/A 67C 309220 4T 22UF +-20% 25V
C145
1
31 #N/A 64C178J103 1T CL21X 0.01UF 100V +-5%
C401
1
32 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C402
1
33 #N/A 65C 2K470 1T6921 47PF 2KV
C410
1
34 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C411
1
35 #N/A 64C178J152 1T 1500PF 100V +-5%
C412
1
36 #N/A 64C178J224 1T C121X 0.22UF 100V +-5%
C414
1
37 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C416
1
38 #N/A 64C178J474 0T CL21X. 0.47UF 63V +-5%
C417
1
39 #N/A 63C210J4327CC
.0043UF 1600V
C418
1
40 #N/A 63C210J1825CU
1800PF 1KV
C419
1
41 #N/A 63C210J1042CC 0.1UF +-5% 250V
C420
1
42 #N/A 64C100J225 59
2.2UF +-5% 100V
C422
1
43 #N/A 63C210J2442CC 0.24uF 250V
C423
1
44 #N/A 63C210J2443CC 0.24uF 400V
C425
1
45 #N/A 63C210J2725CC 2700PF/1KV
C426
1
46 #N/A 63C210J8242CC 0.82UF +-5% 250V(PMH)
C427
1
47 #N/A 63C210J4742CC
0.47UF/250V
C428
1
48 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C429
1
49 #N/A
65C517K222 5T6921
2200PF 10% 500V
C430
1
50 #N/A 67C 309220 7T 22UF +-20% 50V
C433
1
51 #N/A 67C 309479 7T
4.7UF +-20% 50V
C434
1
52 #N/A 67C 30547910T
4.7UF 160V
C436
1
53 #N/A 65C 1K470 5T6921
47P/1KV
C450
1
54 #N/A 65C 1K470 5T6921
47P/1KV
C450
1
55 #N/A 63C210J1227CC MPP 1.2nF/1.6KV. +-5%
C472
1
56 E-00003625 95C 90 23 JUMPER
C480
1
57 E-00003625 95C 90 23 JUMPER
C480
1
58 #N/A 67C 21510112J 100UF +-20% 250V JAMICO
C481
0
59 #N/A 67C 21510112P 100UF/250V
C481
1
60 #N/A 67C 305221 3T 220UF +-20% 16V
C483
1
61 #N/A 65C 2K750 6A6921 SL.75PF+-10% 2KV
C489
1
62 #N/A 64C178J104 0T CL21X0.1UF 63V +-5%
C494
1
63 #N/A 64C178J102 0T 1000PF +-5% 63V
C601
1
64 #N/A 67C 309471 3T 470UF +-20% 16V
C603
1
65 #N/A 67C 305470 7T 47UF +-20% 50V
C605
1
BOM LIST (E96f+SB-G/P)
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
26
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
66 #N/A 67C 305102 3 1000 UF +-20% 16V
C606
1
67 #N/A 64C176J104 1T
0.1UF 5% 100V
C610
1
68 #N/A 64C178J103 1T
CL21X 0.01UF 100V +-5%
C702
1
69 #N/A 65C 1K331 5T6921 330PF/1KV Y5P+-10%
C706
1
70 #N/A 64C178J103 2T
MPE 0.01UF 250V +-5%
C710
1
71 #N/A 67C 30522912T 2.2UF +-20% 250V
C713
1
72 #N/A 67C 309479 3T 4.7UF +-20% 16V
C714
1
73 #N/A 65C 1K561 5T6921 560PF 10% Y5P 1KV
C720
1
74 #N/A
65C517M103 3T6921
10NF 500V
C740
1
75 #N/A 67C 309100 7T 10UF +-20% 50V
C743
1
76 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C804
1
77 #N/A 67C 305470 9 47UF +-20% 100V
C805
1
78 #N/A
65C 2M1033FB6921
10000PF -20%~+18% 2KV
C806
1
79 #N/A 67C 309470 3T 47UF +-20% 16V
C807
1
80 #N/A 67C 309100 3T 10UF +-20% 16V
C808
1
81 #N/A 65C 444331 5T 330PF 10% 50V
C809
1
82 #N/A 67C 305470 9 47UF +-20% 100V
C811
1
83 E-C-0404-4629 65C 44210113T 100PF +-5% NPO 50V
C812
1
84 #N/A 65C251K104 2T 0.1UF 250V
C813
1
85 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C814
1
86 #N/A 64C178J104 0T CL21X0.1UF 63V +-5%
C815
1
87 #N/A 65C 444101 5T 100 PF 10% 50V Y5P
C816
1
88 #N/A 65C 444101 5T 100 PF 10% 50V Y5P
C817
1
89 #N/A 65C 444101 5T 100 PF 10% 50V Y5P
C818
1
90 #N/A 67C 305470 3T 47UF +-20% 16V
C819
1
91 #N/A 67C 70109 9T 1UF +-20% 100V
C820
1
92 #N/A 67C 70109 9T 1UF +-20% 100V
C821
1
93 #N/A 67C 70109 9T
1UF +-20% 100V
C822
1
94 #N/A 64C178J104 0T CL21X0.1UF 63V +-5%
C823
1
95 #N/A 64C178J104 0T CL21X0.1UF 63V +-5%
C824
1
96 #N/A 65C 1K101 5T6921 100PF/1KV Y5P+-10%
C825
1
97 #N/A 67C 309471 3T
470UF +-20% 16V
C826
1
98 #N/A 65C251K104 2T 0.1UF 250V
C827
1
99 #N/A 67C 309470 3T
47UF +-20% 16V
C828
1
100 #N/A 65C251K104 2T
0.1UF 250V
C829
1
101 #N/A 64C176J104 1T 0.1UF 5% 100V
C830
1
102 #N/A 65C251K104 2T 0.1UF 250V
C831
1
103 #N/A 65C251K104 2T
0.1UF 250V
C832
1
104 #N/A 65C 444102 5T
1000 PF 10% 50V Y5P
C833
1
105 #N/A 65C 2K102 5T6921 1000PF/2KV
C835
1
106 E-00004474 65C 2K101 5T6921 100PF/2KV
C836
1
107 #N/A 65C 44447113T 470PF +-10% Z5P 50V
C837
1
108 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C839
1
109 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C840
1
110 #N/A 65C 44210013T 10PF +-5% NPO 50V
C841
1
111 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C842
1
112 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C844
1
113 #N/A 65C 44210013T 10PF +-5% NPO 50V
C845
1
114 #N/A
65C517K102 2T6921
1000PF 10% Z5P 500V
C846
1
115 #N/A
65C517K102 2T6921
1000PF 10% Z5P 500V
C847
1
116 #N/A 67C 70109 9T 1UF +-20% 100V
C848
1
117 #N/A
65C517K102 2T6921
1000PF 10% Z5P 500V
C849
1
118 #N/A 65C 44210013T 10PF +-5% NPO 50V
C850
1
119 #N/A 65C 44210013T 10PF +-5% NPO 50V
C851
1
120 #N/A
65C517K561 2T6921
560PF 500V Z5P +-10%
C852
1
121 #N/A 63C107K104 U 0.1UF/275V
C902
1
122 #N/A 64C178J223 1T CL21X 0.022UF 100V +-5%
C906
1
123 E-00004377 67C 3015115K 150UF+-20% 450V
C907
0
124 E-00004527 67C 3015115P 150UF 450V
C907
0
125 E-00001201 67C 3015115X 150UF 450V
C907
1
126 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C908
1
127 #N/A 67C 309101 3T 100UF +-20% 16V
C909
1
128 #N/A 67C 305470 3T
47UF +-20% 16V
C910
1
129 #N/A 65C 450104 7T 0.1UF +80-20% 50V Y5V
C911
1
130 #N/A
65C517K472 1T6921
4700P/500V
C914
1
131 #N/A 67C 305472 3 4700UF 16V
C918
1
132 #N/A
65C 2M103 3A6921
10000PF 2KV
C919
1
133 #N/A 65C 1K221 1T6052 220PF/1KV
C920
1
134 #N/A 64C178J103 2T MPE 0.01UF 250V +-5%
C925
1
135 #N/A 65C 2K221 5T6921 220PF 2000V
C927
1
136 #N/A 65C 1K470 5T6921 47P/1KV
C928
1
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
27
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
137 #N/A 67C 305470 4T 47UF +-20% 25V
C929
1
138 #N/A 67C 215470 10 47UF +-20% 160V
C930
1
139 #N/A 67C 21522012P LOW E.SD 22UF 250V
C931
1
140 #N/A 65C 450473 4T 47000PF -20 +80% 50V Z5
C932
1
141 #N/A 65C 444332 5T 3300PF 10% 50V Y5P
C933
1
142 #N/A 65C 444221 5T 220PF/50V
C934
1
143 #N/A 67C 70109 7T 1UF +-20% 50V
C935
1
144 E-00002738 67C 305101 9 100UF +-20% 100V
C936
1
145 #N/A 67C 309471 3K
470UF 16V
C937
1
146 #N/A 67C 305102 3
1000 UF +-20% 16V
C939
1
147 #N/A
65C517K102 5T6213
1000PF 500V +-10% Y5P
C940
1
148 #N/A
65C517K102 5T6921
1000PF 500V +-10% Y5P
C940
0
149 #N/A 64C178J103 2T MPE 0.01UF 250V +-5%
C941
1
150 #N/A 67C 305102 3 1000 UF +-20% 16V
C944
1
151 #N/A 67C 305471 4 470UF +-20% 25V
C945
1
152 #N/A 63C212J1042AT
MPE 0.1UF/250V +-5%
C946
1
153 E-C-0404-4629 65C 44210113T
100PF +-5% NPO 50V
C947
1
154 #N/A 65C305M3322B2 3300PF 250VAC/400VAC
C962
0
155 #N/A 65C305M3322B3 3300PF 250VAC/400VAC
C962
1
156 #N/A 65C305M3322B2 3300PF 250VAC/400VAC
C963
0
157 #N/A 65C305M3322B3 3300PF 250VAC/400VAC
C963
1
158 #N/A 67C 309100 3T 10UF +-20% 16V
C967
1
159 #N/A 95C 800 2 1 WIRE HARNESS
CN901
1
160 #N/A 9C 203503 PIN
CN902
2
161 #N/A 33C3803 3 WAFER EH-E
CN903
1
162 E-D-0403-2800 93C1002 1P52T 1N5817
D103
1
163 #N/A 93C 64 1152T IN4148
D104
1
164 E-D-0403-2800 93C1002 1P52T 1N5817
D405
1
165 #N/A 93C1002 1W52T 1N5817
D405
0
166 #N/A 93C1060 6P52T ER106/PANJIT
D406
1
167 #N/A 93C106050152T BYV26C/TFK
D407
0
168 E-00004541 93C106050652T SBYV26C
D407
1
169 #N/A 93C 220505 DMV1500M-AOC
D408
1
170 #N/A 93C 64 1152T IN4148
D409
1
171 #N/A 93C 64 1152T IN4148
D450
1
172 #N/A 93C 6450752T BAV21
D460
1
173 E-00002716 93C 6026T52T RECTIFIER DIODE FR107
D463
1
174 E-00001186 93C 6026W52T FR107
D463
0
175 E-00002716 93C 6026T52T RECTIFIER DIODE FR107
D470
1
176 E-00001186 93C 6026W52T FR107
D470
0
177 E-00002716 93C 6026T52T RECTIFIER DIODE FR107
D473
1
178 E-00001186 93C 6026W52T FR107
D473
0
179 E-00002716 93C 6026T52T RECTIFIER DIODE FR107
D474
1
180 E-00001186 93C 6026W52T FR107
D474
0
181 #N/A 93C 64 1152T IN4148
D476
1
182 #N/A 93C 5247T52T 1N4004
D601
1
183 #N/A 93C 6431P52T BAV20
D701
0
184 #N/A 93C 6431T52T BAV20
D701
1
185 E-00003625 95C 90 23 JUMPER
D704
0
186 #N/A 93C 6044T52T RECTIFIER DIODE FR157S
D706
1
187 E-D-0403-1005 93C1040 252T UF4004
D740
1
188 E-00003625 95C 90 23 JUMPER
D801
0
189 #N/A 93C 6450152T SWITCHING DIODE BAV21
D802
1
190 #N/A 93C 64 1152T IN4148
D803
1
191 #N/A 93C 6450152T SWITCHING DIODE BAV21
D804
1
192 #N/A 93C 64 1152T IN4148
D805
1
193 #N/A 93C 6450152T SWITCHING DIODE BAV21
D806
1
194 #N/A 93C 6450152T SWITCHING DIODE BAV21
D807
1
195 #N/A 93C 6450152T SWITCHING DIODE BAV21
D808
1
196 #N/A 93C 6021P52T PS156R
D809
1
197 #N/A 93C 6450152T SWITCHING DIODE BAV21
D810
1
198 #N/A 93C 64 1152T IN4148
D811
1
199 #N/A 93C 64 1152T IN4148
D812
1
200 #N/A 93C 64 1152T IN4148
D813
1
201 #N/A 93C 64 1152T IN4148
D814
1
202 #N/A 93C102050152T RGP10D
D909
1
203 #N/A 93C1100 1C52T BYV26EGP
D910
1
204 #N/A 93C102050152T RGP10D
D911
1
205 #N/A 93C 6431T52T BAV20
D912
1
206 E-D-0403-2800 93C1002 1P52T 1N5817
D913
1
207 #N/A 93C1002 1W52T 1N5817
D913
0
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
28
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
208 #N/A 93C 6431P52T BAV20
D914
0
209 #N/A 93C 6431T52T BAV20
D914
1
210 #N/A 93C 6450752T BAV21
D915
1
211 #N/A 93C2040 1A ER204 2A 400V
D916
1
212 #N/A 93C 6450152T SWITCHING DIODE BAV21
D917
1
213 #N/A 93C 6073F 31DF4-FC
D918
1
214 #N/A 93C106050152T BYV26C/TFK
D919
0
215 E-00004541 93C106050652T SBYV26C
D919
1
216 #N/A 93C202050052T BYV27-200
D922
1
217 #N/A 93C 521ZJ26T SB240
D923
1
218 E-D-0403-1005 93C1040 252T UF4004
D929
1
219 #N/A 93C202050052T BYV27-200
D930
1
220 #N/A 93C 64 1152T IN4148
D936
1
221 #N/A 93C 64 1152T IN4148
D937
1
222 #N/A 93C106050152T BYV26C/TFK
D938
0
223 E-00004541 93C106050652T SBYV26C
D938
1
224 #N/A 93C 64 1152T IN4148
D939
1
225 #N/A 93C 64 1152T IN4148
D940
1
226 E-D-0403-2800 93C1002 1P52T 1N5817
D942
1
227 #N/A 61C 60233252T CFR 3.3K OHM+-5% 1/6W
D991
1
228 A-00004050 89C414A18N IS POWER CORD（E96f+SB-G）
E089A
1
229 A-00004529 89C402A18N LS POWER CORDE（E96f+SB-M）
E089A
1
230 #N/A 89C414A18N LS POWER CORD
E089A
0
231 #N/A 89C 71B8MCCB5 SIGNAL CABLE
E089B
0
232 CB-00004535 89C 71B8MCHB5 SIGNAL CABLE
E089B
1
233 #N/A 750A55379852AI 19" TCO CRT ASS'Y FOR B
E750A
0
234 E-00004543 750A55379852AV 19" MPRII CRT ASS'Y FOR
E750A
0
235 E-00002695 84A 7H400 SL FUSE 4A 250V LF-618 004
F901
1
236 #N/A 84C 33 10 FUSE CLIP
F901
2
237 #N/A 71C 55503 FERRITE BEAD
FB401
1
238 #N/A 71C 55 29 FERRITE BEAD
FB402
1
239 E-00003625 95C 90 23 JUMPER
FB403
0
240 #N/A 71C 55503 FERRITE BEAD
FB404
1
241 M-FT-0827-0085 53A 40 8 FILTER
FB801
1
242 M-FT-0827-0085 53A 40 8 FILTER
FB802
1
243 M-FT-0827-0085 53A 40 8 FILTER
FB803
1
244 #N/A 61C175L56452T CFR 560K OHM +-5% 1/2W
FB804
1
245 #N/A 71C 55 9 T C CORE RF BEAD RH 3.5X6X0
FB805
1
246 #N/A 71C 55 9 T C CORE RF BEAD RH 3.5X6X0
FB806
1
247 #N/A 71C 55 9 T C CORE RF BEAD RH 3.5X6X0
FB807
1
248 #N/A 71C 55 19 T FERRITE BEAD 9X3.5X0.8
FB901
1
249 #N/A 71C 55 19 T FERRITE BEAD 9X3.5X0.8
FB902
1
250 #N/A 71C 55 24 A FERRITE BEAD 10*6.0*0.6
FB903
1
251 #N/A 73C 5333910T 3.3UH +-10%
FB910
1
252 #N/A 71C 100 9 FERRIRE CORE 28.5*17.5*
FBTF
1
253 #N/A 71C 100501 S CORD
FBTG2
1
254 #N/A 9C 203 8 BRASS PIN
G2
1
255 #N/A 9C 203 8 BRASS PIN
GND1
1
256 #N/A 9C 203 8 BRASS PIN
GND1
1
257 #N/A 9C 203 8 BRASS PIN
GND3
1
258 #N/A 19C 553500 SPRING PIECE
GND-PIN
1
259 #N/A 19C 553500 SPRING PIECE
GND-PIN
1
260 #N/A 19C 553500 SPRING PIECE
GND-PIN
1
261 #N/A 95C8013 14607 WIRE HARNESS
H802
1
262 E-00004059 56C1125575 X SAA4849PS
IC101
1
263 E-00002717 56C1133508 M24C08-WBN6P
IC102
1
264 E-00002874 56C 584 1A TDA4863A/PHILIPS
IC601
1
265 E-00004538 56C 366520 LM1276
IC801
1
266 E-00004061 56C 551525 LM2476
IC802
1
267 E-00004060 56C 625500 S TEA1507P
IC901
1
268 #N/A 56C 133 5 ST L7805CV
IC902
1
269 #N/A 56C 139 5A TCET 1103G
IC903
1
270 #N/A 56C 158 2 T TL431ACLPR
IC904
0
271 #N/A 56C 158 4 T H431-B
IC904
1
272 #N/A 56C 158 10 T AZ431AZ-AE1 TO-92
IC904
0
273 E-00003625 95C 90 23 JUMPER
J001
0
274 E-00003625 95C 90 23 JUMPER
J002
0
275 E-00003625 95C 90 23 JUMPER
J006
0
276 E-00003625 95C 90 23 JUMPER
J007
0
277 E-00003625 95C 90 23 JUMPER
J009
0
278 E-00003625 95C 90 23 JUMPER
J010
0
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
29
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
279 E-00003625 95C 90 23 JUMPER
J013
0
280 E-00003625 95C 90 23 JUMPER
J016
0
281 E-00003625 95C 90 23 JUMPER
J017
0
282 E-00003625 95C 90 23 JUMPER
J019
0
283 E-00003625 95C 90 23 JUMPER
J020
0
284 E-00003625 95C 90 23 JUMPER
J021
0
285 E-00003625 95C 90 23 JUMPER
J023
0
286 E-00003625 95C 90 23 JUMPER
J024
0
287 E-00003625 95C 90 23 JUMPER
J026
0
288 E-00003625 95C 90 23 JUMPER
J029
0
289 E-00003625 95C 90 23 JUMPER
J036
0
290 E-00003625 95C 90 23 JUMPER
J038
0
291 E-00003625 95C 90 23 JUMPER
J039
0
292 E-00003625 95C 90 23 JUMPER
J040
0
293 E-00003625 95C 90 23 JUMPER
J042
0
294 E-00003625 95C 90 23 JUMPER
J043
0
295 E-00003625 95C 90 23 JUMPER
J044
0
296 E-00003625 95C 90 23 JUMPER
J045
0
297 E-00003625 95C 90 23 JUMPER
J047
0
298 E-00003625 95C 90 23 JUMPER
J048
0
299 E-00003625 95C 90 23 JUMPER
J049
0
300 E-00003625 95C 90 23 JUMPER
J050
0
301 E-00003625 95C 90 23 JUMPER
J051
0
302 E-00003625 95C 90 23 JUMPER
J052
0
303 E-00003625 95C 90 23 JUMPER
J053
0
304 E-00003625 95C 90 23 JUMPER
J054
0
305 E-00003625 95C 90 23 JUMPER
J055
0
306 E-00003625 95C 90 23 JUMPER
J056
0
307 E-00003625 95C 90 23 JUMPER
J057
0
308 E-00003625 95C 90 23 JUMPER
J058
0
309 E-00003625 95C 90 23 JUMPER
J059
0
310 E-00003625 95C 90 23 JUMPER
J060
0
311 E-00003625 95C 90 23 JUMPER
J061
0
312 E-00003625 95C 90 23 JUMPER
J062
0
313 E-00003625 95C 90 23 JUMPER
J063
0
314 E-00003625 95C 90 23 JUMPER
J064
0
315 E-00003625 95C 90 23 JUMPER
J065
0
316 E-00003625 95C 90 23 JUMPER
J066
0
317 E-00003625 95C 90 23 JUMPER
J067
0
318 E-00003625 95C 90 23 JUMPER
J068
0
319 E-00003625 95C 90 23 JUMPER
J069
0
320 E-00003625 95C 90 23 JUMPER
J070
0
321 E-00003625 95C 90 23 JUMPER
J071
0
322 E-00003625 95C 90 23 JUMPER
J072
0
323 E-00003625 95C 90 23 JUMPER
J073
0
324 E-00003625 95C 90 23 JUMPER
J074
0
325 E-00003625 95C 90 23 JUMPER
J075
0
326 E-00003625 95C 90 23 JUMPER
J076
0
327 E-00003625 95C 90 23 JUMPER
J077
0
328 E-00003625 95C 90 23 JUMPER
J078
0
329 E-00003625 95C 90 23 JUMPER
J079
0
330 #N/A 61C 17247052T CFR 47 OHM +-5% 1/4W
J080
1
331 E-00003625 95C 90 23 JUMPER
J083
0
332 E-00003625 95C 90 23 JUMPER
J084
0
333 E-00003625 95C 90 23 JUMPER
J086
0
334 E-00003625 95C 90 23 JUMPER
J087
0
335 E-00003625 95C 90 23 JUMPER
J088
0
336 E-00003625 95C 90 23 JUMPER
J089
0
337 E-00003625 95C 90 23 JUMPER
J090
0
338 E-00003625 95C 90 23 JUMPER
J091
0
339 E-00003625 95C 90 23 JUMPER
J092
0
340 E-00003625 95C 90 23 JUMPER
J093
0
341 E-00003625 95C 90 23 JUMPER
J095
0
342 E-00003625 95C 90 23 JUMPER
J096
0
343 E-00003625 95C 90 23 JUMPER
J097
0
344 E-00003625 95C 90 23 JUMPER
J099
0
345 E-00003625 95C 90 23 JUMPER
J101
0
346 E-00003625 95C 90 23 JUMPER
J105
0
347 E-00003625 95C 90 23 JUMPER
J106
0
348 E-00003625 95C 90 23 JUMPER
J108
0
349 E-00003625 95C 90 23 JUMPER
J114
0
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
30
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
350 E-00003625 95C 90 23 JUMPER
J117
0
351 E-00003625 95C 90 23 JUMPER
J120
0
352 E-00003625 95C 90 23 JUMPER
J122
0
353 E-00003625 95C 90 23 JUMPER
J124
0
354 E-00003625 95C 90 23 JUMPER
J135
0
355 E-00003625 95C 90 23 JUMPER
J139
0
356 E-00003625 95C 90 23 JUMPER
J141
0
357 E-00003625 95C 90 23 JUMPER
J142
0
358 E-00003625 95C 90 23 JUMPER
J143
0
359 E-00003625 95C 90 23 JUMPER
J147
0
360 E-00003625 95C 90 23 JUMPER
J149
0
361 E-00003625 95C 90 23 JUMPER
J151
0
362 E-00003625 95C 90 23 JUMPER
J152
0
363 E-00003625 95C 90 23 JUMPER
J155
0
364 E-00003625 95C 90 23 JUMPER
J157
0
365 E-00003625 95C 90 23 JUMPER
J166
0
366 E-00003625 95C 90 23 JUMPER
J167
0
367 E-00003625 95C 90 23 JUMPER
J168
0
368 E-00003625 95C 90 23 JUMPER
J174
0
369 E-00003625 95C 90 23 JUMPER
J175
0
370 E-00003625 95C 90 23 JUMPER
J178
0
371 E-00003625 95C 90 23 JUMPER
J803
0
372 E-00003625 95C 90 23 JUMPER
J804
0
373 E-00003625 95C 90 23 JUMPER
J805
0
374 E-00003625 95C 90 23 JUMPER
J806
0
375 E-00003625 95C 90 23 JUMPER
J807
0
376 E-00003625 95C 90 23 JUMPER
J808
0
377 #N/A 71C 55503 FERRITE BEAD
J809
1
378 #N/A 71C 55503 FERRITE BEAD
J810
1
379 #N/A 71C 55503 FERRITE BEAD
J811
1
380 E-00003625 95C 90 23 JUMPER
J815
0
381 E-00003625 95C 90 23 JUMPER
J816
0
382 E-00003625 95C 90 23 JUMPER
J817
0
383 E-00003625 95C 90 23 JUMPER
J818
0
384 E-00003625 95C 90 23 JUMPER
J819
0
385 E-00004074 73C 147542 H COIL
L401
1
386 E-00002875 73C 253 69 T 150UH +-10% FOR TDK
L405
1
387 E-00003625 95C 90 23 JUMPER
L805
0
388 #N/A 73C 5447810T 0.47UH +-10% peaking co
L807
1
389 #N/A 73C 5447810T 0.47UH +-10% peaking co
L808
1
390 #N/A 73C 5447810T 0.47UH +-10% peaking co
L809
1
391 #N/A 73A 174 7 HG LINE FILTER
L901
1
392 #N/A 73A 174 7 SG LINE FILTER
L901
0
393 #N/A 73C 25818110H 180UH
L902
1
394 #N/A 73C 25818110T 180UH
L902
0
395 #N/A 73C 25810110H 100UH
L903
0
396 #N/A 73C 25810110T 100UH
L903
1
397 #N/A 73C 25810110H 100UH
L904
0
398 #N/A 73C 25810110T 100UH
L904
1
399 #N/A 73C 25818110H 180UH
L905
1
400 #N/A 73C 25818110T 180UH
L905
0
401 E-00004062 73C 253513 H CHOKE COIL
L906
1
402 #N/A 81C 11 7 GP GP32052CE/DIY-ZY
LED4
1
403 #N/A 61C 58450 UT NTCR 45OHM+-15%3100K UP
NR601
1
404 E-R-0405-6988 61A 58 9W NTCR 10OHM+-20% 5A WALS
NR901
0
405 E-R-0405-0377 61C 58 9T NTCR 10OHM+-20% 5A THIN
NR901
1
406 #N/A 9C 203 8 BRASS PIN
P402
4
407 E-00001191 33C327813D WAFER
P801
1
408 E-00004087 33C327814D WAFER& PLUG
P802
1
409 #N/A 95C8013 6617 6PIN WIRE
P803
1
410 #N/A 33C3278 6D WAFER
P803
1
411 #N/A
O : CMB985D1NVSC
CHASSIS FOR B985D-1VSC
PARENT N
412 #N/A
O : AMB985D1NVSC
MAIN BOARD
PARENT N
413 #N/A
O : CRB985D1NVSC
CRT BAORD
PARENT N
414 #N/A
O : ARB985D1NVSC
CRT BOARD
PARENT N
415 #N/A
O : 705A985DR5601V
IC802 ASS'Y
PARENT N
416 #N/A
O : 750A55379852AI
19" TCO CRT ASS'Y FOR
PARENT N
417 #N/A
O : 750A55379852AV
19" MPRII CRT ASS'Y FO
PARENT N
418 #N/A
O : 705A985DC15 01
AC ASS'Y
PARENT N
419 #N/A
O : 705A985DC5601A
IC601 ASS'Y
PARENT N
420 #N/A
O : 705A985DC5701A
D408/Q403 ASS'Y
PARENT N
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
31
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
421 #N/A
O : 705A985DC5701B
Q901 ASS'Y
PARENT N
422 #N/A
O : 705A985DC5702A
Q420 ASS'Y
PARENT N
423 #N/A
O : 705A985DC6101A
NR901 ASS'Y
PARENT N
424 #N/A
O : 705A985DC84 1
F901 ASS'Y
PARENT N
425 #N/A
O : 705A985DC8702A
CN901 ASS'Y
PARENT N
426 #N/A
O : 705A985DX9301A
X101 ASS'Y
PARENT N
427 #N/A
O : 705A985DP52 01
COPPER ASS'Y
PARENT N
428 E-00002859 61C 52 27 4J PTCR
PR901
0
429 E-00002725 61C 52 27 4W PTCR 9OHM+-20% 220V WAL
PR901
1
430 #N/A 57C 516 1 T TRAN PH2369 TAPING
Q401
1
431 #N/A 57C 734 1 BSN254A
Q402
1
432 E-00004067 57C 705 7 A PHILIPS 1500V/12A BU252
Q403
1
433 #N/A 57C 446 3 T 2SC2120-Y
Q404
1
434 #N/A 57C 446501 T 2SC2120-Y
Q404
0
435 E-00004069 57C 600 21 IRF630M/S.T
Q406
1
436 E-00004376 57C 419503 T 2SC945P
Q407
1
437 E-00004376 57C 419503 T 2SC945P
Q408
1
438 #N/A 57C 521 1 T 2SD667ACTZ-E
Q410
1
439 #N/A 57C 521 C T 2SD667CTZ-E
Q410
0
440 E-00004376 57C 419503 T 2SC945P
Q412
1
441 E-00004068 57C 600 28 IRF630B
Q416
1
442 E-00004066 57C 600 14 MOSFET
Q417
1
443 E-00004068 57C 600 28 IRF630B
Q417
0
444 E-00004066 57C 600 14 MOSFET
Q418
1
445 E-00004068 57C 600 28 IRF630B
Q418
0
446 E-00004066 57C 600 14 MOSFET
Q420
1
447 E-00004068 57C 600 28 IRF630B
Q420
0
448 E-00004376 57C 419503 T 2SC945P
Q422
1
449 E-00004376 57C 419503 T 2SC945P
Q423
1
450 #N/A 57C 498 1 T BF423
Q705
1
451 #N/A 57C 498 3 T HBF423
Q705
0
452 #N/A 57C 493 12 T BF420
Q742
0
453 #N/A 57C 708 1 T 2SC4002E
Q742
1
454 #N/A 57C 446 1 T 2SC1213ACTZ-E
Q743
0
455 #N/A 57C 446500 T 2SC1213C
Q743
1
456 E-00004071 57C 724502 STP9NK70Z
Q901
1
457 #N/A 57C 446 1 T 2SC1213ACTZ-E
Q902
1
458 #N/A 57C 419 P T TRAN 2SC945P/NEC TAPING
Q903
0
459 #N/A 57C 419 SG T KSC945C-G TA FAIRCHILD
Q903
0
460 E-00004376 57C 419503 T 2SC945P
Q903
1
461 #N/A 57C 420 P T TRAN 2SA733P/NEC TAPING
Q905
0
462 #N/A 57C 420 SG T KSA733C-G TA FAIRCHIL
Q905
0
463 #N/A 57C 420502 T 2SA733P
Q905
1
464 #N/A 57C 446 1 T 2SC1213ACTZ-E
Q906
1
465 #N/A 57C 4197AP T BC547B
Q907
1
466 #N/A 57C 516 1 T TRAN PH2369 TAPING
Q910
1
467 E-00004070 57C 751 4 2SJ584LS
Q911
1
468 #N/A 57C 419 P T TRAN 2SC945P/NEC TAPING
Q912
0
469 #N/A 57C 419 SG T KSC945C-G TA FAIRCHILD
Q912
0
470 E-00004376 57C 419503 T 2SC945P
Q912
1
471 #N/A 57C 419 P T TRAN 2SC945P/NEC TAPING
Q913
0
472 #N/A 57C 419 SG T KSC945C-G TA FAIRCHILD
Q913
0
473 E-00004376 57C 419503 T 2SC945P
Q913
1
474 #N/A 57C 420 P T TRAN 2SA733P/NEC TAPING
Q920
0
475 #N/A 57C 420 SG T KSA733C-G TA FAIRCHIL
Q920
0
476 #N/A 57C 420502 T 2SA733P
Q920
1
477 #N/A 57C 5661PH BT169B
Q935
1
478 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W
R101
1
479 #N/A 61C 60224252T CFR 2.4K OHM +-5% 1/6W
R102
1
480 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W
R103
1
481 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W
R104
1
482 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W
R105
1
483 E-00004322 61C 60215352T CFR 15K OHM+-5% 1/6W
R106
1
484 #N/A 61C 60247252T CFR 4.7K OHM+-5% 1/6W
R107
1
485 #N/A 61C 60222252T CFR 2.2K OHM +-5% 1/6W
R108
1
486 #N/A 61C 60222252T CFR 2.2K OHM +-5% 1/6W
R109
1
487 #N/A 61C 60210052T CFR 10 OHM +-5% 1/6W
R110
1
488 #N/A 61C 60210052T CFR 10 OHM +-5% 1/6W R111
1
489 #N/A 61C 60215152T CFR 150 OHM +-5% 1/6W R112
1
490 #N/A 61C 60218252T CFR 1.8K OHM+-5% 1/6W R113
1
491 #N/A 61C 60218252T CFR 1.8K OHM+-5% 1/6W R114
1
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
32
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
492 #N/A 61C 60239252T CFR 3.9K OHM+-5% 1/6W R116
1
493 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R117
1
494 #N/A 61C 60212252T CFR 1.2K OHM+-5% 1/6W R118
1
495 #N/A 61C 60247052T CFR 47 OHM +-5% 1/6W R119
1
496 E-00003625 95C 90 23 JUMPER R121
0
497 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R122
1
498 #N/A 61C 60247252T CFR 4.7K OHM+-5% 1/6W R123
1
499 #N/A 61C 60210252T CFR 1K OHM+-5% 1/6W R124
1
500 #N/A 61C 60247152T CFR 470 OHM +-5% 1/6W R125
1
501 #N/A 61C 60210352T CFR 10K OHM+-5% 1/6W R126
1
502 #N/A 61C 60256252T CFR 5.6KOHM+-5% 1/6W R127
1
503 #N/A 61C 60233352T CFR 33K OHM+-5% 1/6W R128
1
504 #N/A 61C 60247152T CFR 470 OHM +-5% 1/6W R129
1
505 #N/A 61C 60210352T CFR 10K OHM+-5% 1/6W R130
1
506 #N/A 61C 60222252T CFR 2.2K OHM +-5% 1/6W R131
1
507 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R132
1
508 #N/A 61C 17275252T CFR 7.5K OHM +-5% 1/4W R133
1
509 #N/A 61C 60239252T CFR 3.9K OHM+-5% 1/6W R134
1
510 #N/A 61C 60247152T CFR 470 OHM +-5% 1/6W R135
1
511 #N/A 61C 60275352T CFR 75K OHM +-5% 1/6W R137
1
512 #N/A 61C 17251352T CFR 51K OHM +-5% 1/4W R138
1
513 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R139
1
514 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R140
1
515 #N/A 61C 60233352T CFR 33K OHM+-5% 1/6W R141
1
516 #N/A 61C 60218352T CFR 18K OHM +-5% 1/6W R142
1
517 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R143
1
518 #N/A 61C 60210352T CFR 10K OHM+-5% 1/6W R144
1
519 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R145
1
520 #N/A 61C 60275252T CFR 7.5K OHM +-5% 1/6W R146
1
521 #N/A 61C 17256352T CFR 56K OHM +-5% 1/4W R147
1
522 #N/A 61C 60247252T CFR 4.7K OHM+-5% 1/6W R148
1
523 #N/A 61C 60210352T CFR 10K OHM+-5% 1/6W R149
1
524 #N/A 61C 17212452T CFR 120K OHM +-5% 1/4W R150
1
525 #N/A 61C 60247152T CFR 470 OHM +-5% 1/6W R151
1
526 #N/A 61C 60210252T CFR 1K OHM+-5% 1/6W R152
1
527 #N/A 61C 60227252T CFR 2.7K OHM+-5% 1/6W R153
1
528 #N/A 61C 60247152T CFR 470 OHM +-5% 1/6W R154
1
529 #N/A 61C 17224252T CFR 2.4KOHM+-5% 1/4W R155
1
530 #N/A 61C 60236252T CFR 3.6K OHM+-5% 1/6W R156
1
531 #N/A 61C 60236252T CFR 3.6K OHM+-5% 1/6W R157
1
532 #N/A 61C 60247252T CFR 4.7K OHM+-5% 1/6W R158
1
533 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R159
1
534 #N/A 61C 17212452T CFR 120K OHM +-5% 1/4W R161
1
535 #N/A 61C 60210252T CFR 1K OHM+-5% 1/6W R162
1
536 #N/A 61C 60210252T CFR 1K OHM+-5% 1/6W R163
1
537 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R164
1
538 #N/A 61C 60247252T CFR 4.7K OHM+-5% 1/6W R166
1
539 #N/A 61C 60224252T CFR 2.4K OHM +-5% 1/6W R167
1
540 #N/A 61C 60233252T CFR 3.3K OHM+-5% 1/6W R168
1
541 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R172
1
542 #N/A 61C 60224252T CFR 2.4K OHM +-5% 1/6W R181
1
543 #N/A 61C 60256252T CFR 5.6KOHM+-5% 1/6W R182
1
544 #N/A 61C 60222352T CFR 22K OHM+-5% 1/6W R183
1
545 #N/A 61C 208109 64 MOFR 1 OHM +-5% 1W R401
1
546 #N/A 61C 17236952T 3.6OHM +-5% 1/4W R402
1
547 #N/A 61C175L68352T CFR 68K OHM +-5% 1/2W R403
1
548 E-00003625 95C 90 23 JUMPER R411
0
549 #N/A 61C 17247352T CFR 47K OHM +-5% 1/4W R412
1
550 #N/A 61C 17210052T CFR 10OHM+-5% 1/4W R413
1
551 #N/A 61C 17211252T CFR 1.1K OHM +-5% 1/4W R414
1
552 #N/A 61C 17210452T CFR100K OHM +-5% 1/4W R415
1
553 #N/A 61C 17212452T CFR 120K OHM +-5% 1/4W R416
1
554 #N/A 61C 17282352T CFR 82KOHM+-5% 1/4W R417
1
555 #N/A 61C 17211352T CFR 11K OHM +-5% 1/4W R418
1
556 #N/A 61C 17218452T CFR 180KOHM+-5% 1/4W R420
1
557 #N/A 61C 17210052T CFR 10OHM+-5% 1/4W R421
1
558 #N/A 61C 60220352T CFR 20K OHM+-5% 1/6W R423
1
559 #N/A 61C152M393 64 MOFR 39KOHM+-5% 2W R424
1
560 #N/A 61C152M681 64 MOFR 680 OHM+-5% 2W R426
1
561 #N/A 61C175L22052T CFR 22 OHM +-5% 1/2W R427
1
562 #N/A 61C153M518 59 MOFR 0.51 OHM +-5% 3W R428
1
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
33
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
563 #N/A 61C 30110052T 1/2W 10 OHM FUSIBIE RES R429
1
564 #N/A 61C 60247152T CFR 470 OHM +-5% 1/6W R433
1
565 #N/A 61C 17210452T CFR100K OHM +-5% 1/4W R435
1
566 #N/A 61C 17222252T CFR 2.2KOHM+-5% 1/4W R437
1
567 #N/A 61C 60233352T CFR 33K OHM+-5% 1/6W R440
1
568 #N/A 61C 17222252T CFR 2.2KOHM+-5% 1/4W R442
1
569 E-00003625 95C 90 23 JUMPER R443
0
570 #N/A 61C 60247252T CFR 4.7K OHM+-5% 1/6W R446
1
571 E-00003625 95C 90 23 JUMPER R447
0
572 #N/A 61C 17210452T CFR100K OHM +-5% 1/4W R449
1
573 #N/A 61C 17210052T CFR 10OHM+-5% 1/4W R450
1
574 #N/A 61C152M220 64 22 OHM +-5% 2W R455
1
575 E-R-0405-6855 61C153M151 59 MOFR 150 OHM +-5% 3W R456
1
576 #N/A 61A212Y47252T MGFR 4.7KOHM +-5% 1/2W R459
1
577 #N/A 61C 17247252T CFR 4.7K OHM +-5% 1/4W R460
1
578 #N/A 61C 17220552T CFR 2MOHM+-5% 1/4W R463
1
579 #N/A 61C 17210452T CFR100K OHM +-5% 1/4W R471
1
580 #N/A 61C 17247252T CFR 4.7K OHM +-5% 1/4W R473
1
581 #N/A 61C 17210052T CFR 10OHM+-5% 1/4W R475
1
582 #N/A 61C 17222452T CFR 220KOHM+-5% 1/4W R476
1
583 #N/A 61C 17222252T CFR 2.2KOHM+-5% 1/4W R477
1
584 #N/A 61C 17222452T CFR 220KOHM+-5% 1/4W R478
1
585 #N/A 61C 17222452T CFR 220KOHM+-5% 1/4W R479
1
586 #N/A 61A212Y47152T 470 OHM 1/2W R480
1
587 #N/A 61C 17247252T CFR 4.7K OHM +-5% 1/4W R481
1
588 E-00003625 95C 90 23 JUMPER R482
0
589 E-00003625 95C 90 23 JUMPER R484
0
590 #N/A 61C 17247252T CFR 4.7K OHM +-5% 1/4W R486
1
591 #N/A 61C 17222252T CFR 2.2KOHM+-5% 1/4W R487
1
592 #N/A 61C 17222452T CFR 220KOHM+-5% 1/4W R488
1
593 #N/A 61C 60233352T CFR 33K OHM+-5% 1/6W R489
1
594 #N/A 61C 60247152T CFR 470 OHM +-5% 1/6W R601
1
595 #N/A 61C 21020252T MFR 2KOHM +-1% 1/6W R602
1
596 #N/A 61C 60247152T CFR 470 OHM +-5% 1/6W R603
1
597 #N/A 61C 21020252T MFR 2KOHM +-1% 1/6W R604
1
598 #N/A 61C 60210052T CFR 10 OHM +-5% 1/6W R605
1
599 #N/A 61C 208121 64 120 OHM 1W R606
1
600 #N/A 61C152M109 64 MOFR 1 OHM +-5% 2W R607
1
601 #N/A 61C152M688 64 MOFR 0.68 OHM +-5% 2W R608
1
602 #N/A 61C175L27152T CFR 270 OHM +-5% 1/2W R609
1
603 #N/A 61C175L10952T CFR 1 OHM +-5% 1/2W R610
1
604 #N/A 61C 17212052T CFR 12 OHM +-5%1/4W R611
1
605 #N/A 61C 17233352T CFR 33KOHM+-5% 1/4W R707
1
606 #N/A 61C 17236352T CFR 36K OHM +-5% 1/4W R715
1
607 E-00003625 95C 90 23 JUMPER R718
0
608 #N/A 61C175L10252T CFR 1K OHM +-5% 1/2W R721
1
609 #N/A 61C 17247352T CFR 47K OHM +-5% 1/4W R722
1
610 #N/A 61C152M220 64 22 OHM +-5% 2W R723
1
611 #N/A 61A212Y18452T MGFR 180K OHM +-5% 1/2W R725
1
612 #N/A 61C 17224252T CFR 2.4KOHM+-5% 1/4W R726
1
613 E-00003625 95C 90 23 JUMPER R730
0
614 #N/A 61C 20047952T MFR 4.7 OHM +-1% 1/4W R738
1
615 #N/A 61C175L56352T CFR 56K OHM +-5% 1/2W R740
1
616 #N/A 61A212Y51352T MGFR 51K OHM +-5% 1/2W R741
1
617 #N/A 61C 60268252T CFR 6.8K OHM+-5% 1/6W R748
1
618 #N/A 61C 17275352T CFR 75K OHM +-5% 1/4W R749
1
619 E-00003625 95C 90 23 JUMPER R750
0
620 #N/A 61C 60230152T 300OHM 1/6W R751
1
621 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R802
1
622 #N/A 61C175L10152T CFR 100 OHM +-5% 1/2W R804
1
623 #N/A 61C 60210152T CFR 100 OHM+-5% 1/6W R805
1
624 #N/A 61C 21082252T MFR 8.2KOHM +-1% 1/6W R806
1
625 E-00003625 95C 90 23 JUMPER R807
0
626 E-00003625 95C 90 23 JUMPER R808
0
627 #N/A 61C172S47152T RES CF 5% 1/4W 470OHM A R809
1
628 #N/A 61C 60262252T CFR 6.2K OHM +-5% 1/6W R811
1
629 #N/A 61C 60268252T CFR 6.8K OHM+-5% 1/6W R812
1
630 #N/A 61C 60268252T CFR 6.8K OHM+-5% 1/6W R813
1
631 #N/A 61C 60247252T CFR 4.7K OHM+-5% 1/6W R814
1
632 #N/A 61C 17215152T CFR 150 OHM +-5% 1/4W R815
1
633 #N/A 61C 60268252T CFR 6.8K OHM+-5% 1/6W R816
1
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
34
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
634 #N/A 61C172S47152T RES CF 5% 1/4W 470OHM A R817
1
635 #N/A 61C 60233052T CFR 33 OHM +-5% 1/6W R818
1
636 #N/A 61C 17233452T CFR 330K OHM +-5% 1/4W R819
1
637 #N/A 61C 60210052T CFR 10 OHM +-5% 1/6W R820
1
638 #N/A 61C 60233052T CFR 33 OHM +-5% 1/6W R821
1
639 E-00003625 95C 90 23 JUMPER R822
0
640 #N/A 61C 60275052T CFR 75 OHM+-5% 1/6W R824
1
641 #N/A 61C 60210352T CFR 10K OHM+-5% 1/6W R825
1
642 #N/A 61C 60275052T CFR 75 OHM+-5% 1/6W R826
1
643 E-00003625 95C 90 23 JUMPER R827
0
644 #N/A 61C 20733052T 33OHM 1/2W R828
1
645 #N/A 61C 20733052T 33OHM 1/2W R829
1
646 #N/A 61C172S47152T RES CF 5% 1/4W 470OHM A R830
1
647 #N/A 61C 60210052T CFR 10 OHM +-5% 1/6W R832
1
648 E-00003625 95C 90 23 JUMPER R833
0
649 #N/A 61C 60275052T CFR 75 OHM+-5% 1/6W R834
1
650 #N/A 61C 60210052T CFR 10 OHM +-5% 1/6W R835
1
651 #N/A 61C 60233052T CFR 33 OHM +-5% 1/6W R836
1
652 #N/A 61C 17233452T CFR 330K OHM +-5% 1/4W R837
1
653 #N/A 61C 60210252T CFR 1K OHM+-5% 1/6W R838
1
654 #N/A 61C 20733052T 33OHM 1/2W R840
1
655 #N/A 61C 17210152T CFR 100OHM+-5% 1/4W R841
1
656 #N/A 61C 17210152T CFR 100OHM+-5% 1/4W R842
1
657 #N/A 61C 17210152T CFR 100OHM+-5% 1/4W R843
1
658 #N/A 61C 17233452T CFR 330K OHM +-5% 1/4W R844
1
659 #N/A 61C 60247252T CFR 4.7K OHM+-5% 1/6W R845
1
660 #N/A 71C 55 9 T C CORE RF BEAD RH 3.5X6X0 R846
1
661 E-R-0405-6803 61A212Y10652T 10MOHM +-5% 1/2W金?R900
1
662 E-R-0405-6779 61A212Y10552T MGFR 1M OHM+-5% 1/2W R901
1
663 #N/A 61C 60275252T CFR 7.5K OHM +-5% 1/6W R902
1
664 #N/A 61C175L43152T CFR 430 OHM +-5% 1/2W R903
1
665 #N/A 61C 17227252T CFR 2.7KOHM+-5% 1/4W R904
1
666 #N/A 61C 60262252T CFR 6.2K OHM +-5% 1/6W R905
1
667 #N/A 61C 17247052T CFR 47 OHM +-5% 1/4W R906
1
668 #N/A 61C 208681 64 MOFR 680 OHM +-5% 1W R907
1
669 #N/A 61C175L15052T CFR 15 OHM +-5% 1/2W R908
1
670 #N/A 61C 17210152T CFR 100OHM+-5% 1/4W R909
1
671 #N/A 61C 60291352T CFR 91K OHM +-5% 1/6W R910
1
672 E-00003625 95C 90 23 JUMPER R911
0
673 #N/A 61C 60210252T CFR 1K OHM+-5% 1/6W R912
1
674 #N/A 61C203S12452T 120KOHM 1/2W R913
1
675 #N/A 61C 60247052T CFR 47 OHM +-5% 1/6W R914
1
676 #N/A 61C203S27252T 2.7K 1/2W R915
1
677 #N/A 61C203S24152T 240OHM 1/2W R916
1
678 #N/A 61C203S10452T 100KOHM 1/2W R917
1
679 #N/A 61C 20733252T 3.3K 1/2W R918
1
680 #N/A 61C 17247852T 0.47OHM 1/4 W R920
1
681 E-R-0405-6779 61A212Y10552T MGFR 1M OHM+-5% 1/2W R921
1
682 E-00003625 95C 90 23 JUMPER R922
0
683 #N/A 61C 17247852T 0.47OHM 1/4 W R923
1
684 #N/A 61C 17247852T 0.47OHM 1/4 W R924
1
685 #N/A 61C 17247852T 0.47OHM 1/4 W R925
1
686 #N/A 61C152M823 64 MOFR 82K+-5% 2W R927
1
687 #N/A 61C 60239152T CFR 390 OHM +-5% 1/6W R928
1
688 #N/A 61C152M560 64 MOFR 56 OHM+-5% 2W R929
1
689 #N/A 61C 60233152T CFR 330 OHM+-5% 1/6W R931
1
690 #N/A 61C 60227352T CFR 27K OHM+-5% 1/6W R932
1
691 #N/A 61C 60210252T CFR 1K OHM+-5% 1/6W R933
1
692 #N/A 61C203S10052T 10OHM 1/4 W R934
1
693 #N/A 61C203S24452T 240K 1/2W R935
1
694 #N/A 61A214Y10252T MGFR 1K 1/4W R936
1
695 #N/A 61C203S33452T 330K 1/2W R937
1
696 #N/A 61C 60215052T CFR 15 OHM +-5% 1/6W R938
1
697 #N/A 61C 17222352T CFR 22KOHM+-5% 1/4W R939
1
698 #N/A 61C 17215452T CFR 150K OHM +-5% 1/4W R950
1
699 #N/A 61C 60210252T CFR 1K OHM+-5% 1/6W R951
1
700 #N/A 61C203S56252T 5.6K OHM 1/2W R953
1
701 #N/A 61C 17247052T CFR 47 OHM +-5% 1/4W R962
1
702 #N/A 61C 17210052T CFR 10OHM+-5% 1/4W R965
1
703 #N/A 61C 17247352T CFR 47K OHM +-5% 1/4W R967
1
704 #N/A 61C 17239352T CFR 39K OHM +-5% 1/4W R969
1
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
35
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
705 #N/A 61C175L22452T CFR 220K OHM +-5% 1/2W R970
1
706 #N/A 61C 17220252T CFR 2KOHM+-5% 1/4W R972
1
707 #N/A 61A212Y20452T MGFR 200K OHM +-5% 1/2W R973
1
708 #N/A 61C175L20452T CFR 200K OHM +-5% 1/2W R977
1
709 #N/A 61C 17222152T CFR 220OHM+-5% 1/4W R980
1
710 #N/A 61C 17210352T CFR 10KOHM +-5% 1/4W R982
1
711 #N/A 61C 17210352T CFR 10KOHM +-5% 1/4W R983
1
712 #N/A 61C 17210052T CFR 10OHM+-5% 1/4W R989
1
713 #N/A 6C 31500 EYELET RV1
1
714 PL-00002759 6C 31 4 BRASS RV10
1
715 PL-00002759 6C 31 4 BRASS RV11
1
716 PL-00002759 6C 31 4 BRASS RV12
1
717 PL-00002759 6C 31 4 BRASS RV13
1
718 PL-00002759 6C 31 4 BRASS RV14
1
719 PL-00002759 6C 31 4 BRASS RV15
1
720 PL-00002759 6C 31 4 BRASS RV16
1
721 PL-00002759 6C 31 4 BRASS RV17
1
722 PL-00002759 6C 31 4 BRASS RV18
1
723 #N/A 6C 31502 BRASS RV19
1
724 #N/A 6C 31500 EYELET RV2
1
725 #N/A 6C 31502 BRASS RV20
1
726 #N/A 6C 31502 BRASS RV22
1
727 #N/A 6C 31502 BRASS RV24
1
728 #N/A 6C 31502 BRASS RV25
1
729 #N/A 6C 31502 BRASS RV26
1
730 #N/A 6C 31502 BRASS RV28
1
731 #N/A 6C 31500 EYELET RV3
1
732 #N/A 6C 31502 BRASS RV30
1
733 #N/A 6C 31501 BRASS RV31
1
734 #N/A 6C 31501 BRASS RV32
1
735 #N/A 6C 31501 BRASS RV33
1
736 PL-00002759 6C 31 4 BRASS RV34
1
737 #N/A 6C 31500 EYELET RV4
1
738 PL-00002759 6C 31 4 BRASS RV5
1
739 PL-00002759 6C 31 4 BRASS RV6
1
740 PL-00002759 6C 31 4 BRASS RV7
1
741 PL-00002759 6C 31 4 BRASS RV8
1
742 PL-00002759 6C 31 4 BRASS RV9
1
743 #N/A 77C 260 5 4 RELAY RY401
1
744 #N/A 77C 260 5 4 RELAY RY901
1
745 #N/A 77C 260 5 2W RELAY OSA-SS-212DM5 RY901
0
746 #N/A 62A 10 16 W SPARK GAP SG408
1
747 #N/A 77C411A 2 S MINI PUSH SWITCH SW901
1
748 #N/A S79C167118VC DRIVER TRANS ASS'Y T401
0
749 #N/A 79C 167118 HC DRIVE TRANSFORMER T401
0
750 E-00004063 79C 167118 LC DRIVE TRANSFORMER T401
1
751 E-00004540 79C 793 1ALB FBT,SHAMPO T402
1
752 E-00001632 79C 167124 HB DRIVER TRANS T403
1
753 E-00004539 80C995D 1 L2 TRANS LITAI T901
1
754 E-00004379 9C 211 2 PIN 1.2X15MM TP402
1
755 #N/A 95C201F 50182 18" ?PULSE TP405
1
756 PL-00002752 12C 385 1 RUBBER FOOT V000
0
757 #N/A 45C 76 34 RN PE BAG FOR BASE V000
0
758 E-R-0405-6801 75A 335223 CFVR 22K OHM +-20% VR701
1
759 #N/A 75A 335222 CFVR 2.2K OHM +-20% VR902
1
760 E-00003625 95C 90 23 JUMPER XGND
1
761 #N/A 93C 3950752T ZENER DIODE ZD101
1
762 #N/A 93C 3951352T HZ6C2-E ZD102
1
763 #N/A 93C 3951752T TZX6V2C ZD102
0
764 #N/A 93C 3951352T HZ6C2-E ZD103
1
765 #N/A 93C 3951752T TZX6V2C ZD103
0
766 #N/A 93C 3951352T HZ6C2-E ZD104
1
767 #N/A 93C 3951752T TZX6V2C ZD104
0
768 #N/A 93C 3951352T HZ6C2-E ZD105
1
769 #N/A 93C 3951752T TZX6V2C ZD105
0
770 E-00003628 93C 3951652T TZX5V1B ZD107
1
771 E-00003625 95C 90 23 JUMPER ZD108
0
772 E-00003628 93C 3951652T TZX5V1B ZD701
1
773 #N/A 93C 39 7352T HZ6B1-E ZD702
1
774 E-00003628 93C 3951652T TZX5V1B ZD726
1
775 E-00002740 93C 3951852T TZX8V2A ZD804
1
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
36
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
776 #N/A 93C 3951952T TZX8V2B ZD804
0
777 E-00002740 93C 3951852T TZX8V2A ZD901
1
778 #N/A 93C 39 7352T HZ6B1-E ZD902
1
779 E-00004306 93C 3953052T TZX5V6D ZD902
0
780 #N/A 93C 39 7752T HZ5C1-E ZD904
1
781 B-00004530 CMB985D1NVSC CHASSIS FOR B985D-1VSC（E96f+SB-G）1
782 B-00004531 CMB985D1NVW CHASSIS FOR B985D-1VSC（E96f+SB-M）1
783 #N/A 1C 503 5T 47 SCREW FOR CRT 4
784 #N/A 5C 38 8 RUBBER WASHER 2
785 #N/A 5C600605075S CRT WASHER 2
786 #N/A 7C 1 4V27 WOODEN PALLET 0
787 #N/A 11C 112500 WIRE MOUNT 1
788 #N/A 11C 115500 FBT CLIP 1
789 #N/A 19C 403 7 STEEL 1
790 #N/A 23C3182 1 Logo 1
791 #N/A 33C6336 FK F POWER KNOB 1
792 #N/A 33C6337 1 LENS 1
793 #N/A 33C6338 FK F KEY PAD 1
794 #N/A 33C6339 FK F OSD KNOB 1
795 #N/A 33C6918 Y A S.W.CAP 1
796 C-00004373 34C 741 QD L BASE 1
797 C-00004534 34C6285AFK F FRONT PANEL 1
798 C-00004524 34C6286 FK F BACK COVER 1
799 #N/A 34C6293 QD L SWIVEL 1
800 #N/A 40C 58162435A MANUAL P/N LABEL 1
801 #N/A 40C 581625 2A PALLET LABEL 0
802 #N/A 40C 581709 1A CARTON LABEL 1
803 #N/A 40C 58170912A S/N BARCODE FOR WARRANT 2
804 #N/A 40C 58170918D PALLET LABEL 0
805 #N/A 40C 90B709 1A ID LABEL 1
806 #N/A 41C 68709 7E WARRANTY CARD 1
807 #N/A 41C 6870913A QUICK SET UP GUIDE 1
808 P-00004544 44C6925709 2A CARTON 1
809 P-00004077 44C6932 1 EPS CUSHION 1
810 P-00004078 44C6932 2 EPS CUSHION 1
811 P-00004101 45C 76 20 RN PE BAG FOR MONITOR 1
812 P-00002871 45C 76 28 V3 PE BAG FOR MANUAL 1
813 #N/A 45C 88539 OUT PE BAG 1
814 #N/A 45C 88601 C EPE COVER 1
815 #N/A 50C 500500 CABLE TIE 2
816 #N/A 50C 500502 CABLE TIE 5
817 #N/A 50C 502 2 PLASTIC TIE 2
818 #N/A 50C 502 5 CABLE TIE 1
819 #N/A 51C 6 4 SILICON 9
820 #N/A 52C 1150 C TAPE 2
821 #N/A 52C 1185 MIDDLE TAPE FOR CARTON 6
822 #N/A 52C 1185 1 BIG TAPE 6
823 #N/A 52C 1186 SMALL TAPE 5
824 DC-00004536 70CD920709 1B CD MANUAL（E96f+SB-G）1
825 DC-00004537 70CD920709 1A CD MANUAL（E96f+SB-M）1
826 #N/A 71C 100504 T CORE 1
827 #N/A 85C6024506 HIELD 1
828 #N/A 85C6027604 SHIELD CASE 1
829 #N/A 85C6028500 SHIELD CASE 1
830 #N/A 95C 91205782 WIRE HARNESS 1
831 #N/A 95C8013 2 CONNECTOR/黑? PIN 0
832 HW-00002750 B1C1035 10 47 SCREW 1
833 HW-00002758 D1C1140 7128 SCREW 4X7(FOR AC) 1
834 HW-00002749 Q1C 340 16 47 SCREW 4
835 #N/A 705A985DP52 01 COPPER ASS'Y 1
836 E-00004542 750A1697 77BAG DEGAUSSING COIL 1
837 E-00003860 750C55372AV SDI 19" DFTM CRT 0
838 #N/A AMB985D1NVSC MAIN BOARD 1
839 B-00004532 CRB985D1NVSC CRT BAORD（E96f+SB-G）
840 B-00004532 CRB985D1NVSC CRT BAORD（E96f+SB-M）
841 #N/A 11C6033 3 PCB SUPPORT 2
842 #N/A 15C5640 1 A B GND LUG 1
843 #N/A 40C 581624 2B CHASSIS LABEL 1
844 M-MS-0808-7412 55A 1 4 SOLDER BAR 6
845 #N/A 71C 100 8 FERRITE CORE 12*25*15 1
846 #N/A B1C1040 12128 SCREW 1
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
37
Item
ViewSonic P/N
Ref. P/N
Description
Location
Universal number#
Q'ty
847 HW-00002758 D1C1140 7128 SCREW 4X7(FOR AC) 1
848 HW-00004380 M1C1140 6128 SCREW 1
849 #N/A M1C1730 8128 SCREW M3x8 1
850 #N/A 705A985DC15 01 AC ASS'Y 1
851 #N/A 705A985DC5601A IC601 ASS'Y 1
852 #N/A 705A985DC5701A D408/Q403 ASS'Y 1
853 #N/A 705A985DC5701B Q901 ASS'Y 1
854 #N/A 705A985DC5702A Q420 ASS'Y 1
855 #N/A 705A985DC6101A NR901 ASS'Y 1
856 #N/A 705A985DC84 1 F901 ASS'Y 1
857 #N/A 705A985DC8702A CN901 ASS'Y 1
858 #N/A 705A985DX9301A X101 ASS'Y 1
859 #N/A 715C1576 2 CMPC 1
860 #N/A ARB985D1NVSC CRT BOARD 1
861 #N/A 40C 45762412B LABEL 1
862 #N/A 87C3504 DL CRT SOCKET(QQ FOCUS) 1
863 #N/A 90C6113500 HEAT SINK 1
864 #N/A 705A985DR5601V IC802 ASS'Y 1
865 PL-00002759 6C 31 4 BRASS 3
866 #N/A 715C1451 1 1 CRPC BOARD 1
867 #N/A 2C6003 1 SCREW NUT 2
868 #N/A 90C6026506 HEAT SINK 1
869 #N/A 90C6074 4 HEAT SINK 1
870 #N/A M1C1730 10128 SCREW M3x10 2
871 E-00003860 750C55372AV SDI 19" DFTM CRT 1
872 E-00003860 750C55372AV SDI 19" DFTM CRT 1
873 HW-00004075 15C5659500 2 Rear Bracket 1
874 #N/A B1C1140 6128 SCREW 1
875 #N/A 32C3028 8 MICA 1
876 #N/A 90C 351511 A HEAT SINK 1
877 #N/A M1C1730 10128 SCREW M3x10 1
878 #N/A M1C1730 10128 SCREW M3x10 1
879 #N/A 5C 71 1 TRANSISTOR HOUSING 3
880 #N/A 32C3028504 MICA 3
881 #N/A 90C6055700 HEAT SINK 1
882 #N/A M1C1130 8128 SCREW 3.0X8 1
883 #N/A M1C1130 8128 SCREW 3.0X8 1
884 #N/A M1C1730 8128 SCREW M3x8 1
885 #N/A M1C1730 10128 SCREW M3x10 1
886 #N/A M1C1730 12128 SCREW 3
887 #N/A 32C3028 8 MICA 1
888 #N/A 90C6234 1 HEAT SINK 1
889 #N/A M1C1730 8128 SCREW M3x8 1
890 #N/A 90C6118 1 HEAT SINK 1
891 #N/A M1C1730 6128 SCREW M3x6 1
892 #N/A 9C 203 9 PIN 1
893 M-00002753 87C 501 6 AC SOCKET 1
894 #N/A 95C2070501 WIRE HARNESS 1
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
38
Model E96f+SB-1
Title
Date Rev:
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
39

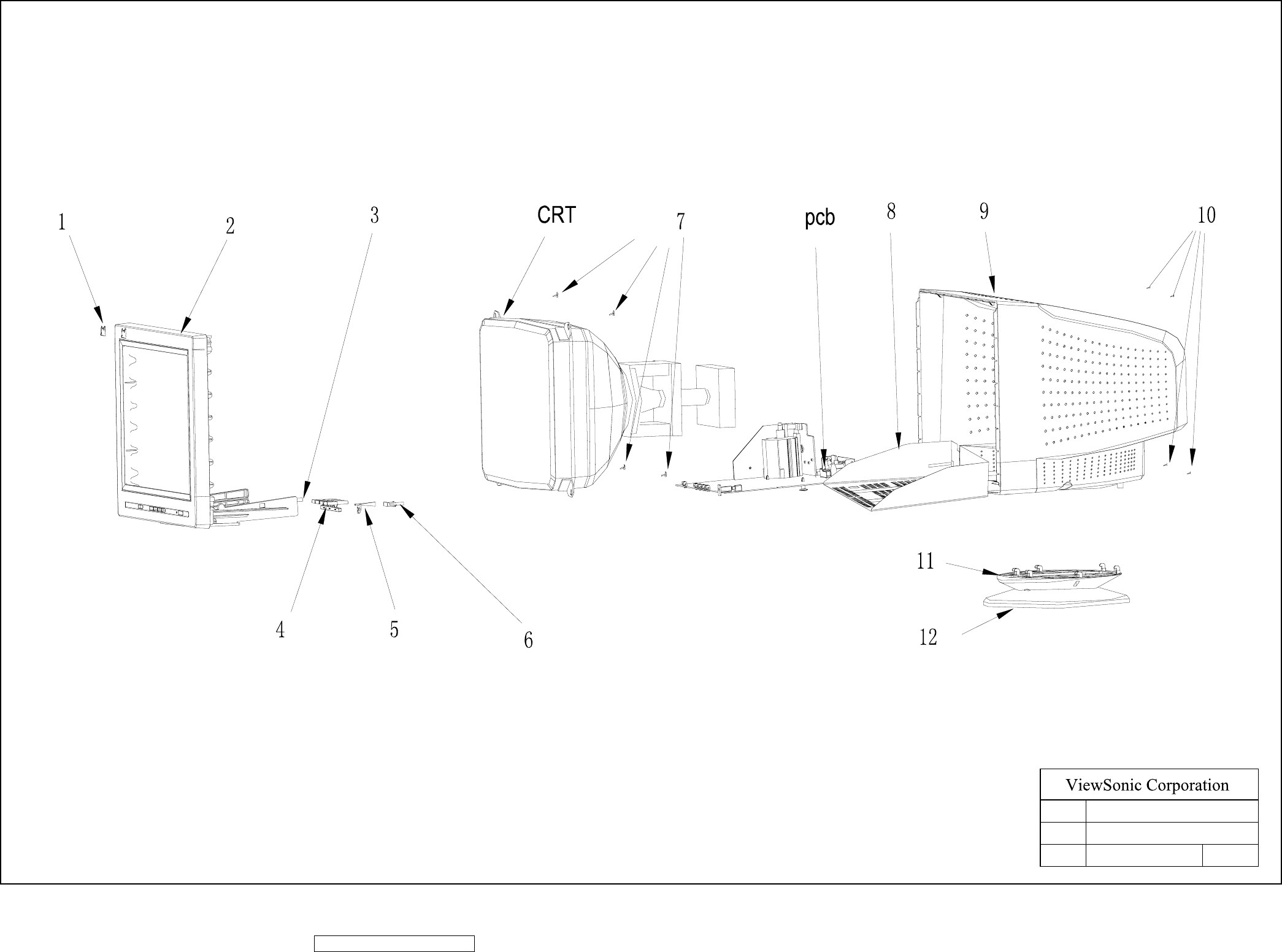

8. Exploded Diagram And Spare Parts List
ViewSonic Model Number: VS10794-1G/P
Rev: 1a
Serial No. Prefix: PTD / PTE
Item
ViewSonic P/N
Ref. P/N
Description
Q'ty
1#N/A 23C3182-1 LOGO 1PCS
2C-00004534 34C6285-AFK-F BEZEL 1PCS
3#N/A 33C6339-FK-F OSDKNOB 1PCS
4#N/A 33C6338-FK-F KEYPAD 1PCS
5#N/A 33C6337-1 LENS 1PCS
6#N/A 33C6336-FK-F POWERKNOB 1PCS
7#N/A 1C503-5T-47 SCREW 4PCS
8#N/A 85C6027-604 SHIELD 1PCS
9C-00004524 34C6286FK-F REARCOVER 1PCS
10 HW-00002749 Q1C-340-164-7 SCREW 4PCS
11 #N/A 34C6293-QD-L SWIVEL 1PCS
12 C-00004373 34C741-QD-L BASE 1PCS
13 E-00003860 750C5537-2AV CRT 1PCS
14 #N/A 715C1576-2 PCB 1PCS
EXPLODED PARTS LIST (E96f+SB-1G/P)
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
40
9. Block Diagram
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
41
56A1125-575
IC101
1
2
3
4
52
53
54
5
50
6
7
8
49
9
10
11
13
14
15
16
17
18
19
20
21
36
37
38
39
40
41
42
43
44
45
46
47
48
51
12
55
56
22
23
24
25
26
27
28
35
34
33
32
31
30
29
SwiChoice
ISCL
ISDA
Mute G1
Hs
Vs
DSCL
ROTA
Pro
H-LIN
Unlock
CLAMP VsOUT
CS1
CS2
NC
OFF
VSSE
VDDD
V5V
VSSD
BDRV
HBGND
HDRV
HFB Iref
Vref
AGND
Bsens
Bin
BOP
Vssa
VDDA
MODE
XTAL1
XTAL2
NC
REM
EEP W/R
standby
DSDA
NC
XRAY
RST
Vfocus
Deguss
ABLadj
KEY2
KEY1
EWdrv
VOUT2
VUOT1
EHT
DouColor
Uvolt
SinColor
IC101 SAA4849
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
42
SAA4849
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
43

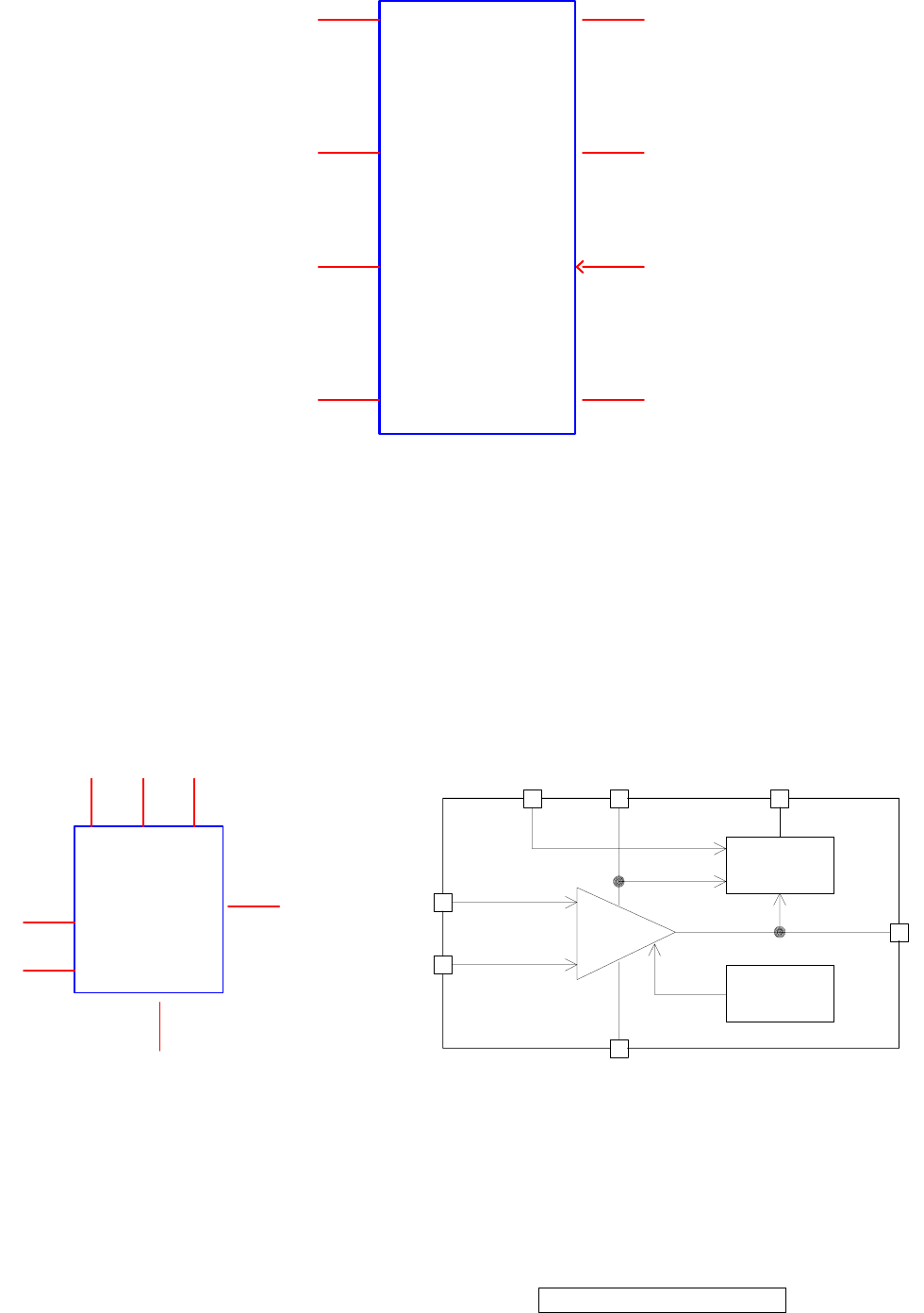

M24C08-BN6
IC102
8
5
6
1
2
3
7
4
VCC
ISDA
ISCL
A0
A1
A2
WP
A4
IC601
TDA4863AJ
1
3
2
6
7
4
5
VCC
N
VF
-I/P
+I/P
GND
+O/P
4
7
1
26 3
5
+
-
AMPLITIER
POWER
PROTECTION
THERMAL
GENERATOR
FLYBACK
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
44

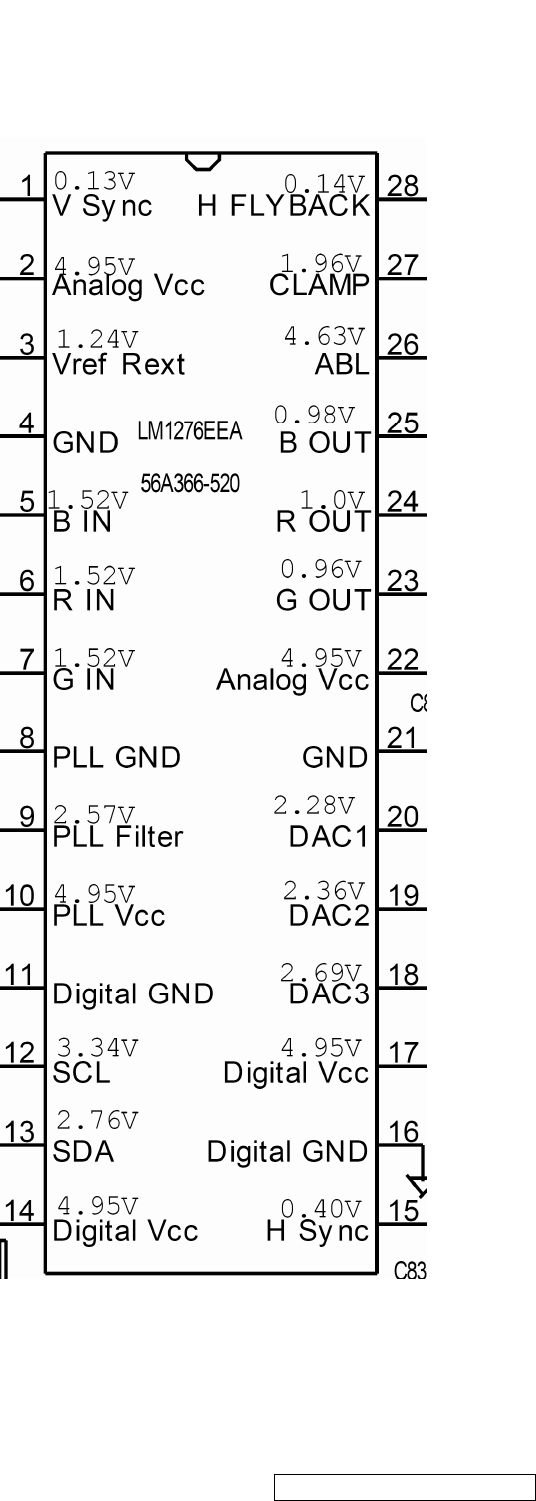

IC801 LM1276EE
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
45

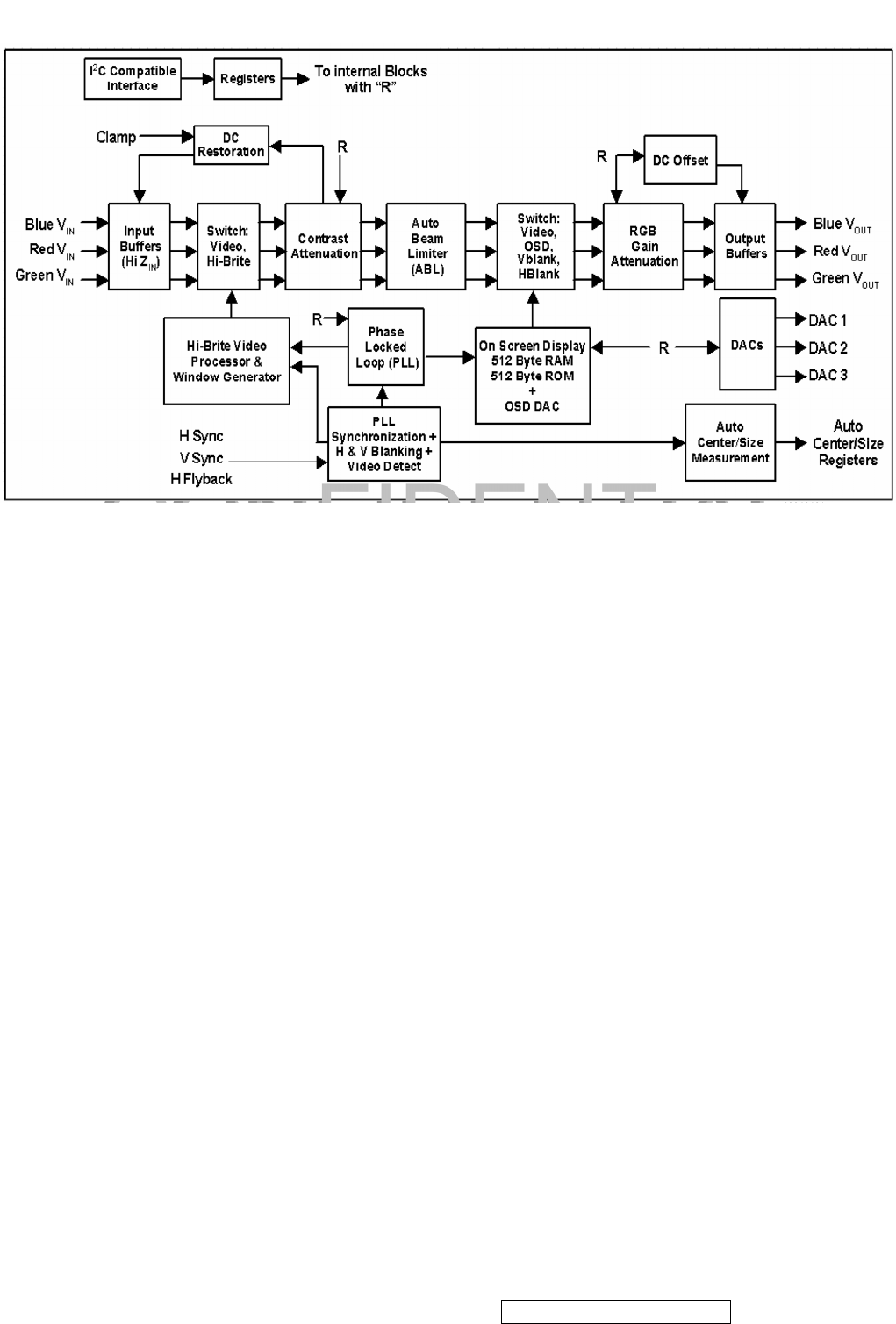

IC801 LM1246DKA
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
46
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
47
Preliminary specification
GreenChipII SMPS control IC TEA1507
BLOCK DIAGR AM
SUPPLY
MANAGEMENT
internal
supply UVLO start
M-level
VCC 1
2
3
GND
S1
CTRL
FREQUENCY
CONTROL
VOLTAGE
CONTROLLED
OSCILLATOR LOGIC
LOGIC
OVER-
VOLTAGE
PROTECTION
OVERPOWER
PROTECTION
short
winding
soft
start
S2
OVER-
TEMPERATURE
PROTECTION
SQ
R
UVLO Q
MAXIMUM
ON-TIME
PROTECTION
POWER-ON
RESET
−1
VALLEY
TEA1507
100 mV
clamp
DRIVER
START-UP
CURRENT SOURCE
0.75 V
0.5 V
5Isense
6DRIVER
MGU230
4DEM
8DRAIN
7HVS
n.c.
OCP
LEB
blank
Iss
2.5 V
burst
detect
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
48

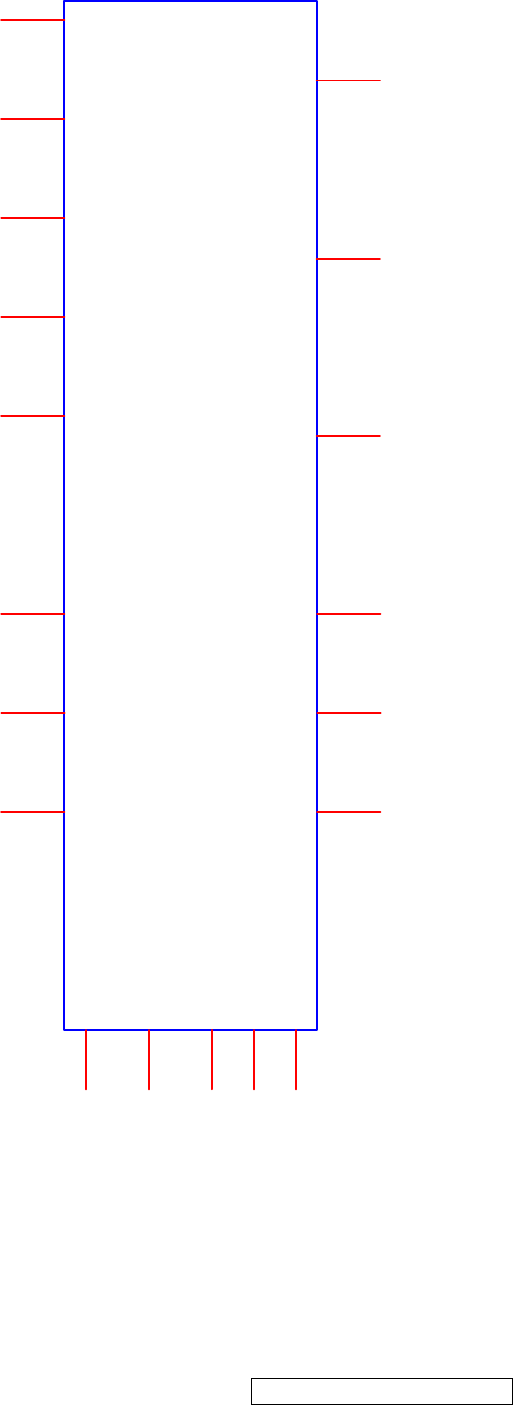

IC802
LM2476
15
19
17
18
16
2
8
14
3
6
4
1
5
13
10
7
9
12
11
OUTD1
OUTD2
OUTD3
N/C
N/C
VBB
INC3
VCC
IND3
INC1
IND1
IND2
GND
OUTC3
GNDS
INC2
OUTC1
N/C
OUTC2
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
49

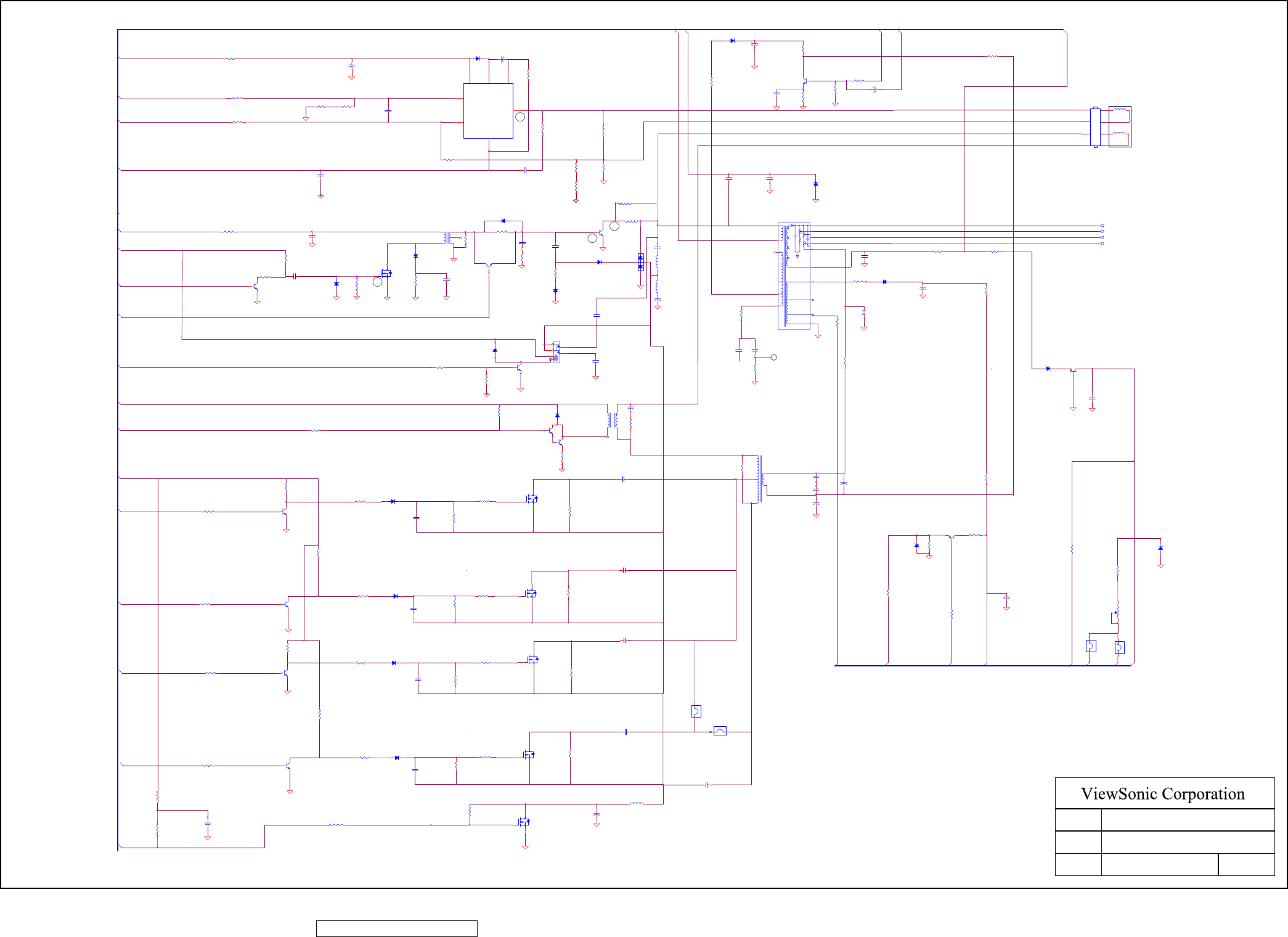

5K6
R127
2200
C124
0.1UF
C102
3.3K
R168
5.6K
R136
715A1415-1
0.00V
0.22V
<SW102>
3K6
R156
0.927V
470
R125
2.7K
R153
2K2
R108
<SW104>
<SW103>
Jumper
C126
10K
R149
H802
SENSE
12V
ISDA
GND
ISCL
V5V
HFB
VO
HO
6.3V
ABL
G1
80V
GND
7K5 1/4W
R133
100
R172
2N2
C116
1K
R163
93C22-48-H
2.58V
150
R112
100
R140
100
R159
HZ6B1
ZD902
7K5
R146
0.01 50V
C702
2.4K 1/4W
R155
82K 1/4W
R417
4K7
R148
0.925V
4.94V
120K 1/4W
R150
HFB
B+
39V
J085 NC
4.7K
R123
5V
5K6
R182
10
R110
+
10UF 16V
C119
100
C110
DEG
1.18V
16V
0.00V
33PF
C131
2K 1/4W
R972
10K
R130
2.527V
4.936V
2K4
R181
2200
C109
+
100UF 16V
C113
VDF
2.07V
Green
LED4
5V
4.98V
JUMPER
R718
2K2
R109
3.9K
R134
33K
R489
4.93V
1
Green
LED1
100
R164
120K 1/4W
R161
120K 1/4W
R416
NC
R115
0.1UF
C111
BDRV
100
R143
HFB
CS0
4.50V
0.1UF
C120
39V
0.02V
NC
ZD106
4.943V
2
SW103
2.519V
1
M24C08-BN6
IC102
8
5
6
1
2
3
7
4
VCC
ISDA
ISCL
A0
A1
A2
WP
A4
3K6
R157
KEY2
HD
NC
22K
R183
100
R103
XRAY
0.40V
UF4004
D929
1.2K
R118
5V
3.28V
100
R101
5.03V
1000PF
C114
81A3-7-GP
14
2.173V
15K
R106
3.9K
R116
47
R119
NC
47K 1/4W
R967
D914
BAV20
33K
R440
StandBy
3.00V
VOUT2
5.03V
2K4
R167
56A1125-575-X
IC101
1
2
3
4
52
53
54
5
50
6
7
8 49
9
10
11
13
14
15
16
17
18
19
20
21 36
37
38
39
40
41
42
43
44
45
46
47
48
51
12
55
56
22
23
24
25
26
27
28
35
34
33
32
31
30
29
SwiChoice
ISCL
ISDA
CS0
Hs
Vs
DSCL
ROTA
H out
H-LIN
Unlock
CLAMP VsOUT
CS1
CS2
SENSE
CR
VSSE
VDDD
V5V
VSSD
BDRV
HBGND
HDRV
HFB Iref
Vref
AGND
Bsens
Bin
BOP
Vssa
VDDA
MODE
XTAL1
XTAL2
NC
PC5V CHECK
EEP W/R
standby
DSDA
CS3
XRAY
RST
Vfocus
Deguss
HD
KEY2
KEY1
EWdrv
VOUT2
VUOT1
EHT
DouColor
Uvolt
SinColor
KEY1
5.00V
12V
0.057V
SAA4849PS
1N4148
D104
+
100UF 16V
C104
<SW101>
1000
C106
Orange
LED4
100
R117
10K
R126
5V
ZD107
2.2K
R131
3.30V
75K
R137
Jumper
R121
10K
R144
12V
ROTA
0.68V
4K7
R107
J076
NC
2.67V
0.1UF
C103
48MHz
X101
KEY1
3
HZ6C2
ZD105
3.283V
SW105
0.793V
51K 1/4W
R138
Orange
LED2
2.4K
R134
1000C105
4700PF
C127
47UF
C125 NC
2.76V
SW102
VOUT1
H-LIN
80V
0.79V
56A1133-508
4.49V
24V
ZD101
100
C121
1.353V
VR902
2K2
HZ6C2
ZD102
0.974V
RIGHT
11K 1/4W
R418
1N5817
D103
470
R135
5.6K
R104
J78
NC
+
4.7UF 50V
C434
100
C122
UNLOCK
CS3
0.00V
56K
R147
+
47UF
C100
1K
R124
G1
1.76V
4
KEY2
SW104
J087
JUMPER
JUMPERZD108
J077
NC
1.355V
KEY2
33K
R128
CON5_0
P102
5V/12V
LED
KEY1
KEY2
GND
0.4043V
J027 NC
C117
2.4K
R103
J074
NC
18K
R142
100
R105
1K
R162
CS1
ABL
80V
2.92V
470PF
R151
100
R139
5V
EHT
0.78V
+
100U 16V
C909
0.144V
4.801V
DOWN
LED
NC
13K
R102
+
220U 16V
C483
2200 NC
C108
33K
R141
1K
R152
HZ6C2
ZD104
CS2
80V
4.26V
EWDRV
0.13V
+
22U
C145
+
1UF 50V
C118
+
22U 50V
C433
4.93V
KEY1
10
R111
4.802V
100
R102
Xray
2SC1213
Q906
100
R122
100
C107
100
R132
430 1/2W
R903
6.3V
HDRV
(SW103)
4K7
R158
CR
VG
P803
GND
DSDA
DSCL
VS
HS
5V
CMPC-B985D-1VSC
5V
0.27V
SW106
0.35V
1.8K
R113
1000PF
C130
0.276V
UltraBrite
39K 1/4W
R969
1.8K
R114
4.7K
R166
180K 1/4W
R420
6
NC
R165
SW101
1/4W
HF
0.1UF
C101
J022
NC
5V
5.03V
3.84V
J026
JUMP
0.1UF/250V
C946
0.042V
KeyBoard
苤啣垀剒脣
PIN
10000P
C123
+
0.47UF 50V
C115
2.57V
100
R145
470
R154
470
R129
HZ6C2
ZD103
100
R104

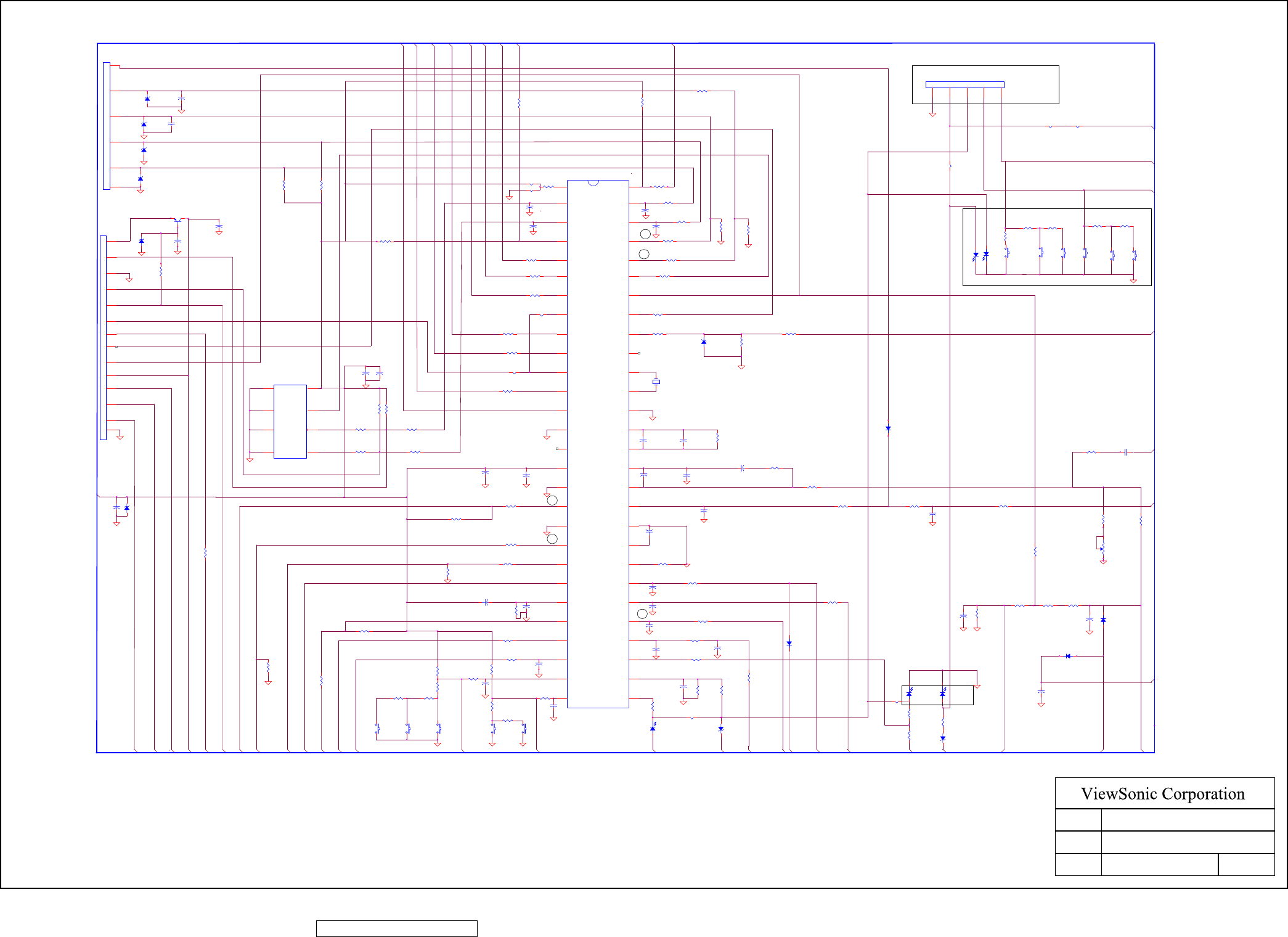

10. Schematic Diagrams
Model
Title
Date Rev:
CPU
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
50

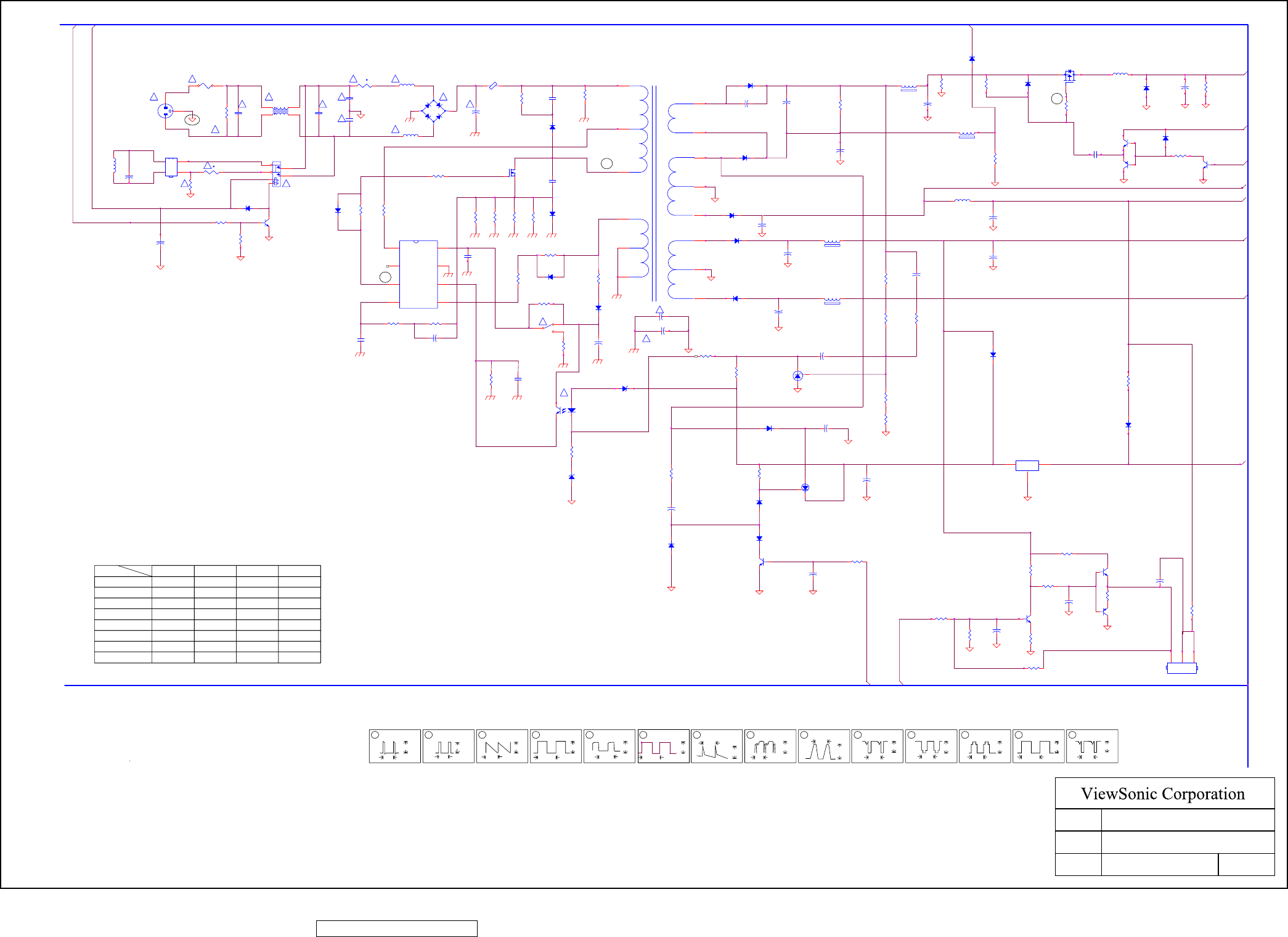

0.01 250V
C941
84C7H-400-SL
330R
R931
UF4004
D917
SW901
+12V
13
FB901
BEAD
!
50KHz~56KHz
!
BEAD1
FB910
ER204
D916
C940
1n/500V
1
0
!
D942
1N5817
68K
1
R915
2K7 1/2W
+
1u 50V
C935
+
C910
47UF/16V
85HZ
85Hz
58V12.1V
1
57C724-502
!
!
6.3V
44KHz~50KHz
0.47 1/4W
R923
390R
R928
2n2 250V
C962
P4
NC
R930
1
0
L901
25mH
1
42
3
1.33V
1
R973
200K 1/2W
R902 NC
3K3
IC802 PIN15/17/19
+80V
56C625-500-S
!
330K 1/2W
R937
73C253-513-H
L906
R910
91K
t
NR901
38KHz~44KHz
R913
120K 1/2W
C961 2n2 250V
!
t
PR901
48
+12V
0
1
-
+
U4KB80R
BD901
2
1
3
4R962
47 1/4W
!
C962/C963
3n3 250V
5.56V 8.0V
Q403 C
Q903
3DG945P
!
R908
15 1/2W
56 2W
R929
R953
5K6 1/2W
14
Deg. Coil
DEGAUSS
33KHz~38KHz
56C133-5-ST
90C6234-1
4700 500V
C914
0.6KV
C9470.1UF
BDRV
>76KHz
110Vac:220uF/400V
0
1N4148
D939
1
1
FB903
71C55-24
IC101 PIN33
R914
47R
+5V
56C139-5A
!
PH2369
Q910
D704
JUMPER
D938
BYC26C
R911
JUMPER
68K
B+
0
190V
82K/2W
R927
68K
11
Q402 G
!
RY901
43
65
1
2
1K
R933
R950
150K 1/4W
5
10
IC901
TEA1507P 1
2
3
45
6
7
8VCC
GND
CTR
DEMSEN
DRI
NC
DRA
T901 PIN13
10K 1/4W
R982
<33KHz
+
220Vac:150uF/450V
C907
ROTA
83V
IC901 PIN6
0.87V
0
6K2
R905
68K
1
!
!
+
10U 16V
C967
IC801 PIN23/24/25
73C174-7-?G
+
2.2UF/50V
C912
CS0/Q418
TCET1103G
R912
1K
StandBy
0
6.3V
CN901
1 2
3
HZ5C1
ZD904 TL431ACZ-AP
IC904
0
10
11.1V
85Hz
1
1V
AK
G
Q935
BT169B
11 12
D918
31DF4
L904
100UH
5.0V
3
ON
Q902
2SC1213C
Q911 G
12V
!
IC101 PIN18
7
Frequency
D940
1N4148
CPU PIN 52
0
1
220p/1KV
C920
RGP10D
D909
!
C906
0.022U
R951
1K
4A/250V
F901
CPU PIN 53
OFF
D923
SB240
68K
3K3
D991
IC902
78L05 OI
G
OI
G
68K
CS
-12V
R989
10 1/4W
R980
220 1/4W
6
0
+
C937
47UF/16V
47n 50V
C932
1M 1/2W
R901
R909
100 1/4W
+
C939
1000UF/16V
42.4V
1
14
0.47 1/4W
R924
R922
JUMPER
R970
220K 1/2W
68K
15R
R938
0.1UF
C911
Q907
TBC548C
A733
Q920
240K 1/2W
R935
2.5V
!
1M 1/2W
R921
68K
9R
R918
3.3K 1/2W
4V
0
R916
240 1/2W
1
12.3V
+12V
90C351-511
+
C936
100UF/100V
77C260-5-4
Q905
3CG733P
D936
1N4148
D937
1N4148
RGP10D
D911
IC903
12
43
+
100UF 250V
C481
1.14KV
R906
47 1/4W
D922
BYV27-200
0
Q403 B
5.41V
CS1/Q417
1
1.34V
C945
Q912
TBC338-40
Q913
BAV21
D915
10 1/2W
R934
!
0.47 1/4W
R920
57C751-4
+
C931
22U 250V
BEAD
FB902
NOTES: 1.The 1/6W resistance not to lable power.
62KHz~76KHz
87C501-6
C919
10n/2KV
+
+
+
+
+
+
+
+
T901
80C995D-1-*2
13
2
3
1
5
4
6
7
8
12
16
10
14
11
27K
R932
D919
BYV26C
68K
+
47u/25V
C929
Q911
2SJ584LS
G
S D
0
!
1K 1/4W
R936
10 1/4W
R965
IC101 PIN20
1
0.04V
L905
1800UH
13
R977
200K 1/2W
R907
680 1W
TZX8V2A
ZD901
C928
47P/1KV
2
68K
61C58-8N-L
680nF/275V
C901
STP9NK70Z
Q901
D913
IN5817
BAV20
D912
0
+
C930
47UF/160V
CONN
CN903
1
2
3
10M 1/2W
R900
1
L903
100UH
D930
BYV27-200
CS2/Q416
2.12V
R939
22K 1/4W
7.5K
R902
2n2 250V
C963
0.47 1/4W
R925
C908
0.1UF
100nF/275V
C902
+
C944
1000UF/16V
9
!
BYC26E
D910
!
IC601 PIN5
68K
-12V
2. Test condiction: 220Vac input,1024X768@85Hz mode,Digital
Multmuter_DGM-8145.
56KHz~62KHz
L902
180UH
CN902
1
2
+
C945
470UF/25V
+
C918
4700UF 16V
10K 1/4W
R983
C925
10n/250V
220p 50V
C934
C933
3.3n
1
290V
CS3/Q420
C927
220P/2KV
R917
100K 1/2W
Model
Title
Date Rev:
POWER
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
51
33
R821
+
10UF/16V
C808
100 1/4W
R843
10K
R825
22K
R812
12
90C6113-500
10
R832
0.96V
0.01UF 2KV
C806
0.1UF/250V
C827
BEAD
J810
1000PF/500V
C849
+
1UF/100V
C848
750A5537-2AV
2.57V
33 1/2W
R828
100PF 1KV
C825
NC
C803
FB802
1
2
3
10PF/50V
C841
100/50V
C816
100
R805
10R835
FB804
560K 1/2W
470 1/4W
R809
BEAD
R846
1000PF 2KV
C835
0.99V
0.1UF/63VC824
3.34V
22K
R813
1UF/100V
C821
0.1UF/50V
C814
10PF/50V
C845
12
JUMPERR833
+
NC
C810
BAV21D802
0.1UF/250V
C832
FB806
0.98V
470/50V
C837
2.76V
100/50V
C818
B
BEAD
J811
NC
C802
NC
C843
BAV21
D807
NC
C823
FB803
1
2
3
7.95V
0.40V
0.13V
1UF/100V
C822
HT
JUMPER
R807
90C6074-4
83.6V
1000/50VC833
R826
75
BAV21
D808
100 1/2W
R804
G2
0.1UF/50V
C839
2.69V
G1
4.95V
BAV21
D806
R824
75
1.47V
100/50V
C817
NCC838
0.1UF/50V
C840
2.36V
NC
C834
BAV21
D810
4.95V
BEAD
11
1.67V
330PF/50V
C809
33
R818
P803
P803
1
3
4
5
6
2
+
47UF,16V
C826
10PF/50V C850
2.28V
0.1UF/63V
C823
4.95V
JUMPER
R808
BEAD
J809
G2
470 1/4W
R830
330K 1/4W
R837
IN4148
D814
1.46V
0.1UF/250V
C813
IN4148
D05
33 1/2W
R840
0.47uH
L807
4.95V
11
0.1UF/63VC815
IN4148
D812
1000PF/500V
C846
R
64.2V
1000PF/500V
C847
ZD804
TZX8V2
1UF/100V
C820
330K 1/4W
R819
10
R820
6.2KR811
JUMPER
R822
4.95V
0.14V
B995D-1VSC
64.4V
P802
P801
GND
80V
G1
ABL
HT
CLP
VF
HF
X
12V
ISDA
GND
ISCL
5V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R834
75
IC802
LM2476
15
19
17
18
16
2
8
14
3
6
4
1
5
13
10
7
9
12
11
OUTD1
OUTD2
OUTD3
N/C
N/C
VBB
INC3
VCC
IND3
INC1
IND1
IND2
GND
OUTC3
GNDS
INC2
OUTC1
N/C
OUTC2
100PF 2KV
C836
11
100
R802
1.24V
1.96V
BEAD
FB807
100PF 50V
C812
P802
5V
GND
R/I
GND
B/I
G/I
GND
NC
HS
VS
DSCL
DSDA
0.1U/50VC844
715C1451-*-1
61.2V
0.1uF/50V
C830
IN4148
D803
1K
R838
JUMPER
L805
150 1/4WR815
8.2K
R806
FB801
1
2
3
4.63V
G
+
47UF,16V
C828
IN4148
D811
76.4V
JUMPER
R827
PS156R
D809
4K7
R814
+
47UF/16V
C807
R
G
B
CRT
SDI 19" CRT
11
6
5
7
8
9
IC801
LM1276EEA
1
2
3
4
5
6
7
8
9
10
11
12 17
18
19
20
21
22
23
24
25
26
27
28
13
14 15
16
V Sync
Analog Vcc
Vref Rext
GND
B IN
R IN
G IN
PLL GND
PLL Filter
PLL Vcc
Digital GND
SCL Digital Vcc
DAC3
DAC2
DAC1
GND
Analog Vcc
G OUT
R OUT
B OUT
ABL
CLAMP
H FLYBACK
SDA
Digital Vcc H Sync
Digital GND
0.1UF 250
C831
22K
R816
0.47uH
L809
0.1UF/250V
C829
JUMPER
D801
0.96V
330K 1/4W
R844
1.52V
5V
76.1V
+
47UF/100V
C805
470 1/4W
R817
12
BAV21
D804
1.0V
L808
0.47uH
33 1/2W
R829
56A366-520
1.52V
+
47UF/100V
C811
76.8V
IN4148
D813
10PF/50V
C851
NC
R830
0.1UF/50V
C804
33
R836
FB805
100 1/4W
R842
100 1/4W
R841
560PF 500V
C852
+
47UF/16V
C819
0.98V
4.7K
R845
1.52V
56C551-525
Model
Title
Date Rev:
VIDEO
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
52
FR157S
D706
330 1KV
C706
2SC945P
Q407
57A419-501-T
JUMPER
10NF 500V
C740
HF
57A419-501-T
57C600-14
1N4148
D476
10 1/4W
R450
Q417
IRF630B
90C6118-1
12V
C945
Q419
F2
4k7
R446
C945
Q412
G1
NC
NC
C488
-11.92V
57C600-28
2SC945P
Q422
CS3
ABL
125.5V
2SC4002
Q742
BYV26C
D407
0.47UF 63V
C417
0.82uF/250V
C427
15K 1/4W
R715
1500P/63V
C412
FR107
D473
Q406
IRF630M
FR107
D470
68K 1/2W
R403
2K4 1/4W
R726
57A493-12-T
57A419-501-T
2.2K 1/4W
R487
2.2K 1/4W
R437
1.1K 1/4W
R414
39K 2W
R424
NR601
47
J080
57A498-3-T
1.0KV
100K 1/4W
R435
2.2K
R477
NC
C490
JUMPER
R411
7
TZX5V1B
ZD701
10 1/2W
R429
F1
3.6 1/4W
R402
VOUT1
NC
CS0
0.1
C429
0.24uF/400V
C425
0.01UF
C401
BAV21
D460
NC
73C253-69-T
L405
NC
C741
2K
R604
V-DY
RY401
43
65
1
2
0.22U 100V
C414
220K 1/4W
R488
+
4.7U 16V
C714
79C167-118-*C
T401
1 6
3 4
5
0.24uF/250V
C423
22 2W
R455
6.8K
R748
57C600-14
93A52-47T-52T
0.47uF/250V
C428
71A55-503
FB401
CS2
680 2W
R426
FR107
D474
JUMPER
R484
470R 1/2W
R480
0.1
C411
8
E.H.T
220K 1/4W
R478
JUMPER
C480
-12.5V
J119
71A55-503
FB404
75PF 2KV
C489
2SC945P
10
R605
FR107
D463
B+
90C6055-700
470
R433
0.1
C402
2700PF 1KV
C426
300
R751
+
470uF/16V
C603
-176.6V
4K7 1/4W
R460
10 1/4W
R413
Unlock
57C600-21
4K7 1/4W
R481
VOUT2
HFB
+
10UF 50V
C743
Q416
IRF630B
1/4W
90C6055-700
9
100K 1/4W
R415
0.1uF/250V
C420
+
10UF
C712
JUMPER
R482
+
47UF/50V
C605
1000PF 63V
C601
1N5817
D405
73C147-542-H
L401
5
3
2
4
470
R603
UF4004
D740
470
R601
2SC945P
EWOUT
-15V
1800PF/1000V
C419
57C600-14
12.07V
12V
J045
2.2K
R442
0.01UF 250V
C710
27K
R717
47K 1/4W
R412
2SC1213
Q743
56A584-1A
90C6055-700
47P 1KV
C450
1.2K
R410
1N4004
D601
4K7 1/2W
R459
47K
R722
JUMPER
R447
4.7U 160V
C436
220K 1/4W
R479
TP405
4.60V
BAV20
D701
CR
180K 1/2W
R725
0.616V
NC
NC
R468
2M 1/4W
R463
0.1UF/100V
C610
100K 1/4W
R449
HDRV
57C705-7
120
1W
R606
D409
IN4148
4K7 1/4W
R486
220K 1/4W
R476
Q423
1R 1/2W
R610
HD
DMV1500M
D408
BF423
Q705
JUMPER
FB403
G2
EHT
JUMPER
47P/2KV
C410
+
2.2uF/250V
C713
75K 1/4W
R749
93C220-505
560P/1KV
C720
2K
R602
80V
90C6055-700
0.22V
10 1/4W
R421
HZ6B1
ZD702
4300P/1.6KV
C418
2K7 1/4W
R904
45
5V
P402
1
2
3
4
12V
+
1000UF/16V
C606
12R 1/4W
R611
NC
R445
90C351-511
33K 1/4W
R707
77C260-5-4
8.69V
2.2uF/100V
C422
0.1UF 63V
C494
PH2369
Q401
Q402
BSN254A
12V
80V
0.68 2W
R608
226.3V
62A10-16-W
SG408
10 1/4W
R475
79C167-124-HB
T403
6
1
3
5
4
1N4148
D450
CS1
HLIN
150 3W
R456
PH2369
Q404
2200P 500V
C430
22R 1/2W
R427
TDA4863A
IC601
1
3
2
6
7
4
5
VCC
N
VF
-I/P
+I/P
GND
+O/P
11.9V
4.7 1/2W
R738
JUMPER
R750
51K 1/2W
R741
1200PF 1.6KV
C472
20K
R423
22 2W
R723
5
VDF
J011
BU2527AX
Q403
4K7 1/4W
R473
Q418
IRF630B
71A55-9
FB402
P4
57A446-500-T
2SD667
Q410
Q420
IRF630B
12 11
9
8
79C793-1-ALB
T402
1F1
3
F2
EHT
G2
13
7
4
6
14
2
10 5
100K 1/4W
R471
56K 1/2W
R740
0.1
C416
0.51 3W
R428
JUMPER
R730
ER106
D406
270
1/2W
R609
0.63V
J044
JUMPER
R443
H-DY
VG
57A419-501-T
12V
NC(22K)
R713
1K 1/2W
R721
1R 2W
R607
VR701
22K
TZX5V1B
ZD726
1R 1W
R401
Q408
Model
Title
Date Rev:
OUTPUT
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
53
11. PCB Layout

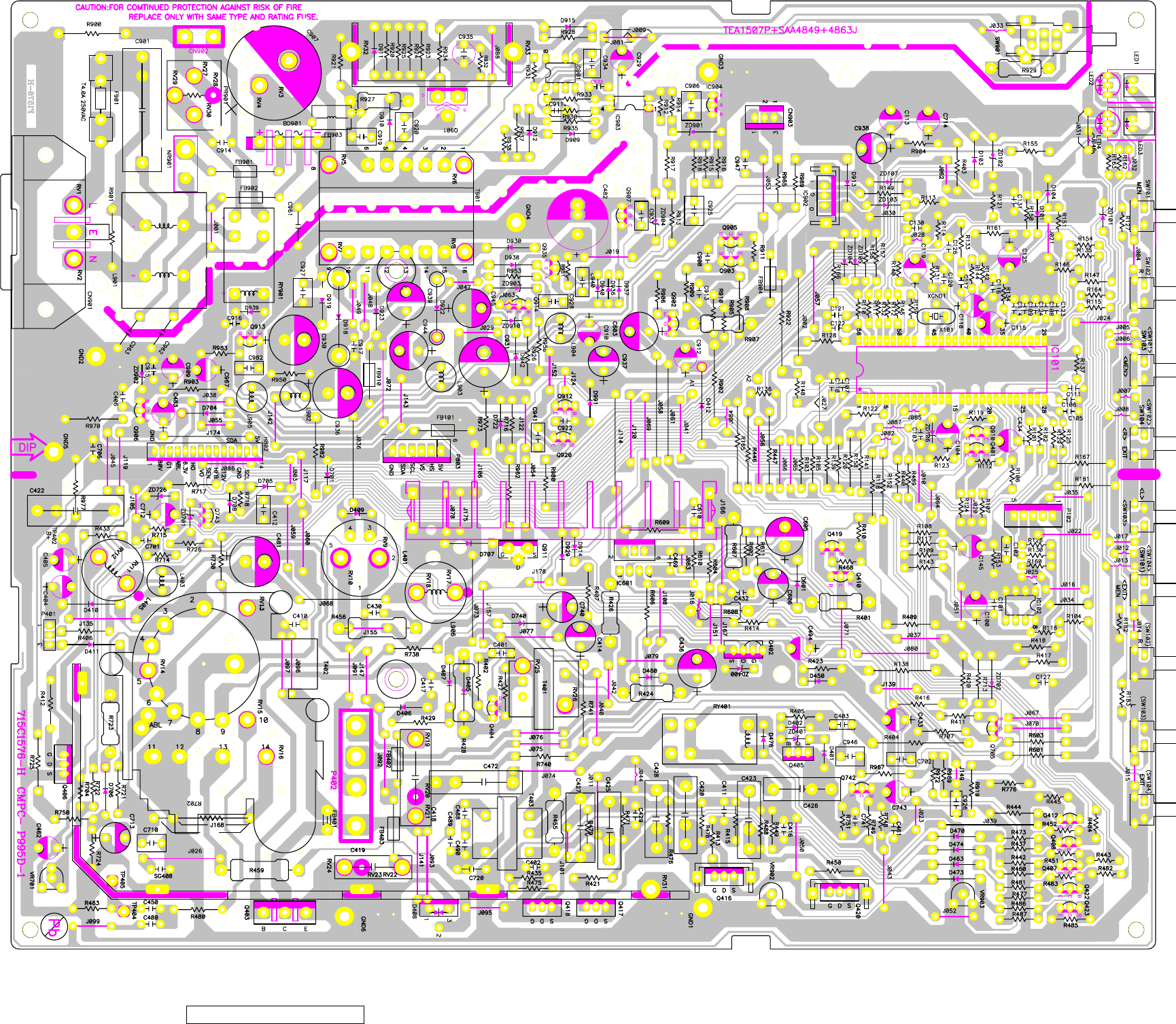

11-1 MAIN PCB LAYOUT
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
54

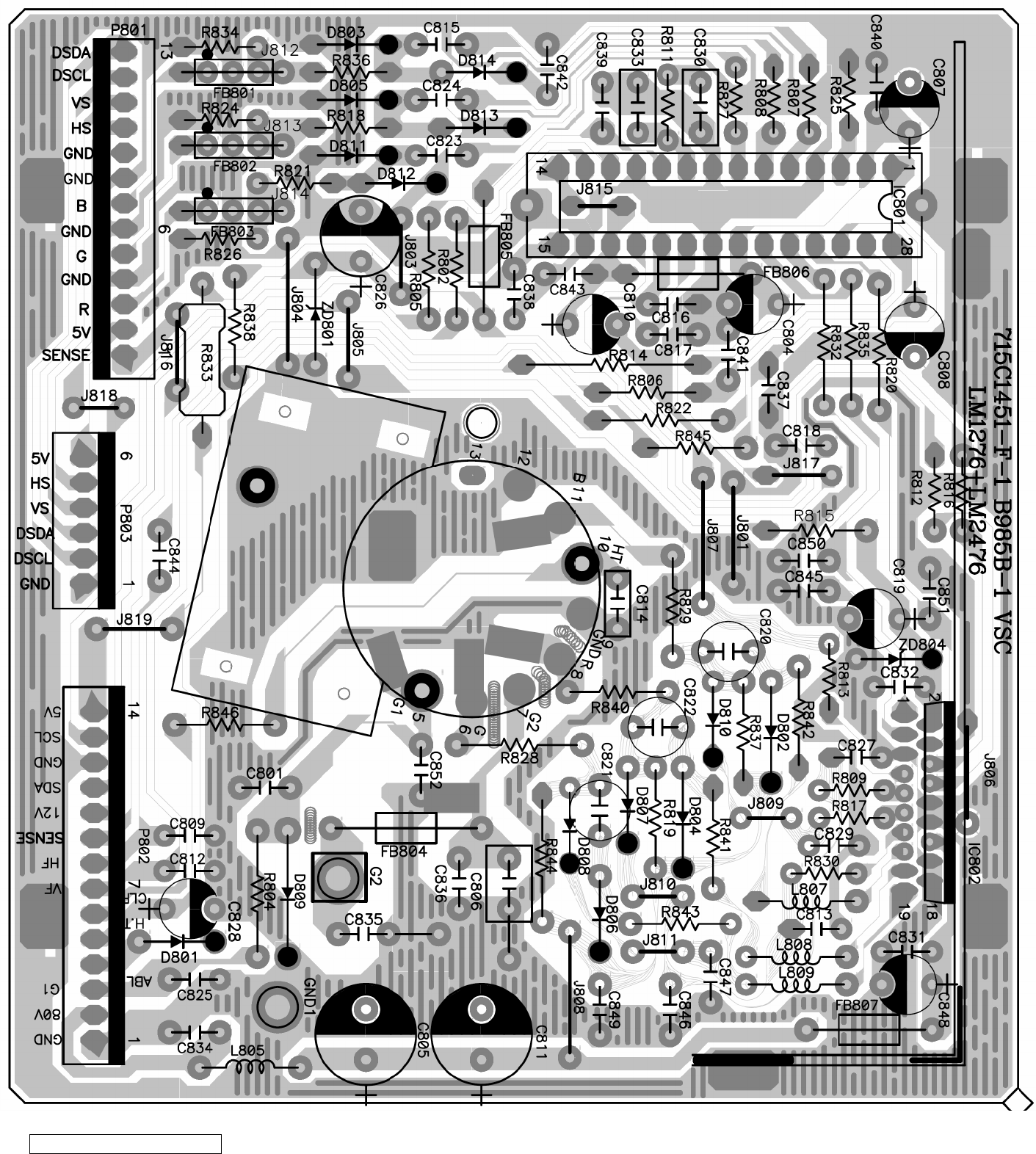

11-2 CRT BOARD LAYOUT
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
55
ViewSonic Corporation Confidential - Do Not Copy E96f+SB-1
56
* Reader’s Response*
Dear Readers:
Thank you in advance for your feedback on our Service Manual, which allows continuous improvement
of our products. We would appreciate your completion of the Assessment Matrix below, for return to
ViewSonic Corporation.
Assessment
A. What do you think about the content of this Service Manual?
Unit Excellent Good Fair Bad
1. Precautions and Safety Notices
2. Specification
3. Front Panel Function Control Description
4. Circuit Description
5. Adjustment Procedure
6. Troubleshooting Flow Chart
7. Recommended Spare Parts List
8. Exploded Diagram and Exploded Parts List
9. Block Diagrams
10. Schematic Diagrams
11.PCB Layout Diagrams
B. Are you satisfied with this Service Manual?
Item Excellent Good Fair Bad
1. Service Manual Content
2. Service Manual Layout
3. The form and listing
C. Do you have any other opinions or suggestions regarding this service manual?
Reader’s basic dada:
Name: Title:
Company:
Add:
Tel: Fax:
E-mail:
After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile
1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes
(marc.maupin@viewsonic.com)
