2017 Full Line Catalogue
1
5 Anya • • • • • •
5 Otto • • • • • •
5 Anna • • • • • • • • • •
7 KF740* • • • • • • • •
7 KF730/737* • • • • • •
7 KF720 • • • • • • •
7 JFL213** • • • • • • •
9 MW Series • • • • • •
11 RADIUS™ • • • • • • • • •
15 Redline™ • • • • • • • • •
17 QX Series • • • • • • • • •
19 MK Series • • • • • • •
20 VFR Series • • • • •
21 VFM Series • • • • •
20 VFS Series • • • • •
23 KF394/364** • • • • • • • • • •
23 JF59/56** • • • • • • • • •
23 JF29 • • • • • • • • • •
23 JF10 & JF8** • • • • • • • • •
25 JF80** • • • • • • • • •
25 JF60** • • • • • • • • •
25 UB52 • • • • •
25 UB22 • • • • •
25 UB12 • • • • •
25 LS Series • •
27 SB2001** • • • • • • •
27 SB1001 & SB1002* • • • • • •
27 SB1000* • • • • • •
29 JFL118** • • • • • • •
29 SB528 • • • • • • • • •
29 SB250 • • • • • • • • •
29 SB180 • • • • • • • • •
29 SB150 • • • • • • • • •
29 SB120 • • • • • • • • •
29 SB48 • • • • • • • • •
31 CIS Series •
31 SMS Series •
33 Resolution™ • • • • • • • • • • • • •
33 EAWmosaic™ • • • • • • • • •
33 EAW Pilot™ • • • • • • • • • • • •
33 UX Series • • • • • • • • • • • •
Commercial
Page
Product
Concert
Corp A/V
Portable
Club Live
Club EDM
Arena
Stadia
Concert Hall
Theater
Auditorium
Trad HoW
Contemp HoW
* Permanent installation version available ** Permanent installation features included
Throughout the catalog, the following icons are shown for each: Intended for Production applications Intended for Installation applications
Adaptive™
Line Source
Monitor
Monitor
Subwoofer
Subwoofer
Fill
Surface/Ceiling
Electronics
Column
Software
EAW was founded on the principal that sound reproduction could be better. And since 1978, we continue to rigorously pursue
the goal of perfecting it. We develop ground-breaking technologies, tools, and products to get ever closer to the perfect
impulse response.
Along the way, we’ve learned that there is more to it than simply building the perfect loudspeaker; the perfect system.
We must be more than simply a maker of loudspeaker systems. We must strive to be a partner to our customers, and in their business.
We must invest in their business and help them to grow it as if it were our own.
This is our mission. This is the EAW of 2017 and beyond. We invite you to join us.
Sincerely,
The EAW Team
Point Source
3
Phase Aligned LF Tuned spacing of LF components to extend pattern control without
the need for enormous horns.
Focusing Use of advanced digital signal processing to perfect the impulse response of
a loudspeaker in the time domain. Eliminating horn “honk” and splashiness, this makes
the loudspeaker sound more like a studio monitor than a “PA” speaker.
Beamwidth Matched Crossovers Introduced over a decade ago for our MK series
loudspeakers, EAW Engineers use carefully-designed HF horns and crossovers to
eliminate polar irregularities through the crossover point.
Application Engineering
The hub of EAW’s support structure is the Application Engineering group, forming the interface
between EAW’s engineering core and the world. A diverse group of individuals with backgrounds
in product development, production and installation, the group exists for one purpose: to be a
fountain of knowledge and expertise for our customers. The Application Engineering team can
assist in many areas, including the following:
·· Create a system design proposal for any project, complete with 3D acoustic modeling
Why EAW
It is the combination of Engineering prowess, developed over the course of many years in the world of professional audio, and customer-centric support for which EAW is known and revered
worldwide. In addition, both the Application Engineering team and our collection of innovative Core Technologies make EAW an ideal choice for your next project.
EAW Core Technologies
Adaptive Performance Adaptive Performance integrates nearly every aspect of a
loudspeaker – mechanical, electrical and acoustical design – to one end: ideal three-
dimensional coverage of every venue, every time.
DynO Dynamic Optimization actively tracks input spectrum and power delivery,
continually maximizing output and delity at any drive level.
Symmetry of Sources Symmetrical arrangement of acoustic sources along a common
axis for utmost consistency throughout the coverage pattern.
Concentric Summation Array (CSA) A method of seamlessly integrating MF and HF
components within a single horn. With CSA, multiple subsystems sum coherently,
without interruption to either HF or MF wavefronts.
·· Oer advice and best practices for system setup, whether for production or installation
·· Author application guides, tech notes and tutorials to help customers better use their
EAW products
·· Provide round-the-clock technical support for software and hardware setup
Visit EAW.com/support for the best ways to reach the Application Engineering team.
45
Adaptive Adaptive systems have the unique ability to assess and then perfectly match the three dimensional performance requirements of any venue. These
comprehensively integrated systems utilize a high resolution array of discretely powered and processed acoustical devices in concert with powerful EAW Resolution software
to create optimized results at show speed without the need for physical reconguration. Adaptive systems can autonomously determine their array conguration, continuously
analyze every system element and even heal the system coverage in the unlikely event of a fault. Simply put – these systems will forever change the world of sound reinforcement.
Anya™
EAW Anya is a complete, self-contained,
high-power sound reinforcement system
that adapts all performance parameters
electronically, allowing it to be used in virtually
any application. Columns of Anya modules
hang straight, without any vertical splay, and
EAW Resolution™ 2 software adapts total
system performance to deliver consistent,
full-range output across the entire coverage
area as dened by the user. Extremely powerful
and immensely scalable, Anya is suitable for
anything from small venues to the largest
stadiums. Otto is the companion subwoofer
for this system.
Operating Range (-10 dB, Hz) 35 - 18k
Calculated Maximum Output Peak (dB SPL) Unadapted
LF: 137; MF: 142; HF: 146
Nominal Coverage (degrees)
Horizontal: 70 (scalable up to 360);
Vertical: Adaptive™
Subsystems
LF: 2x 15-in cone, vented, Phase Aligned™,
Offset Aperture™ loading
MF: 6x 5-in cone, horn-loaded with Radial Phase Plug™ and
CSA™ apertures
HF: 14x 1-in exit, compression driver, horn-loaded
Powering
22 amplifier & DSP channels, internal
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
285 / 129.3
30x45x17 / 762x1143x435
Anna™
Anna is the newest addition to EAW’s agship
line of Adaptive™ Systems, providing all of the
benets of Adaptive Performance in a high-
output mid-sized enclosure. Columns of Anna
can be own as mains or mixed with columns
of Anya within the same array to extend Anya’s
outstanding delity to even greater coverage
possibilities. Like all Adaptive Systems, Anna
is controlled via Resolution™ 2 software over
the Dante™ network and utilizes the same
standardized power and data infrastructure.
Otto is the companion subwoofer for this
system.
Operating Range (-10 dB, Hz) 45 - 18k
Calculated Maximum Output Peak (dB SPL) Unadapted
LF: 130; MF: 136; HF: 141
Nominal Coverage (degrees)
Horizontal: 100 (scalable up to 360);
Vertical: Adaptive™
Subsystems
LF: 2x 10-in cone, vented, Phase Aligned™,
Offset Aperture™ loading
MF: 4x 5-in cone, horn-loaded with Radial Phase Plug™ and
CSA™ apertures
HF: 8x 1-in exit, compression driver, horn-loaded
Powering
14 amplifier & DSP channels, internal
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
135 / 61
11.3x40x23.6 / 287x1016x599
Otto™
EAW Otto is the world’s rst Adaptive™
subwoofer. Utilizing two Oset Aperture-
loaded woofers paired with independent
on-board amplication, processing and
networking, Otto extends Adaptive
Performance™ to the lowest octaves of the
audible spectrum. Incorporating a rotationally-
symmetrical enclosure and rigging, Otto will
perfectly balance low-frequency coverage with
cancellation to suit the user’s requirements;
omni, cardioid, hyper-cardioid or anywhere in
between from just a single module. Combined
in arrays, Otto provides users with nearly
endless possibilities in low-frequency
pattern control.
Operating Range (-10 dB, Hz) 22 - 170
Calculated Maximum Output Peak (dB SPL) Unadapted
VLF: 136
Nominal Coverage (degrees)
Horizontal: Adaptive™;
Vertical: Adaptive™
Subsystems
VLF: 2x 18-in cone, vented, Offset Aperture™ loading
Powering
2 amplifier & DSP channels, internal
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
210 / 95.3
24x31.5x31.5 / 610x800x800
“From mix position to any position
in the room, it’s hard to mentally
process how consistent it is and
how easily we achieved it. Anya has
the purest impulse response I’ve
ever gotten o of a PA system.
The acoustic phase response is
just breathtaking.”
Robert Scovill
FOH Engineer,
Tom Petty & The Heartbreakers
67

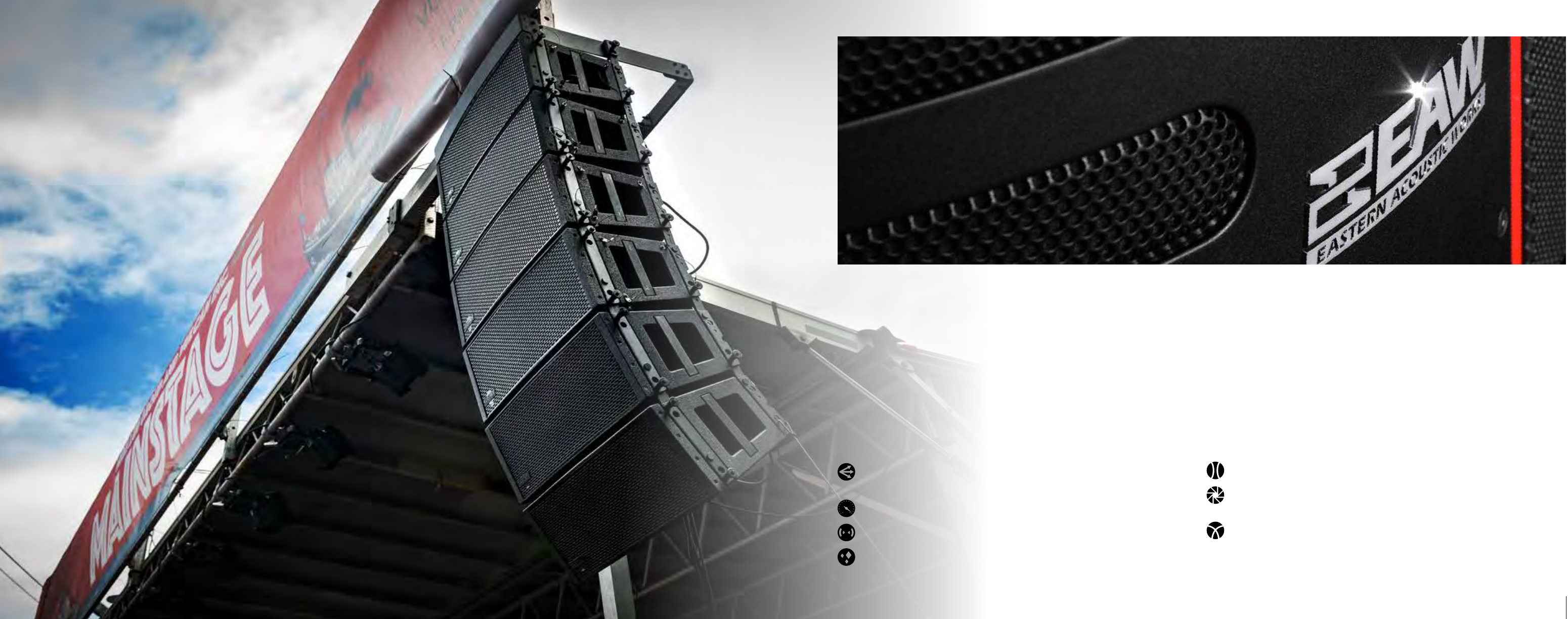

Line Source EAW modular line source systems utilize a combination of phase aligned direct radiating sources and optimized horn loaded sources to generate a
coherent wavefront over the entire audible spectrum. The vertical directivity of every arrayed system conforms to the curvature of the array while the symmetrical design of
every module provides absolute uniformity over the horizontal coverage area and spectacular imaging when used in stereo. The addition of EAW Focusing processing
provides the hallmark level of clarity and detail for which EAW systems are known.
KF720
The KF720 delivers the three-way design,
power and delity of EAW line arrays in ultra-
compact enclosures weighing less than 47
pounds, allowing them to fulll a range of
application requirements ranging from small
permanent installations to temporary live
events.
Operating Range (-10 dB, Hz)
75 - 19k
Calculated Maximum Output Peak (dB SPL)
LF: 118 MF/HF: 126
Nominal Coverage (degrees)
Horizontal: 110 / Vertical: 12
Subsystems
LF: 2x 6-in cone, sealed, tuned spacing
MF: 2x 6-in cone, horn-loaded
HF: 6x 1-in dome tweeter, horn-loaded
Powering
Bi-amplified
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
44 / 20
29.25x30x23.3 / 743x762x594
JFL213
The JFL213 compact two-way line array
module integrates a range of EAW’s most
innovative line array technologies within
a mobile, lightweight constant-curvature
package appropriate in a wide range of small-
to medium-sized venues. With its companion
subwoofer, the JFL118, this easy-to-use
system solves problems in both portable and
permanently-installed applications.
Operating Range (-10 dB, Hz)
65 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 131
HF: 130
Full-range: 130
Nominal Coverage (degrees)
Horizontal: 110 / Vertical: 15
Subsystems
LF: 2x 10-in cone, vented
HF: 3x .75-in exit compression driver, horn-loaded
Powering
Switchable: bi-amplified/passive
Versions
Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
62 / 28
12.4x24.8x15.6 / 314x631x397
KF740
The KF740 line array system is optimized
for the widest possible range of touring
and installation applications. With output
capabilities resembling the much larger
KF760 and a footprint and weight similar to
the diminutive KF730, the KF740 is the ideal
solution for a wide variety of applications
including touring sound, corporate A/V,
sports arenas, houses of worship, performing
arts centers and live clubs. The KF740 is also
available in an installation-only format.
Operating Range (-10 dB, Hz)
50 - 19k
Calculated Maximum Output Peak (dB SPL)
LF: 131 / MF: 140 / HF: 140
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 12
Subsystems
LF: 4x 10-in cone, sealed, phase aligned
MF: 2x 8-in cone, horn-loaded
HF: 2x 1.4-in exit compression driver, horn-loaded
Powering
Tri-amplified
Switchable: bi-amplied or tri-amplied (KF740P and P-WP only)
Versions
Black
Black and White, Permanent (P)
Black, Permanent + Weather-protected (P-WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
107 / 48.6
13x40x17.5 / 330x1018x446
KF730
The KF730 Series is a compact line array system
that delivers 3-way, KF Series performance
in a exible, easy-to-use system. Capable of
delivering concert-level output, the KF730
is an excellent solution for application
such as houses of worship, corporate A/V,
theatre, ballrooms and concert halls, or for
supplemental coverage beneath KF740 arrays.
Operating Range (-10 dB, Hz)
60 - 19k
Calculated Maximum Output Peak (dB SPL)
LF: 125 / Passive MF/HF: 136
Subsystems
LF: 2x 10-in cone, sealed, phase aligned
MF: 2x 7-in cone, horn-loaded
HF: 2x 1-in exit compression driver, horn-loaded
Powering
Bi-amplified
Models & Coverage (deg, H x V)
KF730 (110 x 12)
Versions
Black
Black and White, Permanent (P)
Black and White, Permanent + Weather-protected (P-WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
77 / 34.7
13x28.5x17.5 / 330x723x445
89
MicroWedge™ This series of stage monitors consistently delivers the legendary sonic performance, output capability and superior design principles of the
rst generation in a wide variety of sizes. Renowned by audio professionals and discerning artists around the globe, the MW Series has been pushed to extreme limits by
the prowess of the EAW Engineering team – proof that indeed, the best can get even better.
MW15
The MW15 represents the highest-output
model in the MicroWedge Series. The MW15
can easily switched between single-amp and
bi-amp operation, and includes integral ytrack
for enclosure suspension. The low-frequency
port is also large enough to accommodate an
entire tripod microphone stand leg as well as
excess cabling, for an extremely clean on-stage
appearance.
Operating Range (-10 dB, Hz)
62 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 133
HF: 134
Full-range: 132
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 90
Subsystems
LF: 15-in cone, vented, coaxial with HF
HF: 1.4-in exit compression driver, horn-loaded
Powering
Switchable: full-range or biamplified
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
65 / 29.5
14x19x24 / 357x483x614
MW10
The MW10 oers features in common with
the MW8, combined with performance
approaching the MW12. Due to its compact
size and parallel front and rear connections, the
MW10 enjoys the advantage working equally
well as a stage monitor or as a console bridge
monitor. The low-frequency port is also large
enough to excess cabling, for an extremely
clean on-stage appearance. An optional pole
mount is also available.
Operating Range (-10 dB, Hz)
65 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range: 128
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 90
Subsystems
LF: 10-in cone, vented, coaxial with HF
HF: 1.4-in compression driver, horn-loaded
Powering
Full-range
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
27 / 12.2
11.3x14x18 / 288.5x362x468
MW12
The MW12 balances amazing output with
extraordinary compactness. The MW12 can
easily switched between single-amp and bi-
amp operation, and includes integral ytrack
for enclosure suspension. The low-frequency
port is also large enough to accommodate an
entire tripod microphone stand leg as well as
excess cabling, for an extremely clean on-stage
appearance.
Operating Range (-10 dB, Hz)
64 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 129
HF: 134
Full-range: 128
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 90
Subsystems
LF: 12-in cone, vented, coaxial with HF
HF: 1.4-in exit compression driver, horn-loaded
Powering
Switchable: full-range or biamplified
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
47 / 21.3
13x17x22 / 334x439x579
MW8
The MW8 is the smallest model in the
MicroWedge Series. Due to its compact size
and parallel front and rear connections, the
MW8 enjoys the advantage working equally
well as a stage monitor or as a console bridge
monitor. An optional pole mount is also
available for the MW8.
Operating Range (-10 dB, Hz)
73 - 18k
Calculated Maximum Output Peak (dB SPL)
Full-range: 125
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 90
Subsystems
LF: 8-in cone, vented, coaxial with HF
HF: 1-in compression driver, horn-loaded
Powering
Full-range
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
19.5 / 9
9.8x12x15.4 / 249x308x392
10 11

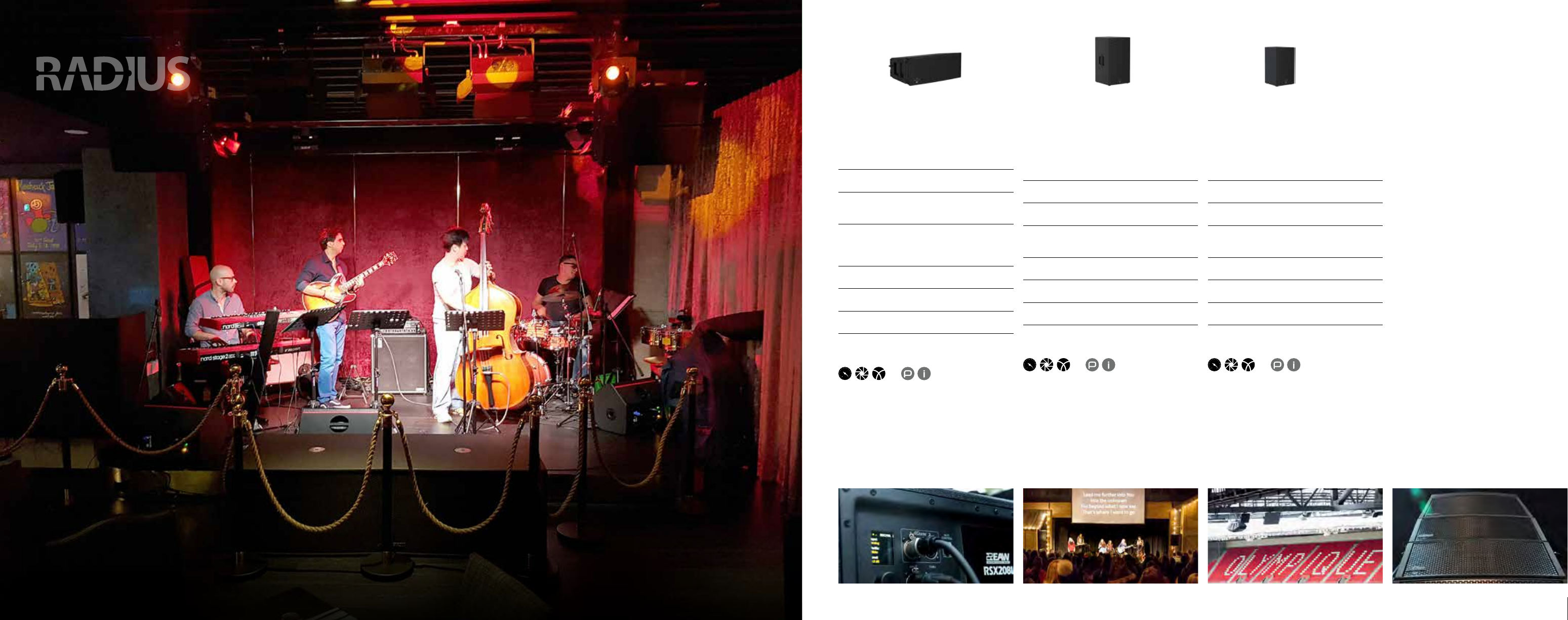

RSX86/89
The RSX89 and RSX86 oers a small-
format point source oering for main or ll
applications. Available with 90x60 (RSX89)
or 60x45 (RSX86) horn patterns for varying
coverage requirements. Bi-amplied with on-
board Dante networking for quick and clean
setup. Remote controlled via iPad with the
EAWmosaic app.
Operating Range (-10 dB, Hz)
68 Hz to 18 kHz
Calculated Maximum Output Peak (dB SPL)
Full-range: 124
Subsystems
LF: 8-in cone, vented
HF: 1x 1-in exit compression driver, horn-loaded
Powering
Bi-amplified, internal
Coverage (deg, H x V)
RSX89: 90 x 60 RSX86: 60 x 45
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
33.6 /15.3
19.5x12.4x12.8 / 498x315x326
RSX208L
The RSX208L is the agship array module
of the RADIUS line. A 3-way, powered
loudspeaker, the RSX208L includes includes
Dante networking and OptiLogic array
detection for simple, rapid setup with
outstanding results. Remote controlled via iPad
with the EAWmosaic app.
Operating Range (-10 dB, Hz)
70 Hz to 18 kHz
Calculated Maximum Output Peak (dB SPL)
LF/MF/HF : 122
Full-range: 128
Subsystems
LF: 1x 8-in cone, vented
LF/MF: 1x 8-in cone, vented
HF: 2x 1-in exit compression driver, horn-loaded
Powering
Bi-amplified, internal
Coverage (deg, H x V)
120 x 12
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
40.5 / 18.4
9.8x27x13 / 249x683x332
RADIUS™ (RSX Series) couples unique and intelligent features, including OptiLogic™, with EAW’s signature acoustical design to deliver solutions for rental rms
and system integrators. Optimal sonic performance has never been easier or more accessible, and system design and control has never been more approachable.
The EAWmosaic™ app provides total system optimization, plus intuitive room design and prediction in a single, comprehensive application. RADIUS harnesses full
Dante™ integration across the line.
RSX126/129
The RSX129 and 126 oers a medium-
format point source oering for main or ll
applications. Available with 90x60 (RSX129)
or 60x45 (RSX126) horn patterns for varying
coverage requirements. Bi-amplied with on-
board Dante networking for quick and clean
setup. Remote controlled via iPad with the
EAWmosaic app.
Operating Range (-10 dB, Hz)
59 Hz to 20 kHz
Calculated Maximum Output Peak (dB SPL)
LF/HF: 136
Subsystems
LF: 1x 12-in cone, vented
HF: 1x 1-in exit compression driver, horn-loaded
Powering
Bi-amplified, internal
Coverage (deg, H x V)
RSX129: 90 x 60 RSX126: 60 x 45
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
58 / 26.3
27x16x16.5 / 683x414x419
“RADIUS is a true line array with
features I have never seen at this
price point. Between the EAWmosaic
app and the easy-to-use DSP on the
back panel, it takes all of the guess
work out of set up. This will be our
go-to system for the upcoming
summer festival season.”
Ron Perchinsky
Owner, R&R Audio Services, Pittsburgh
12 13
RSX18
The RSX18 provides a medium-format,
high-powered subwoofer for ground-stack
use with the RSX208L, RSX129/126 or RSX89.
Self-powered with on-board Dante networking
for quick and clean setup, including a push-
button cardioid mode for stacks of 2 or 3
modules. Remote controlled via iPad with the
EAWmosaic app. Pole mount included.
Operating Range (-10 dB, Hz) 28 to 125
Calculated Maximum Output Peak (dB SPL)
Whole space: 128 Half space: 134
Subsystems
1x 18-in cone, vented
Powering
Single-amplified, internal
Nominal Coverage (degrees)
Horizontal: 360 / Vertical: 360
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
93.6 /42.5
20.25x36x31 / 514x919x790
RSX12M
The RSX12M stage monitor features onboard
bi-amplied electronics featuring signature
EAW DSP including Focusing and DynO
for pristine impulse response. Coverage is
105°x105°. Remote controlled via iPad with the
EAWmosaic app. Bi-amplied with on-board
Dante networking for quick and clean setup.
Operating Range (-10 dB, Hz) 55Hz to 18kHz
Calculated Maximum Output Peak (dB SPL)
Whole space: 128
Subsystems
LF: 1x 12-in cone, vented
HF: 1x 1-in exit compression driver, horn-loaded
Powering
Bi-amplified, internal
Nominal Coverage (degrees)
Horizontal: 105 / Vertical: 105
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
83 / 37
19.9x24.8x33 / 505x630x838
RSX12
The RSX12 provides a small-format high-
powered subwoofer, either own in arrays with
the RSX208L full-range module (employing
OptiLogic array detection for simple, rapid
setup) or in conjunction with the RSX129/126
or RSX89 in a ground-stack conguration.
Self-powered with on-board Dante networking
for quick and clean setup. Remote controlled
via iPad with the EAWmosaic app. Pole mount
included.
Operating Range (-10 dB, Hz)
40 to 140
Calculated Maximum Output Peak (dB SPL)
Whole space: 128 Half space: 134
Subsystem
LF: 1x 12-in cone, vented
Powering
Single-amplified, internal
Coverage (deg, H x V)
360 x 360
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
76 / 34.5
17x25x19 / 437x640x485
“This year everyone noticed the
sound quality [from RADIUS] —
which was pretty incredible. For EAW
and Mackie to come in and produce
such a high quality event in a close
urban environment was fantastic and
so appreciated. I look forward to
next year.”
Mike Stewart
Executive Director, Ballard SeafoodFest
14 15

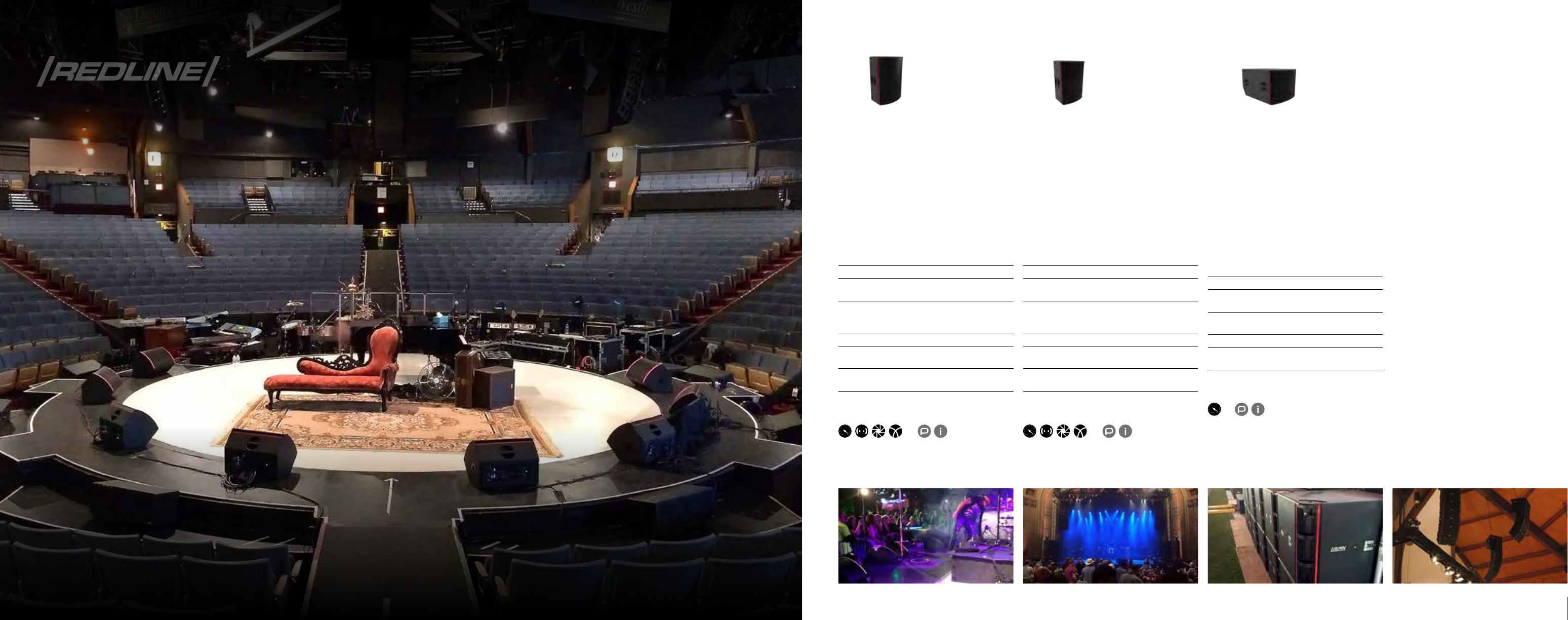

RL12
The RL12 is a two-way powered portable
loudspeaker designed specically for touring,
rental & staging and permanent installation.
The loudspeaker incorporates a complete
on-board 1,250-watt bi-amplied electronics
package mated to precision transducers,
and features renowned EAW Focusing™ and
DynO™ processing to deliver a pristine impulse
response at even the most extreme output
levels. The RL12 also oers a robust yet very
lightweight RoadCoat™ enclosure, pole cup,
M8 ying points and symmetrical rear angles
to allow users to easily form mirror-image
monitor pairs.
Operating Range (-10 dB, Hz) 55 - 19k
Calculated Maximum Output Peak (dB SPL)
Full-range: 135
Subsystems
LF: 12-in cone, vented
HF: 1-in exit compression driver, horn-loaded
Powering Bi-amplified, internal
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
42 / 19
22.8x14.6x17.3 / 579x371x439
RL15
The RL15 is a two-way powered portable
loudspeaker designed specically for touring,
rental & staging and permanent installation.
The loudspeaker incorporates a complete
on-board 1,250-watt bi-amplied electronics
package mated to precision transducers,
and features renowned EAW Focusing™ and
DynO™ processing to deliver a pristine impulse
response at even the most extreme output
levels. The RL15 also oers a robust yet very
lightweight RoadCoat™ enclosure, pole cup,
M8 ying points and symmetrical rear angles
to allow users to easily form mirror-image
monitor pairs.
Operating Range (-10 dB, Hz) 50 - 19k
Calculated Maximum Output Peak (dB SPL)
Full-range: 135
Subsystems
LF: 15-in cone, vented
HF: 1-in exit compression driver, horn-loaded
Powering Bi-amplified, internal
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
55 / 24
25.8x17.6x19.8 / 655x447x503
RL18S
The RL18S is a powered portable subwoofer
designed specically to accompany the
Redline product family for touring, rental &
staging and permanent installation. The RL18S
incorporates a complete on-board 1,000-watt
electronics package mated to a high-power
transducer and features DynO™ processing
to deliver consistent delity at any output
level. Additionally, users can easily generate a
cardioid pattern with two or more units and
two simple button presses, providing more
than 15 dB of attenuation behind the stack.
The RL18S also includes a pole cup
and a robust yet very lightweight
RoadCoat™ enclosure.
Operating Range (-10 dB, Hz) 28 - 160
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 127
Subsystems
Sub: 1x 18-in cone, vented
Powering Single-amplified, internal
Versions
Black, Powered (universal mains)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
83 / 37
19.9x24.8x33 / 505x630x838
“The Redline RL12s have
tremendous vocal clarity and the
RL18S subs really resonate the
musical instruments. The church is
quite happy with the new system
and the congregation noticed the
improvement immediately. It’s the
perfect t for their needs.”
Yergan Jones
President, AEE Productions
16 17

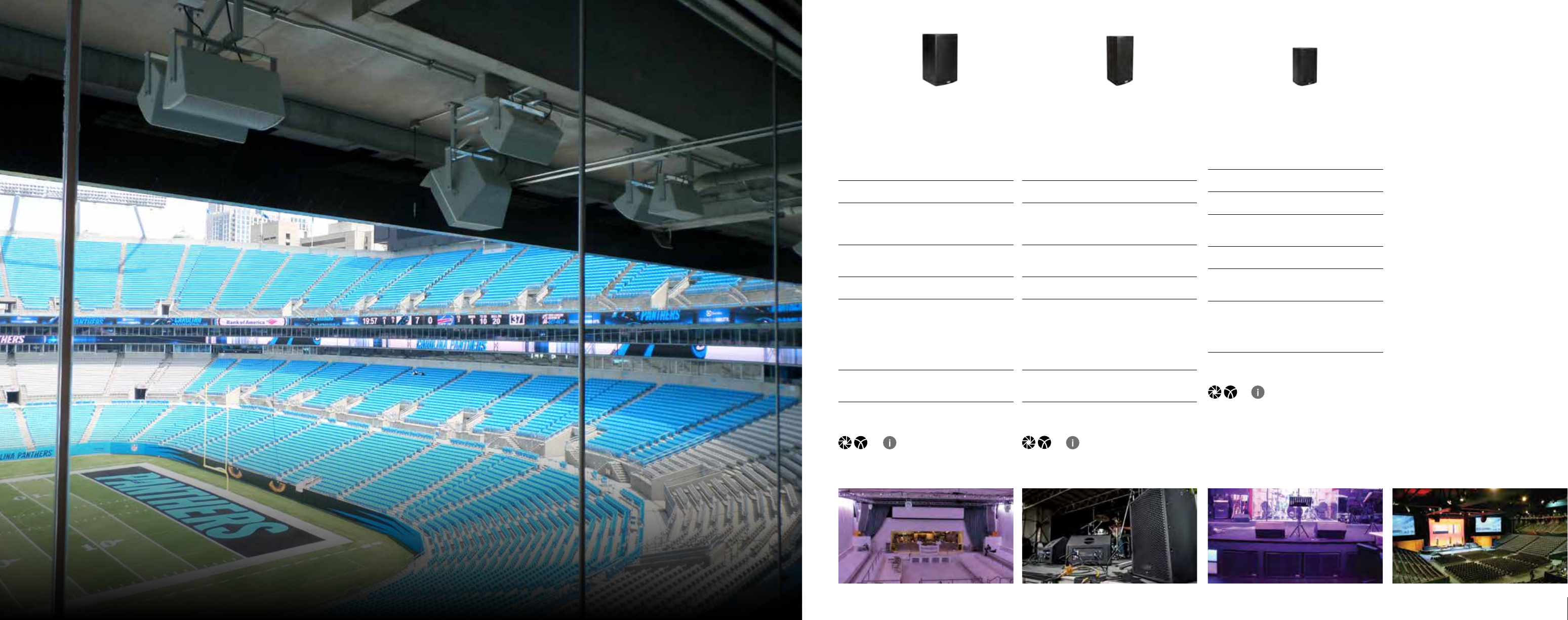

Point Source EAW oers a comprehensive range of point source products that have been optimized for the installation market in partnership with leading
consultants and system integrators. Ranging from small ll speakers to high output mains, these products utilize core EAW technologies such as Symmetry of Sources, Phase
Aligned LF devices, Beamwidth Matched Crossovers and EAW Focusing to deliver an unparalleled combination of broad band pattern control, extended bandwidth, output
capability, clarity and sound quality. From background music and small worship spaces through Wembley and the Vatican – there is an optimal solution for literally any application.
QX500 Series
The QX500 Series delivers high output,
broadband pattern control and exceptional
delity in a compact, three-way form factor. Its
extraordinary output level makes it appropriate
for long throws in arenas and stadiums, or for
large, high-energy applications like live music
venues or clubs, while its excellent pattern
control allows the QX500 Series to tame
hostile acoustical environments.
Operating Range (-10 dB, Hz)
55 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 142
Passive MF/HF: 139 to 141
Subsystems
LF: 4x 12-in cone, tuned spacing
MF: 2-in exit compression driver, horn-loaded, coaxial with HF
HF: 2-in exit compression driver, horn-loaded
Powering
Bi-amplified (passive MF/HF)
Models & Coverage (deg, H x V)
QX544i (45 x 45)
QX564i (60 x 45)
QX566i (60 x 60)
QX594i (90 x 45)
QX596i (90 x 60)
Versions
Black or White
Black, Weather-protected (WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
134 / 61
28x28x23.8 / 710x710x605
QX300 Series
The QX300 Series delivers great output and
renowned broadband pattern control similar to
the QX500 Series three-way loudspeaker, but
in a more compact two-way format. Its high
output level capability makes it appropriate for
medium throws in arenas and stadiums, or as
mains in live music venues or clubs.
Operating Range (-10 dB, Hz)
66 - 20k
Calculated Maximum Output Peak (dB SPL)
LF/HF: 135 to 139
LF: 141
HF: 135 to 139
Subsystems
LF: 4× 10-in cone Phase-Aligned™
HF: 1× 1.4-in exit, 4-in voice coil compression driver Horn-
loaded
Powering
Single-amp: LF/HF
Bi-amp: LF, HF
Models & Coverage (deg, H x V)
QX326 (120 x 60)
QX364 (60 x 45)
QX366 (60 x 60)
QX394 (90 x 45)
QX396 (90 x 60)
QX399 (90 x 90)
Versions
Black or White
Black, Weather-protected (WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
94 / 43
23.7x23.7x20602x602x505
QX118
A dedicated subwoofer system in a
symmetrical, compound trapezoidal enclosure
designed to array with QX Series full-range
systems.
Operating Range (-10 dB, Hz)
30 - 150
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 129
Subsystems
Sub: 18-in cone, vented
Versions
Black or White
Black, Weather-protected (WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
134 / 61
28x28x23.8 / 710x710x605 “There is not another box out there
right now that provides the pattern
control, dynamics, and delity
that the QX Series does without
having to get an entire array of
loudspeakers.”
Tom Brockenbrough, Jr.
Principal, Summit Communications Systems
18 19
“The MK loudspeakers have always
been a quality product and work
well in conjunction with the column
arrays in this application. EAW
products are known for their “voicing”
or the characteristic to sound similar
when used together in a given
application. This is a great example
of that working exceptionally well.”
John Fuqua
VP, All Pro Sound
MK5300 Series
The MK5300 Series of 15" 2-way, high-output
trapezoidal loudspeakers are designed as
main PA elements for smaller venues, or as
a distributed or ll system for larger venues.
Switchable powering modes, a multitude of
rotatable horn patterns, as well as black, white
and & WP nish options provide enormous
installation exibility.
Operating Range (-10 dB, Hz)
48 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 133
HF: 132 to 134
Full-range: 132 to 133
Subsystems
LF: 15-in cone, vented
HF: 1.4-in exit compression driver, horn-loaded
Powering
Switchable: bi-amplified or passive
Models & Coverage (deg, H x V)
MK5326i (120 x 60)
MK5364i (60 x 45)
MK5366i (60 x 60)
MK5394i (90 x 45)
MK5396i (90 x 60)
MK5399i (90 x 90)
Versions
Black or White
Black, Weather-Protected (WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
87 / 39.5
30x18.7x19.7 / 762x475x501
MK2300 Series
The MK2300 Series of 12" 2-way, high-output
trapezoidal loudspeakers are designed as
main PA elements for smaller venues, or as
a distributed or ll system for larger venues.
Switchable powering modes, a multitude of
rotatable horn patterns, as well as black, white
and & WP nish options provide enormous
installation exibility.
Operating Range (-10 dB, Hz)
65 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 131
HF: 128 to 135
Full-range: 128 to 129
Subsystems
LF: 12-in cone, vented
HF: 1.4-in exit compression driver, horn-loaded
Powering
Switchable: bi-amplified or passive
Models & Coverage (deg, H x V)
MK2326i (120 x 60)
MK2364i (60 x 45)
MK2366i (60 x 60)
MK2394i (90 x 45)
MK2396i (90 x 60)
MK2399i (90 x 90)
Versions
Black or White
Black, Weather-Protected (WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
60 / 27.2
30x15.5x14.75 / 762x394x374
MK8100 Series
The MK8100 Series of 8" 2-way, high-output
trapezoidal loudspeakers are designed as an
ideal complement to MK5300i or MK2300i as
a distributed or ll system for larger venues.
The MK8100 series oers black/white and WP
options, as well as multi-tap transformer inputs
as standard options.
Operating Range (-10 dB, Hz)
60 - 18k
Calculated Maximum Output Peak (dB SPL)
Full-range: 126
Subsystems
LF: 8-in cone, vented
HF: 1-in exit compression driver, horn-loaded
Powering
Full-range
Models & Coverage (deg, H x V)
MK8126i (120 x 60)
MK8196i (90 x 60)
Versions
Black or White
Black or White, 128W Multi-tap Transformer (MT 128W)
Black, Weather-protected (PL-WP)
Black, Weather-protected + Transformer (MTPL-WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
31 / 14.1
19.75x11.75x11 / 502x299x280
20 21
VFR159
The VFR159i two-way, full range loudspeaker
system includes a direct-radiating, vented, 15-
in LF cone transducer and a 1-in exit / 1.75-in
voice coil HF compression driver loaded with
a large, square, user-rotatable 90×60 or 60×45
coverage pattern horn. In black, VFR Series
loudspeakers include JF-style handles (which
can be concealed with optional cover plates),
a pole cup and threaded rigging points. In
white, VFR Series loudspeakers omit handles
and the pole cup, leaving the enclosure sides
completely smooth. Both black and white
versions include both NL4 and terminal strip
inputs, and the option to add a multi-tap
transformer.
Operating Range (-10 dB, Hz)
54 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range Passive: 126 to 132
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Powering: Full-range
Subsystems
LF: 1x 15-in, vented
HF: 1x 1-in, horn-loaded
Versions: Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
60 / 27 / 28x20x18 / 720x511x464
VFR129
The VFR129i two-way, full range loudspeaker
system includes a direct radiating,vented, 12-in
LF cone transducer and a 1-in exit / 1.75-in
voice coil HF compression driver loaded with
a large, square, user-rotatable 90×60 or 60×45
coverage pattern horn. In black, VFR Series
loudspeakers include JF-style handles (which
can be concealed with optional cover plates),
a pole cup and threaded rigging points. In
white, VFR Series loudspeakers omit handles
and the pole cup, leaving the enclosure sides
completely smooth. Both black and white
versions include both NL4 and terminal strip
inputs, and the option to add a multi-tap
transformer.
Operating Range (-10 dB, Hz)
50 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range Passive: 119 to 132
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Powering: Full-range
Subsystems
LF: 1x 12-in, vented
HF: 1x 1-in, horn-loaded
Versions: Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
54 / 24.5 / 25.7x16x16.4 / 659x412x417
VFR89
The VFR89i two-way, full range loudspeaker
system includes a direct radiating, vented, 8-in
LF cone transducer and a 1-in exit / 1.25-in
voice coil HF compression driver loaded with
a large, square, user-rotatable 90×50 coverage
pattern horn. In black, VFR Series loudspeakers
include JF-style handles (which can be
concealed with optional cover plates), a pole
cup and threaded rigging points. In white, VFR
Series loudspeakers omit handles and the pole
cup, leaving the enclosure sides completely
smooth. Both black and white versions include
both NL4 and terminal strip inputs, and the
option to add a multi-tap transformer.
Operating Range (-10 dB, Hz)
70 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range Passive: 118 to 124
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 50
Powering: Full-range
Subsystems
LF: 1x 8-in, vented
HF: 1x 1-in, horn-loaded
Versions: Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
22 / 10 / 16x10x10 / 410x257x249
VFR109
The VFR109i two-way, full range loudspeaker
system includes a direct-radiating, vented, 10-
in LF cone transducer and a 1-in exit / 1.75-in
voice coil HF compression driver loaded with
a large, square, user-rotatable 90×60 coverage
pattern horn. In black, VFR Series loudspeakers
include JF-style handles (which can be
concealed with optional cover plates), a pole
cup and threaded rigging points. In white, VFR
Series loudspeakers omit handles and the pole
cup, leaving the enclosure sides completely
smooth. Both black and white versions include
both NL4 and terminal strip inputs, and the
option to add a multi-tap transformer.
Operating Range (-10 dB, Hz)
65 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range Passive: 122 to 128
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Powering: Full-range
Subsystems
LF: 1x 10-in, vented
HF: 1x 1-in, horn-loaded
Versions: Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
37 / 17 / 20x12.8x13 / 506x325x332
VFR69
The VFR69i two-way, full range loudspeaker
system includes a direct radiating, vented, 6-in
LF cone transducer and a 1-in exit / 1.25-in
voice coil HF compression driver loaded with
a large, square, user-rotatable 90×50 coverage
pattern horn. In black, VFR Series loudspeakers
include JF-style handles (which can be
concealed with optional cover plates), a pole
cup and threaded rigging points. In white, VFR
Series loudspeakers omit handles and the pole
cup, leaving the enclosure sides completely
smooth. Both black and white versions include
both NL4 and terminal strip inputs, and the
option to add a multi-tap transformer.
Operating Range (-10 dB, Hz)
70 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range Passive: 113 to 119
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 50
Powering: Full-range
Subsystems
LF: 1x 6-in, vented
HF: 1x 1-in, horn-loaded
Versions: Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
15 / 6.8 / 14.8x8.8x8.4 / 375x225x214
VFM159
The VFM159i two-way, stage monitor
loudspeaker system includes a direct-radiating,
vented, 15-in LF cone transducer and a 1-in
exit / 1.75-in voice coil HF compression driver
loaded with a large, square, user-rotatable
90×60 coverage pattern horn. VFM monitors
include dual NL4 connectors (one on each
side of the enclosure) as well as a pole cup for
use as mains. When paired with a UX Series
processor or Greybox-capable amplier, the
VFM Series can also enjoy the benets of
EAW Focusing™
Operating Range (-10 dB, Hz)
63 - 20k (varies per model)
Calculated Maximum Output Peak (dB SPL)
Full-range Passive: 126 to 132
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Powering
Full-range
Subsystems
LF: 1x 15-in, vented
HF: 1x 1-in, horn-loaded
Versions
Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
49 / 22 / 19x17.5x23.4 / 489x445x596
VFM129
The VFM129i two-way, stage monitor
loudspeaker system includes a direct-radiating,
vented, 12-in LF cone transducer and a 1-in
exit / 1.75-in voice coil HF compression driver
loaded with a large, square, user-rotatable
90×60 coverage pattern horn. VFM monitors
include dual NL4 connectors (one on each
side of the enclosure) as well as a pole cup for
use as mains. When paired with a UX Series
processor or Greybox-capable amplier, the
VFM Series can also enjoy the benets of
EAW Focusing™
Operating Range (-10 dB, Hz)
65 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range Passive: 121 to 127
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Powering
Full-range
Subsystems
LF: 1x 12-in, vented
HF: 1x 1-in, horn-loaded
Versions
Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
40 / 18 / 17x15x21 / 439x375x542
VFM109
The VFM109i two-way, stage monitor
loudspeaker system includes a direct-radiating,
vented, 10-in LF cone transducer and a 1-in
exit / 1.75-in voice coil HF compression driver
loaded with a large, square, user-rotatable
90×60 coverage pattern horn. VFM monitors
include dual NL4 connectors (one on each
side of the enclosure) as well as a pole cup for
use as mains. When paired with a UX Series
processor or Greybox-capable amplier, the
VFM Series can also enjoy the benets of
EAW Focusing™
Operating Range (-10 dB, Hz)
70 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range Passive: 121 to 127
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Powering
Full-range
Subsystems
LF: 1x 10-in, vented
HF: 1x 1-in, horn-loaded
Versions
Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
32 / 14.5 / 15x12.5x18 / 378x317.5x45
VFS Series
The VFS250i and VFS220i, companion subwoofers to the VFR Series, oer the same range of
options for portable and permanent usage while providing substantial low-frequency output
and extension. Optional rigging hardware is also available for precongured arrays of VFR and
VFS loudspeakers.
Operating Range (-10 dB, Hz) 30 - 160 (varies per model)
Calculated Maximum Output Peak (dB SPL) Sub (whole space): 132 to 134
Models & Subsystems VFS250i (2x15") VFS220i (2x12")
Versions Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric) VFS250i:109 / 49.5 VFS220i: 88 / 40
22 23

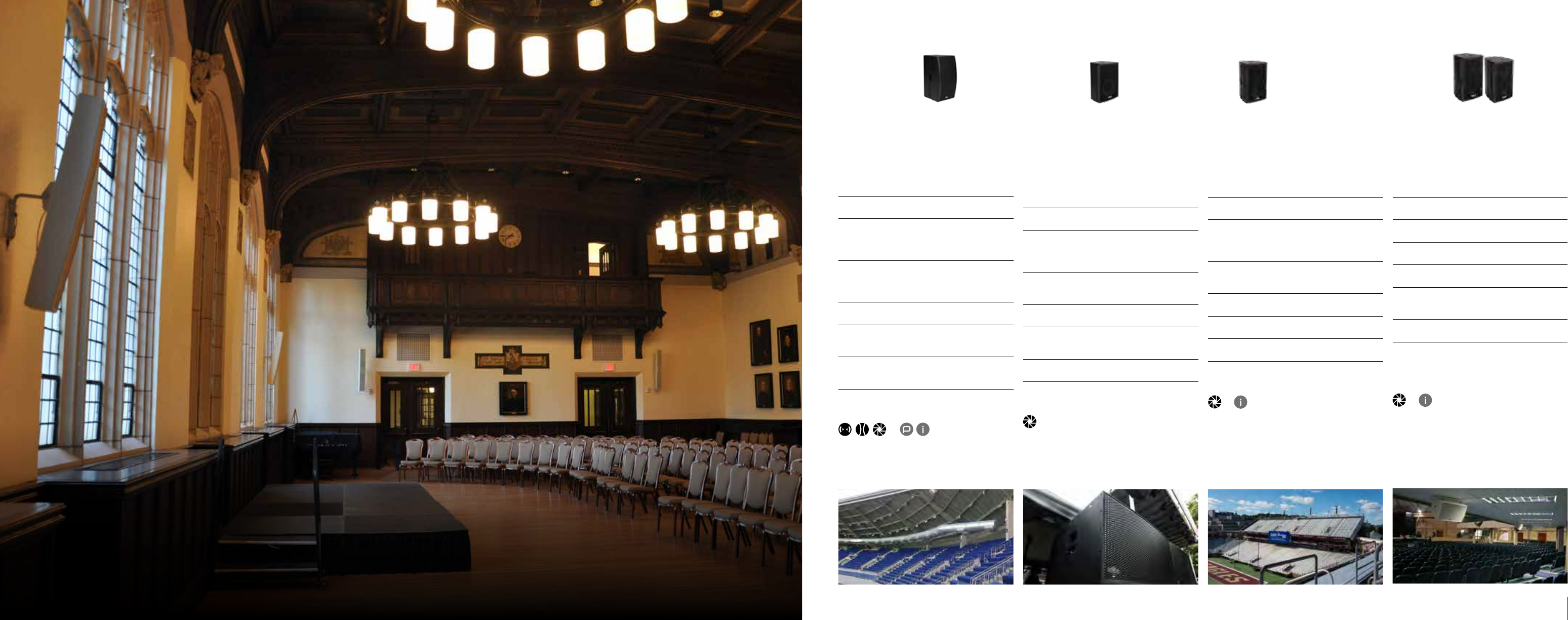

Column and Fill Column speakers were originally developed to simply reinforce speech. EAW LS Series column arrays were developed to oer full range output
and to actually solve the acoustical problems found in challenging environments. EAW’s premium performance JF Series contains EAW’s high-output, two-way systems intended
for permanent installation as well as mobile production. Our UB Series is a dedicated range of ultra-compact, two-way systems designed for near eld or secondary coverage in
permanent installation.
JF29
The JF29 is a comprehensively-integrated
two-way sound reinforcement systems
designed around the concepts of power and
utilty. Like others in the JF Series, the JF29
combines portable features such as a pole cup,
convenient handles and connection points for
ytrack with permanent installation features
such as M10 mounting points and trim plates.
Operating Range (-10 dB, Hz)
55 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 130
HF: 136
Full-range: 130
Subsystems
LF: 12-in cone, vented
HF: 1.4-in exit compression driver, horn-loaded
Powering
Switchable: bi-amplified/passive
Coverage (deg, H x V)
90 x 45
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
56 / 25.4
22.3x14x15.2 / 566x354x387
JF10 & JF8
The JF8 and JF10 extend the unpredented
utility and and adaptability of the JF Series
to a compact yet robust 8” and 10” formats.
Like others in the JF Series, the JF8 and 10
combine portable features such as a pole cup,
convenient handles and connection points for
ytrack with permanent installation features
such as M10 mounting points and trim plates.
Operating Range (-10 dB, Hz)
63 - 22k (varies per model)
Calculated Maximum Output Peak (dB SPL)
Full-range: 124 to 126
Nominal Coverage (degrees)
Horizontal: 100 / Vertical: 100
Powering
Full-range
Models & Subsystems
JF10 (10” woofer)
JF8 (8” woofer)
Versions
Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
JF10: 36 / 16.3
19.7x11.9x11.4 / 502x303x289
JF8: 29 / 13.2
17.5x10x11.3 / 444x255x287
JF59 & JF56
The JF59 and JF56 are comprehensively-
integrated two-way sound reinforcement
systems designed around the concepts of
power and utilty. Like others in the JF Series,
the JF59 and JF56 combine portable features
such as a pole cup, convenient handles and
connection points for ytrack with permanent
installation features such as M10 mounting
points and trim plates.
Operating Range (-10 dB, Hz)
47 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 132
HF: 136
Full-range: 131 to 132
Subsystems
LF: 15-in cone, vented
HF: 1.4-in exit compression driver, horn-loaded
Powering
Switchable: bi-amplified/passive
Models & Coverage (deg, H x V)
JF59 90 x 45
JF56 60 x 45
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
77 / 35
25.5x18x17 / 648x165x435
KF394 & KF364
These additions to the legendary KF Series
of premium 3-way loudspeakers pack even
more capability and application into an
ultracompact package. The integration of
premium neodymium components, a co-axial
mid/high-frequency component and world-
renowned crossover design into one enclosure
oers unprecendented utility.
Operating Range (-10 dB, Hz)
64 - 20k
Calculated Maximum Output Peak (dB SPL)
LF: 134
Passive MF/HF: 137 to 139
Full-range: 133 to 134
Subsystems
LF: 2x 10-in cone, vented, tuned spacing
MF: 1.4-in cone, horn-loaded, coaxial with HF
HF: 1.4-in exit compression driver, horn-loaded
Powering
Switchable: bi-amplified/passive
Models & Coverage (deg, H x V)
KF394 (90 x 45)
KF364 (60 x 45)
Versions
Black
Black, Weather-Protected (WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
65 / 29.5
25x13.9x17 / 648x354x435
24 25
UB22
The UB22z is engineered for extra-wide-angle
horizontal coverage from a wall-mounted
position. This ultra-compact loudspeaker
provides surprisingly high output and
exceptional delity for near-eld applications
such as ll or delay, or as standalone
foreground/background music reproduction.
Operating Range (-10 dB, Hz)
85 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range: 120
Nominal Coverage (degrees)
Horizontal: 120 / Vertical: 50
Subsystems
LF: 2x 5.25-in cone, sealed
HF: 1-in exit compression driver, horn-loaded
Powering
Full-range
Versions
Black or White
Black, Weather-protected (PL-WP)
Black, Weather-protected + Transformer (MTPL-WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
16 / 7.3 11.7x11.7x8 / 298x297x203
UB12
Despite its compact size, the UB12Si will
faithfully deliver high-output, high-denition
sound for a wide variety of professional
applications, including front ll and distributed
delay rings. Because the UB12Si is also mag-
netically shielded, it is ideal for use next to
video displays as well.
Operating Range (-10 dB, Hz)
60 - 20k
Calculated Maximum Output Peak (dB SPL)
Full-range: 117
Nominal Coverage (degrees)
Horizontal: 120 / Vertical: 120
Subsystems
LF: 5.25-in cone, vented
HF: 1-in soft dome tweeter
Powering
Full-range
Versions
Black or White
Black or White, Weather-protected + Transformer (MTPL-WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
9 / 4.2 10.7x6.3x6 / 273x162x152
UB52
The UB52i is engineered to provide full-range
coverage from an extremely low prole. It is
ideal for mounting within a stage lip, apron or
under-balcony location, or even within stair
steps due to its diminutive 6.28-inch height.
Operating Range (-10 dB, Hz)
50 - 18k
Calculated Maximum Output Peak (dB SPL)
Full-range: 119
Nominal Coverage (degrees)
Horizontal: 90 / Vertical: 60
Subsystems
LF: 2x 5.25-in cone, vented, HF: 1-in exit compression driver,
horn-loaded
Powering
Full-range
Versions
Black or White
Weather-protected (PL-WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
19 / 8.6 6x20x8 / 158x503x206
JF80 & JF60
The JF80z is a compact loudspeaker,
engineered for exceptional near-eld
performance. It's high output capabilities
and exceptional delity make it ideal for
background/foreground music applications,
or as a ll or delay element in larger systems.
Operating Range (-10 dB, Hz)
83 - 20k (varies per model)
Calculated Maximum Output Peak (dB SPL)
Full-range: JF80 123; JF60 117
Nominal Coverage (degrees)
Horizontal: 100 / Vertical: 100
Models & Subsystems
JF80 LF: 2x 6.5-in cone, sealed
HF: 1-in exit compression driver, Waveguide Plate™
JF60 LF: 6.5-in cone, sealed
HF: 1.3-in dome, Waveguide Plate™
Powering
Full-range
Versions
Black or White
Black, 64W Multi-tap transformer (MT)
Black, Weather-protected (PL-WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
JF80: 25 / 11.3
20.9x7.8x4.7 / 532x199x247
JF60: 17 / 7.7
14.6x7.8x9.7 / 372x199x247
LS832/432
The LS Series brings the classic column loudspeaker up-to-date. Sophisticated frequency shading
integrates the woofers and soft dome tweeters, maximizing the benets of line source coupling
while eliminating grating lobes.
Operating Range (-10 dB, Hz) 100 - 20k (varies per model)
Calculated Maximum Output Peak (dB SPL) Full-range: 121 to 126
Nominal Coverage (degrees) Horizontal140 / Vertical: 20
Subsystems LF: 4x to 8x 4-in cone, sealed HF: 3x 1-in soft dome tweeter
Models LS432i, LS832i, LS432i-P85, LS432i-P103
Versions Black or White, Black or White, Weather-protected + Transformer (MTPL-WP)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
LS832i: 30 / 13.7 / 44x6.25x6 / 1120x159x152
LS432i: 20 / 9 / 26x6.25x6 / 660x159x152
26 27
Subwoofer EAW subwoofers harness pioneering technologies in acoustics, component design and signal processing to deliver extreme bandwidth, tonal
consistency and storied impact. The complete range includes customized companion solutions for optimal pairing with specic full-range products as well as more universal
and now ubiquitous solutions that have largely evolved from the legendary SB1000. From the compact SB48 to the Adaptable Otto – the complete family of subwoofers oers
extraordinary performance for a comprehensive variety of applications.
SB2001
The SB2001 takes the “clam shell” driver
arrangement of the SB1000z and SB1001/1002
to a new level, employing massive 21” cones
for incredible output and superior extension in
only a slightly larger enclosure. The SB2001 is
the recommended companion subwoofer for
all larger-format KF Series systems, and has also
found a home in many club applications with
other series as well. Hardware to create vertical
arrays of up to 8 modules (at 10:1 design
factor) is also available.
Operating Range (-10 dB, Hz)
20 - 190
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 137
Subsystems
Sub: 2x 21-in cone, vented
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
200 / 91
22.6x33.5x45 / 575x851x1143
SB1001 & SB1002
The SB1001 and SB1002 improve upon the
SB1000z, utilizing the same "clam shell"
driver arrangement to maximize cone area
and minimize frontal area, while employing
improved components for greater output and
extension from a lighter-weight enclosure than
the SB1000z. The SB1001 includes handles
and threaded 3/8" mounting points, while
the SB1002 adds EAW's RoadCoat™ nish and
rigging capable of supporting vertical arrays of
up to 12 modules (at 10:1 design factor).
Operating Range (-10 dB, Hz)
28 - 160
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 135
Subsystems
Sub: 2x 18-in cone, vented
Models
SB1001, SB1002
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
155 / 70
21.3x30x42.2 / 543x758x1073
SB1000
The legendary SB1000z is a high-output, large-
format subwoofer with proven performance in
complementing EAW full-range loudspeakers.
Employing its hallmark "clam shell" driver
mounting, the SB1000z maximizes cone area
and minimizes frontal area, providing punchy,
high-SPL output. With both touring and
installation versions, the SB1000z is suitable for
nearly any application.
Operating Range (-10 dB, Hz)
28 - 156
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 133
Subsystems
Sub: 2x 18-in cone, vented
Versions
Black, Road (R)
Black, Permanent (P)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
162 / 73.5
21x30x42 / 538x757x1072
“Each cluster is made up of two
QX loudspeakers – one QX594
ring straight down and a QX564
for long throw – with two SB2001
subwoofers located directly
behind the QX boxes for that “chest
thumping experience” they wanted.”
Ben Davis
Project Manager, Sound Image
28 29

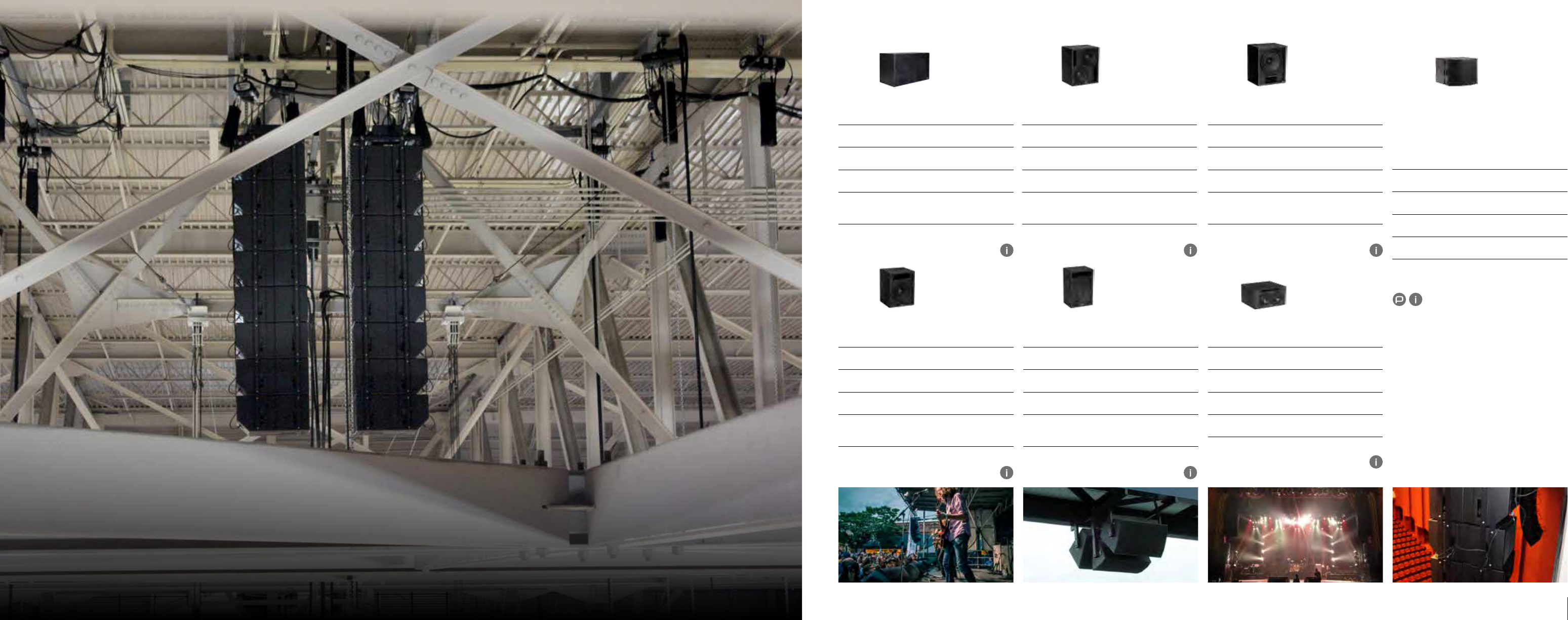

SB528
The SB528zP is comprised of dual 18-in
sub bass cones in a vented, direct-radiating
conguration.
Operating Range (-10 dB, Hz)
27 - 147
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 135
Subsystems
LF: 2x 18-in cone, vented
Versions
Black or White
Black, Weather-protected
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
215 / 97.5
30.2x50.6x24.5 / 766x1287x624
SB180
The SB180zP is comprised of single 18-in
sub bass cones in a vented, direct-radiating
conguration.
Operating Range (-10 dB, Hz)
29 - 150
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 128
Subsystems
Sub: 18-in cone, vented
Versions
Black or White
Black, Weather-protected
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
94 / 42.6
30x25x19.6 / 766x635x498
SB250
The SB250zP is comprised of dual 15-in
sub bass cones in a vented, direct-radiating
conguration.
Operating Range (-10 dB, Hz)
36 - 150
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 133
Subsystems
Sub: 2x 15-in cone, vented
Versions
Black or White
Black, Weather-protected
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
112 / 50.8
29.7x24.7x19.6 / 755x623x498
SB150
The SB150zP is comprised of single 15-in
sub bass cones in a vented, direct-radiating
conguration.
Operating Range (-10 dB, Hz)
34 - 145
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 127
Subsystems
Sub: 15-in cone, vented
Versions
Black or White
Black, Weather-protected
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
72 / 32.6
24.6x19.7x19 / 625.5x500x482
SB120
The SB120zP is comprised of single 12-in
sub bass cones in a vented, direct-radiating
conguration.
Operating Range (-10 dB, Hz)
44 - 152
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 125
Subsystems
Sub: 12-in cone, vented
Versions
Black or White
Black, Weather-protected
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
47 / 21.3
22.5x14.75x11.75 / 572x375x299
SB48
The SB48zP oers dual 8-in sub bass cones in
an extremely compact vented enclosure. WP
not available.
Operating Range (-10 dB, Hz)
31 - 141
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 120
Subsystems
Sub: 2x 8-in cone, vented
Versions
Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
52 / 23.6
12.5x22.4x19.7 / 317x569x502
JFL118
The JFL118 is a lightweight, high-power yable
subwoofer that extends the low frequency
response of the companion JFL213 full-range
line array loudspeaker. JFL118 subwoofers may
be ground stacked or own as part of a JFL213
array via either the FB121 ybar or via integral
M10 points. Also includes a pole cup.
Operating Range (-10 dB, Hz)
30 - 150 (whole space)
Calculated Maximum Output Peak (dB SPL)
Sub (whole space): 129
Subsystems
Sub: 18-in cone, vented
Versions
Black
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
98 / 44.5
12.4x24.8x15.6 / 314x631x397
30 31

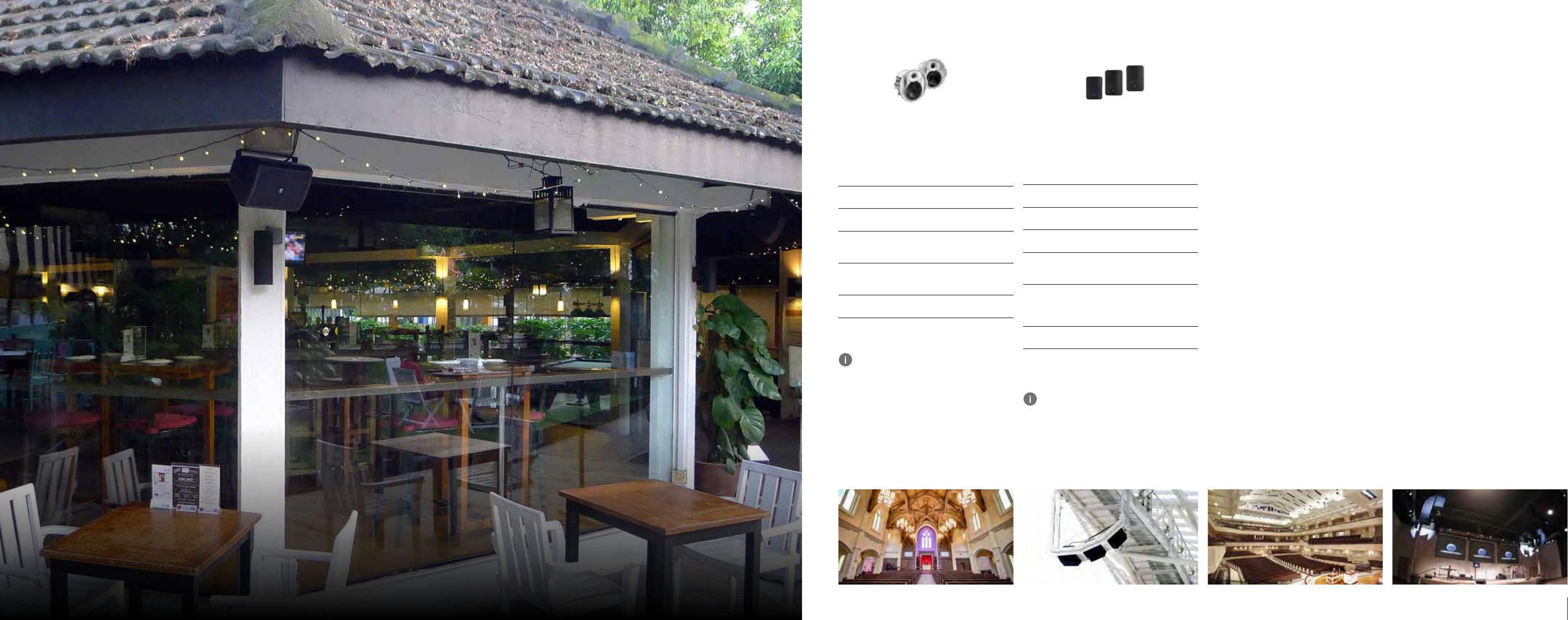

CIS Series
The CIS Series is comprised of compact two-
way ush-mount loudspeakers designed for
xed installation into typical ceiling plenum
spaces. Using a HF waveguide originally
developed for studio monitors and an
optimized woofer, the CIS Series delivers
superior dispersion and pattern control.
Operating Range (-10 dB, Hz)
70 - 22k (varies per model)
Calculated Maximum Output Peak (dB SPL)
Full-range: 108 to 113
Subsystems
LF: 4 to 6.5-in cone, sealed
HF: 1-in dome tweeter
Models & Coverage (deg, H x V)
CIS300 (140 x 124)
CIS400 (110 x 110)
Versions
White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
CIS300: 6.2 / 2.8 / 8.7x5.7 / 144x221
CIS400: 7.9 / 3.6 / 6.6x11.8 / 168x300
Ceiling & Surface Mount EAW oers a variety of traditional ceiling and surface mount loudspeakers that combine premium components and
sophisticated crossover design into elegant and easy-to-install systems. The range additionally includes products that harness the power of EAW core technologies to deliver
more output and astounding pattern control in a compact, installation friendly package. All ceiling and surface mount products include or oer as accessories all components,
such as mounting systems and transformers, that are necessary to install and control these systems.
SMS Series
The SMS3, 4 and 5 are two-way constant
directivity compact loudspeakers in easily-
installed enclosures. The result of careful
acoustic design and the use of advanced
materials, they provide exceptional music
delity and speech intelligibility, combined
with scalable output levels.
Operating Range (-10 dB, Hz)
Full-range: 55 - 25k (varies per model)
Calculated Maximum Output Peak (dB SPL)
Full-range: 111 to 116
Nominal Coverage (degrees)
Horizontal: 110 / Vertical: 110
Subsystems
LF: 5-in cone
HF: 0.75-in dome tweeter, horn-loaded
Models
SMS3
SMS4
SMS5
Versions
Black or White
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
SMS3: 5 / 2.2 / 8.5x6x5.3 / 216x154x136
SMS4: 8 / 3.6 / 10.6x7.3x6.7 / 270x187x172
SMS5: 8.6 / 4 / 10.6x7.3x6.7 / 270x187x172
32 33

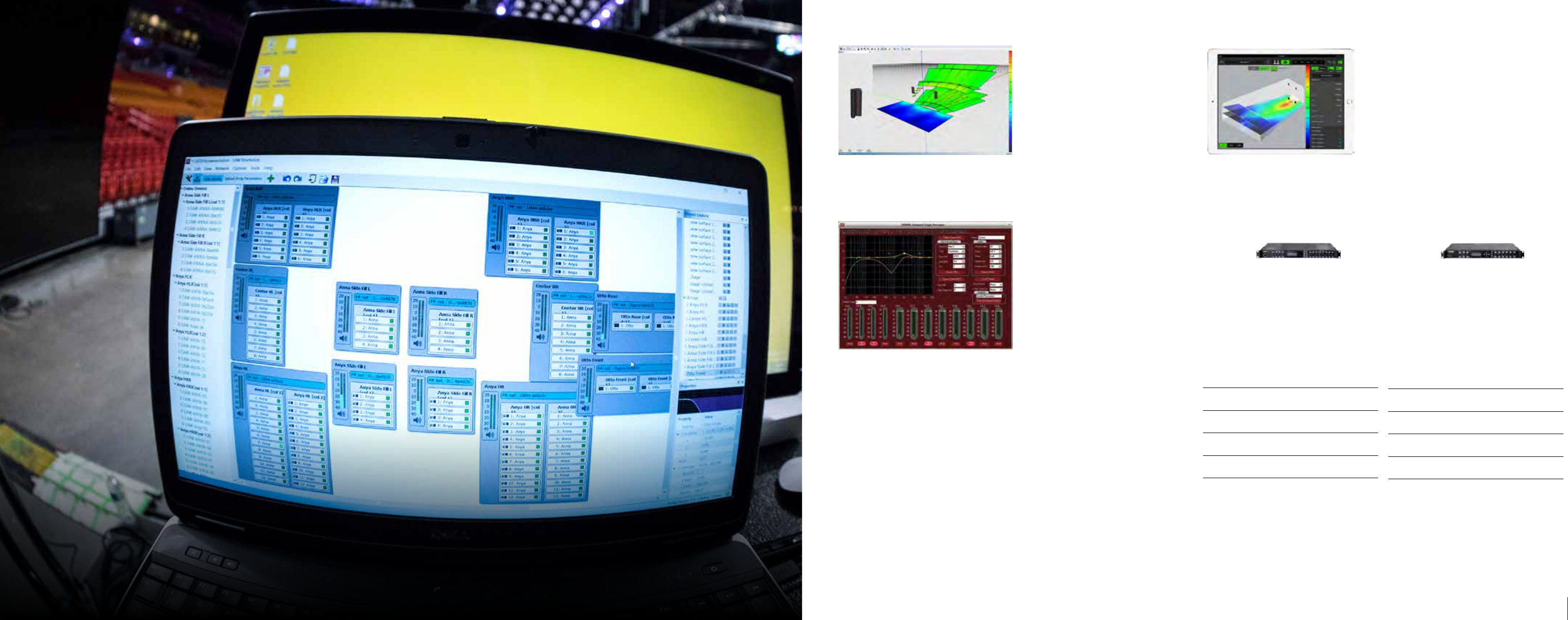

Software & Electronics Since the development of the KF900 Series in 1997, EAW has continuously led the industry in the development of software tools
that model acoustics and enable the advancement of our core engineering approach of integrating multi-component systems into unied entities. These software tools are no longer
just development engines. They have become the primary interface that denes the user experience of conguring, controlling and monitoring system performance. EAW has also
developed proprietary algorithms that integrate processing and acoustics in revolutionary ways to deliver optimum system performance when used with the UX processing platform.
UX8800
The UX8800 is a powerful 4-input by 8-output
digital processor (48-bit/96-kHz) that is
equally adept as a loudspeaker processor or
an overall system processor, and it brings EAW
Focusing technology to an ever-increasing
number of EAW loudspeakers. The front panel
oers access to all operational parameters via
buttons, encoders and a brightly back-lit LCD
panel. More advanced setup and tailoring
can be done via EAWPilot software on a PC
plugged in via the RJ45 port on the front panel.
Configuration
4-in/8-out
Inputs
4x XLR female (elec. balanced) analog or AES/EBU
Outputs
8x XLR male (elec. balanced)
Control
Ethernet (front panel), U-net (rear panel)
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
10 / 4.5
1.72x17.32x13.3 / 44x440x338
UX3600
The UX3600 is a powerful 3-input by 6-output
digital processor (24-bit/48-kHz) that is
equally adept as a loudspeaker processor or
an overall system processor, and it brings EAW
Focusing technology to an ever-increasing
number of EAW loudspeakers. The front panel
oers access to all operational parameters
via buttons, and a brightly back-lit LCD panel.
More advanced setup and tailoring can be
done via EAW Pilot software on a PC plugged
in via the USB port on the front panel.
Configuration
3-in/6-out
Inputs
3x XLR female (elec. balanced) analog only
Outputs
6x XLR male (elec. balanced)
Control
USB
Approx. Weight (lb. / kg) & Dimensions (imperial / metric)
10 / 4.5
1.72x17.32x13.3 / 44x440x338
Resolution™
EAW Resolution is a powerful and easy-to-use
simulation and control software that accurately
predicts the performance of EAW loudspeakers
within a 3D venue. Driven by EAW's proprietary
FChart acoustics modeling software, Resolution
allows precise three-dimensional positioning
of loudspeakers and audience areas and plots the resultant SPL and frequency response. When
using arrayed systems, Resolution will generate recommended aiming angles based on user-
provided coverage targets. Resolution is also a key part of Adaptive Processing™, calculating
all necessary processing and communicating with Adaptive™ Systems.
EAW Pilot™
EAW Pilot delivers Greybox™ settings and
provides user control of UX Series products.
Greyboxes provide quick, easy means of
implementing the complex processing
required for Focusing™, requiring only minimal
user-provided data and performing complex
functions such as gain optimization, passband
alignment, and limiter calculation. Via EAW
Pilot, users can dene system equalization, processing modes and networking parameters, as
well as monitor signal levels and component status.
EAWmosaic™
With an extremely approachable design for engineers
and system techs of all levels, EAWmosaic™ oers
powerful design, prediction and system optimization
and runs exclusively on Apple® iPad®. This single,
comprehensive app solution delivers intuitive and
powerful control over your RADIUS system. EAWmosaic
provides total system optimization, plus intuitive room design and prediction in a single,
comprehensive application.
34 35
Dizzy Gillespie
KF550s
1982
Blink-182
Anya, Anna, Otto
2016
Today
Yesterday
©2017 LOUD Technologies Inc. EAW is a registered trademark of LOUD Technologies Inc in the U.S.A. and all other countries.
All other trademarks referenced herein are the property of their respective owners. All rights reserved. DESIGN PATENTS PENDING. Products are not drawn to scale.
All terms, conditions, and specications subject to change without notice.
RD0921 (C)
Eastern Acoustic Works
One Main Street
|
Whitinsville, MA 01588
|
USA
tel 800 992 5013 / +1 508 234 6158
www.eaw.com
