ELECTRIC
CHAIN HOIST
ER2 and NER2
SERIES
1/8 Ton through 5 Ton Capacity
EFFECTIVE: August 2, 2017
Code, Lot and Serial Number
This equipment should not be installed, operated, or
maintained by any person who has not read and understood
all the contents of this manual. Failure to read and comply
with the contents of this manual can result in serious bodily
injury or death, and/or property damage.
51
9.0 Parts List
When ordering Parts, please provide the Hoist code number, lot number and serial number located on the Hoist
nameplate (see fig. below).
Reminder: Per sections 1.1 and 3.7.4 to aid in ordering Parts and Product Support, record the Hoist code number,
lot number and serial number in the space provided on the cover of this manual.
ER2/NER2 Series Nameplate
The parts list is arranged into the following sections:
Section Page
9.1 Housing and Motor Parts……………………………………………….……………………………………………….. 52
9.2 Gearing Parts…………………………………………………………………………………………........................... 56
9.3 Hook and Chain Parts………………………………………………………………….………………………………….. 60
9.4 Electric Parts (Single Speed)…………………………………………………………….……………………………... 78
9.5 Electric Parts (Dual Speed)…………………………………………………………….……………………………..... 84
9.6 Power Supply and Pendant Parts……………………………………...……………………………………………. 90
In the column "Parts Per Hoist" a designator is used for parts that apply only to a particular model or option. Refer
to Section 2 for hoist model numbers and additional descriptions. The designators are:
S = Single Speed
D = Dual Speed
F = NER Models
M = ER Models
2V = 208/230 Volt Models
4V = 460 Volt Models
52
9.1 Housing and Motor Parts
Figure 9-1-1 Housing and Motor Parts
Figure
No.
Part Name
Parts Per
Hoist
001H
003S
003H
005S
005L
010S
010L
020C
1
Fan Cover
1
ER2BS9107
ER2CS9107
ER2CL9107
ER2DS9107
ER2CS9107
2
Fan
1
ER2BS9108
ER2CS9108
ER2CL9108
ER2DS9108
ER2CS9108
3
Snap Ring
1
9047113
9047116
9047113
4
Brake Cover
F
1
ER2BS9115
ER2CL9115
ER2CS9115
ER2CL9115
ER2DS9115
ER2CS9115
M
ER2CL9149
ER2CL9149
ER2DL9149
5
Packing B
1
ER2BS9119
ER2CS9119
ER2CL9119
ER2DS9119
ER2CS9119
6
Set Pin S
2
ES120003
7
Socket Bolt
4
9091234
8
Electromagnetic Brake
Assembly
1
MBABB0ENA
MBABB09NA
MBABB0ENA
MBABB18NA
MBABB09NA
9
Key B
1
ER2CL9360
ER2CS9360
ER2CL9360
ER2DS9360
ER2CS9360
10
Snap Ring
2
9047119
9047124
9047116
9047124
11
Socket Bolt
3
9091254
12
Spring Lock Washer
3
9012709
13
V Ring
1
ER2CS9210
ER2DS9210
ER2CS9210
53
9.1 Housing and Motor Parts
Figure
No.
Part Name
Parts Per
Hoist
001H
003S
003H
005S
005L
010S
010L
020C
14
Motor Shaft With Rotor
1
ER2BS5502
ER2CS5502
ER2CL5502
ER2DS5502
ER2DL5502
15
Ball Bearing
1
9000904
9000905
9000904
9000905
16
Ball Bearing
1
9001003
9000904
9000922
17
Motor Frame With
Stator
1
ER2BKV03S5A1
ER2BKV05S5A1
ER2BKV05L5A1
ER2BKV10S5A1
ER2BKV10L5A1
18
Packing M
1
ER2BS9118
ER2CS9118
ER2DS9118
19
Set Pin S
2
ES120003
ES120010S
ER1DS9138
20
Socket Bolt
4
9091252
9091275
9091296
21
Body B Assembly*
Lot No. ER2A-...
F
1
ER2BS6101
ER2CS6101
ER2DS6101*
Body B Assembly
Lot No. ER2B-...
F
1
ER2DS6101R4
Body C Assembly*
Lot No. ER2A-...
M
1
ER2BS6099
ER2CS6099
ER2DS6099*
Body C Assembly
Lot No. ER2B-...
M
1
ER2DS6099R4
16
Ball Bearing
1
9001003
9000904
9000922
22
Oil Plug
1
E3S111003
23
Plug Packing
1
E3S112003
24
Snap Ring
1
9047255
9047262
9047268
25
Gear Case
F, S
1
ER2BS6103
ER2CS6103
ER2DS6103
F, D
ER2BI6103
M
ER2BS6102
ER2CS6102
ER2DS6102
26
Oil Plug
1
E3S111003
27
Plug Packing
1
E3S112003
28
Spring Pin
1
9148128
E3S129005S
29
Packing G
F
1
ER2BS9116
ER2CS9116
ER2DS9116
M
2
30
Set Pin S
F
2
ES120003
M
4
31
Socket Bolt
F
4
9091256
M
4
9091262
32
Toothed Lock Washer
4
9679709
33
Oil Fill Plug
1
ER1BS9135
34
Eyebolt Packing
1
ES127005S
35
Name Plate
Load Side E
1
ER1BS9960
36
Oil Full Tag
1
ER1BS9953
37
Warning Sticker E
(Disconnect Power)
1
ER2CS9936
38
Name Plate OF (Correct
Oil Required)
F
1
ER2CS9845
Name Plate OM (Correct
Oil Required)
M
ER2CS9846
39
Name Plate AA (With
Mechanical Brake)
M
1
ER1BS9893
40
Name Plate AD (Speed
Letter)
1
ER1BH
9868
ER1BS
9868
ER1BH9868
ER1BS
9868
ER1BL9868
ER1BS9868
ER1BL
9868
ER1DR
9868
41
Warning Sticker HW
(Hot Surface)
D
1
ER2CI9806
42
Spacer M
M
1
ER2BS9296
ER2CS9296
ER2DS9296
43
Check Voltage Label
S,2V
1
ECP99NVVB
S,4V
ECP99NVVA
D,2V
ECP99NVWB
D,4V
ECP99NVWA
44
Check Hook Movement
Label
(bottom front of cover)
S
1
ER1BS9957
*010L, 010S and 020C Body B and C have been discontinued for lot ER2A. Replace with lot ER2B body B or C and ER2B Top Pins (see pages 63 and 67)
54
9.1 Housing and Motor Parts
Figure 9-1-2 Housing and Motor Parts
Figure
No.
Part Name
Parts Per
Hoist
015S
020L
020S
030C
025S
050L
1
Fan Cover
1
ER2DS9107
ER2ES9107
2
Fan
1
ER2DS9108
ER2ES9108
3
Snap Ring
1
9047116
9047122
4
Brake Cover
F
1
ER2DS9115
ER2ES9115
M
ER2EL9149
5
Packing B
1
ER2DS9119
ER2ES9119
6
Set Pin S
2
ES120003
7
Socket Bolt
4
9091234
9091255
8
Electromagnetic Brake
Assembly
1
MBABB18NA
MBABB35NA
9
Key B
1
ER2DS9360
ER2ES9360
55
9.1 Housing and Motor Parts
Figure
No.
Part Name
Parts Per
Hoist
015S
020L
020S
030C
025S
050L
10
Snap Ring
1
9047130
2
9047124
11
Socket Bolt
3
9091254
9091278
12
Spring Lock Washer
3
9012709
9012711
13
V Ring
1
ER2DS9210
ER2ES9210
14
Motor Shaft With Rotor
1
ER2EL5502
ER2ES5502
ER2FS5502
15
Ball Bearing
1
9000905
9000907
16
Ball Bearing
1
9000906
17
Motor Frame w/Stator
1
ER2BKV20L5A1
ER2BKV20S5A1
ER2BKV25S5A1
18
Packing M
1
ER2ES9118
ER2FS9118
19
Set Pin S
2
ER2ES9138
20
Socket Bolt
4
90912116
21
Body B Assembly
F
1
ER2ES6101
ER2FS6101
Body C Assembly
M
ER2EL6099
ER2ES6099
ER2FS6099
16
Ball Bearing
1
9000906
22
Oil Plug
1
E3S111003
23
Plug Packing
1
E3S112003
24
Snap Ring
1
9047280
25
Gear Case
F
1
ER2EL6103
ER2ES6103
ER2FS6103
M
ER2EL6102
ER2ES6102
ER2FS6102
26
Oil Plug
1
E3S111003
27
Plug Packing
1
E3S112003
28
Spring Pin
1
E3S129005S
29
Packing G
F
1
ER2ES9116
ER2FS9116
M
2
30
Set Pin S
F
2
ES120010S
M
4
31
Socket Bolt
F
4 (5)
9091280
9091286
9091280
9091286
M
4 (5)
90912147
90912155
32
Toothed Lock Washer
4 (5)
9679711
33
Oil Fill Plug
1
ER1BS9135
34
Eyebolt Packing
1
ES127005S
35
Name Plate Load Side E
1
ER1BS9960
36
Oil Full Tag
1
ER1BS9953
37
Warning Sticker E
(Disconnect Power)
1
ER2CS9936
38
Name Plate OF (Correct
Oil Required)
F
1
ER2CS9845
Name Plate OM
(Correct Oil Required)
M
ER2CS9846
39
Name Plate AA (With
Mechanical Brake)
M
1
ER1BS9893
40
Name Plate AD (Speed
Letter)
1
ER1BS9868
ER1BL9868
ER1BS9868
ER1DR9868
ER1BS9868
ER1BL9868
41
Warning Sticker HW
(Hot Surface)
D
1
ER2CI9806
42
Spacer M
M
1
ER2EL9296
ER2ES9296
ER2FS9296
43
Check Voltage Label
S,2V
1
ECP99NVVB
S,4V
ECP99NVVA
D,2V
ECP99NVWB
D,4V
ECP99NVWA
44
Check Hook Movement
Label
(bottom front of cover)
S
1
ER1BS9557
*Quantities in “( )” are for 025 and 050 hoists.
56

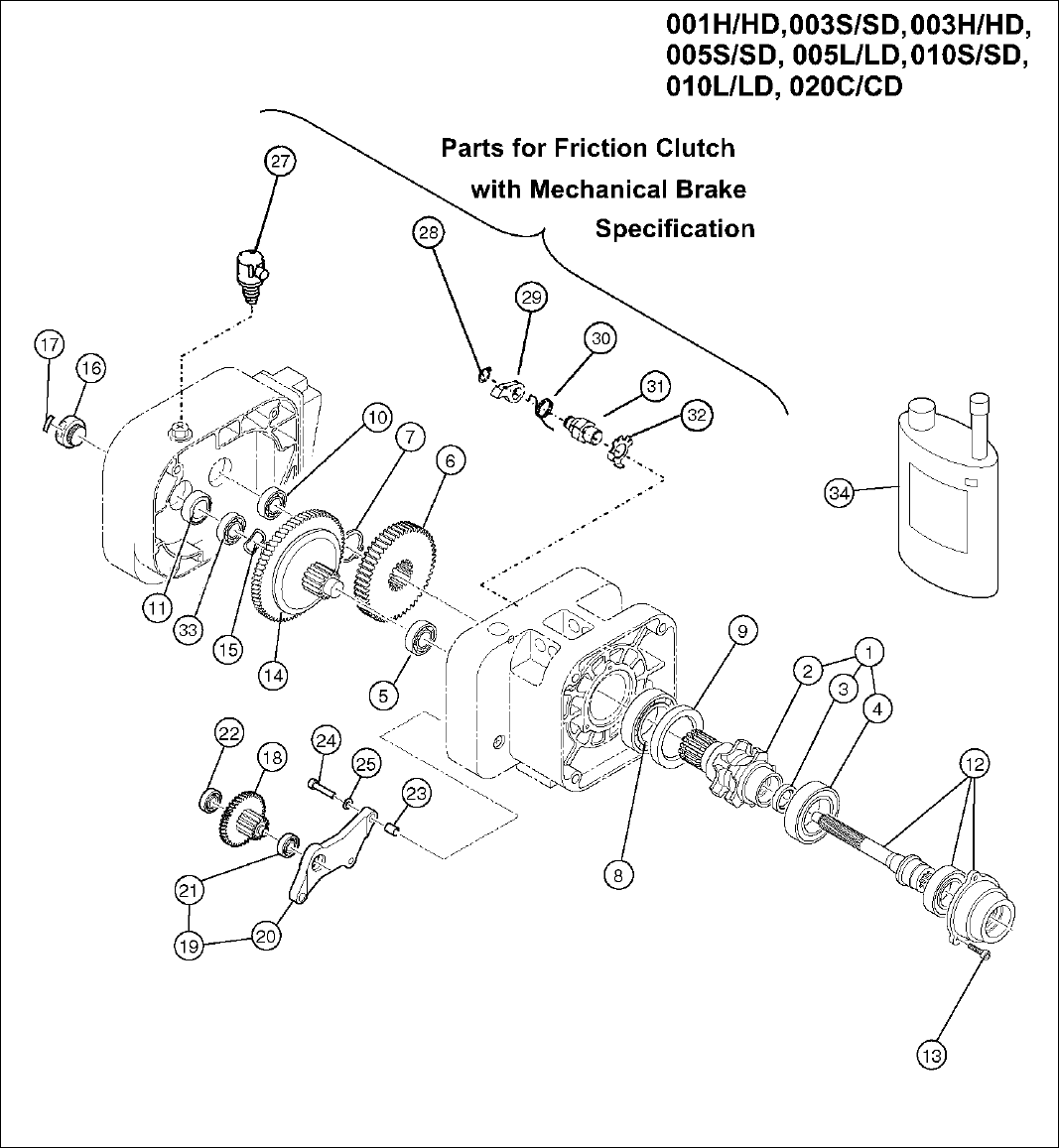

9.2 Gearing Parts

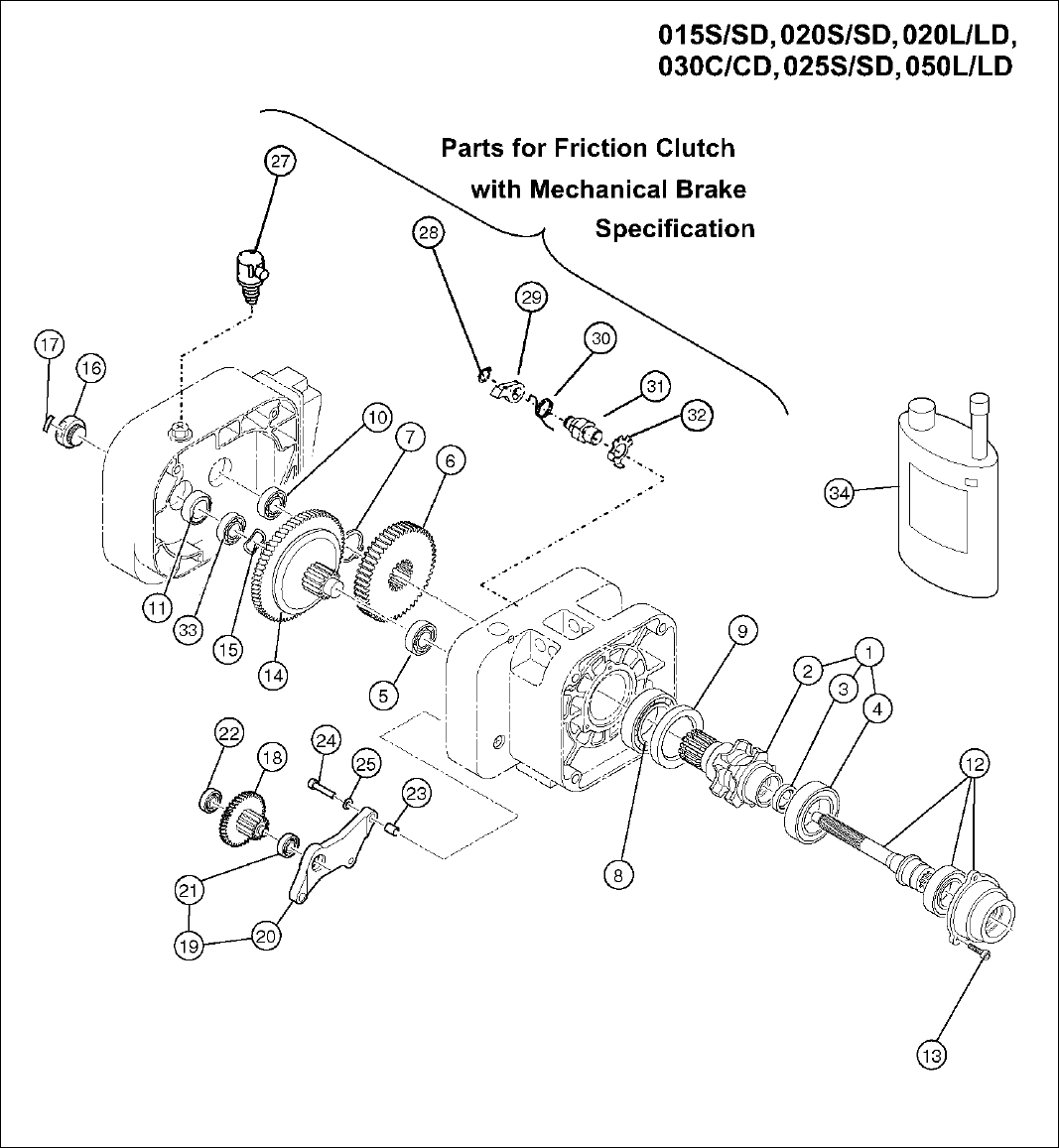

Figure 9-2-1 Gearing Parts
57
9.2 Gearing Parts
Figure
No.
Part Name
Parts
Per
Hoist
001H
003S
003H
005S
005L
010S
010L/020C
1
Load Sheave
Assembly
1
ER2BS6241
ER2CS6241
ER2DS6241
2
Load Sheave
1
ER2BS9241
ER2CS9241
ER2DS9241
3
Oil Seal
1
ER2BS9221
ER2CS9221
ES221010S
4
Ball Bearing
1
9000506
9000508
9000509
5
Ball Bearing
1
9000202
9000104
9000302
9000104
9000304
6
Load Gear
F
1
ER2BH9240
ER2BS9240
ER2CH9240
ER2CS9240
ER2CL9240
ER2DS9240
M
ER2CS9240
7
Snap Ring
1
9047130
9047135
8
Ball Bearing
1
9000106
9000107
9000108
9
Oil Seal
1
ER2BS9244
ES232005S
ES232010S
10
Ball Bearing
1
9000200
9000201
9000301
11
Oil Seal
F
1
E6F235003S
12
Pinion Assembly
F
1
ER2BS5220
ER2CS5220
ER2DS5220
M
1
ER2BS5304
ER2CS5304
ER2DS5304
13
Socket Bolt
3
90912149
14
Friction Clutch
Complete Assembly
F
1
ER2BH1223
ER2BS1223
ER2CH1223
ER2CS1223
ER2CL1223
ER2DS1223
ER2DL1223
Friction Clutch With
Mechanical
Brake Complete
Assembly
M
1
ER2BH1274
ER2BS1274
ER2CH1274
ER2CS1274
ER2CL1274
ER2DS1274
ER2DL1274
15
Wave Washer
F
1
E1DBX20S9311
16
Nut Cover
F
1
ER1CS9235
17
Name Plate FP
(Adjustment Of
Friction Clutch
Prohibited)
F
1
ER1BS9892
18
Gear B Assembly
F
1
ER2DL5262
M
ER2CL5306
ER2DL5306
19
Gear Holder Plate
Assembly
F
1
ER2DL6261
M
ER1CL6261
20
Gear Holder Plate
F
1
ER2DL9261
M
ER1CL9261
21
Ball Bearing
F
1
9000101
M
9000100
22
Ball Bearing
F
1
9000100
M
9000100
23
Set Pin S
F
2
ES120003
M
ES120003
24
Socket Bolt
F
3
9091252
M
9091252
25
Spring Lock Washer
F
3
9012709
M
9012709
27
Vent Cap
M
1
ER1BS1175
28
Snap Ring
M
1
9047111
29
Pawl
M
1
L4155015
30
Pawl Spring
M
1
ER1BS9290
31
Pawl Shaft
M
1
ER2CS9289
32
Pawl Shaft Washer
M
1
ER2CS9294
33
Ball Bearing
M
1
9000300
9000202
34*
NER2 Gear Oil 1qt
F
1
ER1BS1855*
NER2 Gear Oil 2.5 gal
F
1
ER1CS1855*
ER2 Gear Oil 1qt
M
1
7019801*
ER2 Gear Oil 2.5 gal
M
1
7019802*
*Refer to Section 2.1.1 to for how to identify NER2 verse ER2. Refer to Section 6.3 for the amount of gear oil required and for the method to
check the oil level.
58
9.2 Gearing Parts
Figure 9-2-2 Gearing Parts
59
9.2 Gearing Parts
Figure
No.
Part Name
Parts
Per
Hoist
015S
020L
020S
030C
025S
050L
1
Load Sheave
Assembly
1
ER2ES6241
ER2FS6241
2
Load Sheave
1
ER2ES9241
ER2FS9241
3
Oil Seal
1
ER2ES9221
4
Ball Bearing
1
9000609
9000610
5
Ball Bearing
1
9000405
6
Load Gear
1
ER2EM9240
ER2EL9240
ER2ES9240
ER2ER9240
ER2FS9240
7
Snap Ring
1
9047150
8
Ball Bearing
1
9000110
9
Oil Seal
1
ER2ES9244
10
Ball Bearing
1
9000303
11
Oil Seal 22
F
1
ER1DS9233
12
Pinion Assembly
F
1
ER2EL5220
ER2ES5220
ER2FS5220
M
1
ER2EL5304
ER2ES5304
ER2FS5304
13
Socket Bolt
3
90912149
14
Friction Clutch
Complete Assembly
F
1
ER2EM1223
ER2EL1223
ER2ES1223
ER2ER1223
ER2FS1223
ER2FR1223
Friction Clutch With
Mechanical
Brake Complete
Assembly
M
1
ER2EM1274
ER2EL1274
ER2ES1274
ER2ER1274
ER2FS1274
ER2FR1274
15
Wave Washer
F
1
ER1DS9234
ER2ES9234
16
Nut Cover
F
1
ER1DS9235
ER2ES9235
17
Name Plate FP
(Adjustment Of
Friction Clutch
Prohibited)
F
1
ER1BS9892
18
Gear B Assembly
F
1
ER2EM5262
ER2EL5262
ER2FS5262
M
ER2EM5306
ER2EL5306
ER2FS5306
19
Gear Holder Plate
Assembly
1
ER2EL6261
ER2FS6261
20
Gear Holder Plate
1
ER2EL9261
ER2FS9261
21
Ball Bearing
1
9000202
9000203
22
Ball Bearing
1
9000201
9000202
23
Set Pin S
2
ES120010S
ES120010S
24
Socket Bolt
3
9091275
9091275
25
Spring Lock Washer
3
9012711
9012711
27
Vent Cap
M
1
ER1BS1175
28
Snap Ring
M
1
9047116
29
Pawl
M
1
ER2FS9288
30
Pawl Spring
M
1
ER2FS9290
31
Pawl Shaft
M
1
ER2FS9289
32
Pawl Shaft Washer
M
1
ER2CS9294
33
Ball Bearing
M
1
9000303
9000304
34
NER2 Gear Oil 1qt
F
1
ER1BS1855*
NER2 Gear Oil 2.5 gal
F
1
ER1CS1855*
ER2 Gear Oil 1qt
M
1
7019801*
ER2 Gear Oil 2.5 gal
M
1
7019802*
*Refer to Section 2.1.1 to for how to identify NER2 verse ER2. Refer to Section 6.3 for the amount of gear oil required and for the method to
check the oil level.
60
9.3 Hook and Chain Parts

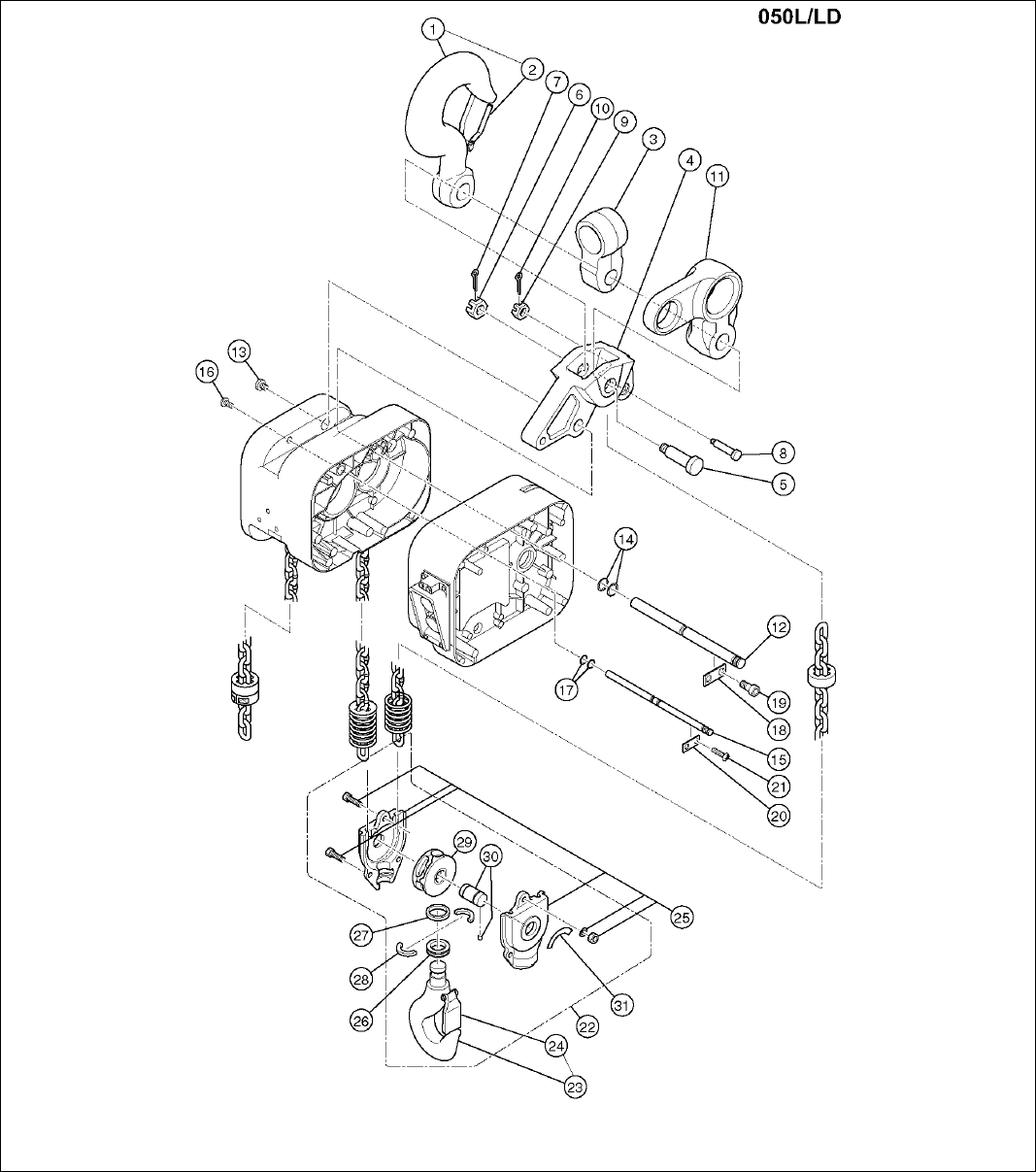

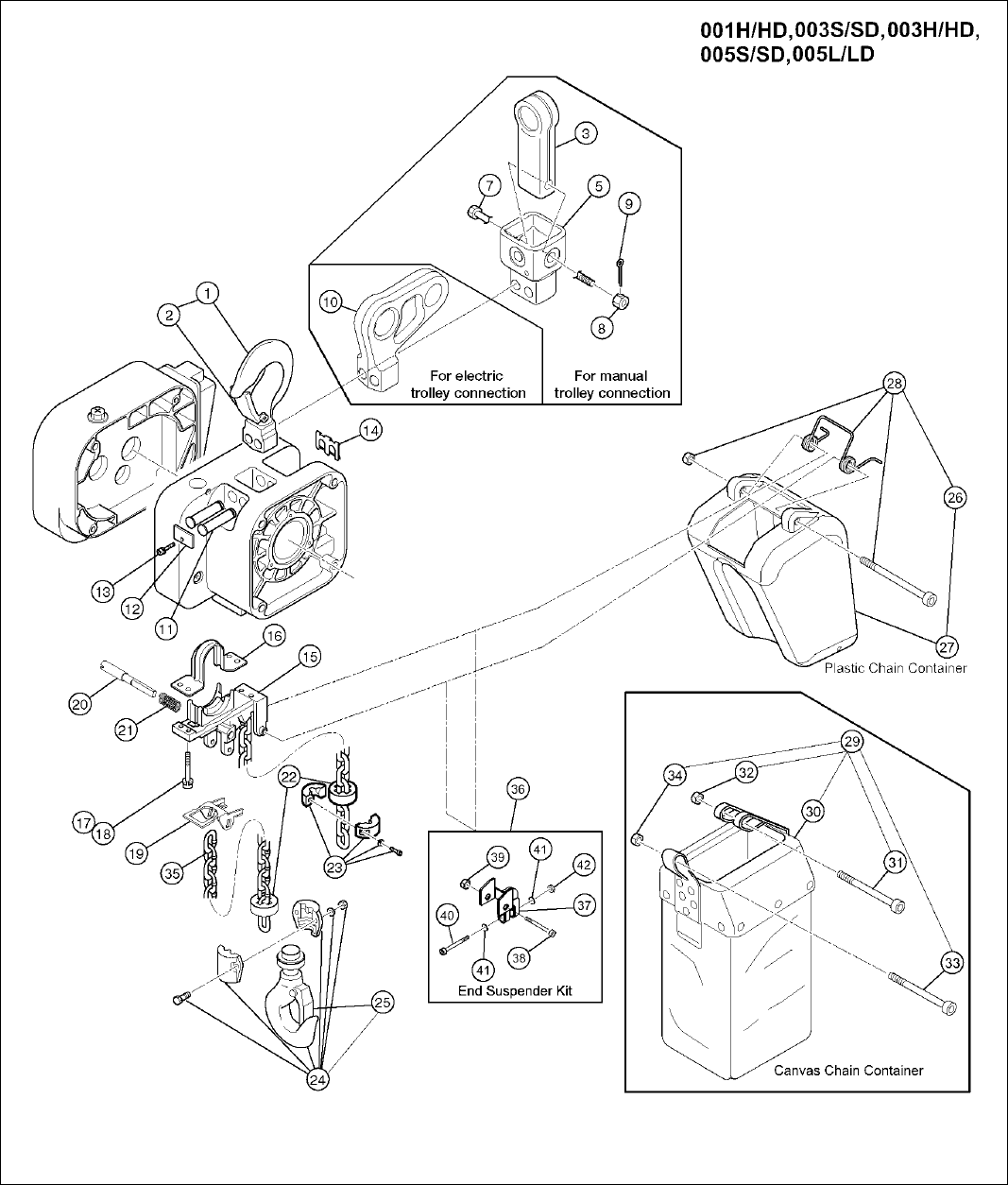

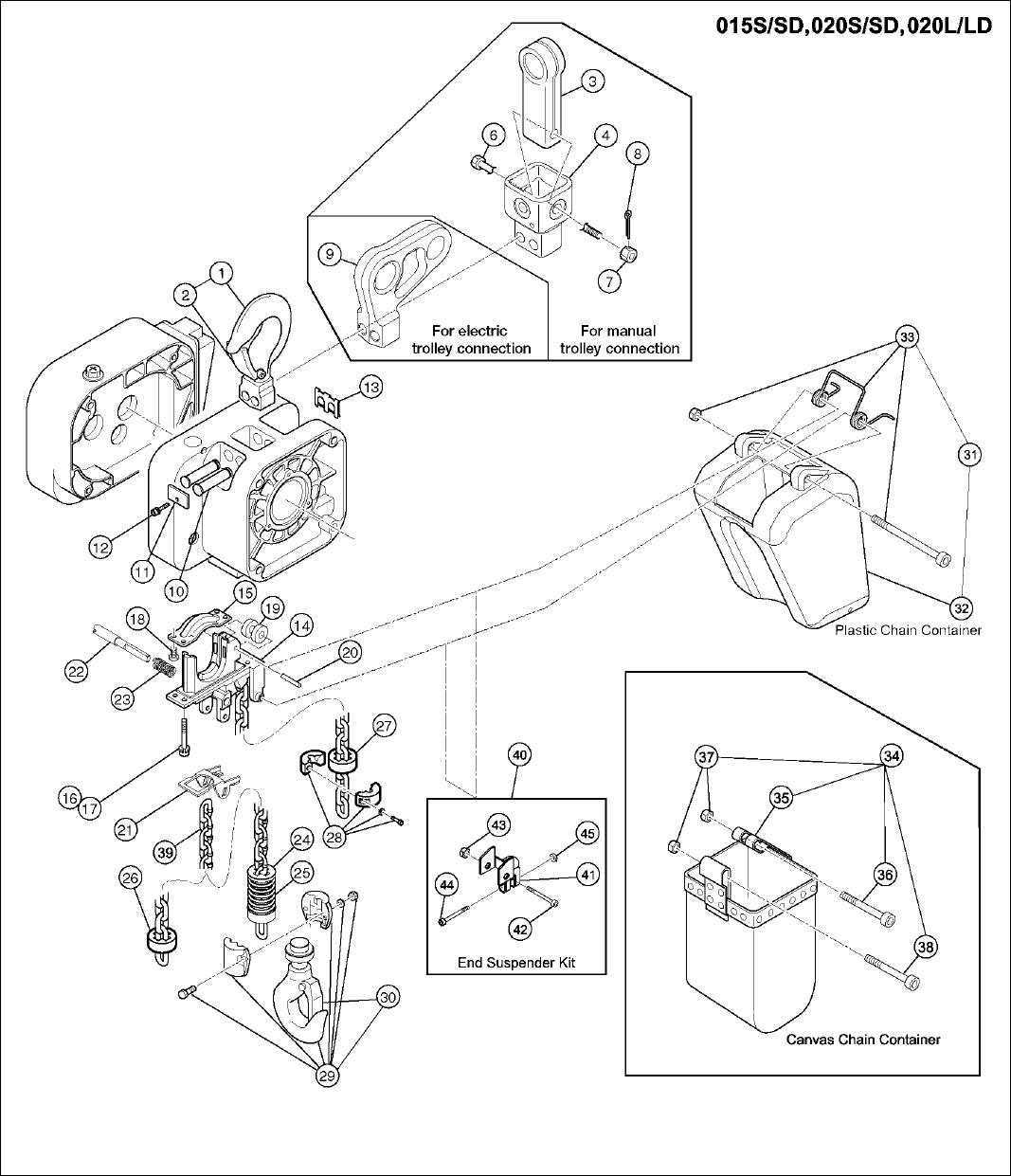

Figure 9-3-1 Hook and Chain Parts
61
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
001H
003S
003H
005S
005L
1
Top Hook Assembly
1
ER2CS1001
2
Hook Latch
1
ER2CS1002
3
Suspender E (For Manual Trolley)
1
T7GB004010
5
Connection Yoke PG*
(For Manual Trolley)
1
ER2CS5027*
7
Yoke Bolt
1
ER1CS9032
8
Slotted Nut
1
L3183008
9
Split Pin
1
9009414-5
10
Suspender T
(For Motorized Trolley)
1
ER2DS9031
11
Top Pin
2
ER2CS9121
12
Plate A
1
ER2CS9123
13
Socket Bolt With Spring Washer
1
J1BG10601212
14
Shaft Clip
1
ER2CS9186
15
Chain Guide A
1
ER2BS9331
ER2CS9331
16
Chain Guide B
1
ER2BS9332
ER2CS9332
17
Socket Bolt
4
9091251
18
Spring Lock Washer
4
9012709
19
Limit Lever
1
ER2BS9337
ER2CS9337
20
Limit Lever Pin
1
ER2BS9338
ER2CS9338
21
Limit Lever Spring
1
ER2CS9357
22
Cushion Rubber
2
ER2BS9053
ER1CS9053
23
Stopper Assembly
1
ES1045003
ER2CS1041
24
Bottom Hook Complete Assembly
1
ER2BH1011
ER2BS1011
ER2CH1011
ER2CS1011
25
Hook Latch
1
ER2CS1002
26
Plastic Chain Container Assembly
(Max. Lifting Height 20ft)
1
PBK2-B
PBK2-C
27
Plastic Chain Container
1
ER2BS1401
ER2CS1401
28
Plastic Container Spring Assembly
1
ER2BS1416
ER2CS1416
29
Canvas Chain Container Assembly
(Max. Lift Height 50ft)
1
BK2C1
BK2C2
30
Canvas Chain Container
1
ER2CS5403
ER2CS5405
31
Socket Bolt
1
9091283
32
Lever Nut
1
ES857005S
33
Socket Bolt
1
ER419001
34
Lever Nut
1
ES855003
35
NP Load Chain
1
LCER2003NP
LCER2005NP
36
End Suspender Kit
1
ENDS2B
ENDS2C
37
End Suspender
1
ER2BS9408
ER2CS9408
38
Socket Bolt
1
9091281
9091283
39
Lever Nut
1
ES857005S
40
Socket Bolt
1
90912150
90912151
41
Flat Washer
2
9012510
9012511
42
Lever Nut
1
E2D853125
ES855003
*Connection Yoke PG replaces Connection Yoke P (ER2CS9027) and Connection Yoke G (ER2CS9029)
62
9.3 Hook and Chain Parts

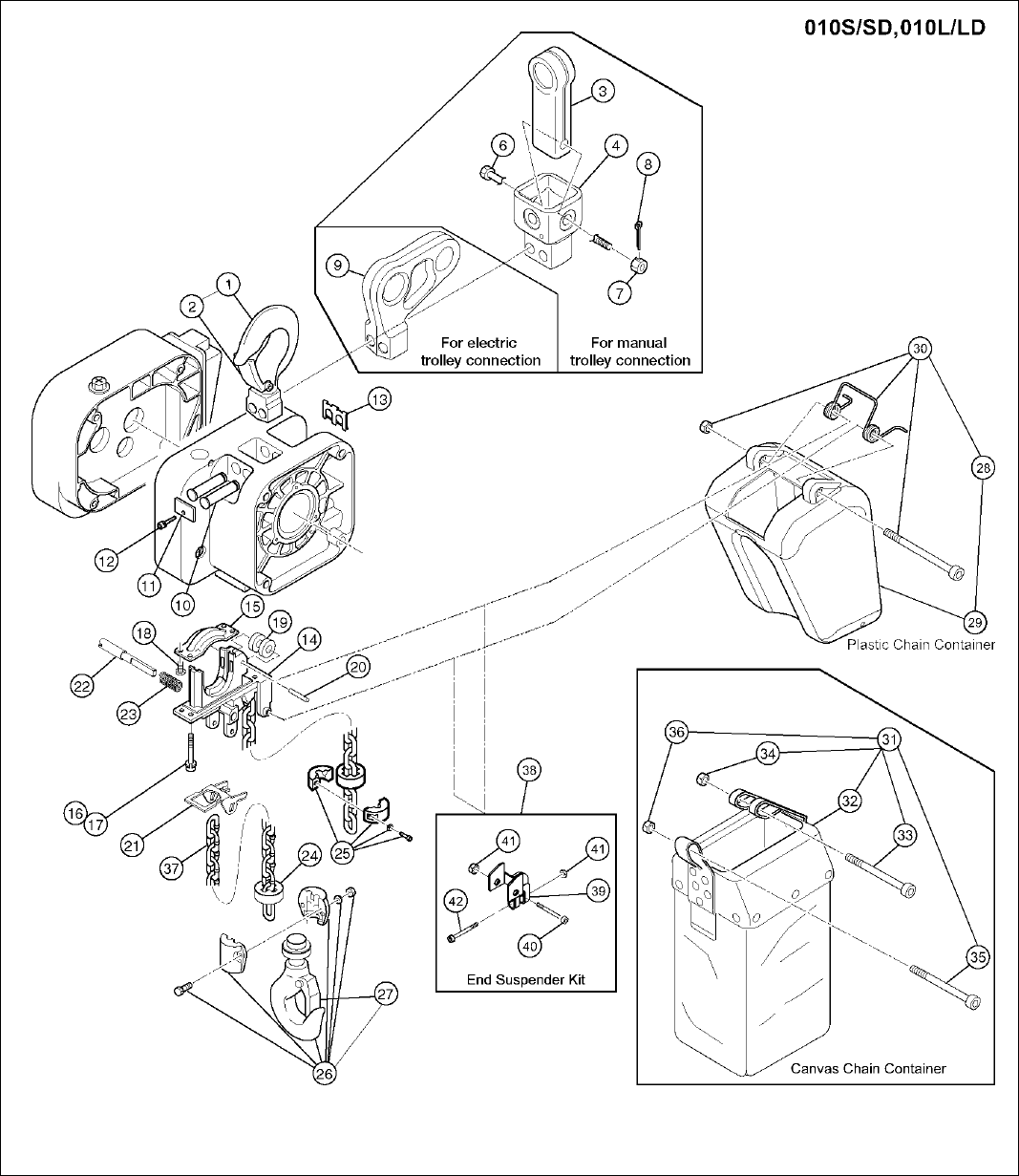

Figure 9-3-2 Hook and Chain Parts
63
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
010S
010L
1
Top Hook Assembly
1
ER2DS1001
2
Hook Latch
1
ER2DS1002
3
Suspender E (For Manual Trolley)
1
T7GB004010
4
Connection Yoke PG*
(For Manual Trolley)
1
ER2CS5027*
6
Yoke Bolt
1
ER1CS9032
7
Slotted Nut
1
L3183008
8
Split Pin
1
9009414-5
9
Suspender T (For Motorized Trolley)
1
ER2DS9031
10
Top Pin, Lot No. ER2A-..., 2.7in (69mm) Long
2
ER2CS9121
Top Pin, Lot No. ER2B-..., 3.7in (95mm) Long
2
ER2DS9121
11
Plate A
1
ER2CS9123
12
Socket Bolt With Spring Washer
1
J1BG10601212
13
Shaft Clip
1
ER2CS9186
14
Chain Guide A
1
ER2DS9331
15
Chain Guide B
1
ER2DS9332
16
Socket Bolt
4
9091274
17
Spring Lock Washer
4
9012711
18
Machine Screw With Spring Washer
4
M6F554010
19
Guide Roller
1
ER2DS9333
20
Roller Pin
1
ER1CS9334
21
Limit Lever
1
ER2DS9337
22
Limit Lever Pin
1
ER2DS9338
23
Limit Lever Spring
1
ER2CS9357
24
Cushion Rubber
2
ER1DS9053
25
Stopper Assembly
1
ER1DS1041
26
Bottom Hook Complete Assembly
1
ER2DS1011
27
Hook Latch
1
ER2DS1002
28
Plastic Chain Container Assembly
(Max. Lifting Height 20ft)
1
PBK2-D
29
Plastic Chain Container
1
ER2DS1401
30
Plastic Container Spring Assembly
1
ER2DS1416
31
Canvas Chain Container Assembly (Max. Lifting
Height 50ft)
1
BK2D2
32
Canvas Chain Container
1
ER2DS5405
33
Socket Bolt
1
9091286
34
Lever Nut
1
ES857005S
35
Socket Bolt
1
ER419001
36
Lever Nut
1
ES855003
37
NP Load Chain
1
LCER2010NP
38
End Suspender Kit
1
ENDS2D
39
End Suspender
1
ER2CS9408
40
Socket Bolt
1
90912153
41
Lever Nut
2
ES857005S
42
Socket Bolt
1
90912152
*Connection Yoke PG replaces Connection Yoke P (ER2CS9027) and Connection Yoke G (ER2CS9029)
64
9.3 Hook and Chain Parts

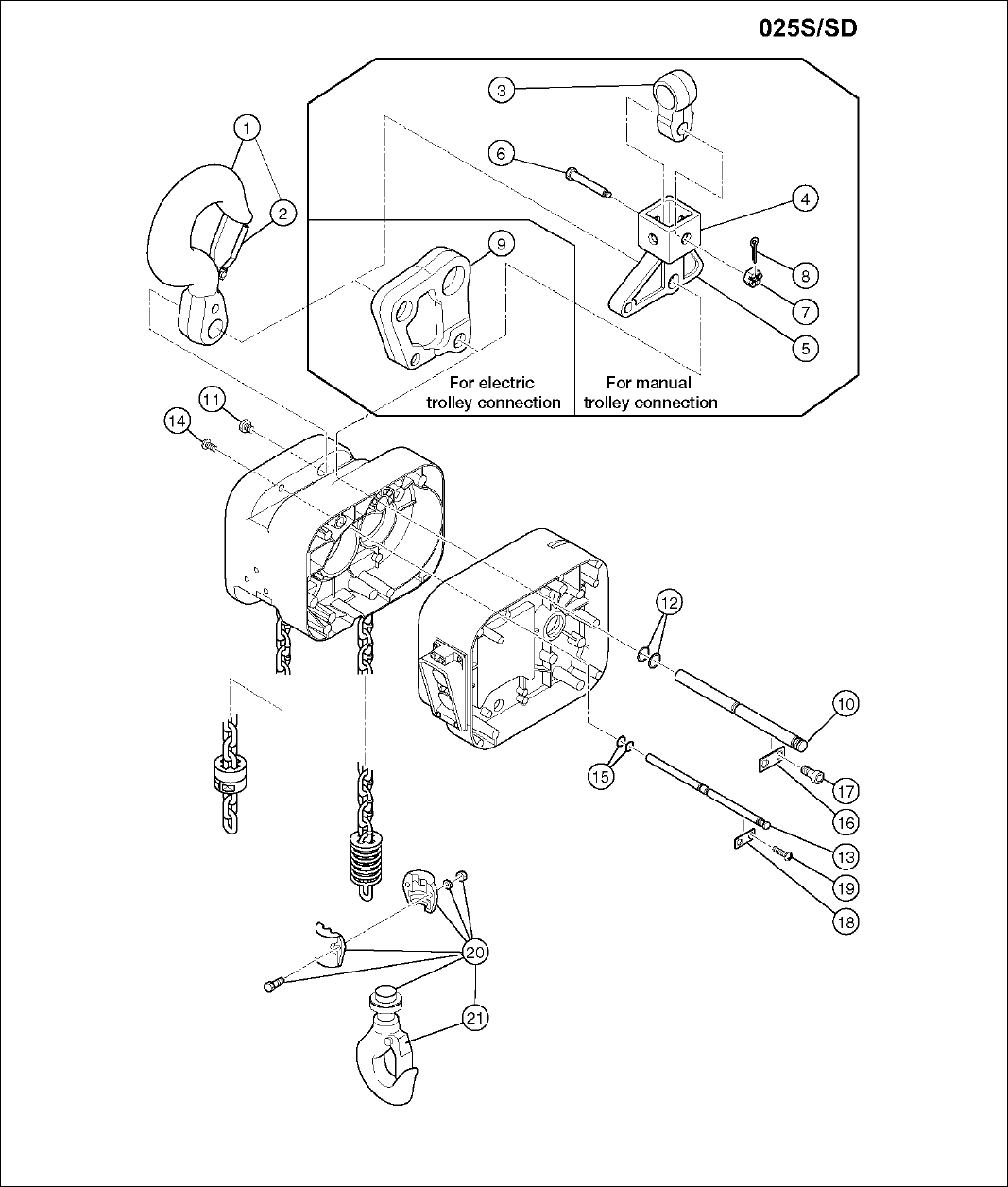

Figure 9-3-3 Hook and Chain Parts
65
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
015S
020S
020L
1
Top Hook Assembly
1
ER2ES1001
2
Hook Latch
1
ER2ES1002
3
Suspender E (For Manual Trolley)
1
T7GB004020
4
Connection Yoke PG*
(For Manual Trolley)
1
ER2ES5027*
6
Yoke Bolt
1
ER1ES9032
7
Slotted Nut
1
ES088020L
8
Split Pin
1
9009436
9
Suspender T
1
ER2ES9031
10
Top Pin
2
ER2ES9121
11
Plate A
1
ER2ES9123
12
Socket Bolt With Spring Washer
1
J1BG10601212
13
Shaft Clip
1
ER2ES9186
14
Chain Guide A
1
ER2ES9331
15
Chain Guide B
1
ER2ES9332
16
Socket Bolt
4
9091274
17
Spring Lock Washer
4
9012711
18
Machine Screw With Spring Washer
4
E6F151003
19
Guide Roller
1
ER1DL9333
20
Roller Pin
1
ER1DL9334
21
Limit Lever
1
ER2ES9337
22
Limit Lever Pin
1
ER2EL9338
ER2ES9338
ER2EL9338
23
Limit Lever Spring
1
ER2CS9357
24
Limiting Plate
1
ER1ES9054
25
Chain Spring
1
E7SS020S9047
ER1DL9051
26
Cushion Rubber
1
ER1ES9053
27
Cushion Rubber
1
ER1ES9053
28
Stopper Assembly
1
ER1ES1041
29
Bottom Hook Complete Assembly
1
ER2EM1011
ER2ES1011
30
Hook Latch
1
ER2EM1002
ER2ES1002
31
Plastic Chain Container Assembly
(Max. Lifting Height 13ft)
1
PBK2-E
32
Plastic Chain Container
1
ER2ES1401
33
Plastic Container Spring Assembly
1
ER2ES1416
34
Canvas Chain Container Assembly
(Max. Lifting Height 60ft)
1
BK2E2
35
Canvas Chain Container
1
ER2ES5405
36
Socket Bolt
1
90912107
37
Lever Nut
2
ES066075
38
Socket Bolt
1
90912104
39
NP Load Chain
1
LCER2020NP
40
End Suspender Kit
1
ENDS2E
41
End Suspender
1
ER2ES9408
42
Socket Bolt
1
90912107
43
Lever Nut
1
ES066075
44
Socket Bolt
1
90912152
45
Lever Nut
1
ES857005S
*Connection Yoke PG replaces Connection Yoke P (ER2ES9027) and Connection Yoke G (ER2ES9029)
66
9.3 Hook and Chain Parts
Figure 9-3-4 Hook and Chain Parts

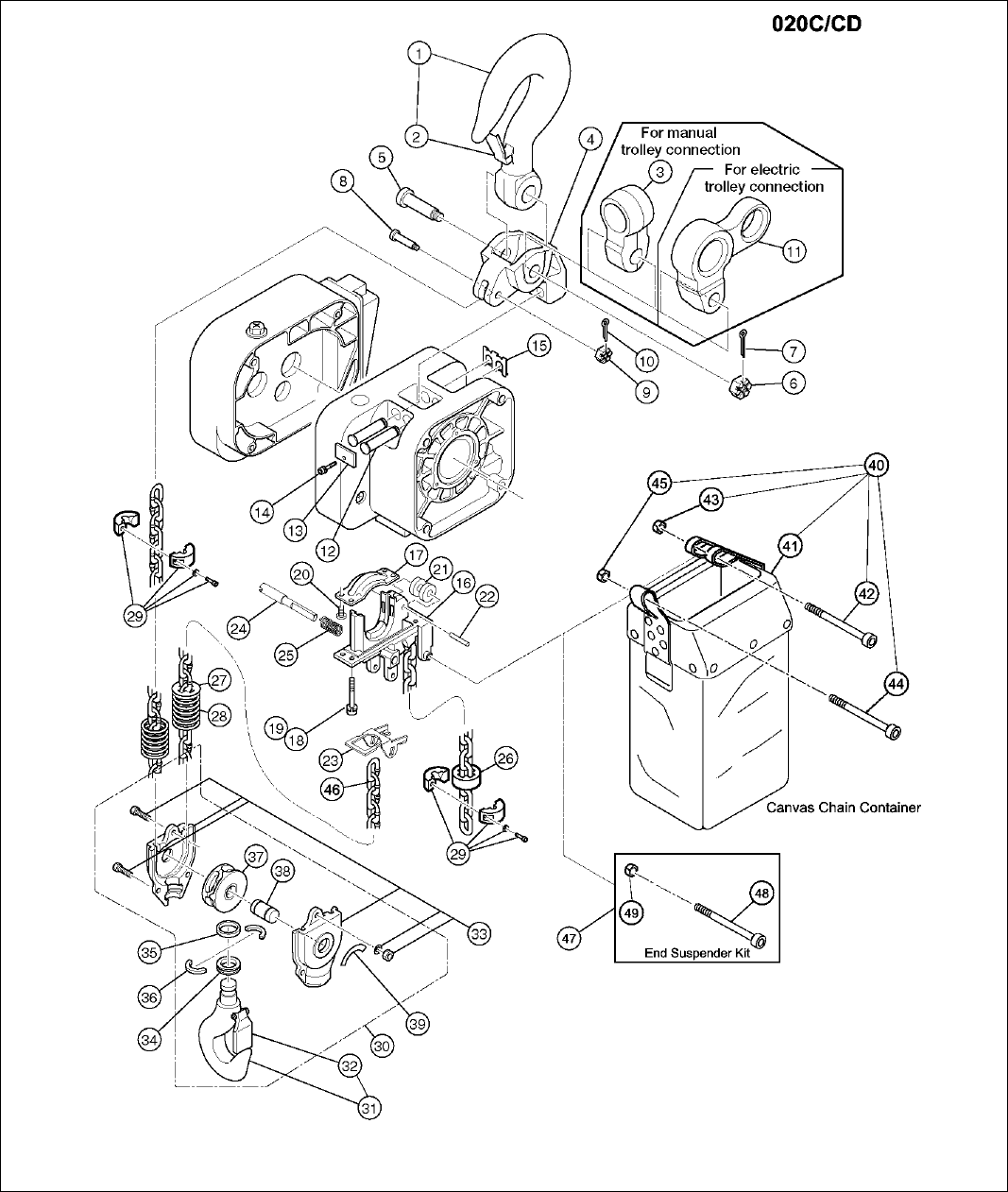

67
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
020C
1
Top Hook Assembly
1
ER2DR1001
2
Hook Latch
1
ER2DS1002
3
Suspender E (For Manual Trolley)
1
T7GB004020
4
Connection Yoke D
1
ER2DR9030
5
Yoke Bolt
1
ER1ES9032
6
Slotted Nut
1
ES088020L
7
Split Pin
1
9009436
8
Chain Pin
1
M2041010
9
Slotted Nut
1
M2049010
10
Split Pin
1
9009412
11
Suspender T (For Motorized Trolley)
1
ER2DR9031
12
Top Pin, Lot No. ER2A-..., 2.7in (69mm) Long
2
ER2CS9121
Top Pin, Lot No. ER2B-..., 3.7in (95mm) Long
2
ER2DS9121
13
Plate A
1
ER2CS9123
14
Socket Bolt With Spring Washer
1
J1BG10601212
15
Shaft Clip
1
ER2CS9186
16
Chain Guide A
1
ER2DS9331
17
Chain Guide B
1
ER2DS9332
18
Socket Bolt
4
9091274
19
Spring Lock Washer
4
9012711
20
Machine Screw With Spring Washer
4
E6F151003
21
Guide Roller
1
ER1DS9333
22
Roller Pin
1
ER1DL9334
23
Limit Lever
1
ER2DS9337
24
Limit Lever Pin
1
ER2DS9338
25
Limit Lever Spring
1
ER2CS9357
26
Cushion Rubber
2
ER1DS9053
27
Limiting Plate
1
ER2DR9054
28
Chain Spring
2
ER1DS9051
29
Stopper Assembly
2
ER1DS1041
30
Bottom Hook Complete Assembly
1
ER2DR1011
31
Bottom Hook Assembly
1
ER2DR2011
32
Hook Latch
1
ER2DS1002
33
Bottom Yoke Assembly
1
ER2DR2015
34
Thrust Bearing
1
ES022015
35
Thrust Collar A
1
ES026015
36
Hook Stopper A
2
ES027015
37
Idle Sheave Assembly
1
ER2DR6021
38
Bottom Shaft Assembly
1
ER2DR6023
39
Name Plate C
1
80173
40
Canvas Chain Container Assembly
(Max. Lifting Height 26ft)
1
BK2D2
41
Canvas Chain Container
1
ER2DS5405
42
Socket Bolt
1
9091286
43
Lever Nut
1
ES857005S
44
Socket Bolt
1
ER419001
45
Lever Nut
1
ES855003
46
NP Load Chain
1
LCER2010NP
47
End Suspender Kit
1
ENDS2D2
48
Socket Bolt
1
90912153
49
Lever Nut
1
ES857005S
68
9.3 Hook and Chain Parts

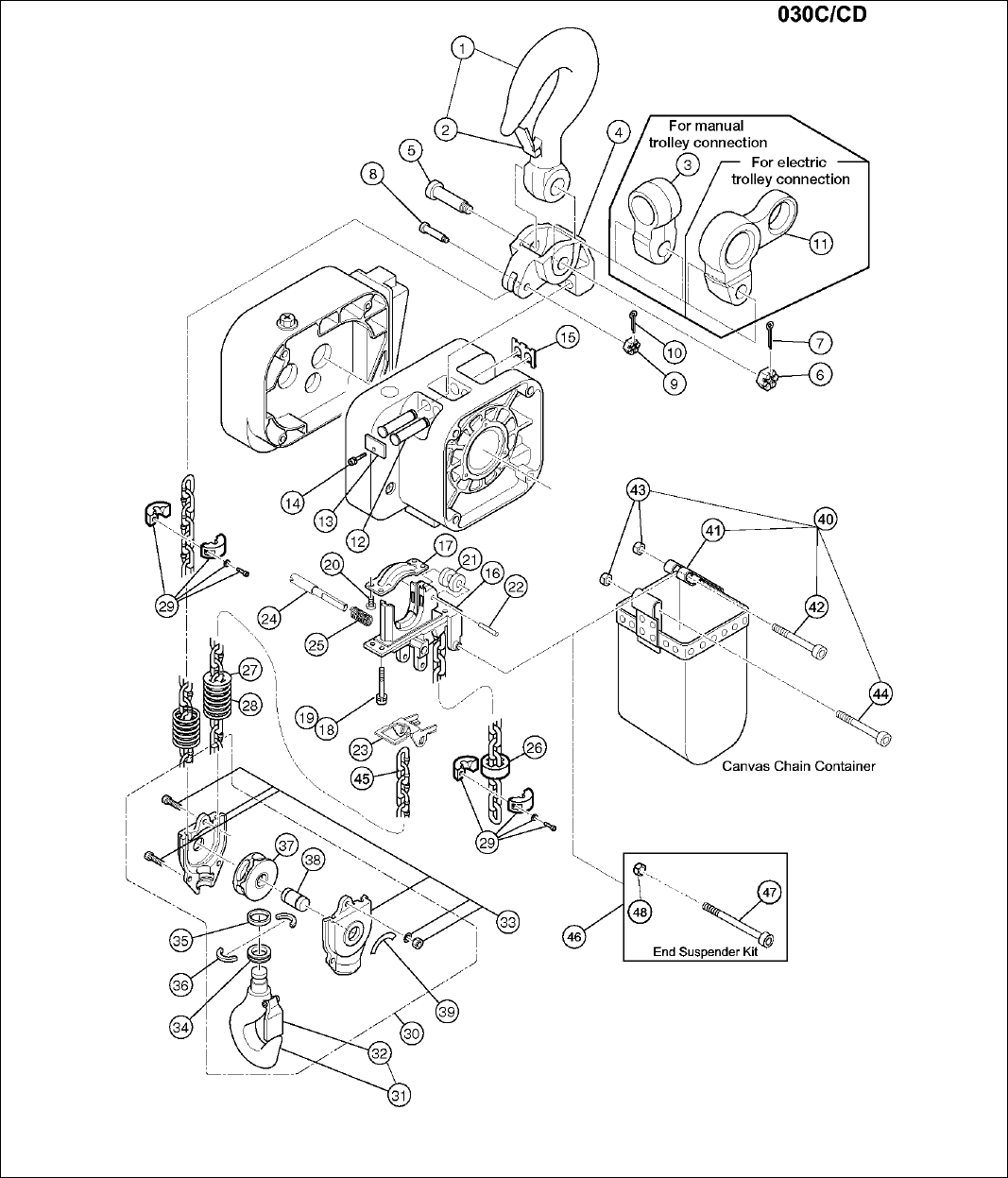

Figure 9-3-5 Hook and Chain Parts
69
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
030C
1
Top Hook Assembly
1
ER2ER1001
2
Hook Latch
1
ER2ER1002
3
Suspender E (For Manual Trolley)
1
T7GB004030
4
Connection Yoke D
1
ER2ER9030
5
Yoke Bolt
1
ER1ES9032
6
Slotted Nut
1
L3183008
7
Split Pin
1
9009436
8
Chain Pin
1
ES041030
9
Slotted Nut
1
M2049020
10
Split Pin
1
9009416
11
Suspender T (For Motorized Trolley)
1
ER2ER9031
12
Top Pin
2
ER2ES9121
13
Plate A
1
ER2ES9123
14
Socket Bolt With Spring Washer
1
J1BG10601212
15
Shaft Clip
1
ER2ES9186
16
Chain Guide A
1
ER2ES9331
17
Chain Guide B
1
ER2ES9332
18
Socket Bolt
4
9091274
19
Spring Lock Washer
4
9012711
20
Machine Screw With Spring Washer
4
E6F151003
21
Guide Roller
1
ER1DL9333
22
Roller Pin
1
ER1DL9334
23
Limit Lever
1
ER2ES9337
24
Limit Lever Pin
1
ER2ES9338
25
Limit Lever Spring
1
ER2CS9357
26
Cushion Rubber
1
ER1EM9053
27
Limiting Plate
1
ER1ES9054
28
Chain Spring
2
ES047015
29
Stopper Assembly
2
ER1ES1041
30
Bottom Hook Complete Assembly
1
ER2ER1011
31
Bottom Hook Assembly
1
ER2ER2011
32
Hook Latch
1
ER2ER1002
33
Bottom Yoke Assembly
1
ER2ER2015
34
Thrust Bearing
1
ES022025
35
Thrust Collar A
1
ES026025
36
Hook Stopper A
2
ES027025
37
Idle Sheave Assembly
1
ER2ER6021
38
Bottom Shaft Assembly
1
ER2ER6023
39
Name Plate C
1
80173
40
Canvas Chain Container Assembly
(Max. Lifting Height 20ft)
1
BK2E1
41
Canvas Chain Container
1
ER2ES5403
42
Socket Bolt
1
90912107
43
Lever Nut
2
ES066075
44
Socket Bolt
1
90912104
45
NP Load Chain
1
LCER2020NP
46
End Suspender Kit
1
ENDS2E2
47
Socket Bolt
1
90912107
48
Lever Nut
1
ES066075
70
9.3 Hook and Chain Parts
Figure 9-3-6 Hook and Chain Parts
71
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
025S
1
Top Hook Complete Assembly
1
ER2FS1001
2
Hook Latch
1
ER2FS1002
3
Suspender E (For Manual Trolley)
1
T7GB004030
4
Connection Yoke PG*
(For Manual Trolley)
1
ER2FS5027*
6
Yoke Bolt
1
ER2FS9032
7
Slotted Nut
1
ES088020L
8
Split Pin
1
9009436
9
Suspender T (For Motorized Trolley)
1
ER2FS9031
10
Connection Shaft Assembly
1
ER2FS6121
11
Shaft Plug
1
ER2FS9128
12
O Ring
2
9013317
13
Fixing Shaft Assembly
1
ER2FS6122
14
Fixing Shaft Plug
1
ER2FS9131
15
O Ring
2
9013307
16
Connection Shaft Plate A
1
ER1ES9123
17
Socket Bolt With Spring Washer
2
J1BG10601616
18
Fixing Shaft Plate A
1
ER1BS9123
19
Machine Screw With Spring Washer
2
M6F554010
20
Bottom Hook Complete Assembly
1
ER2FS1011
21
Hook Latch
1
ER2ES1002
*Connection Yoke PG replaces Connection Yoke P (ER2FS9027) and Connection Yoke G (ER2FS9029)
72
9.3 Hook and Chain Parts

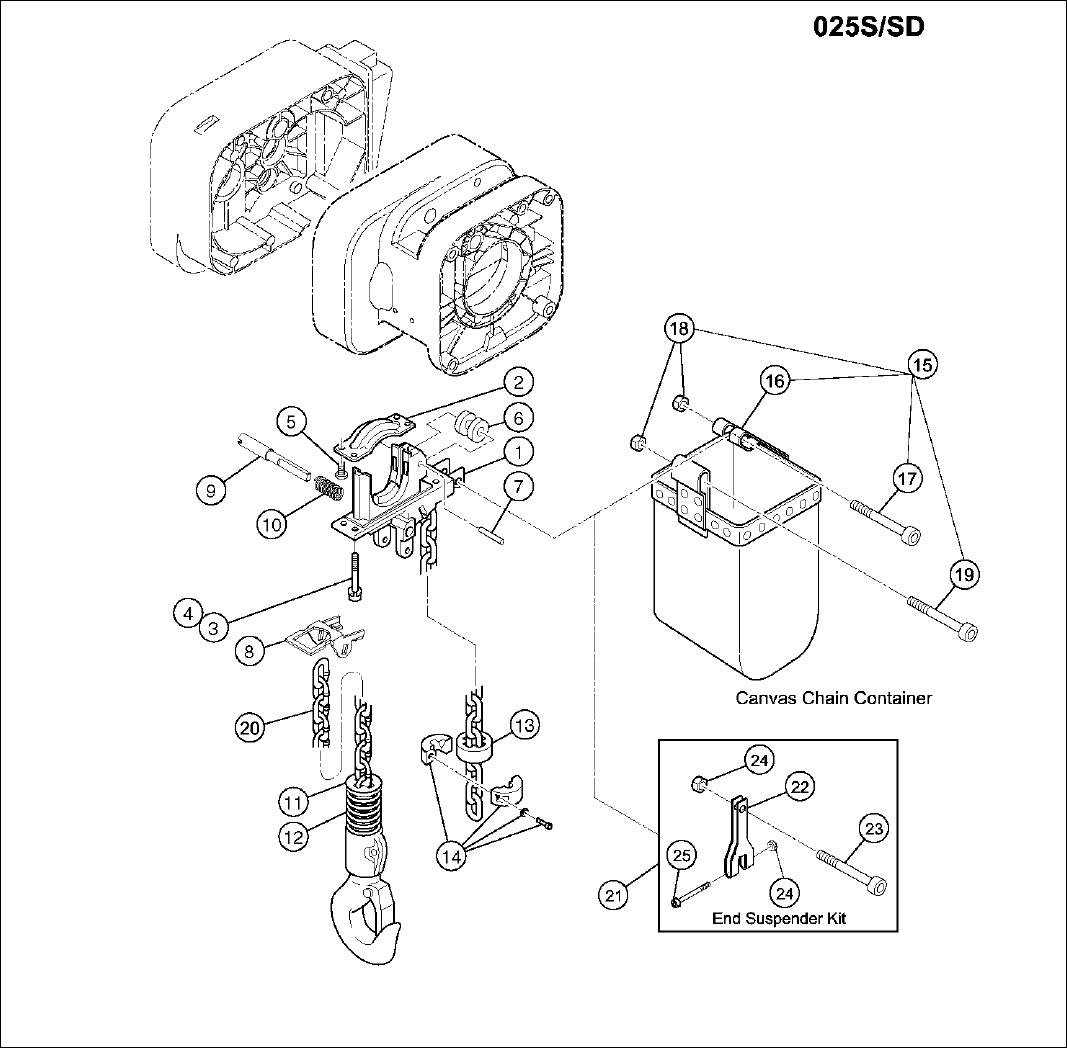

Figure 9-3-7 Hook and Chain Parts
73
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
025S
1
Chain Guide A
1
ER2FS9331
2
Chain Guide B
1
ER2FS9332
3
Socket Bolt
4
9091274
4
Spring Lock Washer
4
9012711
5
Machine Screw With Spring Washer
4
E6F151003
6
Guide Roller
1
ER1EM9333
7
Roller Pin
1
ER2FS9334
8
Limit Lever
1
ER2FS9337
9
Limit Lever Pin
1
ER2FS9338
10
Limit Lever Spring
1
ER2CS9357
11
Limiting Plate
1
ER1FH9054
12
Chain Spring
1
ER1EM9051
13
Cushion Rubber
1
ER1EM9053
14
Stopper Assembly
1
ER1ES1041
15
Canvas Chain Container Assembly (Max. Lifting Height 40ft)
1
BK2F2
16
Canvas Chain Container
1
ER2FS5405
17
Socket Bolt
1
90912140
18
Lever Nut
2
ES066075
19
Socket Bolt
1
90912104
20
NP Load Chain
1
LCER2025NP
21
End Suspender Kit
1
ENDS2F
22
End Suspender
1
ER1ES9408
23
Socket Bolt
1
90912101
24
Lever Nut
1
ES066075
25
Socket Bolt
1
90912140
26
Lever Nut
1
ES066075
74
9.3 Hook and Chain Parts
Figure 9-3-8 Hook and Chain Parts
75
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
050L
1
Top Hook Assembly
1
ER2FR1001
2
Hook Latch
1
ER2FR9002
3
Suspender G (For Manual Trolley)
1
MR1GS9001
4
Connection Yoke D
1
ER2FR9030
5
Yoke Bolt
1
ES006050
6
Slotted Nut
1
J1NL00120200
7
Split Pin
1
9009437
8
Chain Pin
1
ES041050
9
Slotted Nut
1
M2049030
10
Split Pin
1
9009424
11
Suspender T (For Motorized Trolley)
1
ER1FR9031
12
Top Pin Assembly
1
ER2FS6121
13
Top Pin Plug Assembly
1
ER2FS6128
14
O Ring
2
9013317
15
Fixing Shaft Assembly
1
ER2FS6122
16
Fixing Shaft Plug Assembly
1
ER2FS6131
17
O Ring
2
9013307
18
Plate A
1
ER1ES9123
19
Socket Bolt With Spring Washer
2
J1BG10601616
20
Plate A
1
ER1BS9123
21
Machine Screw With Spring Washer
2
M6F554010
22
Bottom Hook Complete Assembly
1
ER2FR1011
23
Bottom Hook Assembly
1
ER2FR2011
24
Hook Latch
1
ER2FR9002
25
Bottom Yoke Assembly
1
ER2FR2015
26
Thrust Bearing
1
ES022050
27
Thrust Collar A
1
ES026050
28
Hook Stopper A
2
ES027050
29
Idle Sheave Assembly
1
ER2FR6021
30
Bottom Shaft Assembly
1
ES5054050
31
Name Plate C
1
80173
76
9.3 Hook and Chain Parts

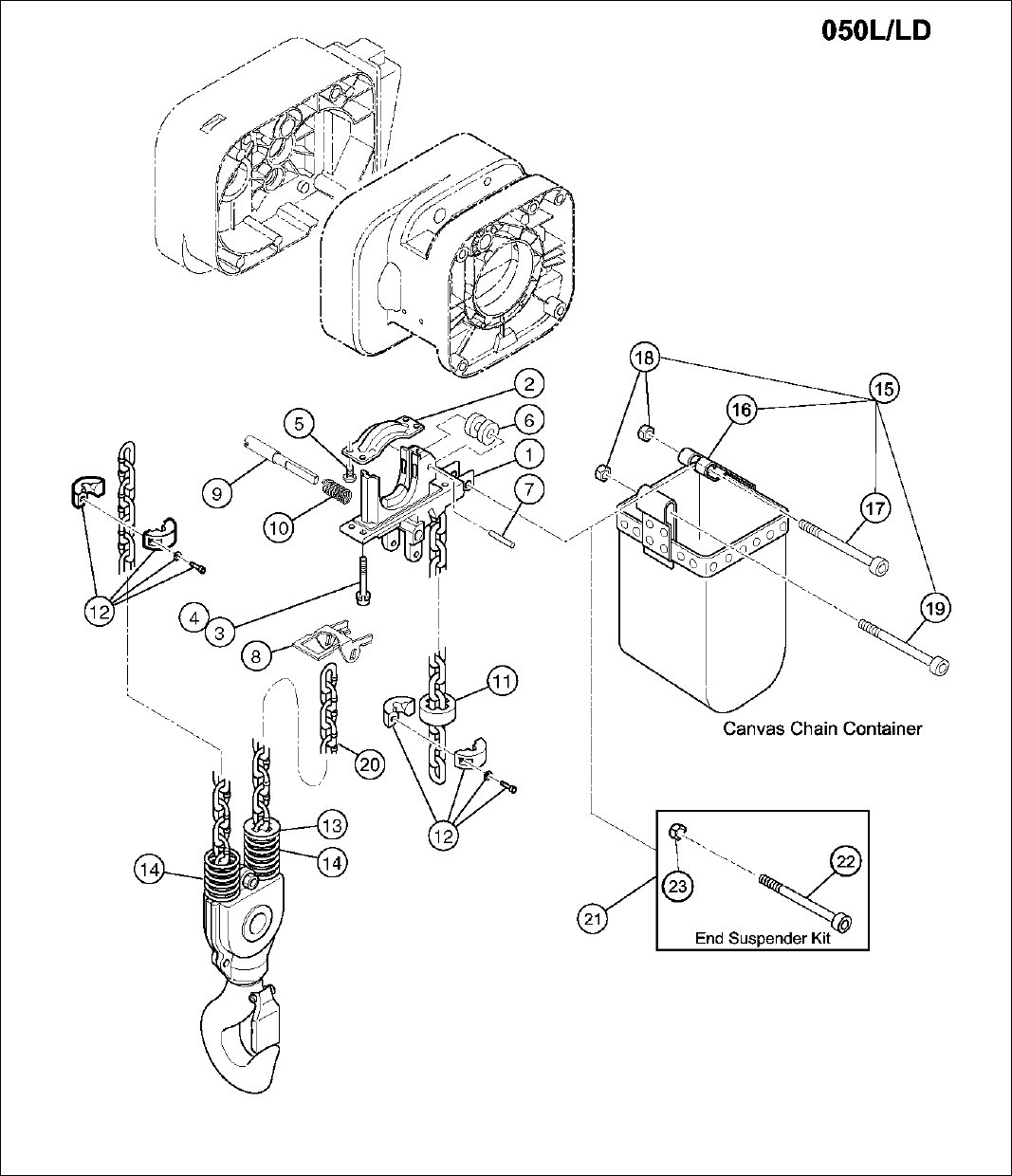

Figure 9-3-9 Hook and Chain Parts
77
9.3 Hook and Chain Parts
Figure
No.
Part Name
Parts
Per
Hoist
050L
1
Chain Guide A
1
ER2FS9331
2
Chain Guide B
1
ER2FS9332
3
Socket Bolt
4
9091274
4
Spring Lock Washer
4
9012711
5
Machine Screw With Spring Washer
4
E6F151003
6
Guide Roller
1
ER1EM9333
7
Roller Pin
1
ER2FS9334
8
Limit Lever
1
ER2FS9337
9
Limit Lever Pin
1
ER2FS9338
10
Limit Lever Spring
1
ER2CS9357
11
Cushion Rubber
1
ER1EM9053
12
Stopper Assembly
2
ER1ES1041
13
Limiting Plate
1
ER1FH9054
14
Chain Spring
2
ER1EM9051
15
Canvas Chain Container Assembly
(Max. Lifting Height 20ft)
1
BK2F2
16
Canvas Chain Container
1
ER2FS5405
17
Socket Bolt
1
90912140
18
Lever Nut
2
ES066075
19
Socket Bolt
1
90912104
20
NP Load Chain
1
LCER2025NP
21
End Suspender Kit
1
ENDS2F2
22
Socket Bolt
1
90912140
23
Lever Nut
1
ES066075
78
9.4 Electric Parts (Single Speed)

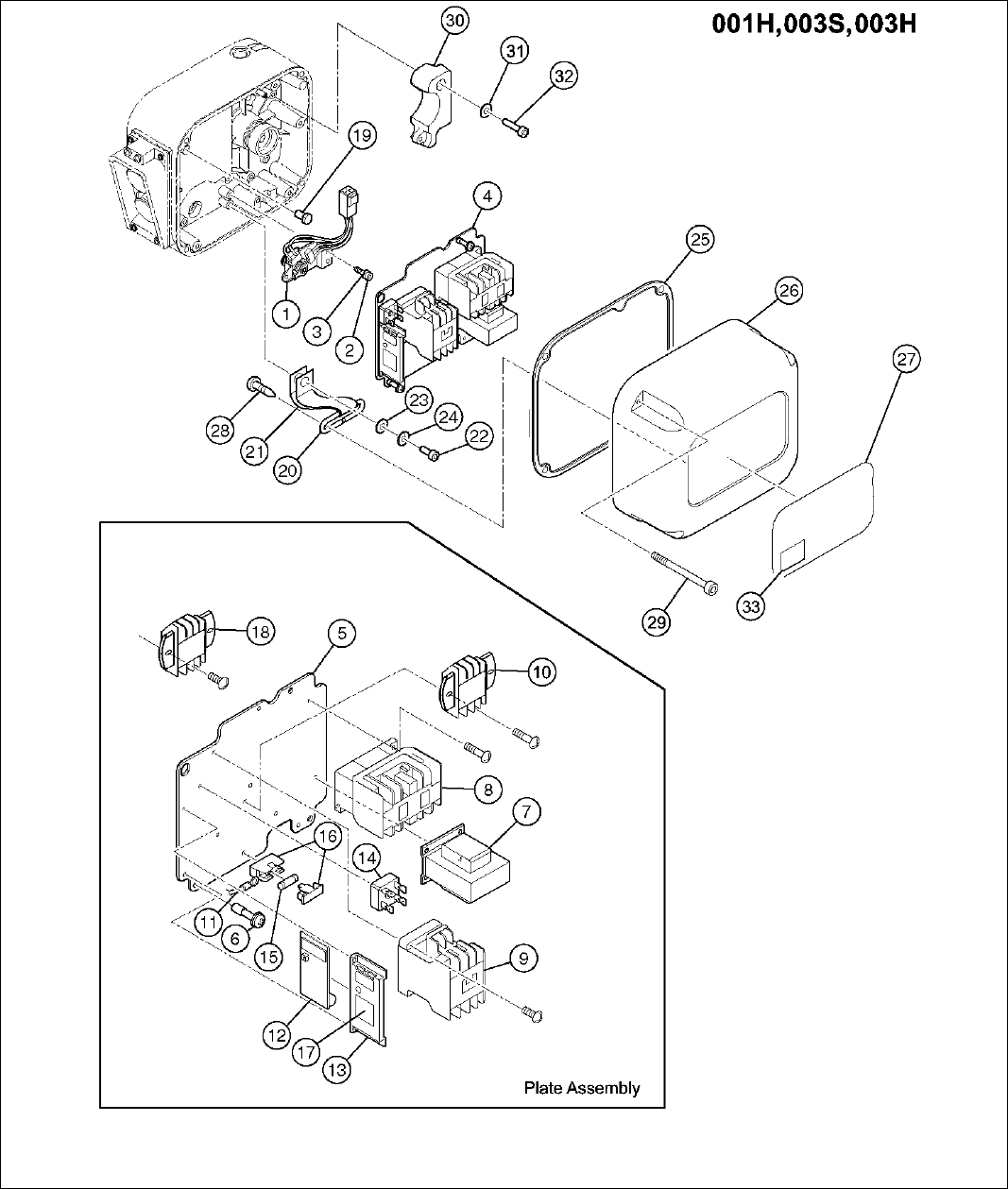

Figure 9-4-1 Electric Parts (Single Speed)
79
9.4 Electric Parts (Single Speed)
Figure
No.
Part Name
Parts
Per
Hoist
001H
003S
003H
1
Limit Switch
Complete Assembly
1
ER2CI1060
2
Socket Bolt
3
9091247
3
Spring Lock Washer
3
9012709
4
Plate Assembly
1
ER2GHM03S5A2
ER2GHM05S5A2
5
Plate
1
ER2BS9441
ER2CS9441
6
Plate Screw
3
ER1BS9445
7
Transformer
1
TRF72V611
TRF73V611
8
Electromagnetic
Contactor
1
MGC23406C
MGC23406A
9
E-Stop Contactor*
1
MGC13306F*
MGC14306C*
10
Terminal Block 3P
1
ECP1303AB
11
Lead Wire
1
ER2GHM03S9A2
ER2GHM05S9A2
12
CH Meter
1
ECP91CHAF
ECP91CHAE
13
CH Meter Support
1
ECP99BKBA
14
Rectifier
1
ECP93DIAA
15
Fuse
1
9006275
16
Fuse Holder
1
ECP92FZAA
17
Name Plate CH
1
ECP99CHAA
18
Terminal Block 6P
1
ECP1306AD
19
Fulcrum Pin
1
ER2CS9449
20
Cover Suspender
1
ER2CS9456
21
Cover Belt
1
ER2BI9457
ER2CS9457
22
Socket Bolt
1
9091249
23
Plain Washer
1
ER1BS9436
24
Spring Lock Washer
1
9012709
25
Packing C
F
1
ER2BS9117
ER2CS9117
M
ER2BI9117
26
Controller Cover
F
1
ER2BS9104
ER2CS9104
M
ER2BS2302
ER2CS2302
27
Name Plate B
1
ER2BHM03S9A5
ER2BHM05S9A5
28
Pan Head Mach.
Screw
2
9798534
29
Socket Bolt With
Spring Washer
4
J1BG10504022
33
Name Plate D
1
ER2BHM01H9A6
ER2BHM03H9A6
*Refer to the alpha-numeric code on contactor. The Code “S-N11” corresponds to MGC13306H.
The code “CLK-25J3” corresponds to MGC14306C.
80
9.4 Electric Parts (Single Speed)

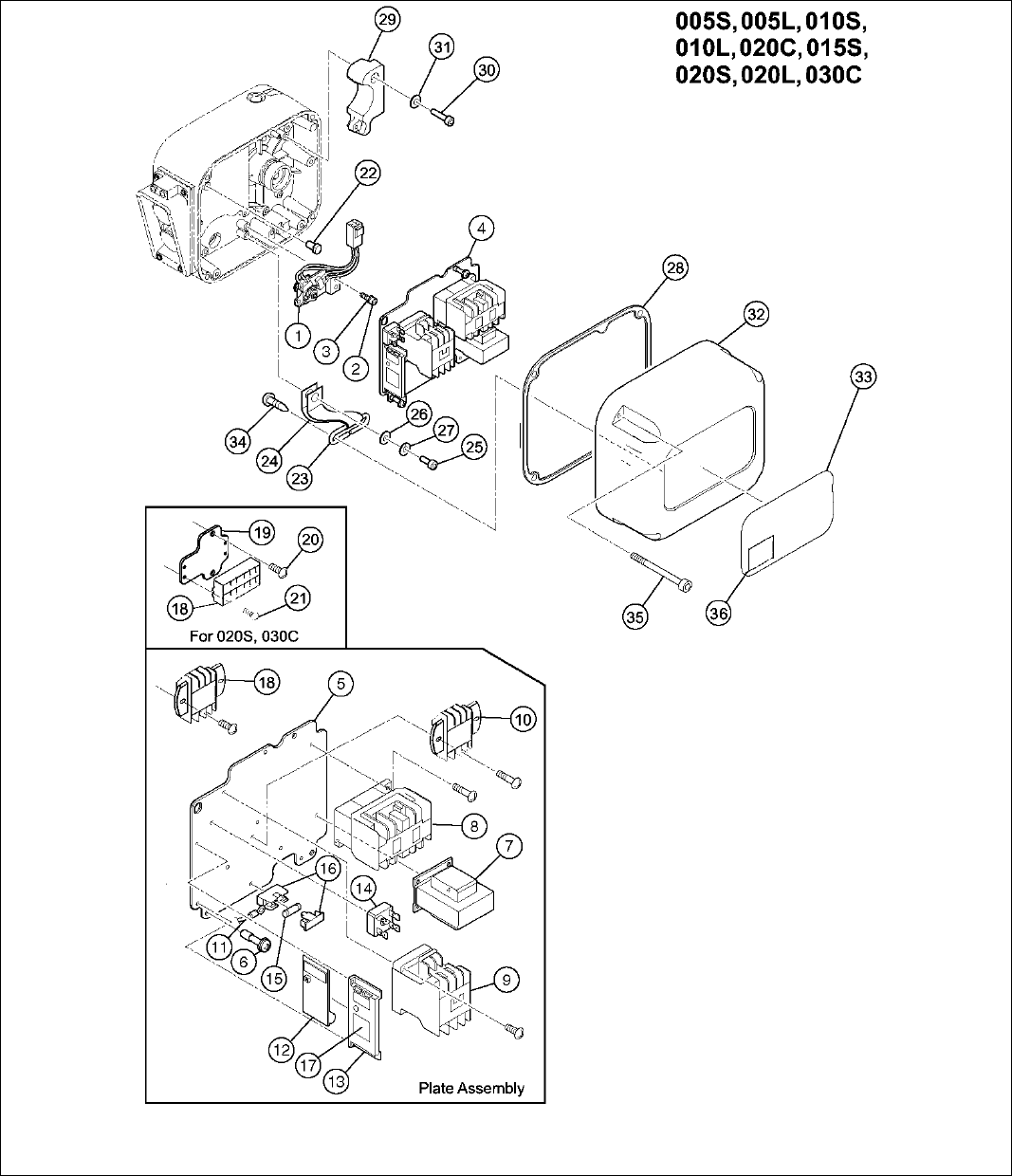

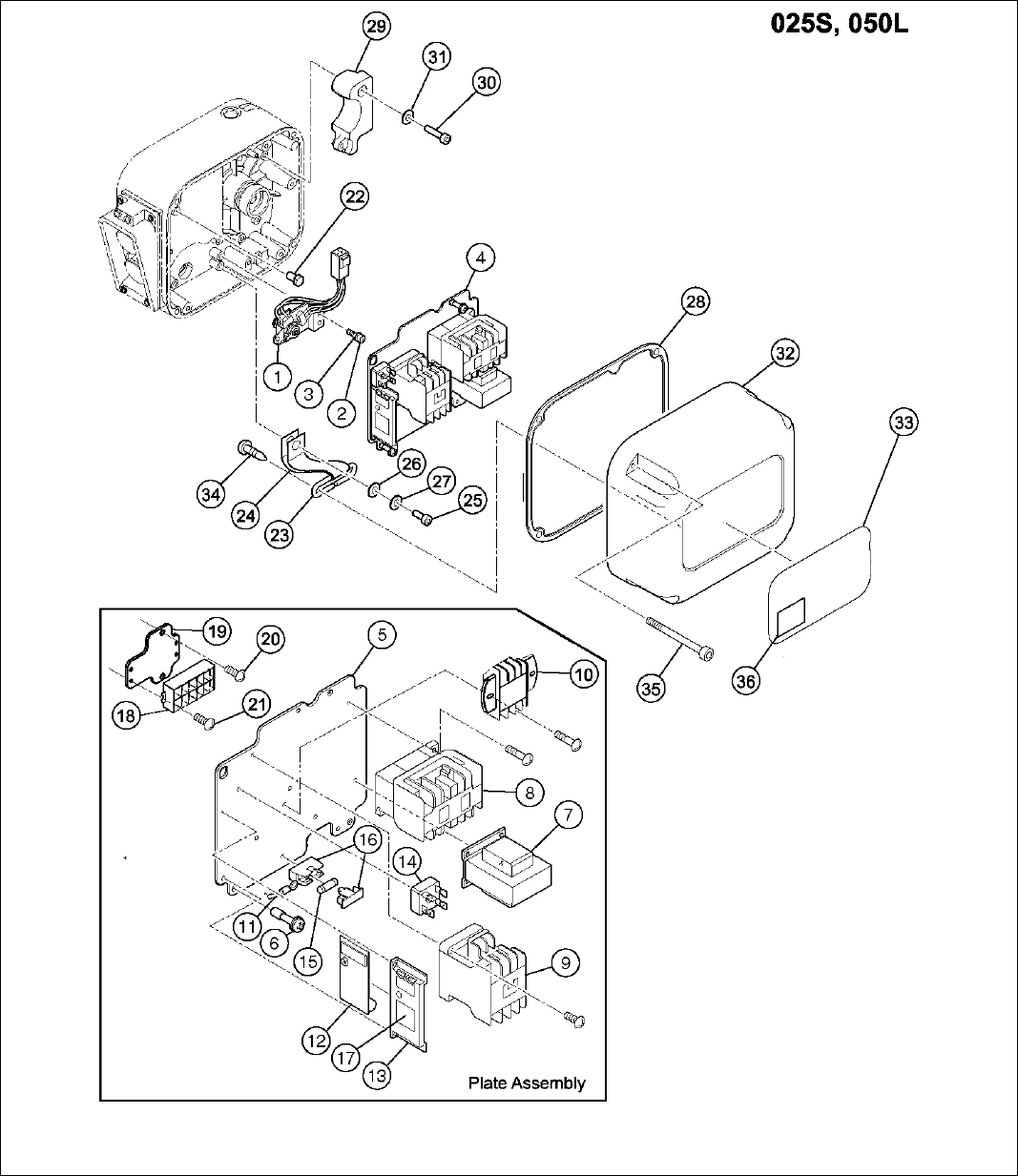

Figure 9-4-2 Electric Parts (Single Speed)
81
9.4 Electric Parts (Single Speed)
Figure
No.
Part Name
Parts
Per
Hoist
005S
005L
010S
010L/020C
015S
020L
020S
030C
1
Limit Switch
Complete
Assembly
1
ER2CI1060
2
Socket Bolt
3
9091247
3
Spring Lock
Washer
3
9012709
4
Plate Assembly
1
ER2GHM05S
5A2
ER2GHM05L
5A2
ER2GHM10S5A2
ER2GHM20L5A2
ER2GHM20S5A2
5
Plate
1
ER2CS9441
ER2DS9441
ER2ES9441
6
Plate Screw
3
ER1BS9445
7
Transformer
1
TRF73V611
TRF72V611
TRF73V611
8
Electromagnetic
Contactor
1
MGC23406A
MGC23406C
MGC23406A
MGC23406B
9
E-Stop
Contactor**
1
MGC13306F**
MGC13306H**
MGC14306C**
10
Terminal Block
3P
1
ECP1303AB
ECP1303AB
Terminal Block
9P
ECP1309AB
11
Lead Wire
1
ER2GHM05S
9A2
ER2GHM05L
9A2
ER2GHM05S9A2
ER2GHM20S9A2
12
CH Meter
1
ECP91CHAE
13
CH Meter
Support
1
ECP99BKBA
14
Rectifier
1
ECP93DIAA
ECP94DIAA
15
Fuse
1
9006275
16
Fuse Holder
1
ECP92FZAA
17
Name Plate CH
1
ECP99CHAA
18
Terminal Block
6P
1
ECP1306AD
ECP1306AD
ECP1306AF
21
Machine Screw
2
9798512
22
Fulcrum Pin
1
ER2CS9449
23
Cover
Suspender
1
ER2CS9456
24
Cover Belt
1
ER2CS9457
25
Socket Bolt
1
9091249
26
Plain Washer
1
ER1BS9436
27
Spring Lock
Washer
1
9012709
28
Packing C
1
ER2CS9117
ER2DS9117
ER2ES9117
29
Balancer
F
1
ER2DS9109
ER2ES9109
M
30
Socket Bolt
2
90912154
90912154
3
9091273
31
Spring Lock
Washer
2
9012709
9012709
3
9012711
32
Controller Cover
F
1
ER2CS9104
ER2DS9104
ER2ES9104
M
ER2CS2302
ER2DS2302
ER2ES2302
33
Name Plate B
1
ER2BHM05S9A5
ER2BHM10S9A5
ER2BHM20S9A5
34
Pan Head Mach.
Screw
2
9798534
35
Socket Bolt With
Spring Washer
4
J1BG10504022
J1BG10604024
36
Name Plate D
1
ER2BHM20S9A6
ER2BHM15
M9A6
ER2BHM30
R9A6
*Name Plate D for 020C ONLY
**Refer to the alpha-numeric code on contactor. The code “S-U12” corresponds to MGD13306F.
The code “S-N11” corresponds to MGC13306H. The code “CLK-25J3” corresponds to MGC14306C.
82
9.4 Electric Parts (Single Speed)
Figure 9-4-3 Electric Parts (Single Speed)
83
9.4 Electric Parts (Single Speed)
Figure
No.
Part Name
Parts
Per
Hoist
025S
050L
1
Limit Switch
Complete Assembly
1
ER2CI1060
2
Socket Bolt
3
9091247
3
Spring Lock Washer
3
9012709
4
Plate Assembly
1
ER2GHM20S5A2
5
Plate
1
ER2ES9441
6
Plate Screw
3
ER1BS9445
7
Transformer
1
TRF73V611
8
Electromagnetic
Contactor
1
MGC23406B
9
E-Stop Contactor*
1
MGC13306H*
MGC14306C*
10
Terminal Block 3P
1
ECP1303AB
11
Lead Wire
1
ER2GHM020S9A2
12
CH Meter
1
ECP91CHAE
13
CH Meter Support
1
ECP99BKBA
14
Rectifier
1
ECP94DIAA
15
Fuse
1
9006275
16
Fuse Holder
1
ECP92FZAA
17
Name Plate CH
1
ECP99CHAA
18
Terminal Block 6P
1
ECP1306AF
21
Machine Screw
2
9798512
22
Fulcrum Pin
1
ER2CS9449
23
Cover Suspender
1
ER2CS9456
24
Cover Belt
1
ER2CS9457
25
Socket Bolt
1
9091249
26
Plain Washer
1
ER1BS9436
27
Spring Lock Washer
1
9012709
28
Packing C
1
ER2FS9117
29
Balancer
1
ER2FS9109
30
Socket Bolt
3
9091273
31
Spring Lock Washer
3
9012711
32
Controller Cover
F
1
ER2FS9104
M
ER2FS2302
33
Name Plate B
1
ER2BHM25S9A5
34
Pan Head Mach.
Screw
2
9798534
35
Socket Bolt With
Spring Washer
4
J1BG10604040
36
Name Plate D
1
ER2BHM50R9A6
*Refer to the alpha-numeric code on contactor. The code “S-N11” corresponds to
MGC13306H. The code “CLK-25J3” corresponds to MGC14306C.
84

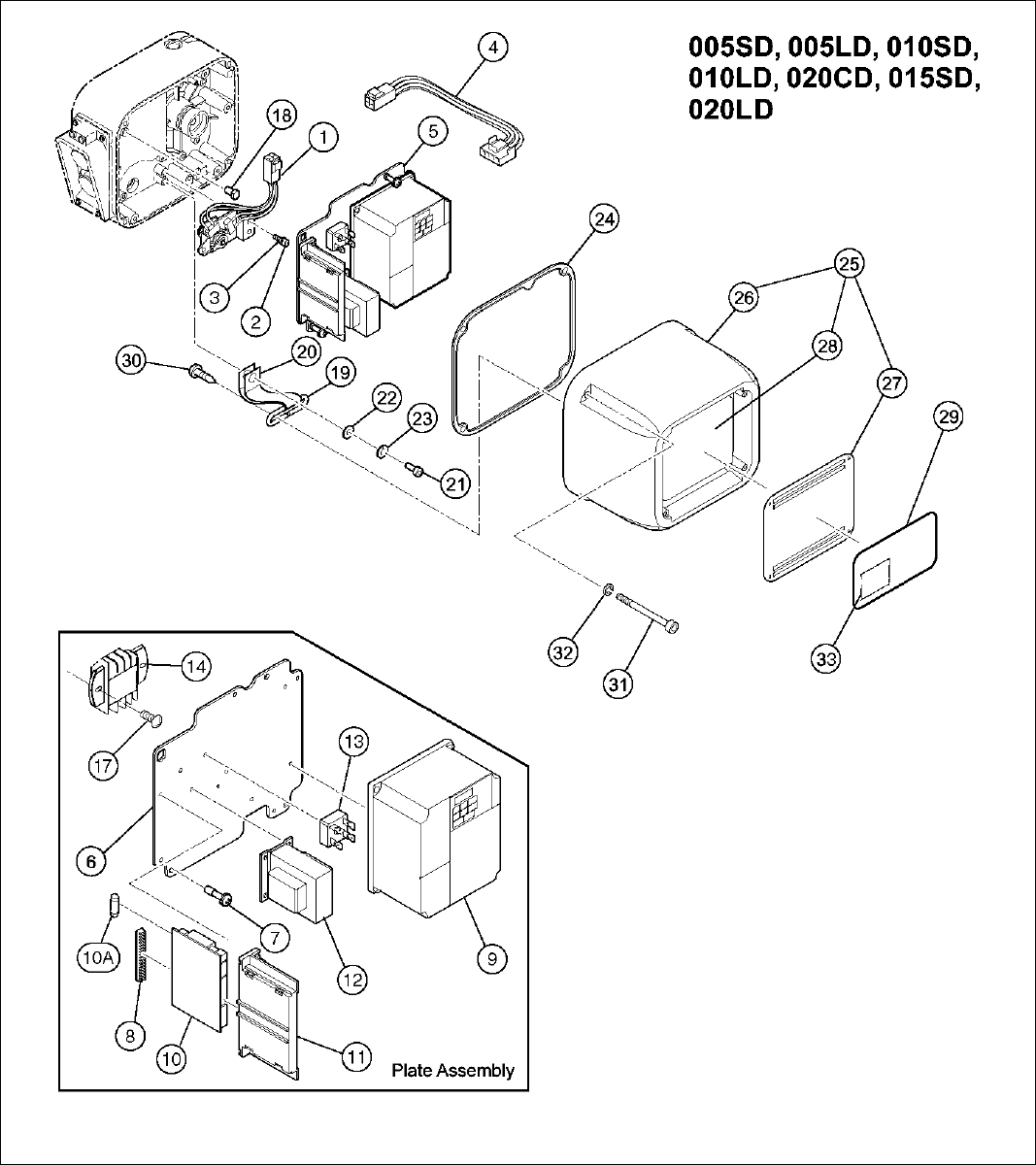

9.5 Electric Parts (Dual Speed)

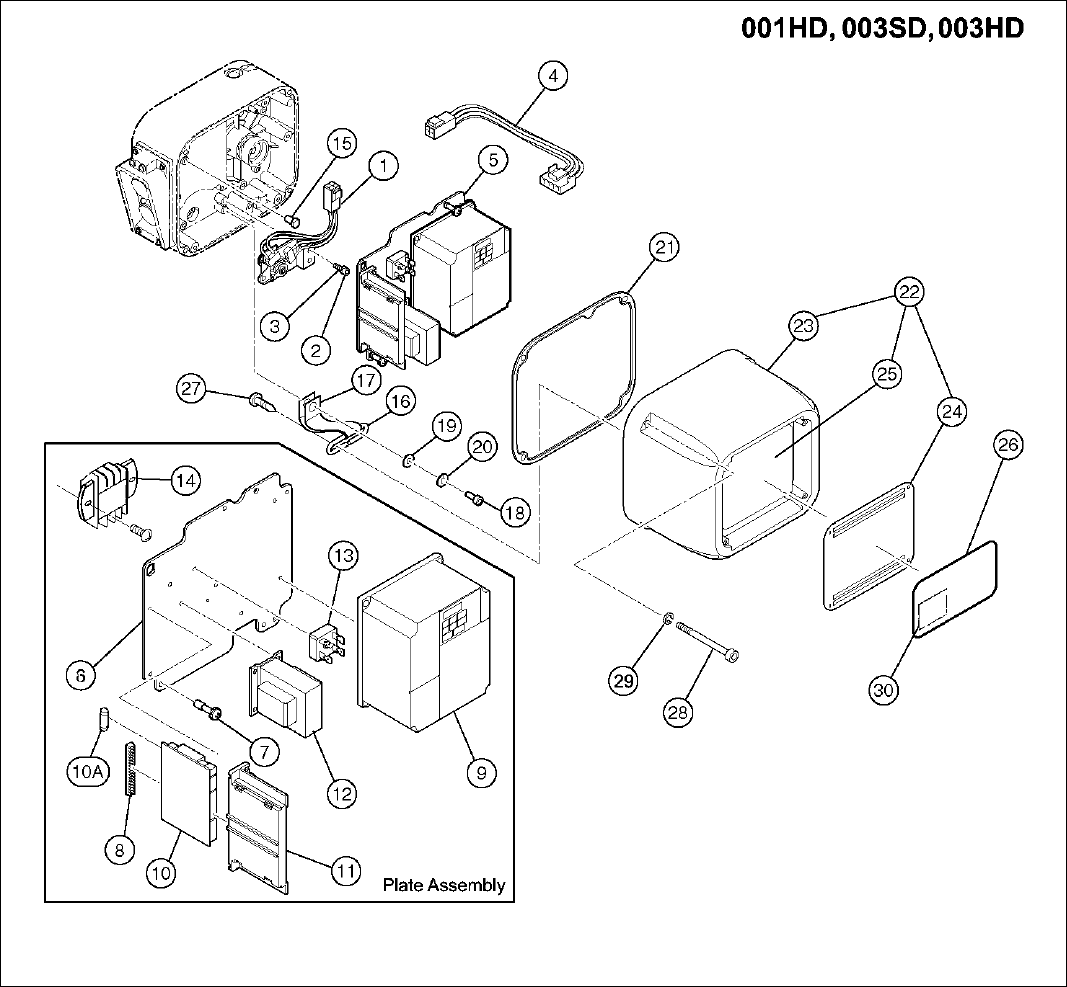

Figure 9-5-1 Electric Parts (Dual Speed)
85
9.5 Electric Parts (Dual Speed)
Figure
No.
Part Name
Parts Per
Hoist
001HD
003SD
003HD
1
Limit Switch
Complete
Assembly
1
ER2CI1060
2
Socket Bolt
3
9091247
3
Spring Lock
Washer
3
9012709
4
LS Harness
1
ER2CI9554
5
Plate
Assembly
M, 2V
1
ER2LHE03I5A2
ER2LHE05I5A2
F, 2V
ER2BHE03I5A2
ER2BHE05I5A2
M, 4V
ER2LHN03I5A2
ER2LHN05I5A2
F, 4V
ER2BHN03I5A2
ER2BHN05I5A2
6
Plate
1
ER2BI9441
ER2CI9441
7
Plate Screw
3
ER1BS9445
8
Bushing
1
ECP99JBAC
9
VFD
Assembly
M, 2V
1
INV60FH24
INV615H24
F, 2V
INV60FH21
INV615H21
M, 4V
INV60FM24
INV615M24
F, 4V
INV60FM21
INV615M21
10
Interface
Board
1
ECP91KB02
10A
Fuse
1
9006275
11
Board
Support
1
ECP99BKAA
12
Transformer
2V
1
TRF32C612
4V
TRF32N612
13
Rectifier
1
ECP93DIAA
14
Terminal
Block 6P
1
ECP1306AD
15
Fulcrum Pin
1
ER2CS9449
16
Cover
Suspender
1
ER2CS9456
17
Cover Belt
1
ER2CS9457
18
Socket Bolt
1
9091249
19
Plain Washer
1
ER1BS9436
20
Spring Lock
Washer
1
9012709
21
Packing C
M
1
ER2BI9117
ER2CS9117
22
Controller
Cover
Assembly
2V
1
ER2BI2104
ER2CI2104
4V
ER2BI1104
ER2CI1104
23
Controller
Cover
1
ER2BI9104
ER2CI9104
24
Resistor
Cover
1
ER2BI9185
ER2CI9185
25
Braking
Resistor
2V
1
INV70EE16
INV709E16
4V
INV70EY16
INV709Y16
26
Name Plate B
1
ER2BHM03I9A5
ER2BHM05I9A5
27
Pan Head
Mach. Screw
2
9798534
28
Socket Bolt
4
9091233
29
Toothed Lock
Washer
4
9679708
30
Name Plate D
1
ER2BHM01H9A6
ER2BHM03H9A6
86
9.5 Electric Parts (Dual Speed)
Figure 9-5-2 Electric Parts (Dual Speed)
87
9.5 Electric Parts (Dual Speed)
Figure
No.
Part Name
Parts
Per
Hoist
005SD
005LD
010SD
010LD/020CD
015SD
020LD
1
Limit Switch
Complete
Assembly
1
ER2CI1060
2
Socket Bolt
3
9091247
3
Spring Lock
Washer
3
9012709
4
LS Harness
1
ER2CI9554
5
Plate Assembly
M, 2V
1
ER2LHE05I5A2
ER2LHE05J5A2
ER2LHE10I5A2
ER2LHE10J5A2
ER2LHE20J5A2
F, 2V
1
ER2BHE05I5A2
ER2BHE05J5A2
ER2BHE10I5A2
ER2BHE10J5A2
ER2BHE20J5A2
M, 4V
1
ER2LHN05I5A2
ER2LHN05J5A2
ER2LHN10I5A2
ER2LHN10J5A2
ER2LHN20J5A2
F, 4V
1
ER2BHN05I5A2
ER2BHN05J5A2
ER2BHN10I5A2
ER2BHN10J5A2
ER2BHN20J5A2
6
Plate
1
ER2CI9441
ER2DI9441
ER2EI9441
7
Plate Screw
3
ER1BS9445
8
Bushing
1
ECP99JBAC
9
Inverter
Assembly
M, 2V
1
INV615H24
INV60FH24
INV622H24
INV615H24
INV622H24
F, 2V
INV615H21
INV60FH21
INV622H21
INV615H21
INV622H21
M, 4V
INV615M24
INV60FM24
INV622M24
INV615M24
INV622M24
F, 4V
INV615M21
INV60FM21
INV622M21
INV615M21
INV622M21
10
Interface Board
1
ECP91KB02
10A
Fuse
1
9006275
11
Board Support
1
ECP99BKAA
12
Transformer
2V
1
TRF32C612
4V
TRF32N612
13
Rectifier
1
ECP93DIAA
14
Terminal Block 6P
1
ECP1306AD
17
Machine Screw
2
9798512
18
Fulcrum Pin
1
ER2CS9449
19
Cover Suspender
1
ER2CS9456
20
Cover Belt
1
ER2CS9457
21
Socket Bolt
1
9091249
22
Plain Washer
1
ER1BS9436
23
Spring Lock
Washer
1
9012709
24
Packing C
1
ER2CS9117
ER2DS9117
ER2ES9117
25
Controller Cover
Assembly
2V
1
ER2CI2104
ER2CJ2104
ER2DI2104
ER2DJ2104
ER2EJ2104
4V
ER2CI1104
ER2CJ1104
ER2DI1104
ER2DJ1104
ER2EJ1104
26
Controller Cover
1
ER2CI9104
ER2DI9104
ER2EI9104
27
Resistor Cover
1
ER2CI9185
ER2DI9185
ER2EI9185
28
Braking Resistor
2V
1
INV709E16
INV70EE16
INV718E16
INV709E16
INV718E16
4V
INV709Y16
INV70EY16
INV718Y16
INV709Y16
INV718Y16
29
Name Plate B
1
ER2BHM05I9A5
ER2BHM10I9A5
ER2BHM20I9A5
30
Pan Head
Machine Screw
2
9798534
31
Socket Bolt
4
9091233
9091254
32
Toothed Lock
Washer
4
9679708
9679709
33
Name Plate D
1
ER2BHM20S9A6*
ER2BHM15M9A6
*Name Plate D for 020C ONLY
88
9.5 Electric Parts (Dual Speed)
Figure 9-5-3 Electric Parts (Dual Speed)
89
9.5 Electric Parts (Dual Speed)
Figure
No.
Part Name
Parts Per
Hoist
020SD
030CD
025SD
050LD
1
Limit Switch
Complete
Assembly
1
ER2CI1060
2
Socket Bolt
3
9091247
3
Spring Lock
Washer
3
9012709
4
LS Harness
1
ER2CI9554
5
Plate Assembly
M, 2V
1
ER2LHE20I5A2
F, 2V
1
ER2BHE20I5A2
M, 4V
1
ER2LHN20I5A2
F, 4V
1
ER2BHN20I5A2
6
Plate
1
ER2EI9441
7
Plate Screw
3
ER1BS9445
8
Bushing
1
ECP99JBAC
9
Inverter Assembly
M, 2V
1
INV637H24
F, 2V
INV637H21
M, 4V
INV637M24
F, 4V
INV637M21
10
Interface Board
1
ECP91KB02
10A
Fuse
1
9006275
11
Board Support
1
ECP99BKAA
12
Transformer
2V
1
TRF32C612
4V
TRF32N612
13
Rectifier
1
ECP94DIAA
ECP94DIAA
14
Terminal Block 6P
1
ECP1306AF
ECP1306AF
17
Machine Screw
2
9798512
18
Fulcrum Pin
1
ER2CS9449
19
Cover Suspender
1
ER2CS9456
20
Cover Belt
1
ER2CS9457
21
Socket Bolt
1
9091249
22
Plain Washer
1
ER1BS9436
23
Spring Lock
Washer
1
9012709
24
Packing C
1
ER2ES9117
ER2FS9117
25
Controller Cover
Assembly
2V
1
ER2EI2104
ER2FI2104
4V
ER2EI1104
ER2FI1104
26
Controller Cover
1
ER2EI9104
ER2FI9104
27
Resistor Cover
1
ER2EI9185
28
Braking Resistor
2V
1
INV735E16
4V
INV735Y16
29
Name Plate B
1
ER2BHM20I9A5
30
Pan Head
Machine Screw
2
9798534
31
Socket Bolt
4
9091254
32
Toothed Lock
Washer
4
9679709
33
Name Plate D
1
ER2BHM30R9A6
ER2BHM25I9A6
ER2BHM50K9A6
90
9.6 Power Supply and Pendant Parts

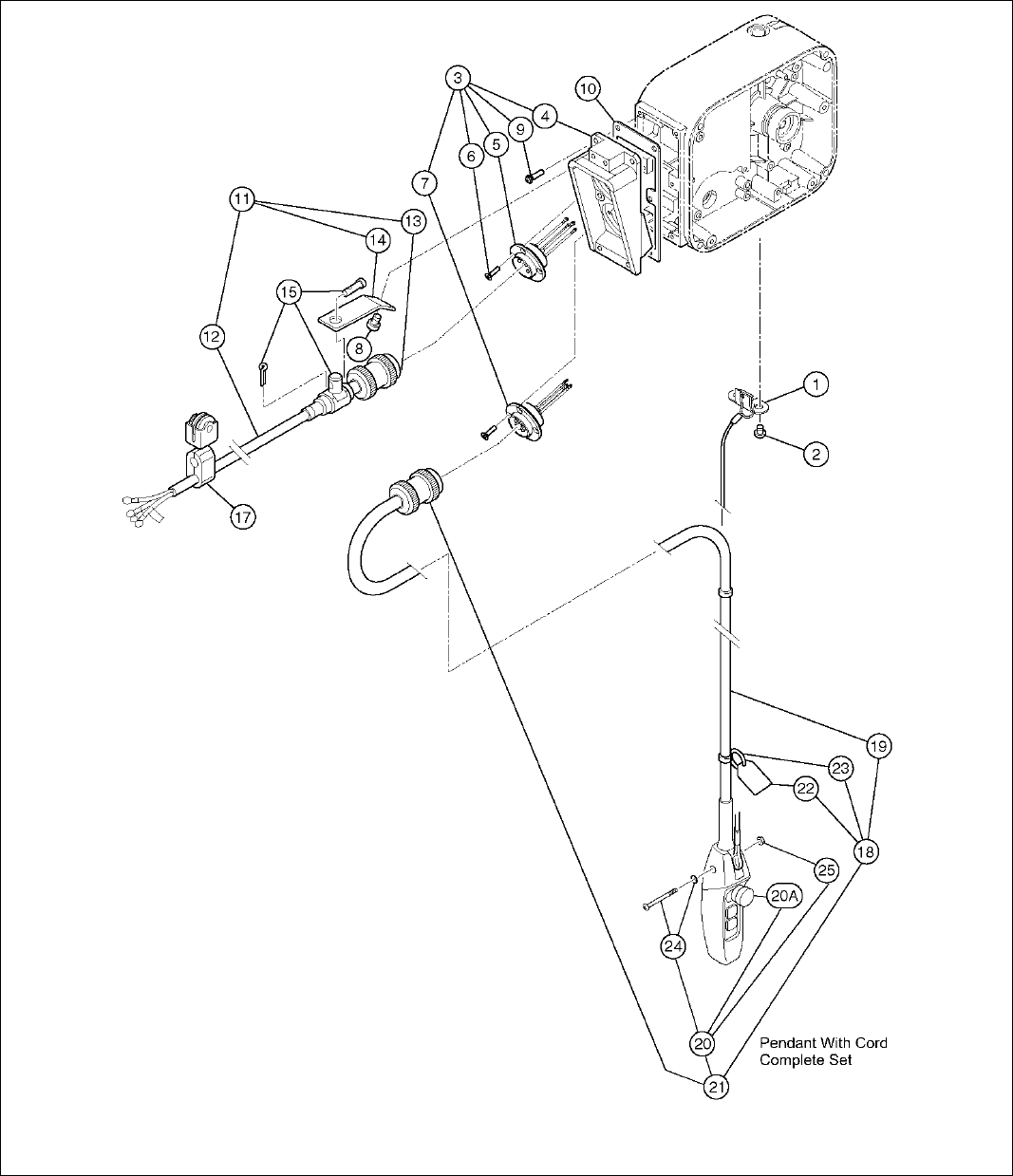

Figure 9-6-1 Power Supply and Pendant Parts (Plug Connection)
91
9.6 Power Supply and Pendant Parts
Figure No.
Part Name
Parts
Per
Hoist
001H
003S
003H
005L
005S
010L/
020C
010S
015S
020L
020S
030C
025S
050L
1
Cord Support
(Wire Stop)
1
ER1BS9535
2
Mach. Screw
W/Spring Washer
2
M6F554010
3
Socket Frame
Complete Assembly
S
1
ER2CS4511
ER2ES4511
D
ER2CI4511
ER2DI4511
ER2EI4511
4
Socket Frame
1
ER2CS9511
5
Socket 4P
Assembly
S
1
ER2CS2523
ER2ES2523
D
ER2CI2523
ER2CS2523
ER2EI2523
6
Tapping Flat Head
Mach. Screw
8
ES558003
7
Socket 8P
Assembly
S
1
ER2CS2564
D
ER2CI2564
ER2EI2564
8
Mach. Screw
W/Spring Washer
2
ES650005S
9
Mach. Screw
W/Spring Washer
6
MS561010
10
Socket Frame
Packing
1
ER2CS9512
11
Power Supply Cable
4C Assembly
1
ZBZA12CH1000
ZBZA12AH1000
12
Power Supply Cable
4C
ft
16/4
14/4
13
Plug 4P
1
ECP2304AD
ECP2304AF
14
Cable Support Arm
1
ER1BS9541
15
Cable Support 12
Assembly
1
ES822003
Cable Support 14
Assembly
MS1724010
17
Cable Hanger
14 Assembly
A/R
ES1527003
18
Pendant W/Cord
Complete Assembly
S
1
ZB10025H1000
D
ZB20025I1000
19
Pendant Cord
S
ft
16/4P
D
16/6P
20
Pendent Assembly
S
1
SWD1100AA
D
SWD2200AA
20A
E-Stop Button and
Switch Assembly
1
SWD9024AA
21
Plug 8P
S
1
ECP2108AA
D
ECP2108AB
22
Warning Tag PB
1
WTAG7
23
Tag Holder
1
E3S787003
24
Machine Screw
w/Spring Washer
1
J1AP24002608
25
Nut
1
9093414
Note: A/R = As required, one every 5 ft. of Power Supply Cable.
92
9.6 Power Supply and Pendant Parts

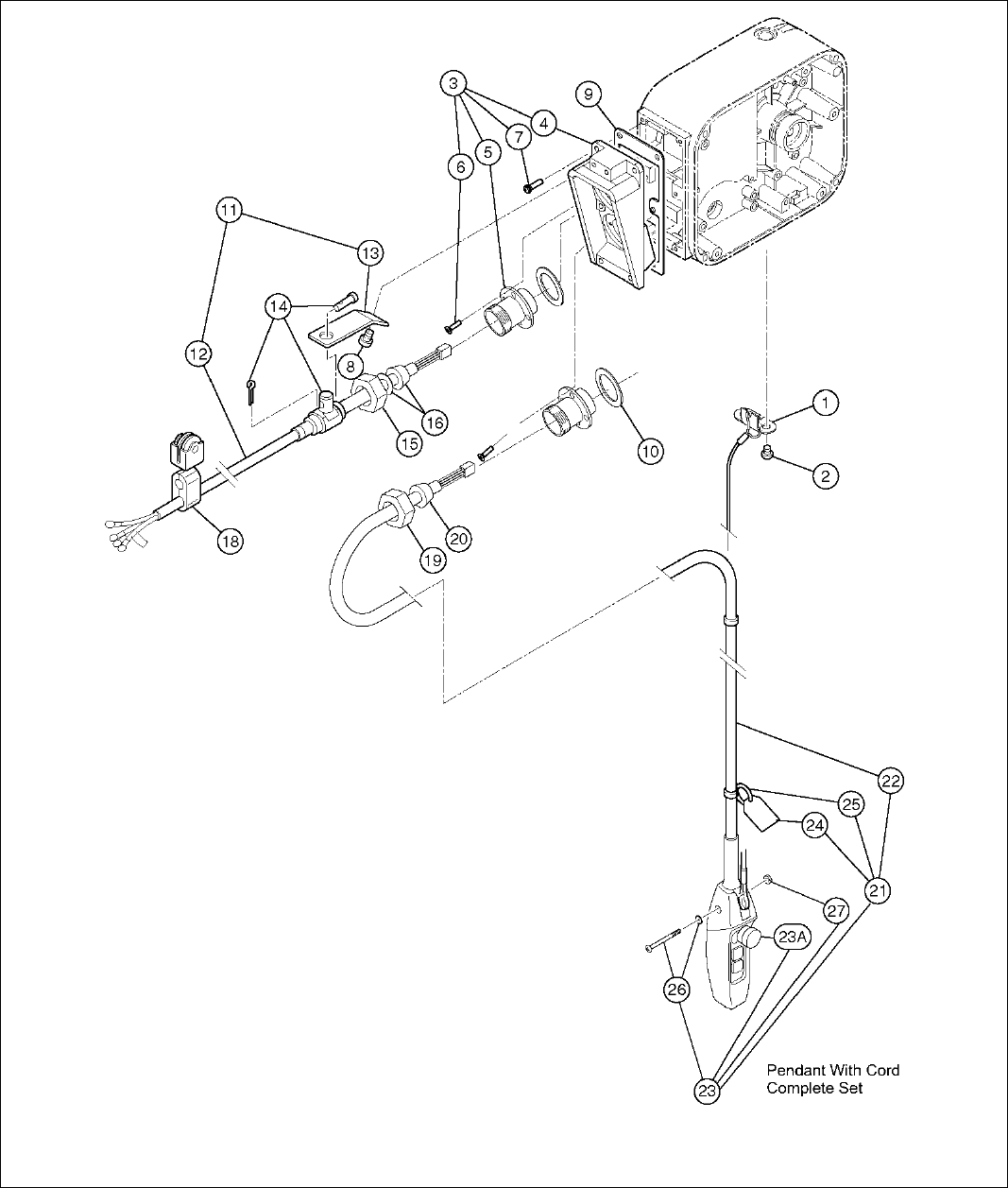

Figure 9-6-2 Power Supply and Pendant Parts (Direct Connection)
93
9.6 Power Supply and Pendant Parts
Figure No.
Part Name
Parts
Per
Hoist
001H
003S
003H
005L
005S
010L/
020C
010S
015S
020L
020S
030S
025S
050L
1
Cord Support
(Wire Stop)
1
ER1BS9535
2
Mach. Screw
W/Spring Washer
2
M6F554010
3
Socket Frame
Complete Assembly
S
1
ER2CS4511
ER2ES4511
D
ER2CI4511
ER2EI4511
4
Socket Frame
1
ER2CS9511
5
Holder C
2
ECP5924AL
6
Tapping Mach.
Screw
8
ER1BS9517
7
Mach. Screw
W/Spring Washer
6
MS561010
8
Mach. Screw
W/Spring Washer
2
ES650005S
9
Socket Frame
Packing
1
ER2CS9512
10
Holder Packing
2
ECP5924AM
11
Power Supply Cable
4C Assembly
1
ZBZA12CH1000
ZBZA12AH1000
12
Power Supply Cable
4C
ft
16/4
14/4
13
Cable Support Arm
1
ER1BS9541
14
Cable Sup. 12
Assembly
1
ES822003
Cable Sup. 14
Assembly
MS1724010
15
Holder A
1
ECP5924AA
16
Cable Packing
1
ECP6912AA
ECP6914AA
18
Cable Hanger 14
Assembly
A/R
ES1527003
19
Holder A
1
ECP5924AA
20
Cable Packing
1
ECP6912AA
21
Pendant W/Cord
Complete Assembly
S
1
ZB10025H1000DW
D
ZB20025I1000DW
22
Pendant Cord
S
ft
16/4P
D
16/6p
23
Pendant Assembly
S
1
SWD1100AA
D
SWD2200AA
23A
E-Stop Button and
Switch Assembly
1
SWD9024AA
24
Warning Tag PB
1
WTAG7
25
Tag Holder
1
E3S787003
26
Machine Screw
w/Spring Washer
1
J1AP24002608
27
Nut
1
9093414
Note: A/R = As required, one every 5 ft. of Power Supply Cable.
94
This Page Intentionally Left Blank
95
This Page Intentionally Left Blank
Harrington Hoists, Inc.
401 West End Avenue
Manheim, PA 17545
www.harringtonhoists.com
Toll Free: 800-233-3010
Phone: 717-665-2000
Fax: 717-665-2861
ER2OM-ENG
