EStokTP

From Electronic Structure to

Temperature and Pressure

Dependent Rate Constants

Carlo Cavallotti, Matteo Pelucchi

Dipartimento di Chimica, Materiali e Ingegneria Chimica "Giulio

Natta", Politecnico di Milano, 20131 Milano, Italy

Stephen J. Klippenstein

Chemical Sciences and Engineering Division, Argonne National

Laboratory, Argonne, IL, 60439, USA

Table of Contents

1.Overview of EStokTP................................................................................................................4

1.1.Purpose......................................................................................................................................4

1.2.Capabilities...............................................................................................................................5

1.2.1.Current....................................................................................................................................5

1.2.2.Planned...................................................................................................................................6

1.3.EStokTP Jobs: theory and sequential module calls...........................................................6

1.3.1.Well.........................................................................................................................................6

1.3.2.Abstraction............................................................................................................................7

1.3.3.Addition...............................................................................................................................11

1.3.4.BetaScission.........................................................................................................................14

1.3.5.Isomerization.......................................................................................................................15

1.4.Input/Output Overview...........................................................................................................16

2.Installation.................................................................................................................................18

2.1.Distribution.............................................................................................................................18

2.2.Compiling................................................................................................................................18

2.3.Execution Environment.........................................................................................................18

2.4.Running...................................................................................................................................19

3.Input files...................................................................................................................................20

3.1.estoktp.dat: job selection and modules..............................................................................20

3.1.1.Reaction Type/Global Keywords.....................................................................................20

3.1.2.List of Modules...................................................................................................................22

3.1.3.Computational environment.............................................................................................26

3.2.Species Data Files..................................................................................................................26

3.2.1.reac1.dat, reac2.dat, prod1.dat, prod2.dat.....................................................................26

3.2.2.wellr.dat, wellp.dat.............................................................................................................29

3.2.3.ts.dat.....................................................................................................................................30

3.3.Electronic Structure and Master Equation Inputs..........................................................32

3.3.1.Theory files..........................................................................................................................32

3.3.1.1.Theory.dat........................................................................................................................32

3.3.1.2.Molpro theory files..........................................................................................................35

3.3.2.Master Equation files.........................................................................................................37

3.3.2.1.me_head.dat.....................................................................................................................37

4.Output........................................................................................................................................38

4.1.EStokTP Outputs..................................................................................................................38

4.1.1.Geometries...........................................................................................................................38

4.1.2.Frequencies..........................................................................................................................39

4.1.3.Hindered Rotor...................................................................................................................39

4.1.4.IRC.......................................................................................................................................39

4.1.5.Energies................................................................................................................................39

4.1.6.Multi Dimensional Tunneling...........................................................................................40

4.2.Rate Output............................................................................................................................40

5.Examples....................................................................................................................................41

6.Advices/Suggestions/Troubleshooting...................................................................................41

7.Index...........................................................................................................................................42

1. Overview of EStokTP

1.1. Purpose

In recent years, theoretical chemical kinetics has transformed from an empirical to a

predictive science, with achievable accuracies approaching or even exceeding that of

experiments. This transformation arises from the dramatic progress in the accuracy of electronic

structure calculations, as well as improved procedures for incorporating such predictions within

treatments of chemical dynamics and kinetics. The ab initio transition state theory based master

equation (AITSTME) approach, which provides the basis for much of the work in this area, is

finding widespread utility as a tool for chemical kinetic modeling. This utility could be greatly

enhanced by reducing the human effort involved in the implementation of such calculations.

Typically, such calculations are performed in three distinct steps: First the molecular

properties of the stationary points on the potential energy surface are predicted with ab initio

(AI) electronic structure codes. Microcanonical rates for chemical transfer are then predicted

with transition state theory (TST) codes that incorporate these stationary point properties. Finally,

thermal rate estimates are obtained with master equation (ME) solver codes, which rely on the

microcanonical and energy transfer rates. While, the transition state theory and master equation

calculations are often performed within the same code, the electronic structure calculations are

almost always performed independently. This decoupling of the electronic structure evaluations

leads to considerable human effort wasted on the transfer of data from one set of codes to the

other.

The EStokTP computational environment is designed to directly couple the electronic

structure, TST, and ME evaluations in automatically obtaining a priori predictions of the

temperature and pressure dependent rate constants. The code requires as input the reference

molecular structures, the transition states to be searched, and the electronic structure and

transition state theory methodologies to be employed. Given this set of input files, the code

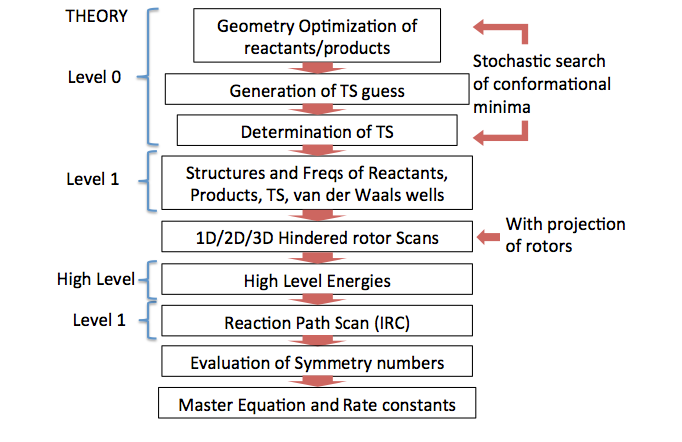

performs sequentially the series of calculations listed in Figure 1.

Figure1:EStokTPprogramstructure.

EStokTP relies on calls to external codes to perform electronic structure and master equation

calculations. Internal torsions can be treated as hindered rotors, in which case they are projected

out from the Hessian so that no identification and removal from the frequency list is necessary.

Tunneling can be accounted for using both Eckart and multidimensional models, such as small

curvature theory. The code has been written following two principles. The first is that it must be

able to reliably and automatically determine a large number of rate constants for classes of

reactions of a target molecule (e.g. H-abstractions). This requirement is motivated by the

perspective of the upcoming availability of exascale computational resources. The code is thus

robust, with several automatic fallback options implemented so that human intervention can be

limited. The second is that it must be capable of determining highly accurate rate constants,

differing by no more than a factor of two from experiments. At present the following reaction

types are implemented: abstraction, addition, isomerization, and beta-decomposition.

EStokTP can be used also to investigate complicated potential energy surfaces. For this

purpose all reaction steps are studied separately applying repeatedly EStokTP. There is no need

of repeating calculations for reactants or products more than once as scripts allow copying all

reactants and products data necessary for a calculation from one directory to the other. After all

the desired reaction steps have been performed, a multiple well master equation input can be

written using a wrapper script.

1.2. Capabilities

1.2.1. Current

- determination of minimum energy structures for wells and saddle points performing

Monte Carlo conformational analysis over specified list of internal coordinates;

- 1D, 2D or 3D rotational scan over list of dihedral coordinates;

- project out torsional motions from Hessian (implies no need to identify torsional

vibrational frequencies manually);

- possibility to project out of the Hessian the motion along the reaction path

- automatic multilevel determination of structures (level0 followed by level1

calculations);

- search for high quality guesses for abstraction, addition, beta-scission and

isomerization reactions;

- determination of internal and external rotational symmetry numbers, including optical

symmetry numbers;

- search for structures of van der Waals wells on reactant and product side;

- IRC calculations with PES evaluation and projection from the Hessian of hindered

rotors along the IRC path at selected points with interpolation for intermediate points;

rescaling of energy at a high level quality along the IRC path is also supported;

- Small Curvature Tunneling calculations, implemented using reaction path

Hamiltonian frequencies;

- preparation of input for the Mess master equation solver, which is at present used to

compute thermodynamic data, multi dimensional partition functions for hindered

rotors, and pressure dependent rate constants;

- two electronic structure calculation codes are currently supported: G09 and molpro

(2008-2015 are supported). All calculation steps can be done with any of the two

codes made exception for the internal reaction coordinate calculations, which are

supported only for G09.

1.2.2. Planned

- automatic determination of rate constants for barrierless reactions

- anharmonic analysis

1.3. EStokTP Jobs: theory and sequential module calls

EStokTP is made of a series of modules that can be called separately. Each module requires a set

of data, which are reported in the ./data subdirectory for the initial calculations (e.g. level 0

geometry optimizations), while geometries and Hessian are stored in the ./output and ./geoms

subdirectories for later stages of the calculations (such as for saddle point determination or high

level calculations).

EStokTP modules can be used to perform five types of calculations (jobs): well, abstraction,

addition, beta-scission, or isomerization. For each job we suggest a set of modules to call, as

listed below. Changes to the proposed call list are possible, though in order to obtain the

production of the master equation blocks and, for the reactions, of the master equation input

for the Mess solver the level0, level1 and high-level calculations must always be performed (see

section 1.4 for a description of what is stored in a block or master equation input file). The

hindered rotor analysis, IRC, and symmetry calculations can be omitted, if thought unnecessary.

1.3.1. Well

1) Opt_Reac1

2) Opt_Reac1_1

3) 1dTau_Reac1

4) mdtau_reac1

5) HL_Reac1

6) Symm_reac1

7) kTP

In step 1, the minimum energy structure for reactant 1 is searched at level 0 of theory. In step 2

geometry and Hessian are determined at level 1. In step 3 1D hindered rotor scans are performed.

In step 4 multidimensional hindered rotor scans are performed. If 1d and multi dimensional HR

scans are not requested, step 3 and 4 can be omitted. In step 5 energies are determined at the

specified high level of theory on level1 geometries. In step 6 symmetry numbers are determined.

In step 7 the output are written in the Mess block format (briefly, me block), which can be used

to generate the input necessary to compute thermodynamic parameters or for multi well master

question calculations. The calculation output, which comprises level 1 geometry, level 1

frequencies from which hindered rotors have been projected, list of 1d hindered rotors, with

rotating groups, axis and rotational pes, and symmetry is summarized in one file that is written

by the kTP module in the ./me_block subdirectory in the reac1.me file. The high level energy

expressed in Hartrees is stored in the same subdirectory in the reac_en.me file. If multi

dimensional hindered rotors calculations have been requested, the PES files are copied as well in

the ./me_block subdirectory and are named reac1_2dhr_01.dat and reac1_2dhr_nofr01.dat, with

the first file containing the PES and the frequencies calculated and projected along the hindered

rotor path and the second one only the PES.

1.3.2. Abstraction

Rate constant calculations for abstraction reactions can be performed using three different PESs,

which differ depending on whether van der Waals wells are considered both on the reactant and

product sides (3TS calculation), only on the reactant side (2TS calculation) or not considered

(1TS calculations). The approach is chosen with the ‘reactiontype’ keyword (see section 3.1.1).

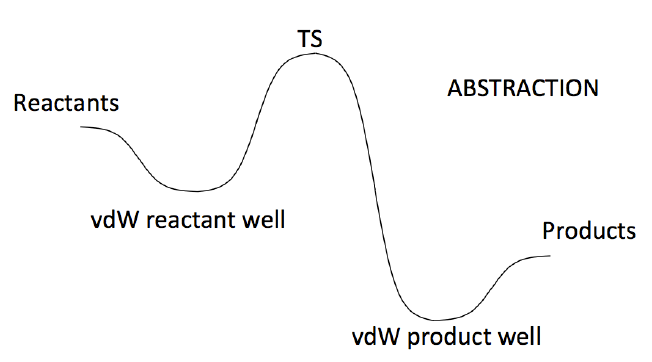

A scheme of the 3TS PES is sketched in Figure 2.

Figure2:PESusedtocalculatedtheabstractionreactionusingathreetransitionstates(3TS)model.

In the 3TS model, the abstraction rate constant is computed solving a master equation consisting

of three channels: entrance, exit and reaction. The rates of the entrance and exit channels are

computed using phase space theory, while that of the reaction channel is determined using

transition state theory. Phase space theory calculations are set up and performed automatically by

the Mess solver, which requires only information on the wells it connects. In this case they are

the bimolecular reactants and the vdW reactant well for the entrance channel and the vdW

product well and the bimolecular products for the exit channel. Usually the rates of entrance and

exit channels largely exceed those of the reaction channel, so that the latter becomes the

controlling step. However at sufficiently low temperatures the van der Waals well may live long

enough time to get collisionally stabilized, in which case they would appear as a possible product

channel in the master equation results. The depth of the van der Waals well may have a

significant impact, especially at low temperatures and when the reaction barrier height is small

with respect to reactants, on the quantum tunneling contribution to the rate constant. It is thus

adviced to compute the wells energy and structure at the same level of theory as that of reactants

and products, though it is it is not necessary, unless the rate of formation of the van der Waals

well is desired, to perform a hindered rotor study of the van der Waals wells. In case of need, the

hindered rotor study of the van der Waals wells should be carefully checked as it may easily lead

to the finding of other van der Waals wells, which may not be those connected to the reaction

transition state. The 2TS and 1TS abstraction PESs are similar to that reported in Figure 2, from

which they differ for the absence of the van der Waals product well and for the absence of both

van der Waals wells, respectively.

The search for the transition state for the reaction channel is performed through a set of

restrained geometry optimizations where the energy of the structure consisting of the two

reactants is minimized while keeping fixed a coordinate, named RTS, which describes the

approach of reactant 2 to the reaction site (isite) of reactant 1. In particular the z-matrix

containing the two reactants is automatically constructed using as input the z-matrixes specified

for reactant 1 and reactant 2 in the reac1.dat and reac2.dat files. The relative position of reactant

2 with respect to reactant 1 is defined through the definition of 6 degrees of freedom (3 if

reactant 2 is an atom, 5 if it is a biatomic species). Since the abstracting atom is often co-linear

with the bond of the abstracted atom, a dummy atom is positioned at 2.0 Å from the abstraction

site (same as abstracted atom) and perpendicularly to the bond that is being broken in reactant 1

through the abstraction reaction. To construct the transition state z-matrix the following

information is needed: a list of three atoms of reactant 1 used to define the relative position of

reactant 2 and 5 angle coordinates: aabs1, babs1, aabs2, babs2, and babs3. The three atoms,

defined as isite, jsite and ksite are the abstraction site (isite), the atom to which the abstracted

atom is bound (jsite), and an atom, usually connected to jsite, which is used to define the dihedral

angle for the dummy atom. The dihedral angle is placed at 2.0 Å from isite, at 90 degrees with

respect to isite and jsite and on a dummy atom-isite-jsite plane that forms a 180 angle with the

isite-jsite-ksite plane. The first atom of reactant 2 is assumed to be the extracting atom (that is the

atom that will bind the extracted atom).

The definition of the 5 angle coordinates (transitional degrees of freedom) is the following:

aabs1: angle between first atom of reactant2, isite and dummy atom (usually 90°).

babs1: dihedral angle between first atom of reactant2, isite, dummy atom, and jsite (usually

180°).

aabs2: angle between second atom of reactant 2, fisrt atom of reactant2, and isite. It depends on

the reactant, often a good choice is 90°, if it is about 180° then it may give problems in

the optimization.

babs2: dihedral angle between second atom of reactant 2, first atom of reactant2, isite, and the

dummy atom. Its value depends on the system. It is likely that it is a torsional degree of

freedom, and should thus be considered as a hindered rotor and randomly scanned in the

tauo_ts module.

babs3: dihedral angle between third atom of reactant 2, the two atoms to which it is connected in

the reactant2 z-matrix structure, and isite. Its value depends on the system. It is likely that

it is a torsional degree of freedom, and should thus be considered as a hindered rotor and

randomly scanned in the tauo_ts module.

An example of a possible definition of isite, jsite, ksite, dummy atom, scanned coordinate as well

as of aabs1 and aabs2 is shown in Figure 3. Once the transition state z-matrix has been

constructed, the RTS distance is scanned in the interval and for the number of points specified in

the ts.dat input file (see section 3.2.3 for further details).

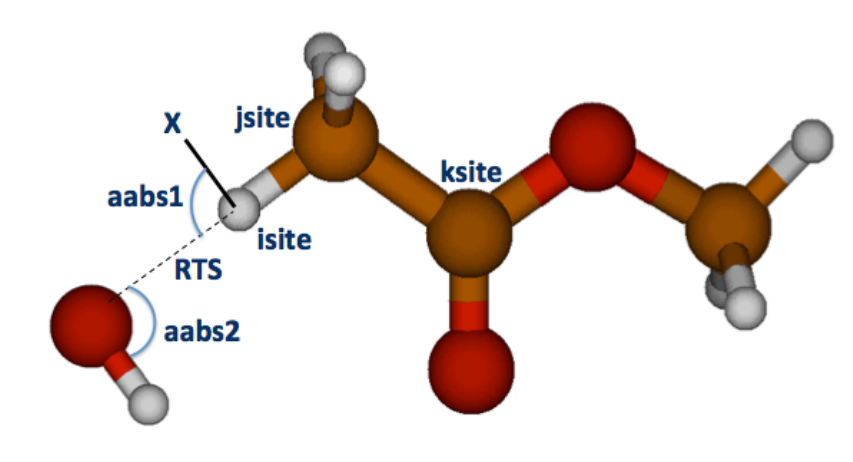

Figure3:TransitionstategeometryconstructedautomaticallyforHabstractionintheOH+methylactetatereaction.

Theisite,jsite,andksiteatomsspecifiedforthecalculationandtheresultingpositionofthedummyatom(X)areexplicitly

shown,togetherwithsomeofthegeometricalvariablesusedinthecalculations(thegridscanneddistanceRTS,andtwoof

theanglesdefiningthepositionoftheOHresiduerelativelytomethylacetate.

For a 3 TS abstraction reaction calculation the sequential list of modules that should be called is

the following:

First the geometries of reactants and products is determined at level 0 of theory.

Opt_Reac1

Opt_Reac2

Opt_Prod1

Opt_Prod2

Then the RTS coordinate is scanned in the interval and for the number of points requested in the

ts.dat file.

Grid_Opt_TS

The structure with the highest energy is used as guess for a saddle point search, which is

performed at level 0 of theory.

Opt_TS_0

Once the saddle point has been found, a random search is performed on the dihedral angles

specified in the ts.dat input for the requested number of times.

Tauo_Ts

Once the TS minimum energy structure has been determined, the structure of reactants, products

and transition state are determined at level 1 of theory.

Opt_Reac1_1

Opt_Reac2_1

Opt_Prod1_1

Opt_Prod2_1

Opt_TS_1

If the ‘wellr findgeom level1’ and ‘wellp findgeom level1’ keywords have been used in the

estoktp.dat file, than the structures of wellr and wellp are searched at level 1 of theory. A

minimum input is requested for the well input files (see section 3.2.2).

Opt_wellr_1

Opt_wellp_1

Hindered rotor scans are then performed for all the considered stationary points and wells.

1dTau_Reac1

1dTau_Reac2

1dTau_Prod1

1dTau_Prod2

1dTau_ts

1dTau_wellr

1dTau_wellp

High level energies are determined for all the considered stationary points and wells.

HL_Reac1

HL_Reac2

HL_Prod1

HL_Prod2

HL_WellR

HL_WellP

HL_Ts

Symmetry numbers are determined for all the considered stationary points and wells.

Symm_reac1

Symm_reac2

Symm_prod1

Symm_prod2

Symm_wellr

Symm_wellp

Symm_ts

An IRC calculation is performed for the number of points and using the algorithm specified in

the theory.dat file. It can be used to determine variationally the rate constant if the ‘variational’

keyword is present in the estoktp.dat file.

Irc

Having performed all the above calculation, we are now ready to compute the rate constant

calling the ktp module.

kTP

1.3.3. Addition

Rate constant calculations for addition reactions can be performed using two different PESs,

which differ depending on whether a van der Waals wells is considered on the reactant side (2TS

calculation) or not (1TS calculations). The selection is made with the ‘reactiontype’ keyword

(see section 3.1.1). A scheme of the 2TS PES is sketched in Figure 4.

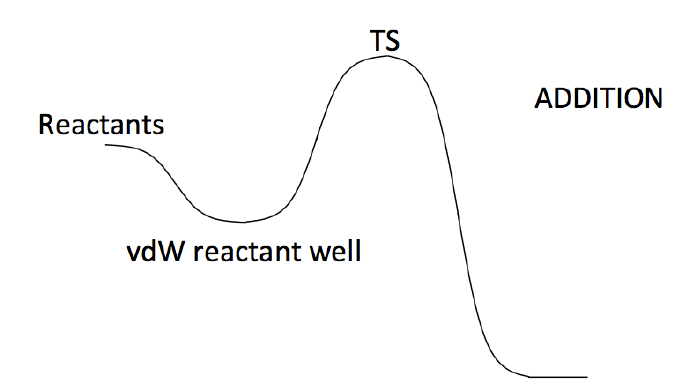

Figure4:PESusedtocalculatedanadditionreactionusingatwotransitionstates(2TS)model.

Similarly to what seen for abstraction reactions, also in this case in the 2TS model the abstraction

rate constant is computed solving a master equation consisting of two channels: entrance, and

reaction. The rate of the entrance channel is computed using phase space theory, while that of the

reaction channel is determined using transition state theory. We refer to section 1.3.2 for a

discussion of what implies including a van der Waals well in a master equation and to set up a

calculation for the well.

The algorithm used to search for the reaction transition state is similar to the one used for

abstraction reactions. The main difference is that no dummy atom is used in this case to construct

the z-matrix of the transition state. Also in this case, however, a list of three atoms (isite, jsite,

and ksite) must be given in order to define the orientation of reactant 2 with respect to reactant1

in the z-matrix. In this case however isite, jsite and ksite are used to define the position of the

first atom of reactant 2, which is assumed to be the atom with which a bond between reactant 1

and 2 will be formed. The parameters aabs1, babs1, aabs2, babs2, and babs3 have the following

meaning:

aabs1: angle between first atom of reactant2, isite and jsite.

babs1: dihedral angle between first atom of reactant2, isite, jsite, and ksite.

aabs2: angle between second atom of reactant 2, first atom of reactant2, and isite.

babs2: dihedral angle between second atom of reactant 2, first atom of reactant2, isite and jsite.

Its value depends on the system. It is likely that it is a torsional degree of freedom, and

should thus be considered as a hindered rotor and randomly scanned in the tauo_ts

module.

babs3: dihedral angle between third atom of reactant 2, the two atoms to which it is connected in

the reactant2 z-matrix structure, and isite. Its value depends on the system. It is likely that

it is a torsional degree of freedom, and should thus be considered as a hindered rotor and

randomly scanned in the tauo_ts module.

An example of a possible definition of isite, jsite, ksite, dummy atom, scanned coordinate as well

as of aabs1 and aabs2 is shown in Figure 5. Once the transition state z-matrix has been

constructed, the RTS distance is scanned in the interval and for the number of points specified in

the ts.dat input file (see section 3.2.3 for further details).

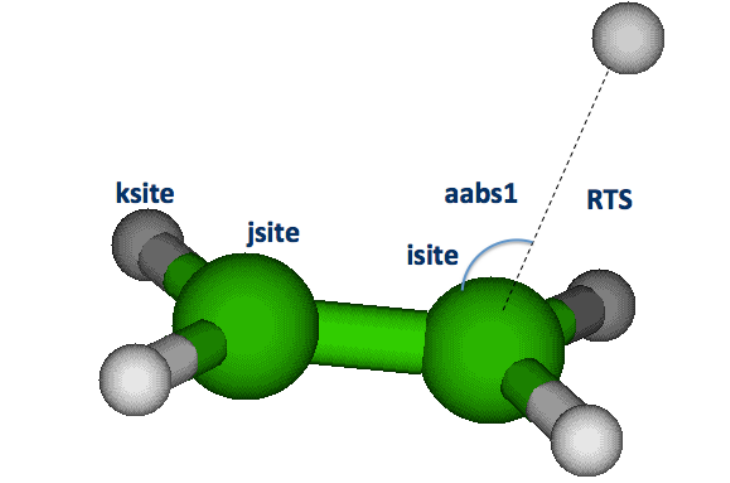

Figure5:TransitionstategeometryconstructedautomaticallyforHadditiontoC2H4.Theisite,jsite,andksiteatoms

specifiedforthecalculationareexplicitlyshown,togetherwithsomeofthegeometricalvariablesusedinthecalculations

(thegridscanneddistanceRTS,andtwooftheanglesdefiningthepositionoftheHatomrelativelytoethylene.

For a 2 TS addition reaction calculation the sequential list of modules that should be called is the

following:

First the geometries of the two reactants are determined at level 0 of theory. Note that no product

needs to be specified here as it will be determined by the code as wellp using the findgeom

keyword.

Opt_Reac1

Opt_Reac2

Then the RTS coordinate is scanned in the interval and for the number of points requested in the

ts.dat file.

Grid_Opt_TS

The structure with the highest energy is used as guess for a saddle point search, which is

performed at level 0 of theory.

Opt_TS_0

Once the saddle point has been found, a random search is performed on the dihedral angles

specified in the ts.dat input for the requested number of times.

Tauo_Ts

Level 1 structures and vibrational frequencies are determined for all the considered stationary

points and wells. The structure of the van der Waals reactant well is determined using the

findgeom algorithm. The same algorithm is used to locate the product well, wellp, which in this

case will coincide with the reaction product.

Opt_Reac1_1

Opt_Reac2_1

Opt_TS_1

Opt_wellr_1

Opt_wellp_1

Hindered rotor scans are then performed for all the considered stationary points and wells.

1dTau_Reac1

1dTau_Reac2

1dTau_ts

1dTau_wellr

1dTau_wellp

High level energies are determined for all the considered stationary points and wells.

HL_Reac1

HL_Reac2

HL_WellR

HL_WellP

HL_Ts

Symmetry numbers are determined for all the considered stationary points and wells.

Symm_reac1

Symm_reac2

Symm_wellr

Symm_wellp

Symm_ts

An IRC calculation is performed for the number of points and using the algorithm specified in

the theory.dat file. It can be used to determine variationally the rate constant if the ‘variational’

keyword is present in the estoktp.dat file.

Irc

Having performed all the above calculation, we are now ready to compute the rate constant

calling the ktp module.

kTP

1.3.4. BetaScission

Beta-scission reactions are the inverse of addition, so that their rate constant may be determined

through detailed balance from the addition rate constant. Alternatively, given a reactant, a rate

constant for a beta-scission reaction can be determined using the betascission algorithm. This is a

relatively simple bond pulling algorithm that stretches the breaking bond for a given number of

steps, specified in the ts.dat input file. To use this algorithm the ‘reactiontype’ keyword (see

section 3.1.1) of the estoktp.dat file must be set to ‘betascission’. The rate of the bet-

decomposition reaction is determined solving the master equation calling the Mess code, so that

pressure dependence is properly accounted for. The parameters of the master equation

calculation are set in the me_head.dat file, located in the ./data subdirectory. No van der Waals

well is used for this type of calculation. The breaking bond is determined through the data

specified in the ts.dat input file. The number of the first of the two atoms of the breaking bond is

identified as isite. The jsite and ksite atom number should be specified as well in the input file

but are at present not used in the calculation, so that they can assume any value. The second atom

is the last number specified in the ts.dat input identified by the rmax1 keyword, namely ireact.

The other numbers are distance1, step1, distance2, and step2. The beta-scission algorithm is a

pushing algorithm working so that the distance between two atoms, isite and ireact, is

progressively increased from that of the minimum energy structure to distance1 with step step1

and then to distance2 with step step2. See section 3.2.3 for further details and an example.

The sequential list of modules that should be called for a standard beta-scission calculation is the

following:

First the geometries of the reactant and two products are determined at level 0 of theory.

Opt_Reac1

Opt_Prod1

Opt_Prod2

Then the breaking bond coordinate is scanned in the intervals requested in the ts.dat file using

the specified steps.

Grid_Opt_TS

The structure with the highest energy is used as guess for a saddle point search, which is

performed at level 0 of theory.

Opt_TS_0

Once the saddle point has been found, a random search is performed on the dihedral angles

specified in the ts.dat input for the requested number of times.

Tauo_Ts

Level 1 structures and vibrational frequencies are determined for all the considered stationary

points and wells.

Opt_Reac1_1

Opt_Prod1_1

Opt_Prod2_1

Opt_TS_1

Hindered rotor scans are then performed for all the considered stationary points and wells.

1dTau_Reac1

1dTau_Prod1

1dTau_Prod2

1dTau_ts

High level energies are determined for all the considered stationary points and wells.

HL_Reac1

HL_Prod1

HL_Prod2

HL_Ts

Symmetry numbers are determined for all the considered stationary points and wells.

Symm_reac1

Symm_prod1

Symm_prod2

Symm_ts

An IRC calculation is performed for the number of points and using the algorithm specified in

the theory.dat file. It can be used to determine variationally the rate constant if the ‘variational’

keyword is present in the estoktp.dat file.

Irc

Having performed all the above calculation, we are now ready to compute the rate constant

calling the ktp module.

kTP

1.3.5. Isomerization

Isomerization reactions are pressure independent unimolecular reactions that involve one

reactant and one product. Transition states for isomerizations are searched constructing a product

like z-matrix where the bond that is to be formed as a result of the reaction is explicitly expressed

as a z-matrix parameter. This is performed by substituting the z-matrix line that contains the

reacting atom (ireact) with a line where the forming bond appears explicitly. To use this

algorithm the ‘reactiontype’ keyword (see section 3.1.1) of the estoktp.dat file must be set to

‘isomerization’. The breaking bond is determined through the data specified in the ts.dat input

file. The number of the first of the two atoms of the breaking bond is the last number specified in

the ts.dat input identified by the rmin1 keyword, namely ireact. The other numbers are distance1,

step1, distance2, and step2. The second atom is identified as isite. The jsite and ksite atom

numbers are used to define the connectivity (angle and dihedral) of the ireact and isite atoms.

The isomerization algorithm is a pulling algorithm working so that the distance between two

atoms, isite and ireact, is progressively decreased from that of the starting structure to distance1

with step step1 and then to distance2 with step step2. The starting structure is not the minimum

energy structure, but the conformer found in the Monte Carlo search for the minimum energy

structure of reactant 1 that exhibits the minimum distance between ireact and isite. See section

3.2.3 for further details and an example.

The sequential list of modules that should be called for a standard isomerization calculation is

the following:

First the geometry of the reactant and is optimized at level 0 of theory.

Opt_Reac1

Then the forming bond coordinate is scanned in the specified intervals (distance1 and distance 2)

using the step specified in the ts.dat file.

Grid_Opt_TS

The structure with the highest energy is used as guess for a saddle point search, which is

performed at level 0 of theory.

Opt_TS_0

Once the saddle point has been found, a random search is performed on the dihedral angles

specified in the ts.dat input for the requested number of times.

Tauo_Ts

Level 1 structures and vibrational frequencies are determined for all the considered stationary

points and wells. The findgeom wellp algorithm is in this case used to find the product structure.

Opt_Reac1_1

Opt_TS_1

Opt_wellp_1

Hindered rotor scans are then performed for all the considered stationary points and wells.

1dTau_Reac1

1dTau_wellp

1dTau_ts

High level energies are determined for all the considered stationary points and wells.

HL_Reac1

HL_wellp

HL_Ts

Symmetry numbers are determined for all the considered stationary points and wells.

Symm_reac1

Symm_wellp

Symm_ts

Having performed all the above calculations, we are now ready to compute the rate constant

calling the ktp module.

kTP

1.4. Input/Output Overview

In order to run EStokTP it is suggested to create a dedicated directory for each calculation type,

may it be just a well or a full reaction calculation. The directory must contain the ./data

subdirectory, which must contain all input files necessary to run EStokTP.

The primary input is contained in the estoktp.dat file, where the type of calculation and list of

modules to call, as well as the computational environment (number of nodes and memory to use)

are defined. See section 3.1 for details on what should go in estoktp.dat.

A dedicated file must be used for each species considered in the calculations, so that it may be

necessary to compile up to seven species input files: reac1.dat, reac2.dat, wellr.dat, ts.dat,

wellp.dat, prod1.dat, prod2.dat. See section 3.2 for details.

The level of theory for the Electronic Structure calculations is specified in the theory.dat file.

This may be sufficient if only g09 is used to perform the calculations. If molpro is used as well

or alternatively, module specific theory files will be needed. These are level0_molpro.dat,

level1_molpro.dat, hl_molpro.dat, and onedtau_molpro.dat. Additionally, specific inputs for

saddle point calculations can be requested, in which case we should add level0_ts_molpro.dat,

level1_ts_molpro.dat, hl_ts_molpro.dat, and onedtau_ts_molpro.dat. See section 3.3 for

details.

The input necessary to run master equation simulations using Mess is specified in the

me_head.dat file, while if only thermochemical data are requested, the thermp.dat file must be

compiled.

The calculation outputs are stored into eight subdirectories that are created contextually to the

first call of EStokTP: level0 and level1 geometries are stored in the ./geoms subdirectory;

modules output and z-matrix parameters of geometries are stored in the ./output subdirectory;

files used in irc calculations are stored in the ./irc_files subdirectory; input and output files for

multi dimensional tunneling calculations are stored in the ./md_tunn subdirectory; the log files

of all high level calculations are stored in the ./hl_logs subdirectory; geometries of hindered

rotor structures computed while performing the PES scan of 1D rotors are stored in

the ./hr_geoms subdirectory; data necessary to build the input for the master question

calculations as well as for the me block files are stored in the ./me_files subdirectory; the me

blocks and energies (multi dimensional rotational PESs and high level energies) are stored in

the ./me_blocks subdirectory.

The main results of an EStokTP job are contained in two different sets of files. The first is the

input for the Mess solver, namely the me_ktp.inp file. The second is the me_block file produced

for each species (reactant1, reactant2, product1, product2, reactant van derWaals well, product

van der Waals well, or transition state). Me block files are named after the species whose data

they contain as reac1.me, reac2.me, prod1.me, prod2.me, wellr.me, wellp.me, or ts.me and

contain essentially the same information as the me_ktp.inp file, that is geometry, hindered rotor

data, frequencies, symmetry, and electronic energy levels. It is not difficult to assemble an input

for the Mess solver starting from the me_block files.

2. Installation

2.1. Distribution

EStokTP is distributed as a tar file. Once opened it will create three subdirectories: example, exe,

and sources. Commands:

2.2. Compiling

EStokTP comprises two separate codes: the EStokTP source and the source code used to

performe the projection of the Hessian and to apply multidimensional tunneling theory. The two

codes are reported in two subdirectories in the sources subdirectory: estoktp_1.6 and projRot_1.0.

Both must be compiled. Makefiles are already present in the subdirectory and should be edited to

choose the preferred compilers and options. The pre-selected compilers and gfortran and gcc.

The code has also been compiled with intel fortran without problems. To compile the codes, it is

sufficient to hit ‘make’ in each subdirectory. One executable file should be created in the ./exe

subdirectory for each code: estoktp.x and RPHt.exe. Commands:

tar –xvf estoktp_dis_1.0.tar

cd estoktp_dis_1.0

cd sources

cd estoktp_1.6

make

cd ../projRot_1.0

make

2.3. Execution Environment

EStokTP uses the executables and the scripts that are present in the ./exe subdirectory. It is thus

sufficient to initialize the execution environment to put the ./exe subdirectory in your path. If the

code is run on a cluster the same applies.

To run EStokTP up to the production of a rate constants it is necessary to have installed at least

one electronic structure code (at present Gaussian 09 and molpro 2008-2015 are both supported)

and the Mess master equation solver (see http://tcg.cse.anl.gov/papr/codes/mess.html for

distribution and installation instructions).

EStokTP calls Gaussian with the ‘g09’ command, so that if Gaussian is properly installed no

further action is needed. Molpro is called through the molprop script reported in the exe directory.

The molprop script takes as input the number of processors to use. The script should be edited to

point to the proper molpro executable. Also, if compiling with gfortran, it is suggested to set the

gfortran_unbuffered_all variable to Y, to increase the frequency at which output is written.

Commands:

Bash:

export PATH=$estoktpdir/estoktp_dis_1.0/exe:$PATH

export GFORTRAN_UNBUFFERED_ALL=Y

csh/tcsh

set PATH = ($estoktpdir/estoktp_dis_1.0/exe $PATH)

setenv GFORTRAN_UNBUFFERED_ALL Y

2.4. Running

A script that launches EStokTP on a node of a cluster is the run_estoktp.com script reported in

the ./exe subdirectory. It should probably be edited to reflect your needs. It is used to launch

EStokTP as: ‘run_estoktp.com nodename &’. Alternatively EStokTP can be launched directly

from a node through the command ‘estoktp.x’.

3. Input files

All data files necessary to perform an EStokTP job are stored in the ./data subdirectory of the

main job directory. Section 1.4 reports an overview of the input files needed. In the following a

detailed description of each file is reported. It should be noted that the input is not case sensitive.

3.1. estoktp.dat: job selection and modules

Estoktp.dat is made of three sequential parts. The first contains a list of keywords, the second the

list of modules to use, and the third a concise description of the computational environment.

3.1.1. Reaction Type/Global Keywords

These keywords define the type of EStokTP job that should be performed. Each one should stay

on a separate line. The order is not important.

- ReactionType reaction tsnumber : this keyword defines which type of reaction is studied. The

reaction field can be either Addition, Abstraction, Isomerization, or Betascission. In the absence

of this keyword the code assumes that the job is dedicated to studying a single well, with data in

the reac1.dat file. The tsnumber, which must be specified, can be either 1TS (active for all

reaction types), 2TS (active only for addition and abstraction) or 3TS (active only for

abstraction). See section 1.3 for how the choice of tsnumber determines the model used for the

calculations. Example: ‘ReactionType abstraction 3TS’.

- Wellr algorithm leveloftheory: it means that a van der Waals well must be searched on the

reactant side. If the algorithm and leveloftheory keywords are left blank than the search is

performed starting from the z-matrix structure that must be specified in the wellr.dat file. If the

algorithm keyword is ‘findgeom’ then a guess structure is generated from the TS geometry. No

z-matrix specification is in this case needed in the wellr.dat file. This is the recommended option

when a van der Waals well is searched. The leveloftheory keyword, which can be either ‘level1’

or ‘level0’, specifies whether the search should be performed starting from level0 of theory or

directly from level1. Example: ‘wellr findgeom level1’.

- Wellp algorithm leveloftheory: it means that a van der Waals well must be searched on the

product side. If the algorithm and leveloftheory keywords are left blank than the search is

performed starting from the z-matrix structure that must be specified in the wellp.dat file. If the

algorithm keyword is ‘findgeom’ then a guess structure is generated from the TS geometry. No

z-matrix specification is in this case needed in the wellp.dat file. This is the recommended option

when a van der Waals well is searched. The leveloftheory keyword, which can be either ‘level1’

or ‘level0’, specifies whether the search should be performed starting from level0 of theory or

directly from level1. Example: ‘wellp findgeom level1’

- Prods: it tells the code that the formation of products should be explicitly considered in writing

the Mess input.

- Variational : it specifies that an IRC scan will be performed (and thus the IRC module will be

called and should be activated in the requested series of calculations) and variational transition

state theory will be used to determine the rate constant.

- FrozRTS distance: it means calculations are performed keeping the RTS coordinate frozen. If

activated, the code will be able to run up to the determination of the rate constant determining

geometries and frequencies and performing hindered rotor scans performing all geometry

optimizations constraining the RTS coordinate. This option can be used to perform several types

of calculations. One possibility for example is to use it to perform variational TST calculations as

a function of the RTS coordinate, so that the minimum energy path can be determined for a

barrierless reaction. The distance parameter is used by the Opt_TS_0 module to set the RTS

value. It should be noted (see sections 1.3.2 and 1.3.3) that RTS is the name of the distance

coordinate used by EStokTP to define the distance between react1 and react2 in abstraction and

addition reaction. Example: ‘FrozRTS 2.5’.

- ResIRC: this keyword requests a linear rescaling of the potential energy profile calculated in

the IRC module to high level quality energies. For this purpose two additional high level

calculations are performed for the first and last geometries computed along the IRC path.

- ResIRCAll: same as ResIRC, except that high level energies are computed for all points

determined along the IRC path. It is, obviously, quite expansive computationally.

- MdTunnel: it requests to compute tunneling contributions using multi dimensional tunneling

theory, in particular the present implementation uses small curvature theory with reaction path

Hamiltonian frequencies. It should be noted that this calculation requires that a large number of

points is taken along the reaction path (on the average 200 points with a stepsize of 0.3 Bohr). It

is suggested to use this keyword in conjunction with the ResIRC keyword. By default, in the

absence of this keyword, the Eckart tunneling model is used.

- NoTunnel: this keyword disables the use of tunneling in rate constant calculations.

- Recover: Recovers the output from a calculation that was interrupted after generating output

prior to processing it (e.g., a high level MOLPRO calculation). It can be used only if a single

module is active (that is, the one from which we want to recover the data).

- Debug debuglevel: it is a keyword that defines the density of writing in the output. At present,

as this is the first release of the code, use 2 (that is dense output), as it will help with debugging

the code. Example: “debug 2”

- Stoichiometry atomstypenumber : this keyword specifies the number of atoms of each type

present in the molecule. It is an input for an external call to a code that is to be used to determine

Lennard Jones parameters, which are needed for the master equation calculation. It is not used at

present. Example: “stoichiometry C4H8”

3.1.2. List of Modules

An EStokTP job typically consists of a set of electronic structure calculations, each used to

produce certain data (geometries, frequencies, or energies most typically) that will then be

necessary either to perform successive higher level calculations or, eventually, to write a master

equation input file or a master equation block. These calculations are grouped in modules, which

can be called independently, provided that the necessary input is available. Each job type (be it a

reaction or a well job) requires that a minimal set of modules is called, either sequentially or one

by one. See sections 1.3.1-1.3.5 for a list of the modules requested by each job type. The full list

of all the available modules is reported in the following, with a brief description. The Module

section must be terminated with a line containing the ‘End’ word.

Opt_Reac1

Opt_Reac2

Opt_Prod1

Opt_Prod2

Opt_WellR

Opt_WellP

Modules that perform the search for the minimum energy structure of reactants, products or

wells at level 0 of theory. Structural parameters are saved in the ./output subdirectory as

reac1_opt.out, reac2_opt.out, prod1_opt.out, prod2_opt.out, wellr_opt.out, wellp_opt.out (briefly,

$species_opt.out). Structural data for all minimum energy structures found in the stochastic scan

are saved as well in the order in which they are found as reac1_opt_1.out, reac1_opt_2.out, and

so on. Geometries in xyz format are saved in the ./geoms subdirectory as reac1_01.xyz,

reac1_02.xyz, etc. Level 0 energies are reported in the title line of the xyz geometries and as last

line of the $species_opt.out geometries. A log of the calculations is reported in the reac1.out,

reac2.out and so on files in the ./output subdirectory. It can be used to check the progress of the

calculations. If the ‘wellr findgeom level0’ or ‘wellp findgeom level0’ keywords are used then

the guess geometry for the van der Waals well optimization will be taken from

the ./output/ts_opt.out file and modified by changing the bond breaking/bond forming length.

Grid_Opt_TS

Module that performs a grid scan along a distance coordinate (usually RTS) to determine a

suitable guess for a TS search. The structure (z-matrix parameters) with the highest energy found

along the scan is saved in the ./output/ts_opt.out file and used for successive calculations. A log

of the grid scan is saved in the ./output/grid_opt.out file and can be used to check the status of

the calculations.

Opt_TS_0

Module used to determine the transition state structure at level 0 of theory. The structure so

determined is saved in the ./output/ts_opt.out file.

TauO_TS

Module that performs a MonteCarlo search along the selected dihedral coordinates to search for

rotational conformers of the transition state. The one with the minimum energy is saved in

the ./output/ts_opt.out file and used for successive calculations.

Opt_Reac1_1

Opt_Reac2_1

Opt_Prod1_1

Opt_Prod2_1

Opt_TS_1

Opt_WellR_1

Opt_WellP_1

These modules are used to determine the minimum energy structure of reactants, products or

wells at level 1 of theory. Structural parameters are saved in the ./output subdirectory as

reac1_opt.out, reac2_opt.out, prod1_opt.out, prod2_opt.out, wellr_opt.out, wellp_opt.out (briefly,

$species_opt.out). Thus overwriting the files written by level0 calculations. Geometries in xyz

format are saved in the ./geoms subdirectory as reac1_l1.xyz, reac2_l1.xyz, etc. Level 1 energies

are reported in the title line of the xyz geometries and as last line of the $species_opt.out

geometries. A log of the calculations is reported in the level1.out file in the ./output

subdirectory. Structures determined at level1 of theory are then used for me calculations and are

saved in the ./me_files subdirectory as reac1_ge.me, reac2_ge.me and so on. Frequencies are

calculated in these modules from the Hessian matrix if no hindered rotor calculation is requested

and are saved in the ./me_files subdirectory as reac1_fr.me, reac2_fr.me and so on. If hindered

rotors are present, then the Hessian matrix (reac1_fcmat.log, reac2_fcmat.log and so on) is saved

in the ./output subdirectory, and will then be used by the hindered rotor module (see the

1dTau_xxx module description) to compute a set of frequencies from which hindered rotors have

been projected. Zero point energies are computed by these modules and saved in the ./me_files

subdirectory as reac1_zpe.me, reac2_zpe.me, and so on. If the ‘wellr findgeom level1’ or ‘wellp

findgeom level1’ keywords are used then the guess geometry for the van der Waals well

optimization will be taken form the ./output/ts_opt.out file and modified by changing the bond

breaking/bond forming length. It means that no preliminary call to the Opt_WellR or Opt_WellP

module is necessary. The global symmetry number (ratio of external rotational and external

optical symmetry numbers, which should account for optical isomers found in hindered rotor

scans) is here set to 1 and should then be edited or corrected calling the symmetry modules (see

below).

1dTau_Reac1

1dTau_Reac2

1dTau_Prod1

1dTau_Prod2

1dTau_WellR

1dTau_WellP

1dTau_TS

The 1dTau modules perform one dimensional hindered rotor scans along the dihedral coordinates

indicated in the input data files for reactants, products, wells or transition state (nhind keyword).

These modules should also be called when a multidimensional hindered rotor scan is requested

for the dihedral coordinates treated multidimensionally. Log files of the calculations are saved in

the ./output subdirectory as reac1_hr.out, reac2_hr.out, and so on. The calculated 1D hindered

rotor PES, the list of atoms in the rotating top and that belong to the rotation axis are saved in

the ./me_files subdirectory as reac1_hr.me, reac2_hr.me, and so on. The Hessian matrix is then

projected and projected frequencies are saved in the ./me_files subdirectory as reac1_fr.me,

reac2_fr.me and so on. Hindered rotor structures for each point are saved in the ./hr_geoms

subdirectory.

MdTau_Reac1

MdTau_Reac2

MdTau_Prod1

MdTau_Prod2

MdTau_WellR

MdTau_WellP

MdTau_TS

The mdTau modules perform a multidimensional hindered rotor scan along the dihedral

coordinates indicated in the input data files for reactants, products, wells or transition state

(nhind2D or nhind3D keywords). At the present level of theory, only one multidimensional

hindered rotor scan is allowed for molecule in order to preserve the correct coupling between

internal and external rotational motions as implemented in the Mess master equation solver. The

calculated potential energy surface is saved in the ./me_files subdirectory in the

reac1_2dhr_nofr01.dat (or reac2_.. or reac1_3dhr_.. and so on) if no frequencies were estimated

at each point of the PES and in the reac1_2dhr_01.dat (or reac2_.. or reac1_3dhr_.. and so on)

file otherwise (if the mhr_freqs keyword has been used in the species input data). The

frequencies, if calculated along the multi dimensional PES, are determined from a Hessian from

which the corresponding hindered rotors have been projected out. Details on rotating groups

necessary to solve the multi dimensional hindered rotor equation as implemented in Mess are

saved in the reac1_mdhr.me file (or reac2, prod1, and so on).

Symm_Reac1

Symm_Reac2

Symm_Prod1

Symm_Prod2

Symm_WellR

Symm_WellP

Symm_TS

The symmetry keywords are used to determine the rotational and optical symmetry numbers for

external and internal rotations. The implemented algorithm works as follows. The external

rotational and optical symmetry numbers are determined through the symmetry_number code

that is part of the Mess suite of codes. A tolerance of 0.07 is used as input to symmetry_number,

as it was found to give better predictions than obtained using the default 0.001 parameter.

Successively the hindered rotor PES is scanned to check if optical isomers are found along the

rotational scan. For this purpose structures saved in the ./hr_geoms subdirectory are used to find

local minima along the rotational PES for each hindered rotor. If the computed energy differs by

less than 0.00001 Hartrees from the absolute minimum than it is considered as an optical isomer.

The species external optical isomer number is then divided by the number of rotational optical

isomers. It should be mentioned that this algorithm is not yet extended to treat optical symmetry

in multidimensional hindered rotors. For this reason if a multidimensional rotor treatment has

been requested all optical symmetry numbers (internal and external) for the considered species

are set to 1, as it is supposed than an eventual external optical symmetry would be captured by

the multi dimensional hindered rotor analysis. The log files for symmetry calculations is saved in

the ./output subdirectory as reac1_sym.out (or reac2_sym.out, and so on). The reac1_ge.me (or

reac2_ge.me and so on) file, which contains the global symmetry number for each species (ratio

of external rotational and external optical symmetry numbers), which is set to 1 when written for

the first time in the level1 calculations (opt_reac1_1 and so on), is then updated on the basis of

what calculated in the symmetry module.

HL_Reac1

HL_Reac2

HL_Prod1

HL_Prod2

HL_WellR

HL_WellP

HL_TS

These modules perform high level calculations for all species. The geometry adopted for this

purpose is the one determine at level 1 of theory and saved in the ./output/reac1_opt.out and so

on files. The output of all high-level calculations are saved in the ./hl_logs subdirectory as

reac1_molpro.out or reac1_g09.out and so on.

IRC

The internal reaction coordinate module is at present set to process files produced through g09

IRC calculations. The required information are Hessians and energies calculated along the

reaction path, which is started from the transition state structure located using level 1

calculations whose geometry is stored in the ./output/ts_opt.out. It is important that the level of

theory at which IRC calculations are performed (specified in the theory.dat file) is the same as

that used to find the transition state. All files used in IRC calculations are stored in the ./irc_files

subdirectory. When the IRC module is called the ‘variational’ keyword should also be present in

the estoktp.dat input, and vice-versa. The output of the IRC module is saved in the variational.me

file, which is stored in the ./me_files subdirectory. Additionally, the IRC module should be

called whenever multi dimensional tunneling calculations are requested. As MD tunneling

calculations are fast compared to electronic structure calculations, they are performed always

when the IRC module is called. The input and output files for such calculations are saved in

the ./md_tunn subdirectory. Notably, the trajec.xyz contains all the geometries of each point of

the IRC scan saved in xyz format and thus easily readable using molecular structure visualization

softwares (such as molden or vmd), while the mdtunn.out files contains the log file of the multi

dimensional tunneling calculation. The tunneling coefficient is reported as kSCT at the end of

the file. The file created and used by the Mess solver for multi dimensional tunneling

calculations is the imactint.dat file, which contains the natural logarithm of the imaginary action

integral as a function of the energy (in cm-1), measured from the energy of the saddle point.

Please look at the mdTunnel keyword description for further information on how to run

multidimensional tunneling calculations.

kTP

The kTP module generates, when the ‘reaction’ keyword is present in the estoktp.dat file, the

me_ktp.inp file, which is the input for the Mess solver. The data used for this purpose are those

saved by previous calls to all modules necessary for the desired calculation in the ./me_files

subdirectory. Also, the me_blocks for all species participating to the reaction are created and

saved in the ./me_blocks subdirectory. The output of the Mess solver is saved in the rate.out file,

which can be found in the job directory and is also copied to the ./output subdirectory.

If the reaction keyword is not present in the estoktp.dat file then it is assumed that this is a well

job and thus only the me_block files for the reac1 species are generated.

ModArr

This module is not yet active. Its purpose is to fit all rate constants reported in the rate.out file

produced by the Mess solver to the modified Arrhenius form.

3.1.3. Computational environment

The computational environment is defined by the last 4 lines of the estoktp.dat file, which must

be preceded by the ‘End’ line that marks the end of the module section. The first line contains

the number of cores used for the low and high level calculations, separated by a comma, the

second is a comment line, the third line contains the memory requested for low and high level

calculations (expressed in Mega words, with the MW letters attached to the number), and the

fourth line is a comment line. In practice, the calculations for each module are performed using

the low level parameters except for high level modules, which use the high level parameters.

Example:

12,4

numprocll, numprochl

200MW 300MW

gmemll gmemhl

3.2. Species Data Files

An EStokTP job can include up to seven species, each one requiring a dedicated input file: two

reactants (reac1.dat and reac2.dat), two products (prod1.dat and prod2.dat), two van der Waals

wells (wellr.dat and wellp.dat) and one transition state (ts.dat). Each file should terminate with a

line containing the ‘end’ word. EStokTP retrieves data from the input files searching for

keywords that correspond to a specific set of input data. For example the geometry is reported

after the charge keyword, while the hindered rotor section is reported after the nhind keyword.

The format of each file is described in detail in the following.

3.2.1. reac1.dat, reac2.dat, prod1.dat, prod2.dat

Each of these files should contain the following data blocks. The order in which the blocks are

reported in the file is not relevant.

- nosmp: it gives the number of sampling points to be used in the Monte Carlo sampling of the

configurational space defined by the coordinates listed in the ntau block, the geometric (in

degrees) and the energy (in Hartree) threshold to check if the new geometry found in the

stochastic search differs from geometries found in previous scans. The whole block is formed

by two lines (keyword and data).

Example (requests 5 sampling points):

nosmp

5 1.0 0.00001

- ntau: lists the number and names of the coordinates that are stochastically sampled to search

for the absolute minimum energy structure. The whole block is formed by three lines

(keyword, number of sampled coordinates and comment line) plus a list of the names of the

sampled coordinates, each followed by its sampling interval. It is assumed that the sampled

coordinates are dihedral angles whose names and z-matrix coordinates are defined in the

‘charge’ block.

Example (scans b1 and b5 coordinates randomly sampling their values in the 0-360 interval

for b1 and in the 0-120 interval for b2):

ntau

-- name and sampling interval

b1 0 360.

b2 0 120.

- nhind: lists the number and names of the dihedral coordinates that are to be treated as

hindered rotors. The whole block is formed by three lines (keyword, number of dihedral

coordinates and a comment line) plus a list of the names of the dihedral coordinates, each

followed by its scan interval, the number of points to take on the PES, and periodicity. The

scan step is obtained dividing the scan interval by the number of PES points. It is assumed

that the first and last point of the scan interval correspond to the same molecular structure,

thus the calculation is performed only once for the first point, so that the total number of

electronic structure calculations is equal to the number of PES points indicated. Though the

ntau and nhind coordinates are often the same this may not always be necessarily the case and

is thus not enforced.

Example (treats b1 and b5 coordinates as hindered rotors, using a symmetry number of 1 for

b1 and of 3 for b2, that is in fact scanned between 0 and 120. The calculations at 360. and 120.

degress for b1 and b2 are not performed, as they are assumed to give the same energy as those

performed at 0 degrees).

nhind

-- name hindmin hindmax points periodicity

b1 0 360. 12 1

b2 0 120. 4 3

- natom: it must be followed by three numbers: the total number atoms in the molecule

excluding dummy atoms, the total number of atoms including dummy atoms and an index,

which can be either 0 and 1, that indicates whether the molecule is linear or not (not necessary

for diatomic molecules).

Example:

natom natomt ilin

6 6 0

- charge: this block contains the charge and spin multiplicity and is followed by the z-matrix of

the molecule. In specifying the z-matrix each coordinate name must differ from the others for

the same species, and for the reac1 and reac2 species in abstraction and addition reactions.

Example (ethylene charge, spin and z-matrix):

charge spin atomlabel

0 1

c2 c1 rcc1

h3 c1 rch1 c2 ahcc1

h4 c1 rch2 c2 ahcc2 h3 b1

h5 c2 rch3 c1 ahcc3 h3 b2

h6 c2 rch4 c1 ahcc4 h5 b3

- intcoor: this blocks contains first guess values for all coordinates reported in the z-matrix,

made exception for the coordinates listed in the ntau block, whose value is determined

through stochastic sampling. Coordinate names and guess values must be separated by a space.

Example (coordinates for ethylene):

intcoor

rcc1 1.5

rch1 1.08

rch2 1.08

rch3 1.08

rch4 1.08

ahcc1 110.

ahcc2 110.

ahcc3 110.

ahcc4 110.

b1 178.

b2 5.

b3 177.

- symmetryfactor: it is the global symmetry factor for the molecule, defined as the ratio

between external rotational symmetry number and external optical symmetry number. It

should also account for optical isomers found in the hindered rotor scan. Though it has to be

specified in this file, it is recalculated when the Symmetry modules are called.

Example (symmetry for ethylene):

SymmetryFactor

- nelec: it lists the number of electronic states for the considered species and their multiplicity

and energy relative to the ground state, including the ground state. The nelec keyword must be

followed by one line giving the number Ne of electronic states and by Ne lines giving energy

(in cm-1) and multiplicity of each electronic state.

Example (electronic states for OH):

nelec

0. 2

140. 2

In addition to these data blocks, which should always be included in the data file, even in the

absence of hindered rotors or coordinates to sample stochastically (in which case the nhind and

ntau parameters should be set to 0), the following data blocks can be optionally added:

- nhind2D (same rules for nhind1D and nhind3D): number and name of rotors for which a

multidimensional scan is requested. The block is structured similarly to the nhind block, thus

it is formed by three lines (keyword, number of multi dimensional rotors and a comment line)

plus nlines containing the list of the names of the dihedral coordinates for which a

multidimensional treatment is requested (nlines = rotor dimensionality x number of

multidimensional rotors). At present, this keyword is designed to generate inputs for the Mess

solver, and thus for the multidimensional hindered rotor model it implements. This is a

sophisticated model that accounts for the coupling between internal and external rotations.

Because of this it does not make sense (and it is thus not supported at present) to use this

treatment for more than 1 multi dimensional rotor at a time, as the correct theoretical

treatment would be to increase the dimensionality of the rotor, rather than have several rotors

of lower dimensionality (which also means that nhind1d, nhind2d, and nhind3d calculations

are alternative ones with respect to the other). This block is read by the mdTau modules,

which must therefore be present in the estoktp.dat input file.

Example (treats b1 and b6 as 2D hindered rotors, using a symmetry number of 3 for each, so

that 4 points are used to scan the coordinates between 0 and 120 for 4 times, for a total

number of 16 points taken along the PES).

nhind2D

-->namehind,hindmn,hindmx,hindstep period

b1 0 120 4 3

b6 0 120 4 3

3.2.2. wellr.dat, wellp.dat

The wellr.dat and wellp.dat data files should always be filled in when the wellp and wellr

keywords are present in the estoktp.dat file. They should be filled in as described in section 3.2.1

unless the findgeom option is associated to the wellr and wellp keywords (which is

recommended). In that case, the only blocks that should be included are nosmp, ntau, nhind,

charge, Symmetryfactor, and nelec. If the findgeom option is used, it is suggested to set the

number of sampling points to 1 and that of sampling coordinates to 0, as the findgeom algorithm

should help to find the van der Waals wells connected to the TS, which may not be that of

absolute minimum energy which may be found using the stochastic sampling strategy. It is also

suggested to set the nhind keyword to 0 (that is, do not consider hindered rotors), as what is

necessary for rate calculations is the energy of the well, rather than an accurate evaluation of its

density of states so that the RRHO approximation should be sufficient.

3.2.3. ts.dat

The data file for the transition state contains several blocks that are the same as those of the

species data described in section 3.2.1. In particular it must contain the: nosmp; ntau, nhind,

Symmetryfactor, and nelec blocks, organized as described in section 3.2.1. The natom and

intcoor blocks should not be present, as the geometry of the TS is constructed from EStokTP

following rules that depend on the reaction type starting from the data reported in the reac1.dat

and reac2.dat data files. In addition, the following blocks must be present:

- charge: requires two integers: charge and spin multiplicity.

Example:

charge spin

0 2

- isite: requires three integers: the atom numbers for isite, jsite, and ksite. The meaning of these

three numbers depends on the reaction type. They are used to construct the z-matrix of the

transition state and to define the reacting atoms. For example isite is the abstracted atom in an

abstraction reaction, the site to which an atom or molecule is added in an addition reaction;

the site to which an atom is transferred in an isomerization reaction, and one of the two atoms

whose bond is being broken in a beta-scission reaction. See sections 1.3.2 – 1.3.5 and

keywords rmin, rmin1 and rmax1 for the meaning.

Example:

isite jsite ksite

11 3 2

- rmin: this block must be present in abstraction and addition reactions. It is not read in

isomerization and beta-scission reactions. It reports data for constructing the TS z-matrix and

defines the TS search grid. It is a four lines block, with the first line being the keyword, the

second three numbers defining the interval of the grid search. The grid search is a restrained

geometry optimization with the RTS coordinate kept frozen. The first number is the lowest

value of RTS, the second the highest and the last the number of steps to progressively move

from the lowest to the highest value of RTS. The third line is a comment line while the fourth

contains 5 numbers, separated by commas, which defines coordinates aabs1, babs1, aabs2,

babs2, and babs3 that are used to construct the transition state z-matrix. The 5 coordinates are

two angles (aabs1 and aabs2) and three dihedrals (babs1, babs2, and babs3) that are used to

define the initial relative orientation of fragments reac1 and reac2. See sections 1.3.2 – 1.3.5

for a precise definition of these coordinates.

Example (scans RTS between 1.4 and 2.2 in 5 steps):

rmin rmax nr

1.4 2.2 5

-->aabs1,babs1,aabs2,babs2,babs3

90., 90., 90., 175., 90.

- rmin1: this block is used in isomerization reactions. It consists of the keyword line and a line

containing 5 numbers: distance1, step1, distance2, step2, and ireact. The isomerization

algorithm is a pulling algorithm working so that the distance between two atoms, the isite and

ireact is progressively diminished from the minimum value found among all the react1

conformers located in the stochastic conformational analysis to distance1 with step step1 and

then decreased to distance2 with step step2.

Example (atom 4 is moved toward atom isite in steps of 0.2 Å down to 1.7 Å and then down

to distance 1.2 Å in steps of 0.1 Å):

rmin1 rstp1 rmin2 rstp2 ireact

1.7 0.2 1.2 0.1 4

- rmax1: this block is used in beta-scission reactions. It consists of the keyword line and a line

containing 5 numbers: distance1, step1, distance2, step2, and ireact. The beta-scission

algorithm is a pushing algorithm working so that the distance between two atoms, the isite

and ireact is progressively increased from that of the minimum energy structure to distance1

with step step1 and then to distance2 with step step2.

Example (the distance between atom 8 and isite is increased in steps of 0.2 Å up to 1.8 Å and

then up to distance 2.4 Å in steps of 0.1 Å):

rmax1 rstp1 rmax2 rstp2 ireact

1.8 0.2 2.4 0.1 8

Additional blocks for the ts.dat file are the nhind1D, nhind2D, and nhind3D blocks, organized

as described in section 3.2.1 and the ts_geom block:

- ts_geom: this block, read by module opt_TS_1, is optionally used to request for level1

calculations the use of the geometry of a transition state different from that of the minimum

energy conformer found in the stochastic search performed at level 0 of theory by the

1dTau_TS module. It is made by the keyword line followed by an integer number iTS

indicating the structure to use for level1, and thus successive, TS calculations. When invoked,

the geometry of conformer iTs saved in the ./output subdirectory as ts_opt_iTS.out is copied

to file ./output/ts_opt.out, which is thus overwritten.

Example (uses geometry, in particular z-matrix parameters, saved in ./output/ts_opt_4.out to

perform level1 and successive calculations, as the ./output/ts_opt.out file is overwritten)

ts_geom

3.3. Electronic Structure and Master Equation Inputs

EStokTP relies on external codes to perform electronic structure and master equation

calculations. At present the supported electronic structure codes are Gaussian 09 and molpro

(versions from 2008 to 2015). Extension to NWchem and Gamess is planned within the next year.

The supported master equation code is Mess, which is part of the Papr distribution

(http://tcg.cse.anl.gov/papr/). Sections 3.3.1 and 3.3.2 describe how to select the level of theory

to use for electronic structure calculations and the input for master equation calculations

performed with Mess.

3.3.1. Theory files

The electronic structure code to use for each calculation module is defined in the theory.dat file.

The level of theory to be used for each module is also defined in theory.dat when Gaussian 09 is

used and in a separate set of files for molpro.

3.3.1.1. Theory.dat

The theory.dat file is organized in blocks, each one identified by a keyword. Each block defines

the electronic structure code to use for a set of modules through a string reported after the

keyword. If the code of choice is g09, the level of theory to use in the calculations is reported in

the lines that follow the keyword, which are then used as the route section for Gaussian

calculations. All optimizations should be performed using internal coordinates, thus any opt g09

call should include the internal option. Also it is suggested to suppress the use of symmetry, and

thus include the ‘nosym’ option in the g09 route section. If the code is molpro one or more

separate files must be prepared, as described in section 3.3.1.2.

- level0: level of theory for modules Opt_Reac1, Opt_Reac2, Opt_Prod1, Opt_Prod2,

Opt_WellR, Opt_WellP, Grid_Opt_TS. If the g09 code is used the g09 route section is

reported in two separate lines after the keyword.

Example (performs optimization using g09 at the b3lyp/6-31+g(d,p) level of theory):

level0 g09

b3lyp/6-31+g(d,p) opt=internal

int=ultrafine nosym

- level0_ts: level of theory for modules Opt_TS_0 and TauO_TS. If the g09 code is used the

g09 route section is reported in two separate lines after the keyword.

Example (performs ts search at using g09 at the b3lyp/6-31+g(d,p) level of theory):

level0_ts g09

b3lyp/6-31+g(d,p) opt=(ts,calcfc,noeig,intern,maxcyc=50)

int=ultrafine nosym

- level1: level of theory for modules Opt_Reac1_1, Opt_Reac2_1, Opt_Prod1_1,

Opt_Prod2_1, Opt_WellR_1, Opt_WellP_1. If the g09 code is used the g09 route section is

reported in two separate lines after the keyword.

Example (performs optimization using g09 at the m062x/6-311+g(d,p) level of theory):

level1 g09

m062x/6-311+g(d,p) opt=internal

int=ultrafine nosym freq

- level1_ts: level of theory for module Opt_TS_1. If the g09 code is used the g09 route section

is reported in two separate lines after the keyword.

Example (performs transition state search using g09 at the m062x/6-311+g(d,p) level of

theory):

level1_ts g09

m062x/6-311+g(d,p) opt=(ts,calcfc,noeig,intern,maxcyc=50)

int=ultrafine nosym freq

- hind_rotor: level of theory for modules 1dTau_Reac1, 1dTau_Reac2, 1dTau_Prod1,

1dTau_Prod2, 1dTau_WellR, 1dTau_WellP, MdTau_Reac1, MdTau_Reac2,

MdTau_Prod1, MdTau_Prod2, MdTau_WellR, MdTau_WellP. If the g09 code is used

the g09 route section is reported in two separate lines after the keyword. If the mdtau module

is called, it searches for an additional line for the ‘mhr_freqs’ keyword. If present, frequencies

are computed for each point along the hindered rotor path.

Example (performs hindered rotor scans using g09 at the b3lyp/6-31+g(d,p) level of theory,

when called from an mdtau module, performs a frequency analysis for each point of the

hindered rotor PES).

hind_rotor g09

b3lyp/6-31+g(d,p) opt=internal

int=ultrafine nosym

mhr_freqs

- hind_rotor_ts: level of theory for modules 1dTau_TS and MdTau_TS. If the g09 code is

used two different g09 route sections are reported in four separate lines after the keyword.

The first two lines are used for the first attempt at determining the torsional PES, while the

other two are used as fallback option if the first attempt fails. It is assumed that in the first

attempt the search is performed for a constrained TS, that is a saddle point where one (or

more) dihedral coordinates is kept fixed. If this fails, the hindered rotor analysis is performed

fixing the length of the bond that is being formed/broken to the TS value. If the mdtau_ts

module is called, it searches for an additional line for the ‘mhr_freqs’ keyword. If present,

frequencies are computed for each point along the hindered rotor path.

Example (performs hindered rotor scans using g09 at the b3lyp/6-31+g(d,p) level of theory

first searching for a constrained TS and then performing a constrained optimization if this

fails).

hind_rotor_ts g09

b3lyp/6-31+g(d,p) opt=(ts,calcfc,noeig,intern,maxcyc=50)

int=ultrafine nosym

b3lyp/6-31+g(d,p) opt=internal

int=ultrafine nosym

- symmetry: level of theory for modules Symm_Reac1, Symm_Reac2, Symm_Prod1,

Symm_Prod2, Symm_WellR, Symm_WellP. If the g09 code is used the g09 route section is

reported in two separate lines after the keyword.

Example (if requested by the symmetry algorithm, performs optimization using g09 at the

b3lyp/6-31+g(d,p) level of theory):

symmetry g09

b3lyp/6-31+g(d,p) opt=internal

int=ultrafine nosym

- symmetry_ts: level of theory for module Symm_TS. If the g09 code is used the g09 route

section is reported in two separate lines after the keyword.

Example (if needed, performs optimization using g09 at the b3lyp/6-31+g(d,p) level of

theory):

symmetry_ts g09

b3lyp/6-31+g(d,p) opt=(ts,calcfc,noeig,intern,maxcyc=50)

int=ultrafine nosym

- hlevel: level of theory for modules HL_Reac1, HL_Reac2, HL_Prod1, HL_Prod2,

HL_WellR, HL_WellP. If the g09 code is used the g09 route section is reported in two

separate lines after the keyword.

Example (searches for a molpro input file):

hlevel molpro

- hlevel_ts: level of theory for module HL_TS. If the g09 code is used the g09 route section is

reported in two separate lines after the keyword.

Example (searches for a molpro input file):

hlevel_ts molpro

- irc: level of theory for module IRC. At present only g09 is supported. It requires that four

lines are reported after the keyword. The first two contain the g09 route section for the

forward IRC scan, while the second two contain the route section for the backward scan. An

additional line is also searched by the IRC module to check if the HRcc option is active. It is

the HRcc keyword followed two numbers, ifor and iback. This option is used to rescale the

hindered rotor potentials along the IRC path by performing ifor +1 and iback+1 times the

hindered rotor analysis at equally spaced points along the IRC path. To produce consistent

results, the level of theory should be the same used to determine the level1 geometry and

frequencies. This is not enforced at present and it is left to the user to check that this condition

is respected.

Example (performs an IRC scan at the m062x/6-311+g(d,p) level taking 10 points in the

forward direction and 10 in the backward using a step of 0.03 Bohr for a total number of 21

points. The hindered rotor potential is re-evaluated 4 times at points 1, 5, 16, and 21. Point 11

is the transition state and it is assumed that its potential is already available):

irc g09

m062x/6-311+g(d,p) irc(forward,calcall,stepsize=3,maxpoints=10)

int=ultrafine nosym iop(7/33=1)

m062x/6-311+g(d,p) irc(reverse,calcall,stepsize=3,maxpoints=10)

int=ultrafine nosym iop(7/33=1)

HRcc 1 1

All keywords may have additional options, some of which are keyword specific. In particular if

the word after the electronic structure code is ‘restart’ it means that in case of failure the

electronic structure calculation is restarted for the number of times reported after the ‘restart’

keyword.

Example (restarts 3 times the calculation from the last available geometry if it fails):

level0 g09 restart 3

It is possible to specify module specific theory levels by introducing keyword whose first part is

the general module keyword and the second part, separated by an underscore from the first part,

is an integer number that identifies each species (1 for reac1, 2 for reac2, 3 for prod1, 4 for prod2,

5 for wellr, 51 for wellr searched using the findgeom algorithm, 6 for wellr, 61 for wellr searched

using the findgeom algorithm).

Example (level 0 of theory used only for product 2, supersedes what was written in the level0

keyword):

level0_4 g09

b3lyp/6-31+g(d,p) opt(internal,calcall)

int=ultrafine nosym

3.3.1.2. Molpro theory files

If the molpro option is specified as the code to use for a specific module, a dedicated file must be

written. The file is formatted so that a molpro input file can be easily reconstructed. The file

should contain three lines: ‘End1’, ‘End2’, and ‘End3’. All that is reported above line End1 will

be inserted in the molpro input above the z-matrix, which will be inserted by EStokTP, all that is

reported between lines ‘End1’ and ‘End2’ will be inserted after the z-matrix for closed shell

species, while all that is reported between lines ‘End2’ and ‘End3’ will be inserted after the z-

matrix for open shell species. Additionally, two lines must be present both in the open shell and

in the closed shell species. One line that saves the molpro output in molden format:

‘put,molden,molpro.molden’, and one line where the ‘CBSen’ variable is initialized to the

desired energy value. The CBSen variable defines the high level energy that will be employed in

the master equation analysis.

The correspondence between molpro file names and theory.dat keywords is the following:

Level0 molpro à level0_molpro.dat

Level0_ts molpro à level0_ts_molpro.dat

Level1 molpro à level1_molpro.dat

Level1_ts molpro à level1_ts_molpro.dat

hindrotor molpro à onedtau_molpro.dat

hindrotor_ts molpro à onedtau_ts_molpro.dat

symmetry molpro à symm_molpro.dat

symmetry_ts molpro à symm_ts_molpro.dat

hlevel molpro à hl_molpro.dat

hlevel_ts molpro à hl_ts_molpro.dat

Additionally, if a specific theory file is requested for a particular species, this is searched by

appending the species number to the molpro file as defined above (see the bottom of section

3.3.1.1 for details about the correspondence between number and species):

Level0_1 molpro à level0_reac1_molpro.dat

Level0_2 molpro à level0_reac2_molpro.dat

Level0_3 molpro à level0_prod1_molpro.dat

Level0_4 molpro à level0_prod2_molpro.dat

Level0_5 molpro à level0_wellr_molpro.dat

Level0_51 molpro à level0_wellr_molpro.dat

Level0_6 molpro à level0_wellp_molpro.dat

Level0_61 molpro à level0_wellp_molpro.dat

and so on

Example (file to read when the ‘hlevel molpro’ keyword is present in the theory.dat file. It

performs CCSD(T) calculations followed by MP2 corrections for basis set size for the reac1,

reac2, prod1, prod2, wellr, and wellp species if called from the hl_reac1, hl_reac2 and so on

modules):

hl_molpro.dat

nosym

End1

!closed shell input

basis=aug-cc-pvtz

ccsd(t)

en_cc=energy

gdirect

basis=aug-cc-pvtz

df-mp2

en_mp2_tz=energy

basis=aug-cc-pvqz

df-mp2

en_mp2_qz=energy

! these lines must be always included in molpro input

! CBSen should be defined as desired

! the molden line should be left as it is

put,molden,molpro.molden

CBSen = en_cc+en_mp2_qz-en_mp2_tz

---

End2

!open shell input

basis=cc-pvdz

uhf

basis=cc-pvtz

uhf

rhf

basis=aug-cc-pvtz

rhf

uccsd(t)

en_cc = energy

gdirect

basis=aug-cc-pvtz

rhf

df-rmp2

en_mp2_tz=energy

basis=aug-cc-pvqz

rhf

df-rmp2

en_mp2_qz=energy

!these lines must be always included in molpro input

! CBSen should be defined as desired

! the molden line should be left as it is

put,molden,molpro.molden

CBSen = en_cc+en_mp2_qz-en_mp2_tz

---

End3

3.3.2. Master Equation files

3.3.2.1. me_head.dat

The input for master equation simulations is reported in the me_head.dat file, which should

always be in the ./data subdirectory. Please look at EStokTP examples for examples on how it

should be formatted and at the Mess manual for an explanation of its syntax

(http://tcg.cse.anl.gov/papr/codes/mess.html). It is in many ways self – explanatory, so it is

suggested to copy it from the EStokTP example subdirectory and modify it according to needs.

4. Output

The output of EStokTP calculations is stored in several files and subdirectories. The log files of

an EStokTP calculation (the ones to control to check for error or warning messages) are

the ./output/estoktp.out file and several standard output messages (screen). It is suggested to re-

direct the standard output to a log file (we usually call this file estoktp.log) when running

EStokTP, which should therefore be called as ‘estoktp.x > estoktp.log). Estoktp.log reports all

the unix shell commands called by EStokTP together with some error messages. The

output/estoktp.out reports several calculation log messages, which may be useful to track the

progression of the code and should be checked in case of an unexpected termination.

4.1. EStokTP Outputs

EStokTP saves as much as possible of the data produced from the electronic structure

calculations. Briefly, calculation logs of each module are reported in the ./output subdirectory,

geometries in the ./geoms subdirectory, files used to create the master equation input in

the ./me_files subdirectory, and logs of high level calculations in the ./hl_logs subdirectory.

More details are reported in dedicated subsections.

4.1.1. Geometries

Optimized geometries are reported in the ./geoms, ./ouput, and ./me_files subdirectories. Level 0

geometries are reported in the ./geoms subdirectory, where they are named $species_$numb.xyz,

where $species may be reac1, reac2, prod1, prod2, wellr, wellp, or ts, and $numb refers to the

progressive number of the structure optimized using the Monte Carlo protocol. The optimized

geometries are numbered following the order on which they are found, not the energy. The

structures are reported in xyz format, with the level0 energy of the structure reported in the

second line. The EStokTP log file of a level0 geometry optimization is reported in the ./output

subdirectory as $species.out, which describes the progress of the Monte Carlo sampling

procedure and reports which structure has been selected for successive level1 calculations. The

z-matrix parameters of each structure are reported in the ./output subdirectory as

$species_opt_$numb.out. The minimum energy structure z-matrix parameters are reported in

the ./output subdirectory as $species_opt.out. This file is the reference file for all geometry

calculations, so that it is overwritten by level1 calculations and used in high level calculations.

Level1 optimized structures are reported in the ./geoms subdirectory as $species_l1.xyz, where

$species may be reac1, reac2, prod1, prod2, wellr, wellp, or tsgta (for the transition state

structure). The level1 module generates also the geometry structures that will be used by the

master equation solver to compute inertia moments. These structures are saved in the ./me_files

subdirectory as $species_ge.me files ($species may be reac1, reac2, prod1, prod2, wellr, wellp,

or ts).

Log files produced by the electronic structure code for level1 and level0 calculations are saved as

well, with the same name as that of the optimized xyz structure, but with the .log extension

($species_$numb.log and $species_l1.log). In case molpro is used, the molden file generated is

also saved in the ./geoms subdirectory using the molden extension ($species_$numb.molden and

$species_l1.molden).

4.1.2. Frequencies

Frequencies are computed in the level 1 module and saved in the ./me_files subdirectory as

$species_fr.me. In addition, level1 calculations by default generate a log file with the Cartesian

Hessian, which is stored in the ./output subdirectory as $species_fcmat.log (where $species may

be reac1, reac2, prod1, prod2, wellr, wellp, or ts). The list of frequencies to be used for master

equation calculations is updated after a call to the hindered rotor module if hindered rotor

treatment has been requested in the species input file. This is done by projecting out the torsional

motions from the Hessian, orthonormalizing and diagonalizing it as suggested by Green et al.

(Sharma et al., J. Phys. Chem. A 2010, 114, 5689–5701). After projection, the updated list of

frequencies is stored in the ./me_files subdirectory as $species_fr.me, while the unprojected

frequencies are saved as $species_unpfr.me. In case of need, an animation of the frequencies is

possible post-processing the electronic structure calculation log file (the .molden file if molpro

was used) reported in the ./geoms subdirectory, using a visualization program such as, for

example, molden.

4.1.3. Hindered Rotor

The log file of hindered rotor calculations is reported in the ./output subdirectory as

$species_hr.out. It describes the progress of the calculation and the adopted algorithm. The

hindered rotor potential together with details on the rotating top is reported in the ./me_files

subdirectory as $species_hr.me. If a multi dimensional hindered rotor treatment is requested, the

multi dimensional hindered rotor PES and the frequencies at each point along the PES (if

requested) are stored in the ./me_files subdirectory in the $species_$dimension_$number.dat file,

with $dimension being 1dhr, 2dhr or 3dhr and $number being a progressive number starting

from 01 (at present only one multidimensional hindered rotor is supported). For 1D hindered

rotors geometries of point taken on the PES are stored in the ./hr_geoms subdirectory. Structures

are saved in xyz format as geom_isp$numb1_hr$numb2_hpt$numb3.xyz, where $numb1 refers

to the species (01 for reac1, 02 for reac2, 03 for prod1, 04 for prod2, 05 for wellr, 06 for wellp,

00 for transition state), $numb2 refers to the hindered rotor progressive number (as numbered in

the specie input file) and $numb3 is the number of the point taken along the hindered rotor PES.

These files are used by the symmetry module to determine the optical symmetry number for

internal rotations.

4.1.4. IRC

Files used in internal reaction coordinate calculations (for now supported only for Gaussian) are

stored in the ./irc_files subdirectory. In particular irc_g09f.log and irc_g09b.log are the log files

of the Gaussian forward and backward IRC scan. Input files for projection of hindered rotor

frequencies are stored as well in this subdirectory as input$numb. The main output of IRC

calculations is reported in the variational.me file, which is stored in the ./me_files subdirectory.

The log file of irc calculations is irc.out and is reported in the ./ouptut subdirectory.

4.1.5. Energies

The electronic structure log files of high level calculations are stored in the ./hl_logs

subdirectory as $species_$code.out, where $code could be either molpro or g09. The energy (In

Hartree) determined through high level calculations is saved in the ./me_files subdirectory as

$species_en.me. The EStokTP log file of high level calculations is very terse, as the electronic

structure log files contain most of the information necessary to check the progress and success of

these calculations.

4.1.6. Multi Dimensional Tunneling

File used to perform multidimensional tunneling calculations are stored in the ./md_tunn

subdirectory. They are produced whenever the IRC module is called. The trajec.xyz file reports

all the structures along the irc in xyz format and can be viewed using a structure visualization

software, such as molden or vmd. The reduced mass computed through the SCT formalism is

stored in the mueff.txt file (last column) in atomic units, while the vibrationally adiabatic energy

is reported in the VaG.txt file. The SCT tunneling coefficients are reported in the last rows of the

mdtunn.out file, in the kSCT column. The imaginary action integral file that is used by the

master equation solver (Mess) to determine tunneling contributions is stored in the imactint.dat

file, which is saved in the main directory of the EStokTP calculation and in the ./me_files

subdirectory.

4.2. Rate Output

The master equation input file is created by the kTP module, which then runs the master equation

calculations calling the Mess program. The Mess output is composed of two parts, the rate.out

file, which contains all the temperature and pressure dependent rate constants, and the

me_ktp.log file, which is the log file of the Mess code. A detailed description of the Mess output

is reported in the Mess manual at http://tcg.cse.anl.gov/papr/codes/mess.html.

5. Examples

Several examples of uses of EStokTP are included in the distribution in the ./examples

subdirectory. Only the input data files are reported in the distribution, while the log files for all

the examples are distributed as a separate tar file. With reference to the subdirectory path, the

examples are:

- Wells/C3H8/c3h8_1dhr: minimum energy search for propane with 1D hindered rotor

treatment up to the production of the Mess block.

- Wells/C3H8/c3h8_2dhr: minimum energy search for propane with 2D hindered rotor

treatment up to the production of the Mess block.

- Wells/C3H8/c3h8_2dhr_fr: minimum energy search for propane with 2D hindered rotor

treatment and evaluation of frequencies at each point of the hindered rotor PES up to the

production of the Mess block.

- Abstraction/ c3h8_h_n3h7_h2_1TS: rate constant evaluation using the 1TS model for H

abstraction from propane (see section 1.3.2).

- Abstraction/ c3h8_h_n3h7_h2_3TS: rate constant evaluation using the 3TS model for H

abstraction from propane (see section 1.3.2).

- Addition/c2h4_h_1TS: rate constant for addition of H to ethylene using the 1TS model (see

section 1.3.3).

- Addition/c2h4_h_2TS: rate constant for addition of H to ethylene using the 2TS model (see

section 1.3.3).

- Betascission/nc3h7_c3h6_h; rate constant calculation for betascission of n-propyl to propene

and H (see section 1.3.4).

- Isomerization/nc3h7_nc3h7: rate constant calculation for n-propyl isomerization (see section

1.3.5). The product well (nc3h7) is determined using the findgeom keyword, so that no z-

matrix has to be specified in the input.

- Isomerization/nc3h7_nc3h7_well5: rate constant calculation for n-propyl isomerization (see

section 1.3.5). The product well (nc3h7) is specified explicitly in the input as wellp.

6. Advices/Suggestions/Troubleshooting

- Highly endothermic reactions must be studied from the endothermic side.

- Search of van der Waals wells with H atoms may be problematic, it may be skipped

without loosing much accuracy.

7. Index

1

1dTau,14,24

C

Capabilities,6

D

Debug,12

G

Grid_Opt,13,23

H

HL,16,25

HL_Prod,16,25

HL_Reac,16,25

HL_TS,16

HL_Well,16,25

I

IRC,16

K

kTP,16

M

MdTau,15,24

MdTunnel,12

ModArr,17

N

NoTunnel,12

O

Opt,13,14,23

Overview,5

R

ResIRC,12

ResIRCAll,12

S

Stoichiometry,12

Symm,15,25

Manual_1.3x EStok TP Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
