1
Table of Contents
1. Before you operate your scooter…………………..….. 2
2. Scooter initial operation………………………….…...….. 2
3. Technical specification……………………………….…….. 3
4. Mirror Assembly……………………………………………….. 4
5. Safety Instruction……………………………………………… 4-6
6. Environment Condition……………………………………… 6
7. Seat Adjustment……………………………………………….. 7
8. Instrument Panel………………………………………………. 8
9. Storage Compartment………………………………………. 9
10. Key Fob…………………………………………….………………. 9
11. Batteries and Charger………………………………………… 10
12. EMC Statement…………………………………………………. 11
2
Before you operate the scooter
Locate the below listed materials in rear basket:
Set of mirrors
Electric charger
Scooter Key (Key #2 located under seat in the storage compartment)
Owner’s manual
IT IS VERY IMPORTANT TO READ OWNER’S MANUAL BEFORE SCOOTER OPERATION
Scooter Initial Operation
Read Owner’s manual
Buckle seat belt
Insert key into ignition (or activate scooter using key fob)
Set variable speed dial to lowest setting
Turn lights on
Adjust mirrors to desired positions
Place both hands on black hand grips
Twist the throttle slowly with your right hand
Enjoy the ride!
Turn off scooter by simply turning key to the off position
3
Technical Specifications
Model
EW-72 Scooter
Weight Capacity
500Lbs.
Speed:
Up to 15mph
Distance:
43 miles per charge (distance varies on terrain, riders weight, road
surface, etc.)
Front Seat: Type
Adjustable Folding Captains chair with backrest
Front seat: Size
18 ½ “x 18 ½ “x 30” (LxWxH)
Front Seat:
26 ½ “from Ground
Carton Size:
Shipped Fully assembled on Pallet – 63”x 36”x 54” (LxWxH)
Basket Size:
10”x20”x12” (LxWxH)
Steering Height
46” from Ground
Turning Radius
92”
Power:
Electric
Watts:
700 Watt
Motor Type:
Transaxle differential brushless
Amps:
20 AH
Volts:
48 Volts
Dimensions:
56” x 27” x 52” Seat folded down 46”
Floor Clearance:
6”
Batteries:
(4) Sealed Lead Acid Maintenance Free
Forward/Reverse switch:
Yes
High/ Low Speed switch:
Adjustable Speed Knob / Rheo-Stat
Front tire size:
14” tire type: 90/70-10 Tubeless
Rear tire size:
16” tire type: 3.0 – 10 Tubeless
Charger:
48-volt Smart Charger included
Throttle Type:
Variable Speed Control – Twist Throttle
Key Start:
Yes
Braking System:
Front and Rear drum brakes with Electronic Braking (EBS)
Drive System:
700 Watt Brushless Motor
Headlight:
12v LED Lights
Rear lights:
12v Bulb
Carton Size:
Shipped Fully assembled on Pallet – 63”x 36”x 54” (LxWxH)
Scooter Weight:
257lbs with batteries
Battery Indicator:
Yes
Front:
Front Frame Suspension Bars
Rear:
Rear Shock Absorbers
Reflectors:
N/A
Warranty:
Limited – 3 Year Warranty
4

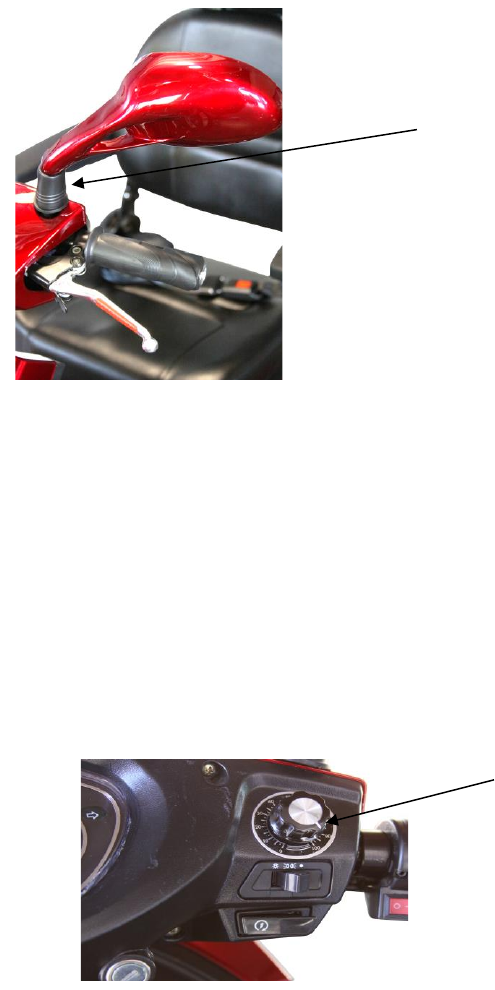

Mirror Assembly
Your power scooter is shipped partially disassembled for protection during shipping. After unpacking,
please check whether you have received the following main components as our standard
specification (See Fig 1)
1. Mirrors
Mirror Post
Fig 1
To attach the mirrors simply place each mirror threaded end into the mirror post. Turn mirror
clockwise and fasten mirror to scooter.
Operation of Scooter:
1. To prevent injury to yourself or others, always ensure that the power is switched off when
getting on or off the scooter, and that the emergency brake tabs are set.
2. Always check that the variable speed control is set to the desired speed setting.
Variable Speed Dial
5

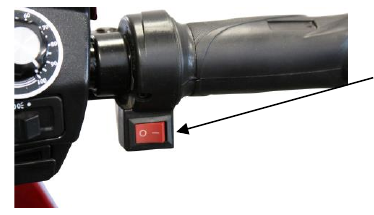

3. Always check you have selected the correct forward or reverse button when about to drive.
Forward/Reverse switch
4. Always reduce your speed when making sharp turns.
5. Do not switch off the power when the scooter is still moving forward.
Ramps and Curbs
1. Check that ramp surface is toughened to prevent slipping. Never drive across a slope of turn
sharply on a slope.
2. When driving up curbs, always check the height of the curb to ensure that it does not exceed
4” height.
General
1. Always use a seatbelt, and keep your feet on the scooter all the time.
2. Do not over load the scooter with its maximum weight capacity of 500lbs including
accessories and carry ons.
3. Do not attempt to lift or move a power scooter by any of its removable parts. Personal injury
and damage to the power chair may result.
4. Never try to use your scooter beyond its limitations as described in the manual.
5. Do not operate your vehicle if it is not functioning properly.
6. Do not connect any electrical or mechanical device to the scooter. Failure to obey this
instruction may result in injury and will void the warranty.
6
Use While Under the Influence of Medication or Alcohol
1. Check with your physician if you are taking any medication that may affect your ability to
operate your powered scooter safely.
2. Do not operate your scooter while you are under the influence of alcohol as this may impair
your ability to operate your power scooter in a safe manner.
Environment Condition
Rain, Sleet and Snow
If exposed to water, your power scooter is susceptible to damage to electronic or mechanical
components. Water can cause electronic malfunction or promote premature corrosion of electrical
components and frame.
Warranty
For valid warranty claims E-Wheels will, at their discretion, replace/repair/refund items mutually
agreed to be defective.
E-Wheels warranty as following:
1. Frame: (3) Year limited warranty
2. Electronic component: (1) Year limited warranty
3. Controllers: (1) Year limited warranty
4. Batteries: Not warranted
5. Consumables: Wheel, tires, arm pads and seat cushions: Not warranted
6. Labor costs are NOT covered by warranty
Any damage or defect of any nature occurring from the misuse of the product is not to be covered.
The warranty is to start from the date of arrival of our products.
7

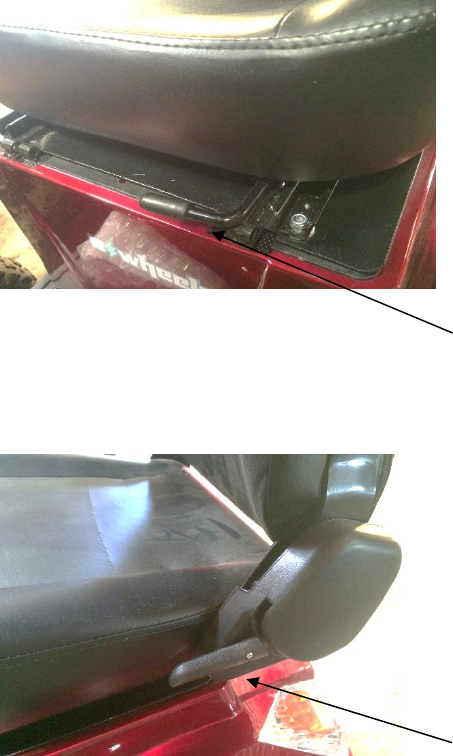

Seat Adjustment
1. Locate forward/reverse seat handle located under the seat
Forward/Reverse Handle
2. Locate the reclining seat lever located on side of seat.
Tilt Lever
Seat arm rest can be in an upright position or a down position.
8

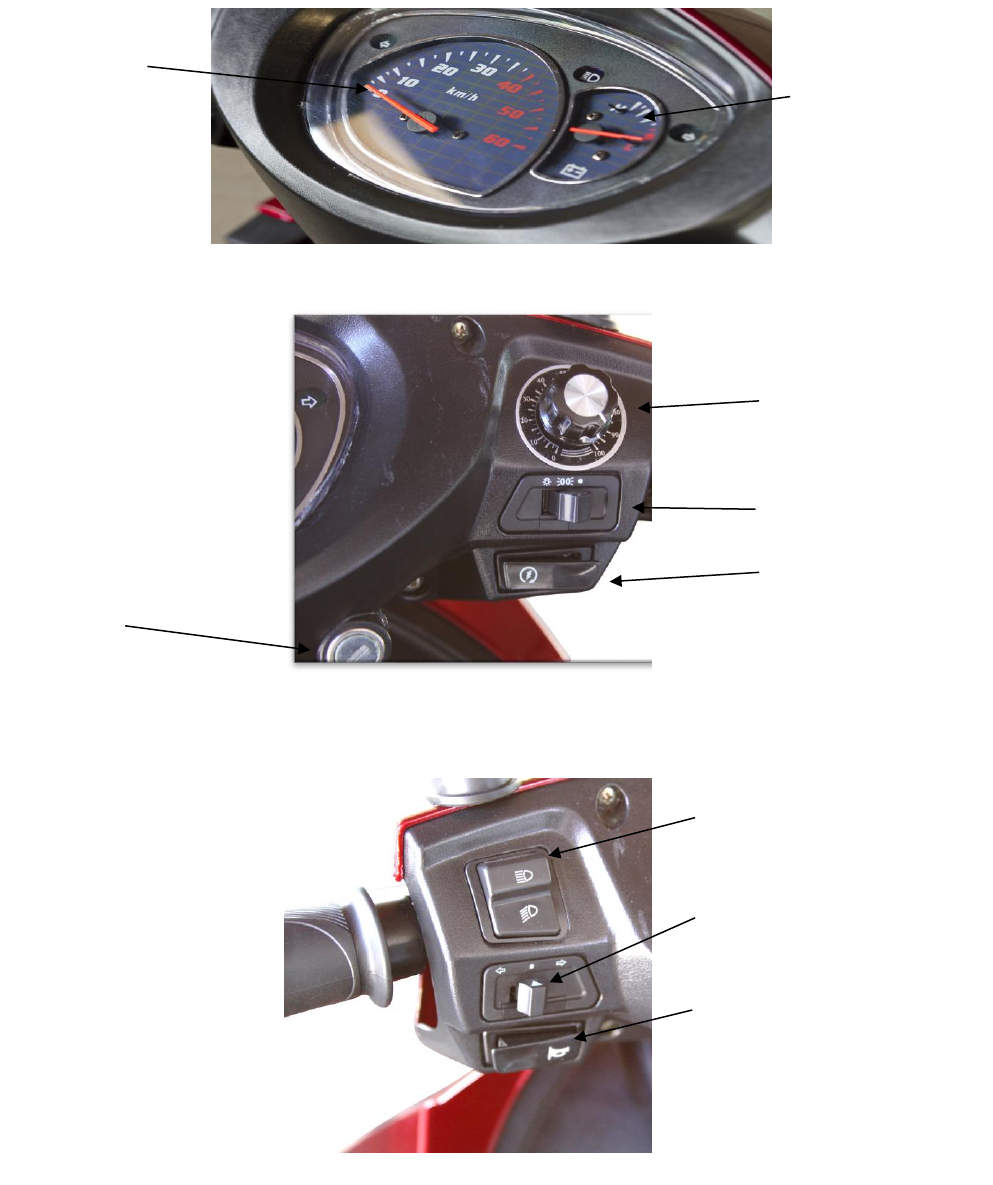

Instrument Panel
Speedometer and Battery level indicator
Speedometer
Battery Indicato Battery Level Indicator
Speed Control
Lights on/off
Key Ignition
High/Low Beam
Turn Signal
Horn
Horn
9

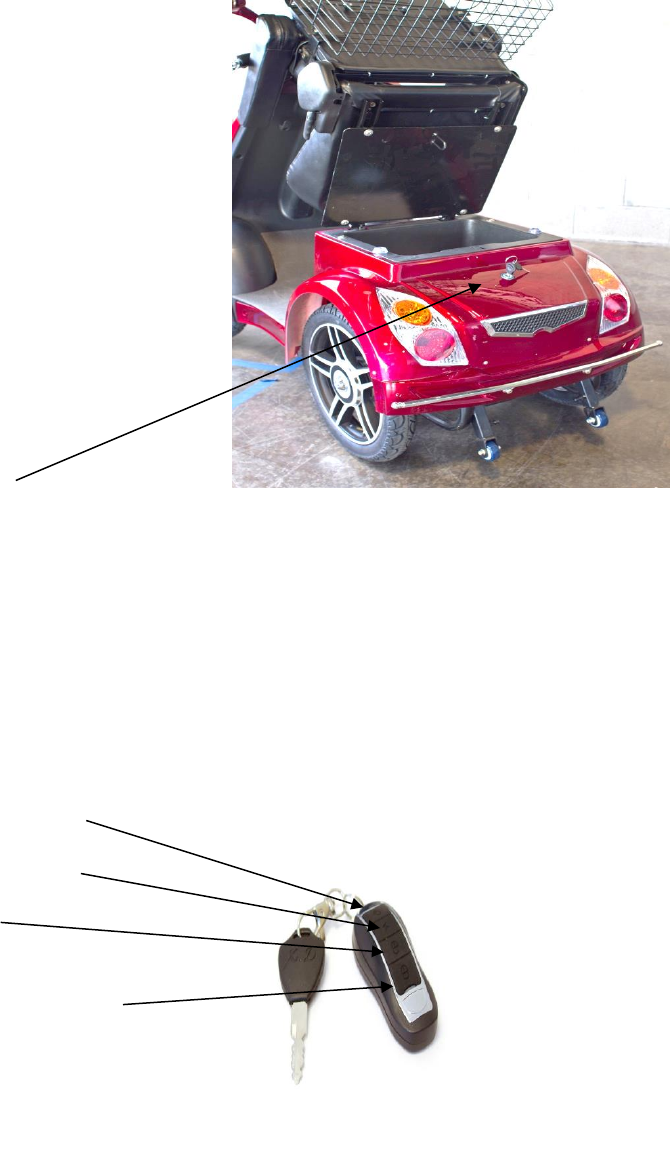

Trunk Key Insert
Insert Key into lock mechanism (as shown above) and turn while lifting so seat will lift and tilt forward
to gain access to storage compartment and circuit breaker.
Key Fob
Press once to activate alarm
Press once to disarm alarm
Panic alarm button
Press twice to power scooter
Without putting key in ignition
10
Batteries and Charger
We recommend that you use deep-cycle batteries that are sealed and maintenance free for your
power scooter. Both are lead acid (SLA) and gel cell are Deep cycle batteries that are similar in
performance. Deep-cycle batteries are specifically designed to provide power, drain down, and then
accept a relatively quick charge. Lead acid batteries should be charged as often as possible.
Specification of the battery that we recommend:
Type: Deep Cycle Sealed lead acid or gel ell
Size: 20 AH
Voltage: 12 V Each (4) totals
Depending on the use, terrain and driving conditions, the batteries will provide a range of 43 miles of
travel. However, even if the power scooter is not in use we recommend that the batteries be charged
at least a month.
Note:
- Do not use any automotive batteries, they are not designed to handle a long, deep discharge
and are unsafe for use in power scooter.
- The useful life of a battery is quite often a reflection of the care it receives.
- Always charge your batteries in well ventilated areas.
- The charger is intended for indoor use only.
- For maximum performance, it is recommended that you replace all four batteries at the same
time if the batteries are weak.
- If the vehicle will not be used for a long period. Arrange to have batteries recharged at least
once every month to avoid deterioration.
Recharge Battery only when the key is in off position.
Charger Use
1. Plug charger into electric wall outlet.
2. Insert charger plug into the scooter’s charging port which is located directly in front of the
scooter’s main body directly under the seat.
3. Red charger light indicates scooter is charging
4. Green charger light indicates the scooter is fully charged.
