Seven-Seas Style : EC215 Assembly Instructions
Carefully unpack all parts and identify them with parts list before attempting to
assemble.
IMPORTANT: DO NOT TIGHTEN BOLTS AND SCREWS UNTIL YOU HAVE
COMPLETED ASSEMBLY.

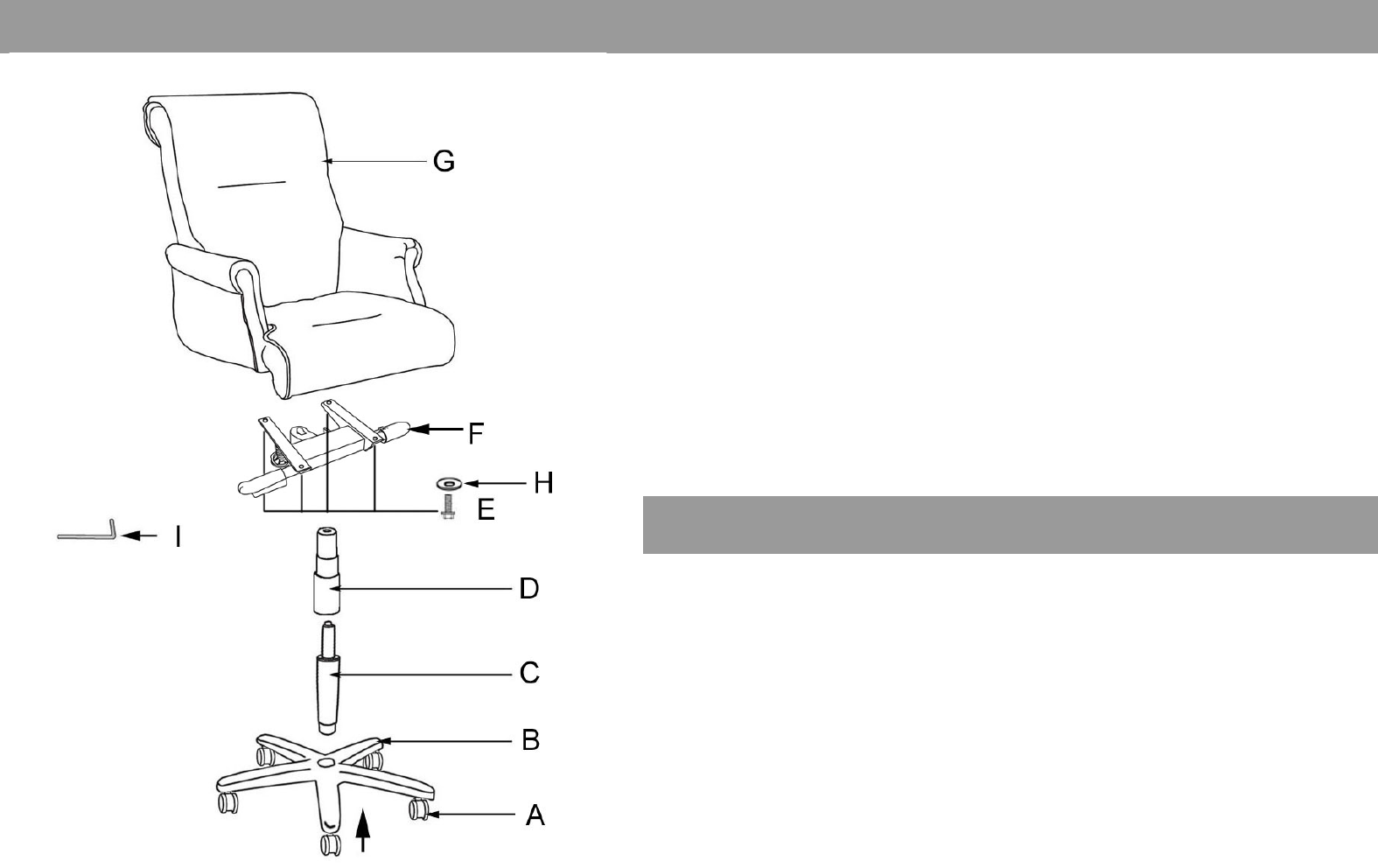

1. Put 5 CASTERS (A) into the holes of 5 STAR BASE (B).
2. Insert GAS LIFT (C) to the center hole top of 5 STAR BASE (B).
3. Insert BELLOW (D) over GAS LIFT (C).
4. Attach SEAT PLATE (F) to THE PRE-ASSEMBLED SEAT (G) by using 4
FLATWASHERS (H) SCREWS (E).
5. Insert the pre-assembled seat unit onto the gas lift to finish the assembly.
Parts List
A. CASTERS 5
B. 5 STAR BASE 1
C. GAS LIFT 1
D. BELLOW 1
E. SCREWS (M8 X 32MM) 4
F. SEAT PLATE 1
G. THE PRE-ASSEMBLED SEAT
H. FLATWASHERS (22MMX8MMX1.5MMT) 1
4
I. ALLEN KEY 1
