Intel® Desktop Board D946GZTS Product Guide English
User Manual: English
Open the PDF directly: View PDF .
Page Count: 76
- Intel® Desktop Board D946GZTS Product Guide
- Revision History
- Preface
- Contents
- 1 Desktop Board Features
- Supported Operating Systems
- Desktop Board Components
- Processor
- Main Memory
- Intel® 946GZ Express Chipset
- Onboard Audio Subsystem
- Input/Output (I/O) Controller
- LAN Subsystem
- Hi-Speed USB 2.0 Support
- Enhanced IDE Interface
- Serial ATA
- Expandability
- BIOS
- Hardware Management Features
- Power Management Features
- Speaker
- Battery
- Real-Time Clock
- 2 Installing and Replacing Desktop Board Components
- Before You Begin
- Installation Precautions

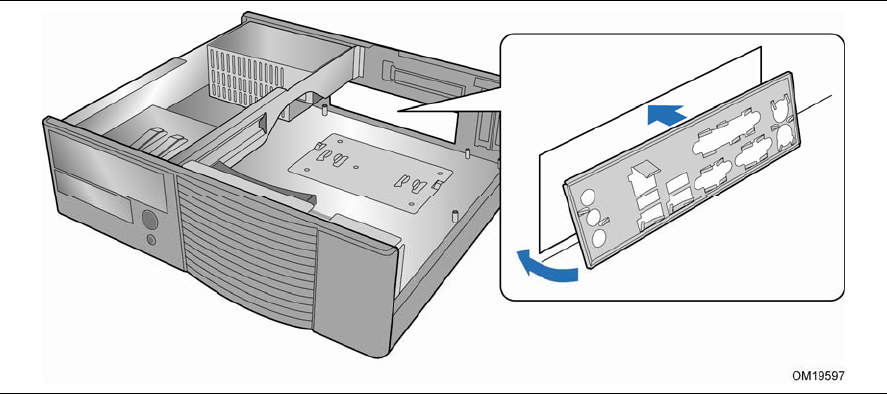

- Installing the I/O Shield

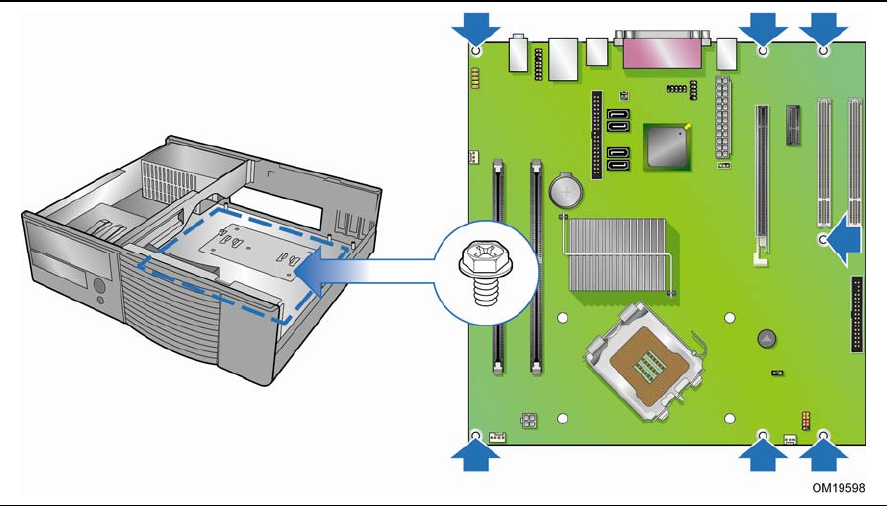

- Installing and Removing the Desktop Board

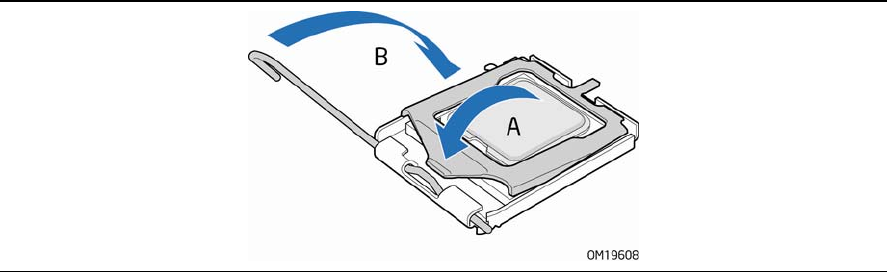

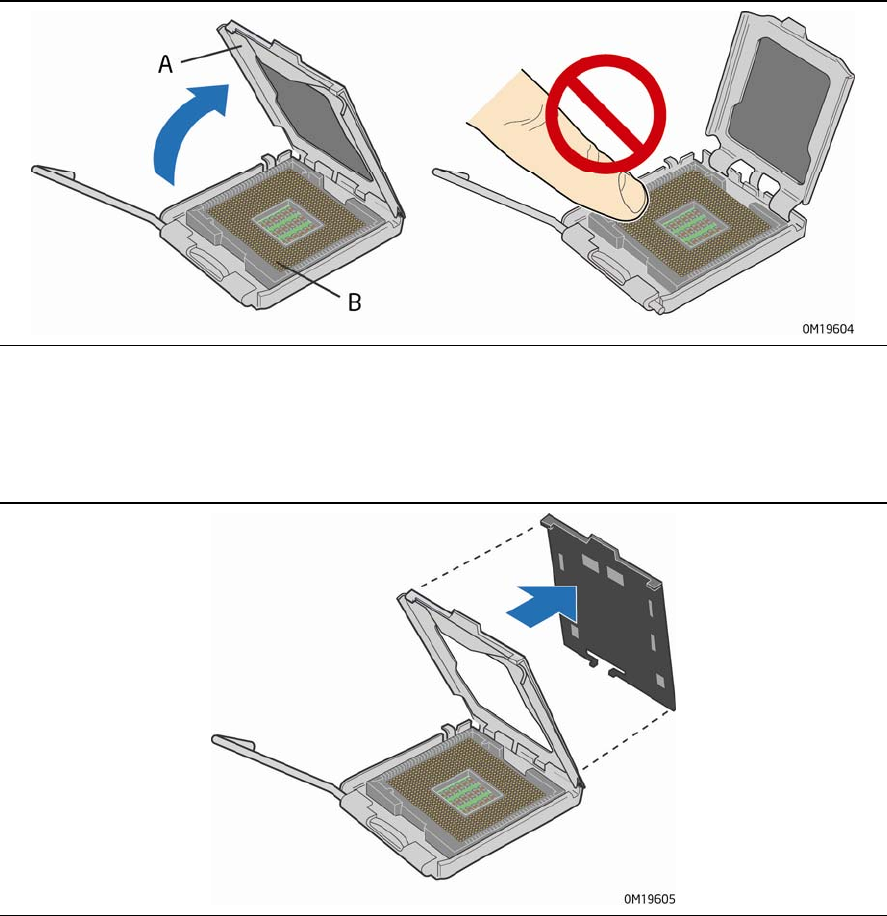

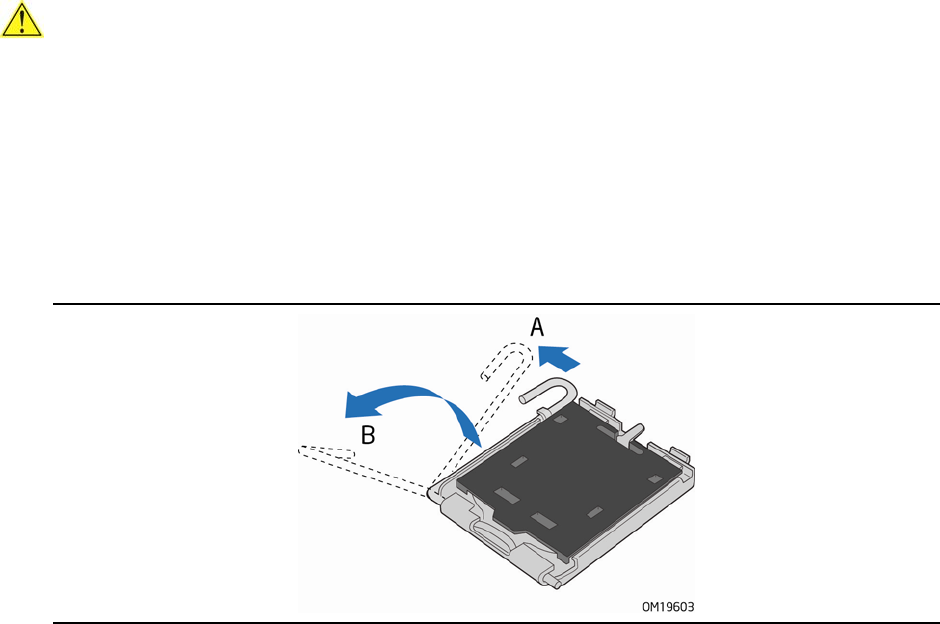

- Installing and Removing a Processor

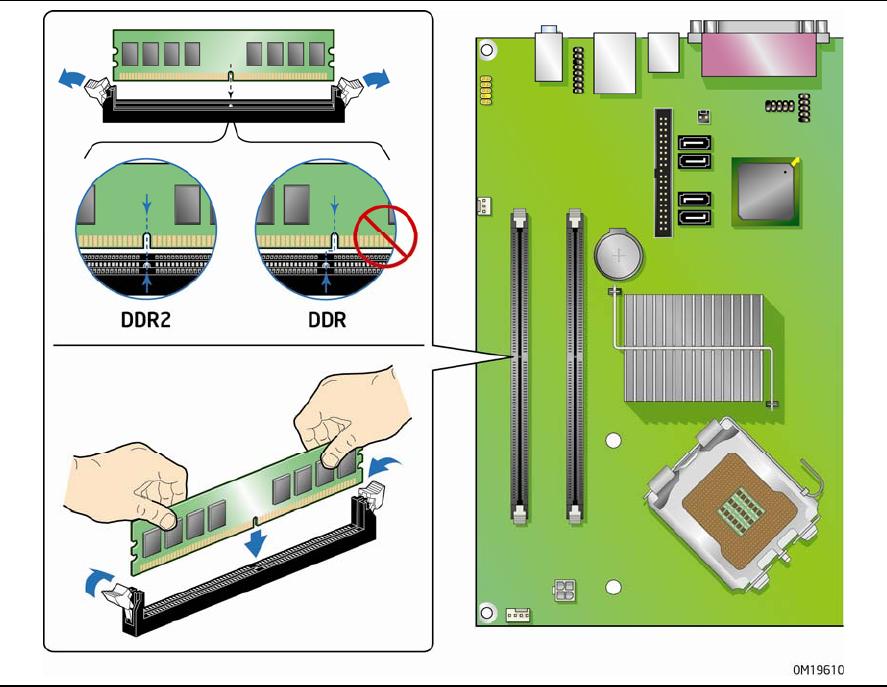

- Installing and Removing Memory

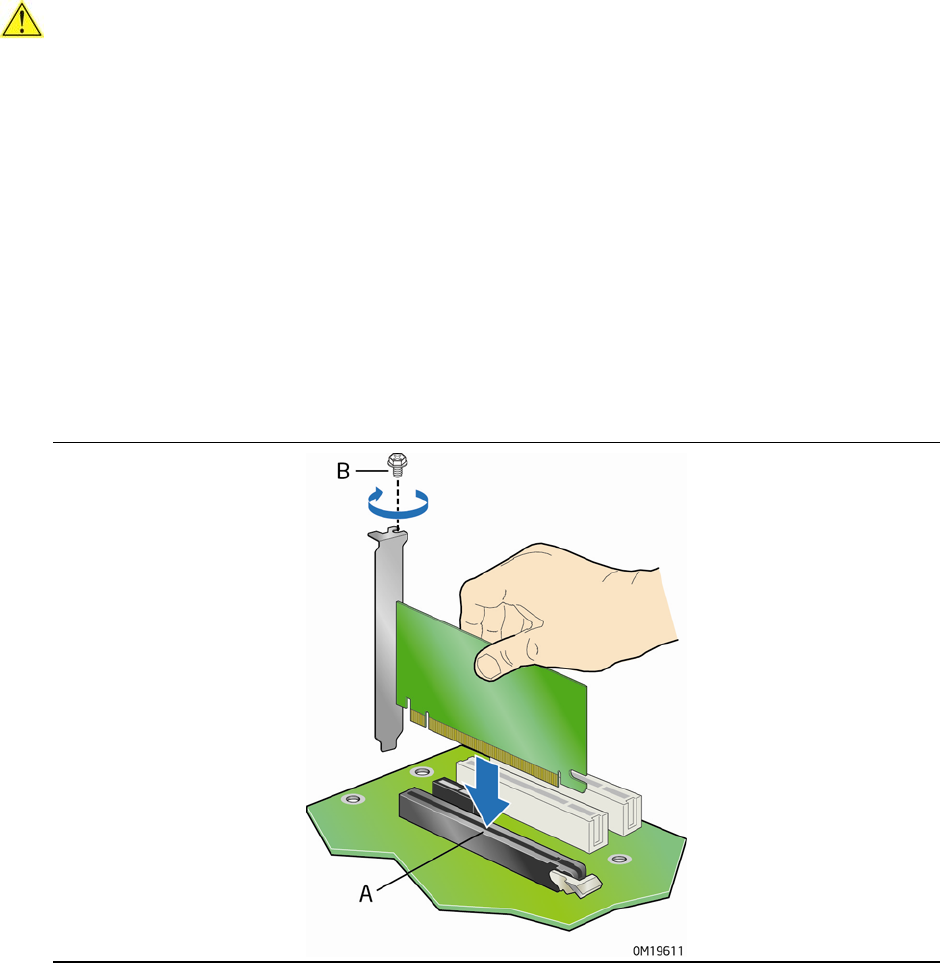

- Installing and Removing a PCI Express x16 Card
- Connecting the IDE Cable

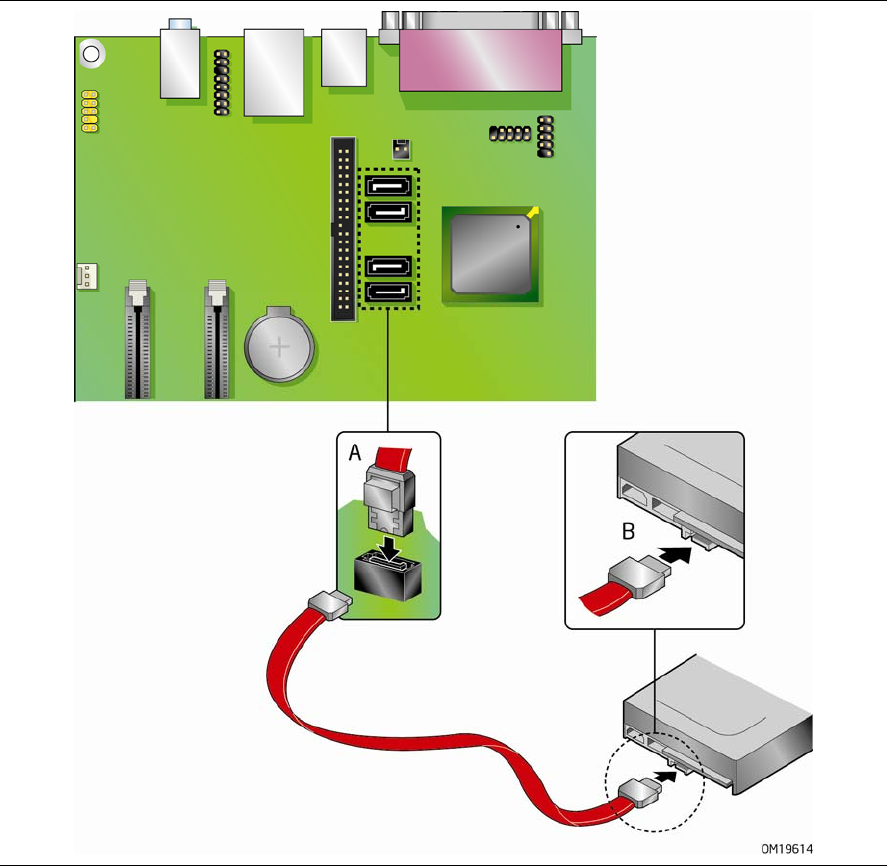

- Connecting the Serial ATA (SATA) Cable
- Connecting to Internal Headers
- Connecting to the Flexible Audio System
- Connecting Chassis Fan and Power Cables
- Other Connectors and Headers

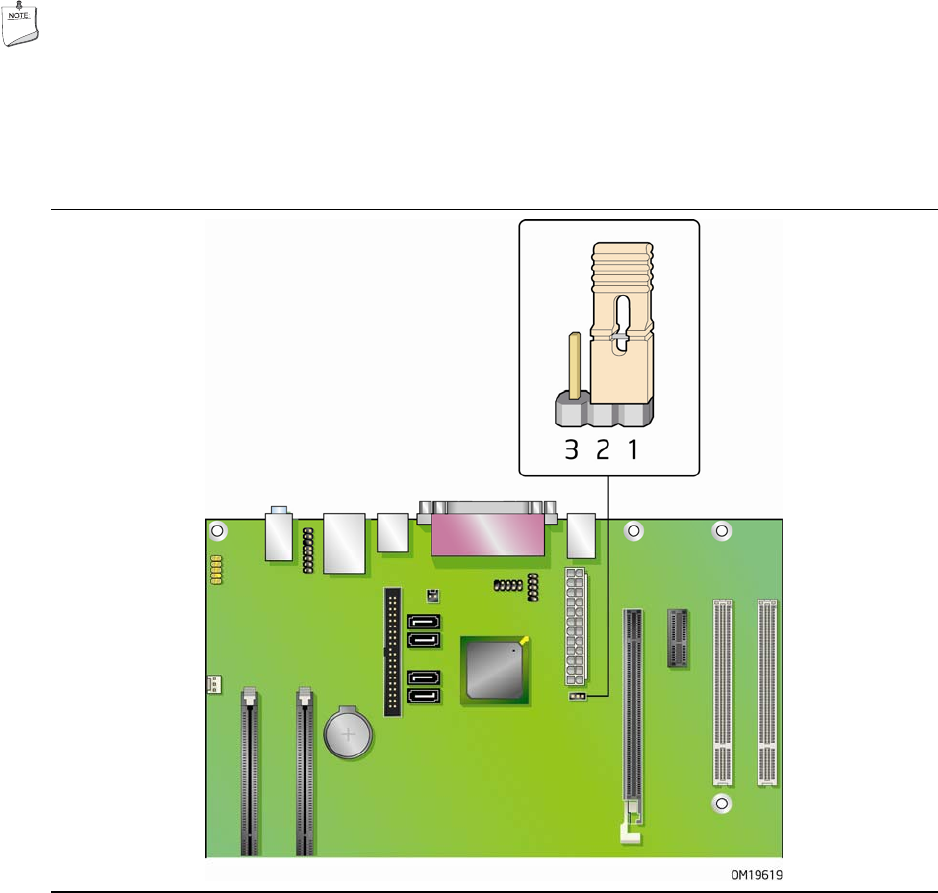

- Setting the BIOS Configuration Jumper
- Clearing Passwords
- Back Panel Connectors
- 3 Updating the BIOS
- A Error Messages and Indicators
- B Regulatory Compliance
![](asset-1.png)
Intel® Desktop Board D946GZTS
Product Guide
Order Number: D55583-002
![](asset-2.png)
Revision History
Revision Revision History Date
001 First release of the Intel® Desktop Board D946GZTS Product Guide July 2006
002 Second release of the Intel® Desktop Board D946GZTS Product Guide October 2006
If an FCC declaration of conformity marking is present on the board, the following statement applies:
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For questions related to the EMC performance of this product, contact:
Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124
1-800-628-8686
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the
user’s authority to operate the equipment.
Tested to comply with FCC standards for home or office use.
Canadian Department of Communications Compliance Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set
out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux
appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par
le ministére des Communications du Canada.
Disclaimer
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS
GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR
SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR
IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT
OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended
for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and
product descriptions at any time, without notice.
Desktop Board D946GZTS may contain design defects or errors known as errata which may cause the
product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing
your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel
literature, may be obtained from Intel Corporation by going to the World Wide Web site at:
http://www.intel.com/ or by calling 1-800-548-4725.
Intel, the Intel logo, Pentium, and Celeron are registered trademarks of Intel Corporation or its subsidiaries
in the United States and other countries.
* Other names and brands may be claimed as the property of others.
Copyright © 2006, Intel Corporation. All rights reserved.
![](asset-3.png)
iii
Preface
This Product Guide gives information about board layout, component installation, BIOS
update, and regulatory requirements for Intel® Desktop Board D946GZTS.
Intended Audience
The Product Guide is intended for technically qualified personnel. It is not intended for
general audiences.
Use Only for Intended Applications
All Intel® desktop boards are evaluated as Information Technology Equipment (I.T.E.)
for use in personal computers (PC) for installation in homes, offices, schools, computer
rooms, and similar locations. The suitability of this product for other PC or embedded
non-PC applications or other environments, such as medical, industrial, alarm systems,
test equipment, etc. may not be supported without further evaluation by Intel.
Document Organization
The chapters in this Product Guide are arranged as follows:
1 Desktop Board Features: a summary of product features
2 Installing and Replacing Desktop Board Components: instructions on how to install
the desktop board and other hardware components
3 Updating the BIOS: instructions on how to update the BIOS
A Error Messages and Indicators: information about BIOS error messages and beep
codes
B Regulatory Compliance: safety and EMC regulations and product certifications
Conventions
The following conventions are used in this manual:
CAUTION
Cautions warn the user about how to prevent damage to hardware or loss of data.
NOTE
Notes call attention to important information.
![](asset-4.png)
Intel Desktop Board D946GZTS Product Guide
iv
Terminology
The table below gives descriptions of some common terms used in the product guide.
Term Description
GB Gigabyte (1,073,741,824 bytes)
GHz Gigahertz (one billion hertz)
KB Kilobyte (1024 bytes)
MB Megabyte (1,048,576 bytes)
Mbit Megabit (1,048,576 bits)
MHz Megahertz (one million hertz)
Box Contents
• Intel Desktop Board D946GZTS
• I/O shield
• One diskette drive cable
• One ATA-66/100 cable
• Two locking Serial ATA cables
• Intel® Express Installer CD-ROM
• Quick Reference Guide
• Configuration and battery caution statement label
![](asset-5.png)
v
Contents
1 Desktop Board Features
Supported Operating Systems ..............................................................................10
Desktop Board Components.................................................................................. 11
Processor ...........................................................................................................13
Main Memory......................................................................................................13
Intel® 946GZ Express Chipset...............................................................................14
Onboard Audio Subsystem ...................................................................................14
Input/Output (I/O) Controller ............................................................................... 15
LAN Subsystem...................................................................................................15
LAN Subsystem Software.............................................................................. 15

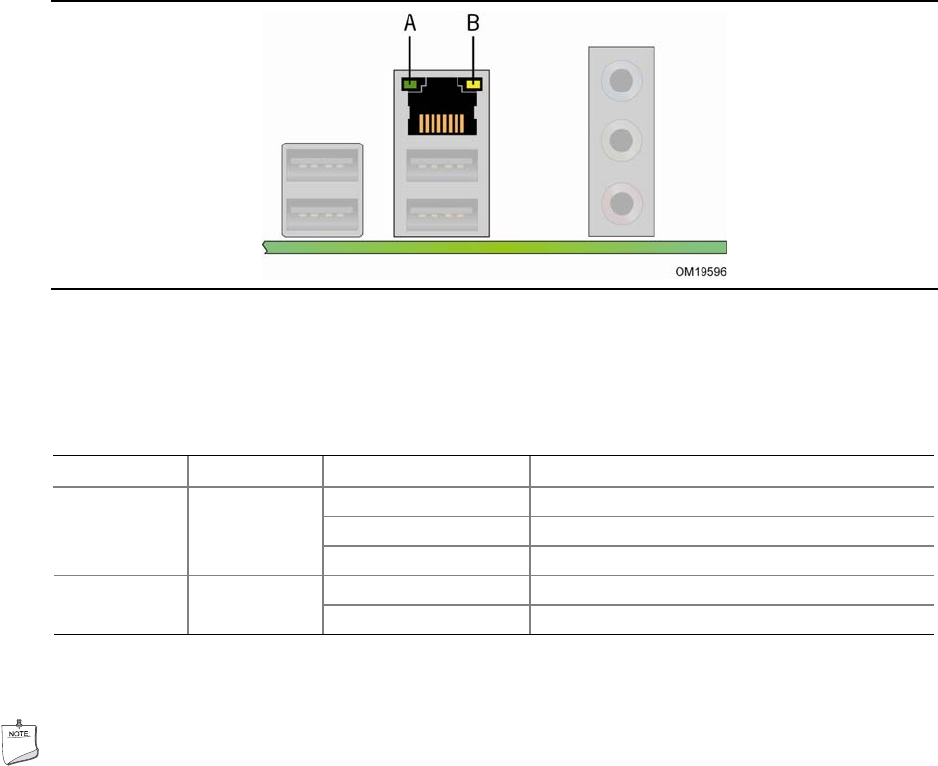

RJ-45 LAN Connector LEDs ...........................................................................16
Hi-Speed USB 2.0 Support ...................................................................................16
Enhanced IDE Interface ....................................................................................... 17
Serial ATA ..........................................................................................................17
Expandability......................................................................................................17
BIOS .................................................................................................................17
Serial ATA and IDE Auto Configuration ...........................................................17
PCI and PCI Express* Auto Configuration ....................................................... 18
Security Passwords ......................................................................................18
Hardware Management Features ...........................................................................18
Hardware Monitoring and Fan Speed Control................................................... 18
Chassis Intrusion Detection...........................................................................19
Power Management Features ................................................................................ 19
ACPI .......................................................................................................... 19
Power Connectors........................................................................................19
Fan Headers ............................................................................................... 20
LAN Wake Capabilities.................................................................................. 20
Instantly Available PC Technology.................................................................. 20
+5 V Standby Power Indicator LED ................................................................ 21
Wake from USB........................................................................................... 22
Wake from PS/2 Keyboard/Mouse..................................................................22
PME# Signal Wake-up Support...................................................................... 22
WAKE# Signal Wake-up Support ...................................................................22
Speaker ............................................................................................................. 22
Battery .............................................................................................................. 22
Real-Time Clock .................................................................................................. 22
2 Installing and Replacing Desktop Board Components
Before You Begin.................................................................................................23
Installation Precautions........................................................................................24
Prevent Power Supply Overload.....................................................................24
Observe Safety and Regulatory Requirements .................................................24
Installing the I/O Shield .......................................................................................25
Installing and Removing the Desktop Board............................................................ 26
Installing and Removing a Processor...................................................................... 28
Installing a Processor ................................................................................... 28

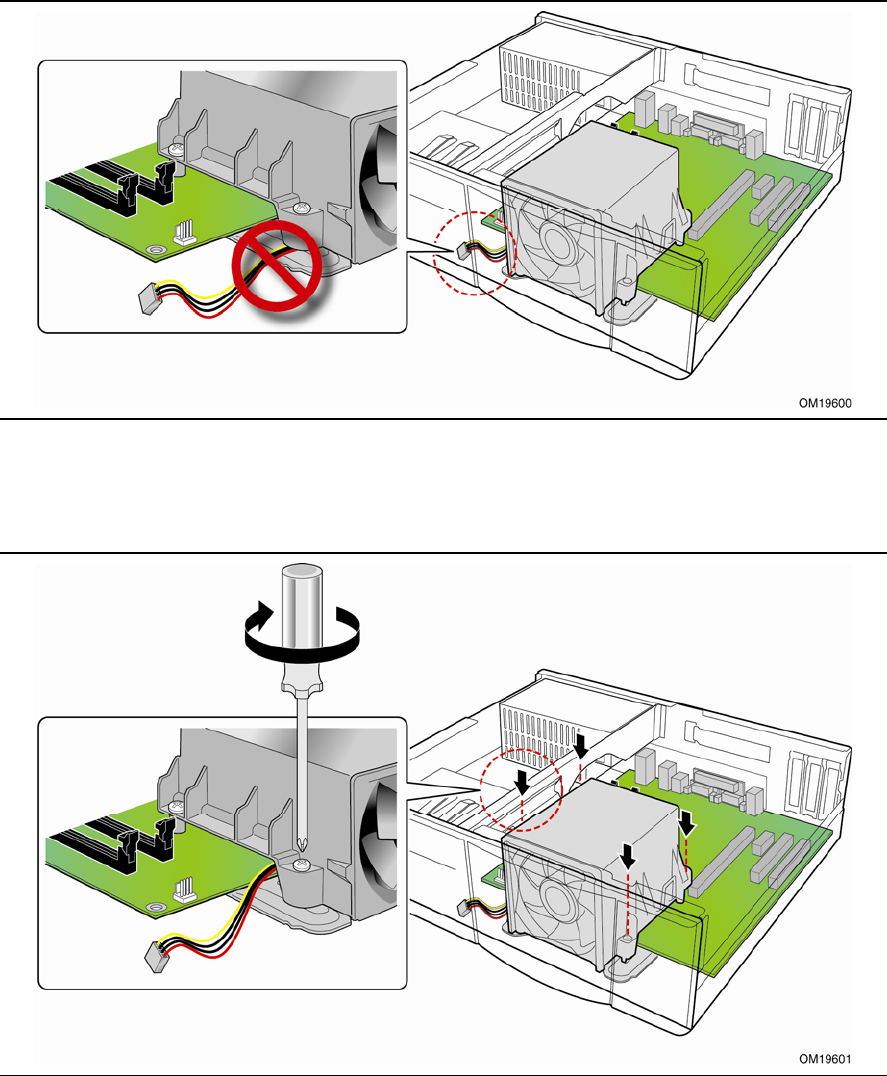

Installing the Thermal Module .......................................................................32
Removing the Processor ............................................................................... 34
Intel Desktop Board D946GZTS Product Guide
vi
Installing and Removing Memory ..........................................................................35

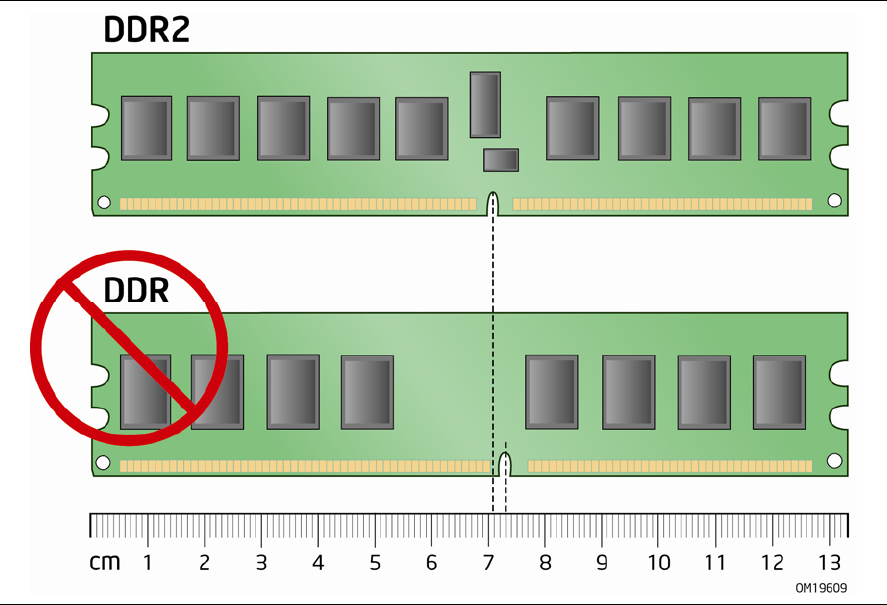

Installing DIMMs.......................................................................................... 37
Removing DIMMs.........................................................................................38
Installing and Removing a PCI Express x16 Card..................................................... 39
Installing a PCI Express x16 Card .................................................................. 39
Removing the PCI Express x16 Card .............................................................. 40

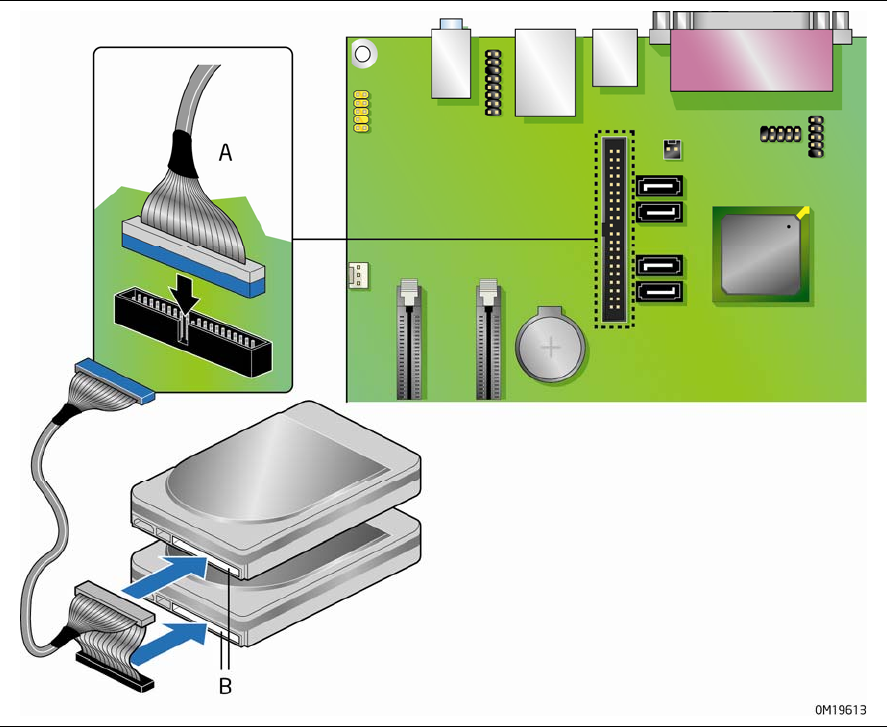

Connecting the IDE Cable..................................................................................... 41
Connecting the Serial ATA (SATA) Cable ................................................................ 43

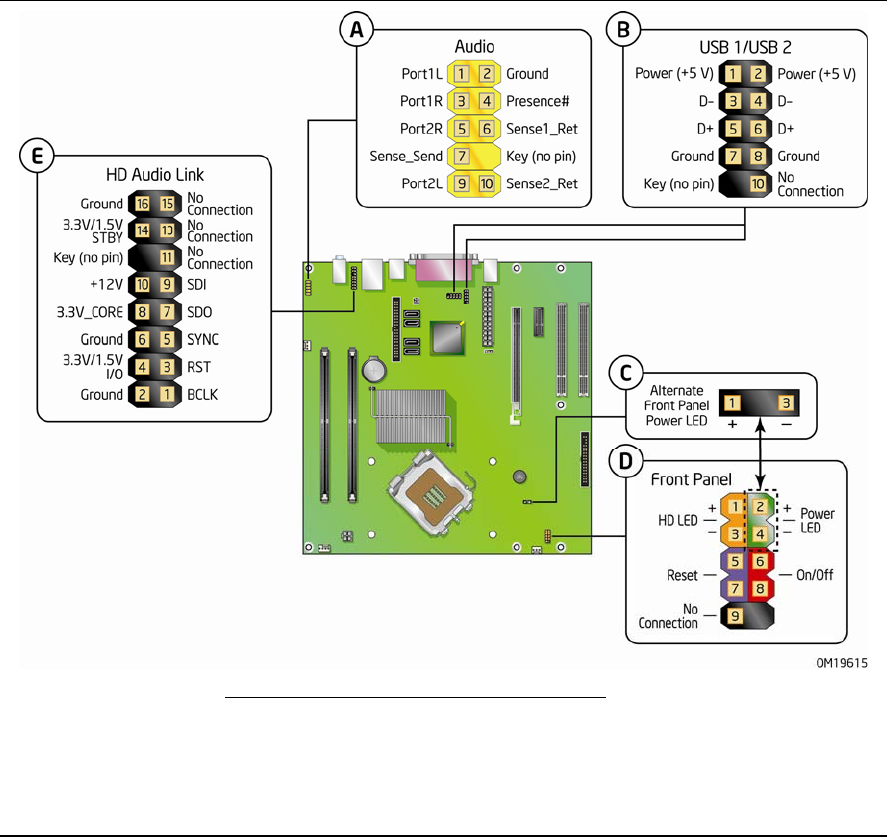

Connecting to Internal Headers............................................................................. 44
Installing a Front Panel Audio Solution for Intel® High Definition Audio............... 45
Connecting to the USB 2.0 Headers ...............................................................46
Connecting to the Front Panel Header ............................................................ 46
Connecting to the Alternate Front Panel Power LED Header............................... 47
Connecting to the HD Audio Link Header ........................................................ 47
Connecting to the Flexible Audio System ................................................................ 48
Connecting Chassis Fan and Power Cables..............................................................49

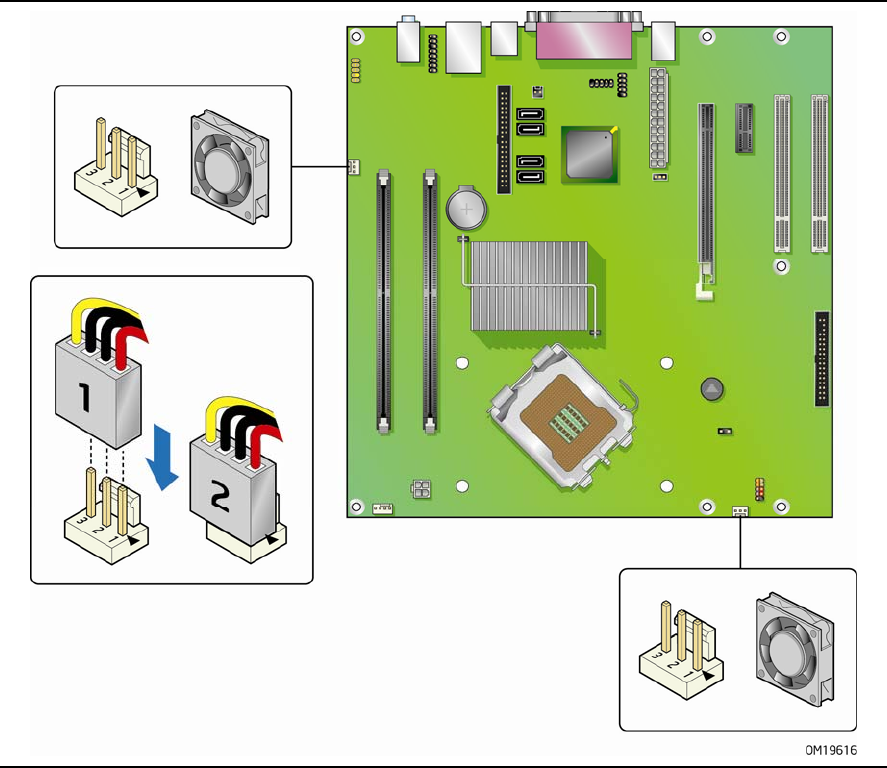

Connecting Chassis Fan Cables...................................................................... 49
Connecting Power Cables.............................................................................. 50
Other Connectors and Headers .............................................................................51
Setting the BIOS Configuration Jumper ..................................................................52
Clearing Passwords..............................................................................................53
Back Panel Connectors.........................................................................................54
3 Updating the BIOS
Updating the BIOS with the Intel® Express BIOS Update Utility................................. 61
Updating the BIOS with the ISO Image BIOS Update File or the Iflash Memory
Update Utility................................................................................................62
Obtaining the BIOS Update File .....................................................................62
Updating the BIOS with the ISO Image BIOS Update File..................................62
Updating the BIOS with Iflash ....................................................................... 63
Recovering the BIOS.................................................................................... 64
A Error Messages and Indicators
BIOS Beep Codes ................................................................................................65
BIOS Error Messages ...........................................................................................65
B Regulatory Compliance
Safety Regulations .............................................................................................. 67
Place Battery Marking ..................................................................................67
European Union Declaration of Conformity Statement.............................................. 68
Product Ecology Statements ................................................................................. 69
Lead-Free Desktop Board ............................................................................. 72
EMC Regulations ................................................................................................. 73
Ensure Electromagnetic Compatibility (EMC) Compliance .................................. 74
Product Certifications...........................................................................................75
Board-Level Certification Markings................................................................. 75
Chassis and Component Certifications ............................................................76
Contents
vii
Figures
1. Desktop Board D946GZTS Components............................................................ 11
2. LAN Connector LEDs ......................................................................................16

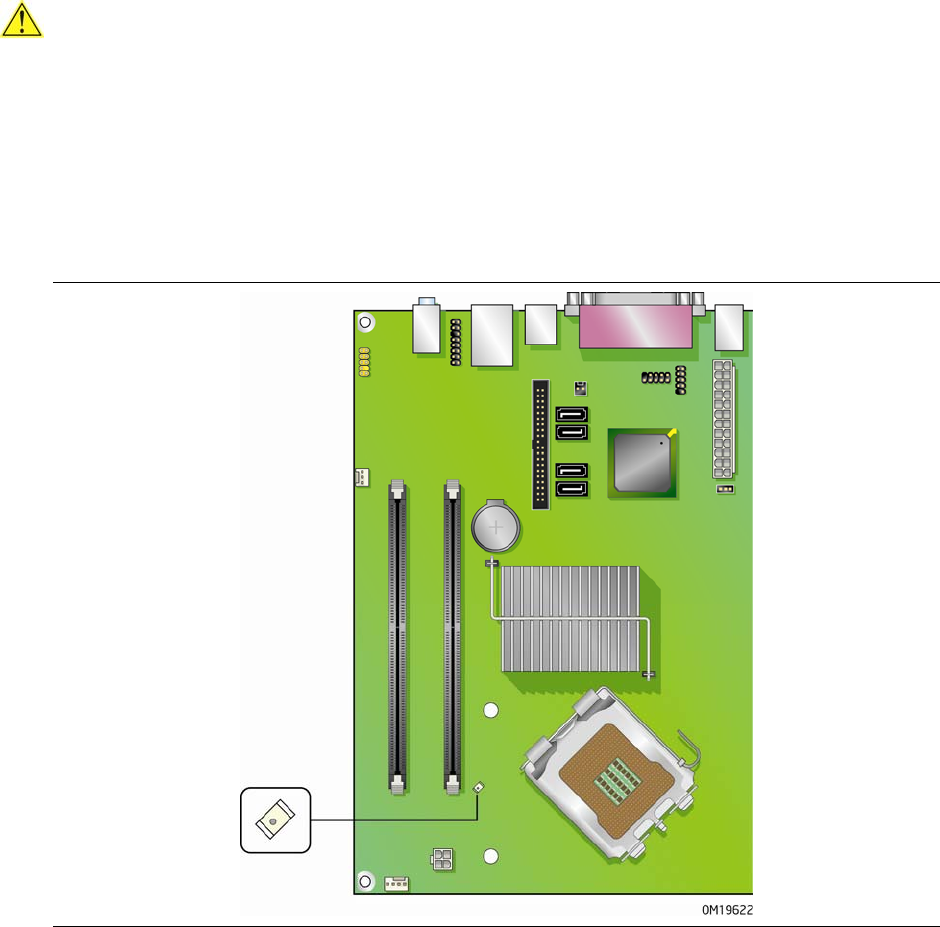

3. Location of Standby Power Indicator ................................................................21
4. Installing the I/O Shield ................................................................................. 25
5. Desktop Board D946GZTS Mounting Screw Hole Locations.................................. 27
6. Lift Socket Lever ...........................................................................................28
7. Lift the Load Plate..........................................................................................29
8. Remove the Protective Socket Cover................................................................ 29
9. Remove the Processor from the Protective Processor Cover ................................30
10. Install the Processor ......................................................................................30
11. Close the Load Plate....................................................................................... 31
12. Position the Thermal Module Over the Mounting Holes........................................ 32
13. Use Care Routing the Thermal Module Fan Cable ............................................... 33
14. Secure the Thermal Module.............................................................................33
15. Connect the Thermal Module Fan Cable ............................................................ 34
16. Dual Channel Memory Configuration Example ................................................... 35
17. Use DDR2 DIMMs ..........................................................................................36
18. Installing a DIMM ..........................................................................................37
19. Installing a PCI Express x16 Card ....................................................................39
20. Removing a PCI Express x16 Card ................................................................... 40
21. Connecting the IDE Cable ...............................................................................42
22. Connecting the Serial ATA Cable...................................................................... 43
23. Internal Headers ...........................................................................................44
24. Back Panel Audio Connectors ..........................................................................48
25. Location of Chassis Fan Headers......................................................................49
26. Connecting Power Supply Cables ..................................................................... 50
27. Location of Other Connectors and Headers........................................................51
28. Location of the BIOS Configuration Jumper Block...............................................52
29. Back Panel Connectors ...................................................................................54
30. Removing the Battery ....................................................................................59
Tables
1. Feature Summary............................................................................................9
2. Desktop Board D946GZTS Components............................................................ 12
3. LAN Connector LED States .............................................................................. 16
4. Front Panel Audio Header Signal Names for Intel High Definition Audio................. 45
5. AC ’97 Audio Header Signal Names .................................................................. 45
6. USB 2.0 Header Signal Names.........................................................................46
7. Front Panel Header ........................................................................................ 46
8. Alternate Front Panel Power LED Header........................................................... 47
9. HD Audio Link Header Signal Names ................................................................ 47
10. Jumper Settings for the BIOS Setup Program Modes ..........................................53
11. Beep Codes................................................................................................... 65
12. BIOS Error Messages .....................................................................................65
13. Safety Regulations.........................................................................................67
14. Lead-Free Board Markings ..............................................................................72
15. EMC Regulations............................................................................................73
16. Product Certification Markings .........................................................................75
Intel Desktop Board D946GZTS Product Guide
viii
![](asset-9.png)
9
1 Desktop Board Features
This chapter briefly describes the main features of Intel® Desktop Board D946GZTS.
Table 1 summarizes the major features of the desktop board.
Table 1. Feature Summary
Form Factor microBTX (264.16 millimeters [10.40 inches] x 266.70 millimeters
[10.50 inches])
Processor Support for an Intel® processor in the LGA775 package
Main Memory • Two 240-pin, DDR2 1.8 V SDRAM Dual Inline Memory Module (DIMM)
sockets
• 667/533 MHz single or dual channel DDR2 SDRAM interface
• Support for up to 4 GB of system memory
Chipset Intel® 946GZ Express Chipset consisting of:
• Intel® 946GZ Express Chipset Graphics and Memory Controller Hub
(GMCH)
• Intel® 82801GB I/O Controller Hub (ICH7)
Graphics • Intel® 946GZ Express Chipset with Intel® Graphics Media Accelerator 3000
(Intel® GMA 3000)
• PCI Express* graphics card support via a PCI Express x16 connector
Audio • 6-channel (5.1) onboard subsystem, featuring:
― Intel® High Definition Audio interface
― SigmaTel* STAC9227 audio codec
― HD Audio Link header
Expansion
Capabilities
• One PCI Express x1 connector
• One PCI Express x16 connector
• Two PCI connectors
Peripheral
Interfaces
• Up to eight USB 2.0 ports
― Four ports routed to the back panel
― Four ports routed to two USB headers
• Four Serial ATA (SATA) channels (3.0 Gb/s), via the ICH7, one device per
channel
• One IDE interface with ATA-66/100 support (two devices)
• One diskette drive interface
• One VGA port
• One parallel port
• One serial port
• PS/2* keyboard and mouse ports
continued
![](asset-a.png)
Intel Desktop Board D946GZTS Product Guide
10
Table 1. Feature Summary (continued)
LAN Support 10/100 Mb/s) LAN subsystem using the Intel® 82562G Platform LAN
Connect (PLC) device
BIOS • Intel® BIOS (resident in the SPI Flash device)
• Support for ACPI, Plug and Play, and SMBIOS
Power
Management
• Support for Advanced Configuration and Power Interface (ACPI)
• Suspend to RAM (STR)
• Wake on USB, PCI Express, PS/2, LAN, and front panel
Hardware
Management
• Three fan headers
• Three fan sensing inputs used to monitor fan activity
• Remote diode temperature sensing
• Voltage sensing to detect out of range values
• Intel® Precision Cooling Technology
Related Links:
For more information about Desktop Board D946GZTS, including the Technical Product
Specification (TPS), BIOS updates, and device drivers, go to:
http://support.intel.com/support/motherboards/desktop/
Supported Operating Systems
The desktop board supports the following operating systems:
• Microsoft Windows* XP Media Center Edition 2005
• Microsoft Windows XP Professional
• Microsoft Windows XP Professional x64 Edition
• Microsoft Windows XP Home Edition
• Microsoft Windows 2000
![](asset-c.png)
Intel Desktop Board D946GZTS Product Guide
12
Table 2. Desktop Board D946GZTS Components
Label Description
A Front panel audio header
B HD Audio Link header
C Chassis intrusion header
D Back panel connectors
E Hi-speed USB 2.0 headers
F Main power connector (2 x 12 pin)
G PCI Express x16 connector
H PCI Express x1 connector
I PCI bus connector 1
J PCI bus connector 2
K BIOS configuration jumper block
L Diskette drive connector
M Front panel header
N Front chassis fan header (3-pin)
O Alternate front panel power LED header
P Speaker
Q Serial ATA connectors
R Processor socket
S 12 V processor core voltage connector (2 x 2 pin )
T Processor fan header (4-pin)
U DIMM 0 Channel A socket
V DIMM 0, Channel B socket
W Rear chassis fan header (3-pin)
X Battery
Y IDE connector
Related Links:
Go to the following links for more information about:
• Desktop Board D946GZTS http://www.intel.com/design/motherbd
http://support.intel.com/support/motherboards/desktop
• Supported processors http://www.intel.com/go/findCPU
• Audio software and utilities http://www.intel.com/design/motherbd
• LAN software and drivers http://www.intel.com/design/motherbd
![](asset-d.png)
Desktop Board Features
13
Processor
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2 pin)
power connector to the desktop board may result in damage to the board or the
system may not function properly.
Desktop Board D946GZTS supports an Intel processor in the LGA775 package.
Processors are not included with the desktop board and must be purchased separately.
The processor connects to the desktop board through the LGA775 socket.
The supported processors list for Desktop Board D946GZTS is located on the web at:
http://www.intel.com/go/findCPU
Related Links:
Go to the following links or pages for more information about:
• Instructions on installing or upgrading the processor, page 28 in Chapter 2
Main Memory
NOTE
To be fully compliant with all applicable Intel® SDRAM memory specifications, the
board should be populated with DIMMs that support the Serial Presence Detect (SPD)
data structure. If your memory modules do not support SPD, you will see a
notification to this effect on the screen at power up. The BIOS will attempt to
configure the memory controller for normal operation.
The desktop board supports the dual or single channel memory configurations defined
below.
• Two 240-pin Double Data Rate 2 (DDR2) SDRAM Dual Inline Memory Module
(DIMM) connectors with gold-plated contacts.
• Support for:
― Unbuffered, non-registered single or double-sided DIMMs
― Non-ECC DDR2 memory
⎯ DIMM Type and Timings listed below:
Type Timing
DDR2-667 5-5-5 only
DDR2-533 4-4-4 only
― Serial Presence Detect (SPD) memory only
― Memory configurations listed below:
• Up to 2.0 GB utilizing 512 Mb and 1 Gb technology
• Up to 4.0 GB utilizing 1 Gb technology
Intel recommends using memory from the tested memory lists, available at:
http://www.cmtlabs.com/mbsearch.asp or
http://www.intel.com/products/motherboard/index.htm?iid=HMPAGE+Header_2_Product_MB
![](asset-e.png)
Intel Desktop Board D946GZTS Product Guide
14
Related Links:
Go to the following links or pages for more information about:
• SDRAM specifications, http://www.intel.com/technology/memory/
• Installing memory, page 35 in Chapter 2
Intel® 946GZ Express Chipset
The Intel 946GZ Express Chipset consists of the following devices:
• Intel 946GZ Express Chipset Graphics and Memory Controller Hub (GMCH)
• Intel 82801GB I/O Controller Hub (ICH7)
The Intel 946GZ Express Chipset contains two separate, mutually exclusive graphics
options. Either the integrated GMA 3000 graphics controller is used or a PCI
Express x16 add-in card can be used. When a PCI Express x16 add-in card is
installed, the GMA 3000 graphics controller is disabled.
NOTE
A minimum of 512 MB of system memory is required in order for the Intel GMA 3000
integrated graphics controller to operate properly.
Related Link:
Go to the following link for more information about the Intel 946GZ Express Chipset:
http://developer.intel.com/design/nav/pcserver.htm
Onboard Audio Subsystem
Desktop Board D946GZTS has a flexible 6-channel (5.1) onboard audio subsystem that
includes a SigmaTel STAC9227 audio codec and an HD Audio Link header.
The audio subsystem features:
• Intel High Definition Audio interface
• Advanced jack sense, for the back panel connectors, that enables the audio codec
to recognize the device that is connected to an audio port and retask the connector
via the audio driver.
• S/N (signal-to-noise) ratio: 95 dB
• Microphone input supporting:
― Stereo microphone
― Microphone boost
The subsystem includes the following connectors:
• Front panel audio connector, including functionality for:
― Line out
― Microphone in
![](asset-f.png)
Desktop Board Features
15
• Back panel audio connectors that are configurable through the audio device
drivers:
― Line in/retasking jack
― Line out/retasking jack
― Mic in/retasking jack
Related Links:
Go to the following link or pages for more information about:
• Audio drivers and utilities http://support.intel.com/support/motherboards/desktop/
• Installing the front panel audio solution, page 45
• The location of audio connectors, Figure 24 on page 48
Input/Output (I/O) Controller
The super I/O controller features the following:
• One serial port
• One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port
(EPP) support
• Serial IRQ interface compatible with serialized IRQ support for PCI systems
• PS/2-style mouse and keyboard interfaces
• Interface for one 1.2 MB or 1.44 MB diskette drive
• Intelligent power management, including a programmable wake up event interface
• PCI power management support
LAN Subsystem
The LAN subsystem consists of the following:
• Intel 82562G Platform LAN Connect (PLC) device for 10/100 Mb/s Ethernet LAN
connectivity
• RJ-45 connector with status indicator LEDs
LAN Subsystem Software
For LAN software and drivers, refer to the D946GZTS link on Intel’s World Wide Web
site at:
http://support.intel.com/support/motherboards/desktop
![](asset-10.png)
Intel Desktop Board D946GZTS Product Guide
16
RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN.
Figure 2. LAN Connector LEDs
Table 3 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 3. LAN Connector LED States
LED LED Color LED State Indicates
Off LAN link is not established
On LAN link is established
A
Green
Blinking LAN activity is occurring
Off 10 Mb/s data rate B Yellow On 100 Mb/s data rate
Hi-Speed USB 2.0 Support
NOTE
Computer systems that have an unshielded cable attached to a USB port might not
meet FCC Class B requirements, even if no device or a low-speed USB device is
attached to the cable. Use a shielded cable that meets the requirements for a full-
speed USB device.
The desktop board supports up to eight USB 2.0 ports via ICH7 (four ports routed to
the back panel and four ports routed to two internal USB 2.0 headers). USB 2.0 ports
are backward compatible with USB 1.1 devices. USB 1.1 devices will function normally
at USB 1.1 speeds.
USB 2.0 support requires both an operating system and drivers that fully support
USB 2.0 transfer rates. Disabling Hi-Speed USB in the BIOS reverts all USB 2.0 ports
to USB 1.1 operation. This may be required to accommodate operating systems that
do not support USB 2.0.
Desktop Board Features
17
Enhanced IDE Interface
The desktop board’s IDE interface handles the exchange of information between the
processor and peripheral devices such as hard disk drives and CD-ROM drives. The
interface supports:
• Up to two IDE devices (such as hard drives)
• ATAPI-style devices (such as CD-ROM drives)
• Older PIO Mode devices
• Ultra DMA-33 and ATA-66/100 protocols
Serial ATA
The desktop board supports four Serial ATA channels (3.0 Gb/s) via ICH7, connecting
one device per channel.
Expandability
For system expansion, the desktop board provides the following:
• One PCI Express x16 connector
• One PCI Express x1 connector
• Two PCI bus connectors
BIOS
The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the
PCI/PCI Express and IDE auto-configuration utilities, and the video BIOS. The BIOS is
stored in a Serial Peripheral Interface (SPI) Flash device.
The BIOS can be updated by following the instructions on page 61 in Chapter 3.
Serial ATA and IDE Auto Configuration
If you install a Serial ATA or IDE device (such as a hard drive) in your computer, the
auto-configuration utility in the BIOS automatically detects and configures the device
for your computer. You do not need to run the BIOS Setup program after installing a
Serial ATA or IDE device. You can override the auto-configuration options by
specifying manual configuration in the BIOS Setup program.
Intel Desktop Board D946GZTS Product Guide
18
PCI and PCI Express* Auto Configuration
If you install a PCI/PCI Express add-in card in your computer, the PCI/PCI Express
auto-configuration utility in the BIOS automatically detects and configures the
resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need
to run the BIOS Setup program after you install a PCI/PCI Express add-in card.
Security Passwords
The BIOS includes security features that restrict whether the BIOS Setup program can
be accessed and who can boot the computer. A supervisor password and a user
password can be set for the BIOS Setup and for booting the computer, with the
following restrictions:
• The supervisor password gives unrestricted access to view and change all Setup
options. If only the supervisor password is set, pressing <Enter> at the password
prompt of Setup gives the user restricted access to Setup.
• If both the supervisor and user passwords are set, you must enter either the
supervisor password or the user password to access Setup. Setup options are then
available for viewing and changing depending on whether the supervisor or user
password was entered.
• Setting a user password restricts who can boot the computer. The password
prompt is displayed before the computer is booted. If only the supervisor
password is set, the computer boots without asking for a password. If both
passwords are set, you can enter either password to boot the computer.
Related Links:
For instructions on resetting the password, see Clearing Passwords on page 53.
Hardware Management Features
The hardware management features of Desktop Board D946GZTS enable the board to
be compatible with the Wired for Management (WfM) specification. The board has
several hardware management features including the following:
• Fan speed monitoring and control
• Thermal and voltage monitoring
• Chassis intrusion detection
Hardware Monitoring and Fan Speed Control
The features of the hardware monitoring and fan speed control include:
• Monitoring of power supply voltages to detect levels above and below acceptable
values
• Intel Precision Cooling Technology
• Thermal sensors in the processor, GMCH, and ICH7 plus an onboard remote sensor
• Thermally monitored closed-loop fan control, for all onboard fans, that can adjust
fan speed or switch the fans off as needed
Desktop Board Features
19
Chassis Intrusion Detection
The board supports a chassis security feature that detects if the chassis cover has
been removed. The security feature uses a mechanical switch on the chassis that can
be connected to the chassis intrusion header on the desktop board. See Figure 27 on
page 51 for the location of the chassis intrusion header.
Power Management Features
Power management is implemented at several levels, including:
• Software support through the Advanced Configuration and Power Interface (ACPI)
• Hardware support:
― Power connectors
― Fan headers
― LAN wake capabilities
― Instantly Available PC technology (Suspend to RAM)
― +5 V standby power indicator LED
― Wake from USB
― Wake from PS/2 keyboard/mouse
― Power Management Event signal (PME#) wakeup support
― WAKE# signal wake-up support
ACPI
ACPI gives the operating system direct control over the power management and Plug
and Play functions of a computer. The use of ACPI with the desktop board requires an
operating system that provides full ACPI support.
Power Connectors
ATX12V-compliant power supplies can turn off the computer power through system
control. When an ACPI-enabled computer receives the correct command, the power
supply removes all non-standby voltages.
When resuming from an AC power failure, the computer returns to the power state it
was in before power was interrupted (either on or off). The computer’s response can
be set by using the Last Power State feature in the BIOS Setup program’s Boot menu.
The desktop board has two power connectors. See Figure 26 on page 50 for the
location of the power connectors.
![](asset-14.png)
Intel Desktop Board D946GZTS Product Guide
20
Fan Headers
The function/operation of the fans is as follows:
• The fans are on when the computer is in the ACPI S0 state.
• The fans are off when the computer is in the ACPI S3, S4, or S5 state.
• Each fan header is wired to a tachometer input of the hardware monitoring and
control device.
• All fan headers support closed-loop fan control that can adjust the fan speed or
switch the fan on or off as needed.
• All fan headers have a +12 V dc connection.
The desktop board has a 4-pin processor fan header and two 3-pin chassis fan
headers.
LAN Wake Capabilities
CAUTION
For LAN wake capabilities, the 5 V standby line for the power supply must be capable
of delivering adequate +5 V standby current. Failure to provide adequate standby
current when using this feature can damage the power supply.
LAN wakeup capabilities enable remote wake-up of the computer through a network.
The LAN subsystem monitors network traffic and upon detecting a Magic Packet*
frame, it asserts a wake-up signal that powers up the computer.
Instantly Available PC Technology
CAUTIONS
For Instantly Available PC technology, the 5 V standby line for the power supply must
be capable of delivering adequate +5 V standby current. Failure to provide adequate
standby current when using this feature can damage the power supply and/or effect
ACPI S3 sleep state functionality.
Power supplies used with this desktop board must be able to provide enough standby
current to support the standard Instantly Available (ACPI S3 sleep state) configuration.
If the standby current necessary to support multiple wake events from the PCI and/or
USB buses exceeds power supply capacity, the desktop board may lose register
settings stored in memory.
Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to-
RAM) sleep state. While in the S3 sleep state, the computer will appear to be off. If
the computer has a dual-colored power LED on the front panel, the sleep state is
indicated by the LED turning amber. When signaled by a wake-up device or event, the
computer quickly returns to its last known awake state.
![](asset-15.png)
Desktop Board Features
21
The desktop board supports the PCI Bus Power Management Interface Specification.
Add-in cards that support this specification can participate in power management and
can be used to wake the computer.
+5 V Standby Power Indicator LED
CAUTION
If the AC power has been switched off and the standby power indicator is still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.
The desktop board’s standby power indicator, shown in Figure 3, is lit when there is
standby power still present on the board even when the computer appears to be off.
For example, when this LED is lit, standby power is still present at the memory module
sockets and the PCI bus connectors.
Figure 3. Location of Standby Power Indicator
![](asset-16.png)
Intel Desktop Board D946GZTS Product Guide
22
Related Links:
For more information on standby current requirements for the desktop board, refer to
the Technical Product Specification by going to the following link, finding the product,
and selecting Product Documentation from the left-hand menu:
http://support.intel.com/support/motherboards/desktop/
Wake from USB
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
USB bus activity wakes the computer from an ACPI S3 state.
Wake from PS/2 Keyboard/Mouse
PS/2 keyboard/mouse activity wakes the computer from an ACPI S3 state.
PME# Signal Wake-up Support
When the PME# signal on the PCI bus is asserted, the computer wakes from an
ACPI S3, S4, or S5 state.
WAKE# Signal Wake-up Support
When the WAKE# signal on the PCI Express bus is asserted, the computer wakes from
an ACPI S2, S3, S4, or S5 state.
Speaker
A speaker is mounted on the desktop board. The speaker provides audible error code
(beep code) information during the Power-On Self-Test (POST).
Battery
A battery on the desktop board keeps the values in CMOS RAM and the clock current
when the computer is turned off. Go to page 55 for instructions on how to replace the
battery.
Real-Time Clock
The desktop board has a time-of-day clock and 100-year calendar. The battery on the
desktop board keeps the clock current when the computer is turned off.
![](asset-17.png)
23
2 Installing and Replacing Desktop
Board Components
This chapter tells you how to:
• Install the I/O shield
• Install and remove the desktop board
• Install and remove a processor
• Install and remove memory
• Install and remove a PCI Express x16 card
• Connect the IDE and Serial ATA cables
• Connect to the internal headers
• Connect the flexible audio system
• Connect the chassis fan and power cables
• Set the BIOS configuration jumper
• Clear passwords
• Replace the battery
Before You Begin
CAUTIONS
The procedures in this chapter assume familiarity with the general terminology
associated with personal computers and with the safety practices and regulatory
compliance required for using and modifying electronic equipment.
Disconnect the computer from its power source and from any telecommunications
links, networks, or modems before performing any of the procedures described in this
chapter. Failure to disconnect power, telecommunications links, networks, or modems
before you open the computer or perform any procedures can result in personal injury
or equipment damage. Some circuitry on the board can continue to operate even
though the front panel power button is off.
Follow these guidelines before you begin:
• Always follow the steps in each procedure in the correct order.
• Set up a log to record information about your computer, such as model, serial
numbers, installed options, and configuration information.
• Electrostatic discharge (ESD) can damage components. Perform the procedures
described in this chapter only at an ESD workstation using an antistatic wrist strap
and a conductive foam pad. If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap and attaching it to a
metal part of the computer chassis.
Intel Desktop Board D946GZTS Product Guide
24
Installation Precautions
When you install and test the Intel desktop board, observe all warnings and cautions in
the installation instructions.
To avoid injury, be careful of:
• Sharp pins on connectors
• Sharp pins on printed circuit assemblies
• Rough edges and sharp corners on the chassis
• Hot components (such as processors, voltage regulators, and heat sinks)
• Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing to
qualified technical personnel.
Prevent Power Supply Overload
Do not overload the power supply output. To avoid overloading the power supply,
make sure that the calculated total current loads of all the modules within the
computer is less than the output current rating of each of the power supplies output
circuits.
Observe Safety and Regulatory Requirements
Read and adhere the instructions in this section and the instructions supplied with the
chassis and associated modules. If you do not follow these instructions and the
instructions provided by the chassis and module suppliers, you increase safety risk and
the possibility of noncompliance with regional laws and regulations. If the instructions
for the chassis are inconsistent with these instructions or the instructions for
associated modules, contact the supplier’s technical support to find out how you can
ensure that your computer meets safety and regulatory requirements.
Related Links
For information about regulatory compliance, go to Appendix B on page 67.
![](asset-19.png)
Installing and Replacing Desktop Board Components
25
Installing the I/O Shield
The desktop board comes with an I/O shield. When installed in the chassis, the shield
blocks radio frequency transmissions, protects internal components from dust and
foreign objects, and promotes correct airflow within the chassis.
Install the I/O shield before installing the desktop board in the chassis. Place the
shield inside the chassis as shown in Figure 4. Press the shield into place so that it fits
tightly and securely. If the shield doesn’t fit, obtain a properly-sized shield from the
chassis supplier.
Figure 4. Installing the I/O Shield
![](asset-1a.png)
Intel Desktop Board D946GZTS Product Guide
26
Installing and Removing the Desktop Board
CAUTION
Only qualified technical personnel should do this procedure. Disconnect the computer
from its power source before performing the procedures described here. Failure to
disconnect the power before you open the computer can result in personal injury or
equipment damage.
Do not lift or handle the desktop board by the chipset heatsink. Handling may damage
the thermal interface material that resides between the heatsink and the chipset
silicon.
Refer to your chassis manual for instructions on installing and removing the desktop
board.
![](asset-1c.png)
Intel Desktop Board D946GZTS Product Guide
28
Installing and Removing a Processor
Instructions on how to install the processor on the desktop board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure the AC power has been
removed by unplugging the power cord from the computer; the standby power LED
should not be lit (see Figure 3 on page 21). Failure to do so could damage the
processor and the board.
To install a processor, follow these instructions:
1. Observe the precautions in "Before You Begin" on page 23.
2. Open the socket lever by pushing the lever down and away from the socket
(Figure 6, A and B).
Figure 6. Lift Socket Lever
![](asset-1d.png)
Installing and Replacing Desktop Board Components
29
3. Lift the load plate (Figure 7, A). Do not touch the socket contacts (Figure 7, B).
Figure 7. Lift the Load Plate
4. Remove the plastic protective socket cover from the load plate (see Figure 8). Do
not discard the protective socket cover. Always replace the socket cover if the
processor is removed from the socket.
Figure 8. Remove the Protective Socket Cover
![](asset-1e.png)
Intel Desktop Board D946GZTS Product Guide
30
5. Remove the processor from the protective processor cover. Hold the processor
only at the edges, being careful not to touch the bottom of the processor (see
Figure 9). Do not discard the protective processor cover. Always replace the
processor cover if the processor is removed from the socket.
Figure 9. Remove the Processor from the Protective Processor Cover
6. Hold the processor with your thumb and index fingers oriented as shown in
Figure 10. Make sure fingers align to the socket cutouts (Figure 10, A). Align
notches (Figure 10, B) with the socket (Figure 10, C). Lower the processor straight
down without tilting or sliding the processor in the socket.
Figure 10. Install the Processor
![](asset-20.png)
Intel Desktop Board D946GZTS Product Guide
32
Installing the Thermal Module
Desktop board D946GZTS has four mounting holes for a BTX Thermal Module. The
board will accept either a Type I or Type II Thermal Module. Use the correct Thermal
Module for your chassis.
To install the Thermal Module, use the following procedure:
1. With the BTX Support and Retention Module (SRM) installed in the chassis, position
the Thermal Module on the desktop board with the fan end extending past the
edge of the desktop board and over the exposed end of the SRM.
2. Align the four captive screws in the Thermal Module with the mounting holes in the
desktop board and SRM as shown in Figure 12.
Figure 12. Position the Thermal Module Over the Mounting Holes
![](asset-21.png)
Installing and Replacing Desktop Board Components
33
3. Make sure not to pinch the Thermal Module Fan cable between the Thermal Module
and the desktop board or SRM (see Figure 13).
Figure 13. Use Care Routing the Thermal Module Fan Cable
4. Tighten the captive screw at each corner of the Thermal Module (see Figure 14).
The screws may be tightened in any order.
Figure 14. Secure the Thermal Module
![](asset-22.png)
Intel Desktop Board D946GZTS Product Guide
34
5. Connect the Thermal Module Fan cable to the 4-pin processor fan header on the
desktop board (see Figure 15).
Figure 15. Connect the Thermal Module Fan Cable
For complete instructions on how to attach the Thermal Module to the desktop board
and the SRM, refer to the chassis manual, the boxed processor installation manual, or
the Intel World Wide Web site at:
Integration Overview for Systems Based on the Boxed Intel® Pentium® 4 Processor in
the 775-Land Package (BTX)
Removing the Processor
For instructions on how to remove the Thermal Module and processor, refer to the
processor installation manual or the Intel World Wide Web site at:
Integration Overview for Systems Based on the Boxed Intel® Pentium® 4 Processor in
the 775-Land Package (BTX)
![](asset-23.png)
Installing and Replacing Desktop Board Components
35
Installing and Removing Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the board
requires DIMMs that support the Serial Presence Detect (SPD) data structure. You can
access the PC Serial Presence Detect Specification at:
http://www.intel.com/technology/memory/ddr/specs/dda18c32_64_128x72ag_a.pdf
The desktop board has two 240-pin DDR2 DIMM sockets providing Channel A and
Channel B. For dual-channel performance, install a matched pair of DIMMs equal in
speed and size (see Figure 16).
Figure 16. Dual Channel Memory Configuration Example
NOTE
All other memory configurations will result in single channel memory operation.
![](asset-25.png)
Installing and Replacing Desktop Board Components
37
Installing DIMMs
To install a DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Turn off all peripheral devices connected to the computer. Turn off the computer
and disconnect the AC power cord.
3. Remove the computer’s cover and locate the DIMM sockets (see Figure 18).
Figure 18. Installing a DIMM
4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position.
5. Holding the DIMM by the edges, remove it from its anti-static package.
6. Position the DIMM above the socket. Align the small notch at the bottom edge of
the DIMM with the keys in the socket (see inset in Figure 18).
7. Insert the bottom edge of the DIMM into the socket.
8. When the DIMM is inserted, push down on the top edge of the DIMM until the
retaining clips snap into place. Make sure the clips are firmly in place.
9. Replace the computer’s cover and reconnect the AC power cord.
Intel Desktop Board D946GZTS Product Guide
38
Removing DIMMs
To remove a DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Turn off all peripheral devices connected to the computer. Turn off the computer.
3. Remove the AC power cord from the computer.
4. Remove the computer’s cover.
5. Gently spread the retaining clips at each end of the DIMM socket. The DIMM pops
out of the socket.
6. Hold the DIMM by the edges, lift it away from the socket, and store it in an
anti-static package.
7. Reinstall and reconnect any parts you removed or disconnected to reach the DIMM
sockets.
8. Replace the computer’s cover and reconnect the AC power cord.
![](asset-27.png)
Installing and Replacing Desktop Board Components
39
Installing and Removing a PCI Express x16
Card
CAUTION
When installing a PCI Express x16 card on the desktop board, ensure that the card is
fully seated in the PCI Express x16 connector before you power on the system. If the
card is not fully seated in the PCI Express connector, an electrical short may result
across the PCI Express connector pins. Depending on the over-current protection of
the power supply, certain desktop board components and/or traces may be damaged.
Installing a PCI Express x16 Card
1. Observe the precautions in "Before You Begin" on page 23.
2. Place the card in the PCI Express x16 connector (Figure 19, A) and press down on
the card until it is completely seated in the connector and the card retention notch
snaps into place around the retention mechanism pin.
3. Secure the card’s metal bracket to the chassis back panel with a screw
(Figure 19, B).
Figure 19. Installing a PCI Express x16 Card
![](asset-28.png)
Intel Desktop Board D946GZTS Product Guide
40
Removing the PCI Express x16 Card
Follow these instructions to remove the PCI Express x16 card from the connector:
1. Observe the precautions in "Before You Begin" on page 23.
2. Remove the screw (Figure 20, A) that secures the card’s metal bracket to the
chassis back panel.
3. Push down on the card ejector lever (Figure 20, B) to release the card from the
connector (C).
4. Pull the card straight up.
Figure 20. Removing a PCI Express x16 Card
![](asset-29.png)
Installing and Replacing Desktop Board Components
41
Connecting the IDE Cable
The IDE cable can connect two drives to the desktop board. The cable supports the
ATA-66/100 transfer protocol. Figure 21 shows the correct installation of the cable.
NOTES
ATA-66/100 compatible cables are backward compatible with drives using slower IDE
transfer protocols. If an ATA-66/100 disk drive and a disk drive using any other IDE
transfer protocol are attached to the same cable, the maximum transfer rate between
the drives may be reduced to that of the slowest drive.
Do not connect an ATA device as a slave on the same IDE cable as an ATAPI master
device. For example, do not connect an ATA hard drive as a slave to an ATAPI
CD-ROM drive.
For correct function of the cable:
1. Observe the precautions in "Before You Begin" on page 23.
2. Attach the cable end with the single connector (blue) to the Intel desktop board
(Figure 21, A).
3. Attach the cable end with the two closely spaced connectors (gray and black) to
the drives (Figure 21, B).
![](asset-2a.png)
Intel Desktop Board D946GZTS Product Guide
42
Figure 21. Connecting the IDE Cable
![](asset-2b.png)
Installing and Replacing Desktop Board Components
43
Connecting the Serial ATA (SATA) Cable
The SATA cable supports the Serial ATA protocol and connects a single drive to the
desktop board. For correct cable function:
1. Observe the precaution in "Before You Begin" on page 23.
2. Attach the locking cable end to the connector on the board (Figure 22, A).
3. Attach the cable end without the lock to the drive (Figure 22, B).
Figure 22. Connecting the Serial ATA Cable
![](asset-2c.png)
Intel Desktop Board D946GZTS Product Guide
44
Connecting to Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page 23. Figure 23 shows the location of the internal headers.
Item Description
A Front panel audio
B USB 2.0
C Alternate front panel power LED
D Front panel
E HD Audio Link
Figure 23. Internal Headers
![](asset-2d.png)
Installing and Replacing Desktop Board Components
45
Installing a Front Panel Audio Solution for Intel® High
Definition Audio
Figure 23, A on page 44 shows the location of the yellow front panel audio header.
Table 4 shows the pin assignments for the front panel audio header.
Table 4. Front Panel Audio Header Signal Names for Intel High Definition
Audio
Pin Signal Name Pin Signal Name
1 PORT 1L 2 GND
3 PORT 1R 4 PRESENCE#
5 PORT 2R 6 SENSE1_RETURN
7 SENSE_SEND 8 KEY (no pin)
9 PORT 2L 10 SENSE2_RETURN
To install the cable that connects the front panel audio solution to the front panel
audio header, follow these steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Turn off all peripheral devices connected to the computer. Turn off the computer
and disconnect the AC power cord.
3. Remove the cover.
4. Install a correctly keyed and shielded front panel audio cable.
NOTE
Some chassis still use a front panel audio solution based on the AC ’97 audio
specification. Refer to Table 5 below to connect an AC ’97 front panel solution to the
front panel audio header on the board. The front panel audio jacks will need to be
manually configured for microphone or line out functionality in the Intel® Audio Studio
application.
Table 5. AC ’97 Audio Header Signal Names
Pin Signal Name Pin Signal Name
1 MIC 2 AUD_GND
3 MIC_BIAS 4 AUD_GND
5 FP_OUT_R 6 FP_RETURN_R
7 AUD_5V 8 KEY
9 FP_OUT_L 10 FP_RETURN_L
5. Connect the audio cable to the front panel audio solution.
6. Replace the cover.
![](asset-2e.png)
Intel Desktop Board D946GZTS Product Guide
46
To restore back panel audio, follow these steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Turn off all peripheral devices connected to the computer. Turn off the computer
and disconnect the AC power cord.
3. Remove the cover.
4. Remove the front panel audio cable.
5. Replace the cover.
Connecting to the USB 2.0 Headers
Before connecting to the USB 2.0 headers, observe the precautions in "Before You
Begin" on page 23. See Figure 23, B on page 44 for the location of the black USB 2.0
headers. Table 6 shows the pin assignments for each USB 2.0 header.
Table 6. USB 2.0 Header Signal Names
USB Port A USB Port B
Pin Signal Name Pin Signal Name
1 POWER 2 POWER
3 D- 4 D-
5 D+ 6 D+
7 GND 8 GND
9 KEY 10 NO CONNECT
Note: USB ports may be assigned as needed.
Connecting to the Front Panel Header
Before connecting to the front panel header, observe the precautions in "Before You
Begin" on page 23. See Figure 23, D on page 44 for the location of the multi-colored
front panel header.
Table 7 shows the pin assignments for the front panel header.
Table 7. Front Panel Header
Pin Description In/Out Pin Description In/Out
Hard Drive Activity LED Power LED
1 Hard disk LED pull-up to +5 V Out 2 Front panel green LED Out
3 Hard disk active LED Out 4 Front panel yellow LED Out
Reset Switch On/Off Switch
5 Ground 6 Power switch In
7 Reset switch In 8 Ground
Power Not Connected
9 Power Out 10 No pin
![](asset-2f.png)
Installing and Replacing Desktop Board Components
47
Connecting to the Alternate Front Panel Power LED
Header
Figure 23, C on page 44 shows the location of the alternate front panel power LED
header. Pins 1 and 3 of this header duplicate the signals on pins 2 and 4 of the front
panel header. If your chassis has a three-pin power LED cable, connect it to this
header.
Table 8 shows the pin assignments for the front panel header.
Table 8. Alternate Front Panel Power LED Header
Pin Description In/Out
1 Front panel green LED Out
2 No pin
3 Front panel yellow LED Out
Connecting to the HD Audio Link Header
See Figure 23, E for the location of the HD Audio Link header. Table 9 shows the pin
assignments for the header.
Table 9. HD Audio Link Header Signal Names
Pin Signal Name Pin
Signal Name
1 BLCK 2 Ground
3 RST 4 3.3V/1.5V I/O
5 SYNC 6 Ground
7 SDO 8 3.3V_CORE
9 SDI 10 +12V
11 No connection 12 Key (no pin)
13 No connection 14 3.3V/1.5V STBY
15 No connection 16 Ground
![](asset-30.png)
Intel Desktop Board D946GZTS Product Guide
48
Connecting to the Flexible Audio System
After installing the SigmaTel audio driver, the multi-channel audio feature can be
enabled. Figure 24 shows the back panel audio connectors. The default connector
assignments are shown in the table. The connectors are retaskable using the audio
driver interface.
Item Description
A Line in/retasking jack
B Line out/retasking jack
C Mic in/retasking jack
Figure 24. Back Panel Audio Connectors
![](asset-31.png)
Installing and Replacing Desktop Board Components
49
Connecting Chassis Fan and Power Cables
Connecting Chassis Fan Cables
Connect the chassis fan cables to the two chassis fan headers on the desktop board.
Figure 25 shows the location of the chassis fan headers.
Figure 25. Location of Chassis Fan Headers
![](asset-32.png)
Intel Desktop Board D946GZTS Product Guide
50
Connecting Power Cables
CAUTION
Failure to use the appropriate power supply and/or not connecting the 12 V (2 x 2 pin)
power connector to the desktop board may result in damage to the board or the
system may not function properly.
The 2 x 12 pin main power connector on the desktop board is backwards compatible
with ATX12V power supplies with 2 x 10 connectors. Figure 26 shows the location of
the desktop board power connectors.
Figure 26. Connecting Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the main power supply cable to the 2 x 12 pin connector.
3. Connect the 12 V processor core voltage power supply cable to the 2 x 2 pin
connector.
![](asset-33.png)
Installing and Replacing Desktop Board Components
51

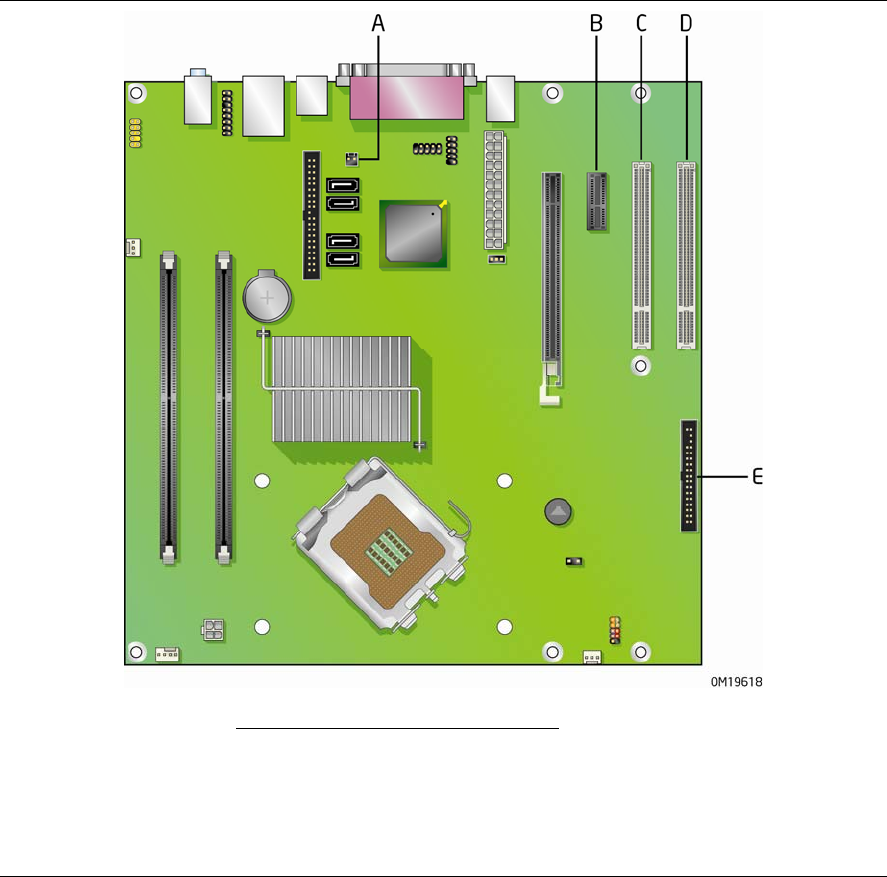

Other Connectors and Headers
Figure 27 shows the location of the other connectors and headers on the desktop
board.
Item Description
A Chassis intrusion header
B PCI Express x1 connector
C PCI bus connector 1
D PCI bus connector 2
E Diskette drive connector
Figure 27. Location of Other Connectors and Headers
![](asset-34.png)
Intel Desktop Board D946GZTS Product Guide
52
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
moving the jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 28 shows the location of the desktop board’s BIOS configuration jumper block.
Figure 28. Location of the BIOS Configuration Jumper Block
![](asset-35.png)
Installing and Replacing Desktop Board Components
53
The three-pin BIOS jumper block enables all board configurations to be done in the
BIOS Setup program. Table 10 shows the jumper settings for the BIOS Setup
program modes.
Table 10. Jumper Settings for the BIOS Setup Program Modes
Jumper
Setting
Mode
Description
Normal (default) (1-2) The BIOS uses the current configuration and
passwords for booting.
Configure (2-3) After the Power-On Self-Test (POST) runs, the
BIOS displays the Maintenance Menu. Use this
menu to clear passwords.
Recovery (None) The BIOS recovers data in the event of a failed
BIOS update.
Clearing Passwords
This procedure assumes that the board is installed in the computer and the
configuration jumper block is set to normal mode.
1. Observe the precautions in "Before You Begin" on page 23.
2. Turn off all peripheral devices connected to the computer. Turn off the computer.
Disconnect the computer’s power cord from the AC power source (wall outlet or
power adapter).
3. Remove the computer cover.
4. Find the configuration jumper block (see Figure 28).
5. Place the jumper on pins 2-3 as shown below.
6. Replace the cover, plug in the computer, turn on the computer, and allow it to
boot.
7. The computer starts the Setup program. Setup displays the Maintenance menu.
8. Use the arrow keys to select Clear Passwords. Press <Enter> and Setup displays a
pop-up screen requesting that you confirm clearing the password. Select Yes and
press <Enter>. Setup displays the maintenance menu again.
9. Press <F10> to save the current values and exit Setup.
10. Turn off the computer. Disconnect the computer’s power cord from the AC power
source.
11. Remove the computer cover.
12. To restore normal operation, place the jumper on pins 1-2 as shown below.
13. Replace the cover, plug in the computer, and turn on the computer.
![](asset-36.png)
Intel Desktop Board D946GZTS Product Guide
54
Back Panel Connectors
NOTE
The line out connector, located on the back panel, is designed to power either
headphones or amplified speakers only. Poor audio quality may occur if passive (non-
amplified) speakers are connected to this output.
Figure 29 shows the back panel connectors.
Figure 29. Back Panel Connectors
![](asset-37.png)
Installing and Replacing Desktop Board Components
55
Replacing the Battery
A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When
the computer is not plugged into a wall socket, the battery has an estimated life of
three years. When the computer is plugged in, the standby current from the power
supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at
25 ºC with 3.3 VSB applied.
When the voltage drops below a certain level, the BIOS Setup program settings stored
in CMOS RAM (for example, the date and time) might not be accurate. Replace the
battery with an equivalent one. Figure 30 on page 59 shows the location of the
battery.
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be
recycled where possible. Disposal of used batteries must be in accordance with local
environmental regulations.
PRECAUTION
Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les
piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des
piles usagées doit respecter les réglementations locales en vigueur en matière de
protection de l'environnement.
FORHOLDSREGEL
Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier bør
om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i overensstemmelse
med gældende miljølovgivning.
OBS!
Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier
bør kastes i henhold til gjeldende miljølovgivning.
VIKTIGT!
Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras
enligt de lokala miljövårdsbestämmelserna.
VARO
Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on
mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten
mukaisesti.
![](asset-38.png)
Intel Desktop Board D946GZTS Product Guide
56
VORSICHT
Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie
darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen
Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen
des Herstellers entsprechend.
AVVERTIMENTO
Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto.
Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per
disfarsi delle pile usate, seguire le istruzioni del produttore.
PRECAUCIÓN
Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice
solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del
equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del
fabricante.
WAARSCHUWING
Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type
batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het
weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.
ATENÇÃO
Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto.
As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias
usadas deve ser feita de acordo com as regulamentações ambientais da região.
AŚCIAROŽZNAŚĆ
Існуе рызыка выбуху, калі заменены акумулятар неправільнага тыпу.
Акумулятары павінны, па магчымасці, перепрацоўвацца. Пазбаўляцца ад старых
акумулятараў патрэбна згодна з мясцовым заканадаўствам па экалогіі.
UPOZORNÌNÍ
V případě výměny baterie za nesprávný druh může dojít k výbuchu. Je-li to možné,
baterie by měly být recyklovány. Baterie je třeba zlikvidovat v souladu s místními
předpisy o životním prostředí.
Προσοχή
Υπάρχει κίνδυνος για έκρηξη σε περίπτωση που η μπαταρία αντικατασταθεί από μία
λανθασμένου τύπου. Οι μπαταρίες θα πρέπει να ανακυκλώνονται όταν κάτι τέτοιο είναι
δυνατό. Η απόρριψη των χρησιμοποιημένων μπαταριών πρέπει να γίνεται σύμφωνα με
τους κατά τόπο περιβαλλοντικούς κανονισμούς.
![](asset-39.png)
Installing and Replacing Desktop Board Components
57
VIGYAZAT
Ha a telepet nem a megfelelő típusú telepre cseréli, az felrobbanhat. A telepeket
lehetőség szerint újra kell hasznosítani. A használt telepeket a helyi környezetvédelmi
előírásoknak megfelelően kell kiselejtezni.
AWAS
Risiko letupan wujud jika bateri digantikan dengan jenis yang tidak betul. Bateri
sepatutnya dikitar semula jika boleh. Pelupusan bateri terpakai mestilah mematuhi
peraturan alam sekitar tempatan.
OSTRZEŻENIE
Istnieje niebezpieczeństwo wybuchu w przypadku zastosowania niewłaściwego typu
baterii. Zużyte baterie należy w miarę możliwości utylizować zgodnie z odpowiednimi
przepisami ochrony środowiska.
PRECAUŢIE
Risc de explozie, dacă bateria este înlocuită cu un tip de baterie necorespunzător.
Bateriile trebuie reciclate, dacă este posibil. Depozitarea bateriilor uzate trebuie să
respecte reglementările locale privind protecţia mediului.
ВНИМАНИЕ
При использовании батареи несоответствующего типа существует риск ее взрыва.
Батареи должны быть утилизированы по возможности. Утилизация батарей должна
проводится по правилам, соответствующим местным требованиям.
UPOZORNENIE
Ak batériu vymeníte za nesprávny typ, hrozí nebezpečenstvo jej výbuchu.
Batérie by sa mali podľa možnosti vždy recyklovať. Likvidácia použitých batérií sa musí
vykonávať v súlade s miestnymi predpismi na ochranu životného prostredia.
POZOR
Zamenjava baterije z baterijo drugačnega tipa lahko povzroči eksplozijo.
Če je mogoče, baterije reciklirajte. Rabljene baterije zavrzite v skladu z lokalnimi
okoljevarstvenimi predpisi.
.
![](asset-3a.png)
Intel Desktop Board D946GZTS Product Guide
58
UYARI
Yanlış türde pil takıldığında patlama riski vardır. Piller mümkün olduğunda geri
dönüştürülmelidir. Kullanılmış piller, yerel çevre yasalarına uygun olarak atılmalıdır.
OСТОРОГА
Використовуйте батареї правильного типу, інакше існуватиме ризик вибуху.
Якщо можливо, використані батареї слід утилізувати. Утилізація використаних
батарей має бути виконана згідно місцевих норм, що регулюють охорону довкілля.
![](asset-3b.png)
Installing and Replacing Desktop Board Components
59
To replace the battery, follow these steps:
1. Observe the precautions in "Before You Begin" (see page 23).
2. Turn off all peripheral devices connected to the computer. Disconnect the
computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the board (see Figure 30).
5. With a medium flat-bladed screwdriver, gently pry the battery free from its
connector. Note the orientation of the “+” and “-” on the battery.
6. Install the new battery in the connector, orienting the “+” and “-” correctly.
7. Replace the computer cover.
Figure 30. Removing the Battery
Intel Desktop Board D946GZTS Product Guide
60
![](asset-3d.png)
61
3 Updating the BIOS
The BIOS Setup program can be used to view and change the BIOS settings for the
computer. You can access the BIOS Setup program by pressing the <F2> key after
the Power-On Self-Test (POST) memory test begins and before the operating system
boot begins.
This chapter tells you how to update the BIOS by either using the Intel Express BIOS
Update utility or the Iflash Memory Update utility, and how to recover the BIOS if an
update fails.
Updating the BIOS with the Intel® Express
BIOS Update Utility
With the Intel Express BIOS Update utility you can update the system BIOS while in
the Windows environment. The BIOS file is included in an automated update utility
that combines the functionality of the Intel® Flash Memory Update Utility and the ease
of use of Windows-based installation wizards.
To update the BIOS with the Intel Express BIOS Update utility:
1. Go to the Intel World Wide Web site:
http://support.intel.com/support/motherboards/desktop/
2. Navigate to the D946GZTS page, click “[view] Latest BIOS updates,” and select the
Express BIOS Update utility file.
3. Download the file to your hard drive. (You can also save this file to a removable
USB device. This is useful if you are updating the BIOS for multiple identical
systems.)
4. Close all other applications. This step is required. Your system will be rebooted at
the last Express BIOS Update window.
5. Double-click the executable file from the location on your hard drive where it was
saved. This runs the update program.
6. Follow the instructions provided in the dialog boxes to complete the BIOS update.
![](asset-3e.png)
Intel Desktop Board D946GZTS Product Guide
62
Updating the BIOS with the ISO Image BIOS
Update File or the Iflash Memory Update
Utility
You can use the information in this section to update the BIOS using either the Iflash
Memory Update Utility or the ISO Image BIOS update file.
Obtaining the BIOS Update File
You can update to a new version of the BIOS by using the ISO Image BIOS update file
(recommended), or Iflash BIOS update file.
The ISO Image BIOS update file is a standardized image of a bootable CD-ROM that
can be used to create a bootable CD that will update the BIOS.
The IFlash BIOS update file is a compressed file that contains the files you need to
update the BIOS. The IFlash BIOS update file contains:
• New BIOS file
• Intel® Integrator Toolkit Configuration File (optional)
• Intel Flash Memory Update Utility
You can obtain either of these files through your computer supplier or by navigating to
the Desktop Board D946GZTS page on the Intel World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
Navigate to the D946GZTS page, click “[view] Latest BIOS updates,” and select the ISO
Image BIOS Update or Iflash BIOS Update utility file.
Updating the BIOS with the ISO Image BIOS Update
File
The ISO Image BIOS update allows for the update of an Intel® Desktop Board BIOS to
the latest production release regardless of the operating system installed on the
computer's hard drive and without the need to remove the BIOS configuration jumper.
It requires a blank CD-R, a read/writeable CD drive, and software capable of
uncompressing and writing the ISO image file to CD.
The image uses ISOLINUX* bootloader and automatically launches a script to upgrade
the BIOS via the Iflash utility.
CAUTION
Do not interrupt the process or the system may not function properly.
![](asset-3f.png)
Updating the BIOS
63
Follow these instructions to upgrade the BIOS using the ISO Image BIOS file:
1. Download the ISO Image BIOS file.
2. Using software capable of uncompressing and writing an ISO image file to CD, burn
the data to a blank CD.
NOTE
Copying the ISO Image BIOS file to CD will not work. The completed CD should
contain multiple files and a directory.
3. Insert the CD that was created in the CD-ROM drive of the computer to be
upgraded and boot the system.
4. When the "Press ENTER to continue booting from CD-ROM" prompt appears, press
the Enter key. The system will boot from the hard drive if no key is pressed within
15 seconds.
5. At the "Welcome to the Intel Desktop Board BIOS Upgrade CD-ROM" page, press
any key to confirm the BIOS upgrade operation.
6. Wait for the BIOS upgrade process to complete.
CAUTION
DO NOT POWER DOWN YOUR COMPUTER before the update is complete. The update
may take up to 5 minutes.
Updating the BIOS with Iflash
With the Iflash Memory update utility you can update the system BIOS from a
bootable CD-ROM, bootable USB flash drive, or other bootable USB media. The utility
available on the Intel World Wide Web site provides a simple method for creating a
bootable CD-ROM that will automatically update your BIOS. The Iflash BIOS update
files can also be extracted locally to your hard drive and copied to a bootable USB
flash drive or other bootable USB media.
The Iflash Memory update utility allows you to:
• Update the BIOS in flash memory
• Update the language section of the BIOS
NOTE
Review the instructions distributed with the update utility before attempting a BIOS
update.
![](asset-40.png)
Intel Desktop Board D946GZTS Product Guide
64
CAUTION
Do not interrupt the process or the system may not function properly.
1. Uncompress the BIOS update file and copy the .BIO file, IFLASH.EXE, and .ITK file
(optional) to a bootable USB flash drive or other bootable USB media.
2. Configure the BIOS or use the F10 option during POST to boot to the USB device.
3. Manually run the IFLASH.EXE file from the USB device and manually update the
BIOS.
Recovering the BIOS
It is unlikely that anything will interrupt the BIOS update; however, if an interruption
occurs, the BIOS could be damaged. Due to BIOS size and recovery requirements, a
CD-R with the .BIO file in the root directory will be required. For more information
about recovering the BIOS for desktop board D946GZTS, go to:
http://support.intel.com/support/motherboards/desktop/
![](asset-41.png)
65
A Error Messages and Indicators
Desktop Board D946GZTS reports POST errors in two ways:
• By sounding a beep code
• By displaying an error message on the monitor
BIOS Beep Codes
The BIOS also issues a beep code (one long tone followed by two short tones) during
POST if the video configuration fails (a faulty video card or no card installed) or if an
external ROM module does not properly checksum to zero. Table 11 lists the BIOS
codes.
Table 11. Beep Codes
Beep Description
3 No memory
Siren Processor overheat (on reboot)
BIOS Error Messages
When a recoverable error occurs during the POST, the BIOS displays an error message
describing the problem. Table 12 gives an explanation of the BIOS error messages.
Table 12. BIOS Error Messages
Error Message Explanation
PROCESSOR_THERMAL_TRIP_ERROR Processor was previously shutdown due to a thermal event
(overheating).
MULTI_BIT_ECC_ERROR The firmware has detected that a Multi-Bit ECC Error occurred.
SINGLE_BIT_ECC_ERROR The firmware has detected that a Single-Bit ECC Error occurred.
CMOS_BATTERY_ERROR The firmware has detected that a CMOS battery failure occurred.
CMOS_CHECKSUM_ERROR The firmware has detected that a CMOS Checksum Error
occurred.
CMOS_TIMER_ERROR The firmware has detected that the system date/time has not
been set.
MEMORY_SIZE_DECREASE_ERROR The firmware has detected that the system memory has
decreased.
INTRUDER_DETECTION_ERROR The system chassis was opened.
SPD_TOLER_ERROR SERIAL PRESENCE DETECT (SPD) device data missing or
inconclusive. Properly programmed SPD device data is required
for reliable operation. DDR2 533 MHz memory assumed at
slowest timings.
MEM_OPTIMAL_ERROR The installed amount of memory in Channel A is not equal to the
amount of memory in Channel B. Maximum memory
performance is achieved with equal amounts of memory
installed in each channel.
Intel Desktop Board D946GZTS Product Guide
66
![](asset-43.png)
67
B Regulatory Compliance
This appendix contains the following regulatory compliance information for Desktop
Board D946GZTS:
• Safety regulations
• European Union Declaration of Conformity statement
• Product Ecology statements
• Electromagnetic Compatibility (EMC) regulations
• Product certifications
Safety Regulations
Desktop Board D946GZTS complies with the safety regulations stated in Table 13
when correctly installed in a compatible host system.
Table 13. Safety Regulations
Regulation Title
UL 60950-1:2003/
CSA C22.2 No. 60950-1-03
Information Technology Equipment – Safety - Part 1: General
Requirements (USA and Canada)
EN 60950-1:2002 Information Technology Equipment – Safety - Part 1: General
Requirements (European Union)
IEC 60950-1:2001, First
Edition
Information Technology Equipment – Safety - Part 1: General
Requirements (International)
Place Battery Marking
There is insufficient space on this desktop board to provide instructions for replacing
and disposing of the Lithium ion coin cell battery. For system safety certification, the
statement below or an equivalent statement is required to be permanently and legibly
marked on the chassis near the battery.
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be
recycled where possible. Disposal of used batteries must be in accordance with local
environmental regulations.
Related Links
For information about replacing the battery, go to page 55.
![](asset-44.png)
Intel Desktop Board D946GZTS Product Guide
68
European Union Declaration of Conformity
Statement
We, Intel Corporation, declare under our sole responsibility that the product
Intel Desktop Board D946GZTS is in conformity with all applicable essential
requirements necessary for CE marking, following the provisions of the European
Council Directive 89/336/EEC (EMC Directive) and Council Directive 73/23/EEC
(Safety/Low Voltage Directive).
The product is properly CE marked demonstrating this conformity and is for
distribution within all member states of the EU with no restrictions.
This product follows the provisions of the European Directives 89/336/EEC and
73/23/EEC.
Čeština Tento výrobek odpovídá požadavkům evropských směrnic 89/336/EEC a
73/23/EEC.
Dansk Dette produkt er i overensstemmelse med det europæiske direktiv
89/336/EEC & 73/23/EEC.
Dutch Dit product is in navolging van de bepalingen van Europees Directief
89/336/EEC & 73/23/EEC.
Eesti Antud toode vastab Euroopa direktiivides 89/336/EEC ja 73/23/EEC kehtestatud
nõuetele.
Suomi Tämä tuote noudattaa EU-direktiivin 89/336/EEC & 73/23/EEC määräyksiä.
Français Ce produit est conforme aux exigences de la Directive Européenne
89/336/EEC & 73/23/EEC.
Deutsch Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie
89/336/EEC & 73/23/EEC.
Ελληνικά Το παρόν προϊόν ακολουθεί τις διατάξεις των Ευρωπαϊκών Οδηγιών
89/336/ΕΟΚ και 73/23/ΕΟΚ.
Magyar E termék megfelel a 89/336/EEC és 73/23/EEC Európai Irányelv előírásainak.
Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
89/336/ EEC & 73/23/EEC.
Italiano Questo prodotto è conforme alla Direttiva Europea 89/336/EEC &
73/23/EEC.
Latviešu Šis produkts atbilst Eiropas Direktīvu 89/336/EEC un 73/23/EEC
noteikumiem.
Lietuvių Šis produktas atitinka Europos direktyvų 89/336/EEC ir 73/23/EEC
nuostatas.
Malti Dan il-prodott hu konformi mal-provvedimenti tad-Direttivi Ewropej 89/336/EEC
u 73/23/EEC.
![](asset-45.png)
Regulatory Compliance
69
Norsk Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
89/336/ EEC & 73/23/EEC.
Polski Niniejszy produkt jest zgodny z postanowieniami Dyrektyw Unii Europejskiej
89/336/EWG i 73/23/EWG.
Portuguese Este produto cumpre com as normas da Diretiva Européia 89/336/EEC &
73/23/EEC.
Español Este producto cumple con las normas del Directivo Europeo 89/336/EEC &
73/23/EEC.
Slovensky Tento produkt je v súlade s ustanoveniami európskych direktív
89/336/EEC a 73/23/EEC.
Slovenščina Izdelek je skladen z določbami evropskih direktiv 89/336/EGS in
73/23/EGS.
Svenska Denna produkt har tillverkats i enlighet med EG-direktiv 89/336/EEC &
73/23/EEC.
Türkçe Bu ürün, Avrupa Birliği’nin 89/336/EEC ve 73/23/EEC yönergelerine uyar.
Product Ecology Statements
The following information is provided to address worldwide product ecology concerns
and regulations.
Recycling Considerations
As part of its commitment to environmental responsibility, Intel has implemented the
Intel® Product Recycling Program to allow retail consumers of Intel’s branded products
to return used products to select locations for proper recycling.
Please consult the
http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm
for the details of this program, including the scope of covered products, available
locations, shipping instructions, terms and conditions, etc.
中文
作为其对环境责任之承诺的部分,英特尔已实施 Intel Product Recycling Program
(英特尔产品回收计划),以允许英特尔品牌产品的零售消费者将使用过的产品退还至指定地点作恰
当的重复使用处理。
请参考http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm
了解此计划的详情,包括涉及产品之范围、回收地点、运送指导、条款和条件等。
![](asset-46.png)
Intel Desktop Board D946GZTS Product Guide
70
Deutsch
Als Teil von Intels Engagement für den Umweltschutz hat das Unternehmen das Intel
Produkt-Recyclingprogramm implementiert, das Einzelhandelskunden von Intel
Markenprodukten ermöglicht, gebrauchte Produkte an ausgewählte Standorte für
ordnungsgemäßes Recycling zurückzugeben.
Details zu diesem Programm, einschließlich der darin eingeschlossenen Produkte,
verfügbaren Standorte, Versandanweisungen, Bedingungen usw., finden Sie auf der
http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm
Español
Como parte de su compromiso de responsabilidad medioambiental, Intel ha
implantado el programa de reciclaje de productos Intel, que permite que los
consumidores al detalle de los productos Intel devuelvan los productos usados en los
lugares seleccionados para su correspondiente reciclado.
Consulte la
http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm
para ver los detalles del programa, que incluye los productos que abarca, los lugares
disponibles, instrucciones de envío, términos y condiciones, etc.
Français
Dans le cadre de son engagement pour la protection de l'environnement, Intel a mis
en œuvre le programme Intel Product Recycling Program (Programme de recyclage
des produits Intel) pour permettre aux consommateurs de produits Intel de recycler
les produits usés en les retournant à des adresses spécifiées.
Visitez la page Web
http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm pour
en savoir plus sur ce programme, à savoir les produits concernés, les adresses
disponibles, les instructions d'expédition, les conditions générales, etc.
日本語
インテルでは、環境保護活動の一環として、使い終えたインテル
ブランド製品を指定の場所へ返送していただき、リサイクルを適切に行えるよう、インテル製品リサイクル
プログラムを発足させました。
対象製品、返送先、返送方法、ご利用規約など、このプログラムの詳細情報は、http://www.intel.com/in
tel/other/ehs/product_ecology/Recycling_Program.htm (英語)をご覧ください。
![](asset-47.png)
Regulatory Compliance
71
Malay
Sebagai sebahagian daripada komitmennya terhadap tanggungjawab persekitaran,
Intel telah melaksanakan Program Kitar Semula Produk untuk membenarkan
pengguna-pengguna runcit produk jenama Intel memulangkan produk terguna ke
lokasi-lokasi terpilih untuk dikitarkan semula dengan betul.
Sila rujuk
http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm untuk
mendapatkan butir-butir program ini, termasuklah skop produk yang dirangkumi,
lokasi-lokasi tersedia, arahan penghantaran, terma & syarat, dsb.
Portuguese
Como parte deste compromisso com o respeito ao ambiente, a Intel implementou o
Programa de Reciclagem de Produtos para que os consumidores finais possam enviar
produtos Intel usados para locais selecionados, onde esses produtos são reciclados de
maneira adequada.
Consulte o site
http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm (em
Inglês) para obter os detalhes sobre este programa, inclusive o escopo dos produtos
cobertos, os locais disponíveis, as instruções de envio, os termos e condições, etc.
Russian
В качестве части своих обязательств к окружающей среде, в Intel создана
программа утилизации продукции Intel (Product Recycling Program) для
предоставления конечным пользователям марок продукции Intel возможности
возврата используемой продукции в специализированные пункты для должной
утилизации.
Пожалуйста, обратитесь на веб-сайт
http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm за
информацией об этой программе, принимаемых продуктах, местах приема,
инструкциях об отправке, положениях и условиях и т.д.
![](asset-48.png)
Intel Desktop Board D946GZTS Product Guide
72
Türkçe
Intel, çevre sorumluluğuna bağımlılığının bir parçası olarak, perakende tüketicilerin
Intel markalı kullanılmış ürünlerini belirlenmiş merkezlere iade edip uygun şekilde geri
dönüştürmesini amaçlayan Intel Ürünleri Geri Dönüşüm Programı’nı uygulamaya
koymuştur.
Bu programın ürün kapsamı, ürün iade merkezleri, nakliye talimatları, kayıtlar ve
şartlar v.s dahil bütün ayrıntılarını ögrenmek için lütfen
http://www.intel.com/intel/other/ehs/product_ecology/Recycling_Program.htm web
sayfasına gidin.
Lead-Free Desktop Board
This desktop board is lead free although certain discrete components used on the
board contain a small amount of lead which is necessary for component performance
and/or reliability. This desktop board is referred to as “Lead-free second level
interconnect.” The board substrate and the solder connections from the board to the
components (second-level connections) are all lead free. Table 14 shows the various
forms of the “Lead-Free 2nd Level Interconnect” mark as it appears on the board and
accompanying collateral.
Table 14. Lead-Free Board Markings
Description Mark
Lead-Free 2nd Level
Interconnect: This symbol
is used to identify electrical
and electronic assemblies and
components in which the lead
(Pb) concentration level in the
desktop board substrate and
the solder connections from
the board to the components
(second-level interconnect) is
not greater than 0.1% by
weight (1000 ppm).
or
or
![](asset-49.png)
Regulatory Compliance
73
EMC Regulations
Desktop Board D946GZTS complies with the EMC regulations stated in Table 15 when
correctly installed in a compatible host system.
Table 15. EMC Regulations
Regulation Title
FCC Class B Title 47 of the Code of Federal Regulations, Parts 2 and 15,
Subpart B, Radio Frequency Devices. (USA)
ICES-003 (Class B) Interference-Causing Equipment Standard, Digital Apparatus.
(Canada)
EN55022: 1998
(Class B)
Limits and methods of measurement of Radio Interference
Characteristics of Information Technology Equipment. (European
Union)
EN55024: 1998 Information Technology Equipment – Immunity Characteristics
Limits and methods of measurement. (European Union)
AS/NZS CISPR22
(Class B)
Australian Communications Authority, Standard for
Electromagnetic Compatibility. (Australia and New Zealand)
CISPR 22, 3rd Edition,
(Class B)
Limits and methods of measurement of Radio Disturbance
Characteristics of Information Technology Equipment.
(International)
CISPR 24: 1997 Information Technology Equipment – Immunity Characteristics –
Limits and Methods of Measurement. (International)
VCCI (Class B) Voluntary Control for Interference by Information Technology
Equipment (Japan)

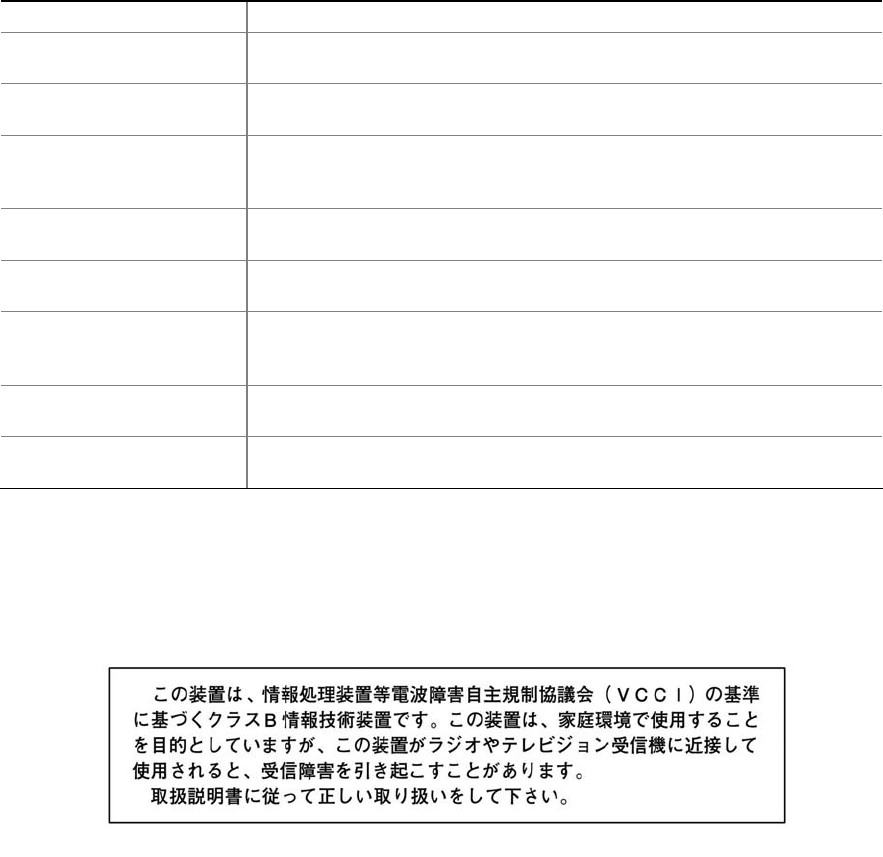

Japanese Kanji statement translation: This is a Class B product based on the standard
of the Voluntary Control Council for Interference from Information Technology
Equipment (VCCI). If this is used near a radio or television receiver in a domestic
environment, it may cause radio interference. Install and use the equipment
according to the instruction manual.
![](asset-4a.png)
Intel Desktop Board D946GZTS Product Guide
74
Korean Class B statement translation: This is household equipment that is certified to
comply with EMC requirements. You may use this equipment in residential
environments and other non-residential environments.
Ensure Electromagnetic Compatibility (EMC)
Compliance
Before computer integration, make sure that the power supply and other modules or
peripherals, as applicable, have passed Class B EMC testing and are marked
accordingly.
Pay close attention to the following when reading the installation instructions for the
host chassis, power supply, and other modules:
• Product certifications or lack of certifications
• External I/O cable shielding and filtering
• Mounting, grounding, and bonding requirements
• Keying connectors when mating the wrong connectors could be hazardous
If the power supply and other modules or peripherals, as applicable, are not Class B
EMC compliant before integration, then EMC testing may be required on a
representative sample of the newly completed computer.
![](asset-4b.png)
Regulatory Compliance
75
Product Certifications
Board-Level Certification Markings
Desktop Board D946GZTS has the following product certification markings:
Table 16. Product Certification Markings
Description Mark
UL joint US/Canada Recognized Component mark. Includes adjacent
UL file number for Intel desktop boards: E210882.
FCC Declaration of Conformity logo mark for Class B equipment.
Includes Intel name and D946GZTS model designation.
CE mark. Declaring compliance to European Union (EU) EMC
directive (89/336/EEC) and Low Voltage directive (73/23/EEC).
Australian Communications Authority (ACA) C-tick mark. Includes
adjacent Intel supplier code number, N-232.
Japan VCCI (Voluntary Control Council for Interference) mark.
S. Korea MIC (Ministry of Information and Communication) mark.
Includes adjacent MIC certification number: CPU-D946GZTS.
For information about MIC certification, go to
http://support.intel.com/support/motherboards/desktop/
Taiwan BSMI (Bureau of Standards, Metrology and Inspections)
mark. Includes adjacent Intel company number, D33025.
Printed wiring board manufacturer’s recognition mark. Consists of a
unique UL recognized manufacturer’s logo, along with a flammability
rating (solder side).
V-0
Intel Desktop Board D946GZTS Product Guide
76
Chassis and Component Certifications
Ensure that the chassis and certain components; such as the power supply, peripheral
drives, wiring, and cables; are components certified for the country or market where
used. Agency certification marks on the product are proof of certification. Typical
product certifications include:
In Europe
The CE marking signifies compliance with all applicable European requirements. If the
chassis and other components are not properly CE marked, a supplier’s Declaration of
Conformity statement to the European EMC directive and Low Voltage directive (as
applicable), should be obtained. Additionally, other directives, such as the Radio and
Telecommunications Terminal Equipment (R&TTE) directive may also apply depending
on product features.
In the United States
A certification mark by a Nationally Recognized Testing Laboratory (NRTL) such as UL,
CSA, or ETL signifies compliance with safety requirements. Wiring and cables must
also be UL listed or recognized and suitable for the intended use. The FCC Class B
logo for home or office use signifies compliance with electromagnetic interference
(EMI) requirements.
In Canada
A nationally recognized certification mark such as CSA or cUL signifies compliance with
safety requirements. The Industry Canada statement at the front of this product guide
demonstrates compliance with Canadian EMC regulations.
