Enigma®

FP2120 Series

SPECIFICATION SHEET

A

ENIGMA®

FP2120**

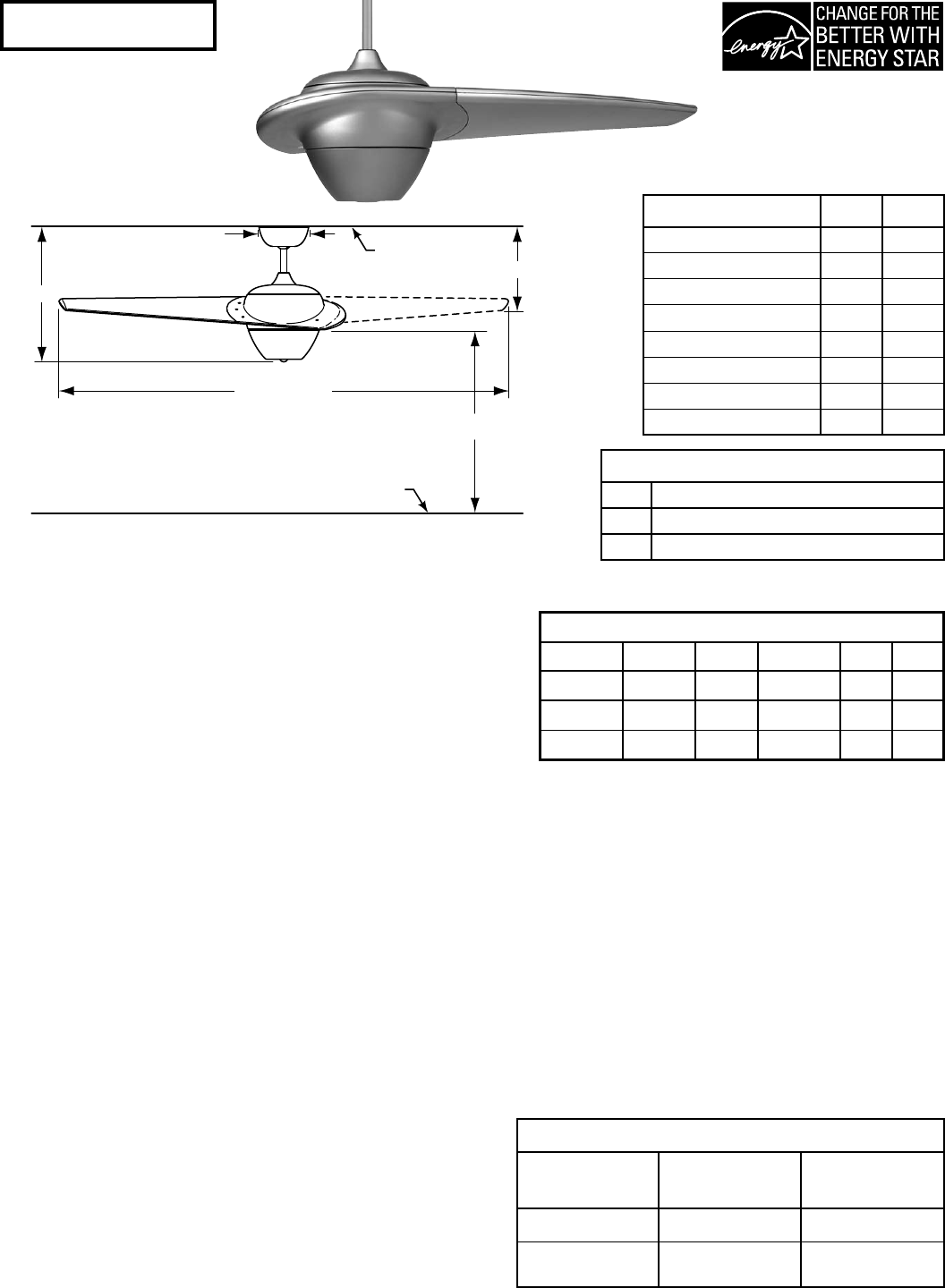

Ceiling Fan

7´ min

Floor

Ceiling

Blade Sweep

60˝ dia

Net Hanging Weight: 29 lbs

6.55˝ dia

18° Blade Pitch

A B

Fan w/6˝ downrod 17.53˝11.02˝

Fan w/12˝ downrod 23.53˝ 17.02˝

Fan w/18˝ downrod 29.53˝ 23.02˝

Fan w/24˝ downrod 35.53˝ 29.02˝

Fan w/36˝ downrod 47.53˝ 41.02˝

Fan w/48˝ downrod 59.53˝ 53.02˝

Fan w/60˝ downrod 71.53˝ 65.02˝

Fan w/72˝ downrod 83.53˝ 77.02˝

*Minimum Pole Lengths for Sloped Ceilings

Degrees / Pitch Minimum Pole

Length

Blade Tip to

Ceiling Dimension

18° / 4 - 12 pitch 12˝ (DR1-12**)6½˝

27°- 30° /

6 - 12 to 7 - 12 18˝ (DR1-18**) 4½˝

**Custom Finishes are available by special order only.

Contact technical support for more information

INSTALLATION REQUIREMENTS:

Ceiling fan must be secured to a structural member, such as a

ceiling joist, capable of withstanding a load of at least 50 lbs. A

3/8˝ x 5˝ long lag bolt passes through loop in ceiling support cable,

hanger bracket plate, and into wood structural member above.

ELECTRICAL REQUIREMENTS:

Requires a grounded electrical supply line of 120 volts AC, 60 Hz,

15 amp circuit.

MOTOR SPECS:

188 x 18 motor is designed for optimal performance with this fan. 220 VAC, 50 Hz export version available.

CONTROL OPTIONS:

C4T hand-held remote control with canopy-style receiver unit (RECAN34) is included. Push-button remote control has

.yletarapes dlos—elbaliava era slortnoc llaw 52C dna 2C ,1C lanoitpO .nottub ffo dna slortnoc thgilnwod ,sdeeps 3

See our catalog or visit www.fanimation.com for more information. C4-220 remote included with 220V models; optional

C6-220 wall control is available. Instructions are provided with each control.

LIGHTING OPTION:

Single built-in downlight socket uses PAR 30 short-neck, 75 watt max., halogen bulb (not included).

DOWNROD OPTIONS:

Fan comes with a 1˝ dia. x 6˝ long downrod (DR1-6). Optional downrods available in 12˝, 18˝, 24˝, 36˝, 48˝, 60˝ and 72˝

lengths. Fan can be mounted on a sloped ceiling up to *30°. Most sloped ceiling installations require a downrod longer

than the standard 6˝ downrod. Optional sloped ceiling ball kits (SCB1-52) are available for slope angles greater than 30°

and up to 52°. Call technical support for more information.

LOCATION USE:

FP2120MG & FP2120RB are dry and damp location rated

FP2120WA is dry location rated only

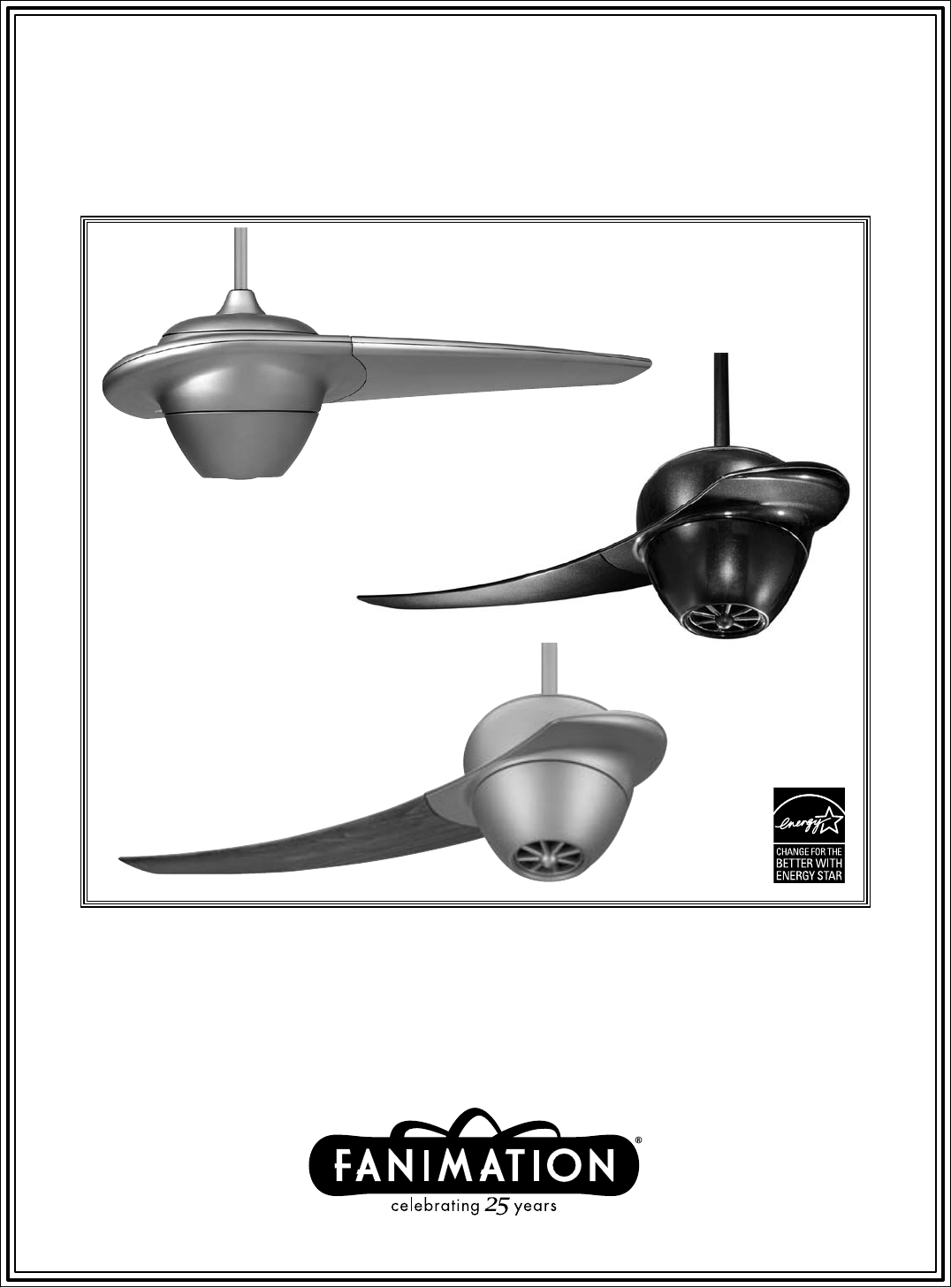

Available Finishes

MG Metro gray (Damp)

RB Red/blue iridescent (Damp)

WA Metro Gray with walnut wood blade

Airflow / Energy Efficiency Info (120V)

Fan Speed Max RPM CFM

CFM / Watts

Amps Watts

High 164 5796 114 0.43 50

Med99 3208 143 0.34 22

Low 62 1693 156 0.26 11
