61200296L1 1C Express 6503 SHDSL ATM DSU User Manual

Express_6503_SHDSL_A.. Express_6503_SHDSL_ATM_DSU_User_Manual_

User Manual: Express 6503 SHDSL ATM DSU User Manual

Open the PDF directly: View PDF .
Page Count: 56

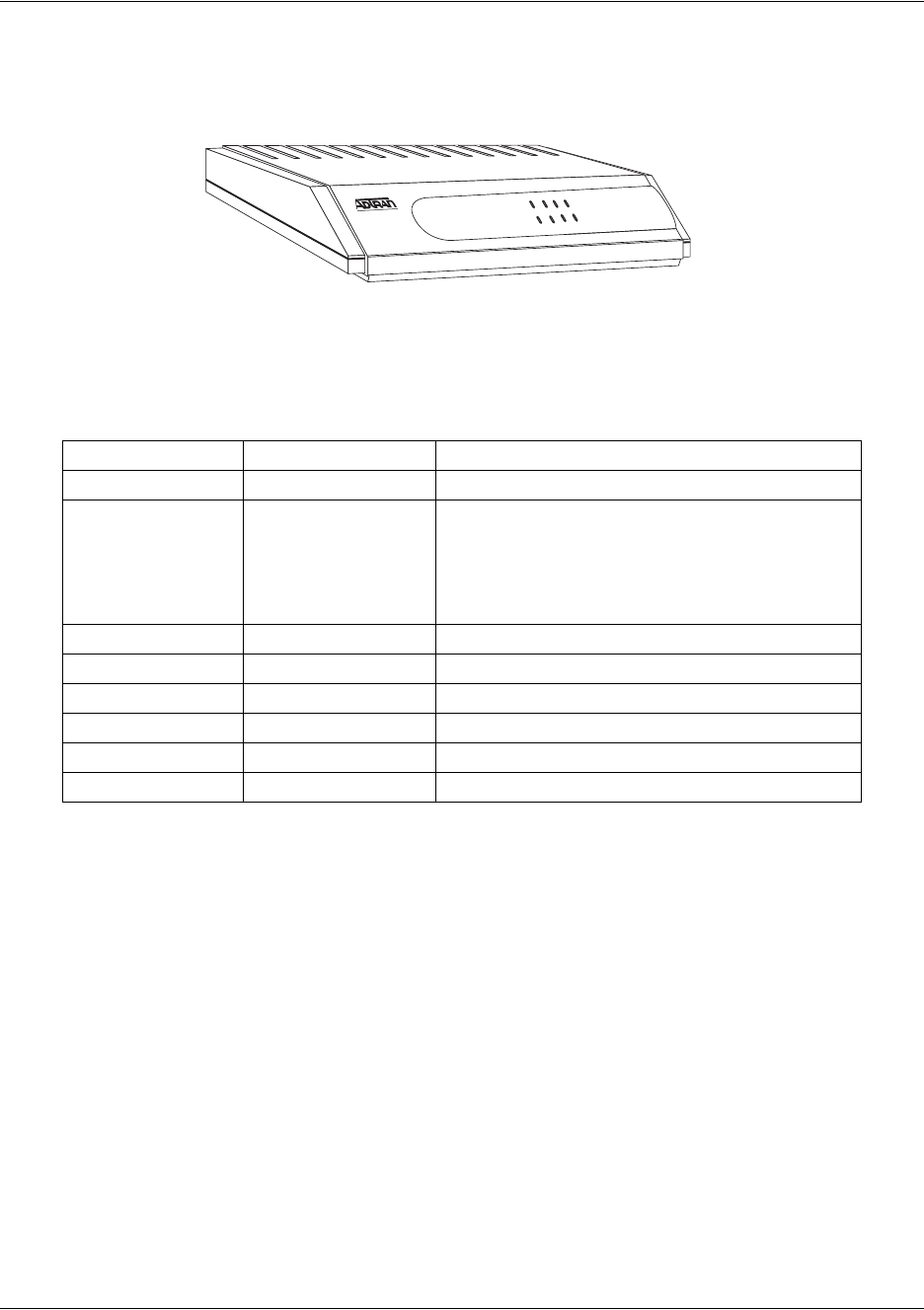

1. Express 6503 Overview
2. Specifications

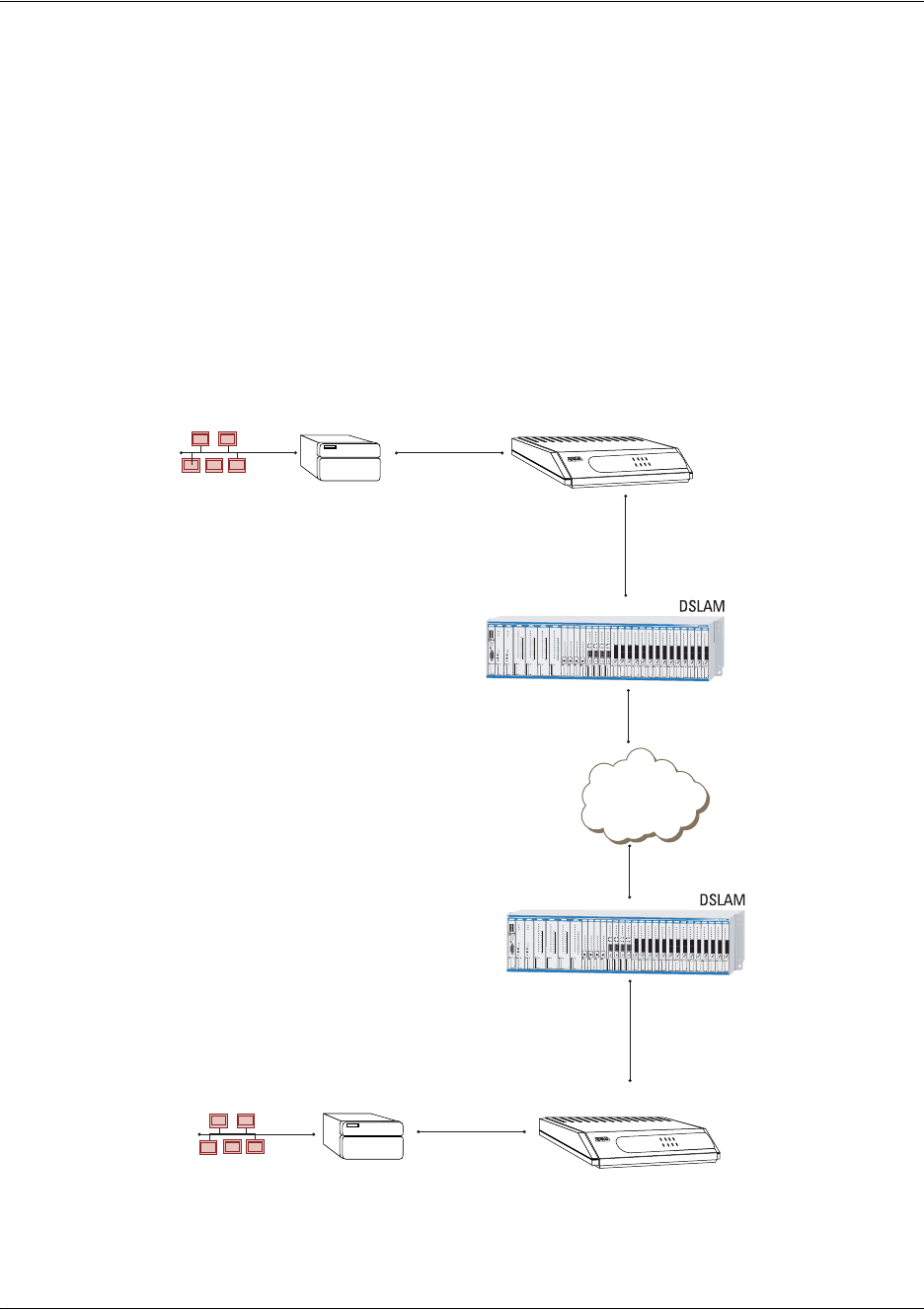

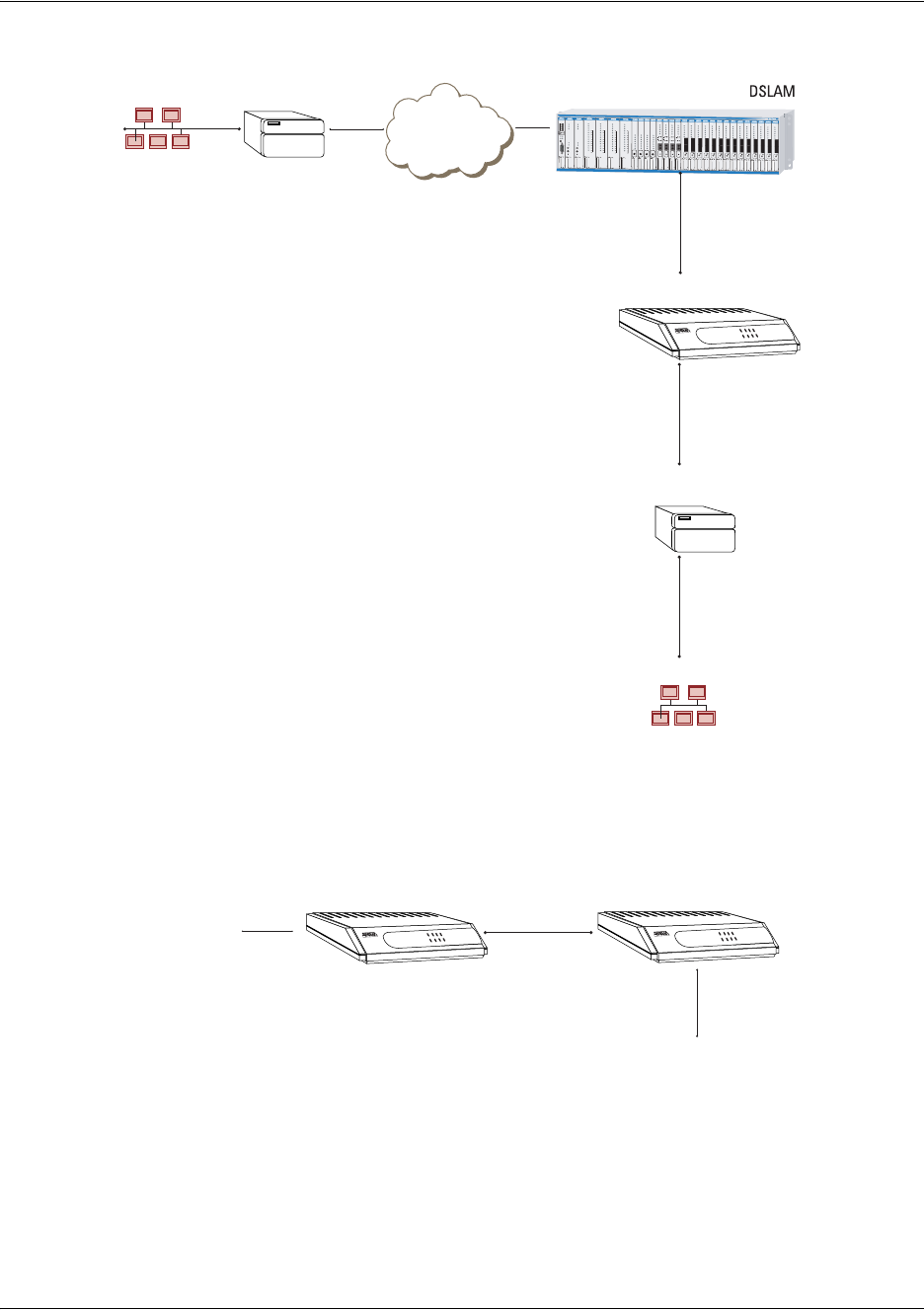

3. SHDSL Applications
4. Configuring the Express 6503
Appendix A. Navigating the Terminal Menus

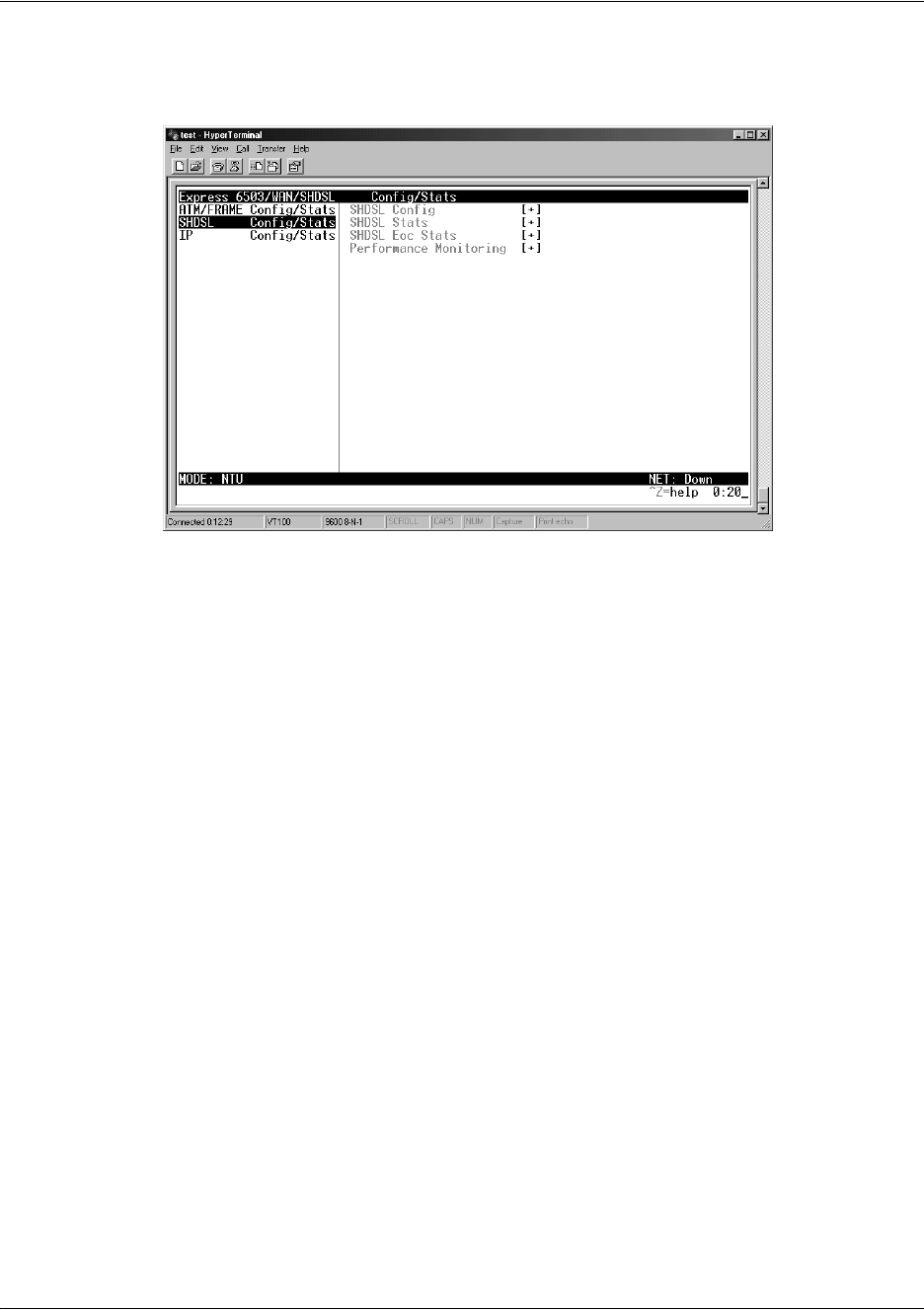

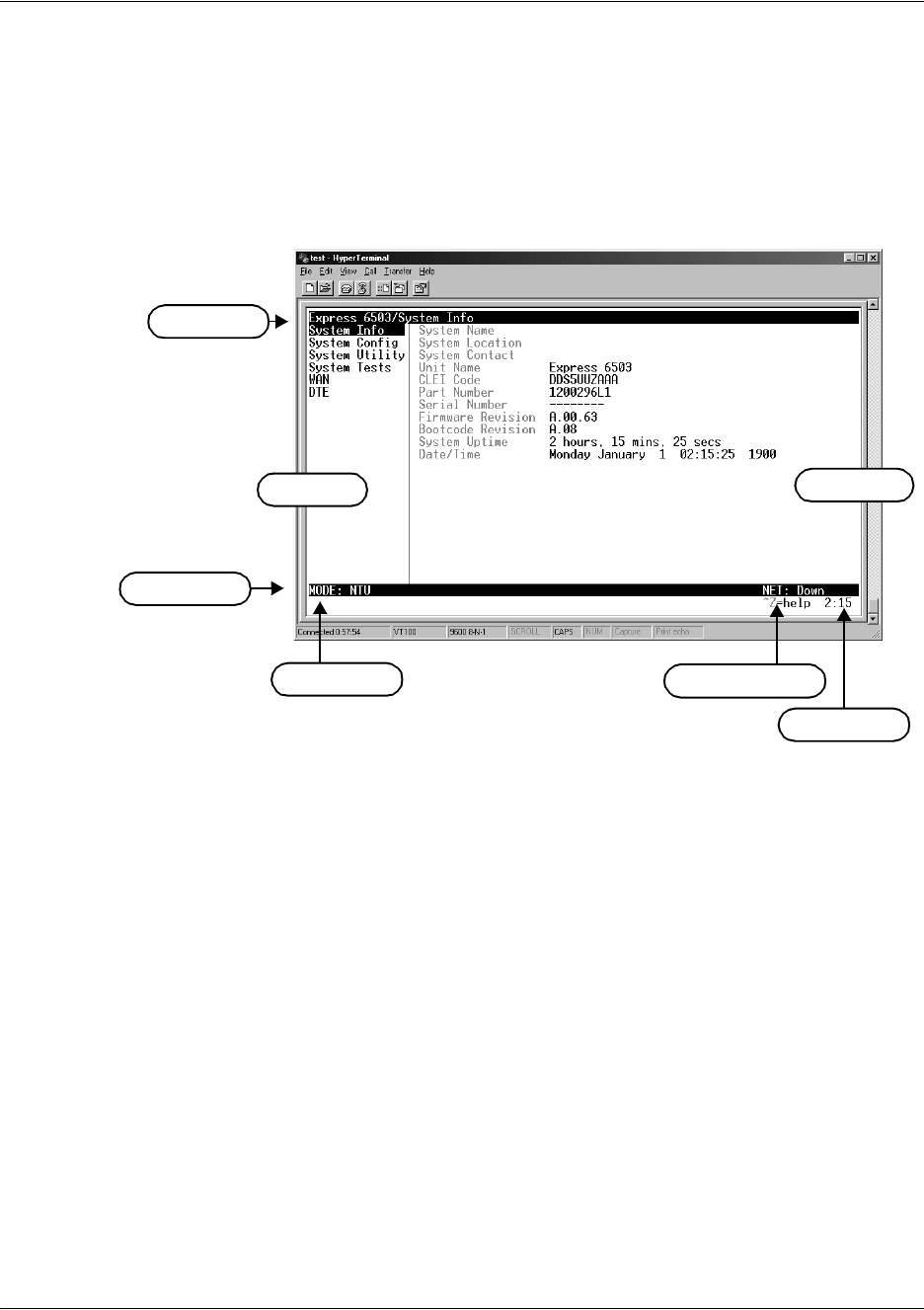

- Terminal Menu Window
- Navigating Using the Keyboard Keys

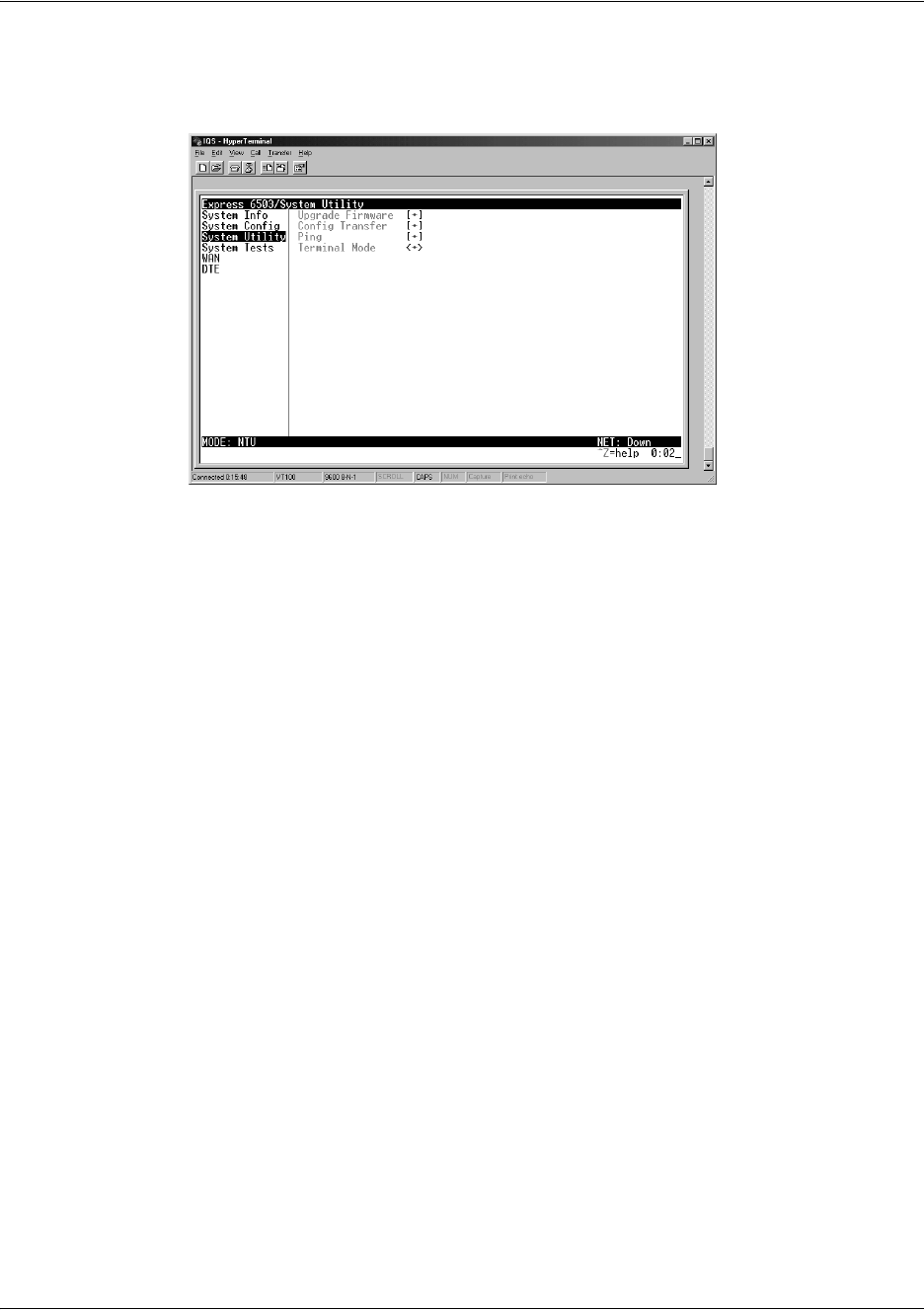

Appendix B. Updating Express 6503 Firmware using XMODEM
- Updating Firmware
- Updating Firmware via the Console Menus

EXPRESS 6503

SHDSL ATM DSU

User Manual

1200296L1 Express 6503

61200296L1-1C

November 2002

Trademarks

Any brand names and product names included in this manual are trademarks, registered trademarks, or

trade names of their respective holders.

To the Holder of the Manual

The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change

the contents without prior notice.

In no event will ADTRAN be liable for any special, incidental, or consequential damages or for

commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication.

901 Explorer Boulevard

P.O. Box 140000

Huntsville, AL 35814-4000

Phone: (256) 963-8000

Printed in U.S.A.

Safety Instructions

When using your telephone equipment, please follow these basic safety precautions to reduce the risk of

fire, electrical shock, or personal injury:

1. Do not use this product near water, such as a bathtub, wash bowl, kitchen sink, laundry tub, in a

wet basement, or near a swimming pool.

2. Avoid using a telephone (other than a cordless-type) during an electrical storm. There is a remote

risk of shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord, power supply, and/or batteries indicated in the manual. Do not dispose of

batteries in a fire. They may explode. Check with local codes for special disposal instructions.

Save These Important Safety Instructions

Notes provide additional useful information.

Cautions signify information that could prevent service interruption.

Warnings provide information that could prevent damage to the equipment or

endangerment to human life.

Affidavit Requirements for Connection to Digital Services

• An affidavit is required to be given to the telephone company whenever digital terminal equipment

without encoded analog content and billing protection is used to transmit digital signals containing

encoded analog content which are intended for eventual conversion into voiceband analog signals and

transmitted on the network.

• The affidavit shall affirm that either no encoded analog content or billing information is being

transmitted or that the output of the device meets Part 68 encoded analog content or billing protection

specifications.

• End user/customer will be responsible for filing an affidavit with the local exchange carrier when

connecting unprotected customer premise equipment (CPE) to 1.544 Mbps or subrate digital services.

Until such time as subrate digital terminal equipment is registered for voice applications, the affidavit

requirement for subrate services is waived.

Affidavit for Connection of Customer Premises Equipment

to 1.544 Mbps and/or Subrate Digital Services

For the work to be performed in the certified territory of ___________________ (telco name)

State of ________________

County of ________________

I, _______________________ (name), ____________________________________ (business address),

____________________ (telephone number) being duly sworn, state:

I have responsibility for the operation and maintenance of the terminal equipment to be connected

to 1.544 Mbps and/or ________ subrate digital services. The terminal equipment to be connected

complies with Part 68 of the FCC rules except for the encoded analog content and billing protection

specifications. With respect to encoded analog content and billing protection:

( ) I attest that all operations associated with the establishment, maintenance, and adjustment of the digital

CPE with respect to analog content and encoded billing protection information continuously complies

with Part 68 of the FCC Rules and Regulations.

( ) The digital CPE does not transmit digital signals containing encoded analog content or billing

information which is intended to be decoded within the telecommunications network.

( ) The encoded analog content and billing protection is factory set and is not under the control of the

customer.

I attest that the operator(s)/maintainer(s) of the digital CPE responsible for the establishment,

maintenance, and adjustment of the encoded analog content and billing information has (have) been

trained to perform these functions by successfully having completed one of the following (check

appropriate blocks):

( ) A. A training course provided by the manufacturer/grantee of the equipment used to encode analog

signals; or

( ) B. A training course provided by the customer or authorized representative, using training materials

and instructions provided by the manufacturer/grantee of the equipment used to encode analog

signals; or

( ) C. An independent training course (e.g., trade school or technical institution) recognized by the

manufacturer/grantee of the equipment used to encode analog signals; or

( ) D. In lieu of the preceding training requirements, the operator(s)/maintainer(s) is (are) under the

control of a supervisor trained in accordance with _________ (circle one) above.

I agree to provide ______________________ (telco’s name) with proper documentation to

demonstrate compliance with the information as provided in the preceding paragraph, if so

requested.

_________________________________Signature

_________________________________Title

_________________________________ Date

Transcribed and sworn to before me

This ________ day of _______________, _______

_________________________________

Notary Public

My commission expires:

_________________________________

FCC regulations require that the following information be provided in this manual:

1. This equipment complies with Part 68 of FCC rules. On the back of the equipment housing is a

label showing the FCC registration number and ringer equivalence number (REN). If requested,

provide this information to the telephone company.

2. If this equipment causes harm to the telephone network, the telephone company may temporarily

discontinue service. If possible, advance notification is given; otherwise, notification is given as

soon as possible. The telephone company will advise the customer of the right to file a complaint

with the FCC.

3. The telephone company may make changes in its facilities, equipment, operations, or procedures

that could affect the proper operation of this equipment. Advance notification and the opportunity

to maintain uninterrupted service are given.

4. If experiencing difficulty with this equipment, please contact ADTRAN for repair and warranty

information. The telephone company may require this equipment to be disconnected from the

network until the problem is corrected or it is certain the equipment is not malfunctioning.

5. This unit contains no user-serviceable parts.

6. An FCC compliant telephone cord with a modular plug is provided with this equipment. This

equipment is designed to be connected to the telephone network or premises wiring using an FCC

compatible modular jack, which is Part 68 compliant.

7. The following information may be required when applying to the local telephone company for a

dial-up line for the V.34 modem:

8. The REN is useful in determining the quantity of devices you may connect to your telephone line

and still have all of those devices ring when your number is called. In most areas, the sum of the

RENs of all devices should not exceed five. To be certain of the number of devices you may

connect to your line as determined by the REN, call your telephone company to determine the

maximum REN for your calling area.

9. This equipment may not be used on coin service provided by the telephone company. Connection

to party lines is subject to state tariffs. Contact your state public utility commission or corporation

commission for information.

Service Type REN FIC USOC

Loop Start 1.6B/0.8A 02LS2 RJ-11C

Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio frequencies. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Shielded cables must be used with this unit to ensure compliance with Class A FCC limits.

Changes or modifications to this unit not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

Industry Canada Compliance Information

Notice: The Industry Canada label applied to the product (identified by the Industry Canada logo or the

“IC:” in front of the certification/registration number) signifies that the Industry Canada technical

specifications were met.

Notice: The Ringer Equivalence Number (REN) for this terminal equipment is supplied in the

documentation or on the product labeling/markings. The REN assigned to each terminal device indicates

the maximum number of terminals that can be connected to a telephone interface. The termination on an

interface may consist of any combination of devices subject only to the requirement that the sum of the

RENs of all the devices should not exceed five (5).

Canadian Emissions Requirements

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus

as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the

Department of Communications.

Cet appareil numérique respecte les limites de bruits radioelectriques applicables aux appareils numériques

de Class A prescrites dans la norme sur le materiel brouilleur: “Appareils Numériques,” NMB-003 edictee

par le ministre des Communications.

Warranty and Customer Service

ADTRAN will repair and return this product within WARRANTY LENGTH years from the date of

shipment if it does not meet its published specifications or fails while in service. For detailed warranty,

repair, and return information refer to the ADTRAN Equipment Warranty and Repair and Return Policy

Procedure.

Return Material Authorization (RMA) is required prior to returning equipment to ADTRAN.

For service, RMA requests, or further information, contact one of the numbers listed at the end of this

section.

LIMITED PRODUCT WARRANTY

ADTRAN warrants that for WARRANTY LENGTH years from the date of shipment to Customer, all

products manufactured by ADTRAN will be free from defects in materials and workmanship. ADTRAN

also warrants that products will conform to the applicable specifications and drawings for such products, as

contained in the Product Manual or in ADTRAN's internal specifications and drawings for such products

(which may or may not be reflected in the Product Manual). This warranty only applies if Customer gives

ADTRAN written notice of defects during the warranty period. Upon such notice, ADTRAN will, at its

option, either repair or replace the defective item. If ADTRAN is unable, in a reasonable time, to repair or

replace any equipment to a condition as warranted, Customer is entitled to a full refund of the purchase

price upon return of the equipment to ADTRAN. This warranty applies only to the original purchaser and

is not transferable without ADTRAN's express written permission. This warranty becomes null and void if

Customer modifies or alters the equipment in any way, other than as specifically authorized by ADTRAN.

EXCEPT FOR THE LIMITED WARRANTY DESCRIBED ABOVE, THE FOREGOING

CONSTITUTES THE SOLE AND EXCLUSIVE REMEDY OF THE CUSTOMER AND THE

EXCLUSIVE LIABILITY OF ADTRAN AND IS IN LIEU OF ANY AND ALL OTHER WARRANTIES

(EXPRESSED OR IMPLIED). ADTRAN SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES,

INCLUDING (WITHOUT LIMITATION), ALL WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION

OF IMPLIED WARRANTIES, SO THIS EXCLUSION MAY NOT APPLY TO CUSTOMER.

In no event will ADTRAN or its suppliers be liable to the Customer for any incidental, special, punitive,

exemplary or consequential damages experienced by either the Customer or a third party (including, but

not limited to, loss of data or information, loss of profits, or loss of use). ADTRAN is not liable for

damages for any cause whatsoever (whether based in contract, tort, or otherwise) in excess of the amount

paid for the item. Some states do not allow the limitation or exclusion of liability for incidental or

consequential damages, so the above limitation or exclusion may not apply to the Customer.

Customer Service, Product Support Information, and Training

ADTRAN will repair and return this product if within WARRANTY LENGTH years from the date of

shipment the product does not meet its published specification or the product fails while in service.

A return material authorization (RMA) is required prior to returning equipment to ADTRAN. For service,

RMA requests, training, or more information, use the contact information given below.

Repair and Return

If you determine that a repair is needed, please contact our Customer and Product Service (CAPS)

department to have an RMA number issued. CAPS should also be contacted to obtain information

regarding equipment currently in house or possible fees associated with repair.

Identify the RMA number clearly on the package (below address), and return to the following address:

Pre-Sales Inquiries and Applications Support

Your reseller should serve as the first point of contact for support. If additional pre-sales support is needed,

the ADTRAN Support web site provides a variety of support services such as a searchable knowledge

base, latest product documentation, application briefs, case studies, and a link to submit a question to an

Applications Engineer. All of this, and more, is available at:

When needed, further pre-sales assistance is available by calling our Applications Engineering

Department.

CAPS Department (256) 963-8722

ADTRAN Customer and Product Service

901 Explorer Blvd. (East Tower)

Huntsville, Alabama 35806

RMA # _____________

http://support.adtran.com

Applications Engineering (800) 615-1176

Post-Sale Support

Your reseller should serve as the first point of contact for support. If additional support is needed, the

ADTRAN Support web site provides a variety of support services such as a searchable knowledge base,

updated firmware releases, latest product documentation, service request ticket generation and

trouble-shooting tools. All of this, and more, is available at:

When needed, further post-sales assistance is available by calling our Technical Support Center. Please

have your unit serial number available when you call.

Installation and Maintenance Support

The ADTRAN Custom Extended Services (ACES) program offers multiple types and levels of installation

and maintenance services which allow you to choose the kind of assistance you need. This support is

available at:

For questions, call the ACES Help Desk.

Training

The Enterprise Network (EN) Technical Training Department offers training on our most popular products.

These courses include overviews on product features and functions while covering applications of

ADTRAN's product lines. ADTRAN provides a variety of training options, including customized training

and courses taught at our facilities or at your site. For more information about training, please contact your

Territory Manager or the Enterprise Training Coordinator.

http://support.adtran.com

Technical Support (888) 4ADTRAN

http://www.adtran.com/aces

ACES Help Desk (888) 874-ACES (2237)

Training Phone (800) 615-1176, ext. 7500

Training Fax (256) 963-6700

Training Email training@adtran.com

CONTENTS

Express 6503 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Express 6503 Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SHDSL Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Configuring the Express 6503 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

System Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

System Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

WAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DTE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Appendix A. Navigating the Terminal Menus36

Terminal Menu Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Navigating Using the Keyboard Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Appendix B. Updating Express 6503 Firmware using XMODEM40

FIGURES

Figure 1. Express 6503 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Figure 2. Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 3. FRF5 Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 4. FRF8 Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 5. LDM Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 6. System Information Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

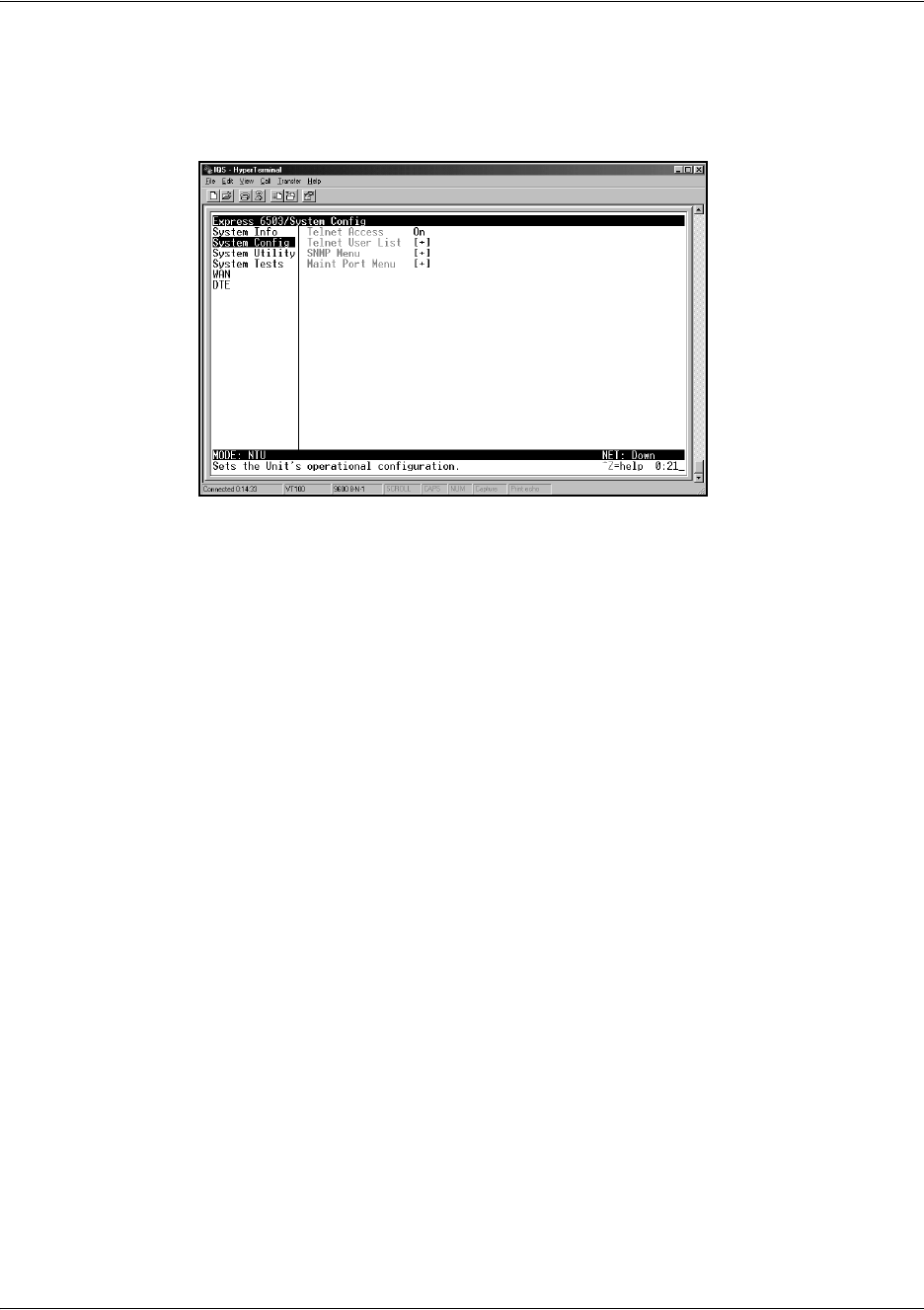

Figure 7. System Configuration Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

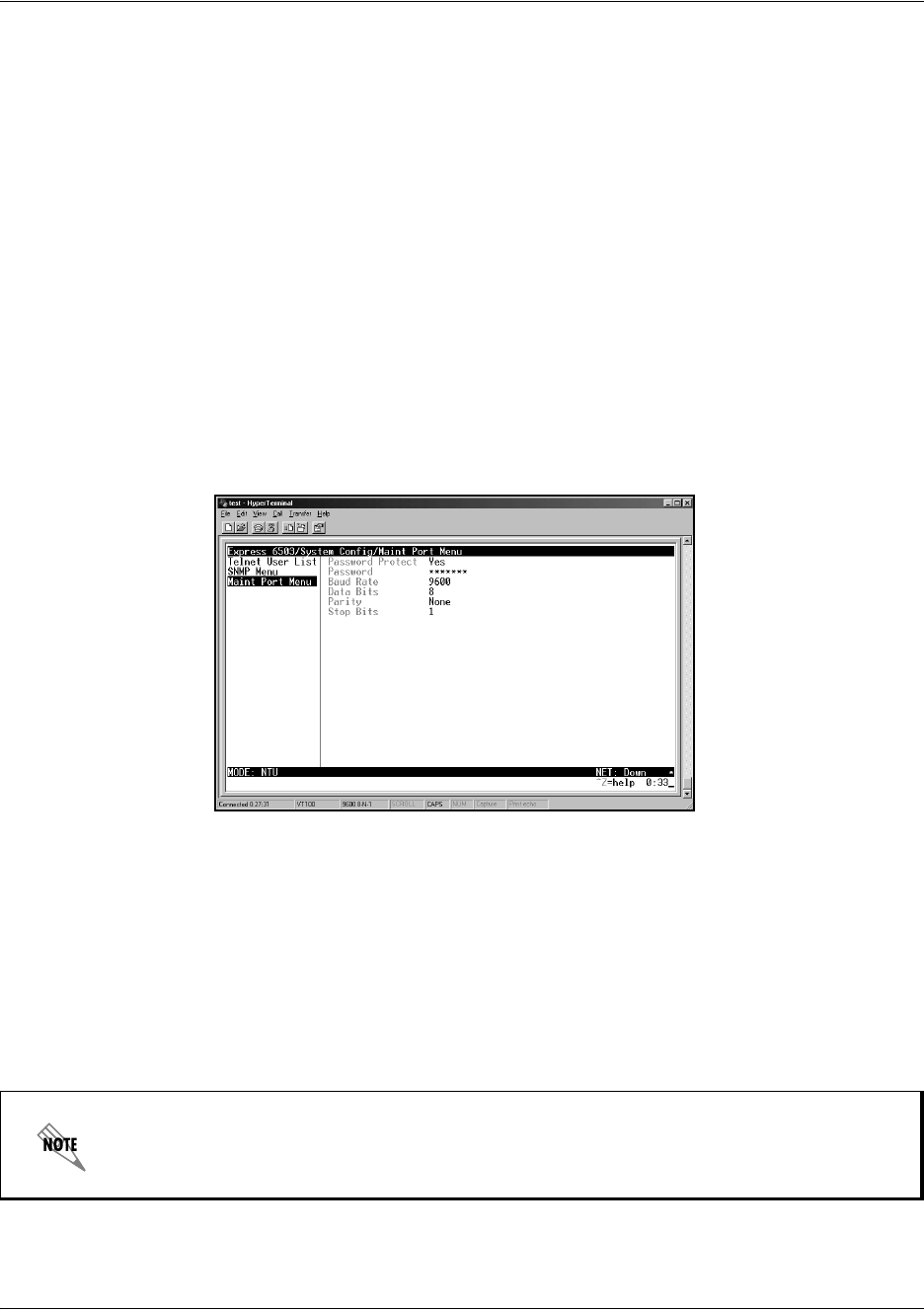

Figure 8. Maintenance Port Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 9. System Utility Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 10. System Tests Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

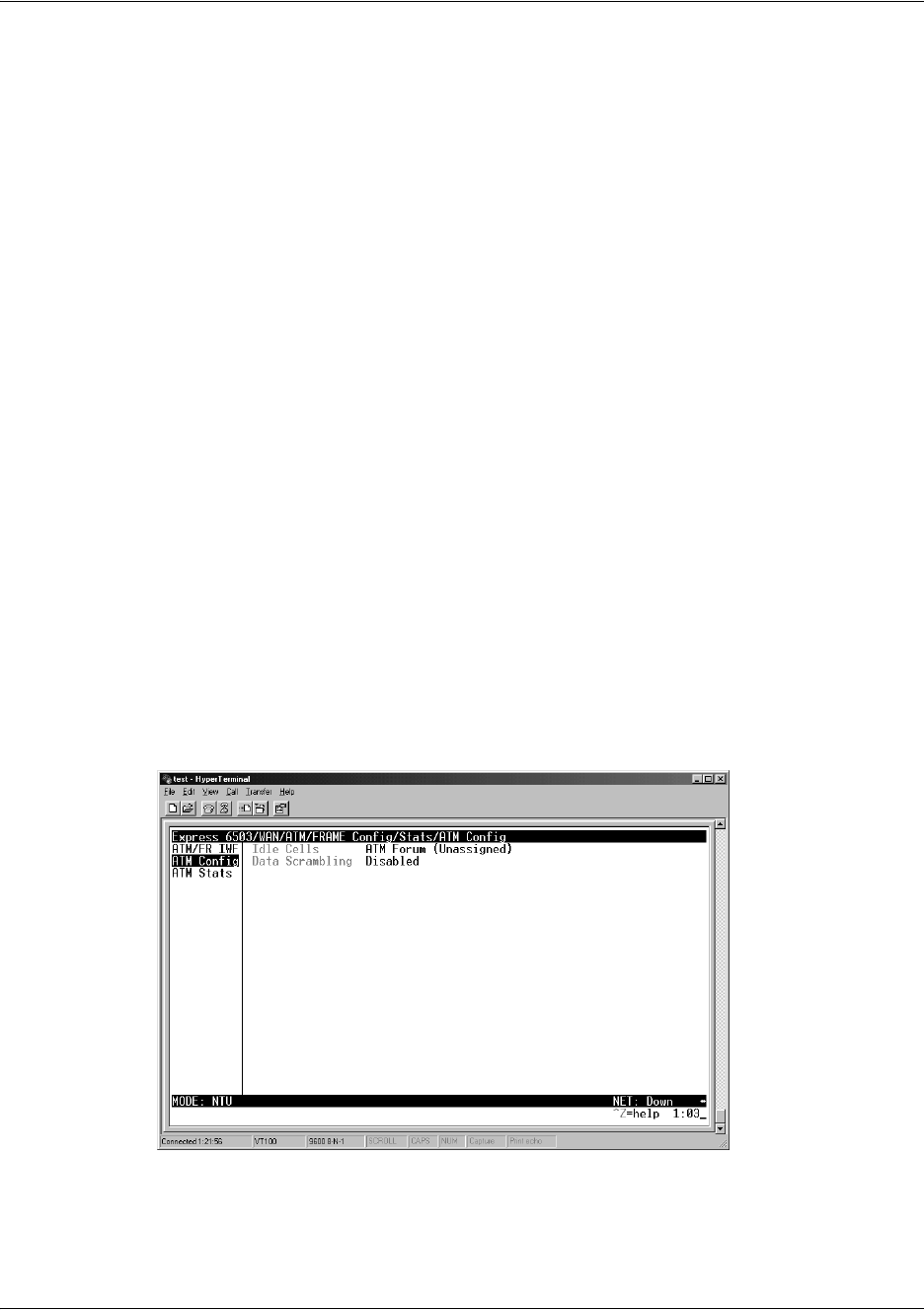

Figure 11. ATM Config Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

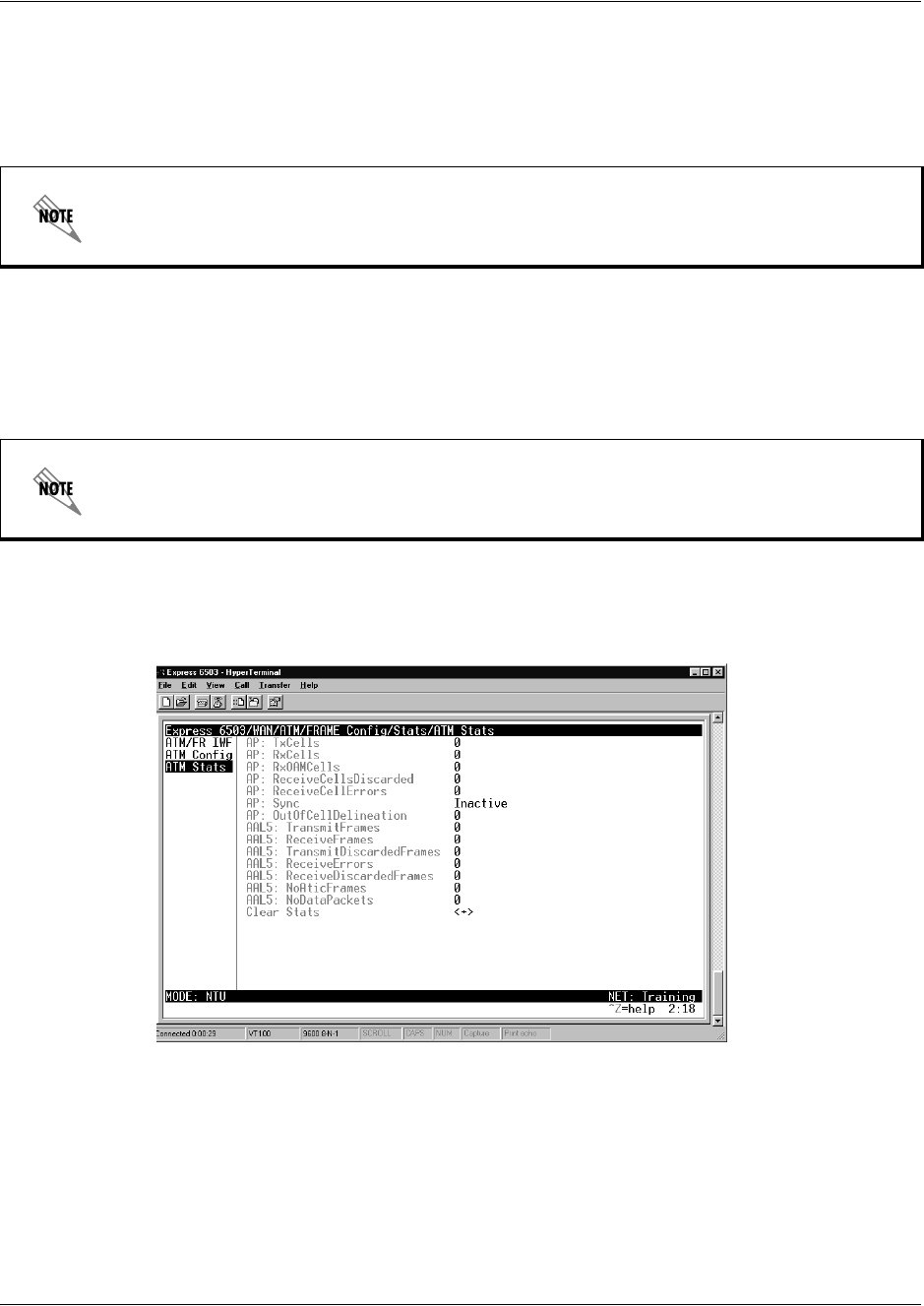

Figure 12. ATM Stats Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

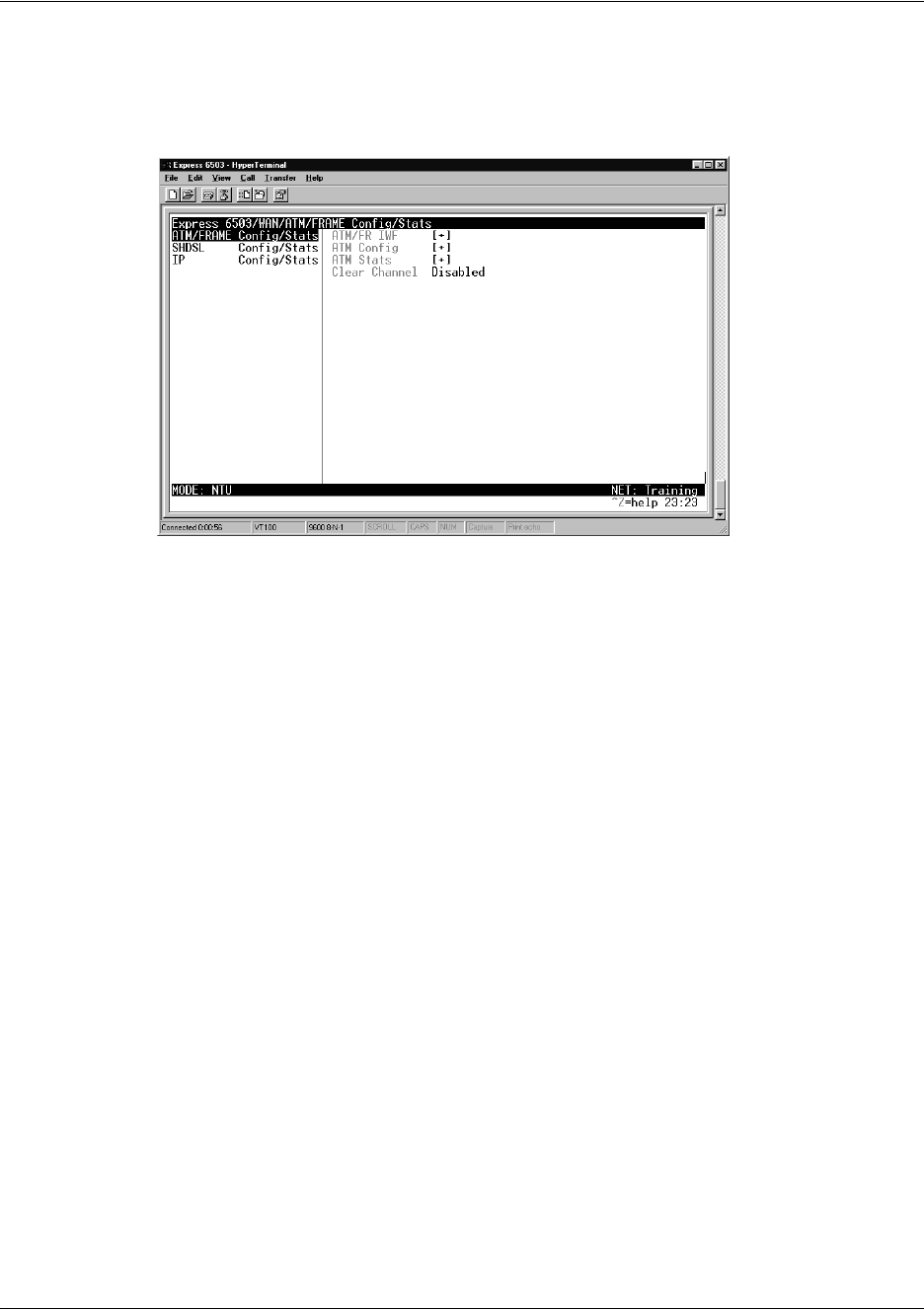

Figure 13. Wan Sub Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 14. SHDSL Config/Stats Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 15. DTE Select/Config Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Figure 16. Top-level Terminal Menu Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

TABLES

Table 1. Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table 2. X.21 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Table 3. V.35 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Table 4. Express 6503 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Table 5. Express 6503 Power and Environmental Specifications and Approvals . . . . . . . . . . . . . . 6

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

1. EXPRESS 6503 OVERVIEW

The Express 6503 is a serial (DCE) to SHDSL data service unit (DSU) designed for small offices and

branch offices to provide cost-effective access to high-speed SHDSL services. The Express 6503 preserves

the customer's investment in existing business class routers, allowing them to take advantage of New

World applications and Packet Telephony. It offers an economical migration path utilizing ATM and Frame

Relay over SHDSL without requiring replacement of existing networking equipment.

The Express 6503 provides small offices and branch offices with fast, affordable, and easy-to-use access to

the Internet and corporate network. The Express 6503 makes DSL services and applications accessible to

the office router or to the desktop. It supports an integrated SHDSL WAN interface and a serial interface to

the router and can operate at symmetric speeds of up to 2312 kbps.

On the Express 6503, the terminal menu is the access point to all other operations. Each terminal menu

item has several functions and submenus that identify and provide access to specific operations and

parameters. These menu selections are described later in this User Interface Guide (pages 18 and

following).

Express 6503 Features and Benefits

• SHDSL WAN Support (ITU-T G.991.2) - The Express 6503 supports serial full duplex bidirectional

data transport of up to 2312 kbps.

• ITU G.hs (ITU-T G.994.1) Support

• TC PAM Line Encoding - Compliant with the SHDSL standard.

• Back-to-back operation for Campus LAN applications.

• Synchronous Serial Interface - The serial interface can support either V.35 or X.21 protocols.

• AAL5 ATM Adaptation Layer Type 5 Support.

• FRF.8 Frame Relay to ATM Interworking Support - The Express 6503 supports FRF.8 Frame/ATM

service interworking. It maps Frame data-link connection identifiers (DLCIs) to ATM permanent

virtual circuits (PVCs); up to four VCs can be configured in the Express 6503.

• FRF.5 Frame Relay to ATM Interworking Support - DLCIs can be assigned automatically or

provisioned.

• Management Support - The Express 6503 is managed through a command-line interface accessible

locally through the management serial port or remotely through Layer 3 in-band management features.

• Safety and Compliance - The Express 6503 is designed for worldwide safety and electromagnetic

certifications (EMC).

See Appendix A. Navigating the Terminal Menus on page 48 for instructions about

navigating the terminal menus.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Front Panel

Figure 1 shows the Express 6503 front panel, which contains eight LEDs. Table 1 describes these LEDs.

Figure 1. Express 6503 Front Panel

Table 1. Front Panel LEDs

Rear Panel

The Express 6503 rear panel (Figure 2) contains the following connectors:

LABEL COLOR DESCRIPTION

PWR Green Power Indication

NET

Green

On solid to indicate the ATM interface is ready

to pass data.

Fast blinking to indicate that the network is

training.

Slow blinking to indicate DSL layer is up.

ALM Red Indication of Network not ready.

TEST Amber Indication of test in progress.

TD Green Transmit Data (TxD)

RD Green Receive Data (RxD)

RS Green Request to Send

CS Green Clear to Send

NETWORK SHDSL interface

X.21 serial interface

V.35 serial interface

CRAFT management/control

90-240/VAC 50/60Hz .1A power input

Express 6503

ALM

PWR NET TEST

TD RD CS

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

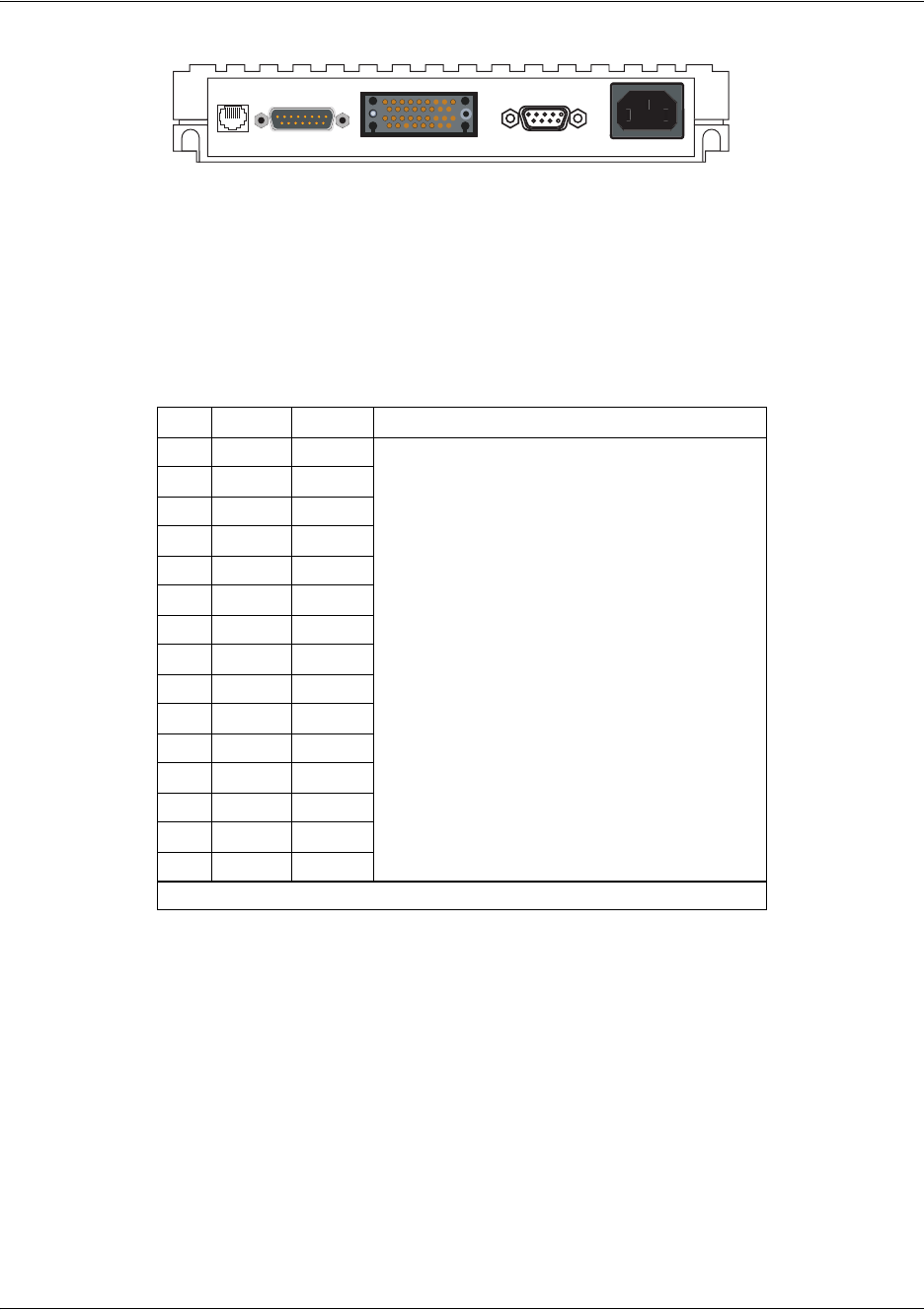

Figure 2. Rear Panel

Connector Pinouts

Table 2 below and Table 3 on page 17 give the pinouts for the V.35 and X.21 connectors.

Table 2. X.21 Interface

Pin Name I/O Description

1 Shield I/O Shield for cable

2 TD-A I Transmitted Data

3 RTS-A I Request to Send

4 RD-A O Received Data

5 CD-A O Carrier Detect

6 CLK-A O Signal Timing

7 ETC-A I External Transmit Clock

8 SG I/O Signal Ground

9 TD-B I Transmit Data (return)

10 RTS-B I Request To Send (return)

11 RD-B O Receive Data (return)

12 CD-B O Carrier Detect (return)

13 CLK-B O Signal Timing (return)

14 ETC-B I External Transmit Clock (return)

15 NC N/A No Connection

I= Input, O= Output, N/A= Not Applicable

NETWORK

V.35

CRAFT

-24

Hz .1

X.21

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Table 3. V.35 Interface

Pin Name I/O Description

A Shield I/O Shield for cable

B SG I/O Signal Ground

C RTS I Request To Send

D CTS O Clear To Send

E DSR O Data Set Ready

F CD O Carrier Detect

H DTR I Data Terminal Ready

J* RI O Ring Indicator

P SD-A I Send Data

R RD-A O Receive Data

S SD-B I Send Data (return)

T RD-B O Receive Data (return)

U TC-A I External Transmit Clock

V RC-A O Receive Clock

W TC-B I External Transmit Clock (return)

X RC-B O Receive Clock (return)

Y ST-A O Send Timing

AA ST-B O Send Timing (return)

K,L NC N/A No Connection

M,N NC N/A No Connection

BB NC N/A No Connection

CC NC N/A No Connection

DD NC N/A No Connection

EE NC N/A No Connection

FF NC N/A No Connection

HH NC N/A No Connection

JJ NC N/A No Connection

KK NC N/A No Connection

LL NC N/A No Connection

MM NC N/A No Connection

NN NC N/A No Connection

*Pin J (ring indicator) is needed for most video conferencing applications.

I= Input, O= Output, N/A= Not Applicable

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

2. SPECIFICATIONS

Hardware

Table 4. Express 6503 Specifications

Table 5. Express 6503 Power and Environmental Specifications and Approvals

Characteristic Description

SHDSL Interface

SHDSL (ITU-T G.991.2),TCPAM encoding:

200-2312 kbps (3-36 DS0s)

RJ-45 connector, unshielded twisted pair copper

wire

ATM PVCs Up to 4 VPI/VCI mappings

User Interface V.35 or X.21 serial interface

Protocols/Standards

Supported ATM Forum UNI 3.1, ITU-TI.432

Frame Relay Forum FRF.8, FRF. 5

Data Rate 200 - 2312 kbps

Flash memory 8 Megabits

DRAM 64 Megabits

Power Source 110-240 VAC, 50-60 Hz

G.handshake G.hs (ITU-T G.994.1) for rate negotiation

Characteristic Description

AC input voltage 110-240 VAC

AC input current ~.1 Amps

Operating

Temperature Range 32 to 122 deg F (0 to 50 deg C)

Operating humidity Humidity: 5 to 90% noncondensing

Power Requirements 110-240 VAC @ ~.1 Amps

Dimensions (H x W x

D) 1.5 in. x 9.0 in. x 6.25 in.

Weight (average

shipping) 1.5 lbs (0.68 kg)

Regulatory Approvals

and Compliance

FCC Part 15, Class B

EN55022, CISPR 22, Class B

UL/CUL 1950 3rd edition

TS001:1997 S043:2001

CE marked for EMC and safety

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Standards Compliance

•ATM Forum

• Frame Relay FRF.5 and FRF.8

Management

• Command Line Interface

3. SHDSL APPLICATIONS

Figure 3 below, Figure 4 on page 20, and Figure 5 on page 20 show some typical applications for the

Express 6503.

Figure 3. FRF5 Application

DS3MX

POWER

STATUS

TEST

LOCKOUT

ON LINE

APS

TEST/

ENABLE

1181020L1

DS3MX

POWER

STATUS

TEST

LOCKOUT

ON LINE

APS

TEST/

ENABLE

1181020L1

SCU

FSE

MODE

SELECT

ALM

HST

ACO

1181015L1

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

1181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

181300L1

DSX

HD-10 BRI Mux

POWER

DSX

LBK

DSL

181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

1181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

181200L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

Express 6503

ALM

PWR NET TEST

TD RD CS

ATM

Network

FR Router

LAN V.35/X.21

Serial Interface

Express 6503

ATM

G.shdsl

DS3MX

POWER

STATUS

TEST

LOCKOUT

ON LINE

APS

TEST/

ENABLE

1181020L1

DS3MX

POWER

STATUS

TEST

LOCKOUT

ON LINE

APS

TEST/

ENABLE

1181020L1

SCU

FSE

MODE

SELECT

ALM

HST

ACO

1181015L1

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

1181300L1

DSX

HD-10 BRI Mux

POWER

DSX

LBK

DSL

181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

181200L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

ATM

G.shdsl

Express 6503

ALM

PWR NET TEST

TD RD CS

Express 6503

V.35/X.21

Serial Interface

FR Router

LAN

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

Figure 4. FRF8 Application

Figure 5. LDM Application

DS3MX

POWER

STATUS

TEST

LOCKOUT

ON LINE

APS

TEST/

ENABLE

1181020L1

DS3MX

POWER

STATUS

TEST

LOCKOUT

ON LINE

APS

TEST/

ENABLE

1181020L1

SCU

FSE

MODE

SELECT

ALM

HST

ACO

1181015L1

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

1181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

1181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACT A

GRN = NORM

YEL = MAN

1181300L1

DSX

QFC-C

DSX

PWR

DSX

TST

ALM

ACTA

GRN = NORM

YEL = MAN

1181300L1

DSX

HD-10 BRI Mux

POWER

DSX

LBK

DSL

1181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

1181200L1

HD-10 BRI Mux

POWER

DSX

LBK

DSL

1181200L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

T1-OR

PWR

DSX

LBK

ALM

–

ACT

GRN = NORM

YEL = MAN

1181310L1

HTU-C

1181101L1

PWR

DSX

TST

LP1

LP2

ALM

ACT

GRN=NORM

YEL=MAN

ATM

Network

ATM Router

LAN

Express 6503

ALM

PWRNET TEST

TDRDCS

Express 6503

ATM

G.shdsl

V.35/X.21

Serial Interface

FR Router

LAN

Express 6503

ALM

PWR NET TEST

TD RD CS

Express 6503

DCE Traffic G.shdsl

LTU

Express 6503

ALM

PWR NET TEST

TD RD CS

Express 6503

DCE Traffic

NTU V.35/X.21

Serial Interface

V.35/X.21

Serial Interface

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

4. CONFIGURING THE EXPRESS 6503

System Info

The SYSTEM INFO menu provides basic information about the unit and contains data fields for editing

information. Figure 6 displays the items available when you select this menu item.

Figure 6. System Information Menu

>System Name

Provides a user-configurable text string for the name of the Express 6503. This name can help you

distinguish between different installations. You can enter up to 31 alpha-numeric characters in this field,

including spaces and special characters (such as an underbar). This name will appear on the top line of all

screens.

>System Location

Provides a user-configurable text string for the location of the Express 6503. This field is to help you keep

track of the actual physical location of the unit. You can enter up to 31 alphanumeric characters in this

field, including spaces and special characters (such as an underbar).

>System Contact

Provides a user-configurable text string for a contact name. You can use this field to enter the name, phone

number, or email address of a person responsible for the Express 6503. You can enter up to 31

alpha-numeric characters in this field, including spaces and special characters (such as an underbar).

>Unit Name

Product-specific name for the Express 6503.

>CLEI Code

CLEI code for the Express 6503.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

> Part Number

ADTRAN part number for the Express 6503.

>Serial Number

Serial number of the Express 6503.

>Firmware Revision

Displays the current firmware revision level of the Express 6503.

>Bootcode Revision

Displays the bootcode revision.

>System Uptime

Displays the length of time since the Express 6503 reboot.

>Date/Time

Displays the current date and time, including seconds. This field can be edited. Enter the time in 24-hour

format (such as 23:00:00 for 11:00 pm). Enter the date in mm-dd-yyyy format (for example, 10-30-2001).

Each time you reset the system, this value resets to 0 days, 0 hours, 0 min, and 0 secs.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

System Config

Set up the Express 6503 operational configuration from the SYSTEM CONFIG menu. Figure 7 shows the

items included in this menu.

Figure 7. System Configuration Menu

>Telnet Access

This parameter determines whether the unit allows telnet access over the SHDSL link. The choices are ON

and OFF. The factory default setting is ON.

>Telnet User List

The telnet user list defines the users which are allowed telnet access and the rules governing that access.

Name Up to four users can be configured for access to the Express 6503. Each user can be assigned a

security level and time out. The name is a text string of the user name for this session. You can

enter up to 15 characters in this field. The factory default is no entry in the NAME field.

Authen Method

The user can be authenticated by selecting:

The factory default is PASSWORD.

Password

When the authenticating method is password, this text string is used for the password. You can

enter up to 15 characters in this field. The factory default setting is no entry in this field.

Idle Time (1-255)

This sets the amount of time in minutes you can be idle before you are automatically logged

off. The factory default is 10 MINUTES. The range is 1-255 MINUTES.

Password The Password field is used to authenticate the user.

Radius The Radius client is used for authenticating the user.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

Level This is the security level granted to the user. The table below gives a brief description of each

level. The factory default is 0.

>SNMP Menu

The Express 6503 is an SNMP agent. It can respond to Gets and Sets, and can generate traps. This menu

sets up the access, communities, and traps.

AccessThis parameter determines whether the unit allows SNMP management. When set to OFF,

SNMP access is denied. When set to ON, the Express 6503 will respond to SNMP managers

based on the configuration. The factory default is ON.

Communities

This list is used to set up to eight SNMP community names that the Express 6503 will allow.

Factory default sets the community "public" with "Get" privileges only.

Name

This is a text string for the community name. You can enter up to 31 characters in this field.

The factory default setting is no entry in this field.

Privilege

The access for this manager can be assigned three levels. The factory default is NONE.

Manager IP

This is the IP address of SNMP manager. If set to 0.0.0.0, any SNMP manager can access the

Express 6503 for this community. The factory default is 0.0.0.0.

Select level... If you want the user to....

5 Have read-only permission for all menu items - minimum rights

4 Have read permission for all menu items and permission to use test commands

3 Have access to all commands except passwords, flash download,

authentication methods, interface configurations, and telnet security levels.

2 Have access to all commands except passwords, flash download,

authentication methods, and telnet security levels.

1 Have access to all commands except passwords and telnet security levels.

0 Have permission to edit every menu item, including creating and editing

passwords -- maximum rights

None No access is allowed for this community or

manager.

Get Manager can only read items.

Get/Set Manager can read and set items.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Traps This list defines the manager IP and the manager name.

Manager Name

The Express 6503 can generate SNMP traps. This list allows up to four managers to be listed

to receive traps.

MANAGER NAME is the text string describing the name of the entry. It is intended for easy

reference and has no bearing on the SNMP trap function. You can enter up to 31 characters in

this field. The factory default is no entry in the manager name field.

Manager IP

This is the IP address of the manager that is to receive the traps. The factory default is 0.0.0.0.

>Maint Port Menu

The Express 6503 VT 100 CRAFT port is located on the rear panel. The setup for this port is under this

menu (Figure 8).

Figure 8. Maintenance Port Menu

Password Protect

When set to NO, the maintenance port is not password protected. When YES (def), the Express

6503 will prompt for a password upon startup.

Password

This is the text string that is used for comparison when password protecting the maintenance

port. By default, no password is entered.

Passwords are case-sensitive.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

Baud Rate

This is the asynchronous rate that the maintenance port will run. The possible values are 300,

1200, 2400, 4800, 9600 (def), 19200, 38400, 57600, and 115200.

Data Bits

This is the asynchronous bit rate that the maintenance port will run. The possible values are 7

or 8 (def) bits.

Parity This is the asynchronous parity that the maintenance port will run. The possible values are

NONE (def), ODD, or EVEN.

Stop Bits

This is the stop bit used for the maintenance port. The possible values are 1 (def), 1.5 or 2.

Instructions for Changing Passwords

Step Action

1 Select the PASSWORD field—a new PASSWORD field displays.

2Type the new password in the ENTER field.

3Type the new password again in the CONFIRM field.

The password can contain up to 15 alphanumeric characters.

You can also use spaces and special characters in the

password.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

System Utility

Use the SYSTEM UTILITY menu (Figure 9) to upgrade firmware.

Figure 9. System Utility Menu

>Upgrade Firmware

Updates firmware when Express 6503 enhancements are released.

Transfer Method

Two transfer methods are available for use in updating the Express 6503.

The two methods for upgrading are XMODEM and TFTP. TFTP requires a TFTP server

running on the network. The Express 6503 starts a TFTP client function which gets the

upgrade code from the TFTP server. Selecting XMODEM will load the upgrade code through

the CRAFT port using any PC terminal emulator with xmodem capability. The factory default

is TFTP. (See Appendix B. Updating Express 6503 Firmware using XMODEM on page 52 for

more information.)

TFTP Server Address

This is required when the transfer method is TFTP. It is the IP address or domain name (if

DNS is configured) of the TFTP server. The factory default is no entry in the TFTP server

address field.

TFTP Server Filename

This is required when the transfer method is TFTP. It is the case-sensitive file name which

contains the upgrade code. The factory default is no entry in the TFTP server filename field.

Transfer Status

This appears when TFTP is used. It displays the status of the transfer as it happens. Any error

or success message will be displayed here.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

Start Transfer

This activator is used when the configurable items in this menu are complete.

Abort Transfer

Use this activator to cancel a TFTP transfer in progress.

>Config Transfer

Sends a file containing the Express 6503 configuration to a PC connected to the CRAFT port using

XMODEM protocol or to a file on a TFTP server using the TFTP protocol.

CONFIG TRANSFER also lets you save the Express 6503 configuration as a backup file, so you can use the

same configuration with multiple Express 6503 units. In addition, CONFIG TRANSFER can retrieve a

configuration file from a TFTP server.

To support these transfers, ADTRAN delivers a TFTP program with the Express 6503 called TFTP Server.

You can configure any PC running Microsoft Windows with this software, and store a configuration file.

Transfer Method

Displays the method used to transfer the configuration file to or from a server. XMODEM

and TFTP are supported. The factory default setting is TFTP.

Transfer Type

Only Binary transfers are currently supported.

TFTP Server IP Address

Specifies the IP address of the TFTP server. Get this number from your system administrator.

If using the ADTRAN Utilities TFTP server, this number appears in the TFTP server status

window. The factory default value is 0.0.0.0.

TFTP Server Filename

Defines the name of the configuration file that you transfer to or retrieve from the TFTP

server. The default name is 6503.cfg, but you can edit this name.

Current Transfer Status

Indicates the current status of the update.

Before using START TRANSFER, the Express 6503 should have a valid IP address, subnet

mask, and default gateway (if required).

Before using CONFIG TRANSFER, the Express 6503 should have a valid IP address, subnet

mask, and default gateway (if required).

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Previous Transfer Status

Indicates the status of the previous update.

Load and Use Config

Retrieves the configuration file specified in the TFTP SERVER FILENAME field from the

server. To start this command, enter Y to begin or enter N to cancel.

Save Config Remotely

Saves the configuration file specified in TFTP SERVER FILENAME to the server identified in

TFTP SERVER IP ADDRESS. To start this command, enter Y to begin or enter N to cancel.

>Ping

This menu includes the various ping test parameters such as the activator to control the test, host address,

packet size, and number of packets.

Start/Stop

Activator to start and cancel a ping test.

Host Address

IP address or domain name (if DNS is configured) of device to receive the ping. The factory

default is no entry in the host address field.

Size (40-1500)

Total size of the ping to send. Range is 40 to 1500 bytes. The default is 64.

# of Packets

Total packets to send every 2 seconds. Setting this to 0 allows the client to ping continuously.

The default is 1.

If you execute this command, the Express 6503 retrieves the configuration file, reboots, then

restarts using the new configuration.

Before using this command, you must have identified a valid TFTP server in TFTP SERVER

IP ADDRESS.

Only one ping session can be active at a time.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

# Transmits

Total packets sent (read only).

# Receives

Total packets received (read only).

% Loss

Percentage loss based on ping returned from host (read only).

>Terminal Mode

The terminal mode gives the user a command-line prompt. From this prompt, you can:

• Perform a reset with the command "reset."

• Perform a factory restore with the command "fact restore."

• Configure the unit. The Express 6503 has the ability to download a text file which contains the

configuration of the entire unit. This configuration may then be altered in a text editor, and then

uploaded to that same or any other Express 6503.

• Debug and troubleshooting. This function would be carried out with the assistance of ADTRAN

Technical Support.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

System Test

Use the SYSTEM TEST menu (Figure 10) to test and debug typical applications.

Figure 10. System Tests Menu

>DTE Loopback

All data is looped back to the serial interface. The choices are DTE LPBK ON and DTE LPBK OFF. The

factory default setting is DTE LPBK OFF.

>Network Loopback

All data is looped back to the network interface. The choices are DISABLED and ENABLED. The factory

default setting is DISABLED.

WAN

This menu defines and displays the ATM/Frame, SHDSL, and IP configuration parameters and statistics.

>ATM/Frame Config/Stats

This menu defines and displays the ATM and frame relay configuration parameters and statistics.

ATM/FR IWF

This menu contains the setup and status for the ATM/Frame Relay interworking functions.

Mode

The MODE setting configures the V.35 port for FRF5 or FRF8 operation, depending upon the

application being supported. The factory default setting is FRF5.

FRF5

This is also known as Network Interworking. Use this mode for Frame Relay over ATM.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

FRF8

This is also known as Service Interworking. In this mode, the Express 6503 performs a

translation between Frame Relay and ATM protocols.

Configuration

The CONFIGURATION menu is used to support the configuration of Frame-to-ATM

interworking, signaling formats, timeout values, and PVC settings.

The following settings are used for FRF5.

DTE FR MAINT

PROTOCOL Frame Relay maintenance or signaling

protocol between local V.35 port and the

attached DTE port. This unit supports ANSI

Annex A, CCITT Q933 Annex D, CISCO

LMI or Static (no signaling). The factory

default setting is LMI.

DTE FR POLL TIMEOUT

T392 (5-30) T392 for signaling protocol. The factory

default setting is 15. This parameter has no

meaning if the Maint Protocol is set to

STATIC (no signaling).

NTWK FRM PORT

CONFIGURE Logical Frame Relay ports over ATM. Up to

4 ports are supported with each port

supporting up to 4 DLCI mappings (max of

4 DLCIs per PVC). Go to NUM field. Typing

"i" or "I" will insert another entry, and typing

"d" or "D" will delete one entry.

NAME To identify your port. You can enter up to 31

characters in this field. The factory default

setting is no entry in this field.

ATM VPI Specifies the virtual path over which this

logical port is running. The range is 0-255.

The factory default setting is 0.

ATM VCI Specifies the virtual circuit over which this

logical port is running. The range is

0-65535. The factory default setting is 38.

PCR Peak Cell Rate for ATM. The range is

0-5434. The factory default setting is 5434.

SCR Sustained Cell Rate for Variable Bit Rate

(VBR) connections. SCR is used to ensure

critical service base on an average rate

below PCR. The factory default setting is 0.

MBS Maximum Burst Size is the number of cells

that can be sent over PCR connections.

QOS Quality of Service. The choices are ATM

UBR and VBR NON-REAL TIME. The factory

default setting is UBR.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

DE MAP Maps Frame Relay Discard Eligible (DE) bit

to the ATM Cell Loss Priority (CLP) bit. The

choices are CLP ALWAYS 0, CLP ALWAYS

1, and MAP DE TO CLP. The factory

default setting is CLP ALWAYS 0.

CLPI MAP Maps ATM Cell Loss Priority (CLP) bit to

the Frame Relay (DE) bit. The choices are

NO MAP CLP and MAP CLP TO DE. The

factory default setting is NO MAP CLP.

D/C Sets the Data/Control (DC) bit in the header

to either 0 or 1. The factory default setting

is set 0 (1 is not commonly used).

HEADER This field specifies the header length

format. The support of a 2 byte header is

mandatory in the Networking

Internetworking (FRF5) specifications. The

3 byte header is for experimentation and

the 4 byte header support is optional in

FRF5 specifications. The choices are 2

BYTES, 3 BYTES, or 4 BYTES. The factory

default setting is 2 BYTES.

MAINT PROTOCOL Specifies the maintenance protocol. The

choices are ANNEX D, ANNEX A, LMI, and

STATIC. The factory default setting is

ANNEX D.

MUX MODE Many DLCIs or one DLCI mapping over this

port. There is a one to one ratio for logical

Frame Relay Connections to ATM Virtual

Channel Connection (VCC) and this is the

ONE TO ONE option. The DLCI range is

16-991 and the DLCI is agreed upon by the

ATM end users’ systems; if not, the ATM

end system must use the default value of

1022. The other method of multiplexing is

MANY TO ONE where several logical Frame

Relay connections are multiplexed into one

ATM VCC. The MANY TO ONE method is only

used for Frame Relay PVCs that terminate

on the same local ATM system. The

choices are ONE TO ONE or MANY TO ONE.

The factory default setting is ONE TO ONE.

DLCI MAP This table shows the DTE DLCI number,

the network DLCI number and the state.

The default DTE DLCI is 0. The default

network DLCI is 1022.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

The following settings are used for FRF8.

OAM CC OAM CC cells are continuity check cells

used to verify the integrity of an ATM PVC.

OAM CC responds to continuity check cells

when enabled. This option is used

particularly for compatibility with the

Newbridge ATM switch. The choices are

ENABLE and DISABLE. The factory default

setting is DISABLE.

DTE FR Maint Protocol Frame Relay maintenance or signaling

protocol between local V.35 port and the

attached DTE port. This unit supports ANSI

Annex A, CCITT Q933 Annex D, CISCO

LMI or Static (no signaling). The factory

default setting is LMI.

DTE FR Poll Timeout

T392 (5-30) T392 for signaling protocol. The factory

default setting is 15. This parameter has no

meaning if the Maint Protocol is set to

STATIC (no signaling).

Fr/ATM PVC Mapping Up to 4 mappings are supported.

FrDLCI Frame Relay DLCI on V.35 port. The range

is 16-1007. The factory default setting is 0.

ATM VPI Specifies the virtual path to which DLCI is

mapped. The range is 0-255. The factory

default setting is 0.

ATM VCI Specifies the virtual circuit to which DLCI is

mapped. The range is 0-65535. The

factory default setting is 38.

PCR Peak Cell Rate for ATM. The range is

0-5434. The factory default setting is 5434.

QOS Quality of Service. The choices are ATM

UBR and VBR NON-REAL TIME. The factory

default setting is UBR.

Translate Network providers have the ability to

provision each PVC pair with an

encapsulation mode to ensure

interoperability between terminal

equipment. The two modes are transparent

and translation. Translation (TRANSLATE)

mode is most common and carries multiple

upper layer protocols over Frame Relay

and ATM PVCs. The choices are NO and

YES. The factory default setting is YES.

De Map Map Frame Relay DE bit to ATM CLPI bit.

The choices are ALWAYS 0, ALWAYS 1, and

CONVERT. The factory default setting is

ALWAYS 0.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Status

Frame Relay

(These stats are available when the mode is set to FRF 5 or FRF8).

FECN Allows mapping of Frame Relay FECN

(Forward Explicit Congestion Notification)

bit to ATM EFCI (Explicit Forward

Congestion Indicator) bit. The choices are

NO MAP FECN and MAP FECN. The

factory default setting is NO MAP FECN.

OAM CC OAM CC cells are continuity check cells

used to verify the integrity of an ATM PVC.

OAM CC responds to continuity check cells

when enabled. This option is used for

compatibility with the Newbridge ATM

switch. The choices are ENABLE and

DISABLE. The factory default setting is

DISABLE.

Ports

Port Index Port number.

Signal State Frame relay state.

Tx Frames Number of frames transmitted.

Rx Frames Number of frames received.

Tx Bytes Number of bytes transmitted.

Rx Bytes Number of bytes received.

Signal TX Frames Number of Frame Relay signaling packets

transmitted out the port.

Signal RX Frames Number of Frame Relay signaling packets

received by the port.

Drop Unknown DLCI Number of frames received that were not

associated with any known PVC.

Drop Invalid DLCI Number of frames received that had illegal

DLCIs.

Clear Stats When activated, this field will clear all frame

relay port stats.

PVCs

Port Port number.

DLCI DLCI number.

State Frame relay state.

Tx Frames Number of frames transmitted.

Rx Frames Number of frames received.

Tx Bytes Number of bytes transmitted.

Rx Bytes Number of bytes received.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

IWF Status

(These stats are only available when the mode is set to FRF8).

DE Count Number of packets received on an

individual DLCI with the DE bit set.

CR Count Number of packets received on an

individual DLCI with the CR bit set.

BECN Count Number of packets received on an

individual DLCI with the BECN bit set.

FECN Count Number of packets received on an

individual DLCI with the FECN bit set.

Unknown Frame RX Frames received that were not associated

with any PVC entries.

DLCI Displays the DLCI number.

DLCI State Displays the DLCI state. If the DLCI is

operational, this field will display active. If

the DLCI is not operational, this field will

display inactive.

ATM VPI Displays the ATM VPI number.

ATM VCI Displays the ATM VCI number.

ATM State Possibilities: ACTIVE, CONFIRM, CREATED,

CONGESTION

DE Displays how the DE map is configured.

Choices are ALWAYS 0, ALWAYS 1, and

CONVERT.

FECN Displays how the FECN map is configured.

Choices are NO MAP FECN and MAP FECN.

AAL Status Shows status of AAL frames.

Max PDU Size Maximum Protocol Data Unit size for the

ATM AAL5 frame.

TX Data Bytes Number of AAL5 data bytes transmitted.

TX Frames Number of AAL5 frames transmitted.

TX Cells (All Types) Total number of AAL5 cells transmitted

(all types).

TX OAM Cells Number of AAL5 OAM cells transmitted.

TX RM Cells Number of AAL5 RM cells transmitted.

TX ERCI=1 Cells Number of AAL5 ERCI=1 cells

transmitted.

TX CLPI=1 Cells Number of AAL5 CLPI=1 transmitted.

RX Data Bytes Number of AAL5 data bytes received.

RX Frames Number of AAL5 frames received

RX User Cells Number of AAL5 user cells received

RX OAM Cells Number of AAL5 OAM cells received

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

ATM Config

Use the ATM CONFIG menu (Figure 11) to set the parameters listed below.

Figure 11. ATM Config Menu

RX Bad OAM Cells Number of AAL5 Bad OAM cells

received

RX RM Cells Number of AAL5 RM cells received

RX Bad RM Cells Number of AAL5 Bad RM cells received

RX EFCI=1 Cells Number of AAL5 ERCI=1 cells received.

RX CLPI=1 Cells Number of AAL5 CLPI=1 cells received.

Discard RX Cells Number of AAL5 RX cells which were

discarded.

Discard RX Frames Number of AAL5 RX frames which were

discarded.

Discard TX Frames Number of AAL5 TX frames which were

discarded.

TX Queue Overflow Number of cells discarded due to queue

overflow.

TX Out of Cells Number of AAL5 TX Out of Cells.

TX Inactive Number of TX frames discarded while

PVC is inactive.

RX Inactive Number of RX frames discarded while

PVC is inactive.

CRC Errors Number of AAL5 CRC Errors.

Reassembly

Timeouts Number of AAL5 Reassembly Timeouts.

Too Long Frames Number of AAL5 Too Long Frames.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

Idle Cells

The IDLE CELLS format must be configured for either ATM FORUM (UNASSIGNED) or ITU

(IDLE). Configuring this setting incorrectly for a particular circuit will cause poor performance

at the ATM layer. The factory default setting is ATM FORUM (UNASSIGNED).

Data Scrambling

DATA SCRAMBLING can be ENABLED or DISABLED for cell traffic. Configuring this setting

incorrectly for a particular circuit will cause poor performance at the ATM layer. The factory

default setting is DISABLED.

ATM Stats

Use the ATM STATS menu (Figure 12) to set the parameters listed below.

Figure 12. ATM Stats Menu

AP: TxCells

This is the number of cells transmitted.

This setting must match the configuration setting of the ATM switch or DSLAM at the other

end of the circuit.

This setting must match the configuration setting of the ATM switch or DSLAM at the other

end of the circuit.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

AP: RxCells

This is the number of cells received.

AP: RxOAMCells

This is the number of OAM cells received

AP: ReceiveCellsDiscarded

This is the number of cells received and discarded for an unconfigured PVC.

AP: ReceiveCellErrors

This is the number of cells received with an HEC error.

AP: Sync

This indicates cell delineation at the ATM layer.

AP: OutOfCellDelineation

This indicates loss of cell delineation at the ATM layer.

AAL5: TransmitFrames

This is the number of AAL5 frames transmitted.

AAL5: ReceiveFrames

This is the number of AAL5 frames received.

AAL5: TransmitDiscardedFrames

This is the number of AAL5 frames discarded.

AAL5: ReceiveErrors

This is the number of AAL5 errors received.

AAL5: ReceiveDiscardedFrames

This is the number of AAL5 frames discarded.

Clear Stats

This is used to clear the counters on this menu screen.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

Clear Channel

Clear channel is a protocol used to transmit data between end users. The default is disabled.

This option is found under the Wan Sub Menu.

Figure 13. Wan Sub Menu

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

>SHDSL Config/Stats

Figure 14 below shows this menu.

Figure 14. SHDSL Config/Stats Menu

SHDSL Config

NTU/LTU Mode

NTU

Network termination unit or remote device. Set the mode to NTU for network connections.

The factory default setting is NTU.

LTU

Line termination unit or host device. Set the mode to LTU for CPE connections.

Data Rate

Select the data rate of the SHDSL network connection. The choices are 3-36 DS0s with 64K

per DS0. The factory default is 2312 KBPS (36 DS0S).

Frame Mode

Type of framing required.

SHDSL Framed

SHDSL framed synchronous operation. The factory default setting is SHDSL FRAMED.

SHDSL Framed Plesio w/bit stuffing

SHDSL framed plesiosynchronous with bit stuffing.

Annex=A/B

Select ANNEX A, ANNEX B, or ANNEX A&B. The factory default setting is ANNEX A.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

RADSL (Auto/Fixed)

Select AUTO or FIXED. The factory default setting is fixed.

SHDSL Stats

Training State

This field is for internal ADTRAN use only.

NTU/LTU Mode

Displays the mode the unit is set for (NTU or LTU).

Data Rate

Displays the data rate of the SHDSL network connection.

Frame Mode

Displays the type of framing (either SHDSL Framed or SHDSL Framed Plesio w/bit stuffing).

G.hs Event

This field is for internal ADTRAN use only.

G.hs State

This field is for internal ADTRAN use only.

Annex

Displays the Annex type set in the SHDSL config.

SHDSL Eoc Stats

SHDSL Version

ITU-T G.991.2 version supported by remote unit.

Vendor List Number

List number of remote unit.

Vendor Issue Number

Issue number of remote unit.

CLEI Code

CLEI code of remote unit.

Vendor ID

Vendor ID of remote unit.

Manufacture Date

Manufacture date of remote unit.

PROM Checksum

PROM checksum of remote.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Vendor Model Number

Model number of remote unit.

Vendor Serial Number

Serial number of remote unit.

Vendor Software Version

Software revision of remote unit.

Performance Monitoring

SNR Margin (dB)

Signal-to-noise ratio margin on SHDSL line.

Loop Attenuation

Loop attenuation on SHDSL line.

Errored Seconds

Number of errored seconds on SHDSL line.

Severely Errored Seconds

Number of severely errored seconds on SHDSL line.

Unavailable Seconds

Number of unavailable seconds on SHDSL line.

Code Violations Count

Number of code violations on SHDSL line.

Loss of Sync Word Seconds

Number of seconds of sync loss on SHDSL line.

>IP Config/Stats

IP Config

This menu includes the various IP configuration parameters associated with the management

PVC. It includes a description field, VPI, VCI, PCR, QOS, Protocol, RFC1483 IP, and OAM

CC.

Description

This field provides a user-configurable text string for describing the management PVC. You

can enter up to 31 alpha-numeric characters in this field, including spaces and special

characters (such as an underbar).

VPI

Specifies the virtual path to which the management DLCI is mapped. The range is 0-255.

The factory default setting is 0.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

VCI

Specifies the virtual circuit to which the management DLCI is mapped. The range is 0-65535.

The factory default setting is 38.

PCR

Peak Cell Rate for ATM for the management DLCI. PCR is normally used for UBR

connections and can be calculated using the equations below.

Peak Cell Rate = Bit Rate/424 (The total of all PCRs must not exceed the line rate).

The range is 0-5434. The factory default setting is 5434.

SCR

Sustained Cell Rate for Variable Bit Rate (VBR) connections. SCR is used to ensure some

level of service based on an average rate below PCR. The factory default setting is 0.

QOS

Quality of Service for ATM UBR and VBR non-real time for the management DLCI. The

factory default setting is UBR.

Protocol

The factory default setting is RFC1483.

RFC1483 IP

This menu configures the various RFC1483 IP parameters associated with the management

DLCI. This includes the active parameter, far-end and local IP addresses, netmask and various

RIP parameters.

Active

Adds this static route entry to the IP routing table when set to YES (default) and removes it (if

it was previously added) if set to NO.

Far-End IP Address

The IP address of the host or network address of the device being routed to. Default is 0.0.0.0.

IP Netmask

Determines the bits in the previous IP address that are used. If this is to be a host route, it must

be set to all ones (255.255.255.255). Default is 0.0.0.0.

Local IP Address

The IP Address of the 6503. Default is 0.0.0.0.

OAM CC

OAM CC cells are continuity check cells used to verify the integrity of an ATM PVC. The

factory default is disable.

IP StatsThis field displays the various IP parameters associated with the management PVC. It

includes the IP route table, IP address, netmask, gateway, port, use, flags, hops, and TTL.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

IP Routes

This lists the contents of the Express 6503's IP router table.

IP Address

Network or host destination address.

Netmask

Network mask applied to the destination address.

Gateway

Host or router to receive this packet.

Port

Port gateway is located on:

local sent directly to the Express 6503 router

wan0Express 6503's first PPP bundle

fr 0...fr 9Express 6503 is connected up to 10 DLCIs

Use

Number of times the Express 6503 has referenced the route.

MBS Maximum Burst Size is the total number of cells that can be sent over PCR connections.

Flags

Important tags associated with this route entry

Hops

Number of routers that must go through to get to destination. Ranges from 0-15 or 16 for

infinite (can’t get there from here).

TTL

Seconds until address is removed from table or “zombied.” Value of 999 means route is static.

ATM Data PVC

This menu describes the various ATM statistics.

VPI

Displays the ATM VPI number.

Hroute is a host route

Groute is a gateway route

Droute learned dynamically from RIP

Iroute learned from an ICMP redirect

Proute is private and is not advertised with RIP

Troute is to a triggered port (updates only when table

changes)

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

VCI

Displays the ATM VCI number.

TxFrames

Displays the number of frames transmitted.

RxFrames

Displays the number of frames received.

TxCells

Displays the number of cells transmitted.

RxCells

Displays the number of cells received.

TxOverflow

Displays the number of cells discarded due to queue overflow

TxInactive

Displays the number of Tx frames discarded while PVC is inactive.

RxDiscard

Displays the number of cells received and discarded for an unconfigured PVC.

RxInactive

Displays the number of Rx frames discarded while PVC is inactive.

Rx CRC32 Errors

Displays the number of errors received.

TxOAM

Displays the number of OAM cells transmitted.

RxOAM

Displays the number of OAM cells received.

OAM_RxAIS

Indicates the reception of an alarm indication signal cell for a PVC.

OAM_RxRDI

Shows the reception of a Remote Defect Indication which indicates that the PVC has failed.

Clear Stats

Using this activator will clear the ATM Data PVC

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

DTE

>DTE Select/Config

Figure 15 shows this menu.

Figure 15. DTE Select/Config Menu

DTE Select (V.35/X.21)

DTE Configuration

DTE SUB-RATE can be set for 64K, 128K or NO SUB-RATE. The default is 64k.

CTS

Can be set to NORMAL or FORCED.

DCD

Can be set to NORMAL or FORCED.

DSR

Can be set to NORMAL or FORCED.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

APPENDIX A. NAVIGATING THE TERMINAL MENUS

Terminal Menu Window

The Express 6503 uses a multilevel menu structure that contains both menu items and data fields. All menu

items and data fields display in the terminal menu window, through which you have complete control of

the Express 6503 (see Figure 16).

Figure 16. Top-level Terminal Menu Window

Menu Path

The first line of the terminal menu window (the menu path) shows the session’s current position (path) in

the menu structure. For example, Figure 16 shows the top-level menu with the cursor on the SYSTEM INFO

submenu; therefore, the menu path reads EXPRESS 6503 SYSTEM INFO.

Window Panes

When you first start a terminal menu session, the terminal menu window is divided into left and right

panes. The left pane shows the list of available submenus, while the right pane shows the contents of the

currently selected submenu.

Window Pane Navigation

Use the following chart to assist you in moving between and within the two window panes.

Menu Path

Status Bar

Right Pane

System Time

Navigation Help

Mode

Left Pane

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Right Window Pane Notation

The right window pane shows the contents of the currently selected menu. These contents can include

both submenu items and data fields. Some submenus contain additional submenus and some data fields

contain additional data fields. The following chart explains the notation used to identify these

additional items.

Additional Terminal Menu Window Features

Navigating Using the Keyboard Keys

You can use various keystrokes to move through the terminal menus, to manage a terminal menu session,

and to configure the system. Press Ctrl-Z to activate a pop-up screen listing the navigation keystrokes.

To move... Press one of these keys...

From left pane to right pane Tab

Enter

Right arrow

From right pane to left pane Tab

Escape

Left arrow

Within each pane

Up arrow

Down arrow

Left arrow

Right arrow

This notation... Means that...

[+] More items are available when selected.

[DATA] More items are available when selected.

<+> An action is to be taken, such as activating a test.

Highlighted menu item You can enter data in this field.

Underlined field The field contains read-only information.

Mode Describes the mode of the Express 6503 base unit

(system).

Navigation Help Lists characters used for navigating the terminal menu

(Ctrl-Z). See also Moving through the Menus on page

50.

System Time Displays current time. See Date/Time on page 22 for

details on editing the time.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

Moving through the Menus

Session Management Keystrokes

To do this... Press this key...

Return to the home screen. H

Jump between two menu items.

Press J while the cursor is located on a menu item, and you jump

back to the main screen.

Go to another menu item, press J, and you jump back to the screen that

was displayed the first time you pressed J.

Press J when you want to jump between these items.

Select items. Arrows

Edit a selected menu item. Enter

Cancel an edit. Escape

Close pop-up help screens. Escape

Move between the left and right panes. Tab or

Arrows

Move to the top of a screen. A

Move to the bottom of a screen. Z

Ascend one menu level. Backspace

To do this... Press this...

Log out of a session. Ctrl-L

Invalidate the password entry and return to the login screen. Ctrl-S

Refresh the screen.

To save time, only the portion of the screen that has changed is refreshed.

This option should be necessary only if the display picks up incorrect

characters.

Ctrl-R

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Configuration Keystrokes

Getting Help

The bottom line of the terminal menu window contains context-sensitive help information. When the

cursor is positioned over a set of configuration items, a help message displays (when available) providing a

description of the item. When more detailed help is available for a particular item, ^A displays at the

bottom of the window. At this point, if you press Ctrl-A, a pop-up help screen displays with information

about the item.

Press Ctrl-Z to activate the help screen that displays the available keystrokes you can use to navigate the

terminal menus.

To do this... Press this key...

Restore factory default settings.

This setting restores the factory defaults based on the location of the cursor.

If the cursor is on a module line (in the MODULES menu), then only the

selected module is updated to factory defaults.

Copy selected items to the clipboard.

The amount of information you can copy depends on the cursor location

when you press C:

• If the cursor is over an editable field, only that item is copied.

• If the cursor is over the index number of a list, then all of the items in the

row of the list are copied.

Paste the item stored in the clipboard, if the information is compatible.

You must confirm all pastes—except those to a single editable field. P

Increment the value of certain types of fields by one when you paste

information into those fields. >

Decrement the value of certain types of fields by one when you paste

information into those fields. <

Insert a new list item.

For example, add a new item to the DLCI MAPPING by pressing I while the

cursor is over an index number. I

Delete a list item.

For example, delete an item from the DLCI MAPPING by pressing D while the

cursor is over the index number. D

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

APPENDIX B. UPDATING EXPRESS 6503 FIRMWARE USING XMODEM

The Express 6503 supports firmware updating using XMODEM transfer protocol via the base unit’s

CRAFT port. XMODEM is found in the VT 100 terminal emulation application in the ADTRAN Utilities

package and in most PC VT 100 communications software packages.

Before beginning this procedure, you must obtain the appropriate update file from ADTRAN Technical

Support at (888) 4ADTRAN (423-8726).

An XMODEM download can be initiated by pressing B and cycling power to the unit or by using the

console menus. The following materials are required.

• VT 100 terminal or PC with VT 100 terminal emulation software

• XMODEM software

Make certain that the communications software package being used has flow control

turned off.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

Updating Firmware

1. Using a VT 100 terminal emulation communication software package which contains

XMODEM protocol support, set the transmit rate of the emulation software to 9600 baud.

2. Press B while powering up the Express 6503.

3. Choose option 1, BEGIN XMODEM DOWNLOAD NOW, from the menu to start the XMODEM file

download.

4. Press Y at the START FLASH DOWNLOAD NOW prompt to continue with the XMODEM file transfer.

To prevent electrical shock, do not install equipment in a wet location or during a

lightning storm.

Electronic modules can be damaged by static electrical discharge. Before handling

modules, wear an antistatic discharge wrist strap to prevent damage to electronic

components. Place modules in antistatic packing material when transporting or storing.

When working on modules, always place them on an approved antistatic mat that is

electrically grounded.

Perform the Steps Below in the Order Listed

To shorten transmit time, select the option from the menu to change the transmit rate to

115.2 baud or the highest rate supported by the terminal emulation software. If this

transmit rate is changed, change emulation software properties to match this rate and

disconnect and connect again. Press Enter until the menu appears.

When Express 6503 is ready to receive the XMODEM upload, the menu screen will display

Transmit Flash . . . download file now. If this does not appear, please review the steps above

for possible configuration errors.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual

5. From the terminal emulation software, begin the XMODEM upload by using the appropriate

command sequence. (If necessary, refer to terminal emulation software documentation for

help. Also, when specifying the filename, ensure that the file transferred is the one provided by

ADTRAN. Otherwise, the update will not complete successfully.)

6. When the update has successfully completed, TRANSFER COMPLETE appears in the terminal

window. If an error occurs during the update, an error message will display in the terminal

window. If this occurs, return to Step 3 and attempt the update again. If the same error occurs,

contact ADTRAN Technical Support.

7. After the TRANSFER COMPLETE message has been displayed, cycle the power to the Express

6503.

8. Change the emulation software properties to 9600 baud. Disconnect and connect to the unit at

this transmit rate and continue configuring the unit as normal.

Updating Firmware via the Console Menus

1. Using a VT 100 terminal emulation communication software package which contains

XMODEM protocol support, log in to Express 6503.

2. Select SYSTEM UTILITY/UPDATE FIRMWARE.

3. Select XMODEM for TRANSFER METHOD.

4. Press Enter on START TRANSFER <+>.

5. When prompted, press Y to erase flash.

Because XMODEM data is being transferred in-band through the menu interface, the VT 100

menus of Express 6503 will be inoperable from the CRAFT port.

It is suggested that a factory default be conducted after the unit is updated with new

firmware.

When Express 6503 is ready to receive the XMODEM upload, the menu screen will clear

and display Transmit Flash . . . download file now. If this does not appear, please review the

steps above for possible configuration errors.

Express 6503 SHDSL ATM DSU User Manual User Interface Guide

6. From the terminal emulation software, begin the XMODEM upload by using the appropriate

command sequence. (If necessary, refer to terminal emulation software documentation for

help. Also, when specifying the filename, ensure that the file transferred is the one provided by

ADTRAN. Otherwise, the update will not complete successfully.)

7. When the update has successfully completed, TRANSFER COMPLETE displays in TRANSFER

STATUS. The module restarts immediately and resumes operation. If an error occurs during the

update, an error message will display in the TRANSFER STATUS field. If this occurs, return to Step

3 and attempt the update again. If the same error occurs, contact ADTRAN Technical Support.

Because XMODEM data is being transferred in-band through the menu interface, the VT

100 menus of Express 6503 will be inoperable from the CRAFT port.

User Interface Guide Express 6503 SHDSL ATM DSU User Manual
