Washer Extractor Parts Manual SC125BYV F232112

User Manual: SC125BYV

Open the PDF directly: View PDF .
Page Count: 70

Cover
Model Identification
Table of Contents
Parts Index

Parts

www.alliancelaundry.com

Washer-Extractor

Cabinet Hardmount

Refer to Page 3 for Model Numbers

B004C_F232112

Part No. F232112R20

August 2017

F232112 1

means without the expressed written consent of the publisher.

Table of Contents

Title Page

Parts Ordering Information........................................................................................................................................ 2

Serial Plate Location ................................................................................................................................................. 2

Model Identification ................................................................................................................................................... 3

Product Overview for A and B-Control...................................................................................................................... 4

Product Overview for NetMaster, Mechanical Timer and P, S and V-Computer ...................................................... 6

Decals ....................................................................................................................................................................... 8

Control Module - Models SC125VNV and UC125VNV ........................................................................................... 10

Control Module........................................................................................................................................................ 12

AC Drive - Models SC125ANV, SC125VNV, UC125ANV and UC125VNV............................................................ 14

AC Drive - Models HC125BCV, HC125BYV and SC125BYV................................................................................. 16

PowerFlex 40 AC Drive - Models SC125ANV, SC125VNV, UC125ANV and UC125VNV ..................................... 18

Valve Panel - Models SC125ANV, SC125VNV, UC125ANV and UC125VNV ....................................................... 20

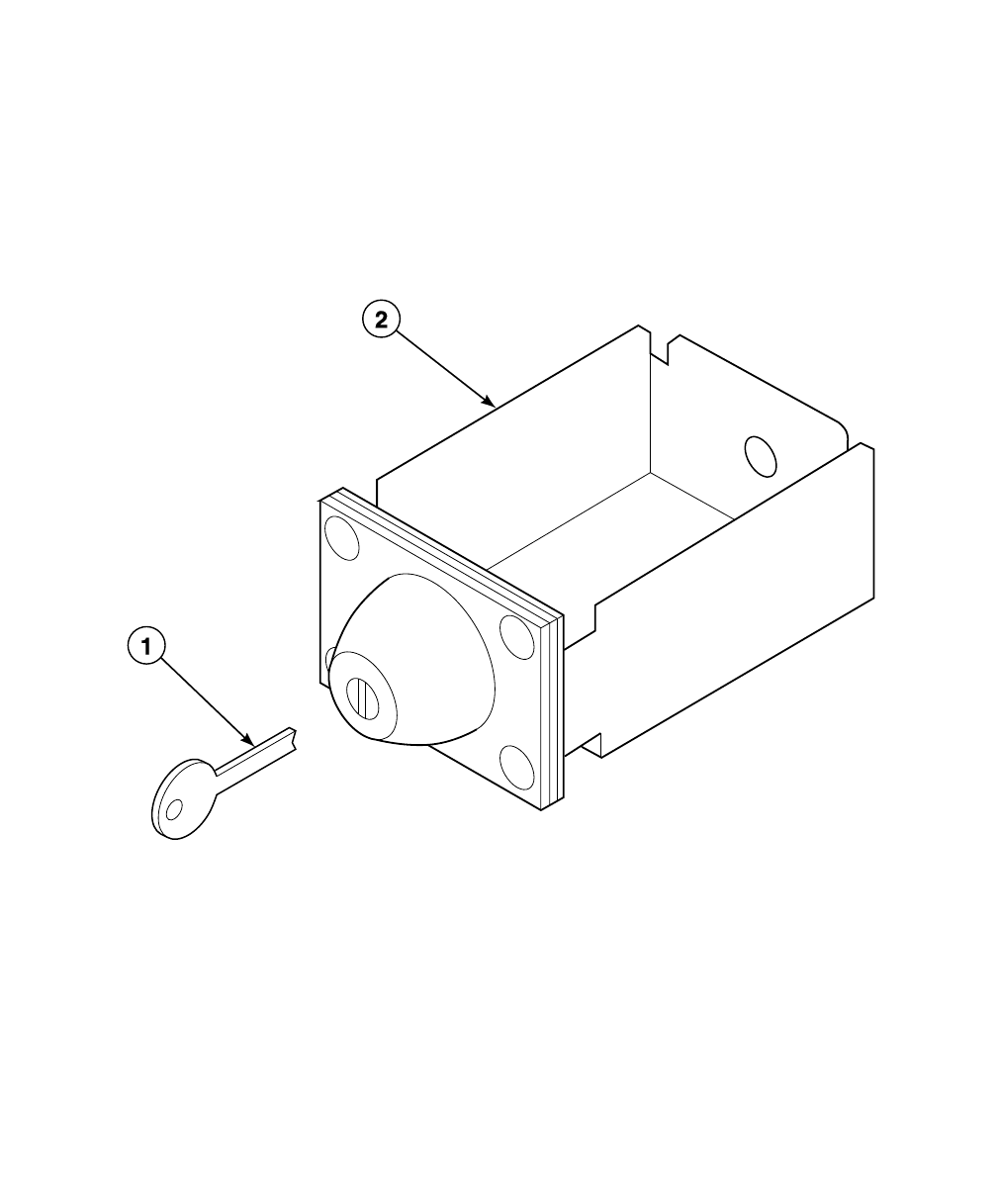

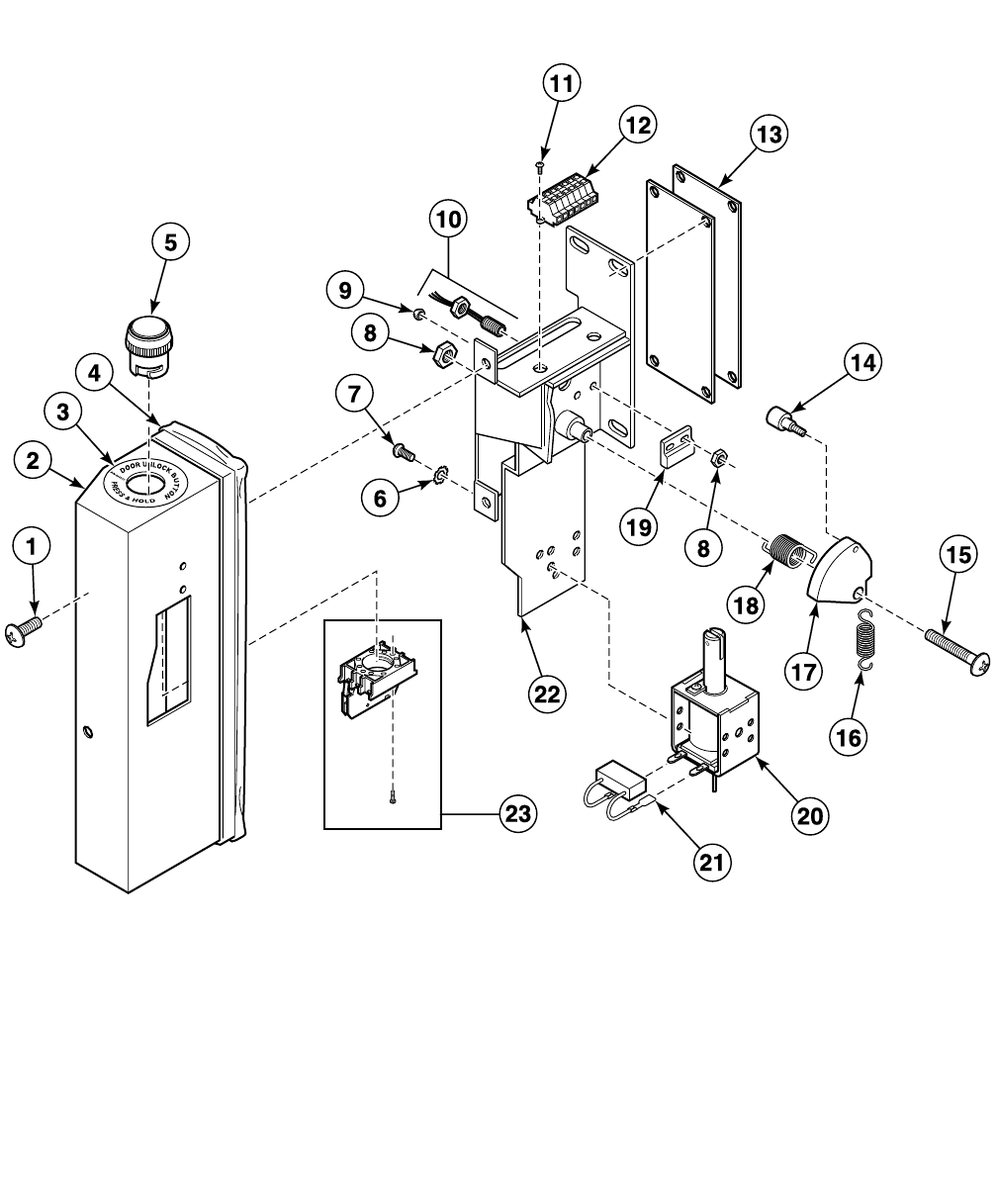

Optional Coin Box - Model HC125BCV .................................................................................................................. 22

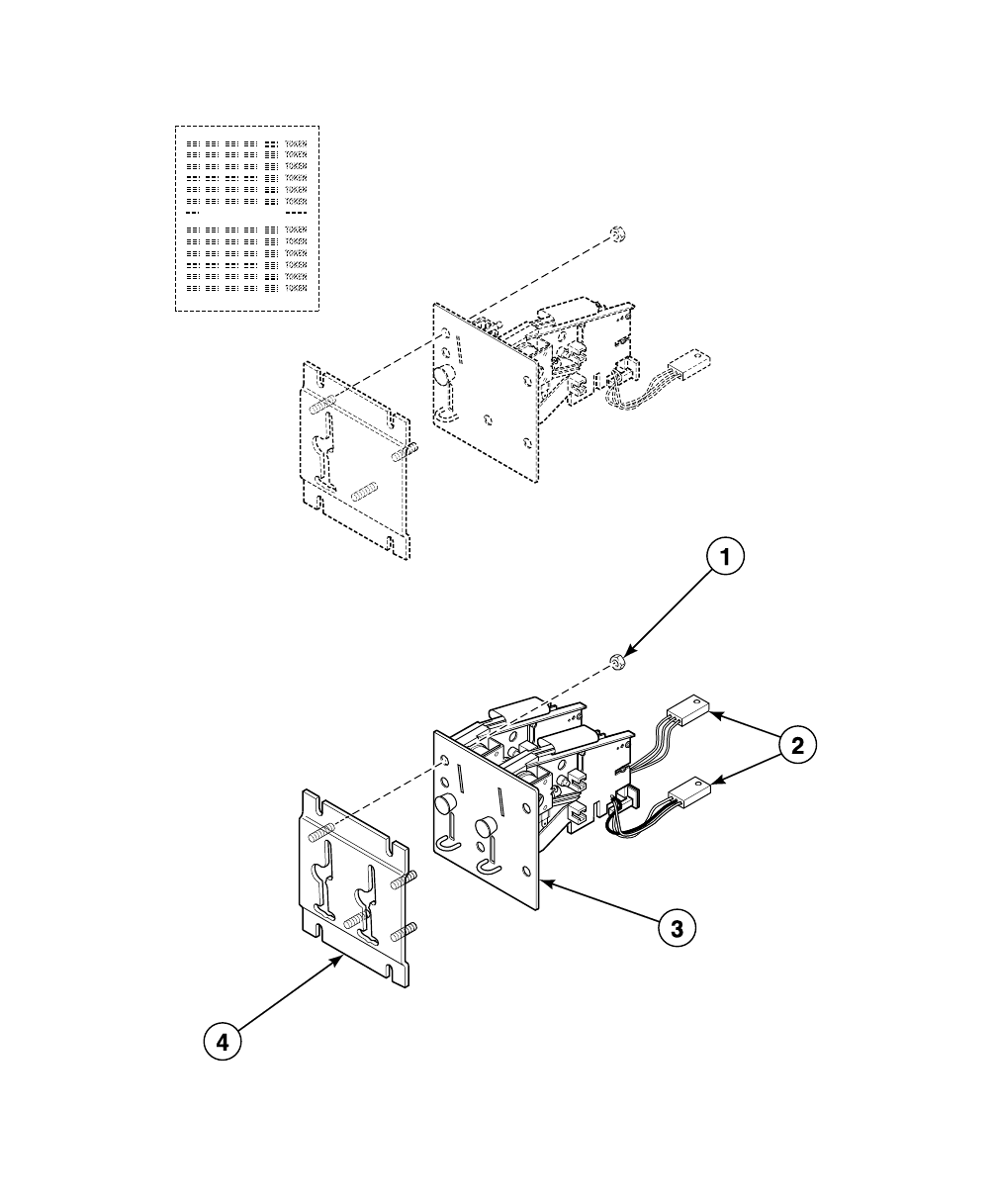

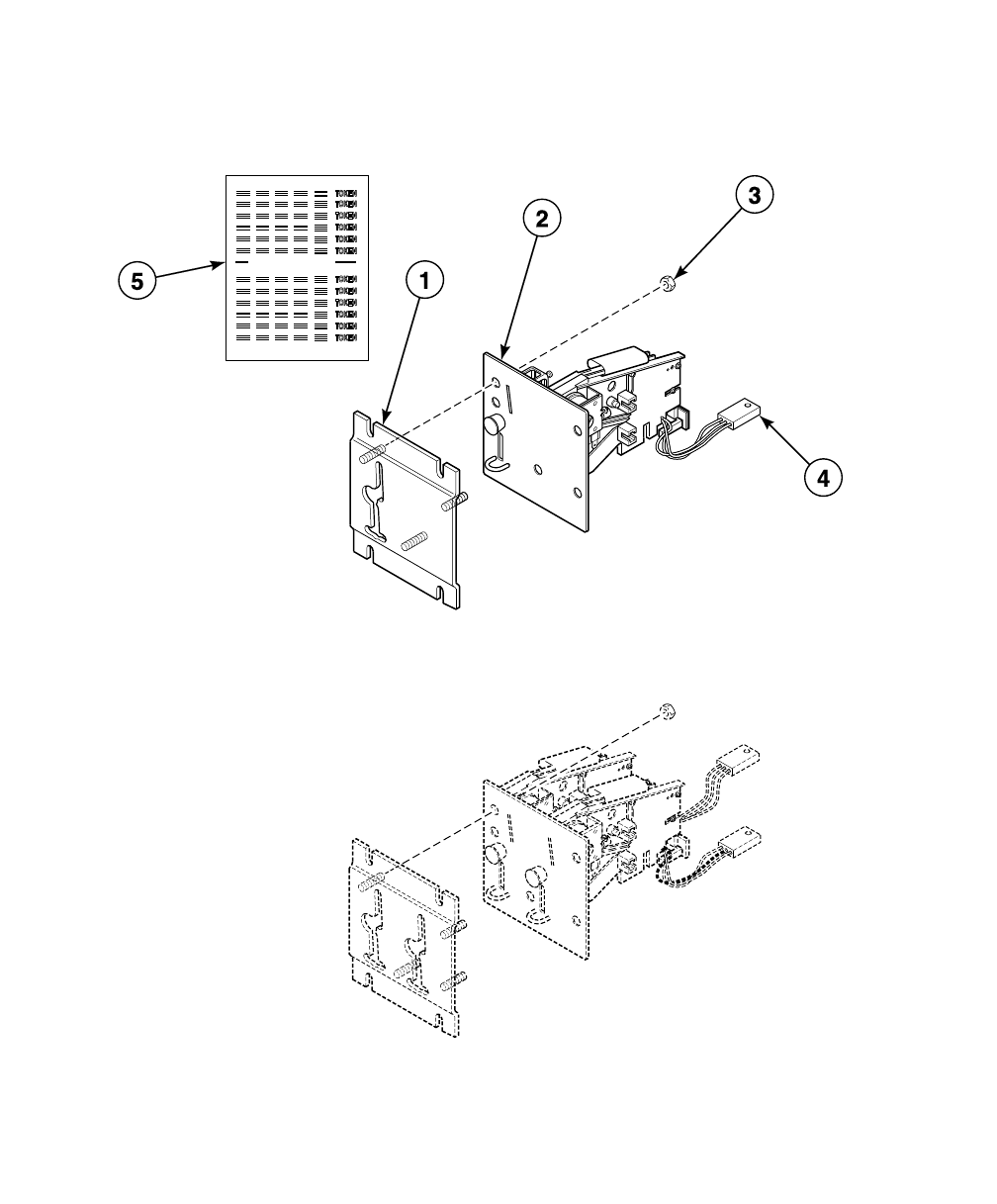

Flush Mount Coin Meter Assembly - Model HC125BCV; Single Drop....................................................................24

Flush Mount Coin Meter Assembly - Model HC125BCV; Dual Drop ...................................................................... 26

Electronic Coin Meter Assembly - Model HC125BCV............................................................................................. 28

Covers, Panels and Frame ..................................................................................................................................... 30

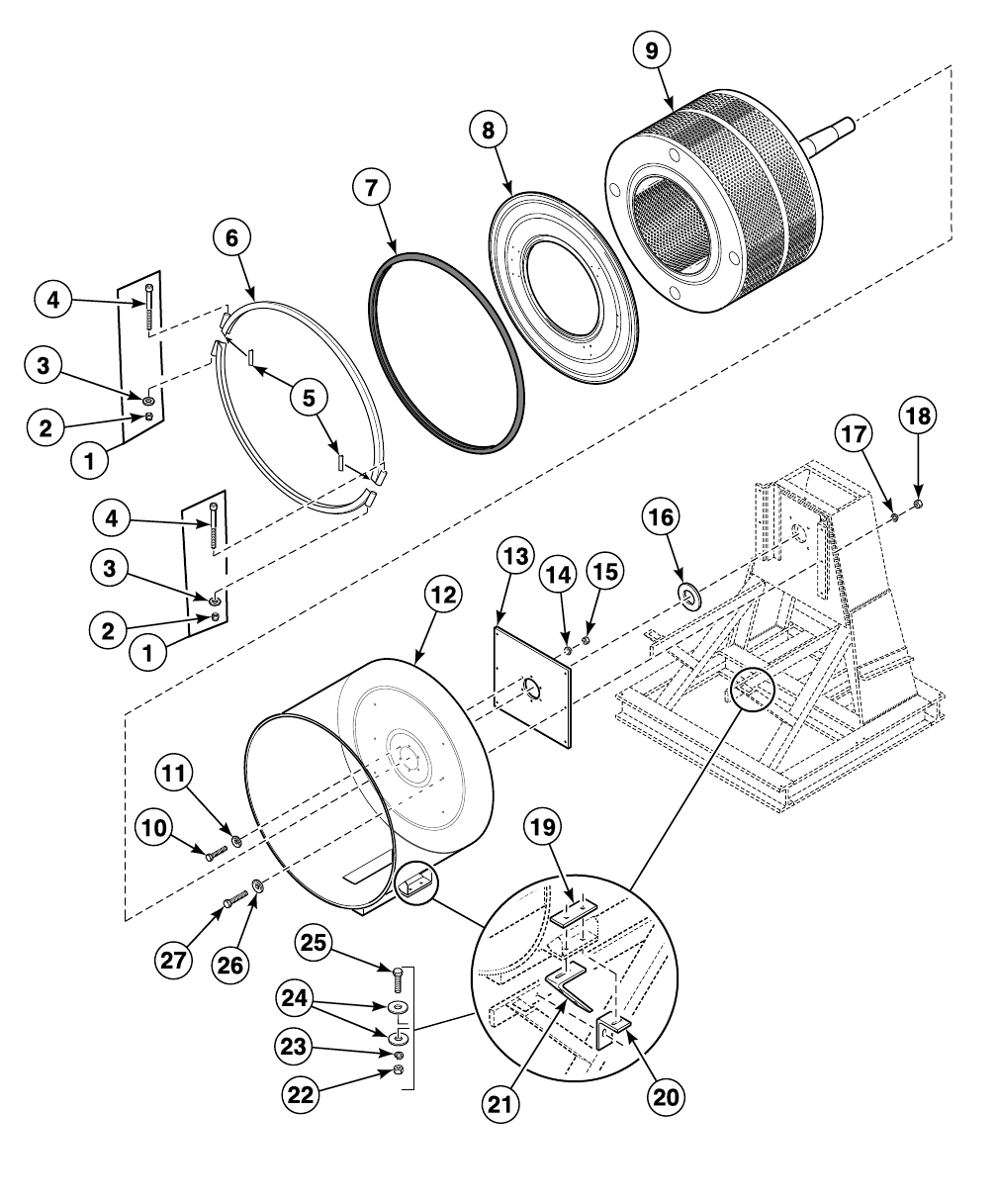

Basket and Shell ..................................................................................................................................................... 32

Door ........................................................................................................................................................................ 34

Door Lock................................................................................................................................................................ 36

Supply Dispenser - Models SC125VNV and UC125VNV (Optional) ......................................................................38

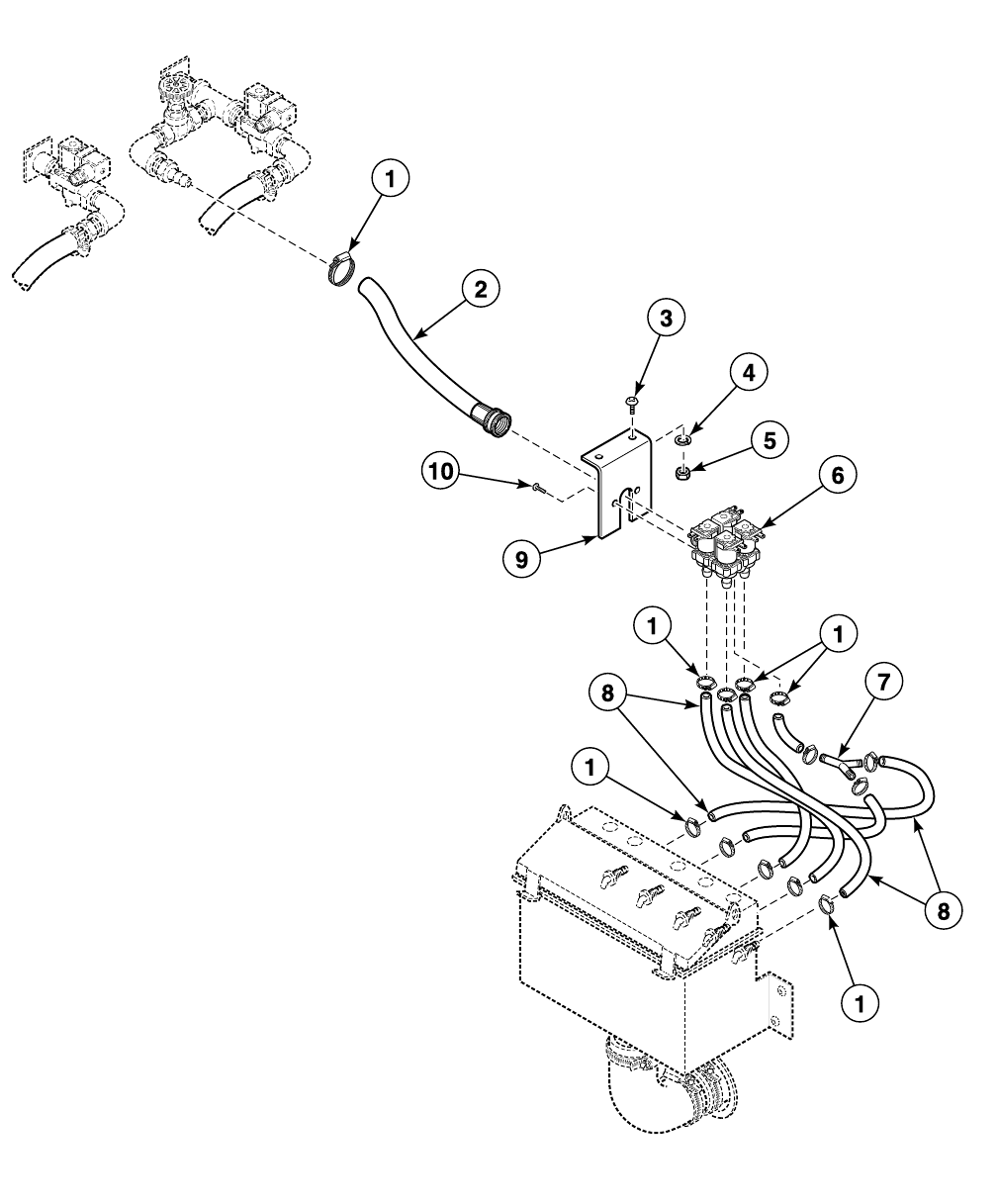

Water Supply Valve and Hoses to Supply Dispenser - Models SC125VNV and UC125VNV (Optional)................ 40

Water Supply Hoses ............................................................................................................................................... 42

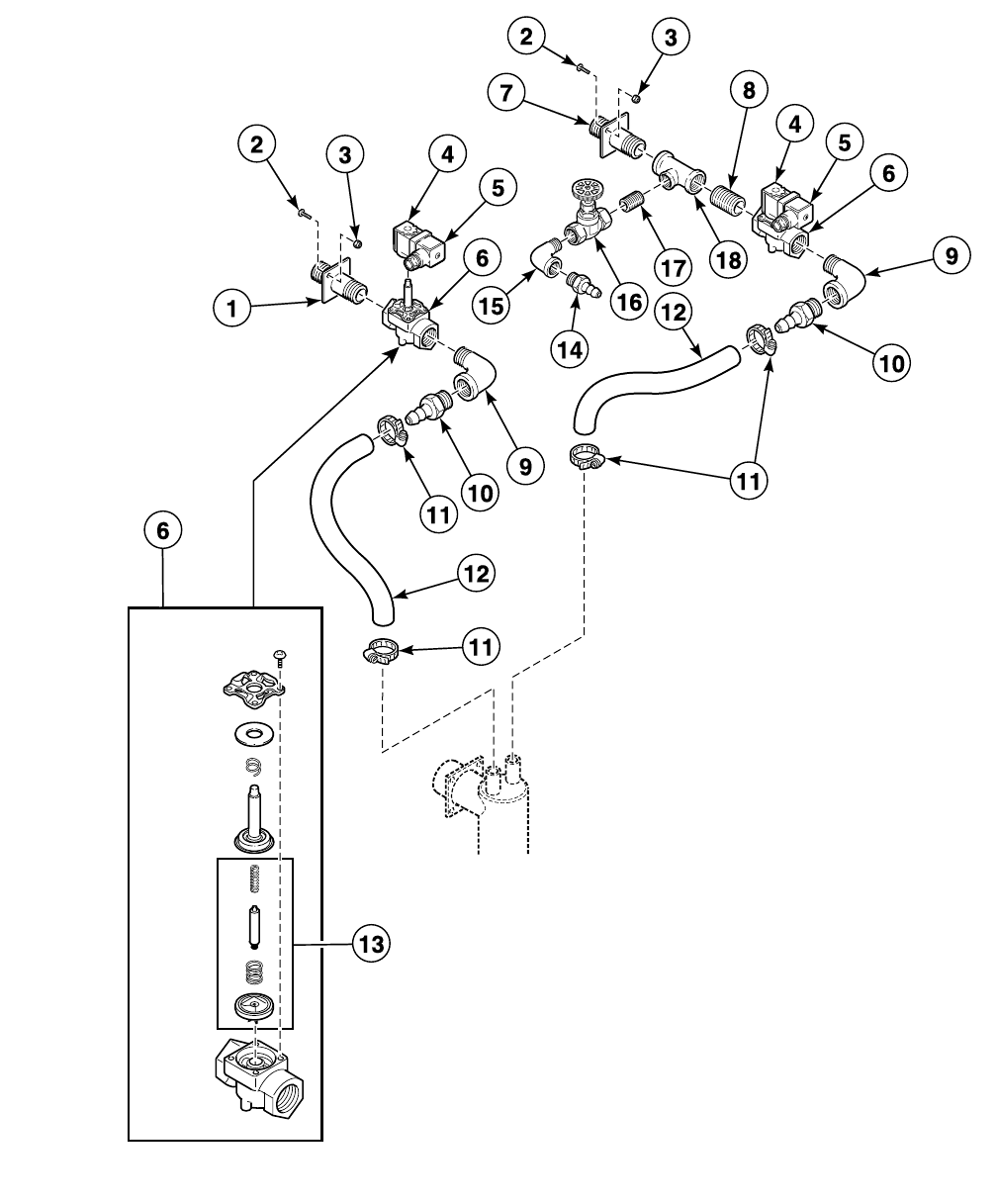

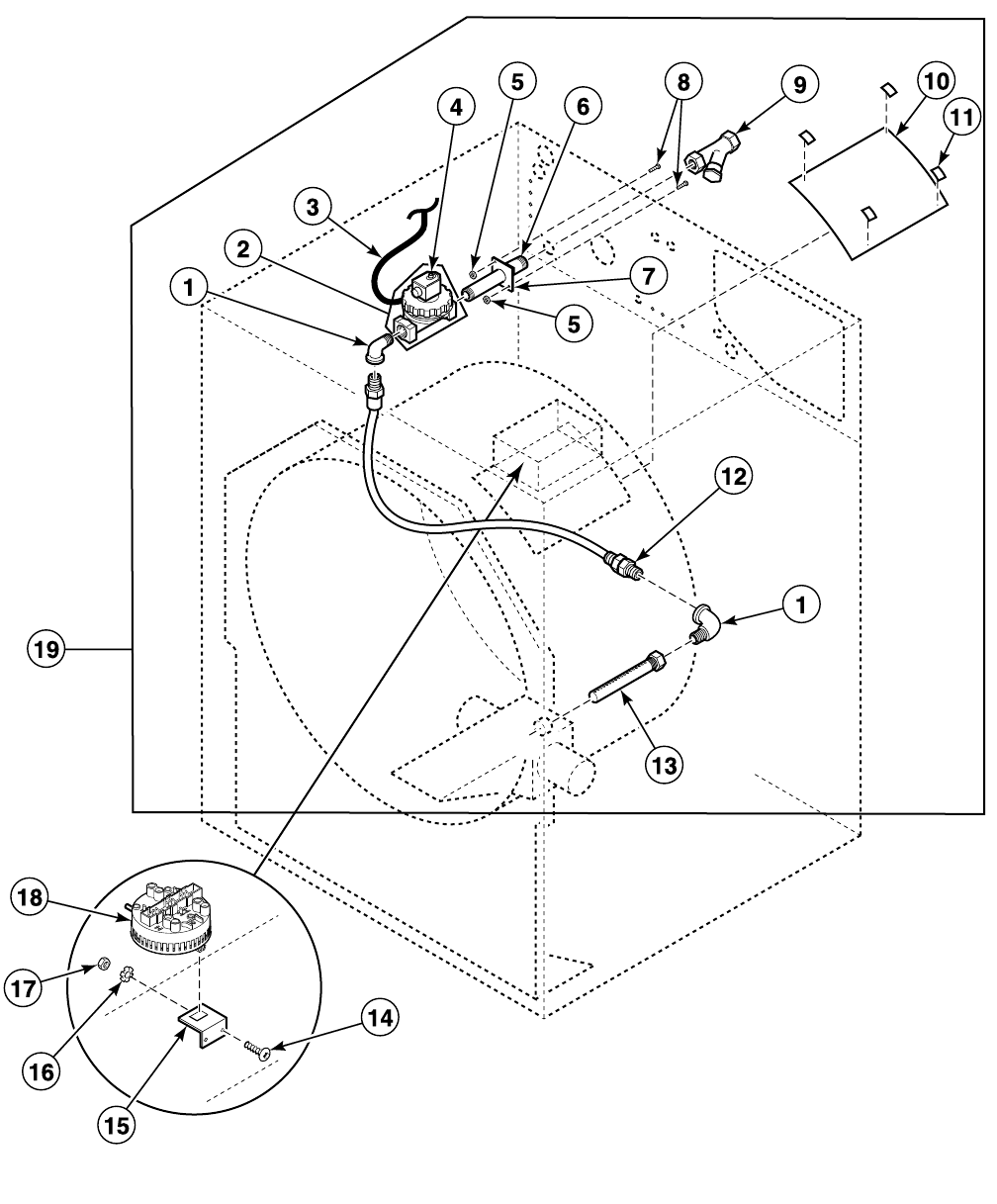

Water Supply Valves and Hoses ............................................................................................................................ 44

Drain ....................................................................................................................................................................... 46

Vacuum Breaker Weldment and Hoses.................................................................................................................. 48

Vent Assembly ........................................................................................................................................................ 50

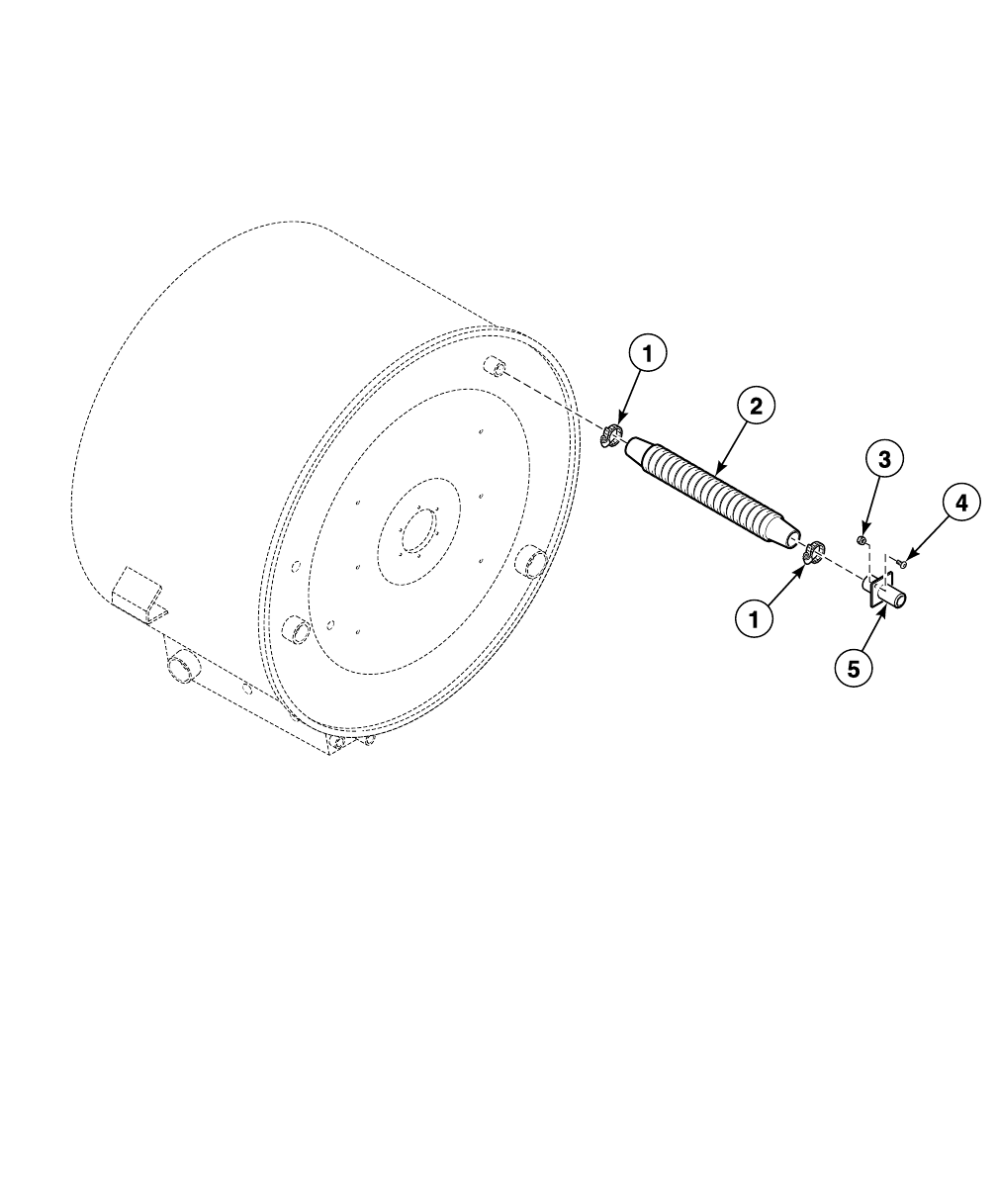

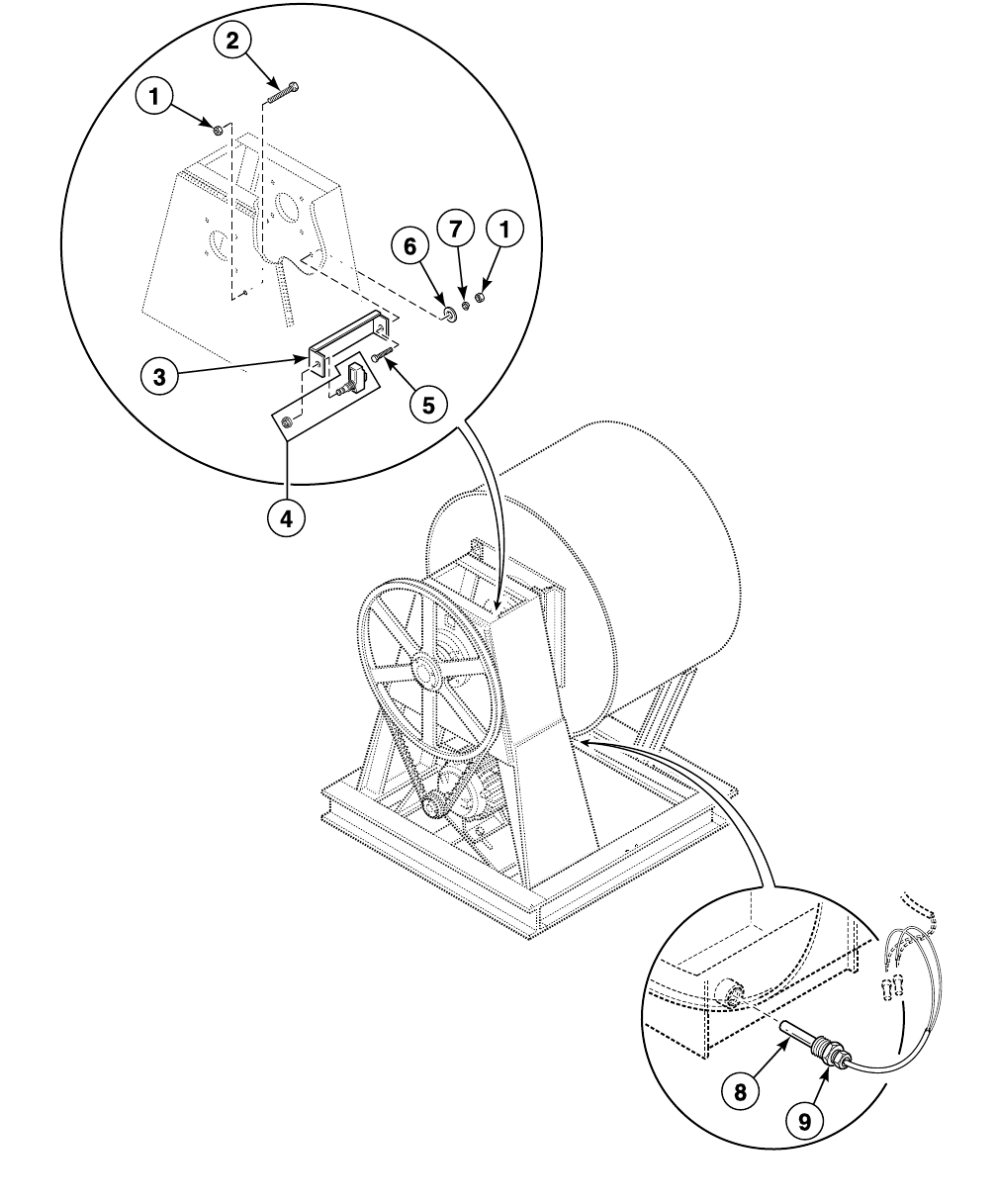

Balance Switch and Temperature Probe ................................................................................................................ 52

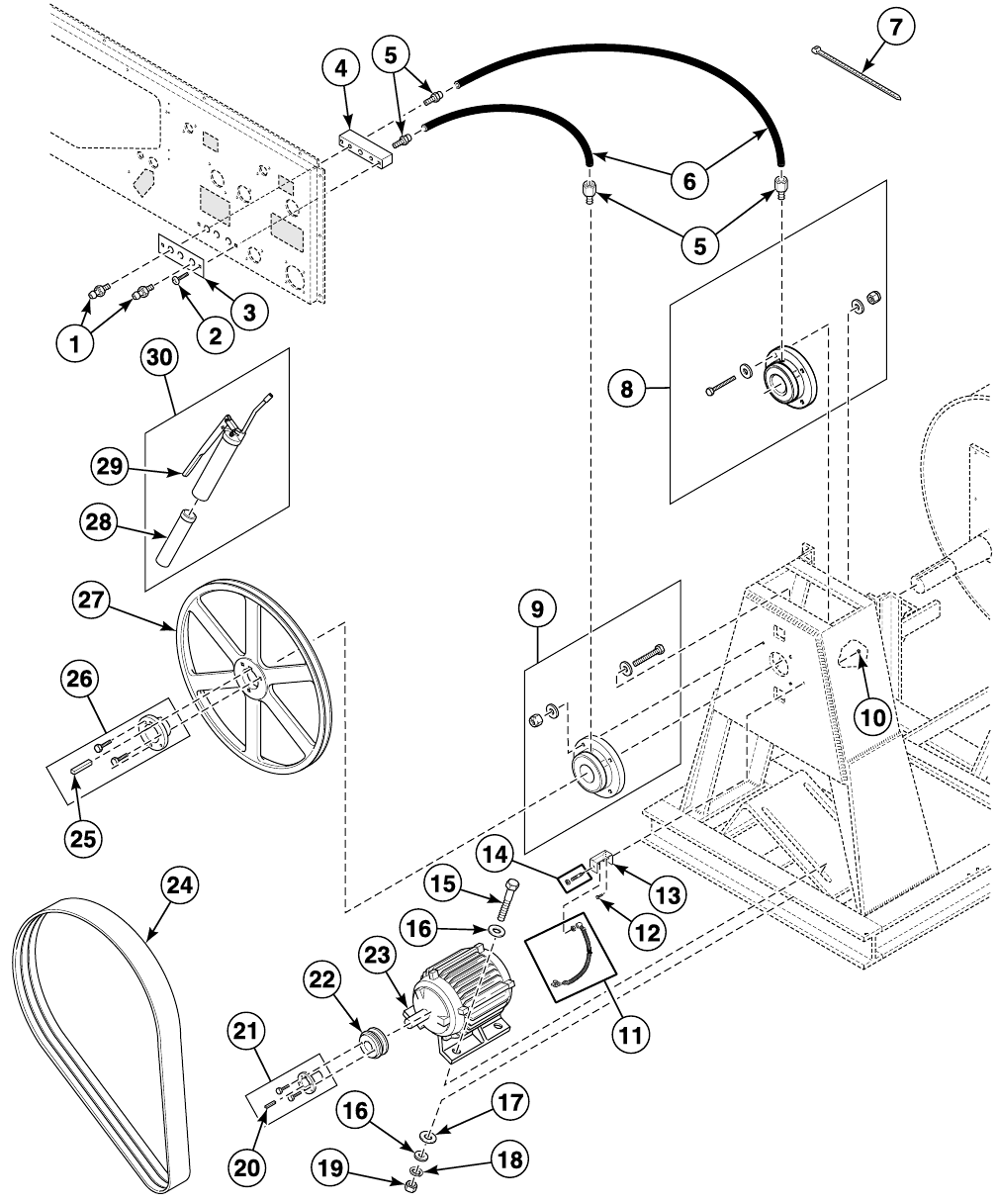

Motor and Pulley ..................................................................................................................................................... 54

Steam Heat Assembly ............................................................................................................................................ 56

Special Tools .......................................................................................................................................................... 58

Parts Index .............................................................................................................................................................. 61

2F232112

Parts Ordering Information

If literature or replacement parts are required, con-

tact the source from whom the machine was pur-

chased or contact Alliance Laundry Systems at

(920) 748-3950 for the name and address of the

nearest authorized parts distributor.

For technical assistance, call the number listed

below:

(920) 748-3121 Ripon, Wisconsin

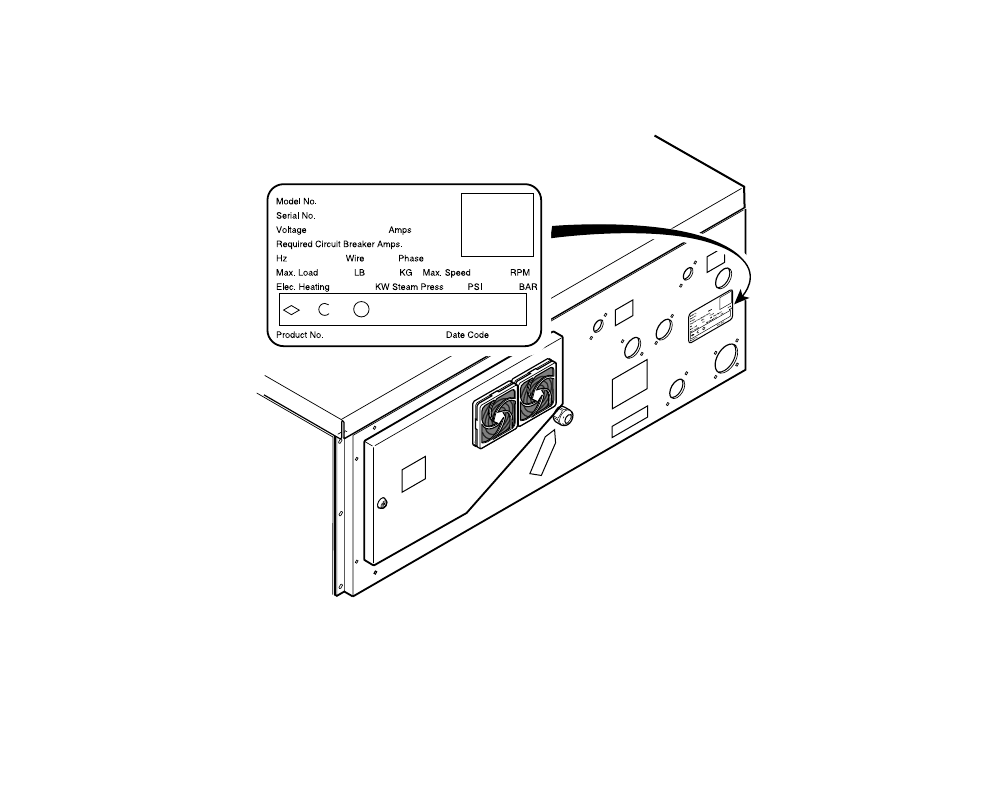

Serial Plate Location

When calling or writing about your product, be

sure to mention model and serial numbers. Model

and serial numbers are located on serial plate(s)

as shown.

CHM2461P_F232112

F232112 3

Model Identification

Information in this manual is applicable to these washer-extractor models:

HC125BCV

HC125BYV

SC125ANV

SC125BYV

SC125VNV

UC125ANV

UC125VNV

NOTE: To determine the machine’s design series, refer to the 11th character of the machine’s model number (e.g.

SC125ANVNU6001).

4F232112

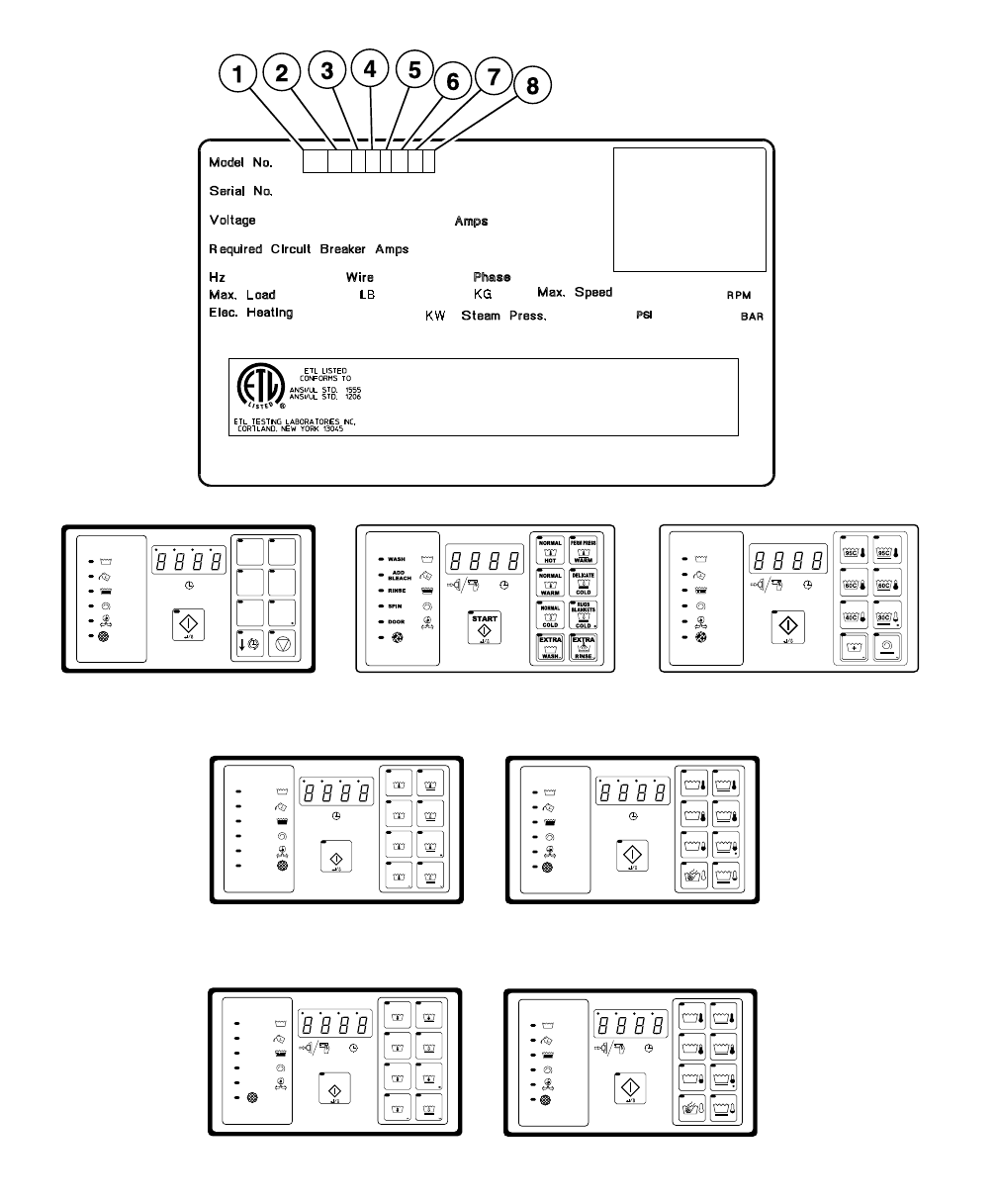

Product Overview for A and B-Control

A-Control OPL A-Control Coin (Domestic) A-Control Coin (International)

WASH

ADD

BLEACH

RINSE

SPIN

DOOR

CLEAN

FILTER

NORMAL

LIGHT SOIL

UNIFORMS

HEAVY SOIL

STAINED

DELICATE

HOT

HOT HOT

HOT

WARM

COLD

START

PERM PRESS

VISA

B-Control OPL (Domestic)

60C 60C

40C 40C

95C 95C

30C

B-Control OPL (International)

WASH

ADD

BLEACH

RINSE

SPIN

DOOR

NORMAL

QUICK AS QUICK WASH

HEAVY SOIL

DELICATE

RM RESS

PERM PRESS

HOT

WARM

HOT

WARM

COLD

WARM

COLD

START

PE P

B-Control Coin (Domestic)

60C 60C

40C 40C

95C 95C

30C

B-Control Coin (International) CHM2976P_F232112

*C40AC2OU60001

00000000000

208 – 240

60 3

18.2 3

N/A N/A 470

Drawing:

F232112 5

Product Overview for A and B-Control

REF PART NO. DESCRIPTION COMMENTS

1- Product Family DC

2- Capacity (Pounds) 18

100

125

3- Control A (A-Control)

B (B-Control)

4- Actuation C (Drop Coin Meter)

D (Digital Coin Meter)

L (Prep for Remote/Central Pay)

N (Non-Coin - OPL)

R (Cardmate Plus II)

X (Prep for Coin Meter)

Y (Prep for Card Reader)

5- Speed 2 (2-Speed)

3 (3-Speed)

F (F-Speed)

V (Variable Speed)

6- Voltage B (120/60/1/2)

C (380-415/50/3/4)

D (220-240/50/3/3)

E (220-240/50/1/2)

F (440-480/60/3/3)

J (220/50/3/3)

N (440-480/50-60/3/3)

O (200-240/60/3/3)

P (380-415/50-60/3/3)

Q (200-240/50-60/3/3)

X (200-240/50-60/1/3)

Y (208-240/60/1/2)

7- Side Panel N (Network Board Installed)

P (Network Adaptable)

U (Standard Specs)

1 (Stainless Steel)

2 (Network Board Installed with Stainless Sides)

3 (Network Adaptable with Stainless Sides)

8- Design 1-4 and 6

6F232112

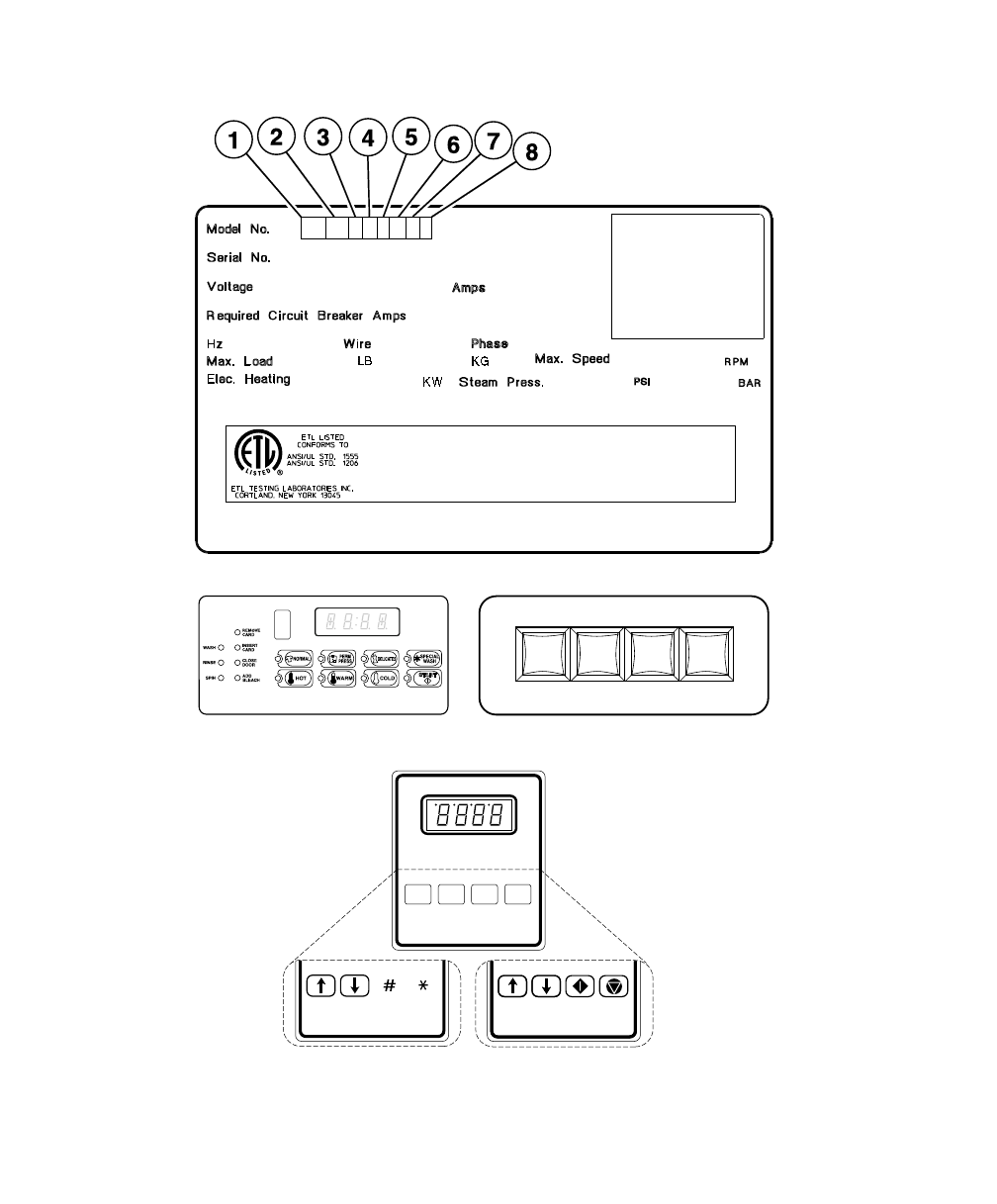

Product Overview for NetMaster, Mechanical Timer and

P, S and V-Computer

NetMaster

HOT WARM WARM COLD

HEAVILY

SOILED

PERM-

PRESS

NORMAL

WASH

DELICATE

KNITS

Mechanical Timer

Up Down Start Stop

P, S and V-Computer CHM2977P_F232112

*C40AC2OU60001

00000000000

208 – 240

60 3

18.2 3

N/A N/A 470

Drawing:

F232112 7

Product Overview for NetMaster, Mechanical Timer and

P, S and V-Computer

REF PART NO. DESCRIPTION COMMENTS

1- Product Family DC

2- Capacity (Pounds) 18

100

125

3- Control M (Mechanical Timer)

N (NetMaster)

P (P-Computer)

S (S-Computer)

V (V-Computer)

4- Actuation C (Drop Coin Meter)

D (Digital Coin Meter)

L (Prep for Remote/Central Pay)

N (Non-Coin - OPL)

R (Cardmate Plus II)

X (Prep for Coin Meter)

Y (Prep for Card Reader)

5- Speed 2 (2-Speed)

3 (3-Speed)

F (F-Speed)

V (Variable Speed)

6- Voltage B (120/60/1/2)

C (380-415/50/3/4)

D (220-240/50/3/3)

E (220-240/50/1/2)

F (440-480/60/3/3)

J (220/50/3/3)

N (440-480/50-60/3/3)

O (200-240/60/3/3)

P (380-415/50-60/3/3)

Q (200-240/50-60/3/3)

X (200-240/50-60/1/3)

Y (208-240/60/1/2)

7- Side Panel N (Network Board Installed)

P (Network Adaptable)

U (Standard Specs)

1 (Stainless Steel)

2 (Network Board Installed with Stainless Sides)

3 (Network Adaptable with Stainless Sides)

8- Design 1-4 and 6

8F232112

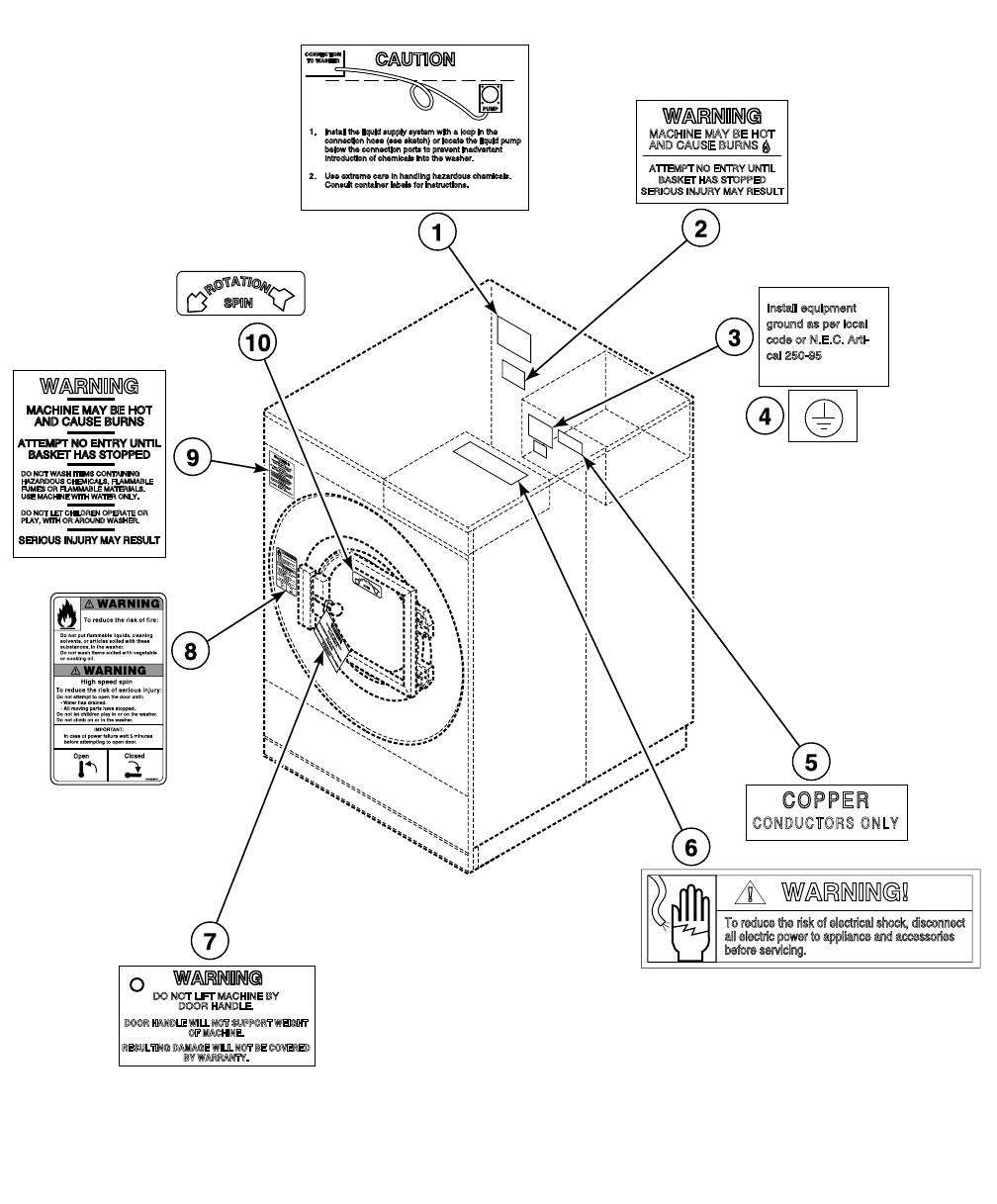

Decals

CHM2696P_F232112

F232112 9

Decals

REF PART NO. DESCRIPTION COMMENTS

1F230877 Liquid Supply Decal Models SC125VNV and UC125VNV

2F230757 Machine May Be Hot Warning Decal

3F230630 Ground Decal

4F230739 Ground Decal

5F231146 Conductor Decal

6D505281 Disconnect Power Warning Label

7F230216 Do Not Lift Decal

8F200284601 Do Not Open Warning Decal

9F231065 Personal Injury Warning Decal

10 F230693 Counterclockwise Spin Rotation Decal

10 F232112

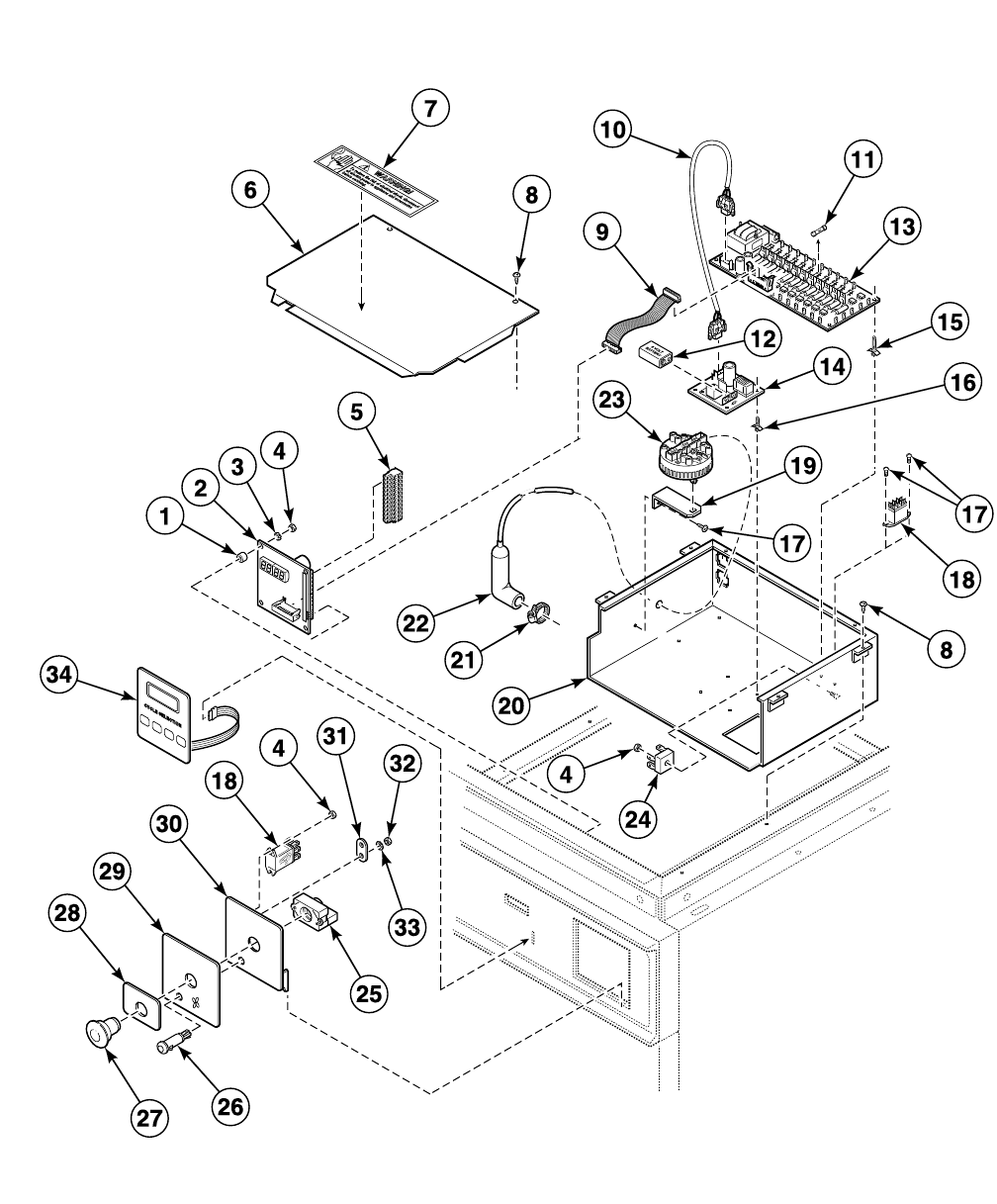

Control Module - Models SC125VNV and UC125VNV

CHM2532P_F232112

F232112 11

Control Module - Models SC125VNV and UC125VNV

REF PART NO. DESCRIPTION COMMENTS

1F401206 Spacer

2F370313-13P Microcomputer

3F431113 Washer

4F430231 Nut

5F140768 Terminal 10 pole

6F633795 Control Module Cover

7D505281 Disconnect Power Warning Label

8F430174 Screw

9F140219P Ribbon Cable 26 pin; 15 inch

10 F140249 Battery Backup Wire Harness Models through 5/14/00

11 F350108 Fuse 1/8 Amp

11 F350109 Fuse 1/2 Amp

11 F350110 Fuse 1 Amp

12 F191101 Battery 9 Volt; Models through 5/14/00

13 F8206501P Output Board VCMP Assembly

14 F370529P Battery Adapter Board Models through 5/14/00

15 F180501 Standoff

16 F432001 Circuit Board Support

17 N/A Screw

18 F330227 Flange Relay

19 F631920 Water Level Switch Bracket

20 F631579 Control Module Box

21 F200215 Hose Clamp No. 28

22 F200163 Air Trap Hose

23 F0340348-10P Water Level Switch

24 F370310 Bridge Rectifier

25 F340444 Contact Block and Mounting Switch Models through 9/1/99; Items 25 and 27 must be

replaced together; 800E-series

25 F8069501 Contact Switch 800F-series

25 F8538101 Contact Base 800F-series

26 F350411 Light Amber

27 F200233700P Emergency Stop Button Kit Used to convert from 800E-series to 800F-series;

Includes F200233500 Emergency Stop Pushbutton and

F200233401P Contact Block Switch

27 F200233401P Contact Block Switch

27 F200233500 Emergency Stop Pushbutton 800F-series

28 F231083 Emergency Stop Decal

29 F231391 Emergency Stop Decal

30 F633750 Emergency Stop Weldment

31 F601515 Clip

32 F430232 Nut

33 F430311 Washer

34 F340608P Membrane Switch Model SC125VNV

34 F370576P Keypad Model UC125VNV

N/A = Part no longer available

12 F232112

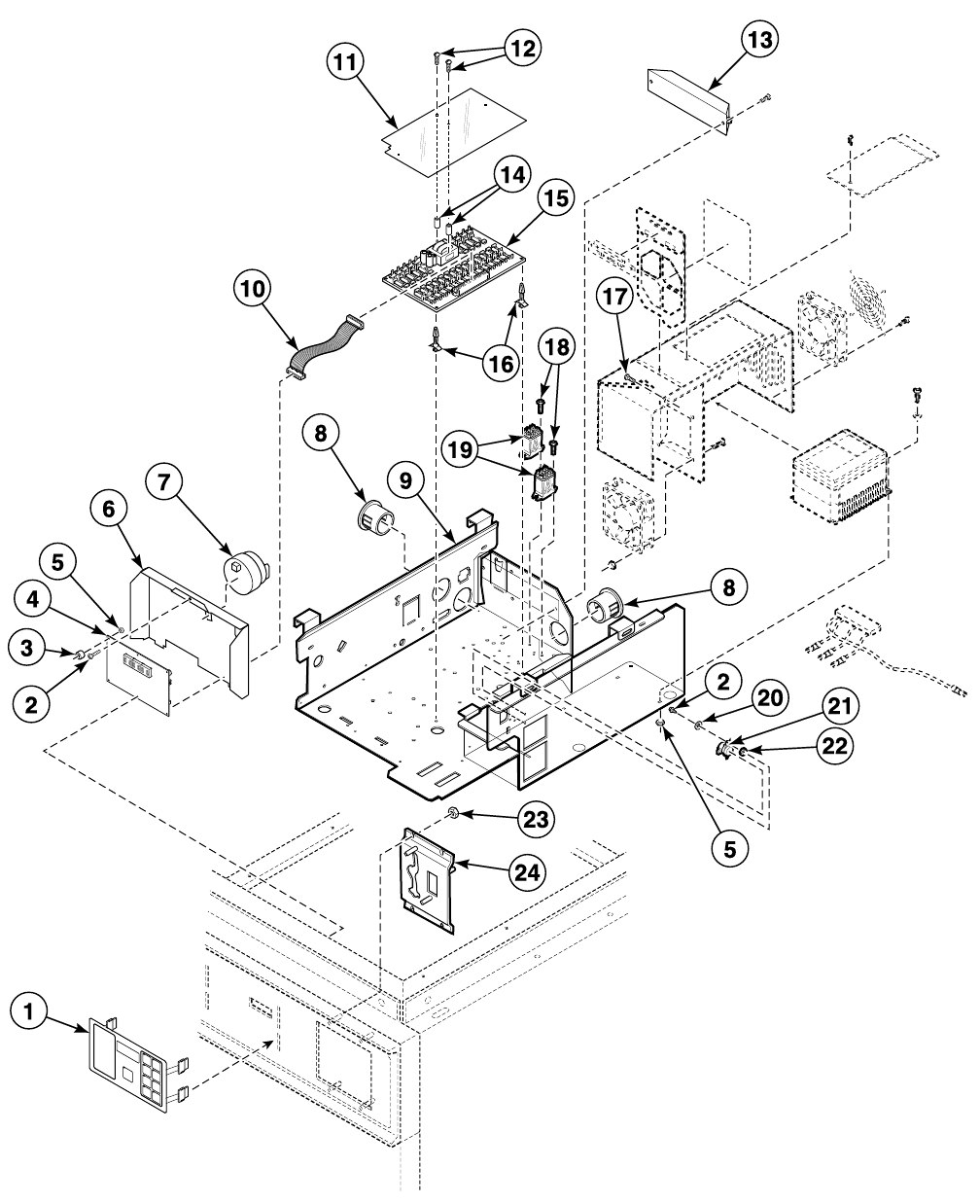

Control Module

Models HC125BCV, HC125BYV, SC125ANV, SC125BYV and UC125ANV

CHM2808P_F232112

F232112 13

Control Module

REF PART NO. DESCRIPTION COMMENTS

1F0231582-03P Keypad Model SC125BYV; English

1F0231582-06P Keypad Model SC125BYV; Icon

1F0231582-07P Keypad Models HC125BCV and HC125BYV

1F023158231P Keypad Models SC125ANV and UC125ANV

2F430928 Screw

3N/A Standoff

4F0370455-11P Computer Model HC125BCV

4F0370455-10P Computer Models HC125BYV and SC125BYV

4F037047530P Computer Models SC125ANV and UC125ANV

5F430231 Nut

6F0634903-00 Control Cover

7F0340348-10P Water Level Switch Standard

7F8223001P Water Pressure Switch Heat safety

8F200139500 Grommet

9F200166601 Module Box Assembly Model HC125BCV

9F200166600 Module Box Assembly All other models

10 F140219P Ribbon Cable 26 pin; 15 inch

11 F0170427-00 Output Board Cover

12 F431702 Screw

13 F8080001P AC Drive Resistor Assembly Models HC125BCV, HC125BYV and SC125BYV

14 F431806 Nut

15 F037044860-1 Output CCA Models HC125BCV, HC125BYV and SC125BYV

15 F037044860-2 Output CCA Models SC125ANV and UC125ANV

15 F350108 Fuse 1/8 Amp

15 F350109 Fuse 1/2 Amp

15 F350110 Fuse 1 Amp

16 F180501 Standoff

17 F430174 Screw Models HC125BCV, HC125BYV and SC125BYV

18 F0430165-00 Screw

19 F330230 Flange Relay

20 F431113 Washer

21 F0290116-00 Thermostat

22 F431022 Nut

23 803017 Nut Model HC125BCV

24 F0636707-00 Mounting Bracket Assembly Model HC125BCV; Single Drop

24 F635319 Mounting Bracket Assembly Model HC125BCV; Dual Drop

N/A = Part no longer available

14 F232112

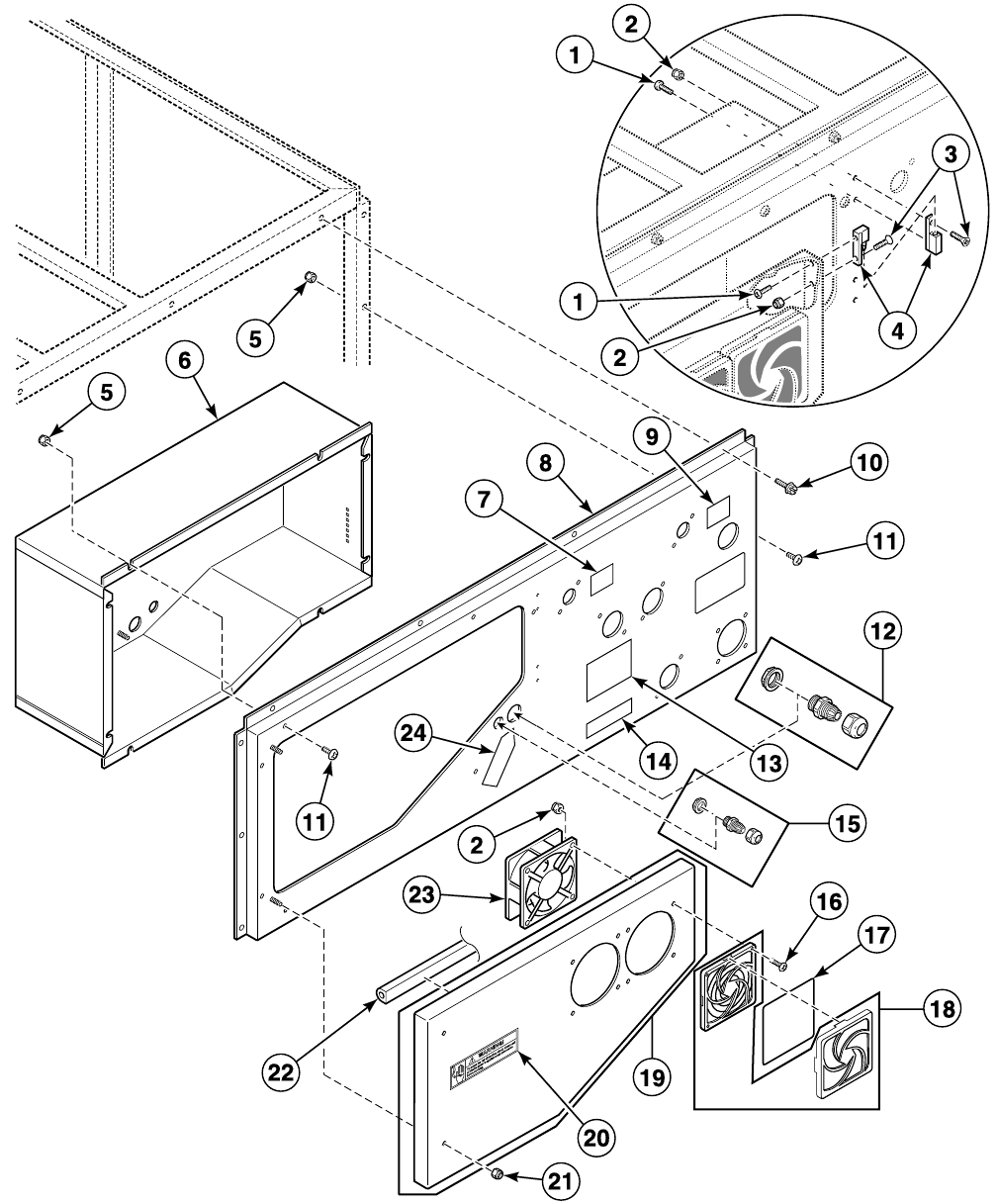

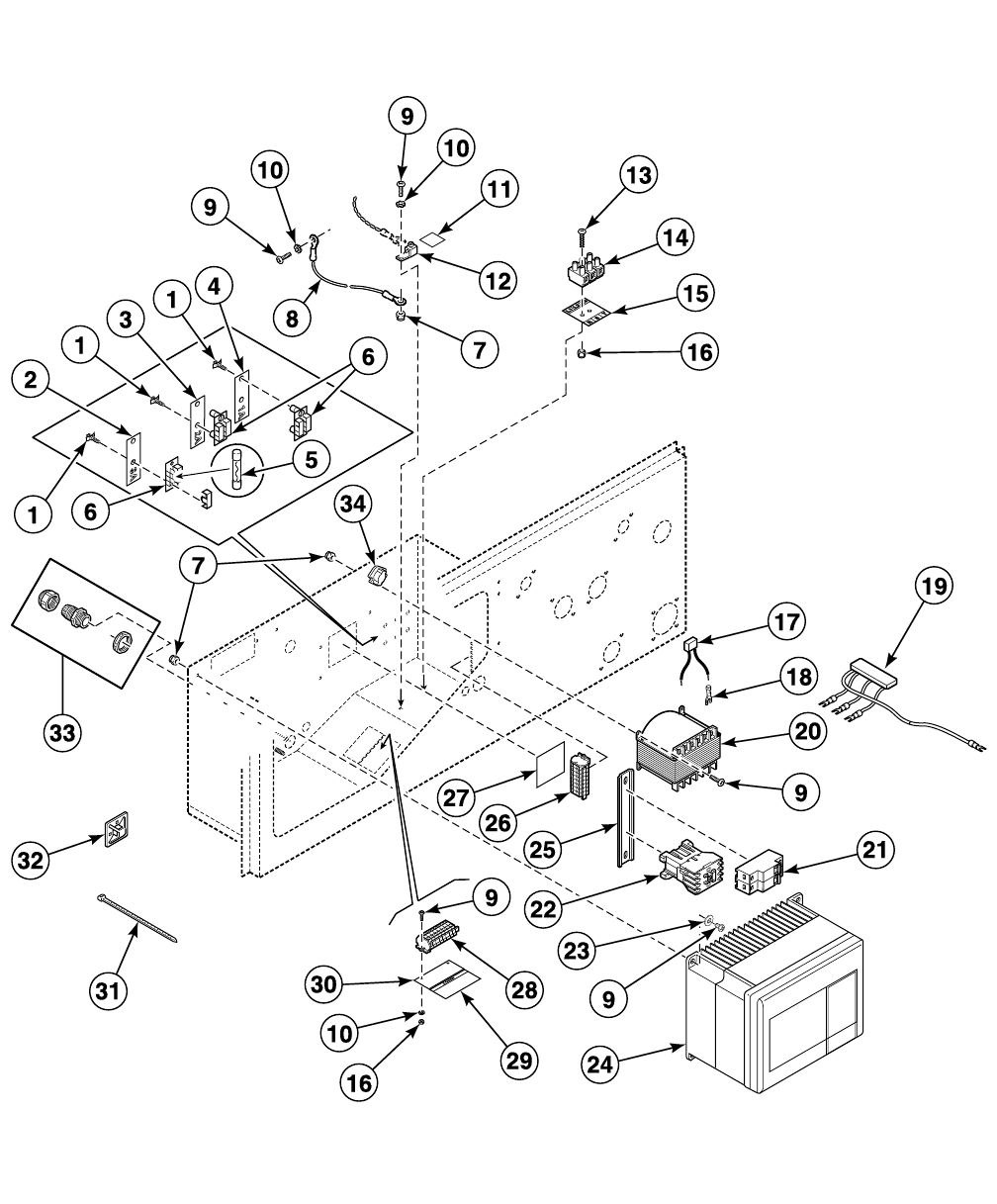

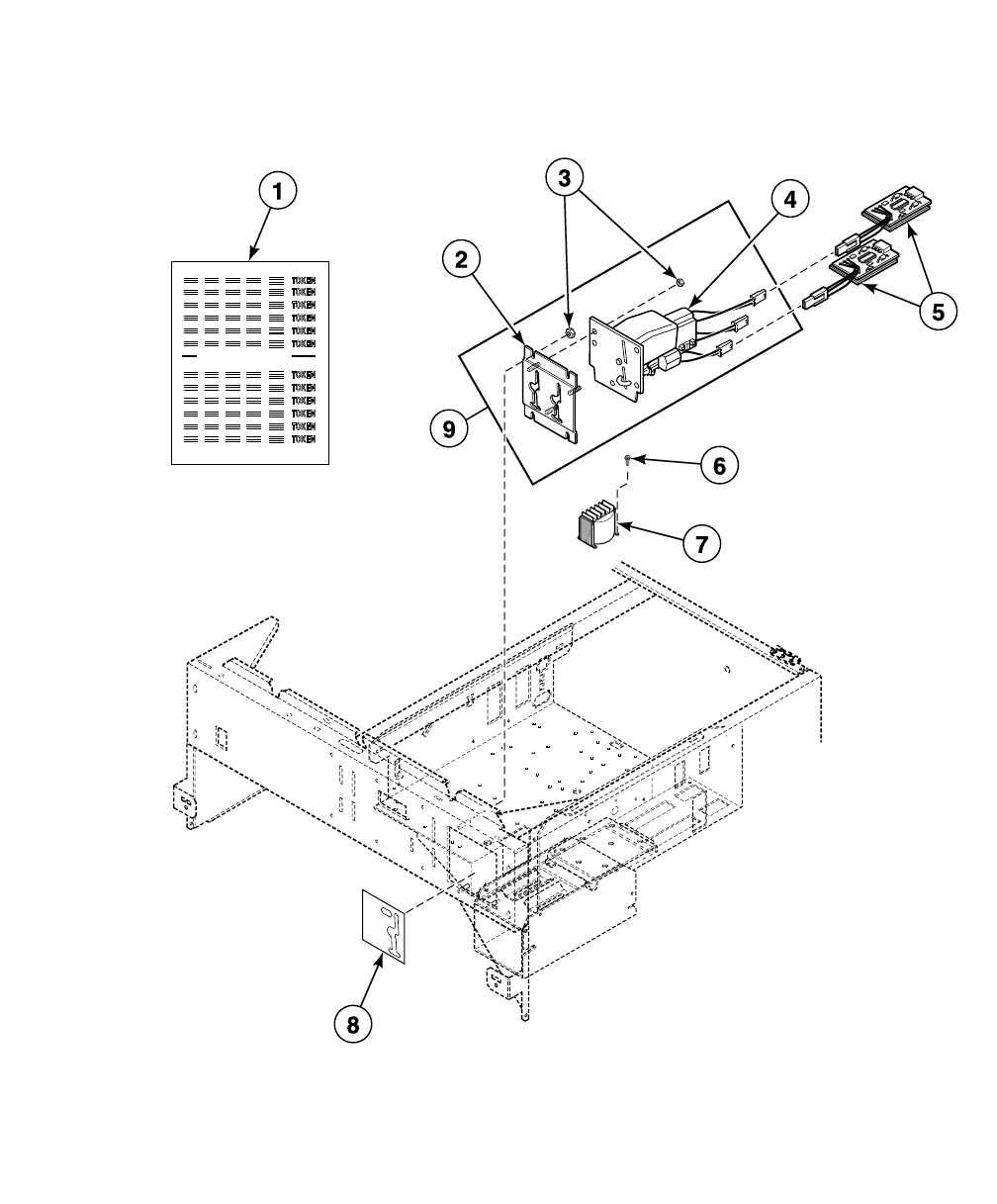

AC Drive - Models SC125ANV, SC125VNV,

UC125ANV and UC125VNV

CHM2753P_F232112

F232112 15

AC Drive - Models SC125ANV, SC125VNV,

UC125ANV and UC125VNV

REF PART NO. DESCRIPTION COMMENTS

1F180506 Standoff

2F231271 External Supply Fuse Decal 3 Amp

3F231394 Fuse Decal 2 Amp

4F231393 Fuse Decal 1 Amp

5F350110 Fuse 1 Amp

5F350117 Fuse 2 Amp

5F350115 Fuse 3 Amp

6F0350312-10 Fuse Holder

7F430231 Nut

845101 Wire Ground; Sold per foot

9F430928 Screw

10 F431113 Washer

11 F230630 Ground Decal

12 F140734 Ground Terminal Lug

13 F430916 Screw

14 F140747 Input Power Block

15 F230677 Input Power Connector Decal

16 F431022 Nut

17 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

18 00446 Snap Spade Terminal

19 F200320901 AC Drive Radio Filter Assembly

20 C000203 Transformer Models SC125VNV and UC125VNV; 120 Volt

20 F360156P Transformer Models SC125ANV and UC125ANV; 220 Volt

21 F350217 Circuit Breaker N and P-voltage models

22 F330180P Contactor 120 Volt

23 F431133 Washer

24 F370838 Inverter Drive 200 Volt; Design 4 models; Used with F220237 Motor;

Models SC125ANV and UC125ANV order F8323901

1336-Series to PowerFlex 40 Drive Kit; Models

SC125VNV and UC125VNV order F8323902

1336-Series to PowerFlex 40 Drive Kit

24 F370818 Inverter Drive 400 Volt; Design 4 models; Used with F220237 Motor

25 F602595-4 Contactor Mounting Rail

26 F140768 Terminal 10 place

27 F231299 Control Transformer Decal

28 F140766 Terminal 8 place

29 F231345-5 External Supply Caution Decal N and P-voltage models

29 F231345-4 External Supply Caution Decal Q-voltage models

30 F231376-6 External Supply Connection Decal N and P-voltage models

30 F231376-5 External Supply Connection Decal Q-voltage models

31 F140605 Cable Tie

32 F140602 Tie Wrap Mounting Clamp

33 F140331 Strain Relief Connector PG21

34 F290115 Thermostat Models SC125VNV and UC125VNV

34 F0290116-00 Thermostat Models SC125ANV and UC125ANV

16 F232112

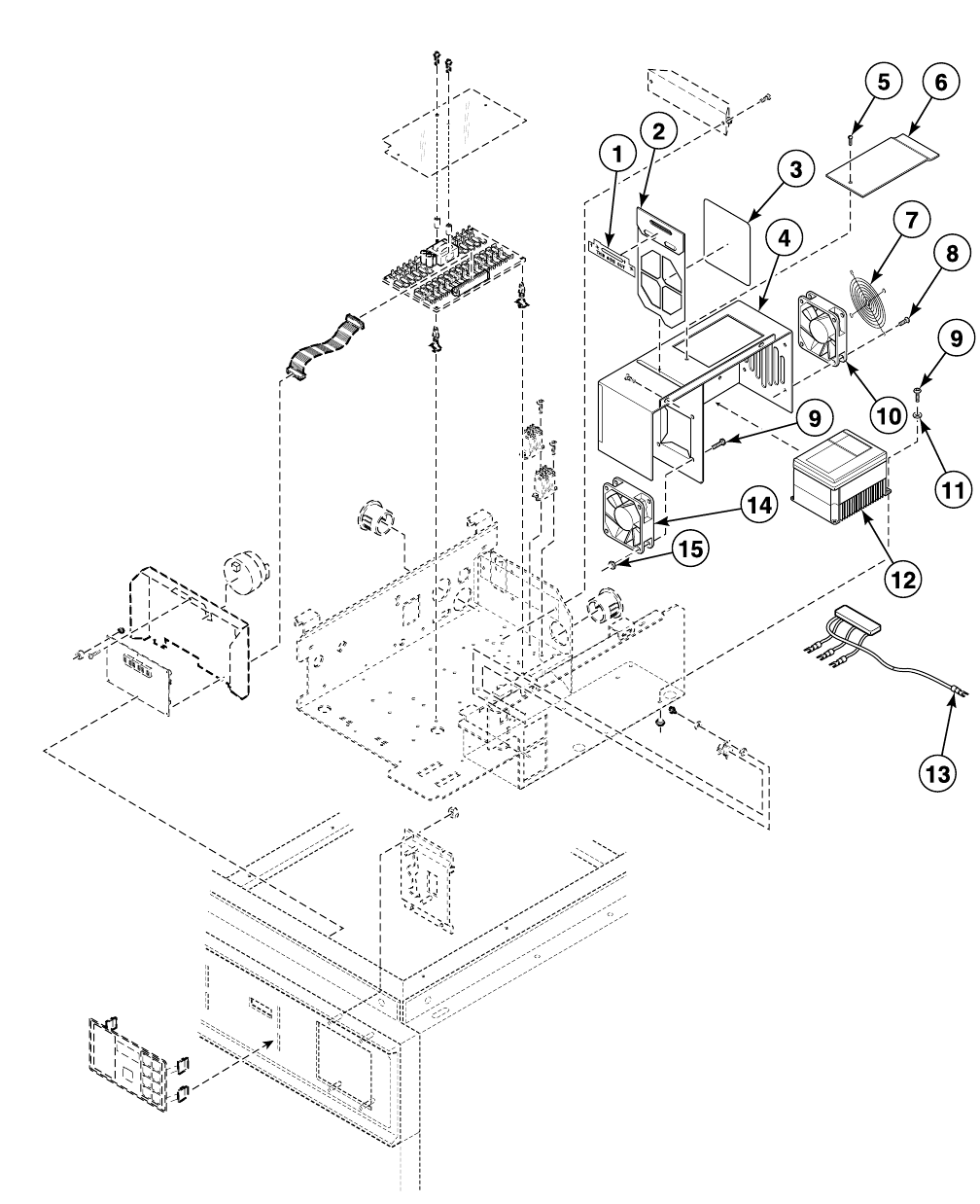

AC Drive - Models HC125BCV, HC125BYV and SC125BYV

CHM2808PA_F232112

F232112 17

AC Drive - Models HC125BCV, HC125BYV and SC125BYV

REF PART NO. DESCRIPTION COMMENTS

NA F0360160-00P Line Reactor Kit Use with F370853 Inverter Drive

1F231377 Filter Handle Decal

2F200159700 AC Drive Slide Air Filter

3F0270321-00P Filter

4F200160100 AC Drive Cover Assembly Includes items 2, 5-10 and 15

4F200160000 AC Drive Cover Assembly

5F430174 Screw

6F200181500 Display Window Cover

7F0220922-00 Fan Guard

8F430922 Screw

9F430916 Screw

10 F110110 Muffin Fan

11 F431133 Washer

12 F370853 Inverter Drive Used with F200174900 Motor

13 F200320900 AC Drive Radio Filter Assembly Model HC125BCV

13 F200320901 AC Drive Radio Filter Assembly Models HC125BYV and SC125BYV

14 F110105 Muffin Fan 220-240 Volt

15 F430231 Nut

18 F232112

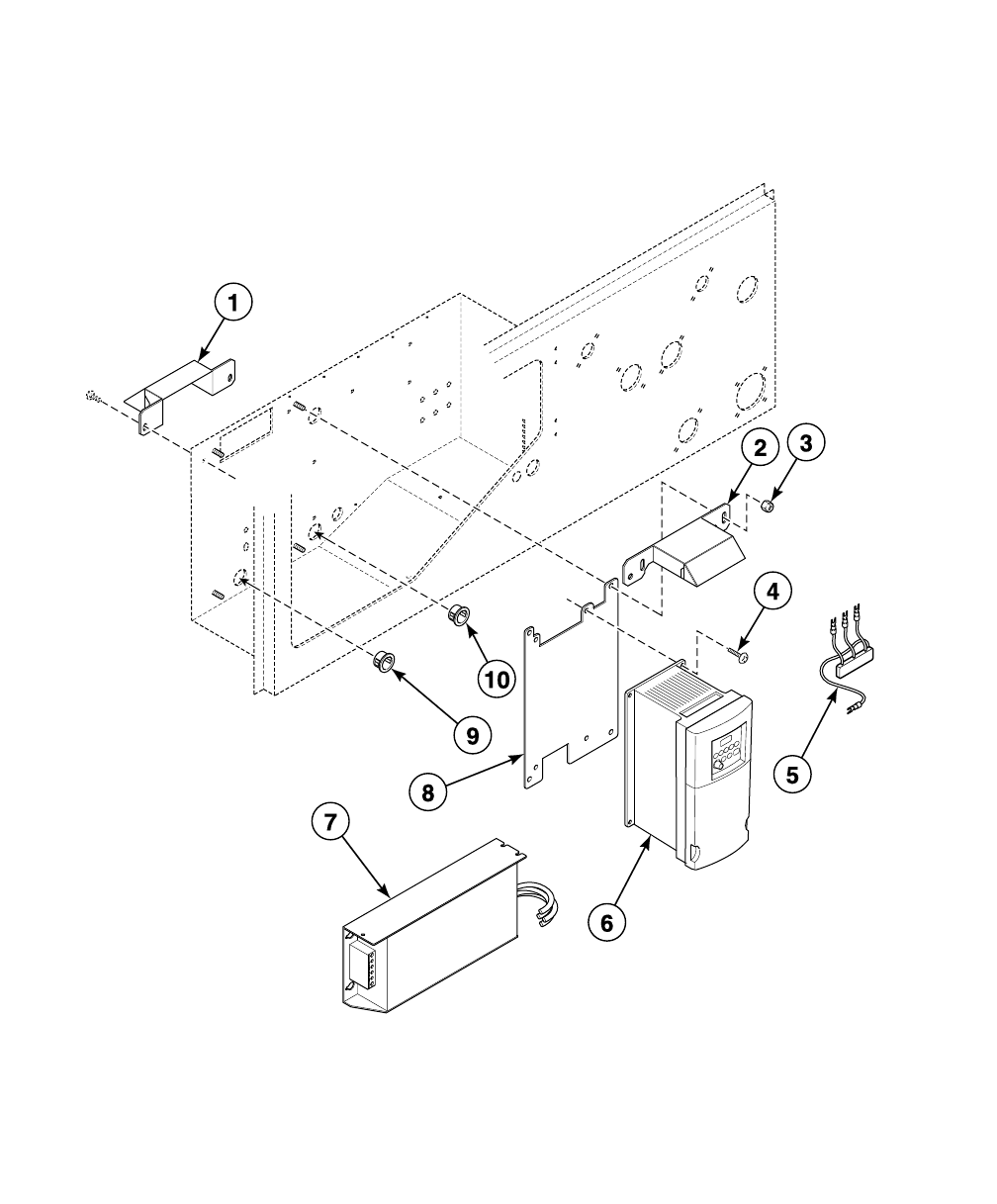

PowerFlex 40 AC Drive - Models SC125ANV, SC125VNV,

UC125ANV and UC125VNV

CHM2862P_F232112

F232112 19

PowerFlex 40 AC Drive - Models SC125ANV, SC125VNV,

UC125ANV and UC125VNV

REF PART NO. DESCRIPTION COMMENTS

NA F8149301 Drive Power Harness Design 6 models

NA F8149401 Control Input Harness Design 6 models

NA F8147301 AC Drive Control Harness Deisgn 6 models

NA F8323901 1336-Series to PowerFlex 40 Drive Kit Models SC125ANV and UC125ANV with F220237

Motor; Design 1-4 Q-voltage models; Includes items 1-4,

6, 8 and 9, F140160 Wire (4 inches) and F140605 Cable

Tie

NA F8324001 1305-Series to PowerFlex 40 Drive Kit Models SC125ANV and UC125ANV with F220237

Motor; Design 1-4 N and P-voltage models; Includes

items 1-4, 8 and 9, F8169429 AC Drive, F140160 Wire (4

inches) and F140605 Cable Tie

NA F8323902 1336-Series to PowerFlex 40 Drive Kit Models SC125VNV and UC125VNV with F220237

Motor; Design 1-4 Q-voltage models; Includes items 1-4,

8 and 9, F8169428 AC Drive, F140160 Wire (4 inches),

F140605 Cable Tie, F140700 Connector, F140712

Connector and F8016701 Software Chip

NA F8324002 1305-Series to PowerFlex 40 Drive Kit Models SC125VNV and UC125VNV with F220237

Motor; Design 1-4 N and P-voltage models; Includes

items 1-4, 8 and 9, F8169429 AC Drive, F140160 Wire (4

inches), F140605 Cable Tie, F140700 Connector,

F140712 Connector and F8016701 Software Chip

1F200321000 AC Drive Exterior Exhaust Duct

2F200321100 AC Drive Interior Exhaust Duct

3F431024 Nut

4F430920 Screw

5F200320902 AC Drive Radio Filter Assembly

6F8169428 PowerFlex 40 Drive Q-voltage models that have been retrofitted with

F8323901 1336-Series to PowerFlex 40 Drive Kit;

Design 1-4 Q-voltage models that have been retrofitted

with F8323902 1336-Series to PowerFlex 40 Drive Kit;

Requires V-computer software ID code UU01 (Software

Chip F8016701)

6F8169429 PowerFlex 40 Drive N and P-voltage models that have been retrofitted with

F8324001 1305-Series to PowerFlex 40 Drive Kit;

Design 1-4 N and P-voltage models that have been

retrofitted with F8324002 1305-Series to PowerFlex 40

Drive Kit; Requires V-computer software ID code UU01

(Software Chip F8016701)

7F8054001 EMI Filter Q-voltage models

7F8054002 EMI Filter N and P-voltage models

8F200322700 AC Drive Mounting Plate Assembly

9F170611 Grommet Design 1-4 models

9F180486 Cap Plug Design 6 models

10 F140331 Strain Relief Connector Design 6 models

20 F232112

Valve Panel - Models SC125ANV, SC125VNV,

UC125ANV and UC125VNV

CHM2533P_F232112

F232112 21

Valve Panel - Models SC125ANV, SC125VNV,

UC125ANV and UC125VNV

REF PART NO. DESCRIPTION COMMENTS

1F430928 Screw

2F430231 Nut

3F432231 Screw

4F190209P Lift-Off Hinge

5F430215 Nut

6F633632-1 AC Drive Box Assembly Design 1-4 Q-voltage models

6F633632-2 AC Drive Box Assembly Design 1-4 N and P-voltage models

6F8147601 AC Drive Box Assembly Design 6 models

7F230857 Cold Water Decal

8F633581 Valve Panel

9F230856 Hot Water Decal

10 F430179 Screw

11 F430929 Screw

12 F140331 Strain Relief Connector PG21

13 F230877 Liquid Supply Decal

14 F230745 Lubrication Instruction Decal

15 F140329 Strain Relief Connector PG13.5

16 F430910 Screw

17 F200318900P Filter

18 F220900 Filter Retainer Guard

19 F633588 AC Drive Box Cover Includes item 20

20 D505281 Disconnect Power Warning Label

21 F8549401 Nut

22 F170176 Gasket Order 6 feet

23 F110106 Muffin Fan 120 Volt

23 F110105 Muffin Fan 220-240 Volt

24 F230917-1 External Supply Connection Decal

22 F232112

Optional Coin Box - Model HC125BCV

CHM1764P_F232112

F232112 23

Optional Coin Box - Model HC125BCV

REF PART NO. DESCRIPTION COMMENTS

1F160420 Key UG21

1F160421 Key UG22

1F160422 Key UG23

1F160423 Key UG24

1F160424 Key UG25

2F160672 Coin Box UG21

2F160673P Coin Box UG22

2N/A Coin Box UG23

2N/A Coin Box UG24

2N/A Coin Box UG25

N/A = Part no longer available

24 F232112

Flush Mount Coin Meter Assembly - Model HC125BCV;

Single Drop

CHM2512P_F232112

F232112 25

Flush Mount Coin Meter Assembly - Model HC125BCV;

Single Drop

REF PART NO. DESCRIPTION COMMENTS

NA F200010000P Coin Meter Assembly U.S. $.25; Includes items 1-3

NA F200010006 Coin Meter Assembly .800 token; Includes items 1-3

NA F200010007 Coin Meter Assembly .880 token; Includes items 1-3

NA F200010009 Coin Meter Assembly .990 token; Includes items 1-3

NA F200010011 Coin Meter Assembly Jeton WH121 token; Includes items 1-3

NA F200010012 Coin Meter Assembly Jeton .08 token; Includes items 1-3

1F0636707-00 Mounting Bracket Assembly

238464P Coin Drop Assembly Canada .25

2N/A Coin Drop Assembly Australia .20

2N/A Coin Drop Assembly Belgium 5 franc

2N/A Coin Drop Assembly Denmark 2 krone

2N/A Coin Drop Assembly United Kingdom 20 pence

2N/A Coin Drop Assembly France 2 franc

2N/A Coin Drop Assembly Hong Kong 5 dollar

2N/A Coin Drop Assembly Italy 500 lirraiget

238475 Coin Drop Assembly Japan 100 yen

238480 Coin Drop Assembly Korea 500 won

2N/A Coin Drop Assembly South Africa 2 rand

2N/A Coin Drop Assembly Spain 100 peseta

2N/A Coin Drop Assembly Thailand 10 baht

2N/A Coin Drop Assembly .886 token

2N/A Coin Drop Assembly 1.000 token

2N/A Coin Drop Assembly Jeton 08 token

270441601P Coin Drop U.S. $.25

2N/A Coin Drop Assembly .800 token

238462P Coin Drop Assembly Token; 118-1; .880 diameter x .079 thick; Brass

238463 Coin Drop Assembly Token; 118-5; .990 diameter x .081 thick; Silver

2201141 Coin Drop Assembly Token; Jeton WH121; Grooves on the face of token

239748 Coin Drop Token; Jeton .08 MS; Grooves on the face of token

3685846 Nut

4200674P Opto Coupler

538725 Coin Identification Paper

N/A = Part no longer available

26 F232112

Flush Mount Coin Meter Assembly - Model HC125BCV; Dual Drop

CHM2957P_F232112

F232112 27

Flush Mount Coin Meter Assembly - Model HC125BCV; Dual Drop

REF PART NO. DESCRIPTION COMMENTS

NA F200010001 Coin Meter Assembly Australia .20 and 1; Includes items 1, 3 and 4

NA F200010002 Coin Meter Assembly 100 and 500 yen; Includes items 1, 3 and 4

NA F200010003 Coin Meter Assembly Canada 1.00 and .25; Includes items 1, 3 and 4

NA F200010004 Coin Meter Assembly New Zealand .20 and 1; Includes items 1, 3 and 4

NA F200010005 Coin Meter Assembly U.S. $1.00 and .25; Includes items 1, 3 and 4

NA F200010008 Coin Meter Assembly .50 and 2.00 euro; Includes items 1, 3 and 4

NA F200010010 Coin Meter Assembly 10 and 50 Taiwan; Includes items 1, 3 and 4

1685846 Nut

2200674P Opto Coupler

3N/A Coin Meter 10 and 50 Taiwan

3N/A Coin Meter Belgium 5 and 20 franc

3N/A Coin Meter Denmark 1 and 5 krone

3N/A Coin Drop Assembly Denmark 5 and 10 krone

338472 Coin Drop Assembly United Kingdom 20 pence and 1 pound

370283102 Coin Drop Assembly .20 and .50 euro

3210195 Coin Drop Assembly .20 and 1.00 euro

3210196 Coin Drop Assembly .50 and 1.00 euro

3N/A Coin Meter 2 and 5 franc

3N/A Coin Meter 2 and 10 franc

339157 Coin Drop Assembly Israel 1 and 5 shekel

338521 Coin Drop Assembly Korea 100 and 500 won

3N/A Coin Meter Spain 100 and 500 peseta

338467 Coin Drop Assembly Australia .20 and 1

338519 Coin Drop Assembly Japan 100 and 500 yen

370441602 Coin Drop Assembly Canada 1.00 and .25

3N/A Coin Drop Assembly New Zealand .20 and 1

370256402P Coin Drop U.S. $1.00 and .25

3F0160737-00 Coin Meter .50 and 2.00 euro

370281102 Coin Drop Assembly 10 and 50 Taiwan dollar

3N/A Coin Meter 5 and 10 Taiwan dollar

4F635319 Mounting Bracket Assembly

N/A = Part no longer available

28 F232112

Electronic Coin Meter Assembly - Model HC125BCV

CHM3024P_F232112

F232112 29

Electronic Coin Meter Assembly - Model HC125BCV

REF PART NO. DESCRIPTION COMMENTS

138725 Coin Identification Paper

2F635319 Mounting Bracket Assembly

3685846 Nut

470294101P Electronic Coin Drop Assembly U.S., Canada, Japan and Taiwan; Includes 201216 Nut

470294105P Electronic Coin Drop Assembly Australia, New Zealand, Hong Kong, South Korea and

Malaysia; Includes 201216 Nut

470294103P Electronic Coin Drop Assembly United Kingdom and euro; Includes 201216 Nut

470294104 Electronic Coin Drop Assembly Denmark, Norway and euro

470294106 Electronic Coin Drop Assembly U.S., Ecuador and Mexico

470294107 Electronic Coin Drop Assembly Euro, Lithuania and Latvia

5F8034701P Pulse Expander Assembly

6N/A Screw

7803527P Transformer

870295301 Overlay Gray

9F200021600P Coin Meter Assembly U.S., Canada, Japan and Taiwan; Includes items 2-4

9F200021601 Coin Meter Assembly Australia, New Zealand, Hong Kong, South Korea and

Malaysia; Includes items 2-4

9F200021602 Coin Meter Assembly United Kingdom and euro; Includes items 2-4

9F200021603 Coin Meter Assembly Denmark, Norway and euro; Includes items 2-4

9F200021604 Coin Meter Assembly U.S., Ecuador and Mexico; Includes items 2-4

9F200021605 Coin Meter Assembly Euro, Lithuania and Latvia; Includes items 2-4

N/A = Part no longer available

30 F232112

Covers, Panels and Frame

CHM2359P_F232112

F232112 31

Covers, Panels and Frame

REF PART NO. DESCRIPTION COMMENTS

1F633566P Side Panel Reversible

1F634190 Side Panel Left front; Side mount soap dispenser; Models through Serial

No. 3060336761

1F0637357-00P Side Panel Left front; Side mount soap dispenser; Models starting Serial

No. 3060336762

1F200213300 Side Panel Assembly Right front; Models HC125BCV, HC125BYV and

SC125BYV; Includes louvers

2F633602 Top Front Panel

3F190802P Lid Lock GR3800; Includes item 4

4F160562 Key GR3800

5F633713 Latch

6F430986 Screw

7F633592 Top Rear Cover

8F430231 Nut

9F633611 Rear Panel

10 F633581 Valve Panel Models SC125ANV, SC125VNV, UC125ANV and

UC125VNV

10 F200202400 Valve Panel Assembly Models HC125BCV, HC125BYV and SC125BYV

11 F633958 Top Cover Hinge Weldment

12 F430232 Nut

13 F430179 Screw

14 F430929 Screw

15 F430910 Screw

16 F758501 Fan Kit Models SC125VNV and UC125VNV; 120 Volt

16 F110107P Fan Models HC125BCV, HC125BYV, SC125ANV, SC125BYV

and UC125ANV; 220 Volt

17 F633272 Frame Weldment

18 F430939 Screw

19 F430174 Screw

20 F140563 Plug

21 F633565 Bottom Front Panel

22 F170400RP Trim

23 F200284300 Middle Front Panel Model HC125BCV

23 F633564 Middle Front Panel All other models

24 N/A Control Panel Decal Model SC125VNV

24 F0231584-00 Control Panel Decal Model UC125VNV

24 F200143300 Control Panel Decal Model SC125BYV

24 F200143301 Control Panel Decal Models HC125BCV and HC125BYV

24 F200298700 Control Panel Decal Model SC125ANV

24 F200298701 Control Panel Decal Model UC125ANV

25 N/A Pop Rivet

26 N/A Control Panel Extrusion Models through 3/6/01

27 F633563 Top Front Panel For models with control panel extrusion

27 F200149000 Control Panel Assembly For models without control panel extrusion

28 F633562 Top Frame Weldment Models SC125VNV and UC125VNV

28 F063356201 Top Frame Weldment Models HC125BCV, HC125BYV, SC125ANV, SC125BYV

and UC125ANV

N/A = Part no longer available

32 F232112

Basket and Shell

CHM3023P_F232112

F232112 33

Basket and Shell

REF PART NO. DESCRIPTION COMMENTS

NA F798833-00 Seal Kit Includes items 7, 16, the seal and sealant

1F791001 Shell Band Fastener Kit Includes items 2-4; 2 required per shell band assembly

2F430215 Nut

3F430317 Washer

4F430500 Screw

5F601216 Shell Gasket Shield

6F603630 Shell Band Assembly 2 required

7F170120RP Shell Band Gasket

8F633952 Shell Front Weldment

9F633619 Basket Assembly 42 inch diameter and 24 inch depth

10 F430913 Screw

11 F431112 Washer

12 F634647 Shell Weldment

13 F601718 Shell Reinforcement Plate

14 F431100 Washer

15 F431005 Nut

16 F100205 Slinger

17 M400013 Washer

18 70142 Nut

19 F601950 Washer

20 F601951 Shell Bracket Support

21 F603592 Shell Adjusting Bracket Assembly Left

21 F603615 Shell Adjusting Bracket Assembly Right

22 20274 Nut

23 M400014 Washer

24 M400081 Washer

25 800461 Screw

26 F431116 Washer

27 F430924 Screw

34 F232112

Door

CHM1980P_F232112

F232112 35

Door

REF PART NO. DESCRIPTION COMMENTS

NA F8211401 Door Assembly Includes items 1-8, 10-13, 19, 21, 22, 25-32, 34, 36-39,

F320102 Retainer Spring, F431026 Nut, F431139

Washer, F633666 Shim and F8199401 Door Handle

1F431222 Spring Pin

2F431907 Washer

3F280253 Bushing

4F0637580-00 Door Support Weldment Models through 3/2/08

4F8210001 Pivot Lock Cover Weldment Models starting 3/3/08

5F340502P Switch Magnet

6F100145 Follower Cam

7F608536 Pivot Lock Weldment

8F280252 Bushing

9F430928 Screw

10 F431143 Washer

11 F431142 Washer

12 F431024 Nut

13 F8390801 Magnet

14 F430231 Nut

15 F430923 Screw

16 F150225 Door Handle

17 F140563 Plug

18 F8549401 Nut

19 F431100 Washer

20 F8504901 Door Glass Retainer

21 F290210P Glass

22 F170115 Door Glass Gasket

23 N/A Door Support Cover

24 F430986 Screw

25 F633650 Door Weldment Models through 3/2/08

25 F8203901 Door Weldment Models starting 3/3/08

26 F8434801 Door Gasket

27 F280293 Bearing Sleeve

28 F431933 Washer Neoprene

29 F431934 Washer Nylon

30 F432306 Hinge Pin

31 F431036 Nut

32 F633751 Base Weldment

33 N/A Washer

34 F431047 Nut

35 N/A Shim Base Plate

36 F432285 Screw

37 F633753 Base Weldment

38 F190309 Cap Plug

39 F633663 Hinge Weldment

N/A = Part no longer available

36 F232112

Door Lock

CHM3022P_F232112

F232112 37

Door Lock

REF PART NO. DESCRIPTION COMMENTS

NA F8210402 Door Lock Assembly Includes items 1-4, 6-20 and 22

1F430929 Screw

2F8071203 Door Lock Cover Weldment

3F230816 Door Unlock Decal

4F170404 Trim Order 3 feet

5N/A Button Kit 800E-series; Models through 9/30/07; Order

F8069902P Button Kit

5F8069902P Button Kit Used to convert from 800E-series to 800F-series;

Includes F8069602 Momentary Pushbutton, F8069501

Contact Switch and F8538101 Contact Base

5F8069602 Momentary Pushbutton 800F-series; Models starting 10/1/07

6F431106 Washer

7F430995 Screw

8F430215 Nut

9F430231 Nut

10 F340503P Hall Effect Sensor Switch

11 F430928 Screw

12 F140766 Terminal 8 pole

13 F606563 Door Lock Shim

14 F340502P Switch Magnet

15 F430921 Screw

16 F310107 Spring

17 F0150518-00 Door Lock Cam

18 F310133 Door Cam Torsion Spring

19 F0340723-00 Magnetic Switch

20 F300122P Intermittent Duty Solenoid Models SC125VNV and UC125VNV; 120 Volt

20 F0300130-00P Solenoid Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; 220 Volt

21 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

22 F8209801 Door Lock Bracket Weldment

23 F340444 Contact Block and Mounting Switch 800E-series; Models through 9/30/07

23 F8069501 Contact Switch 800F-series; Models starting 10/1/07

23 F8538101 Contact Base 800F-series; Models starting 10/1/07

N/A = Part no longer available

38 F232112

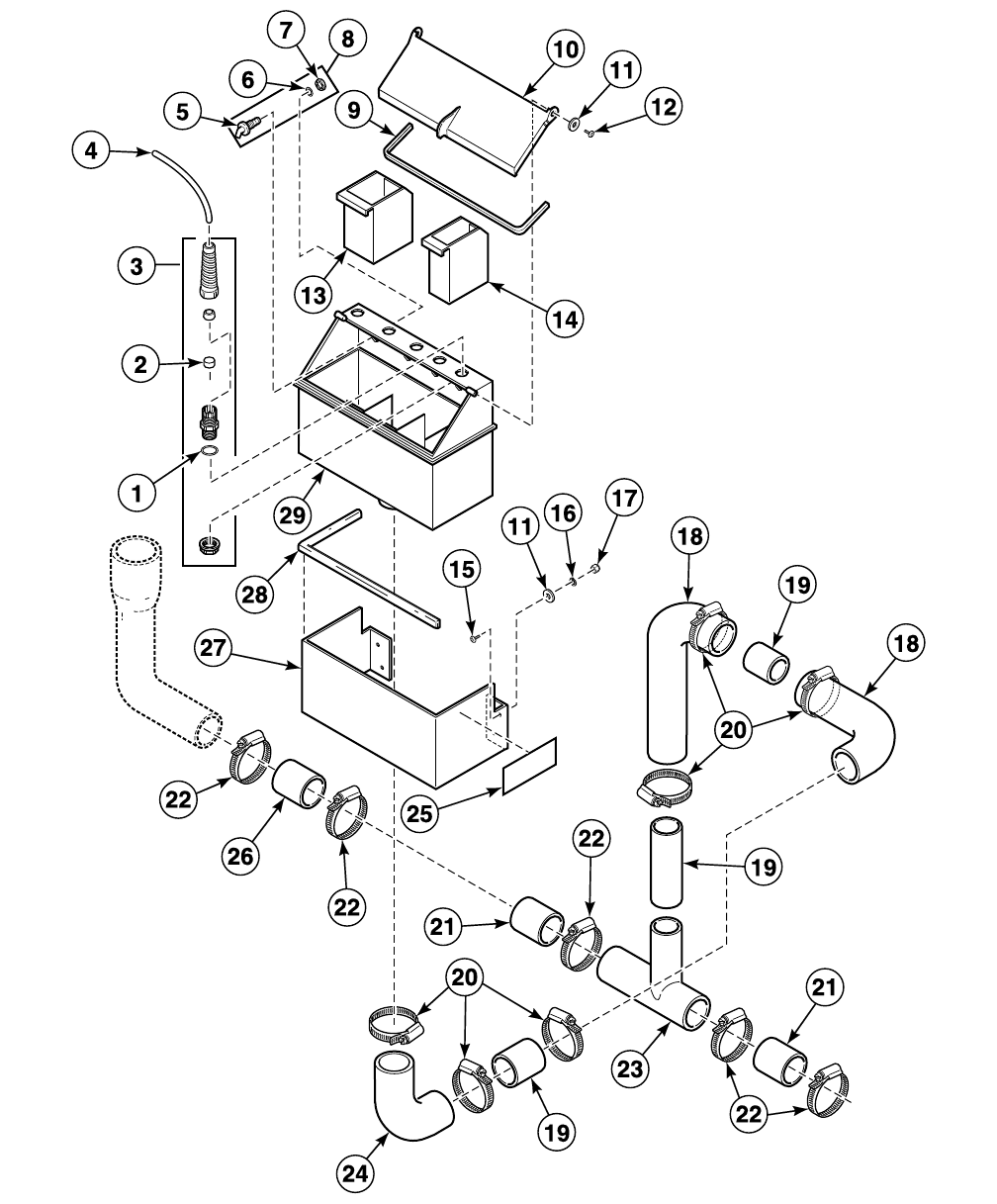

Supply Dispenser - Models SC125VNV and UC125VNV (Optional)

CHM2794P_F232112

F232112 39

Supply Dispenser - Models SC125VNV and UC125VNV (Optional)

REF PART NO. DESCRIPTION COMMENTS

1F170215 O-Ring

2F170165 Plug

3F749802 Strain Relief Adapter Kit Includes items 1 and 2

4F150390 Siphon Tube

5F8322001 Injection Nozzle

6F170208 O-Ring

7802292 Nut

8F730168 Injection Nozzle Kit Includes items 5-7

9F170158P Gasket

10 F0150514-00 Dispenser Lid

11 F431147 Washer

12 F430956 Screw

13 F150386 Chemical Supply Cup 20 ounce

14 F150385 Chemical Supply Cup 12 ounce

15 F430925 Screw

16 F431100 Washer

17 F430215 Nut

18 F150308 Overflow Hose

19 F0602364-06 Pipe

20 F200213 Hose Clamp No. 40

21 F0150399-00 Rear Drain Hose Use 6 inches

22 F200201 Hose Clamp No. 48

23 F422803 Tee

24 F150391 Lower Hose

25 F231020 Dispenser Decal

26 F0602365-15 Pipe

27 F634189 Soap Dispenser Bracket

28 F170401P Gasket

29 F0150512-00P Dispenser Assembly Includes items 10, 13 and 14

40 F232112

Water Supply Valve and Hoses to Supply Dispenser -

Models SC125VNV and UC125VNV (Optional)

CHM2662P_F232112

F232112 41

Water Supply Valve and Hoses to Supply Dispenser -

Models SC125VNV and UC125VNV (Optional)

REF PART NO. DESCRIPTION COMMENTS

136801 Hose Clamp No. 8

2F150493 Supply Dispenser Hose

3F430939 Screw

4F431147 Washer

5F431024 Nut

6F381724P 4-Way Valve 120 Volt

7F422808 Y Connector

8F200110P Water Hose

9F634261 Valve Bracket

10 F430948 Screw

42 F232112

Water Supply Hoses

CHM2886P_F232112

F232112 43

Water Supply Hoses

REF PART NO. DESCRIPTION COMMENTS

1F200185 Water Hose Standard thread

1F200193 Water Hose Metric thread

2F200503 Washer

3F8126601 Strainer

44 F232112

Water Supply Valves and Hoses

CHM2663P_F232112

F232112 45

Water Supply Valves and Hoses

REF PART NO. DESCRIPTION COMMENTS

1N/A Nipple Weldment 4 inch; Standard thread; For models with side mount

soap dispenser

1F0637212-00 Nipple Inlet Weldment 4 inch; Metric thread; For models with side mount soap

dispenser

2F430928 Screw

3F430231 Nut

4F300127P Solenoid Models SC125VNV and UC125VNV; 120 Volt

4F300126P Solenoid Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; 220 Volt

5F140609P DIN Connector

6F381727P Valve Models SC125VNV and UC125VNV; 120 Volt; Includes

item 4

6F381733P Valve Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; 220 Volt; Includes item 4;

F0381007P Water Valve Repair Kit

7F607532 Nipple Weldment 7 inch; Standard thread; For models without side mount

soap dispenser

7F609279 Nipple Weldment 7 inch; Metric thread; For models without side mount

soap dispenser

8F420118 Nipple

9F421706 Street Elbow

10 F421952 Hose Barb

11 F200222 Hose Clamp No. 12

12 F200155P Hose

13 F0381007P Water Valve Repair Kit

14 F421964 Hose Barb

15 F420502 Street Elbow

16 F380500 Gate Valve

17 F420101 Nipple

18 F420419 Tee

N/A = Part no longer available

46 F232112

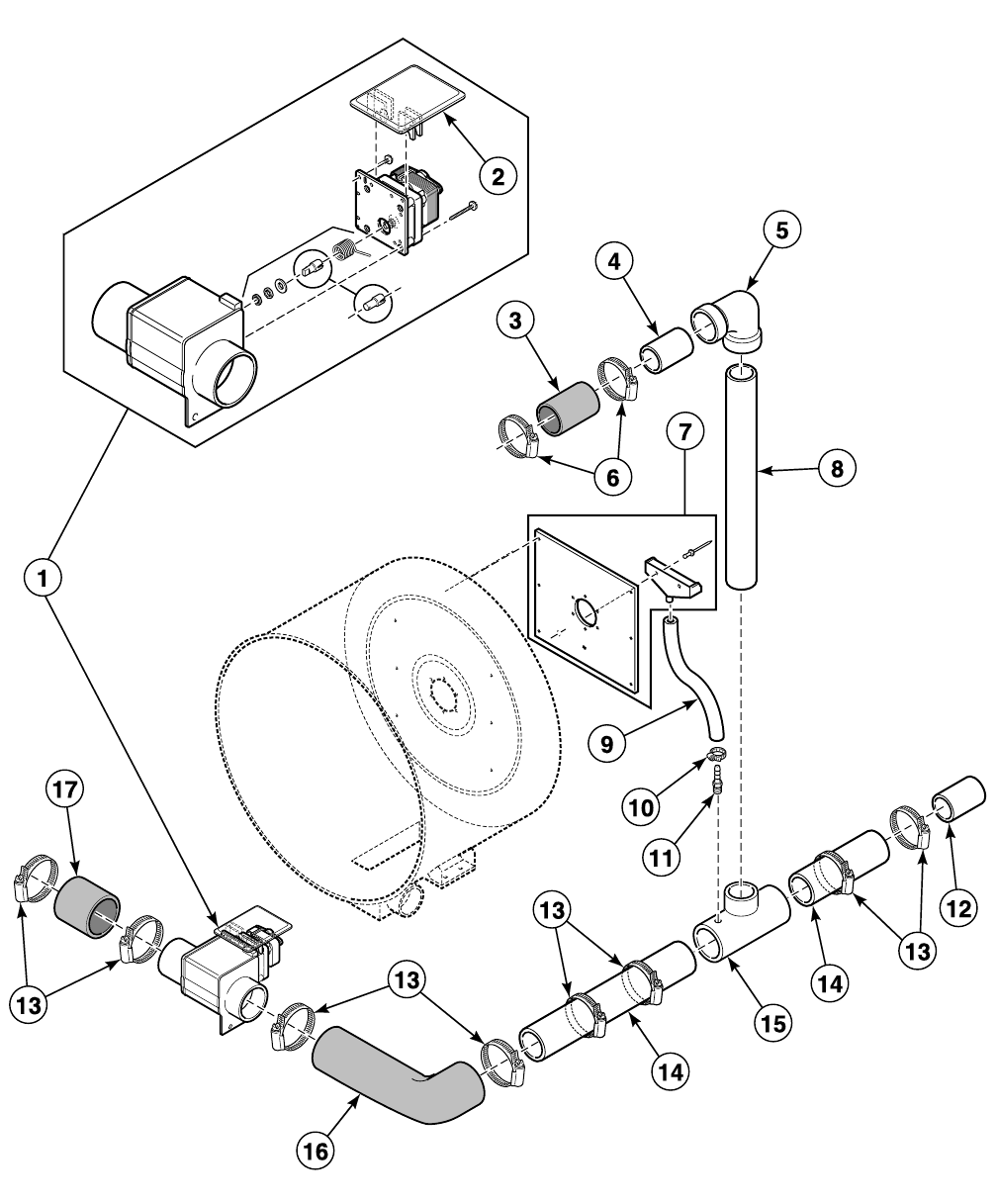

Drain

CHM2795P_F232112

F232112 47

Drain

REF PART NO. DESCRIPTION COMMENTS

1F200166302 Drain Valve Kit Models SC125VNV and UC125VNV; 120 Volt; 3 inch;

Includes item 2

1F200166402 Drain Valve Kit Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; 220 Volt; 3 inch; Includes

item 2

2F200133600 Drain Valve Cover

3F609401 Tubing

4F0602364-13 Pipe

5F422900 Elbow

6F200213 Hose Clamp No. 40

7F604051 Shell Plate Assembly

8F0602364-13 Pipe

9F200107P Water Hose

10 36801 Hose Clamp No. 8

11 F421929 Hose Barb

12 F200165100 Drain Hose No. 56

13 F200201 Hose Clamp No. 56

14 F0602365-20 Pipe

15 F422803 Tee

16 F150411 Drain Hose

17 F150442 Drain Hose

48 F232112

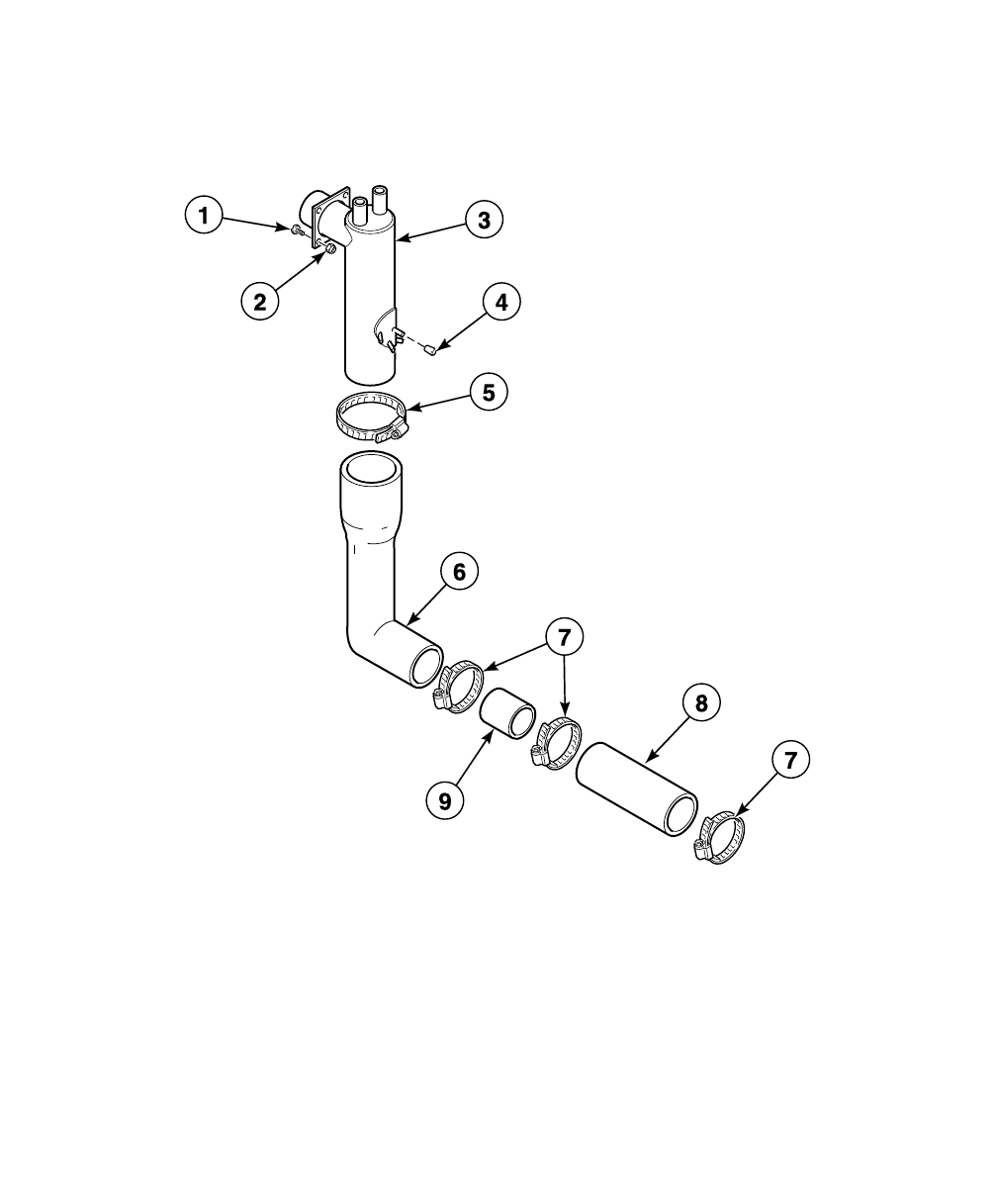

Vacuum Breaker Weldment and Hoses

CHM2537P_F232112

F232112 49

Vacuum Breaker Weldment and Hoses

REF PART NO. DESCRIPTION COMMENTS

1F430928 Screw

2F430231 Nut

3F633606 Vacuum Breaker Weldment

4F190303 Cap

5F200201 Hose Clamp No. 48

6F0150399-00 Rear Drain Hose

7F200415 Hose Clamp No. 36

8F150442 Drain Hose 3 inch

9F0602365-07 Pipe

50 F232112

Vent Assembly

CHM2538P_F232112

F232112 51

Vent Assembly

REF PART NO. DESCRIPTION COMMENTS

NA F634256 Vent Assembly Includes items 1, 2 and 5

1F200204 Hose Clamp No. 20

2F200170 Vent Hose

3F430215 Nut

4F430925 Screw

5F422517 Vent Nipple

52 F232112

Balance Switch and Temperature Probe

B064P_F232112

F232112 53

Balance Switch and Temperature Probe

REF PART NO. DESCRIPTION COMMENTS

144087301 Nut

2F430124 Screw

3F8124301 Balance Switch Bracket

4F340900 Interlock Switch

5F8122701 Screw

6M400081 Washer

7M400014 Washer

8F8045001 Temperature Probe Assembly Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV

9F421936 Reducer Bushing

54 F232112

Motor and Pulley

CHM2868P_F232112

F232112 55

Motor and Pulley

REF PART NO. DESCRIPTION COMMENTS

1F190701 Grease Fitting

2F430916 Screw

3F230745 Lubrication Instruction Decal

4F320326 Grease Manifold

4F761900 Grease Manifold Kit Includes items 1, 5, 6, F231064 Lubrication Instruction

Decal and F430925 Screw

5J1408004 Connector

6C000628P Tubing

7F140605 Cable Tie

8F798835-00 Front Bearing Kit Includes seal and attaching hardware

8F010030901P Face Seal

9F745010 Rear Bearing Kit Includes seal and attaching hardware

10 F430218 Nut Model HC125BCV

11 F200290700 Rotation Sensor Assembly Harness Model HC125BCV

12 F430927 Screw Model HC125BCV

13 F200122500 Rotation Sensor Bracket Model HC125BCV

14 F200126200P Rotation Sensor Assembly Model HC125BCV

15 F430993 Screw

16 M400081 Washer

17 F430300 Washer

18 M400014 Washer

19 20274 Nut

20 F430802 Key

21 F280233P Bushing Model HC125BCV; Includes screws and item 20; 1-1/8;

Style JA

21 F280242 Motor Bushing All other models; 1-3/8; Style H

22 C000795P Motor Pulley Model HC125BCV; 3GRV-3V-2.65; Style JA

22 F280289P Drive Motor Pulley All other models; 3GRV-3V-3.15; Style H

23 F220237P Motor Models SC125VNV and UC125VNV; Design 1-4 models

SC125ANV and UC125ANV; Magnetek **

23 F200174900 Motor Models HC125BCV, HC125BYV and SC125BYV

23 F8054201P Motor Design 6 models SC125ANV and UC125ANV; Uses

F8148301 Motor Harness; Order F8356402 Motor

Retrofit Kit

23 F8356402 Motor Retrofit Kit Used with machines manufactured before June 2010

with F8054201P Reliance Electric or Allen-Bradley

Motor

24 F200140400P Belt

25 F608824-1 Key

26 F280294P Basket Pulley Bushing Includes item 25, 44079301 scew, 56552 washer,

44048901 screw

27 F150268 Basket Pulley

28 F210206P Bearing Grease

29 F210207P Grease Gun

30 F798700 Grease Gun Kit Includes items 28 and 29

** NOTE: This motor replaces all previous motors. However, when using F220237 as a replacement for a previous motor, please

contact Alliance Laundry Systems to see if the machine’s AC drive parameters have to be changed.

56 F232112

Steam Heat Assembly

CHM2755P_F232112

F232112 57

Steam Heat Assembly

REF PART NO. DESCRIPTION COMMENTS

NA F8382301 DIN Valve Adapter Kit Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; Use with F8322901P Valve

NA F8379501P Valve Kit Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; Use with F8322901P Valve

1M411264 Street Elbow

2F8322904P Steam Valve Models SC125VNV and UC125VNV; 120 Volt

2F380985P Steam Valve Repair Kit 120 Volt

2F8322901P Valve Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; Replaces F380796P Steam

Valve; Includes F8514601 Coil; For models that have

been upgraded with F8522001 DIN Valve Kit

2F8522001 DIN Valve Kit Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; Replaces F380796P Steam

Valve; Includes F8322901P Valve, F8382301 DIN Valve

Adapter Kit and F8514601 Coil

3F140887P Harness Assembly Models SC125VNV and UC125VNV

4F380986P DIN Coil Models SC125VNV and UC125VNV; 120 Volt

4F380987P DIN Coil Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; 220 Volt

4F8514601P Coil Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; Use with F8322901P Valve

5F430215 Nut

6F421323 Nipple

7F607659 Steam Inlet Pipe Flange

8F430925 Screw

9F270308 Steam Filter

10 F410301 Fiberglass Blanket

11 N/A Foil Tape

12 F200183 Steam Hose

13 F060313201 Steam Injection Tube Assembly

14 F430928 Screw

15 F630242 Water Level Switch Bracket Models SC125VNV and UC125VNV

16 F431113 Washer Models SC125VNV and UC125VNV

17 F431022 Nut Models SC125VNV and UC125VNV

18 F8223001P Water Pressure Switch

19 N/A Steam Assembly Models SC125VNV and UC125VNV; 120 Volt; Includes

items 1-12, F231380 Hot Surface Warning Decal,

F8119401 Maximum Steam Pressure Label, F410300

Pipe Insulation, F420106 Nipple, F420408 Plug and

F421323 Nipple

19 F063409701 Steam Assembly Models HC125BCV, HC125BYV, SC125ANV,

SC125BYV and UC125ANV; 220 Volt; Includes items

1-12, F231380 Hot Surface Warning Decal, F8119401

Maximum Steam Pressure Label, F410300 Pipe

Insulation, F420106 Nipple, F420408 Plug and F421323

Nipple

N/A = Part no longer available

58 F232112

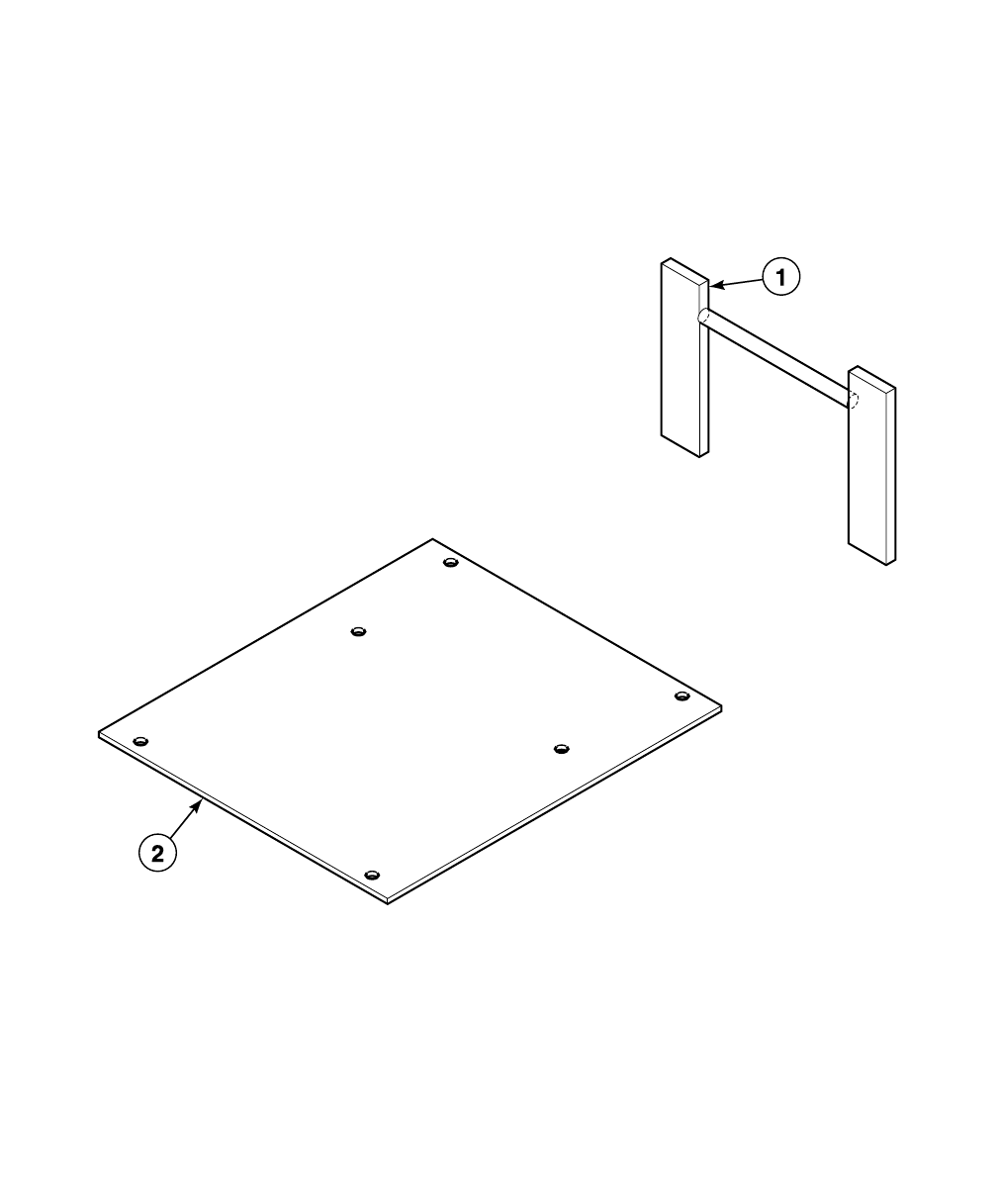

Special Tools

CHM2810P_F232112

F232112 59

Special Tools

REF PART NO. DESCRIPTION COMMENTS

NA F200040300P Communication Box Kit Standard; A-control

NA F200041700P Communication Box Kit Icon; A-control

NA F200041800P Communication Box Kit Icon; A-control

NA F200098500P Communication Box Kit Standard; B-control

NA F200098600P Communication Box Kit Icon; B-control

NA F200098700P Communication Box Kit Icon; B-control

1F460131P Basket Pulley Puller Tool

2F601862P Rebar Frame Template

Notes

60 F232112

F232112 61

N/A items do not appear in index.

Parts Index

AC Drive Box Assembly

F633632-1............................................................... 21

F633632-2............................................................... 21

F8147601................................................................ 21

AC Drive Box Cover

F633588.................................................................. 21

AC Drive Control Harness

F8147301................................................................ 19

AC Drive Cover Assembly

F200160000............................................................ 17

F200160100............................................................ 17

AC Drive Exterior Exhaust Duct

F200321000............................................................ 19

AC Drive Interior Exhaust Duct

F200321100 ............................................................ 19

AC Drive Mounting Plate Assembly

F200322700............................................................ 19

AC Drive Radio Filter Assembly

F200320900............................................................ 17

F200320901...................................................... 15, 17

F200320902............................................................ 19

AC Drive Resistor Assembly

F8080001P ............................................................. 13

AC Drive Slide Air Filter

F200159700............................................................ 17

Air Trap Hose

F200163.................................................................. 11

Balance Switch Bracket

F8124301................................................................ 53

Base Weldment

F633751.................................................................. 35

F633753.................................................................. 35

Basket Assembly

F633619.................................................................. 33

Basket Pulley

F150268.................................................................. 55

Basket Pulley Bushing

F280294P ............................................................... 55

Basket Pulley Puller Tool

F460131P ............................................................... 59

Battery

F191101 .................................................................. 11

Battery Adapter Board

F370529P ............................................................... 11

Battery Backup Wire Harness

F140249.................................................................. 11

Bearing Grease

F210206P ............................................................... 55

Bearing Sleeve

F280293.................................................................. 35

Belt

F200140400P ......................................................... 55

Bottom Front Panel

F633565.................................................................. 31

Bridge Rectifier

F370310 ..................................................................11

Bushing

F280233P................................................................55

F280252 ..................................................................35

F280253 ..................................................................35

Button Kit

F8069902P..............................................................37

Cable Tie

F140605 ............................................................15, 55

Cap

F190303 ..................................................................49

Cap Plug

F180486 ..................................................................19

F190309 ..................................................................35

Chemical Supply Cup

F150385 ..................................................................39

F150386 ..................................................................39

Circuit Board Support

F432001 ..................................................................11

Circuit Breaker

F350217 ..................................................................15

Clip

F601515 ..................................................................11

Coil

F8514601P..............................................................57

Coin Box

F160672 ..................................................................23

F160673 ..................................................................23

Coin Drop

39748 ......................................................................25

70256402P ..............................................................27

70441601P ..............................................................25

Coin Drop Assembly

201141.....................................................................25

210195 ....................................................................27

210196 ....................................................................27

38462P ....................................................................25

38463 ......................................................................25

38464P ....................................................................25

38467 ......................................................................27

38472 ......................................................................27

38475 ......................................................................25

38480 ......................................................................25

38519 ......................................................................27

38521 ......................................................................27

39157 ......................................................................27

70281102.................................................................27

70283102 ................................................................27

70441602 ................................................................27

Coin Identification Paper

38725 ................................................................25, 29

Coin Meter

F0160737-00 ...........................................................27

Coin Meter Assembly

F200010000P..........................................................25

F200010001 ............................................................27

F200010002 ............................................................27

62 F232112

N/A items do not appear in index.

F200010003............................................................ 27

F200010004............................................................ 27

F200010005............................................................ 27

F200010006............................................................ 25

F200010007............................................................ 25

F200010008............................................................ 27

F200010009............................................................ 25

F200010010............................................................ 27

F200010011 ............................................................ 25

F200010012............................................................ 25

F200021600P ......................................................... 29

F200021601............................................................ 29

F200021602............................................................ 29

F200021603............................................................ 29

F200021604............................................................ 29

F200021605............................................................ 29

Cold Water Decal

F230857.................................................................. 21

Communication Box Kit

F200040300P ......................................................... 59

F200041700P ......................................................... 59

F200041800P ......................................................... 59

F200098500P ......................................................... 59

F200098600P ......................................................... 59

F200098700P ......................................................... 59

Computer

F0370455-10P ........................................................ 13

F0370455-11P......................................................... 13

F037047530P ......................................................... 13

Conductor Decal

F231146 .................................................................... 9

Connector

J1408004 ................................................................ 55

Contact Base

F8538101.......................................................... 11, 37

Contact Block and Mounting Switch

F340444............................................................ 11, 37

Contact Block Switch

F200233401P ......................................................... 11

Contact Switch

F8069501.......................................................... 11, 37

Contactor

F330180P ............................................................... 15

Contactor Mounting Rail

F602595-4............................................................... 15

Control Cover

F0634903-00........................................................... 13

Control Input Harness

F8149401................................................................ 19

Control Module Box

F631579.................................................................. 11

Control Module Cover

F633795.................................................................. 11

Control Panel Assembly

F200149000............................................................ 31

Control Panel Decal

F0231584-00........................................................... 31

F200143300............................................................ 31

F200143301............................................................ 31

F200298700............................................................ 31

F200298701............................................................ 31

Control Transformer Decal

F231299.................................................................. 15

Counterclockwise Spin Rotation Decal

F230693.................................................................... 9

DIN Coil

F380986P................................................................57

F380987P................................................................57

DIN Connector

F140609P................................................................45

DIN Valve Adapter Kit

F8382301 ................................................................57

DIN Valve Kit

F8522001 ................................................................57

Disconnect Power Warning Label

D505281........................................................9, 11, 21

Dispenser Assembly

F0150512-00P.........................................................39

Dispenser Decal

F231020 ..................................................................39

Dispenser Lid

F0150514-00 ...........................................................39

Display Window Cover

F200181500 ............................................................17

Do Not Lift Decal

F230216 ....................................................................9

Do Not Open Warning Decal

F200284601 ..............................................................9

Door Assembly

F8211401.................................................................35

Door Cam Torsion Spring

F310133 ..................................................................37

Door Gasket

F8434801 ................................................................35

Door Glass Gasket

F170115...................................................................35

Door Glass Retainer

F8504901 ................................................................35

Door Handle

F150225 ..................................................................35

Door Lock Assembly

F8210402 ................................................................37

Door Lock Bracket Weldment

F8209801 ................................................................37

Door Lock Cam

F0150518-00 ...........................................................37

Door Lock Cover Weldment

F8071203 ................................................................37

Door Lock Shim

F606563 ..................................................................37

Door Support Weldment

F0637580-00 ...........................................................35

Door Unlock Decal

F230816 ..................................................................37

Door Weldment

F633650 ..................................................................35

F8203901 ................................................................35

Drain Hose

F150411...................................................................47

F150442 ............................................................47, 49

F200165100 ............................................................47

Drain Valve Cover

F200133600 ............................................................47

Drain Valve Kit

F200166302 ............................................................47

F200166402 ............................................................47

F232112 63

N/A items do not appear in index.

Drive Kit, 1305-Series to PowerFlex 40

F8324001................................................................ 19

F8324002................................................................ 19

Drive Kit, 1336-Series to PowerFlex 40

F8323901................................................................ 19

F8323902................................................................ 19

Drive Motor Pulley

F280289P ............................................................... 55

Drive Power Harness

F8149301................................................................ 19

Elbow

F422900.................................................................. 47

Electronic Coin Drop Assembly

70294101P.............................................................. 29

70294103P.............................................................. 29

70294104 ................................................................ 29

70294105P.............................................................. 29

70294106 ................................................................ 29

70294107 ................................................................ 29

Emergency Stop Button Kit

F200233700P ......................................................... 11

Emergency Stop Decal

F231083.................................................................. 11

F231391.................................................................. 11

Emergency Stop Pushbutton

F200233500............................................................ 11

Emergency Stop Weldment

F633750.................................................................. 11

EMI Filter

F8054001................................................................ 19

F8054002................................................................ 19

External Supply Caution Decal

F231345-4............................................................... 15

F231345-5............................................................... 15

External Supply Connection Decal

F230917-1............................................................... 21

F231376-5............................................................... 15

F231376-6............................................................... 15

External Supply Fuse Decal

F231271.................................................................. 15

Face Seal

F010030901P ......................................................... 55

Fan

F110107P................................................................ 31

Fan Guard

F0220922-00........................................................... 17

Fan Kit

F758501.................................................................. 31

Fiberglass Blanket

F410301.................................................................. 57

Filter

F0270321-00P ........................................................ 17

F200318900P ......................................................... 21

Filter Handle Decal

F231377.................................................................. 17

Filter Retainer Guard

F220900 ..................................................................21

Flange Relay

F330227 ..................................................................11

F330230 ..................................................................13

Follower Cam

F100145 ..................................................................35

Frame Weldment

F633272 ..................................................................31

Front Bearing Kit

F798835-00 .............................................................55

Fuse

F350108 ............................................................11, 13

F350109 ............................................................11, 13

F350110.......................................................11, 13, 15

F350115...................................................................15

F350117...................................................................15

Fuse Decal

F231393 ..................................................................15

F231394 ..................................................................15

Fuse Holder

F0350312-10 ...........................................................15

Gasket

F170158P................................................................39

F170176 ..................................................................21

F170401P................................................................39

Gate Valve

F380500 ..................................................................45

Glass

F290210P................................................................35

Grease Fitting

F190701 ..................................................................55

Grease Gun

F210207P................................................................55

Grease Gun Kit

F798700 ..................................................................55

Grease Manifold

F320326 ..................................................................55

Grease Manifold Kit

F761900 ..................................................................55

Grommet

F170611...................................................................19

F200139500 ............................................................13

Ground Decal

F230630 ..............................................................9, 15

F230739 ....................................................................9

Ground Terminal Lug

F140734 ..................................................................15

Hall Effect Sensor Switch

F340503P................................................................37

Harness Assembly

F140887P................................................................57

Hinge Pin

F432306 ..................................................................35

Hinge Weldment

F633663 ..................................................................35

64 F232112

N/A items do not appear in index.

Hose

F200155P ............................................................... 45

Hose Barb

F421929.................................................................. 47

F421952.................................................................. 45

F421964.................................................................. 45

Hose Clamp

F200201...................................................... 39, 47, 49

F200204.................................................................. 51

F200213............................................................ 39, 47

F200215.................................................................. 11

F200222.................................................................. 45

F200415.................................................................. 49

36801 ................................................................ 41, 47

Hot Water Decal

F230856.................................................................. 21

Injection Nozzle

F8322001................................................................ 39

Injection Nozzle Kit

F730168.................................................................. 39

Input Power Block

F140747.................................................................. 15

Input Power Connector Decal

F230677.................................................................. 15

Interlock Switch

F340900.................................................................. 53

Intermittent Duty Solenoid

F300122P ............................................................... 37

Inverter Drive

F370818.................................................................. 15

F370838.................................................................. 15

F370853.................................................................. 17

Key

F160420.................................................................. 23

F160421.................................................................. 23

F160422.................................................................. 23

F160423.................................................................. 23

F160424.................................................................. 23

F160562.................................................................. 31

F430802.................................................................. 55

F608824-1............................................................... 55

Keypad

F0231582-03P ........................................................ 13

F0231582-06P ........................................................ 13

F0231582-07P ........................................................ 13

F023158231P ......................................................... 13

F370576P ............................................................... 11

Latch

F633713.................................................................. 31

Lid Lock

F190802P ............................................................... 31

Lift-Off Hinge

F190209P ............................................................... 21

Light

F350411...................................................................11

Line Reactor Kit

F0360160-00P.........................................................17

Liquid Supply Decal

F230877 ..............................................................9, 21

Lower Hose

F150391 ..................................................................39

Lubrication Instruction Decal

F230745 ............................................................21, 55

Machine May Be Hot Warning Decal

F230757 ....................................................................9

Magnet

F8390801 ................................................................35

Magnetic Switch

F0340723-00 ...........................................................37

Membrane Switch

F340608P................................................................11

Microcomputer

F370313-13P...........................................................11

Middle Front Panel

F200284300 ............................................................31

F633564 ..................................................................31

Module Box Assembly

F200166600 ............................................................13

F200166601 ............................................................13

Momentary Pushbutton

F8069602 ................................................................37

Motor

F200174900 ............................................................55

F220237P................................................................55

F8054201P..............................................................55

Motor Bushing

F280242 ..................................................................55

Motor Pulley

C000795P ...............................................................55

Motor Retrofit Kit

F8356402 ................................................................55

Mounting Bracket Assembly

F0636707-00 .....................................................13, 25

F635319 ......................................................13, 27, 29

Muffin Fan

F110105.............................................................17, 21

F110106...................................................................21

F110110...................................................................17

Nipple

F420101 ..................................................................45

F420118...................................................................45

F421323 ..................................................................57

Nipple Inlet Weldment

F0637212-00 ...........................................................45

Nipple Weldment

F607532 ..................................................................45

F609279 ..................................................................45

Nut

F430215 ....................................21, 33, 37, 39, 51, 57

F232112 65

N/A items do not appear in index.

F430218.................................................................. 55

F430231............ 11, 13, 15, 17, 21, 31, 35, 37, 45, 49

F430232............................................................ 11, 31

F431005.................................................................. 33

F431022...................................................... 13, 15, 57

F431024...................................................... 19, 35, 41

F431036.................................................................. 35

F431047.................................................................. 35

F431806.................................................................. 13

F8549401.......................................................... 21, 35

20274 ................................................................ 33, 55

44087301 ................................................................ 53

685846 ........................................................ 25, 27, 29

70142 ...................................................................... 33

802292 .................................................................... 39

803017 .................................................................... 13

Opto Coupler

200674P............................................................ 25, 27

O-Ring

F170208.................................................................. 39

F170215.................................................................. 39

Output Board Cover

F0170427-00........................................................... 13

Output Board VCMP Assembly

F8206501P ............................................................. 11

Output CCA

F037044860-1......................................................... 13

F037044860-2......................................................... 13

Overflow Hose

F150308.................................................................. 39

Overlay

70295301 ................................................................ 29

Personal Injury Warning Decal

F231065.................................................................... 9

Pipe

F0602364-06........................................................... 39

F0602364-13........................................................... 47

F0602365-07........................................................... 49

F0602365-15........................................................... 39

F0602365-20........................................................... 47

Pivot Lock Cover Weldment

F8210001................................................................ 35

Pivot Lock Weldment

F608536.................................................................. 35

Plug

F140563............................................................ 31, 35

F170165.................................................................. 39

PowerFlex 40 Drive

F8169428................................................................ 19

F8169429................................................................ 19

Pulse Expander Assembly

F8034701P ............................................................. 29

RC Network Filter

F330217P..........................................................15, 37

Rear Bearing Kit

F745010 ..................................................................55

Rear Drain Hose

F0150399-00 .....................................................39, 49

Rear Panel

F633611...................................................................31

Rebar Frame Template

F601862P................................................................59

Reducer Bushing

F421936 ..................................................................53

Ribbon Cable

F140219P..........................................................11, 13

Rotation Sensor Assembly

F2002126200P........................................................55

Rotation Sensor Assembly Harness

F200290700 ............................................................55

Rotation Sensor Bracket

F2002122500 ..........................................................55

Screw

F0430165-00 ...........................................................13

F430124 ..................................................................53

F430174 ................................................11, 13, 17, 31

F430179 ............................................................21, 31

F430500 ..................................................................33

F430910 ............................................................21, 31

F430913 ..................................................................33

F430916 ......................................................15, 17, 55

F430920 ..................................................................19

F430921 ..................................................................37

F430922 ..................................................................17

F430923 ..................................................................35

F430924 ..................................................................33

F430925 ......................................................39, 51, 57

F430927 ..................................................................55

F430928 ........................13, 15, 21, 35, 37, 45, 49, 57

F430929 ......................................................21, 31, 37

F430939 ............................................................31, 41

F430948 ..................................................................41

F430956 ..................................................................39

F430986 ............................................................31, 35

F430993 ..................................................................55

F430995 ..................................................................37

F431702 ..................................................................13

F432231 ..................................................................21

F432285 ..................................................................35

F8122701 ................................................................53

800461 ....................................................................33

Seal Kit

F798833-00 .............................................................33

Shell Adjusting Bracket Assembly

F603592 ..................................................................33

F603615 ..................................................................33

Shell Band Assembly

F603630 ..................................................................33

Shell Band Fastener Kit

F791001 ..................................................................33

66 F232112

N/A items do not appear in index.

Shell Band Gasket

F170120RP............................................................. 33

Shell Bracket Support

F601951.................................................................. 33

Shell Front Weldment

F633952.................................................................. 33

Shell Gasket Shield

F601216.................................................................. 33

Shell Plate Assembly

F604051.................................................................. 47

Shell Reinforcement Plate

F601718.................................................................. 33

Shell Weldment

F634647.................................................................. 33

Side Panel

F0637357-00P ........................................................ 31

F633566P ............................................................... 31

F634190.................................................................. 31

Side Panel Assembly

F200213300............................................................ 31

Siphon Tube

F150390.................................................................. 39

Slinger

F100205.................................................................. 33

Snap Spade Terminal

00446 ...................................................................... 15

Soap Dispenser Bracket

F634189.................................................................. 39

Solenoid

F0300130-00P ........................................................ 37

F300126P ............................................................... 45

F300127P ............................................................... 45

Spacer

F401206.................................................................. 11

Spring

F310107.................................................................. 37

Spring Pin

F431222.................................................................. 35

Standoff

F180501............................................................ 11, 13

F180506.................................................................. 15

Steam Assembly

F063409701............................................................ 57

Steam Filter

F270308.................................................................. 57

Steam Hose

F200183.................................................................. 57

Steam Injection Tube Assembly

F060313201............................................................ 57

Steam Inlet Pipe Flange

F607659.................................................................. 57

Steam Valve

F8322904P ............................................................. 57

Steam Valve Repair Kit

F380985P ............................................................... 57

Strain Relief Adapter Kit

F749802.................................................................. 39

Strain Relief Connector

F140329.................................................................. 21

F140331...................................................... 15, 19, 21

Strainer

F8126601................................................................ 43

Street Elbow

F420502.................................................................. 45

F421706 ..................................................................45

M411264..................................................................57

Supply Dispenser Hose

F150493 ..................................................................41

Switch Magnet

F340502P..........................................................35, 37

Tee

F420419 ..................................................................45

F422803 ............................................................39, 47

Temperature Probe Assembly

F8045001 ................................................................53

Terminal

F140766 ............................................................15, 37

F140768 ............................................................11, 15

Thermostat

F0290116-00 .....................................................13, 15

F290115...................................................................15

Tie Wrap Mounting Clamp

F140602 ..................................................................15

Top Cover Hinge Weldment

F633958 ..................................................................31

Top Frame Weldment

F063356201 ............................................................31

F633562 ..................................................................31

Top Front Panel

F633563 ..................................................................31

F633602 ..................................................................31

Top Rear Cover

F633592 ..................................................................31

Transformer

C000203..................................................................15

F360156P................................................................15

803527P ..................................................................29

Trim

F170400RP .............................................................31

F170404 ..................................................................37

Tubing

C000628P ...............................................................55

F609401 ..................................................................47

Vacuum Breaker Weldment

F633606 ..................................................................49

Valve

F381727P................................................................45

F381733P................................................................45

F8322901P..............................................................57

Valve Bracket

F634261 ..................................................................41

Valve Kit

F8379501P..............................................................57

Valve Panel

F633581 ............................................................21, 31

Valve Panel Assembly

F200202400 ............................................................31

Valve, 4-Way

F381724P................................................................41

F232112 67

N/A items do not appear in index.

Vent Assembly

F634256.................................................................. 51

Vent Hose

F200170.................................................................. 51

Vent Nipple

F422517.................................................................. 51

Washer

F200503.................................................................. 43

F430300.................................................................. 55

F430311 .................................................................. 11

F430317.................................................................. 33

F431100 ...................................................... 33, 35, 39

F431106 .................................................................. 37

F431112 .................................................................. 33

F431113 ................................................ 11, 13, 15, 57

F431116 .................................................................. 33

F431133 ............................................................ 15, 17

F431142 .................................................................. 35

F431143 .................................................................. 35

F431147 ............................................................ 39, 41

F431907.................................................................. 35

F431933.................................................................. 35

F431934.................................................................. 35

F601950.................................................................. 33

M400013 ................................................................. 33

M400014 ..................................................... 33, 53, 55

M400081 ..................................................... 33, 53, 55

Water Hose

F200107P ............................................................... 47

F200110P................................................................ 41

F200185.................................................................. 43

F200193.................................................................. 43

Water Level Switch

F0340348-10P .................................................. 11, 13

Water Level Switch Bracket

F630242.................................................................. 57

F631920.................................................................. 11

Water Pressure Switch

F8223001P ....................................................... 13, 57

Water Valve Repair Kit

F0381007P ............................................................. 45

Wire

45101 ...................................................................... 15

Y Connector

F422808.................................................................. 41

Notes

68 F232112

Washer Extractor Parts Manual SC125BYV F232112

Navigation menu

Versions of this User Manual:

Views

Navigation
